Wowtac A5 Flashlight Review

The Wowtac A5 is a new wall-of-light in a 26650 flashlight.  Wowtac has made some great lights, with “technical support by Thrunite.”  Read on!

---

Official Specs and Features

Here’s a link to the Wowtac A5 Flashlight product page.

Versions

I only see one version of this light, but it wouldn’t surprise me if both NW and CW were available.  In fact, the box confirms that there are NW and CW, at least in theory.

Price and Coupon

The A5 is going for $59.95 right now $49.95 on amazon!  That is an Amazon referral link.

Also, my Wowtac rep emailed me this offer to share.

 “Leave an honest review for A5 on Amazon, qualified to get one FREE A1 flashlight, CONTACT review@wowtac.com to get in.”

Take that deal for what you will…

---

Short Review

Low price for a complete package and it exceeds throw and output specs.  It’s a nice package and good light!

Long Review

The Big Table

Wowtac A5
Emitter:	Cree XHP70 (NW)
Price in USD at publication time:	$49.95 on amazon!
Cell:	1×26650
Turbo Runtime	High Runtime
LVP?	Yes
Switch Type:	E-Switch
Quiescent Current (A):	0.00009
On-Board Charging?	Yes
Chargetime
Power off Charge Port with no Cell?	No.  Lowest three modes with cell.
Claimed Lumens (lm)	3650
Measured Lumens (at 30s)	3674 (100.7% of claim)^
Claimed Throw (m)	234
Candela (Calculated) in cd (at 30s)	630lux @ 5.363m = 18120cd
Throw (Calculated) (m)	269.2 (115% of claim)^
All my Wowtac reviews!

^ Measurement disclaimer:  Testing flashlights is my hobby. I use hobbyist-level equipment for testing, including some I made myself. Try not to get buried in the details of manufacturer specifications versus measurements recorded here; A certain amount of difference (say, 10 or 15%) is perfectly reasonable.

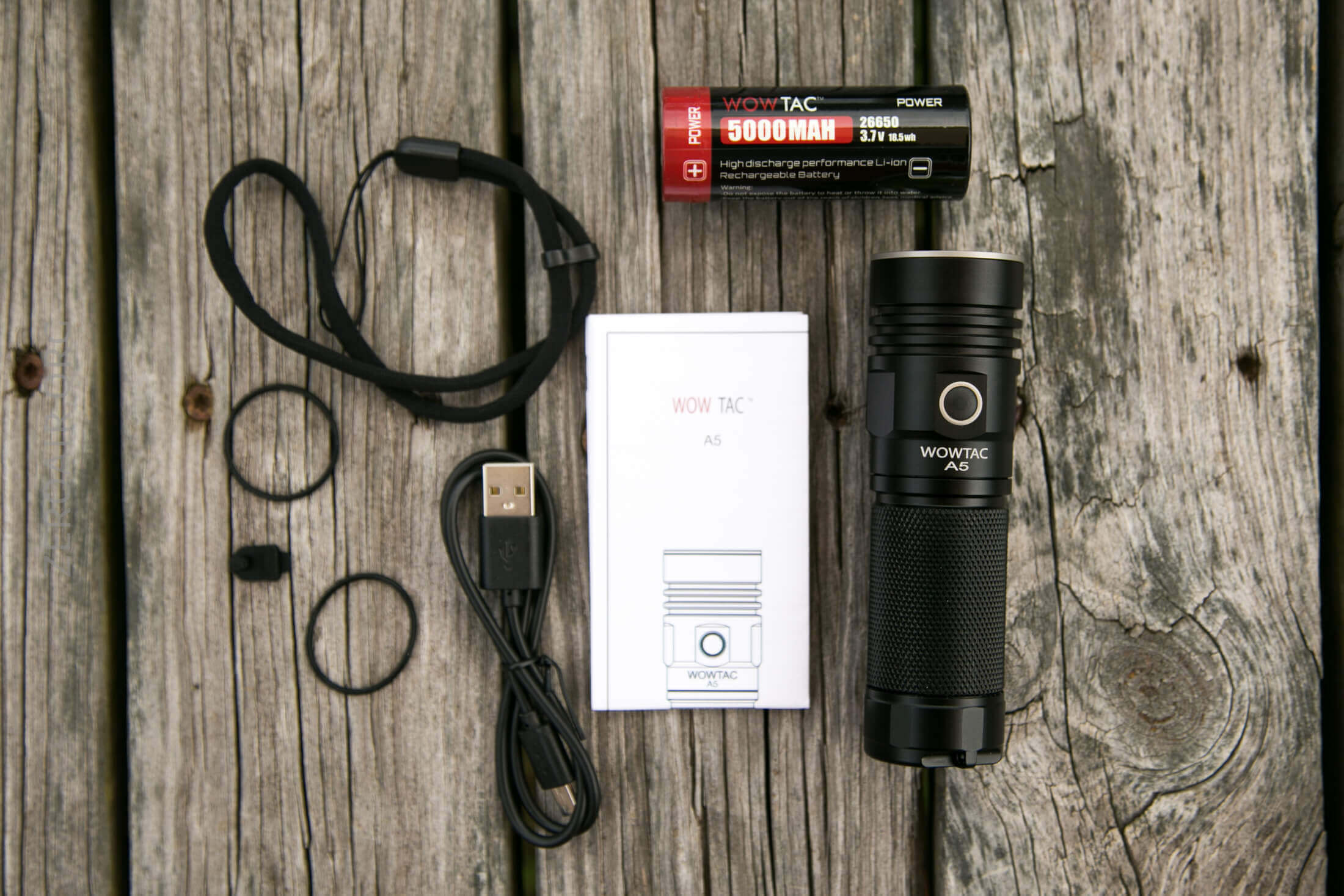

What’s Included

• Wowtac A5 Flashlight
• Wowtac 5000mAh 26650
• Lanyard
• Spare o-rings (2)

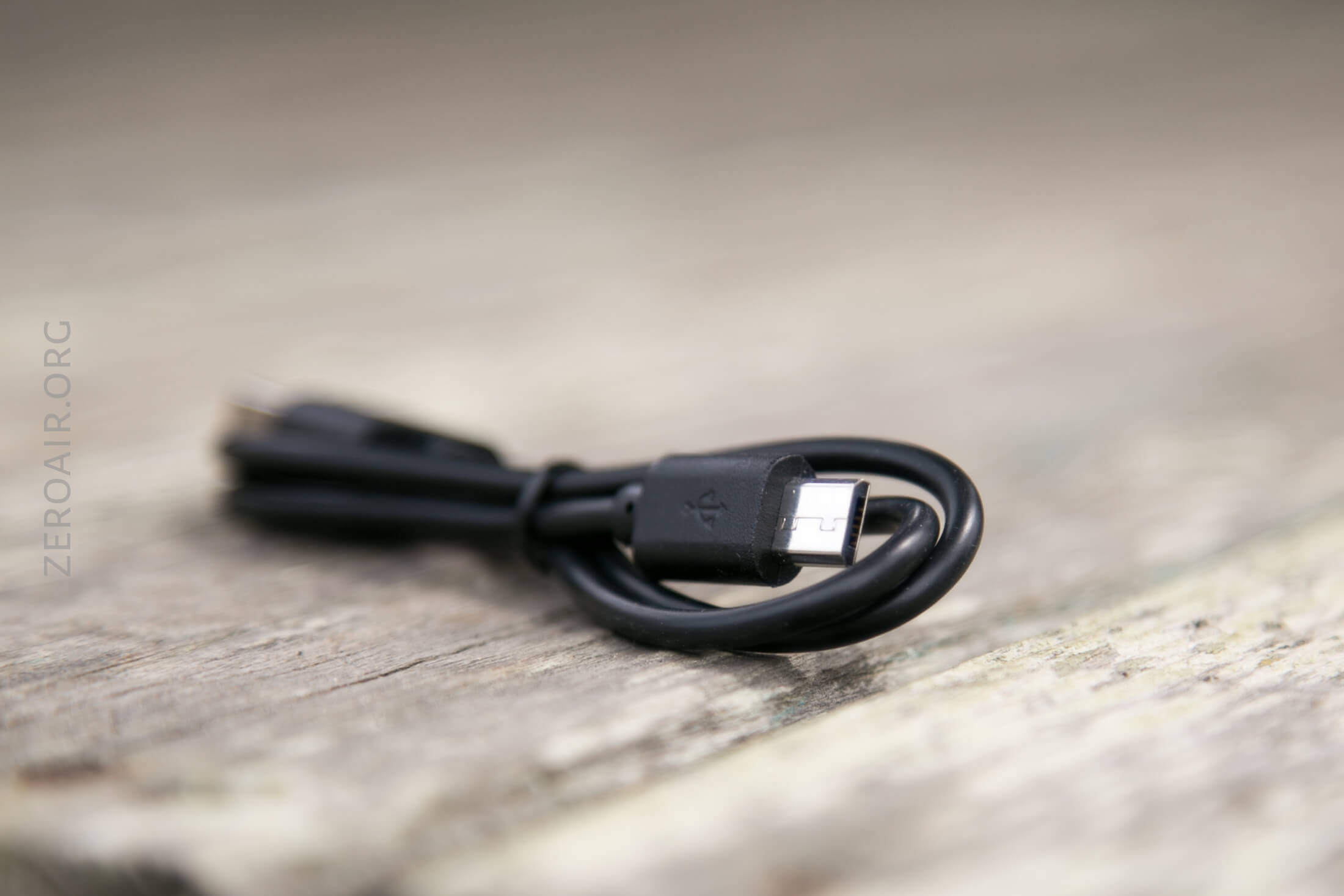

• Charge cable (USB to micro-USB)
• Manual

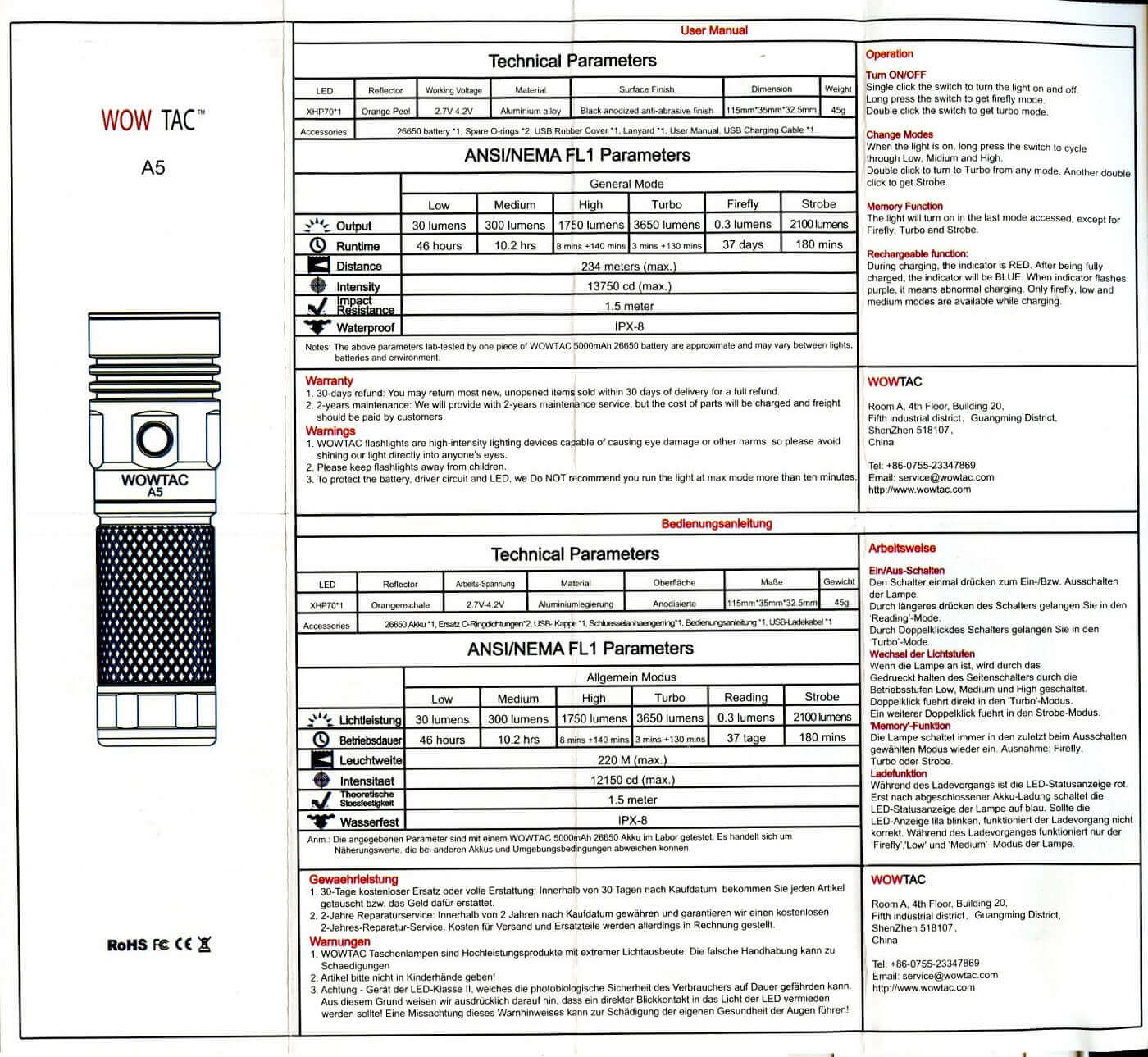

Package and Manual

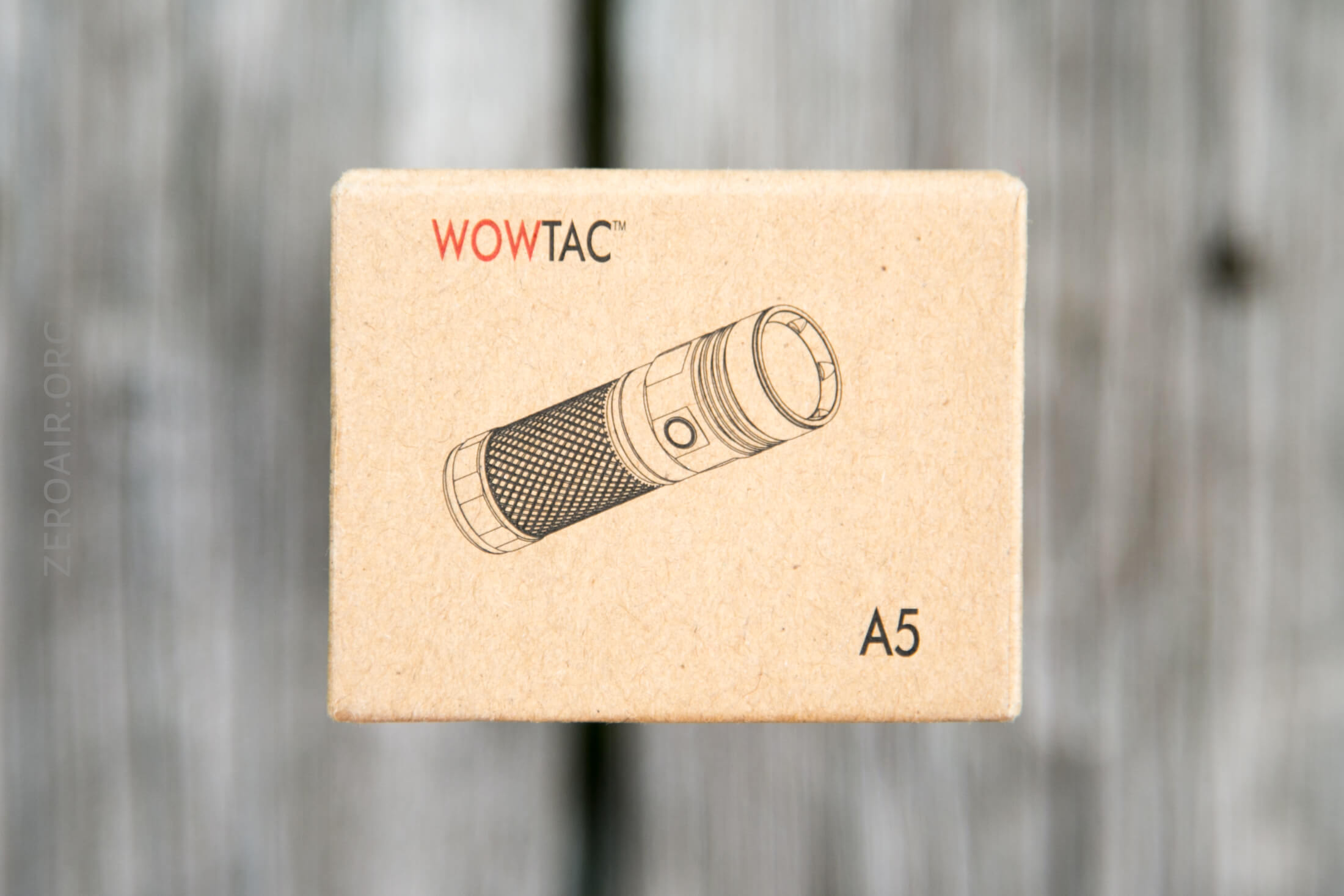

Wowtac’s package is just like Thrunites – a printed cardboard box.

Build Quality and Disassembly

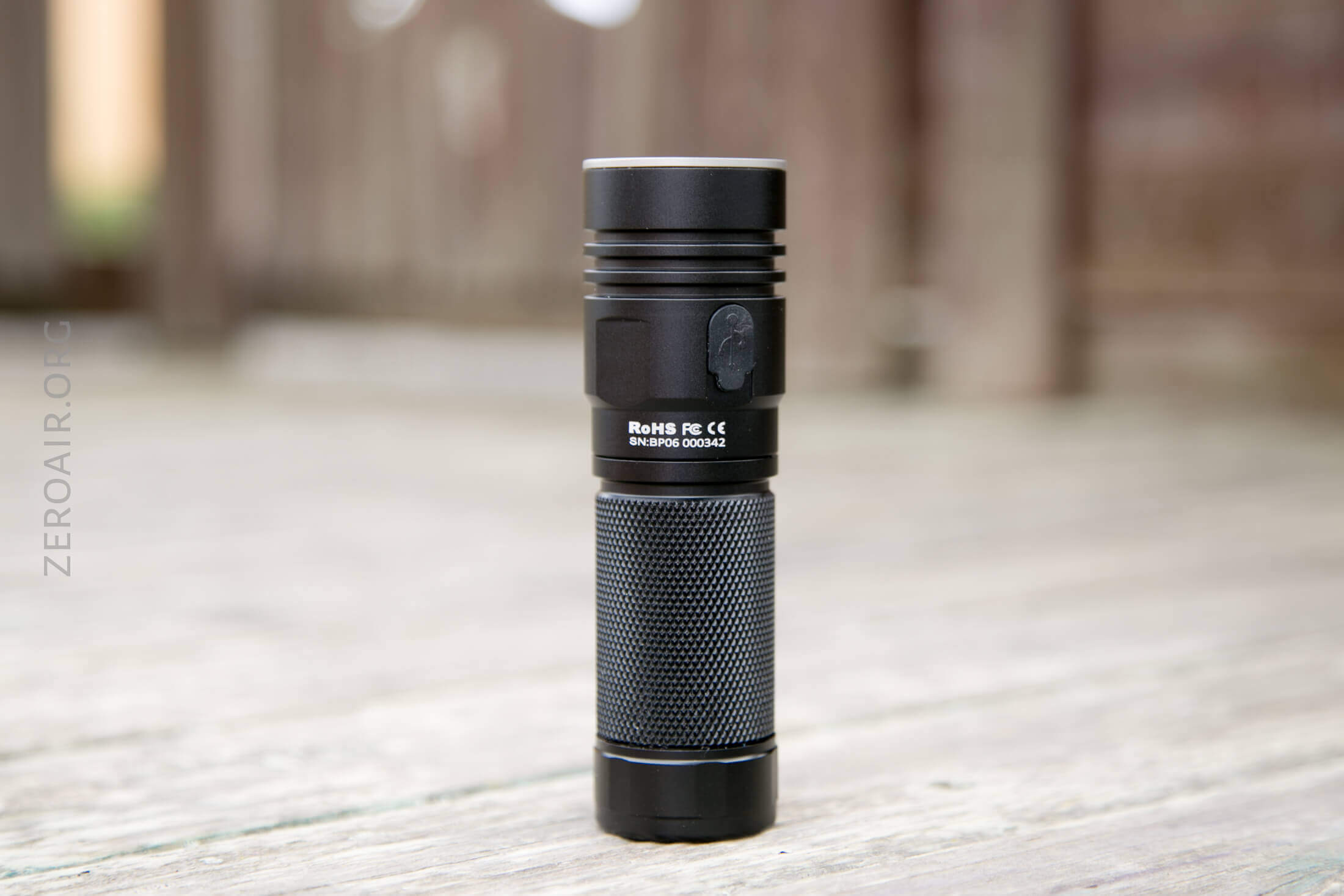

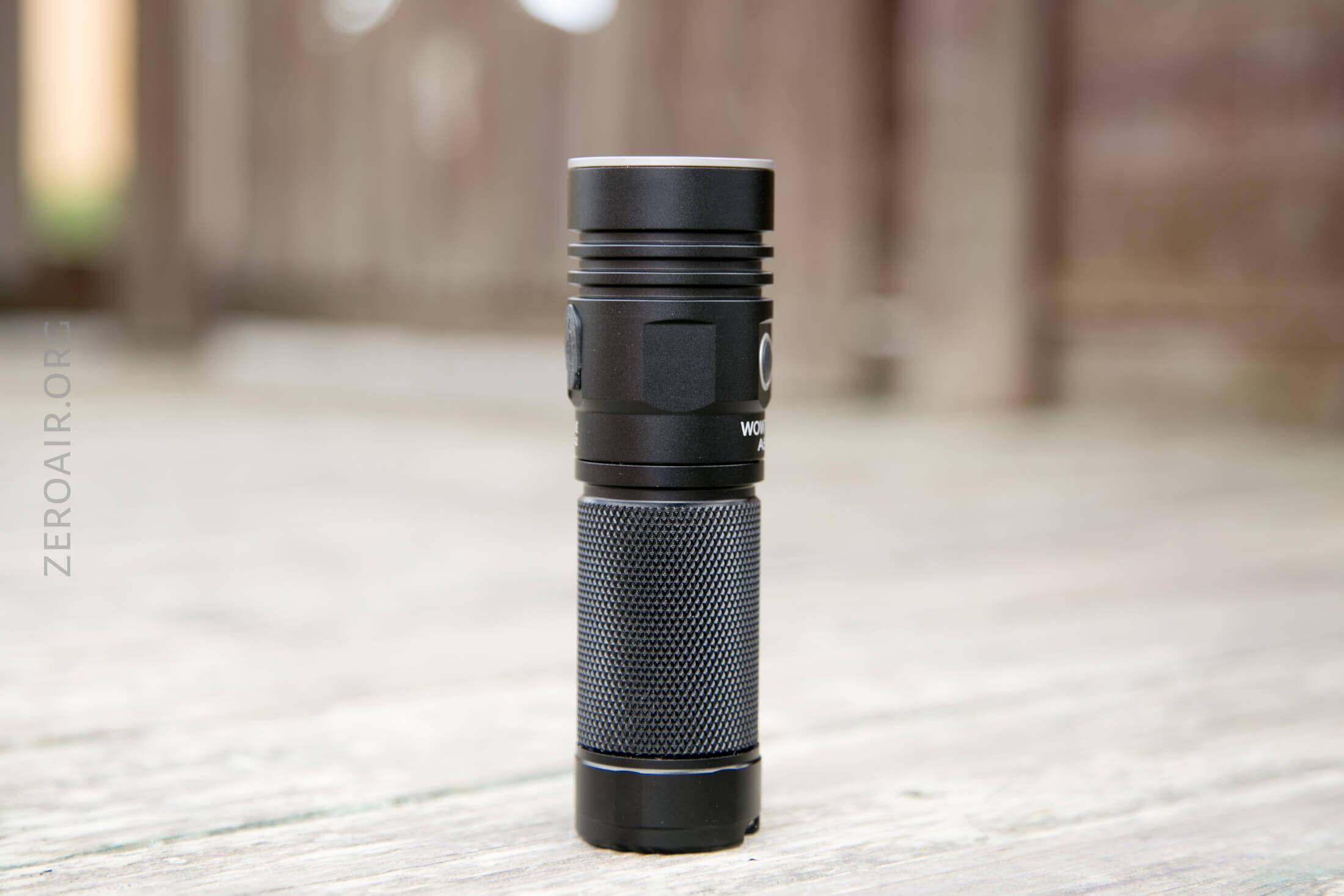

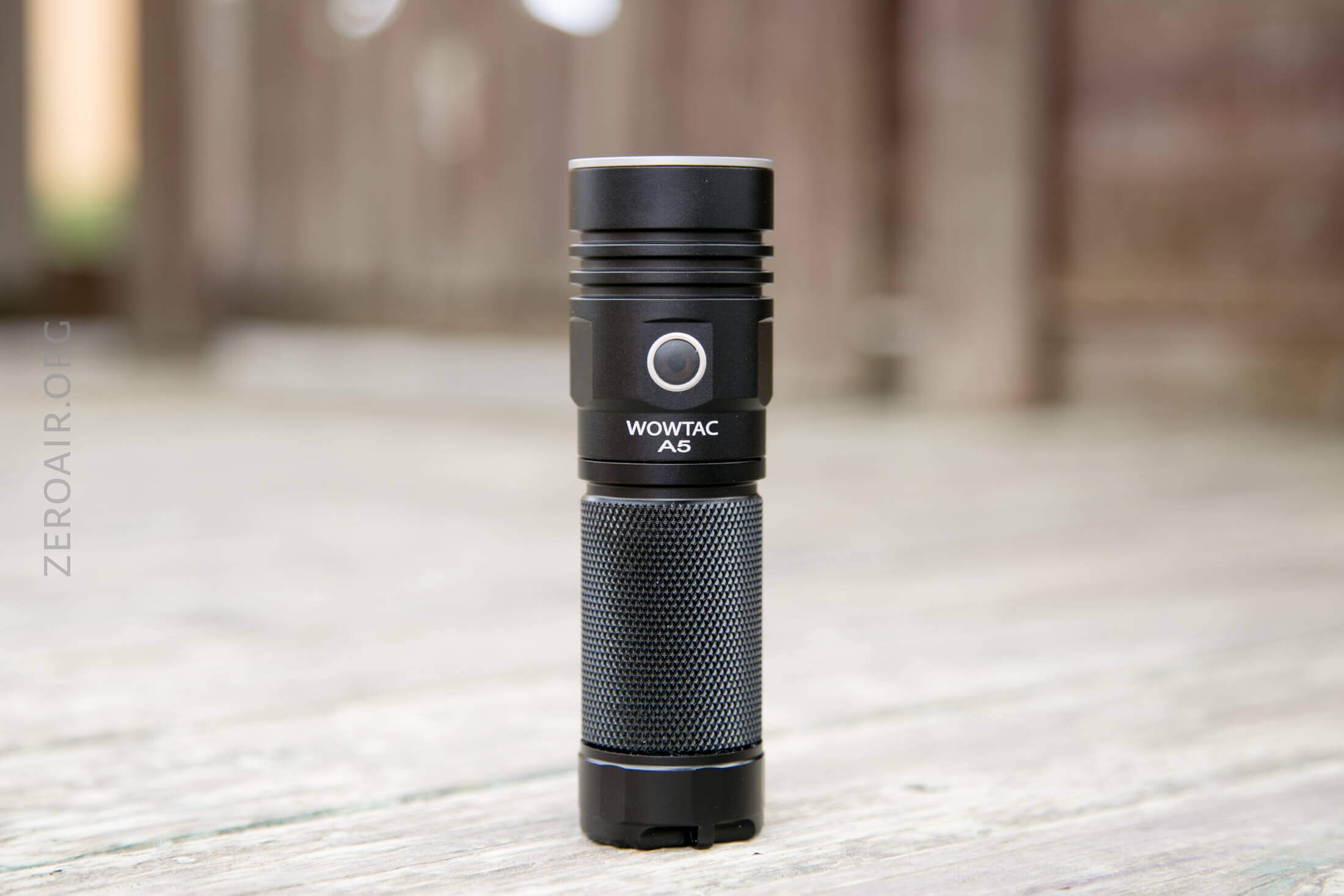

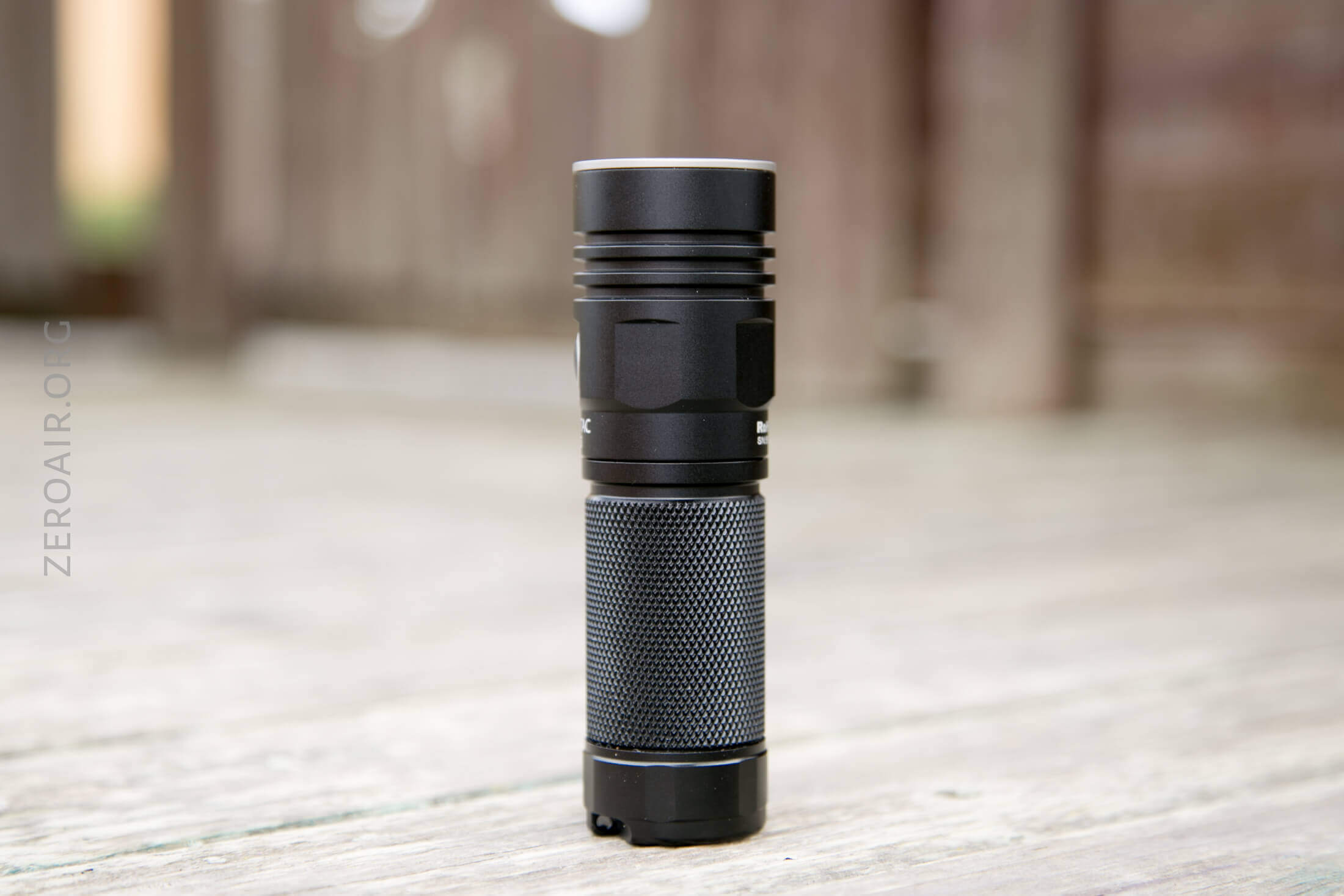

The A5 is a sturdy light. I have no build quality complaints whatsoever.

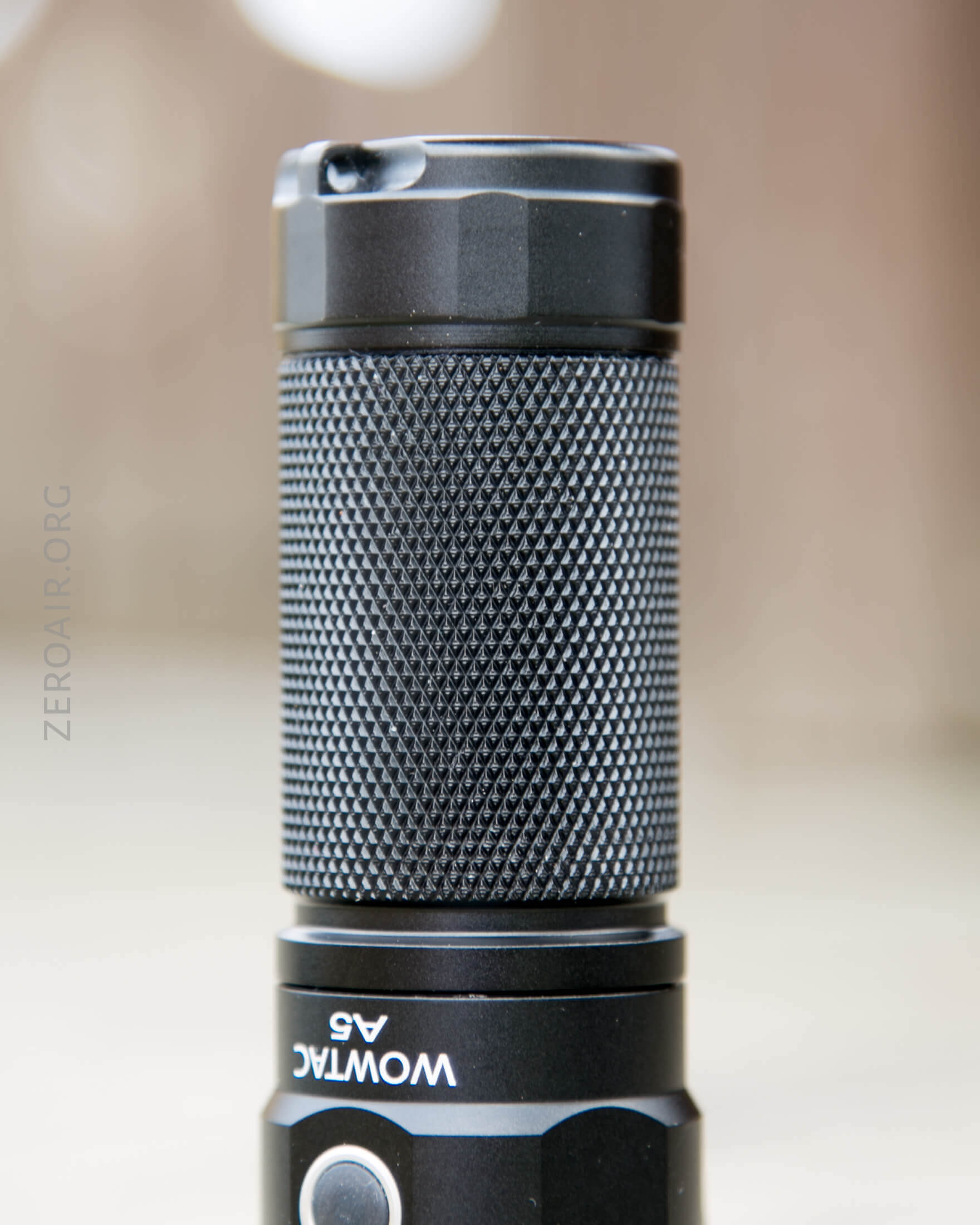

The knurling around the cell tube looks pretty aggressive but it’s actually not – at least not so much to be abrasive on hands.  It provides adequate grip.

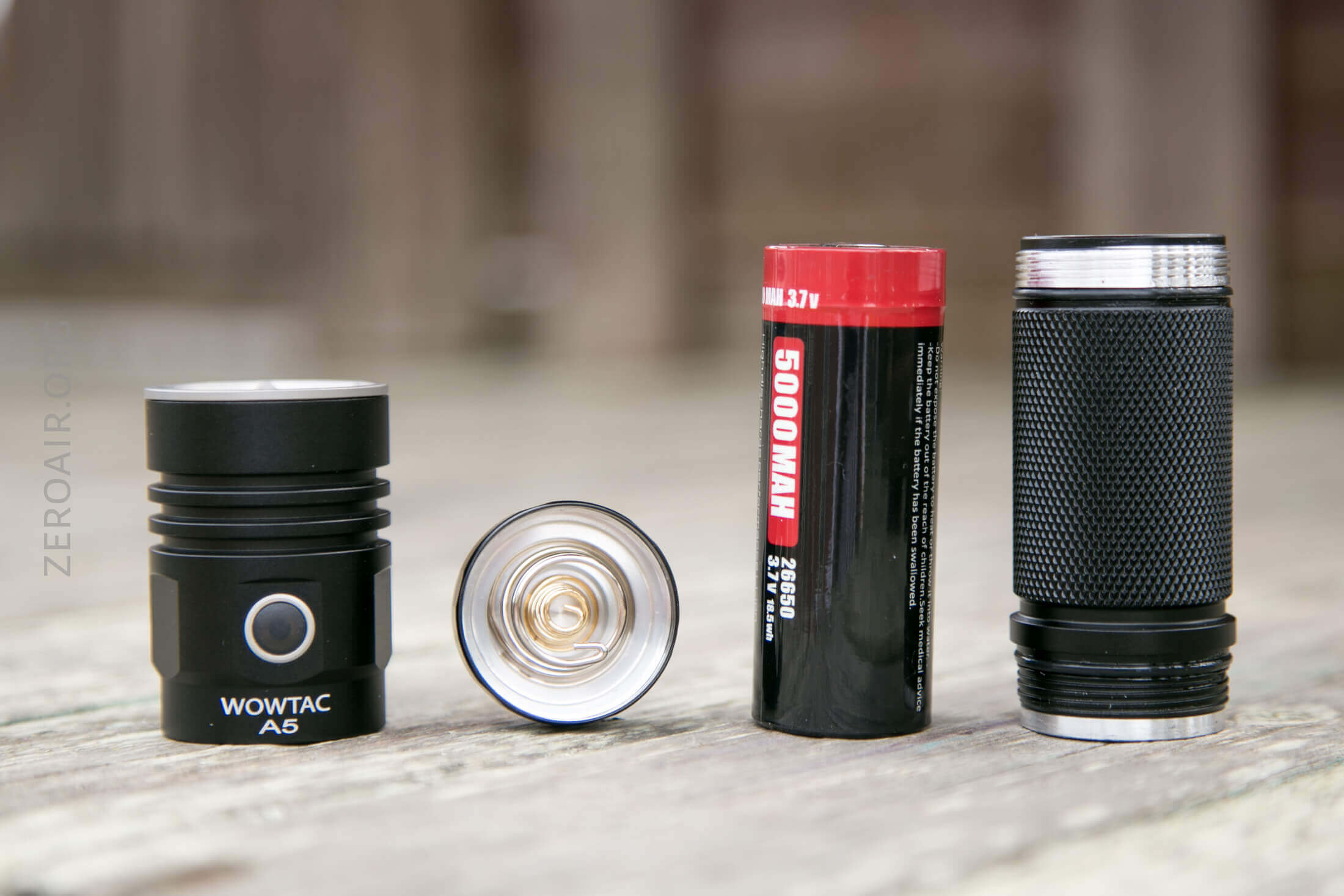

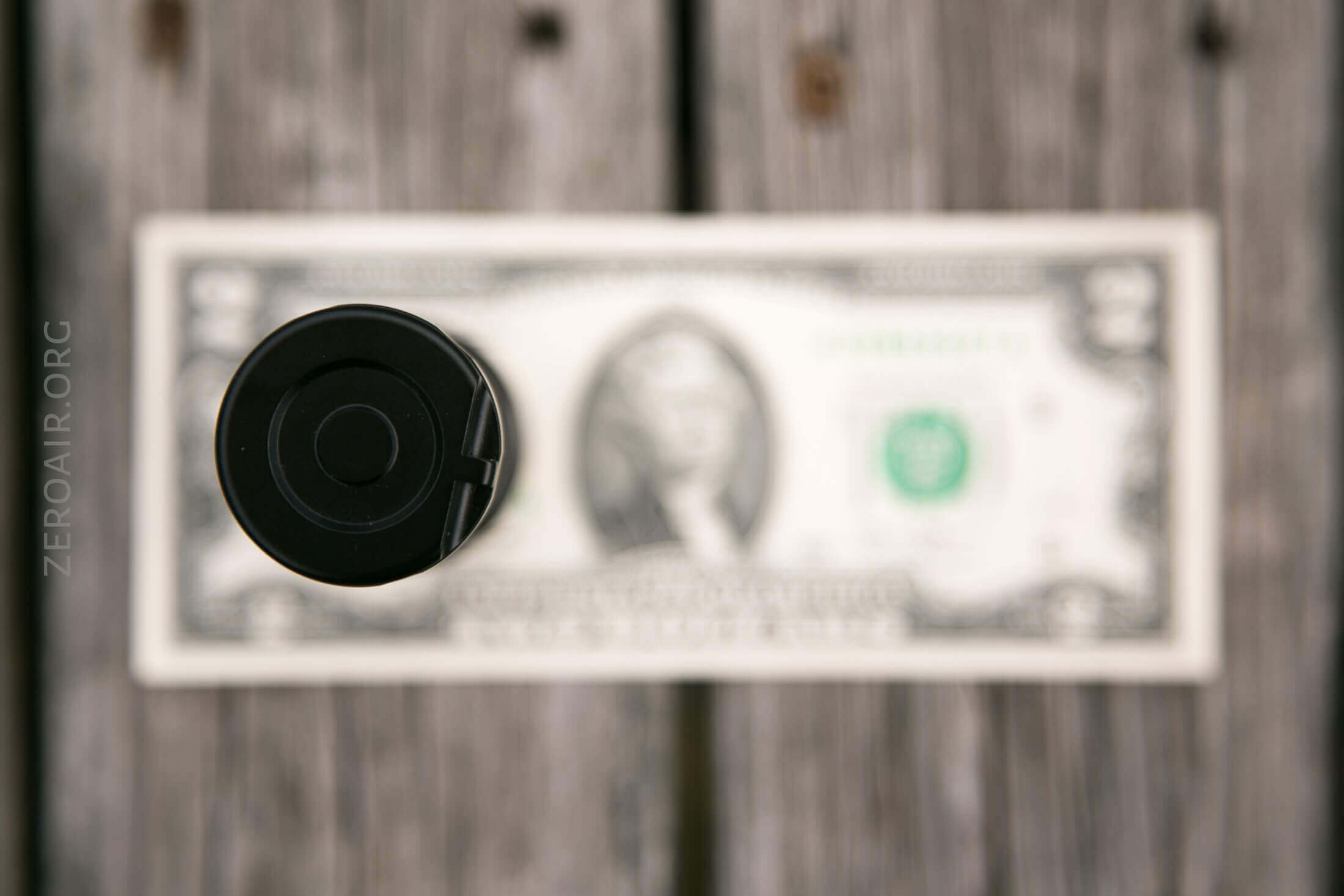

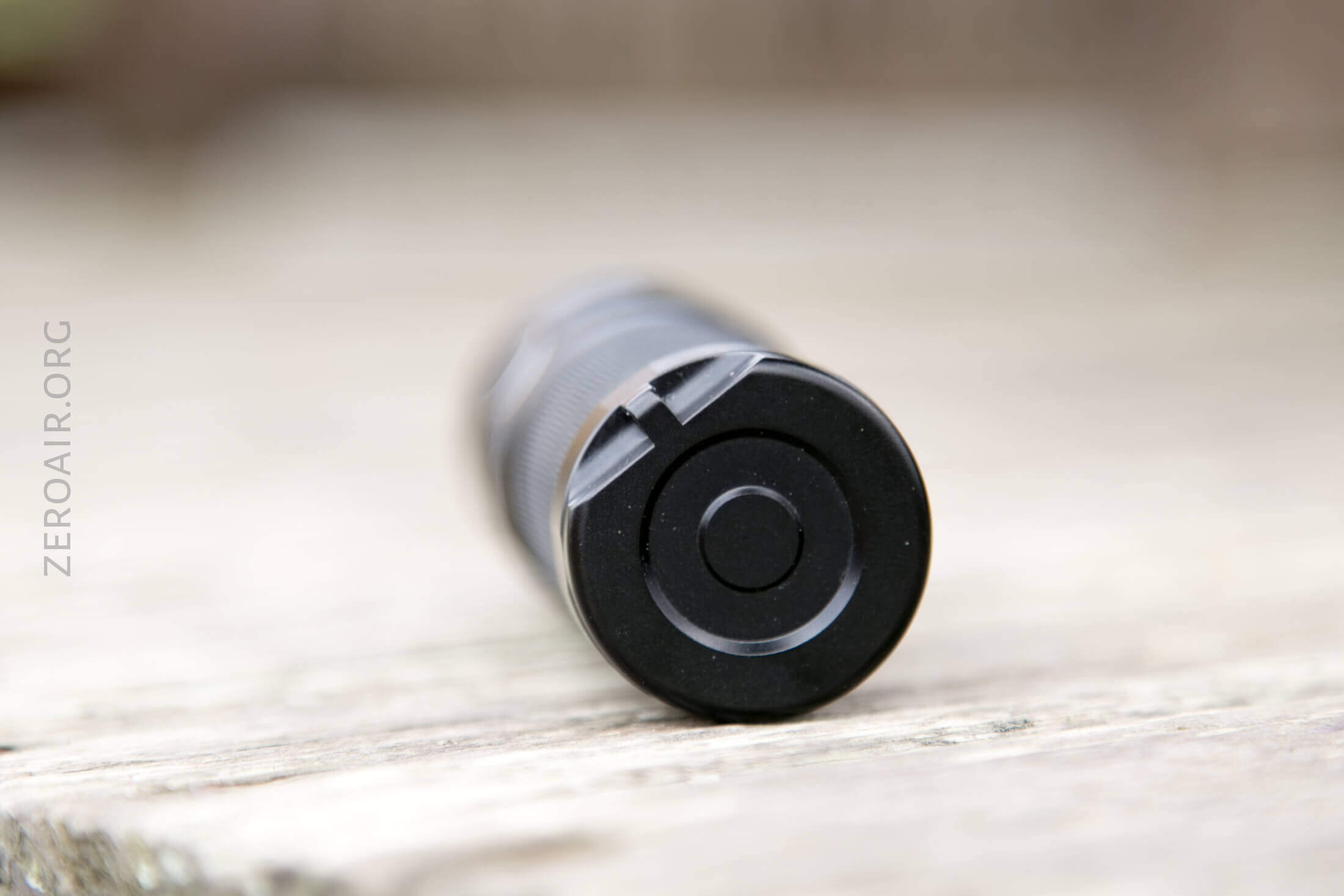

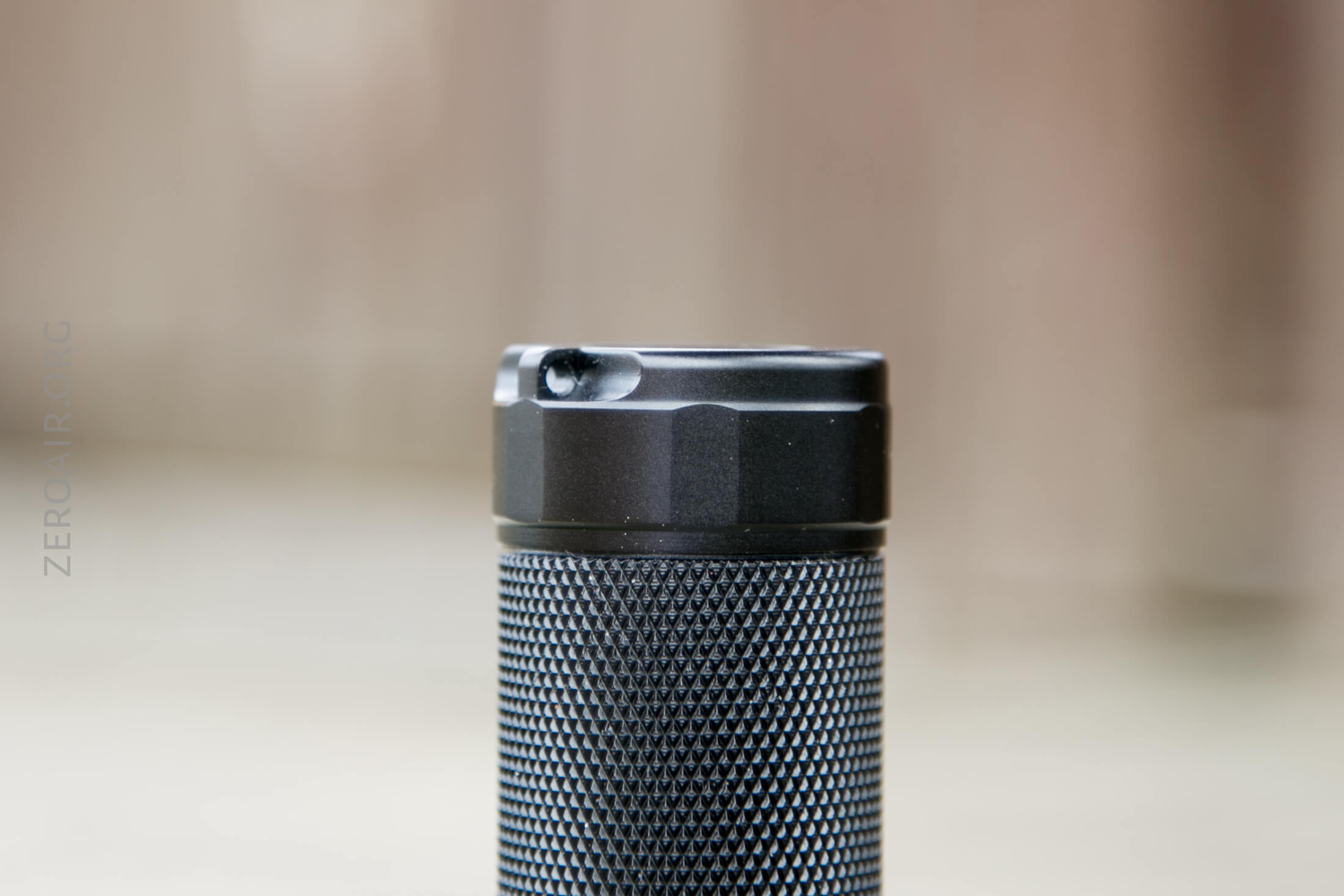

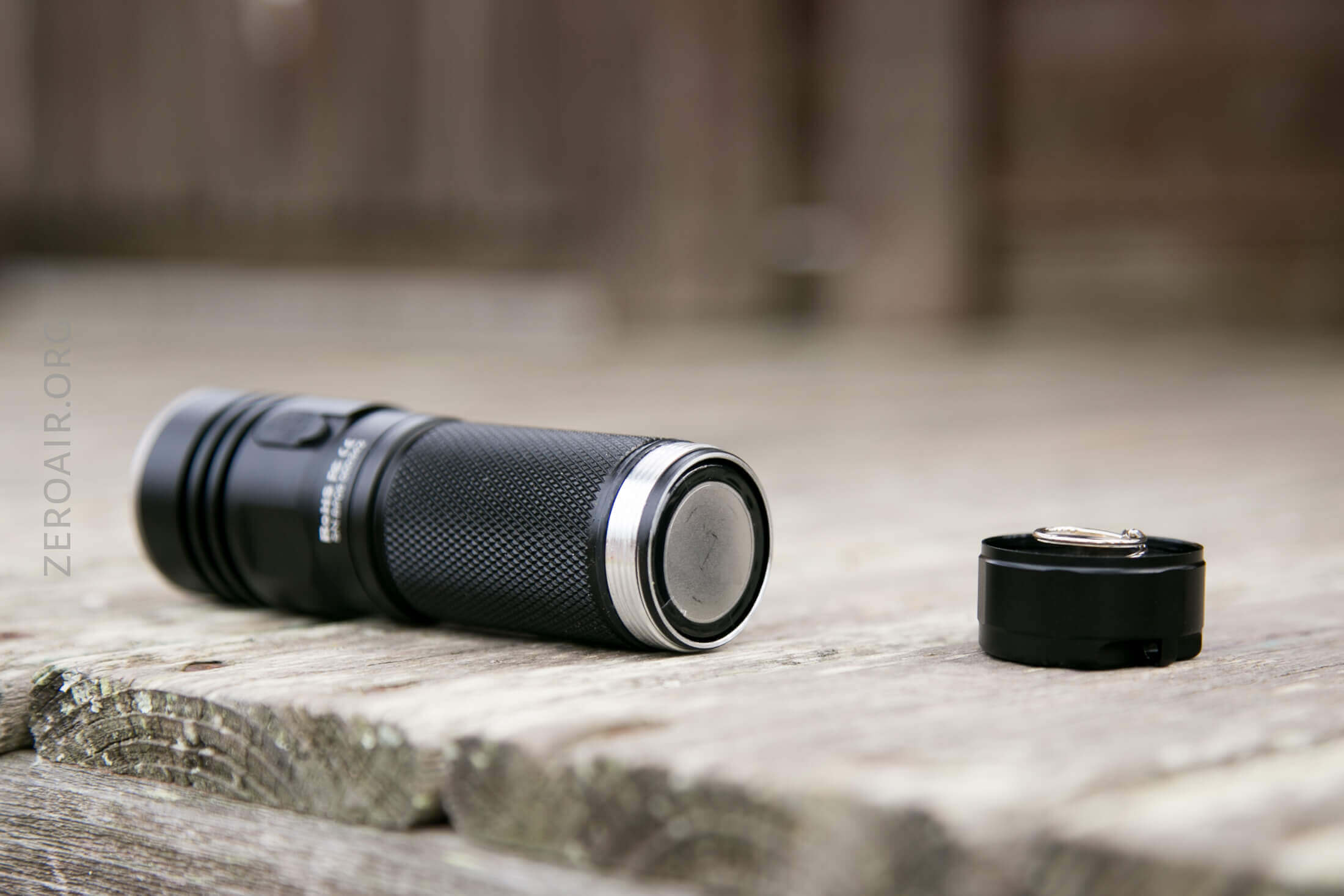

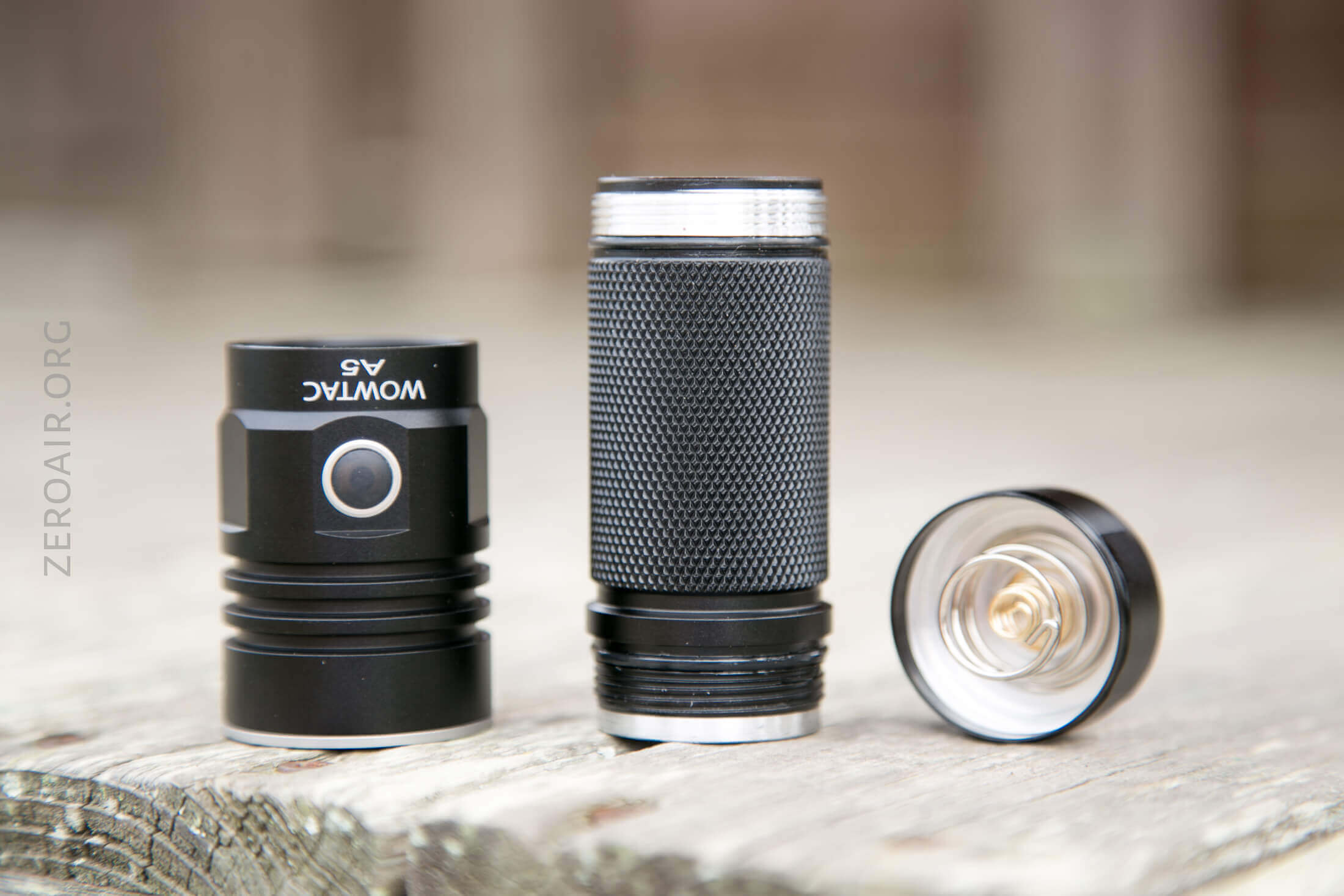

The tailcap technically unscrews but my impression is that it’s not intended to be removed.  Much easier to unscrew the head from the body.

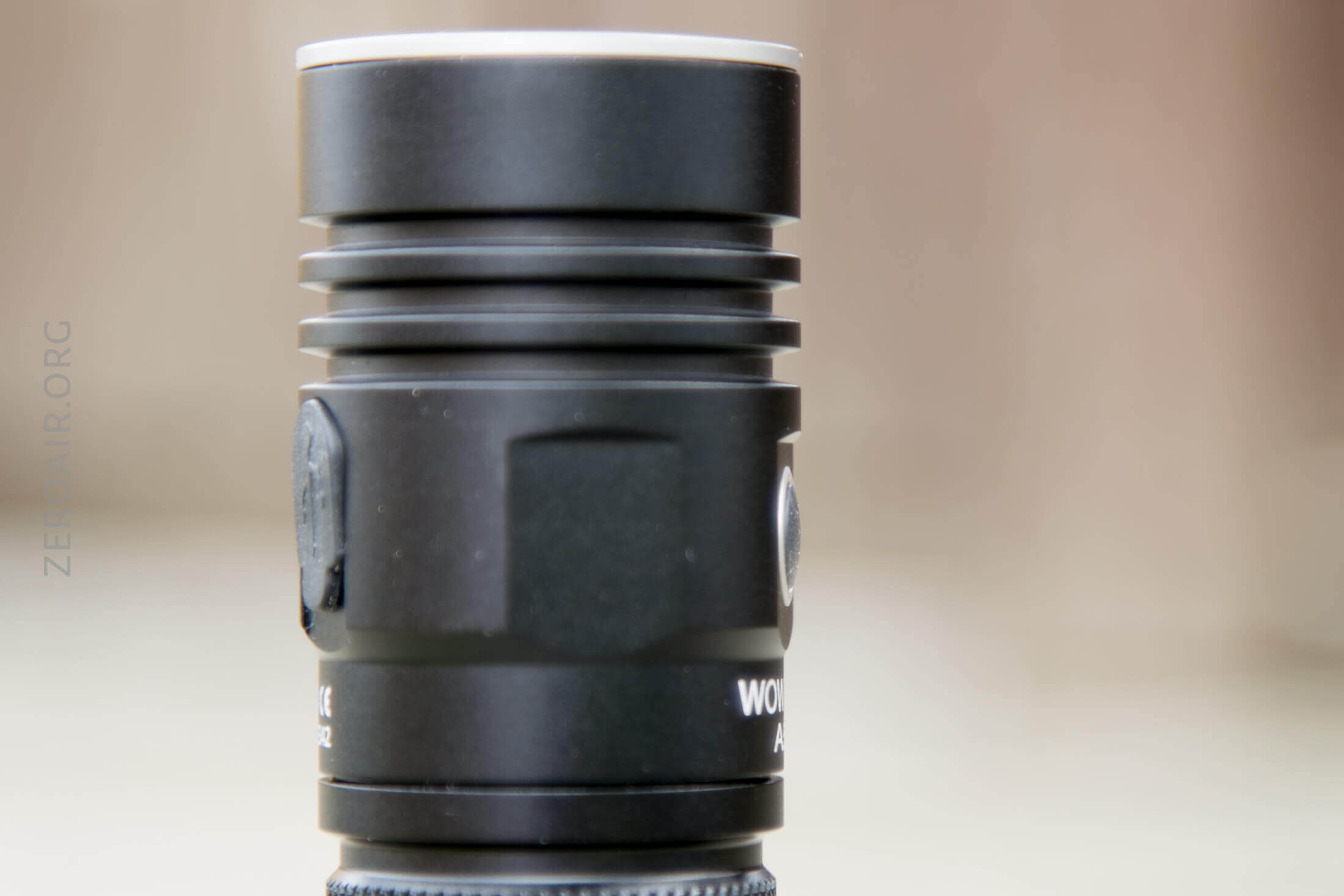

The head has a few thick fins for cooling.

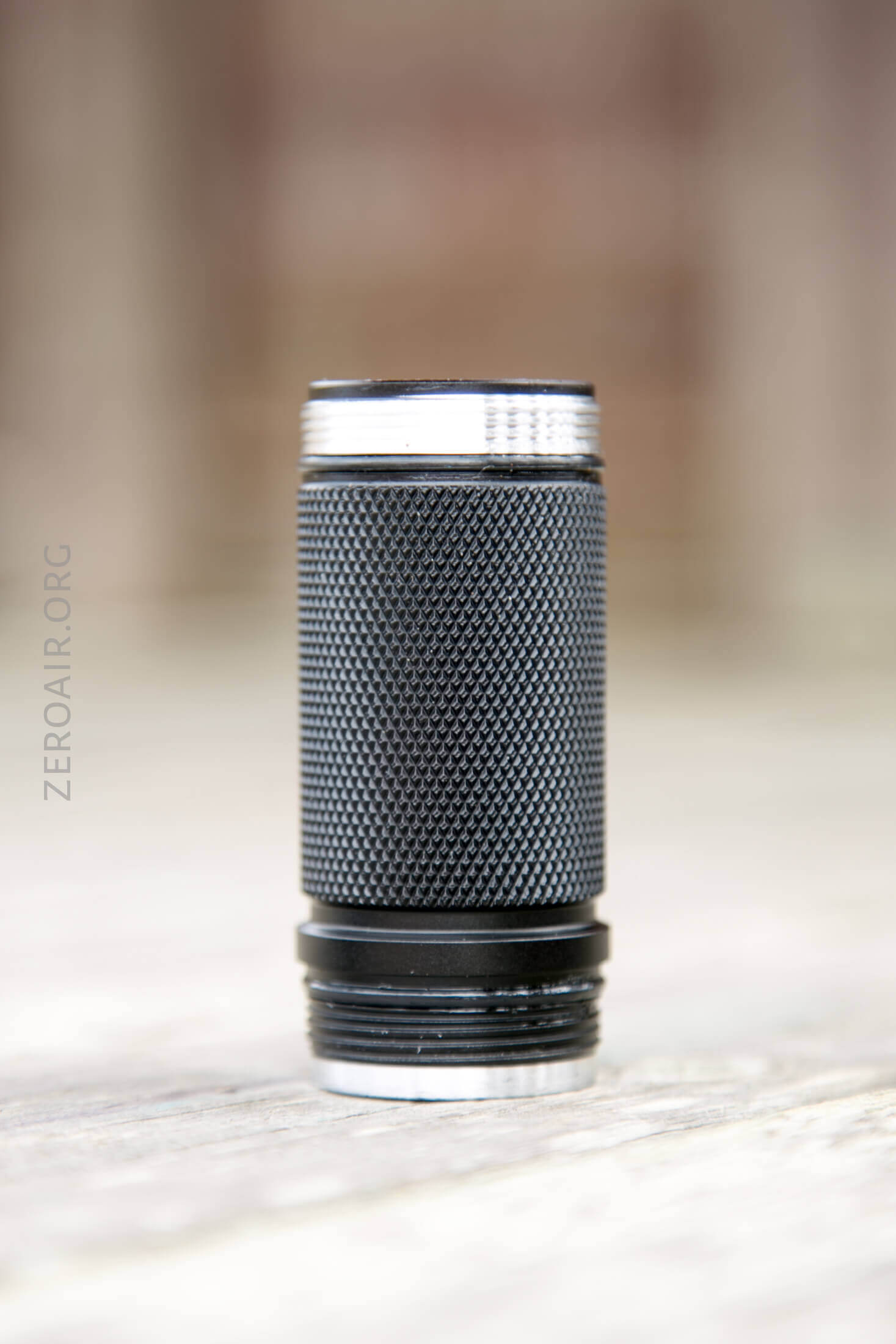

The cell tube is not reversible.

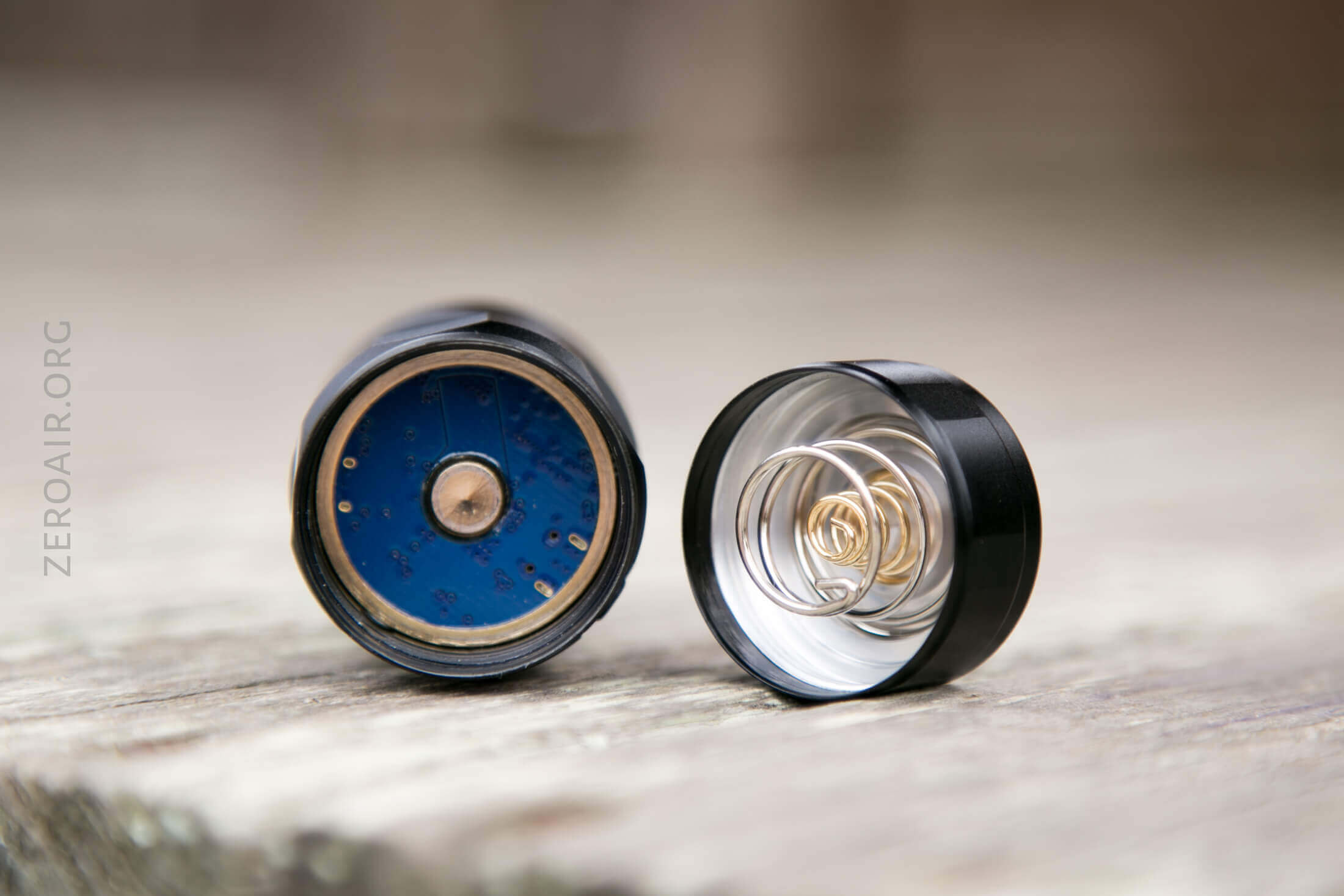

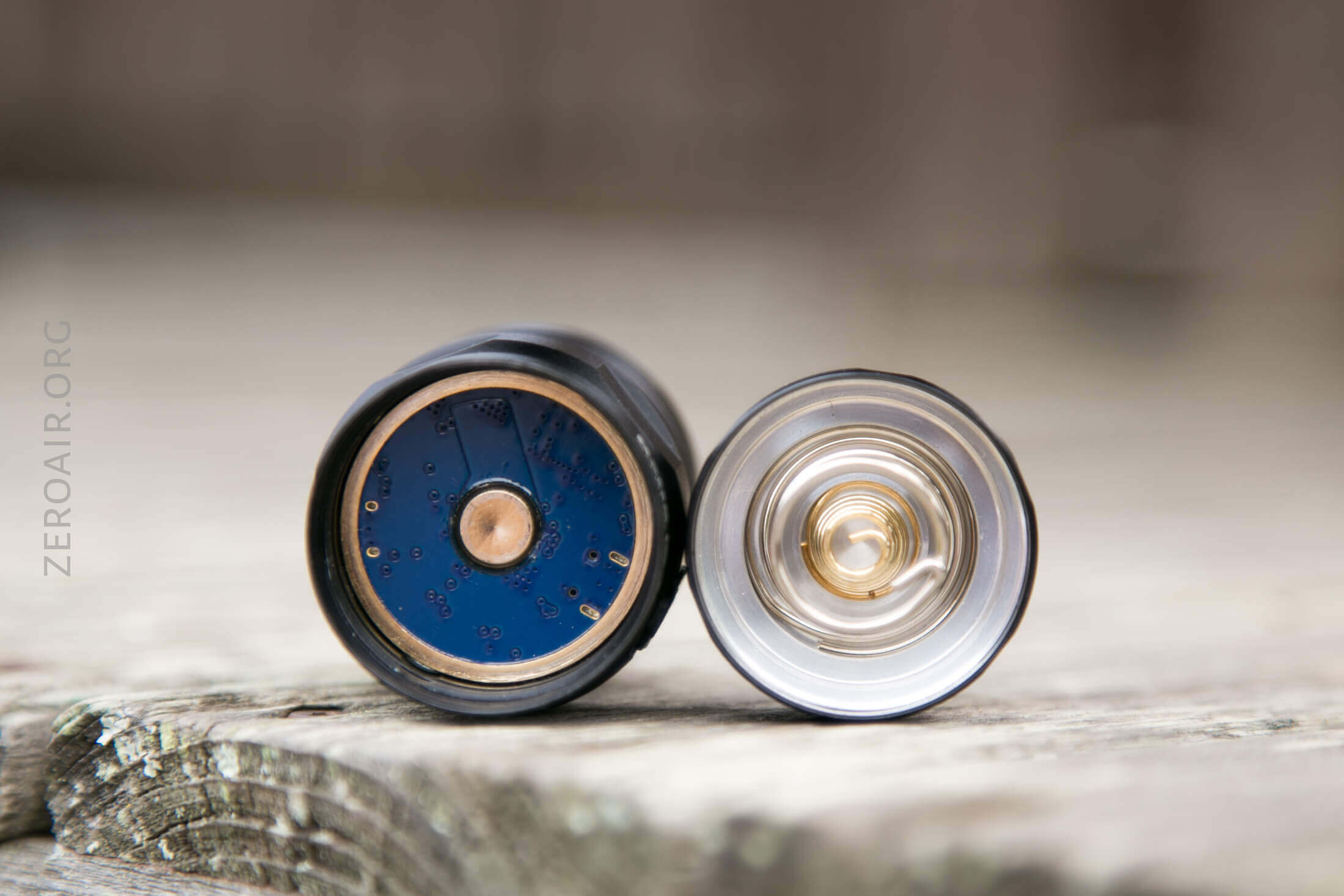

The head does not have a spring; instead, it has a brass button.  The tail actually has two springs.

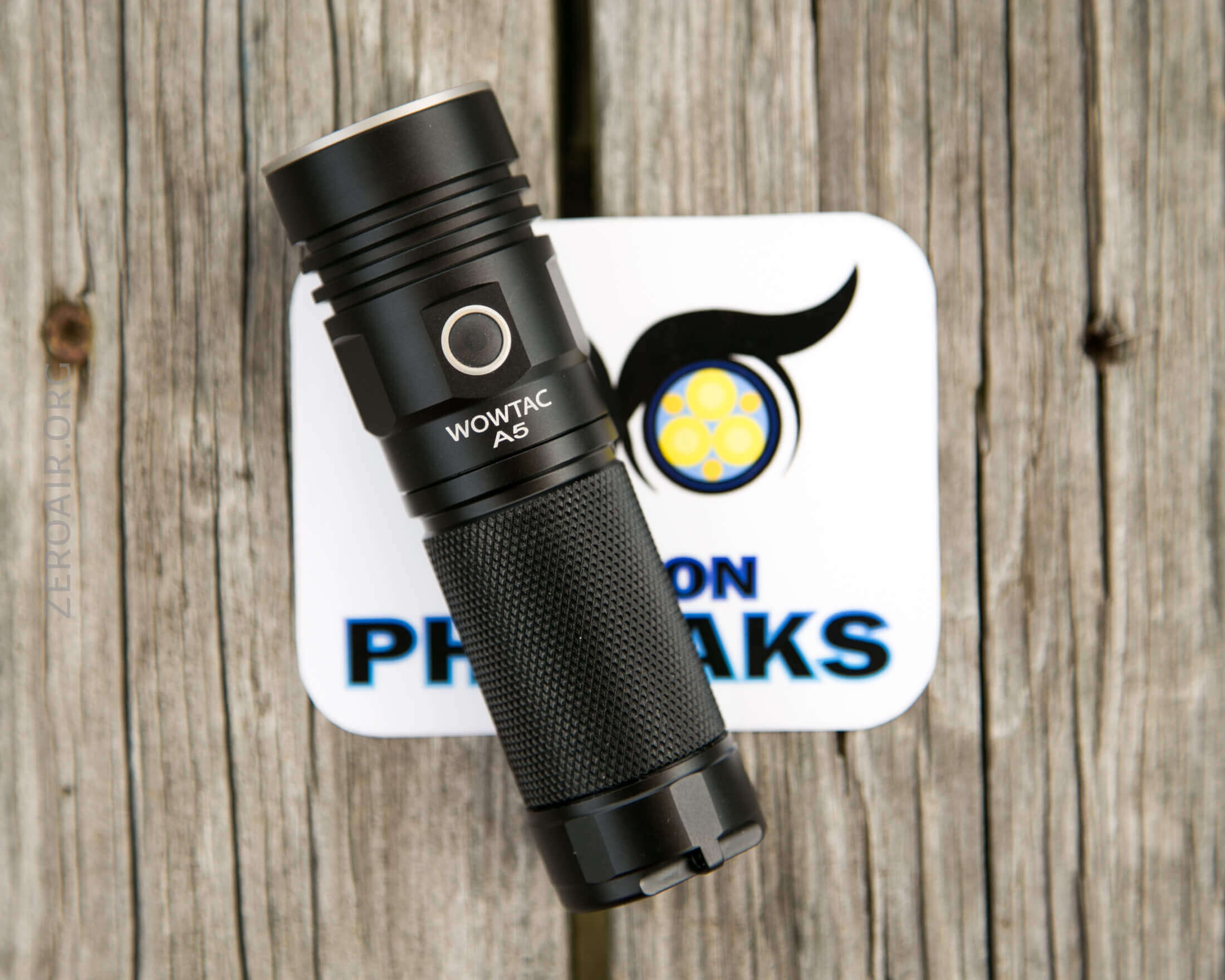

#photonphreaks !!

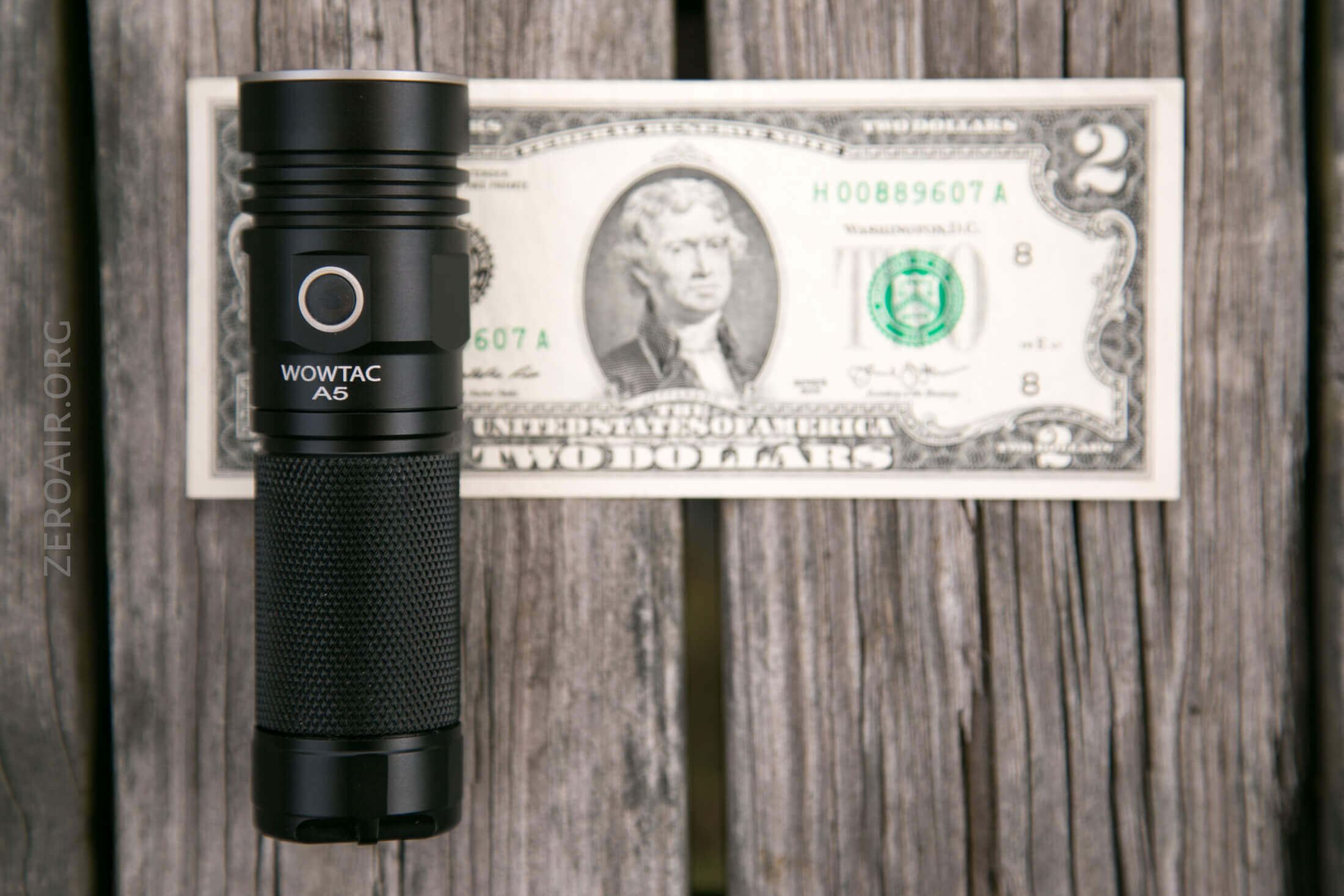

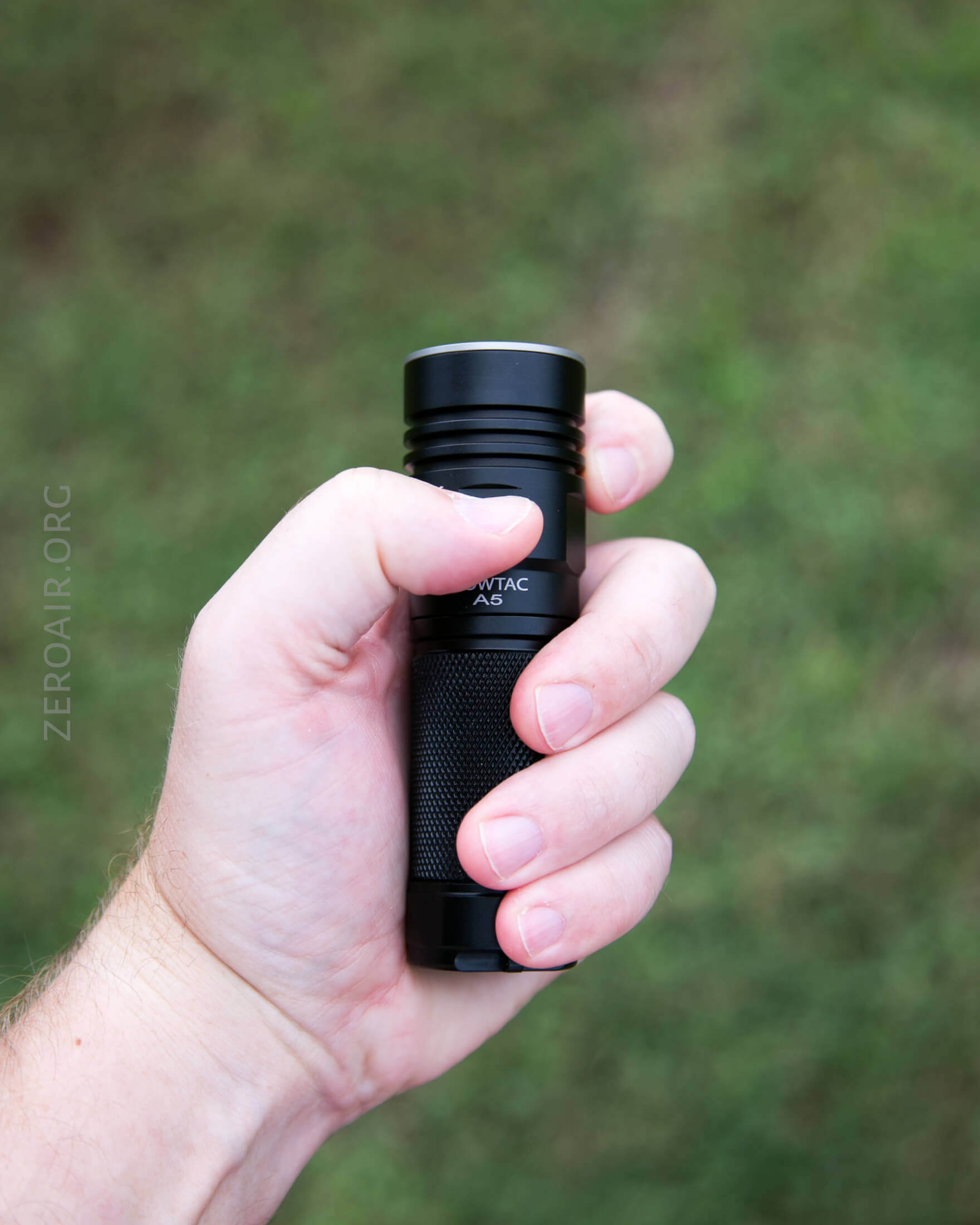

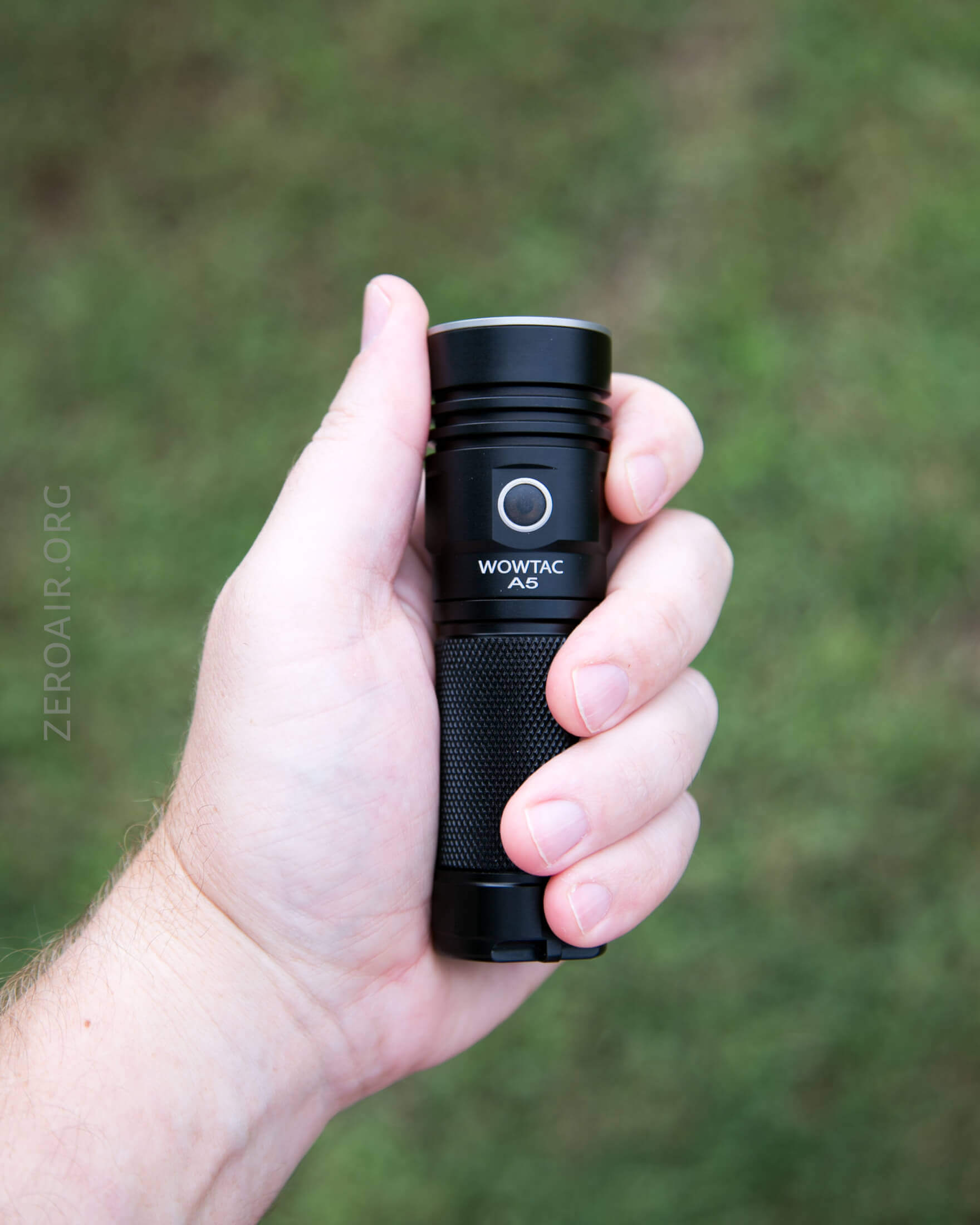

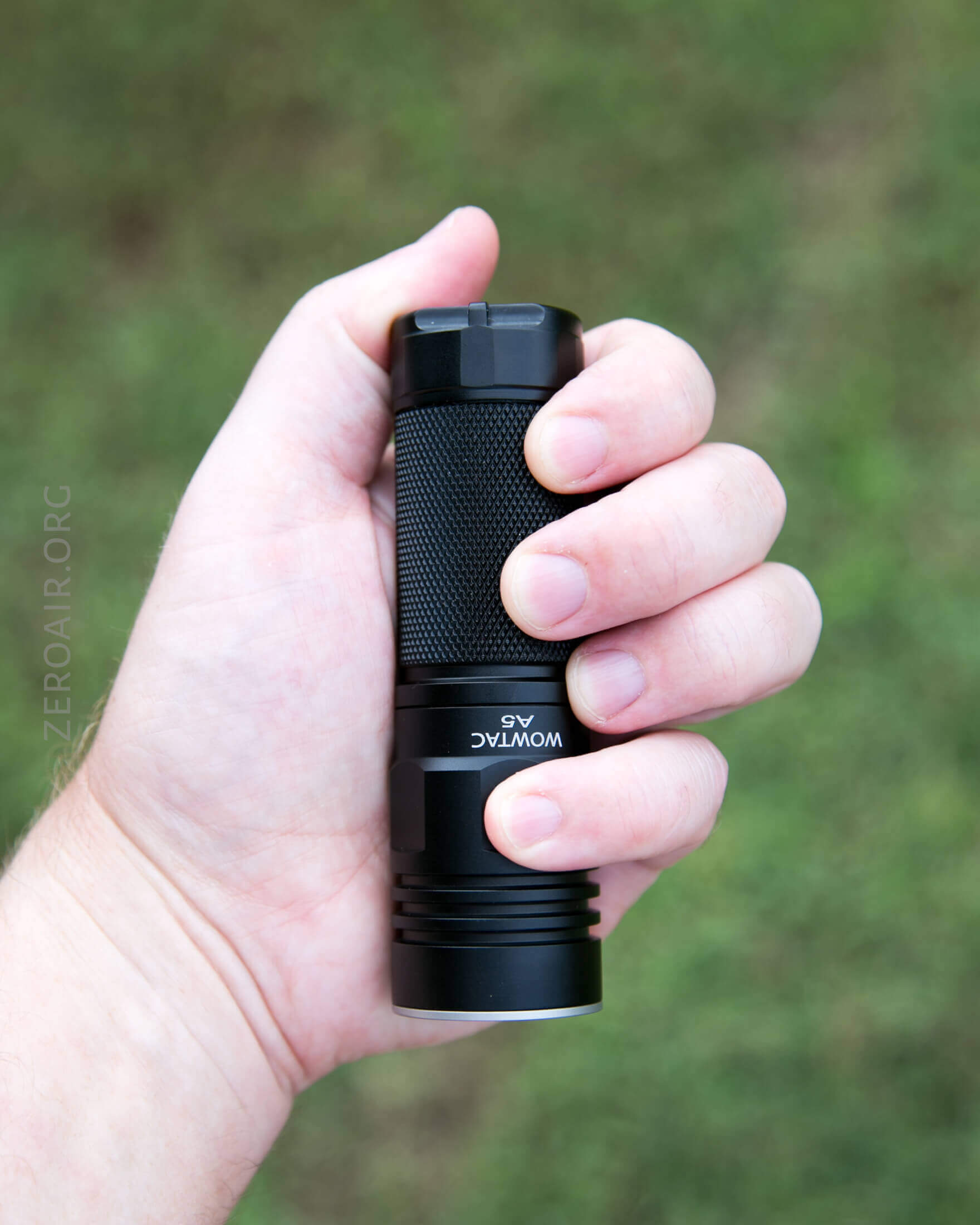

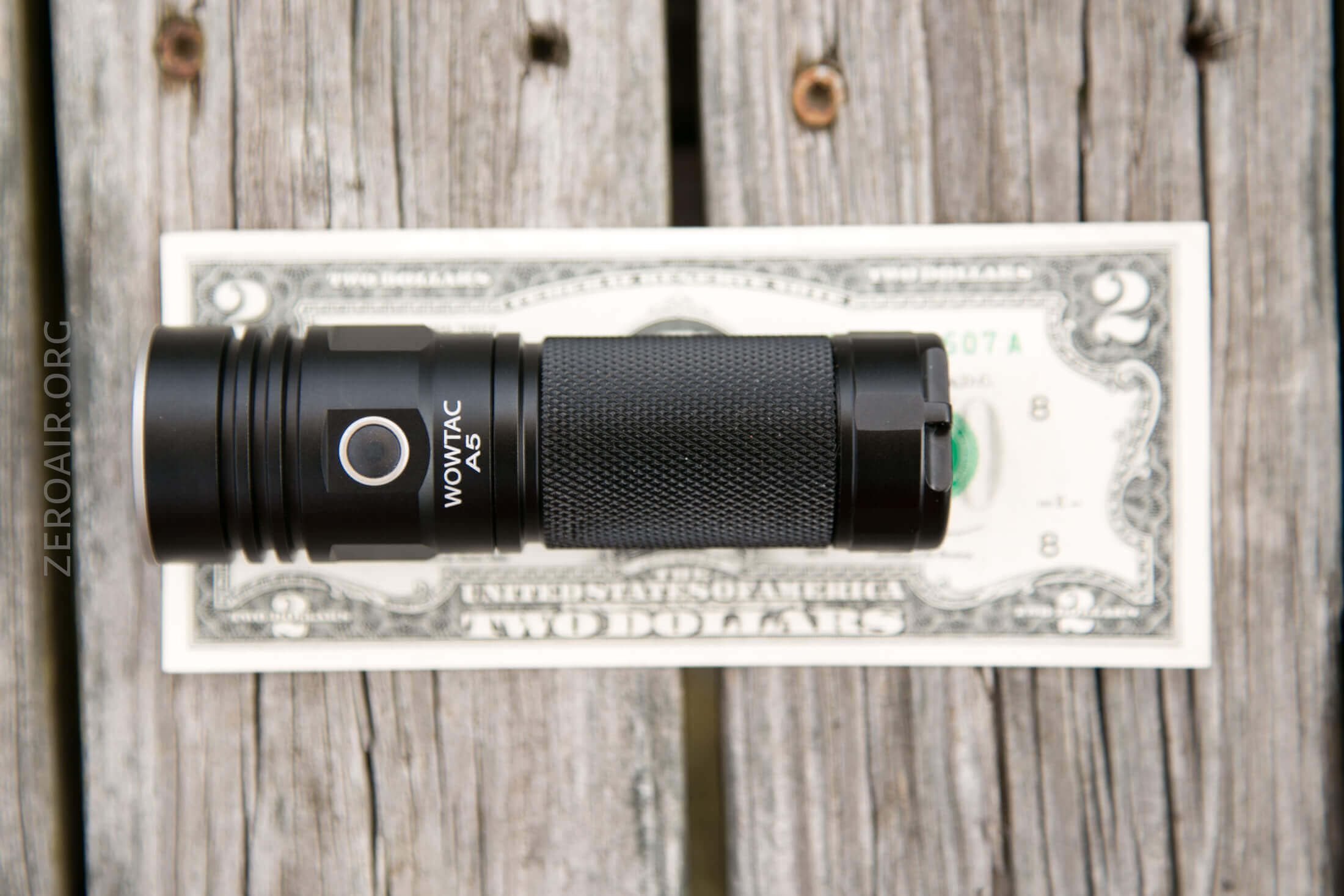

Size and Comps

Dimensions: 115mm x 35mm x 32.5mm
Weight: 212.7g with battery.

It’s not a terribly small light, but it’s a 26650 with charging.  So you wouldn’t expect it to be all that small.

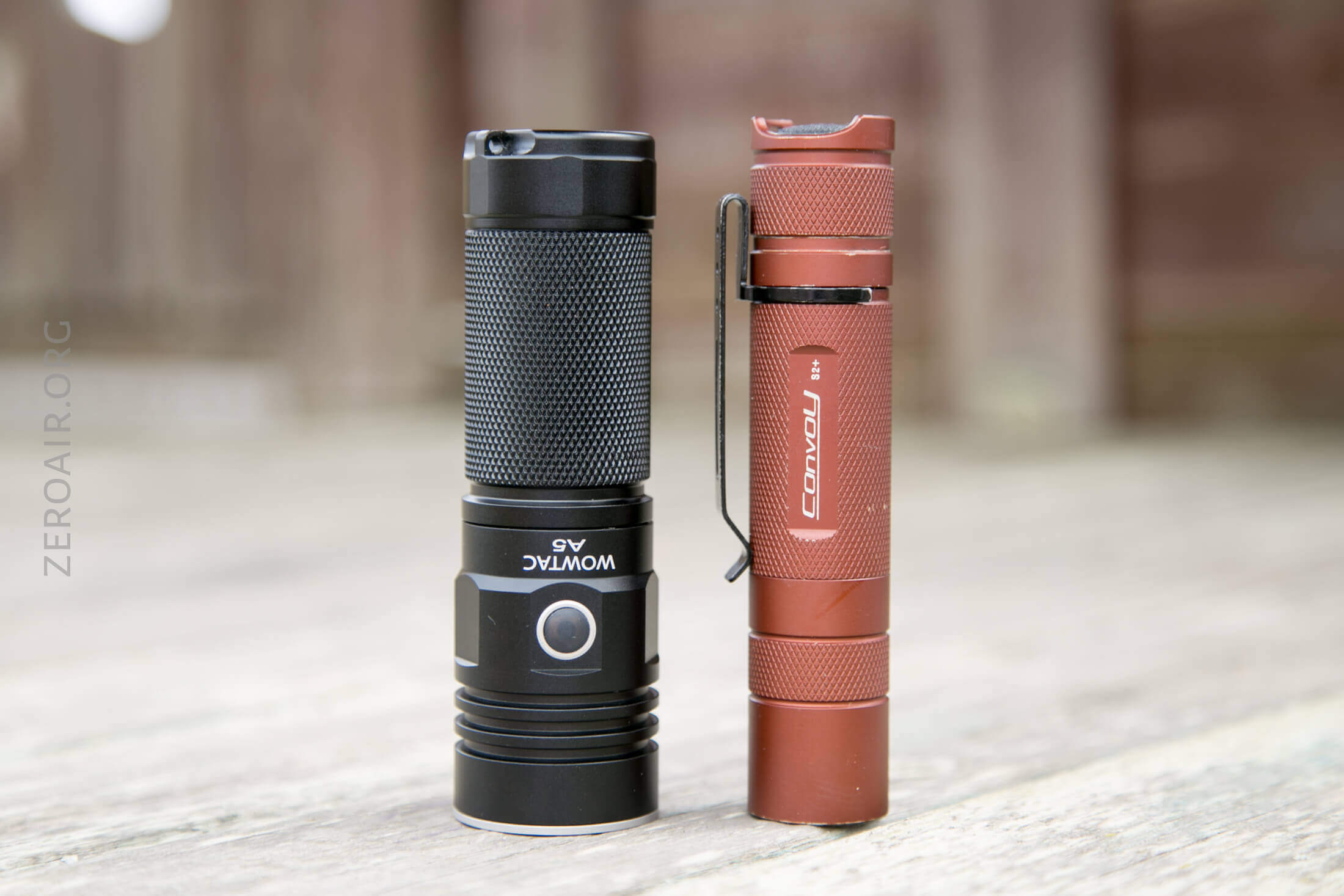

Still shorter than an S2+!

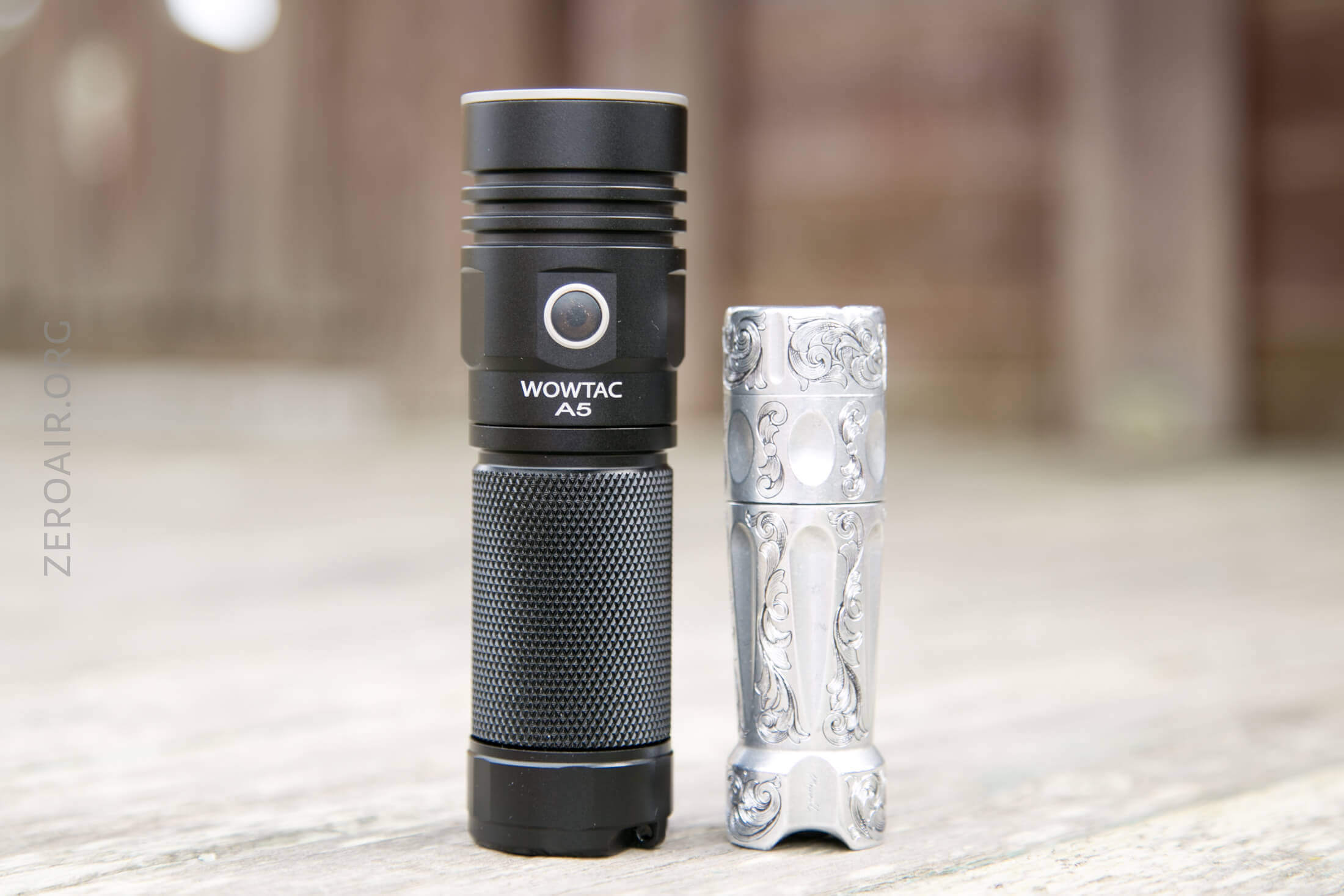

And here’s the light beside my custom engraved TorchLAB BOSS 35, an 18350 light.  I reviewed the aluminum version of that light in both 35 and 70 formats.

Retention and Carry

Really the only way to carry the A5 is either in hand or with the included lanyard.  There is no pouch, pocket clip, or magnet.

Power and Runtime

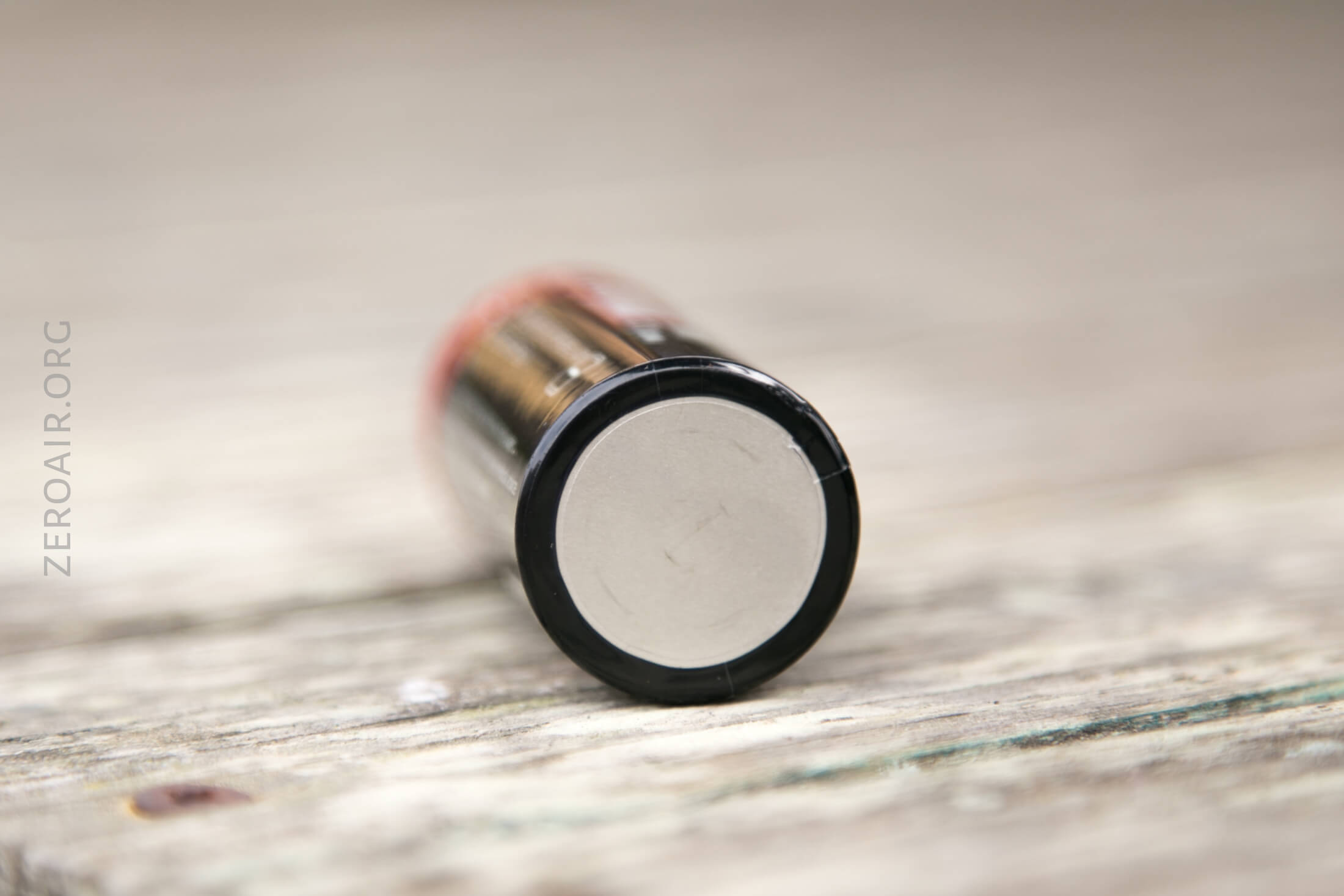

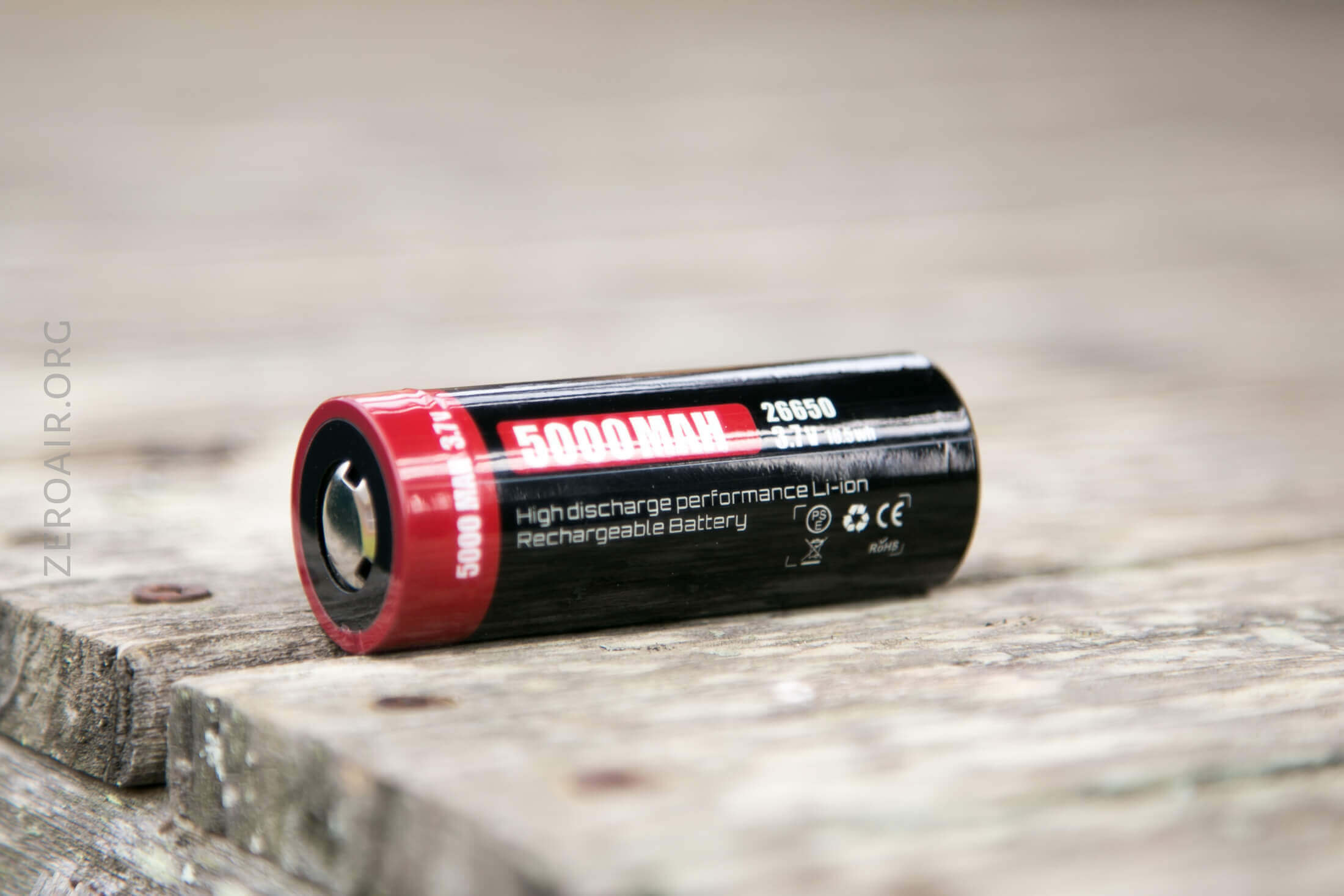

Wowtac includes the cell appropriate for the A5 – it’s a 26650 cell, at 5000mAh.  The included cell is a flat-top, and labeled as “high discharge.”

With an adapter (read: pvc tube) inside the body, an 18650 should work just fine.

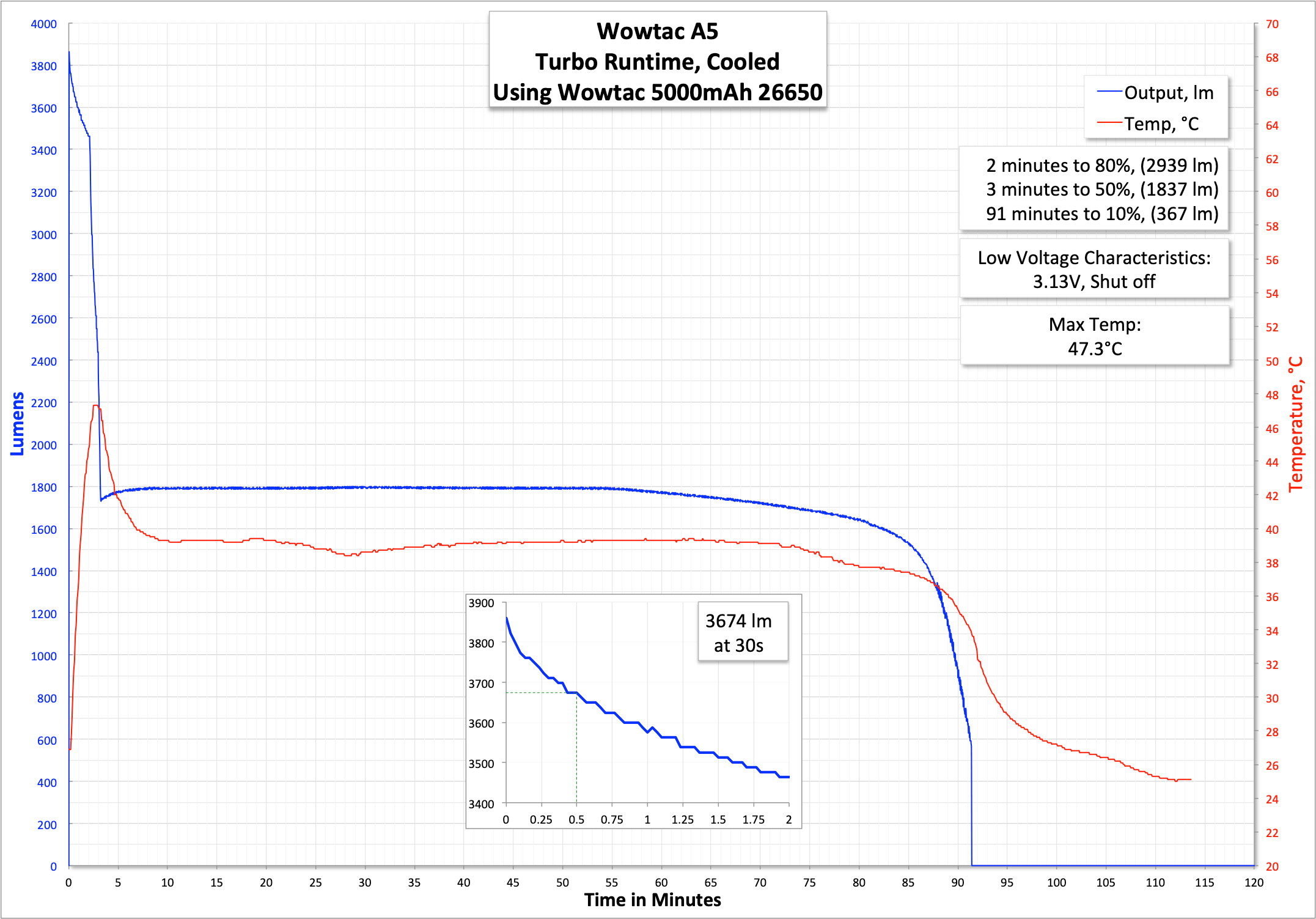

Here’s a runtime on Turbo.  Output holds for around 3 minutes before dropping, likely due to temperature.  At 30 seconds the output is much higher than the claim, at >3700 lumens.  The light steps down to around 1800 lumens, which isn’t a trivial output, for 90 or so minutes.  This level is the same as High.

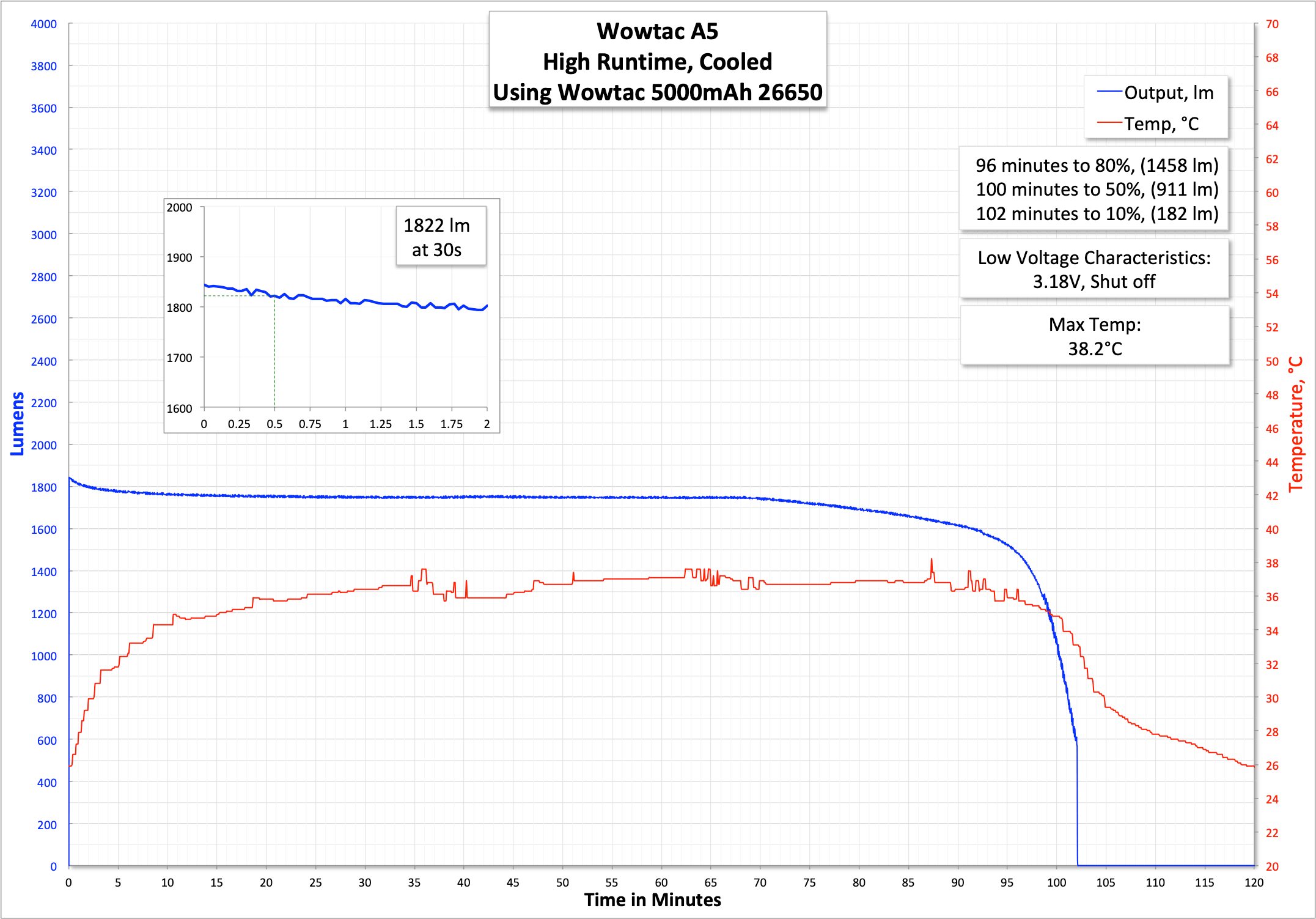

High output looks just like Turbo, but without the blip of > 3700-lumen output.  The runtime is a little longer, as expected.

In both cases, the light shut off when the cell voltage was low.  Around 3V.

Charging

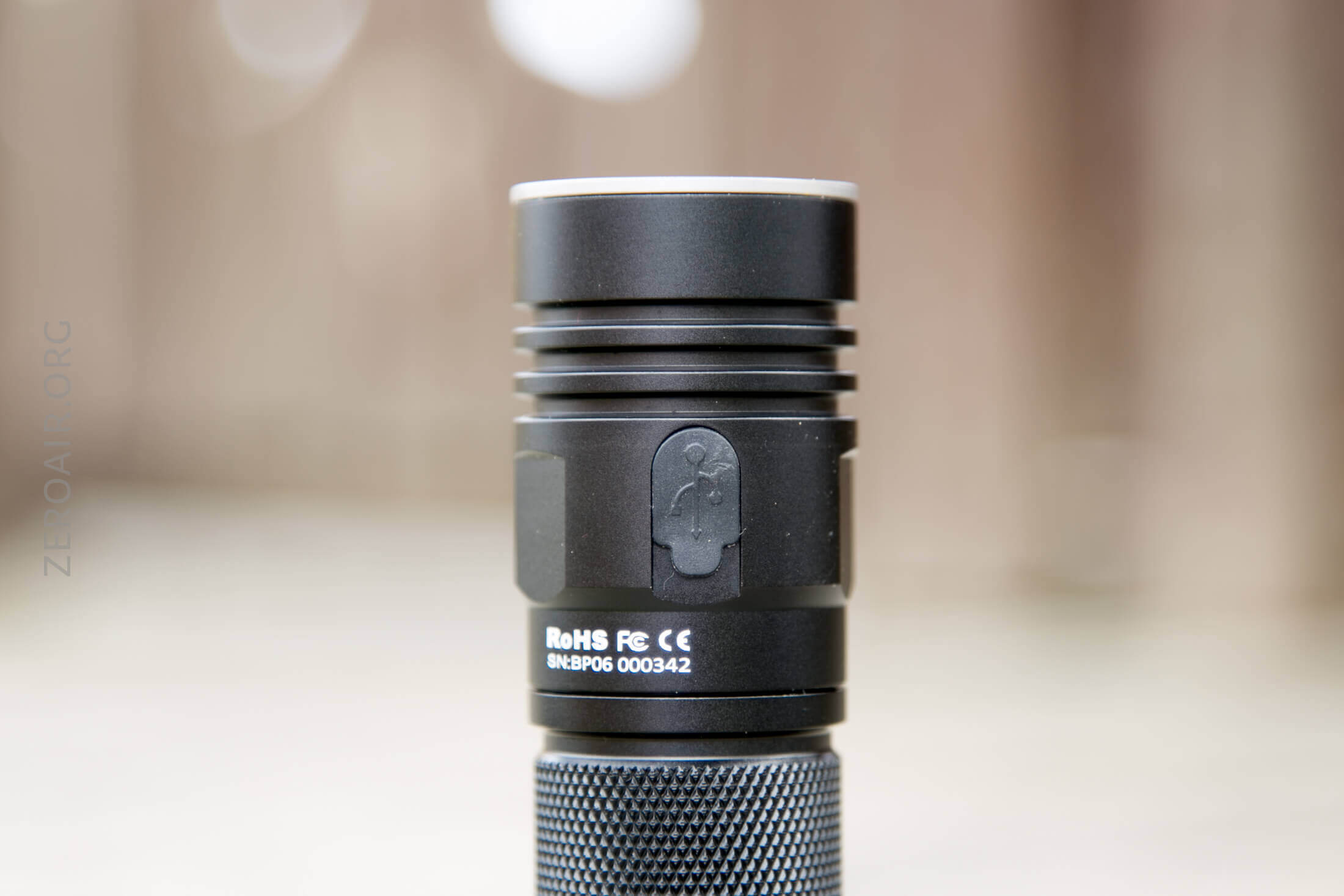

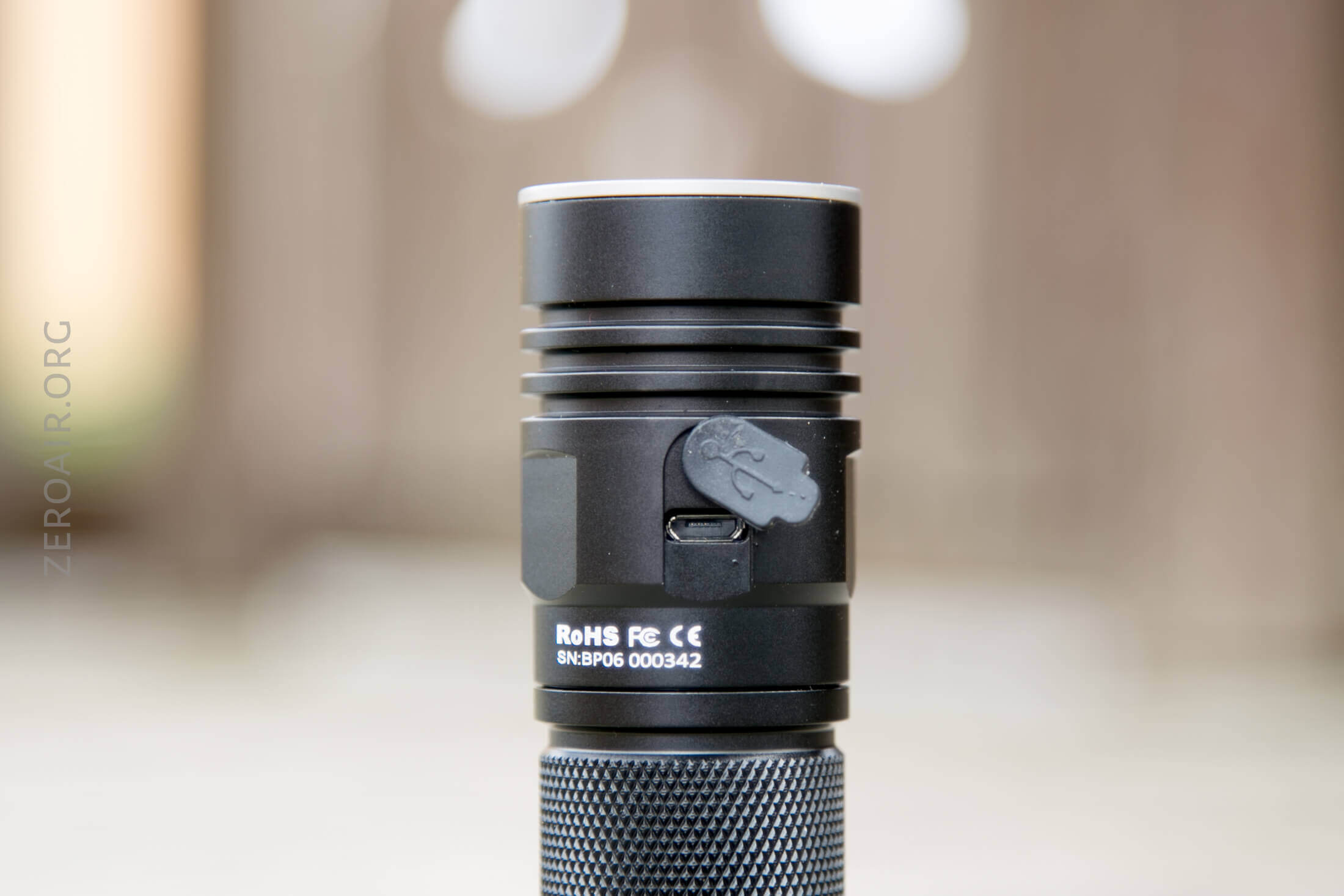

Wowtac also put on-board charging in the A5.  It’s a common micro-USB port in the head, opposite the switch.  The appropriate cable is included.

The port is covered with a rubber push-in cover, which feels quite secure.

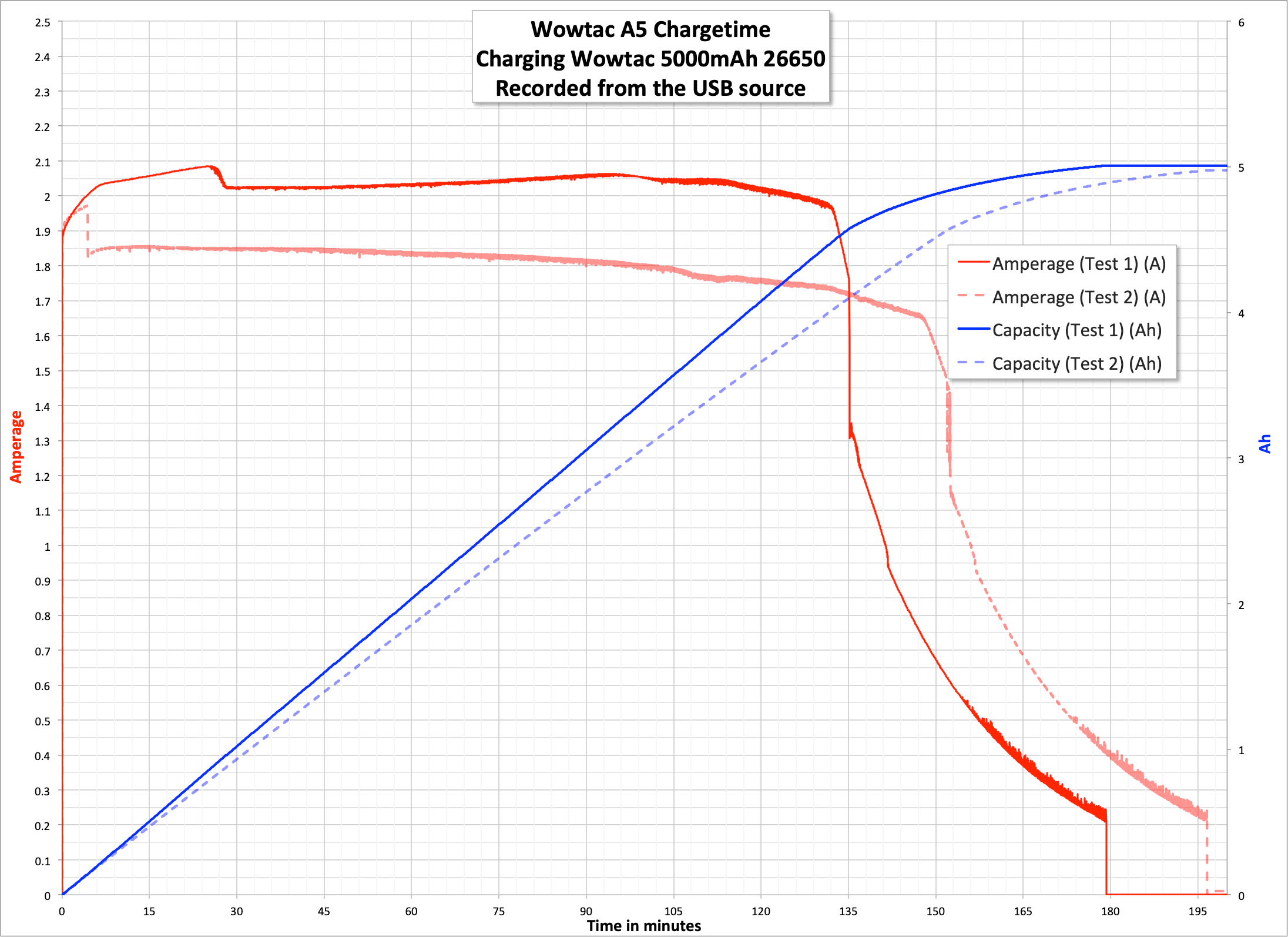

Charging is at around 2A, as seen below.  The two tests look a little different, but that’s not a deal-breaker – 2A from a micro-USB could come down to something awry in my charge setup during one test; not necessarily anything in the light.  Full charging takes around 3 hours.

Also, the manual only states that the indicating side switch does anything during charging.  Ie it doesn’t indicate when voltage is low during runtimes.  That’s a bit of a letdown.  Anyway, during charging, the indicator is red.  When charging is complete, the switch is blue.  When charging is abnormal, the switch is purple.

Modes and Currents

Mode	Mode Claimed Output (lm)	Claimed Runtime	Measured Lumens	Tailcap Amps
Turbo	3650	3m+130m	3674	8.52
High	1750	8m+140m	1822	2.95
Medium	300	10.2h	322	0.39
Low	30	46h	31	0.04
Firefly	0.3	37d	~	0.00

Eight point five amps on Turbo means you’ll need a very good quality cell to run this light.

Pulse Width Modulation

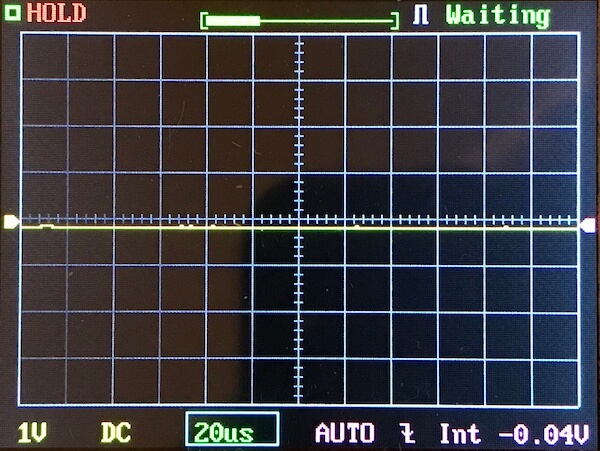

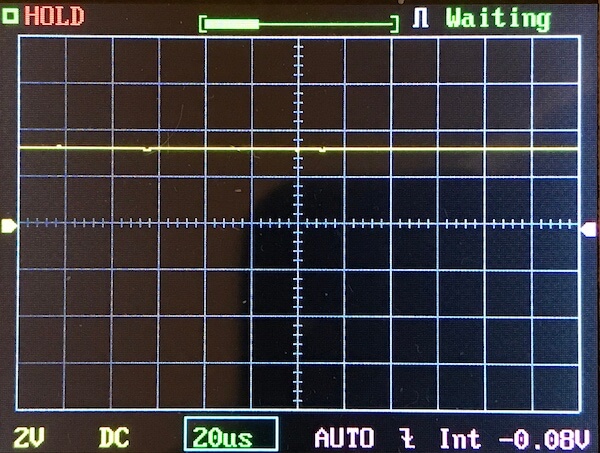

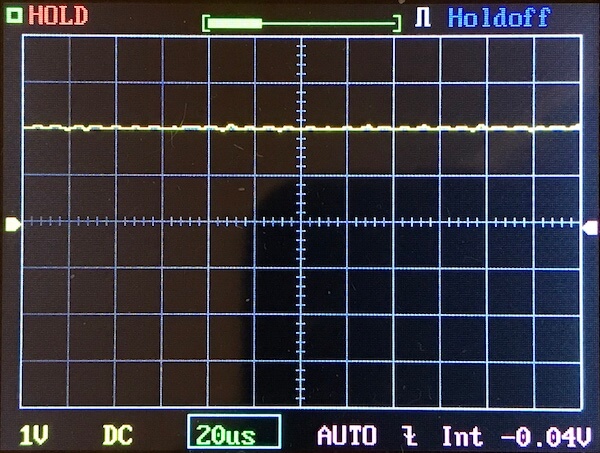

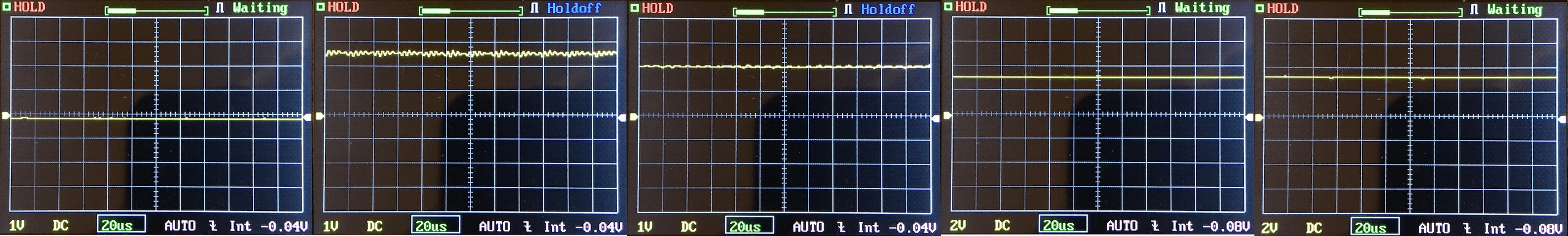

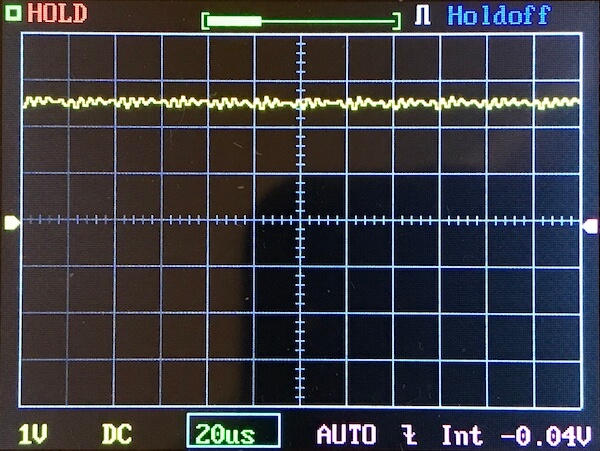

No PWM detected.

For reference, here’s a baseline shot, with all the room lights off and almost nothing hitting the sensor.  Also, here’s the light with the worst PWM I could find.  I’m adding multiple timescales, so it’ll be easier to compare to the test light.  Unfortunately, the PWM on this light is so bad that it doesn’t even work with my normal scale, which is 50 microseconds (50us). 10ms.  5ms.  2ms.  1ms.  0.5ms.  0.2ms.  In a display faster than 0.2ms or so, the on/off cycle is more than one screen, so it’d just (very incorrectly) look like a flat line.  I wrote more about this Ultrafire WF-602C flashlight and explained a little about PWM too.

User Interface and Operation

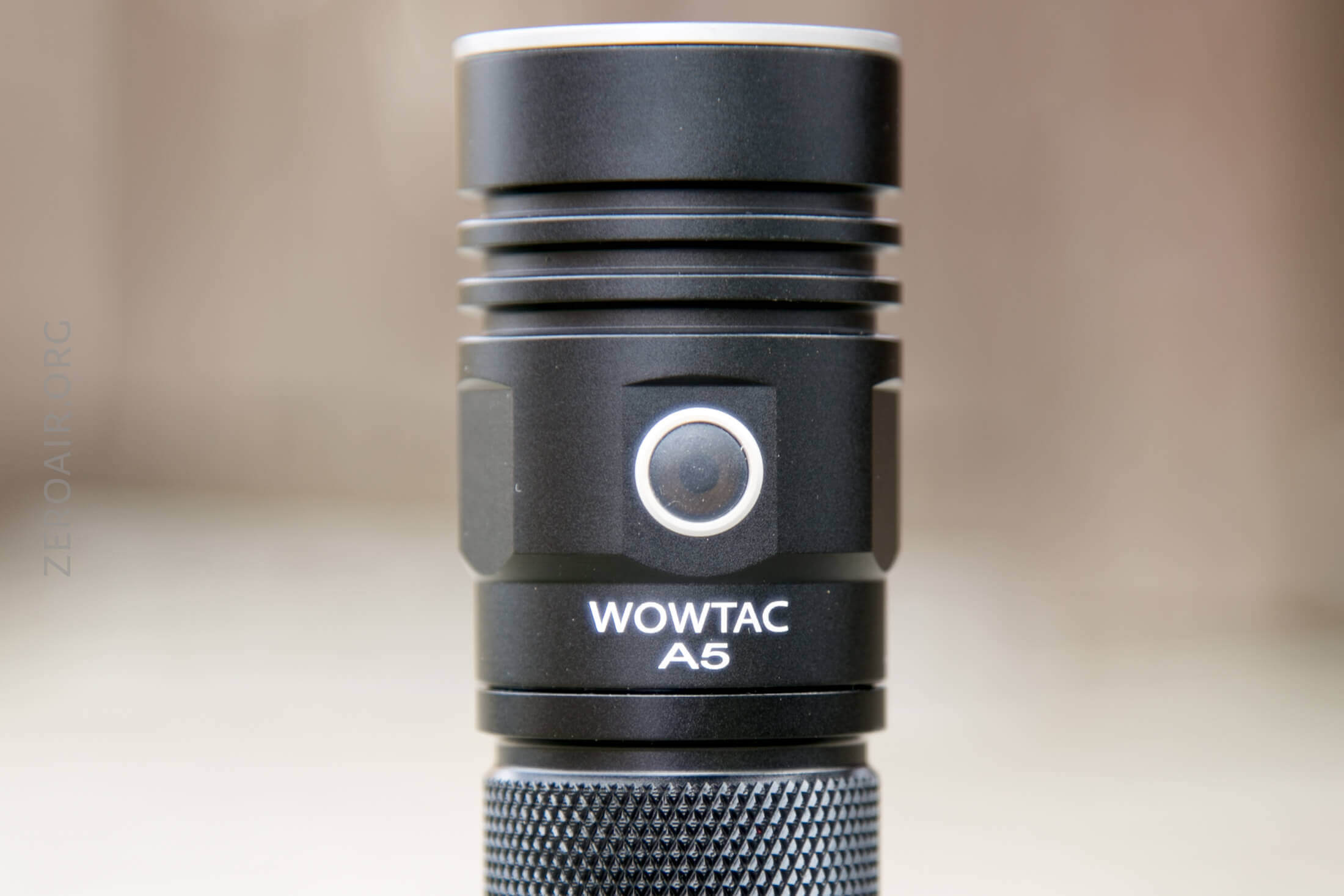

This Wowtac has a single side switch, which is an indicating e-switch.  There are two emitters, displaying red and blue.  The cover is clear silicone, and a little low and hard to find for my tastes – I prefer these side switches to be a bit proud like on the A4.

Here’s a UI table!

State	Action	Result
Off	Click	On (memory, LMH only)
Off	Hold	Firefly
Any	Double Click	Turbo
Turbo	Double Click	Strobe
On	Click	Off
On	Hold	Mode cycle (LMH only)

That’s the same UI as other Wowtacs (A4 for example) and also many Thrunites (TC20 for example).

LED and Beam

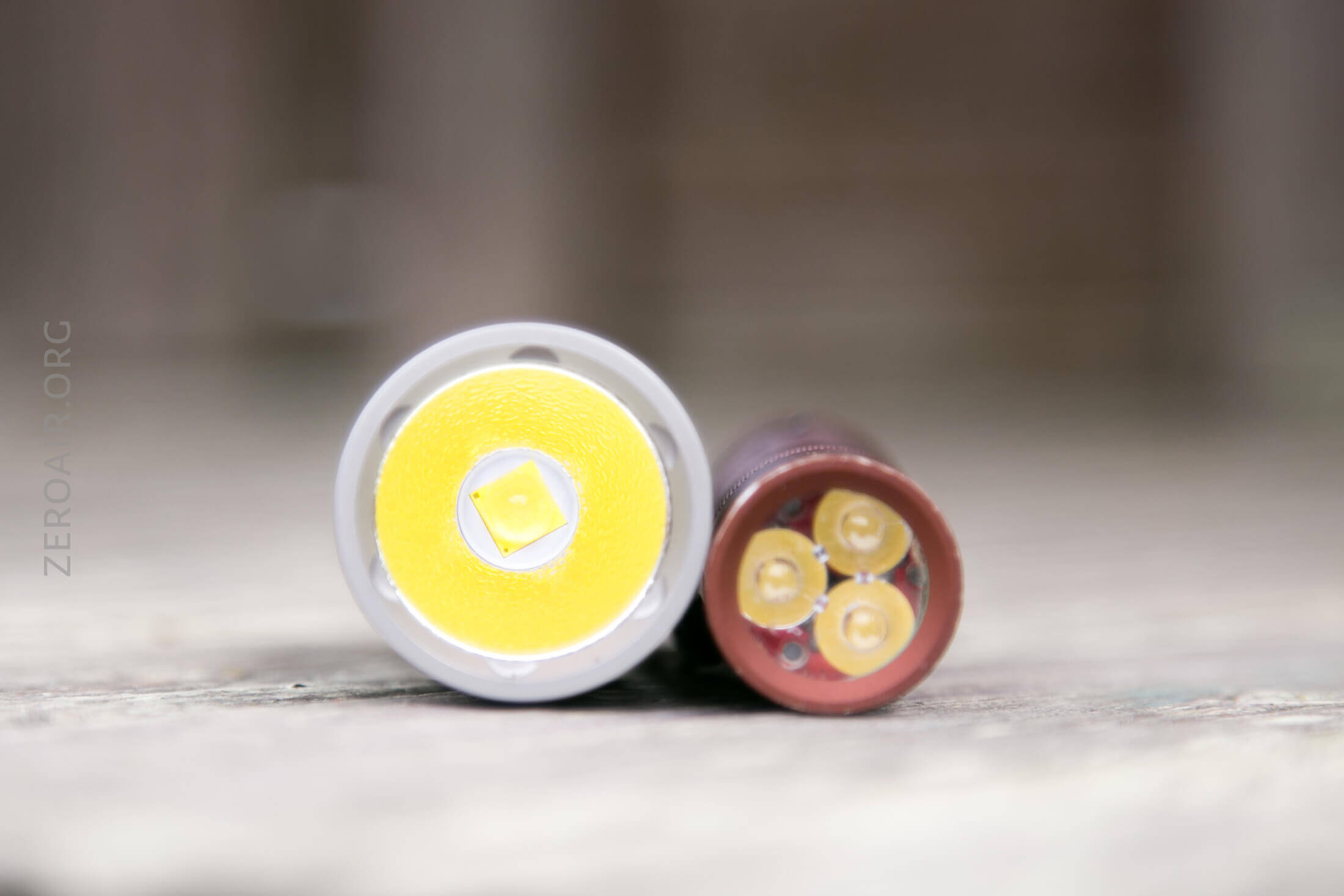

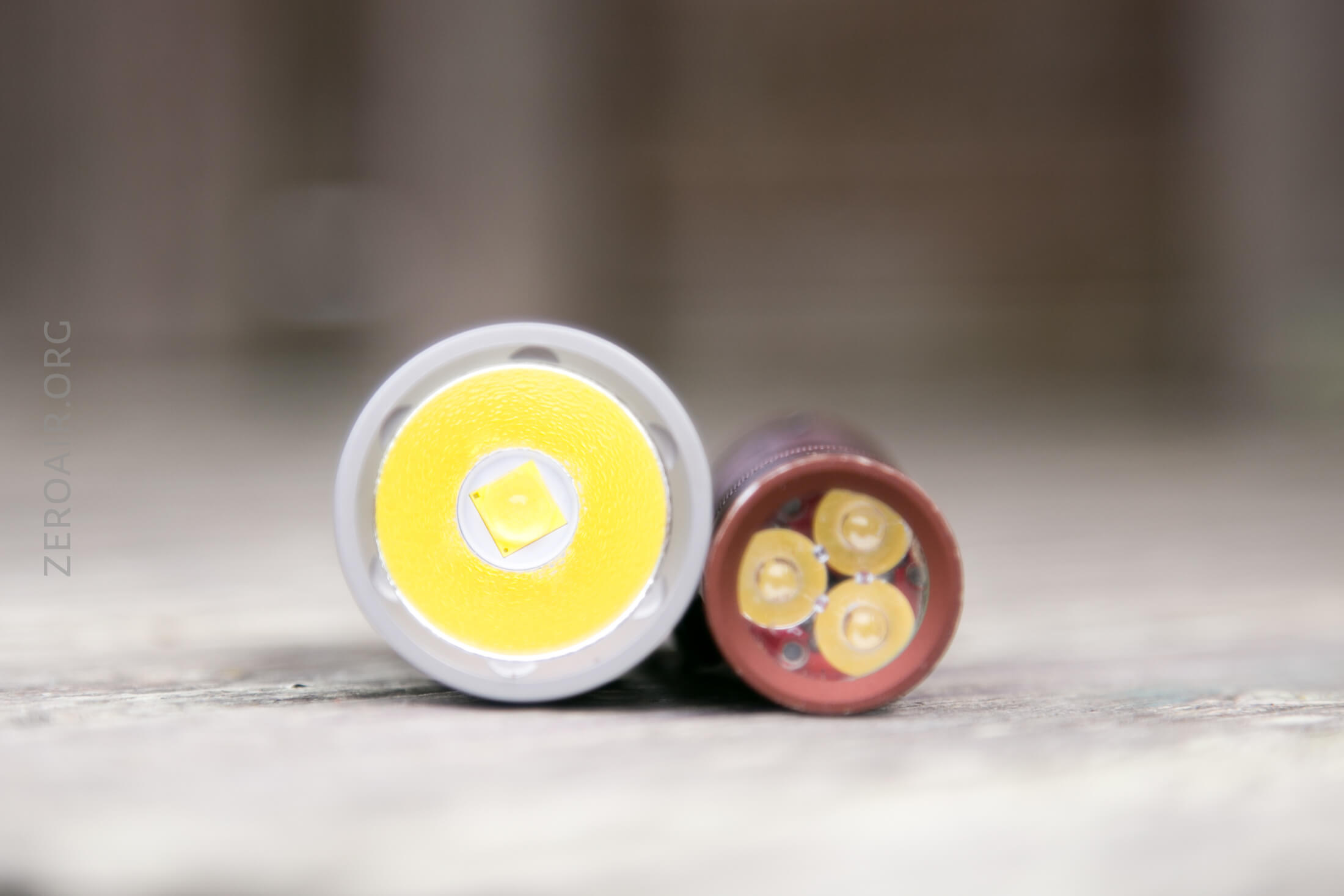

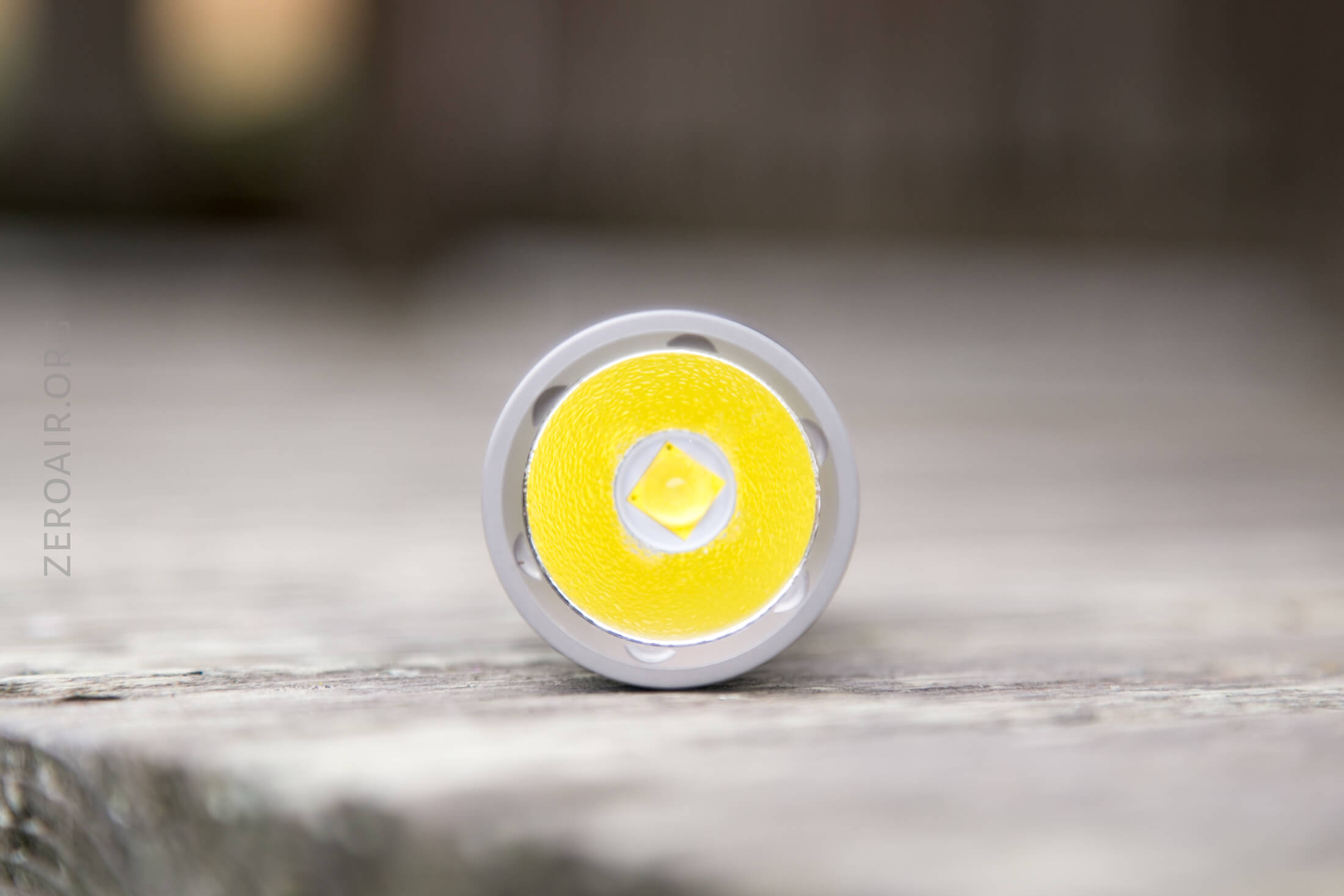

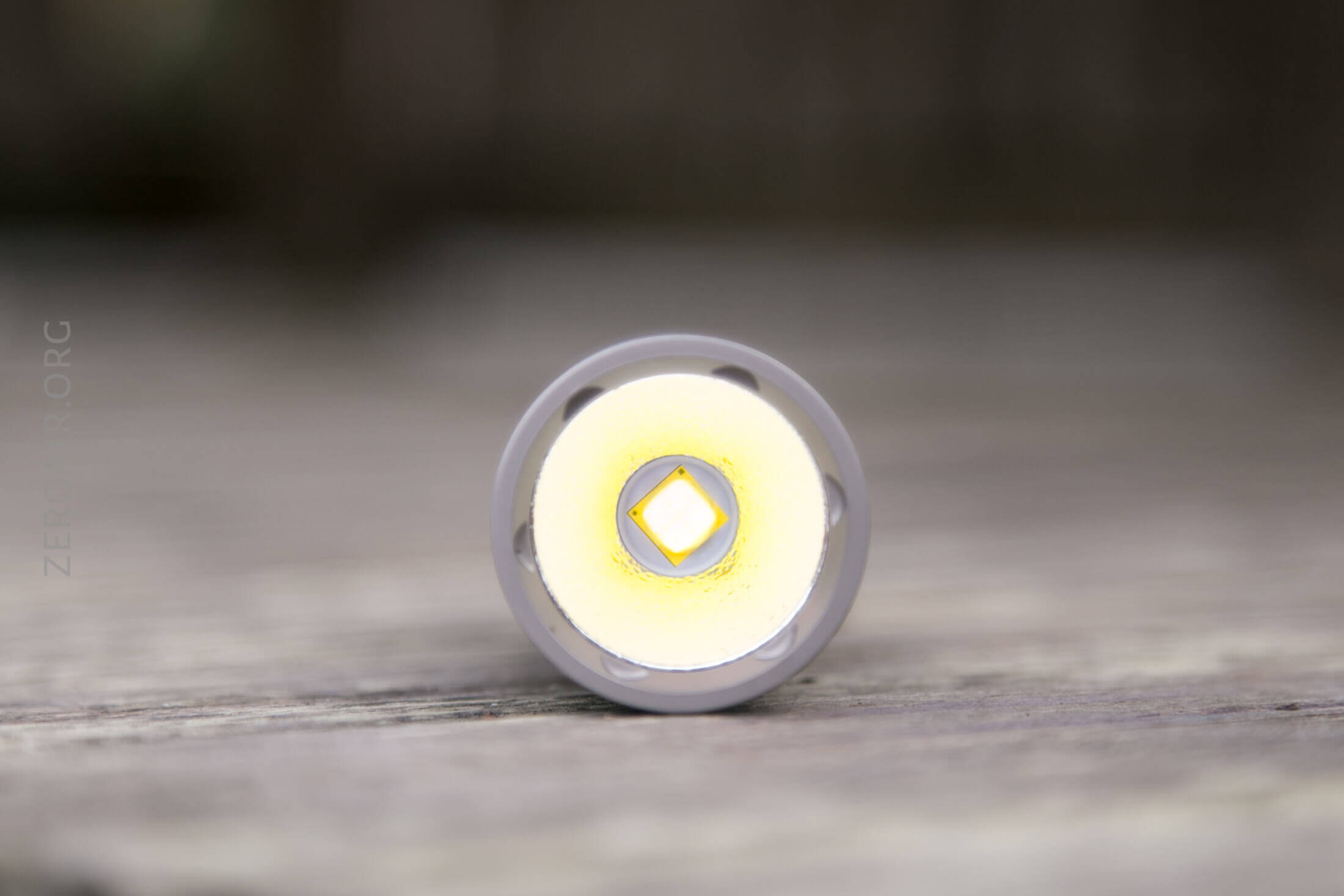

In the A5 is a Cree XHP70, and my sample is neutral white.  The reflector is shallow and orange peel.  There’s mostly hotspot, but with some spill still.

Firefly is quite low!

These beamshots are always with the following settings:  f8, ISO100, 0.3s shutter, and manual 5000K exposure.

Tint vs BLF-348 (KillzoneFlashlights.com 219b version) (affiliate link)

I compare everything to the Killzone 219b BLF-348 because it’s inexpensive and has the best tint!

Conclusion

What I like

• Complete package
• Hits claimed numbers
• Absolute wall of light at >3700 lumens for 3 minutes
• High being 1800 and holding for 90+ minutes is pretty incredible
• Available in NW and CW both
• [Debatable] Looks to use 70 and not 70.2, which I think has worse Cree rainbow

What I don’t like

• The switch is a bit hard to find, particularly without looking

---
