Thrunite TN42 V2 Flashlight Review

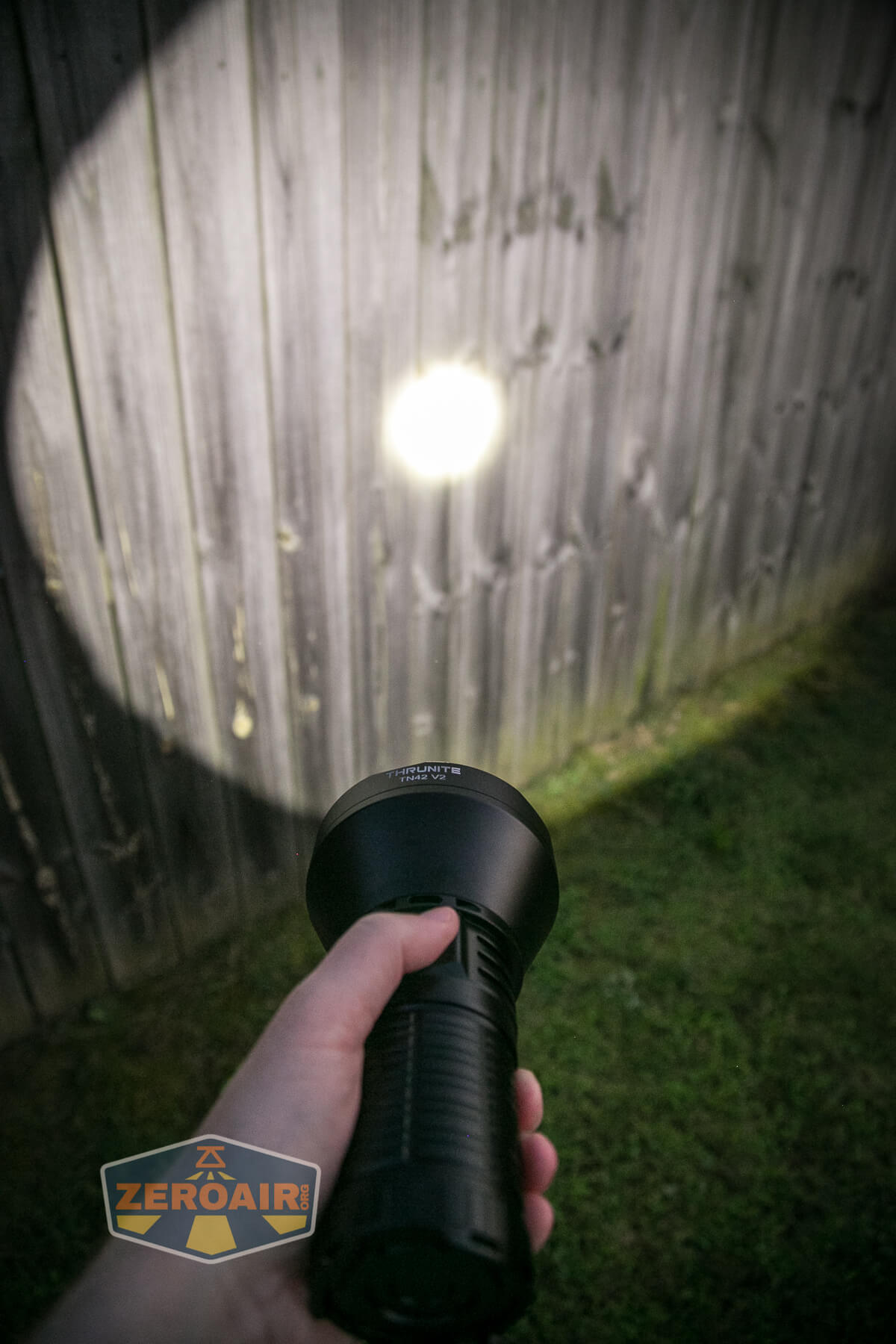

Thrunite has released the TN42 V2, an updated thrower, which now outputs a massive amount of light! Read on for testing!
Official Specs and Features
Here’s a link to the Thrunite TN42 V2 flashlight product page.
Versions
Despite that there are cool white and neutral white listed on the website, I believe only cool white (as seen here) will be available.
There are at least two previous generations of this TN42 flashlight. I’ve reviewed two of them. The Thrunite TN42, and the Thrunite TN42C V2. The naming went a bit squirrely and while the “C” may be labeled “V2” I’m not sure there was a “TN42C V1.” Anyway, you can forget that version. The new one is the best.
Price
Including the four 21700 cells seen in this review, the Thrunite TN42 V2 weighs in at $299.95. Thrunite has an automatic 5% off coupon though, so you can have this for around $275. Don’t sleep on the fact that four 21700 cells would be costly if separate!
Short Review
Alright, I have always loved the TN42 line. It’s fantastic. The build is great, the user interface is great, the output and throw have been great. Those are all outdated now. This Luminus SBT90.2 version is an absolute unit. Throw is over 2km. Over two kilometers! (well over the rating). The output hits specifications, and overall this is just a great light.
Long Review
The Big Table
Thrunite TN42 V2 | |
---|---|
Emitter: | Luminus SBT90.2 |
Price in USD at publication time: | $299.95 |
Cell: | 4×21700 |
Turbo Runtime Graph | High Runtime Graph |
LVP? | Yes with warning |
Switch Type: | E-Switch |
Quiescent Current (mA): | 0.07 |
On-Board Charging? | Yes |
Charge Port Type: | USB-C |
Charge Graph | |
Power off Charge Port | with cells: lowest 2 modes without cels: lowest only |
Claimed Lumens (lm) | 4848 |
Measured Lumens (at 30s) | 4490 (92.6% of claim)^ |
Candela per Lumen | 222.7 |
Claimed Throw (m) | 1860 |
Candela (Calculated) in cd (at 30s) | 18770lux @ 7.344m = 1012347cd |
Throw (Calculated) (m) | 2012.3 (108.2% of claim)^ |
All my Thrunite reviews! |
^ Measurement disclaimer: Testing flashlights is my hobby. I use hobbyist-level equipment for testing, including some I made myself. Try not to get buried in the details of manufacturer specifications versus measurements recorded here; A certain amount of difference (say, 10 or 15%) is perfectly reasonable.

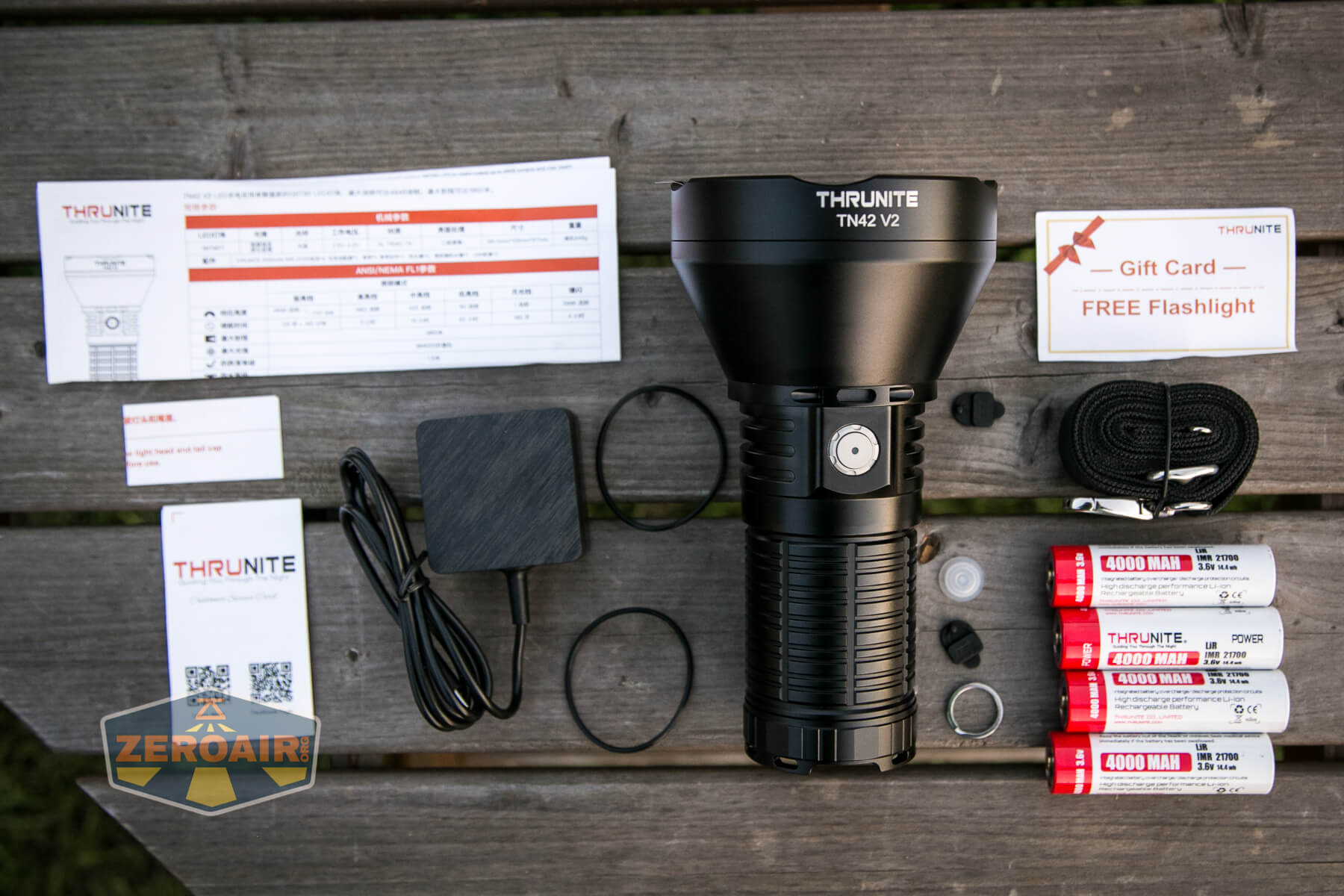

What’s Included
- Thrunite TN42 V2 Flashlight
- Four (4) 4000mAh 21700 cells
- Spare o-rings (2)
- Wall wart (5V USB-C output)
- Shoulder strap
- Spare charge port cover (2)
- Split ring
- E-Switch cover replacement
- Manual and papers etc

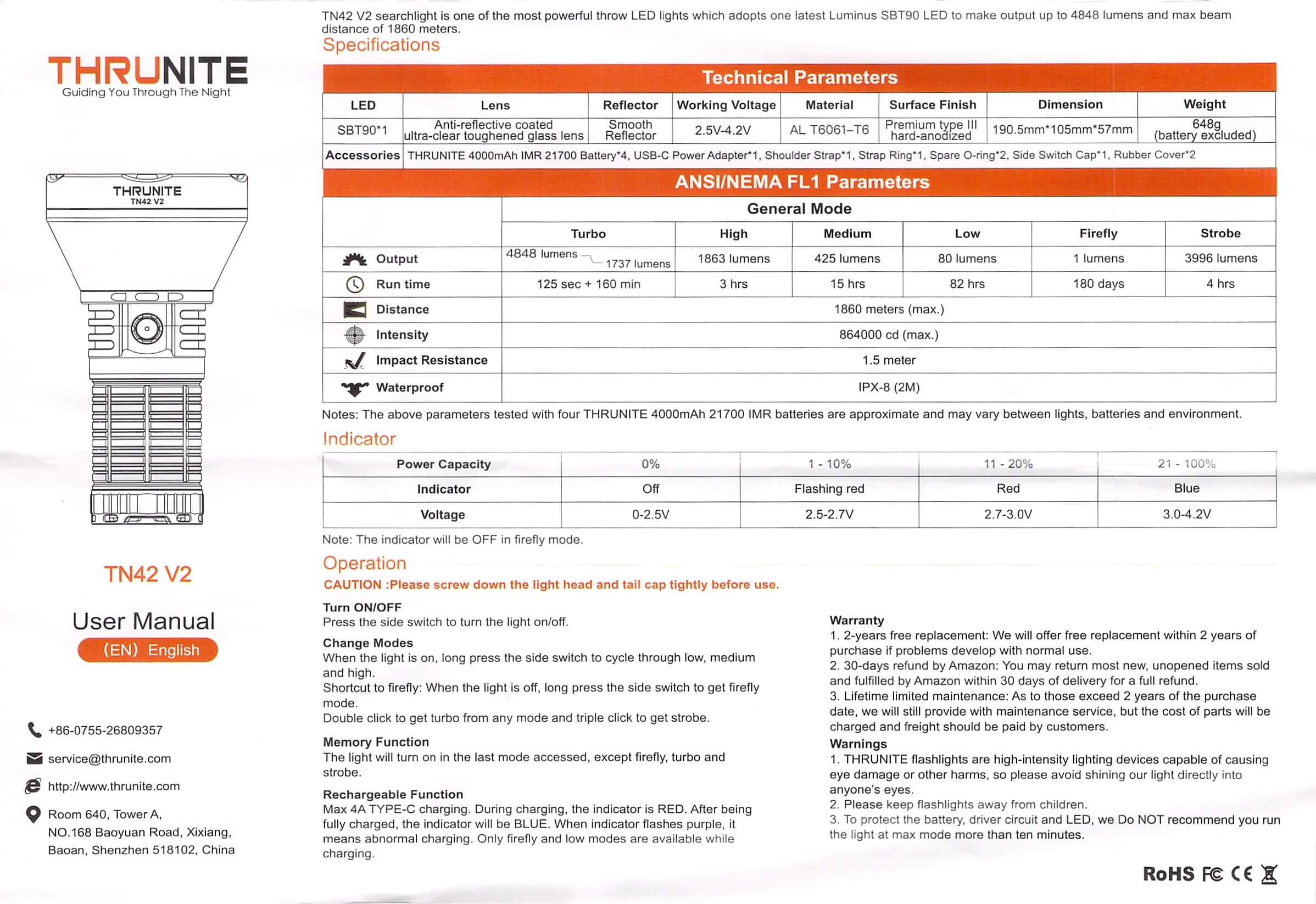

Package and Manual

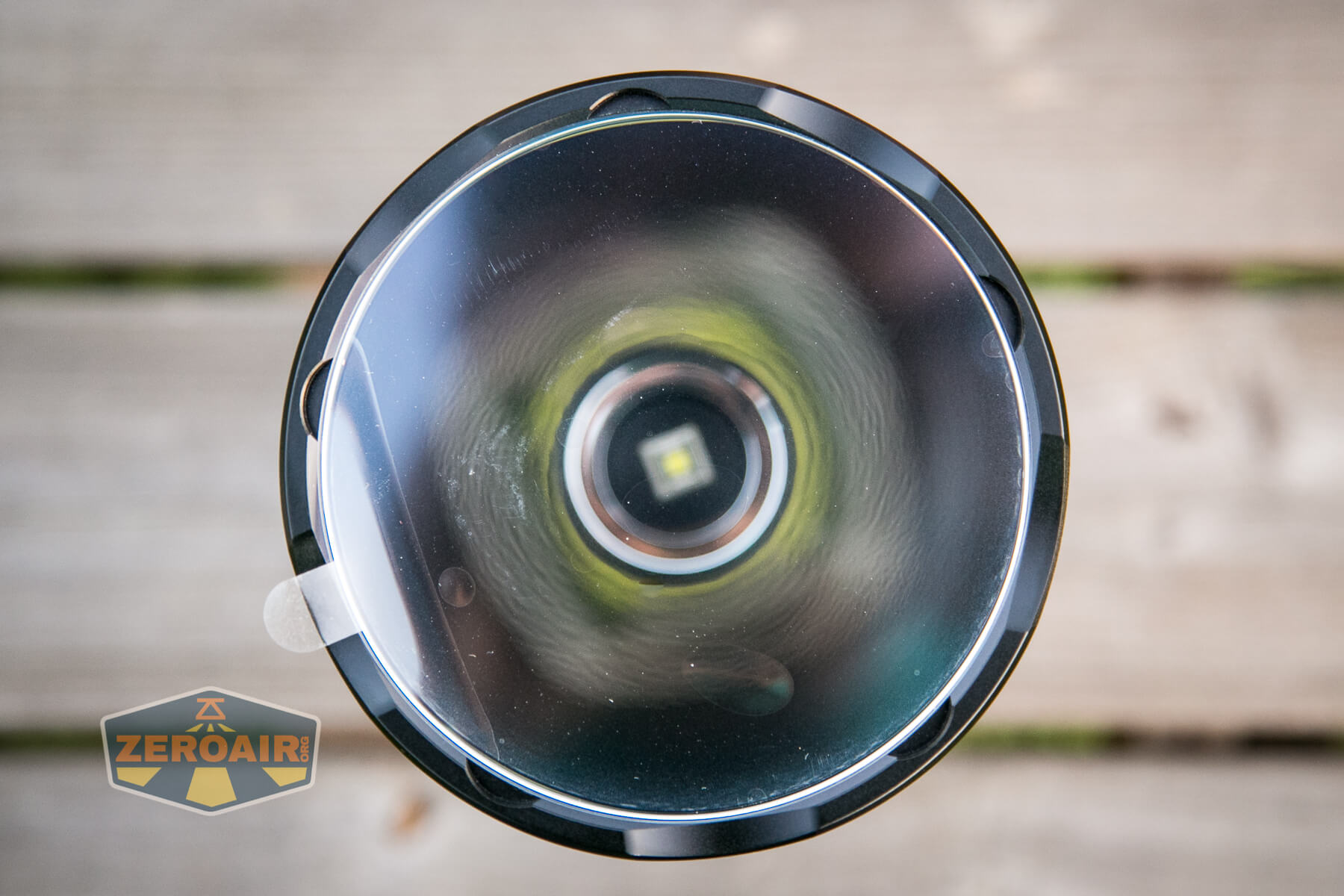

The light ships with a lens protector.
Build Quality and Disassembly
Let’s talk about the previous generation Thrunite TN42 lights, for just a second. The original TN42 lights were all masterful throwers. They’re big lights, they have a big deep reflector, they should throw. And they did! For the longest time (well, till even now, really) I considered the whole TN42 line to be the “go-to” for a common thrower recommendation (sure we have LEPs now but come on.)
The previous TN42’s were dedicated throwers. They (at least my two) have Cree XHP35 HI emitters, and that’s fantastic for a thrower! But with this new emitter, the Luminus SBT90.2, we can have the best of multiple options. Absolutely massive output, but still ridiculous throw. And that’s what we see here.
So regarding the build quality of this versus the old ones: this one is the same. It’s as good or better. Thrunite does not disappoint. Regarding updates: these are good updates. We’ll cover it all more later, but let’s suffice to say here that Thrunite isn’t really sacrificing anything from the TN42 lineage with this light that throws but also “wall of lights.”
There are a couple of notable updates to the Thrunite TN42 V2. This version is markedly shorter while using longer cells. This version also loses the knurling that was popular a few years ago. I like that knurling – in fact, it was quite useful then. The Thrunite TN42 V2 could use a ring of knurling on the head somewhere. You’ll feel this way IF you ever swap the cells. However, you may never even want to do that, since the included charging is good.

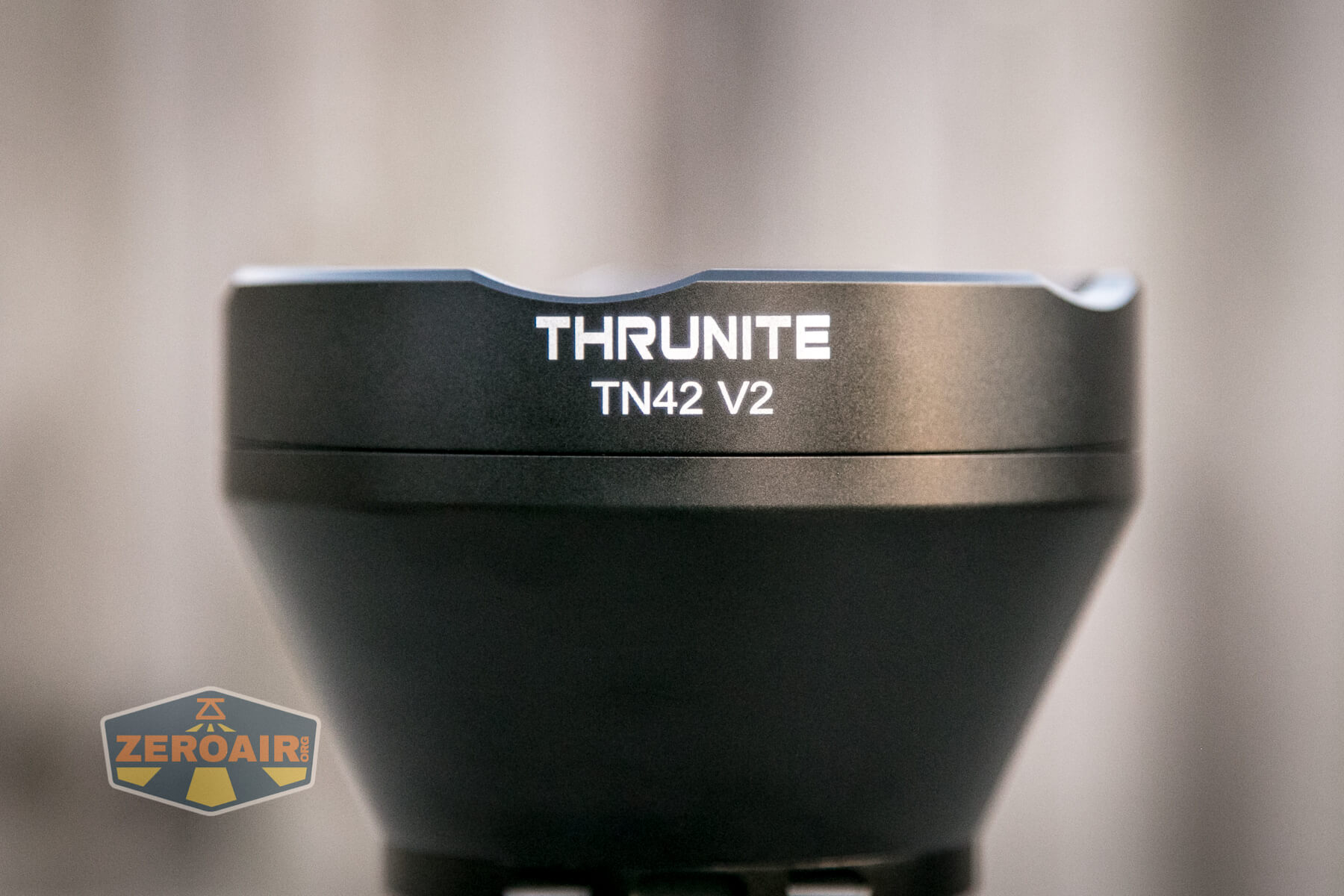

The bezel has screen-printed branding. This is no different from previous generations.

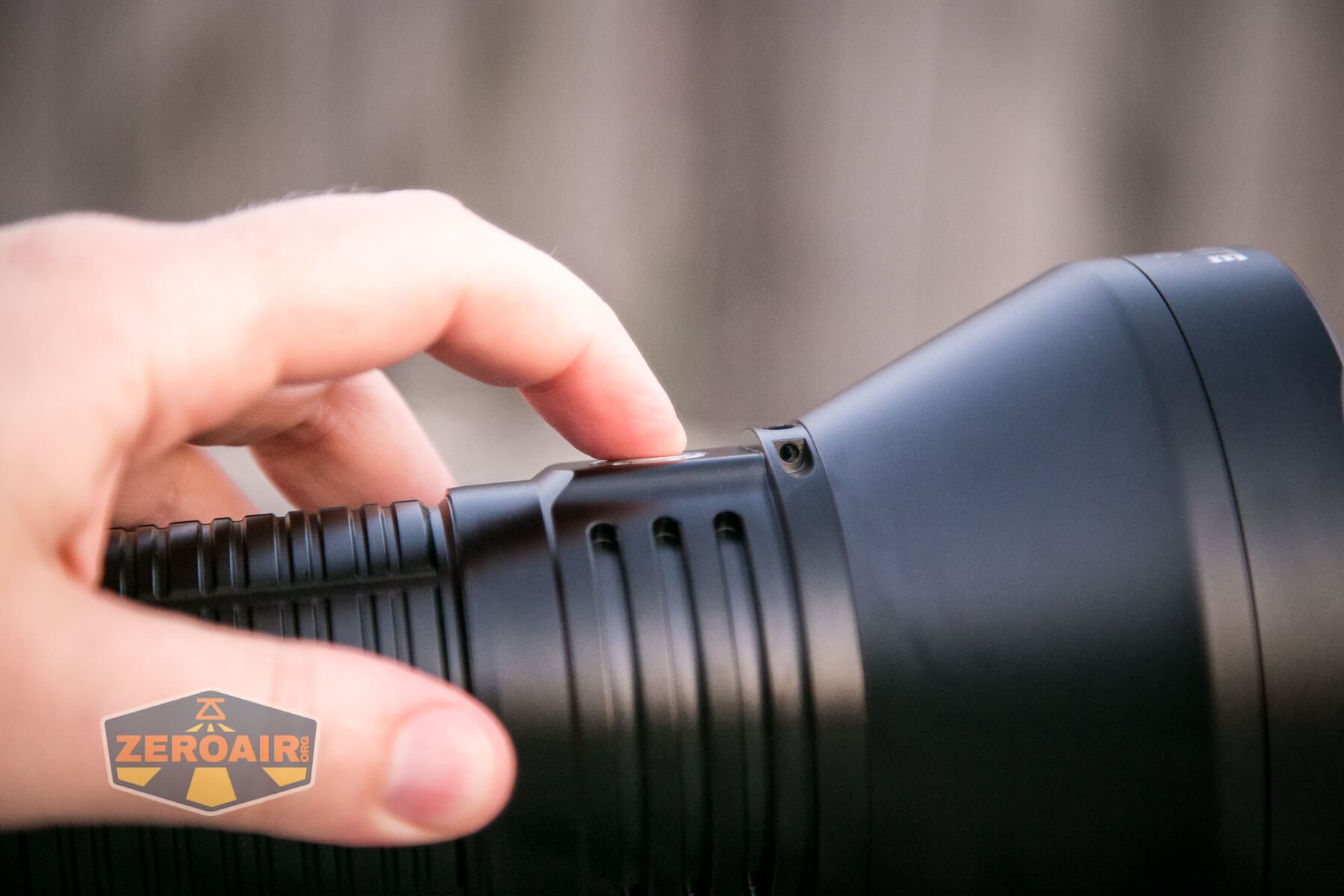

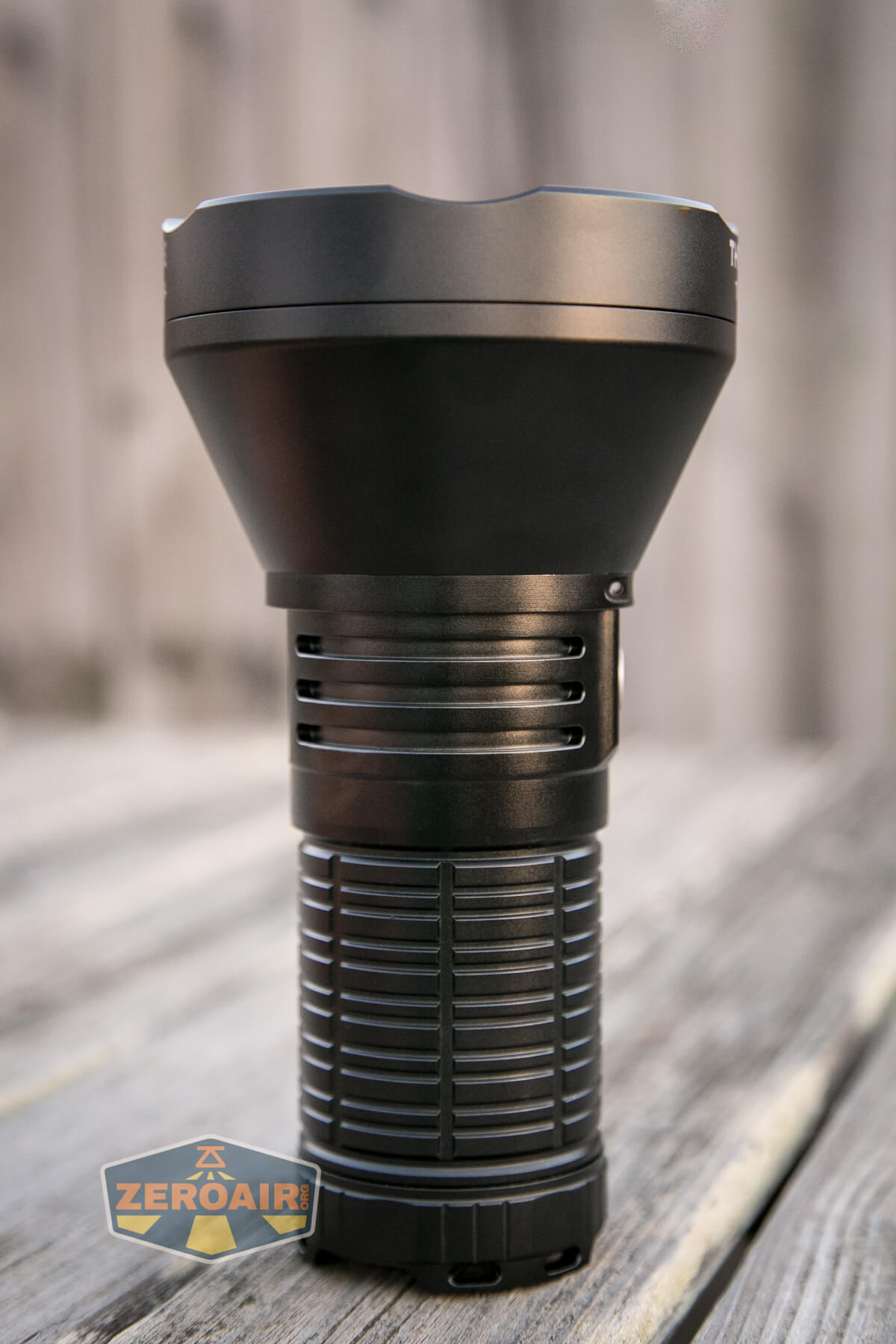

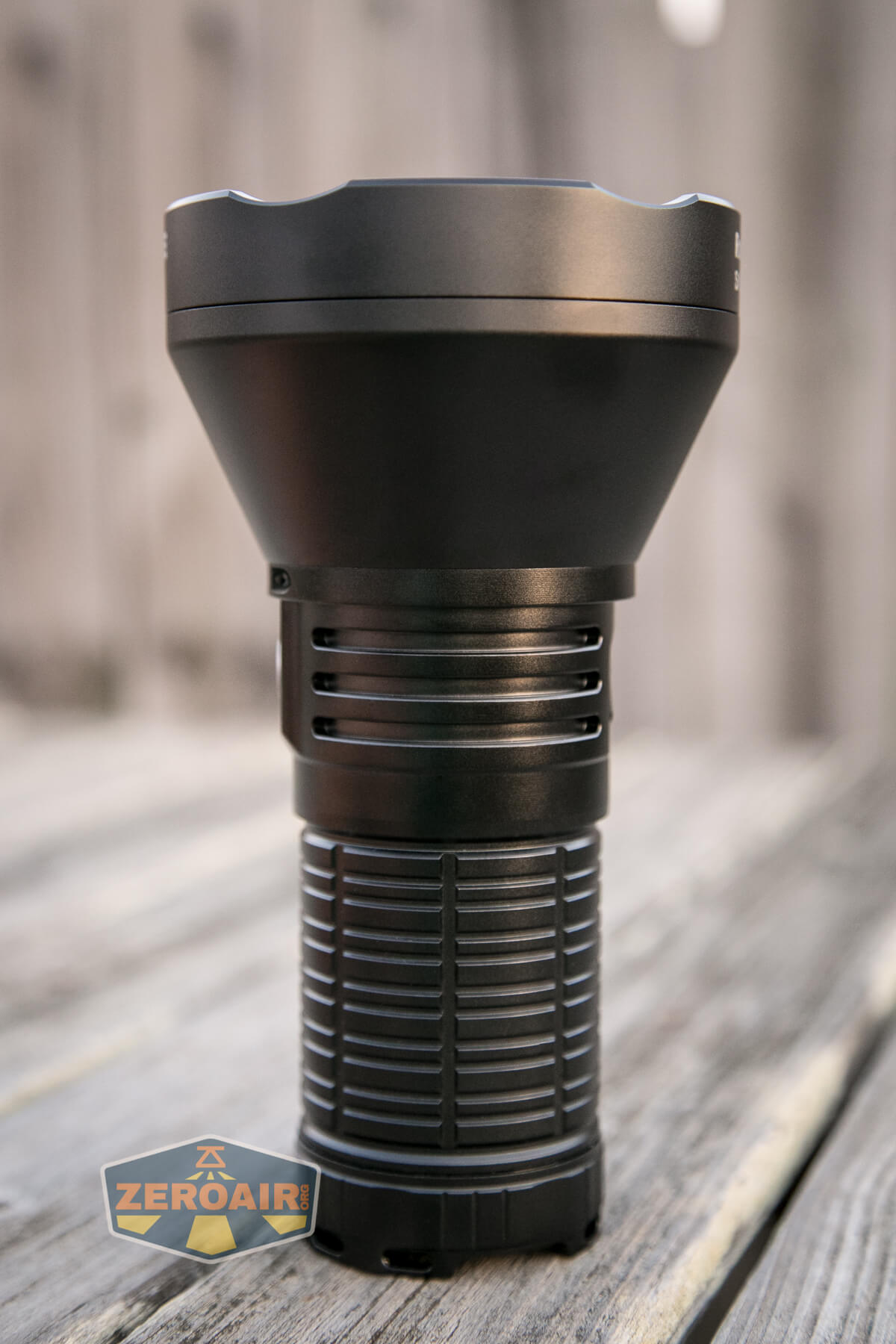

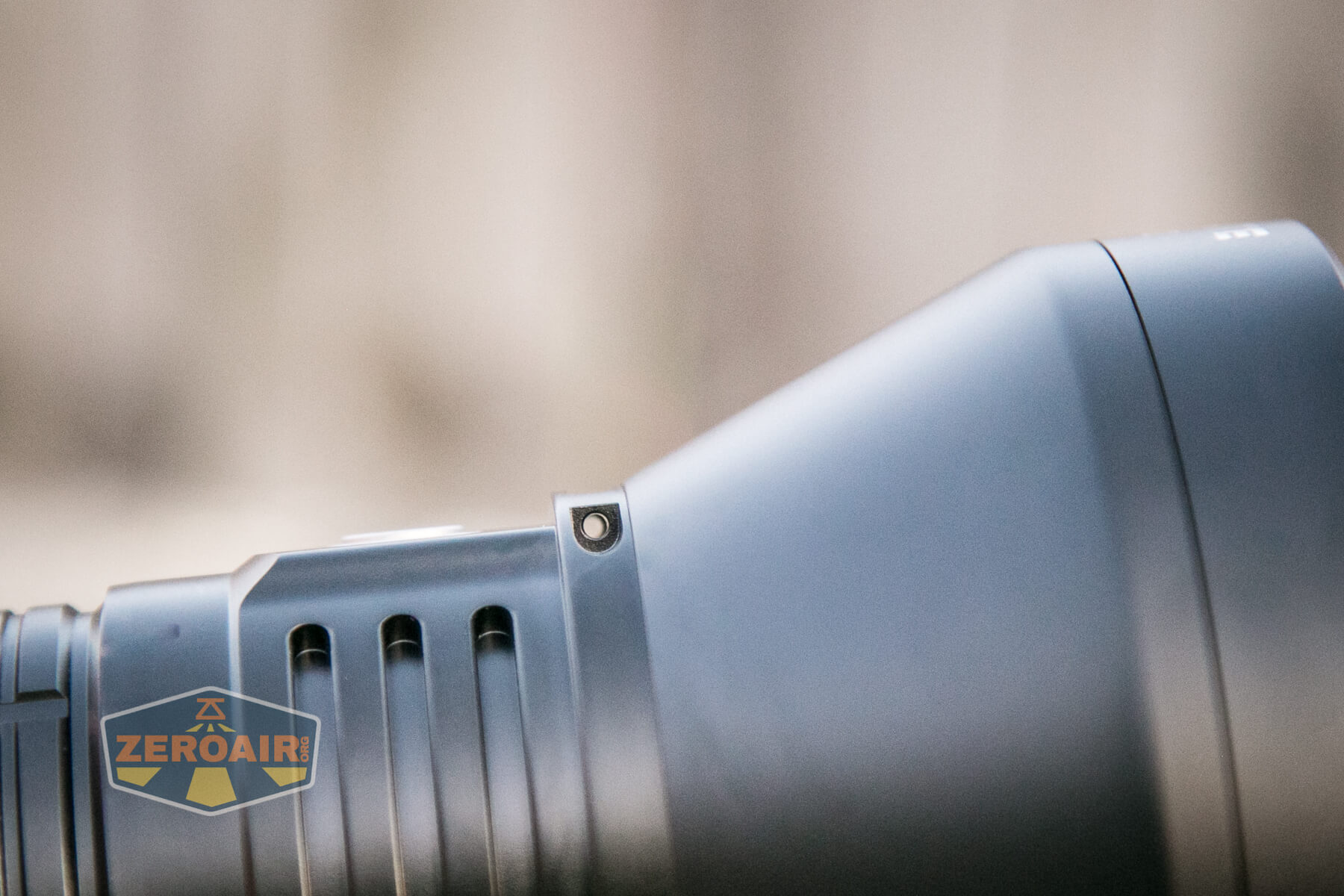

You can see on the body, head-side, there are minimal-depth cooling fins. This is good since the light draws around 20A on turbo (!!!).

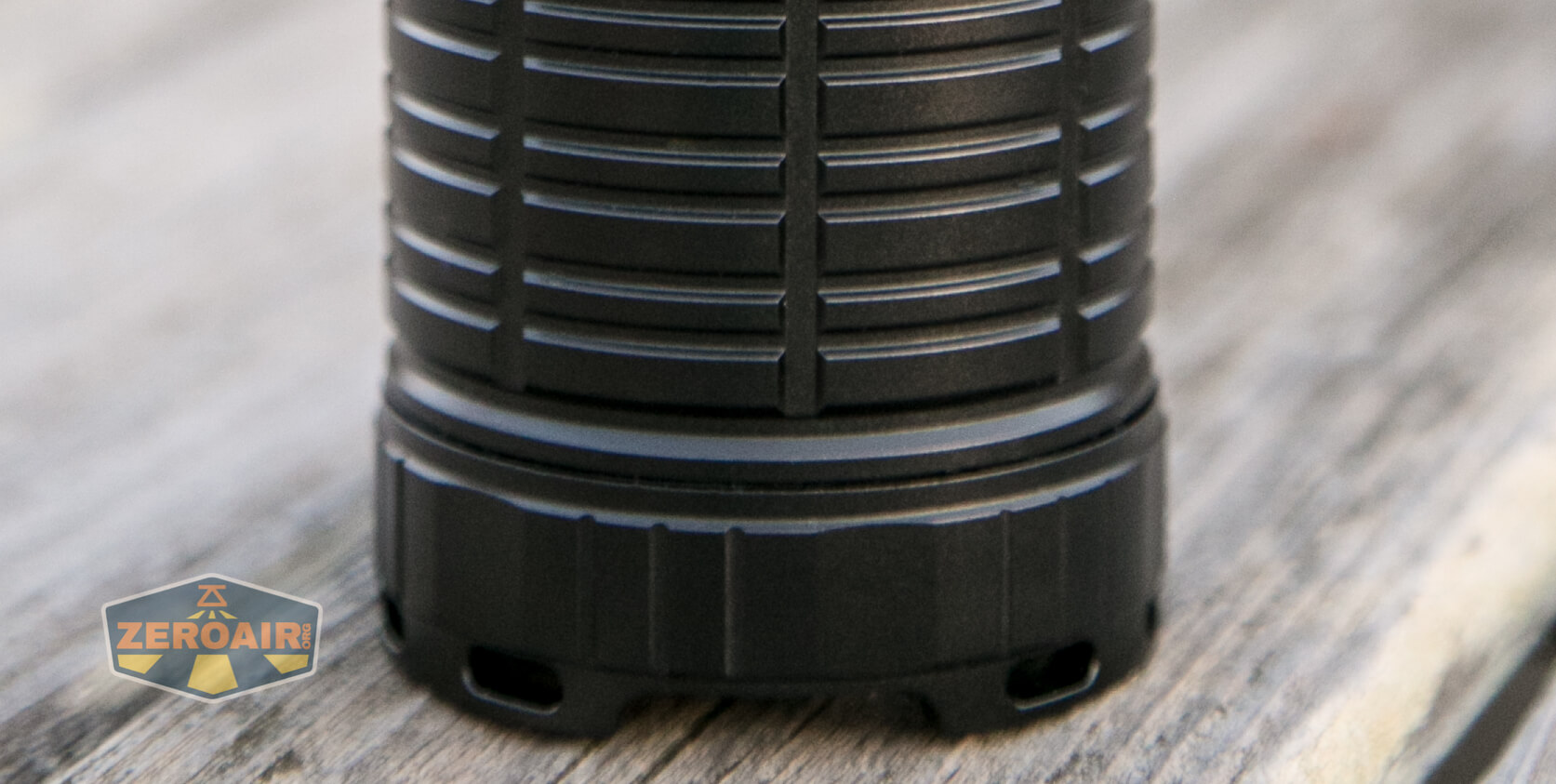

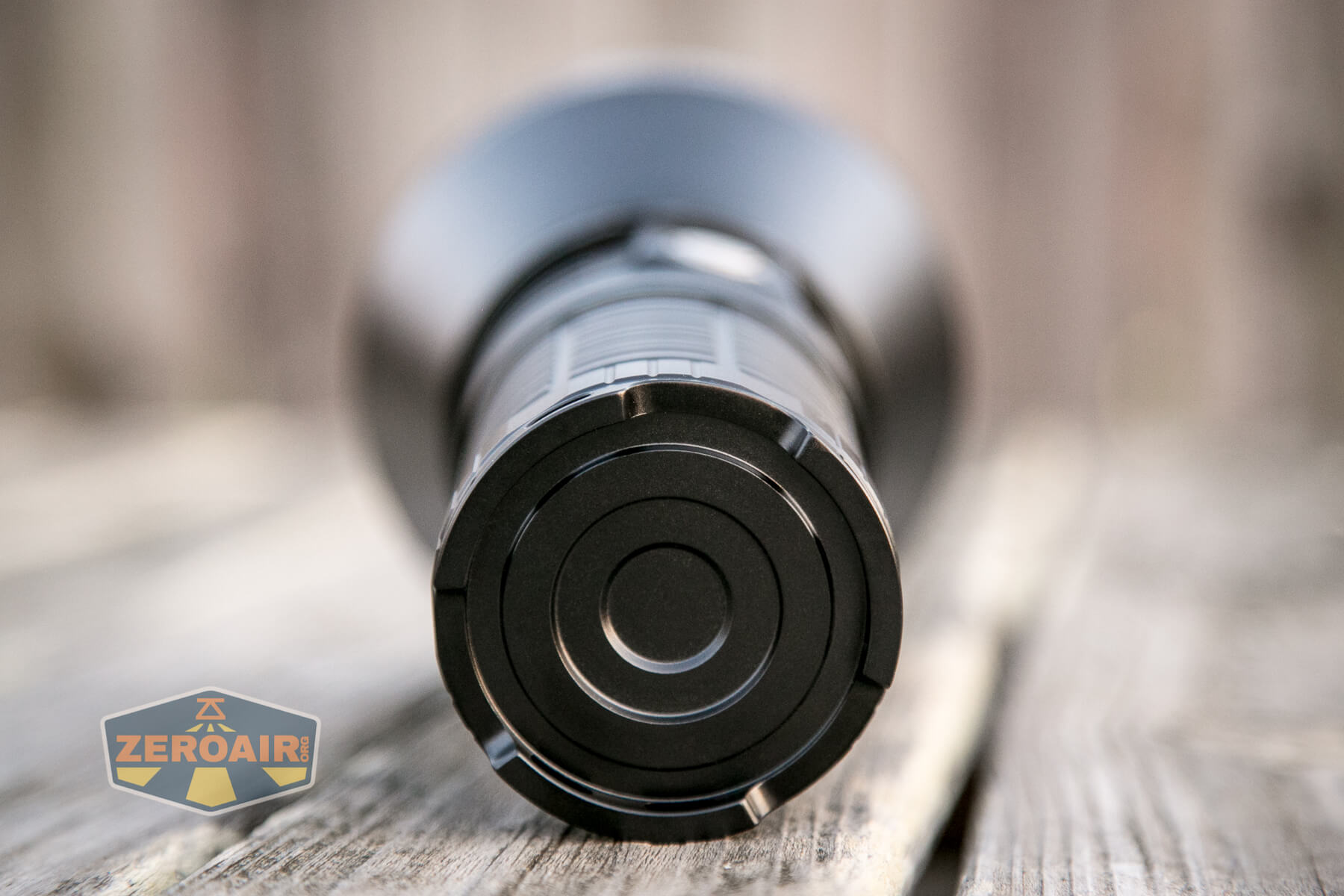

Nothing going on in the tailcap.

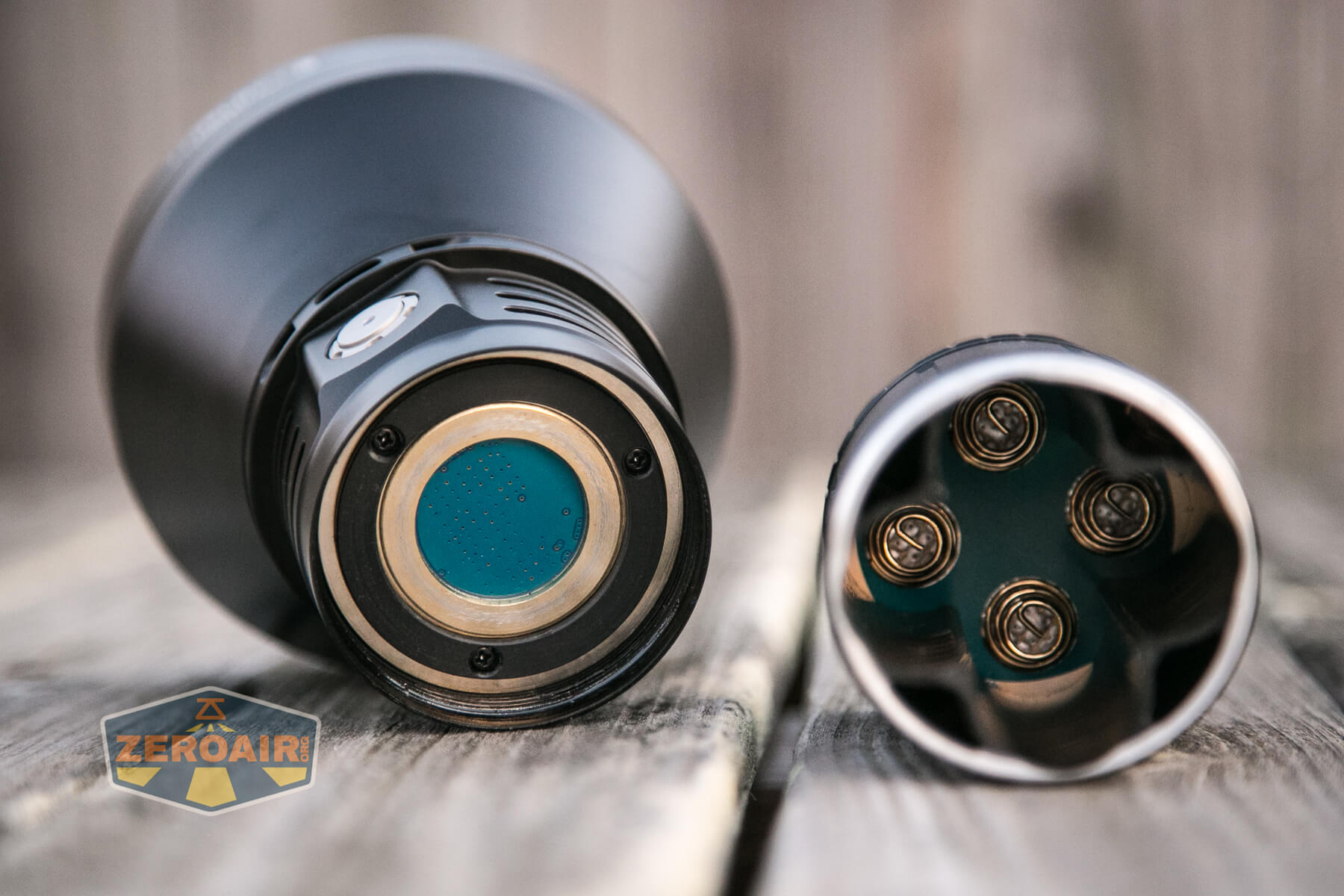

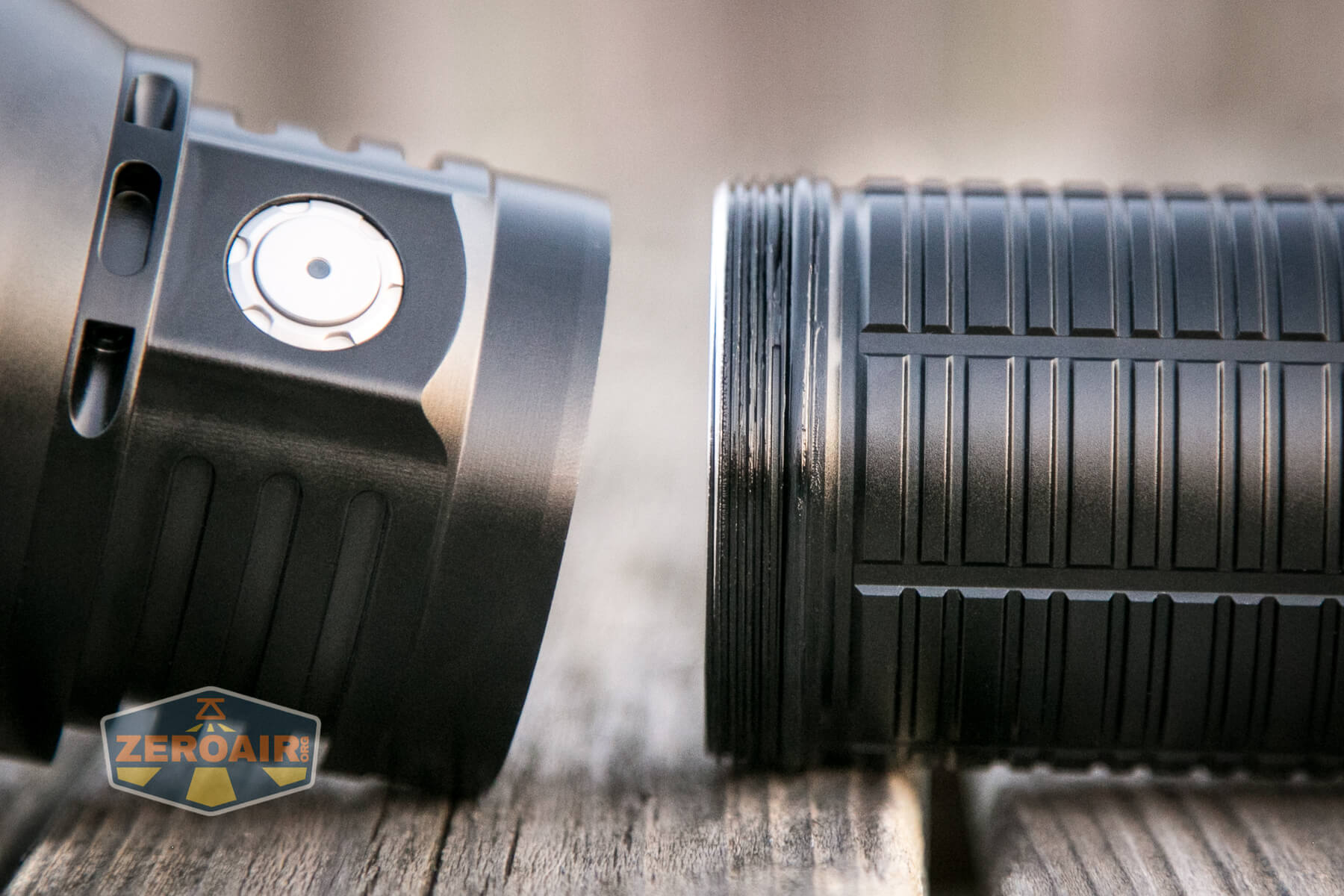

The only place to take the light apart is here – the cell holder comes off the head. These threads are anodized, square-cut, highly lubed, and very smooth. They’re short too, which is nice. I don’t usually love screwing down a cell tube while the cells gets twisted around the head contacts (which is why I often prefer cell holders, which then slip into the body). But there are a couple of things that make it “ok” here (and one that doesn’t).
First, the threads are short. Second, when the cells get to where they need to go, the body stops. You don’t have to crank down and tighten and fiddle and worry is it tight enough and all that. When you get to “tightened” there is no further. It’s a smooth stop. All in all this is very good.
What I don’t like is that there is extremely minimal grip to support tightening the body to the head. And that’s not just on the head side. The head is nearly completely devoid of grip and is also large. So gripping it for tightening can be difficult. (The previous generation had knurling on the head-side that helped with this very thing!). Next is the body, which has grip but it’s not really “help with tightening” grip. I am not saying I’d rather have knurling. The look here is better. But it’s a tough call on having something that looks good (this one) vs something that works well (the knurling one). All this is moot though since you’ll literally never have to take the cells out anyway! Just charge via the USB-C that’s included, and you’re good to go.
Inside the body, you can see each cell has a spring. On the head end, which we’ve already talked about, is a brass ring which the cell positive contacts screw against. There’s a plastic ring there too, which will prevent the use of flat tops.

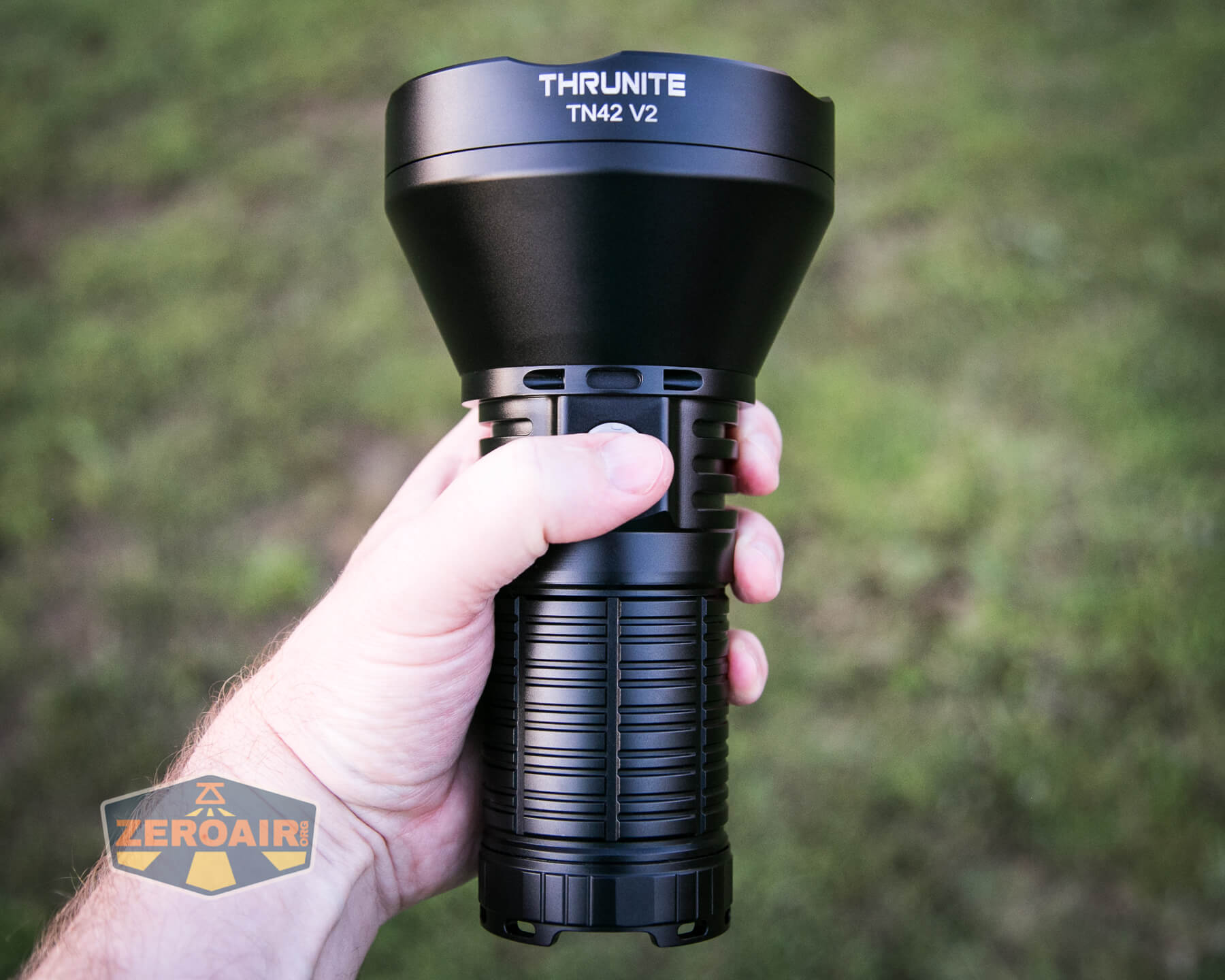

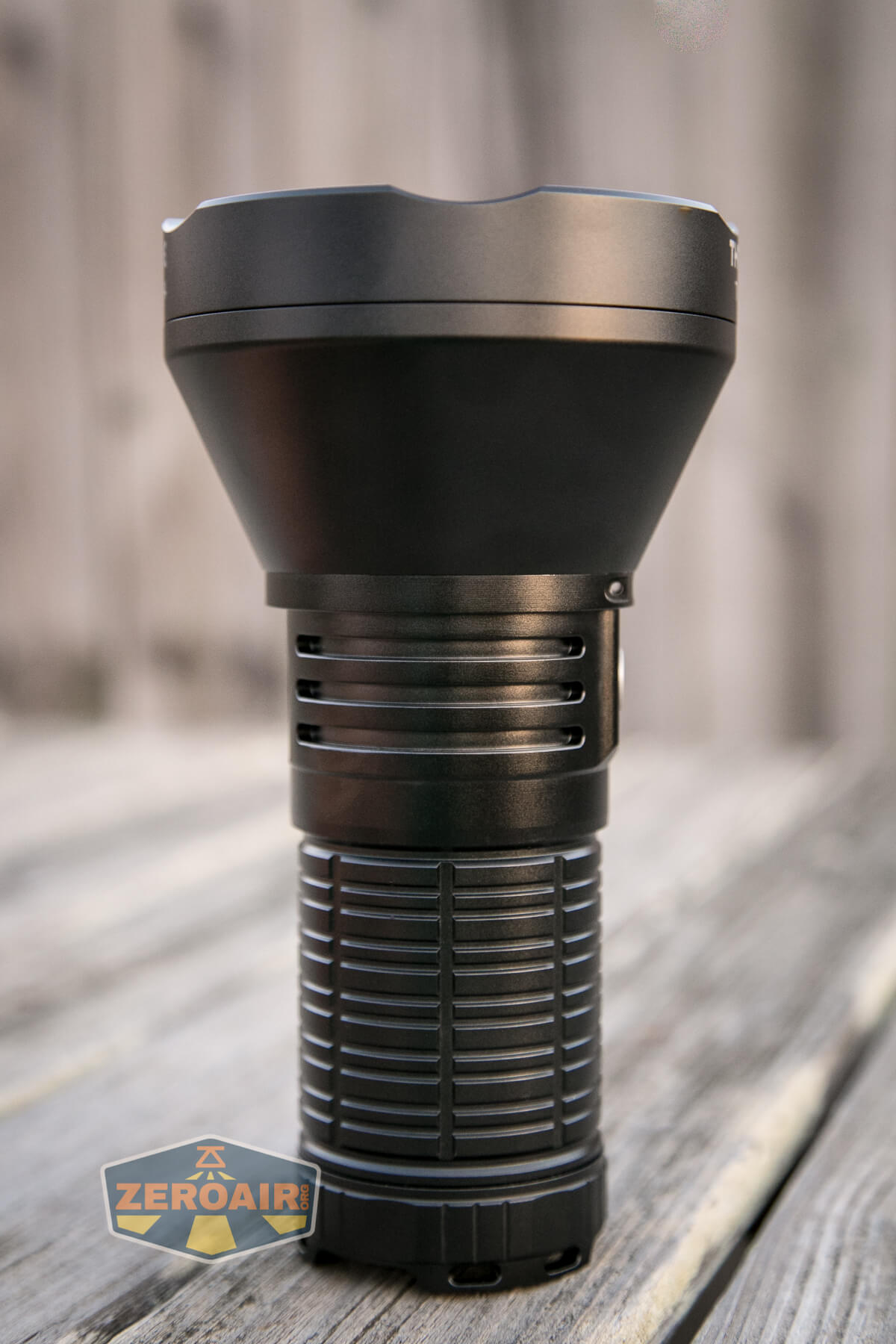

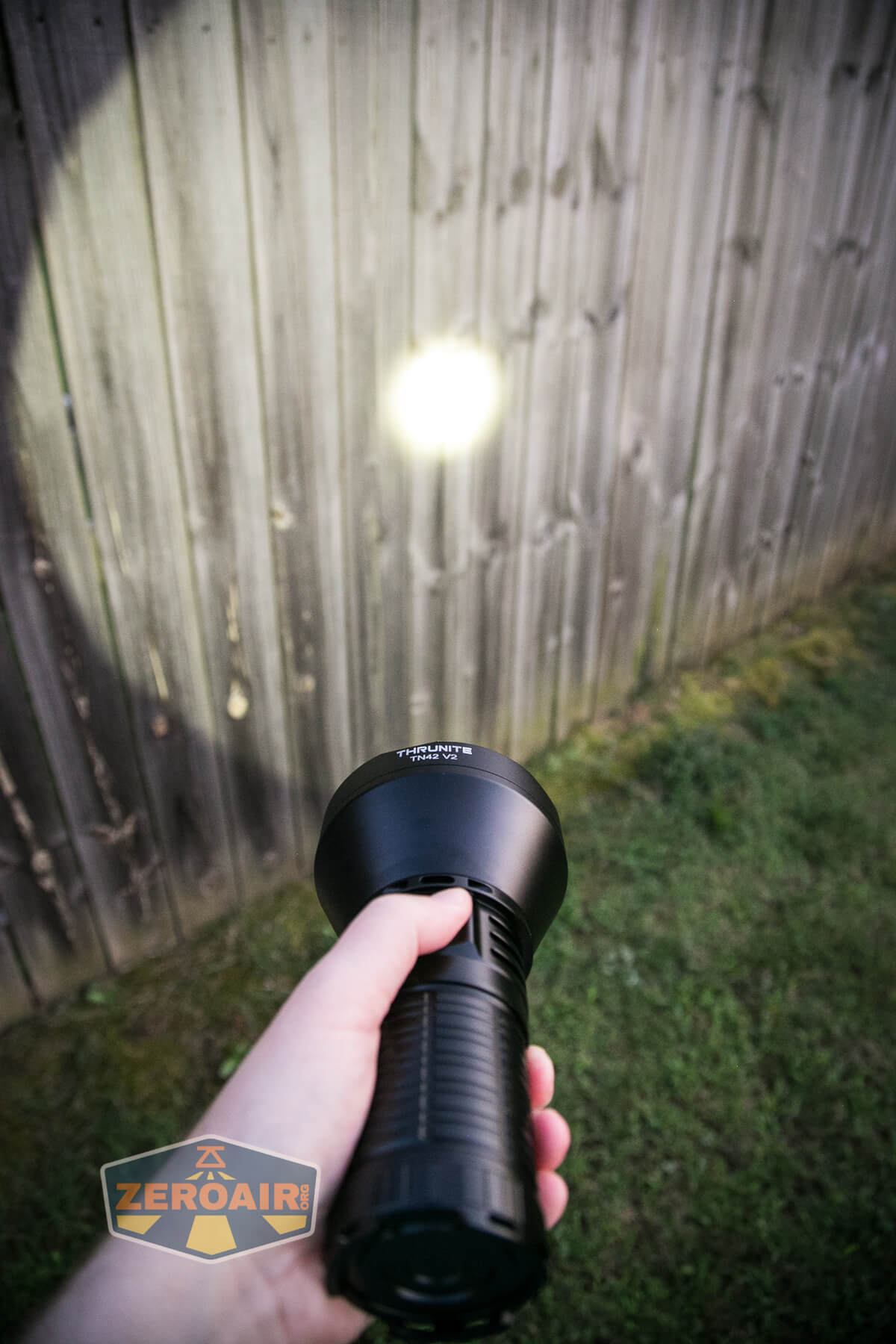

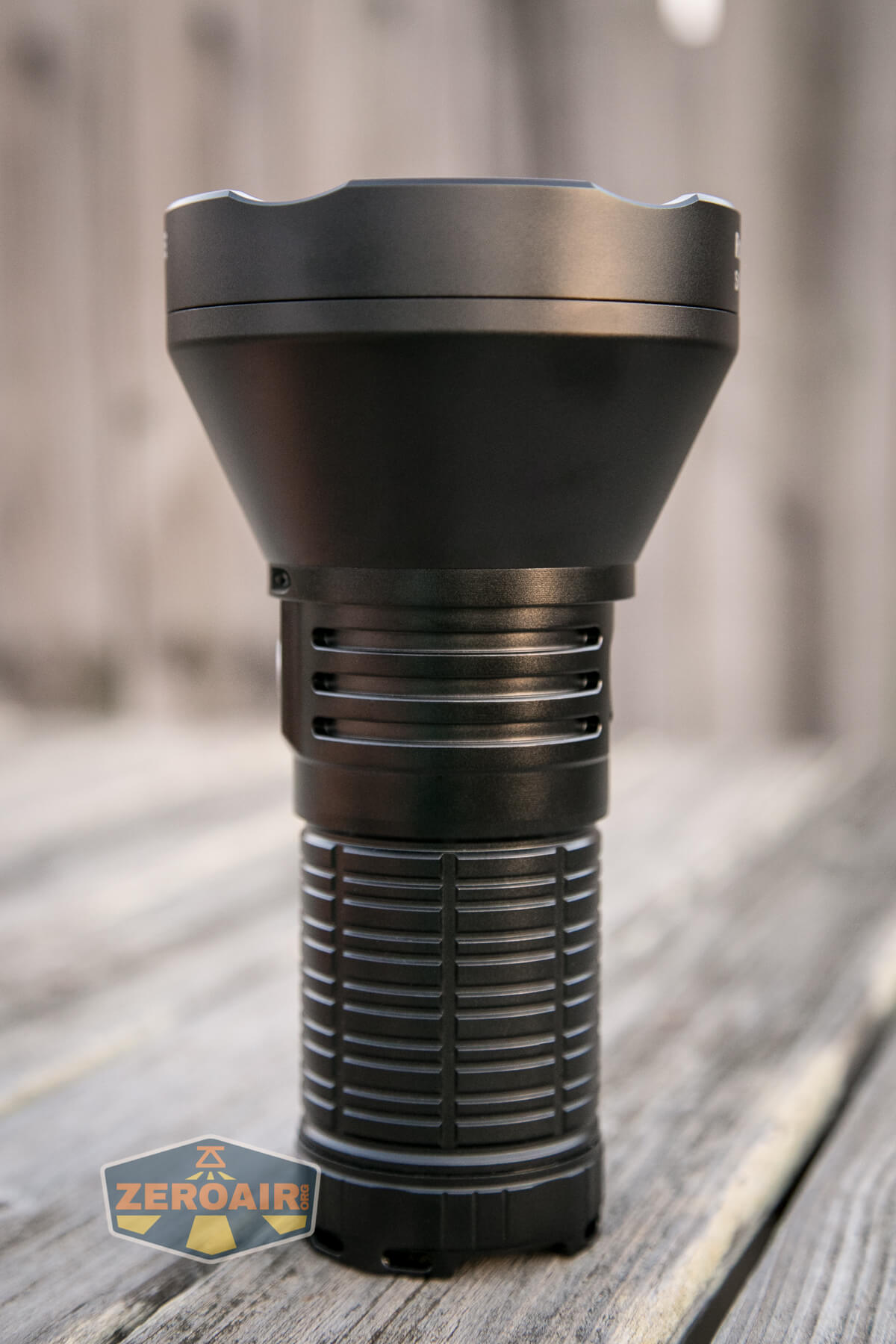

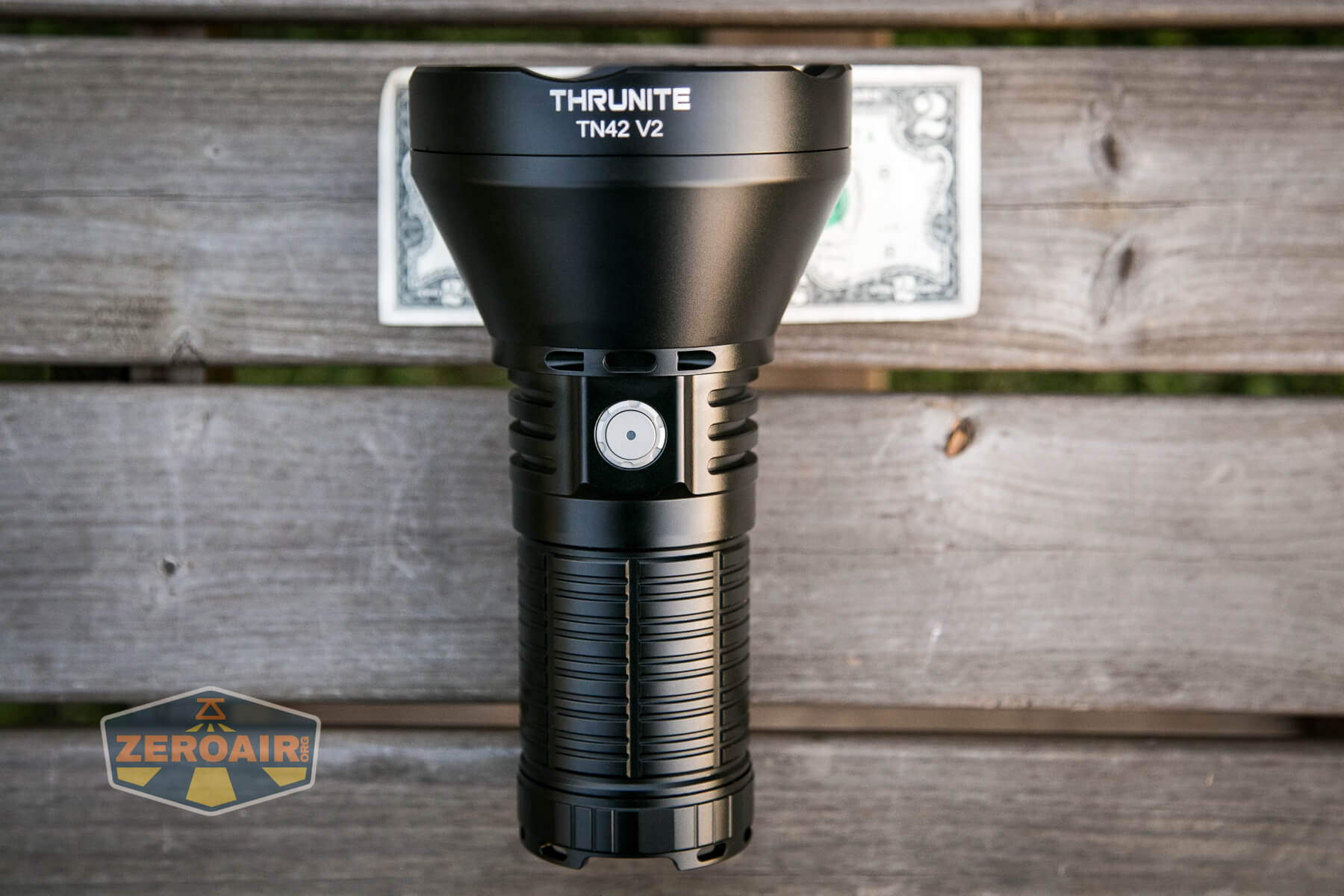

Size and Comps
Officially:
- 190.5mm (length) x 105mm x 57mm
- Weight: 648g (excluding cells)

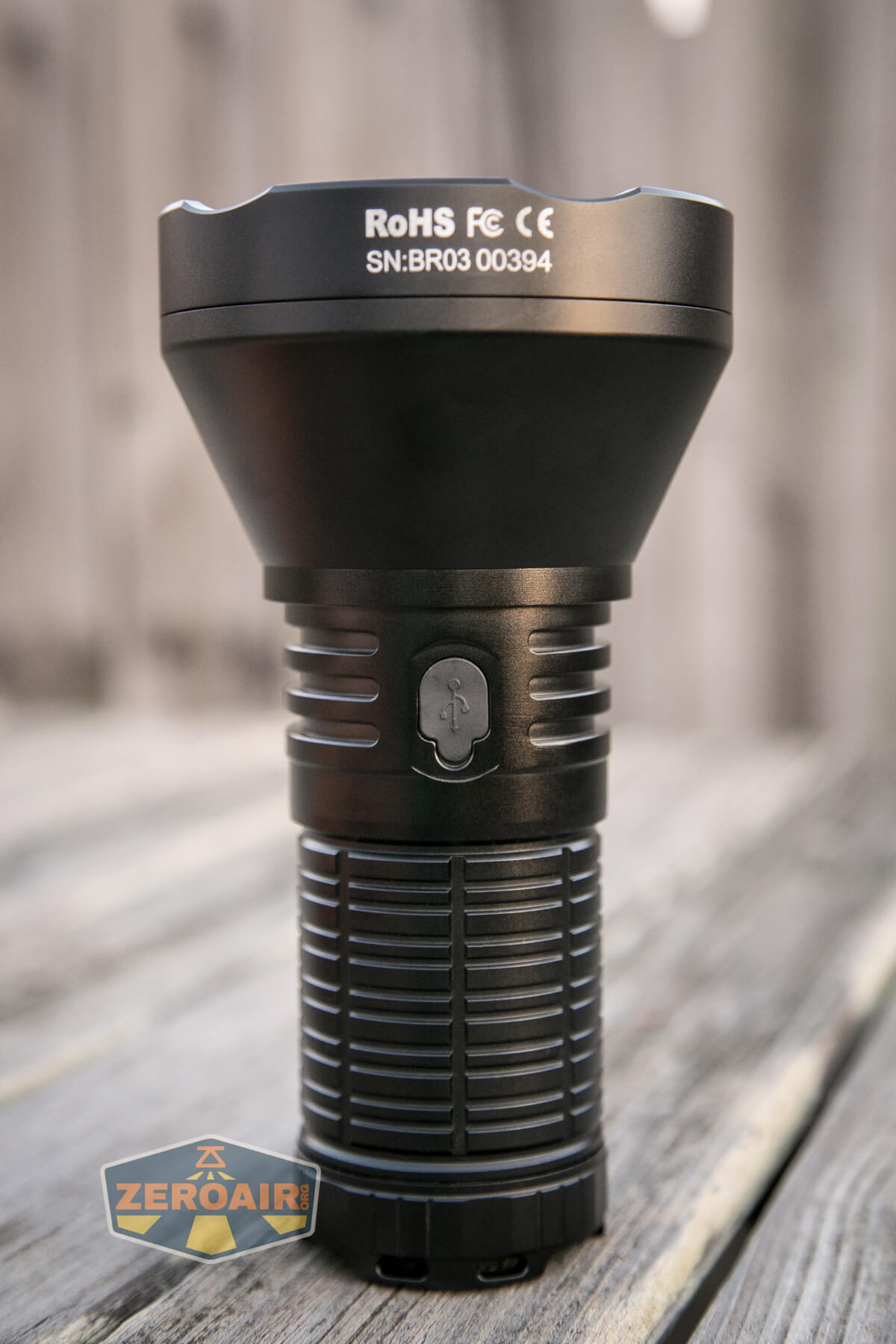

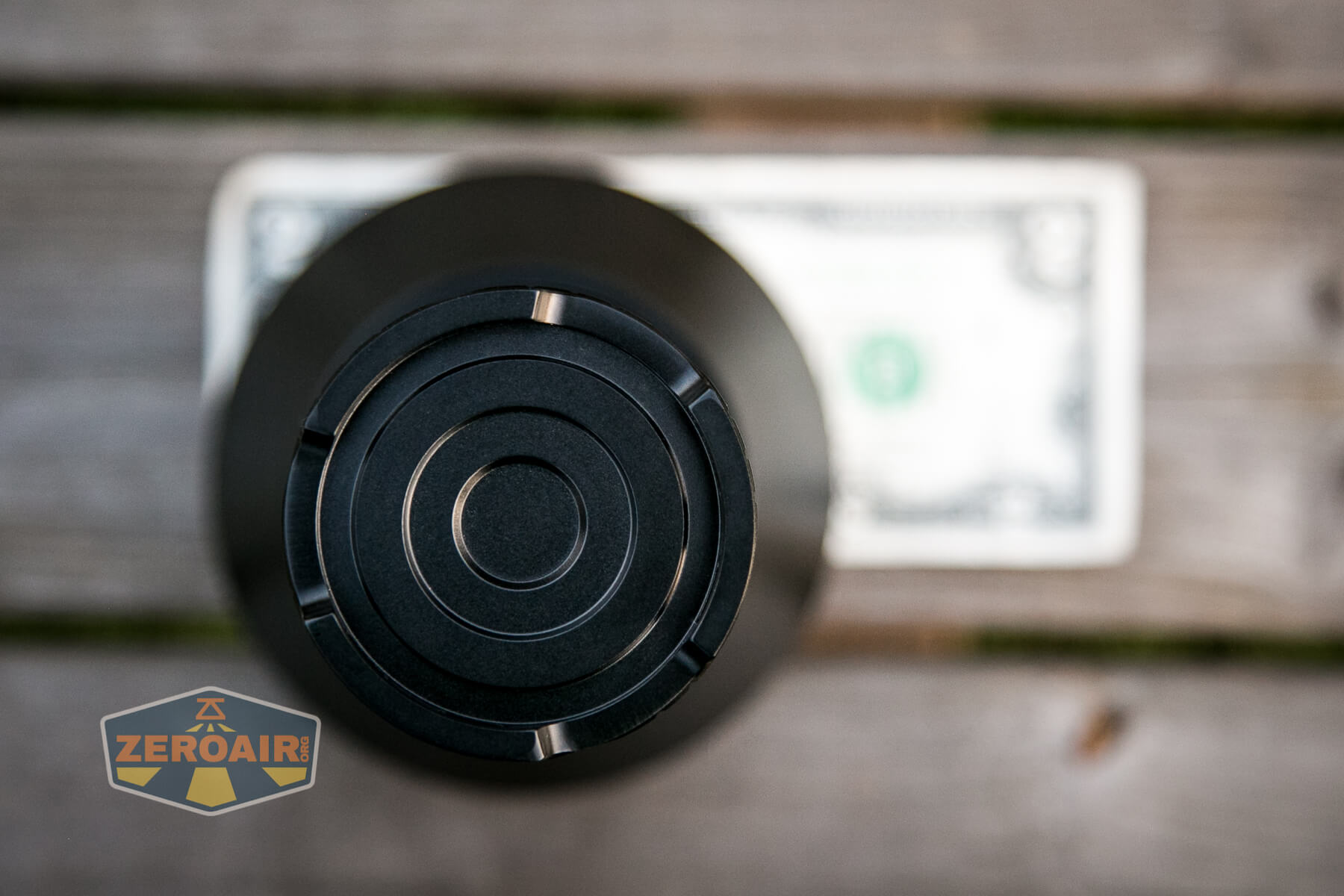

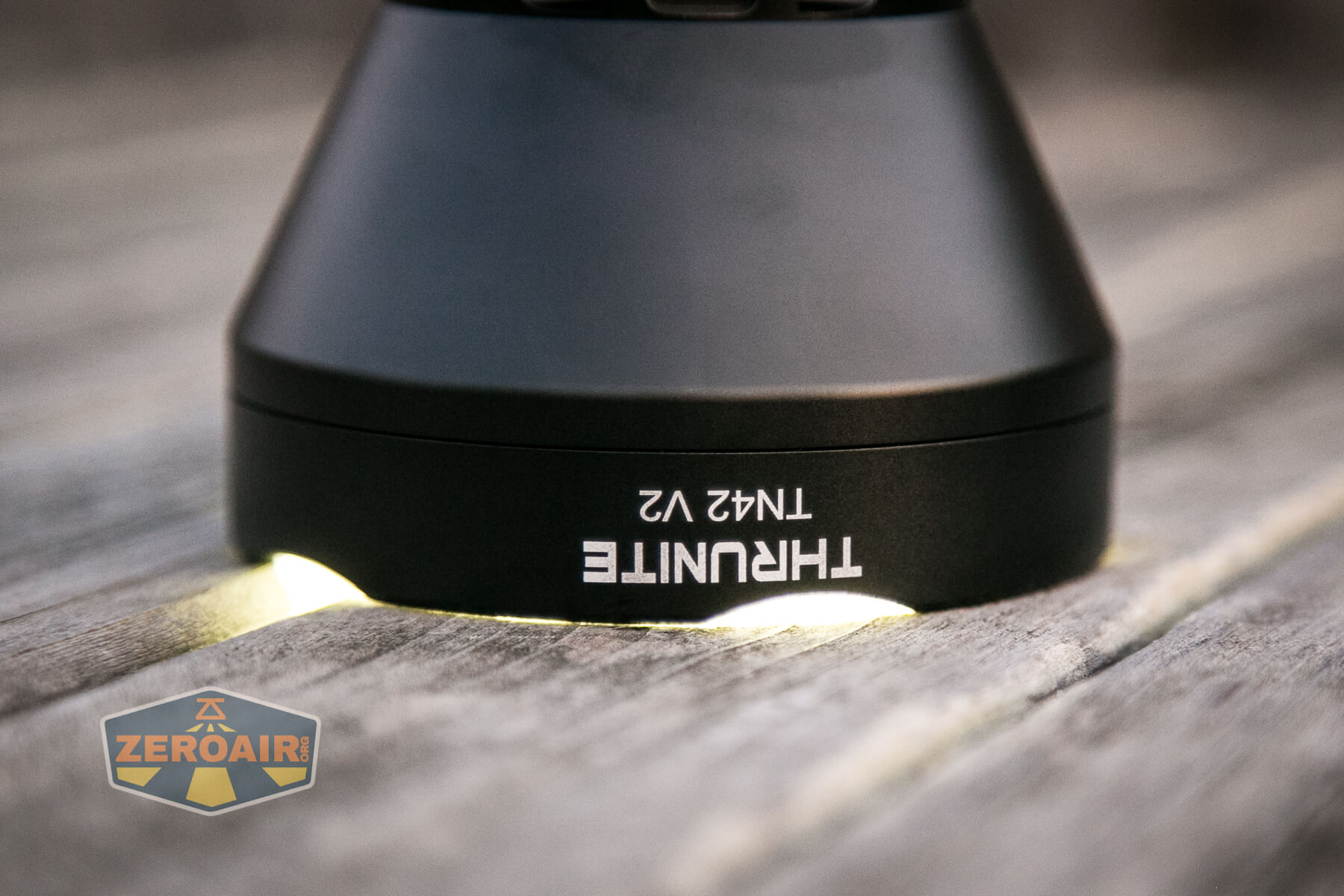

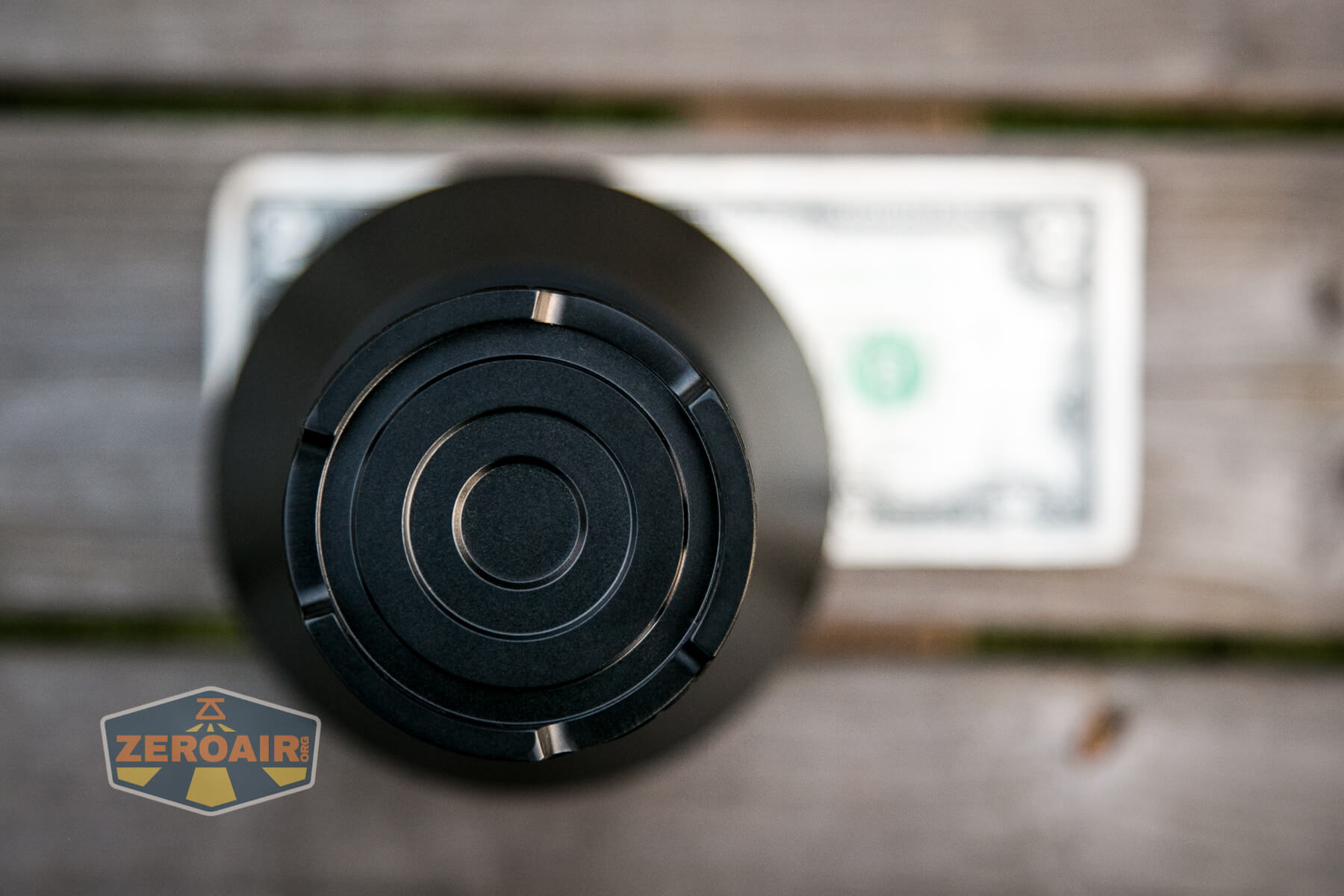

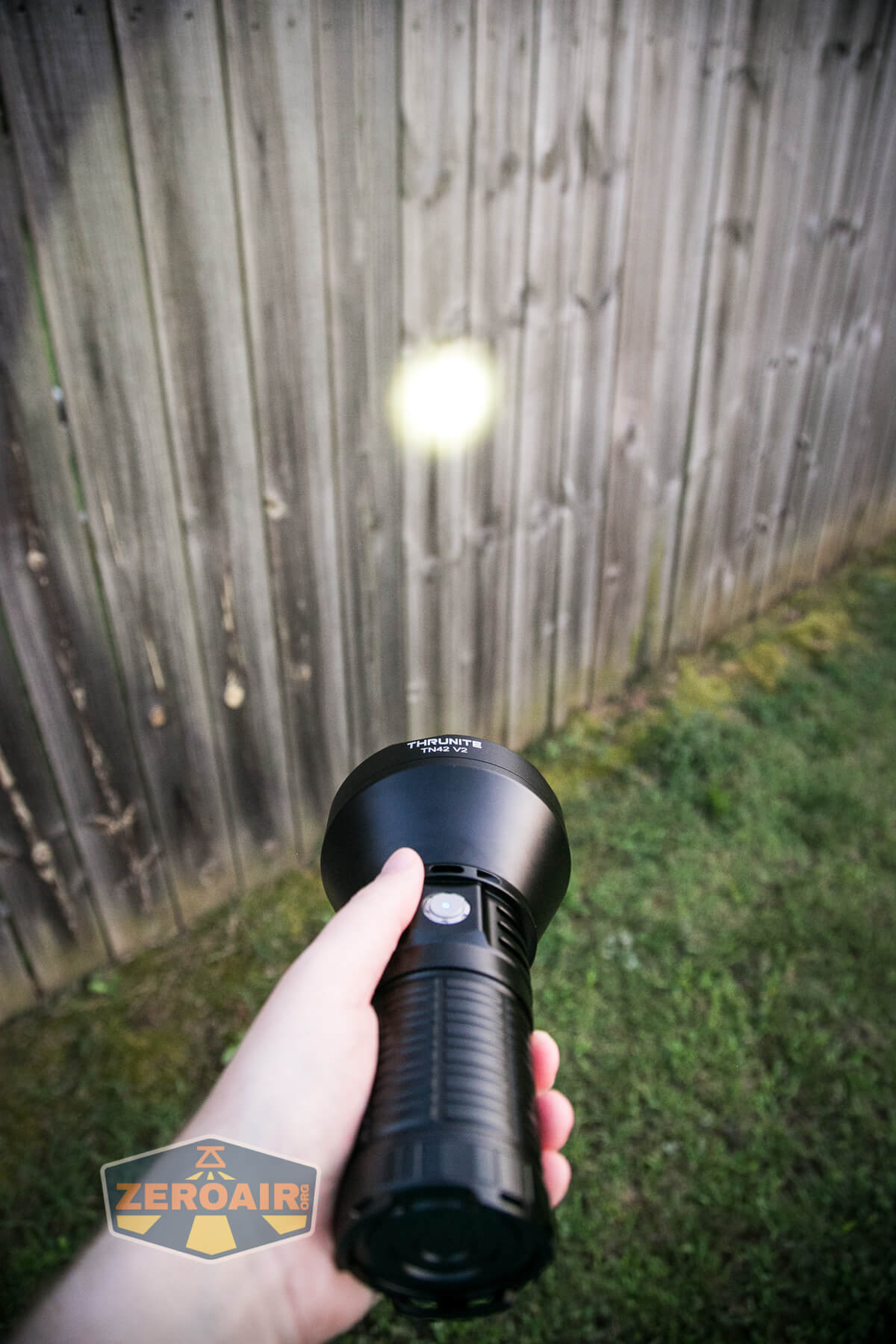

If the flashlight will headstand, I’ll show it here (usually the third photo). If the flashlight will tailstand, I’ll show that here, too (usually the fourth photo).

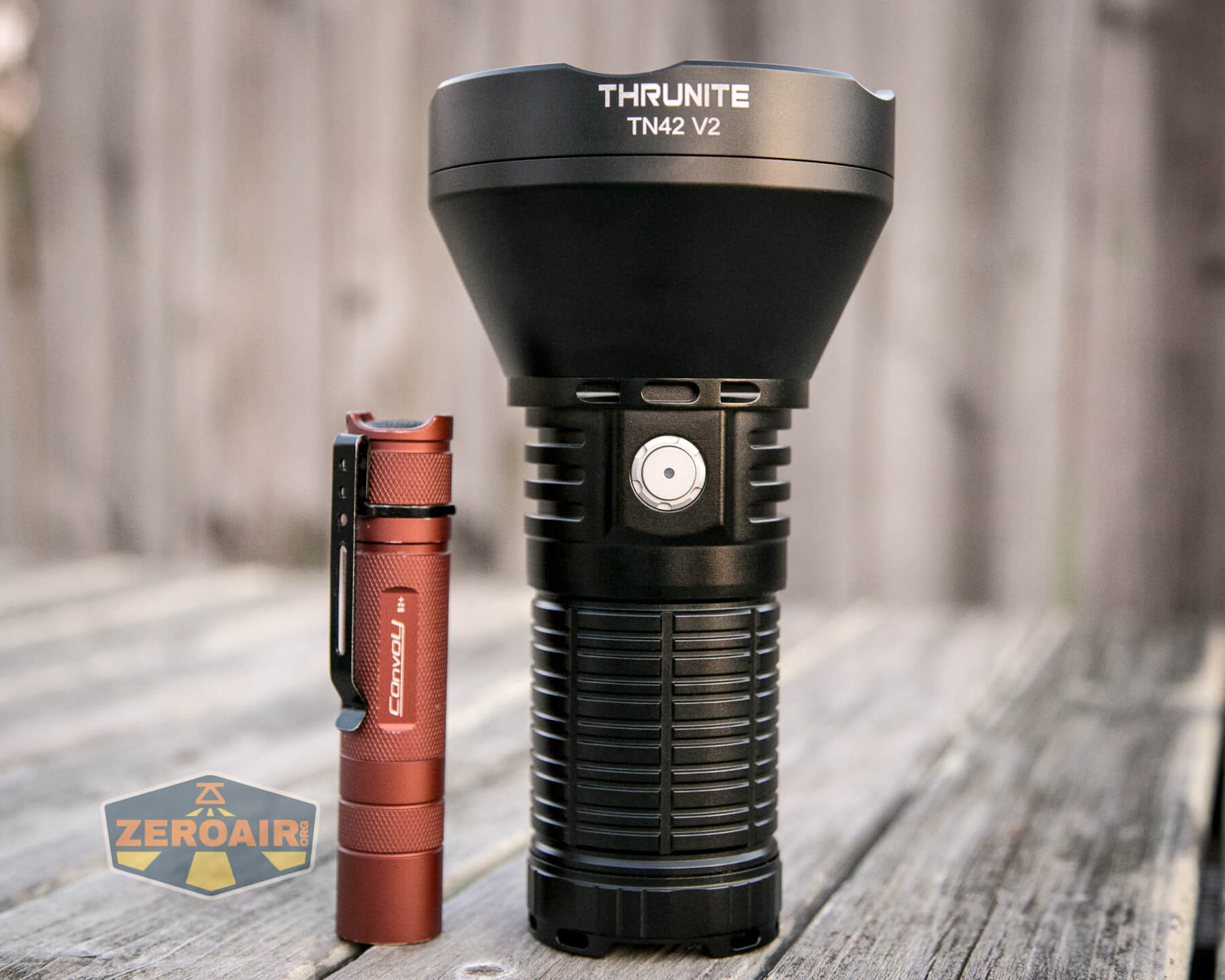

Here’s the test light with the venerable Convoy S2+. Mine’s a custom “baked” edition Nichia 219b triple. A very nice 18650 light.

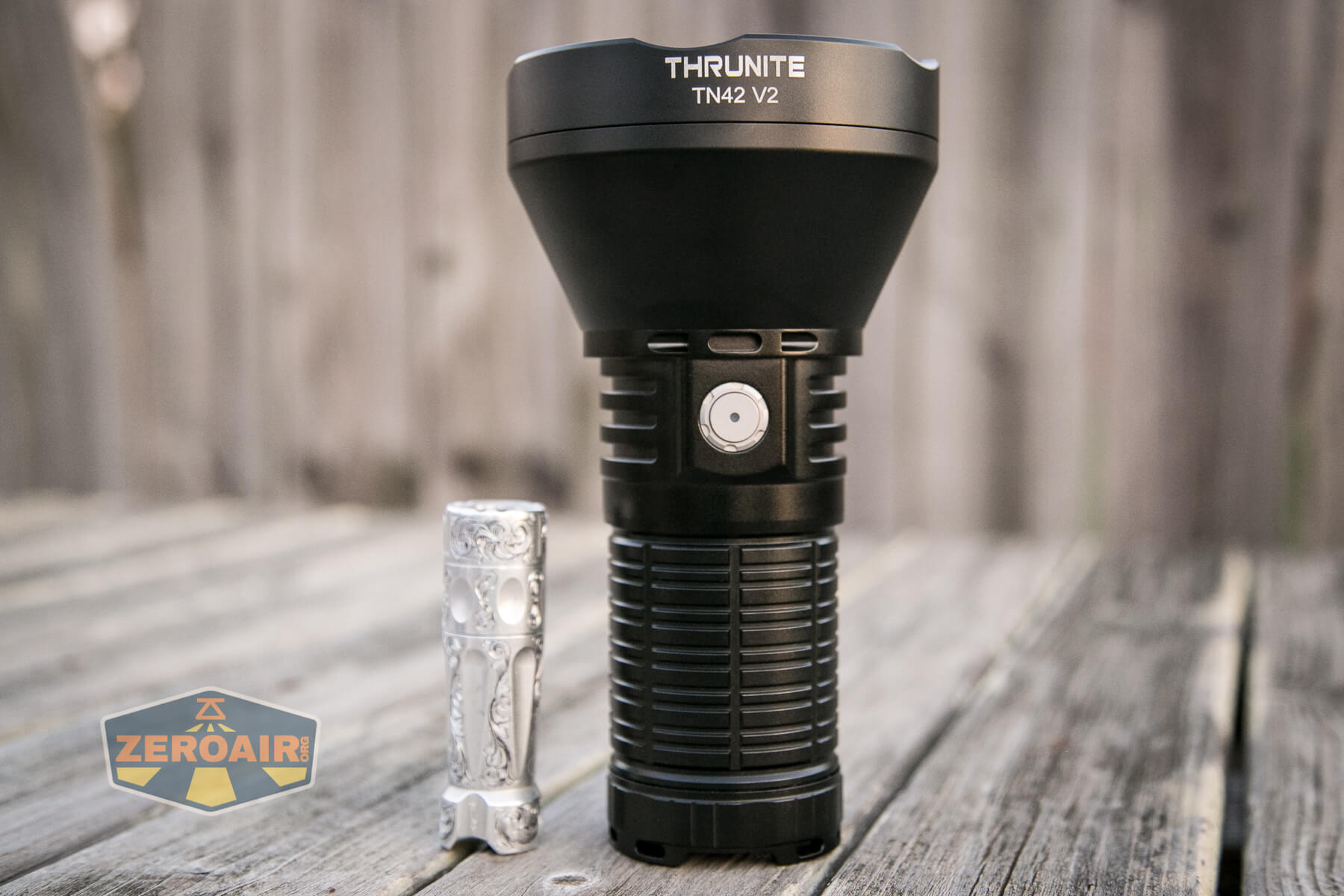

And here’s the light beside my custom engraved TorchLAB BOSS 35, an 18350 light. I reviewed the aluminum version of that light in both 35 and 70 formats.
Retention and Carry

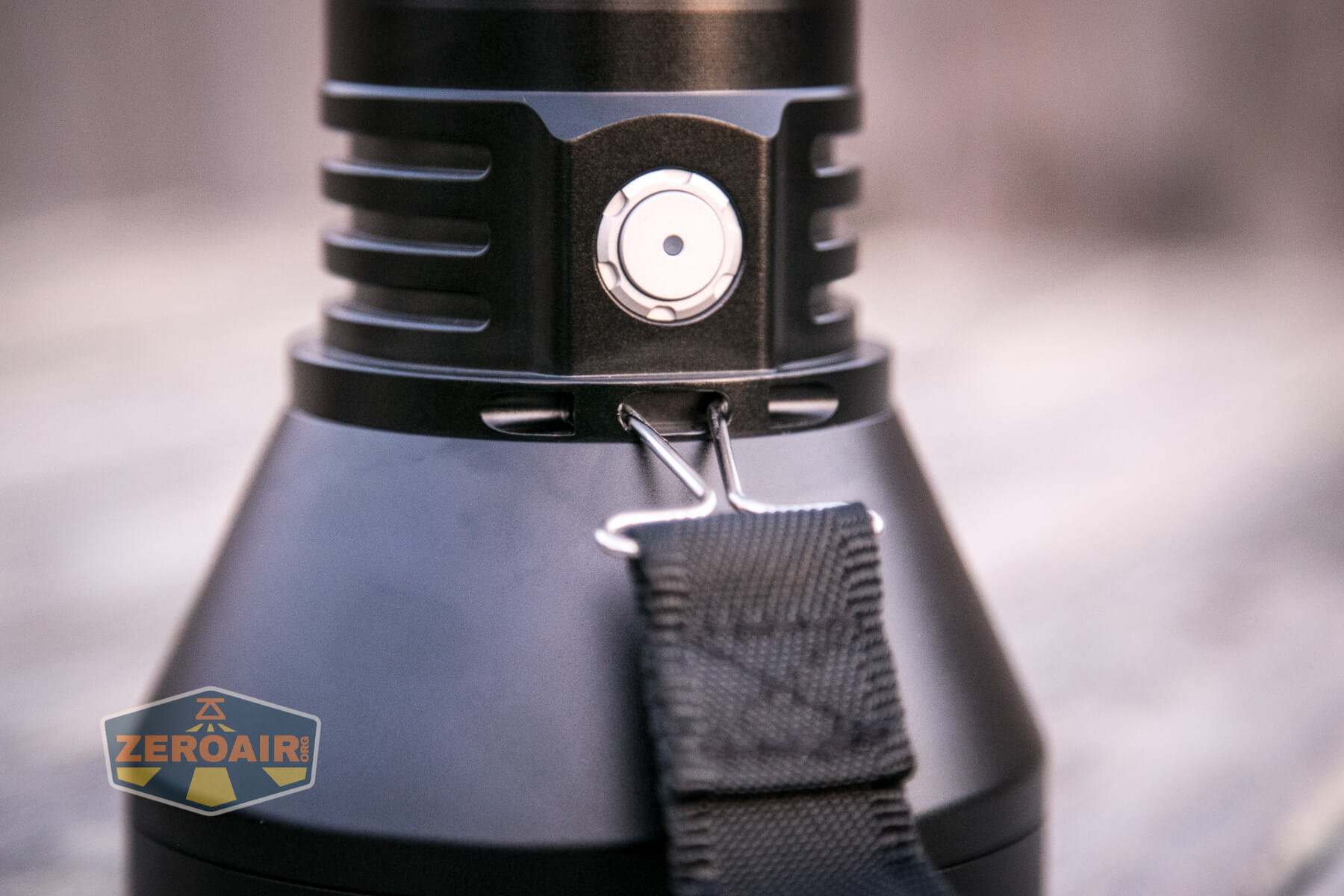

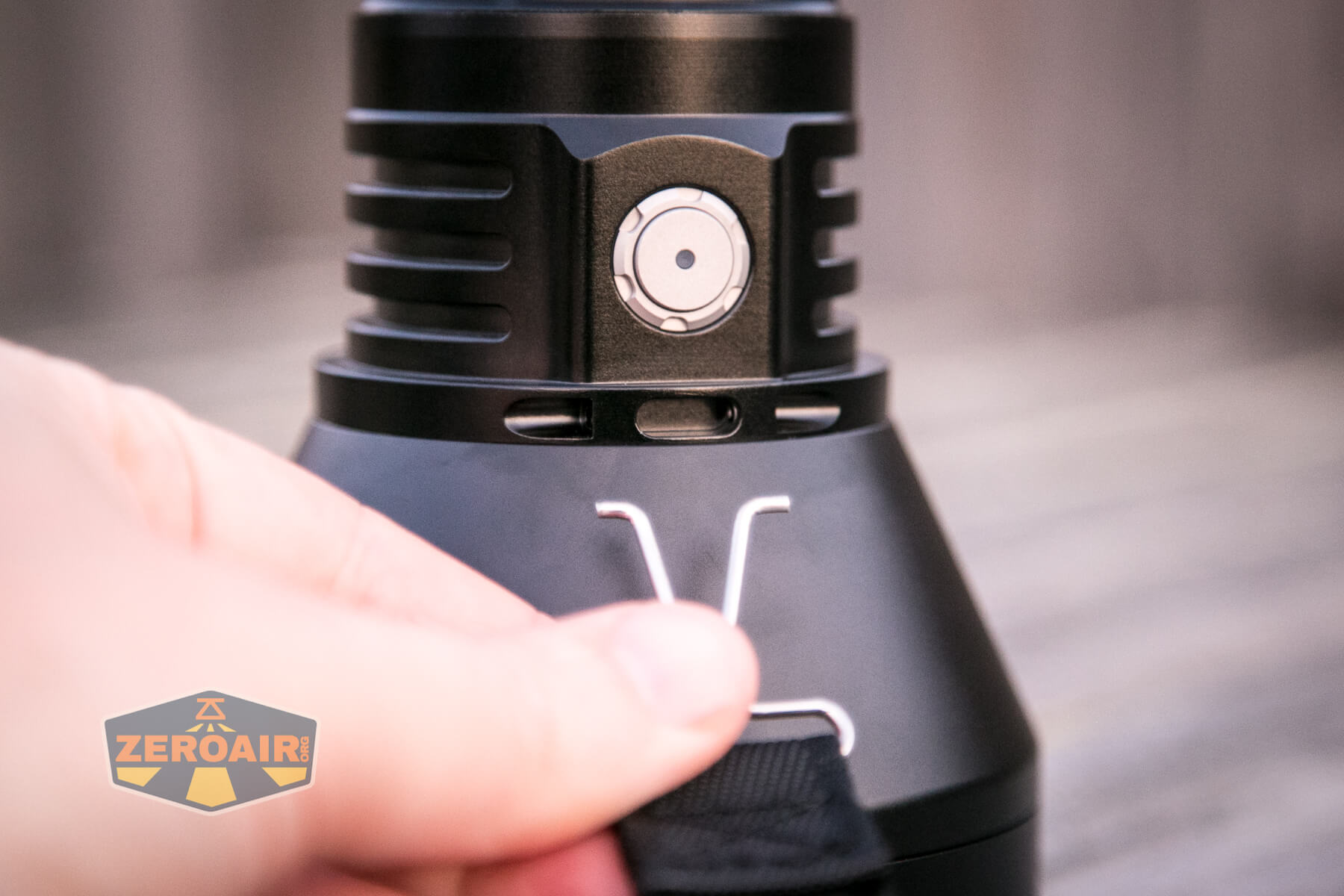

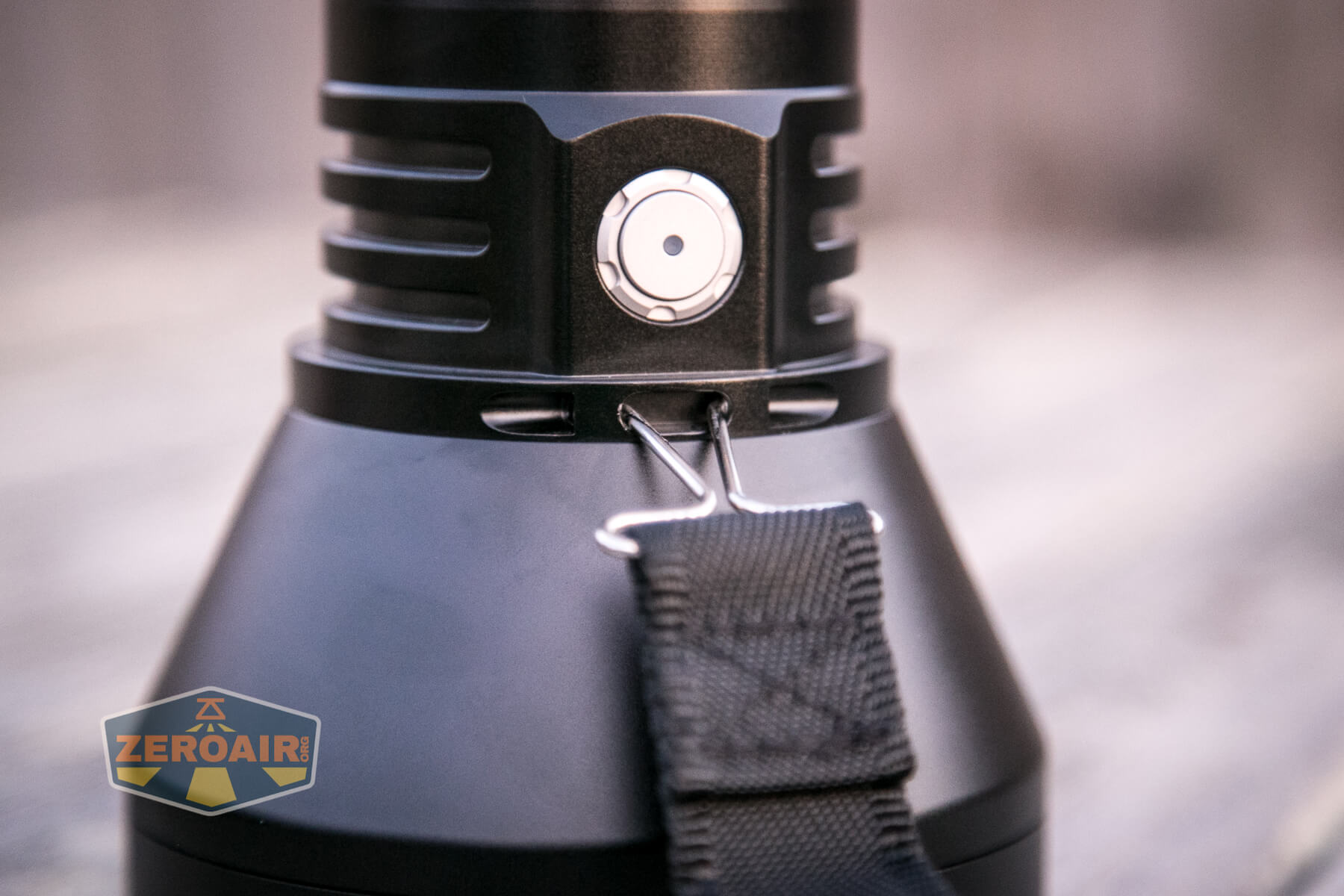

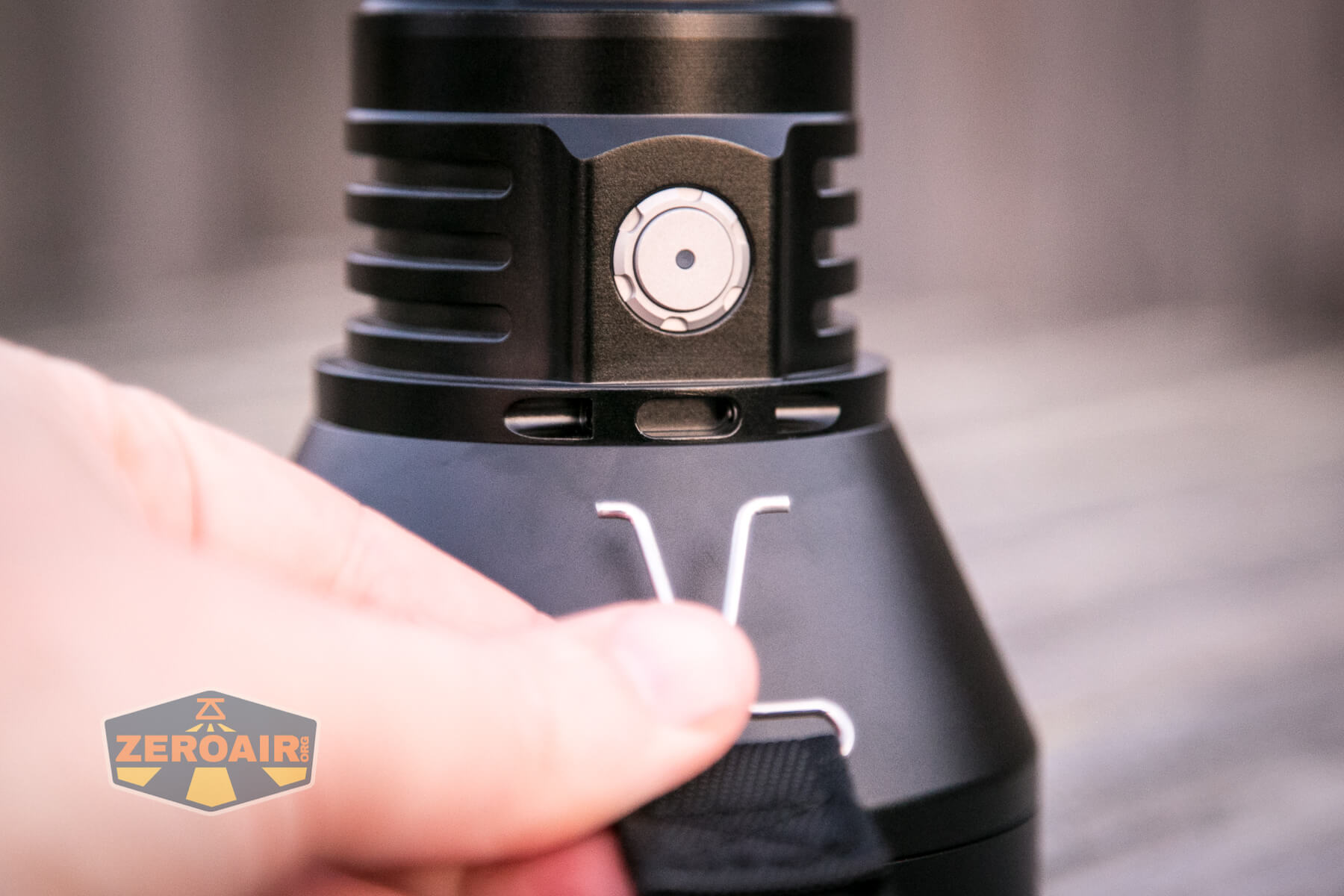

The Thrunite TN42 V2 ships with a shoulder strap, which connects in this little hole on the head.
It’s not hard to install, but won’t scratch your new flashlight all up while doing it.

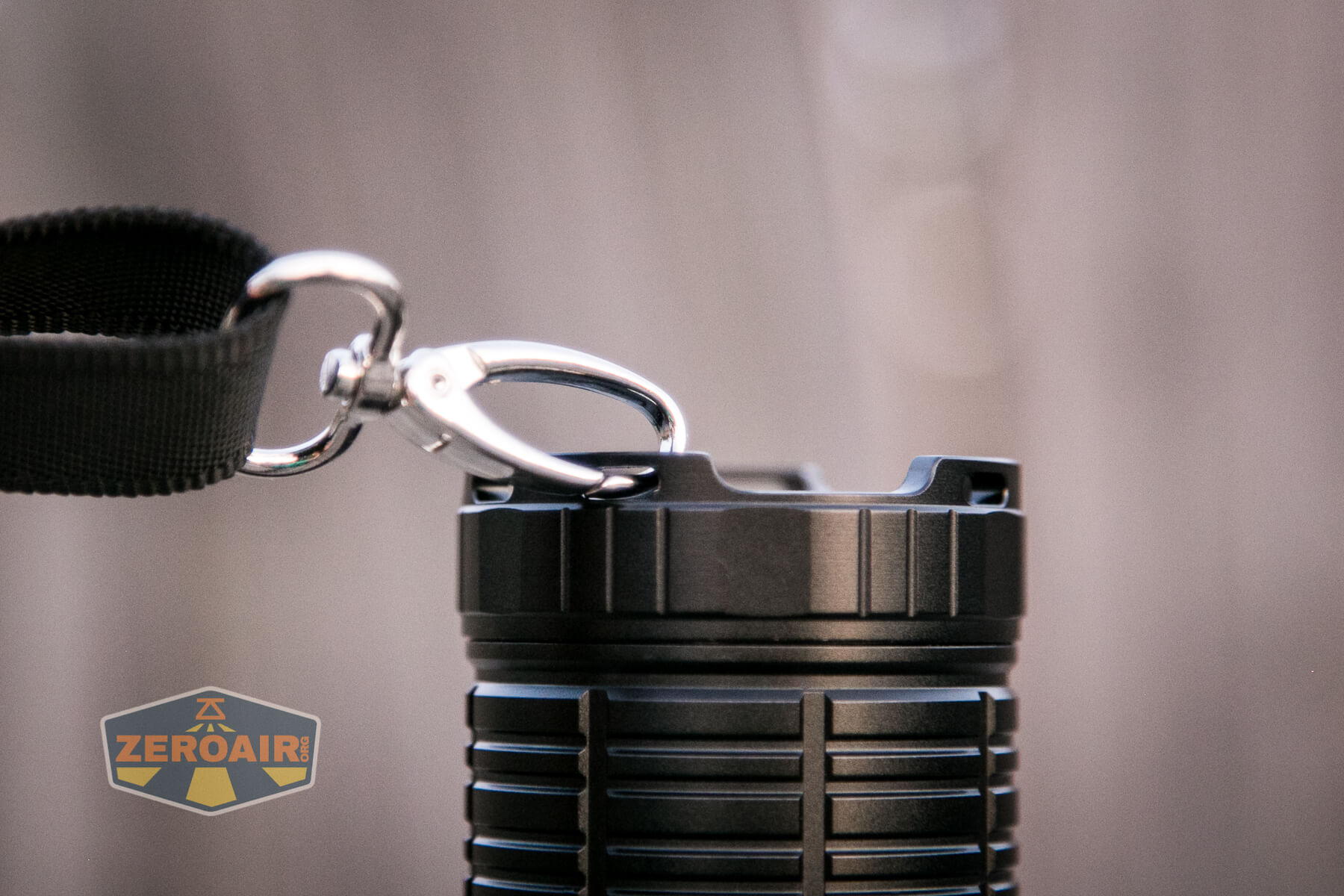

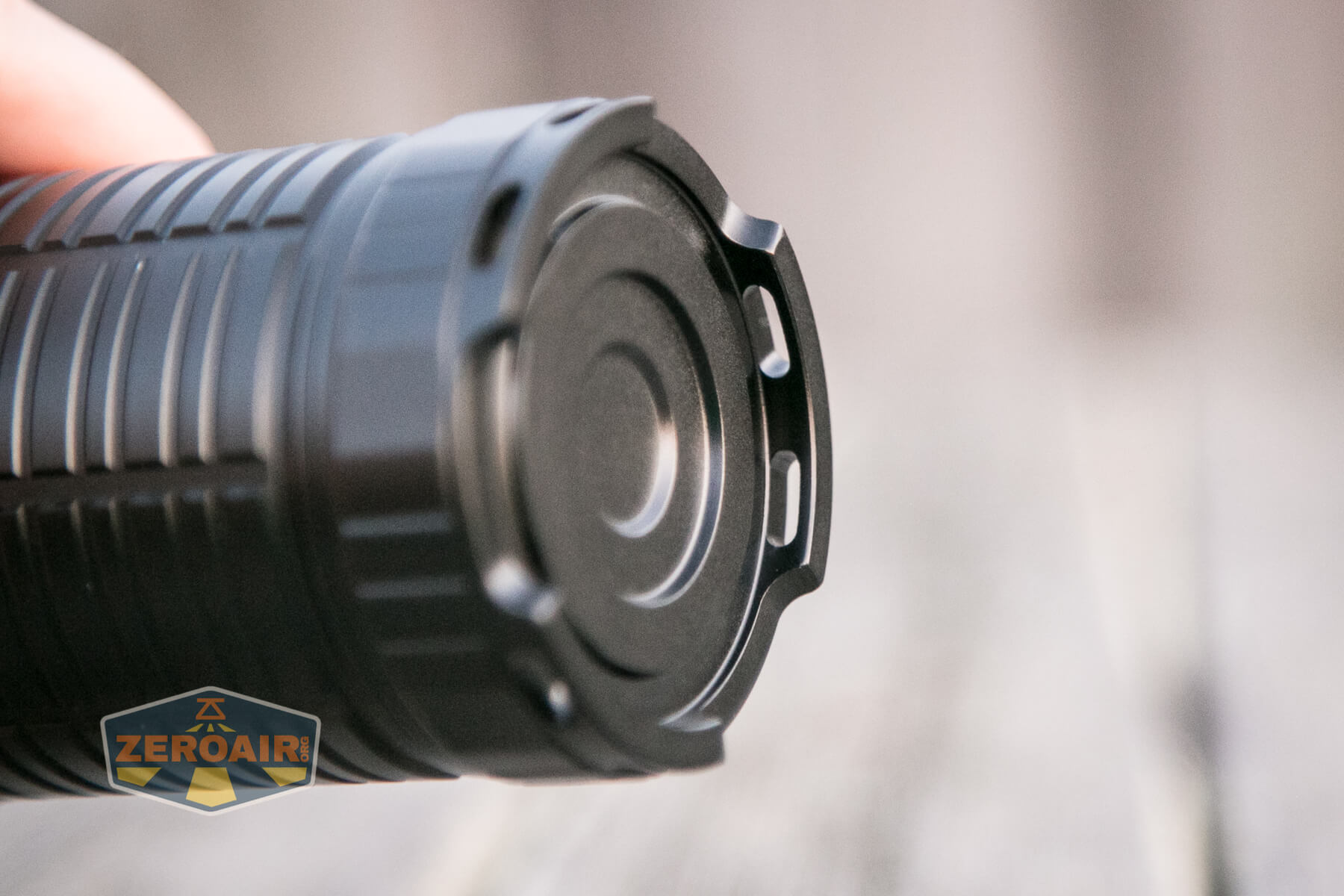

The other end of the strap connects to some of these holes on the tailcap.

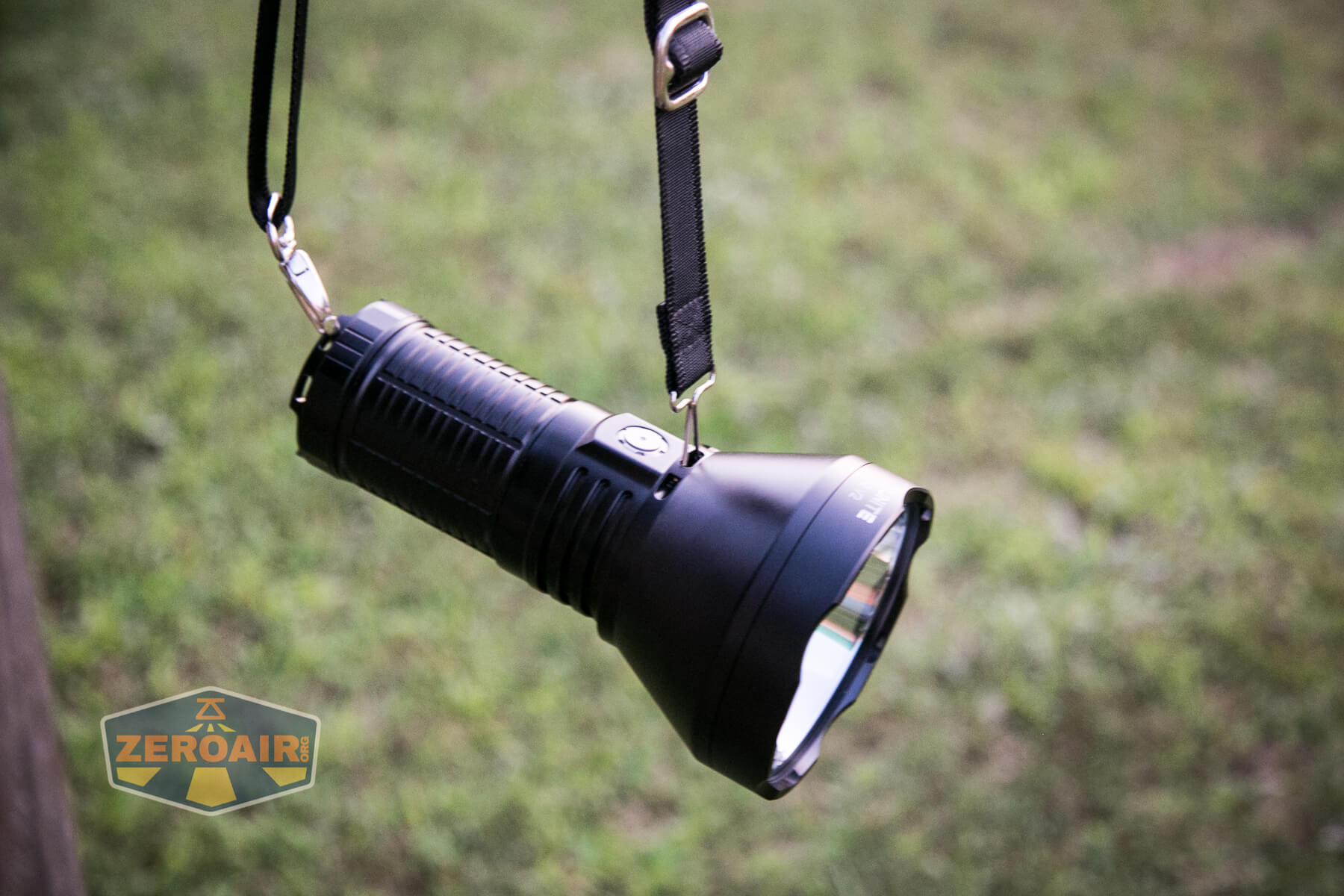

You really have two options here. You can connect the strap directly, as seen below.

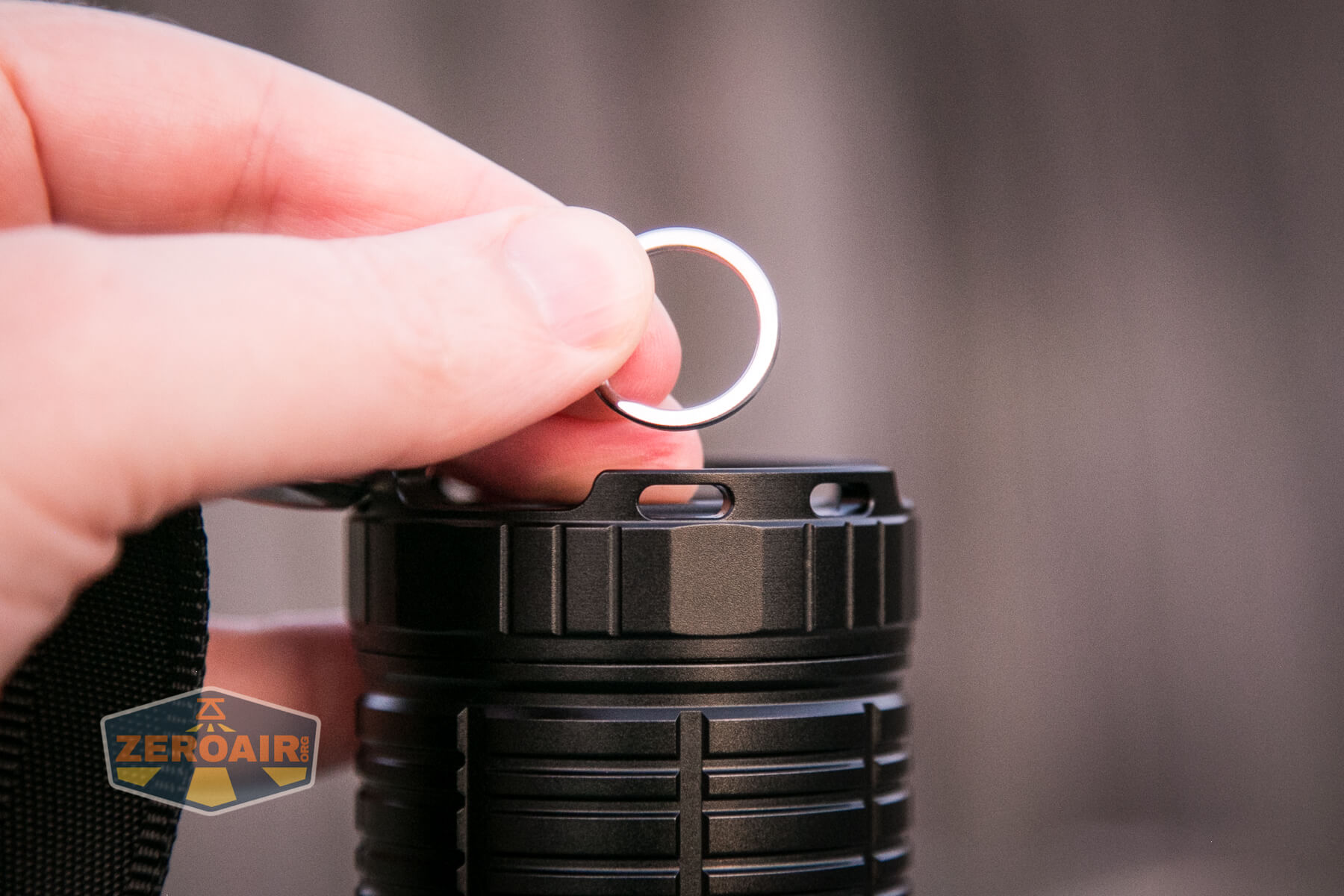

Or you can connect the included split ring through these holes, and then connect the shoulder strap to that. I’m not sure which is better but I can say I don’t really know why you’d use this split ring. ¯(ツ)/¯

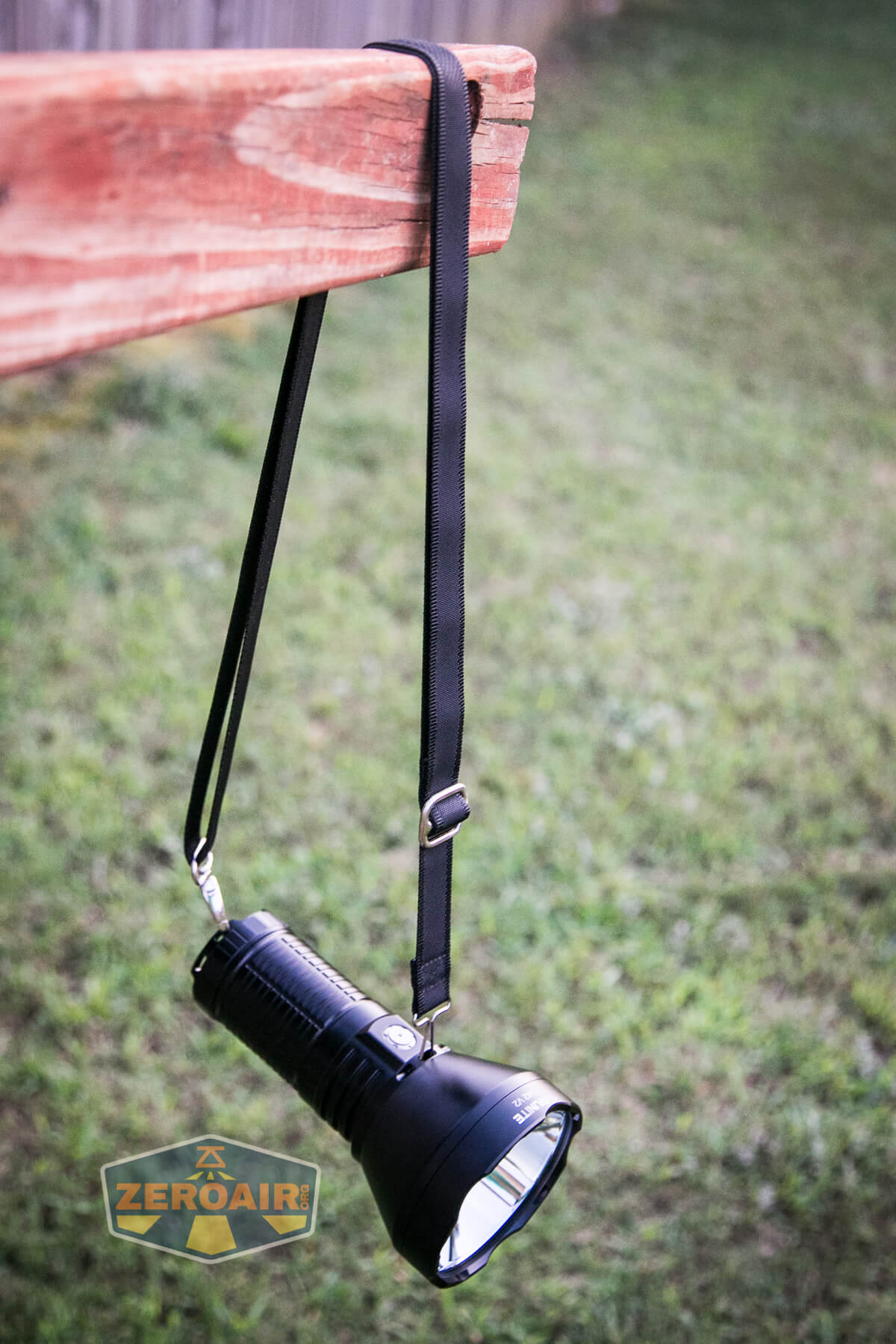

The strap is highly adjustable and quite useful.
This shoulder-carry option really makes me wish Thrunite had a neoprene lens cover for the TN42 V2.
Power and Runtime

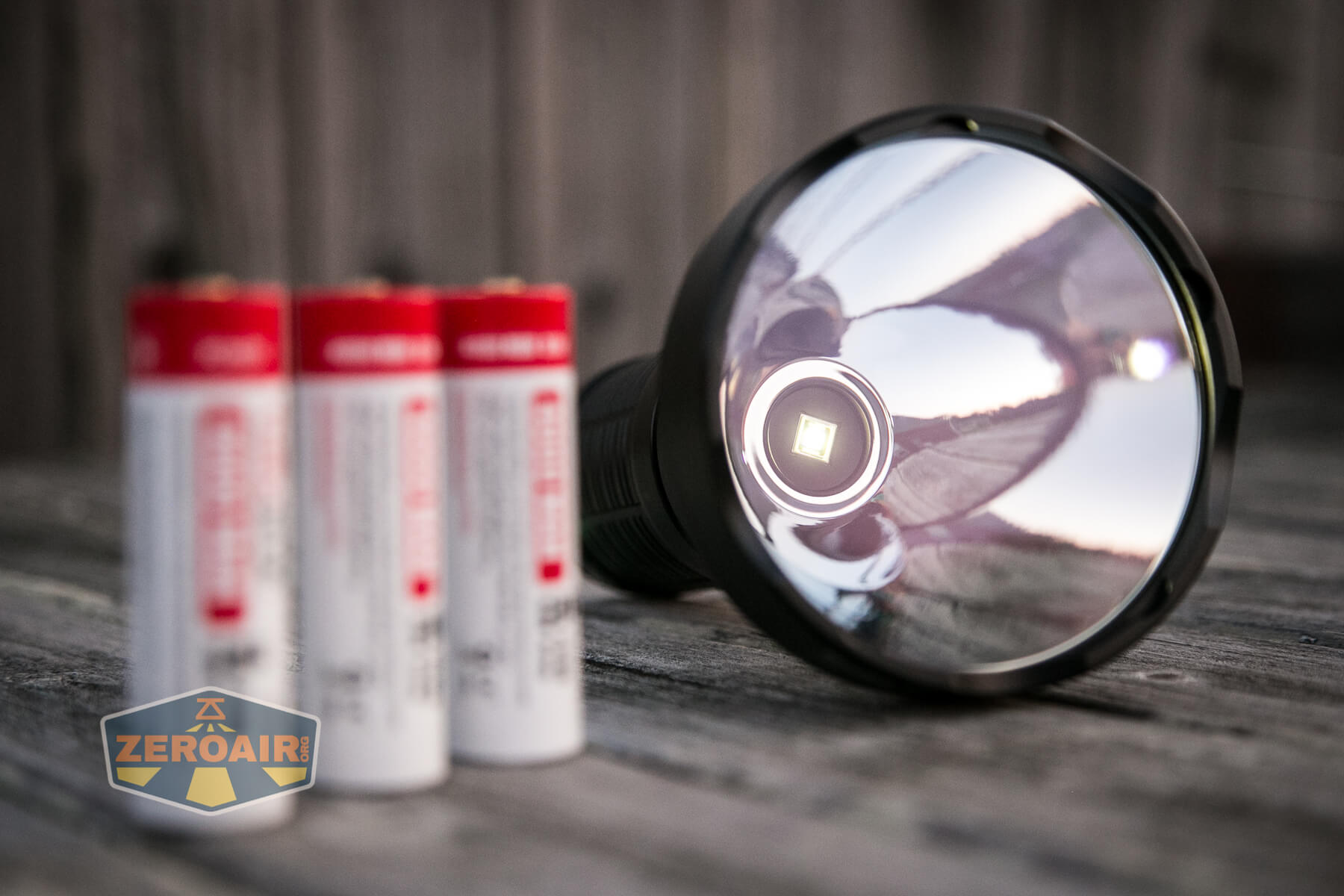

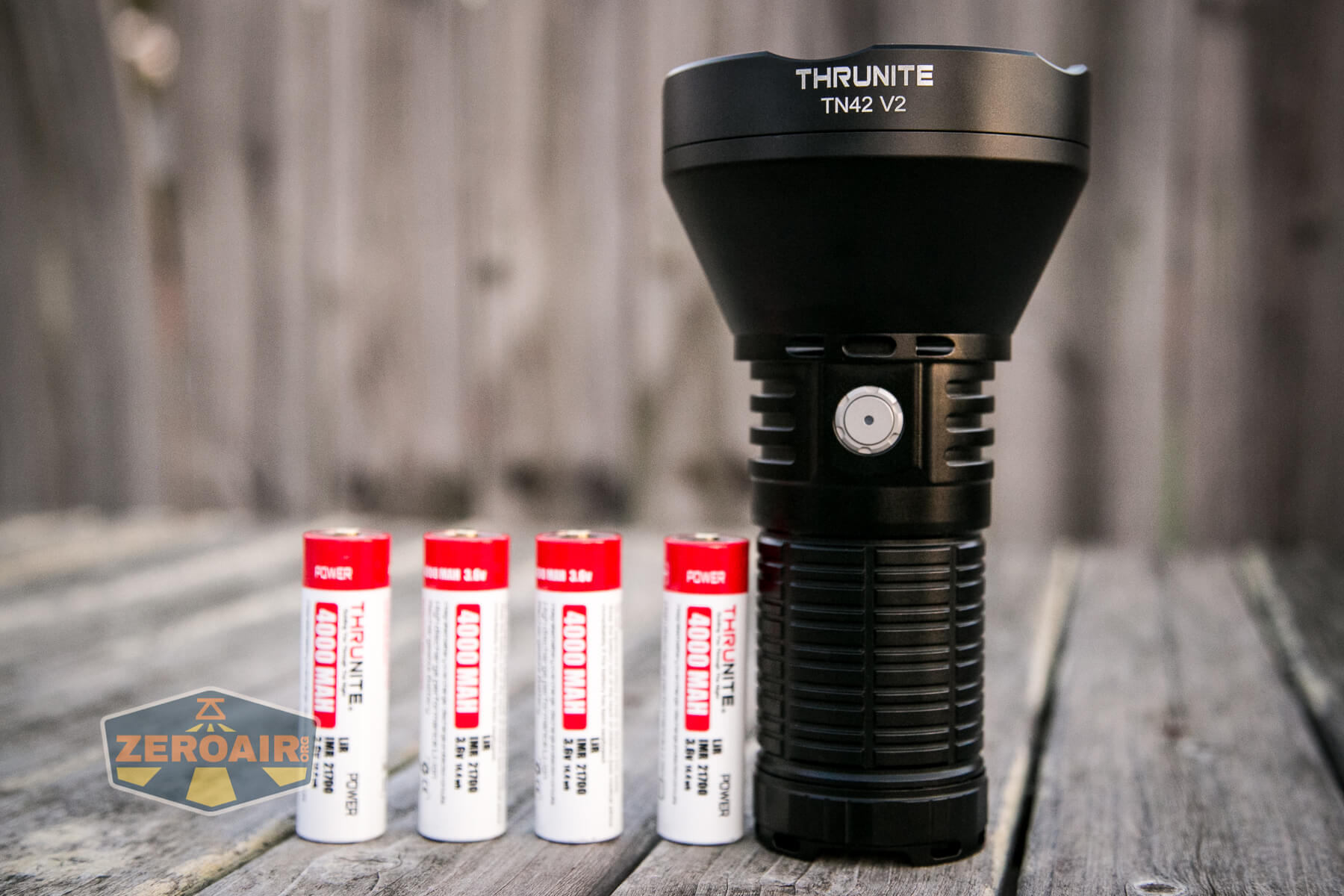

The other massive update to this V2 of the TN42 is the cells that are used. This version uses four 21700 cells. Those cells are included with the purchase.
The Thrunite TN42 V2 can run on standard button top cells. Owing to the light not using a cell holder, I’d recommend planning to use these cells exactly.

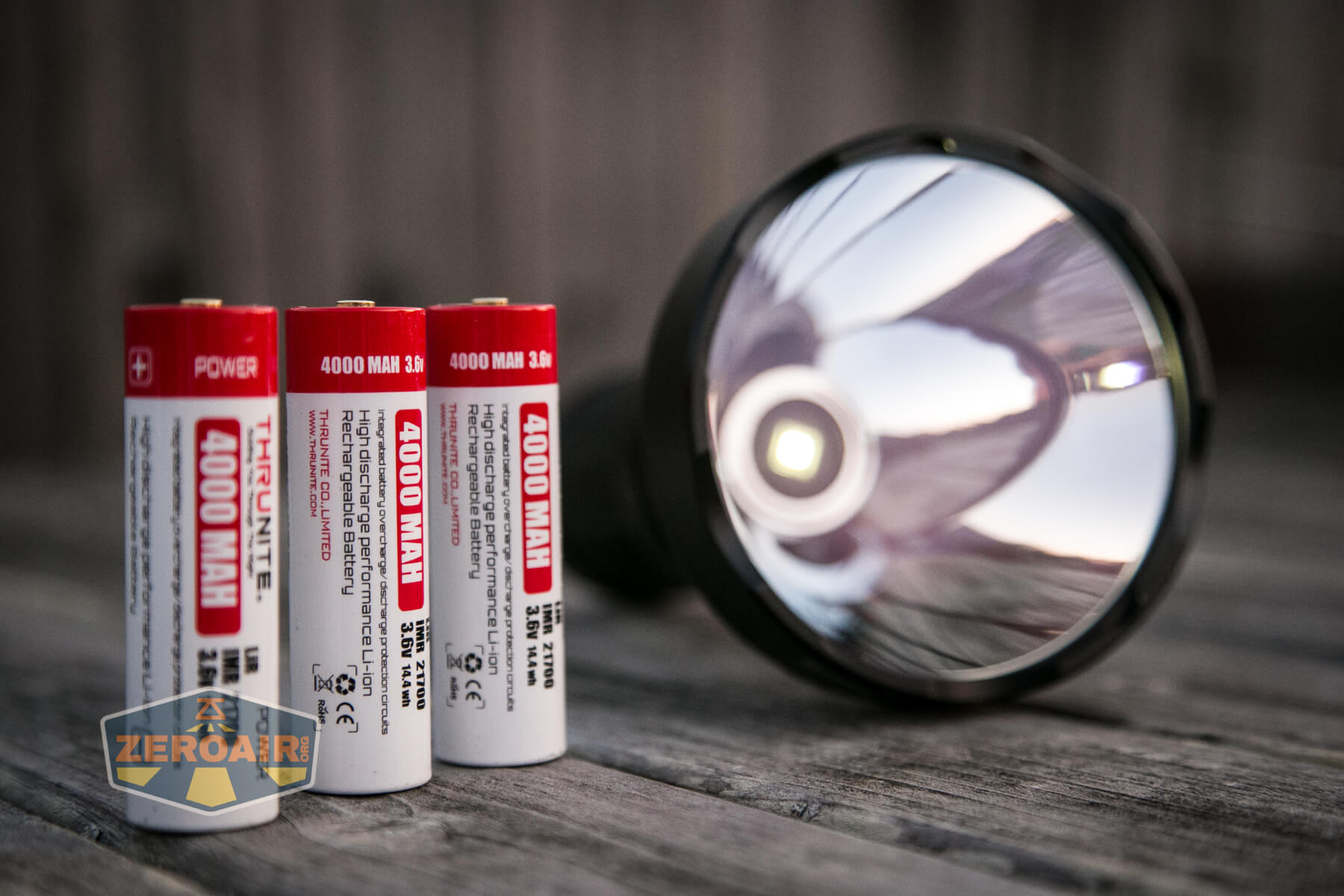

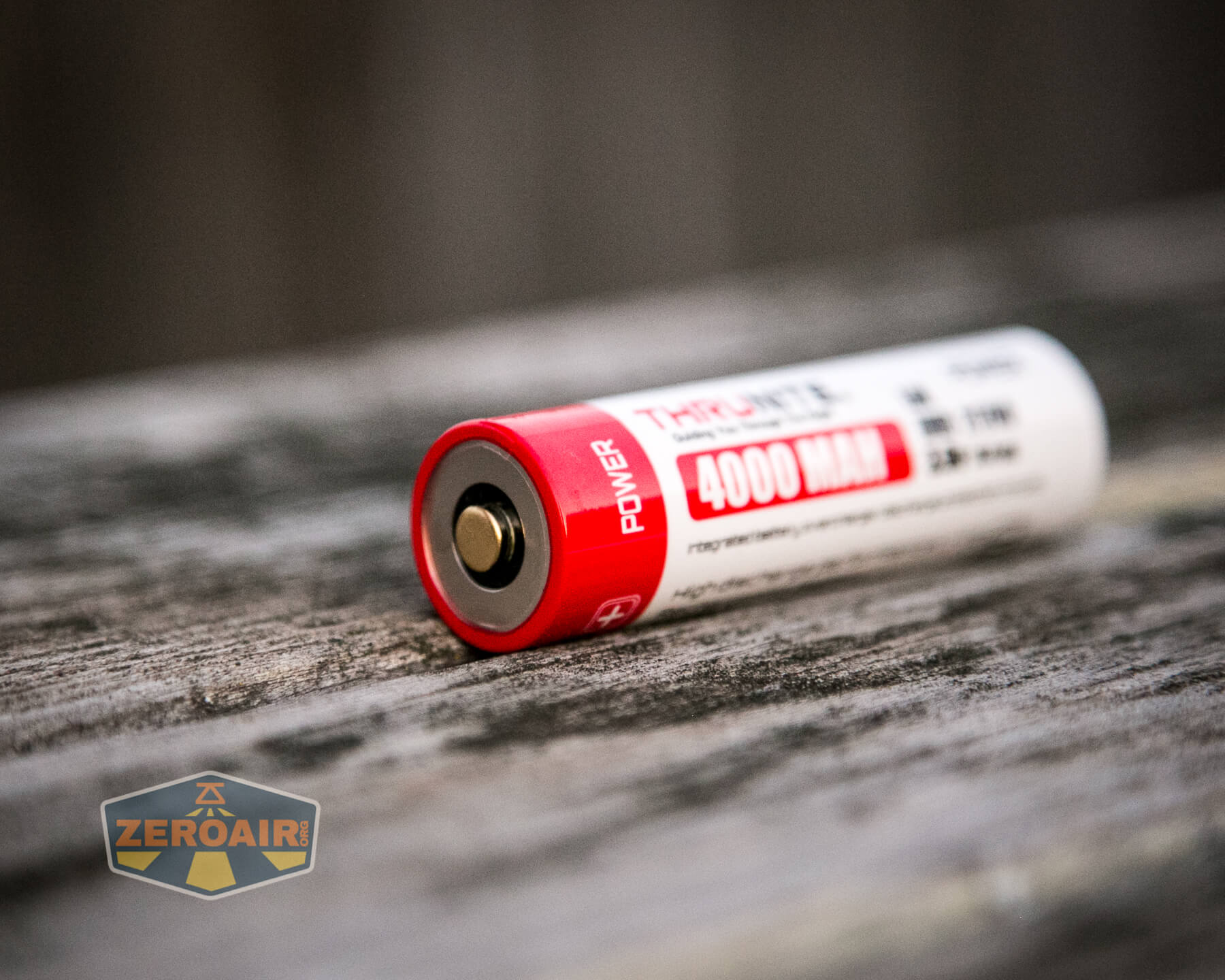

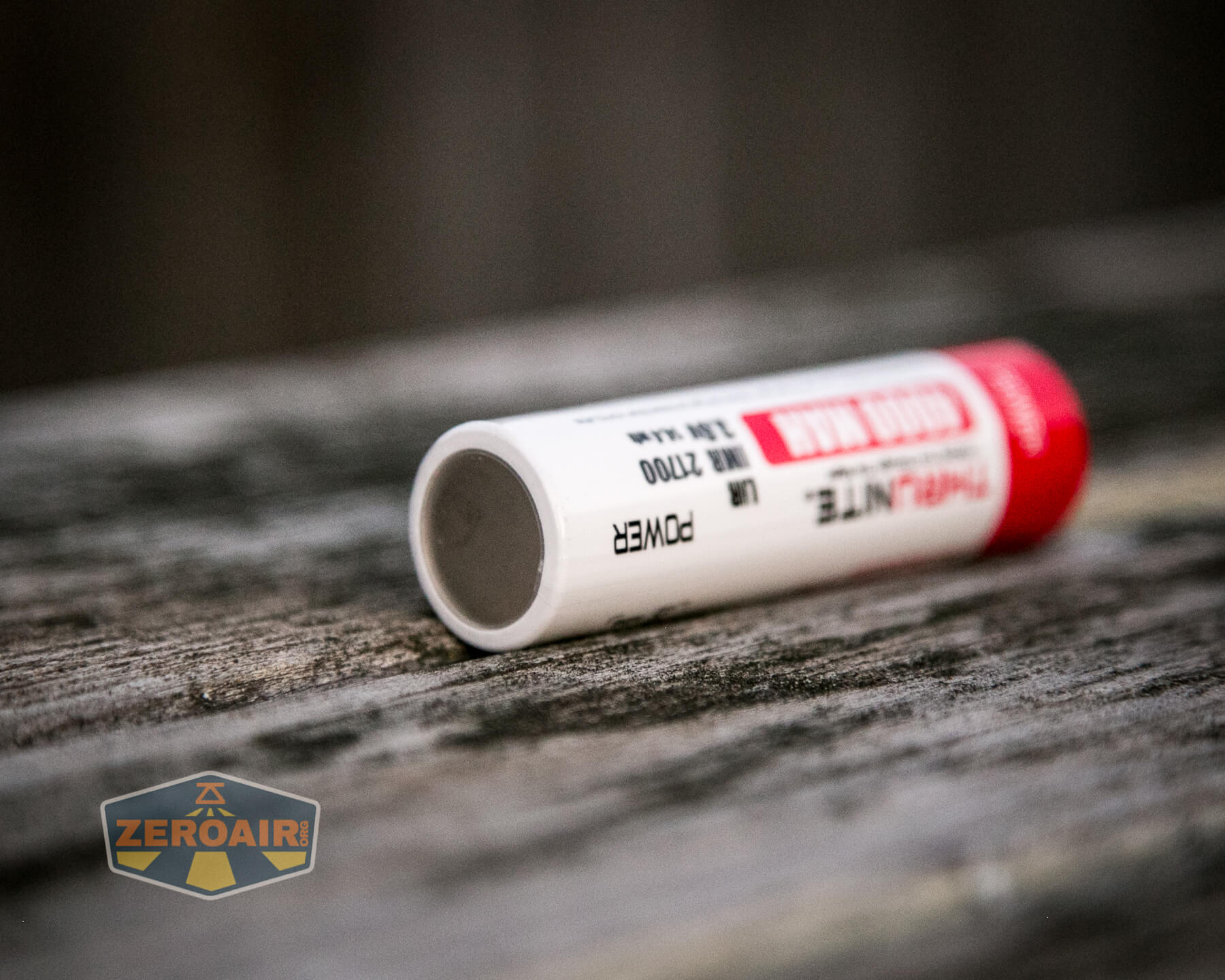

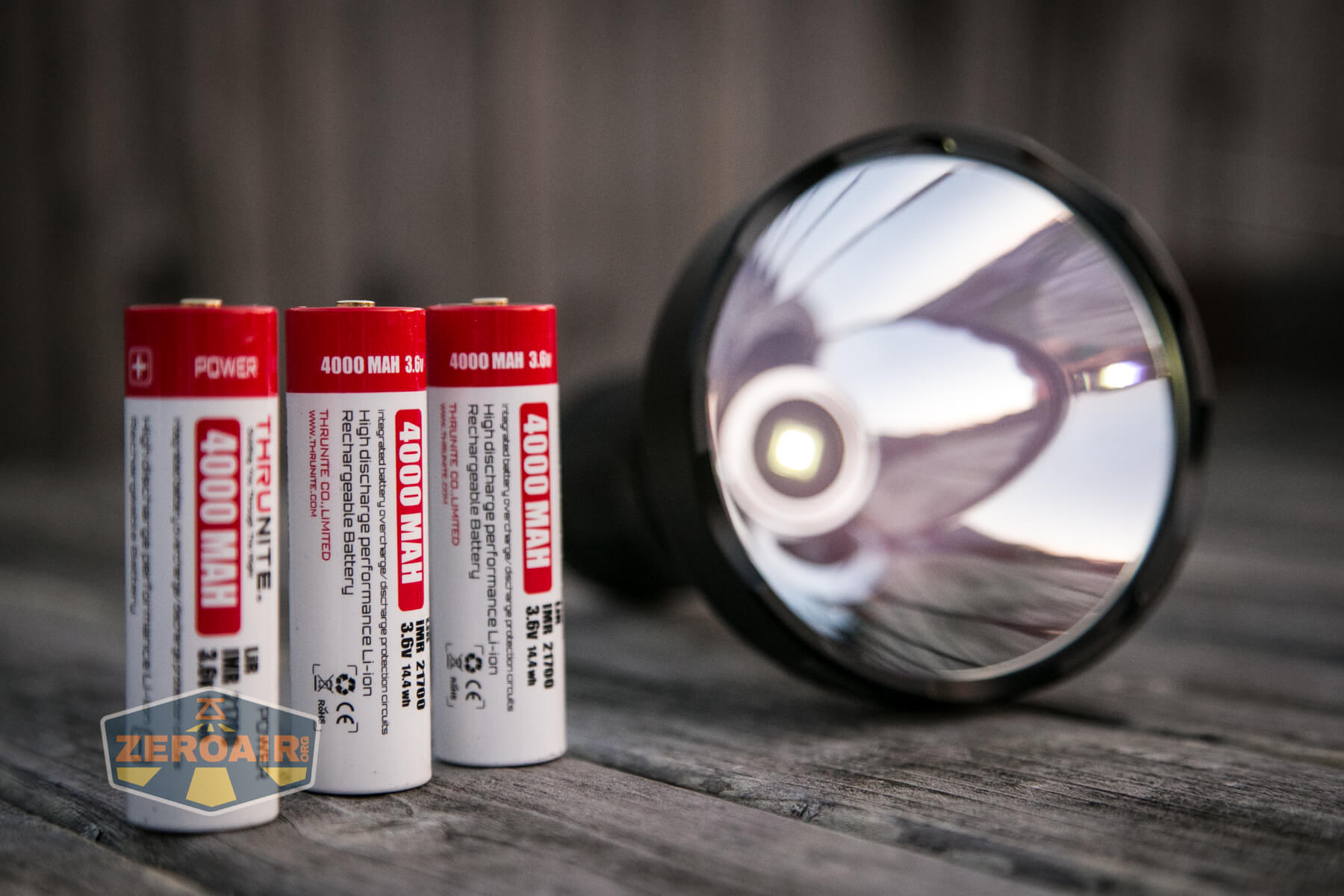

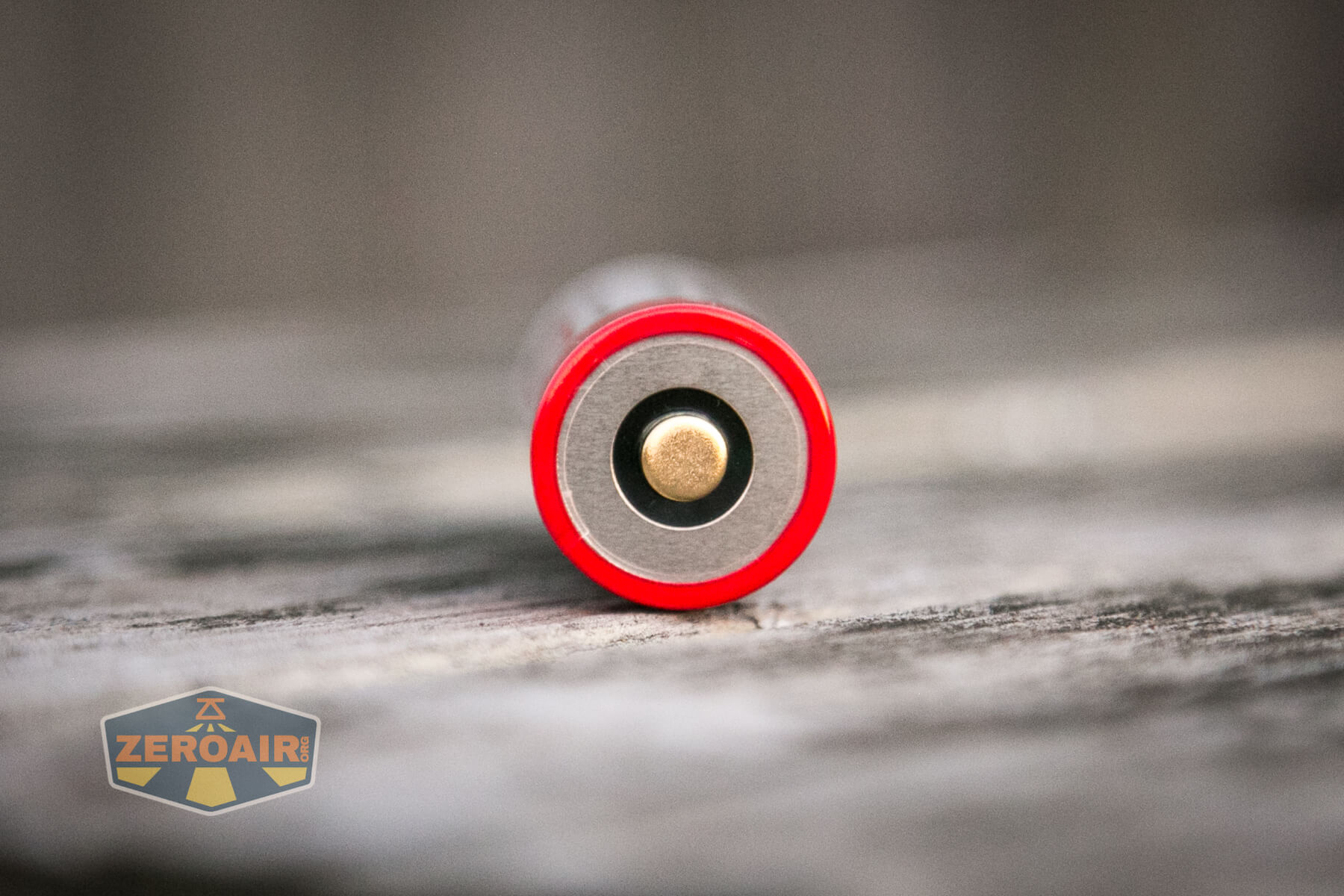

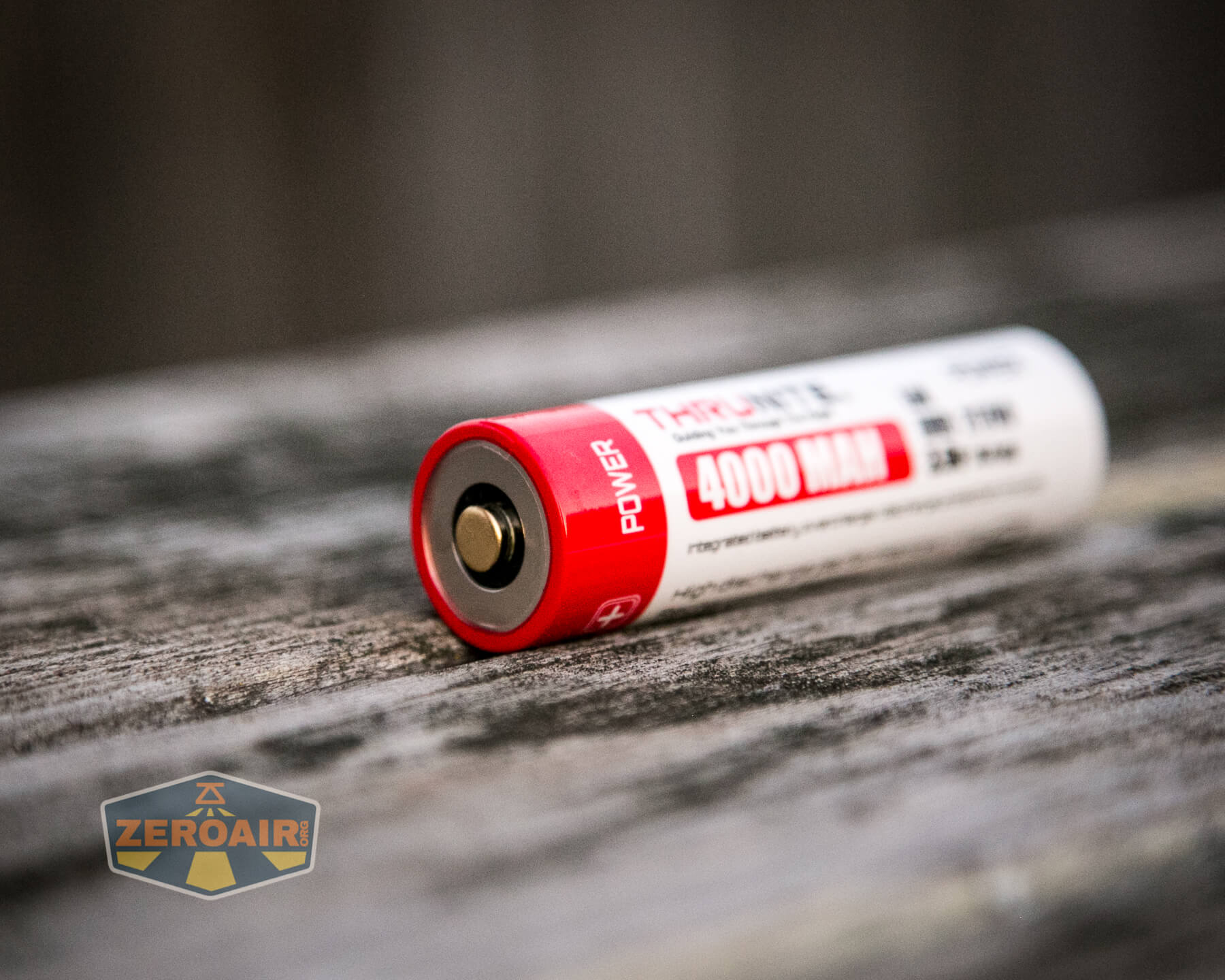

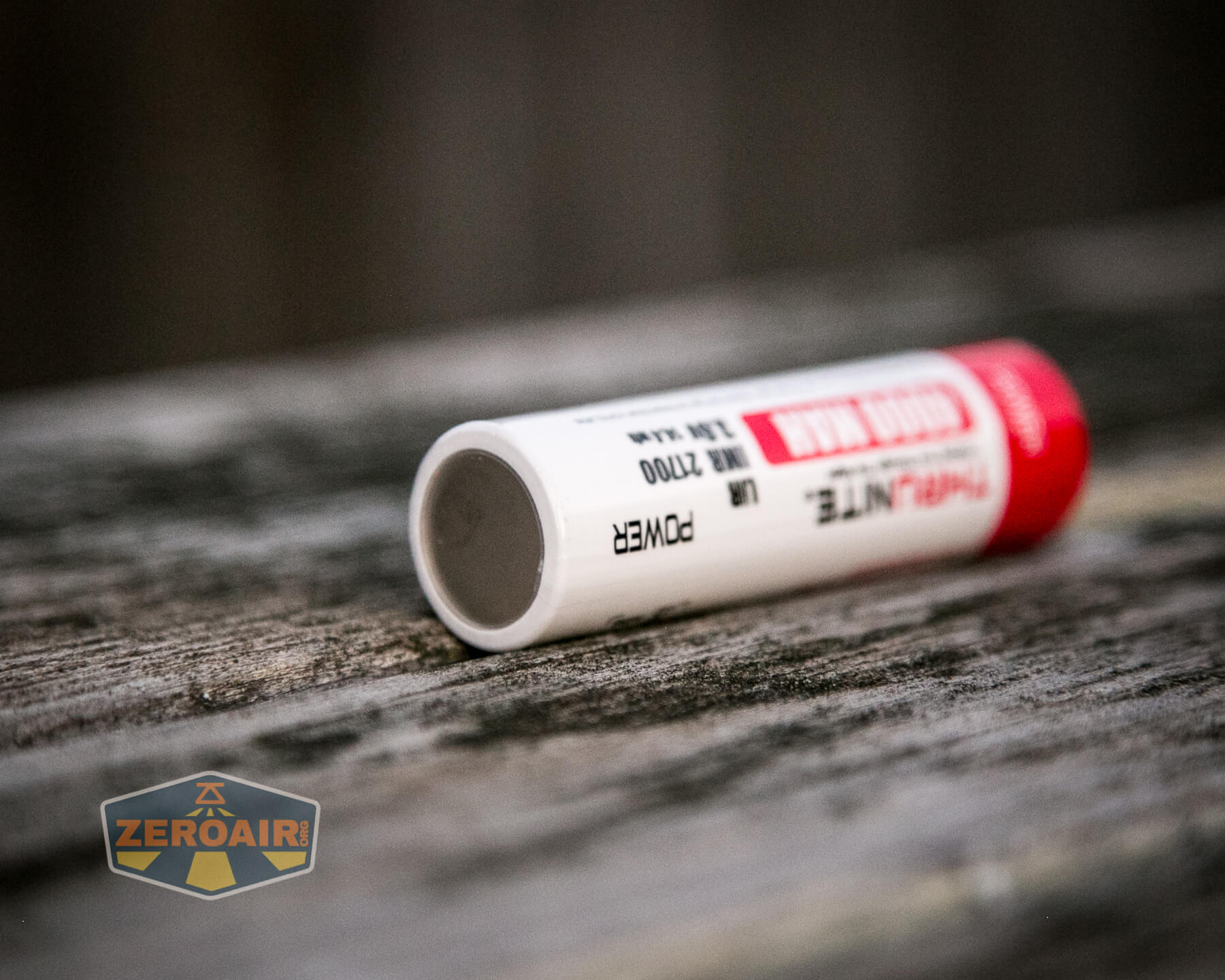

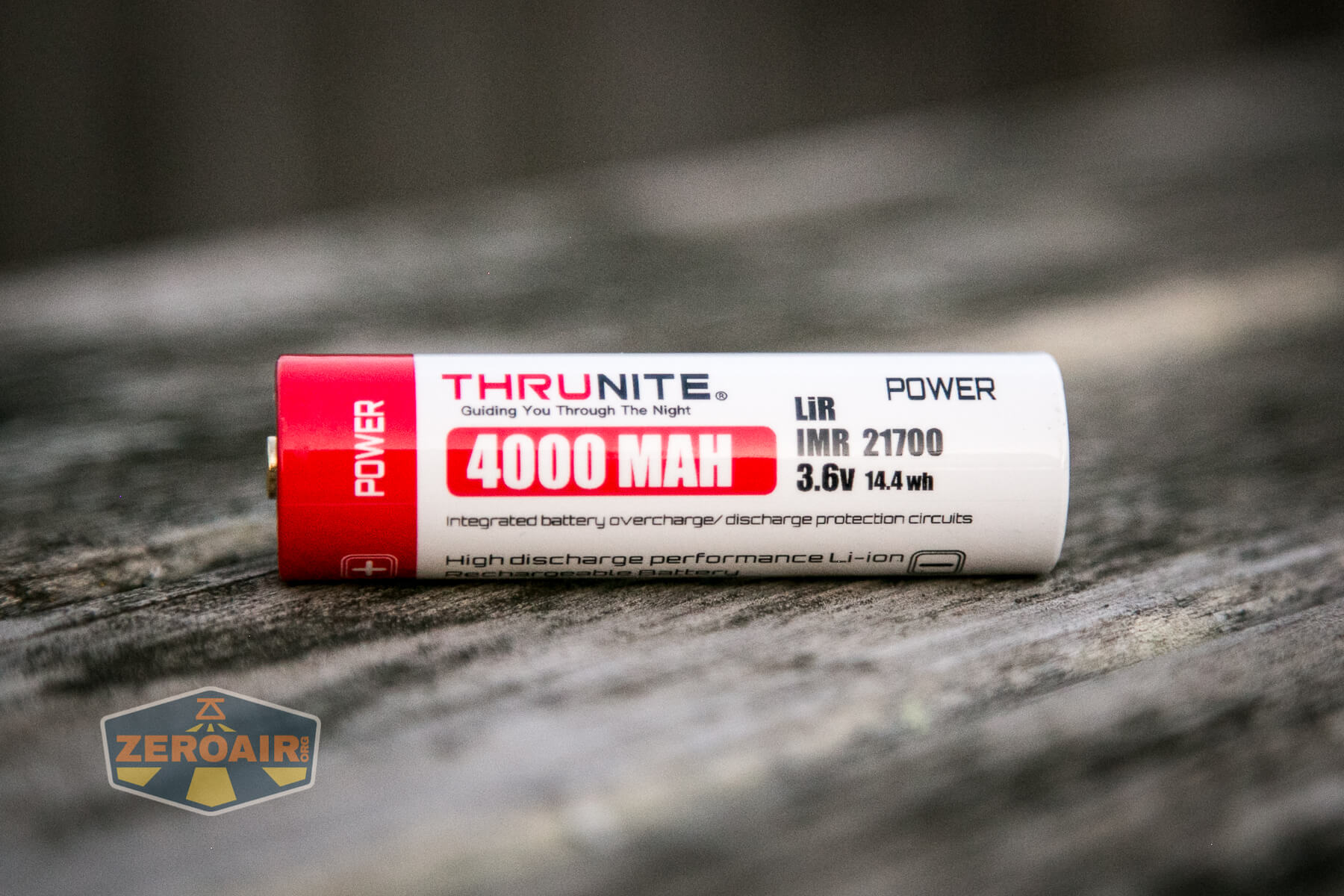

These Thrunite branded cells are “customized” cells – that ring around the positive terminal is exposed and is the anode… However, that aspect of these cells is not utilized in the Thrunite TN42 V2. Thankfully.

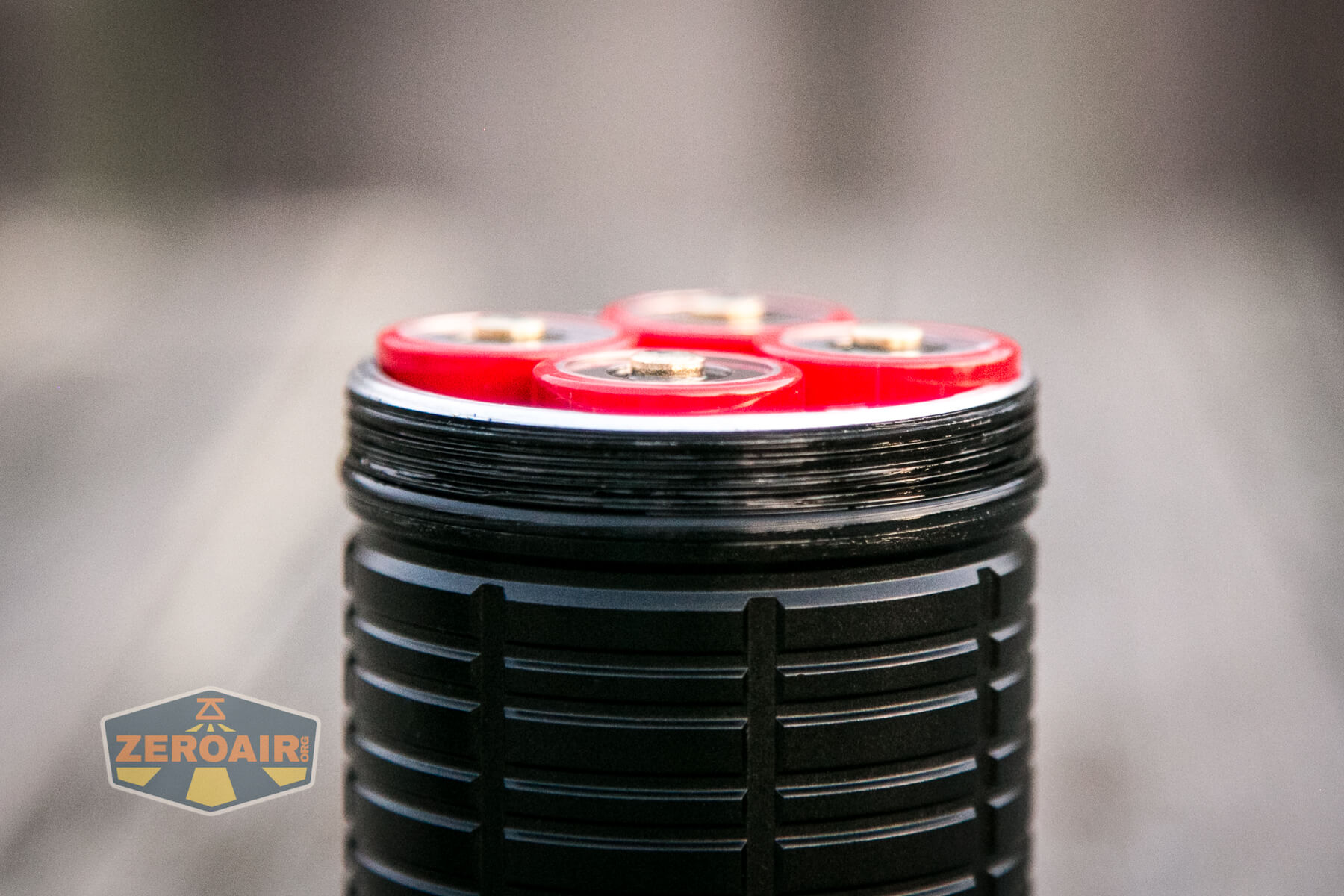

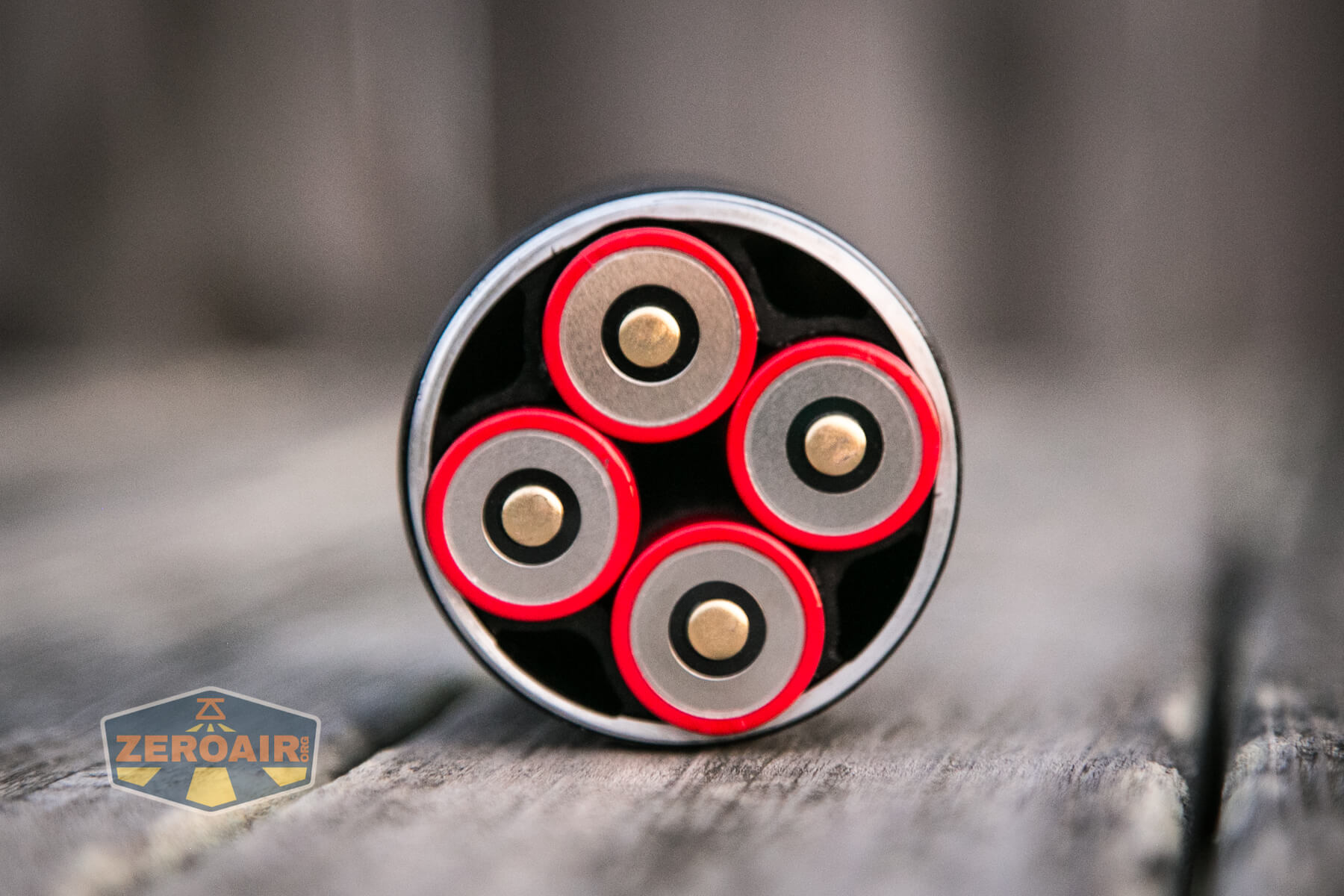

The cells sit just above the body when installed.
How nice they look in there! I think this is the first 4×21700 cell light I’ve had, and I have absolutely zero complaints.

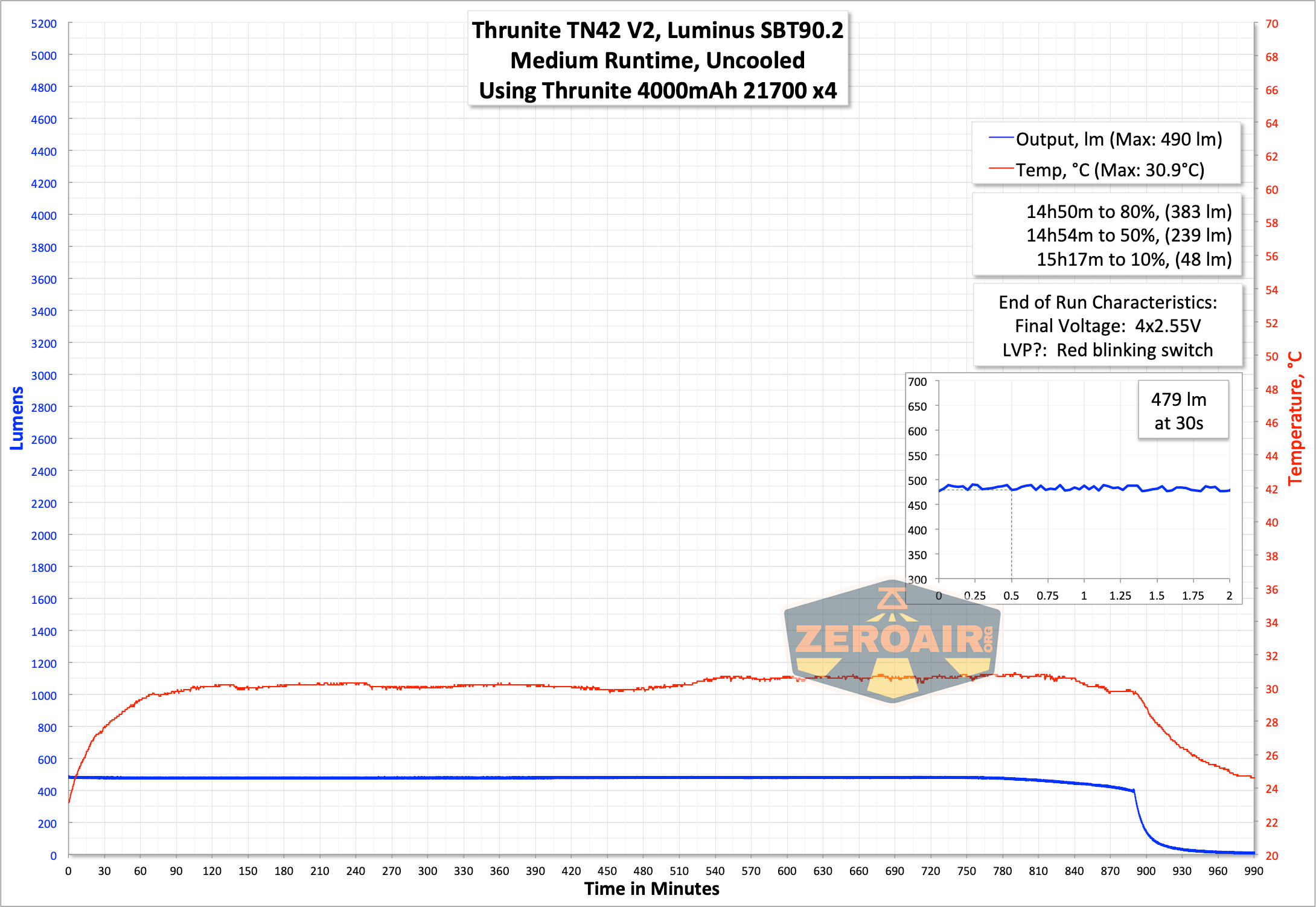

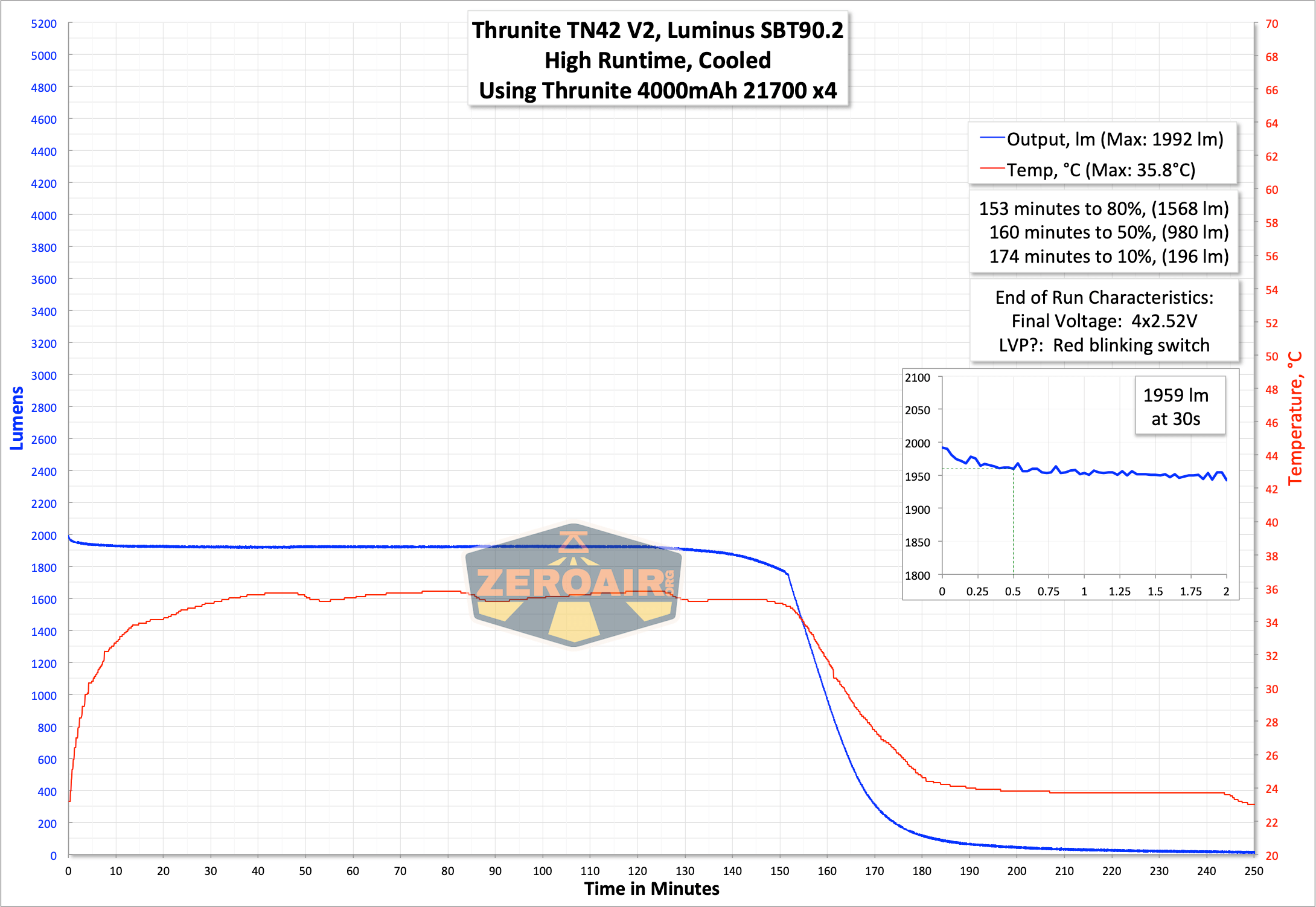

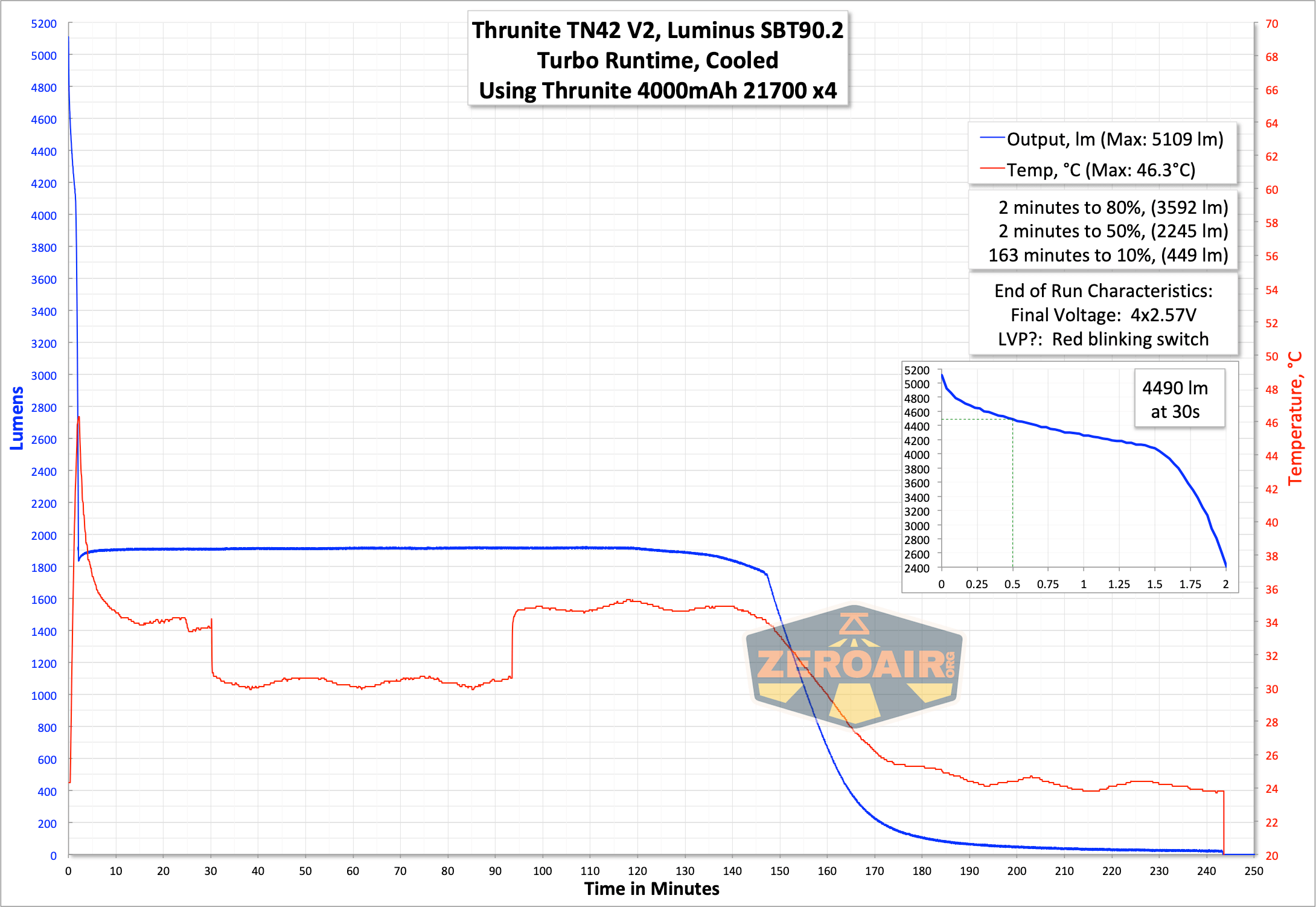

Below are a few runtimes. Output is a staggering 5100 lumens at startup, and after around 1.75 minutes has a big stepdown. That’s short of the 125 second claim. After the stepdown, output maintains around 1900 lumens for nearly 3 hours! Sorry to say my temperature probe got misaligned from around 30 minutes to around 95 minutes, but I think it’s safe to infer what’s going on there. The initial temperature spike had happened already.
All in all the runtimes look great. Note that the shutoff voltage is a little low, around 2.5V in all these tests. At this point the output was extremely low (maybe 20 lumens or so) and you’d certainly notice that. But you should also notice the indicating switch. It’s blue when power is “ok.” Red when power is low. Red flashing when power is very low.
One more thing about power – these cells are parallel, not series. So the driver is seeing the 4.2V (or 3.7V nominal) that a single cell provides, and yes that means the Thrunite TN42 V2 will run on a single cell. Now, I wouldn’t push Turbo through a single cell, because that’s quite demanding on a single cell. But in a pinch, you should be able to get some of the lower modes for some time if you have to.
Charging

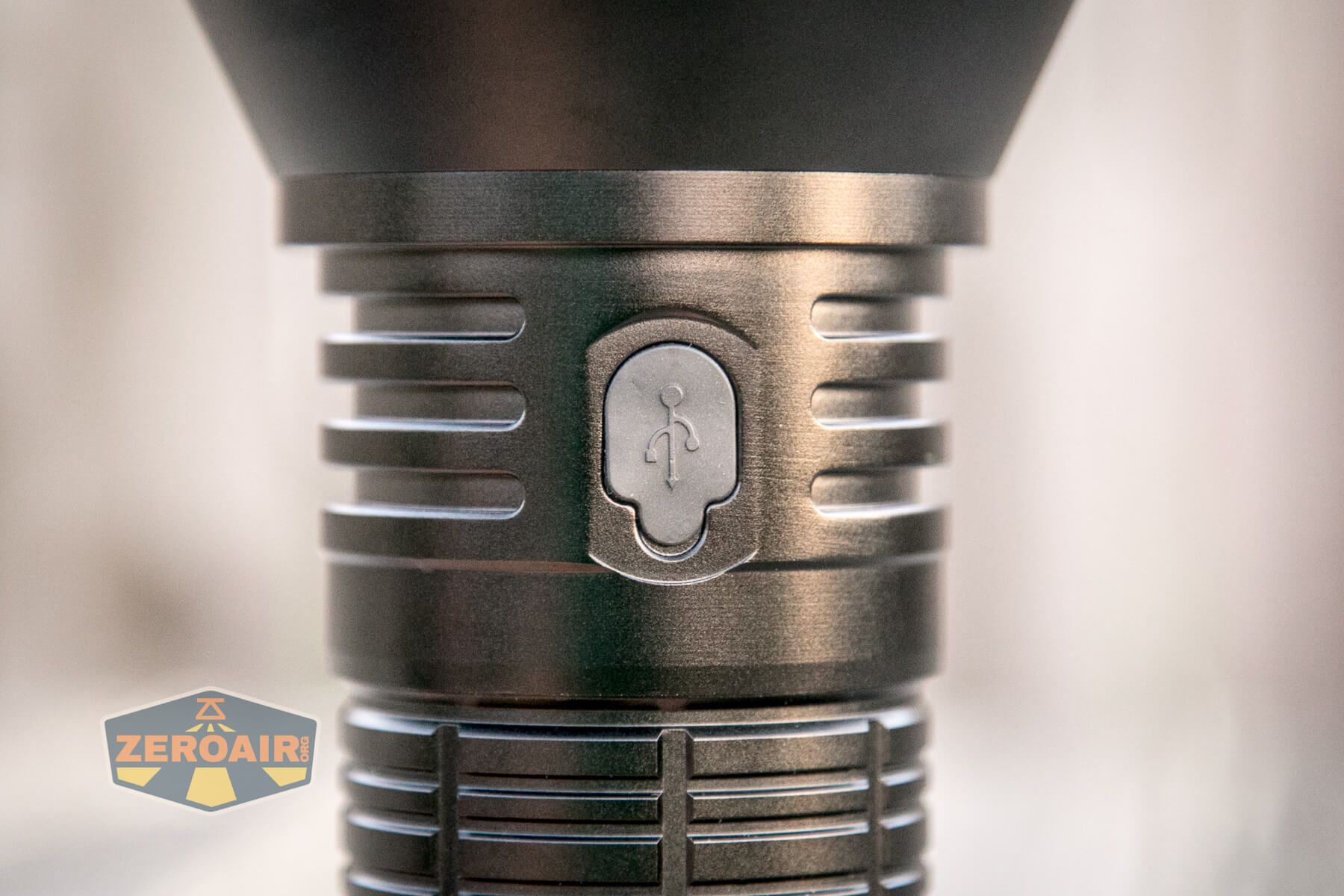

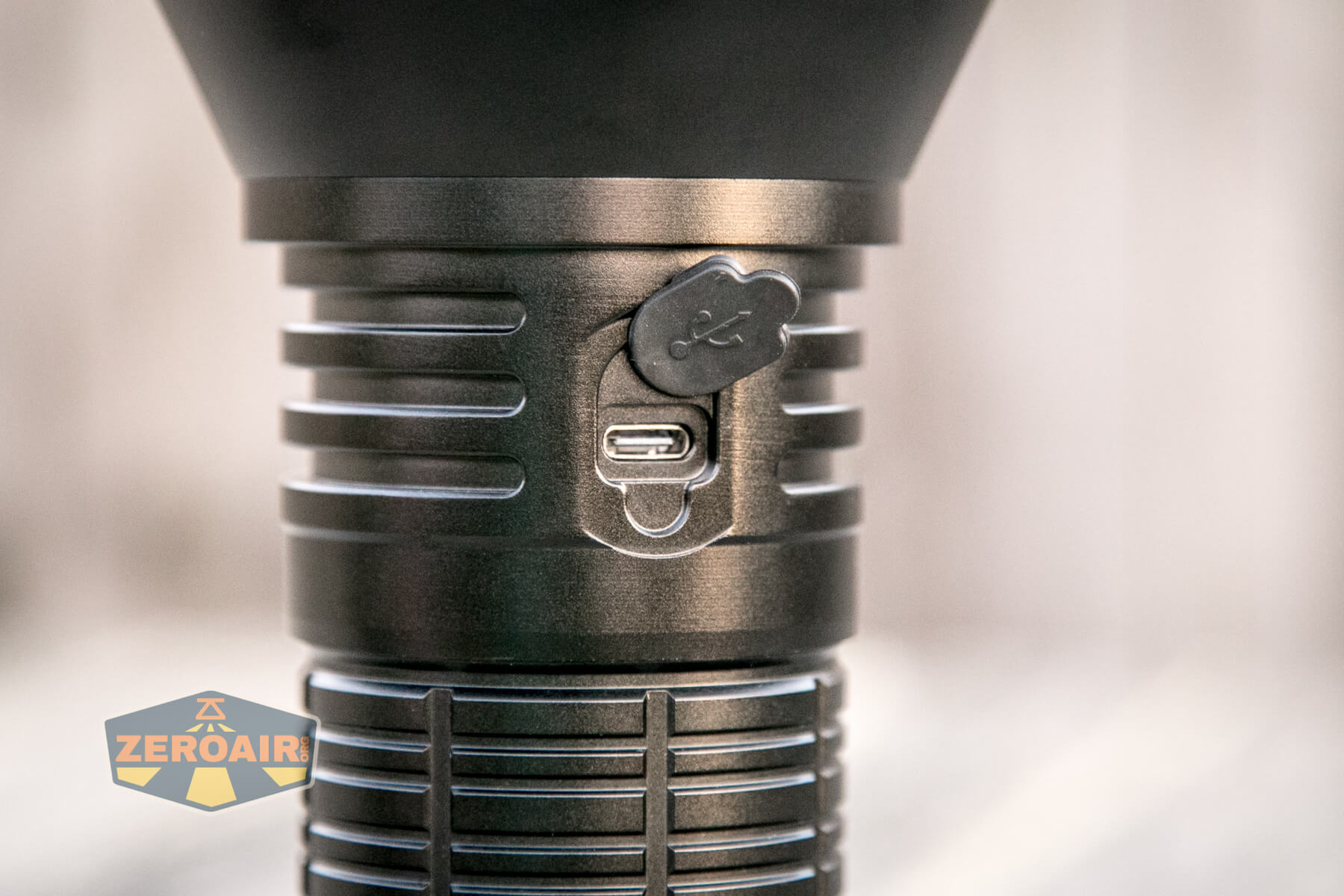

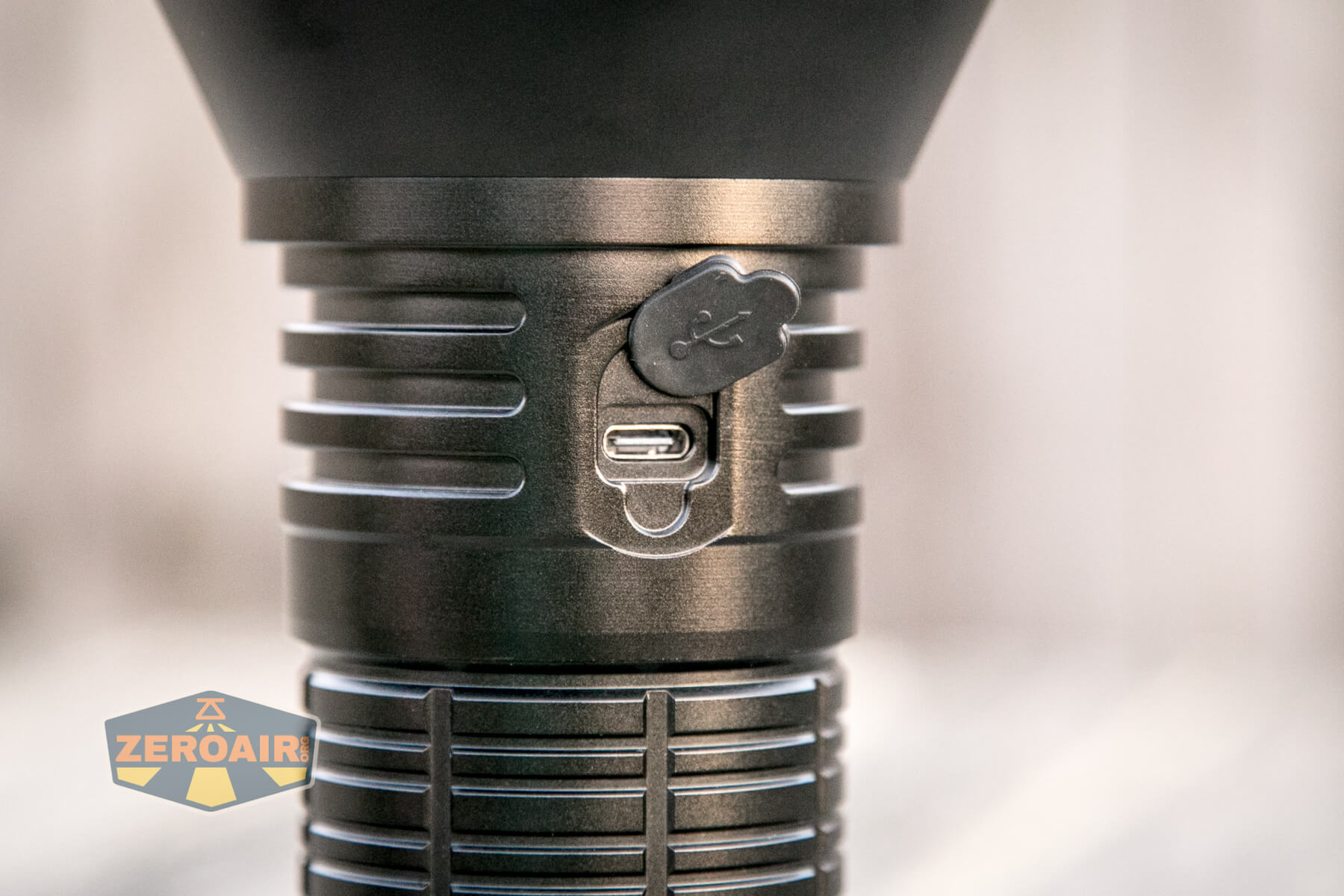

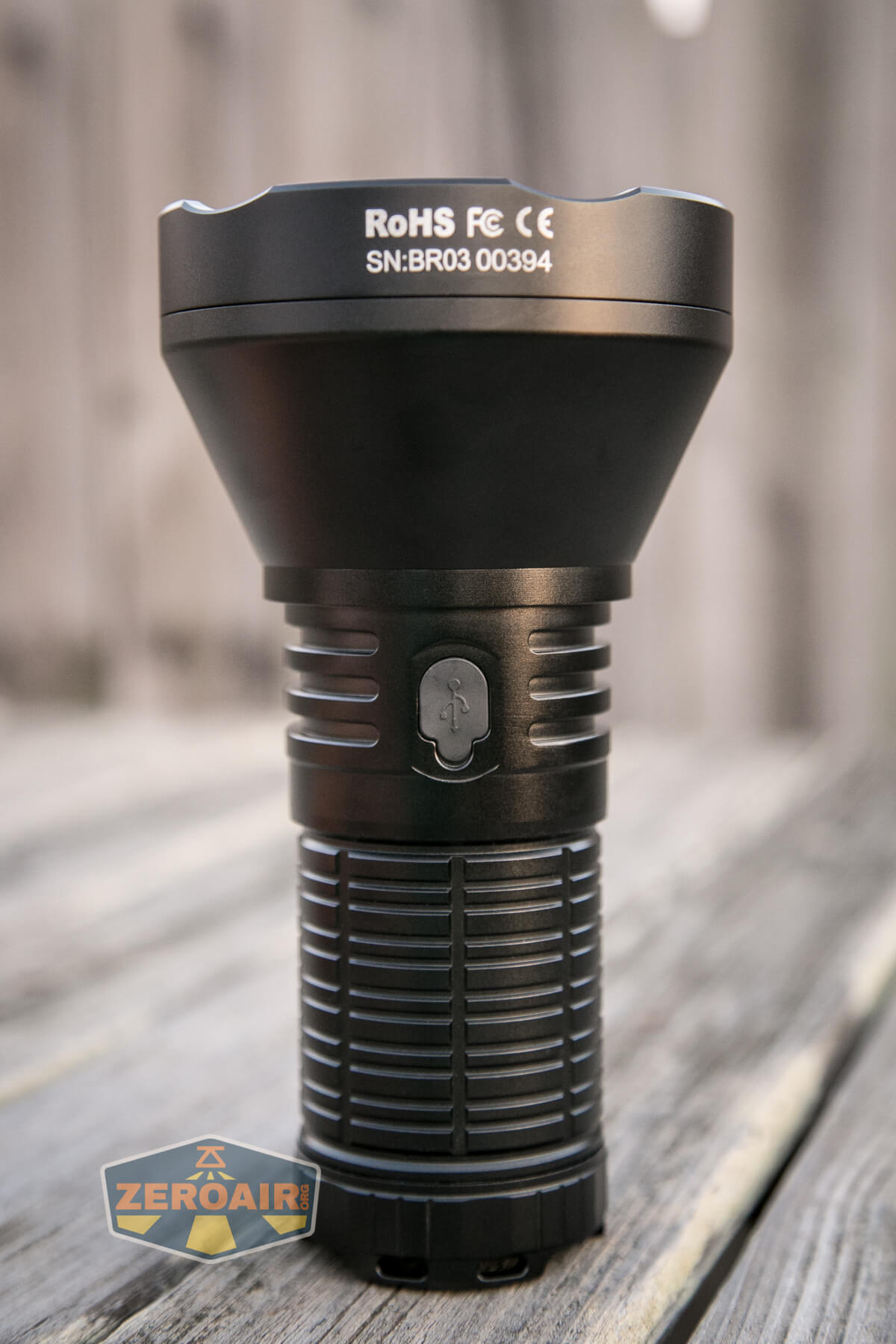

Unlike previous TN42’s which had charging, the Thrunite TN42 V2 utilizes normal USB-C. There’s a charge port right here in the head, exactly on the opposite side from the switch.

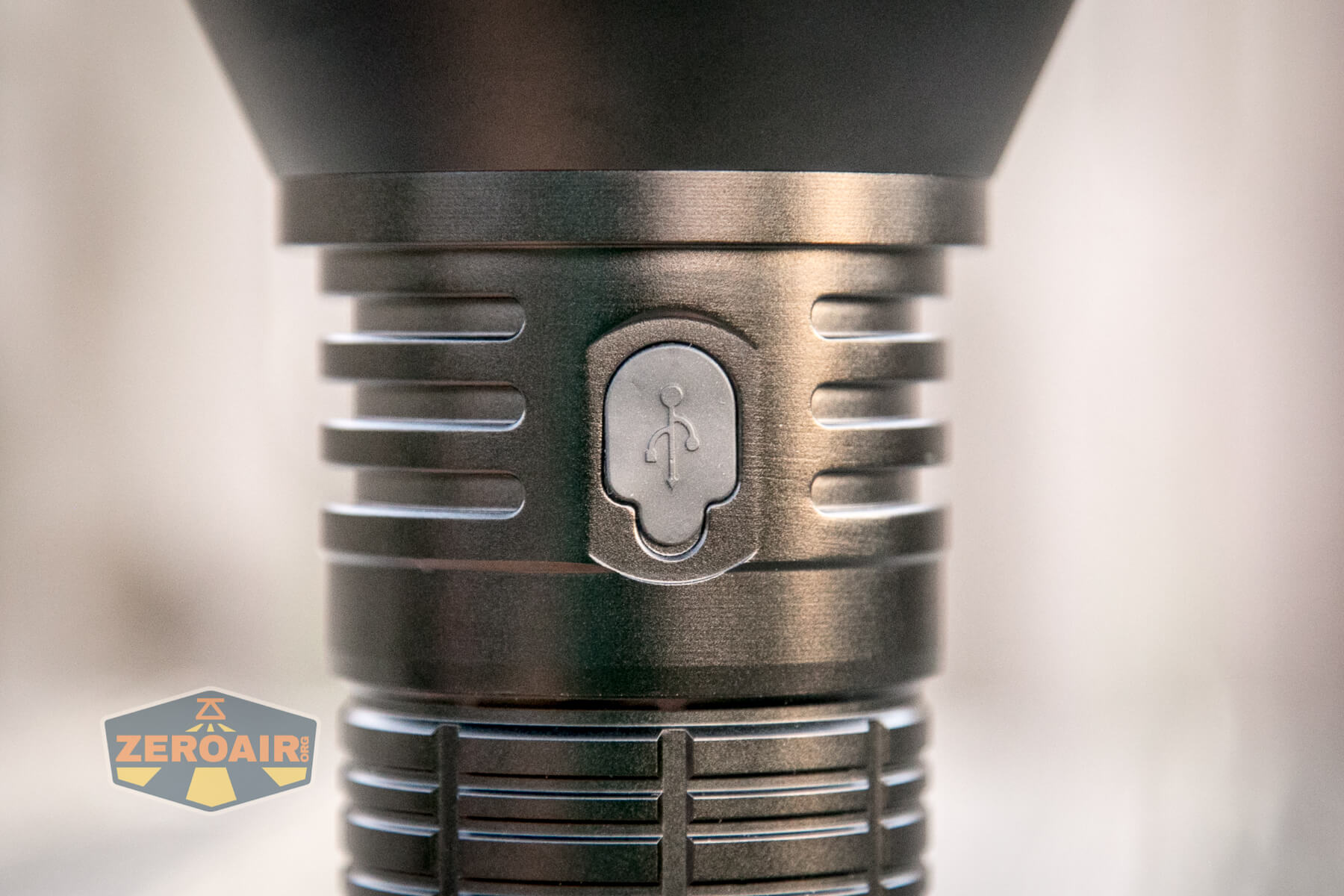

The charge port cover seems very secure and is in fact a little hard to grab to open. (That’s the better option than it being too easy to open!)

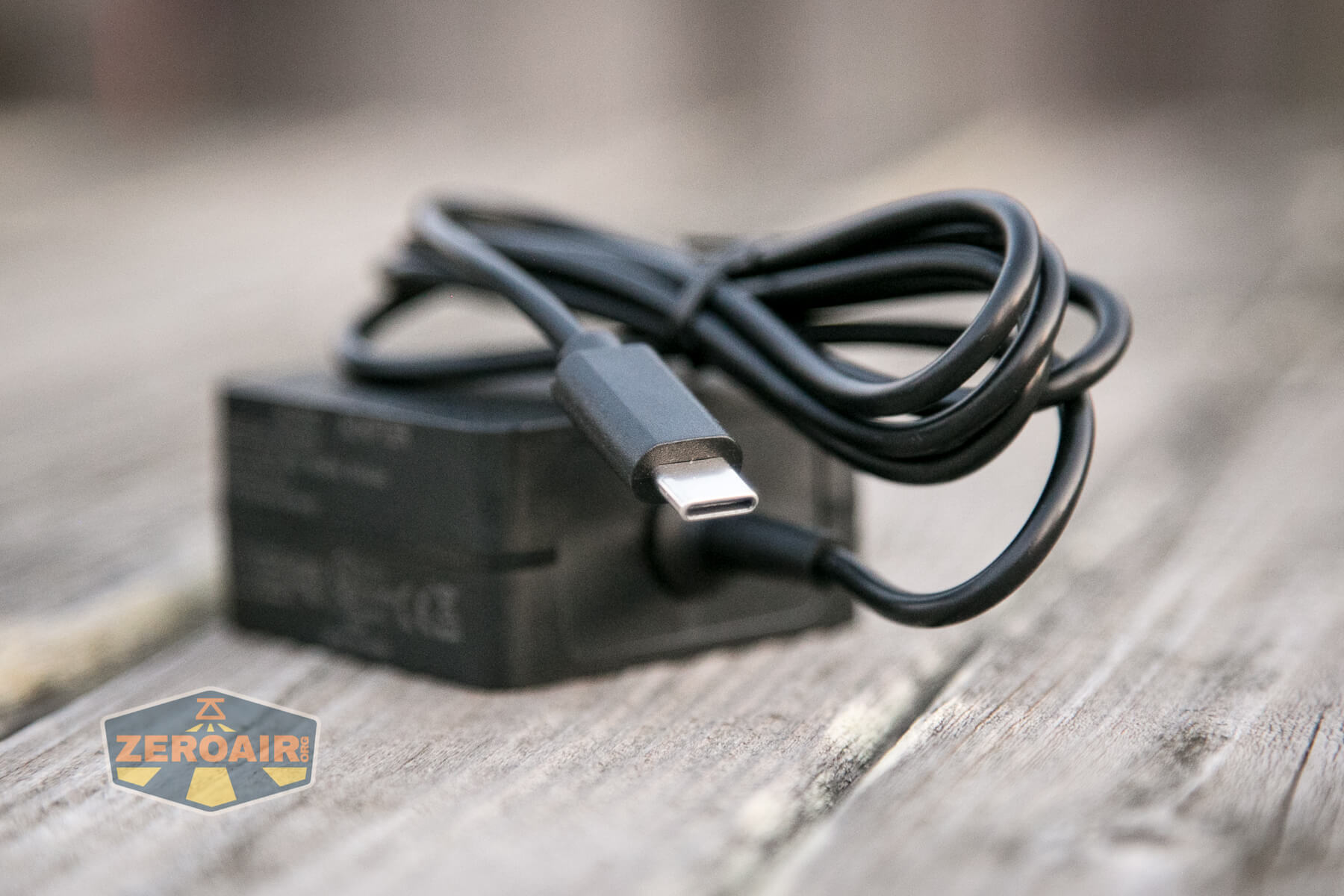

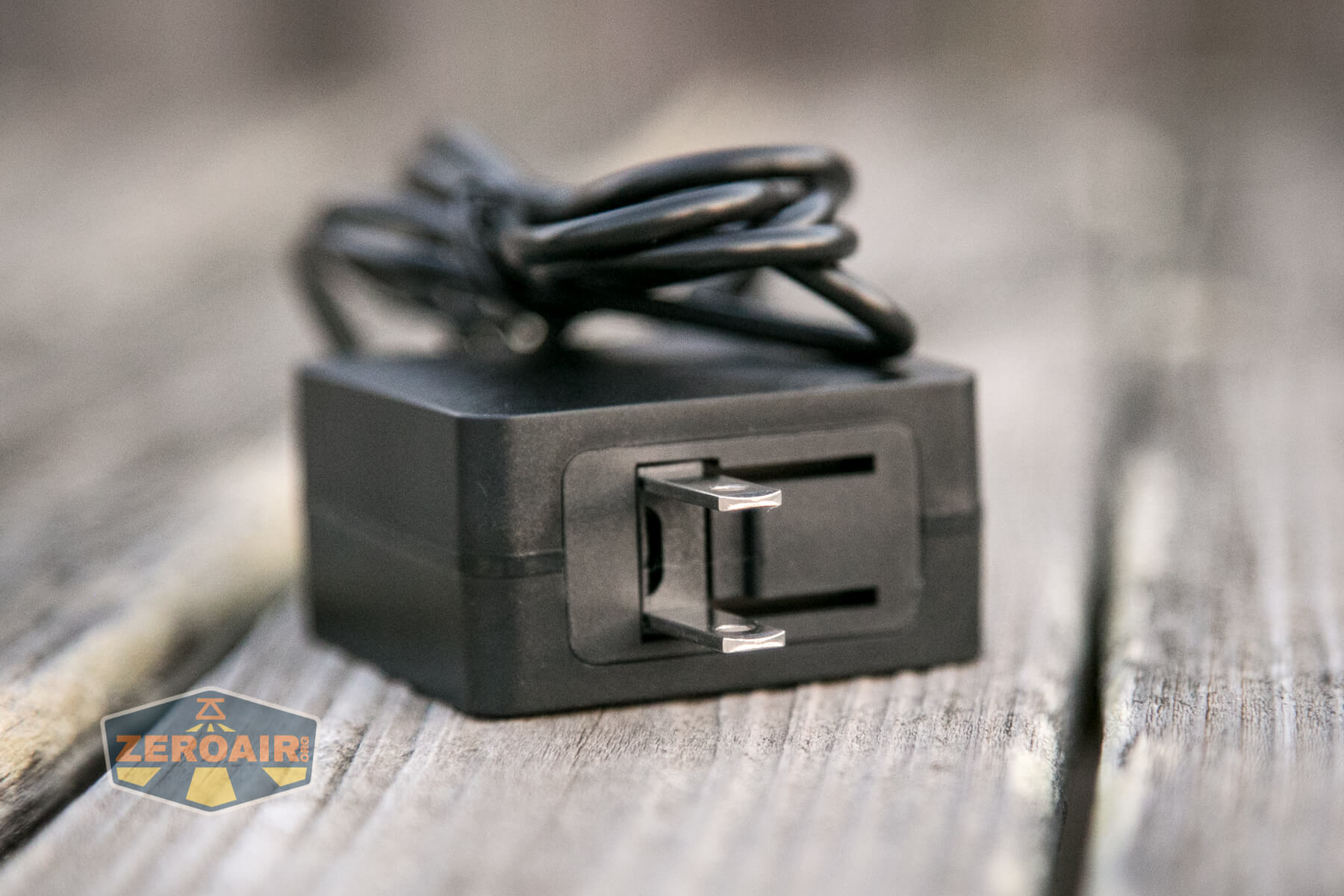

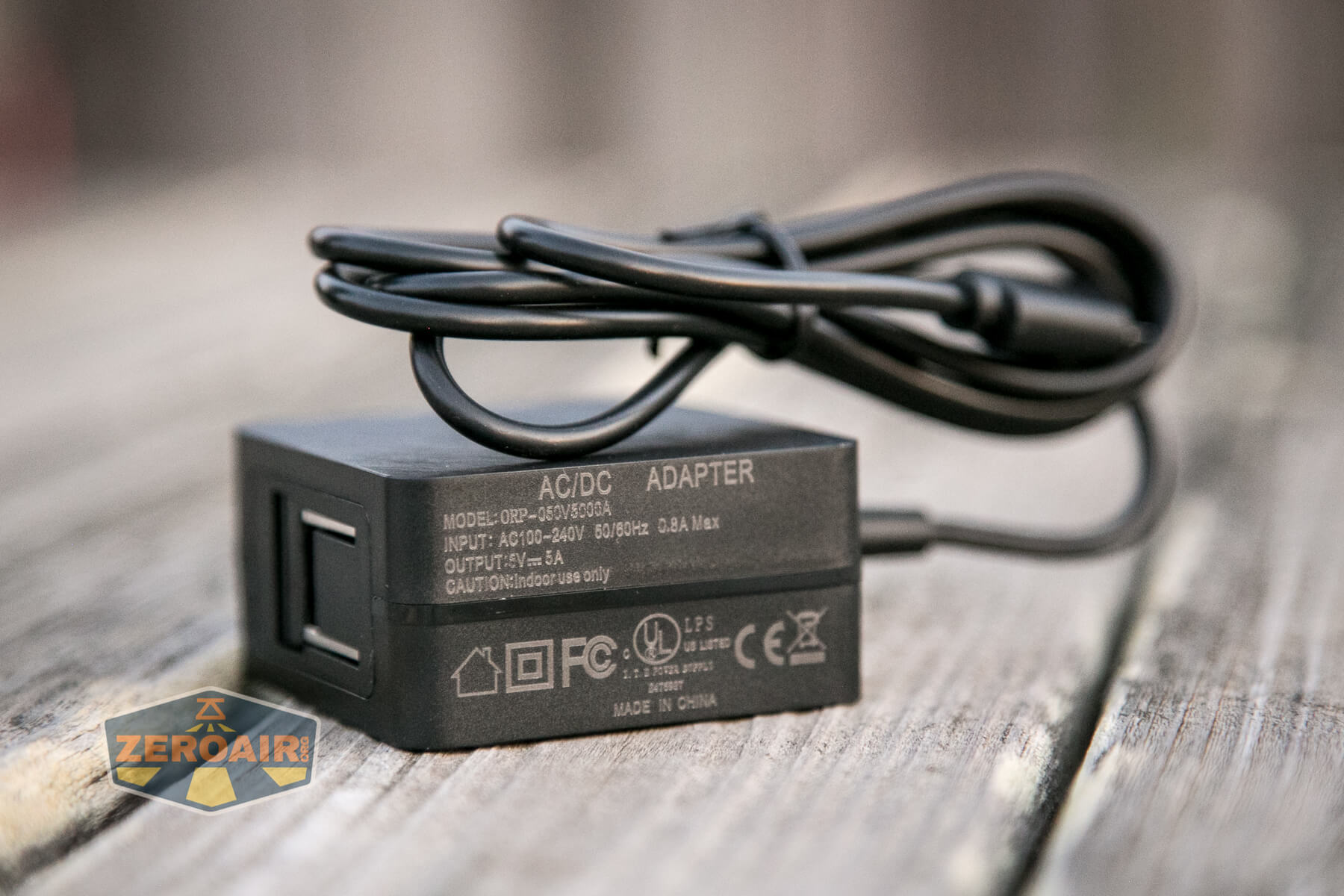

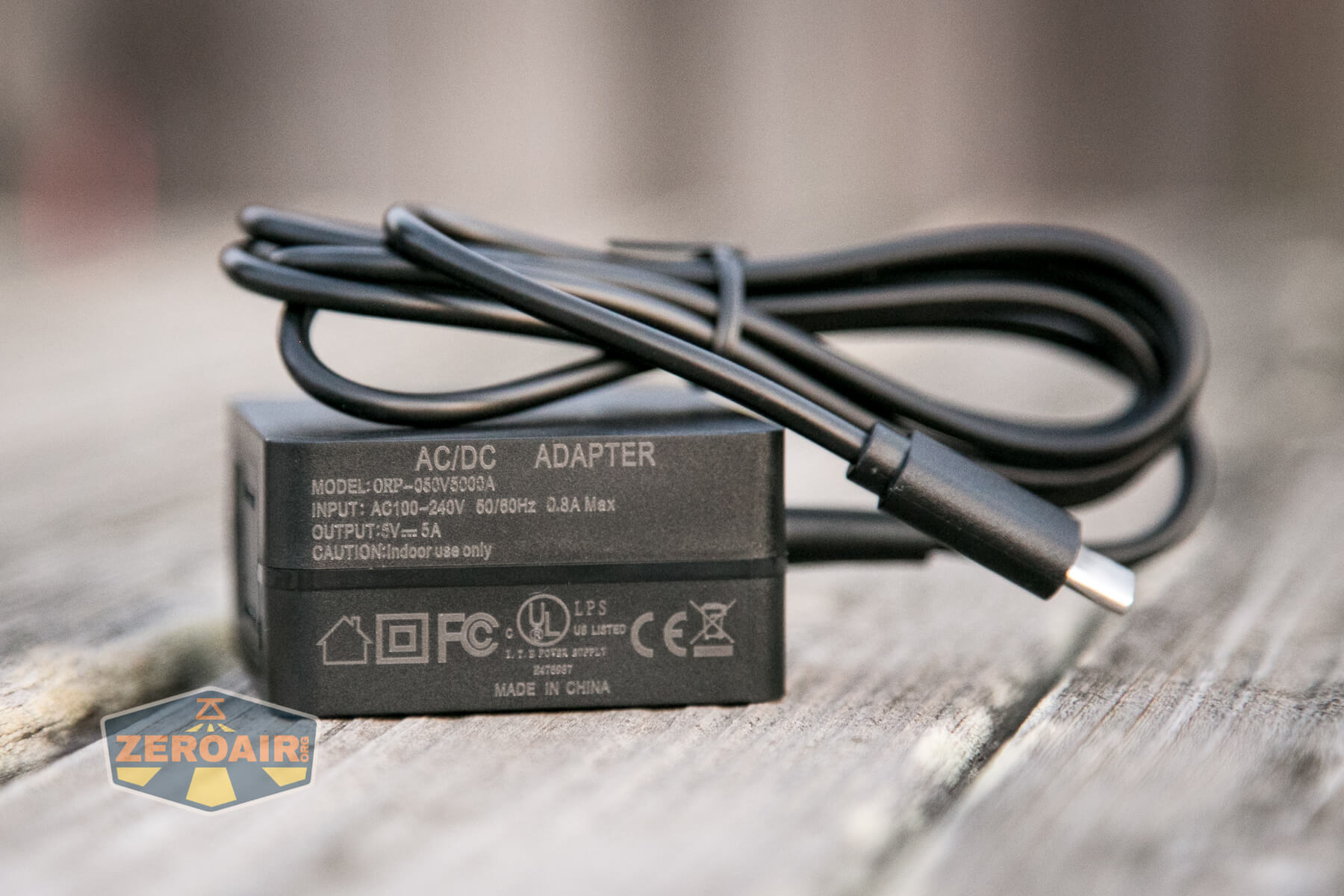

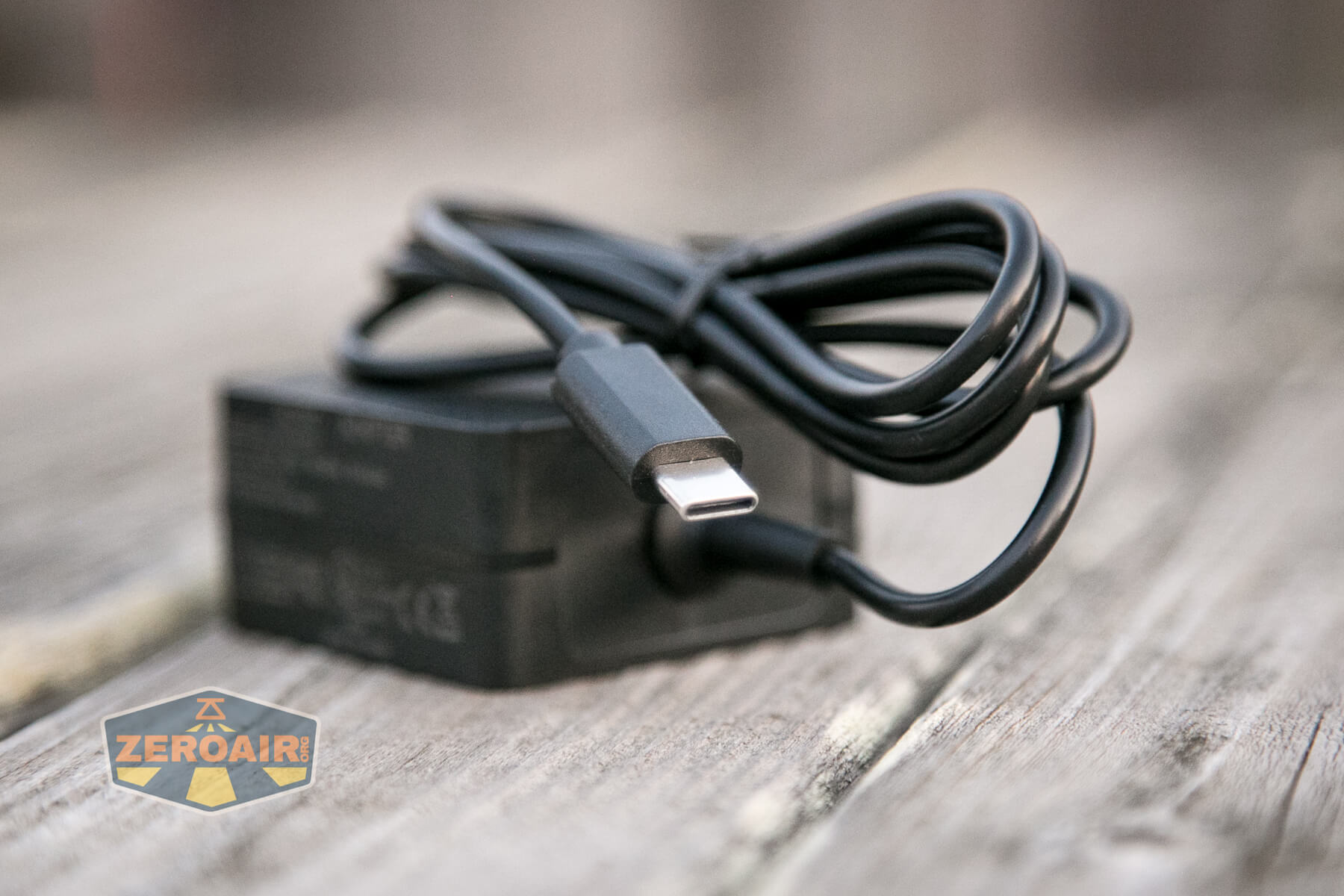

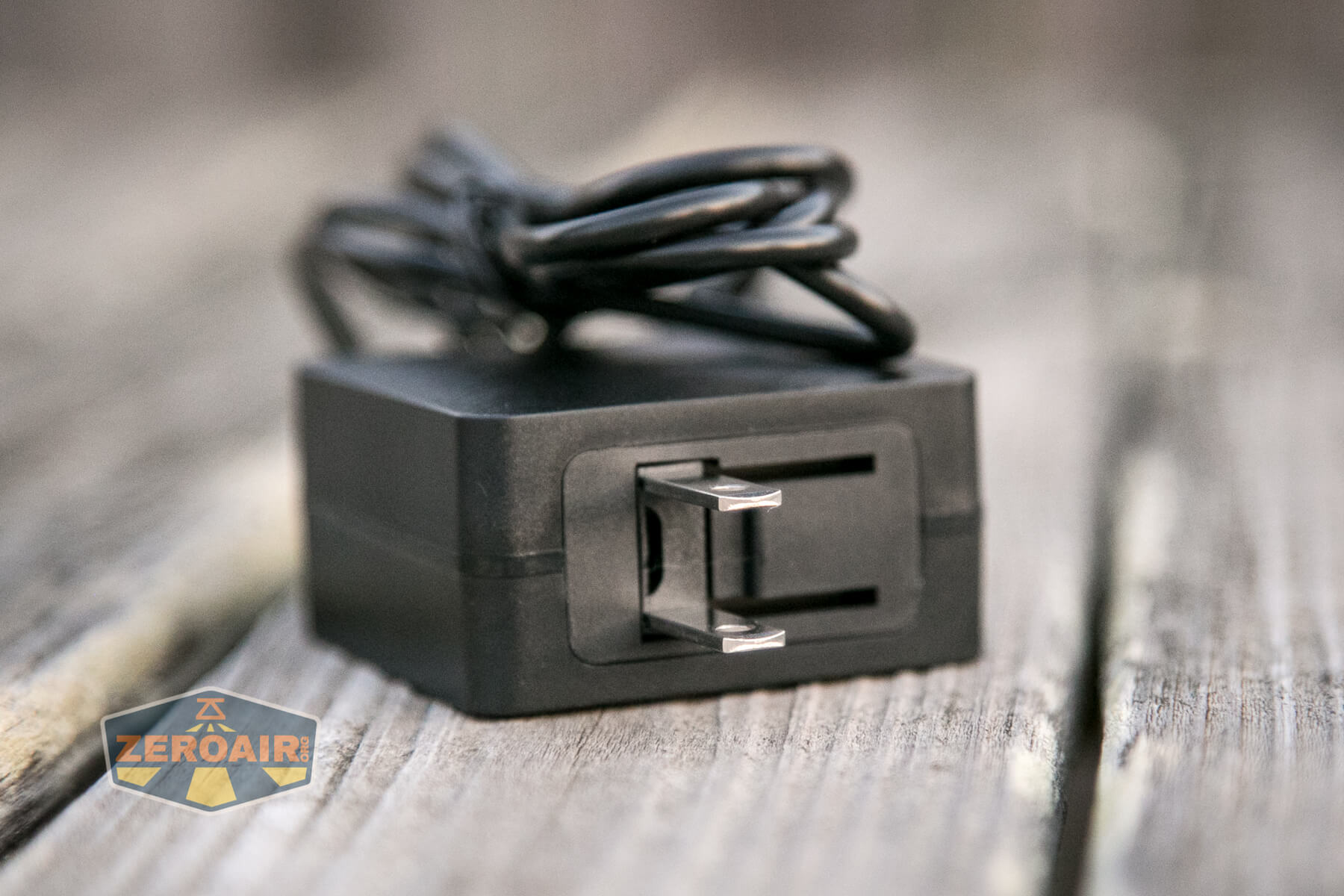

Thrunite includes a charge adapter. This is a “wall wart” to USB-C plug. The output here is 5V, so no power delivery (which makes a little bit of sense since the cells are in parallel, and 4.2V total) (not that they couldn’t have done it with power delivery if they wanted to, but I think that gets more complicated internally). (That said, PD on this light would be amazing – 20V or 12V at 2A or whatever, would certainly charge the light faster!)
This cable is built into the wall wart (unfortunately). Seems like Thrunite could have provided a wall wart that had a USB-C plug and a C to C cable. On the other hand, this definitively limits the charge voltage to 5V, and should prevent a user from grabbing some other plug (like the Olight Marauder II, which is PD and can output higher voltages.)

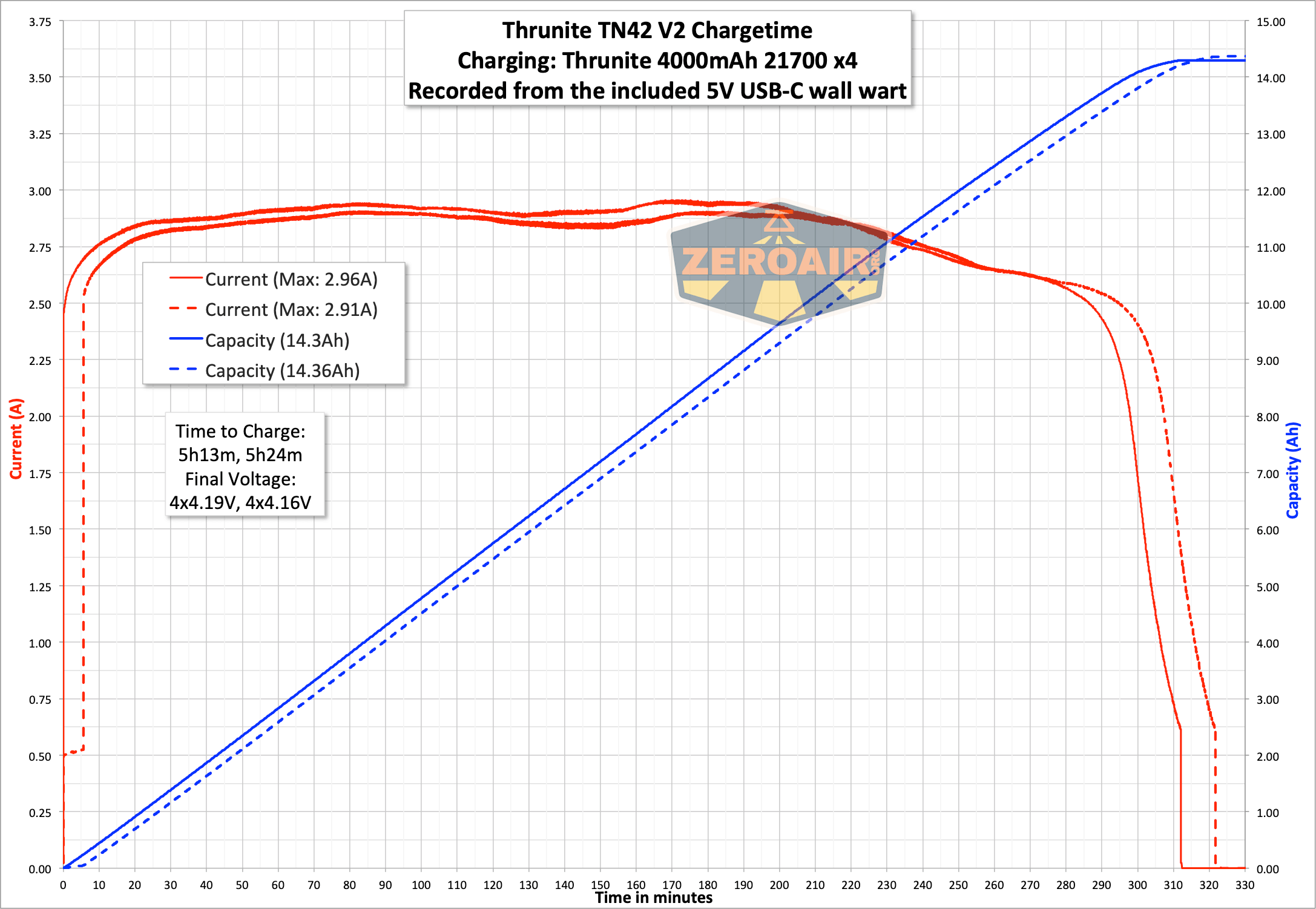

Charging is good, and a respectable 5ish hours for the 16000mAh battery (remember, these four cells are parallel. So capacity is cumulative, not voltage). (Just to finish the thought – if they were series, the voltage would add and the capacity would be just whatever one cell was listed as).
Charging peaks at around 3A, which is perfectly fine for four 4000mAh cells getting one-fourth of 3A. That’s slow, even, but such is the nature of 5V USB output.
Modes and Currents
Mode | Mode Claimed Output (lm) | Claimed Runtime | Measured Lumens | Tailcap Amps |
---|---|---|---|---|
Turbo | 4848/1737 | 125s/160m | 4490 | 17.59 (++) |
High | 1863 | 3h | 1959 | 5.90 |
Medium | 425 | 15h | 479 | 1.00 |
Low | 80 | 82h | 124 | 0.23 |
Firefly | 1 | 180d | 0.82 | 3.52mA |

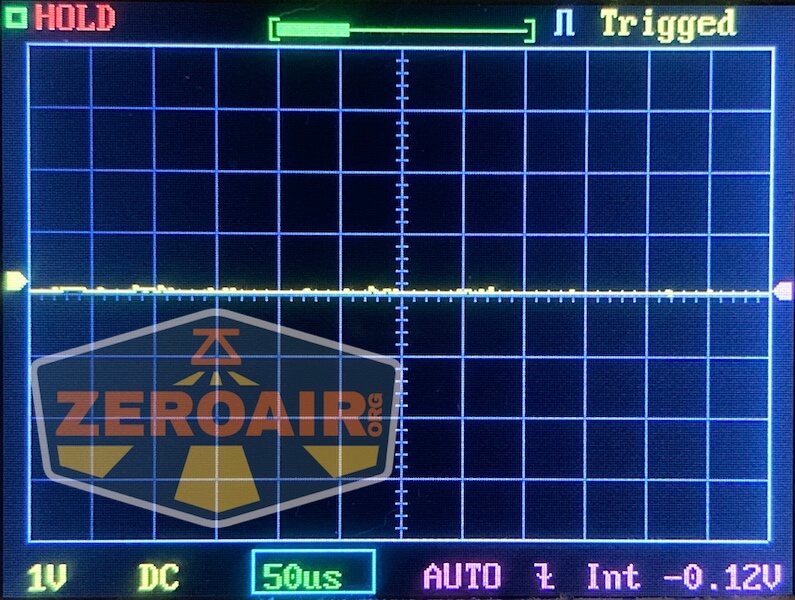

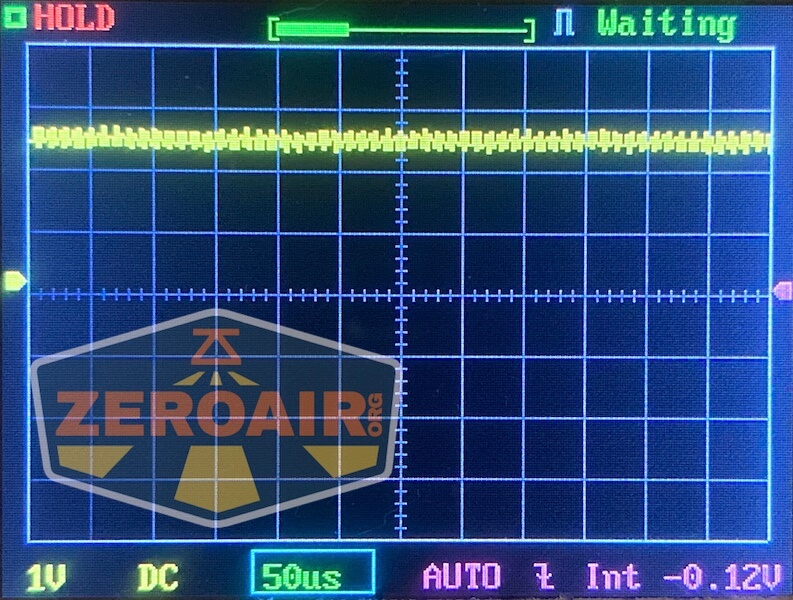

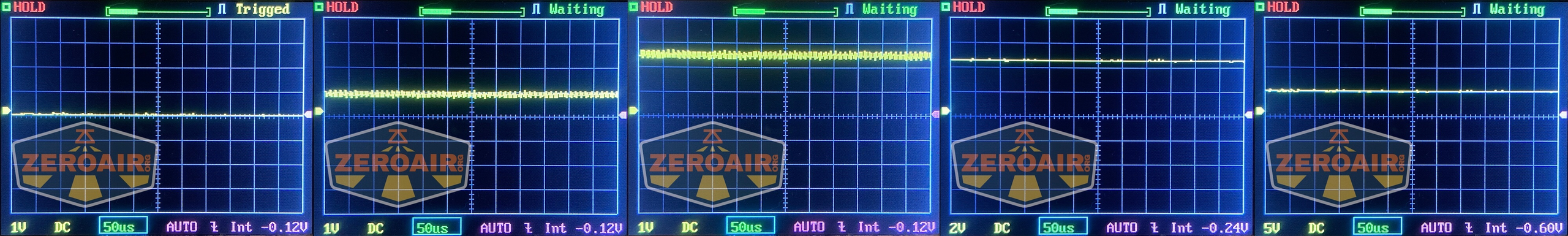

Pulse Width Modulation
No PWM is seen.

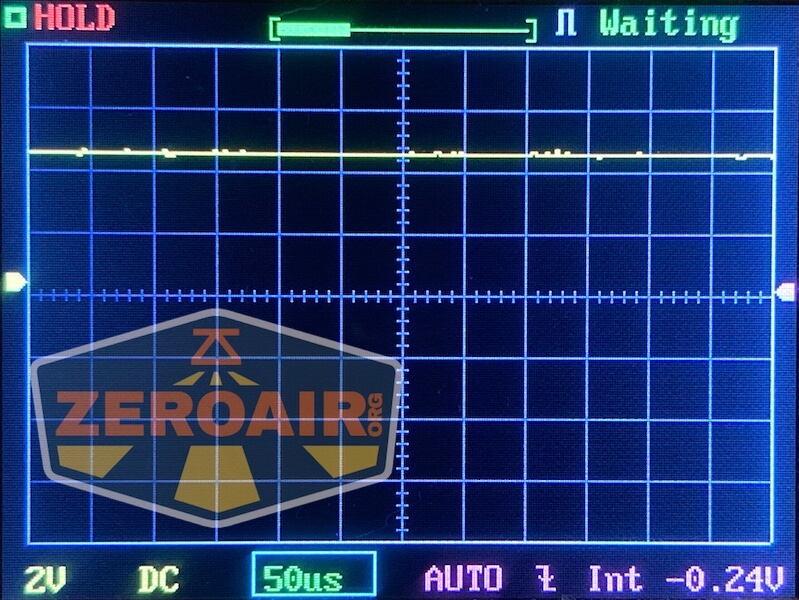

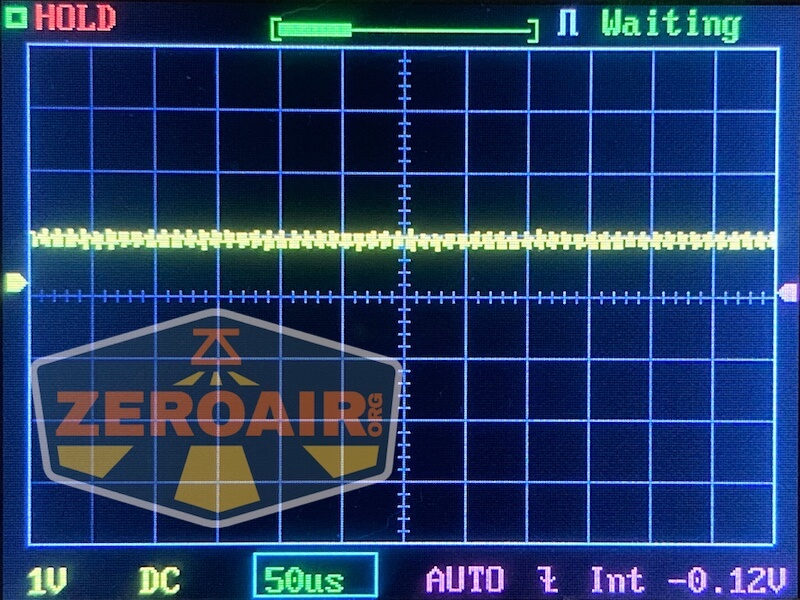

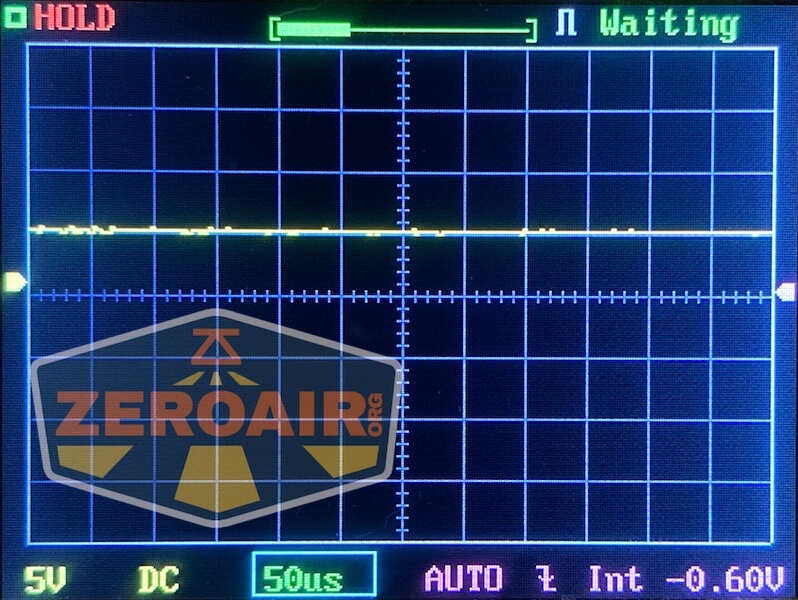

Here you can see a “baseline” – a chart with almost no light hitting the sensor.
Then there’s the Ultrafire WF-602C flashlight, which has some of the worst PWM I’ve seen. It’s so bad that I used a post about it to explain PWM! Here are multiple timescales (10ms, 5ms, 2ms, 1ms, 0.5ms, 0.2ms) to make comparing this “worst” PWM light to the test light easier. That post also explains why I didn’t test the WF-602C at the usual 50us scale.
User Interface and Operation

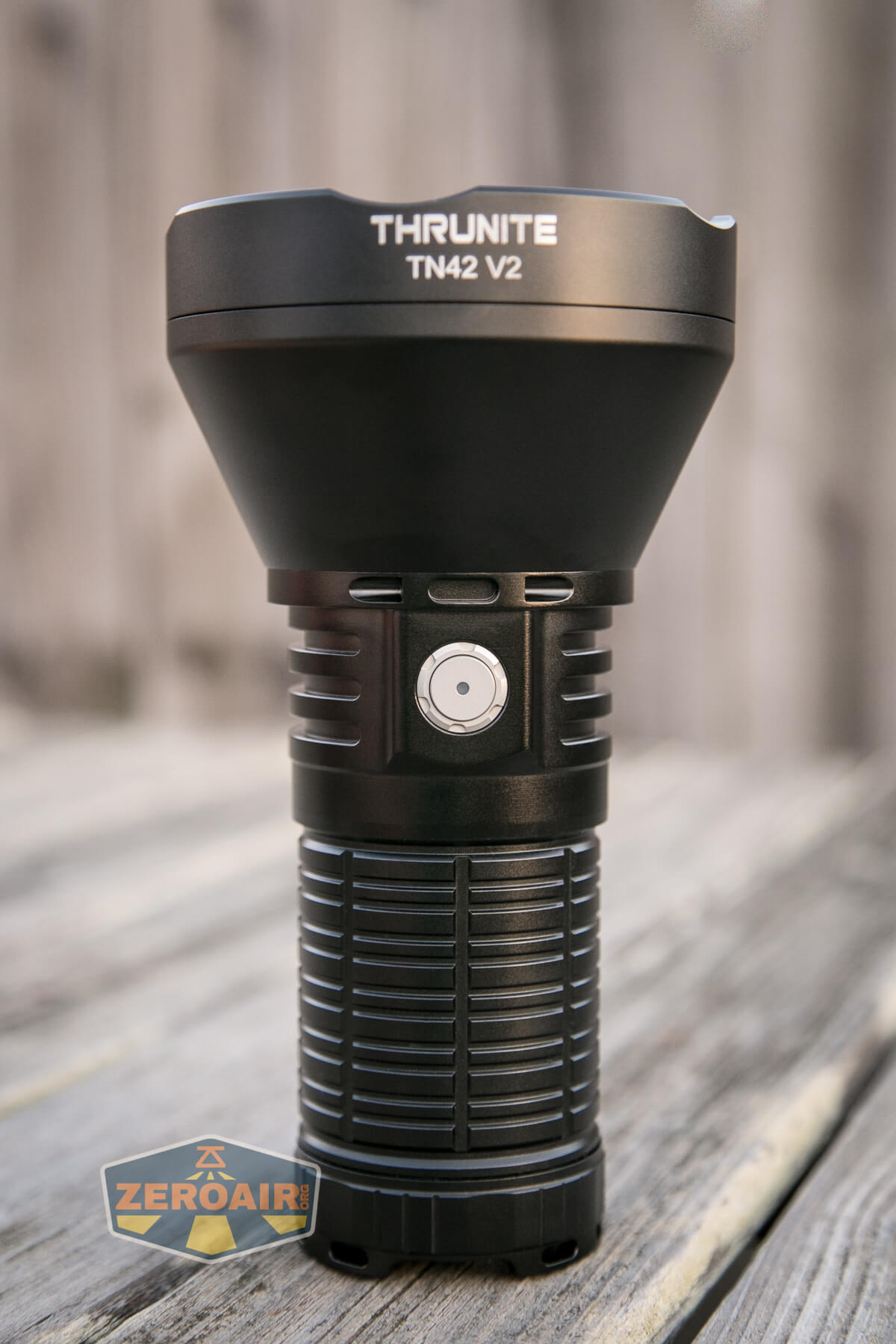

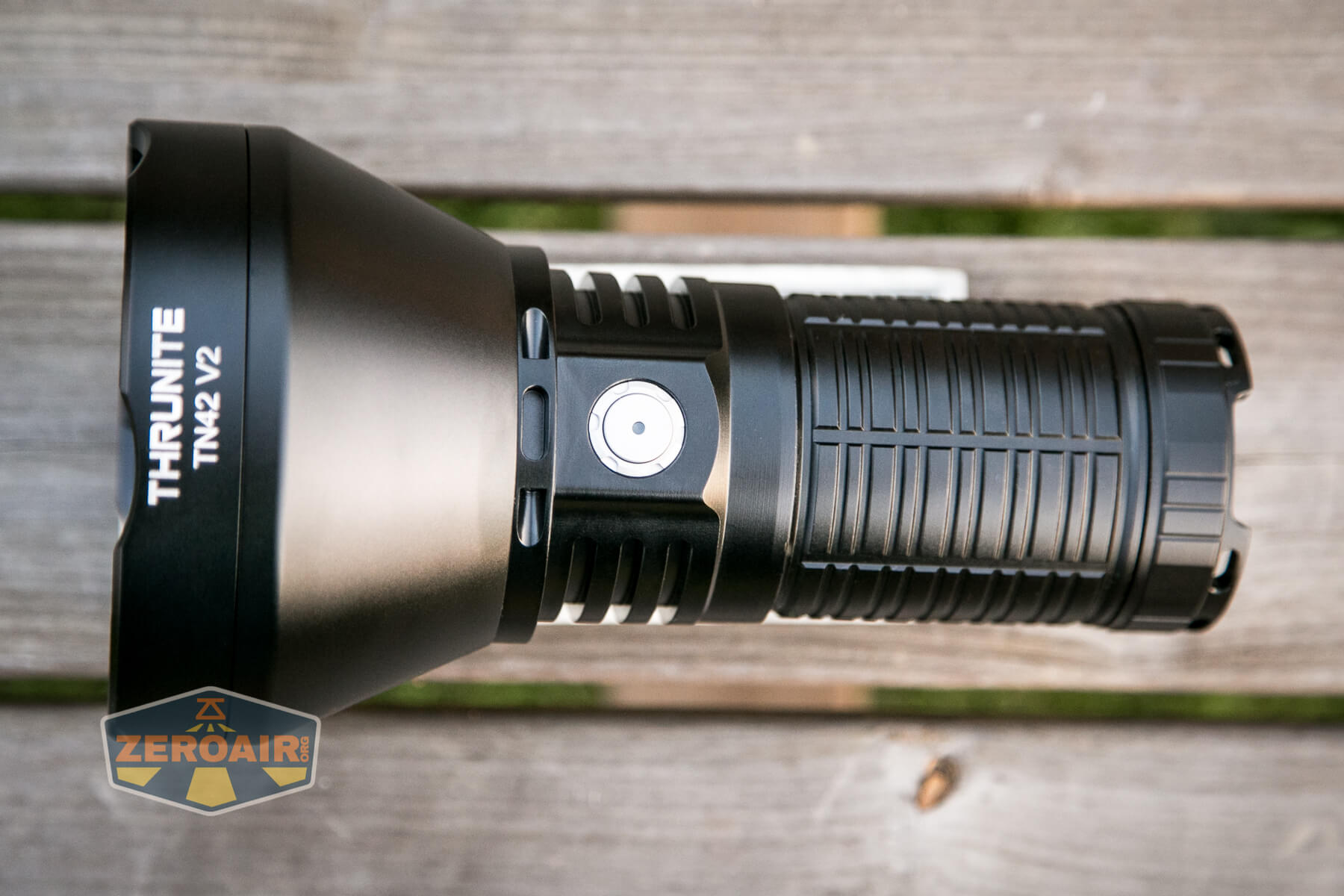

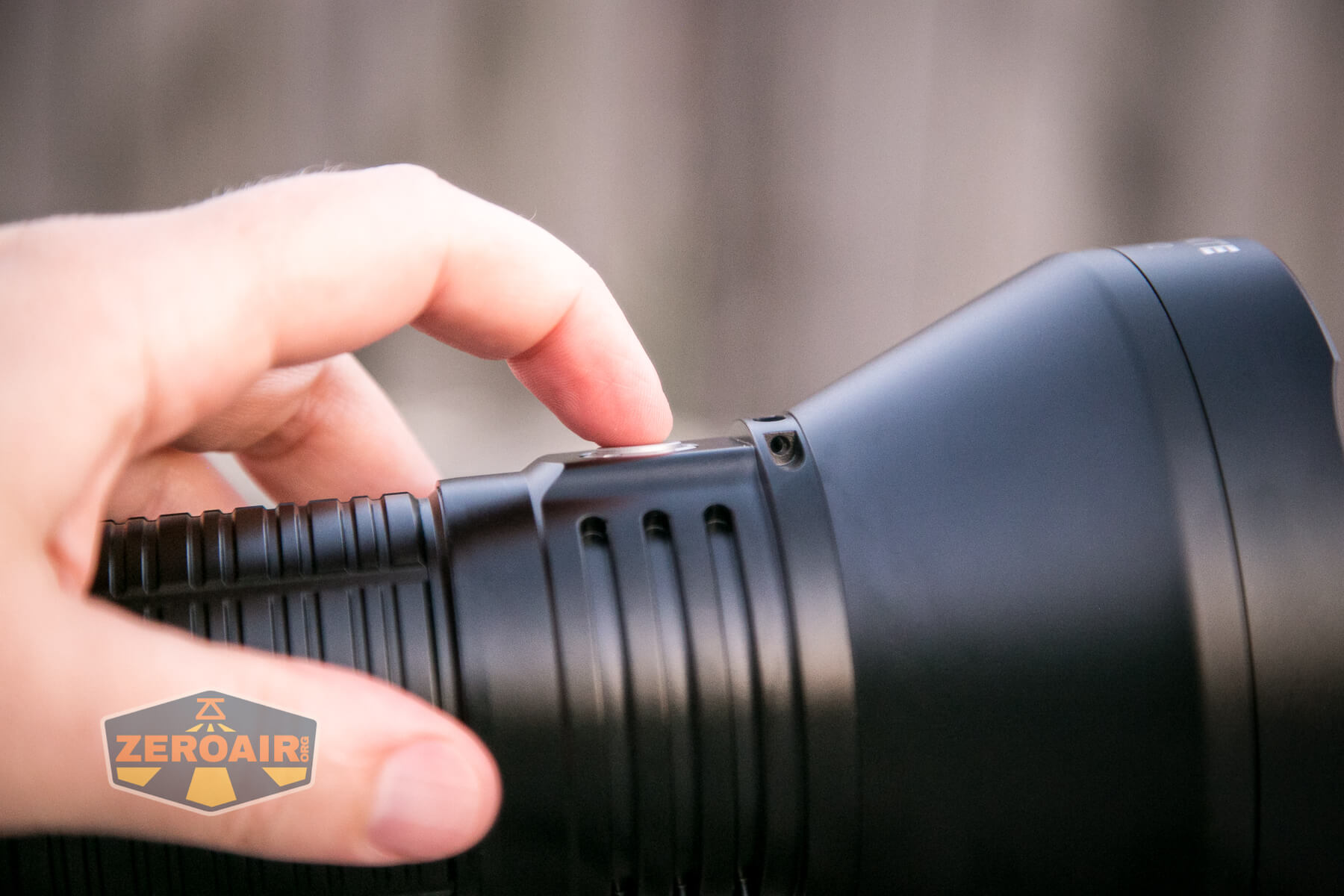

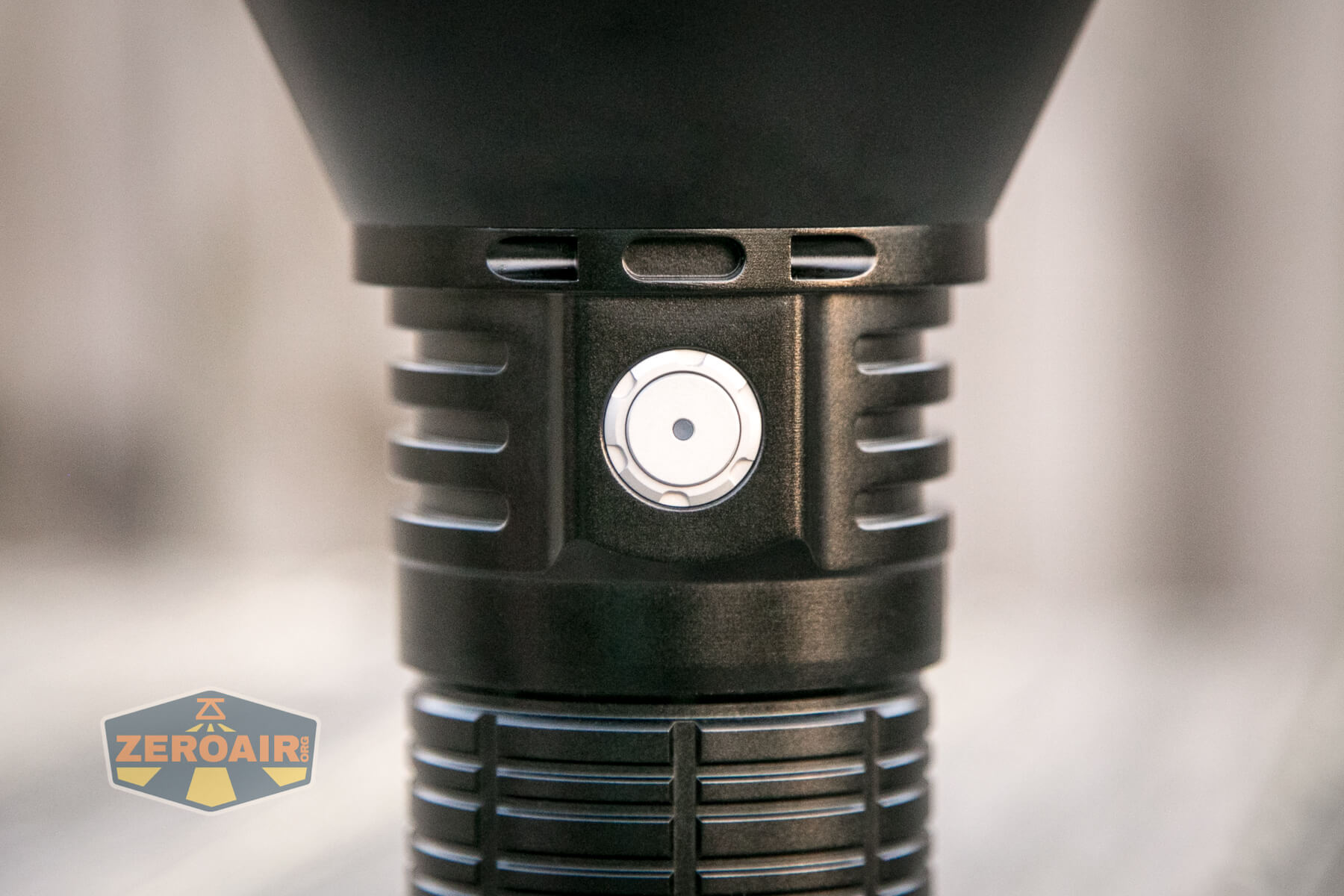

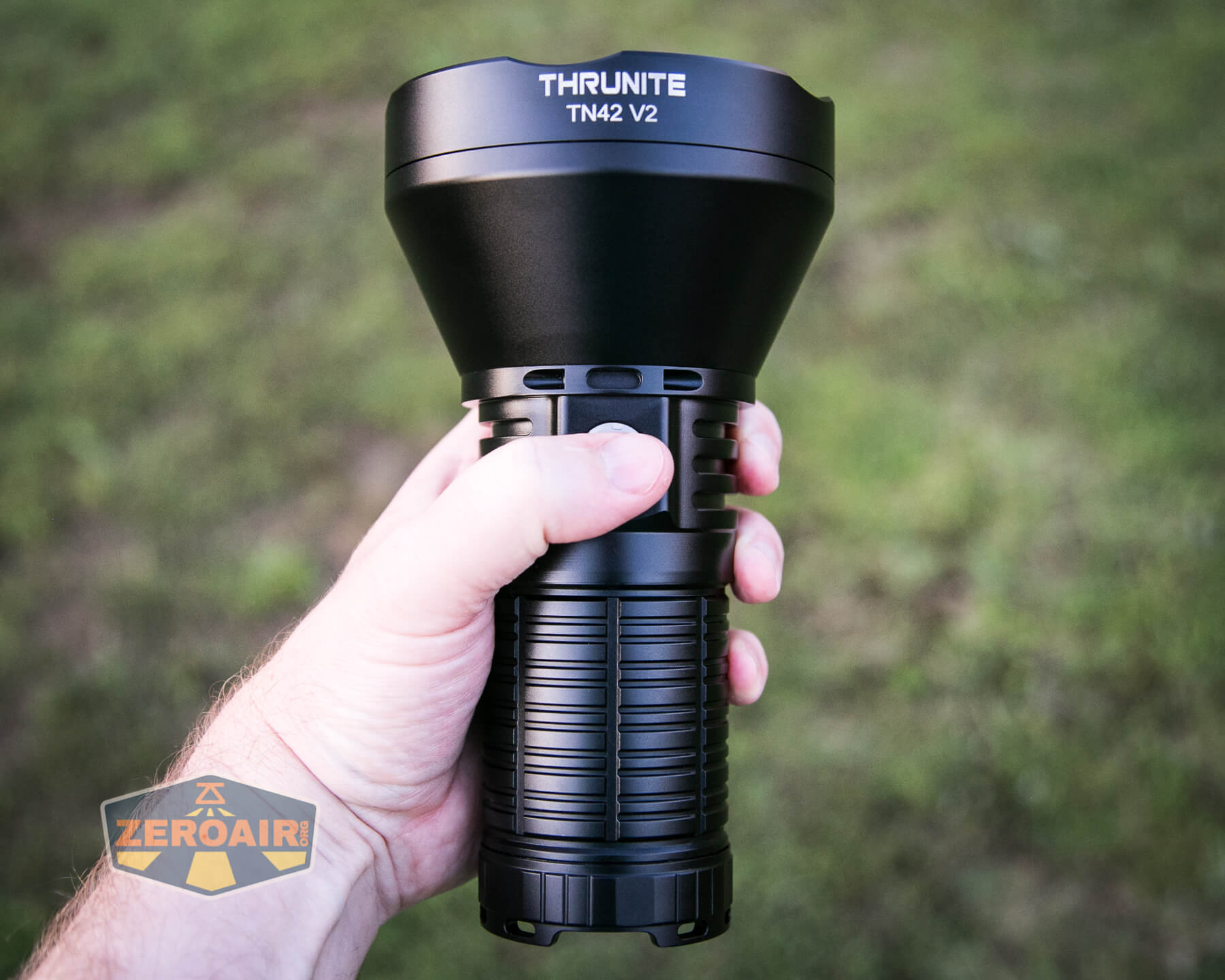

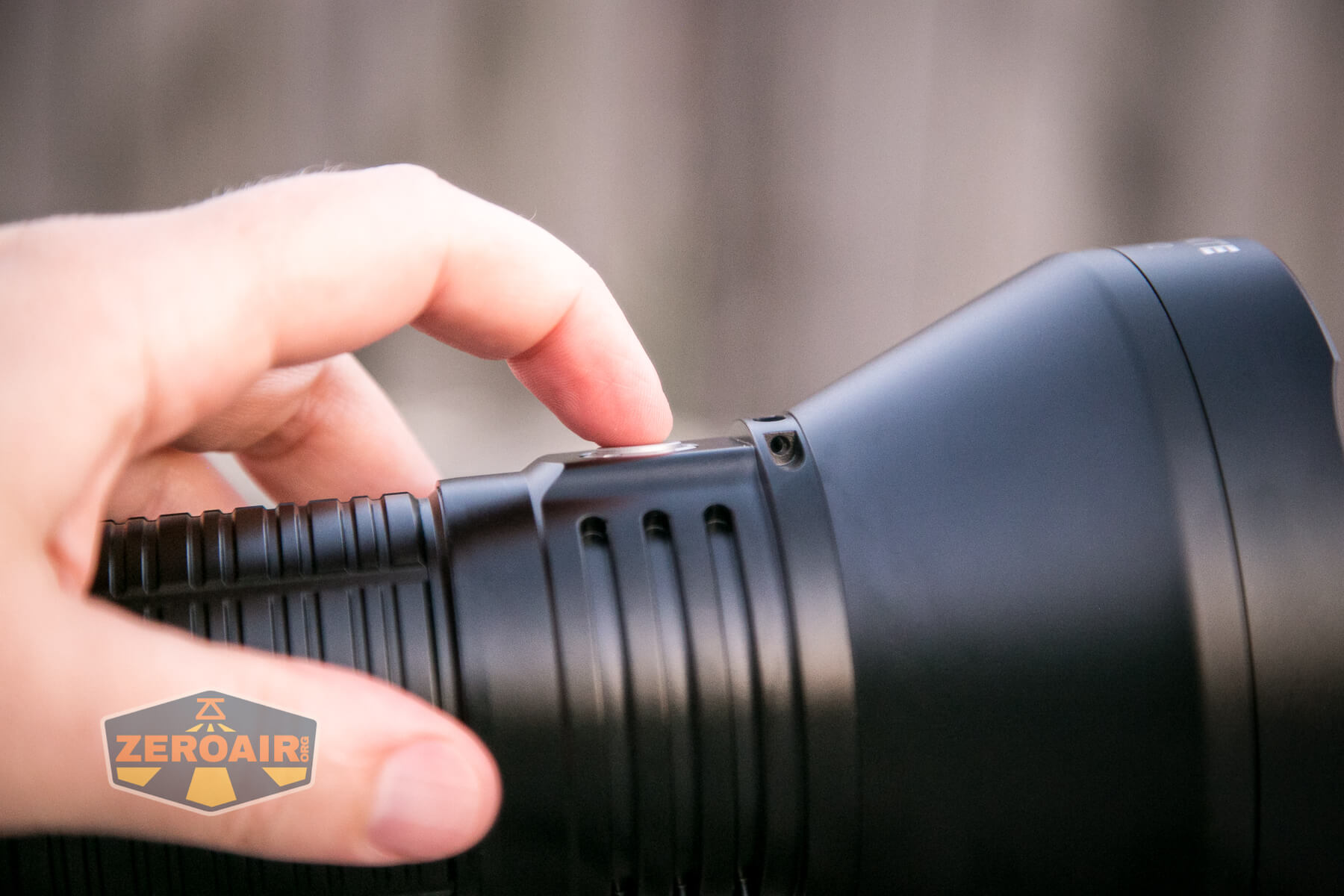

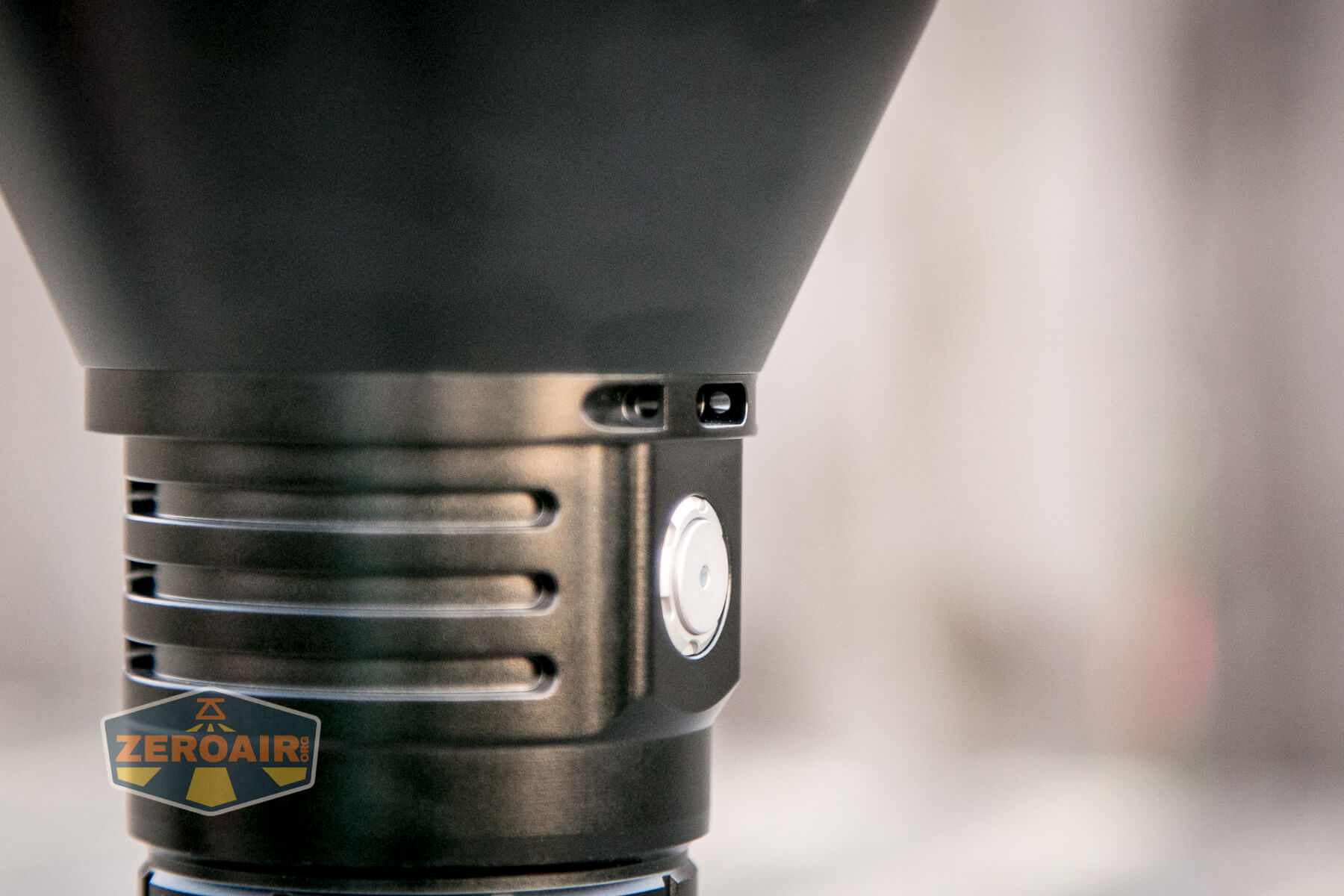

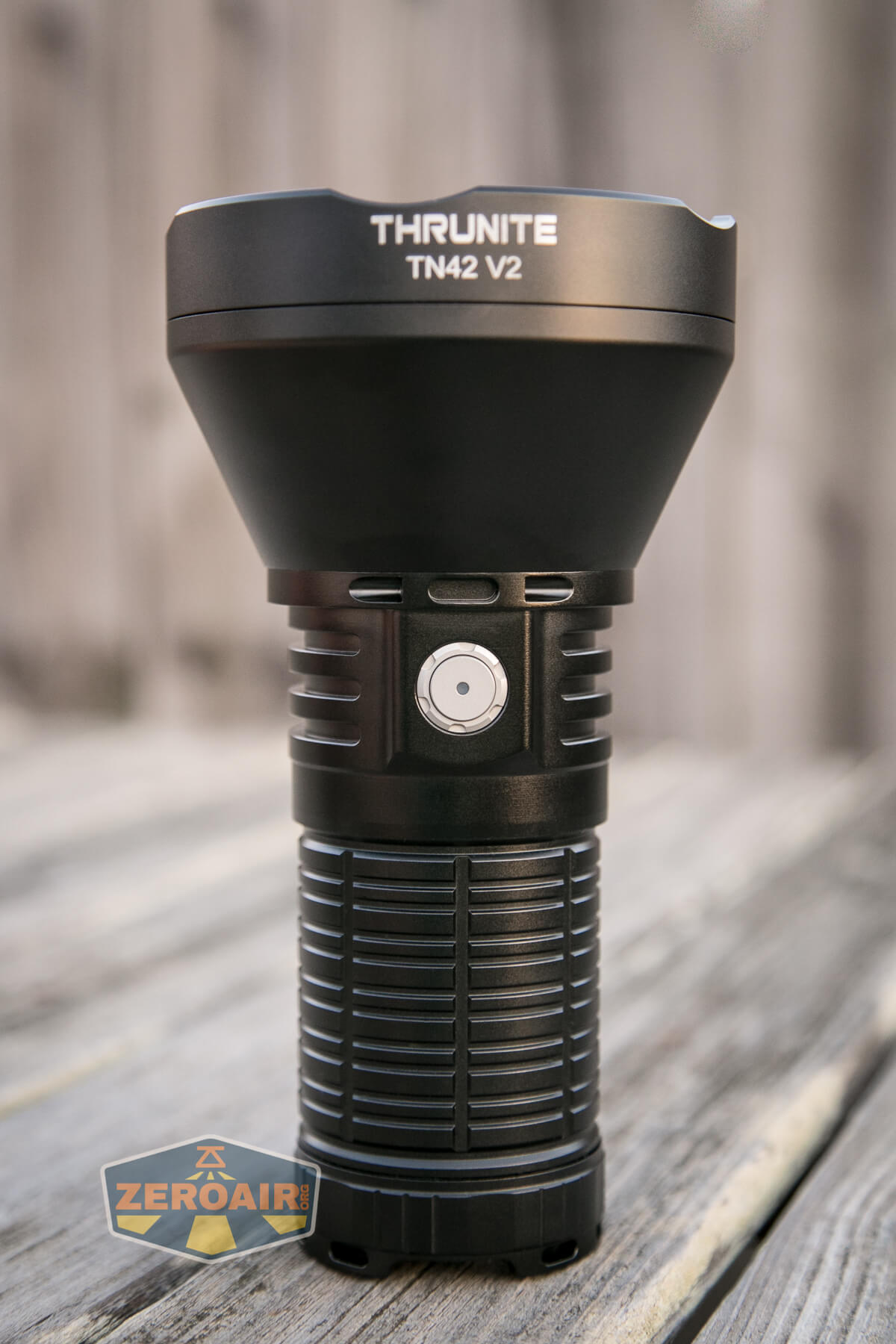

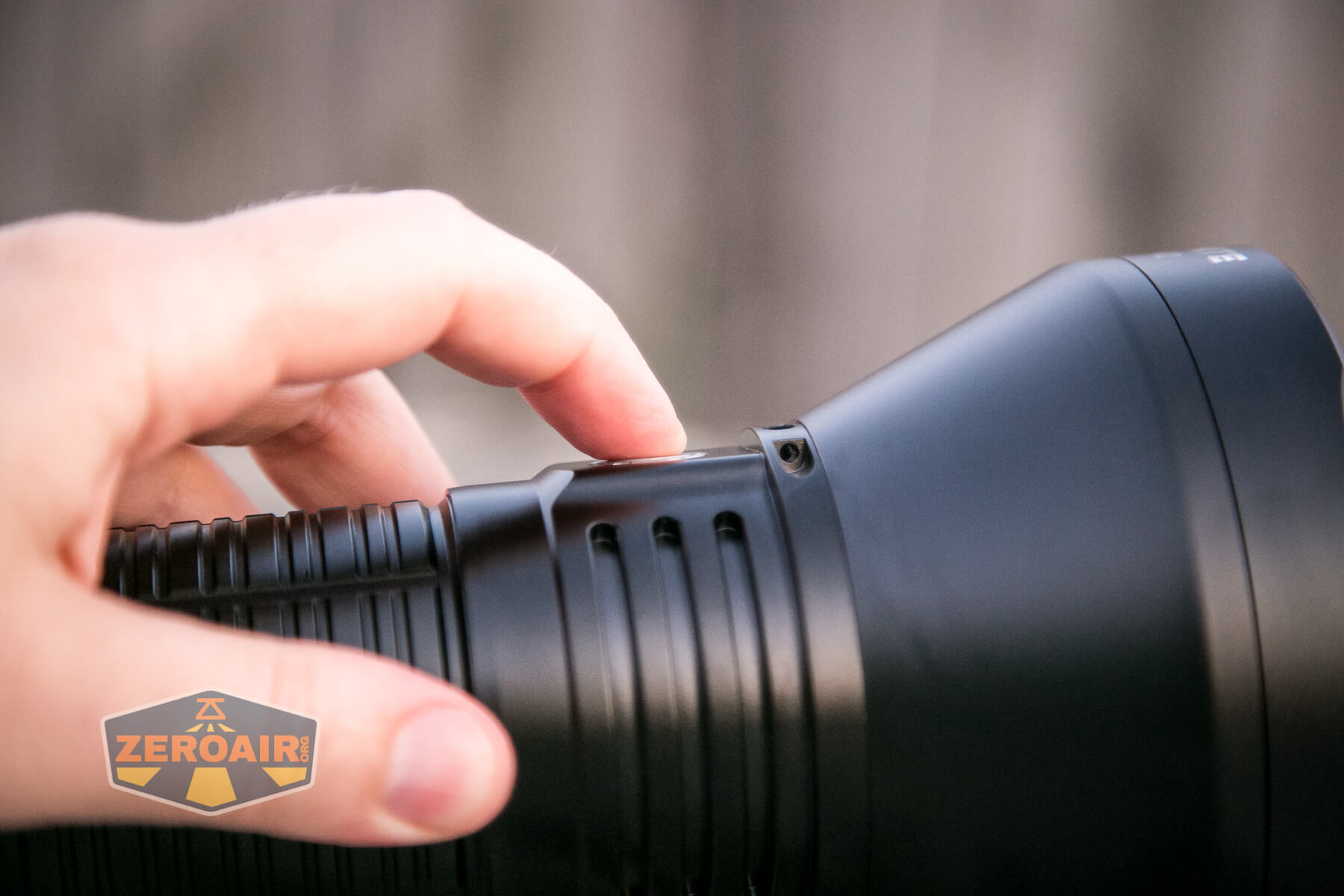

There’s a single switch on the Thrunite TN42 V2. It’s just below the head and is a clicky e-switch with an indication function. It’s exactly like the TN42 switch (which I also loved).
I like this switch. The action is low, the pad is wide, it’s metal (or close enough), it’s easy to find…. Thrunite does e-switches right!

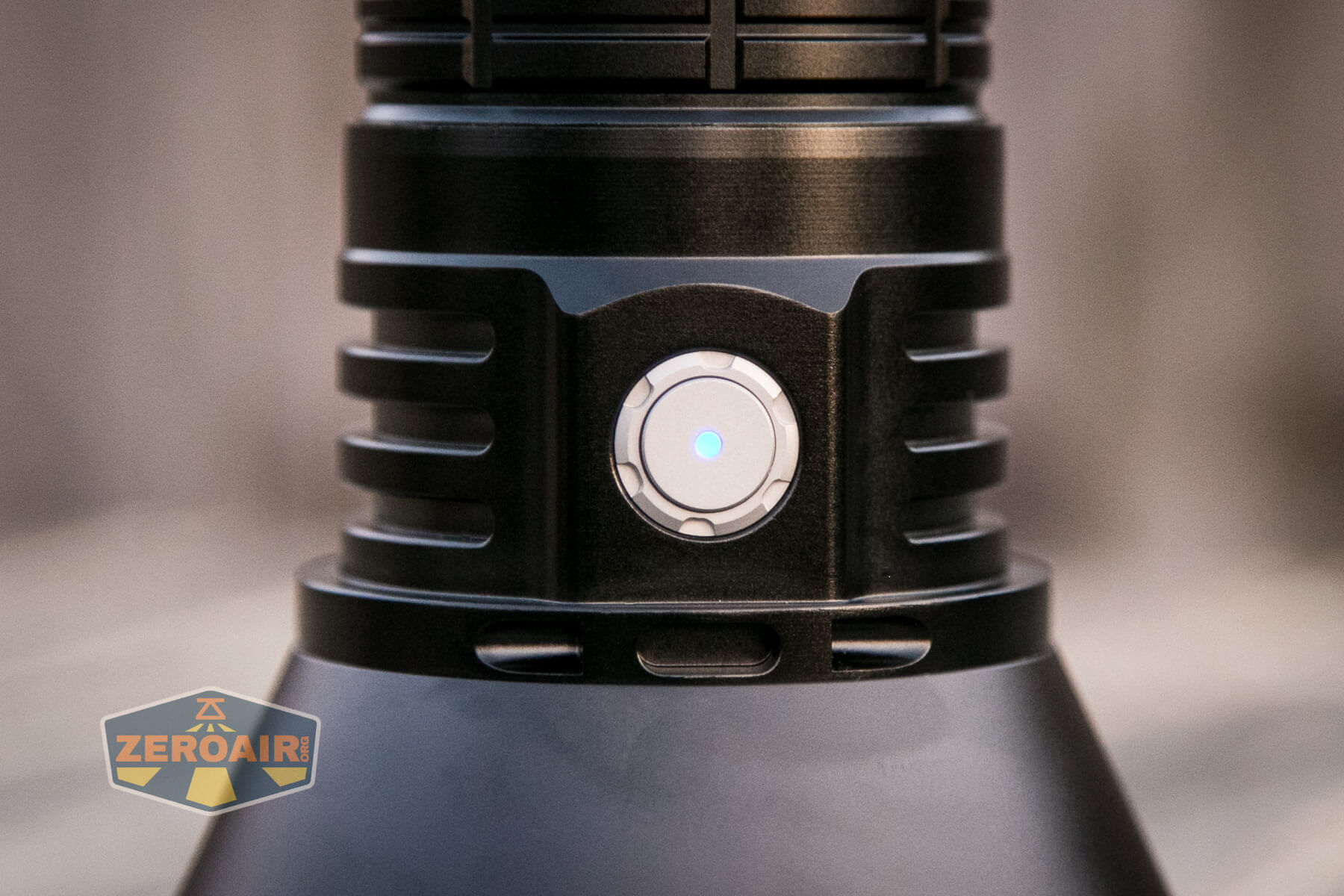

The blue is a bit washed out here, but it’s a nice blue (not such a “white” blue). The switch can also indicate in red.
Here’s a UI table! The user interface is unchanged from previous lights.
State | Action | Result |
---|---|---|
Off | Hold | Firefly |
Off | Click | On (Mode Memory except for Turbo/Firefly/Strobe) |
Any | Double click | Turbo |
Turbo | Double click | Strobe |
On | Hold | Mode cycle (LMH)^ |
^ There’s a mode cycle that’s hard to explain in table form. When the light is on, the only way to get to High is to cycle from low. If you turn the light on to Medium and hold the switch to advance, the advance is to Low first, then Medium then High. In fact, any time you’re in medium, and you release the switch, the next advance upon holding the switch, will be low, whereby you need to cycle through low and medium to get to high. I found this to be quite cumbersome.

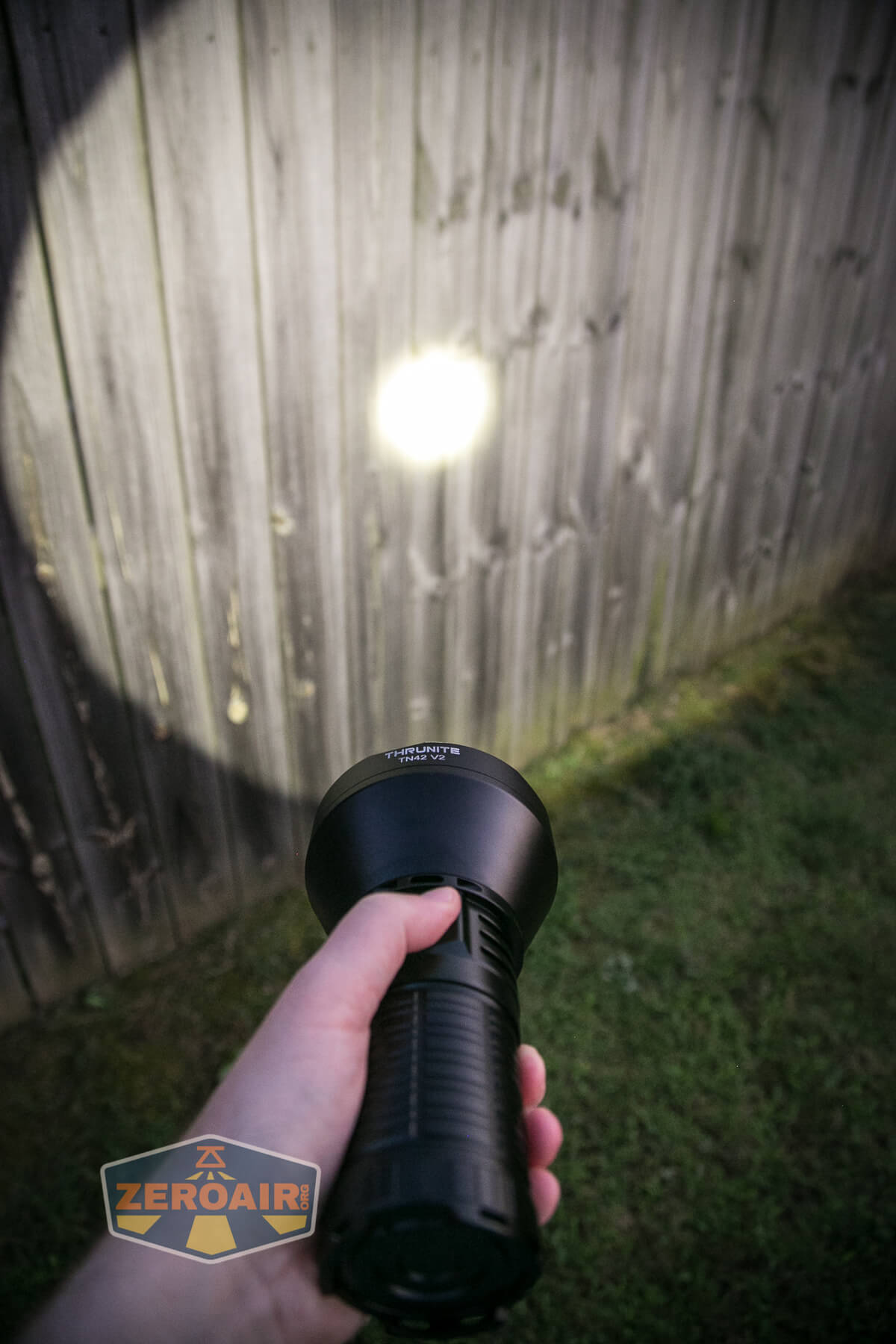

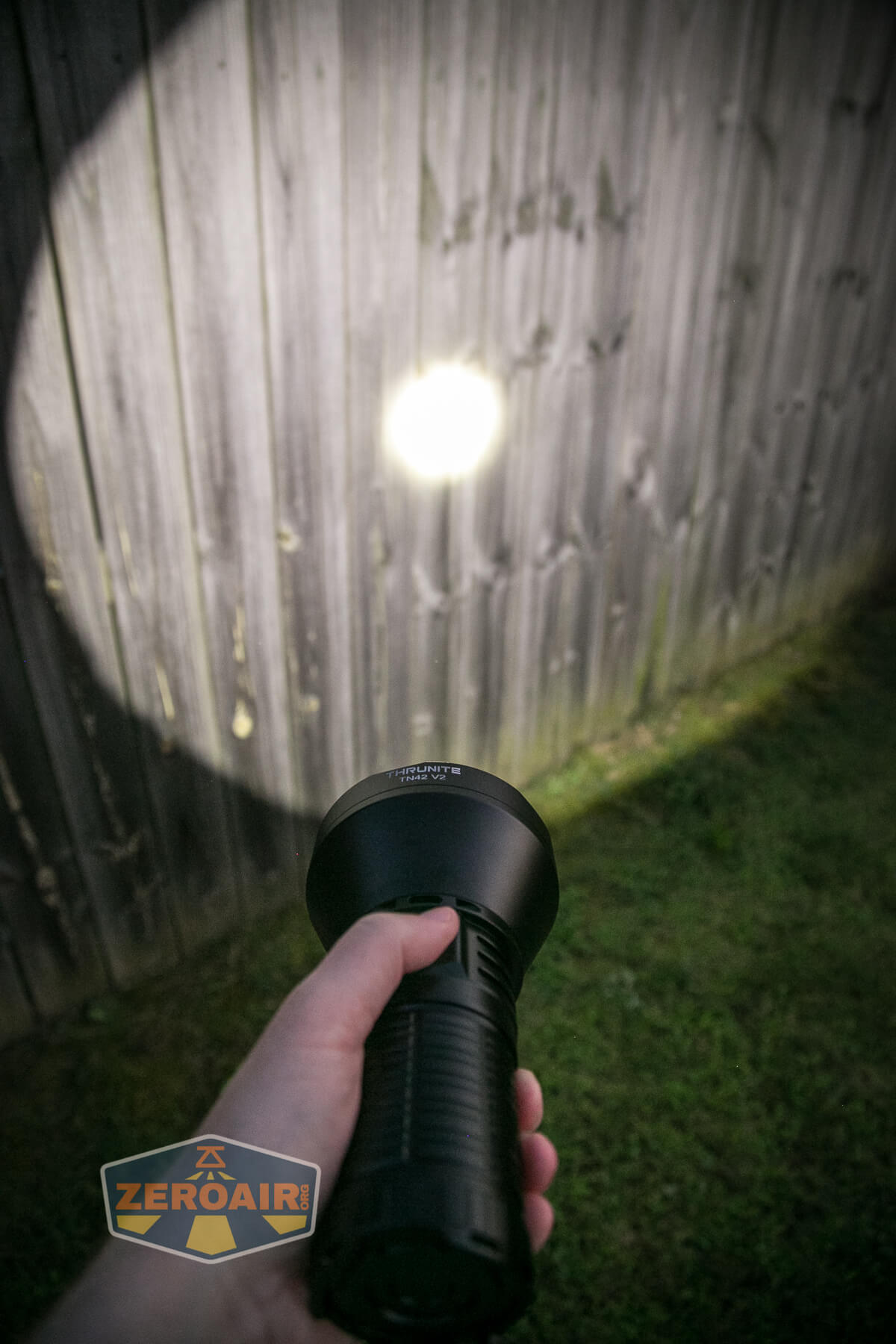

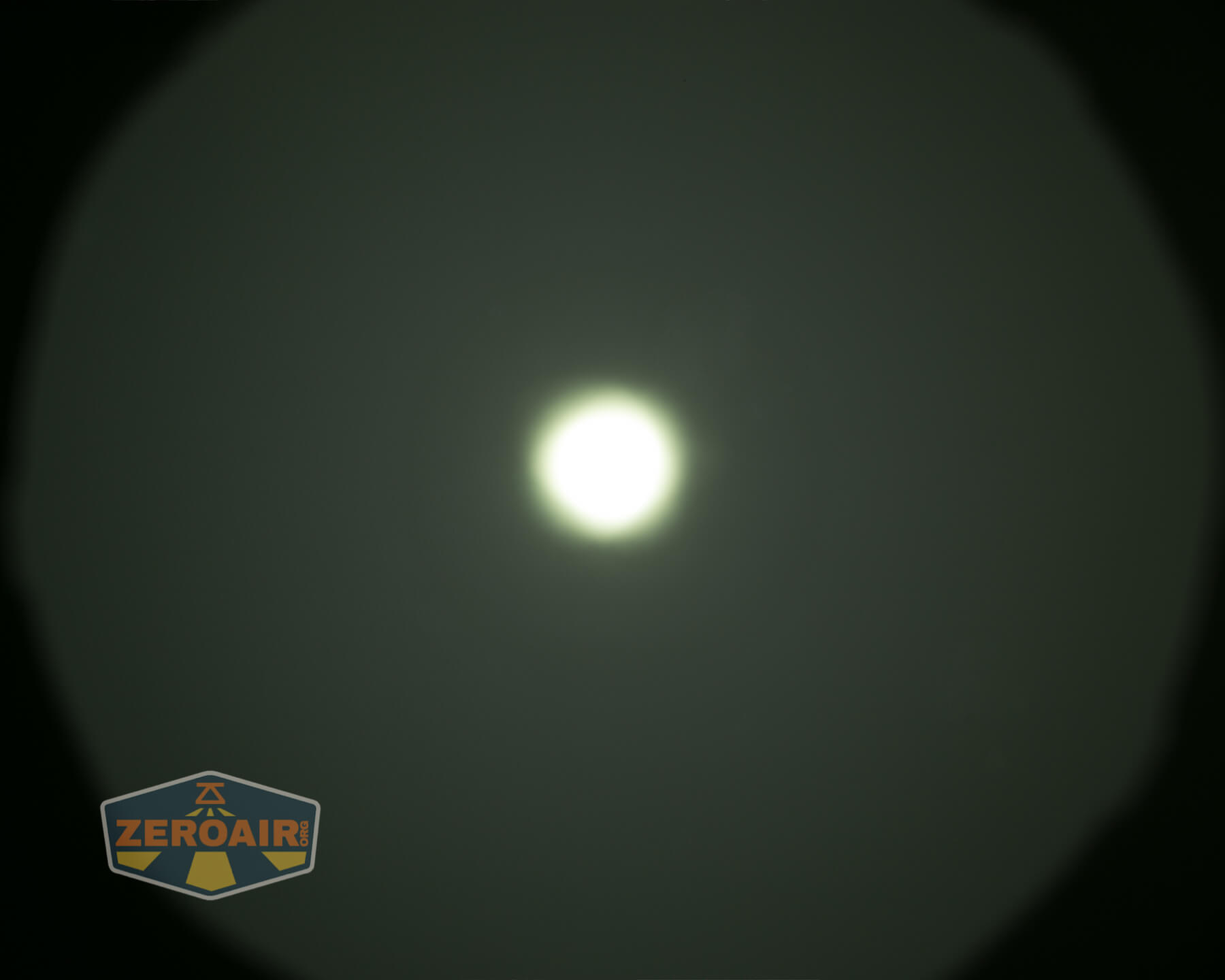

LED and Beam

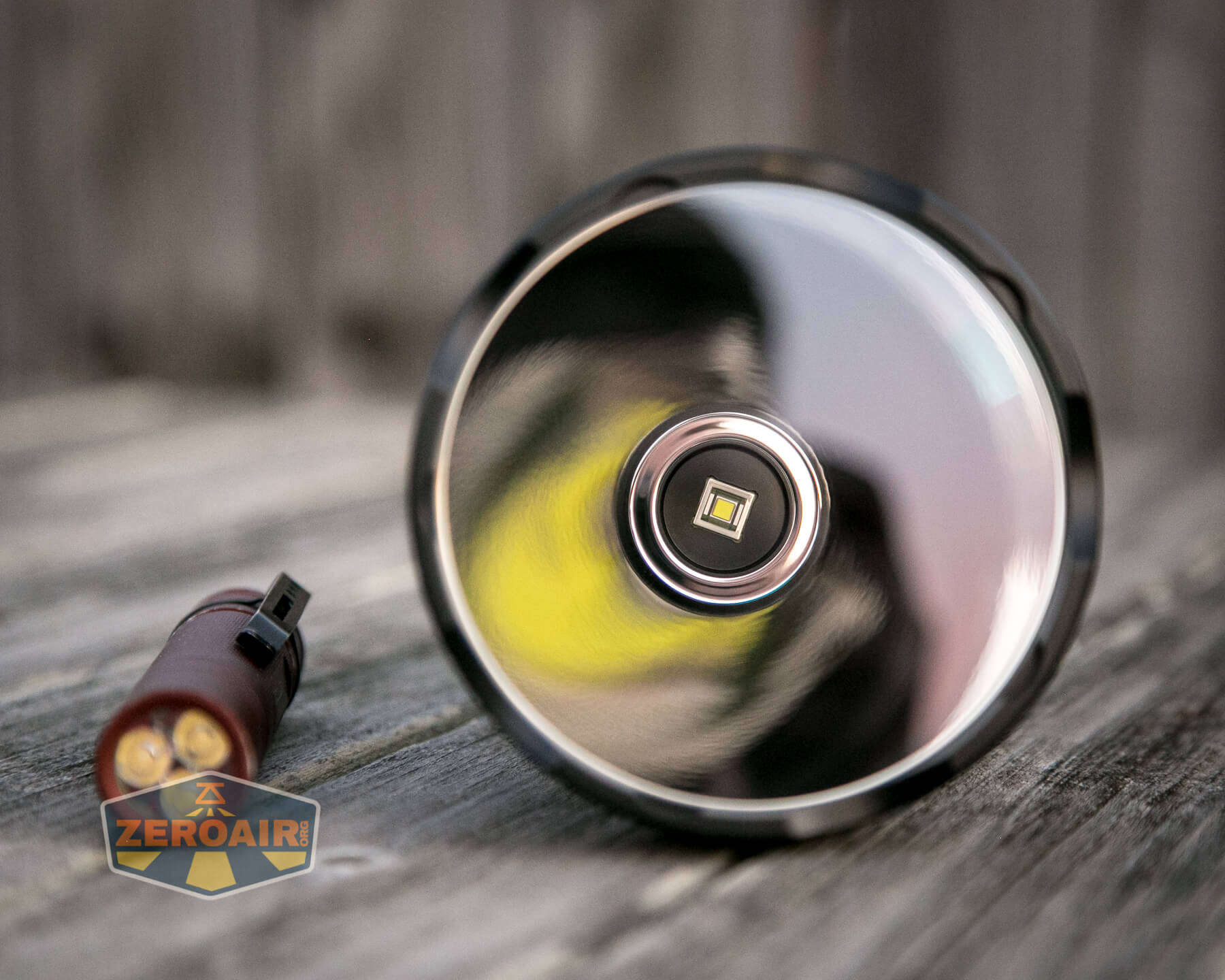

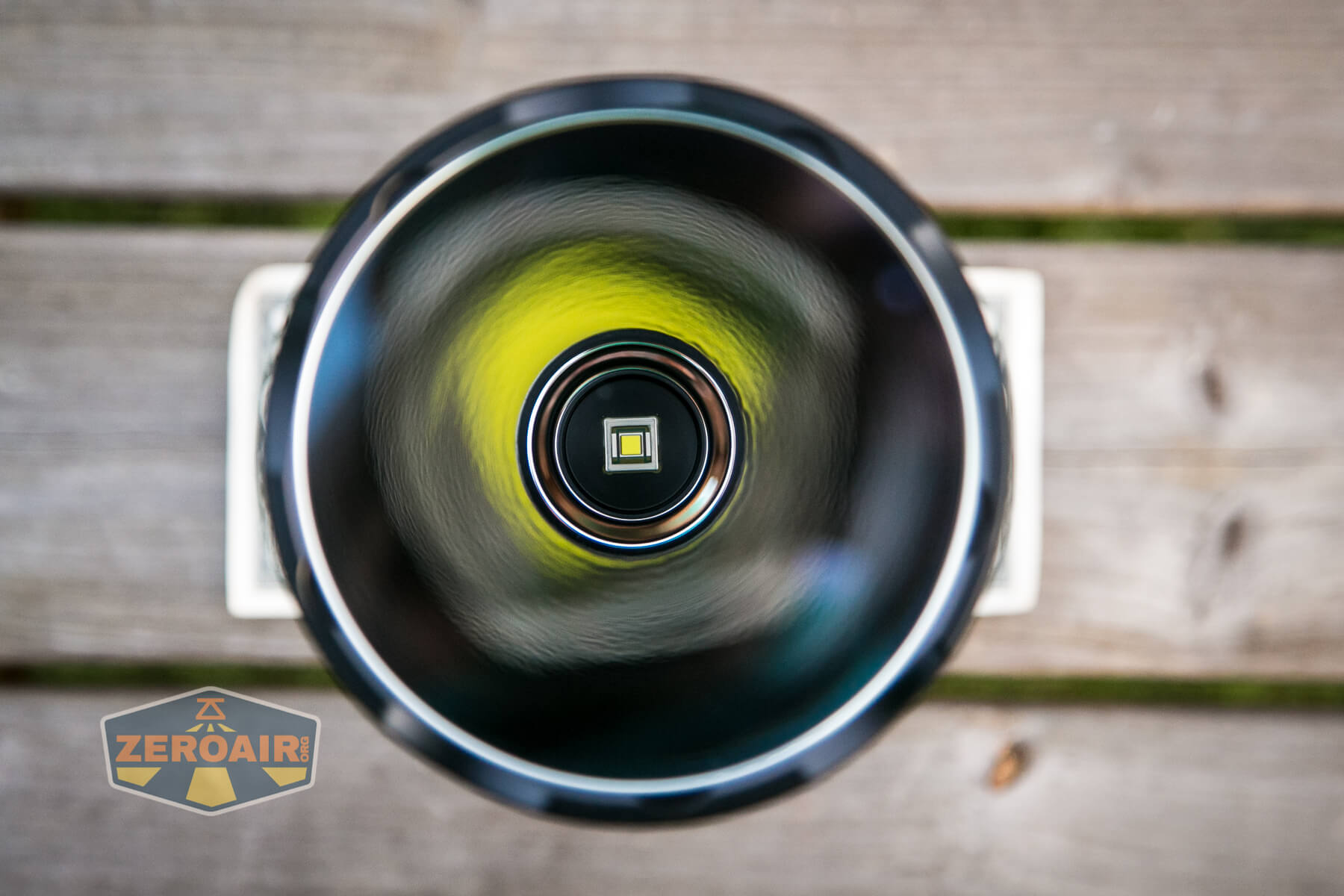

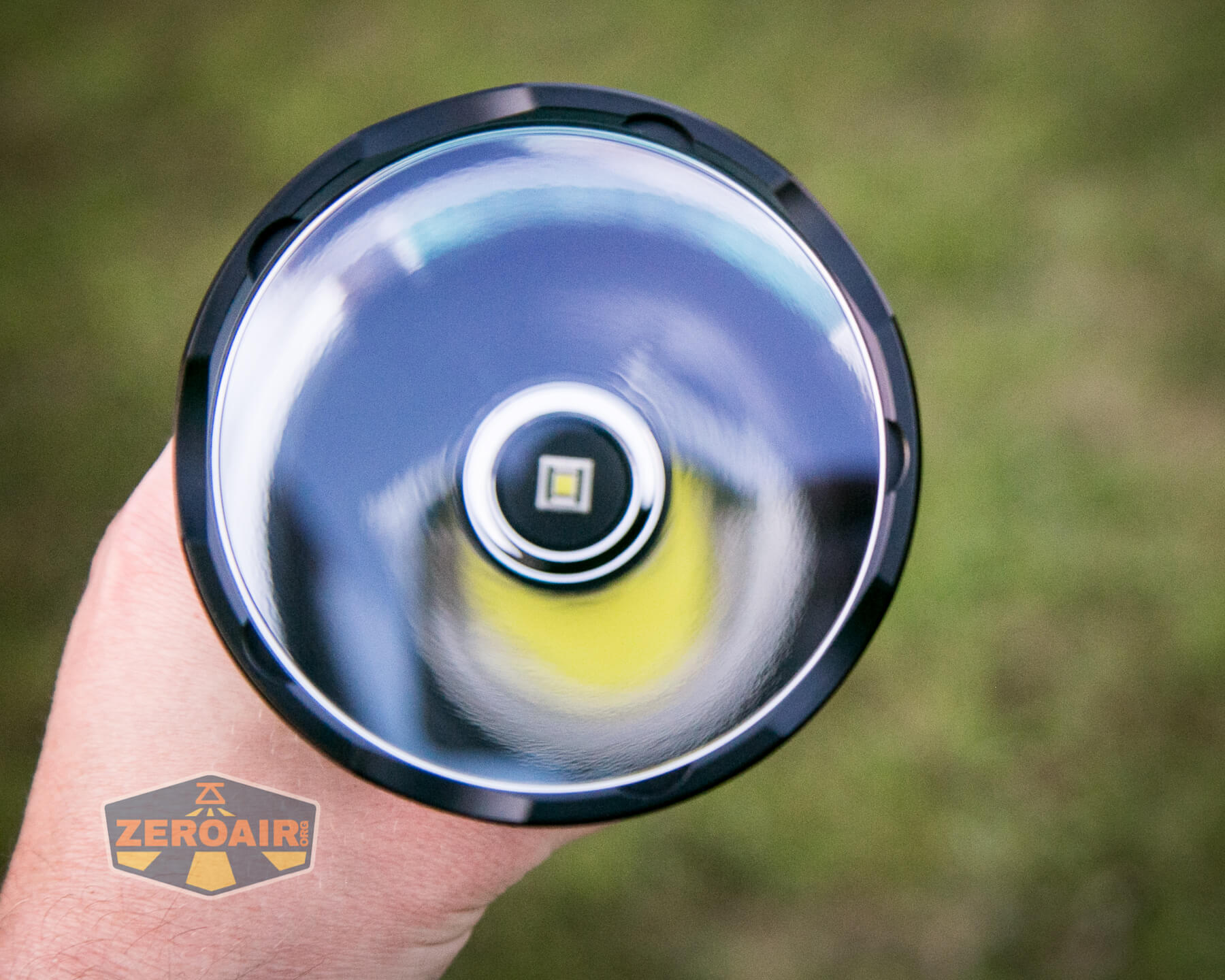

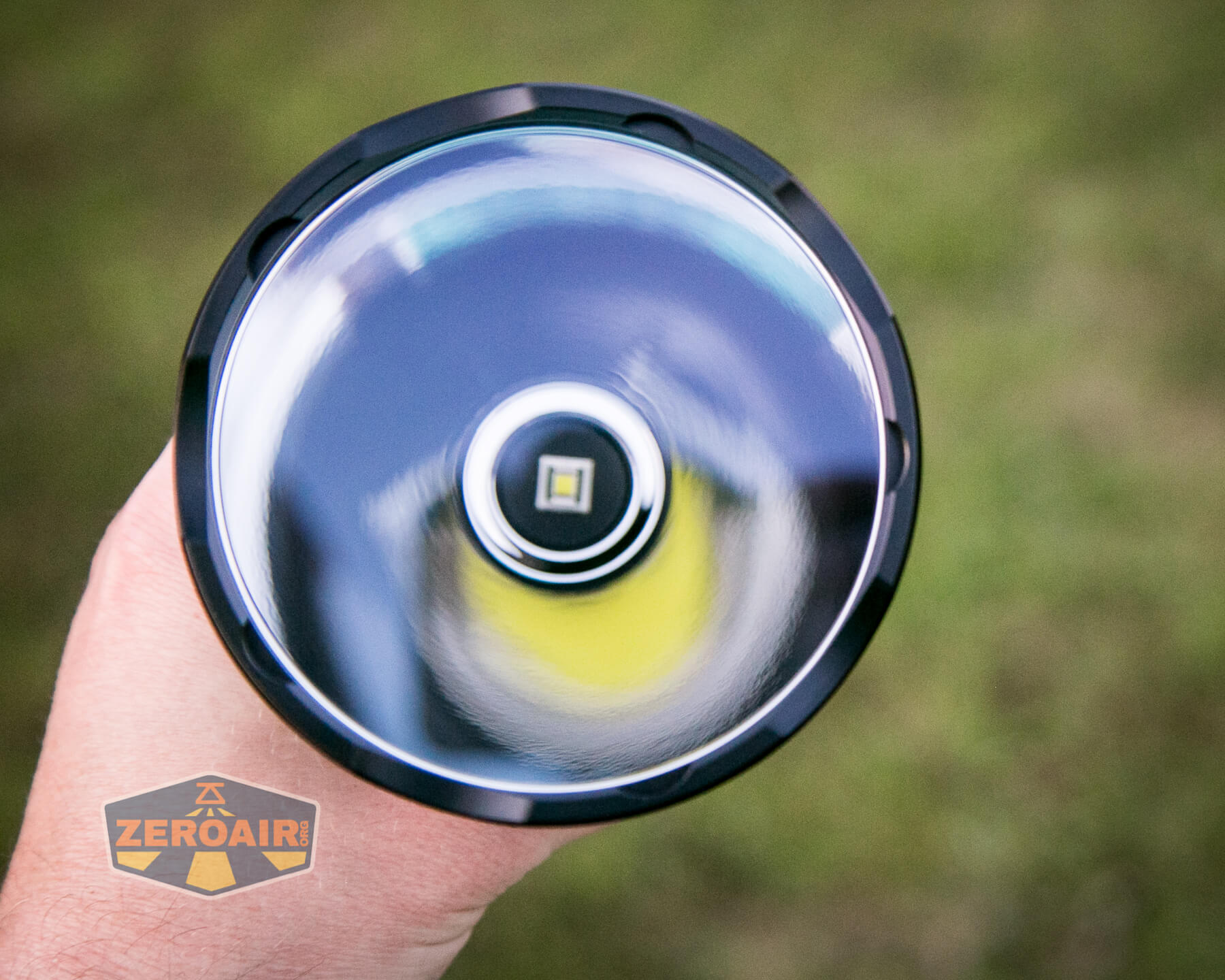

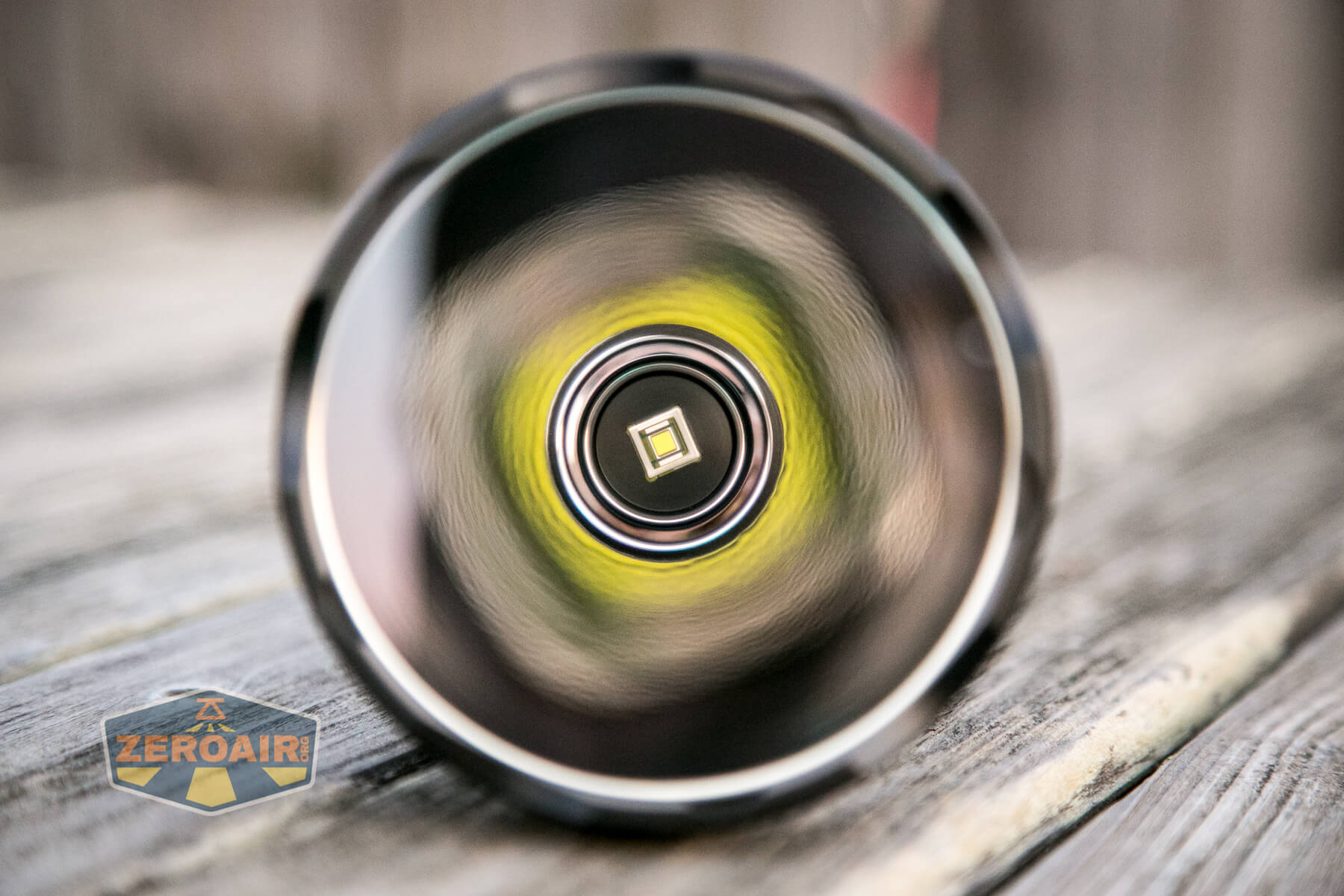

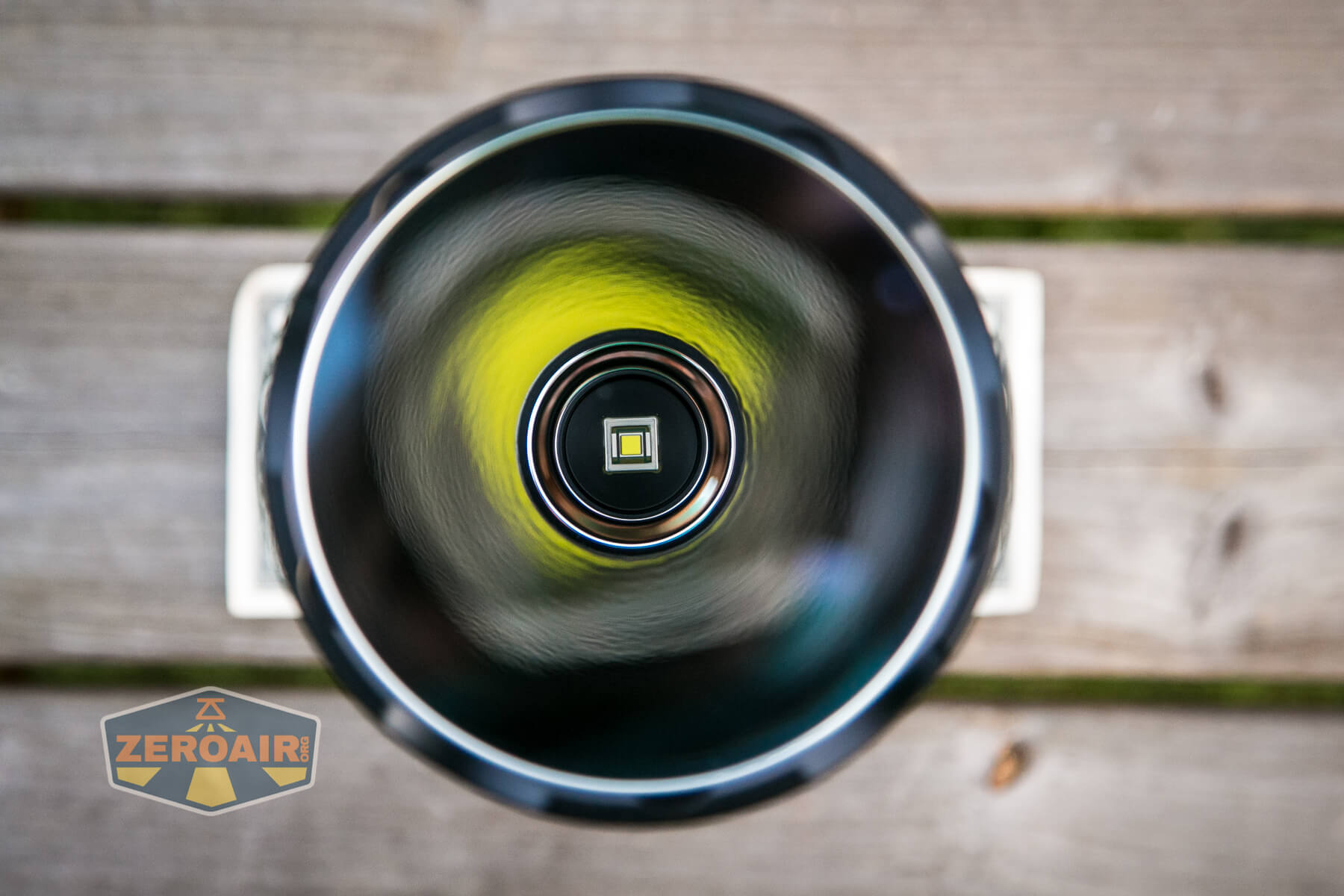

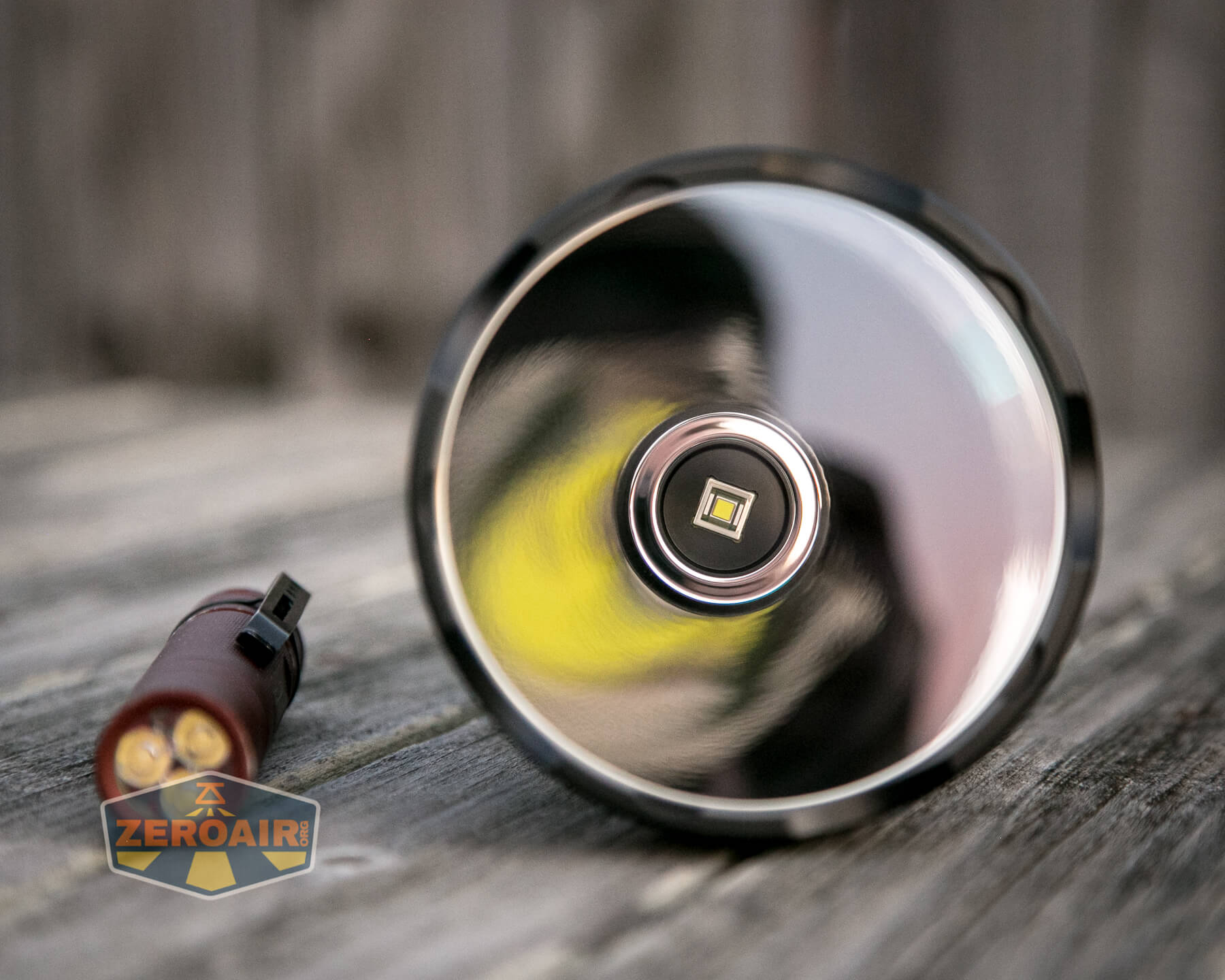

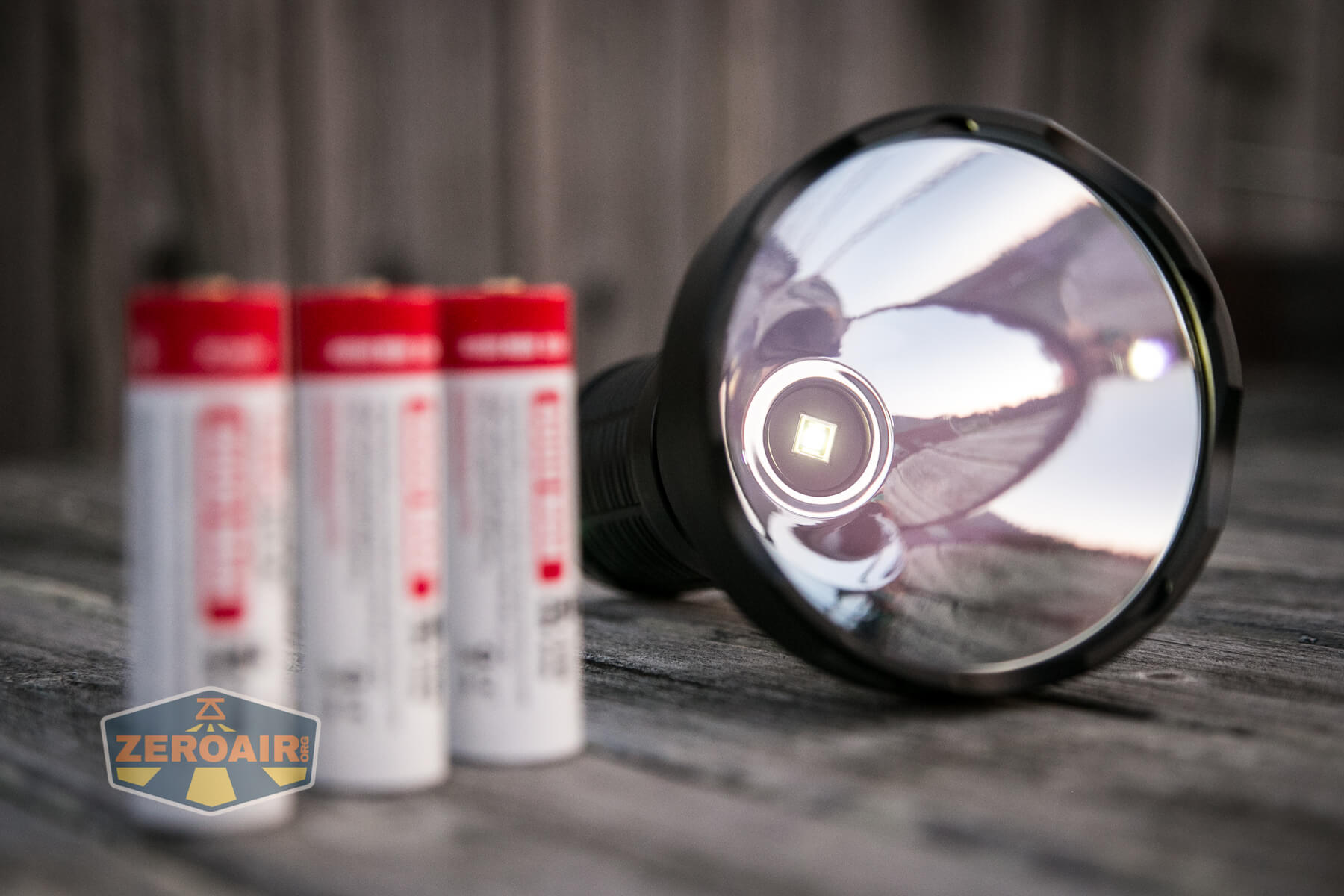

Thrunite went with a Luminus SBT90.2 emitter for the TN42 V2.
I like this emitter. It’s a weird combination of output and throw that seems like we’ve jumped into some new era of emitter technology.
That said, it’s not quite as “clean” of a thrower as the previous – those smaller Cree XHP35 HI emitters had a tighter hotspot and less spill than this light has. That’s a choice you’ll have to make based on your needs, but I can say, this light is fantastic!

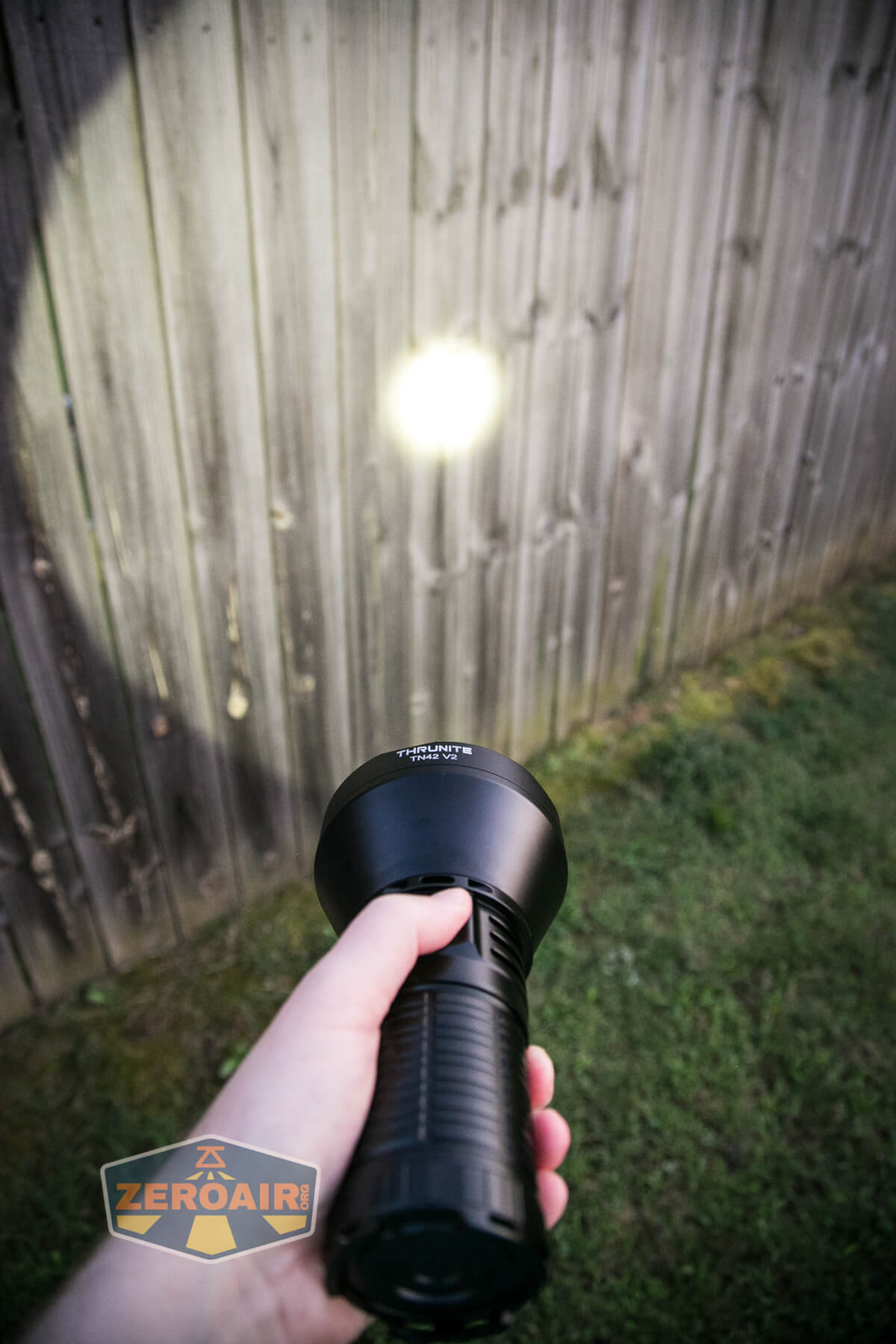

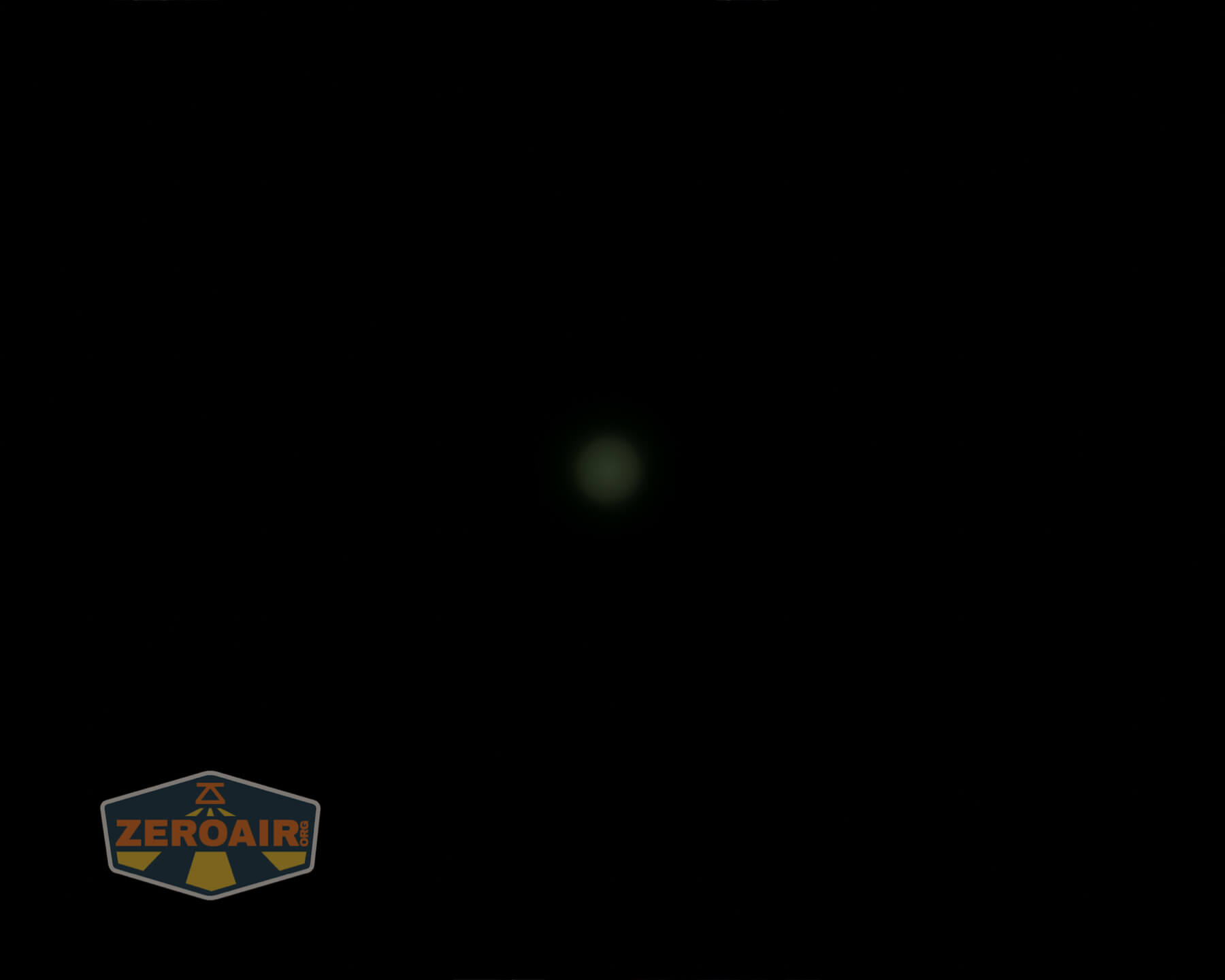

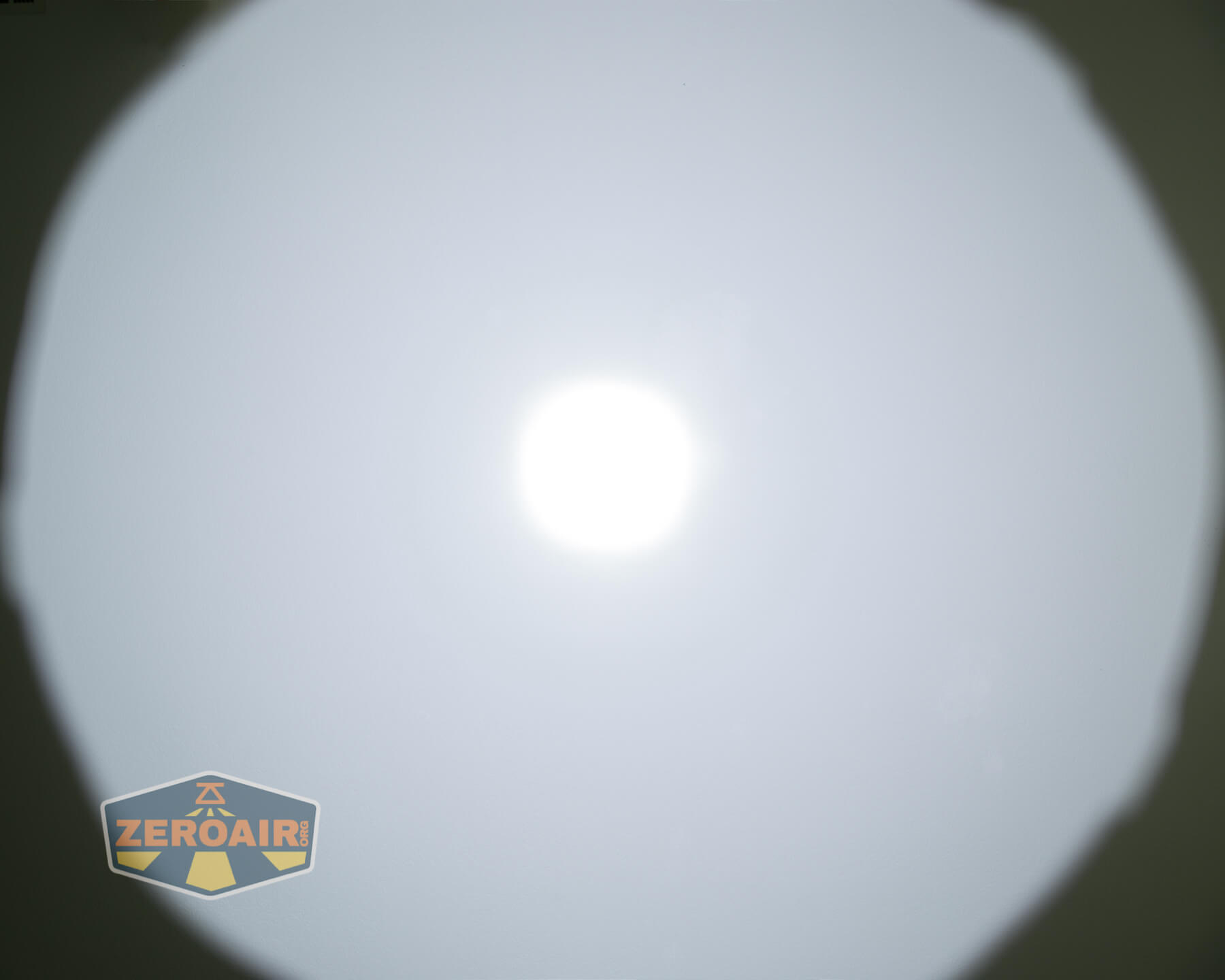

These beamshots are always with the following settings: f8, ISO100, 0.3s shutter, and manual 5000K exposure. These photos are taken at floor level and the beam hits the ceiling around 9 feet away.
Tint vs BLF-348 (KillzoneFlashlights.com 219b version) (affiliate link)
I keep the test flashlight on the left, and the BLF-348 reference flashlight on the right.
I compare everything to the KillzoneFlashlights.com 219b BLF-348 because it’s inexpensive and has the best tint!
Conclusion
What I like
- Massive output
- Stunning throw
- Cells are included
- Included cells are very high quality
- Regular USB-C Charging
- Uses 21700 cells
- Good user interface
What I don’t like
- Charging is at 5V, instead of higher voltage power delivery
- Price is $300
- Cool white only
Notes
- This light was provided by Thrunite for review. I was not paid to write this review.
- This content originally appeared at zeroair.org. Please visit there for the best experience!
- For flashlight-related patches, stickers, and gear, head over to PhotonPhreaks.com!
- Please use my amazon.com referral link to help support zeroair.org!
- Please support me on Patreon! I deeply appreciate your support!
Would you go with this light or with an Acebeam K75?
Ooh that’s tough right there. The K75 has a handle, which might be enough to push you over to it. It’s more of a thrower too, which might make it more appealing (if you need a thrower).
All other things being equal (that is, if you don’t need a thrower or need a handle, then I’d probably say I’d rather have the Thrunite. I prefer the smooth anodizing and feel of the Thrunite. Also, it uses a larger cell size (and they’re included), which is appealing.
The Thrunite is probably available for less money, too. That’s a very important point of comparison between the two…
I have both. The K75 throws further but alot bigger and not practical to carry around. The TN42 V2 is perfect size and power. And much more portable and praticl and still a beast.
Thank you very much for the explanation and your time! You’ve made a great point re: cost.
Looks like one might be able to find the Acebeam for just north of $200 (w/o batteries) and the Thrunite for less than that – but like you say, it’s got the batteries and charger included. Choices, choices.
I’ve got a quick additional question, if you don’t mind.
I see the Acebeam K65GT on your “Arbitrary list of popular lights – Summer Solstice 2021 edition” but am having trouble finding much additional information about it. How familiar are you with that light? Are you a fan of it? If so, would you rather have that or K75/TN42V2?
I realize it’s more of a hybrid, but I am looking for a light to complement and/or replace a T27 and an old K70. And, on paper at least, the K65GT seems like it might offer some of that in a smaller format than the K75 (that was how I was trending before given my lack of personal experience with Thrunite — which raises a whole other but related question, which brand do you currently prefer between the two?).
Thanks again for your help here and your thorough and informative reviews.
Best regards,
I’ve never held a K65GT. Honestly, that seems like more of a competitor to the TN42 V2 than the K75 does (despite the K65GT not throwing quite as far).
Between the three, it’s probably just down to cost for me. Throw on paper is different but in practice, I wonder if you’d notice much difference at >1.5km (probably not).
Next, it’s battery comfort level. If you are already set up for 18650, you might not wish to move to 21700 cells (even if they will always live inside the flashlight.) So that’s a consideration.
Preference between these two brands? None really. I think these are two of the top flashlight brands available today. I would comfortably go with either of these brands over nearly any other, especially in a light like the format you’re chasing. I probably like the feel of Thrunites more because I like the non-matte anodizing. But this isn’t a performance characteristic. On the flip side, the Acebeams will have more grip due to their finish and knurling.
