Here’s another Convoy S2+ flashlight – the Nichia 519a version! Basically tested just to see the 519a performance, and it’s great! Read on!


Official Specs and Features

Here’s a link to the official product page.

Versions

It’s the Convoy S2+… there are a bazillion iterations. There are body colors. There’s a 18350 cell tube size. There’s the “old version” and the “new version.”  There are triples, there are singles (as seen here).  There’s a metal clicky button (as seen here) and a rubber switch cover. There are lighted switch options. The S2+ is a stalwart in the flashlight world.

Price

The current price for this Convoy S2+ Nichia 519a flashlight looks to be $18.48. That’s a great way to get into this Nichia 519a emitter, just for testing purposes and to see how you like it! Plus you end up with another Convoy S2+, which is a good thing anyway.


Short Review

I have so many Convoy S2+ flashlights. But I never had a Nichia 519a flashlight. This is a great gateway into the Nichia 519a emitter, and the Convoy S2+ is great, too! Great build quality for under $20 – great deal!

Long Review

The Big Table

Convoy S2+ Nichia 519a Flashlight
Emitter: Nichia 519a (4500K)
Price in USD at publication time: $18.48
Cell: 1×18650
Turbo Runtime Graph High Runtime Graph
LVP? Yes
Switch Type: Mechanical
On-Board Charging? No
Claimed Lumens (lm)
Measured Lumens (at 30s) 924
Candela per Lumen 10.6
Claimed Throw (m)
Candela (Calculated) in cd (at 30s) 438lux @ 4.355m = 8307cd
Throw (Calculated) (m) 182.3
Claimed CCT 4500
Measured CCT Range (K) 4200-4600 Kelvin
Item provided for review by: Convoy Store
All my Convoy reviews!

^ Measurement disclaimer:  I am an amateur flashlight reviewer.  I don’t have $10,000 or even $1,000 worth of testing equipment.  I test output and such in PVC tubes!!  Please consider claims within 10% of what I measure to be perfectly reasonable (accurate, even).

What’s Included

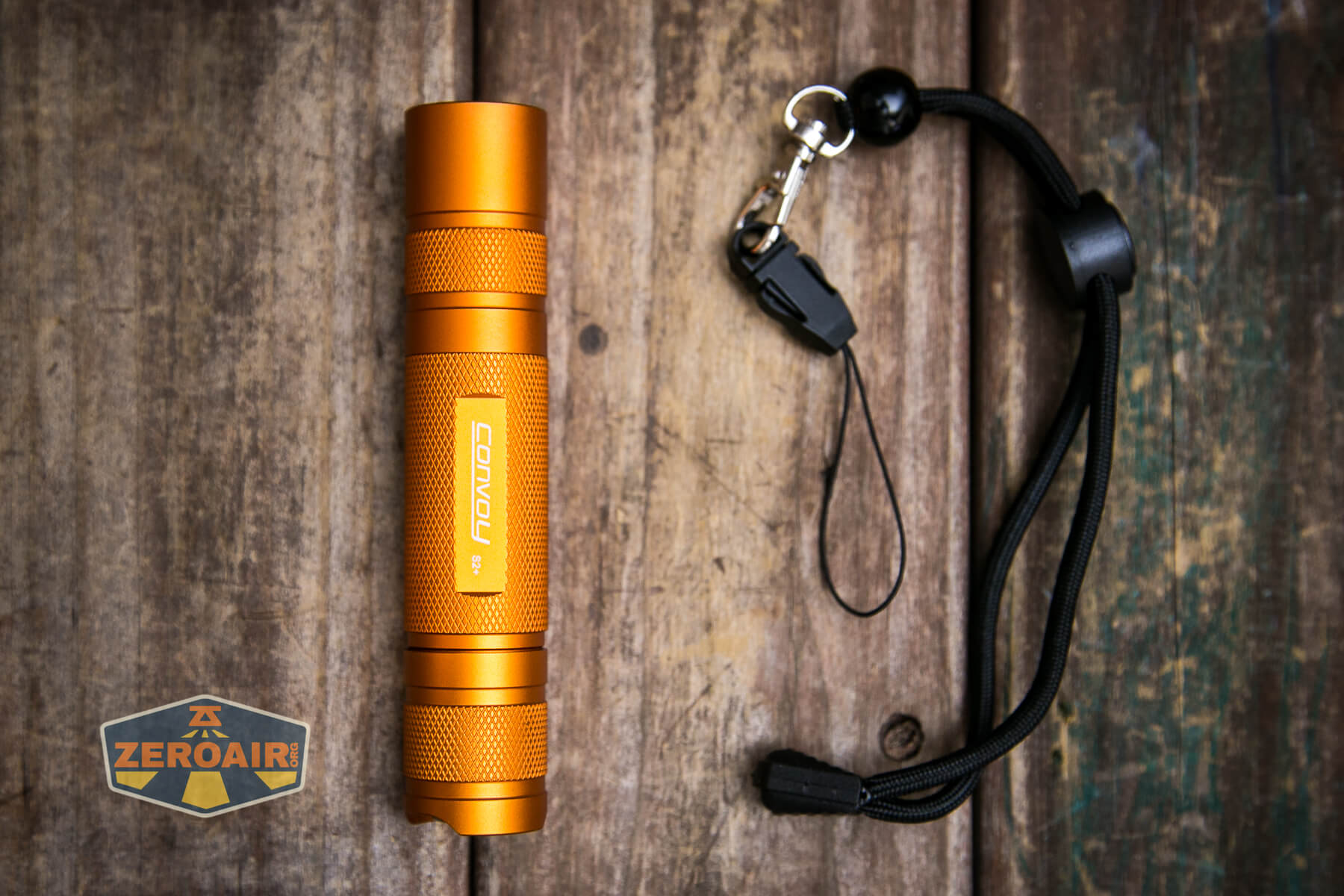

Convoy S2+ Nichia 519a Flashlight what's included

  • Convoy sS2+ (18650 size)
  • Lanyard

Package and Manual

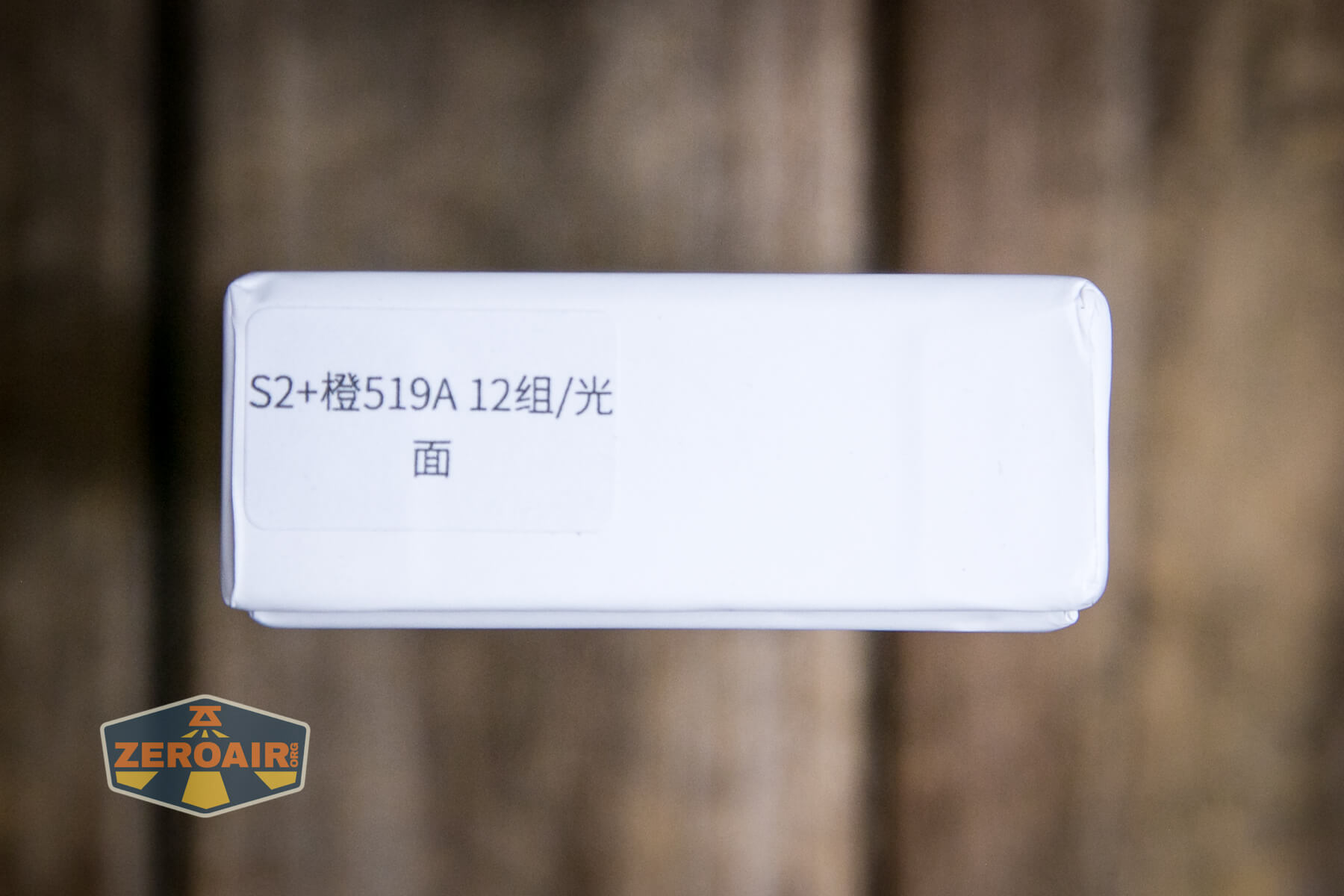

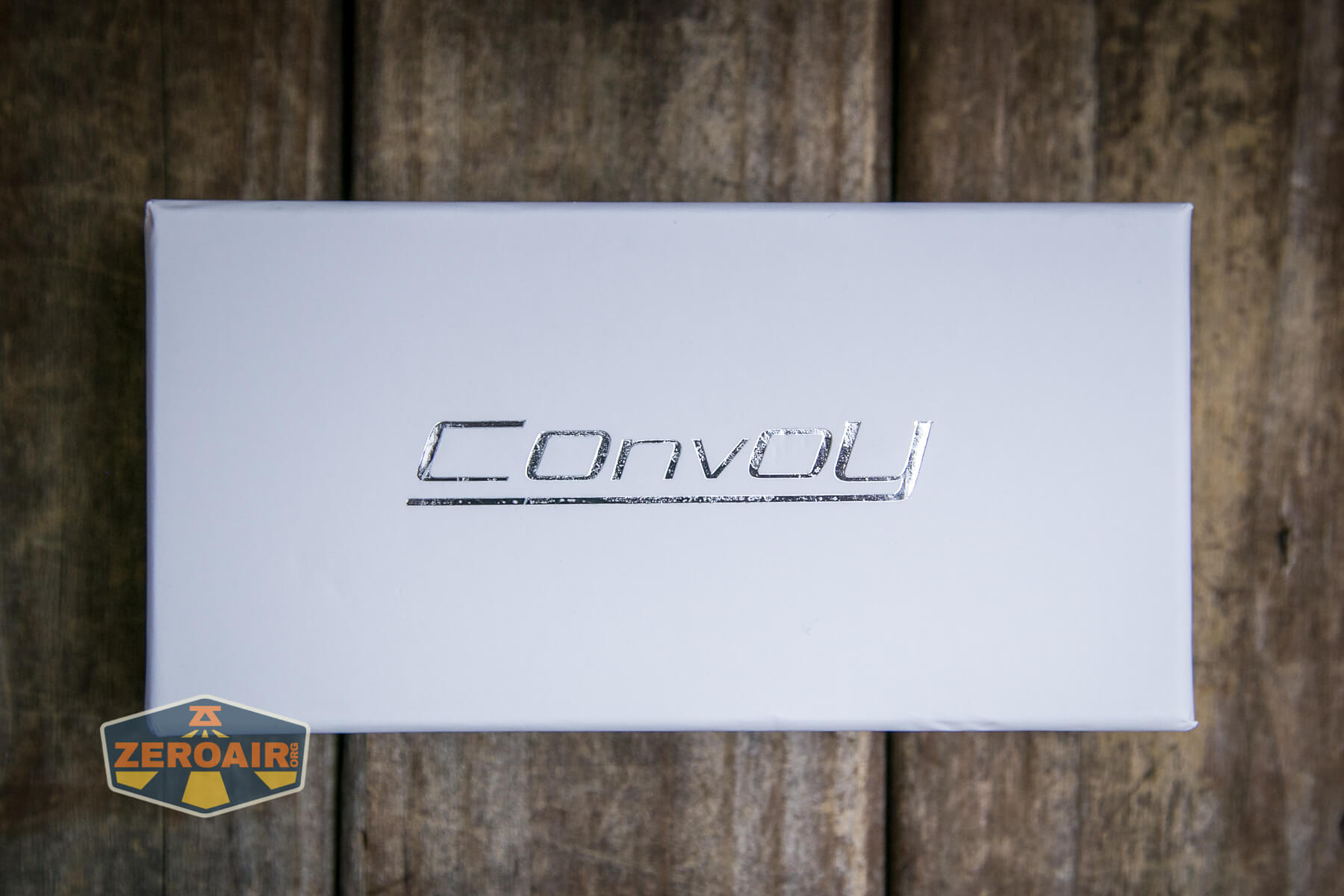

Convoy S2+ Nichia 519a Flashlight box Convoy S2+ Nichia 519a Flashlight box

There is no manual.

Build Quality and Disassembly

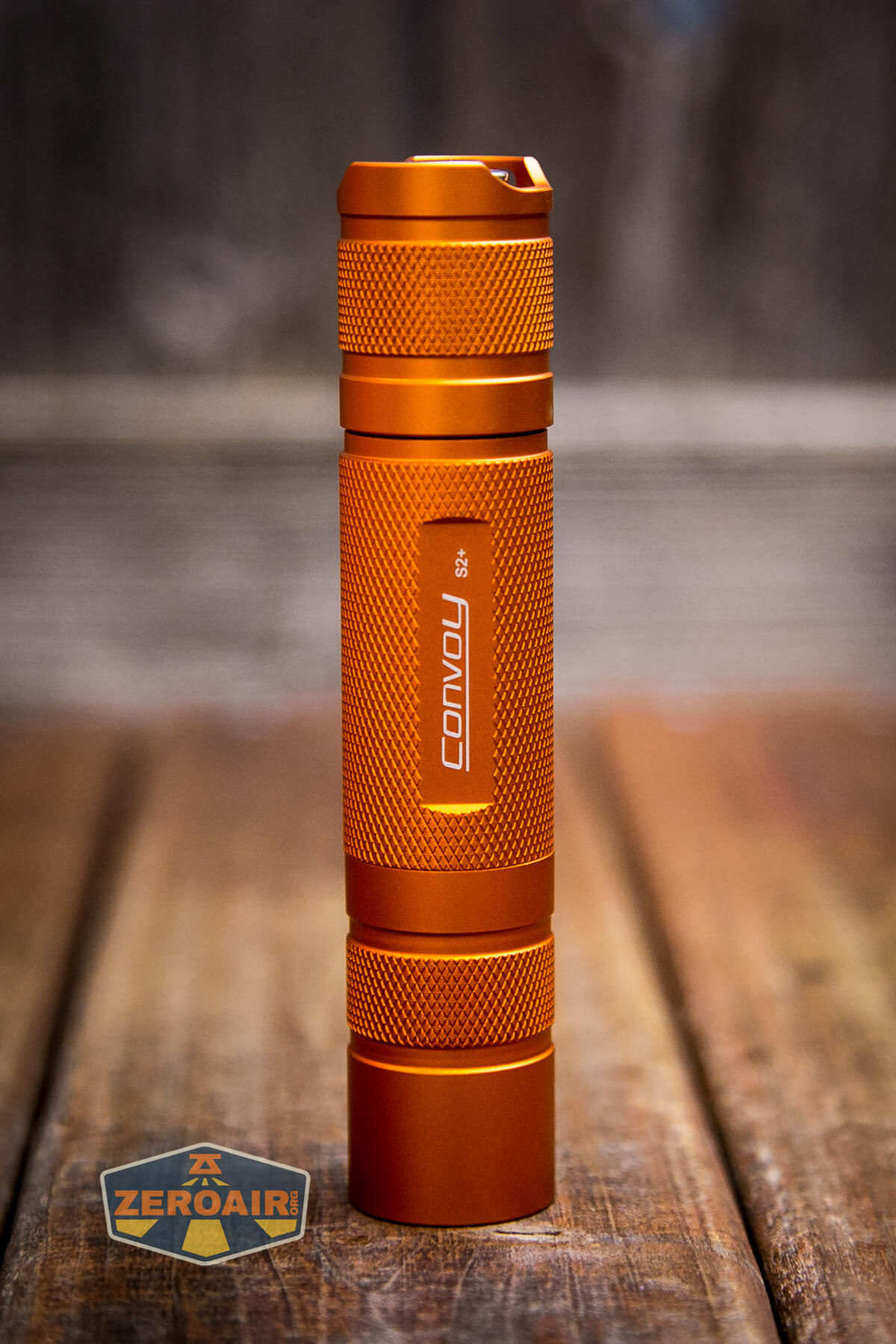

Convoy S2+ Nichia 519a Flashlight

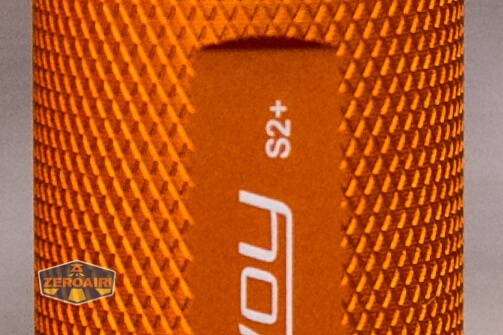

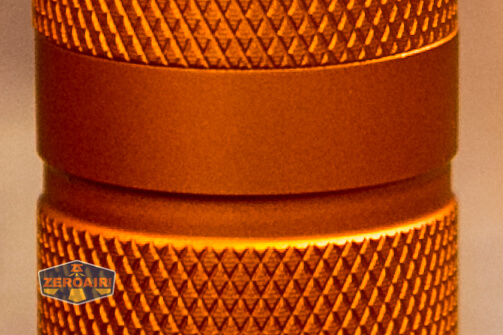

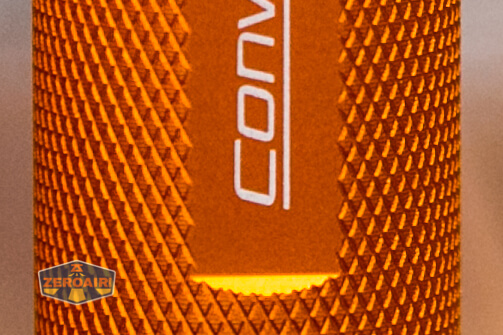

Convoy is very highly regarded by flashlight enthusiasts for having great build quality and low prices. This Convoy S2+ Nichia 519a is no exception. It’s great!

Both head and tail come off the light. The tail parts are held in place by a brass retaining ring.

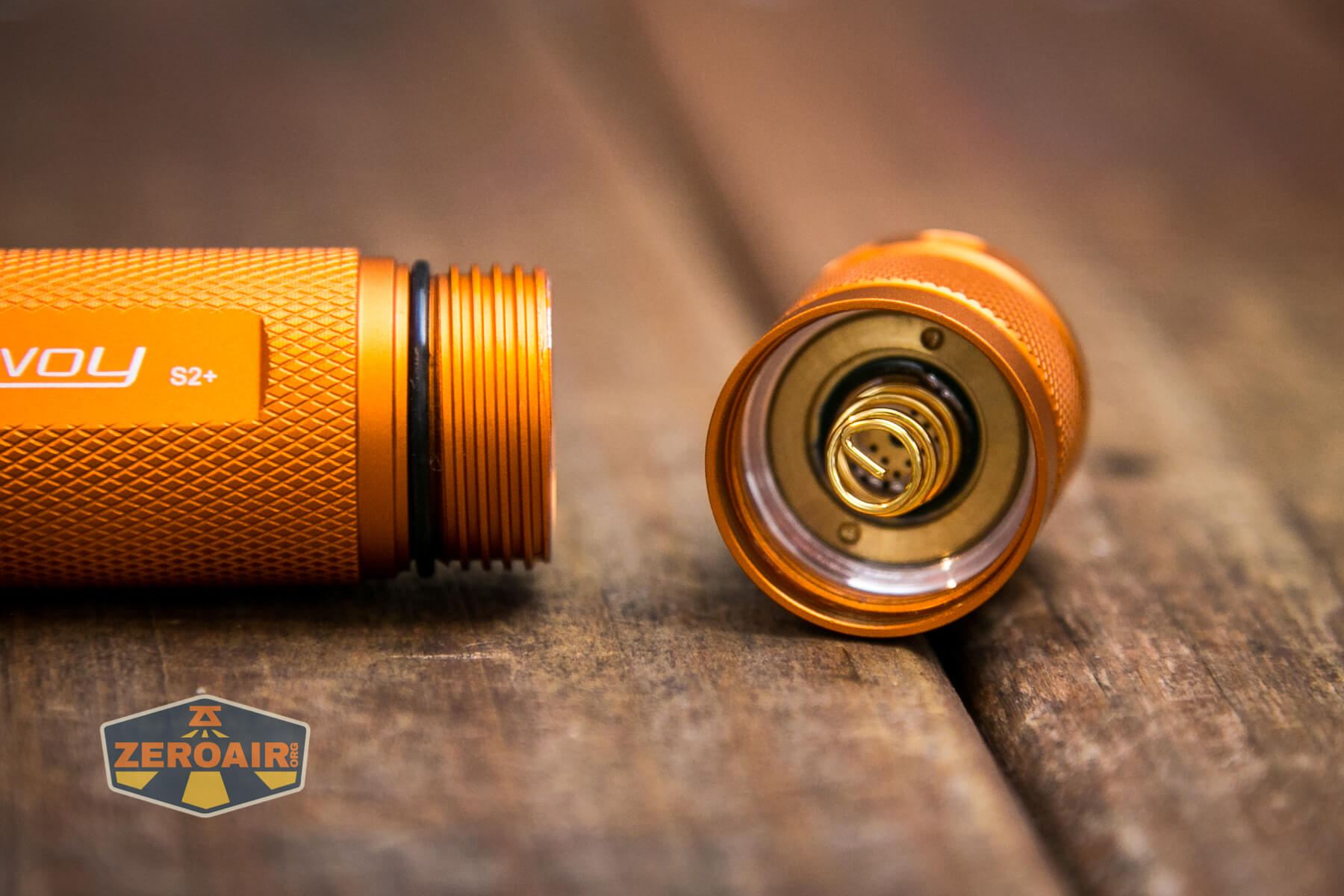

Convoy S2+ Nichia 519a Flashlight tailcap spring

The driver is visible – note how the driver is not soldered to the retaining ring on this version. I’m not sure if that’s a special feature to the 519a version or if it’s the way Convoy ships them all now.

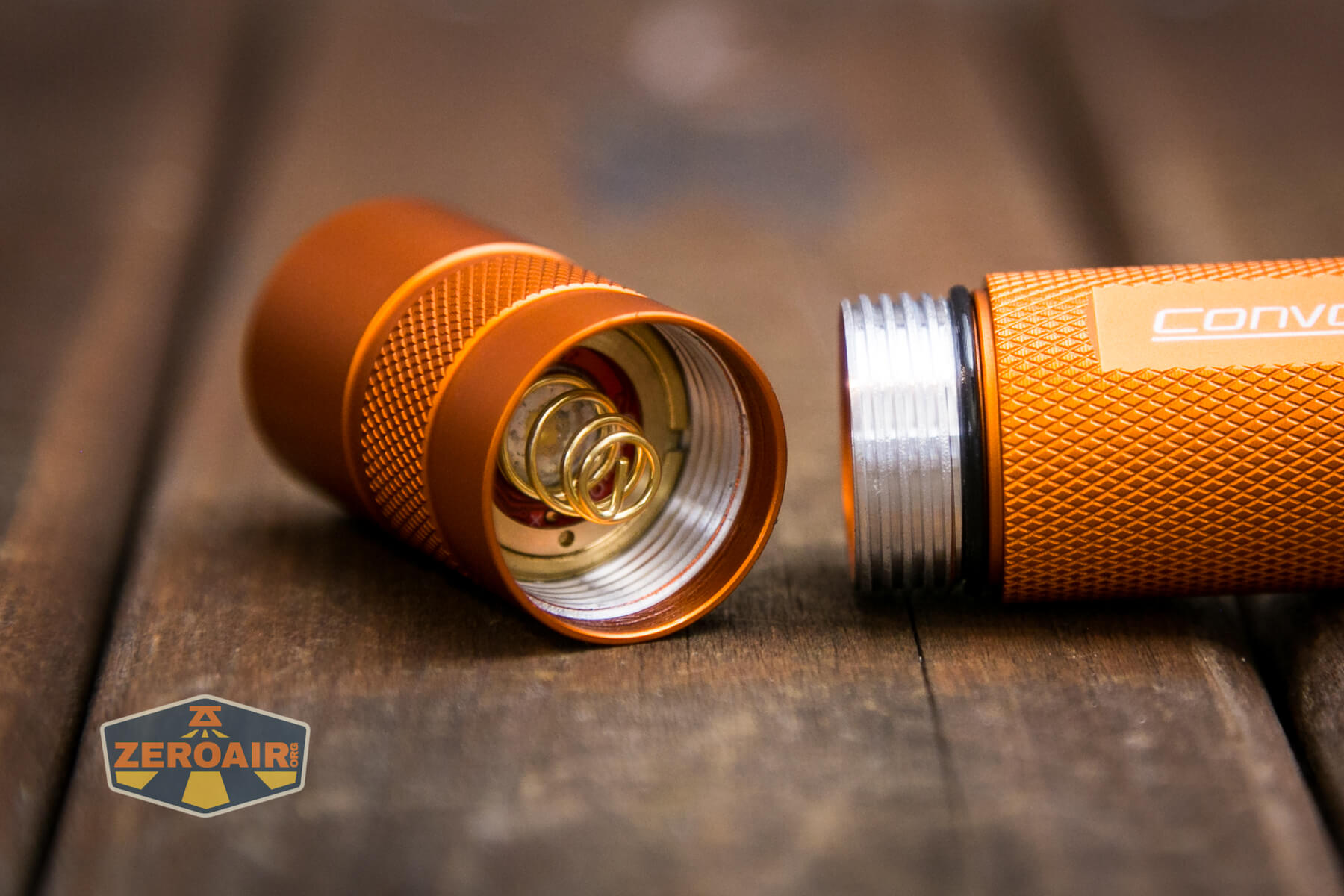

Convoy S2+ Nichia 519a Flashlight head spring

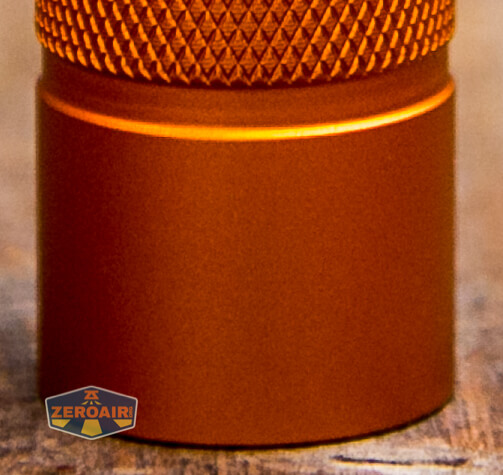

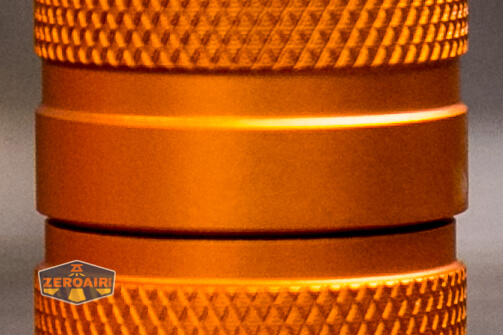

The cell tube is not reversible.  One end is anodized, and one is unanodized.  The anodized end is the tail end.  Also, both bodies have their own o-rings.

Convoy S2+ Nichia 519a Flashlight apart

Convoy is moving to (or “has moved to” – I’m not really sure) a new threading system.  What you see on this head and tail is the new type.  The newer type has bigger square-cut threads. Both work fine but the parts are not interchangeable. If this bit of information is important to you, ask before placing an order what type of threads the light will have.  But if you never plan to mod, and don’t have any other parts that you’ll be swapping this with, do not worry about it and don’t think about it again.

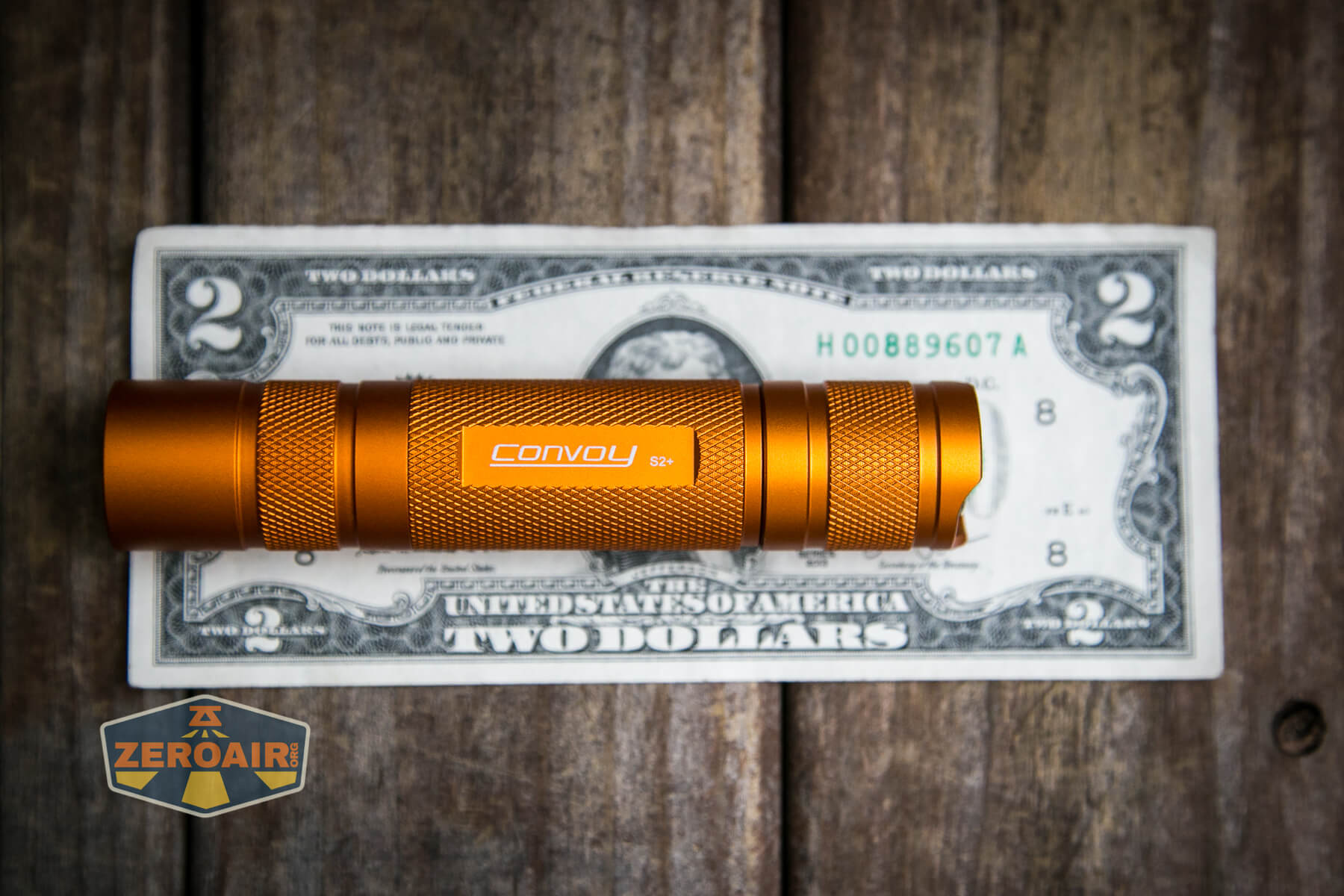

Size and Comps

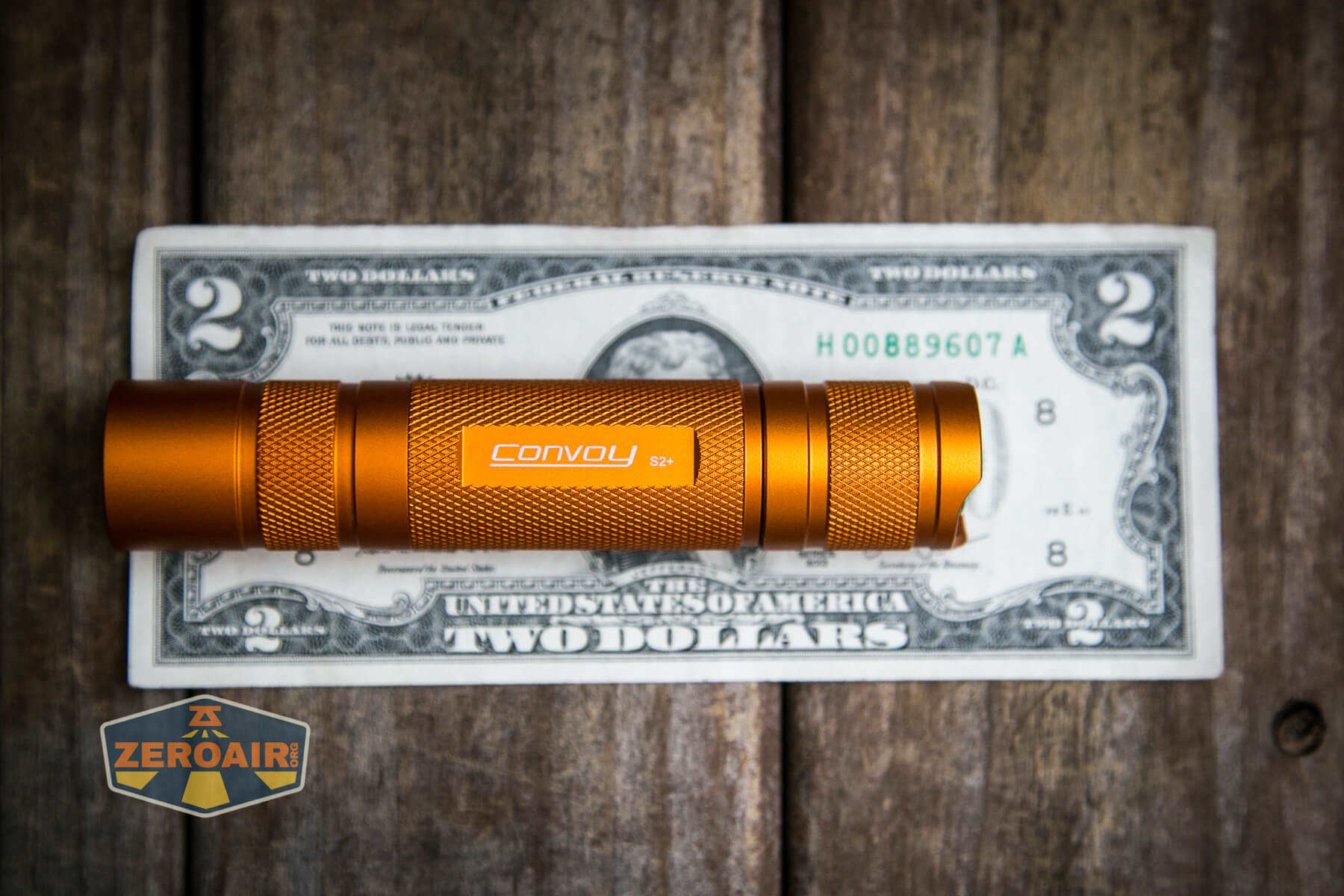

  • Length: 118.9mm
  • Width: 24.1mm

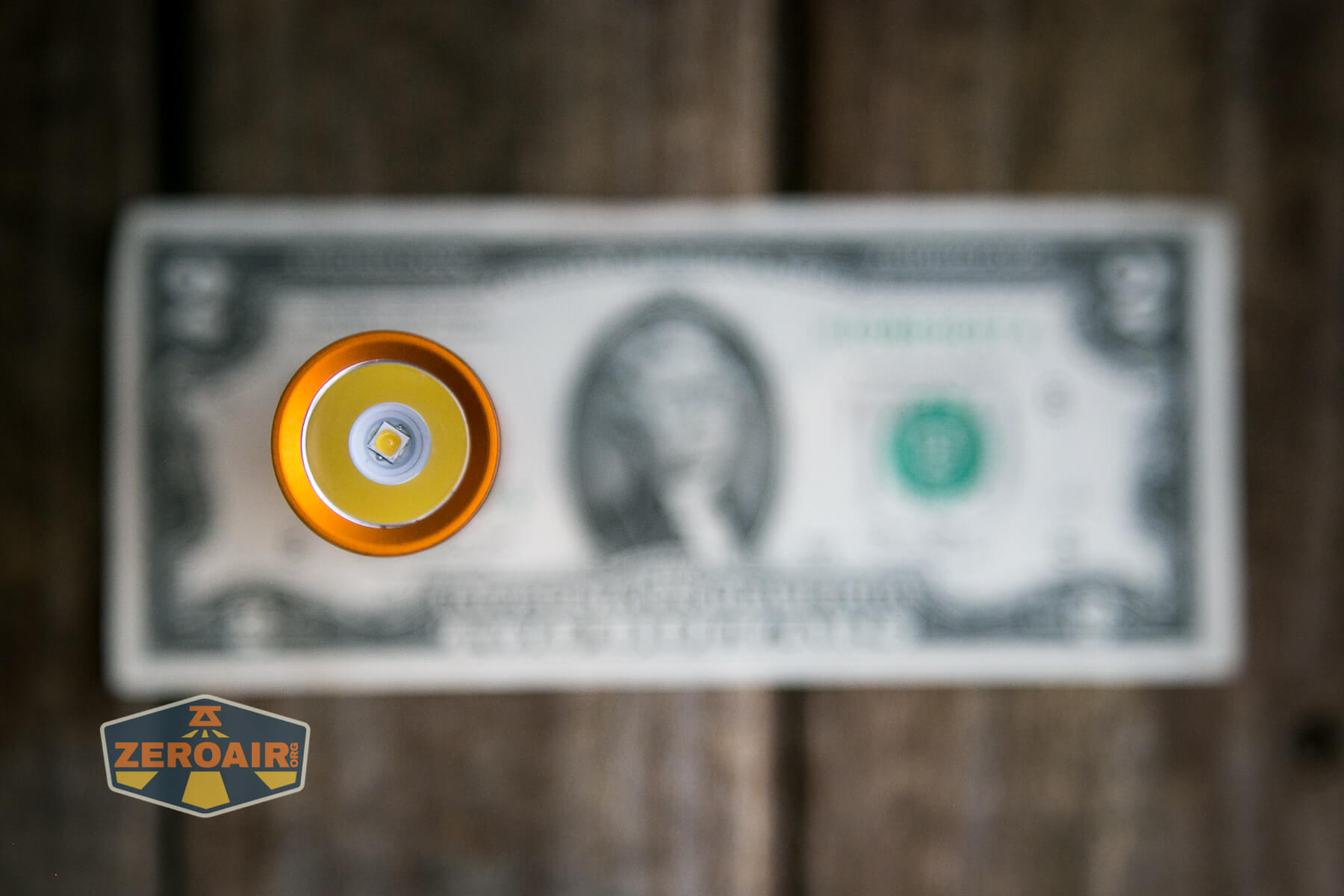

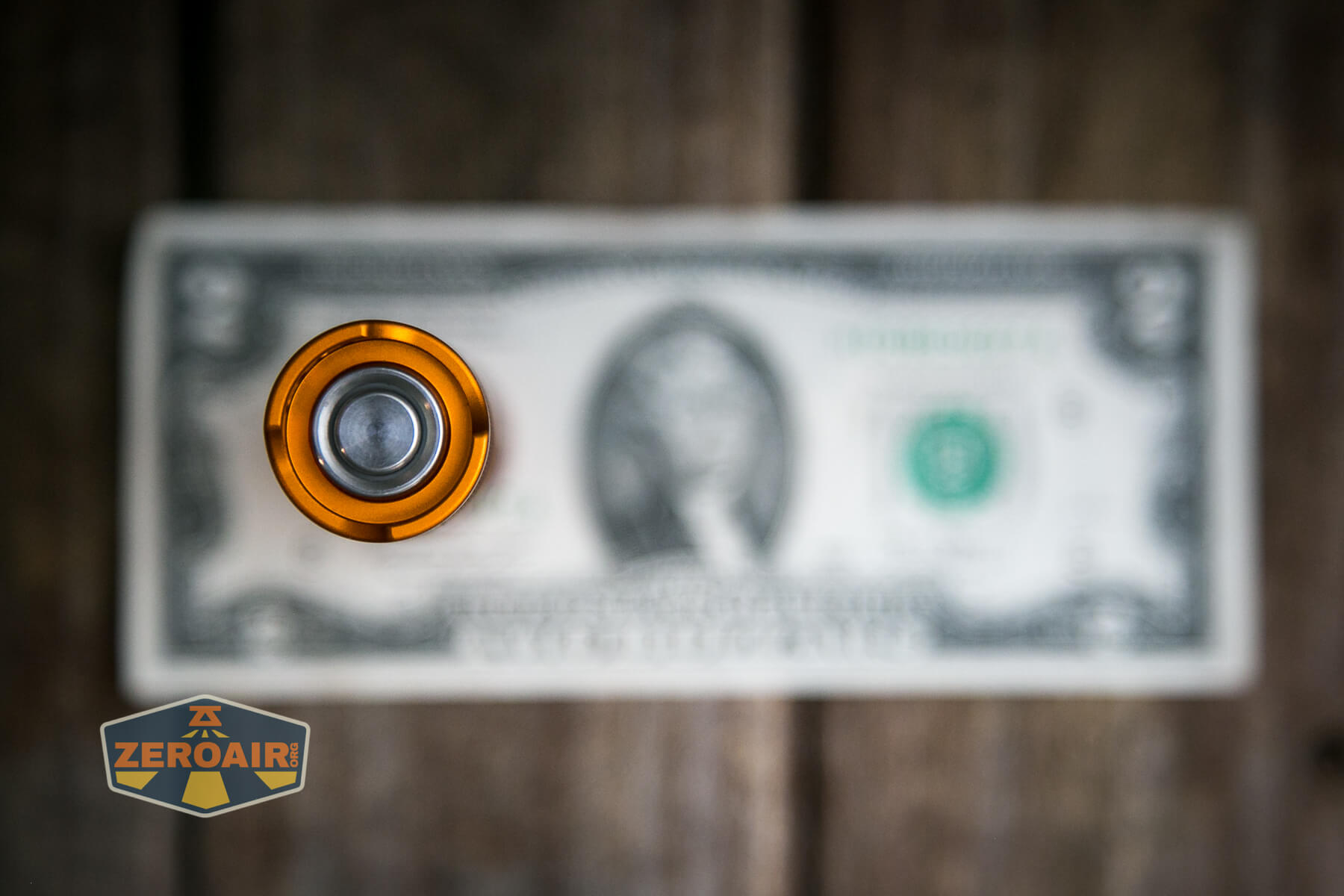

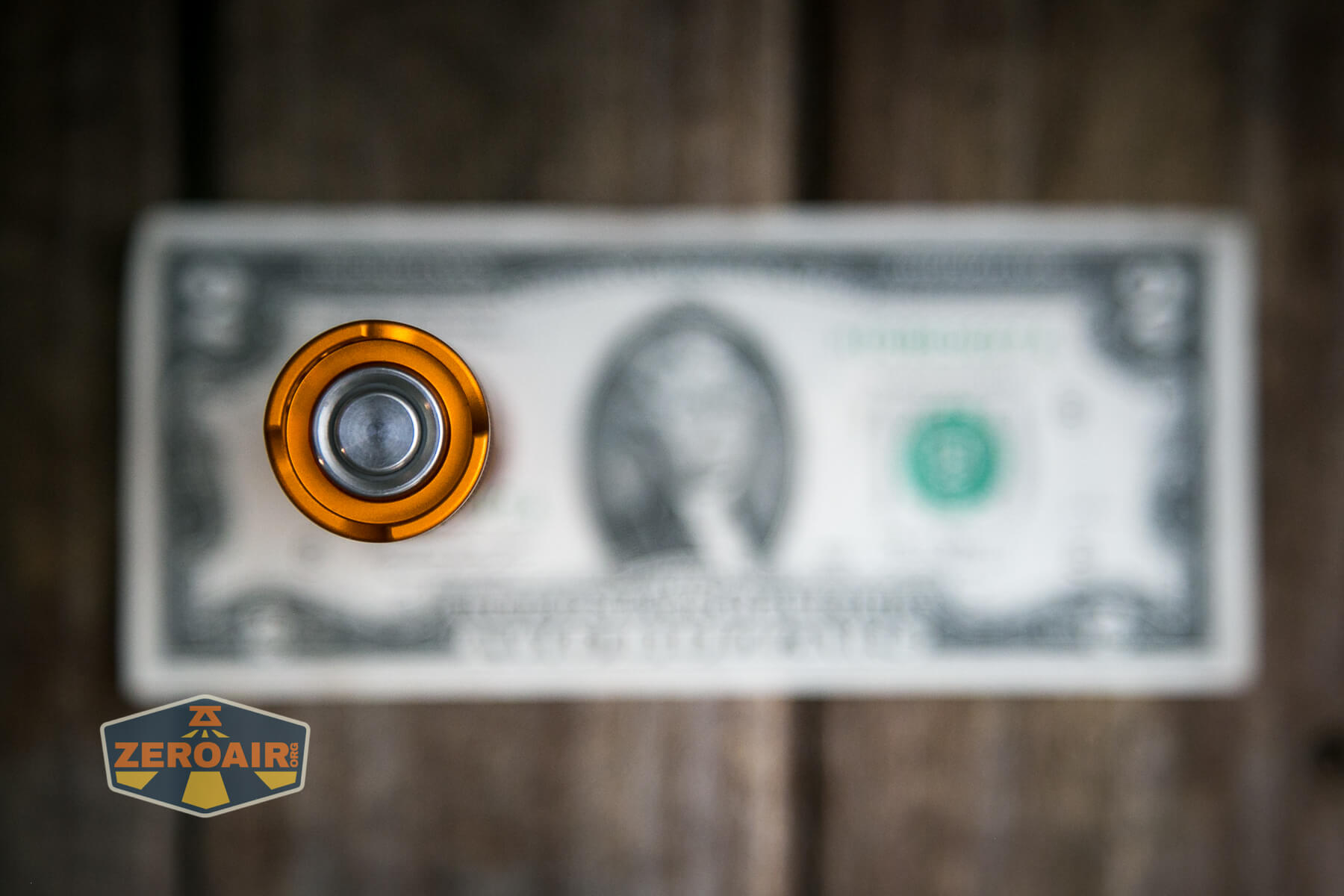

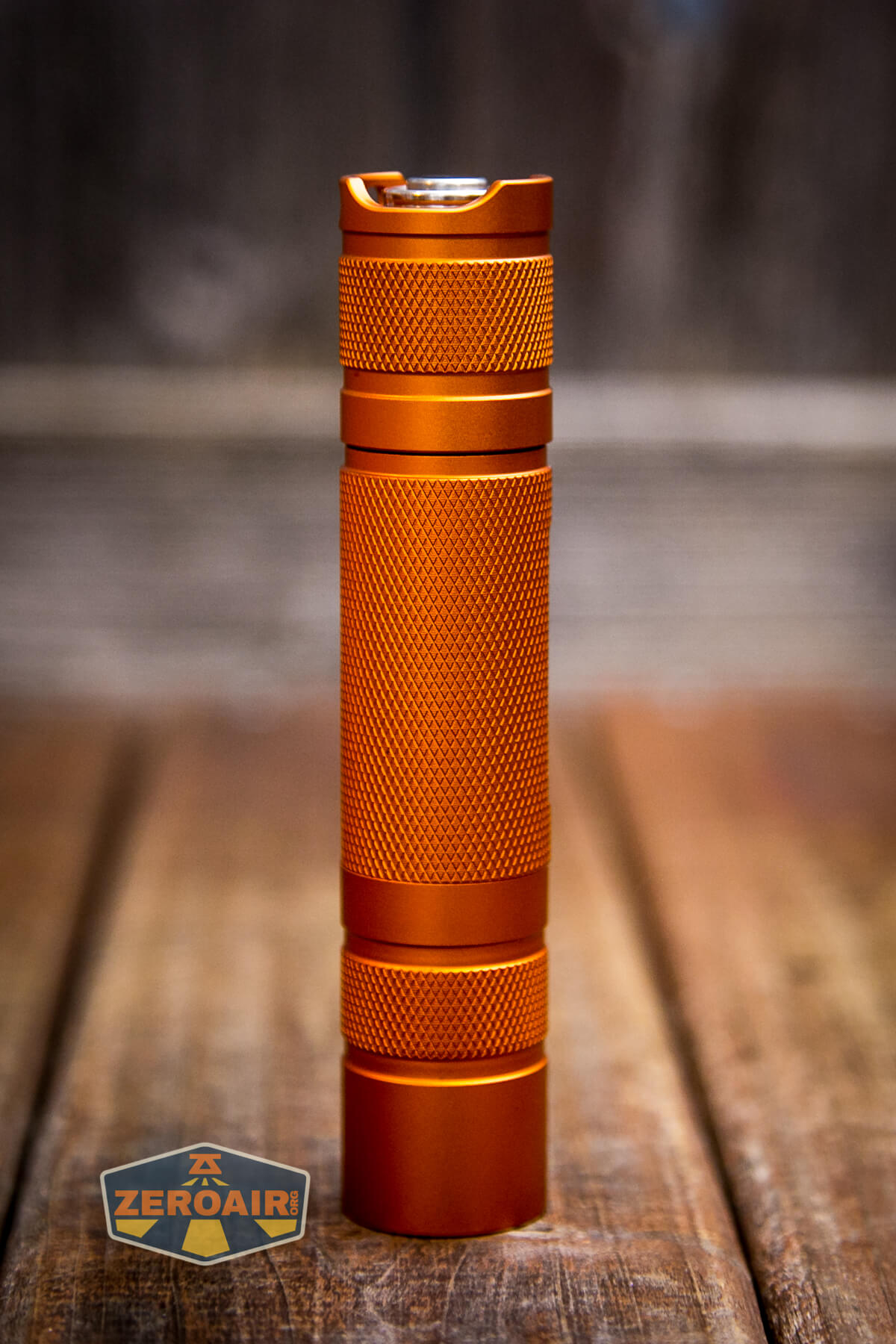

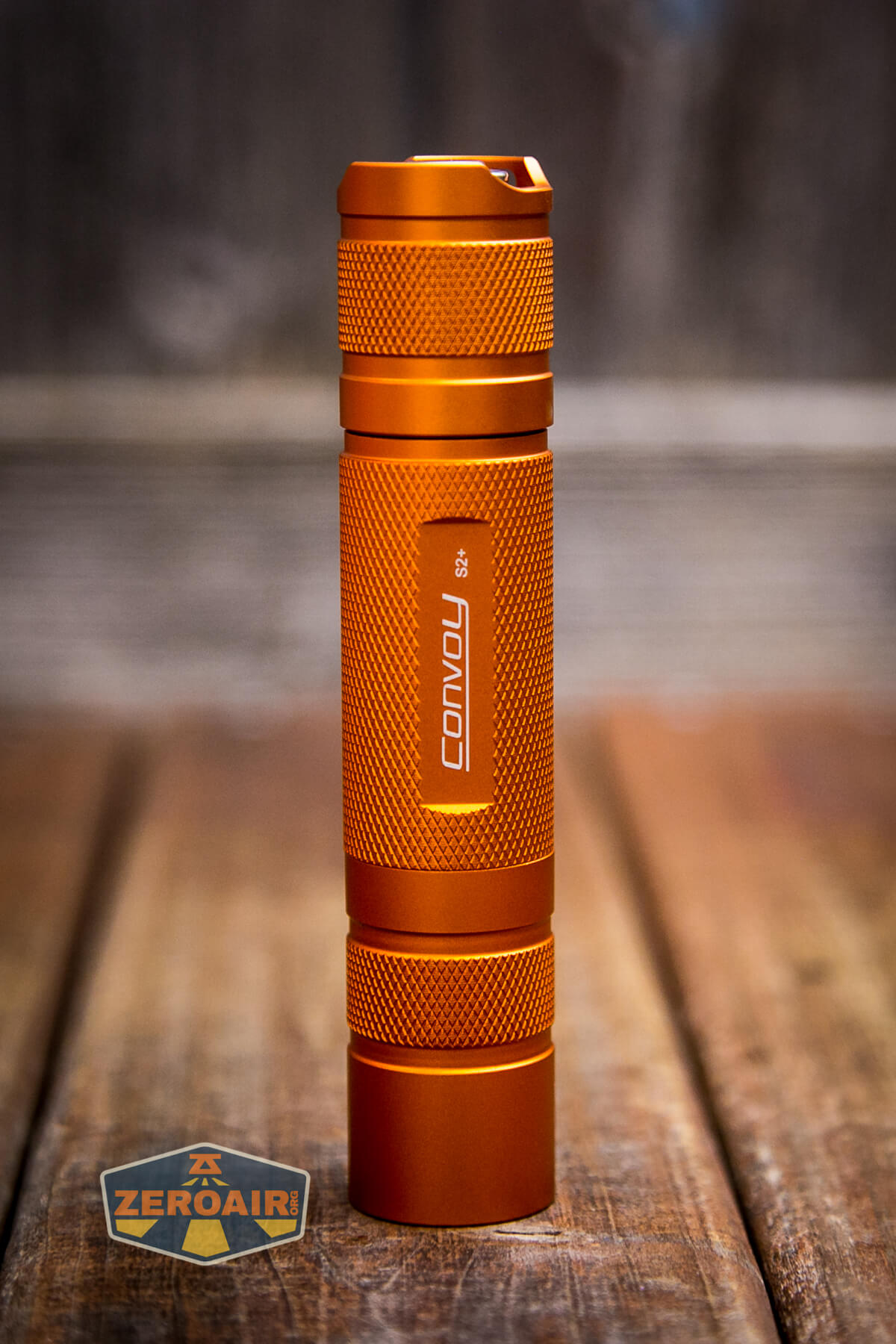

If the flashlight will headstand, I’ll show it here (usually the third photo).  If the flashlight will tailstand, I’ll show that here, too (usually the fourth photo).

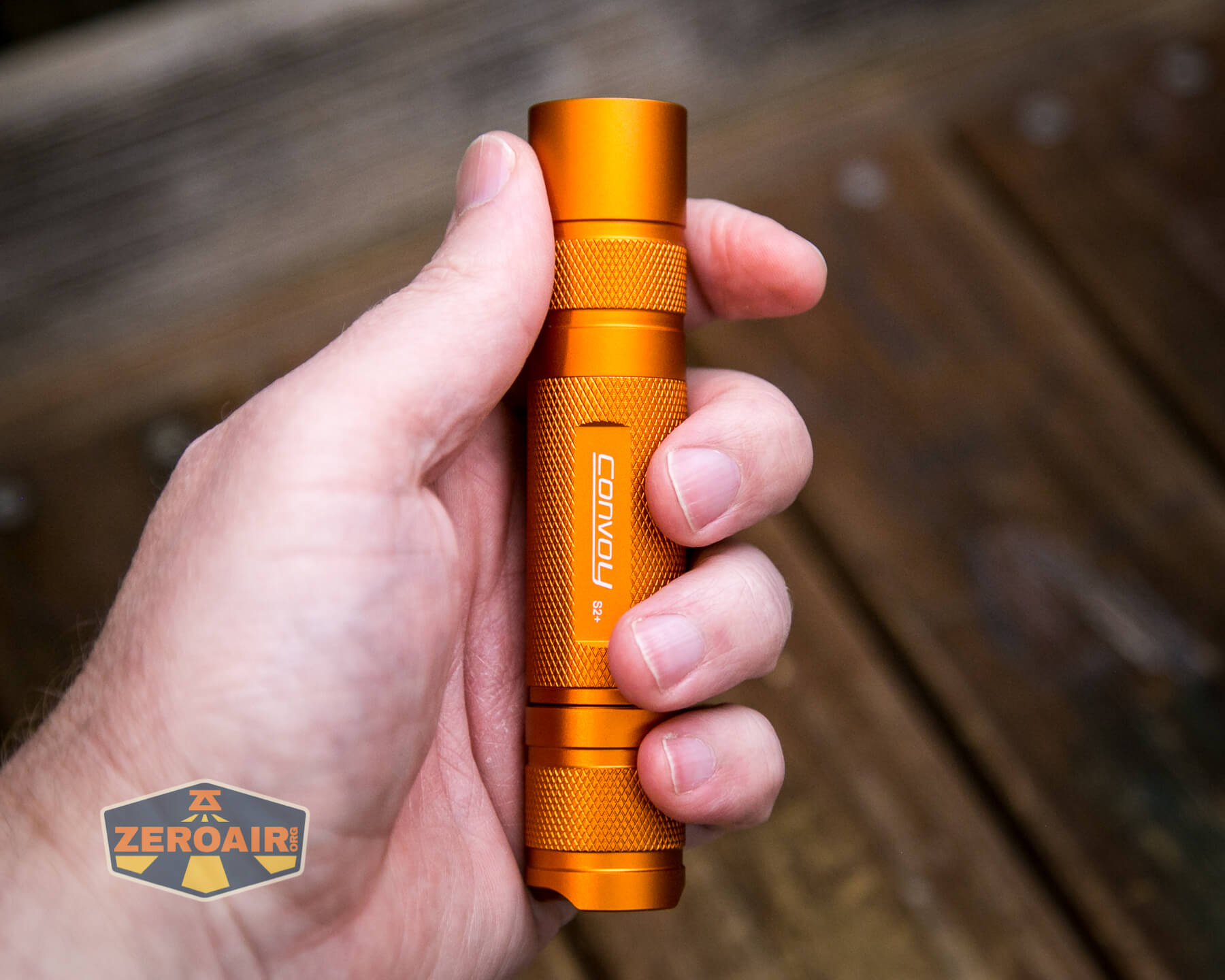

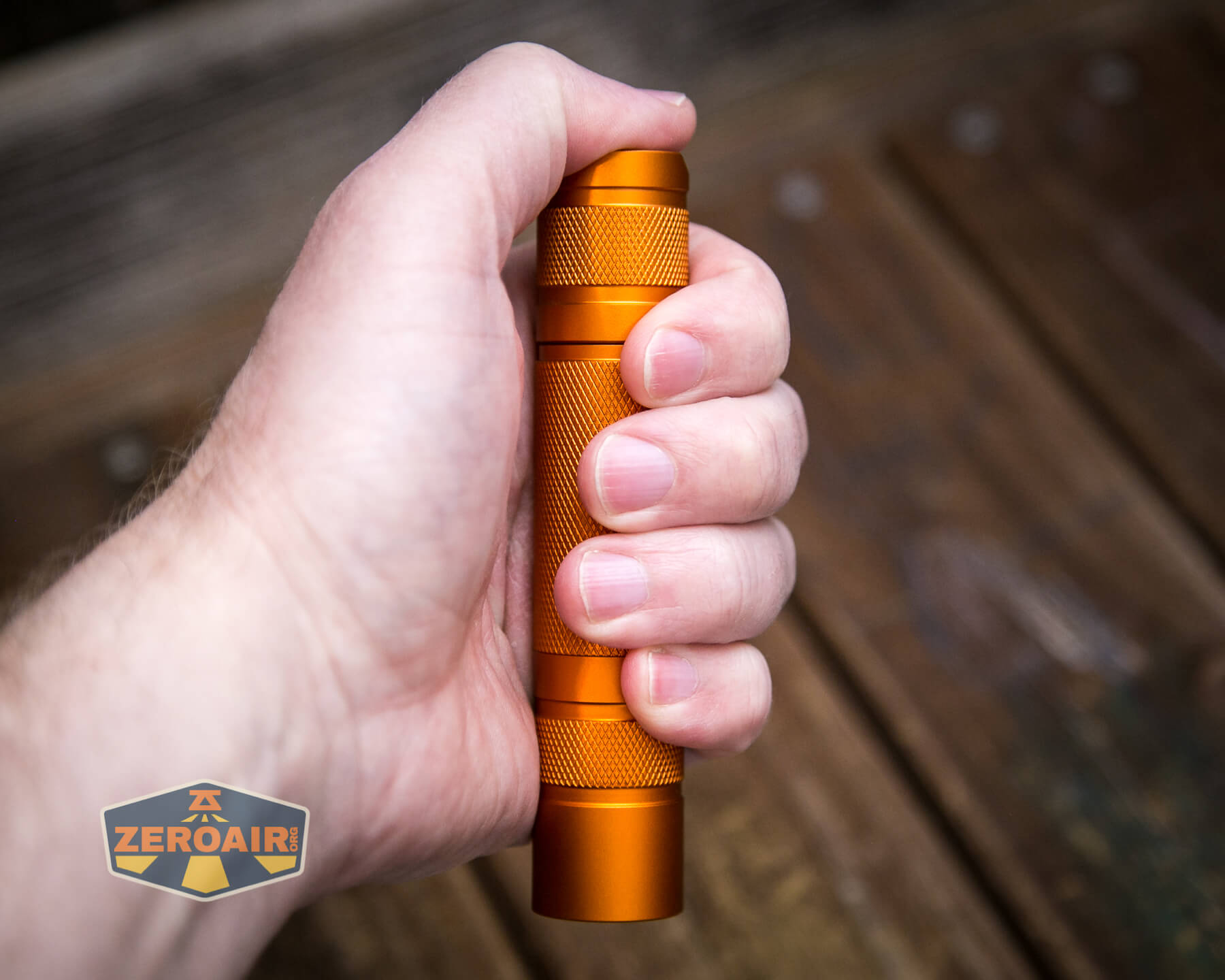

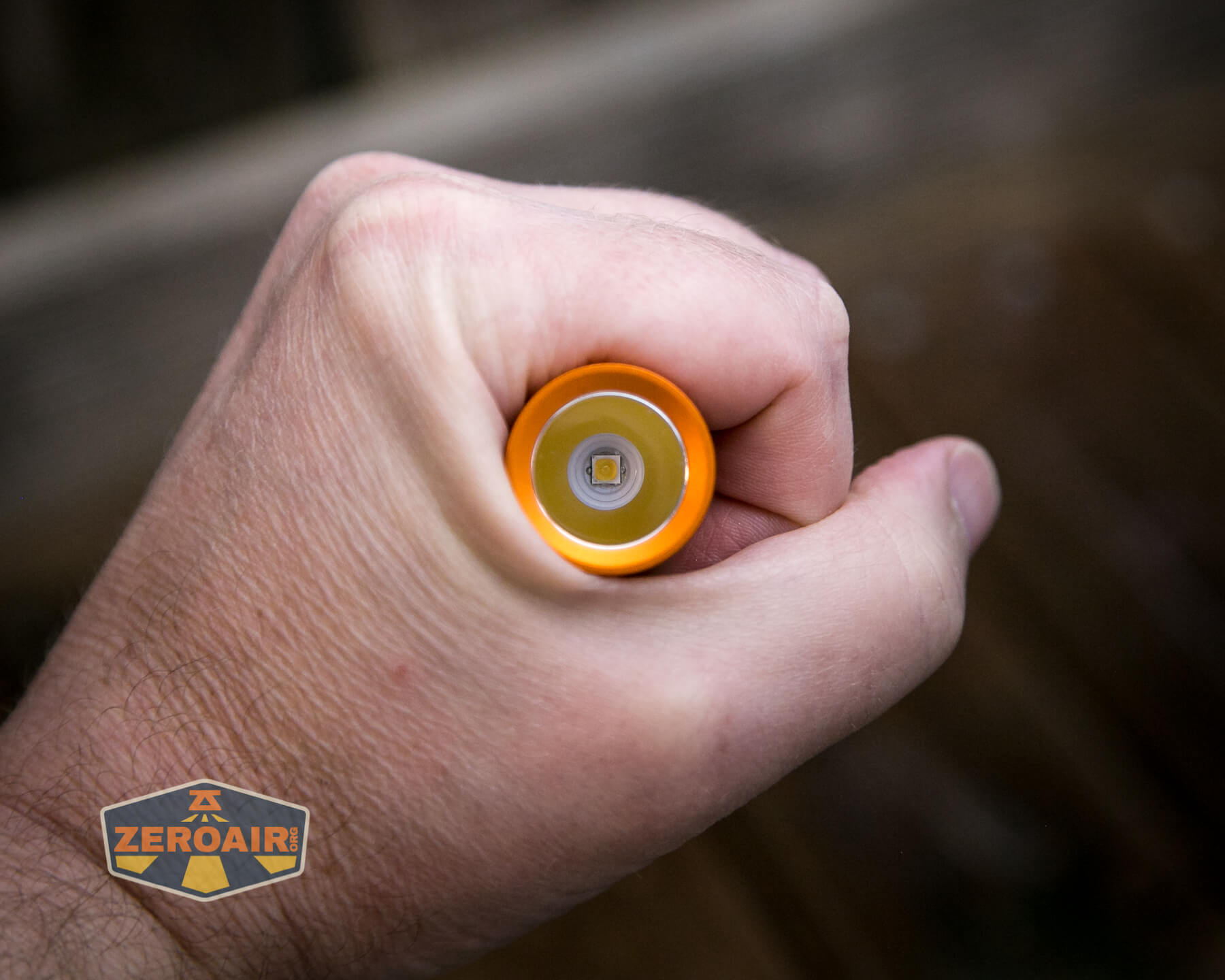

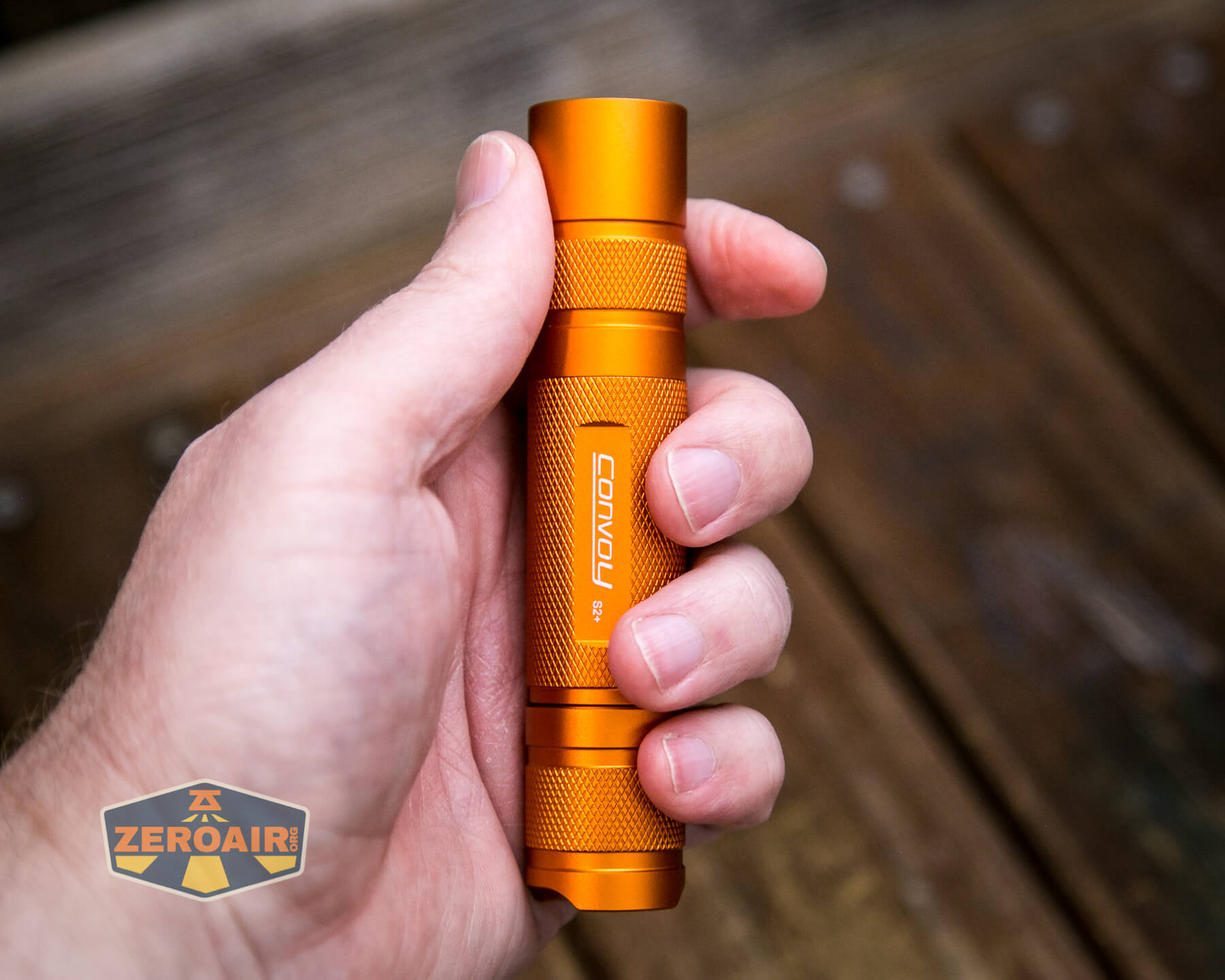

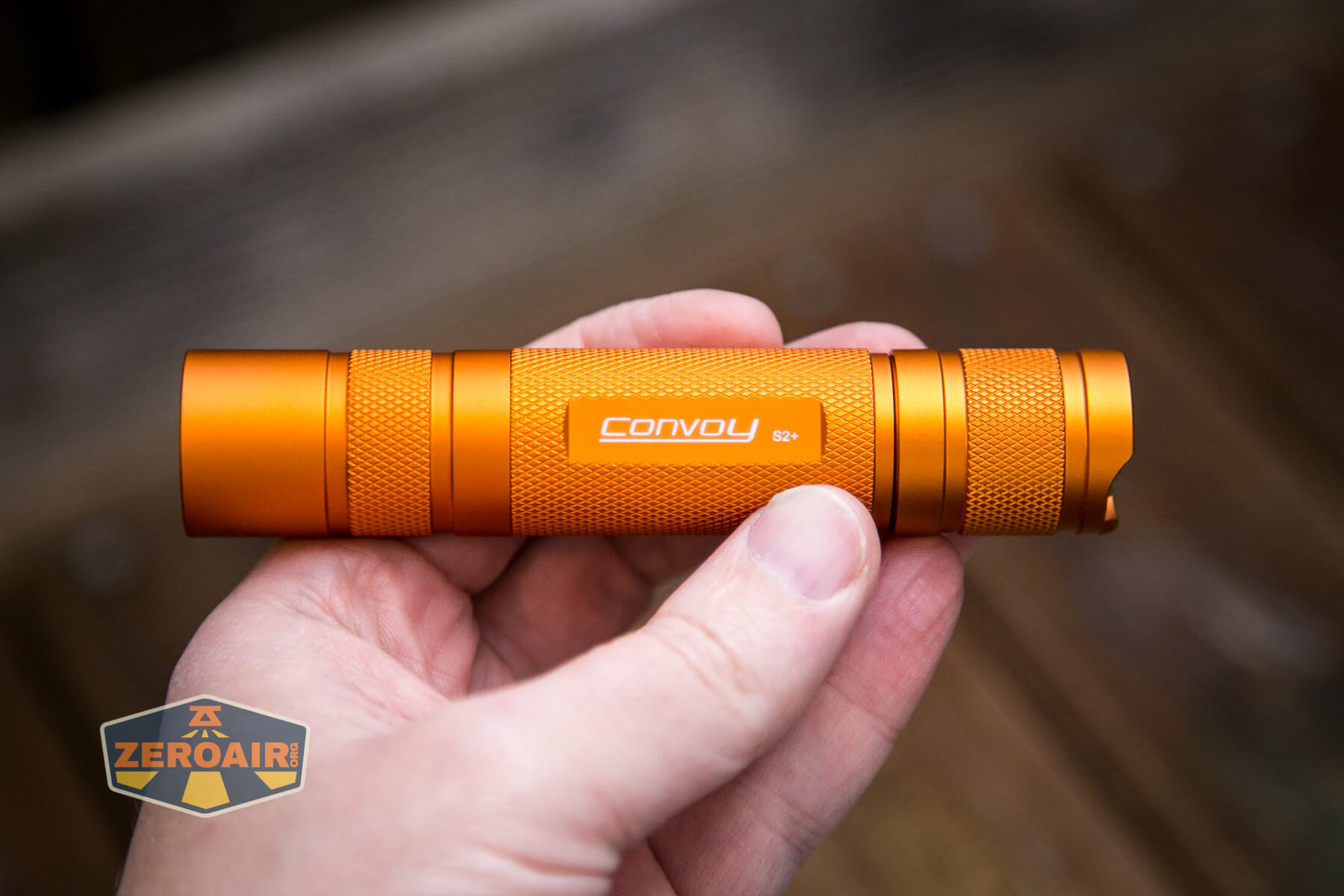

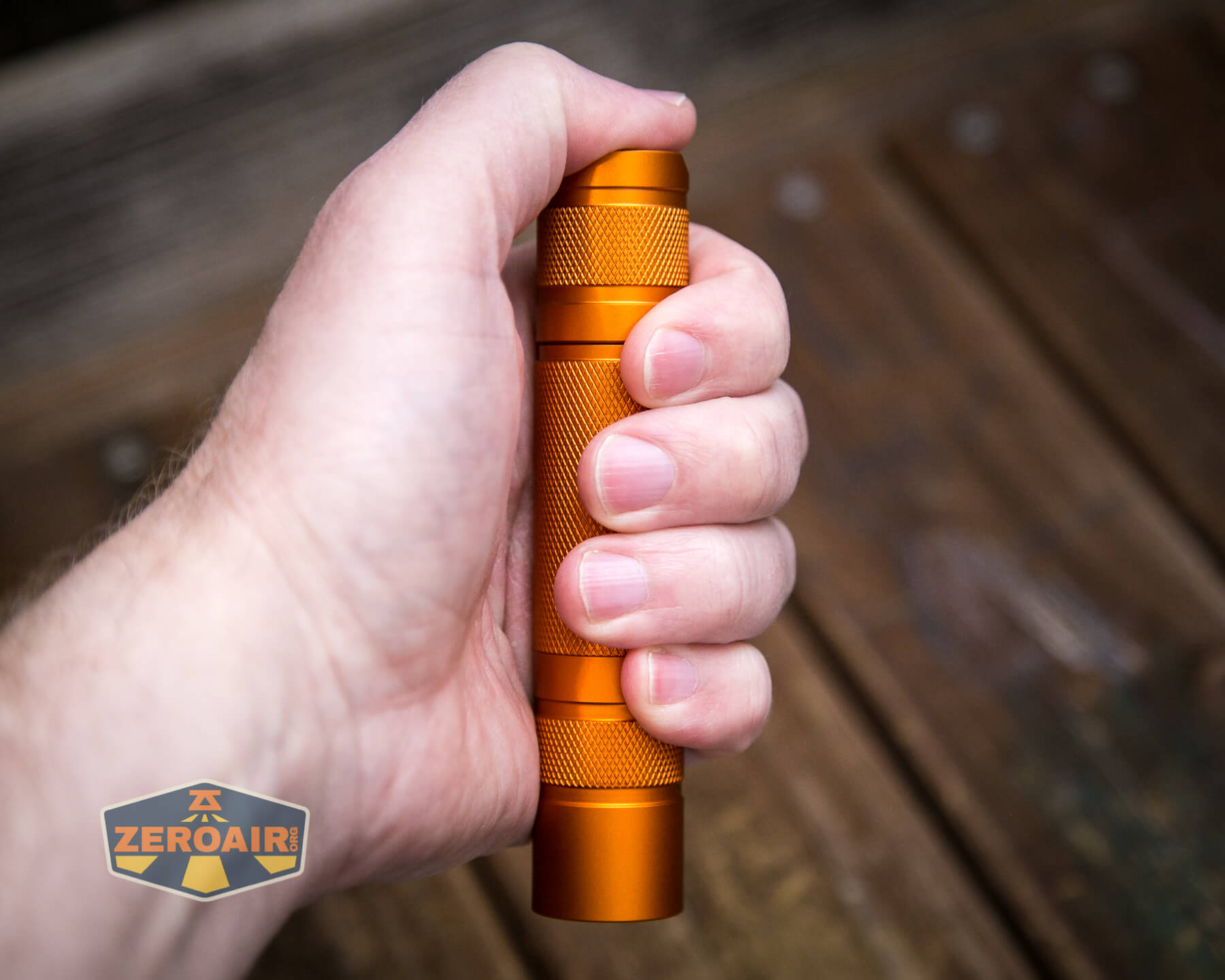

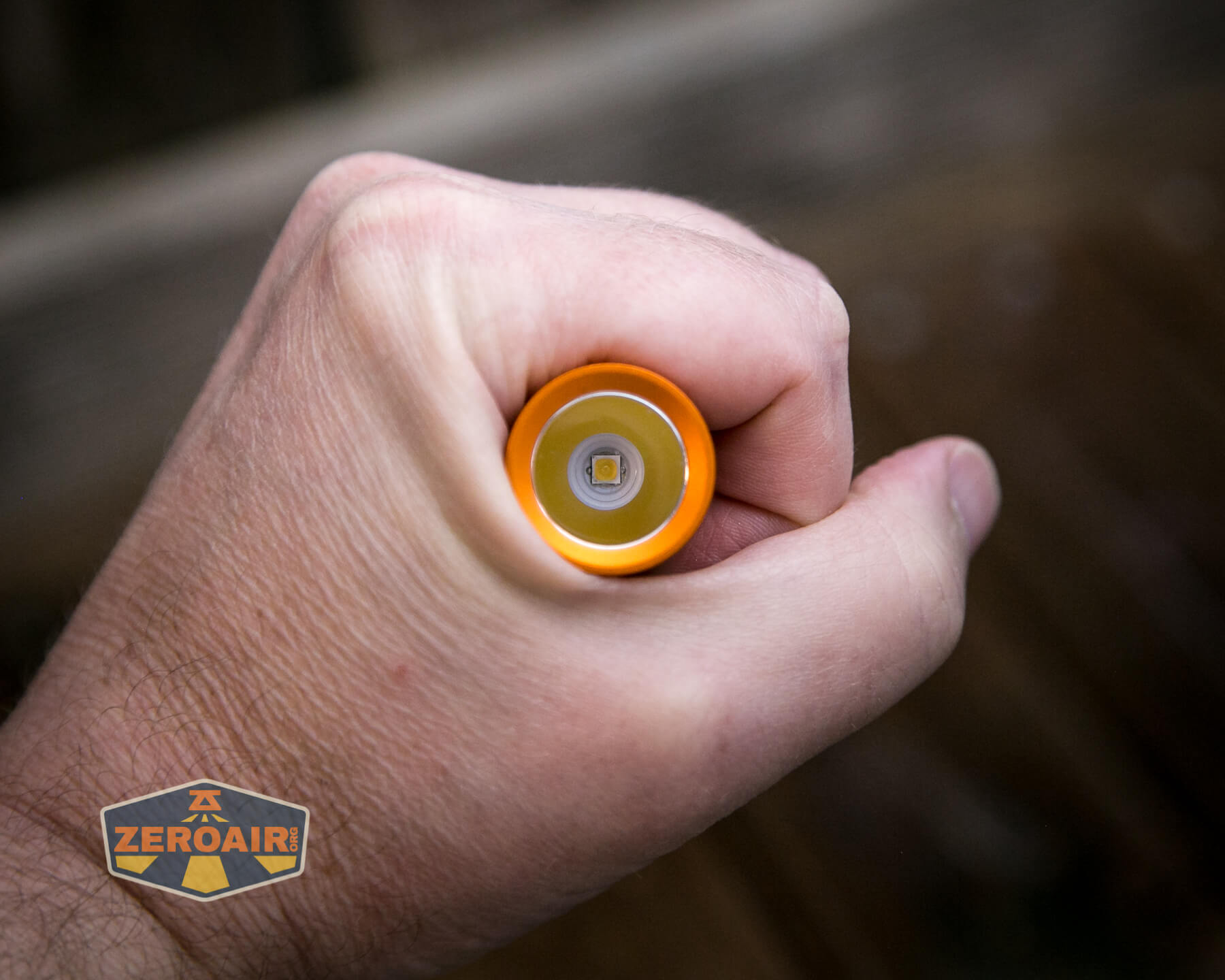

Convoy S2+ Nichia 519a Flashlight in hand

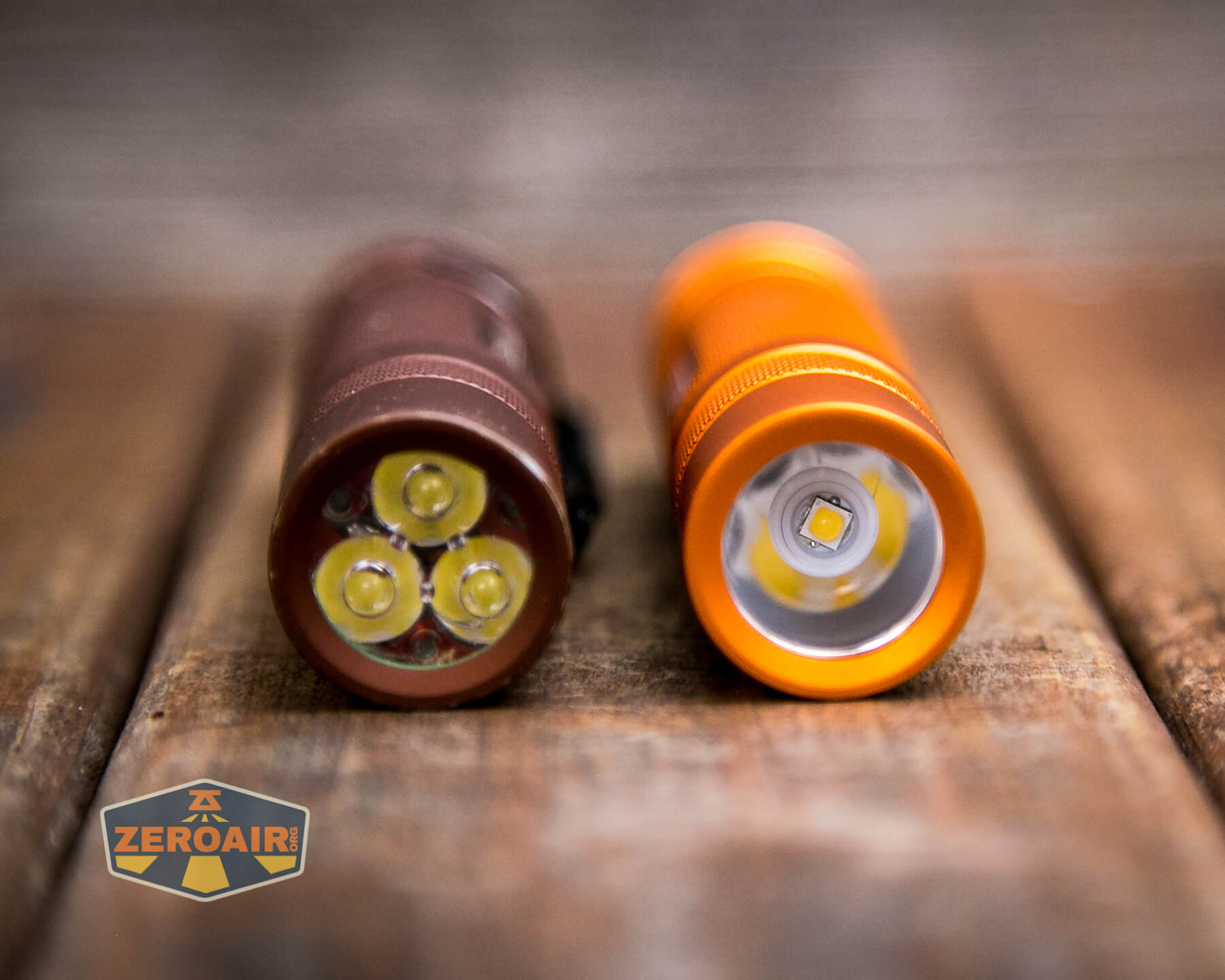

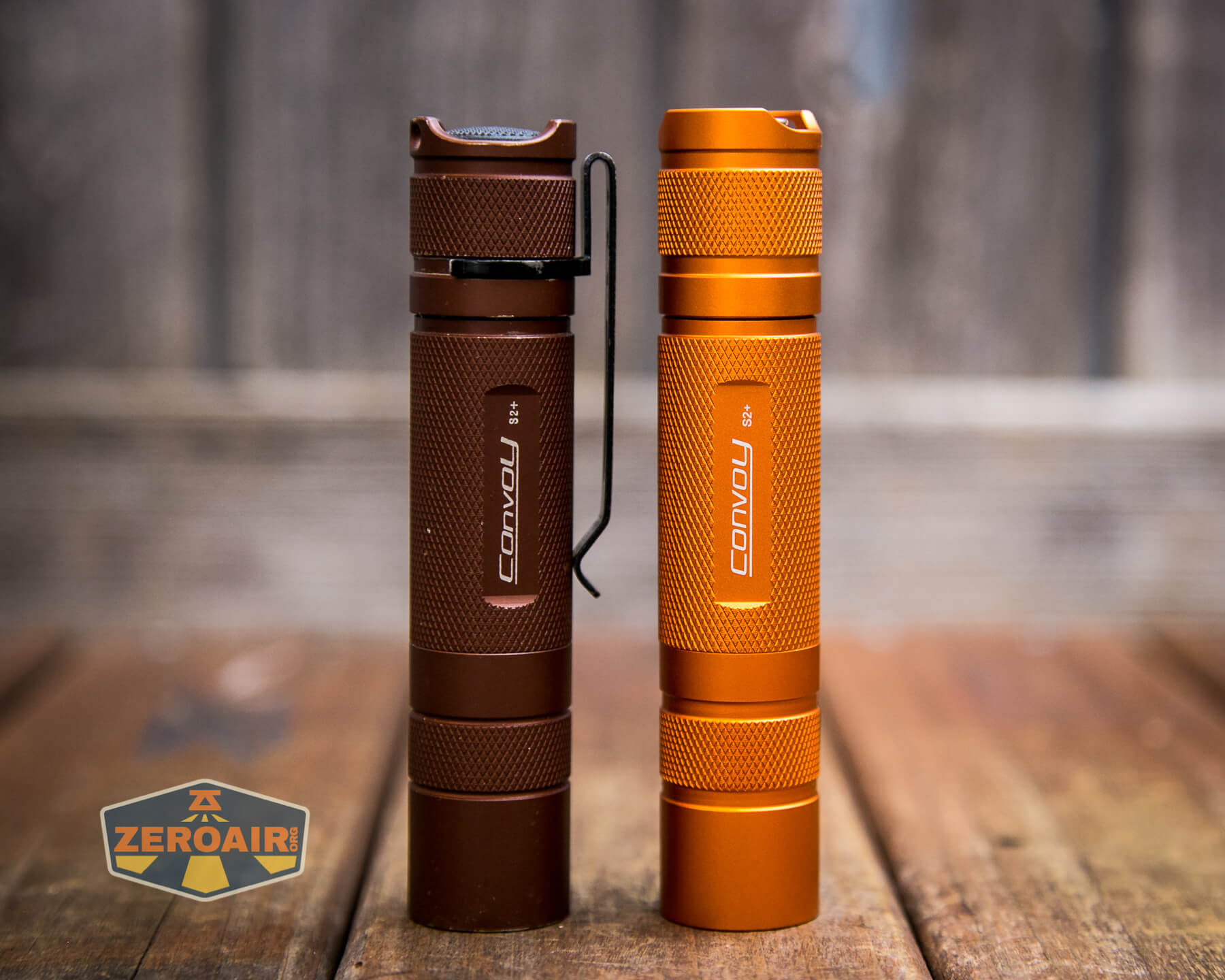

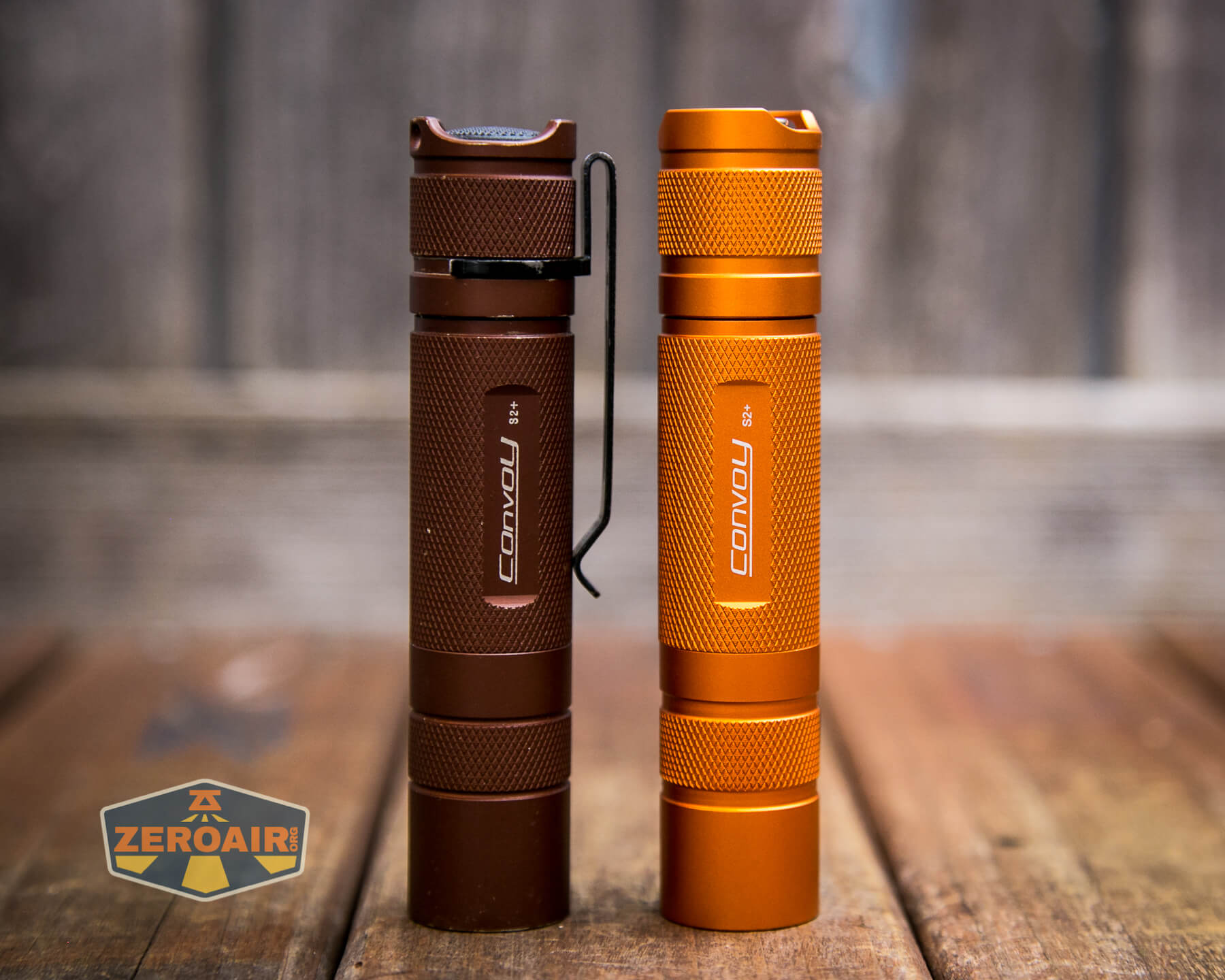

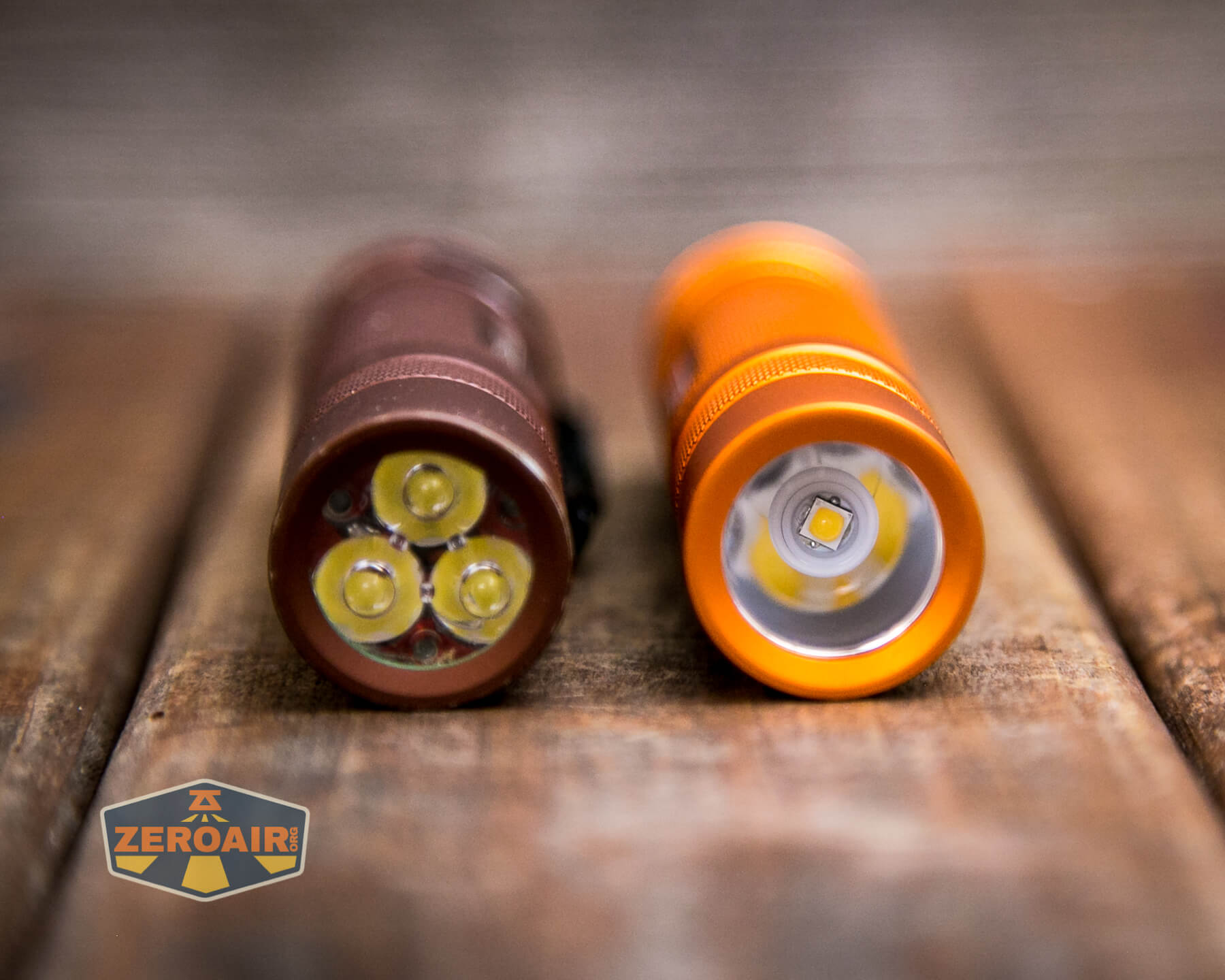

Here’s the test light with the venerable Convoy S2+.  Mine’s a custom “baked” edition Nichia 219b triple.  A very nice 18650 light.

And here’s the light beside my custom engraved TorchLAB BOSS 35, an 18350 light.  I reviewed the aluminum version of that light in both 35 and 70 formats.

Convoy S2+ Nichia 519a Flashlight beside torchlab boss 35 Convoy S2+ Nichia 519a Flashlight not real shorty

Retention and Carry

There are three main ways to carry the S2+.  The first is a pocket clip, which is a separate purchase.  I happened to have one on hand.  Absolutely buy one with the light, though. I failed to do so. 🙁 You can see the pocket clip in my other Convoy S2+ reviews, though.

Below you can see it in all four positions on the 18650 body.  This light can be carried either orientation and deeper or shallower, depending on preference.

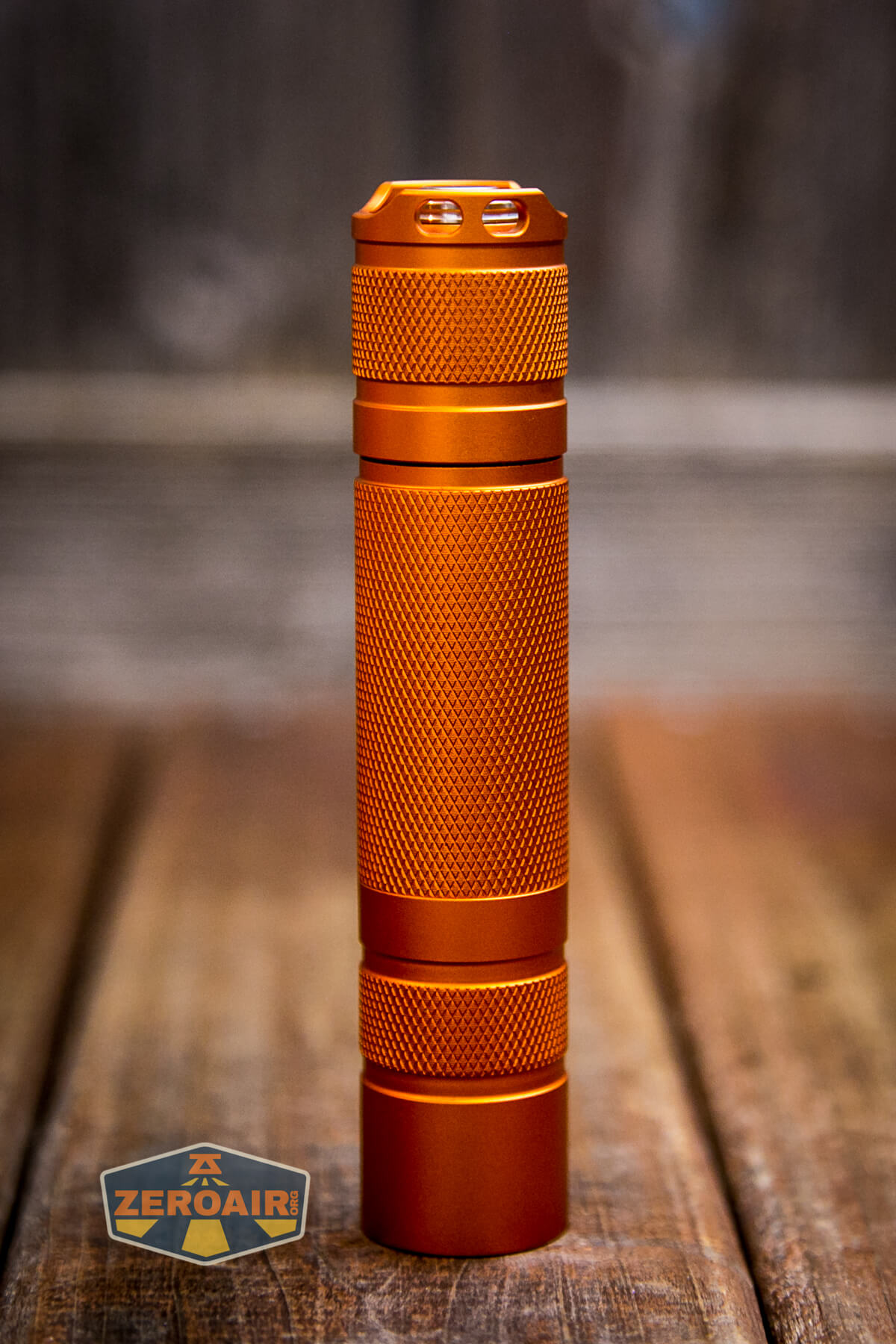

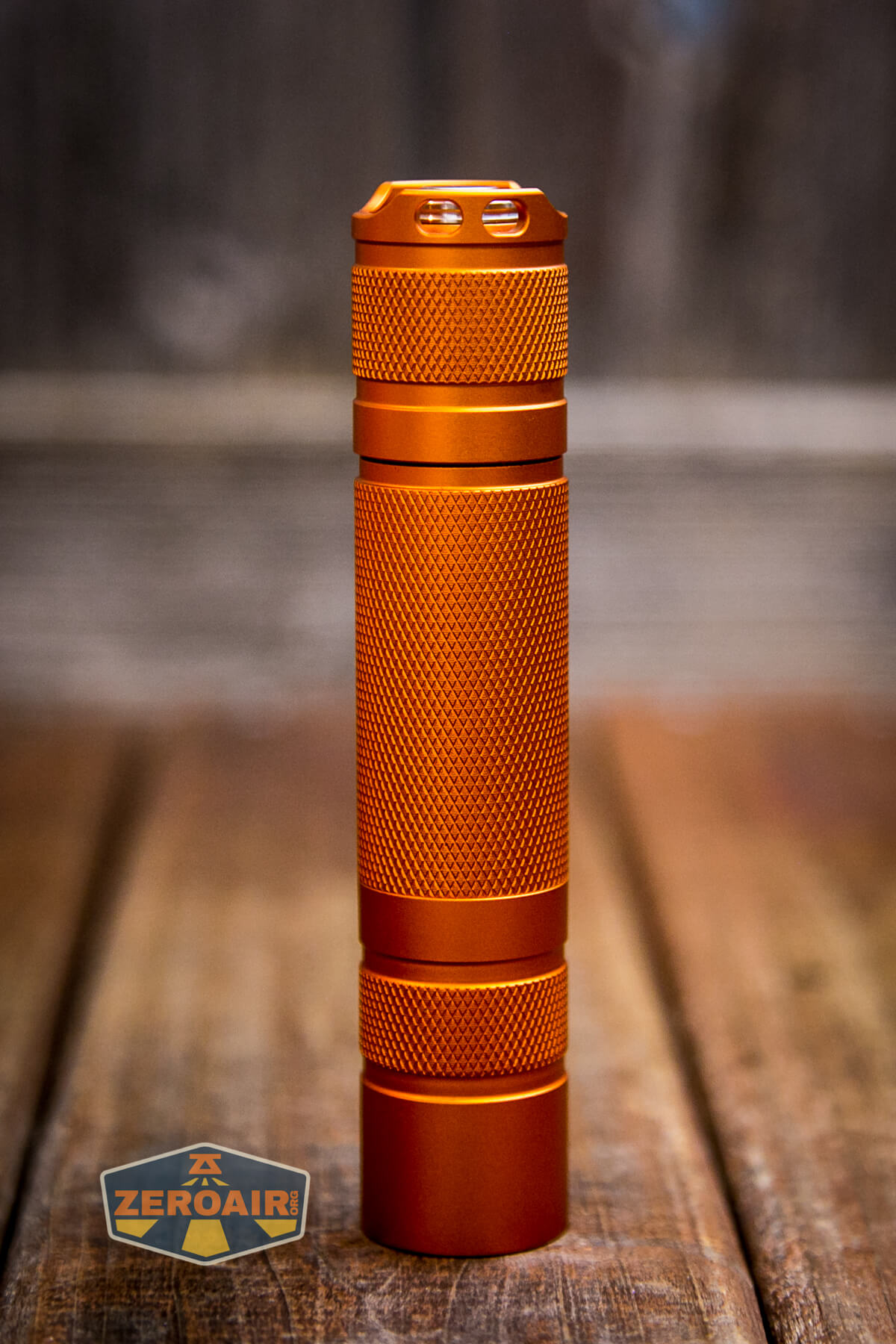

Convoy S2+ Nichia 519a Flashlight lanyard holes

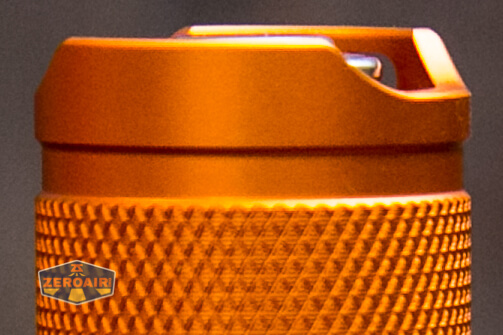

Also available is a lanyard, which is included.  The lanyard fits through these two holes on the tailcap.  Note that the holes are only on one side of the tail, so really the lanyard and screw clip can’t be used together unless actually attaching the lanyard to the clip.  I don’t know if the clip will withstand that type of use, though (it’s fairly thin).

Convoy S2+ Nichia 519a Flashlight no lanyard holes

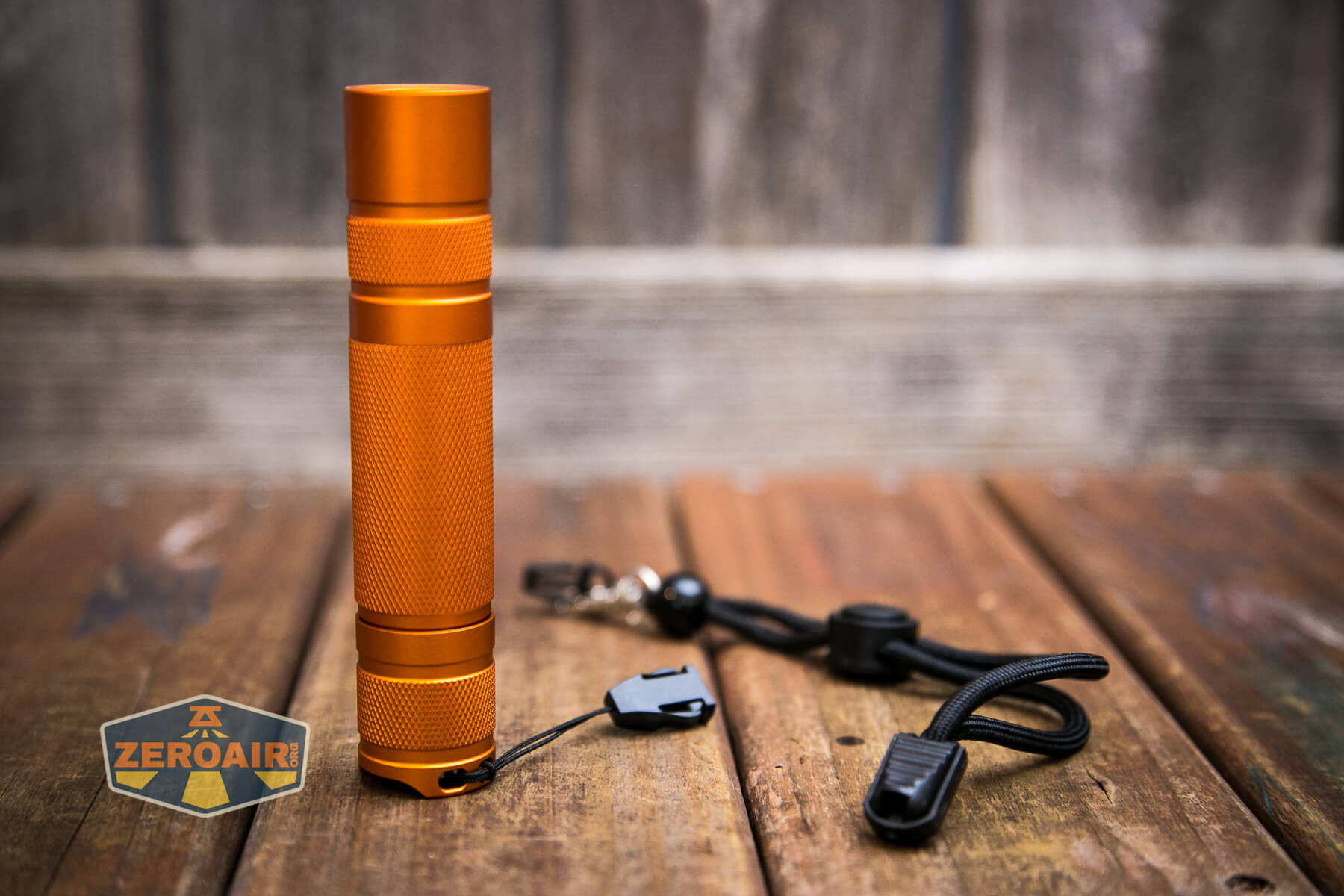

Convoy S2+ Nichia 519a Flashlight lanyard installed

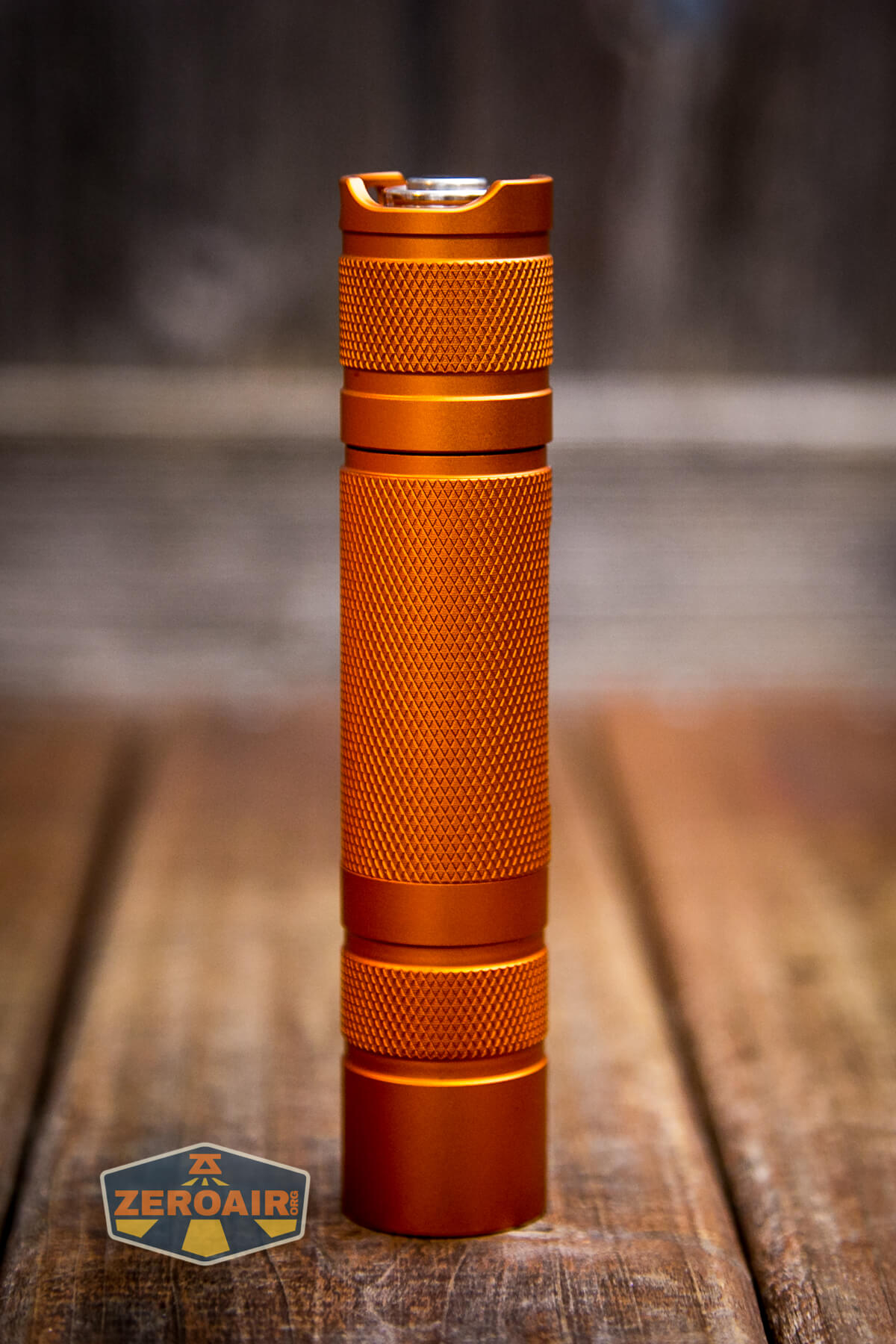

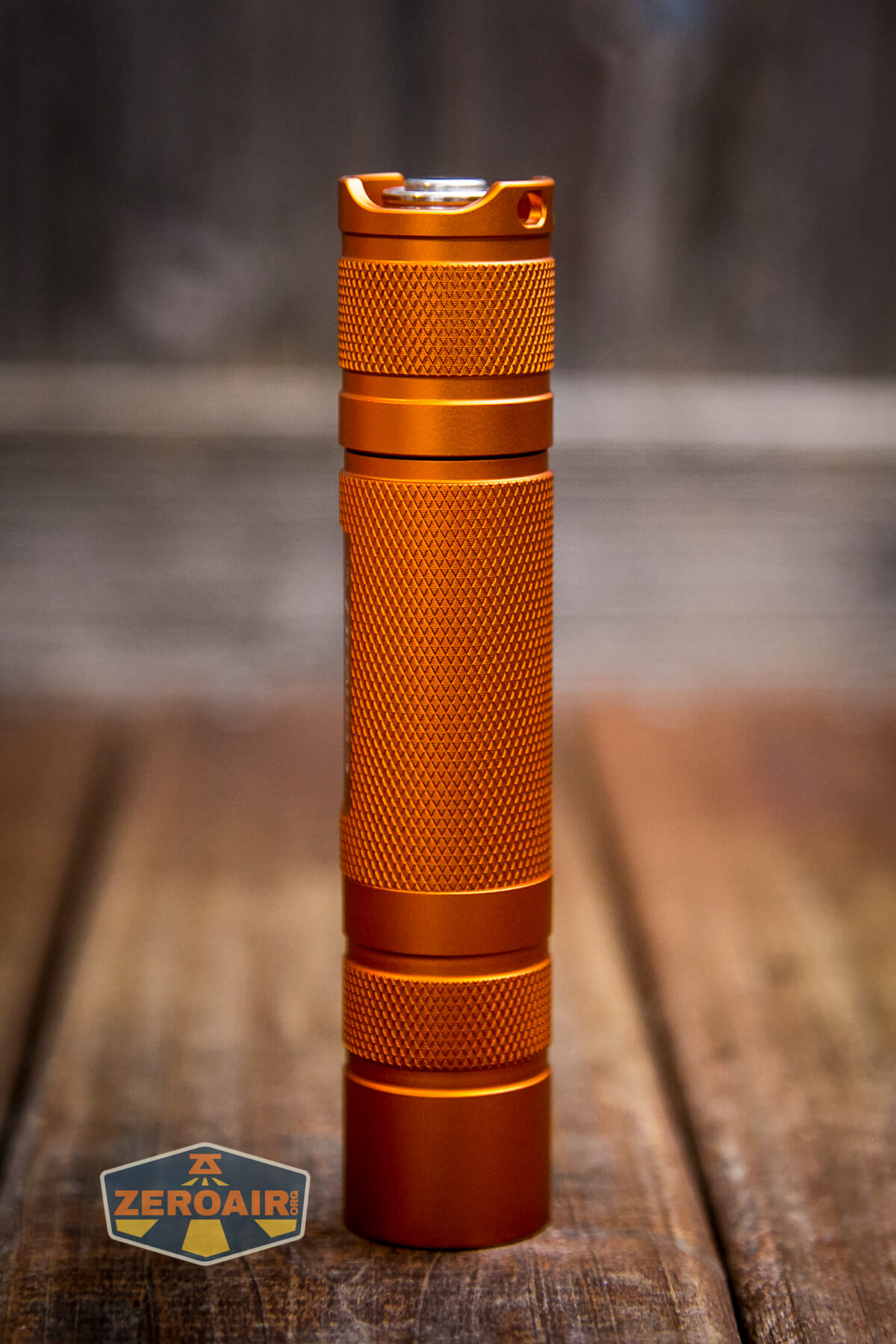

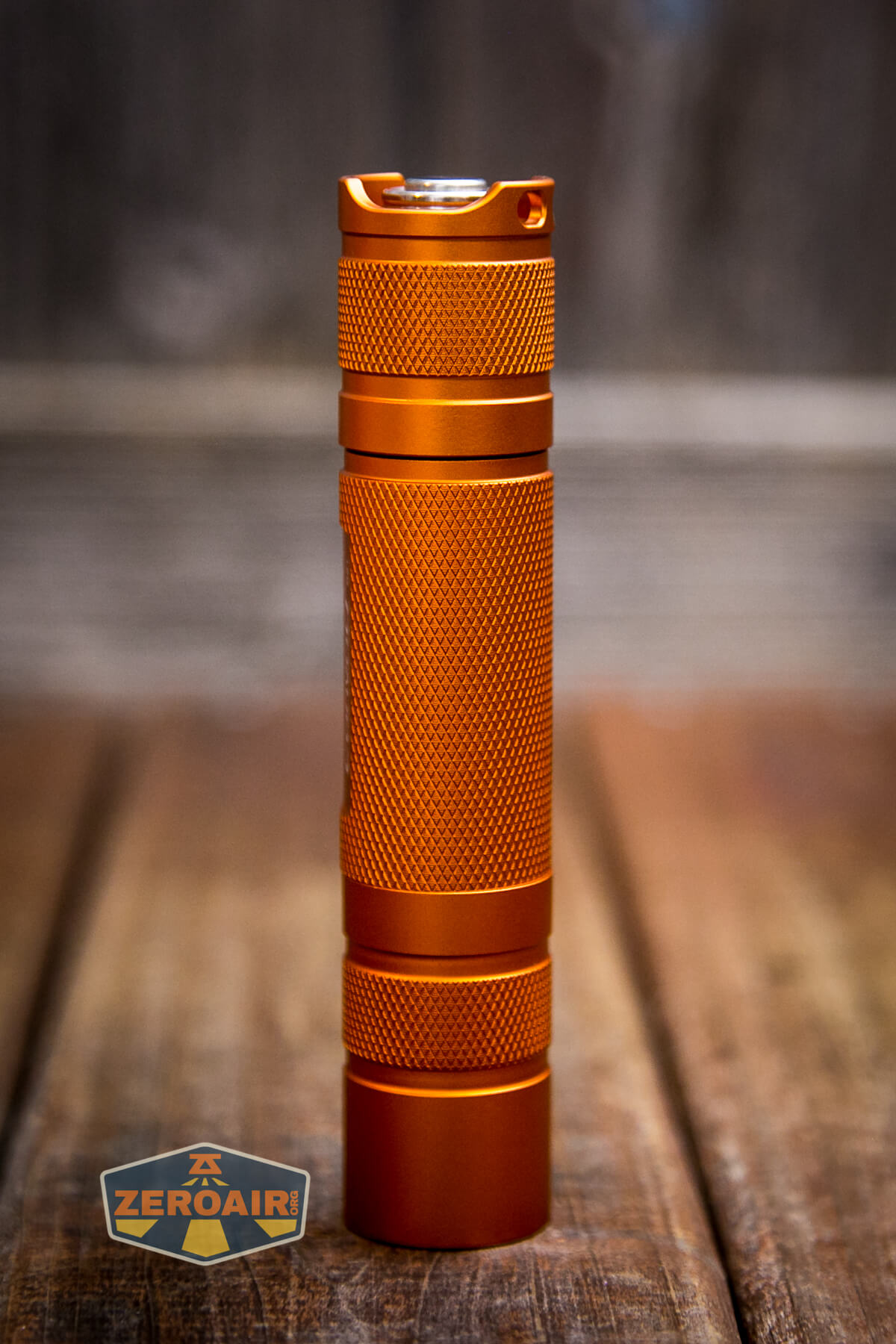

The light also tailstands reliably.

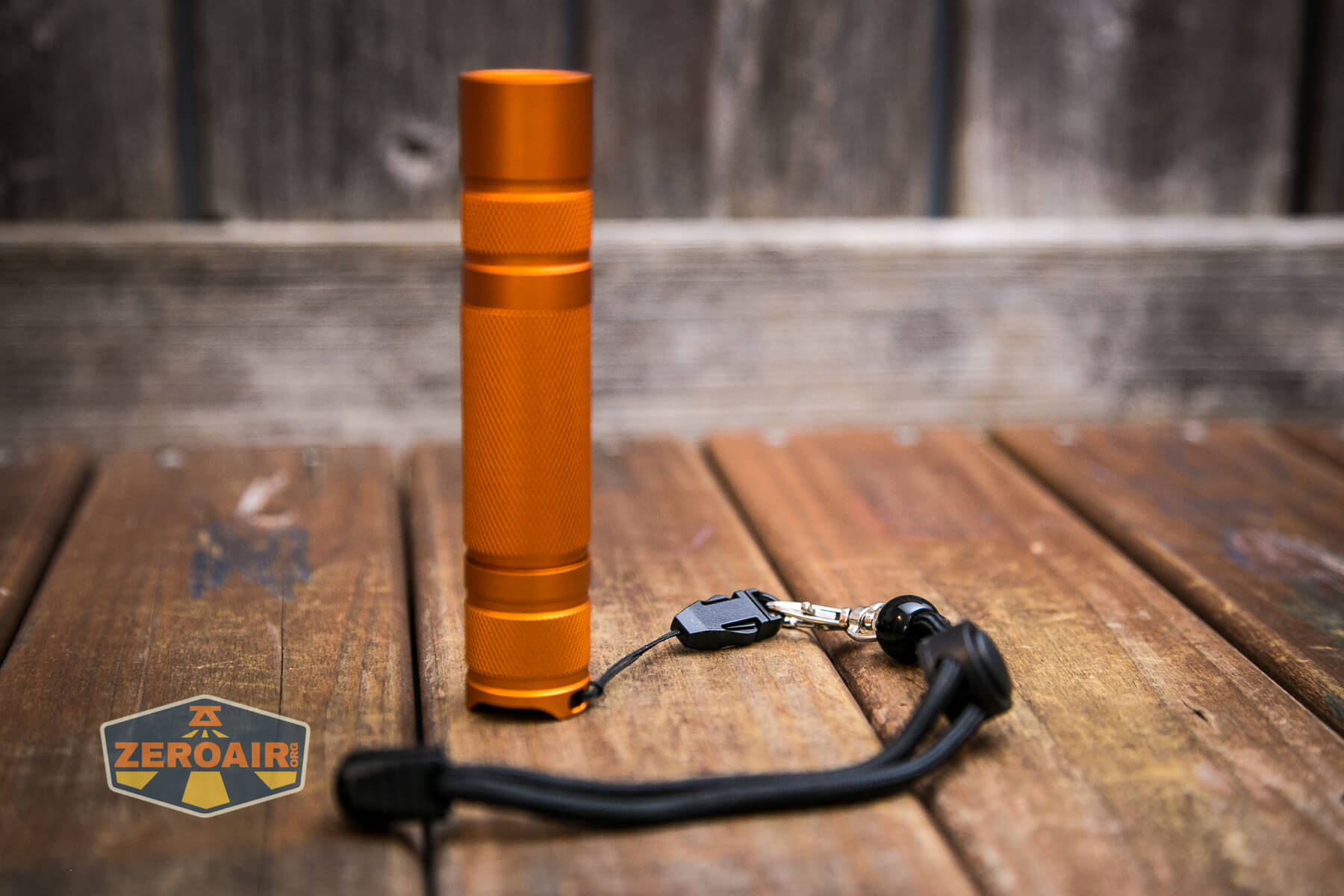

Convoy S2+ Nichia 519a Flashlight lanyard installed

Power and Runtime

The Convoy S2+ is powered by a single lithium-ion cell.  The default tube supports a single 18650 cell.  The accessory tube (which is another accessory I didn’t purchase with this S2+ 🙁 ) supports a single 18350 cell.

Convoy S2+ Nichia 519a Flashlight with 18650 cell

The cell goes into the light in the normal direction – positive end toward the head.

Convoy S2+ Nichia 519a Flashlight with 18650 cell installed

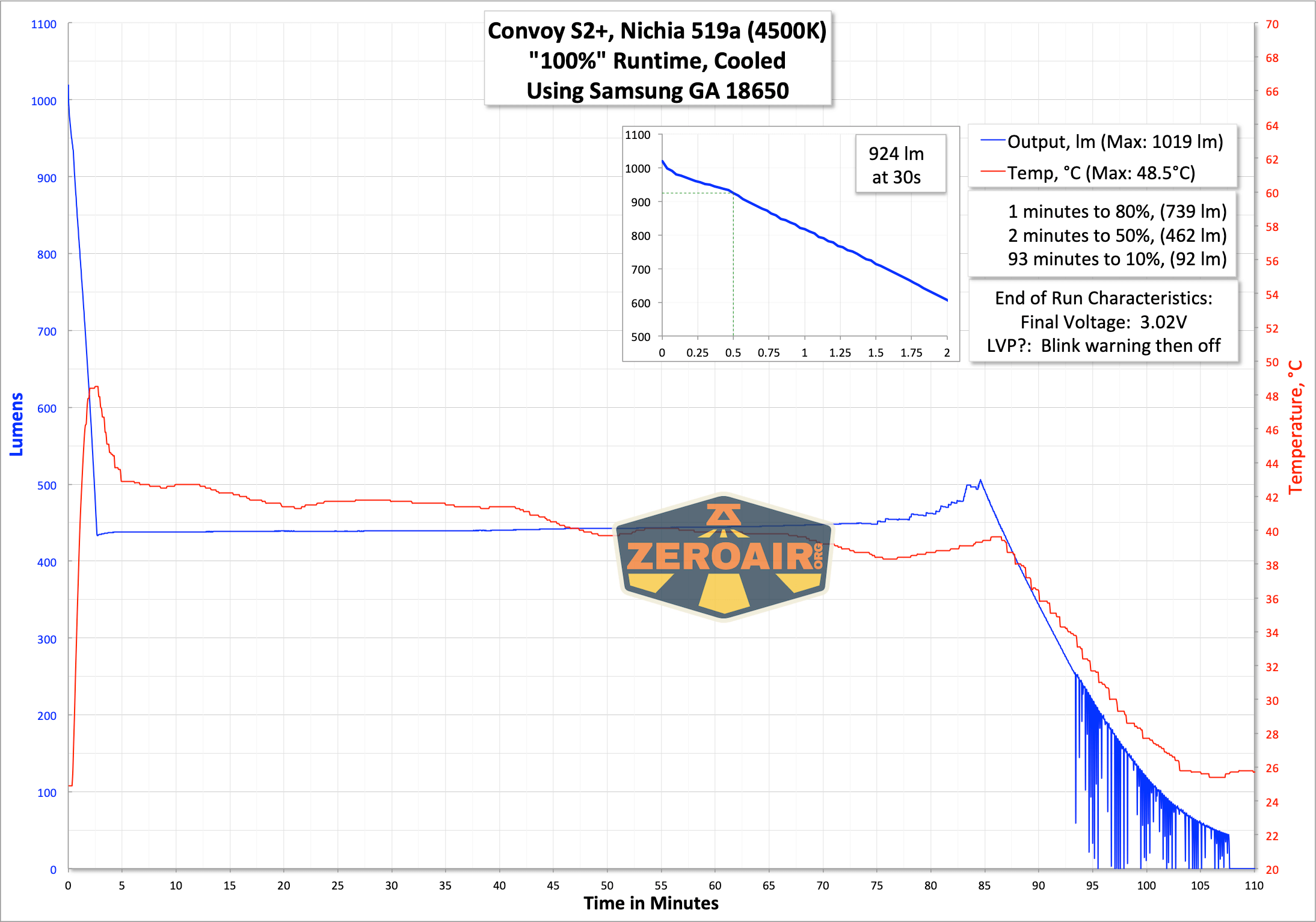

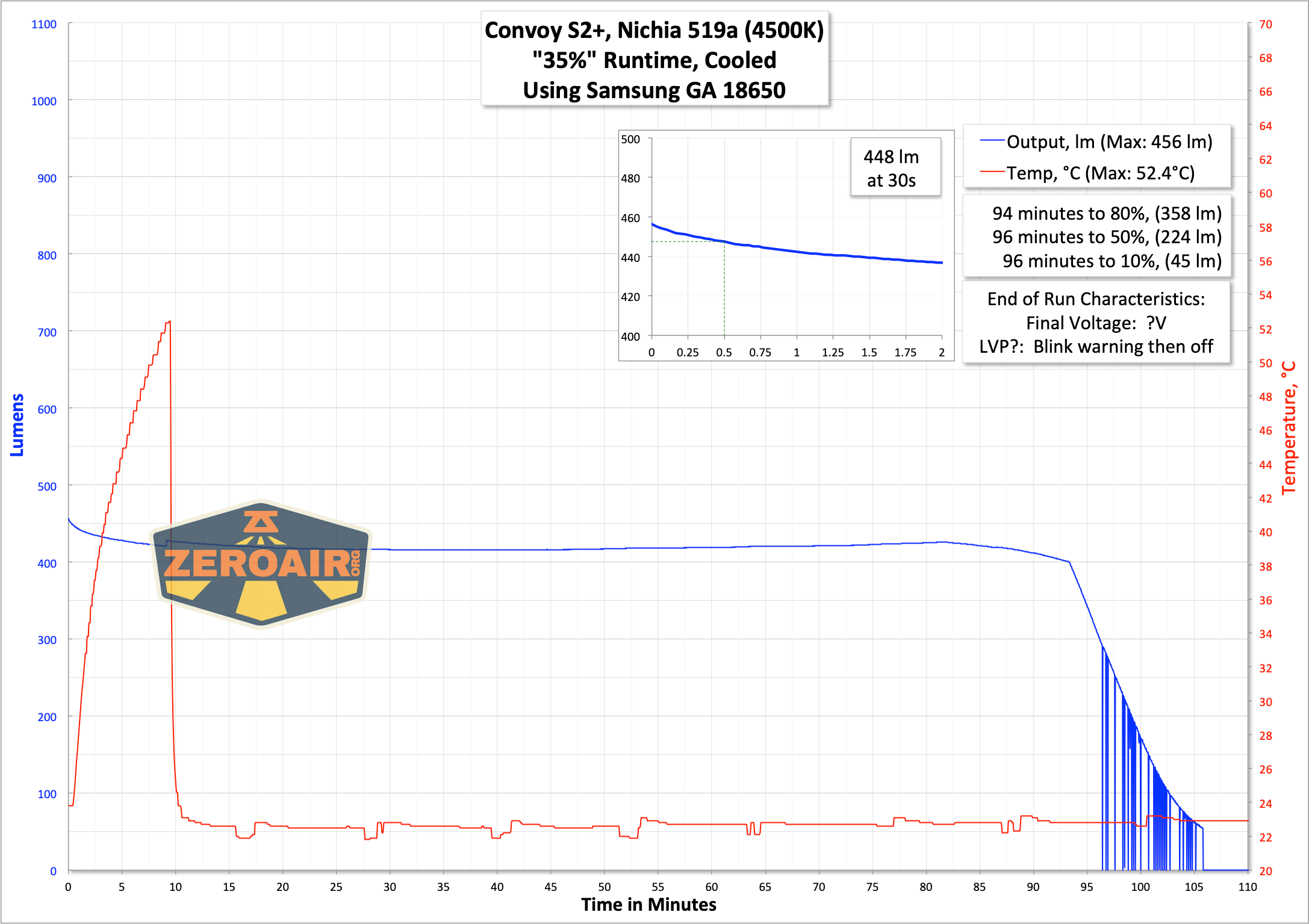

Here are a couple of runtimes for the 18650 setup. The light does have low voltage protection, and on bench power seemed to shut off electronically around 2.6V.  That’s just a shade low, but still acceptable.

runtime graph

The outputs are defined as percentages, so the “second from highest” mode is “35%”. There is a 50% output, but that’s in a different group. There isn’t a group that has 100%, 50%, and also 35%.

Unfortunately, my temperature sensor popped off the flashlight, and obviously it was at a most inopportune time.

runtime graph

When you buy yours (and yes, you should buy one or a few), include the 18350 cell tube too.  It’s just too much fun and adds too much to this light, to skip it.

Modes and Currents

Mode Mode Claimed Output (lm) Claimed Runtime Measured Lumens Tailcap Amps
100% 924 5.43
35% 448 1.91
10% 154 0.53
1% 12.2 0.04
0.1% 1.3 0.00

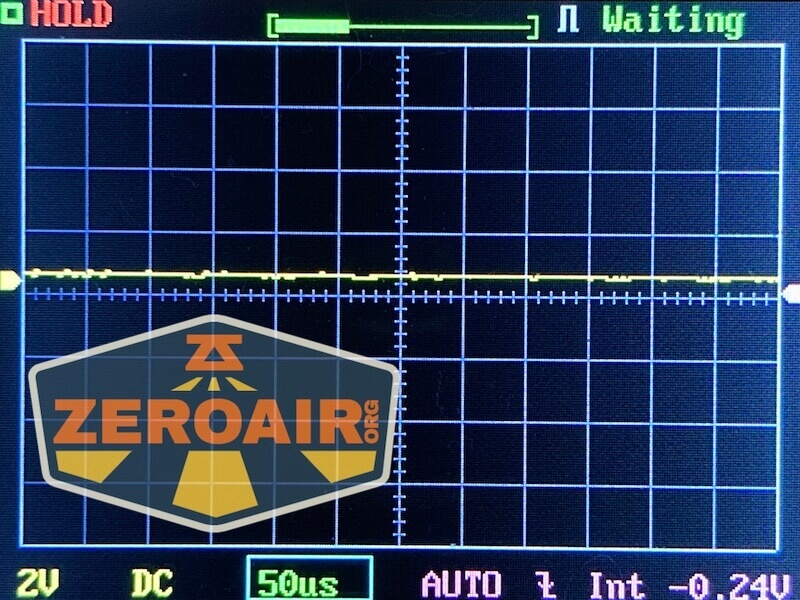

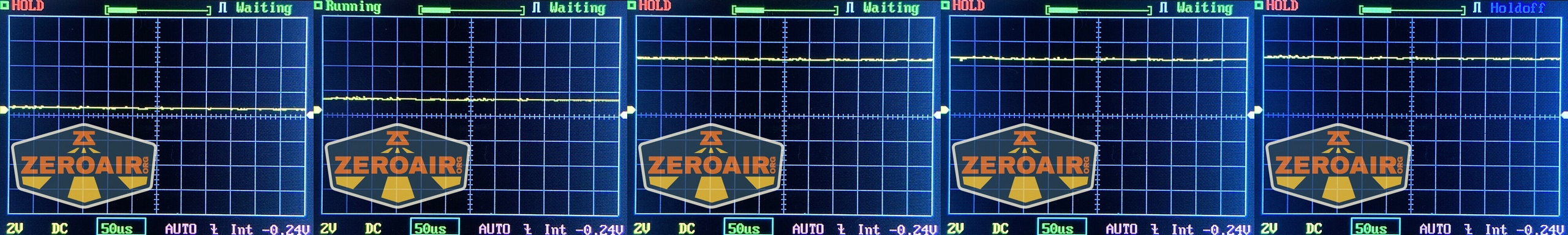

Pulse Width Modulation

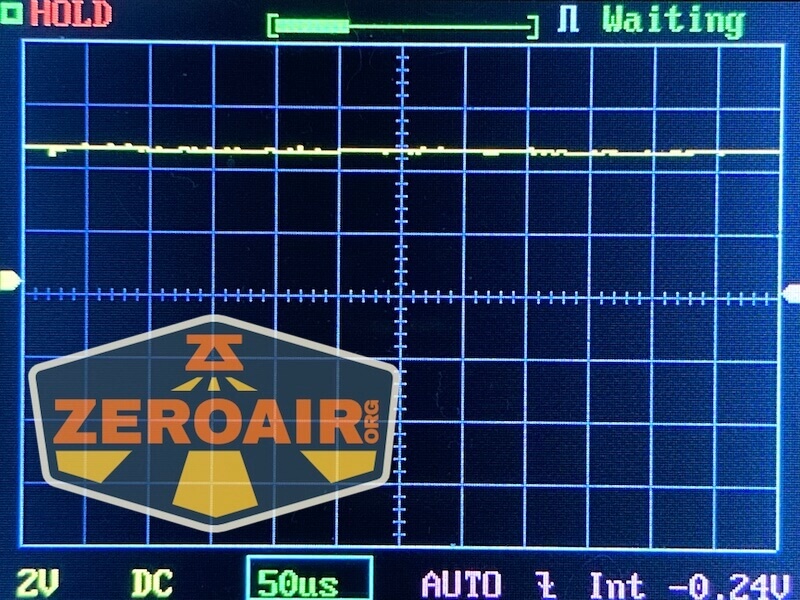

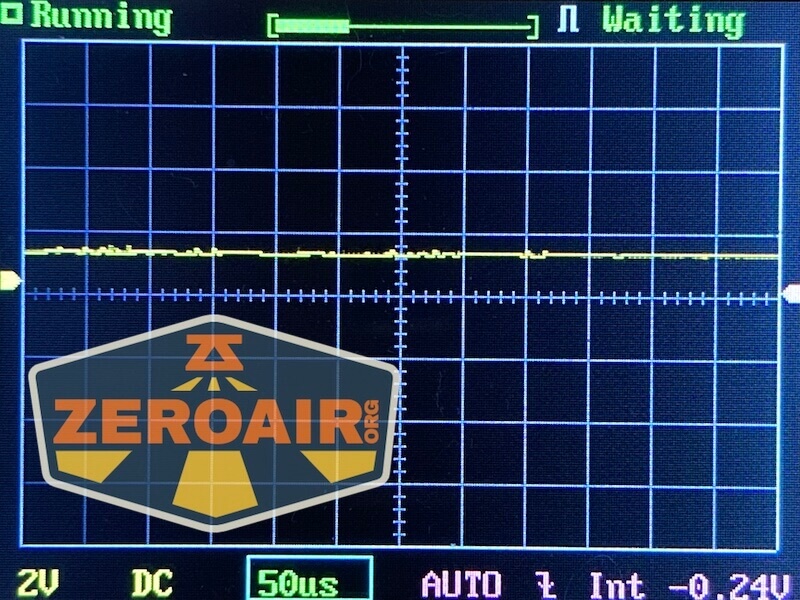

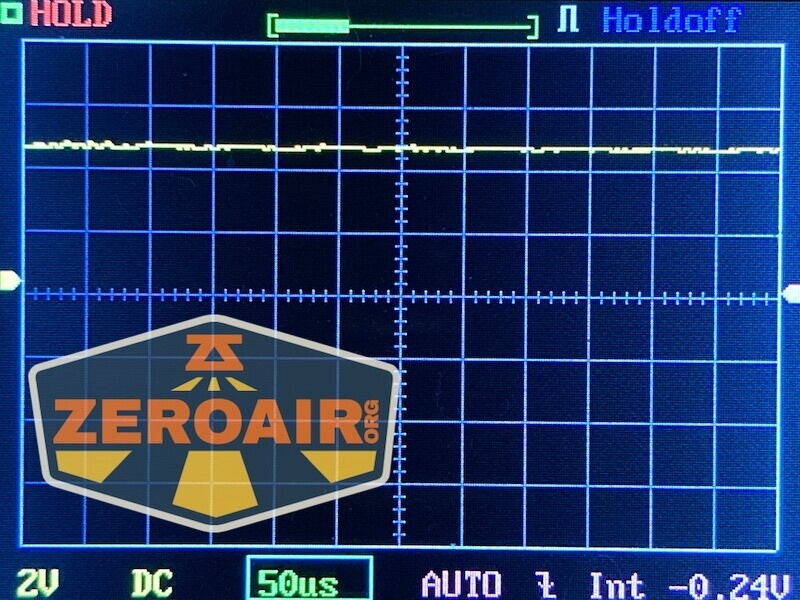

This version of the S2+, unlike some previous versions, does not seem to use PWM!

For reference, here’s a baseline shot, with all the room lights off and almost nothing hitting the sensor.  Also, here’s the light with the worst PWM I could find.  I’m adding multiple timescales, so it’ll be easier to compare to the test light.  Unfortunately, the PWM on this light is so bad that it doesn’t even work with my normal scale, with is 50 microseconds (50us).  10ms5ms2ms1ms0.5ms0.2ms.  In a display faster than 0.2ms or so, the on/off cycle is more than one screen, so it’d just (very incorrectly) look like a flat line.  I wrote more about this Ultrafire WF-602C flashlight and explained a little about PWM too.

User Interface and Operation

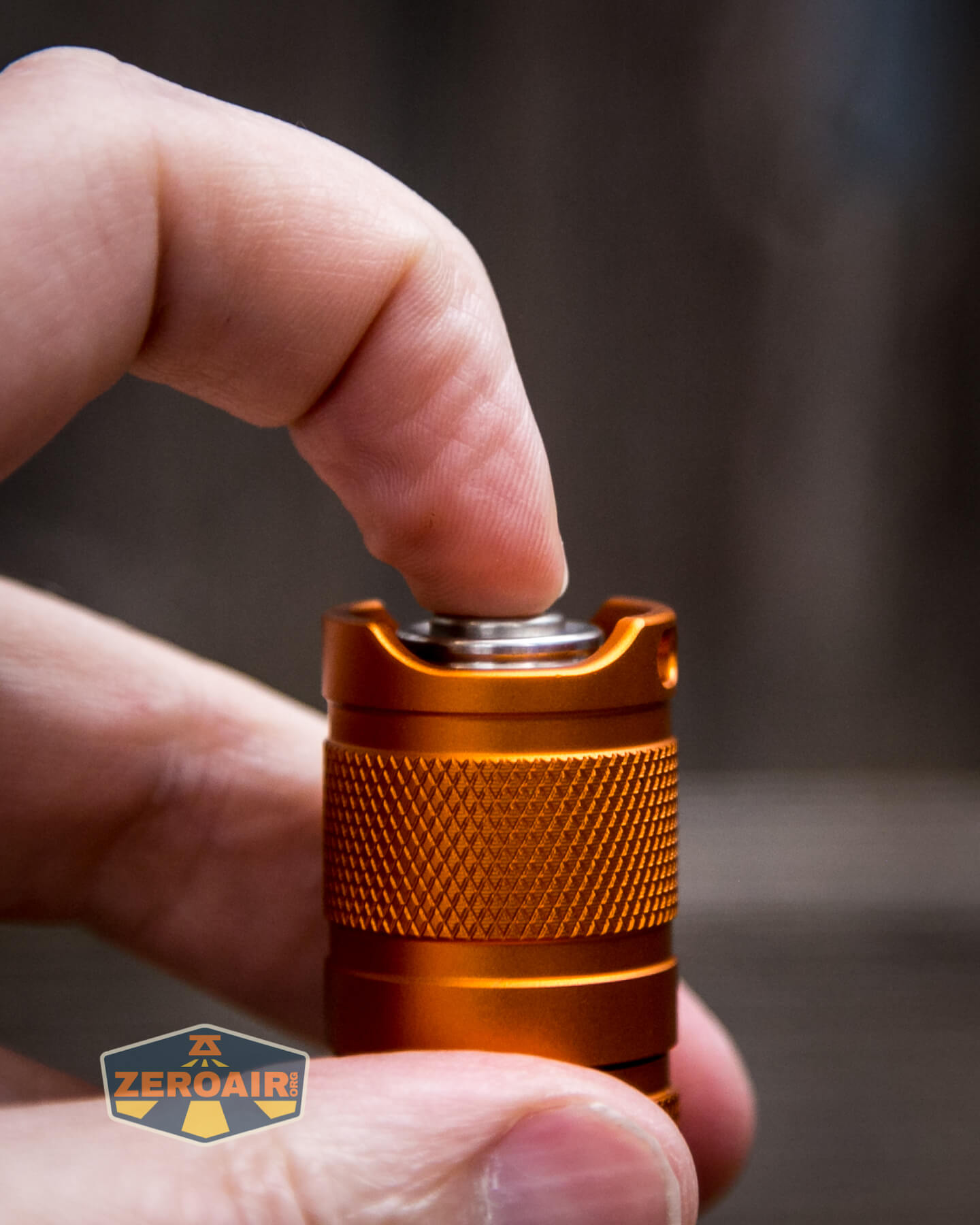

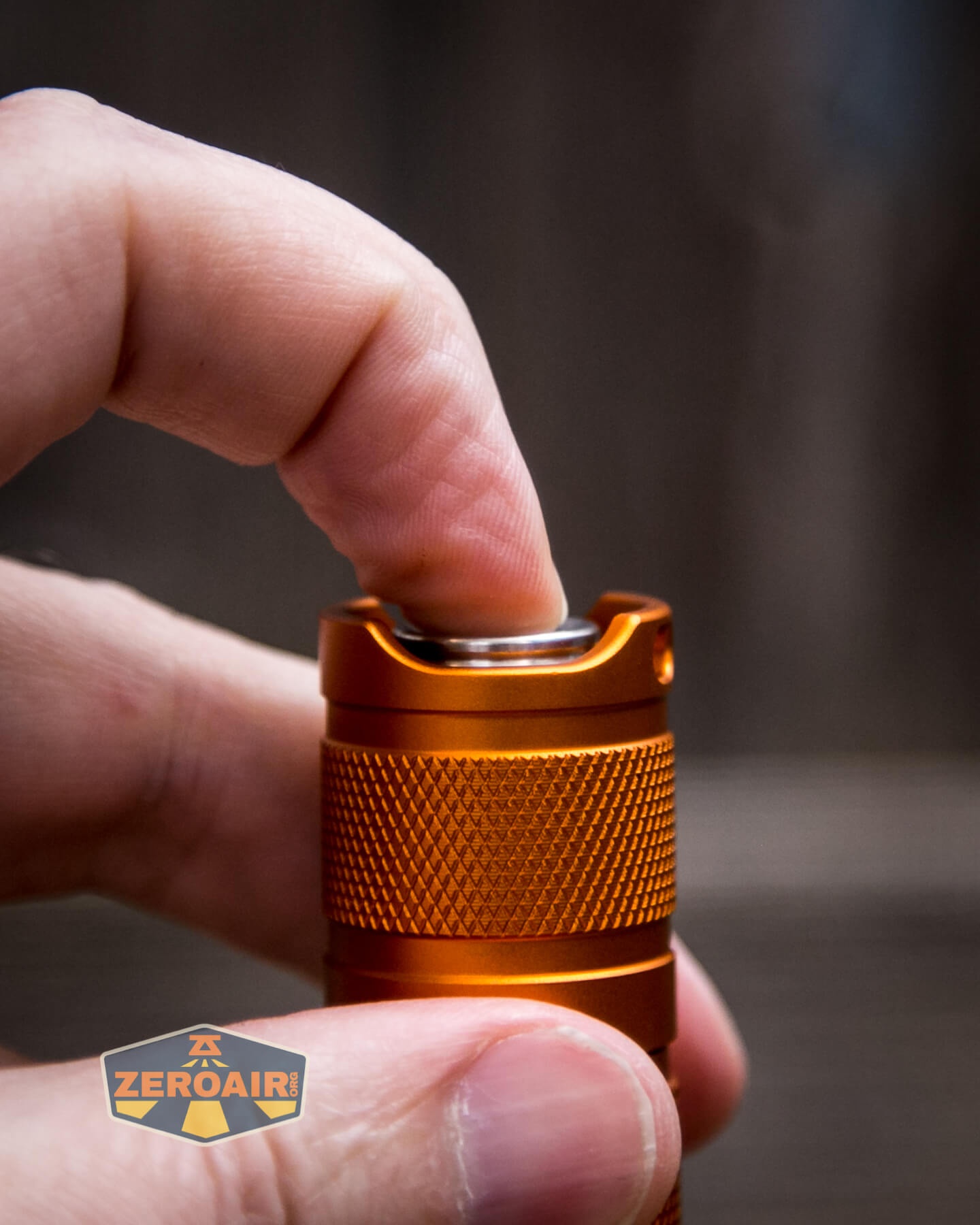

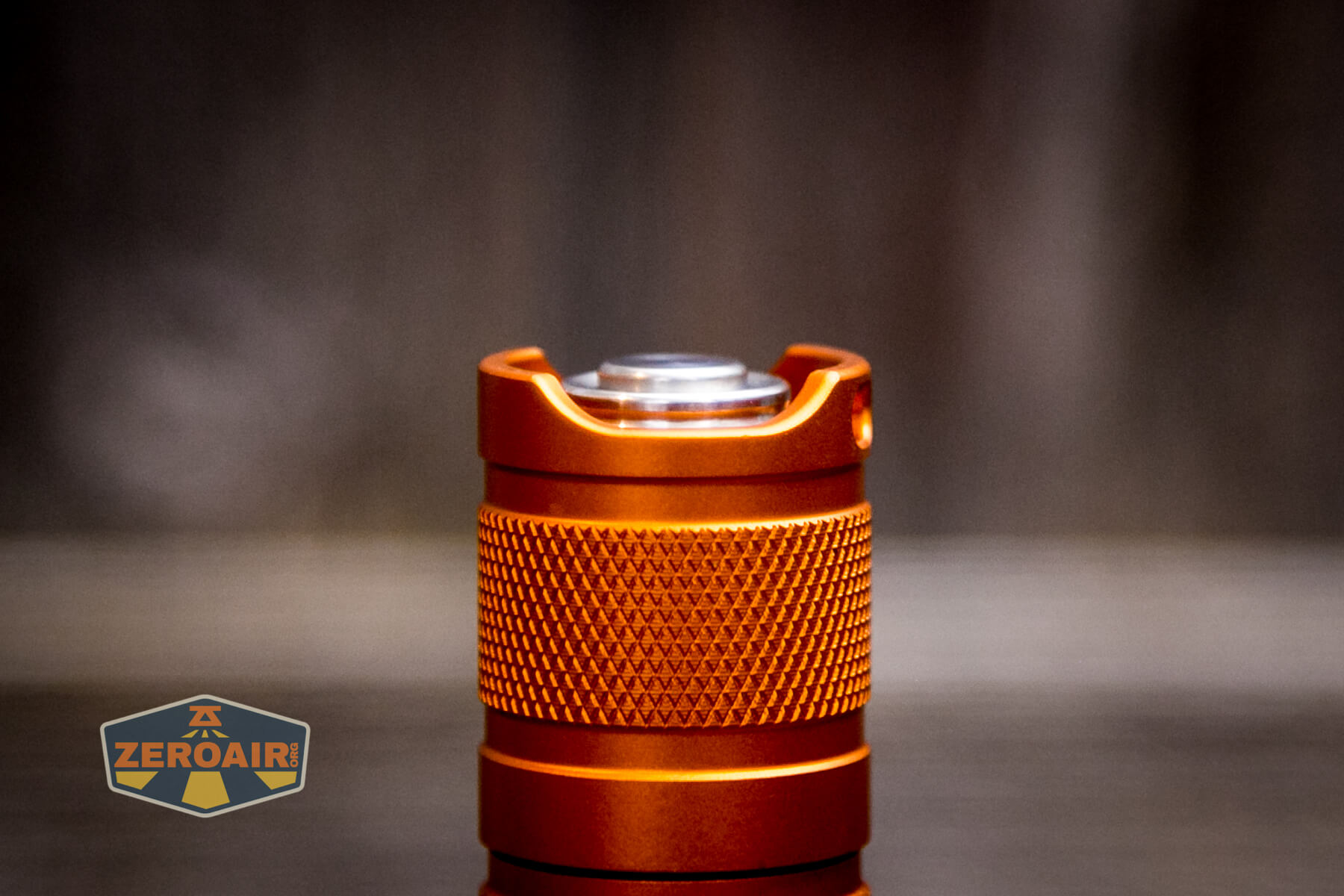

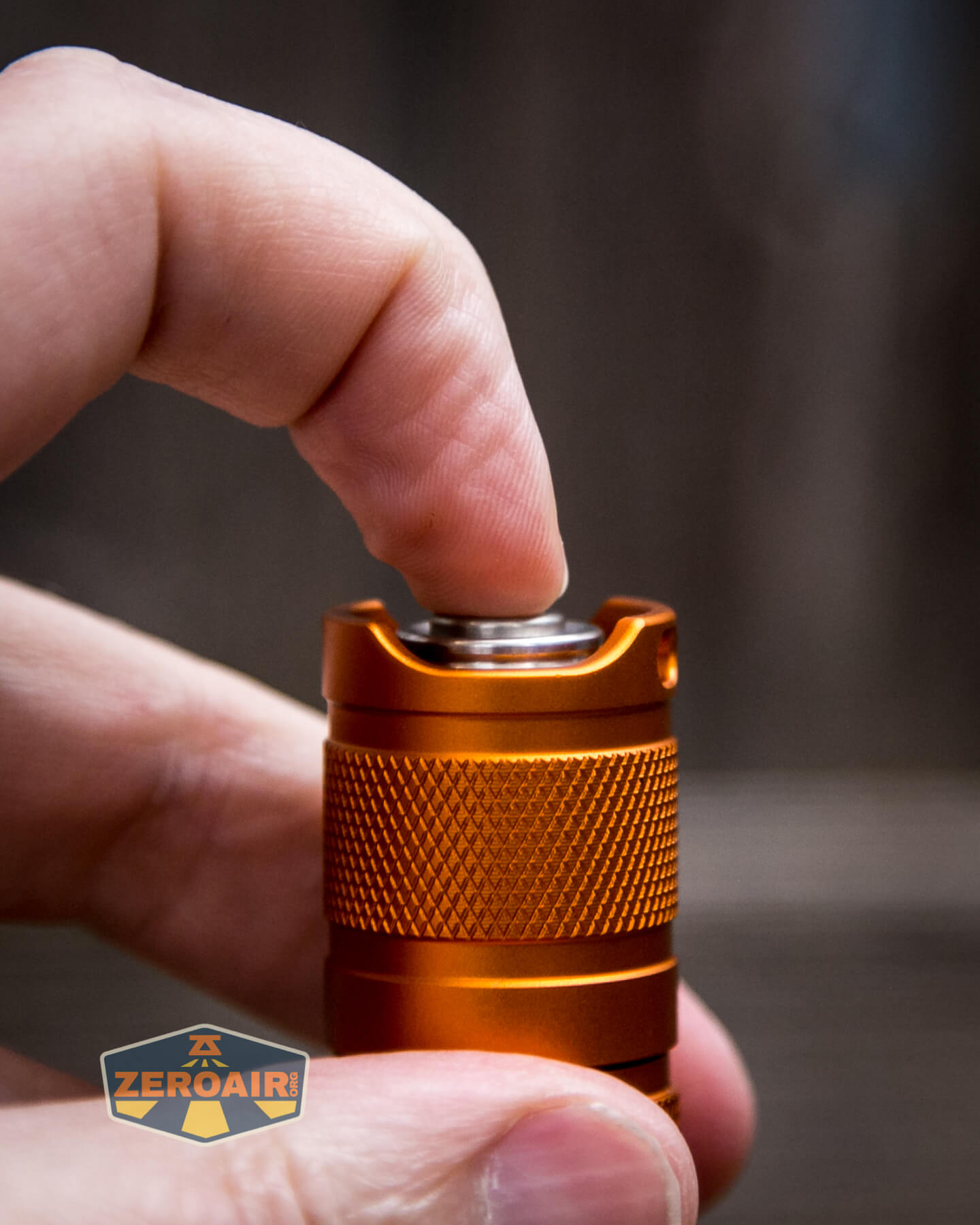

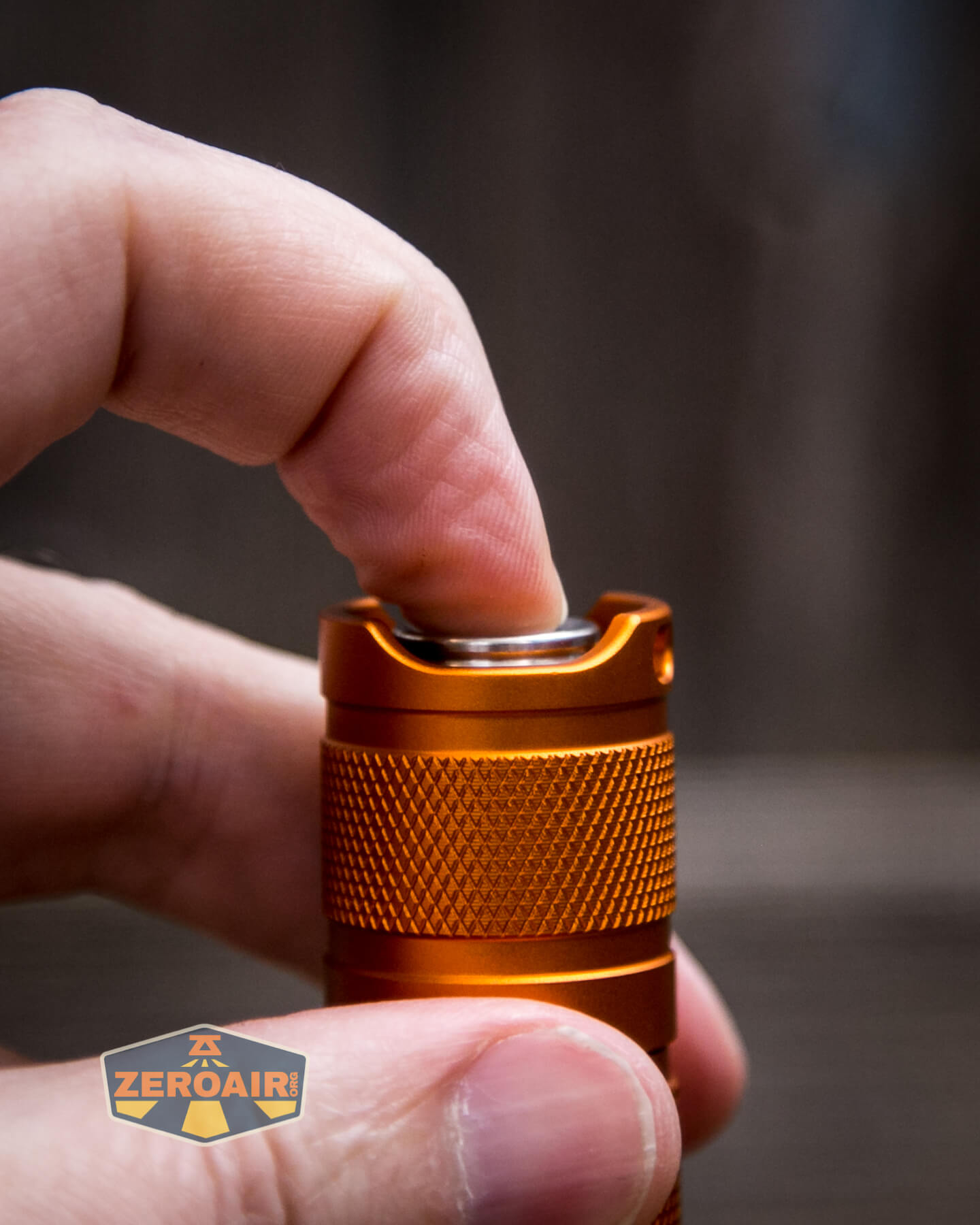

There’s a single switch on the Convoy S2+.  This is a reverse mechanical clicky.  A reverse clicky has the benefit of allowing mode changes while the light is on.  But this also means that the switch does nothing until it is on – no momentary action whatsoever.

Convoy S2+ Nichia 519a Flashlight reverse mechanical clicky Convoy S2+ Nichia 519a Flashlight reverse mechanical clicky

The action on these metal switches is fantastic. It’s like clicking a good Bic Clic Stic pen – just a rewarding action.

This driver is known as “Biscotti” and has a bunch of mode groups. Actually, this is reportedly not true Biscotti – that’s why I called it “Fauxcotti” above. It’s nearly the same though. Mode memory can be turned on or off (yay!), and programming is easy!  But there are simply too many possibilities for me to list the UI in a table as I usually do. Here is Simon’s flow chart for the UI.

Here’s the official guide for the Biscotti firmware:


From the mode group selection above, the light ships in mode group 1.  You’ll want to switch it to mode group 2 quickly of course.  🙂  And I always turn off memory if possible (and it’s possible here!).  I made a first pass at my own flow chart, which you can see below.

zeroair reviews biscotti flow chart revision 1

If something’s wrong (or even just “unclear”) in there, please let me know!

LED and Beam

Here’s the whole point of this whole review. This copy of the Convoy S2+ has a Nichia 519a emitter. That emitter is all the rage lately, and if you continue reading I think you’ll see why. But the summary is that it has great output with great CCT and great CRI – it’s just a great emitter.

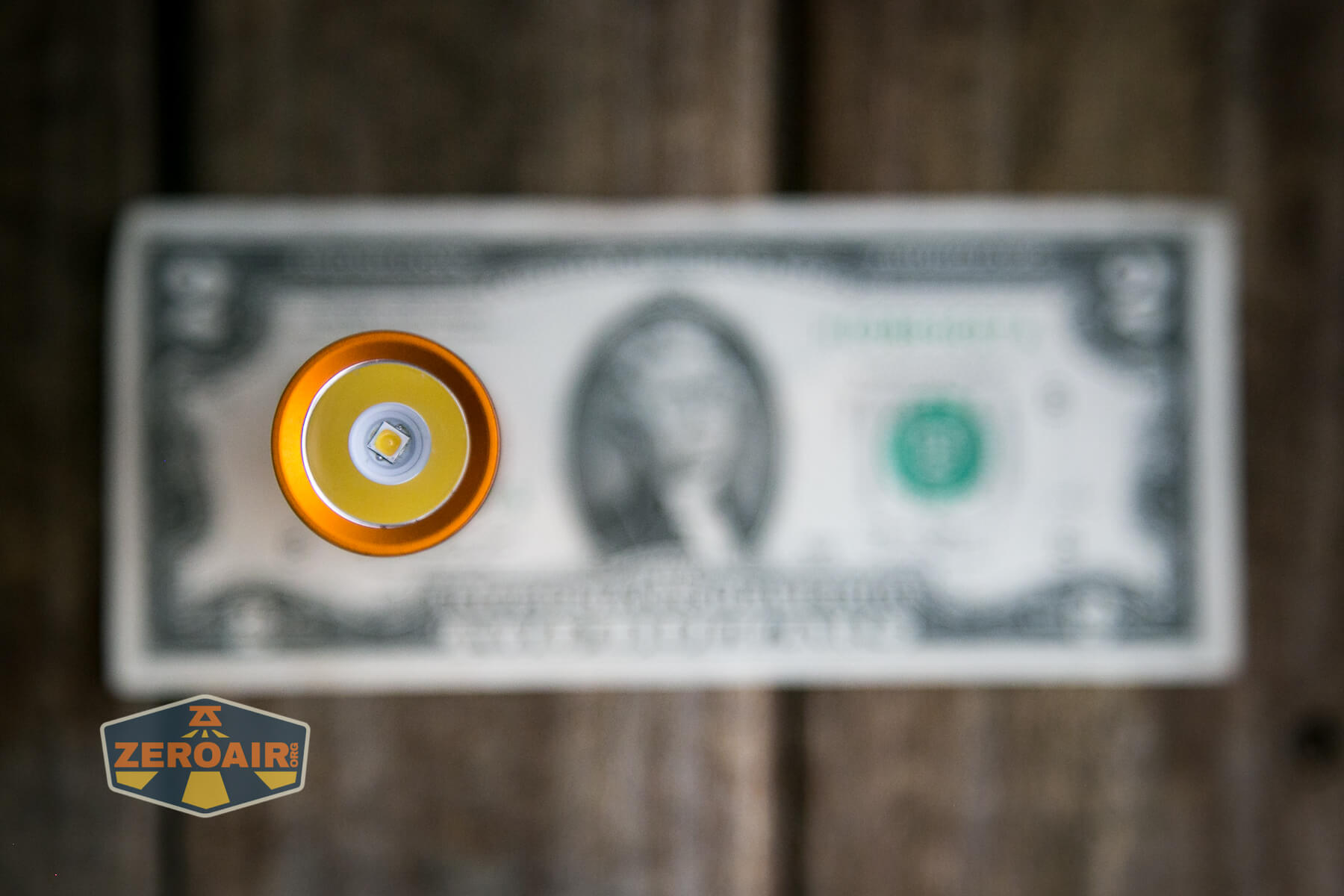

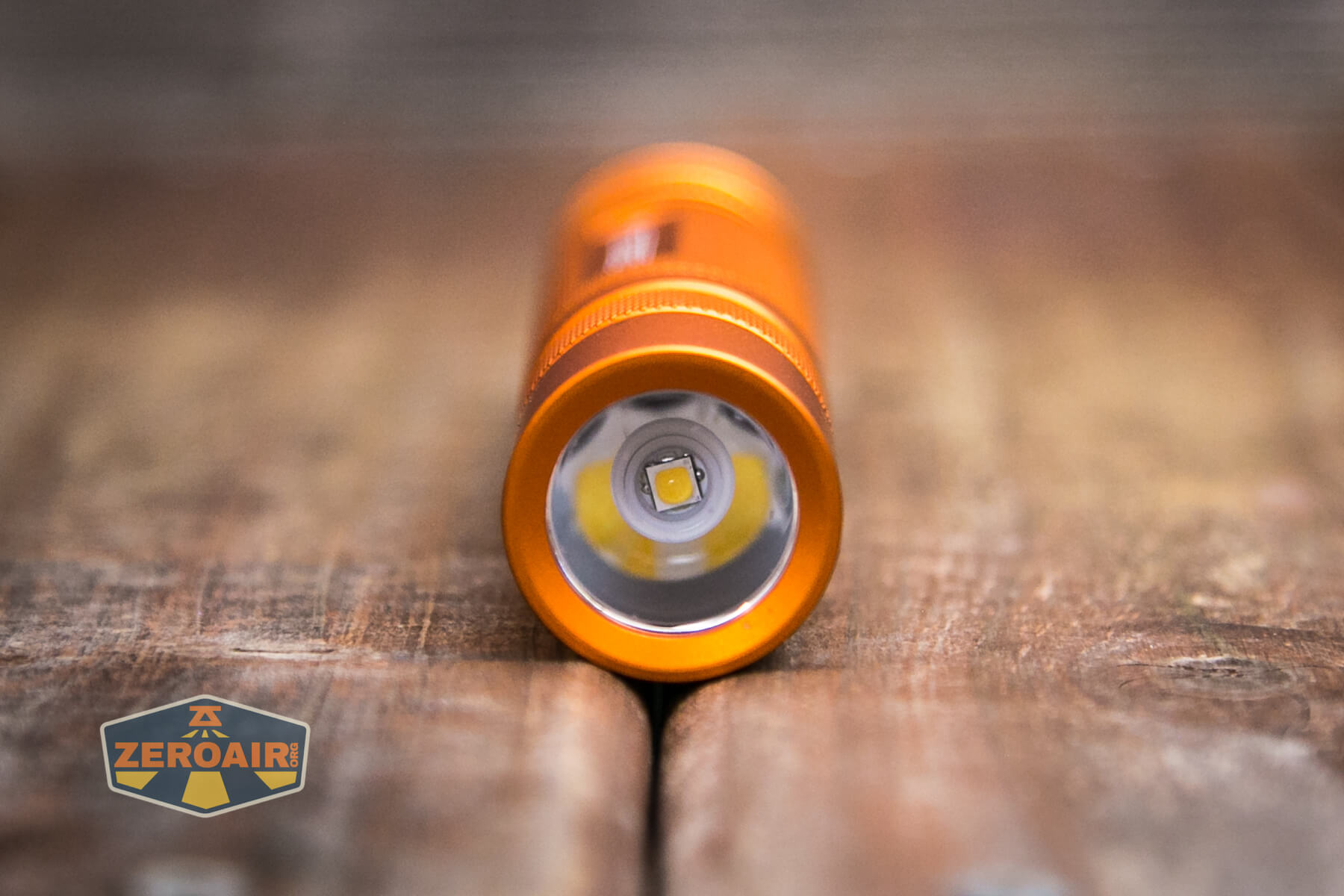

Convoy S2+ Nichia 519a Flashlight reflector

As you can see above, there’s a smooth reflector in this S2+. But since it’s the S2+, you can put an orange peel reflector here if you desire it. The bezel is smooth, so light doesn’t escape when headstanding.

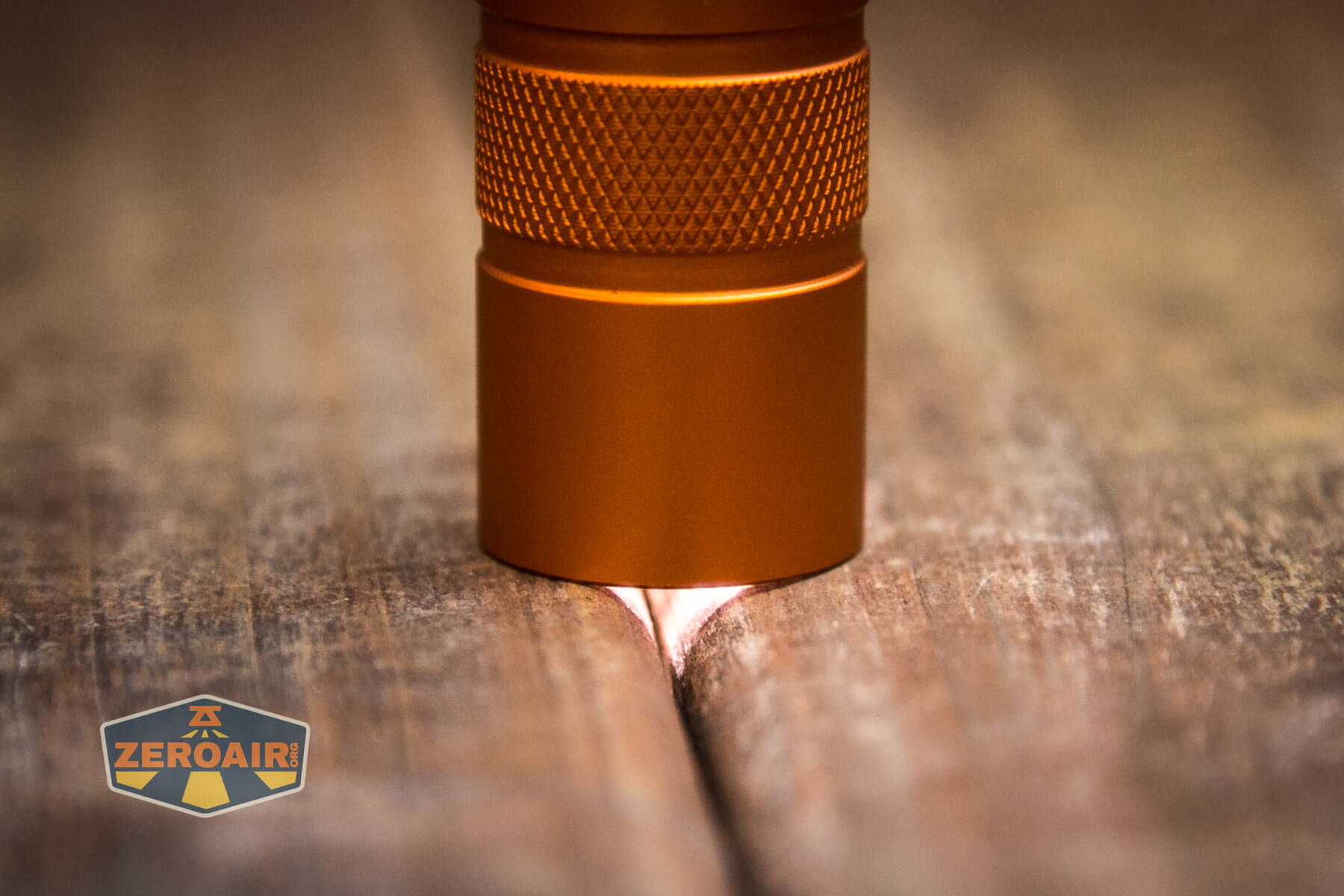

Convoy S2+ Nichia 519a Flashlight headstanding Convoy S2+ Nichia 519a Flashlight on Convoy S2+ Nichia 519a Flashlight on

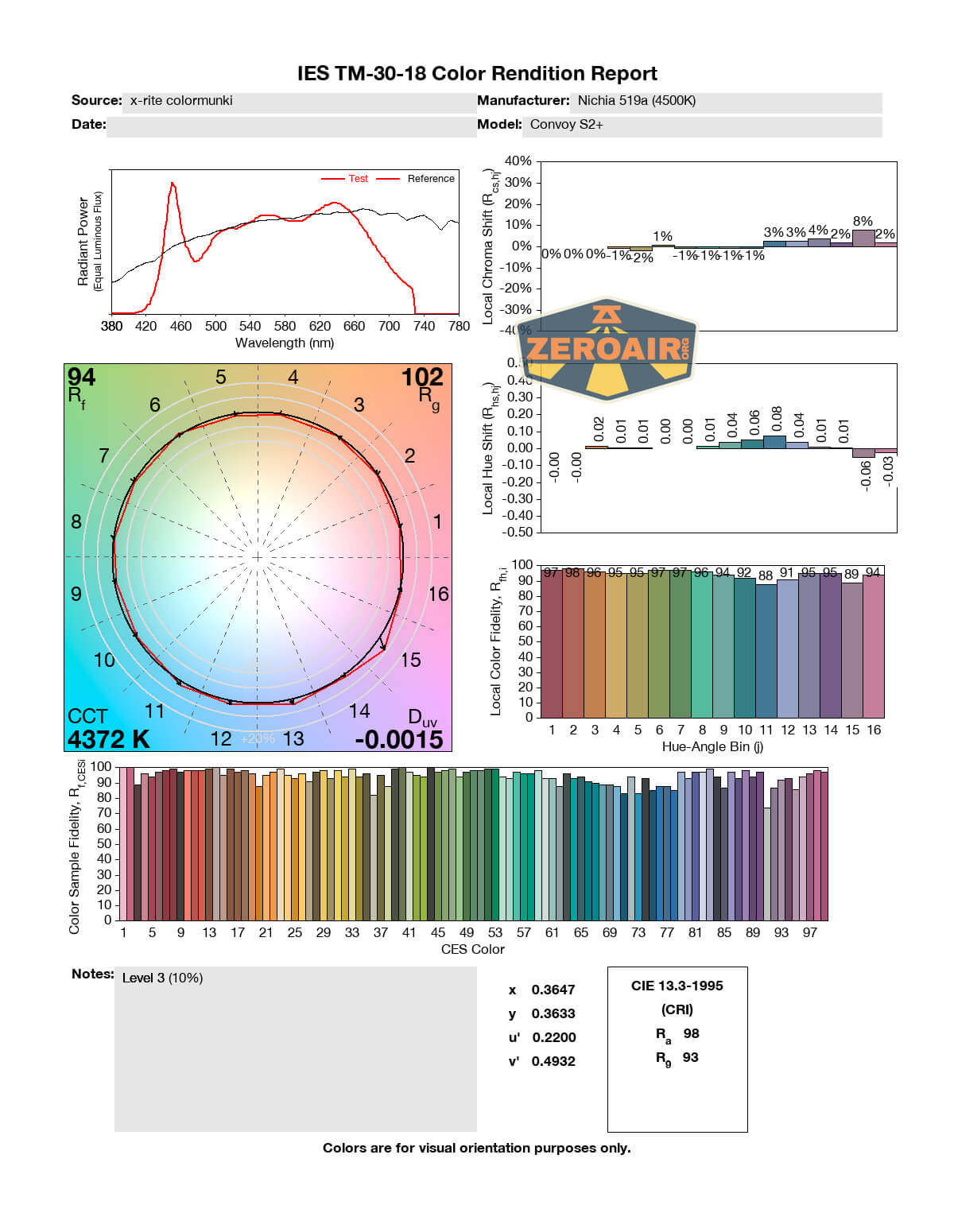

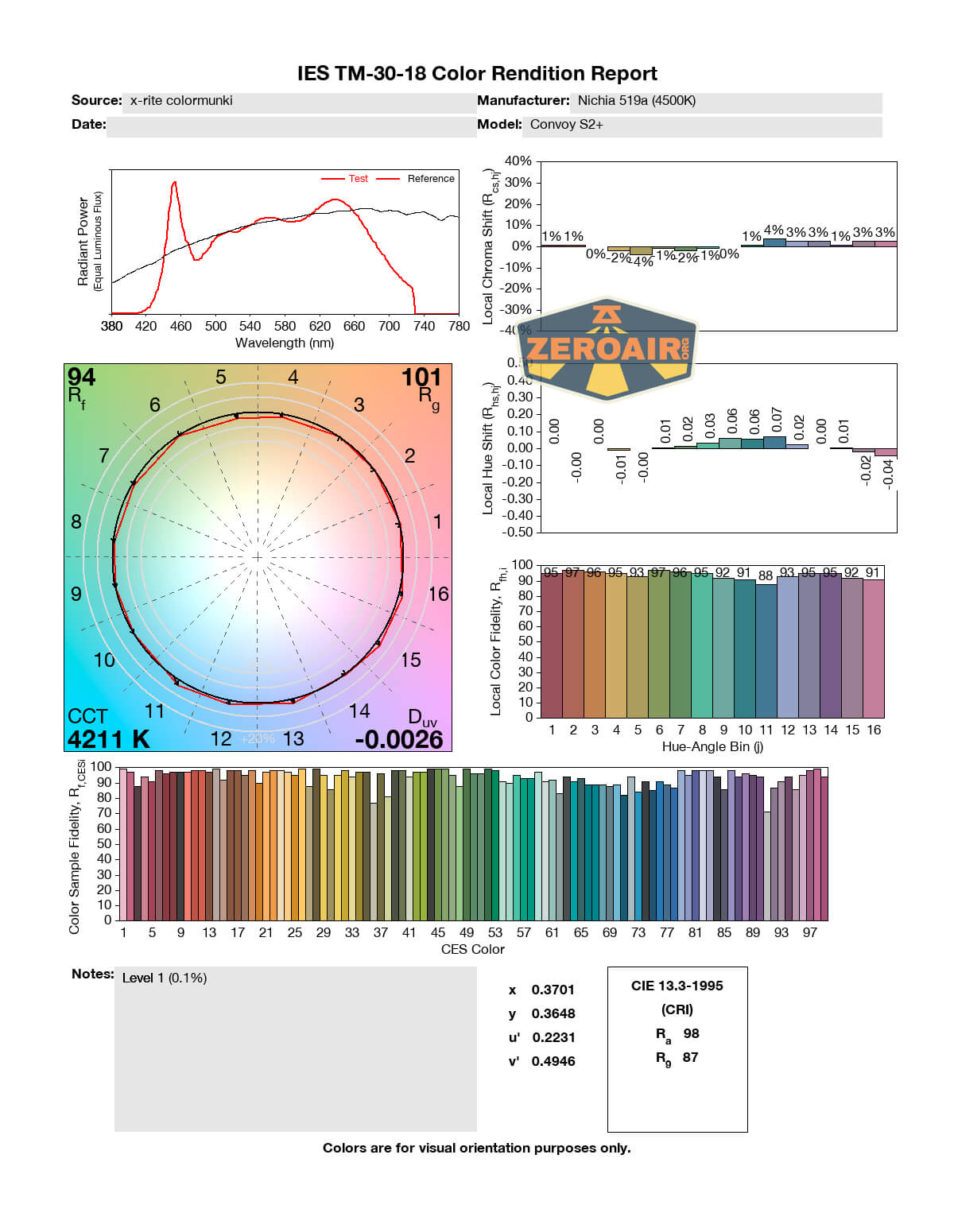

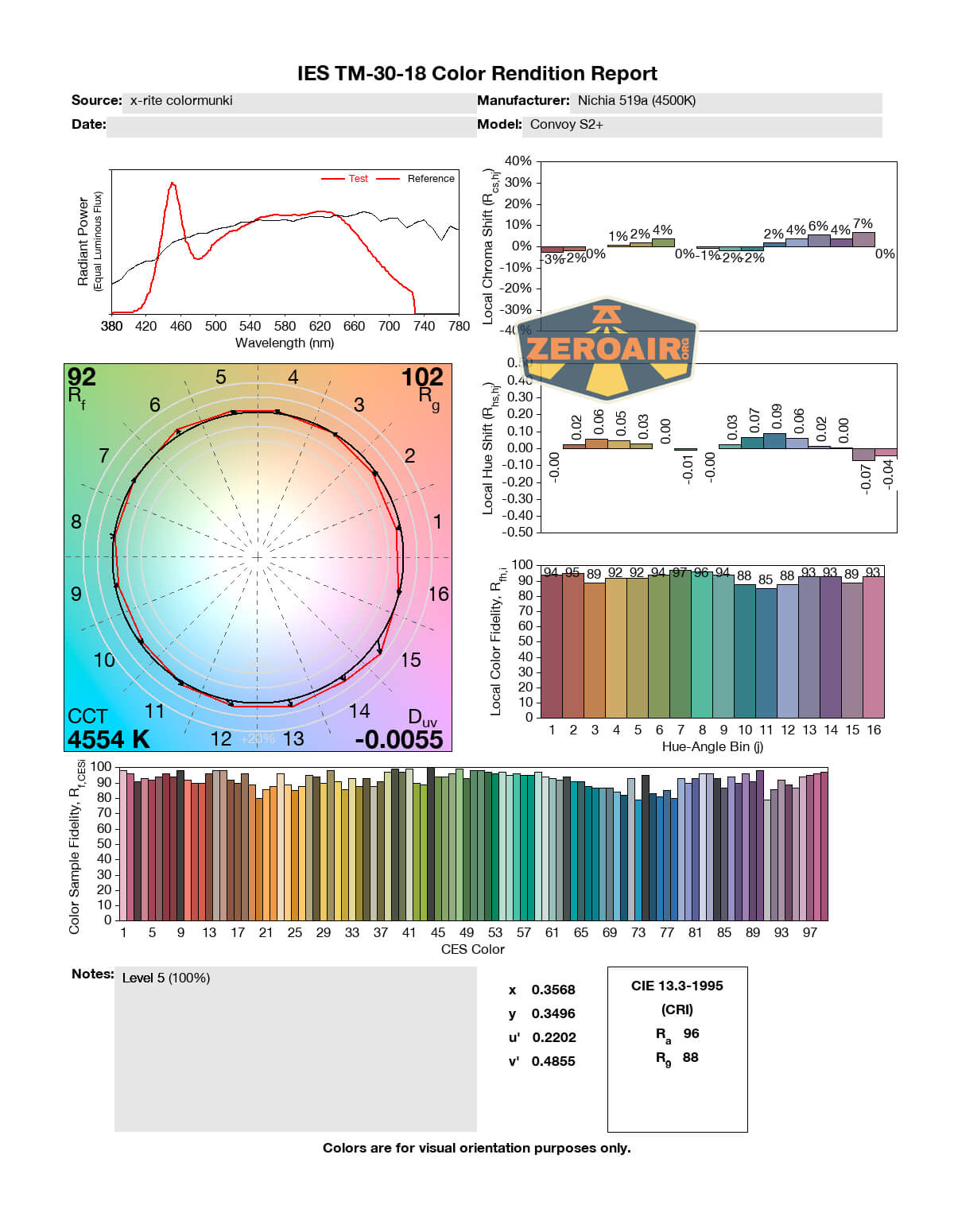

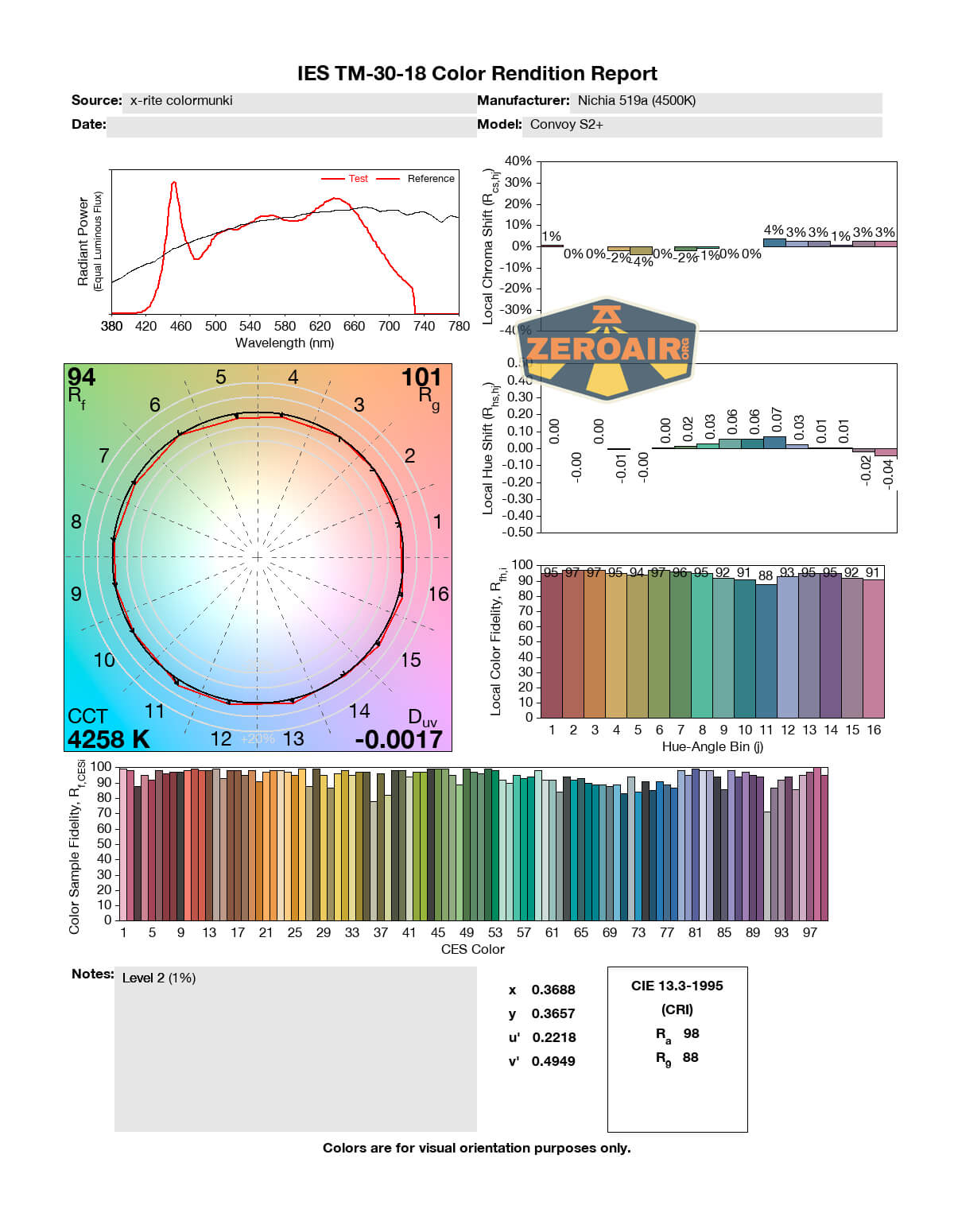

LED Color Report (CRI and CCT)

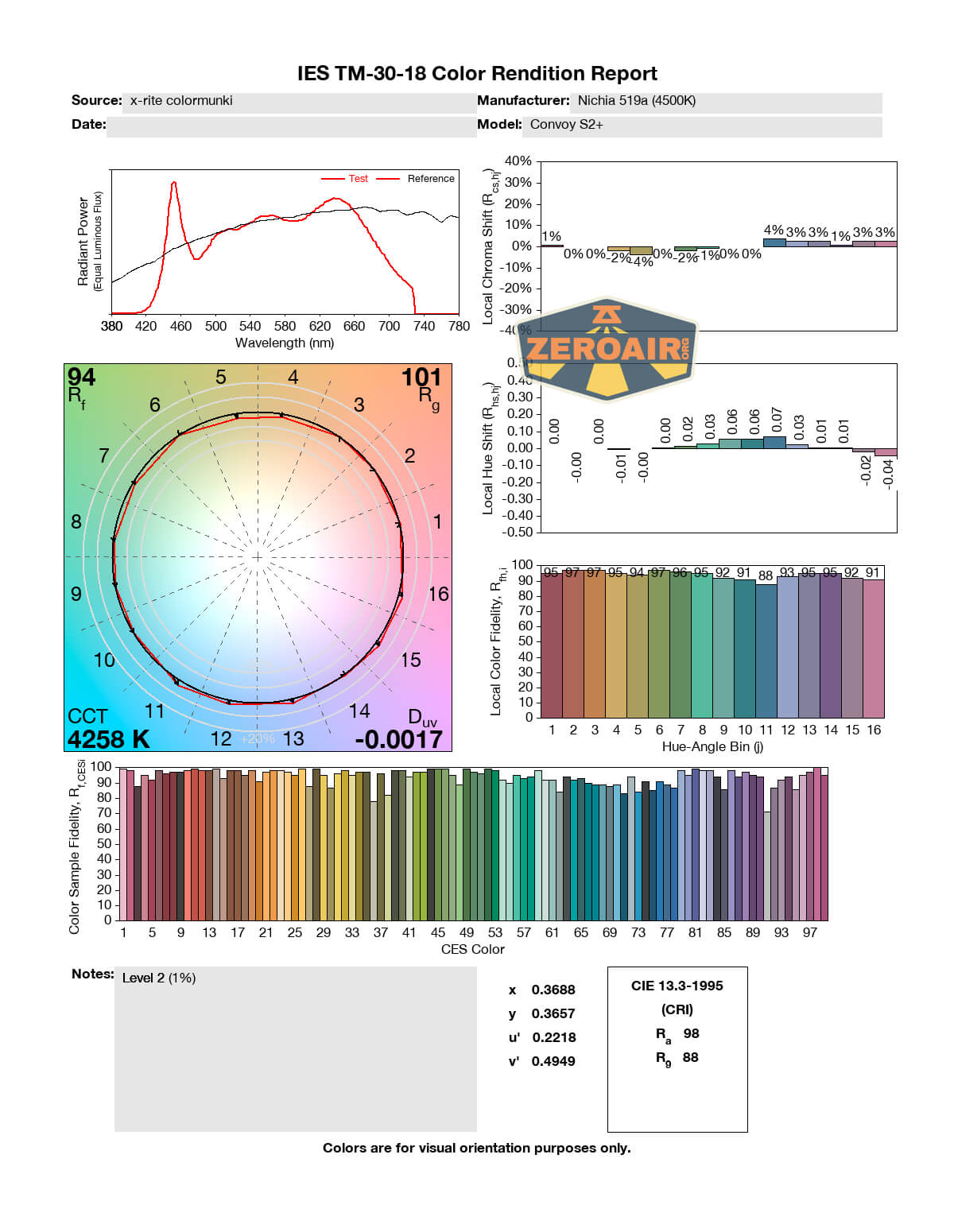

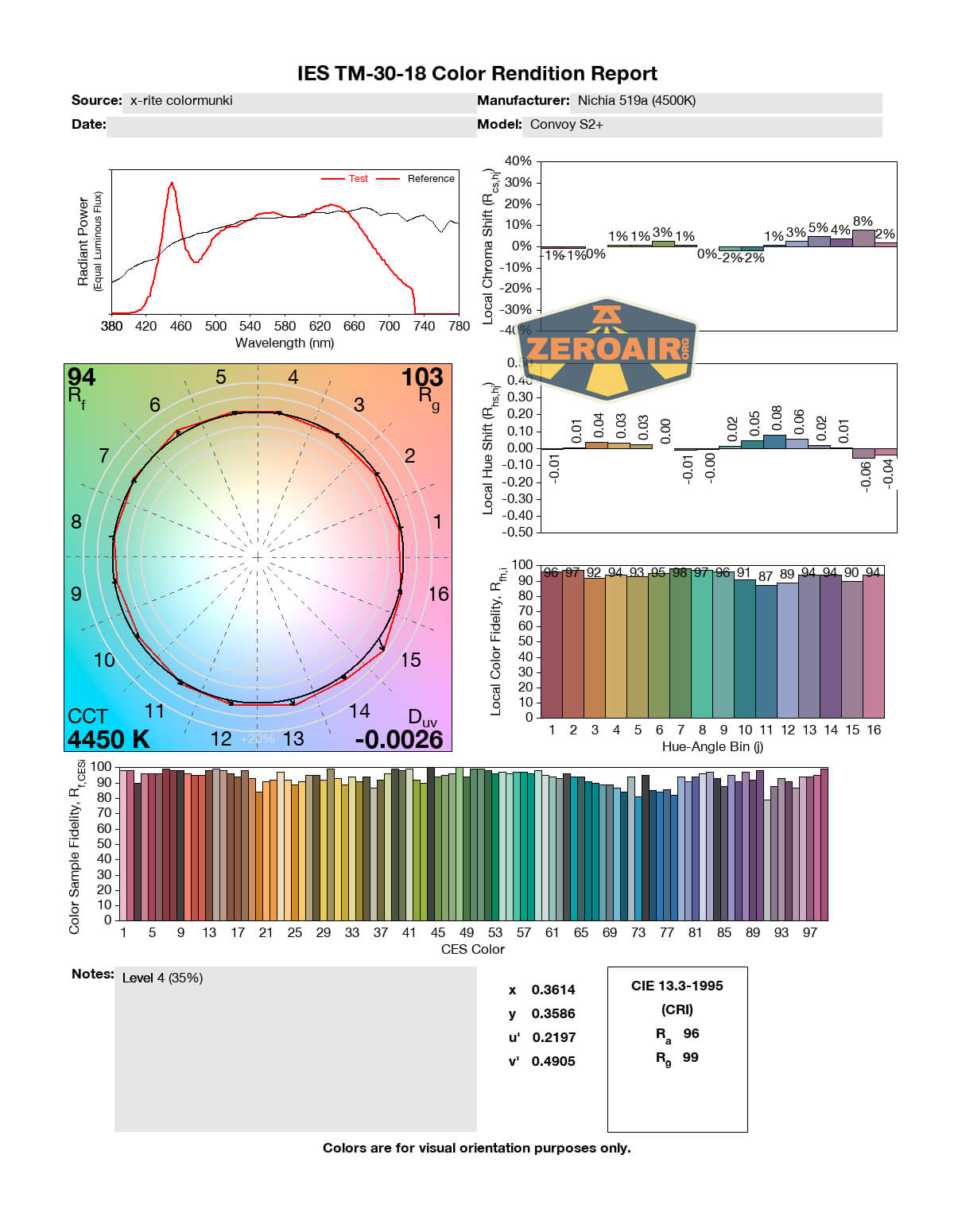

Without even zooming in or clicking those images below you should be able to get a good idea – look at the circles, to start with. See how nearly the red circle matches the black circle? The black circle is essentially “perfect.” That means that the Nichia 519a is “nearly perfect” – in fact, it’s practically as perfect as we can get in a flashlight. Now translate that into CRI – the CRI is above 96 in every output level. At the lower levels (when not being driven very hard) the CRI is hitting 98!

Another worthwhile point for those of us who have an unusual love for the “old best” (Nichia 219b) – the Duv here is slightly negative, which means the Nichia 519a will be just a touch pinkish (with no green whatsoever, on any mode). This is something like but it is a personal preference.

The point of all this is that the emitter is just fantastic.

Beamshots

These beamshots are always with the following settings:  f8, ISO100, 0.3s shutter, and manual 5000K exposure.

Tint vs BLF-348 (KillzoneFlashlights.com 219b version) (affiliate link)

I keep the test flashlight on the left, and the BLF-348 reference flashlight on the right.

I compare everything to the KillzoneFlashlights.com 219b BLF-348 because it’s inexpensive and has the best tint!

Conclusion

What I like

  • Low price
  • Great way to get this new Nichia 519A emitter in the CCT of your choice
  • Build quality is great, especially for such a low-cost light
  • TONS of build-out options. (different clips, bodies, etc)
  • Highly modifiable (drivers, emitters, etc).

What I don’t like

  • Nothing!
