Wuben has released the X-0 Knight flashlight, a light that offers USB-C charging as well as many tritium slots and a novel design. Read on!


Official Specs and Features

Here’s a link to the Wuben X-0 Knight flashlight product page.

Versions

There are two emitter options, and they’re available in different body finishes. Both aluminum and titanium are available. Below, the white and black are aluminum, and green and grey are titanium. Here’s a stock photo by Wuben. The emitters are Osram P9 and Samsung LH351d – based on specs I think this is the Samsung version.

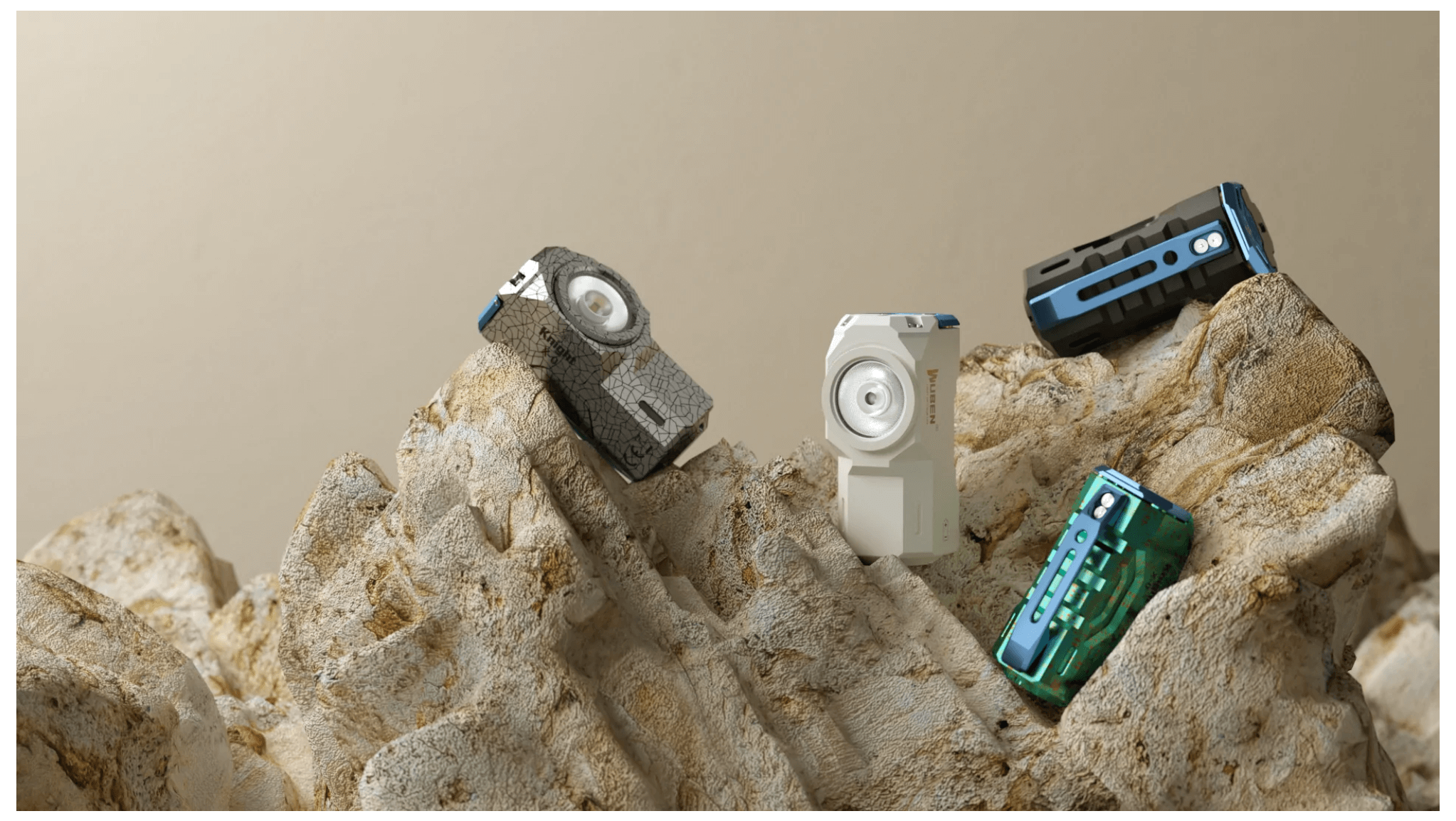

Wuben X-0 Knight flashlight options

Price

The pricing starts at $39 and goes up for the more colorful options. What I’m reviewing here is the least expensive model. Based on conversions I’m seeing right now, the most expensive model is around $110.

Here’s the Kickstarter link to the Wuben X-0 Knight flashlight (a tracking link).


Short Review

This is a funny little light. Wuben is no stranger to making lights with built-in batteries, but this is not one!! The Wuben X-0 Knight flashlight uses a standard 18350 cell, and despite whatever you might read elsewhere, it’s quite easy to change. It’s quite a neat light, and if you’re in the market for a neat light, it’s a good one to grab. It’s not even expensive, and the aluminum is still quite fetching. I think I’ve called the emitter “Cool White” a number of places below but it’s not really – it’s very much neutral!

Long Review

The Big Table

Wuben X-0 Knight Flashlight
Emitter: Osram P9 (or Samsung LH351d)
Price in USD at publication time: $39.00 Kickstarter tracking link here!
Cell: 1×18350
Turbo Runtime Graph High Runtime Graph
LVP? Yes
Switch Type: E-Switch
Quiescent Current (mA): ?
On-Board Charging? Yes
Charge Port Type: USB-C
Charge Graph
Power off Charge Port with cell: all modes
without cell or tailcap: lower 3 modes only
Claimed Lumens (lm) 1100
Measured Lumens (at 30s) 688 (62.5% of claim)^
Candela per Lumen 4.1
Claimed Throw (m) 130
Candela (Calculated) in cd (at 30s) 161lux @ 4.832m = 3759cd
Throw (Calculated) (m) 122.6 (94.3% of claim)^
Claimed CCT Unstated (?)
Measured CCT Range (K) 4600-5100 Kelvin
Item provided for review by: Wuben
All my Wuben reviews!

^ Measurement disclaimer:  I am an amateur flashlight reviewer.  I don’t have $10,000 or even $1,000 worth of testing equipment.  I test output and such in PVC tubes!!  Please consider claims within 10% of what I measure to be perfectly reasonable (accurate, even).

What’s Included

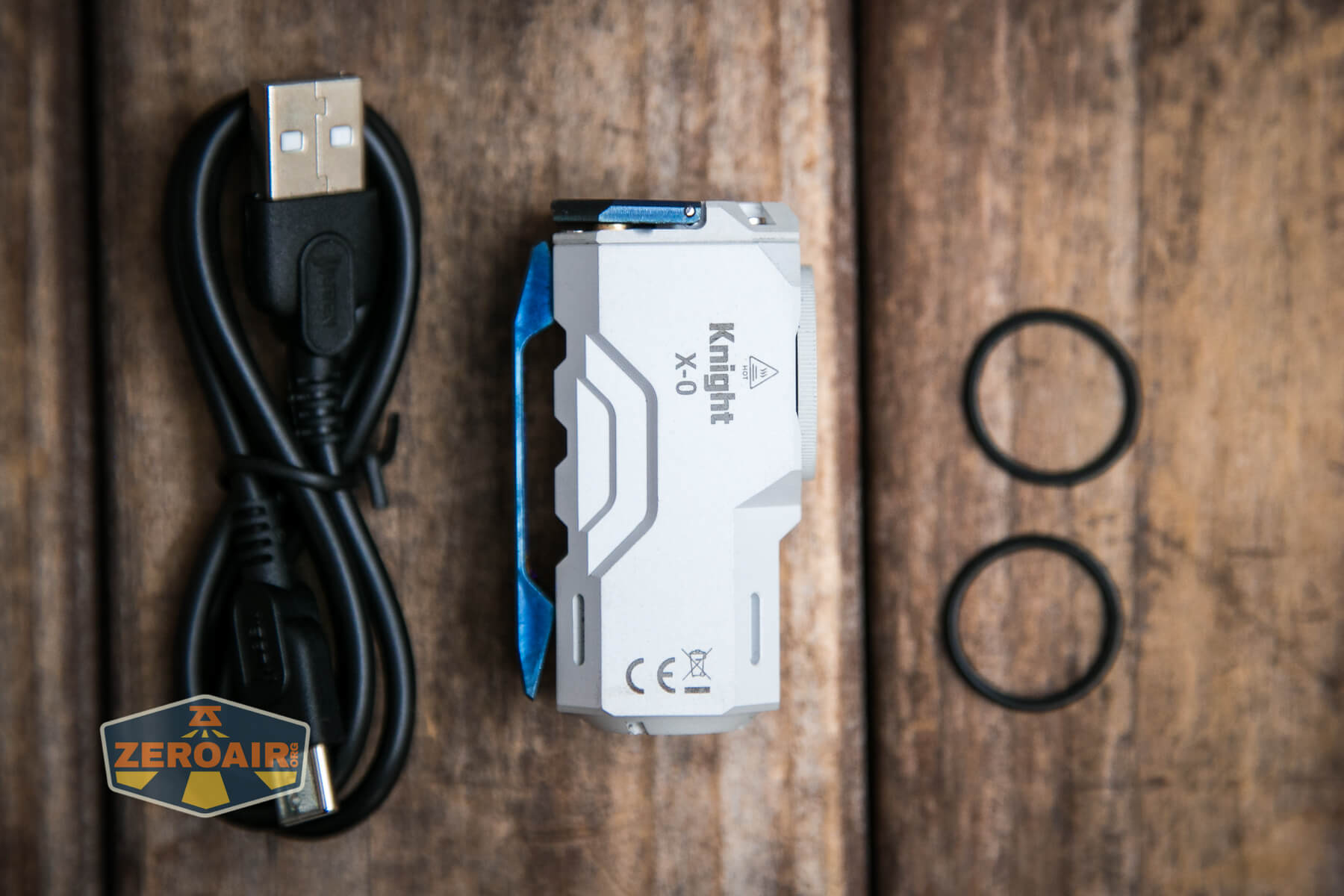

Wuben X-0 Knight flashlight what's included

I am not sure if I received only a review package or the full retail package, but here’s what’s included in mine:

  • Wuben X-0 Knight flashlight
  • Spare o-rings (2)
  • Charging cable (USB to USB-C)

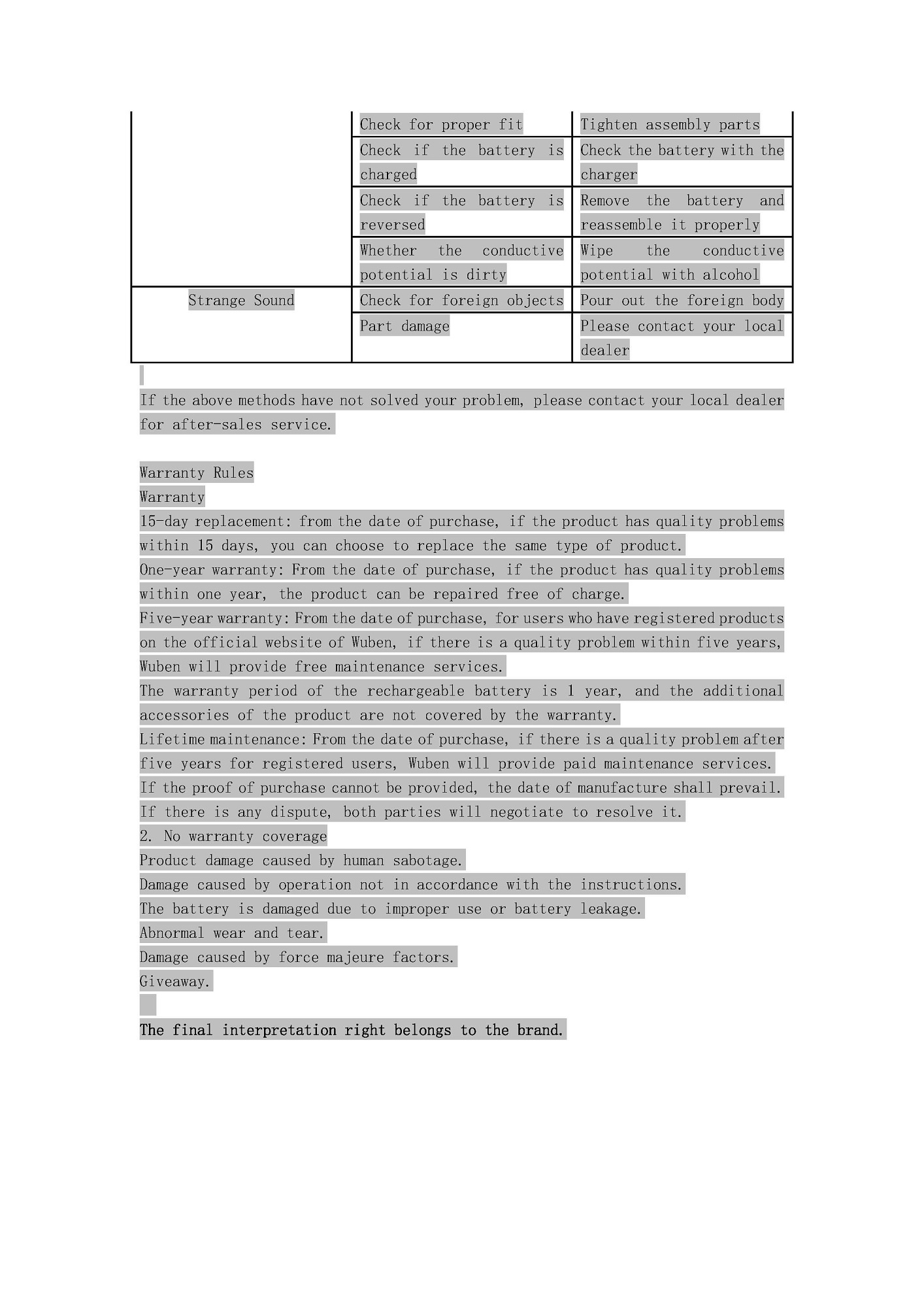

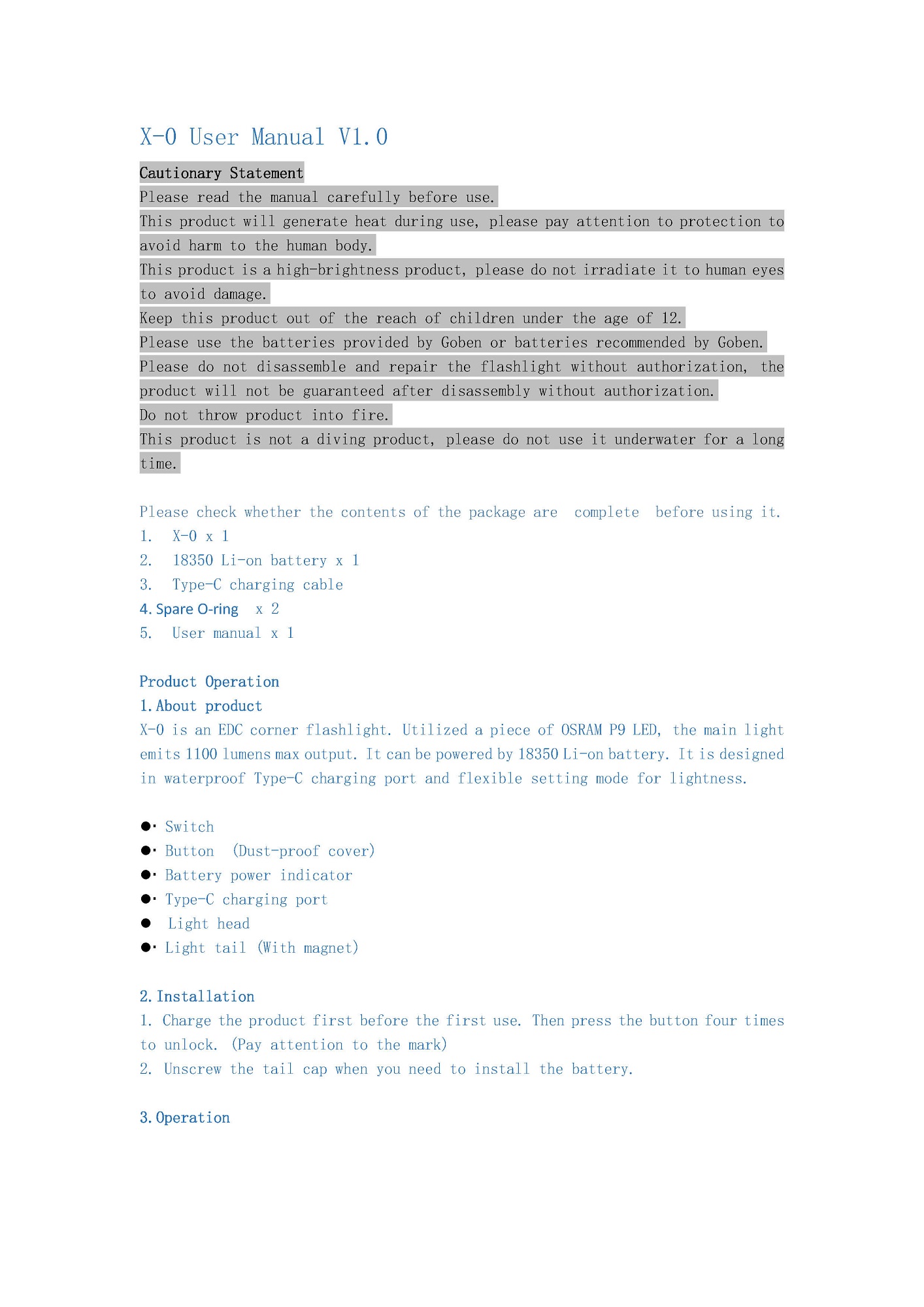

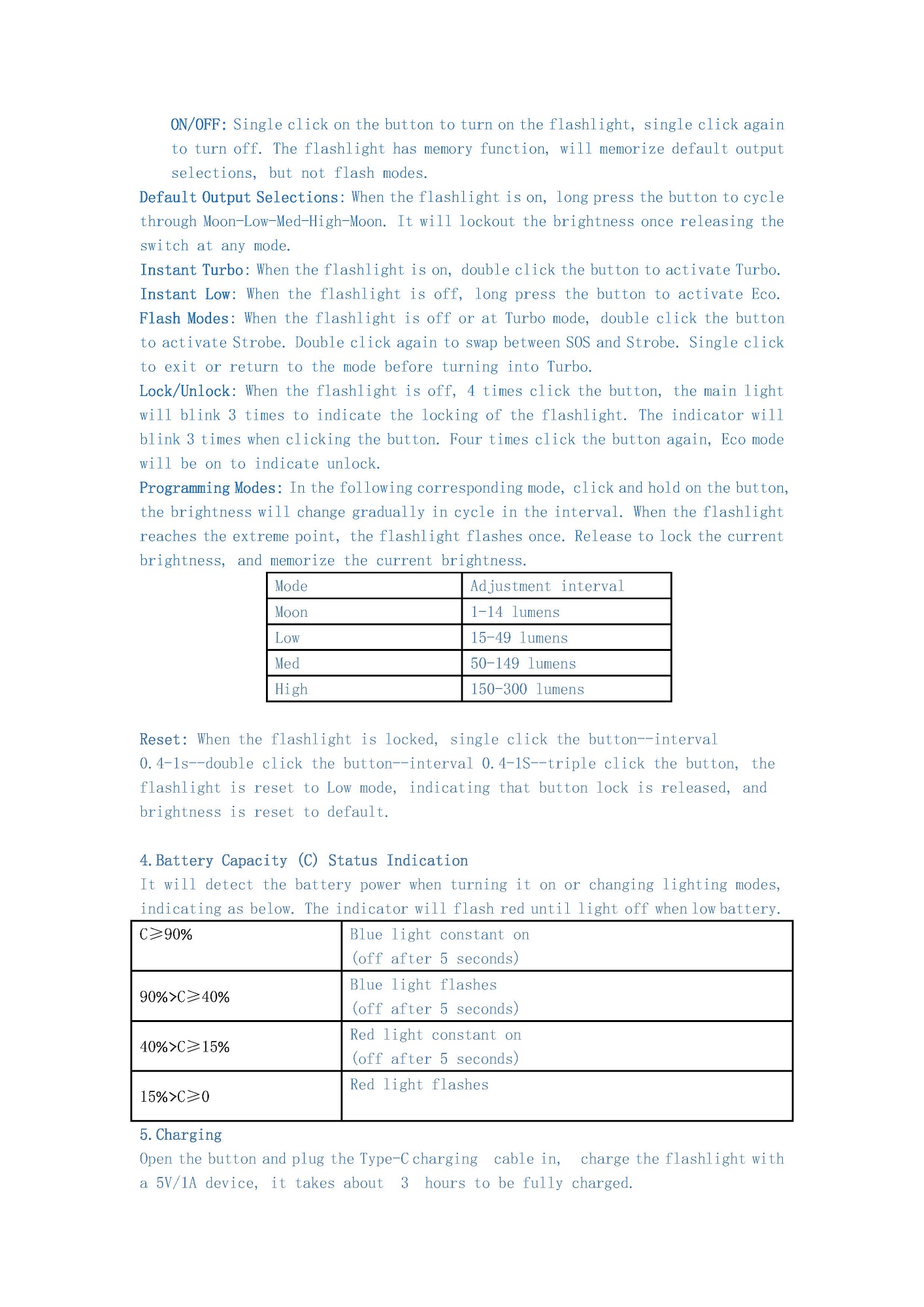

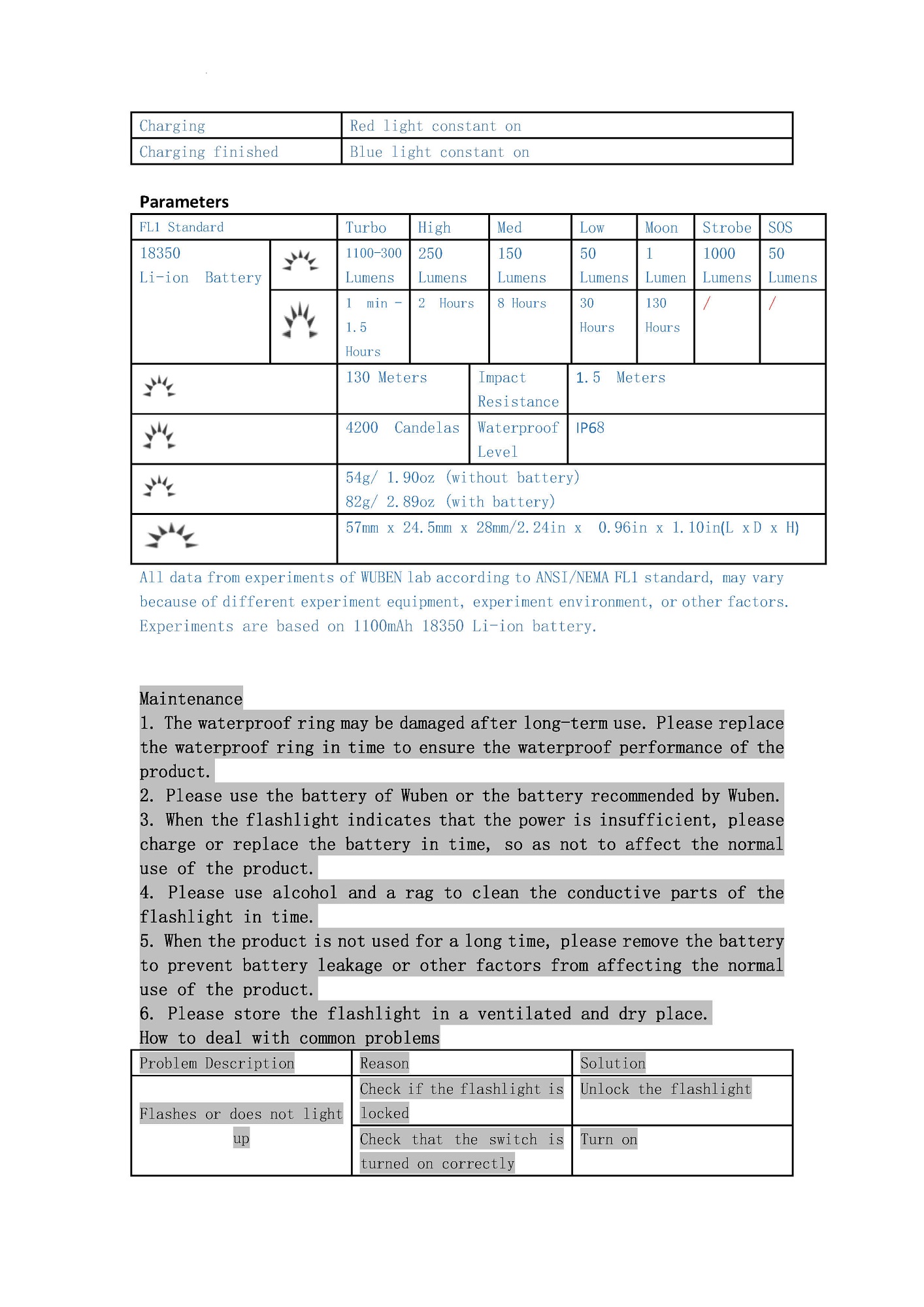

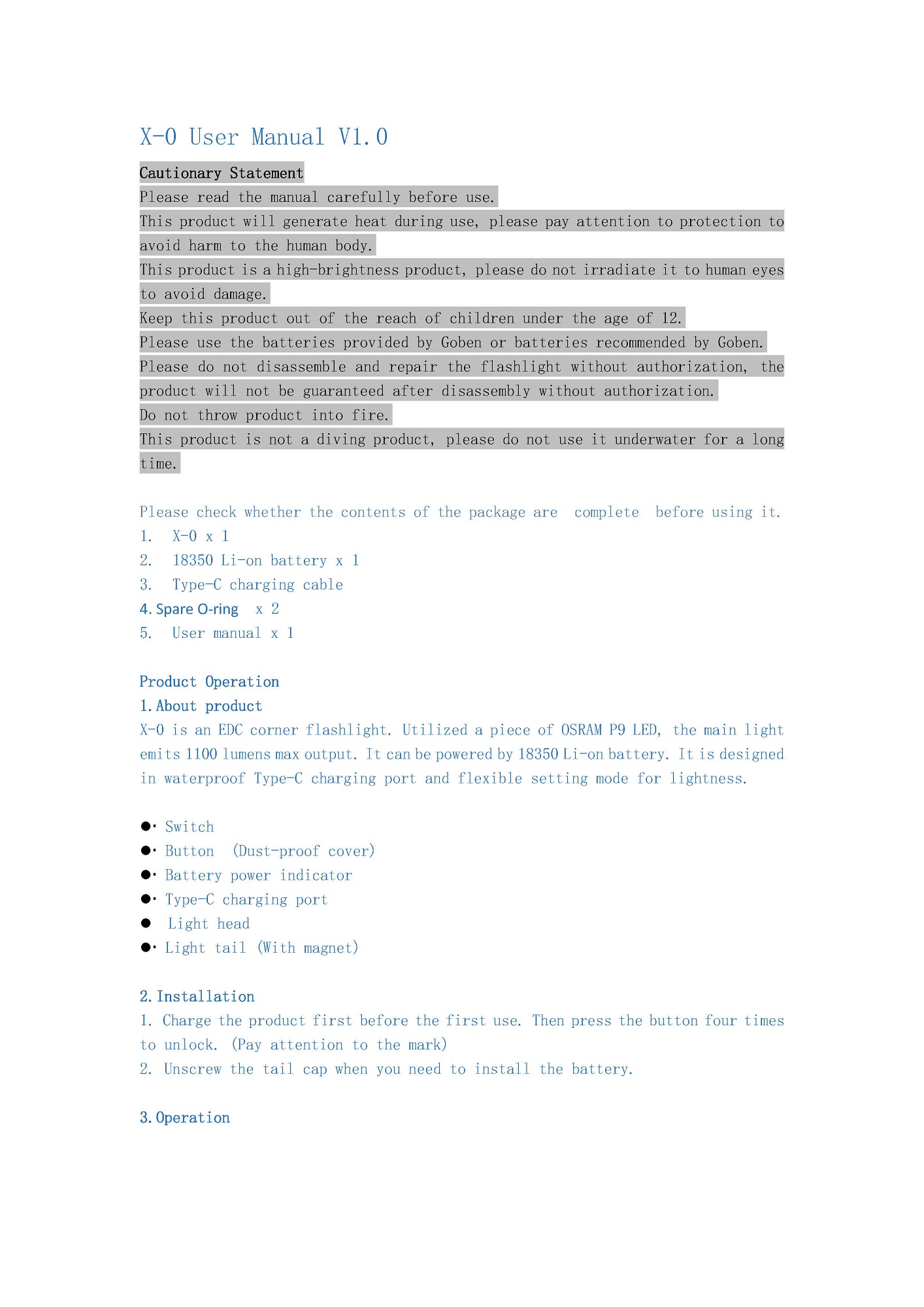

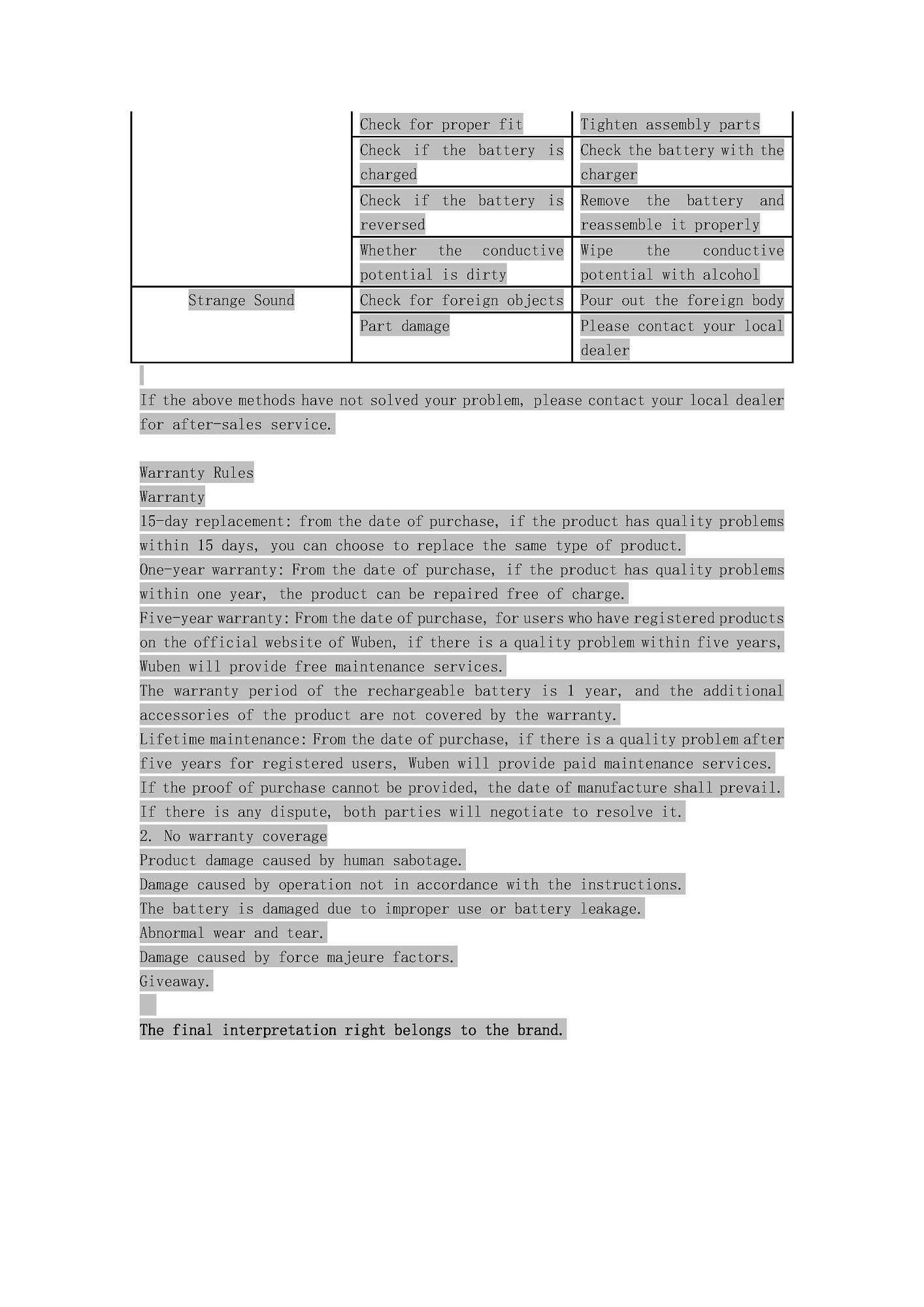

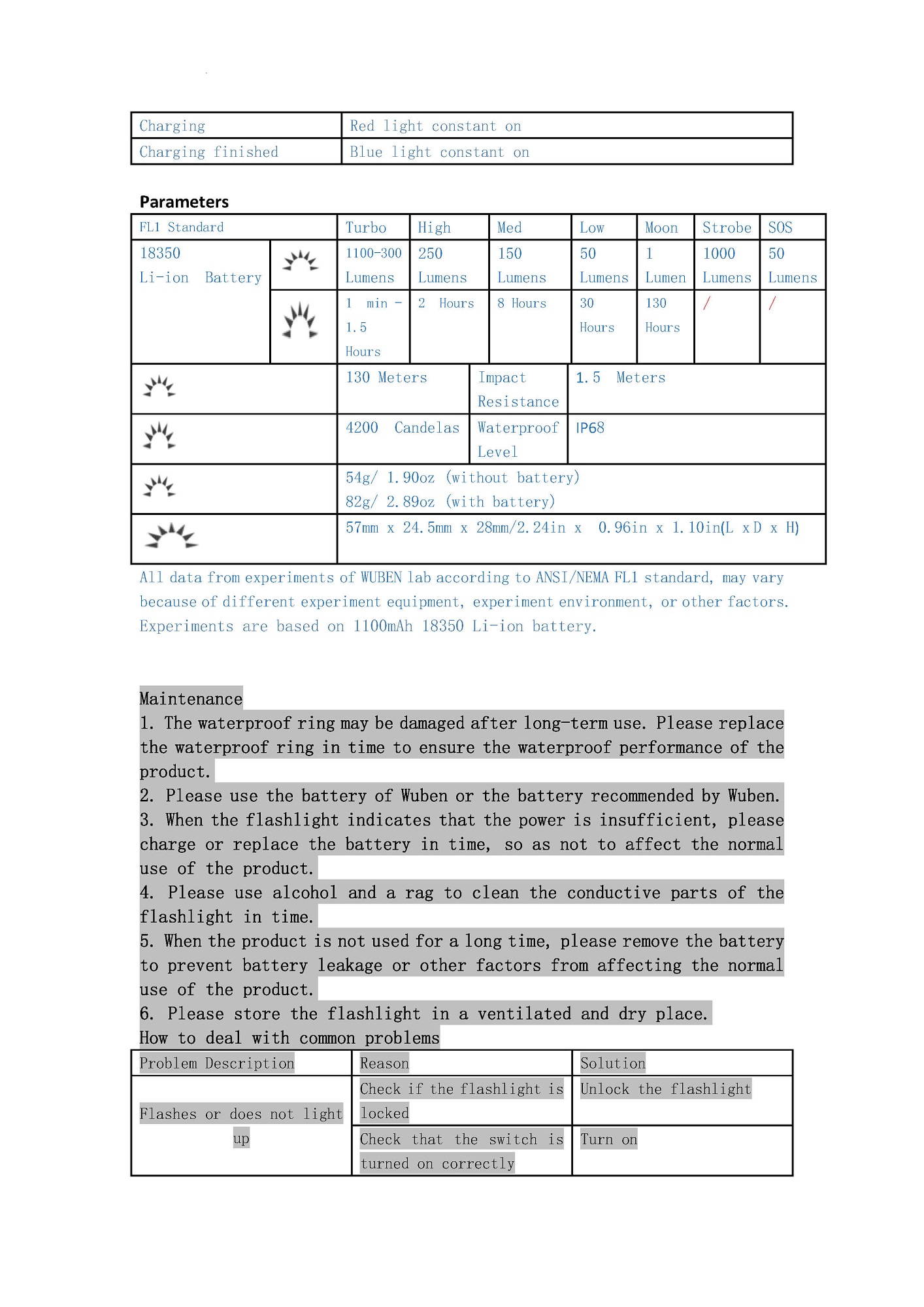

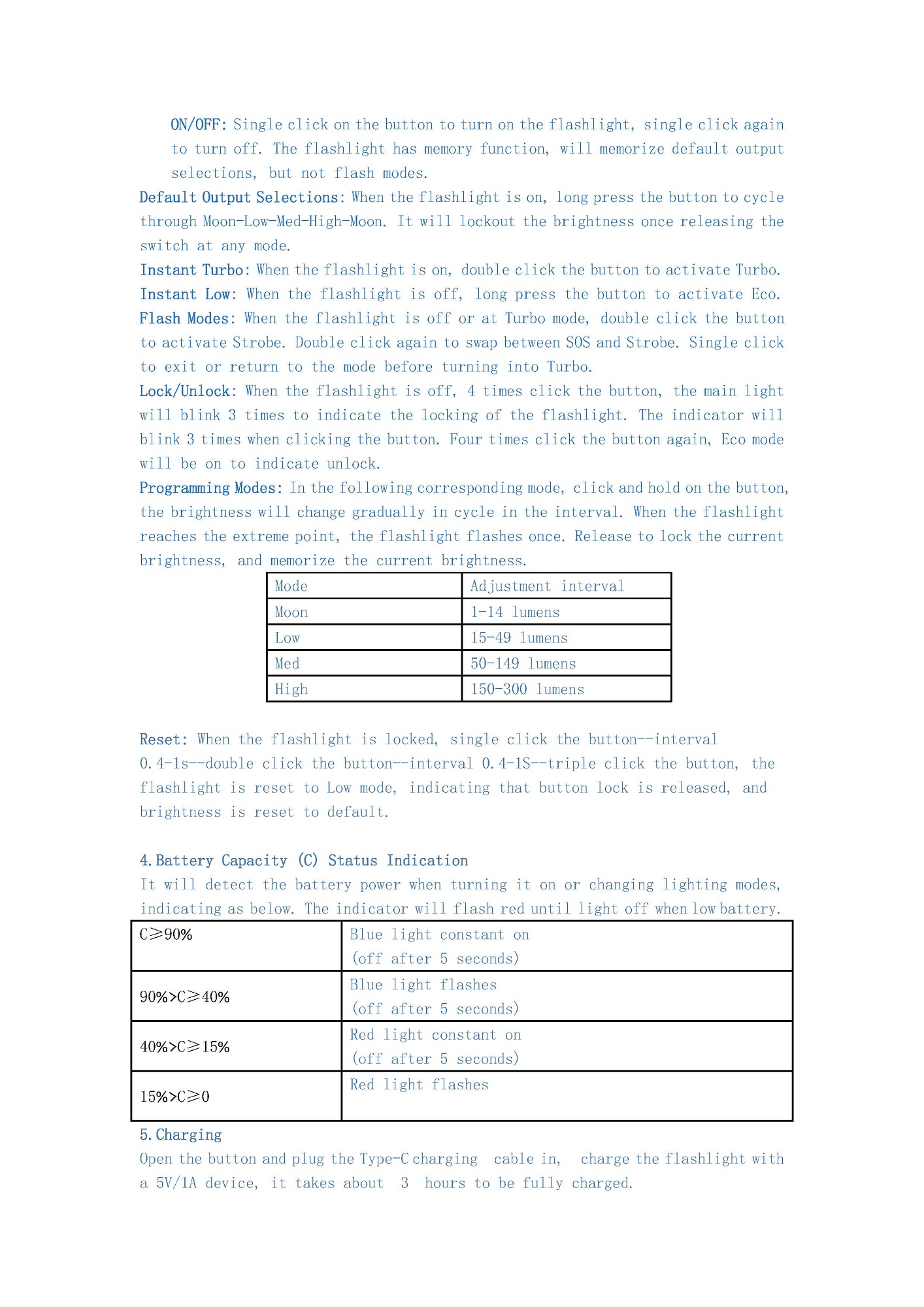

Package and Manual

Wuben X-0 Knight flashlight box

Again, I think that box you see above is just the reviewer’s box – you’d probably get something different. Same with the manual – I didn’t get a manual but Wuben did email me this version below.

Build Quality and Disassembly

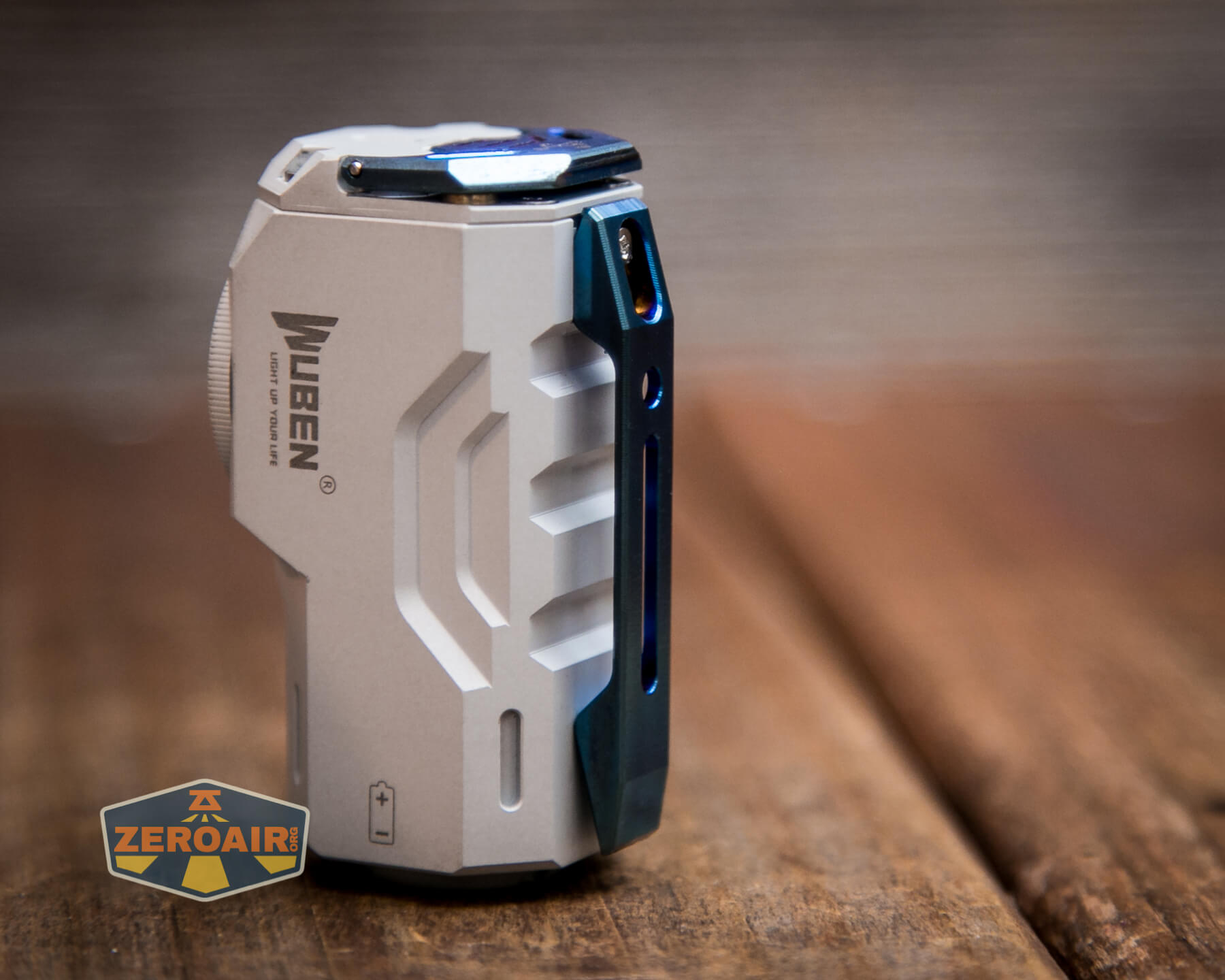

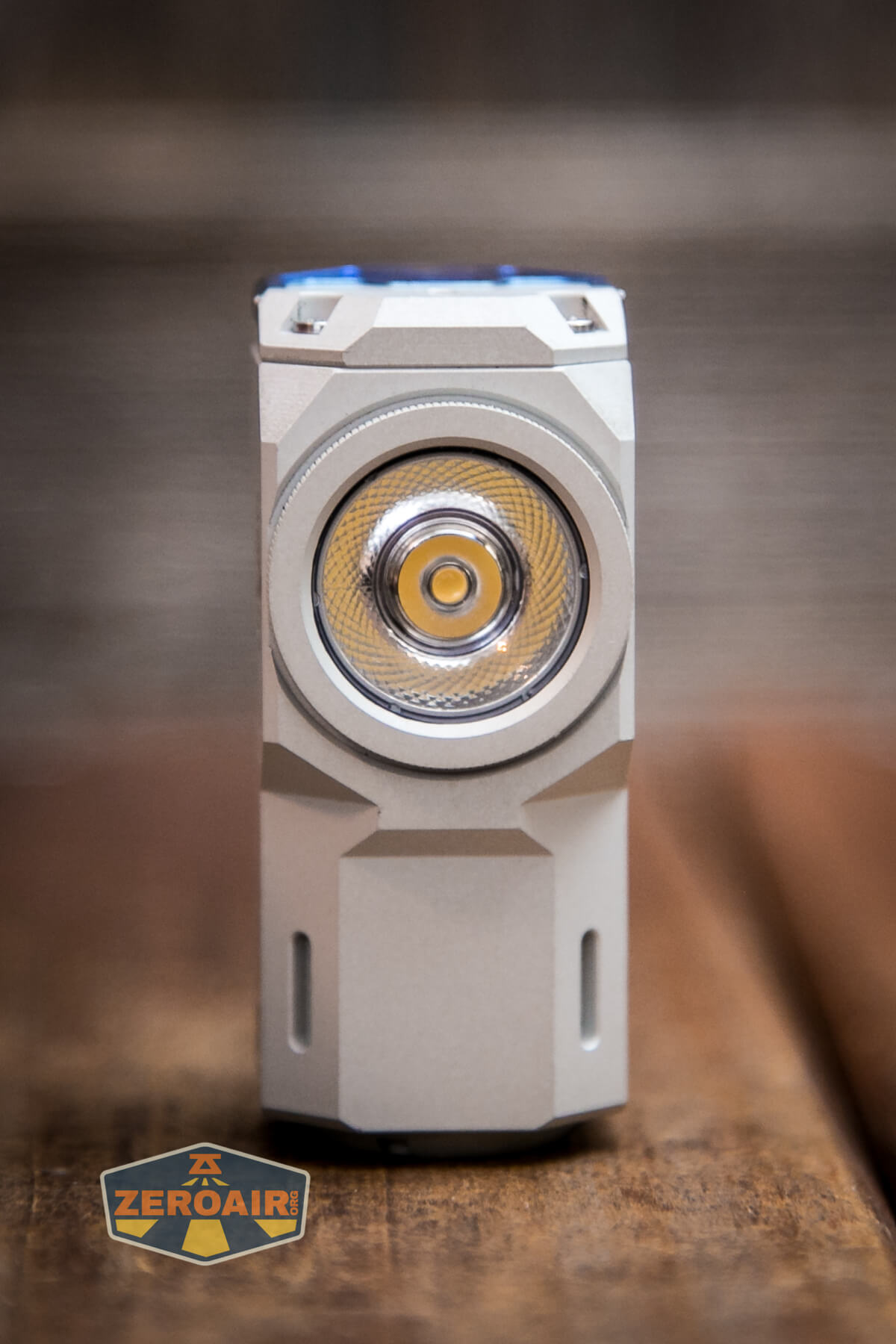

Wuben X-0 Knight flashlight

First, the Wuben X-0 Knight flashlight uses a matte finish white anodizing. I think that’s probably very much like what Convoy is using now, and it’s great! There’s a good bit of grip added because of this matte finish, but it’s not quite chalkboardy like Armytek’s anodizing.

Next, note that this light is very angular – there’s not much tube-ishness going on here! That’s a nice change of pace. You’ll like that or not like it, but either way i can say that it’s a nice anti-roll feature. 🙂

There are a few slots for tritium all over the light (I count six) but the slot to the right that you see below is not one of them. The slot below is an indicator! Those two slots on the blue part (at left) are tritium slots!

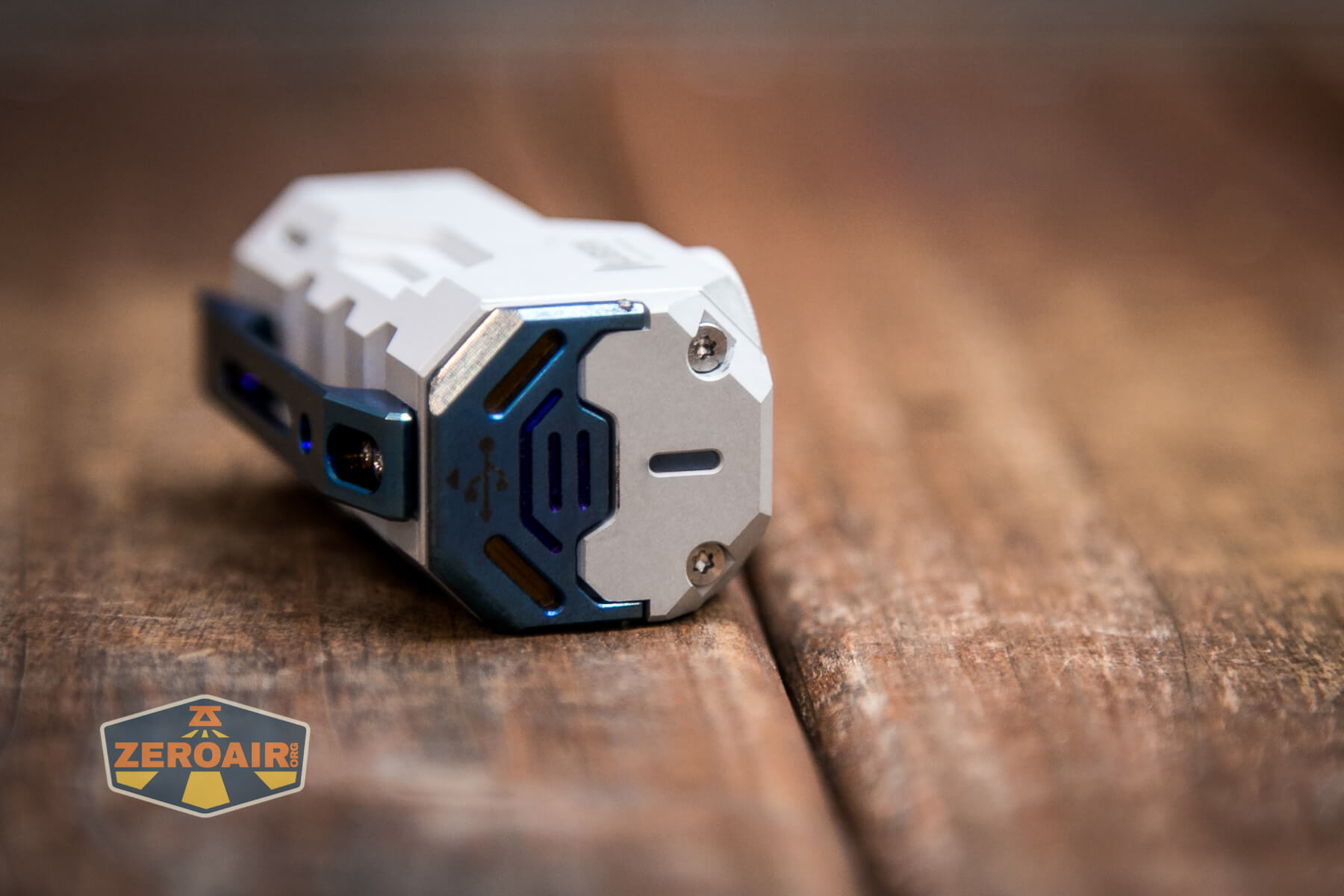

Wuben X-0 Knight flashlight top

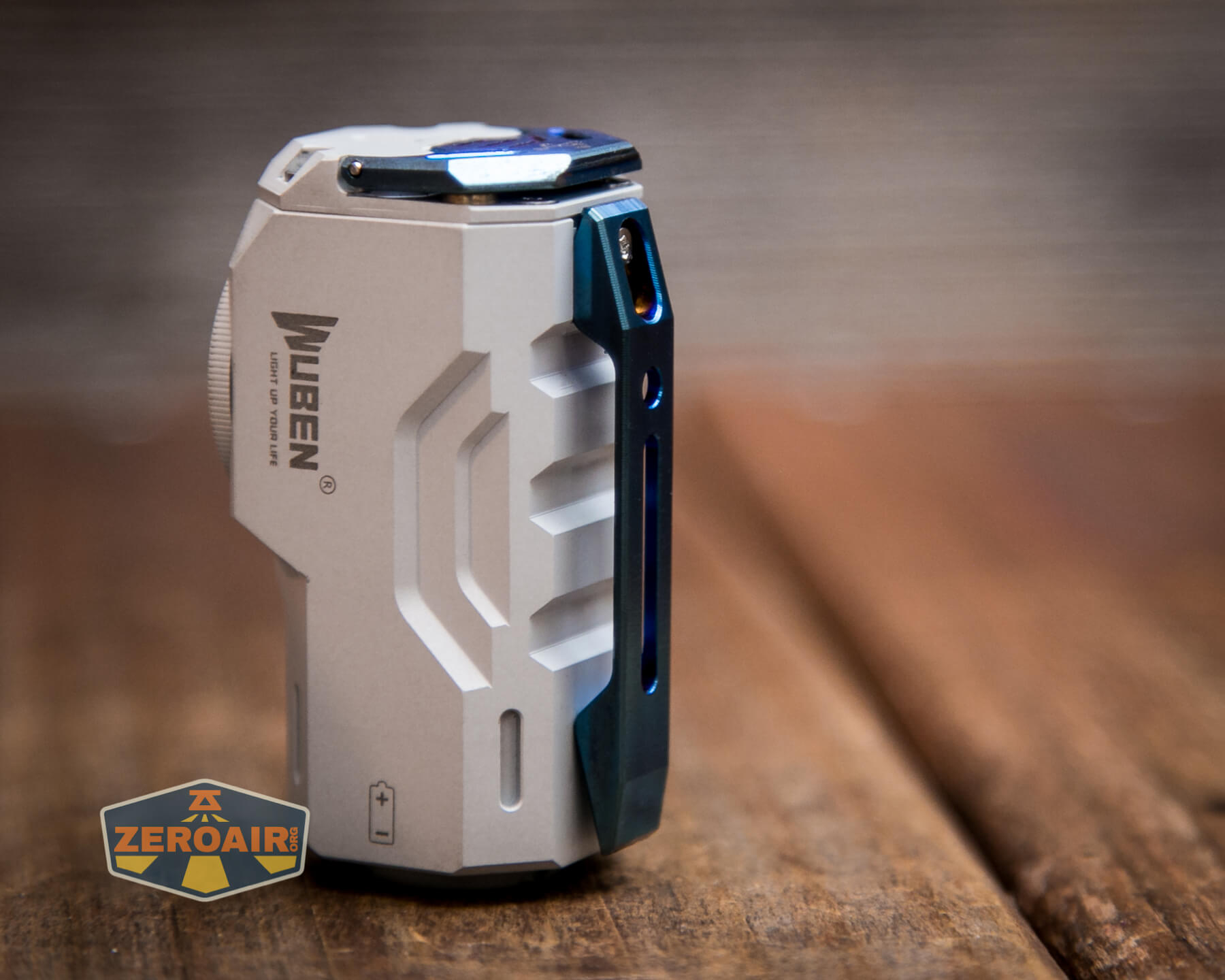

Again, the whole design is very angular. Even the pocket clip carries on this very squared, angular design.

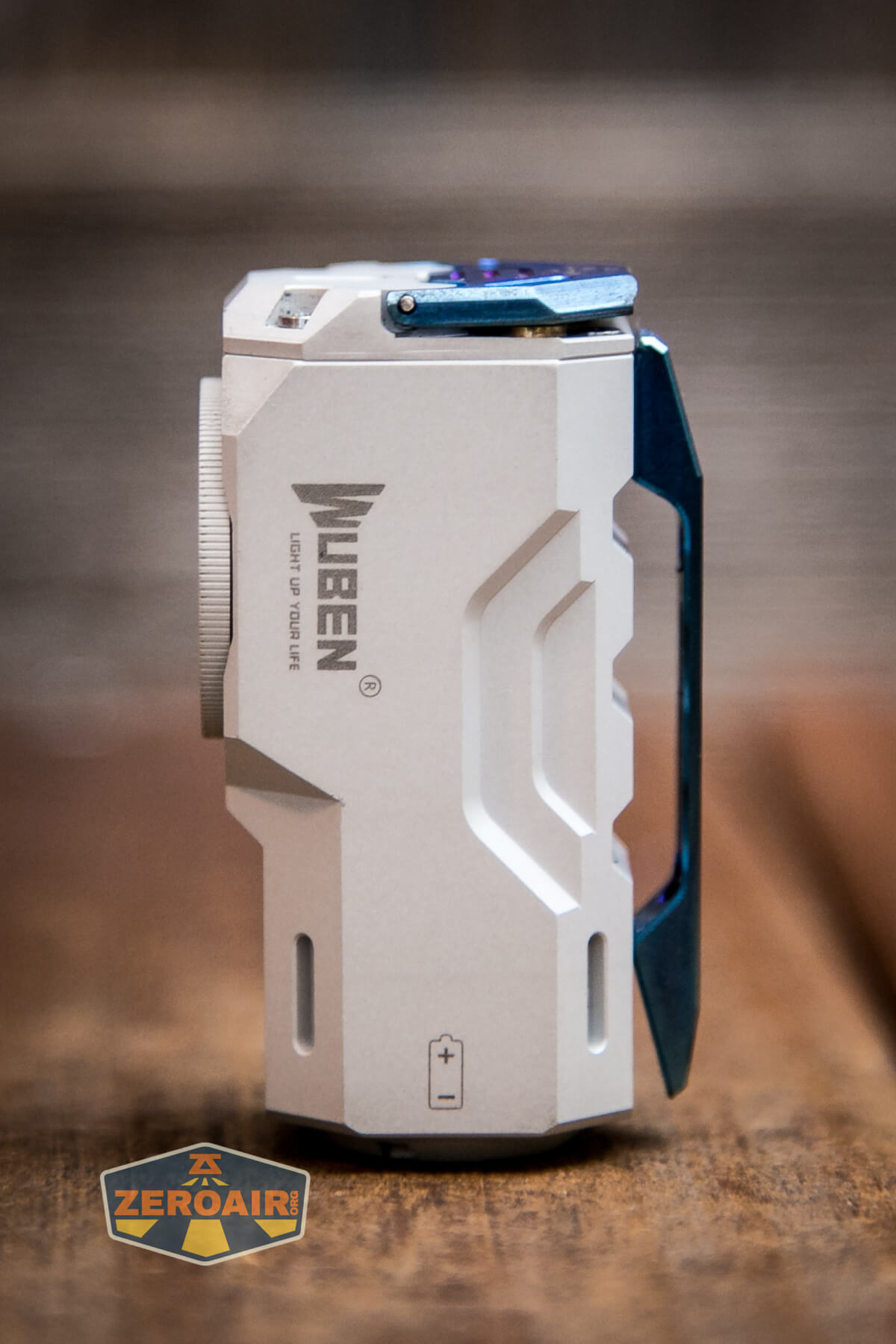

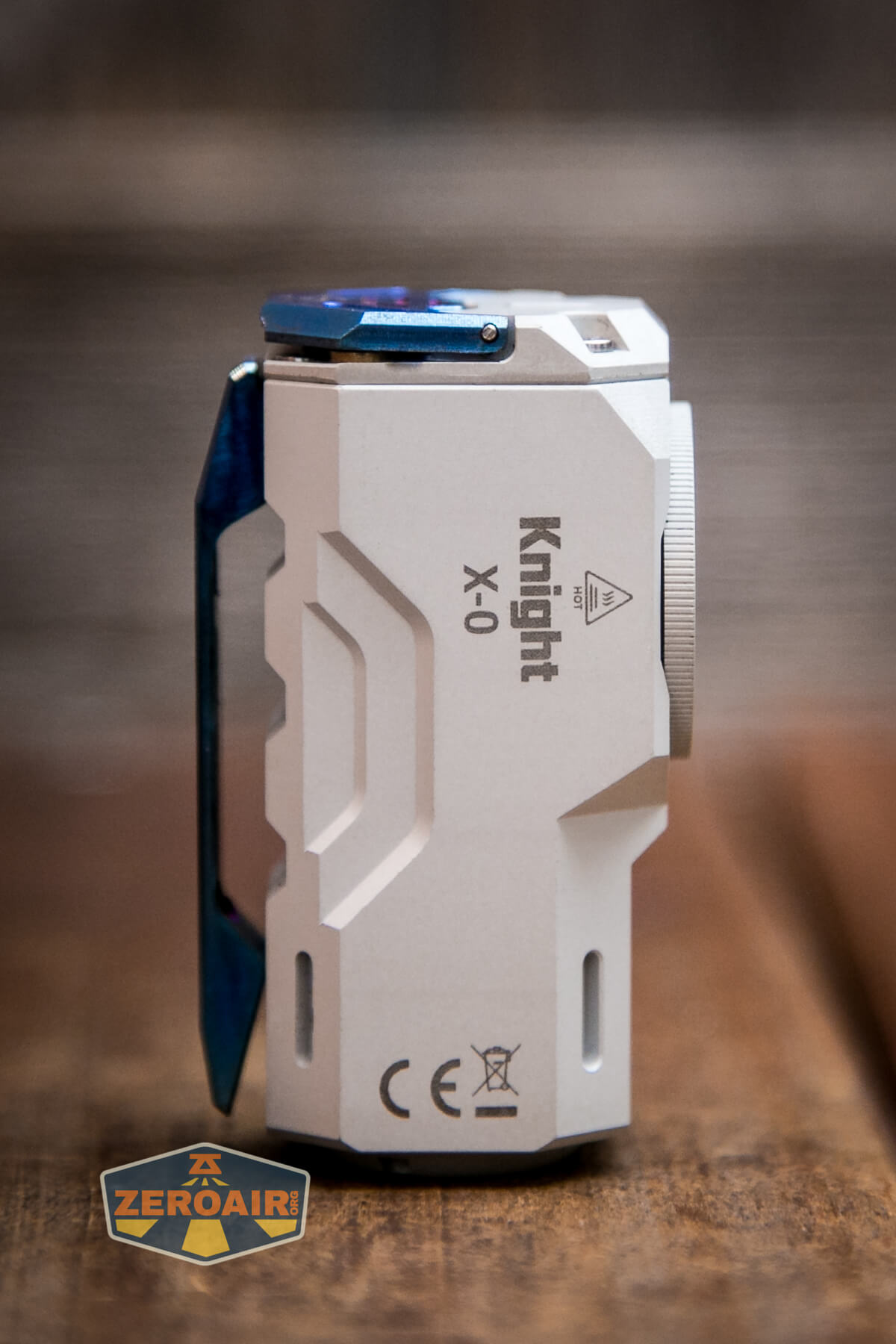

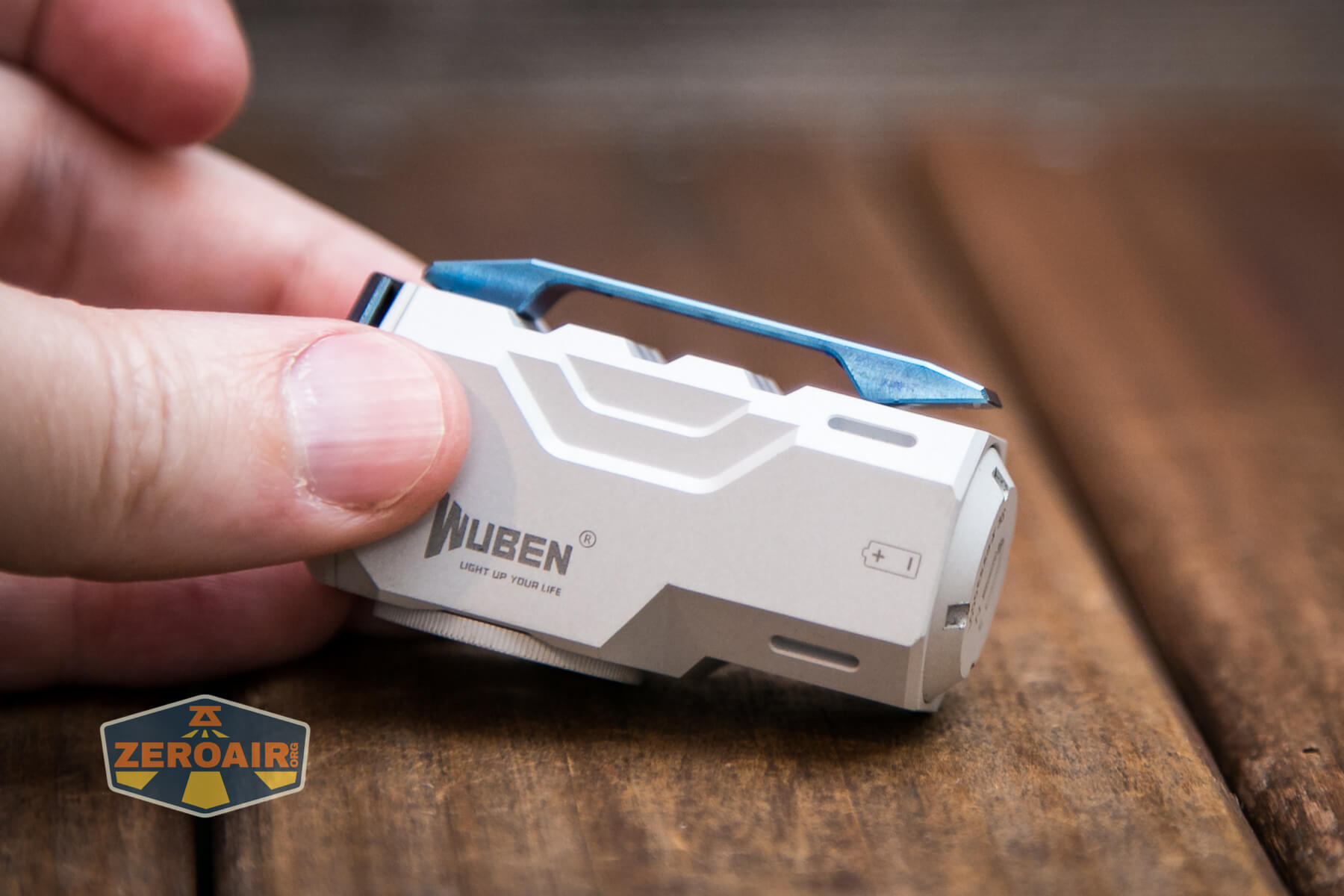

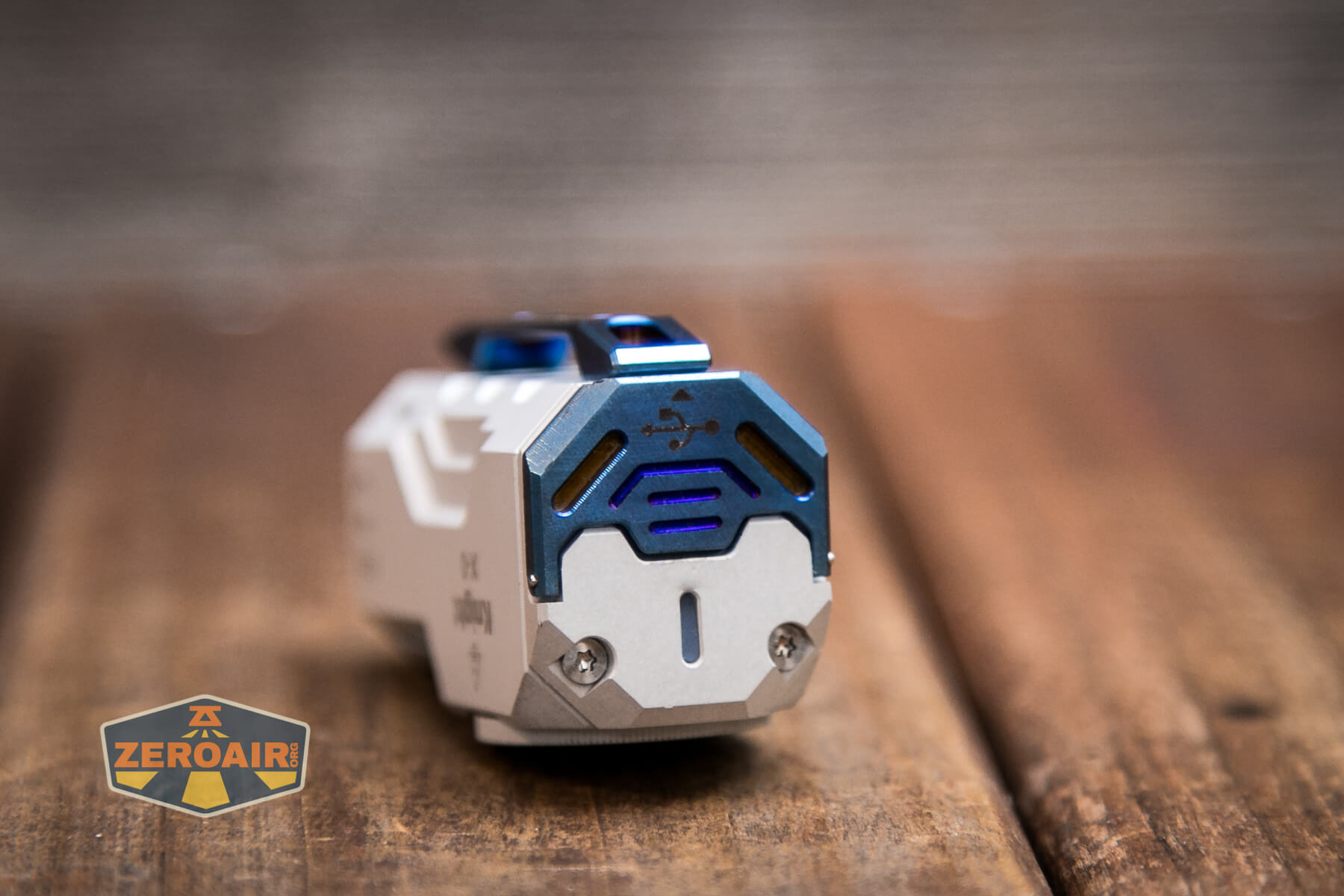

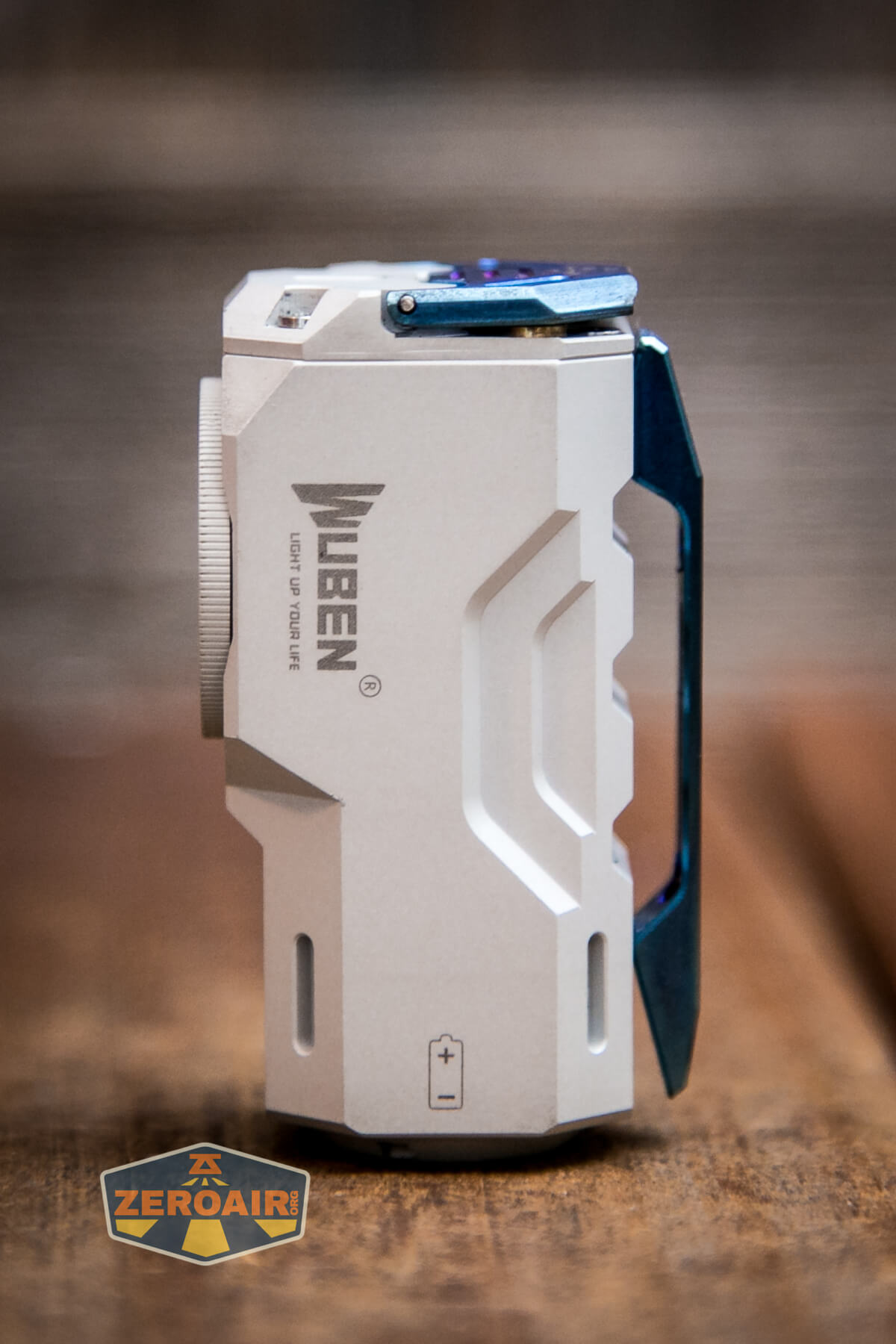

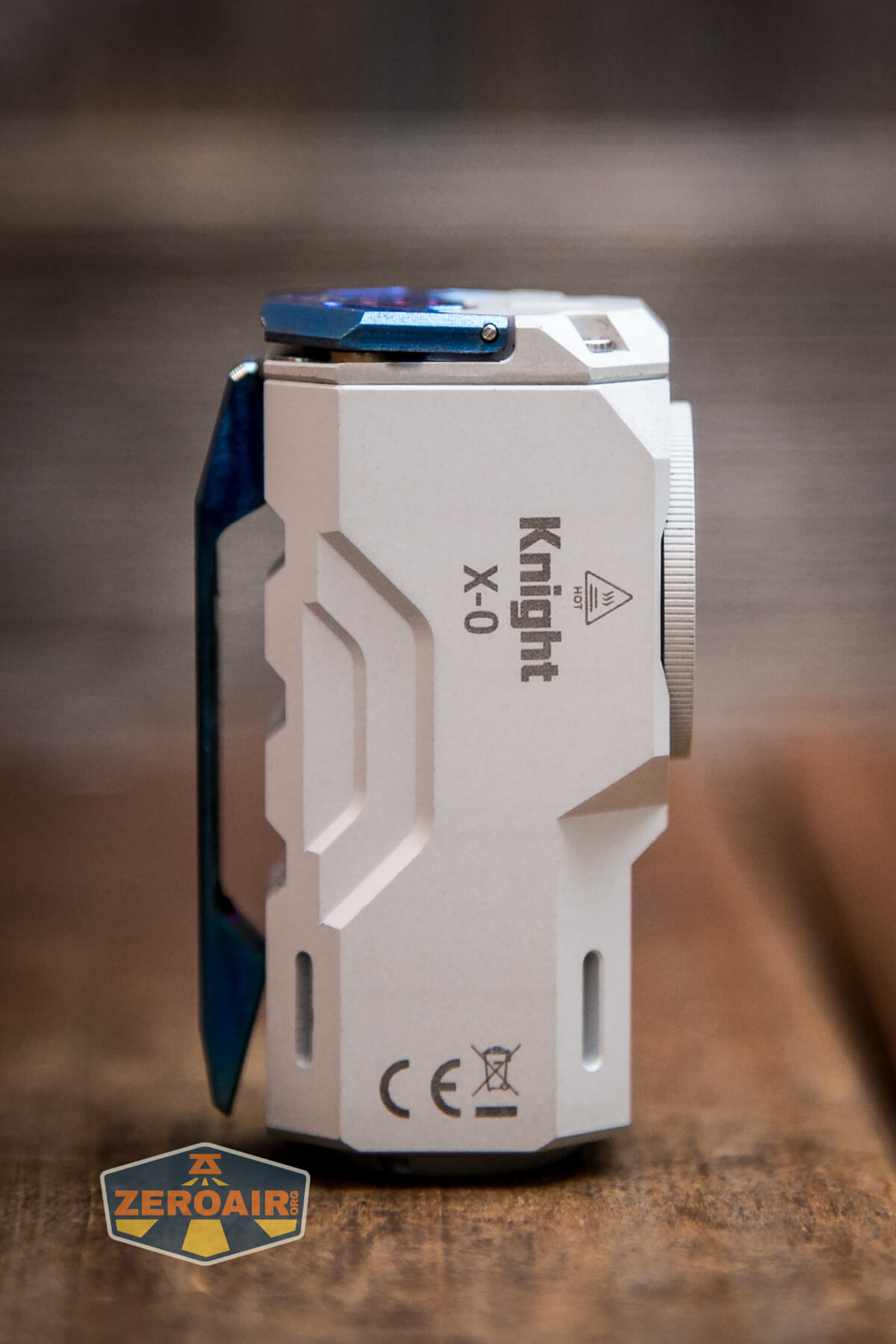

Wuben X-0 Knight flashlight side

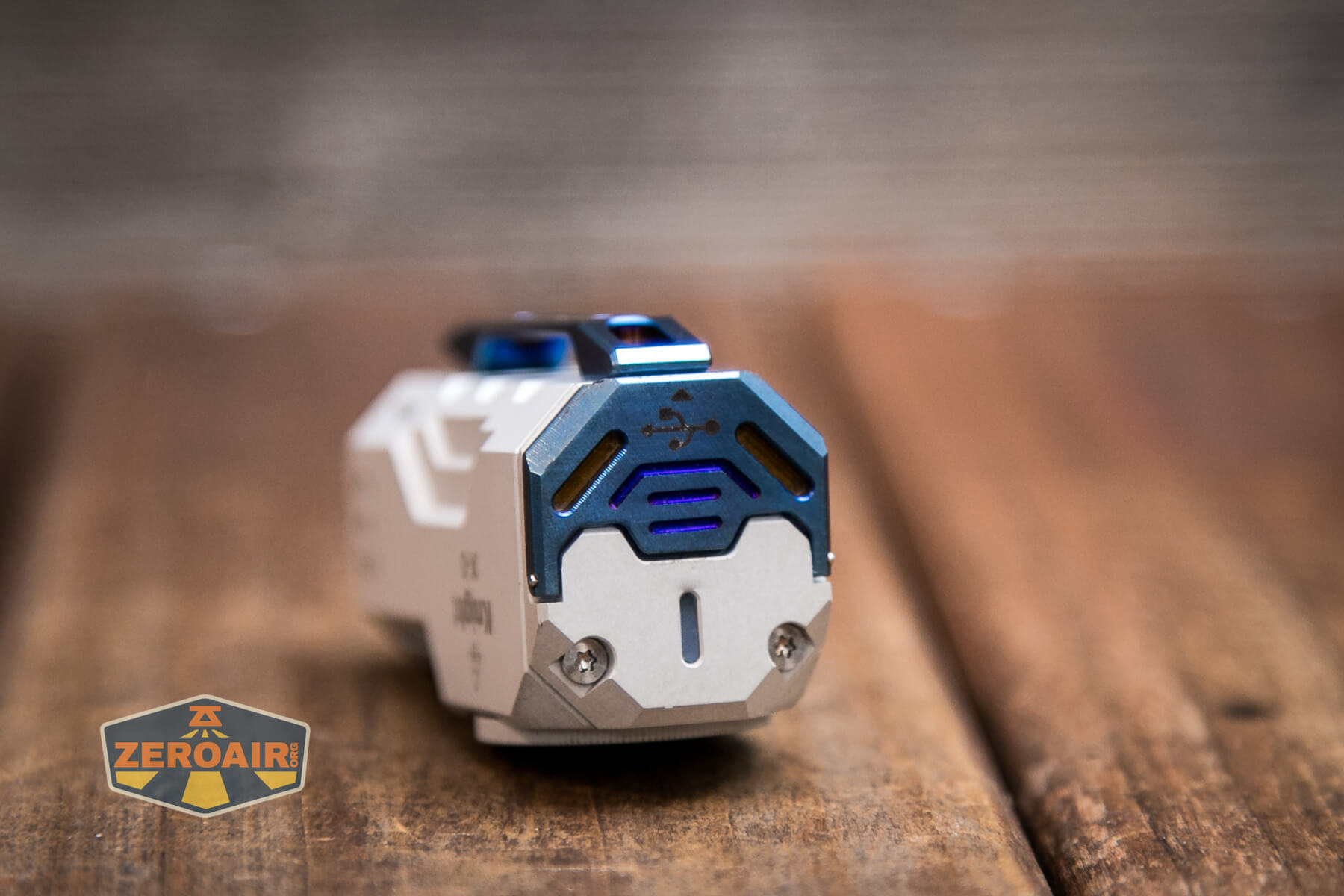

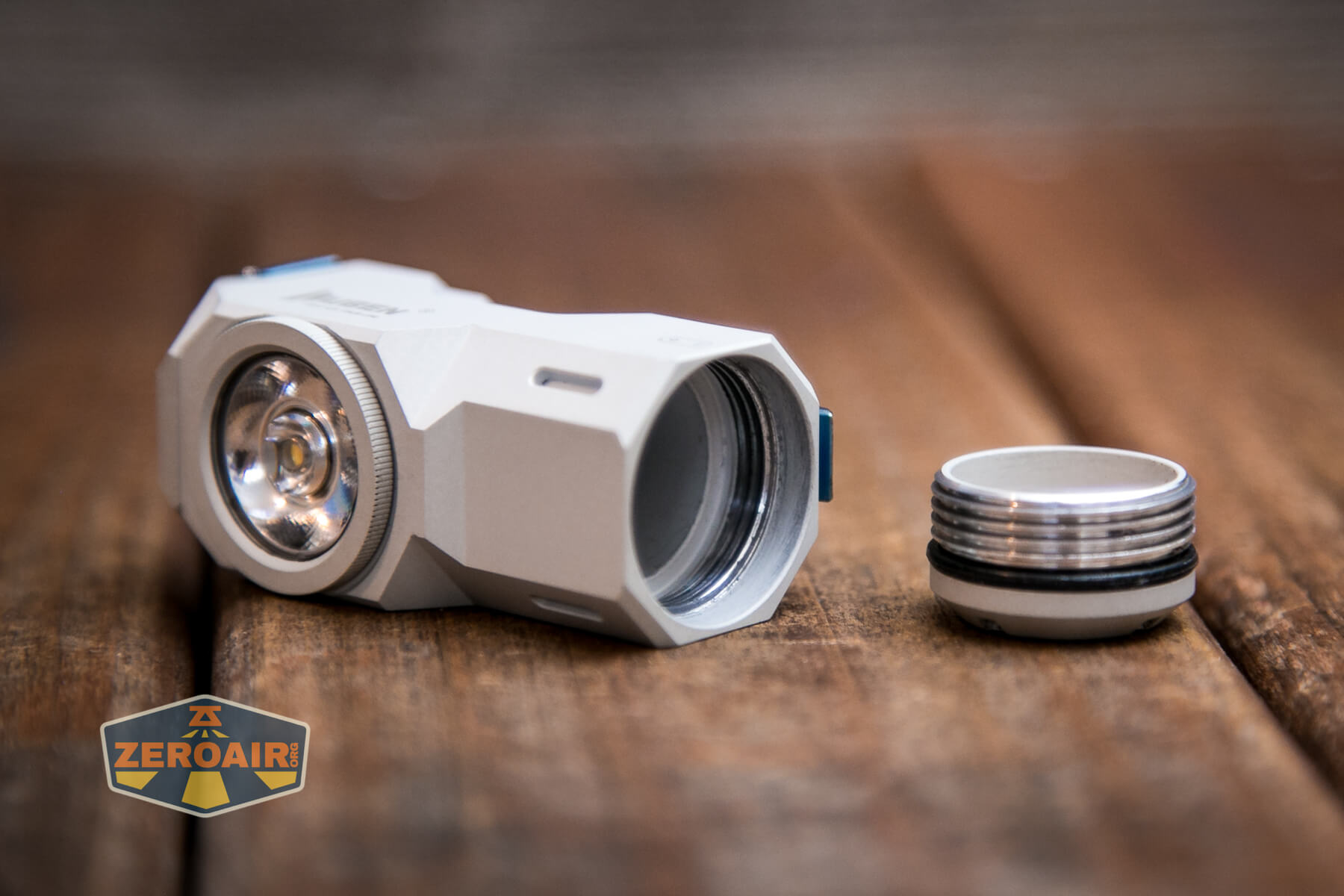

The tailcap is removable. Thus, the Wuben X-0 Knight is a “right angle” flashlight. This tailcap was a point of contention for many users who feared that the (standard!) 18350 used in this light was not replaceable. It is very much replaceable. I don’t even think you really need any special tools to remove this tailcap. I used a pair of (plastic!) tweezers, but the threads are smooth enough and the closure is “clean” enough that you could use makeshift probably nearly anything – a paper clip for example. Yes, you will probably not remove this tailcap by hand, but no you won’t need a watchmaker’s case back removal tool!

Wuben X-0 Knight flashlight tailcap off

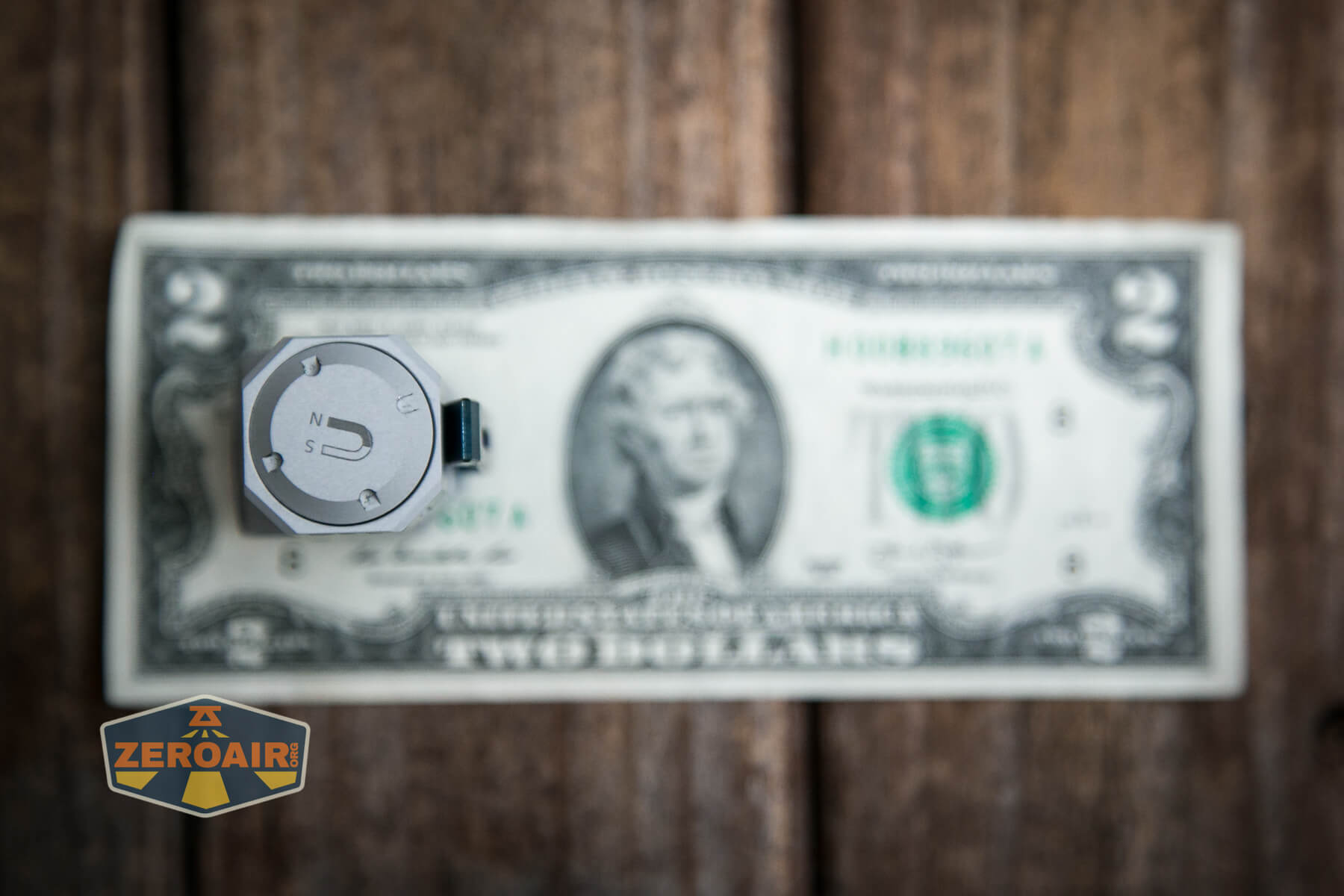

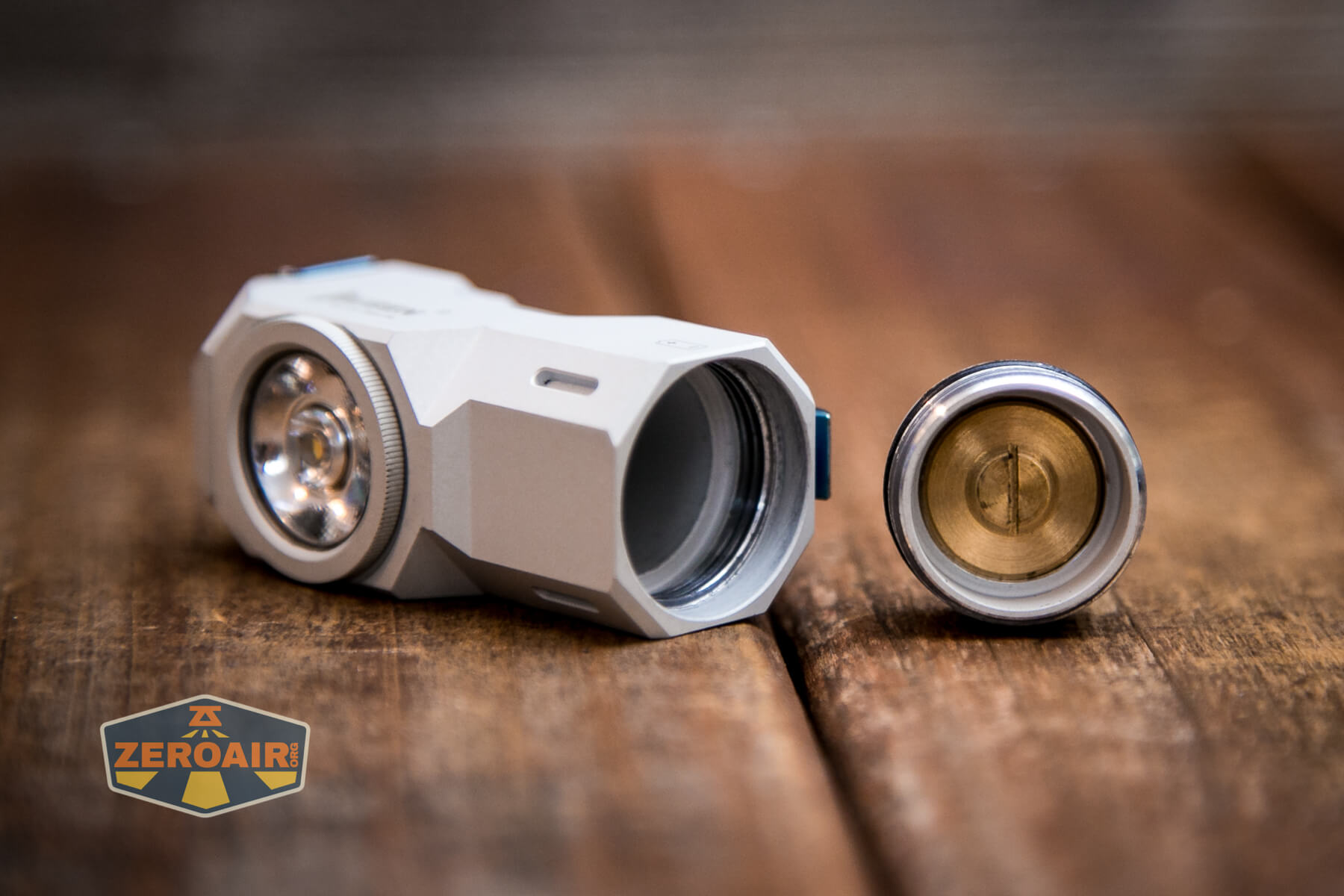

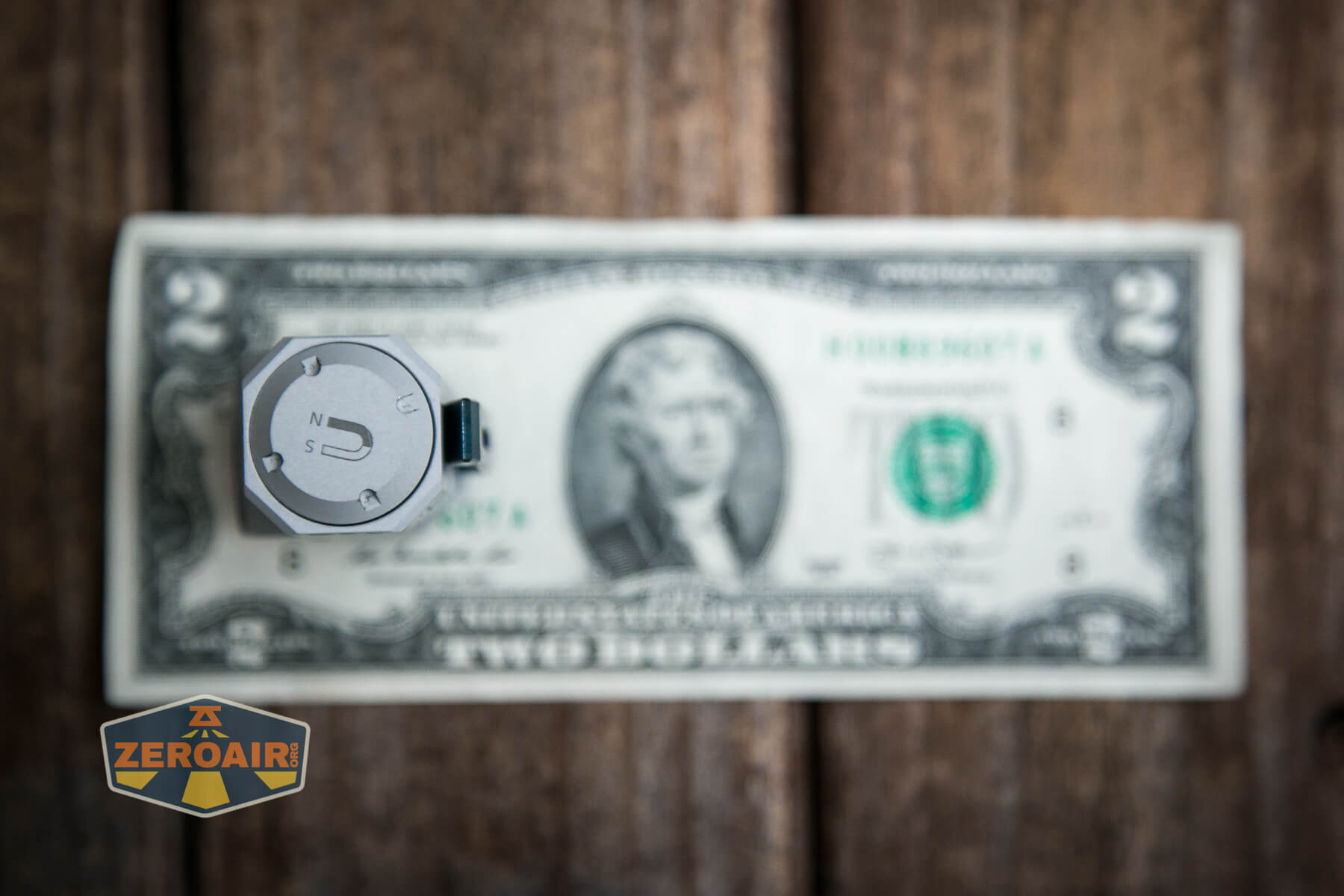

Inside the tailcap is this brass bit which is slotted – I think you could remove the magnet in there if you wanted to do so.

Wuben X-0 Knight flashlight removable magnet

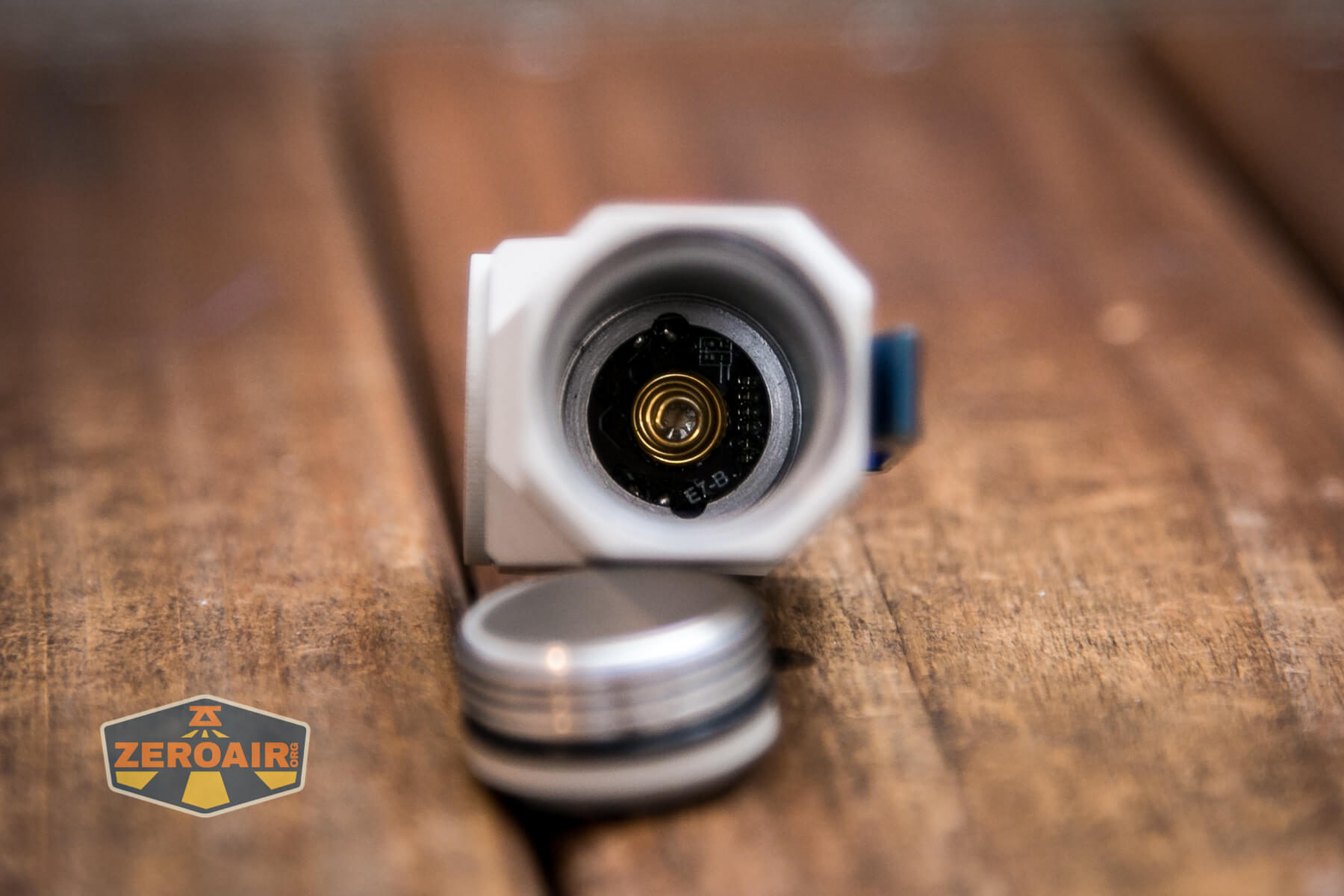

The positive contact is a spring.

Wuben X-0 Knight flashlight spring in head

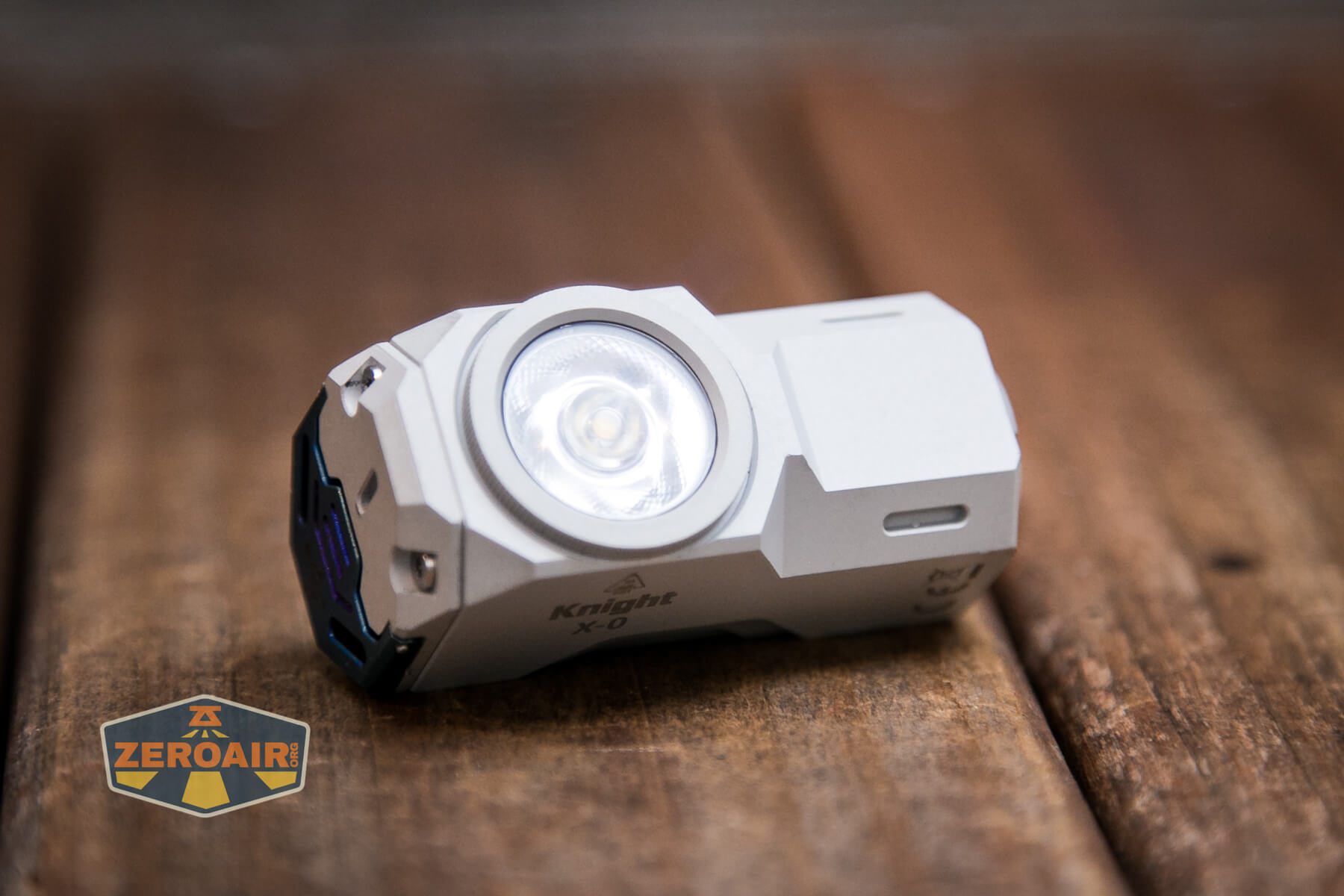

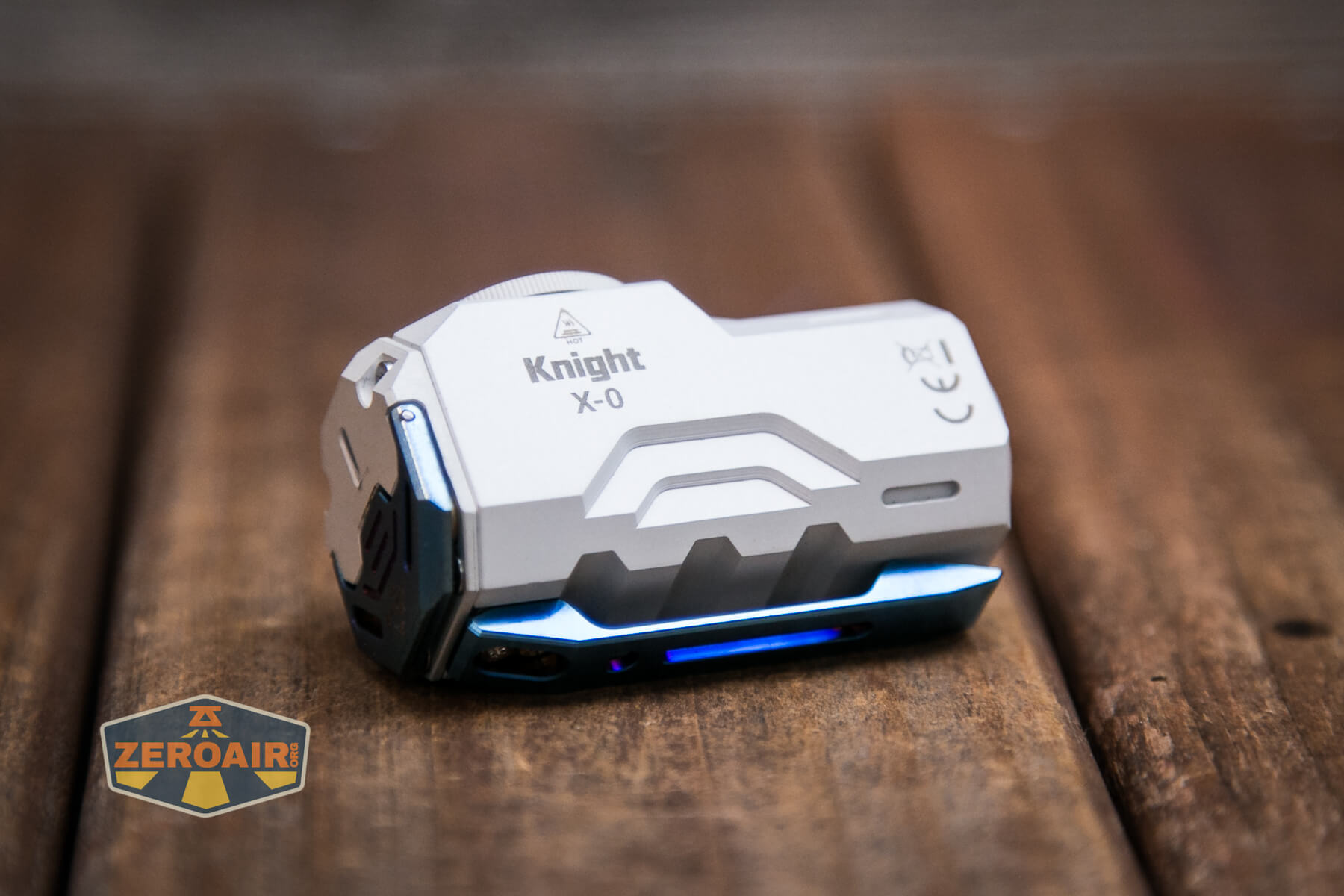

Wuben X-0 Knight flashlight logo Wuben X-0 Knight flashlight bezel

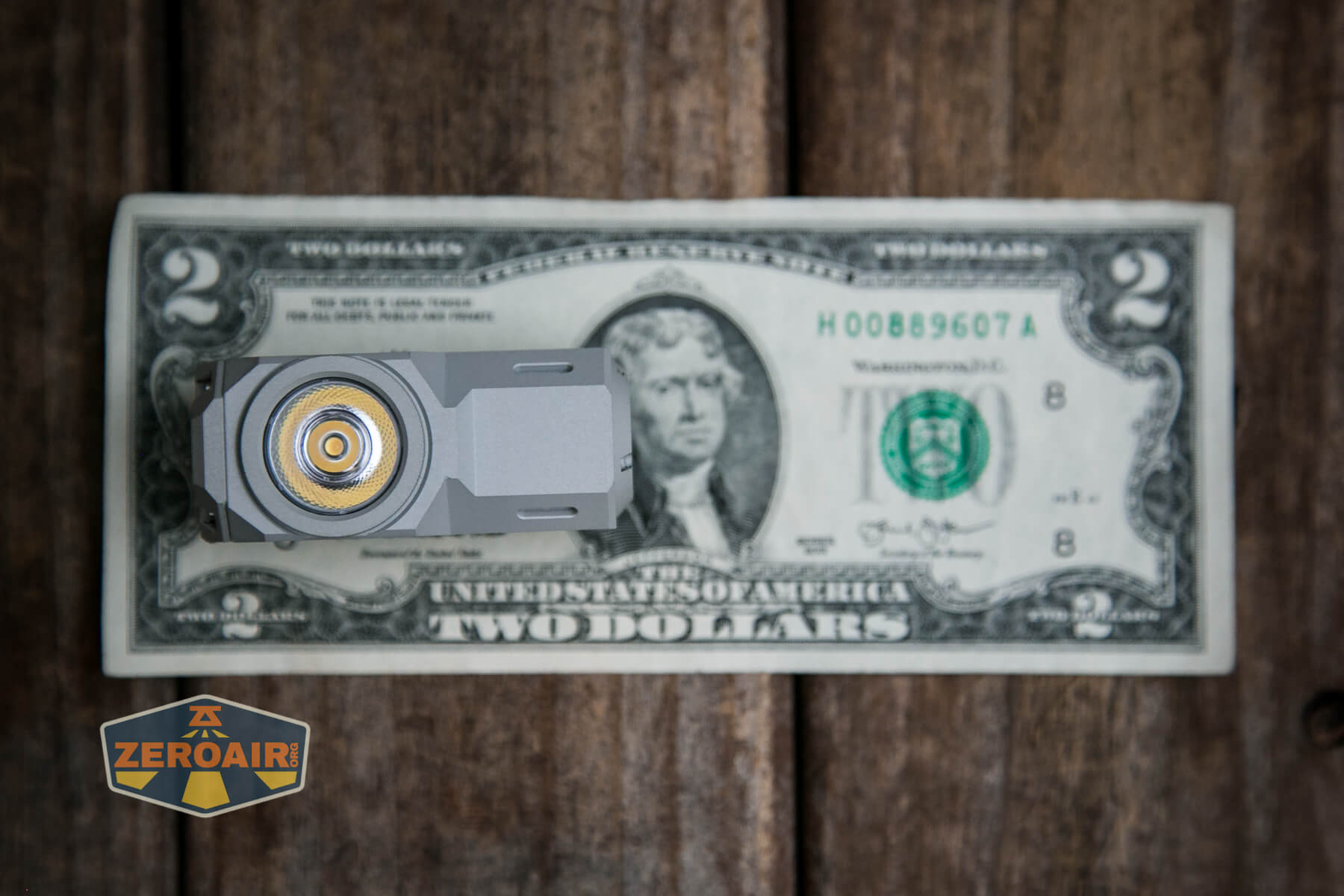

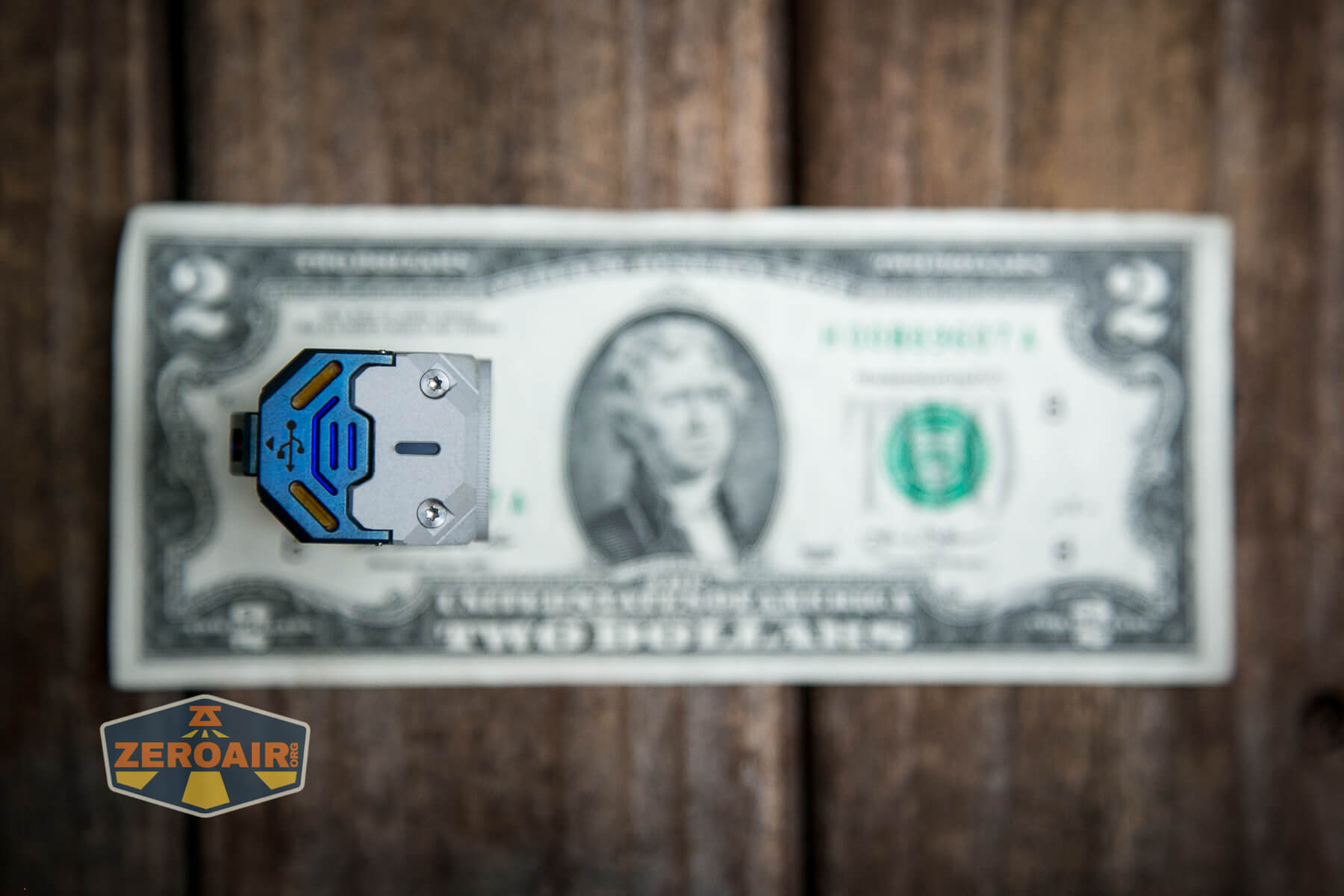

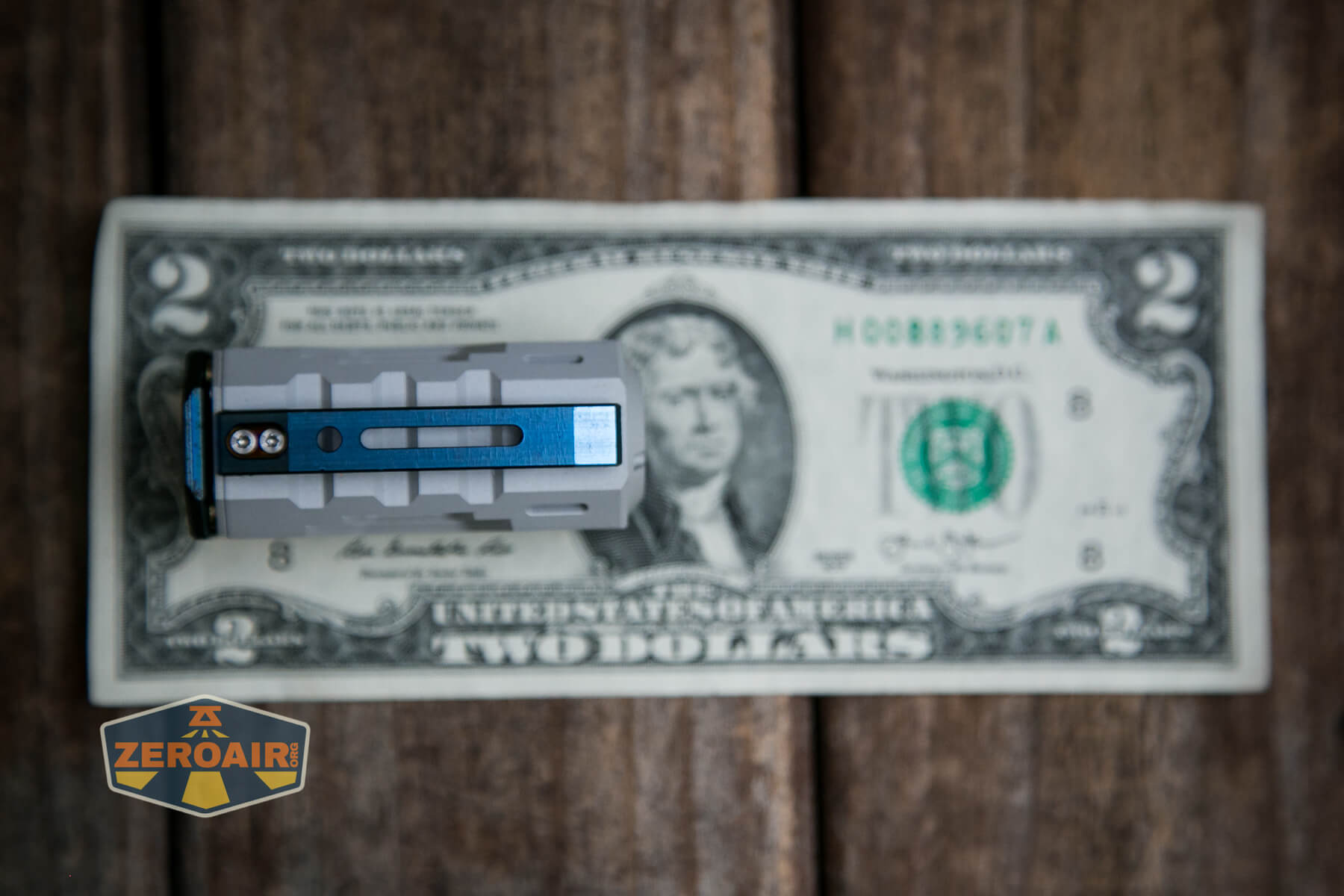

Size and Comps

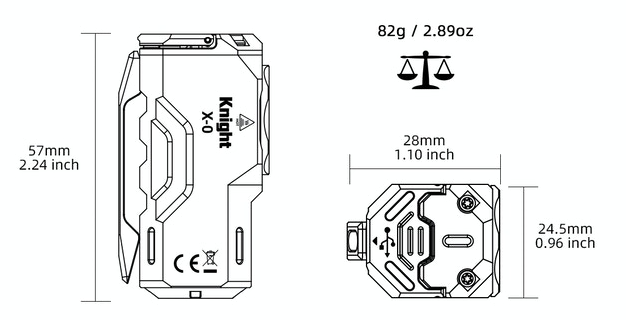

I’m going to add Wuben’s illustration here because it’s great!

Wuben X-0 Knight flashlight size

Officially: 57mm long, 24.5mm and 28mm across, and 82g.

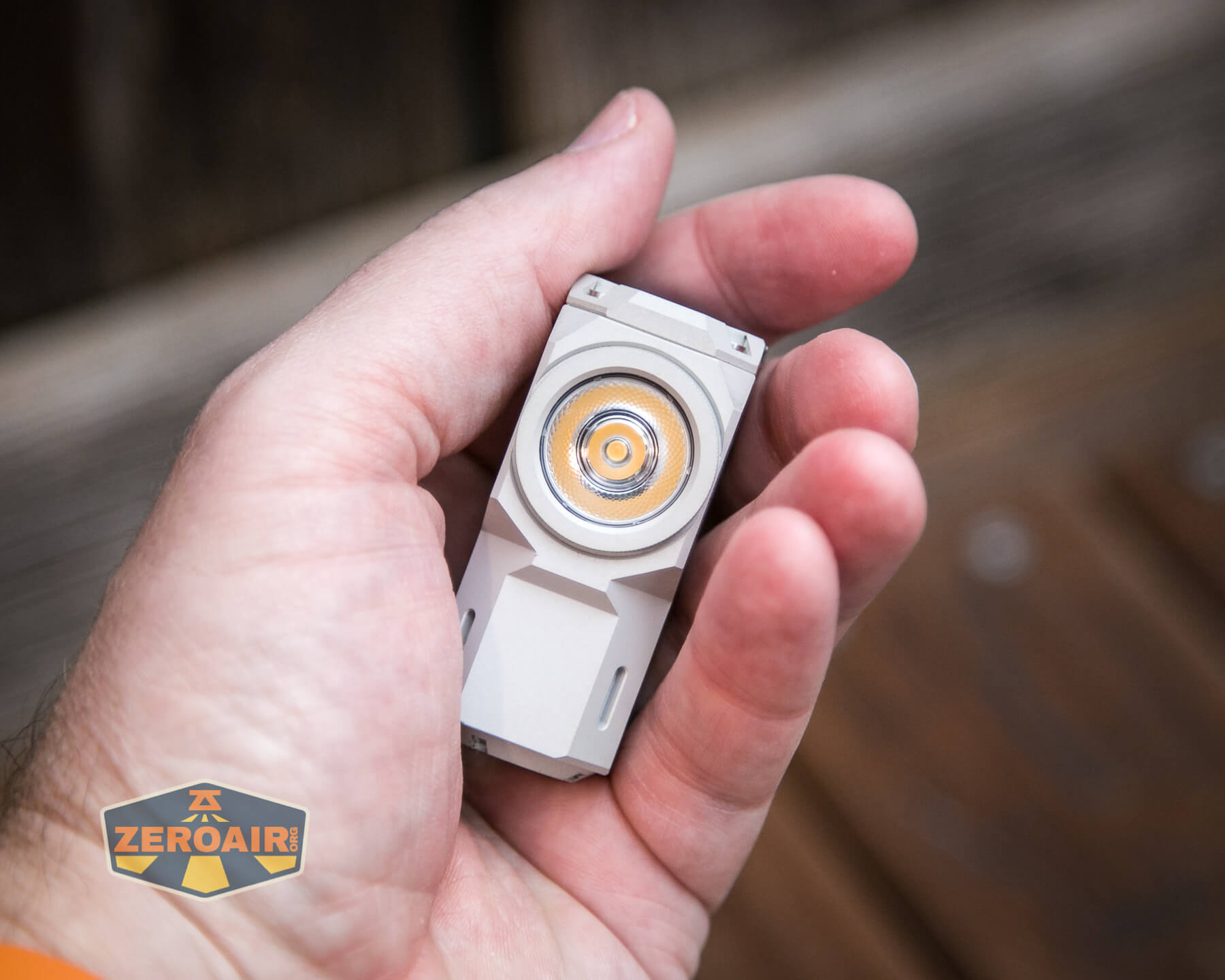

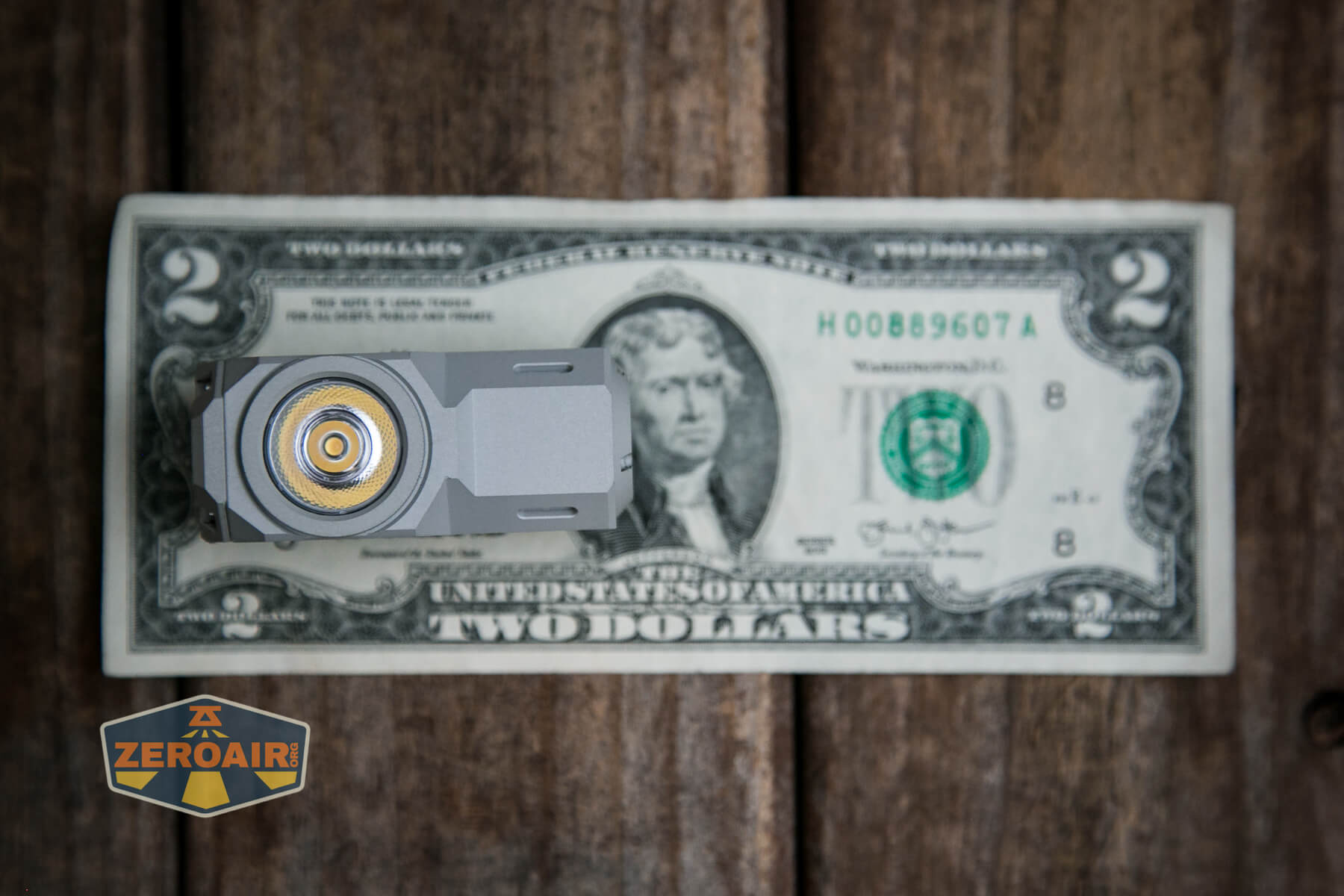

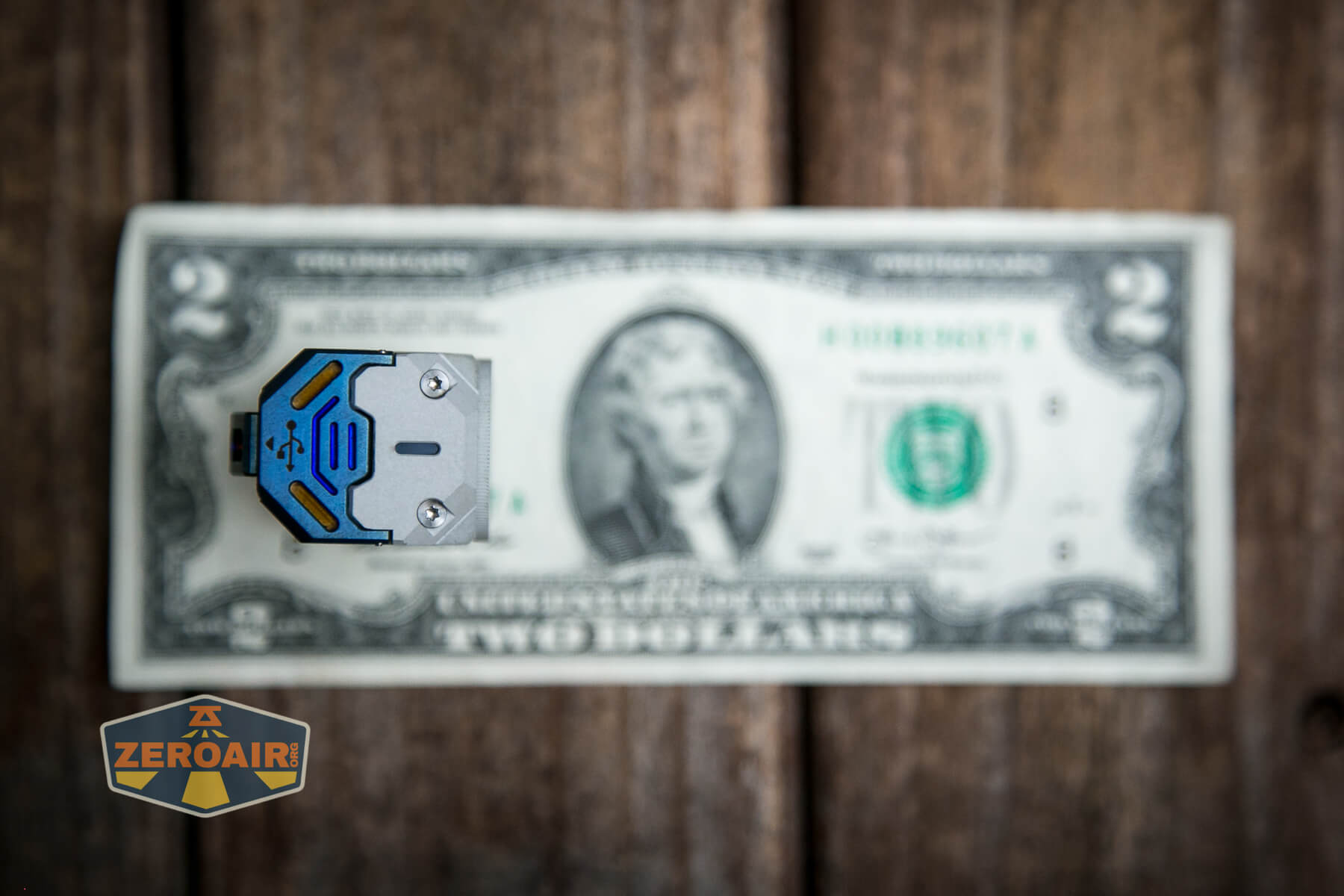

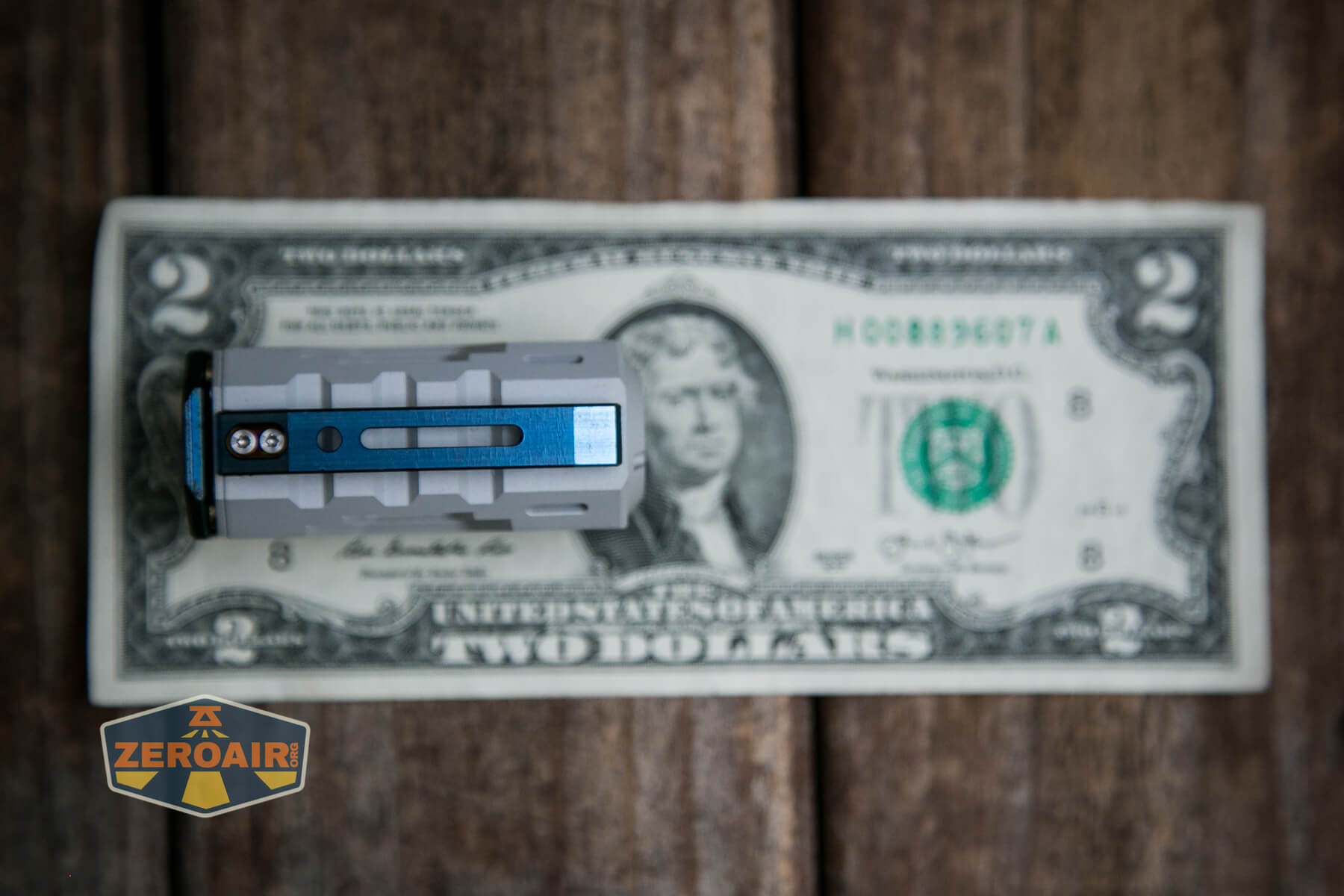

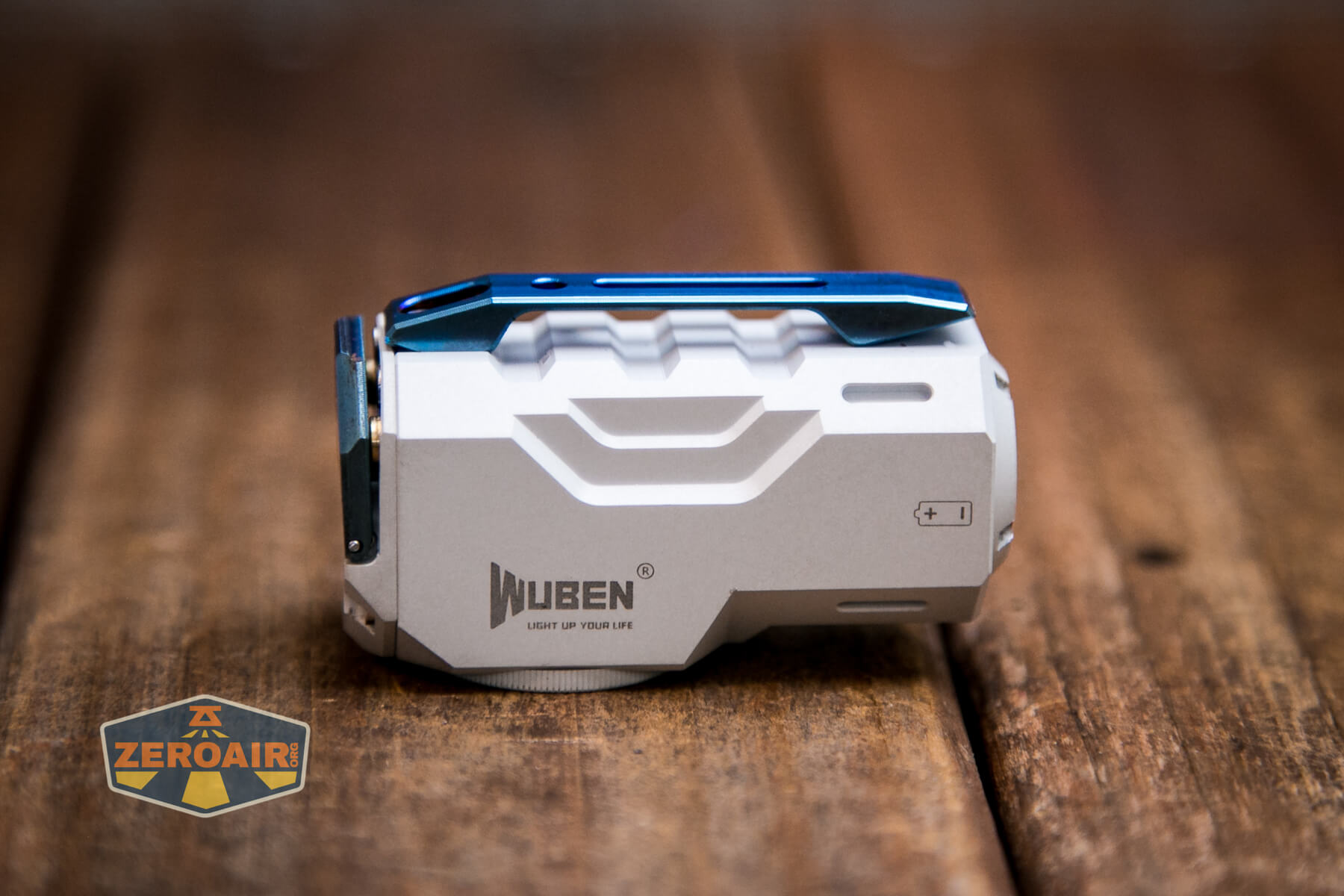

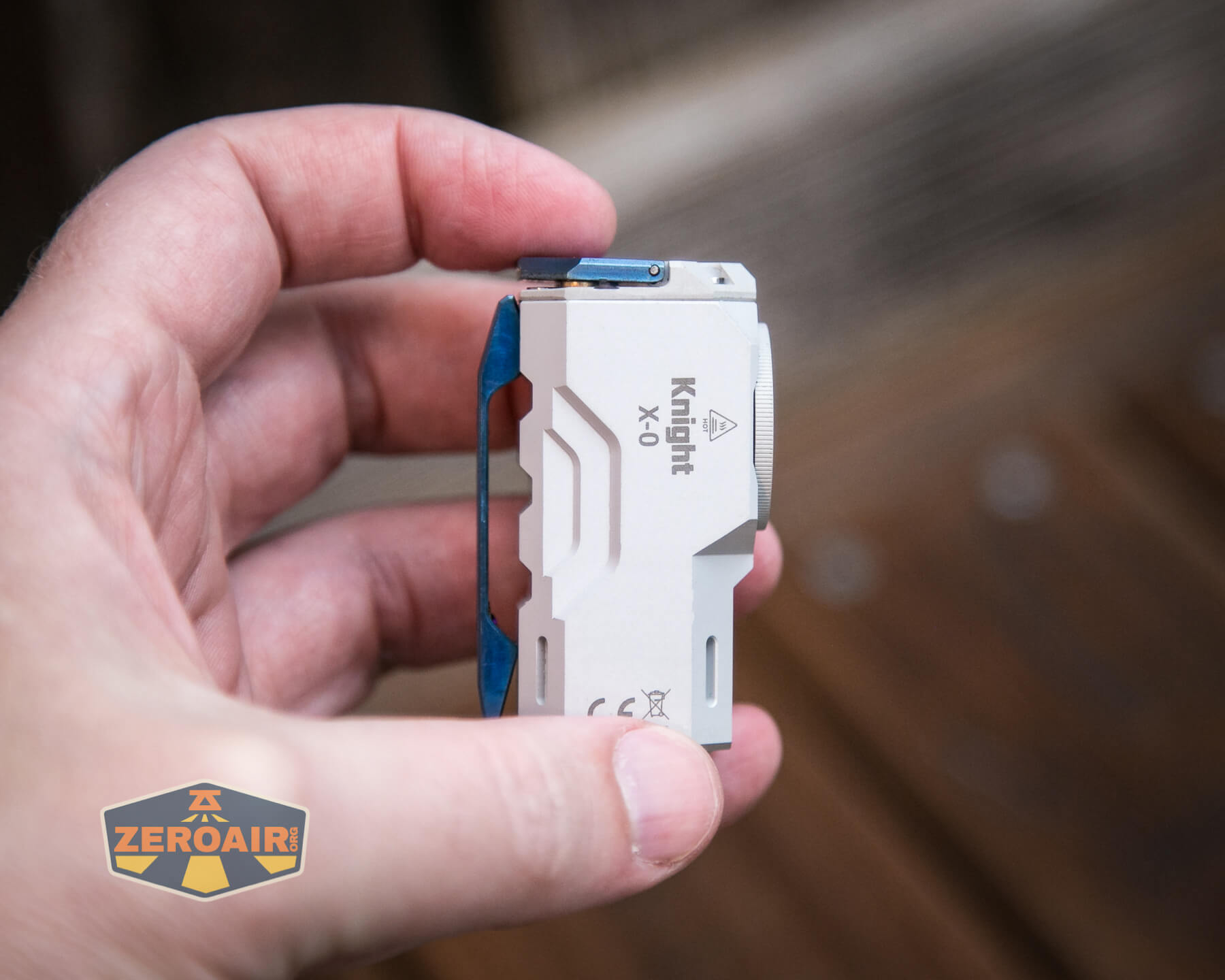

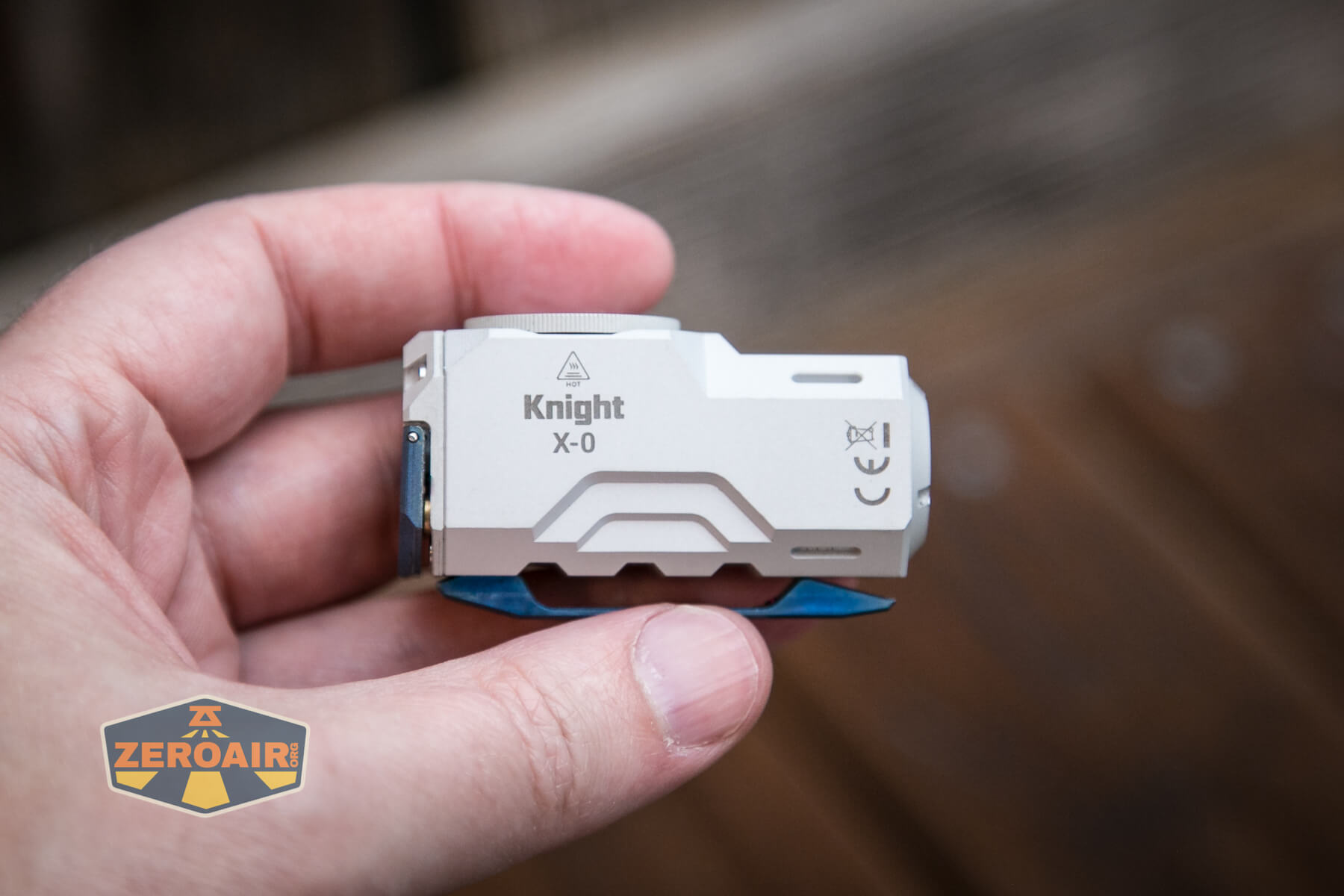

If the flashlight will headstand, I’ll show it here (usually the third photo).  If the flashlight will tailstand, I’ll show that here, too (usually the fourth photo).

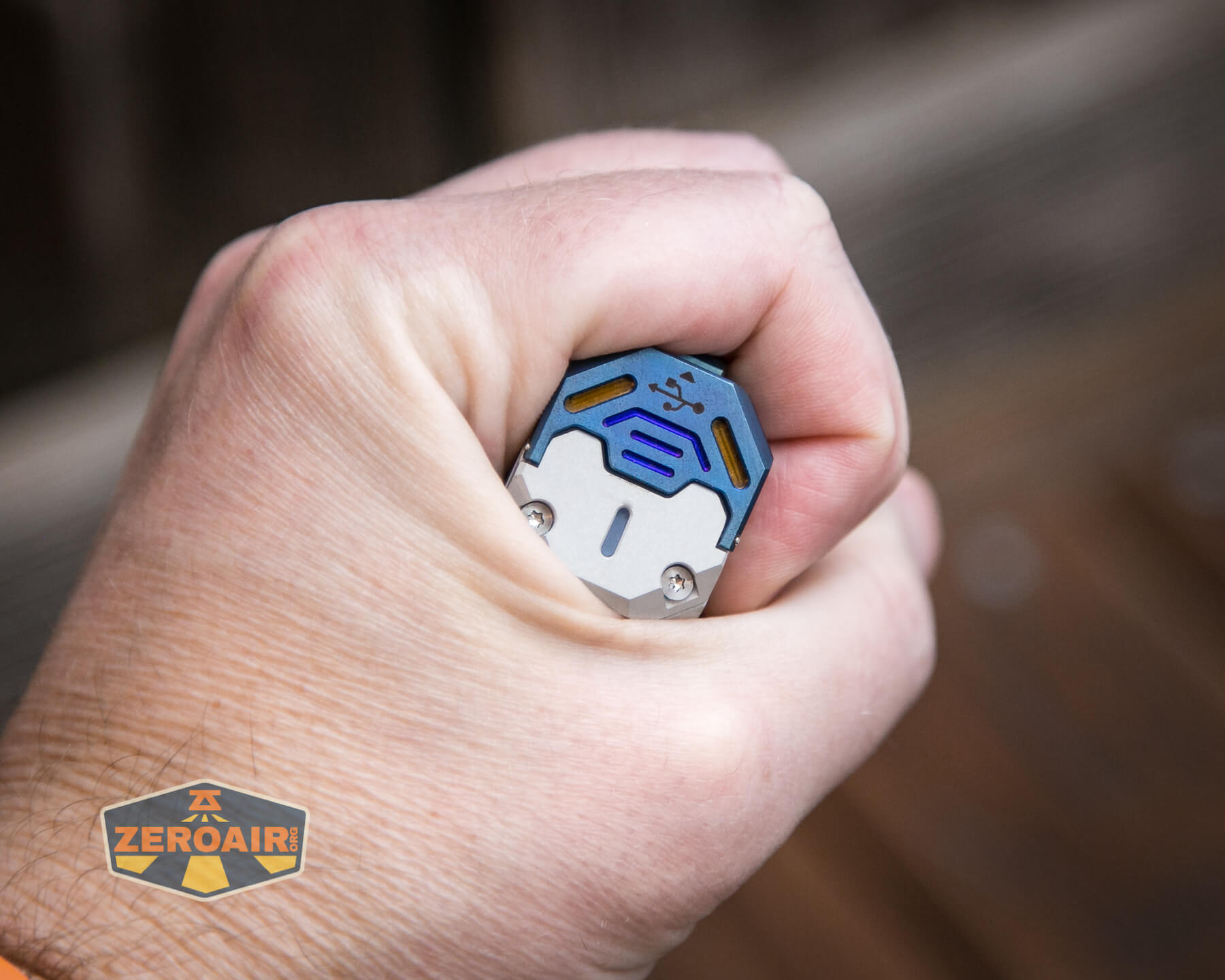

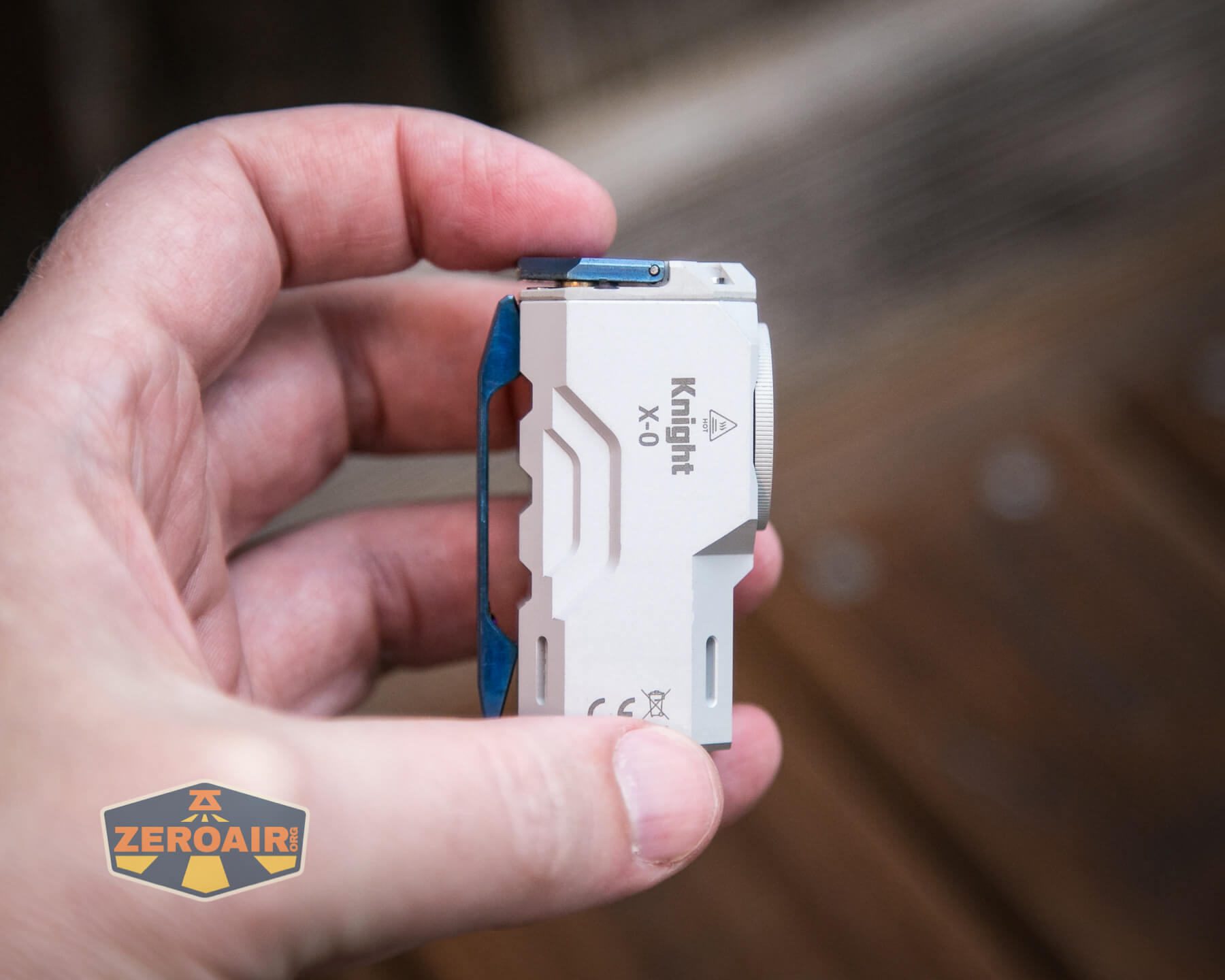

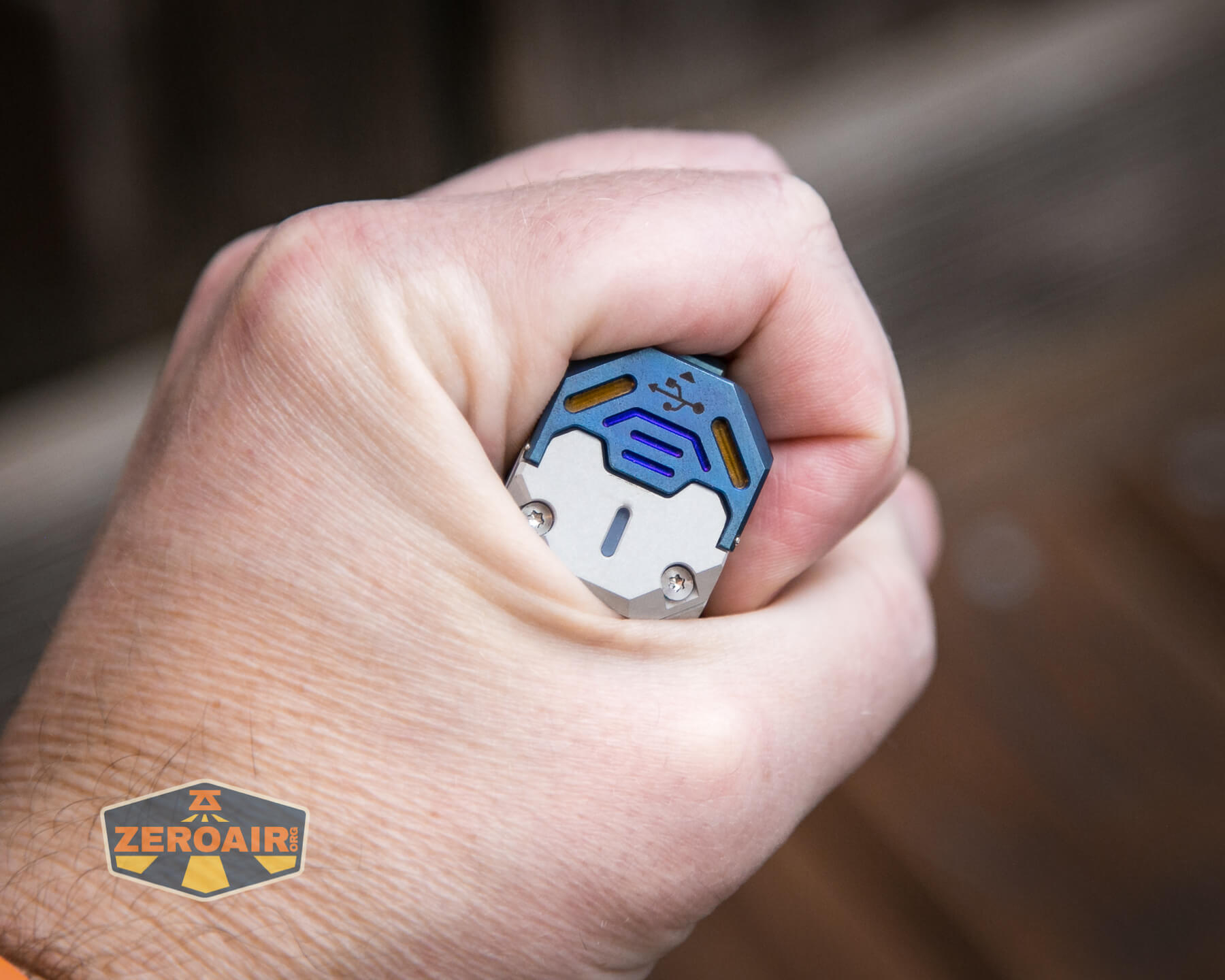

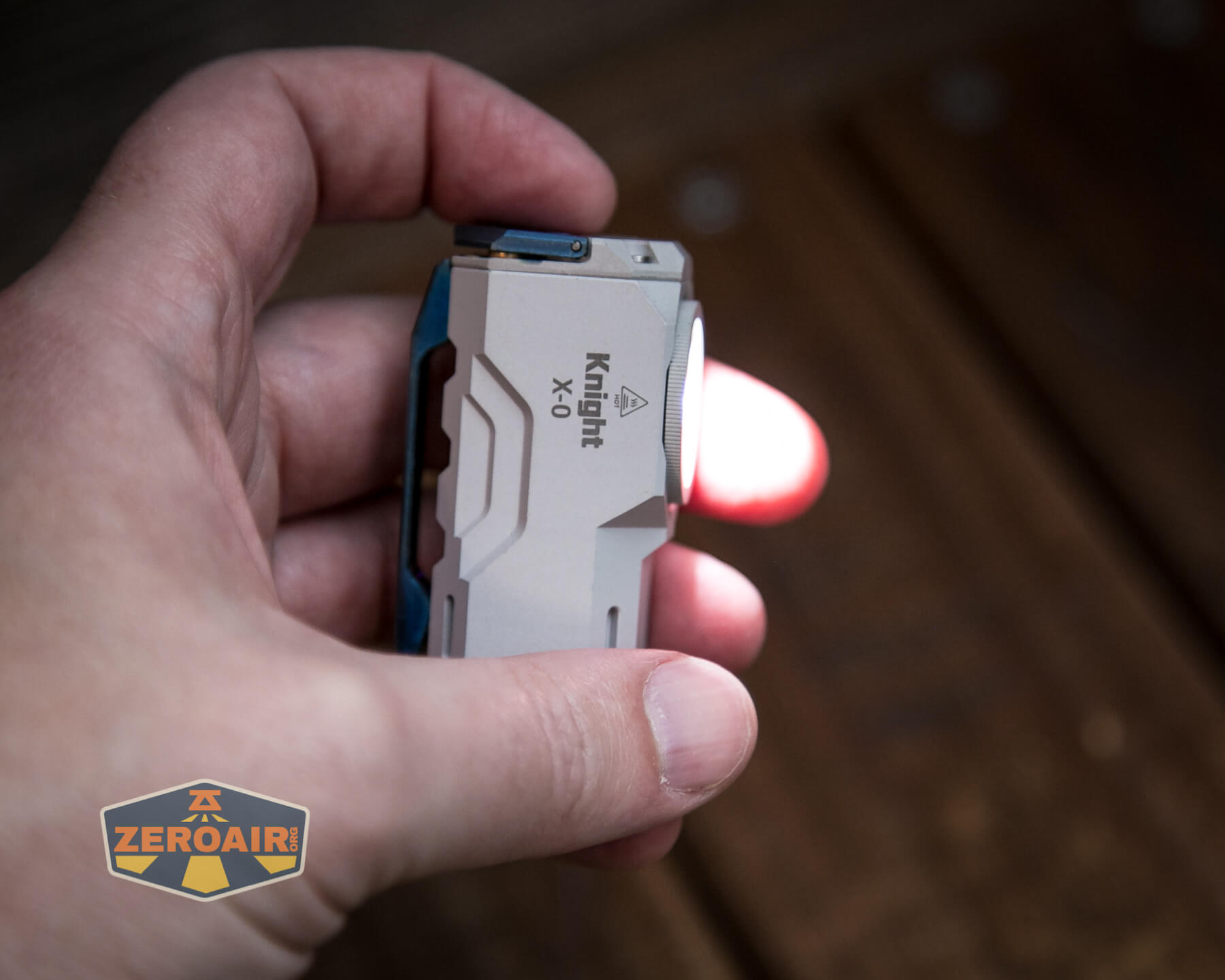

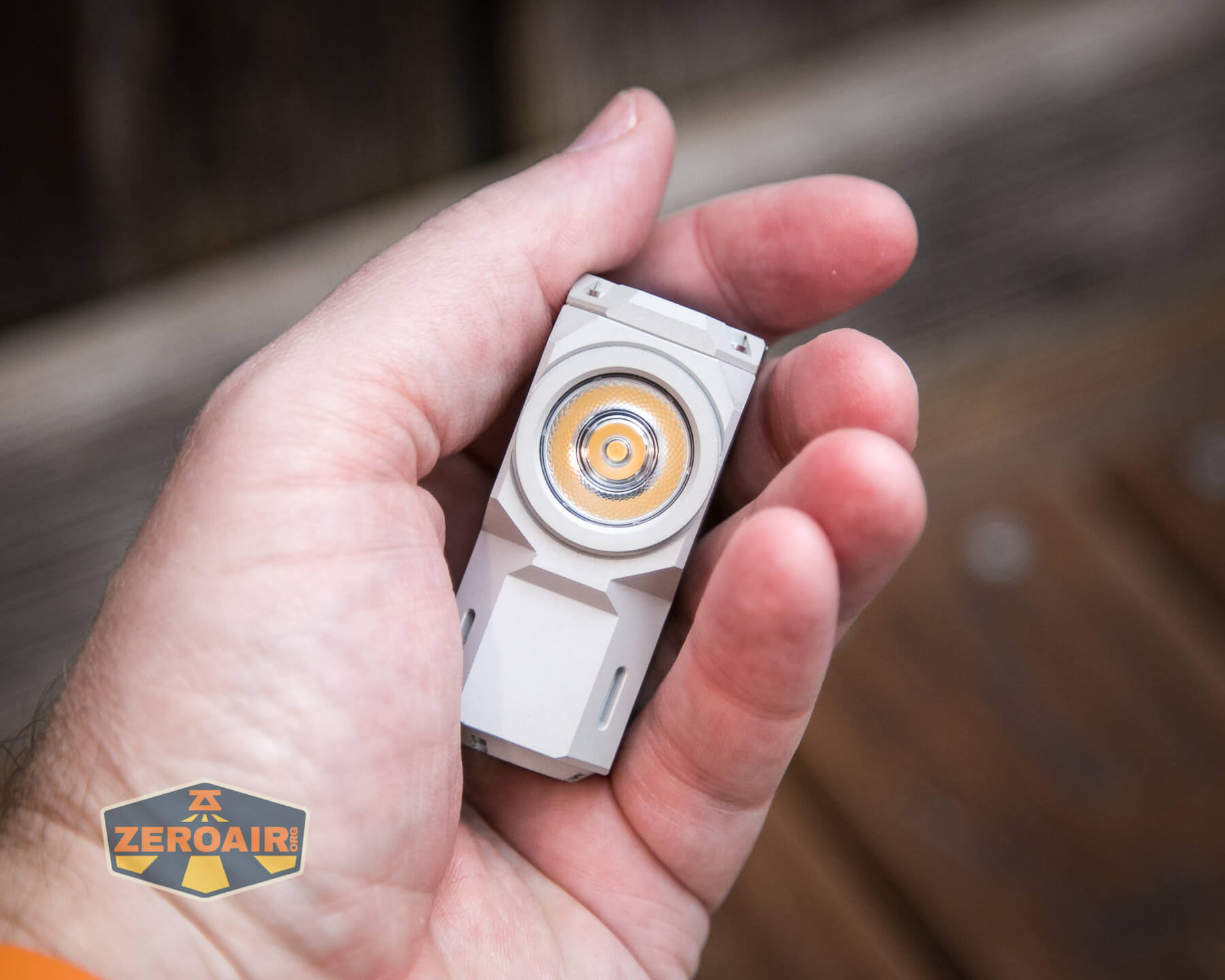

Wuben X-0 Knight flashlight in hand

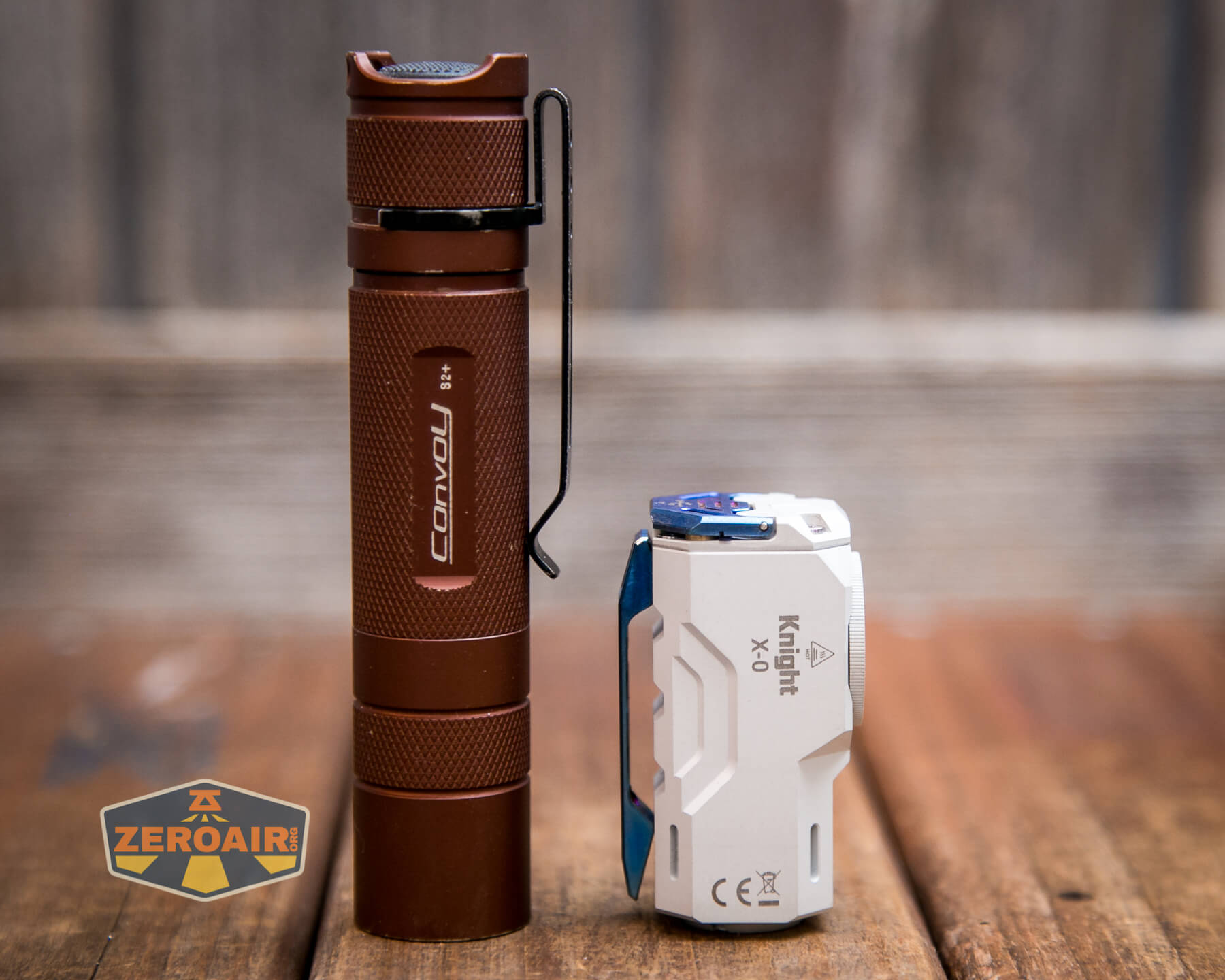

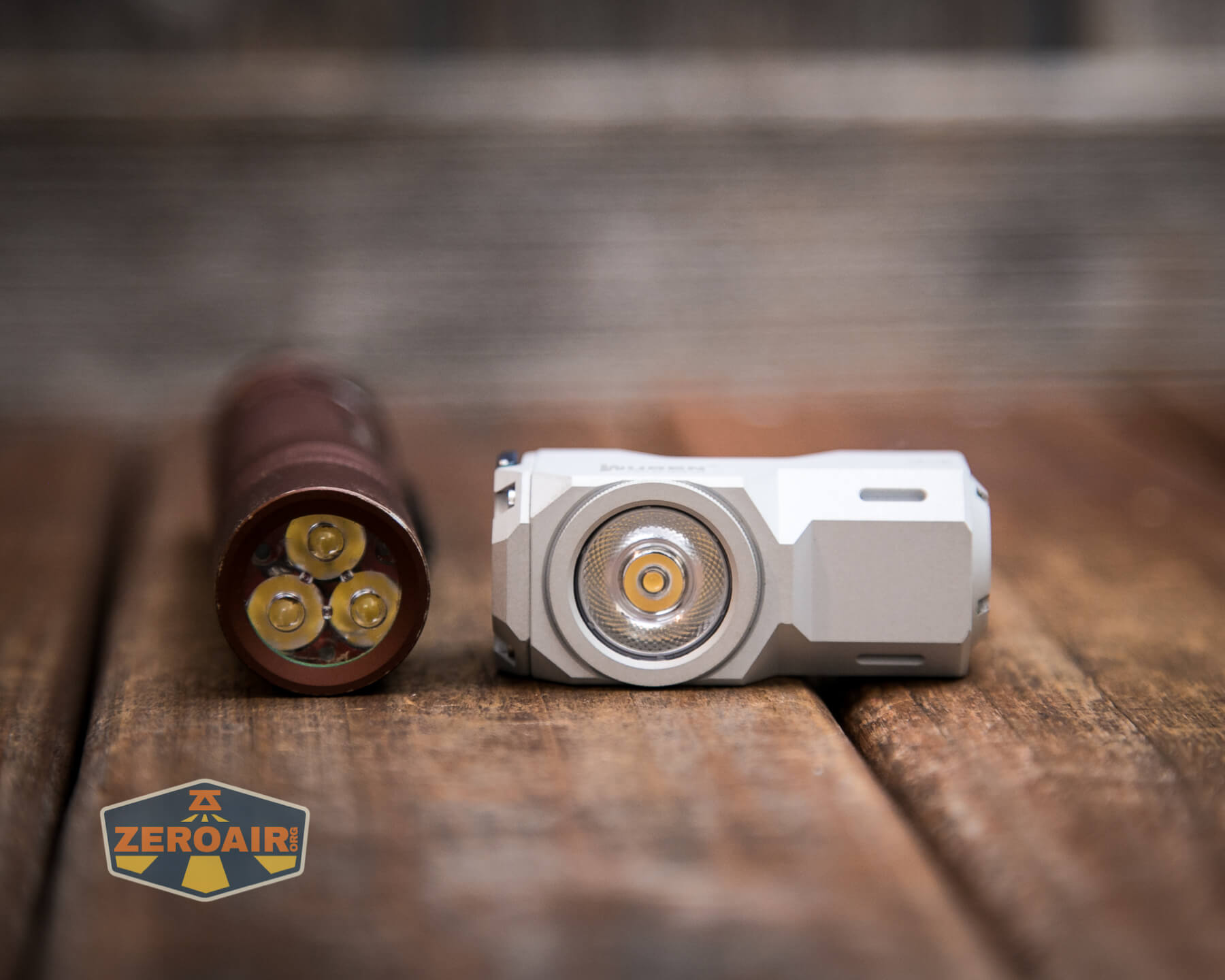

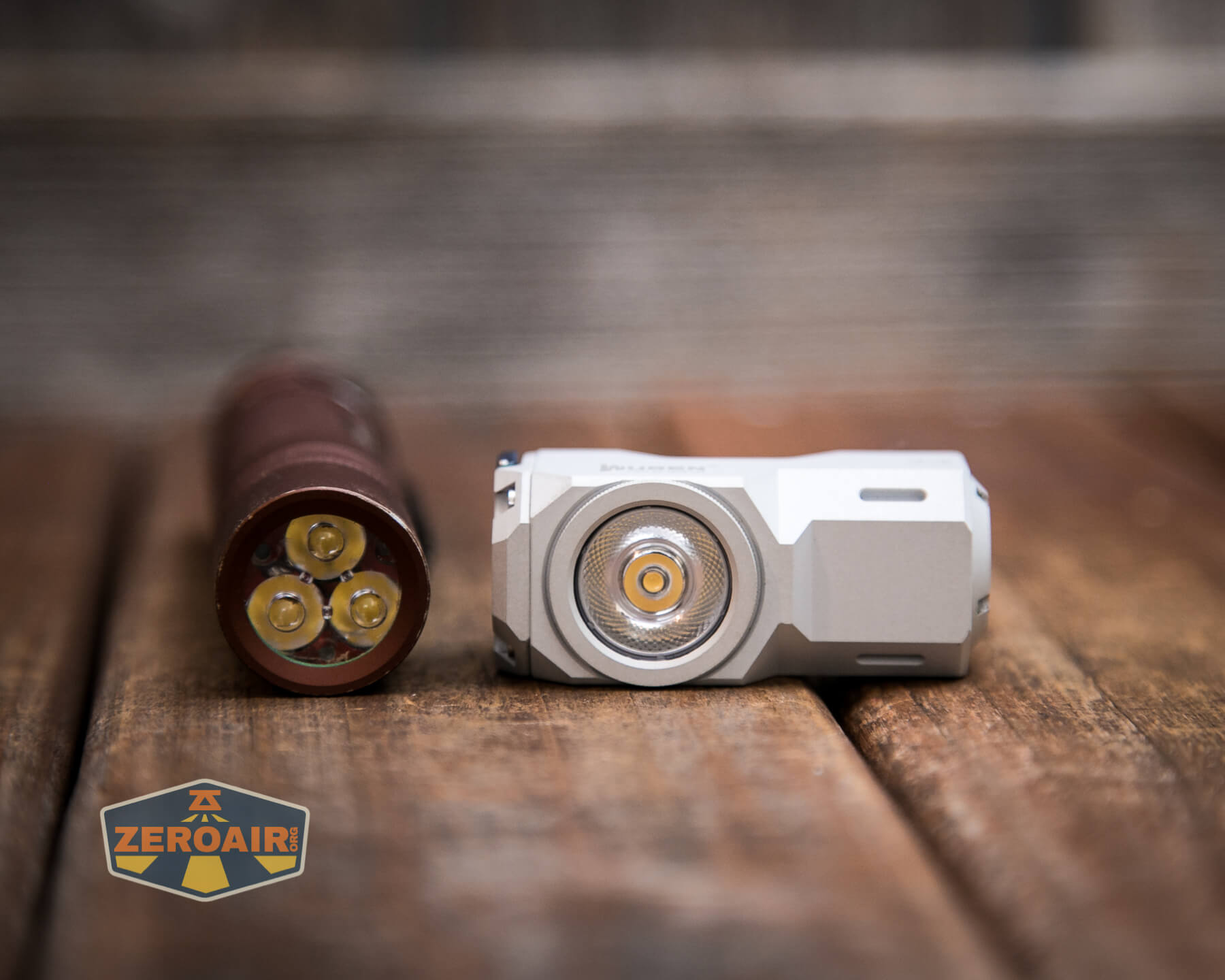

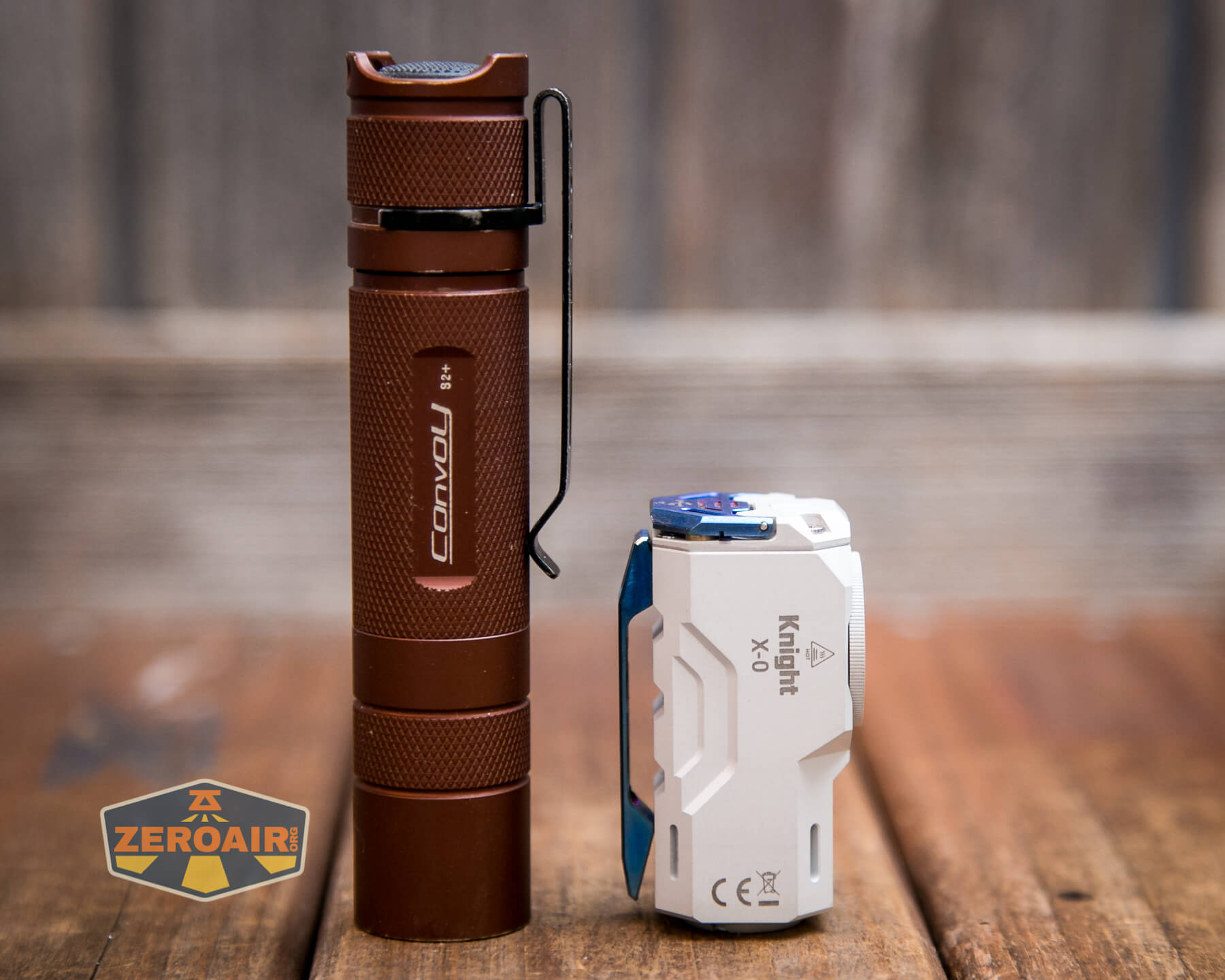

Here’s the test light with the venerable Convoy S2+.  Mine’s a custom “baked” edition Nichia 219b triple.  A very nice 18650 light.

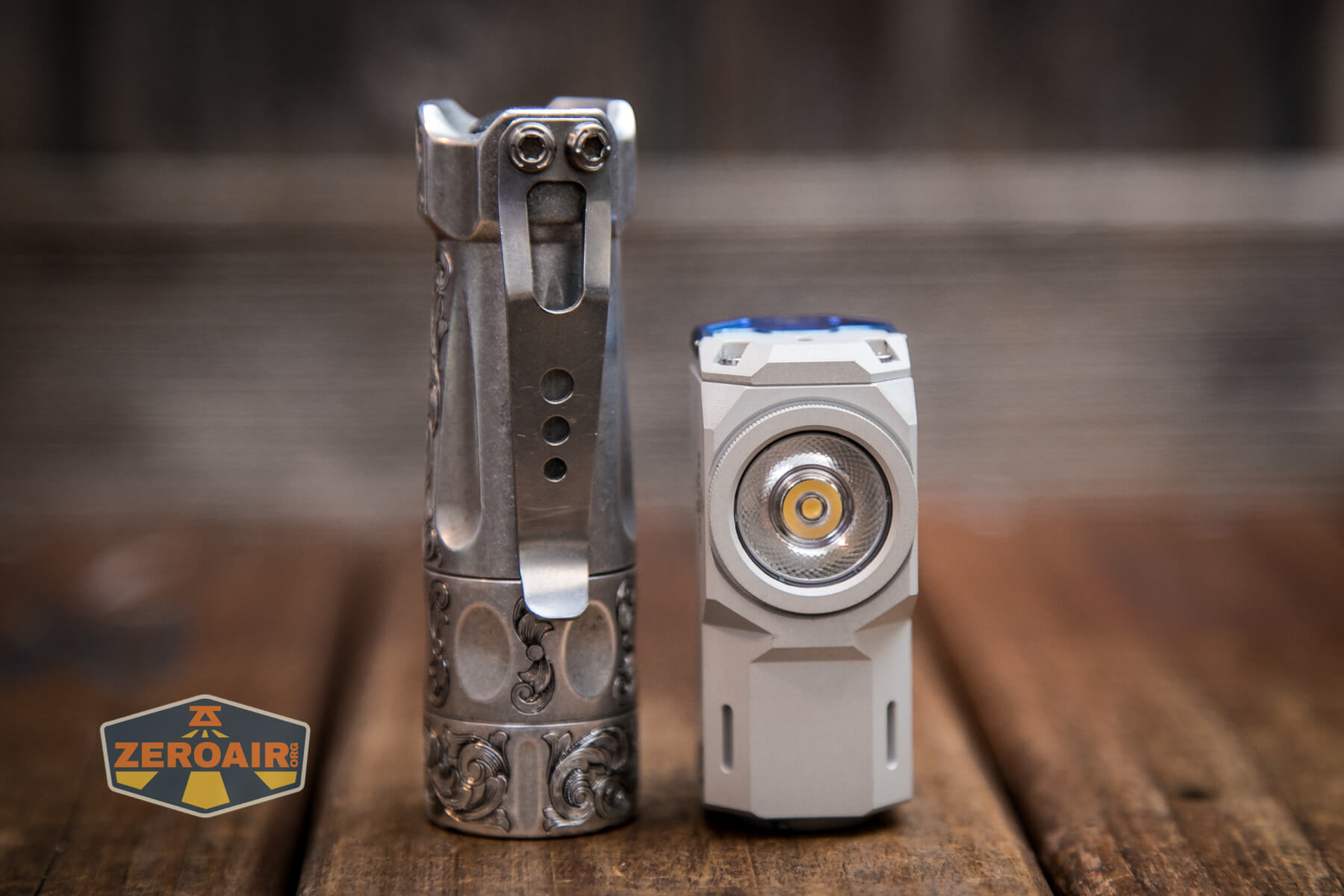

And here’s the light beside my custom engraved TorchLAB BOSS 35, an 18350 light.  I reviewed the aluminum version of that light in both 35 and 70 formats.

Wuben X-0 Knight flashlight beside the TorchLAB BOSS 35 (custom engraved)

Retention and Carry

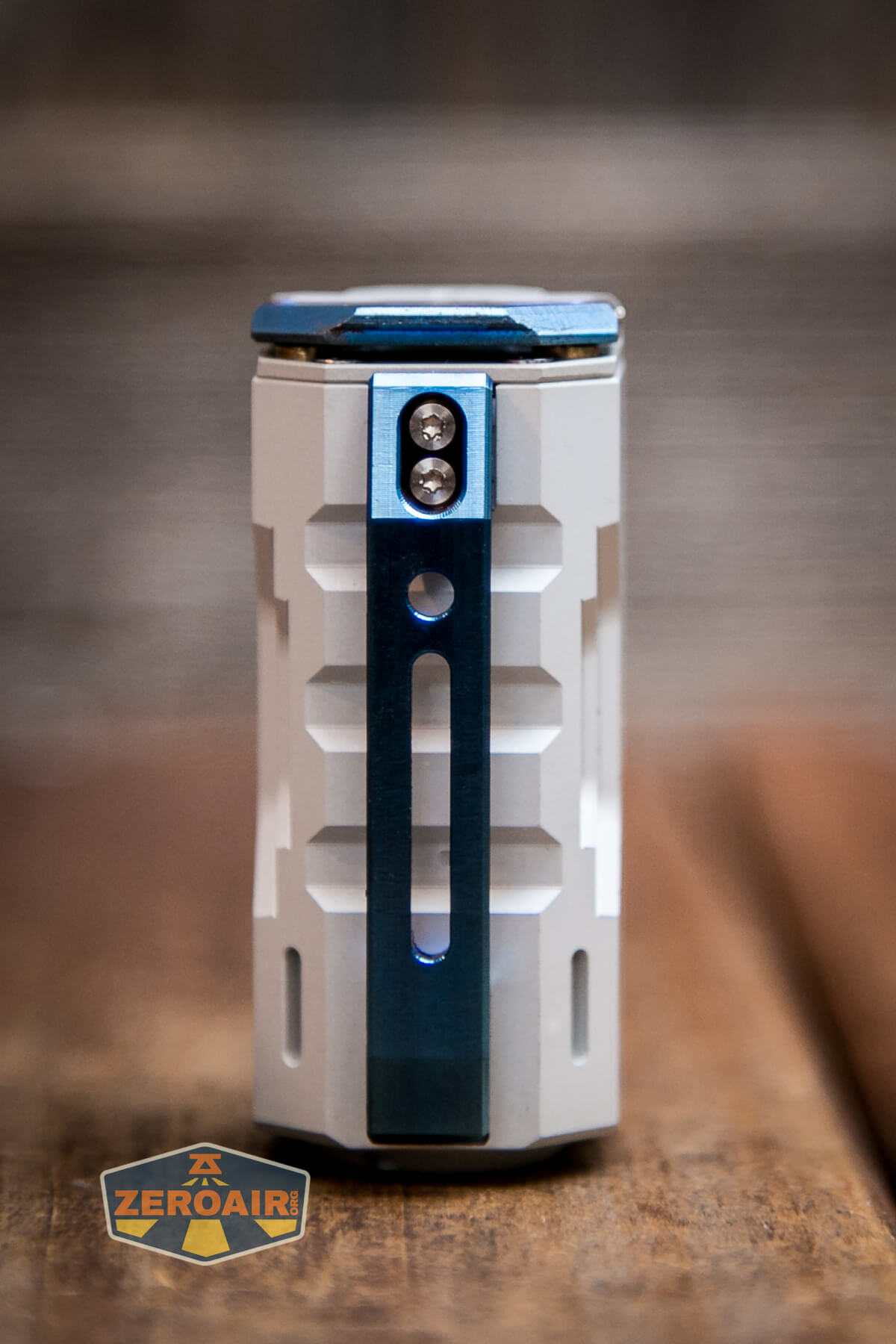

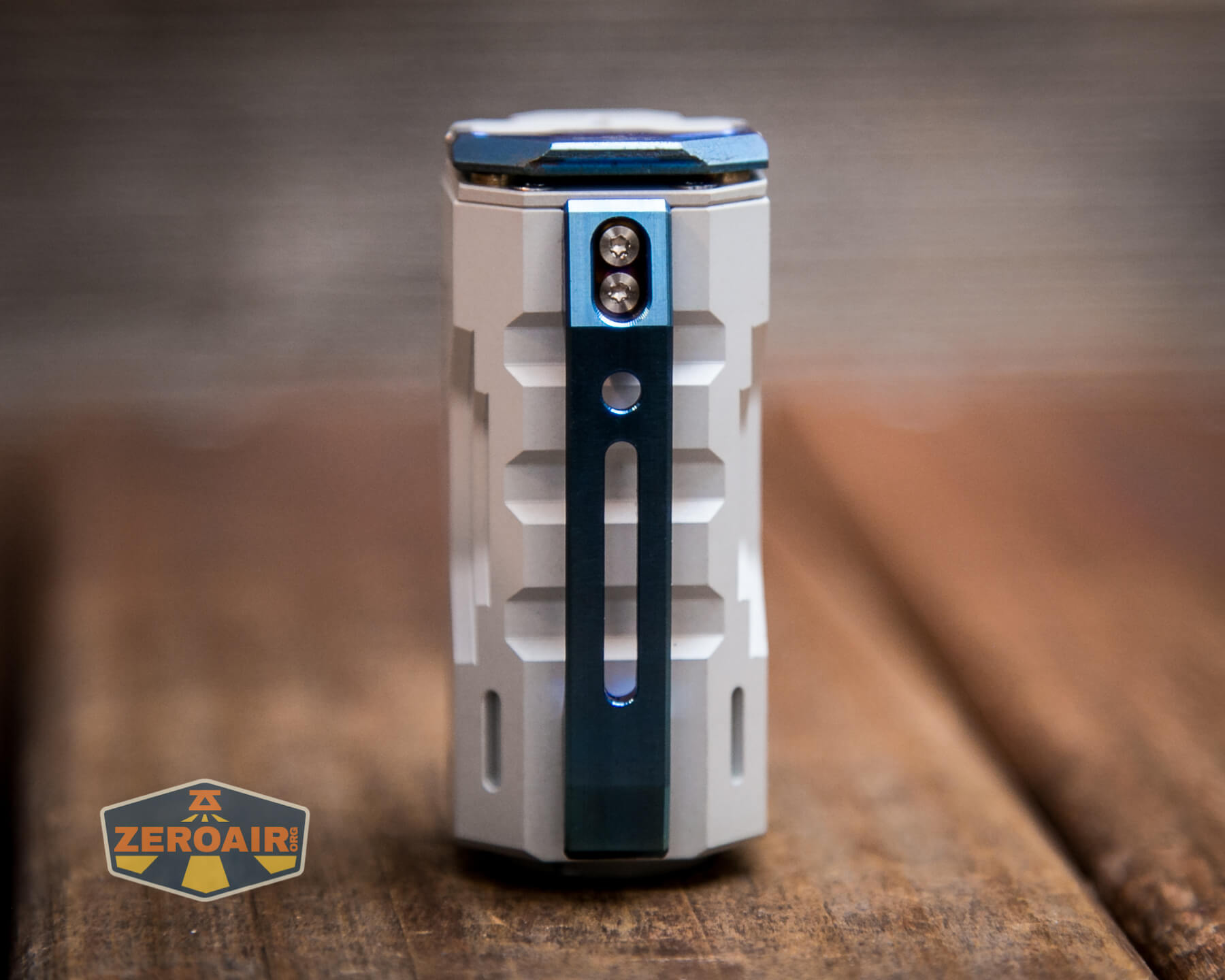

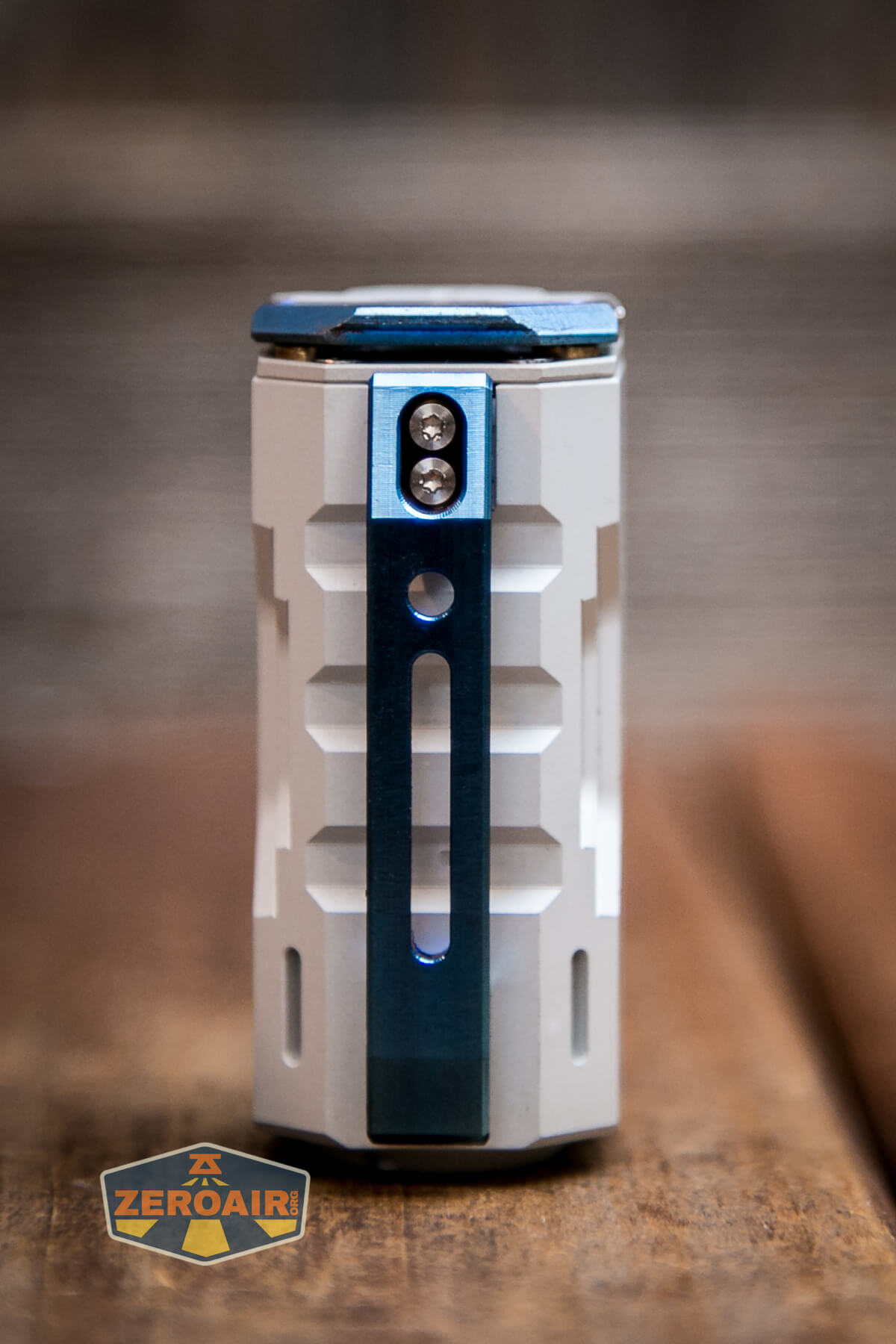

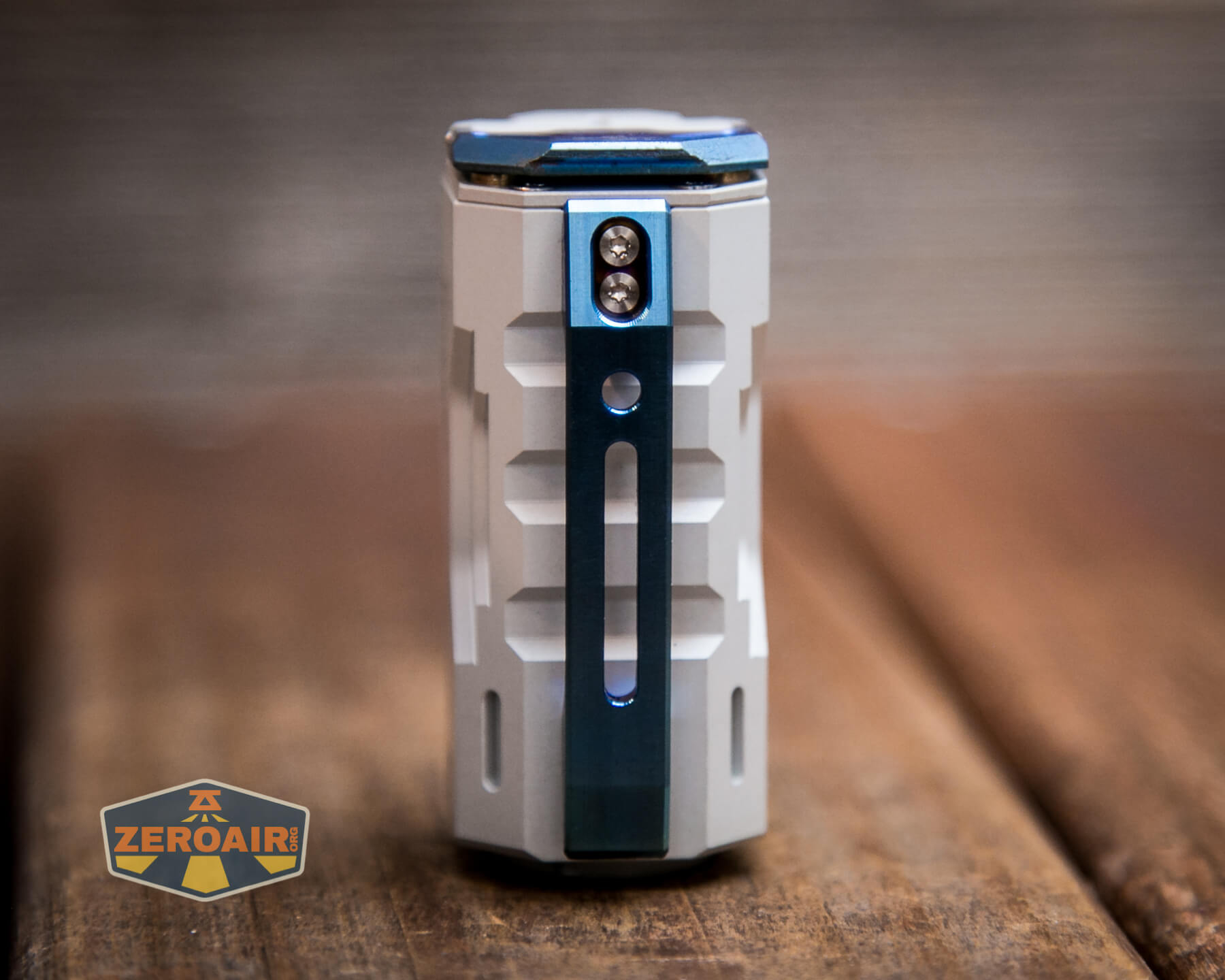

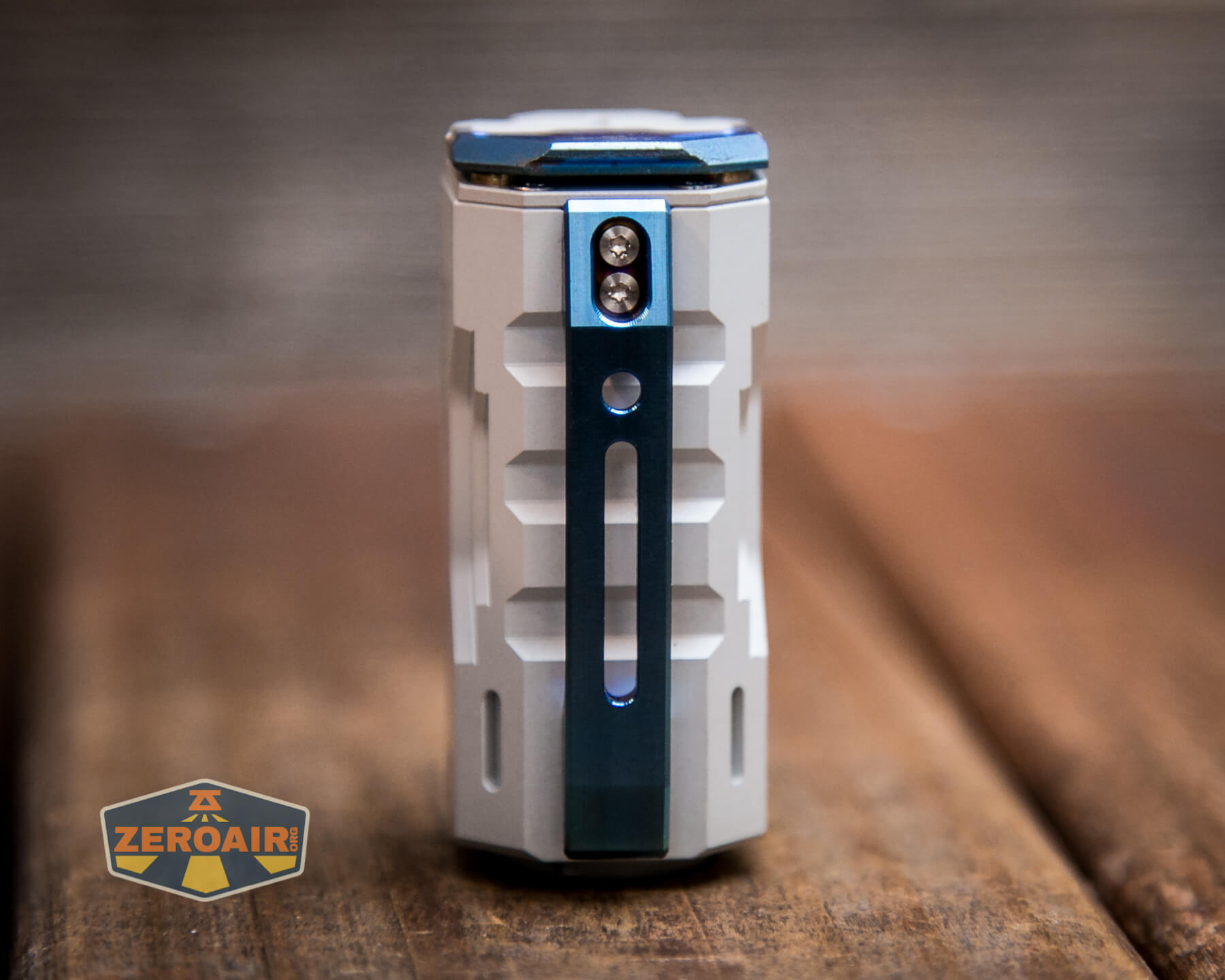

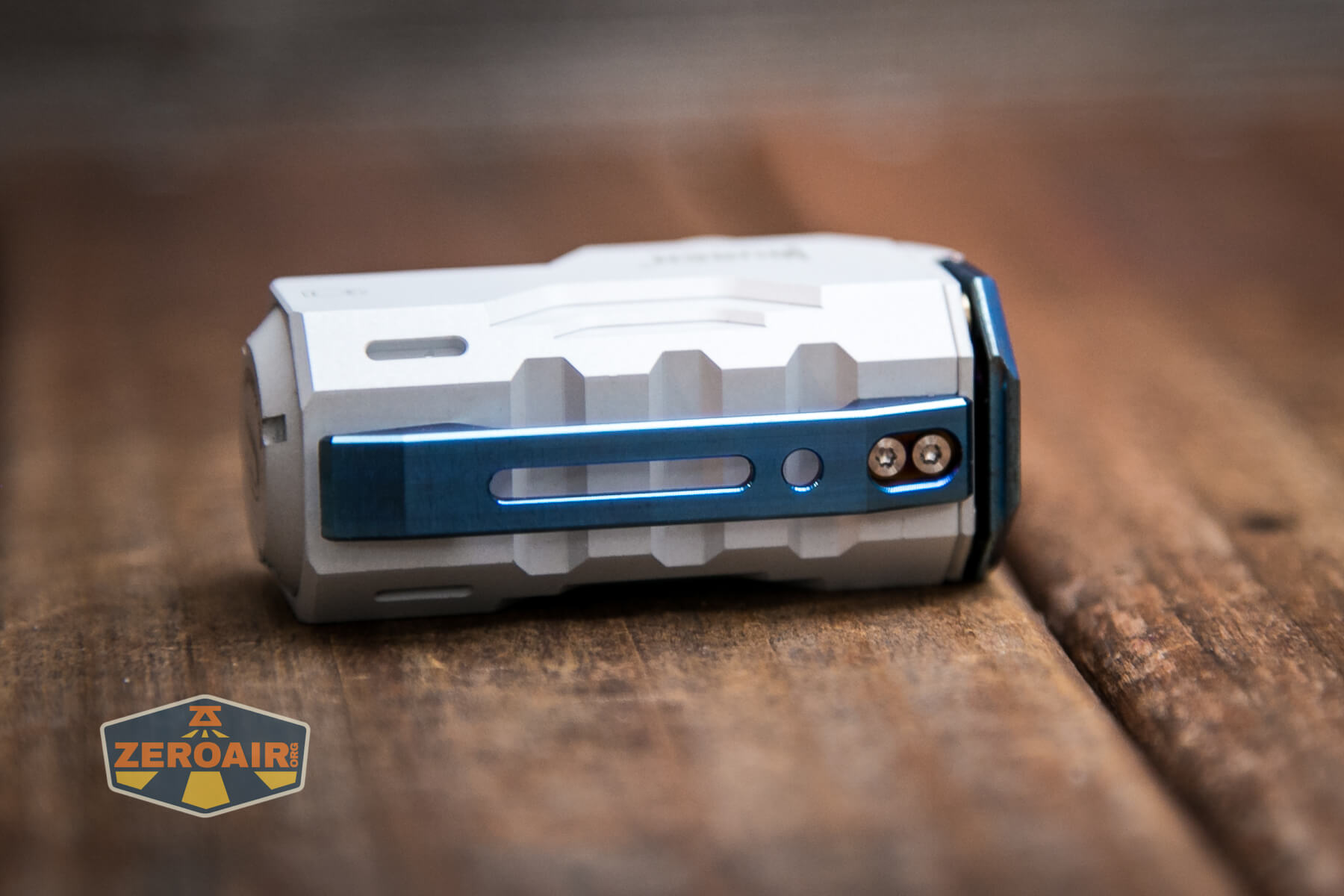

A screw-down pocket clip is attached from the factory. This clip carries the design of the body, which is a nice touch.

Wuben X-0 Knight flashlight pocket clip

The clip also matches the switch in color of anodizing. Another nice touch!

I did find the clip just a bit hard to use because the mouth is quite narrow and it’s across a flat part of the light (the whole light is flat parts!). Anyway, the carry isn’t as deep as I’d want to carry such a short light, so I would certainly carry this light deep in a pocket. I’d lock it out first. 😀

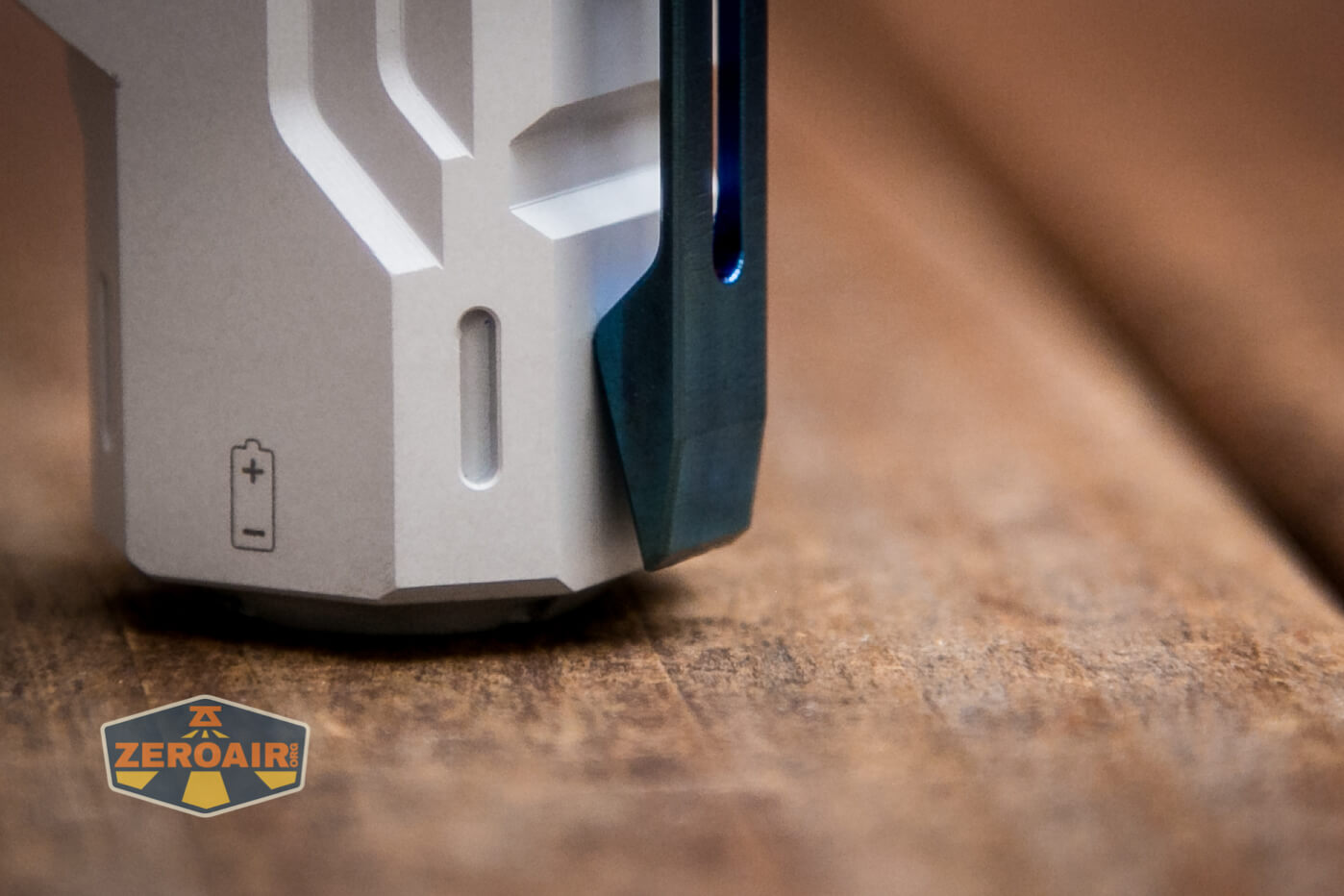

Wuben X-0 Knight flashlight pocket clip tip

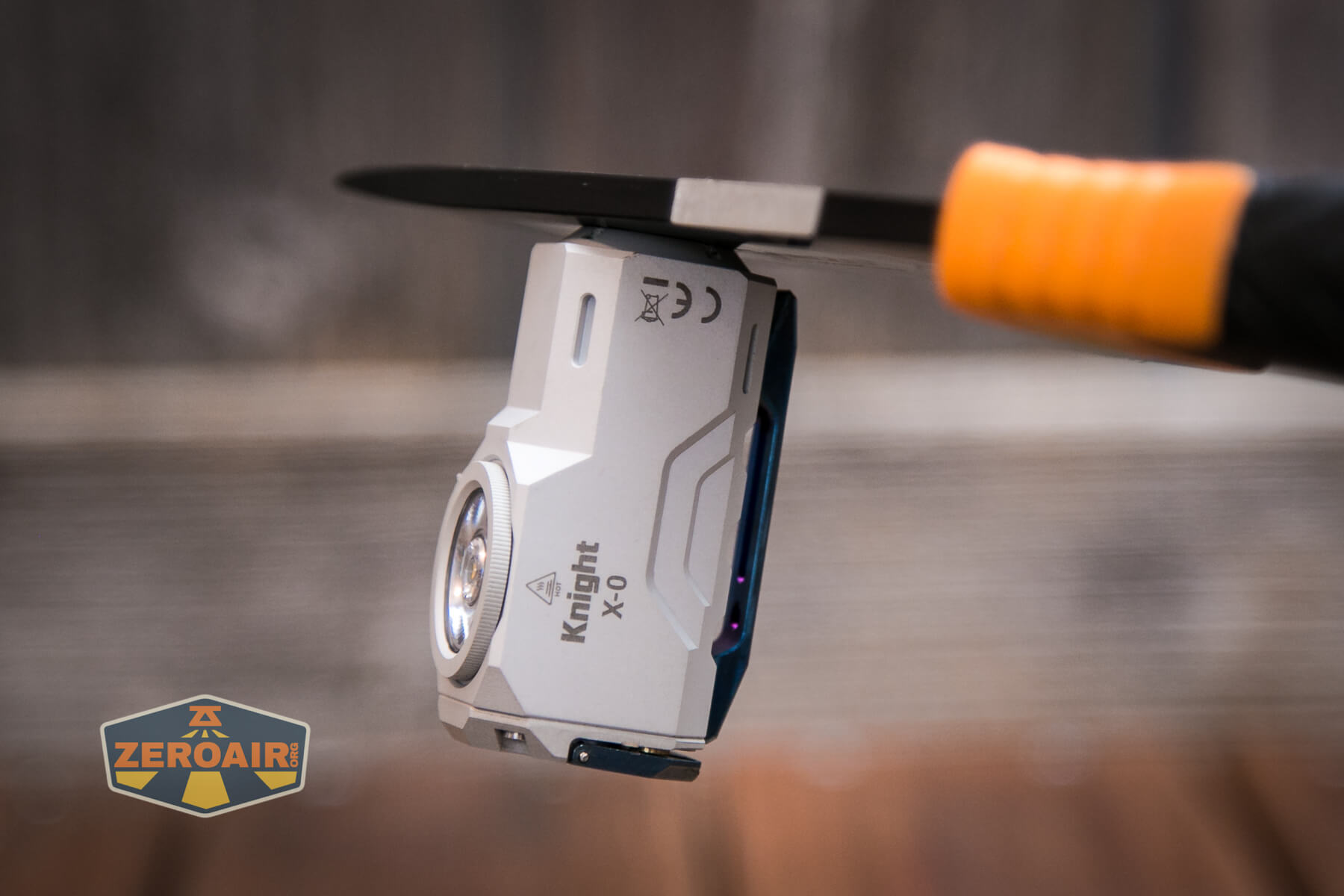

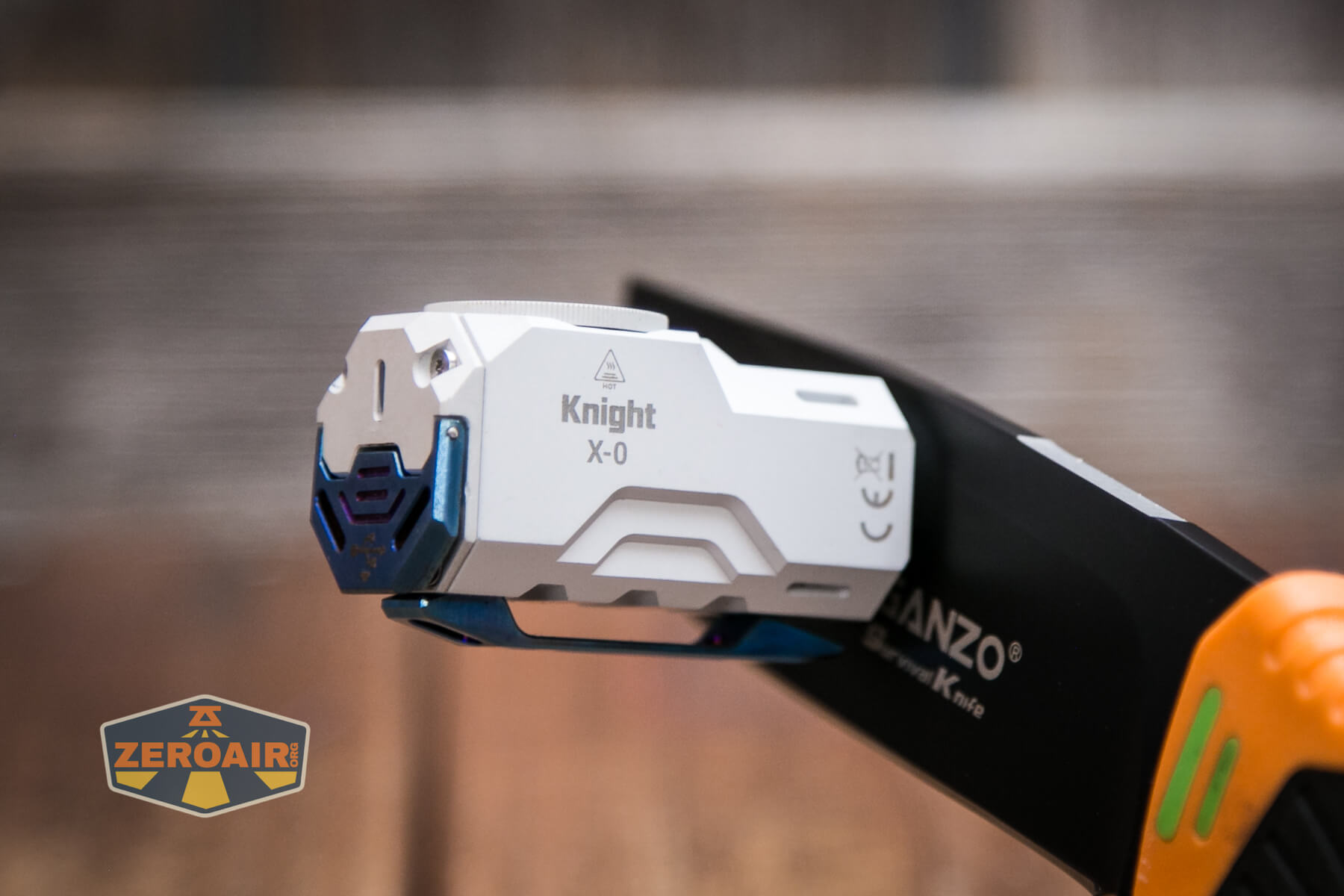

There’s also a magnet, which I mentioned above. The magnet is strong enough to hold the Wuben X-0 Knight flashlight in any orientation.

Wuben X-0 Knight flashlight magnet Wuben X-0 Knight flashlight magnet

The pocket clip has a couple of holes for a lanyard, but a lanyard is not included.

Power and Runtime

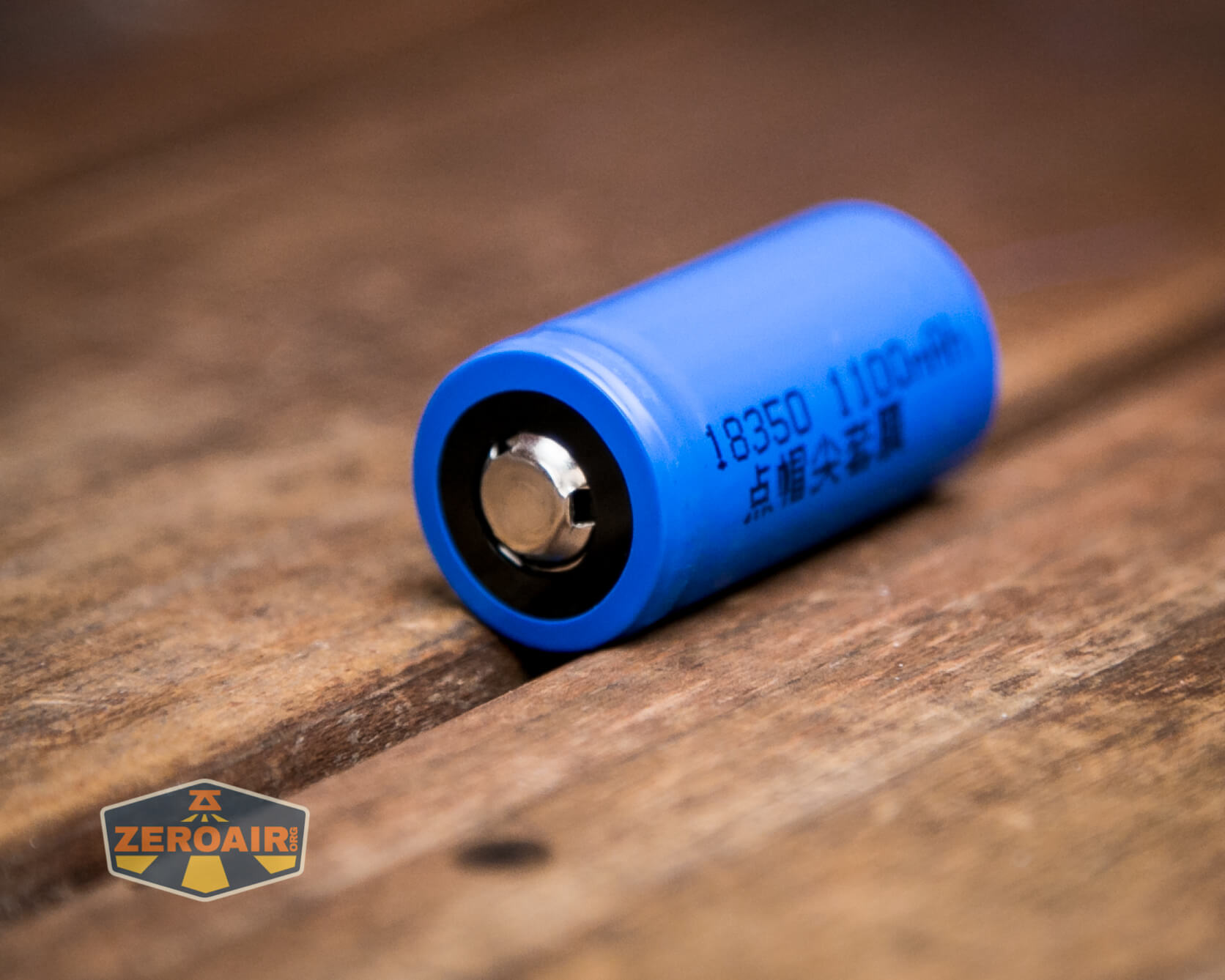

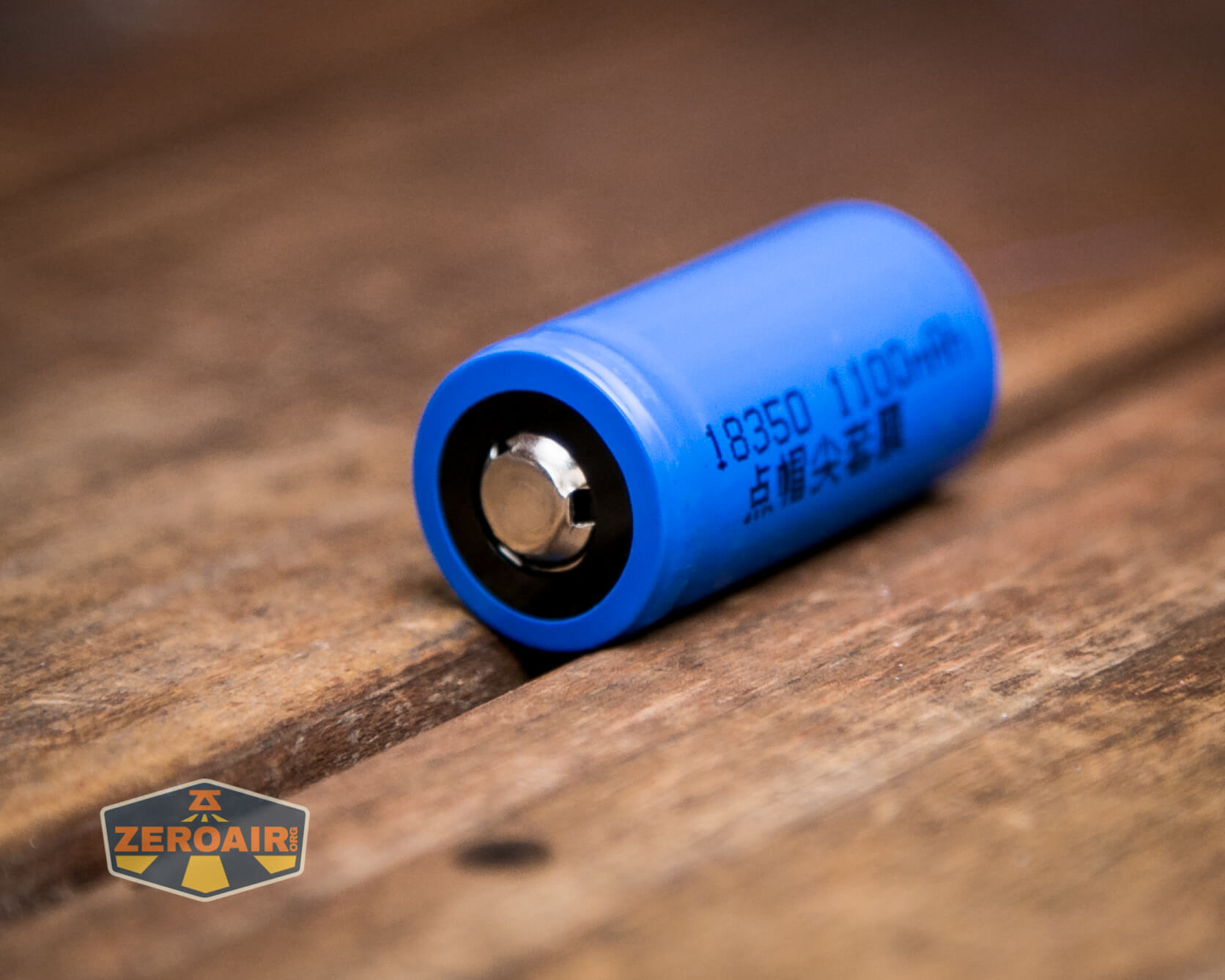

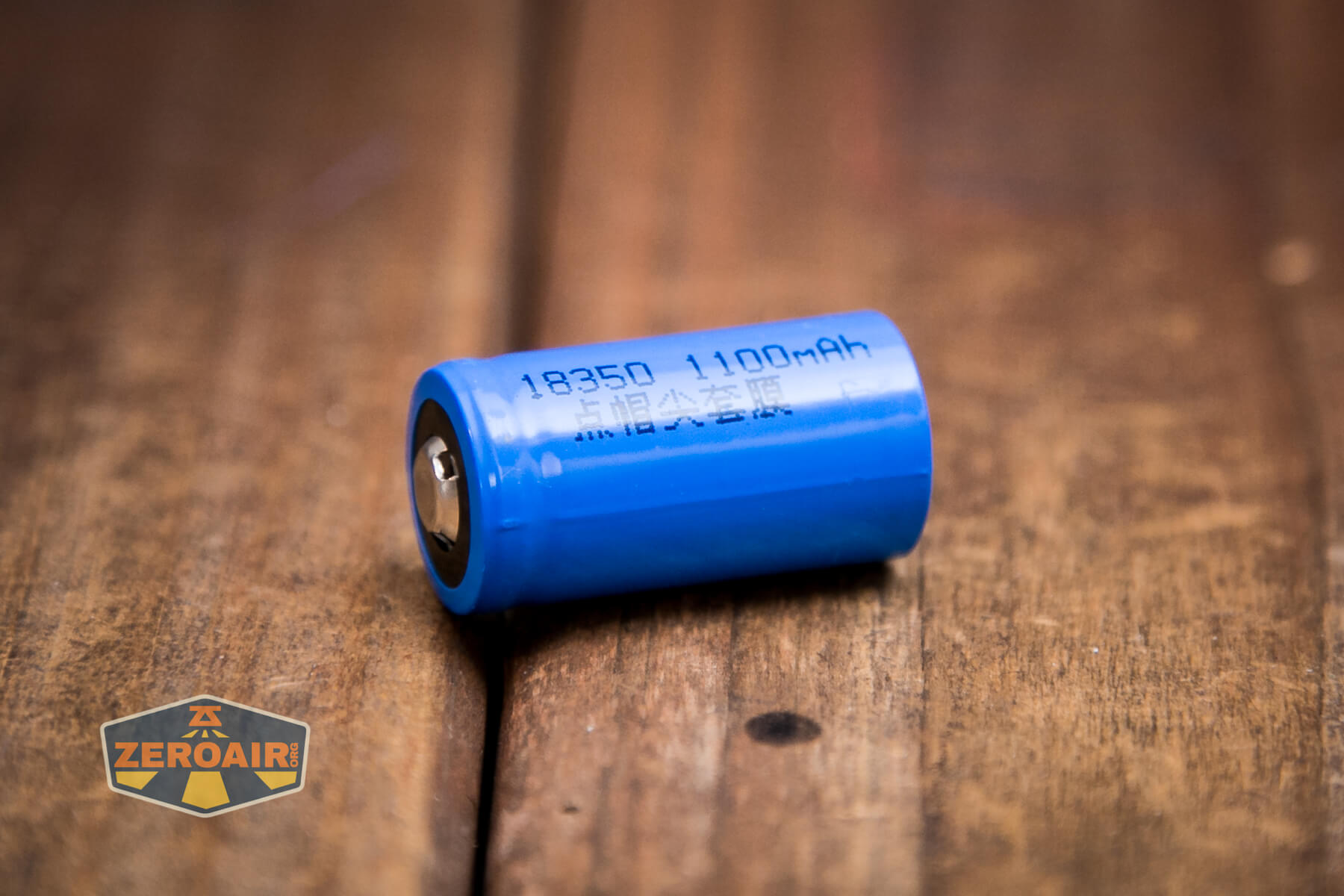

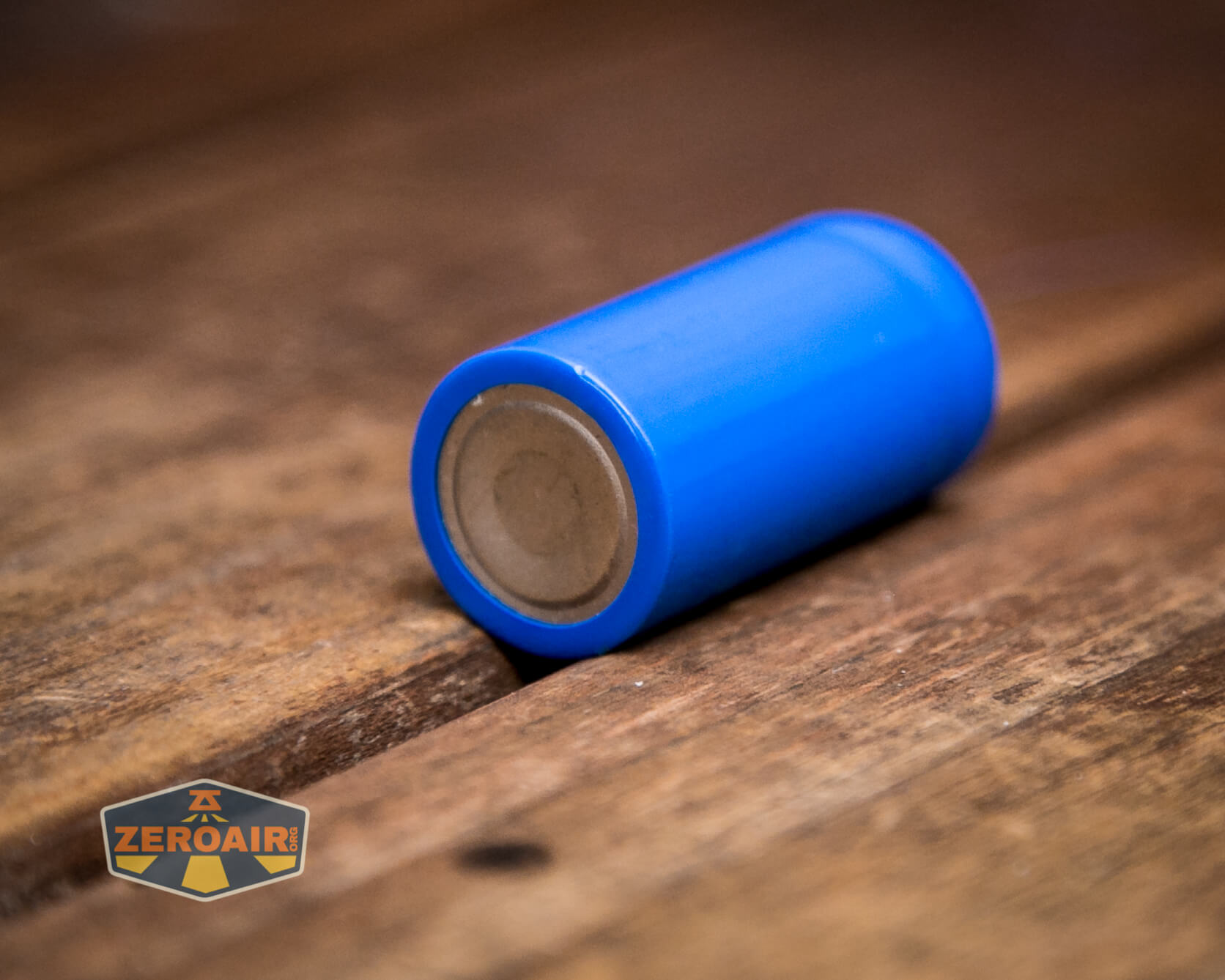

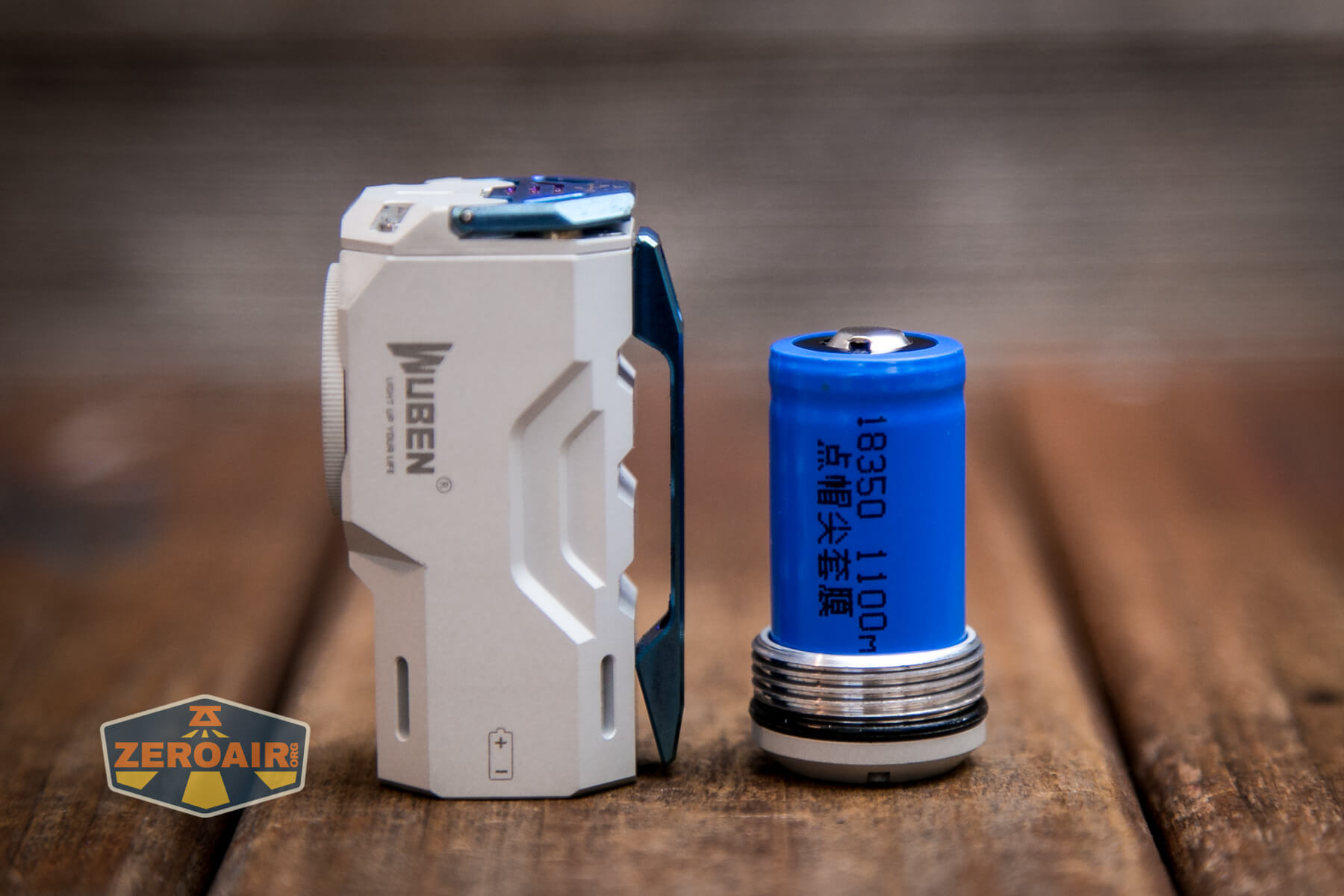

The Wuben X-0 Knight flashlight runs on a single 18350 cell. The button-top cell you see below is included!

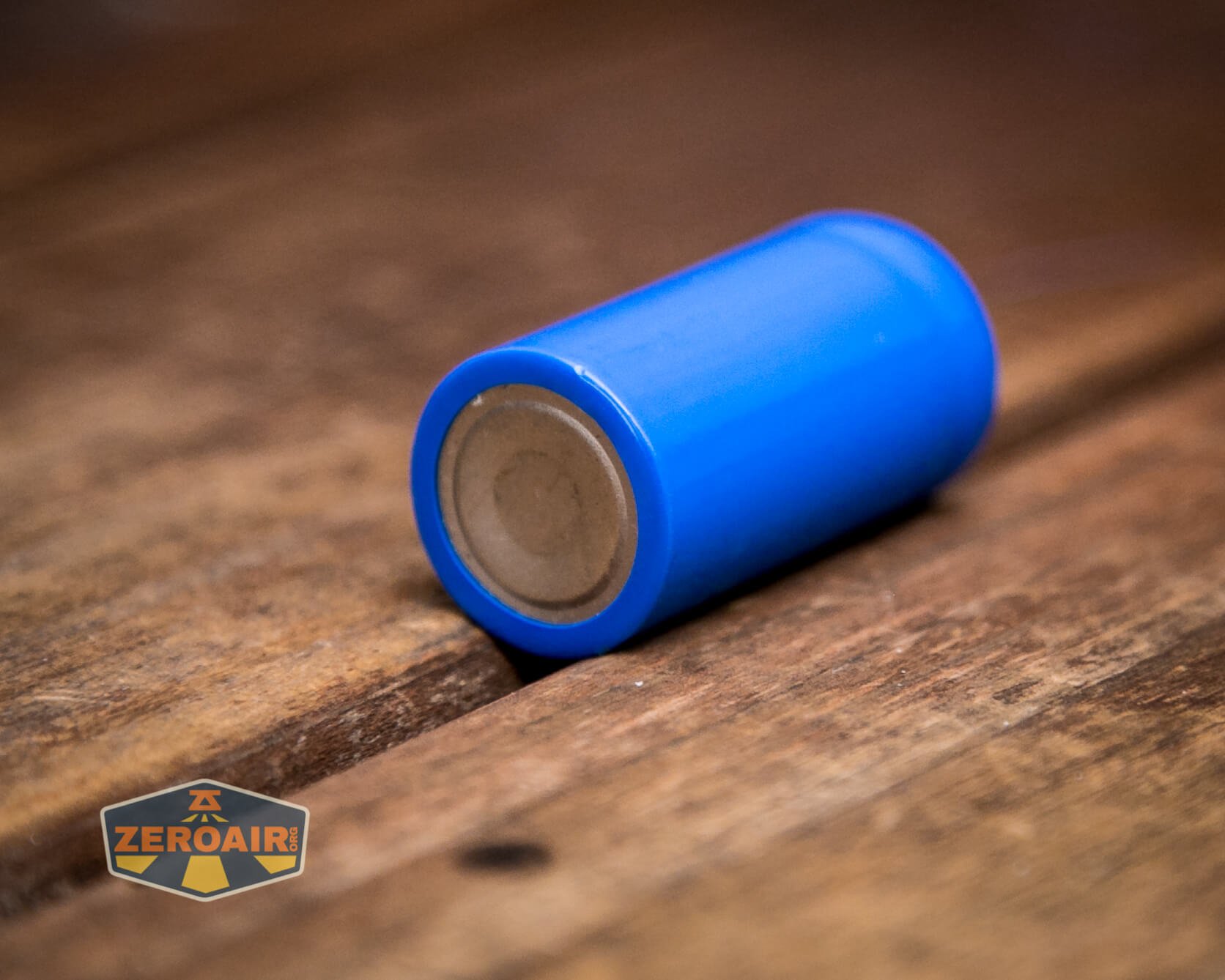

Wuben X-0 Knight flashlight 18350 included

This is an 1100mAh 18350.

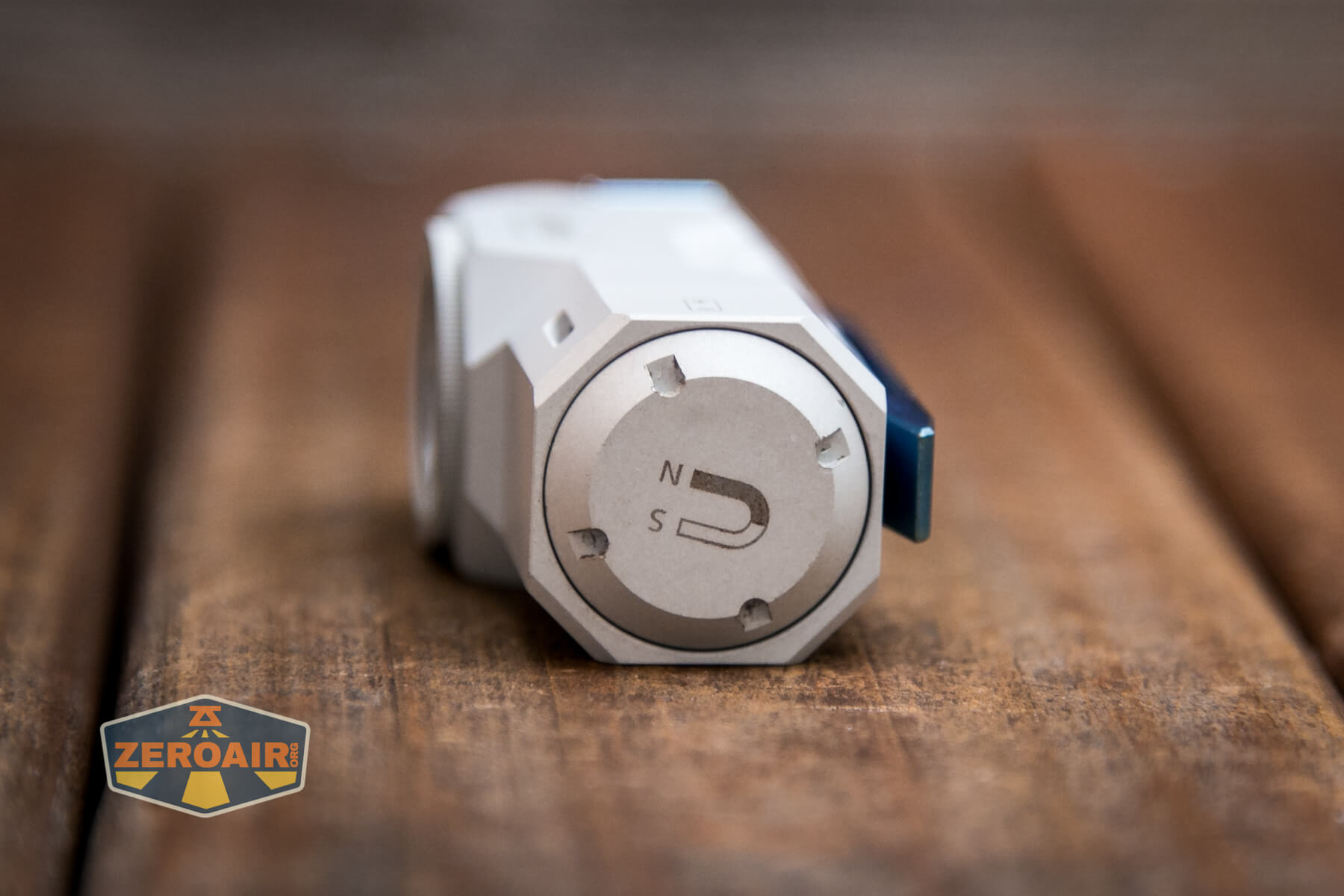

As covered above, the tailcap is removable. You’ll want to use some tweezers or something, but once you’ve gotten past the initial turn or so, the tailcap can be removed by hand. Removal is not difficult!

Wuben X-0 Knight flashlight removable tailcap

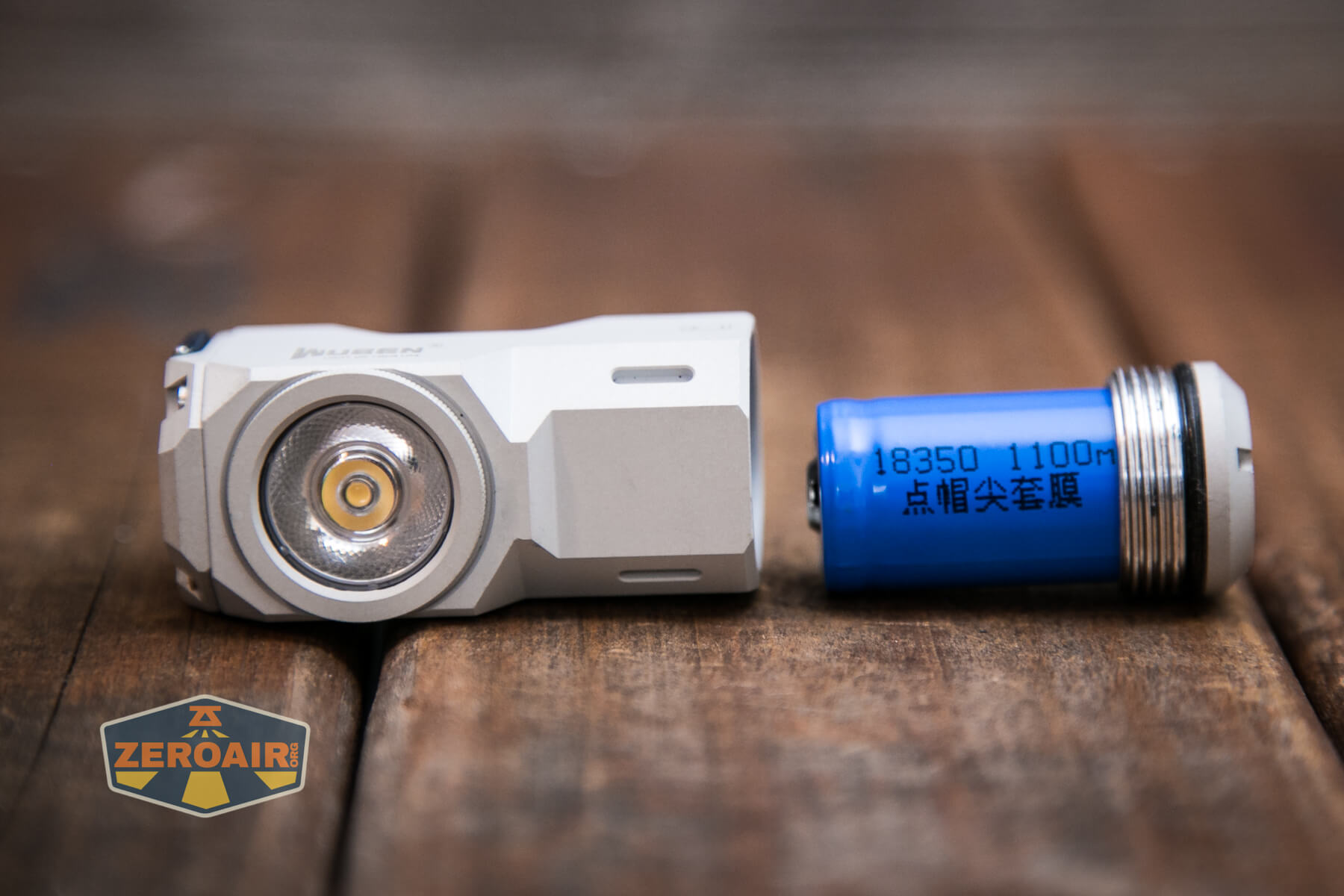

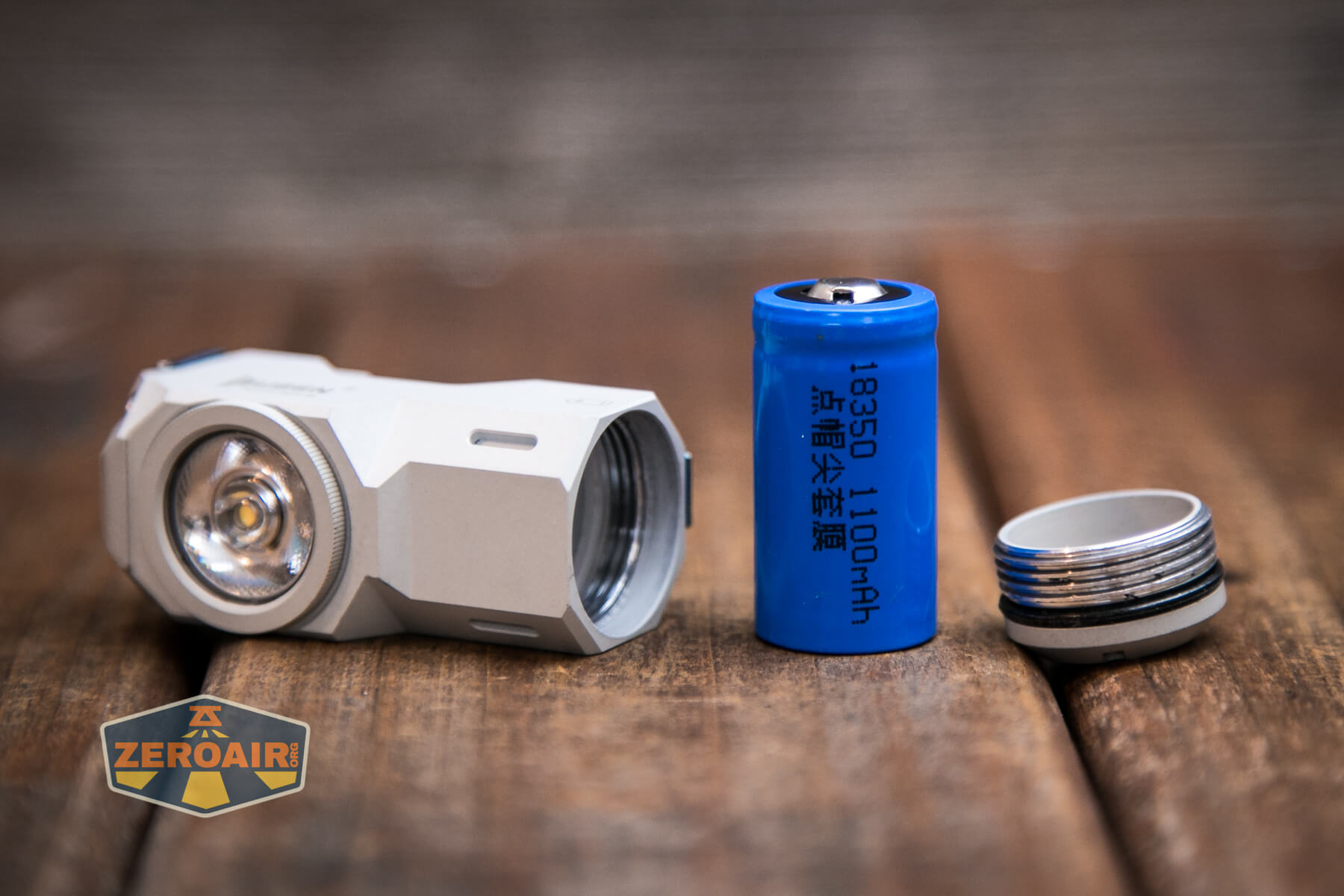

The cell goes into the light in the usual orientation: positive terminal (button) toward the head.

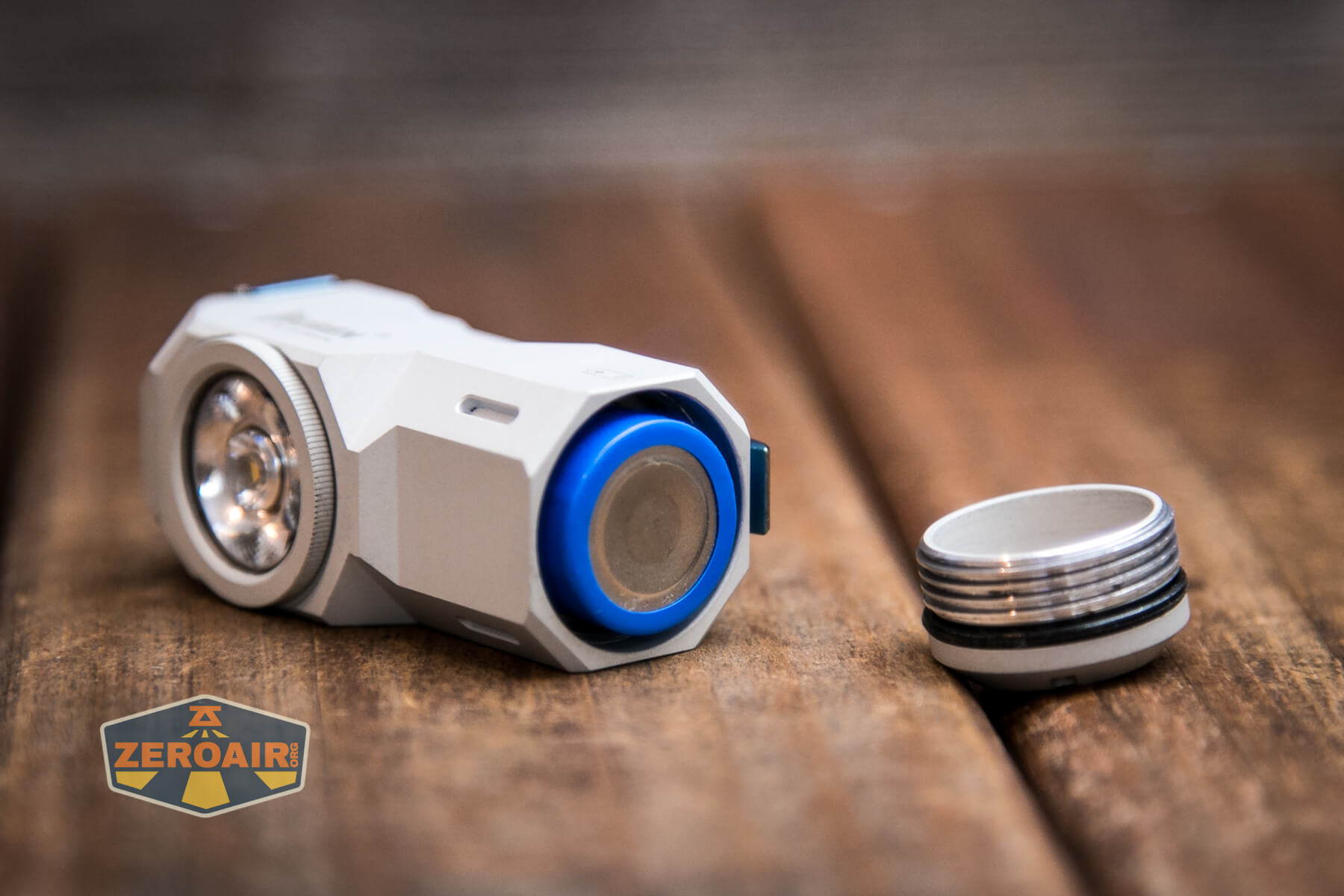

Wuben X-0 Knight flashlight cell direction Wuben X-0 Knight flashlight cell out Wuben X-0 Knight flashlight beside cell

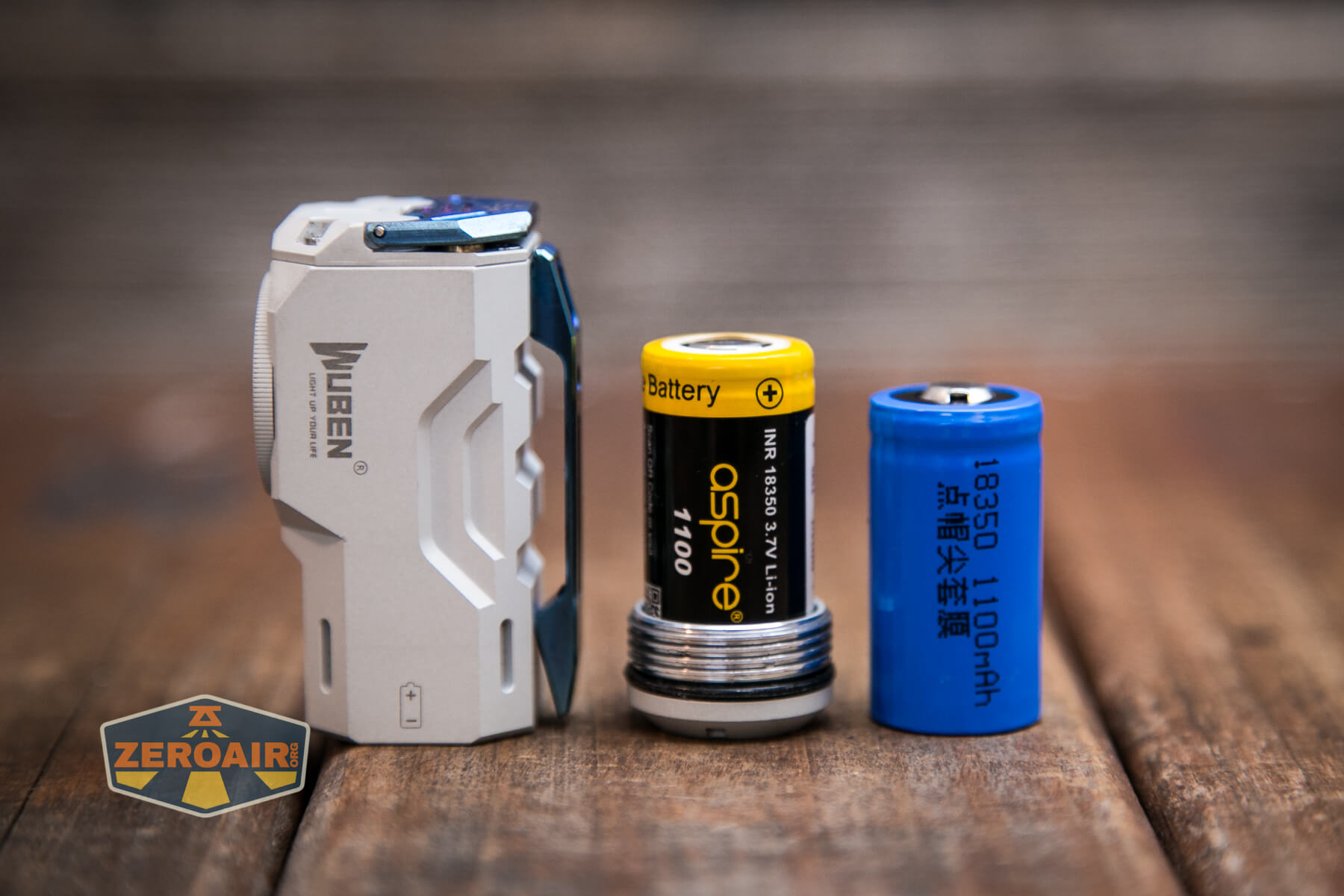

Standard 18350 cells do work here, too. Even flat tops, thanks to the spring in the head!

Wuben X-0 Knight flashlight other cell works Wuben X-0 Knight flashlight cell direction

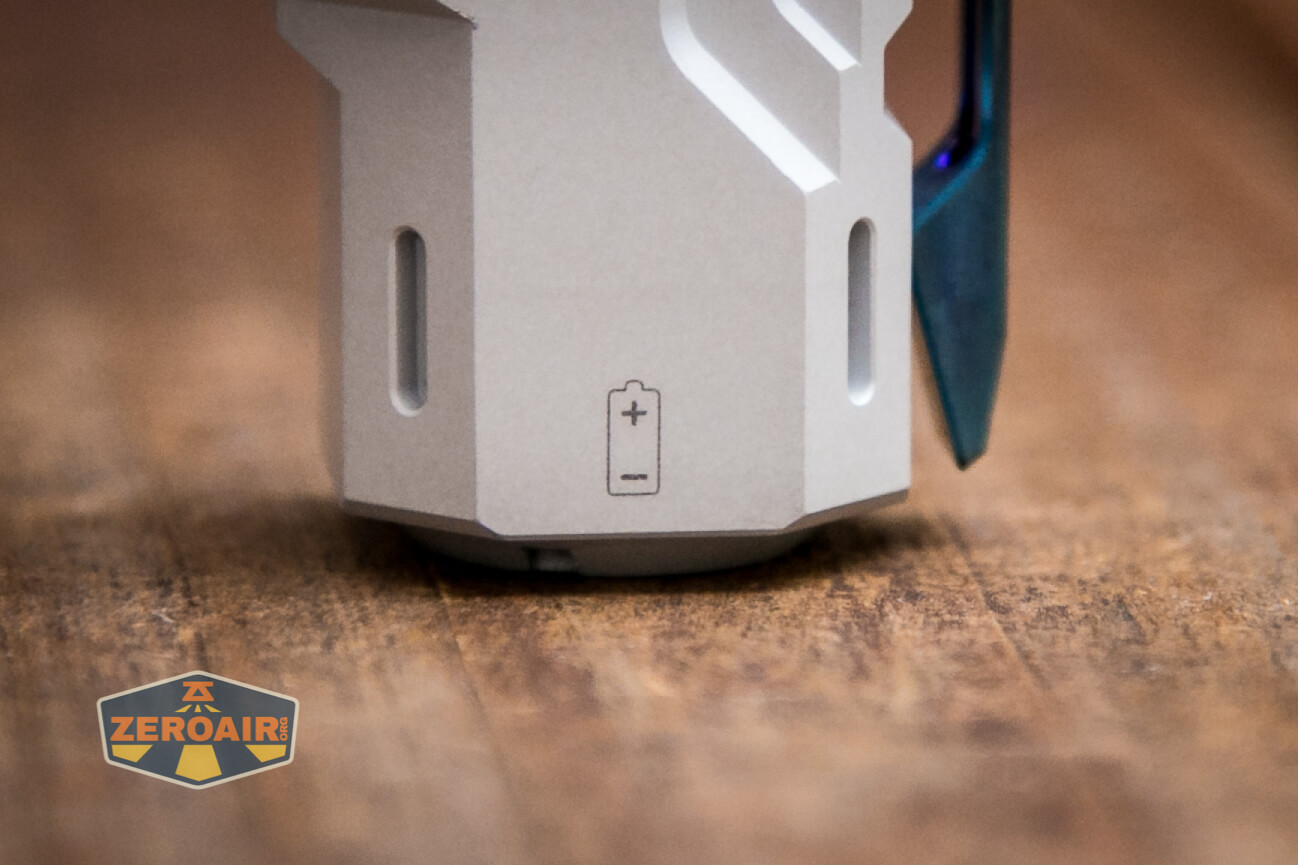

In case you forget which orientation to install the cell, there’s a little icon reminder on the tail end.

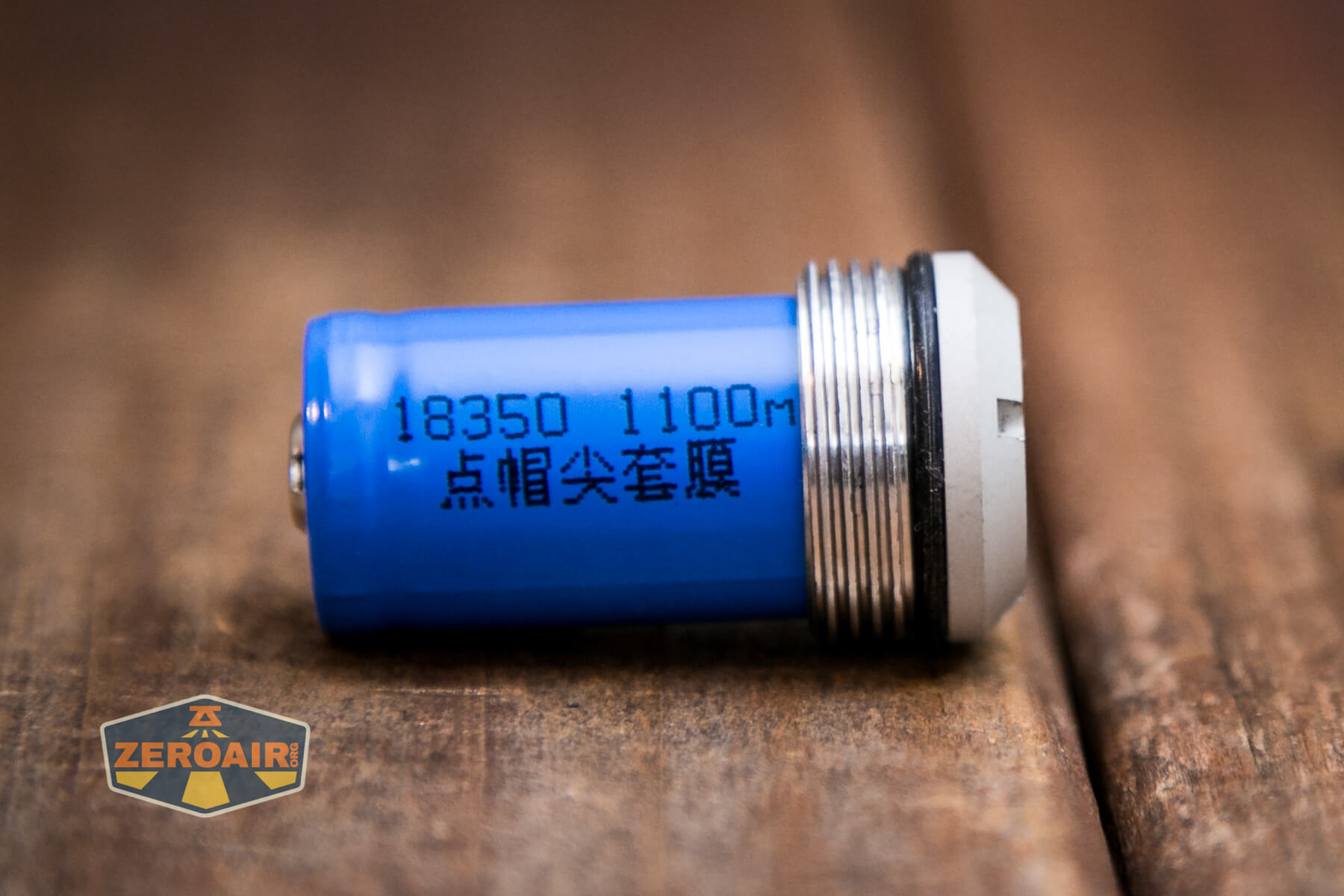

Wuben X-0 Knight flashlight cell direction indicator Wuben X-0 Knight flashlight close fit

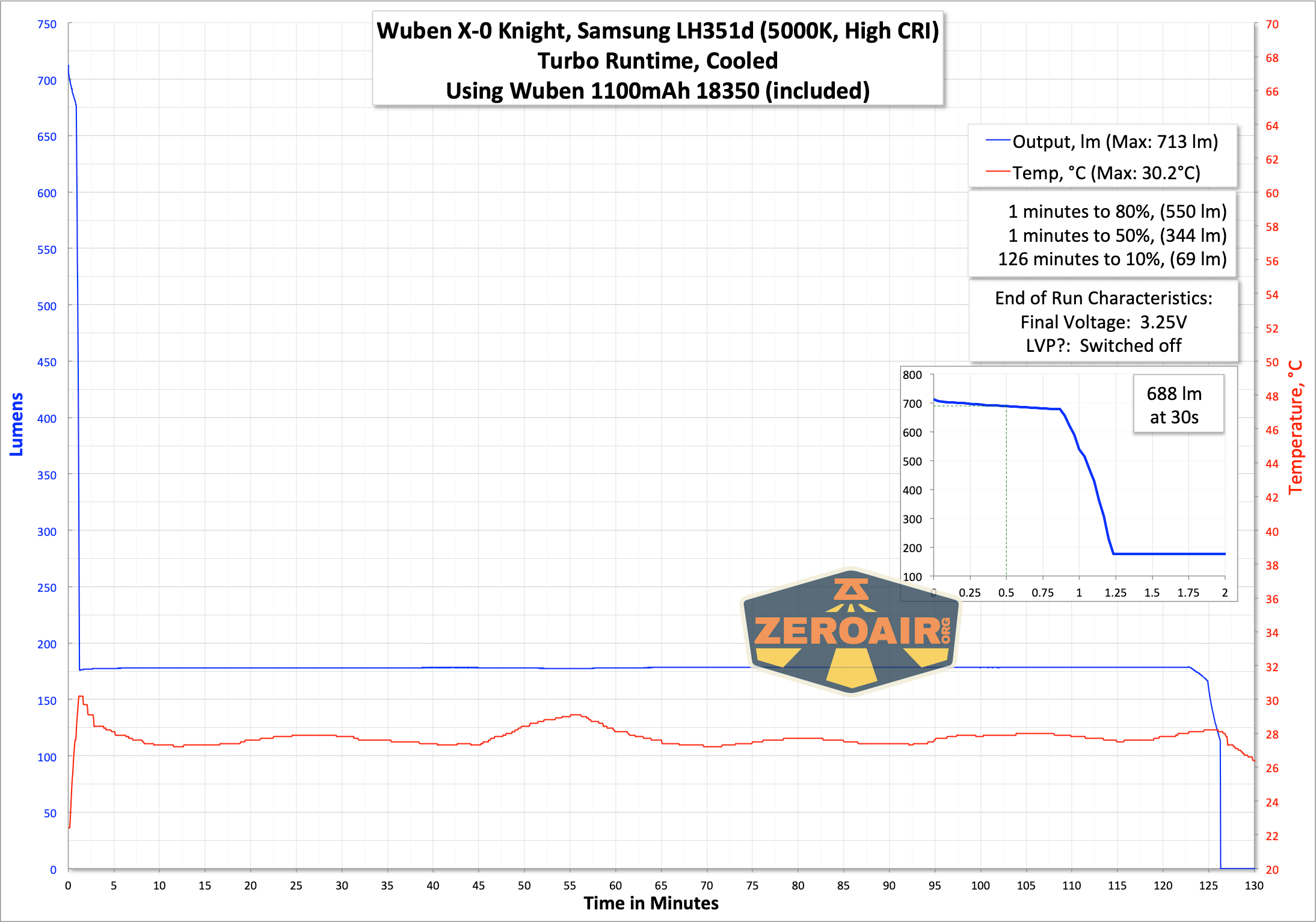

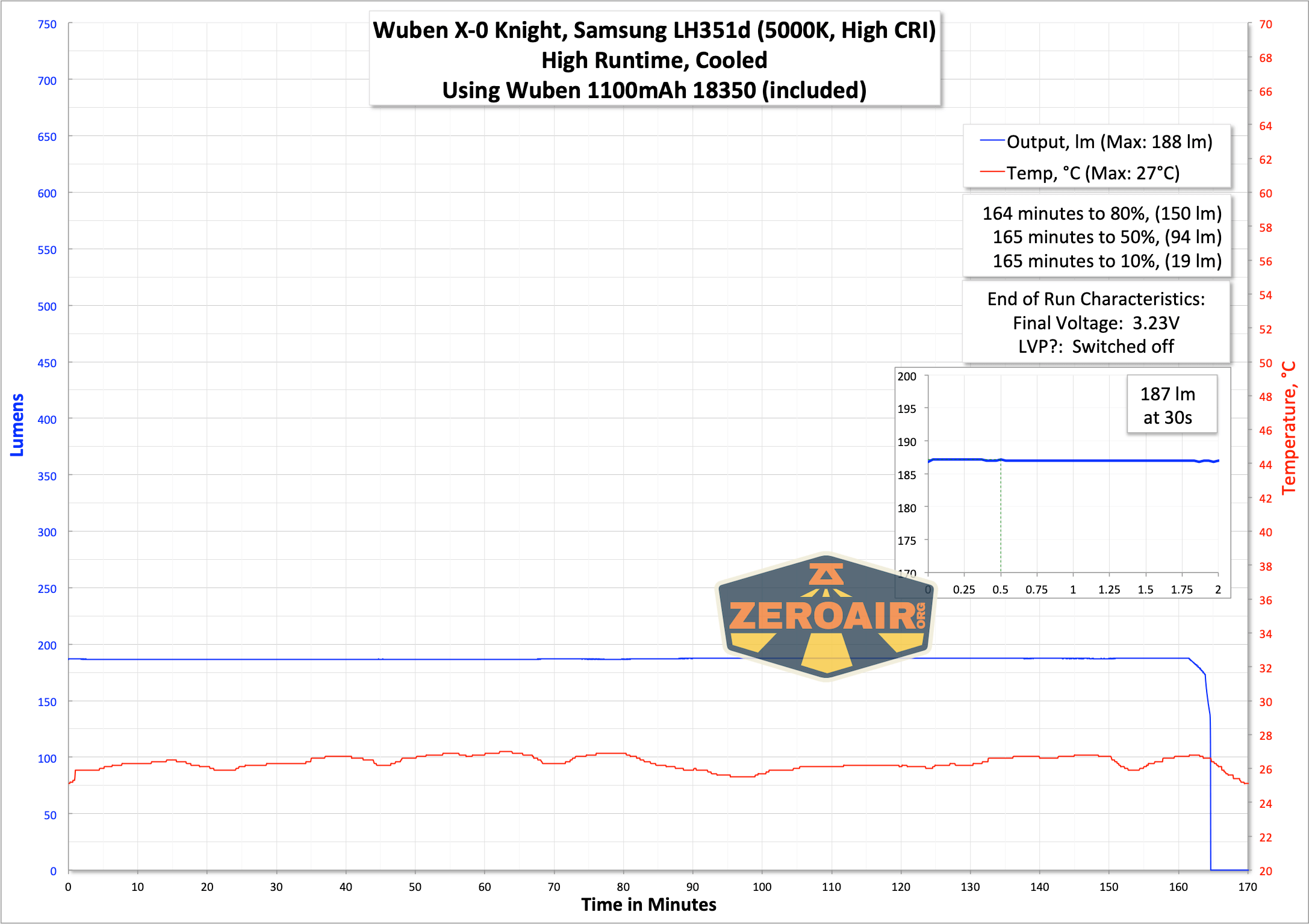

Below are a couple of runtimes. I didn’t see output quite as high as Wuben’s claim, but overall performance is acceptable. Notably, once the light has stepped down, the output is very flat!

Wuben X-0 Knight flashlight runtime graph Wuben X-0 Knight flashlight runtime graph

Charging

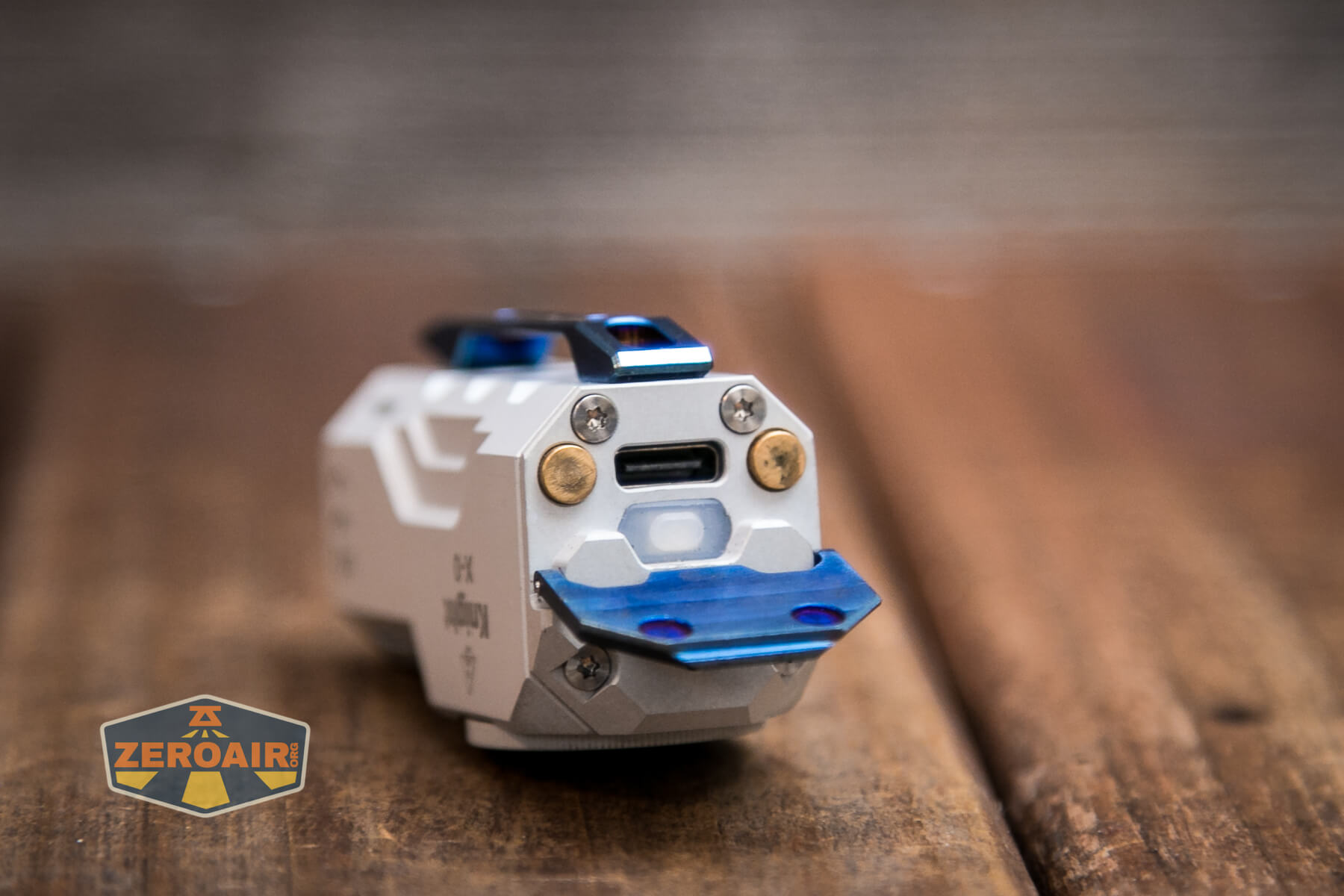

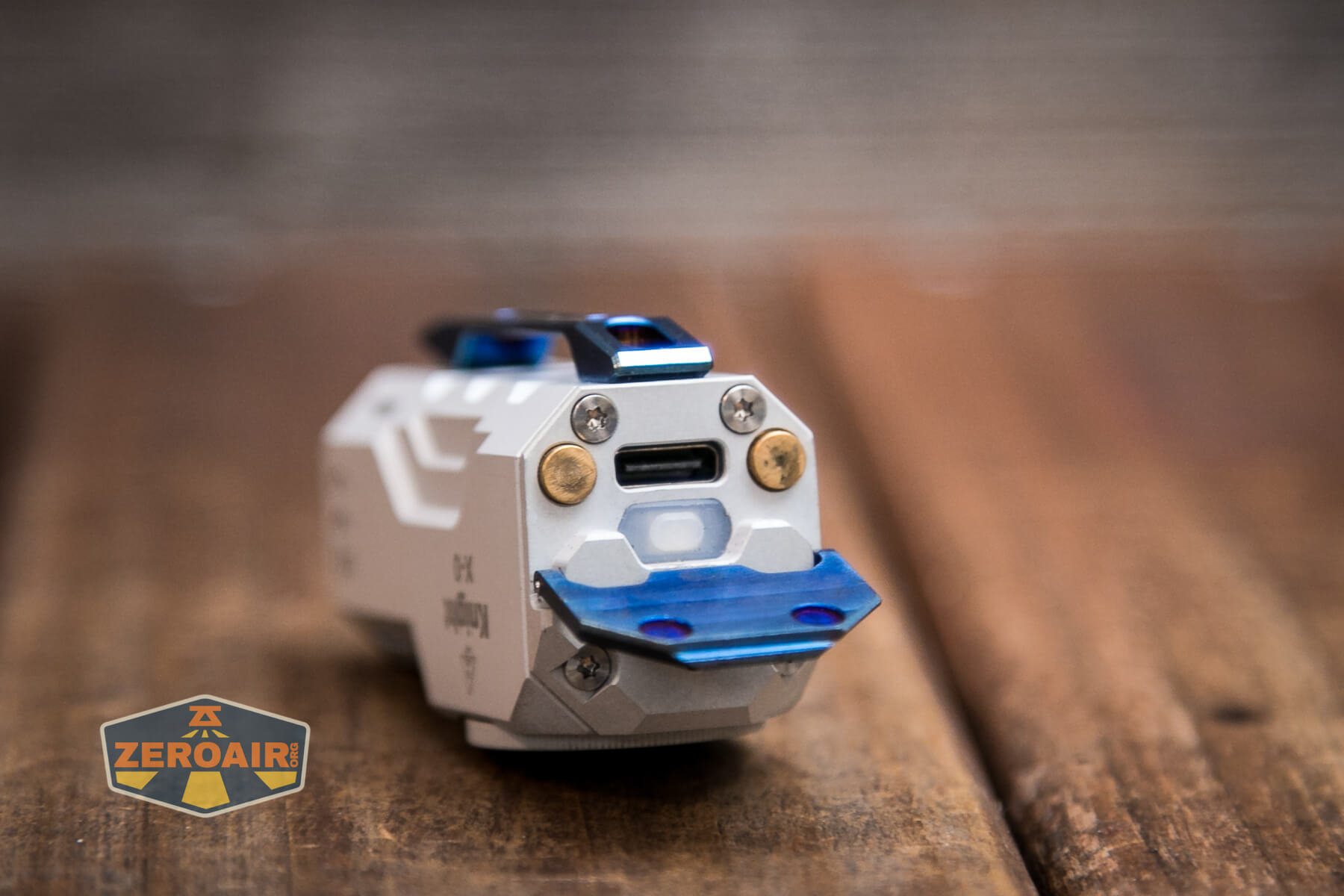

Wuben put a USB-C port in the top (or “head”) of this light. They say this is a waterproof port.

The port is accessed by flipping up this blue hinged switch cover. In fact, it’s not just a switch cover. It’s a lever switch, a charge port cover, and a place to install tritium! Quite versatile.

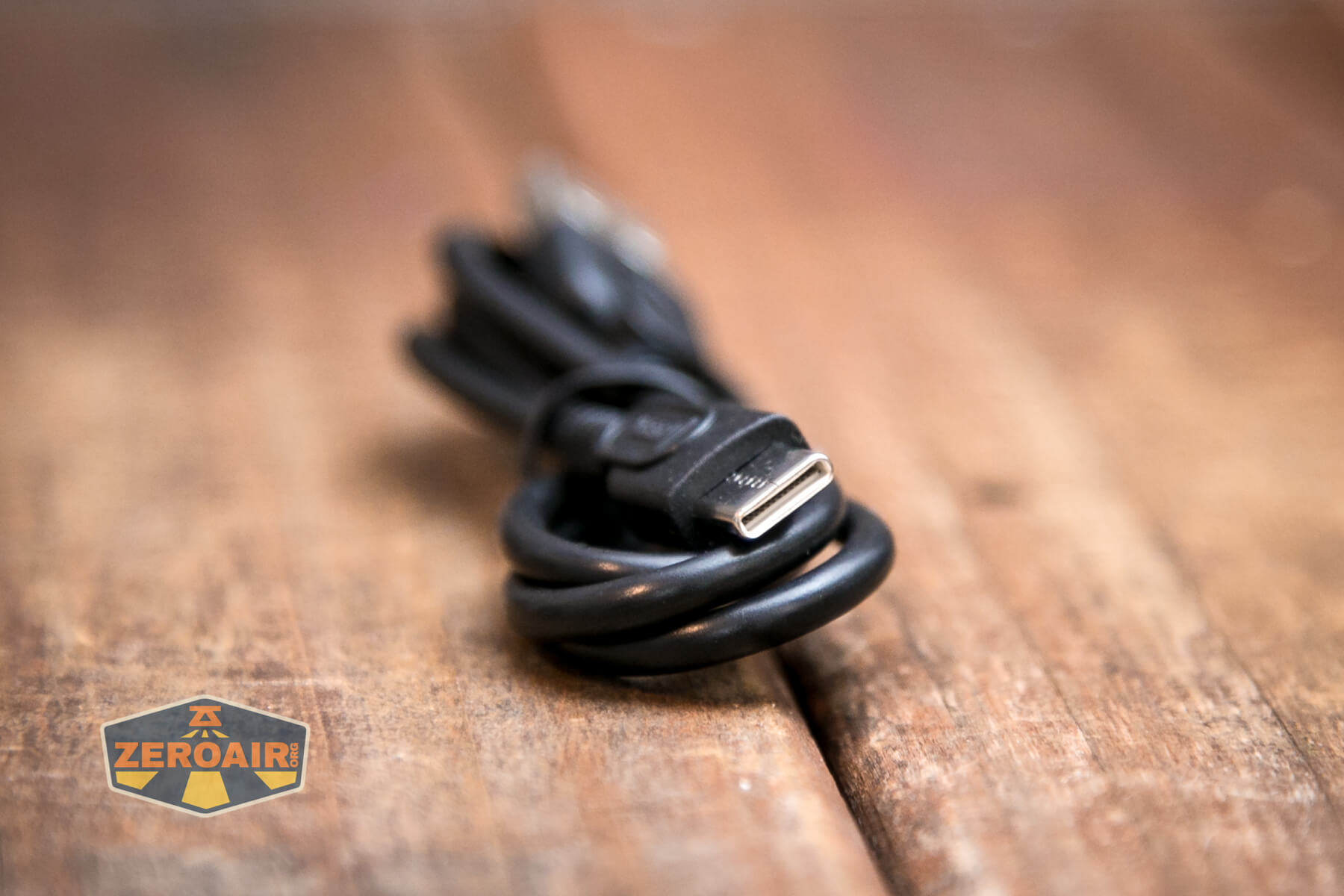

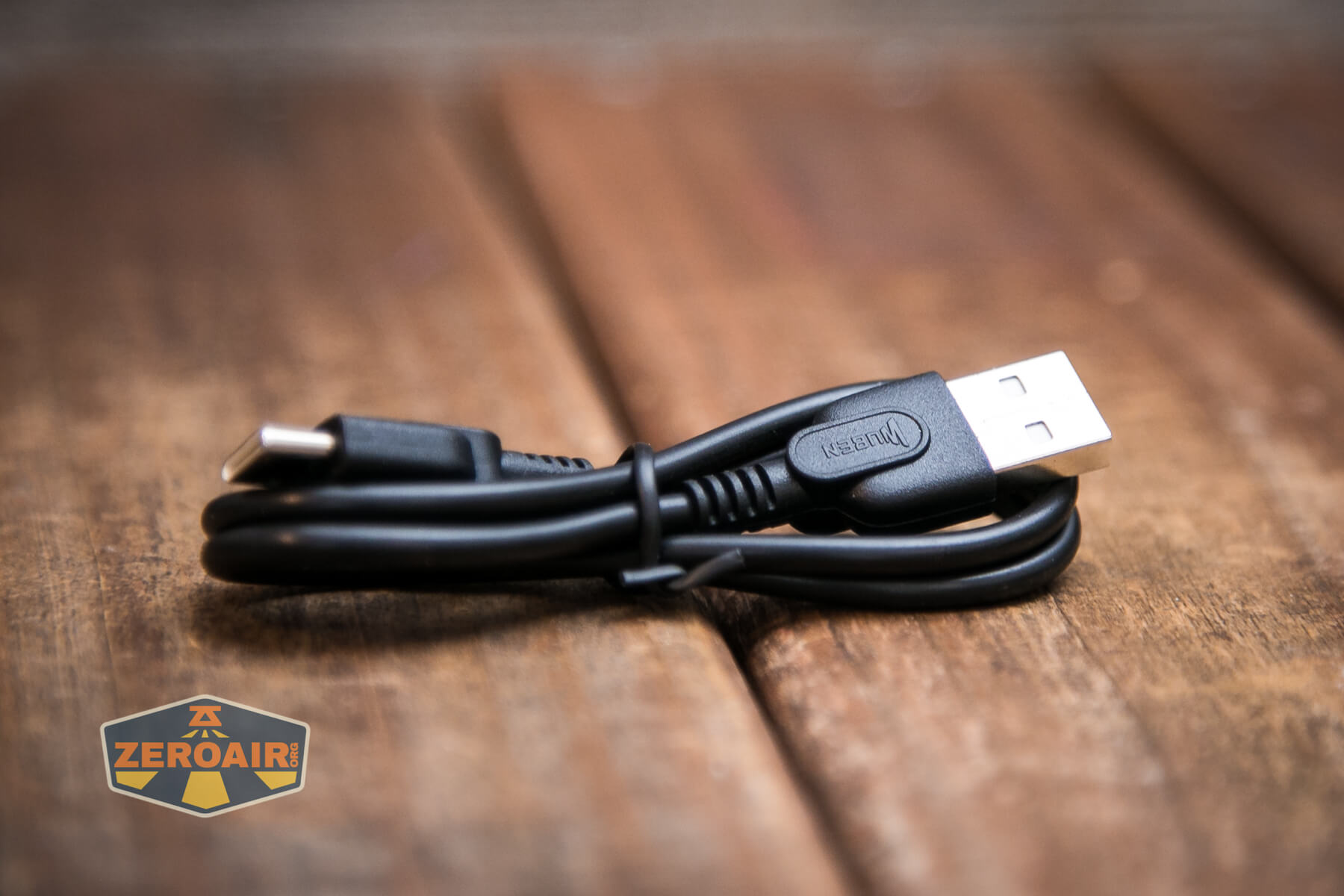

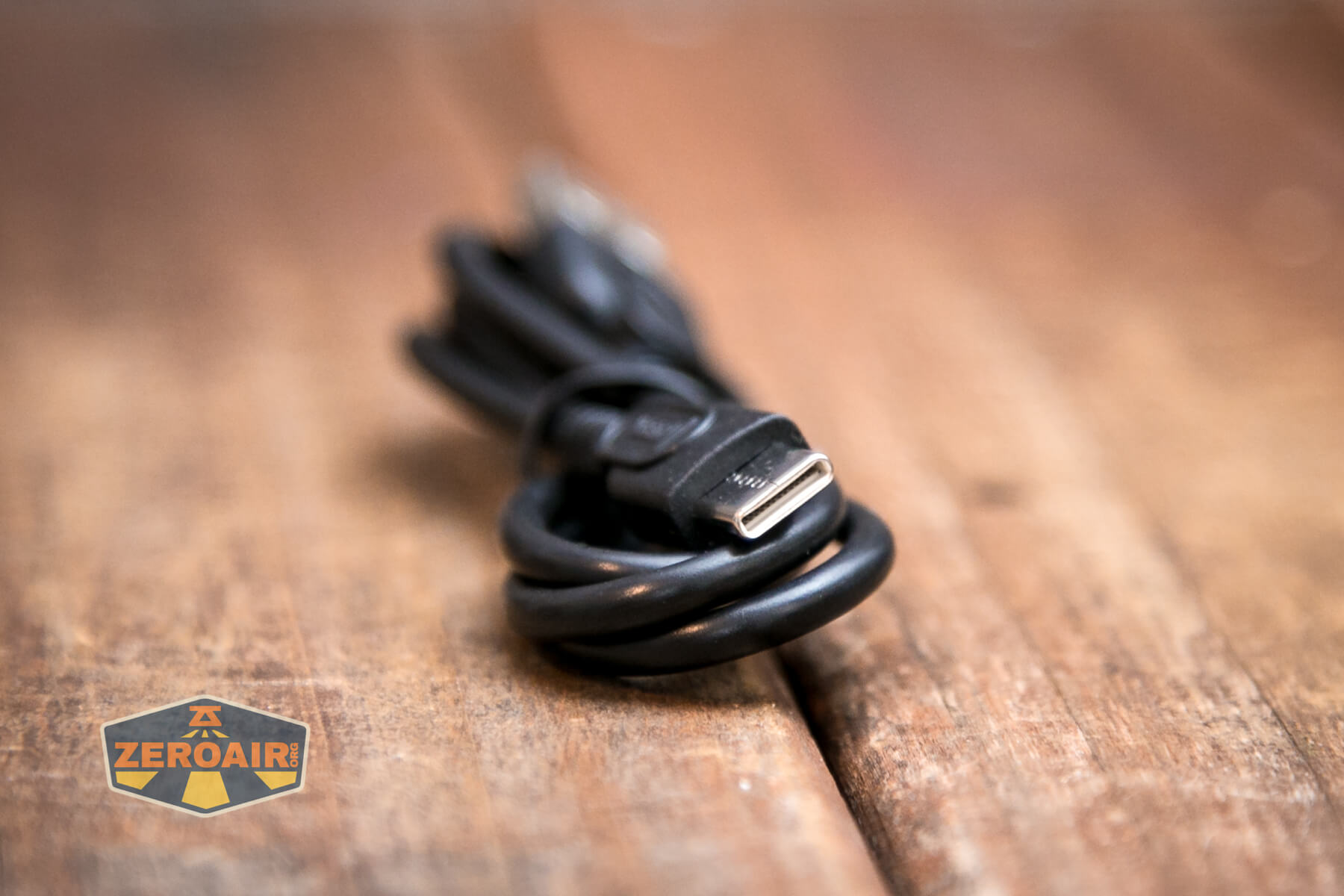

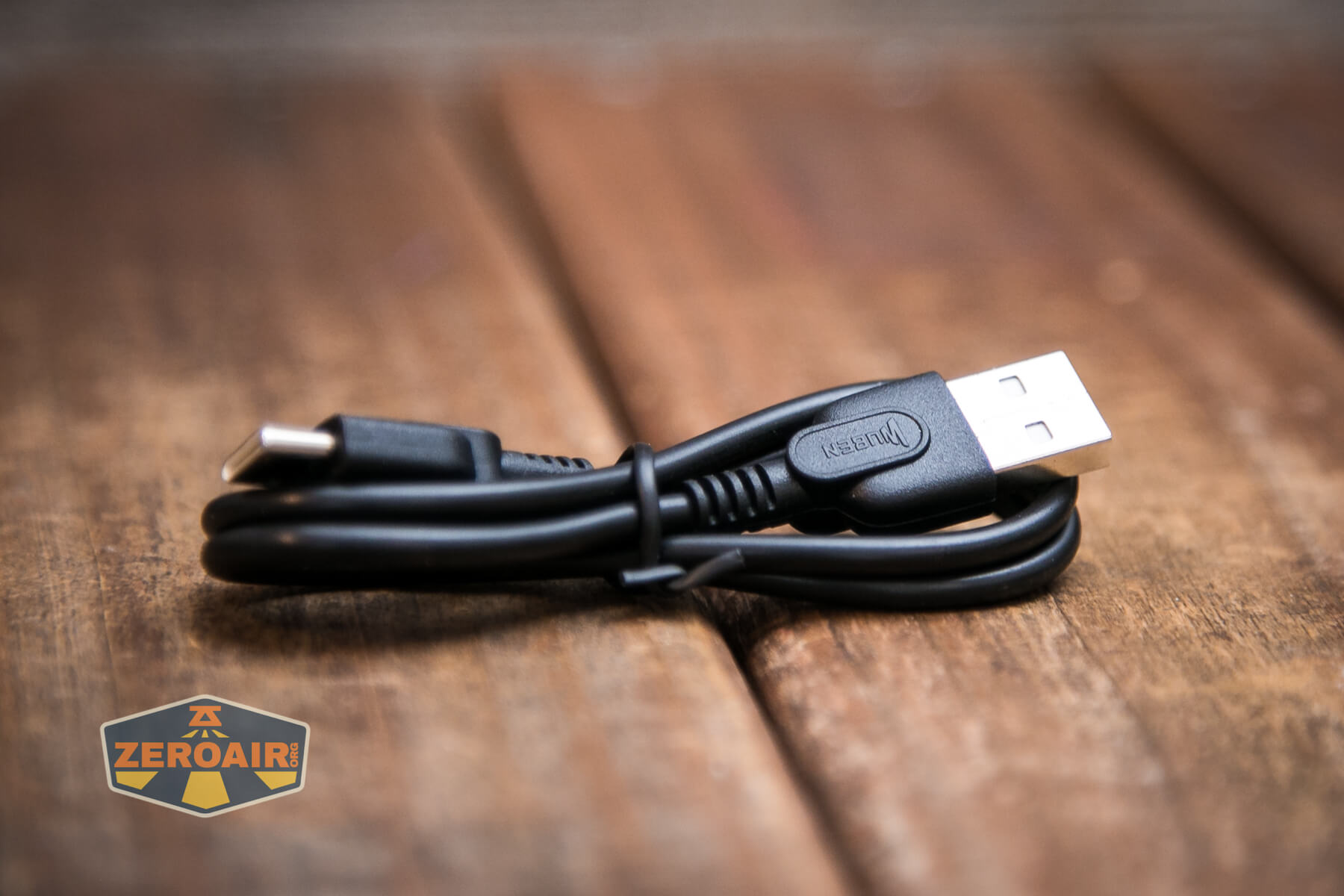

Wuben includes a charging cable, too, which is USB to USB-C.

I mentioned in the table that the light can be used while charging. That’s true, but the switch is practically inaccessible while the charging cable is installed.

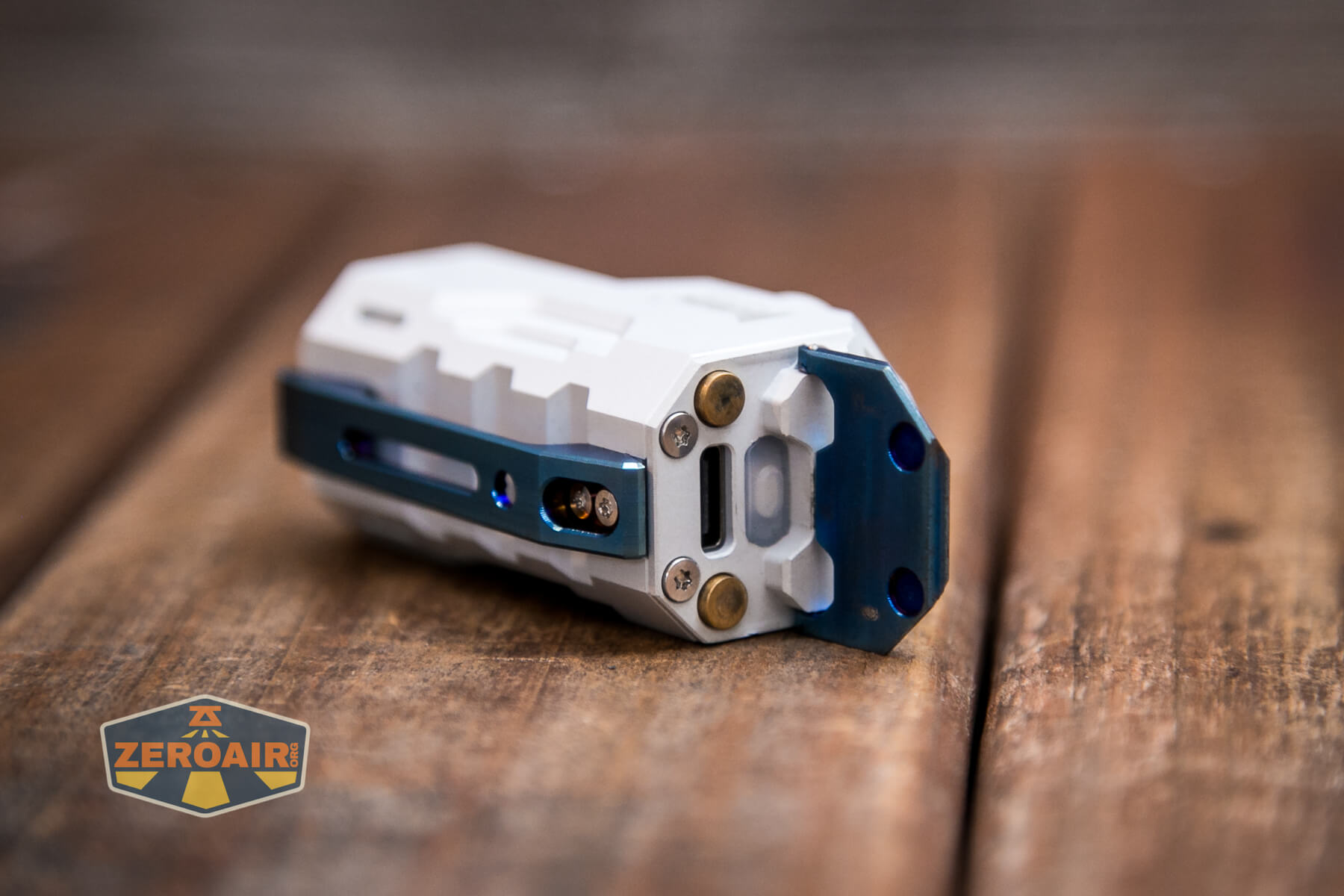

Wuben X-0 Knight flashlight switch access over charging port

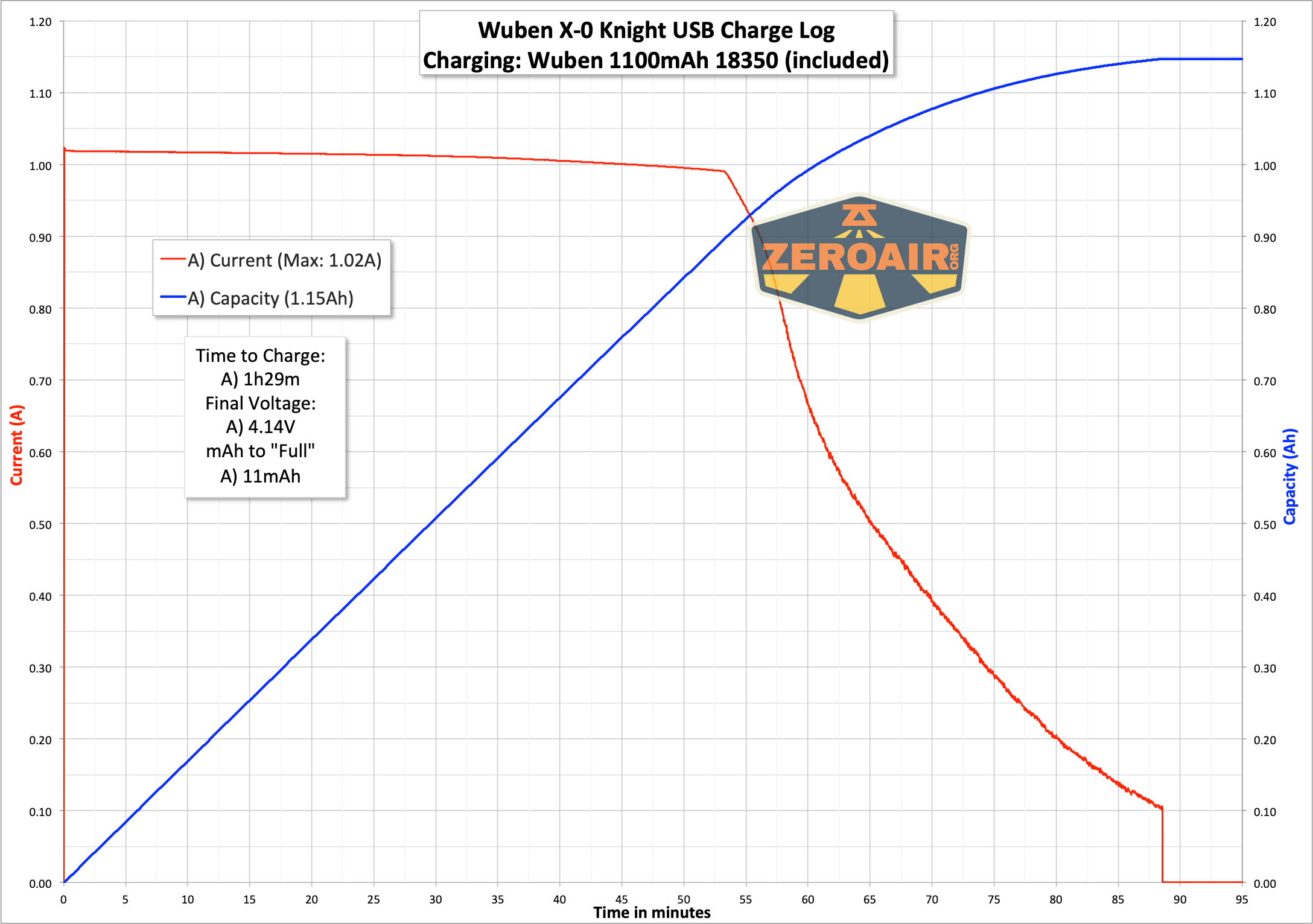

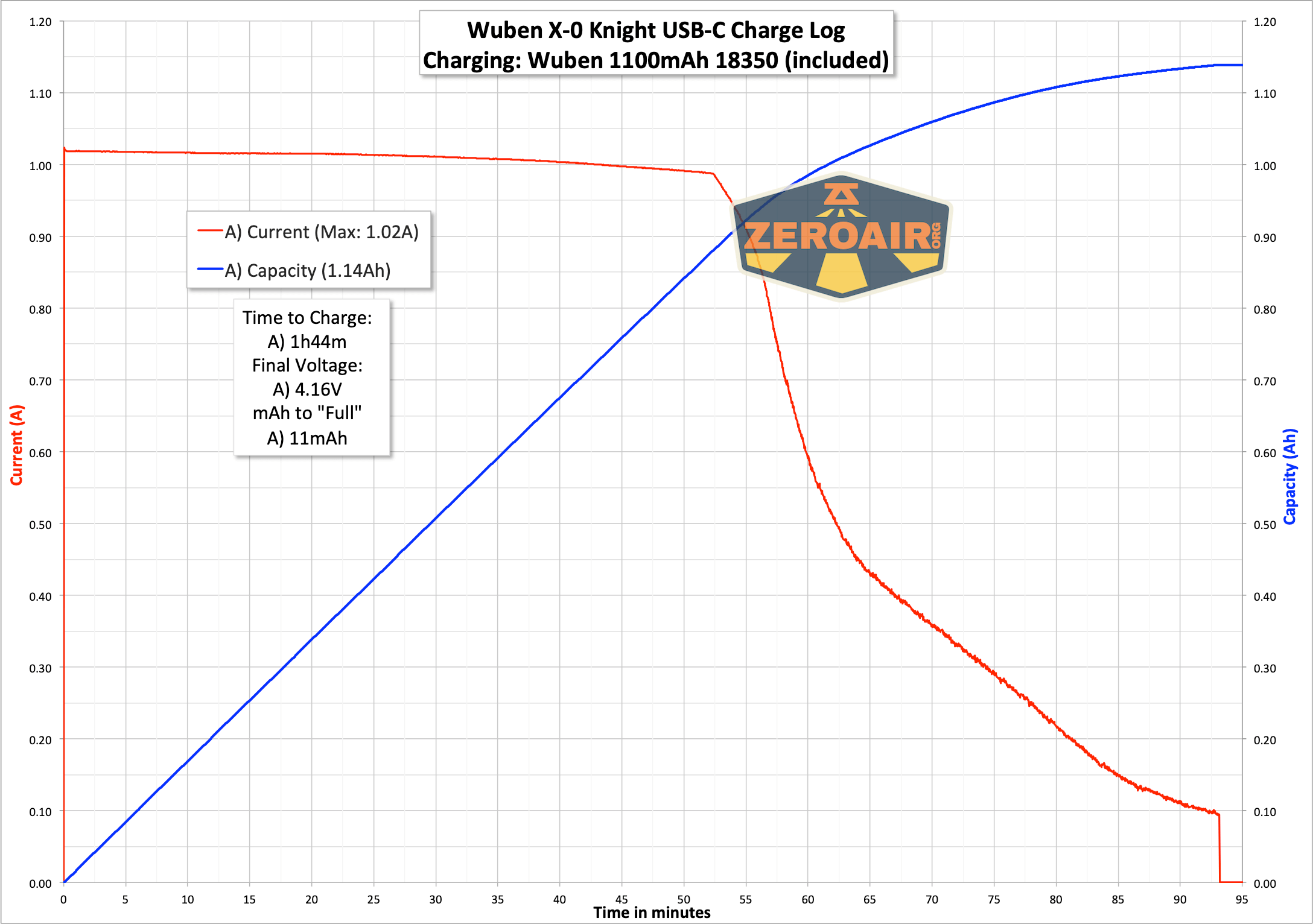

Here’s a C to C charge graph. Wuben states around 1.5 hours for charging, and I’d say that’s about right.

Wuben X-0 Knight flashlight charging graph

USB to USB-C works as well, of course.

charging log

The LED indicator on top does indicate while charging. Red while charging and blue when charging is complete.

Modes and Currents

Mode Mode Claimed Output (lm) Claimed Runtime Measured Lumens Tailcap Amps
Turbo 1100-300 1m-1.5h 688 3.34
High 250 2h 187 0.37
Med 150 8h 38.6 0.06
Low 50 30h 12.3 0.01
Moon 1 130h 1.3 0.00

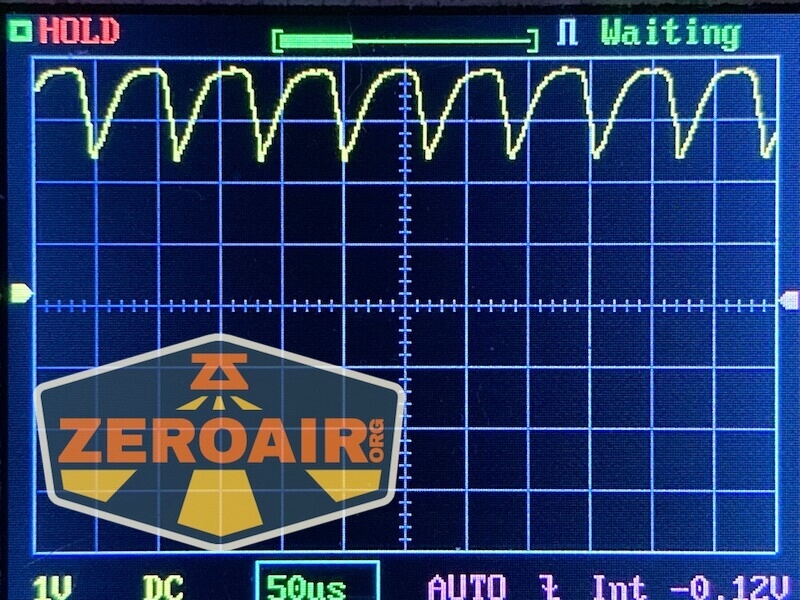

Pulse Width Modulation

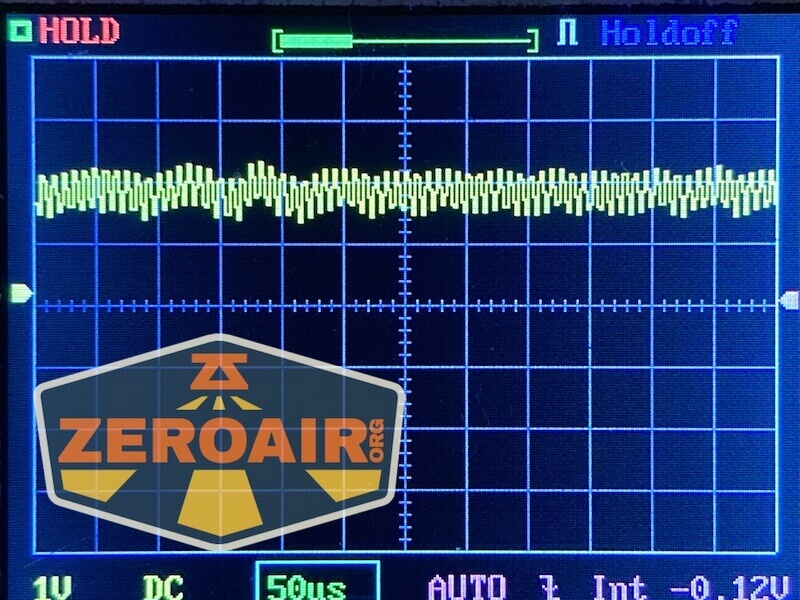

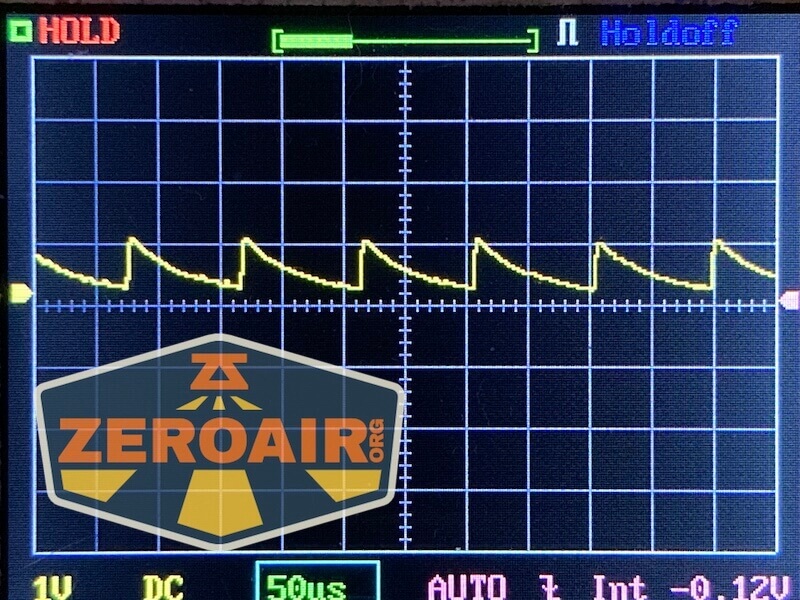

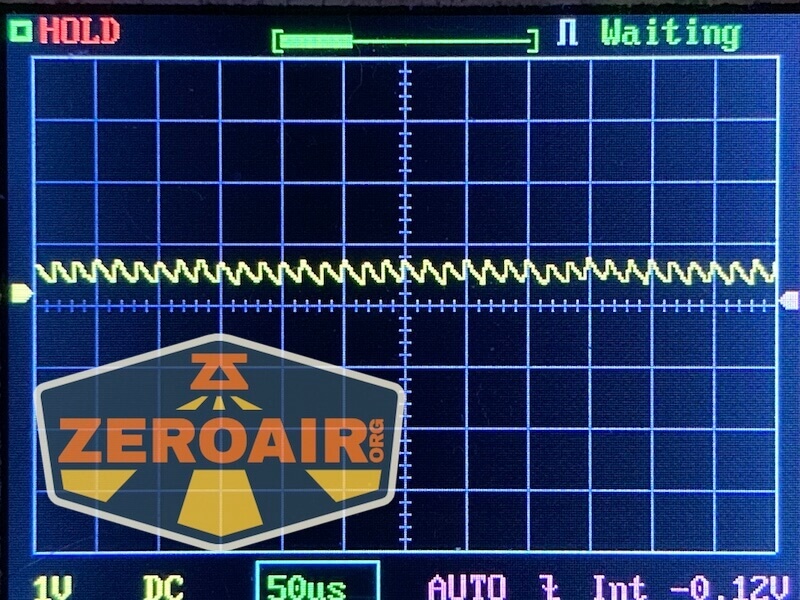

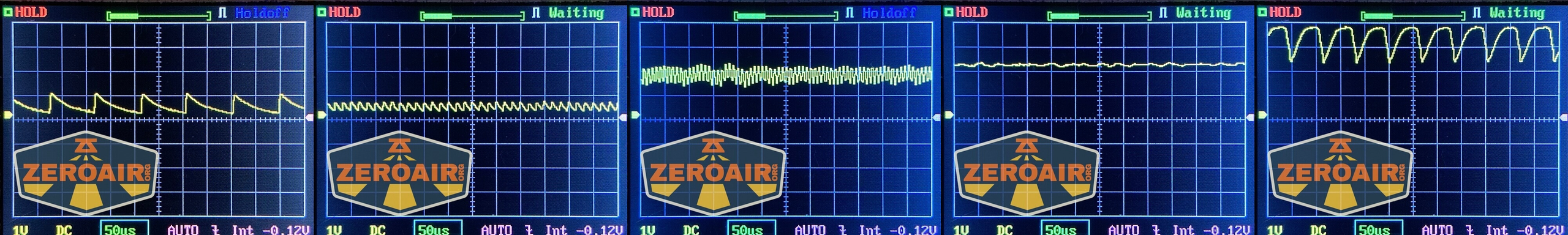

I don’t think what we’re seeing here is really “PWM” but just more of a sawtooth. I don’t find it to be visible during use, anyway.

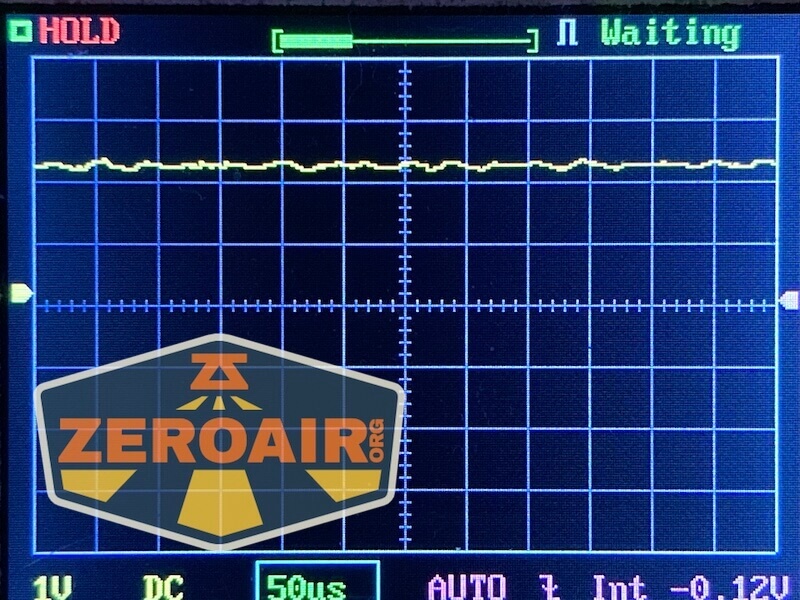

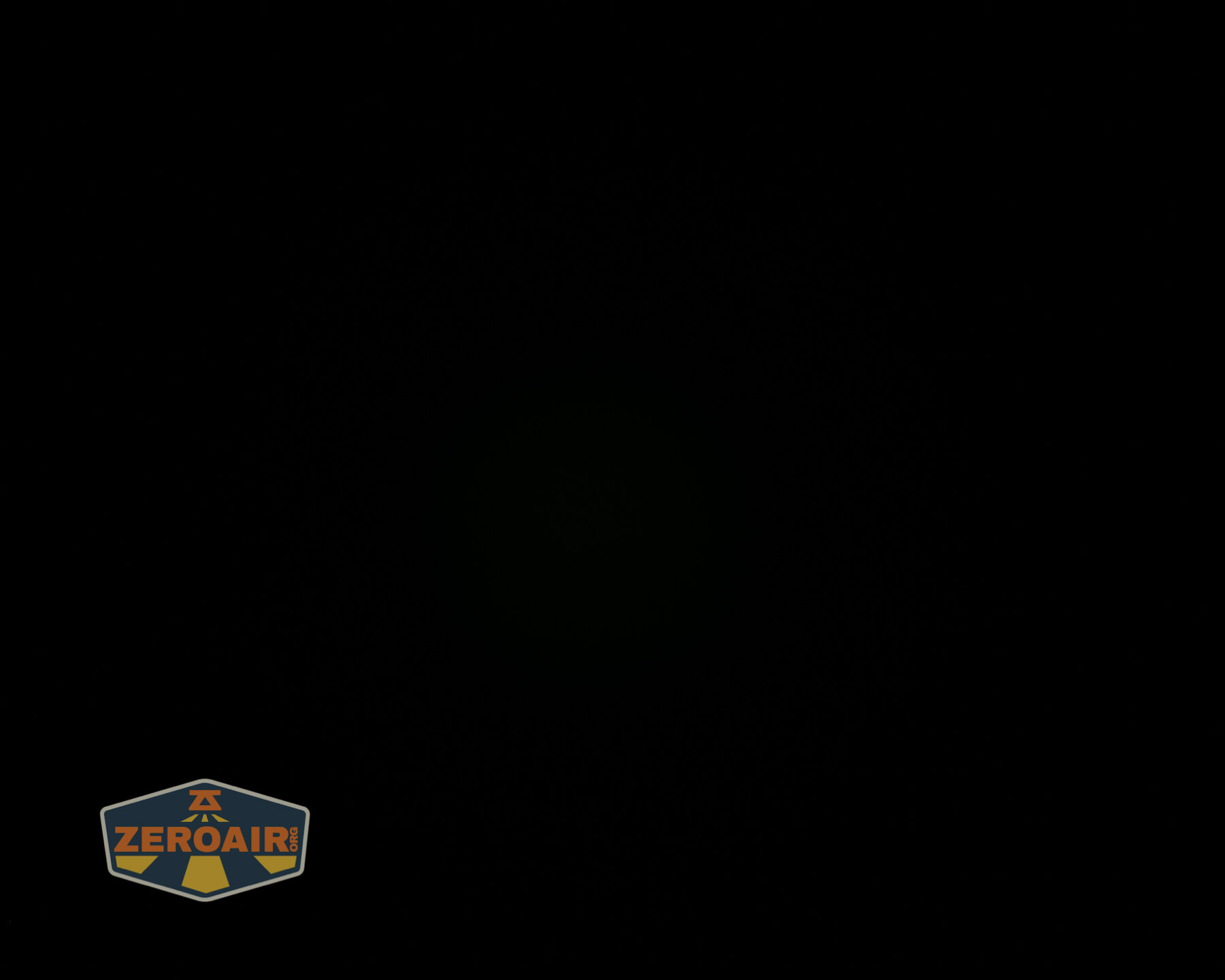

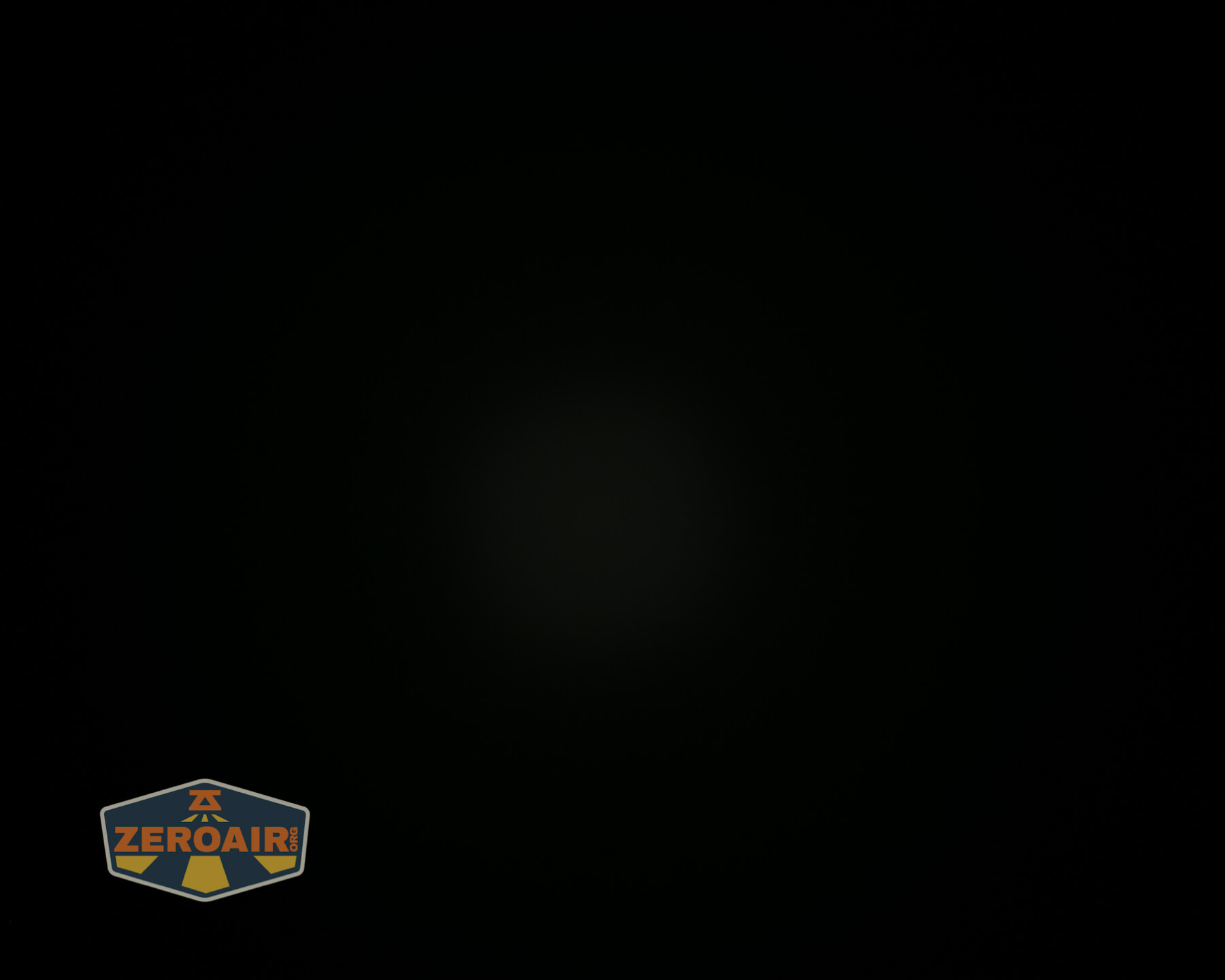

For reference, here’s a baseline shot, with all the room lights off and almost nothing hitting the sensor.  Also, here’s the light with the worst PWM I could find.  I’m adding multiple timescales, so it’ll be easier to compare to the test light.  Unfortunately, the PWM on this light is so bad that it doesn’t even work with my normal scale, with is 50 microseconds (50us).  10ms5ms2ms1ms0.5ms0.2ms.  In a display faster than 0.2ms or so, the on/off cycle is more than one screen, so it’d just (very incorrectly) look like a flat line.  I wrote more about this Ultrafire WF-602C flashlight and explained a little about PWM too.

User Interface and Operation

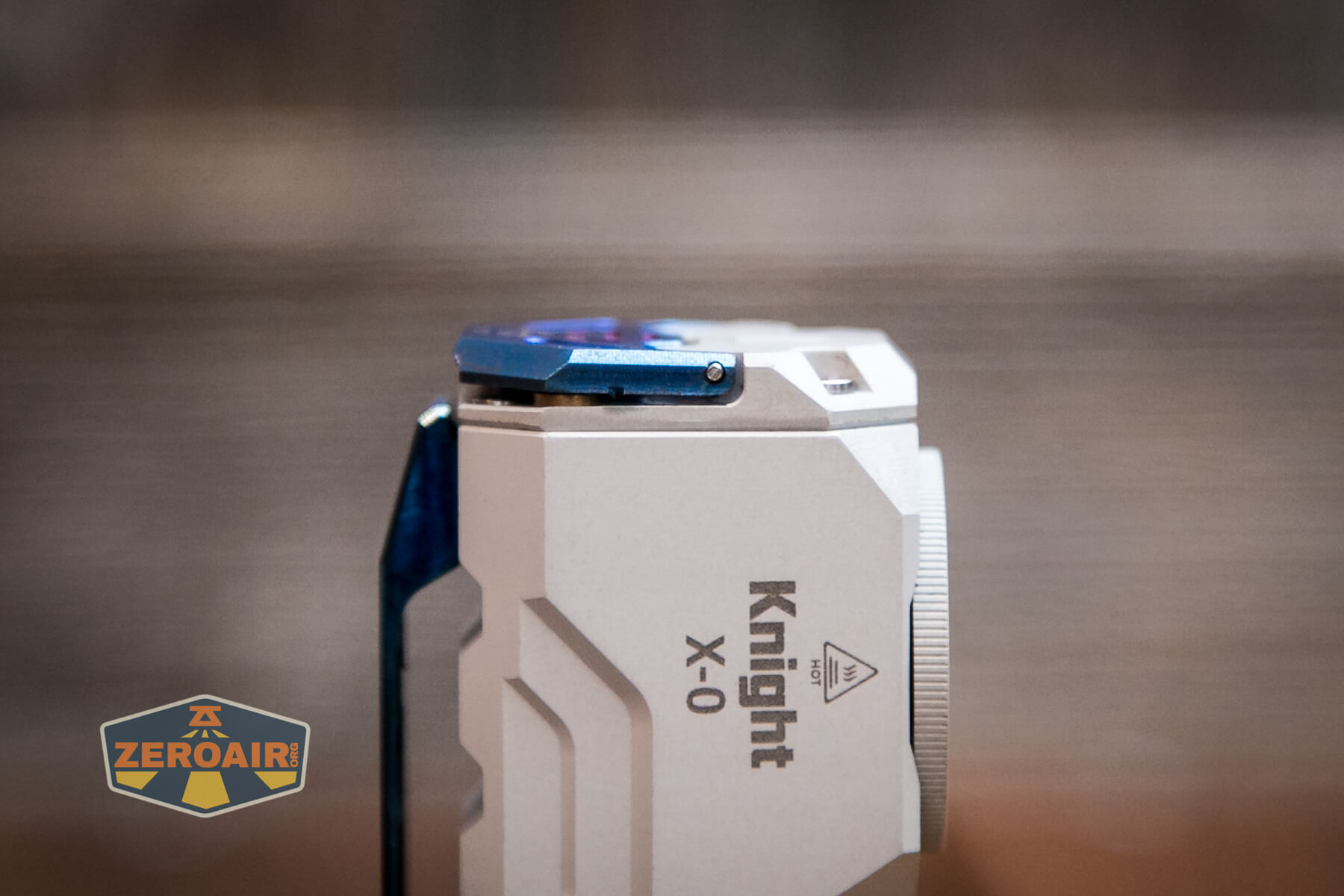

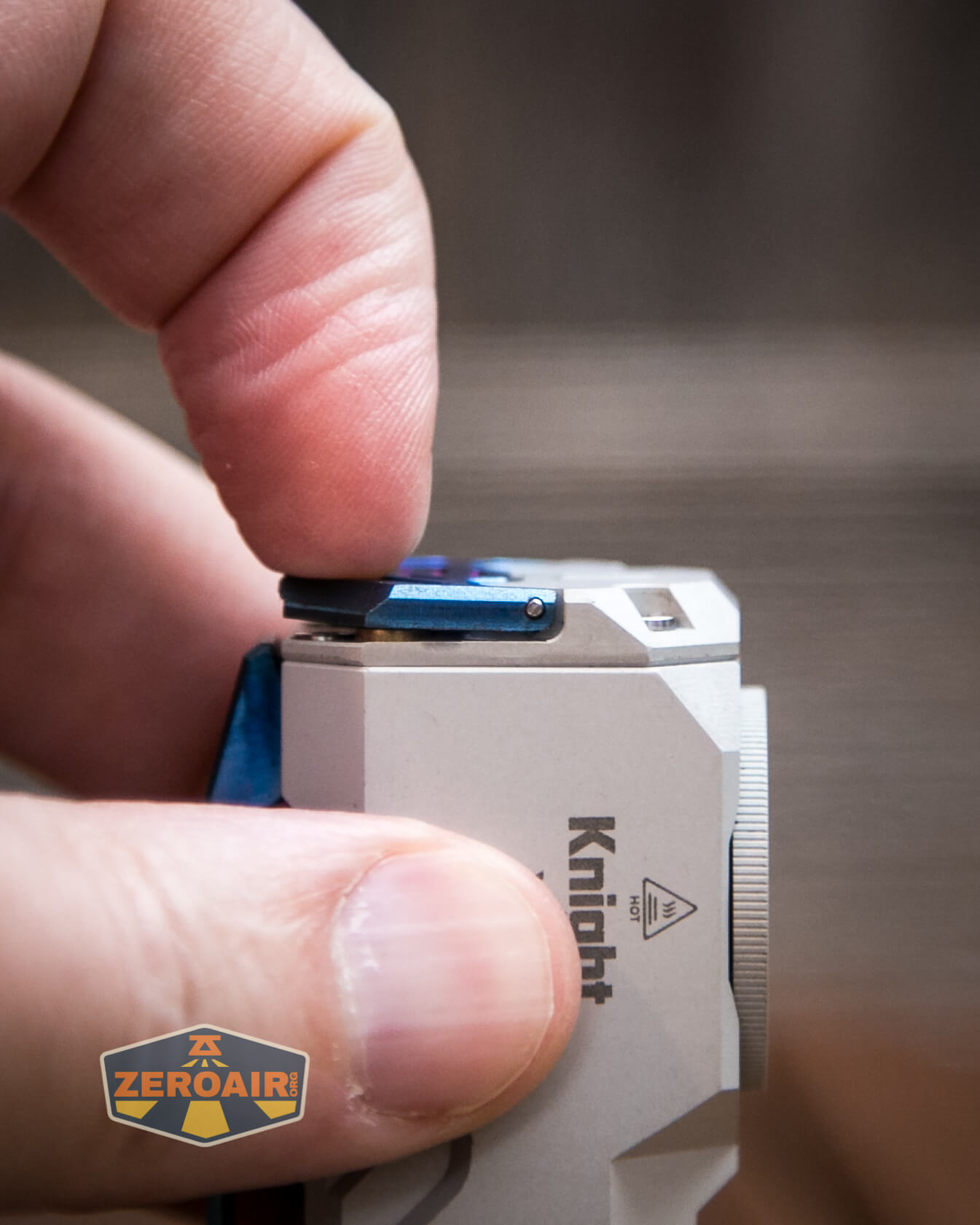

The switch itself is a soft-cover e-switch. But over that switch is the blue anodized lever-style switch. This metal part also serves as a charging port cover.

Wuben X-0 Knight flashlight e-switch

The action in this switch is great.

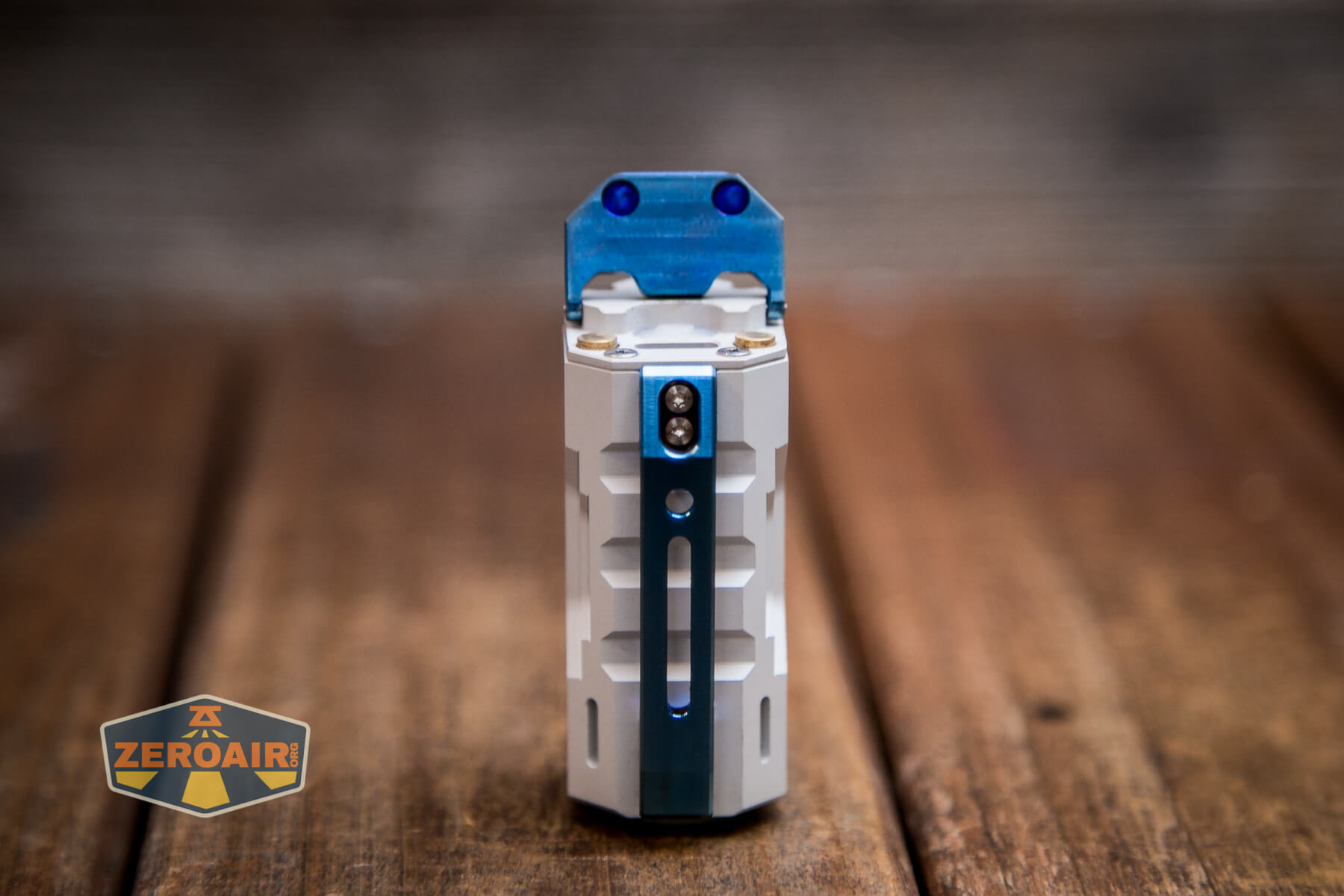

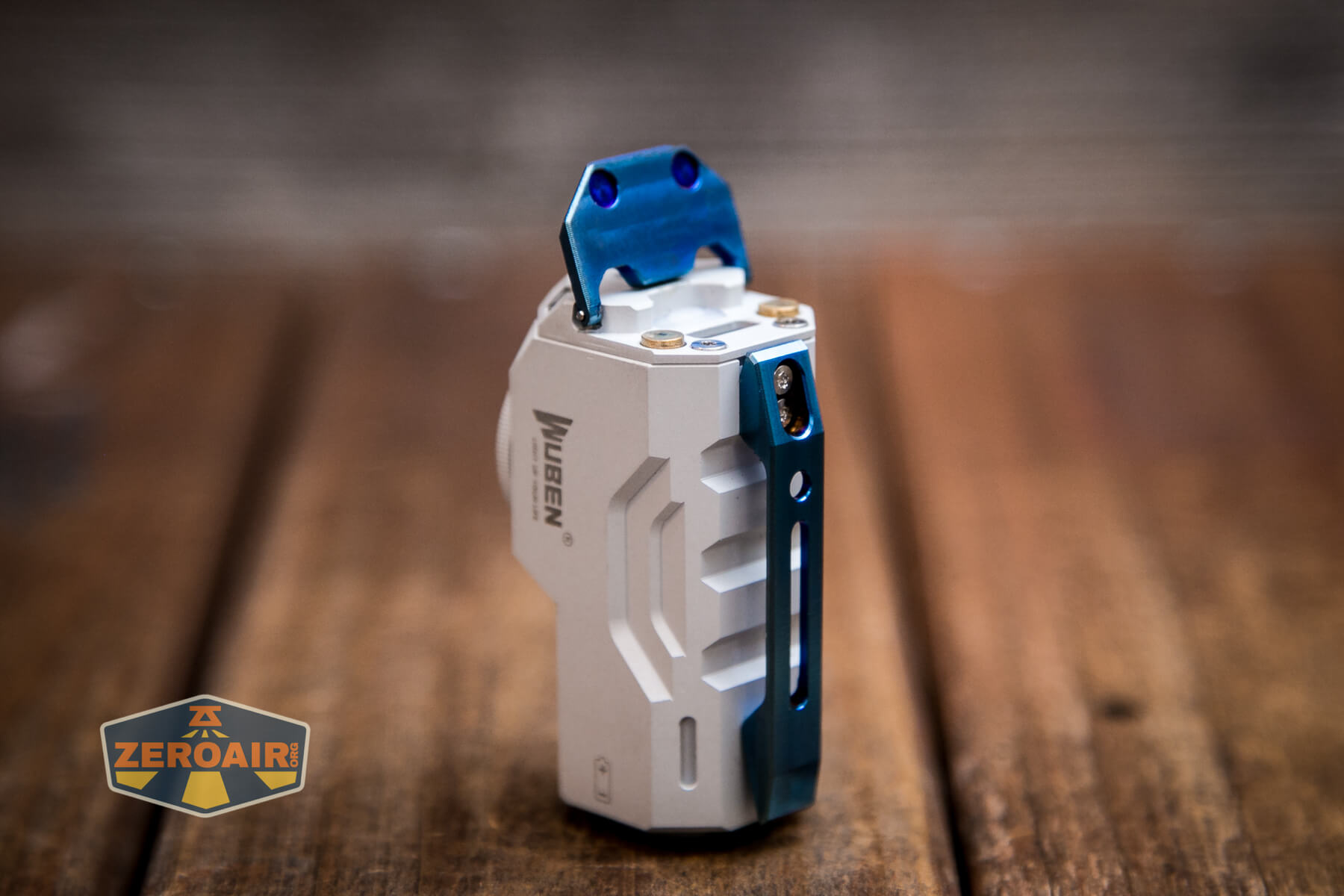

You’ll see it below, but there are two brass buttons for this metal cover to rest against. When the cover goes from “up” (all the way up) to down, there’s a very pleasant ‘thonk’ that I can’t even describe. The cover has no bounce at all, and because of this thonk, could be described adequately as a fidget toy, too. Turns out that those two brass buttons are springy, and “catch” the cover when it lands. It’s exceptionally pleasant.

Wuben X-0 Knight flashlight e-switch cover

Wuben X-0 Knight flashlight e-switch cover

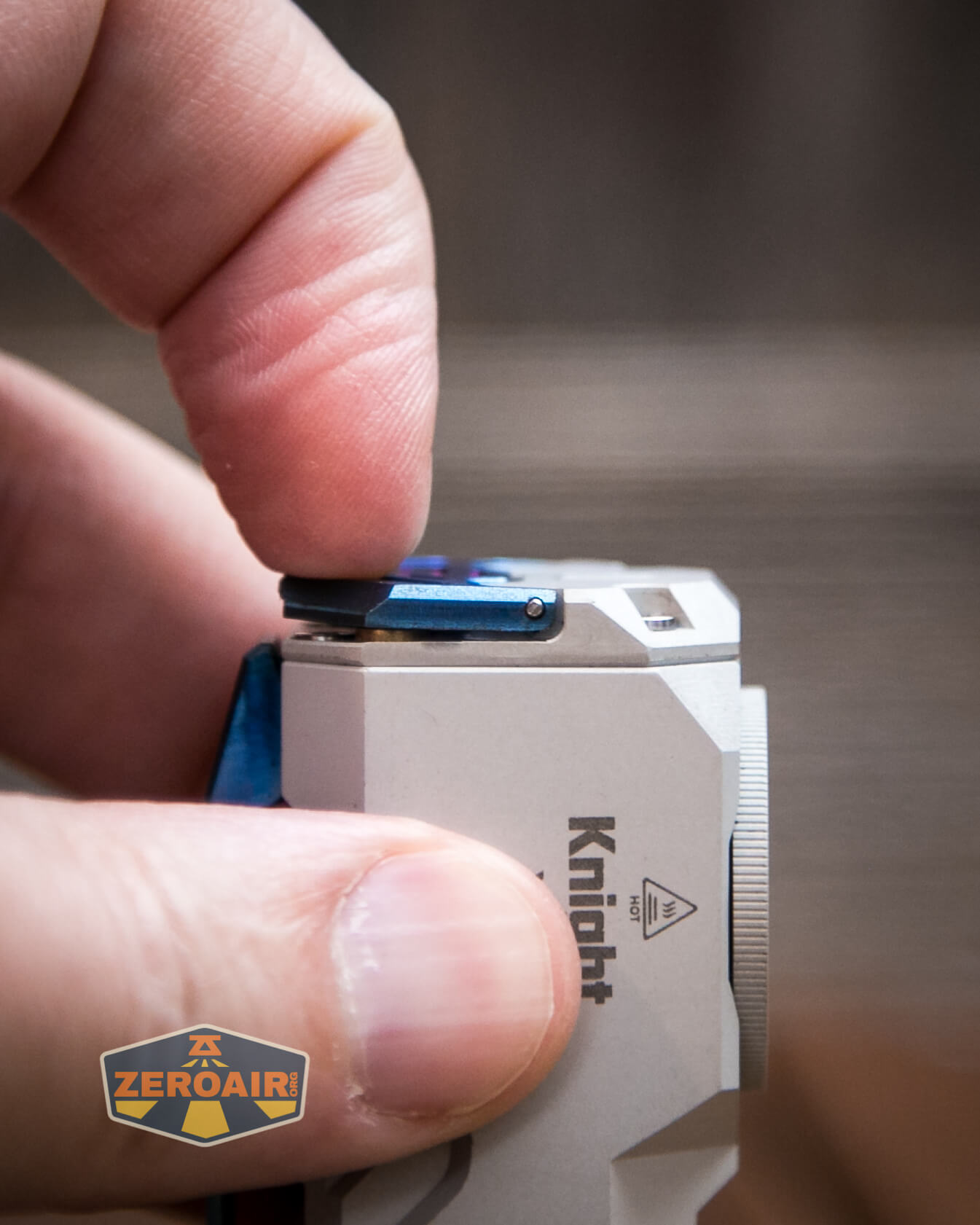

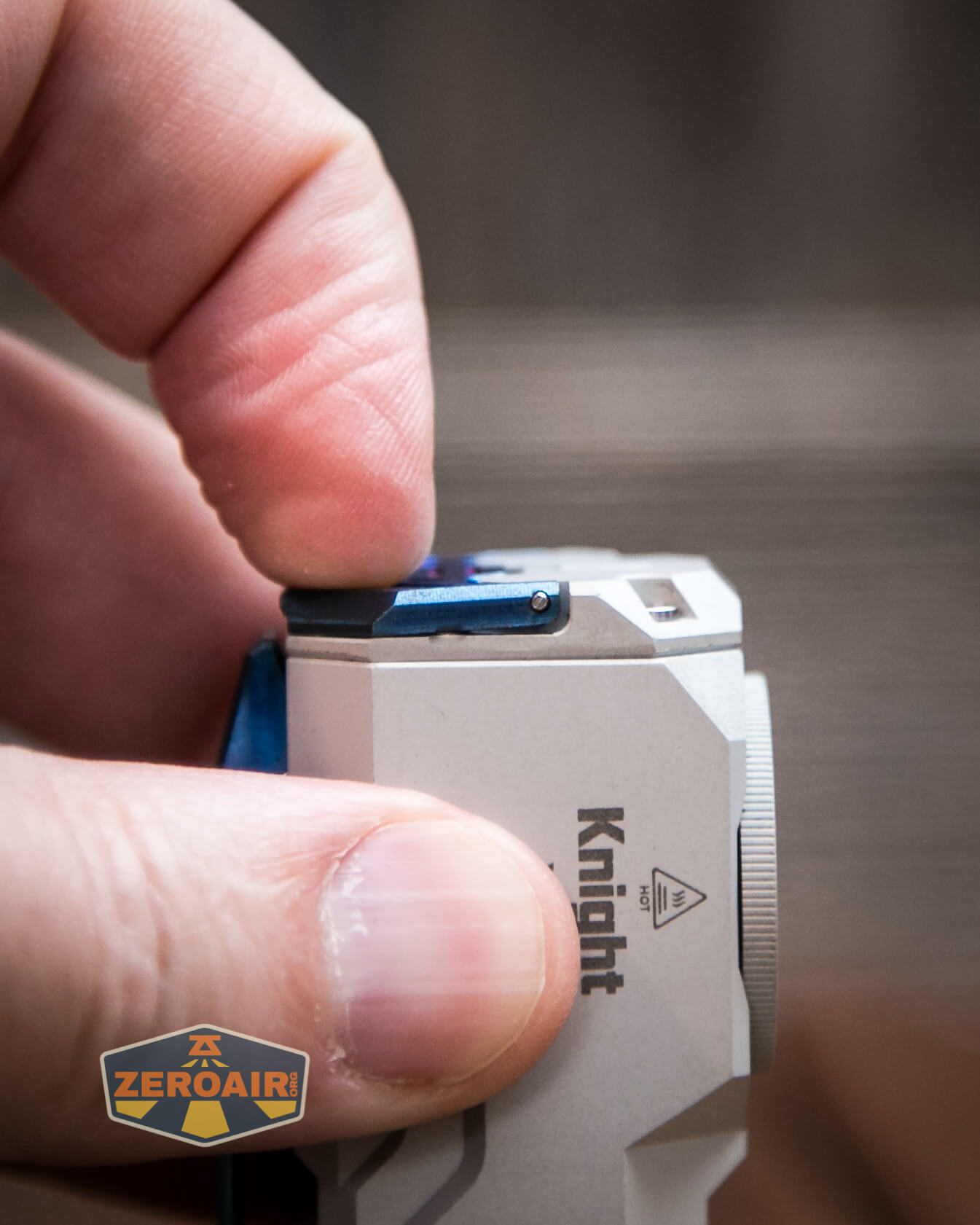

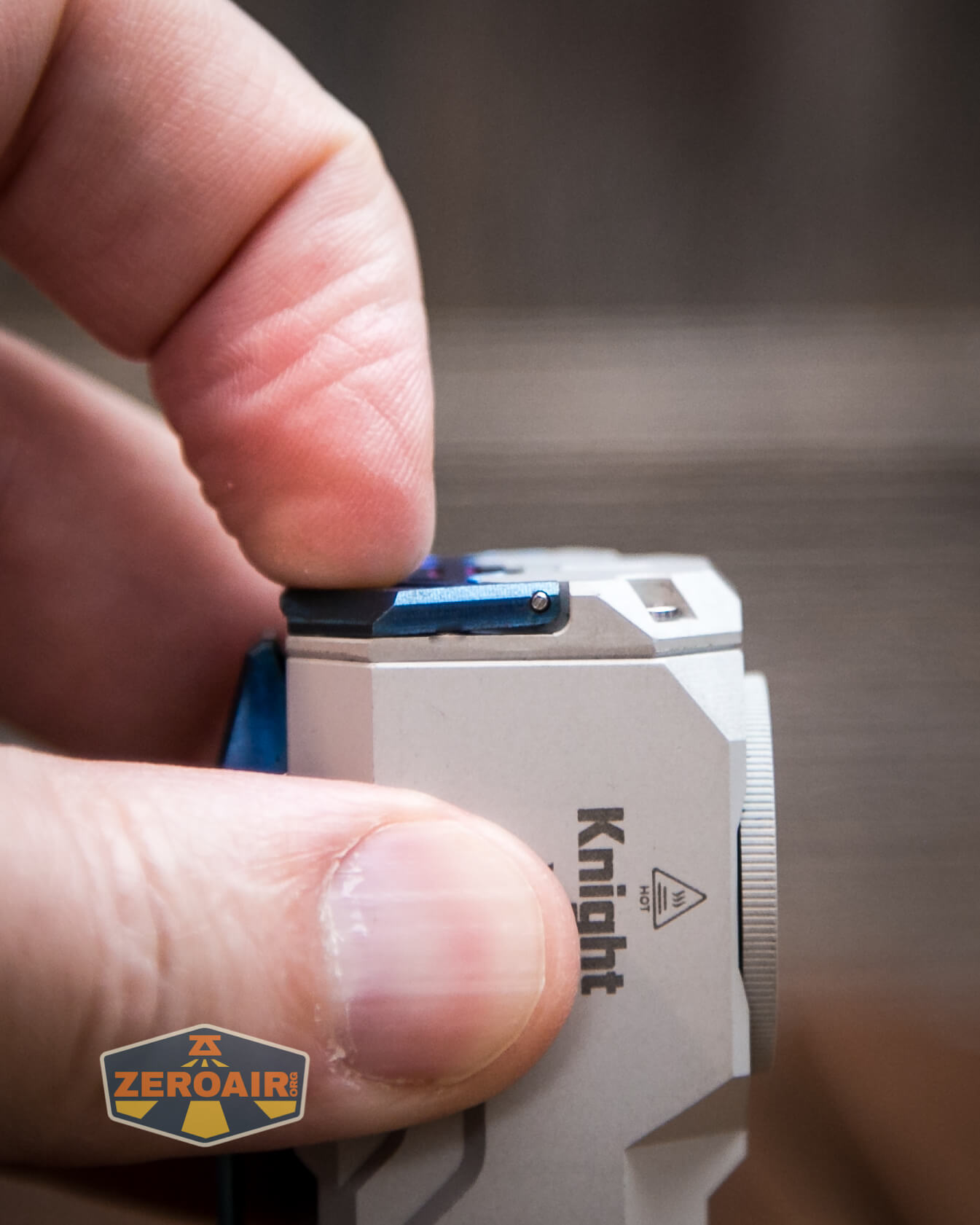

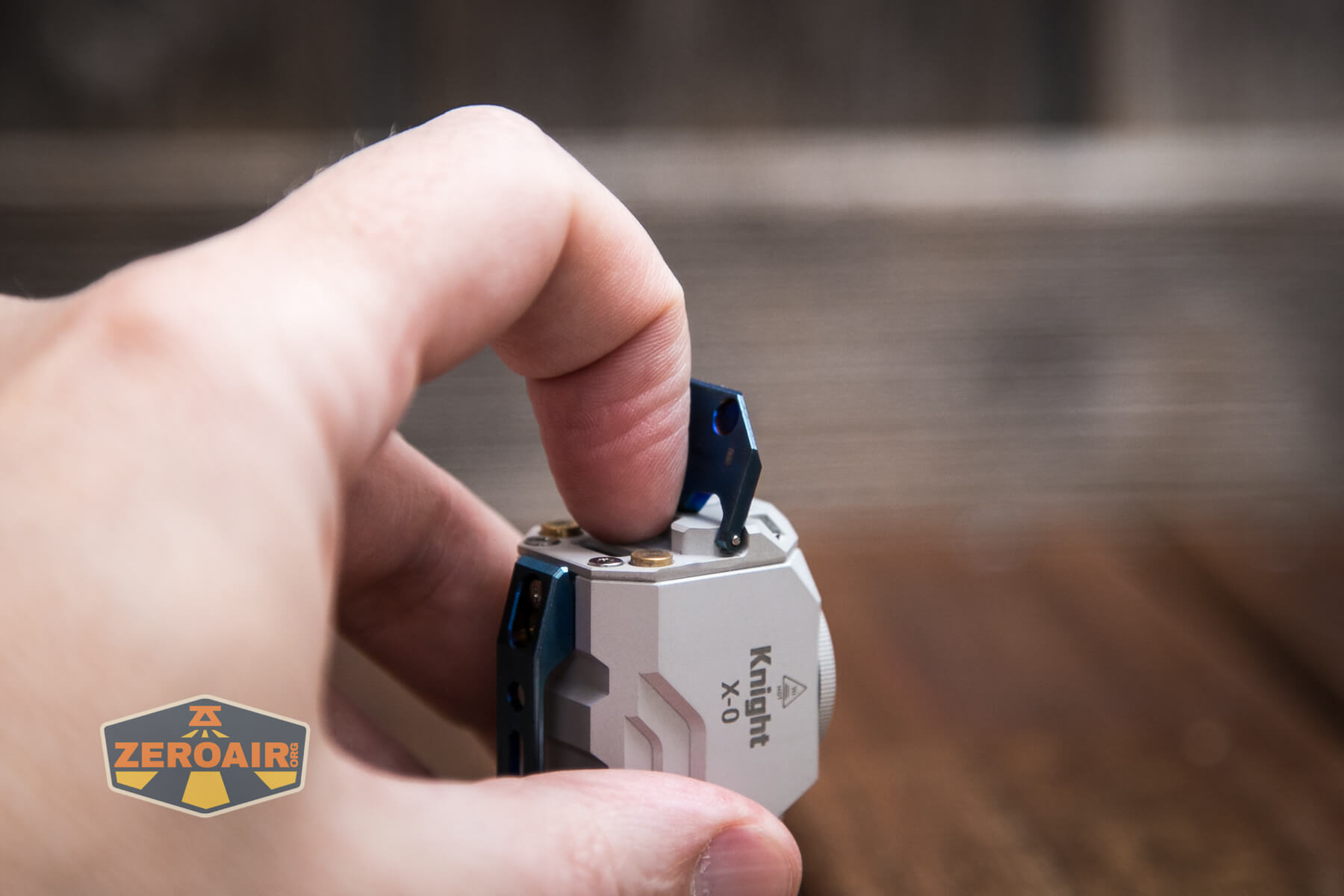

It’s possible to use the e-switch without the levered part. That switch is fairly tiny, and fairly hidden though.

Wuben X-0 Knight flashlight accessing switch

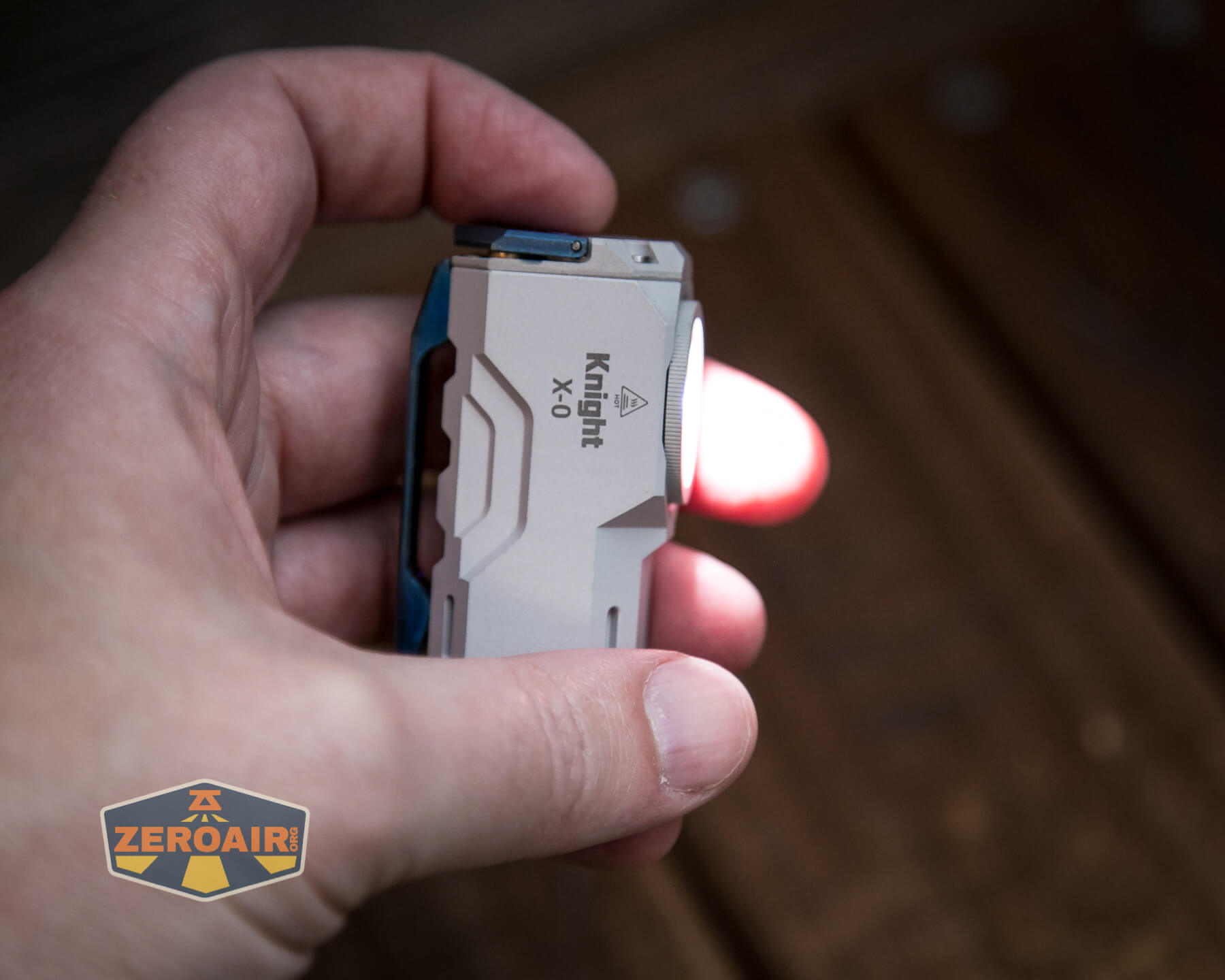

As you can see, the switch cover is translucent. It doesn’t directly have indicating features (I think), but the indicator visible from the top of the light (not visible in the photo below because of the hinged cover) has indicating features that also light up the switch just a bit.

Wuben X-0 Knight flashlight switch

Here’s a UI table!

State Action Result
Off Click On (Mode Memory) and battery indicator from near-switch LED^
On Hold Mode advance (Moon, Low, Med, High)
On Double click Turbo
On Click Off
Off Hold Eco (Or “Moon”, they call it both)
Off or Turbo Double Click Strobe
Strobe Double Click SOS
Strobe Click Return to previous state except Turbo, which resumes to Moon
Off Click 4x Lockout (indicated by three blinks from main emitter)
Lockout Click Lockout indication by LED indicator near switch
Lockout Click 4x Unlock to Moon
Any steady mode (excluding Turbo) Click then Hold (two actions; it’s not just “hold” it’s: click first then hold) Program output of selected mode^^
Lockout Click [wait], Double Click [wait], Triple Click Resets light to default state. Light unlocks and turns on to Eco to confirm.

^ Battery indication is as follows (from the near-switch LED)

Blue steady: ≥90% power
Blue flashing: 90% to ≥40% power
Red steady: 40% to ≥15% power
Red flashing: 15% to ≥ 0% power

^^ In programming mode, the output ramps up to the maximum possible for that level and blinks then begins ramping down to the lowest output possible for that mode and again blinks. When you release the switch, that mode is programmed to that output level.

LED and Beam

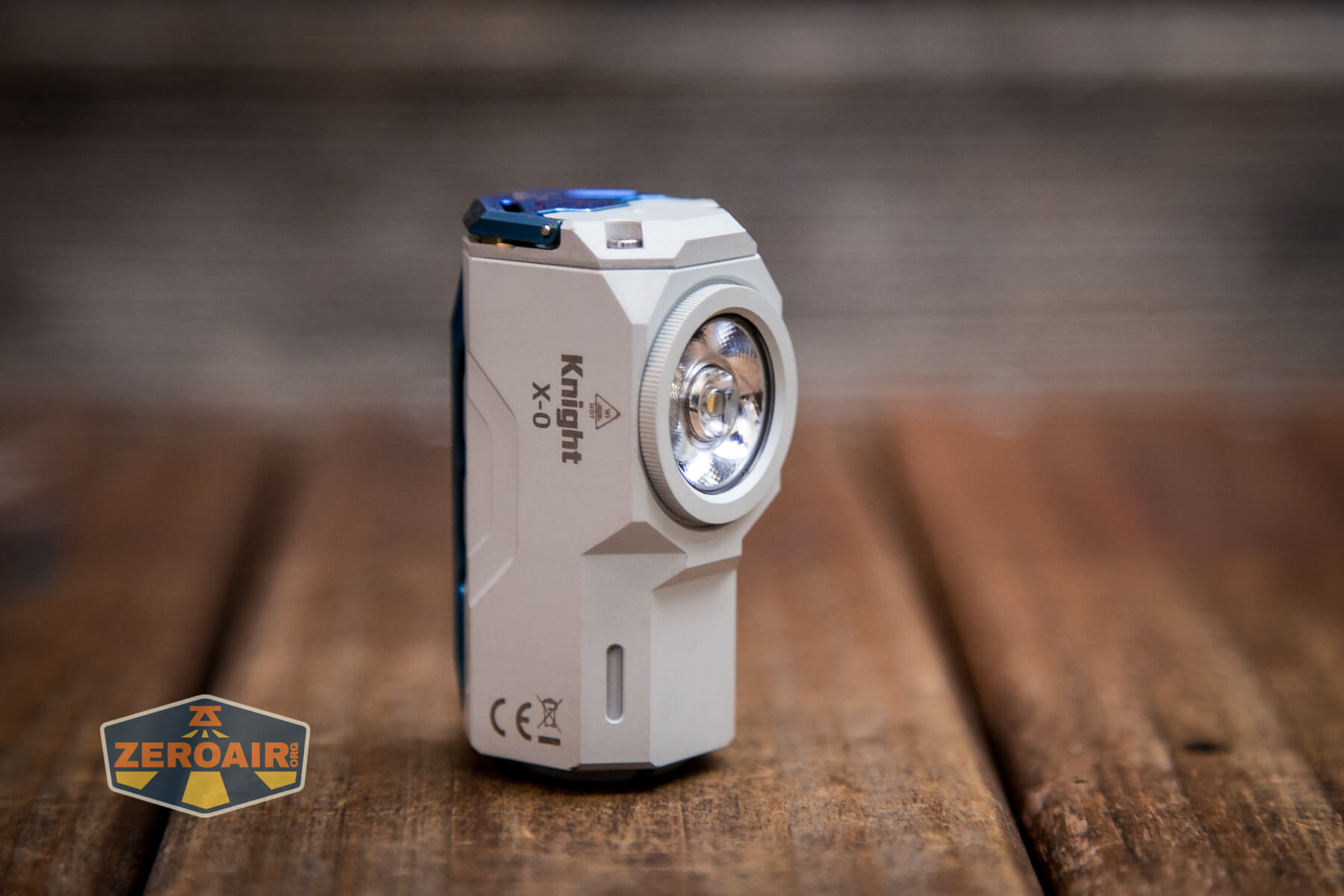

Wuben states that the emitter used in this light is an Osram P9. I was nearly sure they stated it’s a cool white emitter but I can’t find that now. Either way, it’s pleasantly neutral! Wuben also offers a Samsung LH351d option. Specs for either emitter are not given, and I couldn’t remove the bezel. So I’m left with the picture you can see below to try to determine if this is the Osram or Samsung (at least visually).

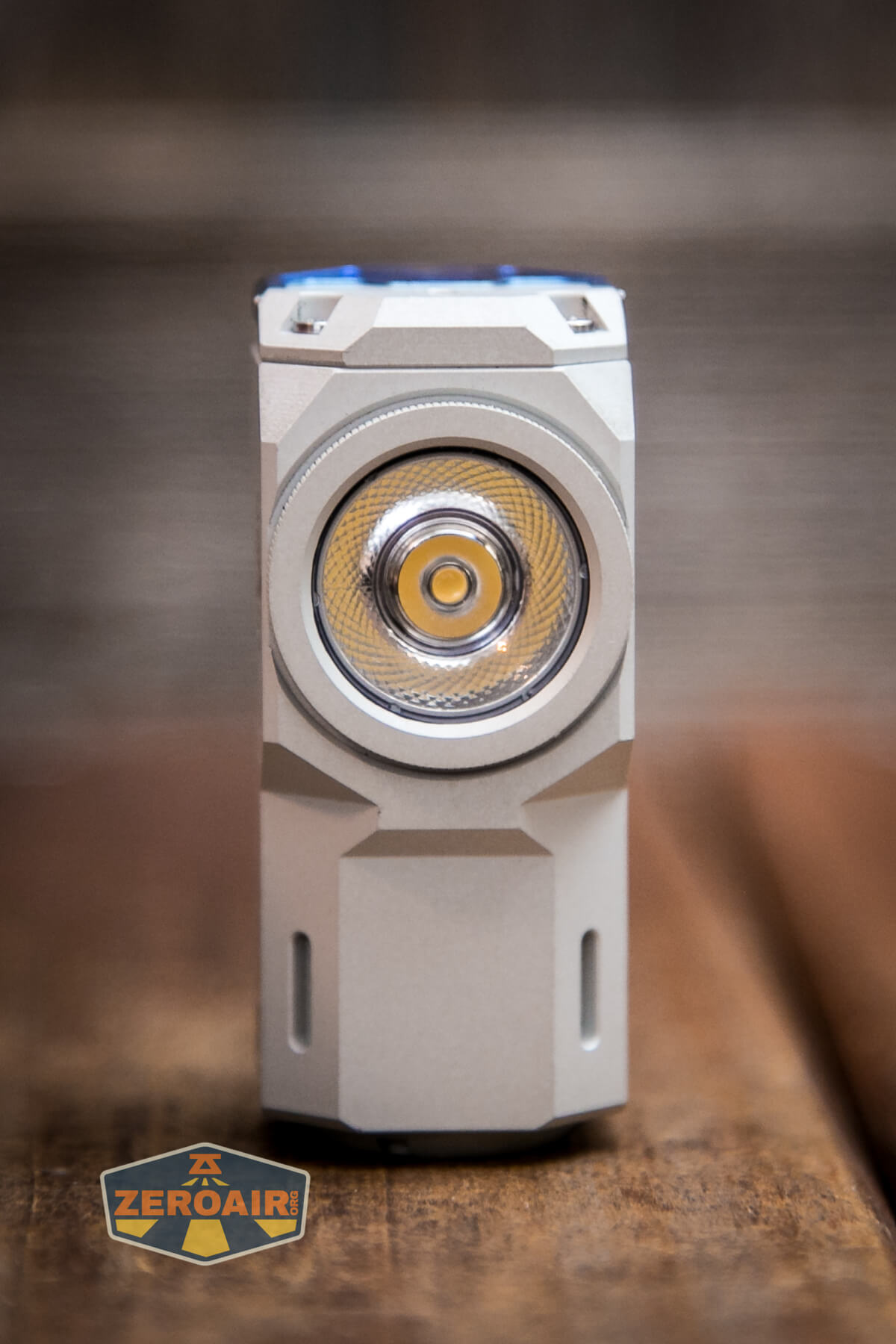

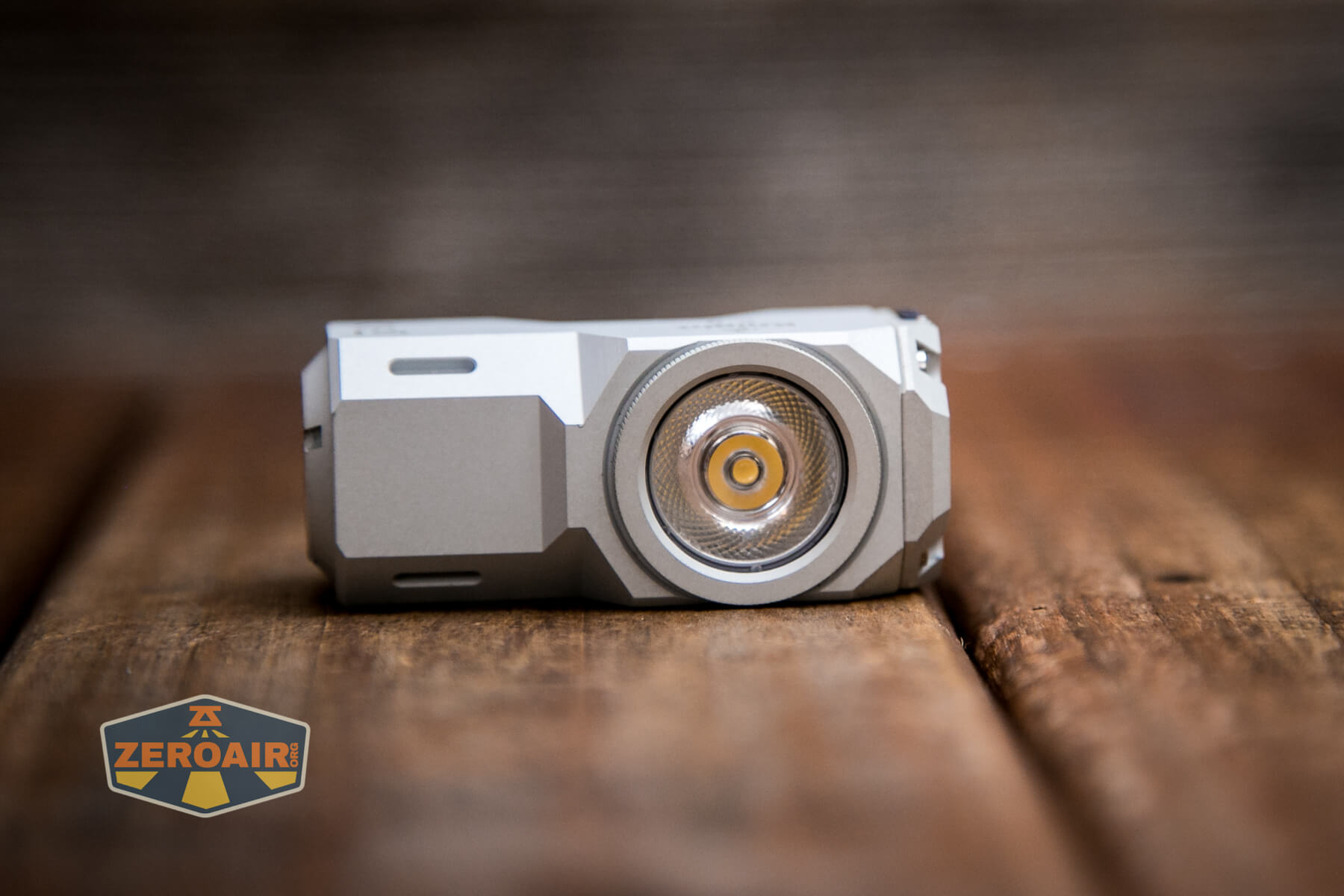

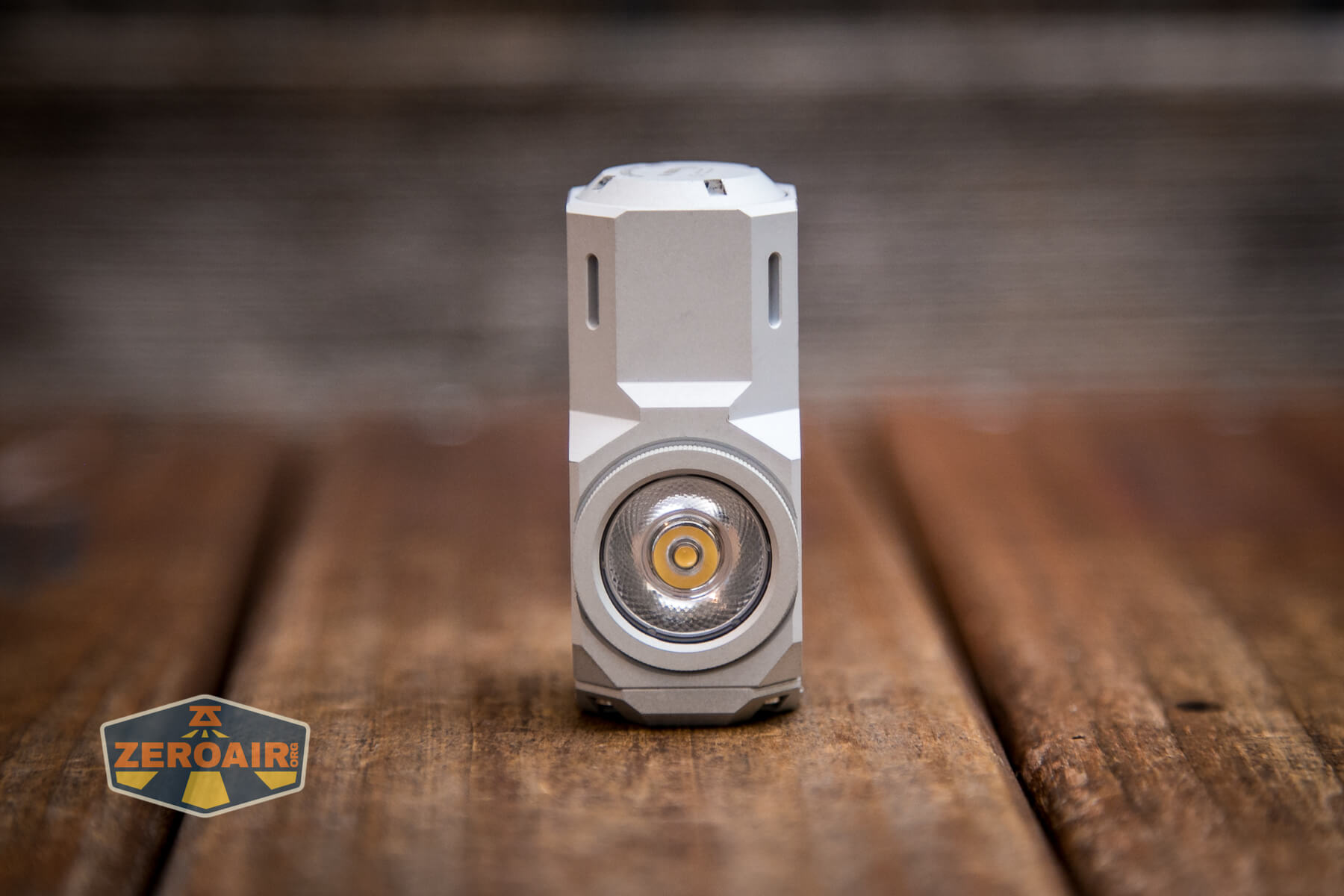

Wuben X-0 Knight flashlight emitter and tir

As you can see above and below, Wuben has used this very shallow TIR optic, which gives a very throwy beam profile (which I love!)

Wuben X-0 Knight flashlight emitter and tir

I’m not sure if the bezel can be removed but it has reeding that leads me to believe with the right motivation, someone could remove it.

Wuben X-0 Knight flashlight emitter and tir Wuben X-0 Knight flashlight emitter and tir Wuben X-0 Knight flashlight headstanding Wuben X-0 Knight flashlight on

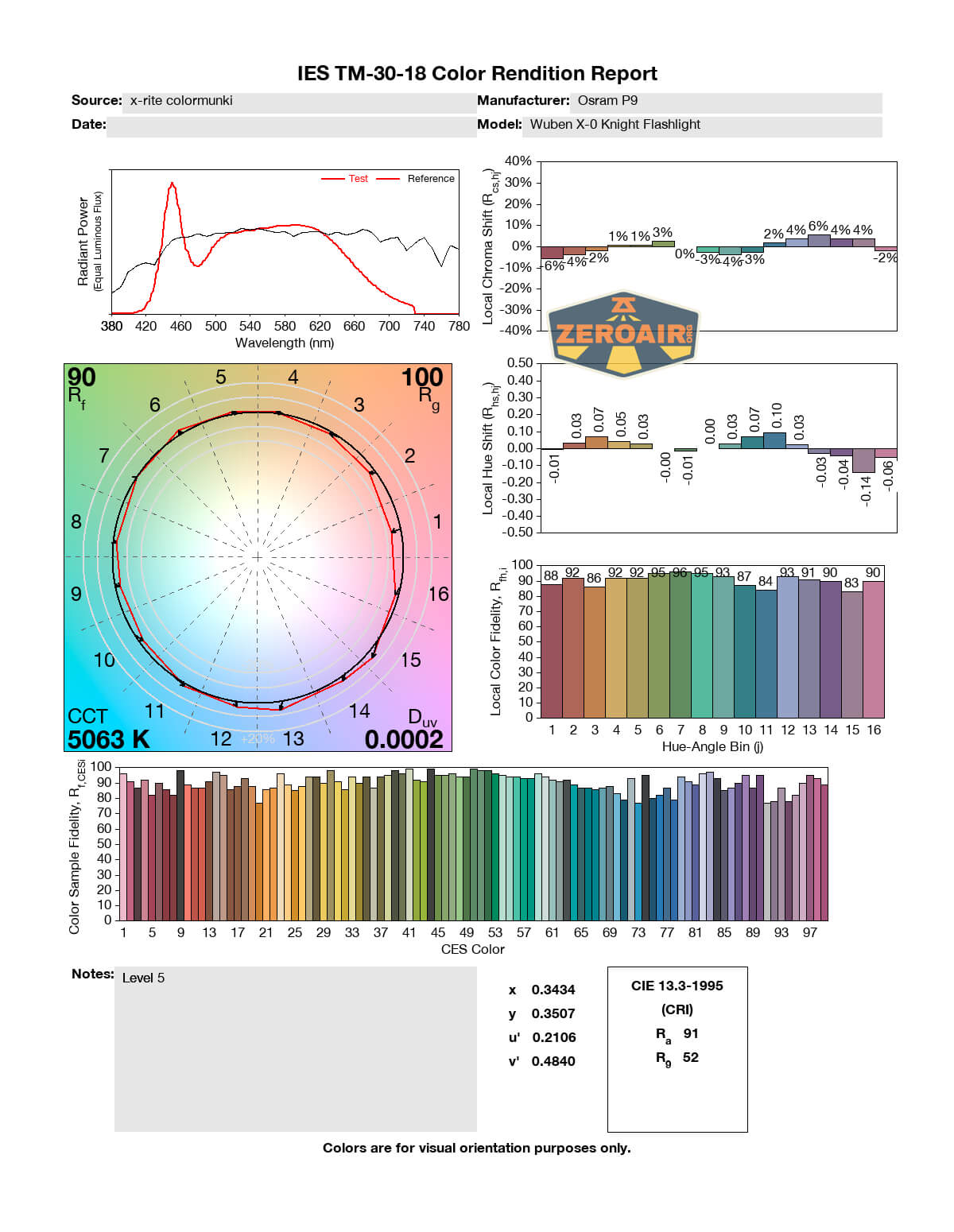

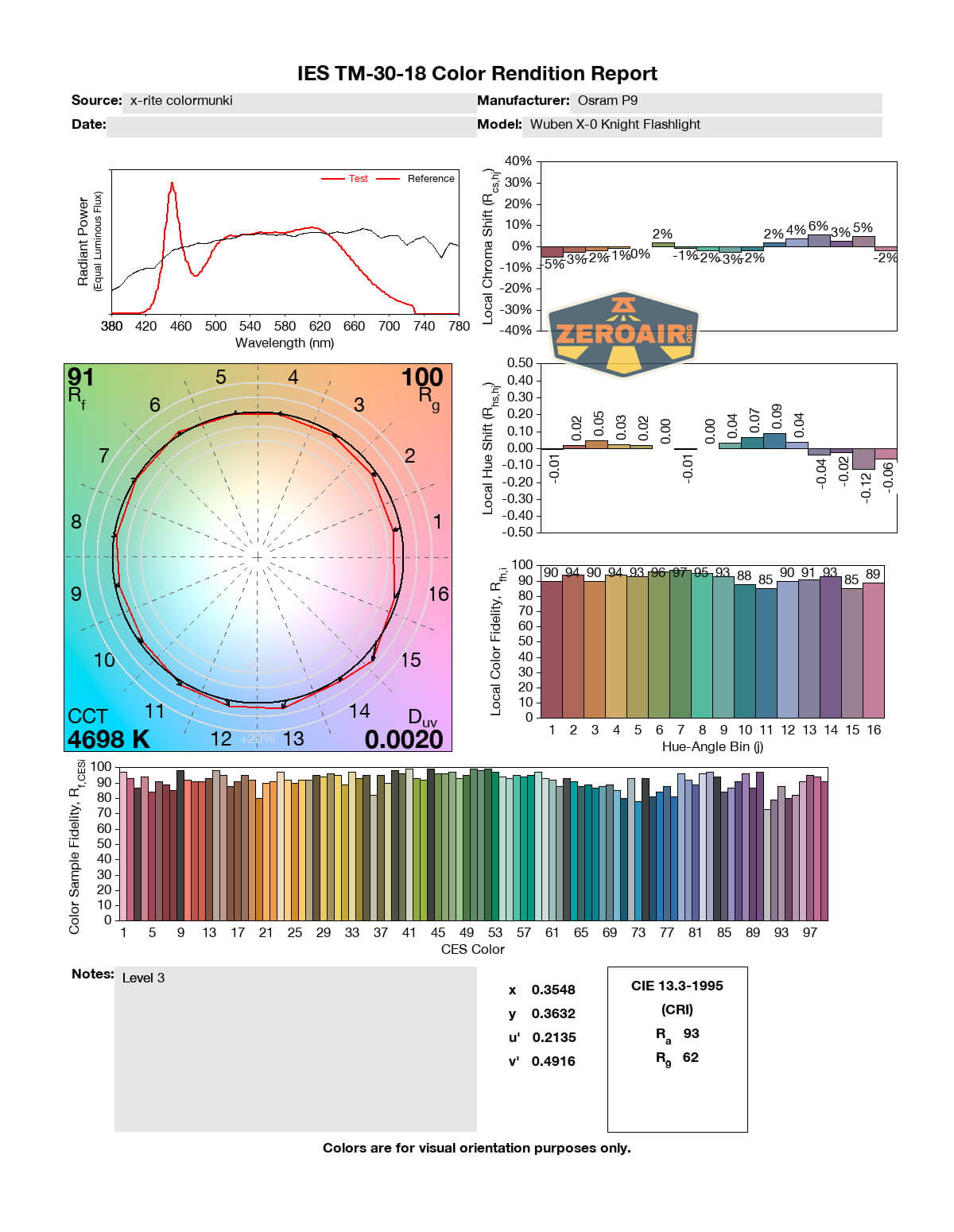

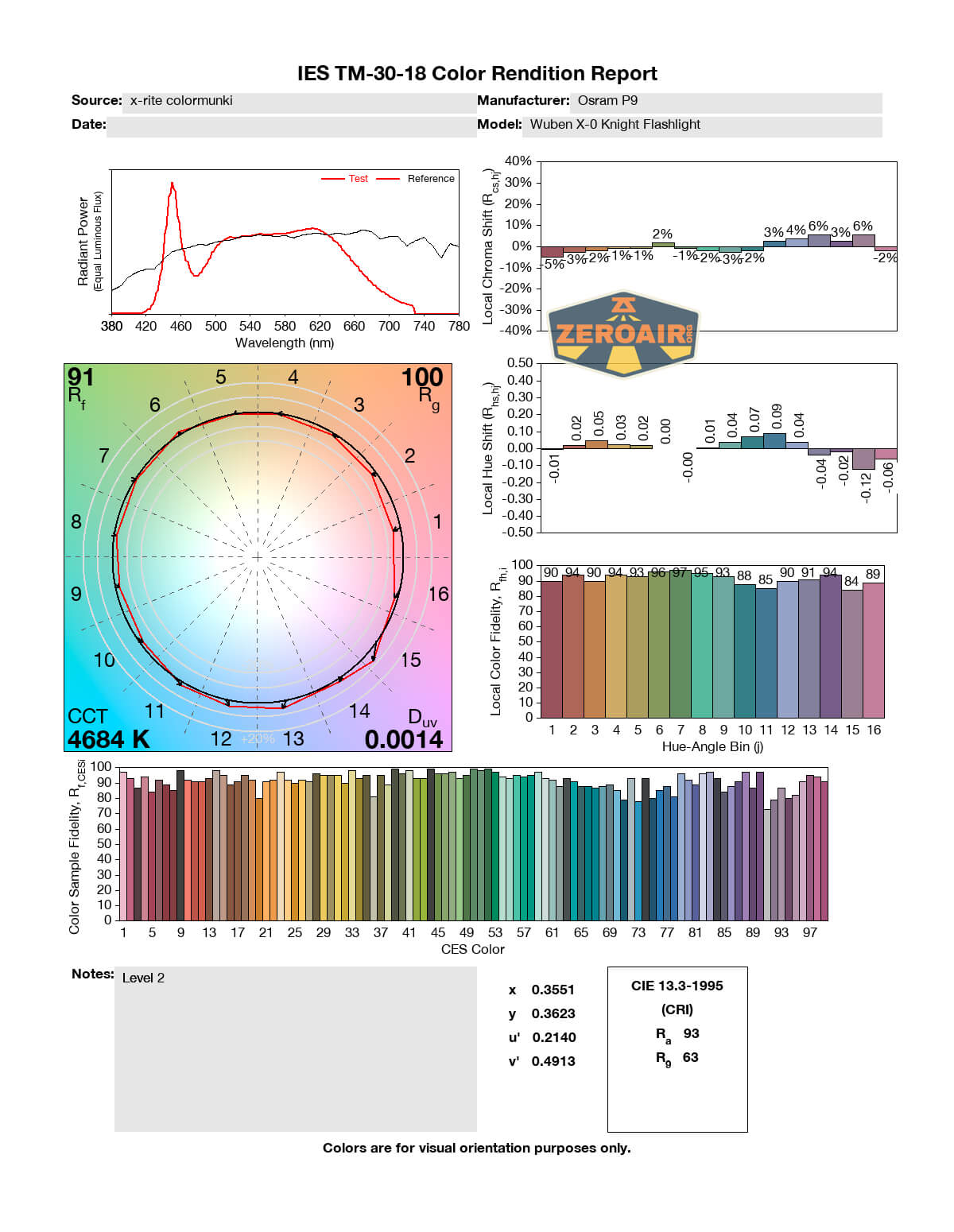

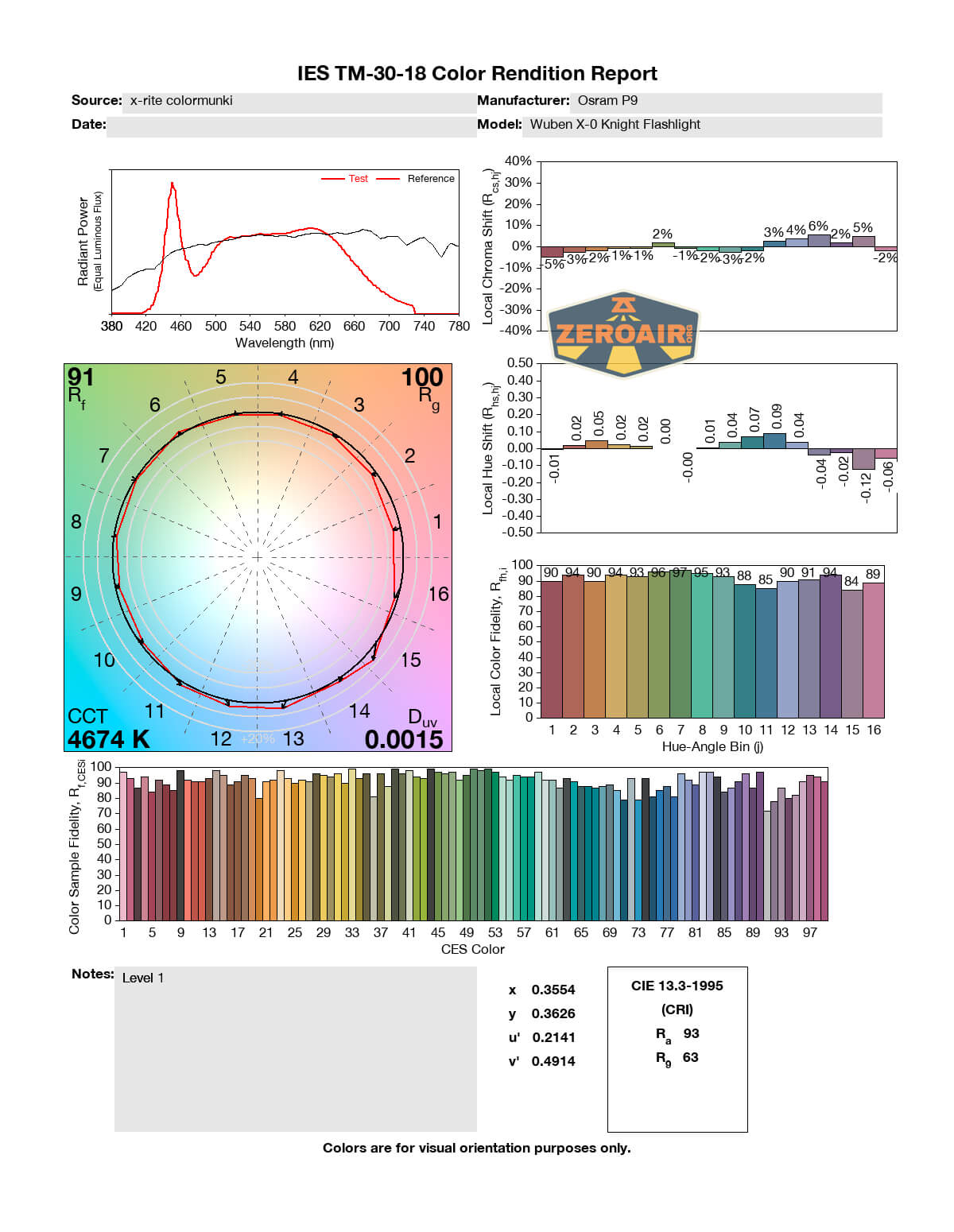

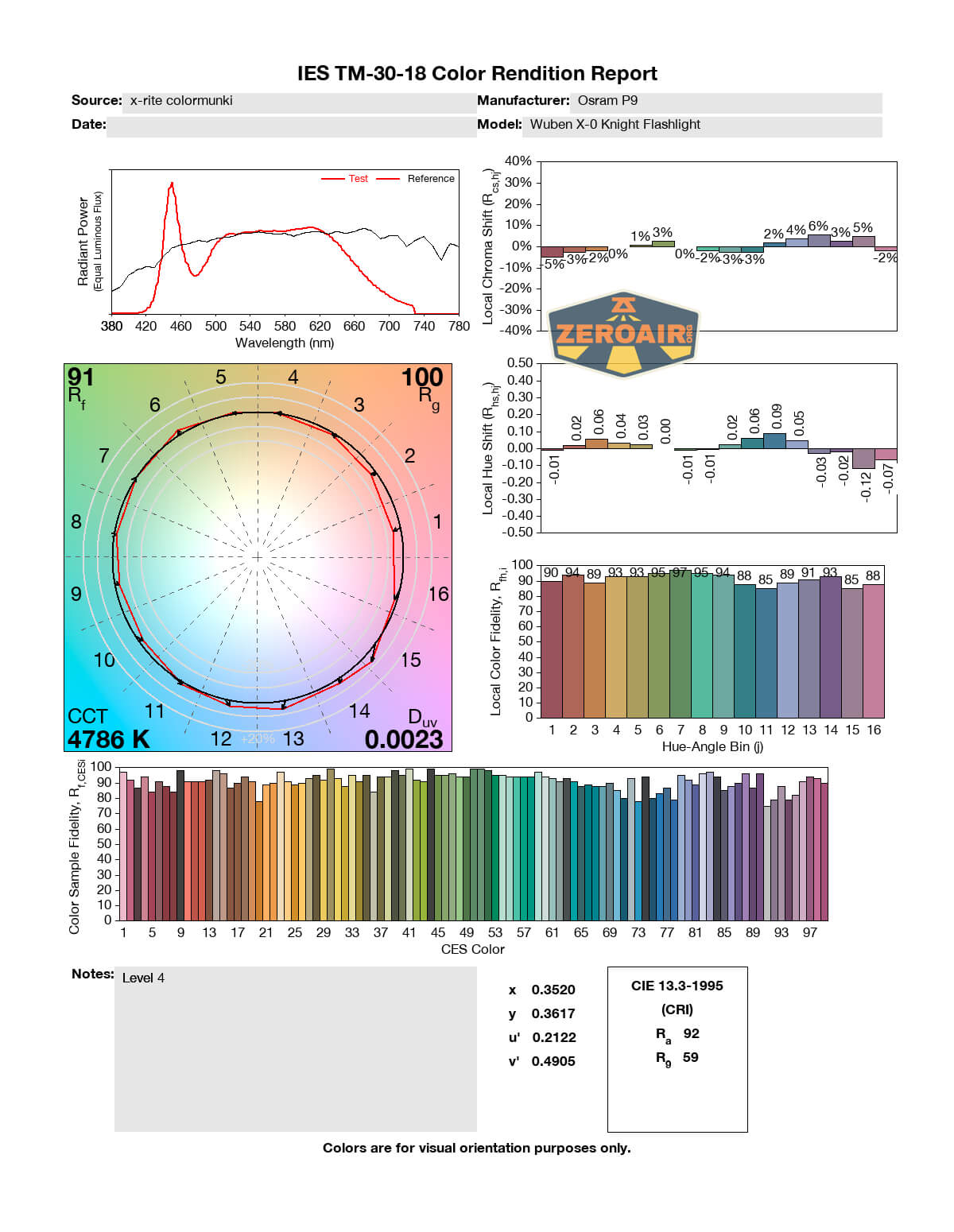

LED Color Report (CRI and CCT)

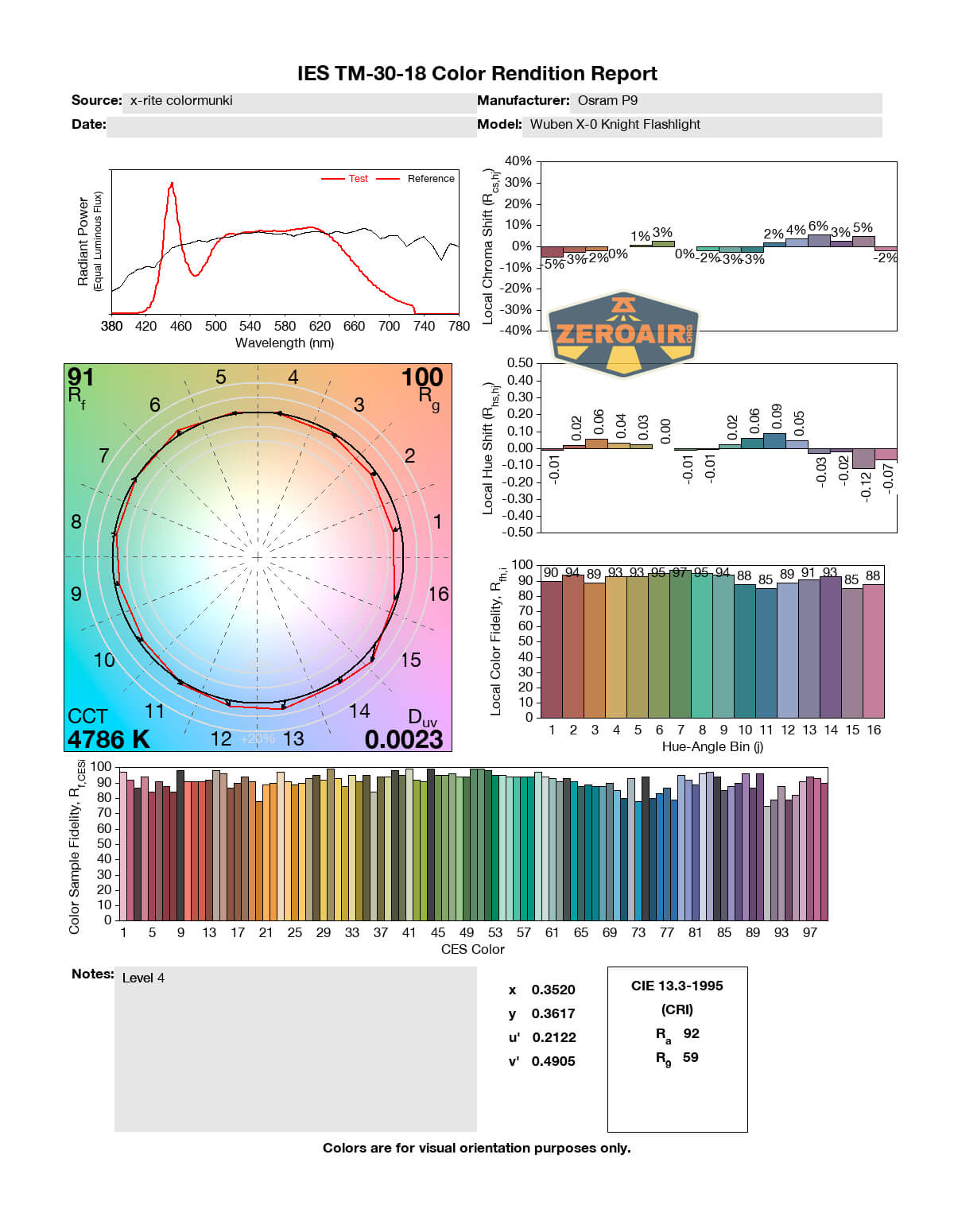

What we have here from this Osram P9 is a pleasantly neutral white (around 4600K to 5100K) and surprisingly high CRI. In fact, now that I look at these numbers, I wonder if Wuben sneaked me one of the Samsung LH351d emitter options, which I think were only available if the Kickstarter hit its funding goal. I don’t know of any high CRI Osram P9 emitters. I will check with Wuben on this and update the review if things need to be changed!

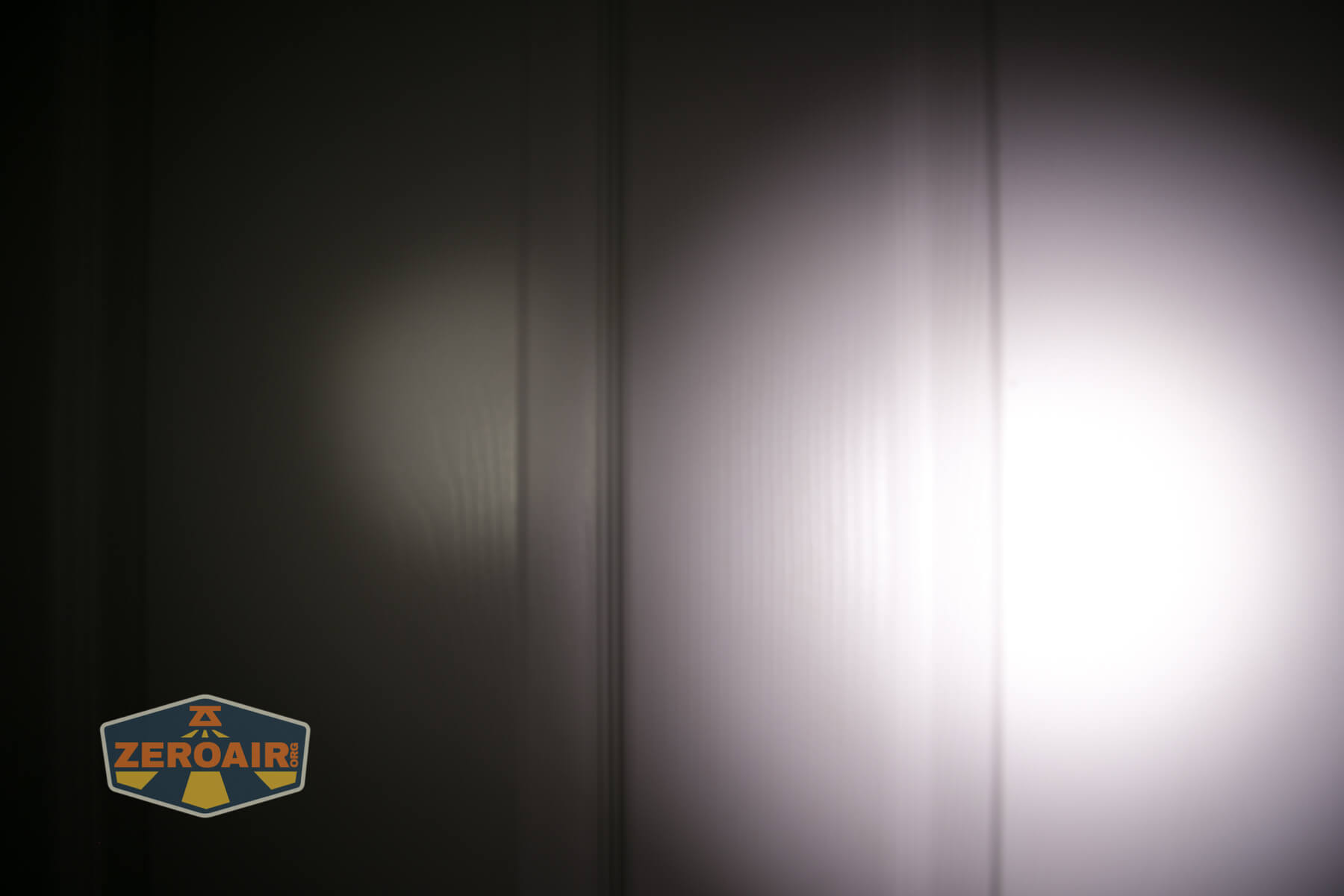

Beamshots

These beamshots are always with the following settings:  f8, ISO100, 0.3s shutter, and manual 5000K exposure.

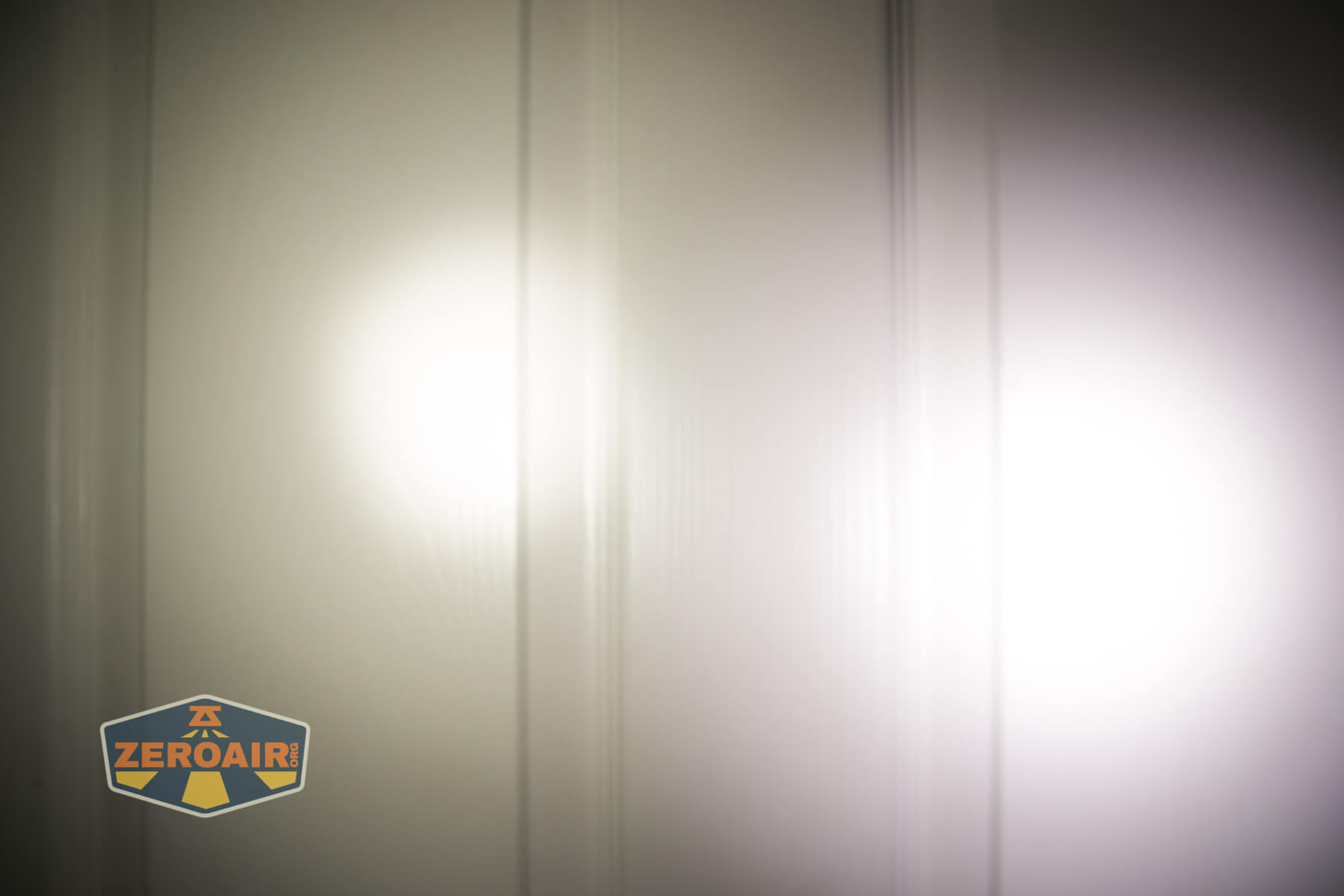

Tint vs BLF-348 (KillzoneFlashlights.com 219b version) (affiliate link)

I keep the test flashlight on the left, and the BLF-348 reference flashlight on the right.

I compare everything to the KillzoneFlashlights.com 219b BLF-348 because it’s inexpensive and has the best tint!

Conclusion

What I like

  • Good CCT (4600K-5100K)
  • Good CRI (93)
  • Great user interface
  • Programmable modes
  • Plenty of tritium slots
  • Replaceable 18350 (standard!)
  • Unique design
  • Low cost for basic model of such a unique light

What I don’t like

  • Exposed USB-C port (even if it’s waterproof)
  • Hard to use pocket clip
  • Kickstarter funding for the light
