Skilhunt EK1 Keychain Flashlight Review

Skilhunt EK1 Keychain Flashlight Review

Skilhunt has released the EK1, a keychain flashlight that offers two modes and USB-C charging. It comes in high CRI 5000K as well as 6500k.


Official Specs and Features

Here’s a link to the Skilhunt EK1 keychain flashlight product page. (That’s a ShareASale link.)

Versions

Two emitters are available: Luminus SST-20 (seen here) and Nichia 219F-V2, which is high CRI and 5000K. Four body colors are available: Carbon Black, Royal Blue, Olive Green, and Vibrant Orange (seen here).

Price

The Skilhunt EK1 keychain flashlight goes for $18.90 and can be purchased through my ShareASale link.


Short Review

The Skilhunt EK1 is a nice little keychain flashlight. The twisty operation works fine, USB-C charging works fine, and most importantly it’s available in orange! So it’s a clear winner. Even the price is completely acceptable.

Long Review

The Big Table

Skilhunt EK1 Keychain Flashlight
Emitter: Luminus SST-20 (6500K)
Price in USD at publication time: $18.90
Cell: Internal (10220, 130mAh)
Runtime Graphs
LVP? ?
Switch Type: Twisty
On-Board Charging? Yes
Charge Port Type: USB-C
Charge Graph
Power off Charge Port No
Claimed Lumens (lm) 180
Measured Lumens (at 30s) 185 (102.8% of claim)^
Candela per Lumen 6.9
Claimed Throw (m) 66
Candela (Calculated) in cd (at 30s) 166lux @ 2.826m = 1326cd
Throw (Calculated) (m) 72.8 (110.3% of claim)^
Claimed CCT 6500
Measured CCT Range (K) 5300-5600 Kelvin
Item provided for review by: Skilhunt
All my Skilhunt reviews!

^ Measurement disclaimer:  I am an amateur flashlight reviewer.  I don’t have $10,000 or even $1,000 worth of testing equipment.  I test output and such in PVC tubes!!  Please consider claims within 10% of what I measure to be perfectly reasonable (accurate, even).

What’s Included

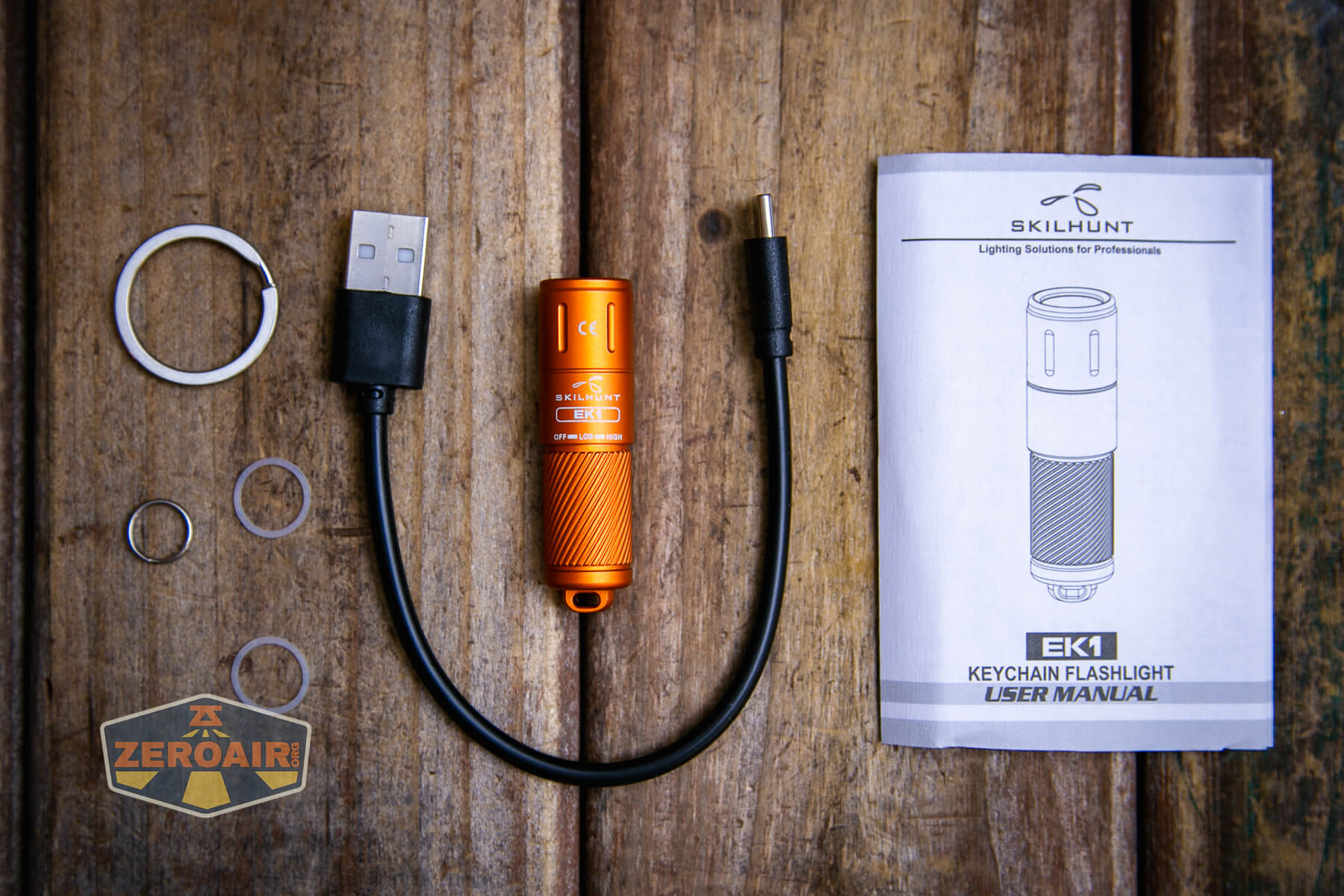

Skilhunt EK1 keychain flashlight what's included

  • Skilhunt EK1 keychain flashlight
  • Charging cable (USB to USB-C)
  • Spare o-rings (2)
  • Split rings (2)
  • Manual

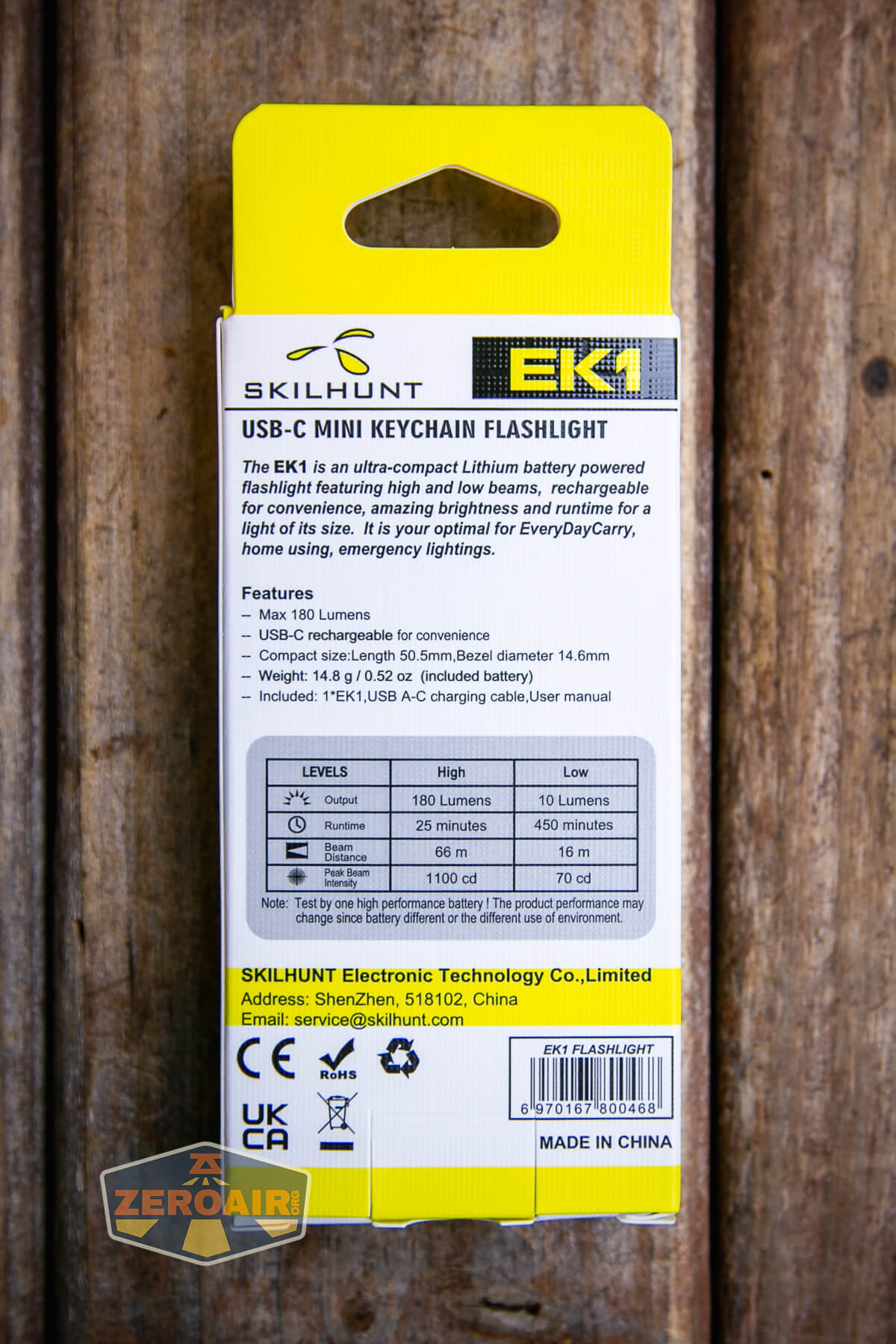

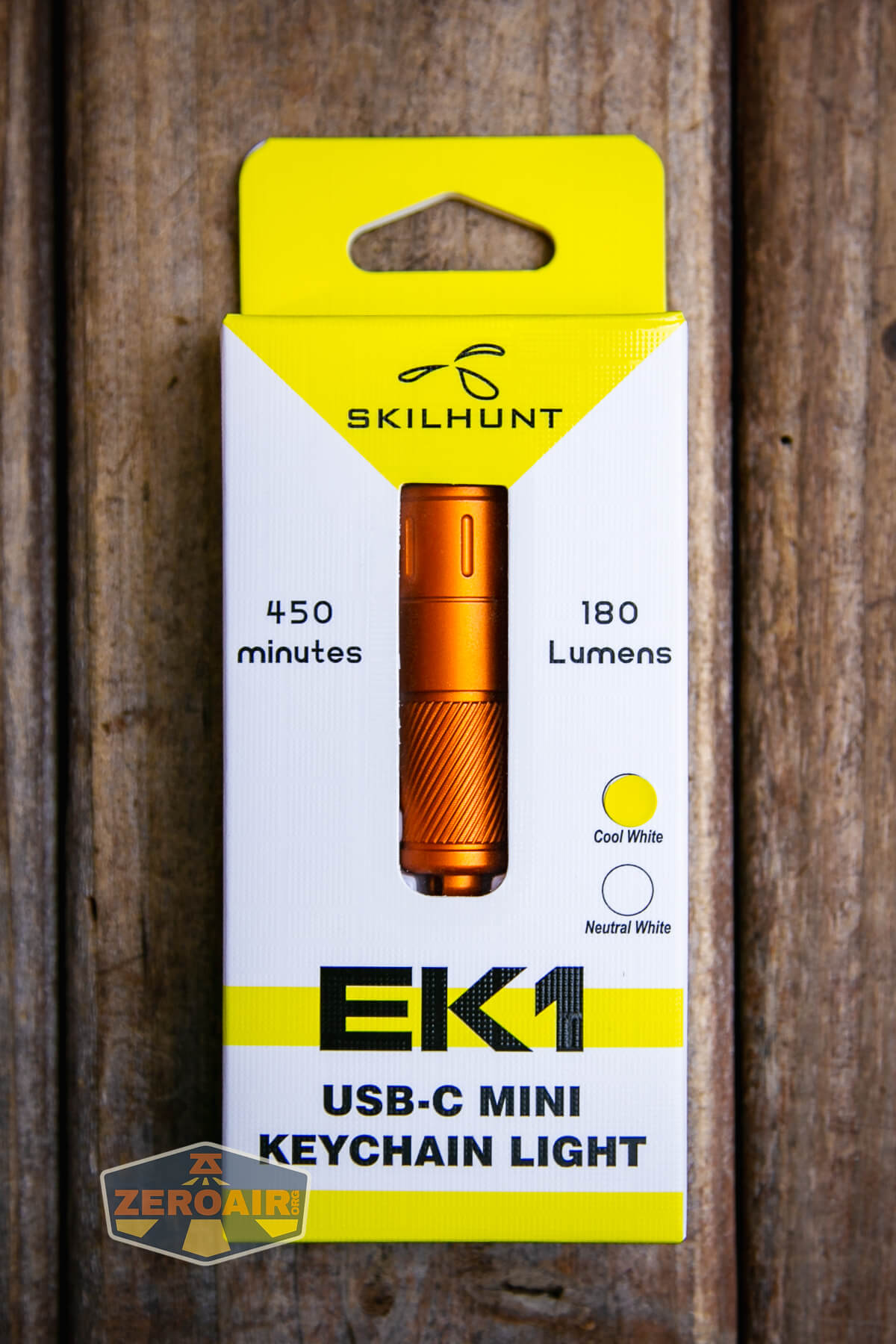

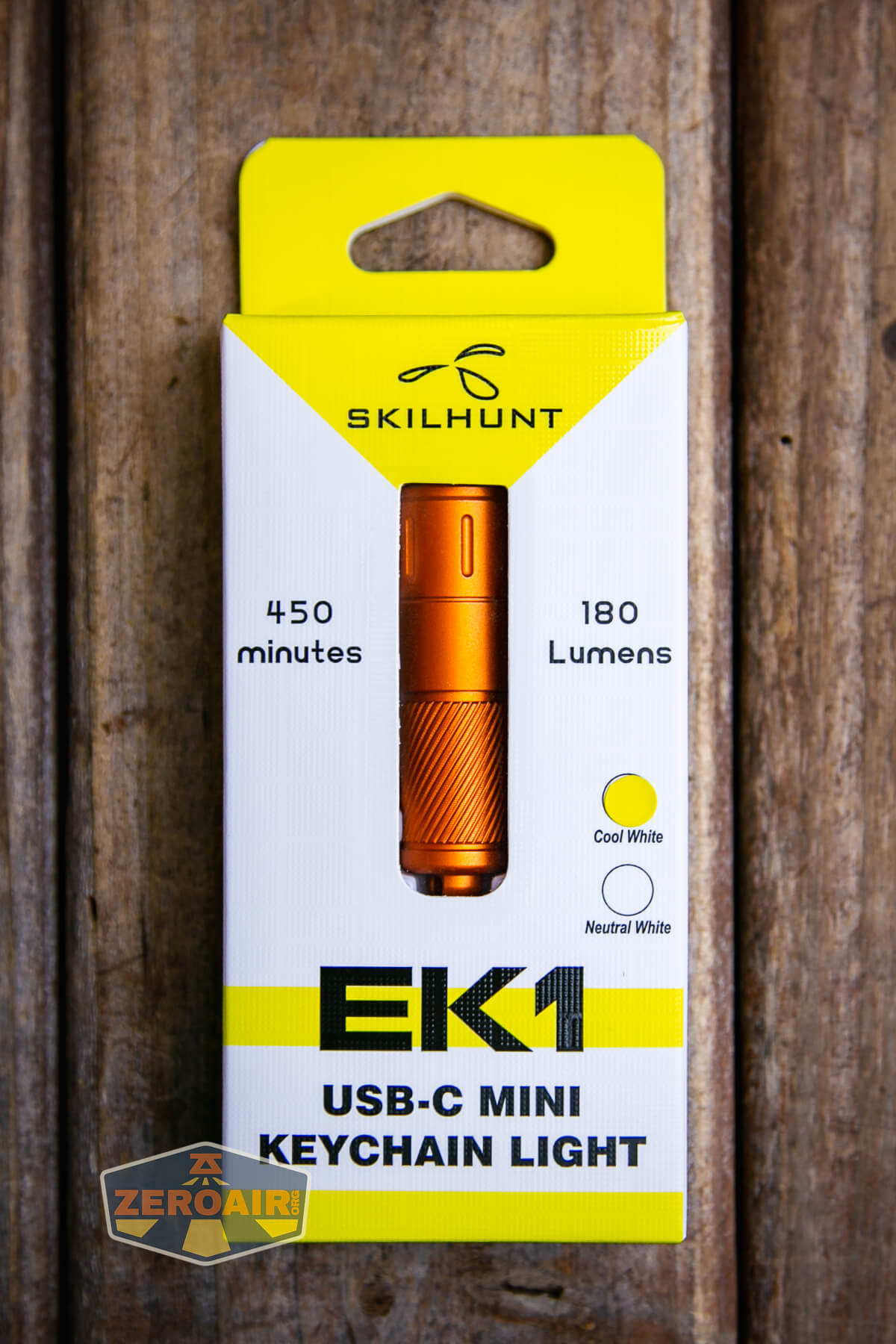

Package and Manual

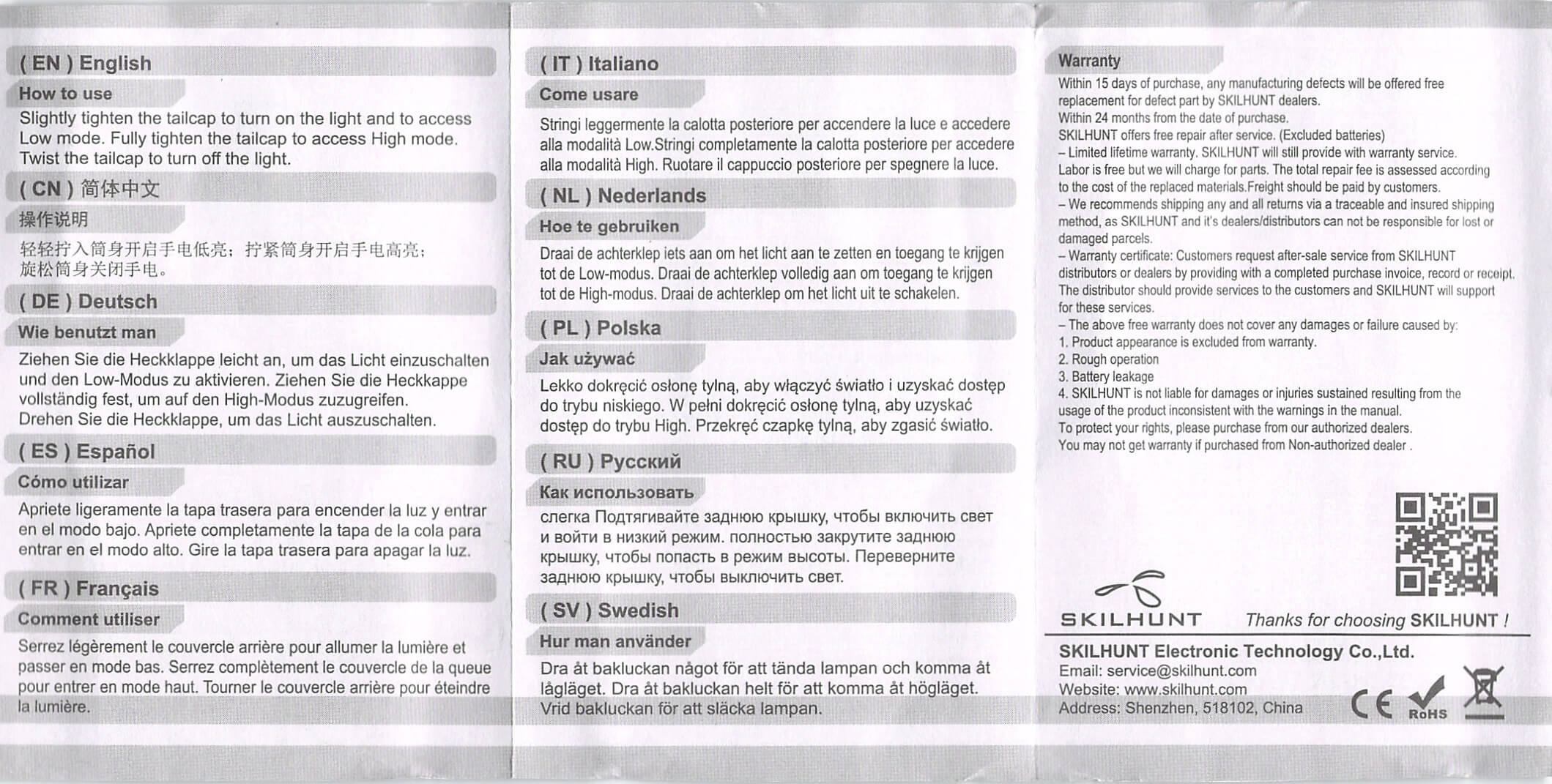

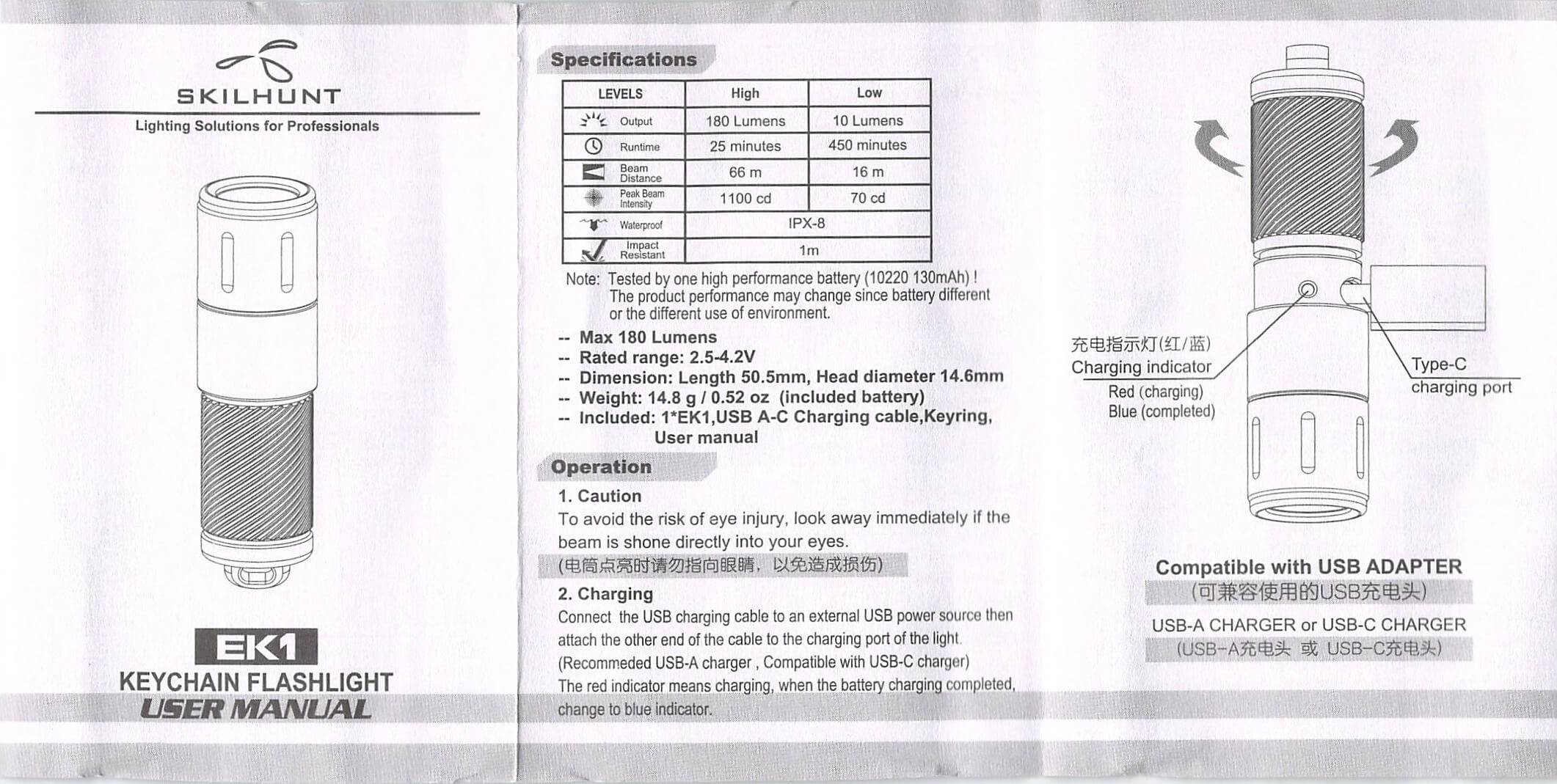

manual

manual

Build Quality and Disassembly

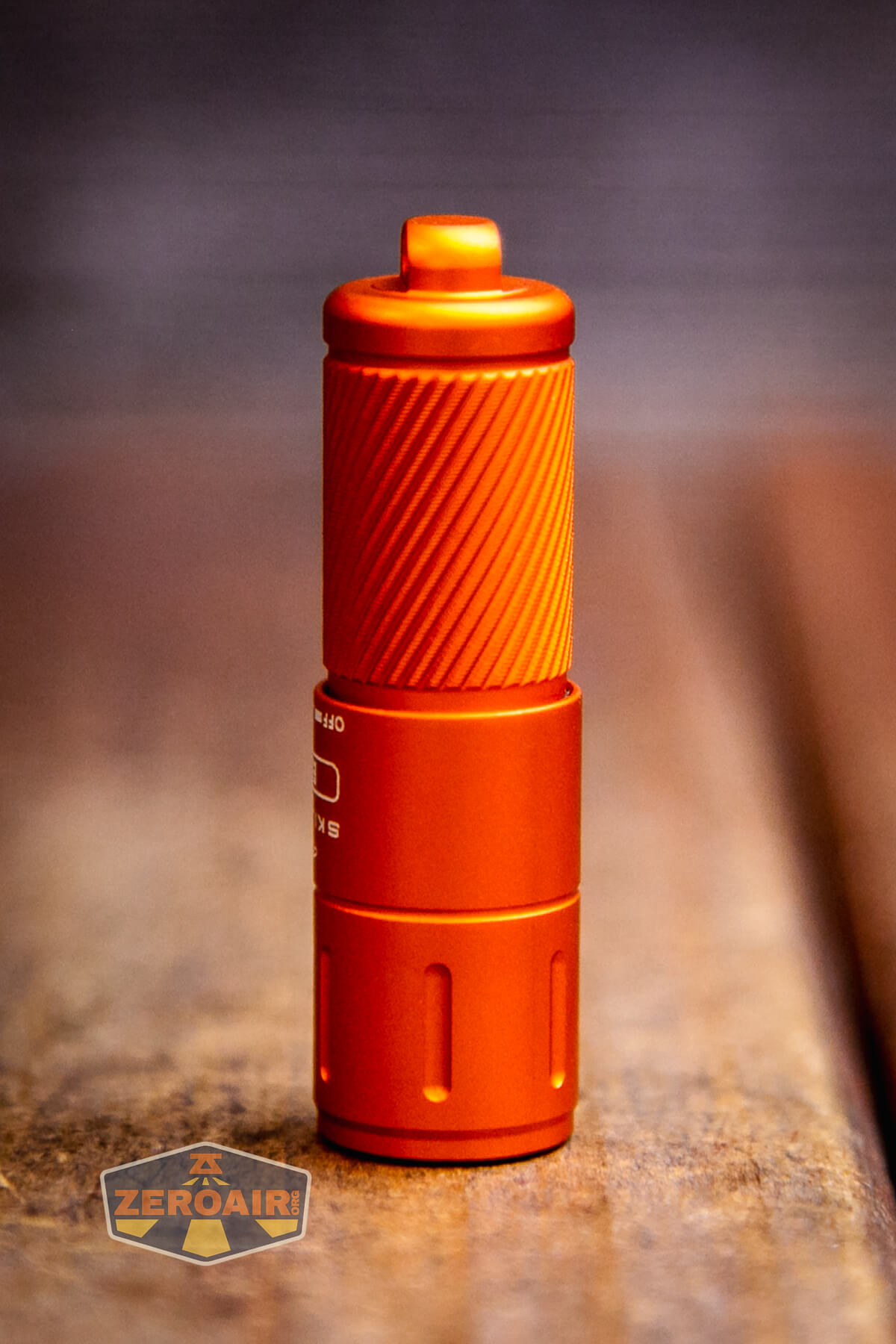

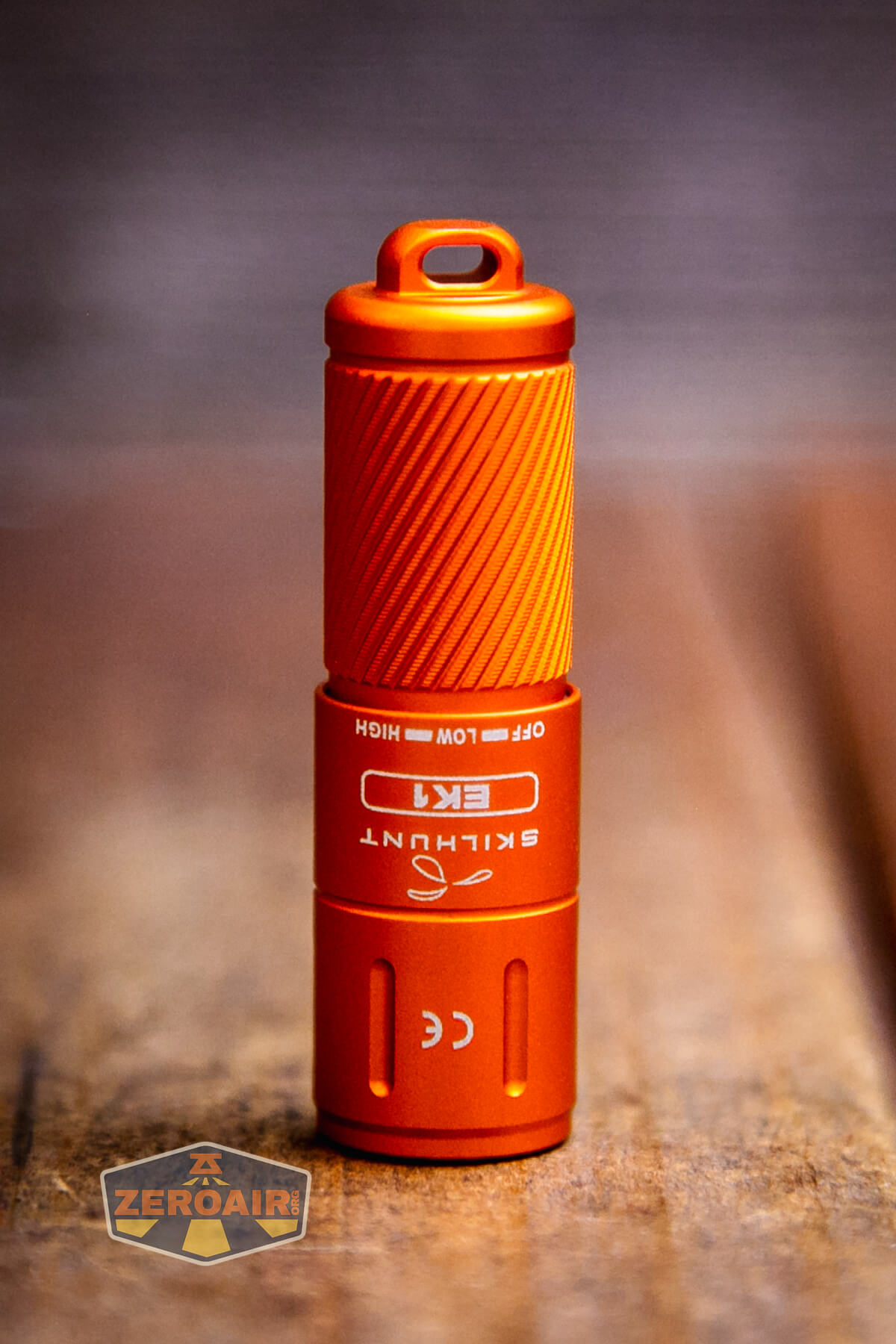

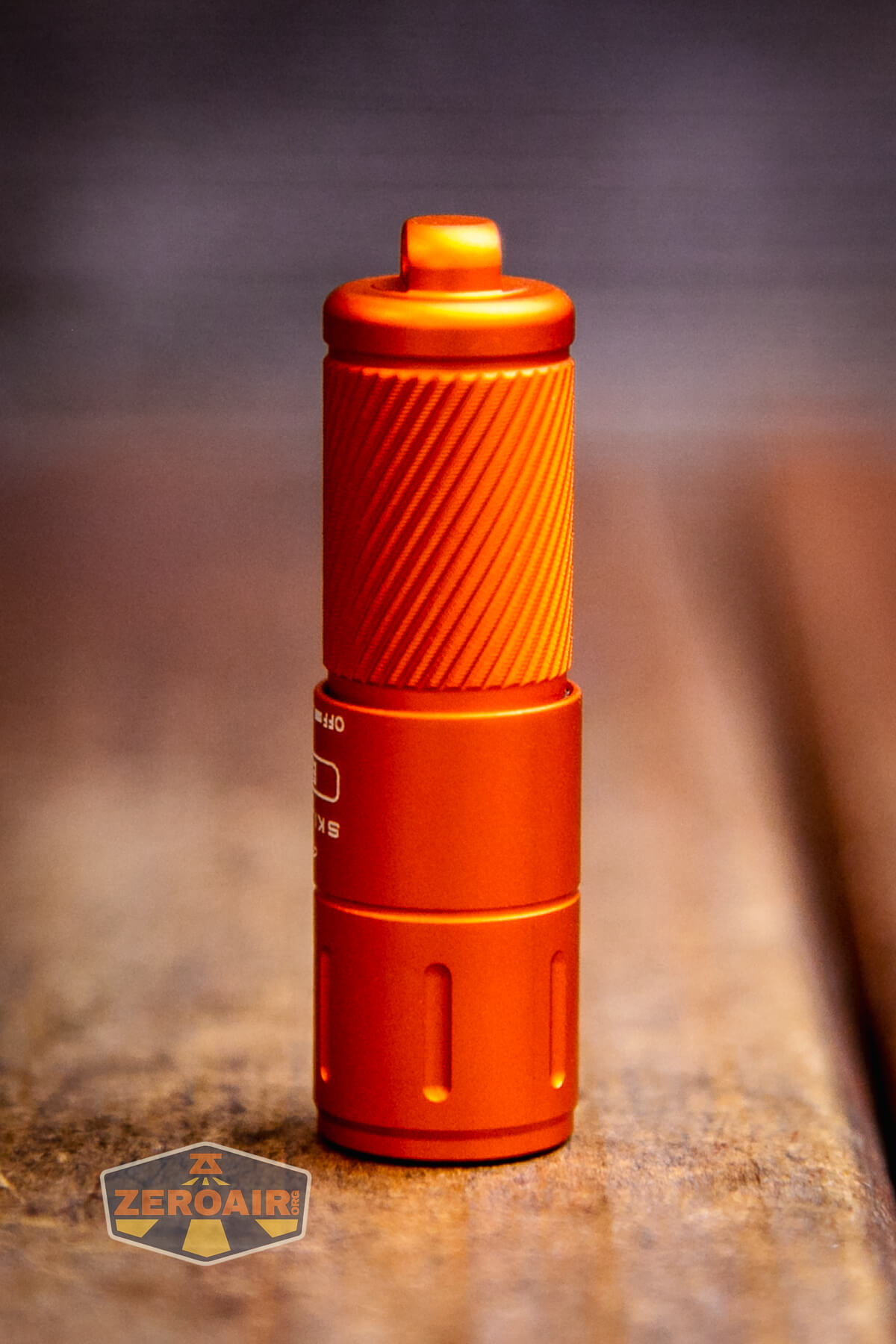

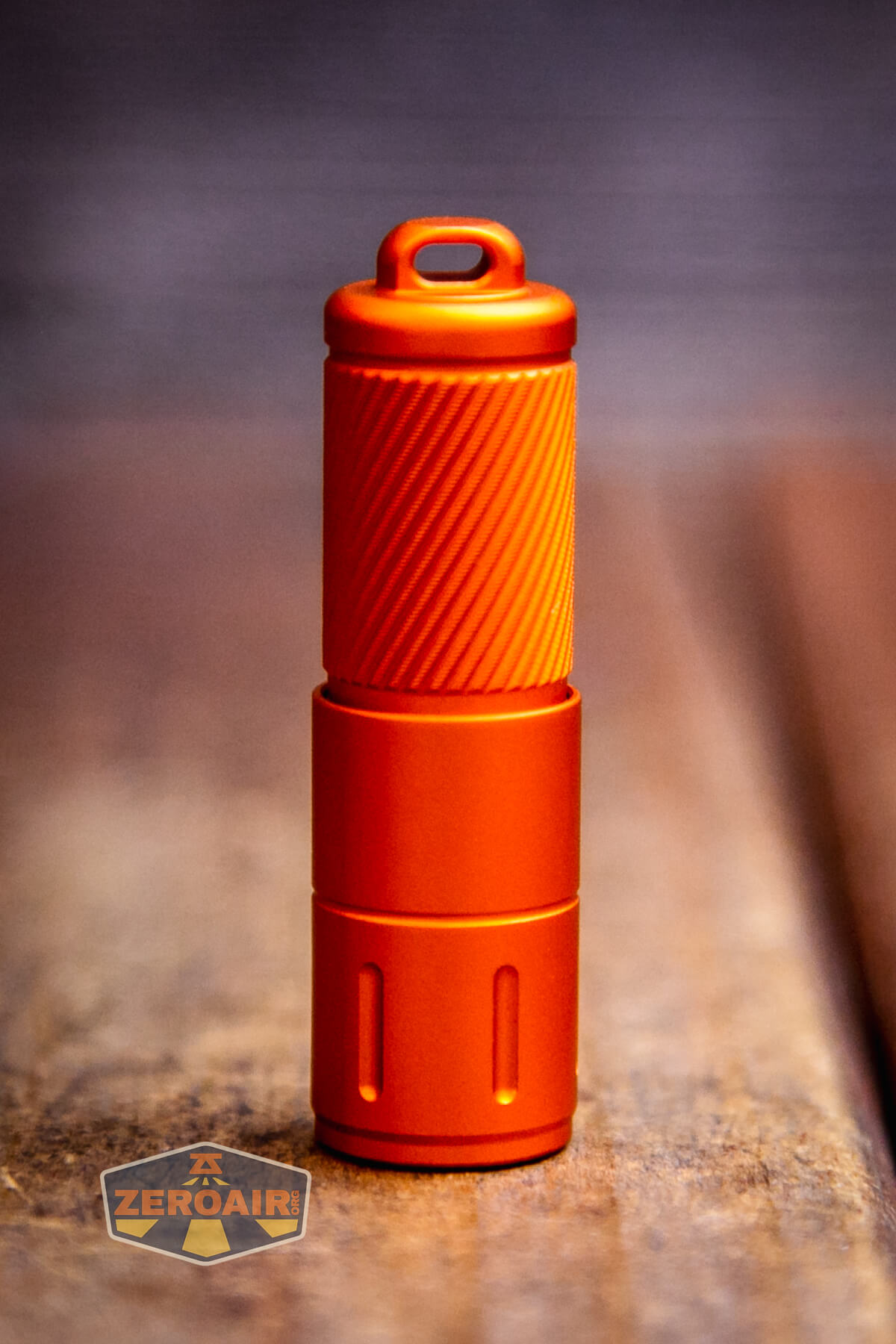

Skilhunt EK1 keychain flashlight

I didn’t disassemble the Skilhunt EK1 keychain flashlight at all. The head is captured and doesn’t unscrew from the body.

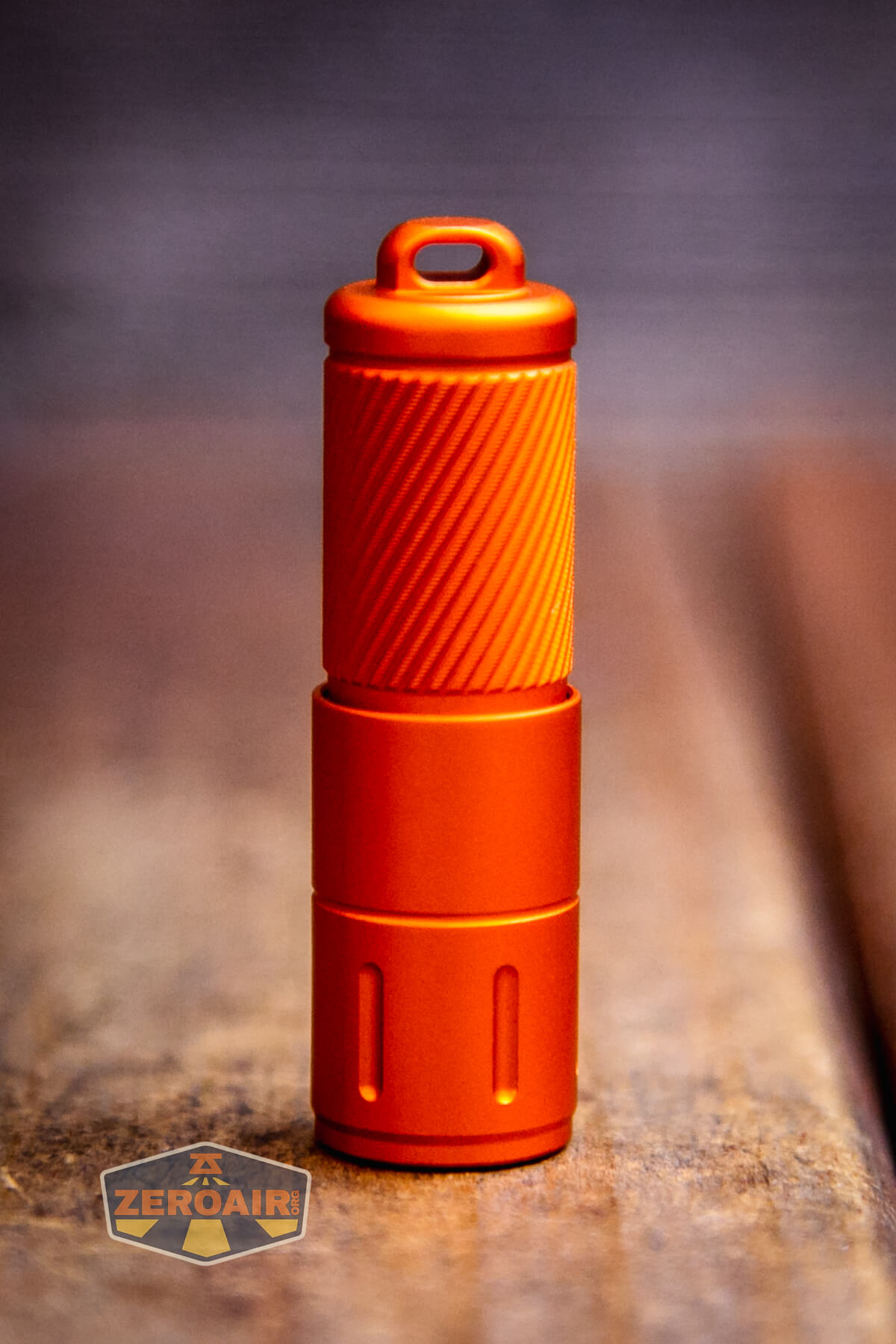

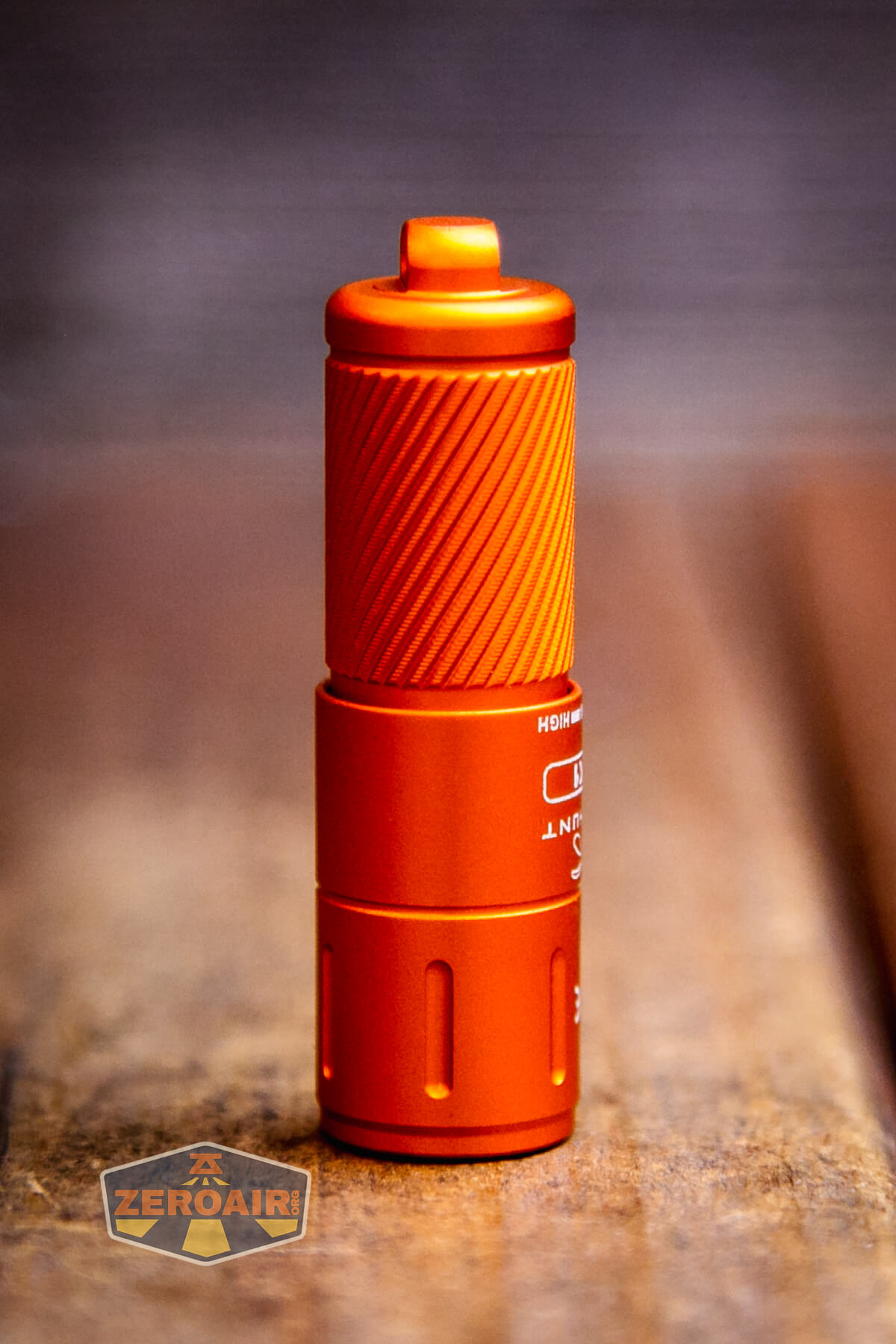

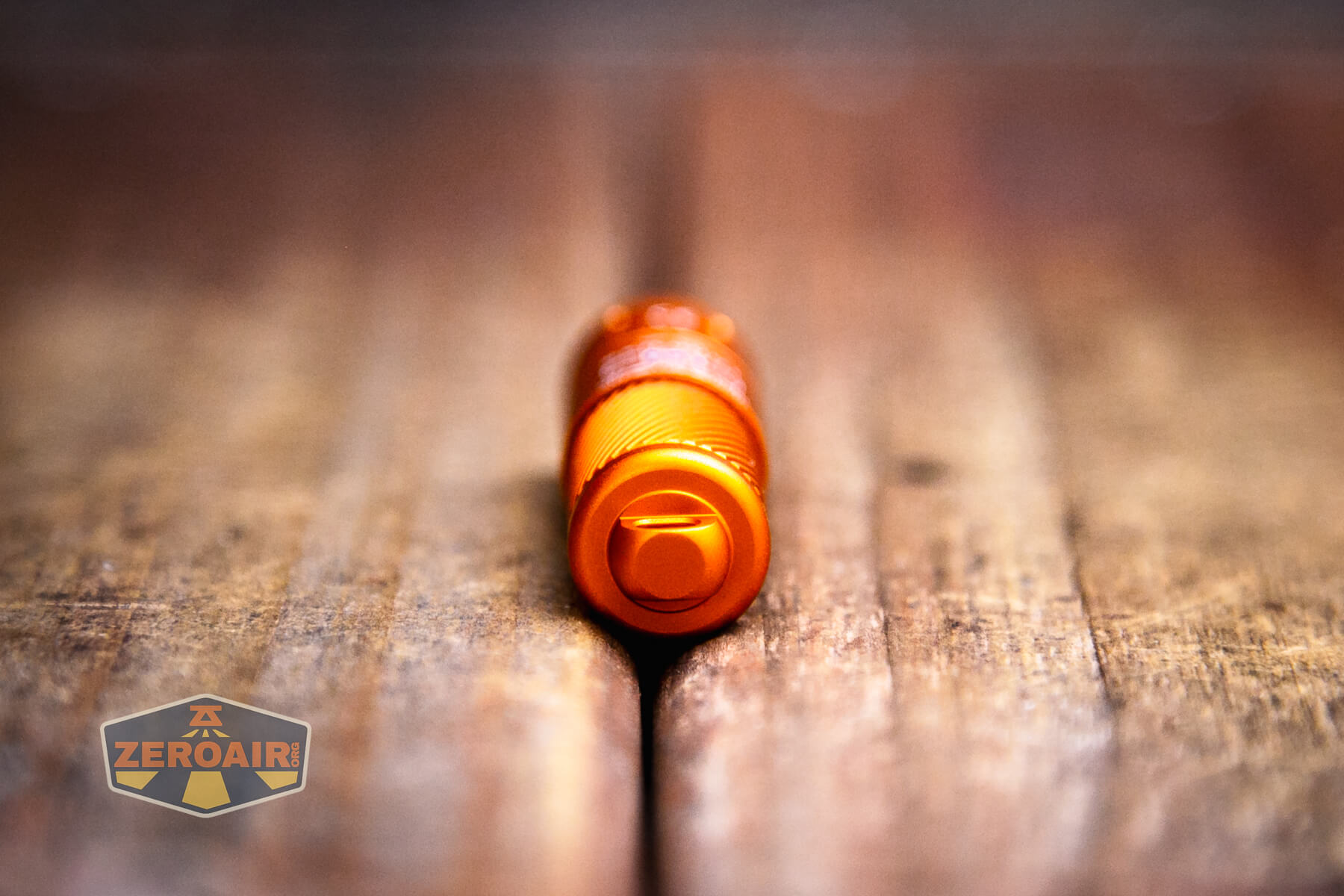

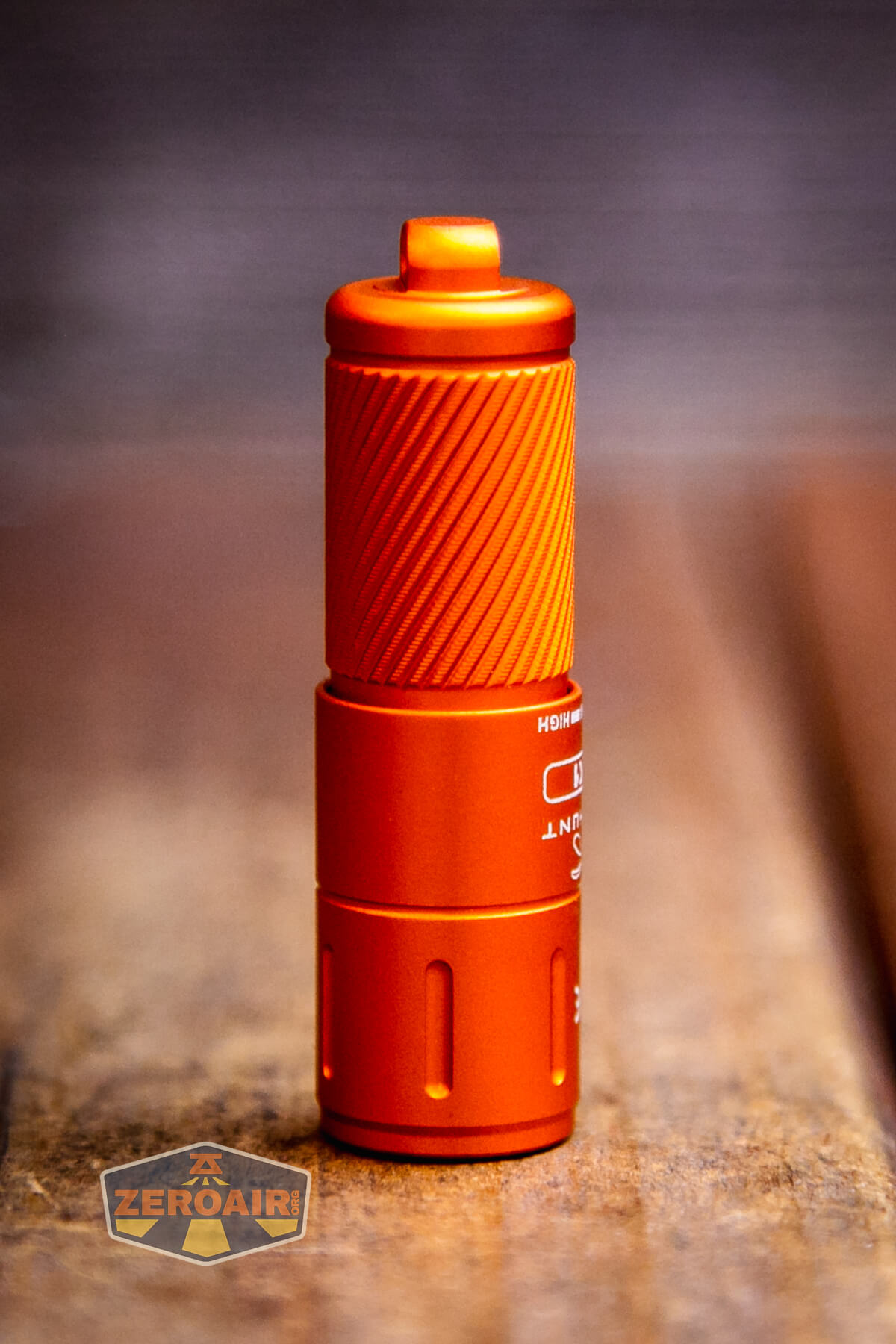

Skilhunt EK1 keychain flashlight tail end

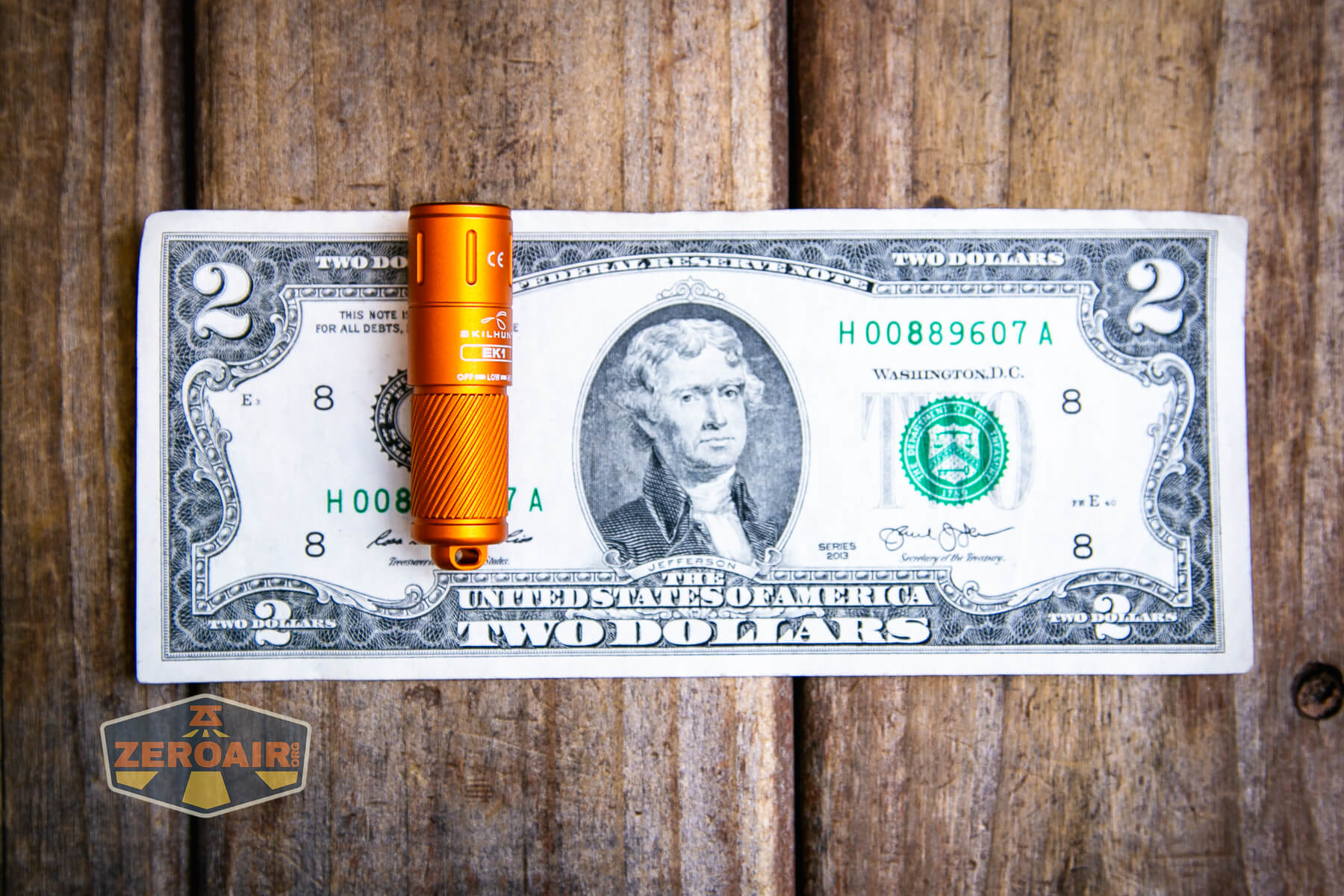

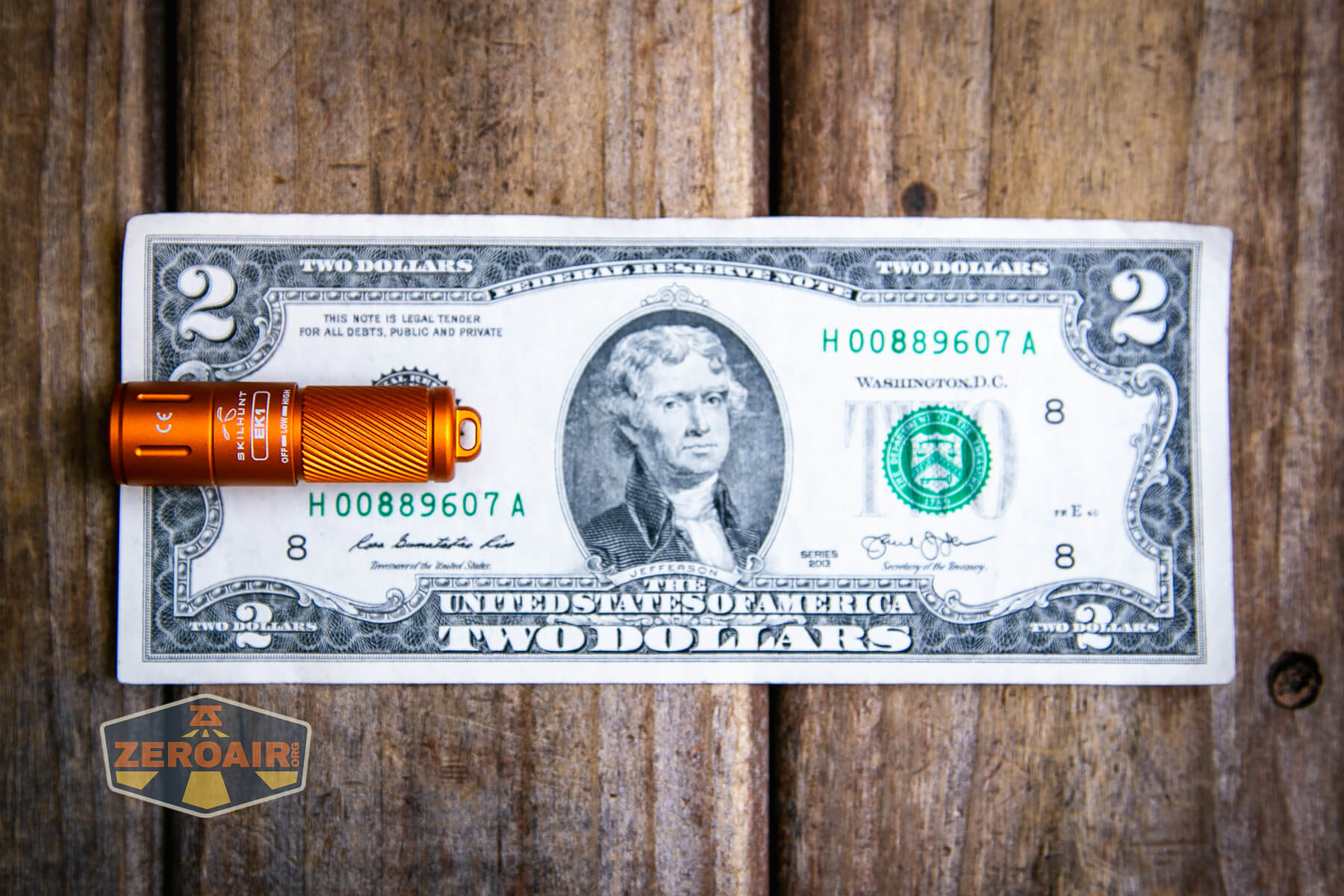

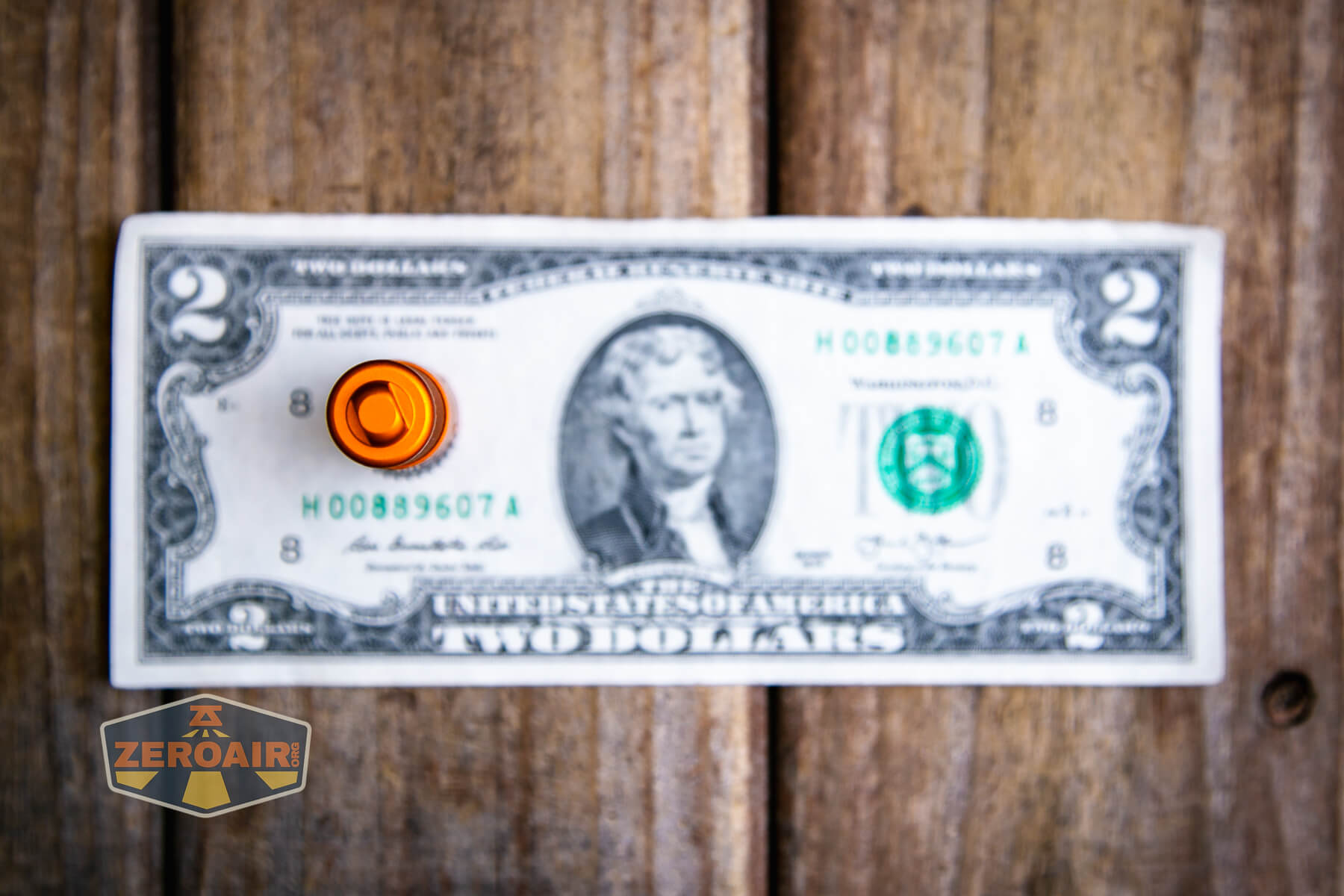

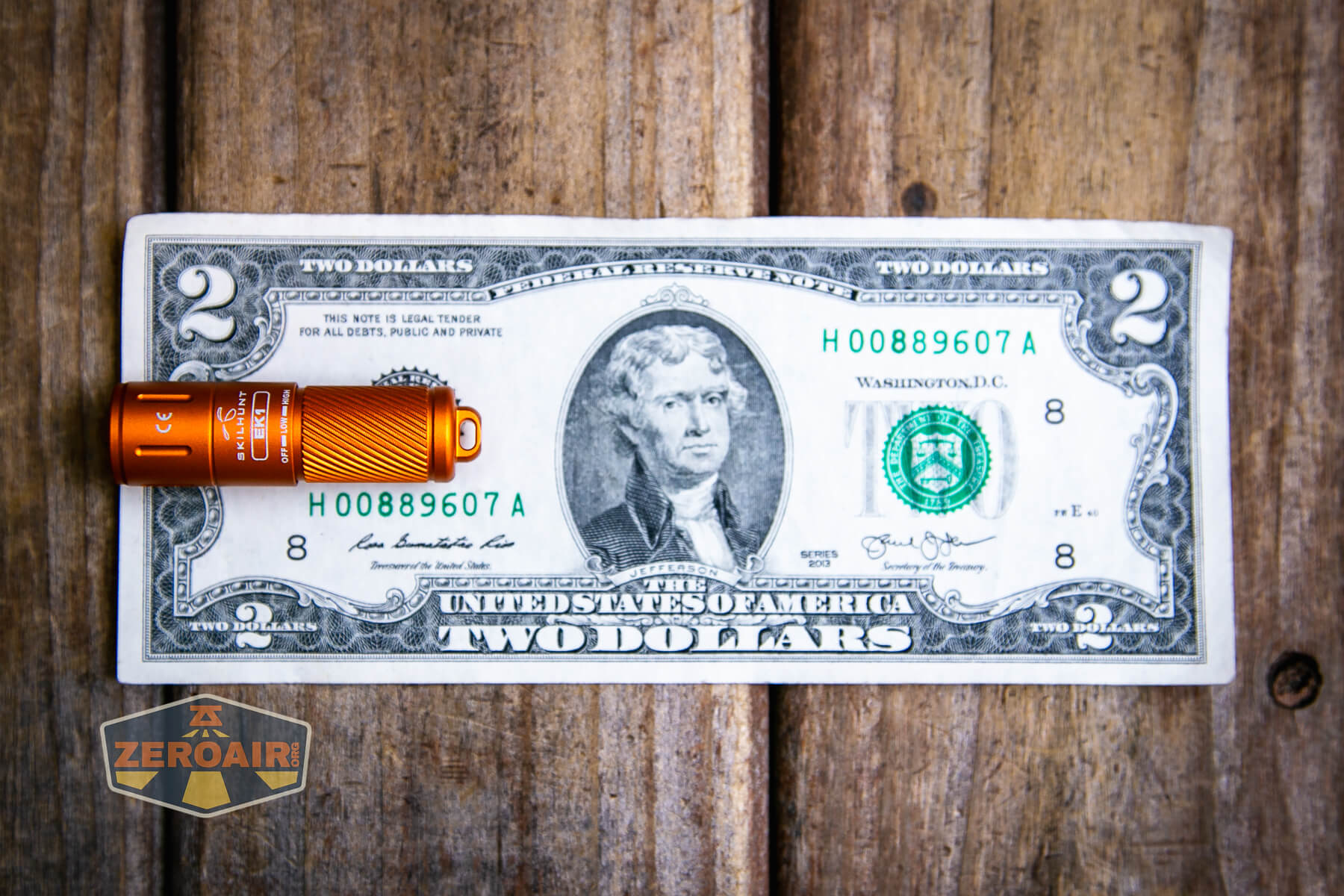

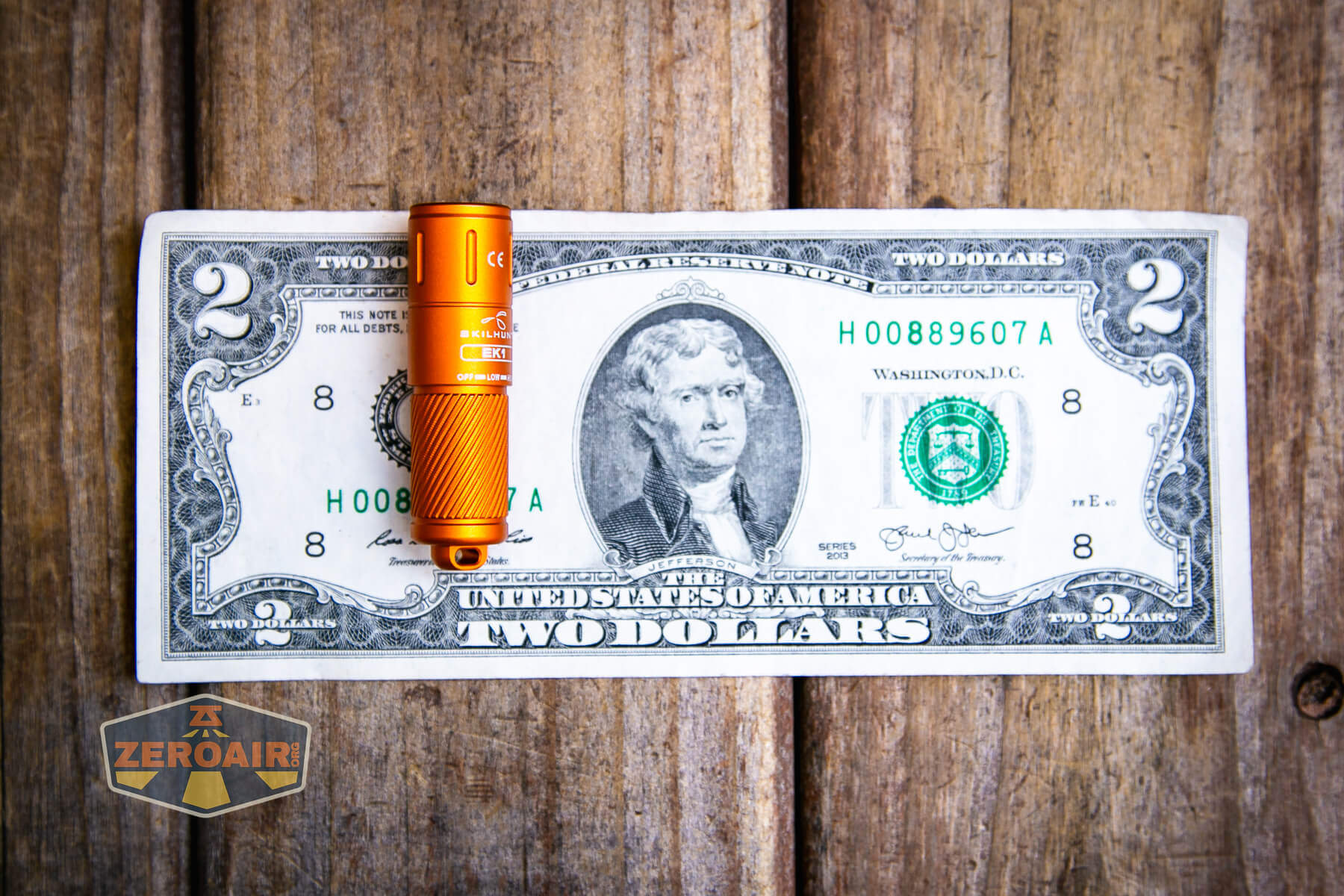

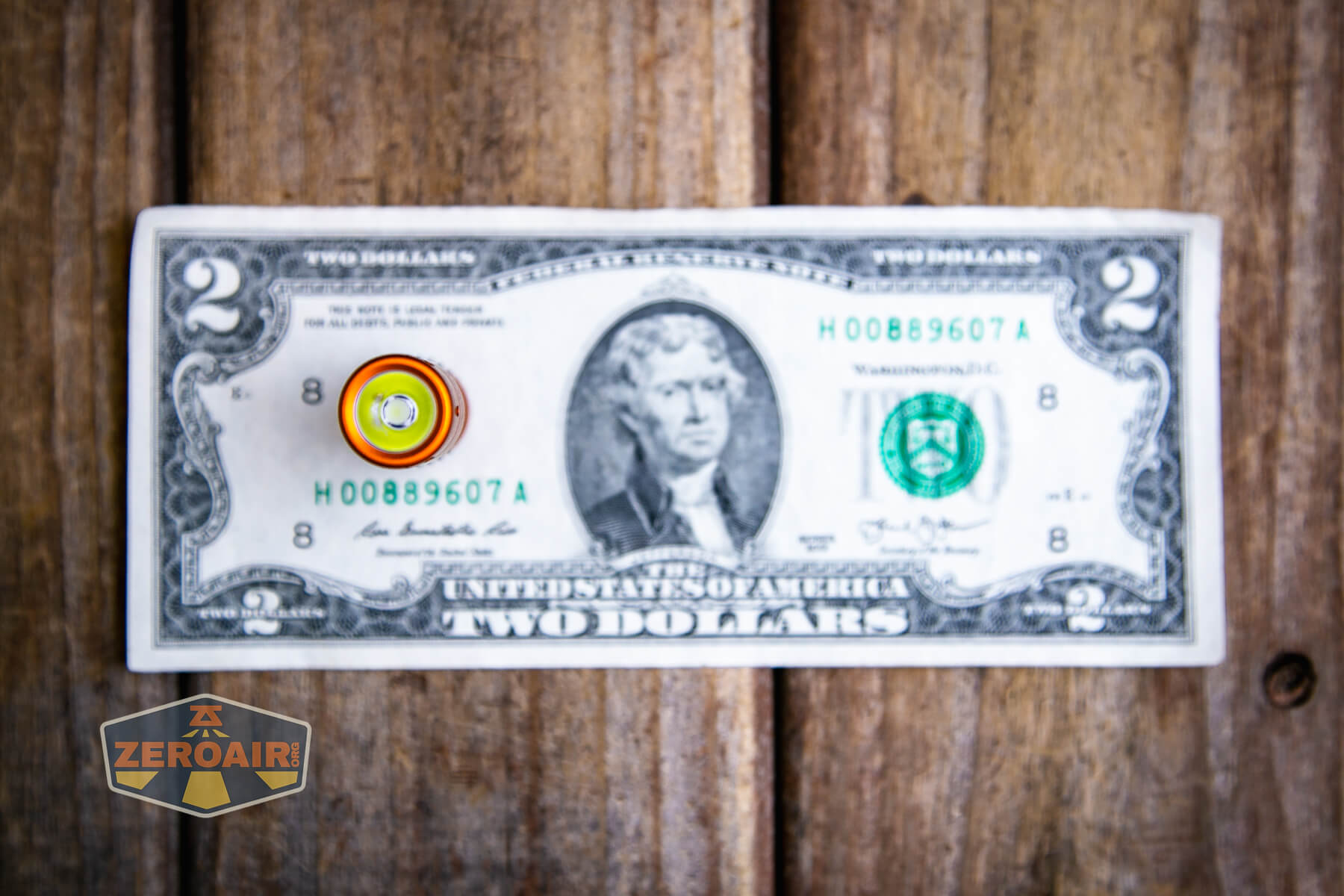

Size and Comps

Length 50.5 mm
Head diameter 14.6 mm, Body: 13.6mm
Weight: 14.8 g / 0.52 oz (Included battery)

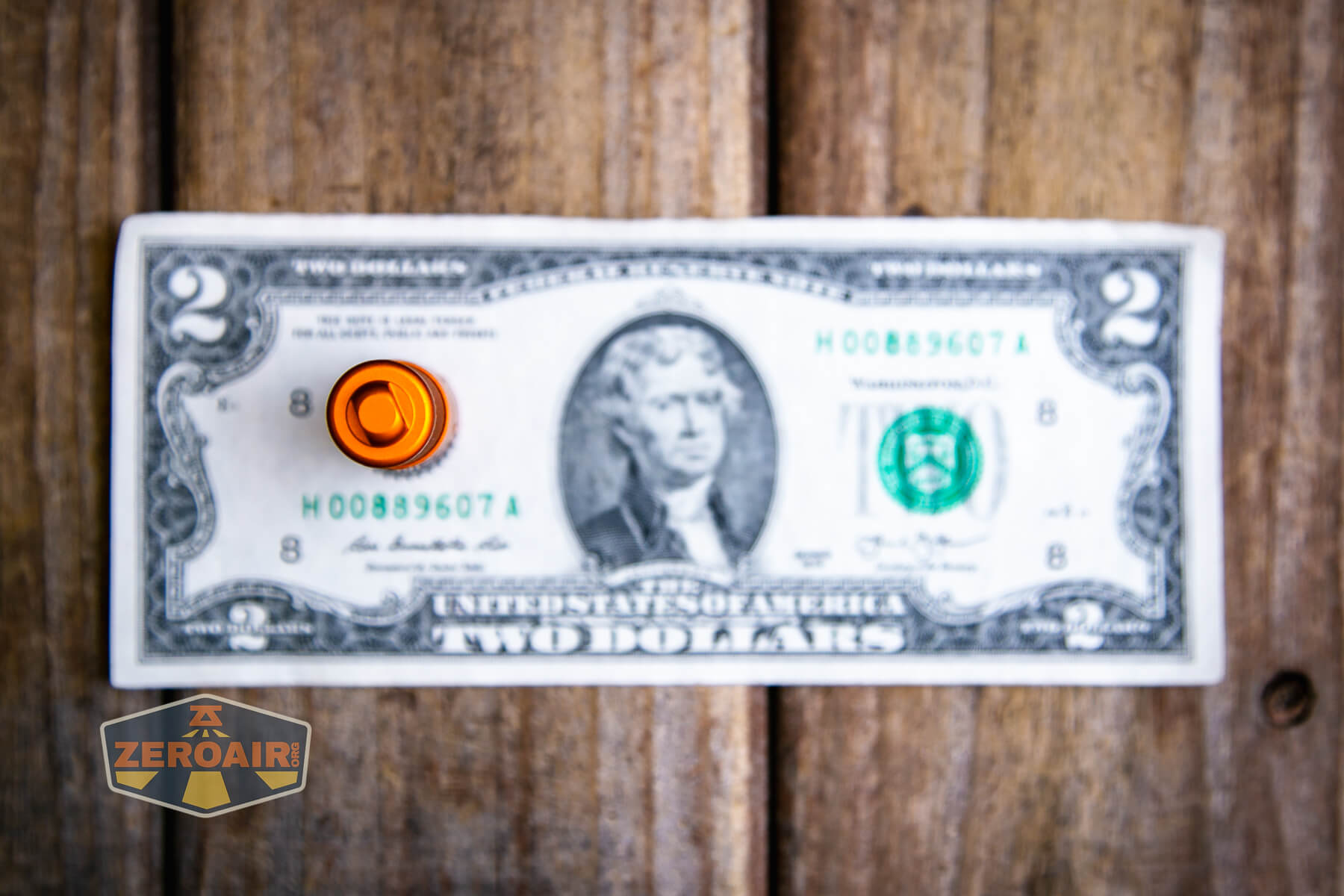

If the flashlight will headstand, I’ll show it here (usually the third photo).  If the flashlight will tailstand, I’ll also show that (usually in the fourth photo).

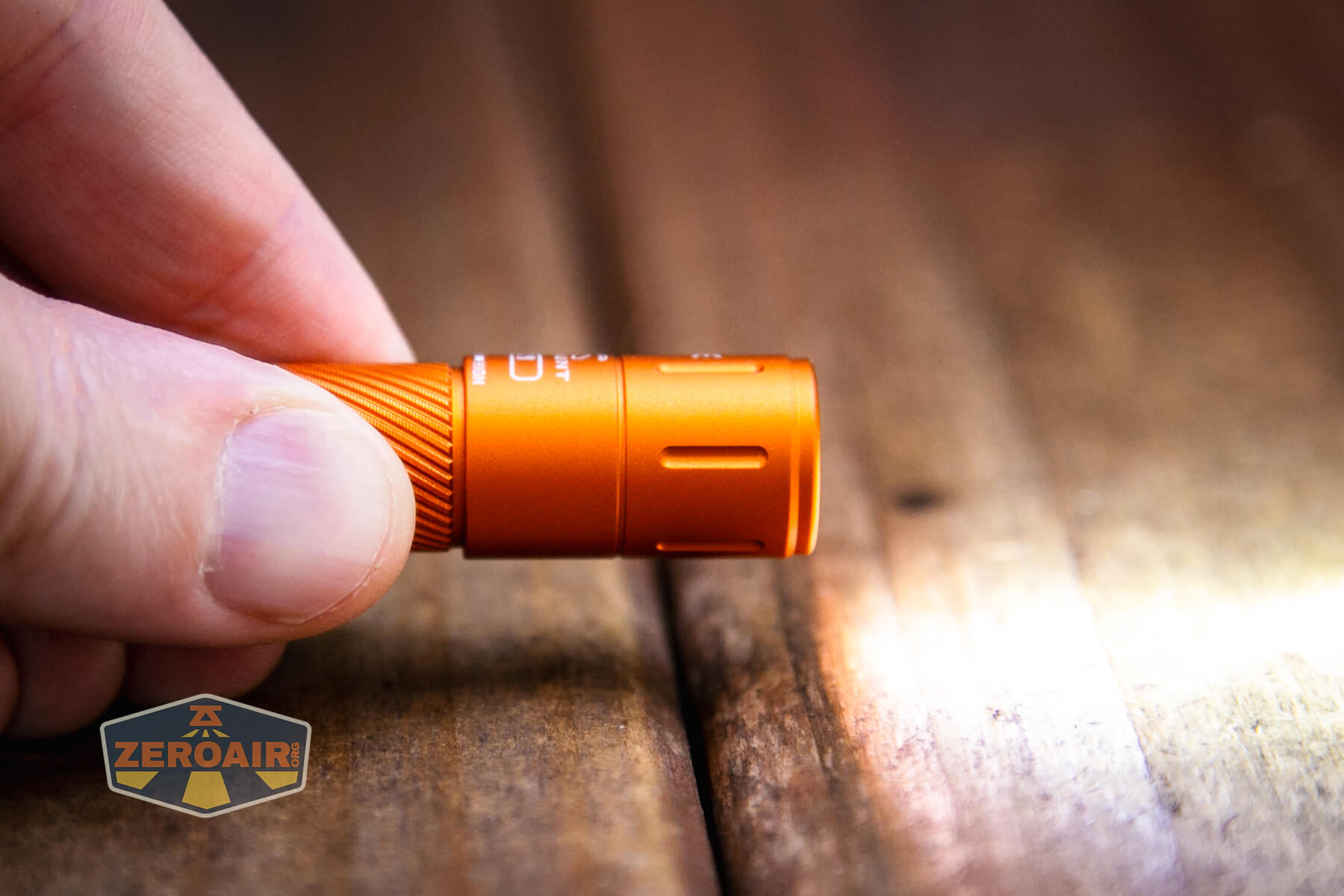

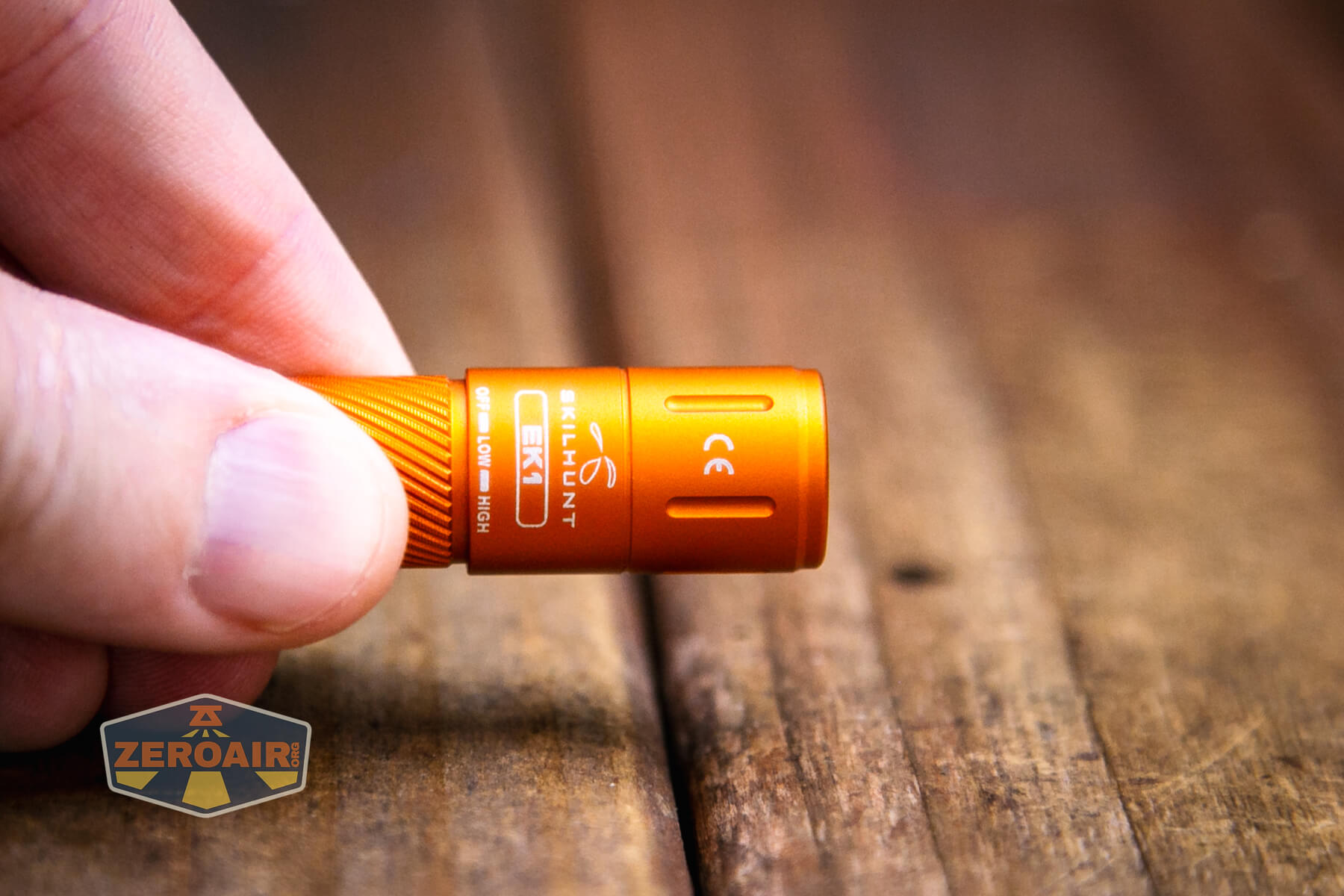

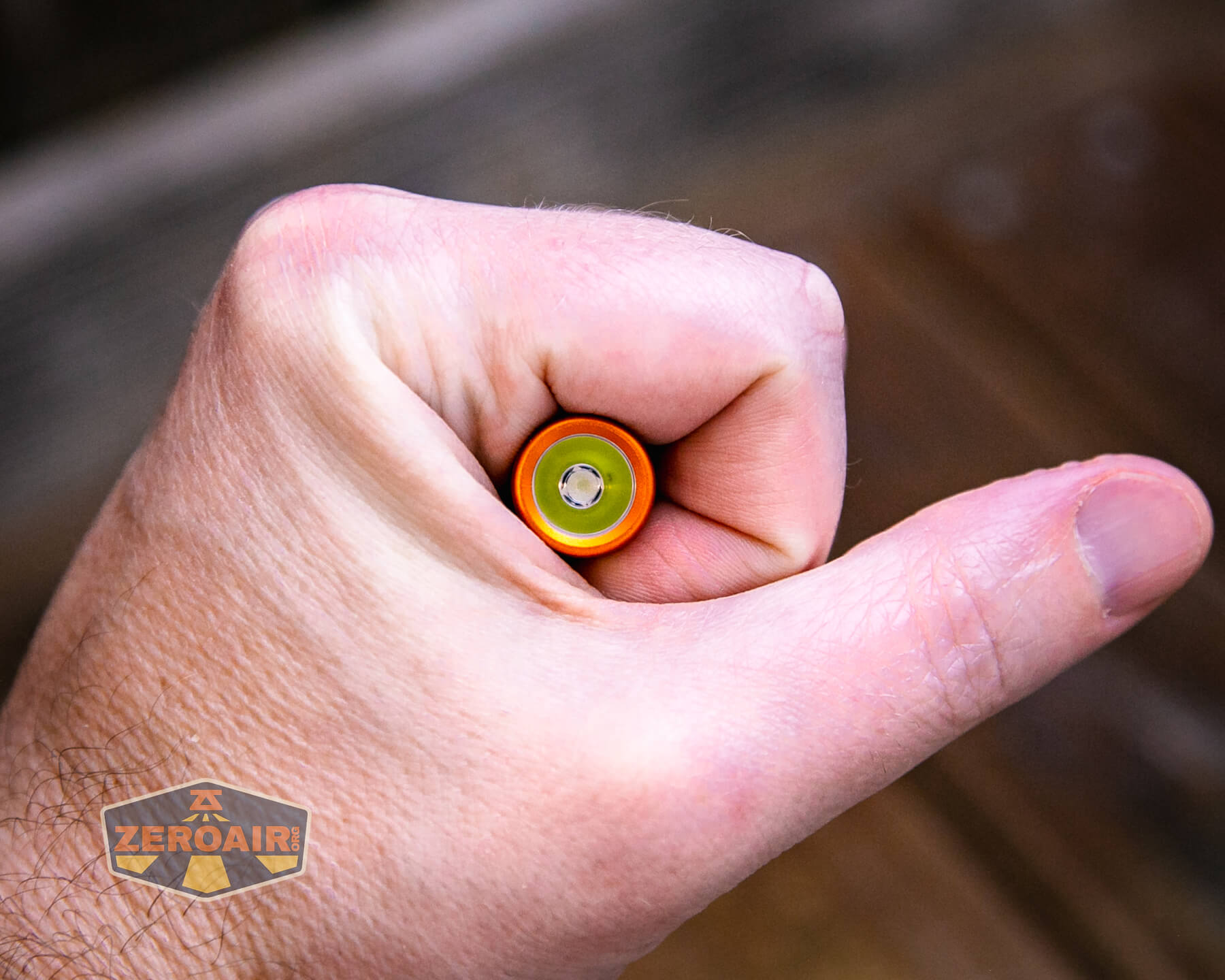

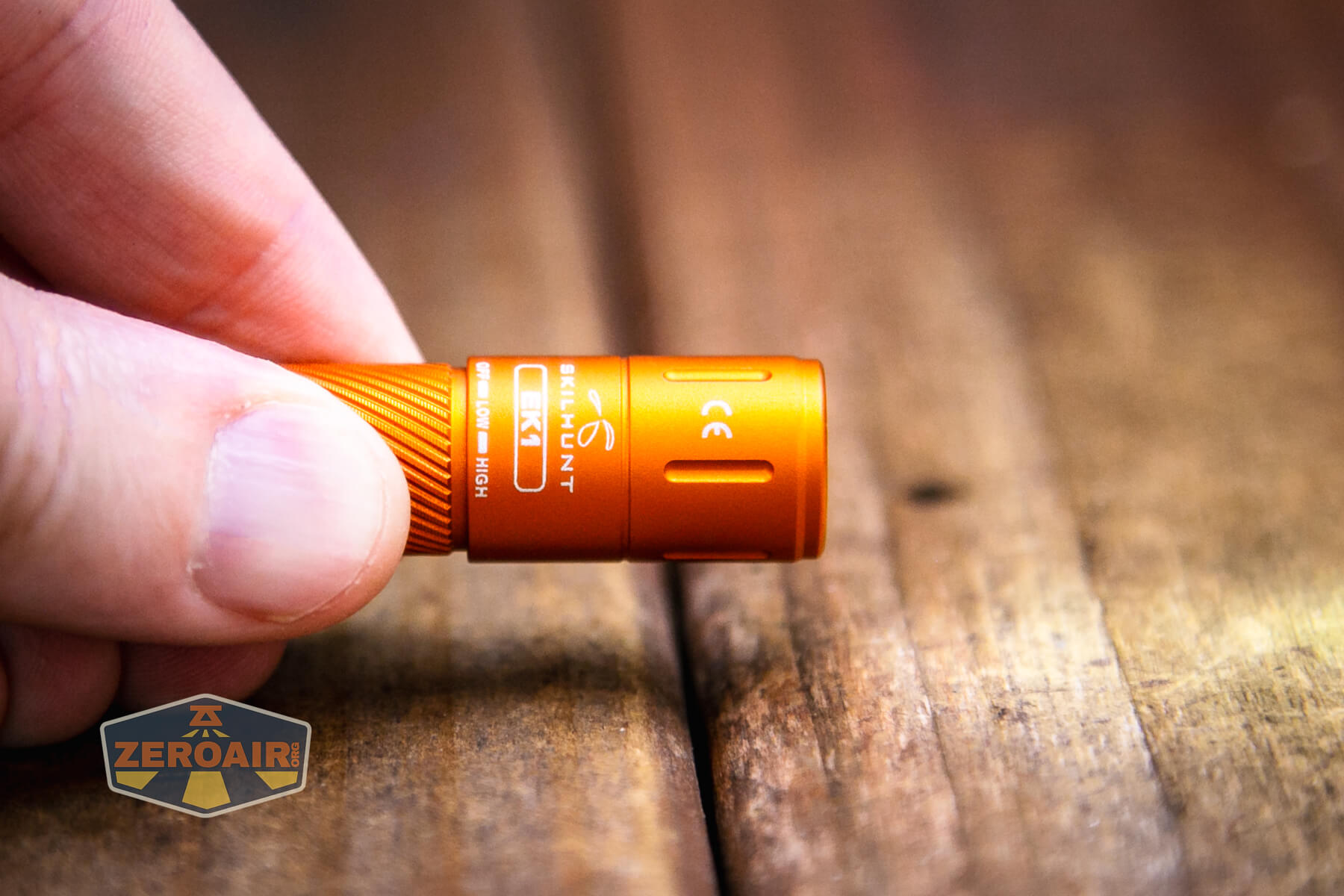

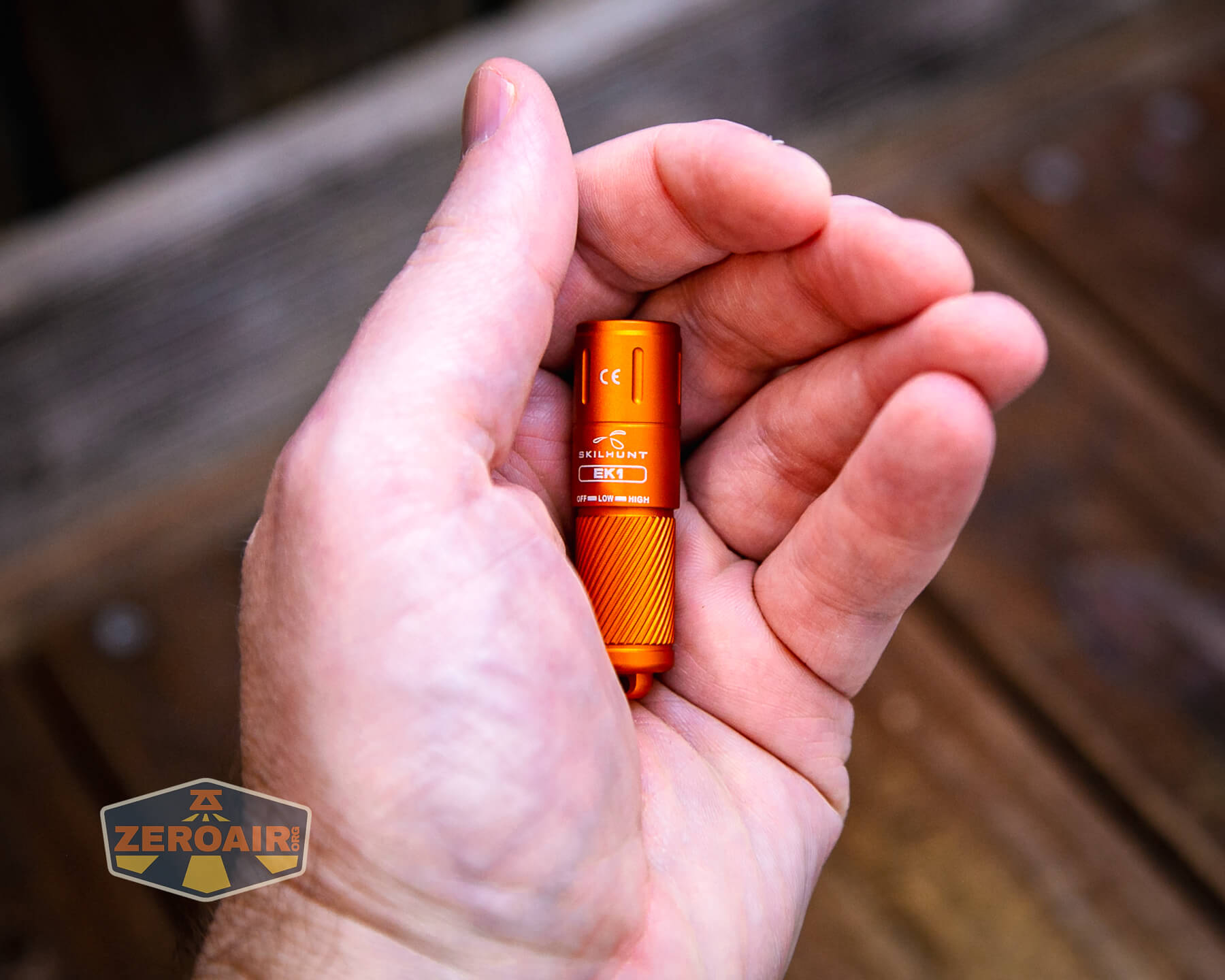

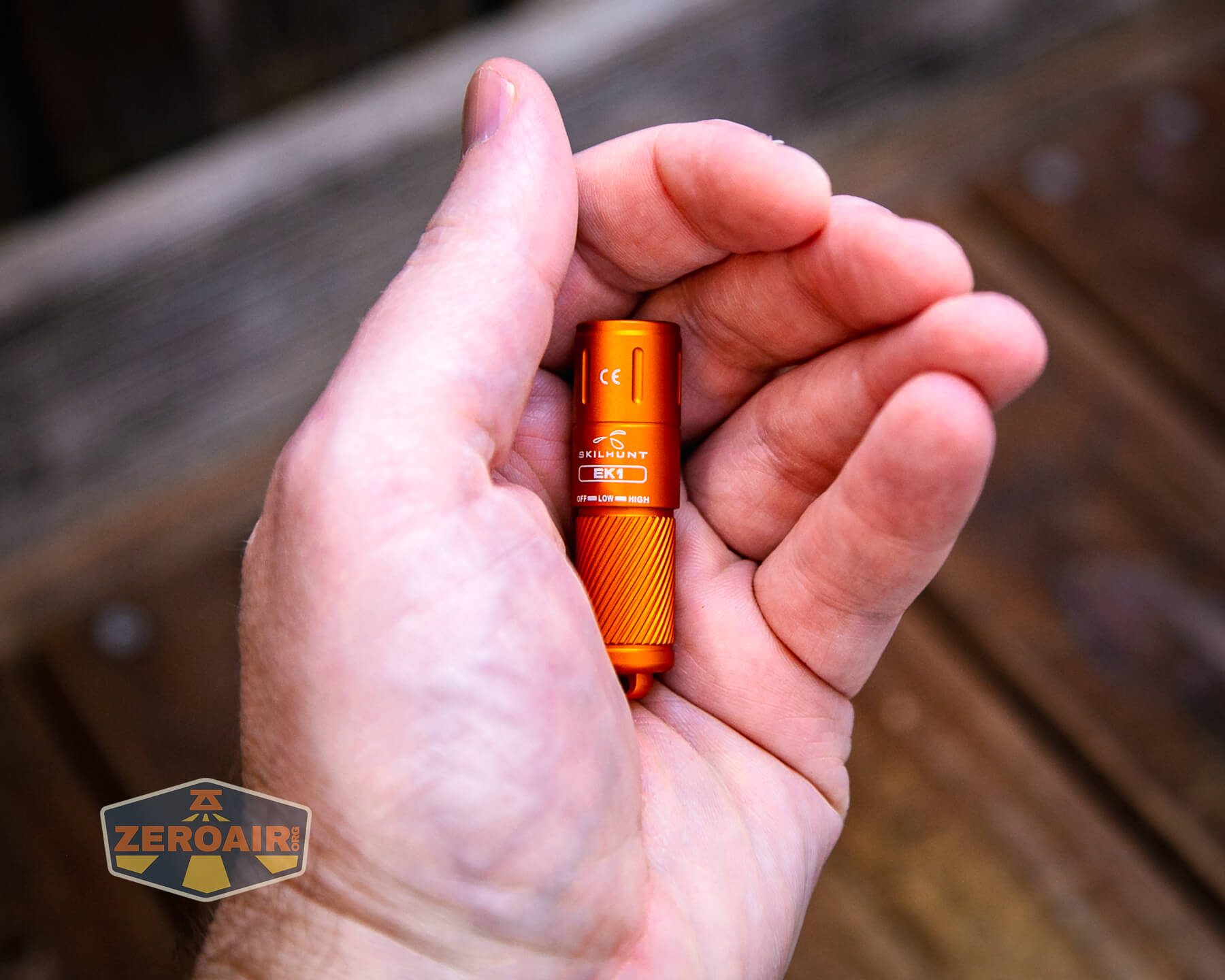

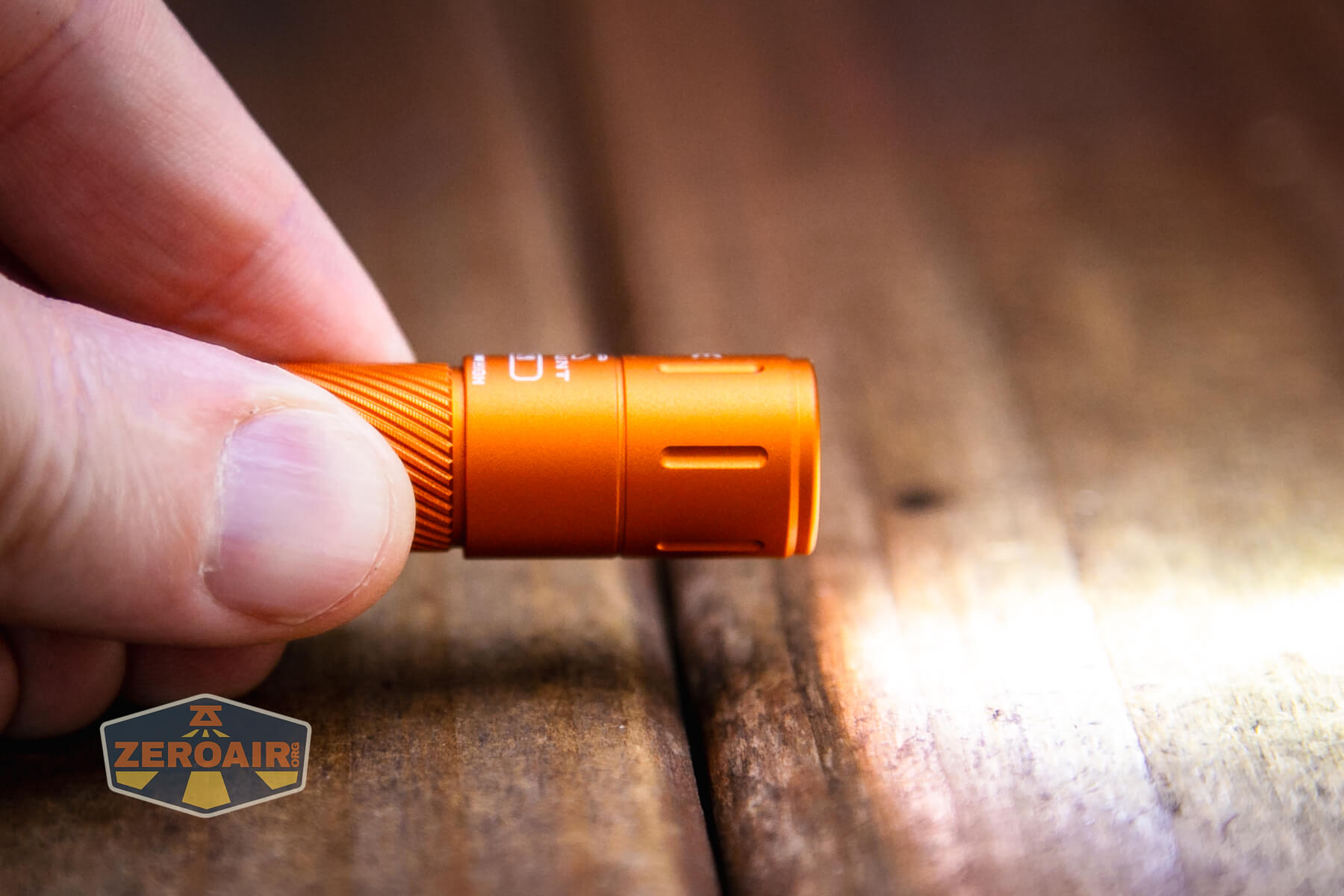

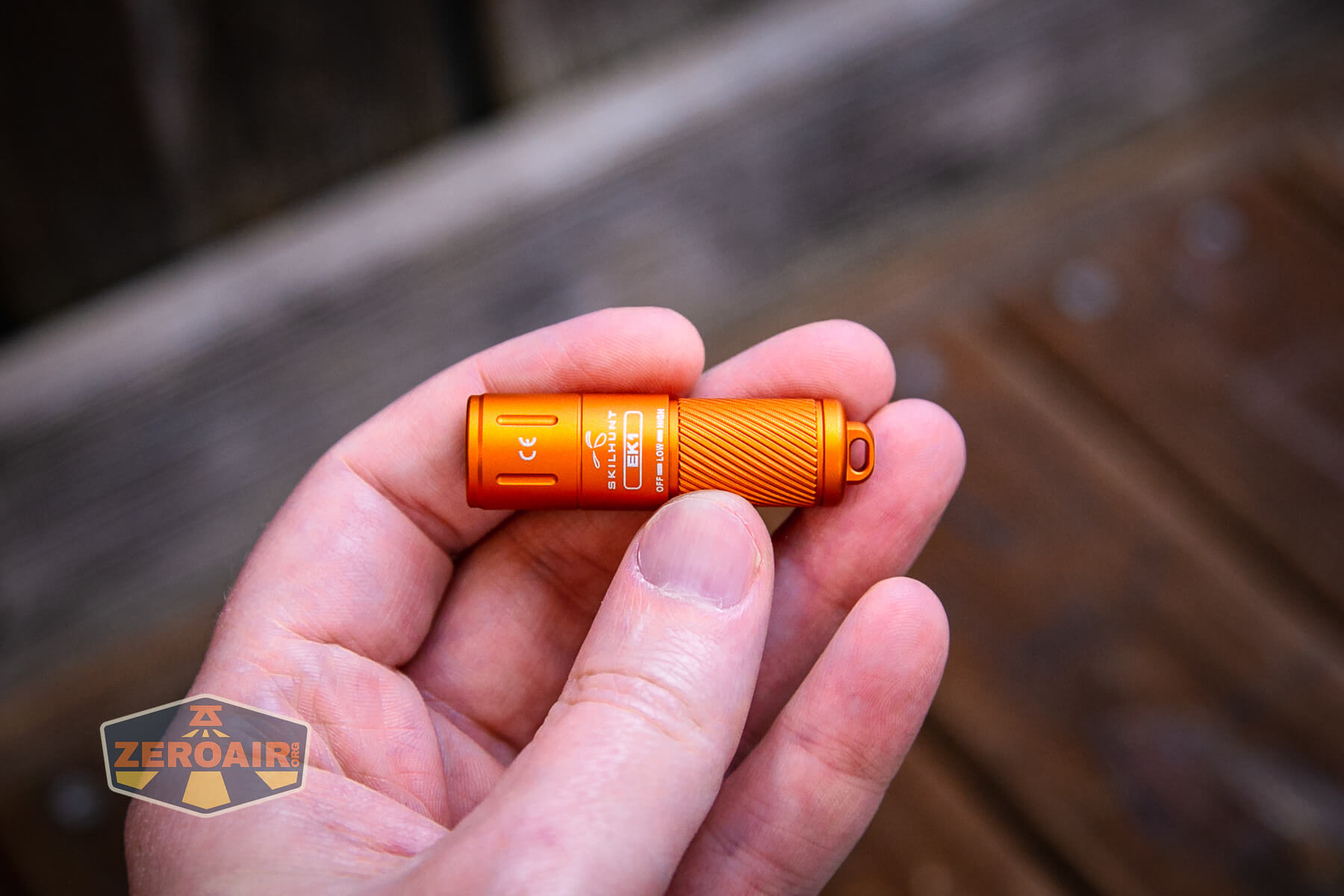

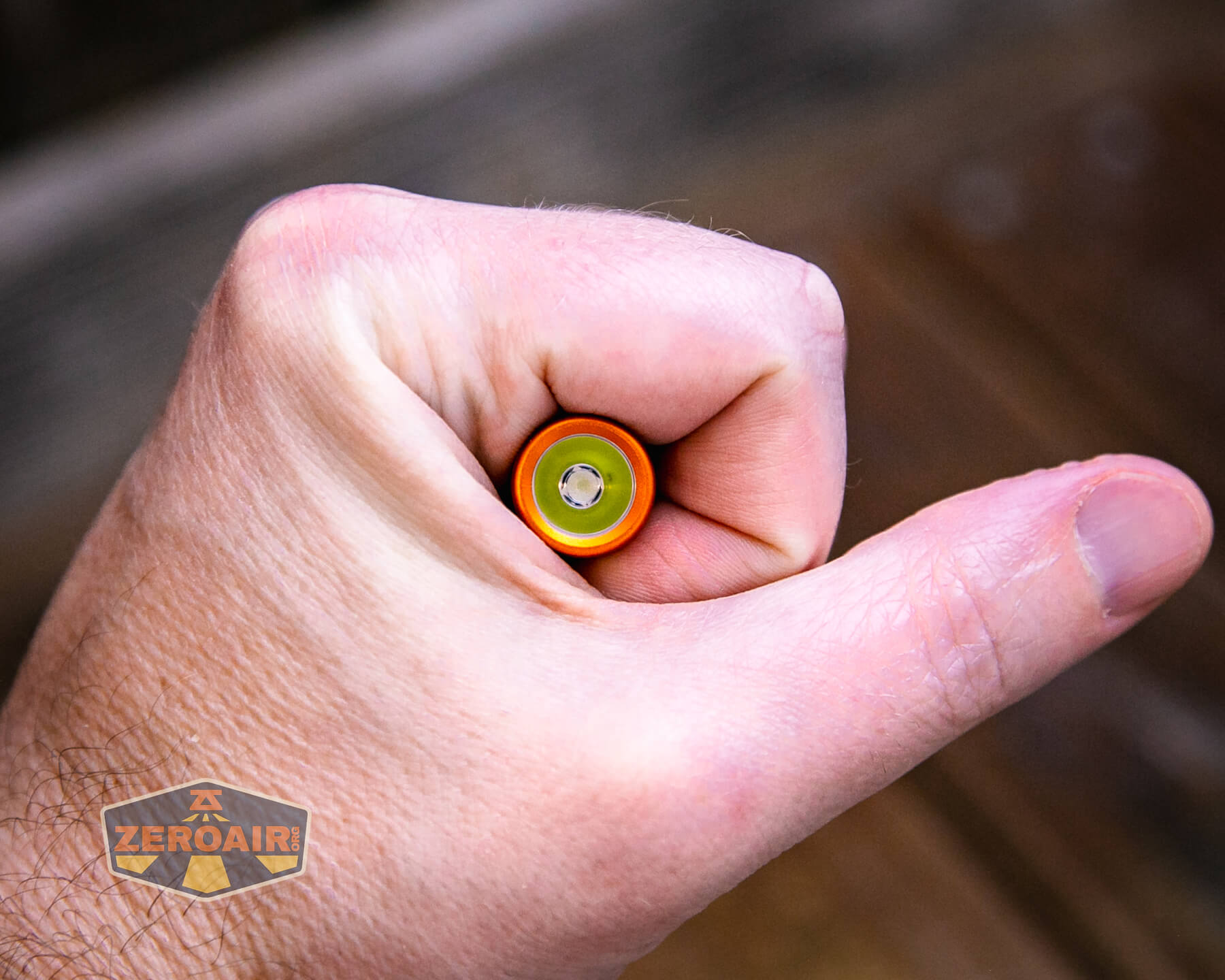

Skilhunt EK1 keychain flashlight in hand

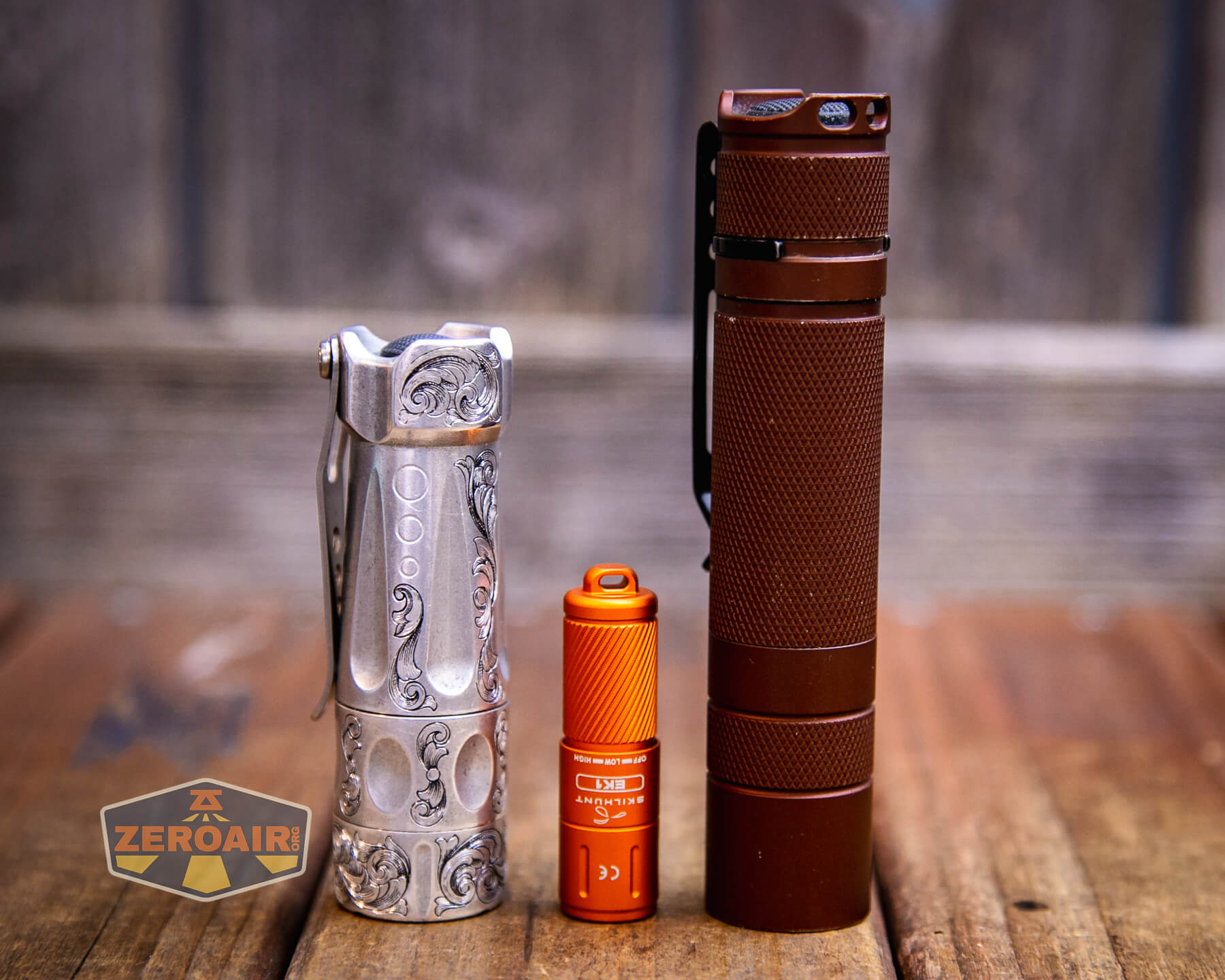

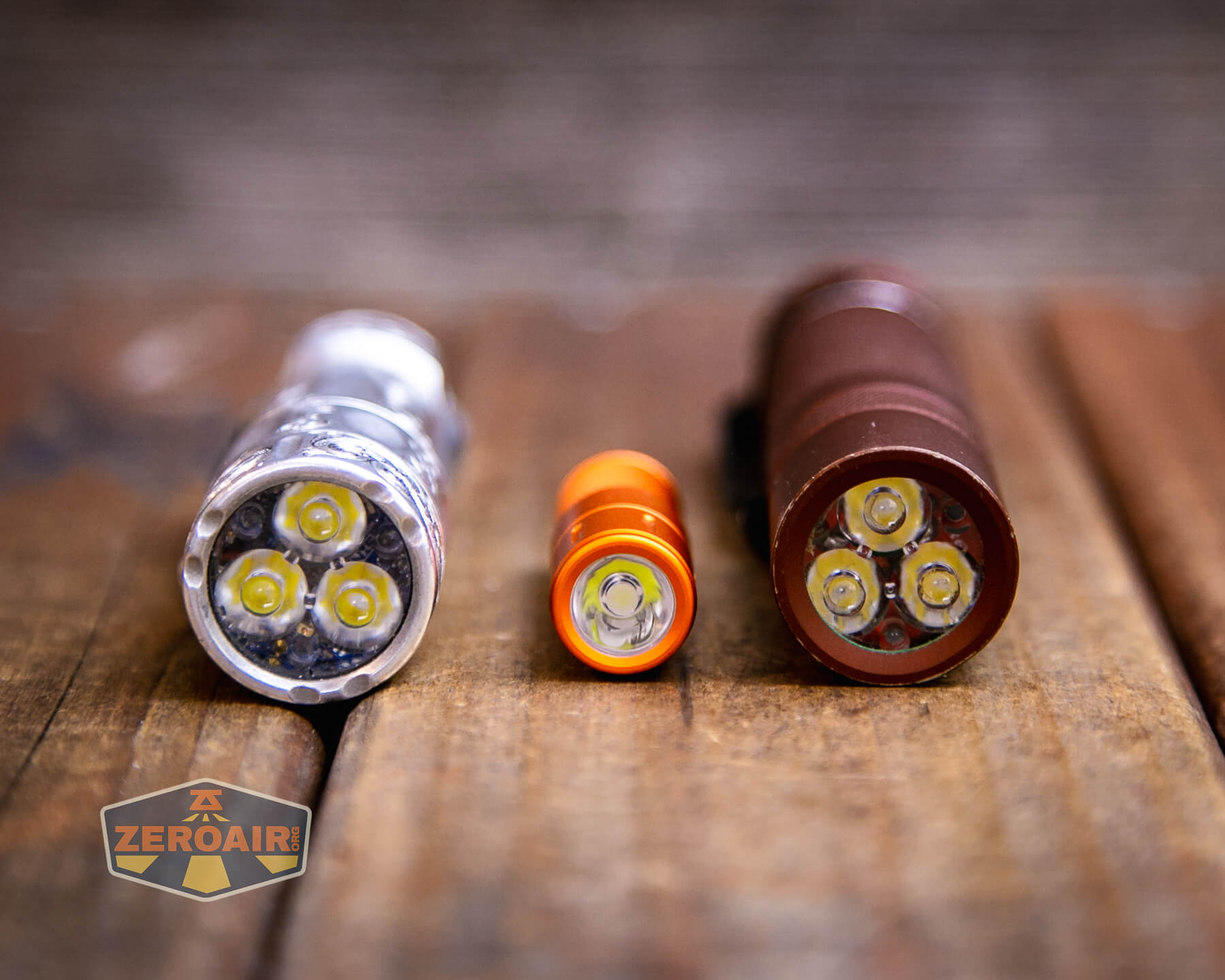

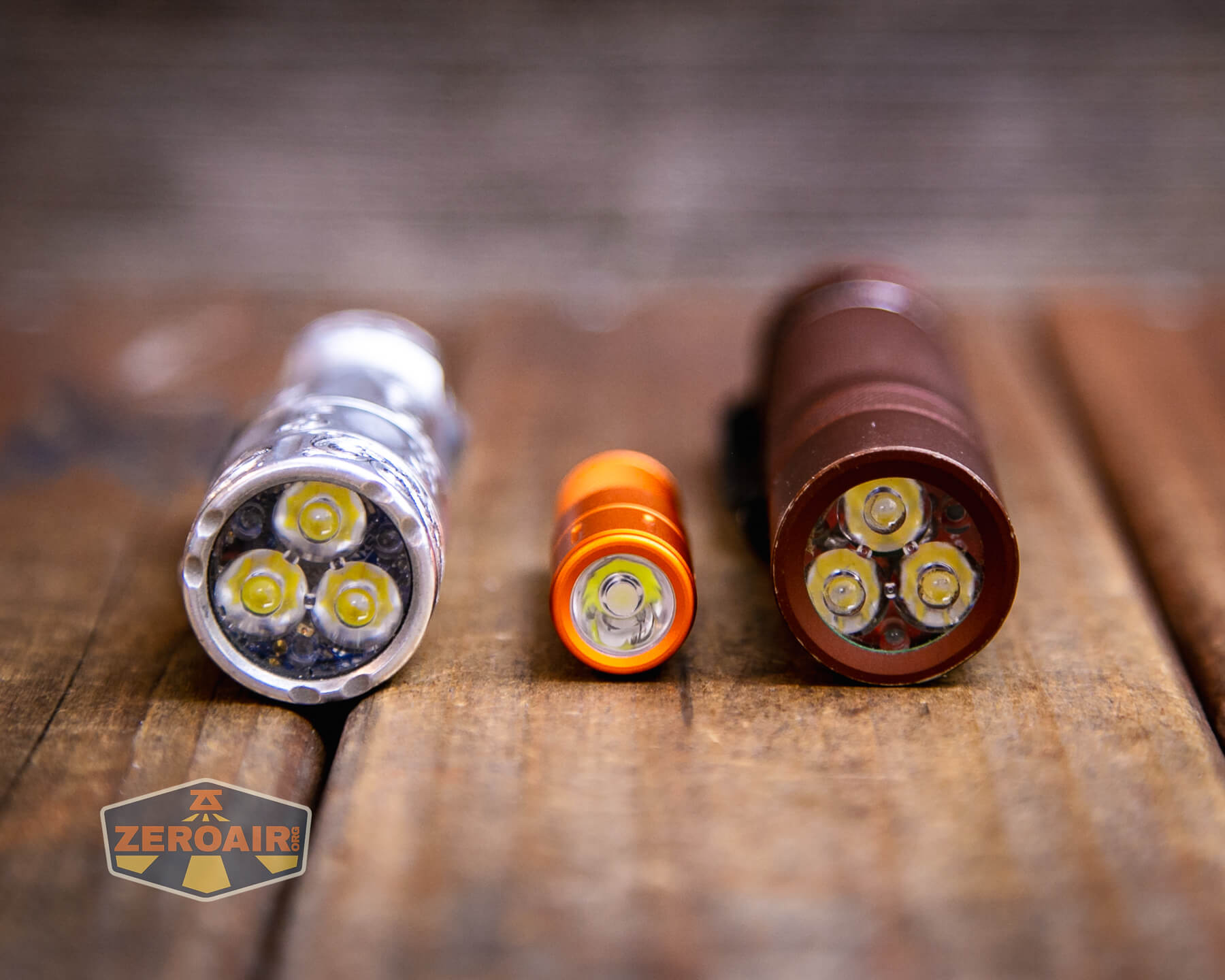

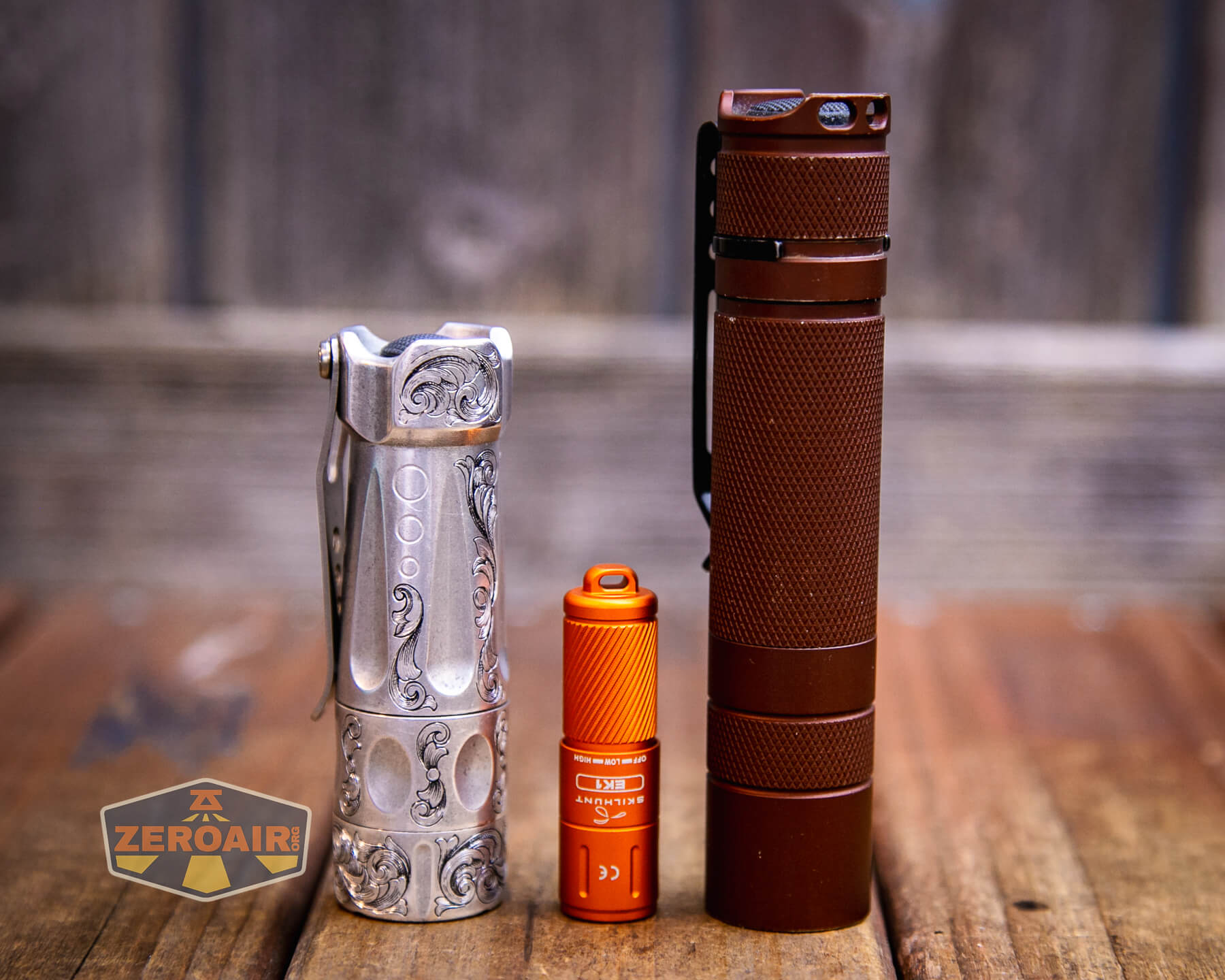

Here’s the test light with the venerable Convoy S2+.  Mine’s a custom “baked” edition Nichia 219b triple.  A very nice 18650 light.

Also above is the light beside my custom engraved TorchLAB BOSS 35, an 18350 light.  I reviewed the aluminum version of that light in both 35 and 70 formats.

Retention and Carry

The only means to carry the Skilhunt EK1 keychain flashlight is loose or with either (or both?) of these split rings. Two sizes are included, so you have options!

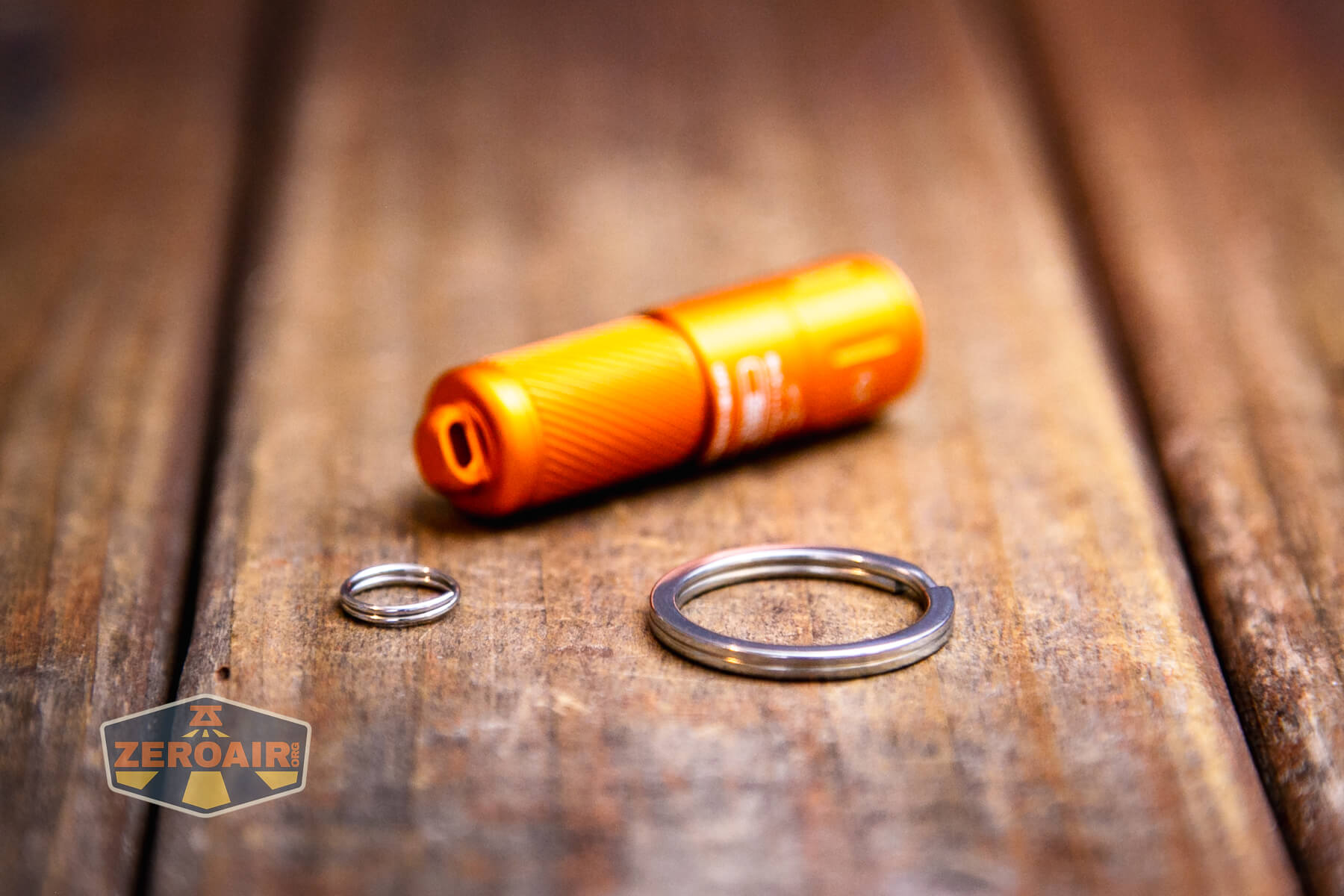

Skilhunt EK1 keychain flashlight with split rings (2)

Power and Runtime

A built-in 130mAh “10220” lithium-ion battery is included in the EK1. Below you can find runtimes for both of the two modes.

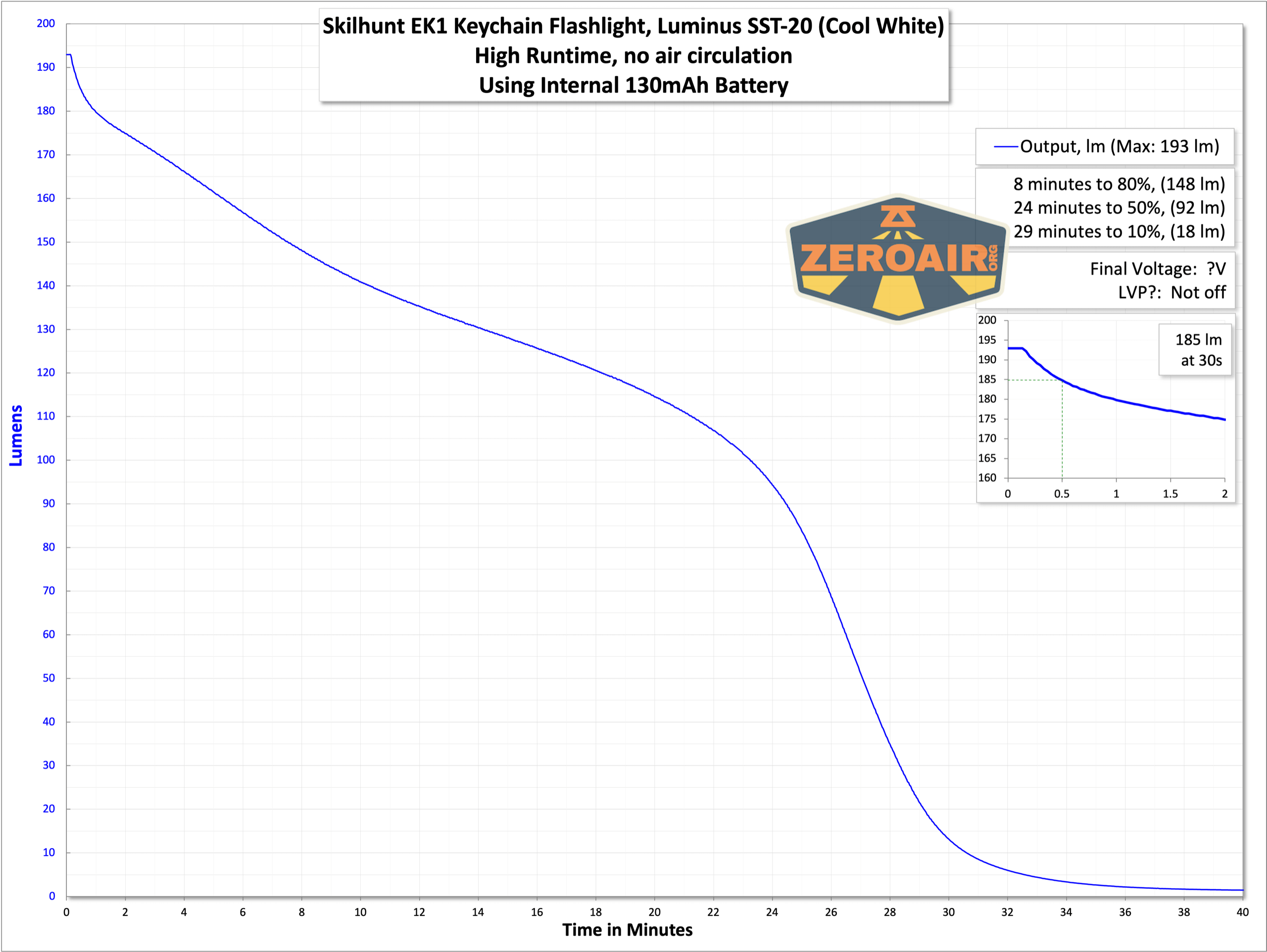

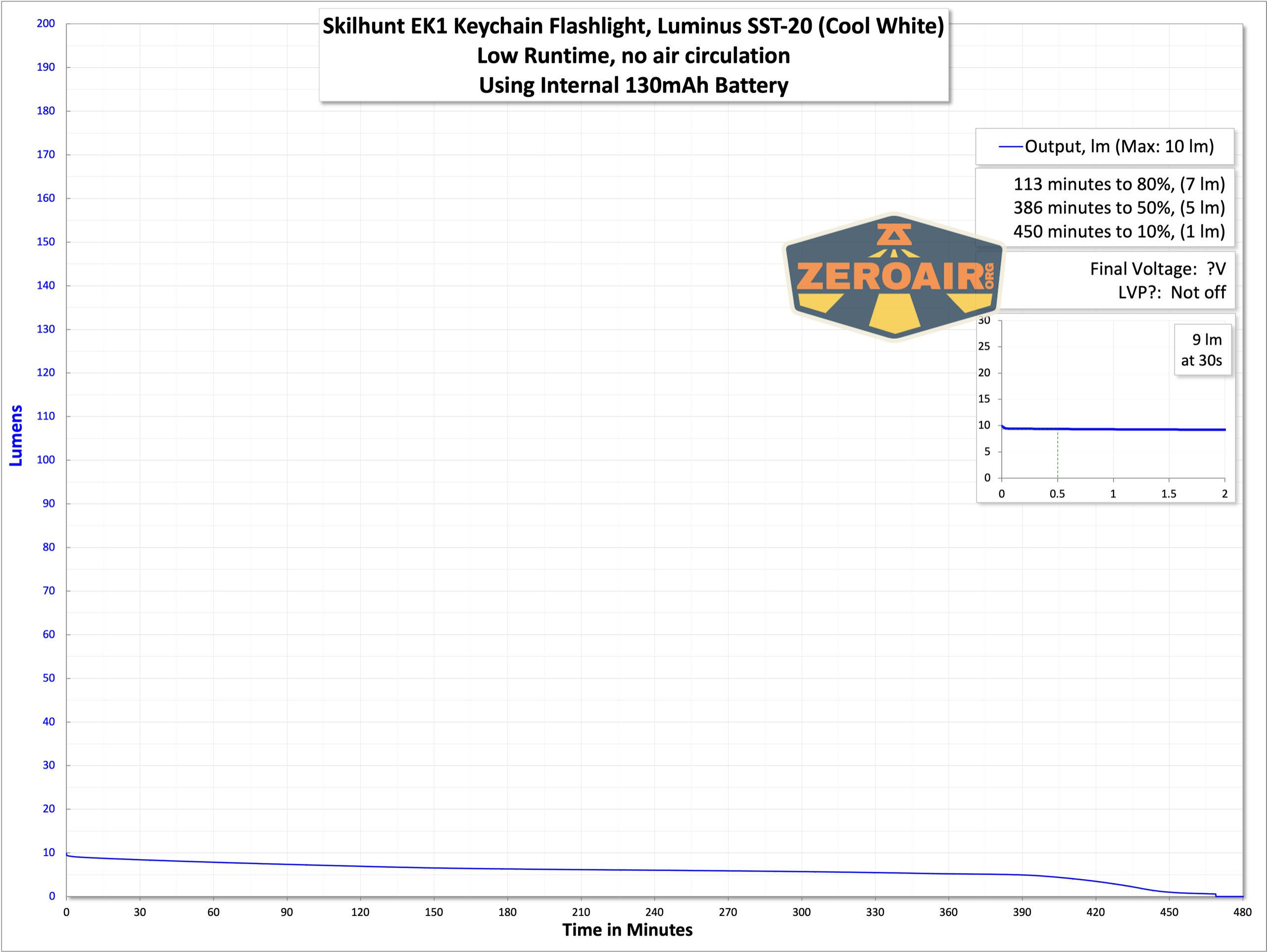

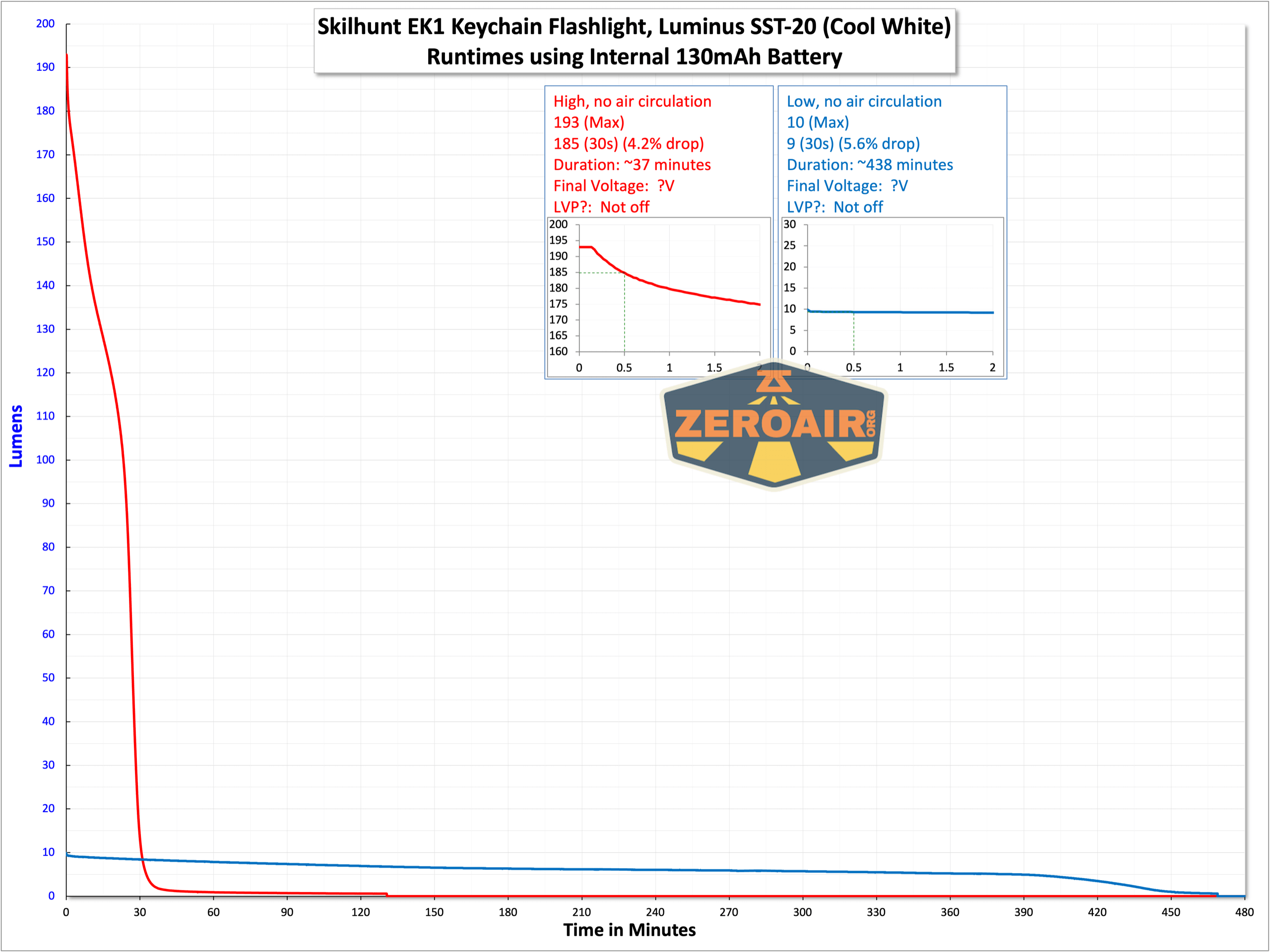

Skilhunt EK1 keychain flashlight runtime graphs

Skilhunt EK1 keychain flashlight runtime graphs

Skilhunt EK1 keychain flashlight runtime graphs

Charging

Built into the EK1 is USB-C charging. The port is accessed by unscrewing the head from the body.

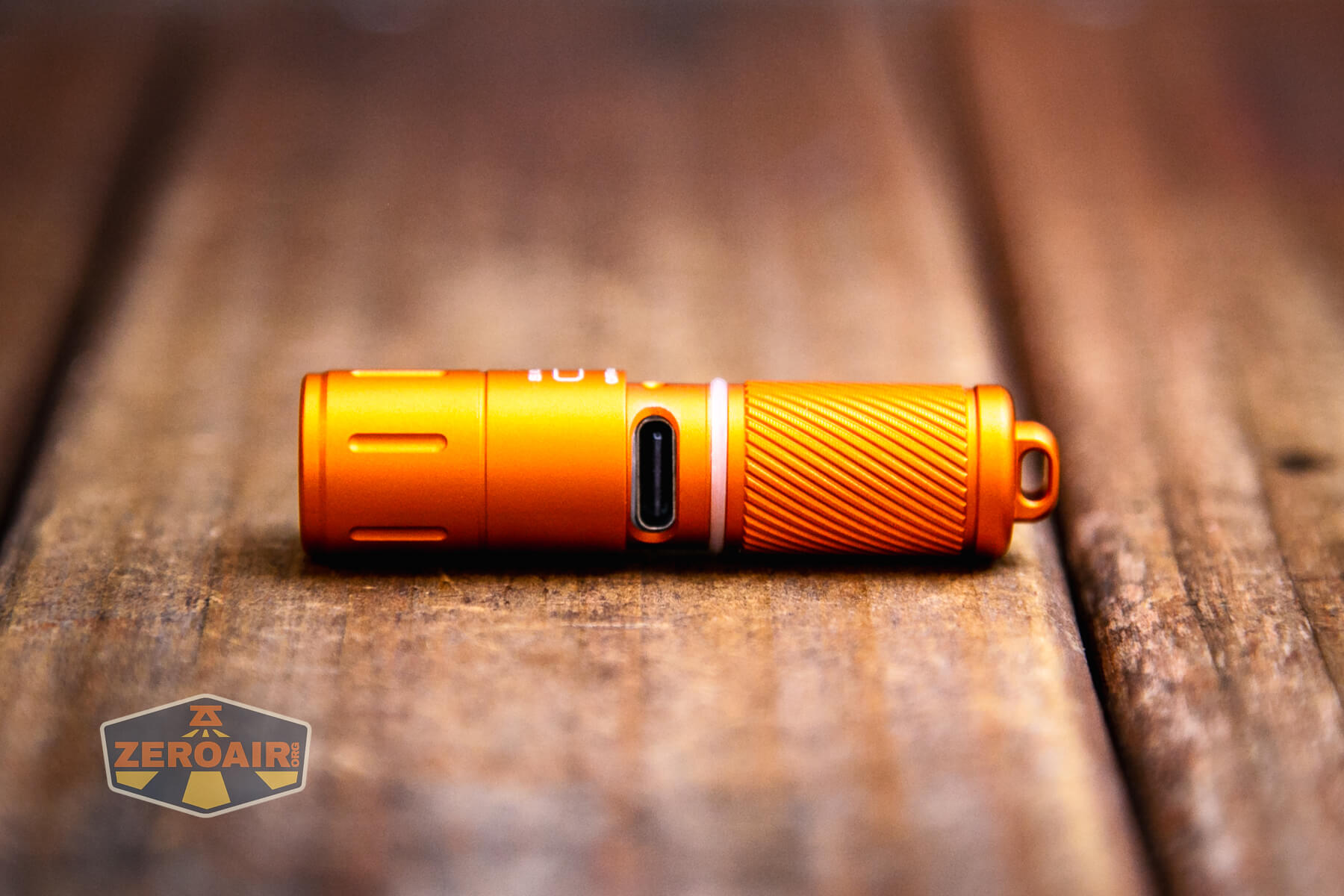

Skilhunt EK1 keychain flashlight charging port

A short USB to USB-C cable is included.

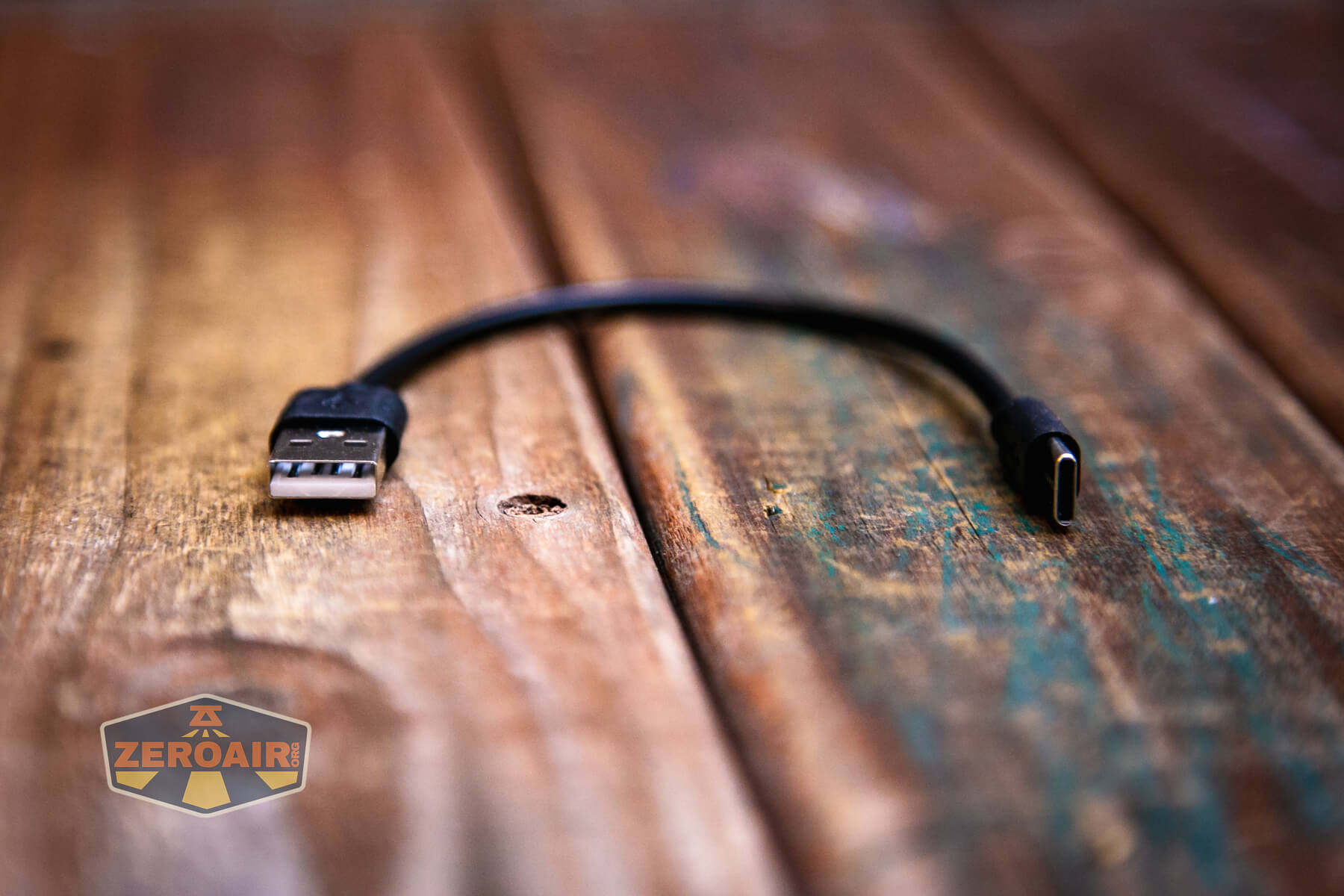

Skilhunt EK1 keychain flashlight charging cable

While the Skilhunt EK1 keychain flashlight is charging, this little charge indicator (seen below) is lit in red, and when charging is complete, this indicator switches to blue.

Skilhunt EK1 keychain flashlight charging indicator

Charging takes around 1.25 hours with USB and USB-C both. It’s nice to note that USB-C does work!

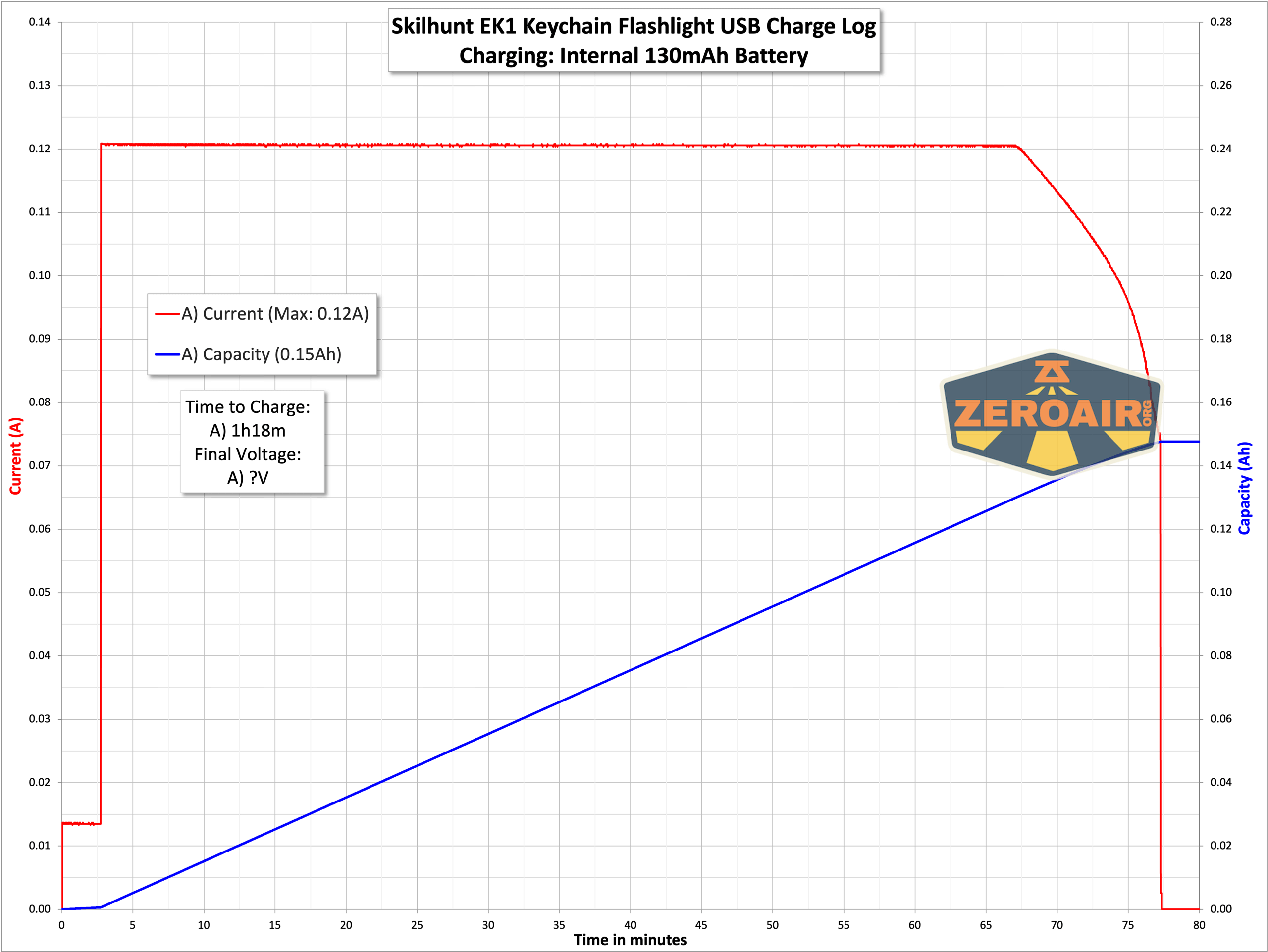

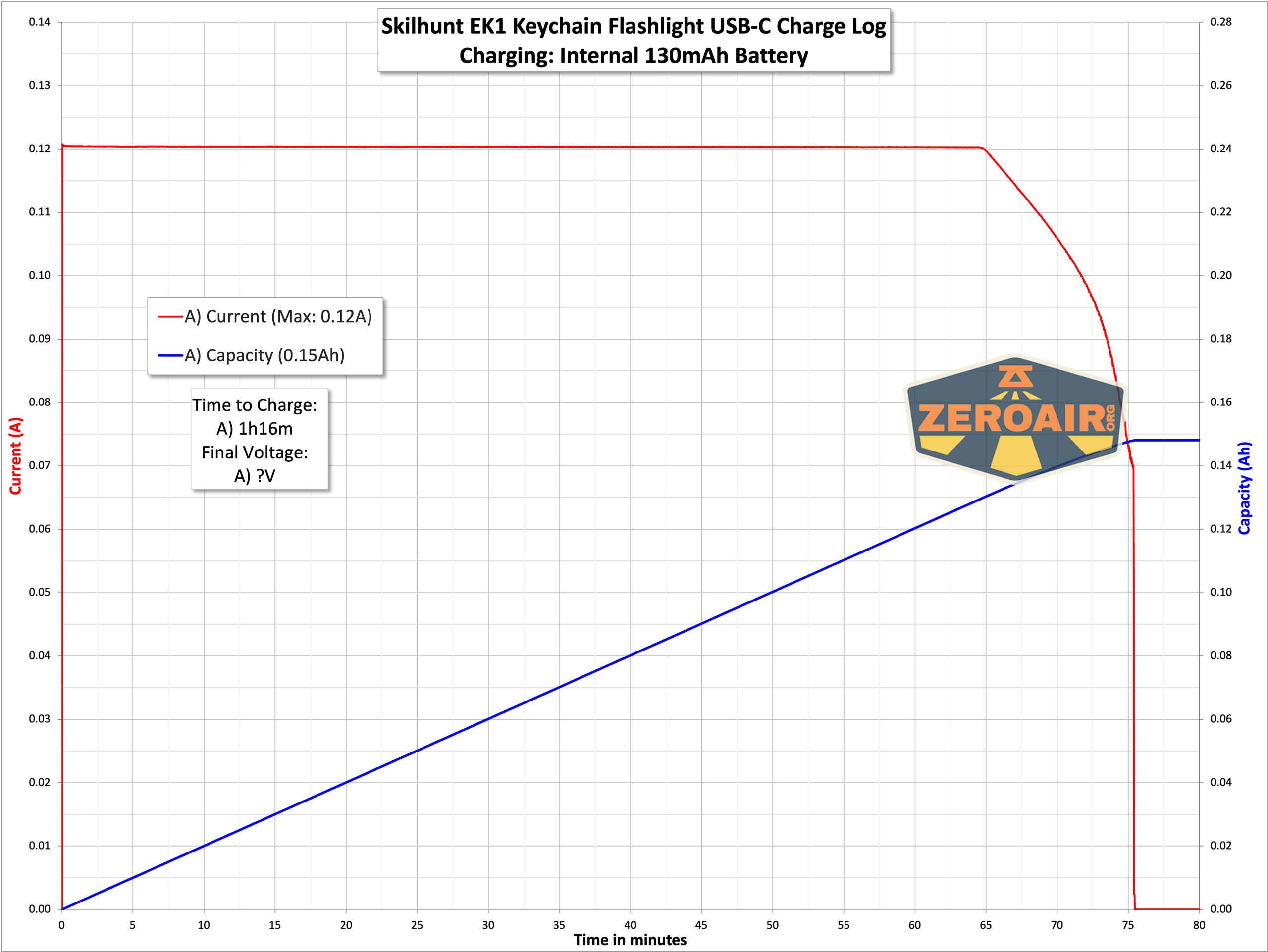

Skilhunt EK1 keychain flashlight charging graph

Skilhunt EK1 keychain flashlight charging graph

Modes and Currents

Mode Mode Claimed Output (lm) Claimed Runtime Measured Lumens
High 180 25m 185
Low 10 450m 10

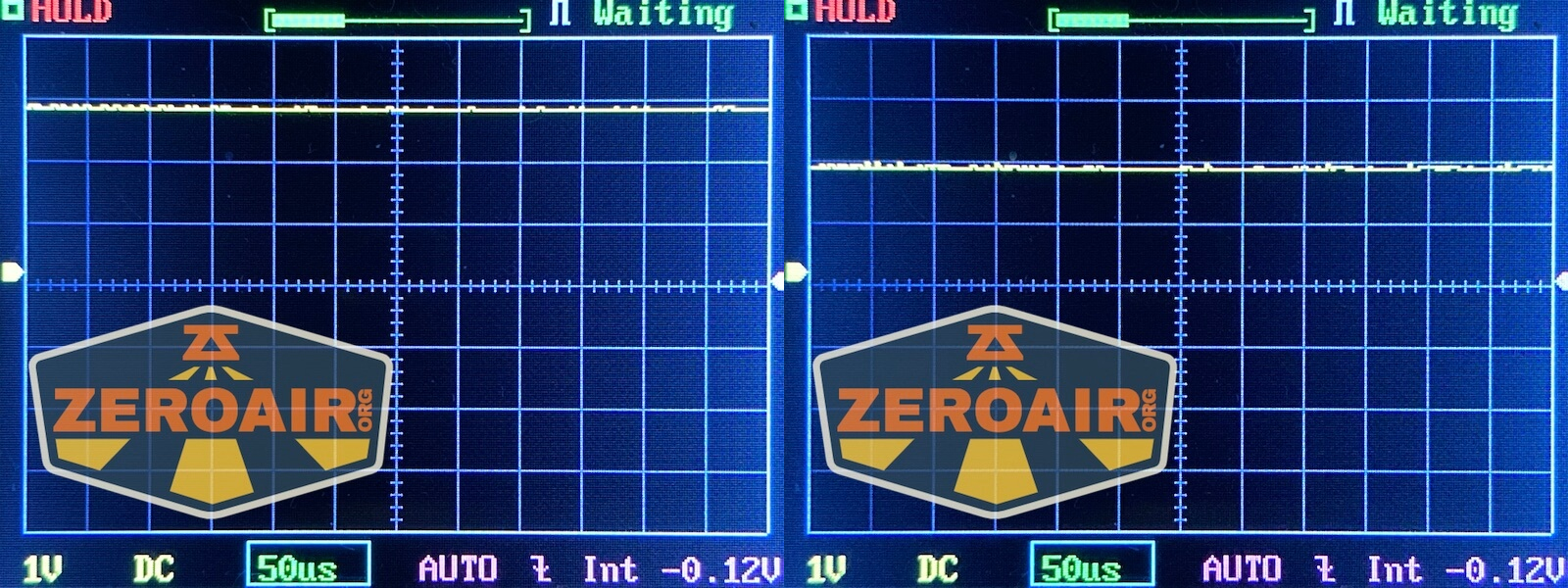

Pulse Width Modulation

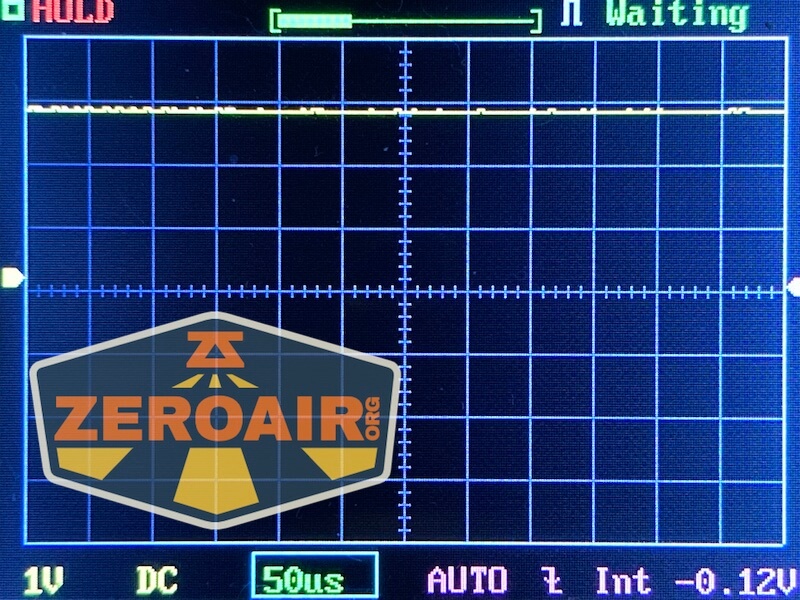

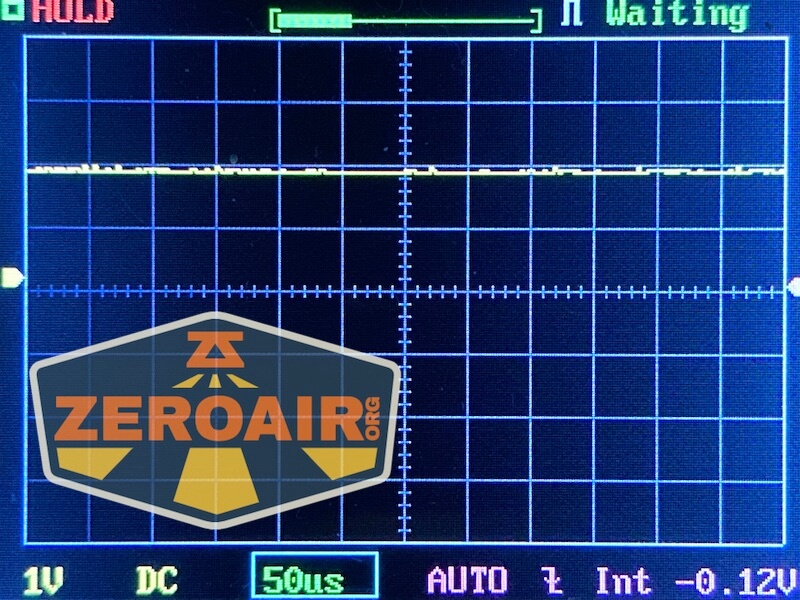

Neither mode uses PWM.

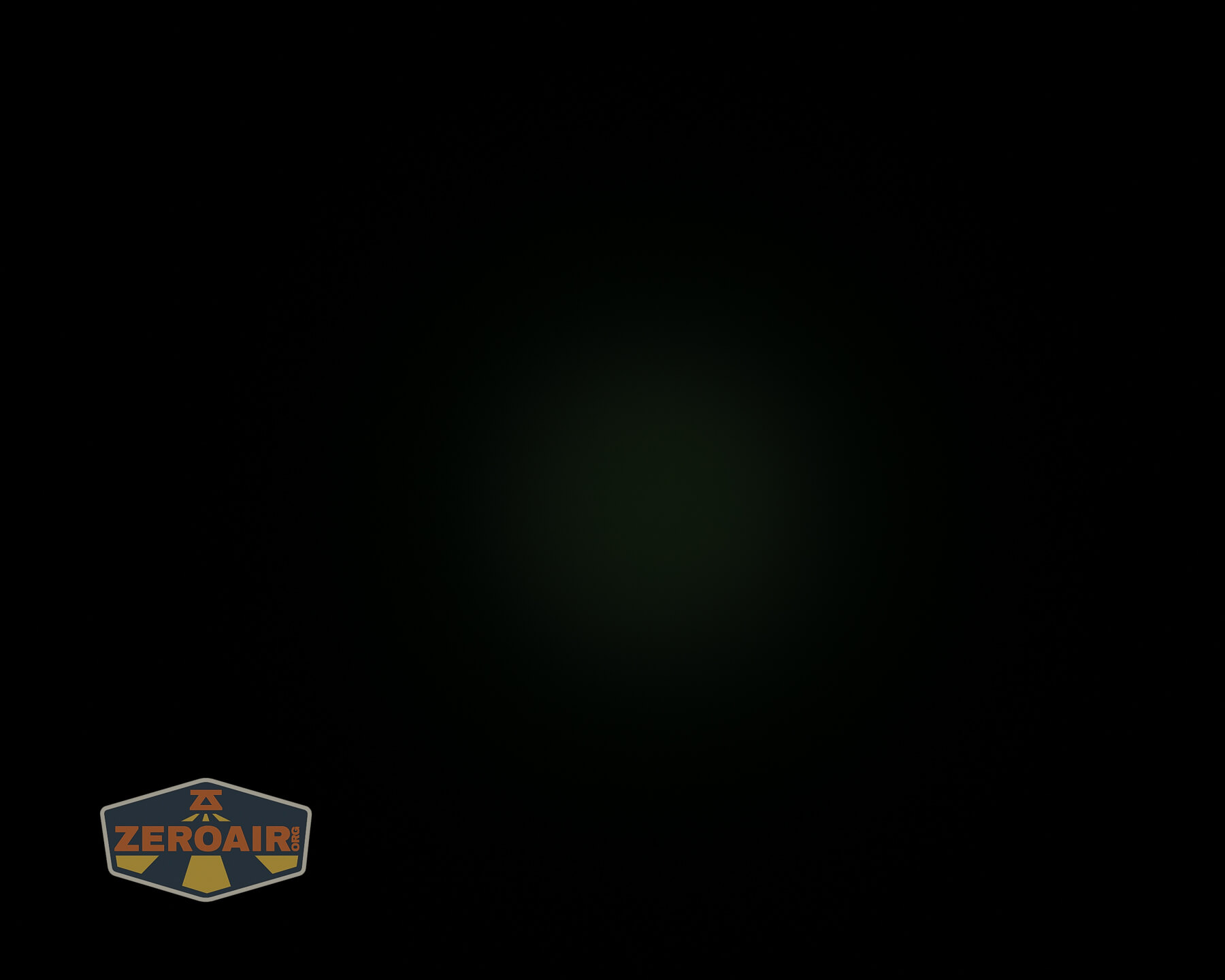

For reference, here’s a baseline shot, with all the room lights off and almost nothing hitting the sensor.  Also, here’s the light with the worst PWM I could find.  I’m adding multiple timescales, so it’ll be easier to compare to the test light.  Unfortunately, the PWM on this light is so bad that it doesn’t even work with my normal scale, with is 50 microseconds (50us).  10ms5ms2ms1ms0.5ms0.2ms.  In a display faster than 0.2ms or so, the on/off cycle is more than one screen, so it’d just (very incorrectly) look like a flat line.  I wrote more about this Ultrafire WF-602C flashlight and explained a little about PWM too.

User Interface and Operation

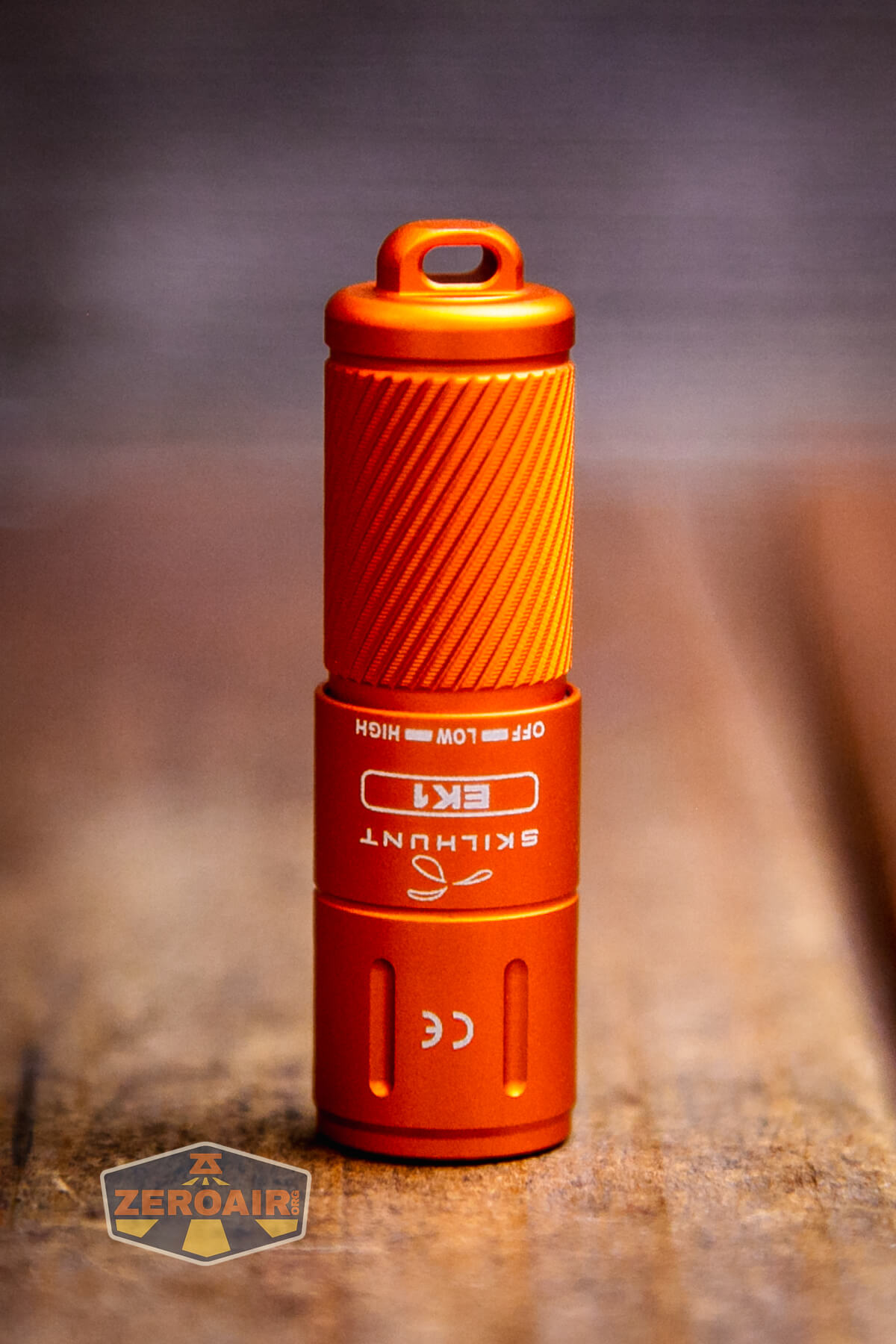

The EK1 is a twisty keychain flashlight.  There are markings on the side to help a user know what to do, but of course, it’s very simple.

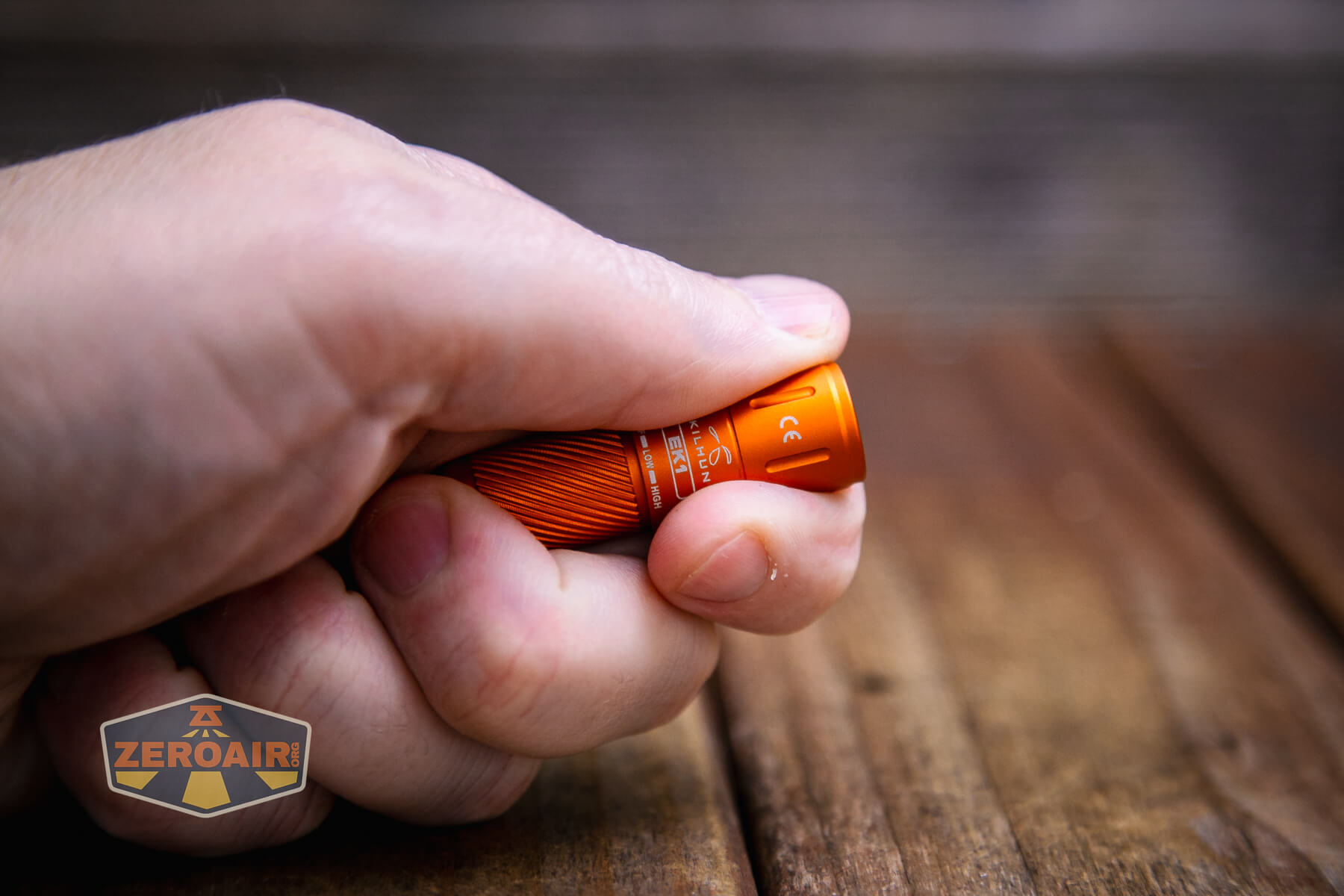

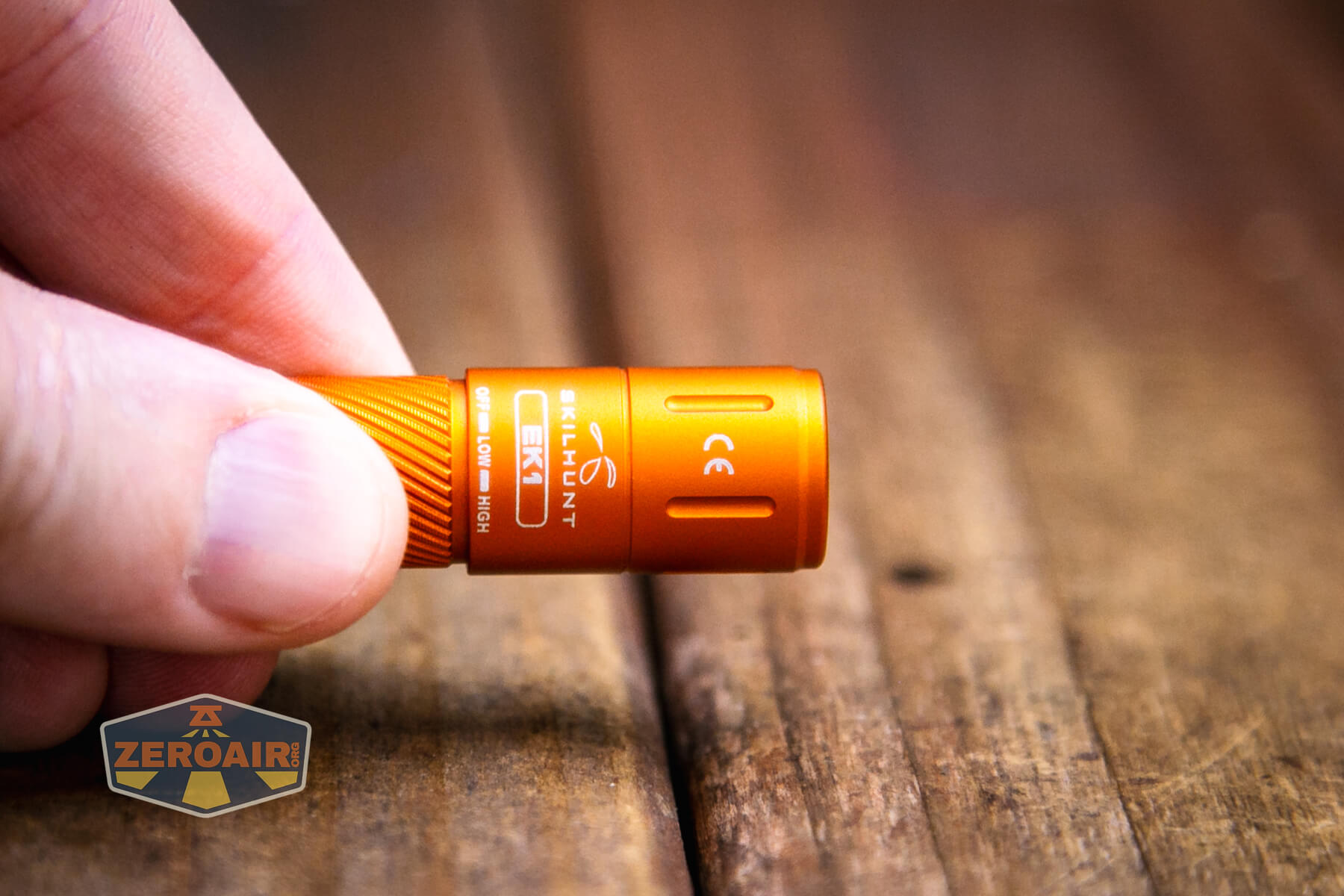

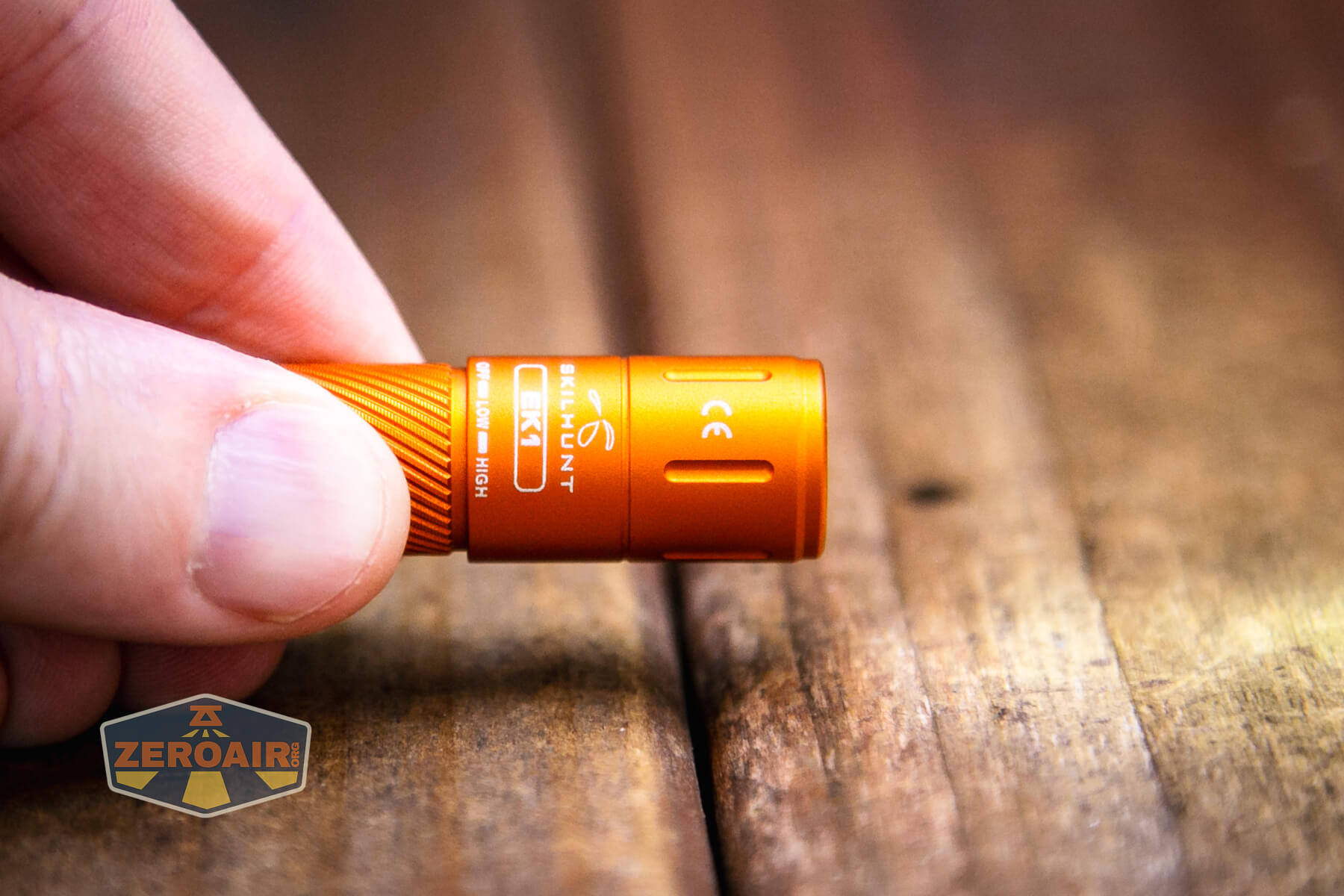

Skilhunt EK1 keychain flashlight twisty user interface

I will say that after all my uses of the EK1, the threads are not as smooth as I’d like for them to be. This is probably because I tried to unscrew the head, and potentially galled the threads a bit – so that’s on me. But that should be a lesson to you – don’t over-loosen the head.

Here’s a UI table!

State Action Result
Off Tighten head Low
Low Tighten head High
High Loosen head Low
Low Loosen head Off

LED and Beam

Skilhunt uses a Luminus SST-20 in the higher-output version if the EK1. There’s also a high-CRI version, which has lower output.

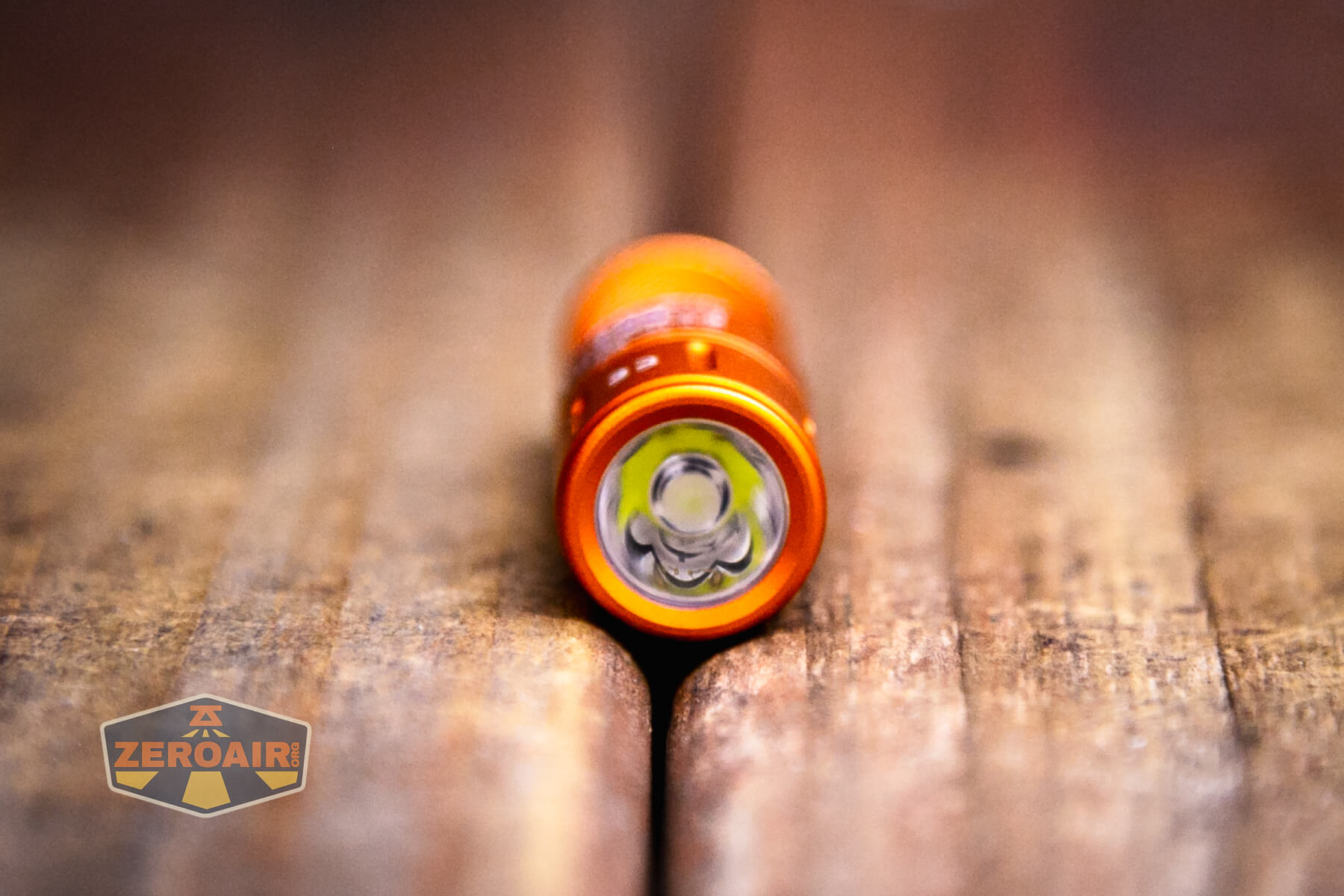

Skilhunt EK1 keychain flashlight emitter and TIR

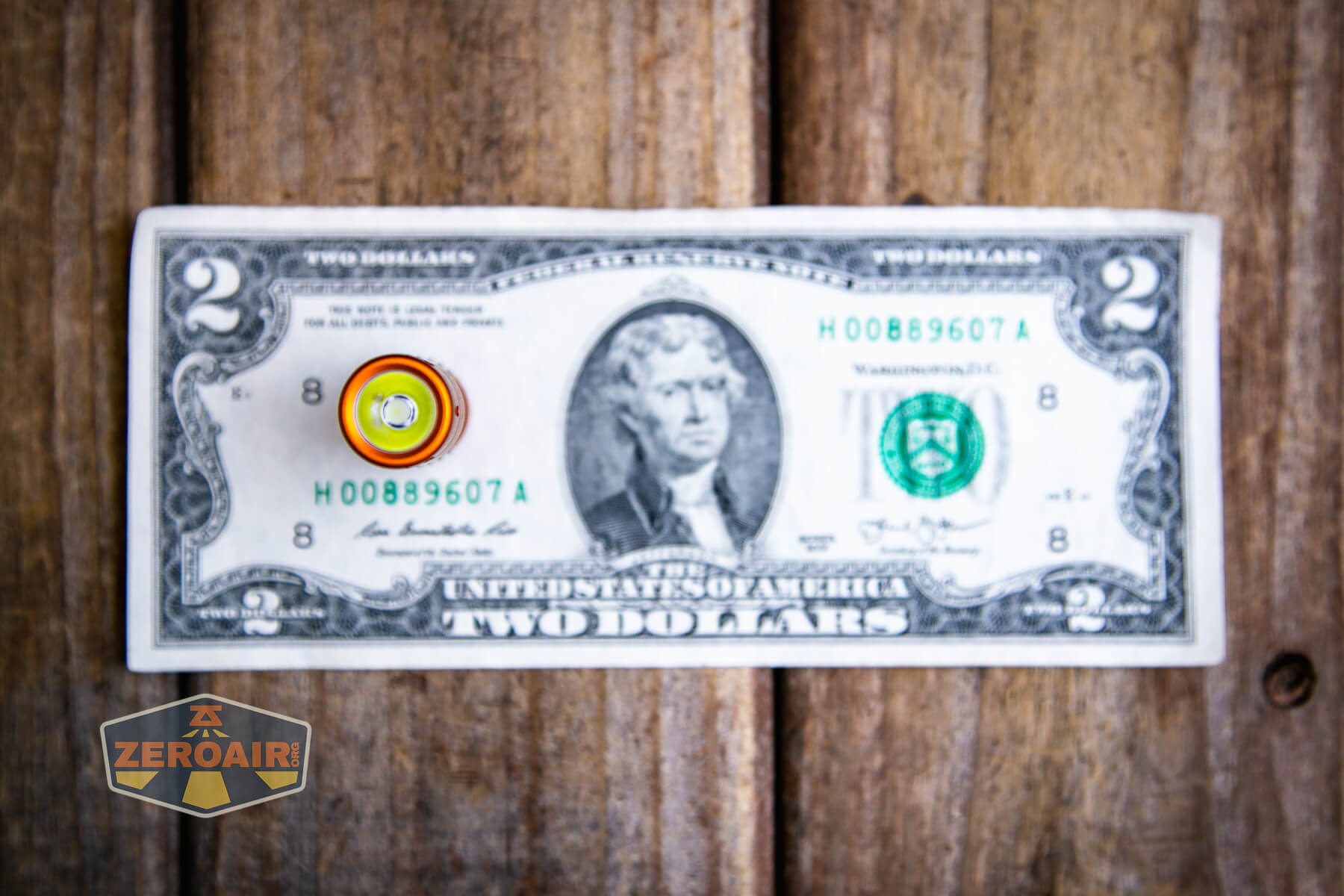

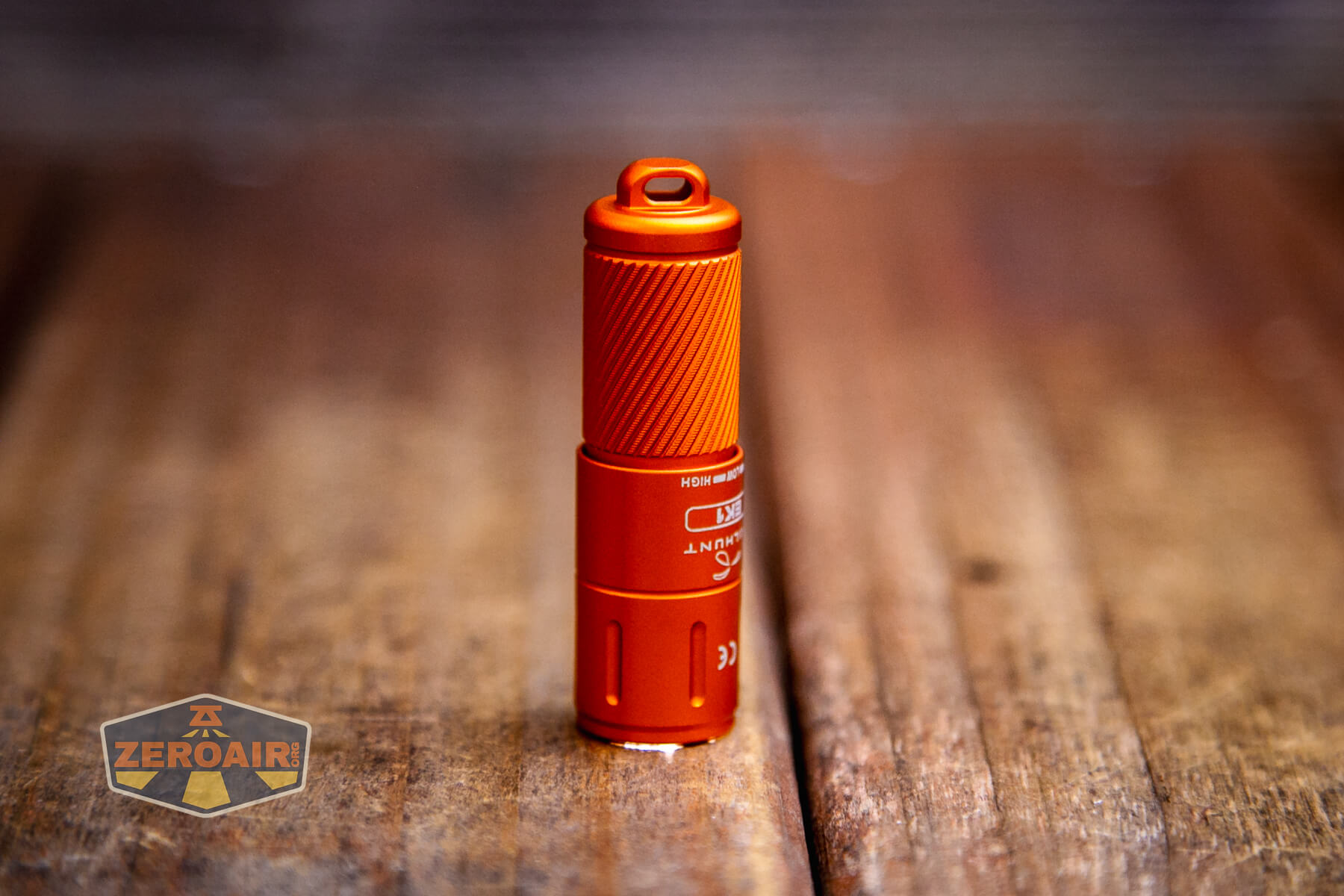

Skilhunt EK1 keychain flashlight headstanding

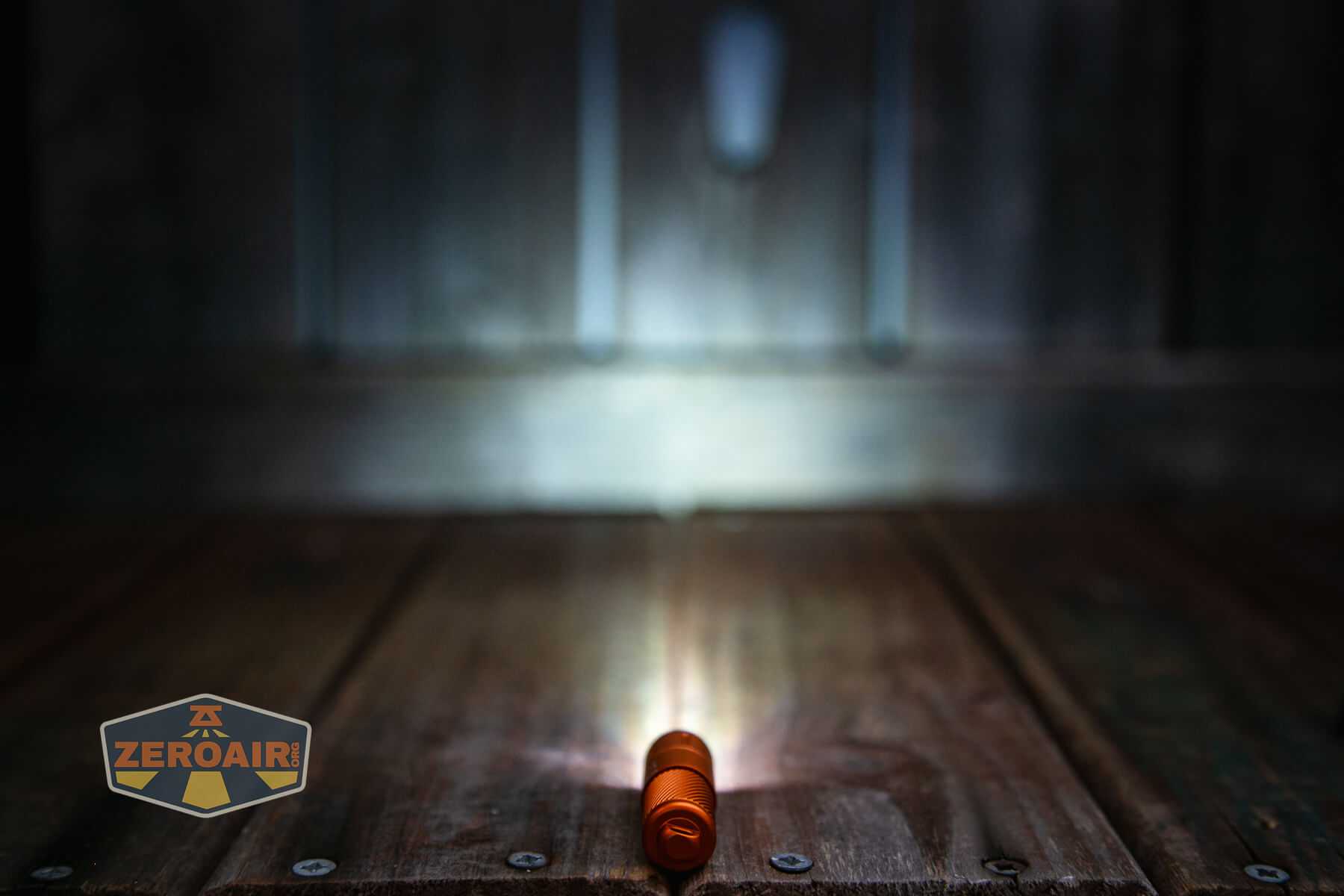

Skilhunt EK1 keychain flashlight beamshot on

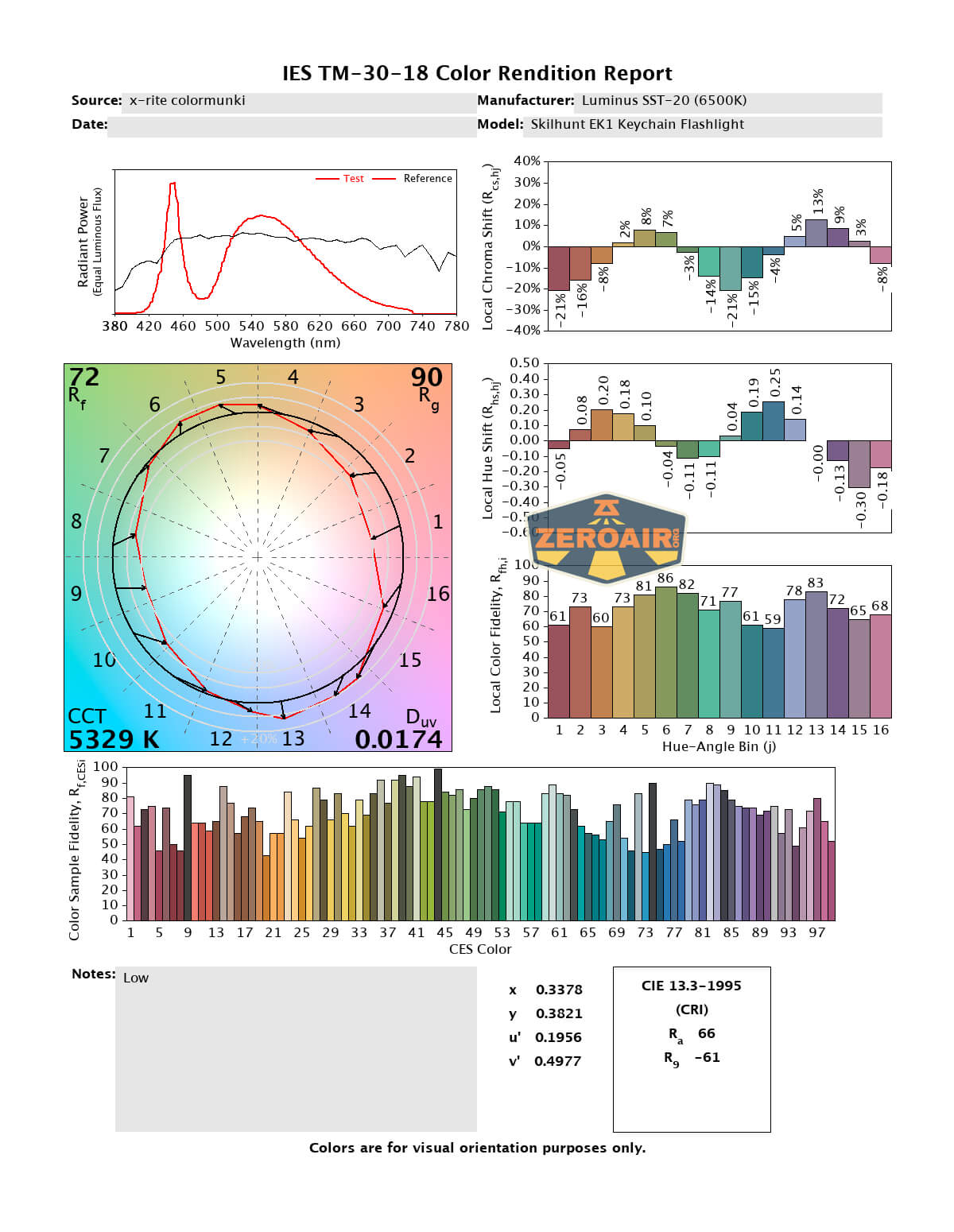

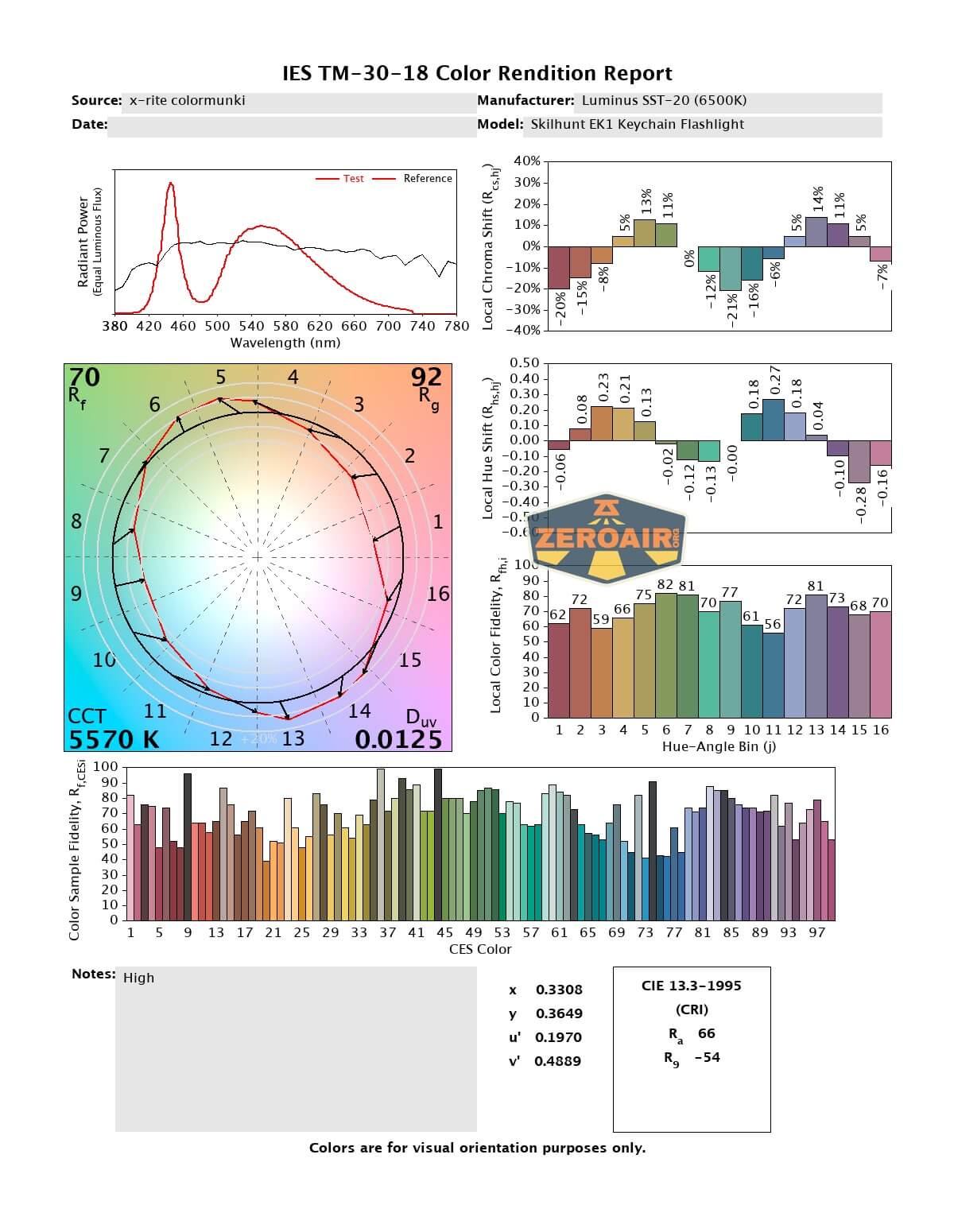

LED Color Report (CRI and CCT)

The claim of 6500K is not really met here, but that’s generally a good thing. I’m reading this at around 5400K, well below 6500K. However, 6500K is usually considered cool white (or even “very” cool white) so… I don’t think that would be ideal in a keychain flashlight anyway. So 5300-5500K is very good. CRI is very low though, at around 66.

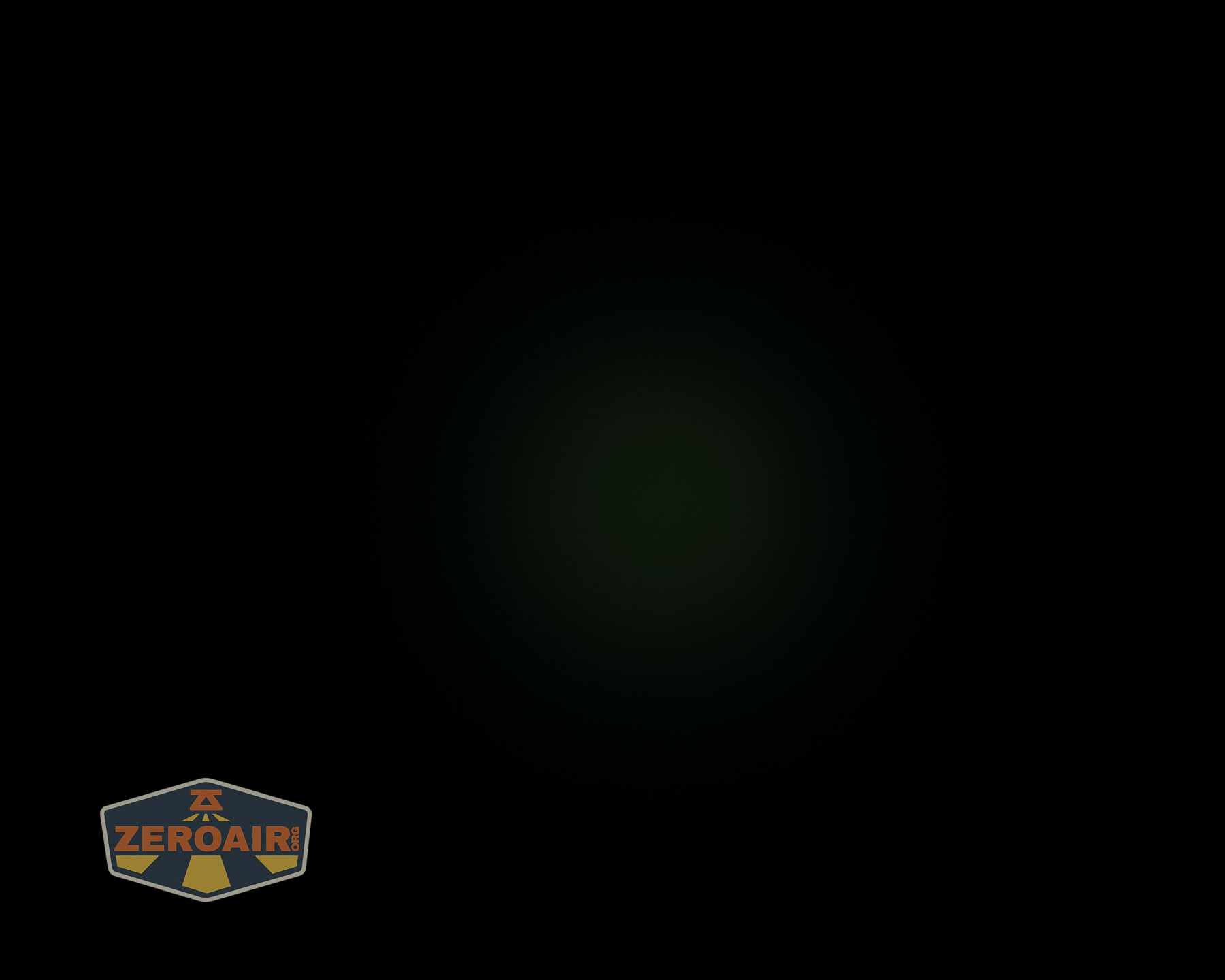

Beamshots

These beamshots are always with the following settings:  f8, ISO100, 0.3s shutter, and manual 5000K exposure.

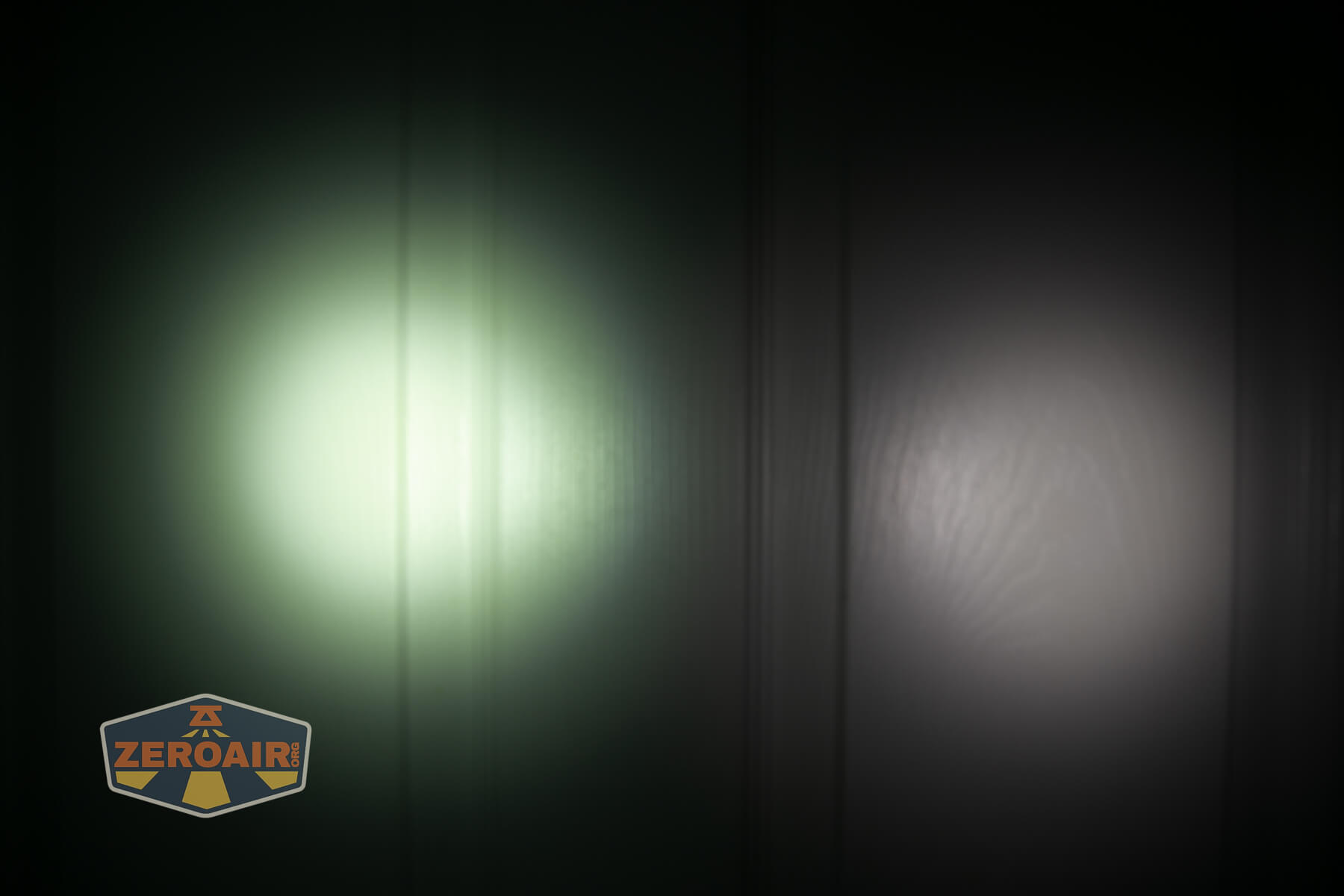

Tint vs BLF-348 (KillzoneFlashlights.com 219b version) (affiliate link)

I keep the test flashlight on the left, and the BLF-348 reference flashlight on the right.

I compare everything to the KillzoneFlashlights.com 219b BLF-348 because it’s inexpensive and has the best tint!

Conclusion

What I like

  • It’s orange!
  • USB-C charging works
  • Very simple user interface
  • CCT is really more neutral than the rated 6500K

What I don’t like

  • Very low CRI
  • CCT is rated at 6500K but is much warmer

Notes

  • This content originally appeared at zeroair.org.  Please visit there for the best experience!
  • For flashlight-related patches, stickers, and gear, head over to PhotonPhreaks.com!
  • Use my amazon.com referral link if you’re willing to help support making more reviews like this one!
  • Please support me on Patreon!  Feeding flashlights is expensive!  And funding Fun Fund Friday even more so.  I deeply appreciate your support!
Liked it? Take a second to support zeroair on Patreon!
