Skilhunt has released V3 of the M200, an 18650 flashlight that has the incredible Nichia 519a emitter as well as built-in charging! Read on!


Official Specs and Features

Here’s a ShareASale link to the Skilhunt M200 V3 flashlight product page.

Versions

There’s quite a bit to mention here. First, there are two body colors: black and gunmetal grey (seen here). Next, there are emitter options, of which there are three: Nichia 519a (seen here), Samsung LH351d, and Cree XP-L2. The real story of this light is of course the Nichia 519a version, which is what you should buy. It’s also possible to buy with or without an 18650. I recommend with, but the light is very 18650-friendly, too.

Price

As shown here, the Skilhunt M200 V3 flashlight sells for $53.90. Again, you should buy the Skilhunt M200 V3 flashlight through my ShareASale link!


Short Review

I have liked the previous M200 by Skilhunt, and I like (maybe love?) the various options available with the M150. The M300 is great too! This whole series is a winner. So to have this light available in the fantastic Nichia 519a emitter, at R9080 and 4500K… this is a real winner! Also, the user interface is quite versatile, too!

Long Review

The Big Table

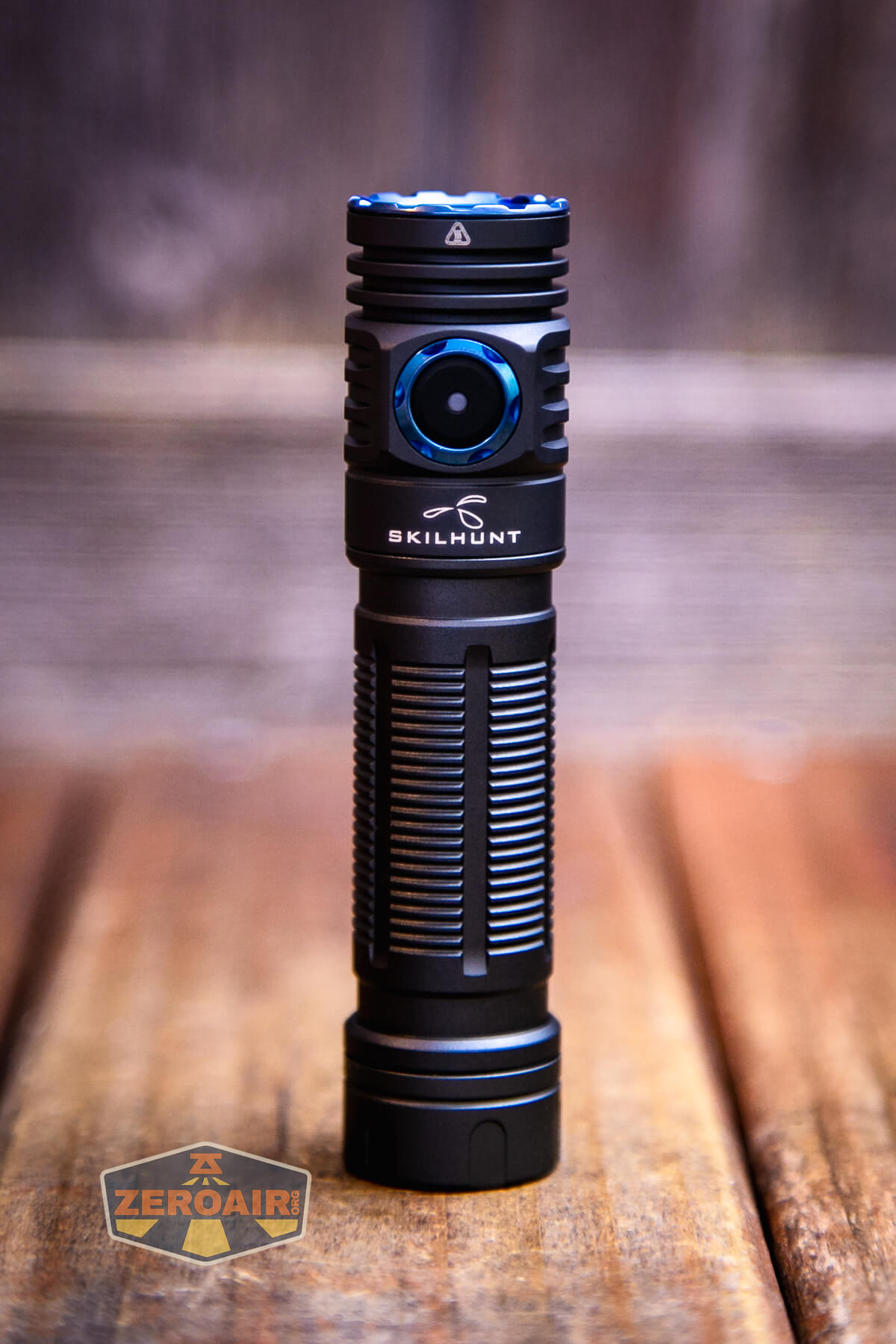

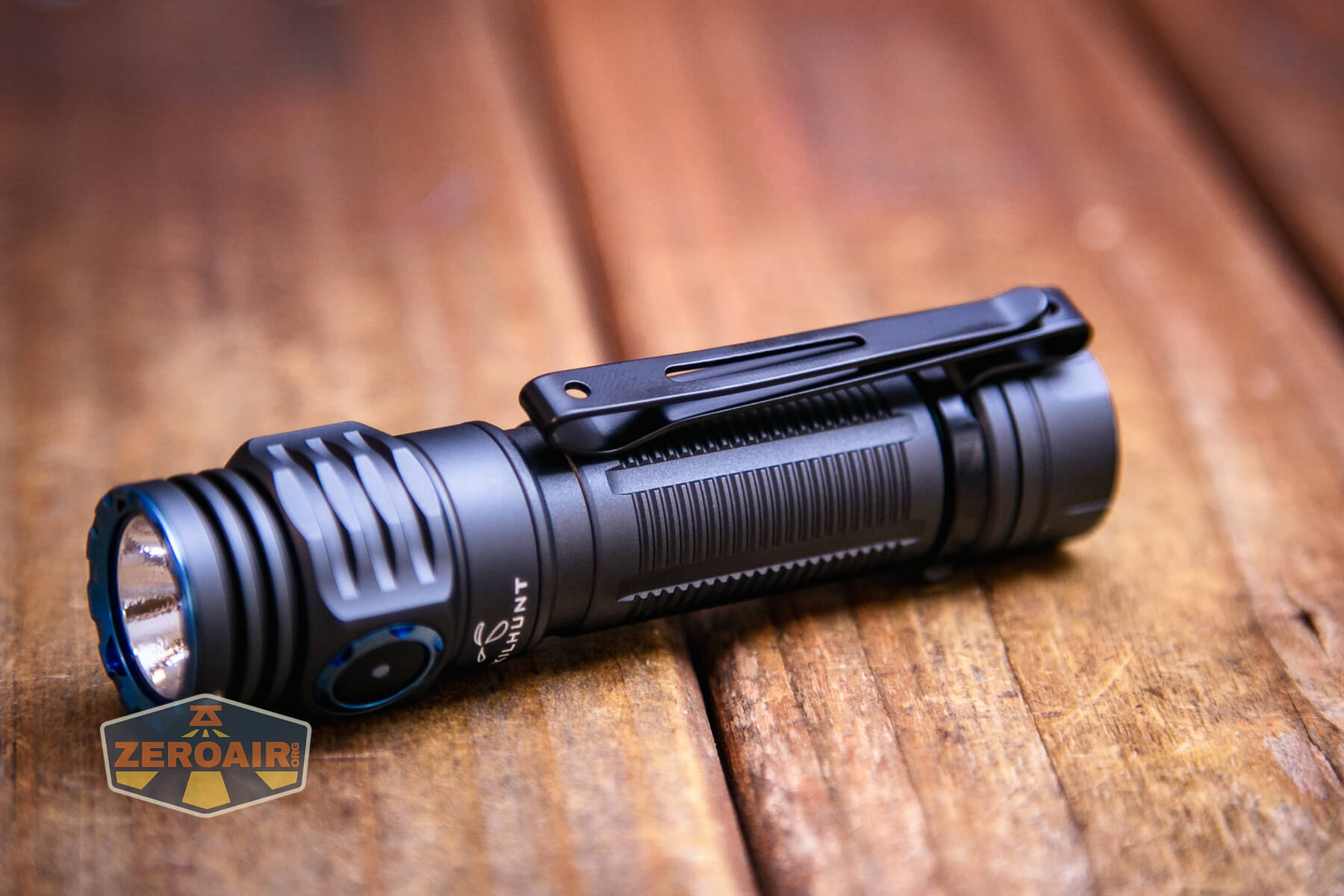

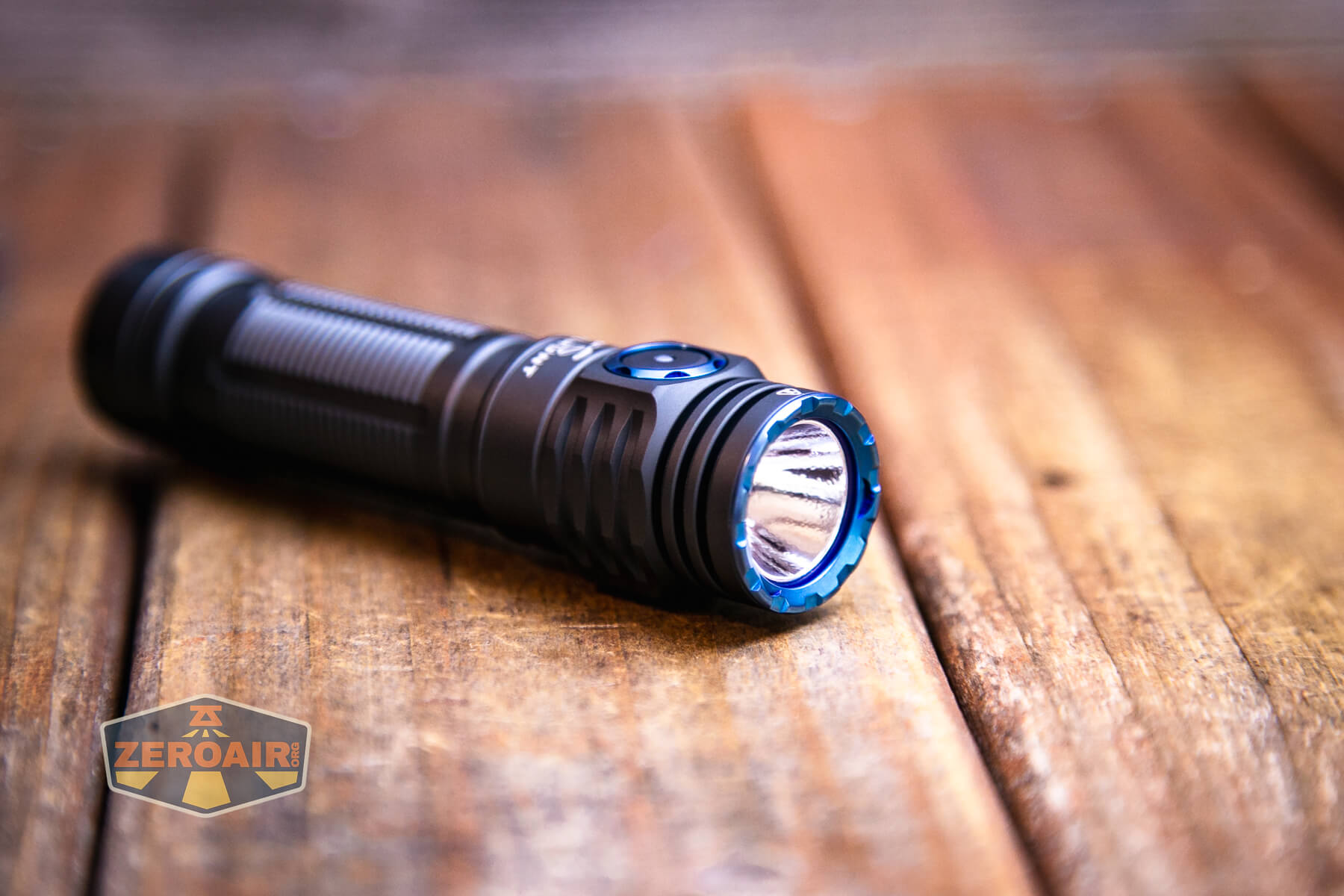

Skilhunt M200 V3 flashlight
Emitter: Nichia 519a (4500K, High CRI, R9080)
Price in USD at publication time: $53.90
Cell: 1×18650
Runtime Graphs
LVP? Yes
Switch Type: E-Switch
Quiescent Current (mA): 0.04
On-Board Charging? Yes
Charge Port Type: Proprietary Magnetic
Charge Graph
Power off Charge Port Any scenario: all modes
Claimed Lumens (lm) 950
Measured Lumens (at 30s) 841 (88.5% of claim)^
Candela per Lumen 7
Claimed Throw (m) 188
Candela (Calculated) in cd (at 30s) 262lux @ 5.504m = 7937cd
Throw (Calculated) (m) 178.2 (94.8% of claim)^
Claimed CCT 4500
Measured CCT Range (K) 4100-4300 Kelvin
Item provided for review by: Skilhunt
All my Skilhunt reviews!

^ Measurement disclaimer:  I am an amateur flashlight reviewer.  I don’t have $10,000 or even $1,000 worth of testing equipment.  I test output and such in PVC tubes!!  Please consider claims within 10% of what I measure to be perfectly reasonable (accurate, even).

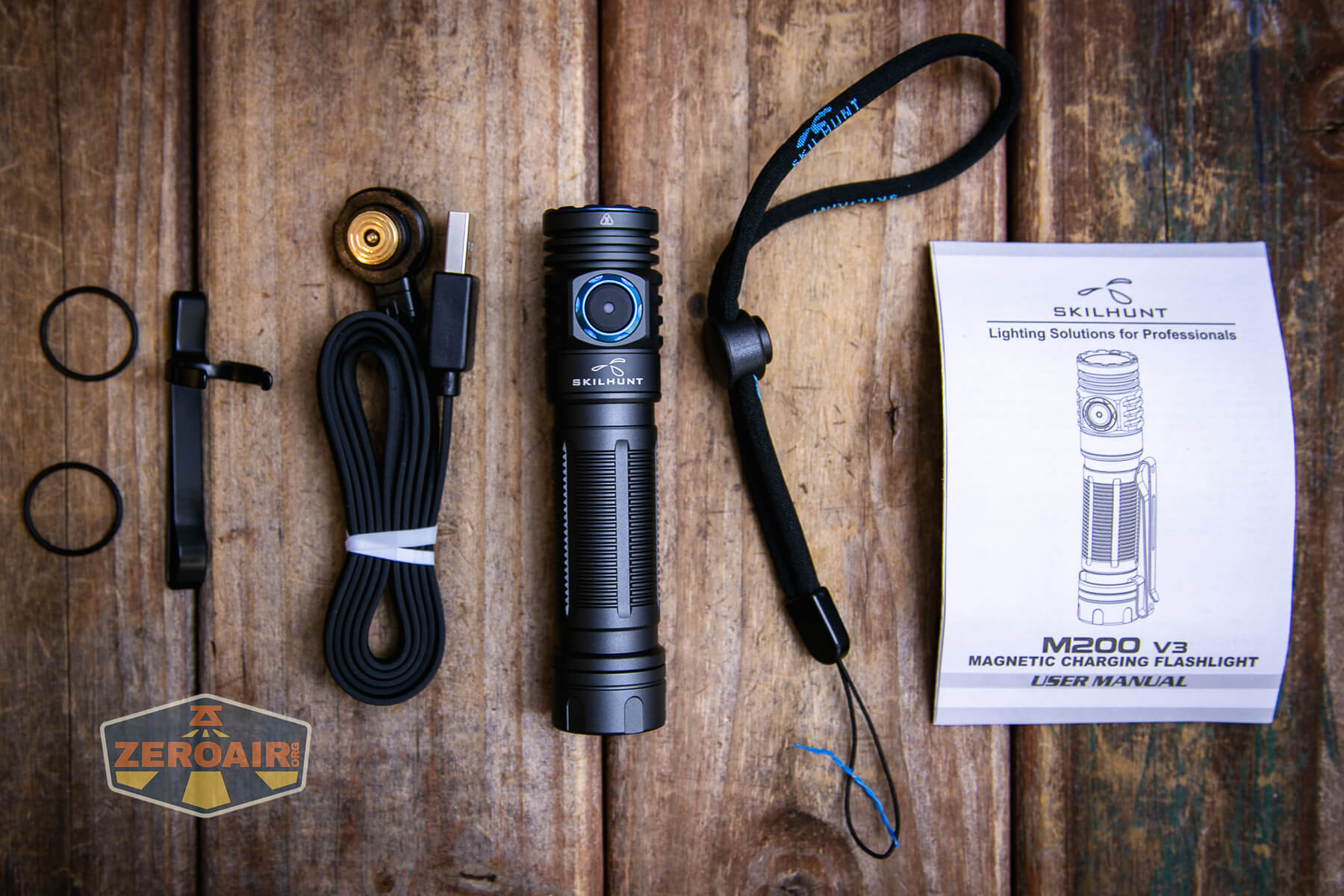

What’s Included

Skilhunt M200 V3 flashlight what's included

  • Skilhunt M200 V3 flashlight
  • Charge cable (USB to proprietary magnetic)
  • Lanyard
  • Pocket clip
  • Manual
  • Spare o-rings (2)

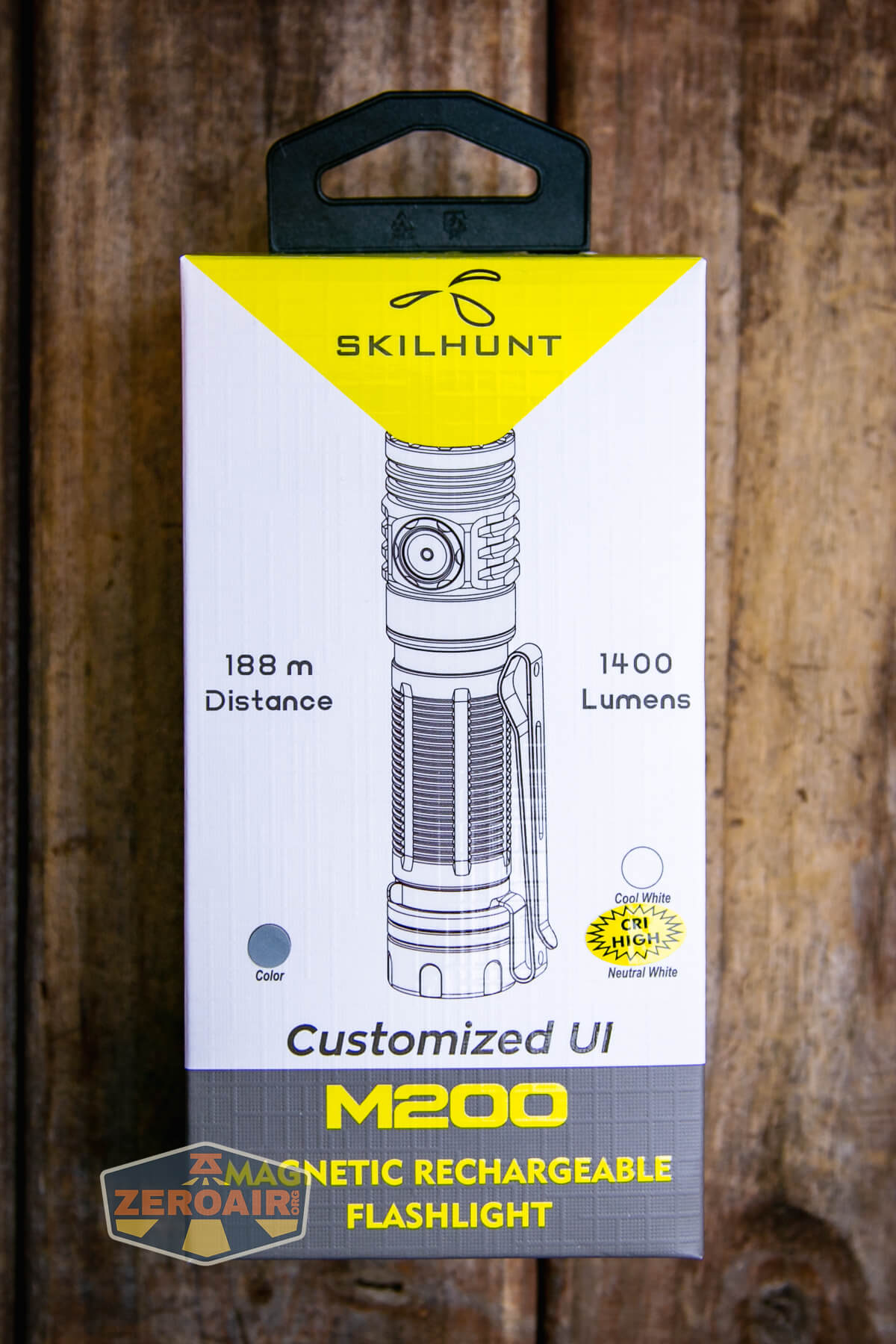

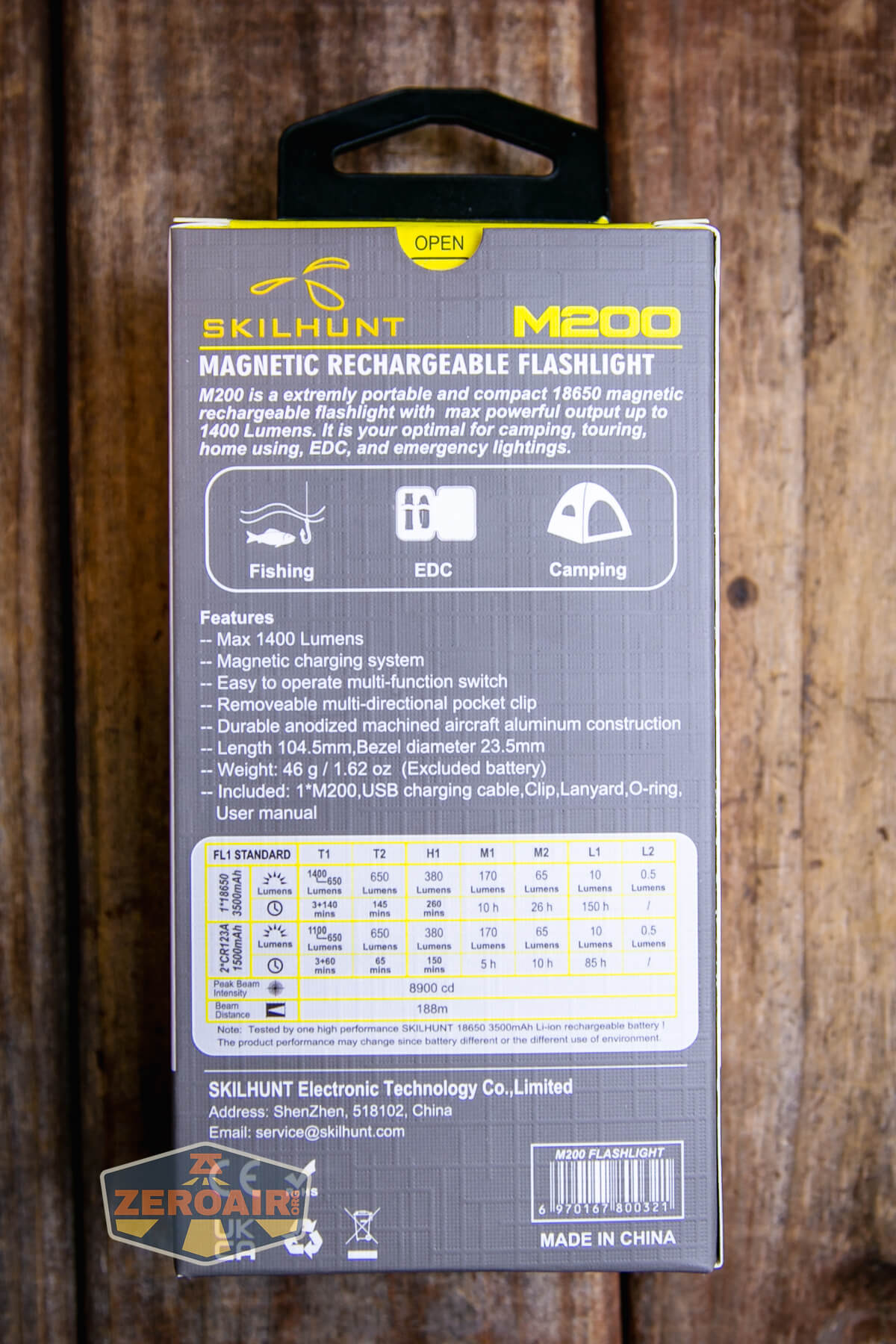

Package and Manual

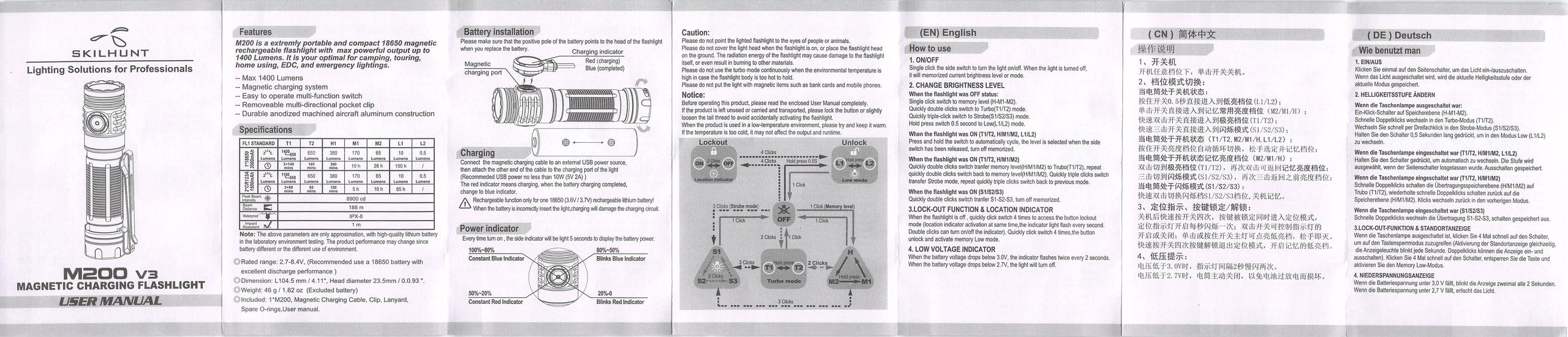

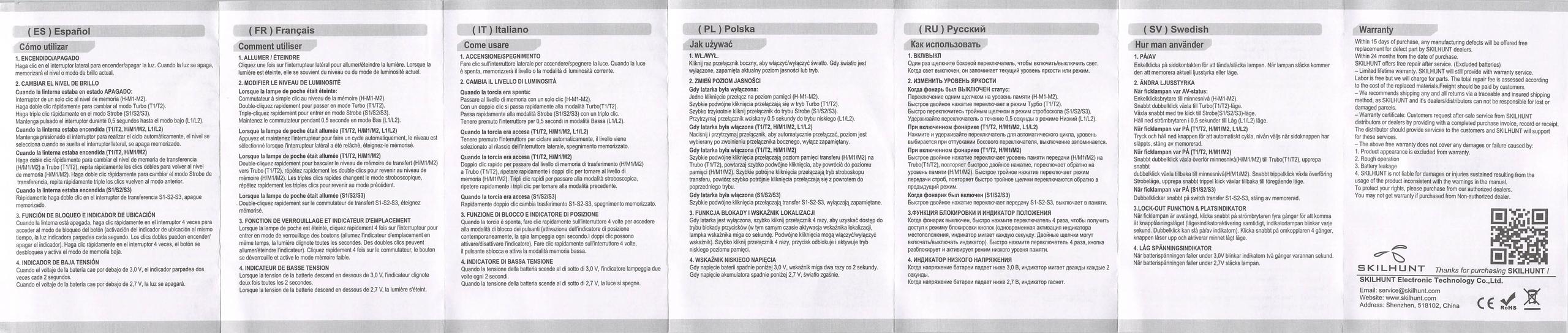

Skilhunt M200 V3 flashlight manual

Skilhunt M200 V3 flashlight manual

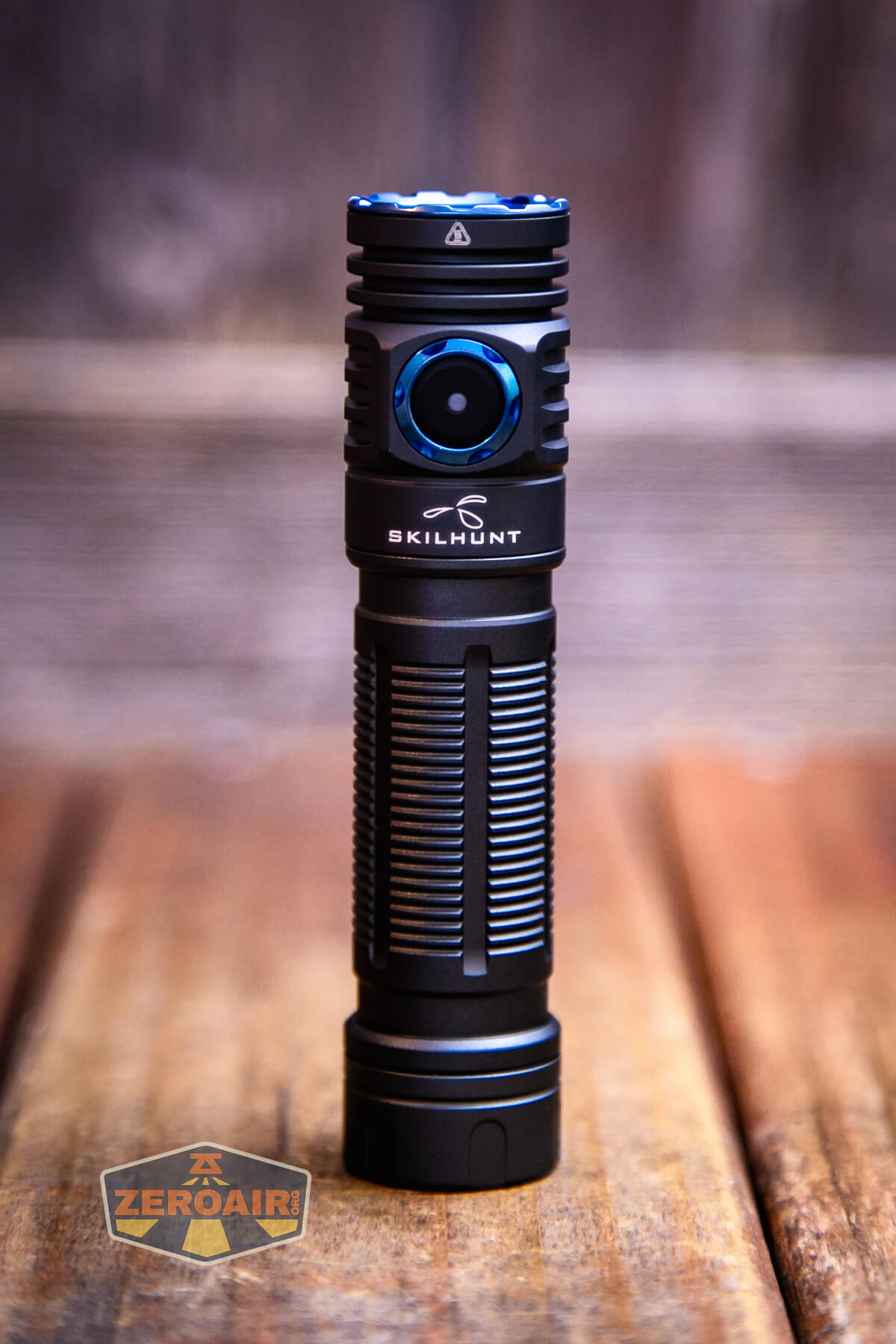

Build Quality and Disassembly

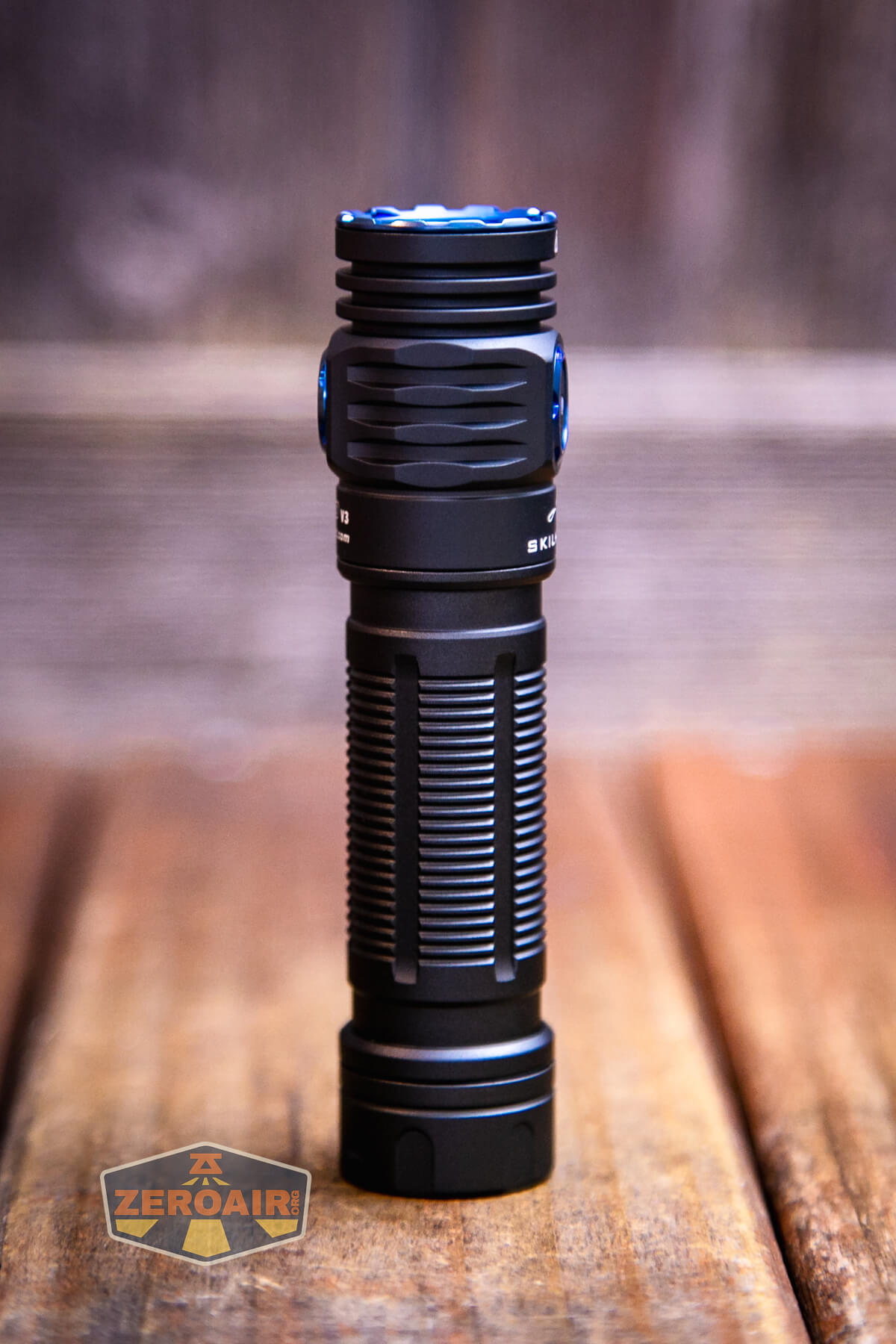

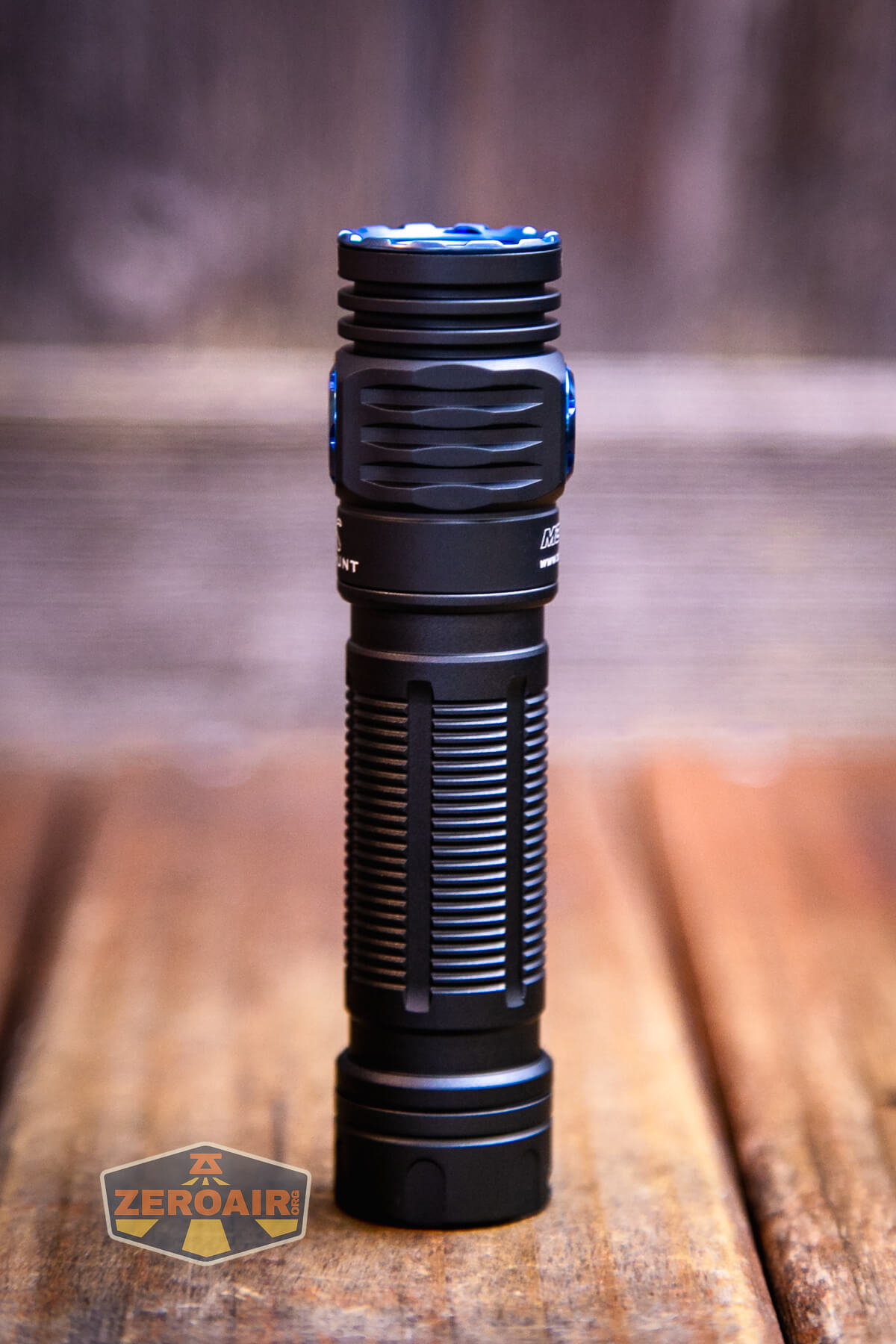

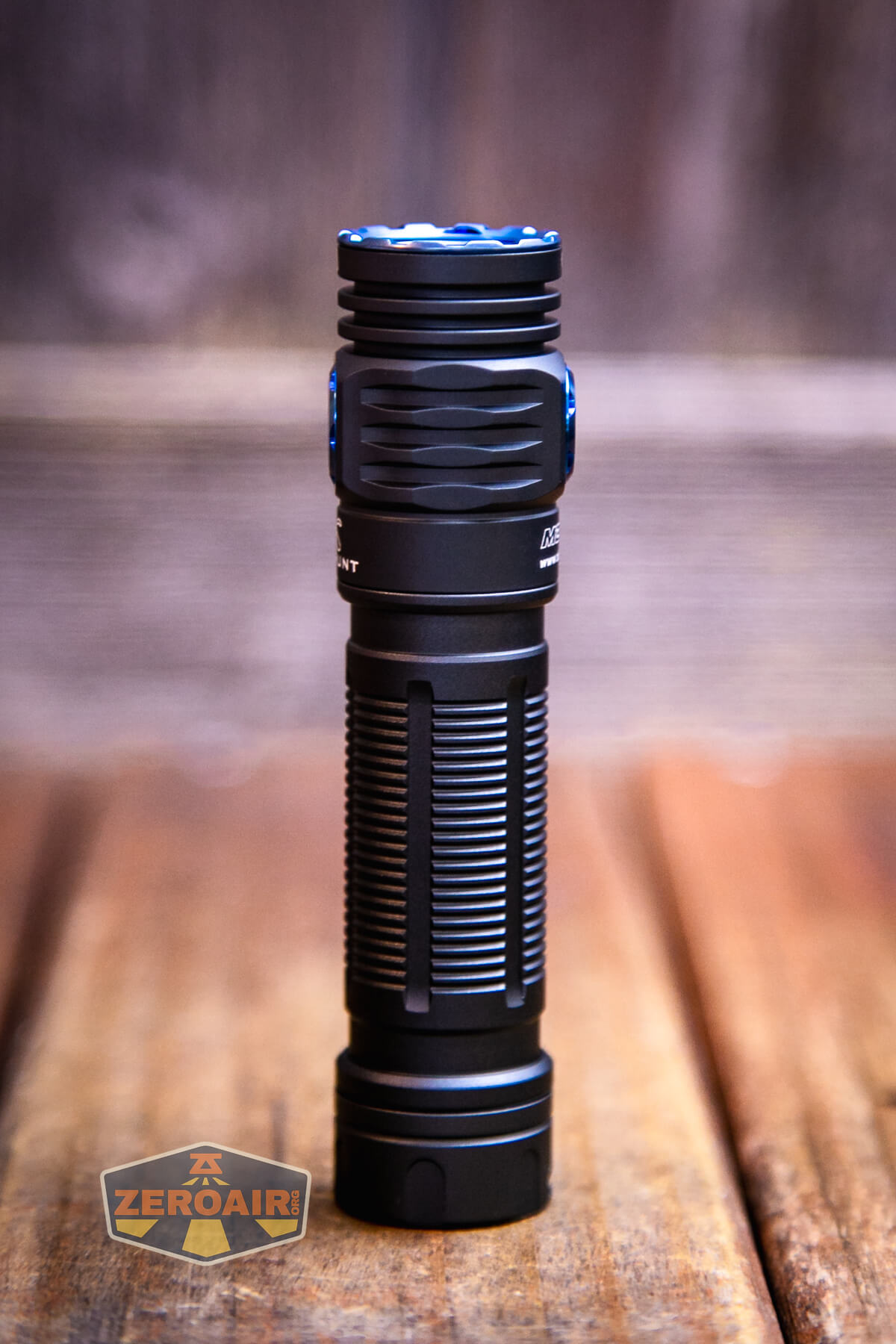

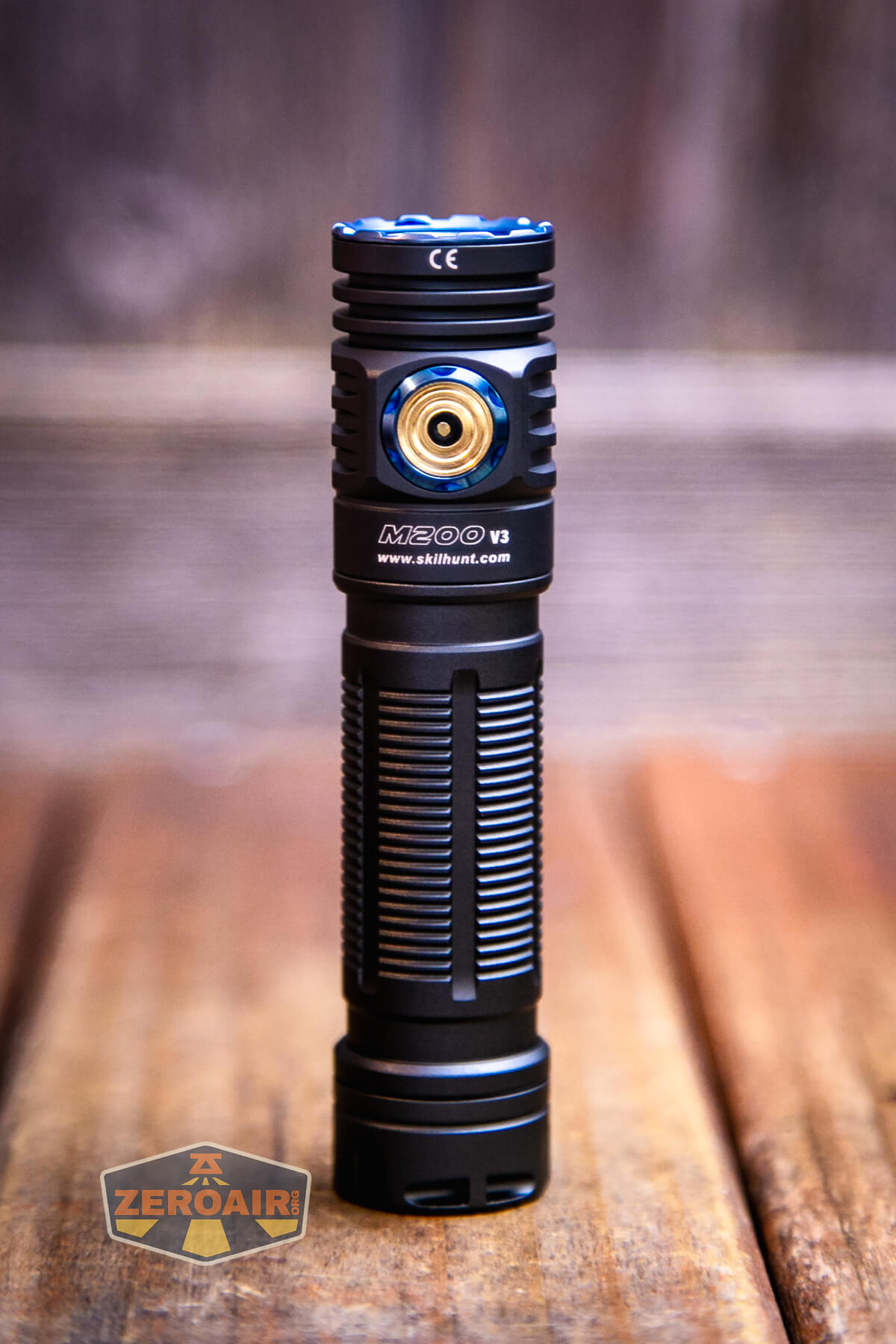

Skilhunt M200 V3 flashlight

Skilhunts are usually well-built lights, and this one is no exception. Maybe more importantly, the design language between this and the other M-series lights is very consistent!

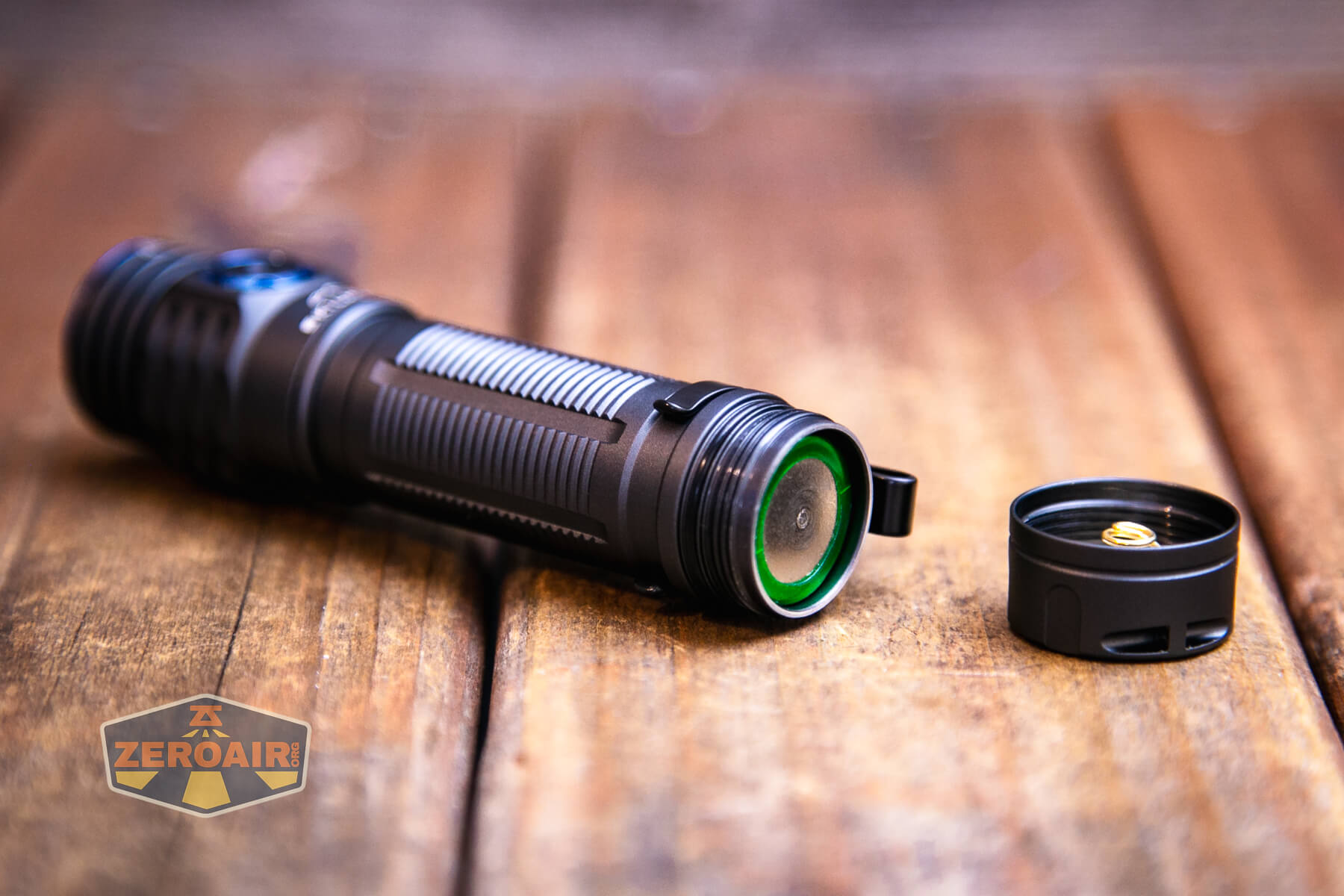

The threads are square-cut and lubed an appropriate amount. That spring is also removable so that the magnet can be removed, too.

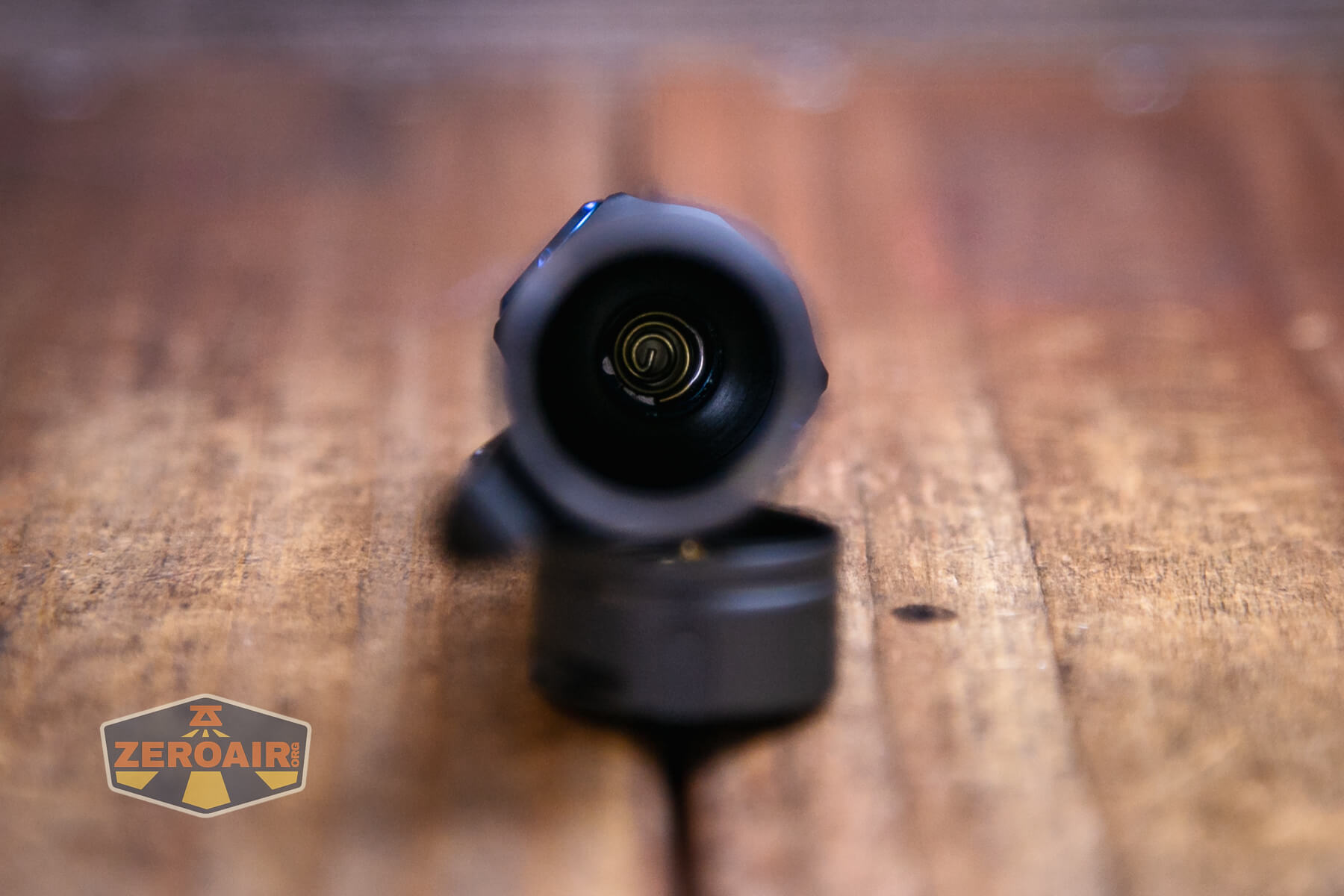

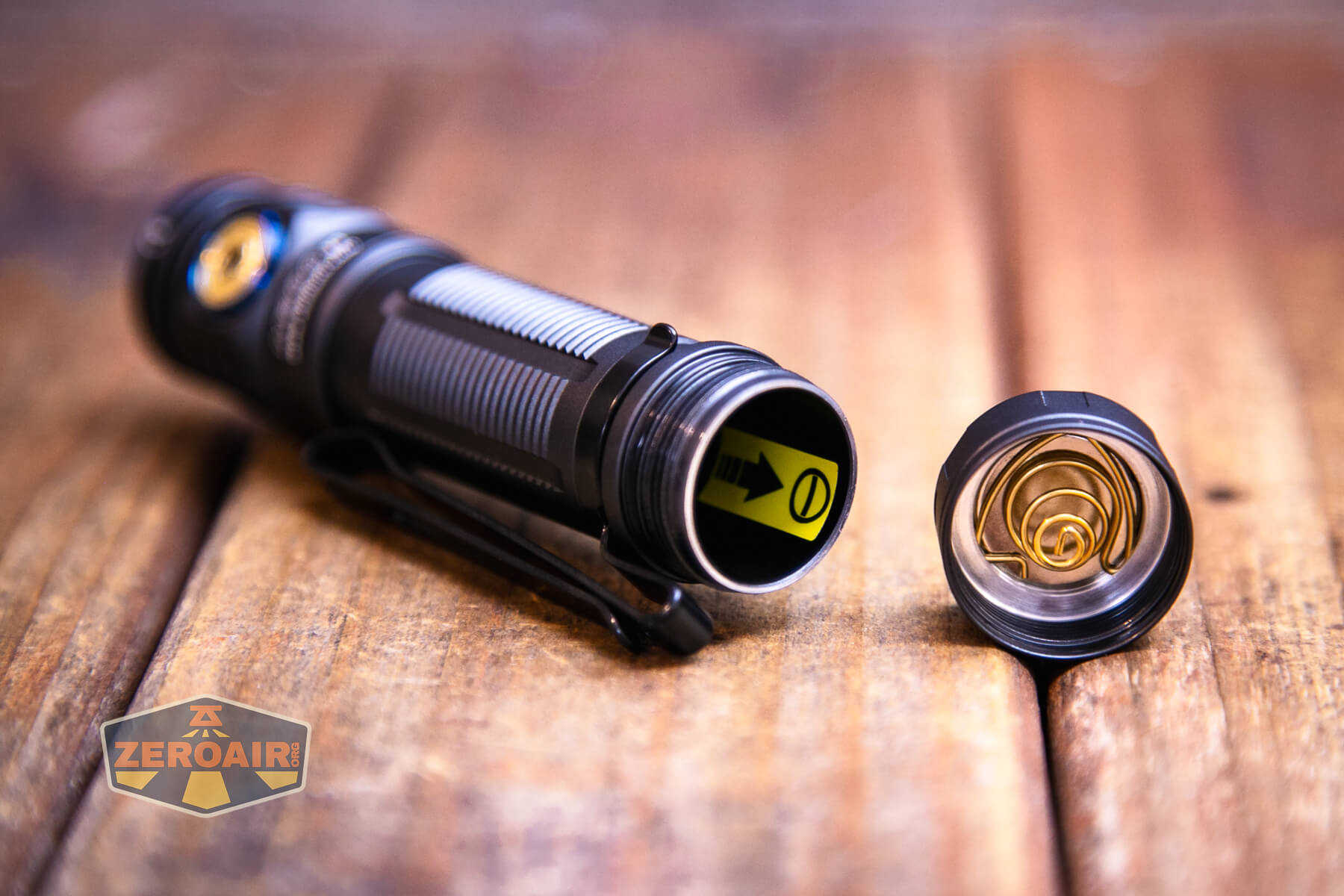

Skilhunt M200 V3 flashlight tailcap off

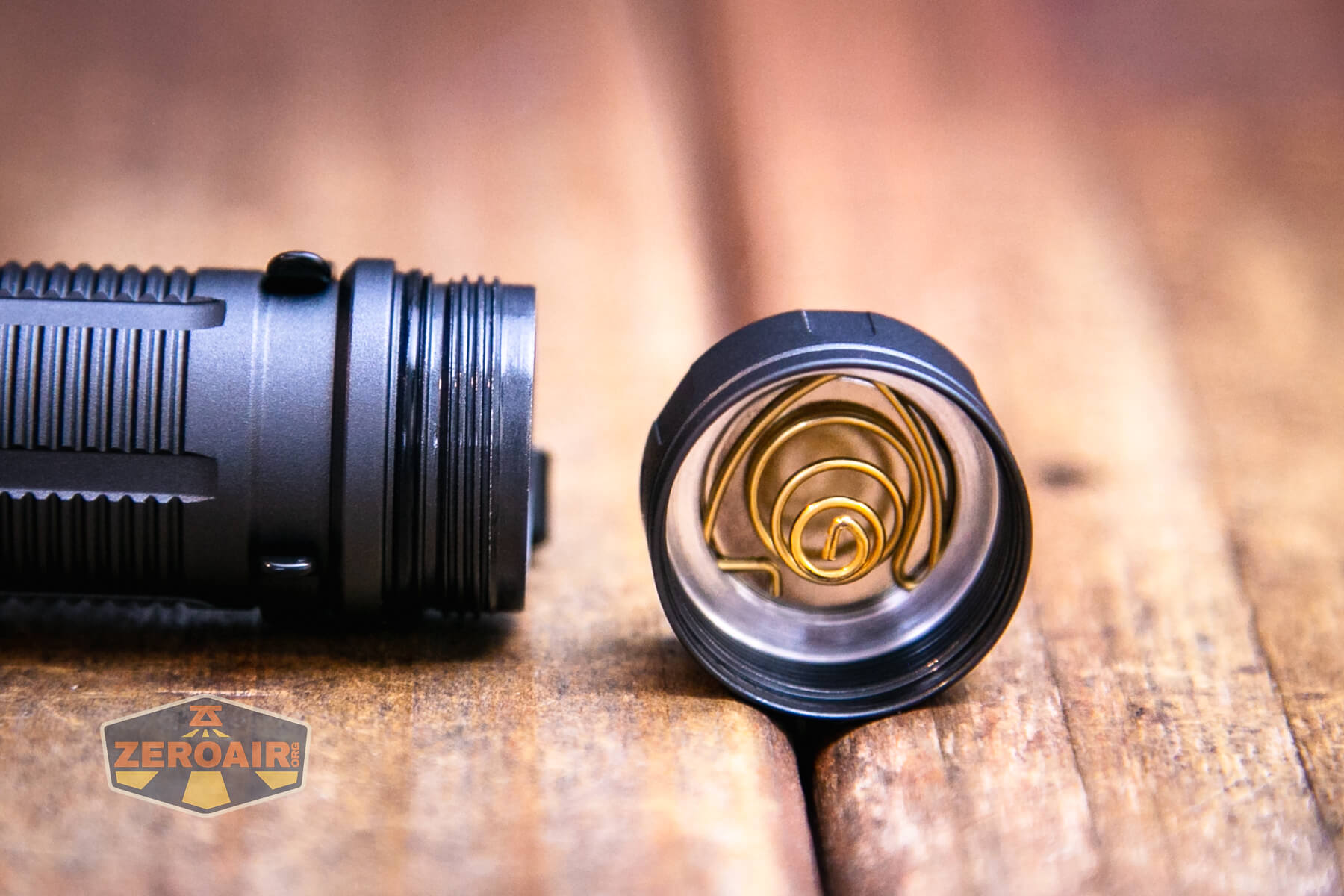

The head end has a spring, too, which is why I said the M200 V3 is very “18650-friendly.” I tested the light with a flat top unprotected 18650, but just about any type should work fine.

Skilhunt M200 V3 flashlight spring in head

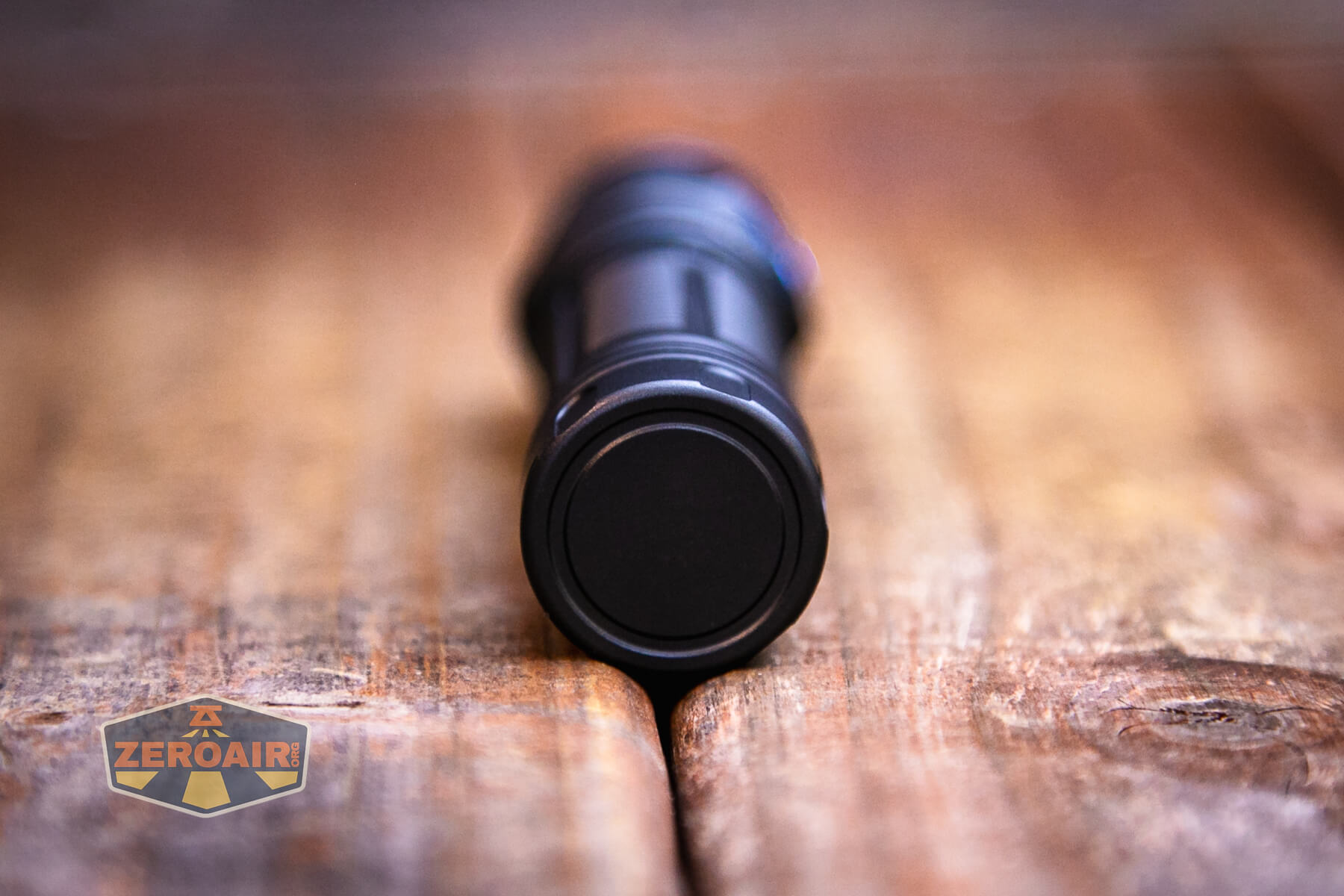

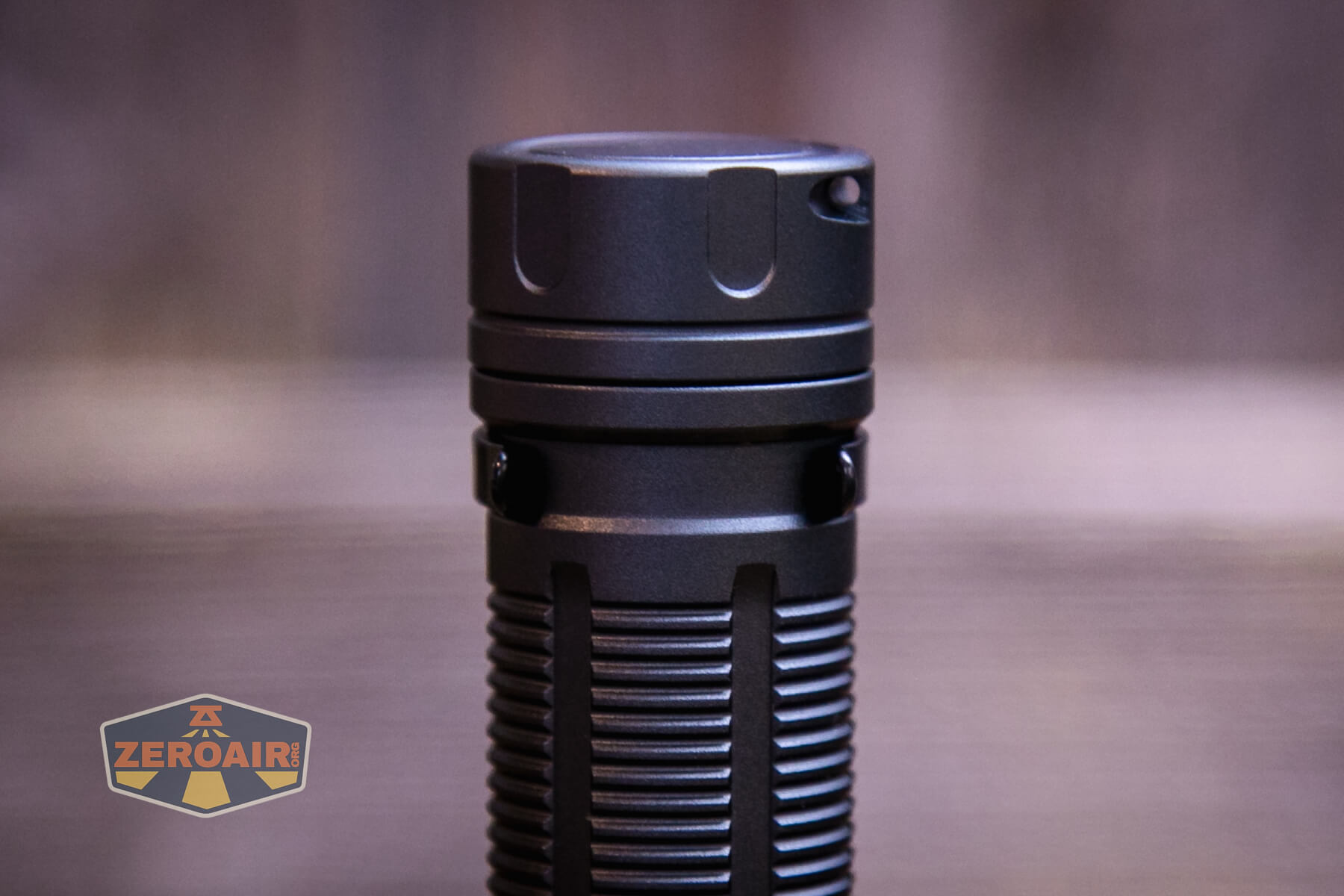

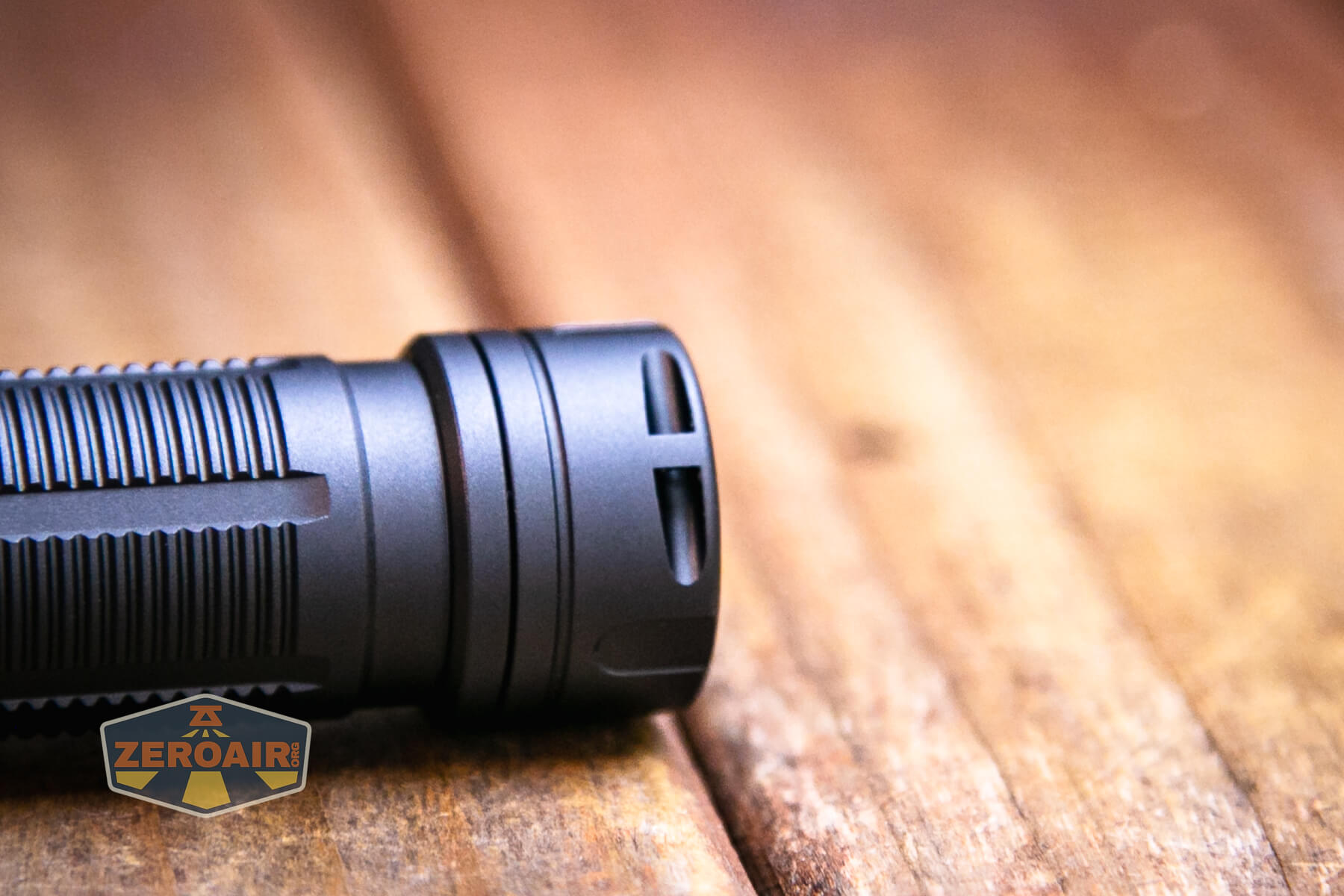

The tailcap has a ring to allow a lanyard attachment and also room for the magnet.

Skilhunt M200 V3 flashlight showing tailcap

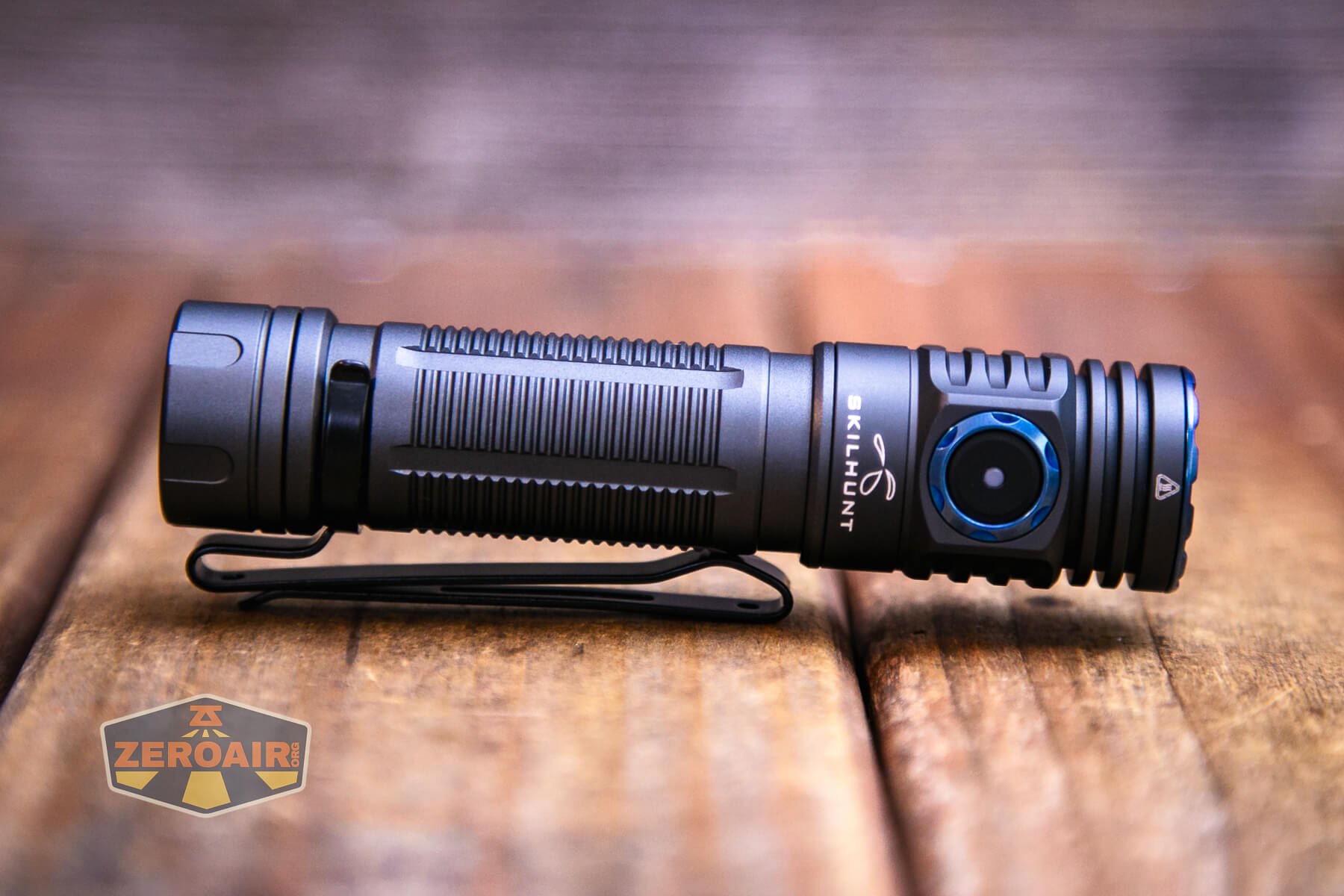

Skilhunt M200 V3 flashlight perched on clip

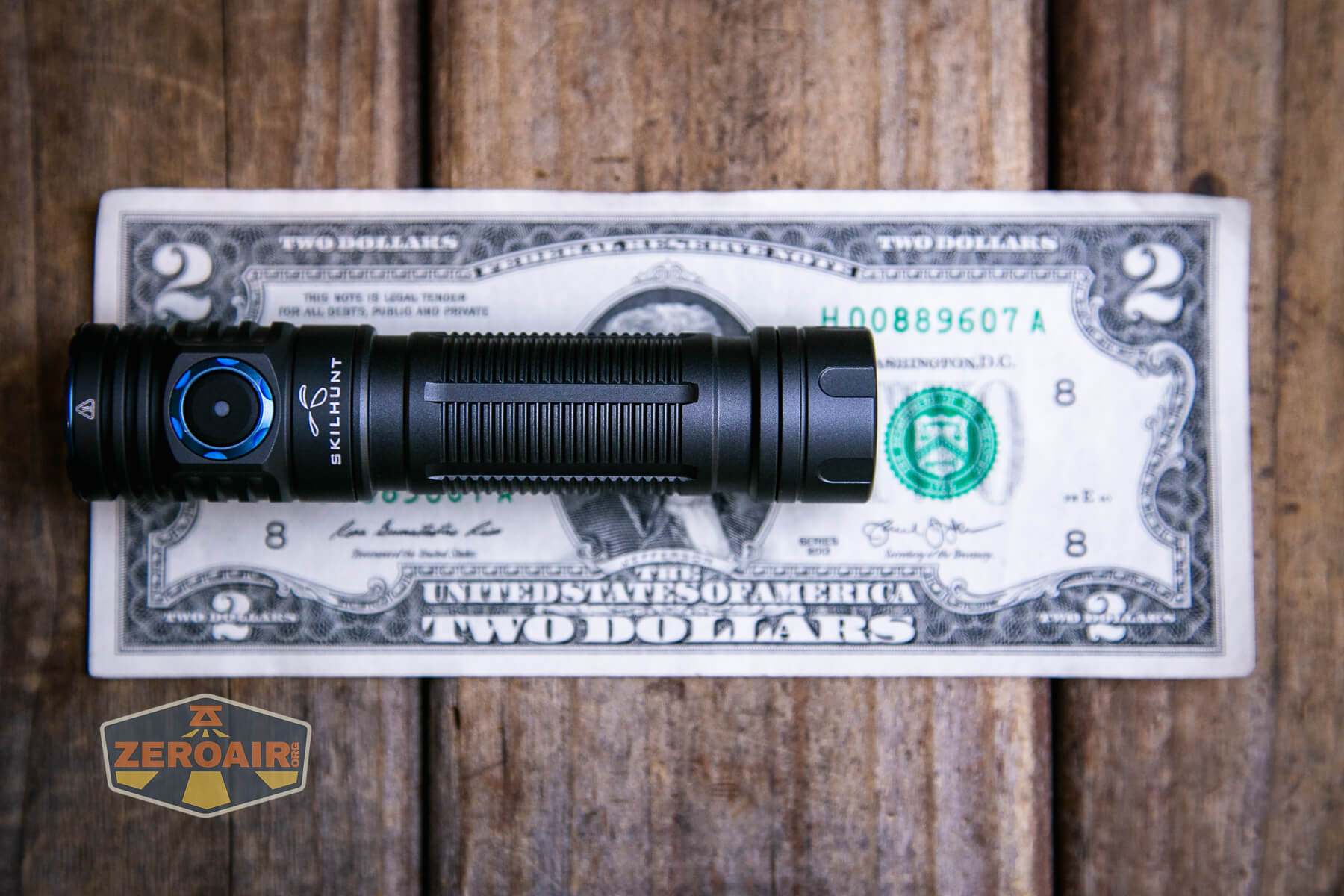

Size and Comps

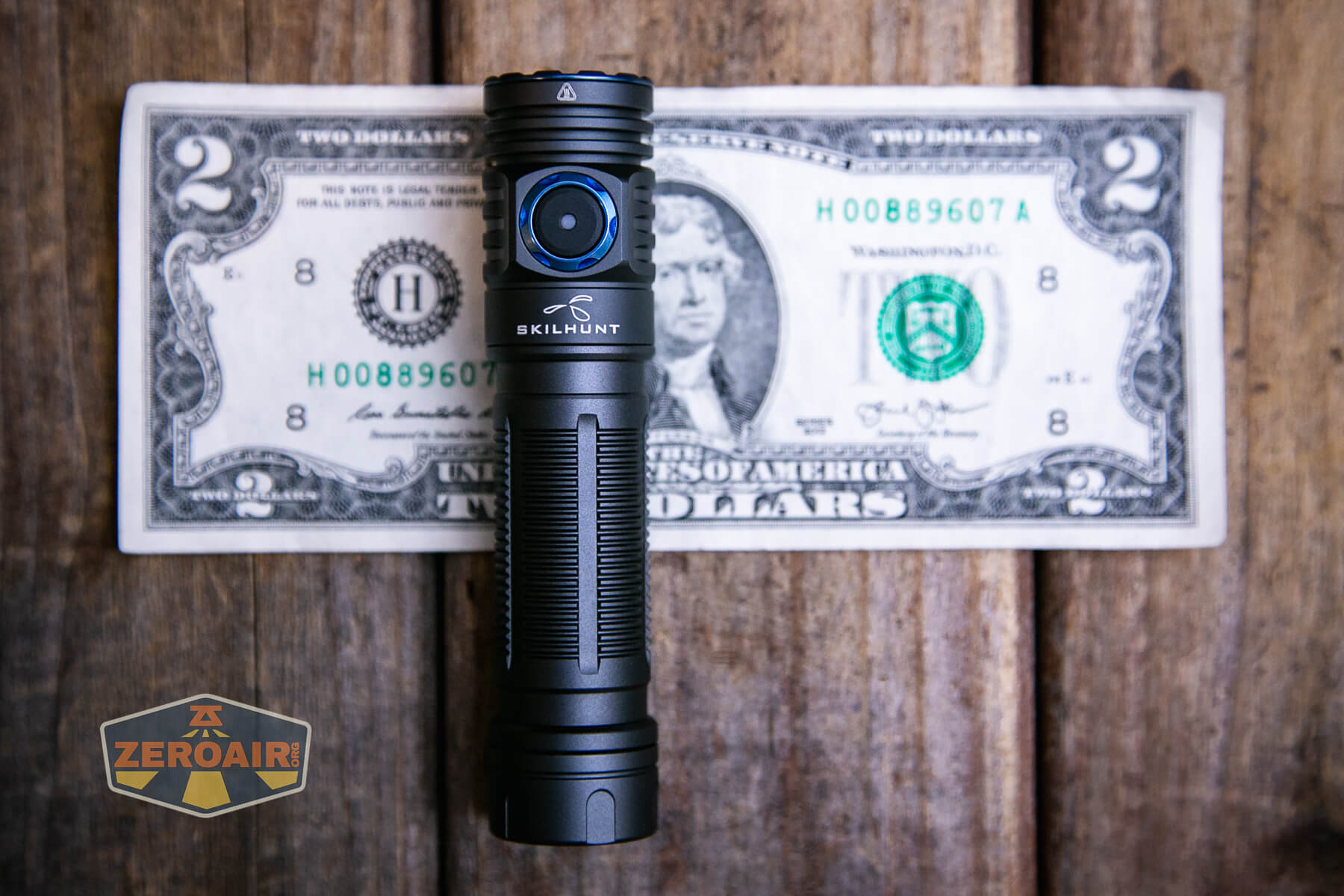

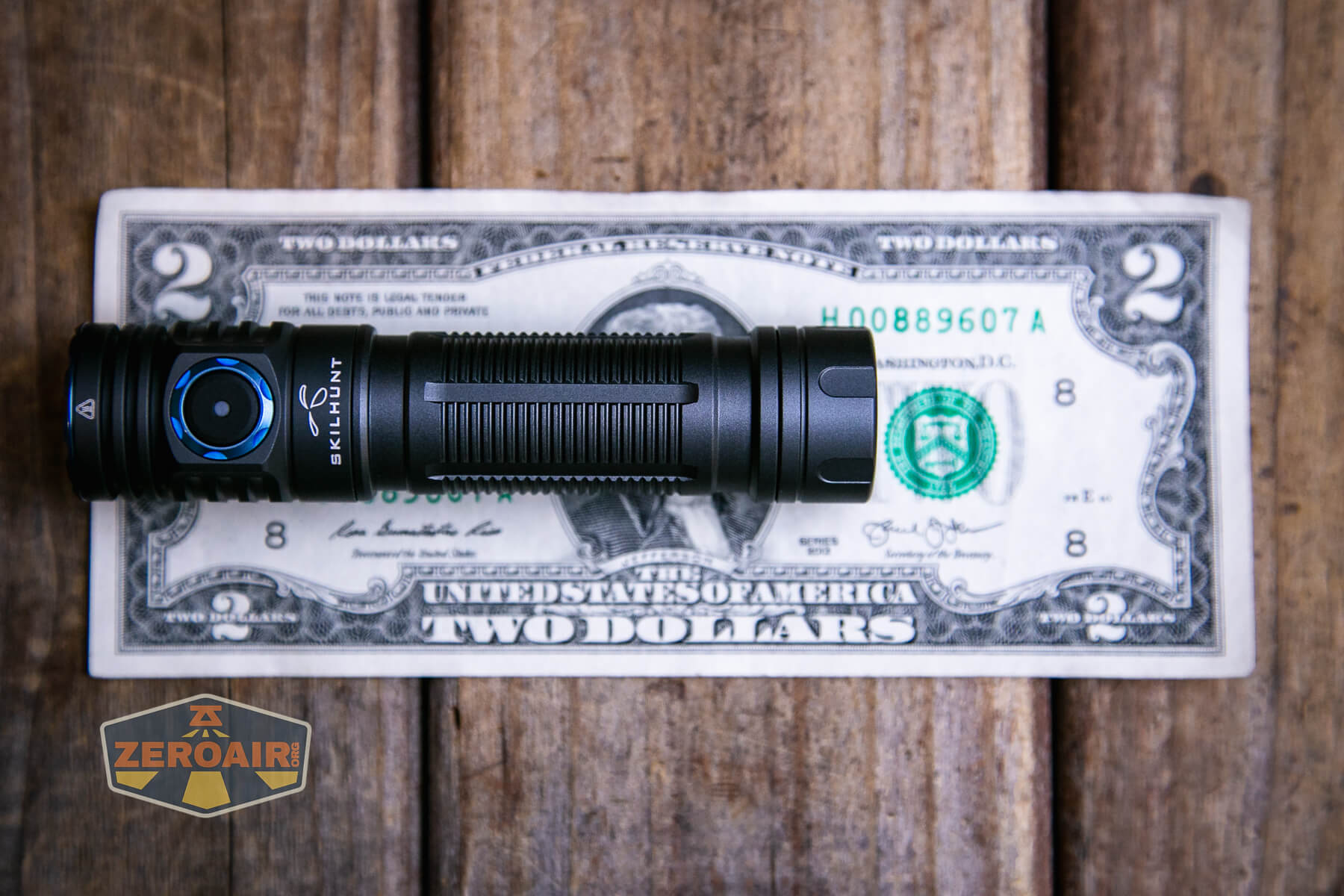

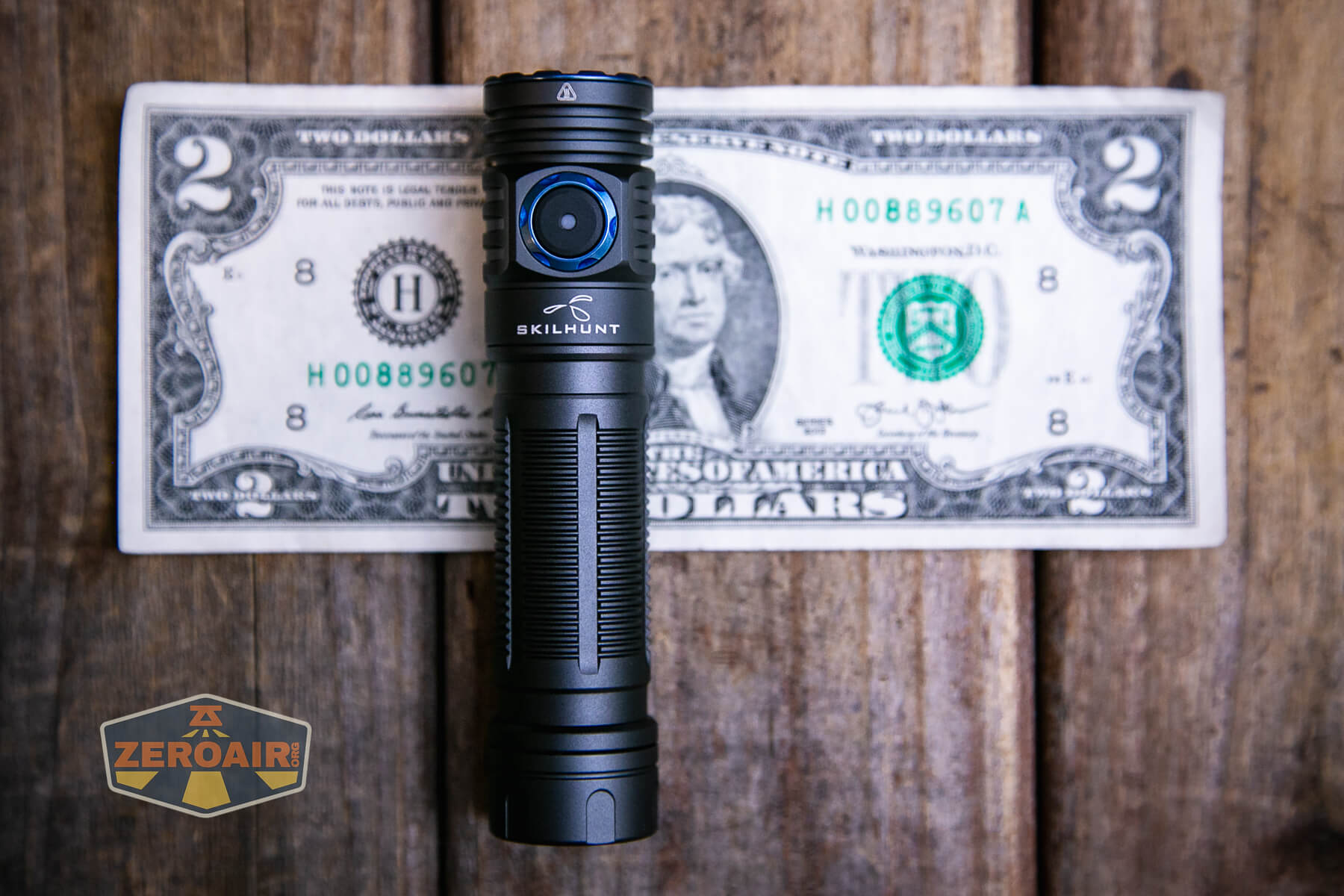

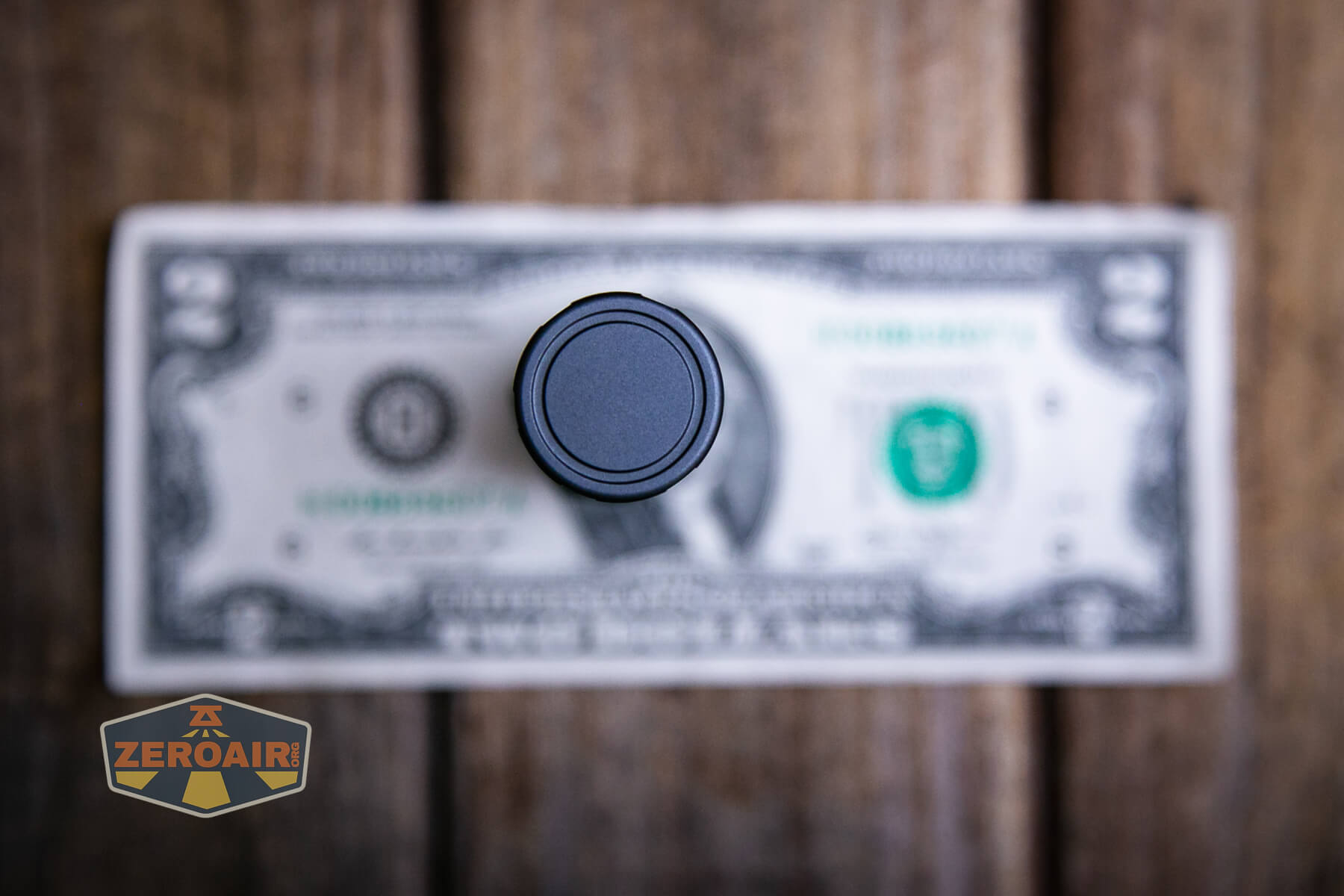

104mm x 23.5mm, and 46g (without battery).

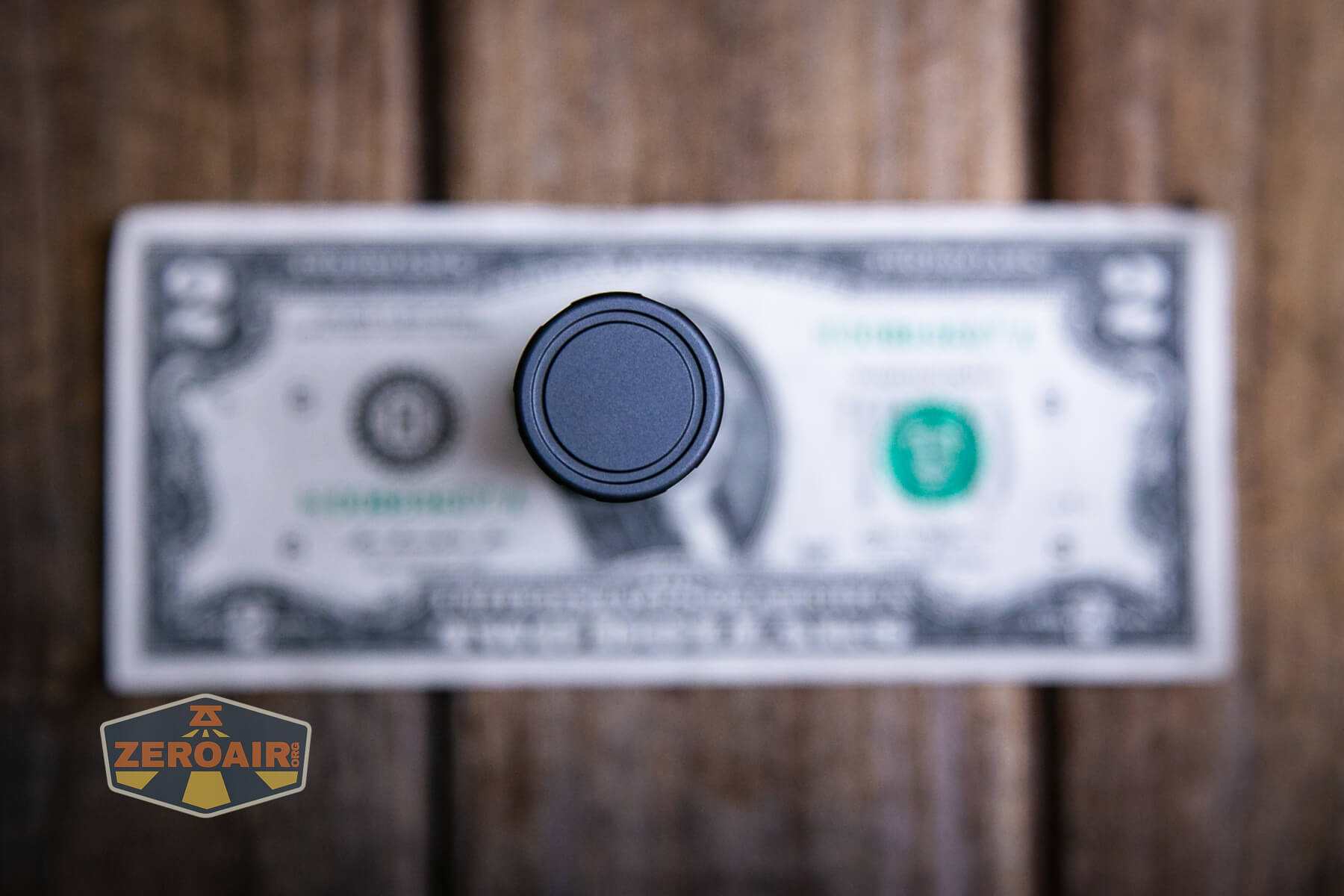

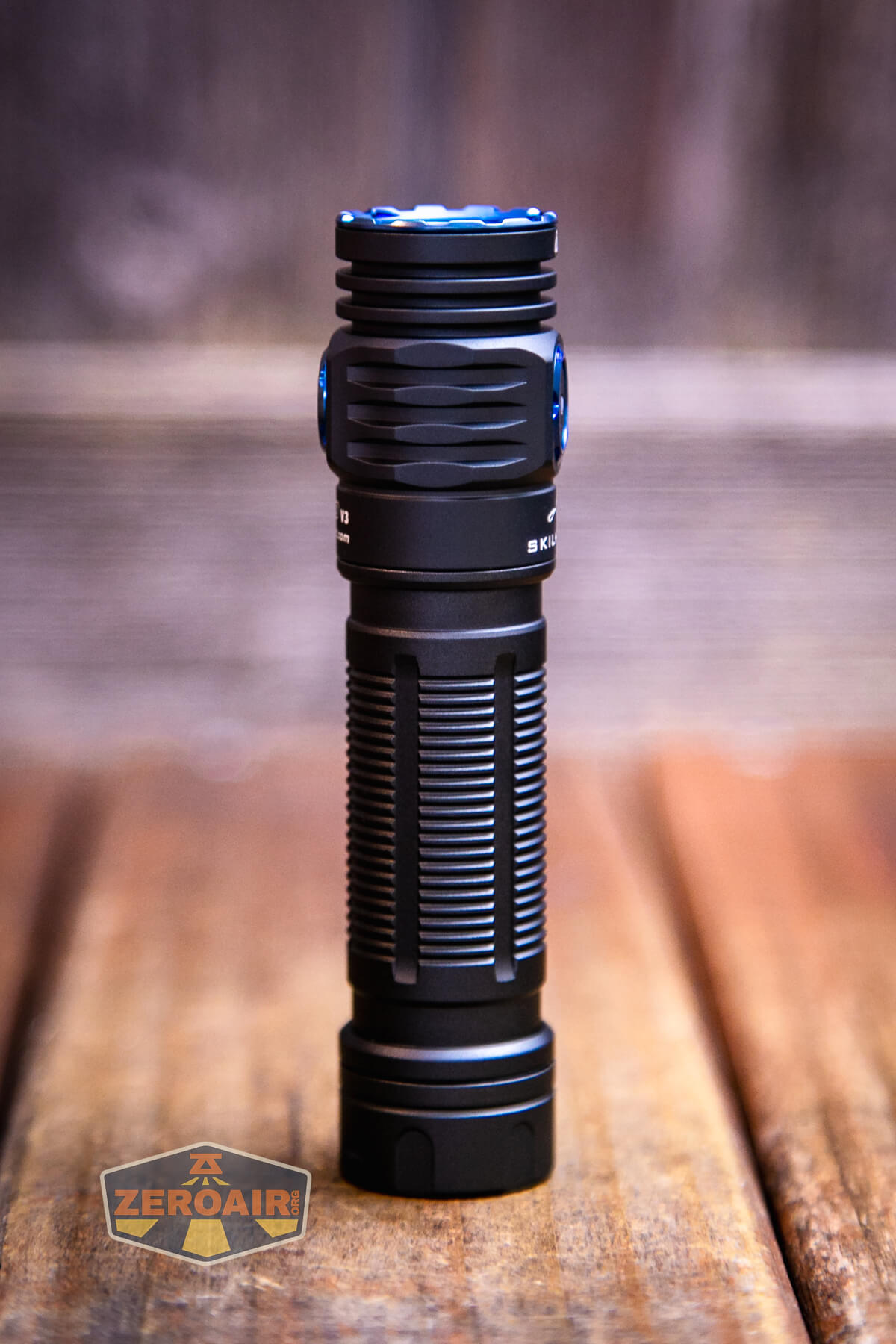

If the flashlight will headstand, I’ll show it here (usually the third photo).  If the flashlight will tailstand, I’ll also show that (usually in the fourth photo).

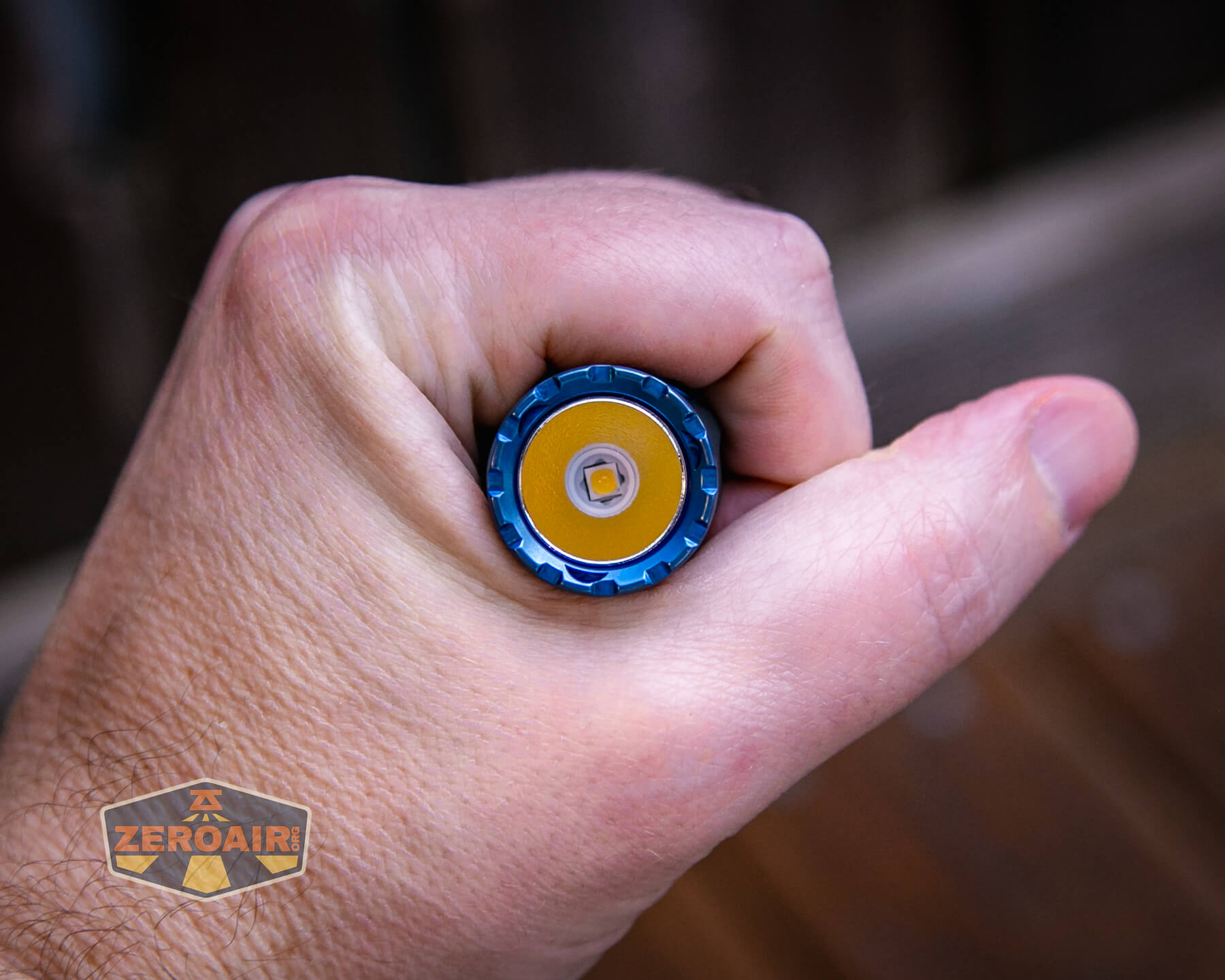

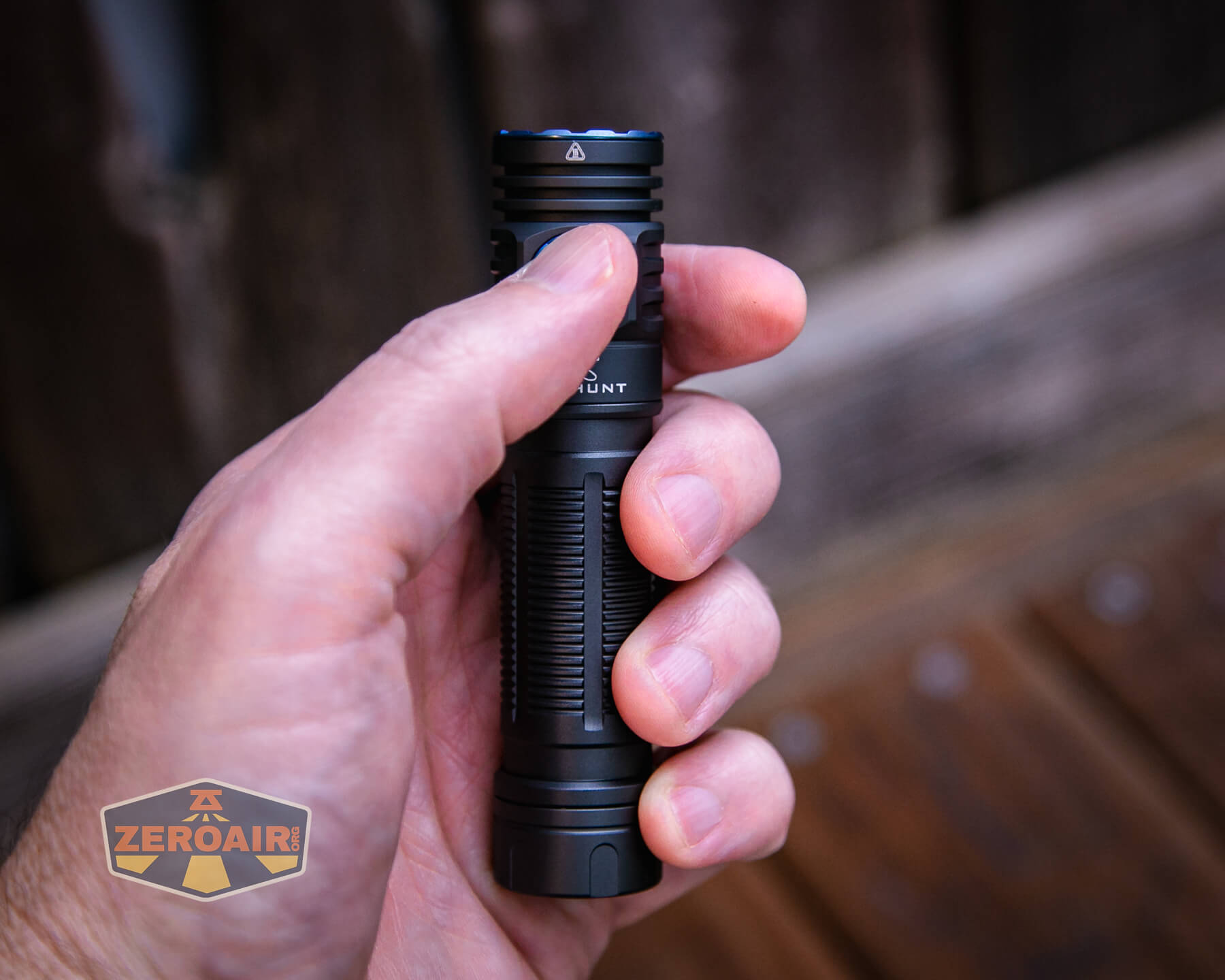

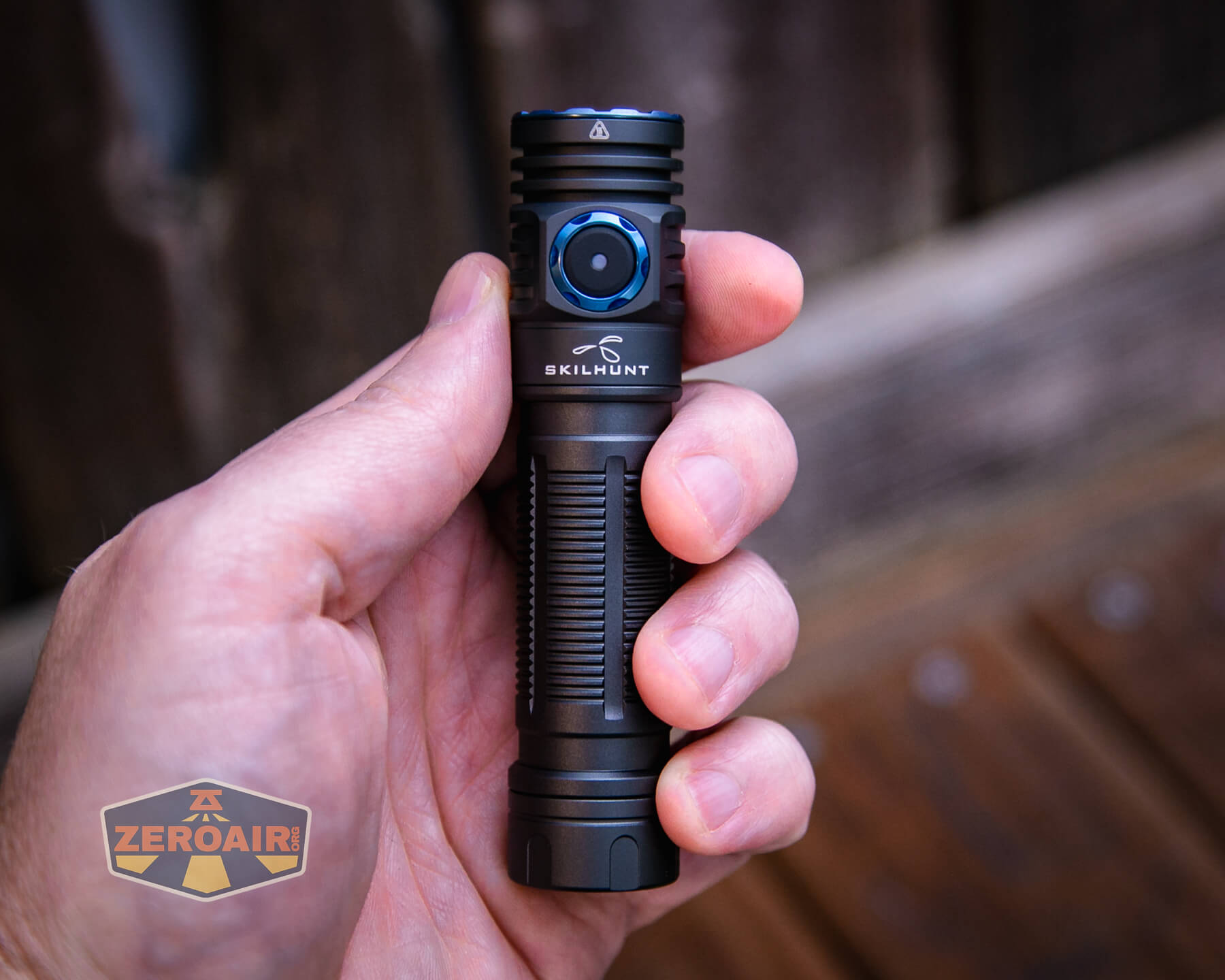

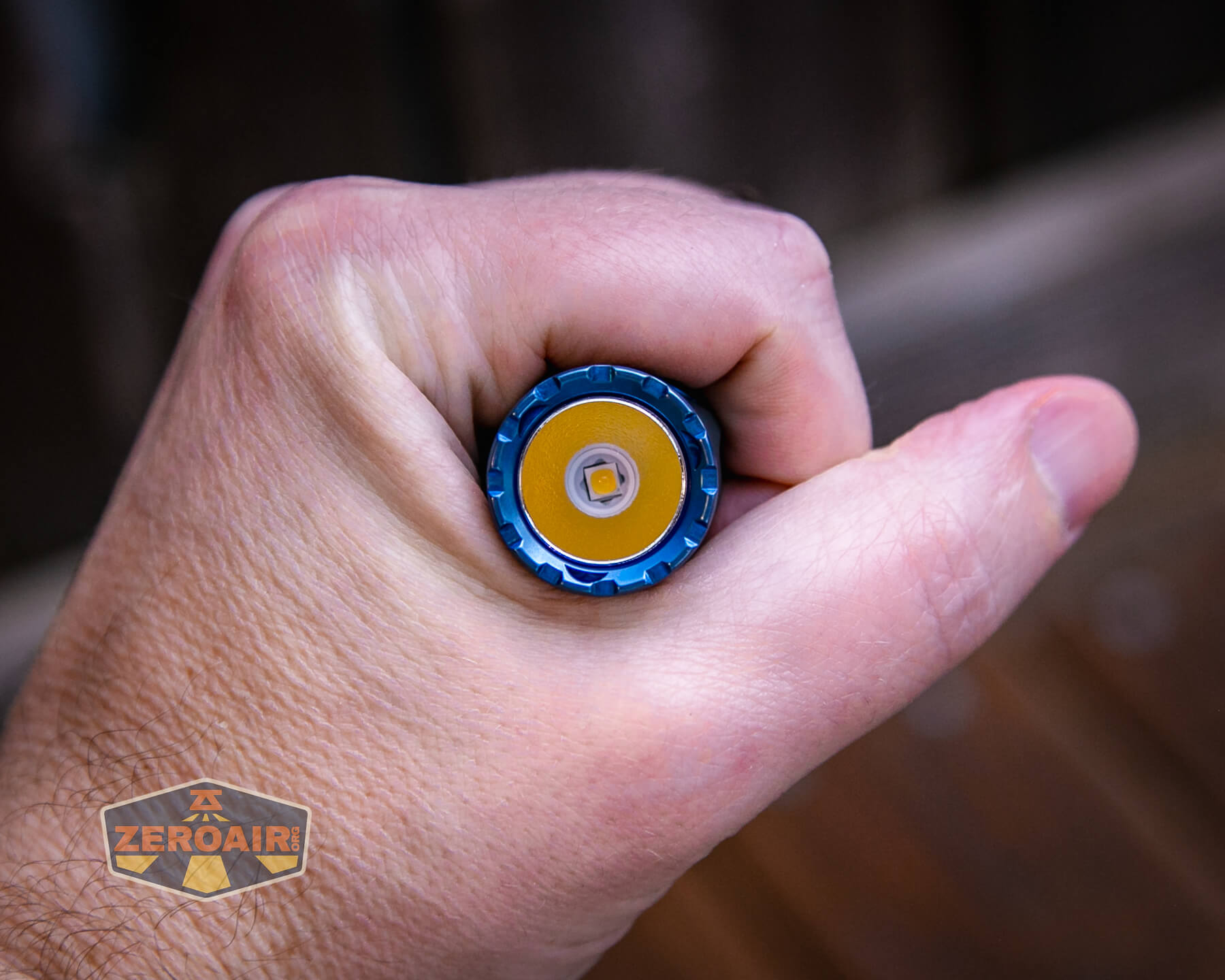

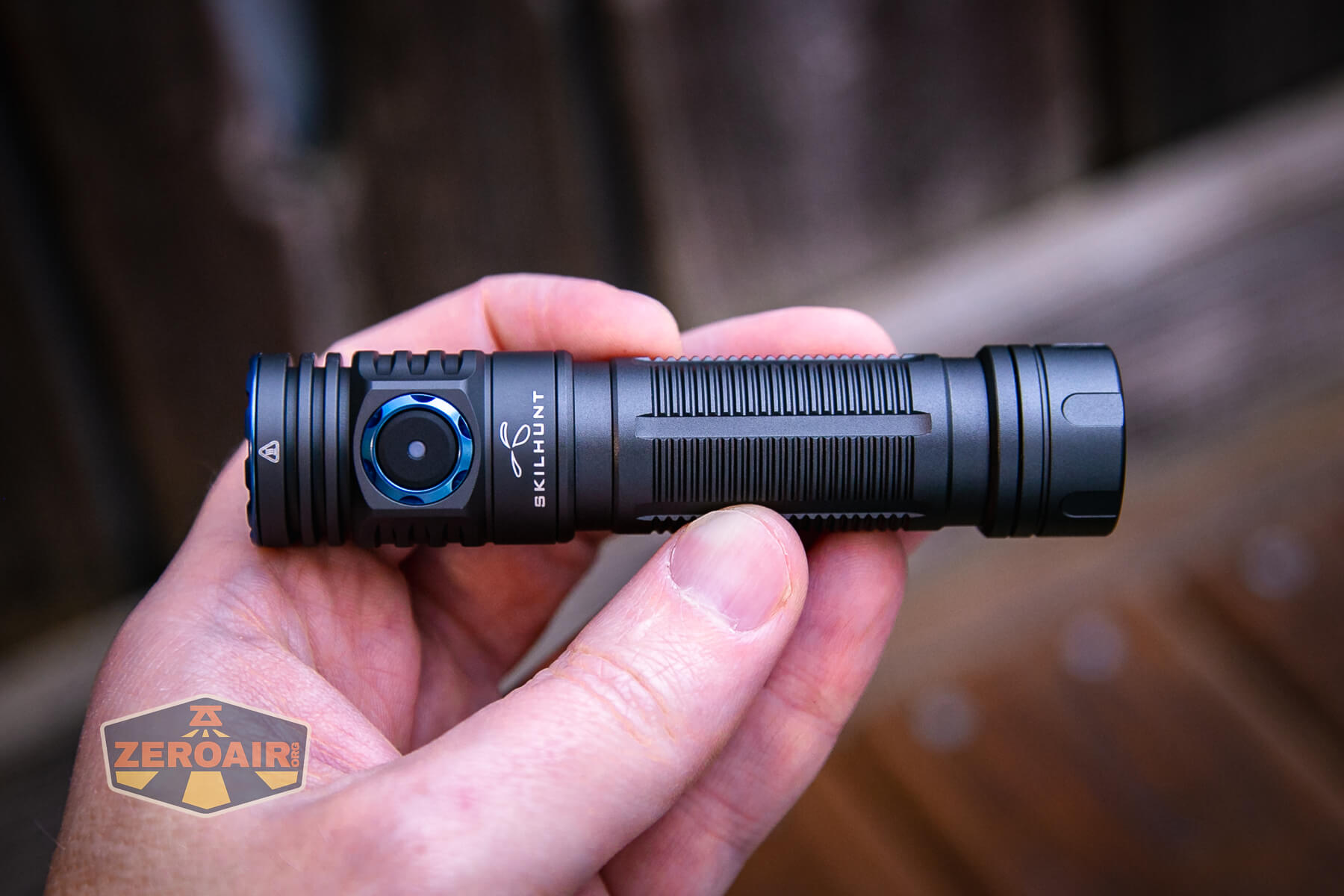

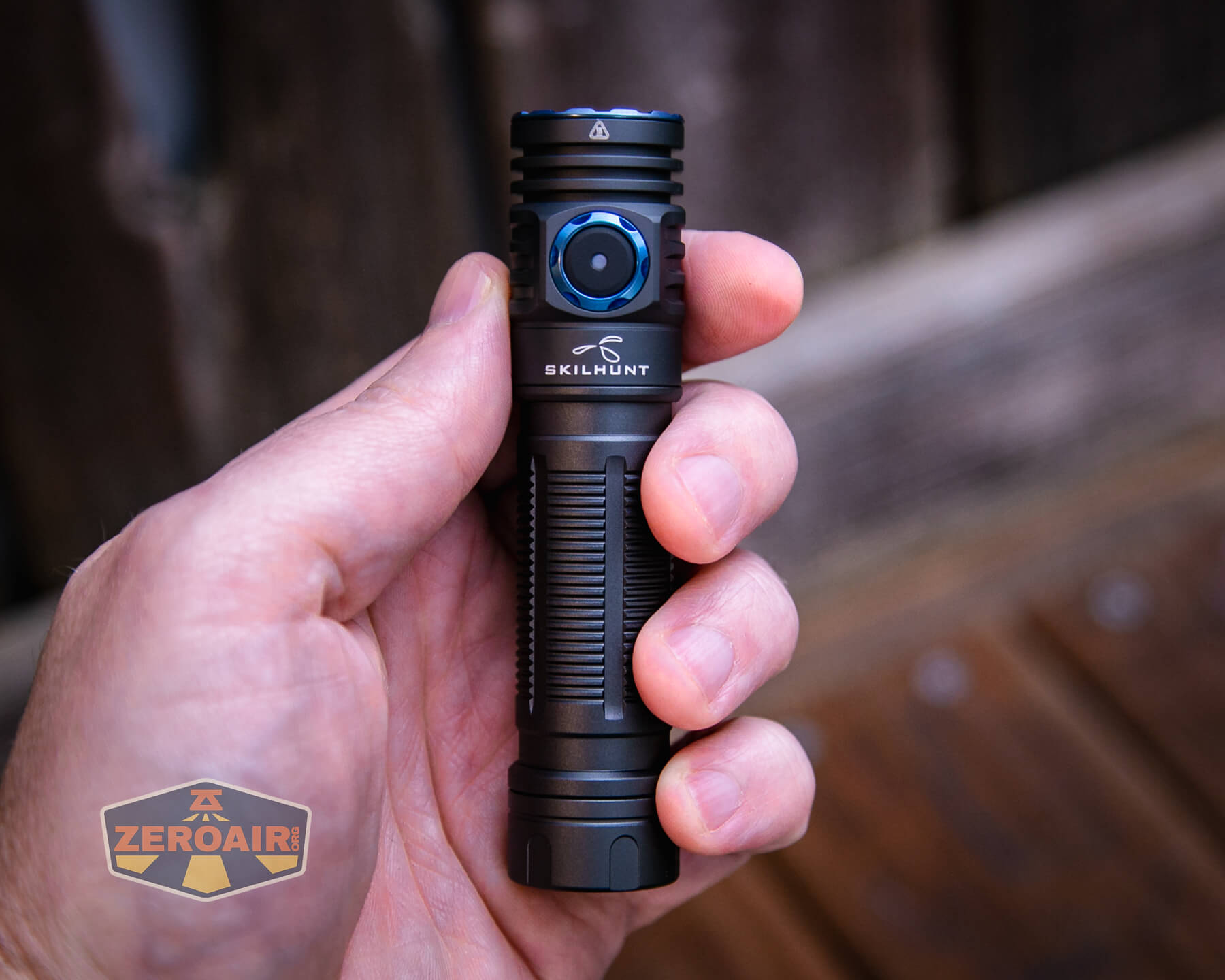

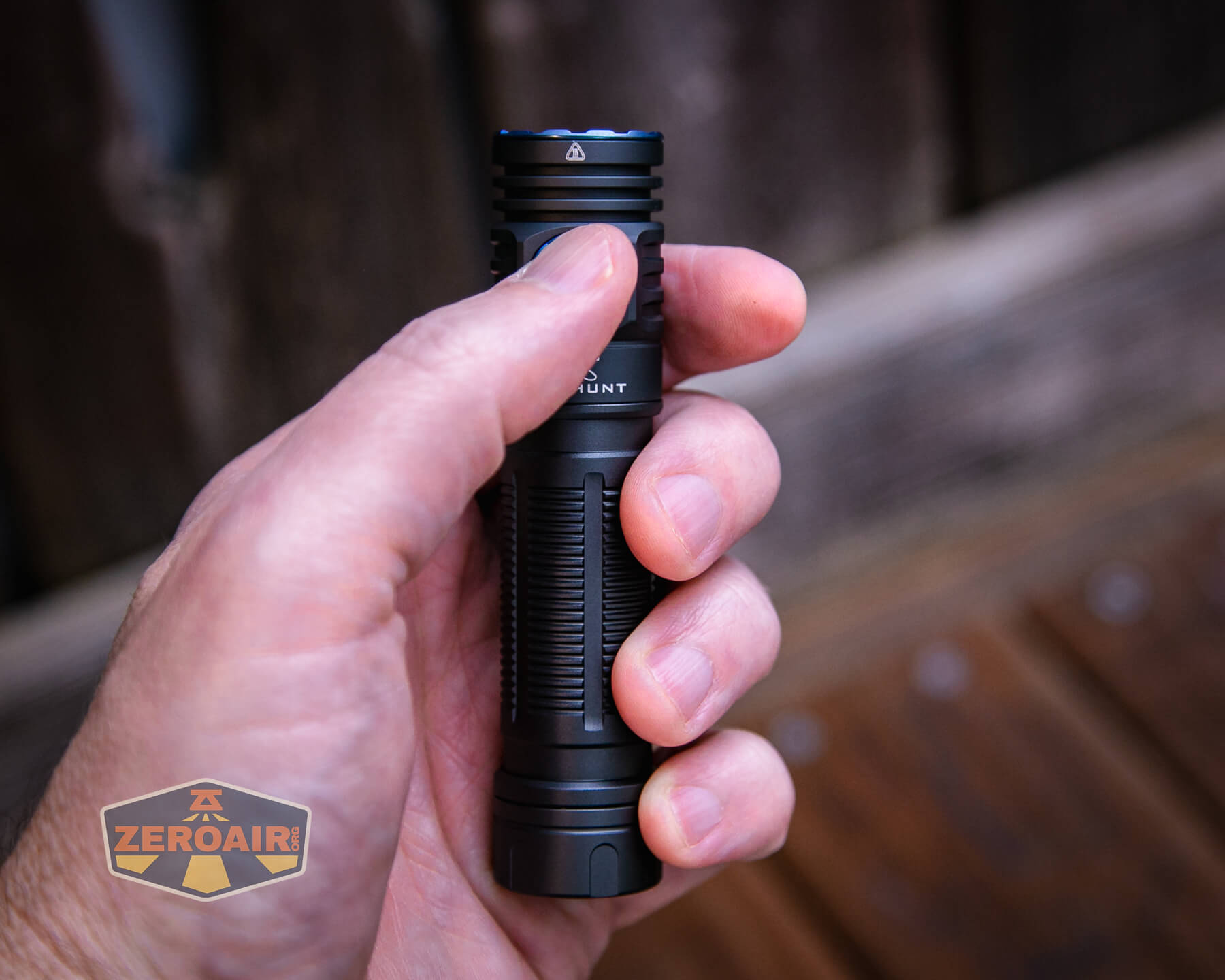

Skilhunt M200 V3 flashlight in hand

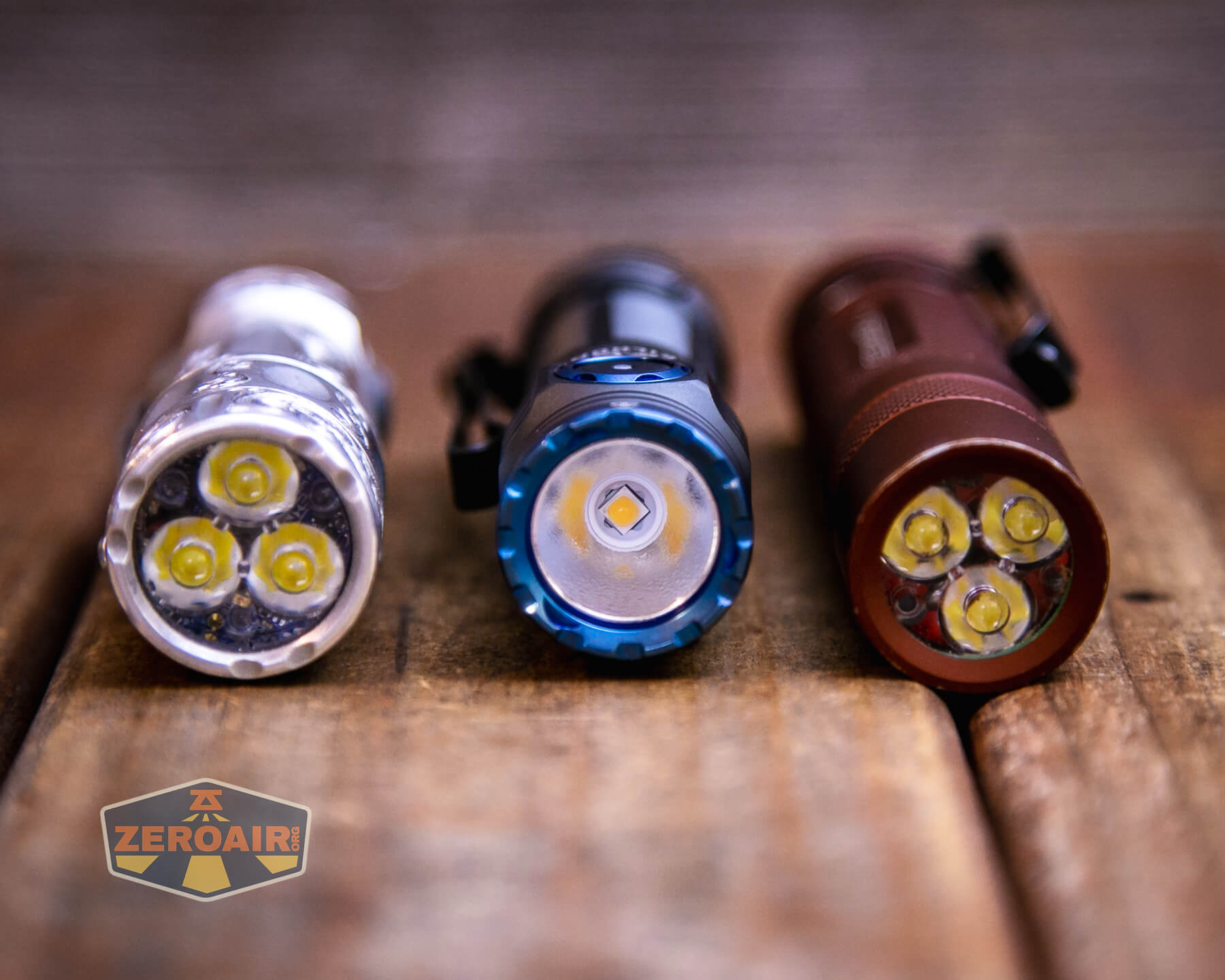

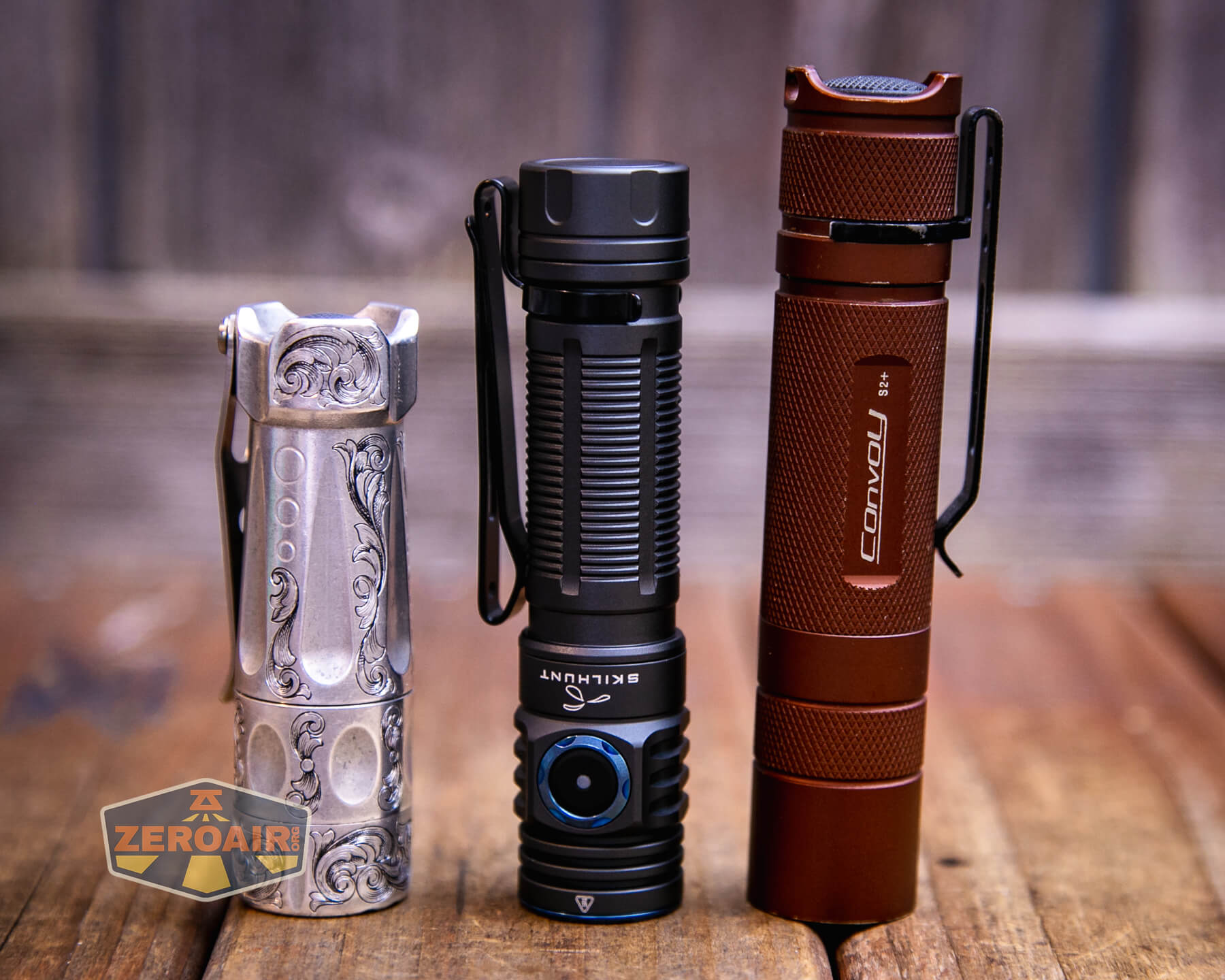

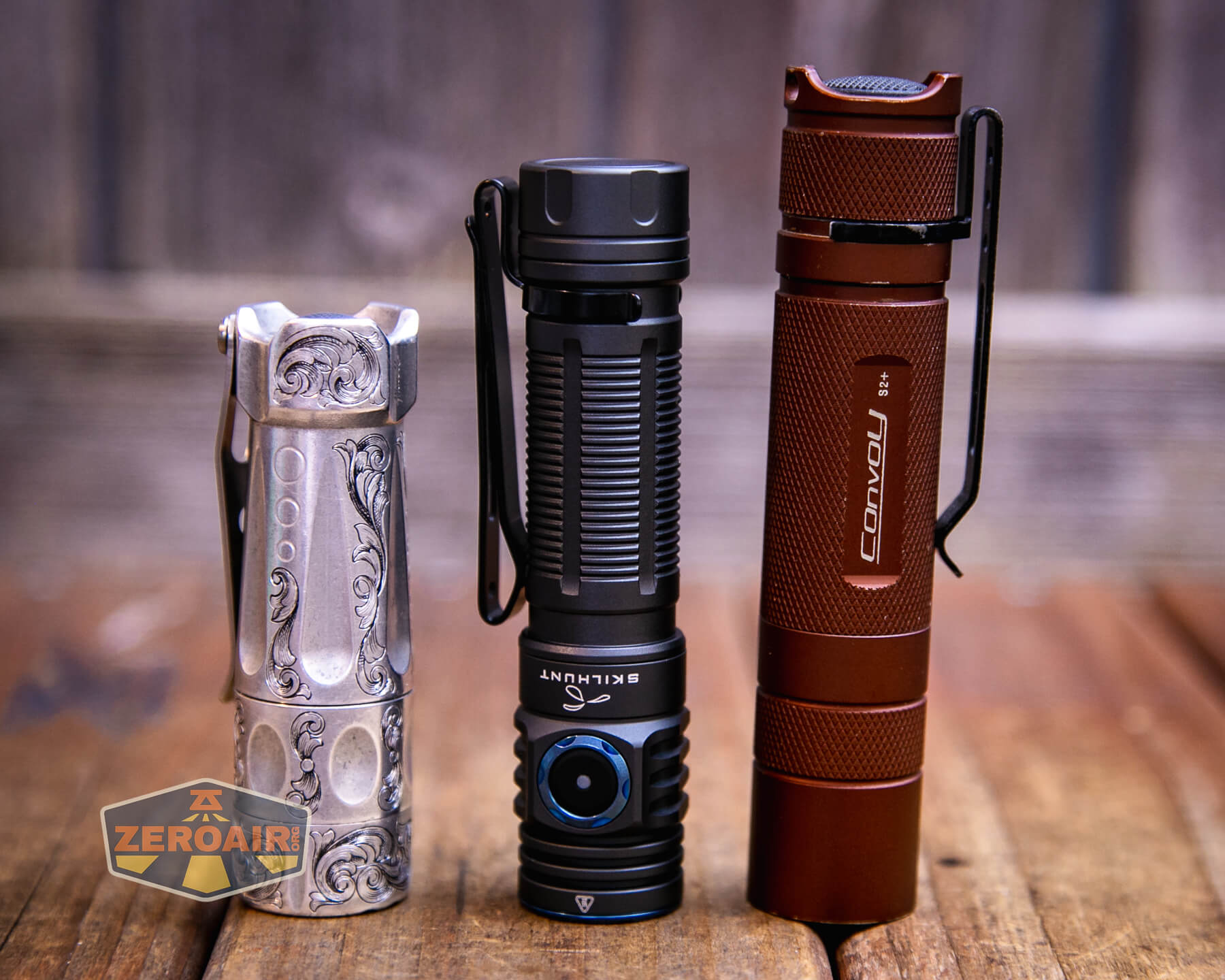

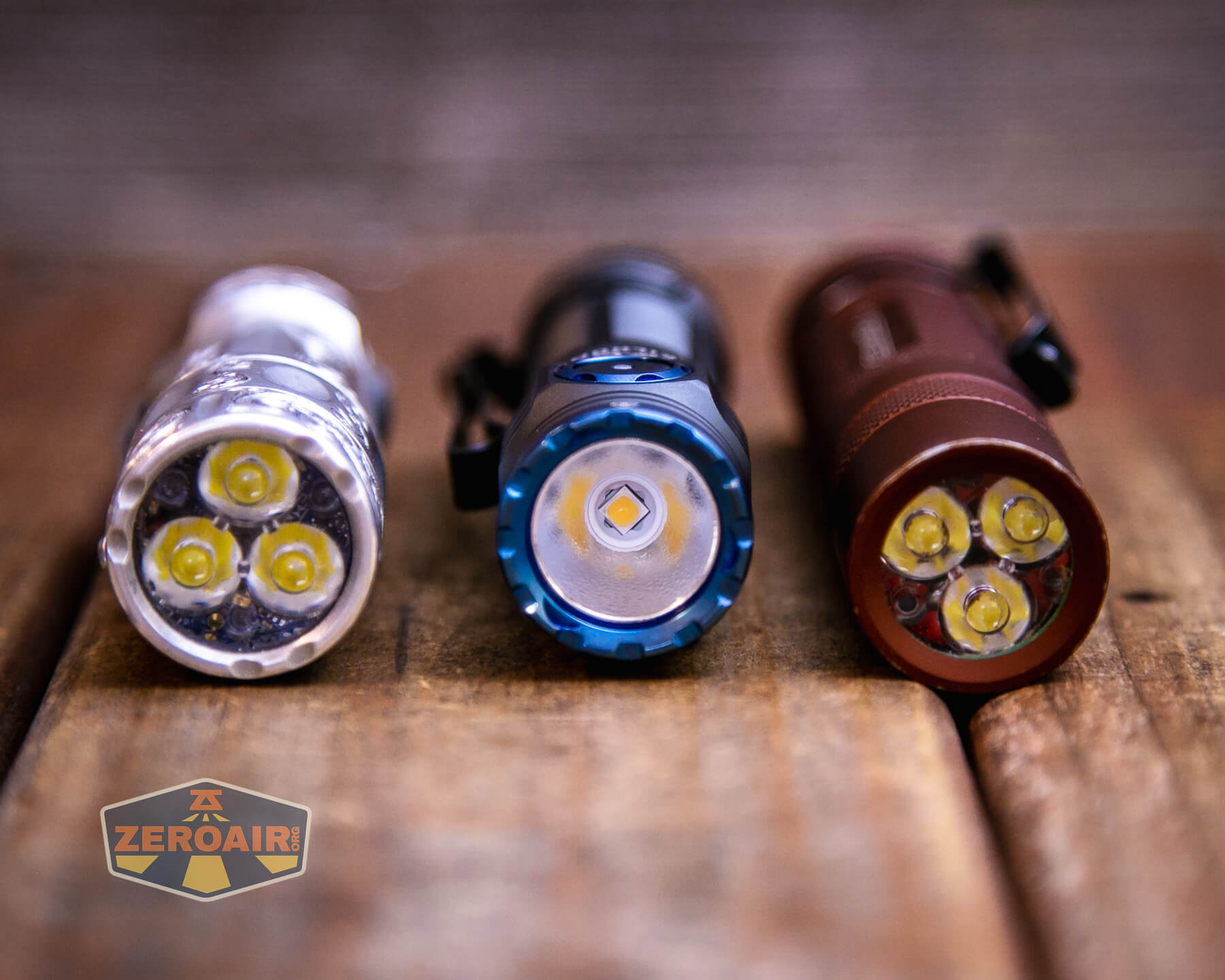

Here’s the test light with the venerable Convoy S2+.  Mine’s a custom “baked” edition Nichia 219b triple.  A very nice 18650 light.

Also above is the light beside my custom engraved TorchLAB BOSS 35, an 18350 light.  I reviewed the aluminum version of that light in both 35 and 70 formats.

Retention and Carry

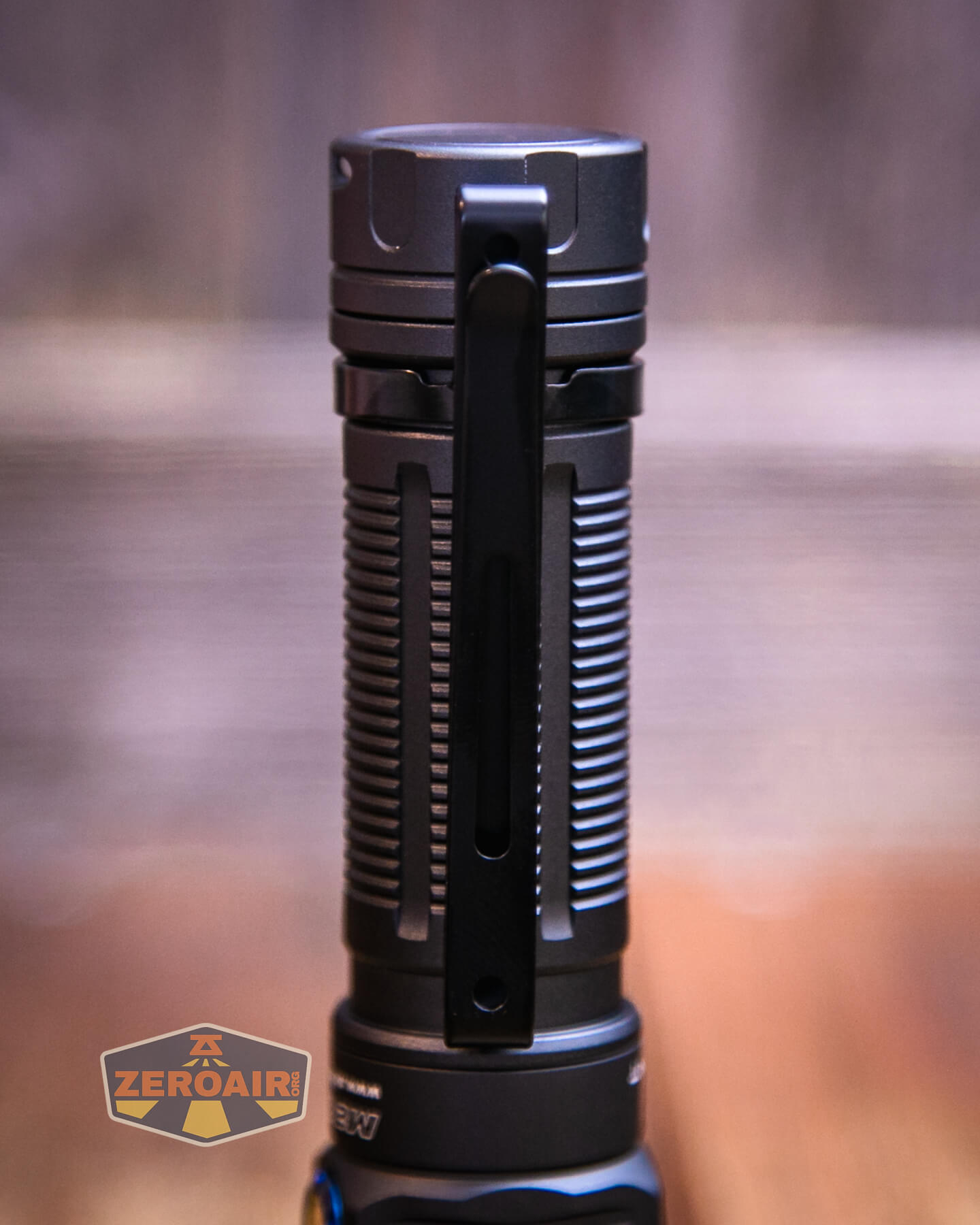

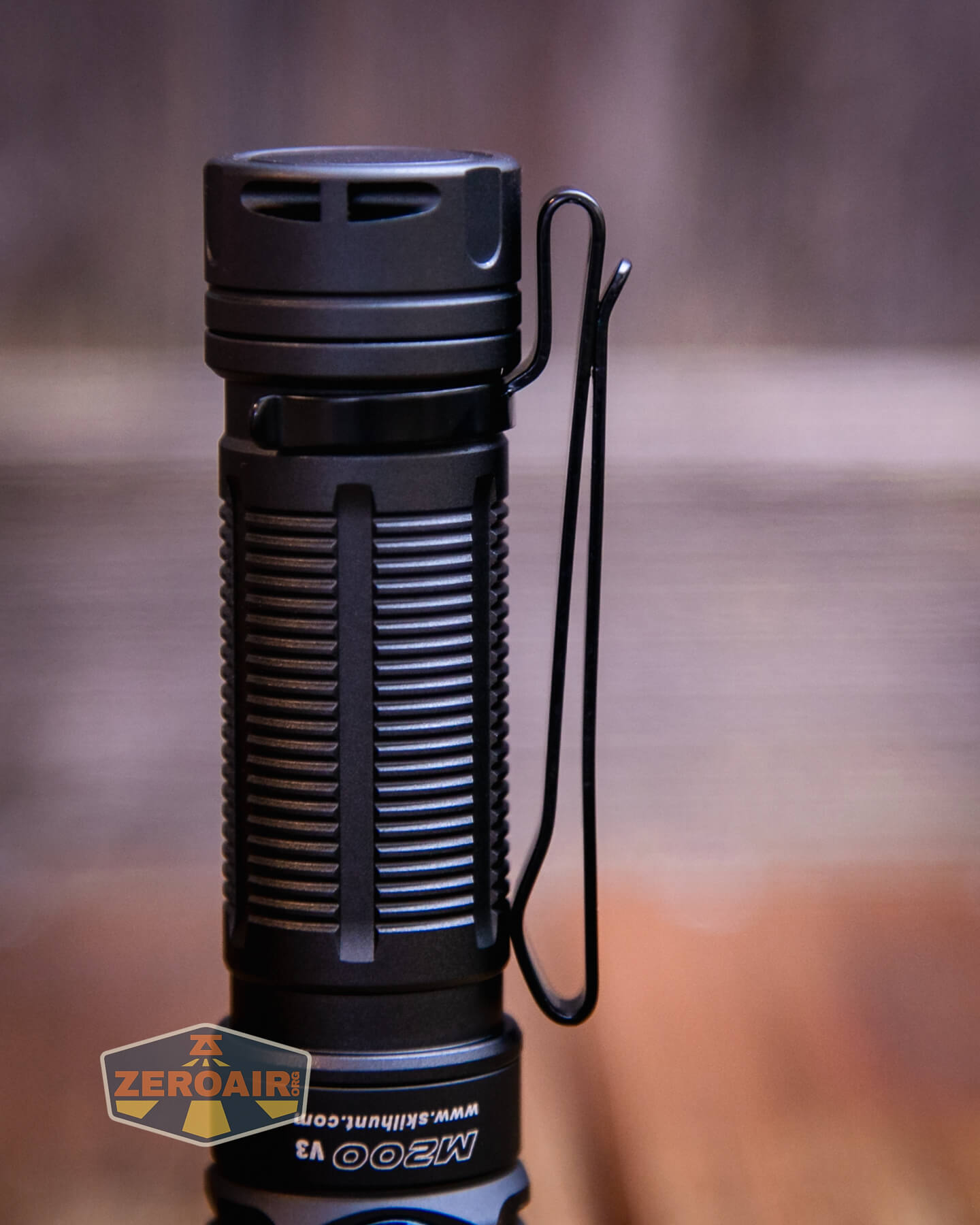

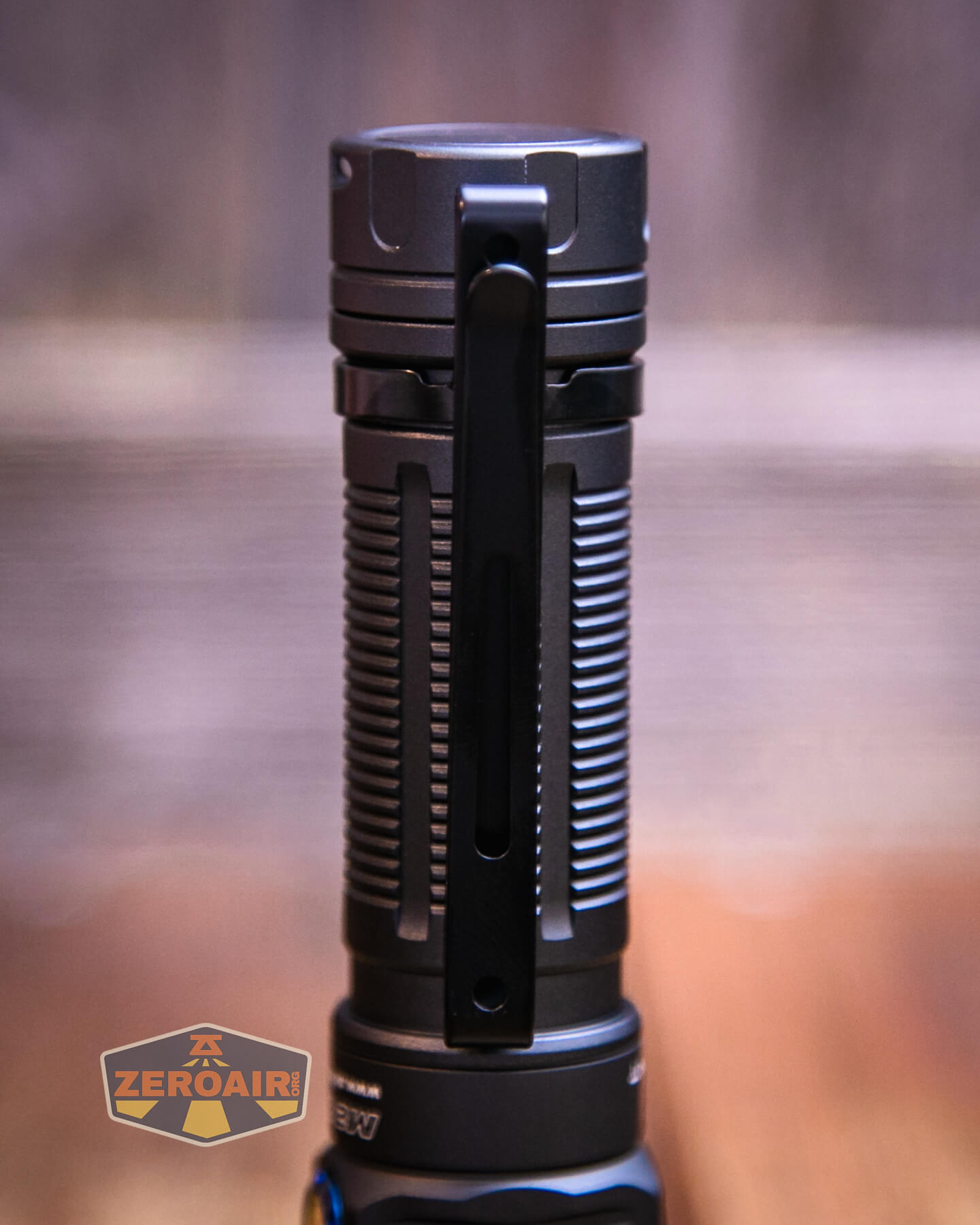

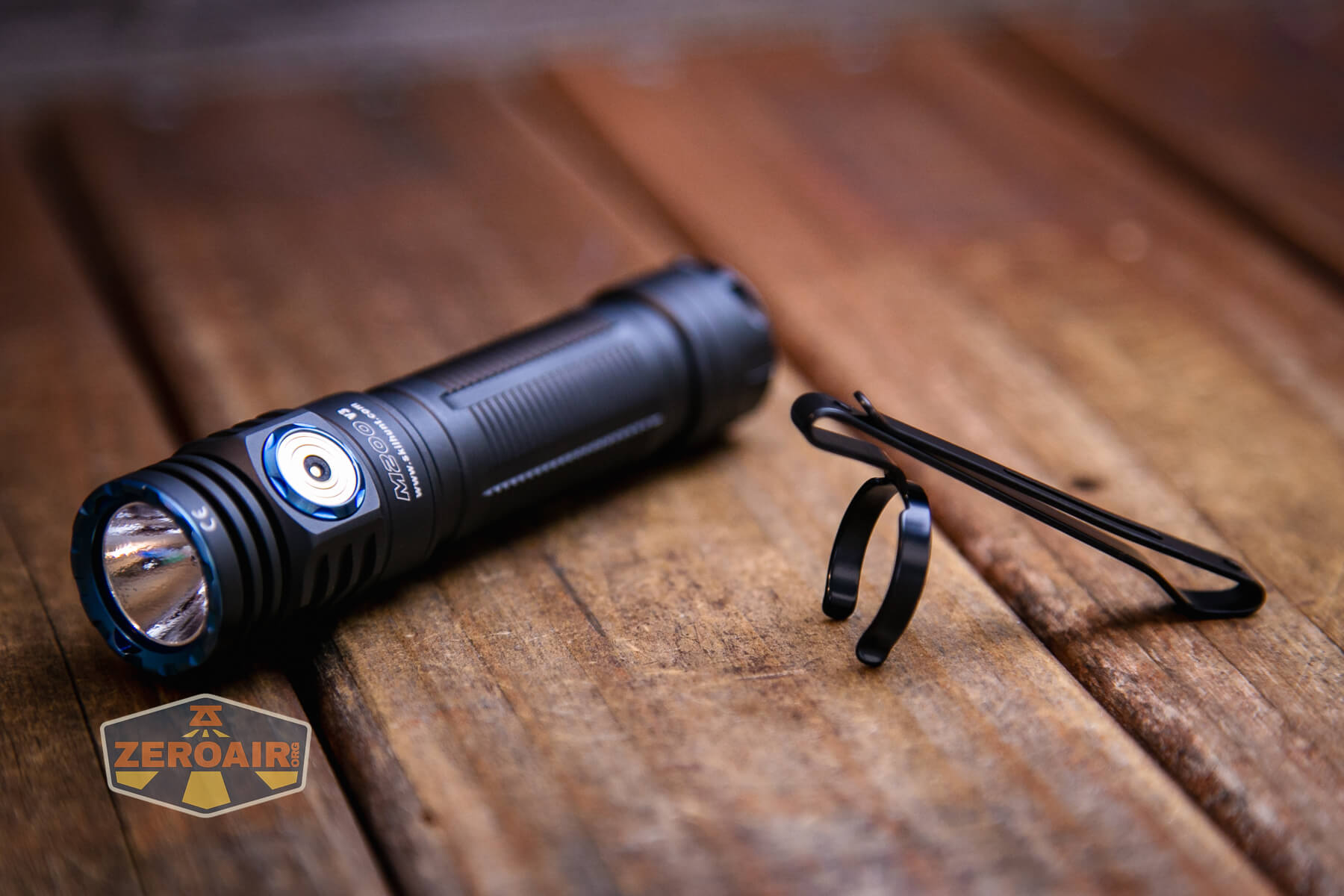

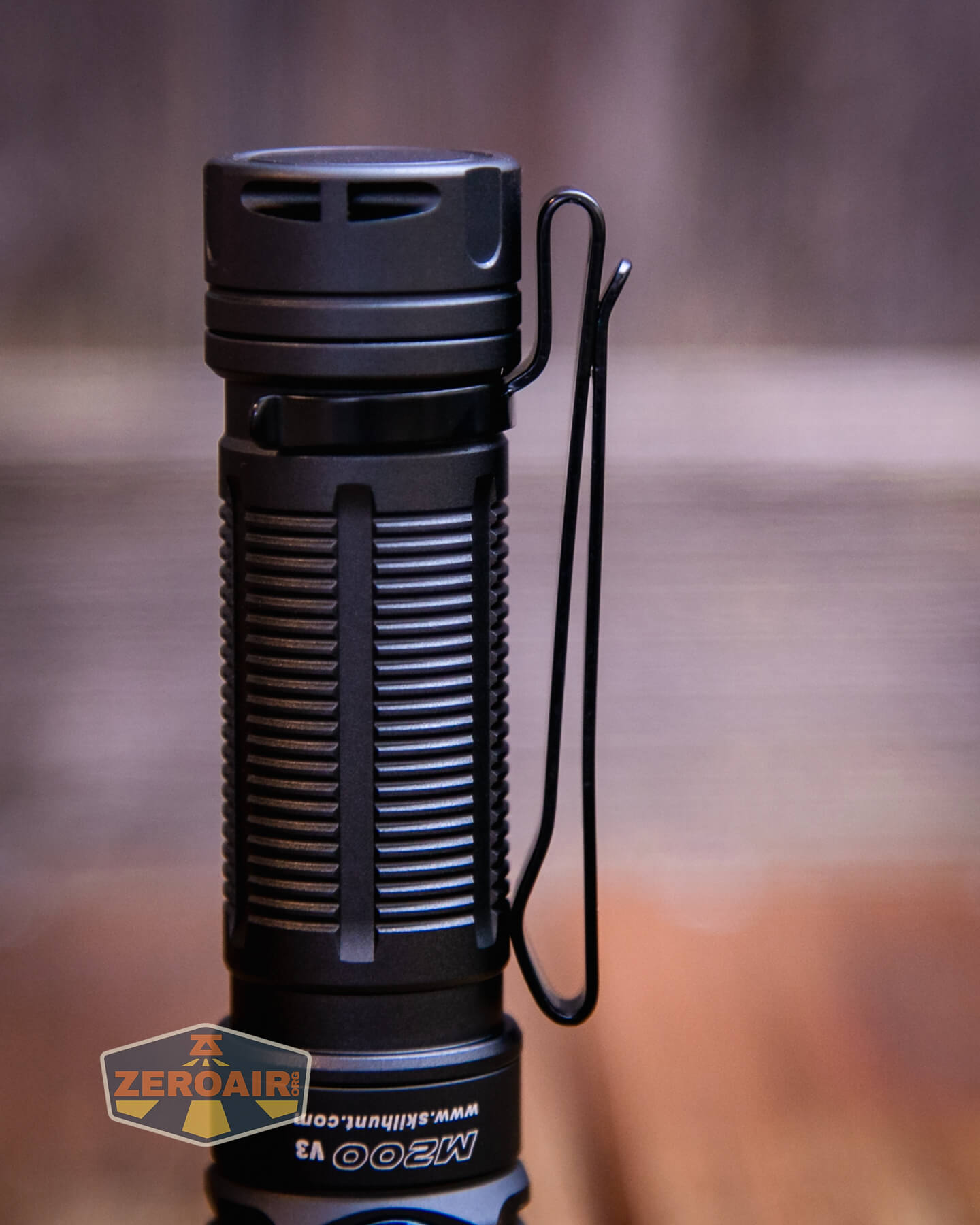

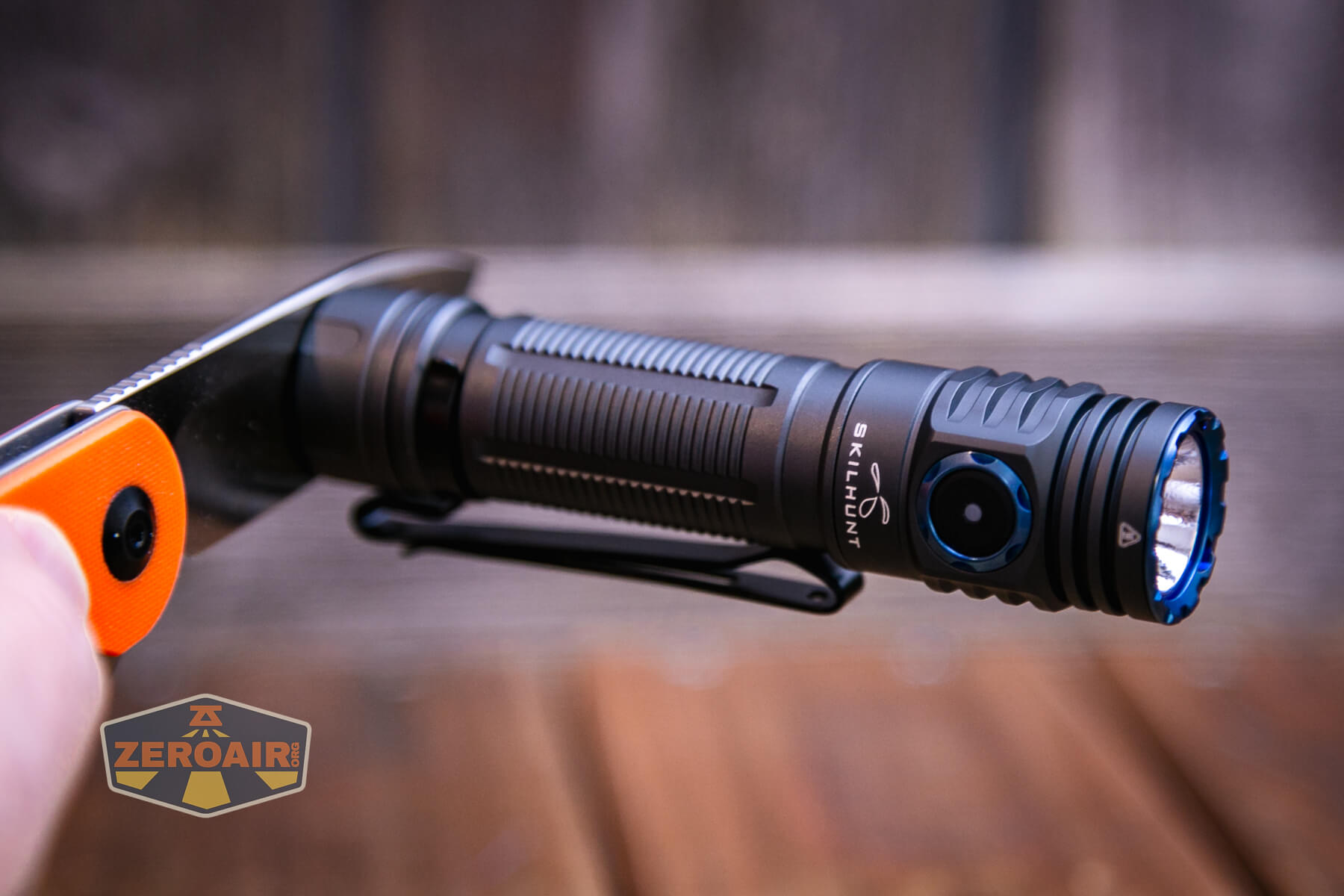

A pocket clip is included.  It’s a pretty nice friction-fit clip.

Skilhunt M200 V3 flashlight with pocket clip

Skilhunt M200 V3 flashlight with pocket clip

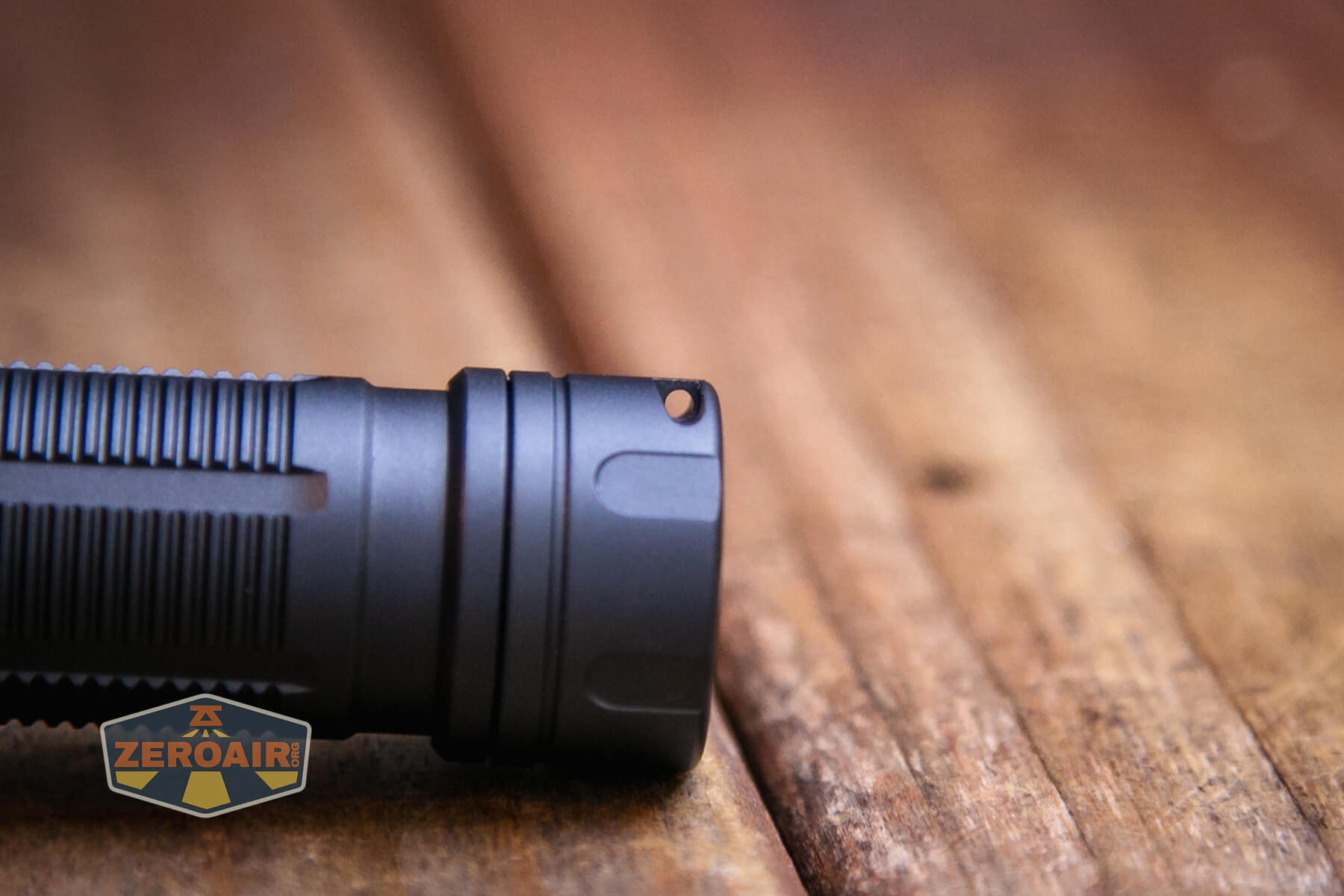

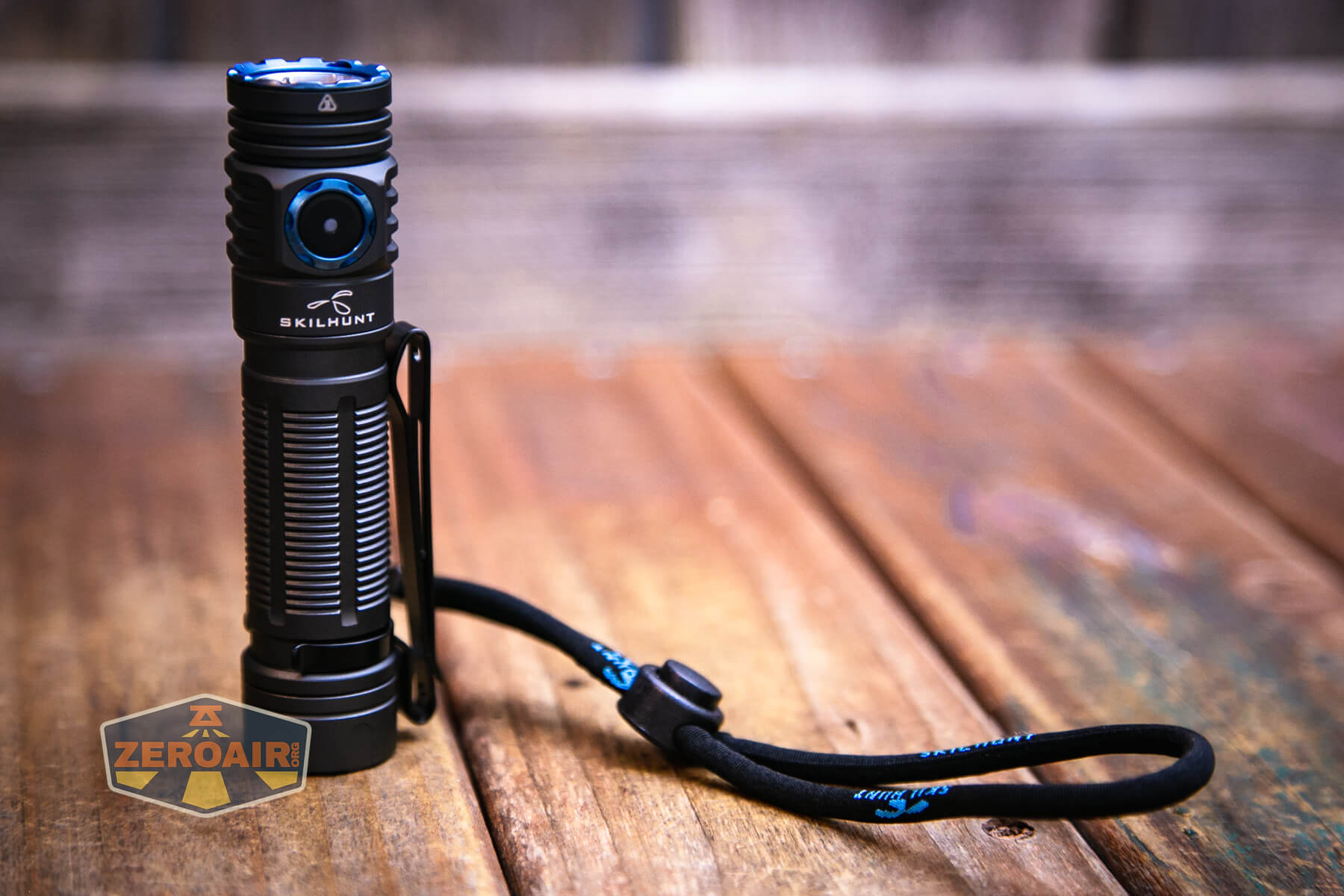

Also included is a lanyard, which attaches either through the pocket clip (less recommended) or the tailcap, where there is a hole for this express purpose.

Skilhunt M200 V3 flashlight lanyard hole

Skilhunt M200 V3 flashlight lanyard hole

Skilhunt M200 V3 flashlight lanyard hole

Skilhunt M200 V3 flashlight lanyard installed

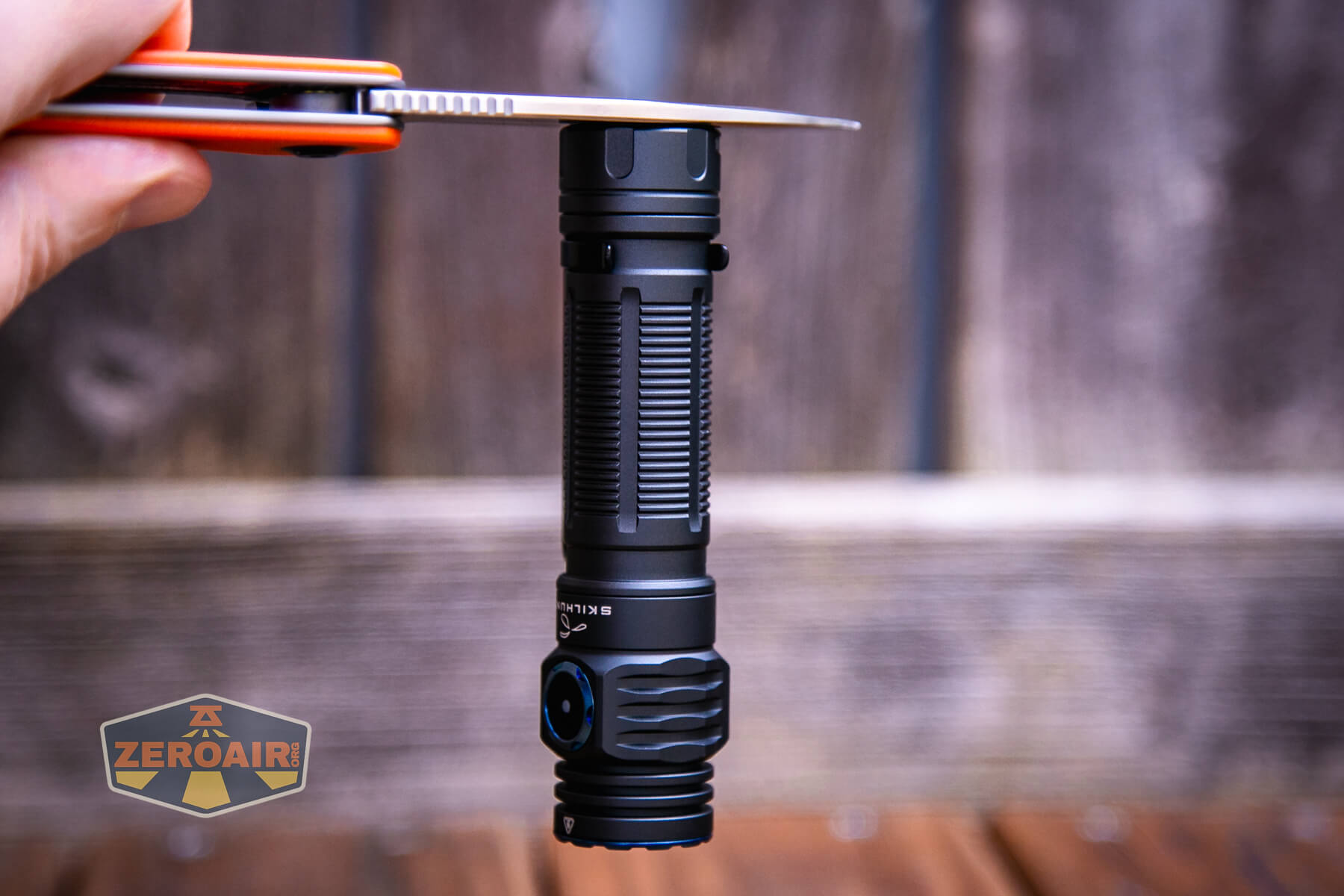

The tailcap has a magnet, too, which is plenty strong to hold the light.

Skilhunt M200 V3 flashlight magnet in use

Skilhunt M200 V3 flashlight magnet in use

Power and Runtime

The Skilhunt M200 V3 flashlight runs a single lithium-ion cell. My package did not include a cell.

Skilhunt M200 V3 flashlight showing battery sticker

Inside the cell tube is a sticker indicating that the cell should go with the positive end toward the head.

Skilhunt M200 V3 flashlight 18650 installed

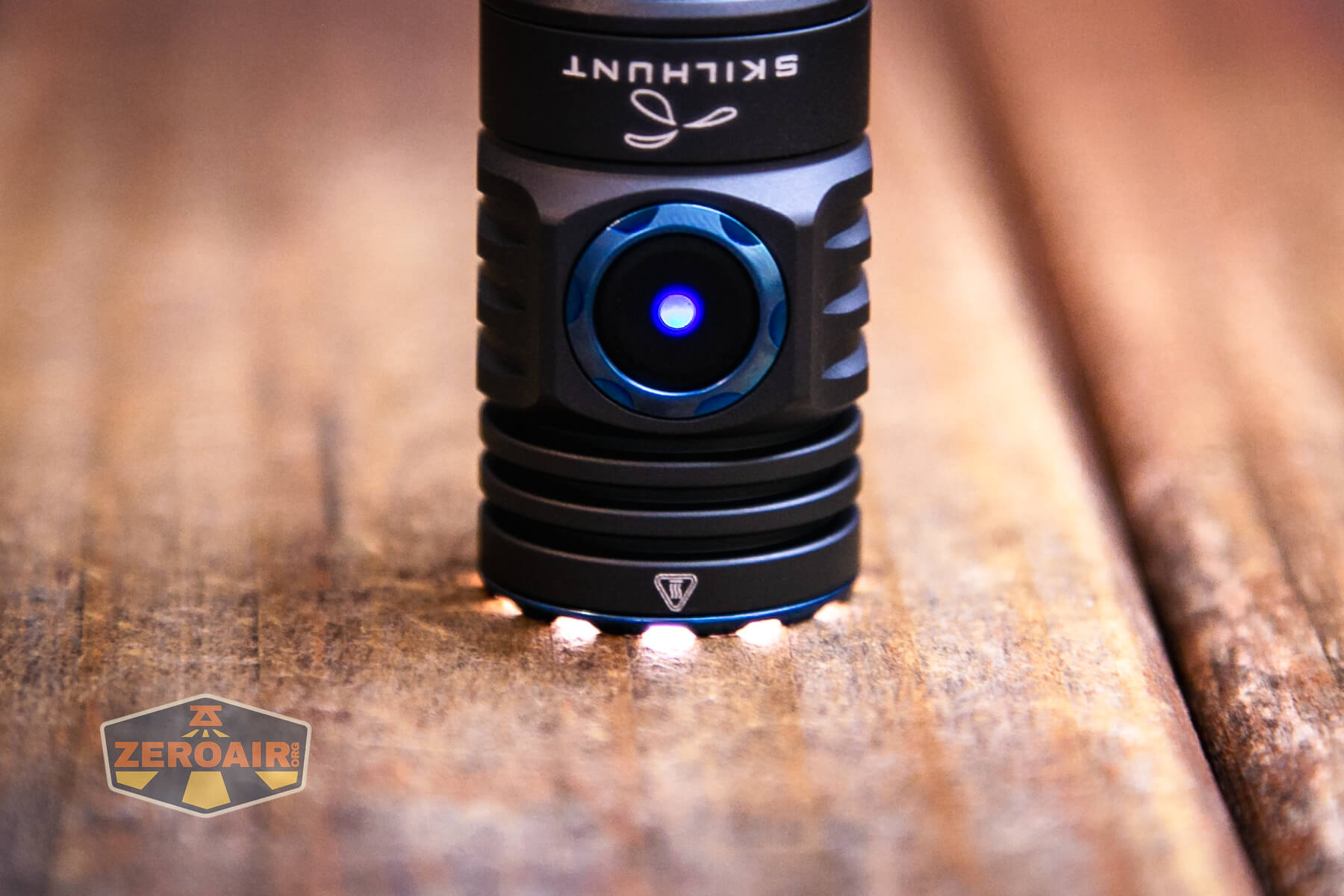

The switch has a battery indicator, too. This lights briefly (around 5 seconds) when a cell is installed or the light is turned on.

Skilhunt M200 V3 flashlight power indicator

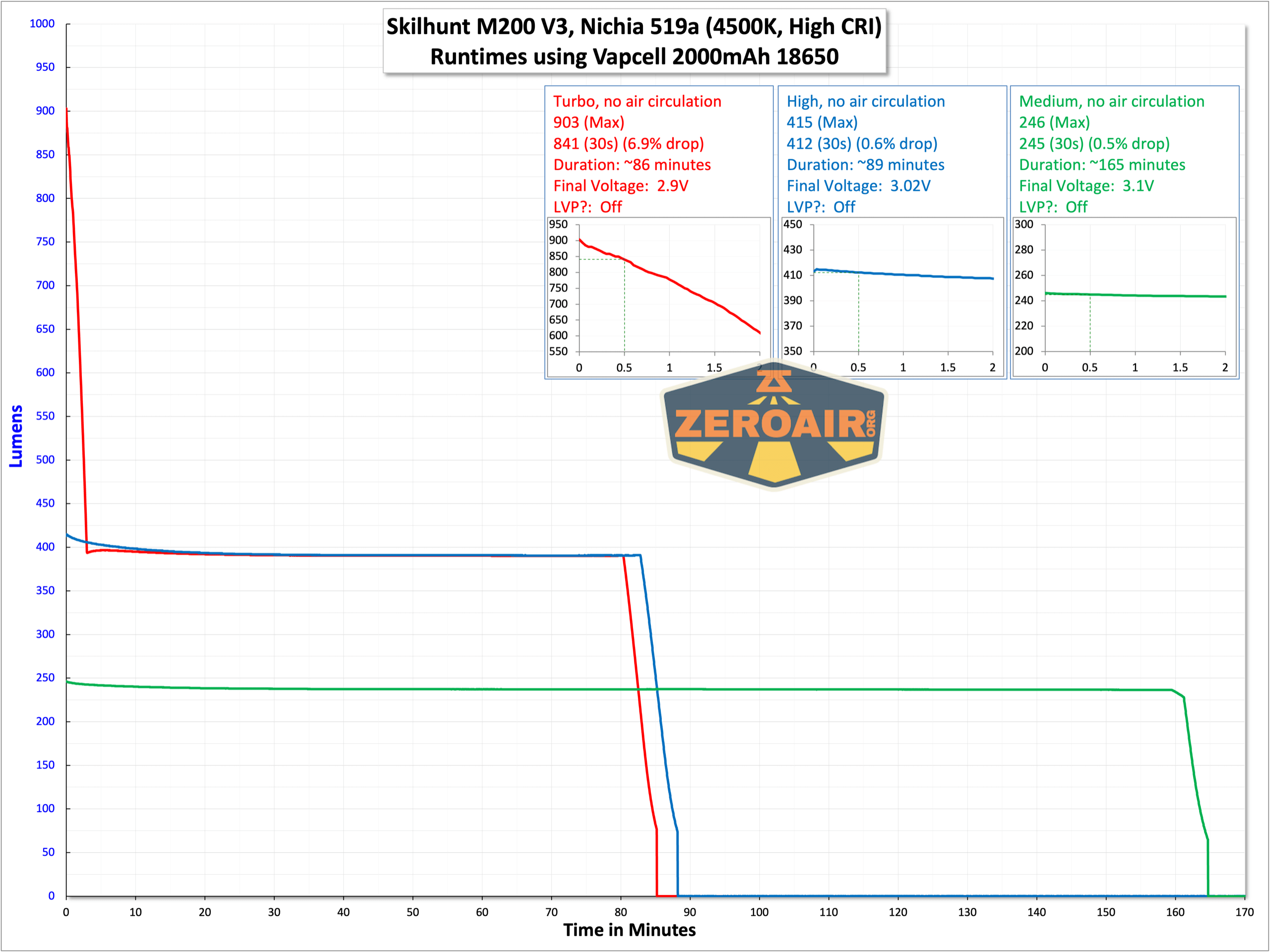

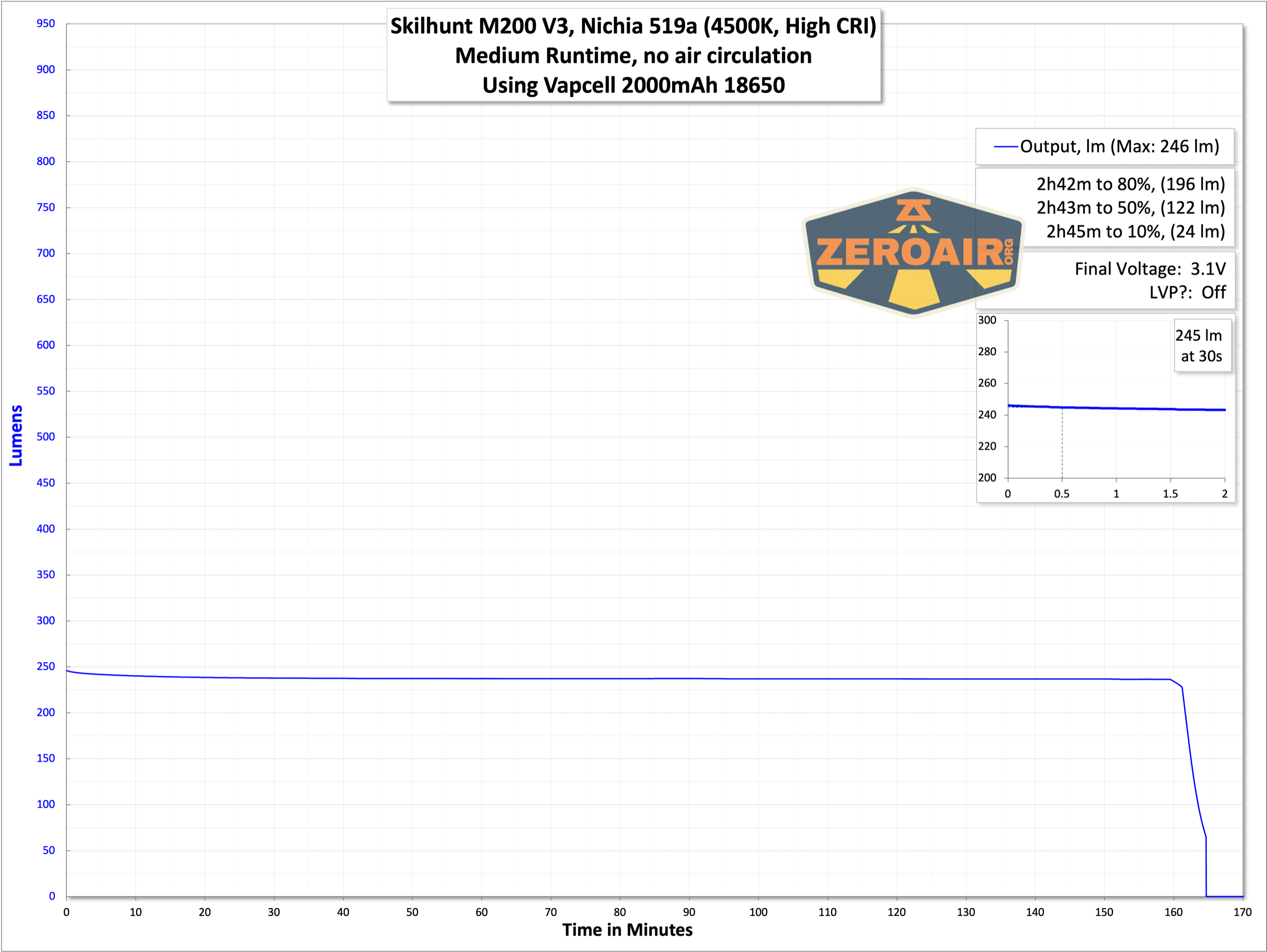

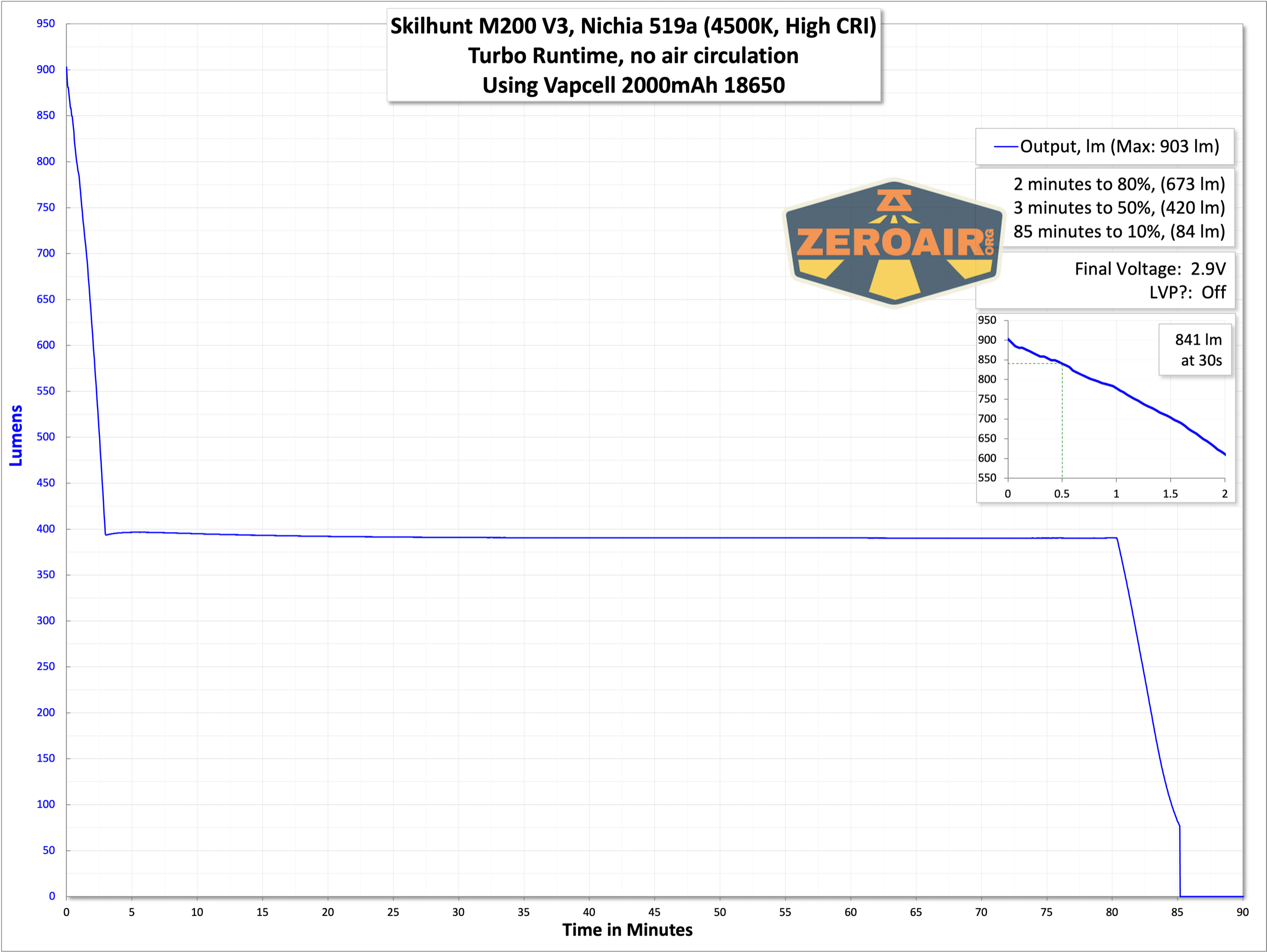

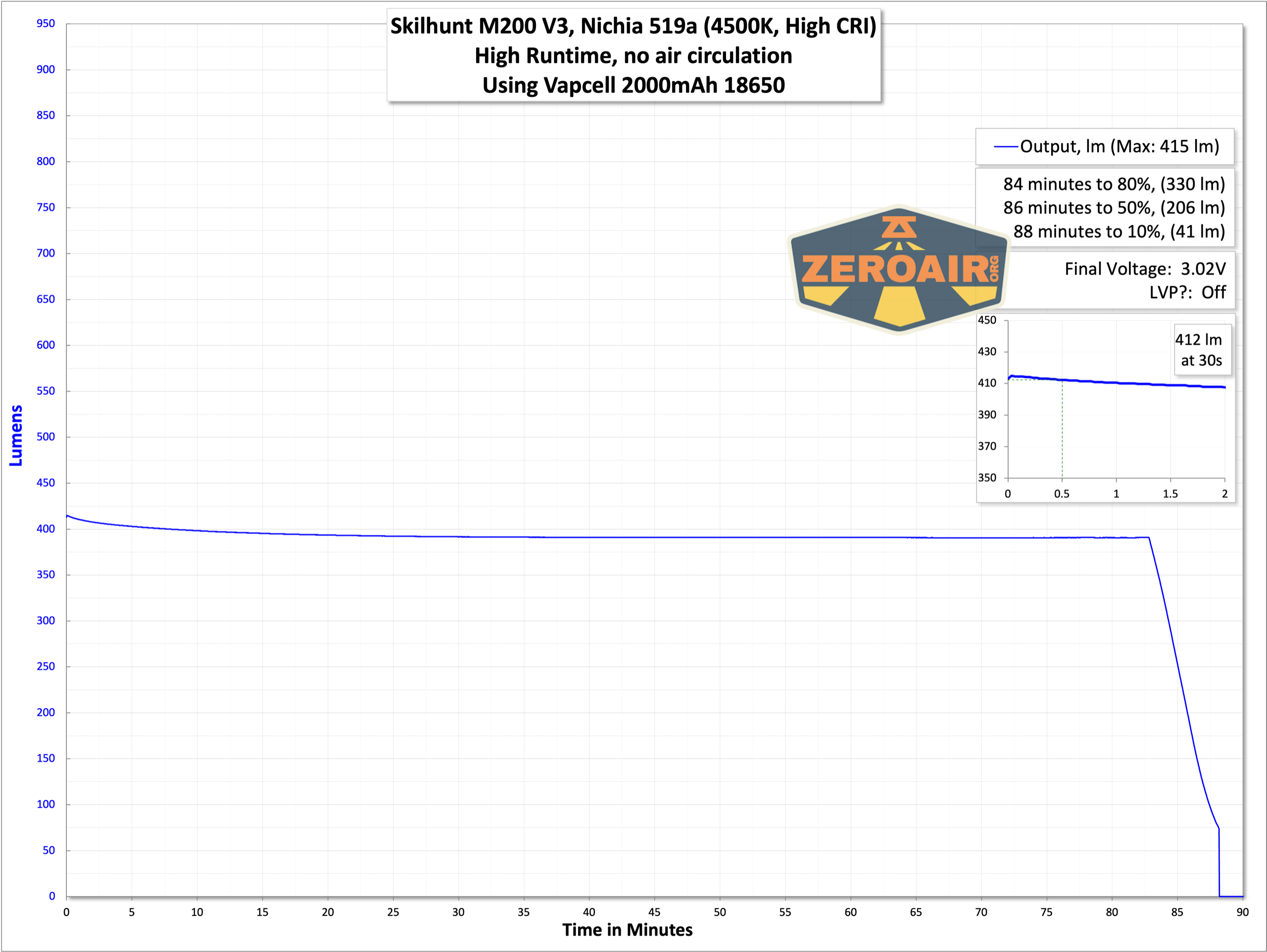

Below you can see three runtime tests. Performance is “lower than the manual claims” but the manual is not written specifically for the Nichia 519a version. In the product literature, I did see that the claim for 519a is 950 lumens, which is much more closely aligned with what I tested.

Skilhunt M200 V3 flashlight runtime graph

Skilhunt M200 V3 flashlight runtime graph

Skilhunt M200 V3 flashlight runtime graph

Skilhunt M200 V3 flashlight runtime graph

Low voltage protection was observed in every test. On bench power, the switch starts blinking in red at around 2.9-3V and then the light shuts off at around 2.8V.

Charging

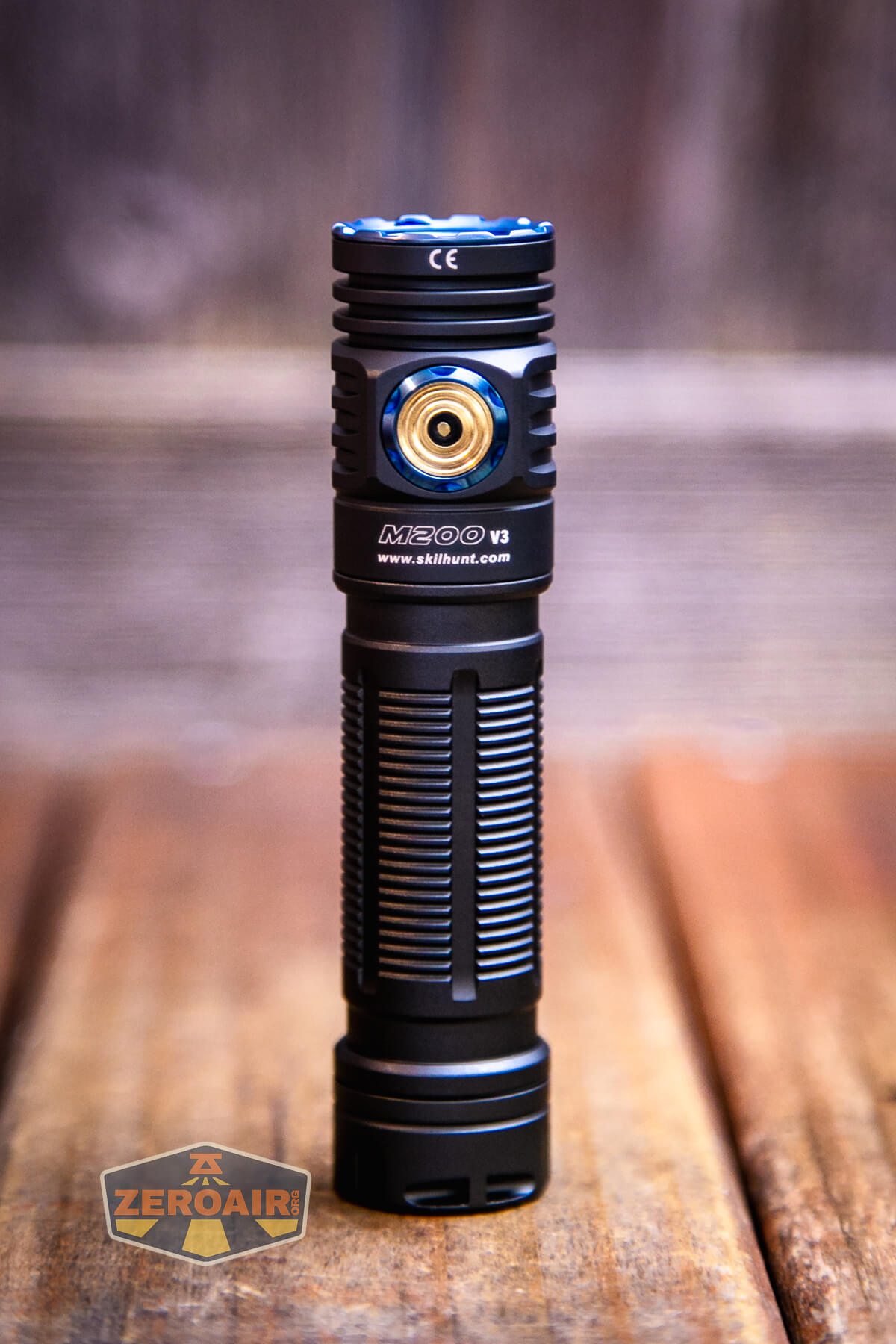

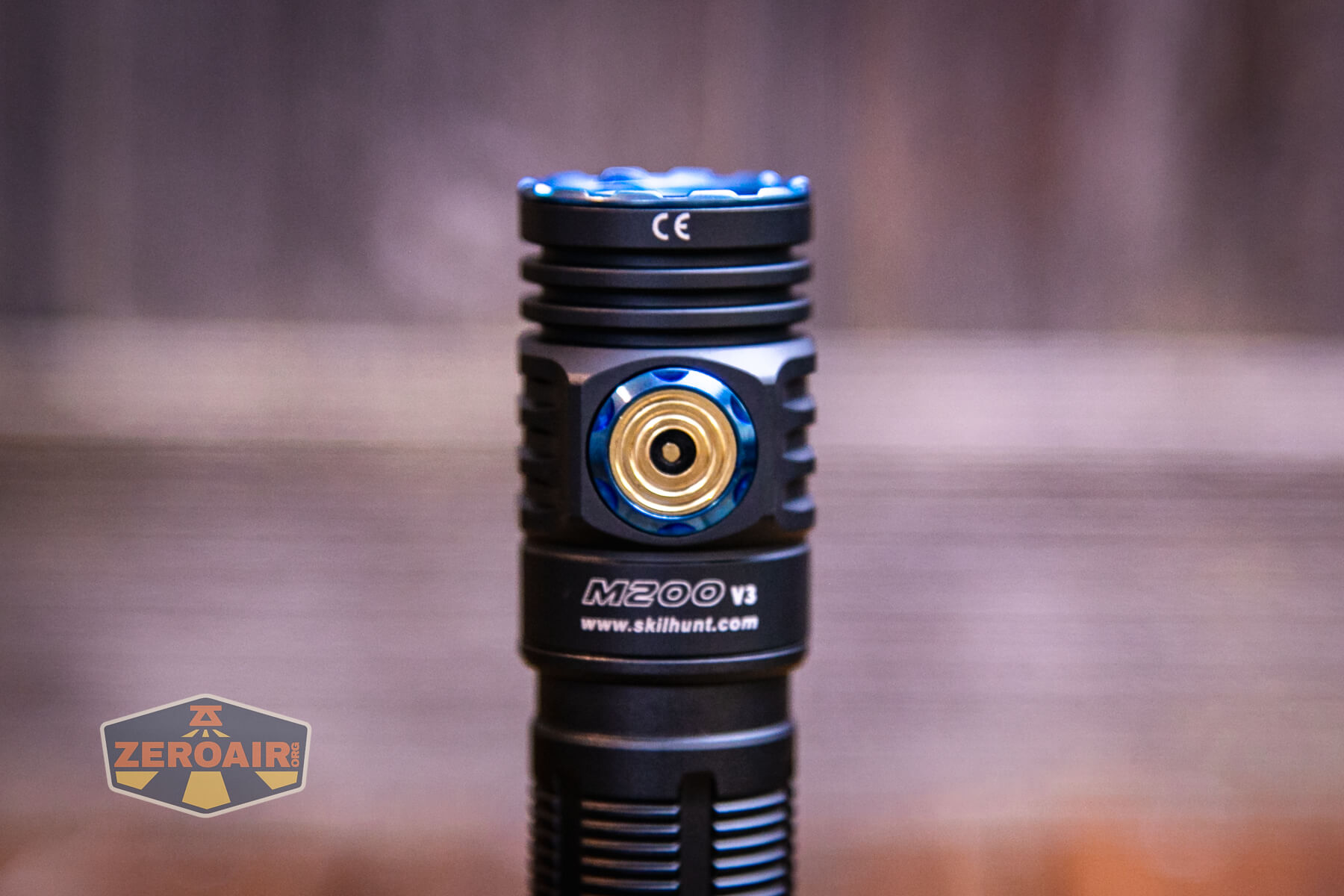

The Skilhunt M200 V3 flashlight also has built-in charging.  There’s a connector opposite the switch.  One end is a USB plug, and the other is a proprietary magnetic connector.

Skilhunt M200 V3 flashlight charging port

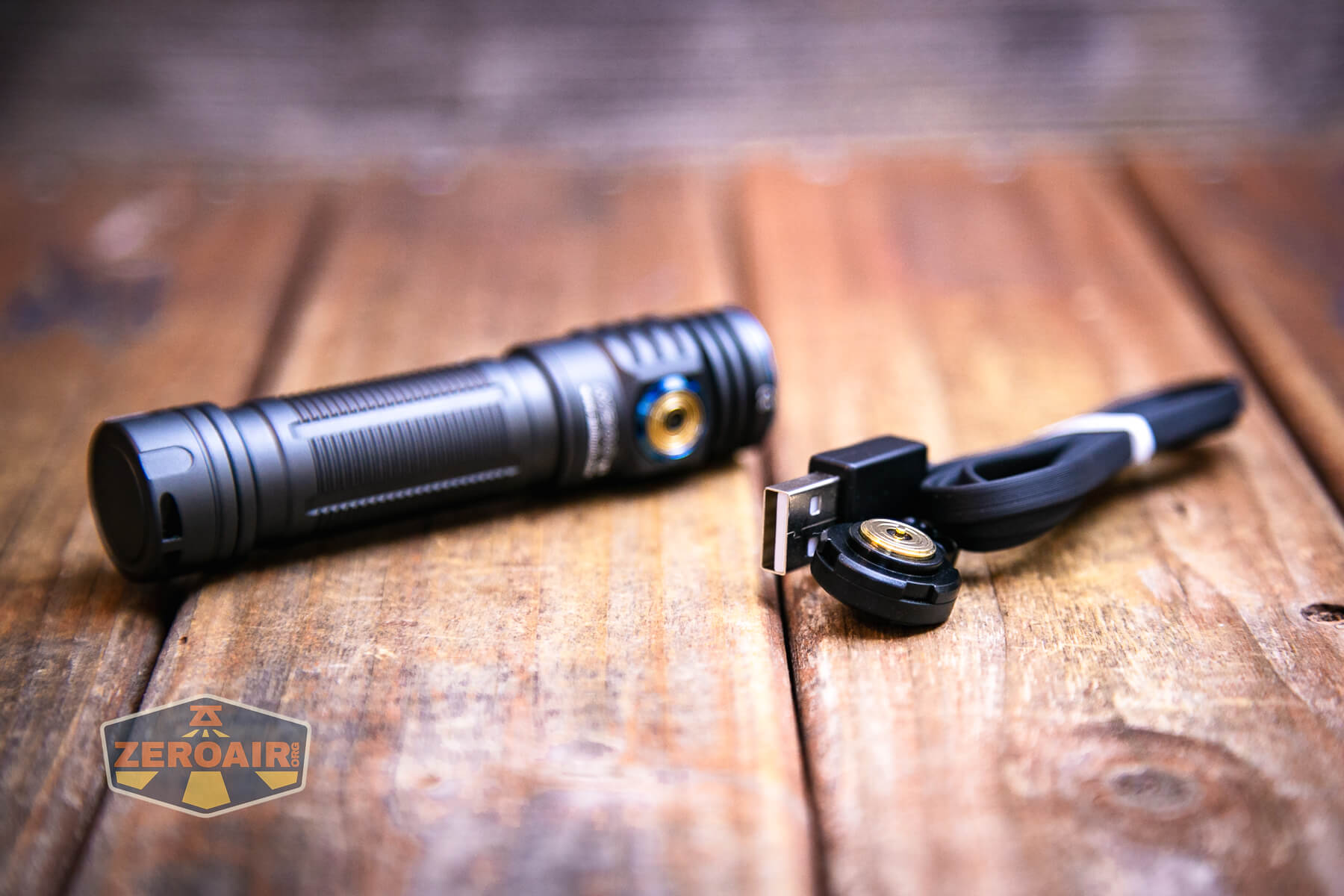

Skilhunt M200 V3 flashlight charging cable

The connection works well. Notably, though not pictured explicitly, this is the “MC-20” charger. As far as I know, all previous iterations I’ve tested have been MC-10 chargers. There seems to be quite a performance advantage to the MC-20, as it reaches a max current of around 2A.

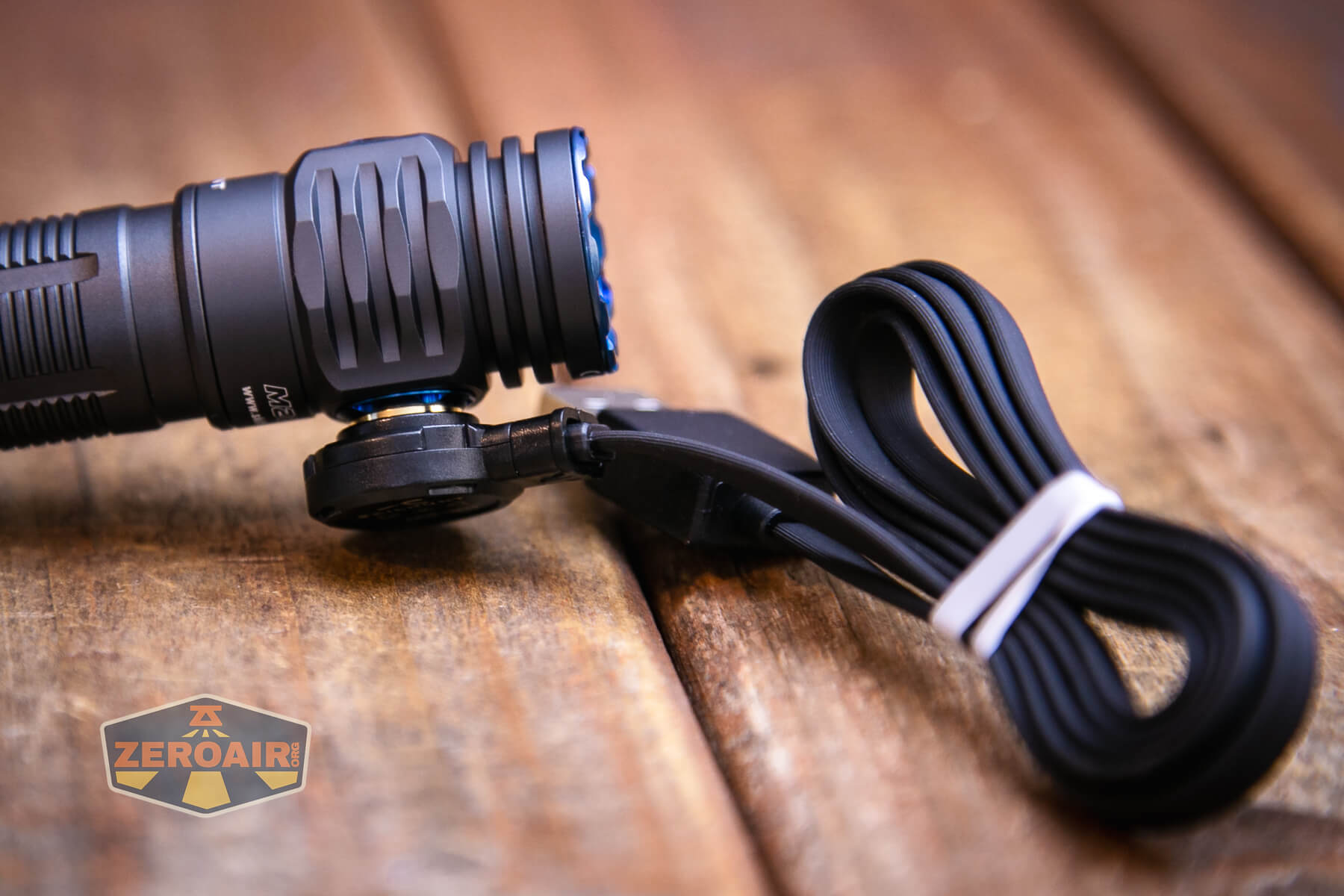

Skilhunt M200 V3 flashlight charging cable attached

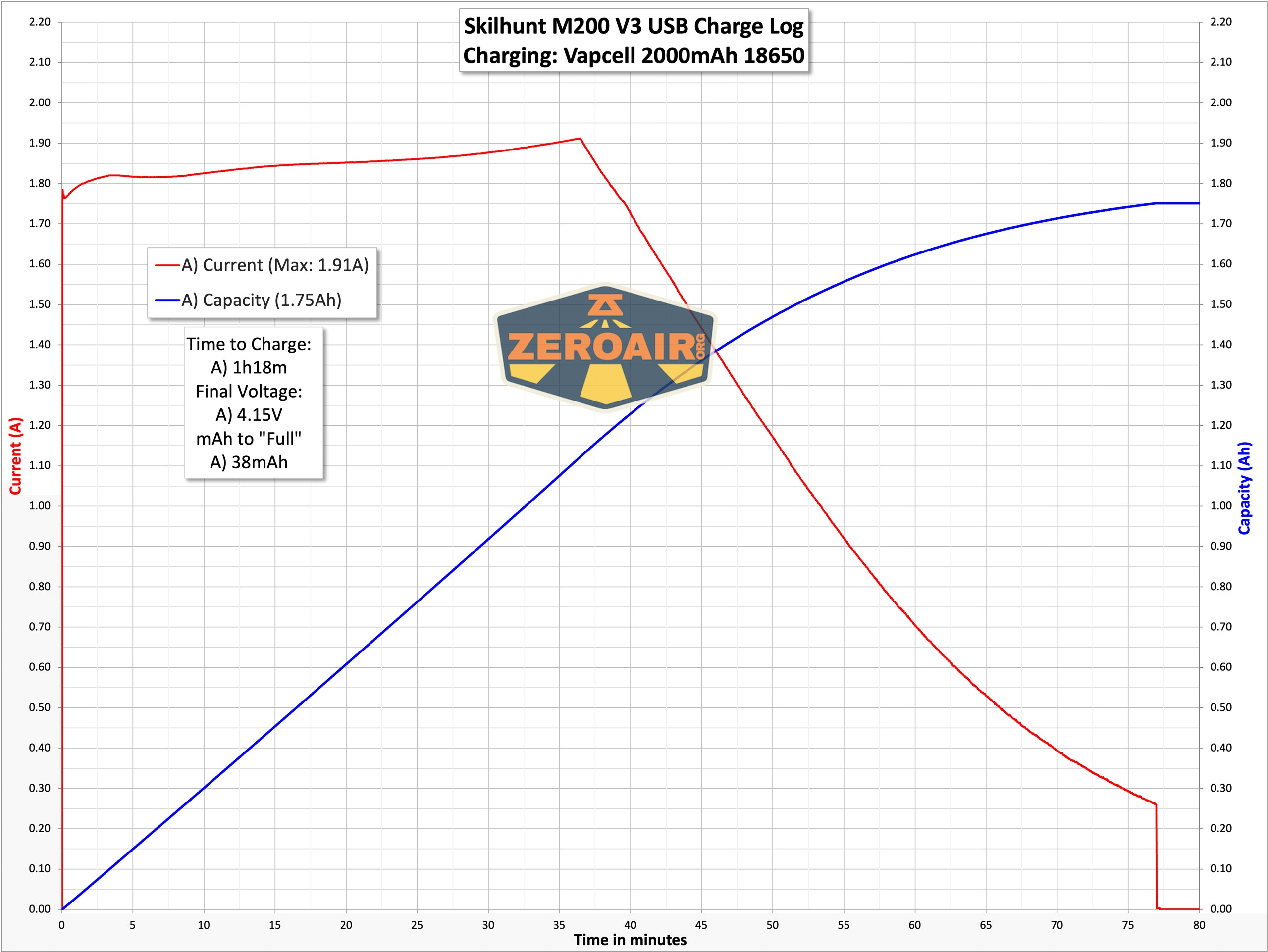

Skilhunt M200 V3 flashlight charging graph

Charging works fine, and this 2000mAh (low for an 18650, to be fair) required only around 1.25 hours.

While charging, the charger blinks red, and when charging is complete, the charger uses a blue indicator.

Modes and Currents

Mode Mode Claimed Output (lm) Claimed Runtime Measured Lumens Tailcap Amps
T1 950
(Manuals “1400” is for a different emitter)
3m+140m 903 (0s)
841 (30s)
4.32
T2 650 145m 412 1.32
H1 380 260m 245 0.68
M1 170 10h 110 0.27
M2 65 26h 38 0.10
L1 10 150h 3.8 0.01
L2 0.5 / 0.8 3.6mA

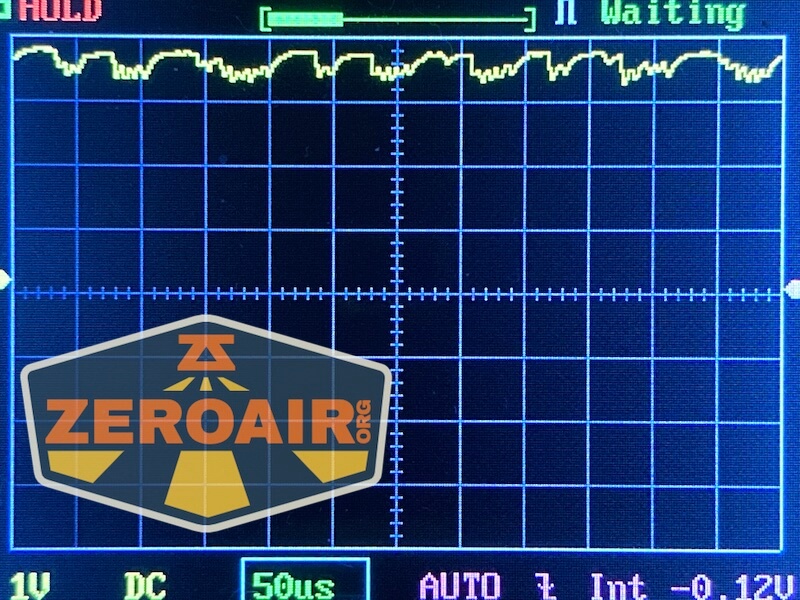

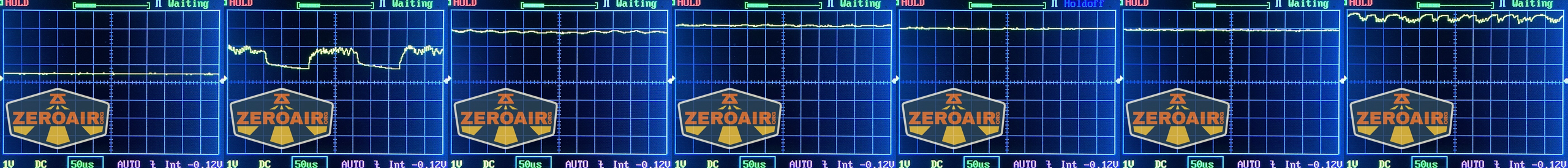

Pulse Width Modulation

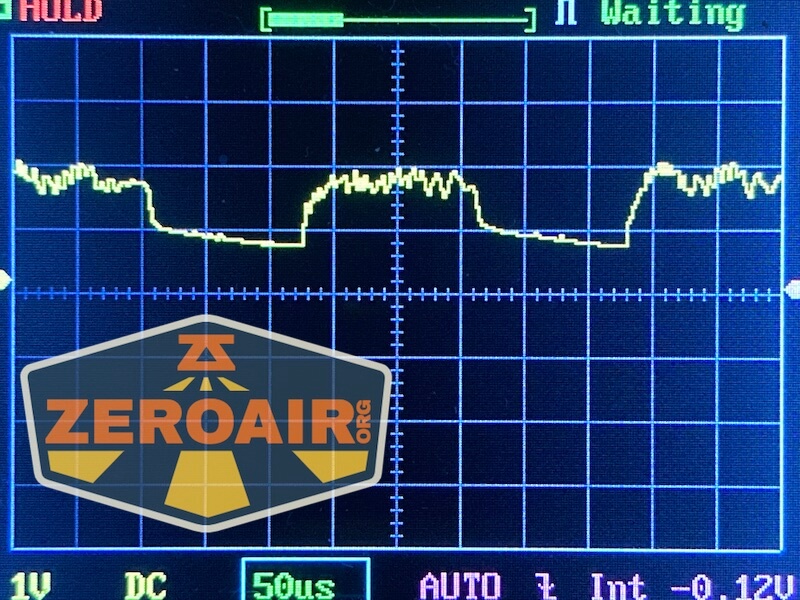

There’s no PWM, but a couple of modes have some squiggles.

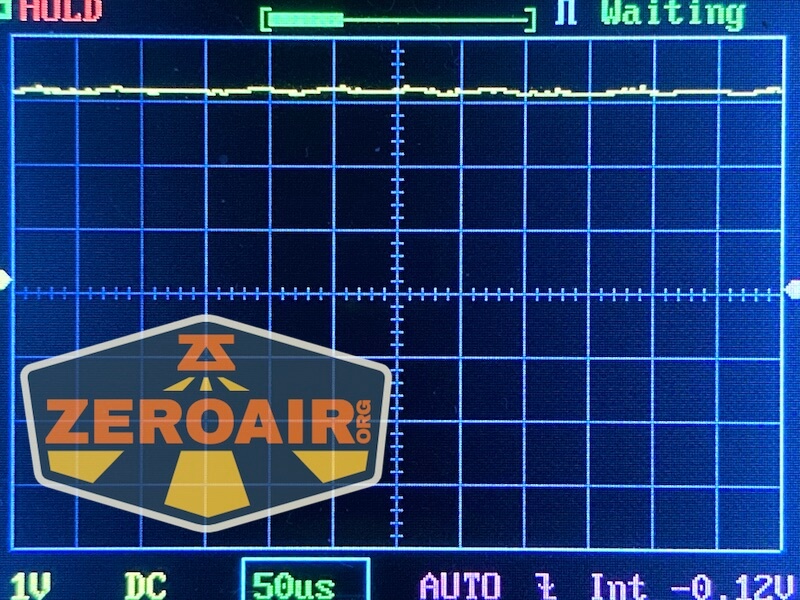

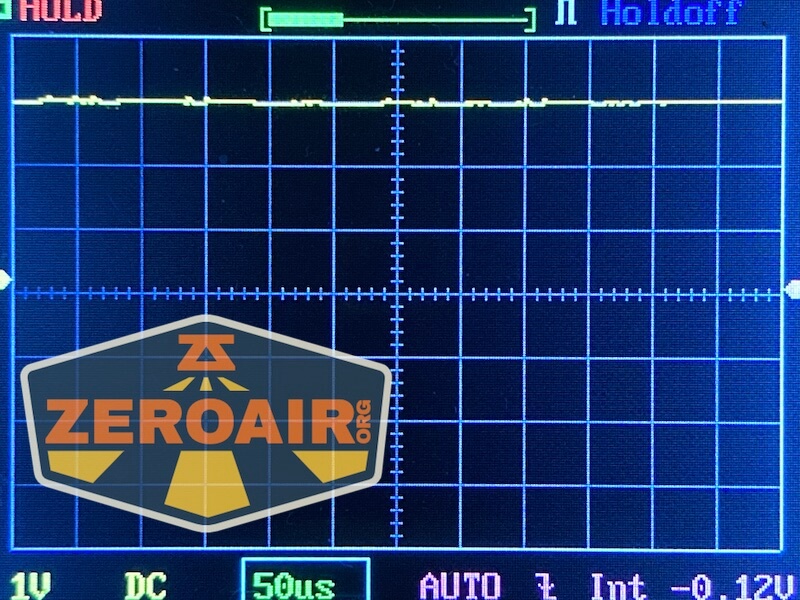

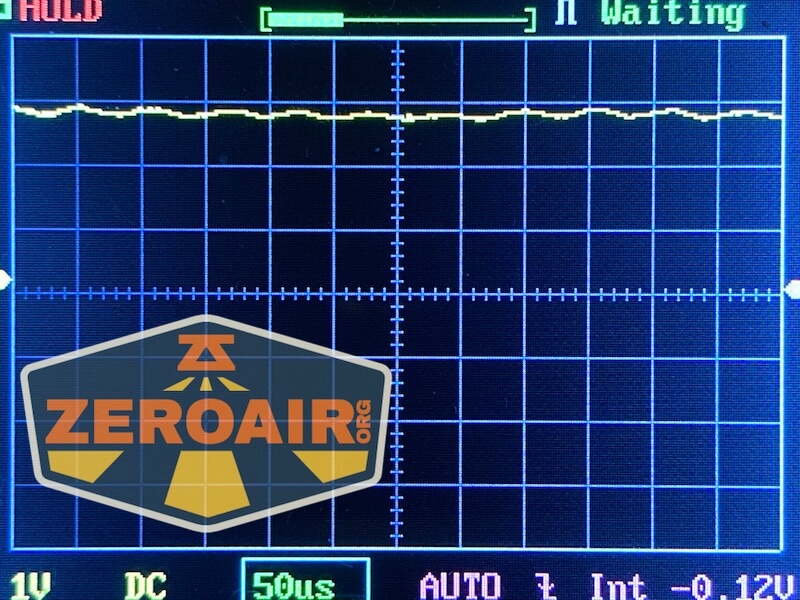

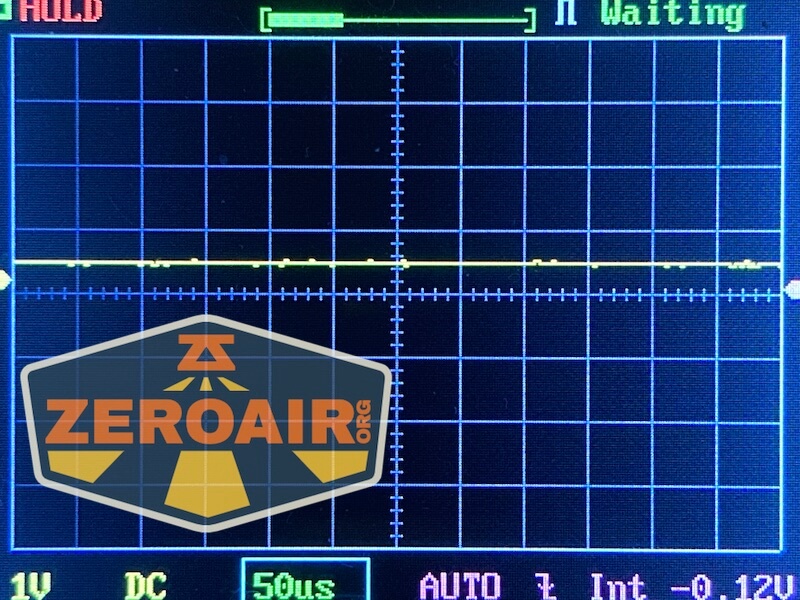

For reference, here’s a baseline shot, with all the room lights off and almost nothing hitting the sensor.  Also, here’s the light with the worst PWM I could find.  I’m adding multiple timescales, so it’ll be easier to compare to the test light.  Unfortunately, the PWM on this light is so bad that it doesn’t even work with my normal scale, with is 50 microseconds (50us).  10ms5ms2ms1ms0.5ms0.2ms.  In a display faster than 0.2ms or so, the on/off cycle is more than one screen, so it’d just (very incorrectly) look like a flat line.  I wrote more about this Ultrafire WF-602C flashlight and explained a little about PWM too.

User Interface and Operation

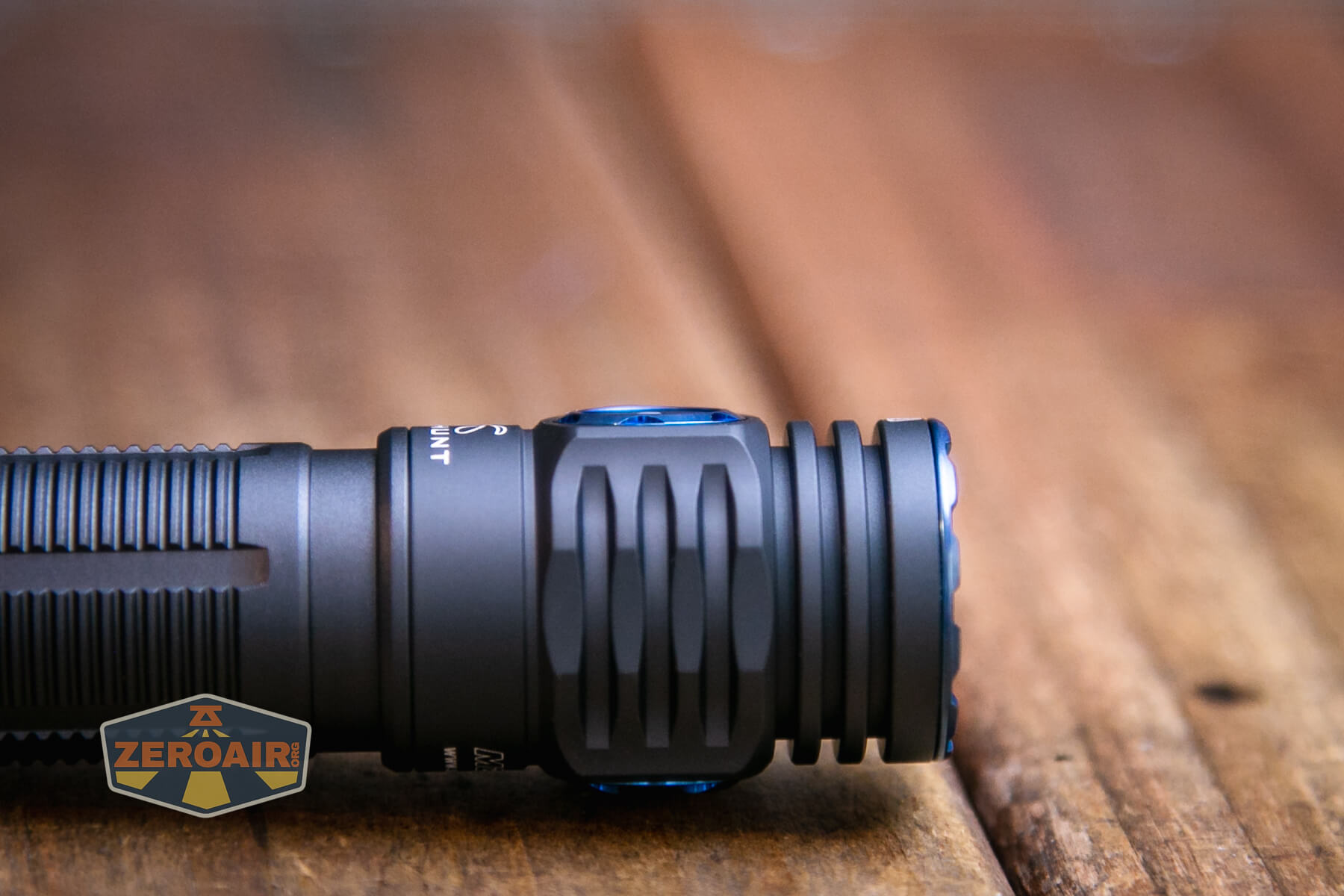

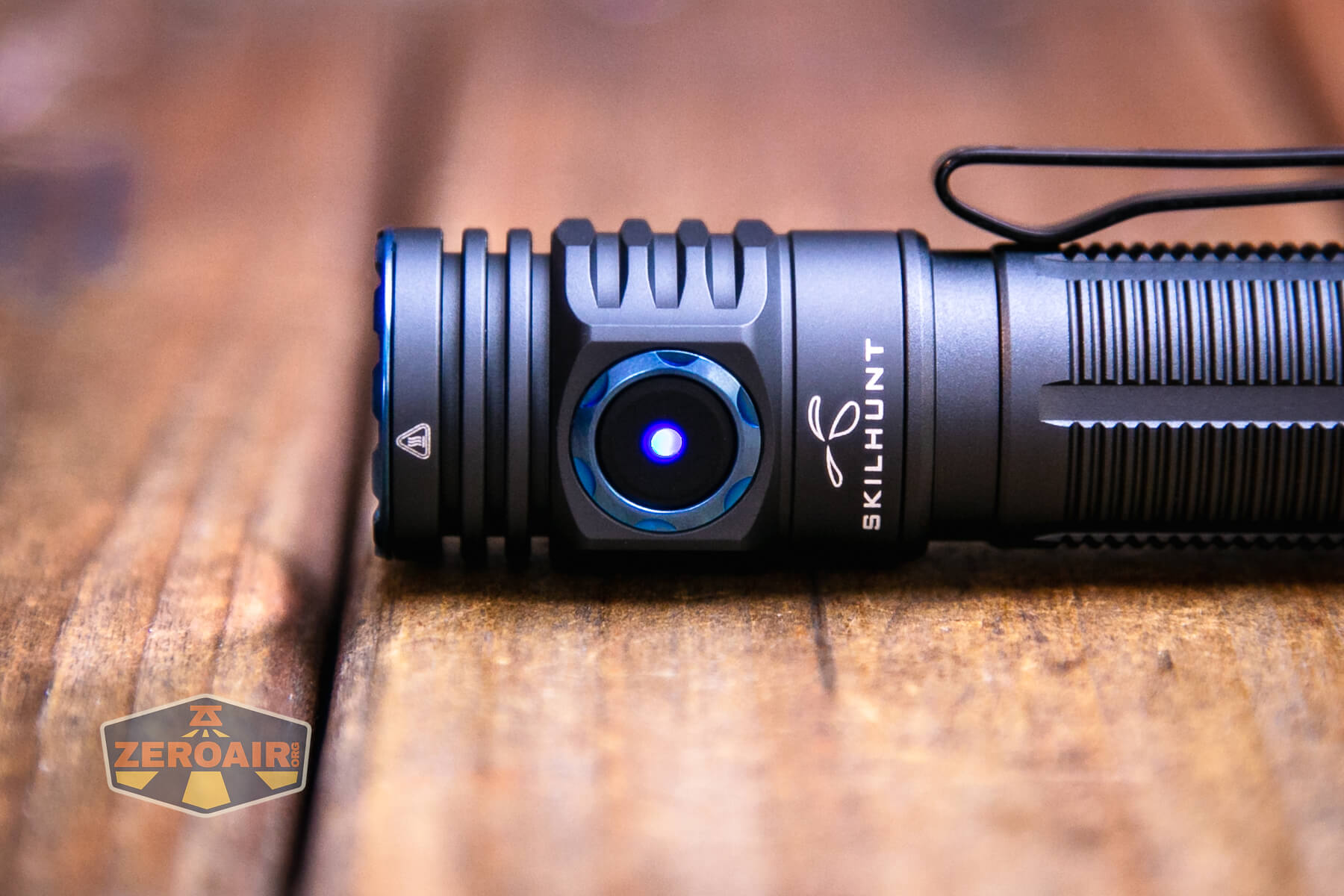

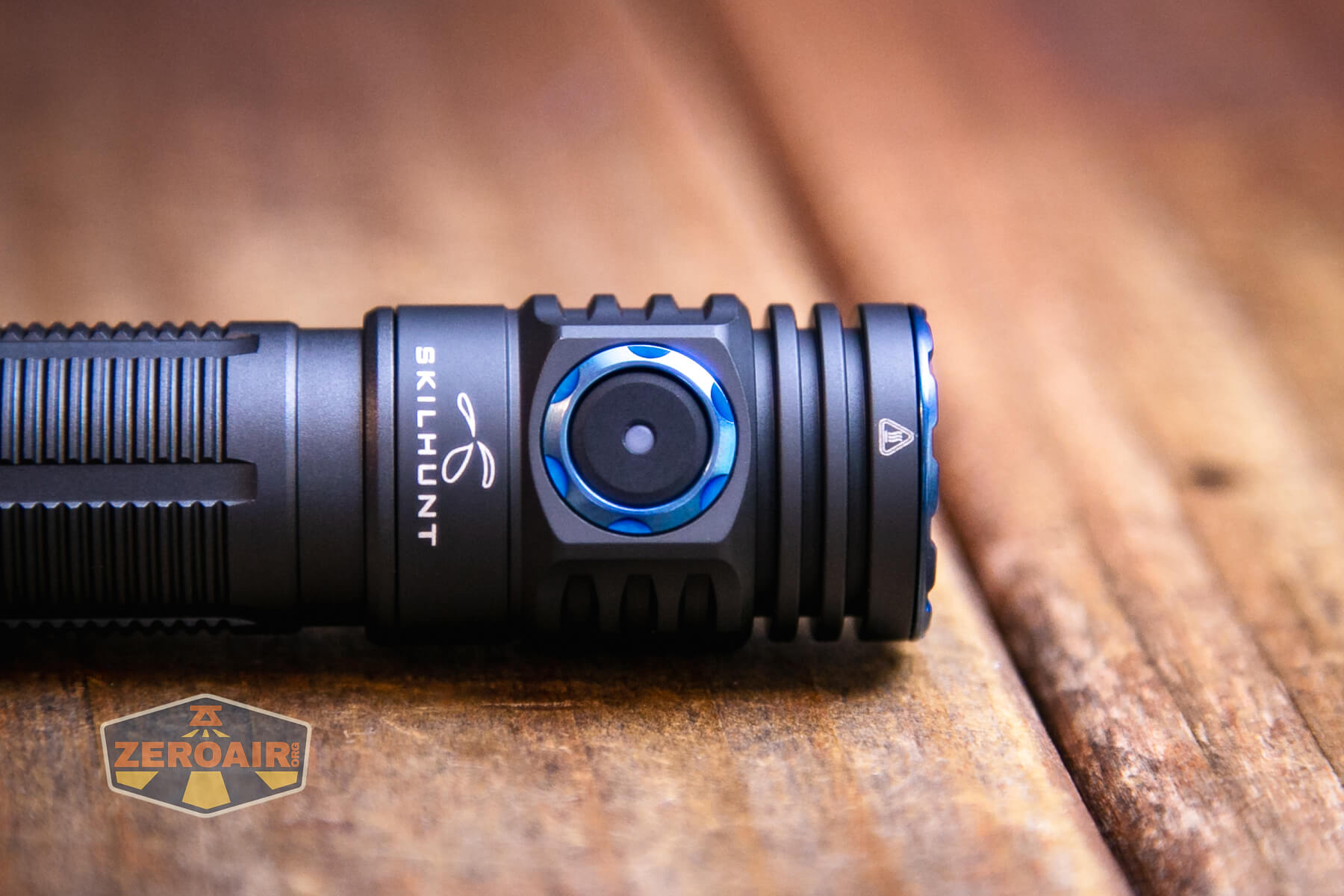

There’s a single switch on the M200 V3.  It’s a side e-switch, with an indicator in the center.  It’s a big secure switch, with a very positive but quiet click.  I very much like this switch. The switch seems unchanged from the previous iterations of the M-series.

Skilhunt M200 V3 flashlight indicating e-switch

Skilhunt M200 V3 flashlight indicating e-switch profile

The cutout for the switch in the head is the same size as the charge connector, and while it’s hard to distinguish between the two while holding the light, I found that it didn’t matter; I’ll just pinch the light with both spots between my fingers, and activate the light.

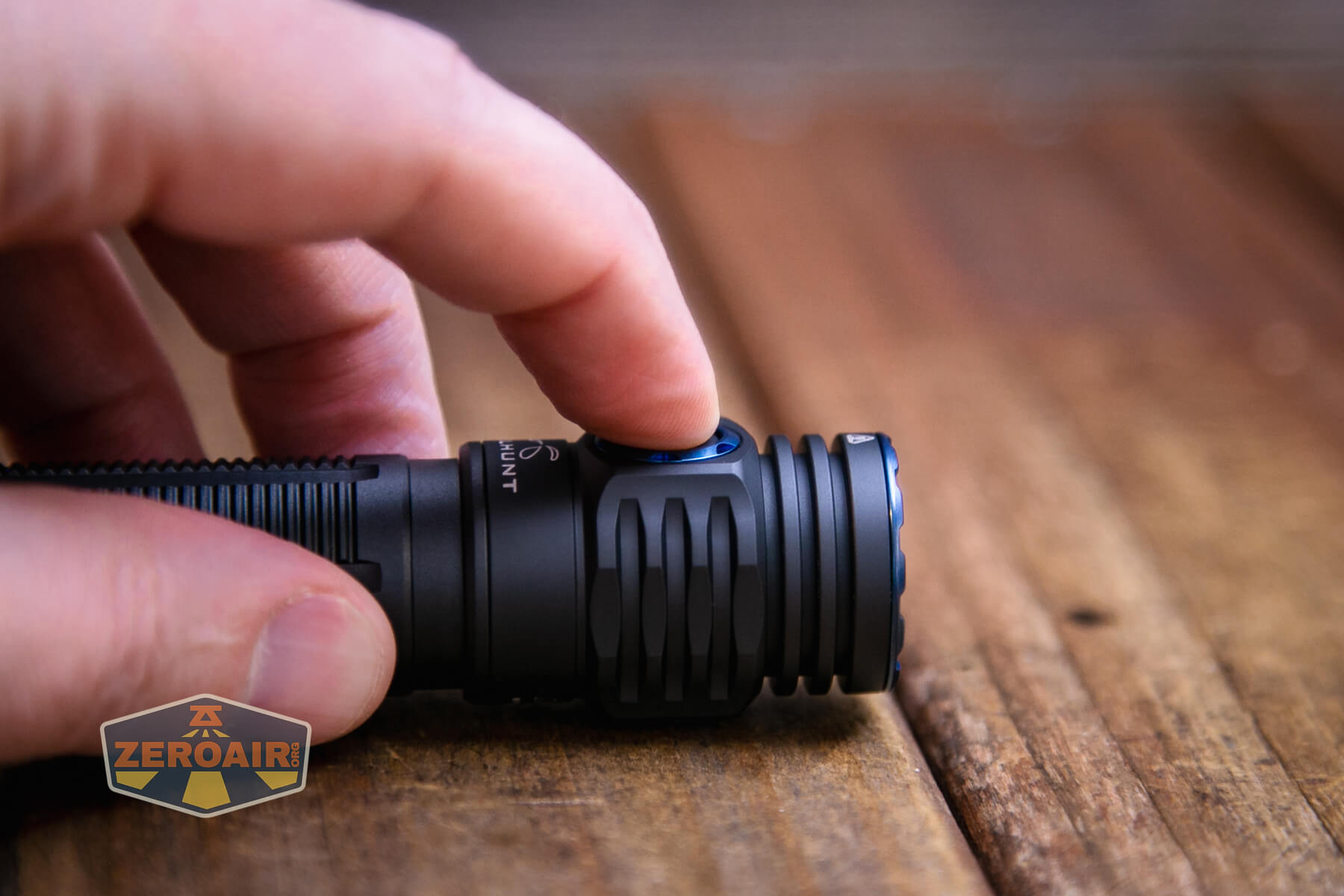

Skilhunt M200 V3 flashlight indicating e-switch actuation

Skilhunt M200 V3 flashlight indicating e-switch

The user interface could be a bit daunting, but it’s very straightforward when you get used to it. It’s also very logical and provides access to low from off, which is as close to a requirement from a user interface as I have.

Here’s a UI table!

State Action Result
Off Hold Low (Memory between L1 and L2)
L1 or L2 Hold Iterate between L1 and L2
L1 or L2 Click 2x No change in level
Off Click 4x Lockout (Three blinks of main emitters to confirm and the switch turns red briefly)
Lockout Click 4x Unlock to Low group (memory, can be L1/L2)
Lockout Click 2x Iterate lockout indicator^
Lockout Hold Momentary Output (Appears to be approximately L1)
L1/L2 Click Off
Off Click On in “Main Group” (Mode memory M2/M1/H)
Main Group Hold Mode advance (M2 > M1 > H)
Main Group Click Off
Main Group or Off Click 2x Turbo Group (Mode memory T1/T2)
T1/T2 Hold Iterate between T1 (higher) and T2 (lower) output
T1/T2 Click Off
T1/T2 Click 2x Main Group (memory output)
Main Group or Off Click 3x Strobe Group (with memory)
Strobe Group Click 3x Previous Group (T1/T2 or M2/M1/H, depending on how you accessed Strobe Group)^^
Strobe Group Click 2x^^^ Strobe Advance (S1 > S2 > S3)†
Strobe Group Hold No result

^ Lockout indicator blinks a red switch every 2-3 seconds.
^^ Aside from just general mode memory (which you know I don’t like) this seems to me to be the only place where you may need to immediately remember what mode you were in so you have the experience you expect. However, the difference is getting the two highest white outputs, or the three main white outputs – it won’t be that dramatic even if you don’t remember. Also note that if you access the strobe group from off, triple-clicking will not return to off. For continuity, it should! In fact, if you accessed the strobe from an off state, a triple-click sends the light to the Main group!
^^^ Seems like the strobe group is the only group that isn’t advanced by a hold. Since there’s no hold anywhere else into or out of Strobe, I am not sure why that user interface continuity wasn’t maintained here.
† Strobes are like this:

S1: Disorienting strobe of White (turbo, ish)
S2: SOS (main white, some mid-High output)
S4: Beacon (one highish blink every second or so)

LED and Beam

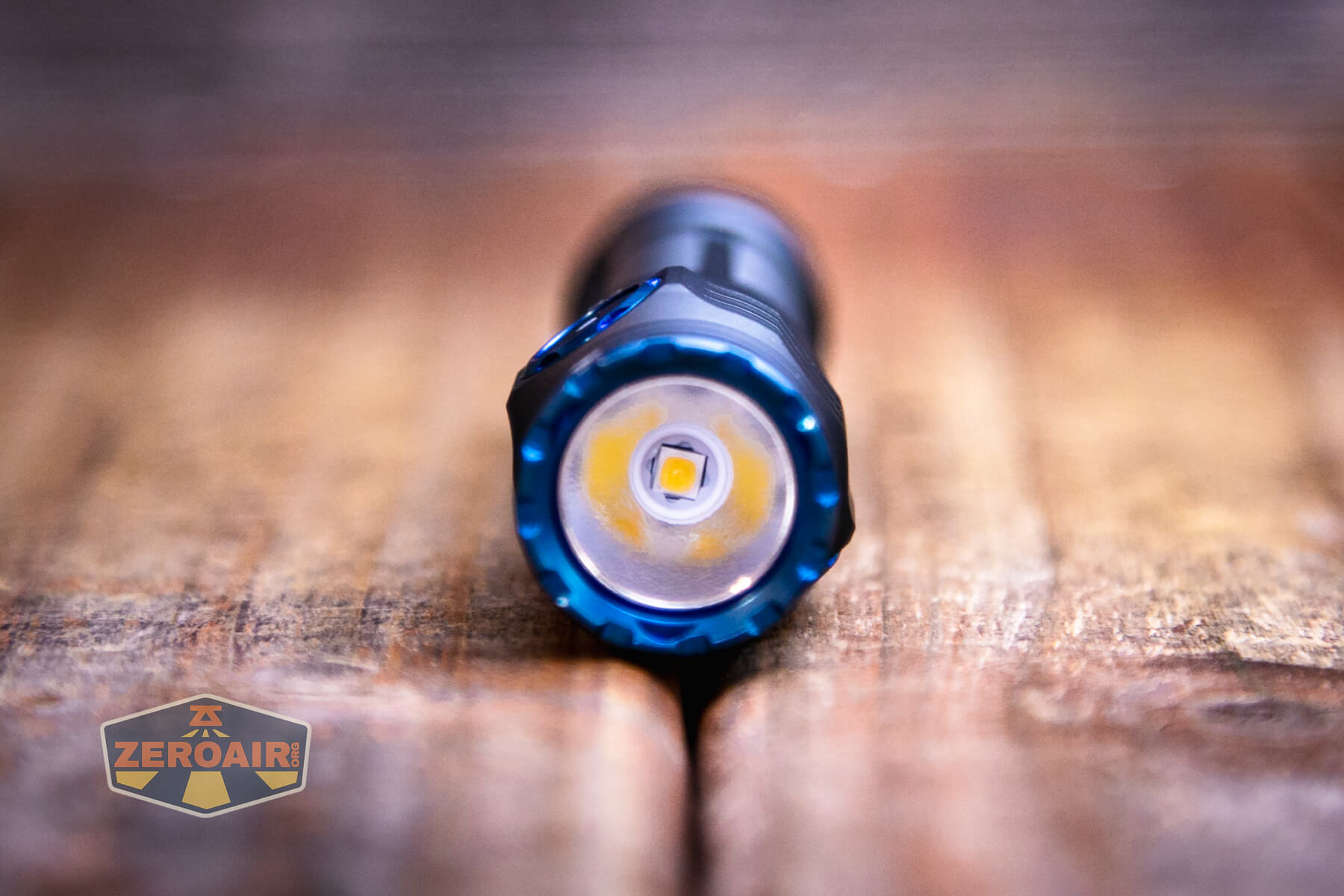

The emitter of choice here is a Nichia 519a which offers High CRI and is 4500K in CCT.

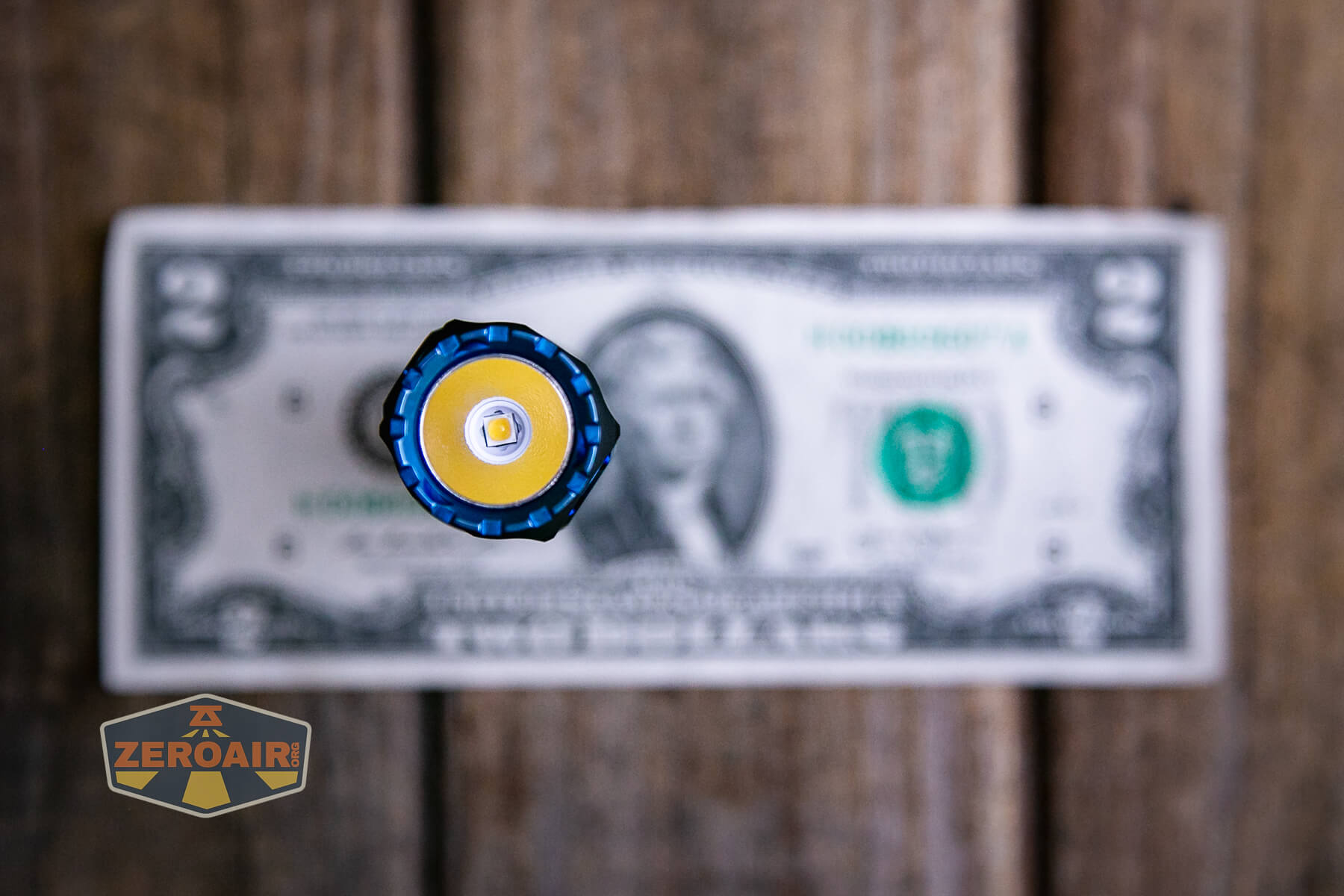

Skilhunt M200 V3 flashlight emitter

That’s of course a fantastic choice, and everything about this light’s output is great because of it. The M200 V3 uses a reflector that has a very light texture.

Skilhunt M200 V3 flashlight reflector

Skilhunt M200 V3 flashlight headstanding

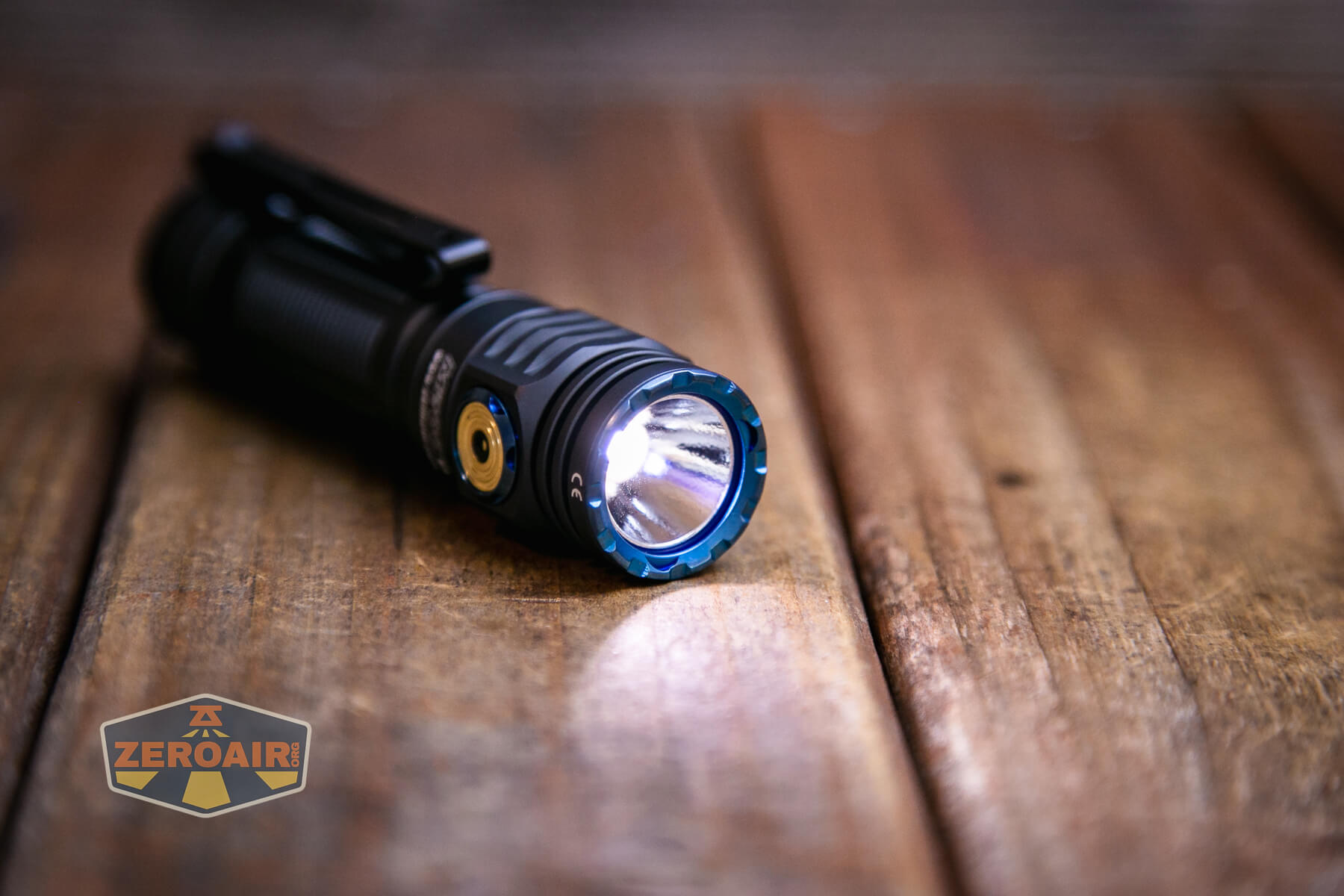

Skilhunt M200 V3 flashlight on

Skilhunt M200 V3 flashlight on

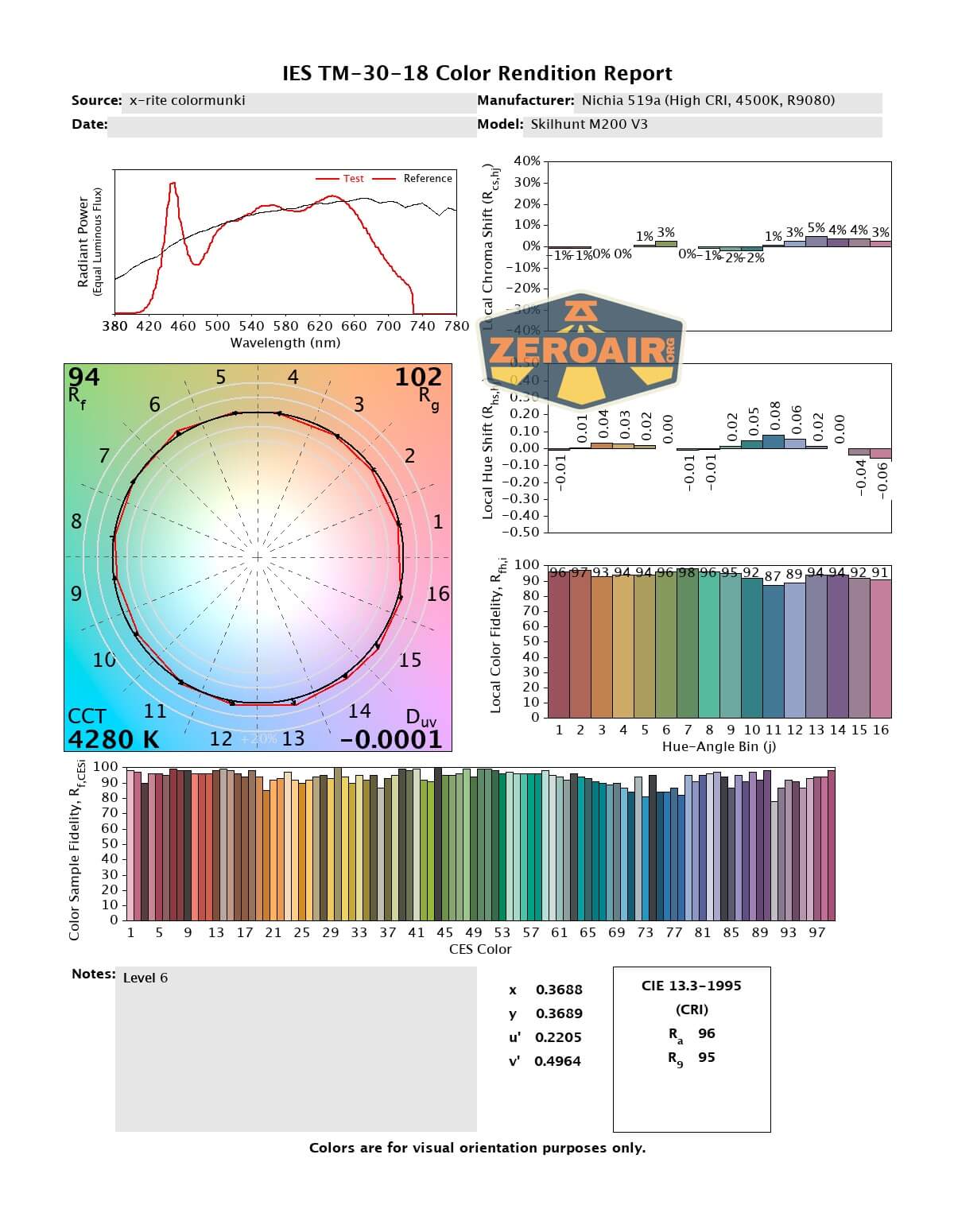

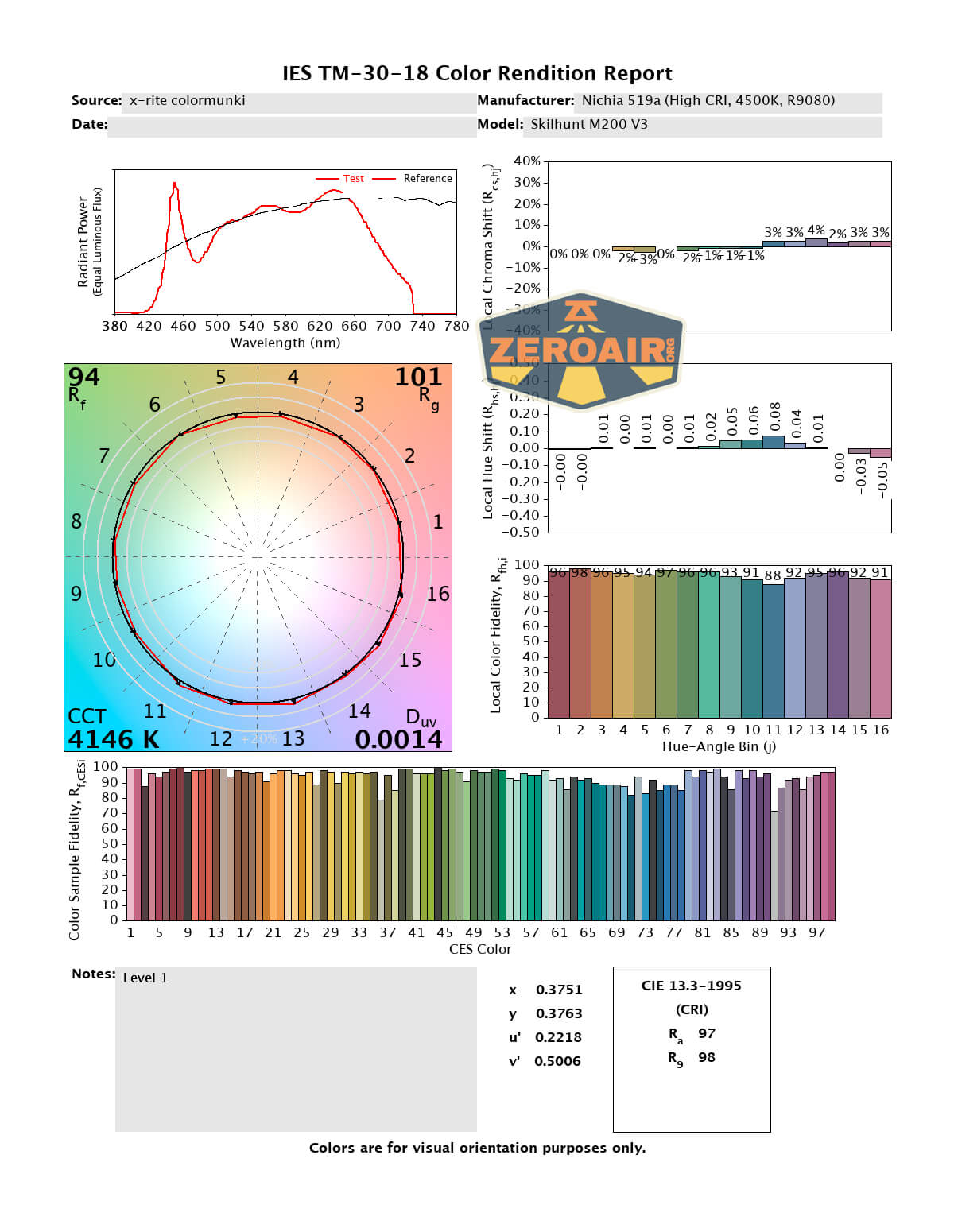

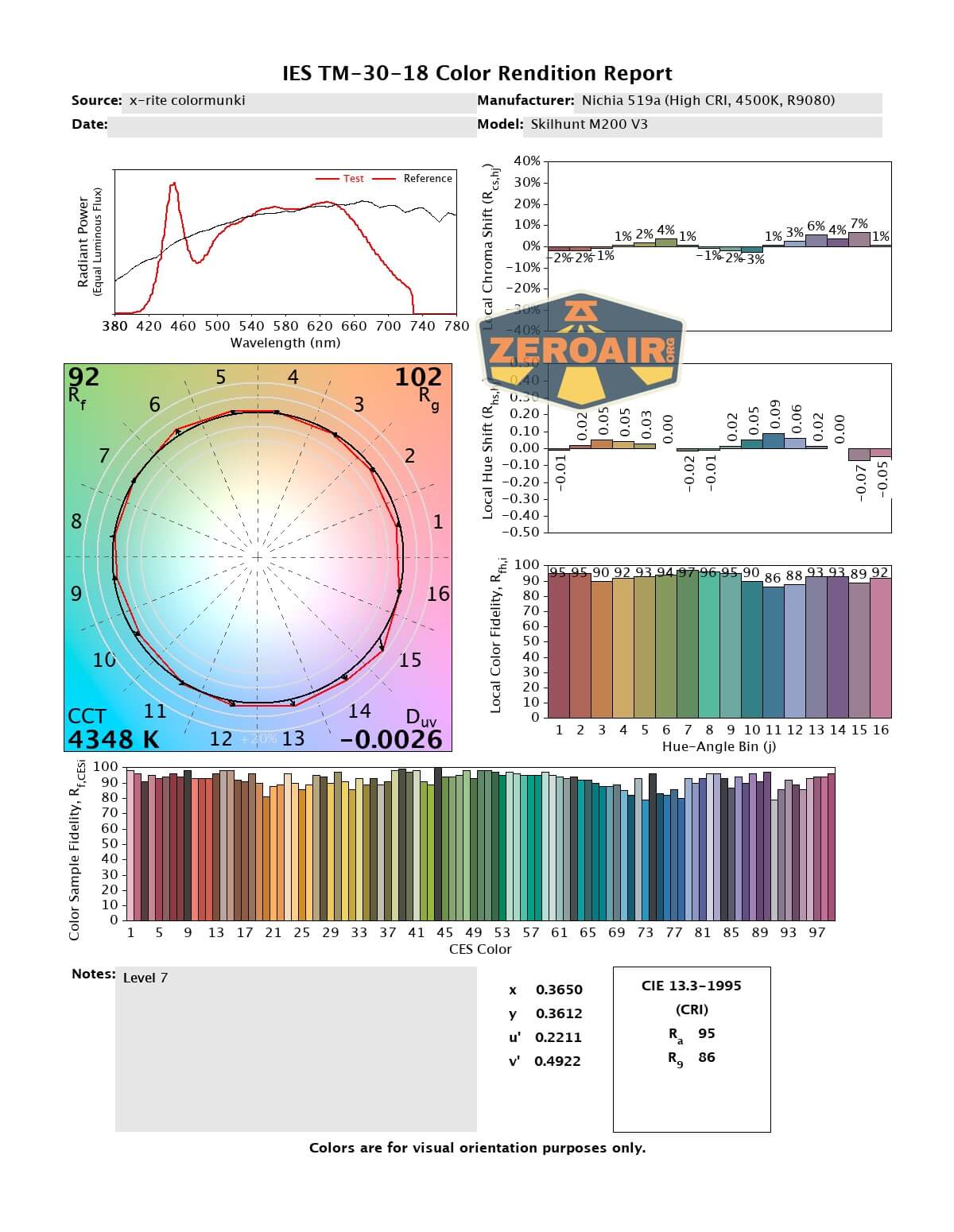

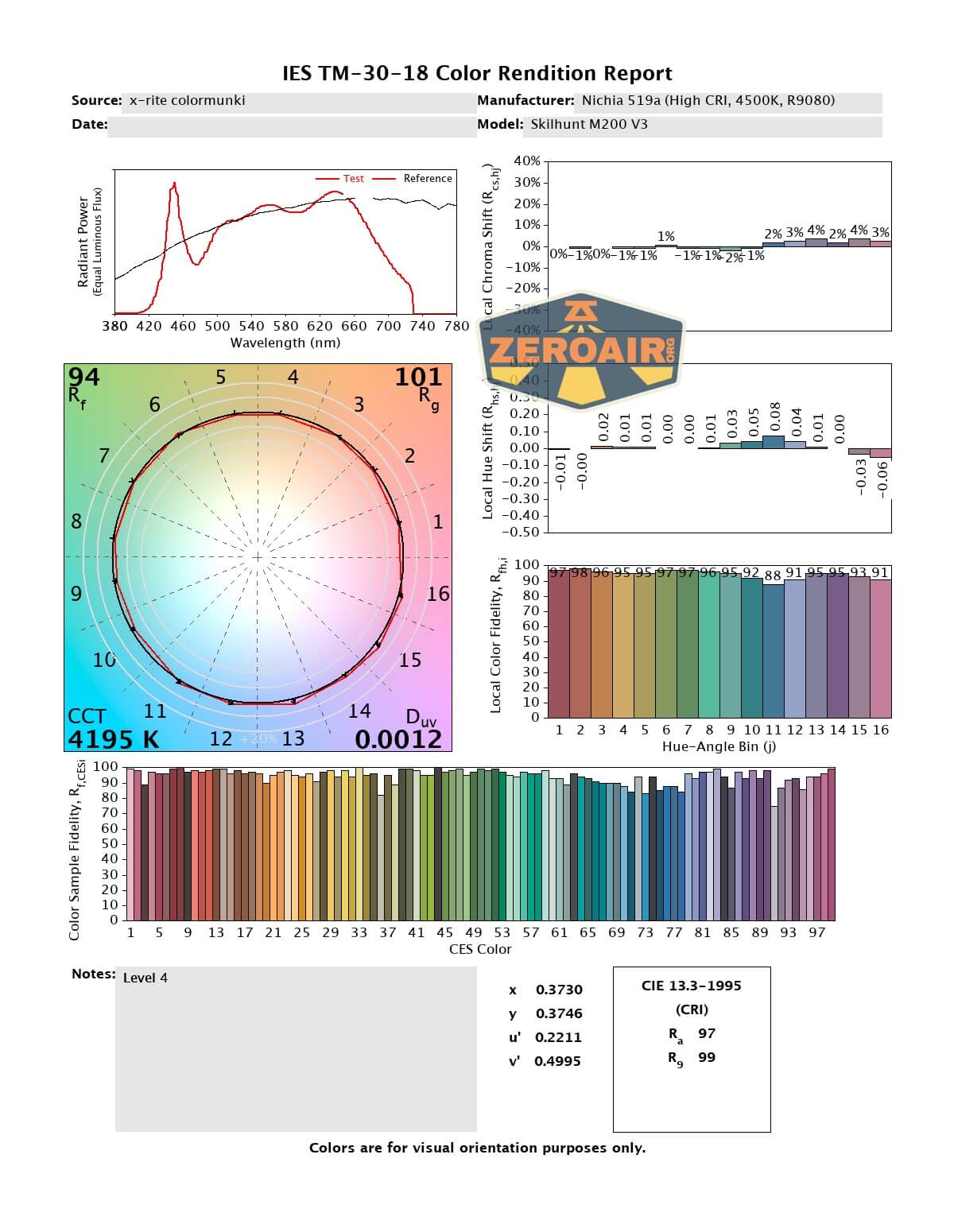

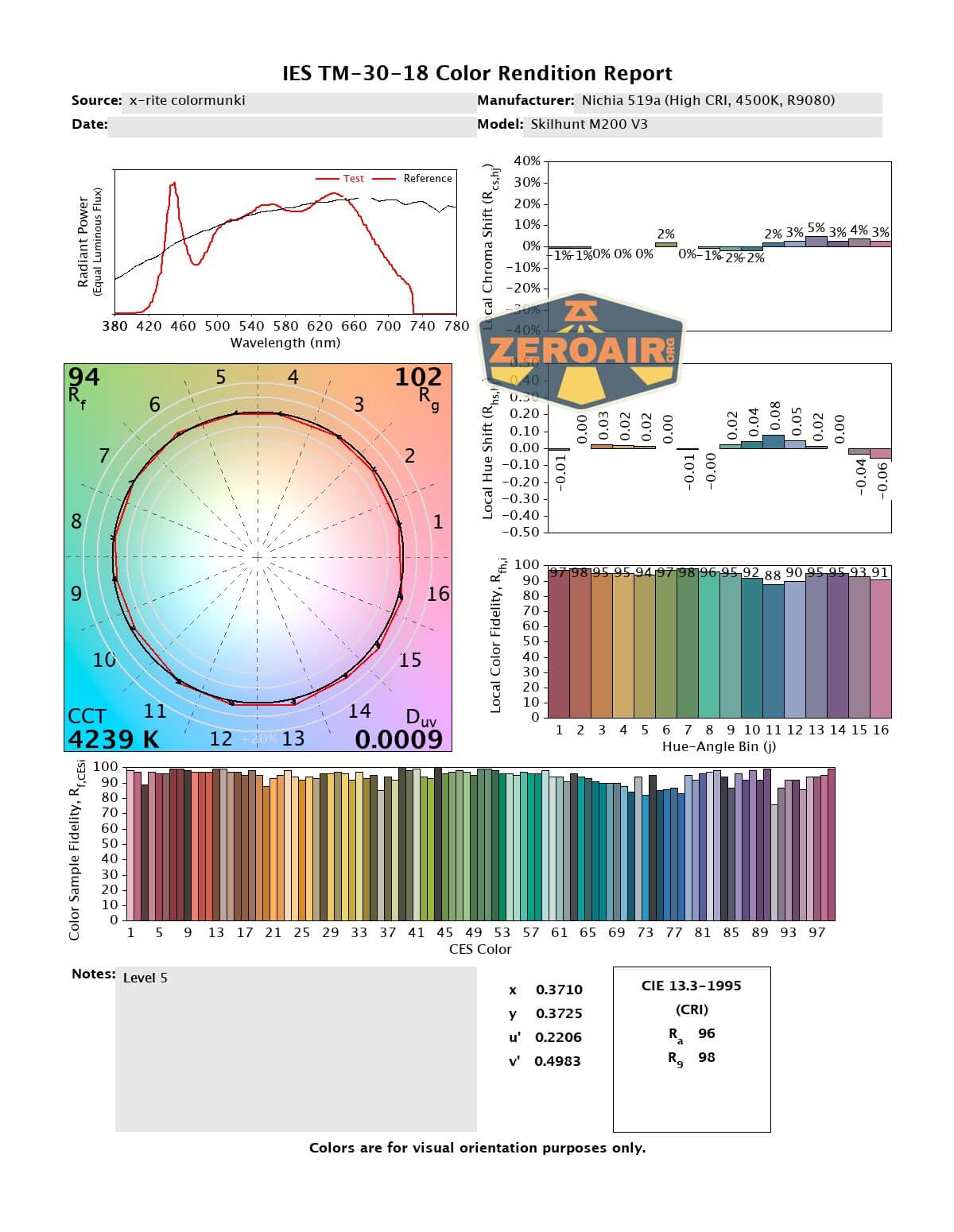

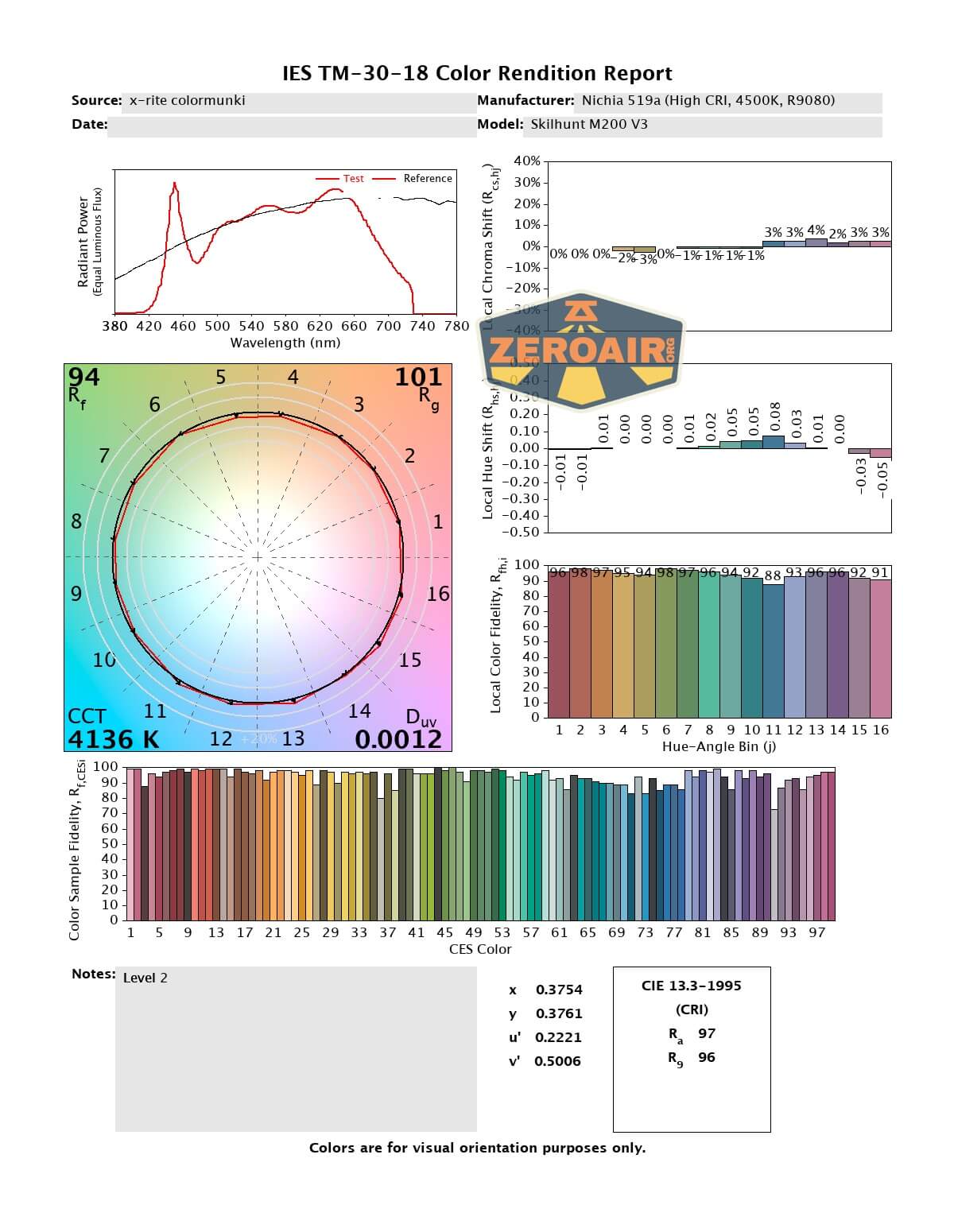

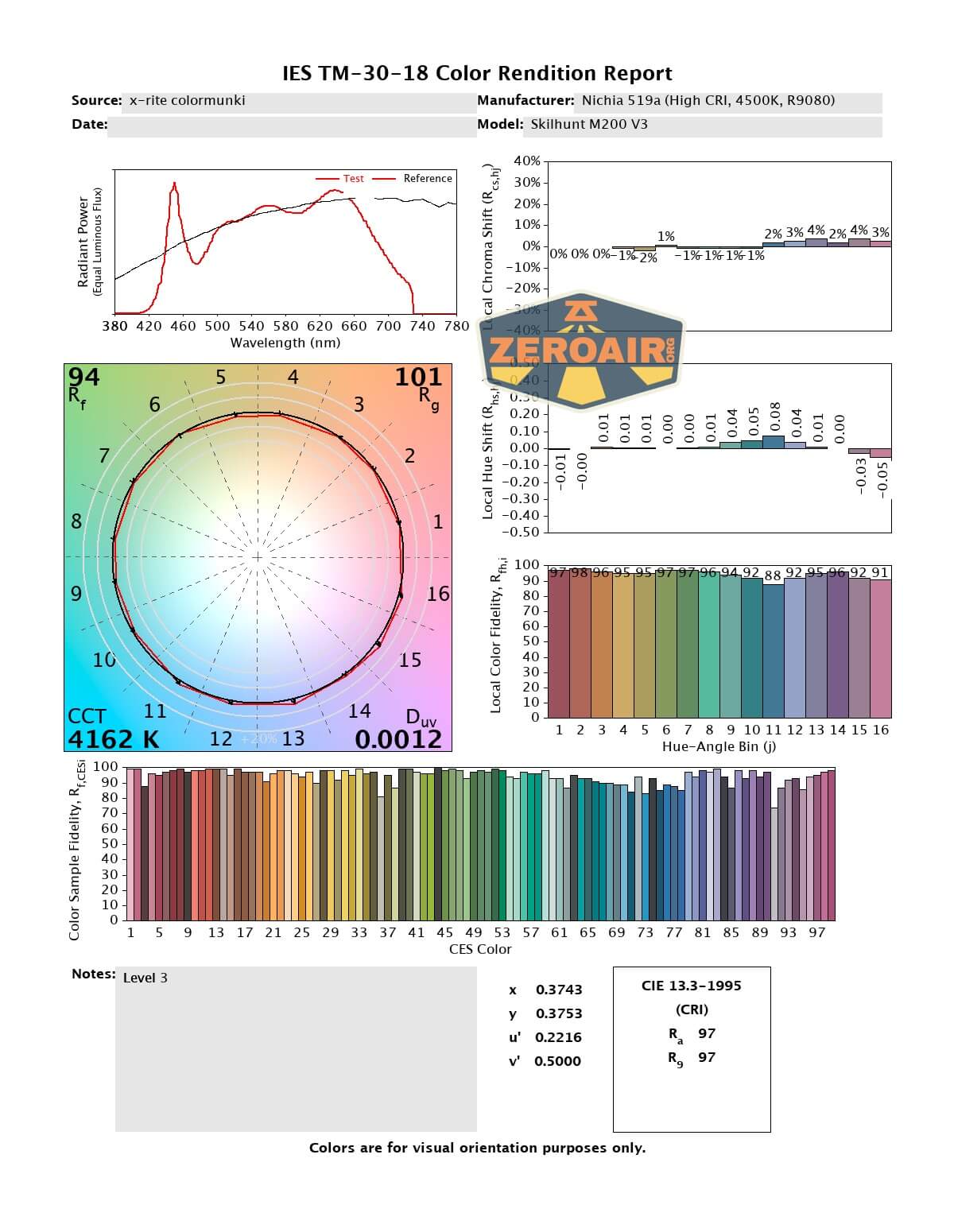

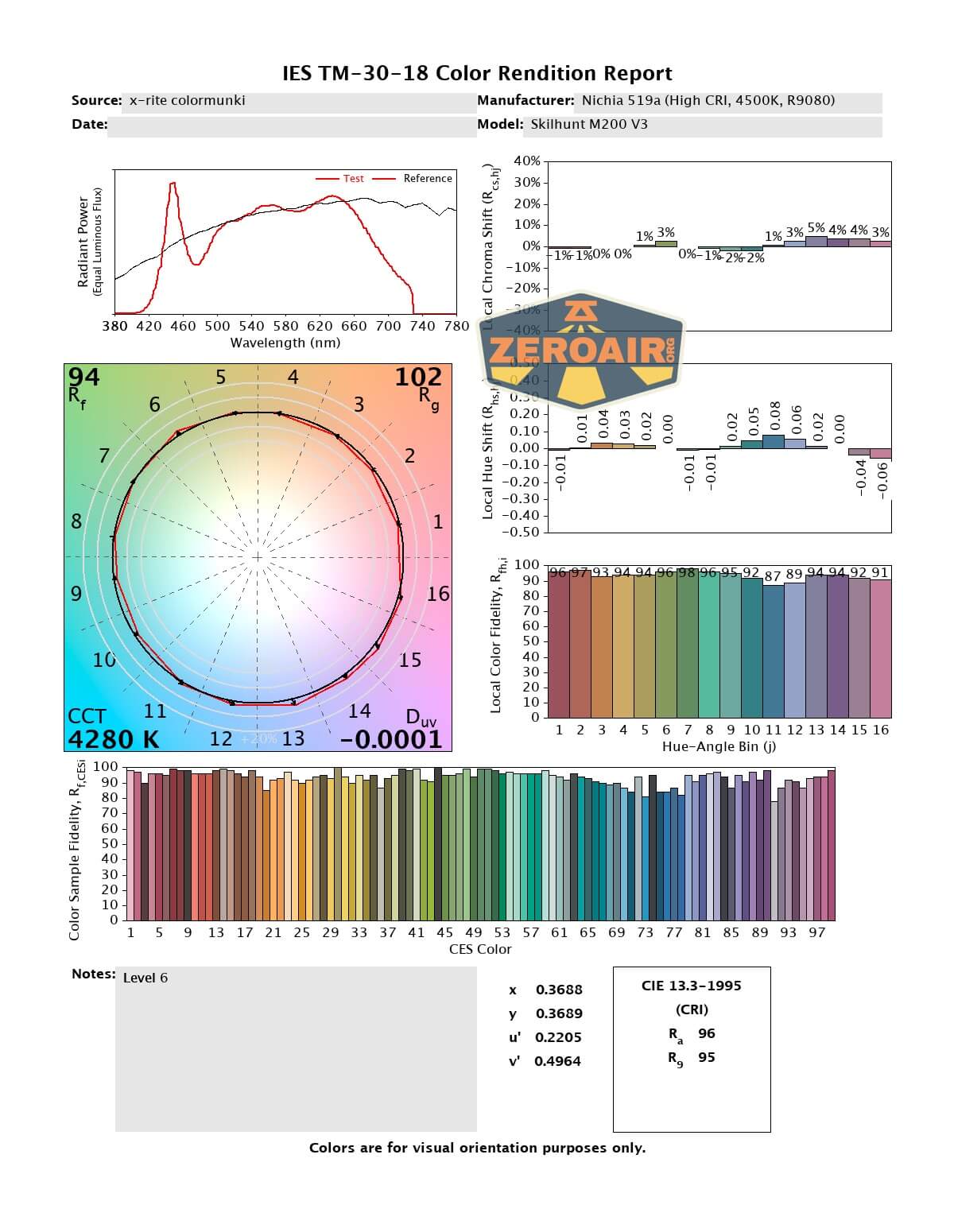

LED Color Report (CRI and CCT)

Check out those circles – the red and black circles. Black is “perfect” or “ideal” and the closer the red (test light) circle comes to the black, the better! This one is one of the best. Great CCT (around 4200K) and very high CRI, at around 97.

Beamshots

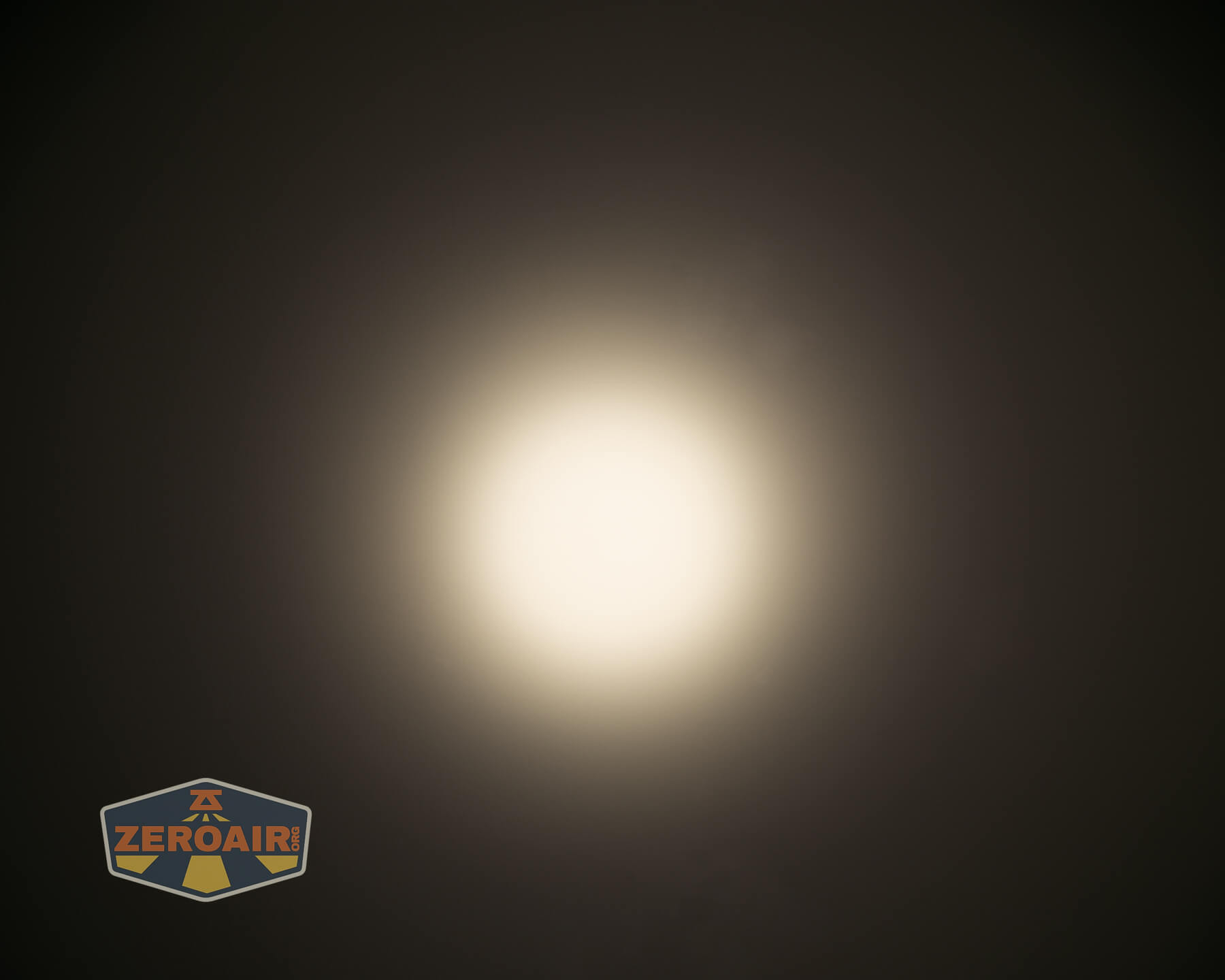

These beamshots are always with the following settings:  f8, ISO100, 0.3s shutter, and manual 5000K exposure.

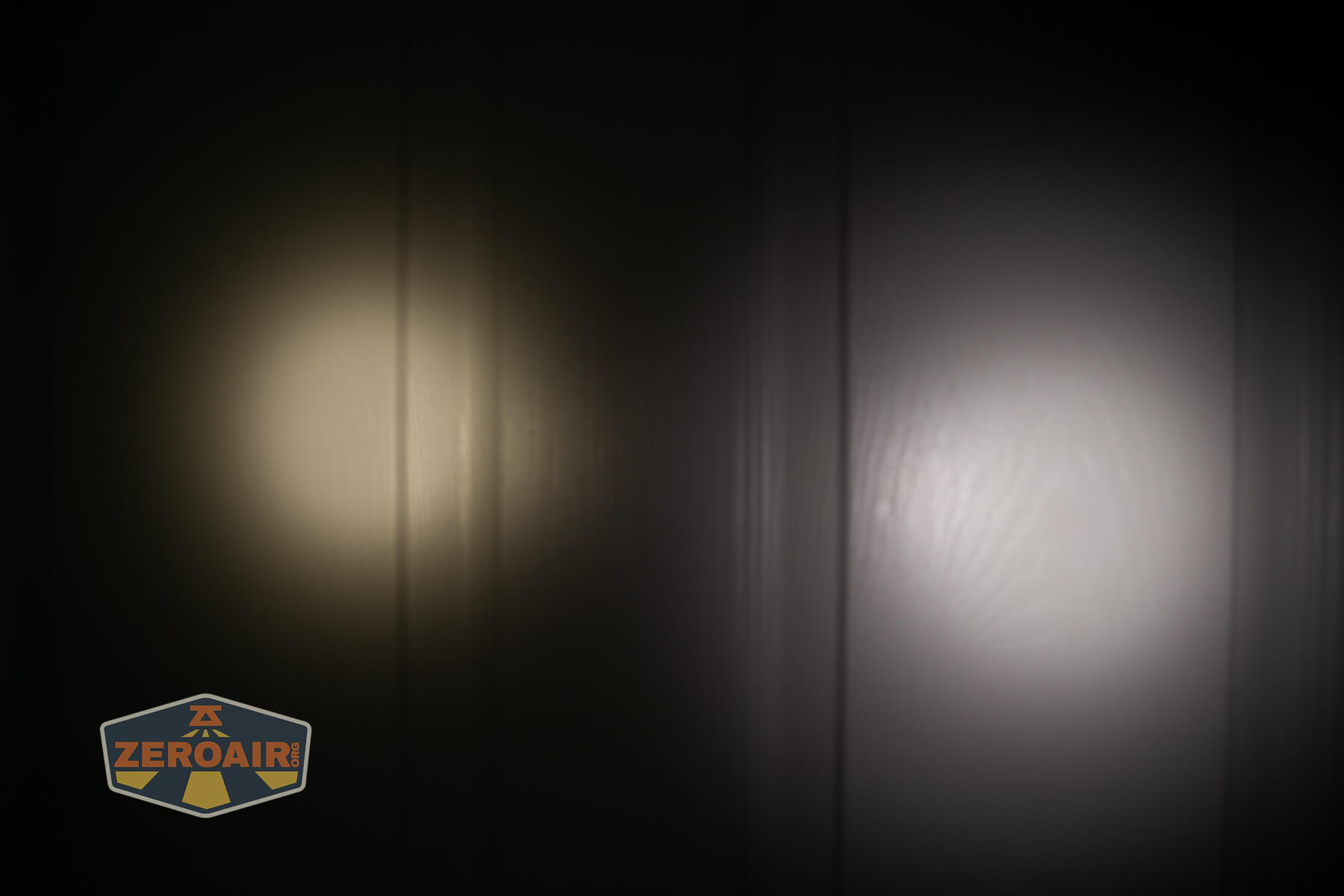

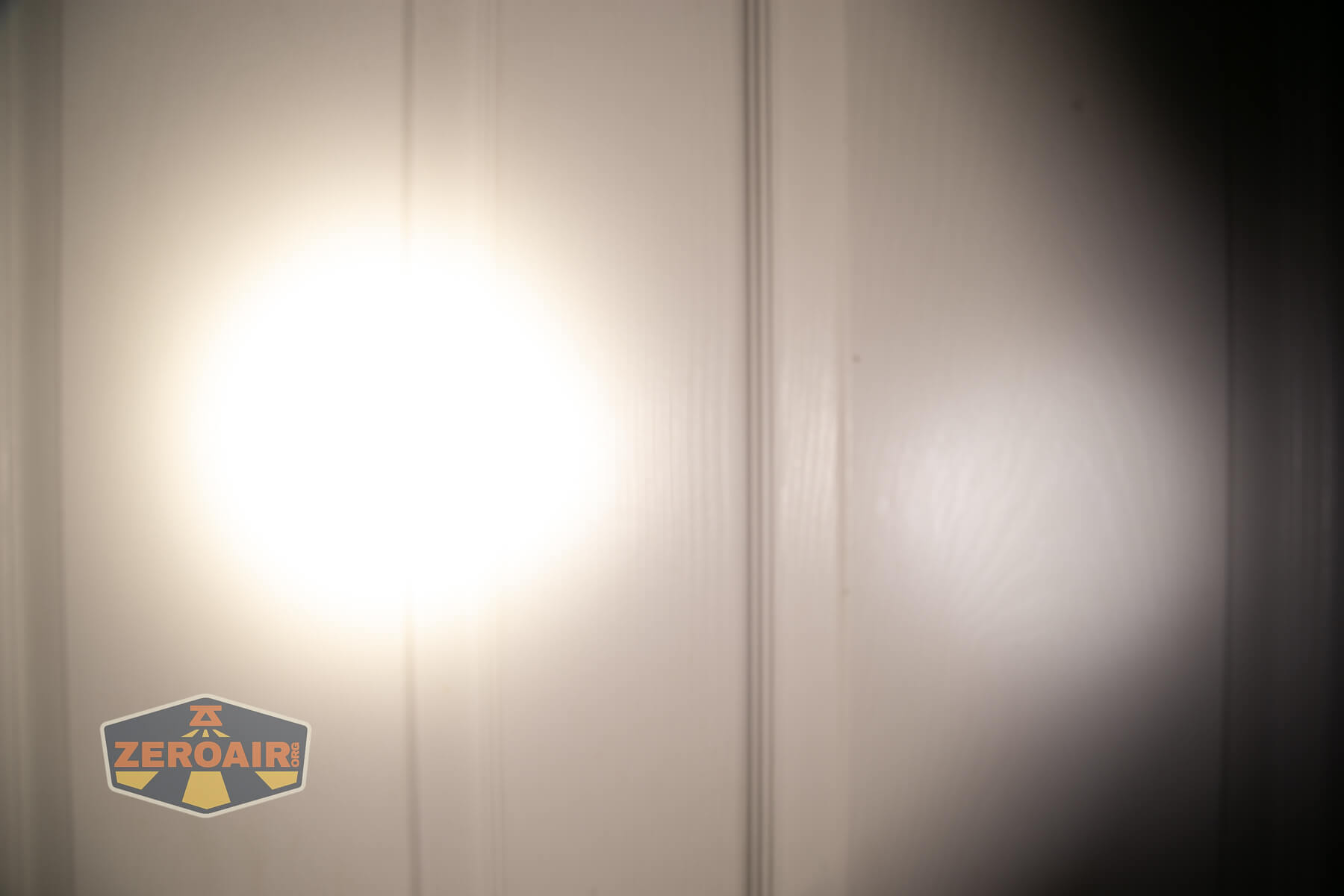

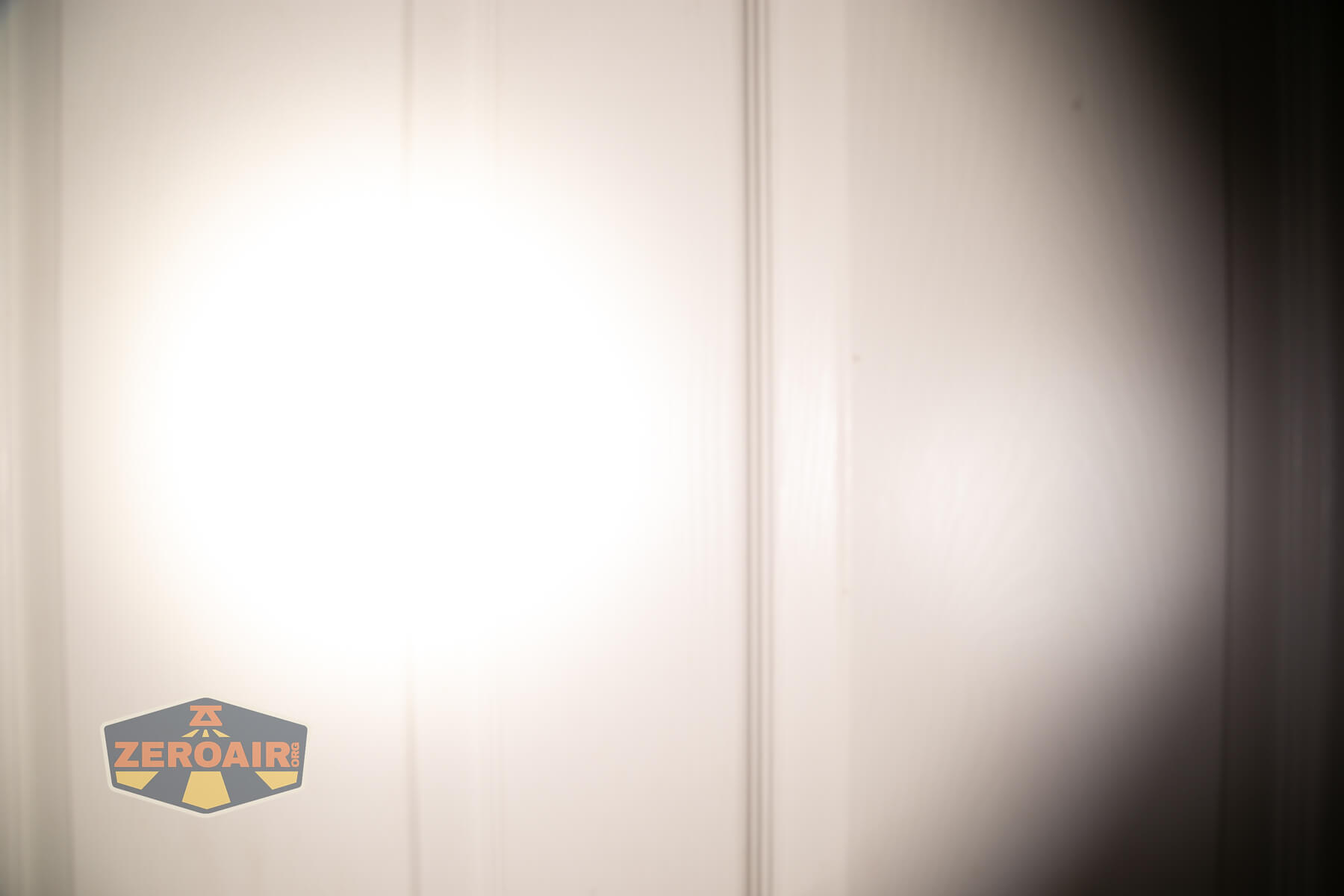

Tint vs BLF-348 (KillzoneFlashlights.com 219b version) (affiliate link)

I keep the test flashlight on the left, and the BLF-348 reference flashlight on the right.

I compare everything to the KillzoneFlashlights.com 219b BLF-348 because it’s inexpensive and has the best tint!



Conclusion

What I like

  • Small for a 18650 flashlight
  • This new Skilhunt UI has something for everyone (and I like the UI)
  • The button is perfectly clicky and ‘pinch to click’ opposite the charge port works nicely too
  • Nice charging built-in
  • Updated pocket clip is fantastic (even though it’s a two-way)
  • Very high CRI
  • Great CCT choice
  • Emitter options for those preferring higher output etc.

What I don’t like

  • Manual is not spec’d for this Nichia 519a emitter
  • Charging requires a proprietary charger cable (but the light runs a standard 18650, so you can also use a bay-charger)
