The TS21 by Wurkkos is a versatile flashlight offering both a very floody beam (in 5000K and great CRI) and a very throwy beam, too! Read on!


Official Specs and Features

Here’s a link to the Wurkkos TS21 flashlight product page.

Versions

There’s sort of just one version because the previous version had different emitters and has been (or “is being”) replaced by this version. The other version used Samsung LD351d emitter for flood. As you will see in this post, the current iteration uses Nichia 519a emitters for flood.

Price

The listed price states “20% off” and shows a discounted price of $85.99. I’d expect that’s basically the street price, and around what you should pay. If you include the cells (as you will see in this review), the price goes up to around $102.


Short Review

I have a weird love/hate relationship with lights like these that offer both flood and throw in one package. I hate that I love them so much…. While I almost always love carrying multiple lights, having both needs (that is “flood” and “throw”) in one light is very useful! As far as this specific light, I can say that it’s also excellent! The two emitter sets can be used separately or together and in just about any combination, which is very useful. Also, the user interface is quite simple. The powerbank feature works quite well, as does the USB-C charging.

Long Review

The Big Table

Wurkkos TS32
Emitter: Luminus SFT-40 and Nichia 519a (12, 5000K) (Both)
Price in USD at publication time: $85.99
Cell: 3×21700
Runtime Graphs
LVP? Yes
Switch Type: E-Switch
Quiescent Current (mA): ?
On-Board Charging? Yes
Charge Port Type: USB-C
Power off Charge Port “with cells: all modes
without cells (or even body): lowest few modes”
Claimed Lumens (lm) 13000
Measured Lumens (at 30s) 10023 (77.1% of claim)^
Candela per Lumen 26.9
Claimed Throw (m) 584
Candela (Calculated) in cd (at 30s) 2460lux @ 6.024m = 89270cd
Throw (Calculated) (m) 597.6 (102.3% of claim)^
Claimed CCT
Measured CCT Range (K) 6400 Kelvin
Item provided for review by: Wurkkos
All my Wurkkos reviews!
Wurkkos TS32
Emitter: Nichia 519a (Flood (12 emitters, 5000K))
Price in USD at publication time: $85.99
Cell: 3×21700
Turbo Runtime Graph High Runtime Graph
LVP? Yes
Switch Type: E-Switch
Quiescent Current (mA): ?
On-Board Charging? Yes
Charge Port Type: USB-C
Charge Graph
Power off Charge Port “with cells: all modes
without cells (or even body): lowest few modes”
Claimed Lumens (lm) 12000
Measured Lumens (at 30s) 9447 (78.7% of claim)^
Candela per Lumen 3.2
Claimed Throw (m) 584
Candela (Calculated) in cd (at 30s) 1148lux @ 6.12m = 42998cd
Throw (Calculated) (m) 414.7 (71% of claim)^
Claimed CCT 5000
Measured CCT Range (K) 4800-5200 Kelvin
Item provided for review by: Wurkkos
All my Wurkkos reviews!
Wurkkos TS32
Emitter: Luminus SFT-40 (Throw)
Price in USD at publication time: $85.99
Cell: 3×21700
Turbo Runtime Graph High Runtime Graph
LVP? Yes
Switch Type: E-Switch
Quiescent Current (mA): ?
On-Board Charging? Yes
Charge Port Type: USB-C
Charge Graph
Power off Charge Port “with cells: all modes
without cells (or even body): lowest few modes”
Claimed Lumens (lm) 2000
Measured Lumens (at 30s) 1806 (90.3% of claim)^
Candela per Lumen 55.2
Claimed Throw (m) 584
Candela (Calculated) in cd (at 30s) 2730lux @ 6.111m = 101950cd
Throw (Calculated) (m) 638.6 (109.3% of claim)^
Claimed CCT
Measured CCT Range (K) 5900-6900 Kelvin
Item provided for review by: Wurkkos
All my Wurkkos reviews!

^ Measurement disclaimer:  I am an amateur flashlight reviewer.  I don’t have $10,000 or even $1,000 worth of testing equipment.  I test output and such in PVC tubes!!  Please consider claims within 10% of what I measure to be perfectly reasonable (accurate, even).

What’s Included

Wurkkos TS21 flashlight what's included

  • Wurkkos TS21 flashlight
  • Wurkkos 5000mAh 21700 (3)
  • Handle (attached)
  • Charging cable (USB to USB-C)
  • Cell adapter (for flat-top cells)
  • Spare o-rings (2)
  • Manual

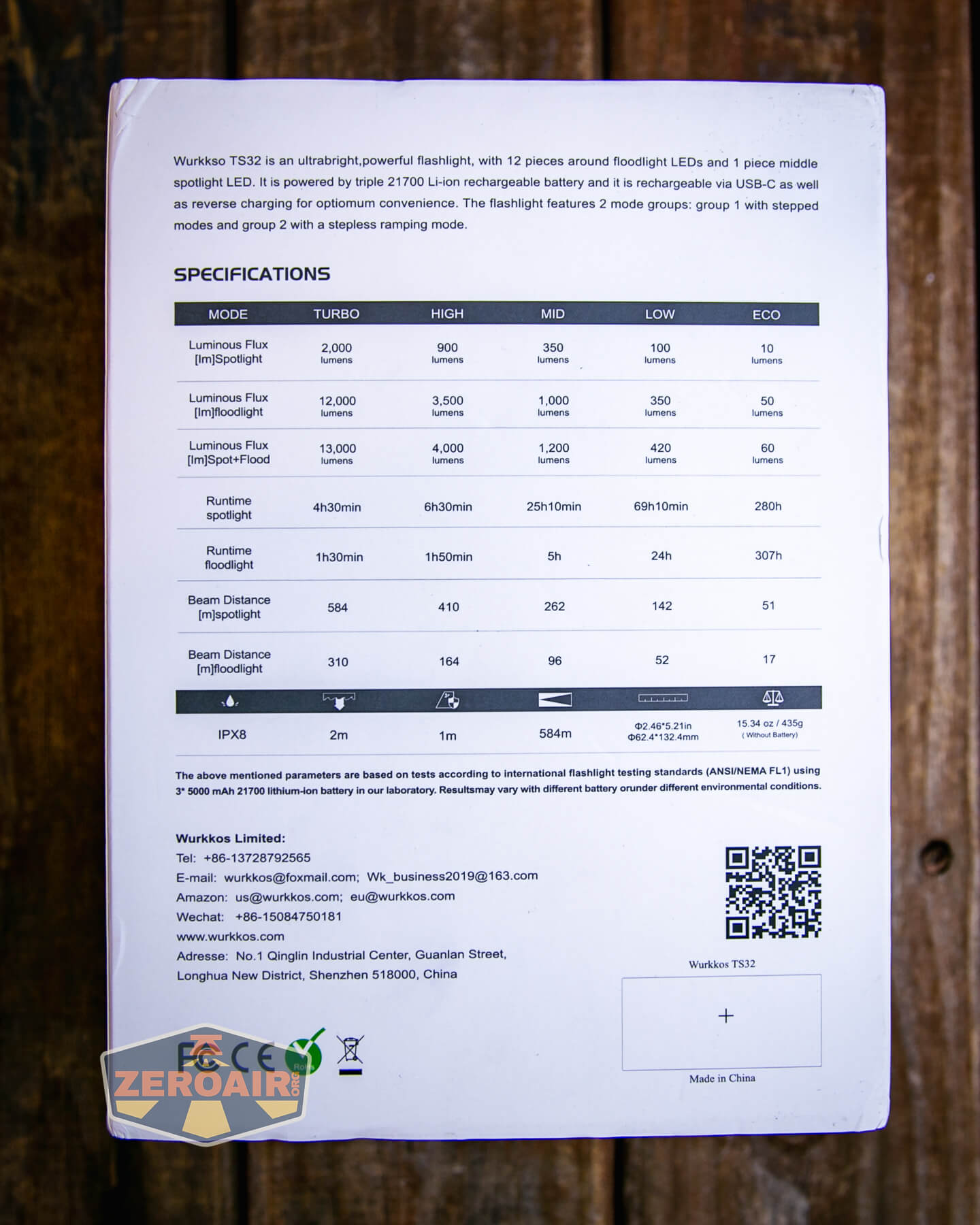

Package and Manual

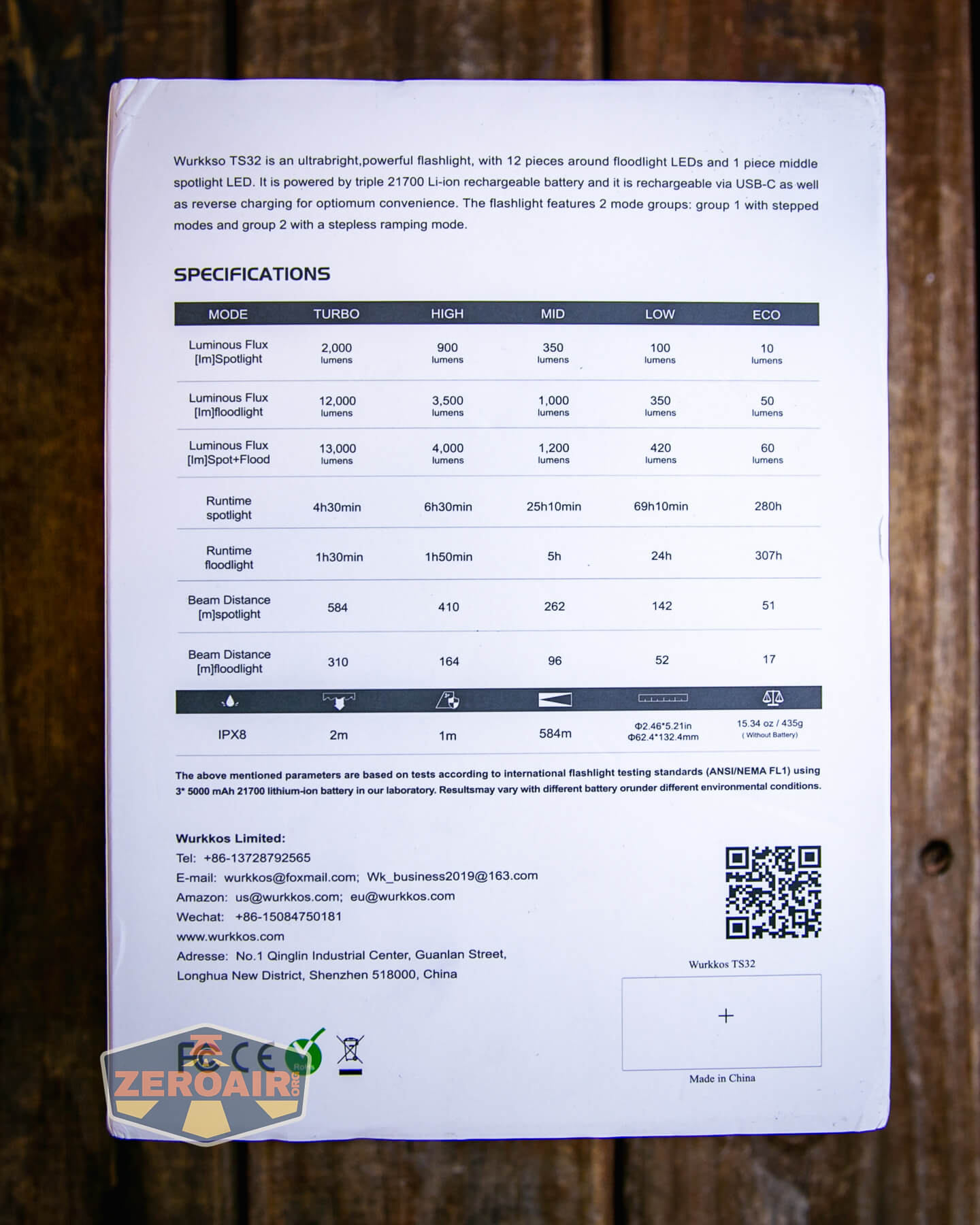

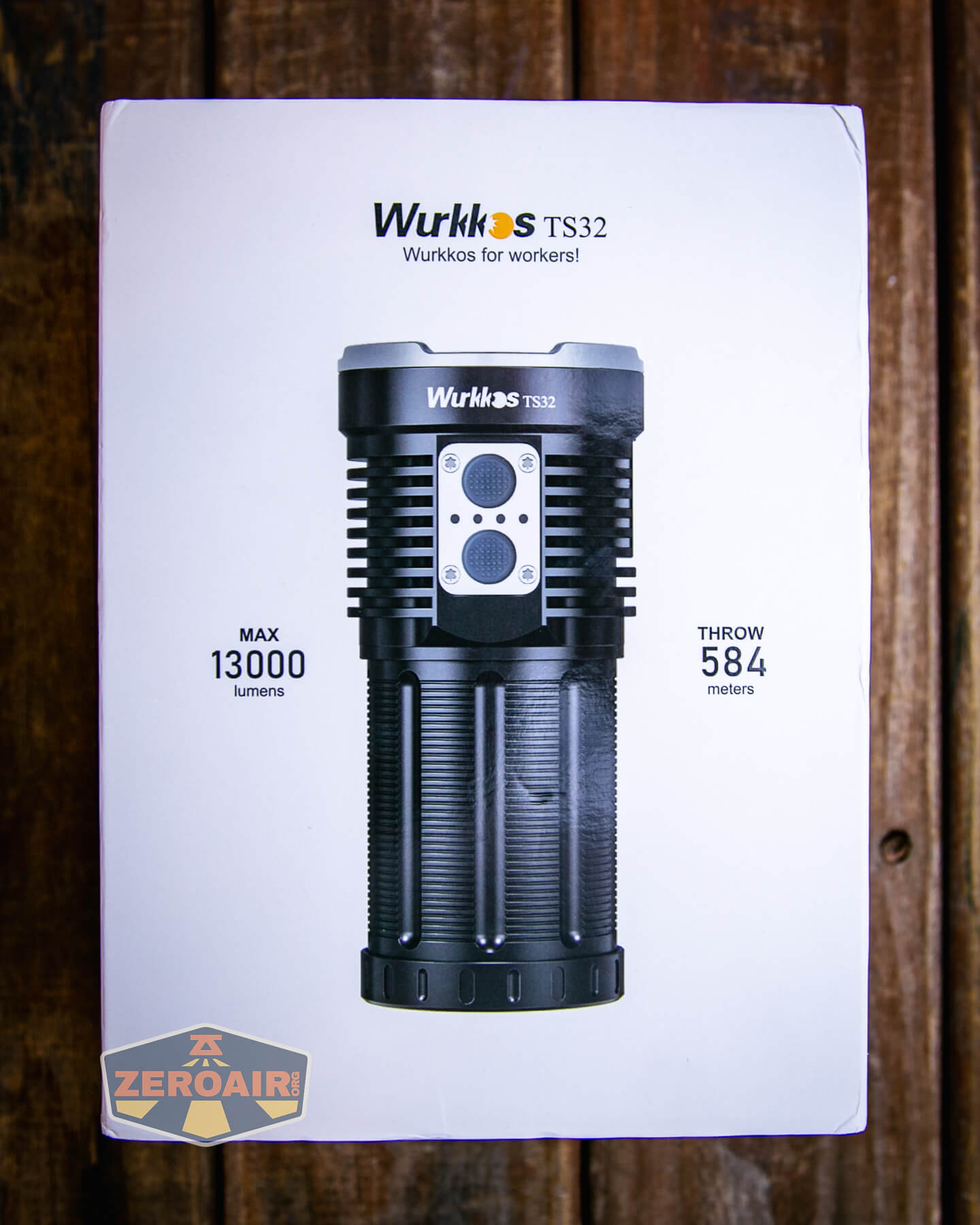

Wurkkos TS21 flashlight package

manual

Build Quality and Disassembly

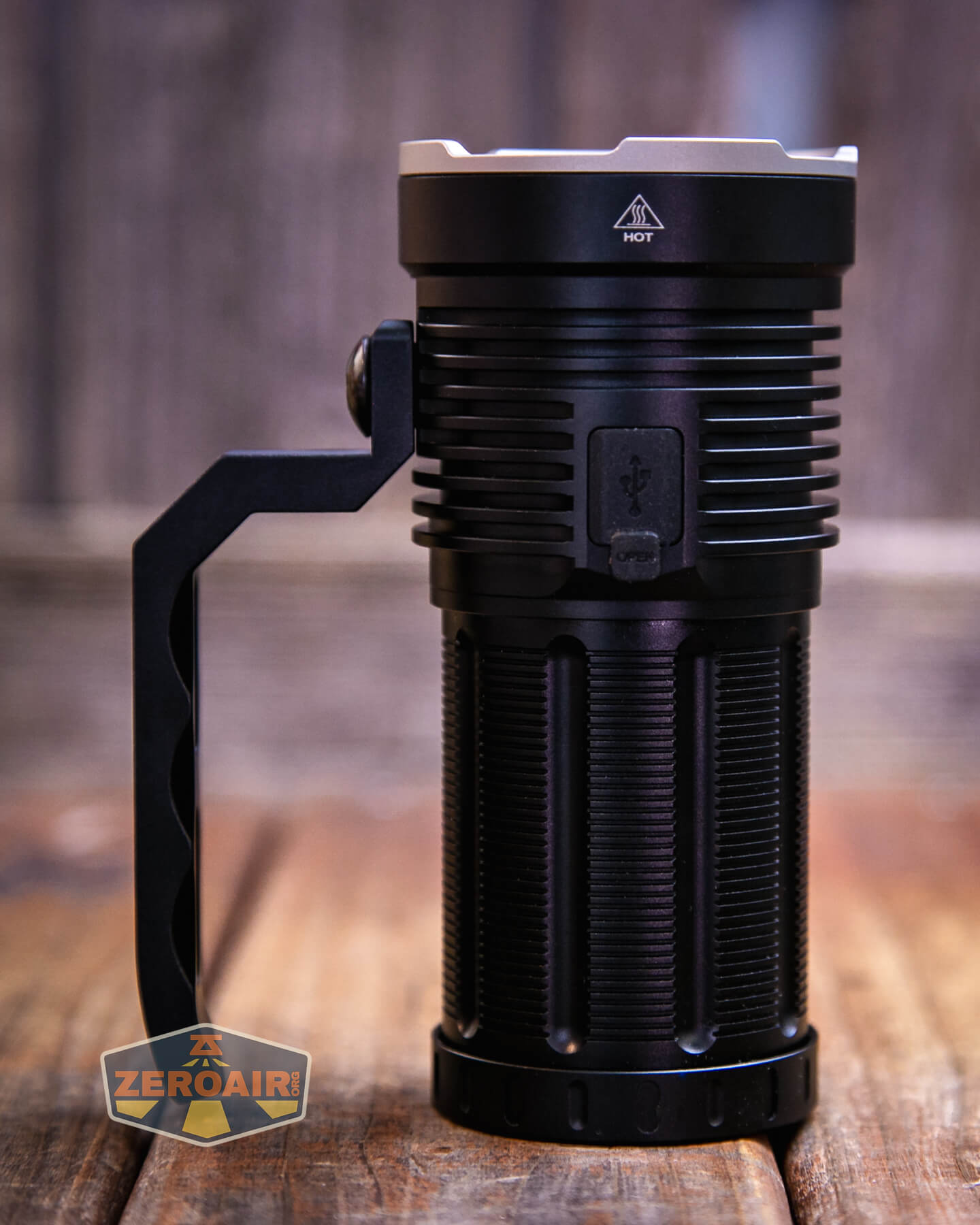

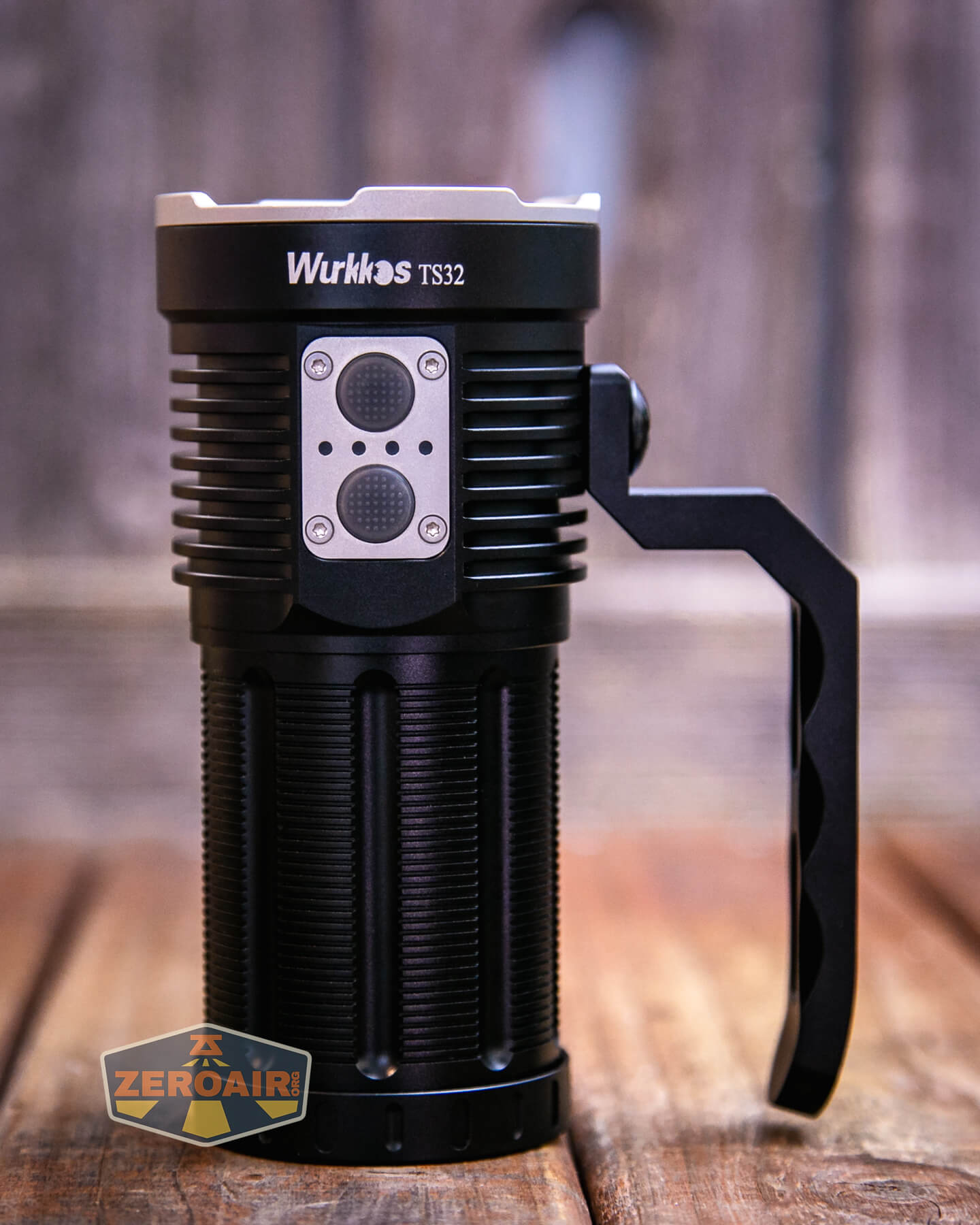

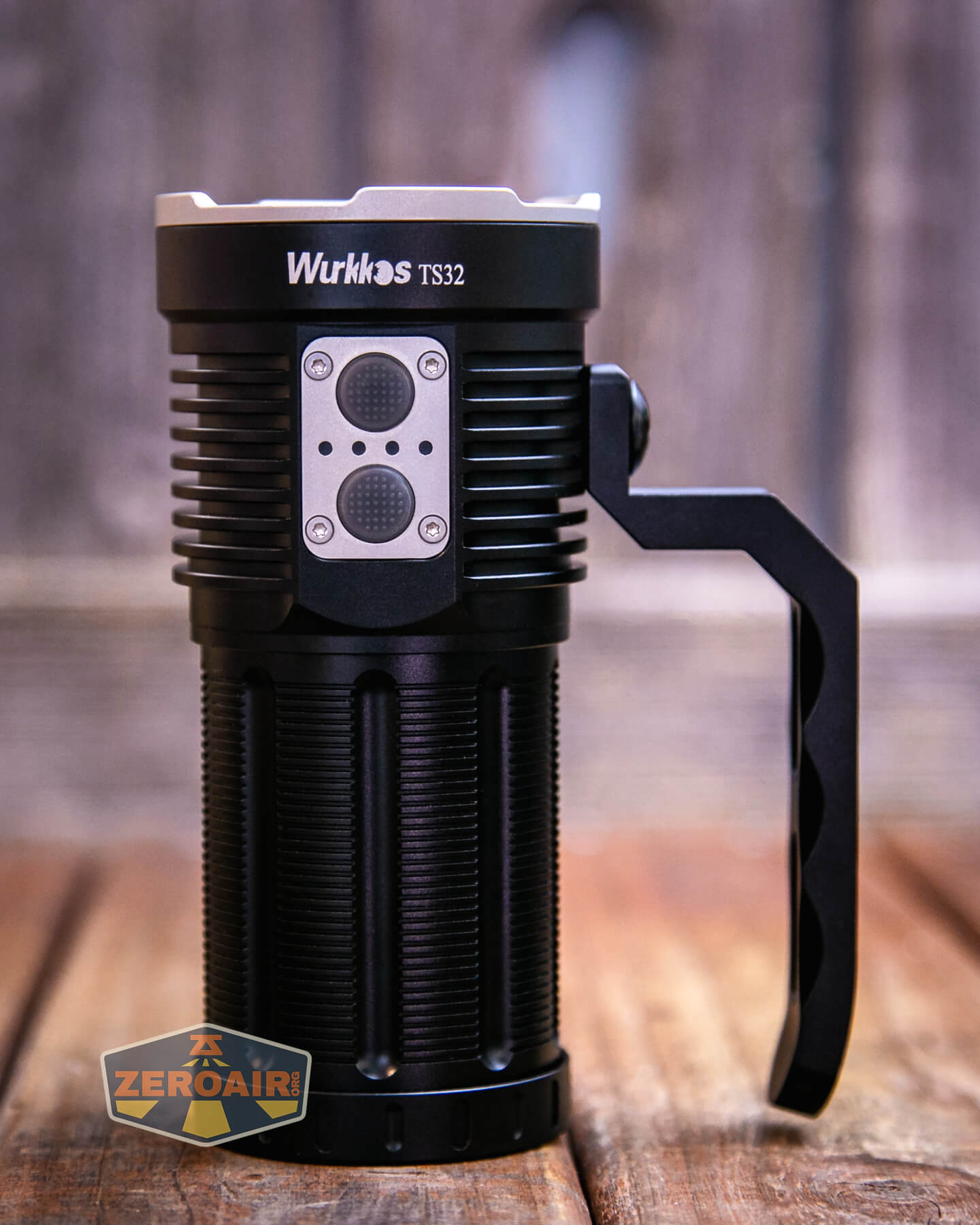

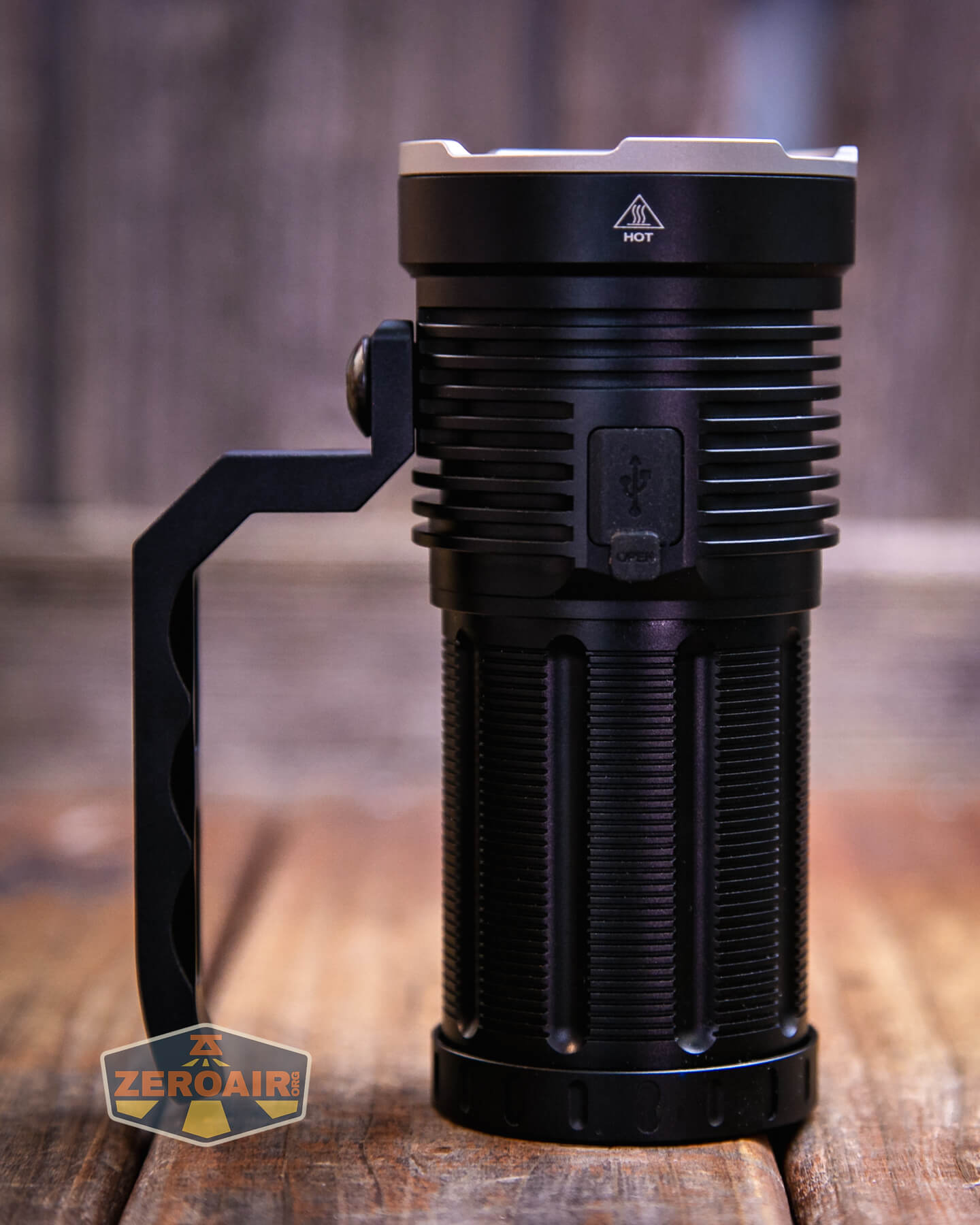

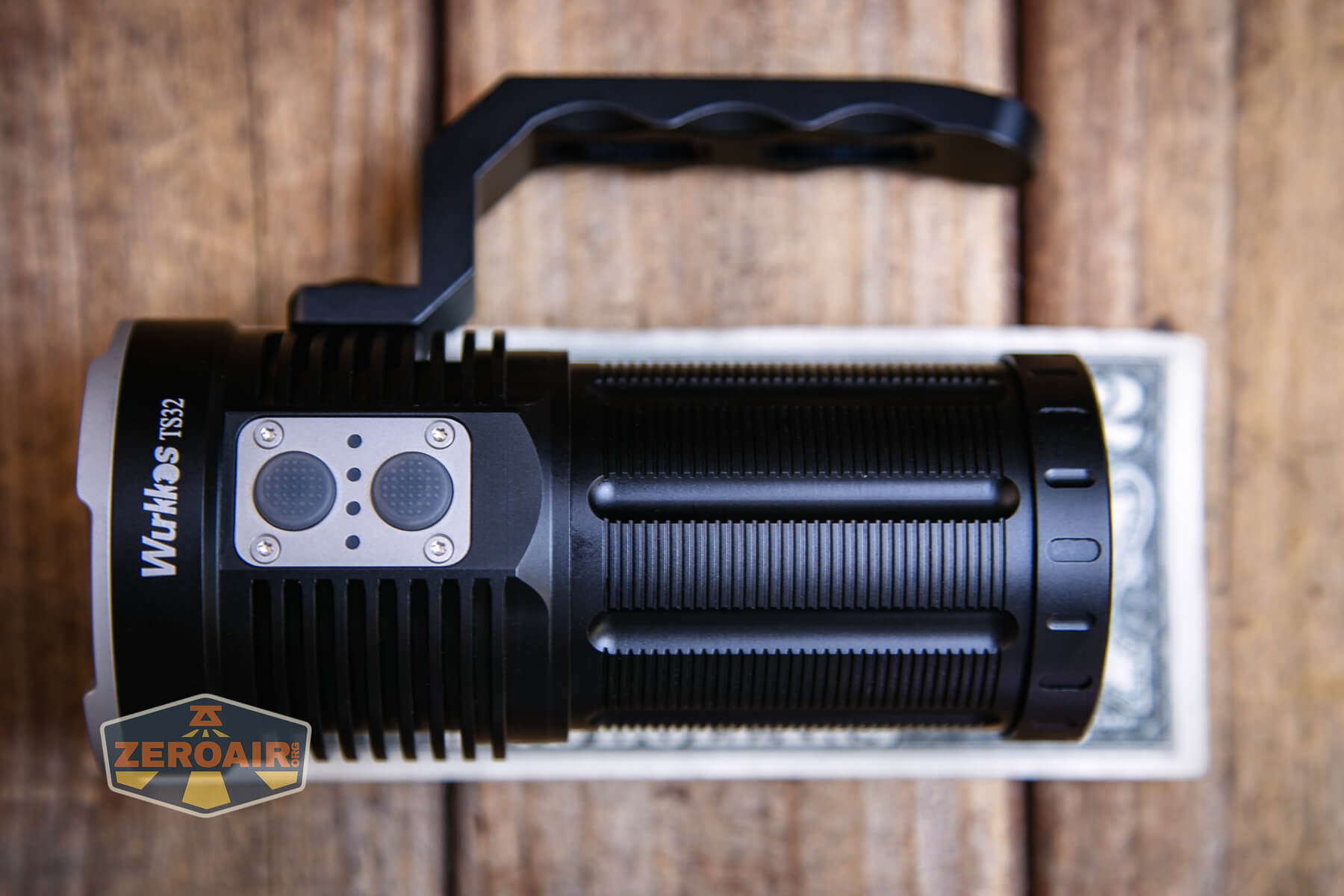

Wurkkos TS21 flashlight

Wurkkos builds nice quality lights with fairly low cost. This is no exception, and what you get at the purchase price seems to hit pretty hard.

You may know that I love lights with handles – this is a good handle with an “okay” connection. The connection is sort of keyed and the handle will go to exactly where it should go. Well – more on all this later. Suffice to say that the build quality of the handle is just fine.

There are nice solid contact points on the head.

Wurkkos TS21 flashlight contacts

Overall the build quality is great.

Size and Comps

Dimension: 132.4mm (length) x 62.4mm (head diameter)
Weight: 435 ±1 grams (without battery)

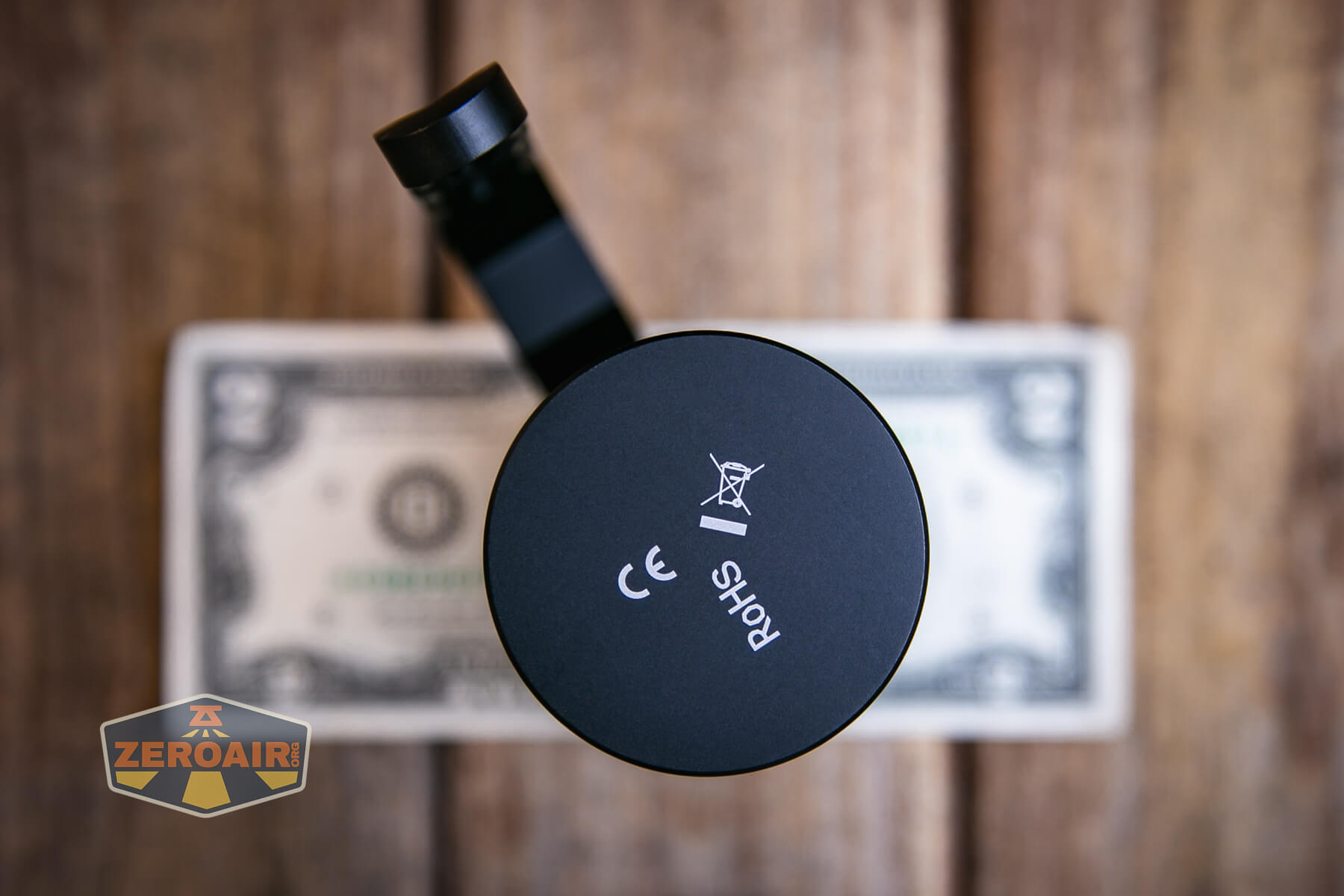

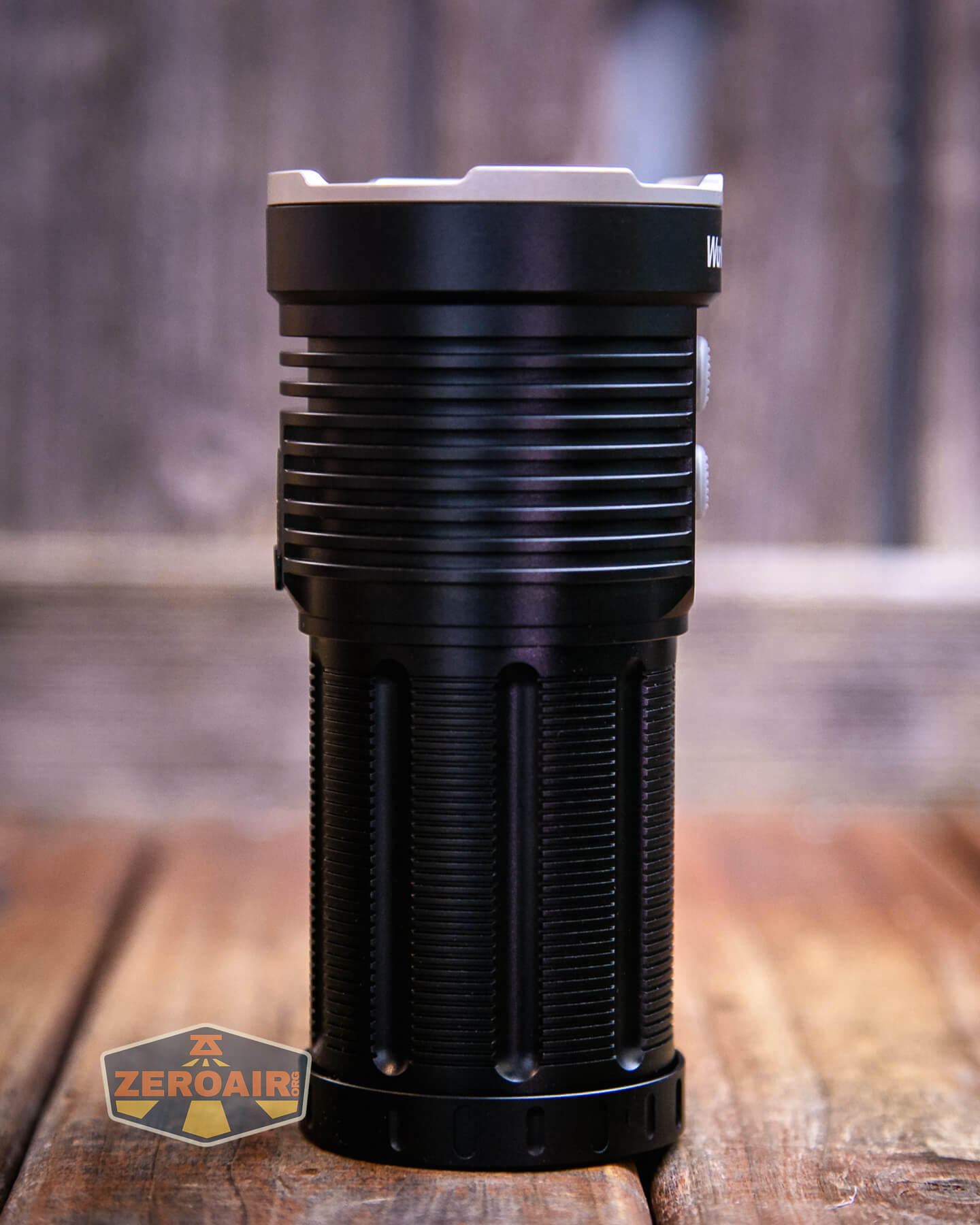

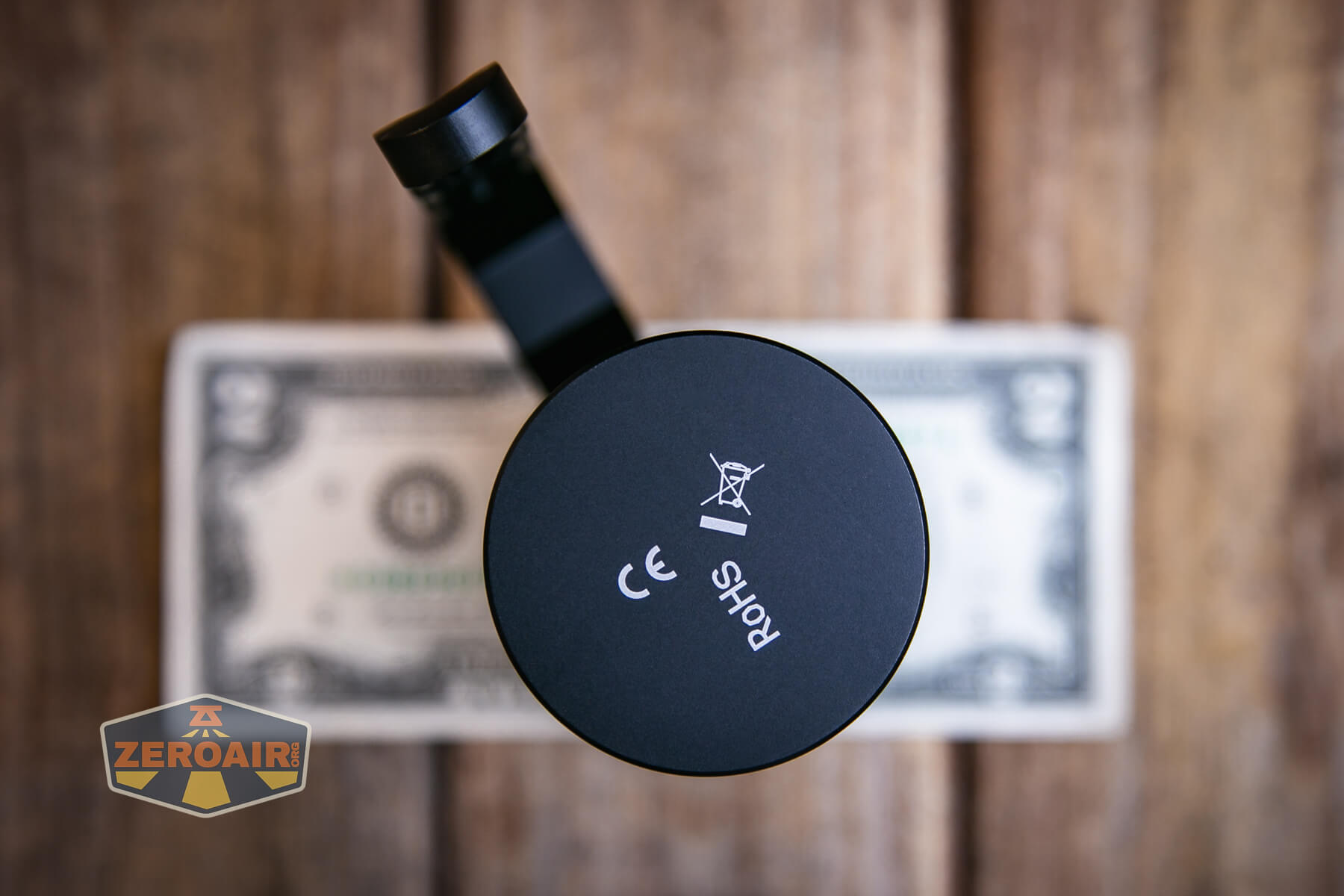

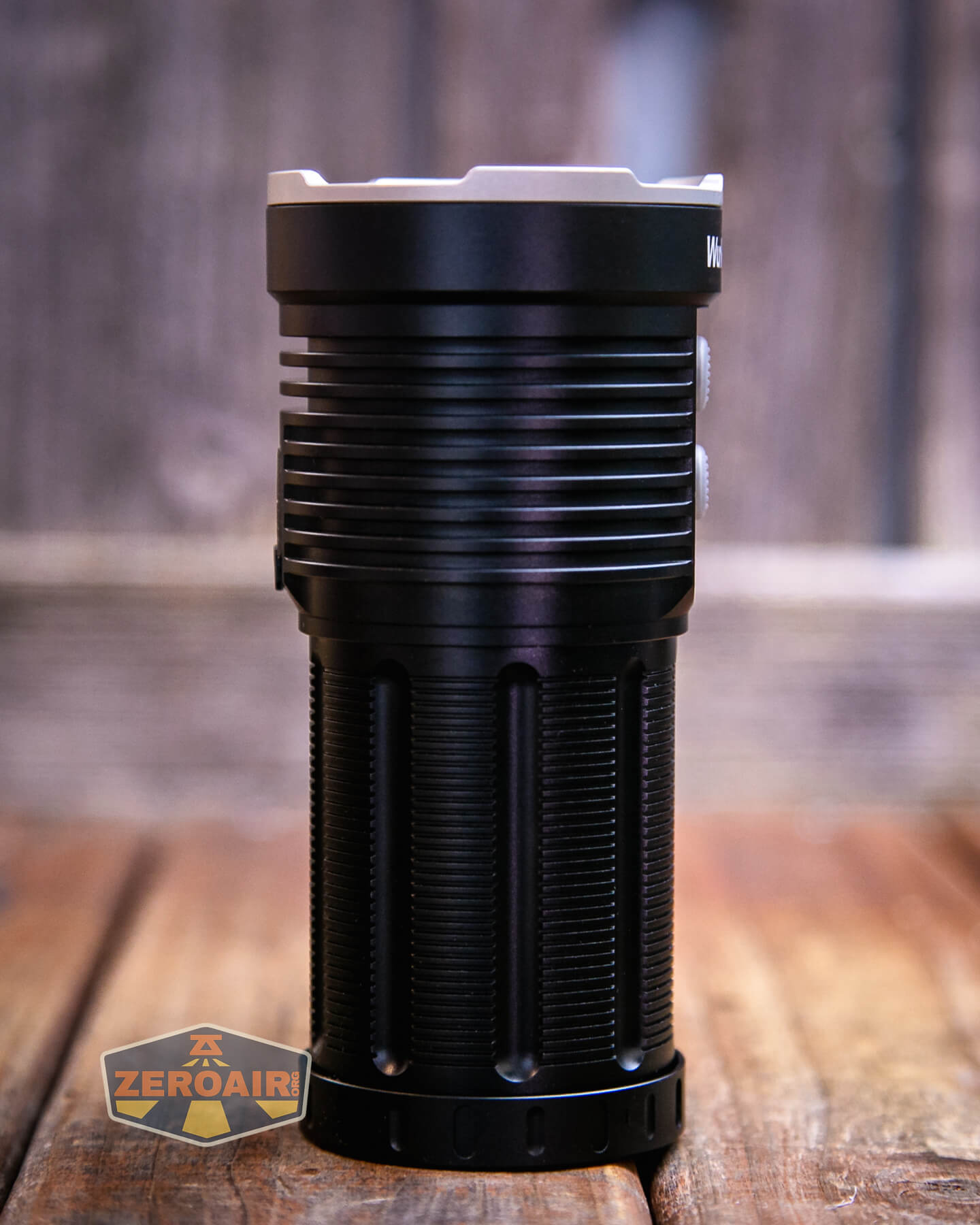

If the flashlight will headstand, I’ll show it here (usually the third photo).  If the flashlight will tailstand, I’ll also show that (usually in the fourth photo).

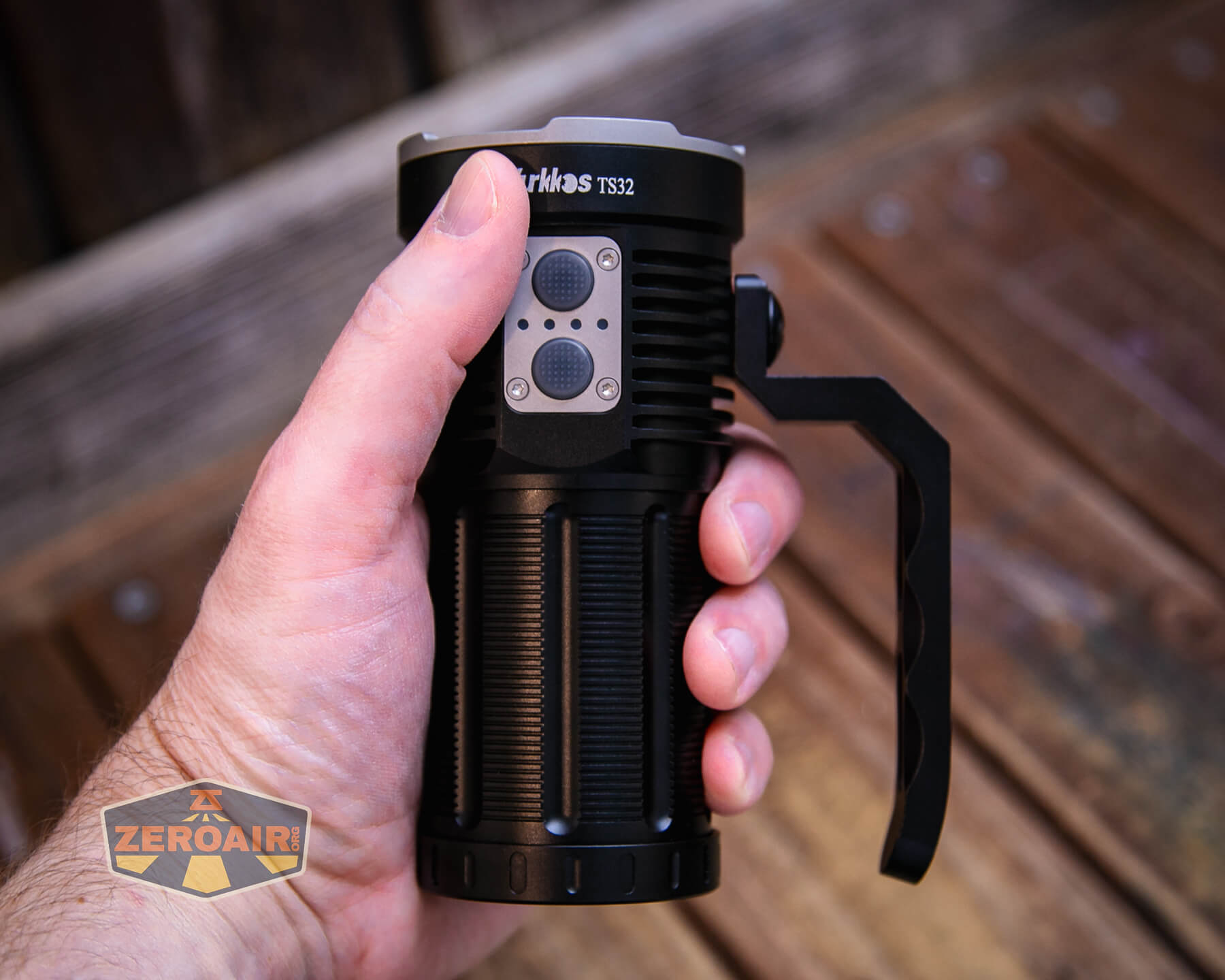

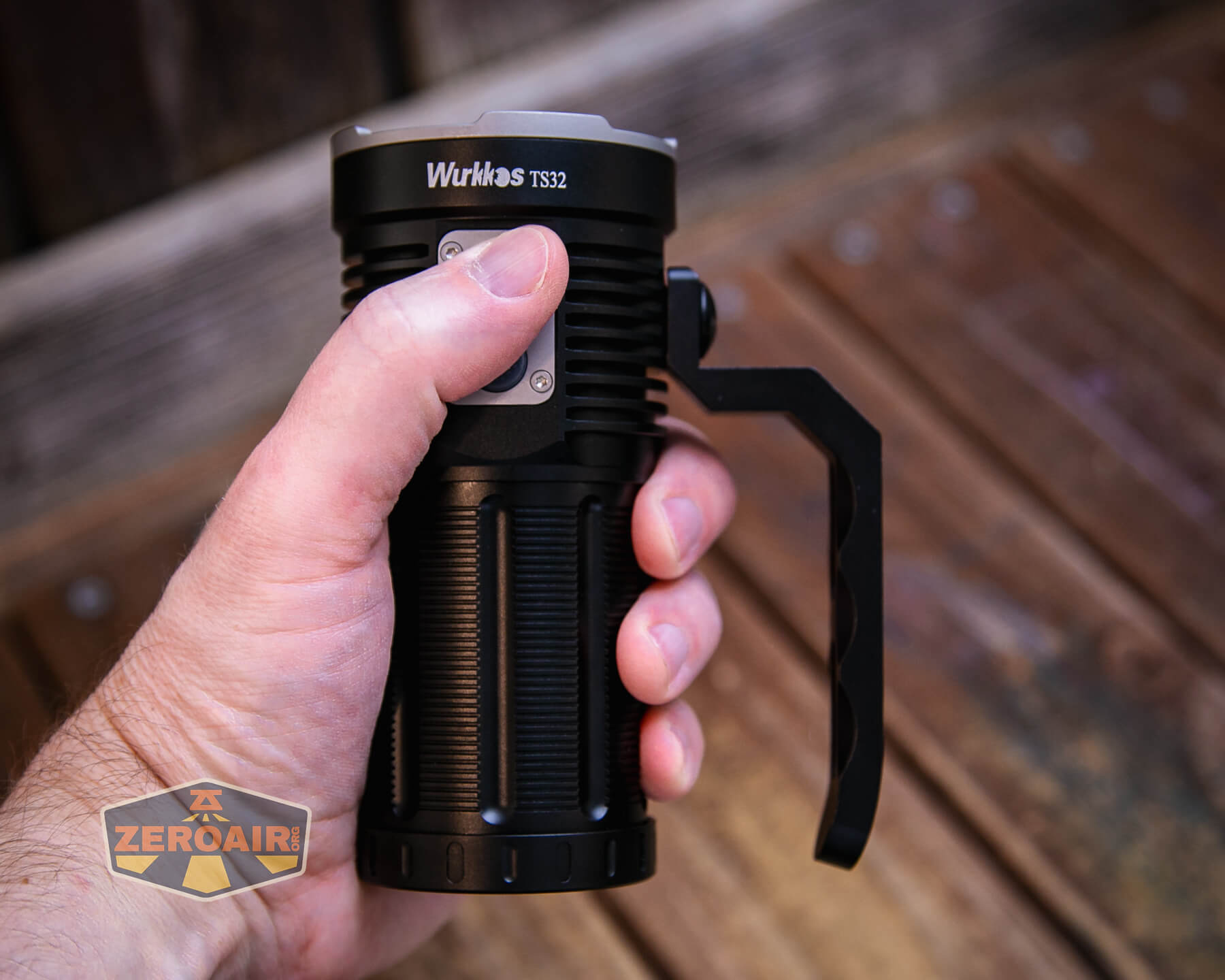

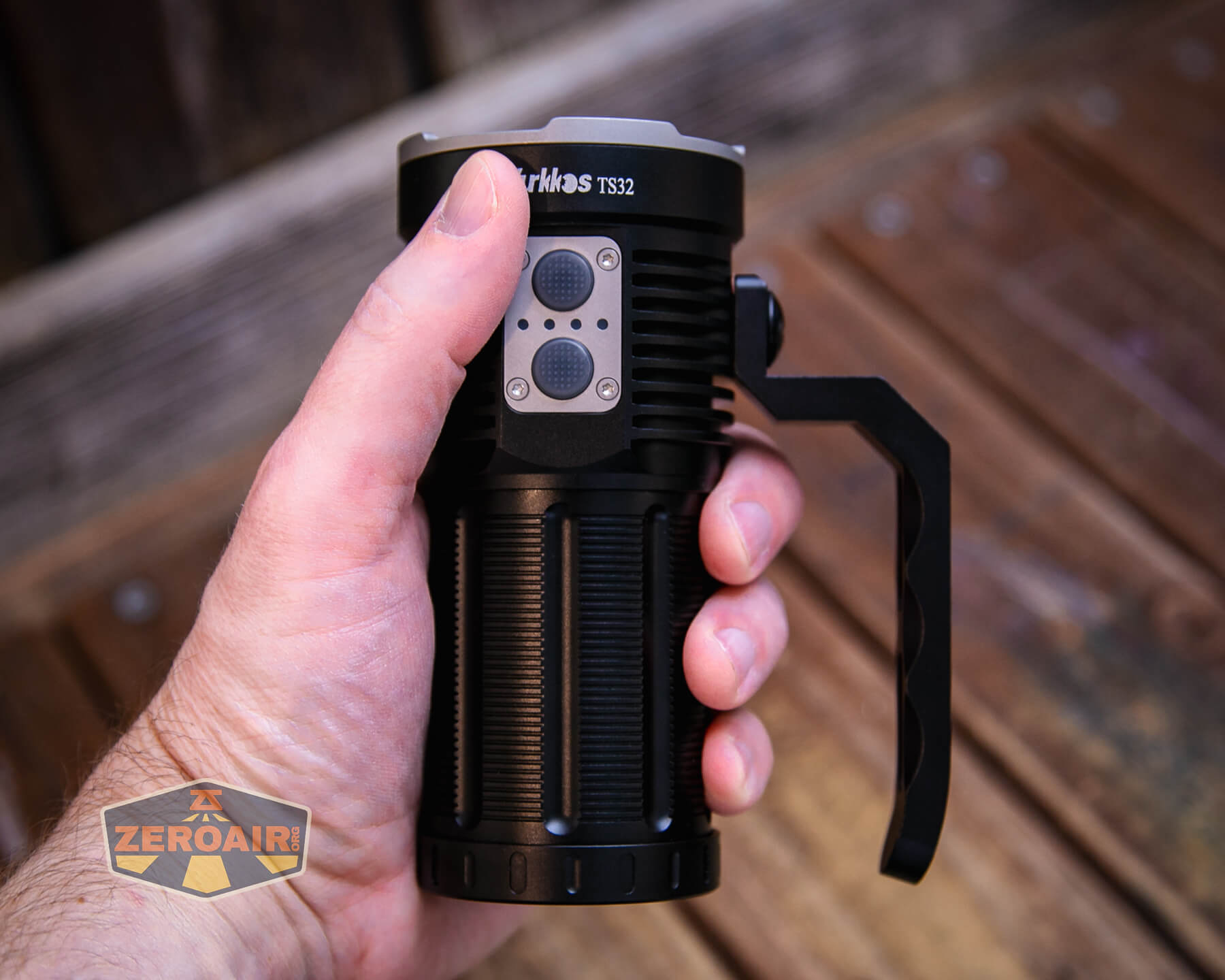

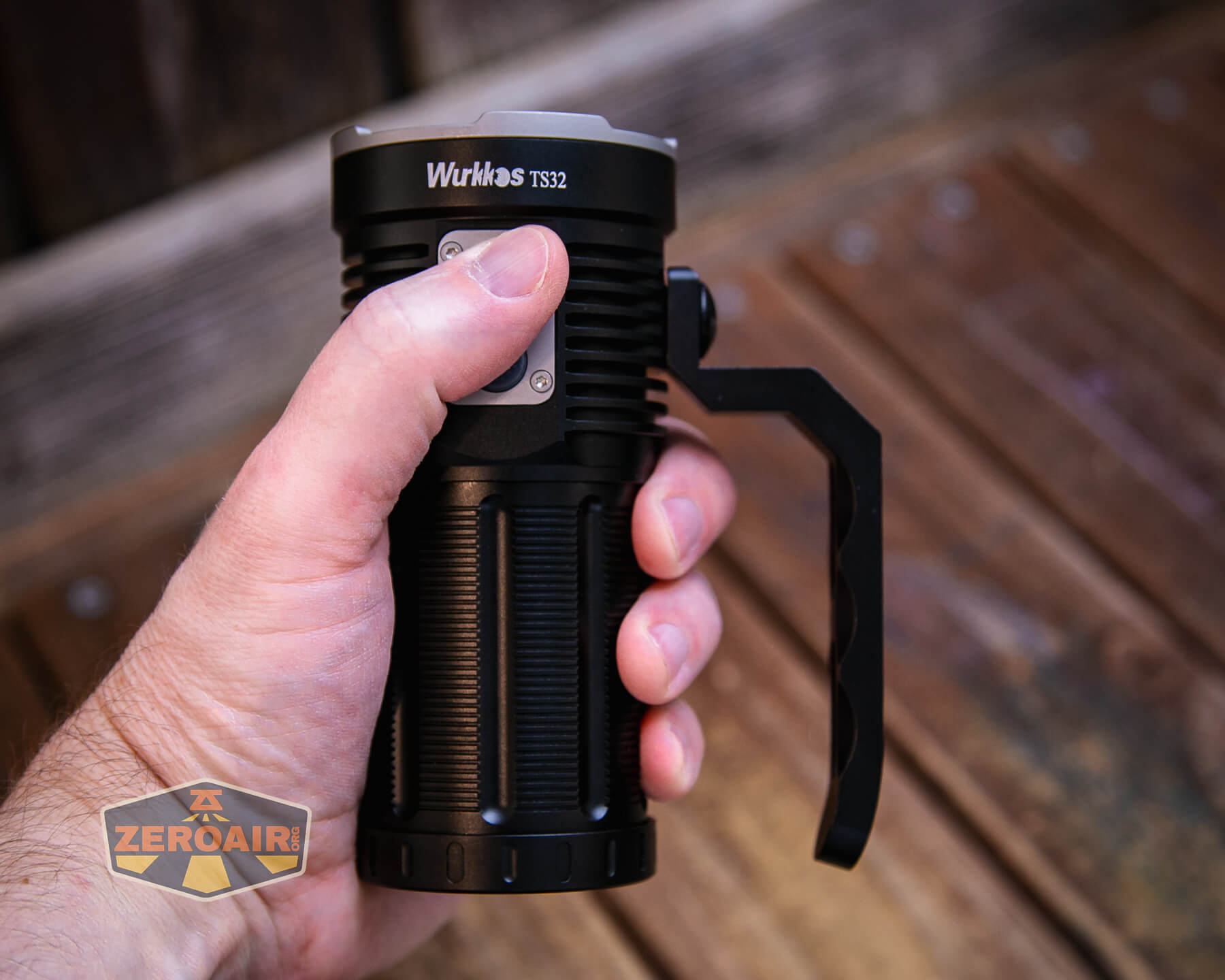

Wurkkos TS21 flashlight in hand

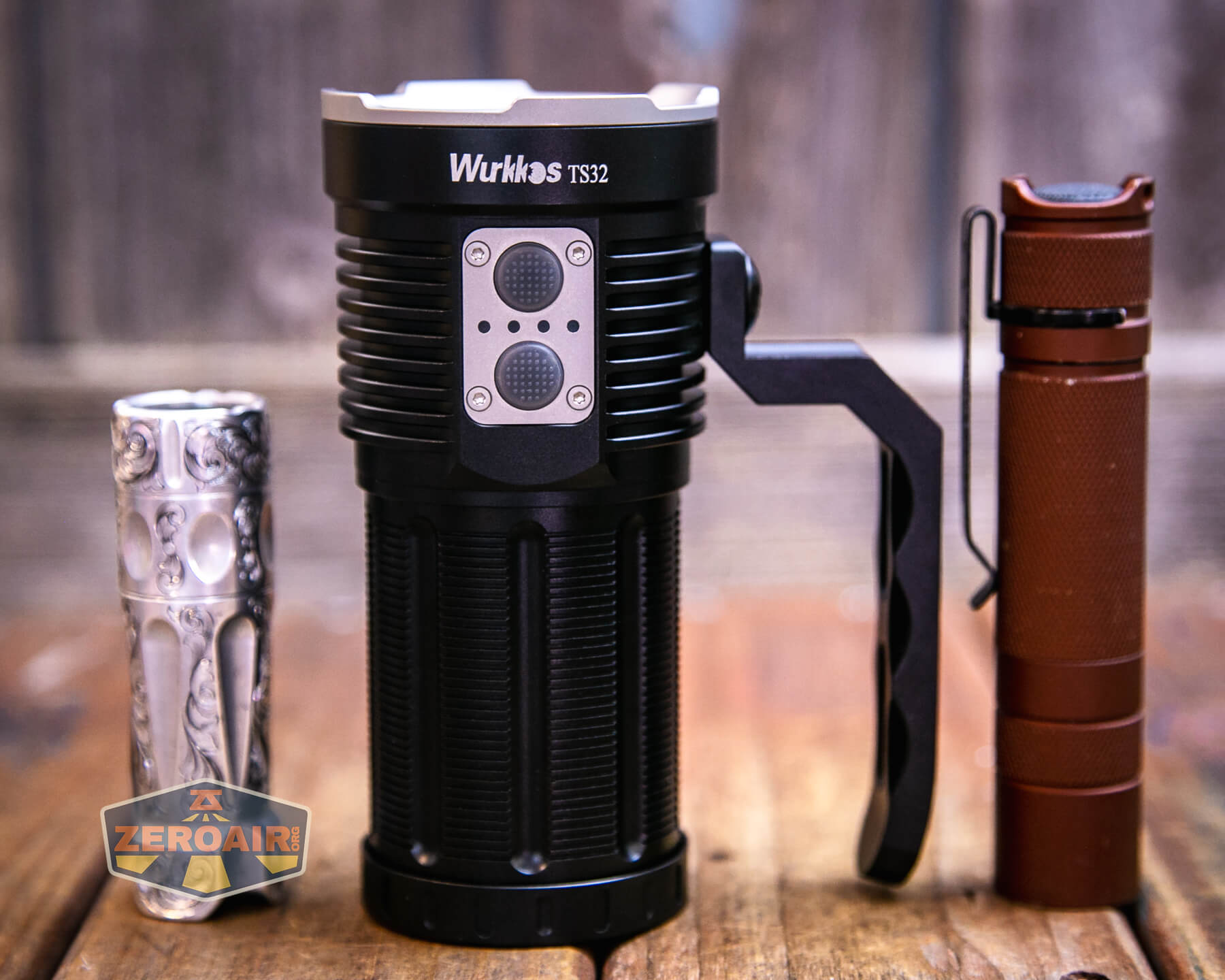

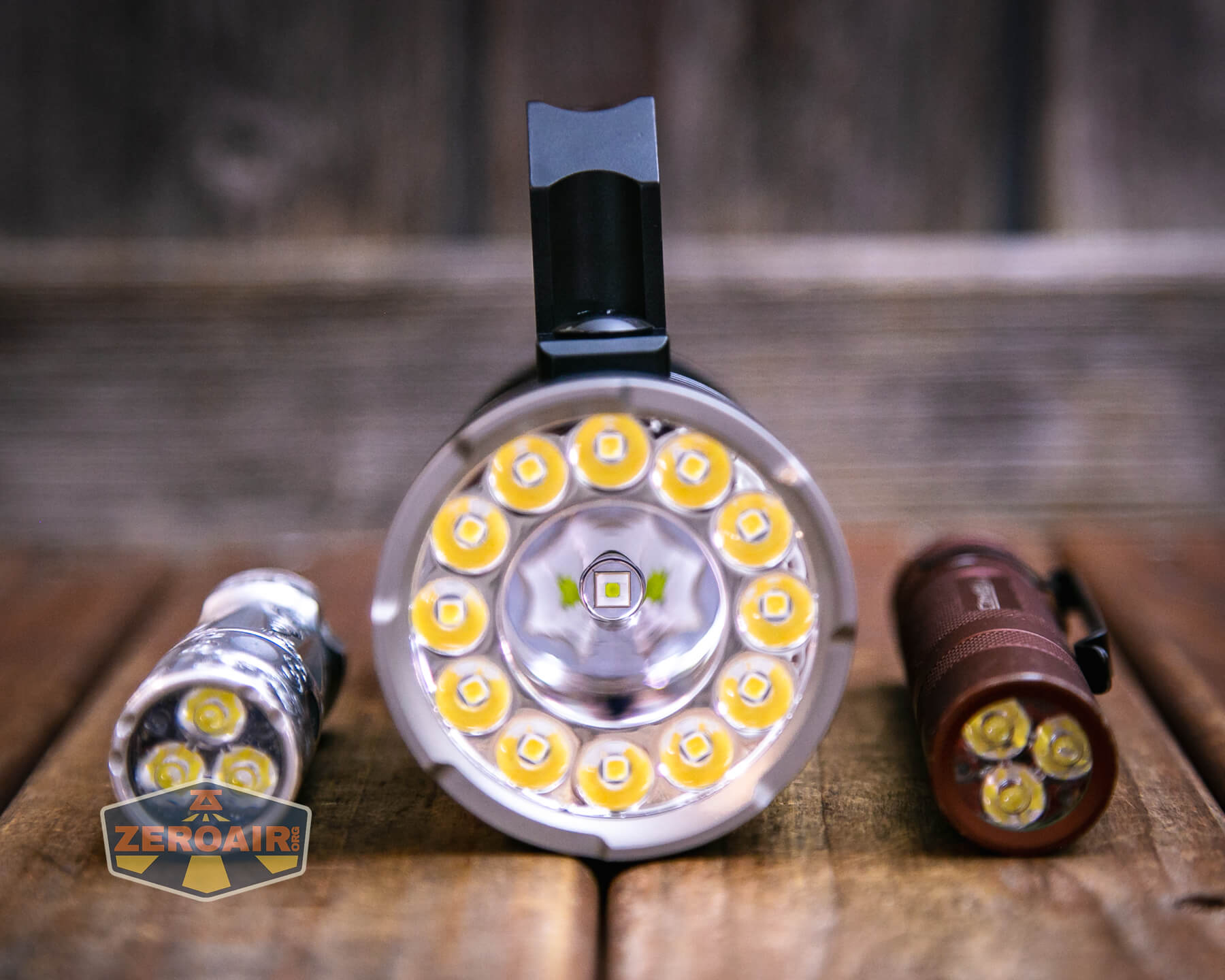

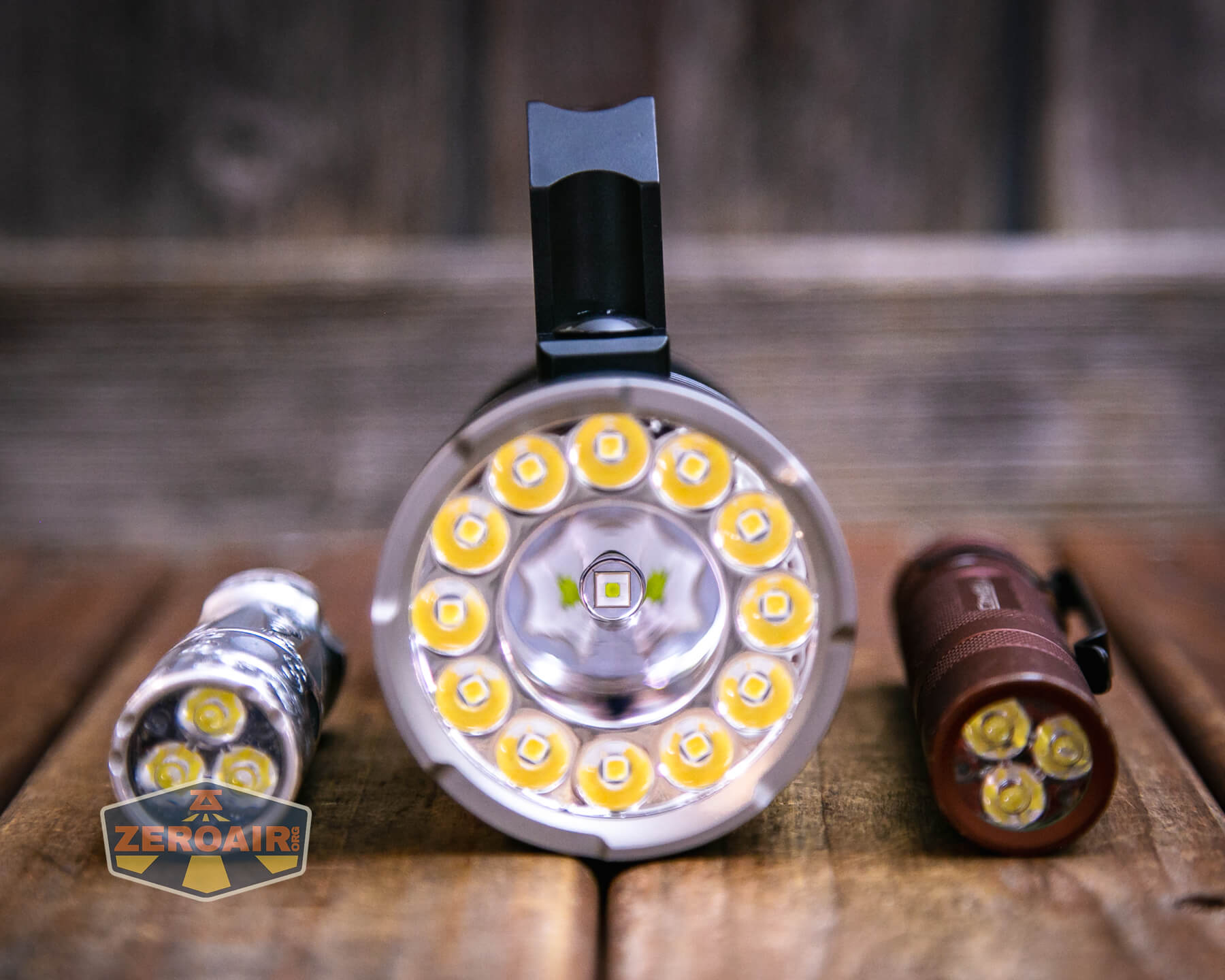

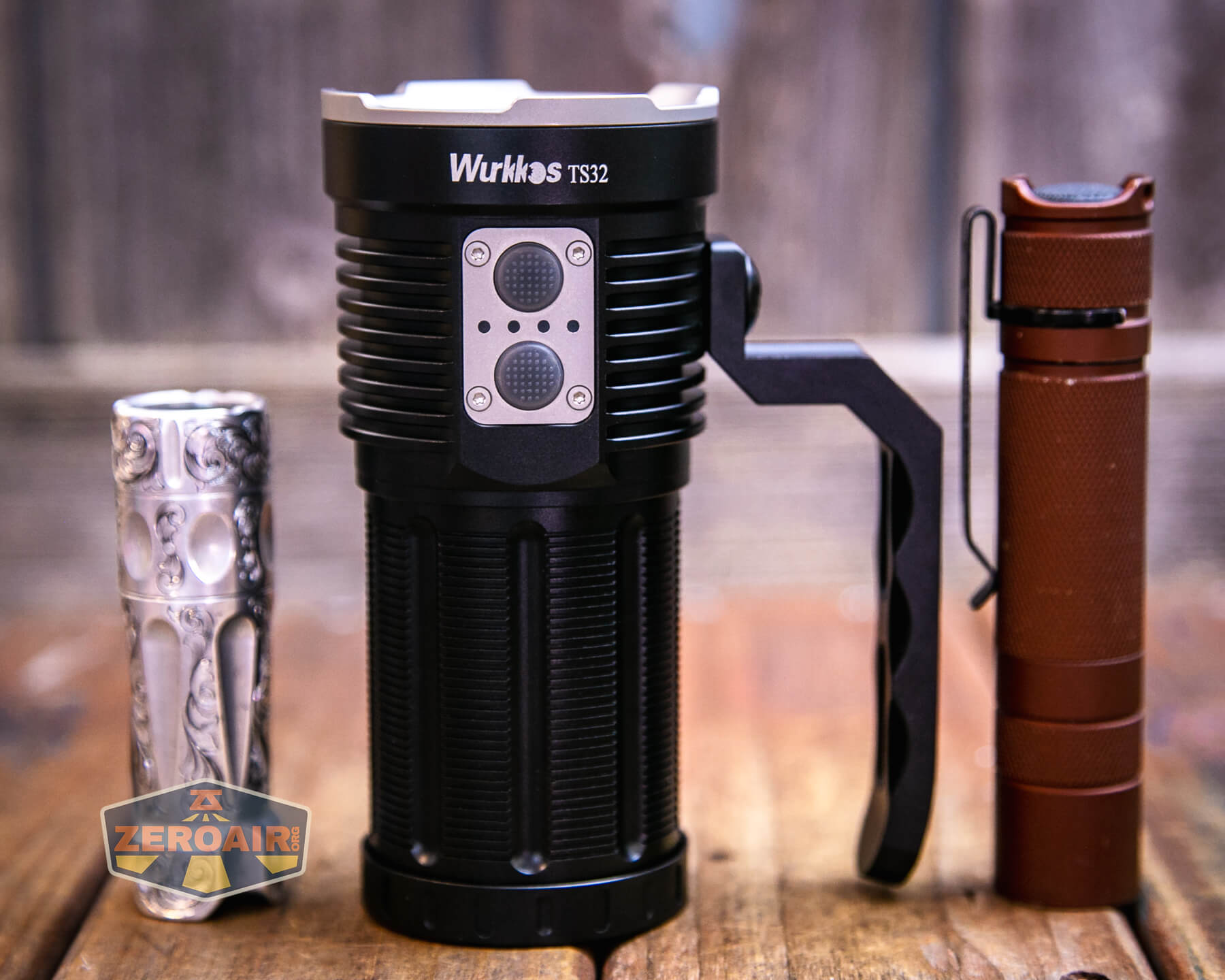

Here’s the test light with the venerable Convoy S2+.  Mine’s a custom “baked” edition Nichia 219b triple.  A very nice 18650 light.

Also above is the light beside my custom engraved TorchLAB BOSS 35, an 18350 light.  I reviewed the aluminum version of that light in both 35 and 70 formats.

Retention and Carry

The only included means for carrying the Wurkkos TS21 flashlight is this handle, which ships attached to the light. Without cells, the TS32 doesn’t rest on the handle (but without cells why would you even want it to?)

Wurkkos TS21 flashlight handle

With cells installed, the light will rest on the handle just fine. So you can use the handle as a sort of “standoff” to place the light on a surface horizontally. It’s a good setup.

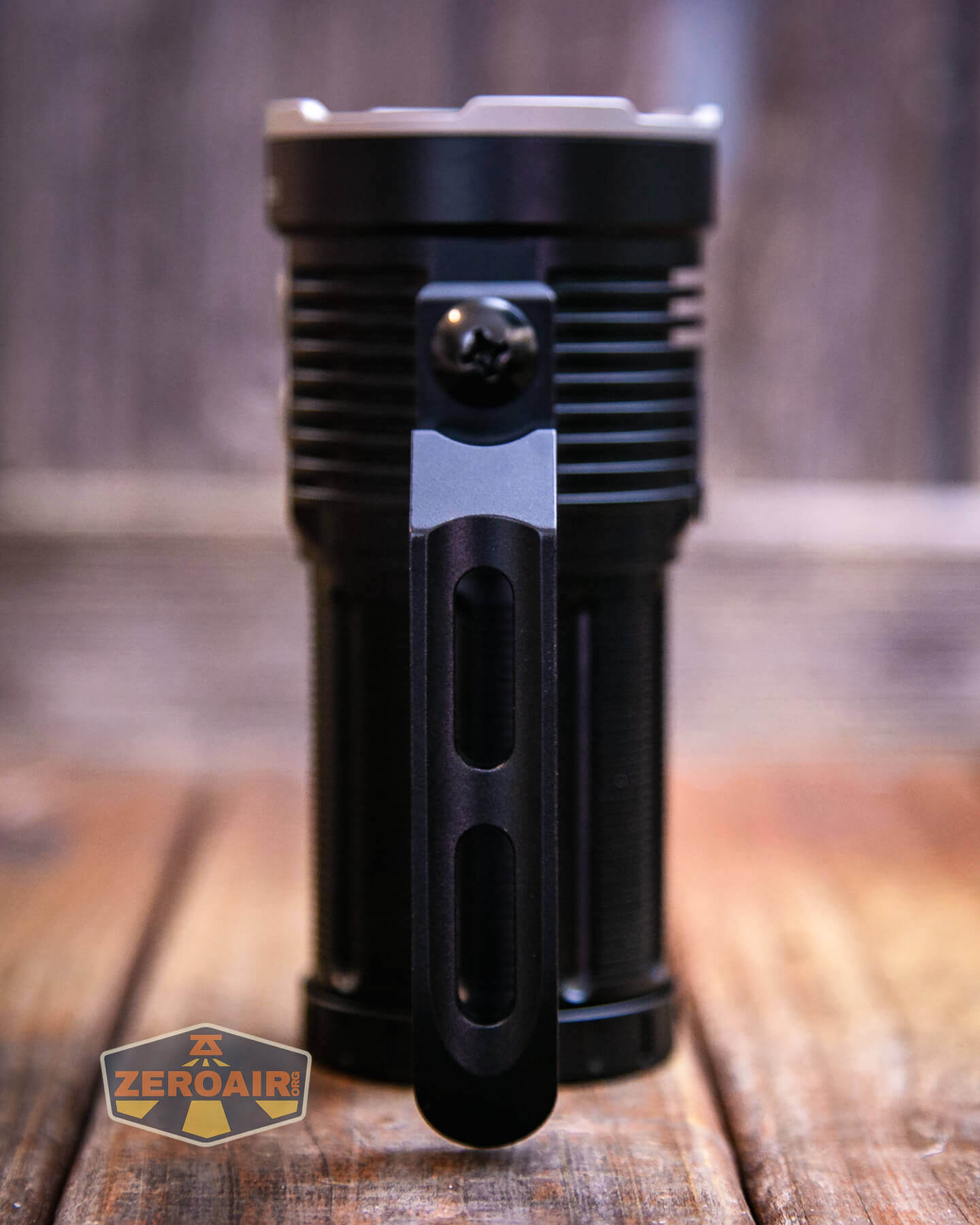

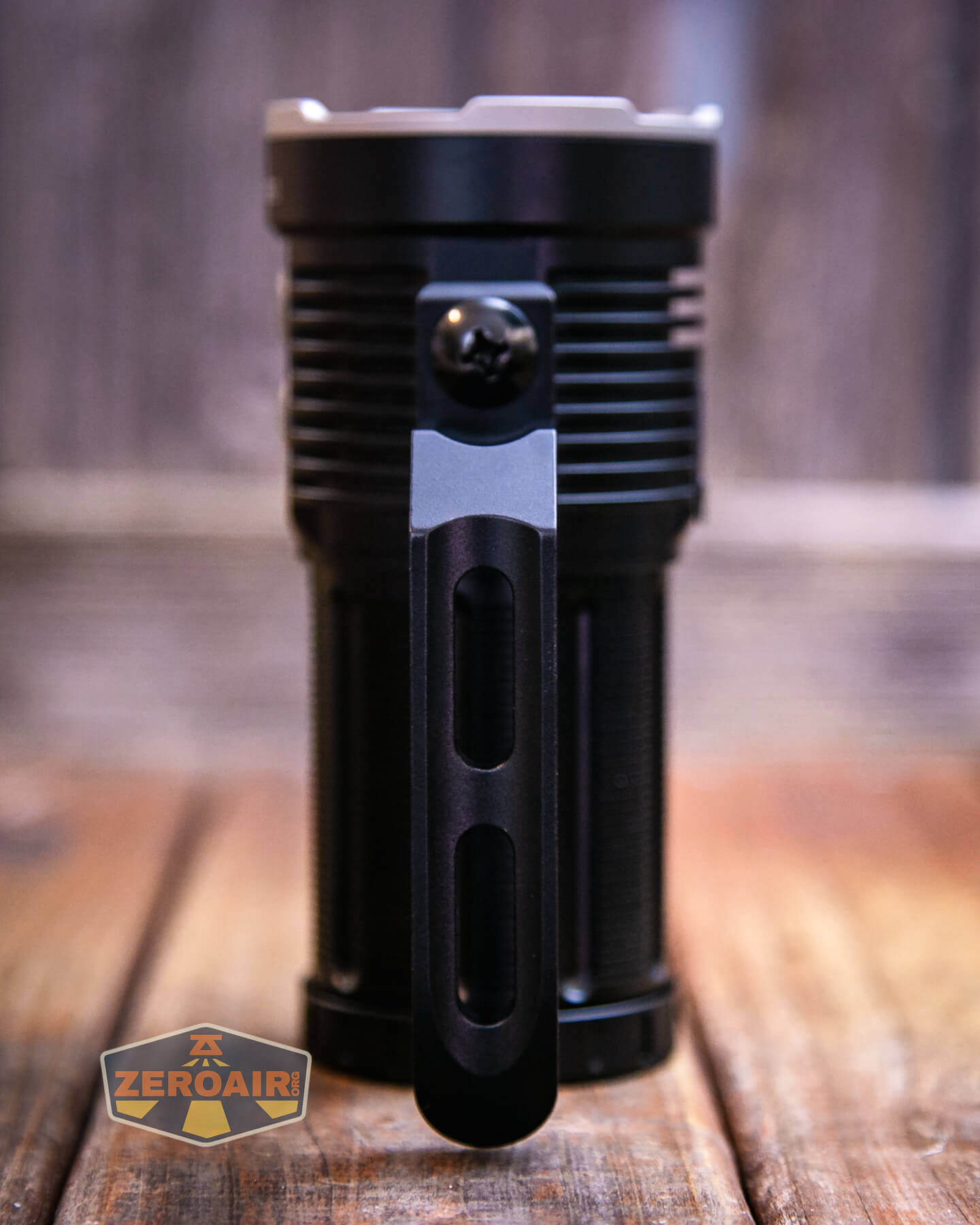

However, the handle is held in place by just one screw and it’s a Philips screw. None of that is necessarily bad (though I would rather have two points of attachment, which prevent twisting of the handle). I did find that the screw really has to be cranked down – you might just prefer some threadlock there.

Wurkkos TS21 flashlight handle screw

Wurkkos TS21 flashlight beer can handle

In hand, the handle is great, though you don’t really have any easy switch access.

Wurkkos TS21 flashlight handle in use

There’s no pouch or anything else for carrying the Wurkkos TS21 flashlight.

Power and Runtime

Power for the Wurkkos TS21 flashlight is from lithium-ion cells. In this case, that’s three 21700 cells, which can be added on from Wurkkos for around $15. That’s a great price for those three cells, and I fully recommend buying the package.

Wurkkos TS21 flashlight 21700 cells

The cells all fit into the TS32 with the positive end toward the head. This means they’re in a parallel configuration, and a single cell (or two cells) can also run the TS32, though any turbo mode that includes the flood might be a little demanding for just one cell.

Wurkkos TS21 flashlight 21700 cells installed

Also included is this little cell cover, which is needed for these flat-top cells, but removing it should allow the use of 21700 button tops, too.

Wurkkos TS21 flashlight 21700 cells installed with cover

Wurkkos TS21 flashlight 21700 cells installed with cover

Below is a host of runtime graphs. I did see output coming in a bit below the specification, but I’d call it “fairly close enough” to the claim. One thing also noted is that it seems to take just a few seconds (5 to 10) for the output to fully ramp up to maximum. I believe this has something to do with the driver.

I won’t describe every graph. The light does have low voltage protection and seems to protect the cells very well (at around 3V). Also the cells were always discharged perfectly evenly which means that contact with the cells and driver is very good.

Wurkkos TS21 flashlight runtime graphs

Wurkkos TS21 flashlight runtime graphs

Wurkkos TS21 flashlight runtime graphs

Wurkkos TS21 flashlight runtime graphs

Wurkkos TS21 flashlight runtime graphs

Wurkkos TS21 flashlight runtime graphs

Wurkkos TS21 flashlight runtime graphs

Four blue LEDs between the switches also give an indication of the battery voltage, as follows.

Four steady: 100% power
Three steady, one blinking: >75% power
Two steady, one blinking: 50-75% power
One steady, one blinking: 25-50% power
One blinking: <25% power

Charging

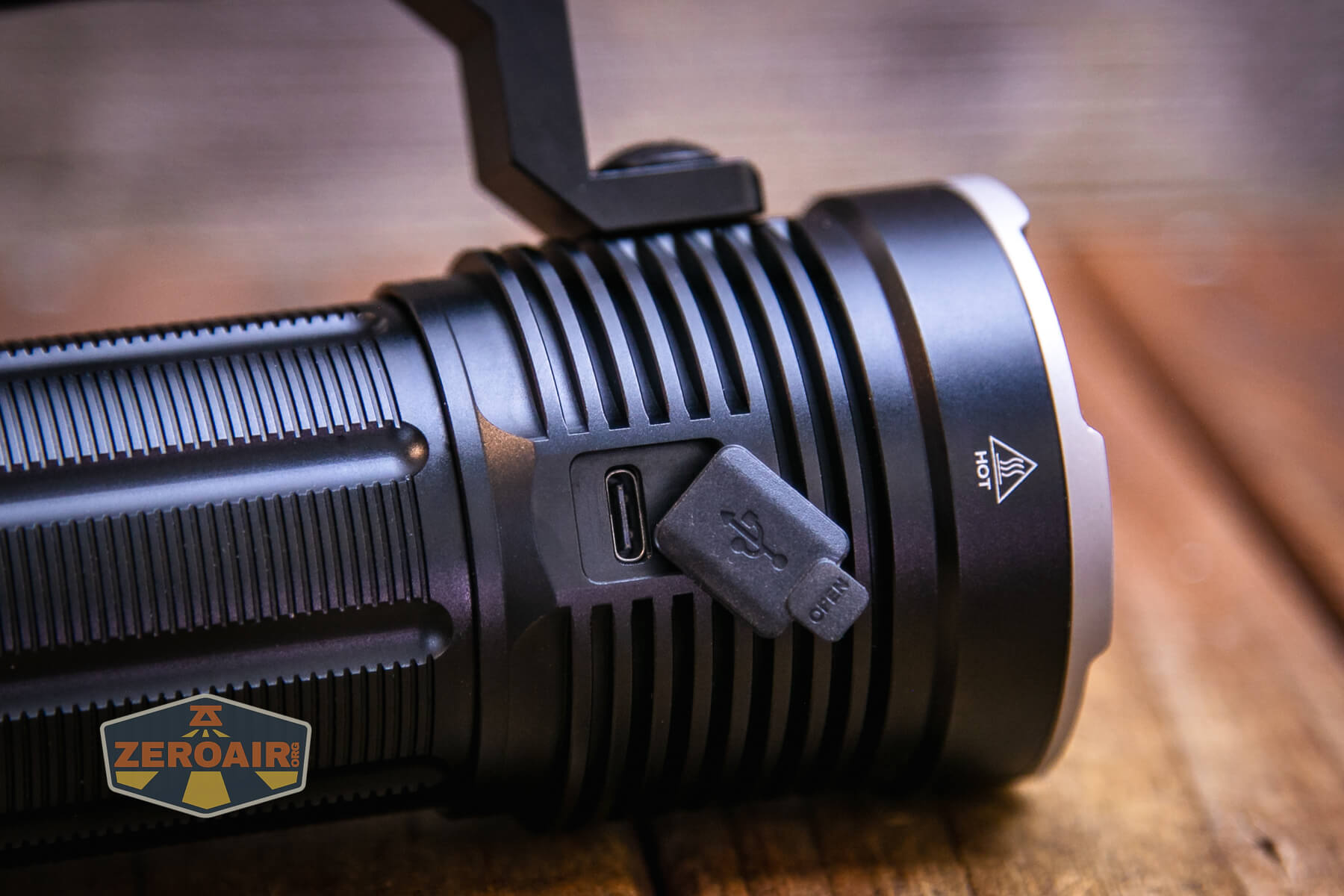

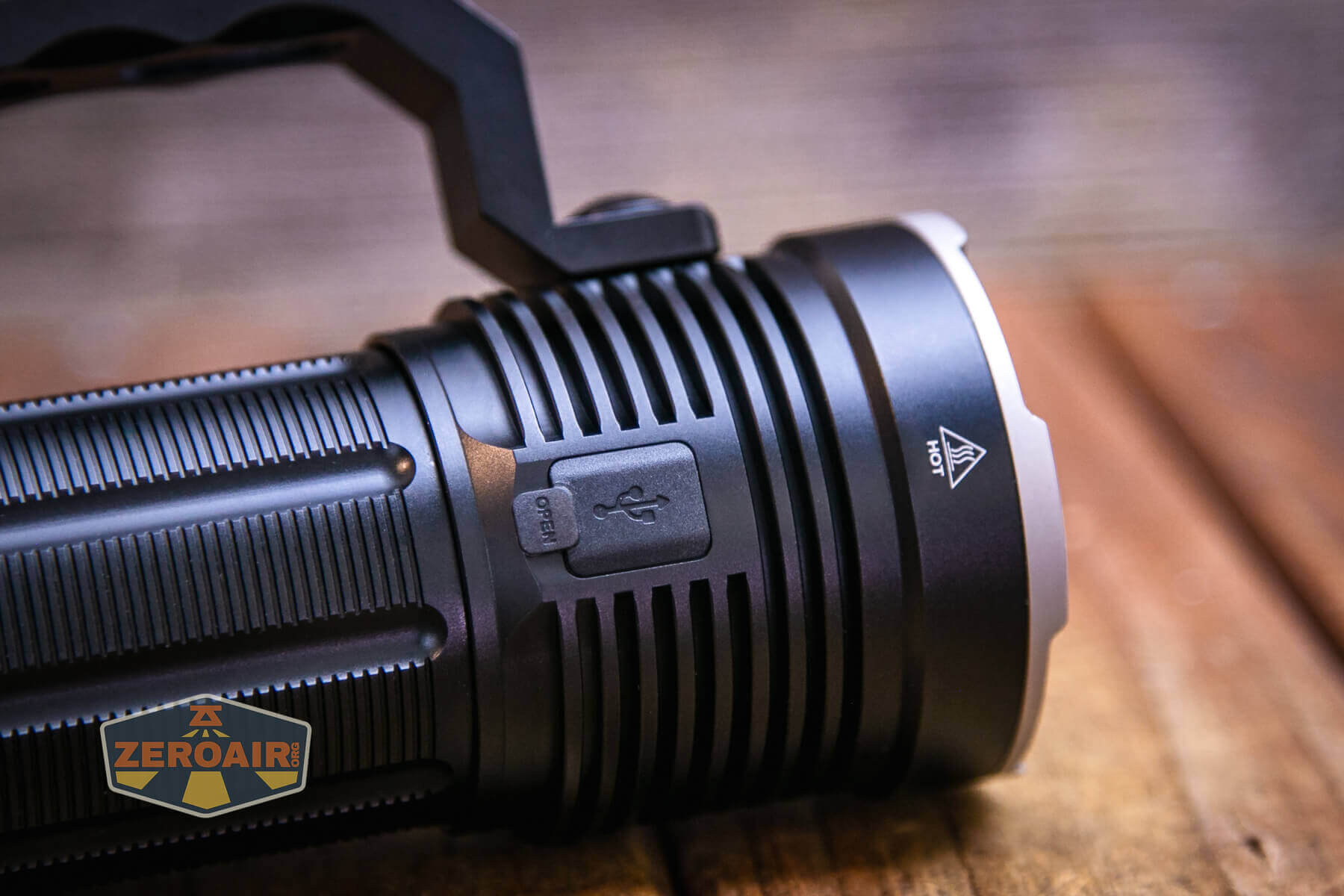

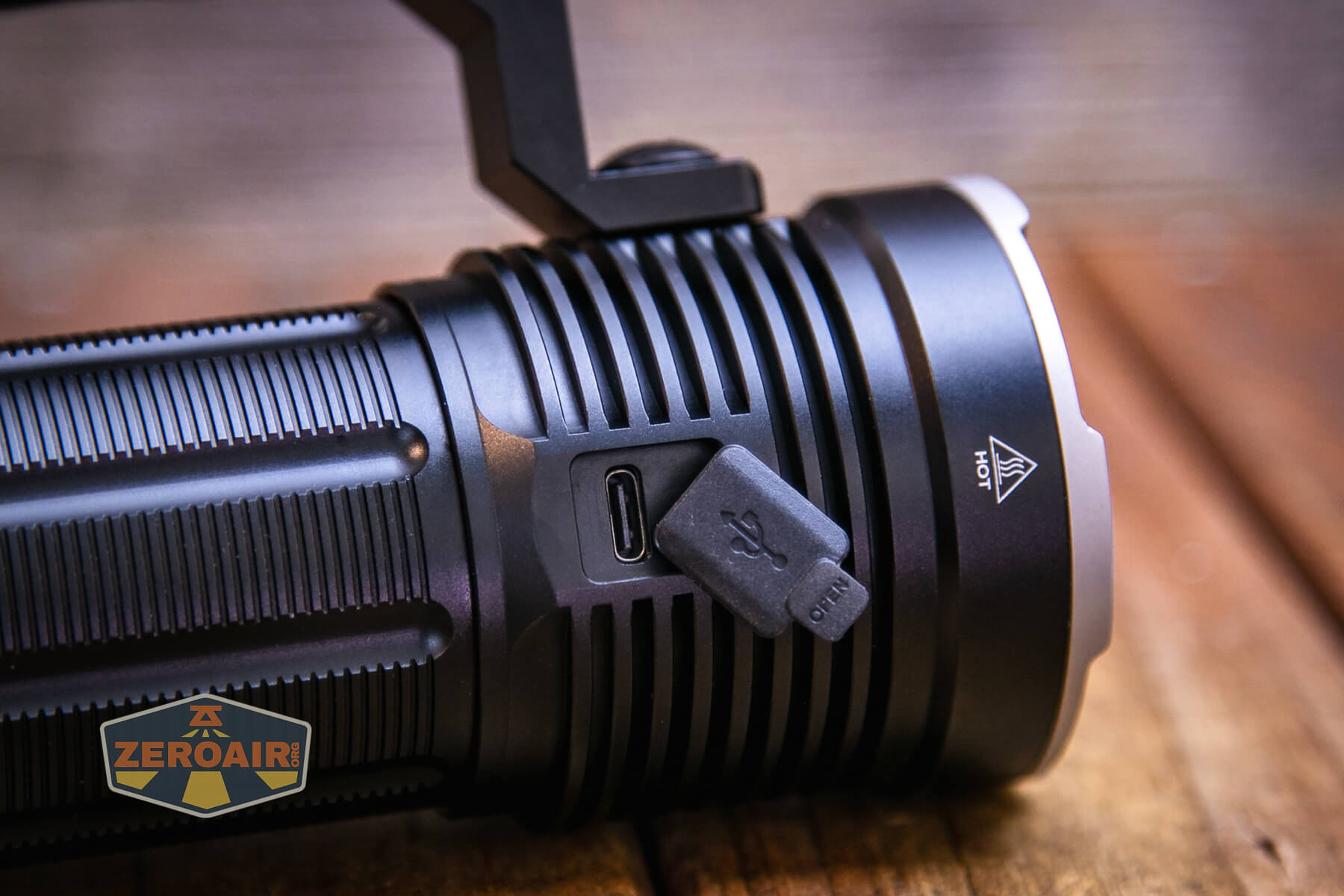

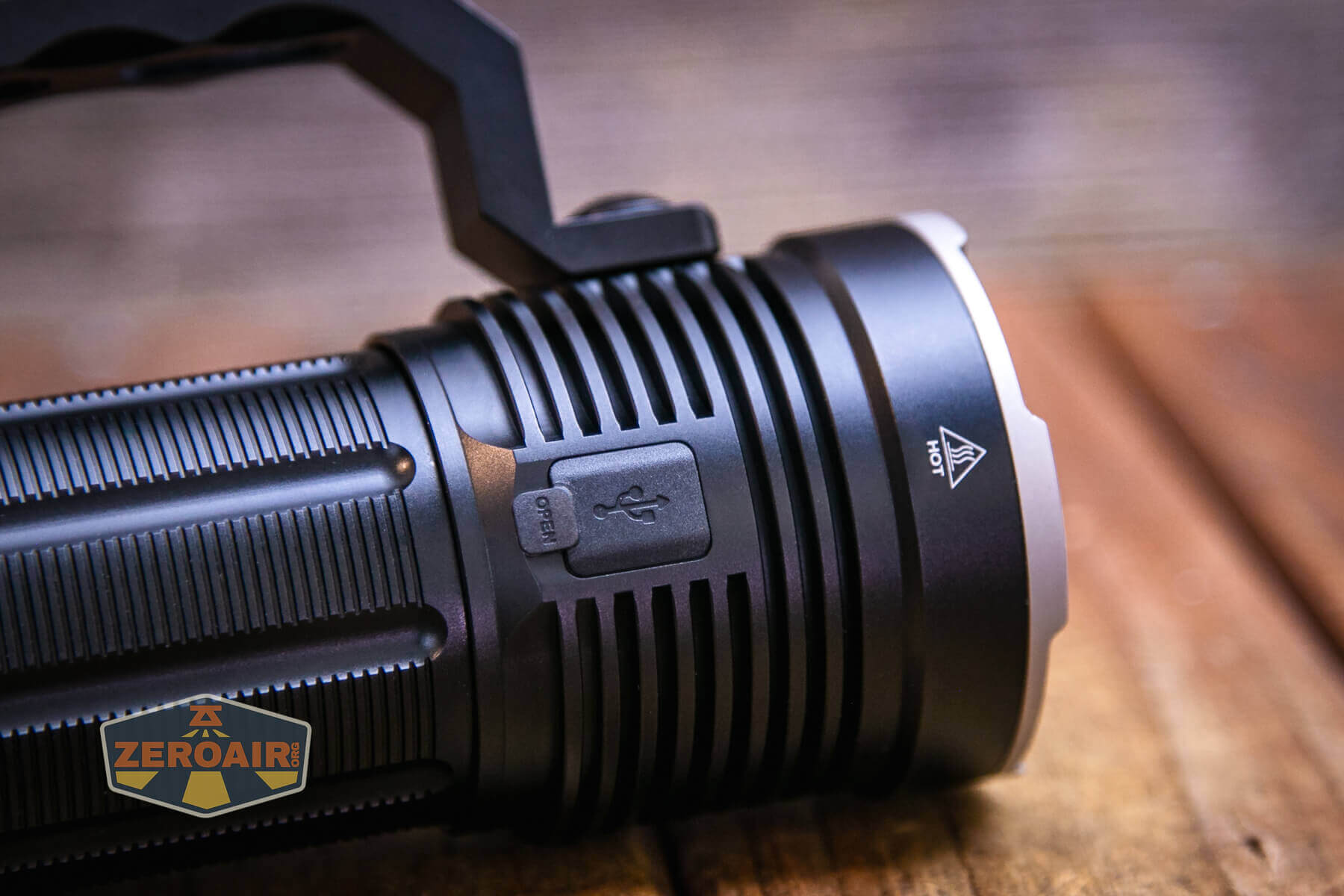

Built into the Wurkkos TS21 flashlight is USB-C charging. The charge port is across from the switches and has a nice press-in cover.

Wurkkos includes a USB to USB-C cable.

Wurkkos TS21 flashlight charging cable

Between the switches is a power indicator. While charging, these blue LEDs blink. When charging is complete, all four are steady blue.

Wurkkos TS21 flashlight power indicator

Charging from USB (A) works as does charging from USB-C (ie “C to C” works).

Wurkkos TS21 flashlight charging graph

One of those tests did have all three cells terminating at 4.21V and while that’s “high” it’s really not anything to stress over.

Wurkkos TS21 flashlight charging graph

Charging the TS32 uses the blue indicating LEDs in the same way that they’re used for runtime indication:

Four steady: 100% power
Three steady, one blinking: >75% power
Two steady, one blinking: 50-75% power
One steady, one blinking: 25-50% power
One blinking: <25% power

Powerbank

One more feature of the Wurkkos TS21 flashlight is that the USB-C port can be used to discharge the cells, too! This is actually great (where by “actually great” I mean “actually useful”) because the high-capacity 21700 cells (5000mAh) (x3) is enough to actually charge something (like your cell phone or whatever.)

Wurkkos TS21 flashlight power bank graph

And not just that, but the TS32 can output fairly high current (around 3.3A) for quite some time (nearly three hours!!)

Below you can see a bit of a “stress test” on the output. It’s the same test as above, though.

Wurkkos TS21 flashlight power bank graph

The powerbank shuts of at a similarly safe cell voltage level that it does in runtime tests – around 3V. During powerbank usage, the blue indicating LEDs also indicate power levels, as mentioned above:

Four steady: 100% power
Three steady, one blinking: >75% power
Two steady, one blinking: 50-75% power
One steady, one blinking: 25-50% power
One blinking: <25% power

Modes and Currents

Mode Mode Claimed Output (lm) Claimed Runtime Measured Lumens Tailcap Amps
Turbo (Both) 13000 10023 >18
Turbo (Flood) 12000 1h20m 9447 >18
(Flood) 3600 2h30m 3124 3.84
(Flood) 1200 5h 1135 2.04
(Flood) 400 25h 254 0.73
(Flood) 50 270h 40 0.13
(Flood) 5 1100h 2.2 0.02
(Spot) 2000 4h30m 1806 5.19
(Spot) 900 6h30m 877 1.80
(Spot) 4000 (typo in manual, certainly means “400”) 25h10m 341 0.59
(Spot) 150 69h10m 101 0.16
(Spot) 10 387h 12 0.02

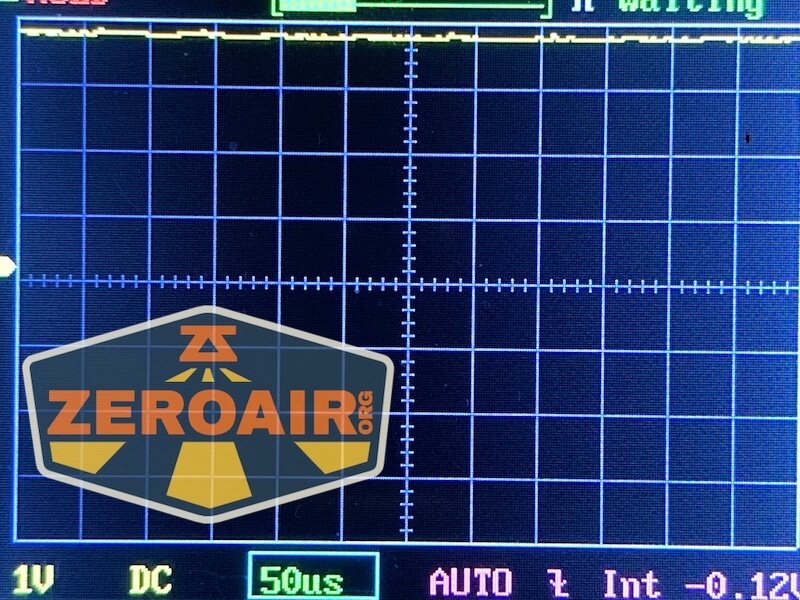

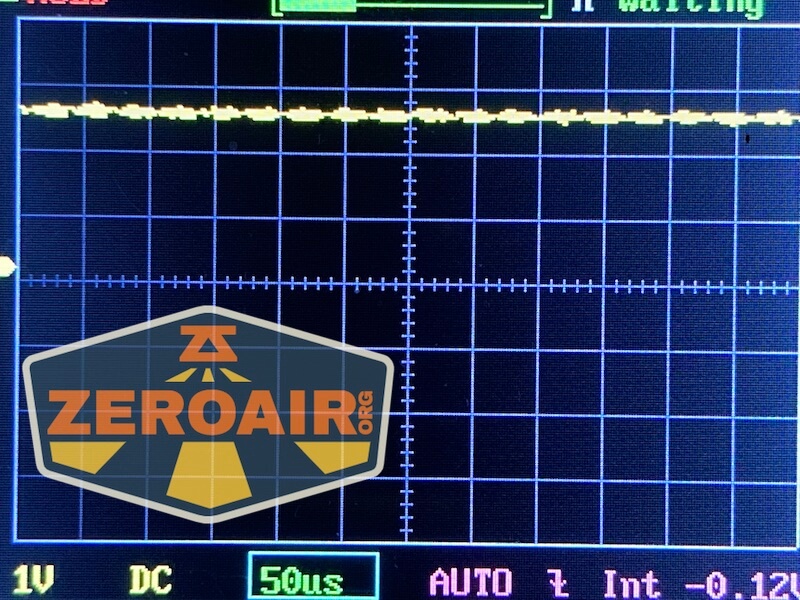

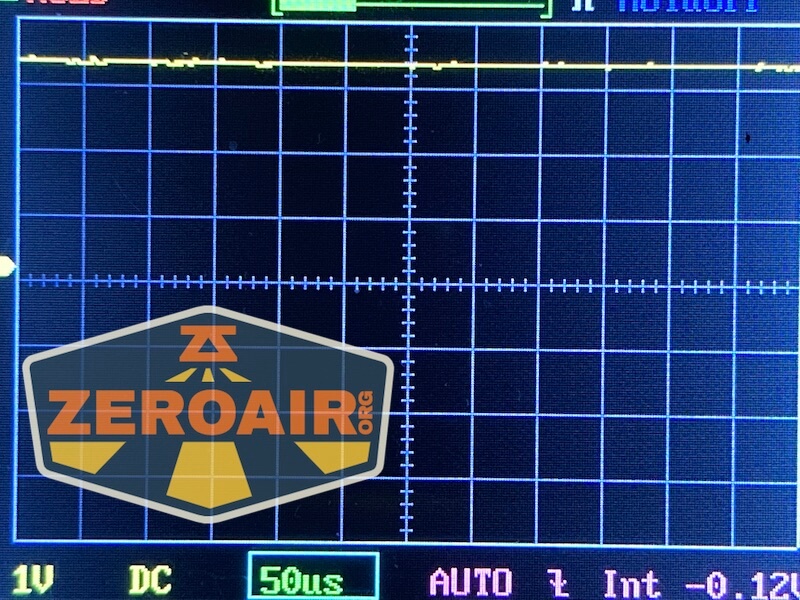

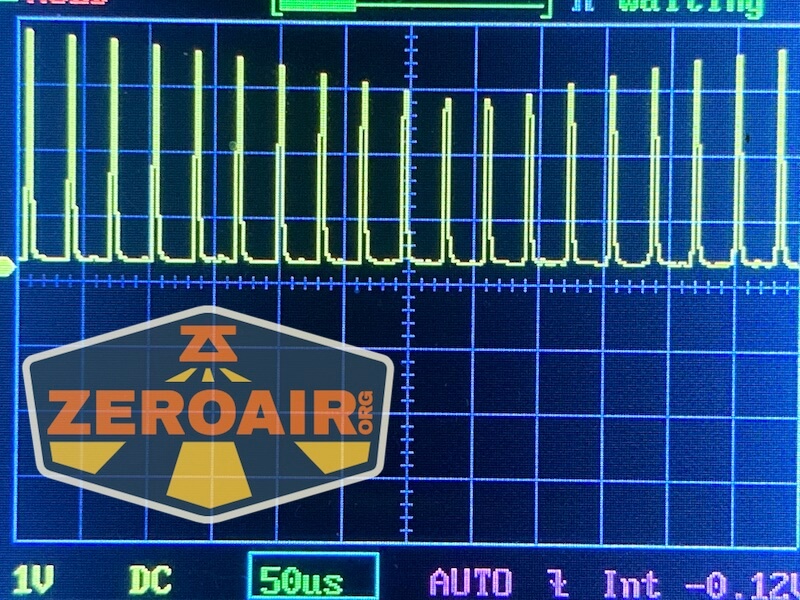

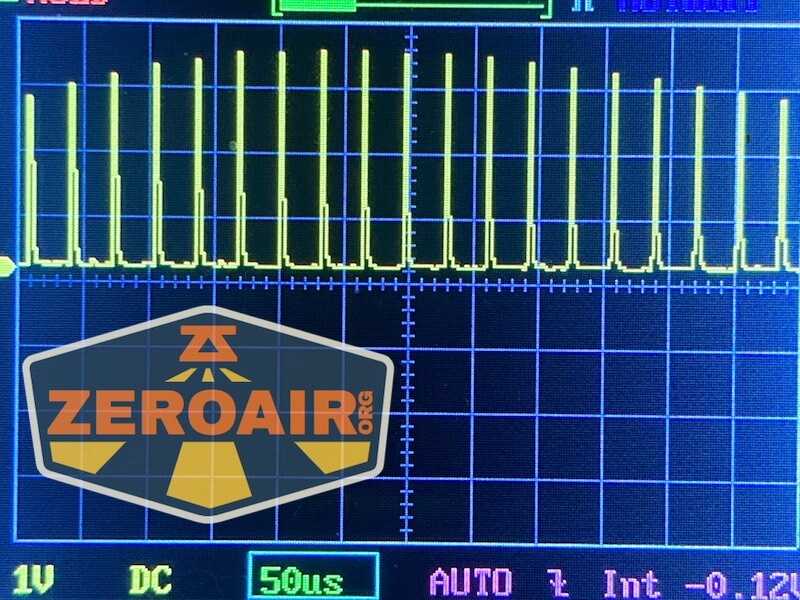

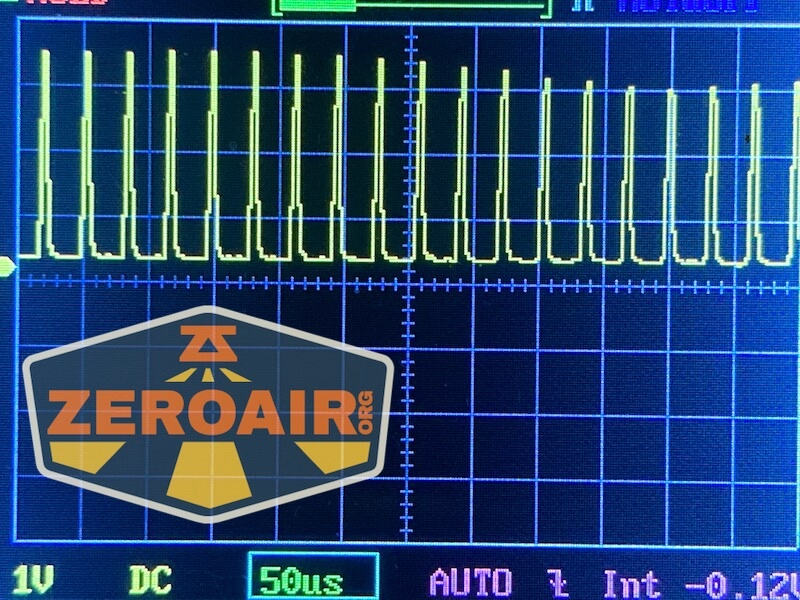

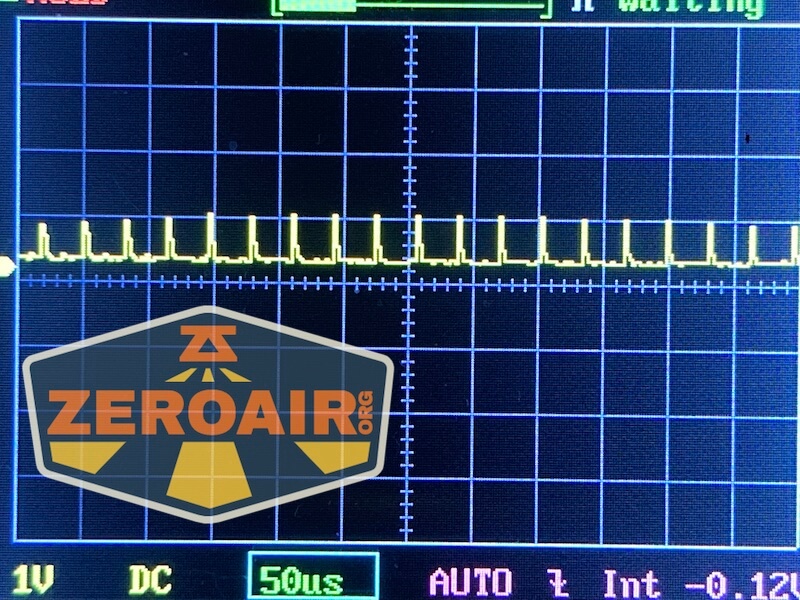

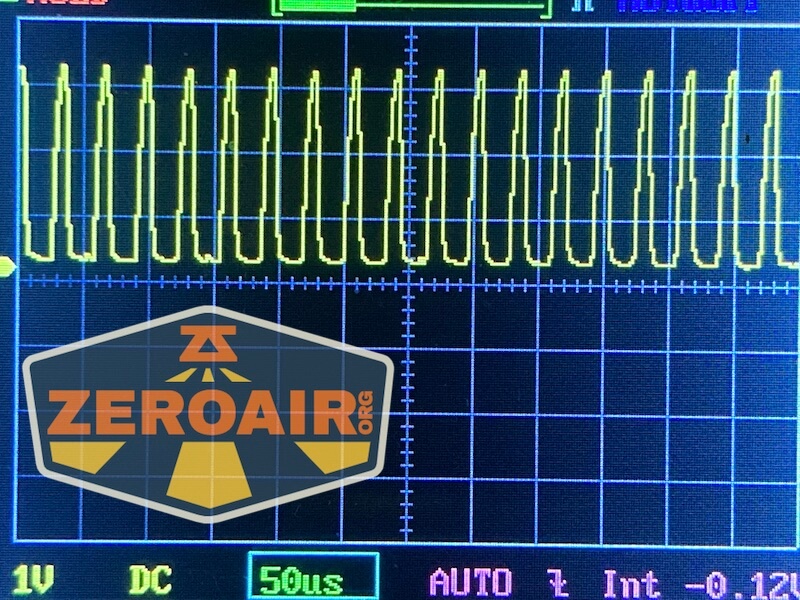

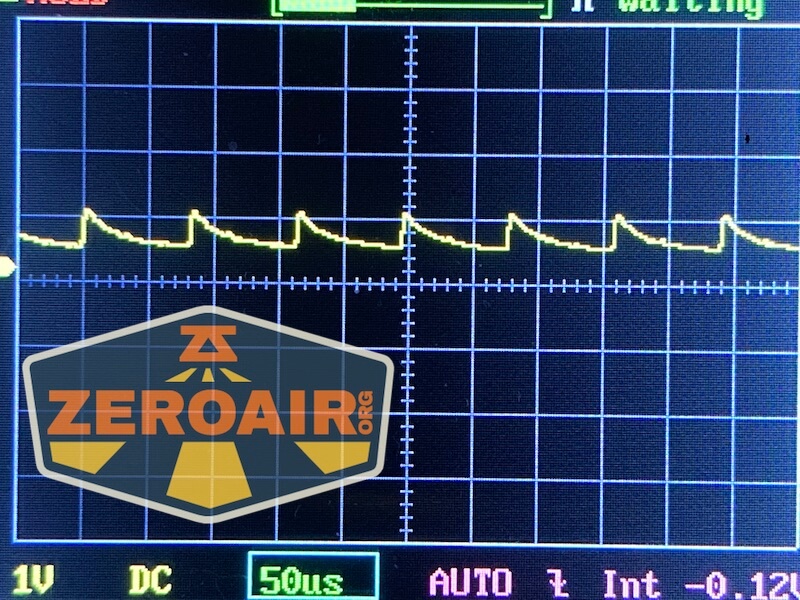

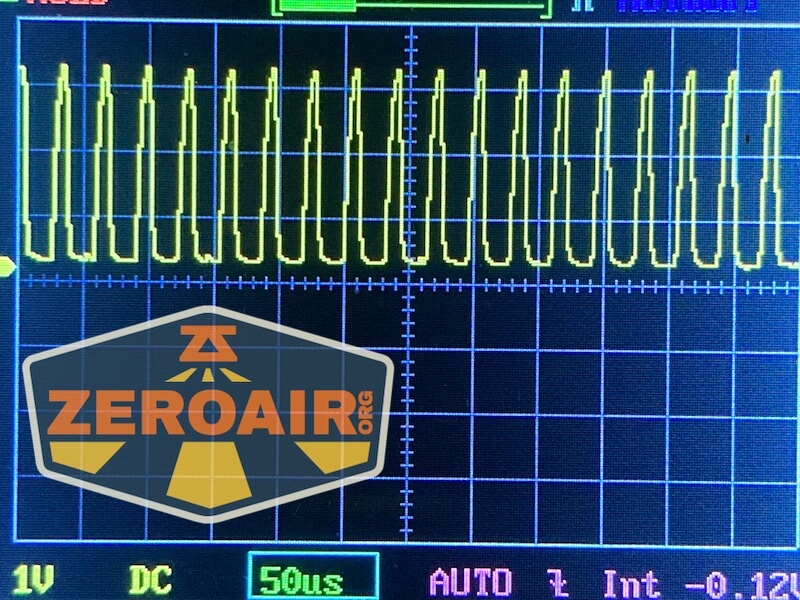

Pulse Width Modulation

The order below (and in the other sequential photos below, too) is this: top row is 6 modes of flood. The bottom row is 5 modes of flood with the turbo (both) at far right.)

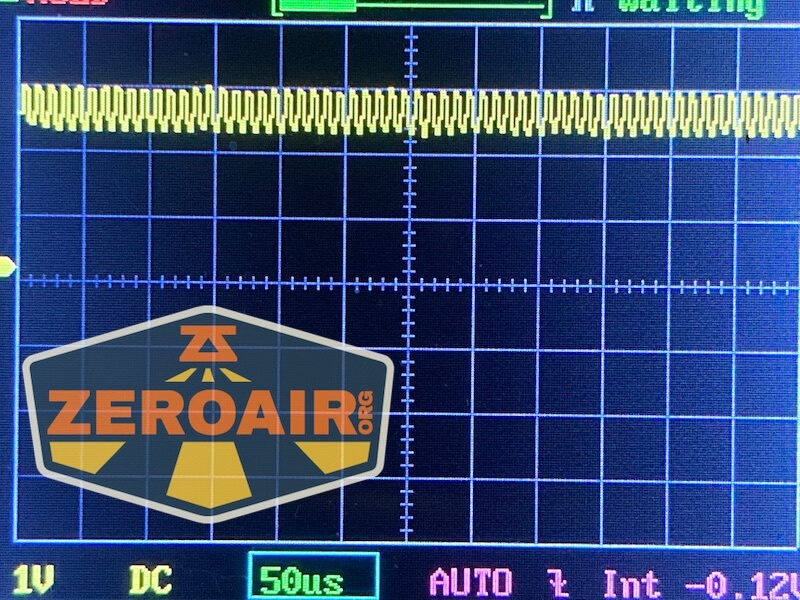

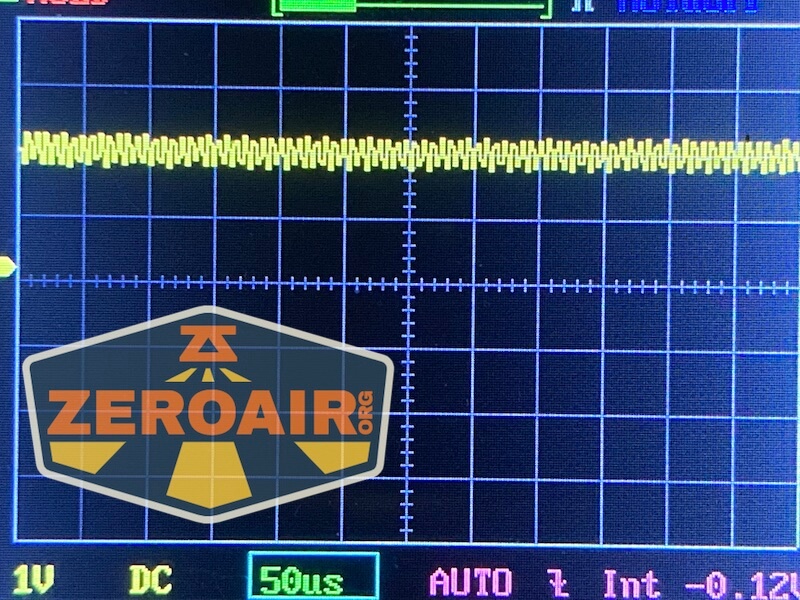

The PWM seen on the top line is fast enough to not be noticeable at all.

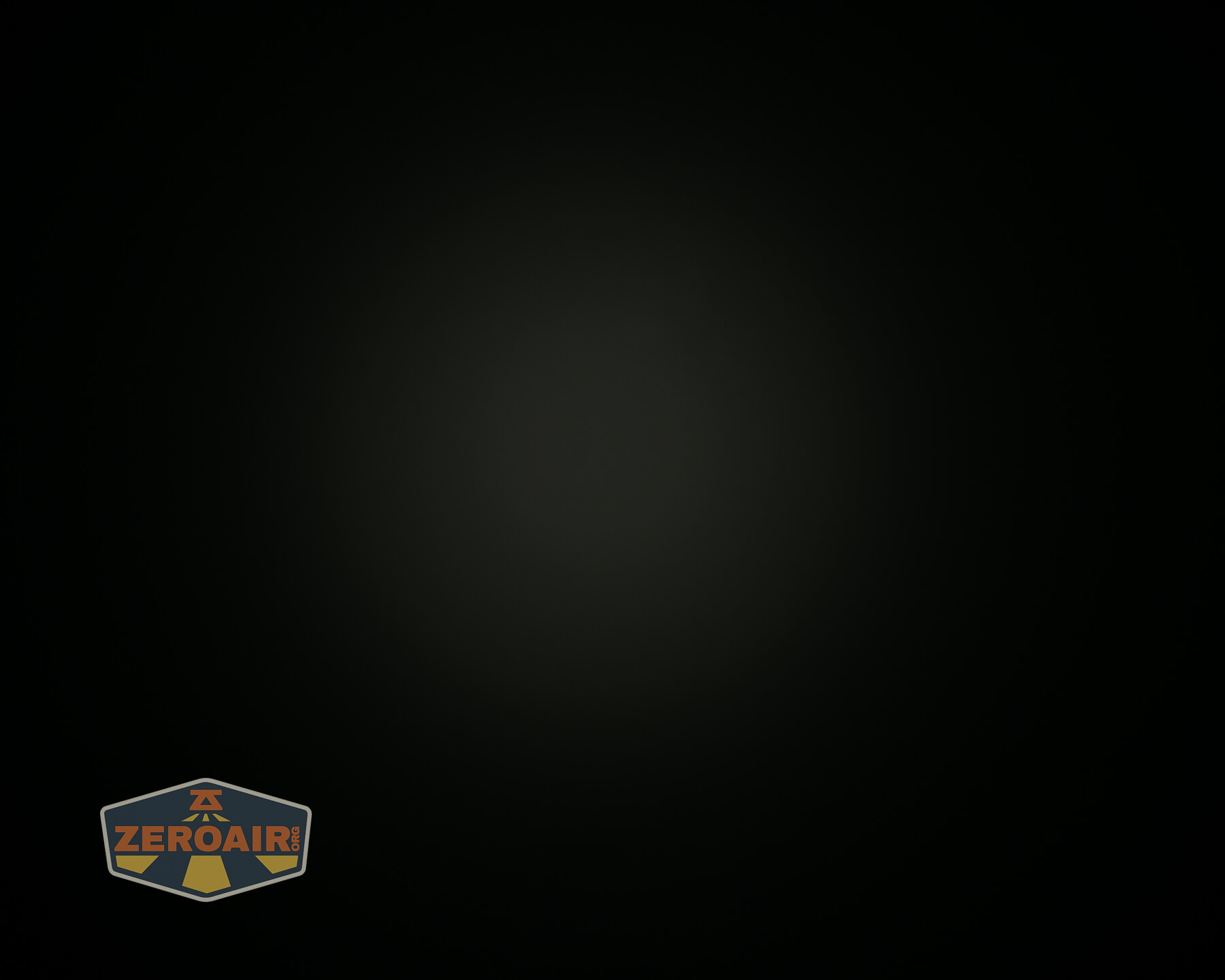

For reference, here’s a baseline shot, with all the room lights off and almost nothing hitting the sensor.  Also, here’s the light with the worst PWM I could find.  I’m adding multiple timescales, so it’ll be easier to compare to the test light.  Unfortunately, the PWM on this light is so bad that it doesn’t even work with my normal scale, with is 50 microseconds (50us).  10ms5ms2ms1ms0.5ms0.2ms.  In a display faster than 0.2ms or so, the on/off cycle is more than one screen, so it’d just (very incorrectly) look like a flat line.  I wrote more about this Ultrafire WF-602C flashlight and explained a little about PWM too.

User Interface and Operation

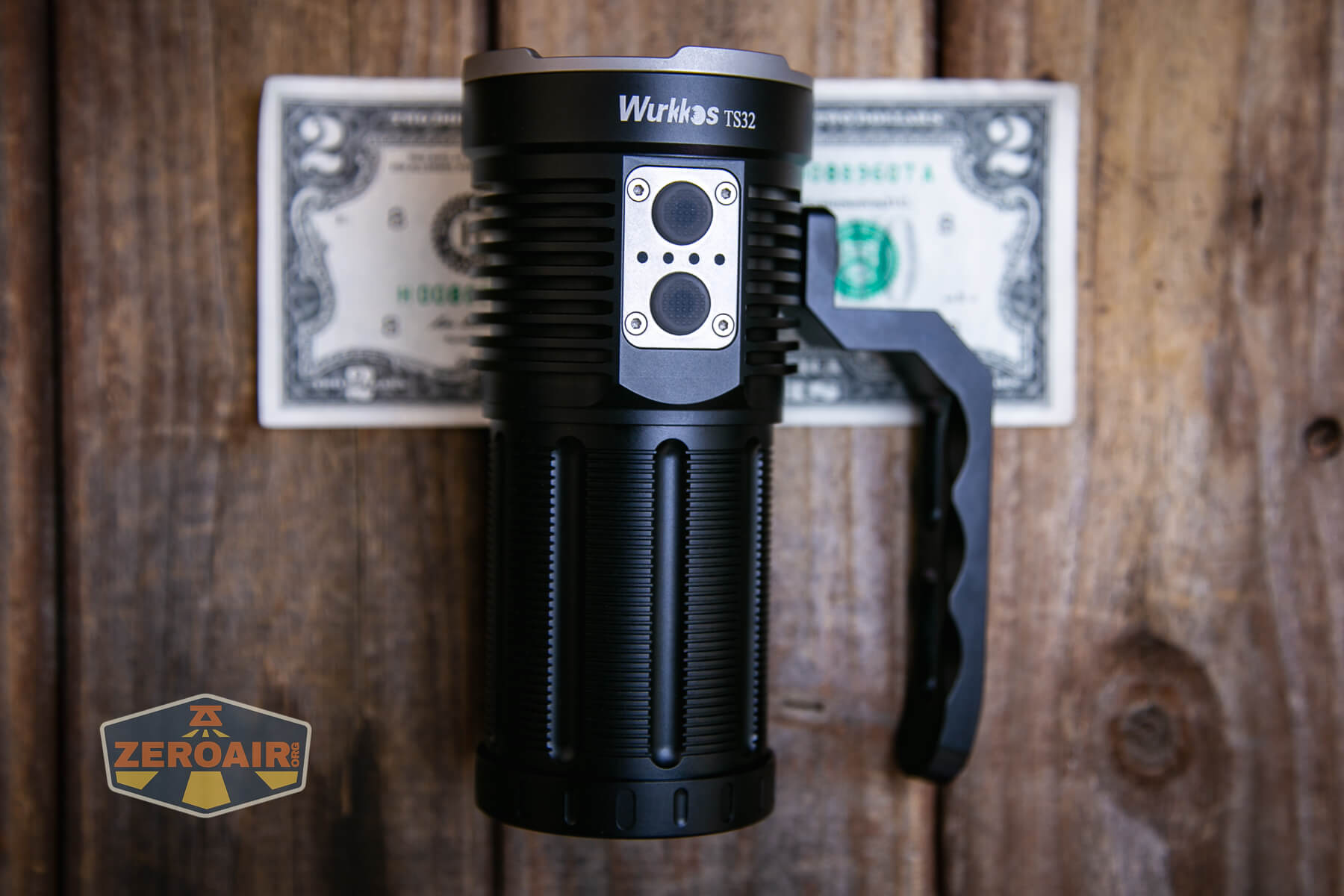

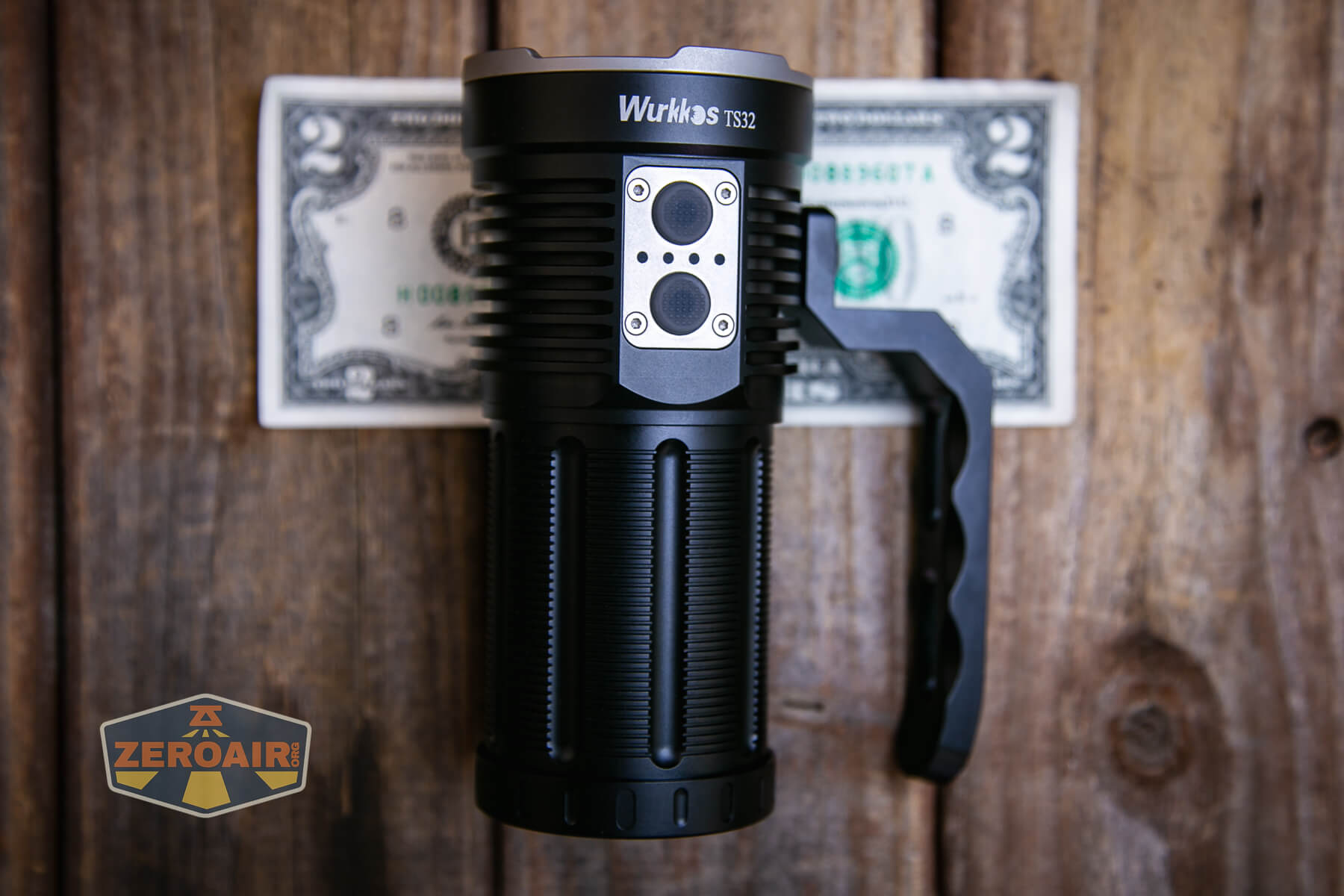

Two switches operate the Wurkkos TS21 flashlight. These two control flood (rearmost switch) and spot (frontmost switch) and essentially make those two setups completely separate lights with in the TS32.

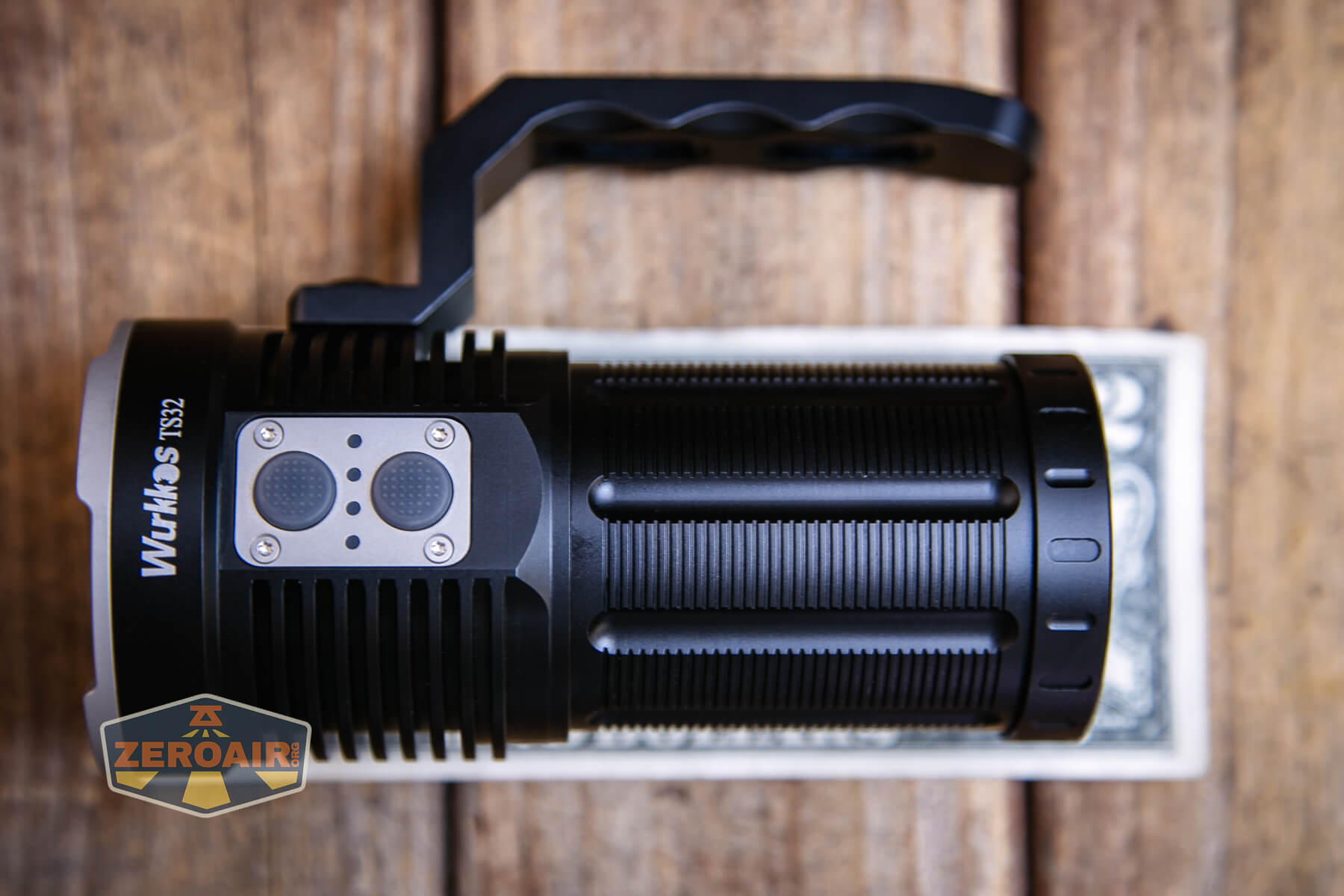

Wurkkos TS21 flashlight dual e-switches

Wurkkos TS21 flashlight dual e-switches

Wurkkos TS21 flashlight dual e-switches profile

Wurkkos TS21 flashlight dual e-switches actuation

The switches are exactly the same in size and shape and clickiness.

Wurkkos TS21 flashlight dual e-switches actuation

Here’s a UI table! The TS32 offers a stepped output setup (which I prefer) as well as a ramping output.

I won’t write a separate table for each output (flood and spot) because the user interface is the same.

State Action Result
Off Click On (mode memory)
Off Hold Eco (Spot) or Moonlight (Flood)
On (except Turbo) Click Off
Turbo Click Previous output level
On Hold Advance upward through modes
Any Triple Click Strobe modes
Strobe Modes Double Click Strobe advance (Strobe > SOS > Beacon)
On Double Click Turbo
On Click 4x Switch between Group 1 (Stepped) and Group 2 (Ramping). 3 flashes indicate group switch.

LED and Beam

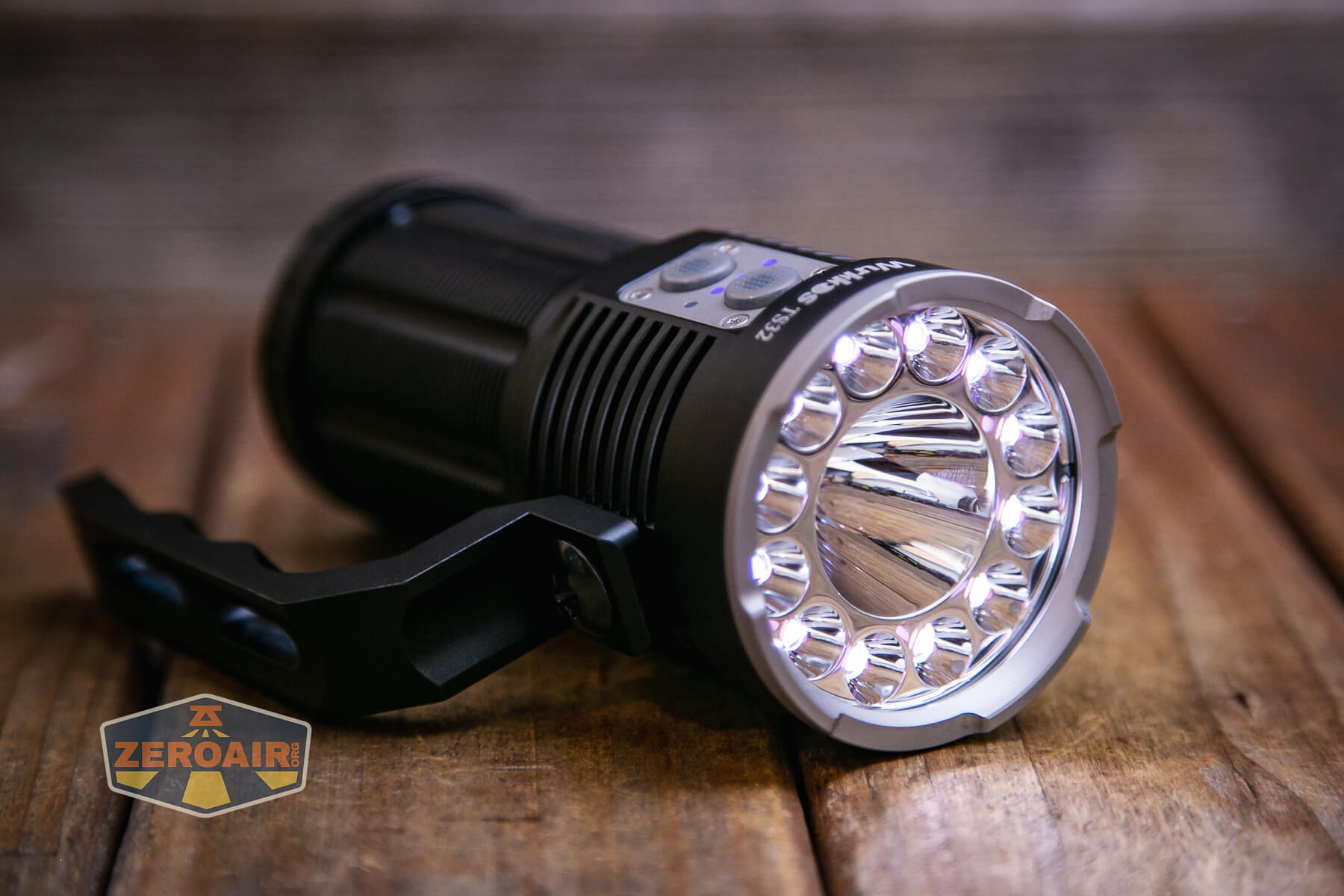

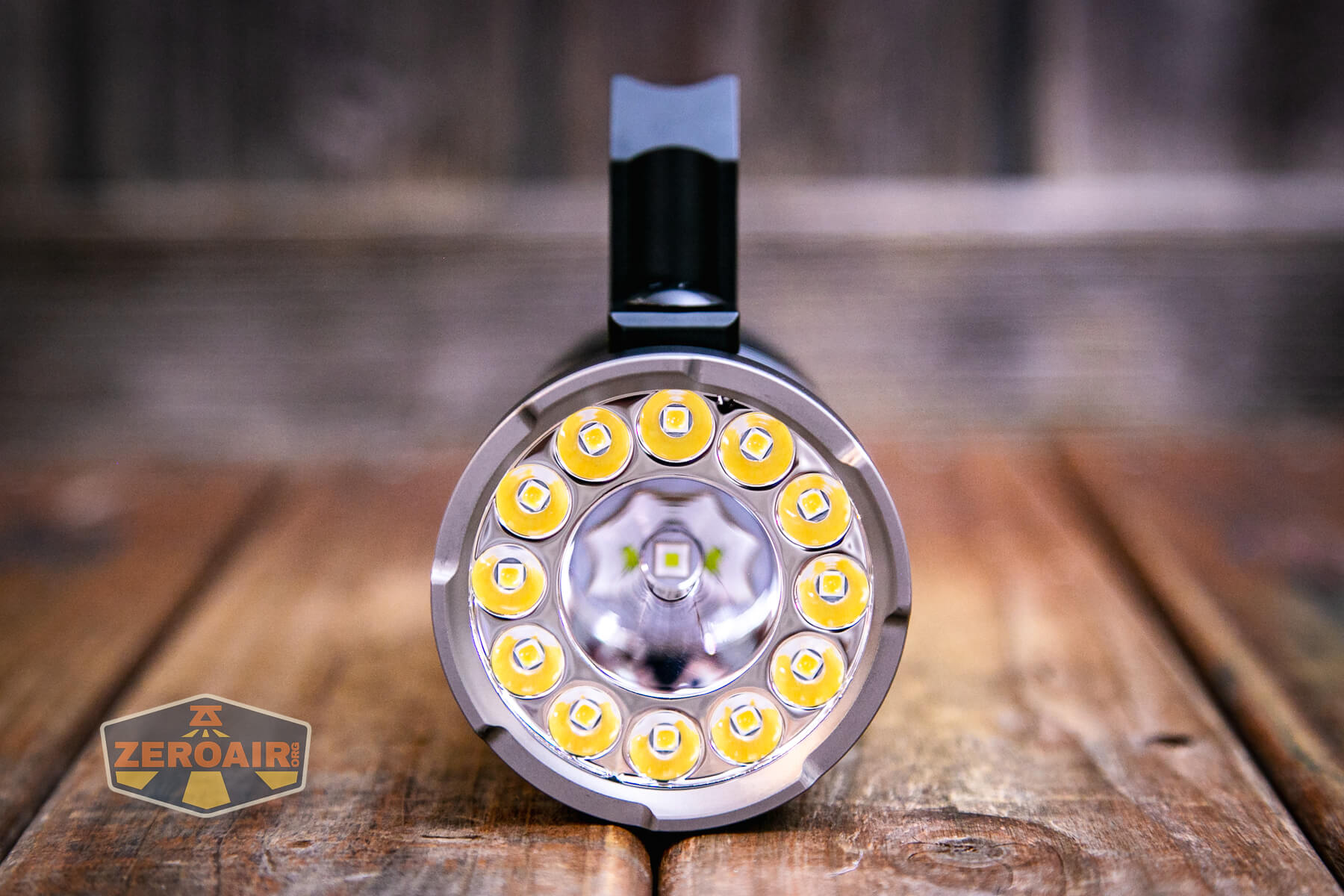

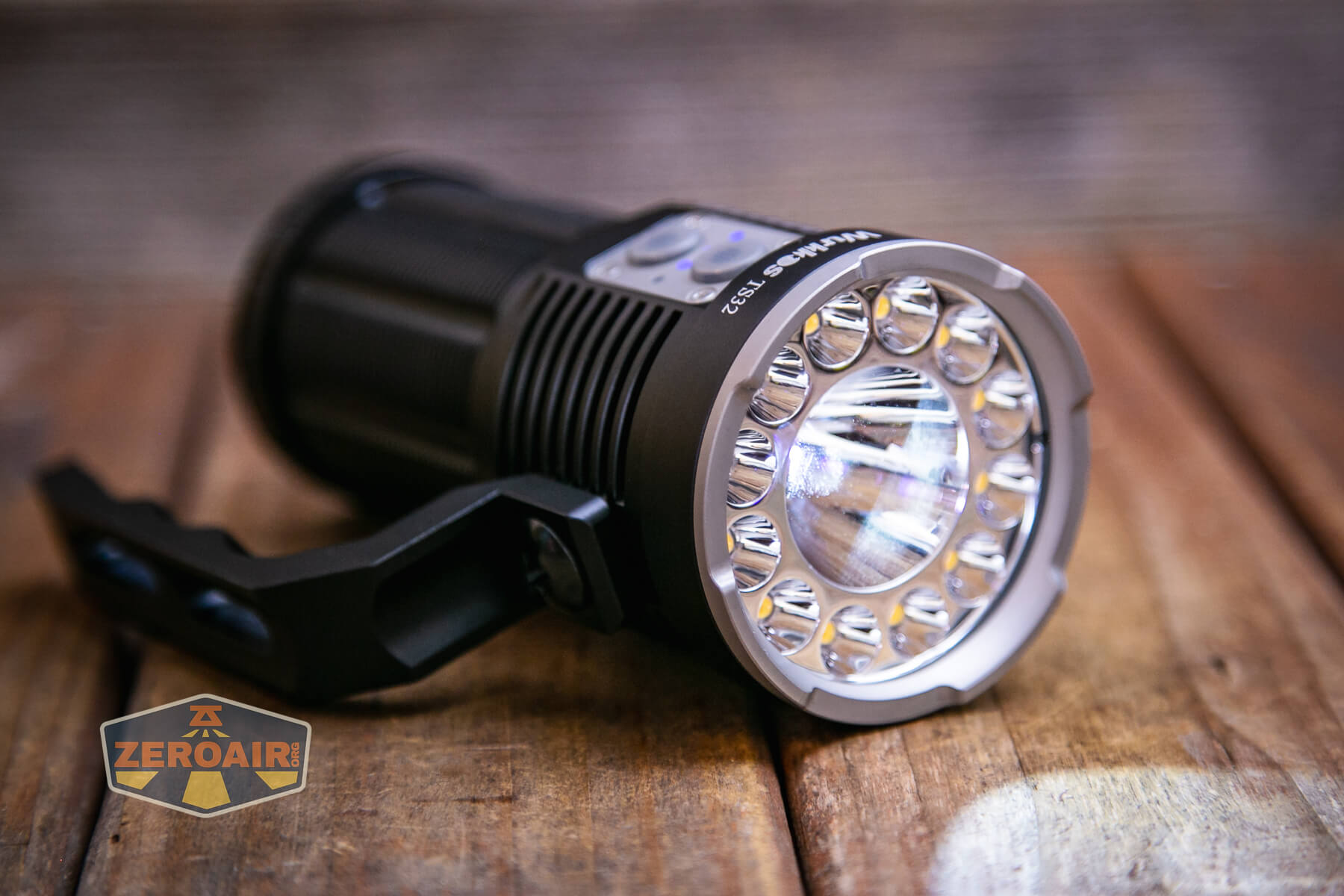

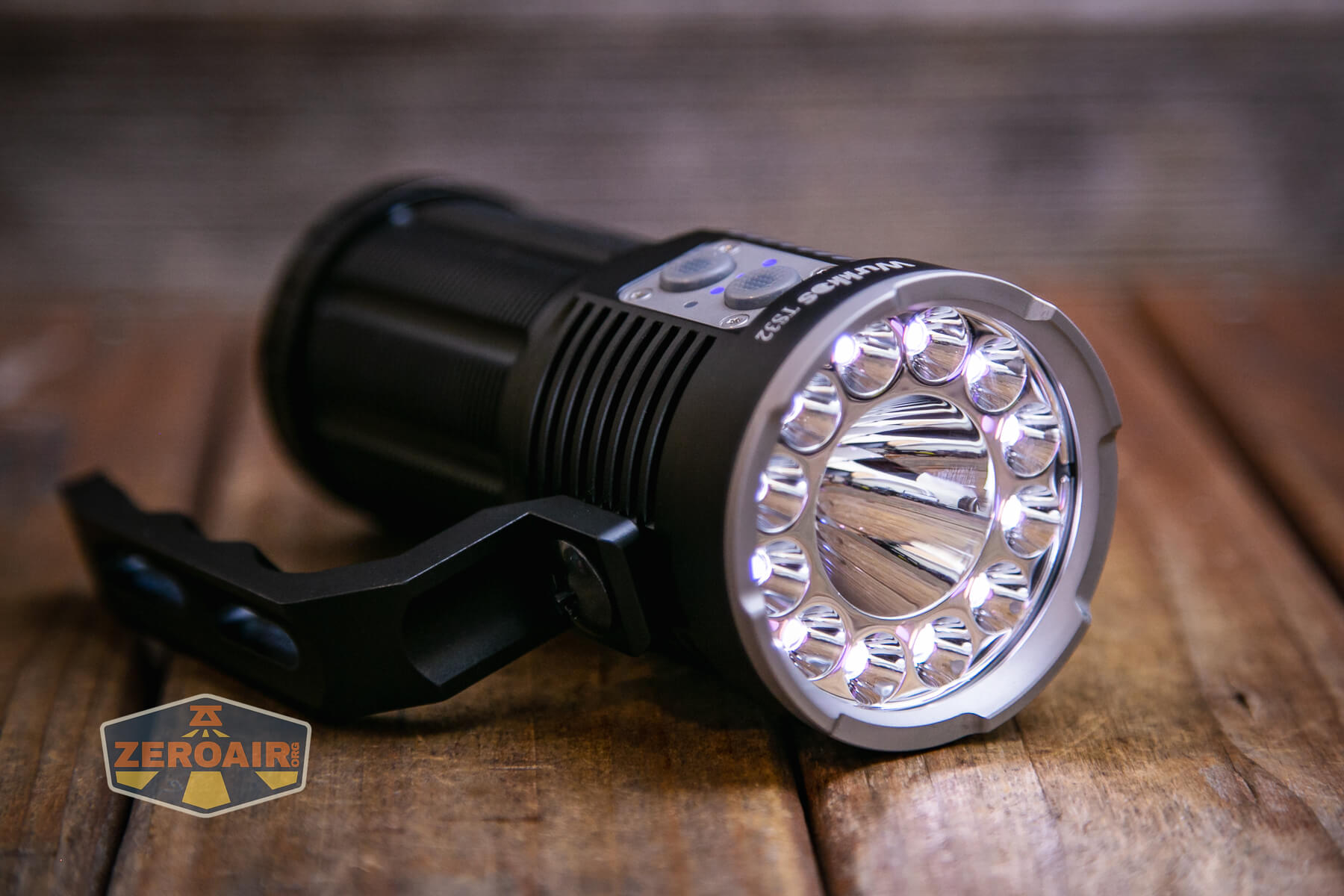

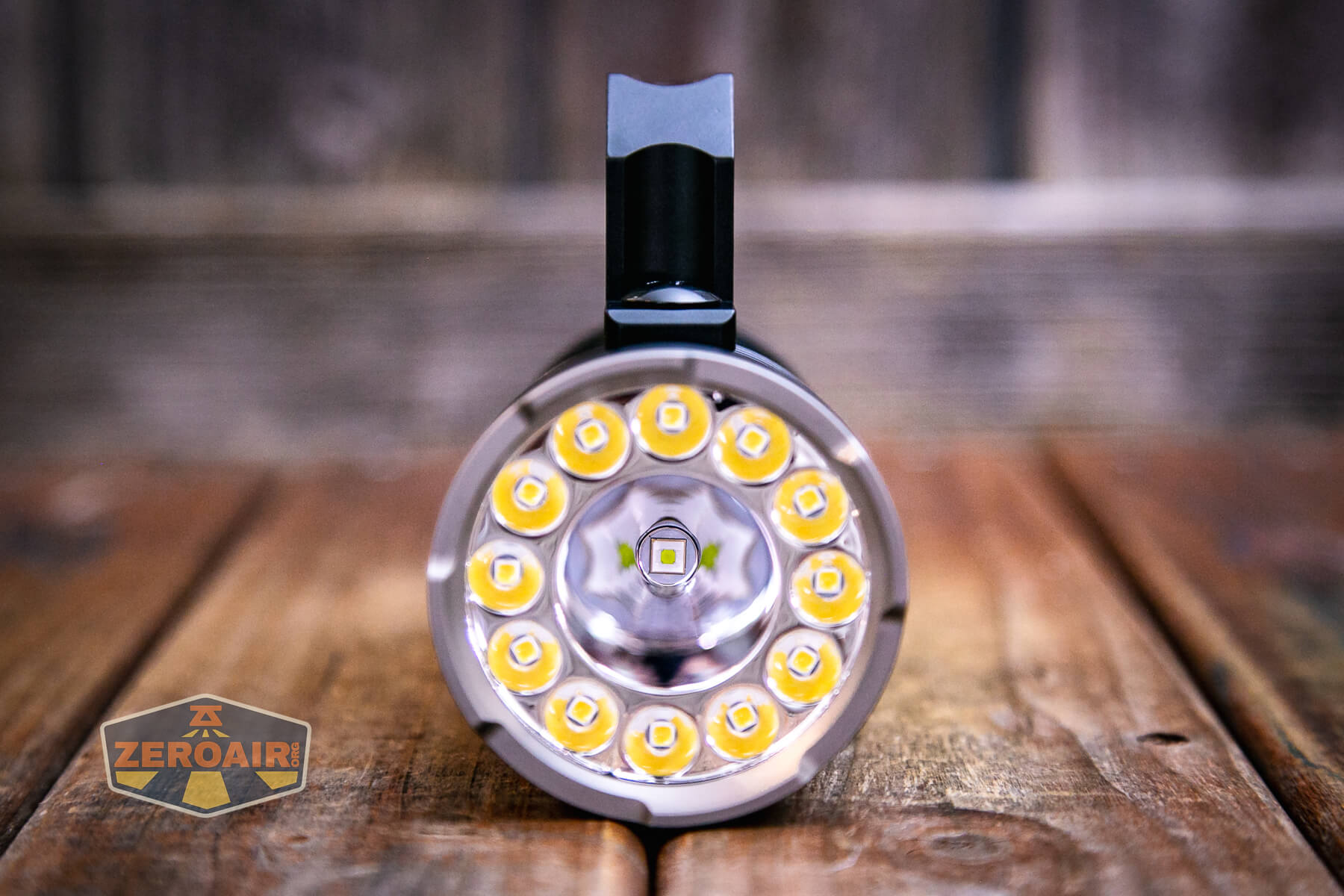

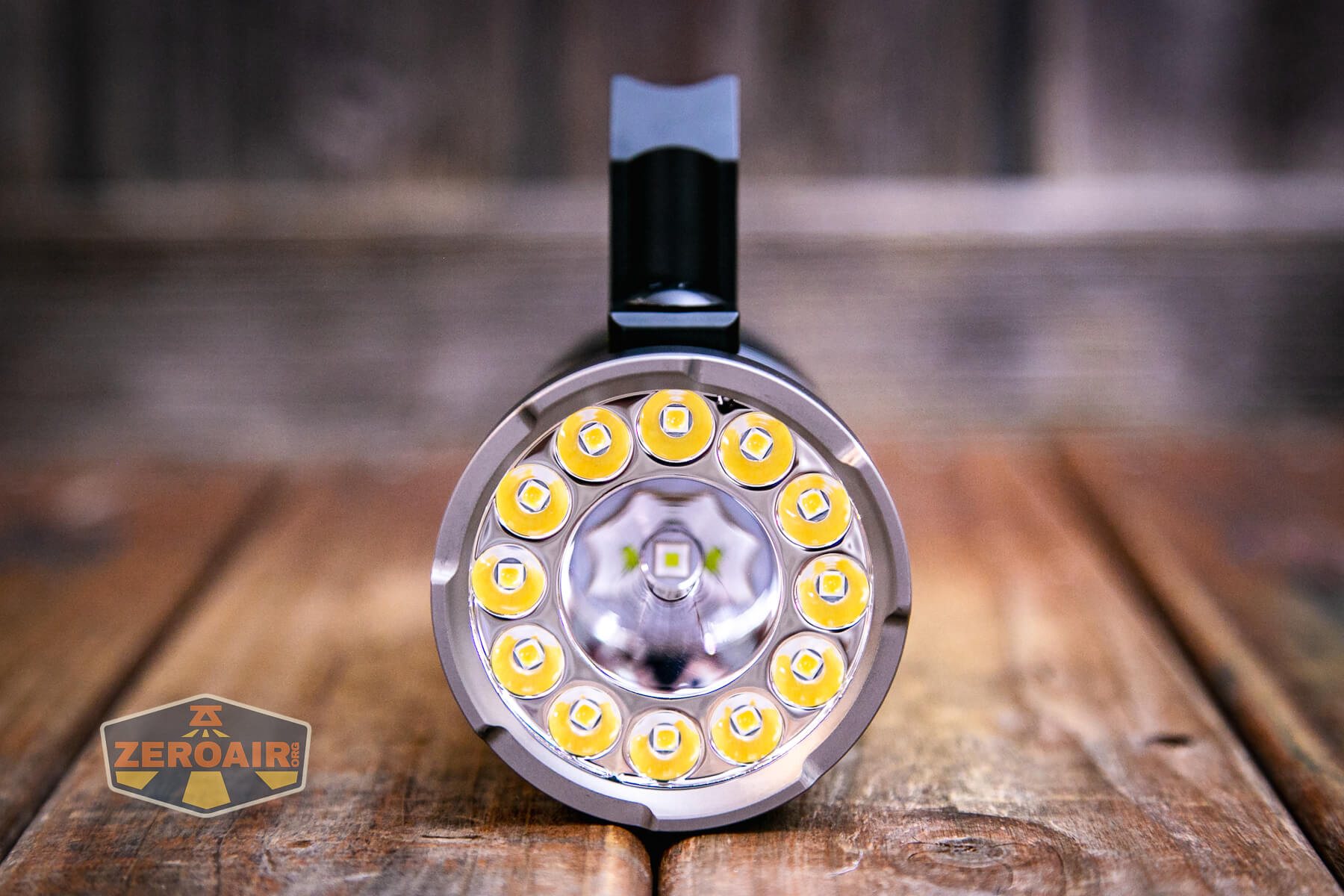

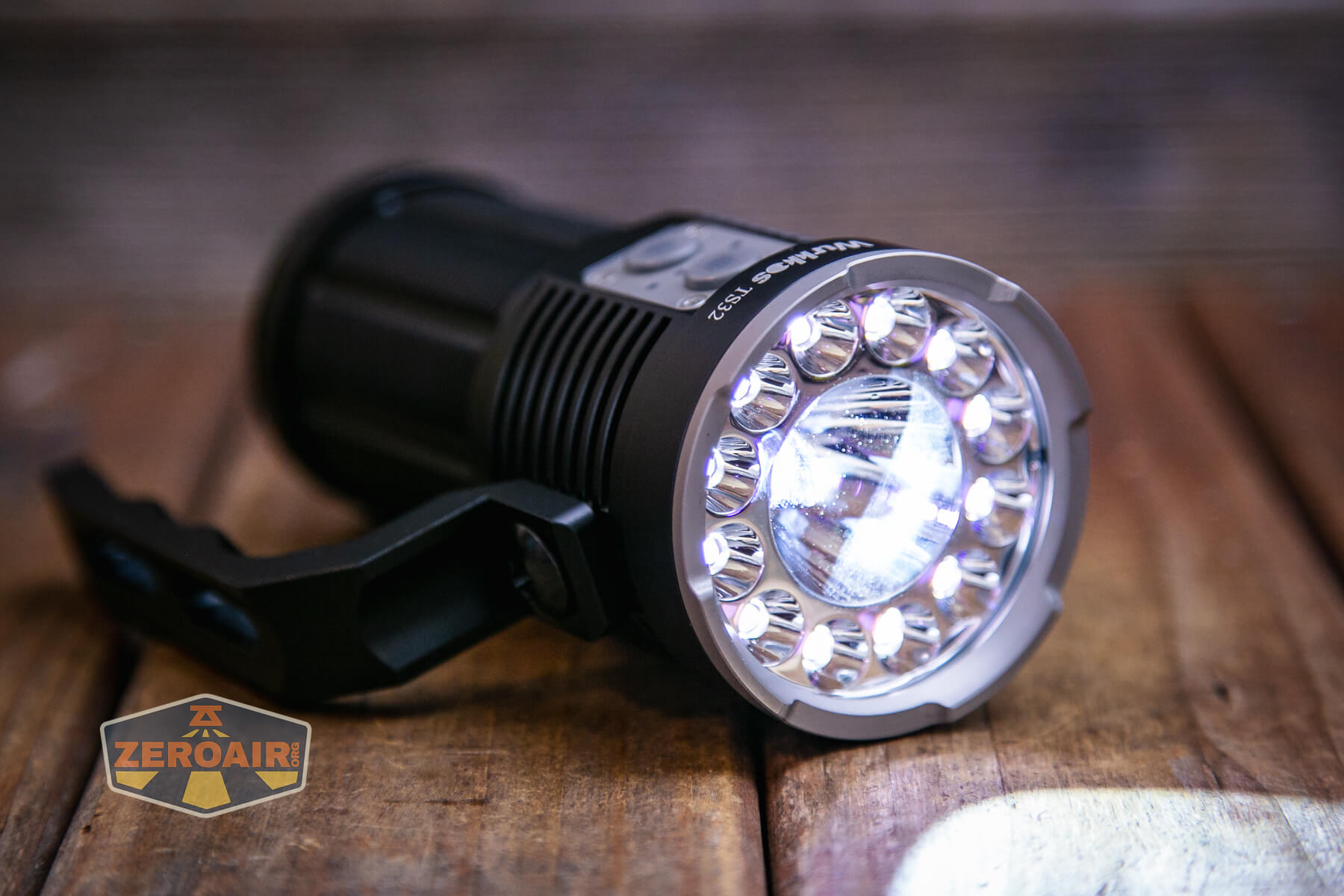

The big change with this version of the TS32 is that the flood emitters are Nichia 519a. There are 12 of those, and a single SFT40 emitter in the center for throw.

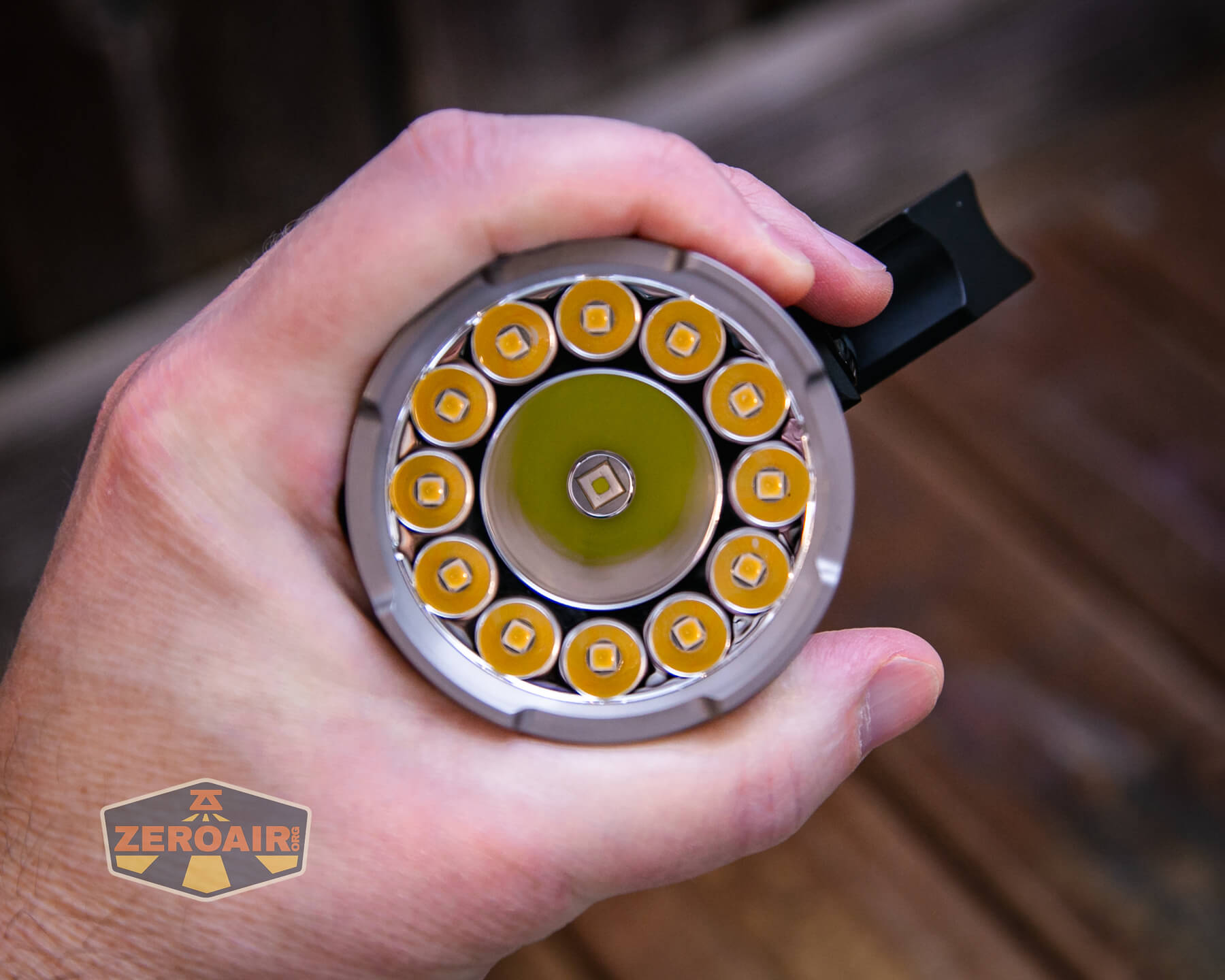

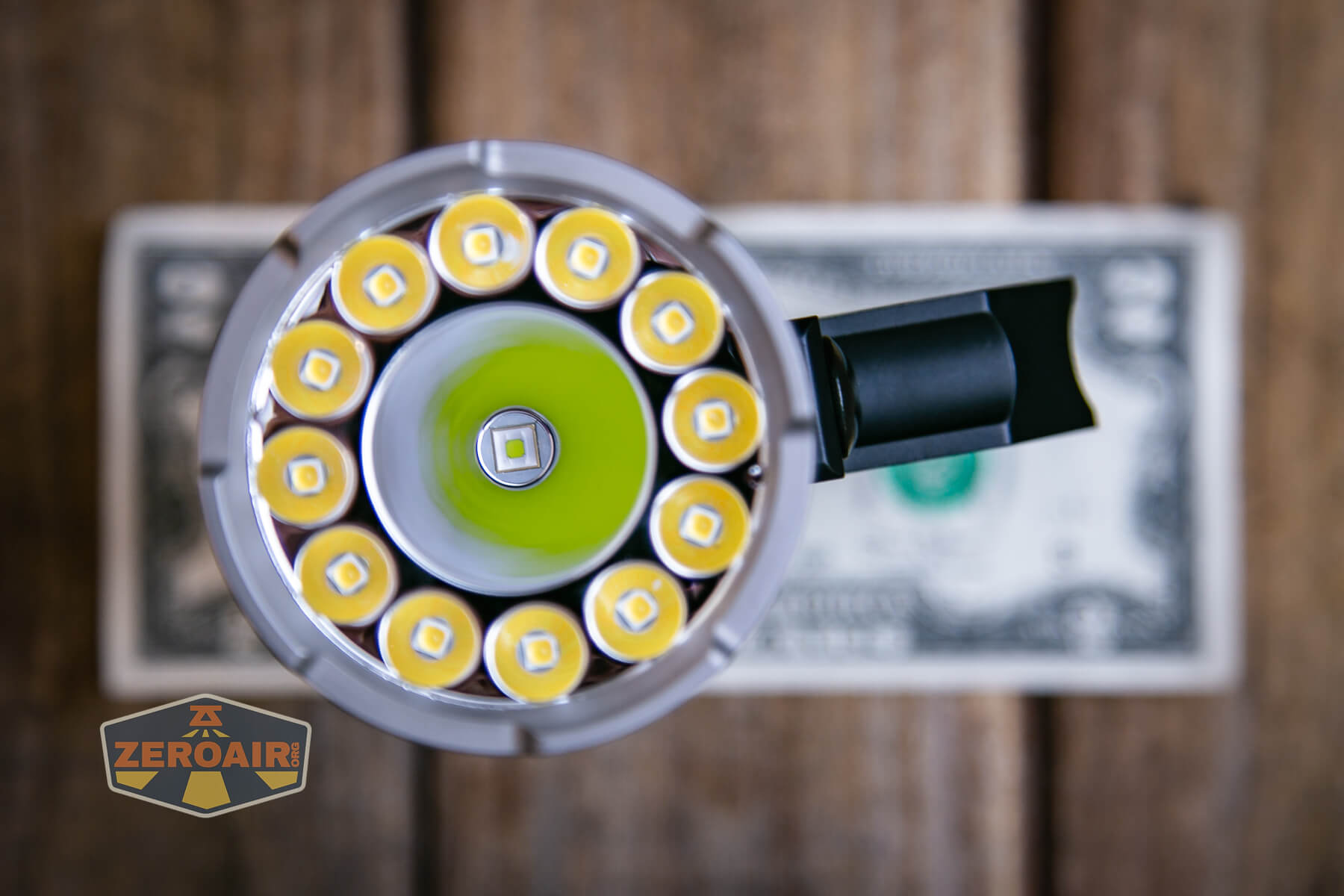

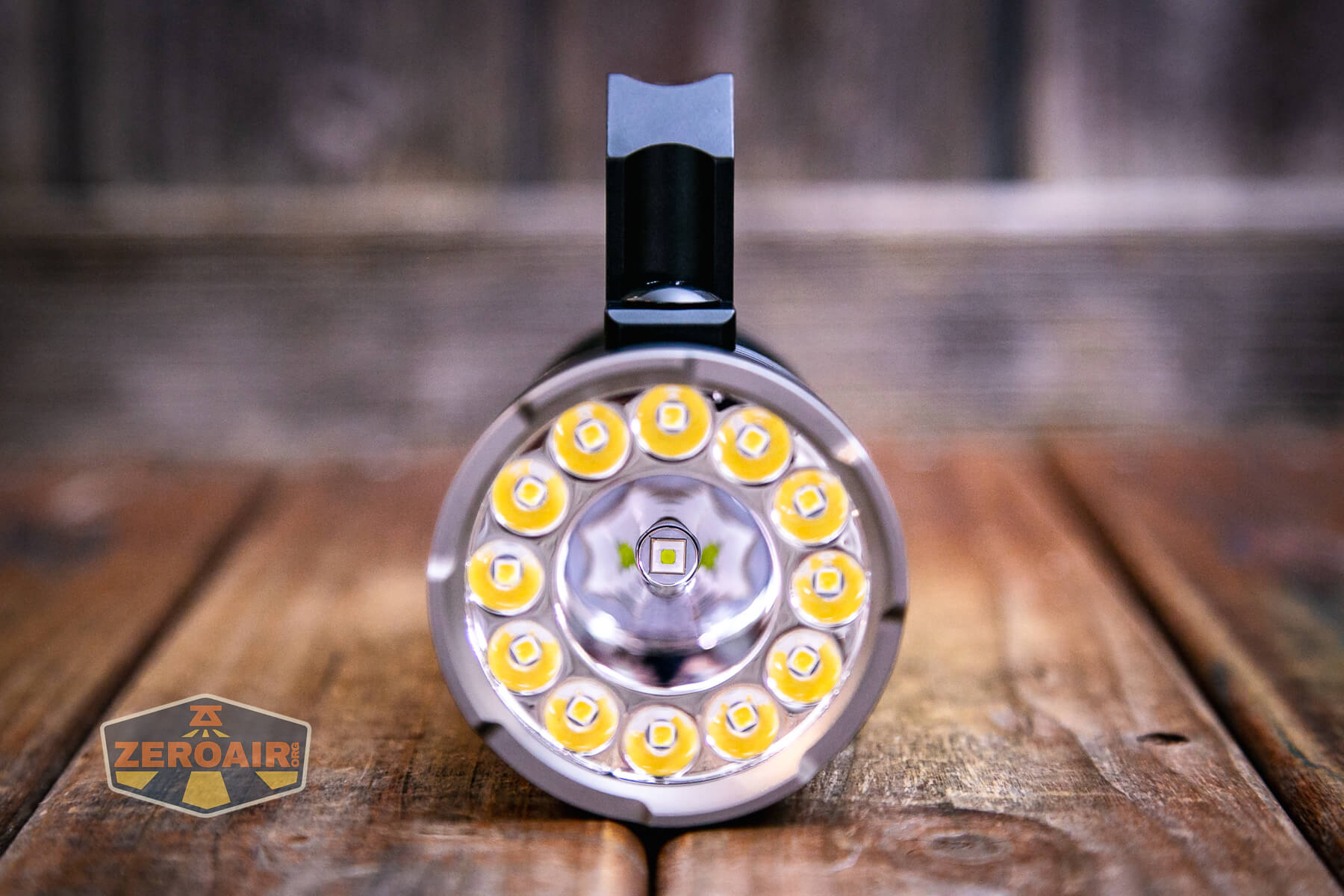

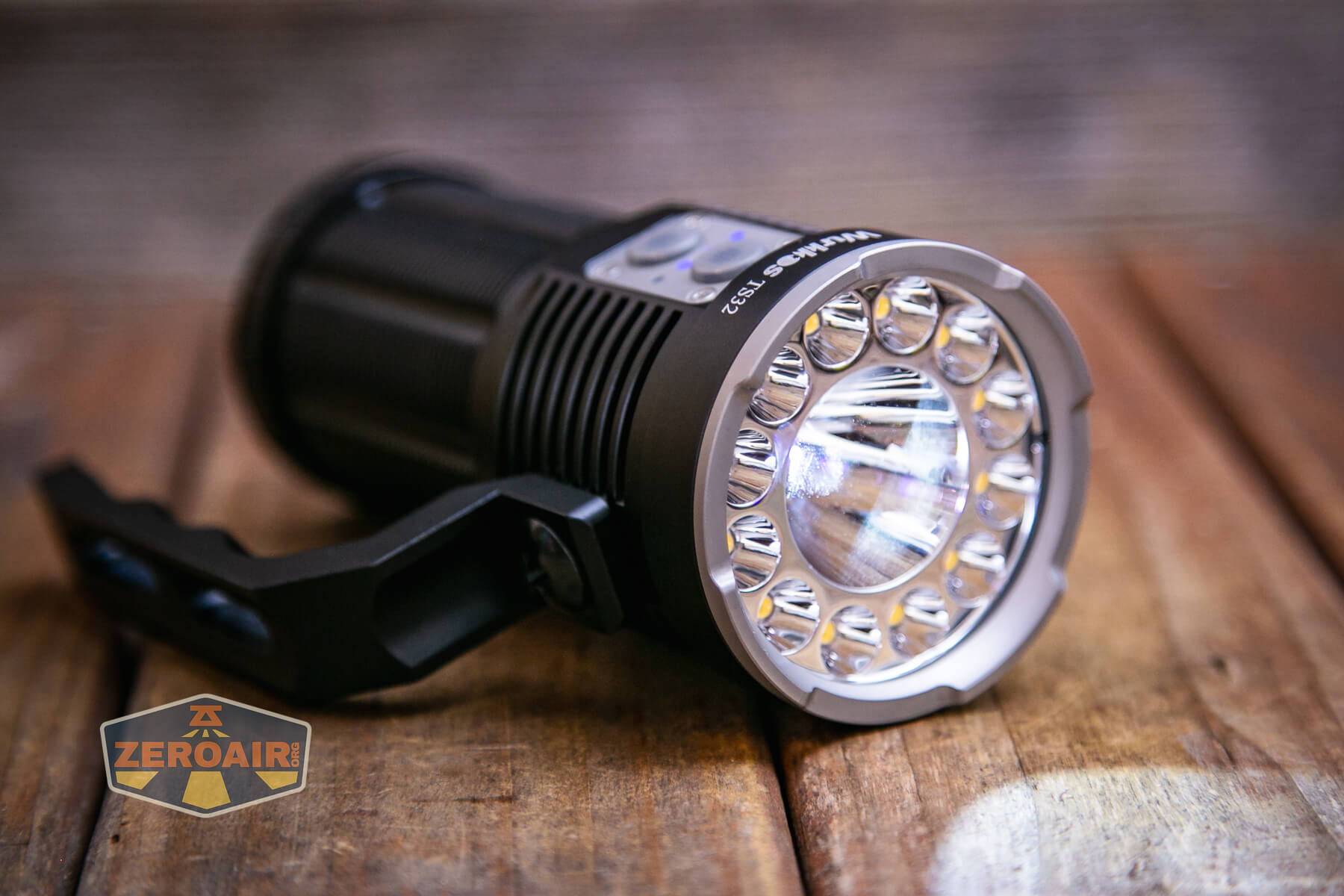

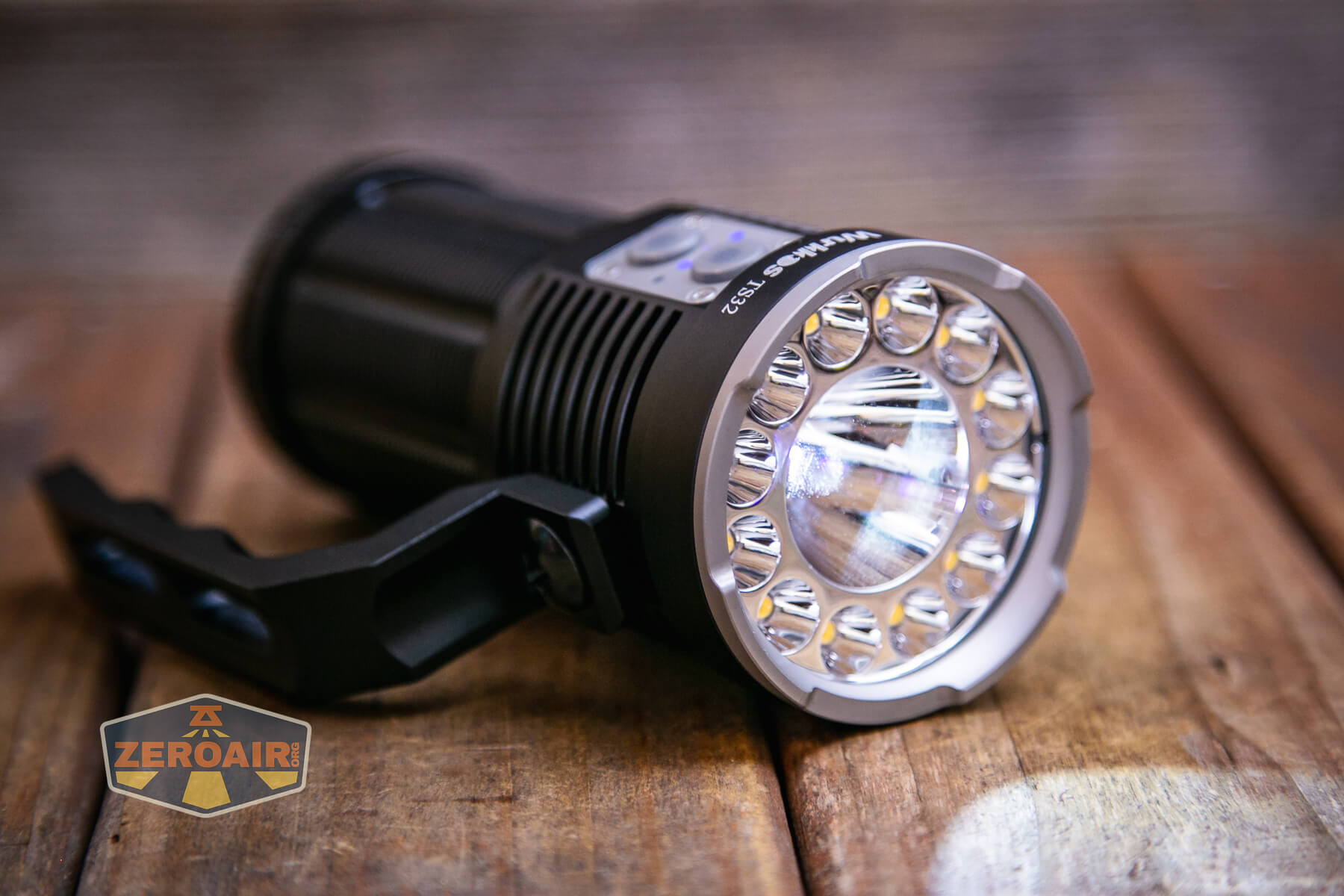

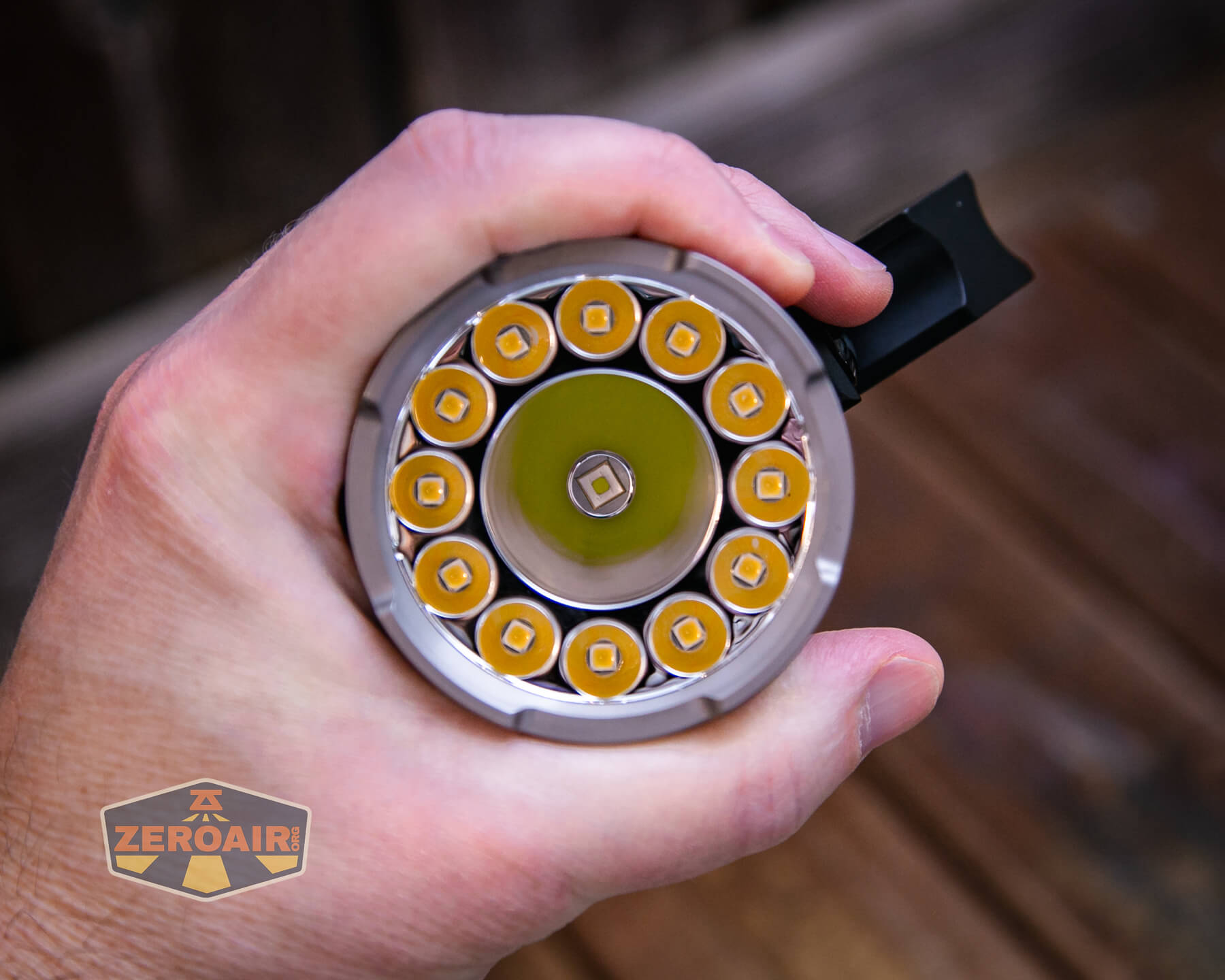

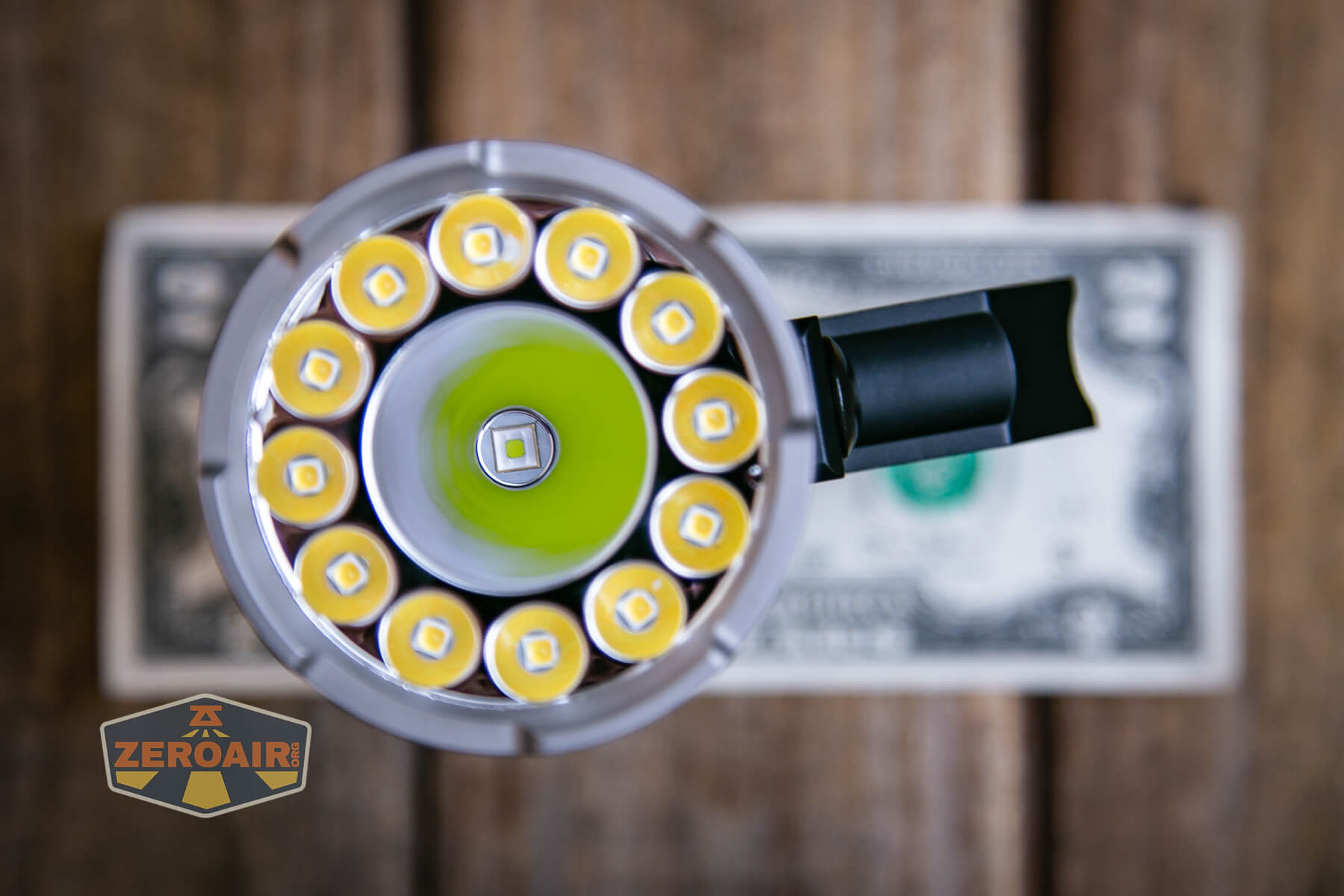

Wurkkos TS21 flashlight emitter array

These Nichia emitters are just fantastic and the 5000K they output is so very great.

Wurkkos TS21 flashlight bezel

The bezel (which is probably stainless steel) has a bit of shape and light escapes while the light is face-down.

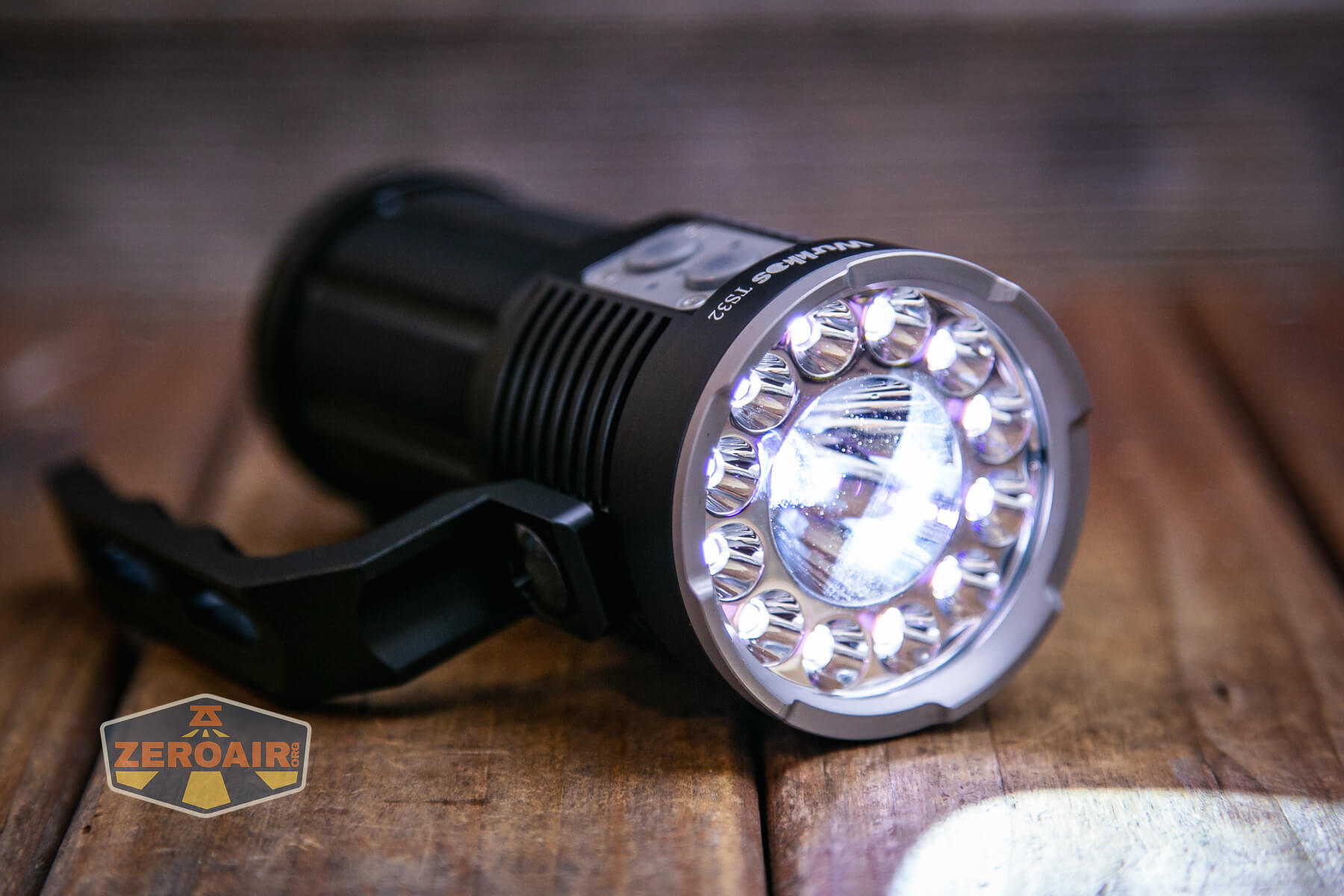

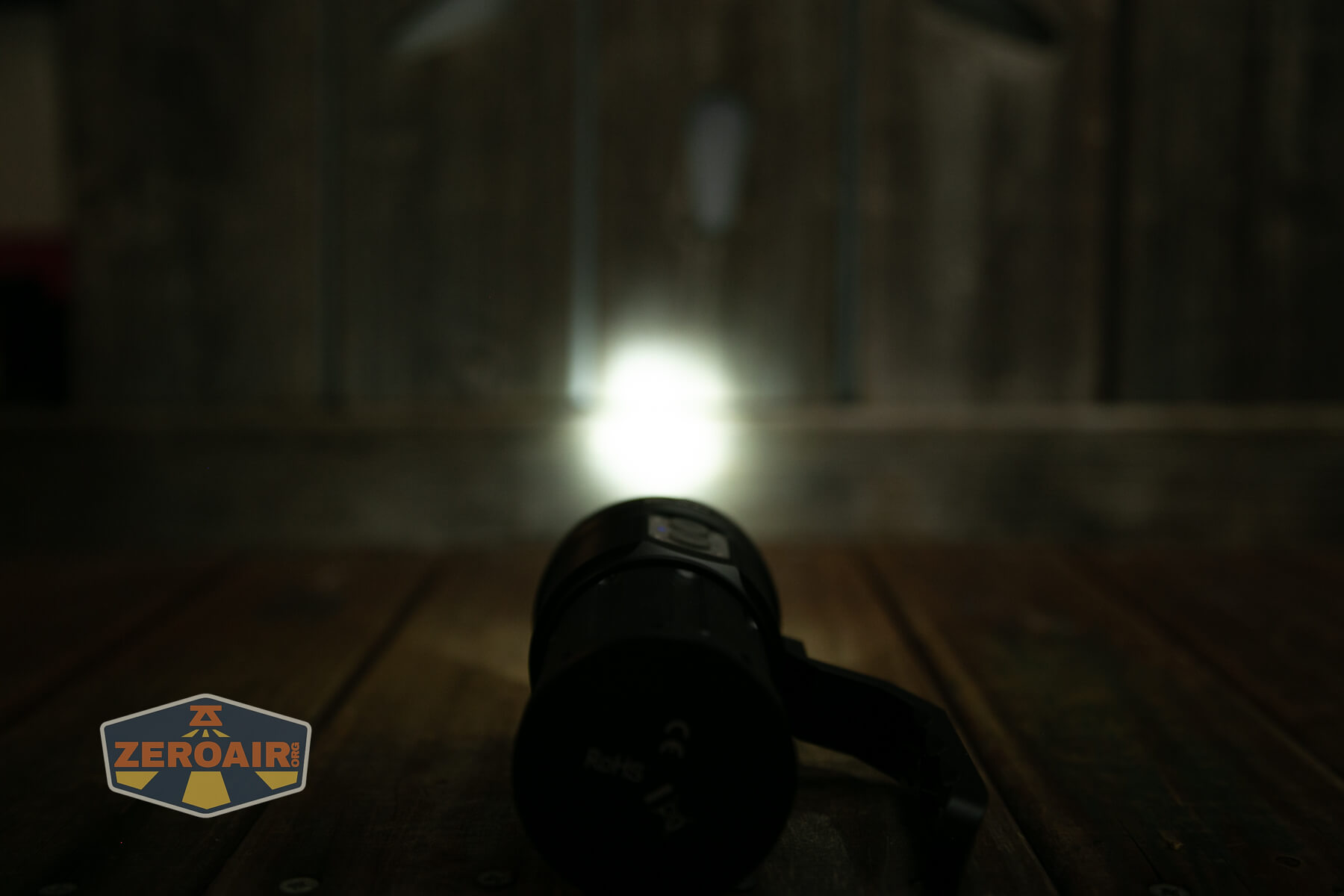

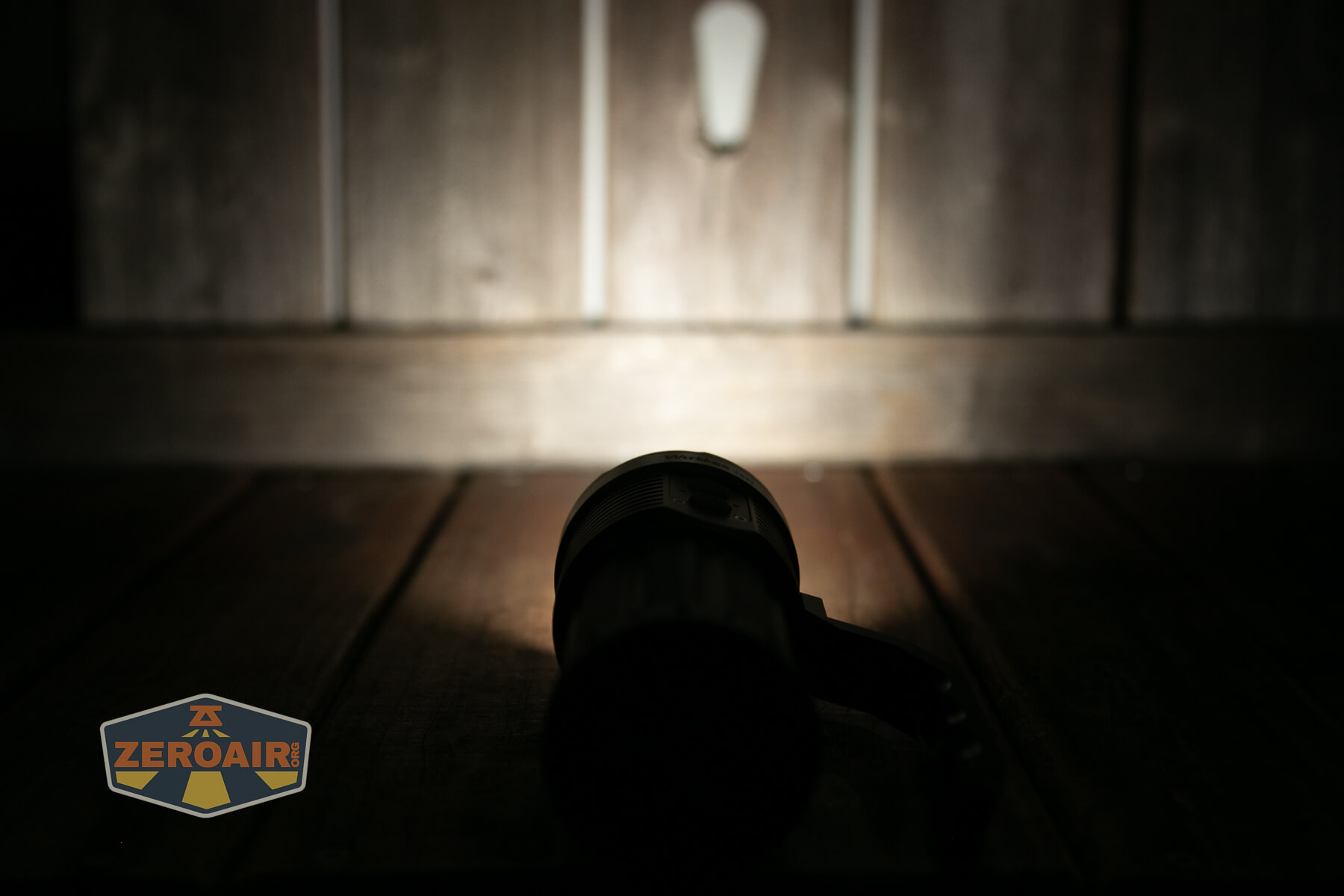

Wurkkos TS21 flashlight low flood

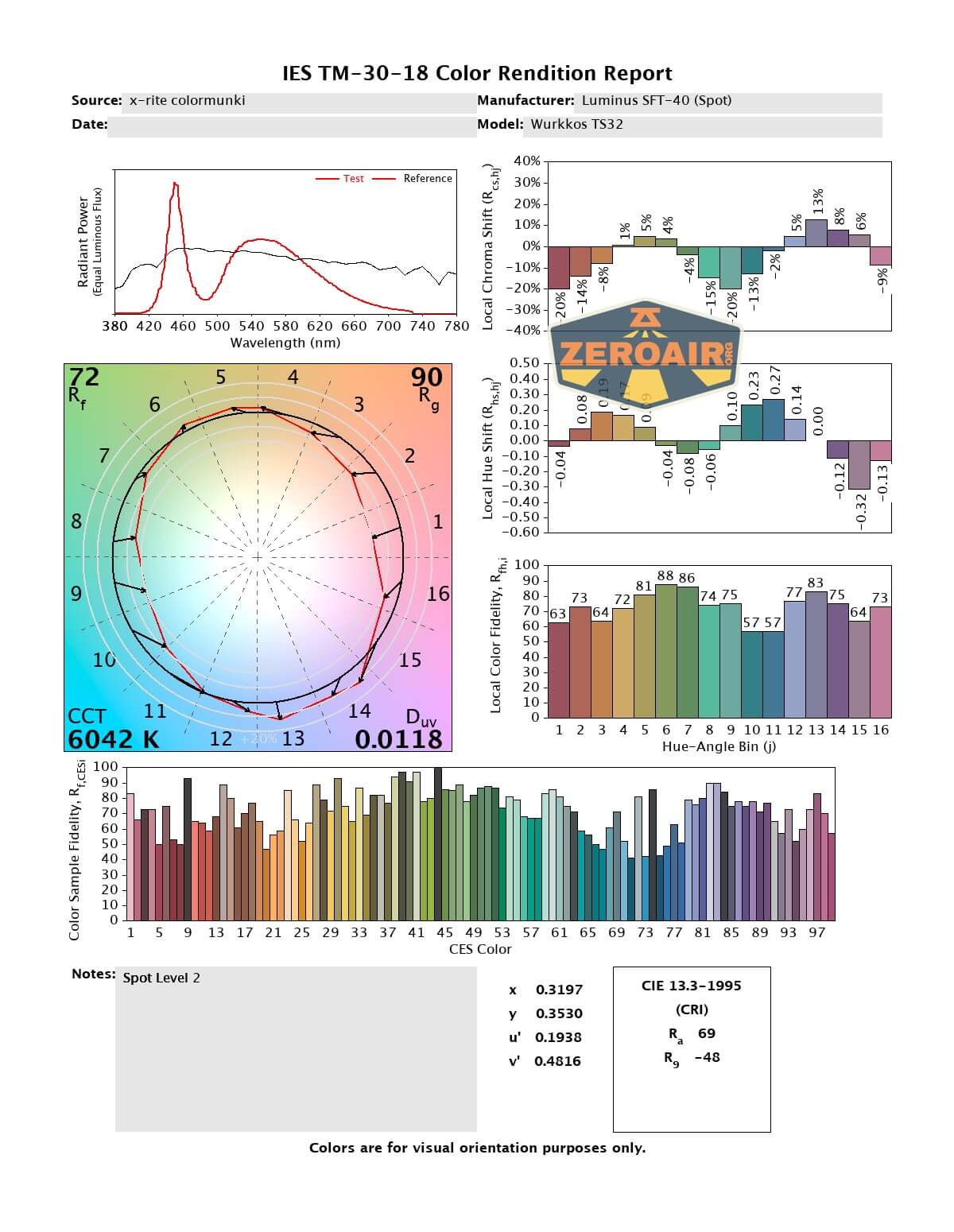

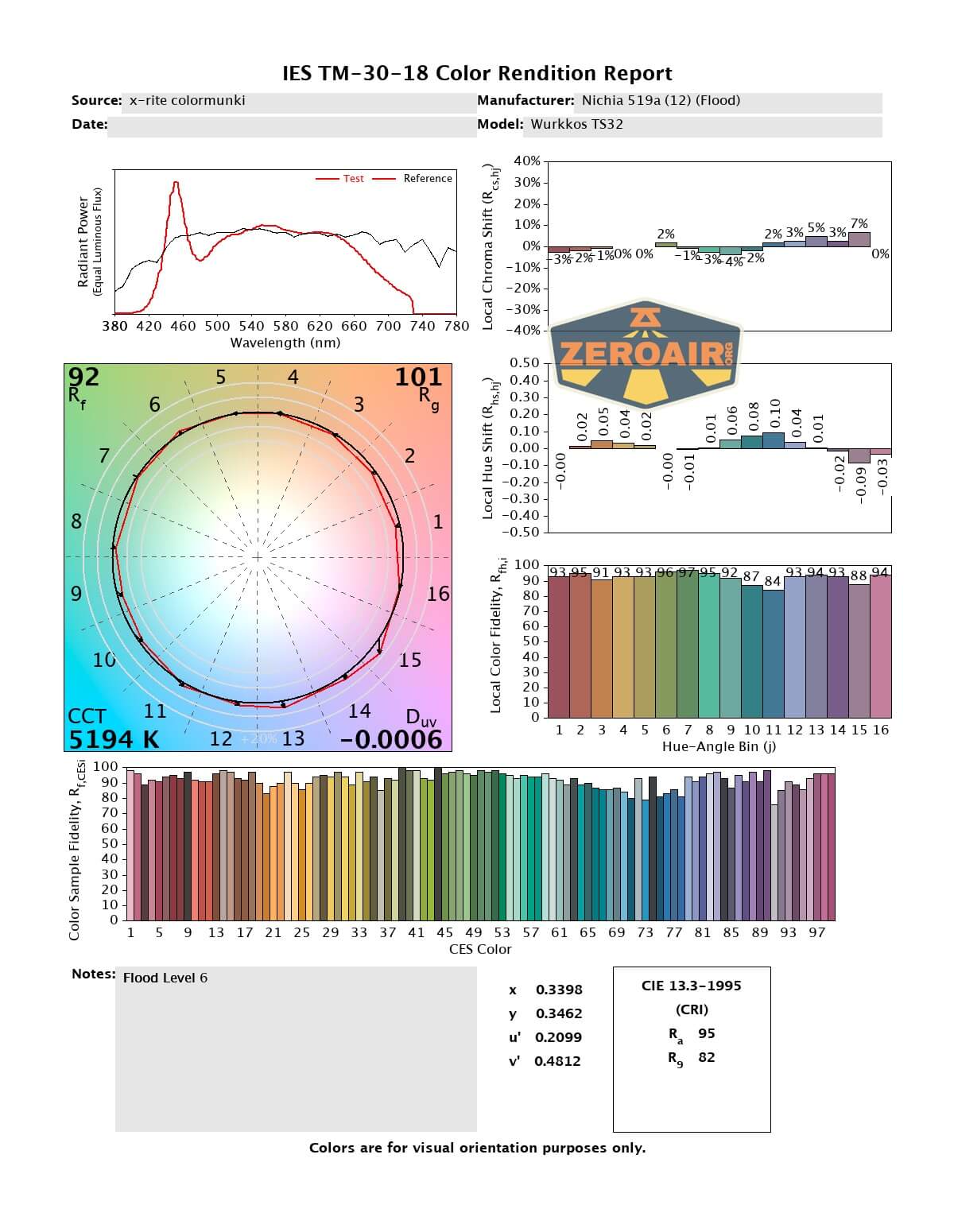

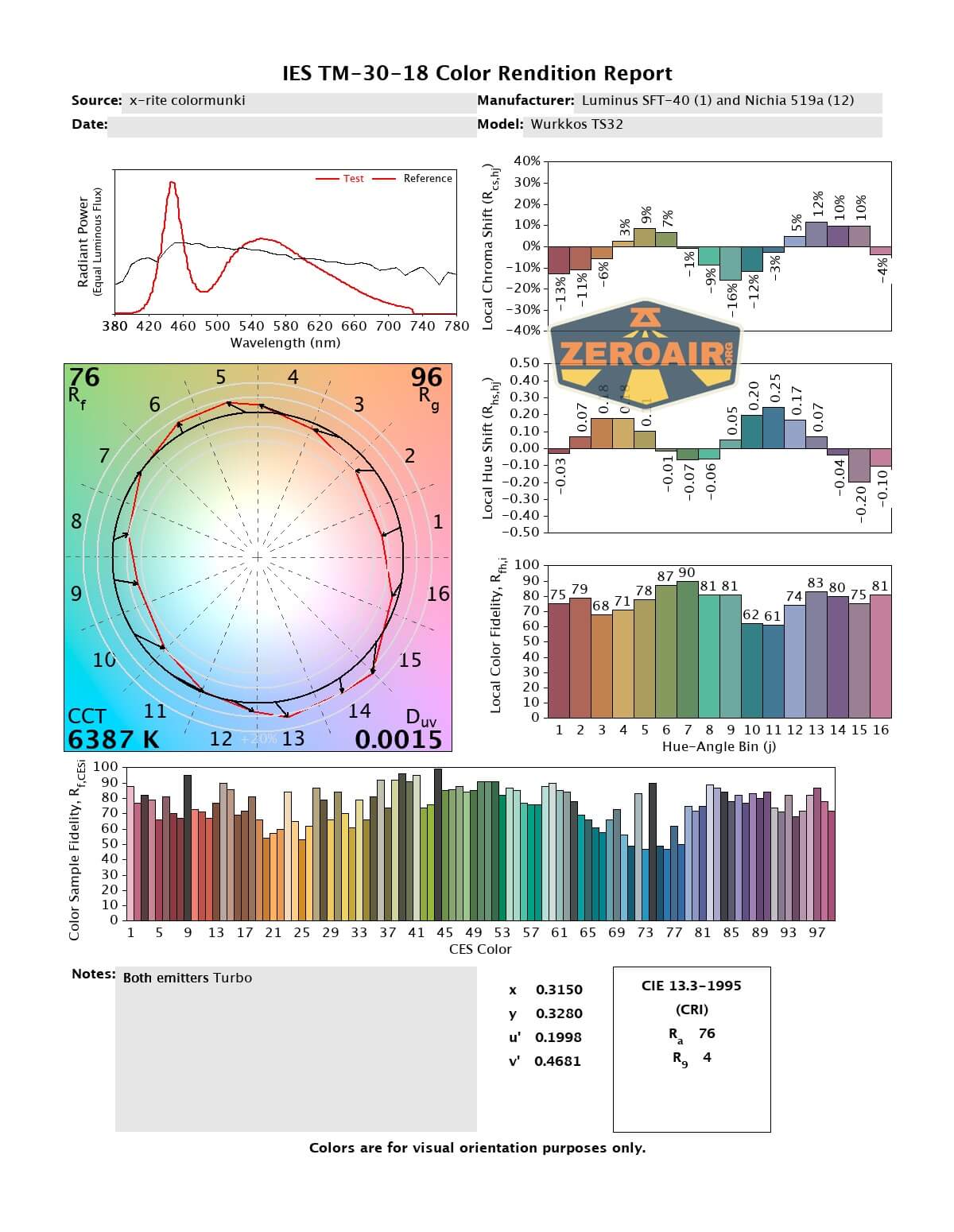

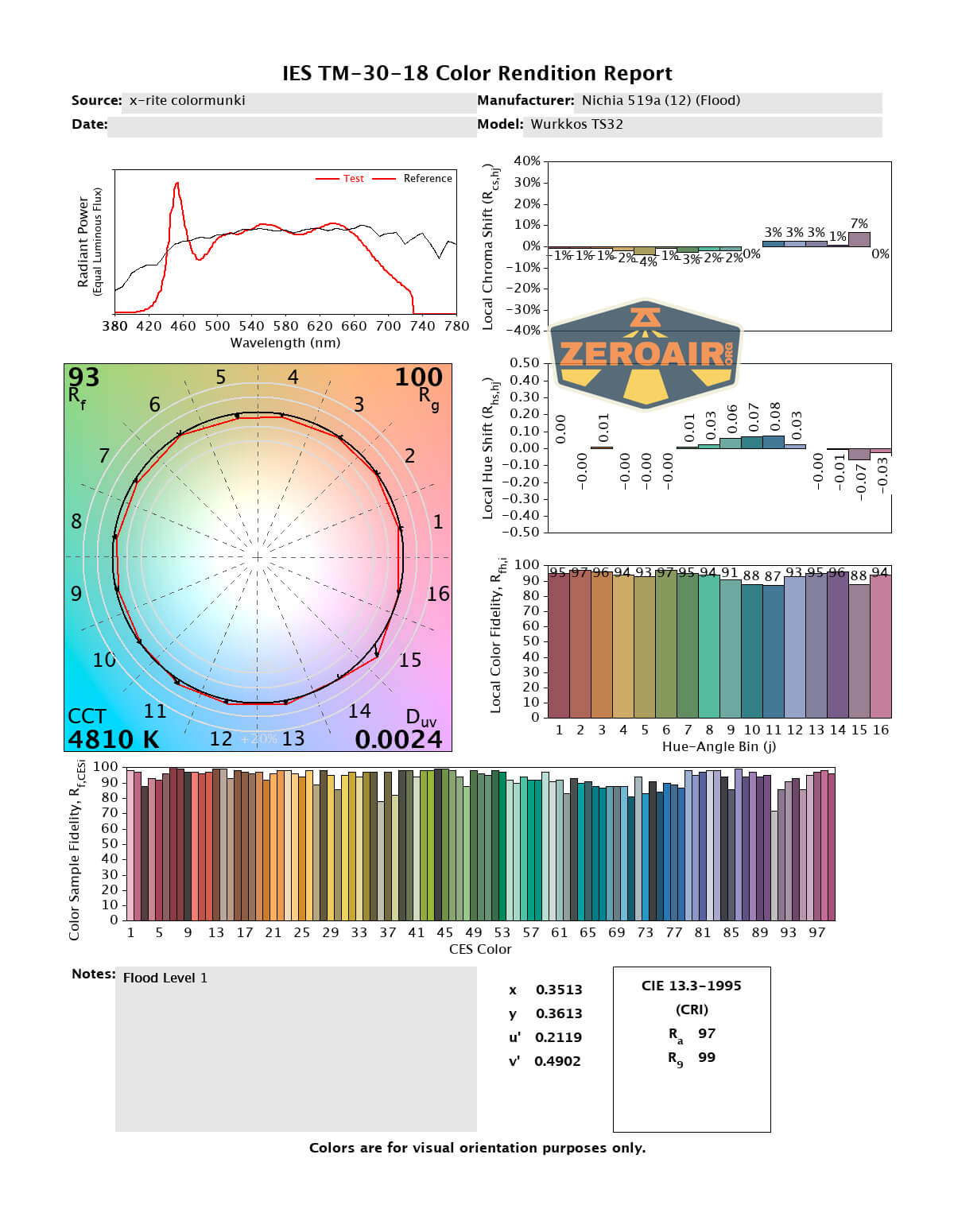

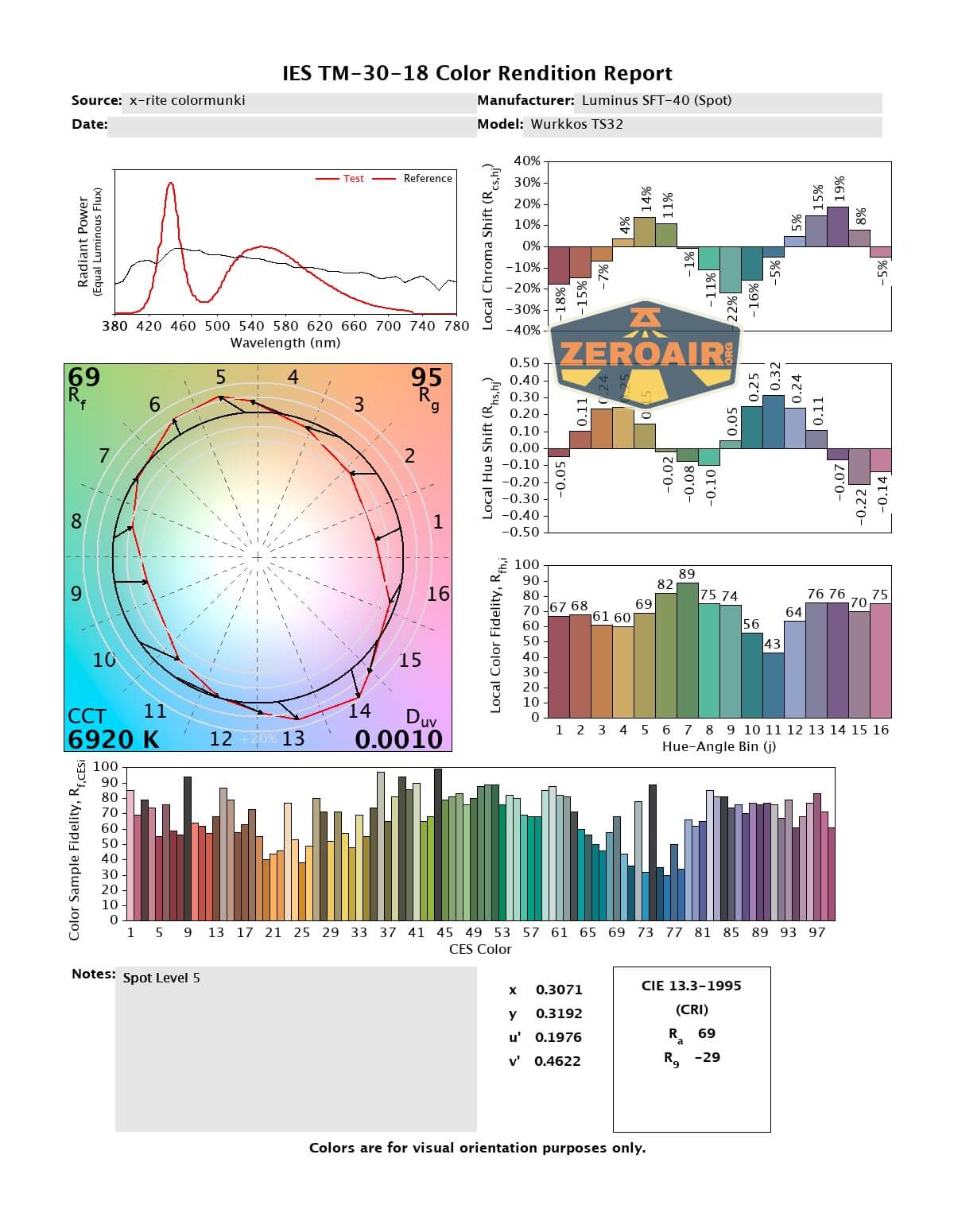

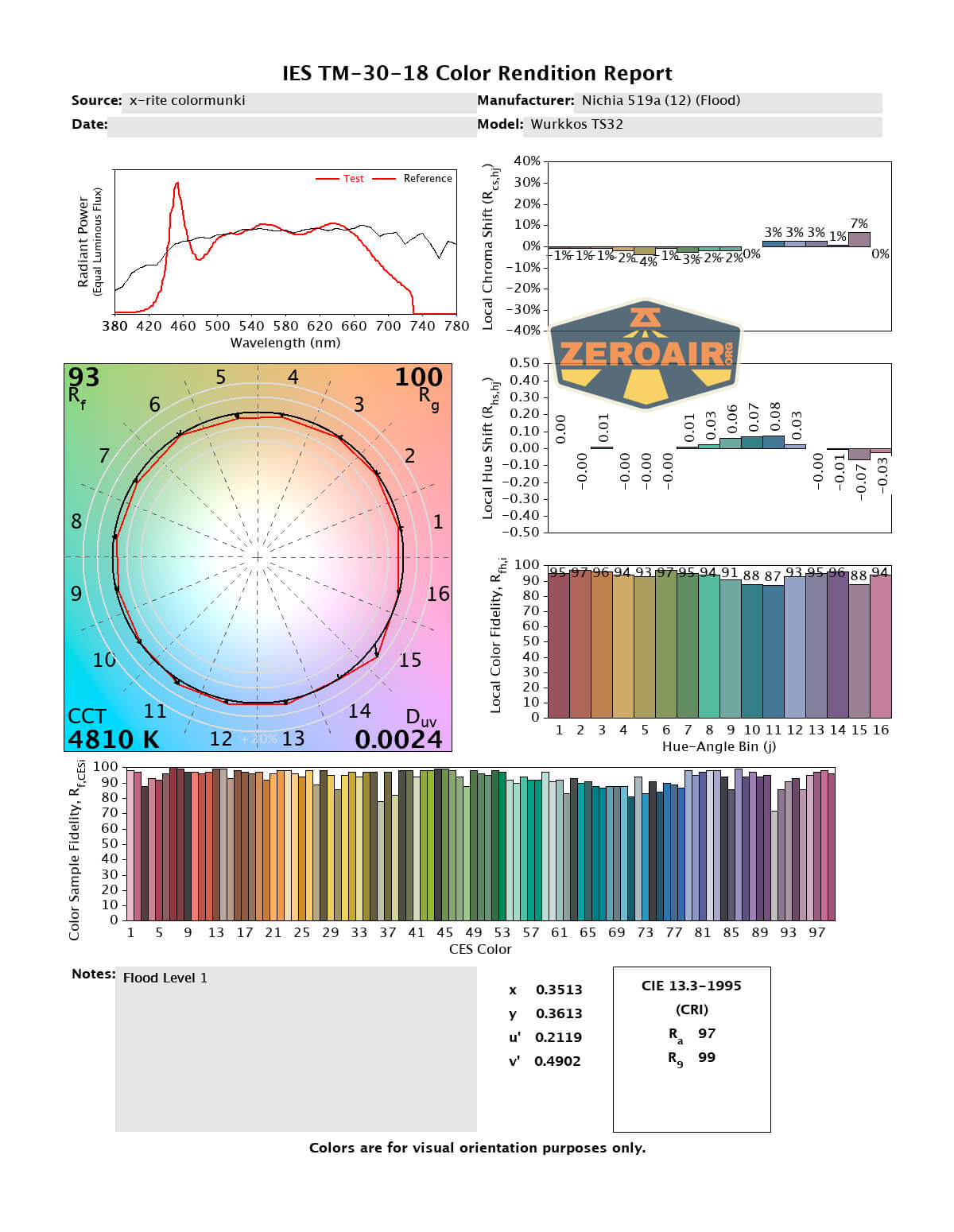

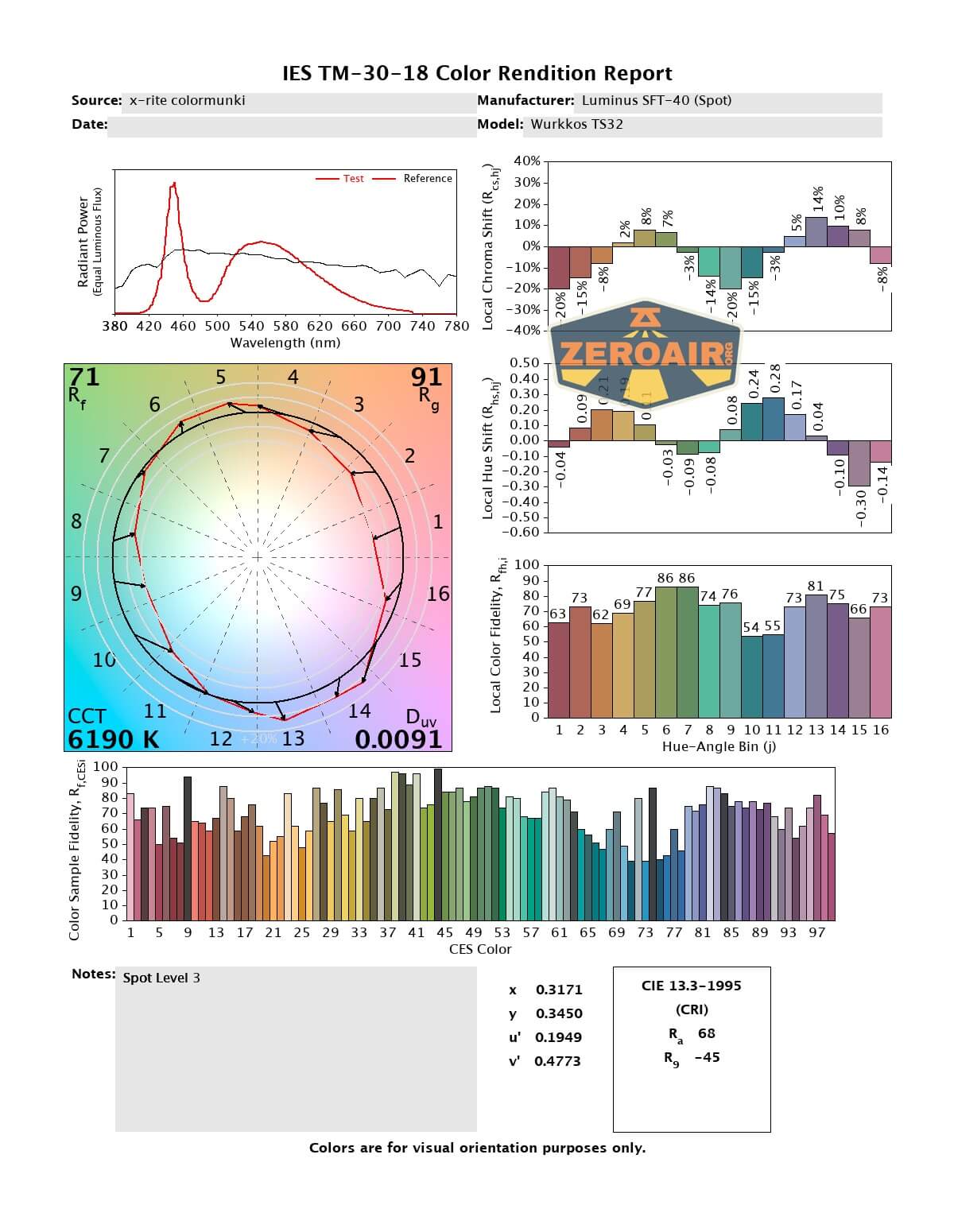

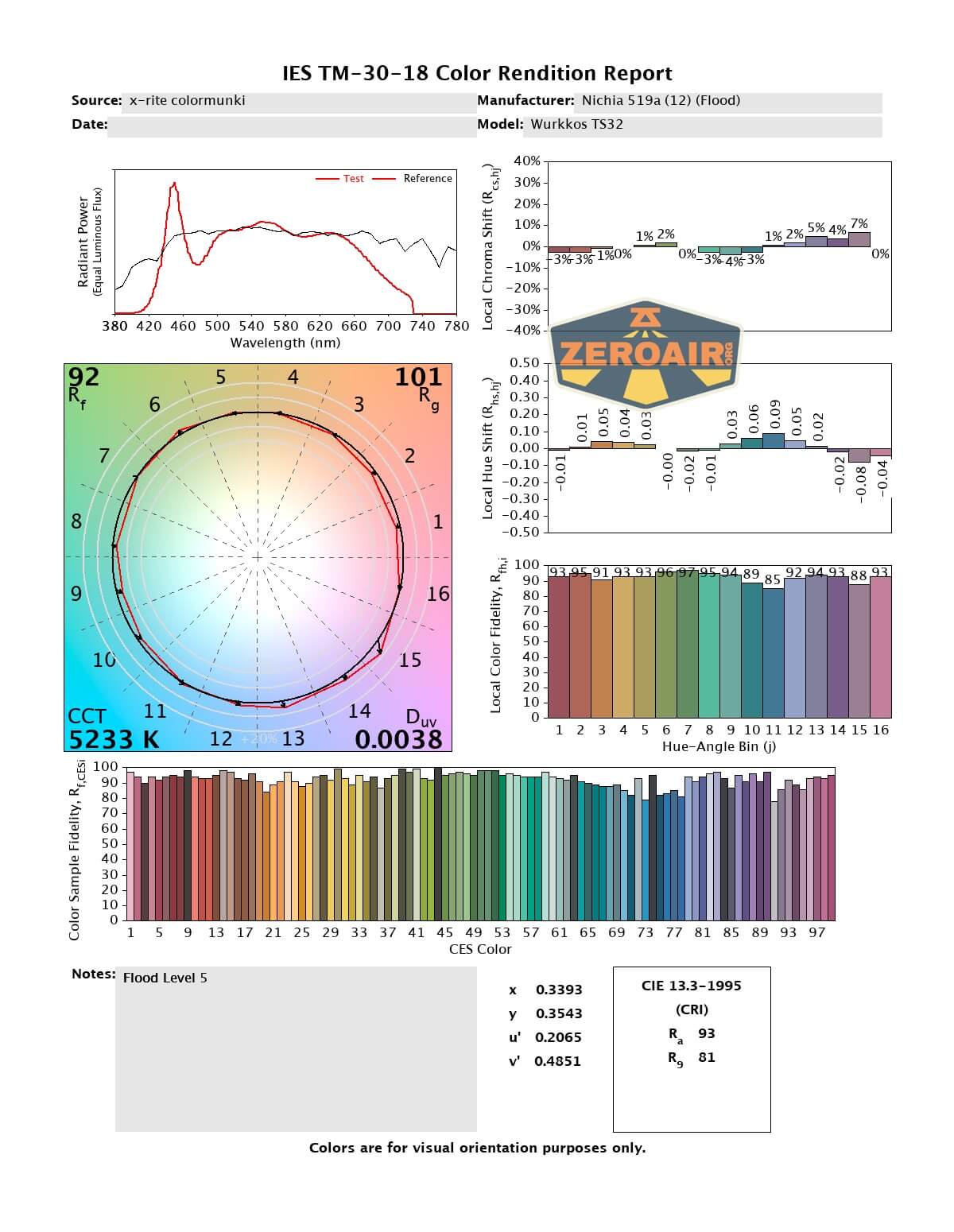

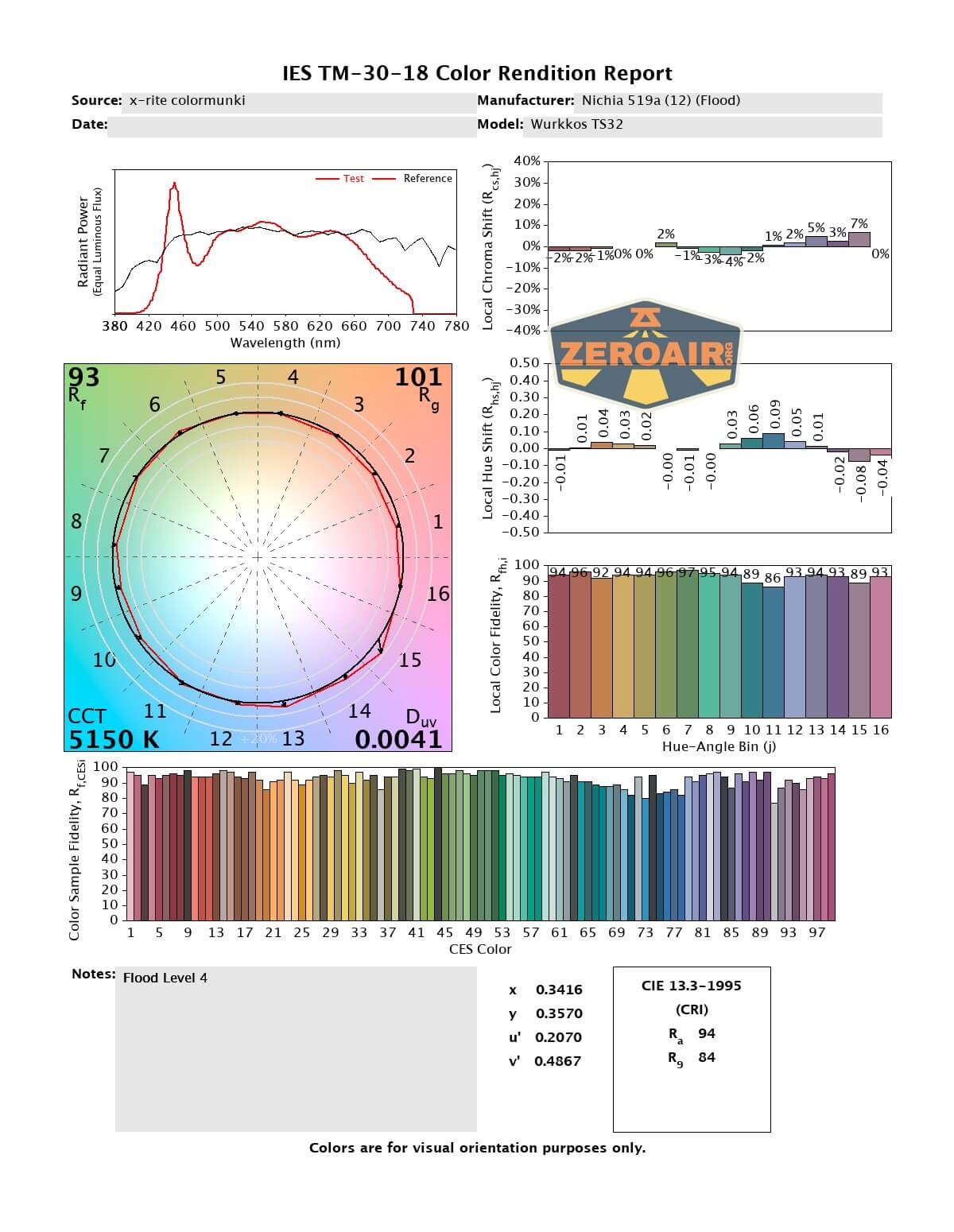

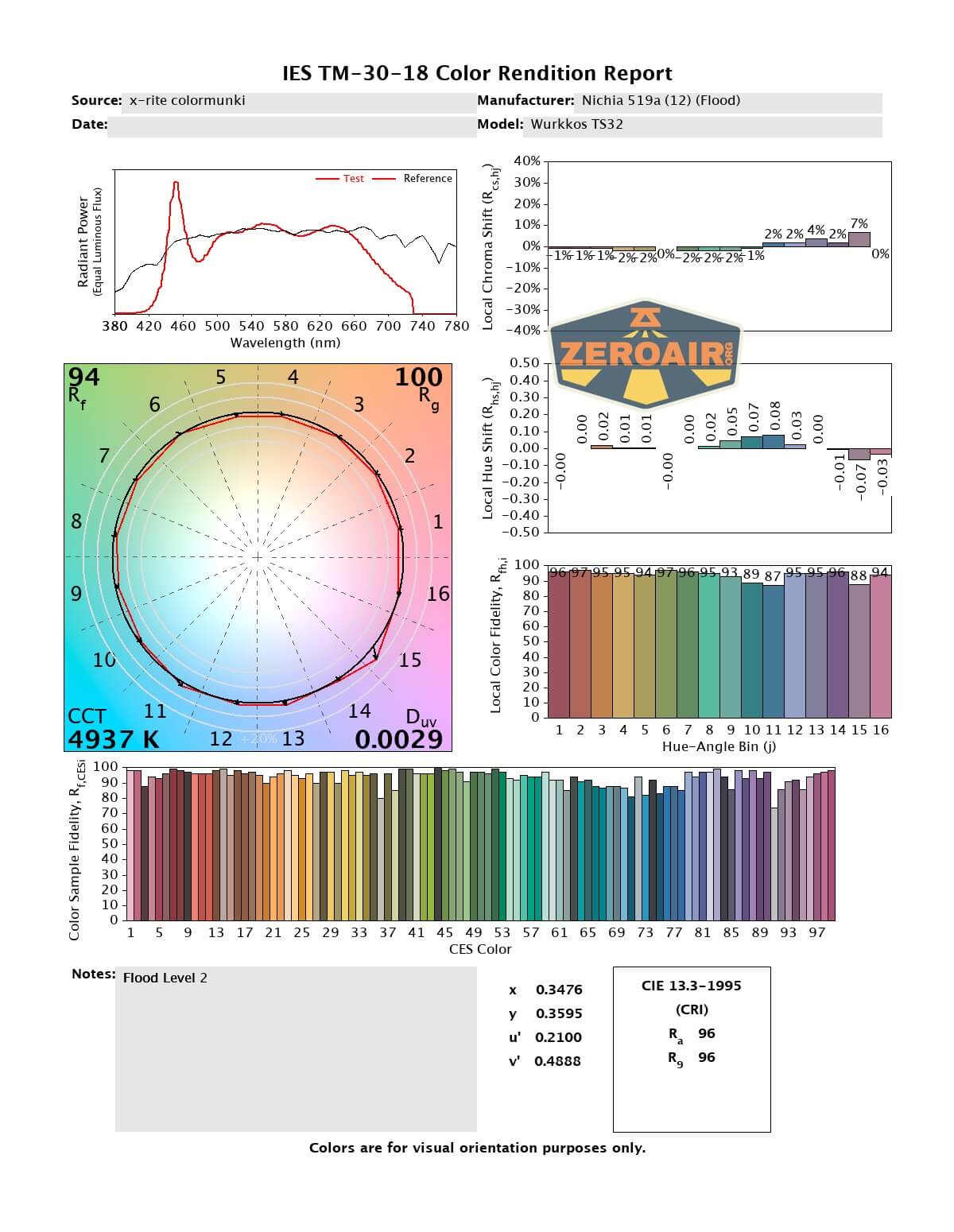

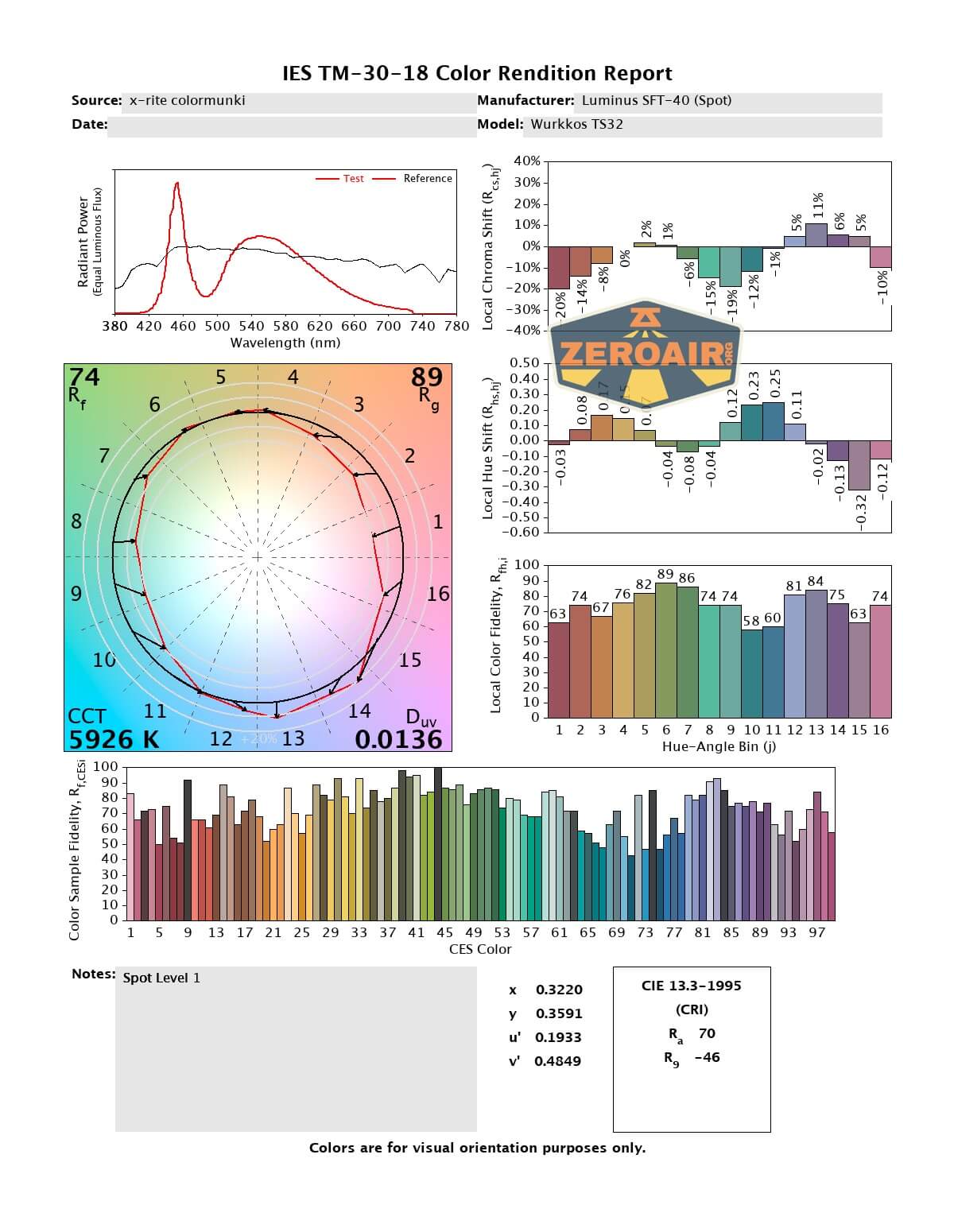

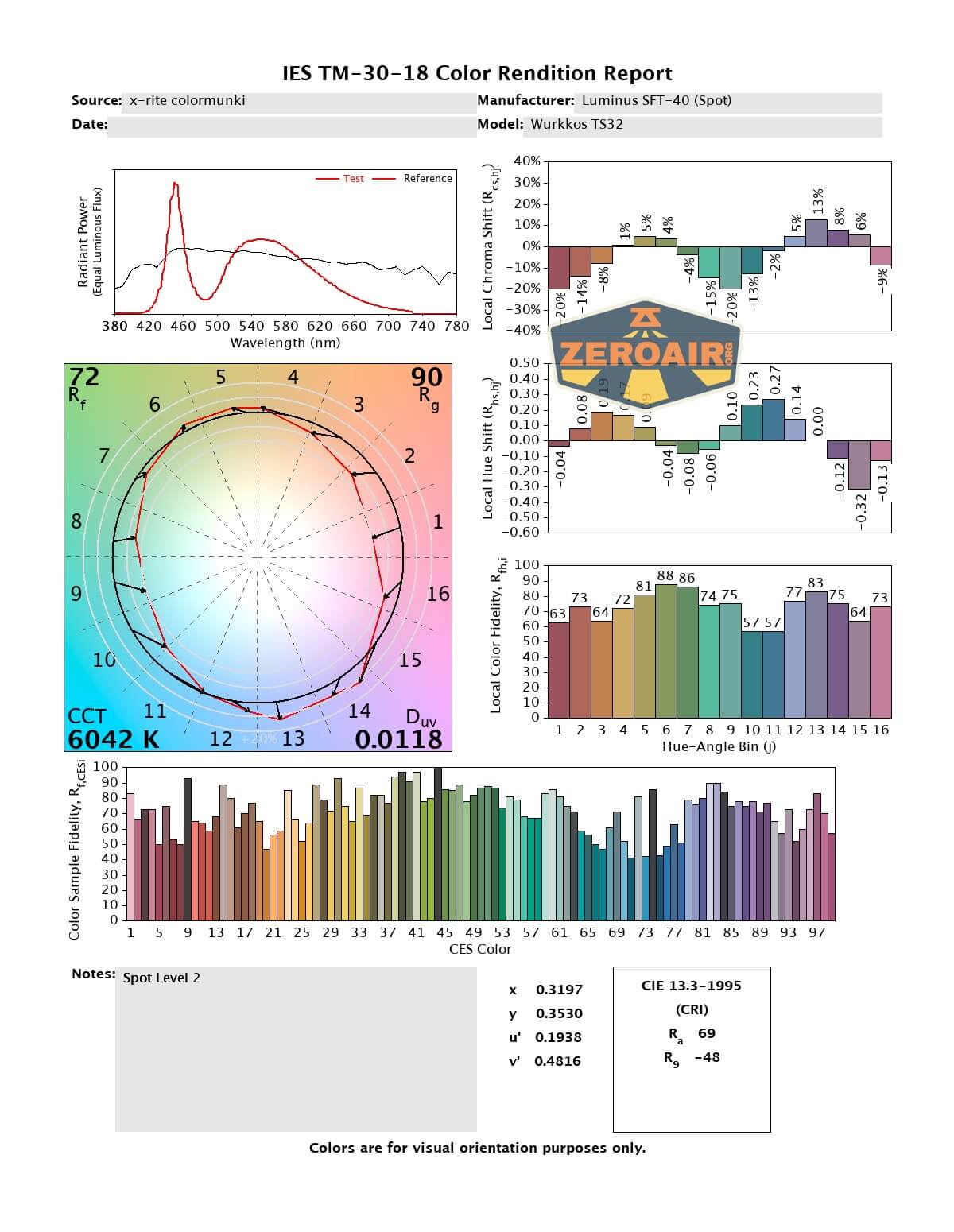

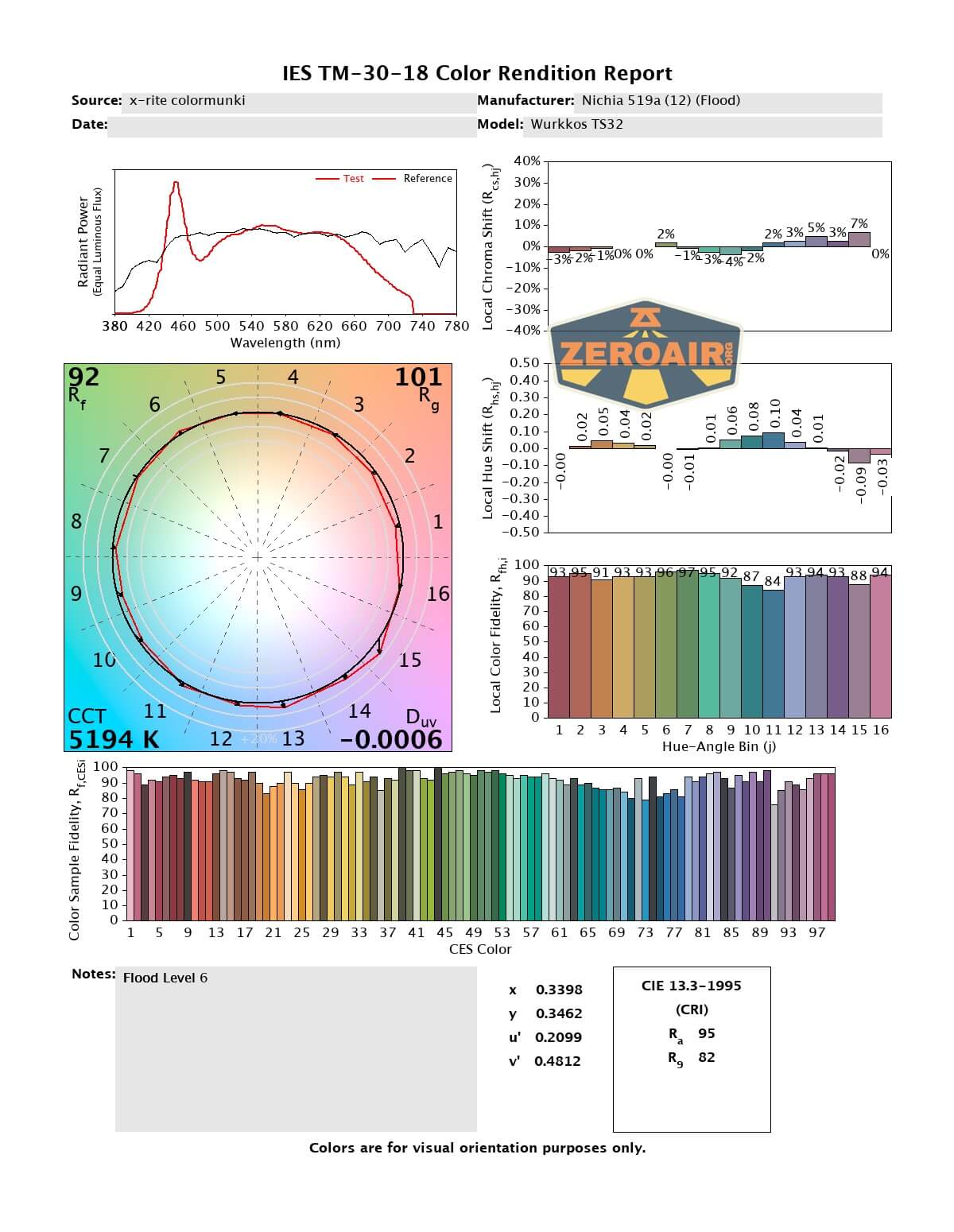

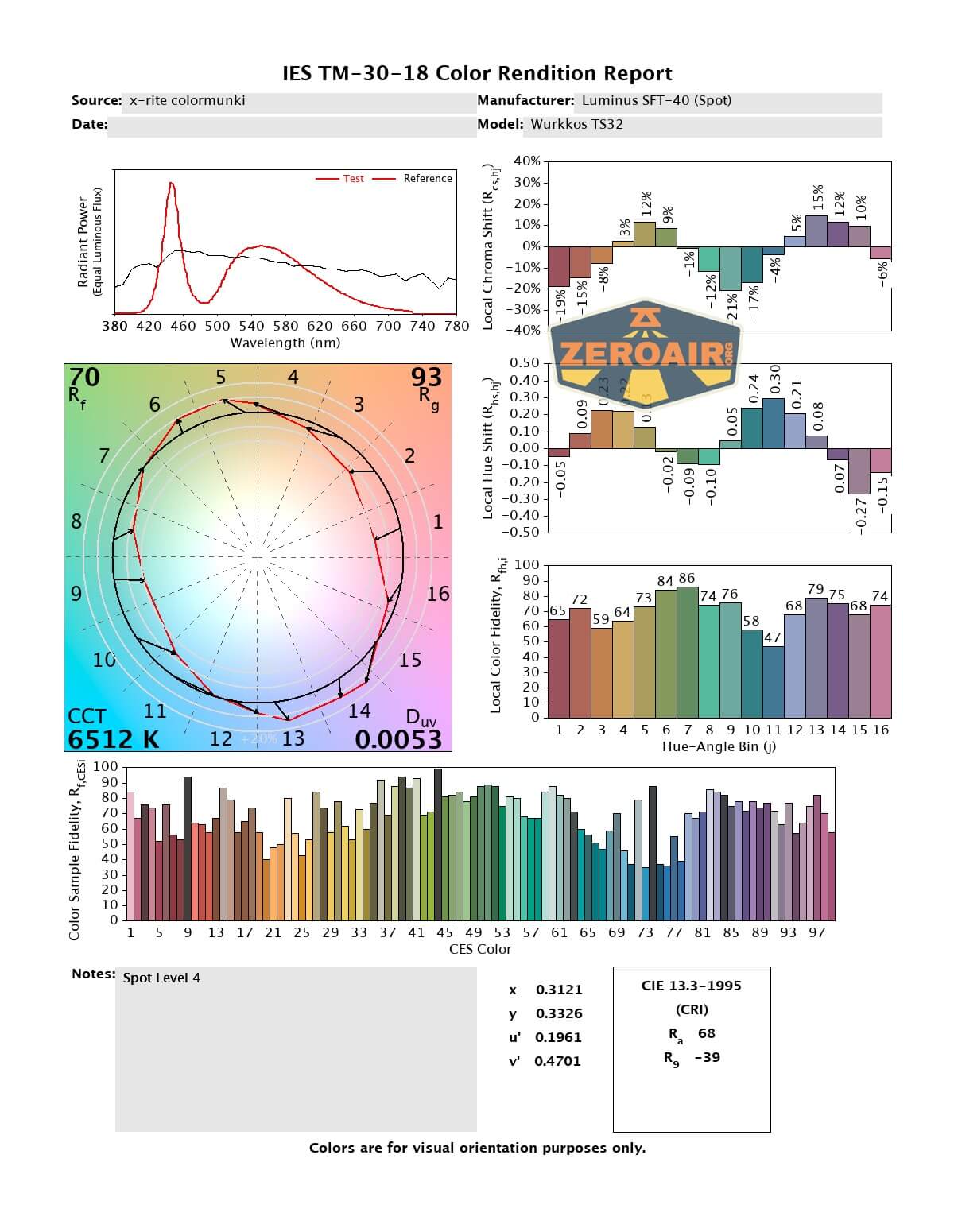

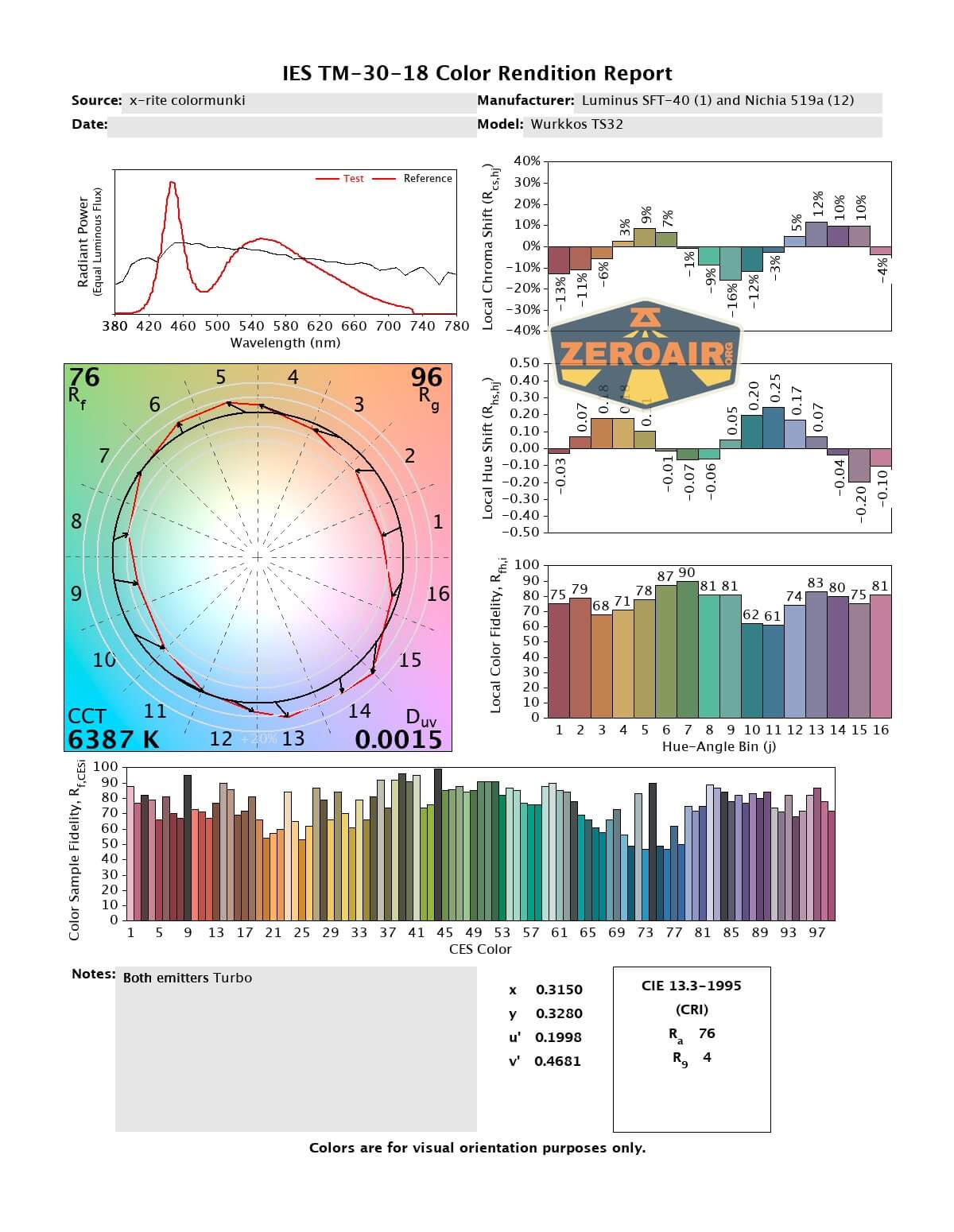

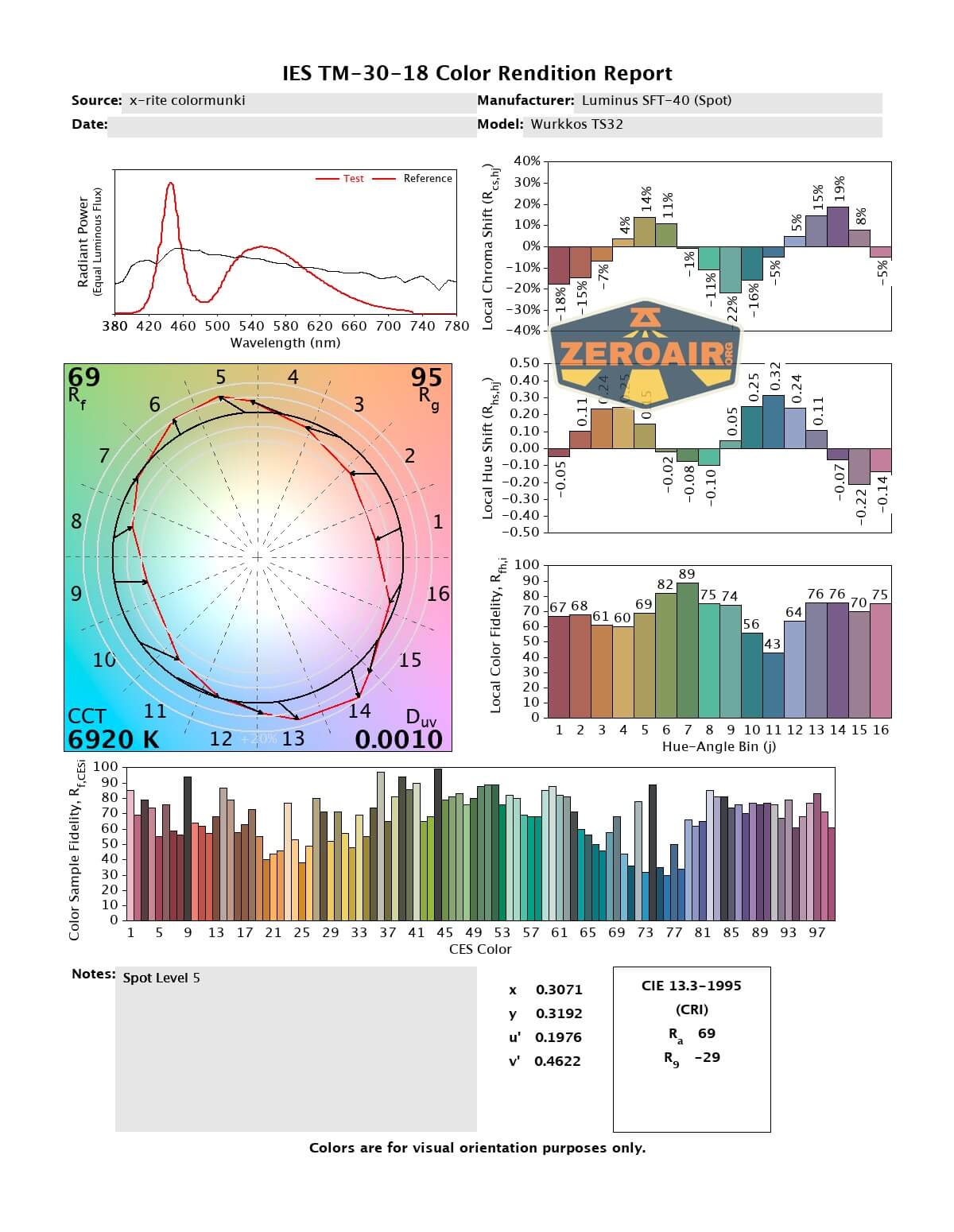

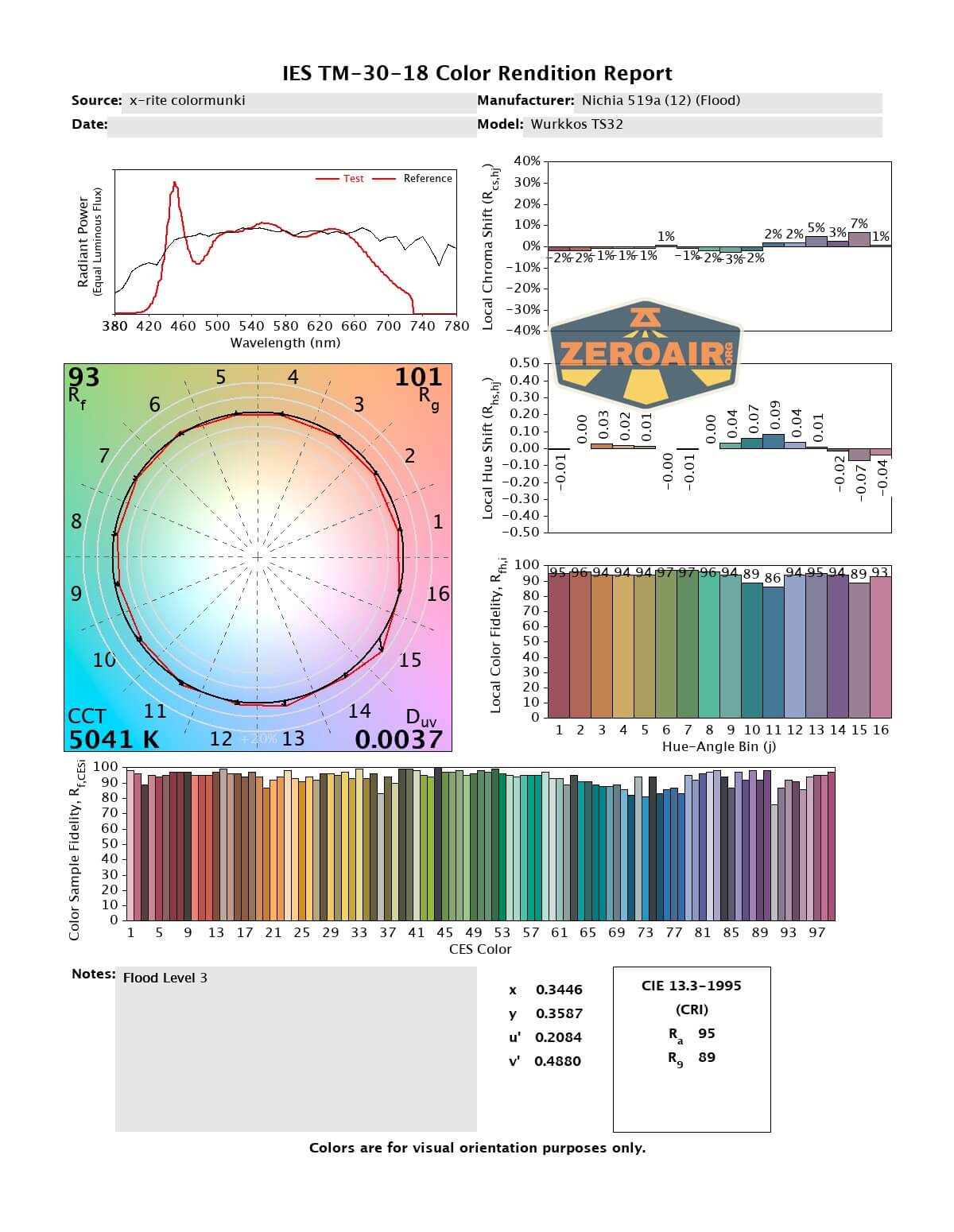

LED Color Report (CRI and CCT)

The mode order here is the same as above. 6 flood modes (low to high) in the top row. Five spot modes (low to high) and then the bottom right most photo is turbo of both emitters.

CRI and CCT for the flood emitters are great – around the claimed 5000K but also very high CRI. Throw is driven hard and is cooler white with a lower CRI.

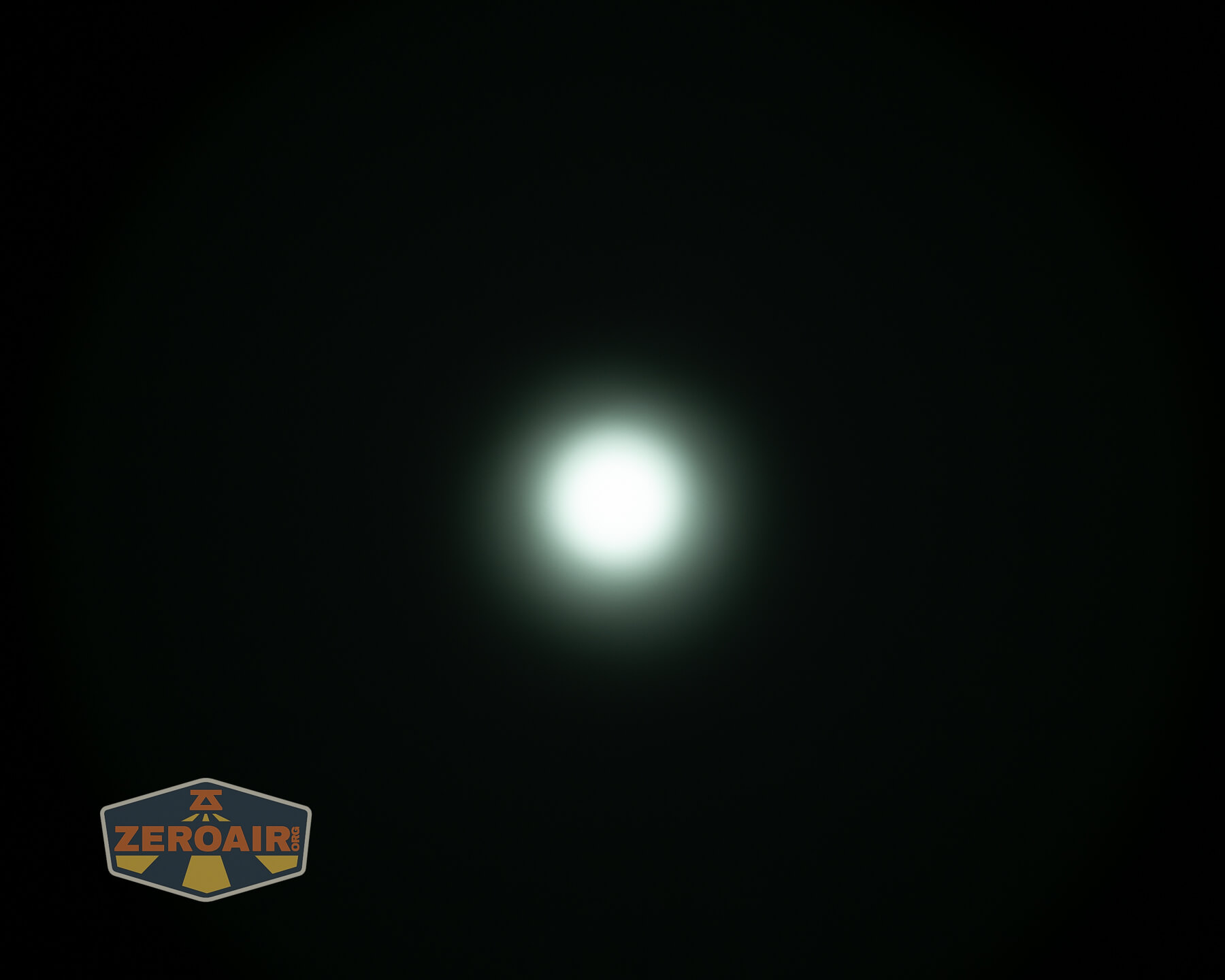

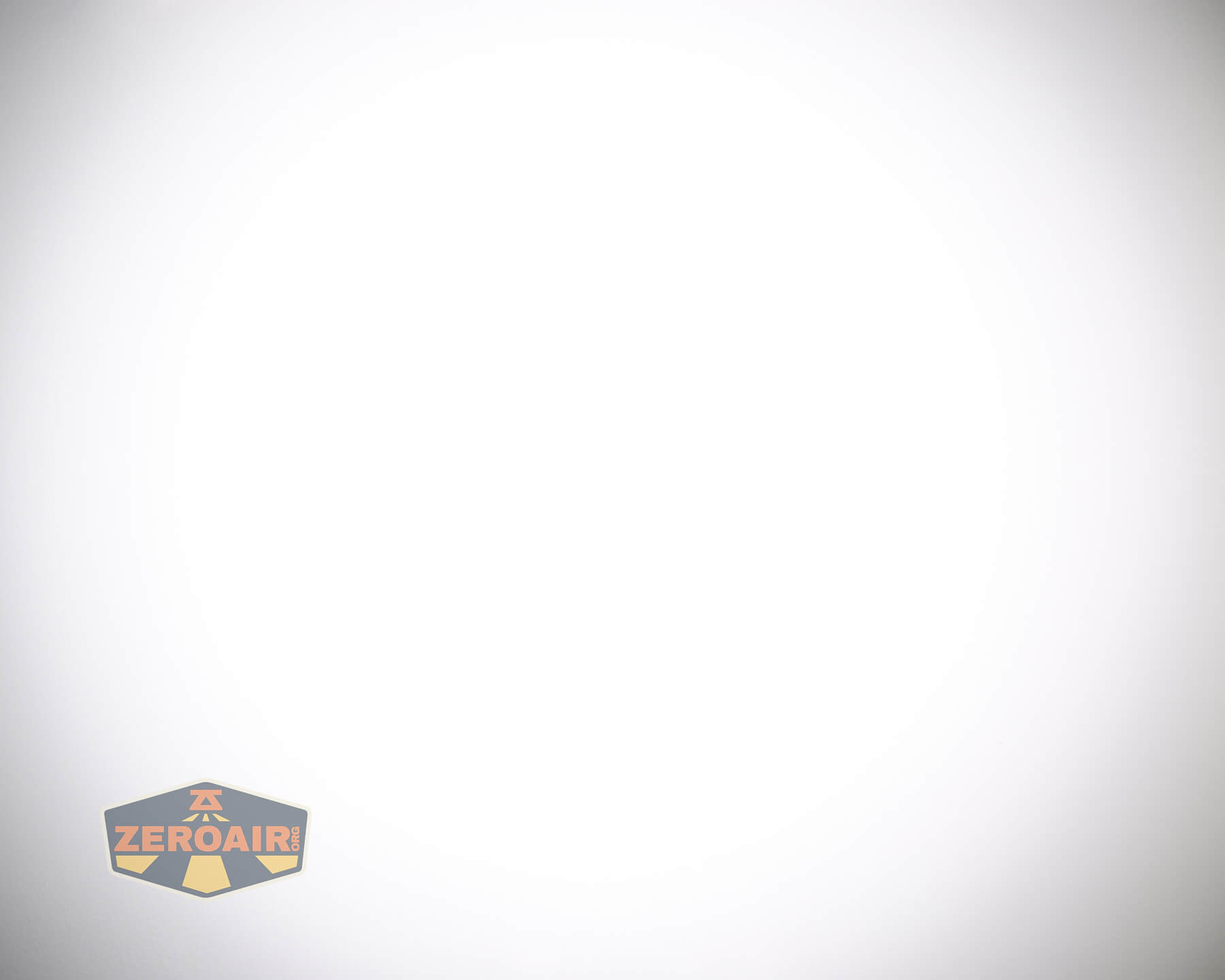

Beamshots

These beamshots are always with the following settings:  f8, ISO100, 0.3s shutter, and manual 5000K exposure.

Tint vs BLF-348 (KillzoneFlashlights.com 219b version) (affiliate link)

I keep the test flashlight on the left, and the BLF-348 reference flashlight on the right.

I compare everything to the KillzoneFlashlights.com 219b BLF-348 because it’s inexpensive and has the best tint!

Conclusion

What I like

  • Good price for what you get
  • Including cells with the package only adds around $15
  • Good (and fairly simple) user interface
  • High CRI flood
  • Flood output can be very bright!
  • Handle!
  • USB-C charging
  • Powerbank is very capable
  • Offers ramping

What I don’t like

  • Handle needs either 2 screws or a drop of threadlock
  • Doesn’t seem to hit output specifications (more so on the flood output)
