The Amutorch BT60 is a LEP flashlight that uses a single 21700 cell (included), has just two modes, and an astoundingly tight beam! Read on!


Official Specs and Features

Here’s a link to the Amutorch BT60 LEP flashlight product page.

Versions

There’s just this one version.

Price

MSRP (and going price) for the Amutorch BT60 LEP flashlight is $199.95. That includes the Samsung 50E 21700 seen in this review, as well as the neat little 2-bay charger.

Amutorch sent over a 25% off coupon, too! Go through this link for the Amutorch BT60 LEP and then enter this coupon at checkout!

Z25B60


Short Review

The Amutorch BT60 LEP flashlight has just two modes, but that honestly seems fairly reasonable for a LEP like this. The beam is incredibly thin and tight – maybe more so than other LEP lights I’ve had. It’s fantastic. The user interface is good. Despite output “not hitting the claim,” the point here is throw and the BT60 certainly does that. Around 94% of the claim was measured, so don’t worry about the lumen numbers. Throw is incredible.

Long Review

The Big Table

Amutorch BT60 LEP flashlight
Emitter: LEP
Price in USD at publication time: $199.95
Cell: 1×21700
Runtime Graphs
LVP? Yes
Switch Type: Mechanical
On-Board Charging? Yes
Charge Port Type: Bay charger
Charge Graph
Power off Charge Port
Claimed Lumens (lm) 400
Measured Lumens (at 30s) 200 (50% of claim)^
Candela per Lumen 245.7
Claimed Throw (m) 2560
Candela (Calculated) in cd (at 30s) 33500lux @ 6.521m = 1424535cd
Throw (Calculated) (m) 2387.1 (93.2% of claim)^
Item provided for review by: Amutorch
All my Amutorch reviews!

^ Measurement disclaimer:  Testing flashlights is my hobby. I use hobbyist-level equipment for testing, including some I made myself. Try not to get buried in the details of manufacturer specifications versus measurements recorded here; A certain amount of difference (say, 10 or 15%) is perfectly reasonable.

What’s Included

Amutorch BT60 LEP flashlight what's included

  • Amutorch BT60 LEP flashlight
  • Samsung 50E 5000mAh 21700
  • Amutorch 2-bay USB-C Charger
  • Charging cable (USB to USB-C)
  • Lanyard
  • Tactical ring
  • Spare o-ring
  • Nylon pouch
  • “Manual” (that is not in English)

Package and Manual

Amutorch BT60 LEP flashlight box

There isn’t a manual.

Build Quality and Disassembly

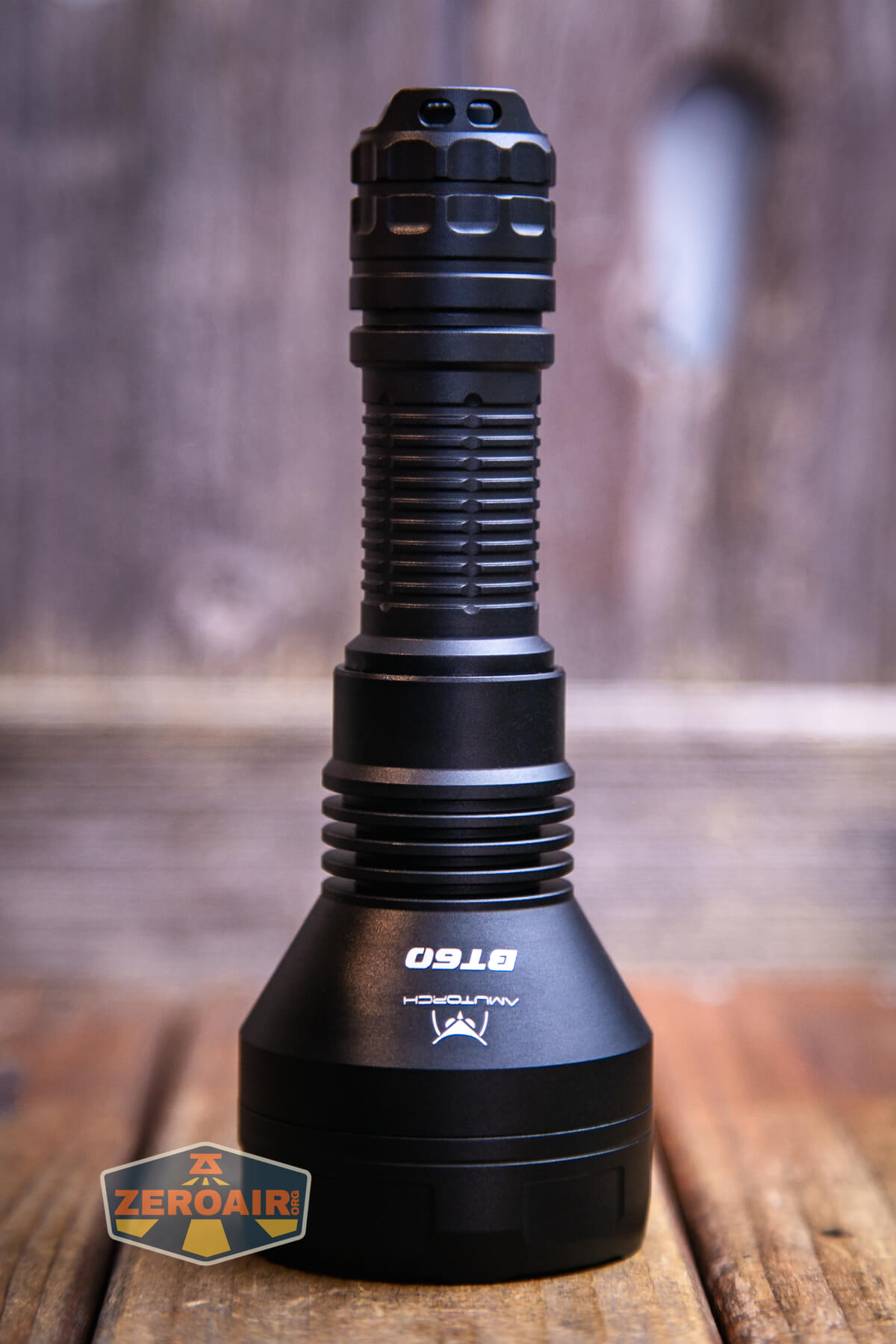

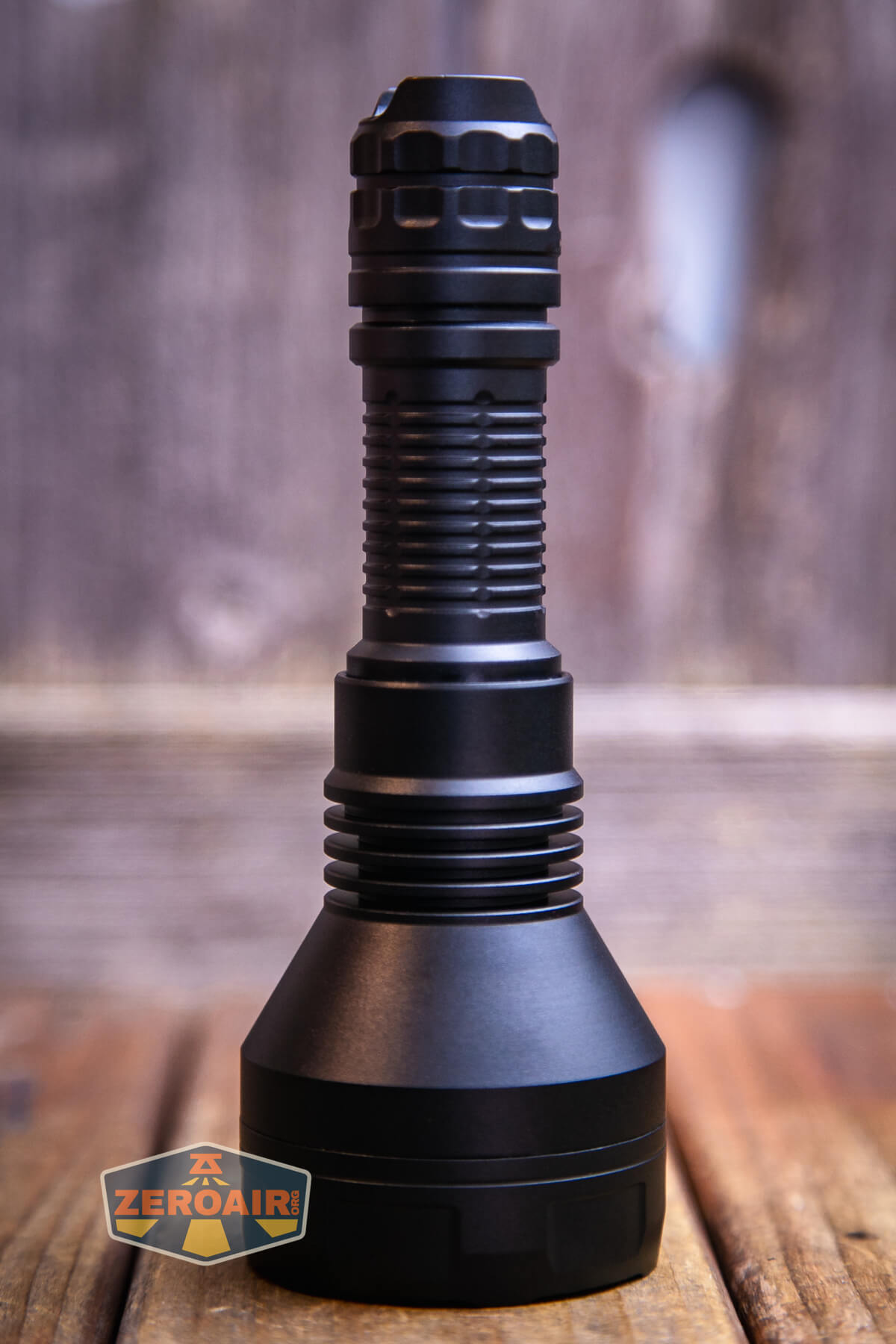

Amutorch BT60 LEP flashlight

Build quality of the Amutorch BT60 LEP flashlight is good. There’s no much more to say about it than that.

Amutorch BT60 LEP flashlight head contacts

The head (above) has a flat spring but the tail end has a beefy springy spring. Both ends have anodized threads, and the cell tube is not reversible.

Amutorch BT60 LEP flashlight tail contacts and threads

Size and Comps

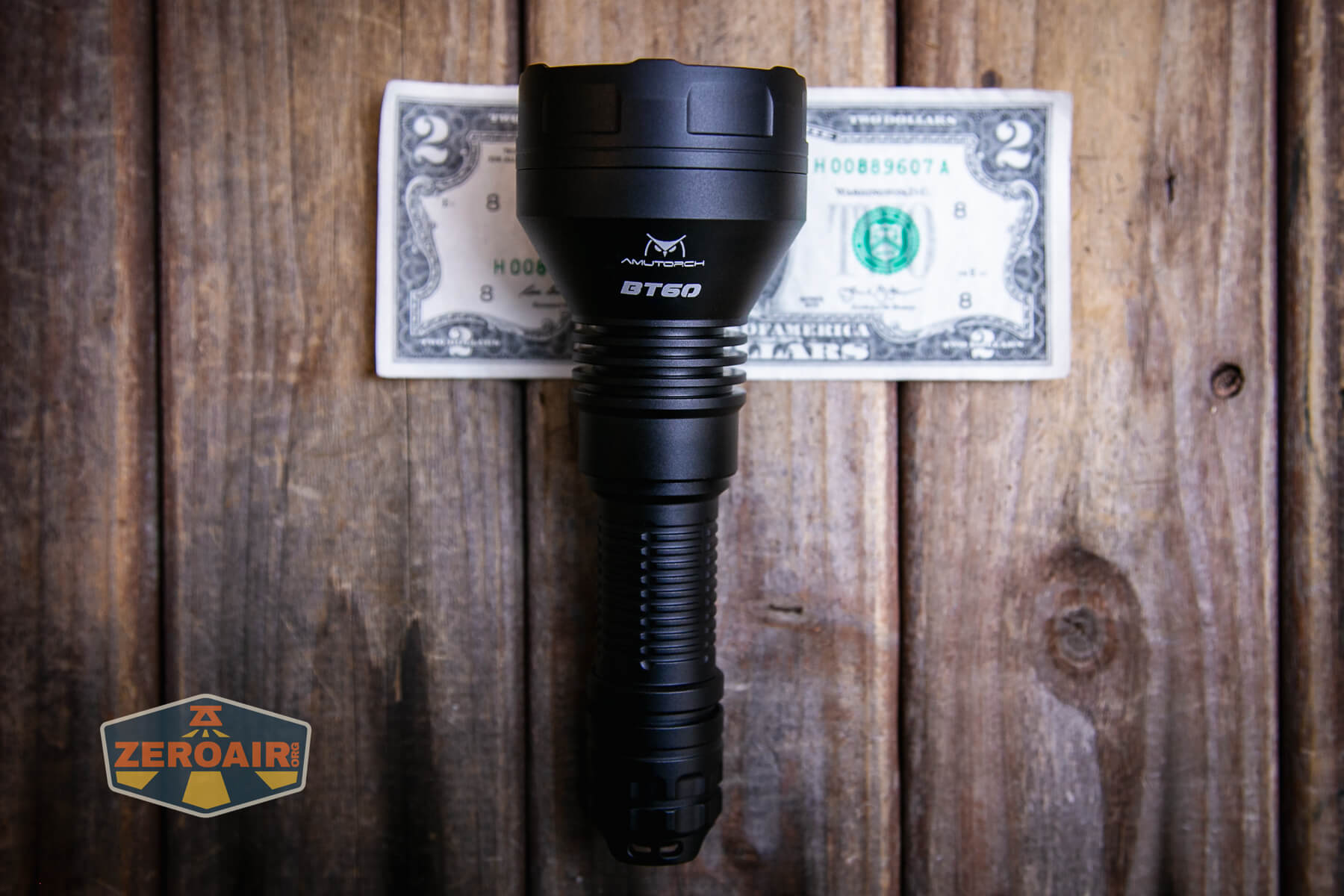

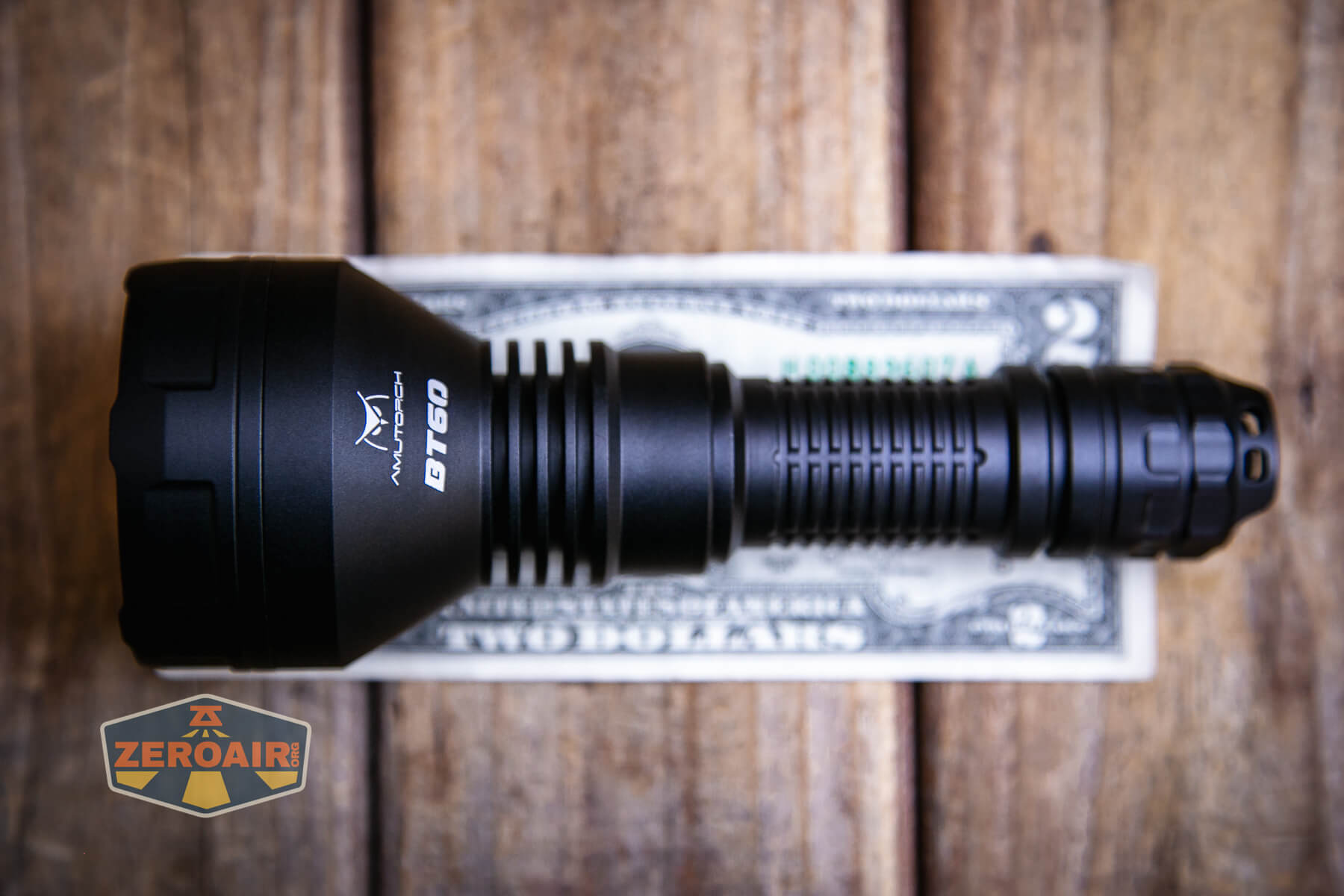

165mm long x 60mm head diameter x 26mm body diameter. Weight not specified.

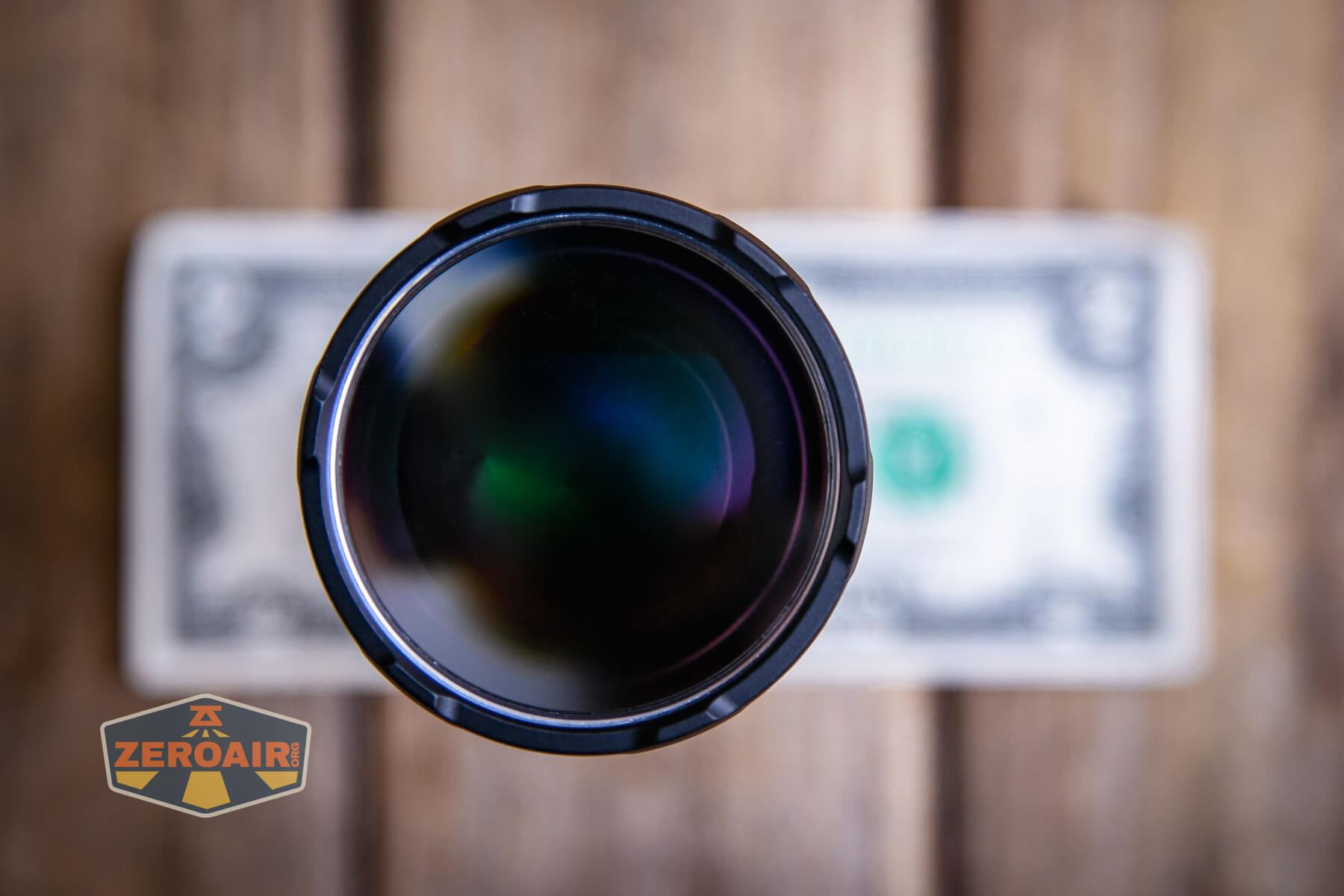

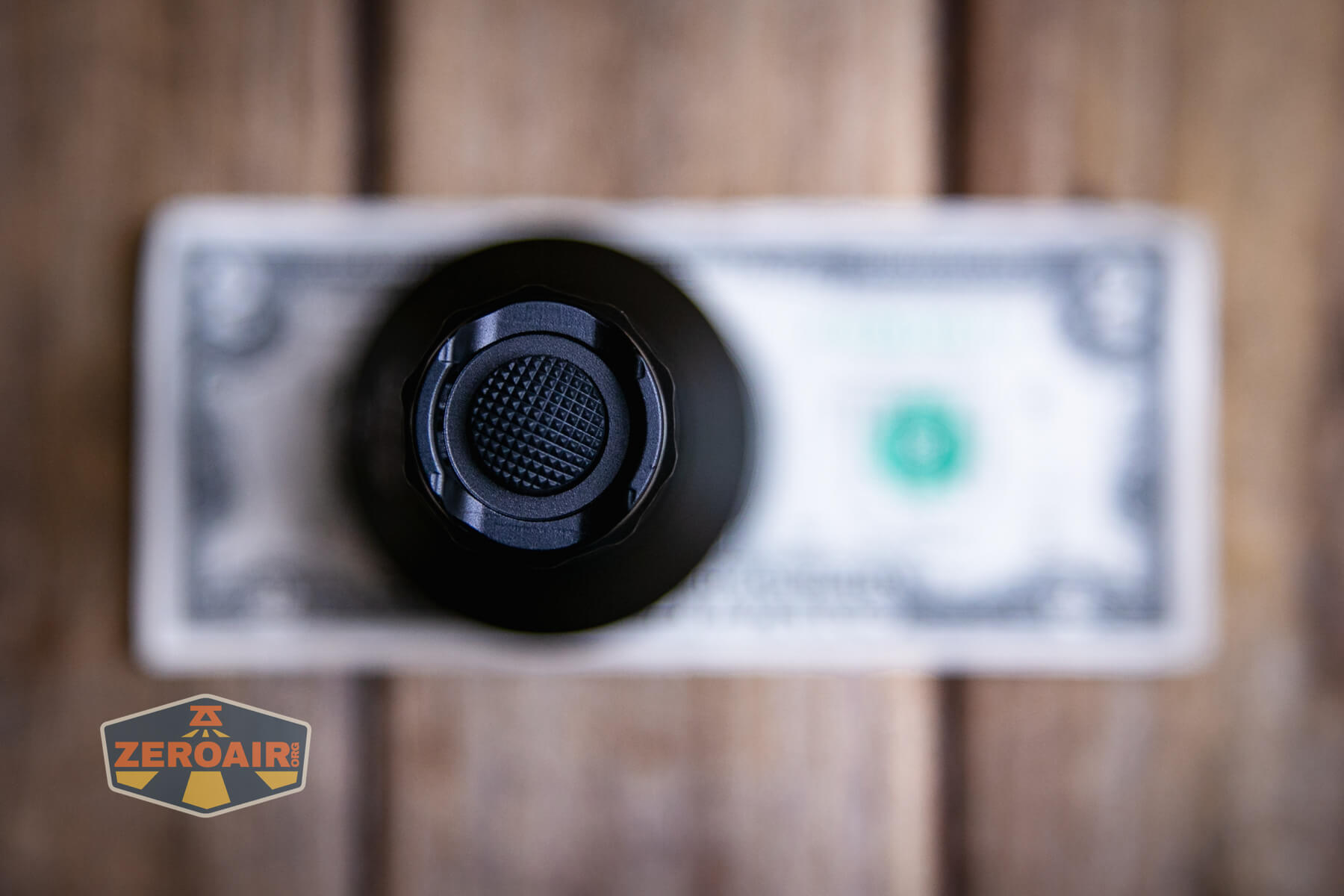

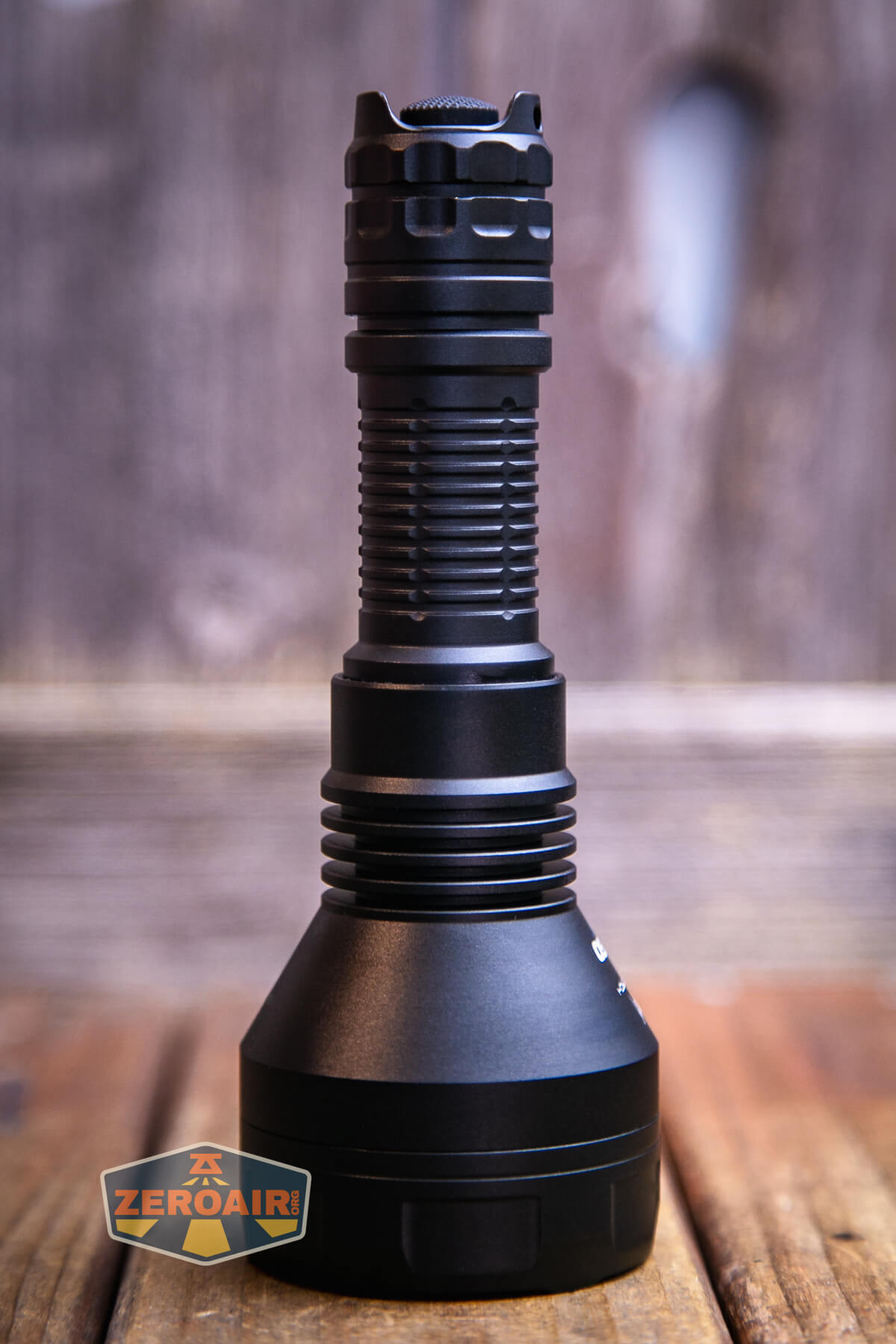

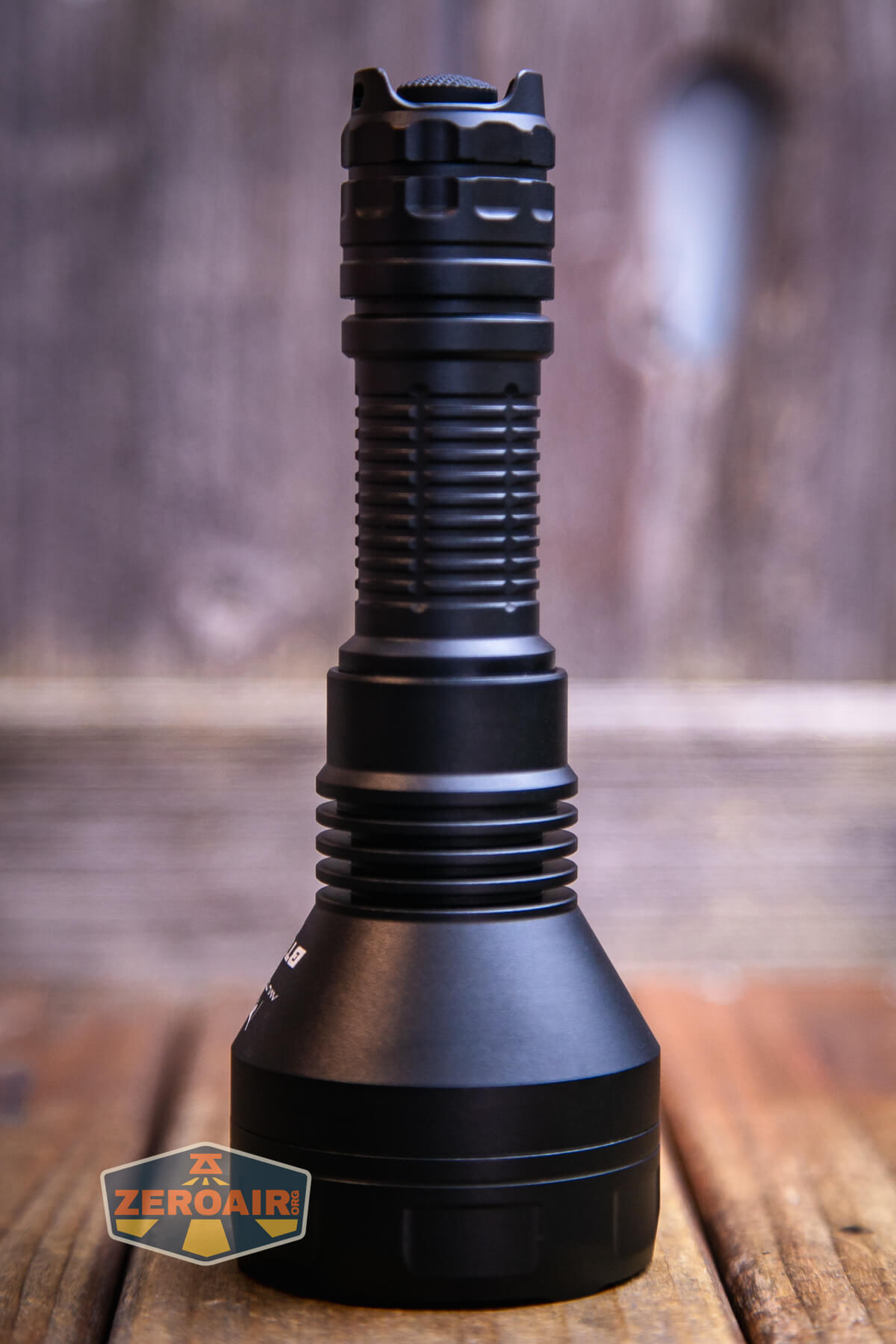

If the flashlight will headstand, I’ll show it here (usually the third photo).  If the flashlight will tailstand, I’ll also show that (usually in the fourth photo).

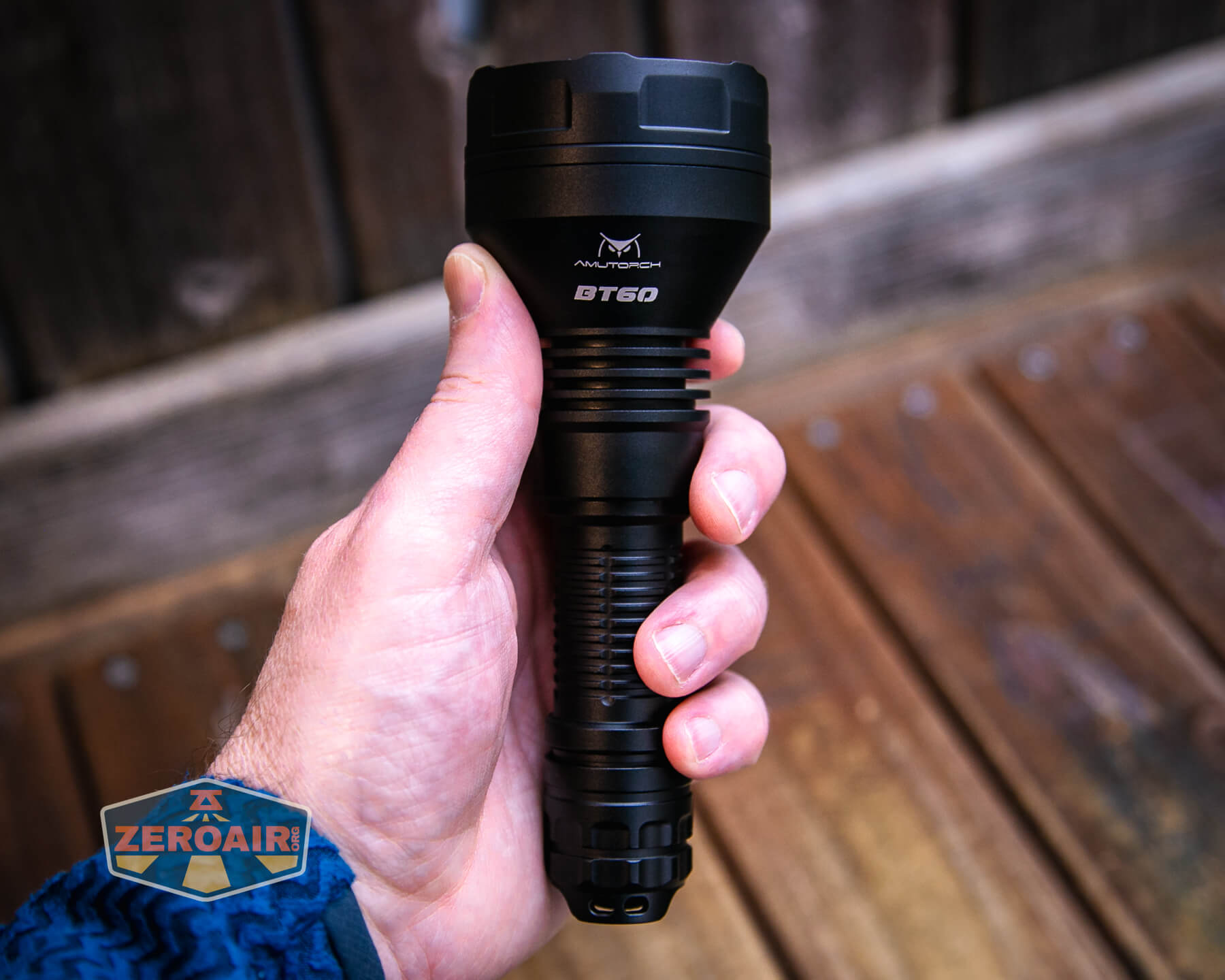

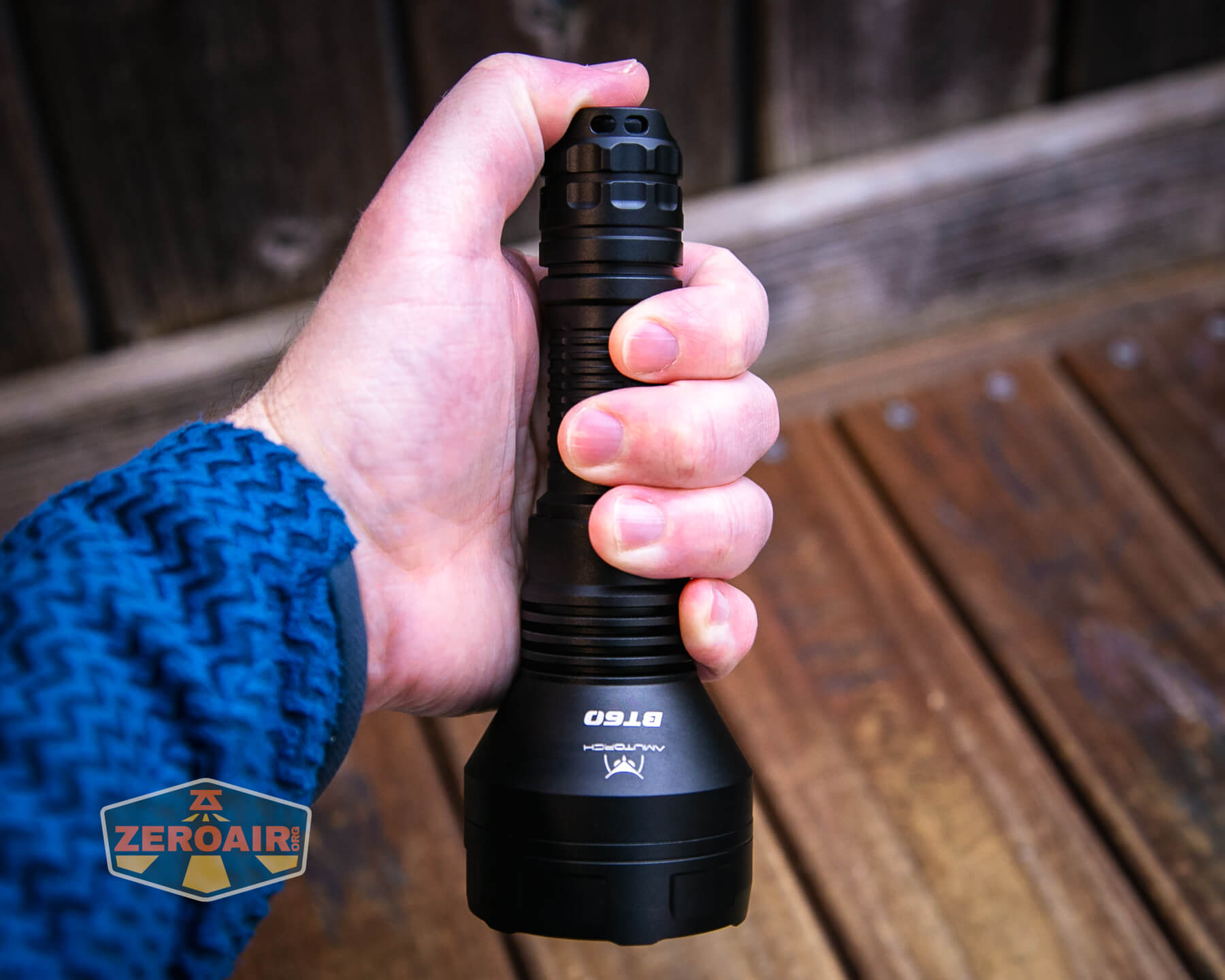

Amutorch BT60 LEP flashlight in hand

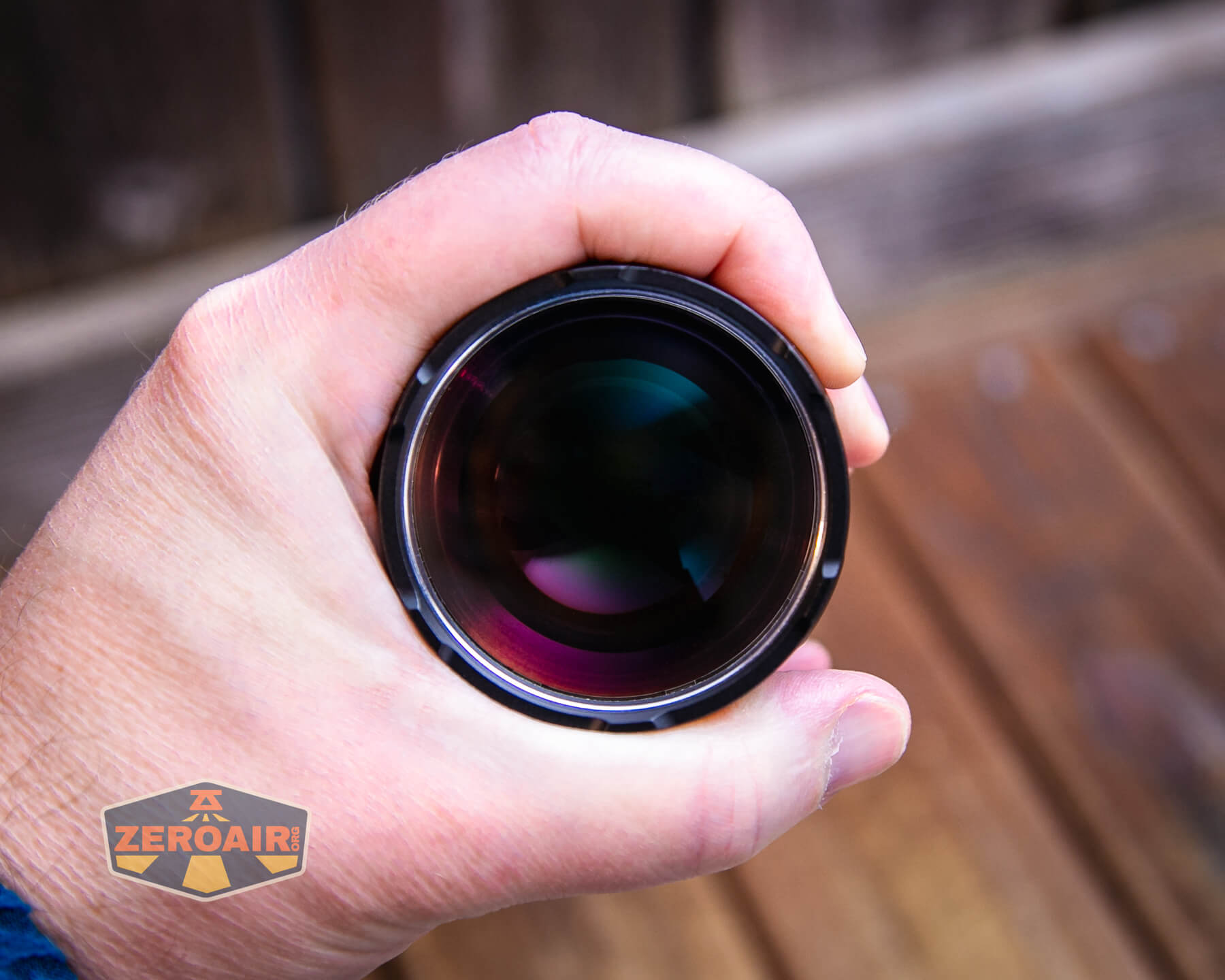

Amutorch BT60 LEP flashlight in hand lens cover

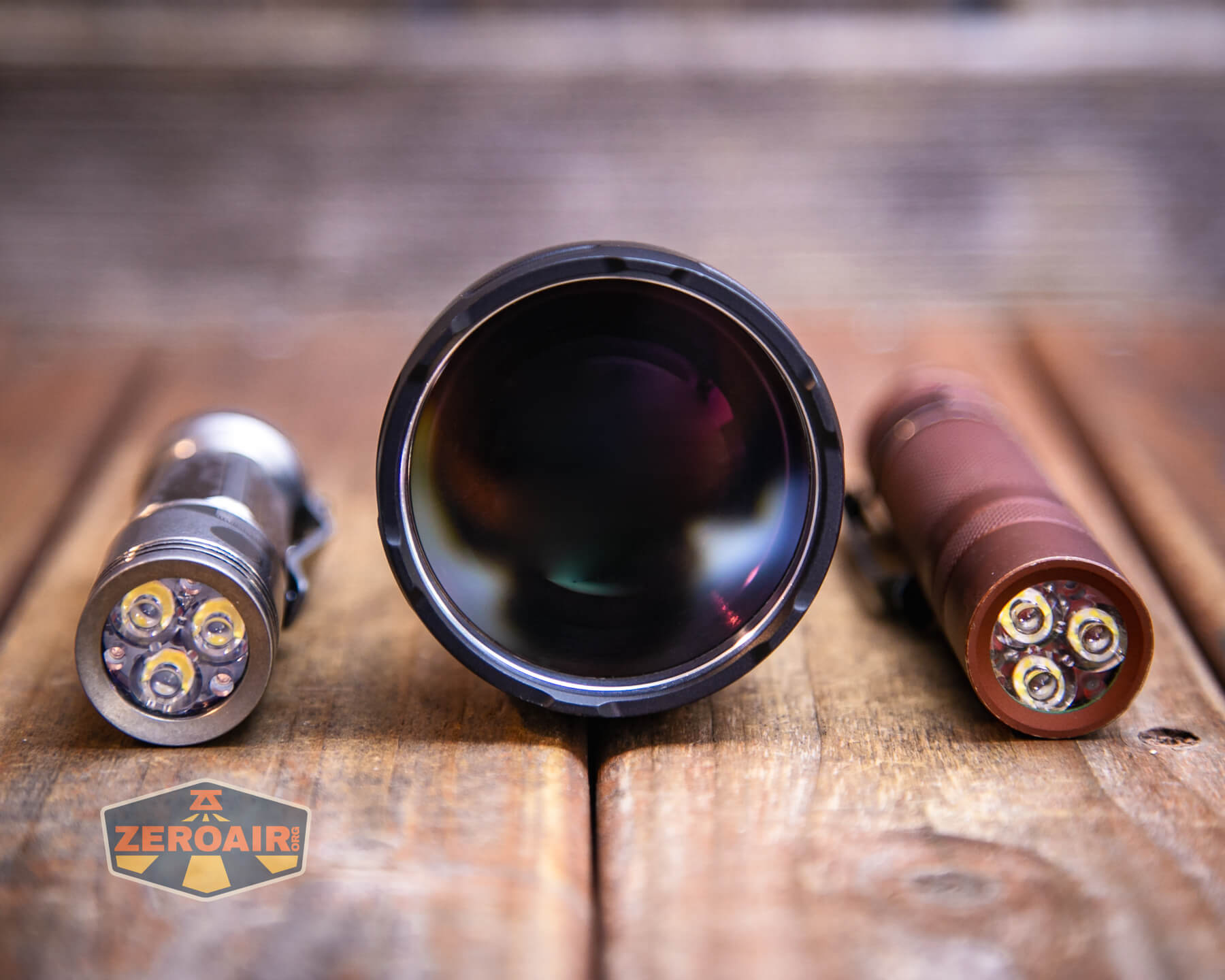

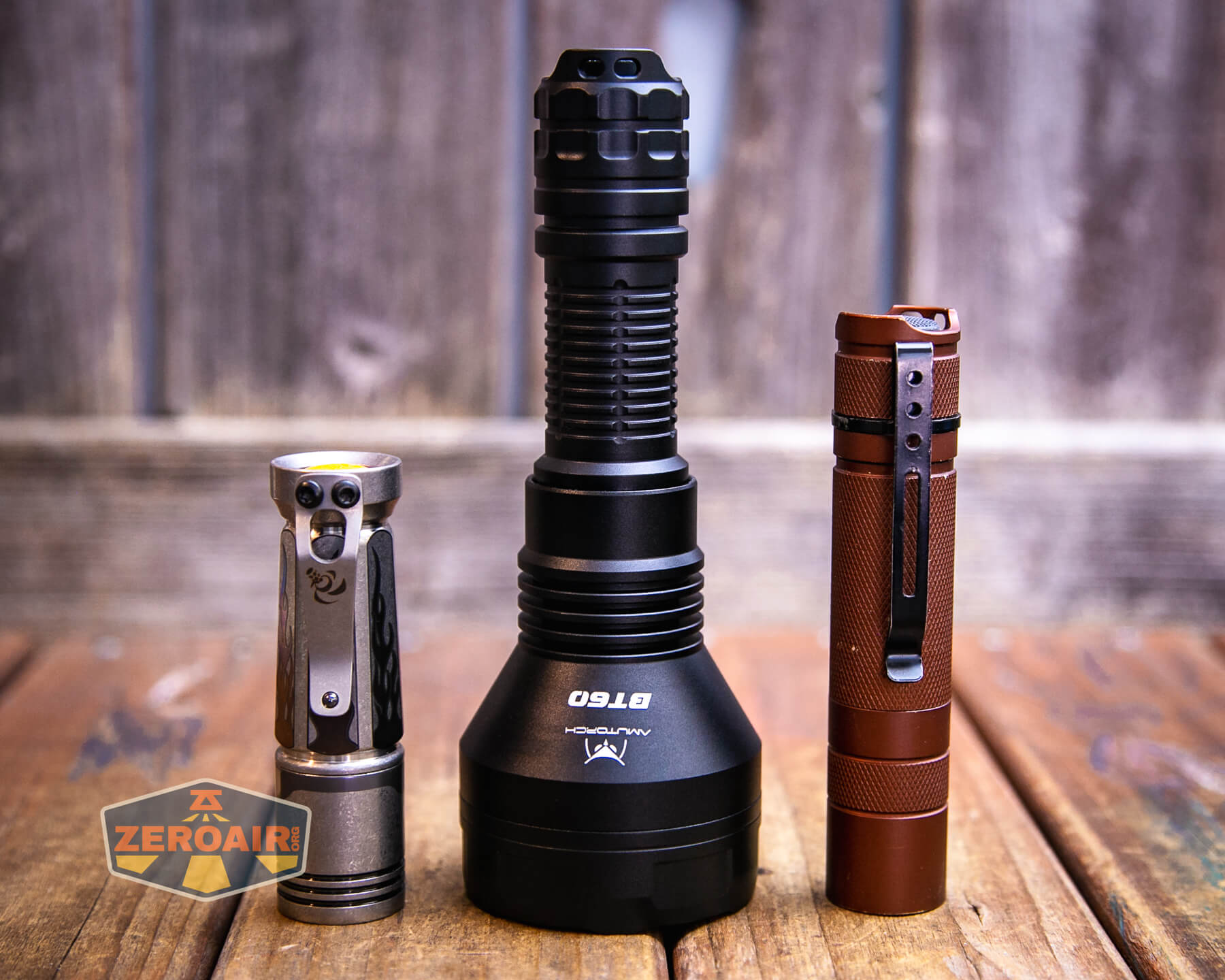

Here’s the test light with the venerable Convoy S2+.  Mine’s a custom “baked” edition Nichia 219b triple.  A very nice 18650 light.

Also above on the left is a new feature light!! Laulima Metal Craft sent this titanium Todai for some size comparison photos like the ones above. Laulima has bunch of incredible items. I’ve tested one (the Laulima Metal Craft Hoku) (the official site for Hoku is here) that was a Friend Fund Friday review. I was impressed enough by that Hoku that I bought a Laulima Metal Craft Diamond Slim (also in tumbled aluminum) (review is upcoming!) These lights by Laulima have impeccable build quality and not only that, they’re quite configurable. There are some (great, actually) default configurations, but Joshua Dawson (of Laulima Metal Craft) is open to ideas and emitter options and the like. I haven’t reviewed this Todai, but I have to say, it feels absolutely fantastic and I love it thus far. (Notably, I love how warm and eggy those emitters look through the TIR.)

Retention and Carry

A lanyard is included with the Amutorch BT60 LEP flashlight package. This lanyard attaches through the tailcap holes, seen below.

Amutorch BT60 LEP flashlight tailcap lanyard holes

The lanyard is good, with a couple of nice touches.

Amutorch BT60 LEP flashlight lanyard installed

Also included is a tactical ring. This ring is flexible silicone and slips over the tailcap.

Amutorch BT60 LEP flashlight tactical ring

I’m actually not completely sure how it goes on, but this seems about right.

Amutorch BT60 LEP flashlight tactical ring installed

Finally, there’s a nylon belt pouch included. This pouch is directional, and only for carrying; the light can not be used while inside the pouch.

Amutorch BT60 LEP flashlight carry pouch

Amutorch BT60 LEP flashlight carry pouch

Power and Runtime

Amutorch provides in the package what you’ll need for powering the BT60. It’s a lithium-ion cell, specifically a 21700.

Amutorch BT60 LEP flashlight with included 21700 cell

The cell is a Samsung 50E, a 5000mAh cell, and has a flat top. The cell goes into the light in the usual orientation – positive end toward head.

Amutorch BT60 LEP flashlight with included 21700 cell installed

runtime graphs

runtime graphs

runtime graphs

The Amutorch BT60 does shut off with low voltage protection at around 3V. Aside from just the shutoff, the emitter also blinks. That blinking can be seen in the runtime graphs above.

Charging

While the Amutorch BT60 LEP flashlight itself doesn’t have charging, nor does the included cell, the package I received (and you can purchase as an option) includes this Amutorch TC2 charger.

Amutorch BT60 LEP flashlight included charger

The TC2 is a 2-bay charger suitable for only lithium-ion cells. It’ll certainly charge this 21700, of course, but it’ll go up to 26700 as a max, and down to 16340 as a minimum.  The charge rate is 1A, and I don’t really think that’s able to be changed. But it’ll do 1A on both bays at once.

The TC2 accepts USB-C input and will work from a USB-A source or a USB-C source (still with 5V input, though – it’ll negotiate all that.)

Amutorch BT60 LEP flashlight included charger power port

Amutorch BT60 LEP flashlight included charger in use

I love the size and simplicity of this charger. A previous iteration of the TC2 overcharged the cells to around 4.3V but this one kept the final charge under 4.2V. So that’s perfect.

One more thing about charging – I ran this cycle overnight and I’m nearly certain that the “eyes” from the owl logo turned green WELL before the charging stopped (technically I am not sure charging ever actually stopped).  So if you were paying attention (unlike what I was doing) then you could (and really very much should) pull the cell off the charger when the indicator turns from red (charging) to green (complete or “bay not in use”).

charging graph

Modes and Currents

Mode Mode Claimed Output (lm) Claimed Runtime Measured Lumens Tailcap Amps
High 400 2h 200 2.25
Low 100 6h45m 84 0.78

Pulse Width Modulation

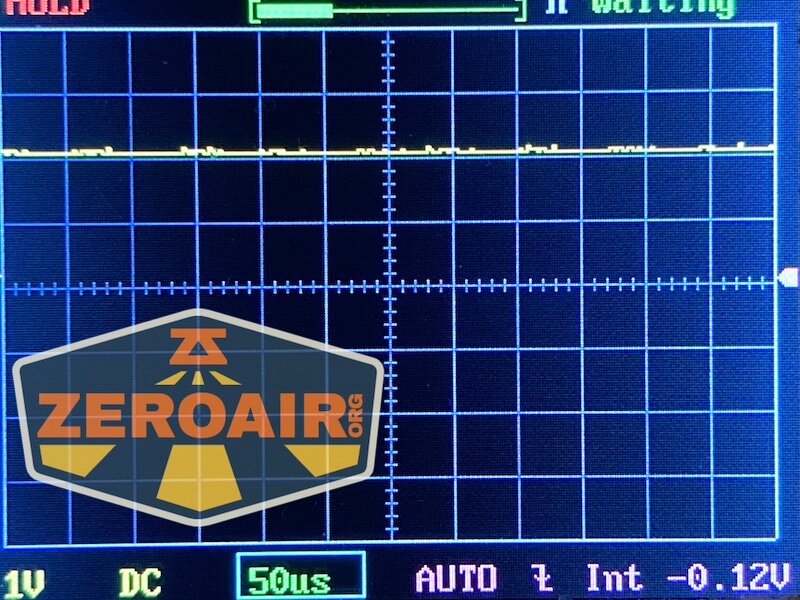

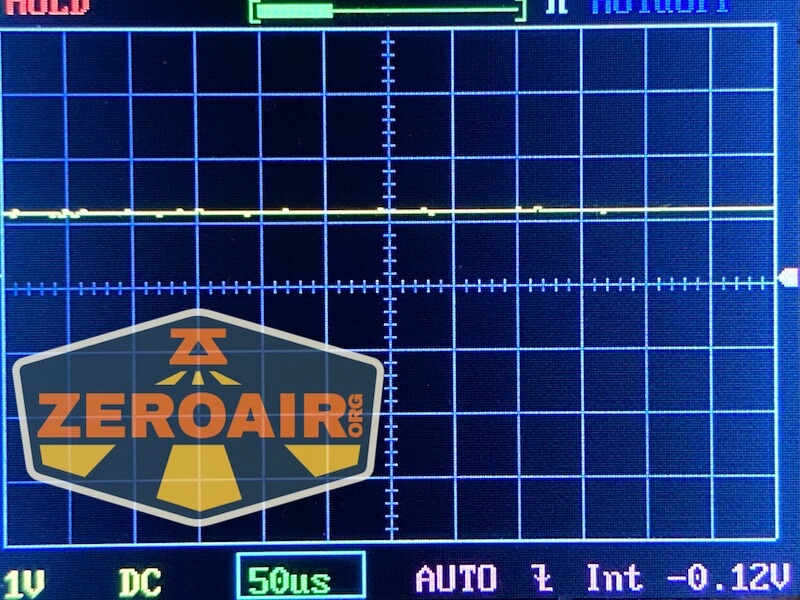

Neither output uses PWM.

For reference, here’s a baseline shot, with all the room lights off and almost nothing hitting the sensor.  Also, here’s the light with the worst PWM I could find.  I’m adding multiple timescales, comparing them to the test light will be easier.  Unfortunately, the PWM on this light is so bad that it doesn’t even work with my normal scale, which is 50 microseconds (50us). 10ms5ms2ms1ms0.5ms0.2ms.  In a display faster than 0.2ms or so, the on/off cycle is more than one screen, so it’d just (very incorrectly) look like a flat line.  I wrote more about this Ultrafire WF-602C flashlight and explained a little about PWM.

User Interface and Operation

The Amutorch BT60 LEP flashlight uses a mechanical tail switch.  In this case, it’s a forward clicky.  The switch is very clicky, with positive action.

Amutorch BT60 LEP flashlight tailcap switch

Being a forward clicky means that momentary output is possible by just holding the switch a bit.

Amutorch BT60 LEP flashlight tailcap switch actuation

Here’s a UI table!

State Action Result
Off Click On (Mode Memory)
On Click Off
Off Tap Mode advance (Low > High)

LED and Beam

The Amutorch BT60 is a LEP flashlight, and I’m not sure how to distinguish past “LEP.” LEPs are a different breed, and do use lasers in some way. You should be careful when using them, but they’re not dangerous in the specific way lasers are also dangerous.

Amutorch BT60 LEP flashlight lens

The bezel has a bit of shape, which I appreciate.

Amutorch BT60 LEP flashlight toothy bezel

The beam is so very tight!

Amutorch BT60 LEP flashlight tight beam

I really believe this is tighter than other LEP lights I’ve used. Not that most spread out all that much, but this seems especially tight.

Amutorch BT60 LEP flashlight beam photo

LED Color Report (CRI and CCT)

Because of the intensity of spot on the BT60, I was unable to test the CRI and CCT. It’s just too concentrated, and saturates my sensor. I can think of plenty of ways to attenuate the output, but I’m not sure that they won’t also affect the readings for CRI and CCT.

Beamshots

These beamshots are always with the following settings:  f8, ISO100, 0.3s shutter, and manual 5000K exposure. These photos are taken at floor level and the beam hits the ceiling around 9 feet away.

Tint vs BLF-348 (KillzoneFlashlights.com 219b version) (affiliate link)

I keep the test flashlight on the left, and the BLF-348 reference flashlight on the right.

I compare everything to the KillzoneFlashlights.com 219b BLF-348 because it’s inexpensive and has the best tint!

Conclusion

What I like

  • Very tight beam
  • Fantastic(al) throw
  • Extremely simple user interface (with no extra stuff like strobe)
  • Charger works well (and is a great size) (and doesn’t seem to overcharge like previous versions of the TC2)
  • Cost – for a LEP, $200 is not that costly
  • Complete package includes charger and very high-quality cell

What I don’t like

  • Just 2 modes? I don’t really wish for more than 2 modes but I can see how someone might.
  • There’s really no “low” mode, because of how the beam is. k
