VIVIBRIGHT GP100 Projector Review

Preface

GearBest sent over a projector for review.  I think this one’s a hot item at the moment; here’s my review and thoughts on it!  Note I’ve not reviewed a projector before, so this review could be slightly basic for seasoned projector veterans out there; I’m always open to improving my reviews based on constructive criticism!


Official Specs and Features

Versions

There are two basic versions of this projector.  One (this one) is basic, and accepts only external sources.  The other, for $30 more, has built in android hardware.  I wasn’t able to test that one.
Both are also available with an EU and US plug.
This same projector is available elsewhere, under other brand names, too.

Price

$159.99 for the basic version, and $189.99 for the android version.


Short Review

For my very basic projector needs, this Vivibright has served fairly well.  It’s a good bit louder than I’d want, and doesn’t seem to play well with every HDMI source or USB drive, though.

Long Review

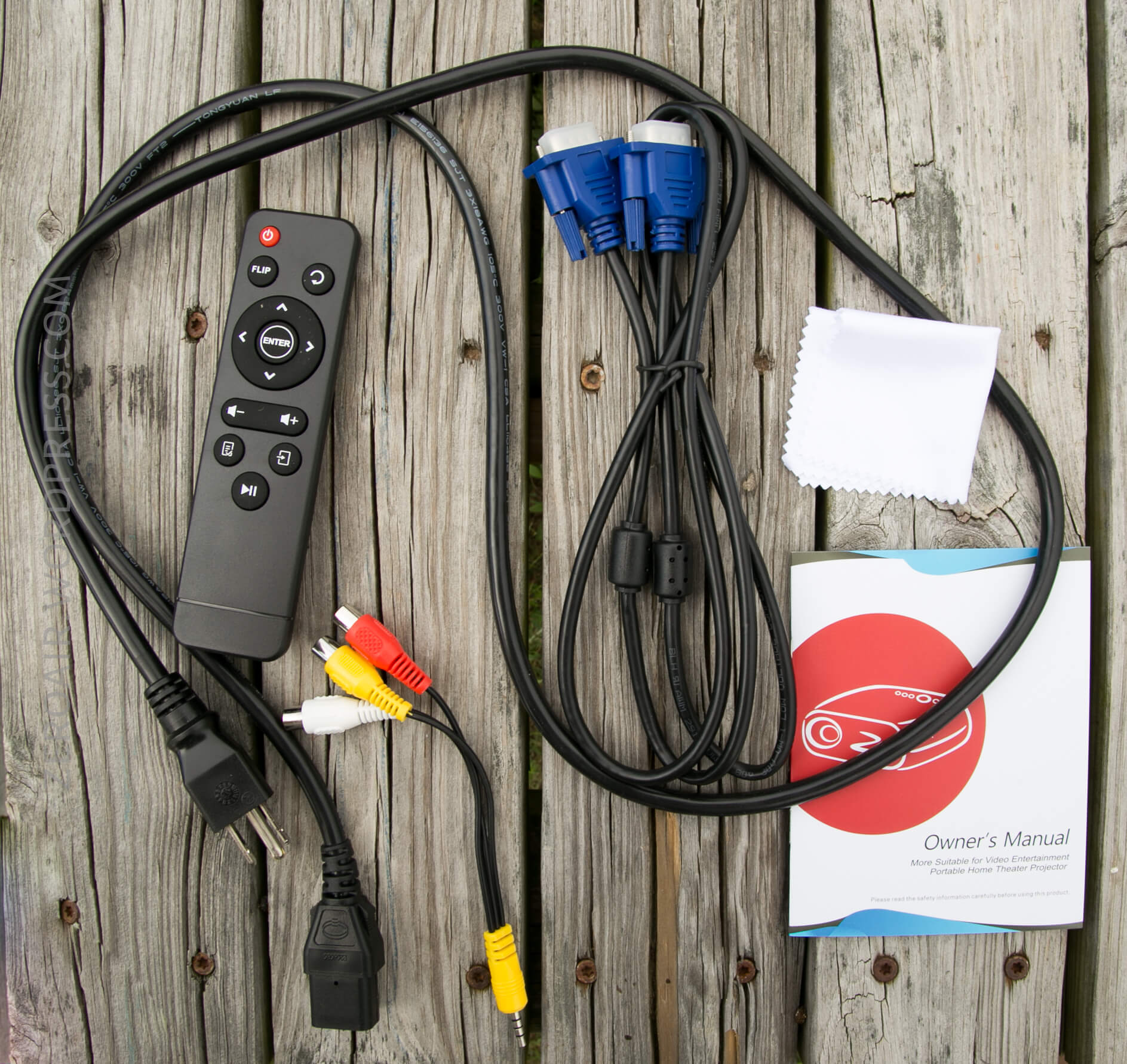

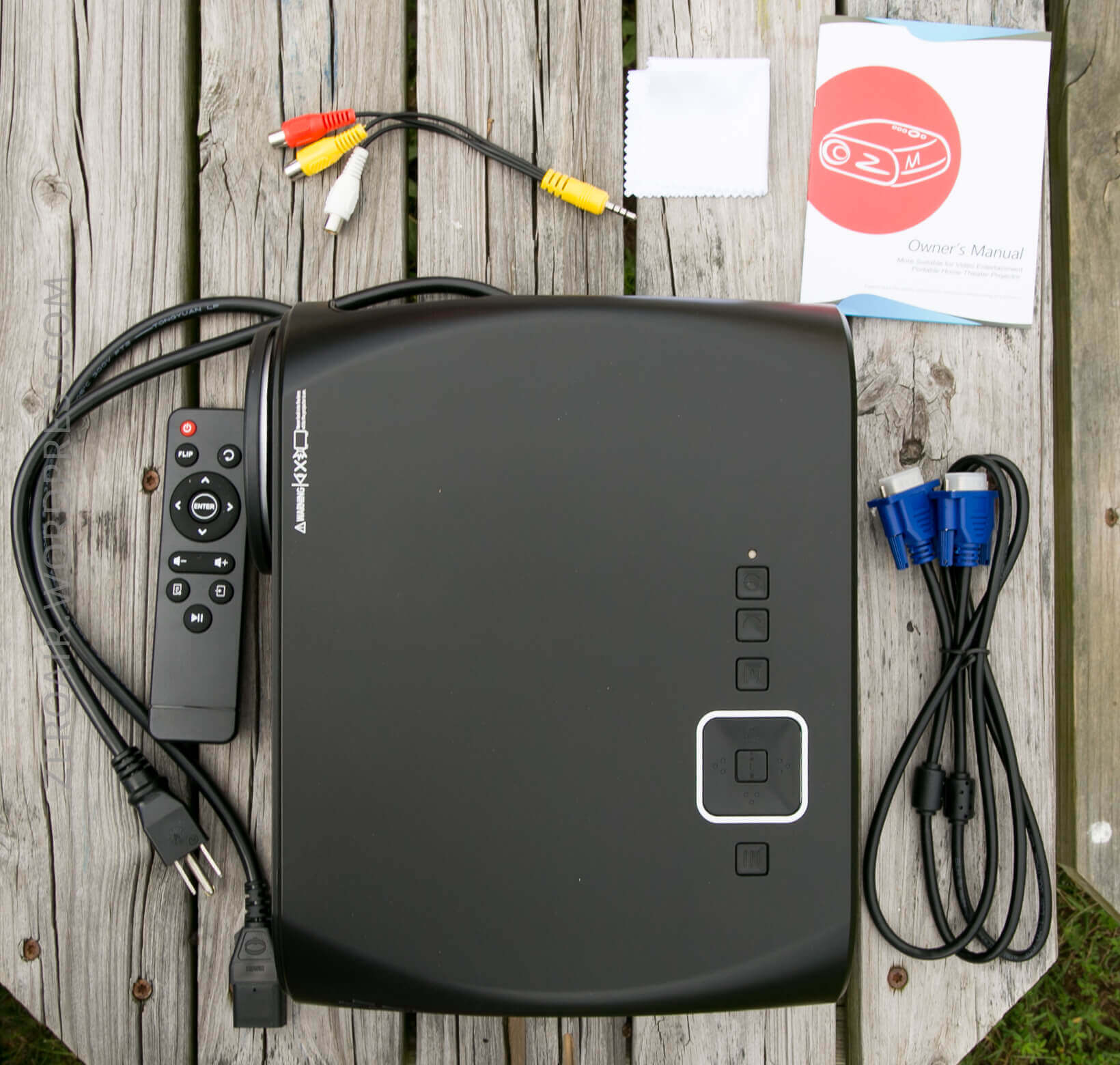

What’s Included

  • Vivibright GP100 Projector
  • AAAx2 Remote Control
  • Lens cleaner
  • Power cable
  • VGA cable
  • Manual


Package and Manual

The box is a simple, minimally printed, cardboard box with styrofoam packing inserts.  This is actually the shipping box as well, and my item shipped fine.  The packaging is good.

The manual is fine for mentioning specs and features, and generally anything you’d already know because of whatever reason you bought the GP100 for.  It gives limited information on connection (most of which should be fairly obvious anyway).  It gives even less information on what kind of media you can use for example from a USB drive.  And no information whatsoever for troubleshooting if a device doesn’t work over HDMI.  While it’s a very nicely printed manual, it’s bereft of the real details a beginning user might need.

Build Quality and Disassembly

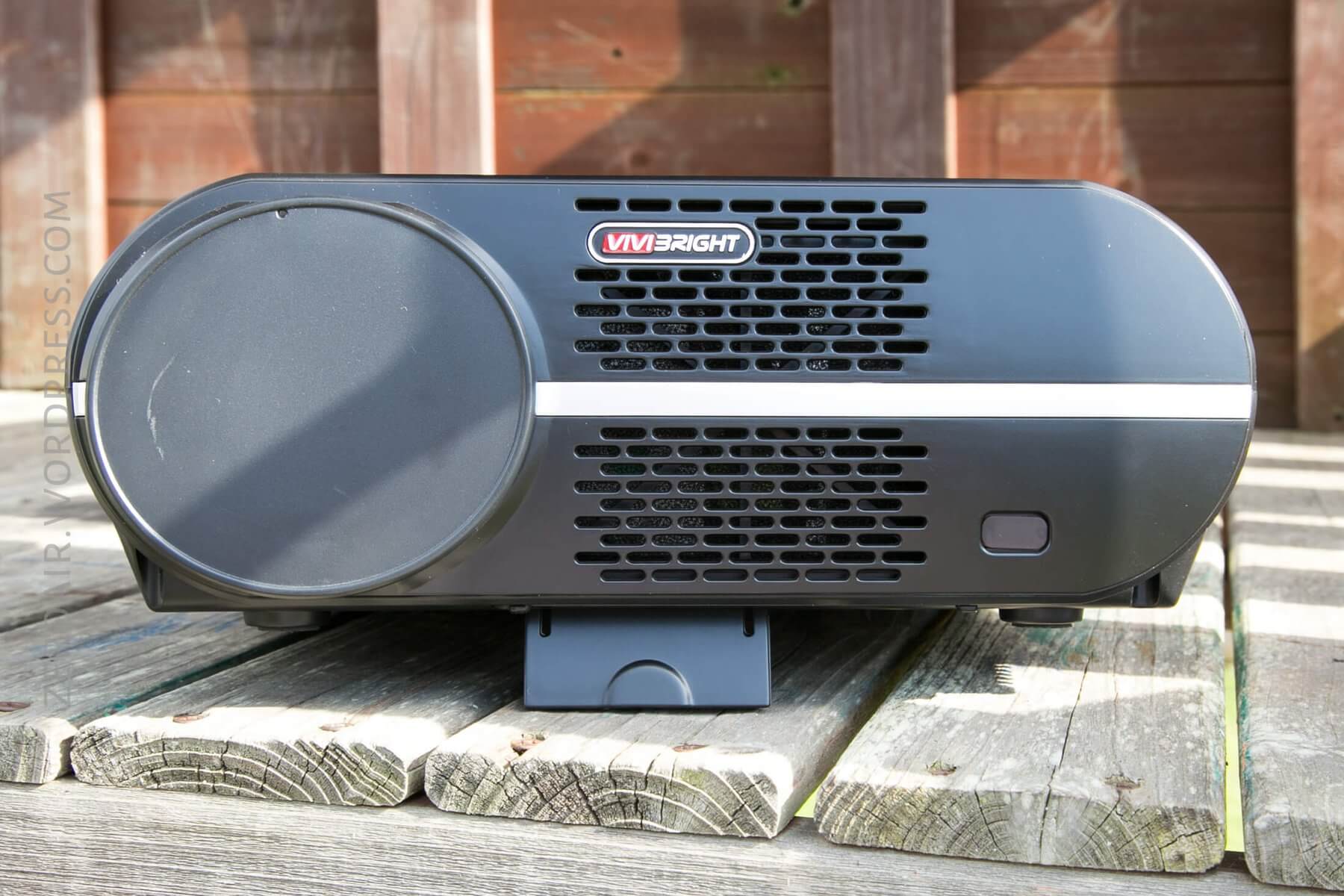

This is a large projector, but the plastic used on the case doesn’t feel extremely high quality.  It’s the brittle type plastic.

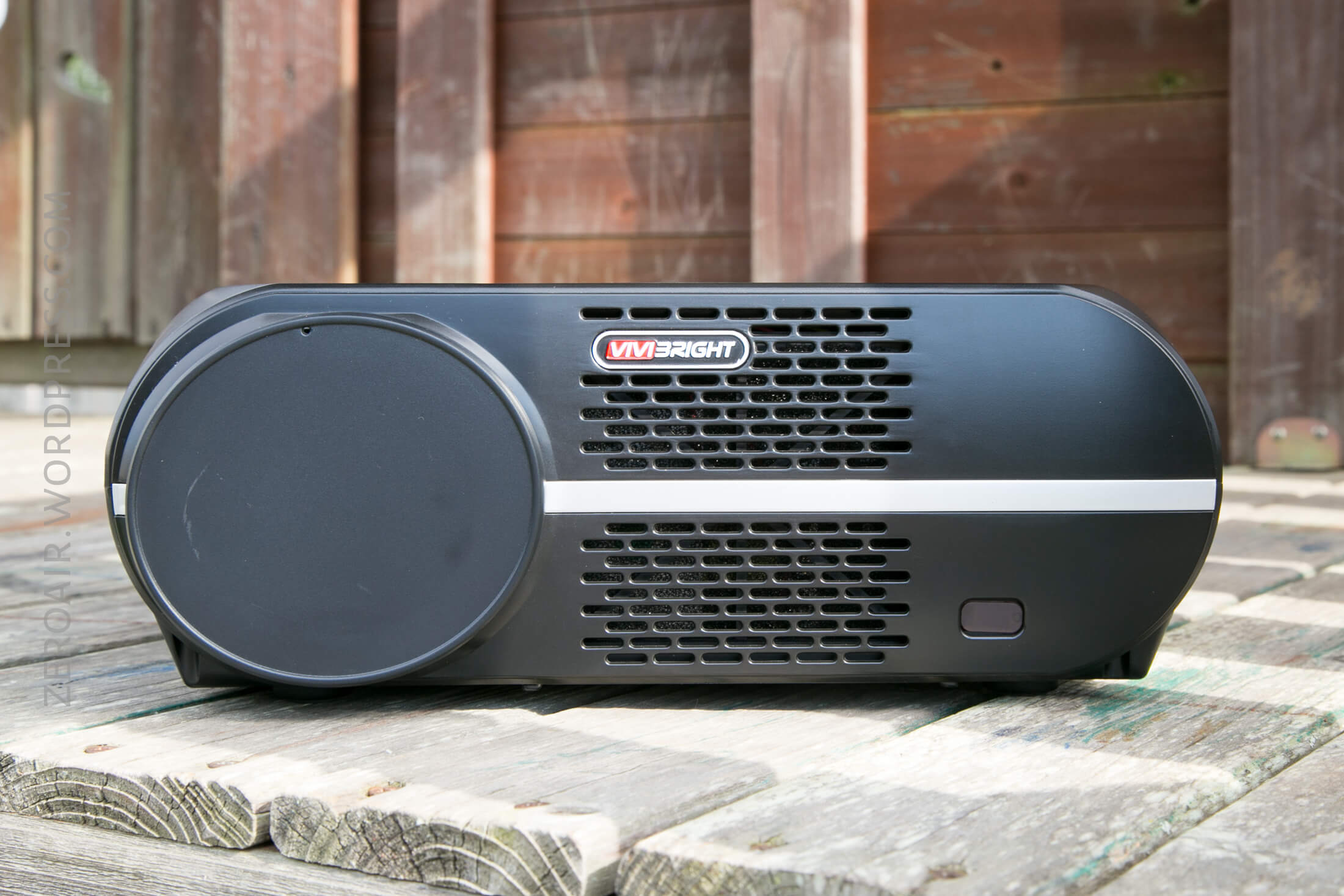

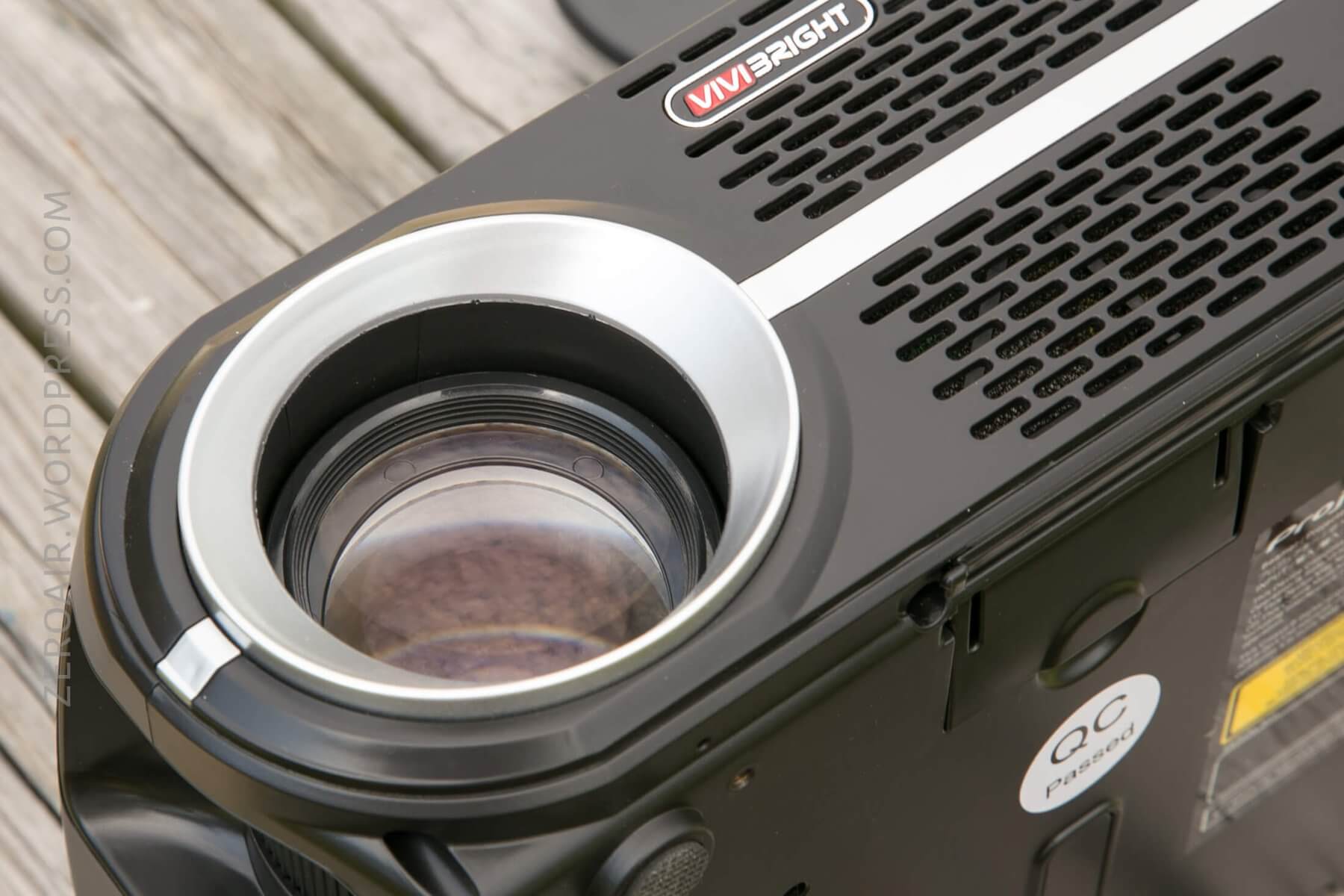

The lens is the high point of the build, but without a proper way to evaluate these lenses, all I can say is that it look good and is clear, and allows a nice image to be projected.
20180531-IMG_3913

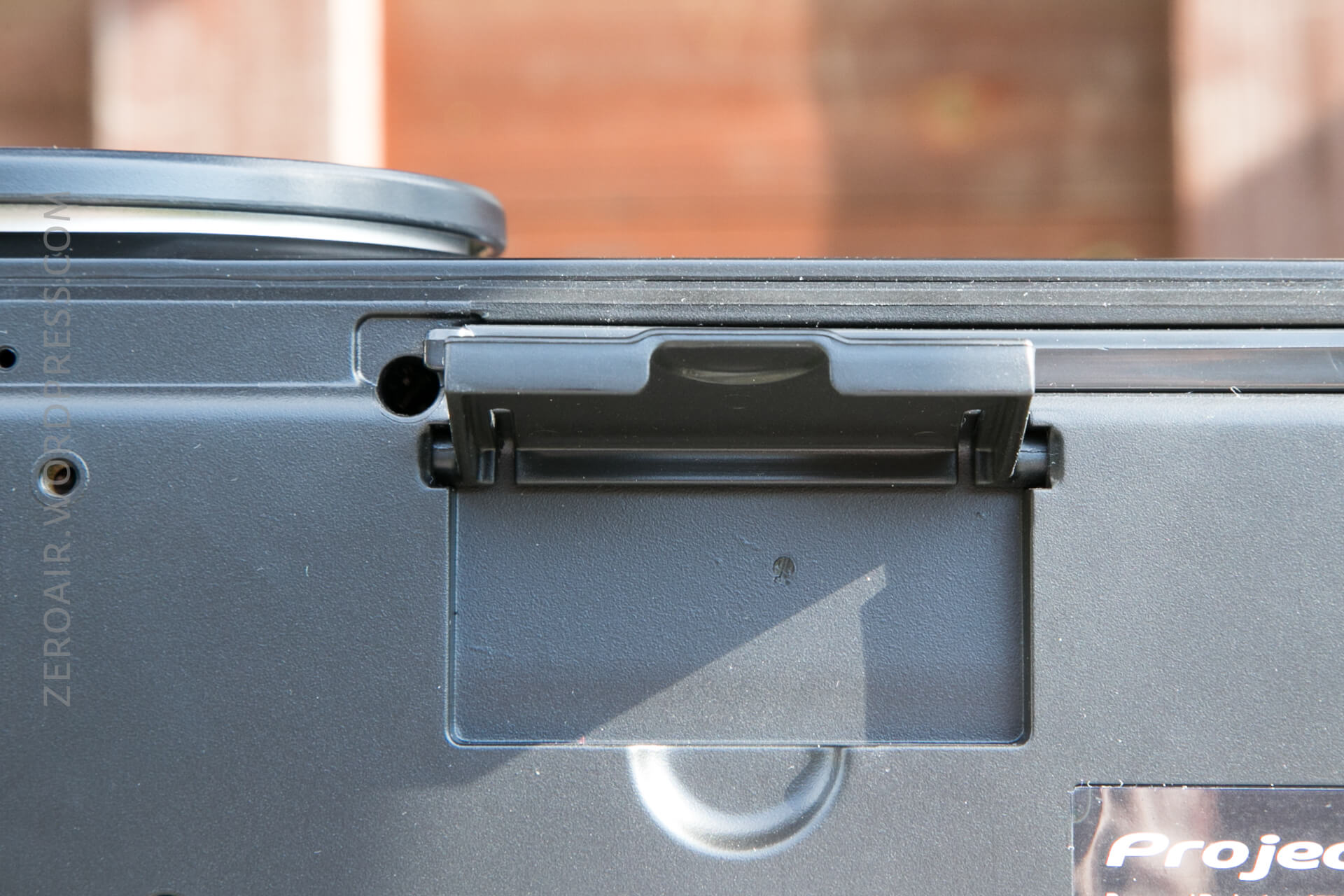

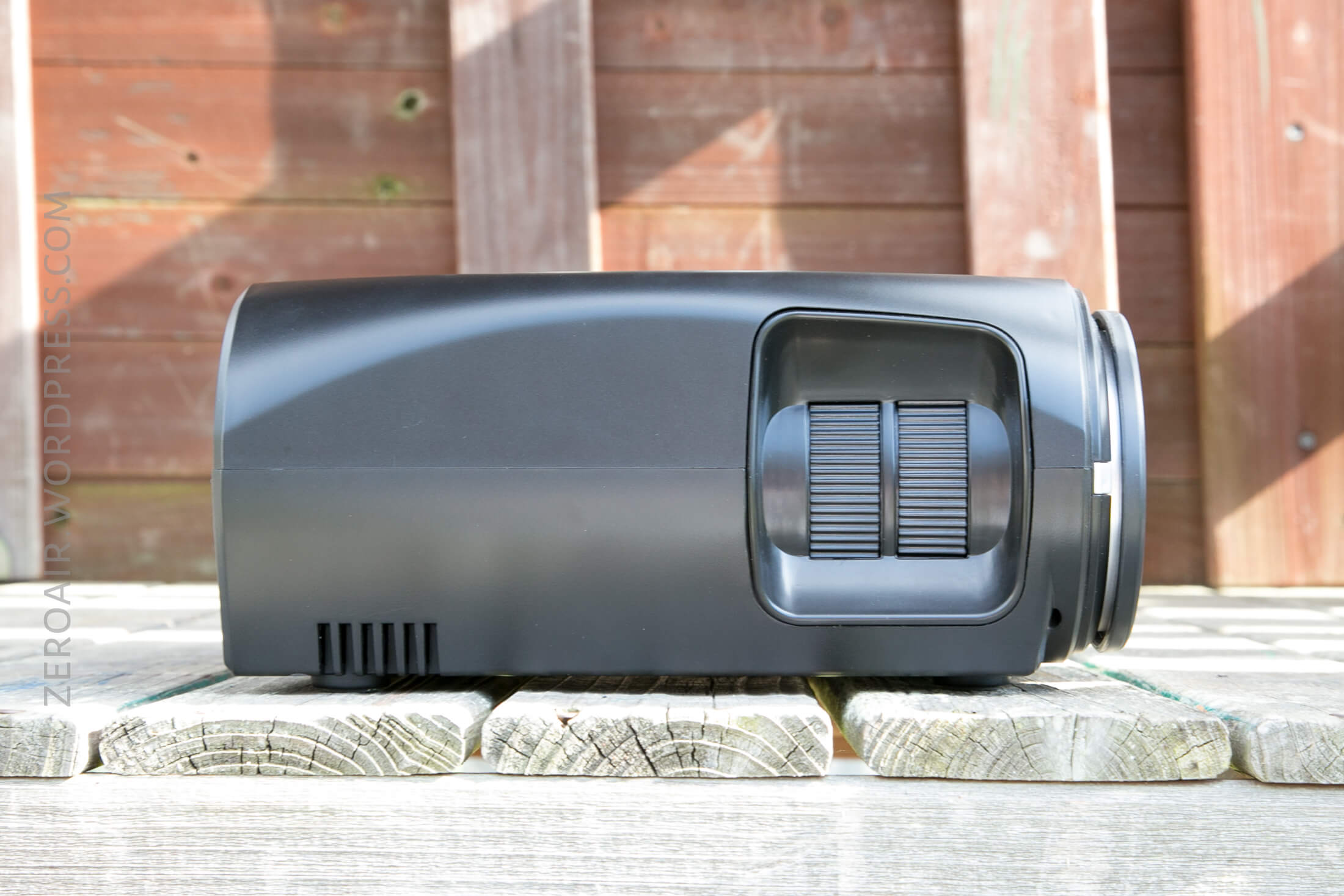

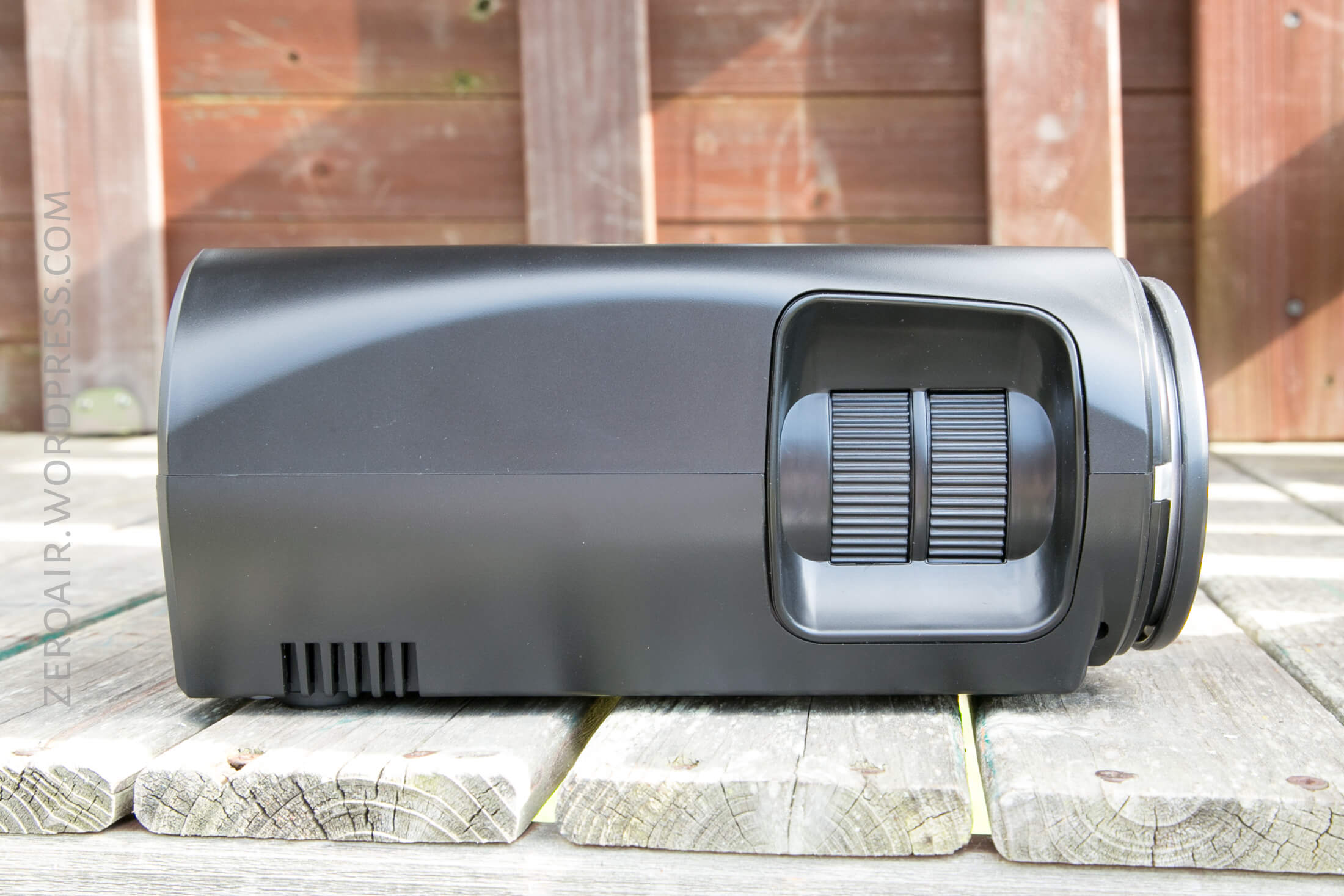

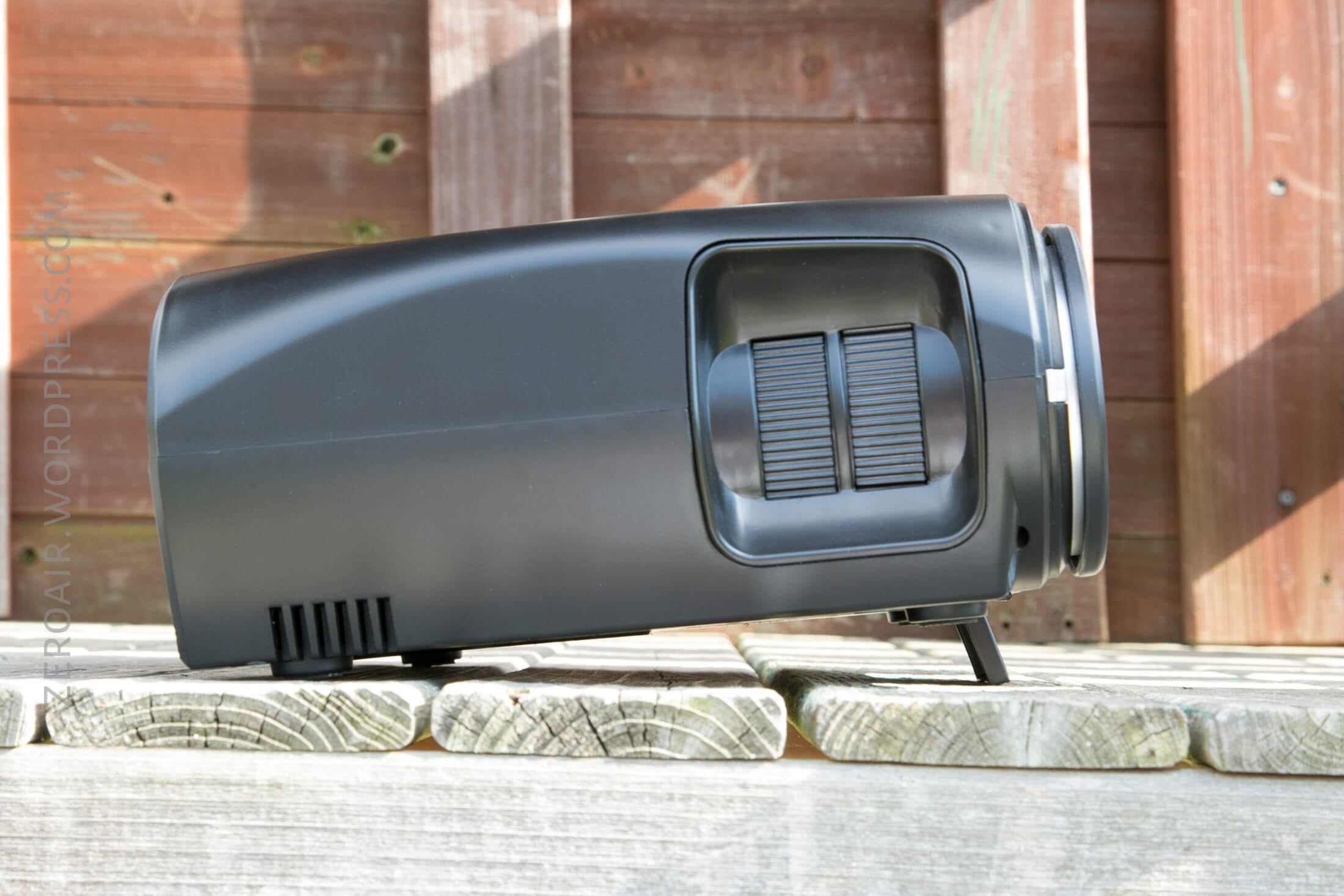

There are minimal adjustment possibilities for the GP100.  Essentially you can see them all below.  Primarily I’m showing the leg which angles the projection up or allows directly horizontal.  The second adjustment is the dial which tilts the image on the plane of the wall, allowing one to account for an unlevel projector.  The third is the dial which allows focusing of the picture.

Unfortunately the actual projector picture can’t be adjusted with the projector to be larger or smaller.  The GP100 projects one image, which can be focused (as described above), but to increase or decrease the image size, one must physically move the projector.  Not a huge deal, but for anywhere in my house where I wanted projection, the location I could put the projector wasn’t right for the focus.  When I put the projector in a spot that worked, it was in the way.
This is just my experience.  If you intend to ceiling mount the projector, or place it on a cart with wheels, you’ll have no problems; just mount it where it works.  Particularly permanent installation would render this issue had meaningless.
Some helpful specifics.  The image size (diagonal): 35~180 inch, allowing a projection distance of 1.2~5.5 meter.  But the best screen size and distance are as follows: 72~120inch / 2.5~3.5m.

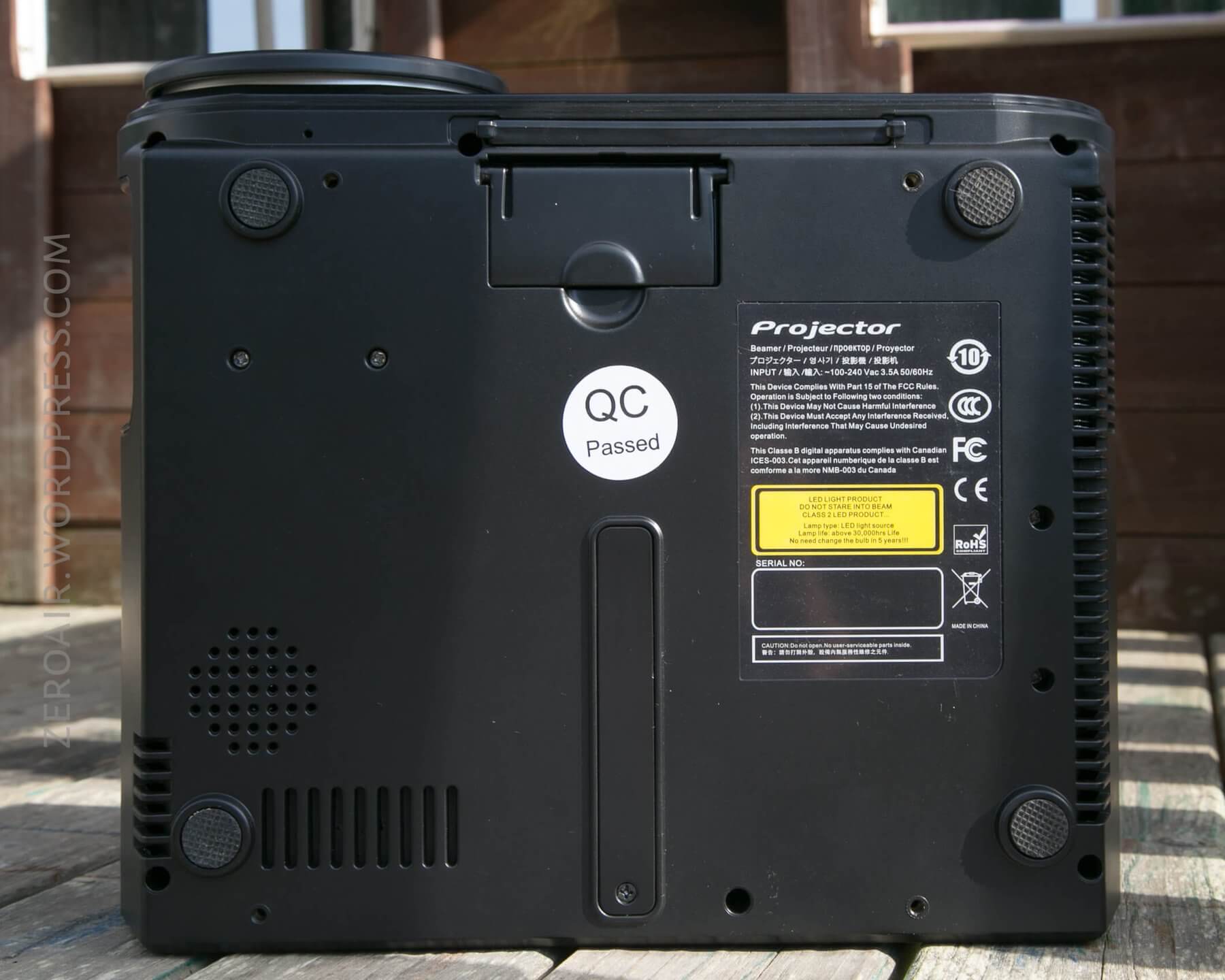

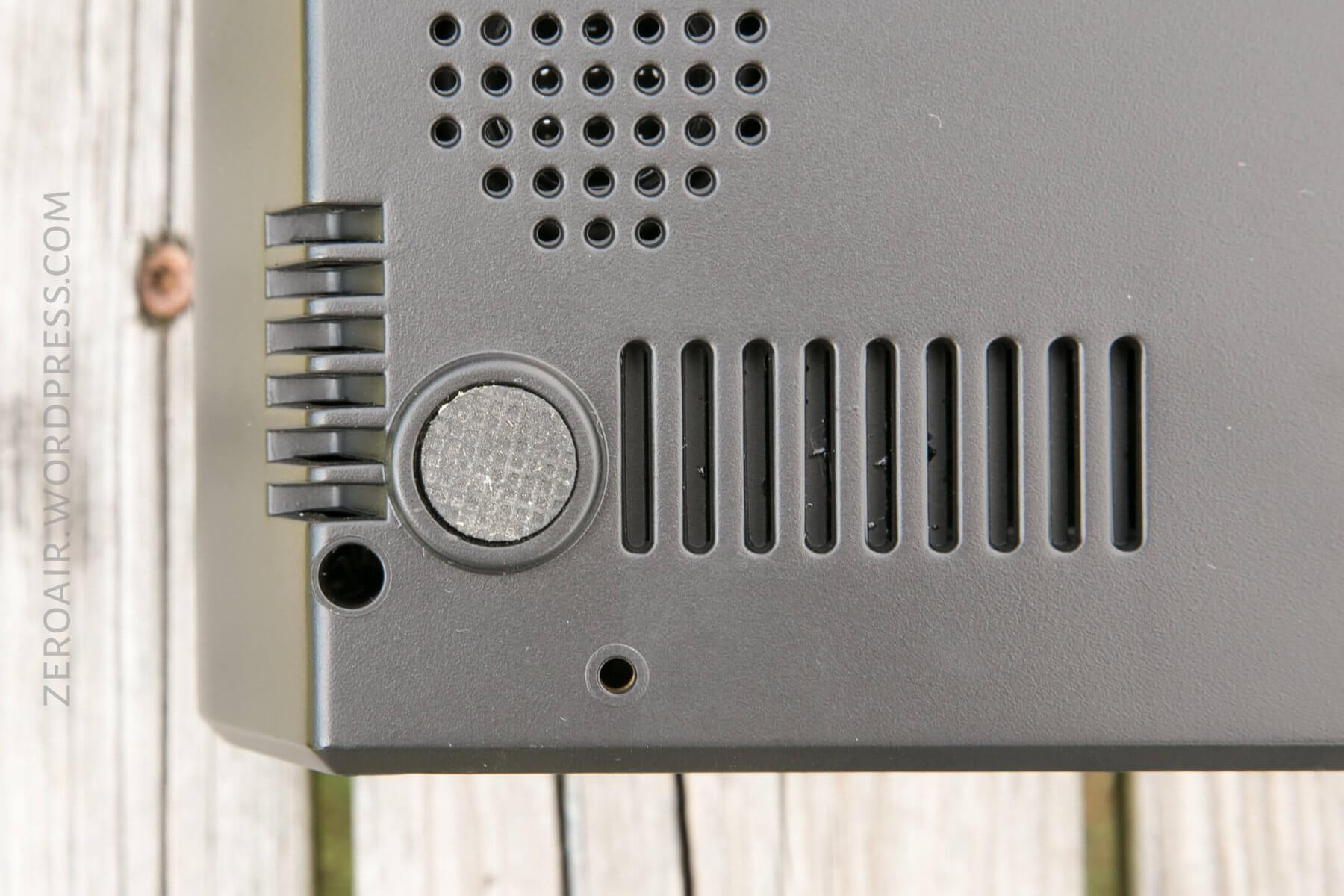

The feet (which do not cover screw holes as is often the case) have nice rubber pads to prevent slippage.

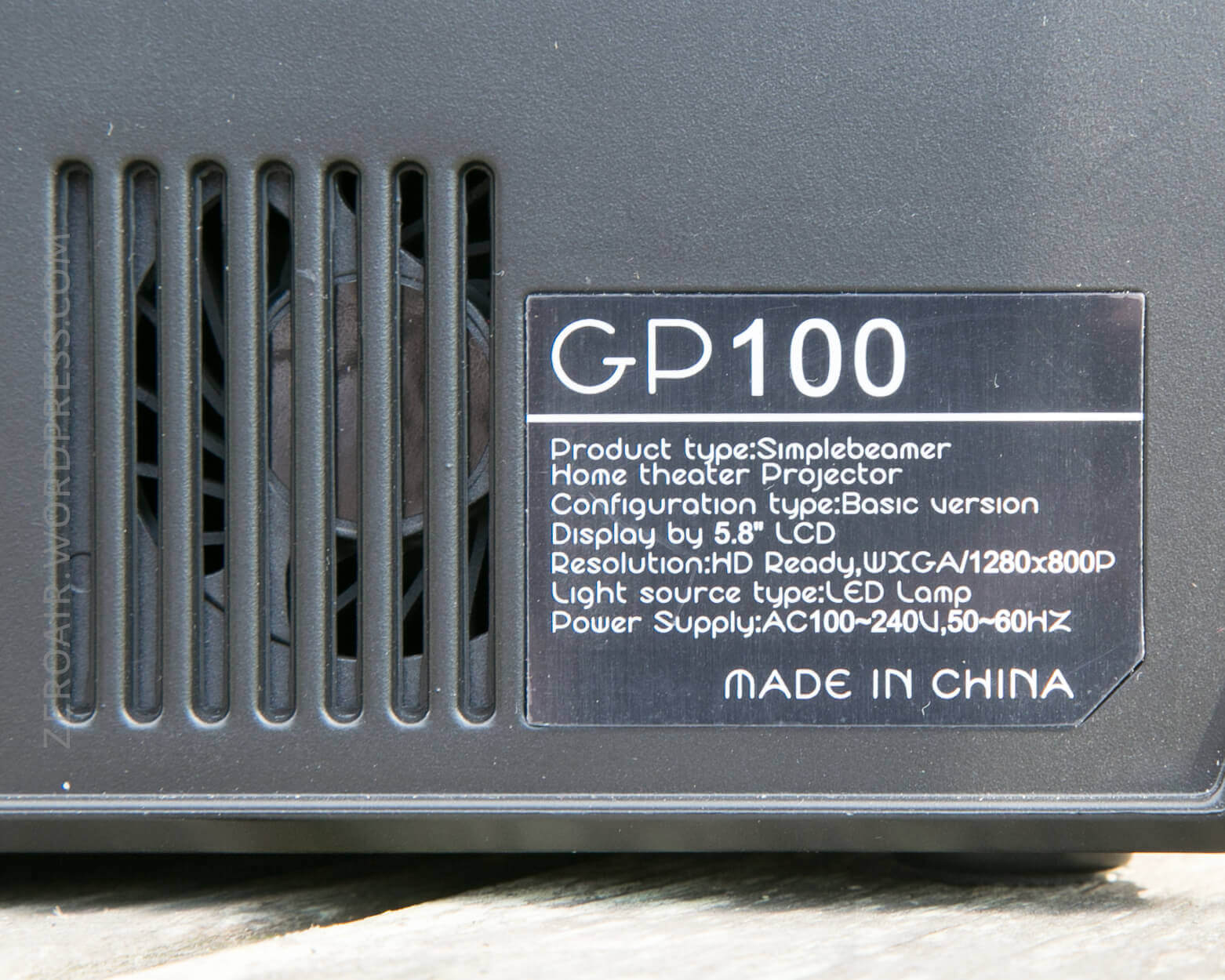

Here’s one of the few fans.  Unfortunately this is my main complaint with this projector:  The fans are loud.  Not just “when the projector heats up and gets going the thing turns loud.”  But from the second the projector is on the fans spin up and they are not quiet fans.
Fortunately it’s all fan noise and not case rattle or anything – if you wished it’d likely be very simple to replace these fans with quieter versions.  In fact I had occasion to disassemble the projector (more on that later) and I can say that it’s simple to get into, and access the guts.

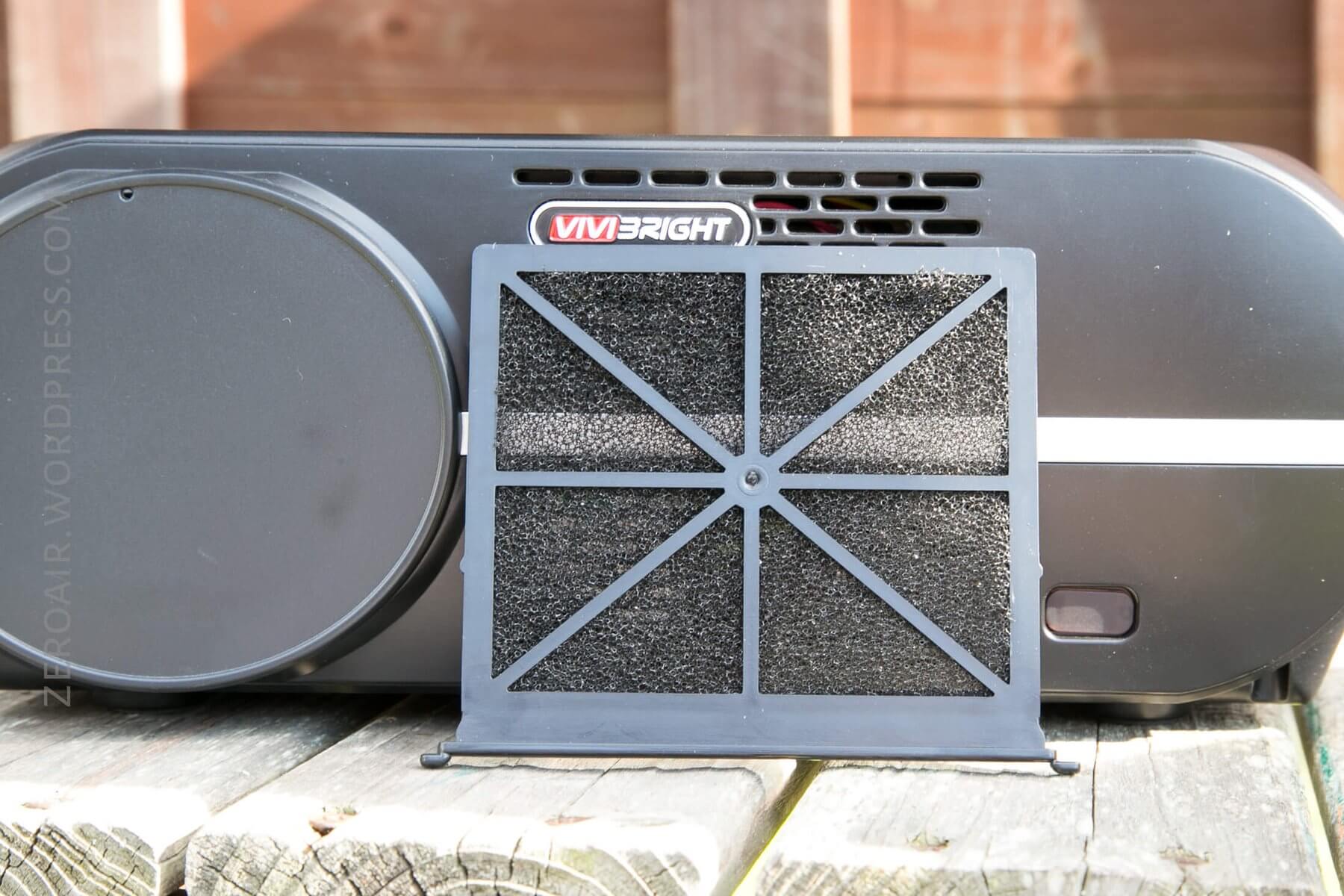

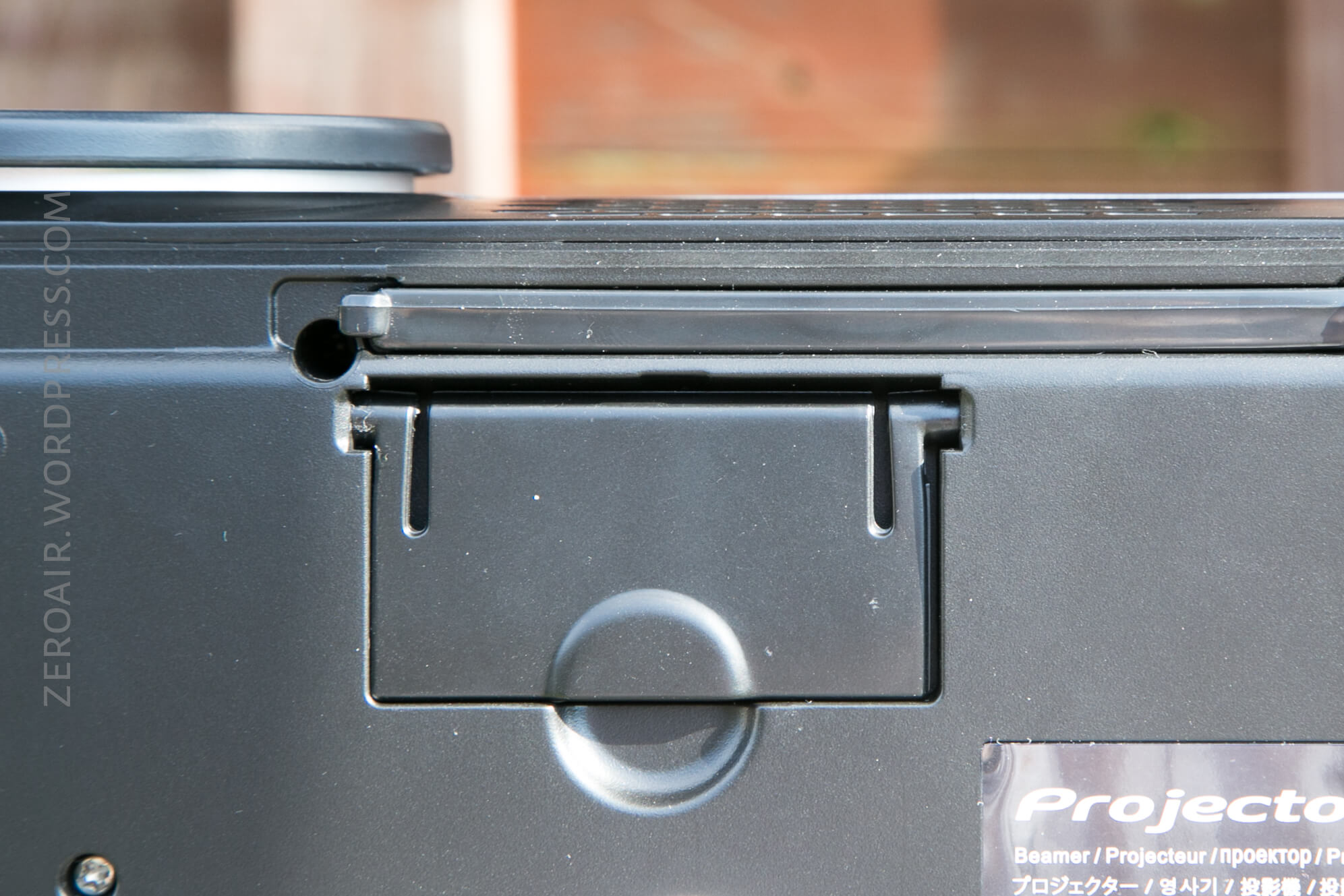

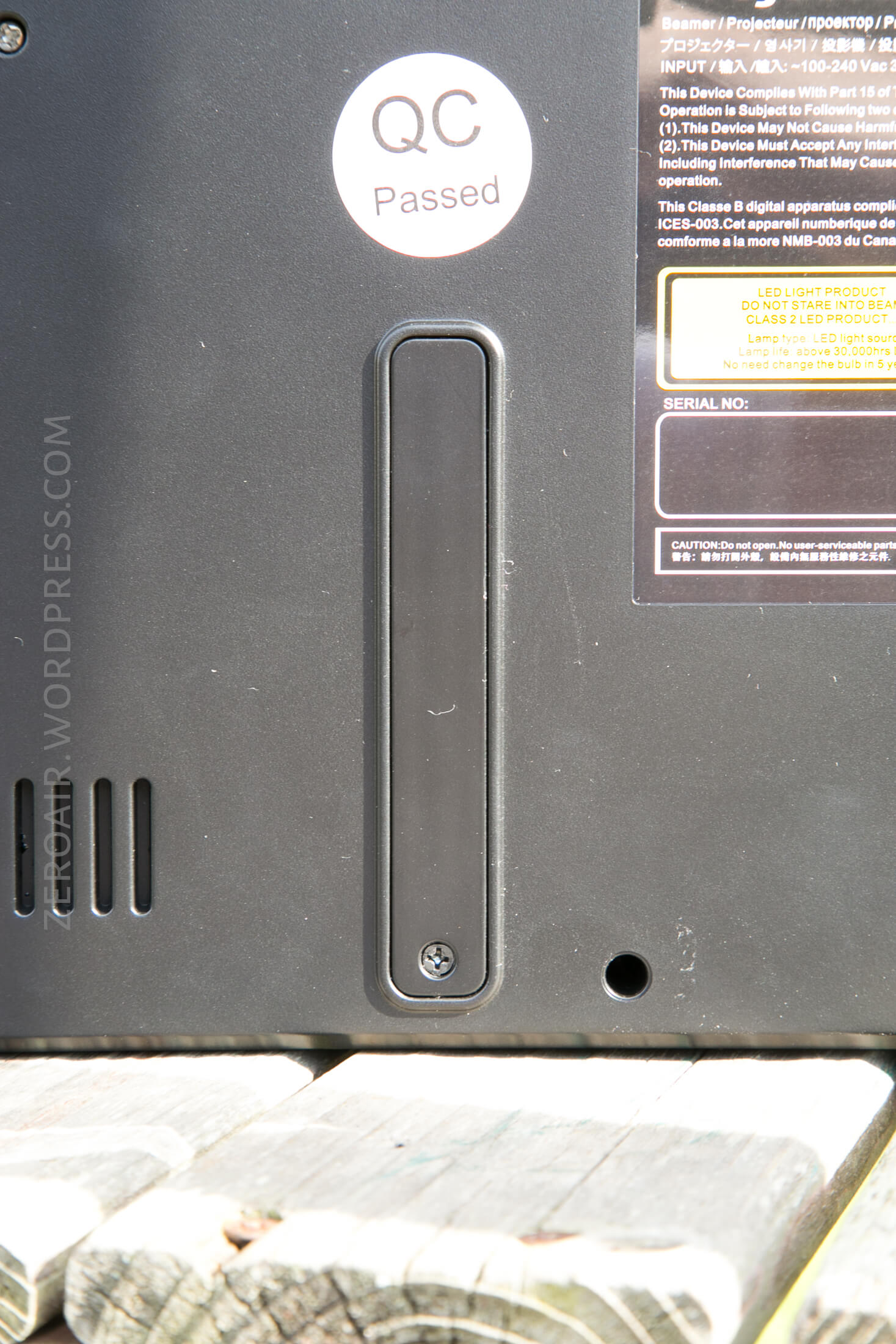

The fans also pass filtered air through the system, and this filter is replaceable.  Though the manual doesn’t state it, I think more than replaceable, the filter is user-cleanable.

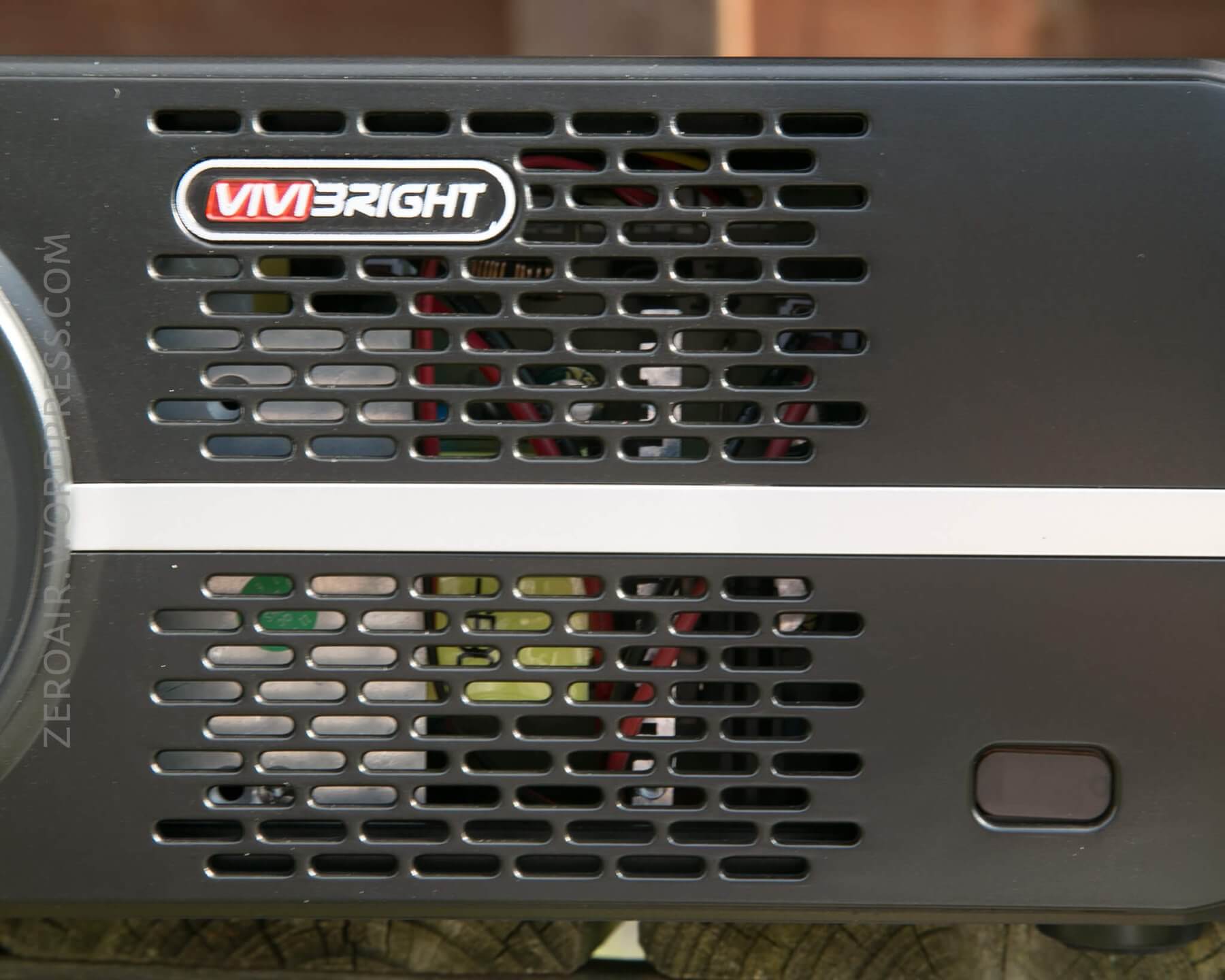

Here’s a look into the guts.  Not much to see.  You can see the remote receiver at bottom right.  (There’s one in the back, too!)

Size

Officially the size is 9.8 x 11.4 x 4.7 inches.

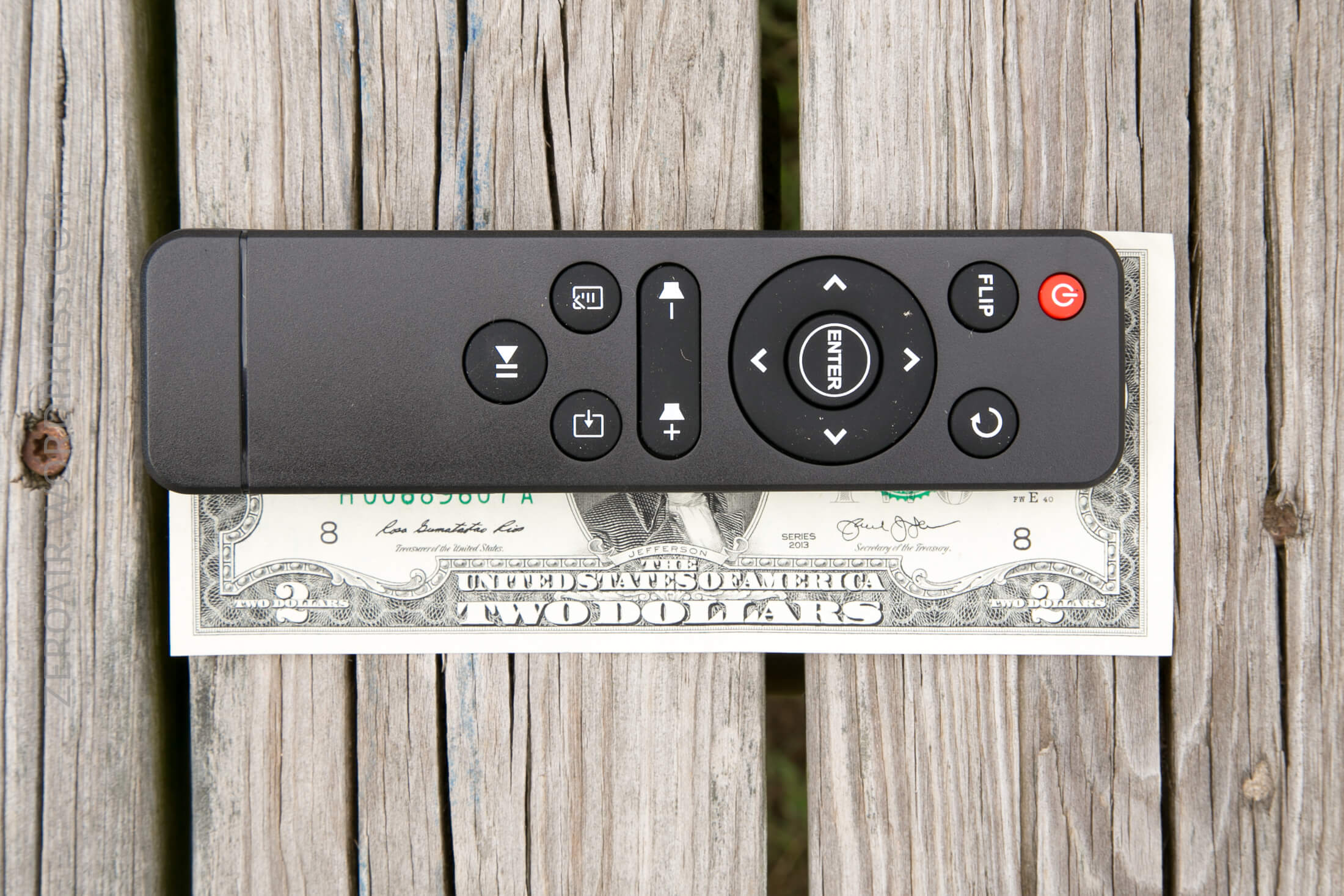

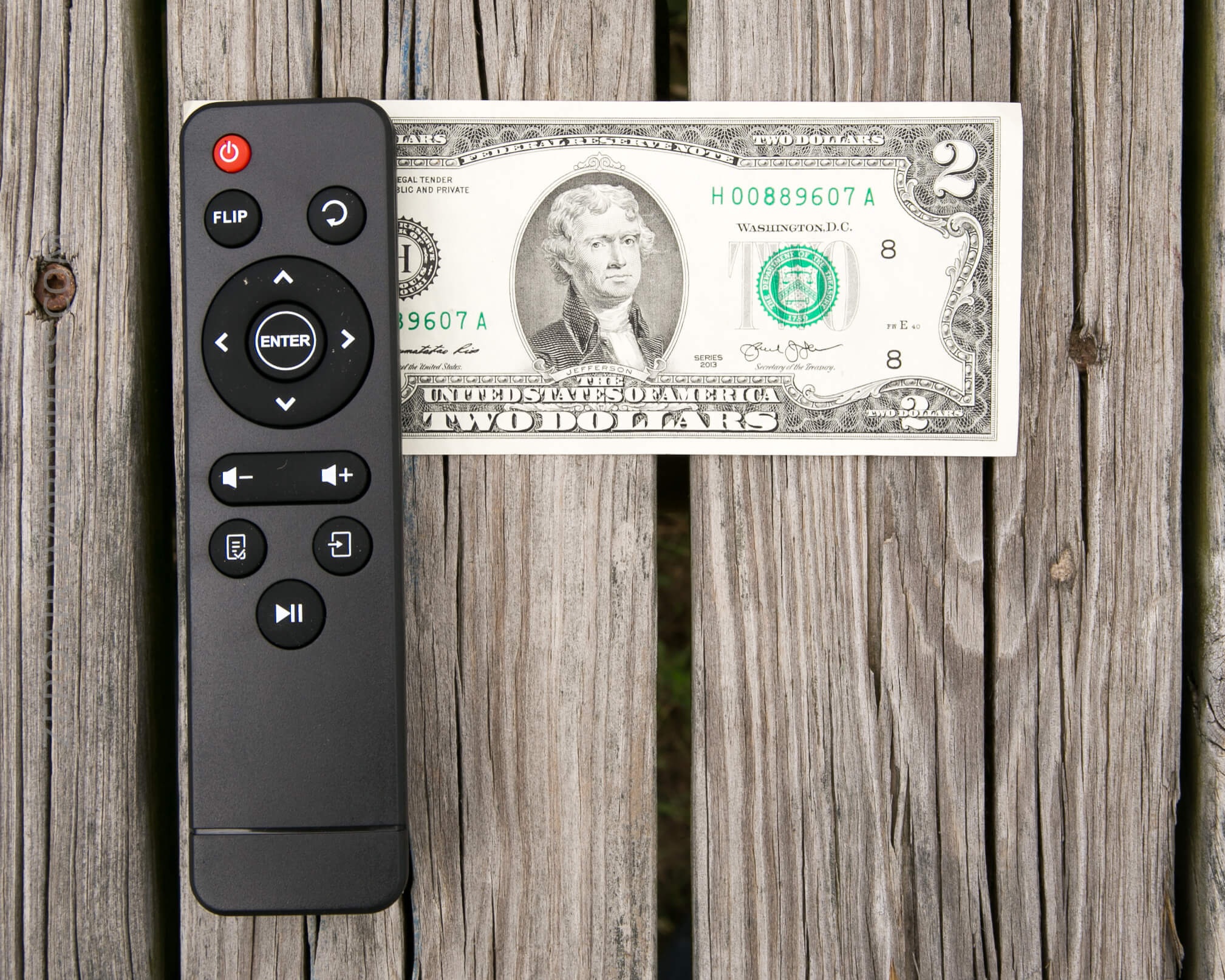

The remote is thin, and big enough to be easy to use.  The buttons are rubber coated and clicky, and useful.

Power

Power is sent to the GP100 by a regular computer power cable (which is included).  It runs on 120V power, but there’s also an EU version.

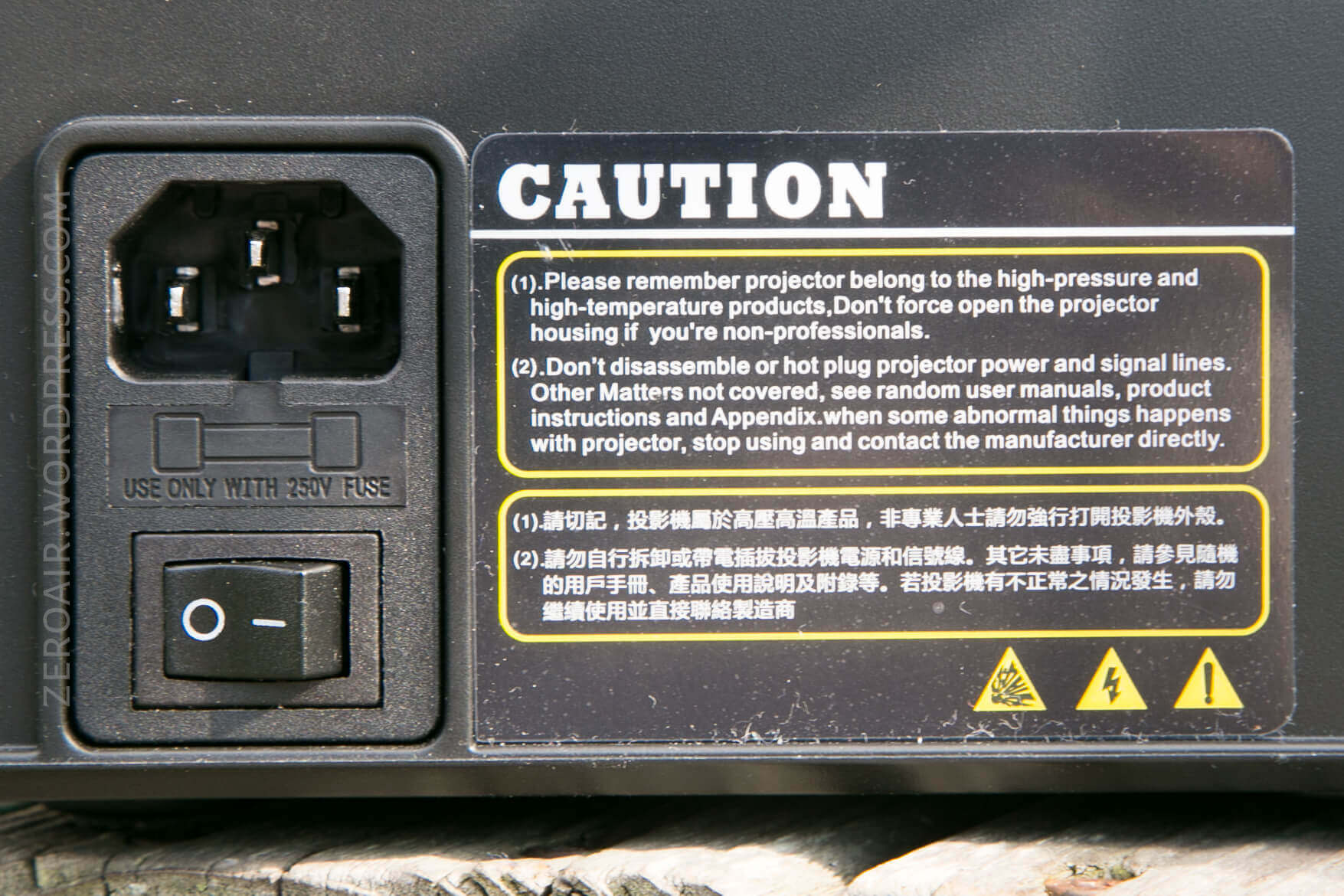

Here’s the reason I had to tear my unit apart.  When I first plugged my device, it worked momentarily, and then stopped working.  I took it apart and tested everything I knew to test.  At wits end I finally looked at the plug.  You’ll see it immediately I’m sure.  There’s a fuse there.  It’s a 250V fuse.  I opened that little fuse drawer and sure enough, I had a bad fuse.
What makes me feel even dumber; I looked and looked for a replacement fuse, only to finally realize that there’s a spare in the fuse drawer included.  When I swapped it in, the projector worked fine and has worked ever since.  I think it’s a 250V, 20A fuse (but don’t quote me on that).

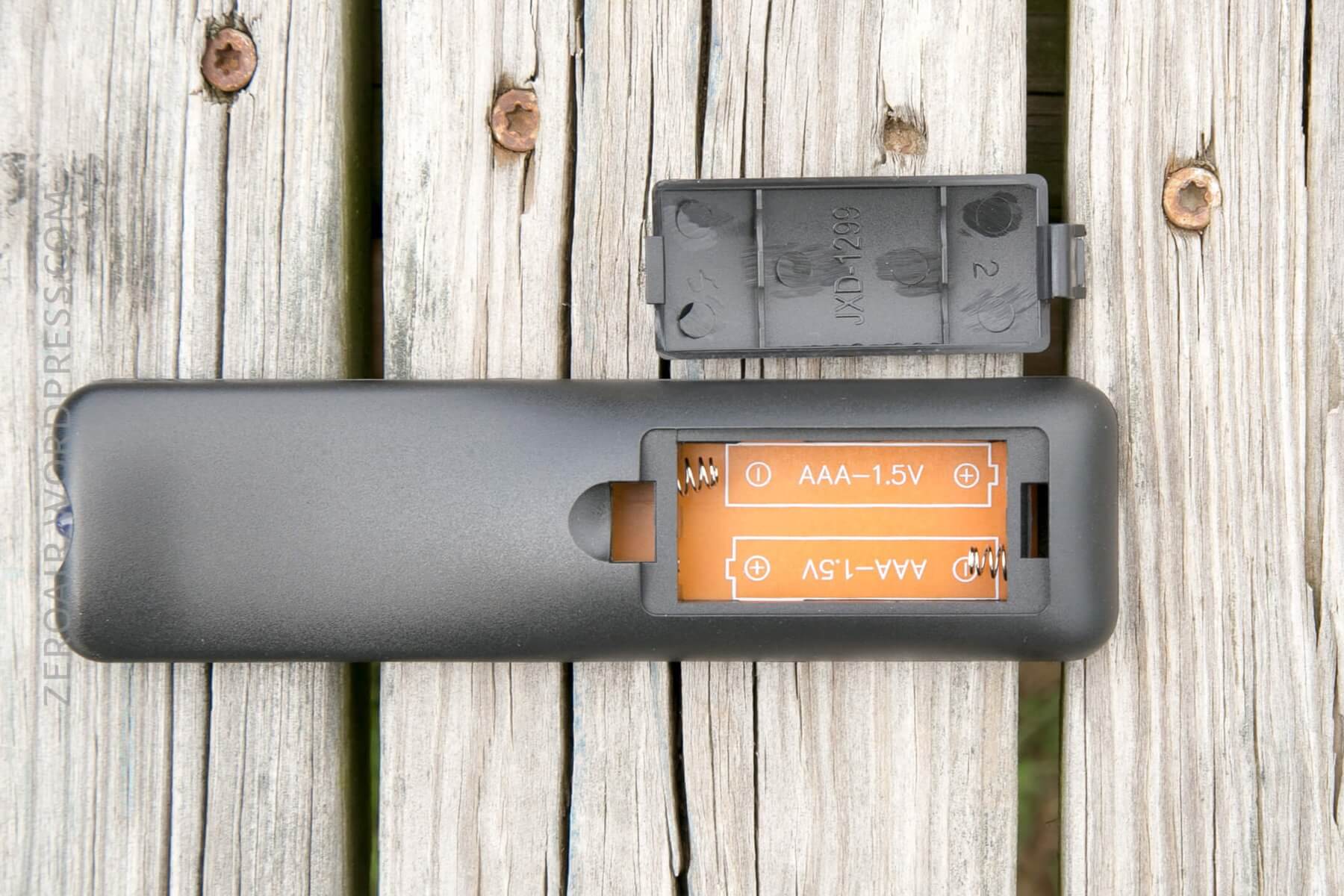

The remote is powered by two AAA cells.  I used Eneloops.

Connections

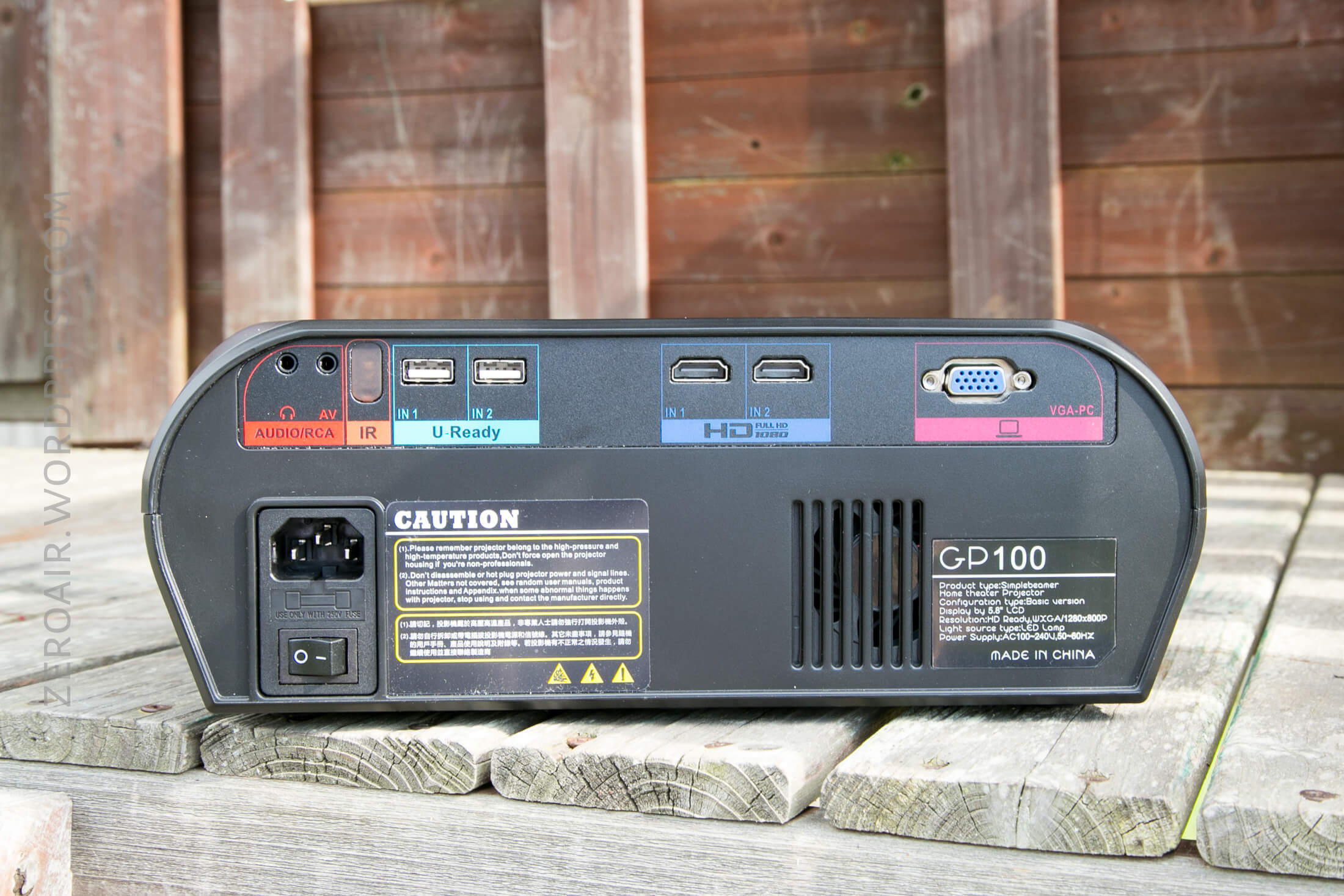

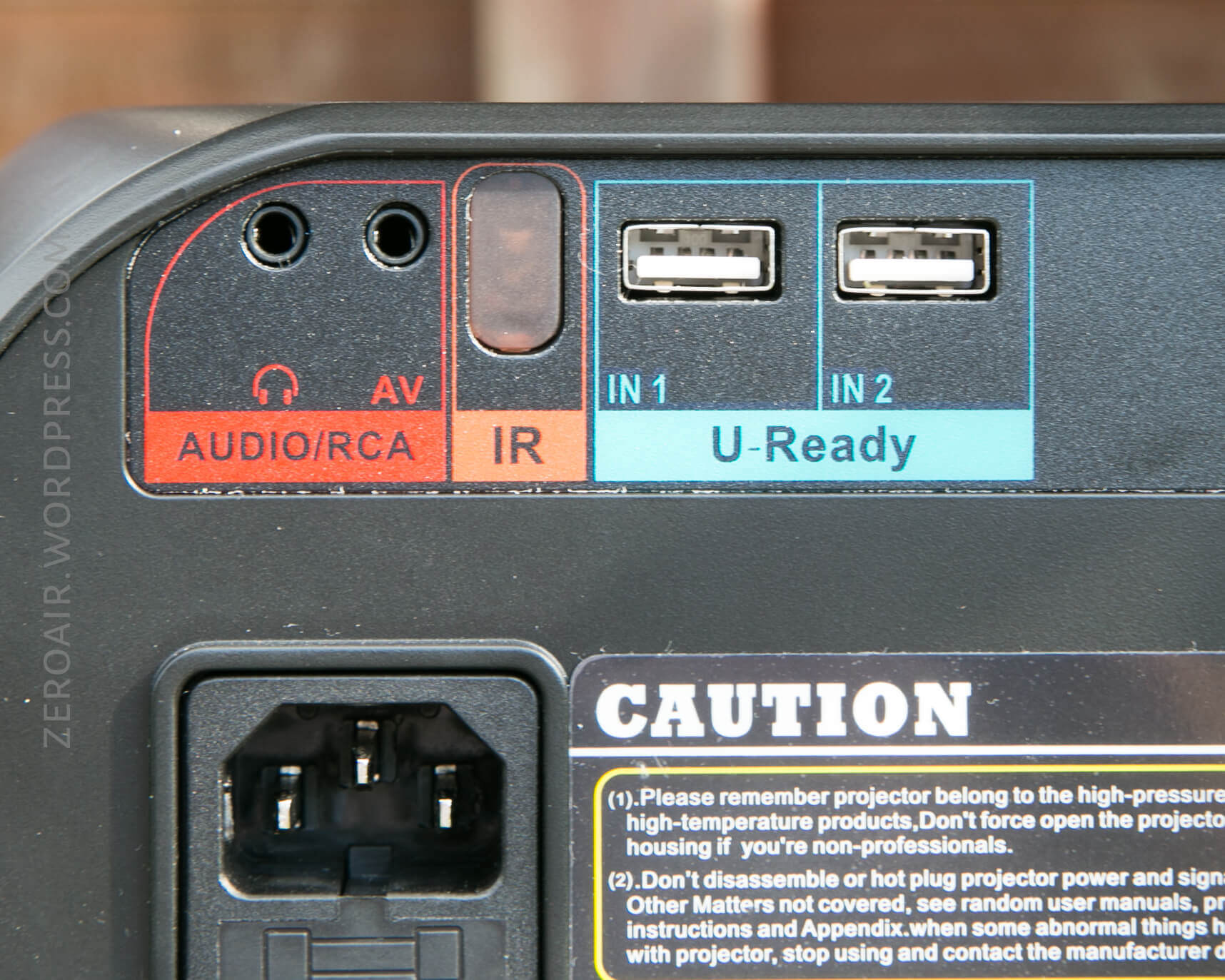

There are a number of inputs (and a couple of outputs) available.  Seen below are two audio outs, which can be used for running headphones or speakers from the GP100.  Next is the rear IR receiver for the remote.  Then two USB inputs.  If I’m honest I never had luck with the USB inputs, most likely due to having improperly formatted media.  My primary interest is not using the projector with USB, so I didn’t pursue it.
20180531-IMG_3908

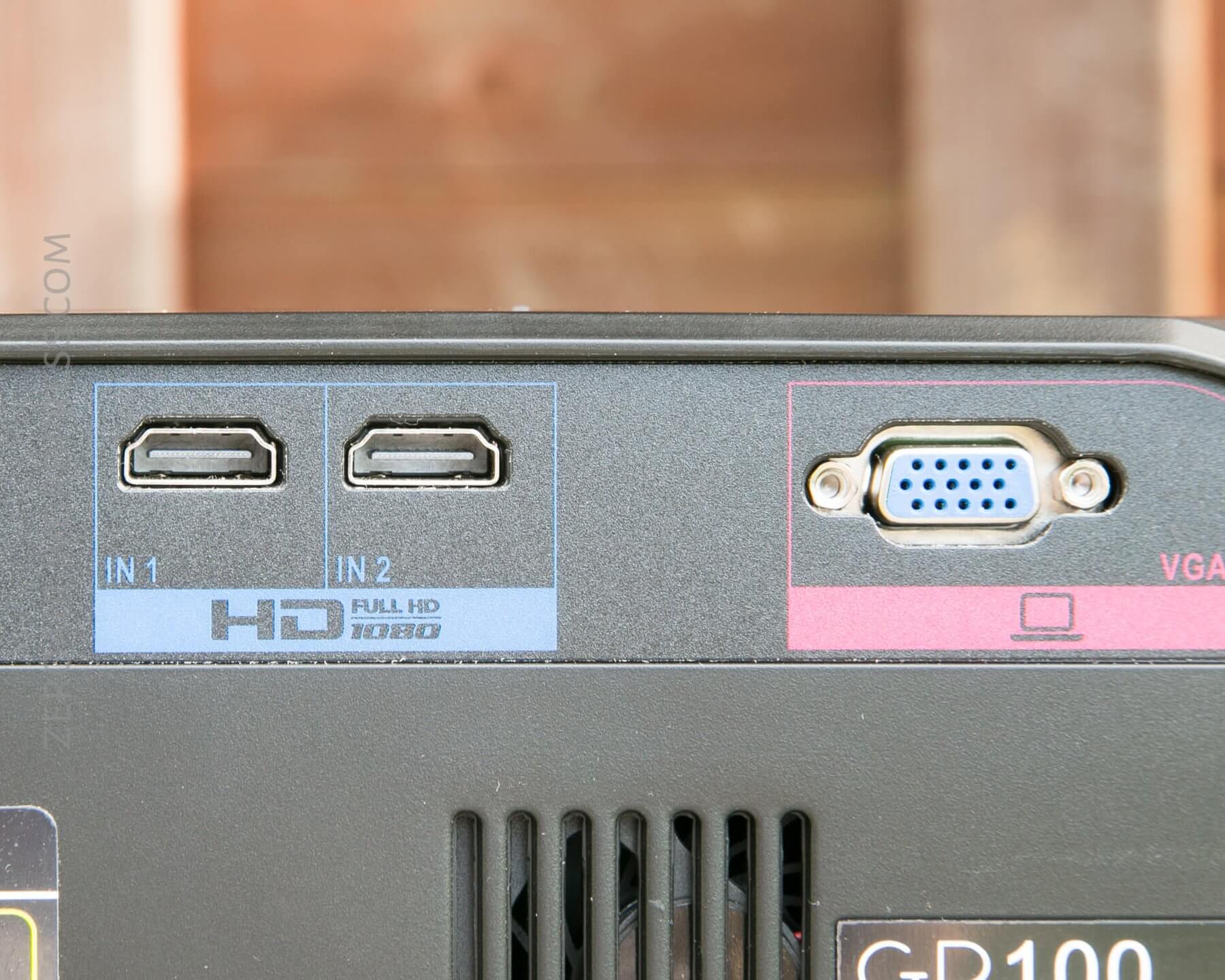

Next are two HDMI ports, which I used extensively.  I connected from my Macbook Pro, and the GP100 worked flawlessly.  I also tried using my recently reviewed GPD Pocket Computer – in fact it was the device I intended to use primarily with the GP100 Projector.  Unfortunately, for some reason, I could not get these two to work together.  I tested the GPD Pocket computer HDMI out on a different monitor, and it worked fine.  So the problem was with how the GP100 received the signal.
The final connection is VGA.

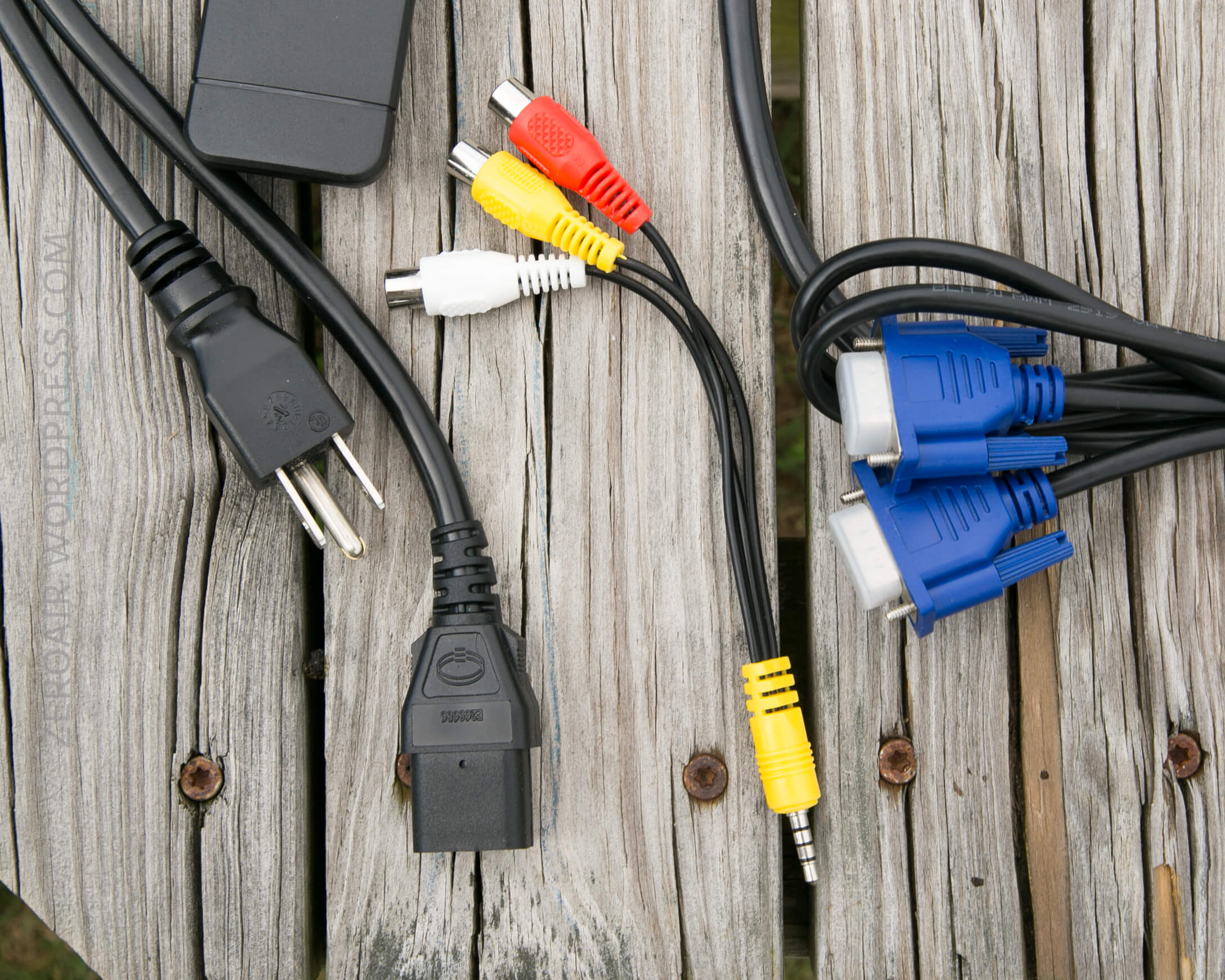

A few connectors are included; VGA to VGA, an RCA dongle, and a power cable.  Unfortunately there is no HDMI cable included, and there should be.

User Interface and Operation

Both the top of the projector and the remote can control all the functions of the projector.  There are 5 buttons on the top of the projector, and one D-pad.  The power switch has a LED beside, and when there is power but the projector is off, this LED is red.  When the projector is on, this led is Green.  When turning the projector off, there’s a popover warning – pressing the power button again shuts off the projector.  Pressing any other button cancels power-off.  (And of course at any time the AC power can be cut on the back of the device – a ‘hard power off’ if you will.)
20180531-IMG_3897

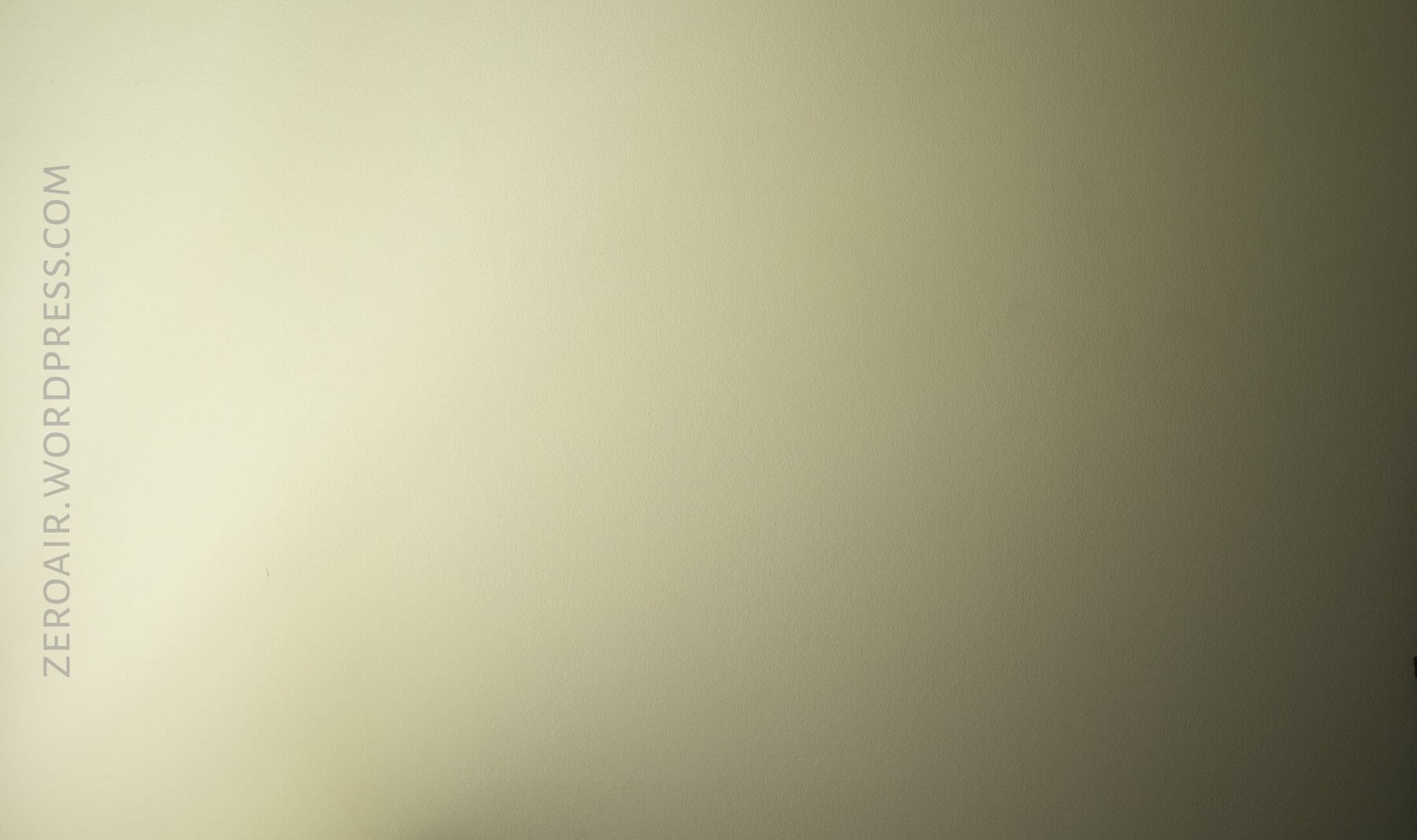

First a control shot.  The situation for photos wasn’t the best, but it’s what I could do.  There’s a window to the left, and these were shot at around 4pm (ie, still fairly light outside).

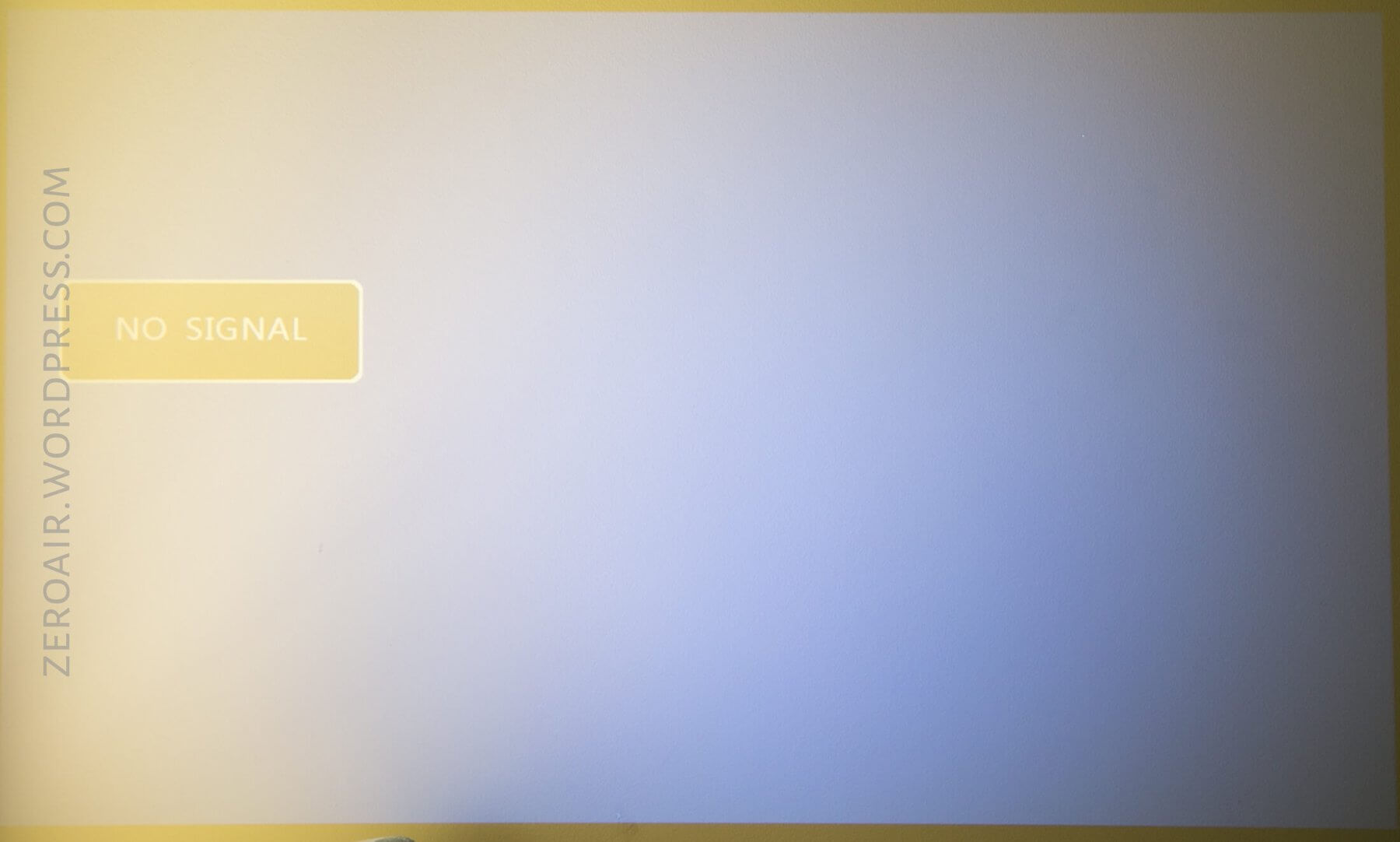

When you turn on the projector and don’t have any signal input, you get the screen below.

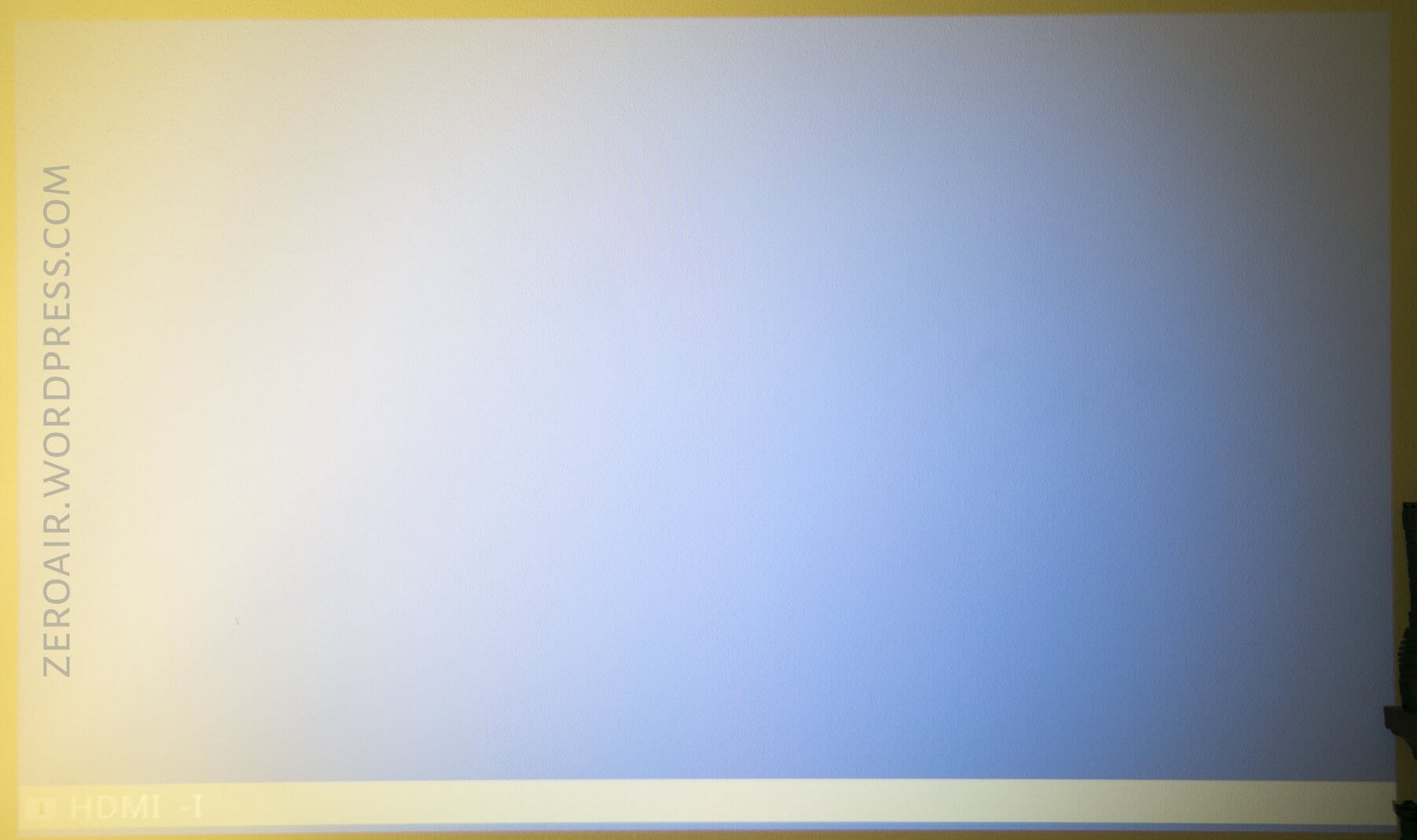

Once you’ve selected an input, but there’s no data being transferred, you get this:

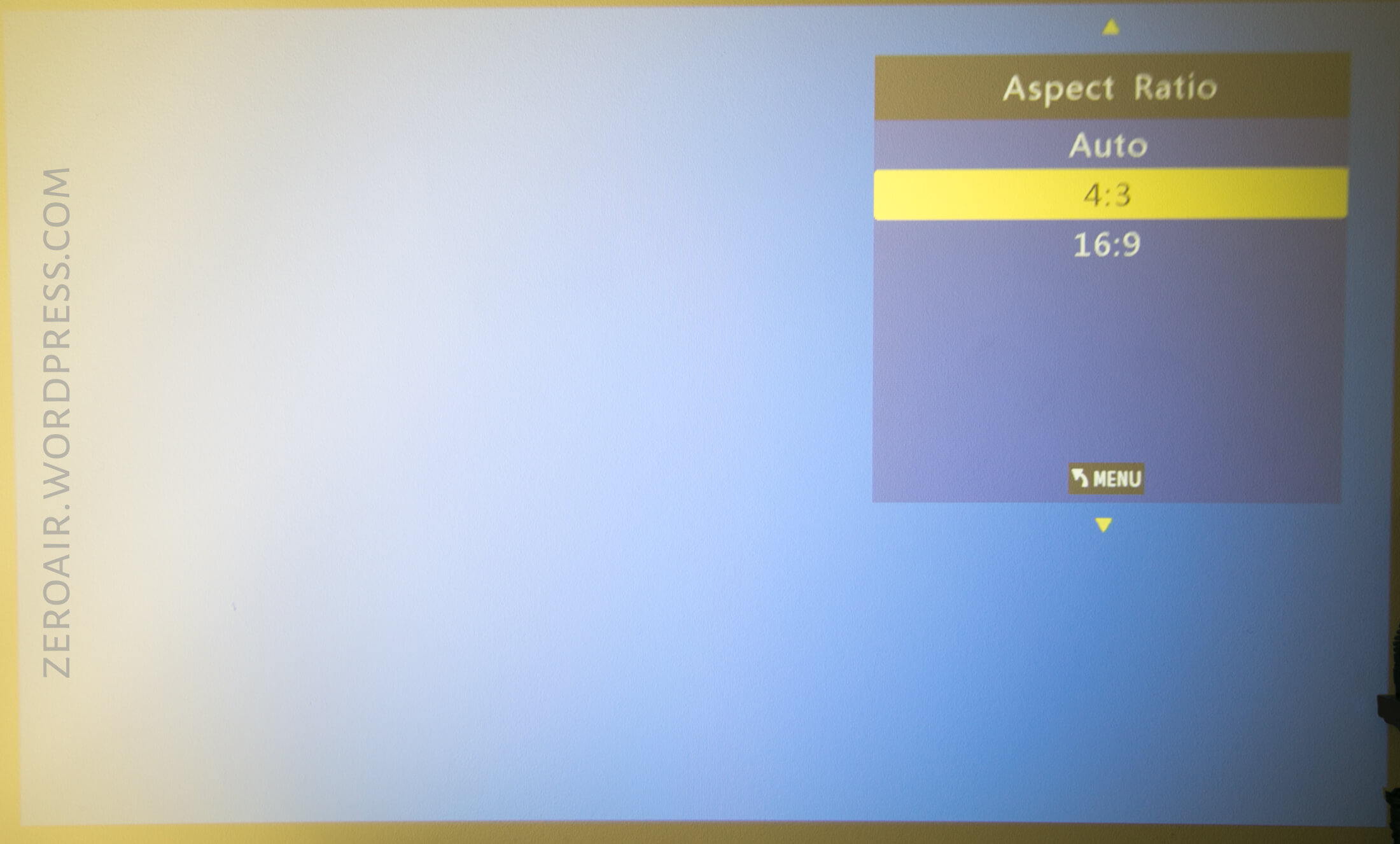

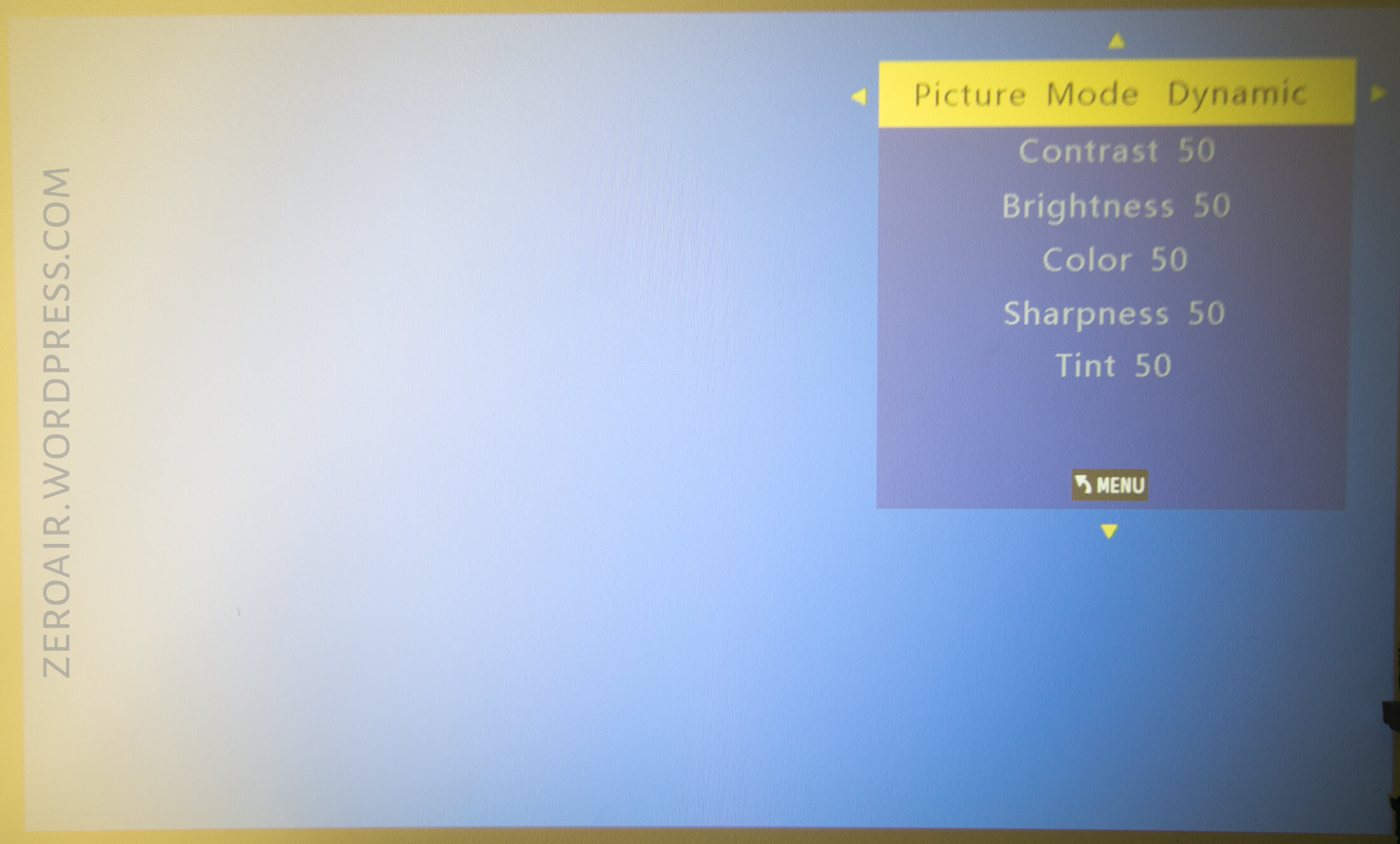

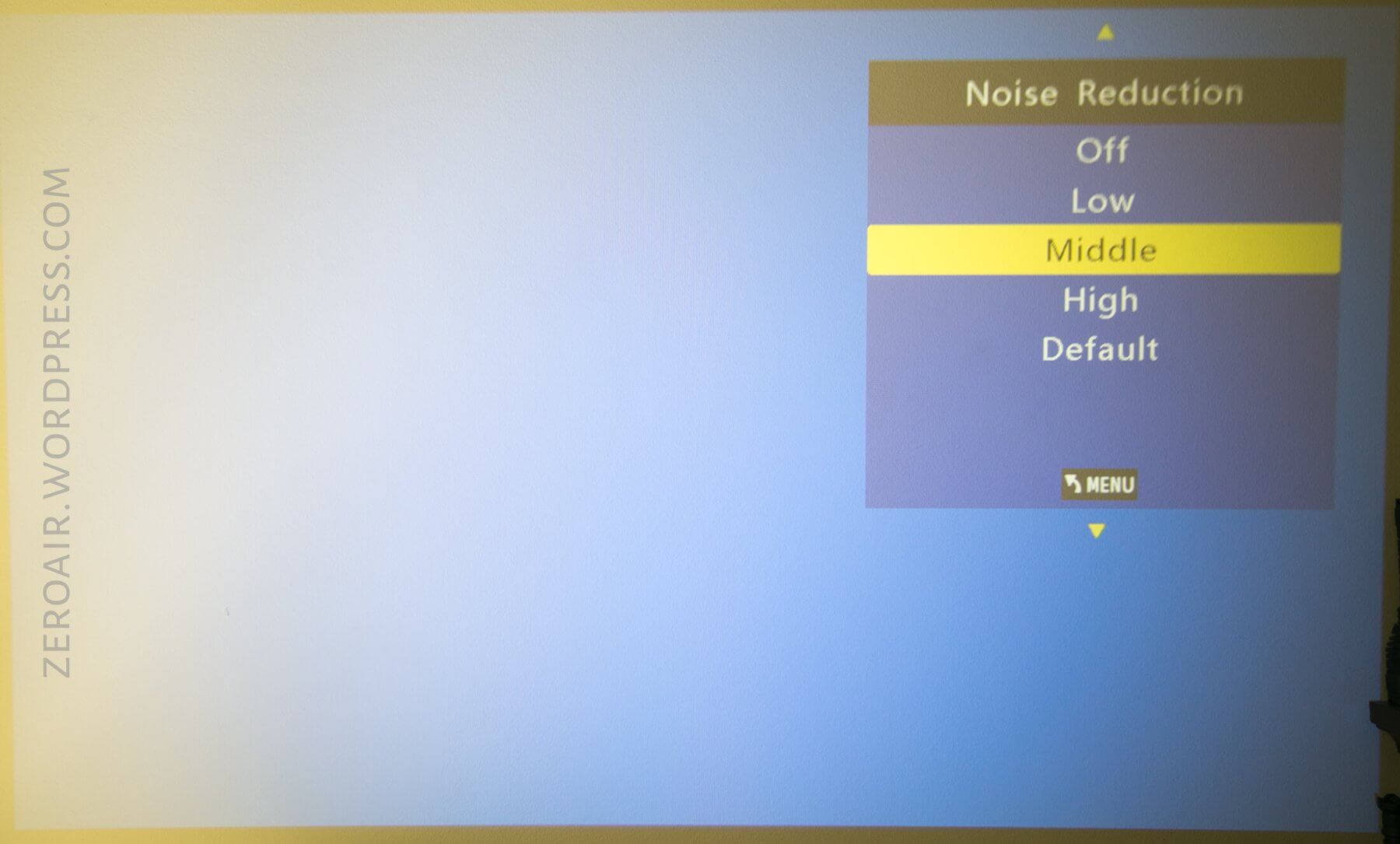

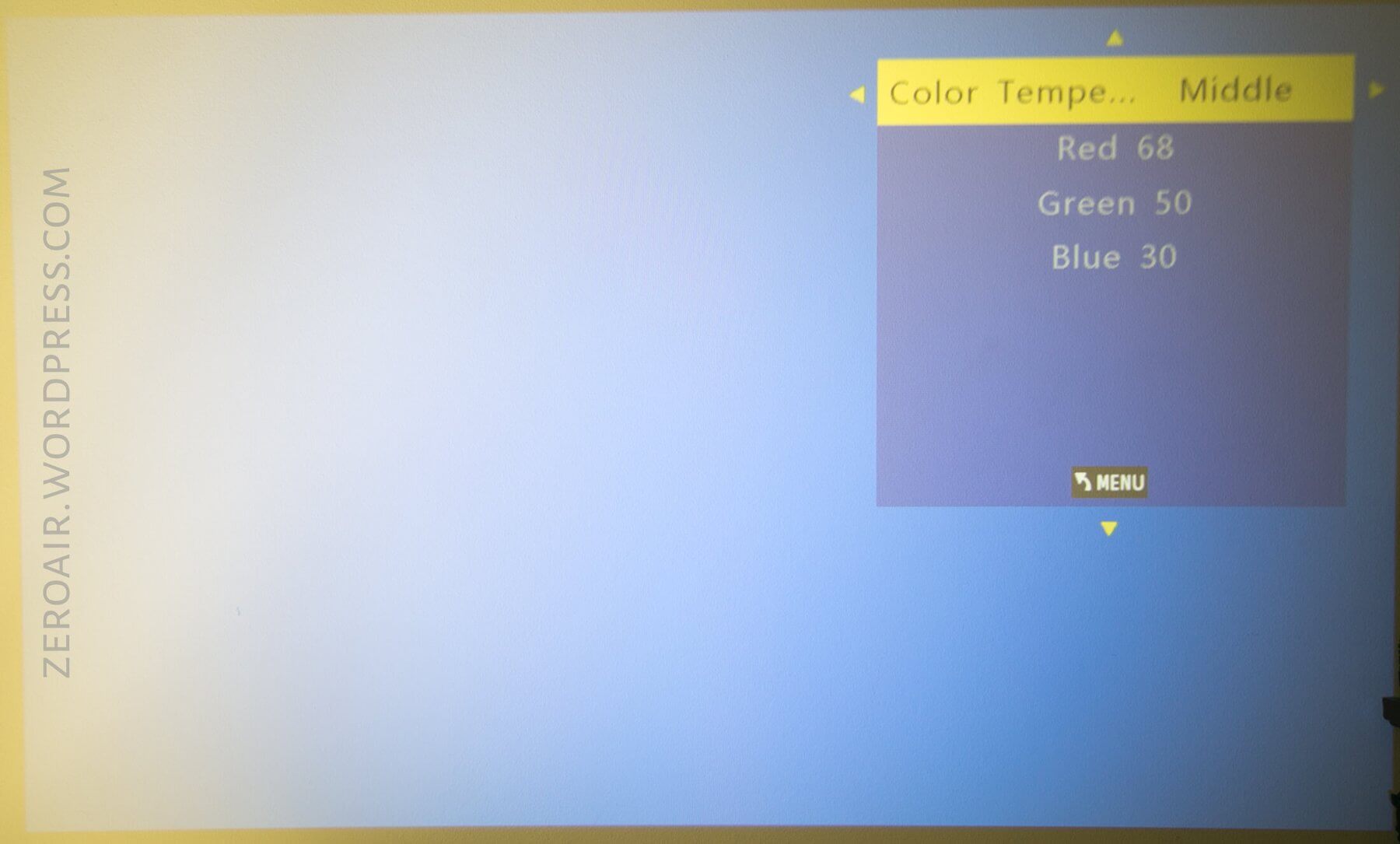

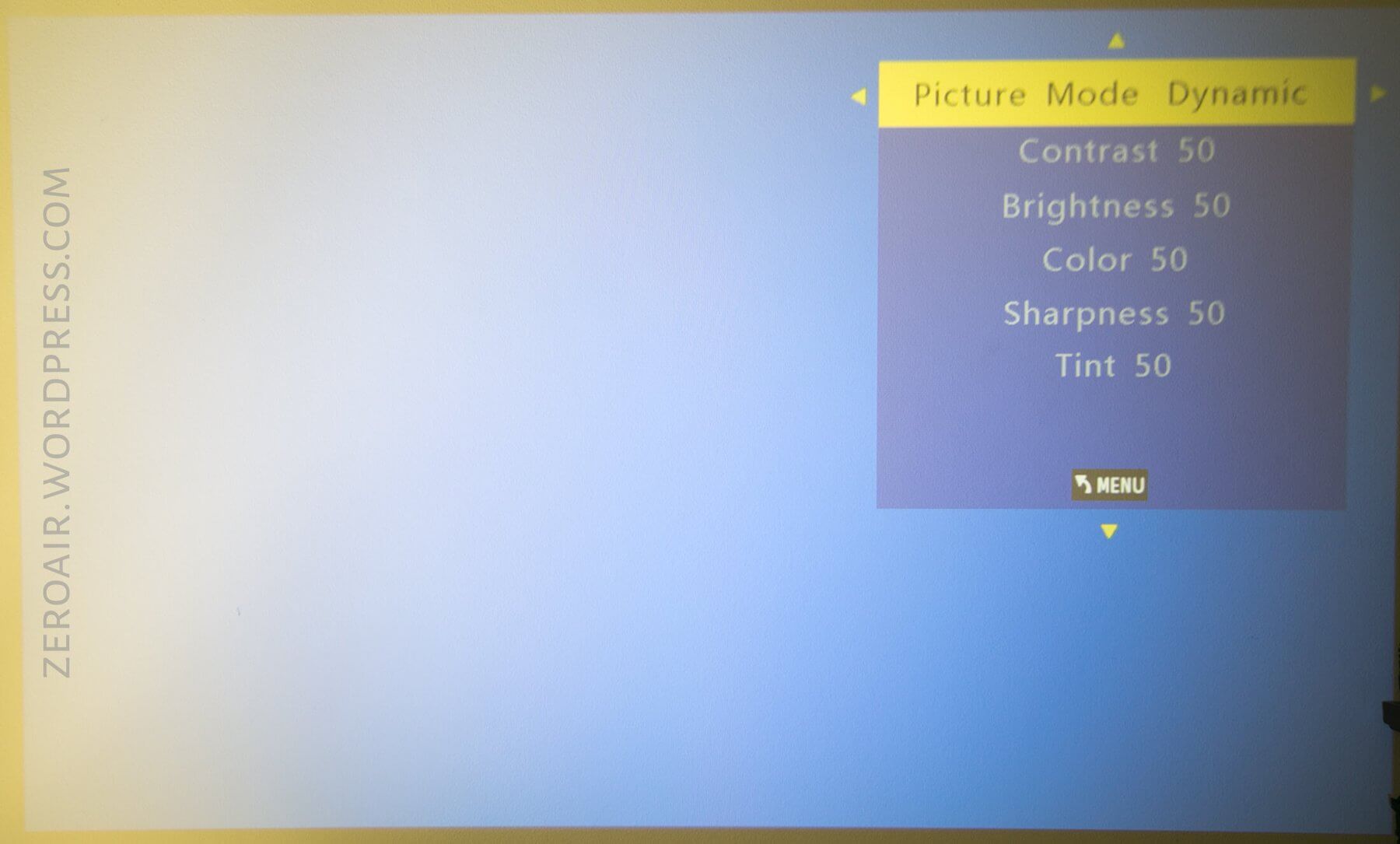

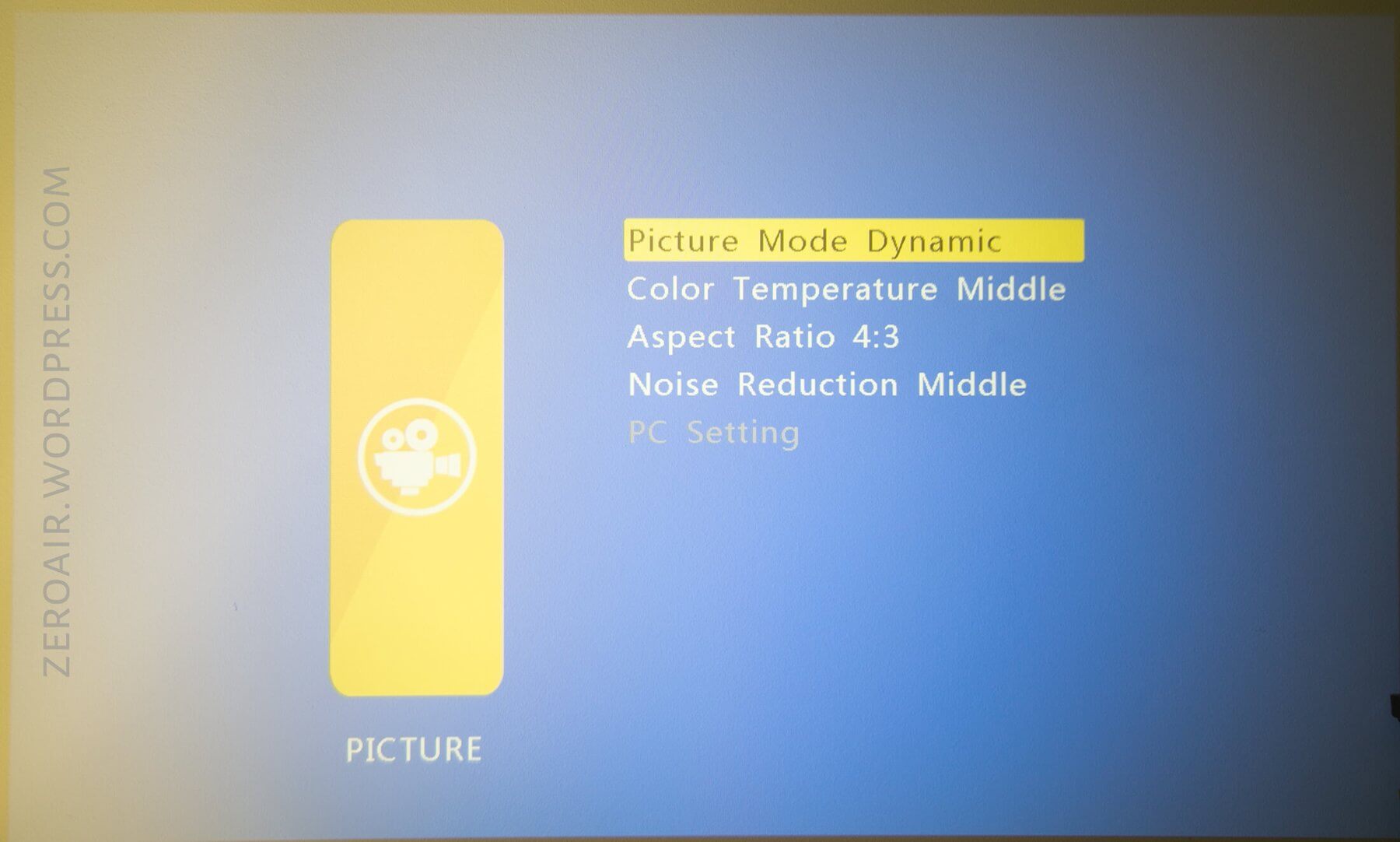

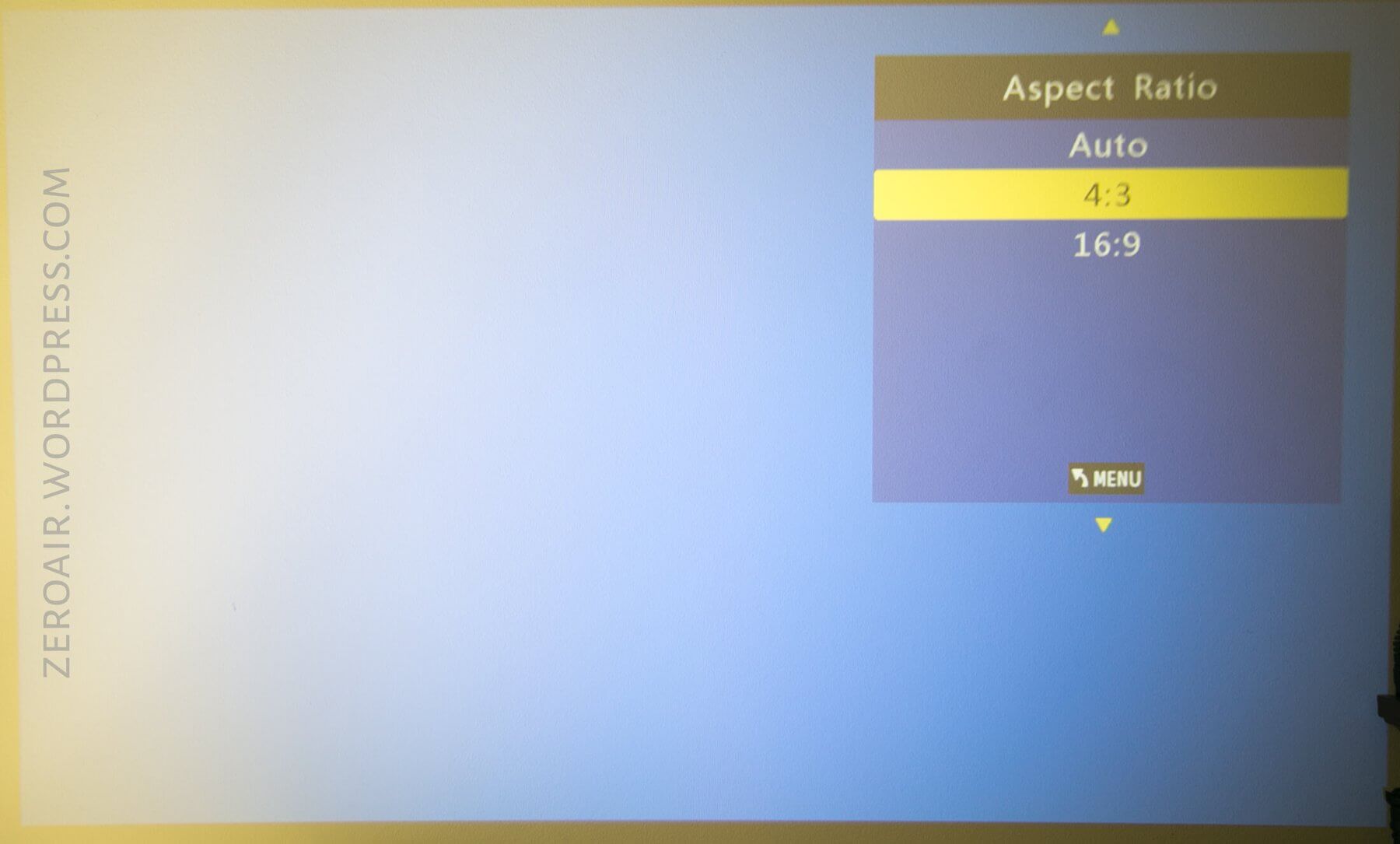

There are a bunch of configuration options, as seen below.  Basically I just left it stock and ran with it – the stock setting were very good for my needs.  Most of the controls are straight forward, but I never understood the purpose of the “Noise Reduction” setting.

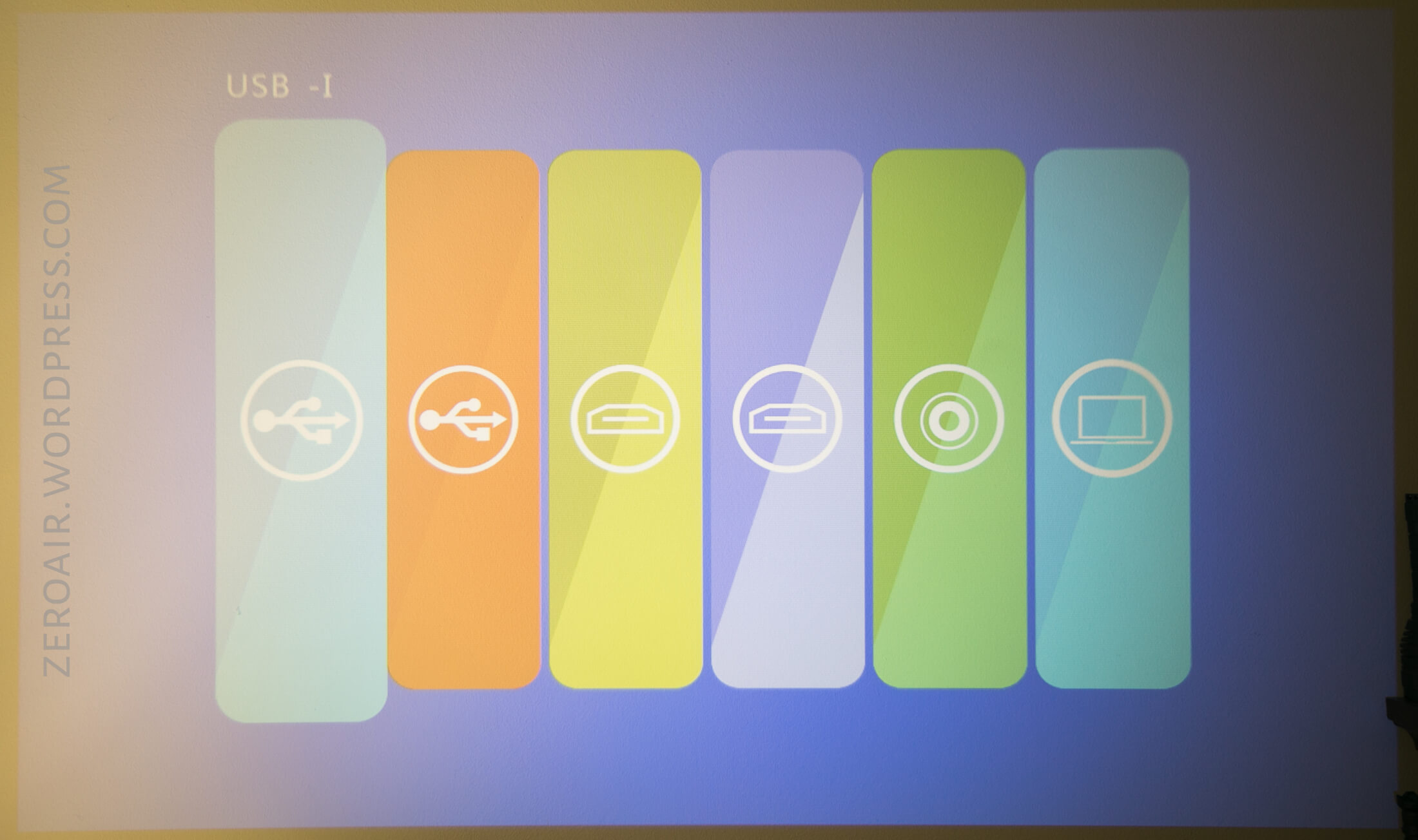

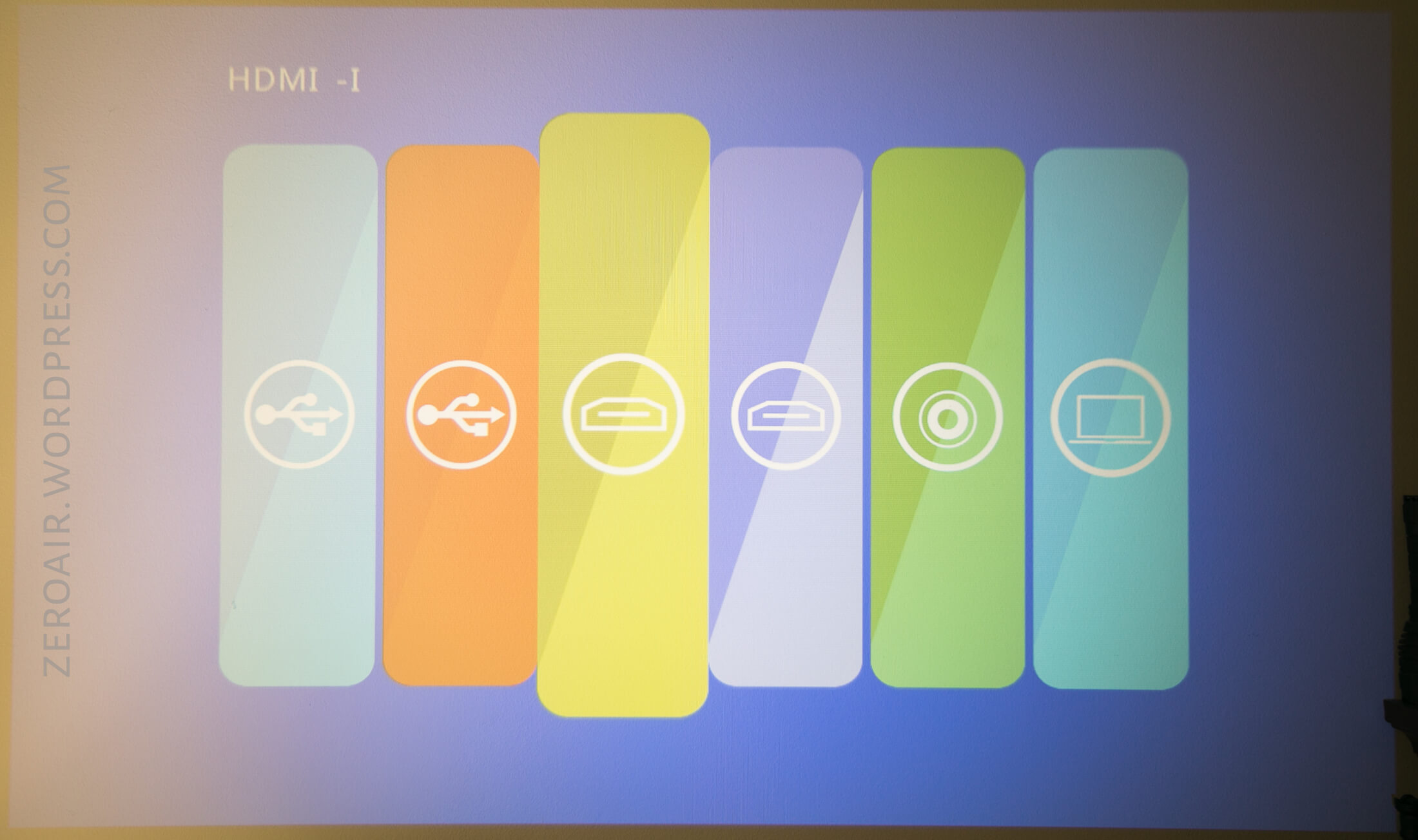

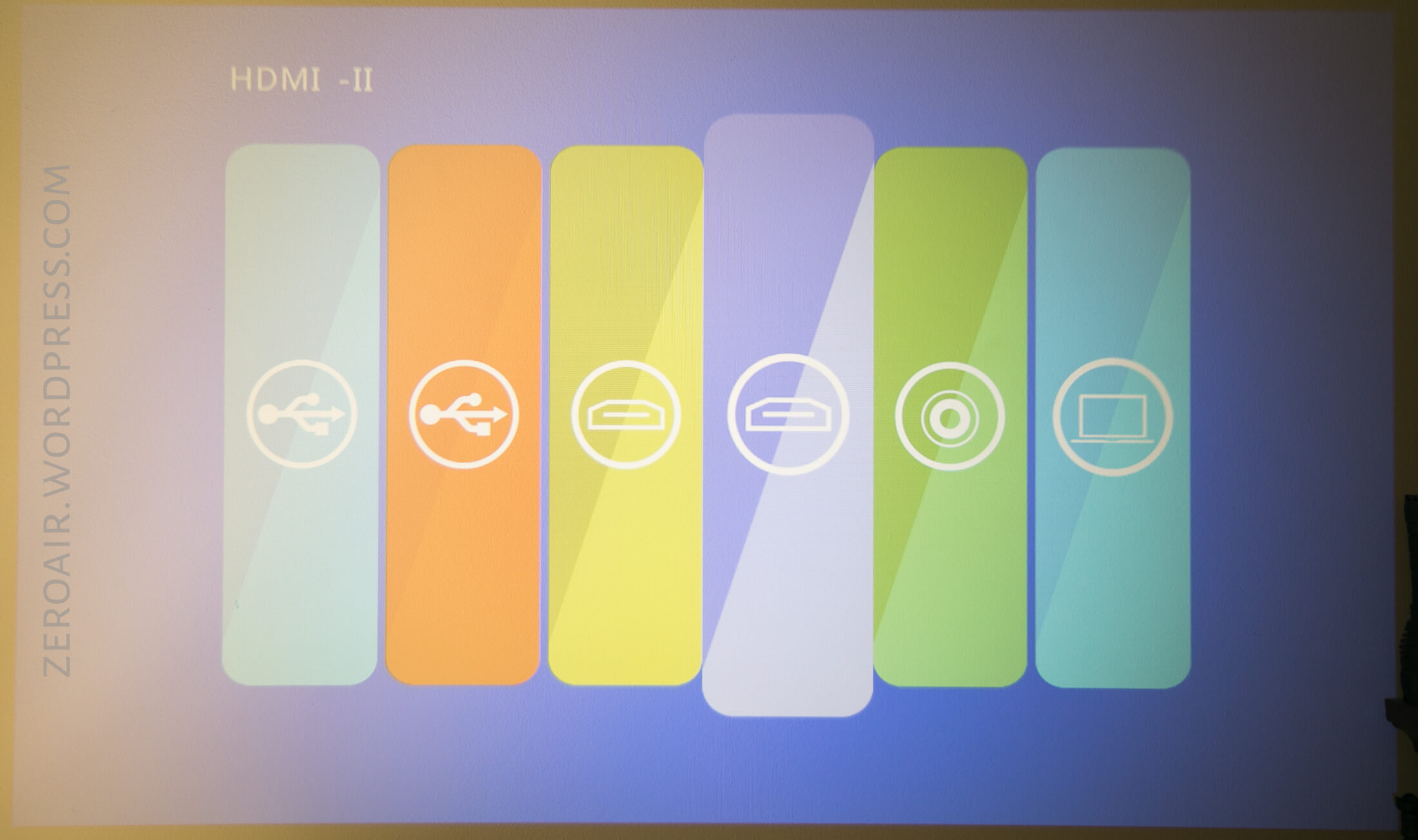

Below is what it looks like to select a device.  Once the desired option is hilighted (bigger)

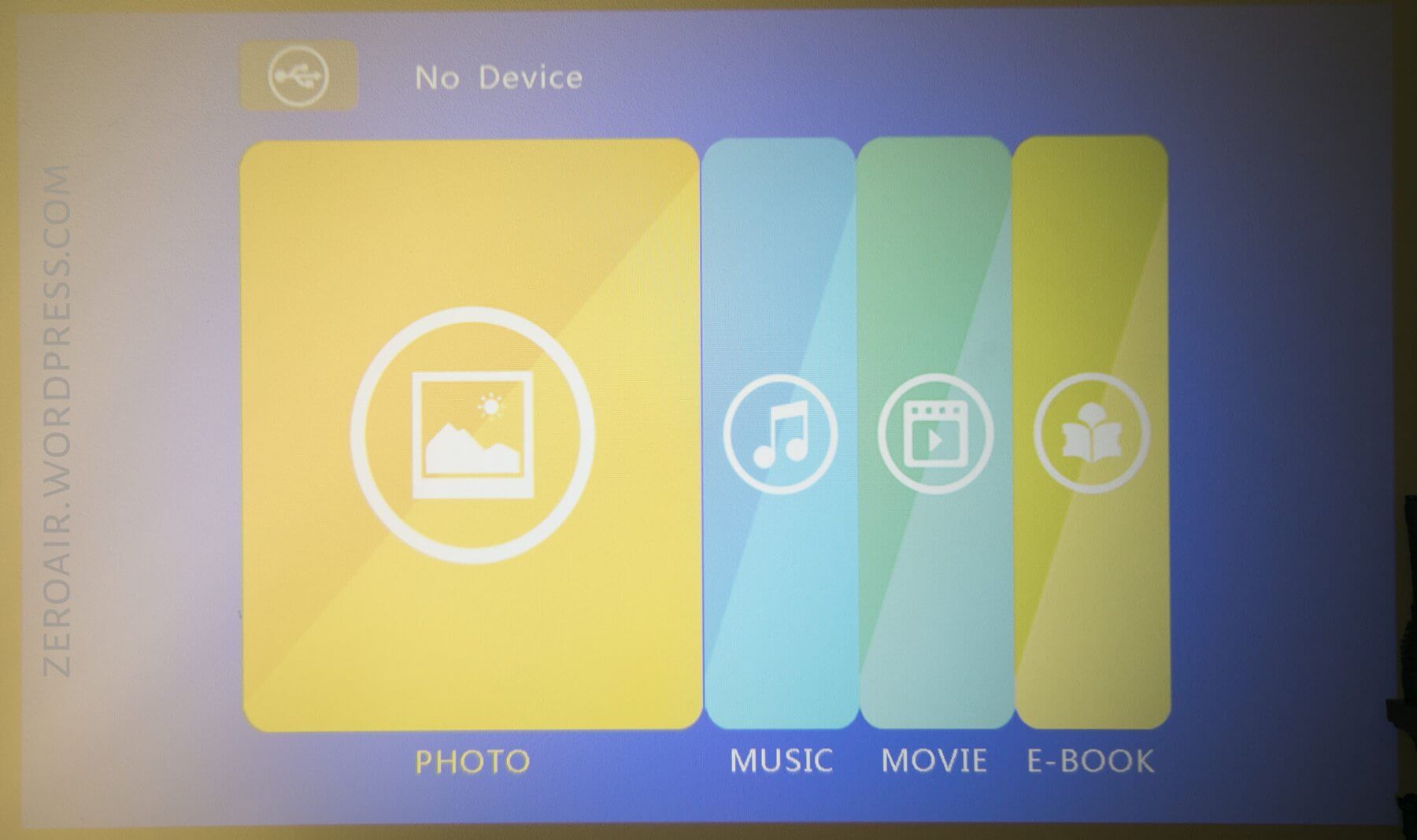

USB is really the only option with sub menus, where you can select between Photo, Music, Movie, and E-book.


So, how’s the picture on this projector?  The only actual specification I see is WXGA (1280 x 800), though the heading on GearBest states “VGA Support 1080P”.  I believe 1280x 800, but I doubt this is 1080P.  I was satisfied with the rendered image; others in my family were not.  They said it looked grainy.
The colors were good too.
Overall a projection experience wasn’t the goal here; my goal was simply projection.  And this projector did great at that.

Conclusion

What I like

  • Relatively inexpensive
  • Multitude of inputs

What I don’t like

  • Projector is loud when running
  • HDMI and USB are picky
  • Manual doesn’t describe much of anything with the appropriate level of detail

Up Next

I’ll have an Olight for review tomorrow!

Notes

  • This light was provided by GearBest for review. I was not paid to write this review.
  • This content originally appeared at zeroair.org.  Please visit there for the best experience!
  • Whether or not I have a coupon for this light, I do have a bunch of coupons!!  Have a look at my spreadsheet for those coupons. It’s possible to subscribe and get notifications when the sheet is edited!!



Author: zeroair

1 thought on “VIVIBRIGHT GP100 Projector Review

  1. “VGA Support 1080P” Most likely refers to the maximum input resolution – in many projectors this will be stated, and can sometimes lead to consumer confusion as in most budget projectors the accepted input resolution is much higher than the image the projector spits out.
