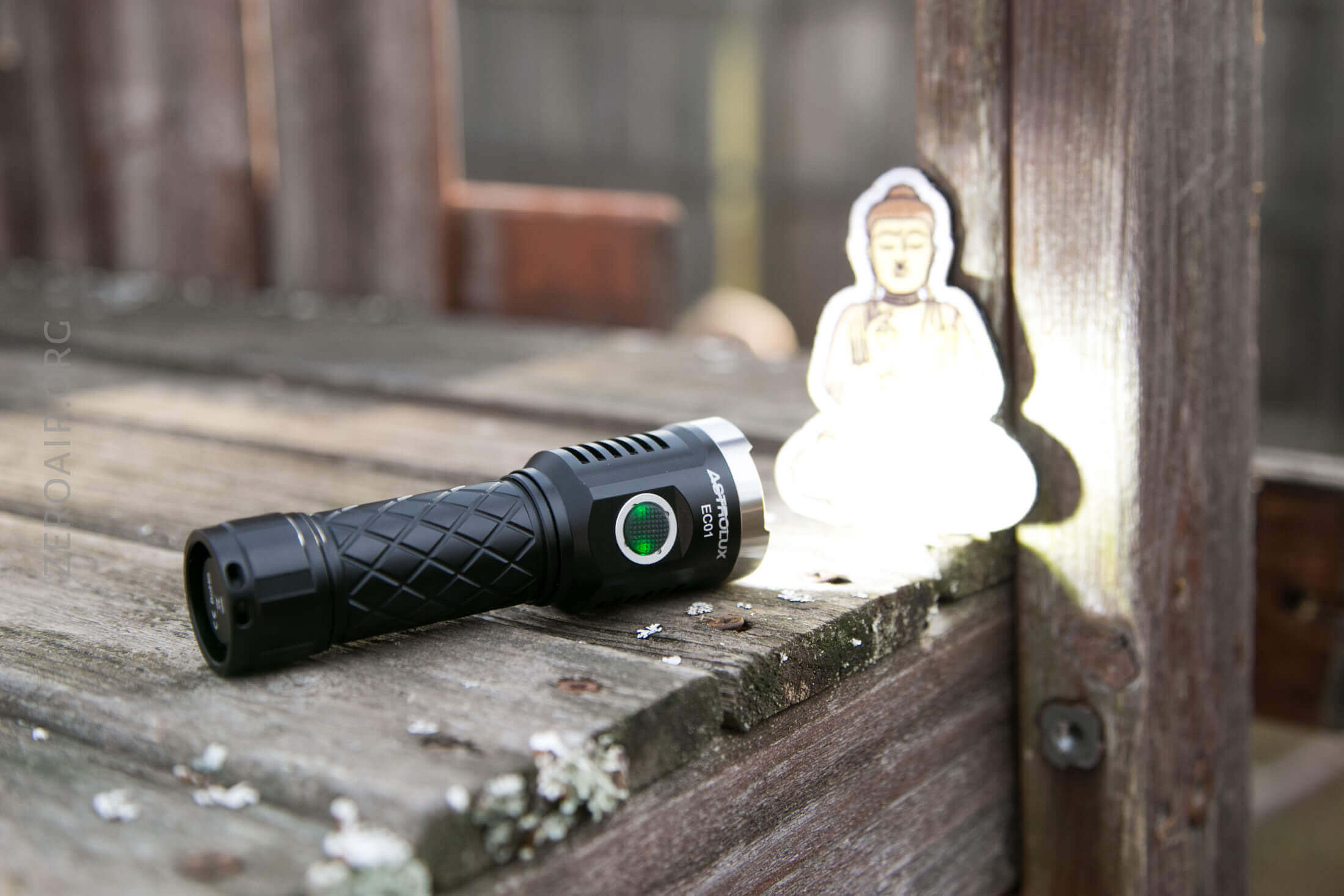

The Astrolux EC01 is a new 21700 flashlight falling into my “wall o’ light” category with a massive output of 3500 claimed lumens. Read on!

Official Specs and Features

Here’s a link to the Astrolux EC01 Flashlight product page.  That’s an affiliate link – just clicking through helps me get review items.  Buying is even better!  Thank you!


There’s only one version.


The EC01 goes for $37.95 right now.  It’s been lower; I’m going to try to get a new coupon!

Short Review

The output is real.  Charging is fine.  I love 21700, of course.  Unfortunately, it’s 6500K, but maybe there’ll be a warm version in the near future.

Long Review

The Big Table

Astrolux EC01 Flashlight
Emitter: Cree XHP50B (3V, 6000K-6500K)
Price in USD at publication time: $37.95 at BangGood
Cell: 1×21700
Turbo (Double click from on) Runtime High (Top of ramp) Runtime
LVP? Switch to Low
Switch Type: E-Switch
Quiescent Current (A): 0.00009
On-Board Charging? Yes
Power off Charge Port with no Cell? Yes, 4 modes. With cell and charging, all modes.
Claimed Lumens (lm) 3500
Measured Lumens (at 30s) 3352 (95.8% of claim)^
Claimed Throw (m) 298
Candela (Calculated) in cd (at 30s) 1005lux @ 5.056m = 25691cd
Throw (Calculated) (m) 320.6 (107.6% of claim)^
All my Astrolux reviews!

^ Measurement disclaimer:  I am an amateur flashlight reviewer.  I don’t have $10,000 or even $1,000 worth of testing equipment.  I test output and such in PVC tubes!!  Please consider claims within 10% of what I measure to be perfectly reasonable (accurate, even).

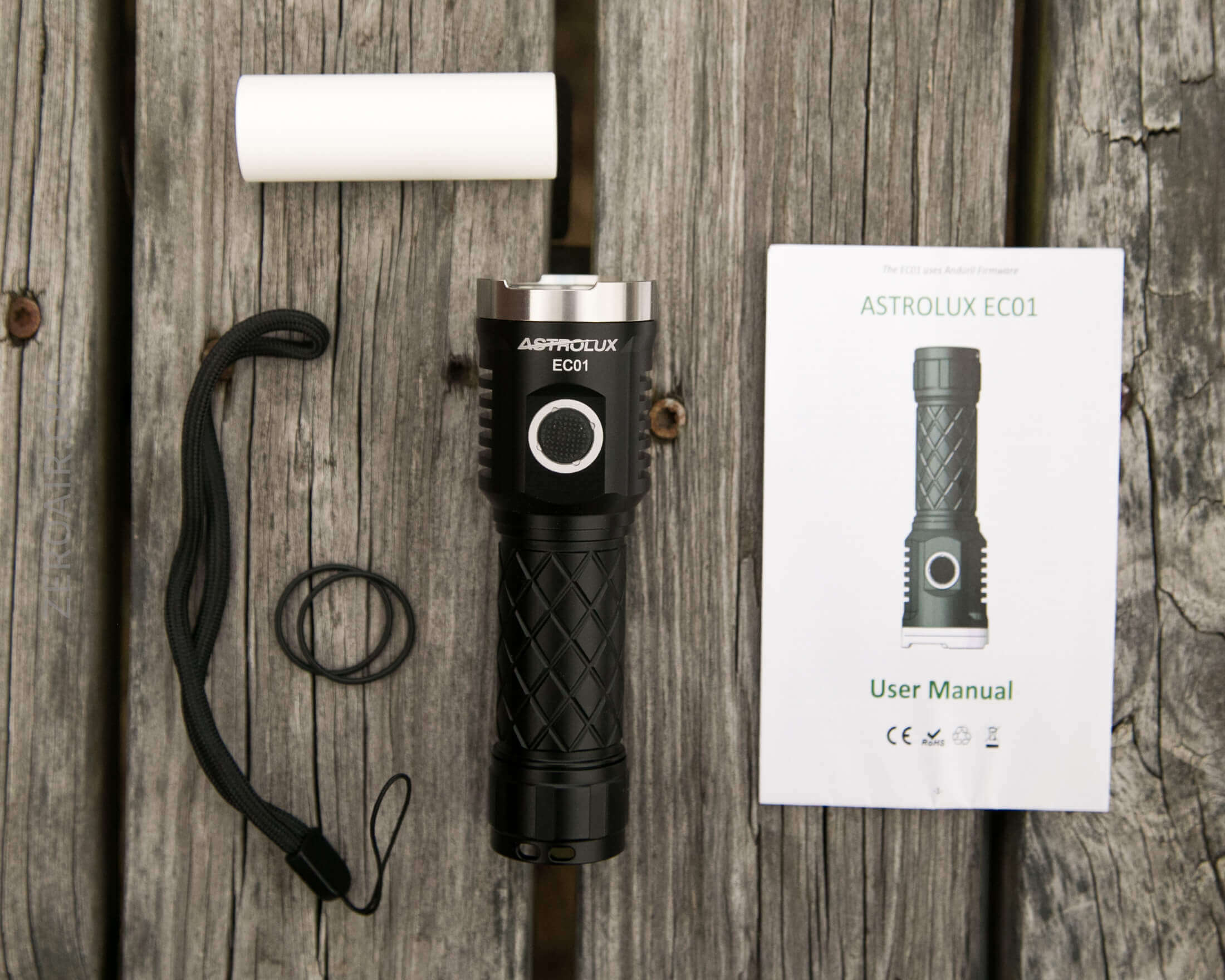

What’s Included

  • Astrolux EC01 Flashlight
  • Adapter sleeve from 21700 to 18650
  • Lanyard
  • Spare o-rings (2)
  • Manual

Package and Manual

Standard Astrolux package here.  Foam inside.

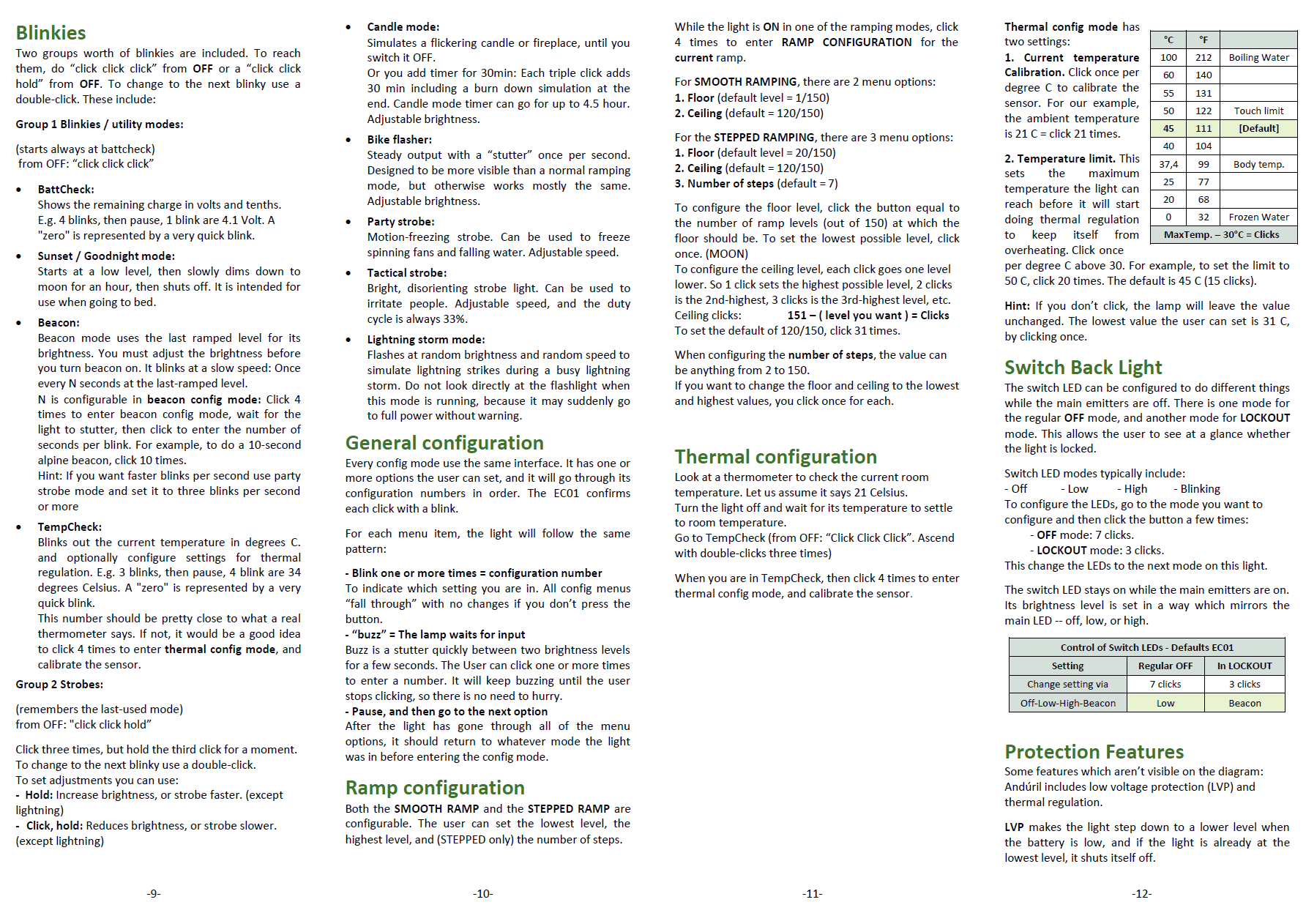

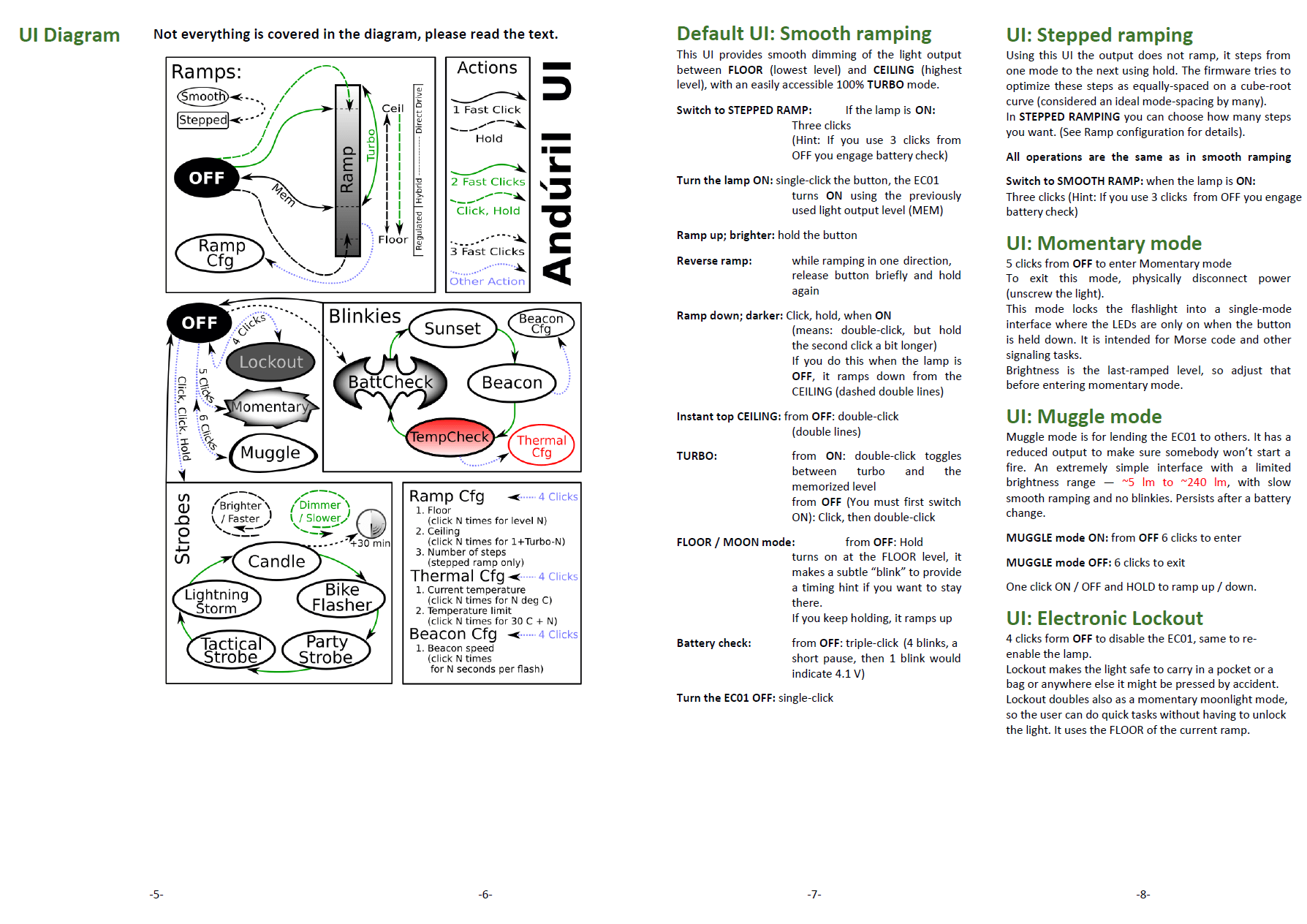

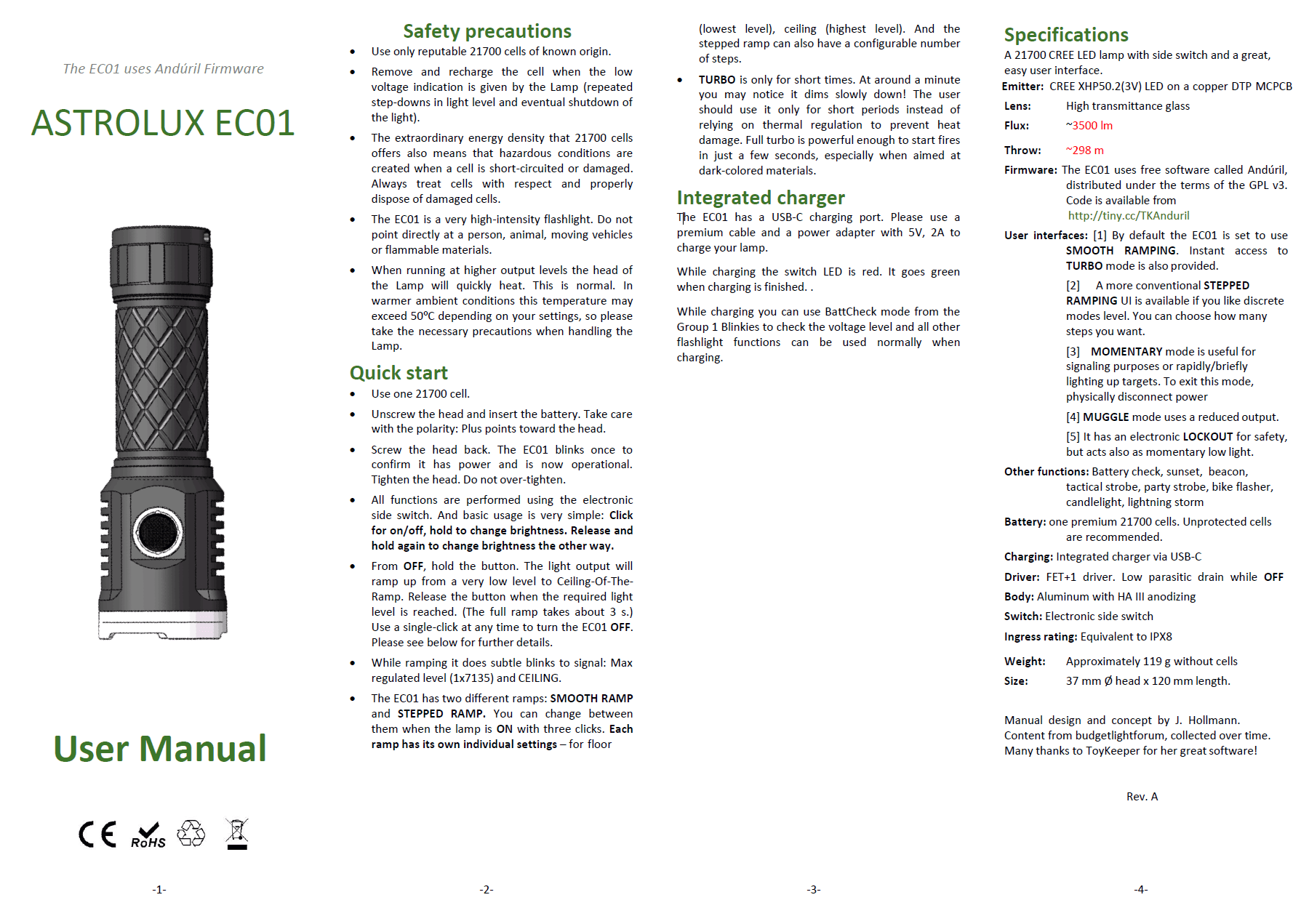

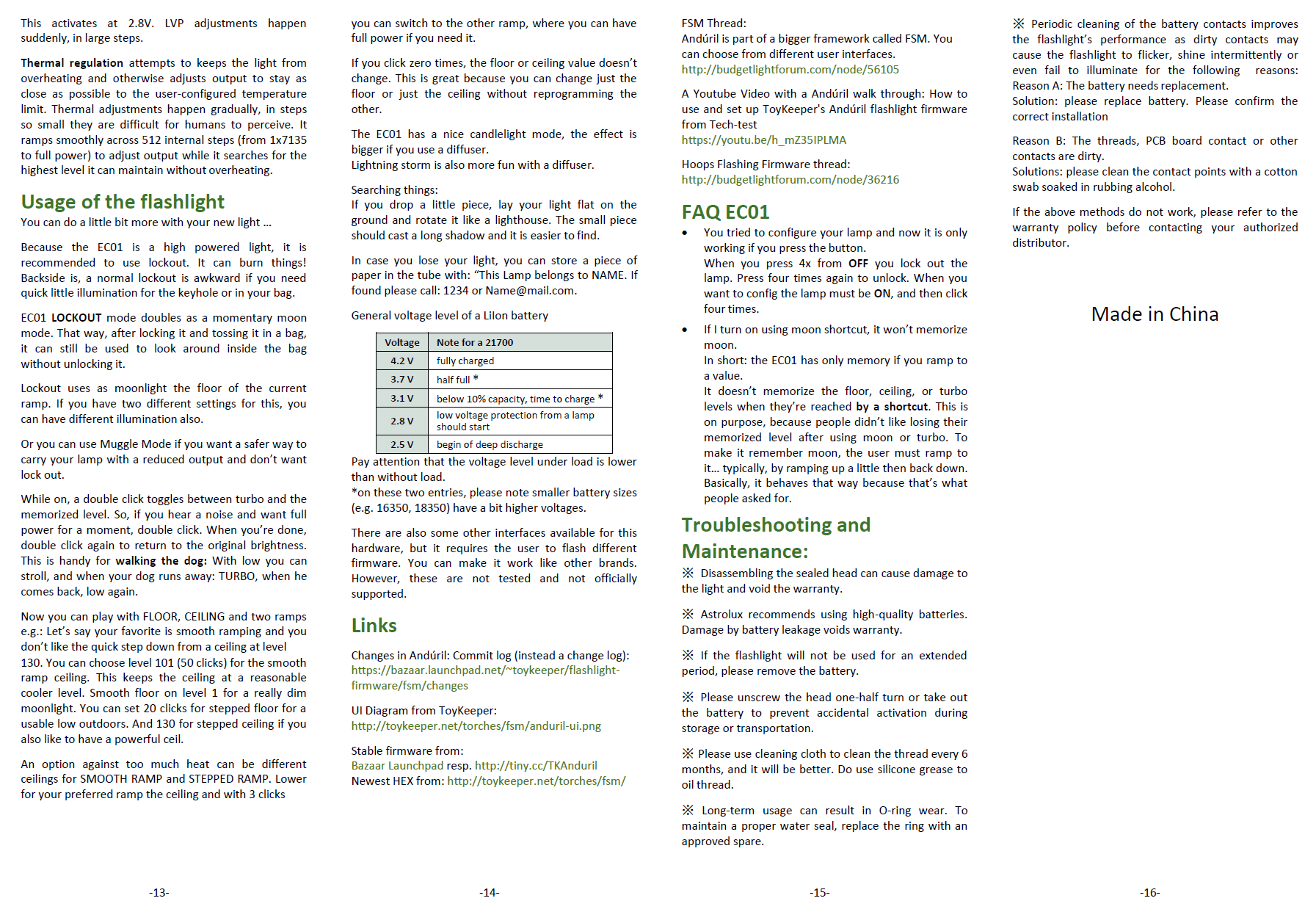

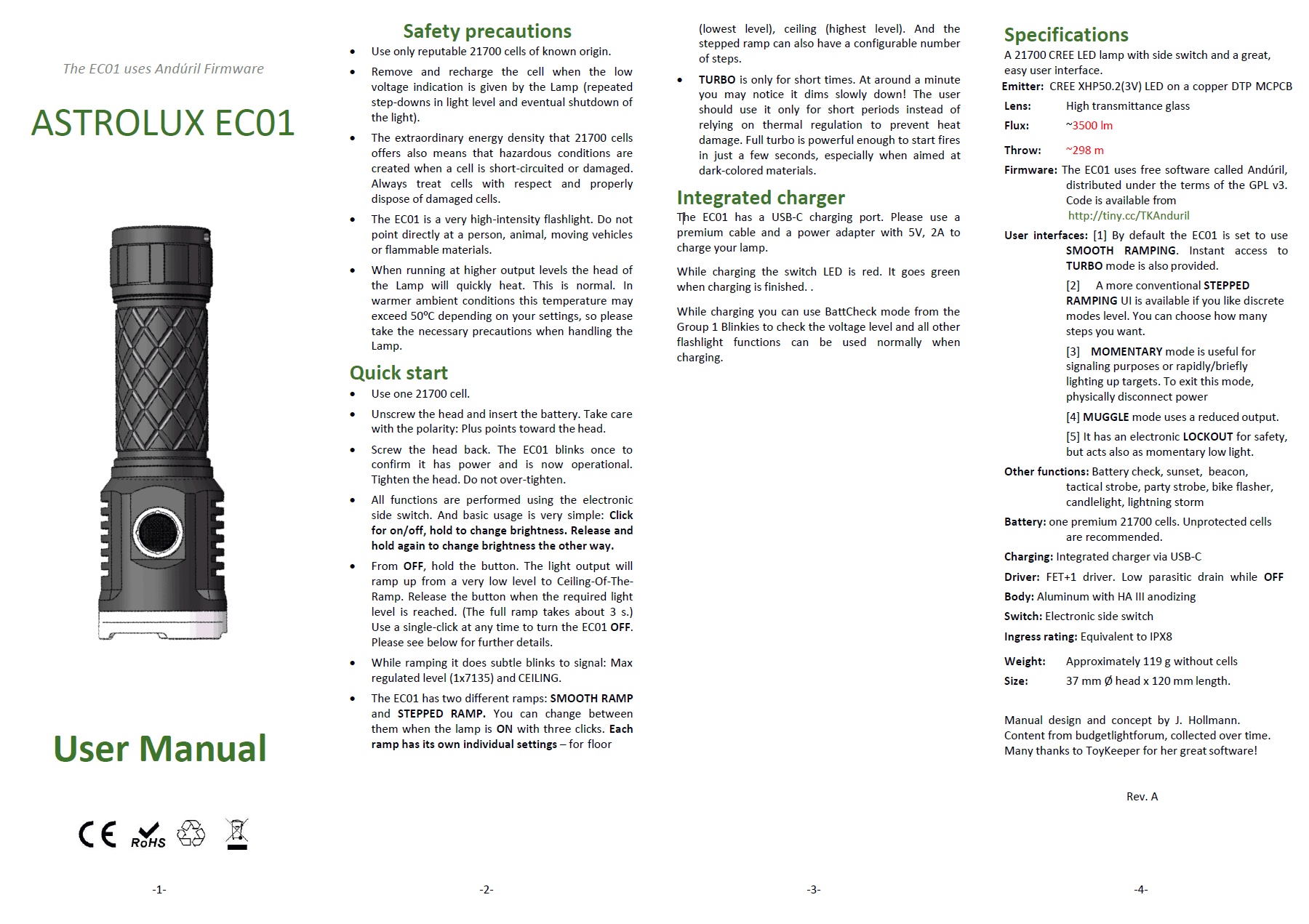

The manual is also a standard for Astrolux Anduril UI lights.

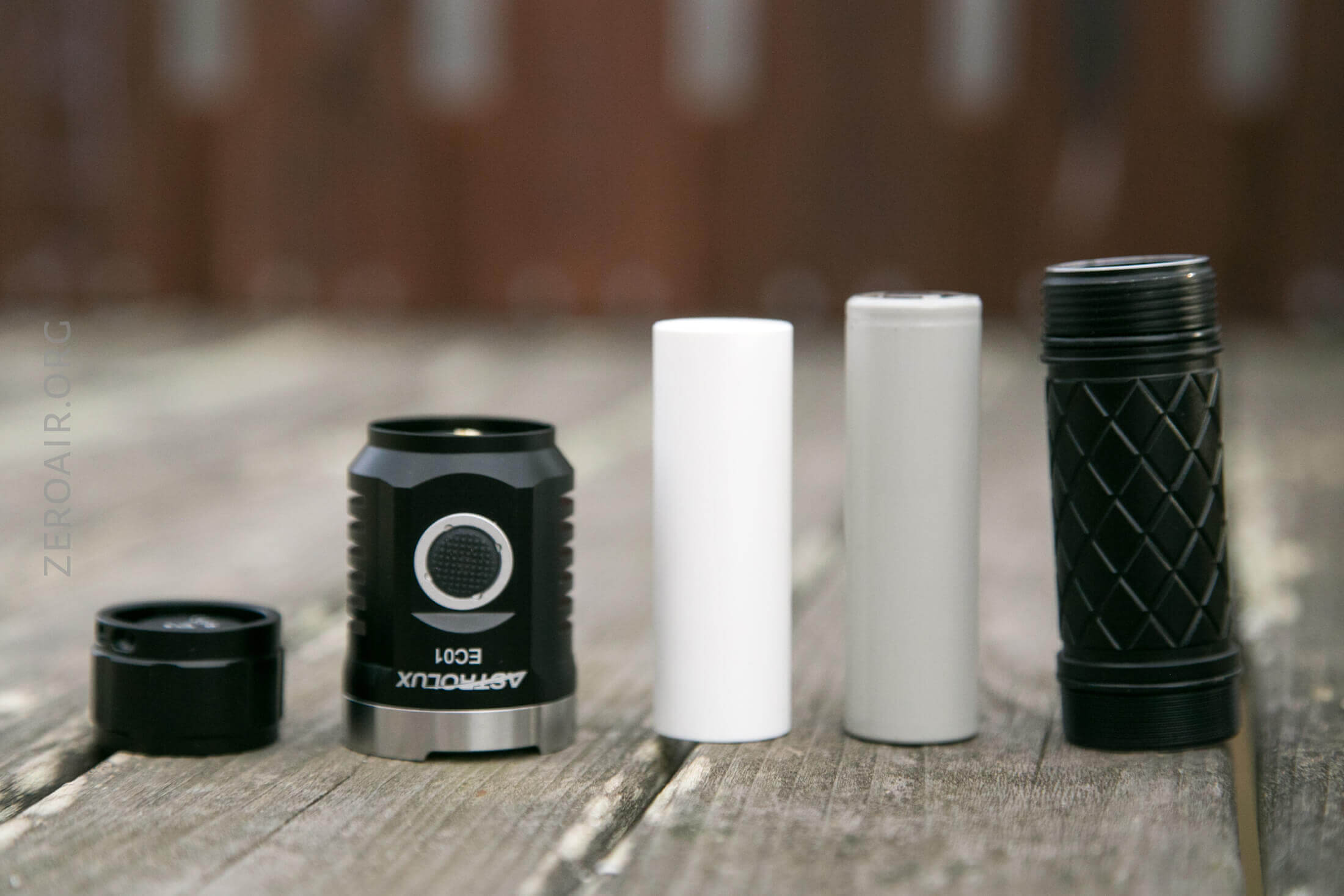

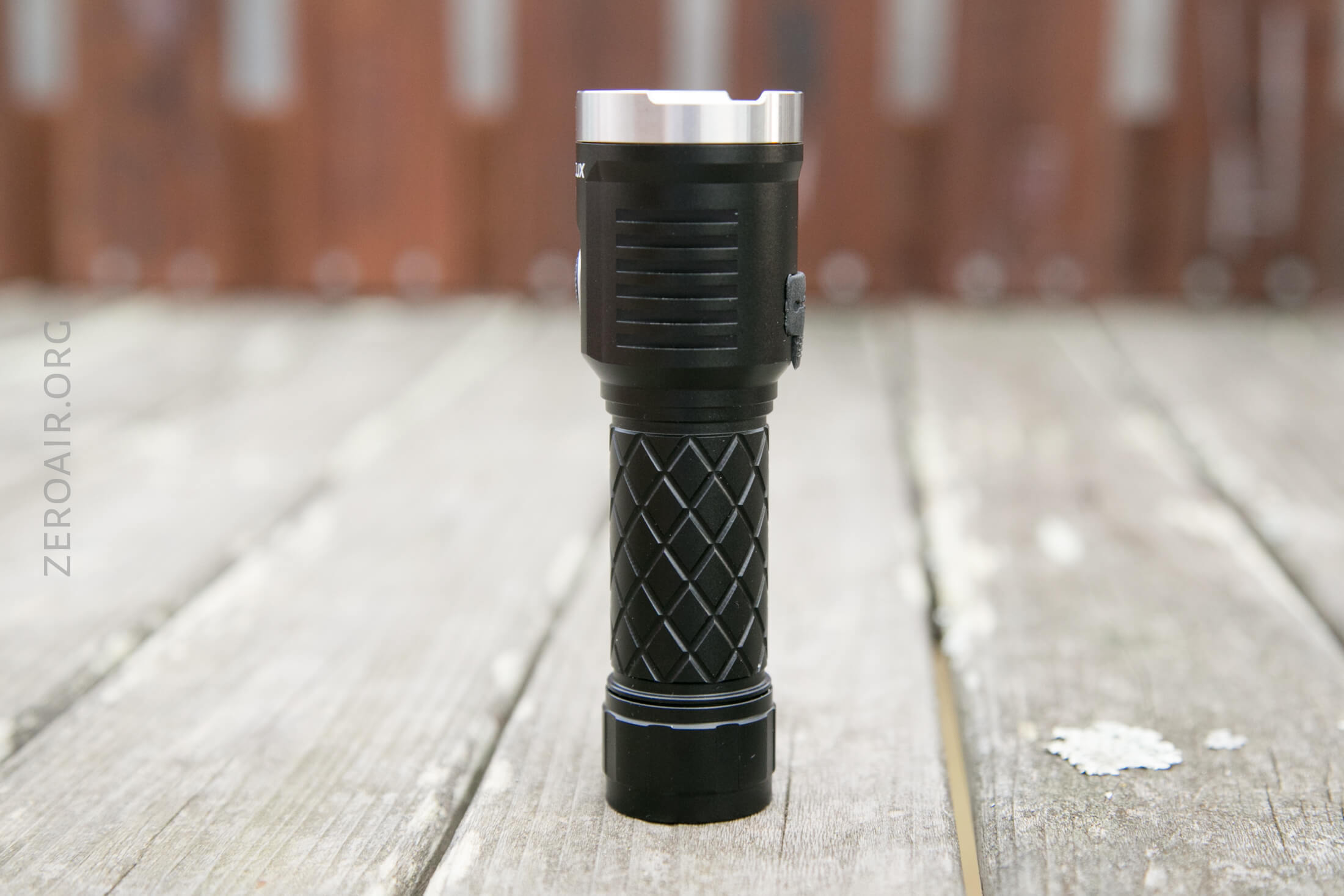

Build Quality and Disassembly

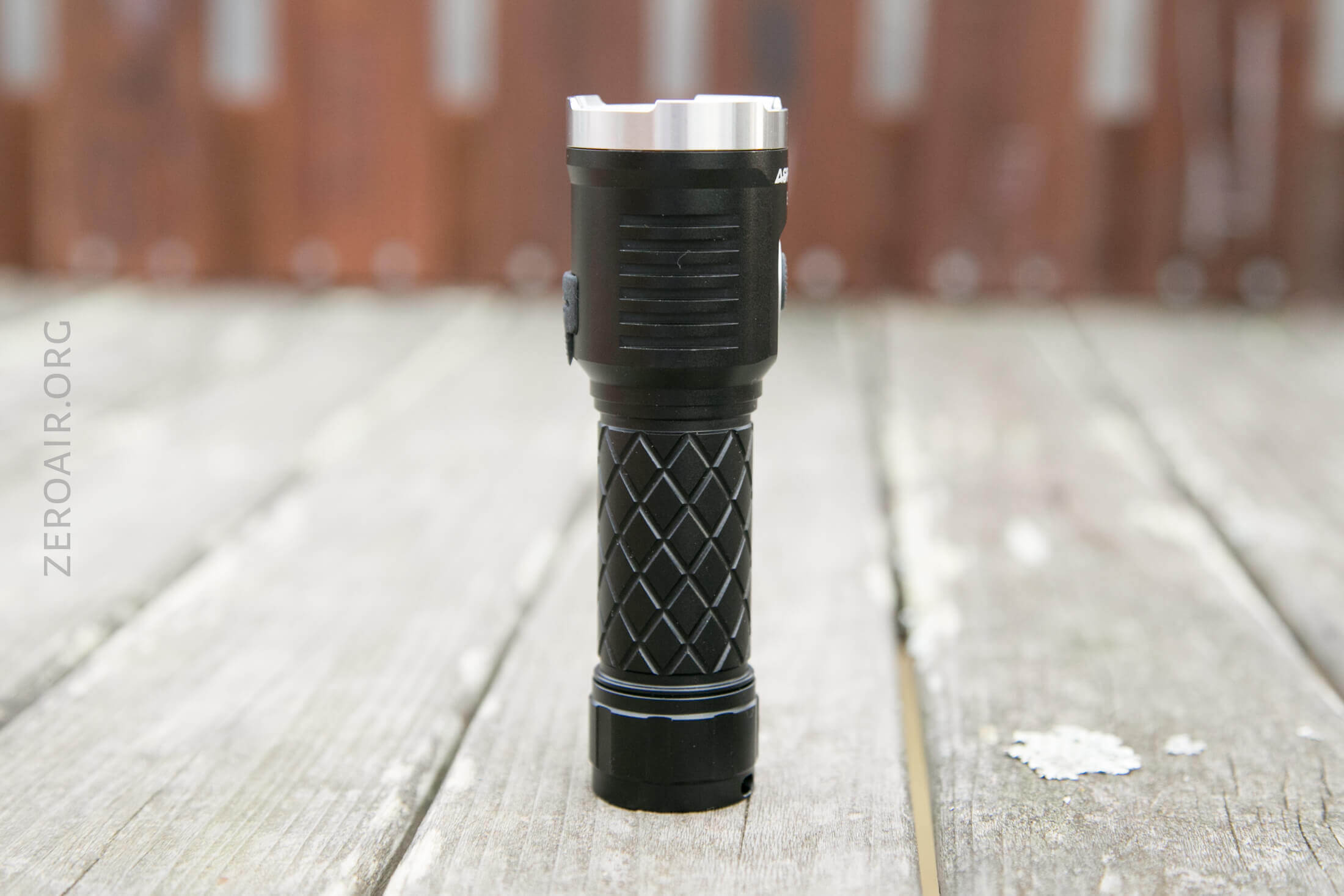

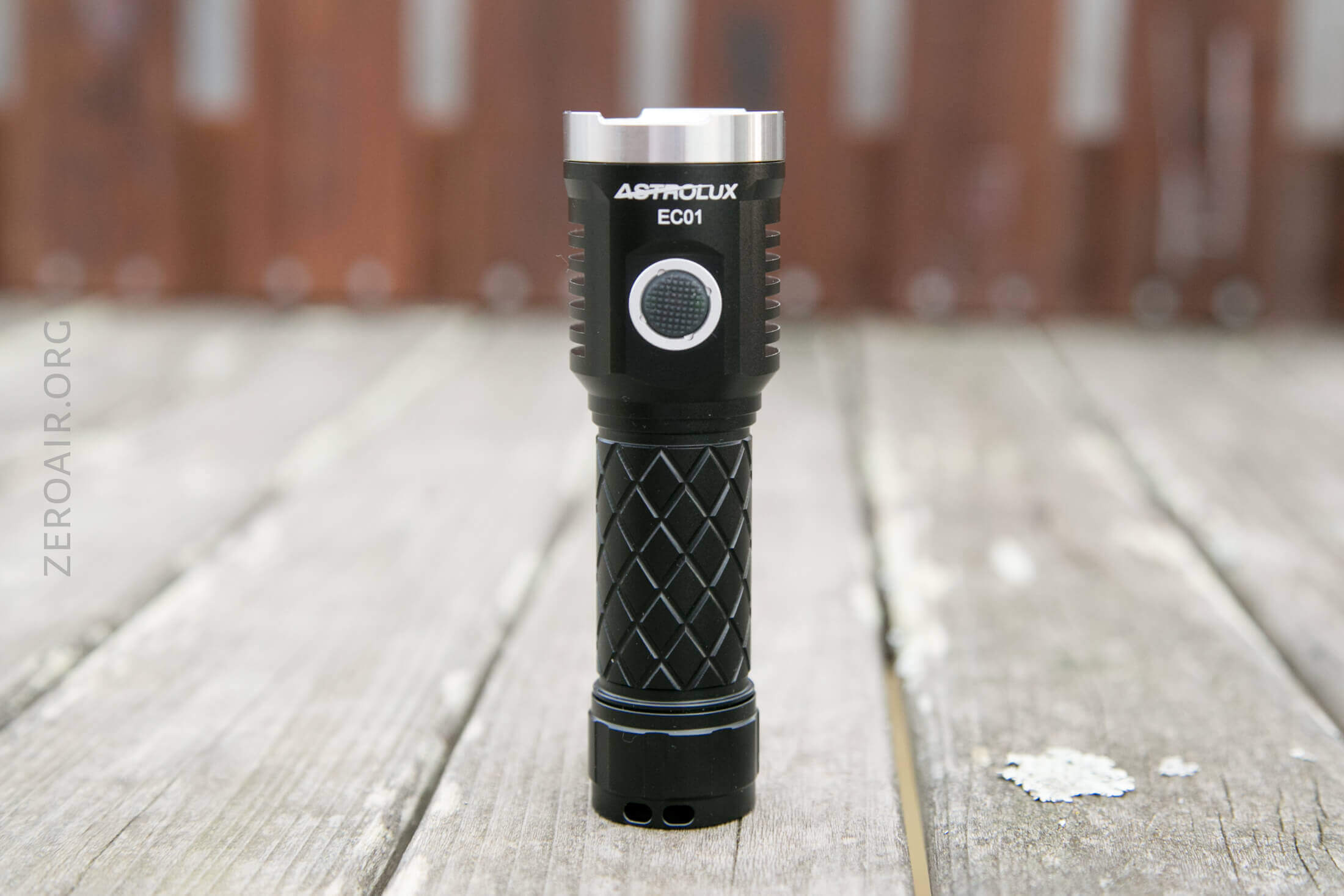

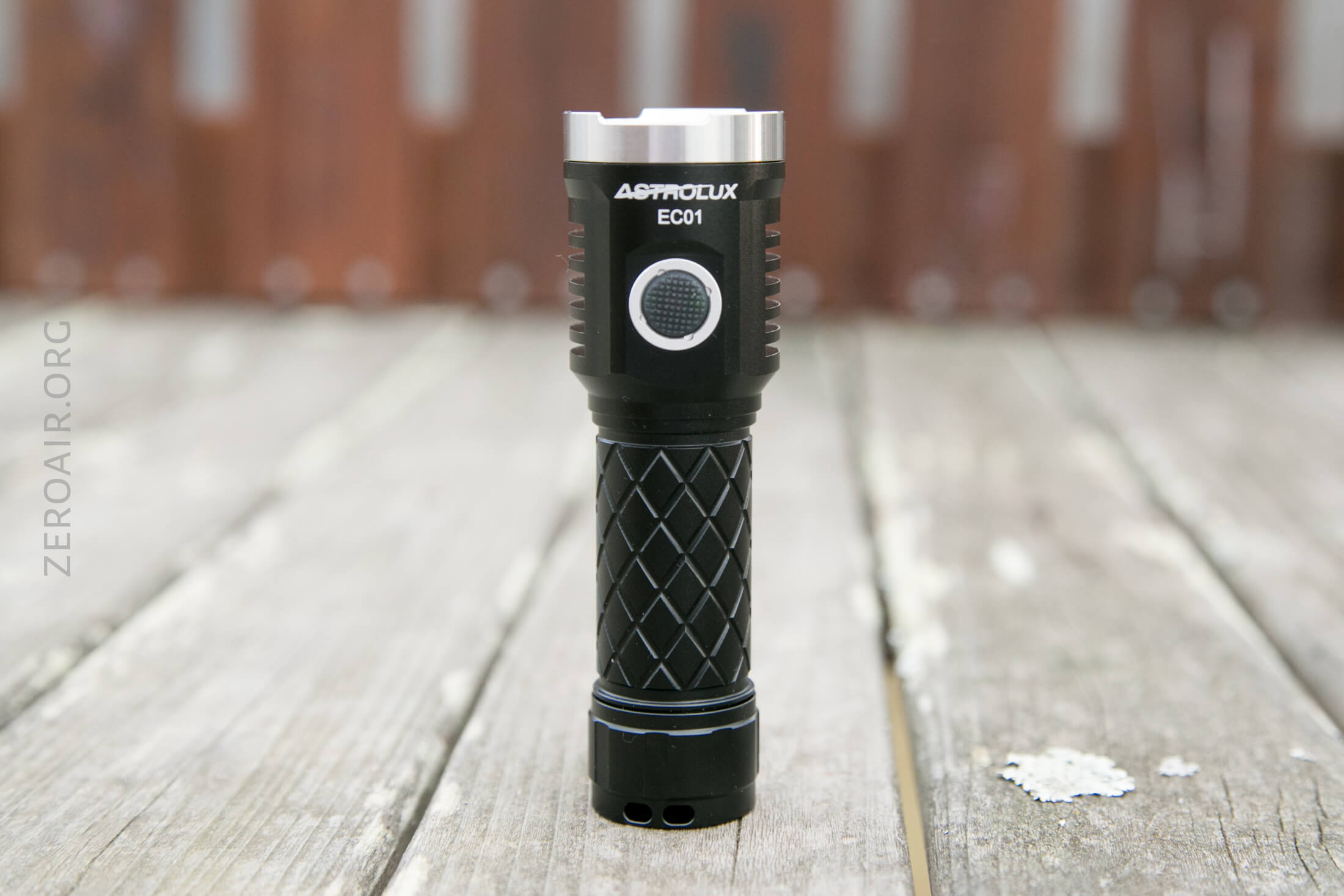

No complaints here.  I like the pineapple body – I always like pineapple bodies.

The bezel is a bit of a mismatch with the body, but I think it’s a stainless bezel; it’s purposeful.

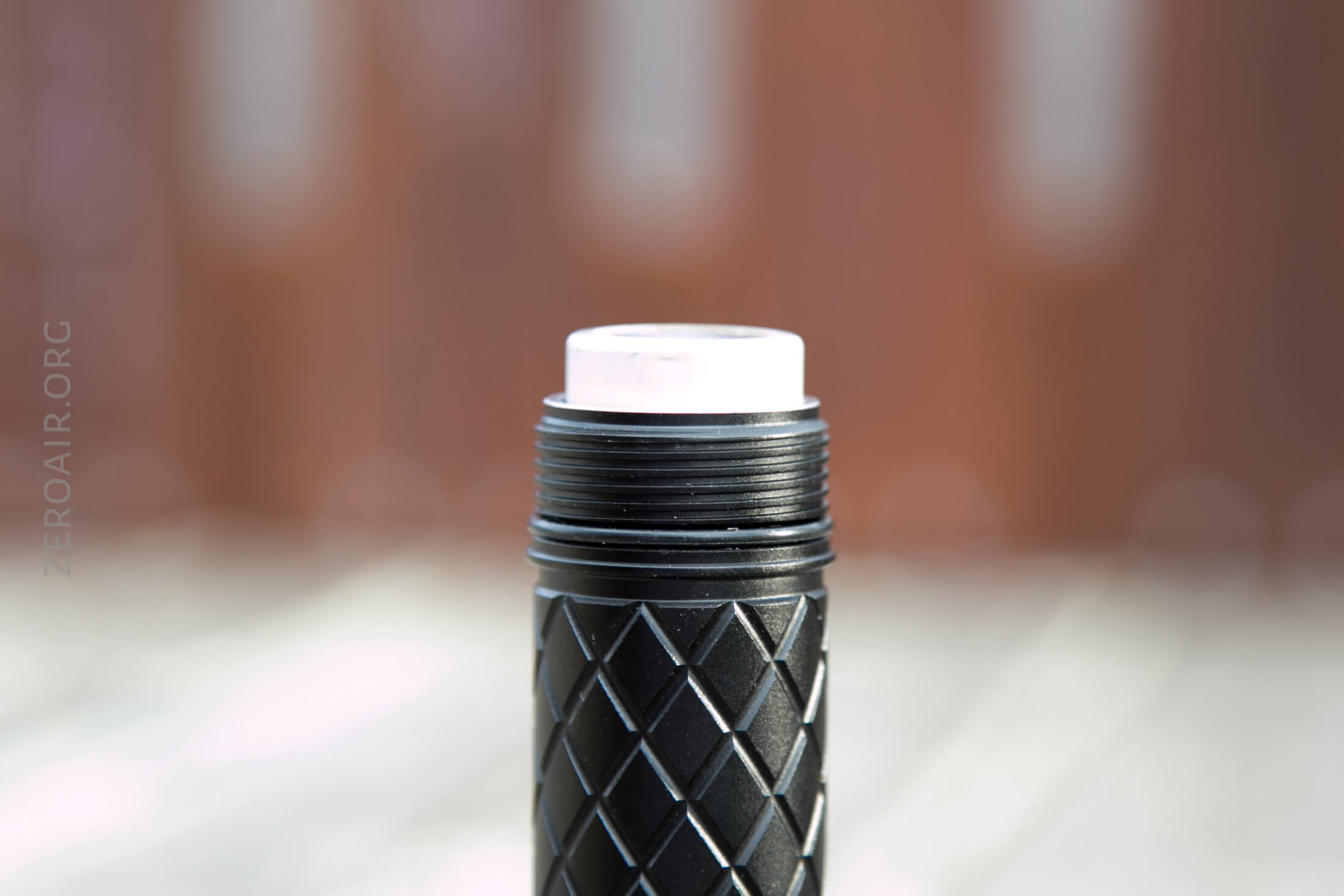

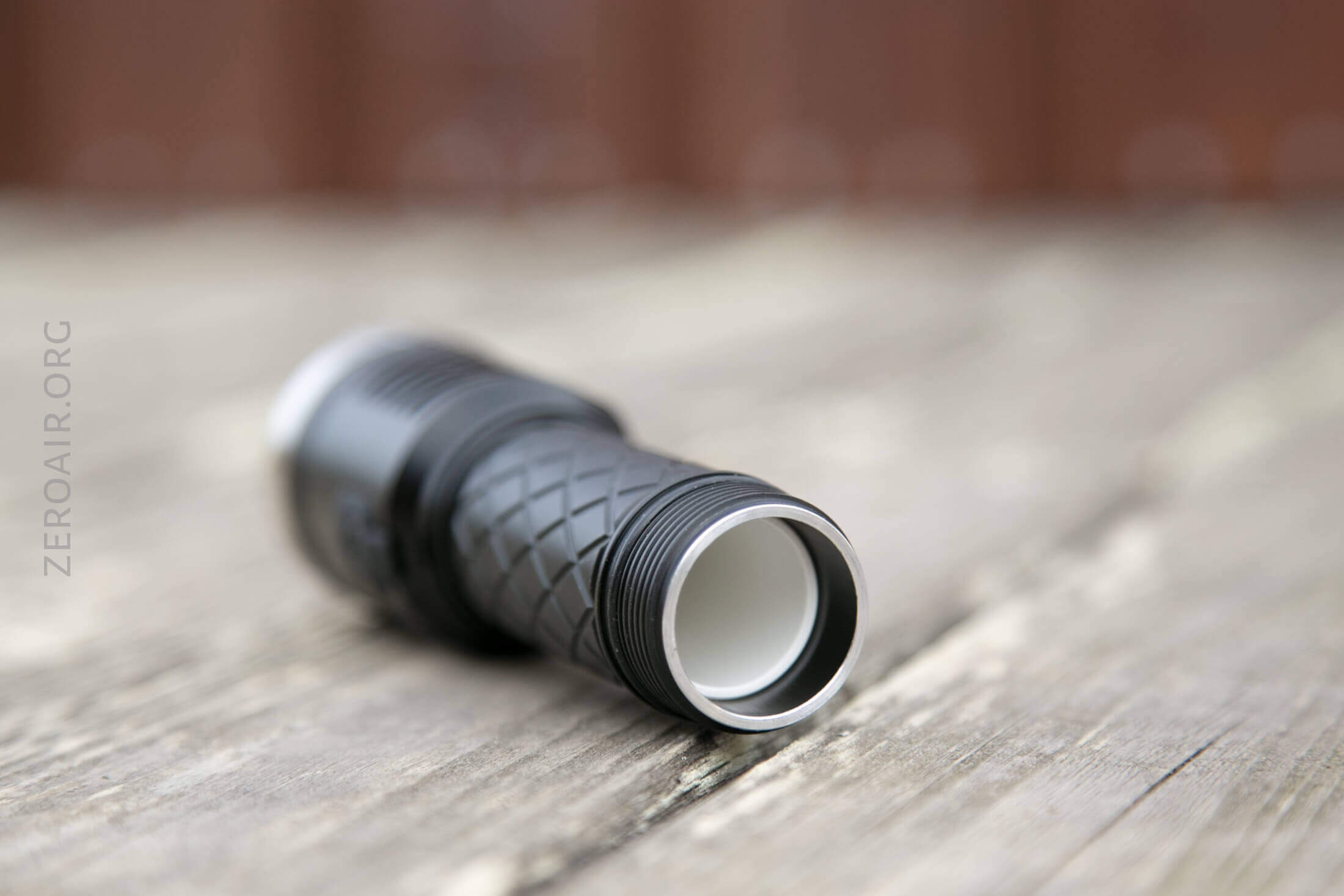

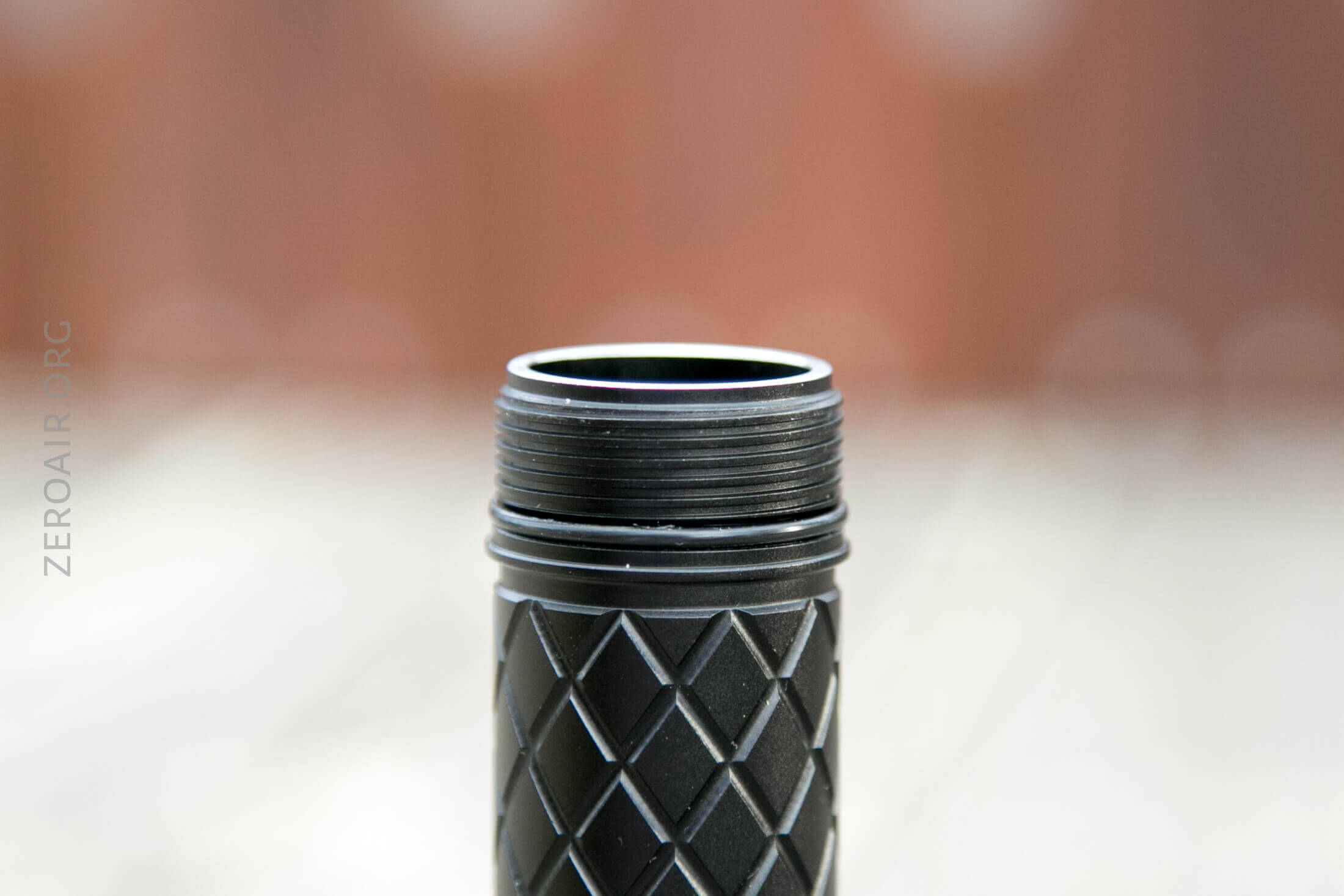

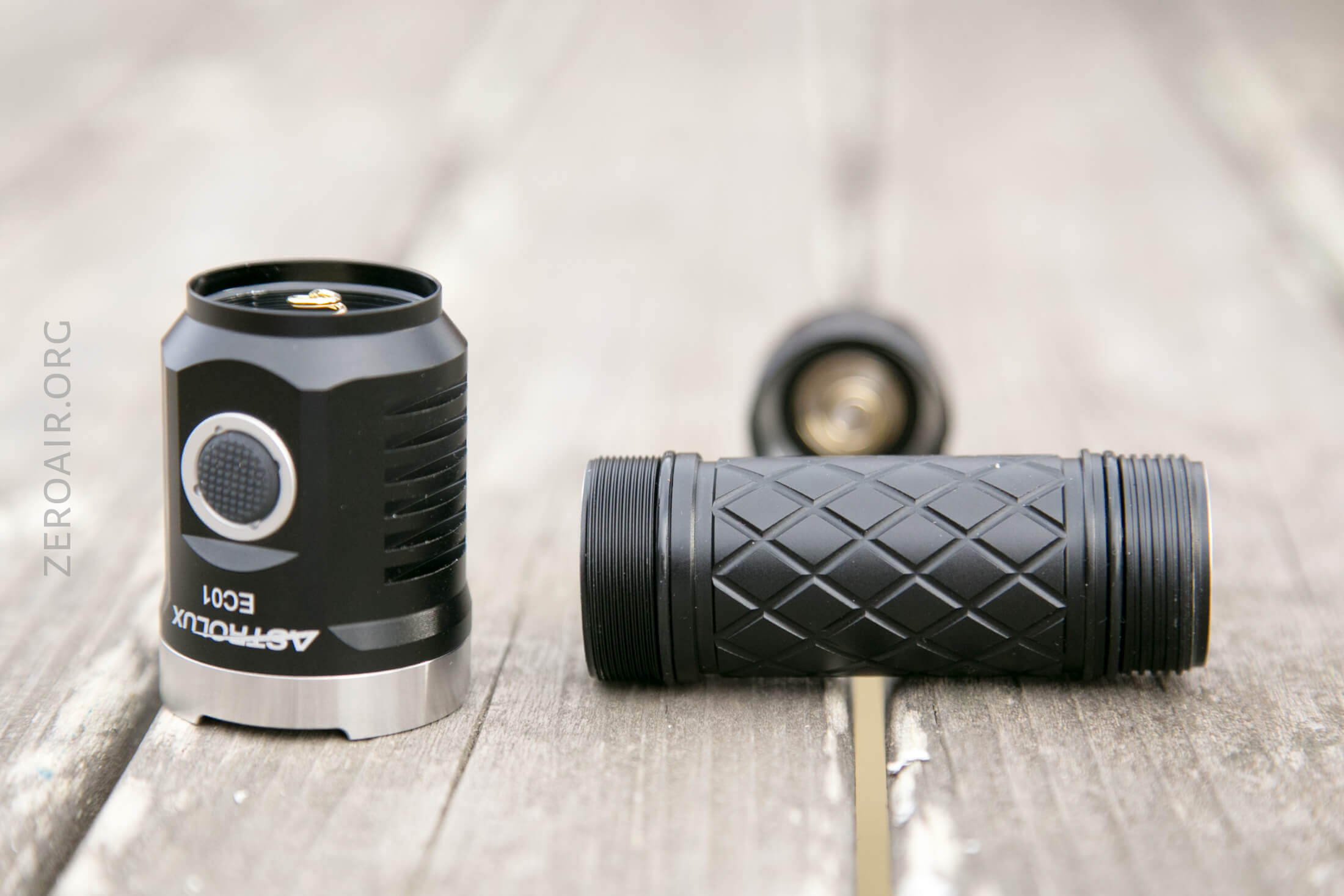

The threads are anodized, square-cut, and beefy.  They are very smooth and allow locking the light out with just a twist to loosen the tail.

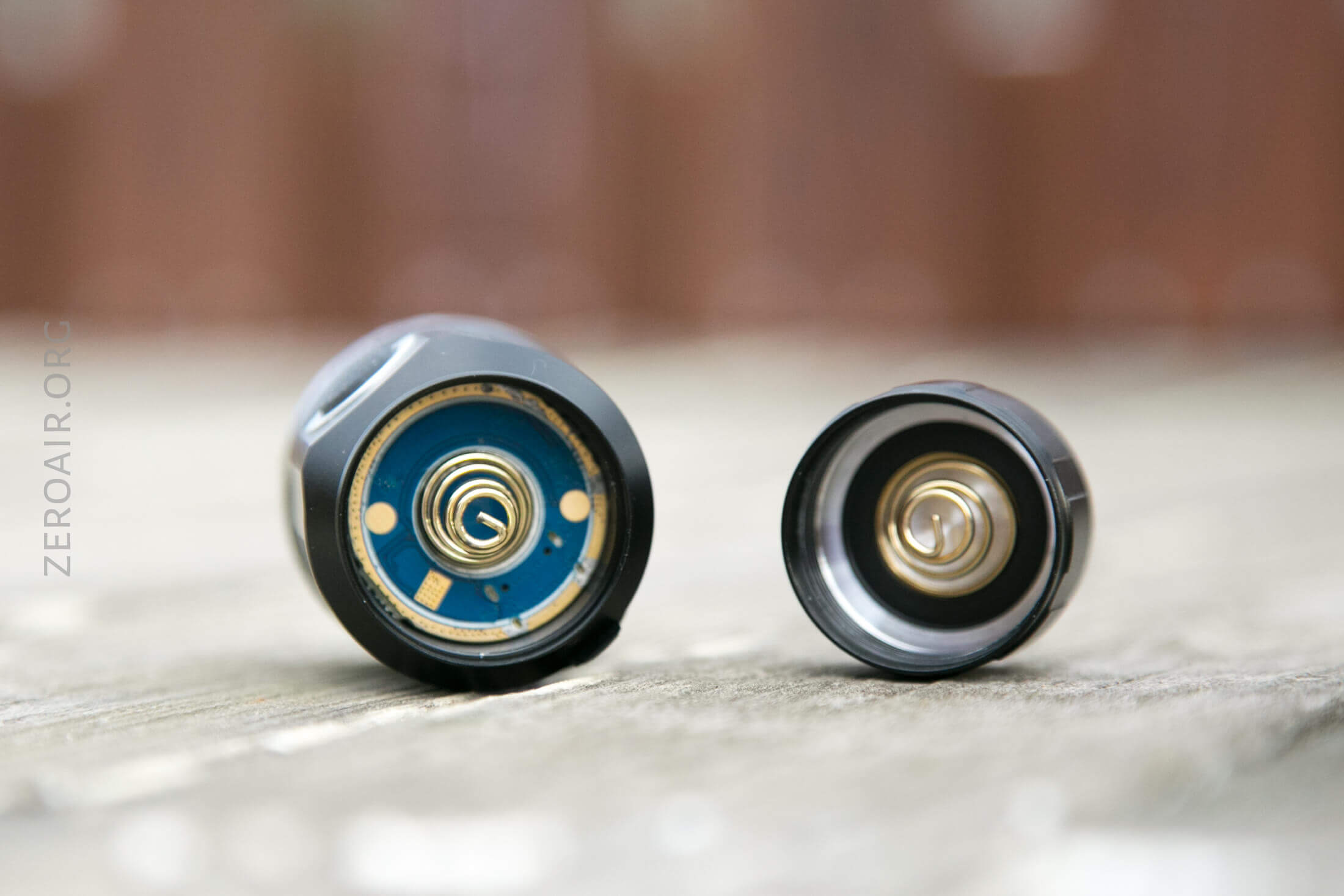

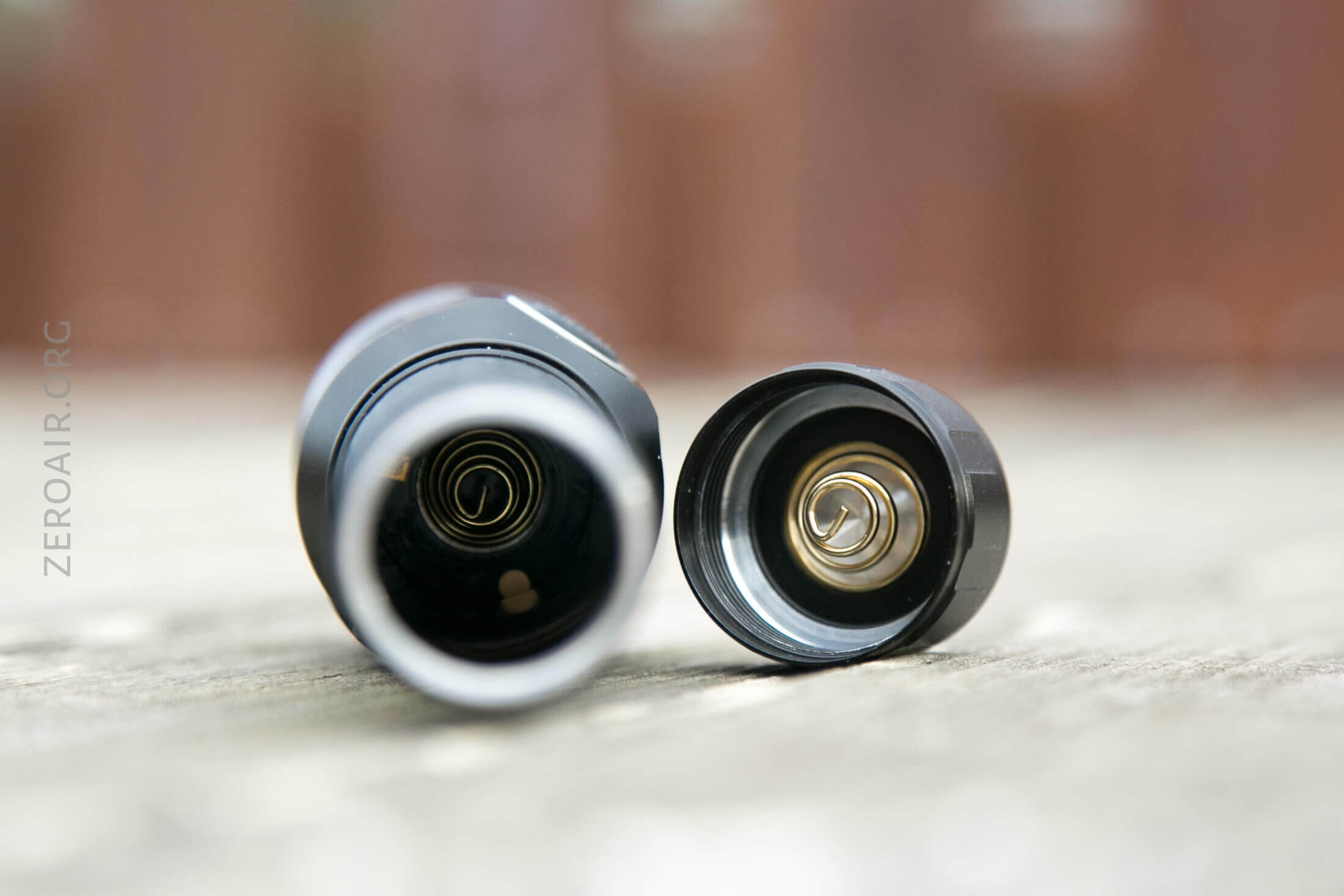

Both ends have springs.

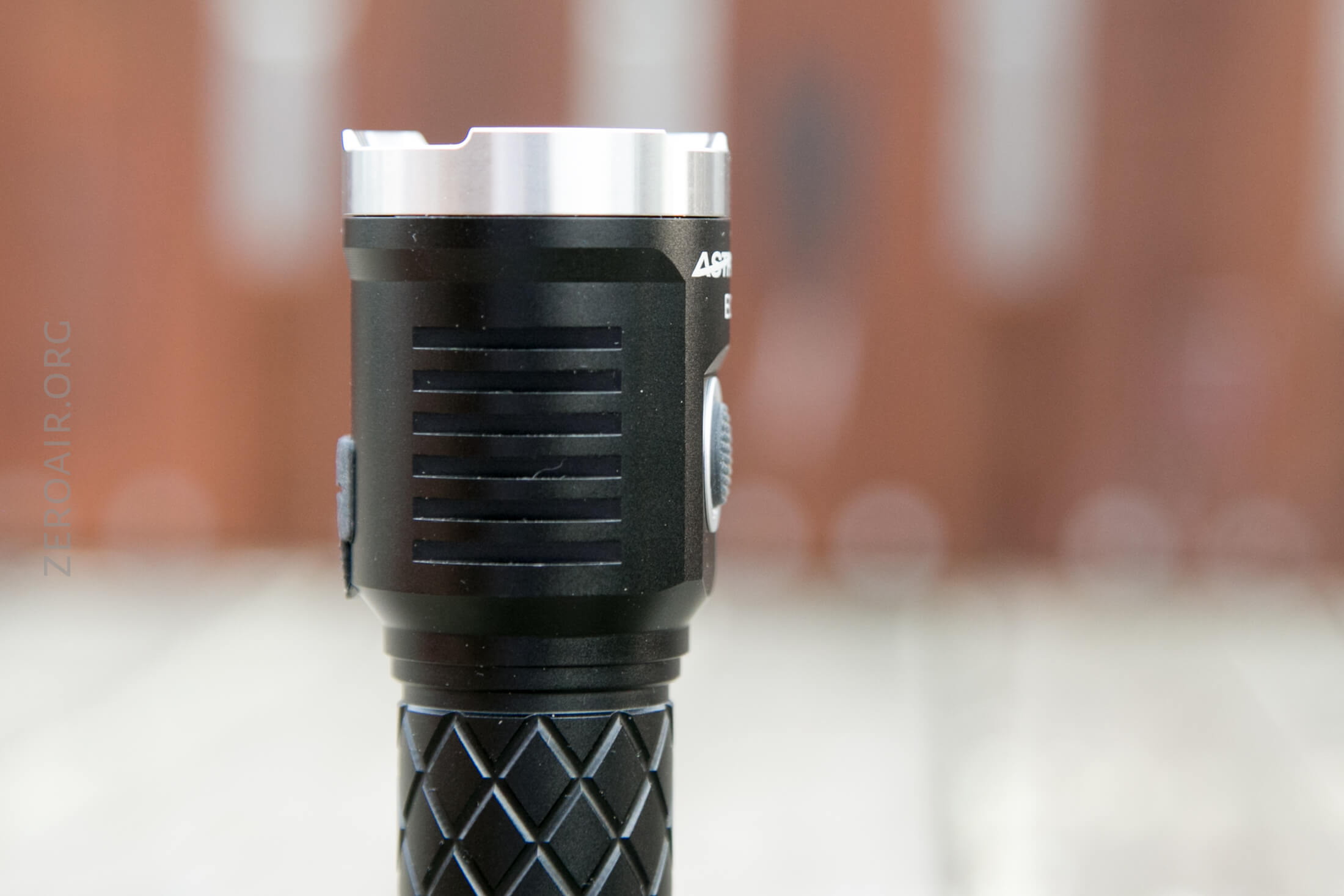

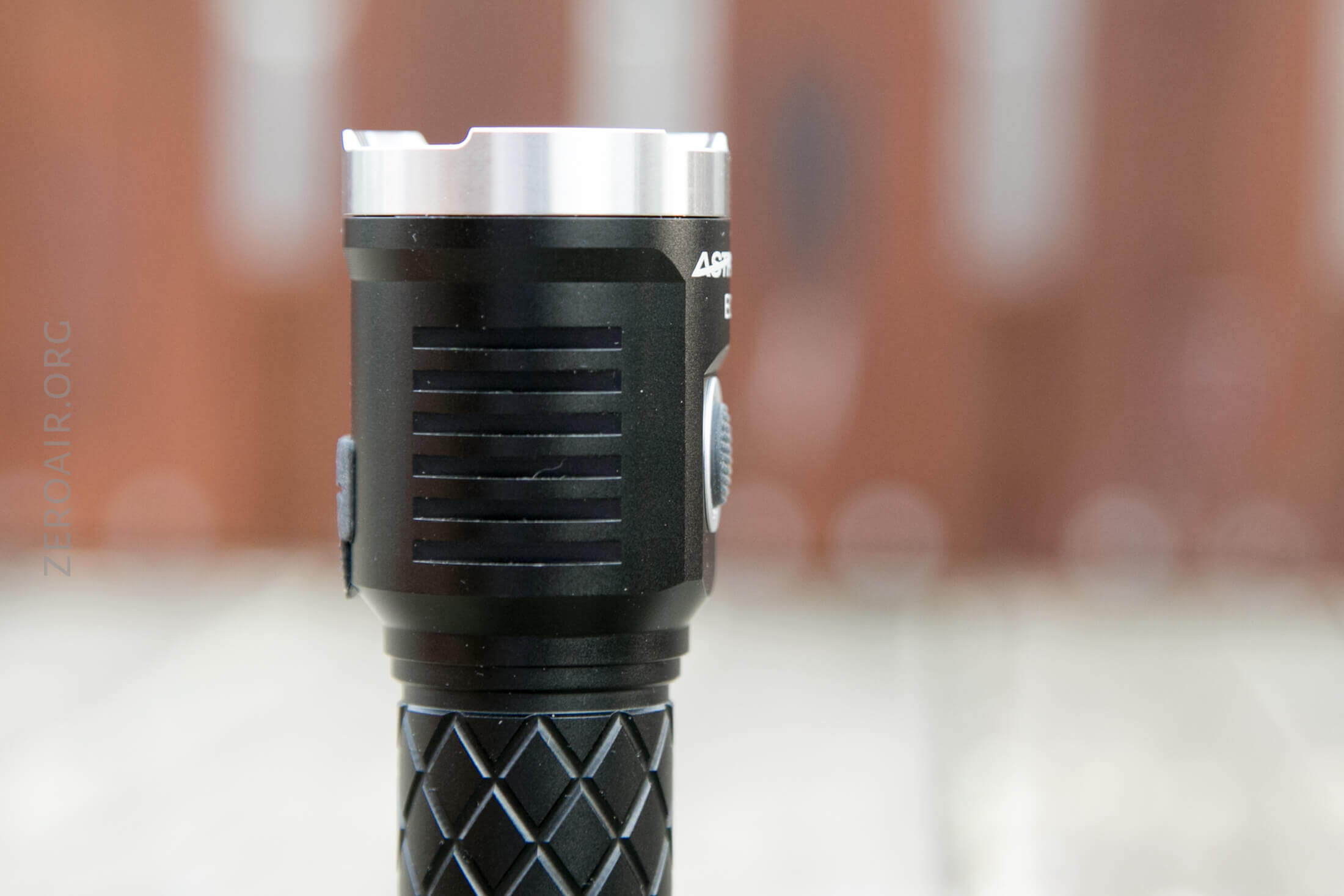

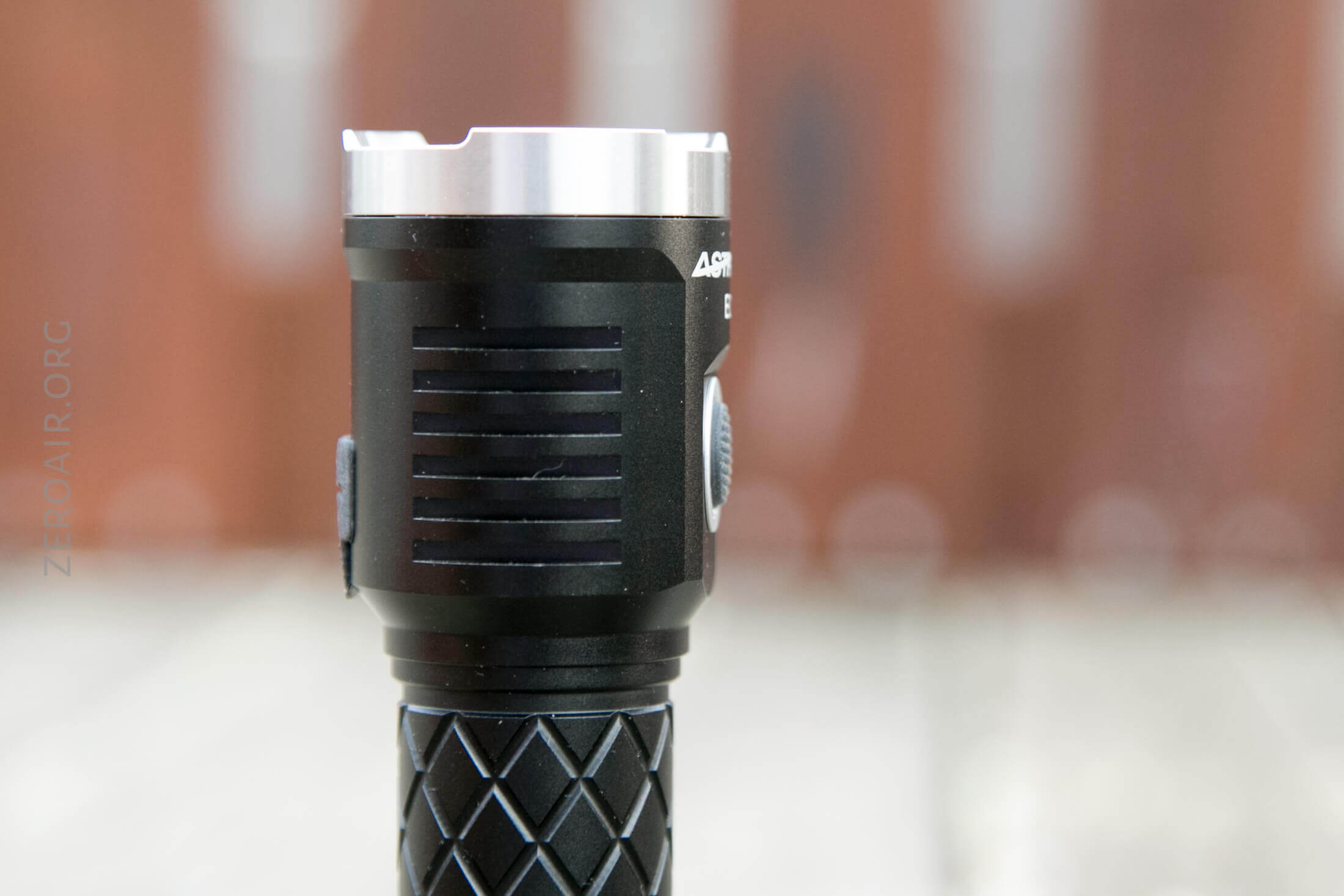

The fins on the head are a bit sharp – that’s one area that could improve on this light.

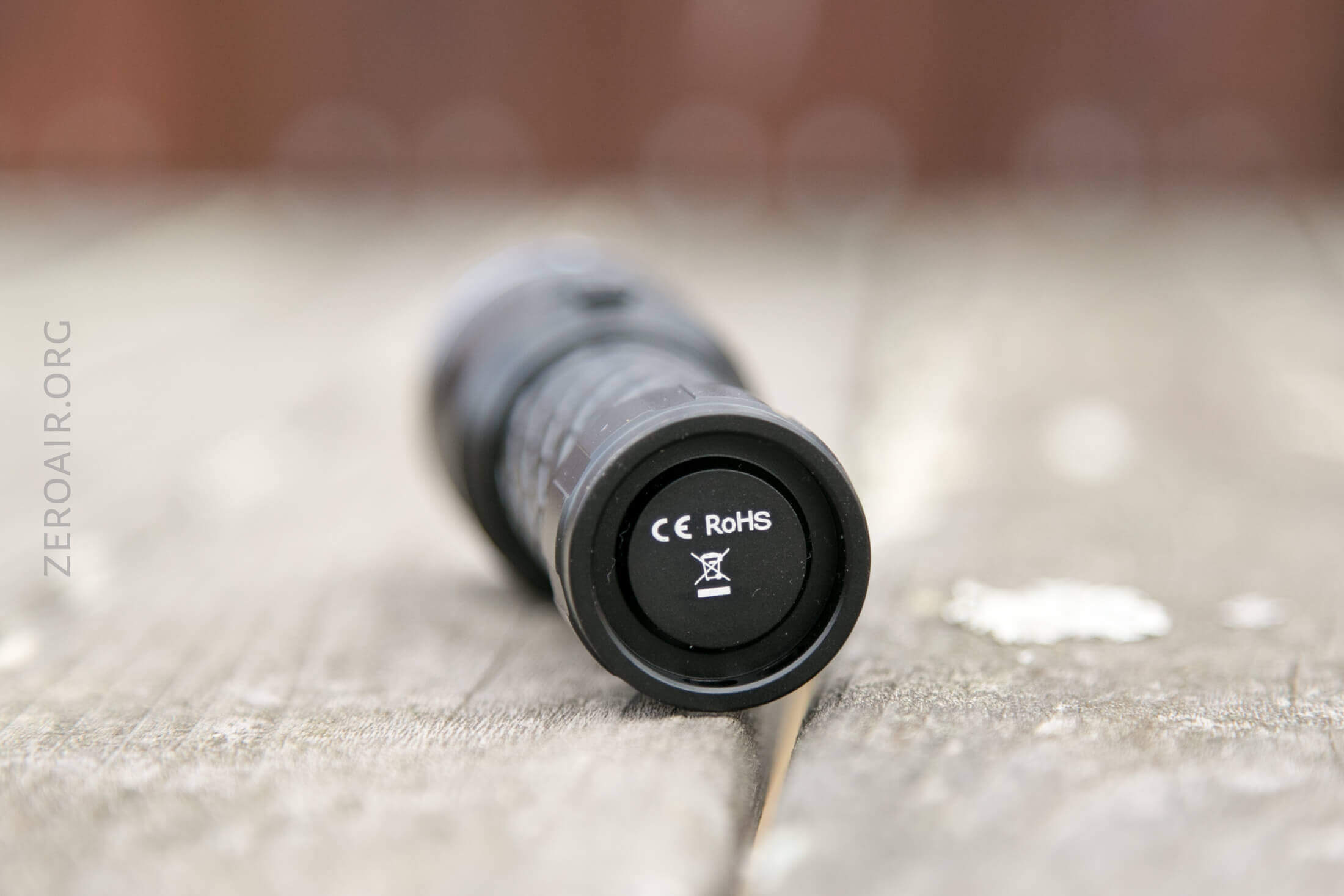

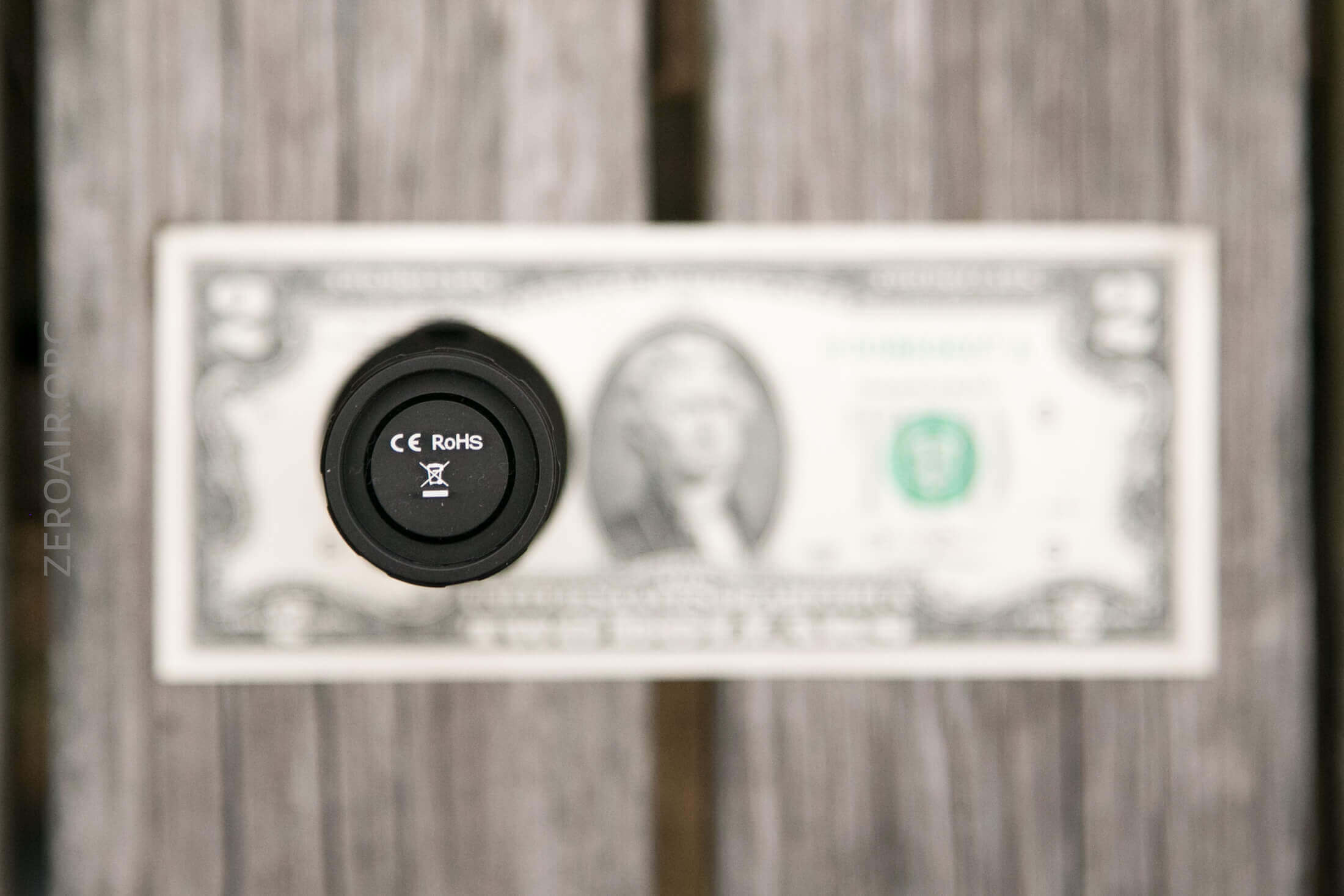

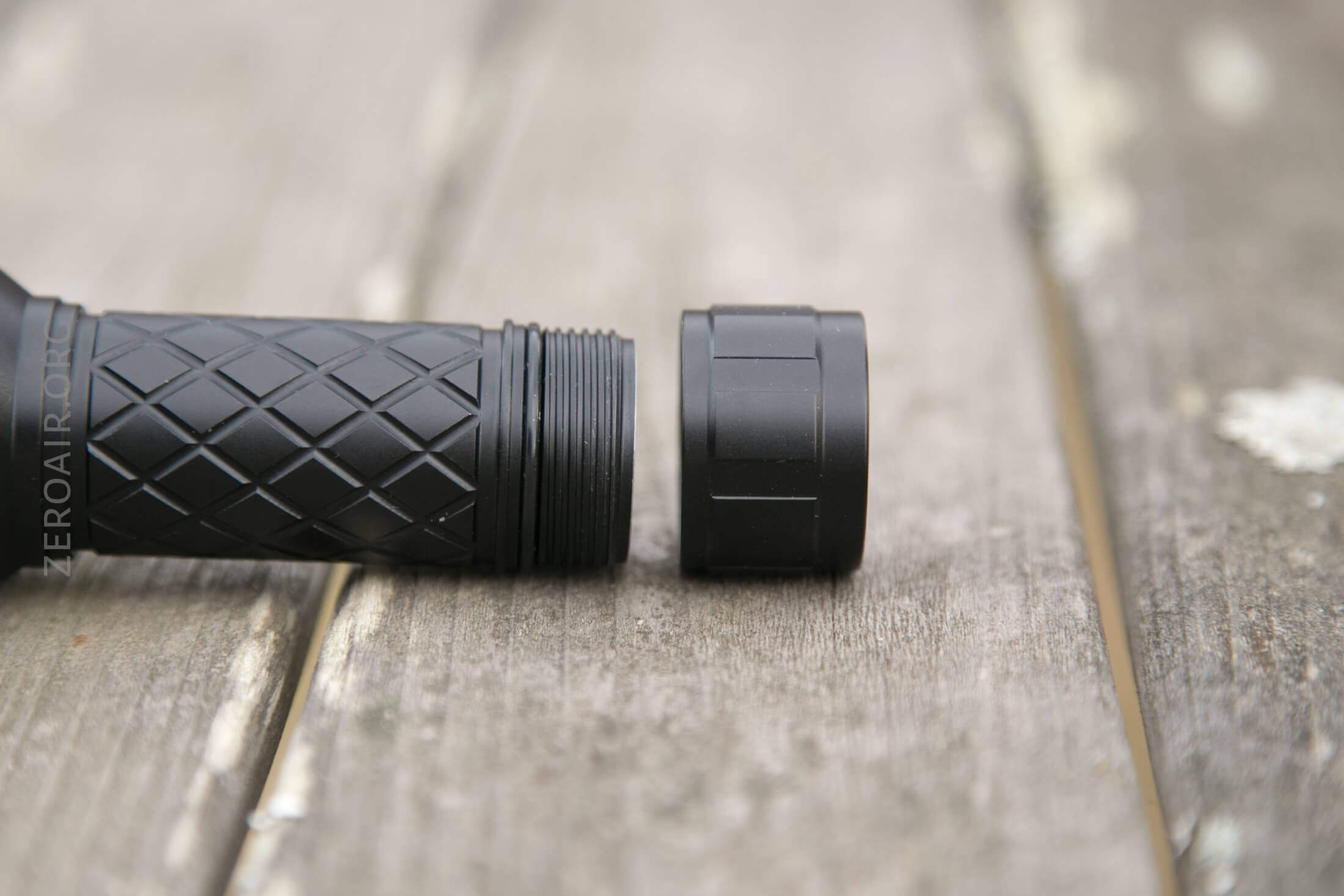

The tailcap has a little ridge around the edge to allow for the lanyard.

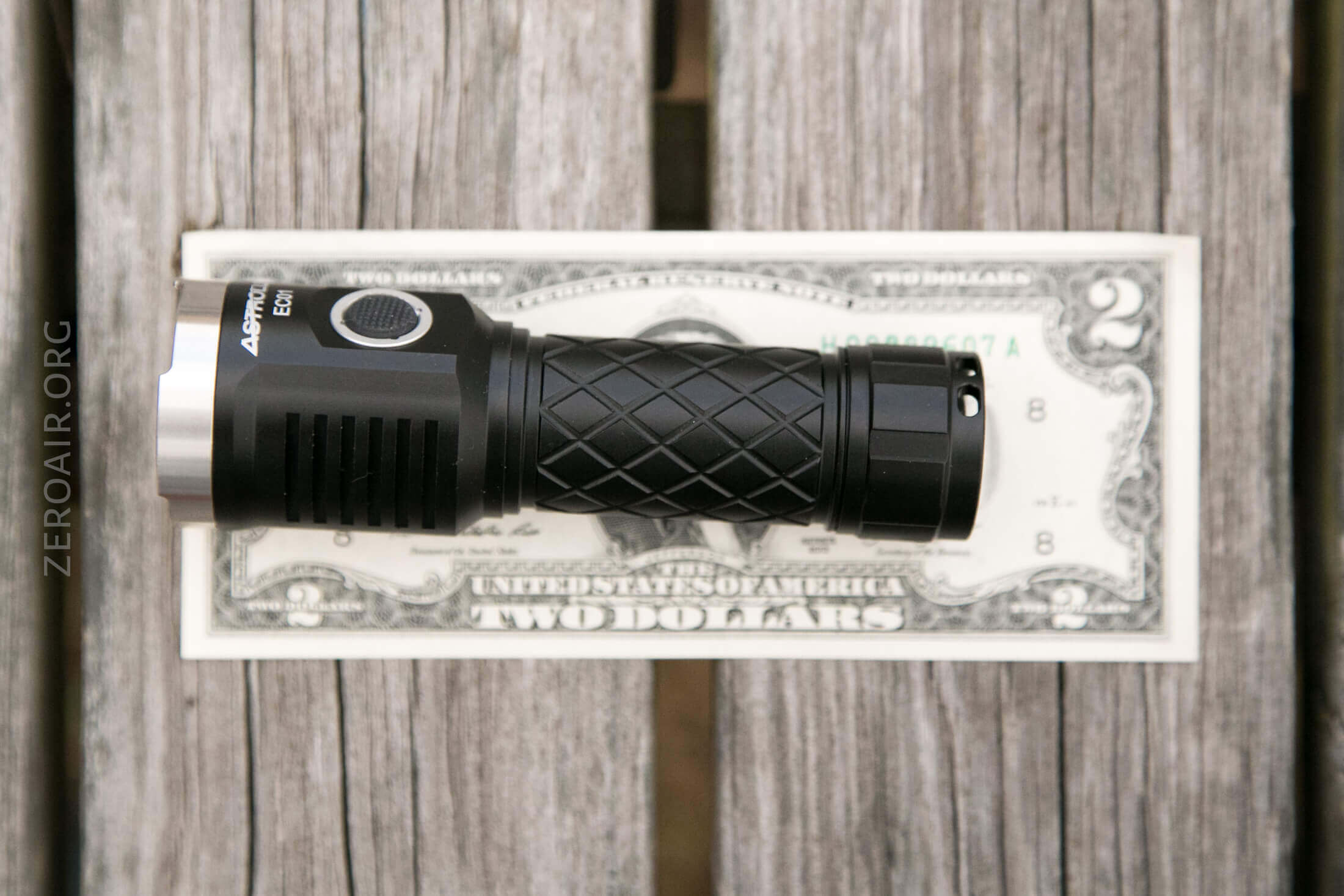

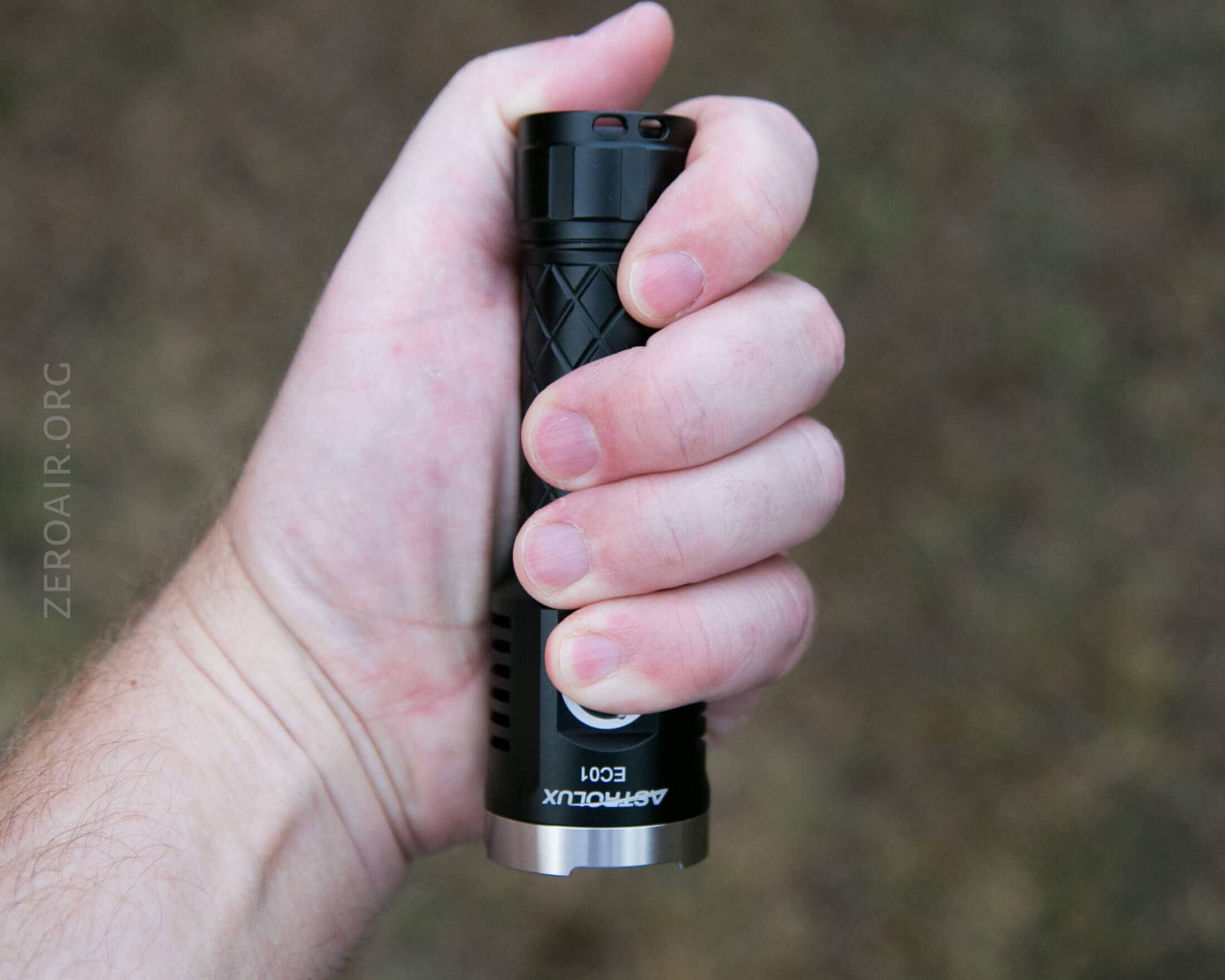

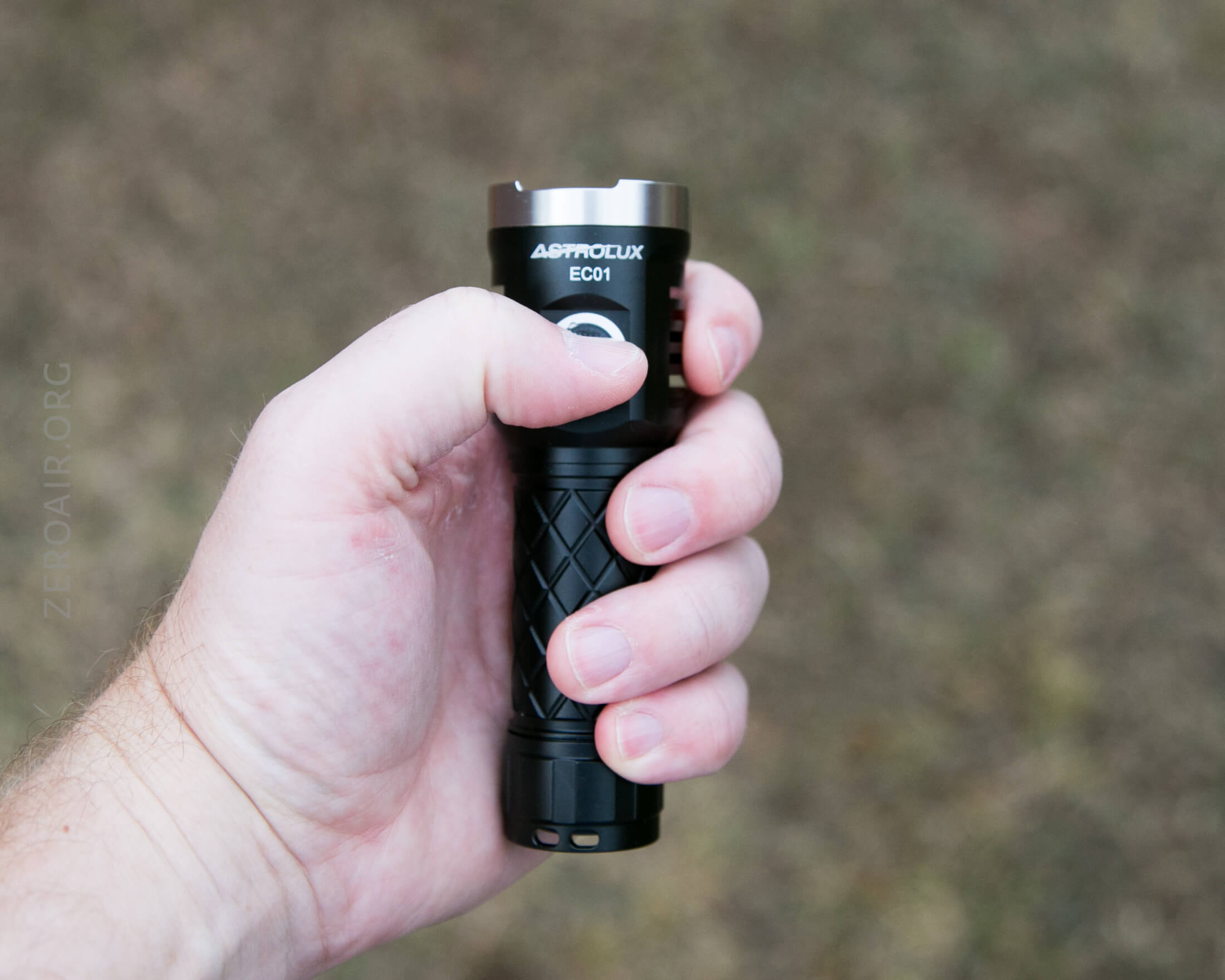

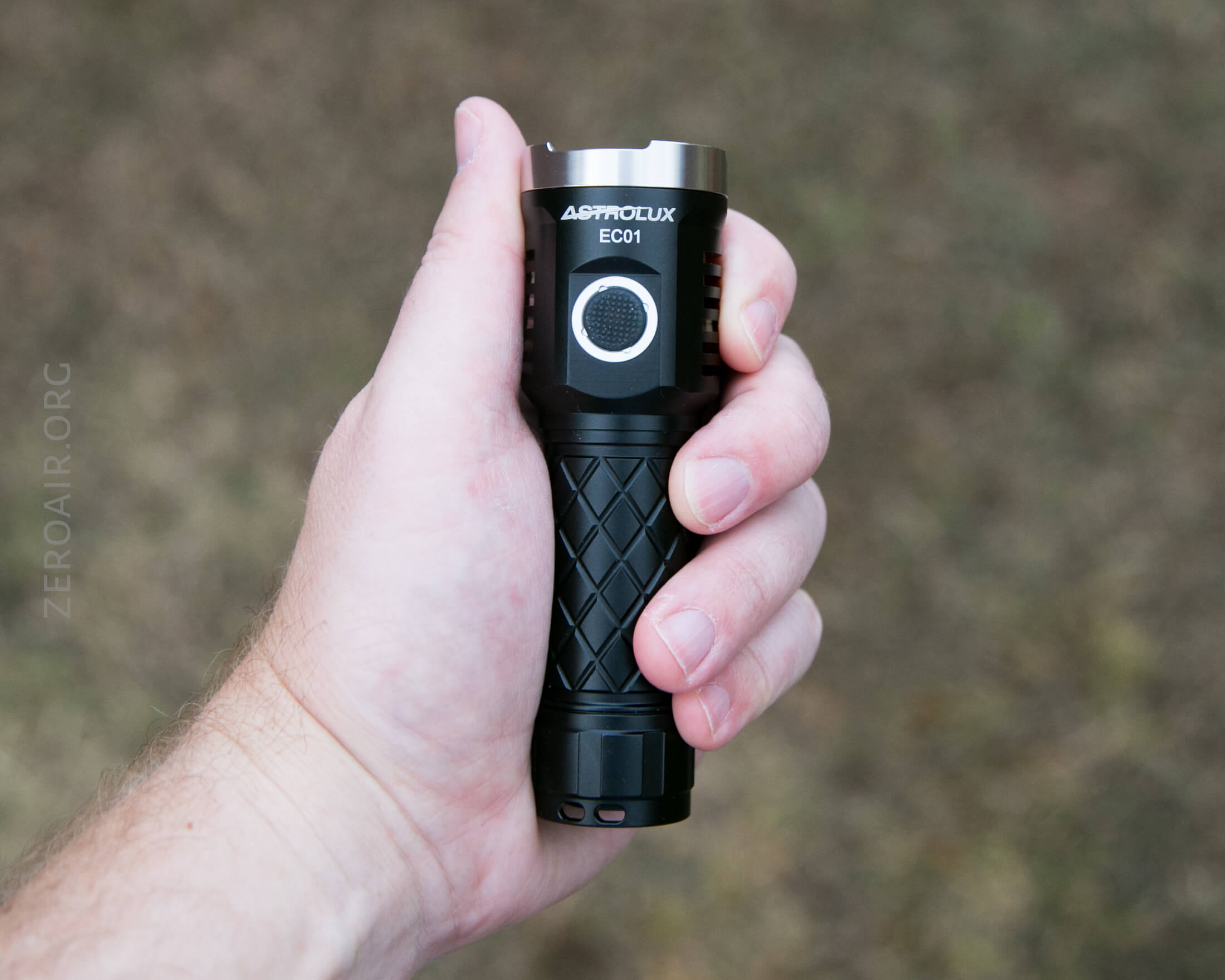

Size and Comps

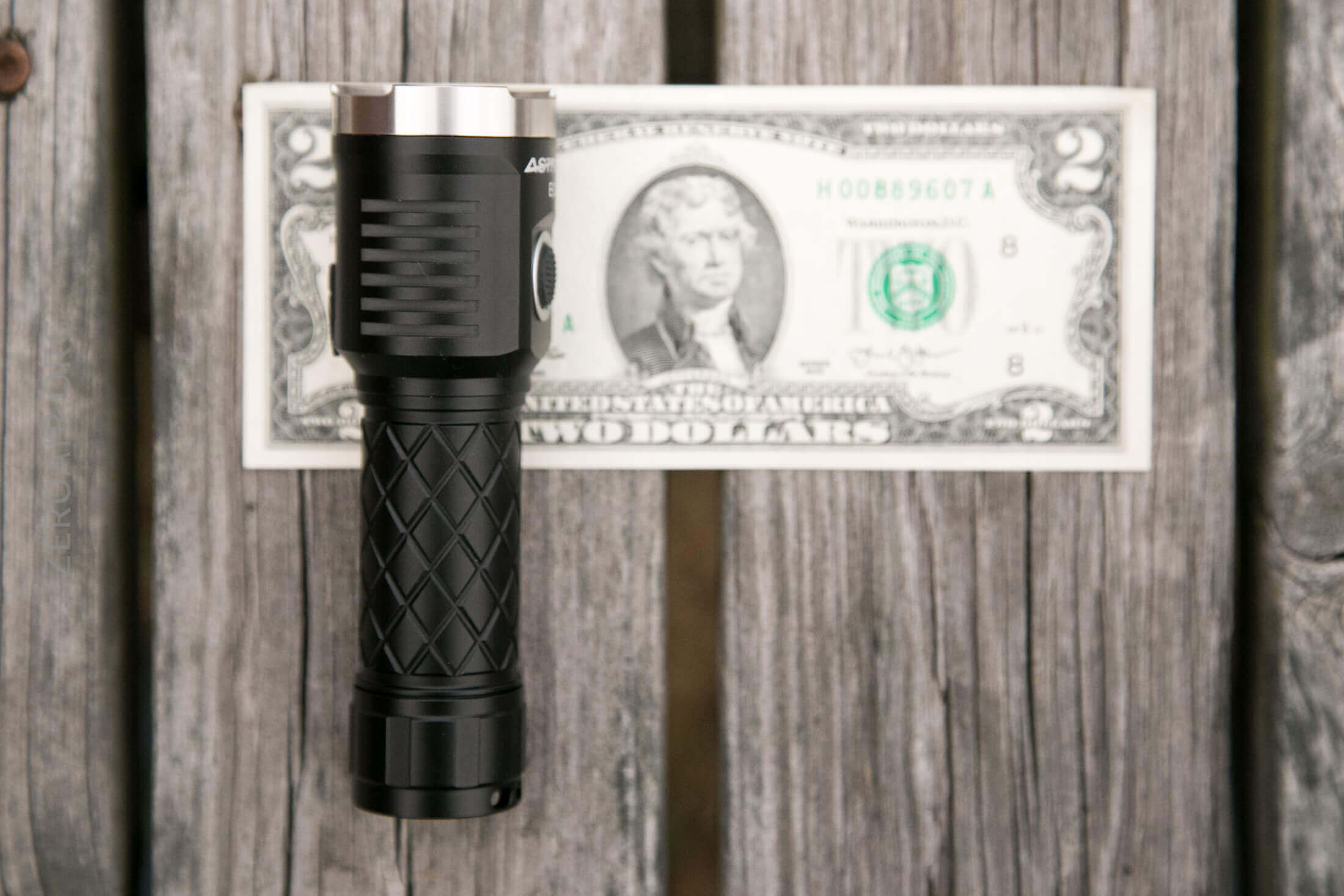

Weight: Approximately 119 g without cells
Size: 37 mm Ø head x 120 mm length.

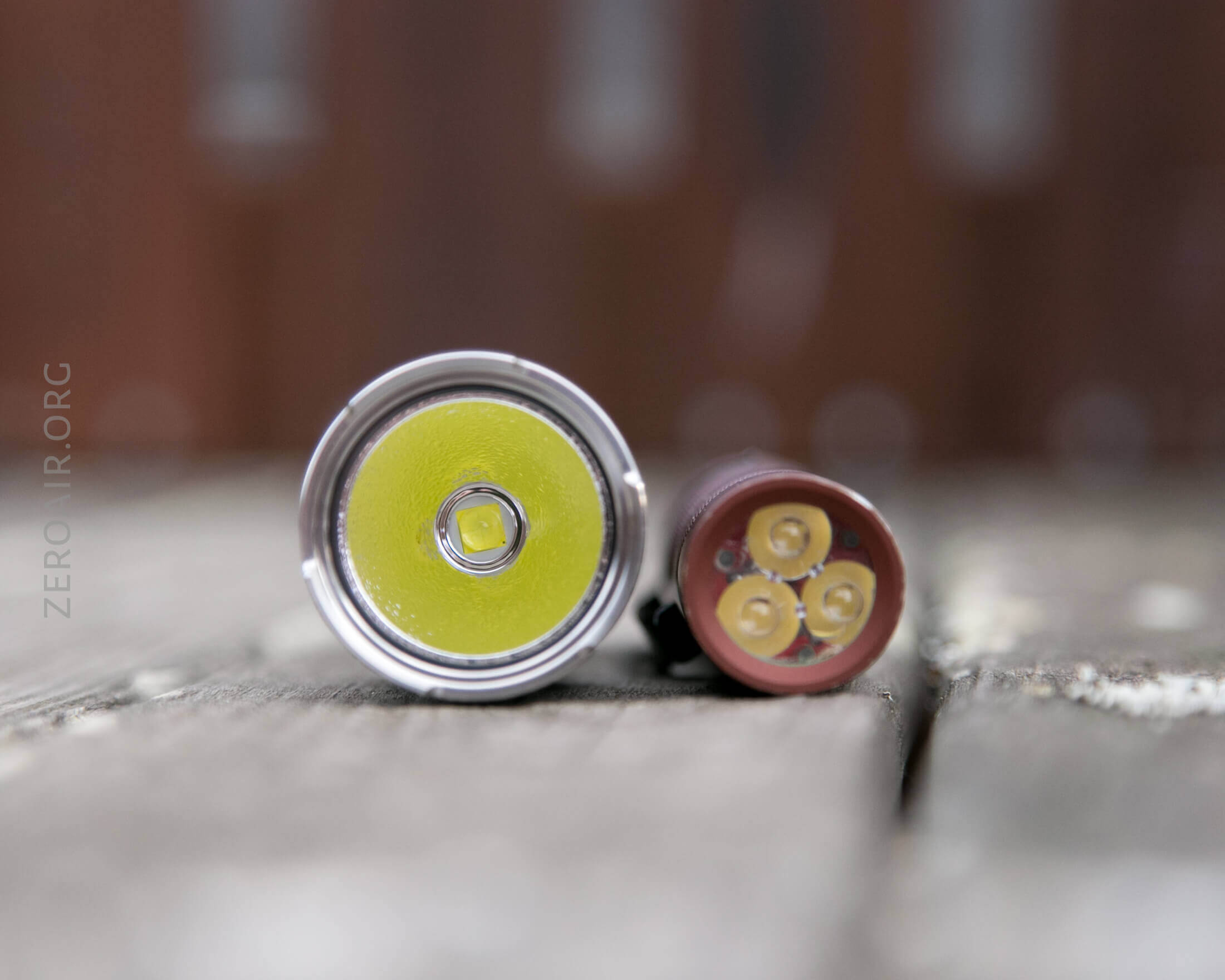

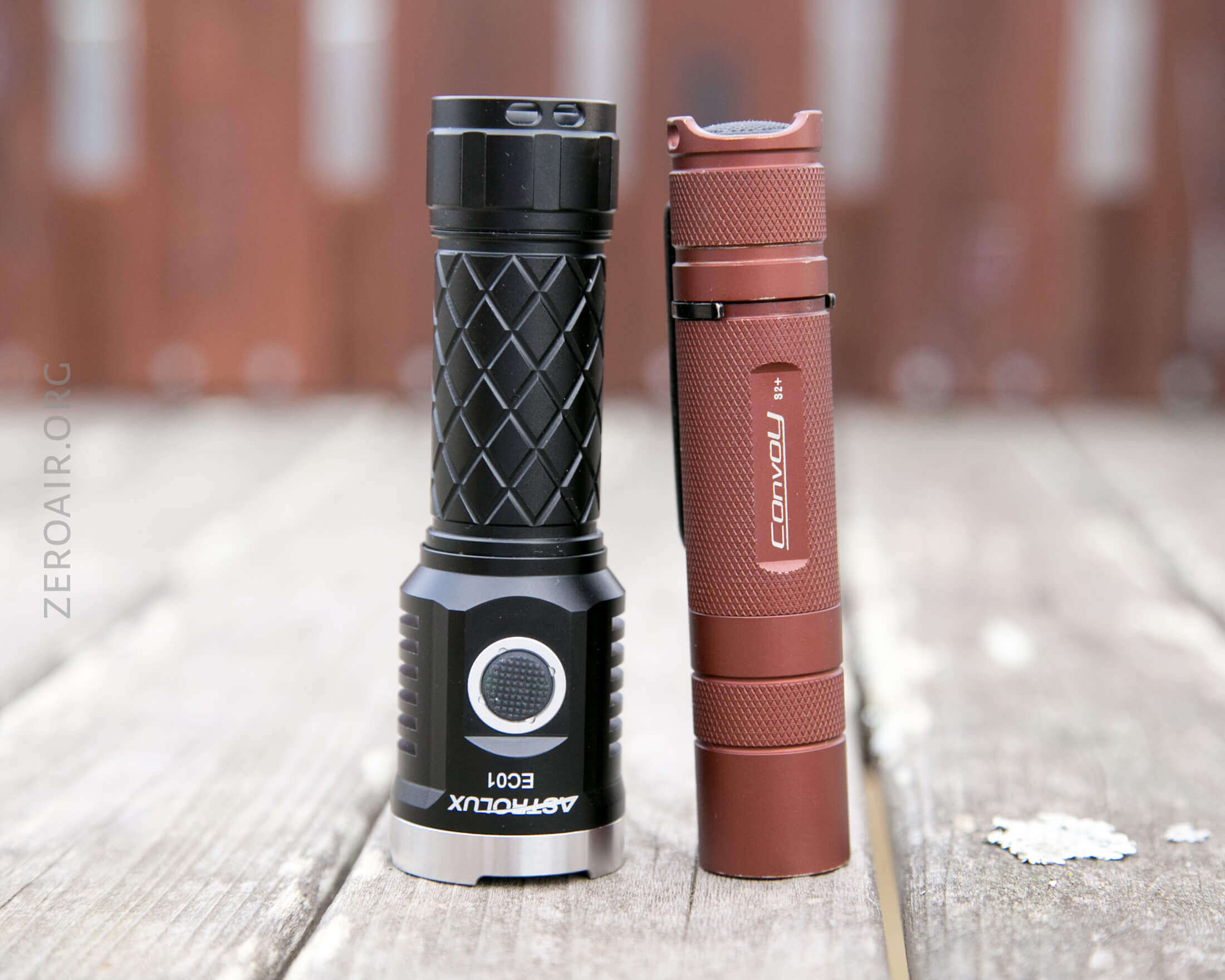

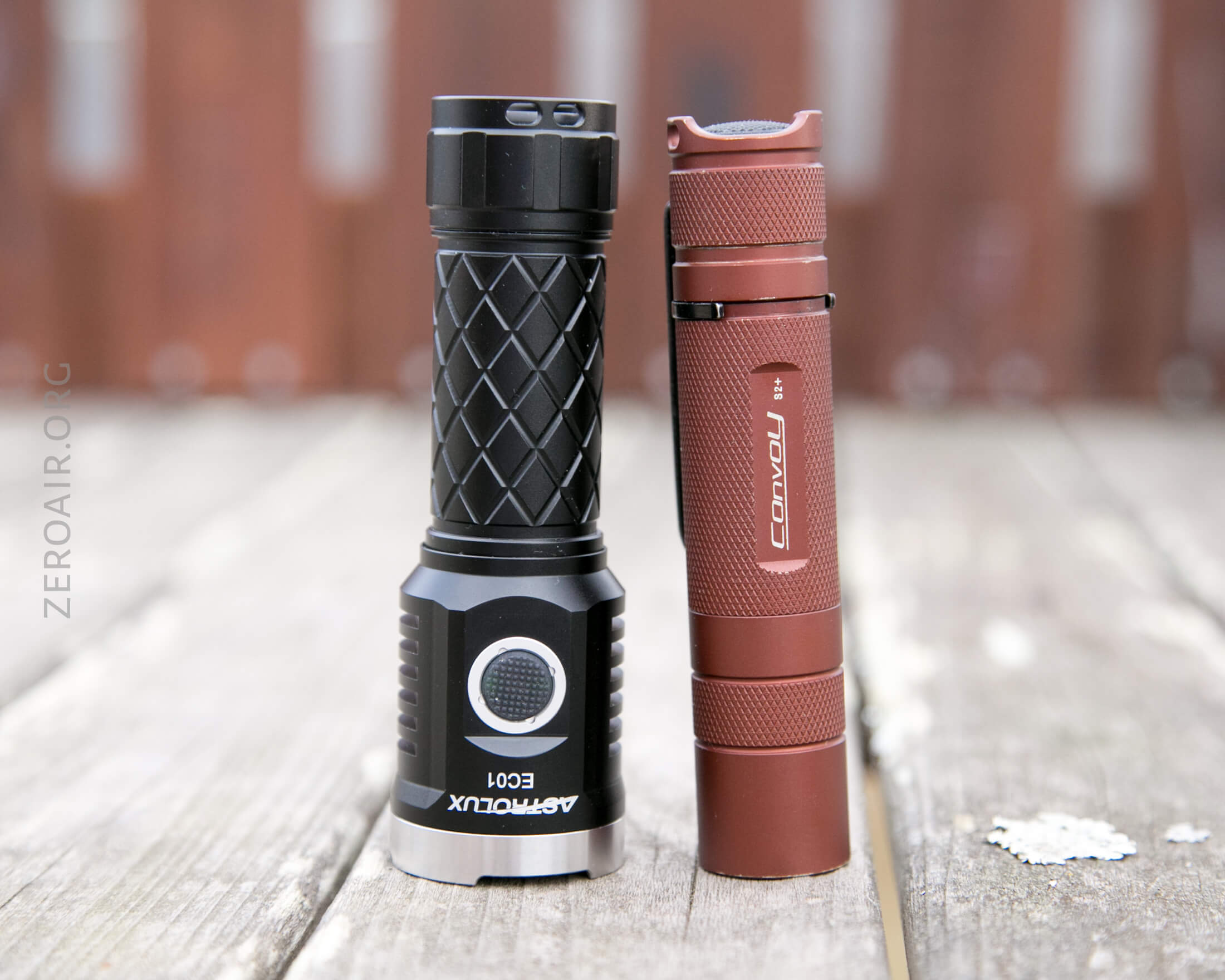

Here’s the test light with the venerable Convoy S2+.  Mine’s a custom “baked” edition Nichia 219b triple.  A very nice 18650 light.

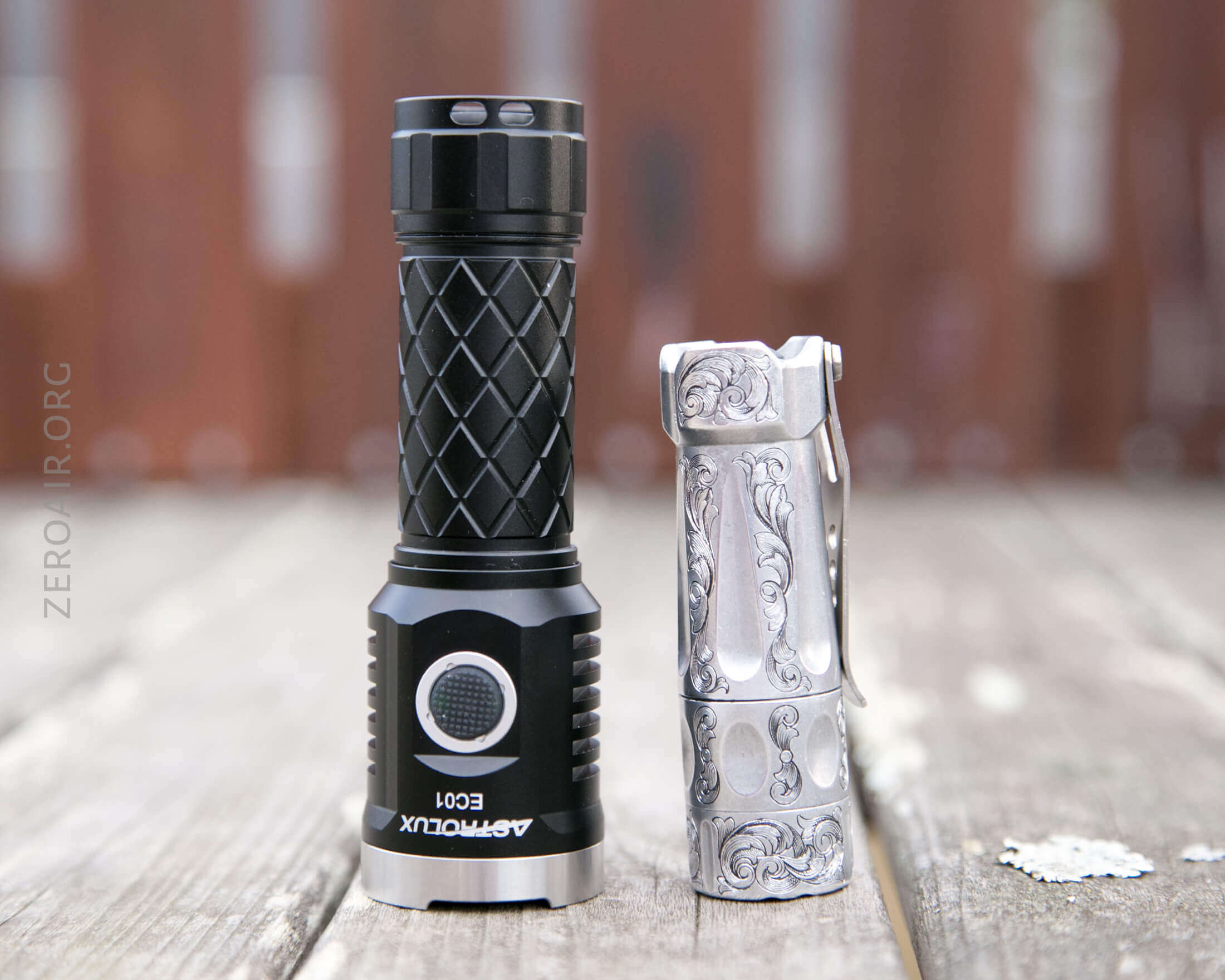

And here’s the light beside my custom engraved TorchLAB BOSS 35, an 18350 light.  I reviewed the aluminum version of that light in both 35 and 70 formats.

Retention and Carry

There’s no pocket clip.  There’s no pouch.  The only real way to retain the light is with the included lanyard, which connects through two holes in the tailcap.

Power and Runtime

The EC01 is powered by a single 21700 cell.  With springs on both ends, any type 21700 will work.  An adapter is also included for running an 18650.

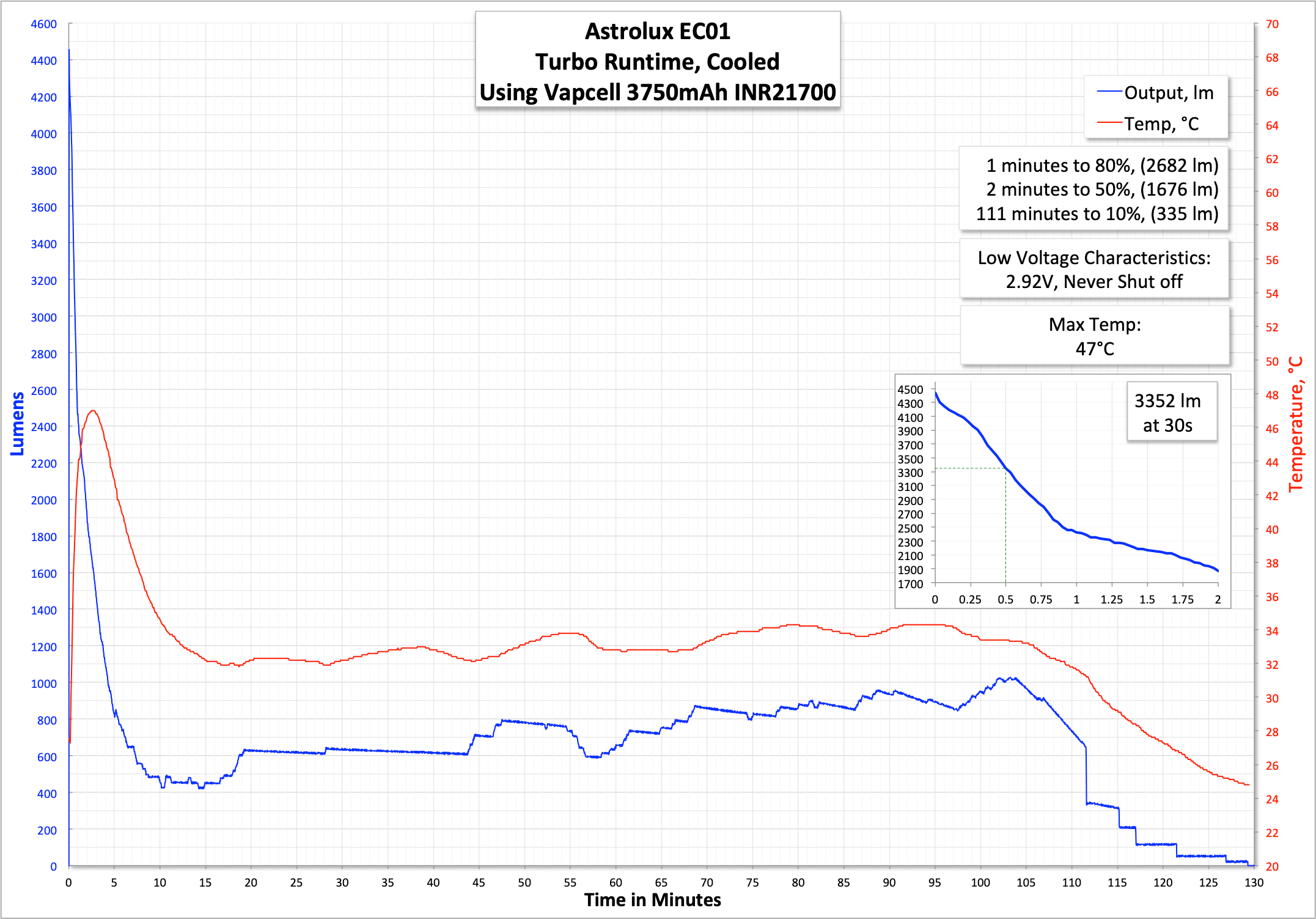

Here’s a runtime on Turbo.  This is the “double click from on” turbo – maximum output for Anduril.

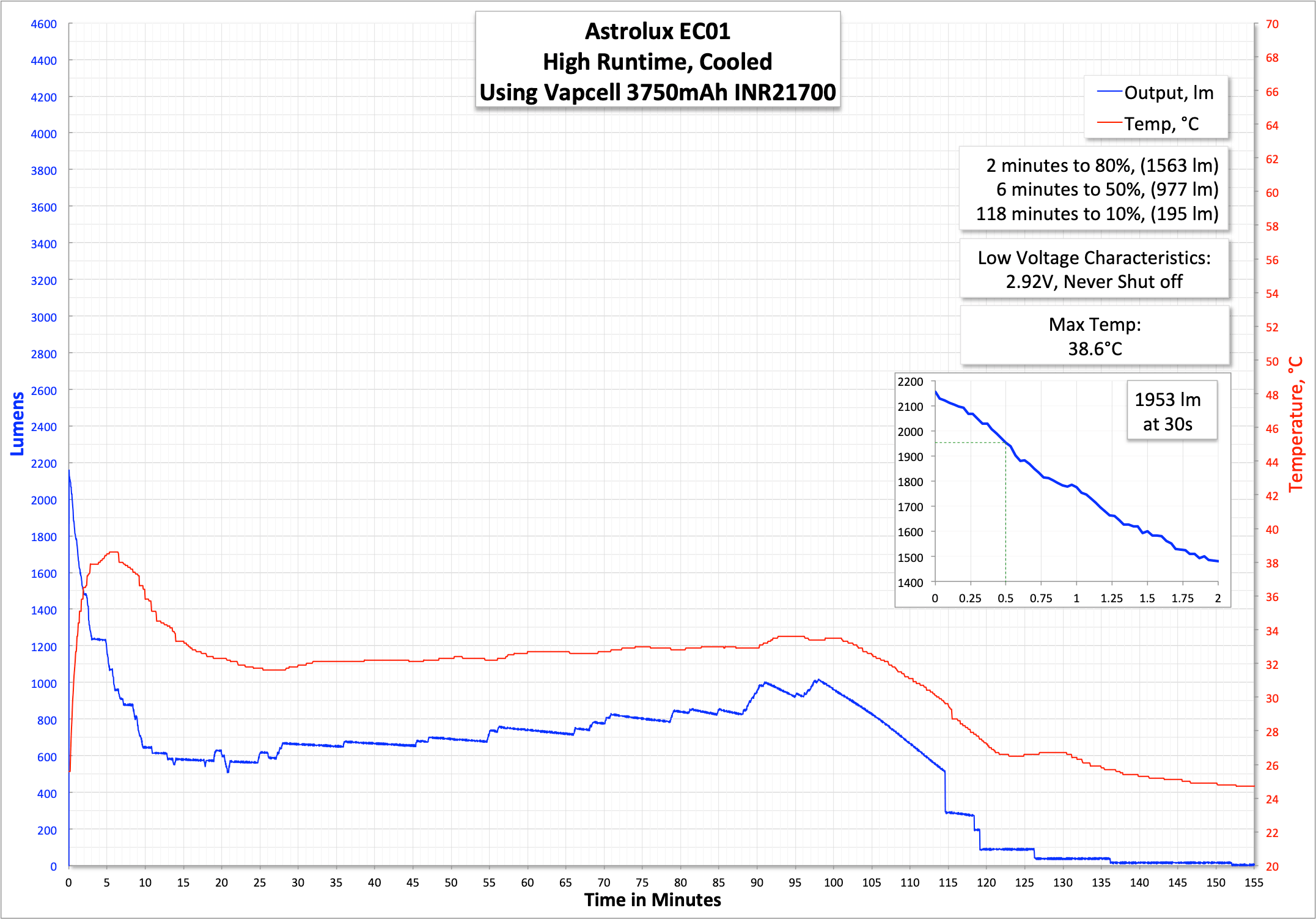

And here’s another runtime – this is the maximum output when clicking through the default stepped modes (which I think is the same as the top output on the ramped output, before the double click to turbo).

In both cases once the light settles off the highest output, the light sort of hunts around for the level.

No LVP on bench power.  No switch warning.  In practice the light switches to such a low output that you’ll notice and charge the cell.

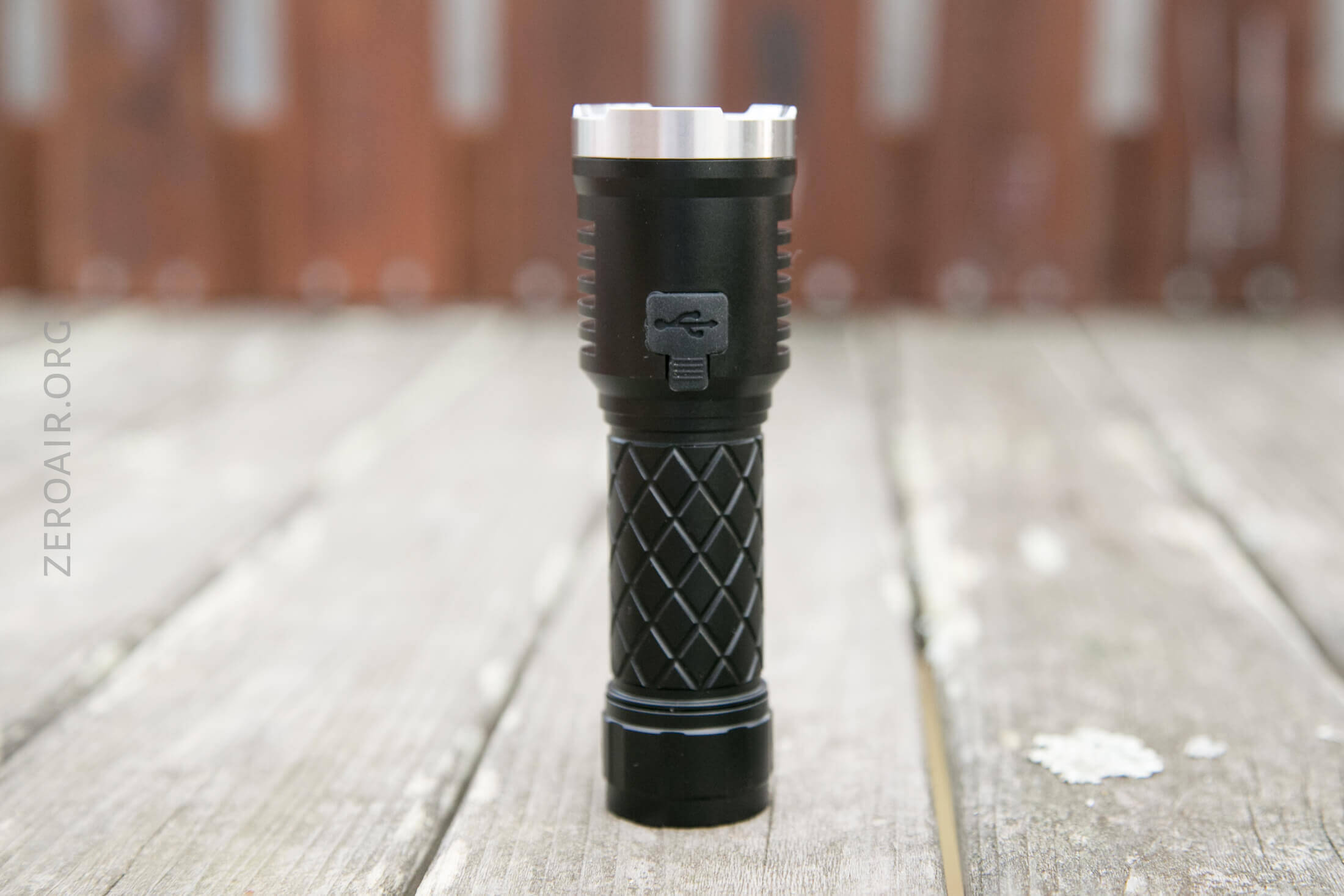

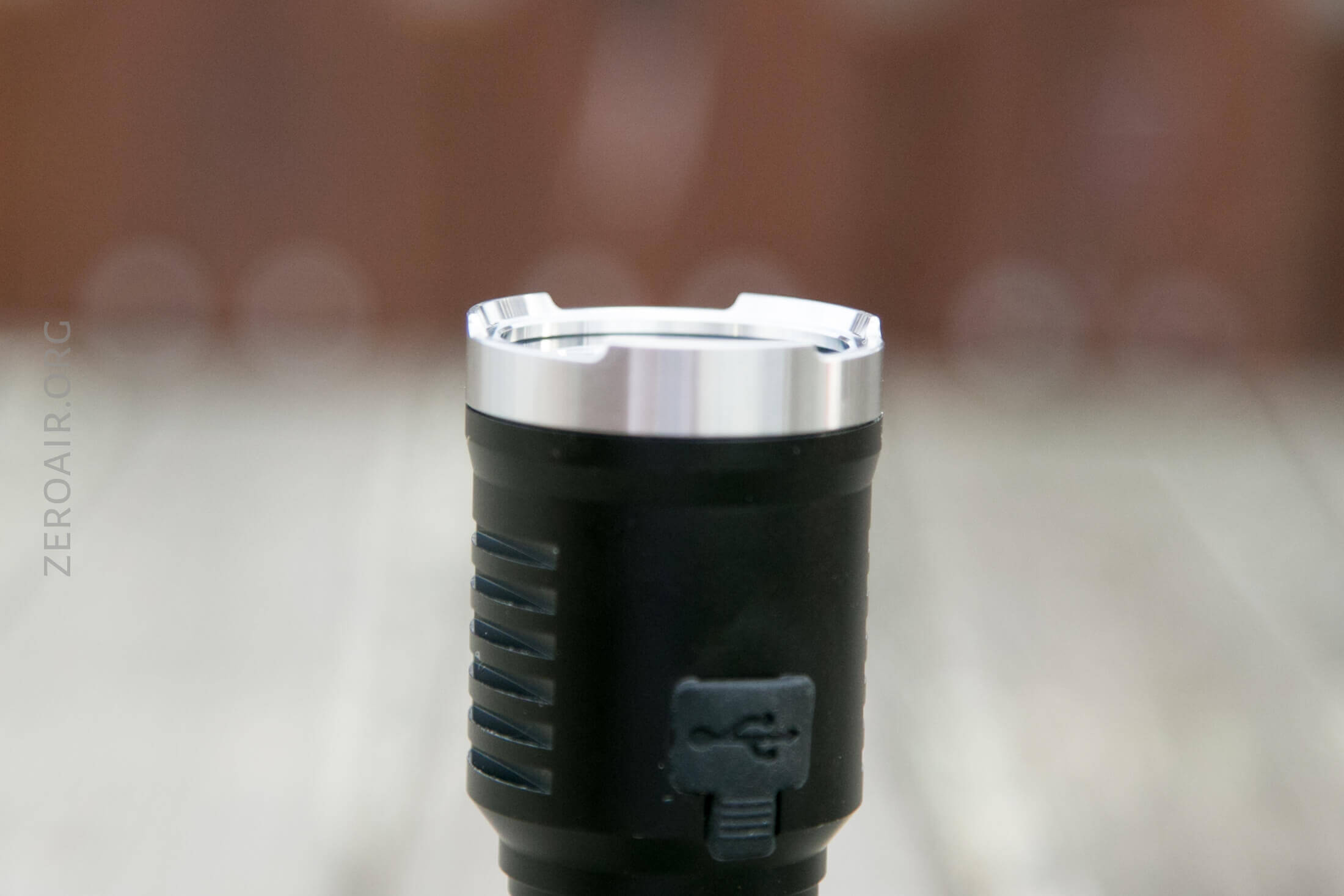

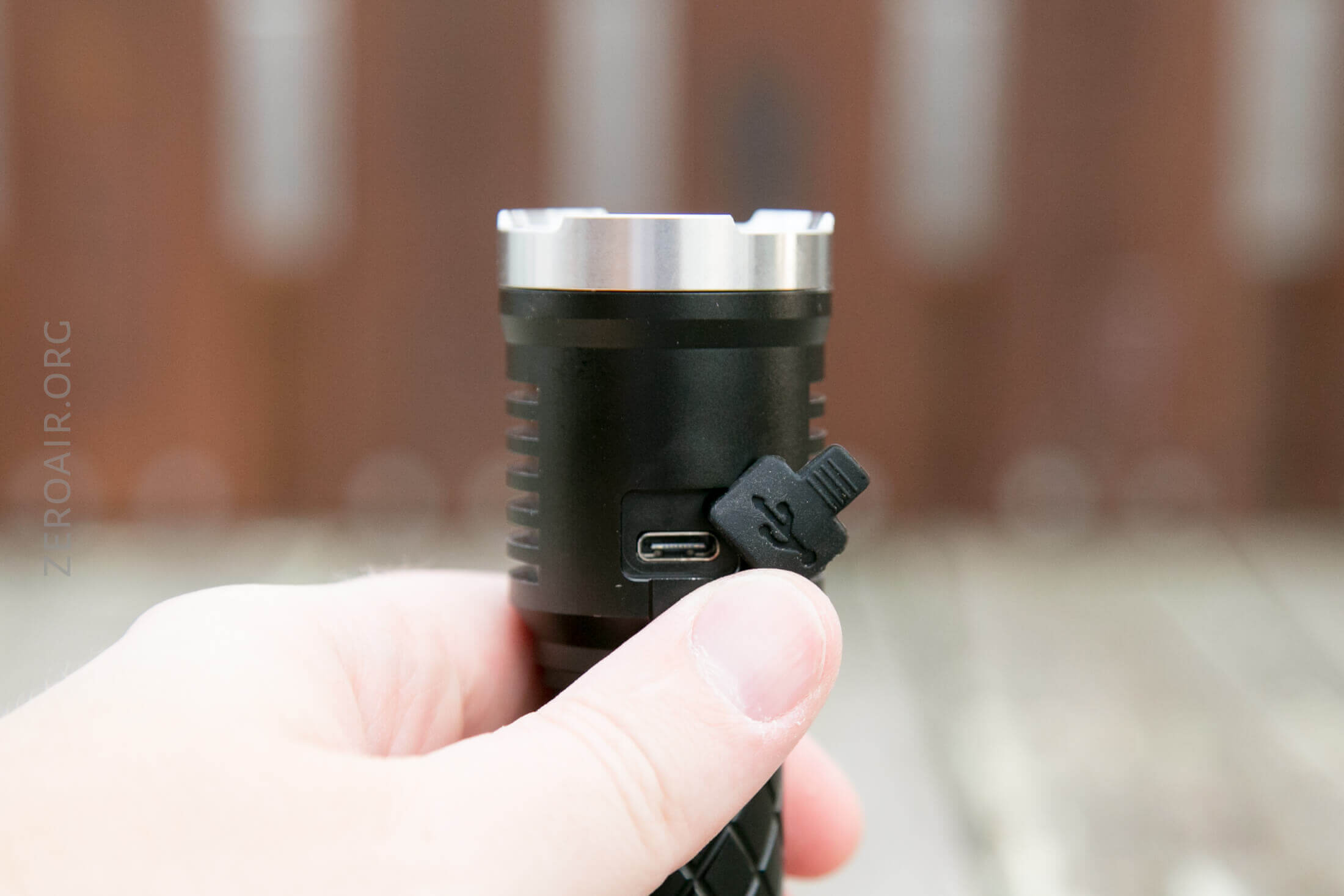

The EC01 also has built-in charging, facilitated by USB-C.

Charging starts a bit low (0.9A) but quickly rises to  >1.3A, then gradually rises to almost 1.8A before starting the CV descent.  This is fairly good charging.

Modes and Currents

Anduril doesn’t really play nicely with this table, so it’s intentionally blank save the last two columns.  Just a few data points, is all.

Mode Mode Claimed Output (lm) Claimed Runtime Measured Lumens Tailcap Amps
3352 [FET]
1953 3.40
1256 1.78
615 0.80
249 0.50
108 0.19
40 0.07
10 0.01

Pulse Width Modulation

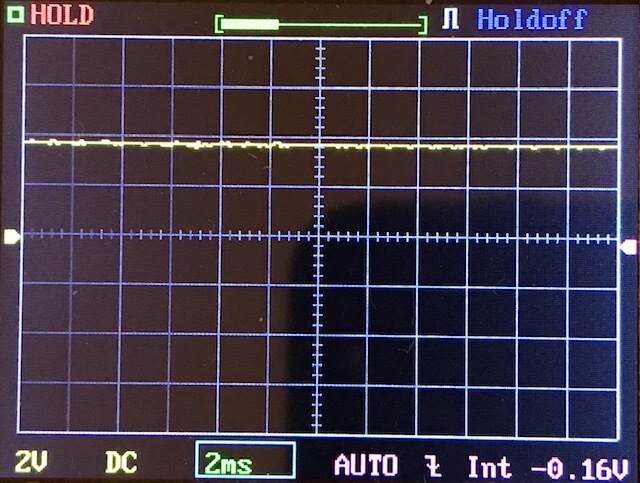

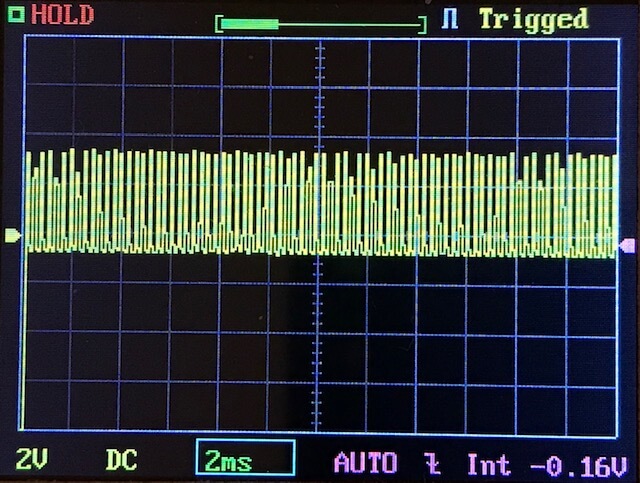

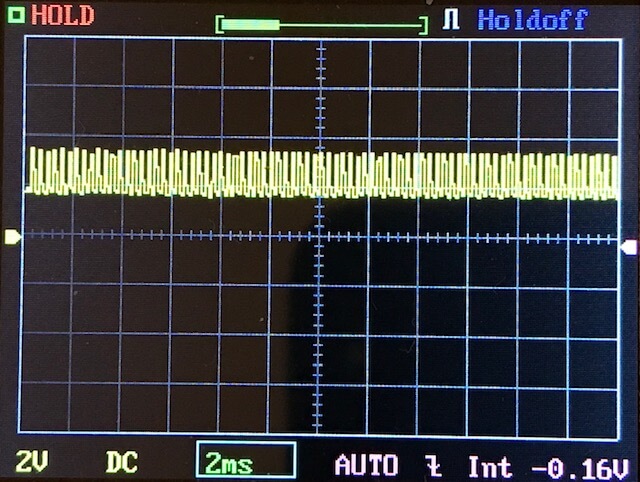

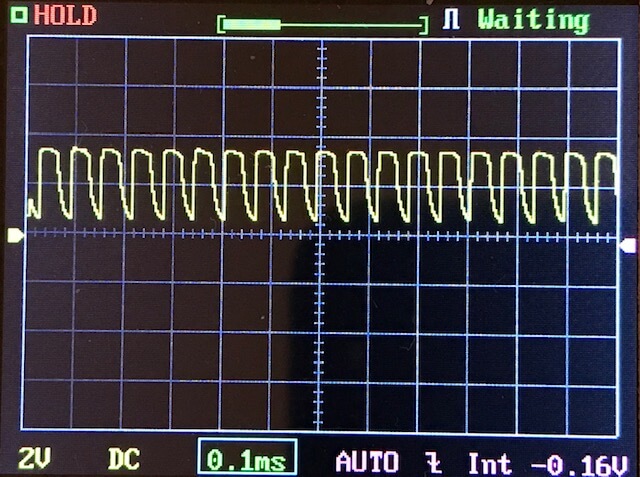

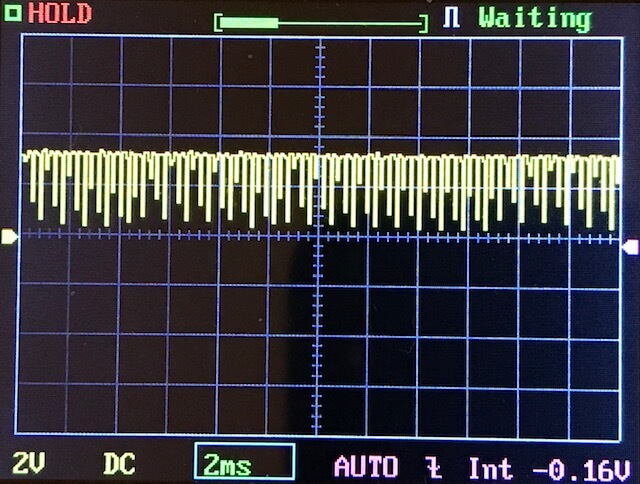

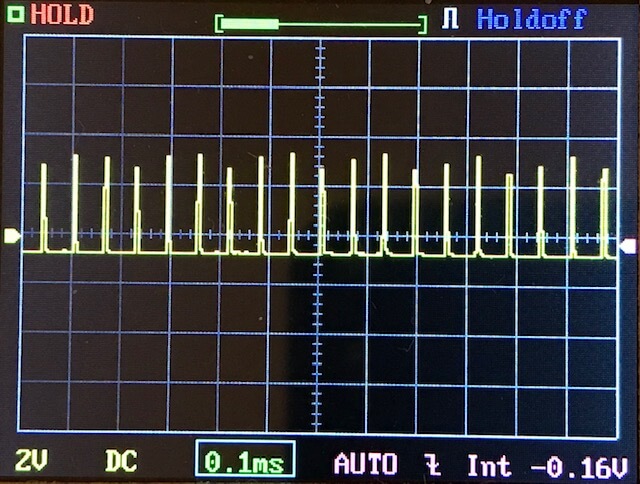

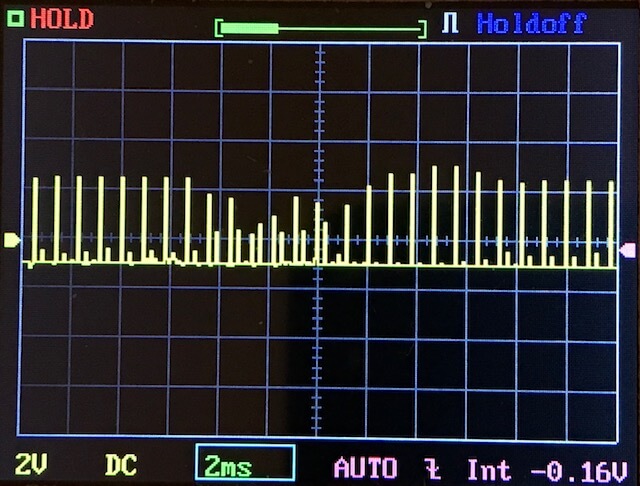

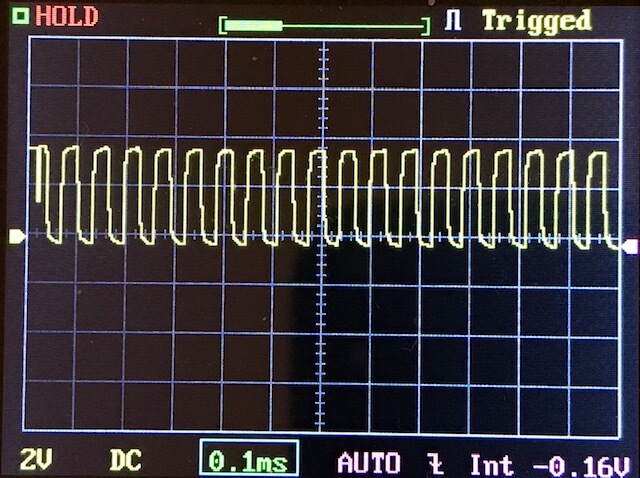

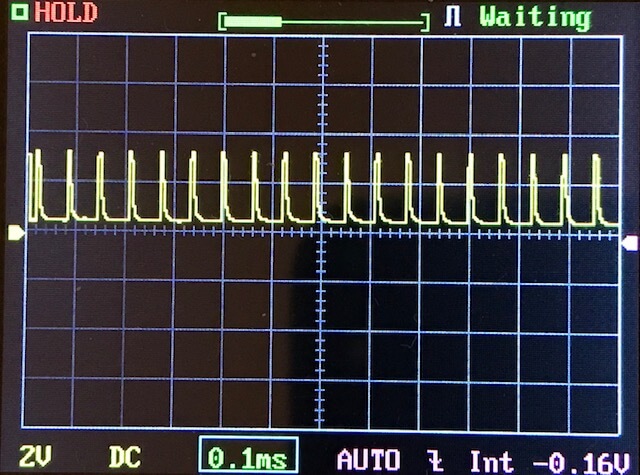

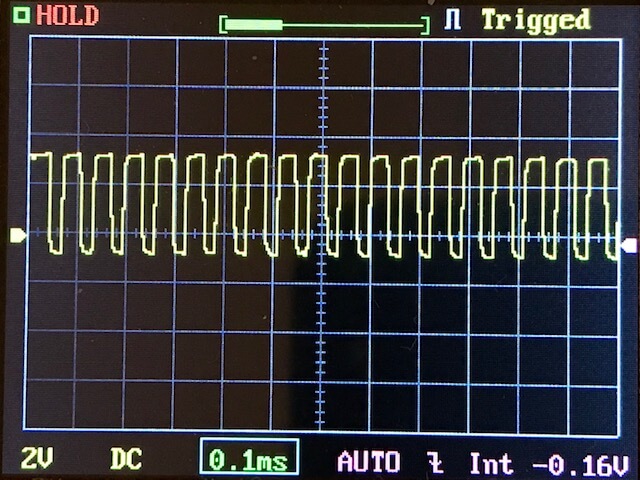

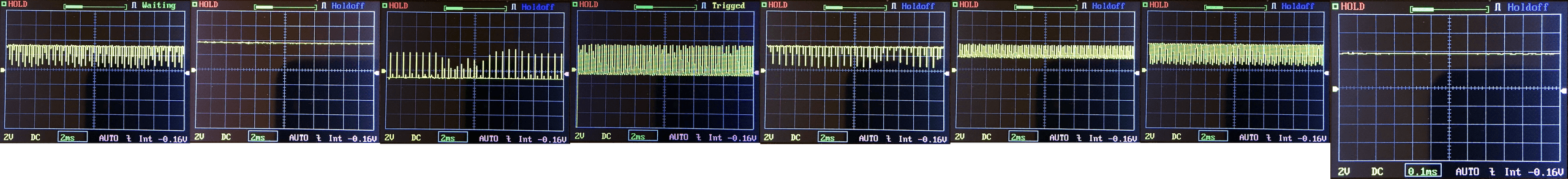

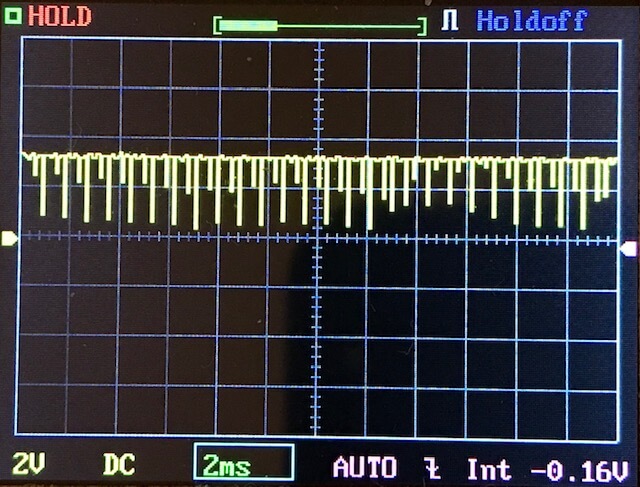

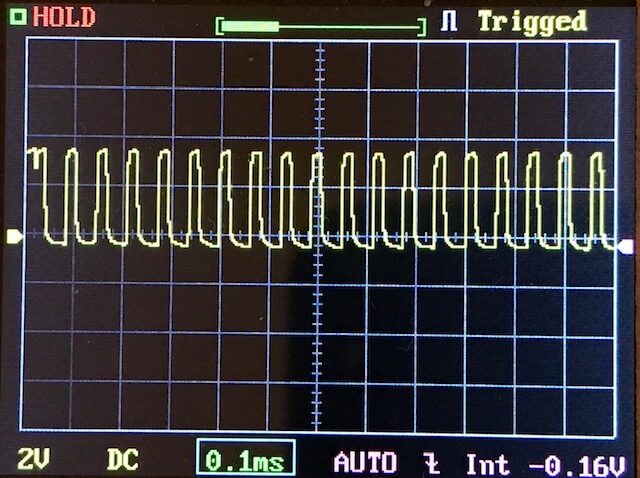

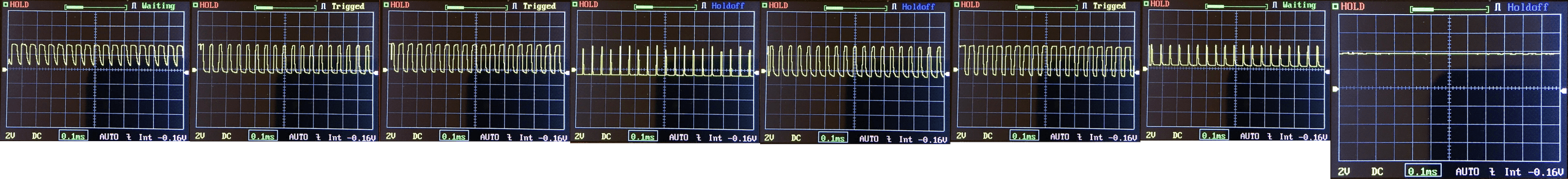

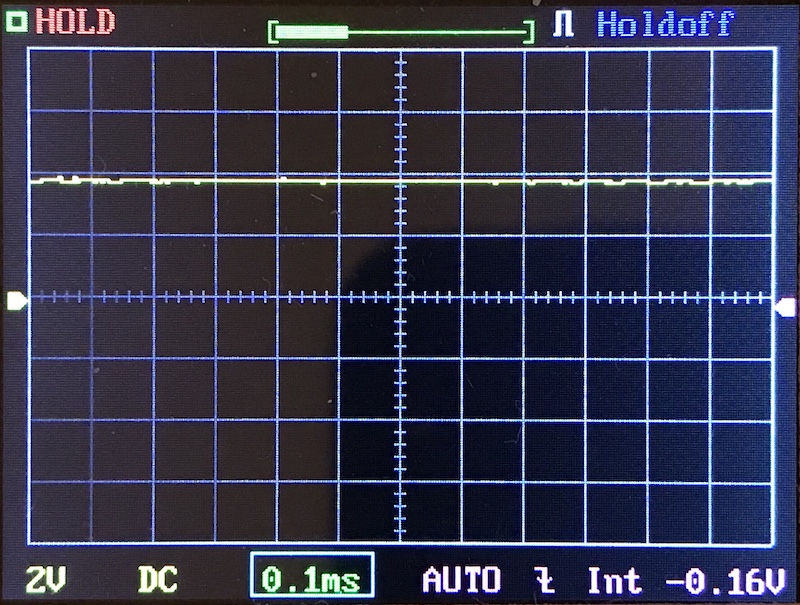

Two different scales for PWM are below.  I’m not sure what to make of some of these, except to say that PWM seems to be present on every mode.  Turbo lacks PWM as you’d expect.

For reference, here’s a baseline shot, with all the room lights off and almost nothing hitting the sensor.  Also, here’s the light with the worst PWM I could find.  I’m adding multiple timescales, so it’ll be easier to compare to the test light.  Unfortunately, the PWM on this light is so bad that it doesn’t even work with my normal scale, with is 50 microseconds (50us).  10ms5ms2ms1ms0.5ms0.2ms.  In a display faster than 0.2ms or so, the on/off cycle is more than one screen, so it’d just (very incorrectly) look like a flat line.  I wrote more about this Ultrafire WF-602C flashlight and explained a little about PWM too.

User Interface and Operation

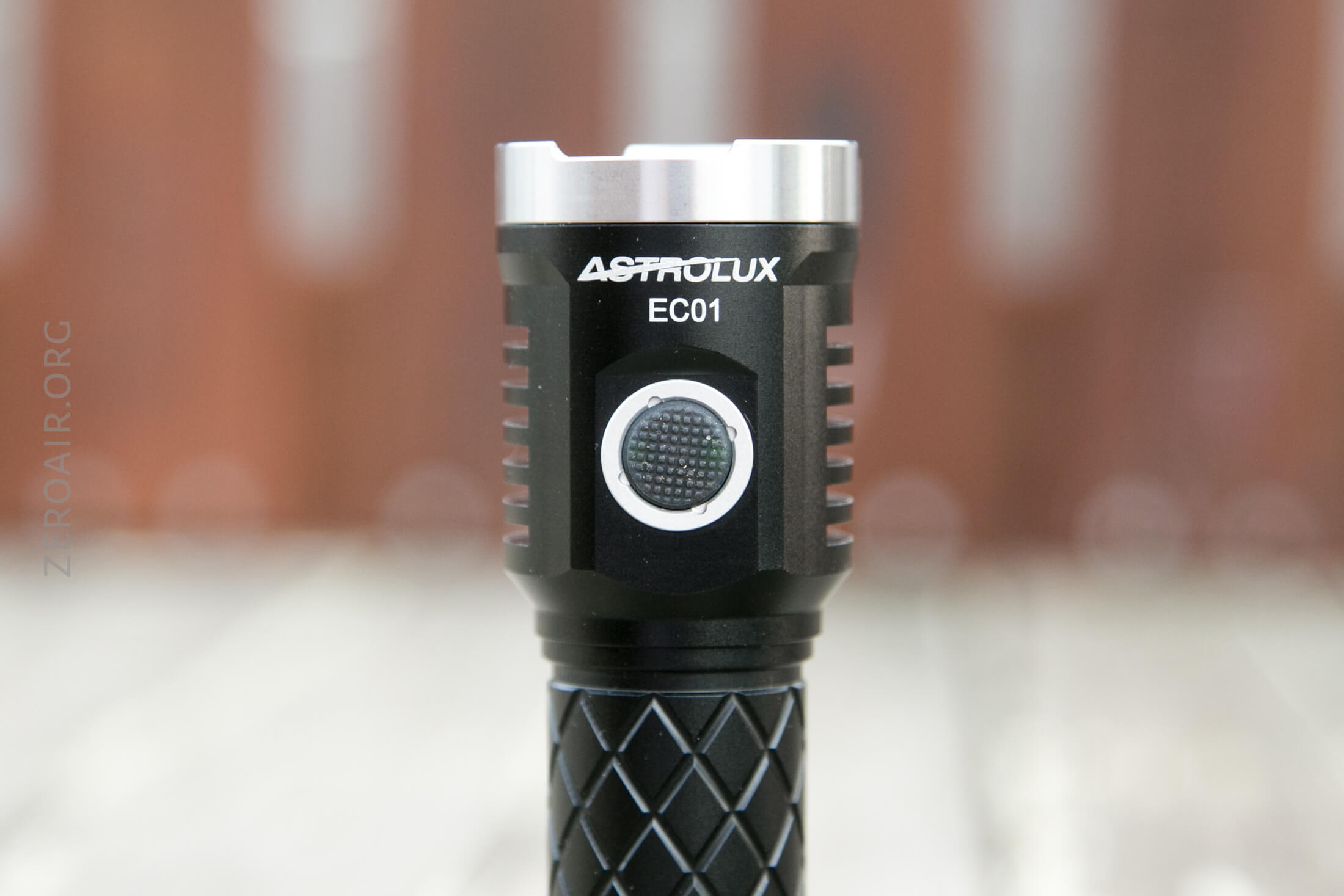

A side e-switch is utilized here.  It has green emitters, but they seem a bit underutilized in the UI overall.

The button isn’t too proud and is relatively easy to differentiate between the switch and the charge port cover.

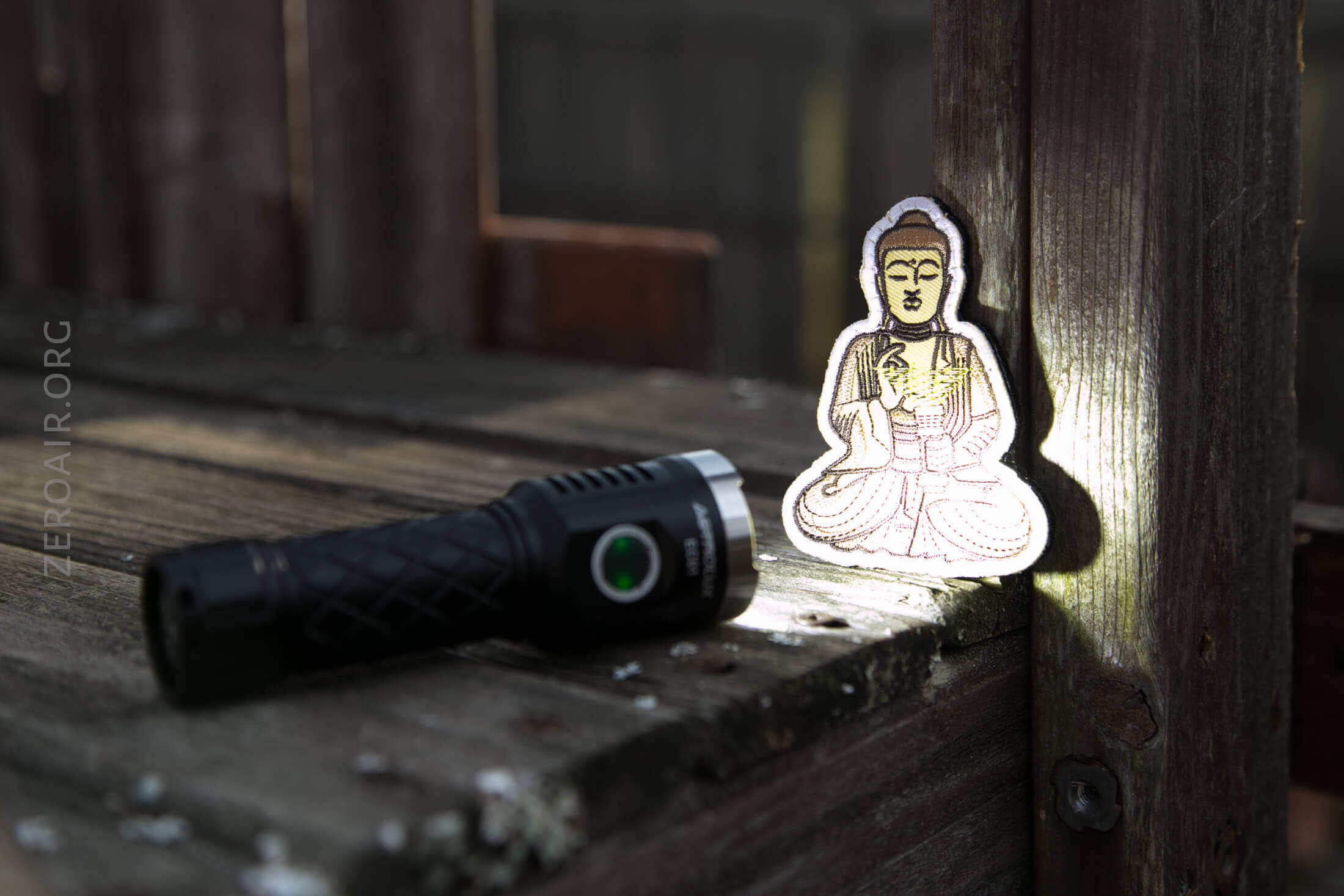

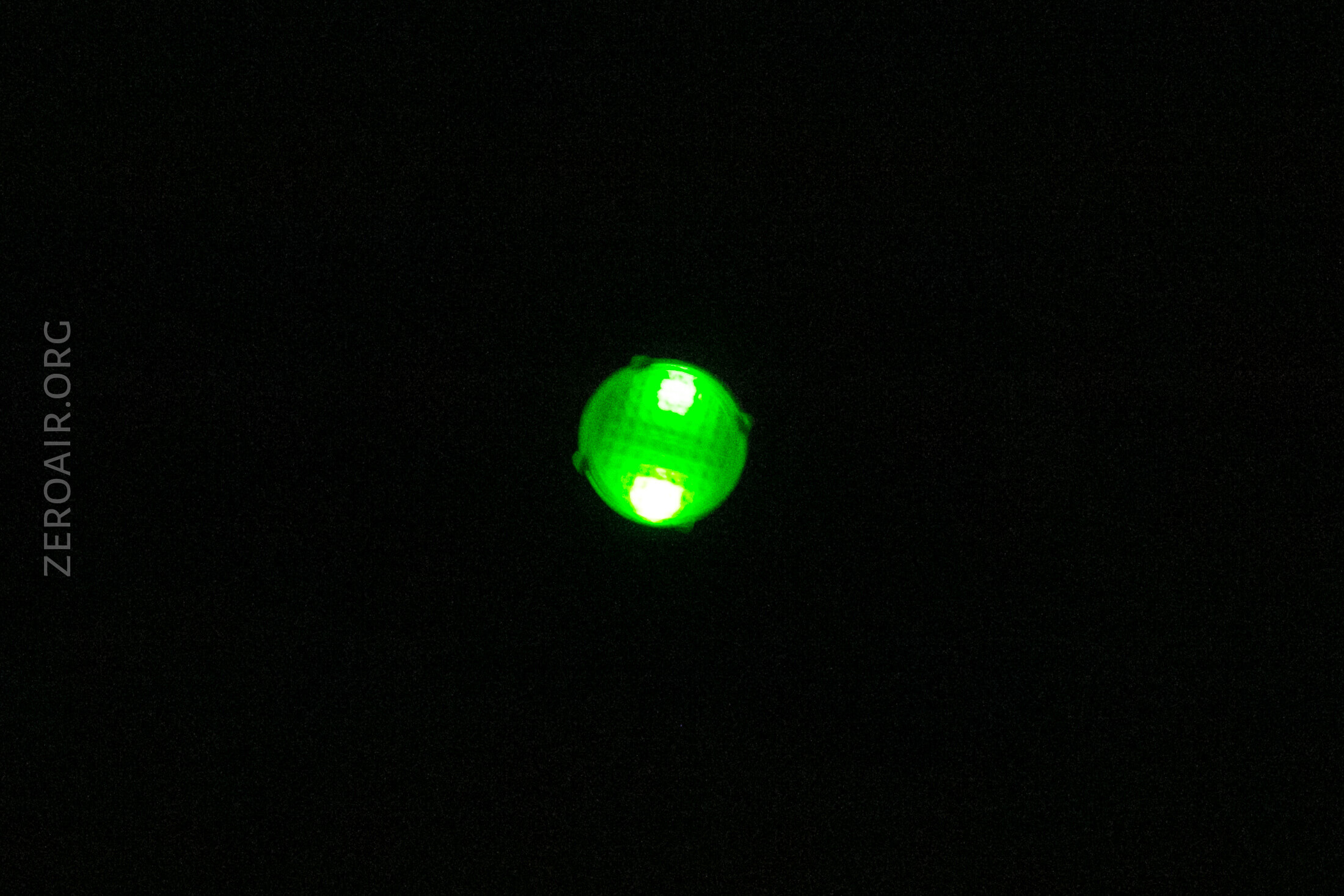

Here’s a shot of the green switch lights.

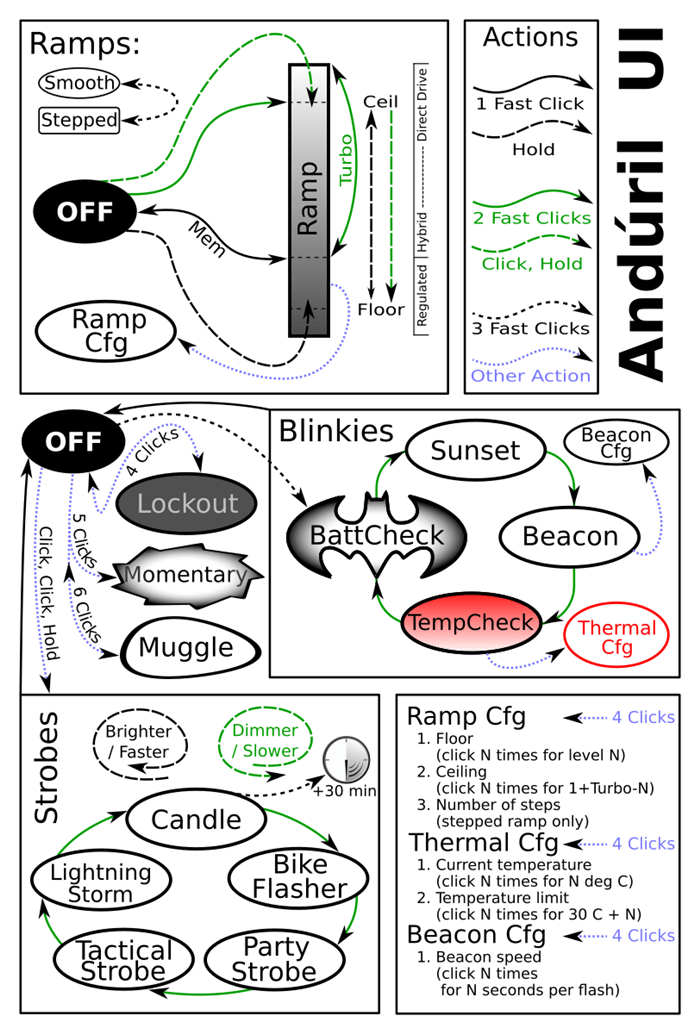

The UI here is ToyKeeper’s Anduril, which at this point is very well covered.  I’ve reviewed other lights with it, too.  Here’s ToyKeeper’s UI graphic:

Despite this UI not being all that suited for a table, here’s a UI table anyway!

State Action Result
Off Hold On (Low)
Off Click On (Mode Memory)
Off Click 2x Highest Hybrid Mode
Off Click 3x Blinkie Mode Group
Off Click 4x Lockout
Off Click 5x Momentary
Off Click 6x Muggle
Off Click, Click, Hold Strobe Group (Mode Memory Strobe)
Strobe Group Click 2x Strobe Cycle (Candle > Bike Flasher > Party Strobe > Tactical Strobe > Lightning Storm)
Blinkie Mode Group Click 2x Blinke Cycle (Sunset > Beacon > TempCheck > BattCheck)
On Click 3x Switch between Stepped and Smooth Ramp
On Click 4x Ramp Configuration
TempCheck Click 4x Thermal Configuration
Beacon Click 4x Beacon Configuration
Lockout Click 4x Off
Strobe Group Click Off
(Basically) On Click Off
Candle Click 3x 30 minute timer to off
Strobe Group Hold Heighten selected mode (Make faster or brighter)
Strobe Group Click, Hold Lessen selected mode (Make slower or dimmer)
On Click 2x FET Turbo
Ramp Configuration [Wait for Single flash] Click N time for level N. Selection of the “Low” you like best by clicking 1, 2, 3, etc. where 1, 2, 3, etc are different levels of low.
Ramp Configuration [Wait for Second flash] Click N time for 1+Turbo-N. Selection of the “Ceiling” you like best by clicking 1, 2, 3, etc. where 1, 2, 3, etc are different Ceiling levels.
Ramp Configuration [Wait for Third flash] Click for how many steps you want in Stepped mode. Sets Number of Steps.
Thermal Configuration [Wait for First flash] Click for N times for N degrees C. Displays Current Temperature.
Thermal Configuration [Wait for Second flash] Click for N times for 30C + N. Sets Temperature Limit.
Beacon Configuration [Wait for First flash] Click for N times N seconds per flash Sets Beacon Speed.

That’s a long table, and I’m pretty sure still doesn’t cover everything.

LED and Beam

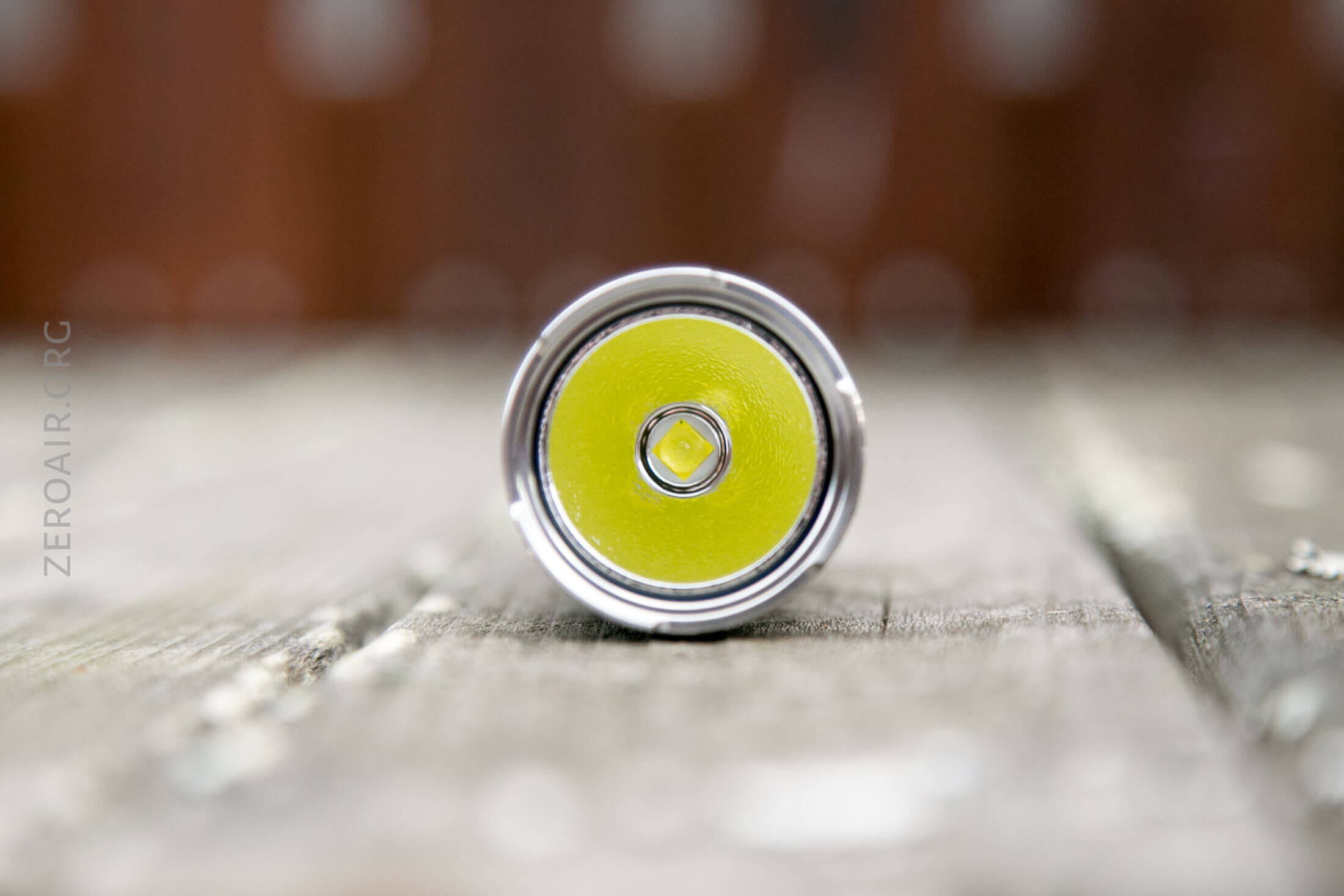

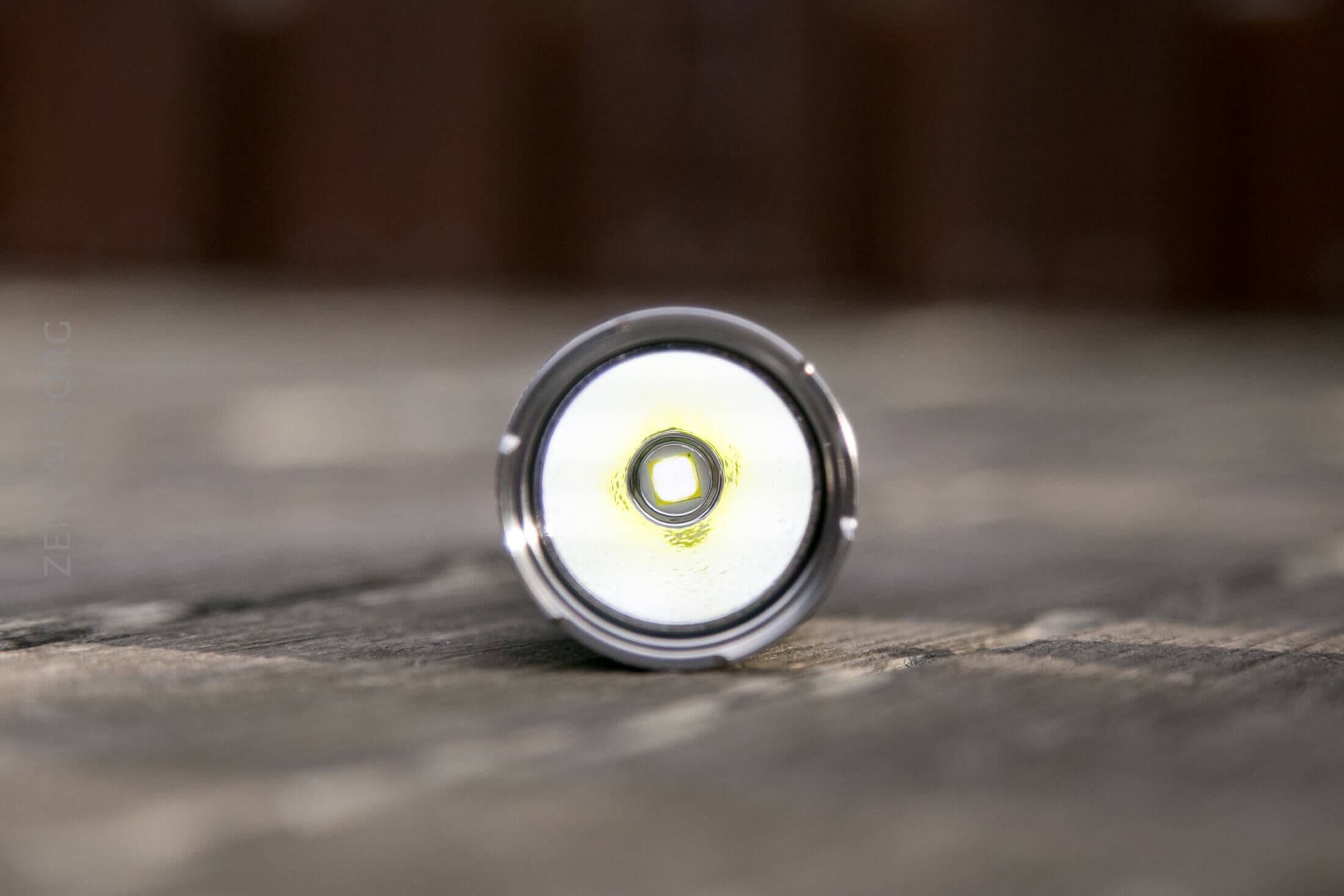

The emitter is a 6500K Cree XHP50B (aka 50.2).  There’s a moderate depth, orange peel reflector.  This makes a good bit of hotspot, and a good bit of spill.

These beamshots are always with the following settings:  f8, ISO100, 0.3s shutter, and manual 5000K exposure.

Tint vs BLF-348 ( 219b version) (affiliate link)

I compare everything to the Killzone 219b BLF-348 because it’s inexpensive and has the best tint!

Random Comparisons and Competitive Options….

Here’s a link to a relevantly filtered page on  I use that site a lot!

There’s not a lot else in this category, in particular because it offers USB-C charging.


What I like

  • Very high output
  • Anduril is a nice UI
  • I like 21700 lights, and it works great in this format (ie not pocket format)

What I don’t like

  • 6500K is just … not my preference
  • Only way to carry is the lanyard (belt clip? nylon pouch?)


  • This light was provided by BangGood for review. I was not paid to write this review.
  • This content originally appeared at  Please visit there for the best experience!
  • For flashlight-related patches, stickers, and gear, head over to!
  • Use my referral link if you’re willing to help support making more reviews like this one!
  • Please support me on Patreon!  Feeding flashlights is expensive!  And funding Fun Fund Friday even more so.  I deeply appreciate your support!
Liked it? Take a second to support zeroair on Patreon!

11 thoughts on “Astrolux EC01 Flashlight Review”

  1. Thanks for the review, but why do you have on the table for currents on the highest mod just [FET]? The maximum current is pretty important value :/

    1. It’s a FET, so it’ll use whatever the cell in the light can deliver. Better cell, better performance.

  2. Would you recommend a 10A, 20, 30A, or 40A battery? Can 40A be too much for the FET? would a lower amperage give longer runtimes (I don’t understand it, but I’ve read about sag). I’ve seen a battery listed as high-drain, high mAh, but also as protected. Is that even possible? And if it did fit the tube, would it be usable to give max lumens with this light?

    1. Would you recommend a 10A, 20, 30A, or 40A battery?

      Your choice. I wouldn’t worry too much about it… I’d lean toward the 20A range, I suppose.

      would a lower amperage give longer runtimes

      Not really, I don’t believe. Lower amperage cell will just have lower output on the highest mode, and the burden on the cell will be greater.

      I’ve seen a battery listed as high-drain, high mAh, but also as protected. Is that even possible?

      It’s not really impossible, but a protected cell has to start somewhere. So if there isn’t a corresponding unprotected cell with the same capacity/amp rating, then I would be suspicious.

      And if it did fit the tube, would it be usable to give max lumens with this light?

      I can’t see why not.

  3. Did you calibrate the thermal sensor before testing? If not then your output and runtime tests aren’t accurate. All 6 EC01’s came with 37-42 degrees stock and would start stepping down almost immediately
