Lumintop Tool AA Flashlight Review

Preface

I have reviewed a bunch of Lumintop lights, and really, I’m a fan.  The Tool AAA series was good enough that after I got the two review versions, I bought two more myself!  This is the Tool AA, which shares the look of the AAA version, and features as well.  Like the AAA version, there are a few options for this light.  Read on!


Official Specs and Features

Versions

There is a reverse clicky, and twisty tail version of this light.  The package I have for review contains both UI options.  There are also many colors in this light:  Black, red with green cap (seen here), blue with green cap, purple with green cap.  The color options seem to be named “Tool AA C-Edition” which I take to mean “Christmas” but I can’t find that verbiage on the product page.

Price

The Tool AA sells for around $20-22.  GearBest the Tool AA C-Edition for $21.90 right now.


Short Review

This is a fine little light.  One I probably prefer on an AA cell, but I love the option for a 14500 as well.  The build is great and the light feels like quality in hand.

Long Review

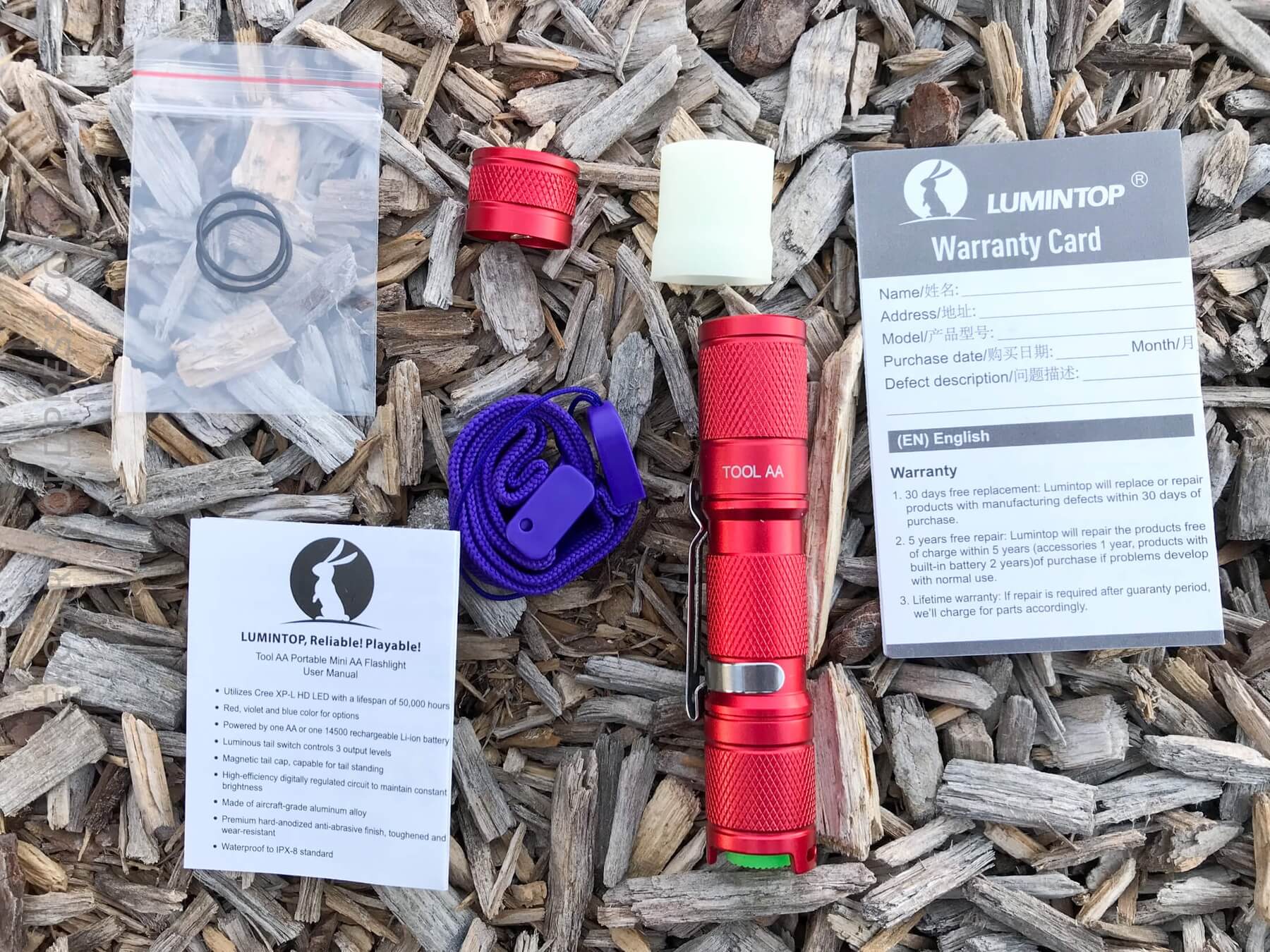

What’s Included

  • Lumintop Tool AA C-Edition
  • Twisty tailcap (with magnet) and Reverse Clicky tailcap (both!)
  • Spare o-rings (2)
  • Lanyard
  • Silicone glow diffuser
  • Manual and paperwork


Package and Manual

Lumintop strayed from their normal package, because this is intended as a Christmas light.  The Lumintop branding is there, with a bit of Merry Christmas imagery.  The package is void of specs and features, but a GearBest inventory sticker has been added.

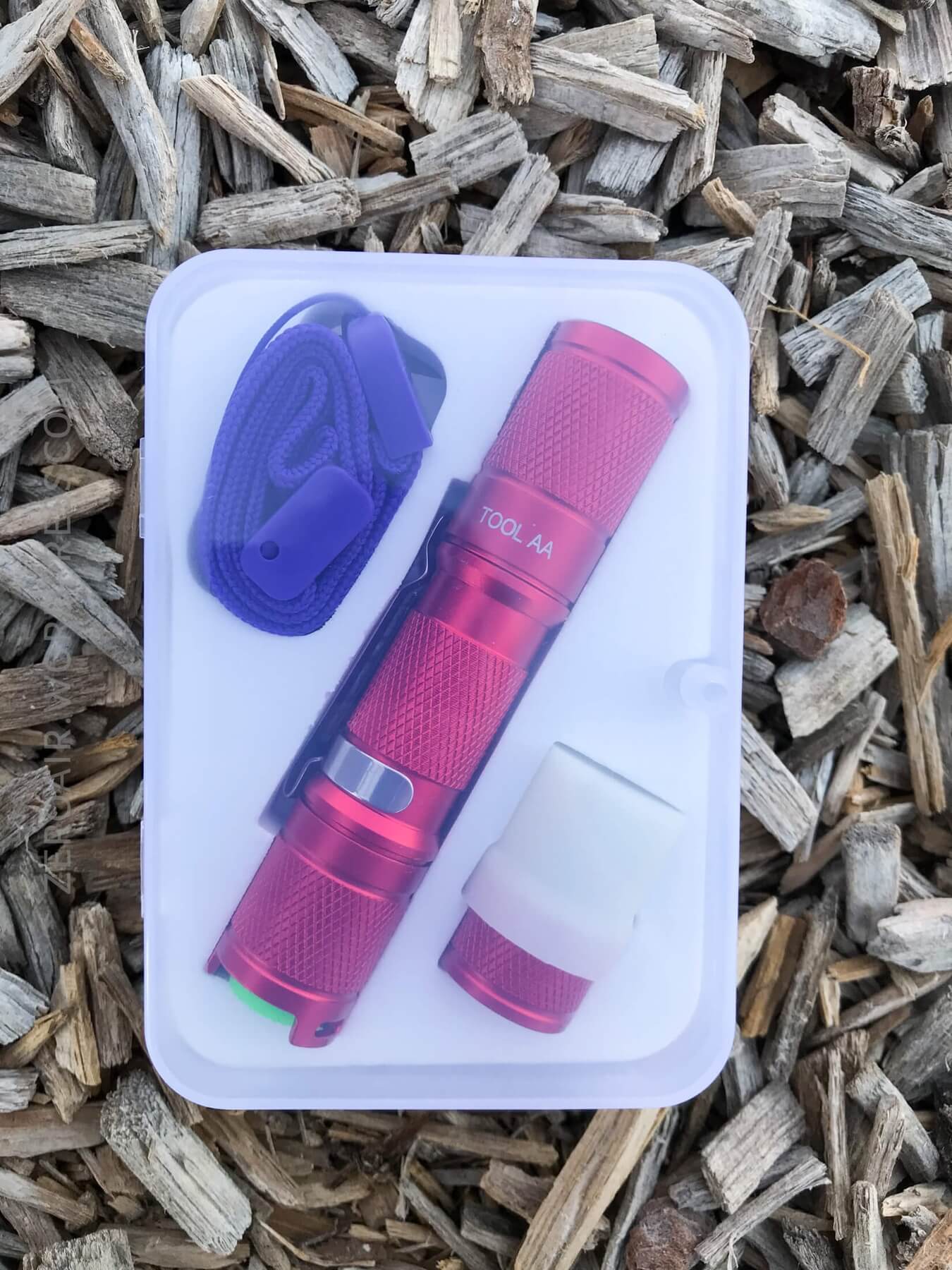

Inside the cardboard package is a plastic flip-top container (good for permanent storage), held closed with two tiny magnets.  The light and goods are held in place in foam cutouts.

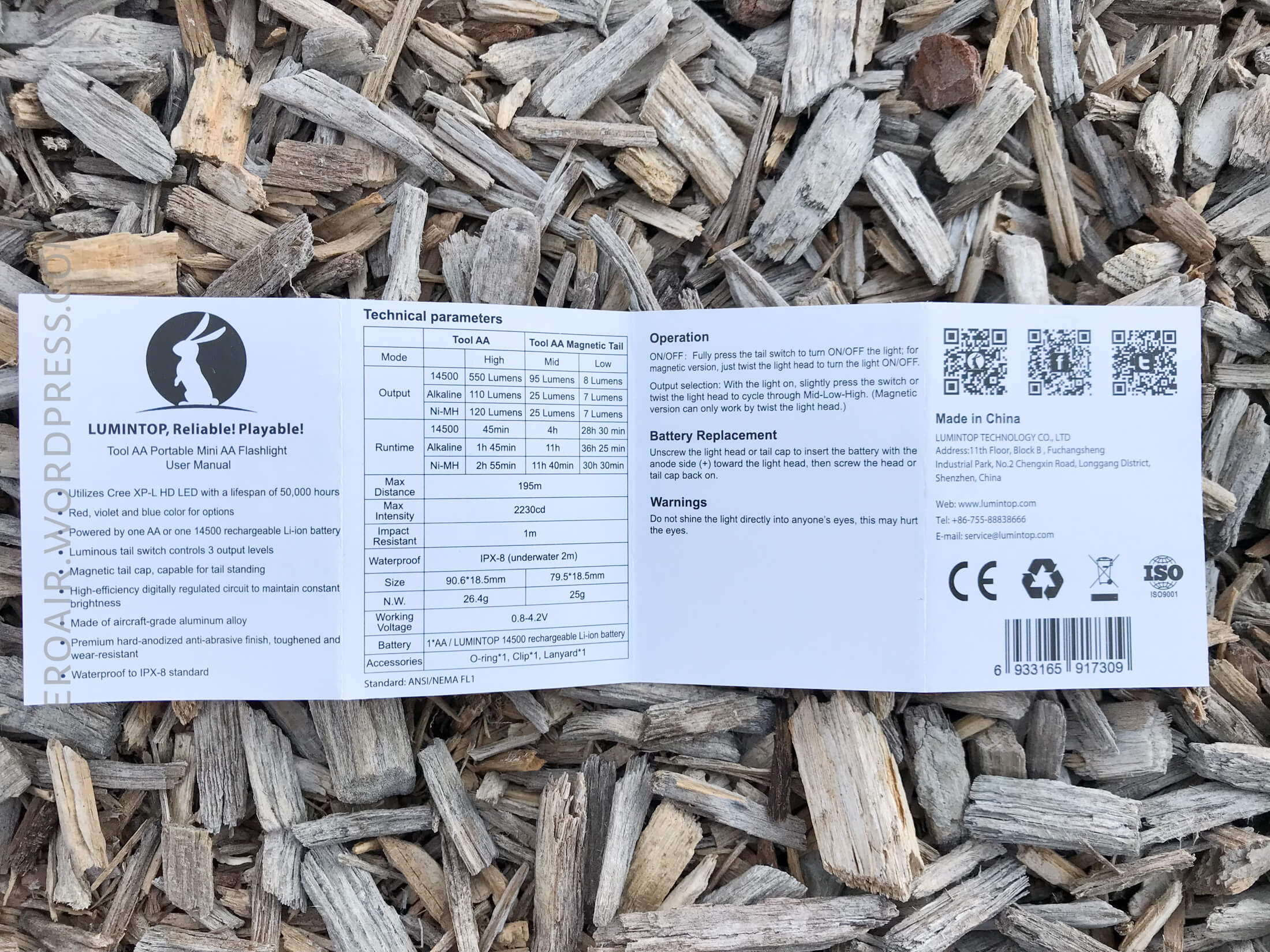

The manual is ok – I find the table with runtimes and output to be slightly confusing, and I’m not sure the UI is covered completely enough.  However, it’s an uncomplicated light.


Build Quality and Disassembly

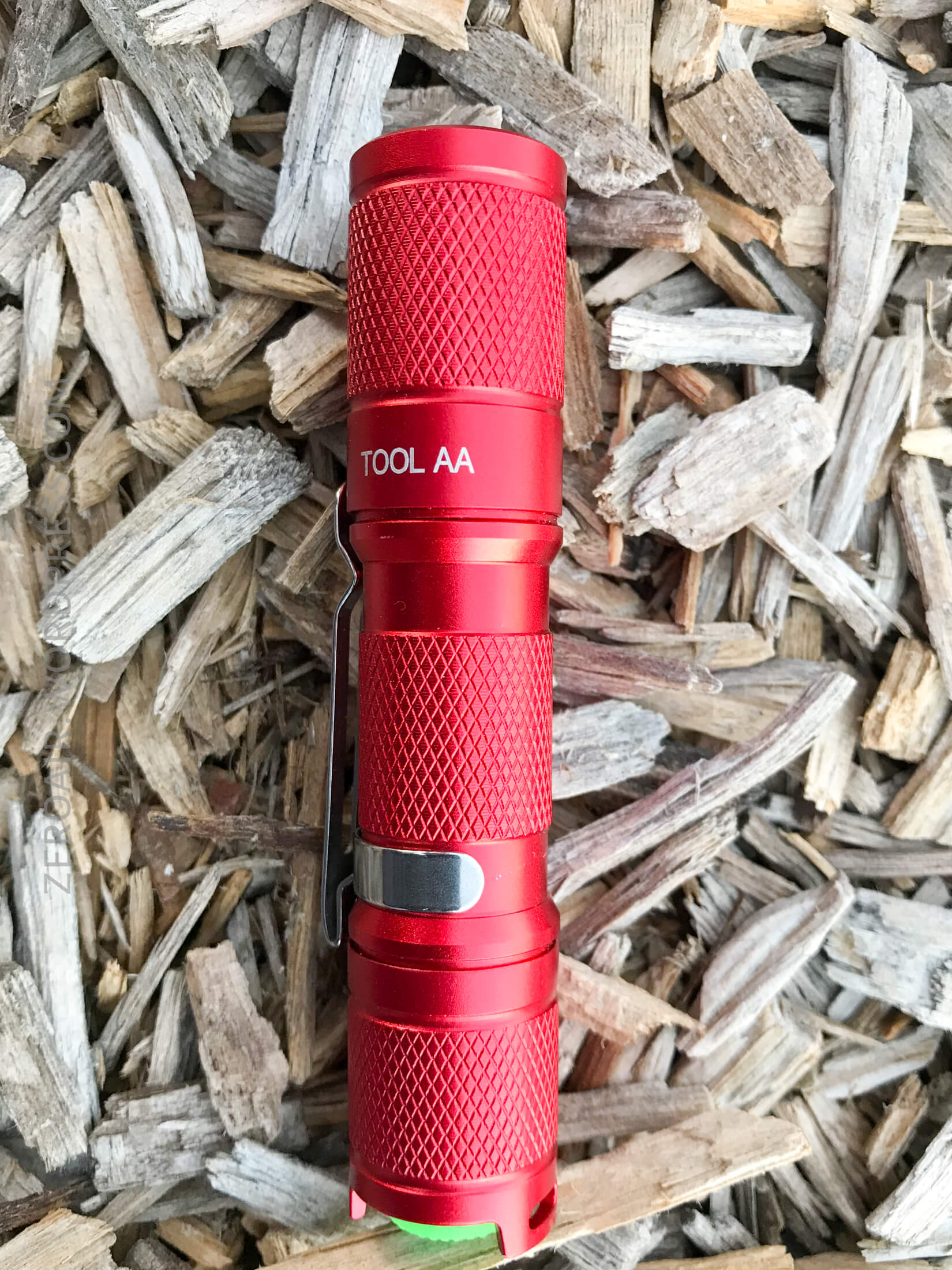

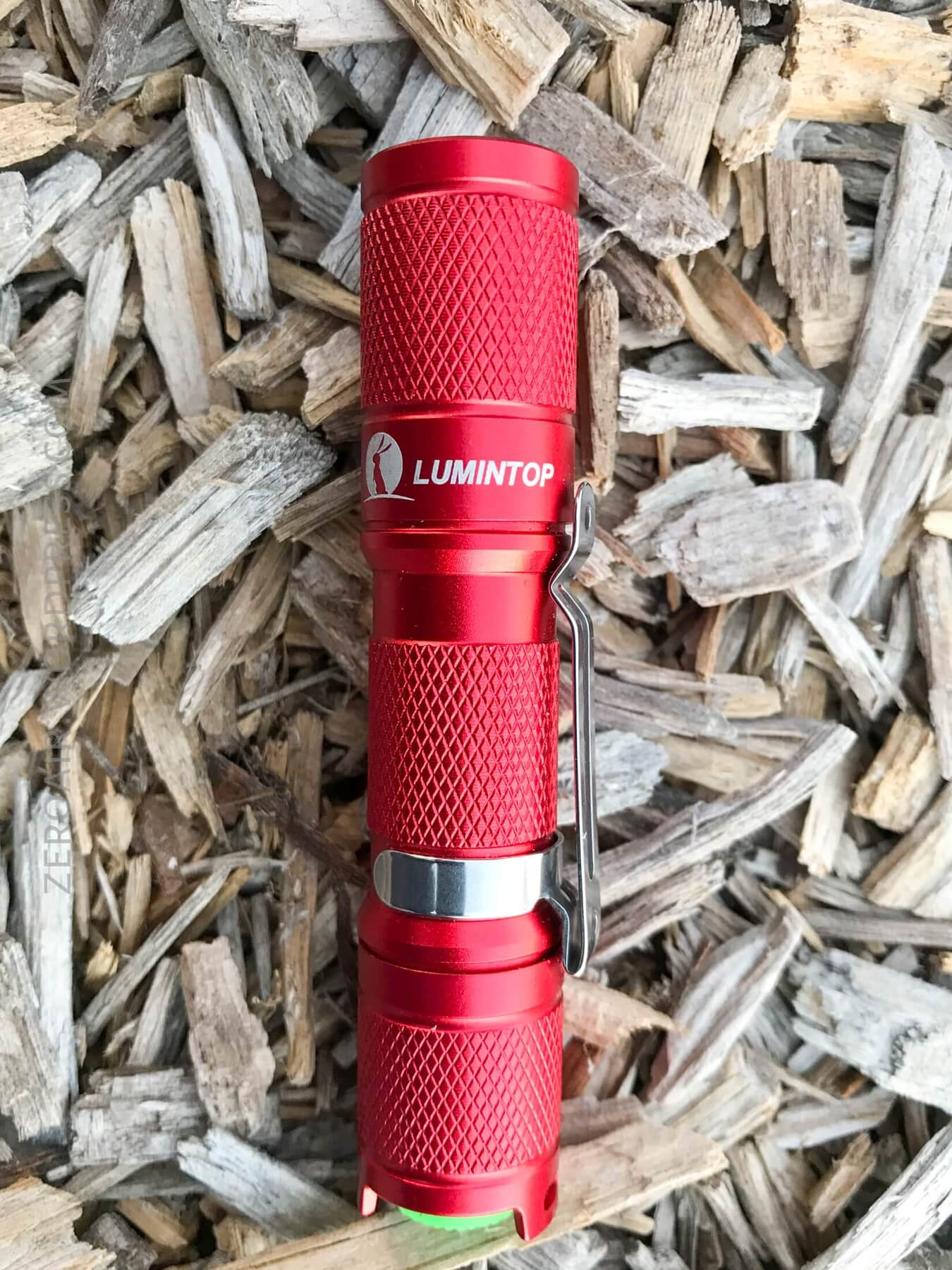

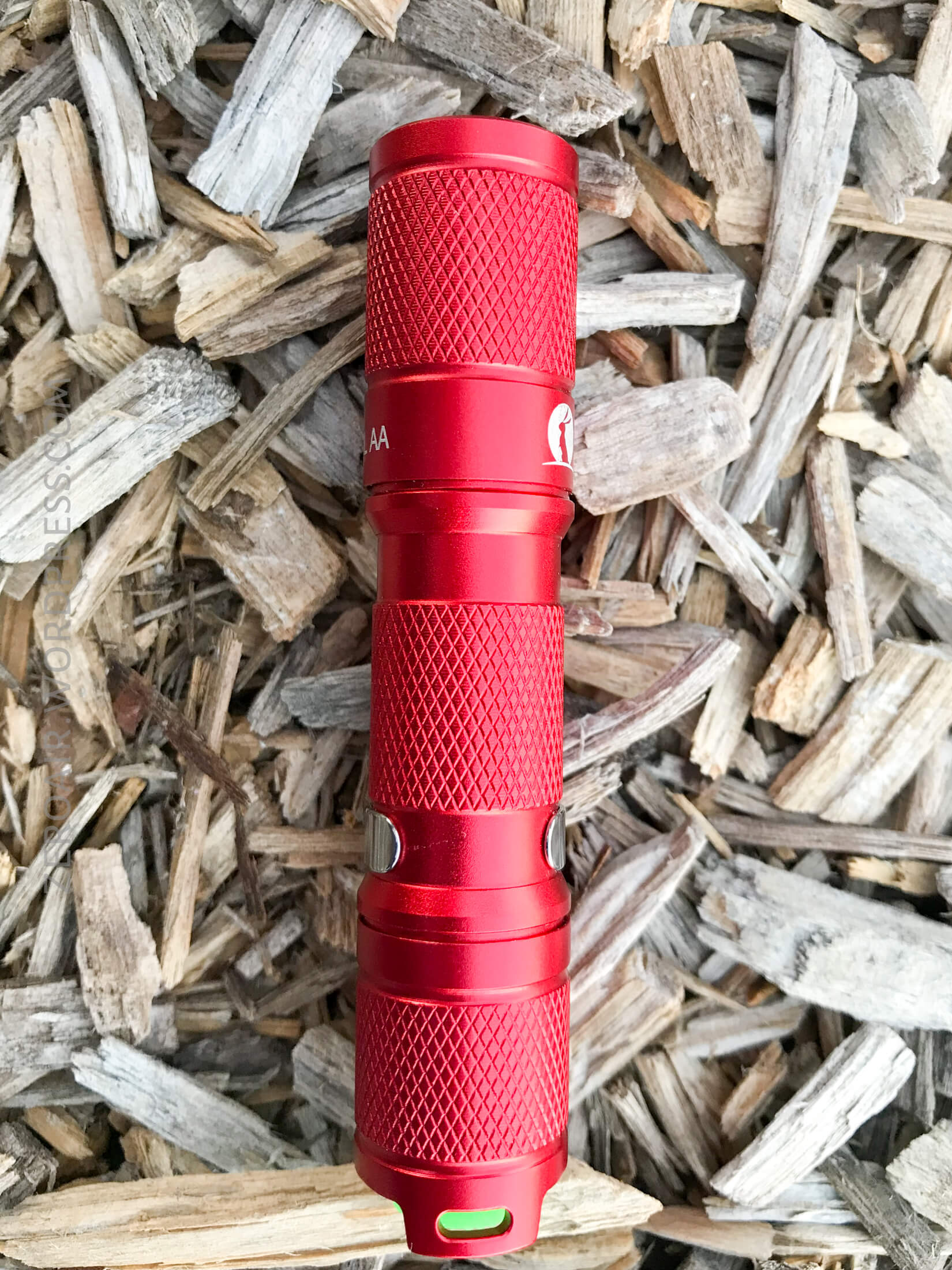

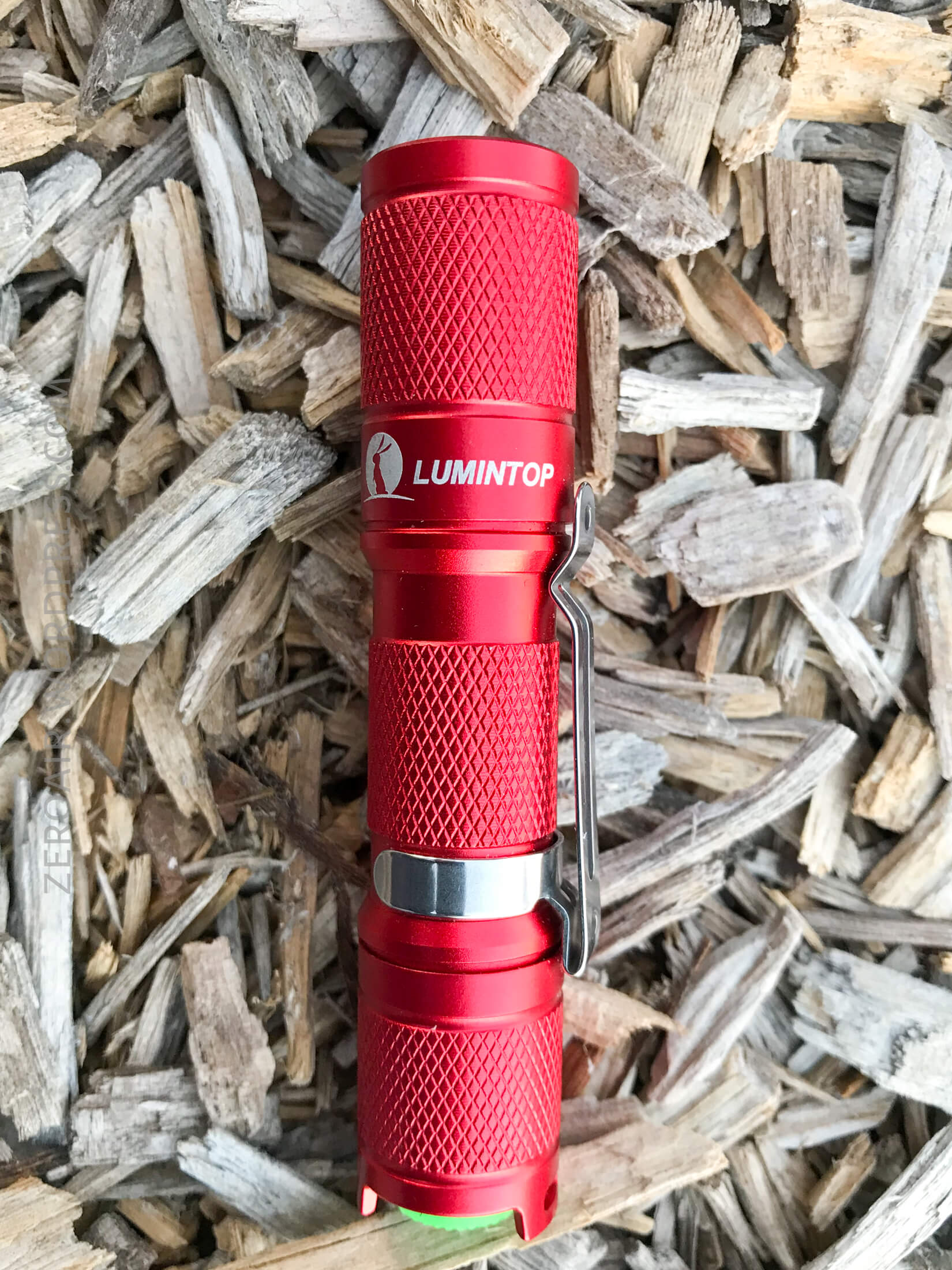

As stated above, this is a nicely built light.  Most Lumintops are, really.  The red anodizing on this light is superb.  There’s a nice gloss to it.  The knurling is diamond pattern but very shallow and not grippy at all.

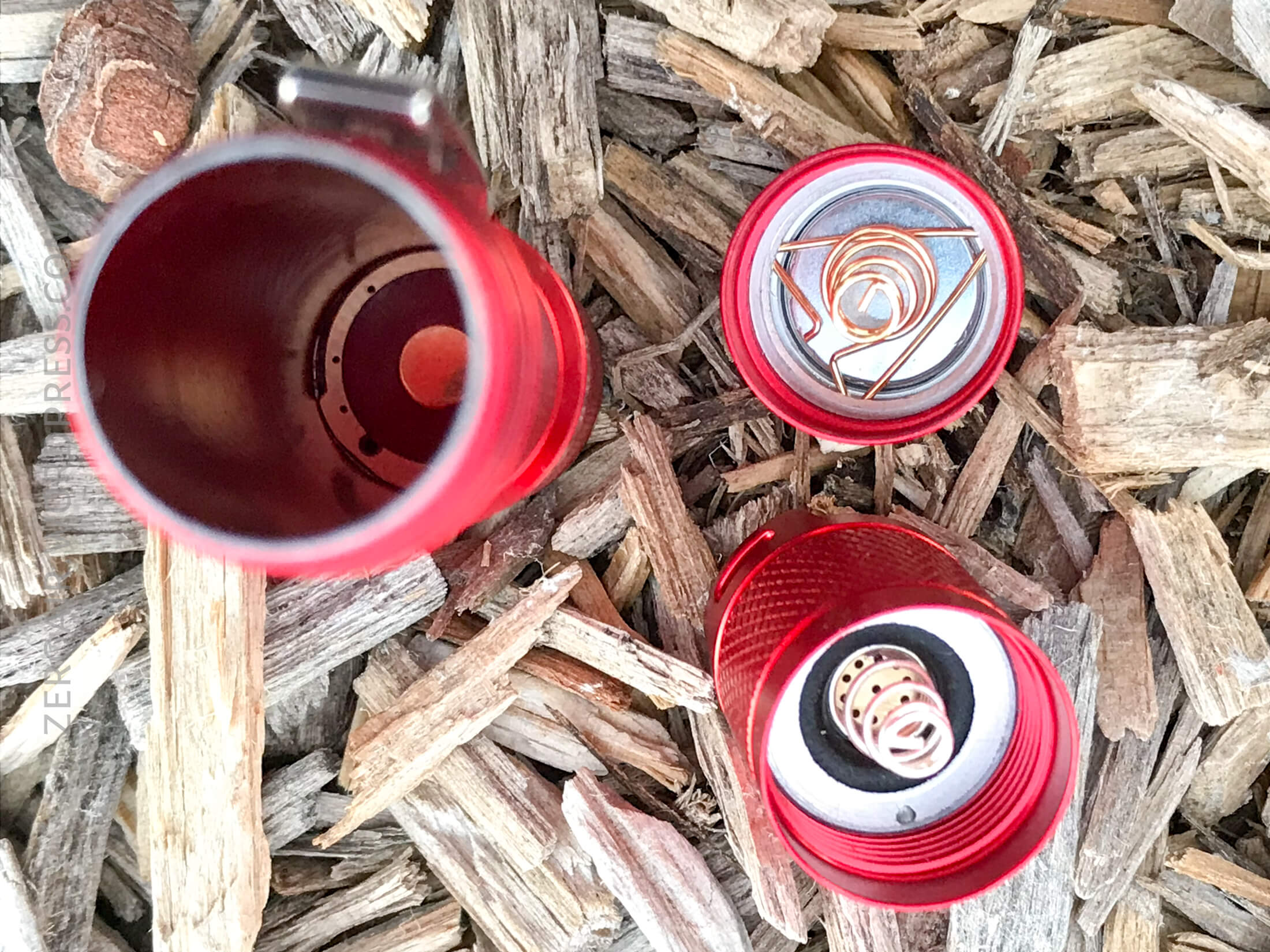

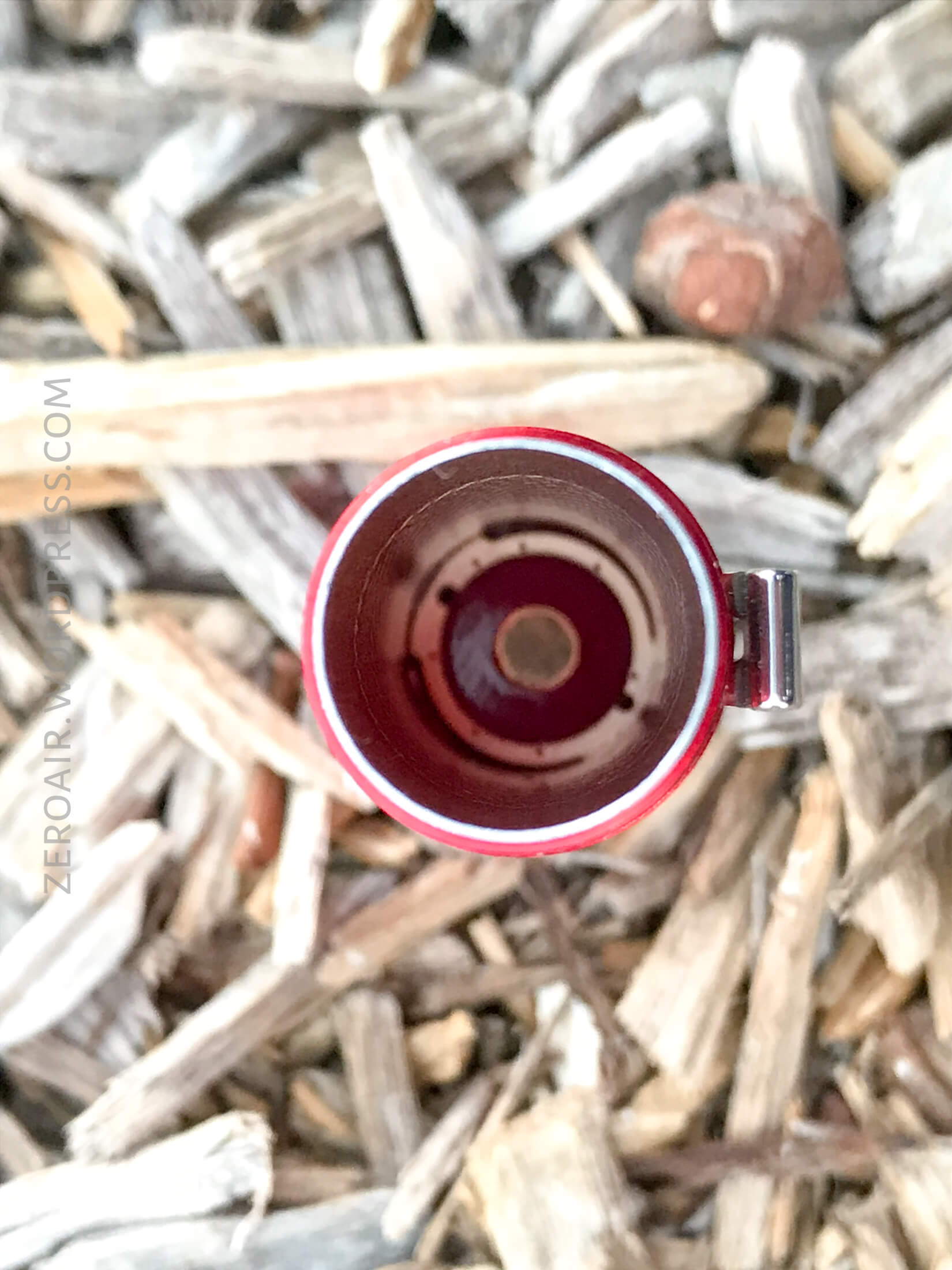

The light disassembles quite well.  The head and tail come off the cell tube, which is reversible.  The clicky tailcap has a retaining ring, so the clicky and boot may be accessed and maintained.  The emitter end as well, can be unscrewed to reveal an aluminum pill and the emitter, for easy swapping.  The magnet on the tailcap is held in with a “retaining spring.”

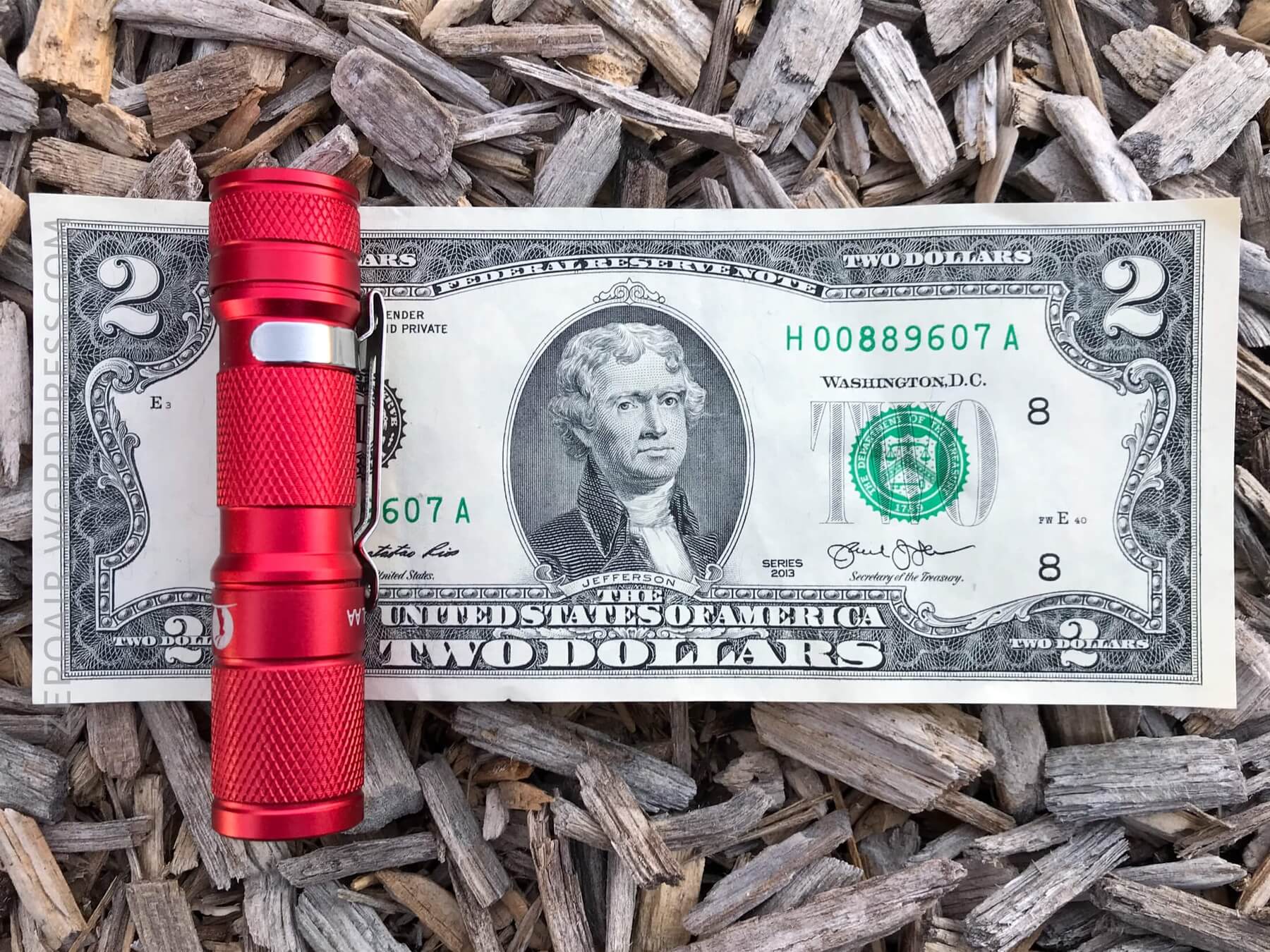

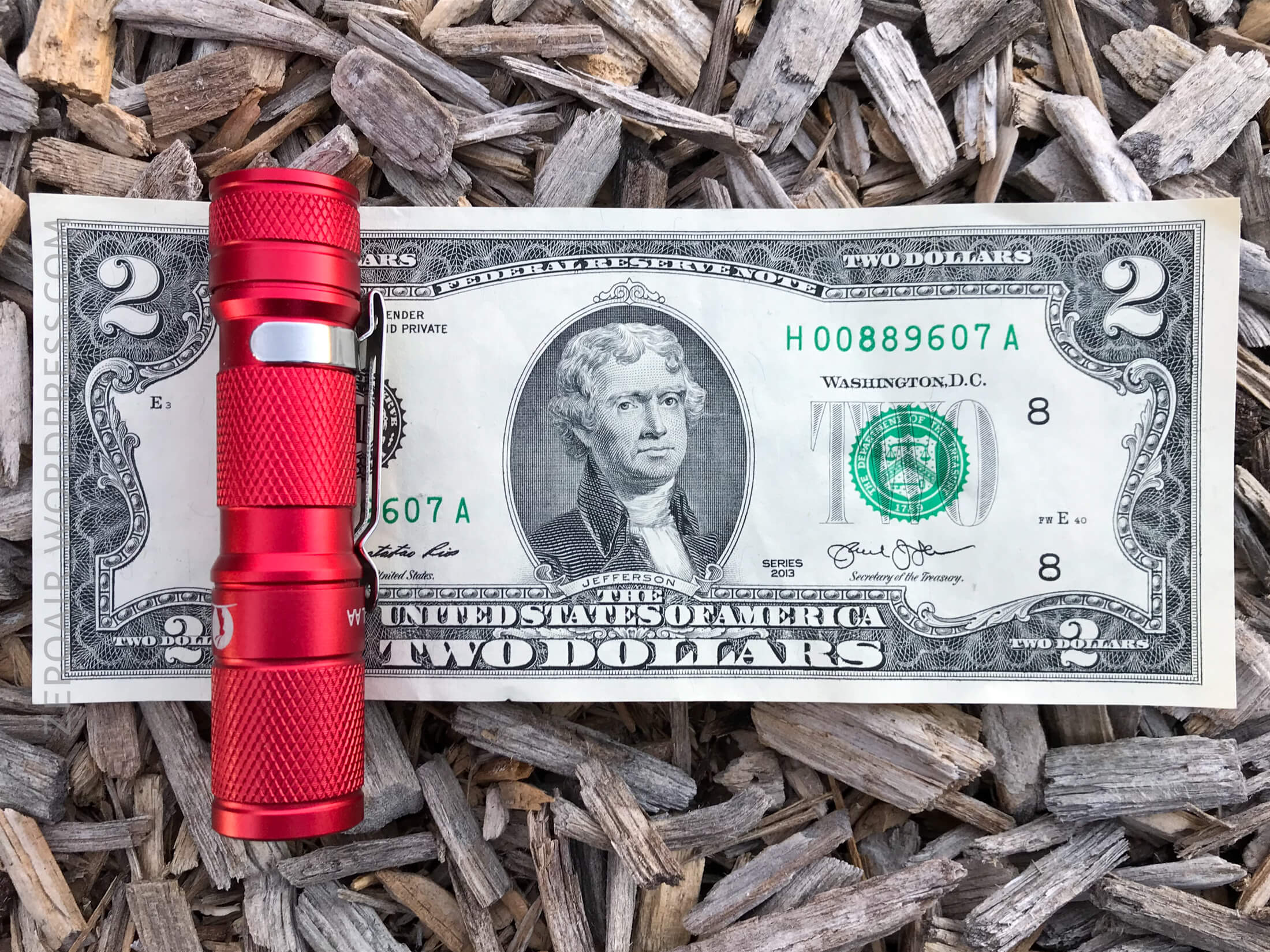

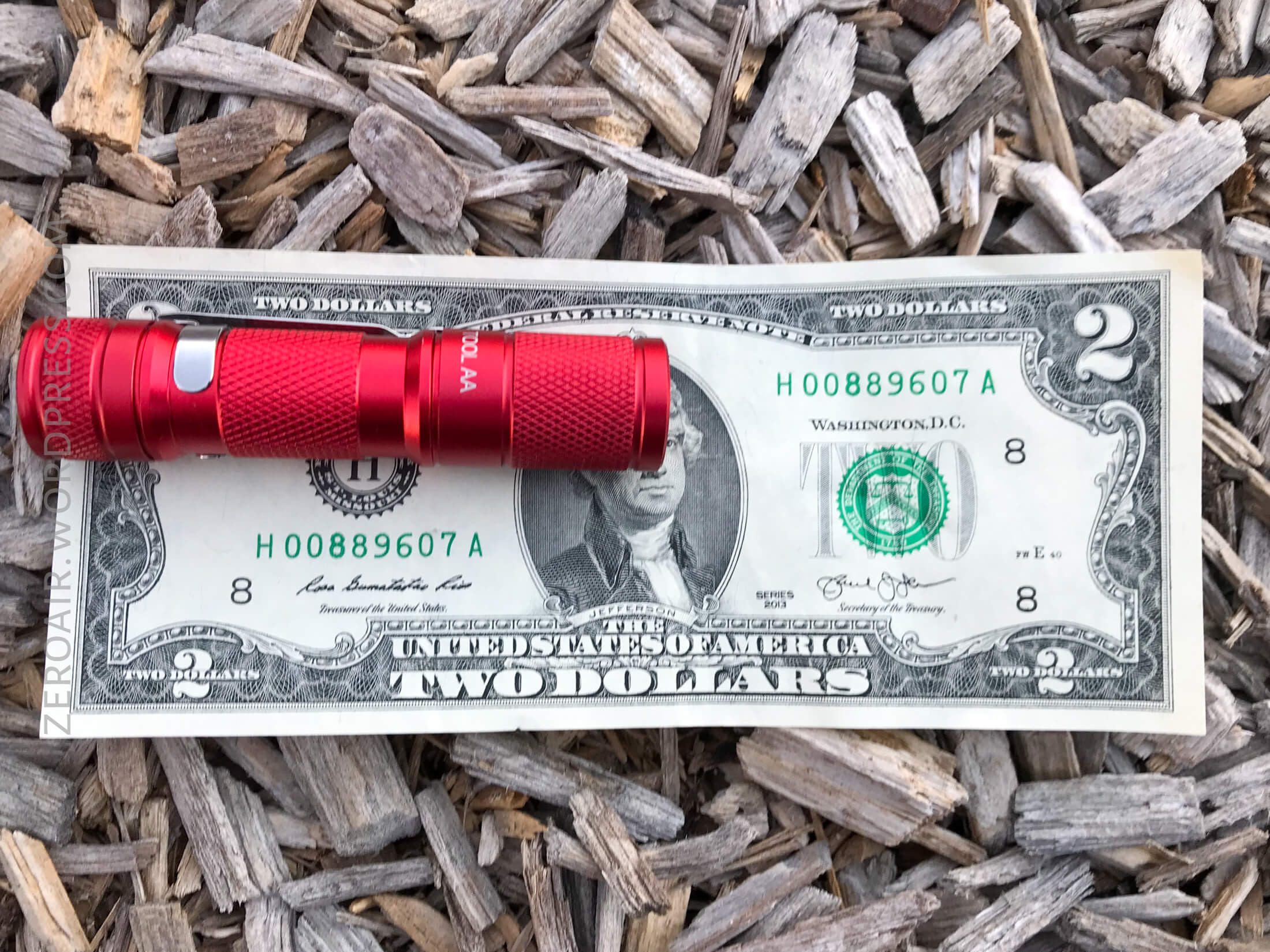

Size

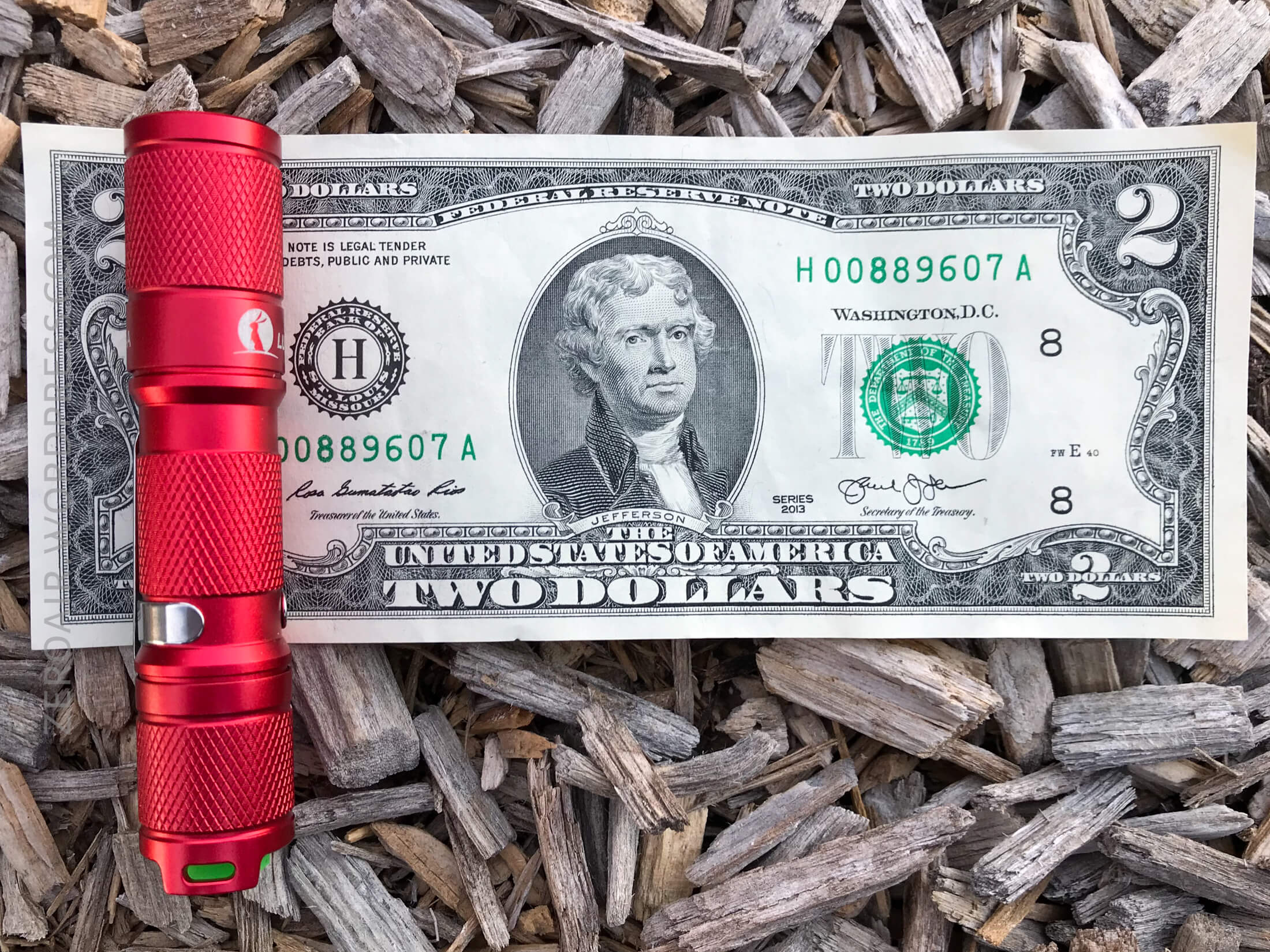

Officially: 91.5mm long, and 18.5mm wide, weighing 23.5g.  The twisty version of this light is a fair amount shorter than the clicky version.

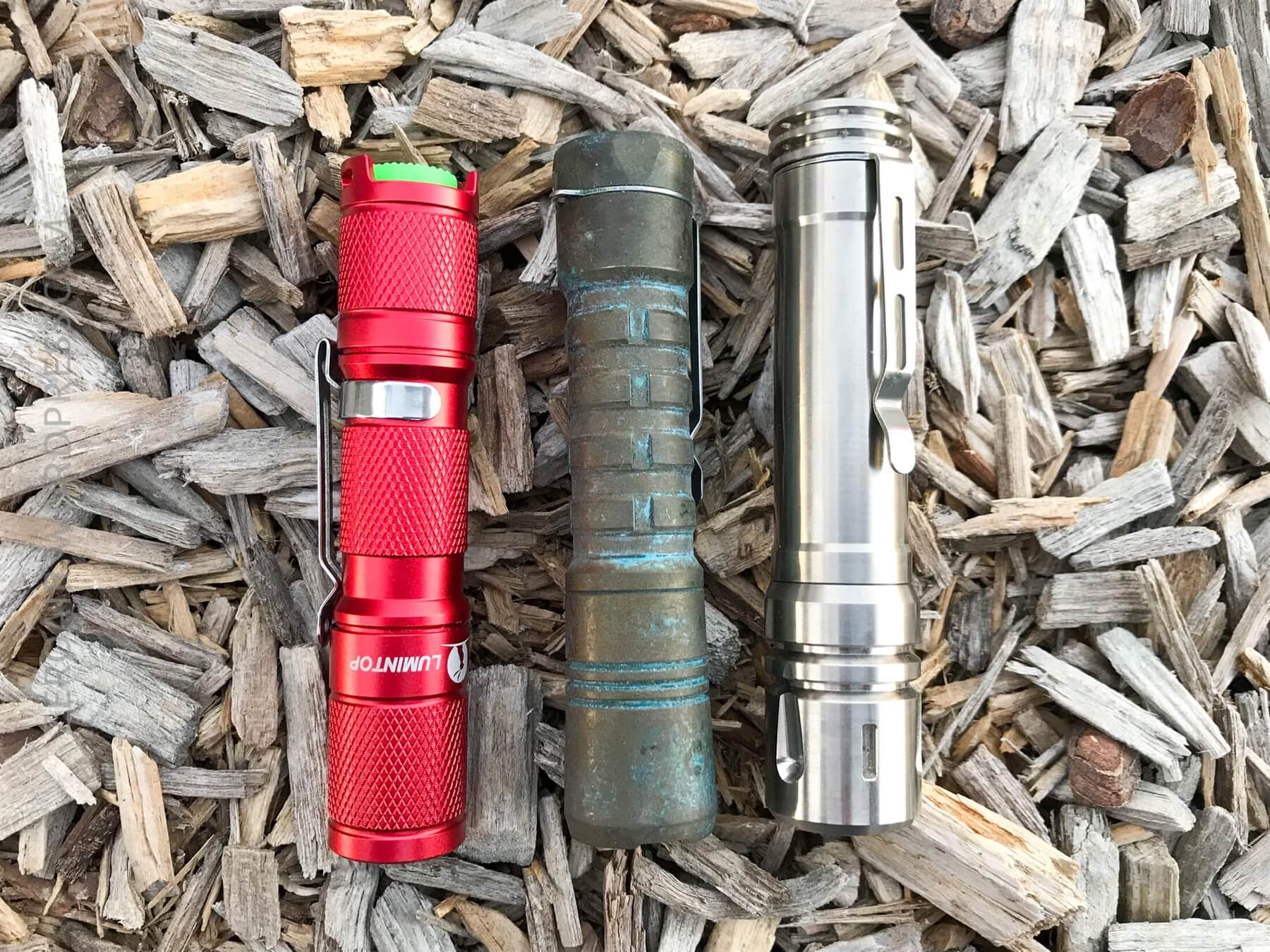

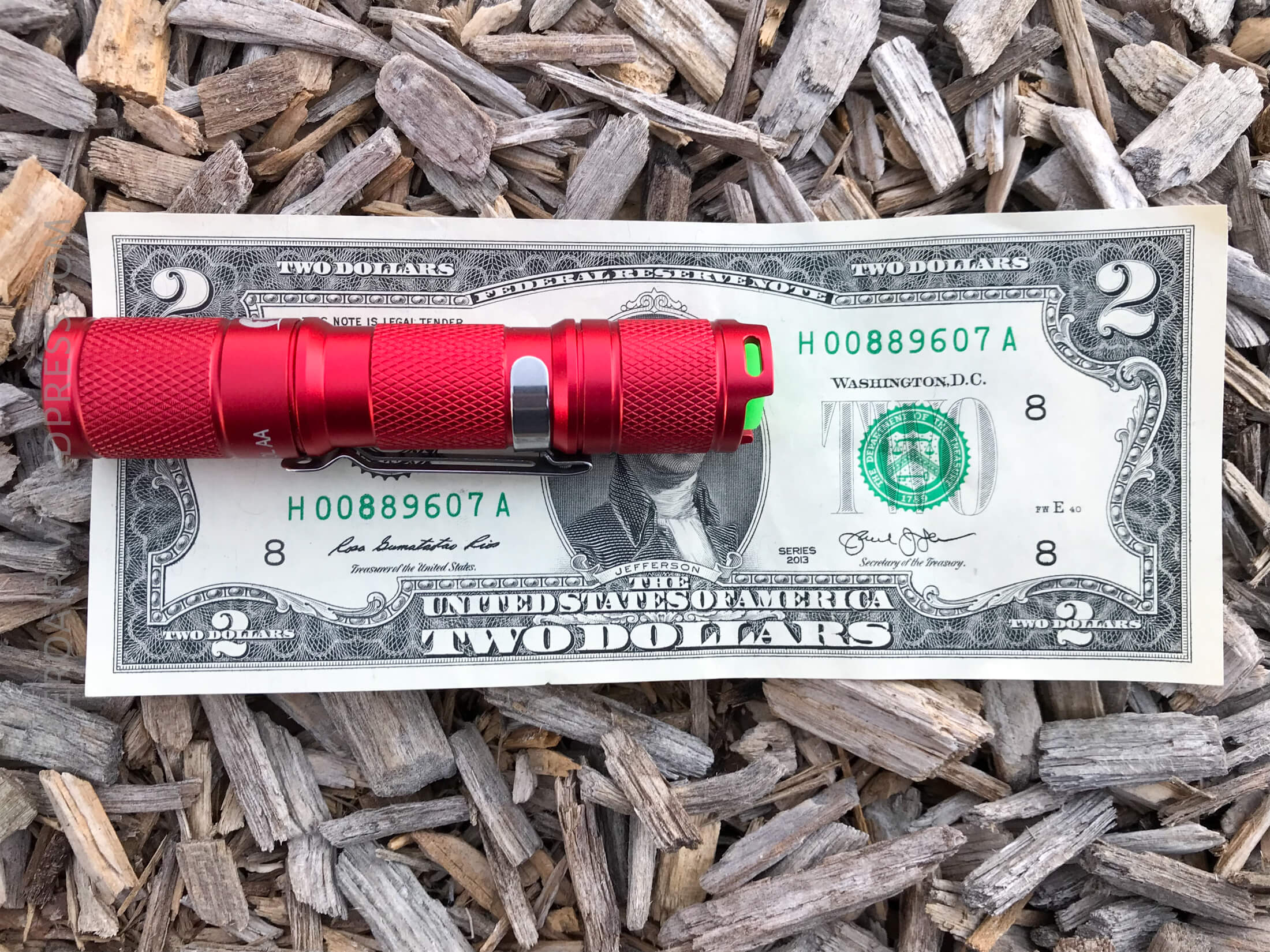

The Tool AA is in line with other AA sized lights I have on hand.  A little shorter, even in the longer configuration, actually.


Retention

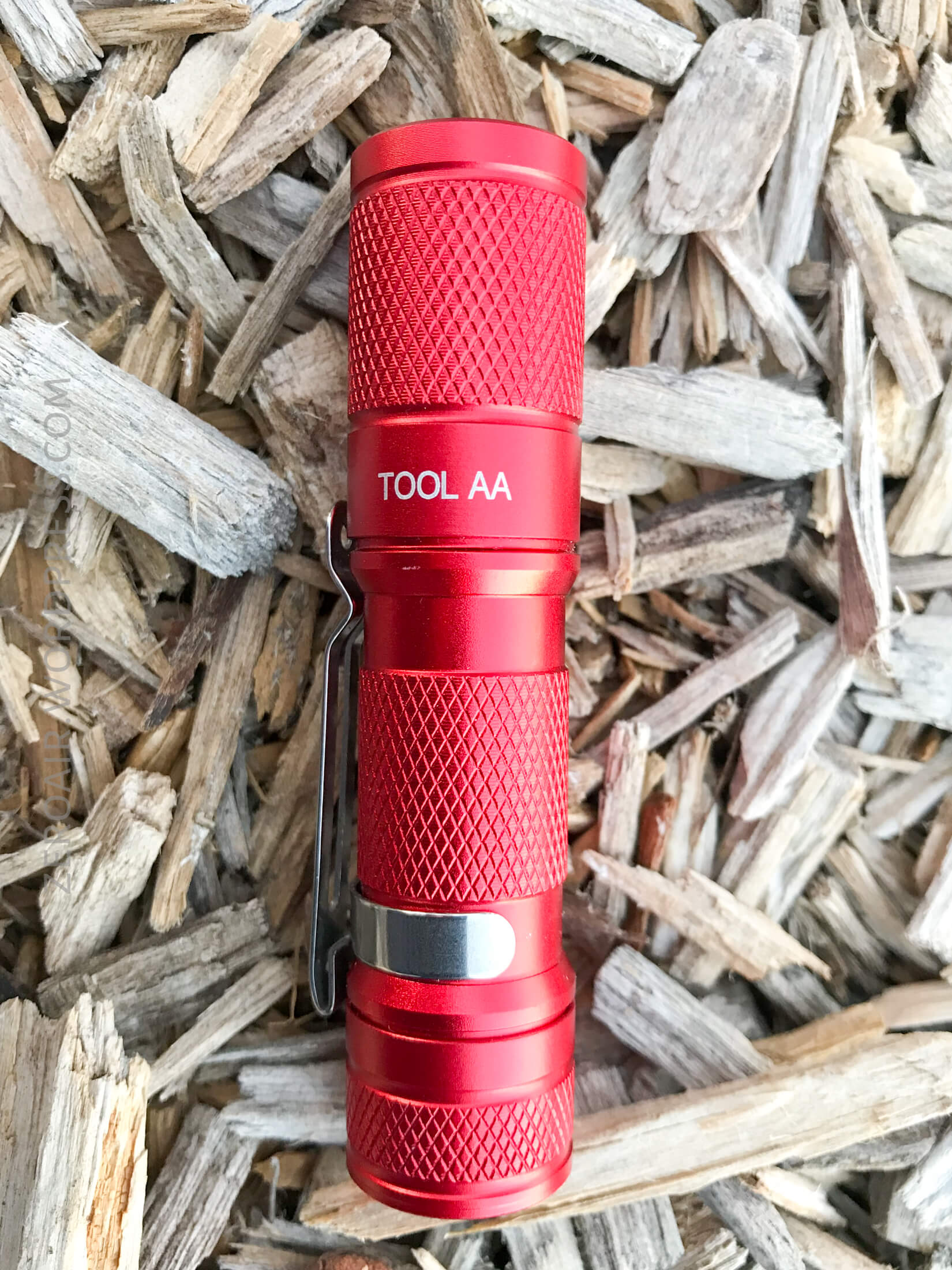

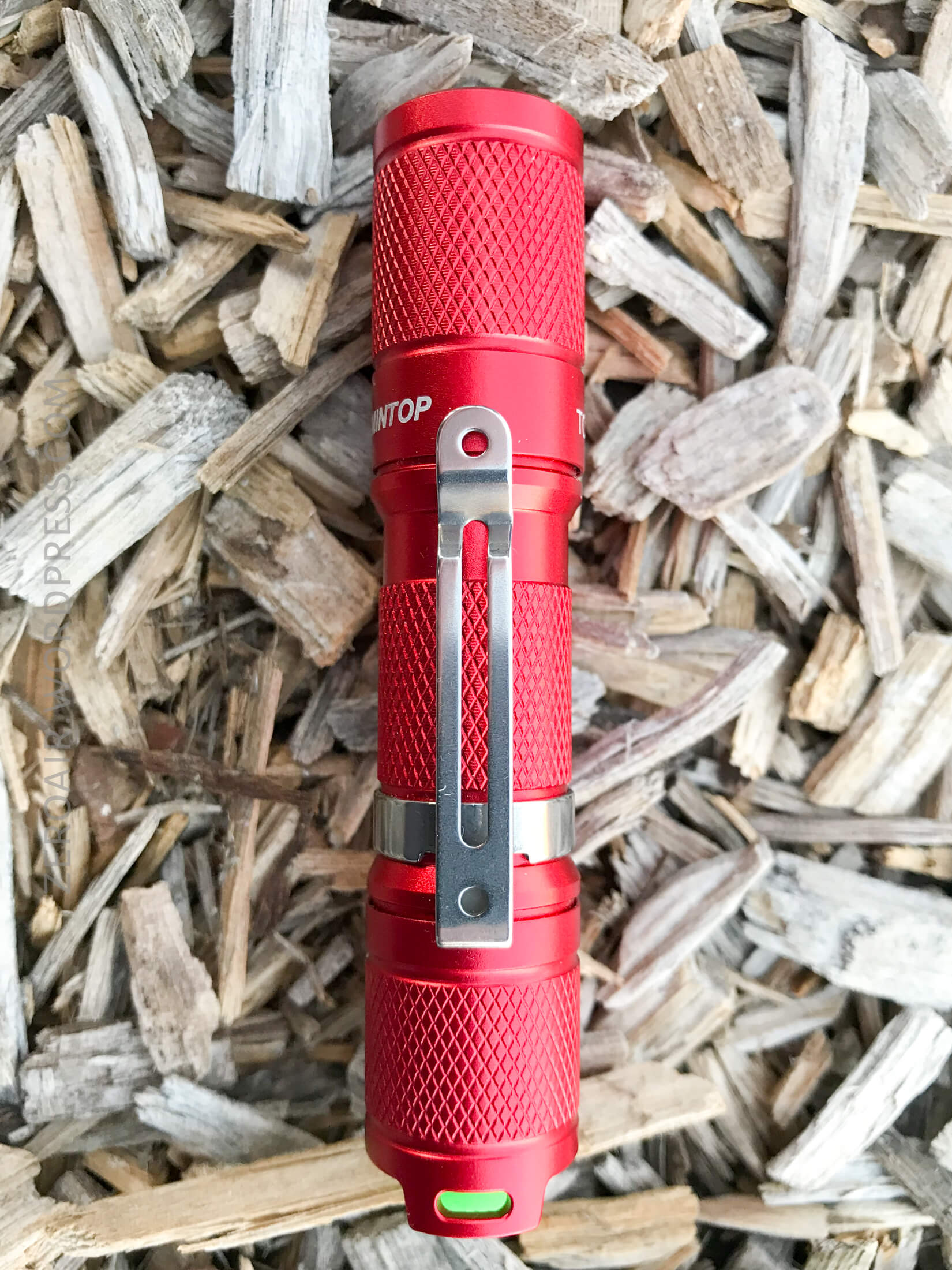

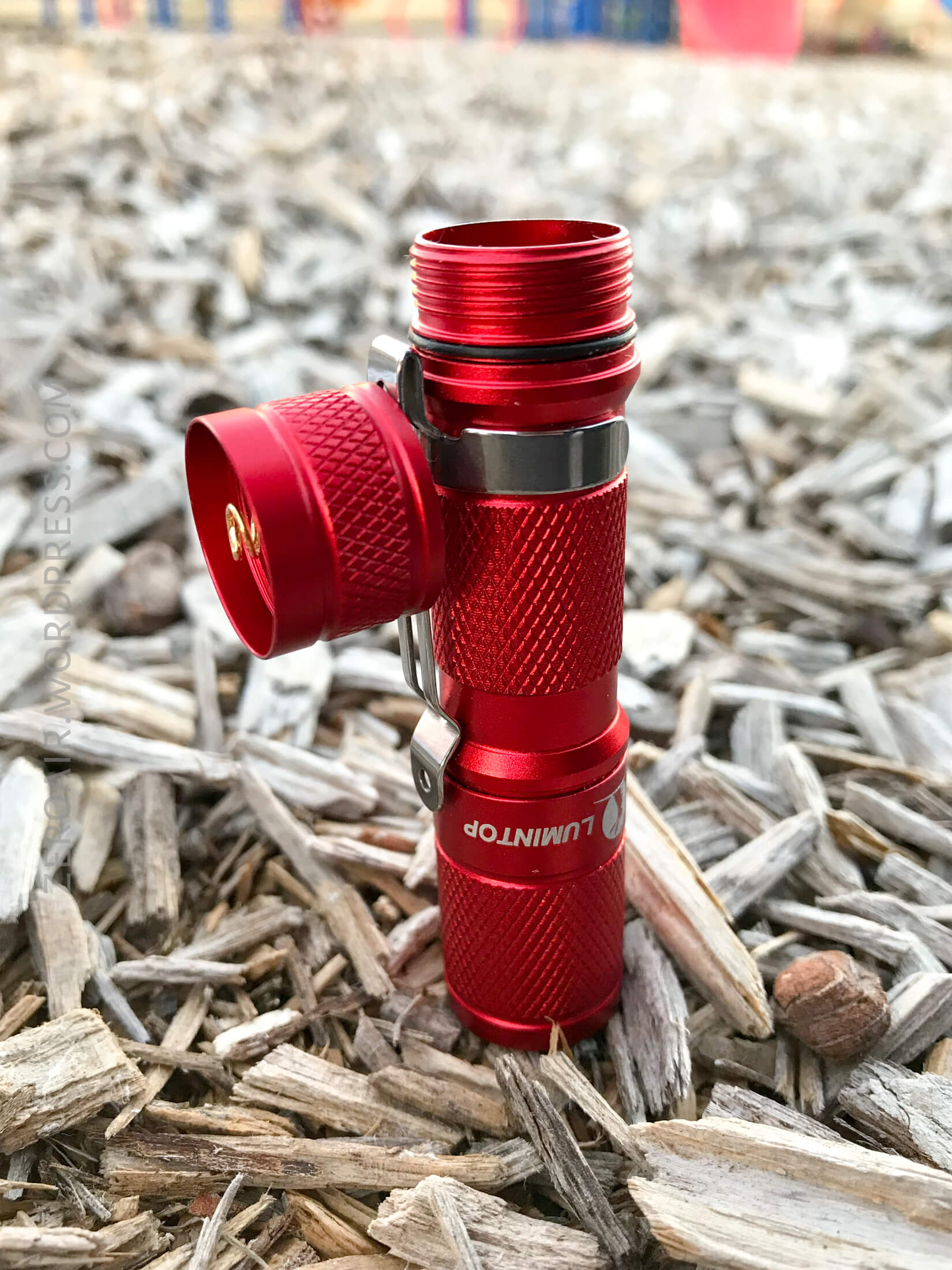

The Tool AA arrives with a reversible pocket clip installed.  Since the tube is reversible, one may switch the direction of the clip without actually removing the clip; just take the head and tail off and swap them (and flip the cell too!).

20180302-IMG_8796

Also included is a very usual lanyard, colored purple.  Does that make it unusual?  It connects in a usual way, anyway.  With the clicky, the lanyard may attach to the tailcap.  With the twisty, the lanyard must attach to the pocket clip, where there’s a hole at the shoulder and mouth for attachment.

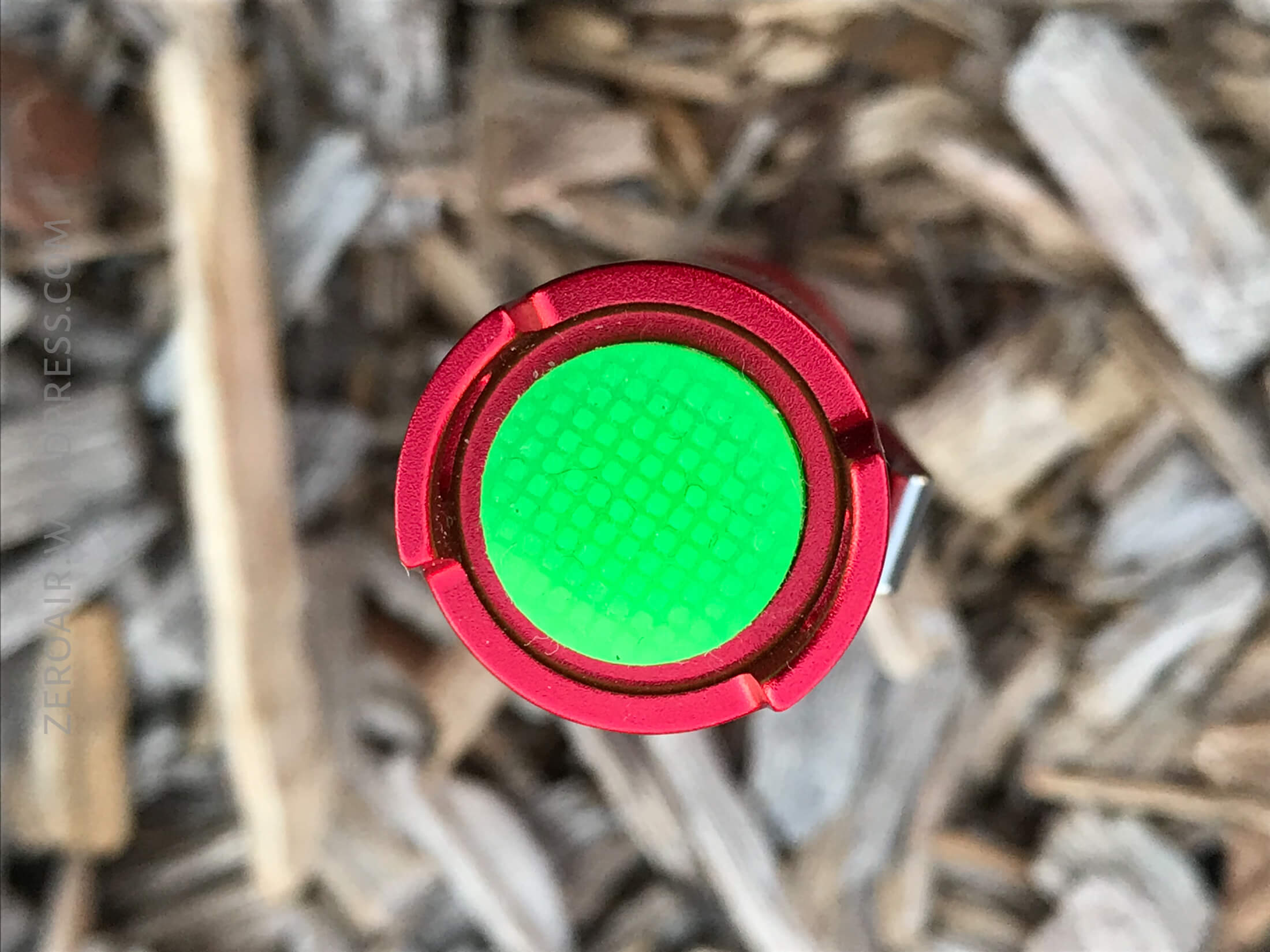

Also included (in the twisty cap) is a magnet.  It’s quite strong, and also I believe, removable.


Power

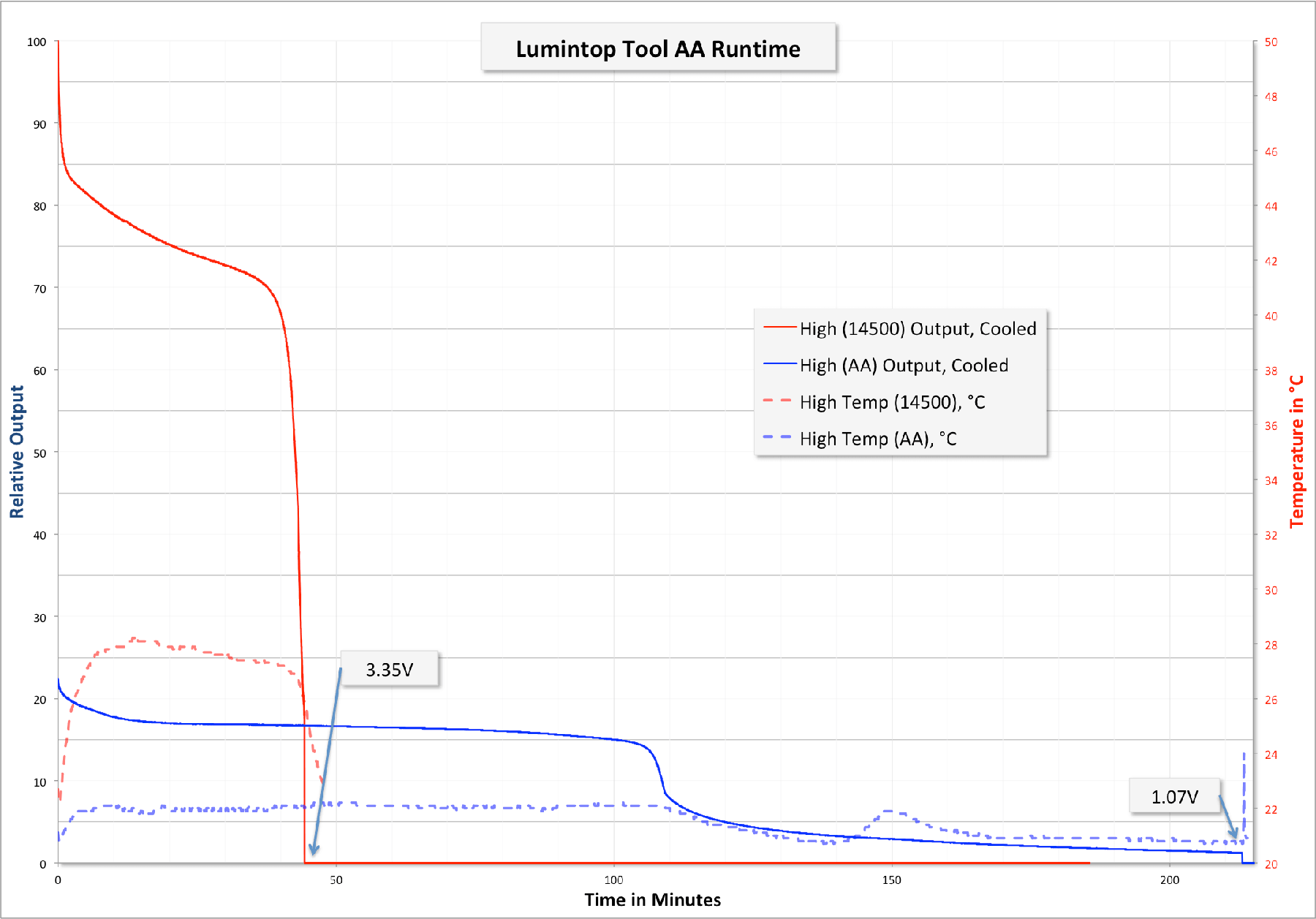

The Tool AA is powered by a single cell.  It’ll work with NiMH, Li-ion, and Alkaline.  I tested with only NiMH and Li-Ion.  A runtime may be seen below.  The light never really gets hot (or even warm).  The runtime with a 14500 is much brighter than the NiMH, but dies very quickly (45m or so).


User Interface and Operation

Two UI options are included with the Tool AA.  The clicky is installed in the package, and a twisty cap is included too.  They can’t be used at the same time.  The clicky is a reverse clicky.  For the size of the light, the button is actually quite large, and very accessible.


Lumintop describes the twisty UI to be “twist the head” of the light. But I tend to twist the tail instead; functionally there’s no difference.  The knurling doesn’t lend itself to one-hand operation.


The UI is very simple, with only three modes and no strobe nonsense.

Here’s a UI table!

State Action Result
 Off Click Low
 On Half click Mode advance (LMH)
 On Click Off
 Off Tighten Low
 On Loosen/tighten Mode advance (LMH)
 On Loosen Off

Modes

Mode Mode Claimed Output (lm) Claimed Runtime Mode Measured Lux
High 14500: 550
Alkaline: 110
Ni-MH: 120
45m
1h45m
2h55m
9570

2140
Mid 14500: 95
Alkaline: 25
Ni-MH: 25
4h
11h
11h40m
1550

1174
Low 14500: 8
Alkaline: 7
Ni-MH: 7
28h30m
36h25m
30h3om
183

164

LED and Beam

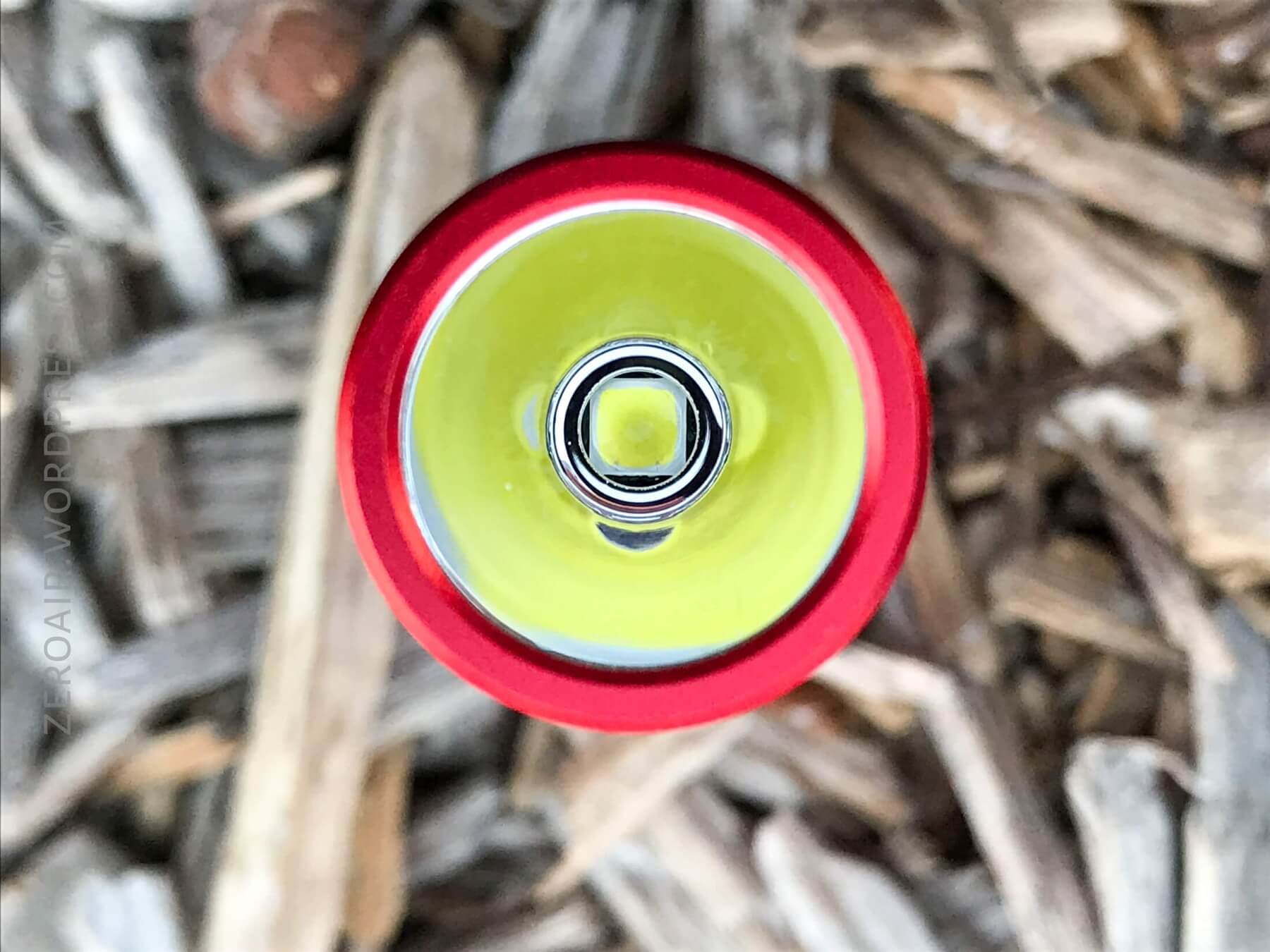

The emitter of choice is a Cree XP-L HD.  The reflector is smooth, and has a “middle depth” – not shallow, and not super deep.  The beam is mostly spot with little spill.

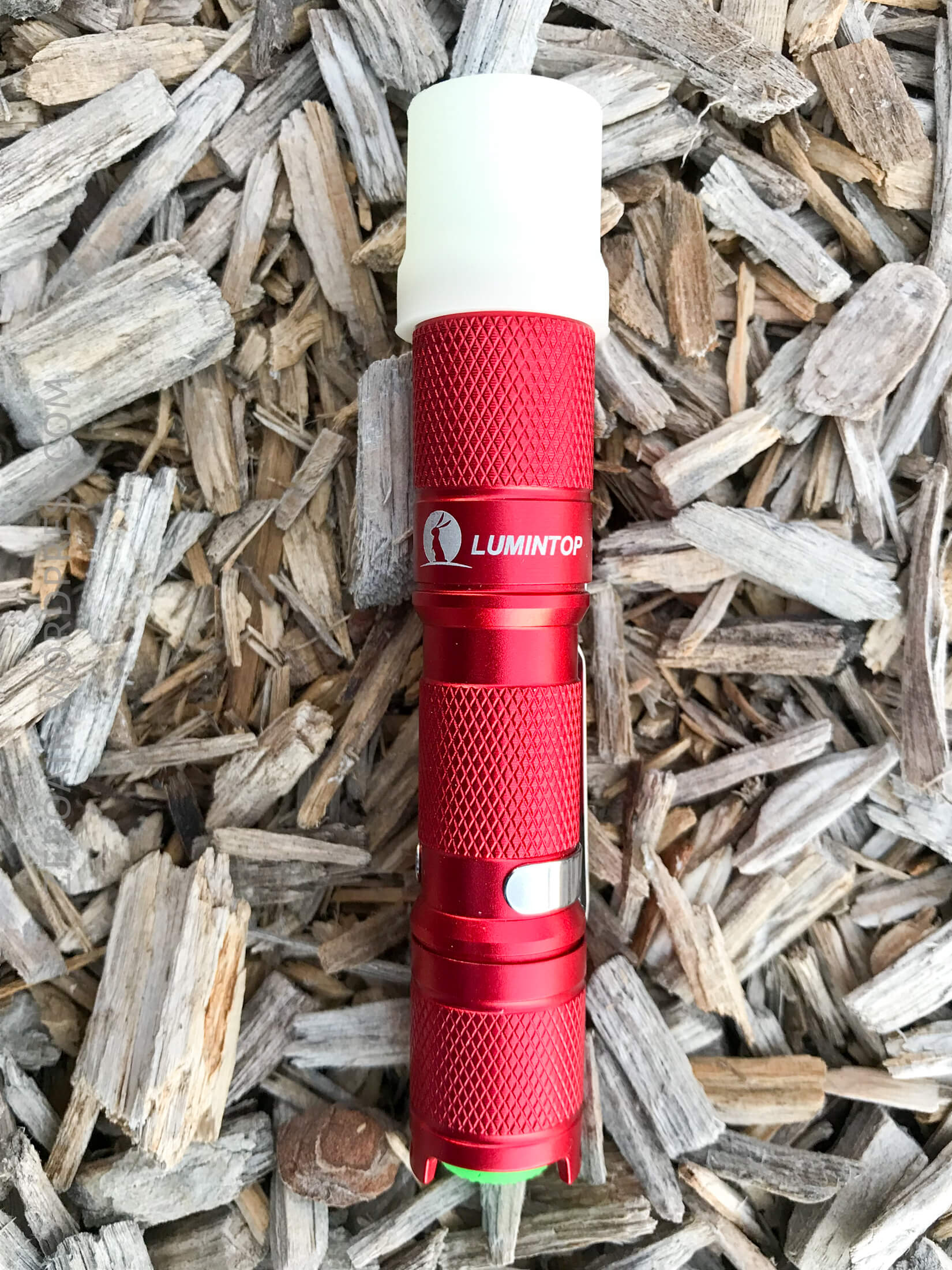

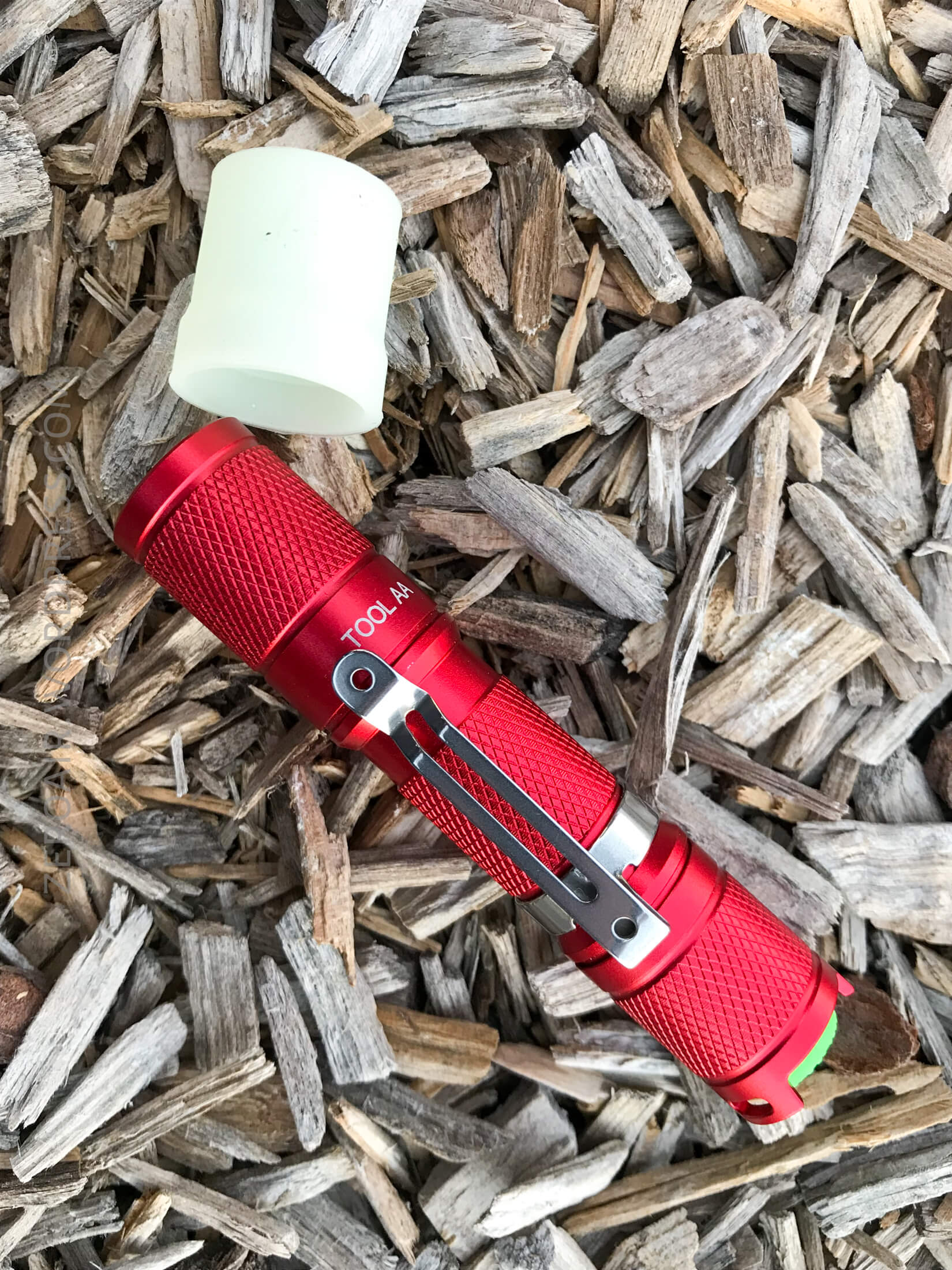

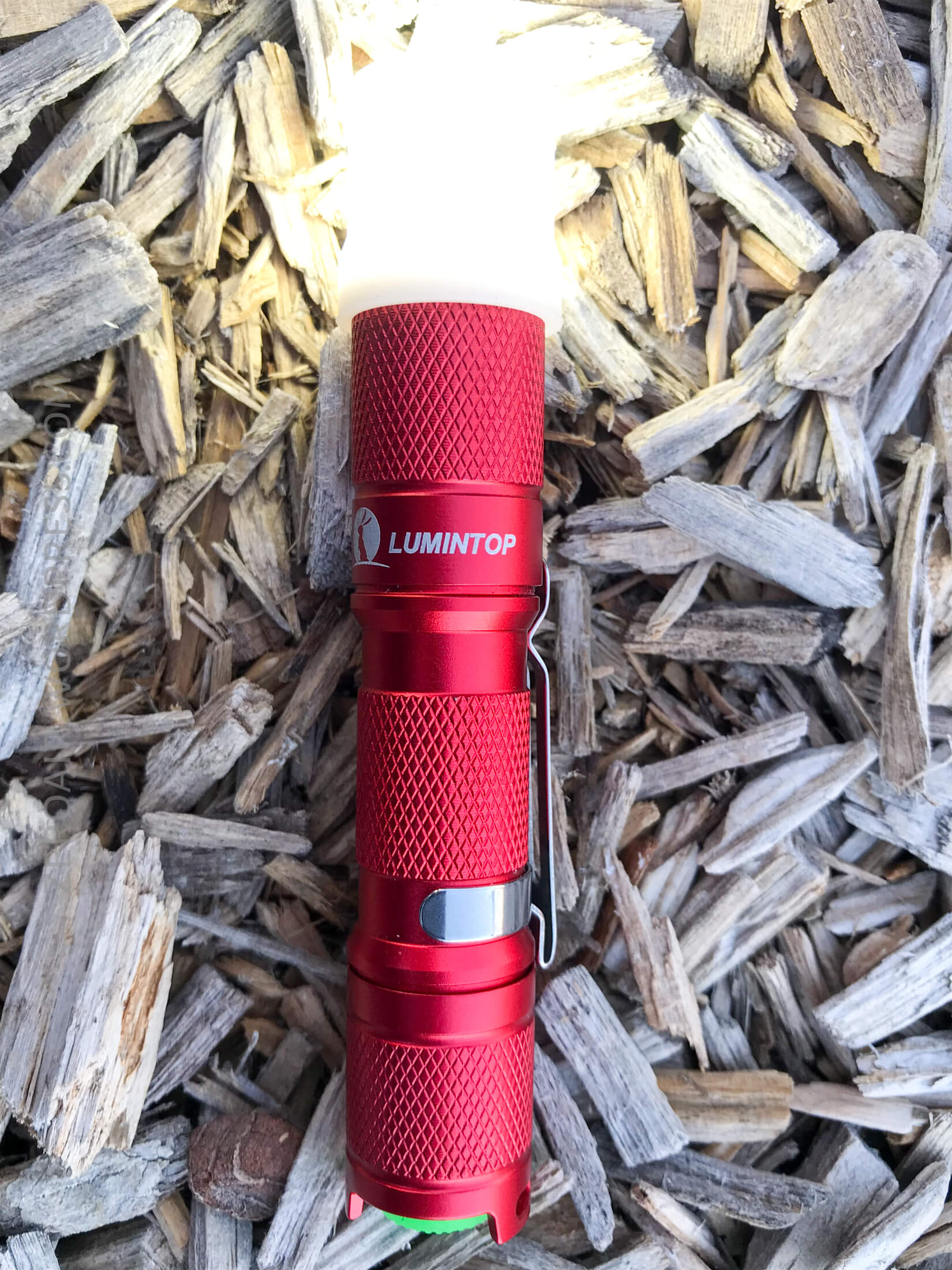

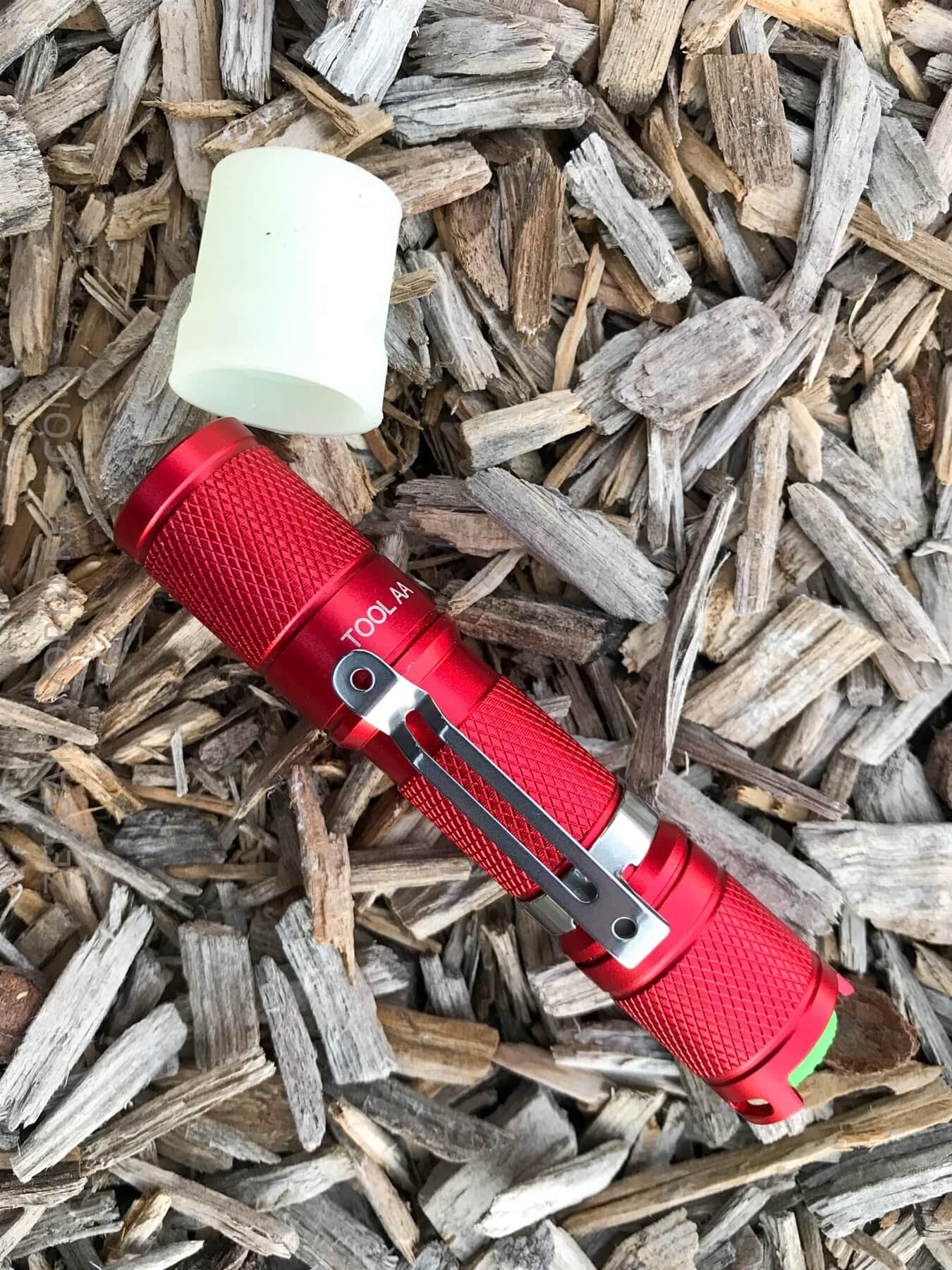

For lack of any better place to put the info, Lumintop also includes this GITD diffuser, which fits snugly over the front of the light.

Tint vs BLF-348


Beamshots, Runtime, and Lux Measurements

Lumintop Tool AA
Emitter Cree XP-L HD
Cell 14500.0 AA

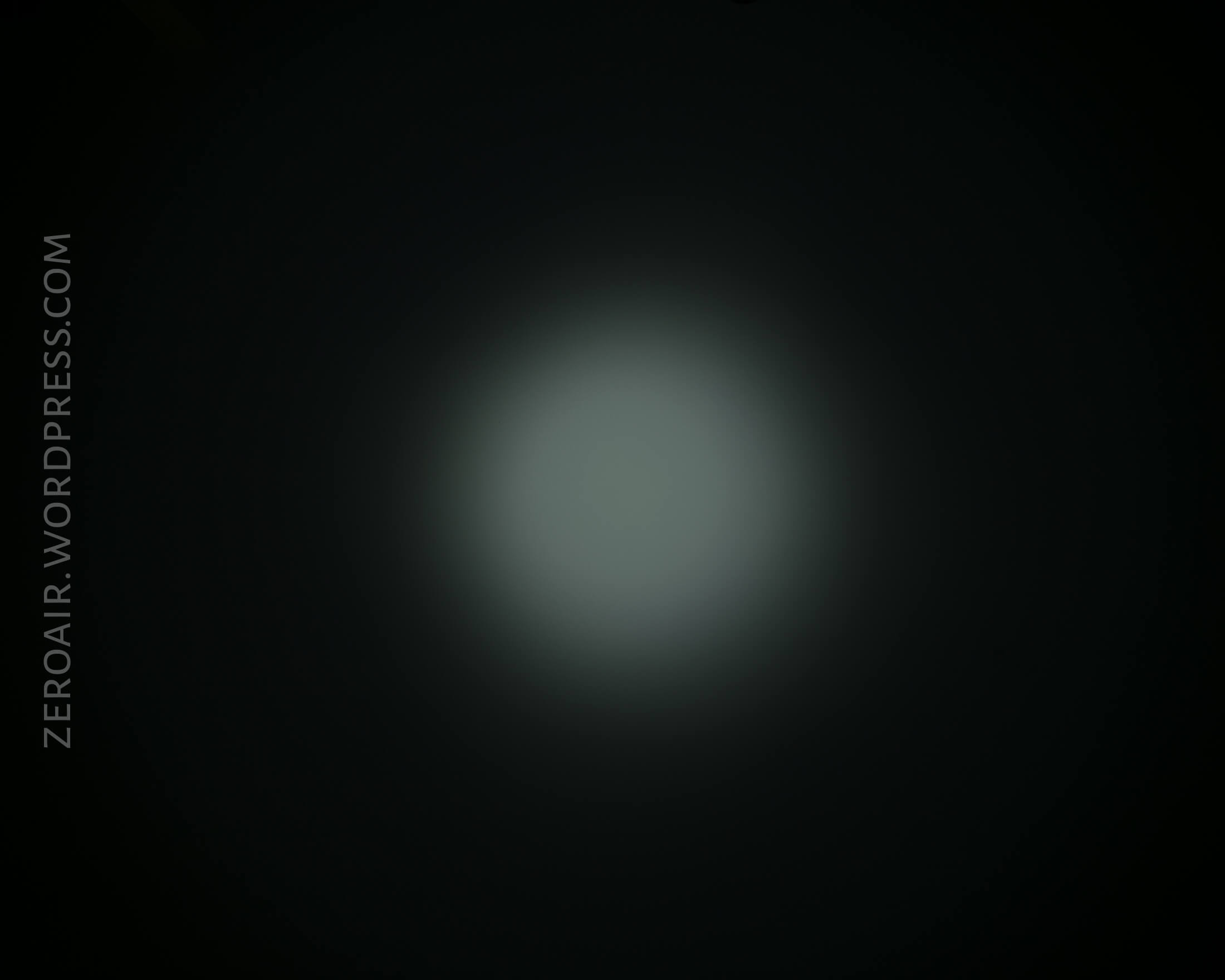

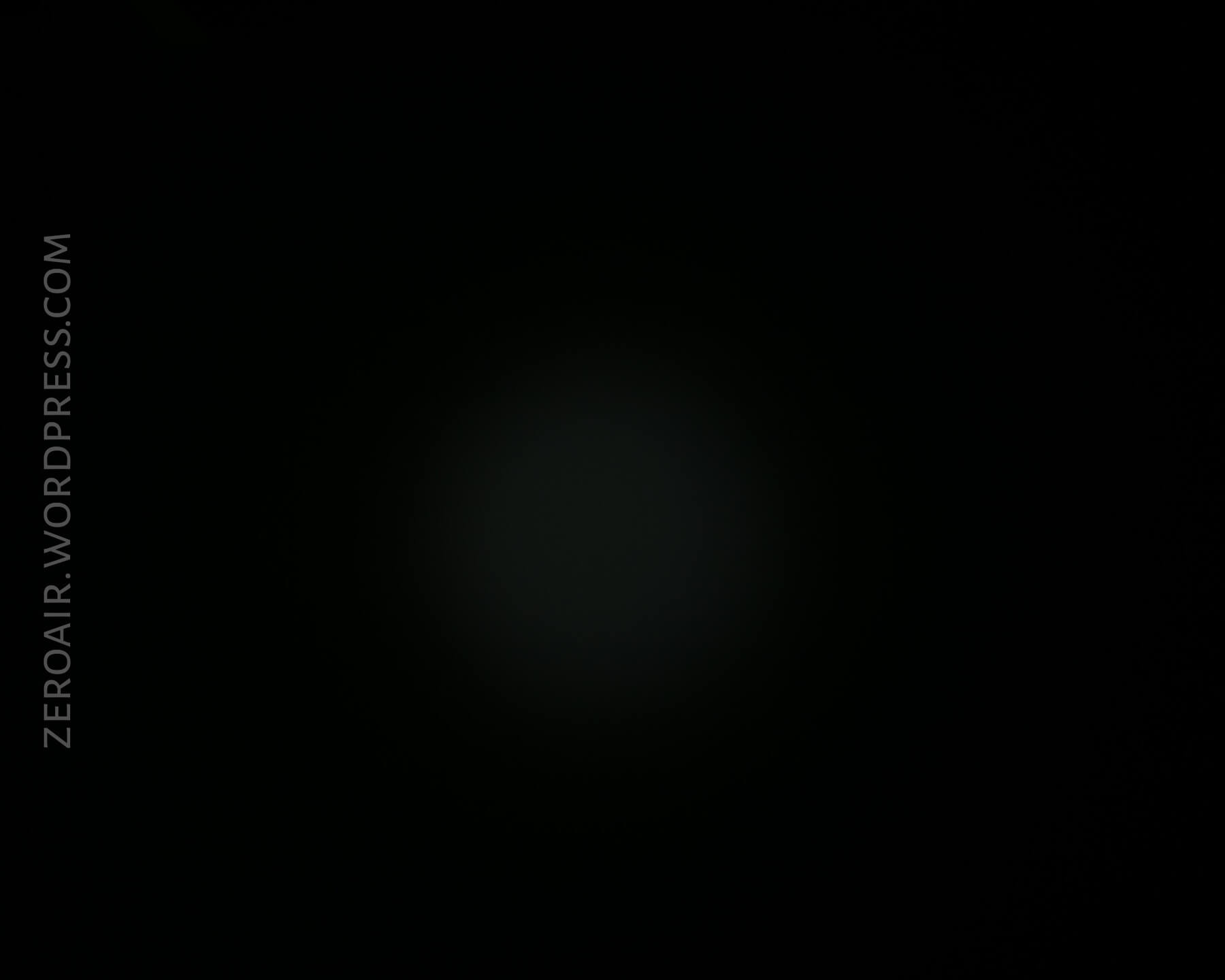

Glamour Shots Beamshots [0.3″, f/8, ISO 100, 5000k]
Runtime Chargetime N/A
LVP? Yes No
Claimed Lumens (lm) 550.0
Lux (Measured) 196 lux @ 3.859 m 51 lux @ 3.407 m
Candela (Calculated) in cd 2918.8 592
Throw (Calculated) (m) 108.1 48.7
Throw (Claimed) (m) 95.0

Random Comparisons and Competitive Options….

Double-A lights with an XP-L HD – this isn’t going to be a small list.  However, the full package with both UI options (two tailcaps) separate this light.  Also, these available colors are quite… unusual.  The red is really quite striking!

Conclusion

What I like

  • The anodization is catching, and seems high quality
  • The UI options are nice
  • Multi-chemistry support

What I don’t like

  • One probably won’t actually swap between the two UI’s in practice.
  • The runtime isn’t regulated, and trails off very quickly on 14500.

Up Next

Most likely I’ll wrap the MecArmy SGN7 by Wednesday, and hopefully the Olight X7R for Friday.  I hope to have a thing or two (blog only) in the meantime, too!

Notes

  • This light was provided by GearBest for review. I was not paid to write this review.
  • This content originally appeared at zeroair.wordpress.com.  Please visit there for the best experience!
  • Whether or not I have a coupon for this light, I do have a bunch of coupons!!  Have a look at my spreadsheet for those coupons. It’s possible to subscribe and get notifications when the sheet is edited!!
