Astrolux MF02 Flashlight Review
Astrolux has introduced the MF02, a flashlight made for fantastic throw with the Cree XHP35 HI emitter. Read on for thoughts and testing!
Official Specs and Features
Here’s a link to the Astrolux MF02 Flashlight product page.
Versions
There’s just one version of this light.
Price
The list price for the MF02 is $125.95, but I’m talking to Banggood at the moment to get a good coupon for you all! If you just can’t wait, buy it here!
Edit: Got the coupon! Here’s the flashlight link and the discount price is $79.99, code: 85dd97. That is a referral link (traffic tracking)!
Short Review
As far as ‘handheld throwers’ go, this one is a beast. It’s deep smooth reflector really gets the light out there. I like the whole package, and I like that it’s not a cool white tint. The huge reflector makes it a little unbalanced in my hand, but that’s not too big a price to pay for >1300m throw!
Long Review
The Big Table
Astrolux MF02 | |
---|---|
Emitter: | Cree XHP35 HI (NW 4000-4500K) |
Price in USD at publication time: | $79.99 |
Cell: | 4×18650 |
Turbo Runtime | |
LVP? | Yes |
Switch Type: | E-Switch |
On-Board Charging? | No |
Claimed Lumens (lm) | 3000 |
Claimed Throw (m) | 1587 |
Candela (Calculated) in cd (at 30s) | 4370lux @ 10.517m = 483354cd |
Throw (Calculated) (m) | 1390.5 (87.6% of claim)^ |
All my Astrolux reviews! |
^ Measurement disclaimer: Testing flashlights is my hobby. I use hobbyist-level equipment for testing, including some I made myself. Try not to get buried in the details of manufacturer specifications versus measurements recorded here; A certain amount of difference (say, 10 or 15%) is perfectly reasonable.
What’s Included
- Astrolux MF02 Flashlight
- Nylon Pouch
- Shoulder strap
- Lanyard
- Spare o-rings (2)
- Threaded lanyard connect
Package and Manual

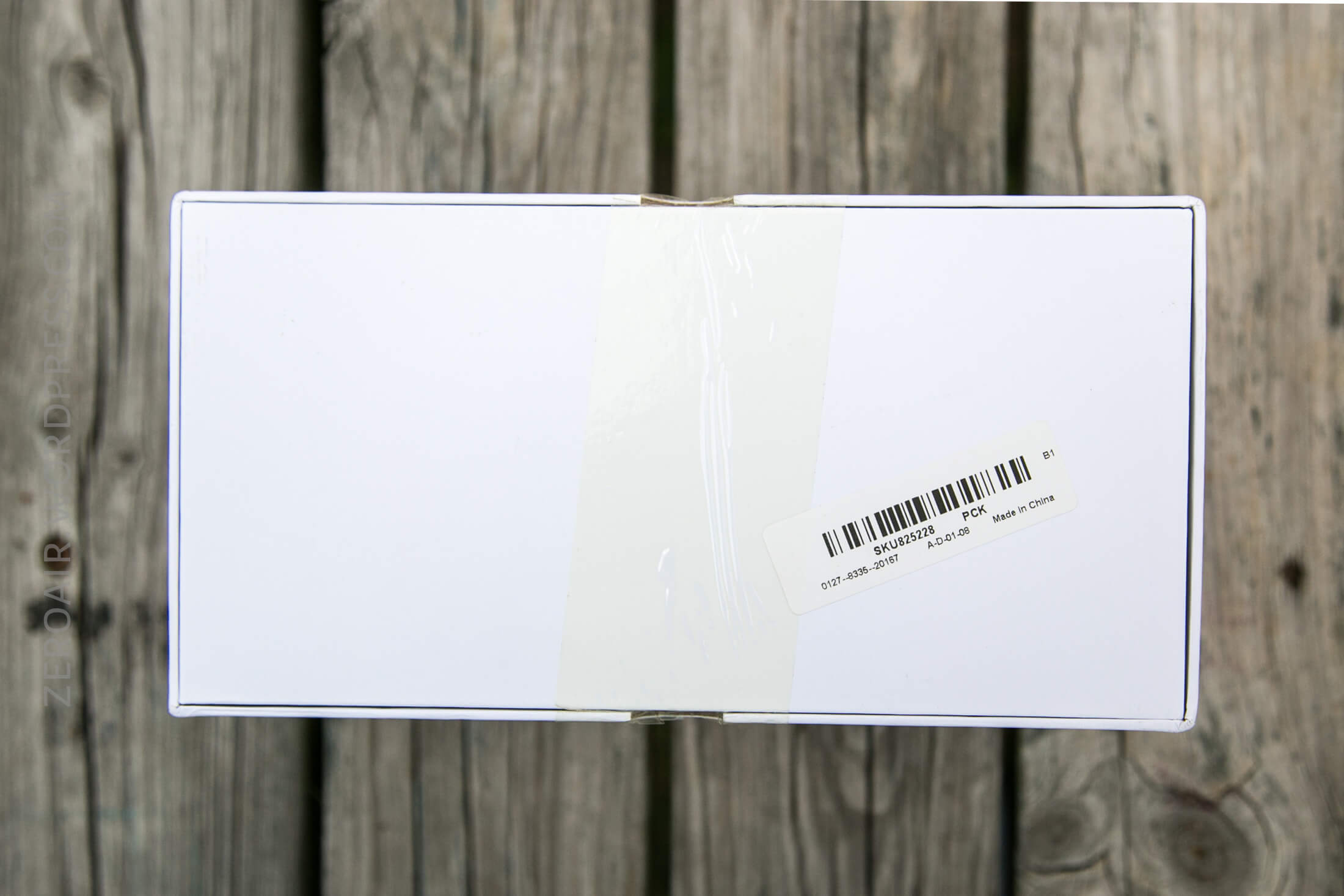

White glossy slip fit box. Foam inside, stamped illustration of light on front. Simple.

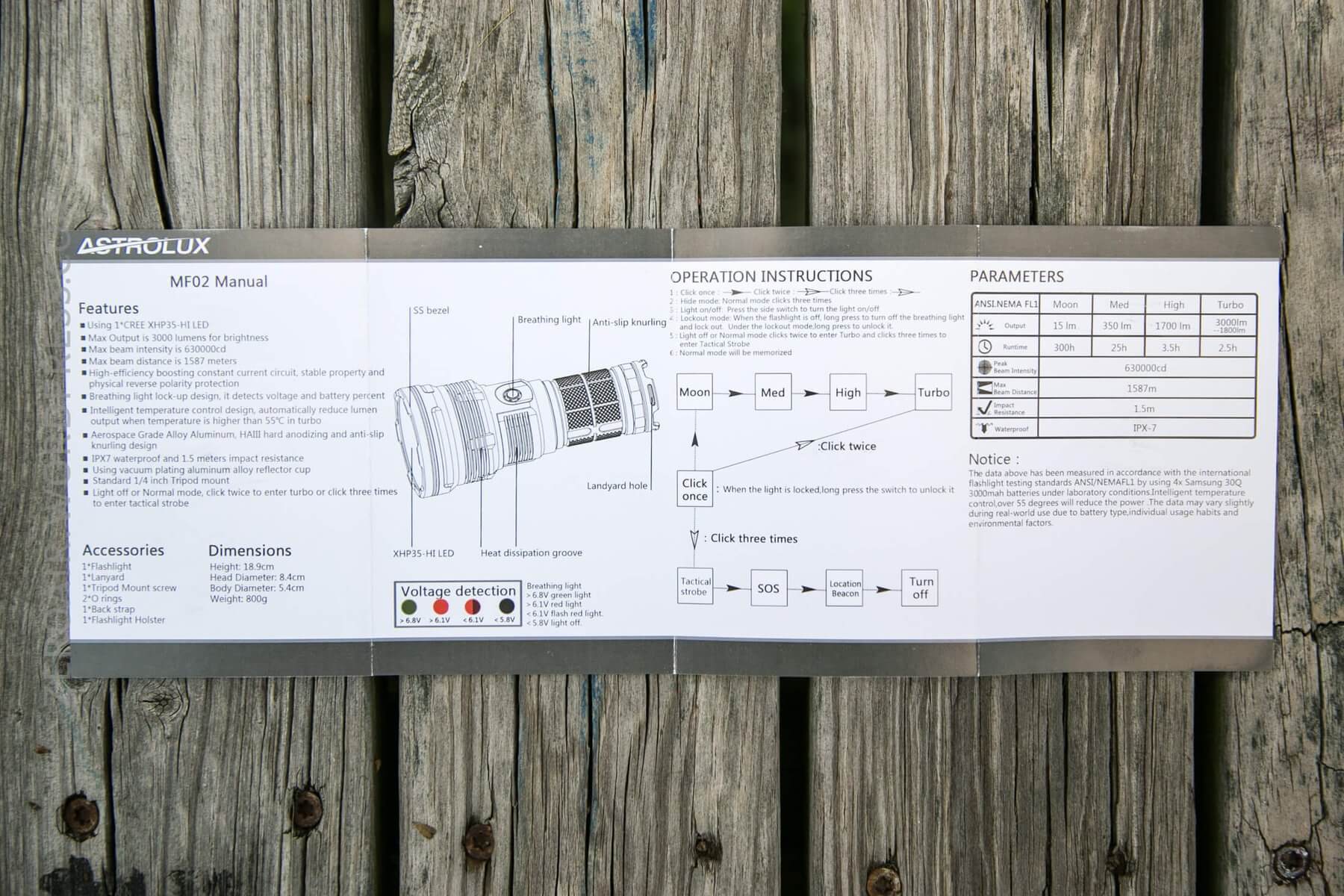

The manual has the same illustration of the light, with some diagrams and whatnot. A fine manual.
Build Quality and Disassembly

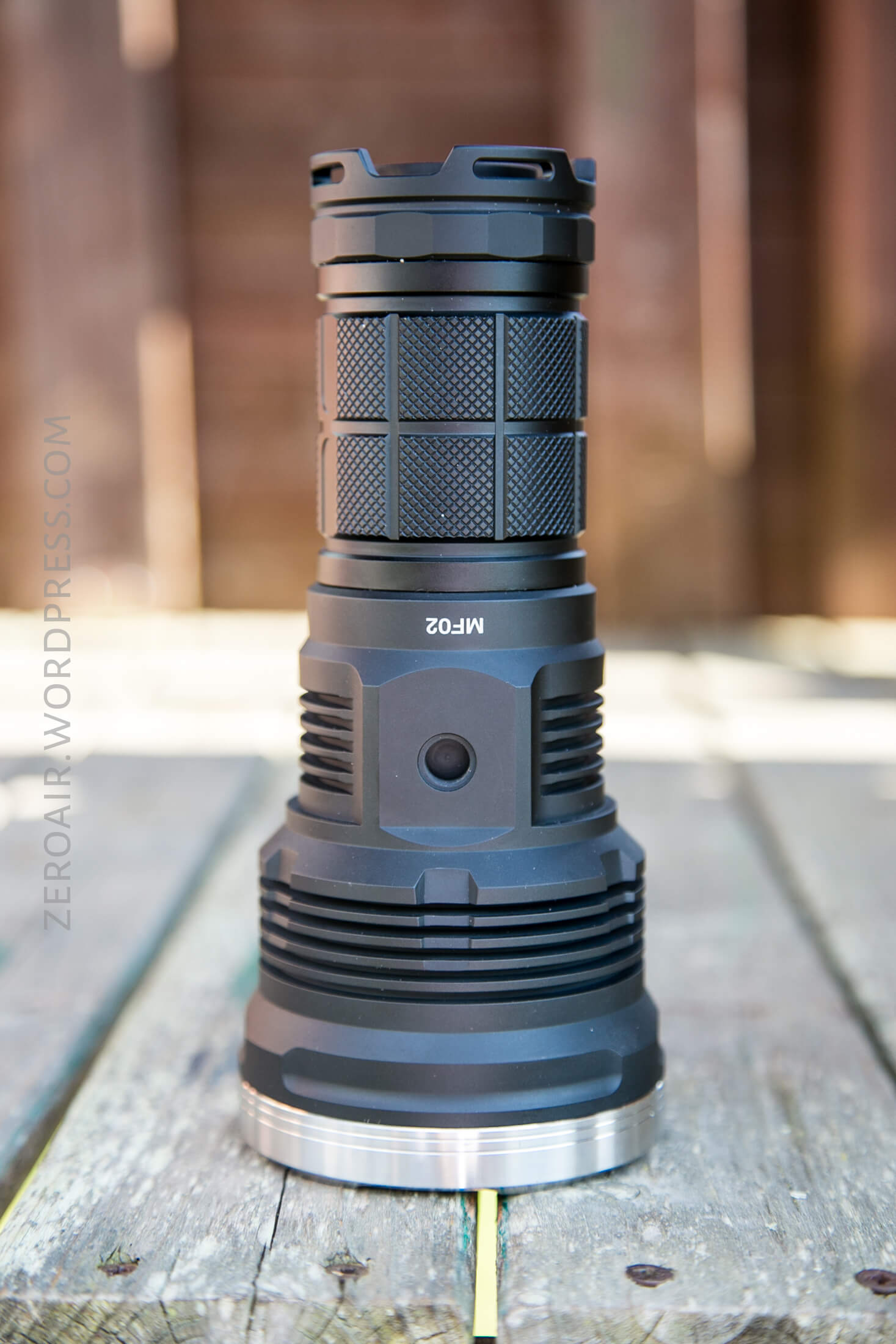

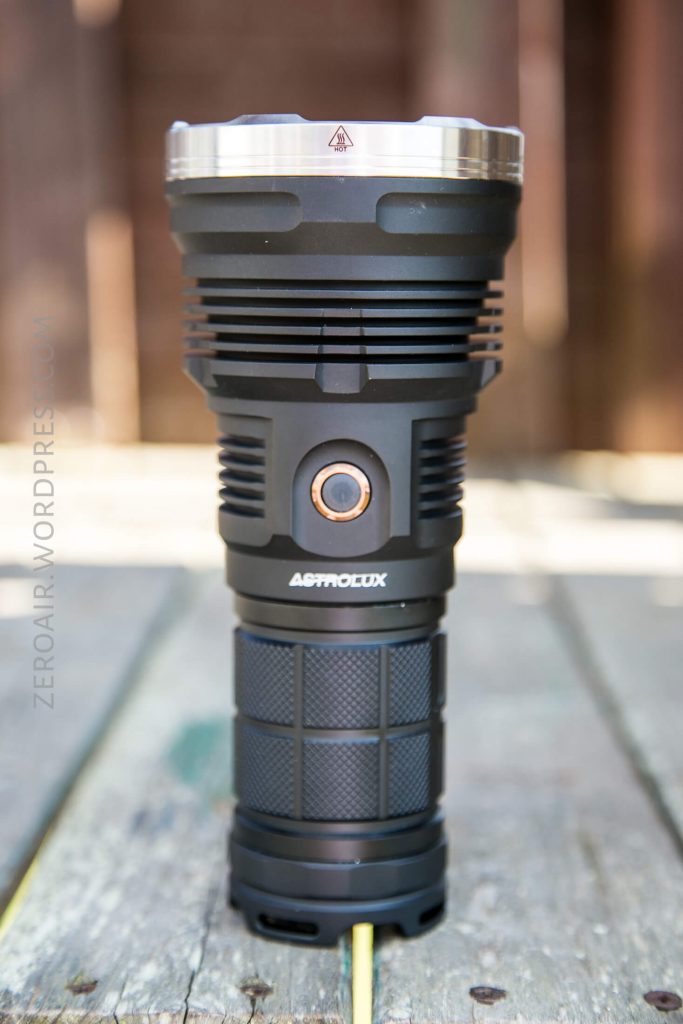

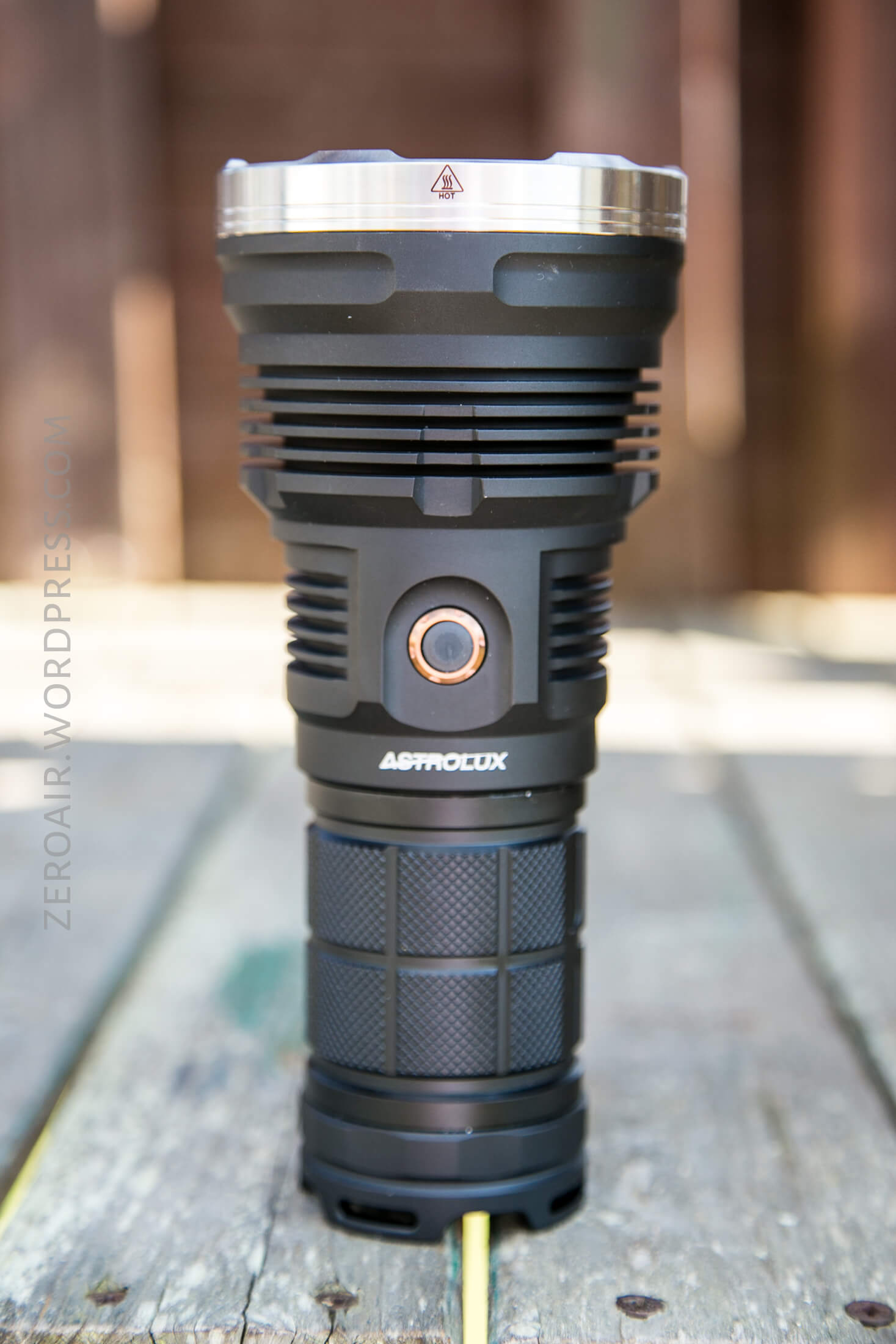

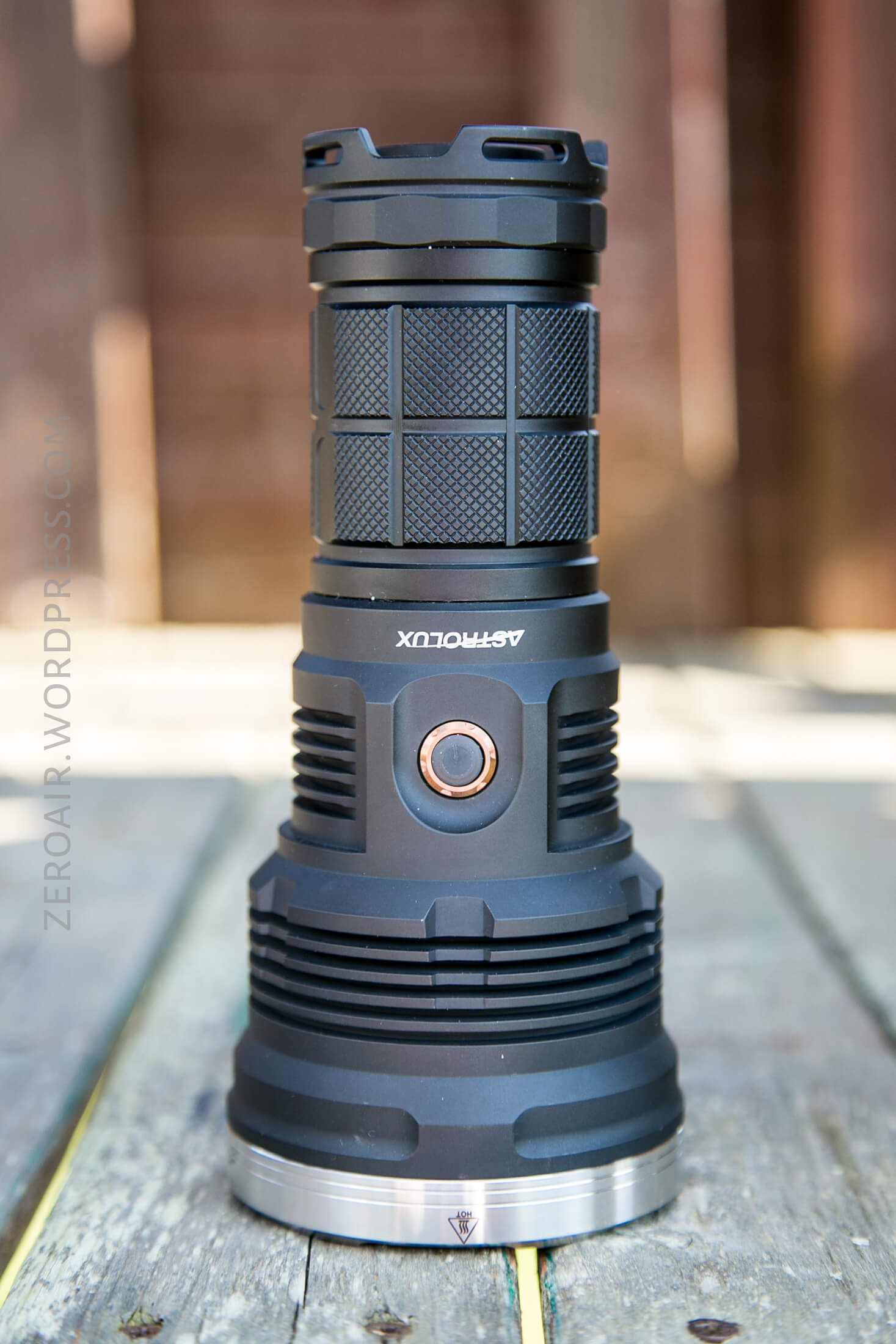

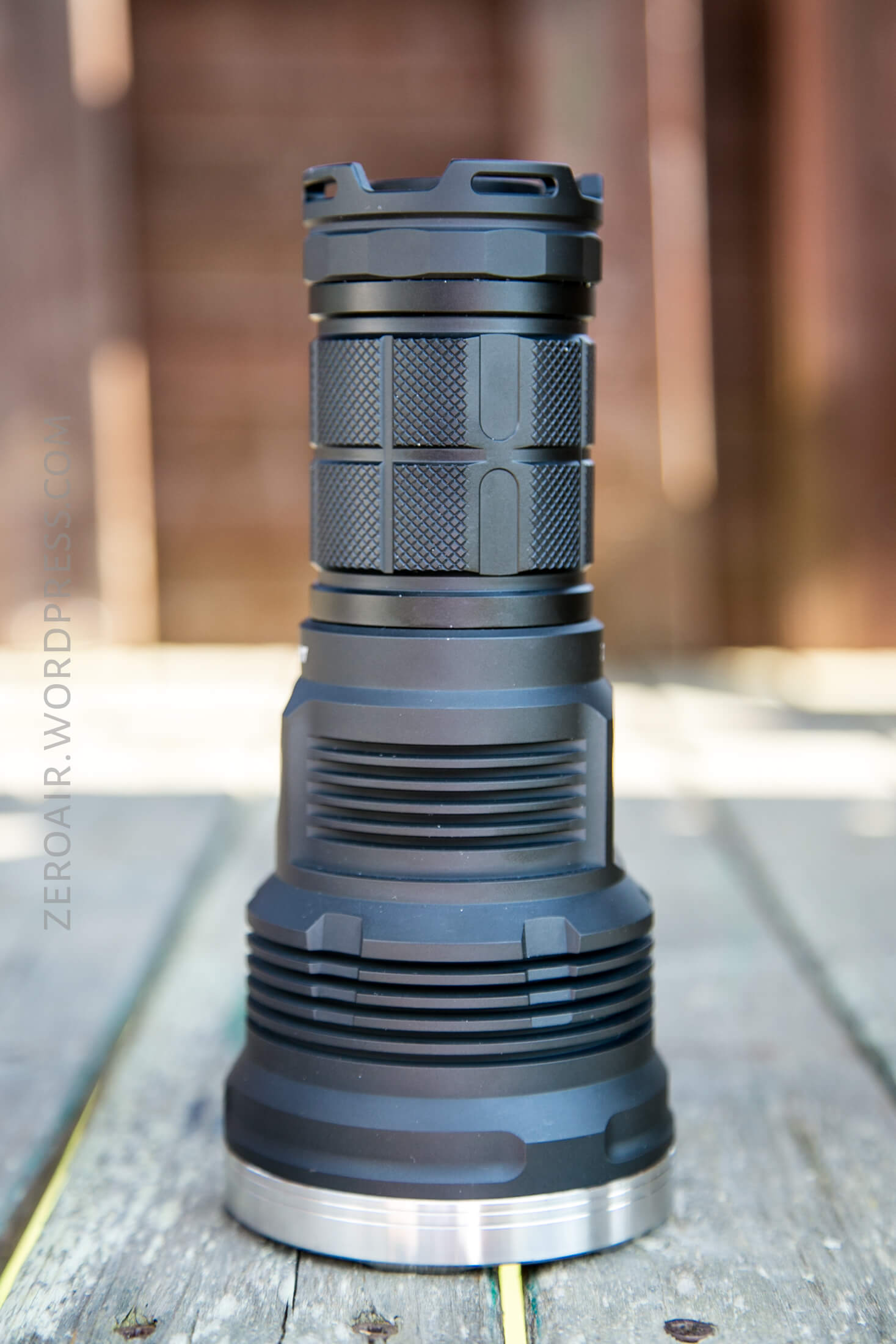

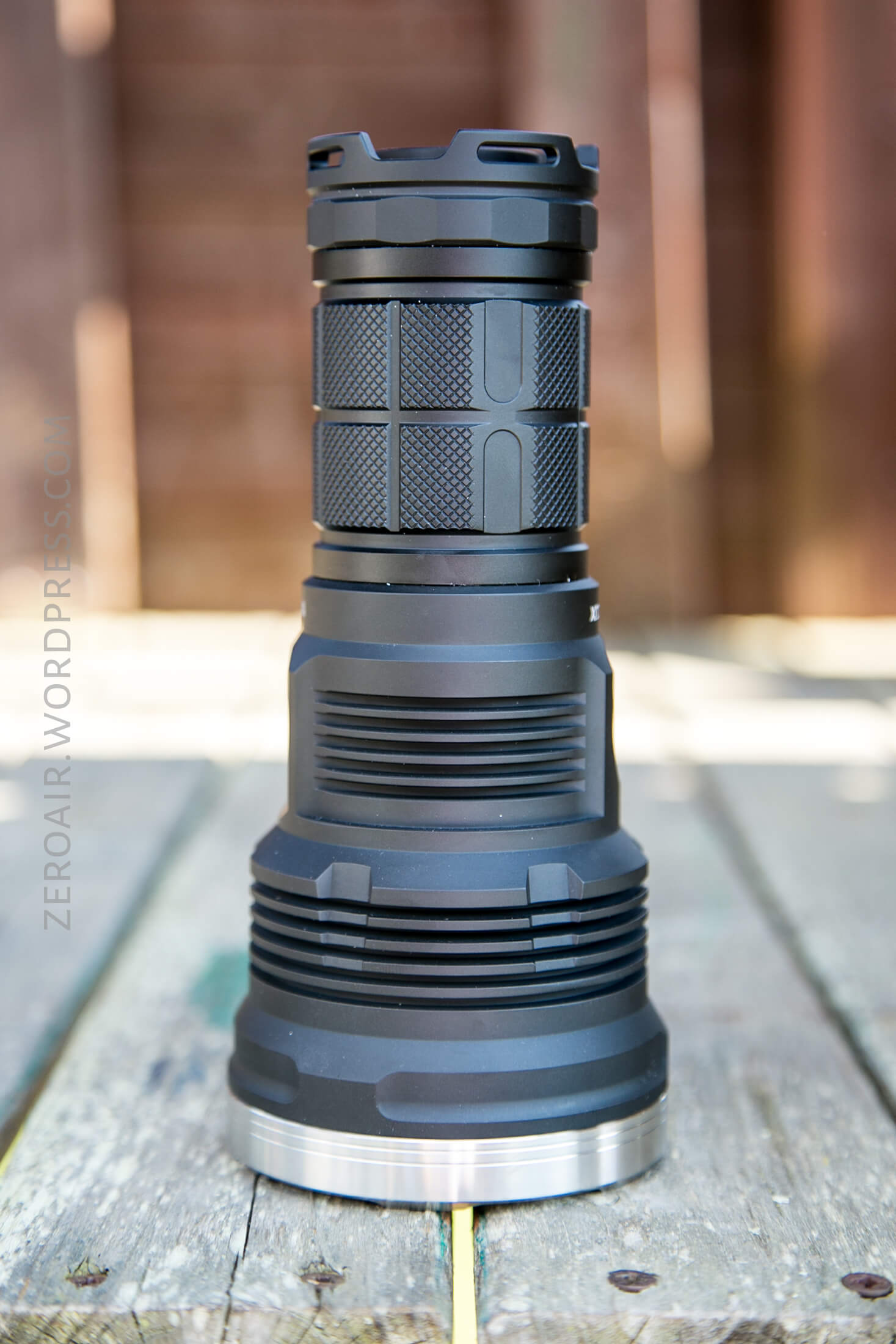

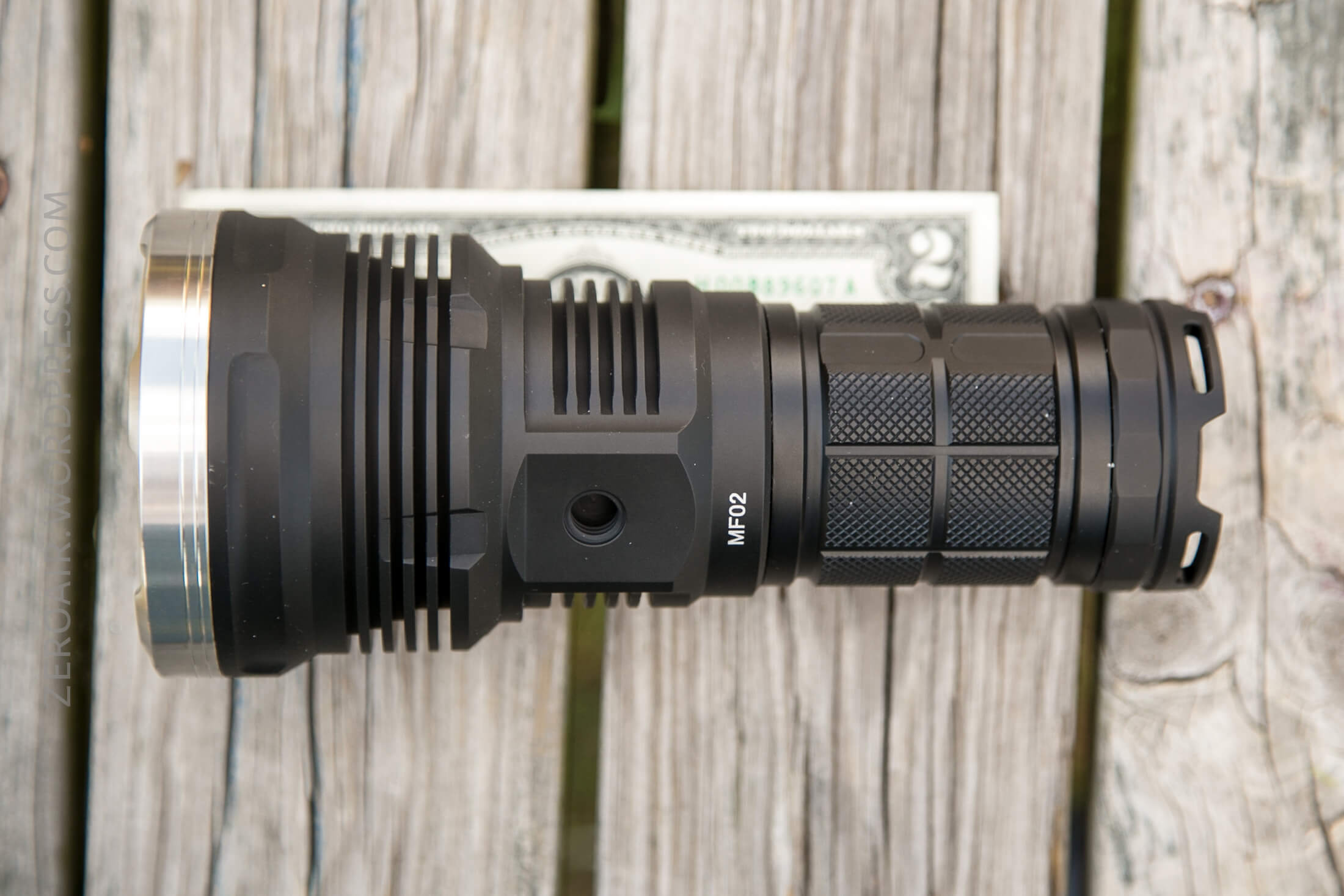

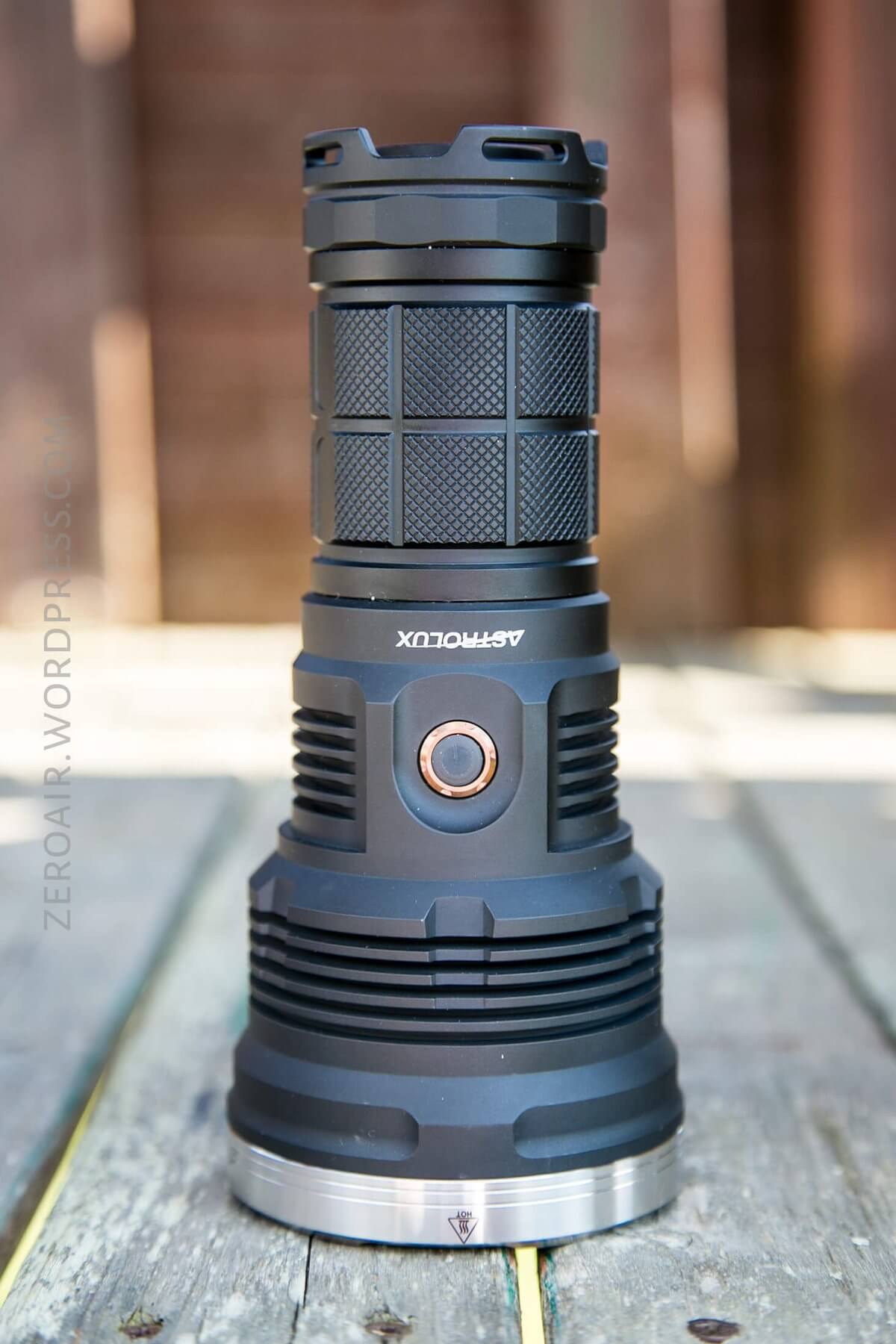

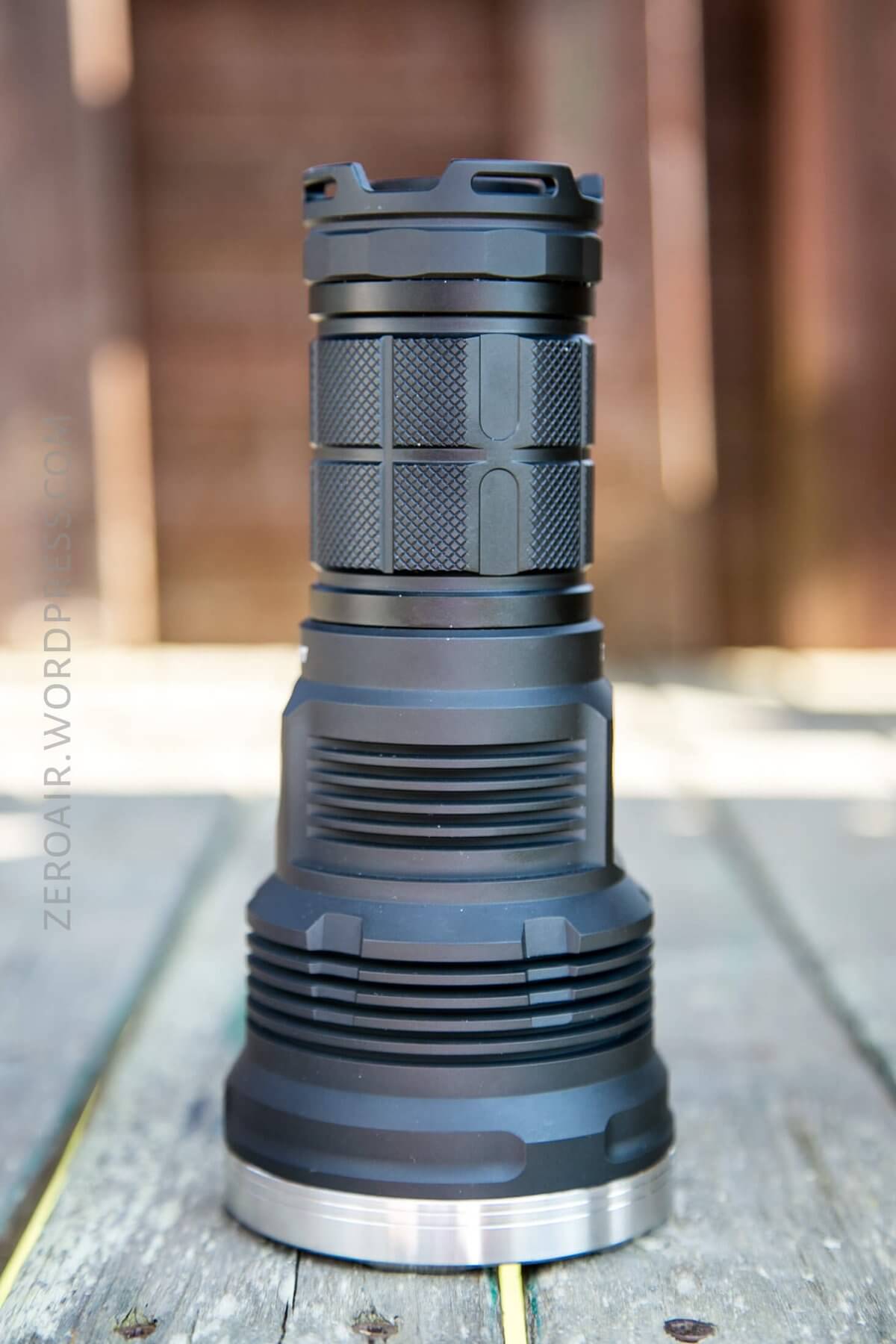

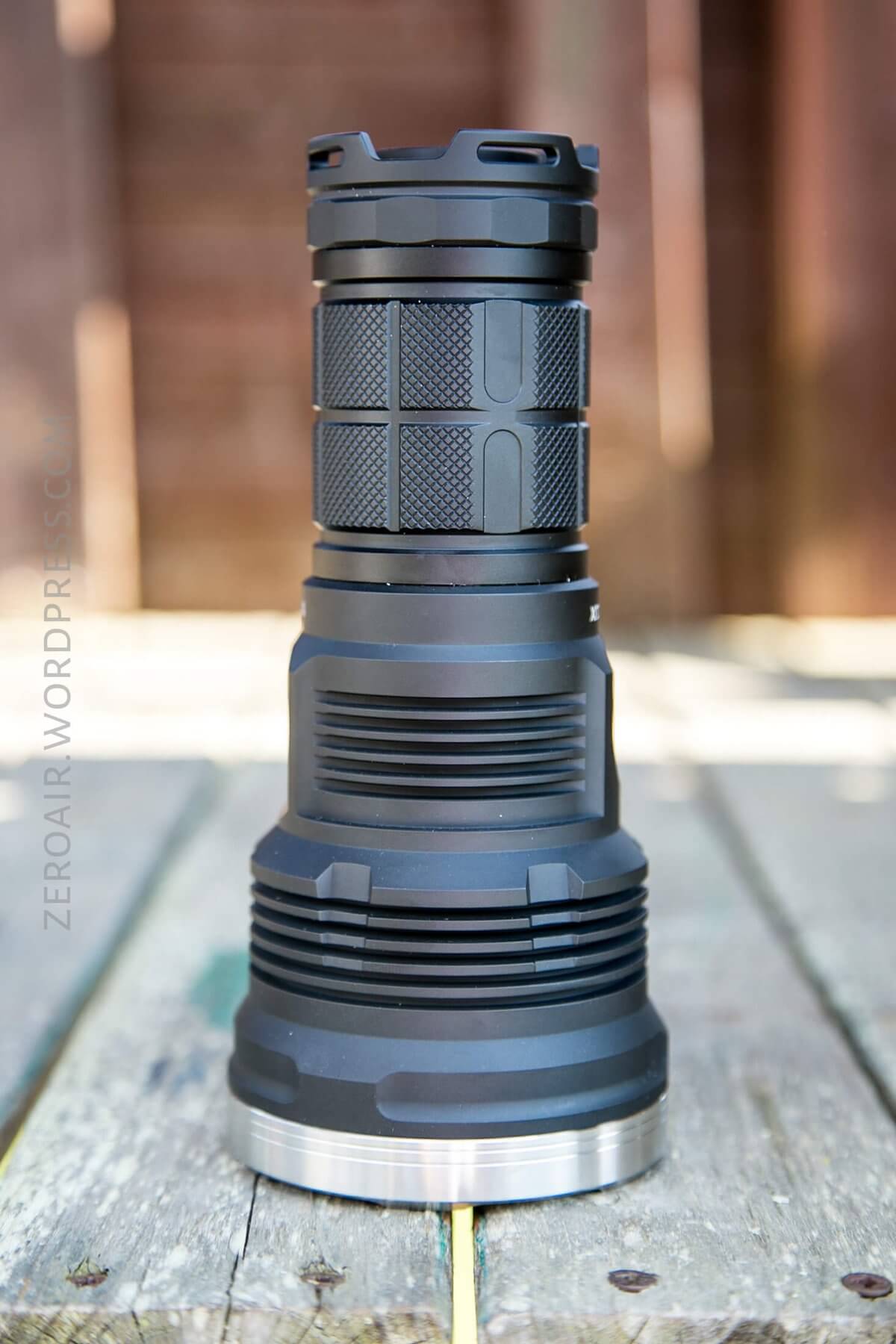

The MF02 has quite a presence in hand. It’s very sturdy, and there’s a lot of mass in the head. The build quality is great, and is at least as good as Astrolux is normally.
The head has two fin areas for great heat dissipation. And also tons of mass, as I mentioned.

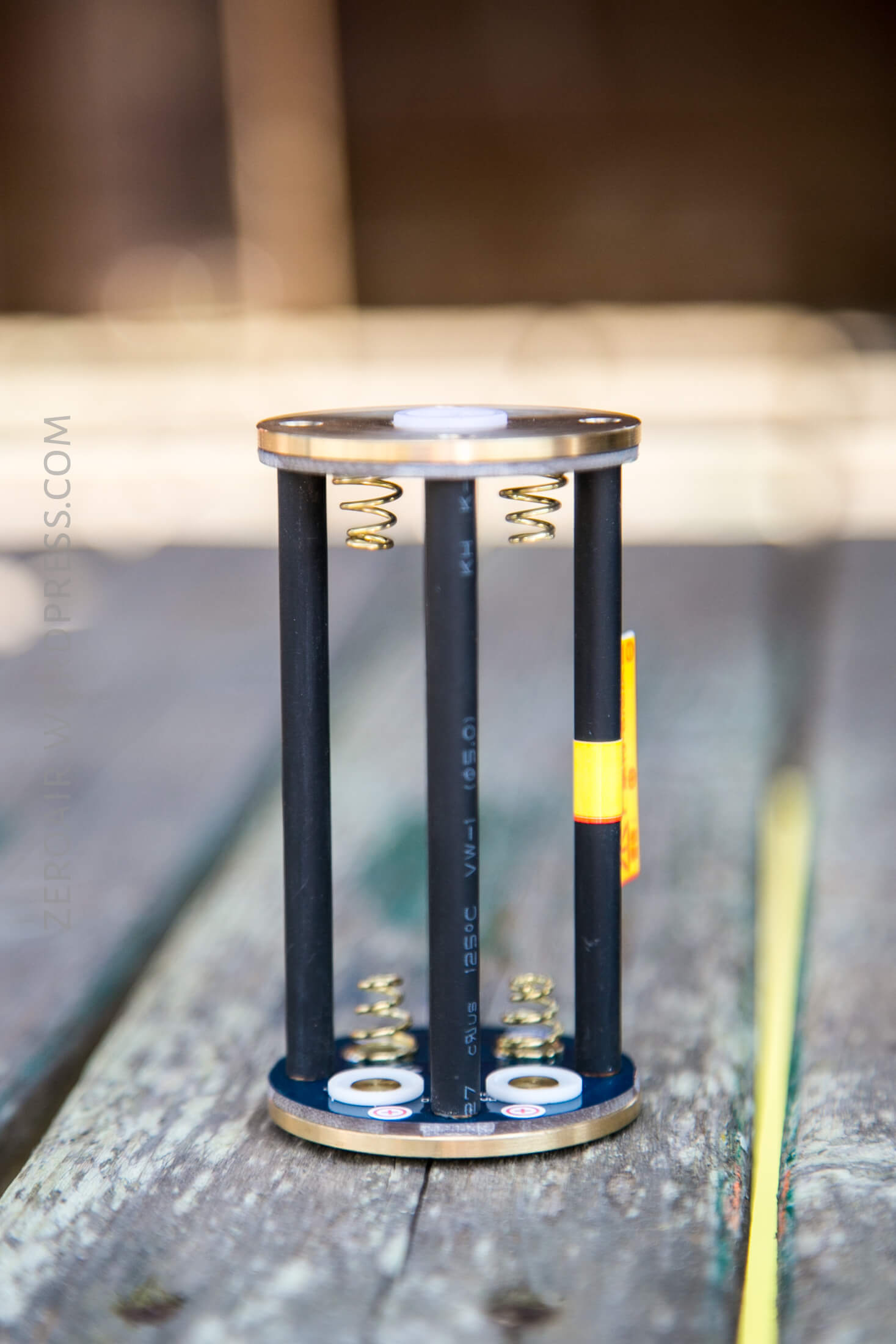

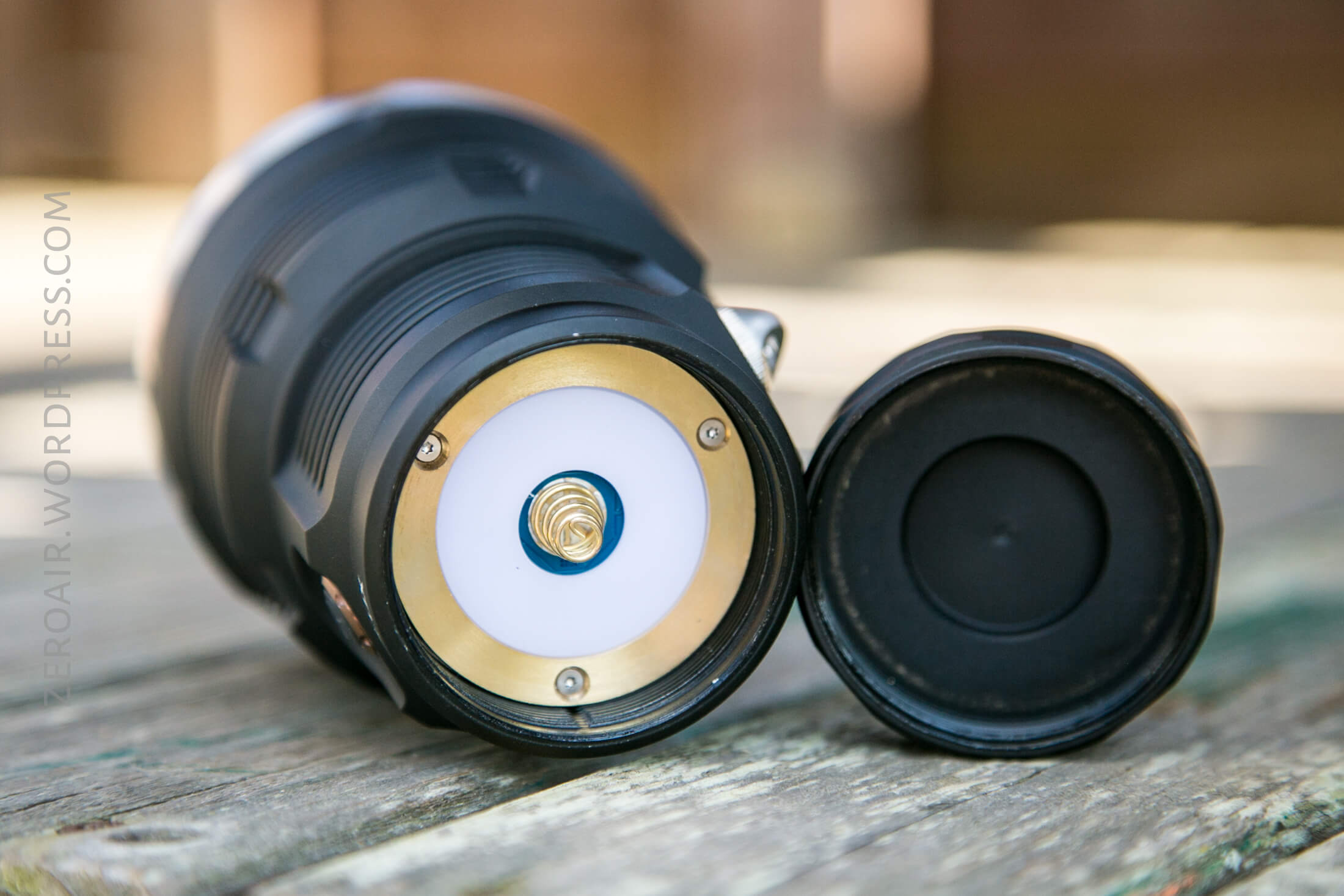

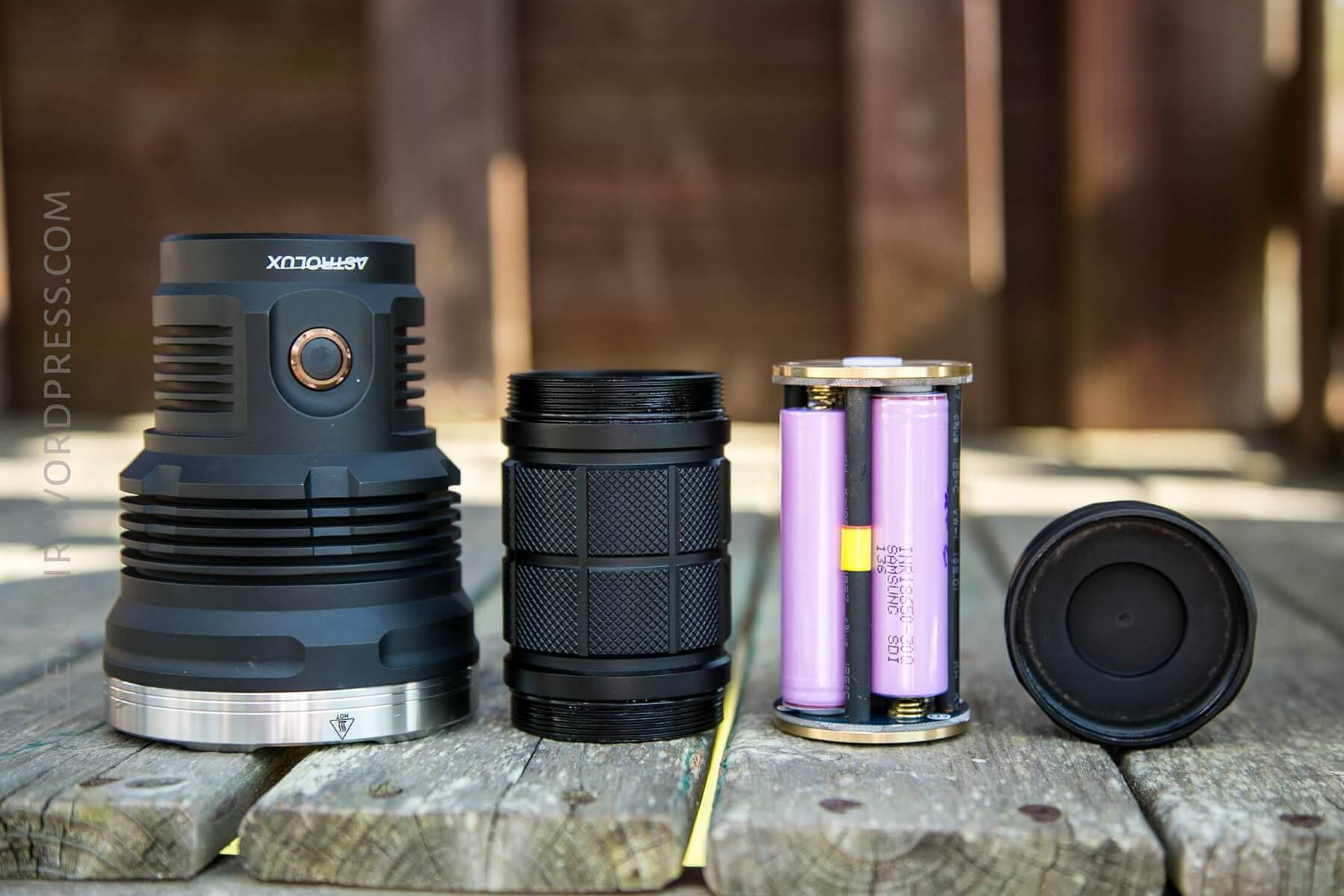

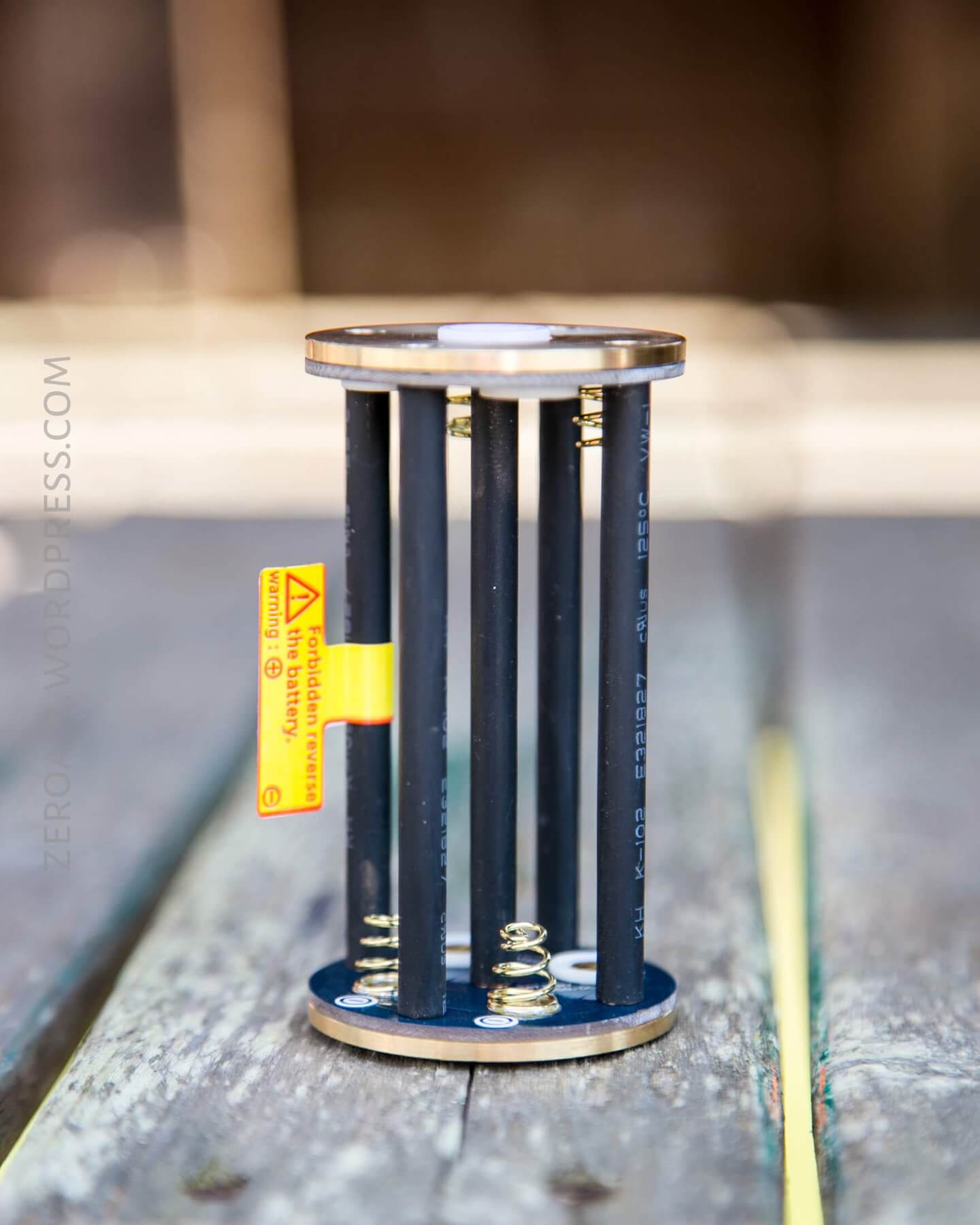

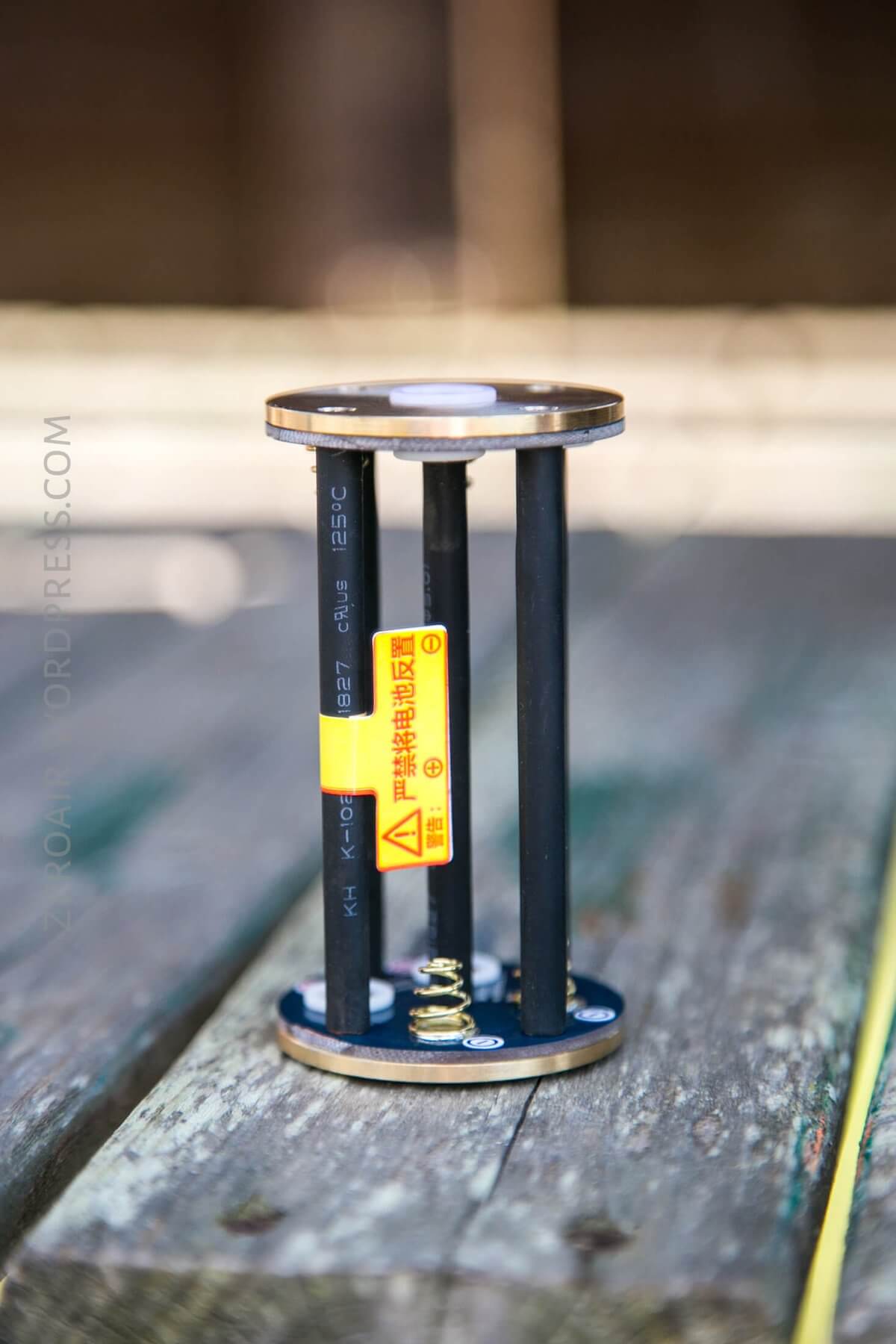

Here’s a general teardown of the parts. The tailcap has nothing – no spring, no contact etc. The business part of the body is in the cell holder. The format is 2s2p.

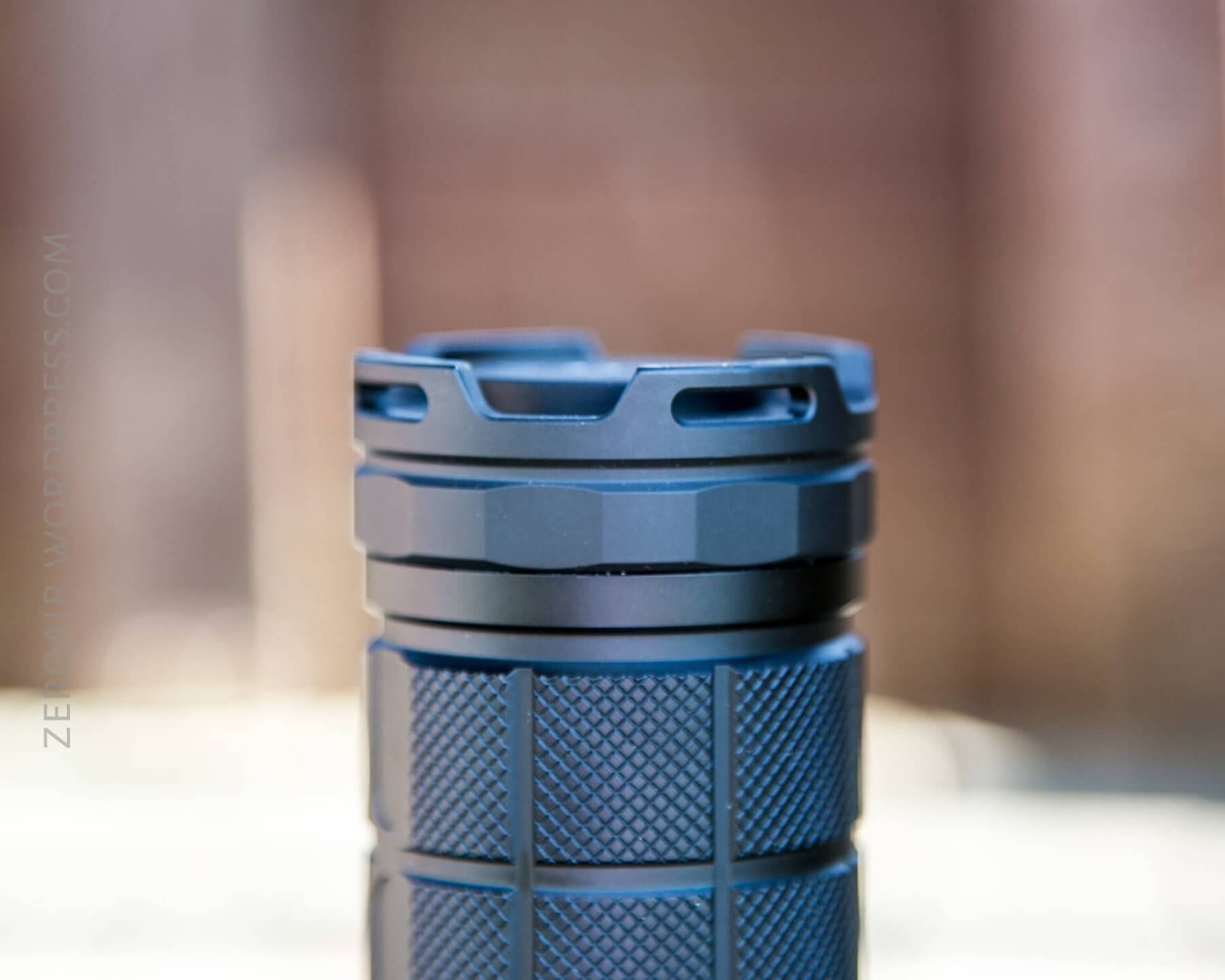

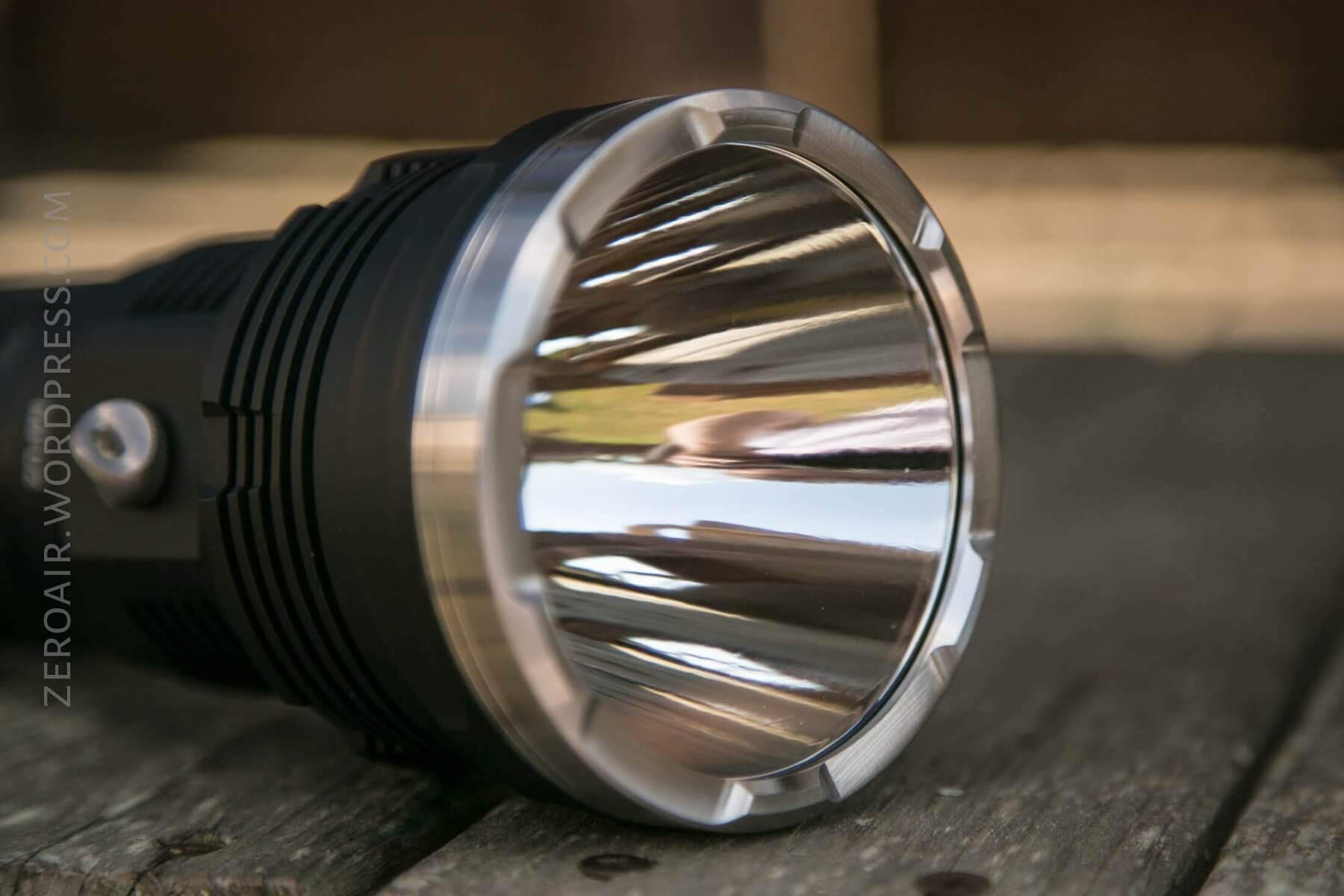

The bezel seems to be stainless, but I never was able to remove it for inspection. There are slight crenelations, but not of the “murder” variety.

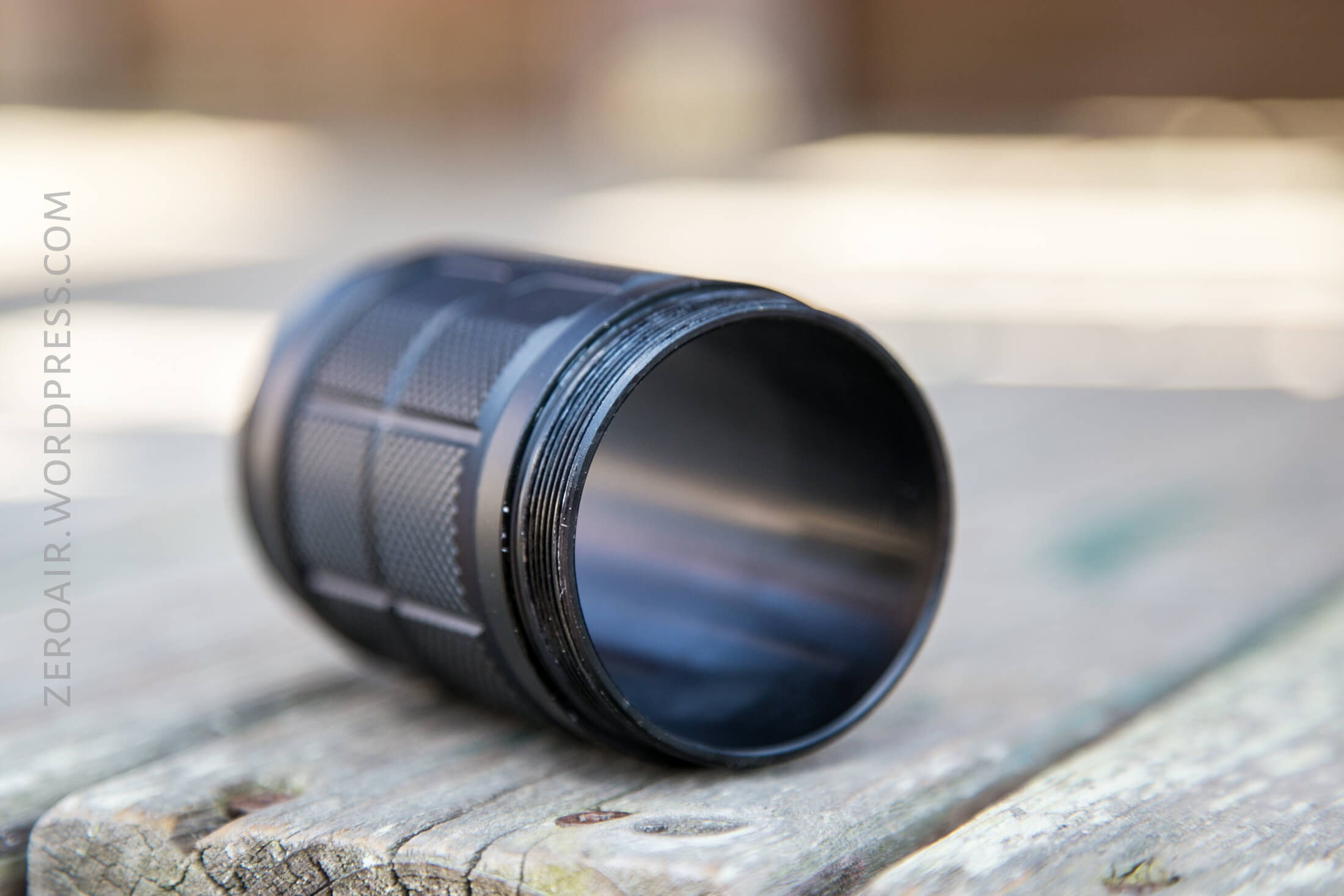

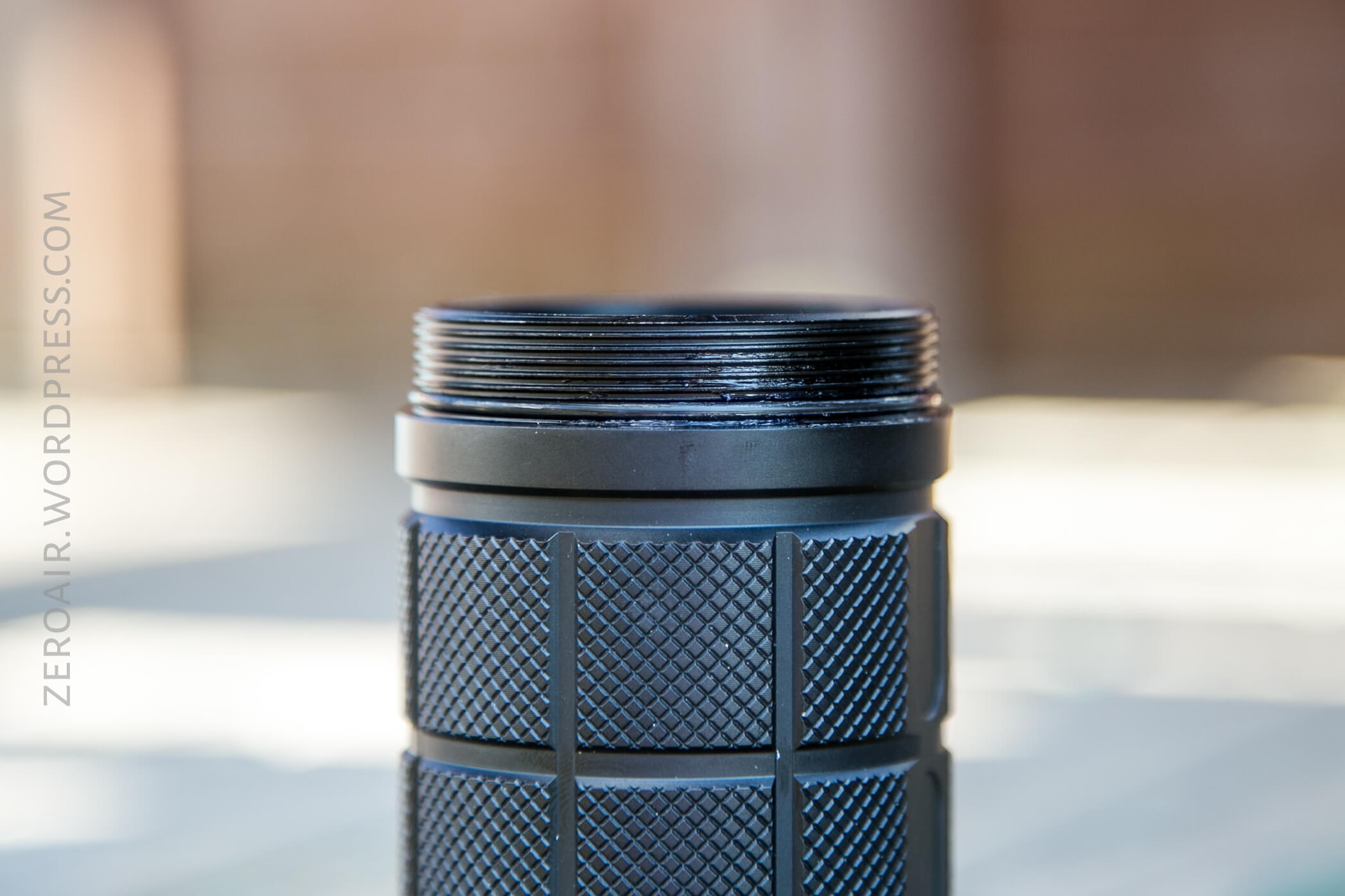

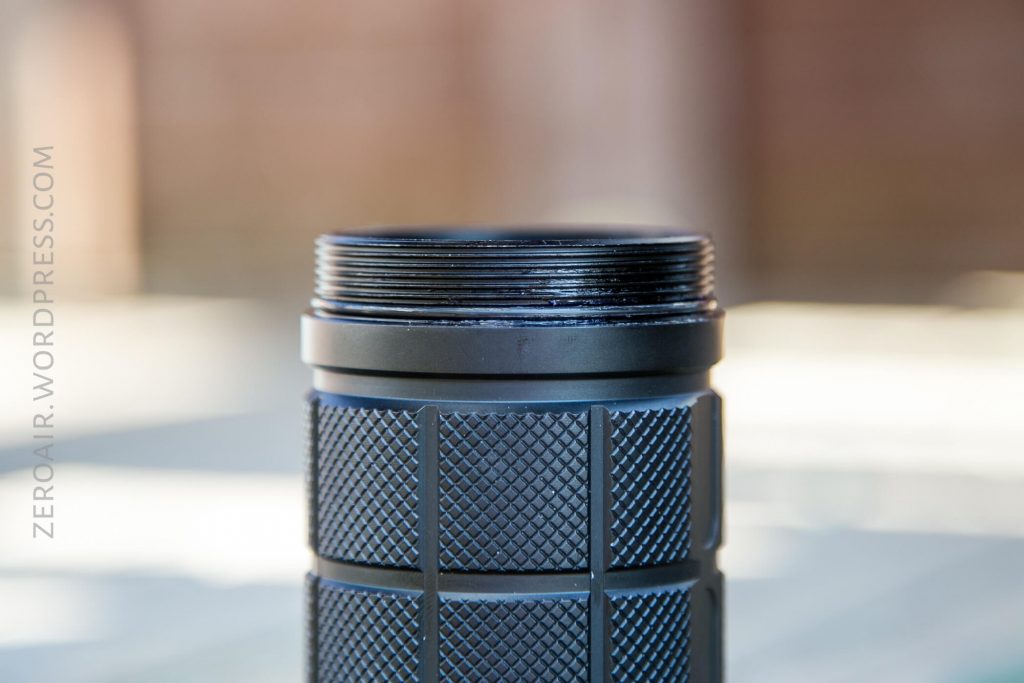

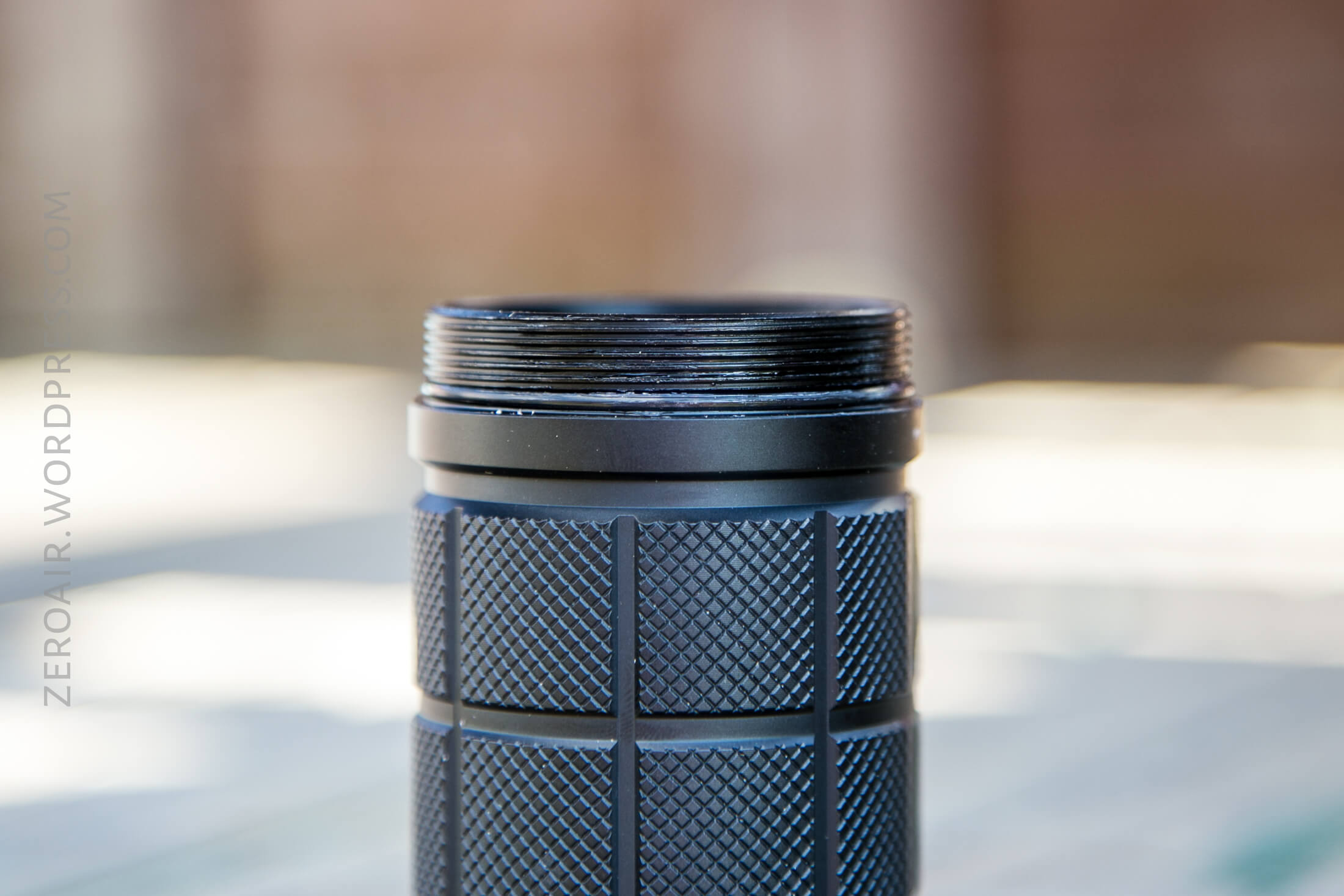

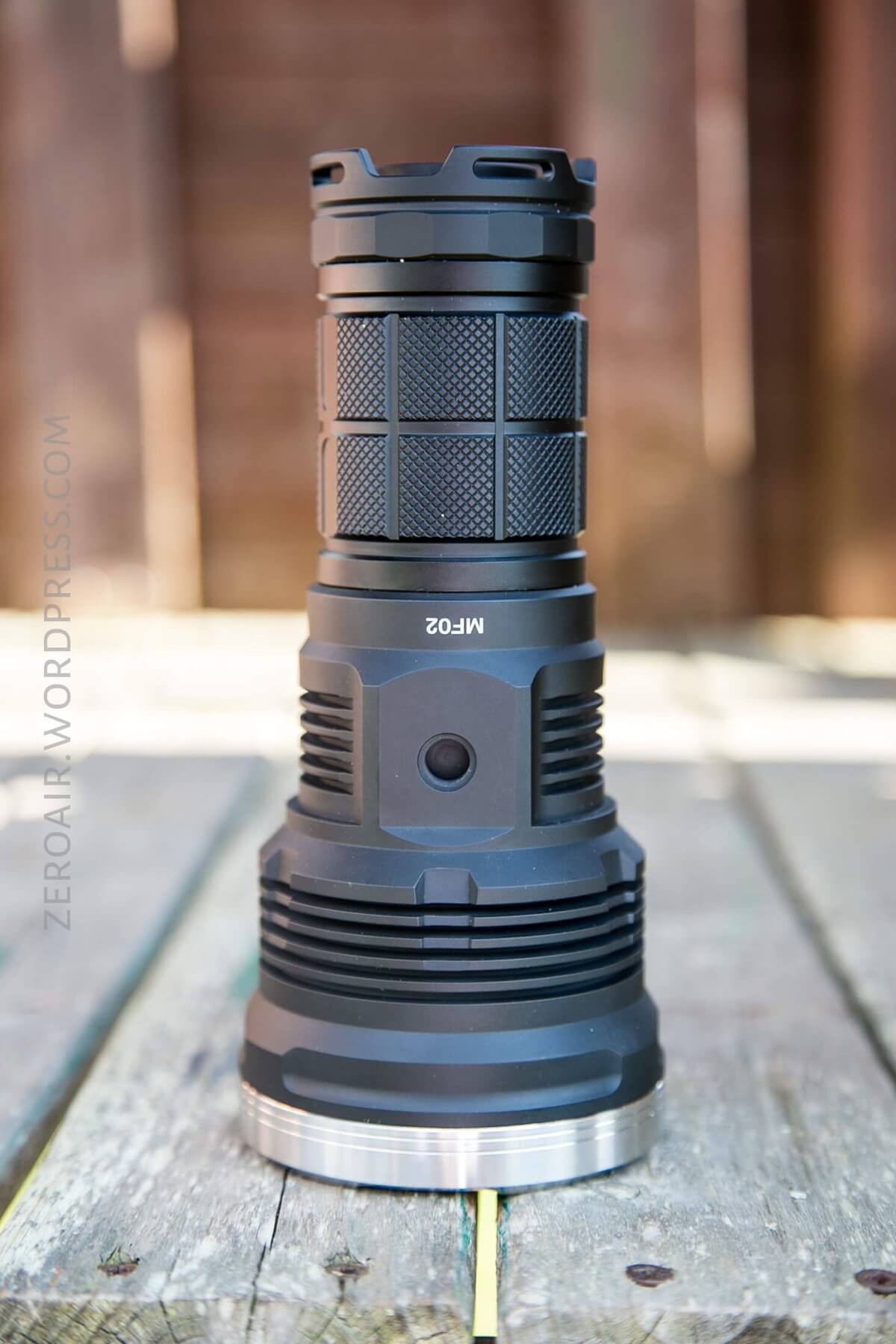

Here are some detail shots of the body. The center tube is just that, a tube. Diamond knurling in larger squares provide ample grip. The cell holder is conveniently reversible (but the cells are absolutely not! Take care to install them properly!).

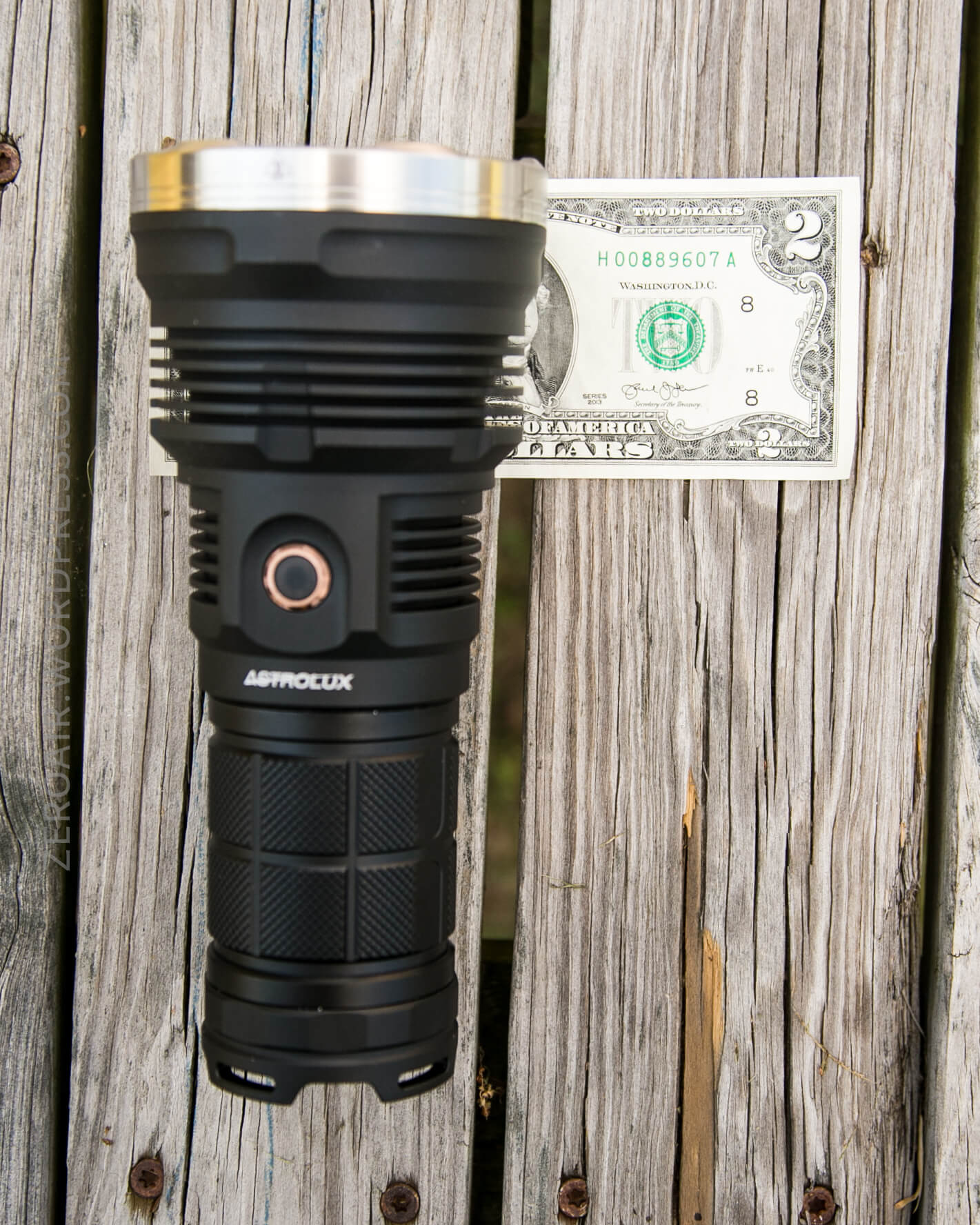

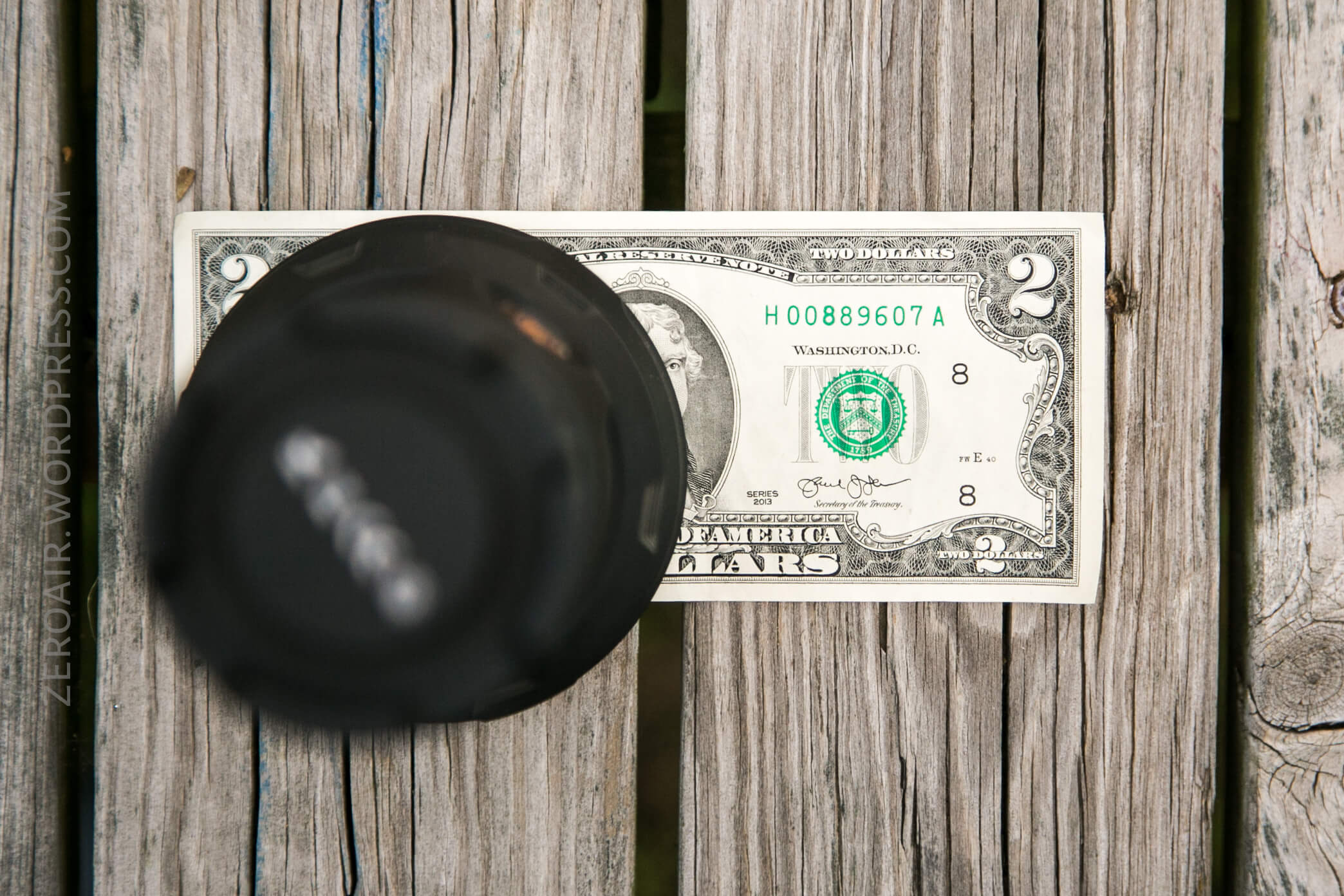

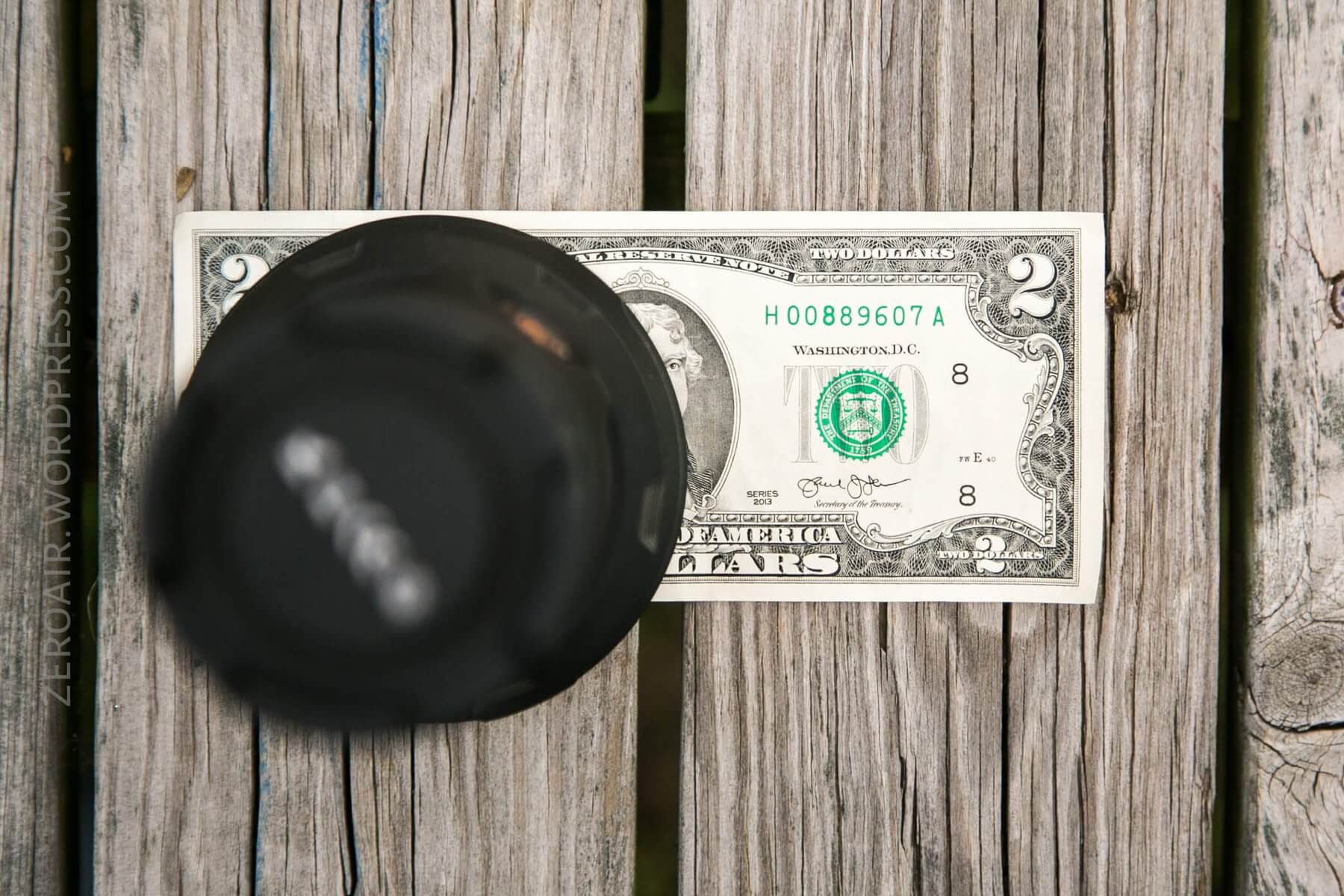

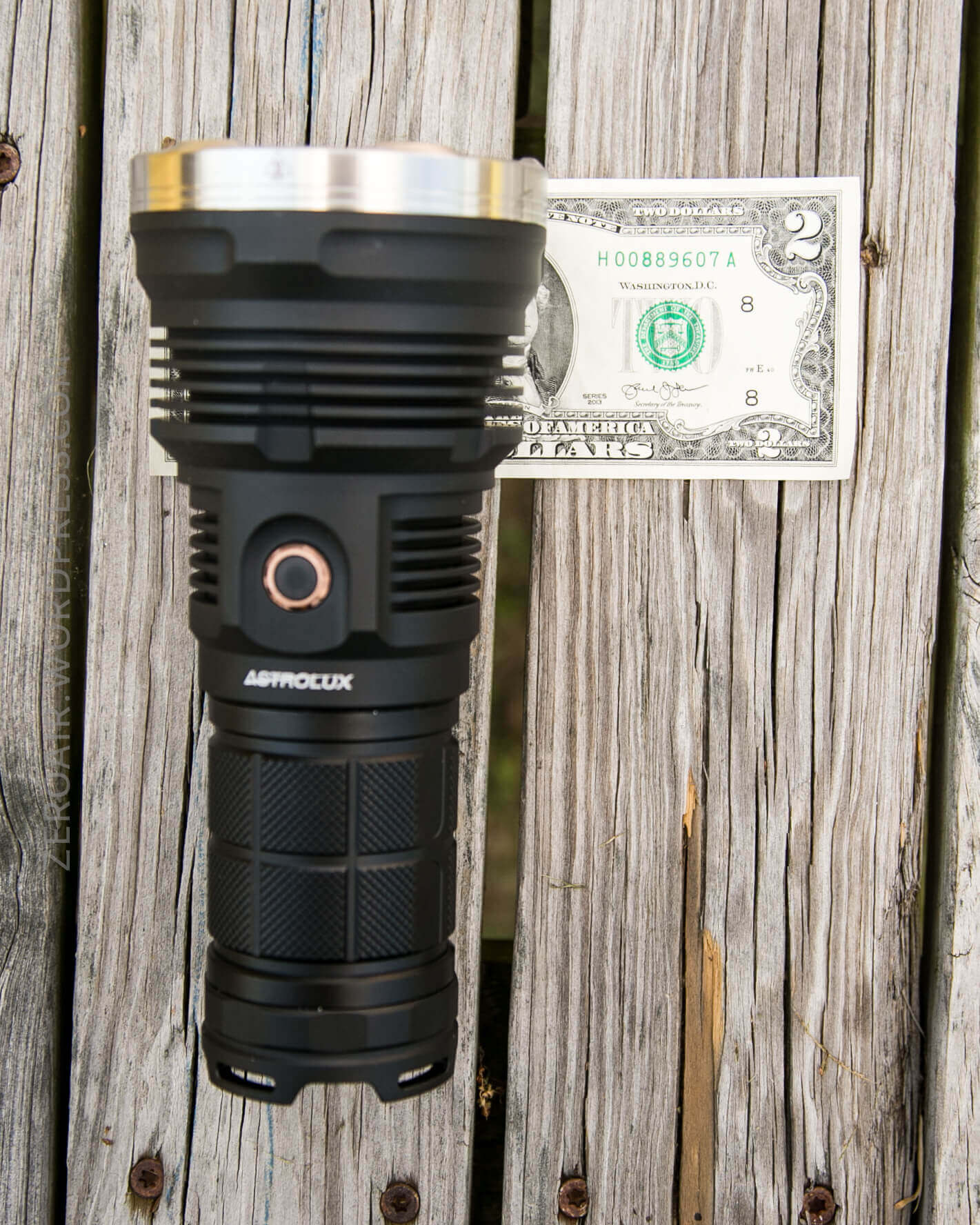

Size
Officially 189mm x 84mm x 54mm(length x head x body diameter).
I hate to call such a small (?) light “massive,” but this light carries quite large. The head (I’ll say it again) has a lot of mass!
Retention

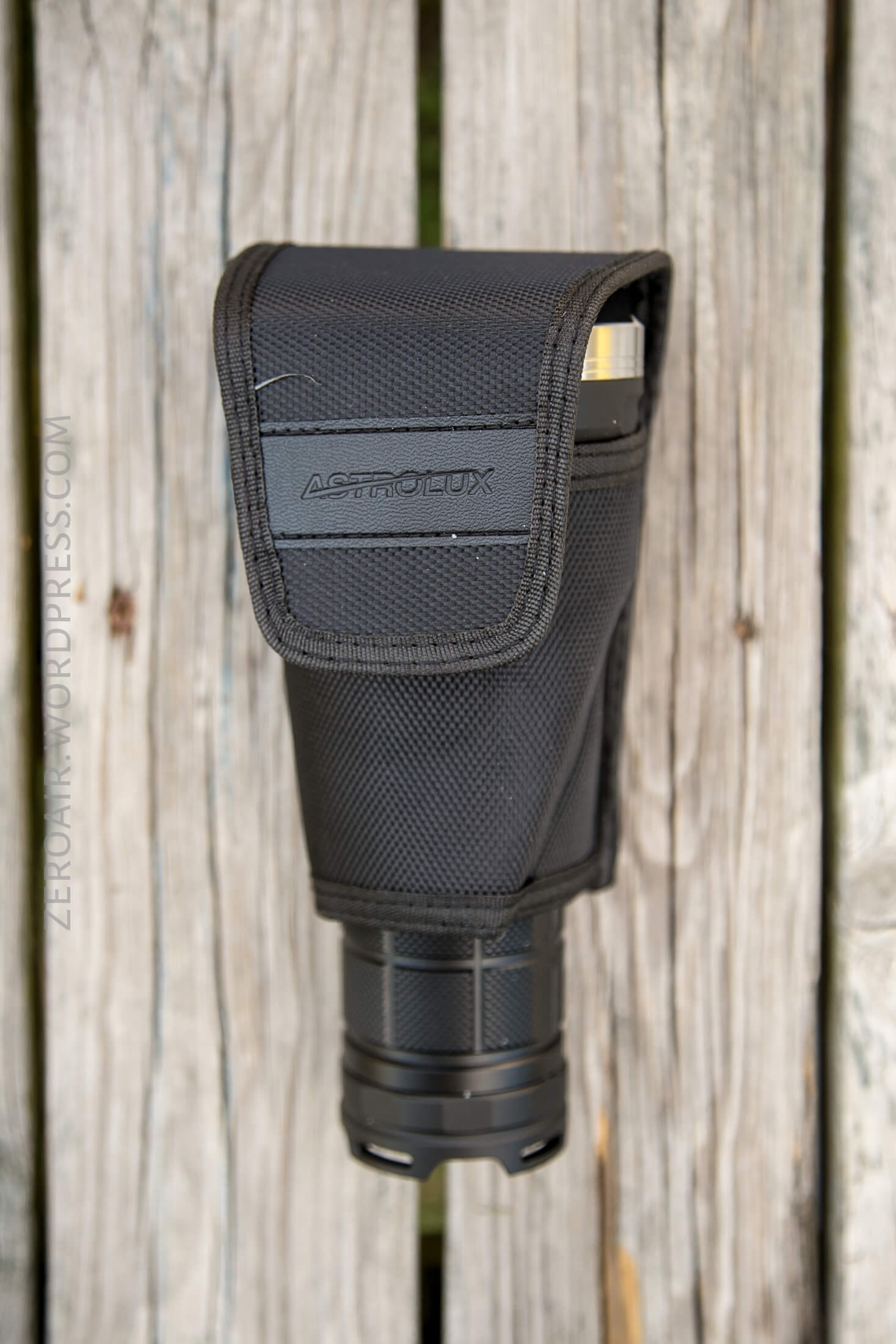

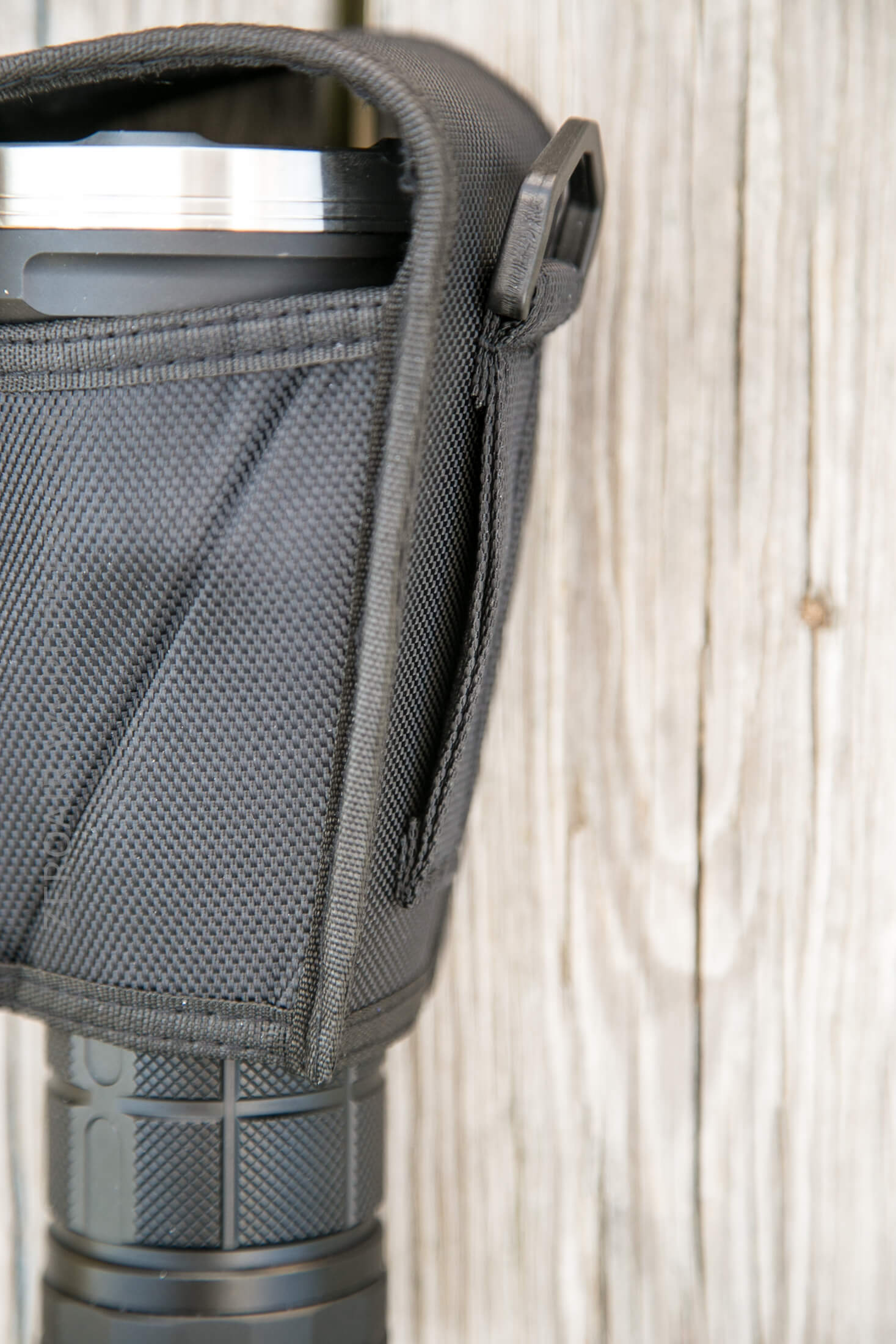

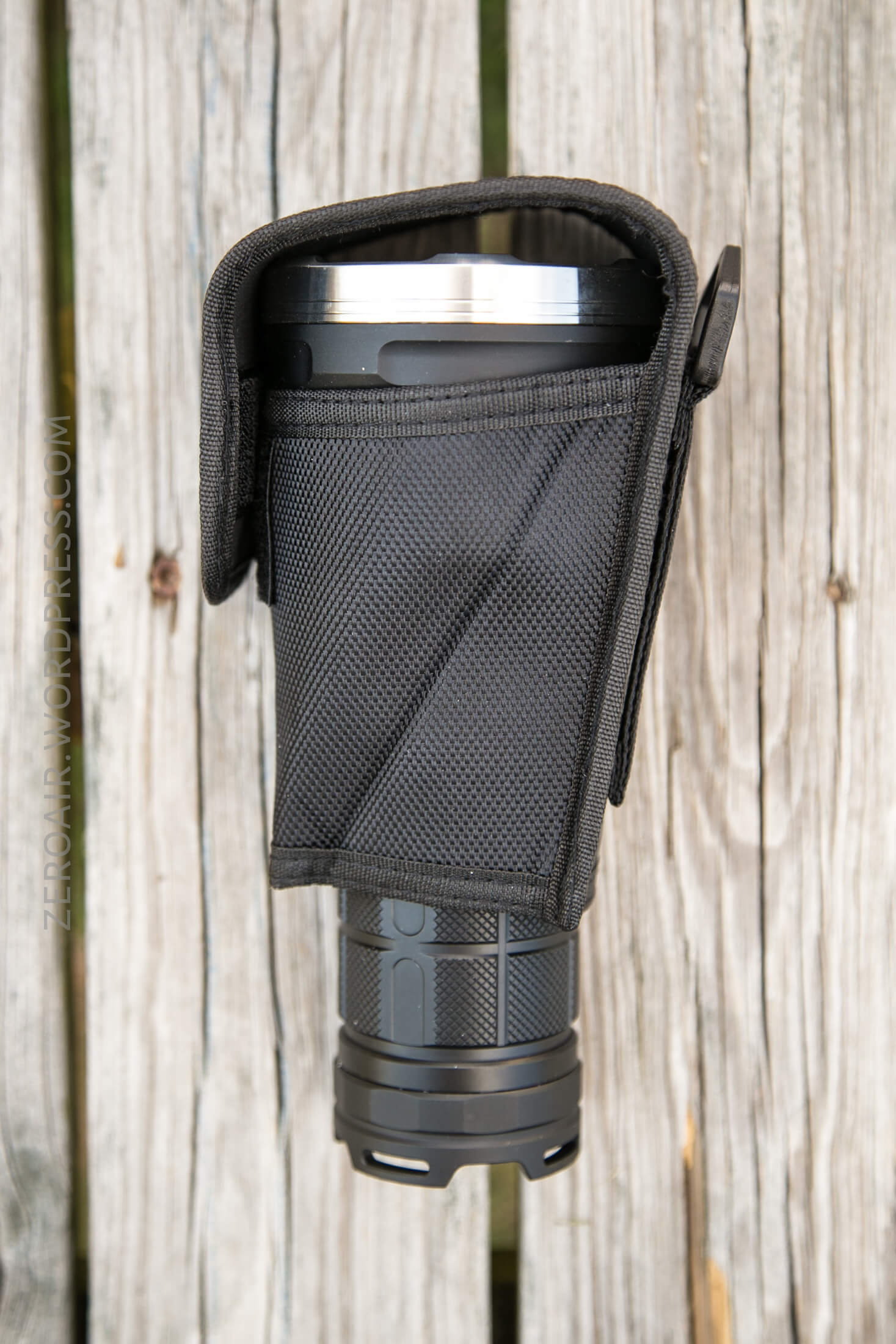

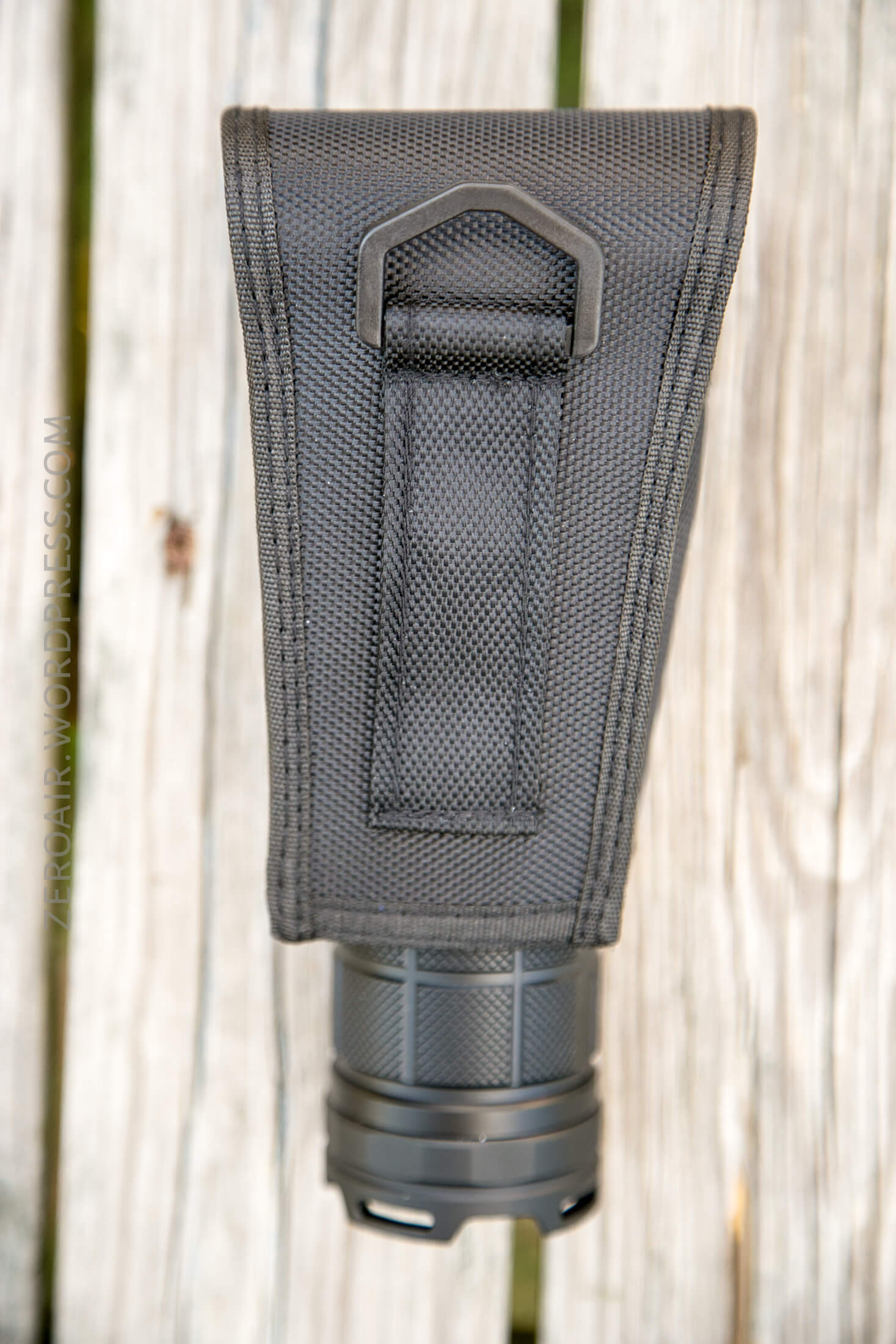

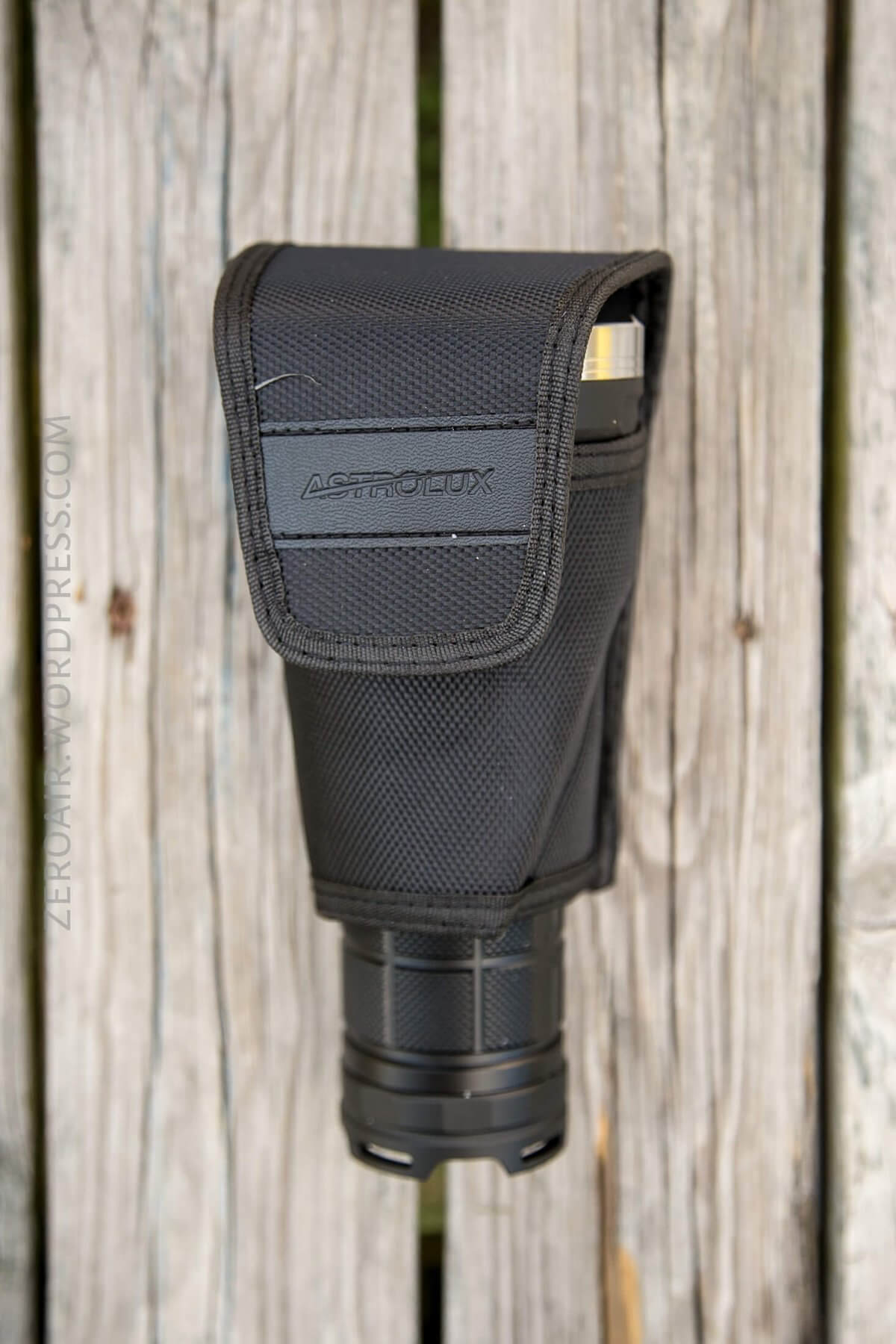

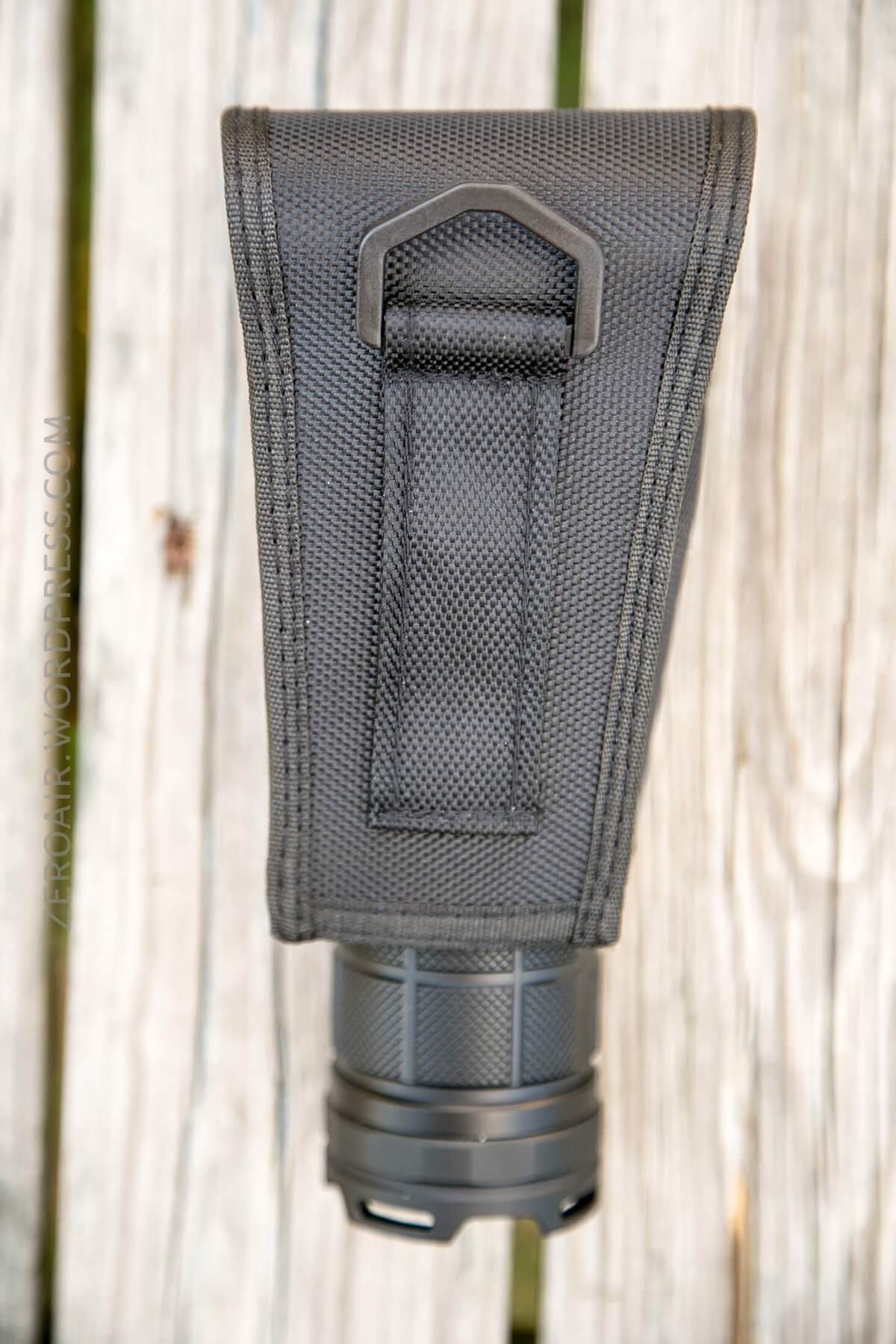

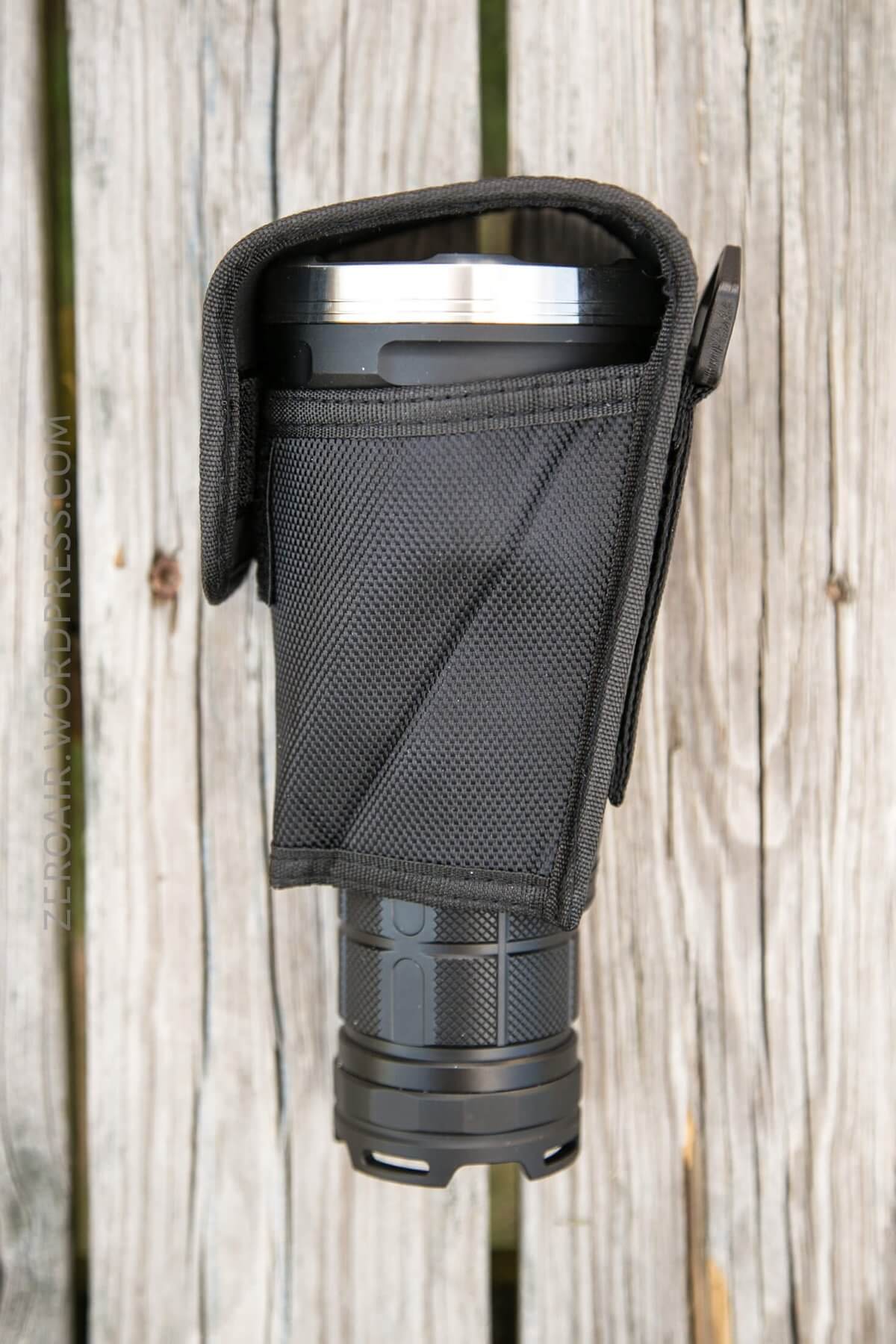

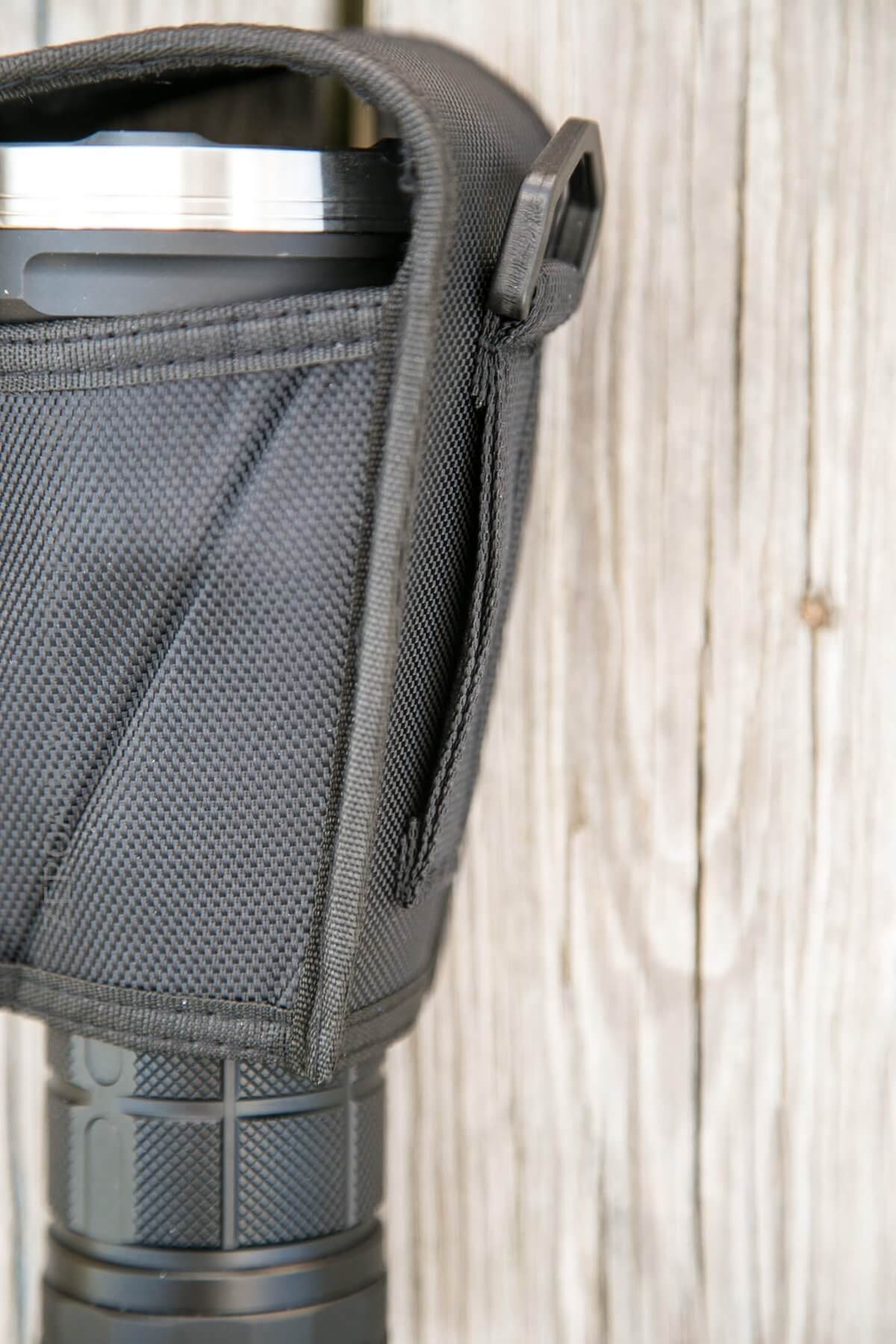

There are a few ways to carry this light. Primary is the nylon pouch. It’s directional, with bezel up carry. It’s a pretty nice pouch, with the exception that the belt loop doesn’t detach at all and so you’d need to remove a belt to remove the pouch. Otherwise it’s a standard plastic D-ring nylon pouch.
Also included is an adjustable shoulder strap. This attaches through permanent loops in the tailcap, and a screw-in loop mid-body. The hole in the screw-in loop is just a touch small, so the hook does not rotate very freely, but the tailcap connection fits well, and the hook has a bit of freedom. This strap is quite adjustable, and has a pad for shoulder contact.

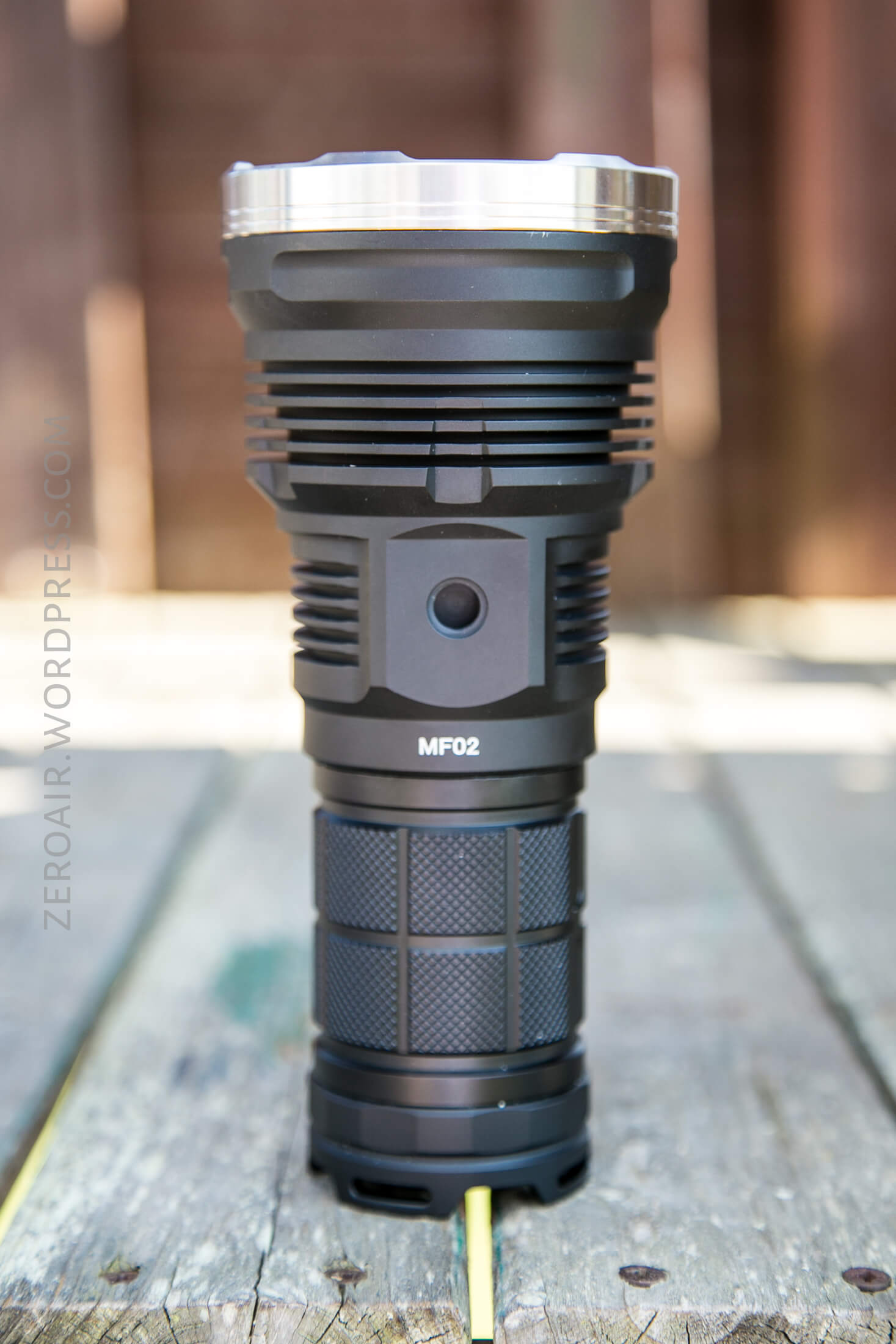

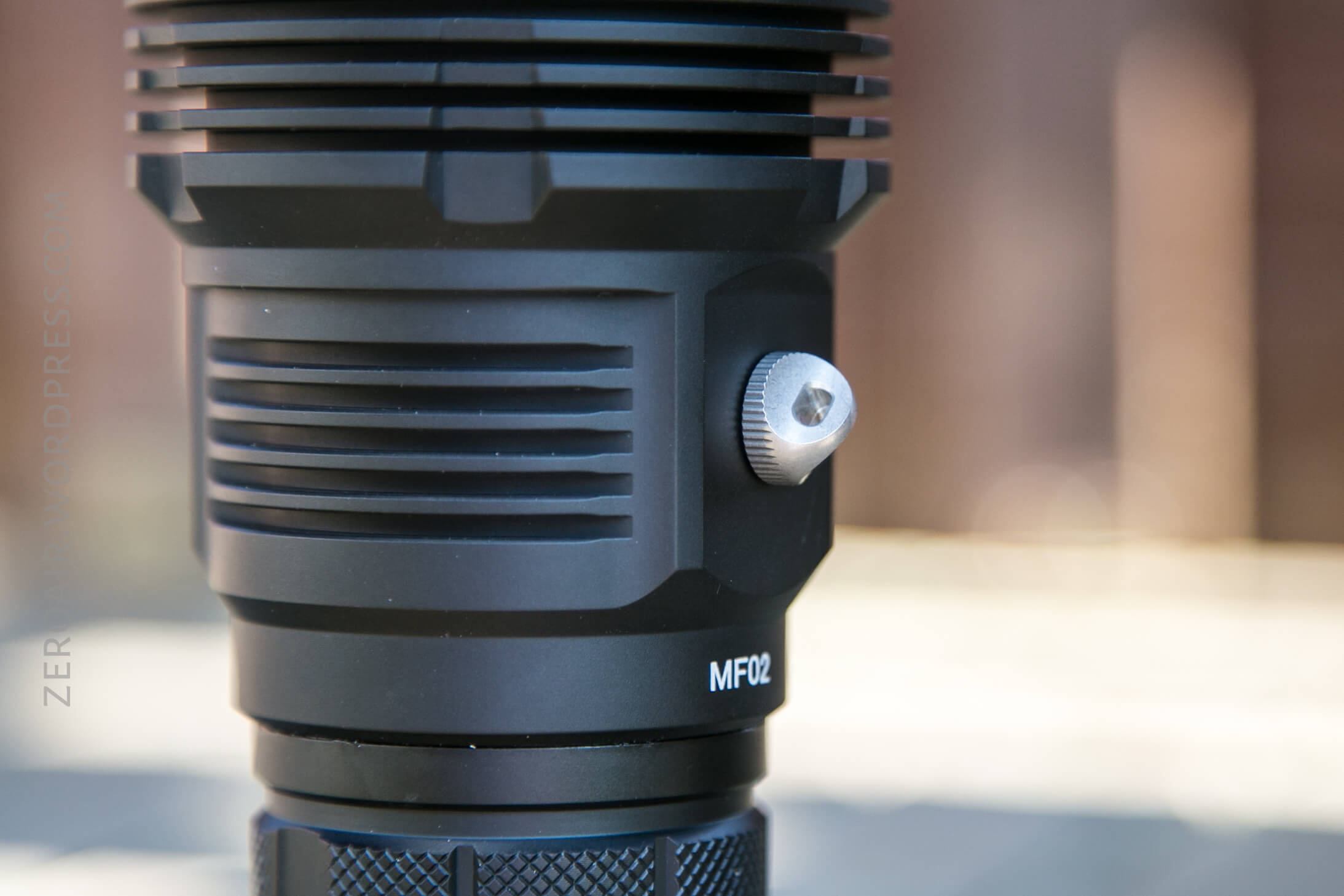

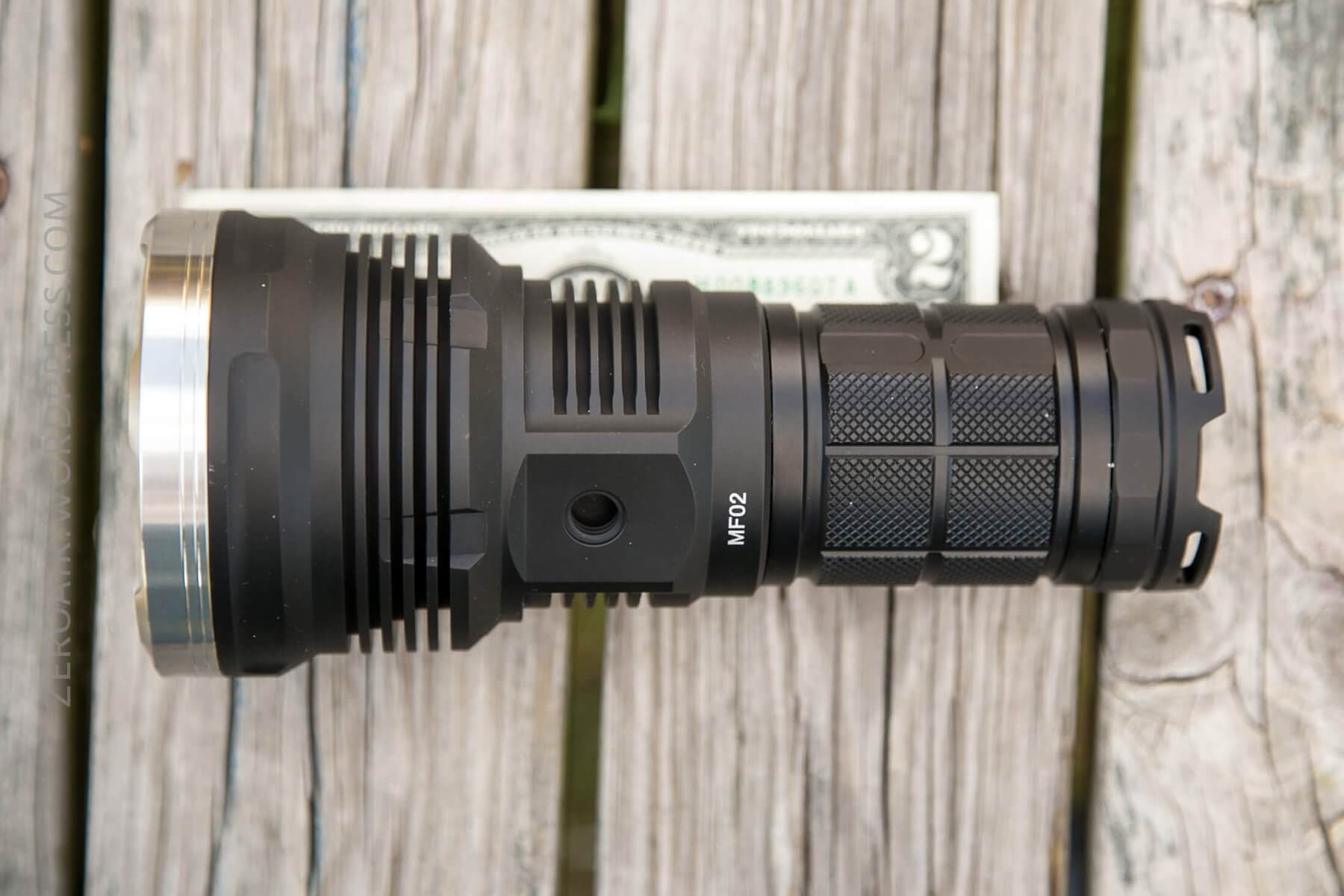

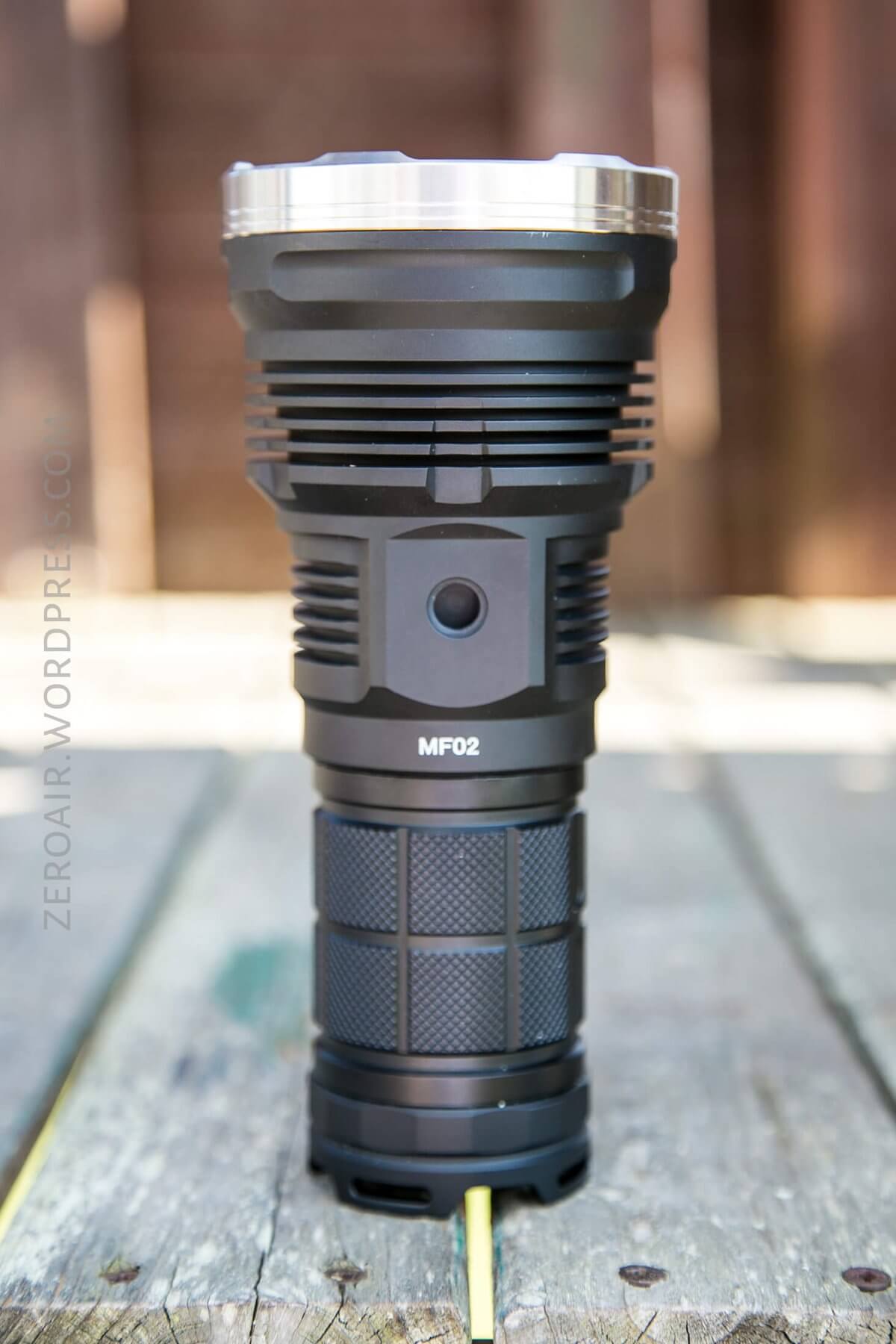

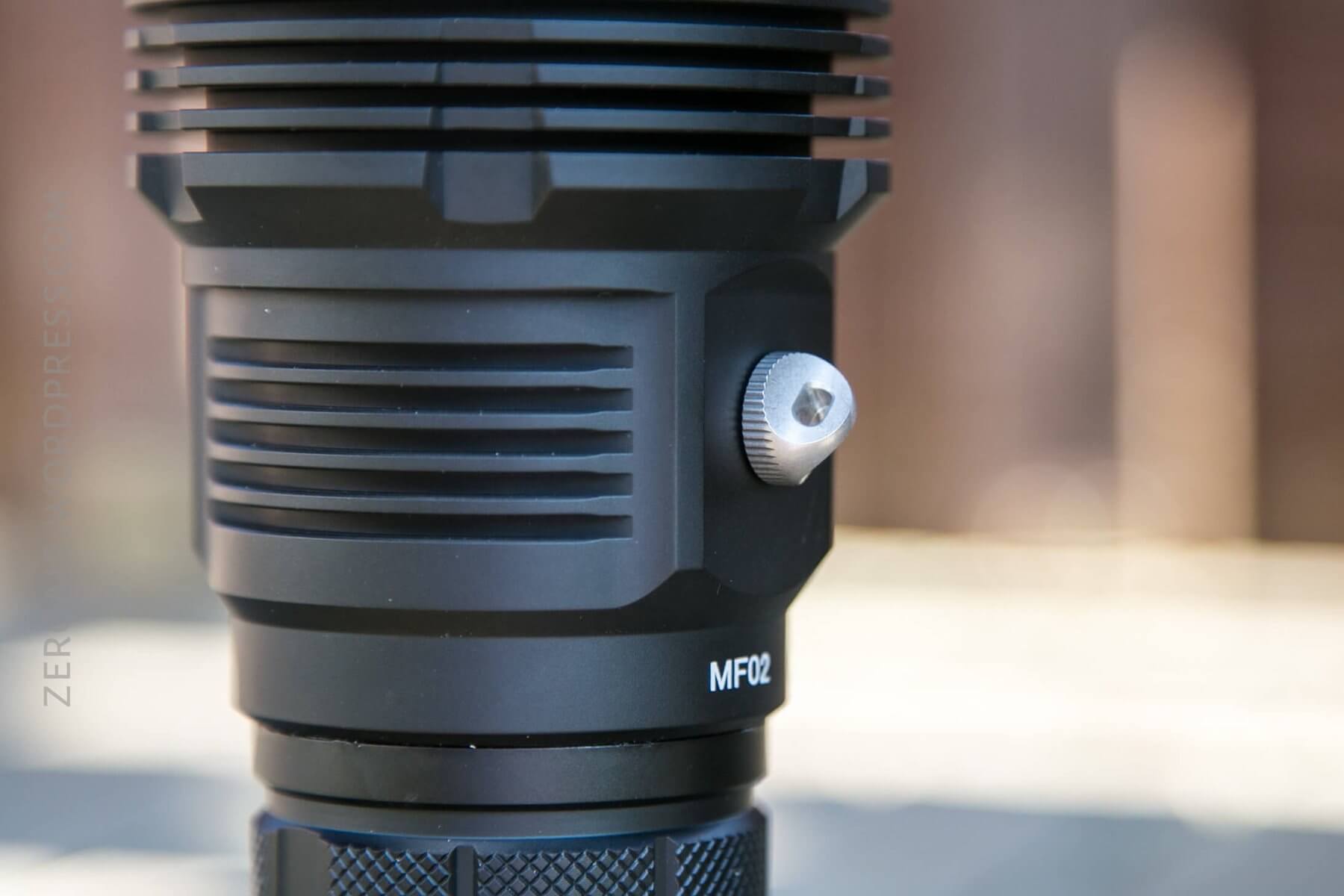

There’s also a threaded hole, but it’s not a standard tripod threading. As far as I know, this really can only connect the threaded, included, lanyard attachment. It’s likely there’s a screw in attachment that will convert this hole to a tripod mount. That would be a very nice inclusion with the package. I believe some light I’ve had has one of those, but the name escapes me (possibly the Astrolux S42!).
While it’s not really intended this way, I think a better lanyard attachment would be to just connect both ends on tailcap, and have the light hang straight down.
Power

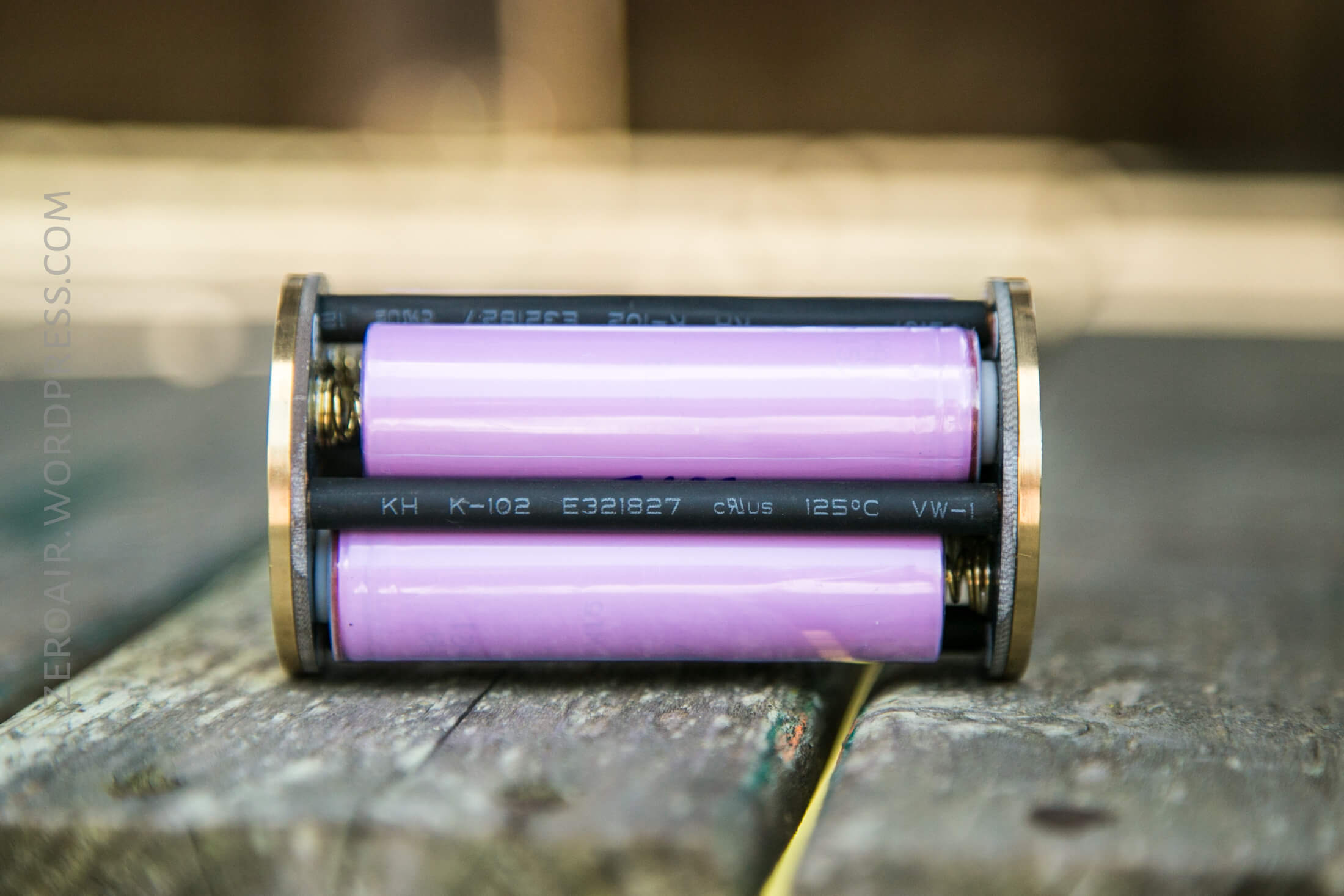

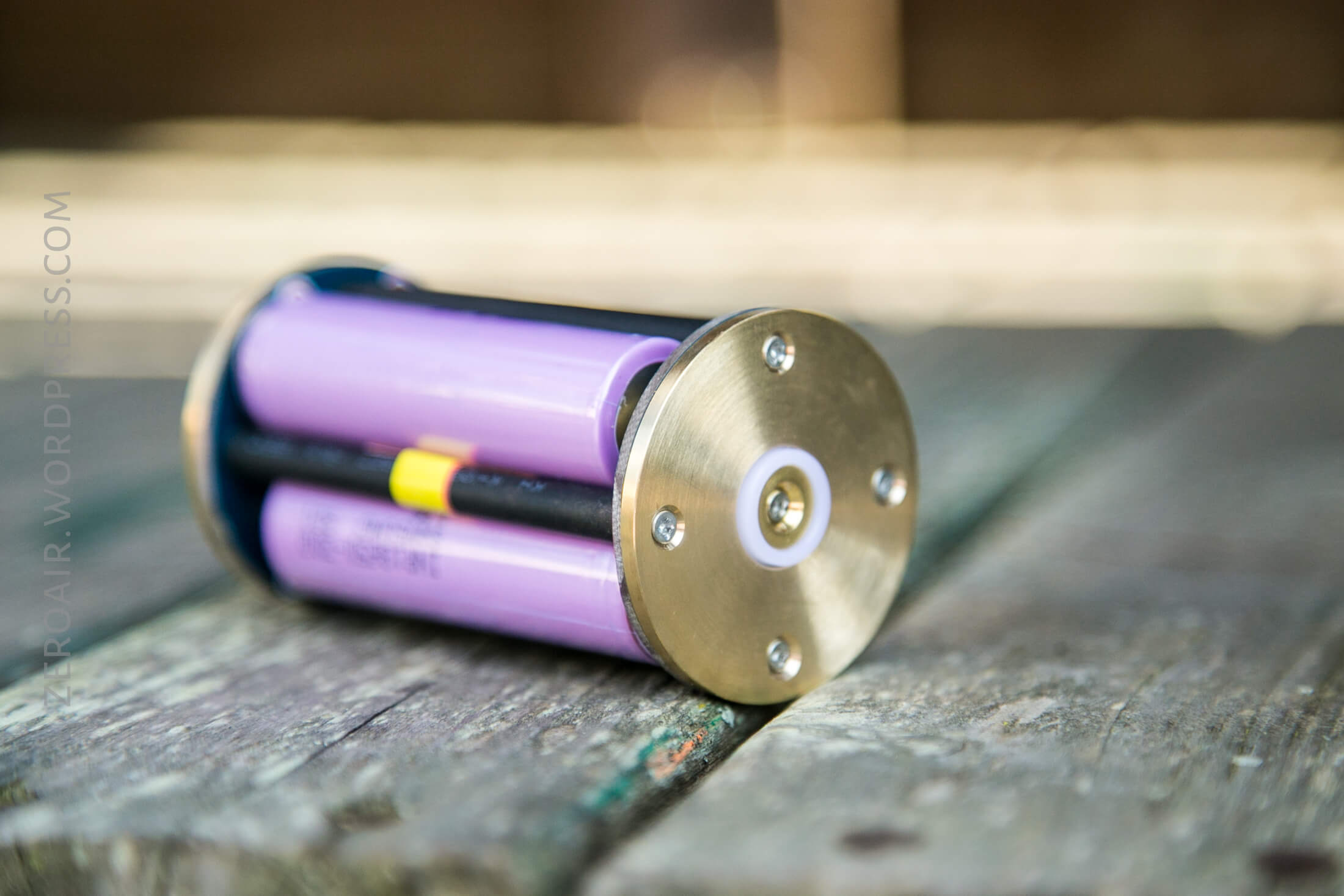

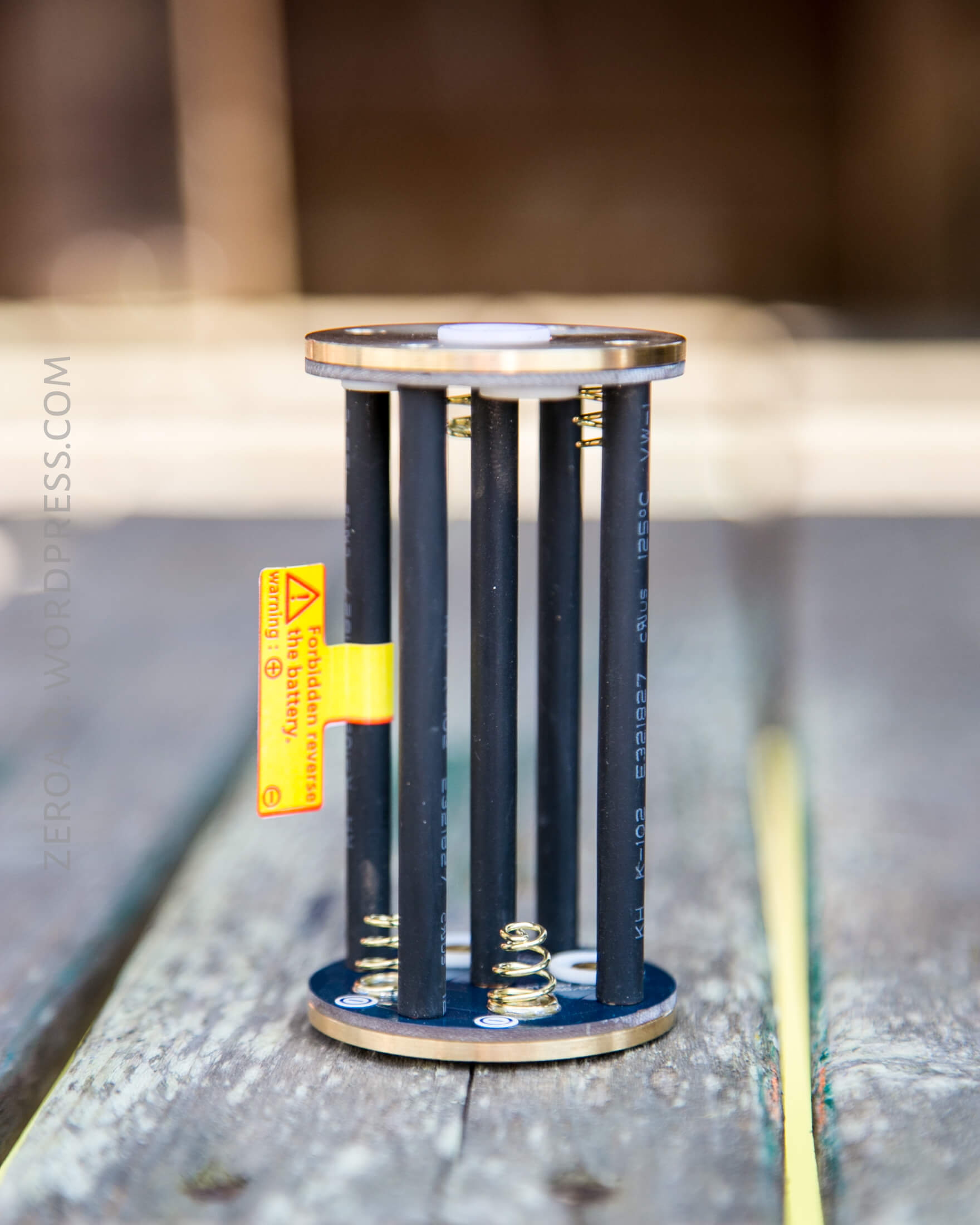

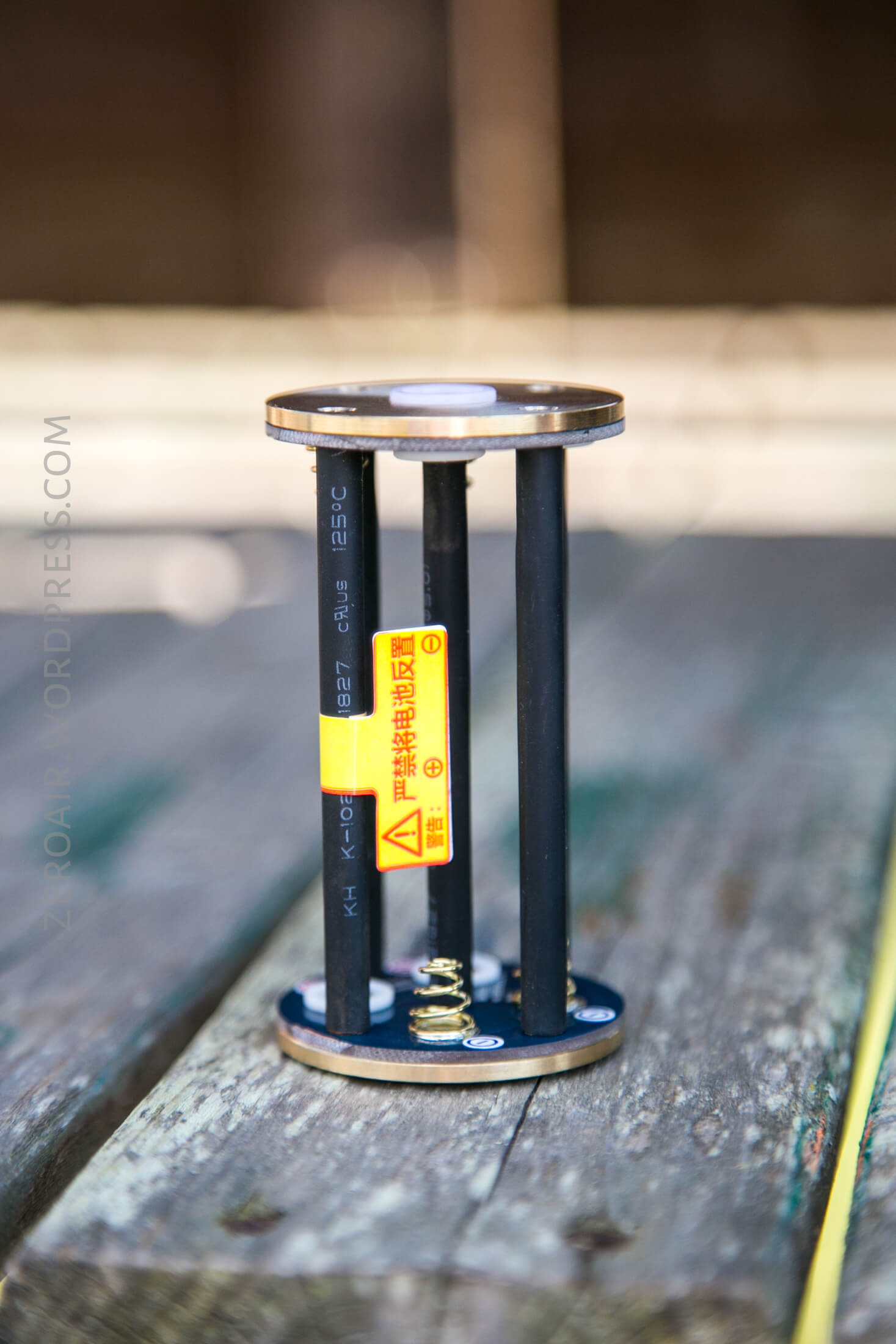

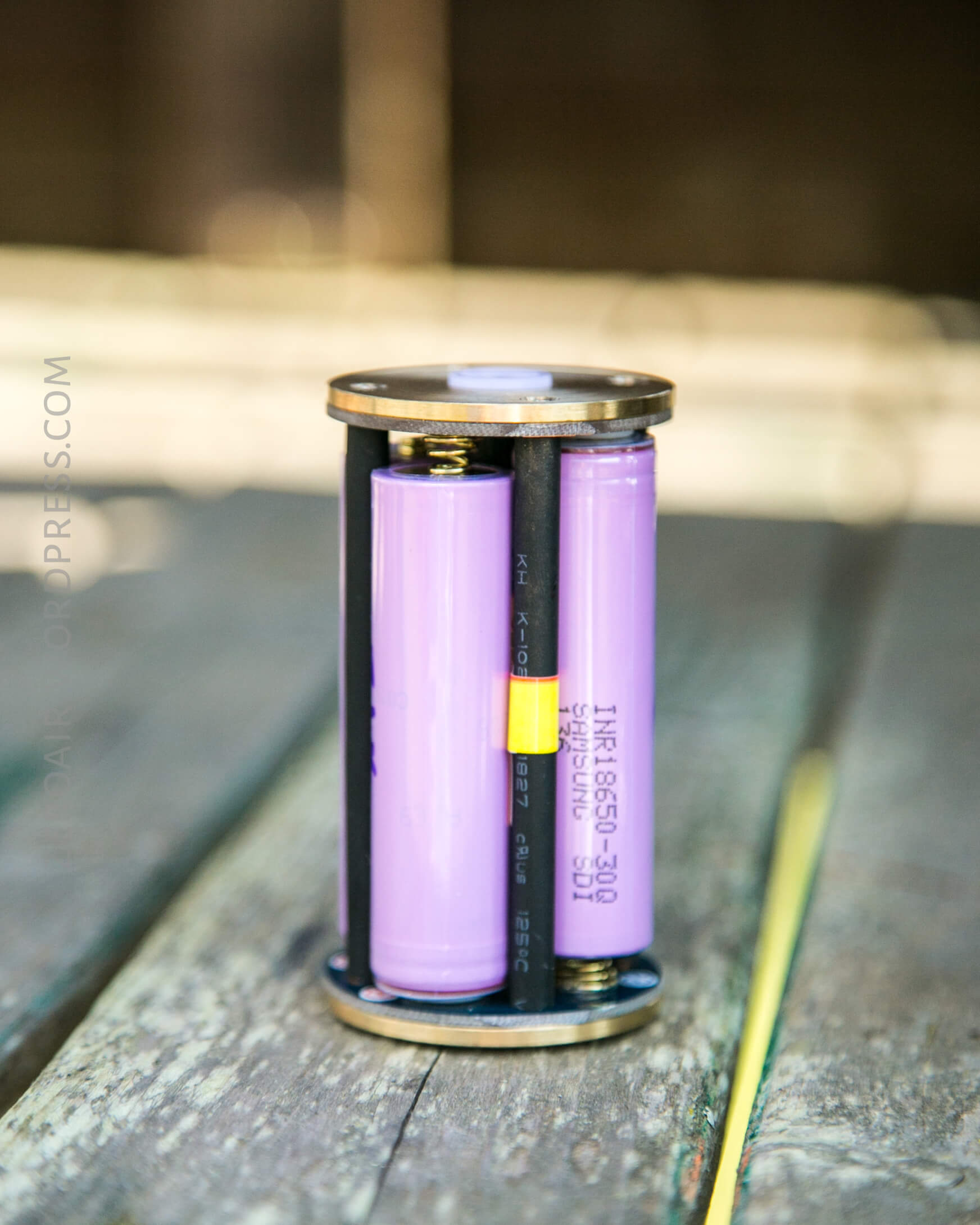

Four 18650 cells are used for powering this light. The cells are in a 2s2p configuration (or to quote u/kaybi_ “or 2p2s”). This means that the battery holder voltage is around 8.4V at a maximum. It also means that the light will work fully on some combination of 2 cells! That combination is actually versatile – any bay of the holder in which two cells are opposing each other will work! (ie, with one positive on “top” and one negative on “top”). And output won’t suffer; output should be the same with 2 or 4 cells.

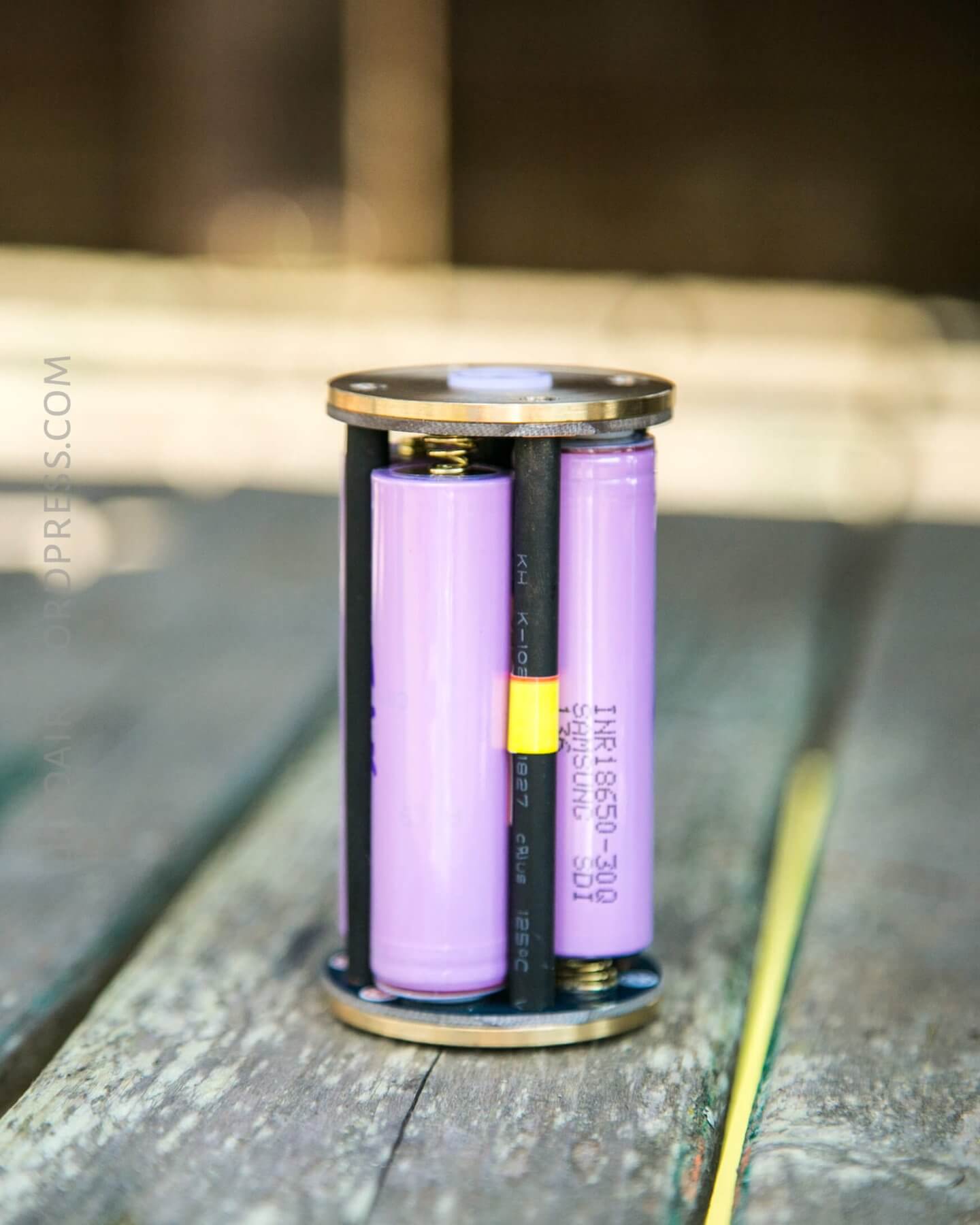

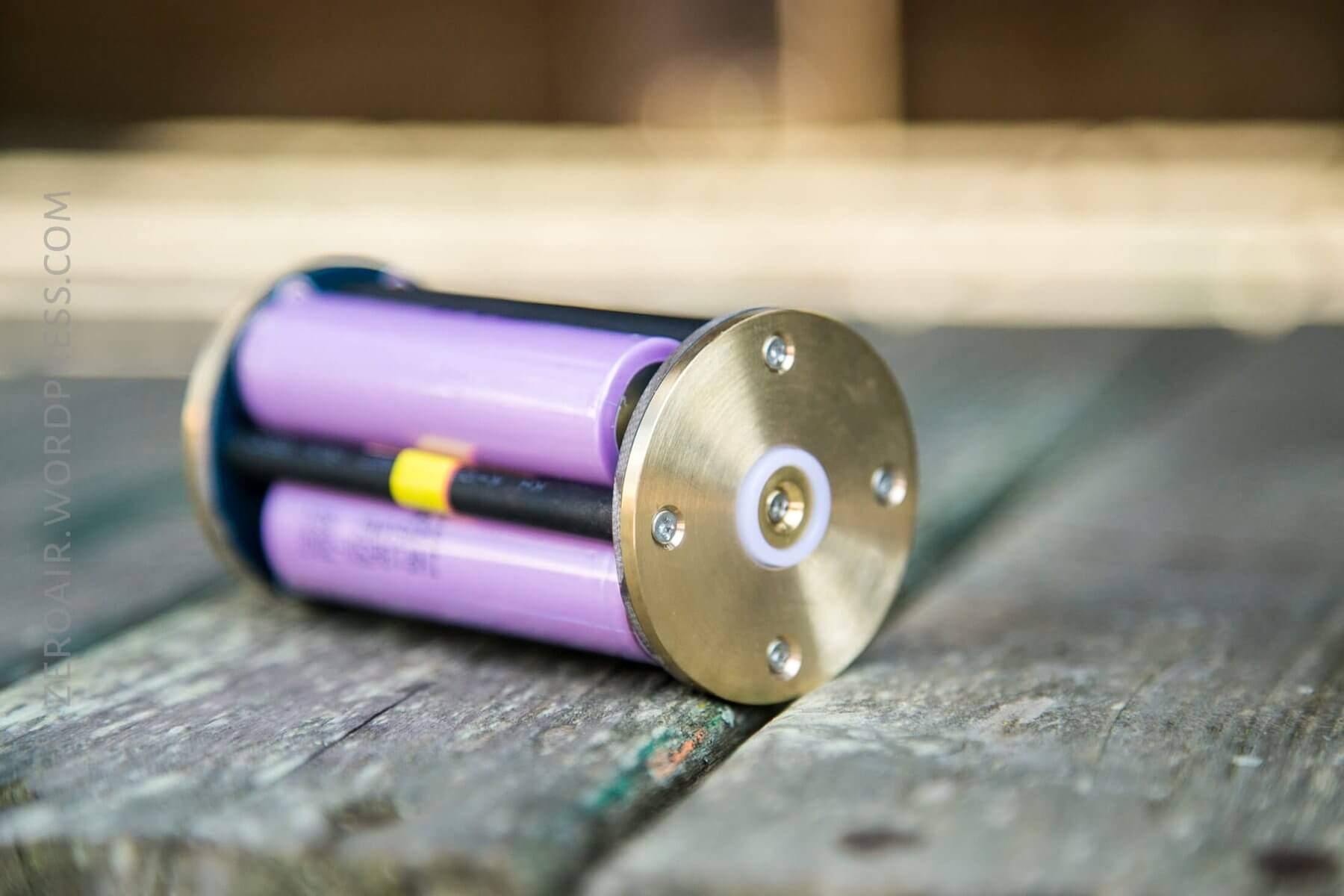

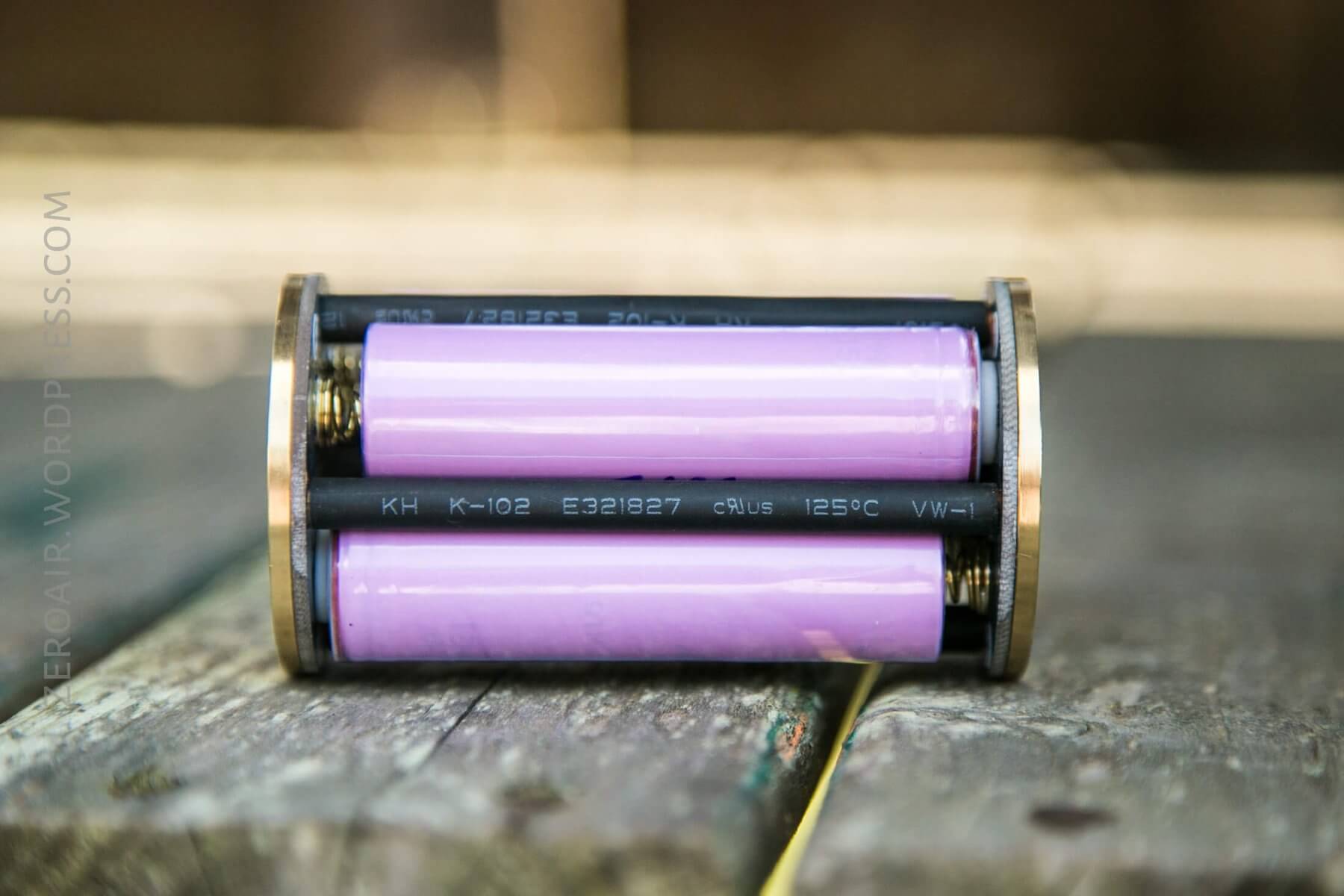

In the photos above, I have 4x 30q flat top cells, and to be perfectly honest, they just barely fit. I’d recommend your shortest cell, but protected/unprotected and flat top/button top shouldn’t matter (yes, there’s a little plastic …. thing over the positive terminal, but that didn’t stop flat top cells from working. I do expect it’d prevent damage, but I’d still be extra careful and don’t push your luck.

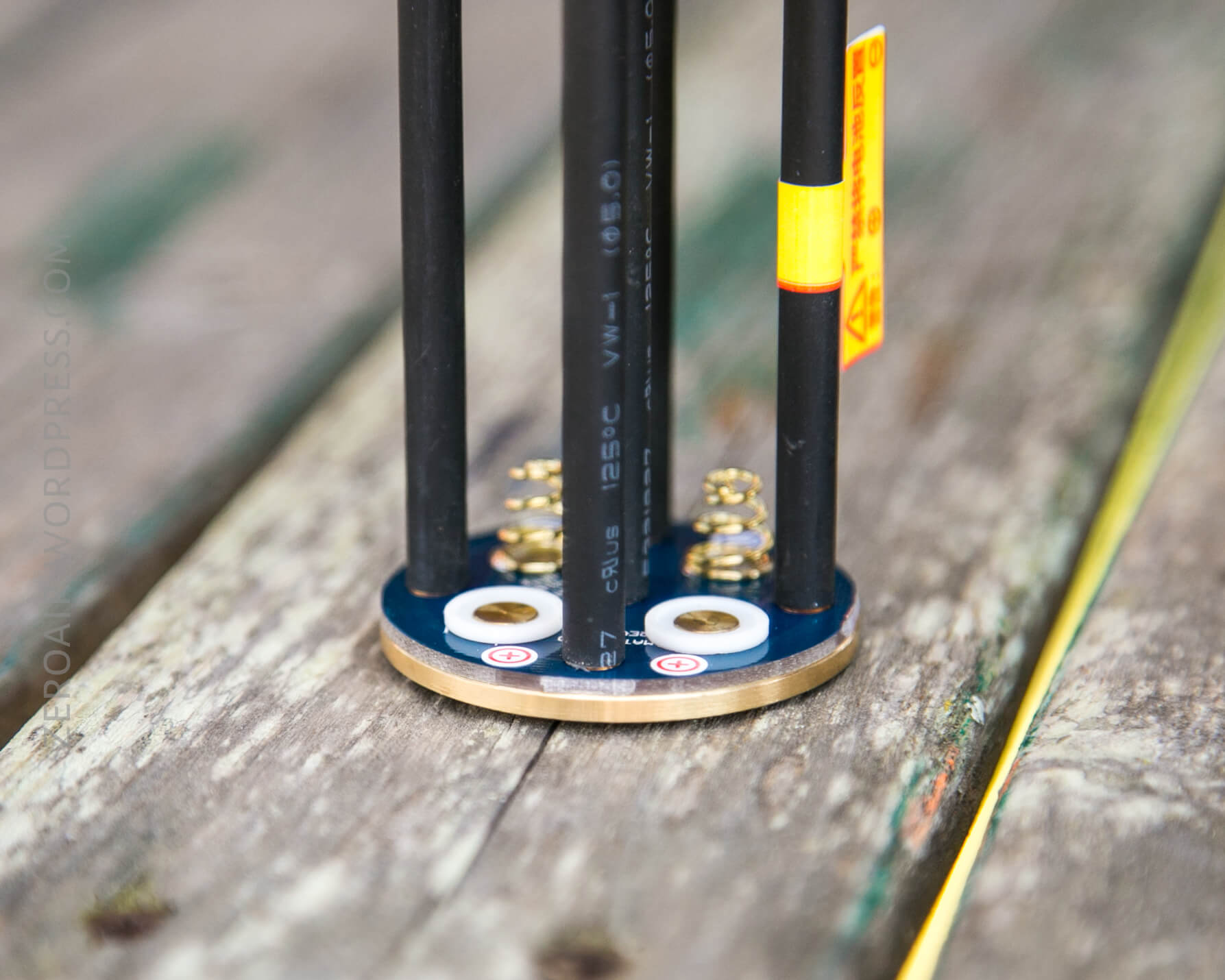

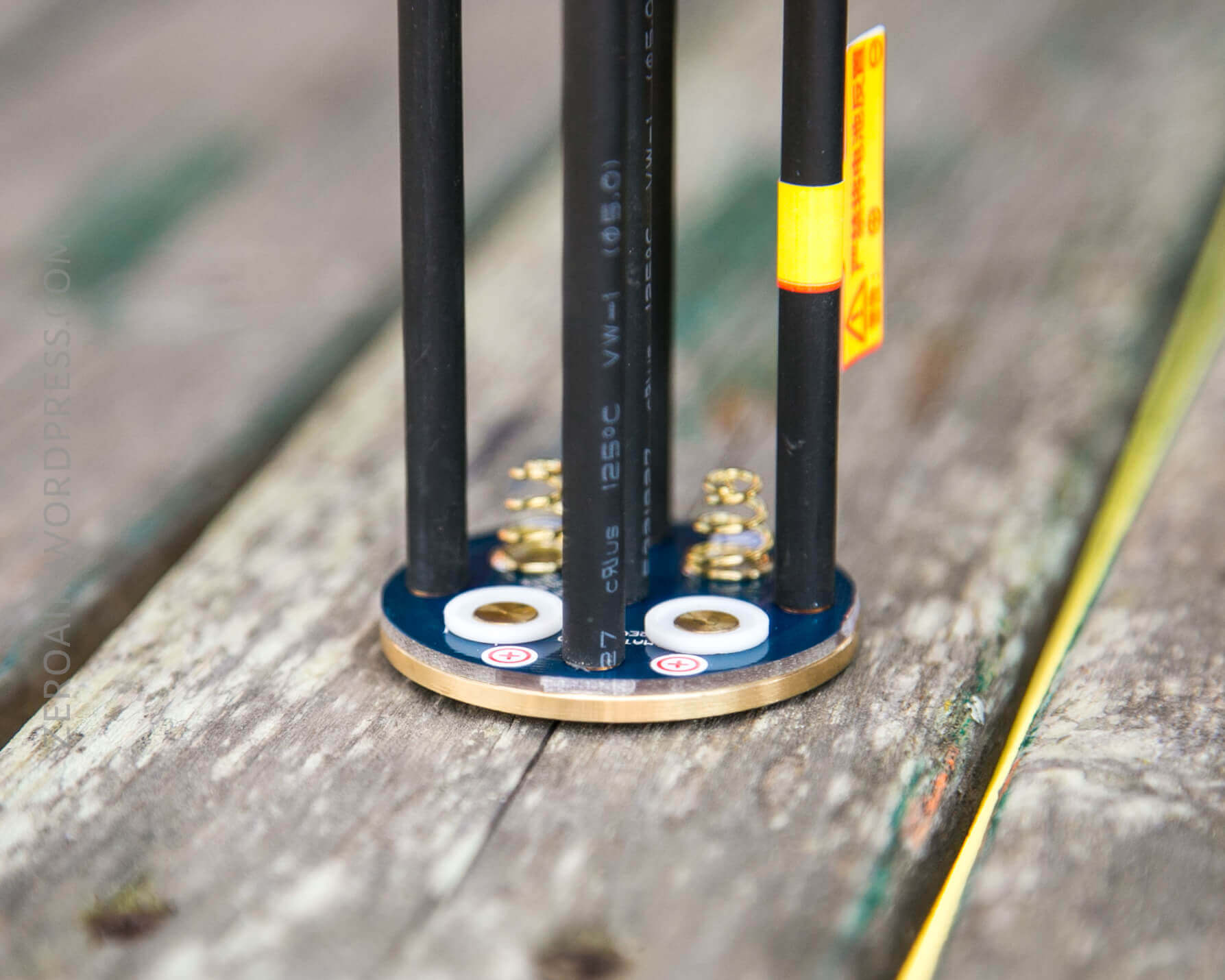

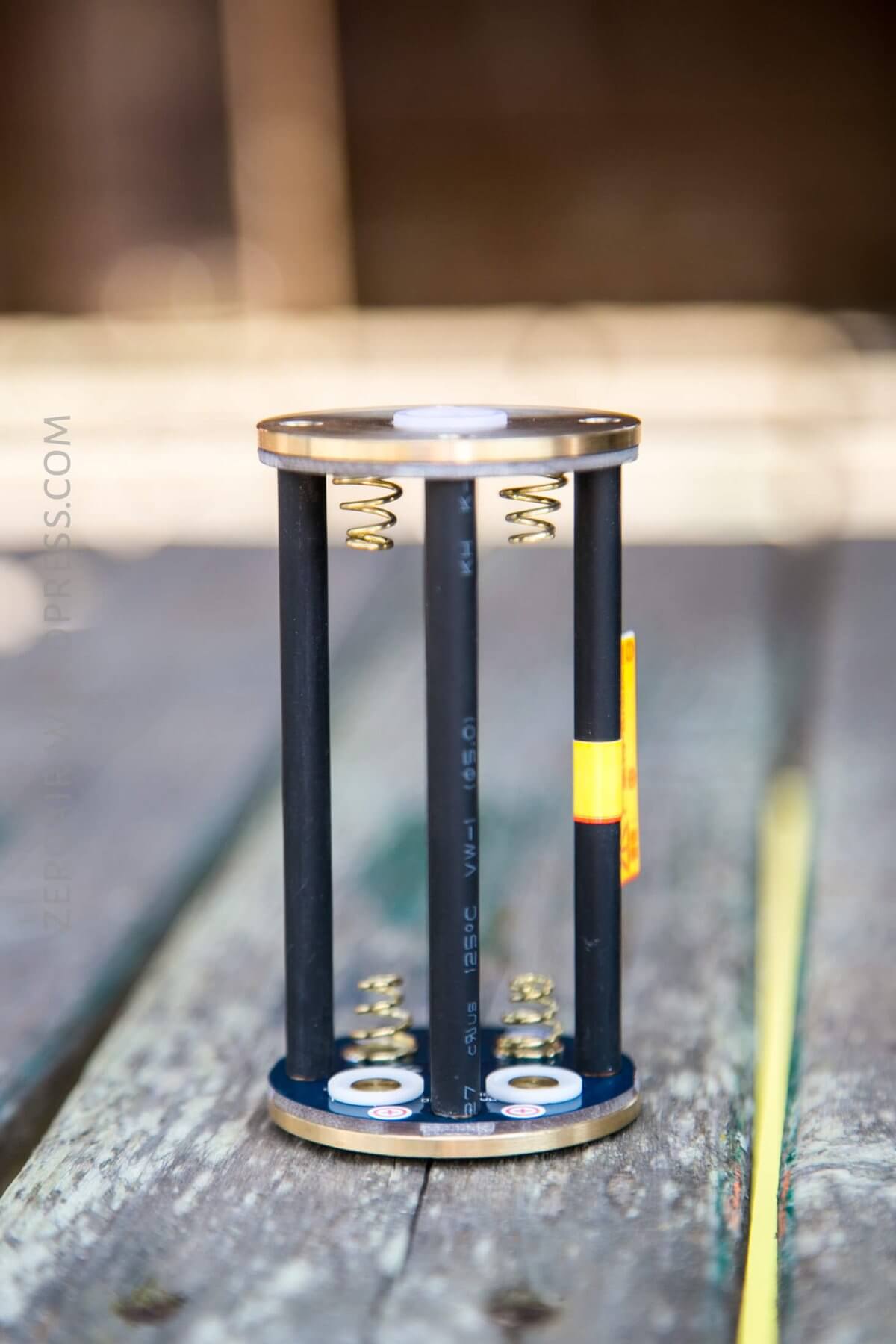

In the last photo below, you can see the plastic things on the positive terminals. Also note the cell arrangement. ++– (instead of probably the more common +-+-).
I like lights that have no cell holder, but I do appreciate cell holders. I am not smart enough to know why a maker decides to do one or the other. I can say that lights without this holder seem to be smaller, as in the case of the Imalent RT35 (which I’ll be reviewing soon!). That light throws almost as well, and has on-board charging too.

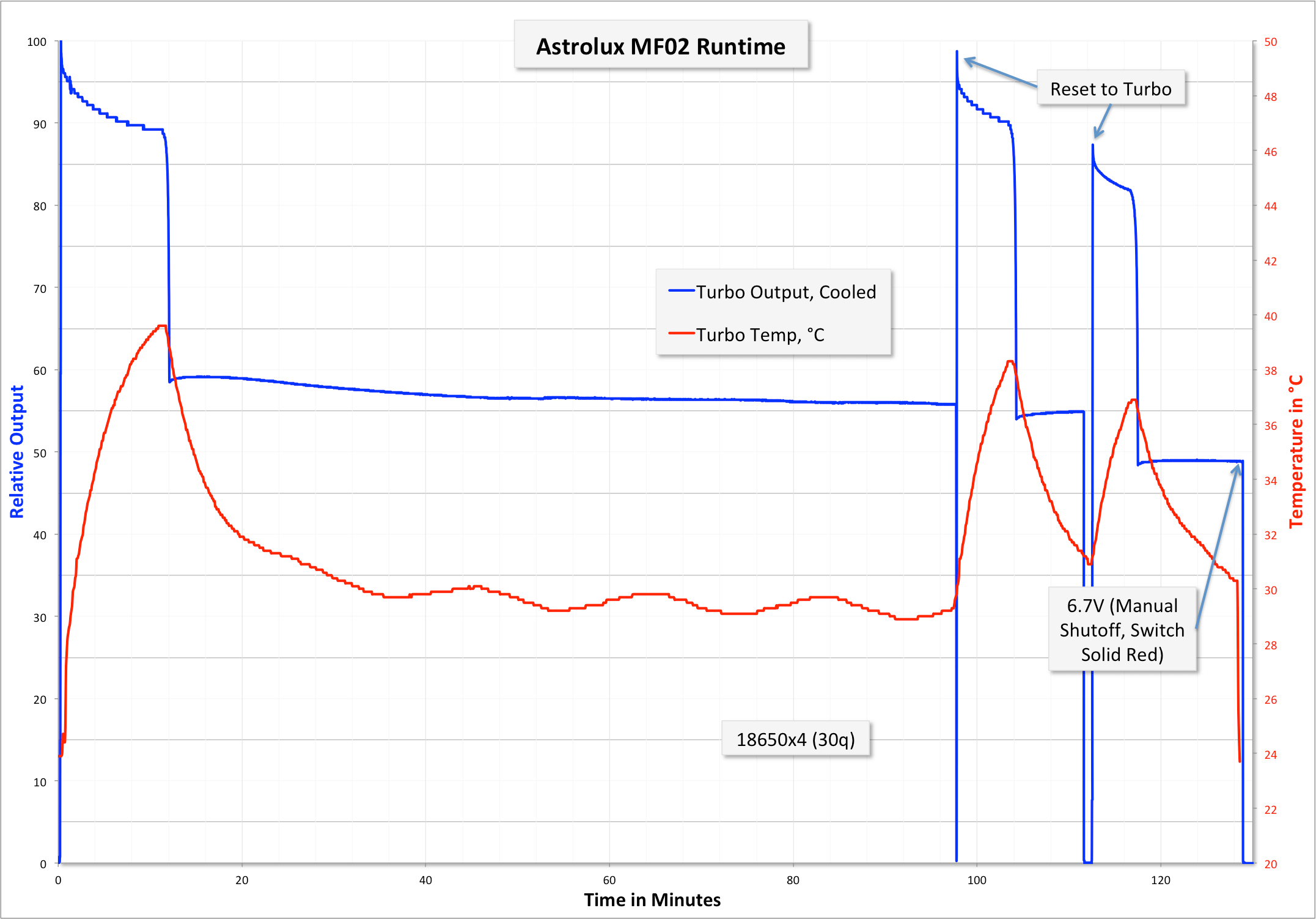

Here’s the runtime. I reset the light to turbo twice toward the end (because I just like to see what happens). The switch does turn red when the voltage gets low. I was using unprotected cells, so I opted to shut the light off, and the cell holder was at 6.7V (ie 3.35V each). The switch indicates as follows:
Green: Cell holder is at >6.8V
Red: Cell holder is at >6.1V
Flashing red: Cell holder is <6.1V
Light off: Cell holder is <5.8V.
User Interface and Operation

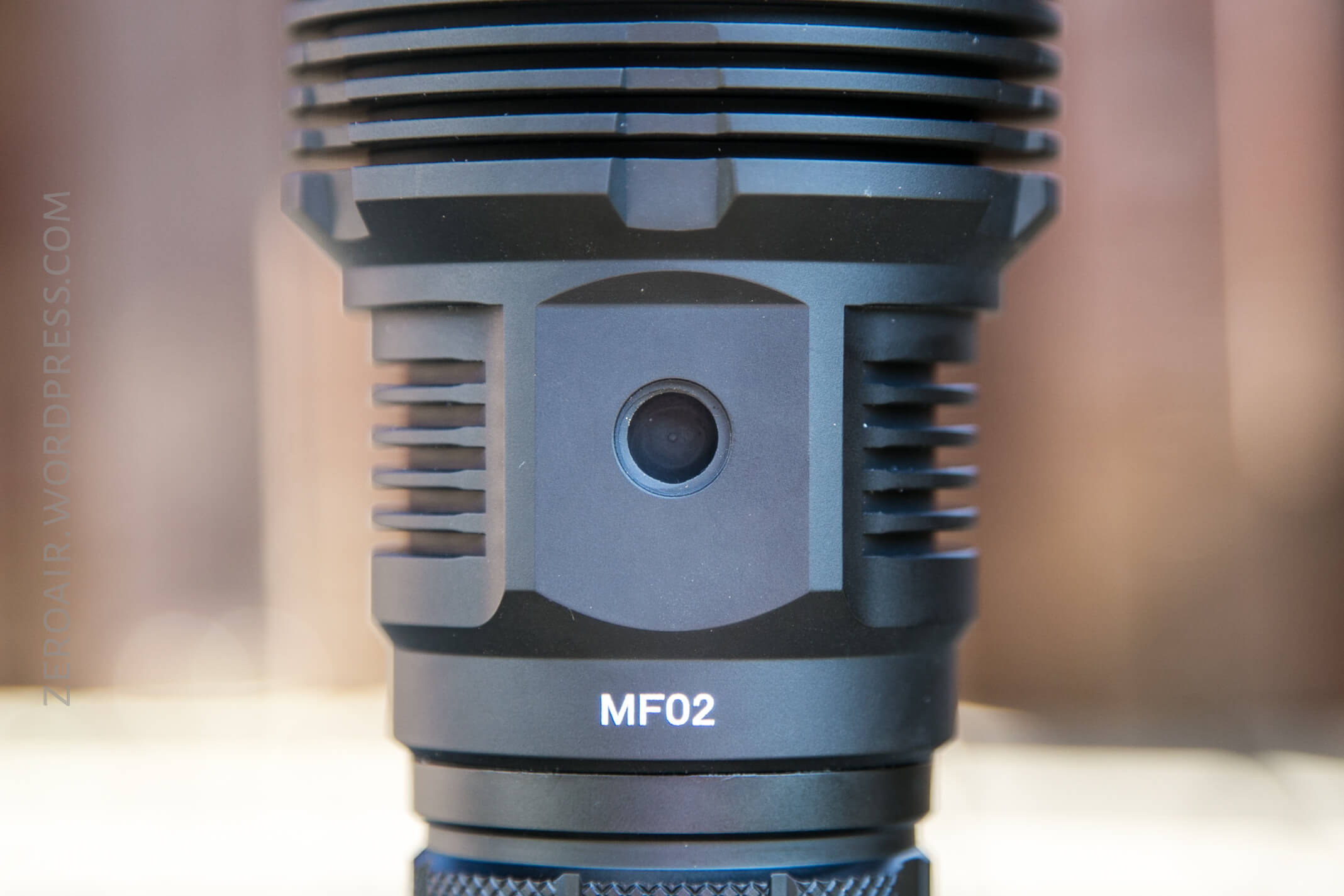

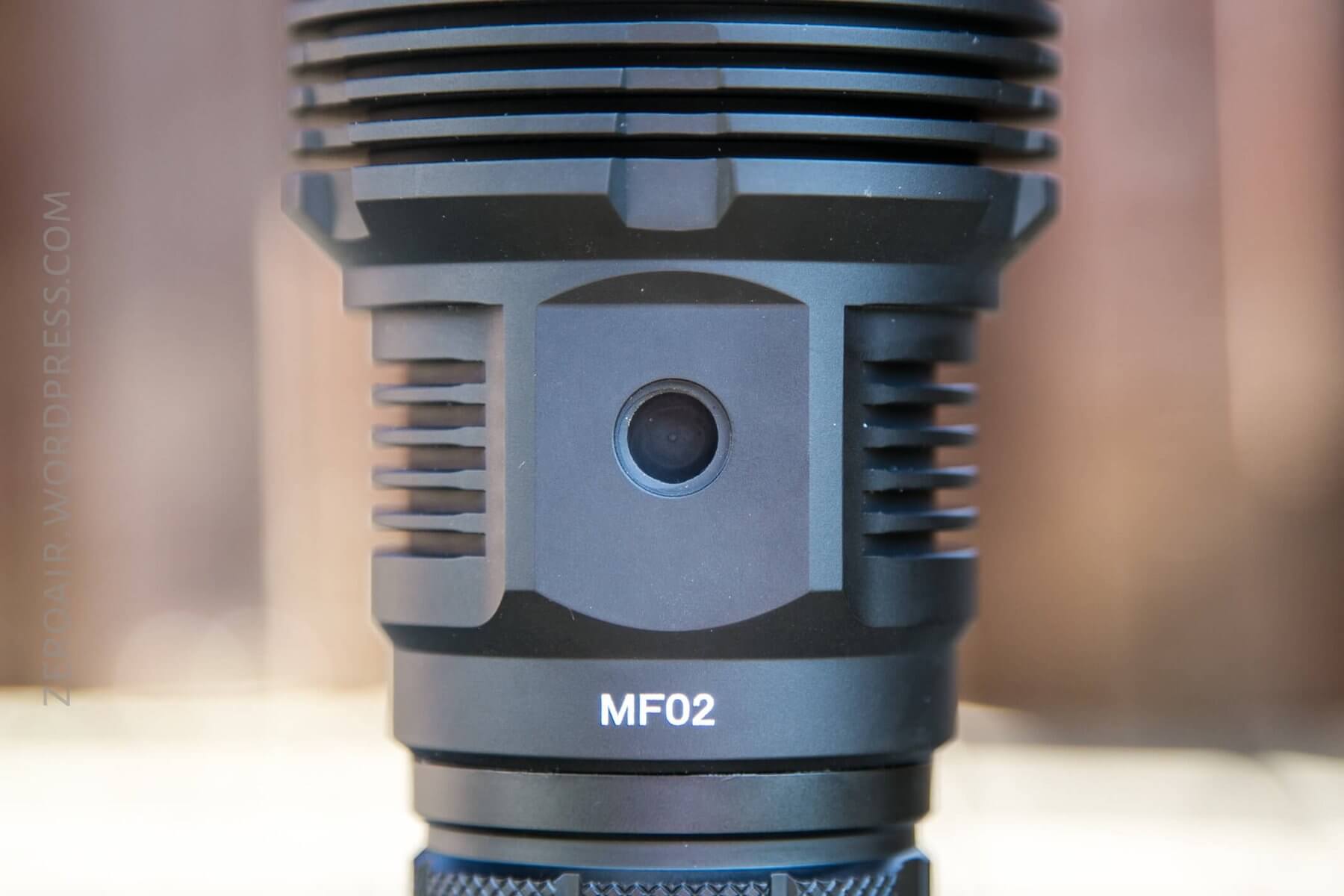

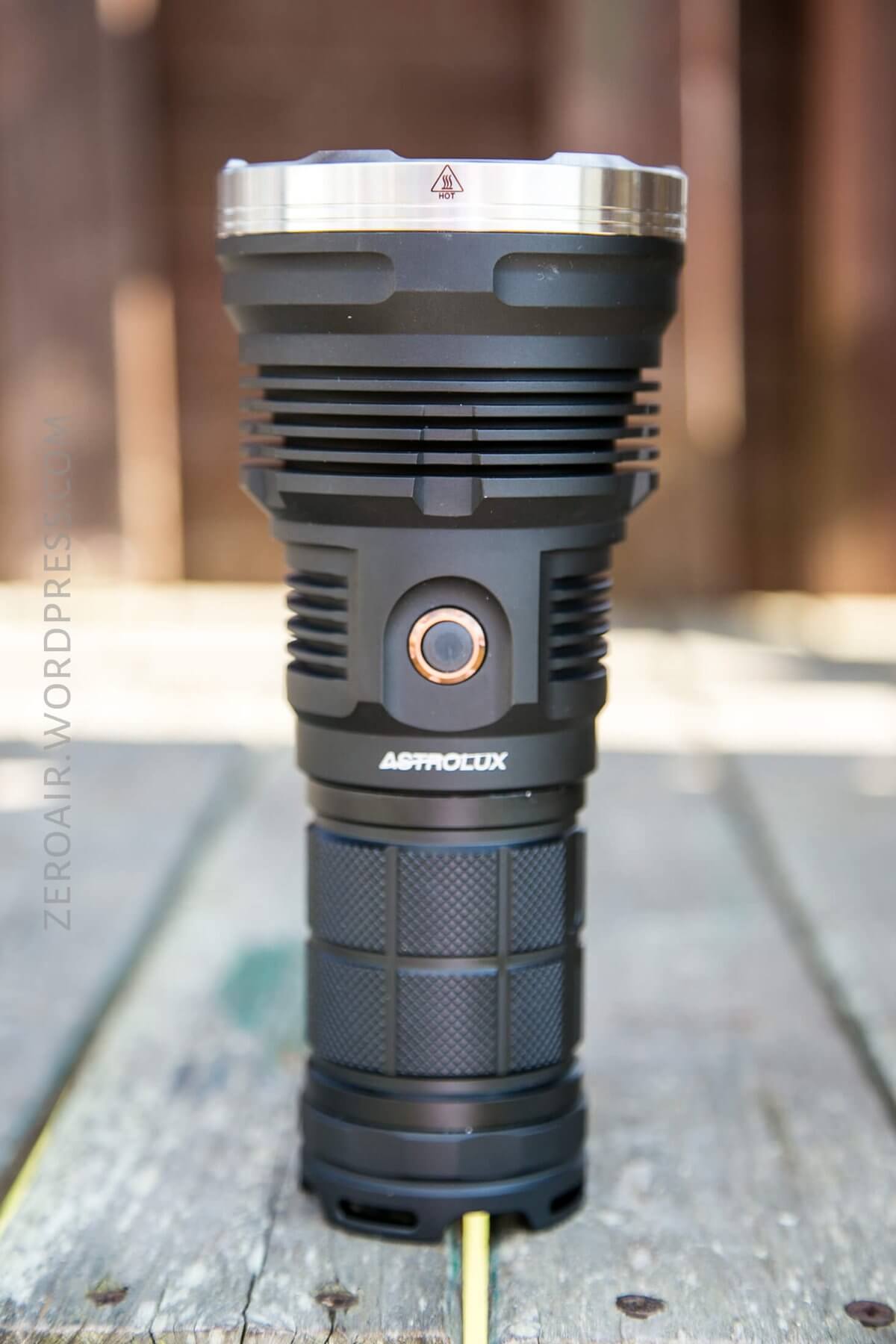

The MF02 has one side indicating e-switch. Under normal operation, the switch will be lit green (and also fade in and out). This can be turned off easily. It’s a nice switch, with a very positive click. It’s not huge, but it’s plenty big.

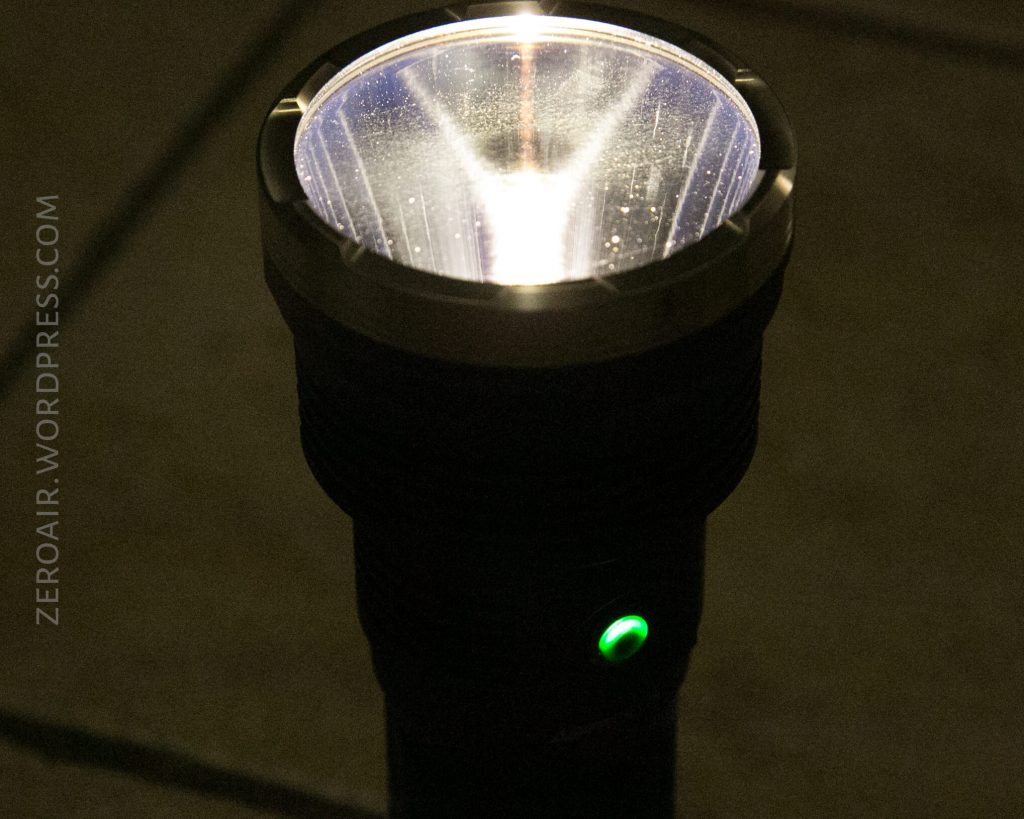

Here you can see the green nature of the switch. Yes, it’s visible during daytime. Yes, it’s not even across the whole switch. I think some users had a problem with this on a previous light’s group buy but it really does not bother me.

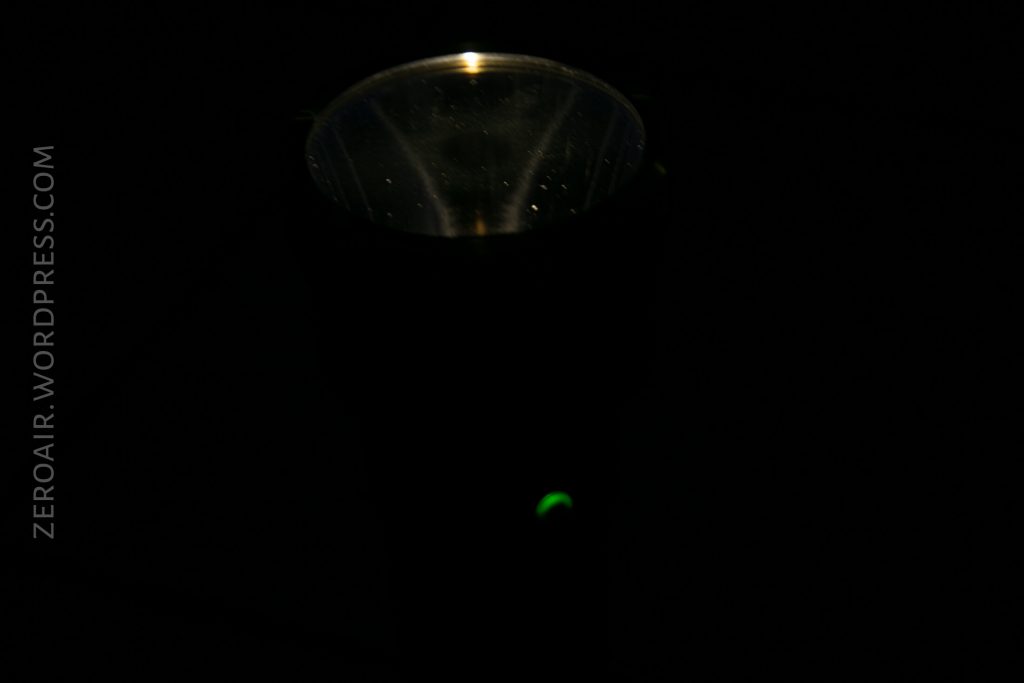

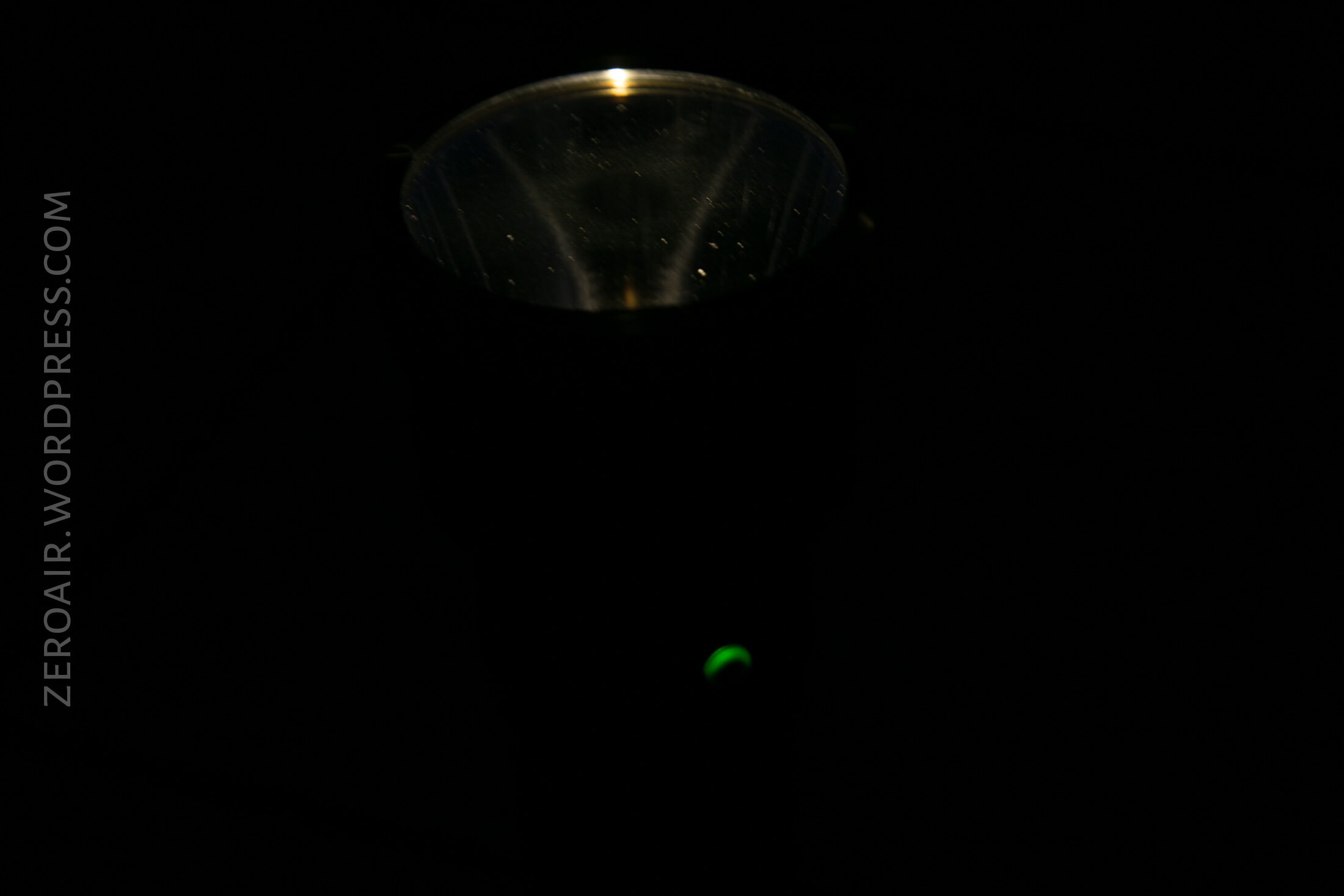

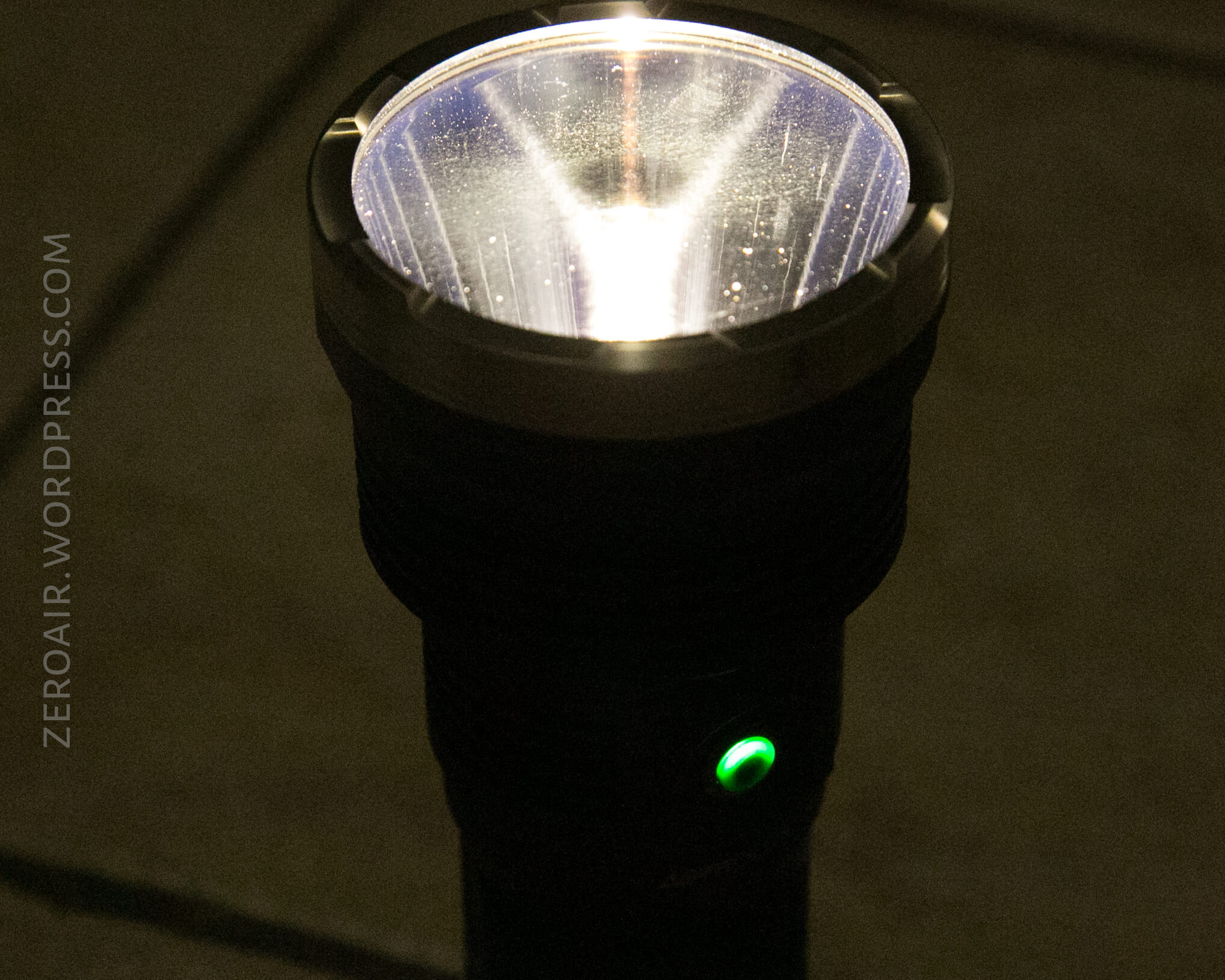

The switch is very visible in dark. There’s also a red emitter under the switch, for other indications.
Here’s a UI table!
State | Action | Result |
---|---|---|
Off | Long Press | Lock |
Locked | Long Press | Unlock |
Off | Click | Low |
On | Hold | Off |
On | Click | Mode Cycle (LMHT) |
On | Double Click | Turbo |
Any | Triple Click | Strobe (Fast) |
Any | Triple Click | Strobe (Fast) |
Strobe | Click | Strobe advance (Fast, SOS, Beacon) |
I like the UI, but there’s just something that’s taken me a while to get used to. I love that there’s no memory and it always starts on low, for absolute sure!! Strobes are not front and center, too.
Modes
Mode | Mode Claimed Output (lm) | Claimed Runtime | Mode Measured Lux | Tailcap Amps |
---|---|---|---|---|
Turbo | 3000 | 2.5h | 20400 | 5.04 |
High | 1700 | 3.5h | 12180 | 1.72 |
Mid | 350 | 25h | 3030 | 0.28 |
Moon | 15 | Â 300h | 152 | 0.00 |
LED and Beam

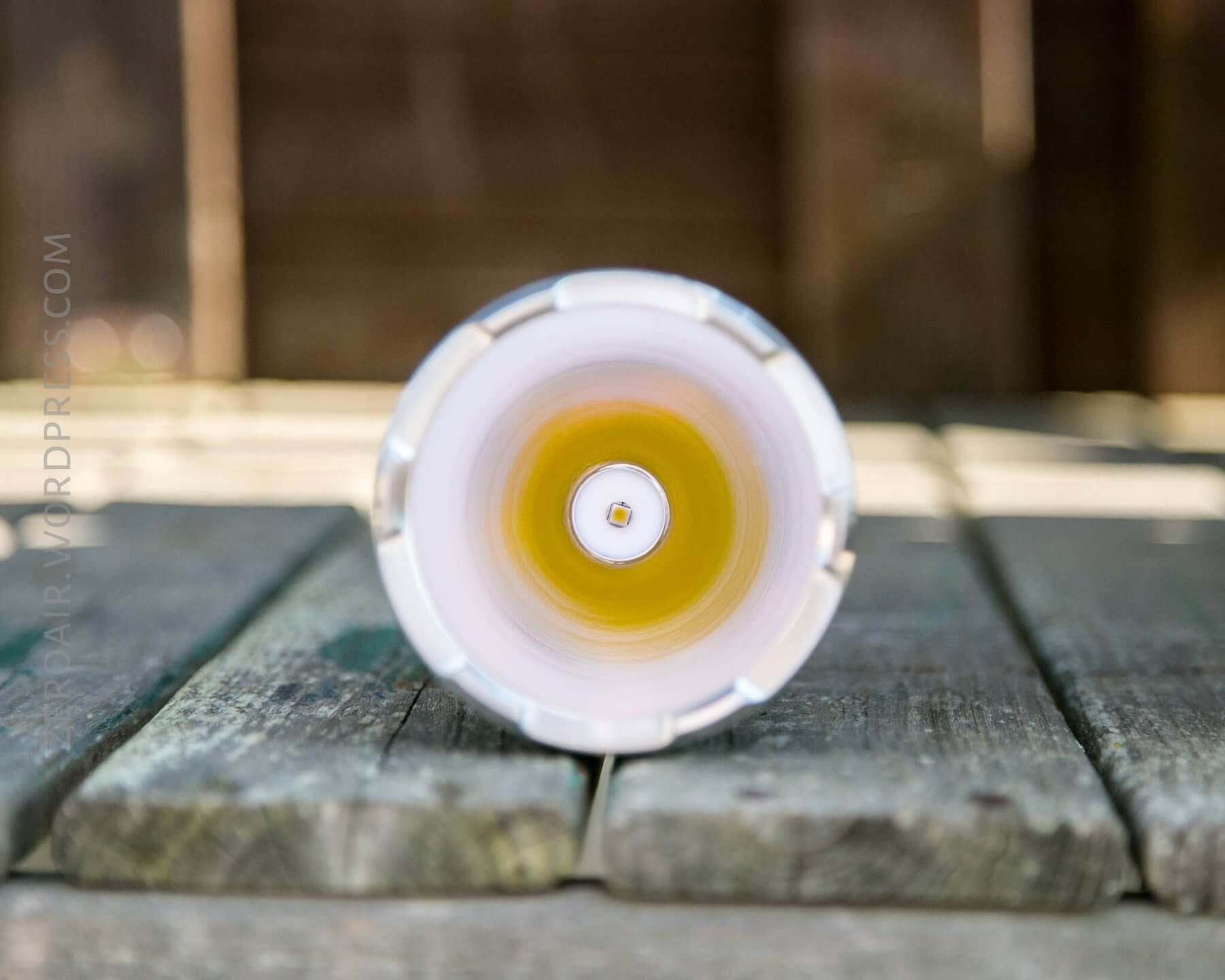

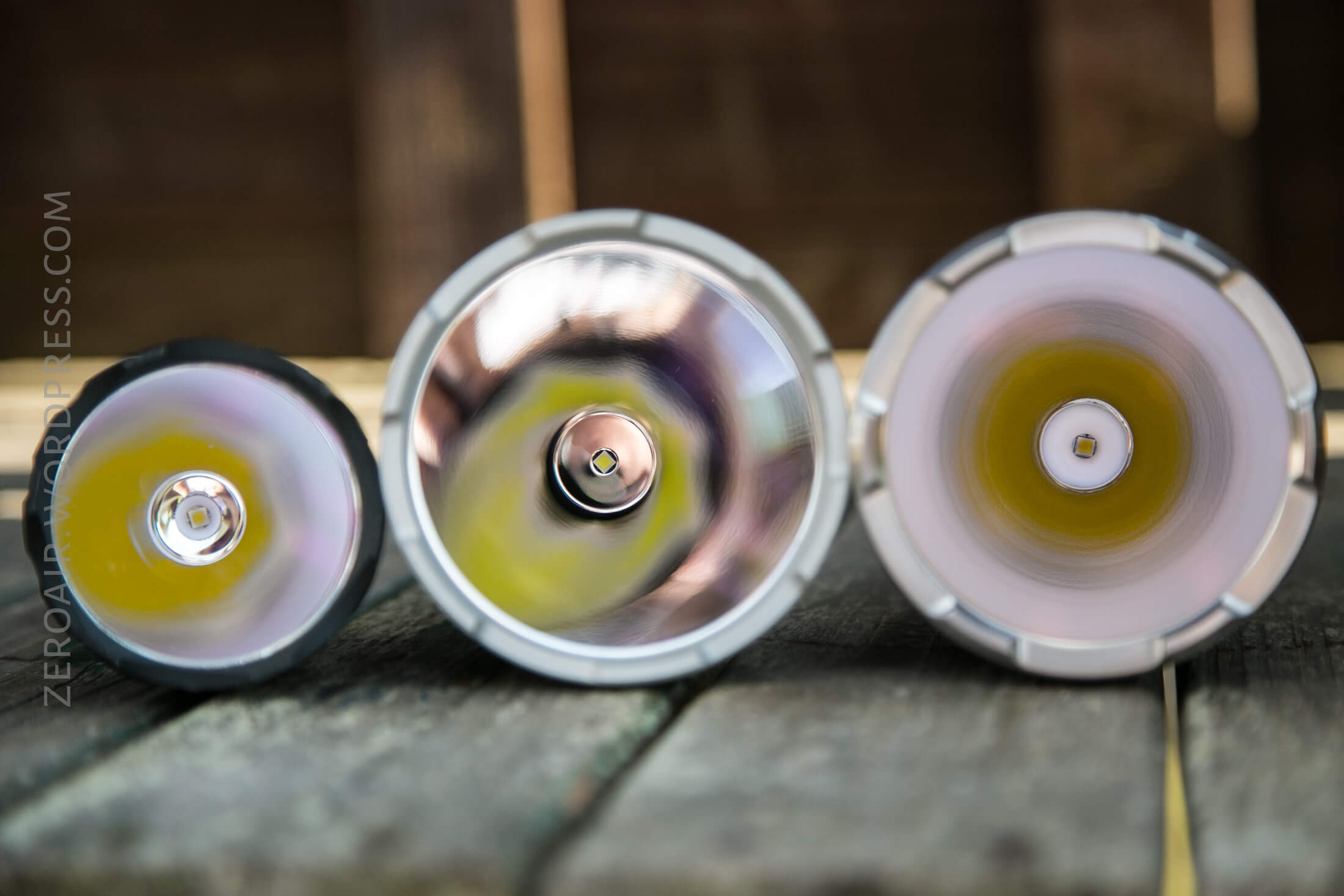

Astrolux has a Cree XHP35 HI in this thrower. It’s labeled as “NW, 4000-4500K” but it’s really quite warm. The reflector is smooth and quite deep.
Beamshots
These beamshots are always with the following settings:Â f8, ISO100, 0.3s shutter, and manual 5000K exposure.
Tint vs BLF-348 (KillzoneFlashlights.com 219b version) (affiliate link)
I keep the test flashlight on the left, and the BLF-348 reference flashlight on the right.

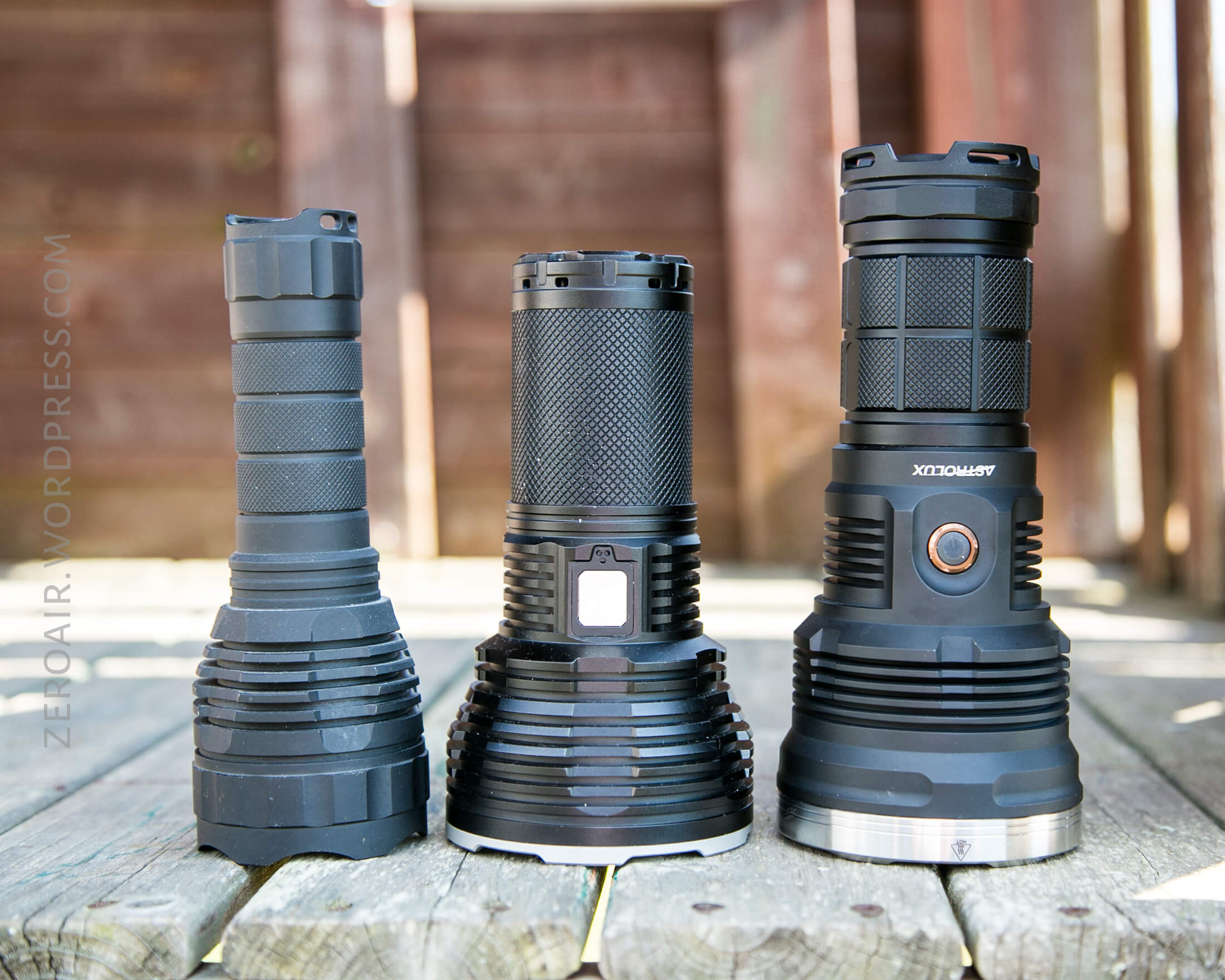

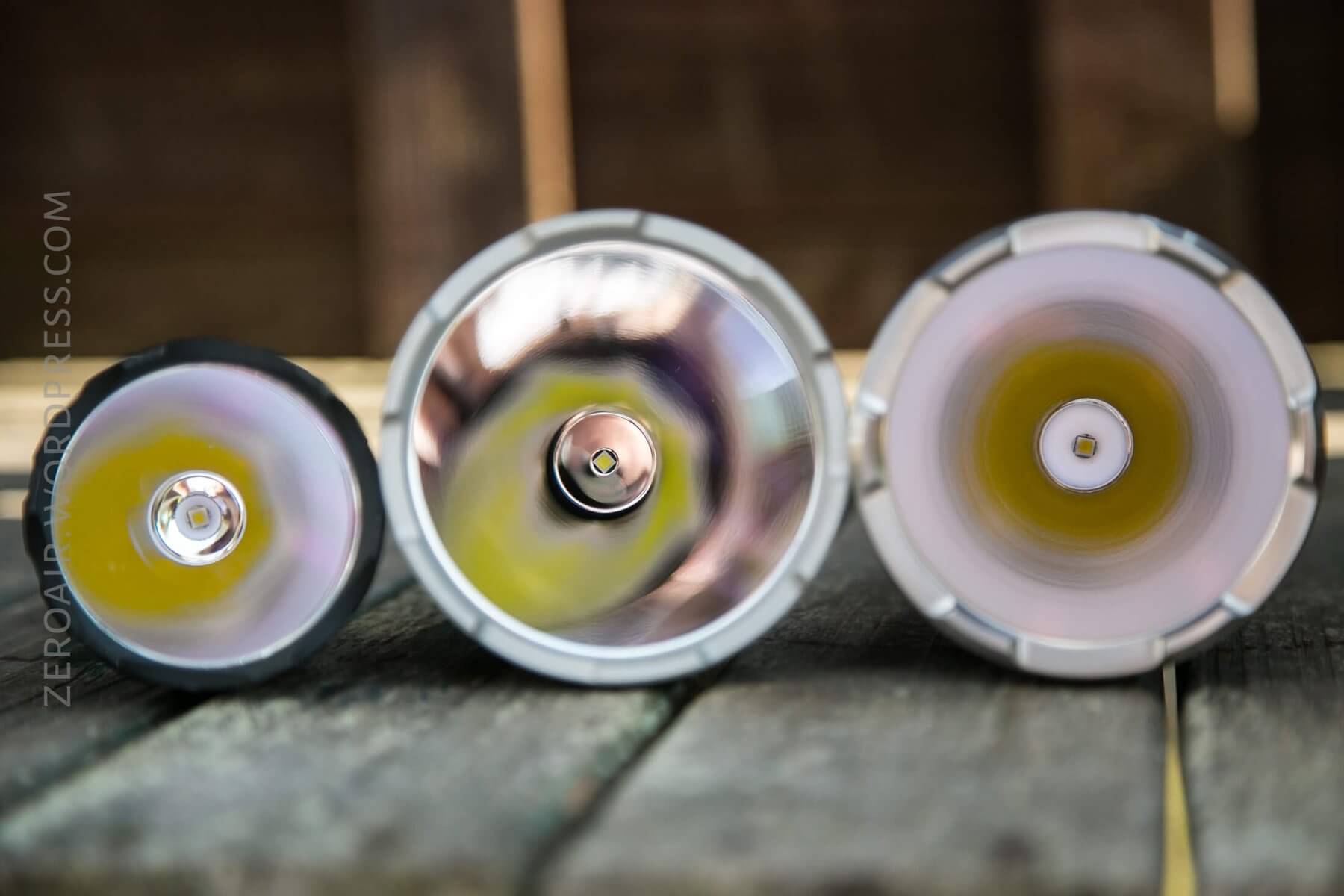

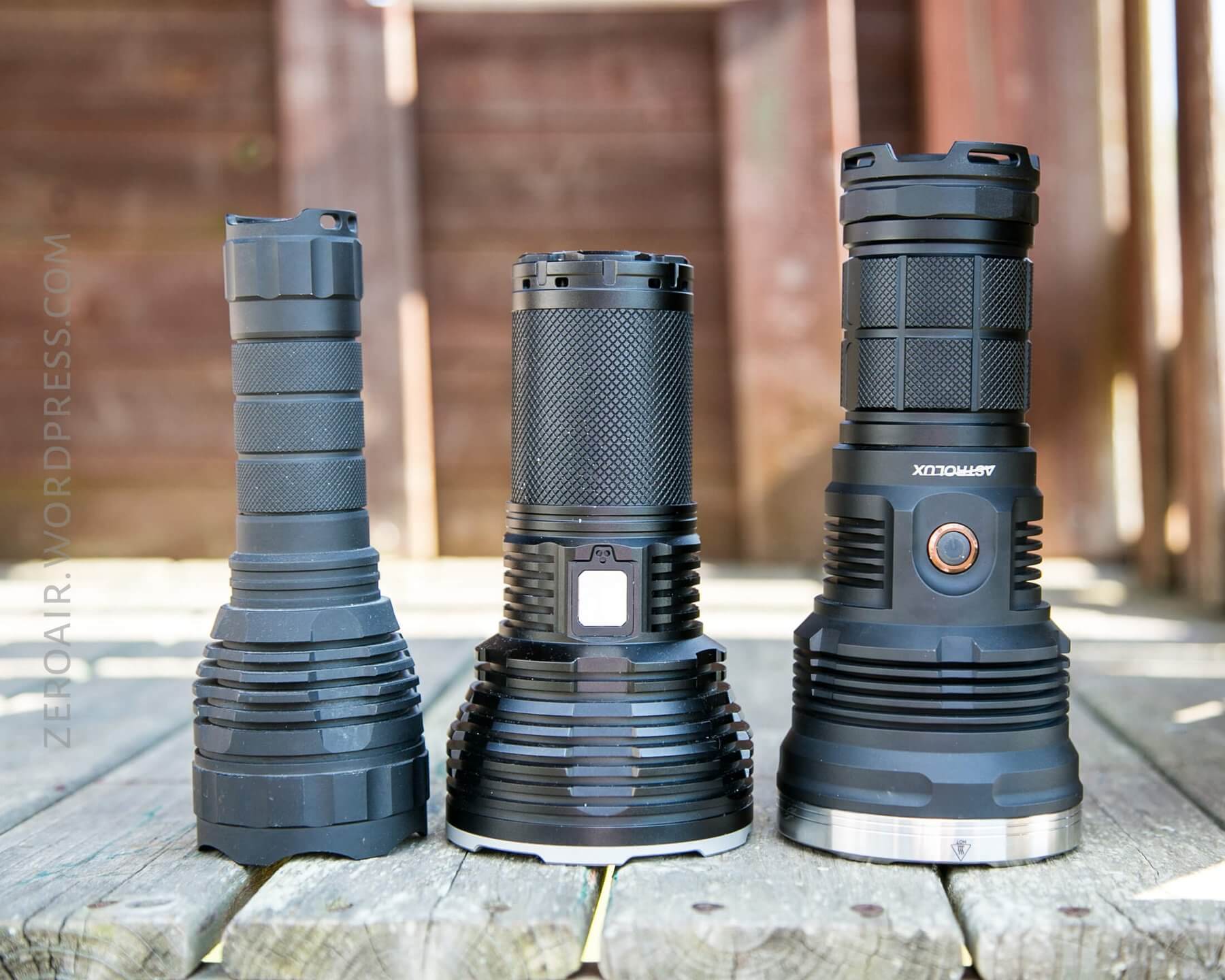

Random Comparisons and Competitive Options….
Here’s a relevantly filtered page on parametrek.com. For an 18650 “can” style light the emitter of choice is what should be the emitter of choice. As such there are a bunch of competitors! I like this one in particular because it handles the 5A well, with plenty of mass in the head to deal with the heat. I also like the tint – very far off of cool.
Conclusion
What I like
- Great throw!
- NW tint
- UI is simple
- Indicating side switch
What I don’t like
- Tint is warm but a bit muddy
- Head seems bigger and heavier than it really needs to be
