Thrunite TS1 Self-Rescue Flashlight Review

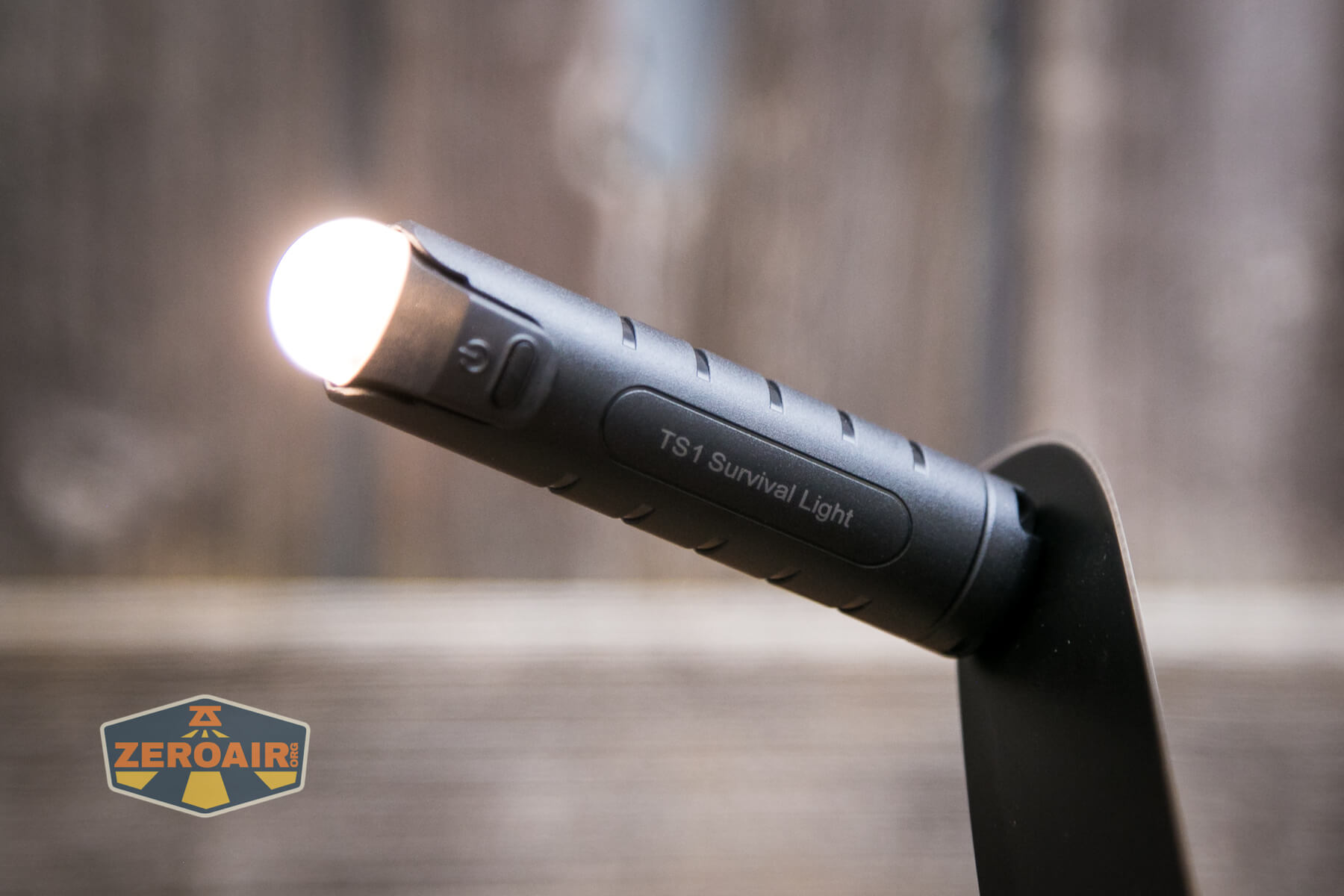

Thrunite has released the TS1 Self-Rescue flashlight, a tiny little device that sits atop a single 18650 cell and provides warm white output!
Official Specs and Features
Here’s a link to the Thrunite TS1 Self-Rescue flashlight product page.
Versions
There’s just one version of the TS1. Thrunite also makes a TS2, though, which runs on a single 21700 cell.
Price
The Thrunite TS1 Self-Rescue flashlight lists for $29.95.
Short Review
It’s hard to deny the utility of these little things. I don’t even want to though; they’re great fun. I’m so glad Thrunite went with a warm white emitter option here (despite not stating what the emitter is). The price is maybe a little high but that price does include the cell. Honestly, the cable that’s included is probably worth half the price of the item.
Long Review
The Big Table
| Thrunite TS1 Self-Rescue Flashlight | |
|---|---|
| Emitter: | – (Warm White) |
| Price in USD at publication time: | $29.95 |
| Cell: | 1×18650 |
| Runtime Graph | |
| LVP? | Yes |
| Switch Type: | E-Switch |
| Quiescent Current (mA): | ? |
| On-Board Charging? | Yes |
| Charge Port Type: | USB-C |
| Charge Graph | |
| Power off Charge Port | – |
| Claimed Lumens (lm) | 100 |
| Measured Lumens (at 30s) | ? |
| Candela per Lumen | 0.9 |
| Claimed Throw (m) | – |
| Candela (Calculated) in cd (at 30s) | 24lux @ 1.02m = 25cd |
| Throw (Calculated) (m) | 10.0 |
| Claimed CCT | – |
| Measured CCT Range (K) | 3000 Kelvin |
| Item provided for review by: | Thrunite |
| All my Thrunite reviews! | |
^ Measurement disclaimer: Testing flashlights is my hobby. I use hobbyist-level equipment for testing, including some I made myself. Try not to get buried in the details of manufacturer specifications versus measurements recorded here; A certain amount of difference (say, 10 or 15%) is perfectly reasonable.

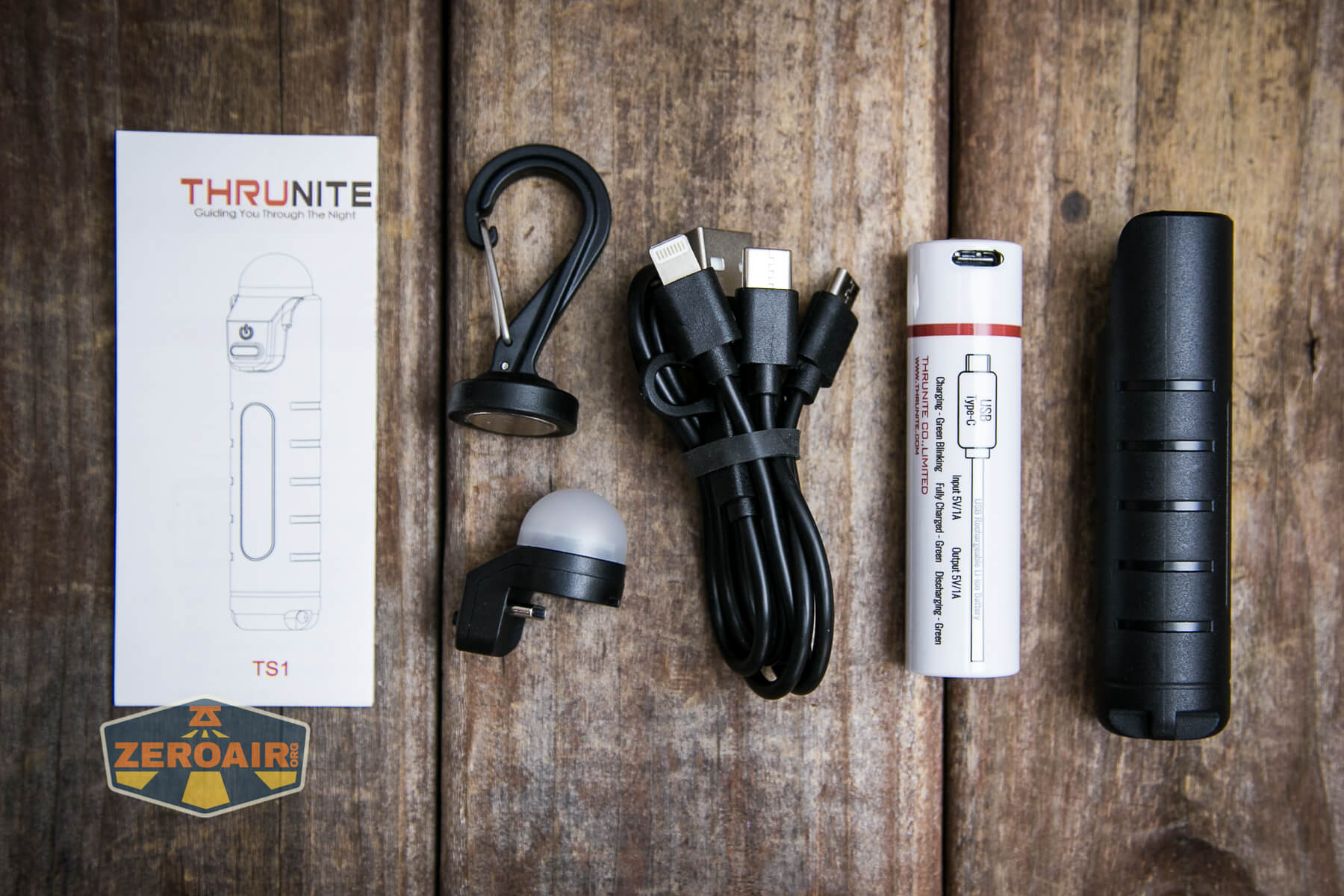

What’s Included
- Thrunite TS1 Self-Rescue flashlight
- Thrunite 3400mAh 18650 with USB-C port
- Magnetic hook
- Magnetic carry sheath
- Charge cable (USB/USB-C on one end and USB-C/Lightning/Micro-USB on the other)
- Manual

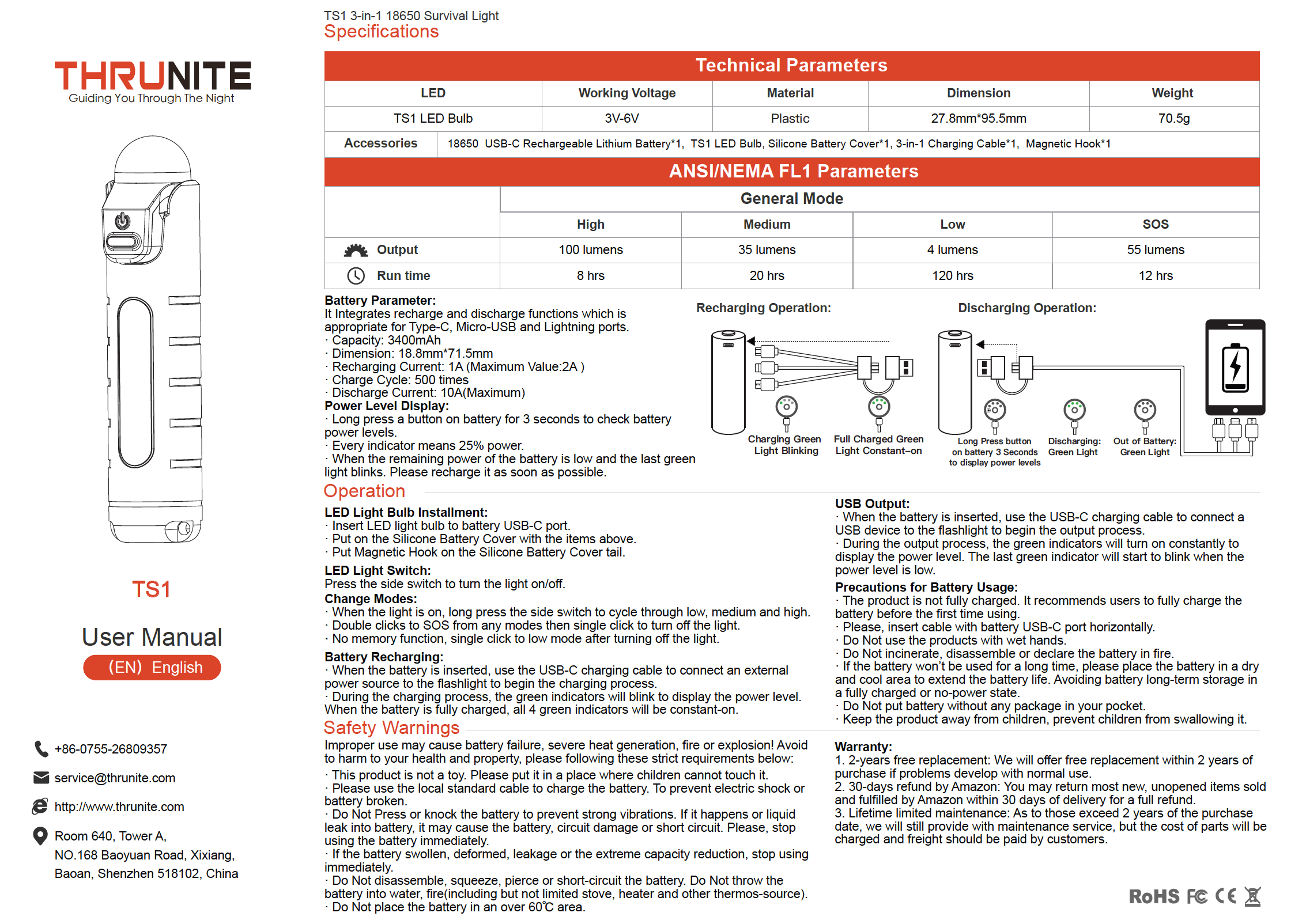

Package and Manual
Build Quality and Disassembly

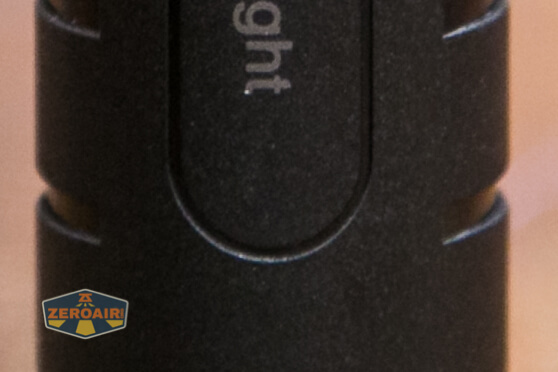

Really there are two parts here. There’s the lantern, which lives atop the included 18650. That’s the main thrust of the reviews – the rest are just accessories. The build quality of this little lantern is officially “fine.” It’s not better or worse than you’d expect out of a $30 package where half or more is the cost of a 18650, and half the rest is probably that fancy cable…

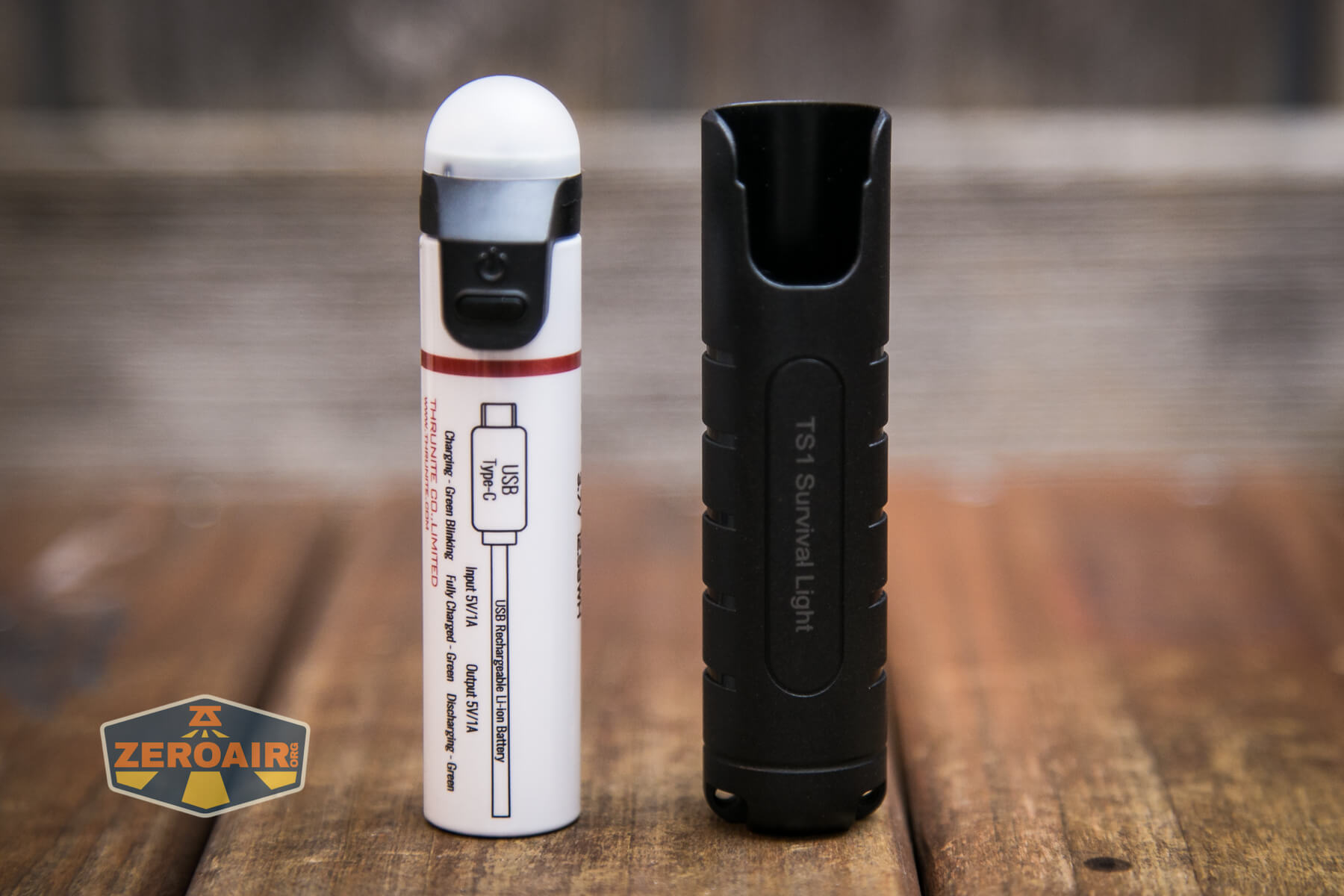

You’ll see the parts much more below, but take note of how these two fit together. The Thrunite TS1 Self-Rescue lantern (the actual lantern of it) and the plastic case that the 18650 cell fits into. The fit is great (or “perfect”).
Maybe you’re like me and thought that this would be a good thing to give the kids to wander around and play with…. Eh maybe. It’s still essentially handing them a bare 18650 lithium-ion cell, even if it’s inside this plastic case. These parts (lantern and plastic body) do not screw together. The cell is held into the case by a magnet but still, it’s easy to remove.
Thus despite how perfect it’d be for kids, it’s probably really not at all ideal for kids (any more so than you’d trust them to handle a bare lithium-ion cell).

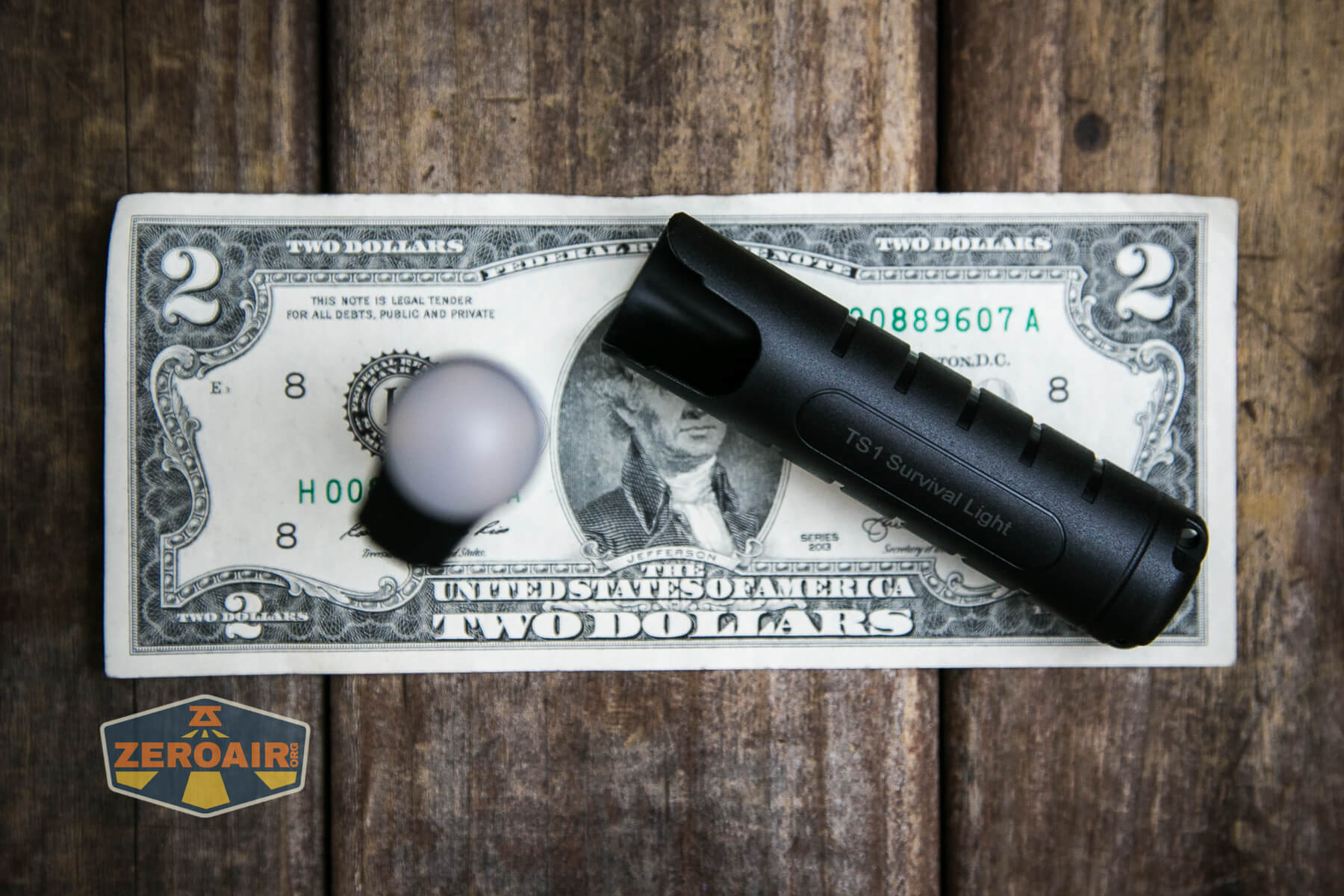

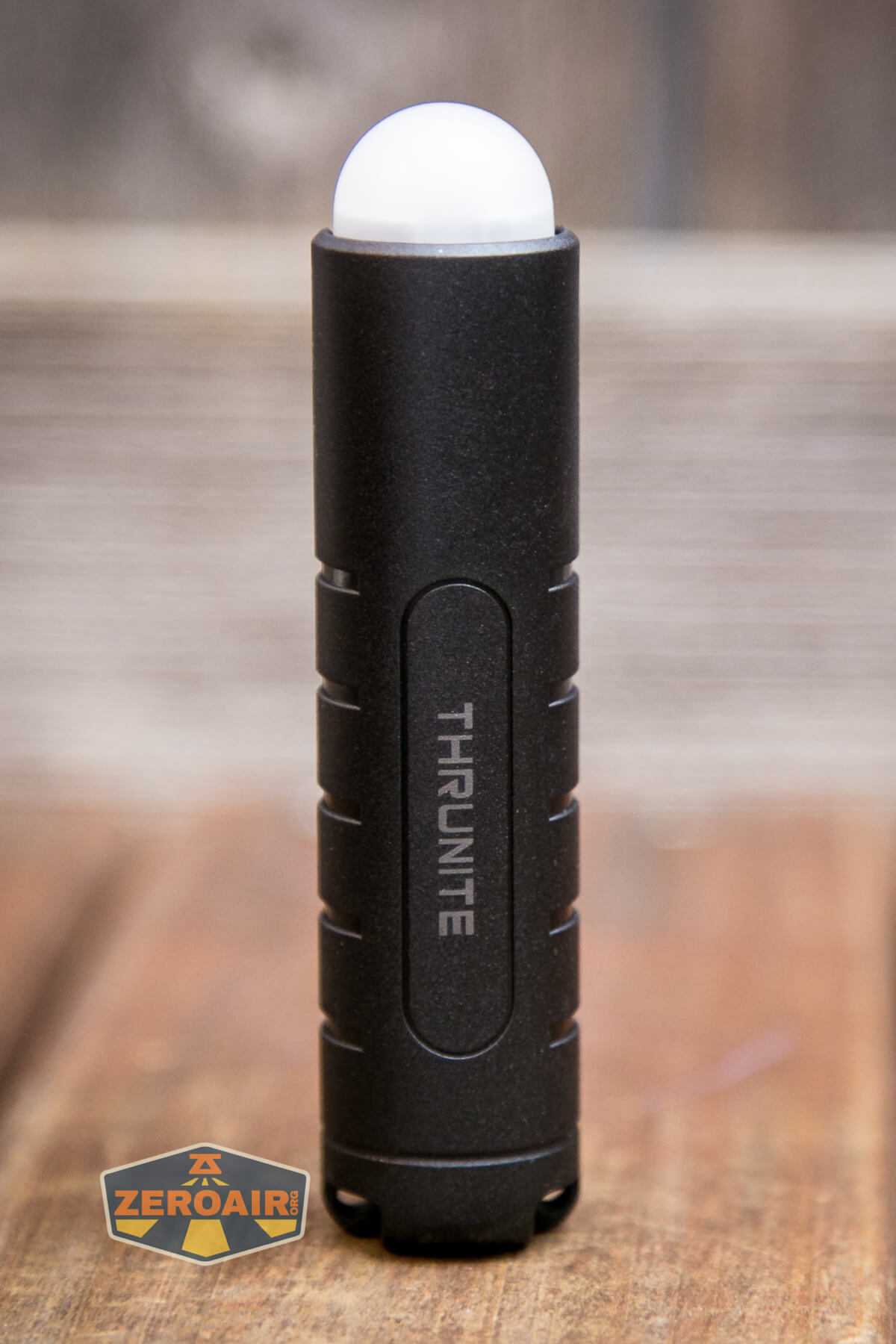

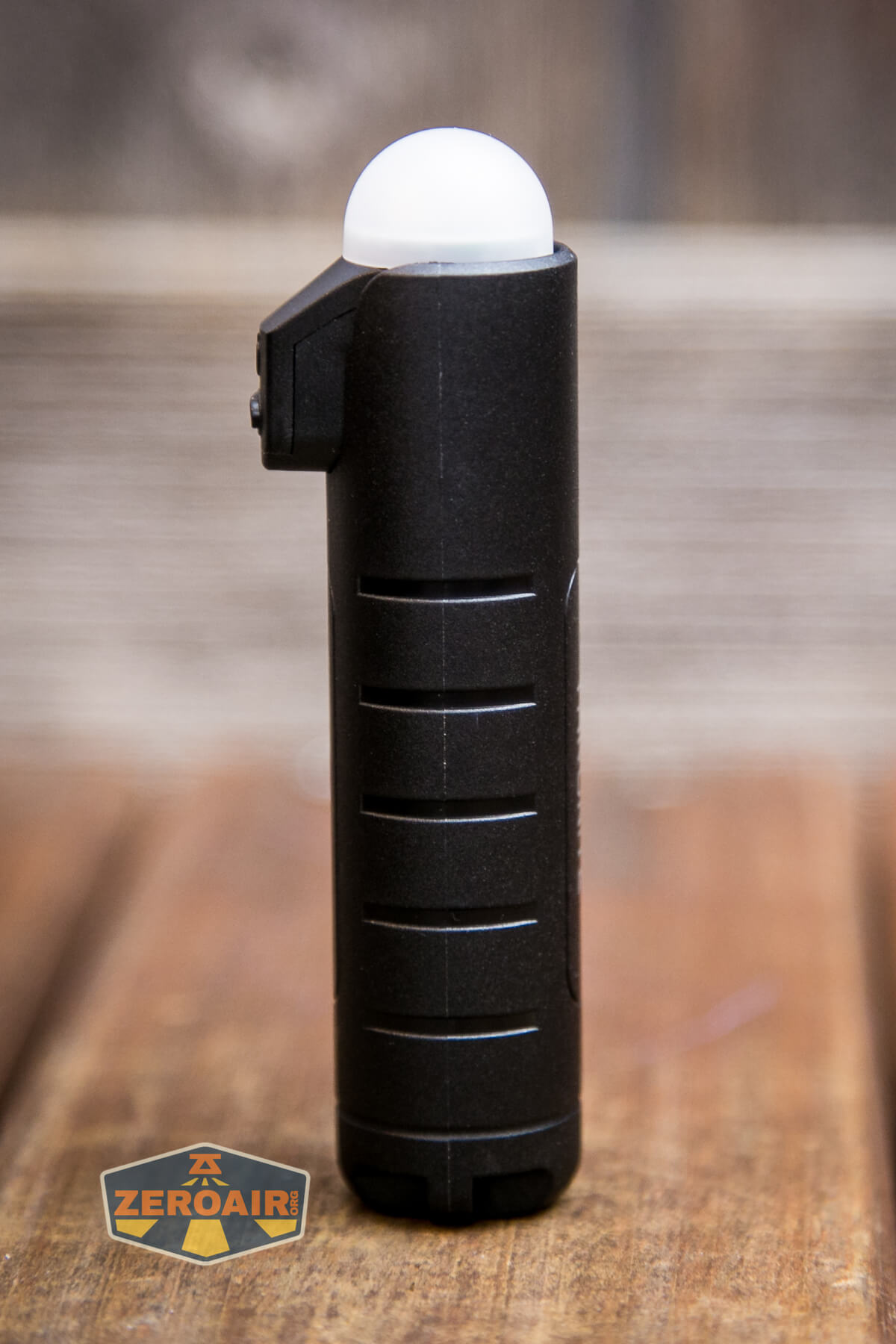

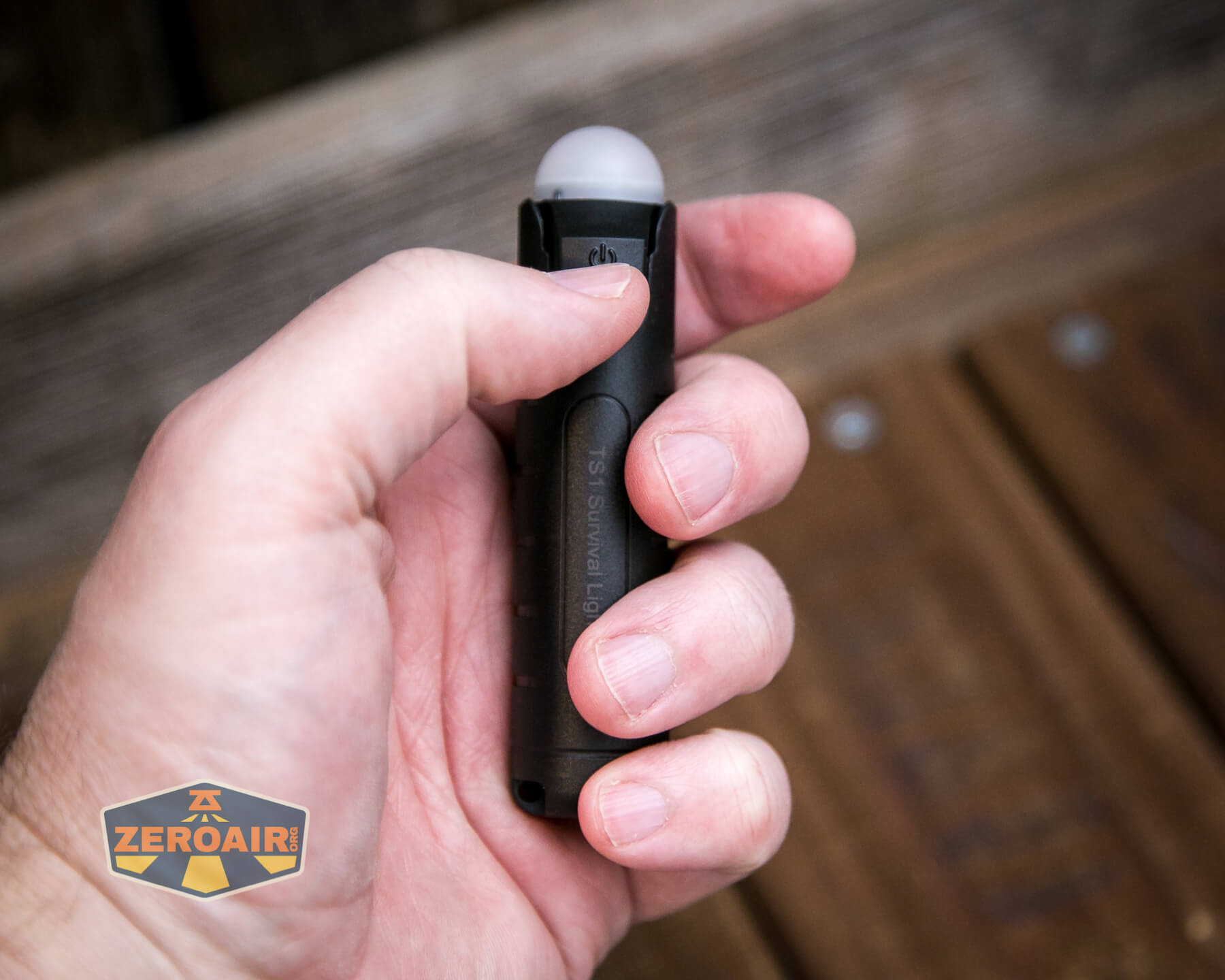

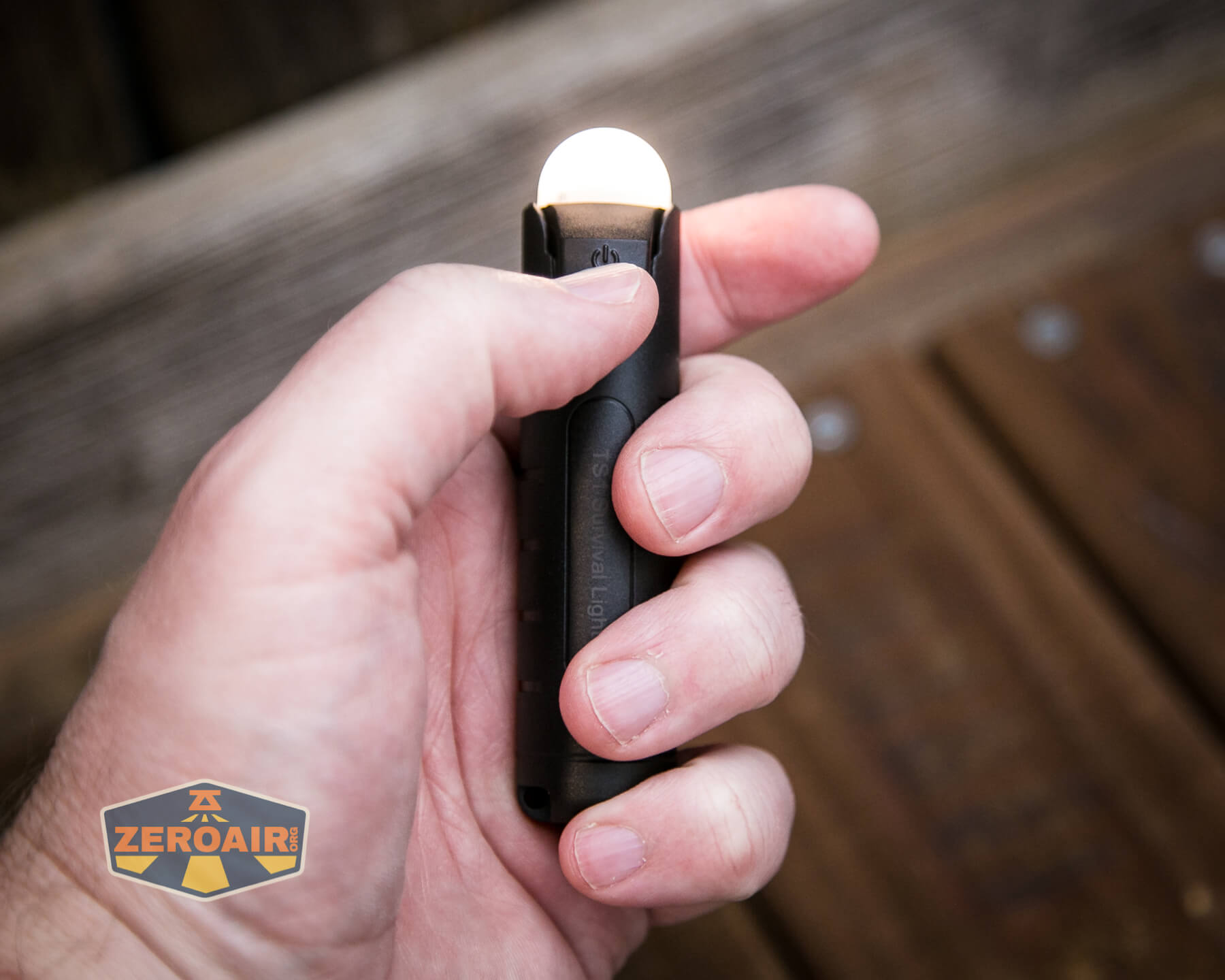

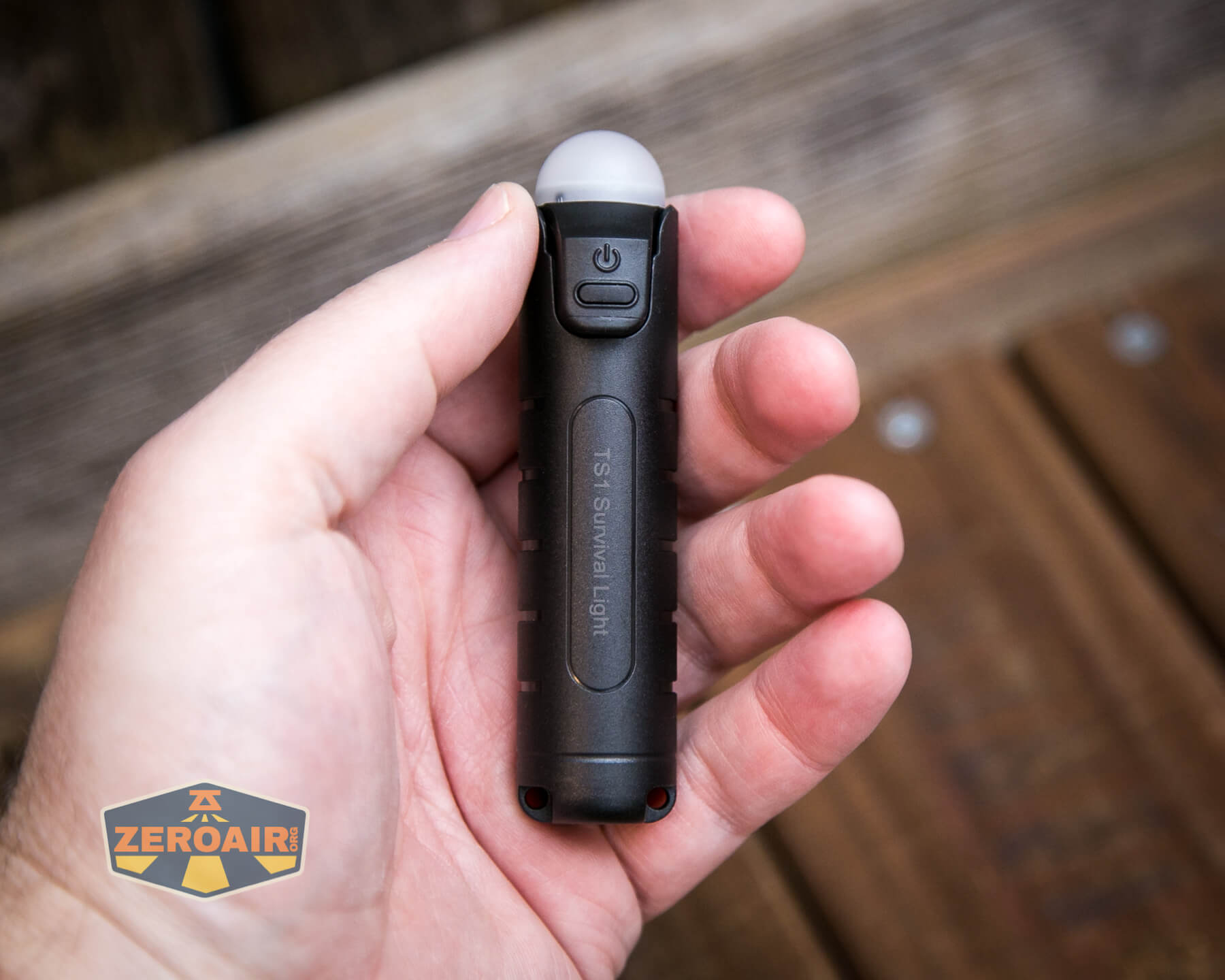

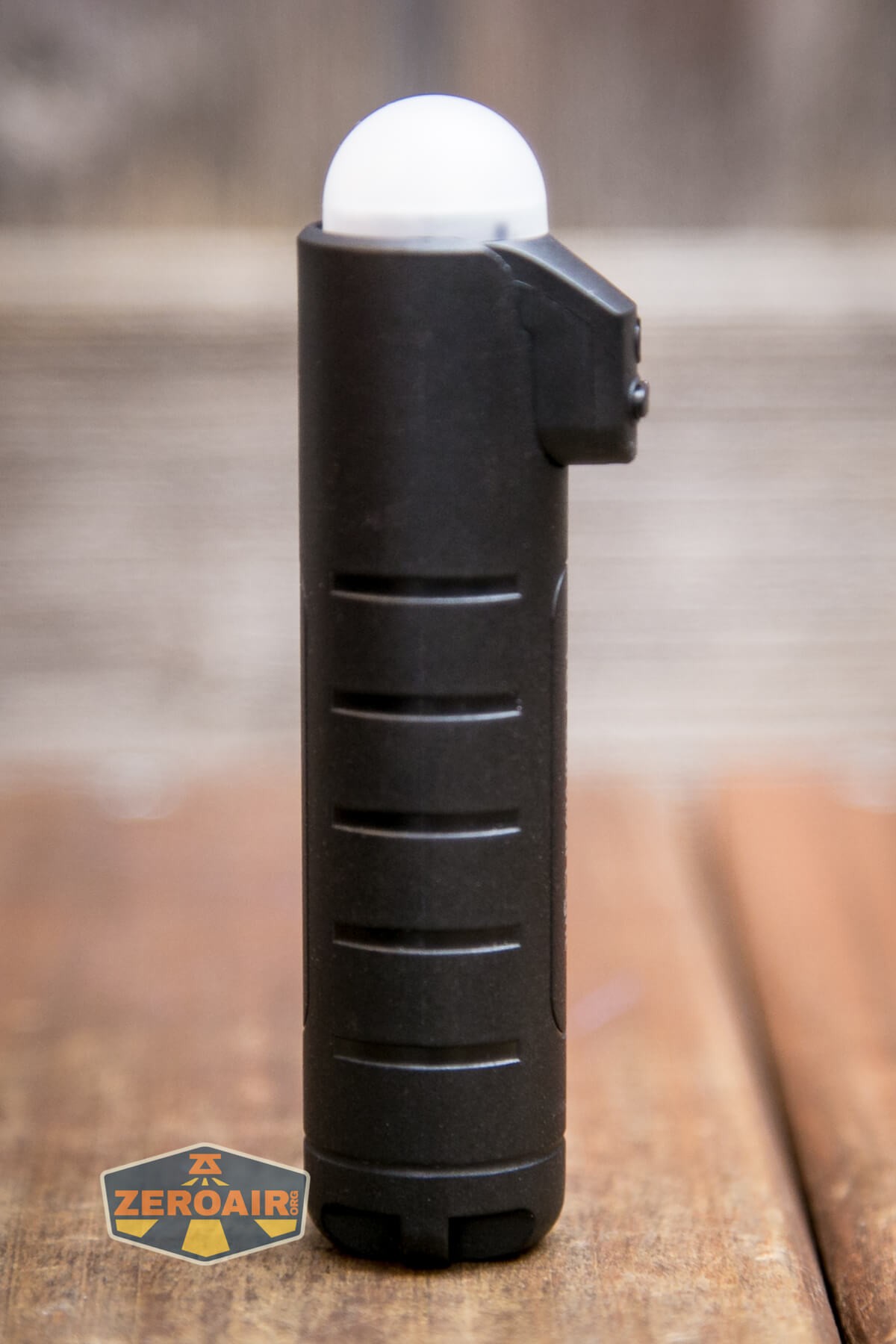

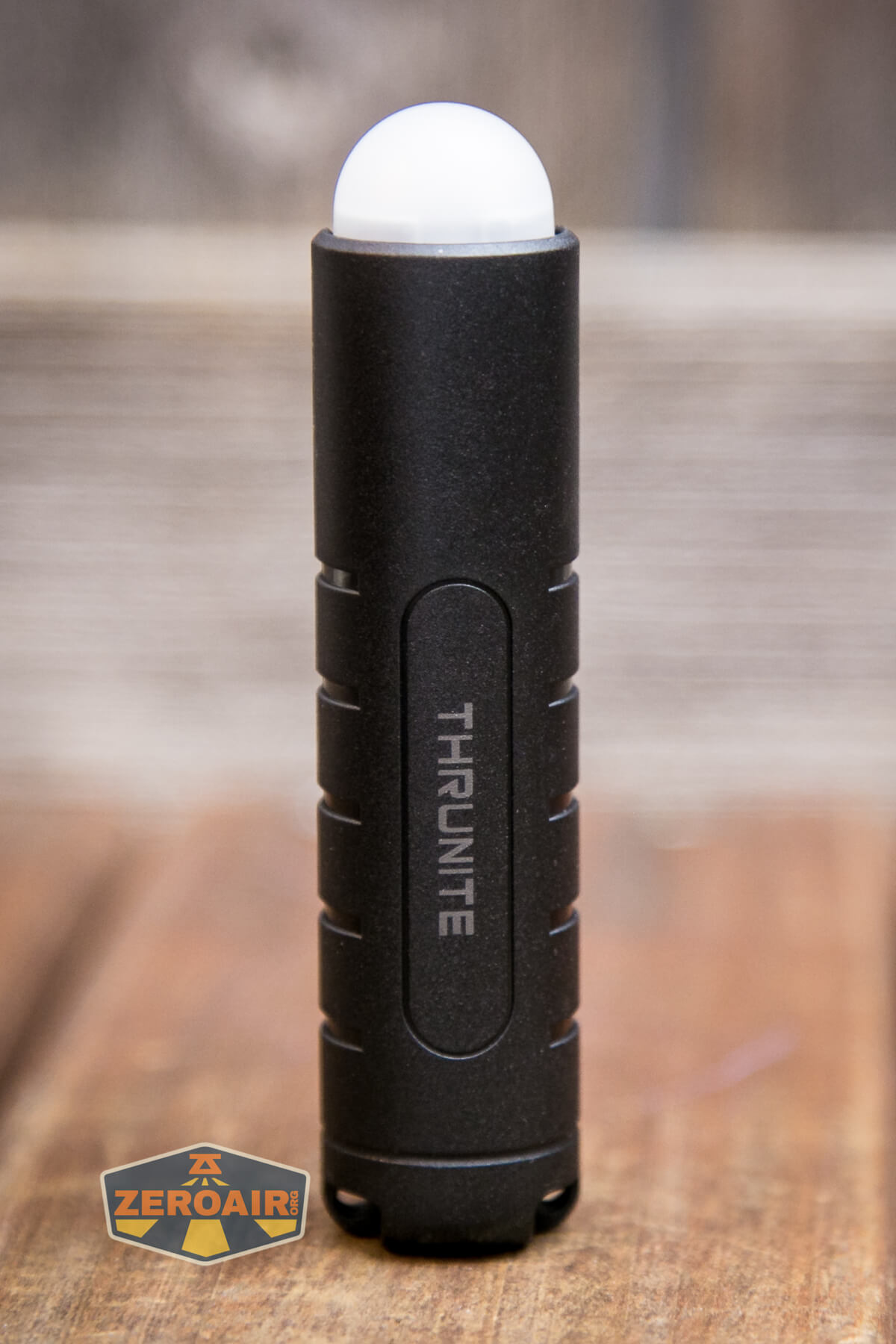

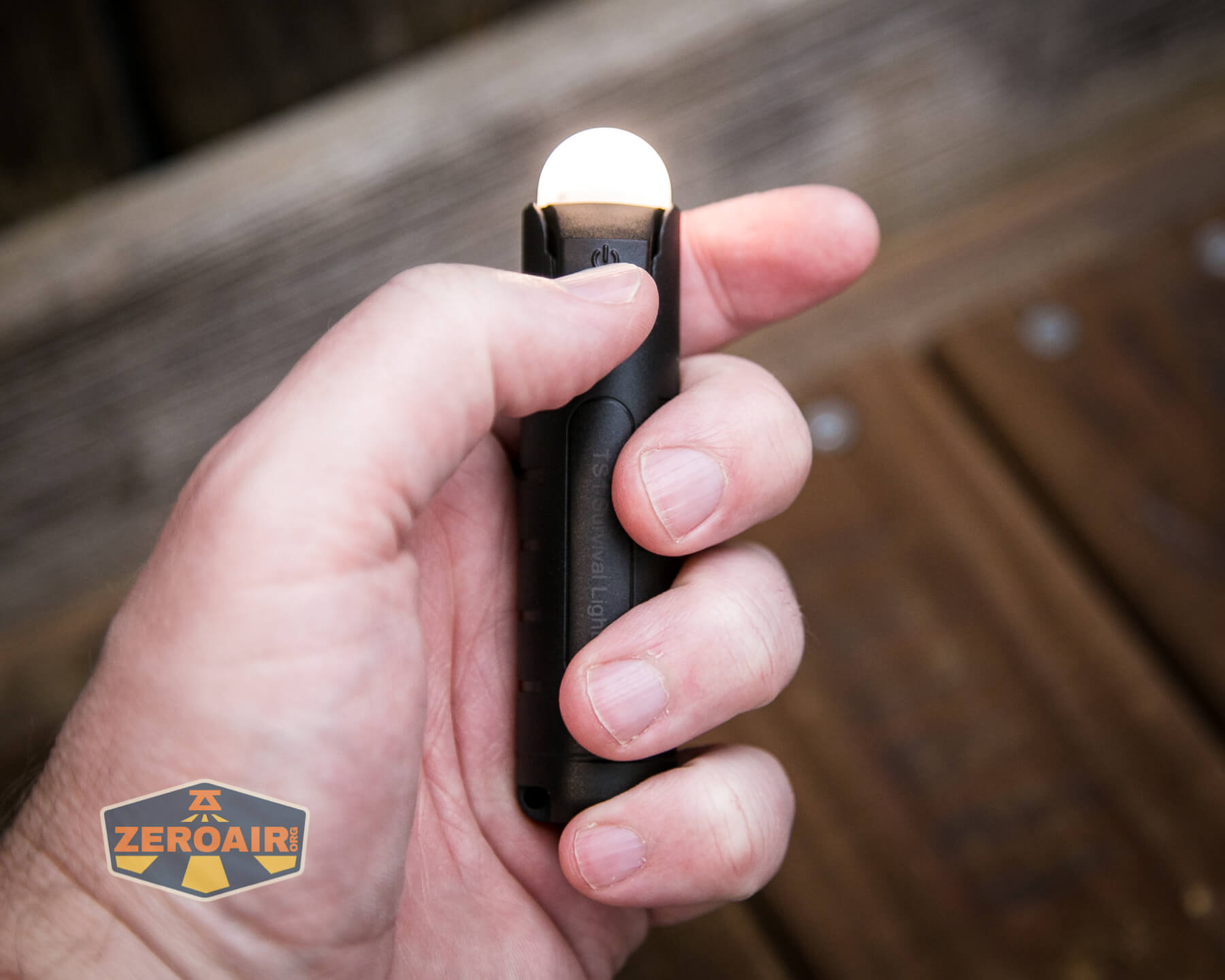

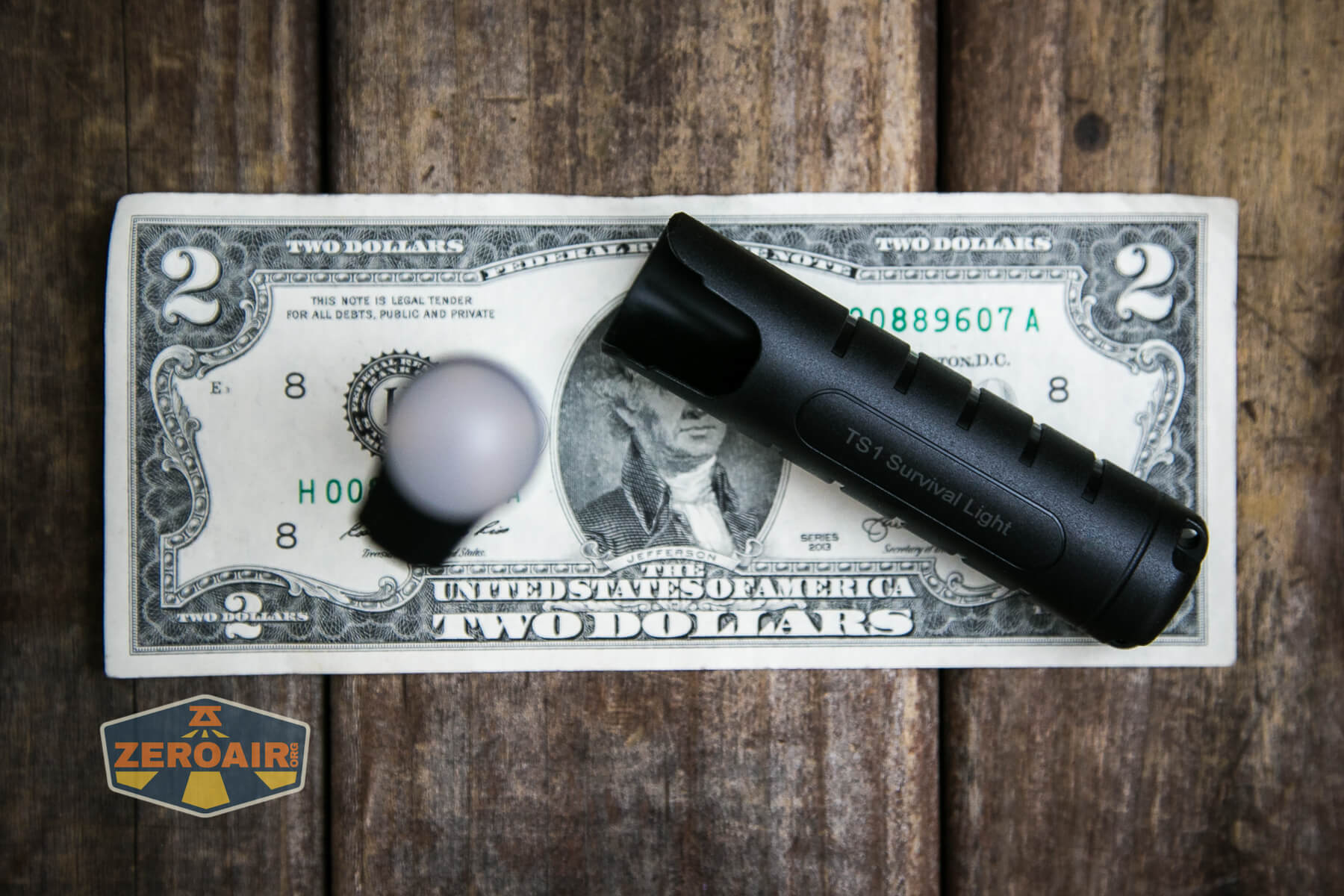

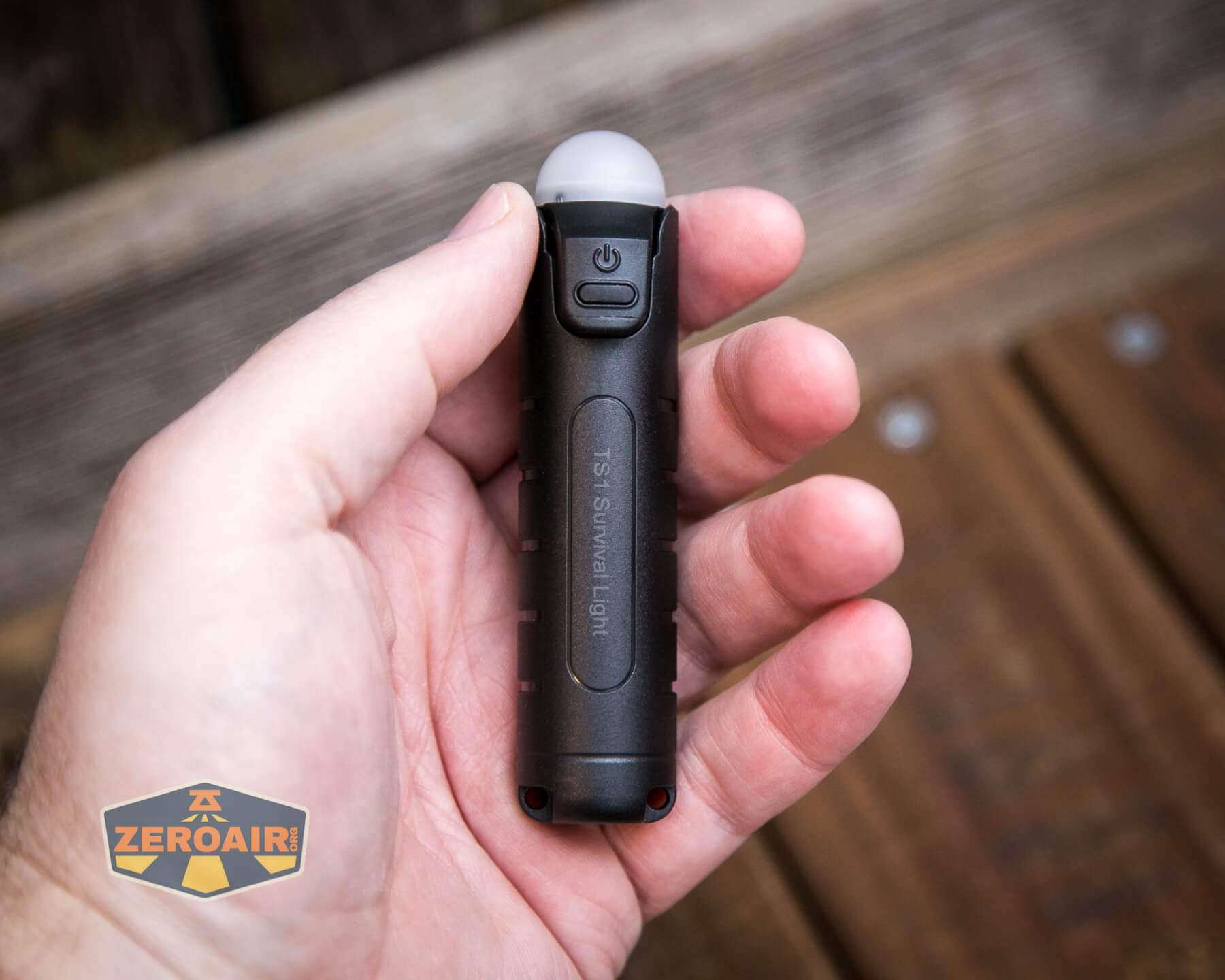

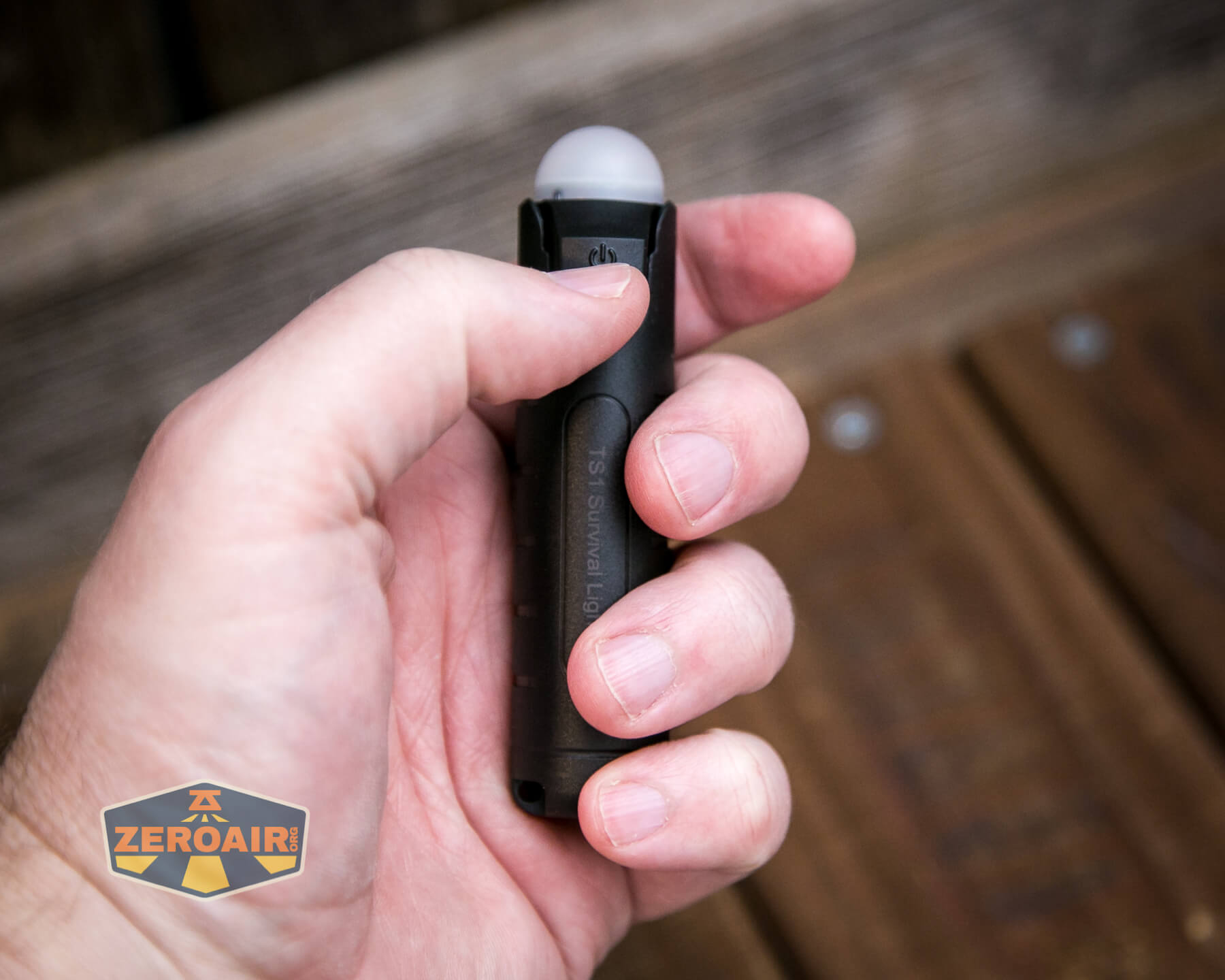

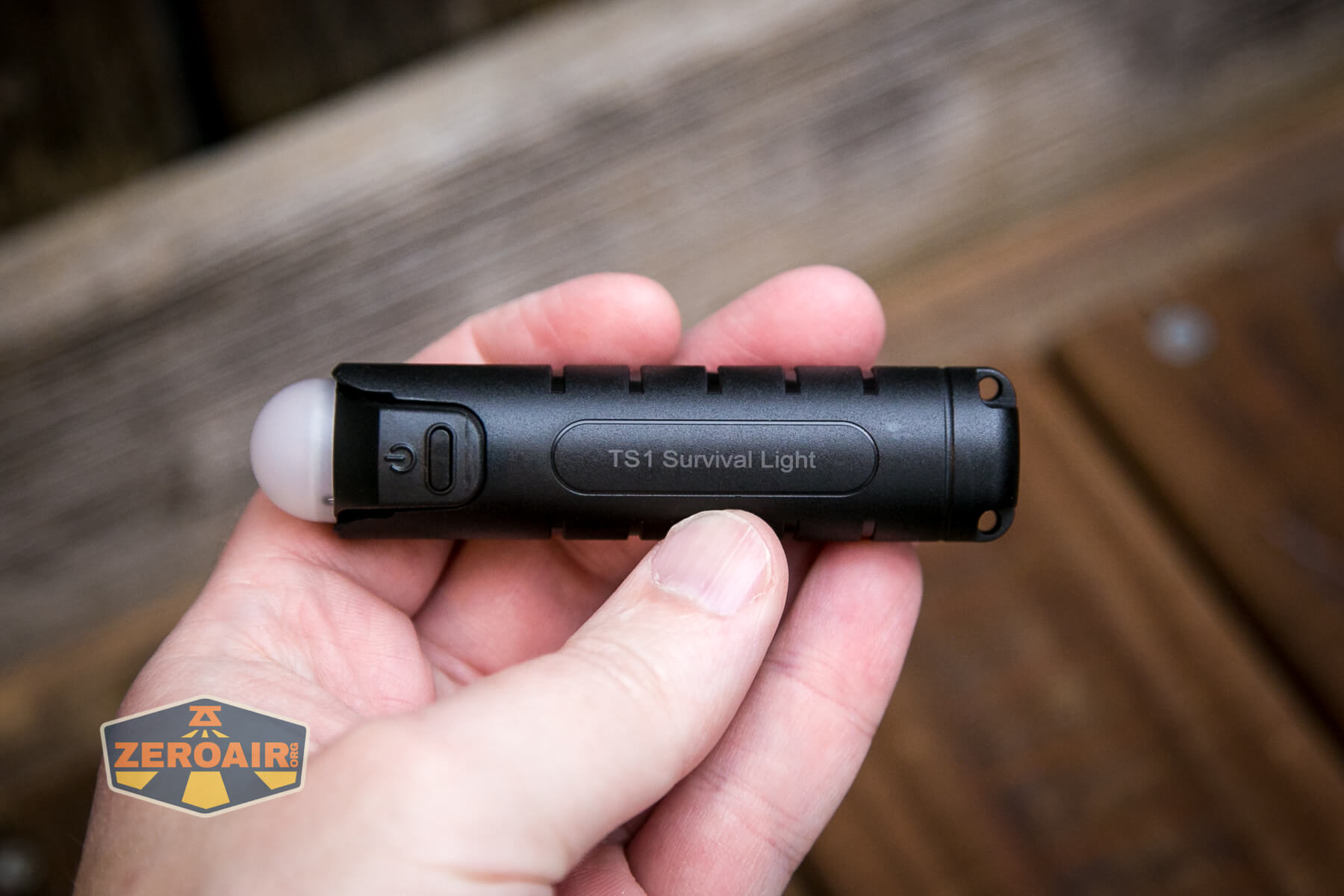

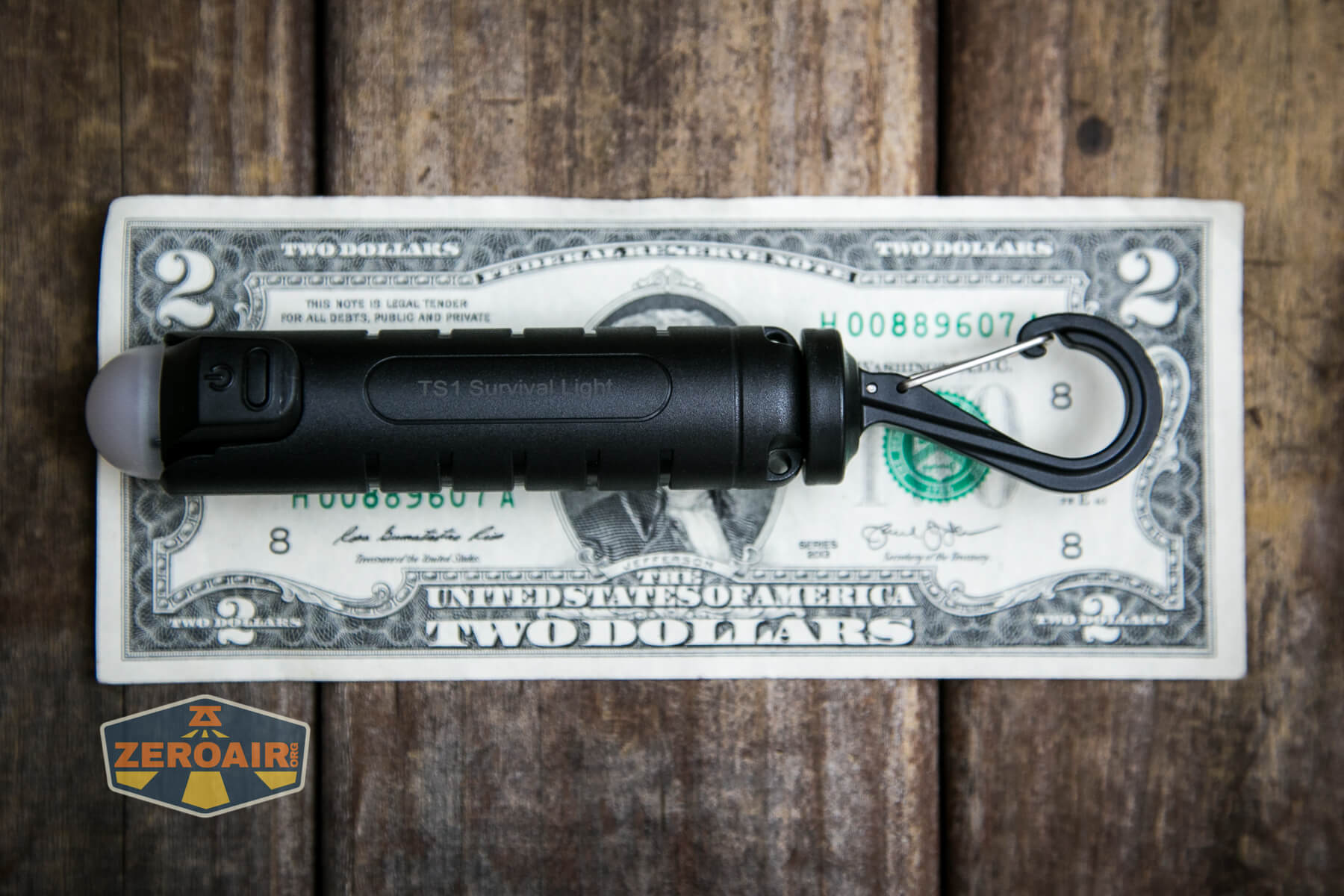

Size and Comps
Officially 27.8mm x 95.5mm, and 70.5g.

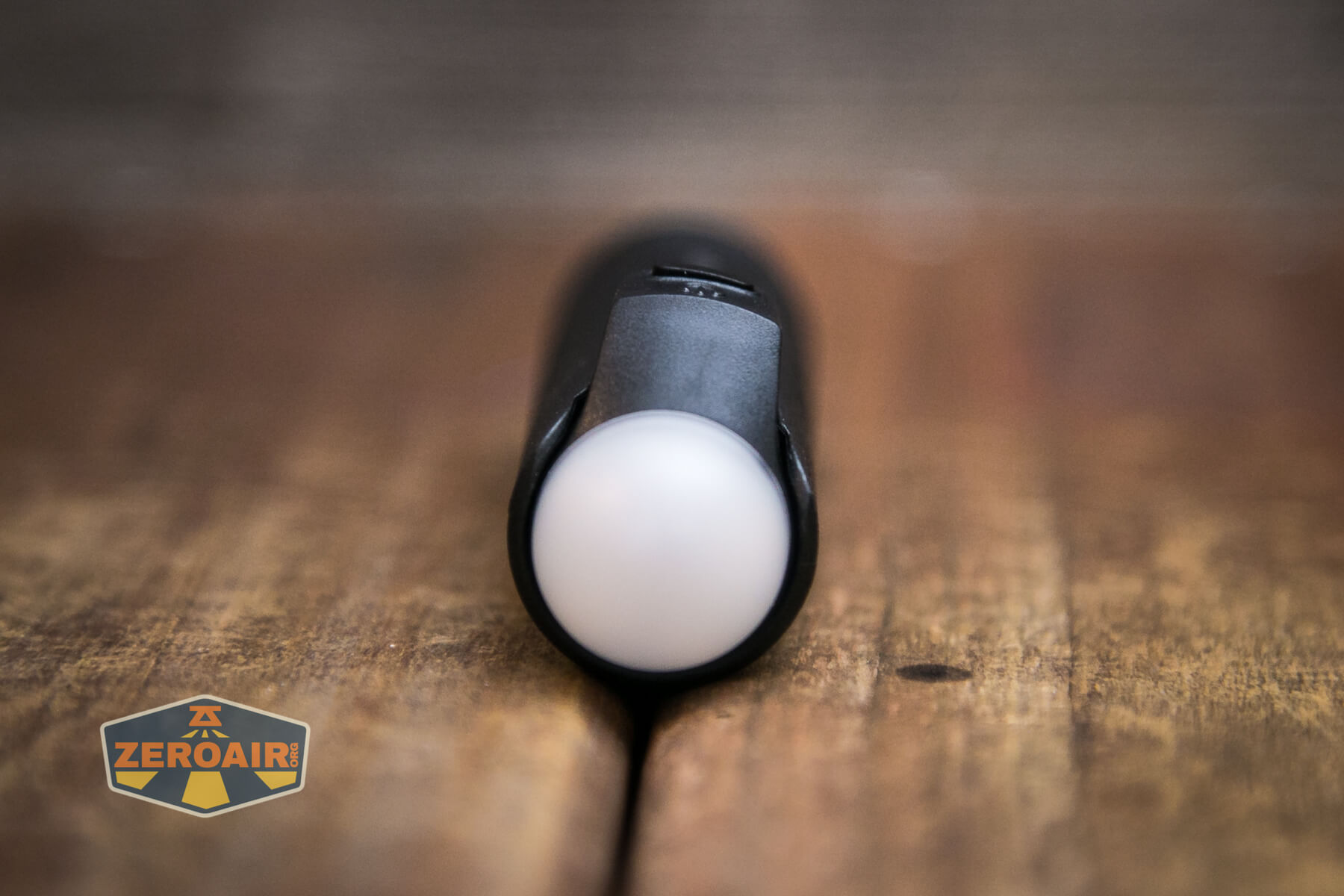

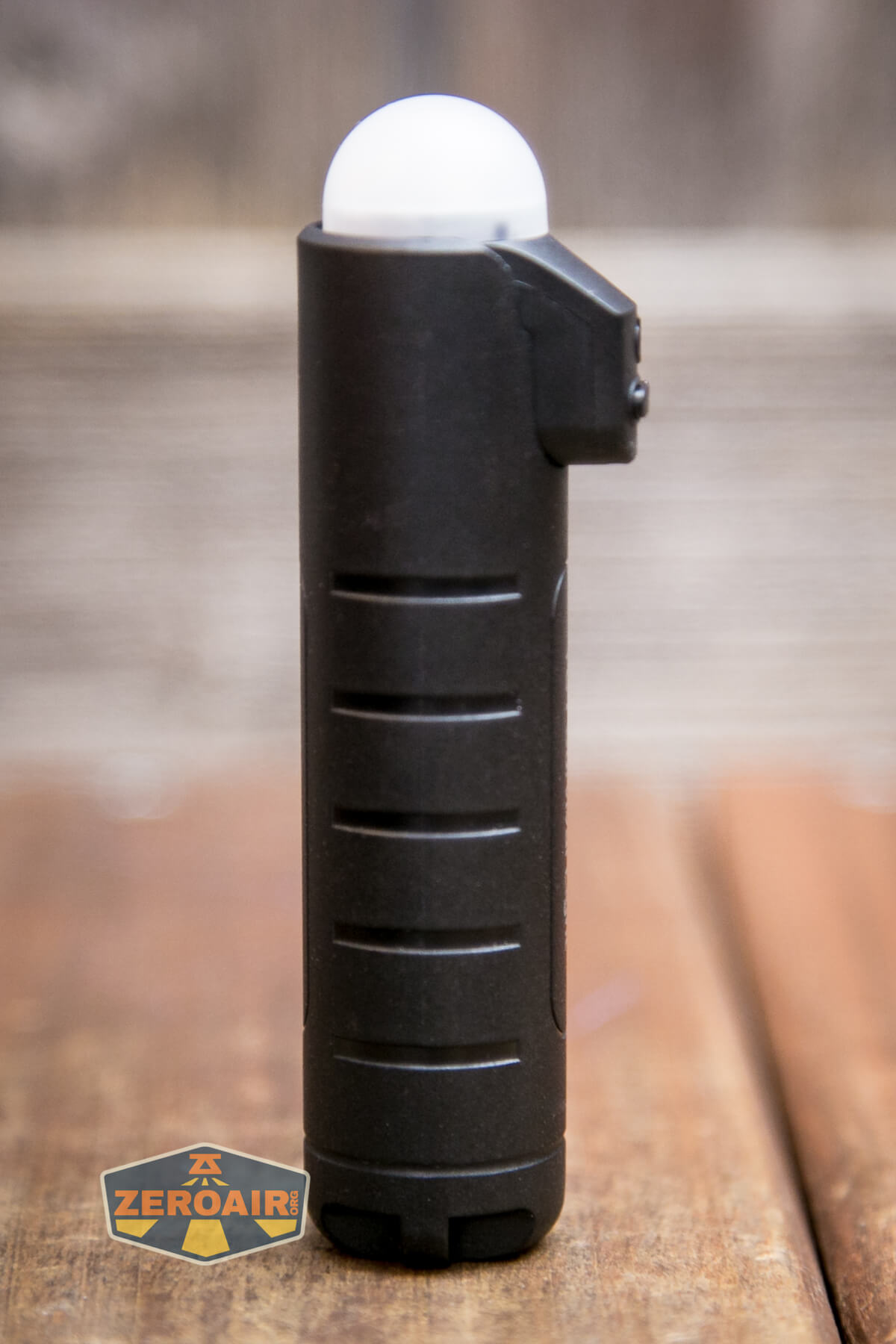

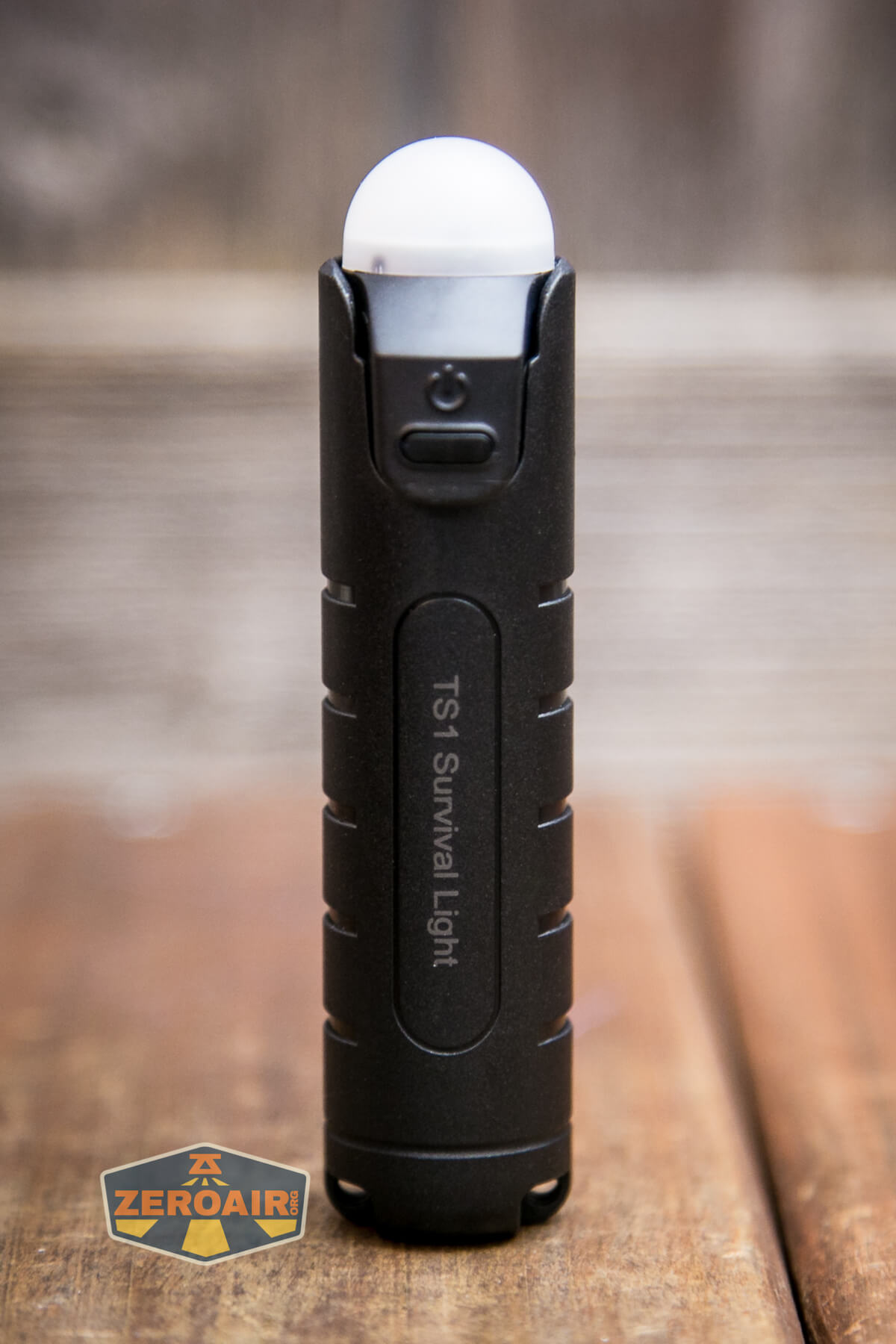

If the flashlight will headstand, I’ll show it here (usually the third photo). If the flashlight will tailstand, I’ll show that here, too (usually the fourth photo).

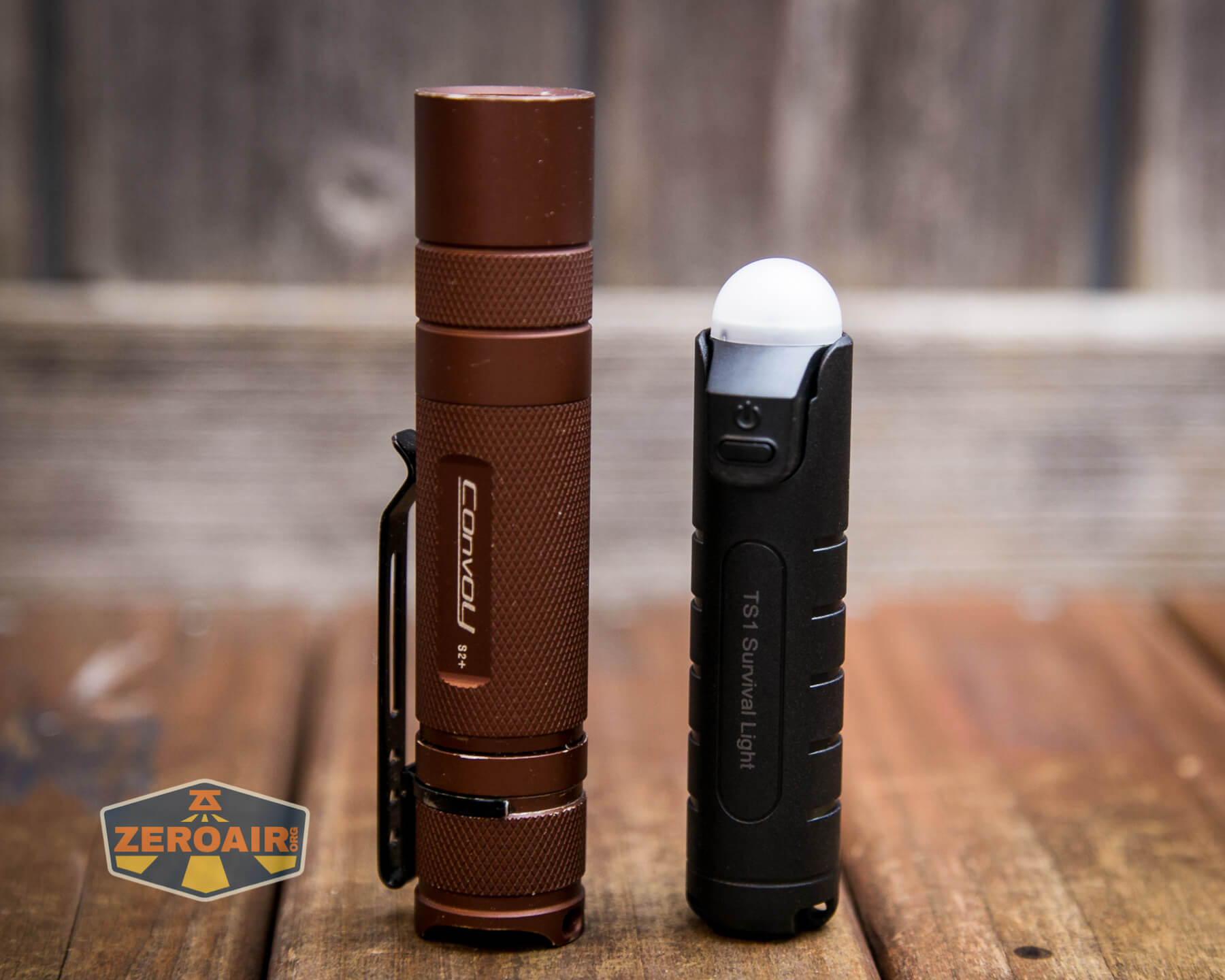

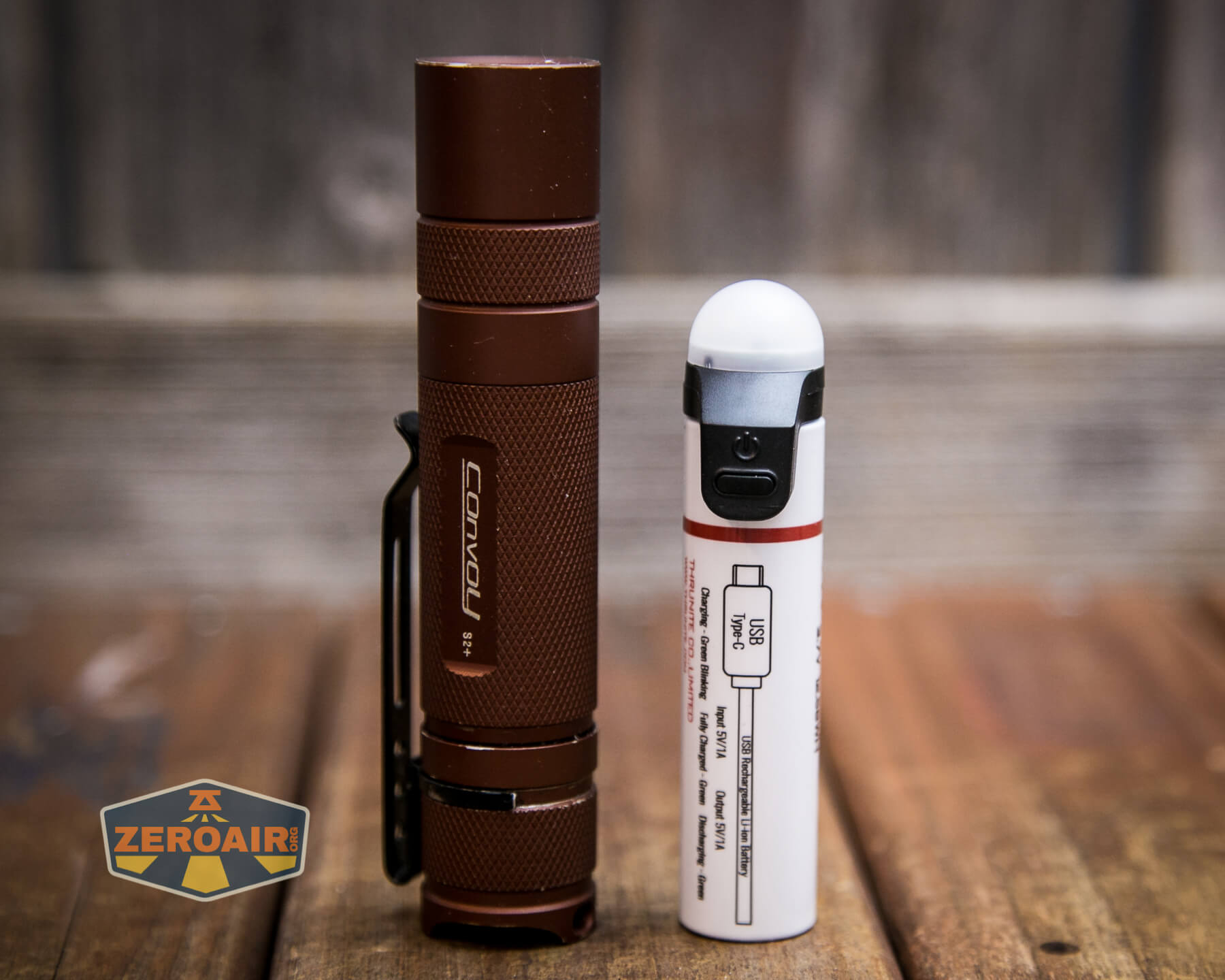

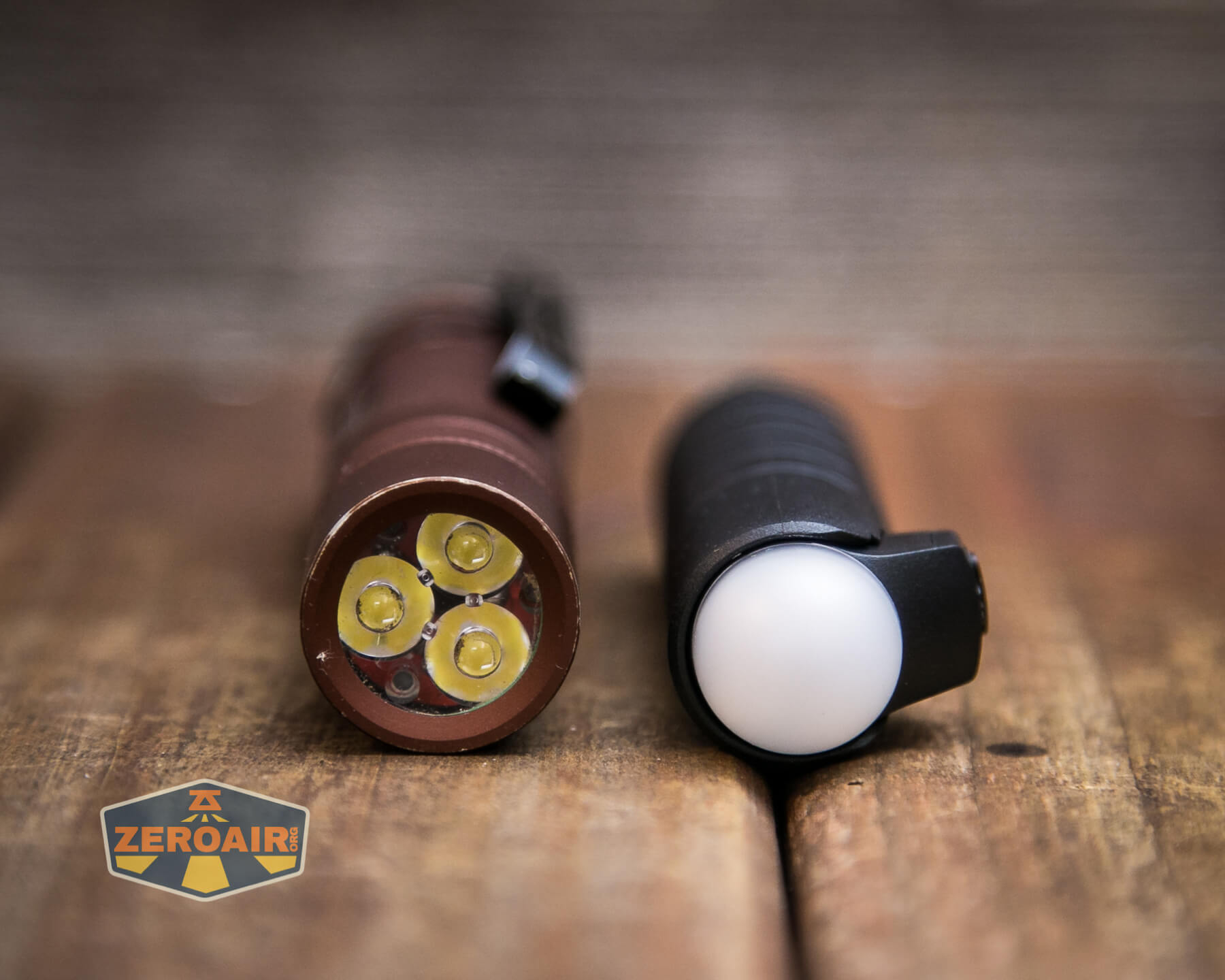

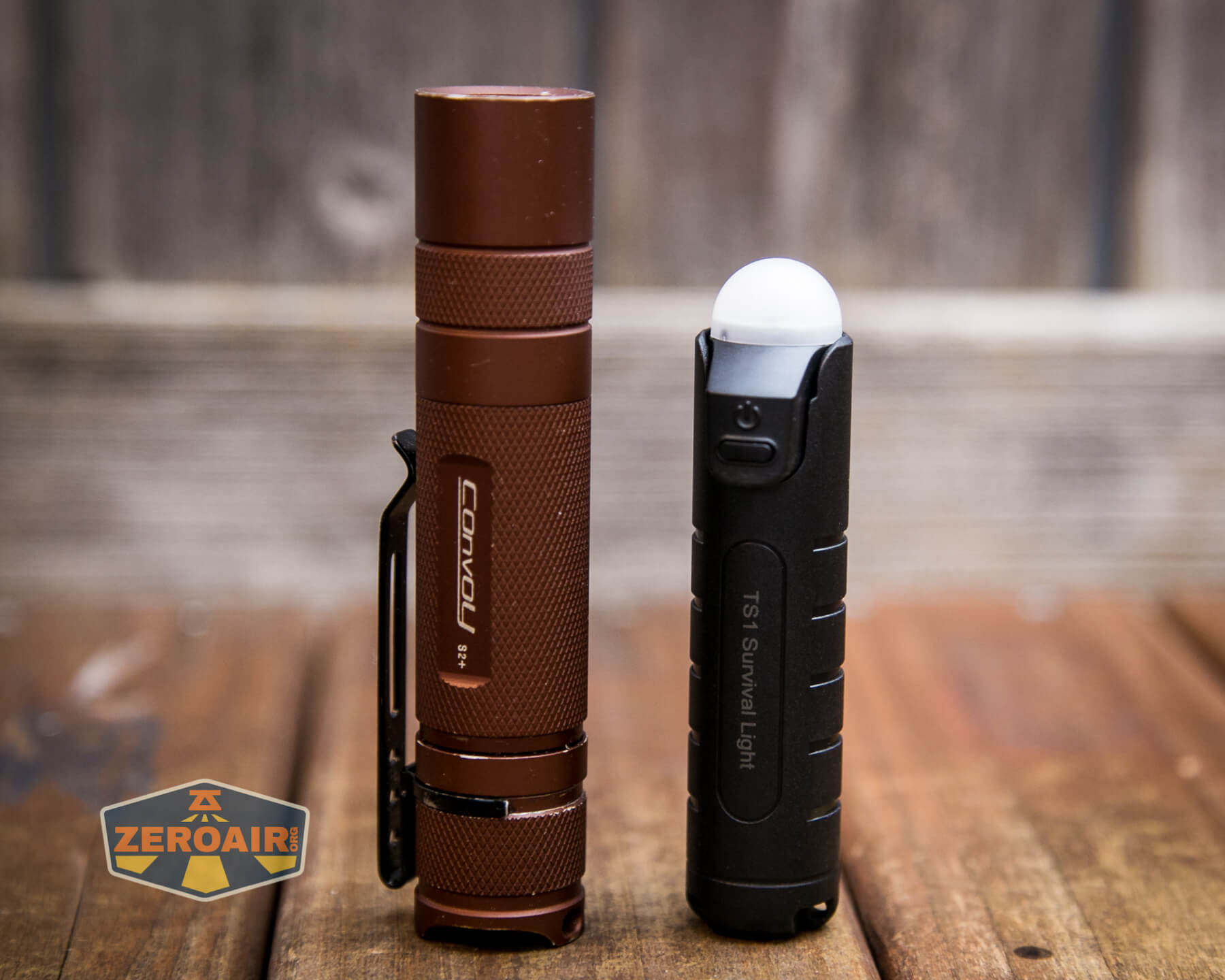

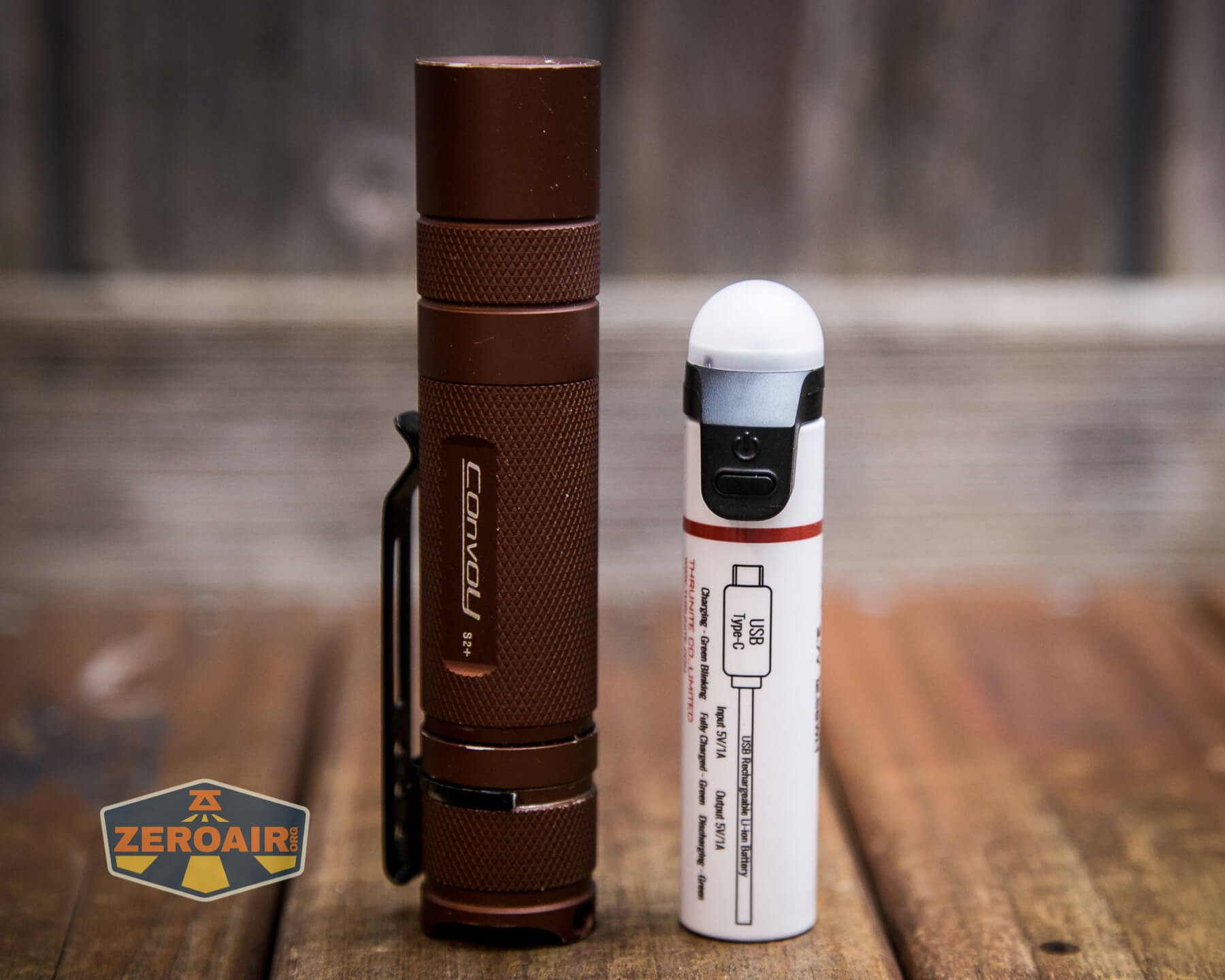

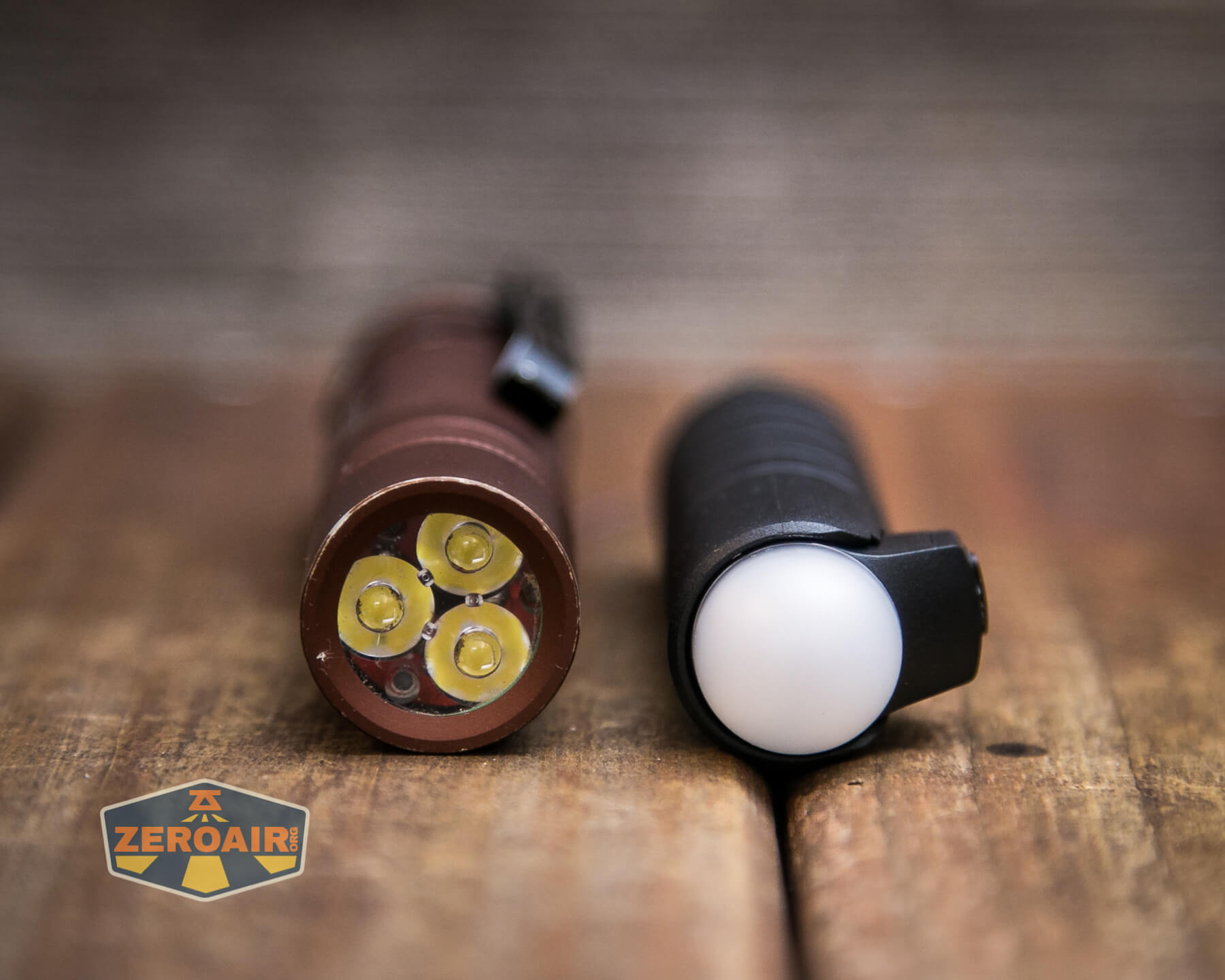

Here’s the test light with the venerable Convoy S2+. Mine’s a custom “baked” edition Nichia 219b triple. A very nice 18650 light.

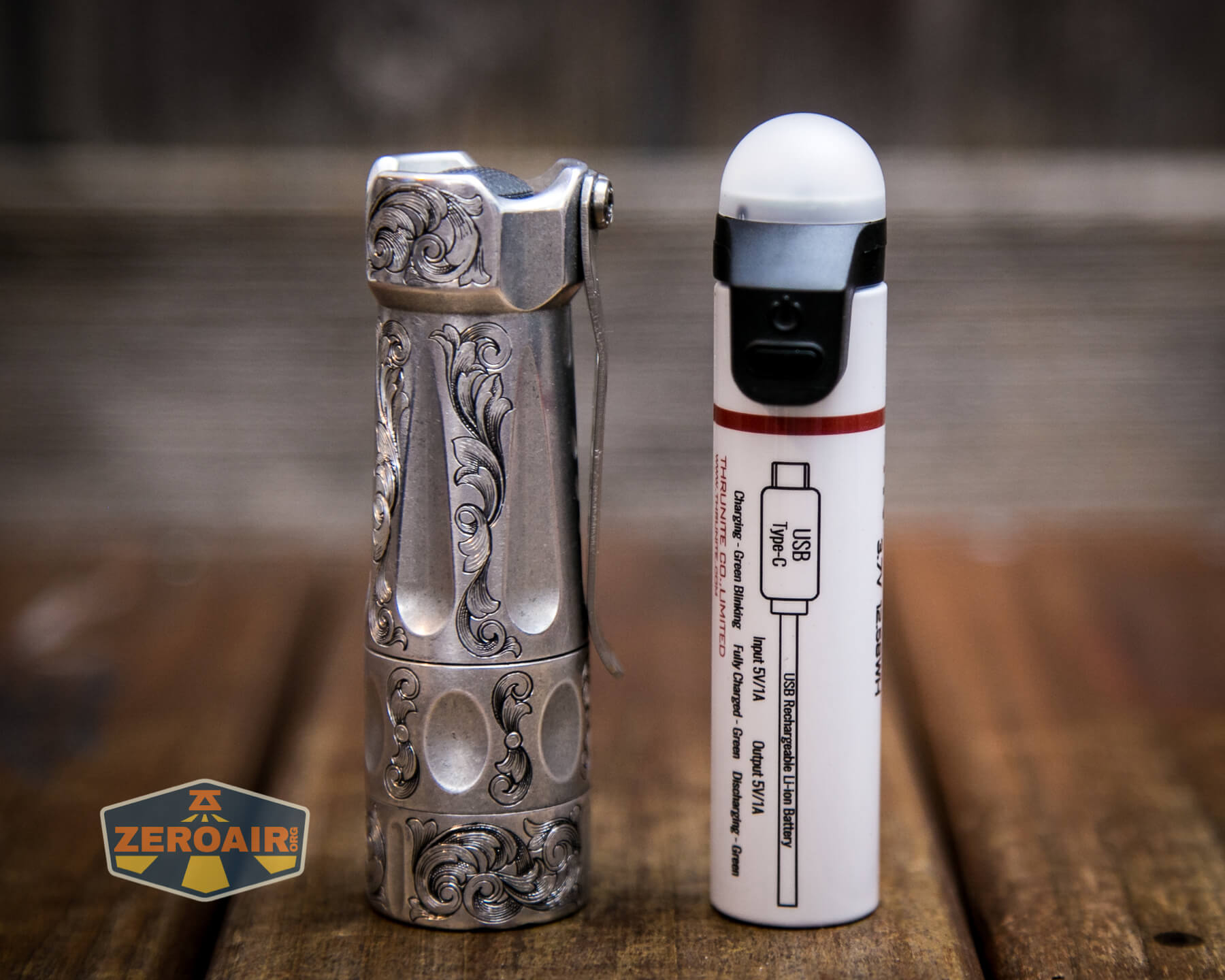

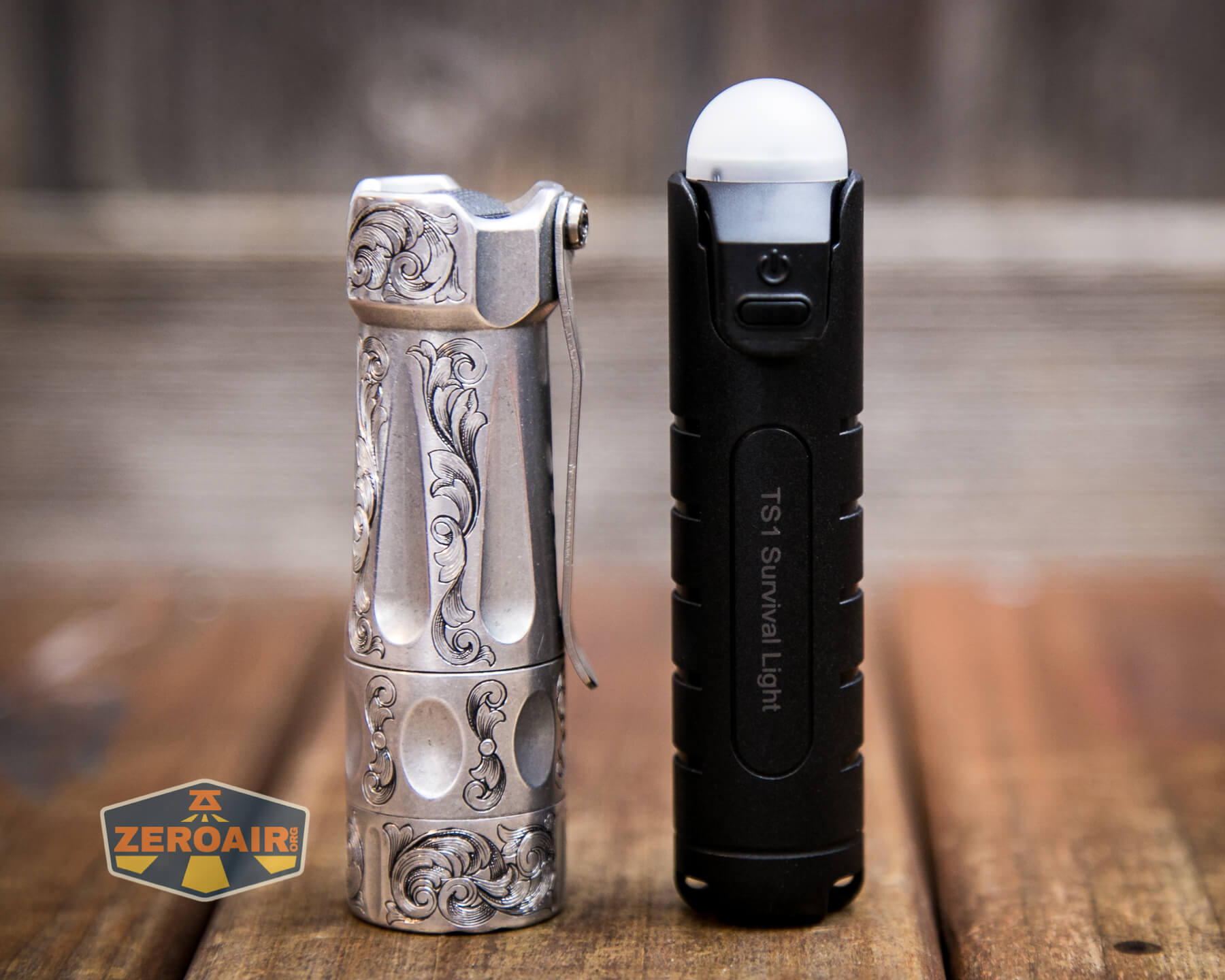

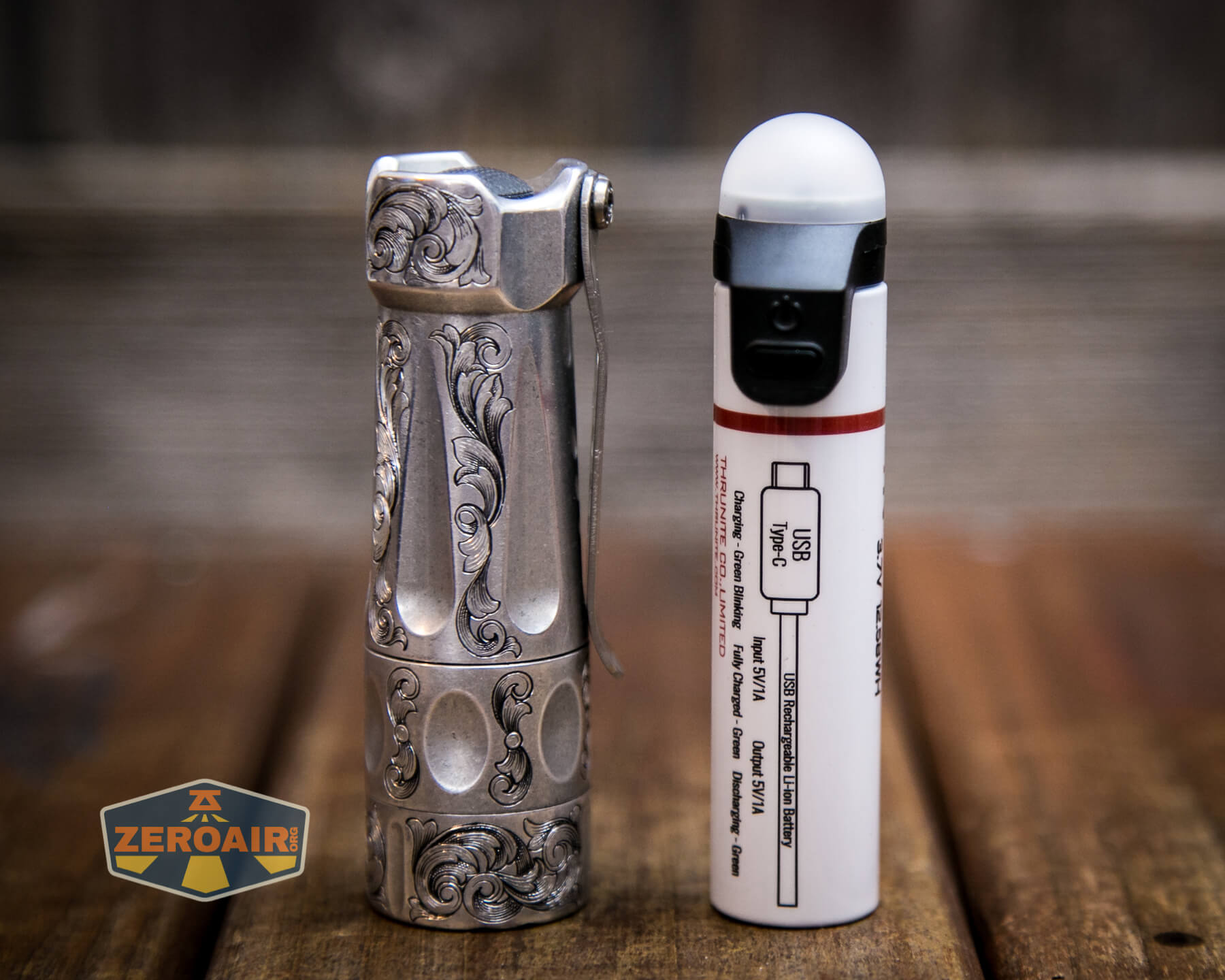

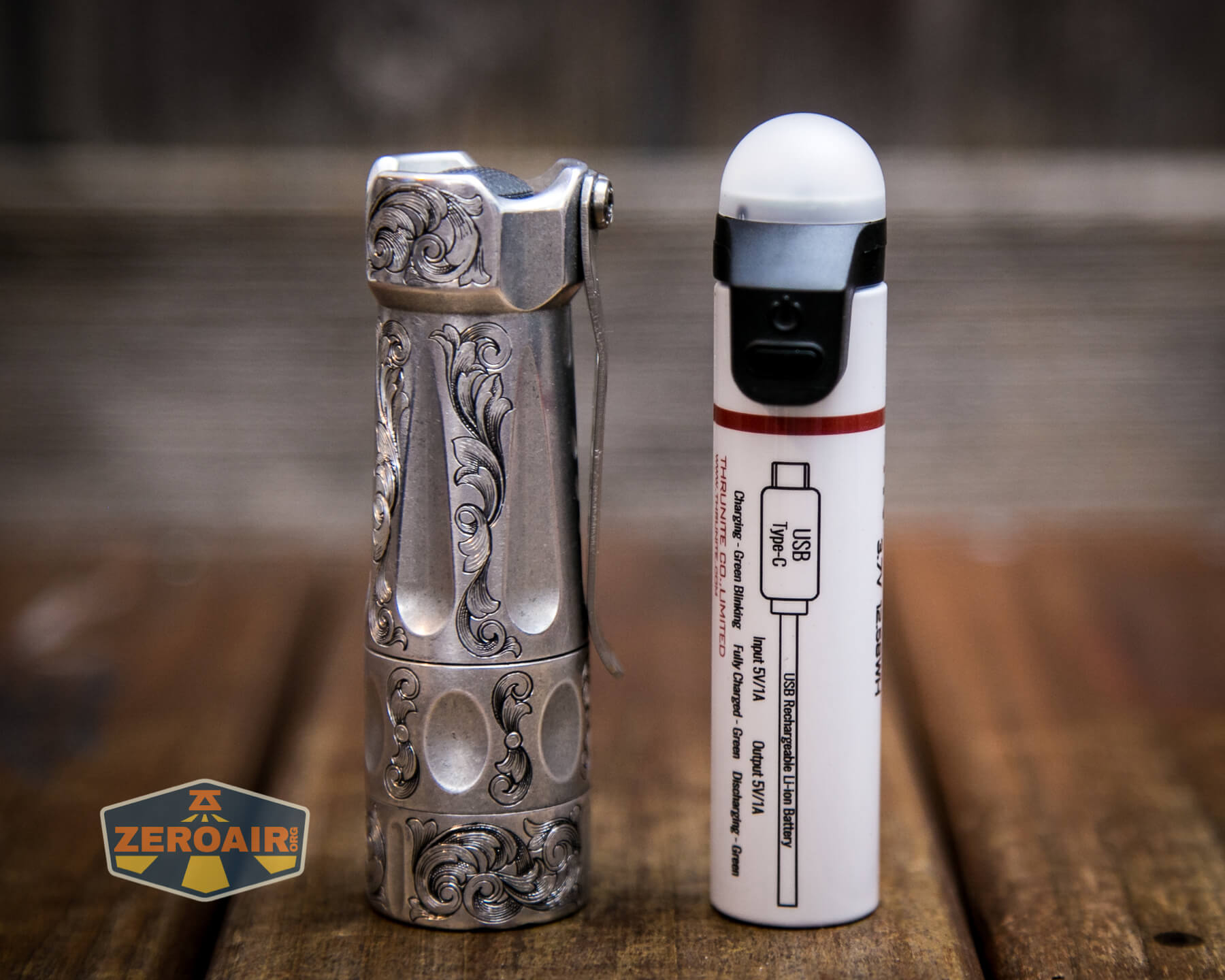

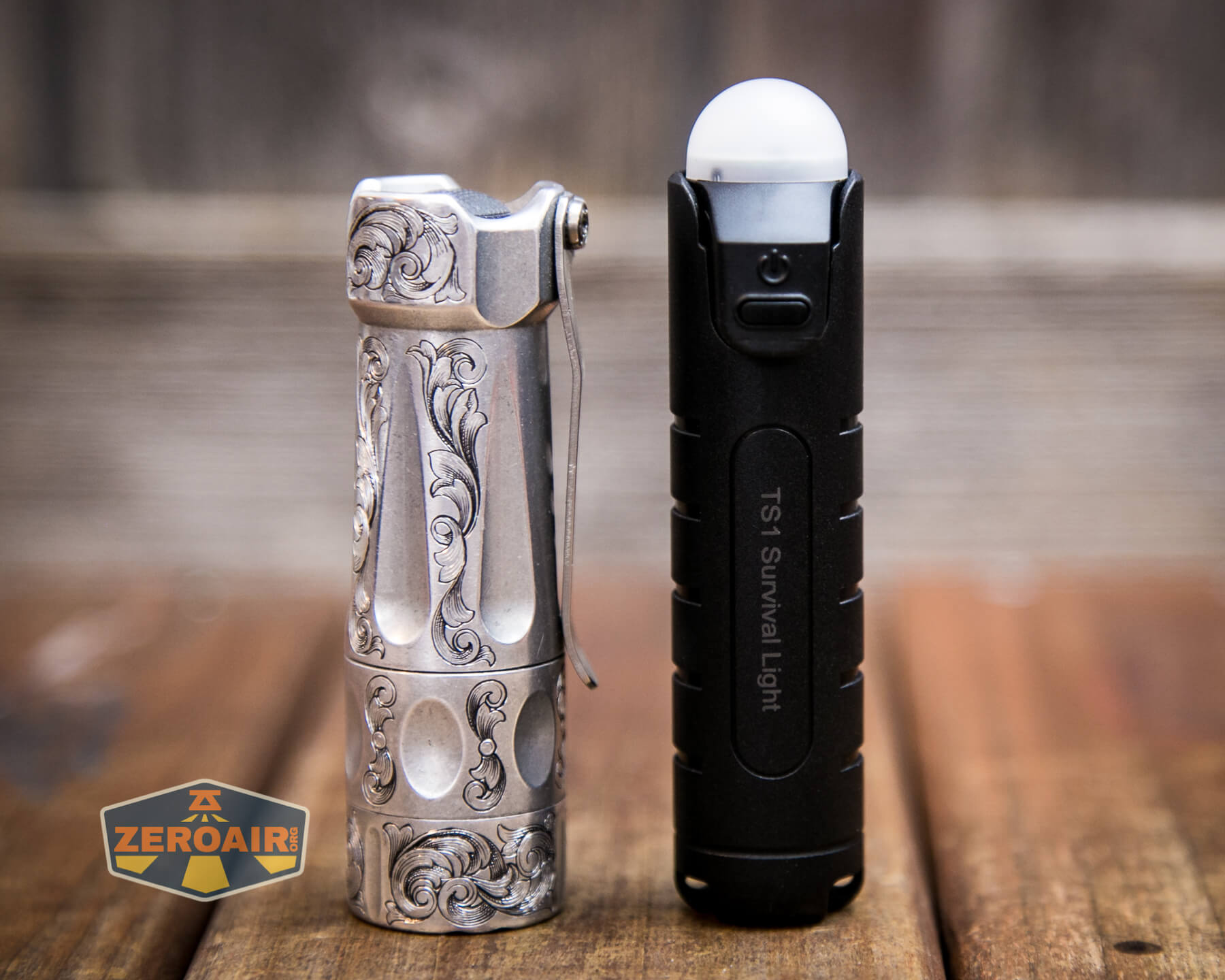

And here’s the light beside my custom engraved TorchLAB BOSS 35, an 18350 light. I reviewed the aluminum version of that light in both 35 and 70 formats.

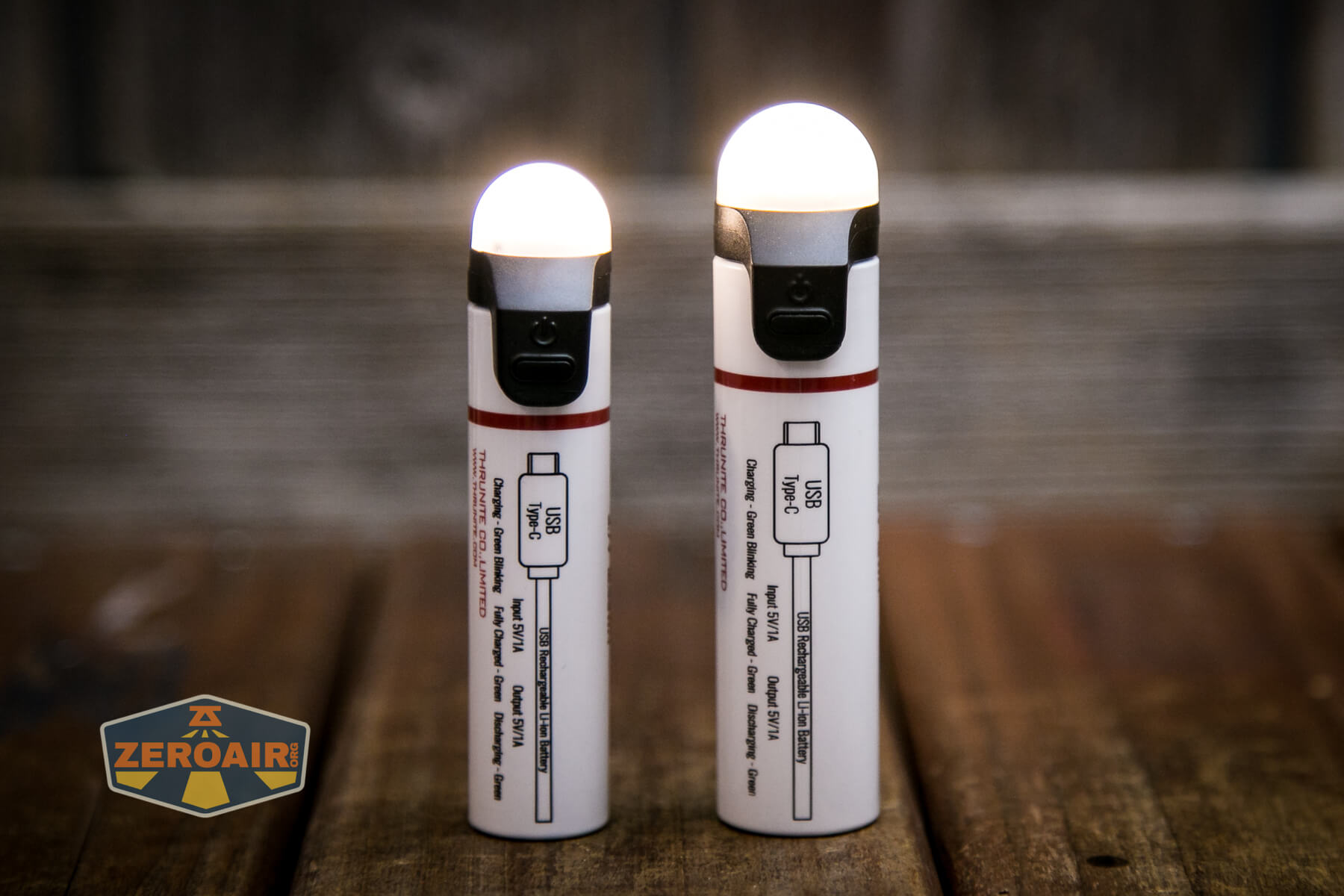

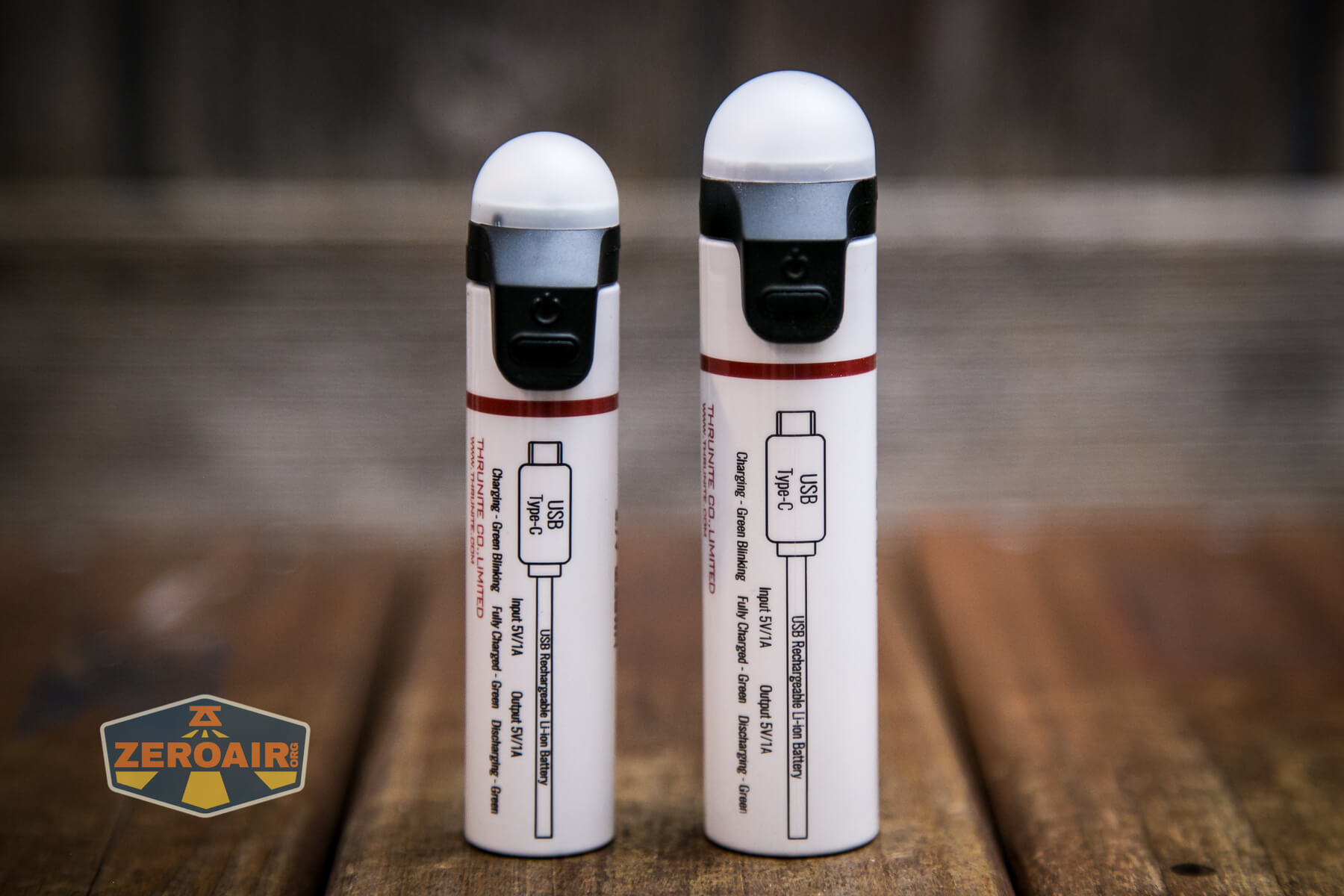

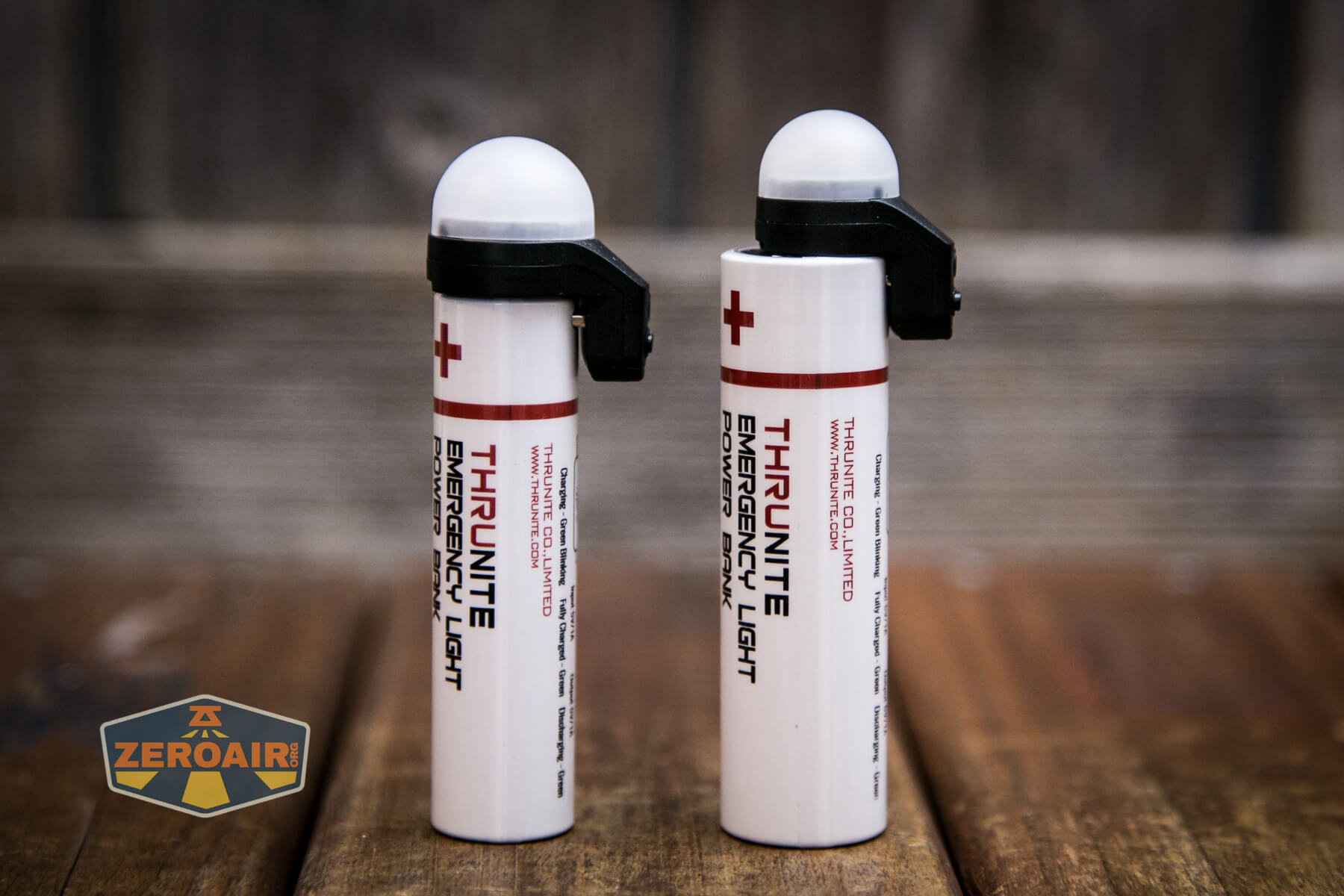

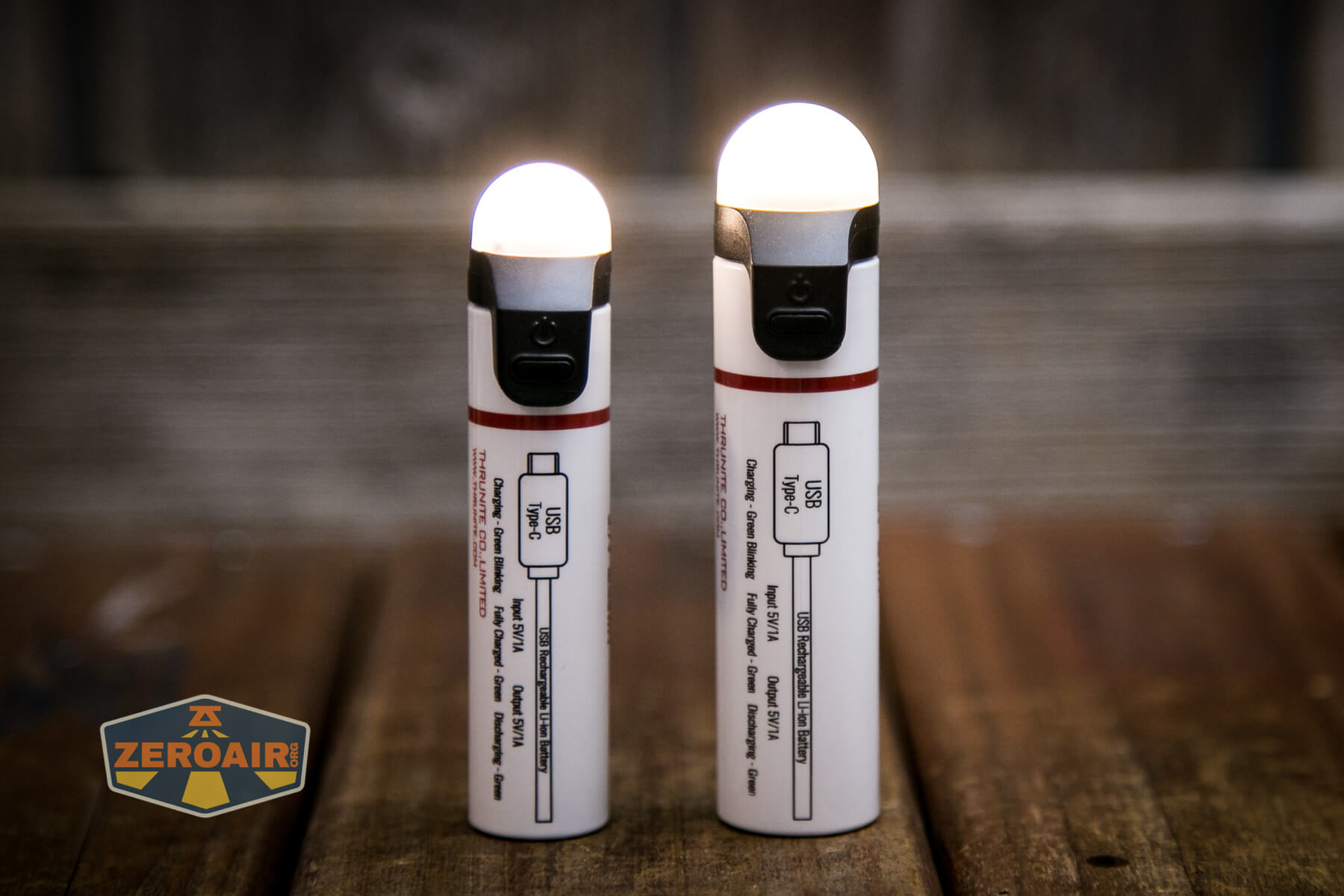

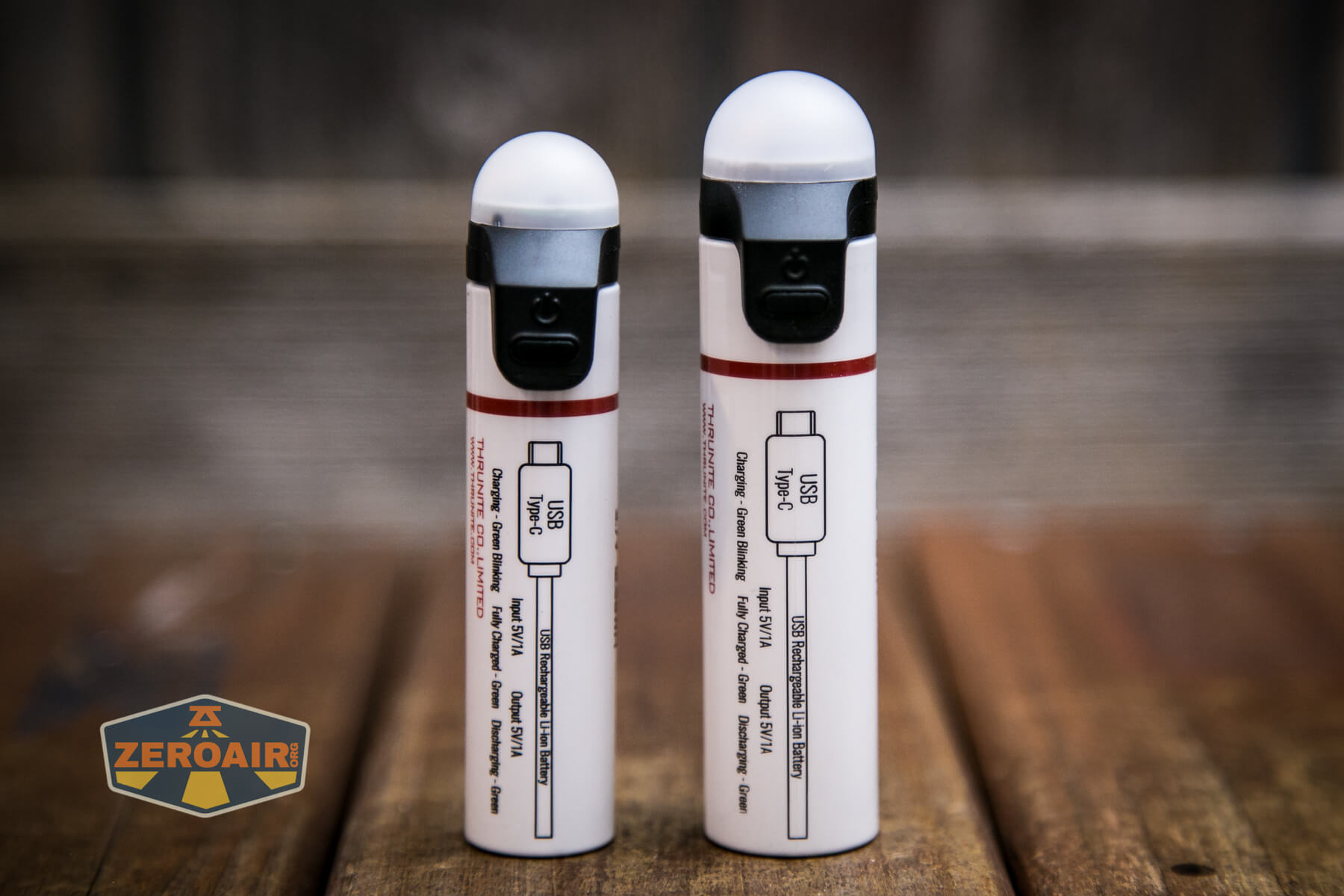

As I said above, I’ve tested the TS2 before – here these two are side by side. They are very much the same item, but for a specific-sized cell. TS2 for the 21700 cell and the TS1 for a 18650 cell.
And yes, the lantern is “the same” but different in size.

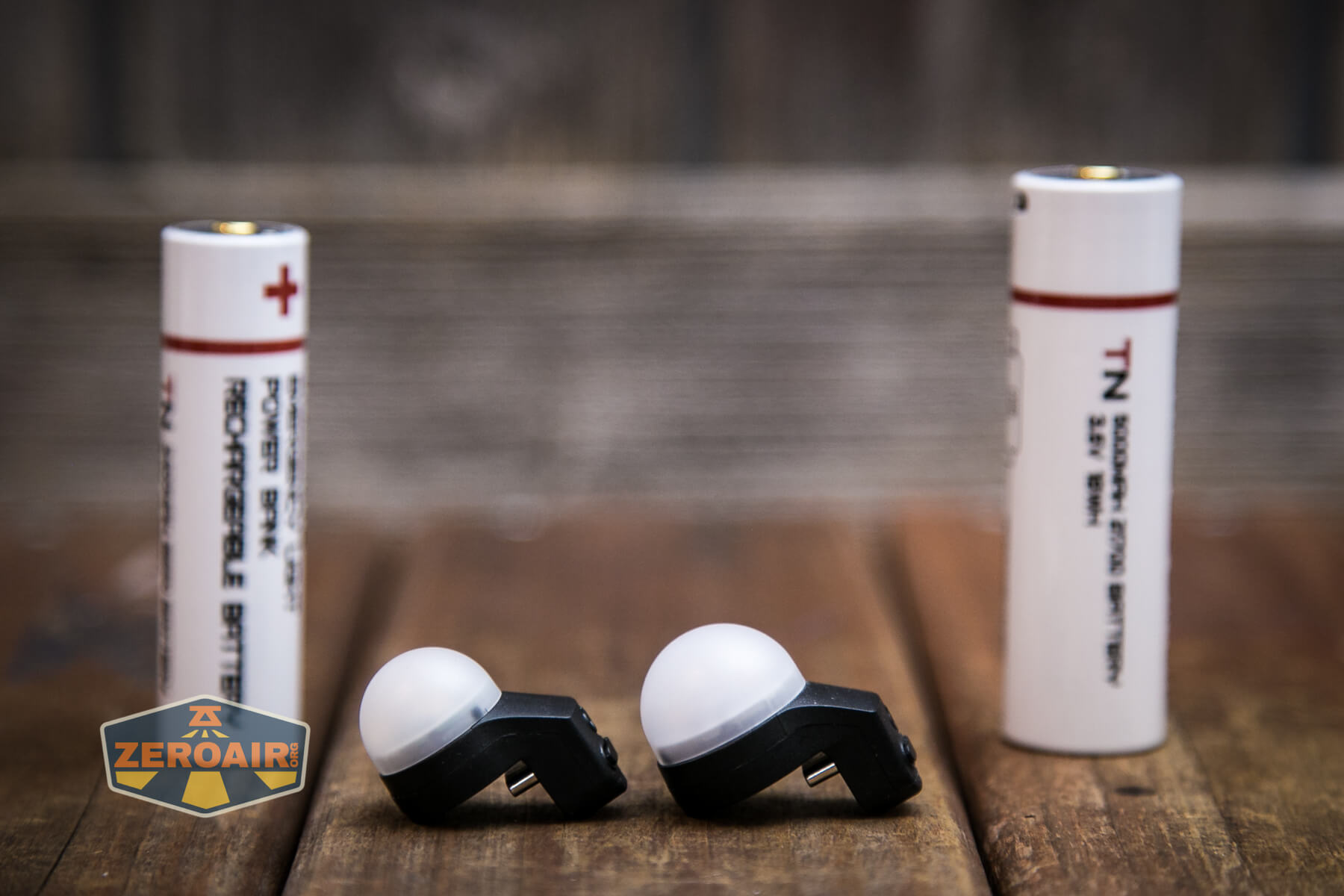

And no, they don’t swap to the other size cell.
Retention and Carry

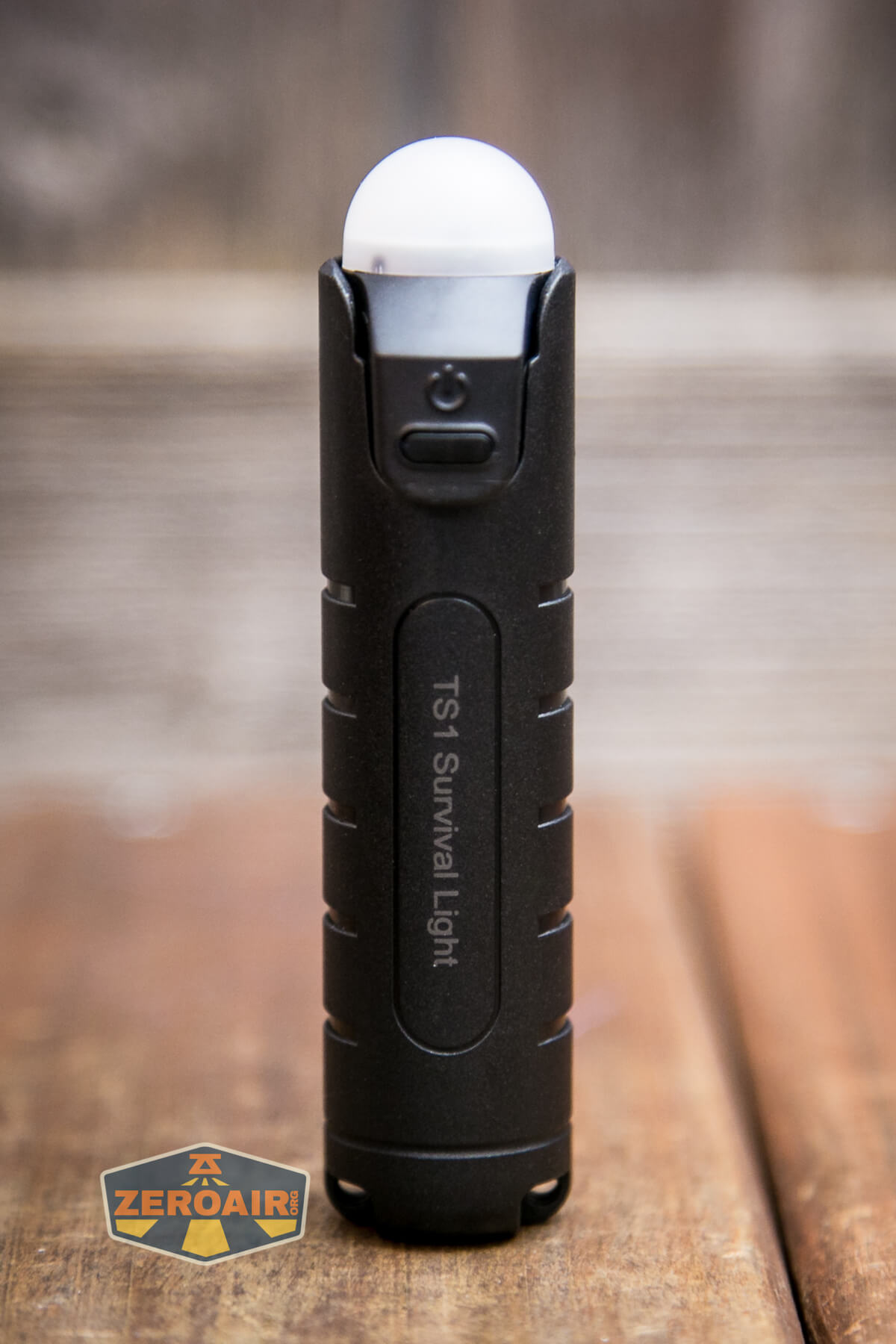

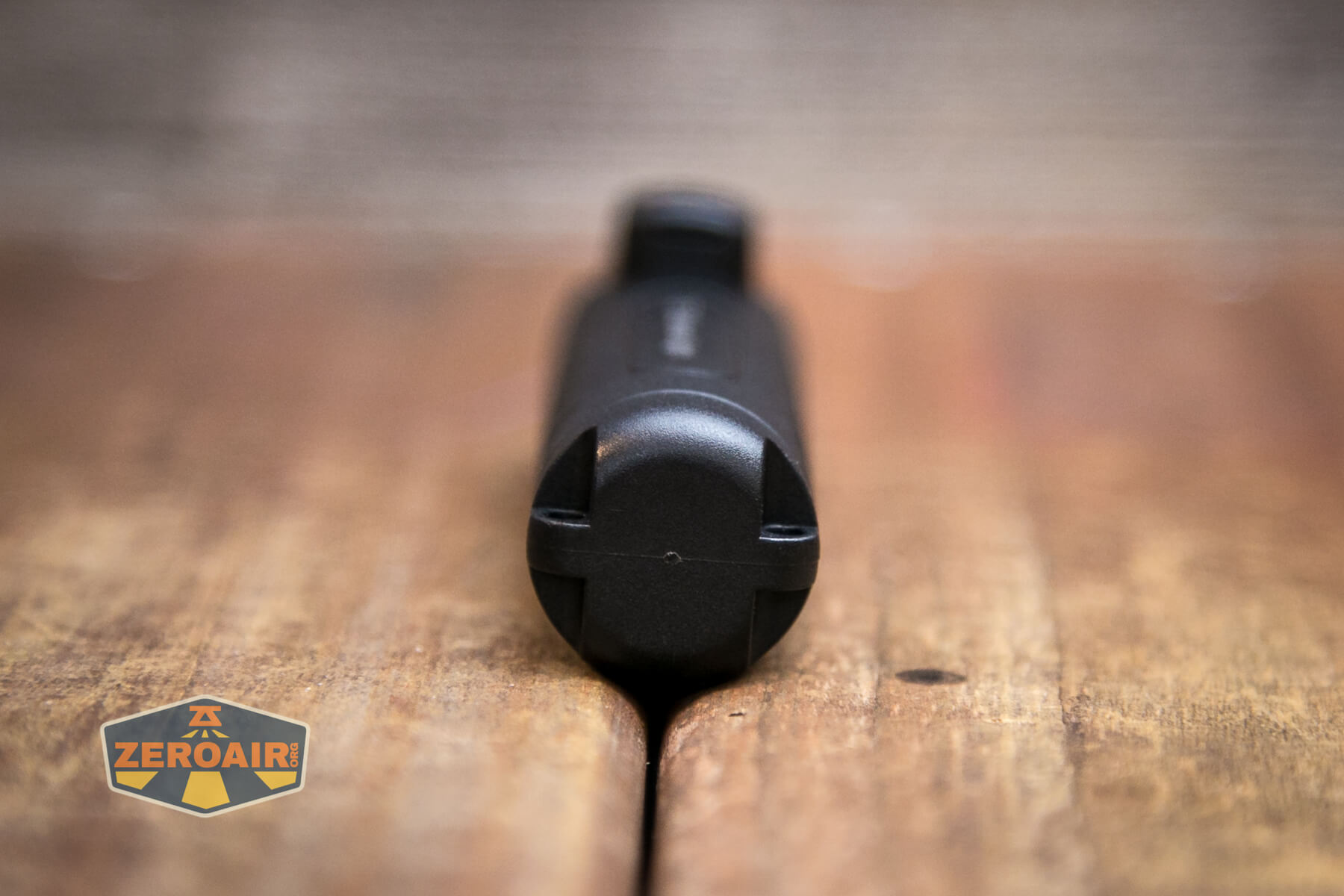

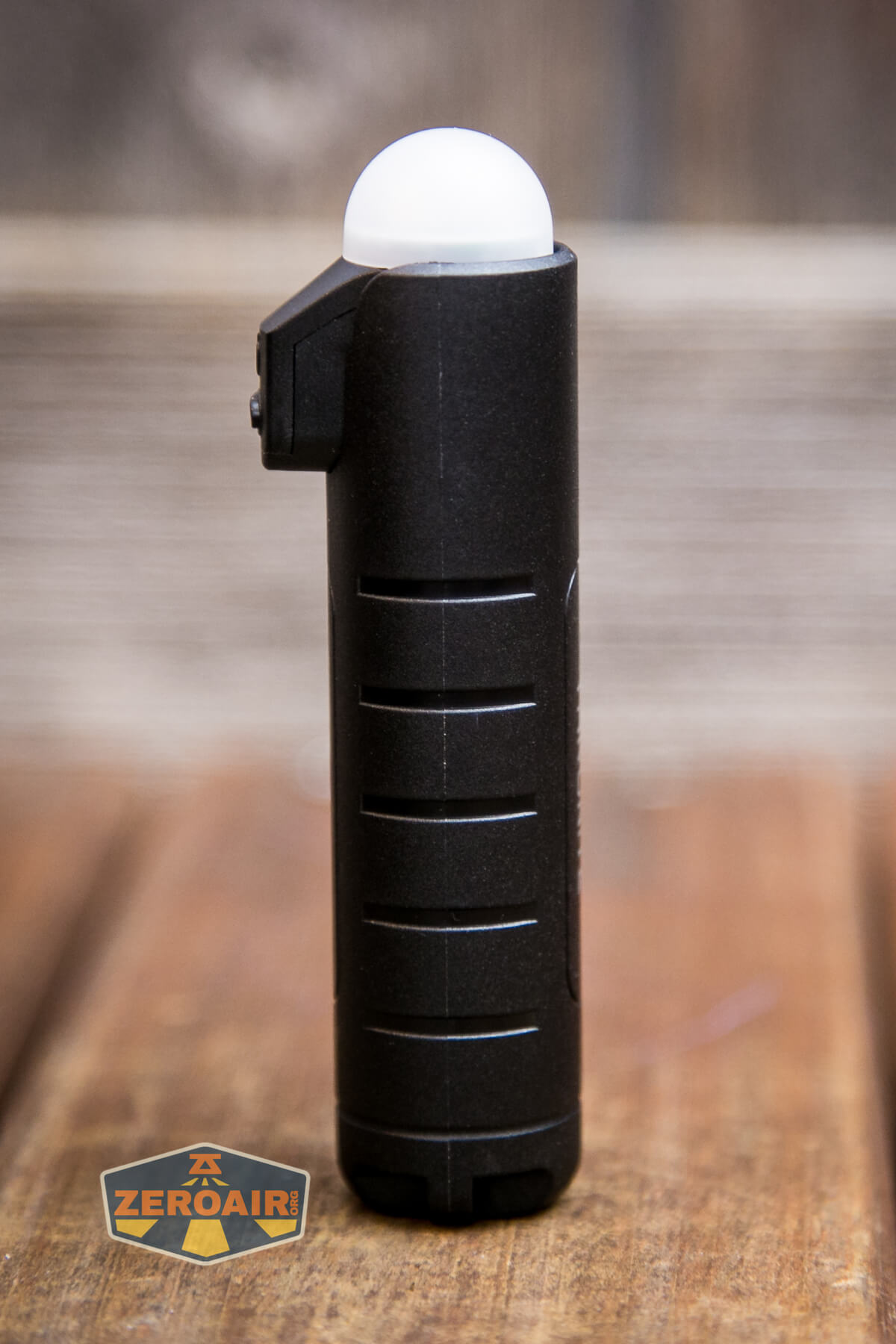

As I’ve already touched on, there are a number of ways to carry the Thrunite TS1 Self-Rescue lantern. Probably primary among those is this plastic case, into which the 18650 cell slips. You can see below that there’s a magnet in the base of that case, and it holds the 18650 “fine.”

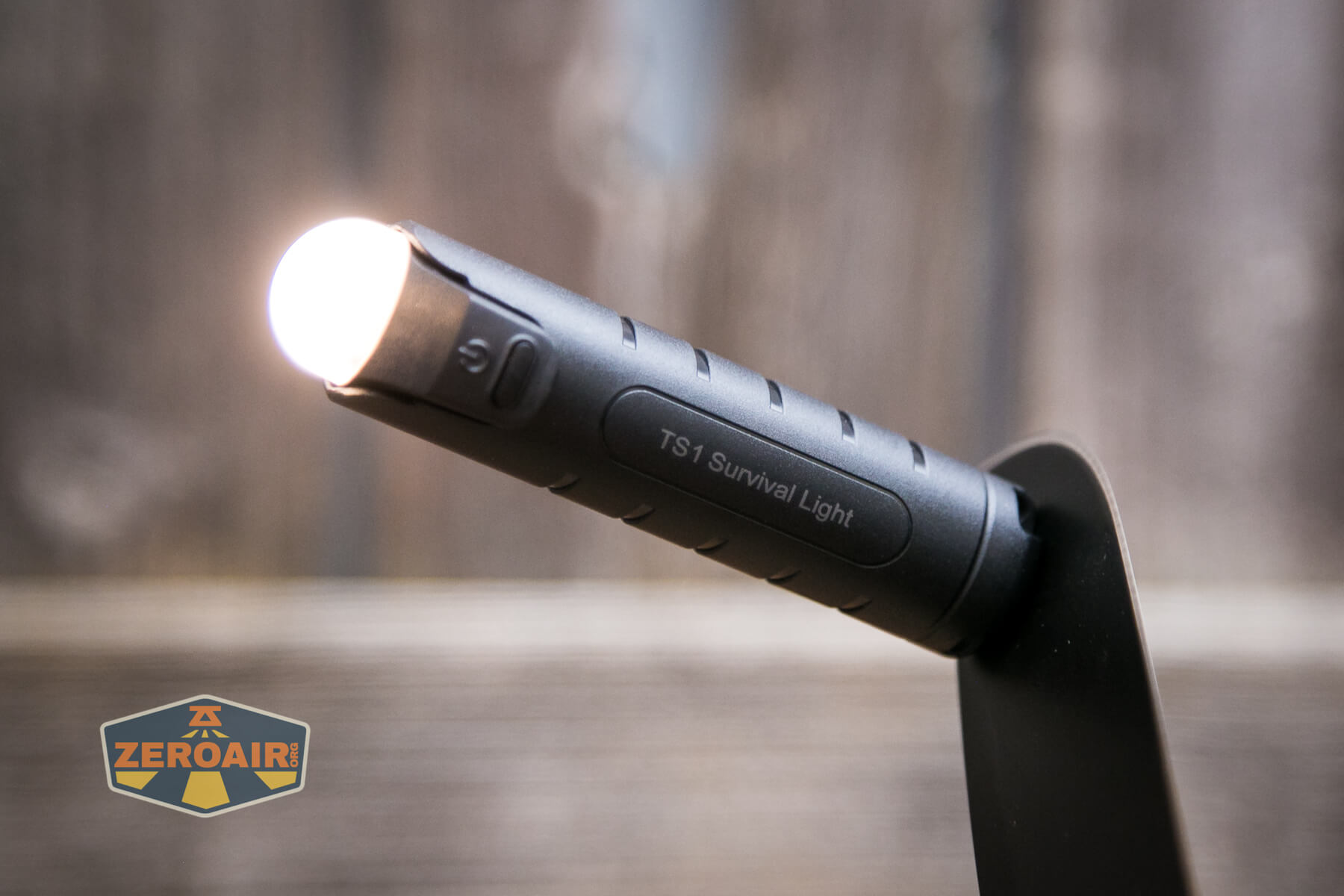

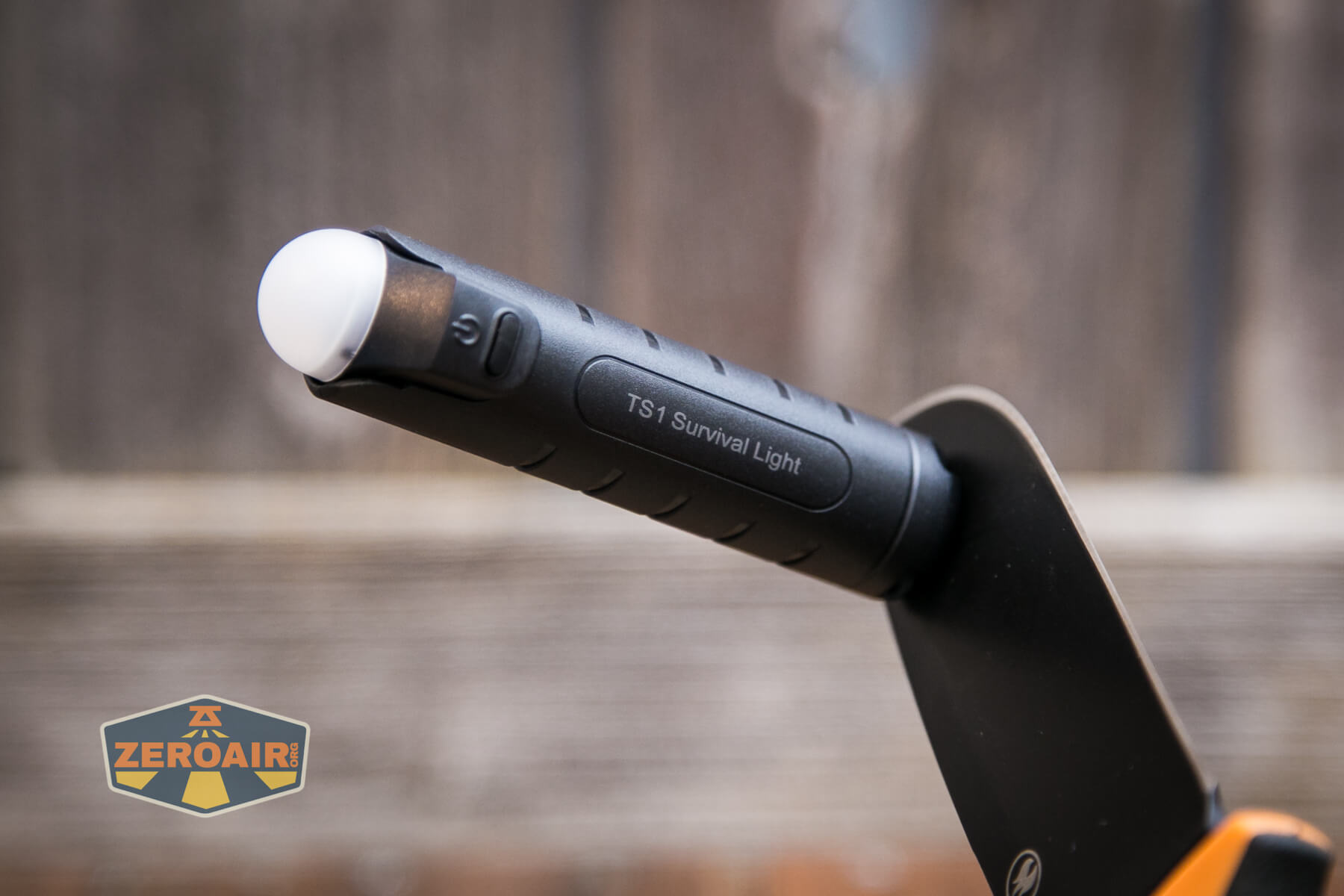

The magnet here is plenty strong to hold the parts against a metal surface. It’ll hang easily by this magnet – horizontally too, but a little less securely. It’s by no means an extra aggressive connection.

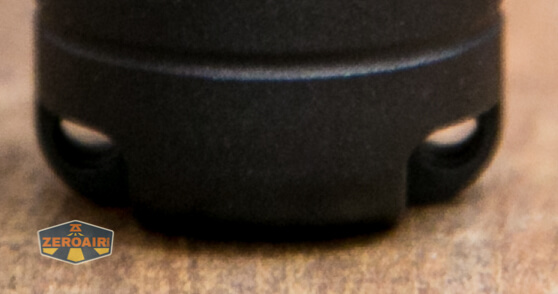

On this plastic case are two lanyard loops. A lanyard is not included.

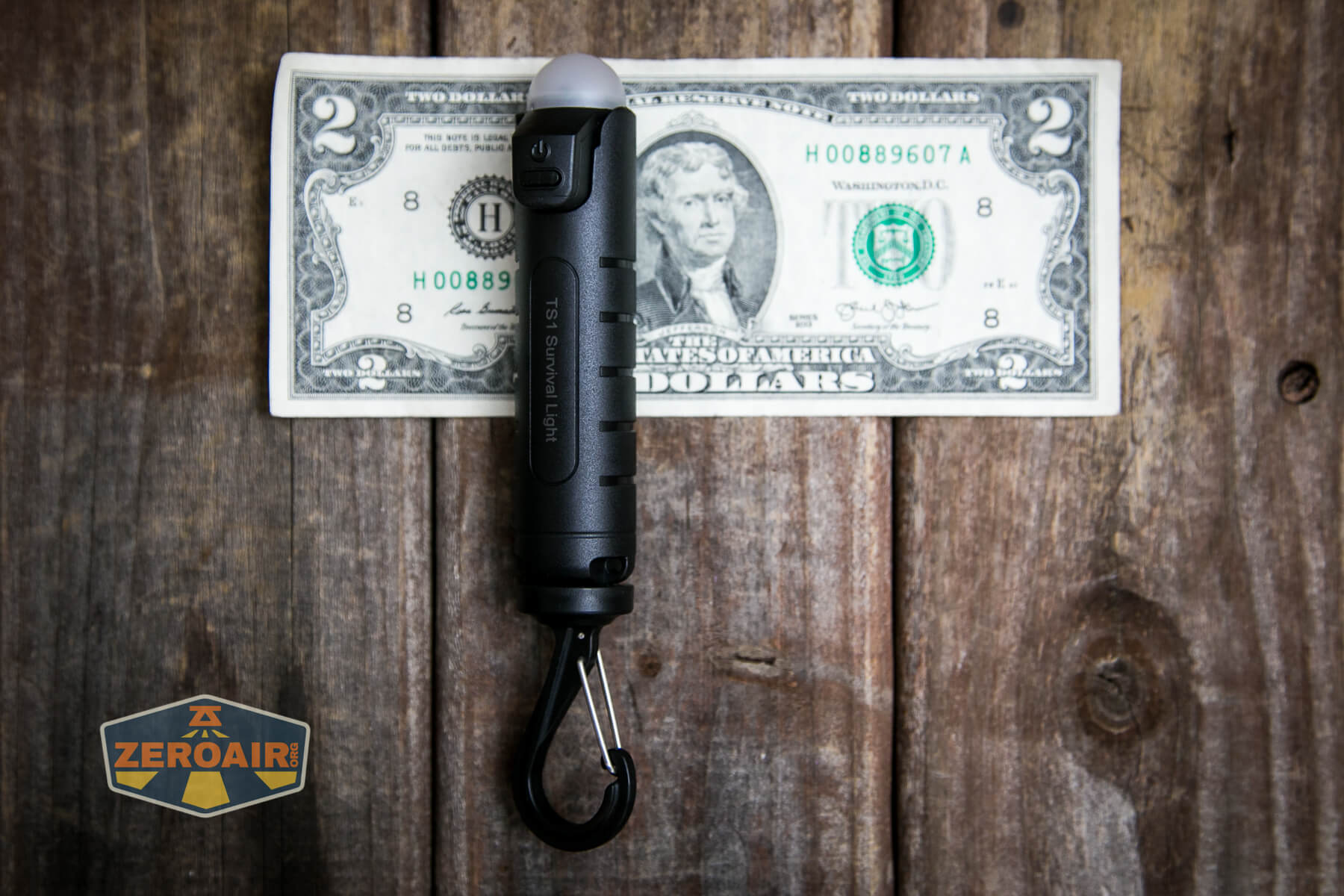

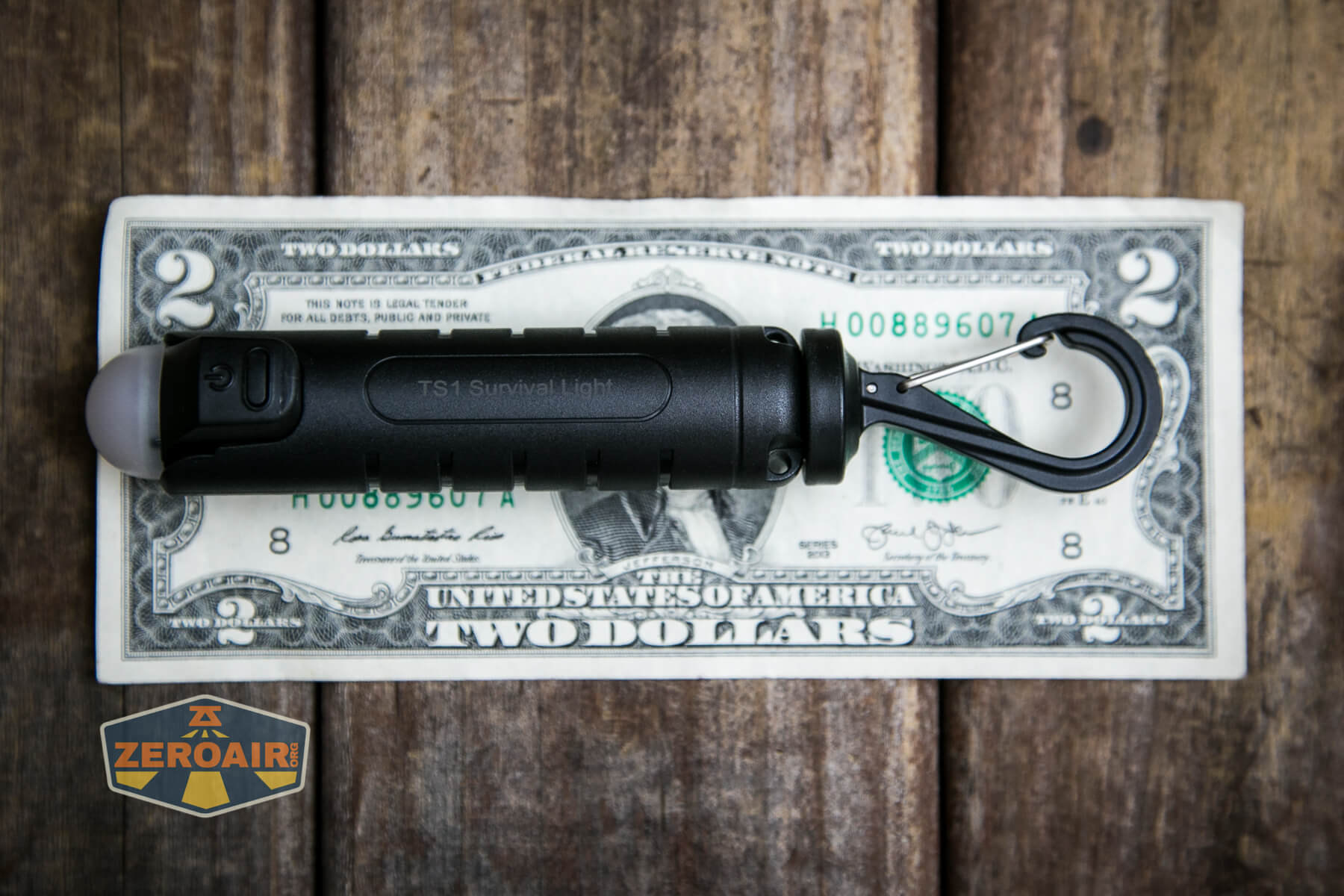

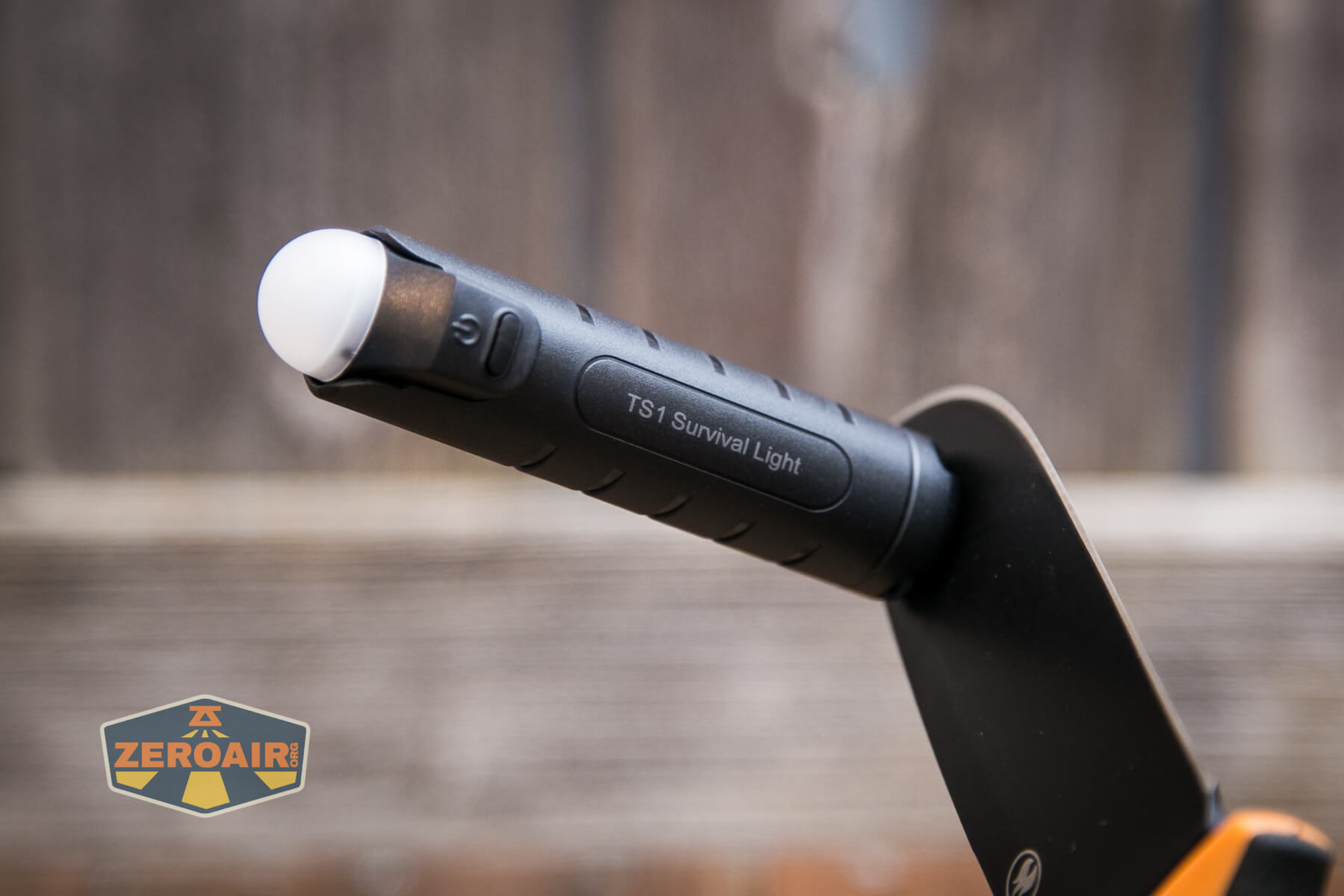

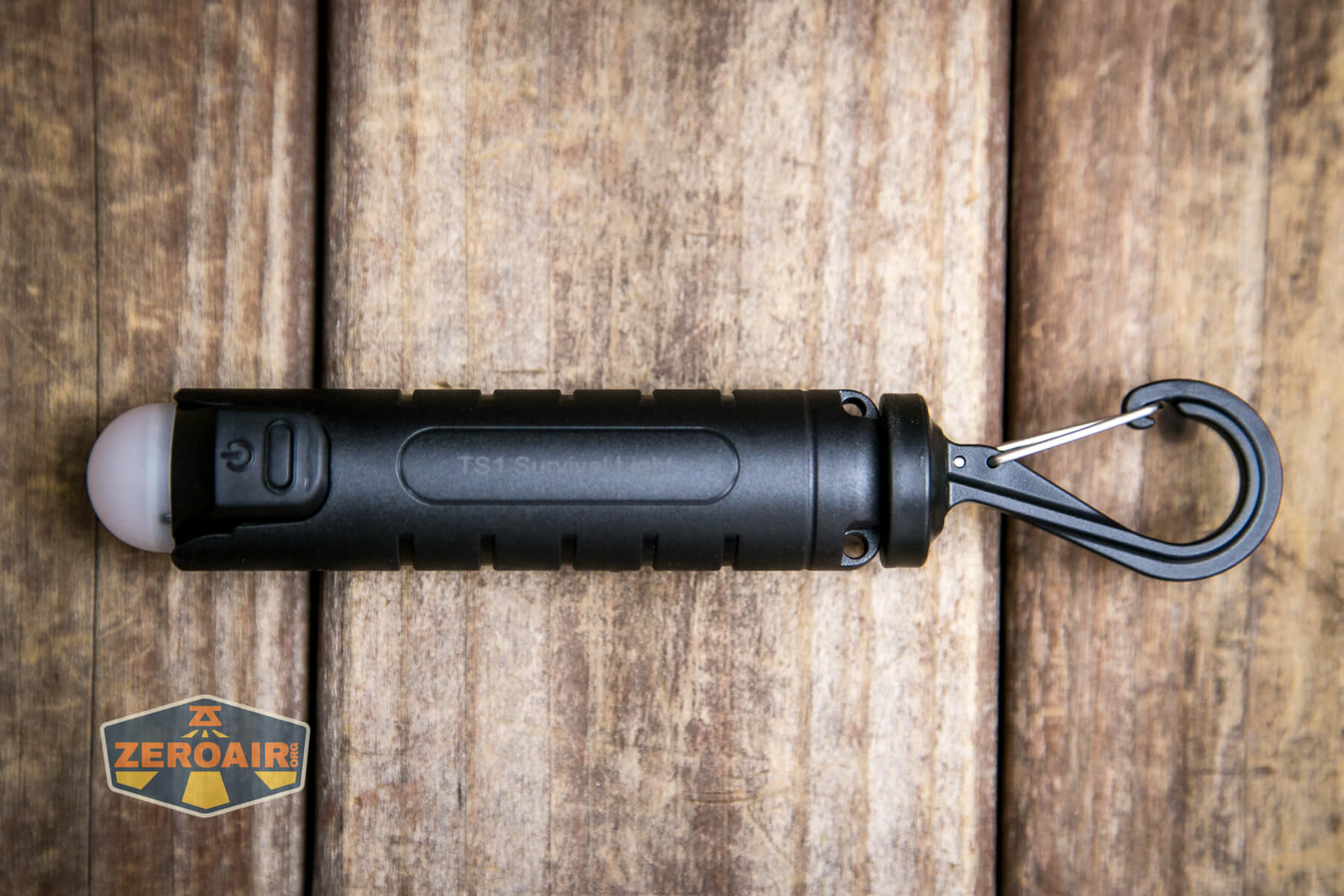

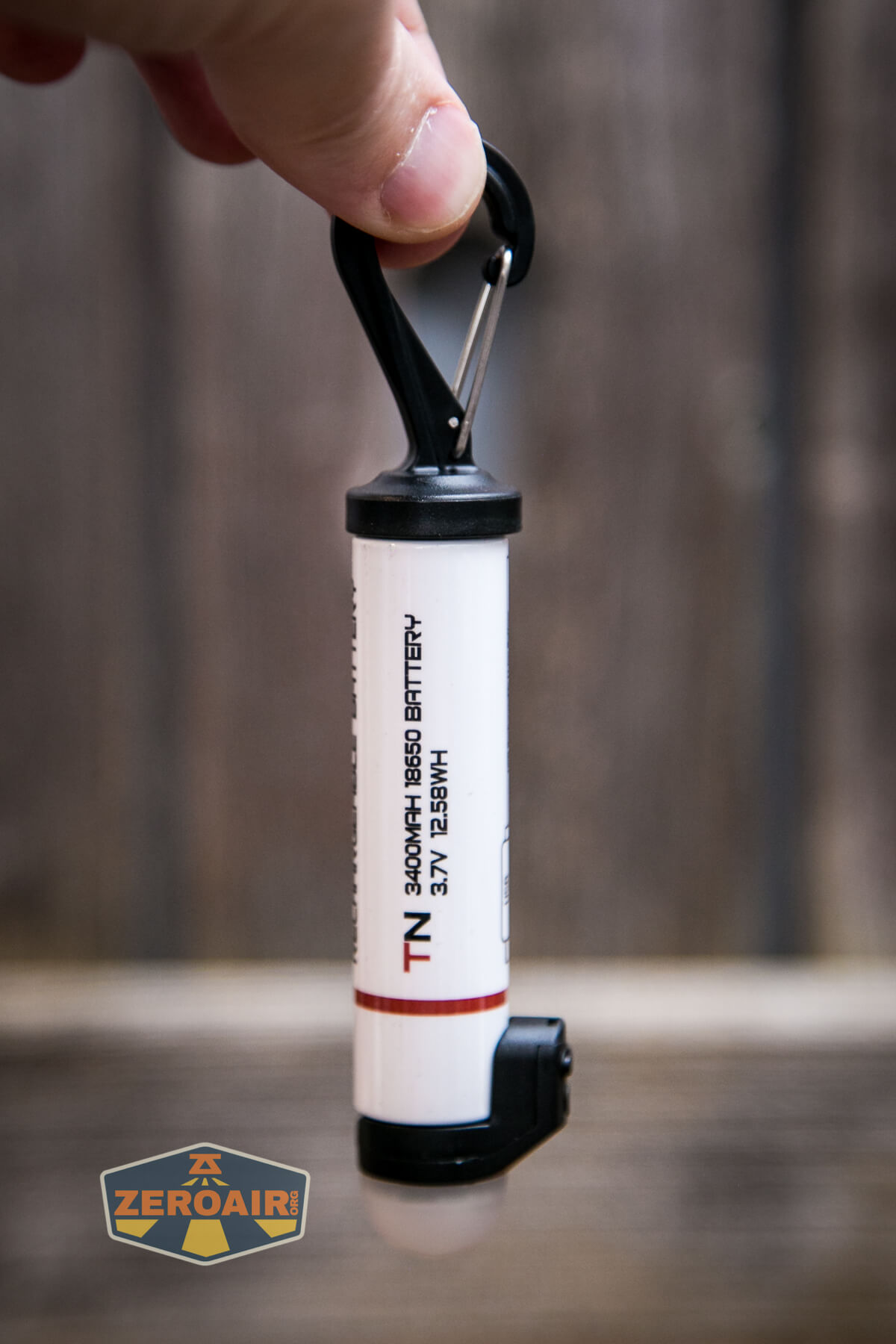

Finally, there’s a magnetic hook. I find this connection to be just fine – the Thrunite TS2 Self-Rescue lantern will hang easily. In fact, the magnetic hook will hang from the plastic case too.

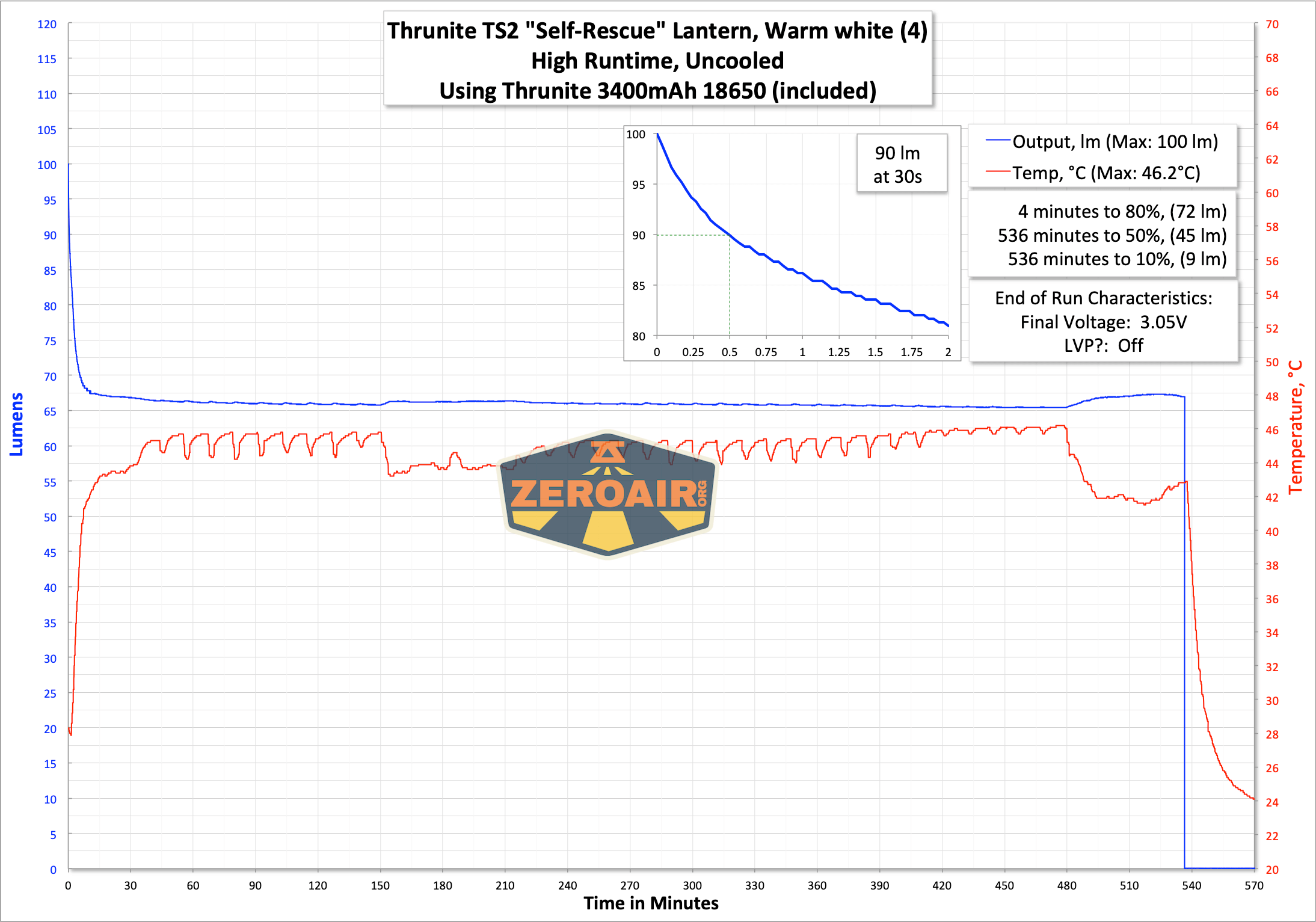

Power and Runtime

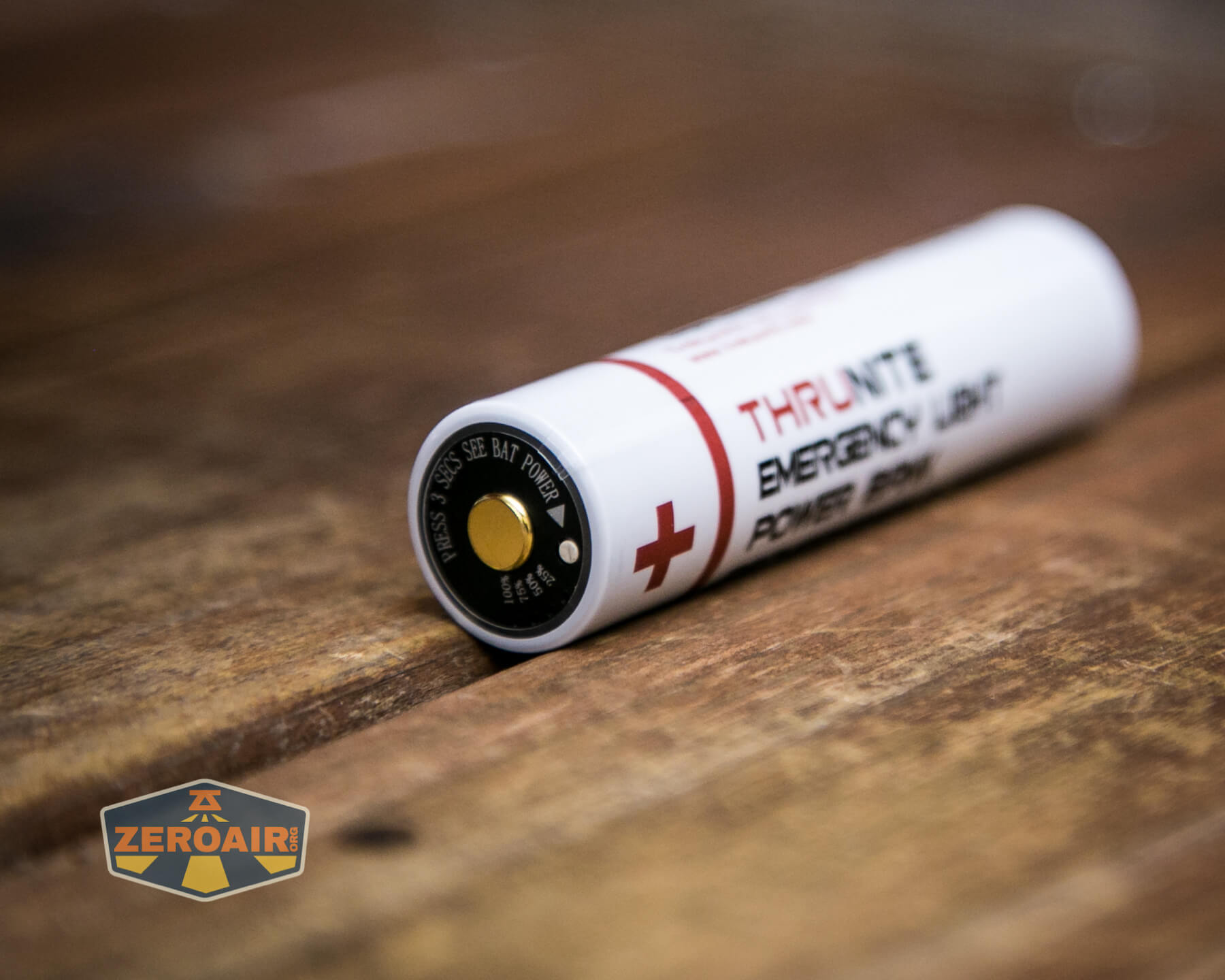

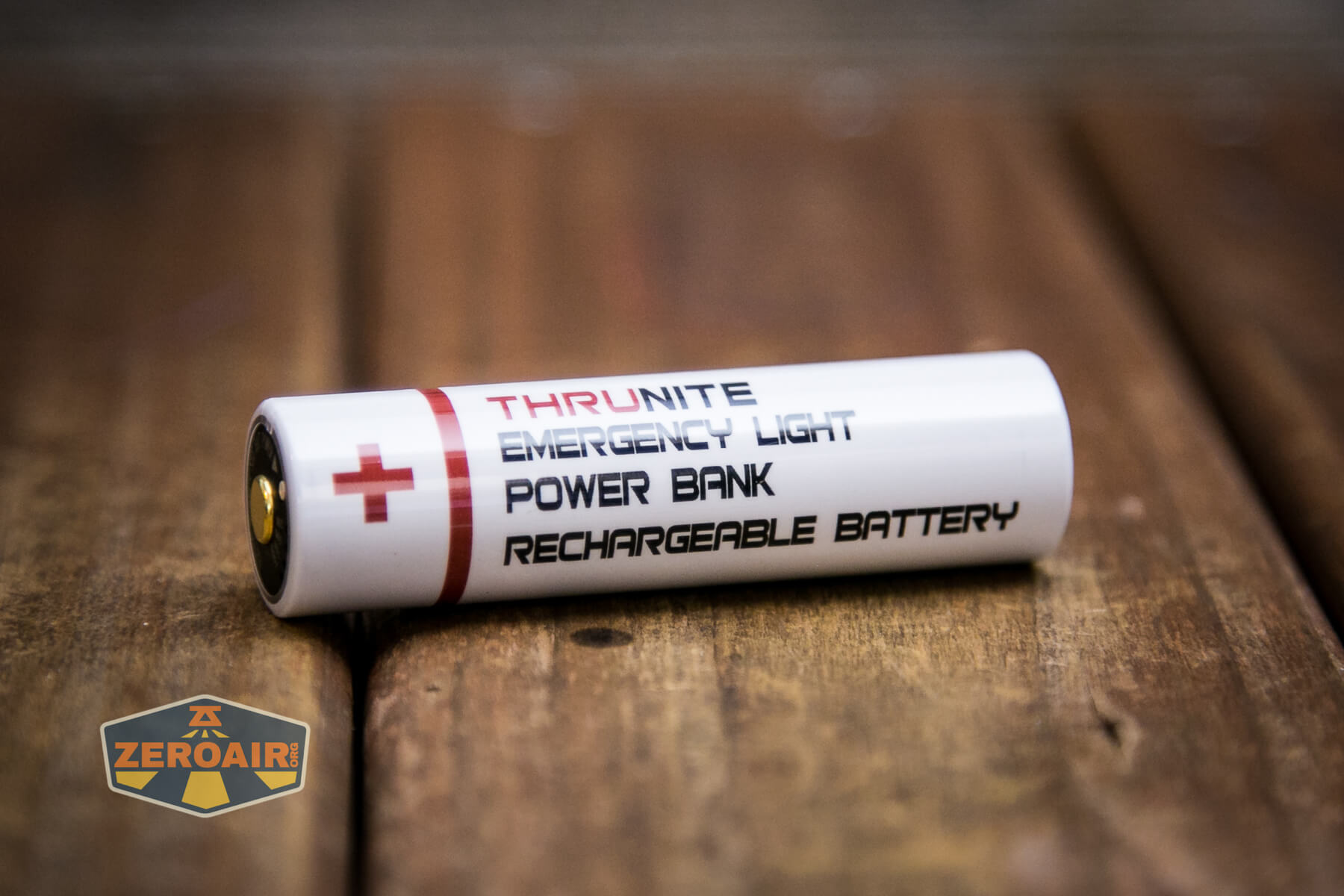

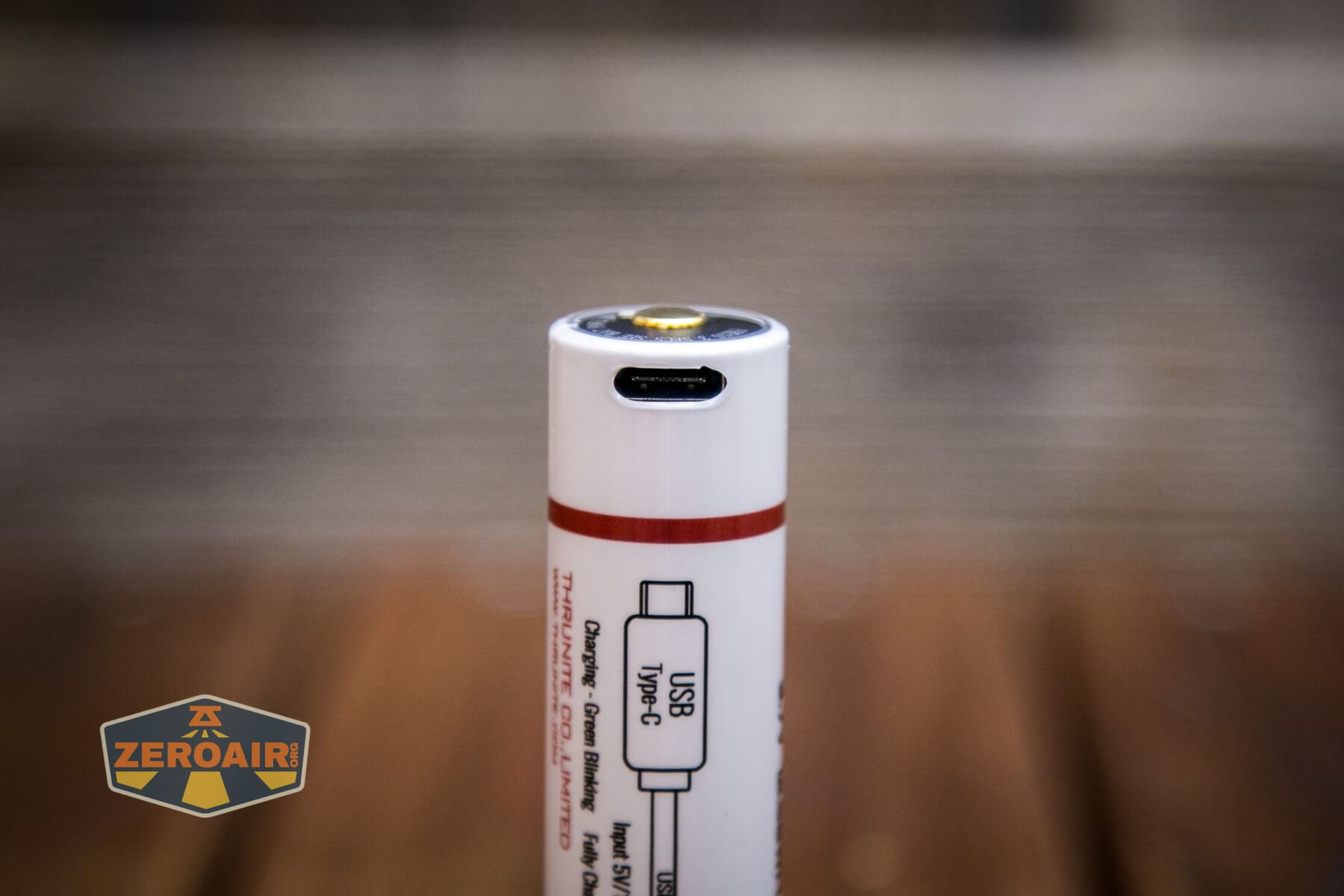

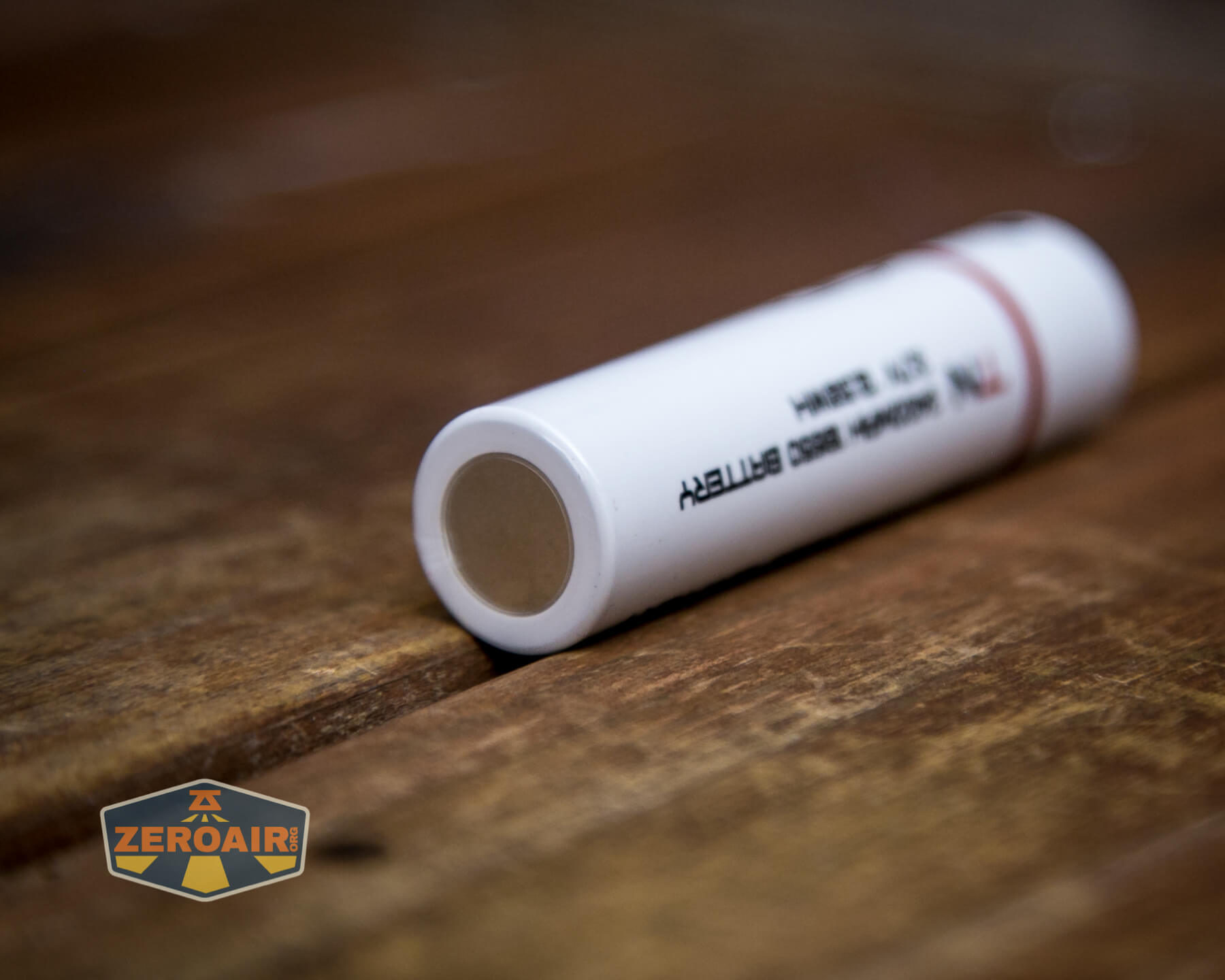

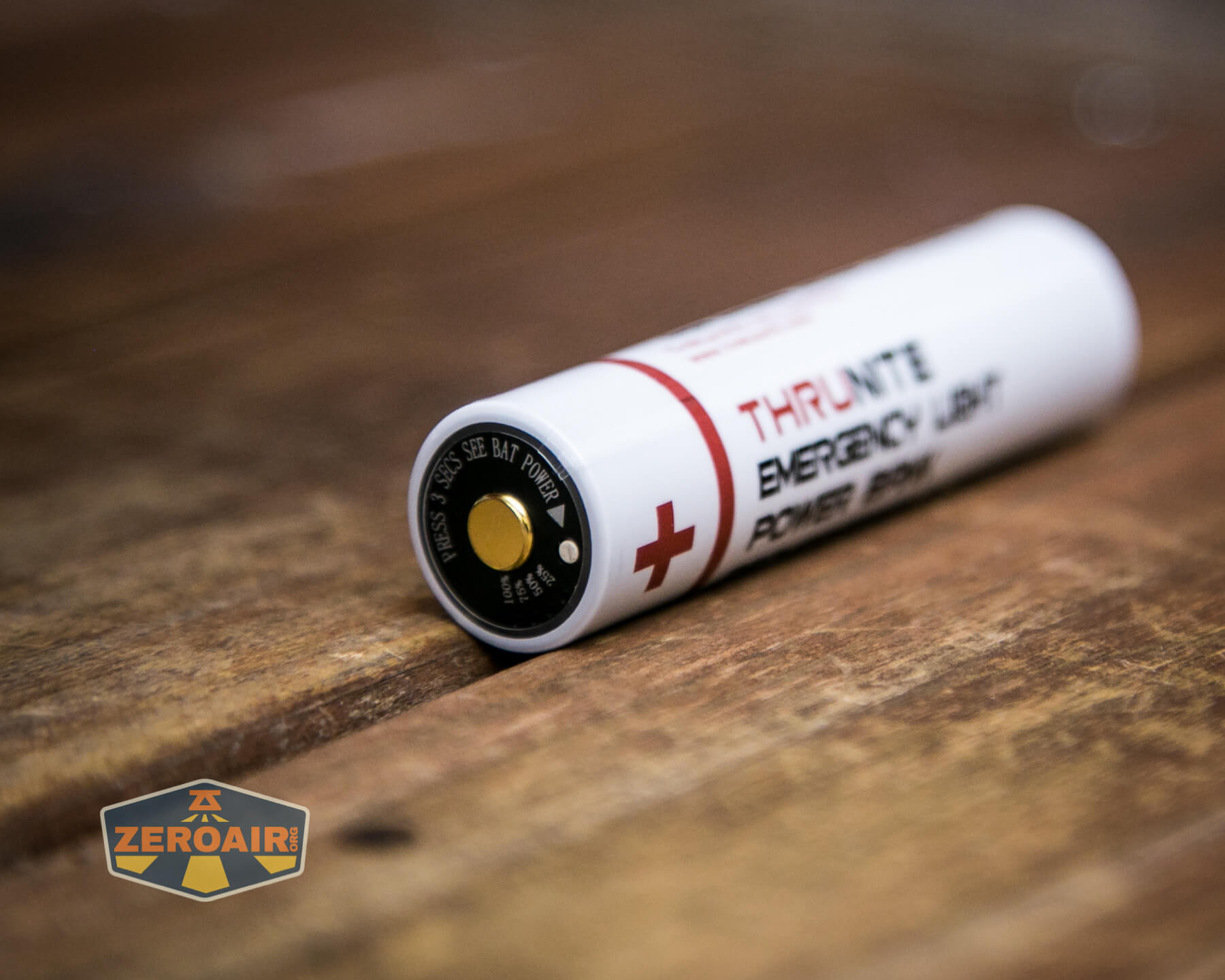

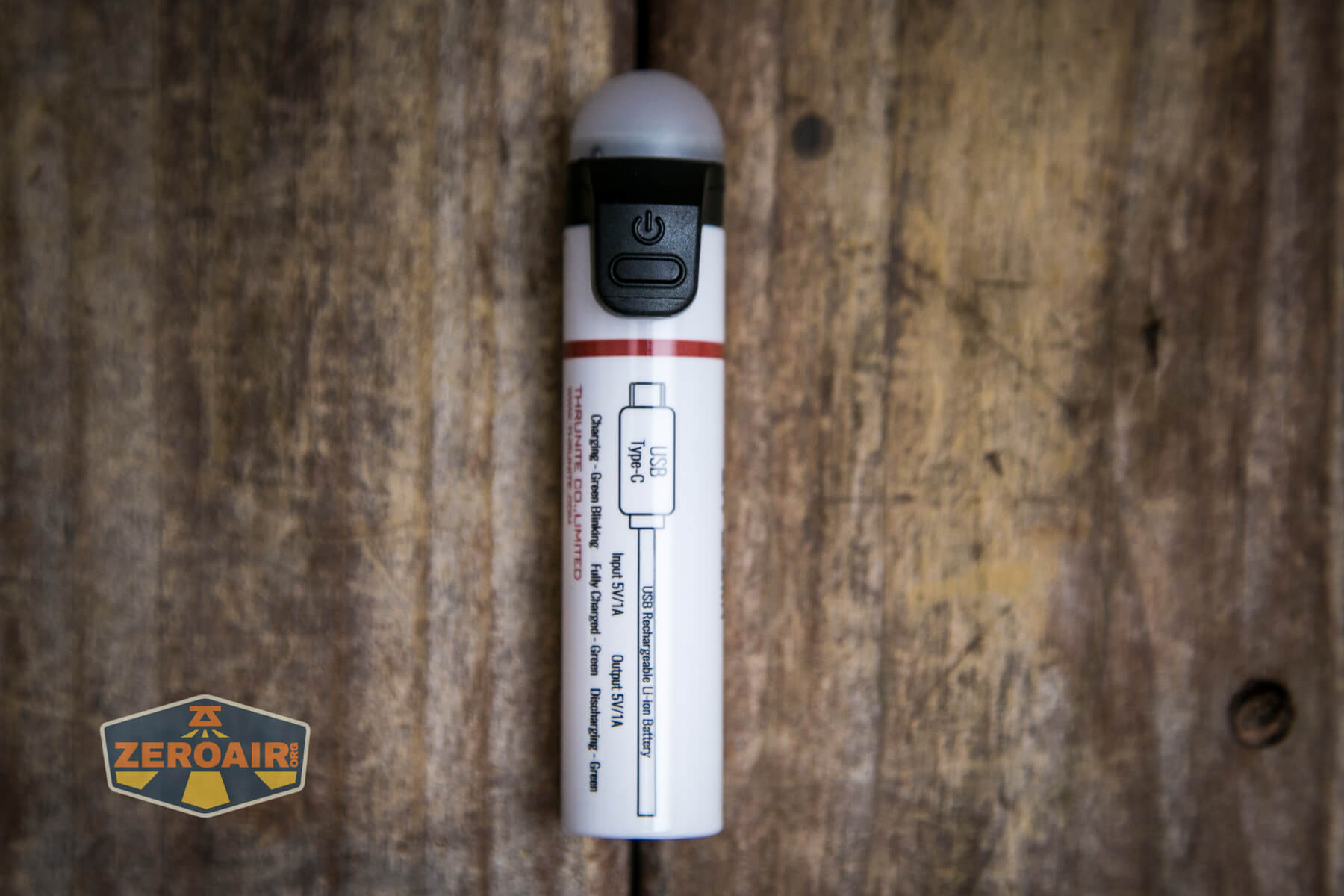

The Thrunite TS1 Self-Rescue lantern is powered by the included 18650 cell. This cell has a USB-C port on the positive end.
Actually, the lantern receives power from the USB-C port, and not strictly “from the cell” (in the traditional sense).

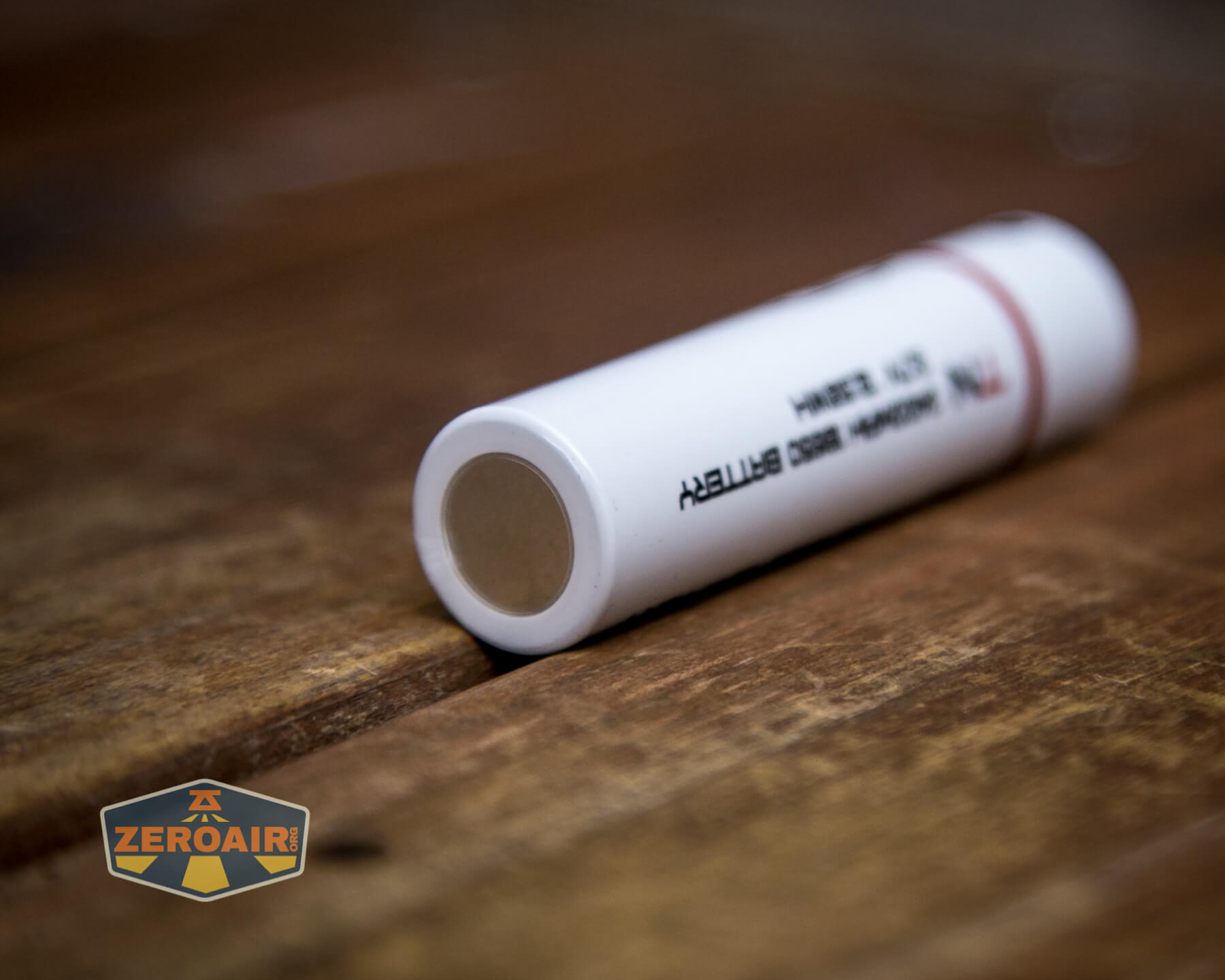

The contacts of the cell are actually completely irrelevant for the TS1 lantern. The part of the lantern that touches the positive terminal does so only for guidance and support – there is no electrical connection. ALL the power comes through the USB-C port.
That leads me to be able to answer your other question: Yes if you have a female USB-C port that can be powered, you can run this lantern from that USB-C port. I don’t really sit around with a ton of female USB-C ports though. I happen to have a few, and two of them are on testing devices. They have to have a “high exposure” side though because the plastic of the “top” of the lantern has maybe 1.5mm between the USB-C (male) and the top. For example on my computer that has a USB-C port, it’s too protected to fit the lantern.

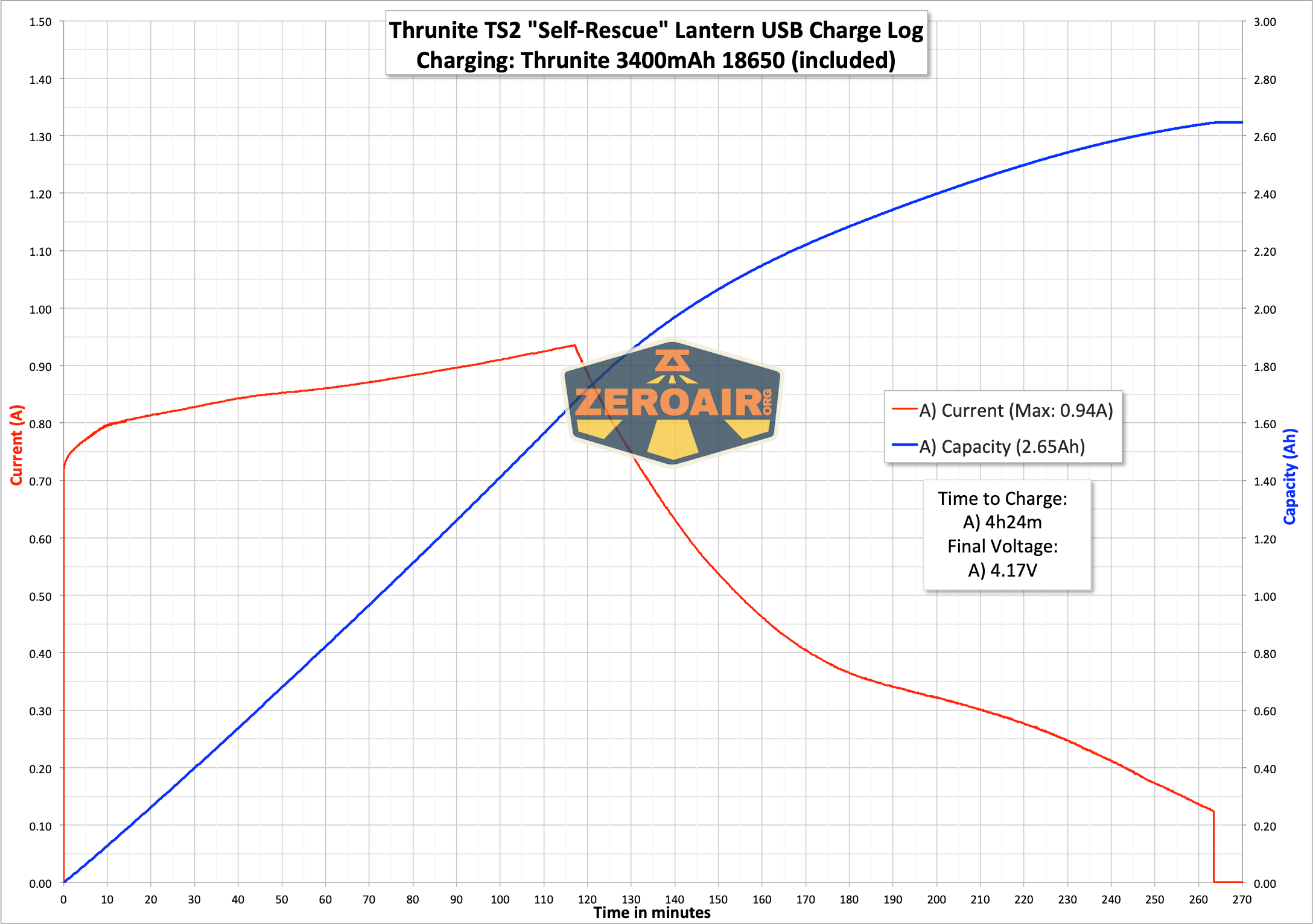

Charging
The lantern itself is just a head. But the included cell charges via USB-C.
The charge port is accessible when the cell is in the sheath. It’d be sort of hard to get the lantern off the cell while in the sheath, though…

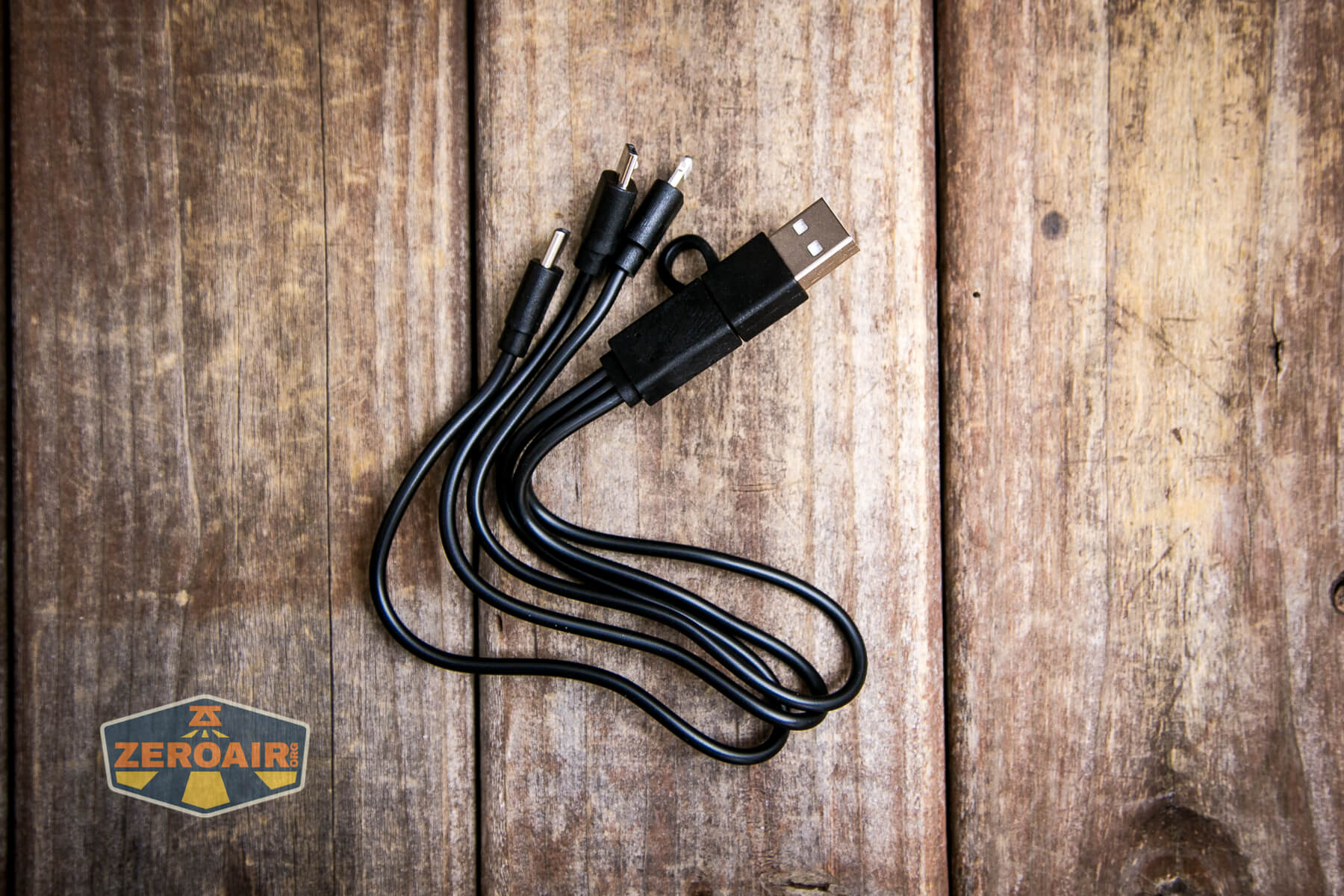

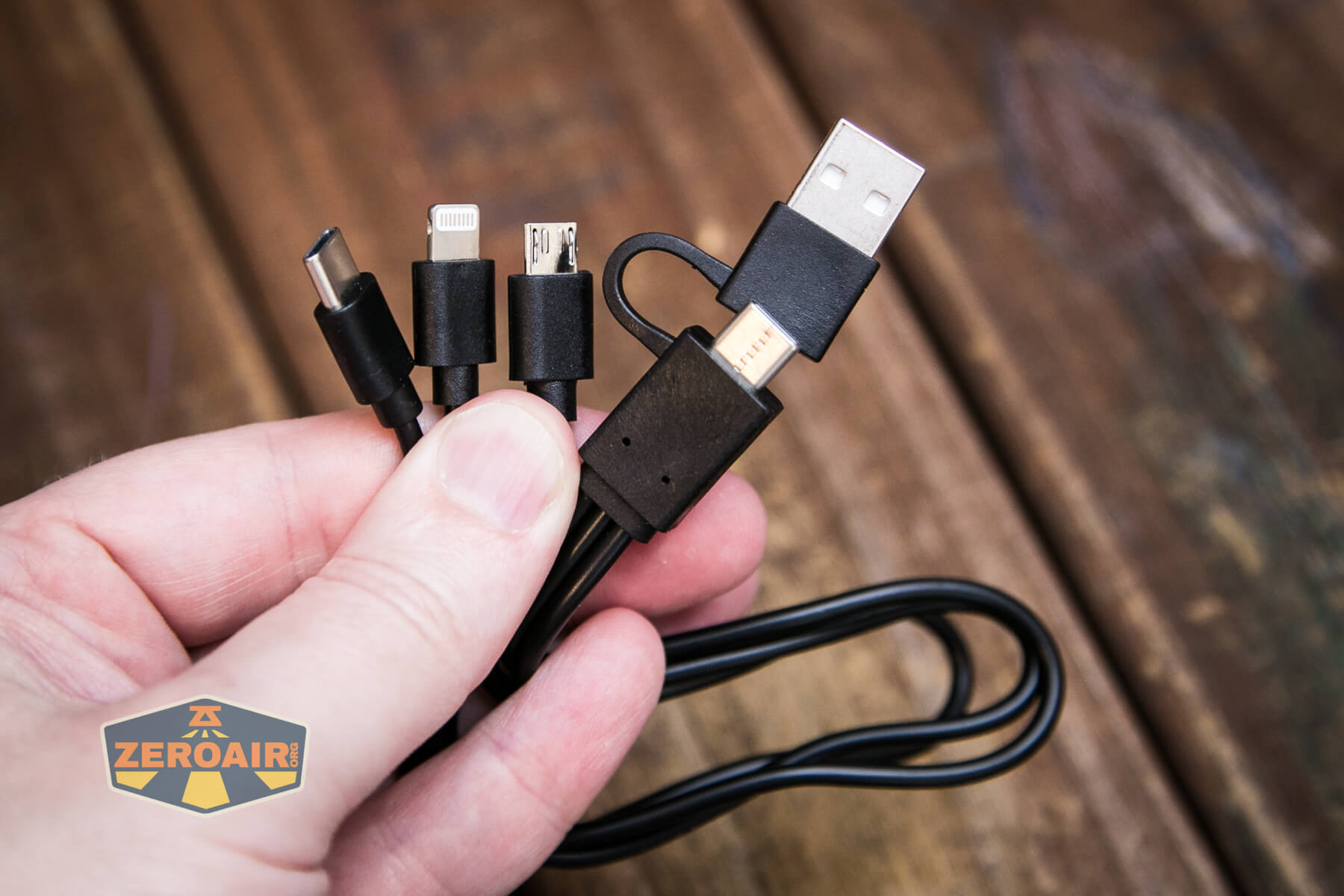

Included as well is this charging cable which has pretty much everything you’d want. On the “power” side there is a USB port, and inside that is a USB-C port. The opposite end of this cable offers three options – USB-C, micro-USB, and an Apple Lightning plug. This means you can probably use this cable to charge just about whatever, from just about whatever. (Including charging this 18650 cell from USB-A or USB-C).

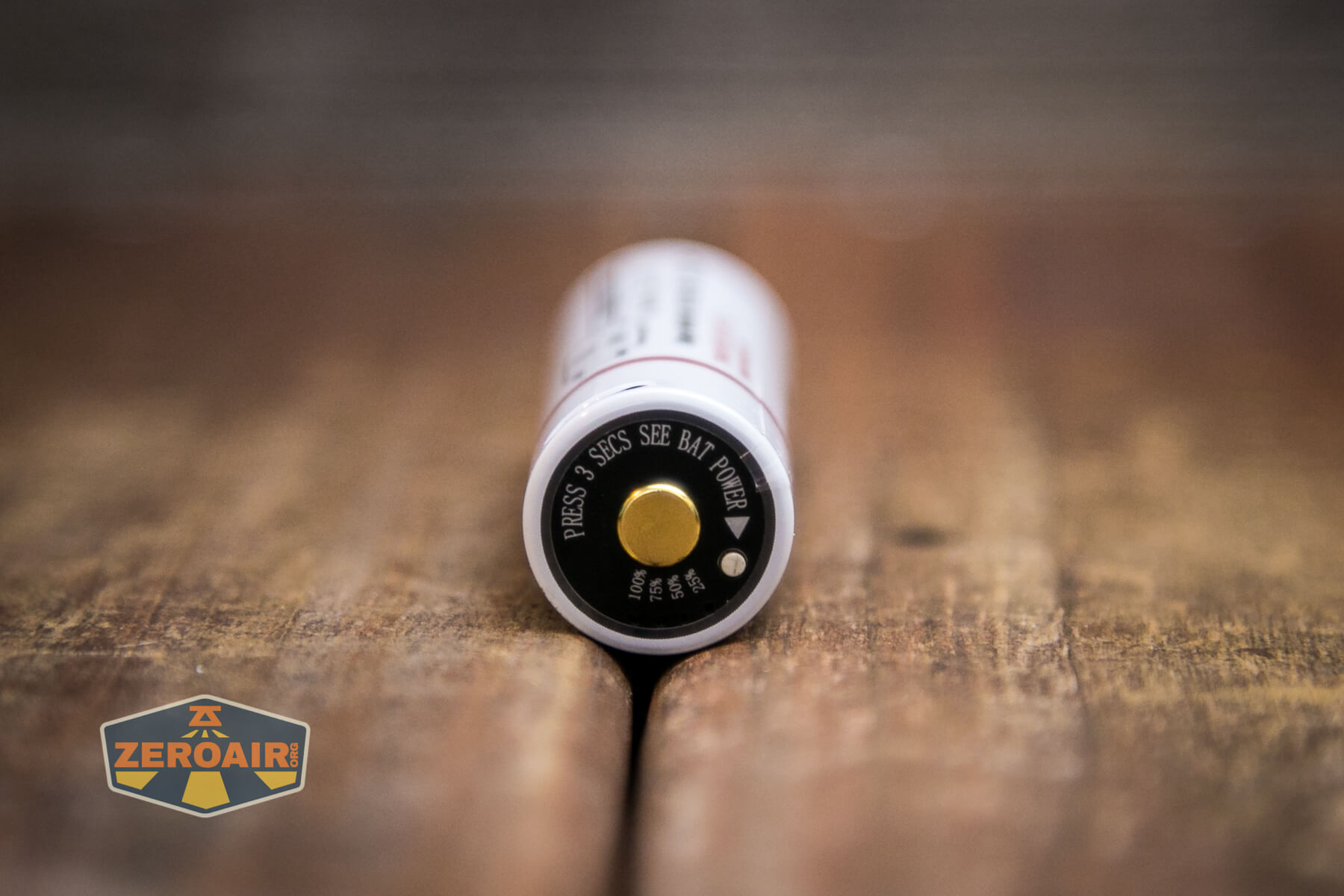

While charging the cell, a number of little green lights blink, up to four. When four are lit steadily, charging is complete. It’s also possible to press that little white button (at the 3 o’clock position below) for 3 seconds to find the battery level.
Charging can be performed in a regular bay-style charger too, of course. It’s not advised to do both USB-C and bay-charging at the same time, though.
Powerbank

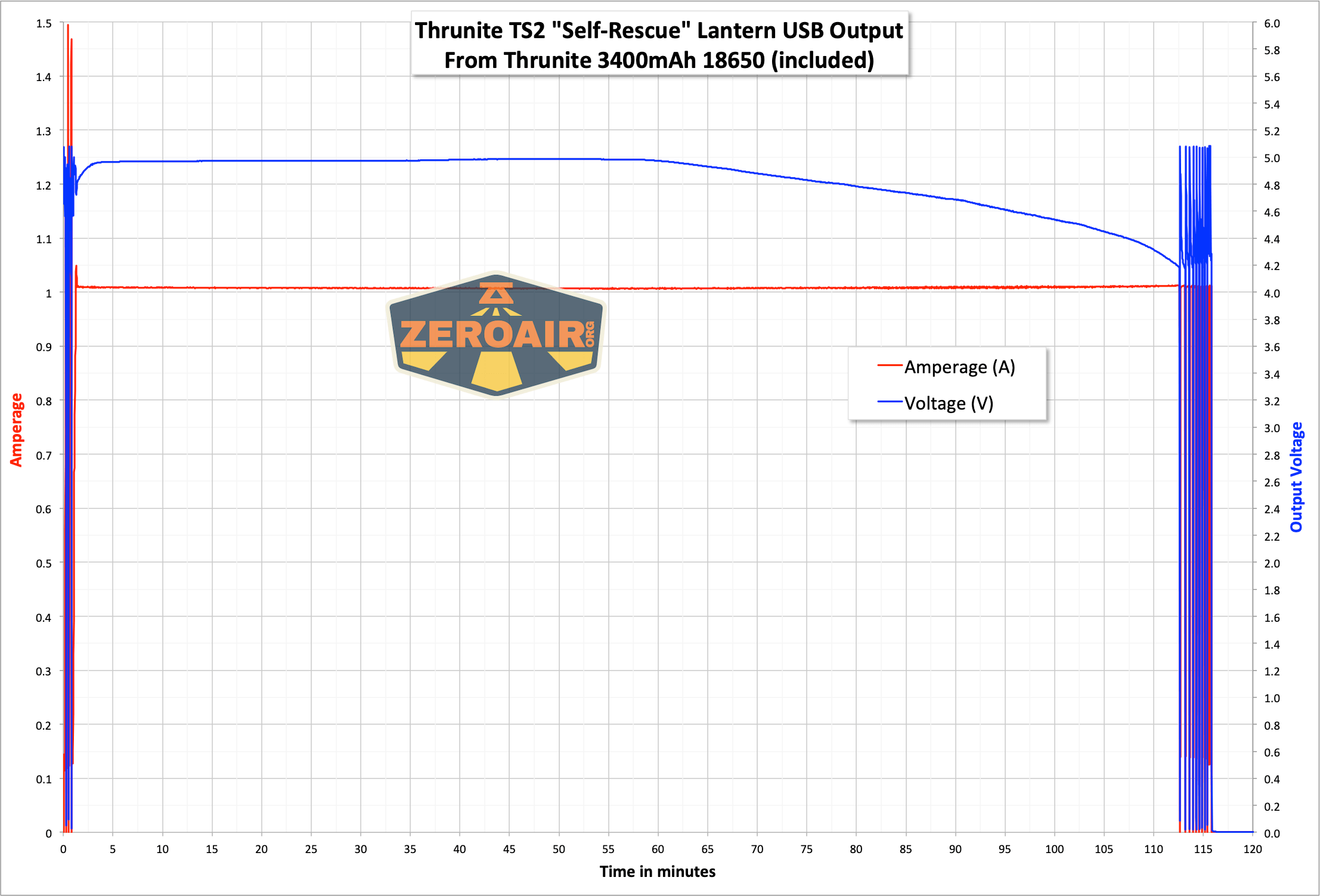

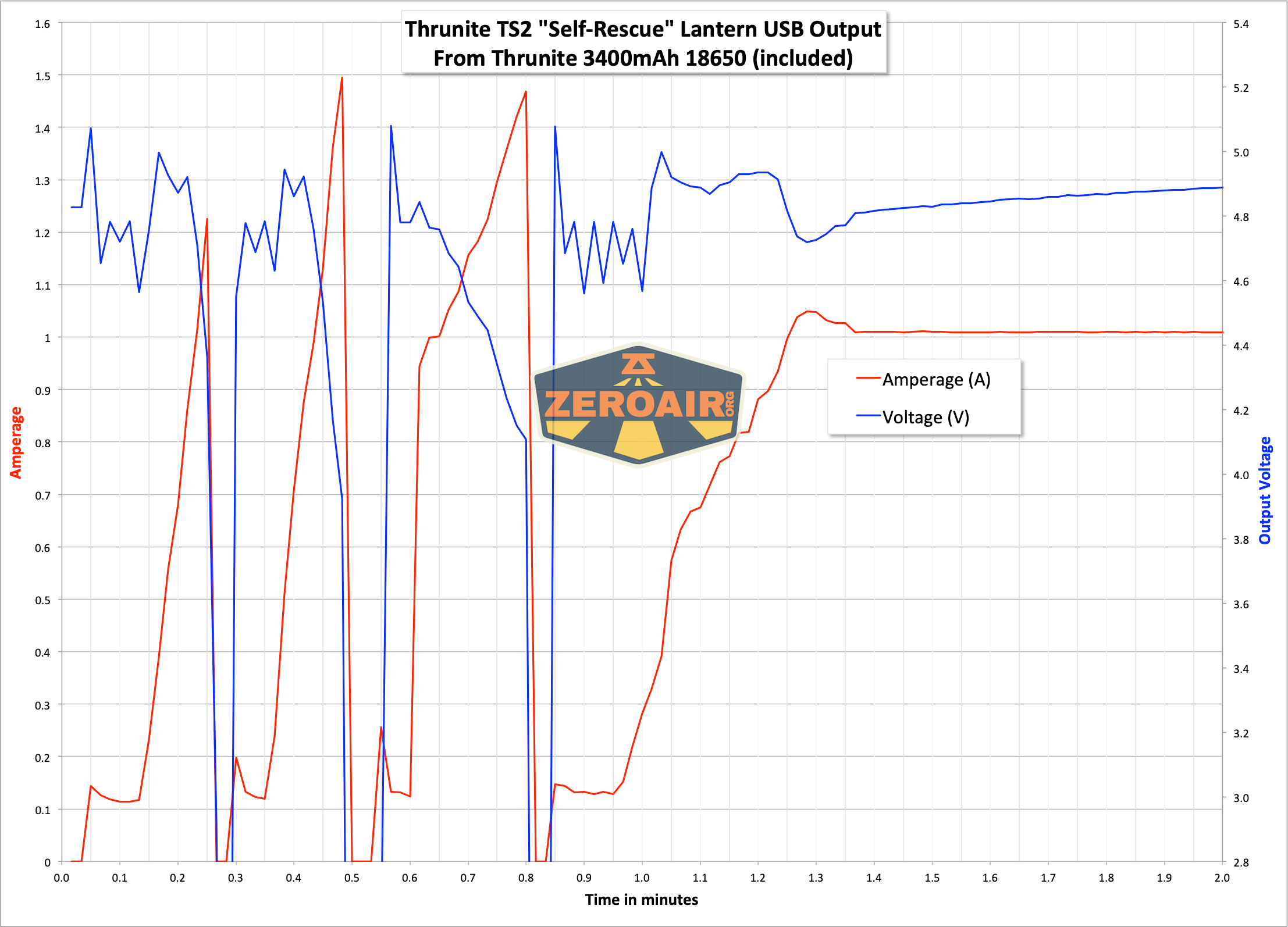

Not only does the TS1 offer onboard charging, but it also offers USB-C output, as well.
Of course, that’s where the real magic of this included cable comes in. The USB-A side also has a USB-C plug, which goes into the 18650 cell. Then the other end can be used with Lightning, USB-C, or micro-USB.
It’s truly a versatile setup!
Modes and Currents
| Mode | Mode Claimed Output (lm) | Claimed Runtime | Measured Lumens | Amps^ |
|---|---|---|---|---|
| High | 118 | 11h | – | 0.36 |
| Medium | 40 | 30h | – | 0.14 |
| Low | 5 | 180h | – | 0.03 |
^ The amps displayed here are just what I see when running the light directly from a USB-C testing device. Probably moderately accurate, at least.
Pulse Width Modulation

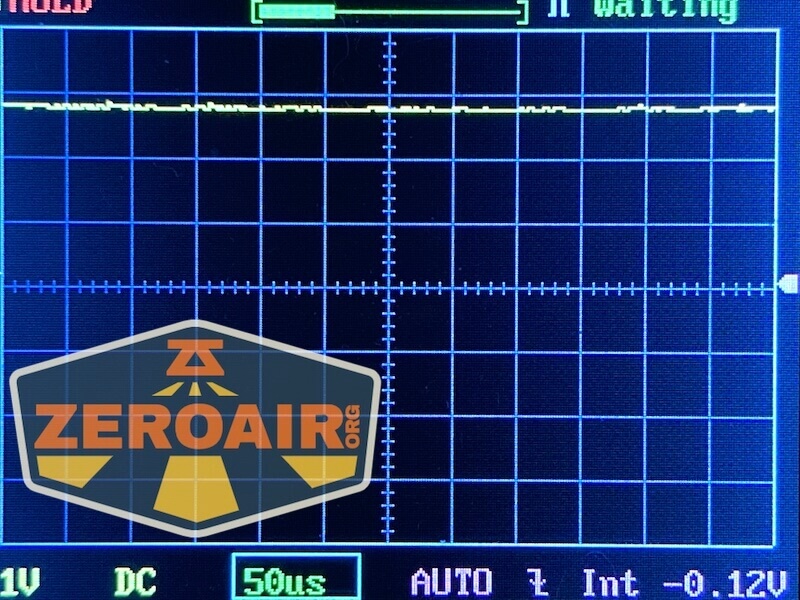

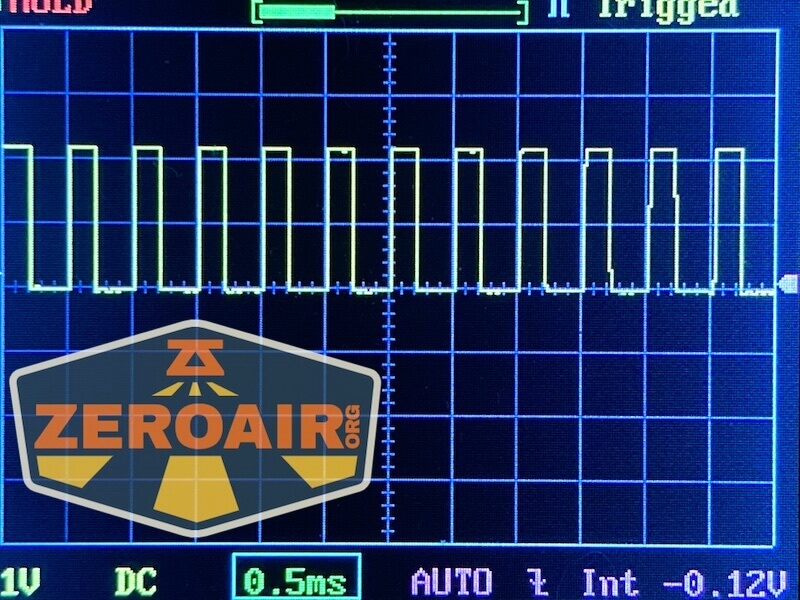

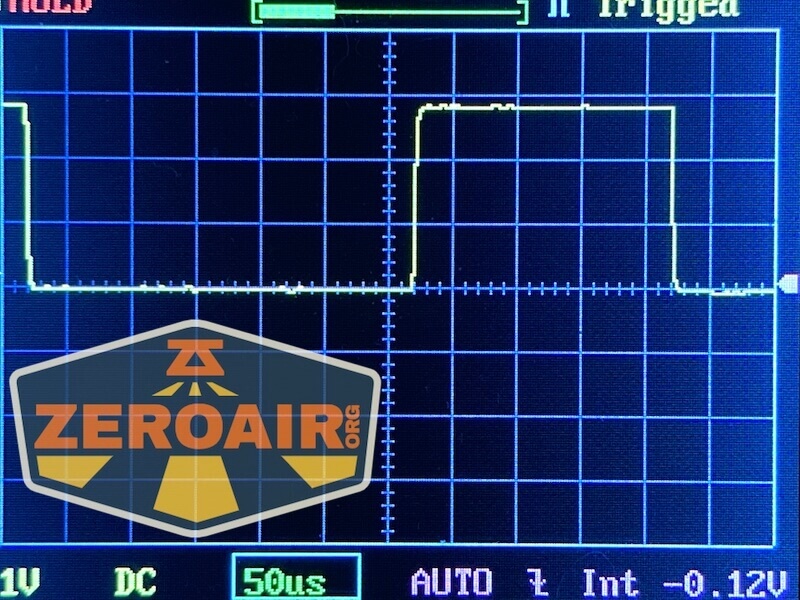

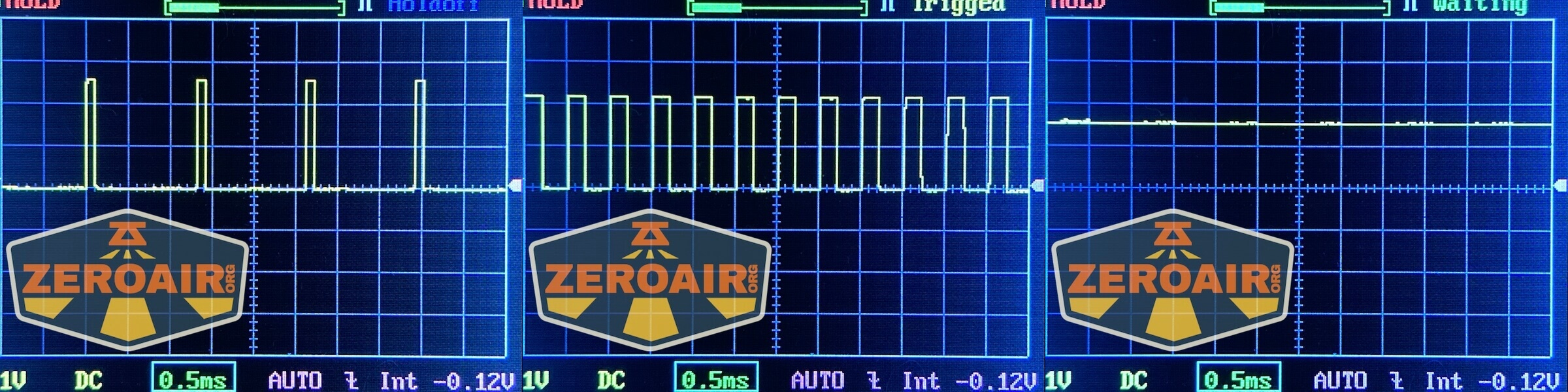

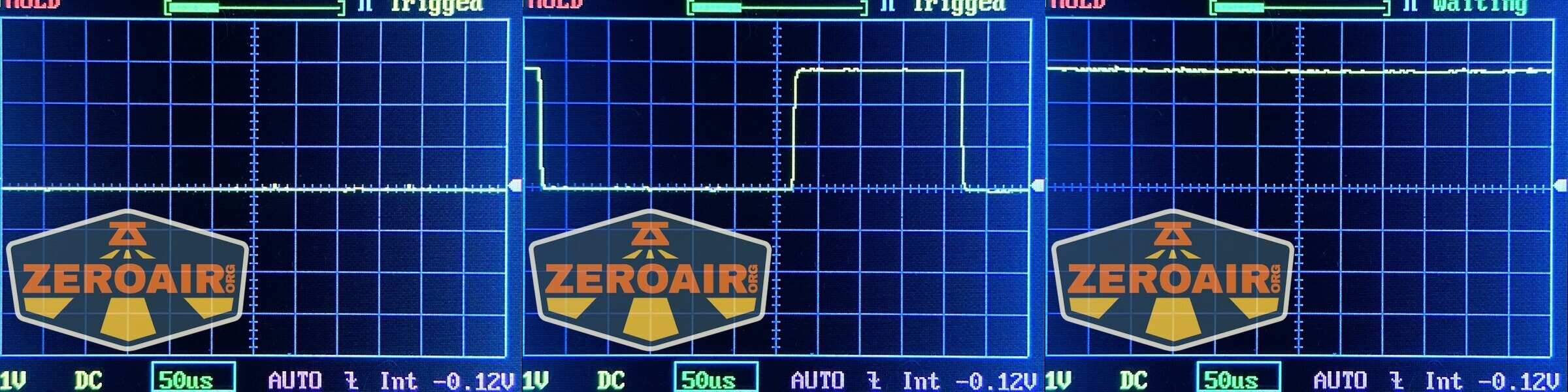

Here’s one downside of this great device: PWM. The lower two modes have very slow PWM. So slow in fact, that I’m displaying it in two timescales. First is the usual timescale.

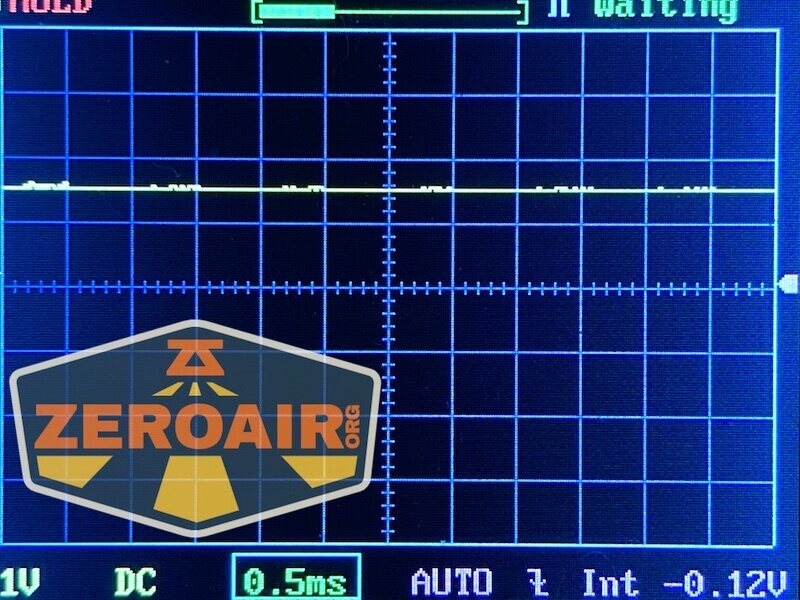

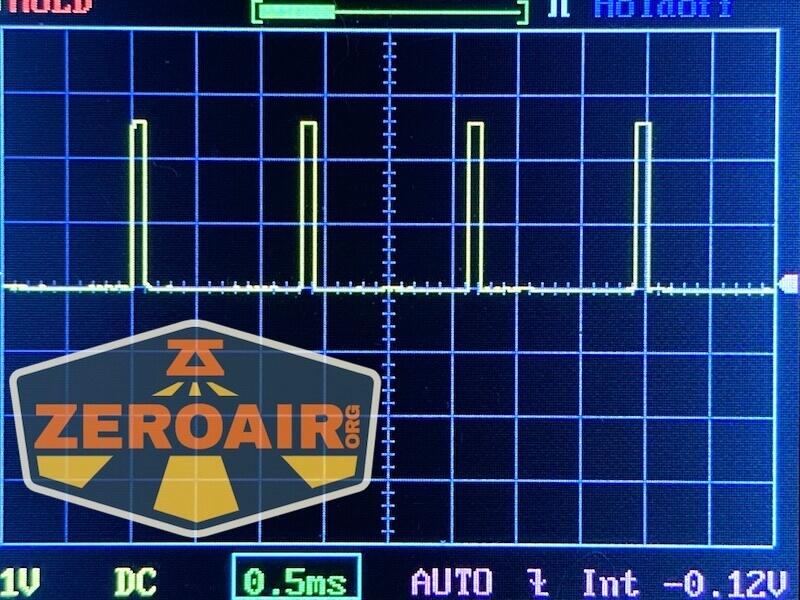

Next is a scale where you can see multiple peak-to-peak waves of PWM.

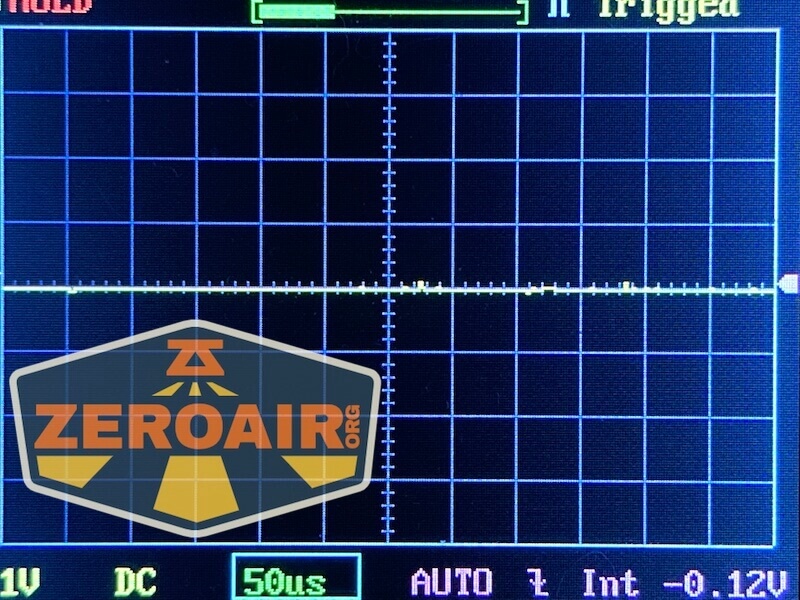

Here you can see a “baseline” – a chart with almost no light hitting the sensor.
Then there’s the Ultrafire WF-602C flashlight, which has some of the worst PWM I’ve seen. It’s so bad that I used a post about it to explain PWM! Here are multiple timescales (10ms, 5ms, 2ms, 1ms, 0.5ms, 0.2ms) to make comparing this “worst” PWM light to the test light easier. That post also explains why I didn’t test the WF-602C at the usual 50us scale.
User Interface and Operation

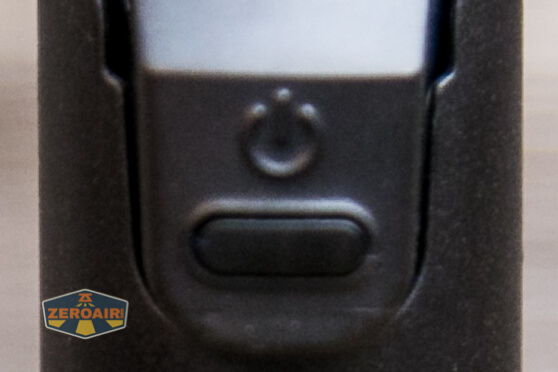

There’s a single e-switch on the TS1. Because of how the device is built, with the USB-C port going into the cell, there has to be a part sticking out from the cell. The design is clever in that when actuating the switch, the device is pushed into the port, and not some other direction.
Thus, you won’t dislodge the TS2 by pressing the switch.
The flip side here is that when removing the TS2 from the 21700, it’s possible to torque the USB-C port. That can’t be good for the port, but I haven’t had any bad experiences due to my lazy removal of the TS2. Just something to note.
Here’s a user interface table!
| State | Action | Result |
|---|---|---|
| Off | Click | Low |
| Off | Hold | No action |
| On | Click | Off |
| On | Hold | Mode advance (LMH) |
| Any | Double Click | SOS |
It’s really a very simple and pleasant user interface, especially in that the device always turns on to Low.
LED and Beam

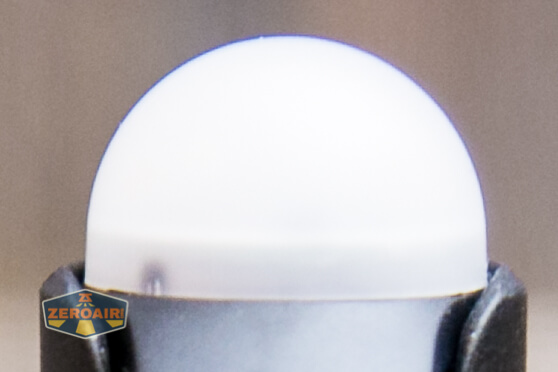

While the emitter isn’t stated on the product materials, I can say a few things. There are four emitters here, and they’re covered by this opaque dome.
The dome diffuses the light very well, and there are approximately 180 degrees of illumination.
What Thrunite doesn’t state about the emitters, maybe we can answer below.

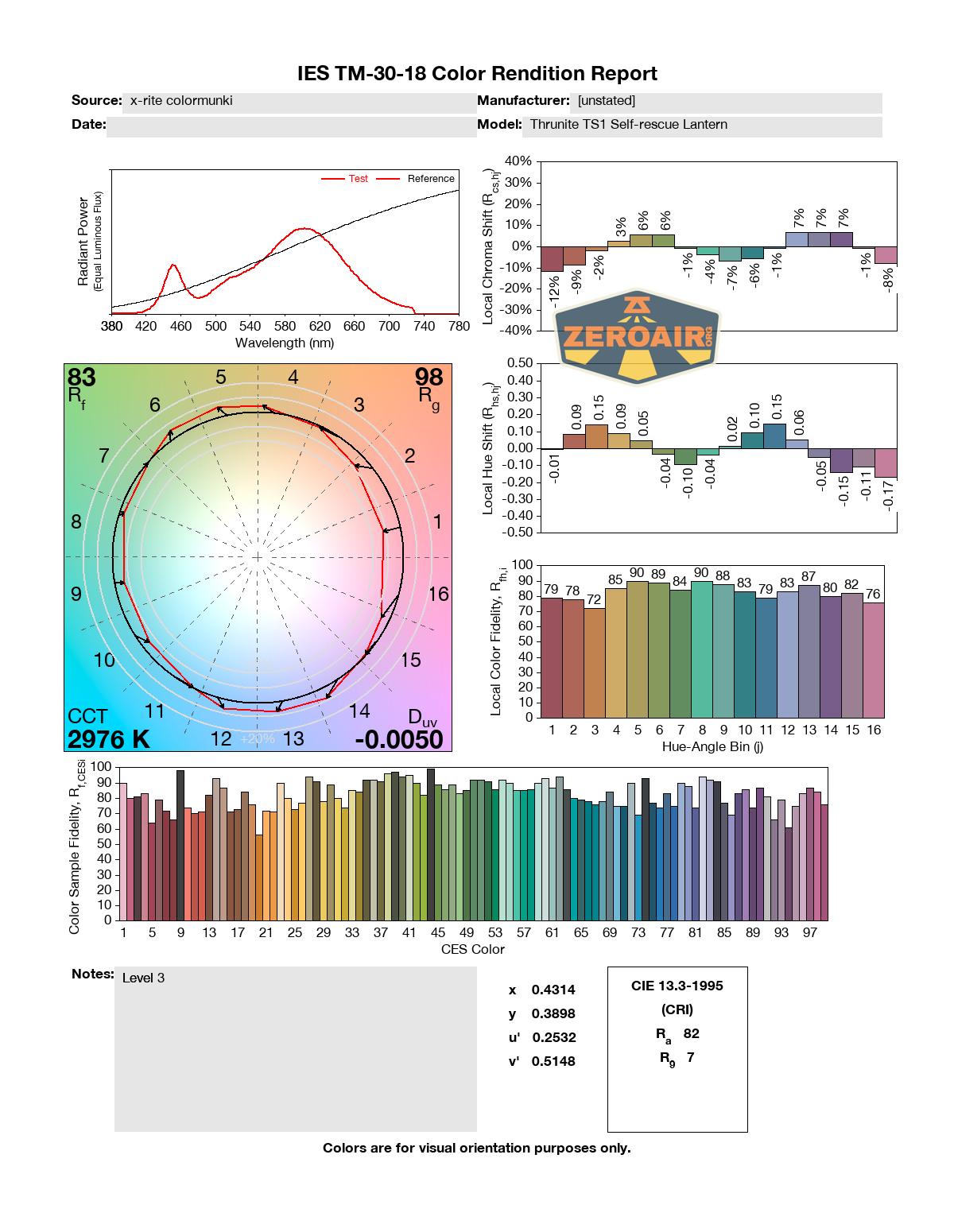

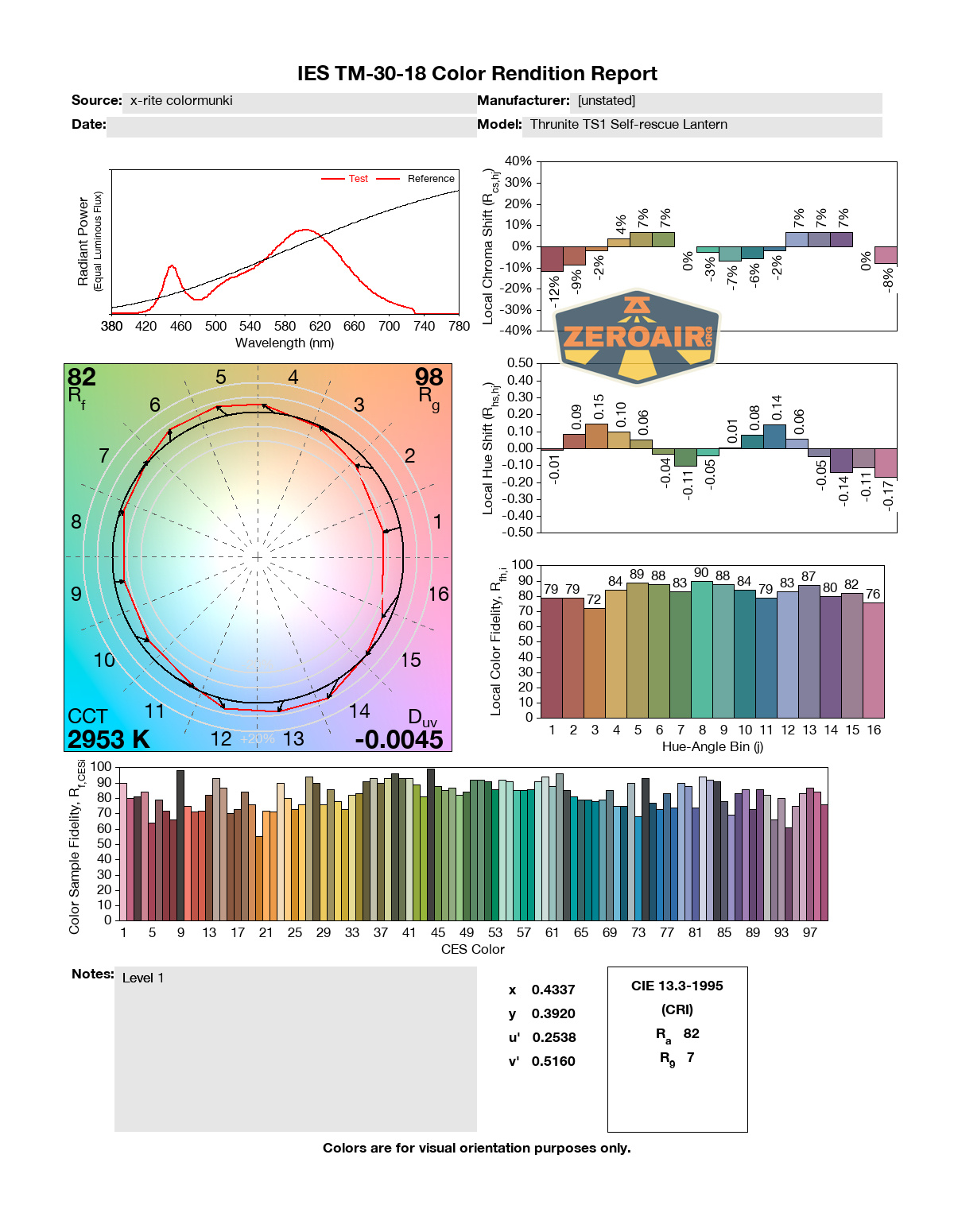

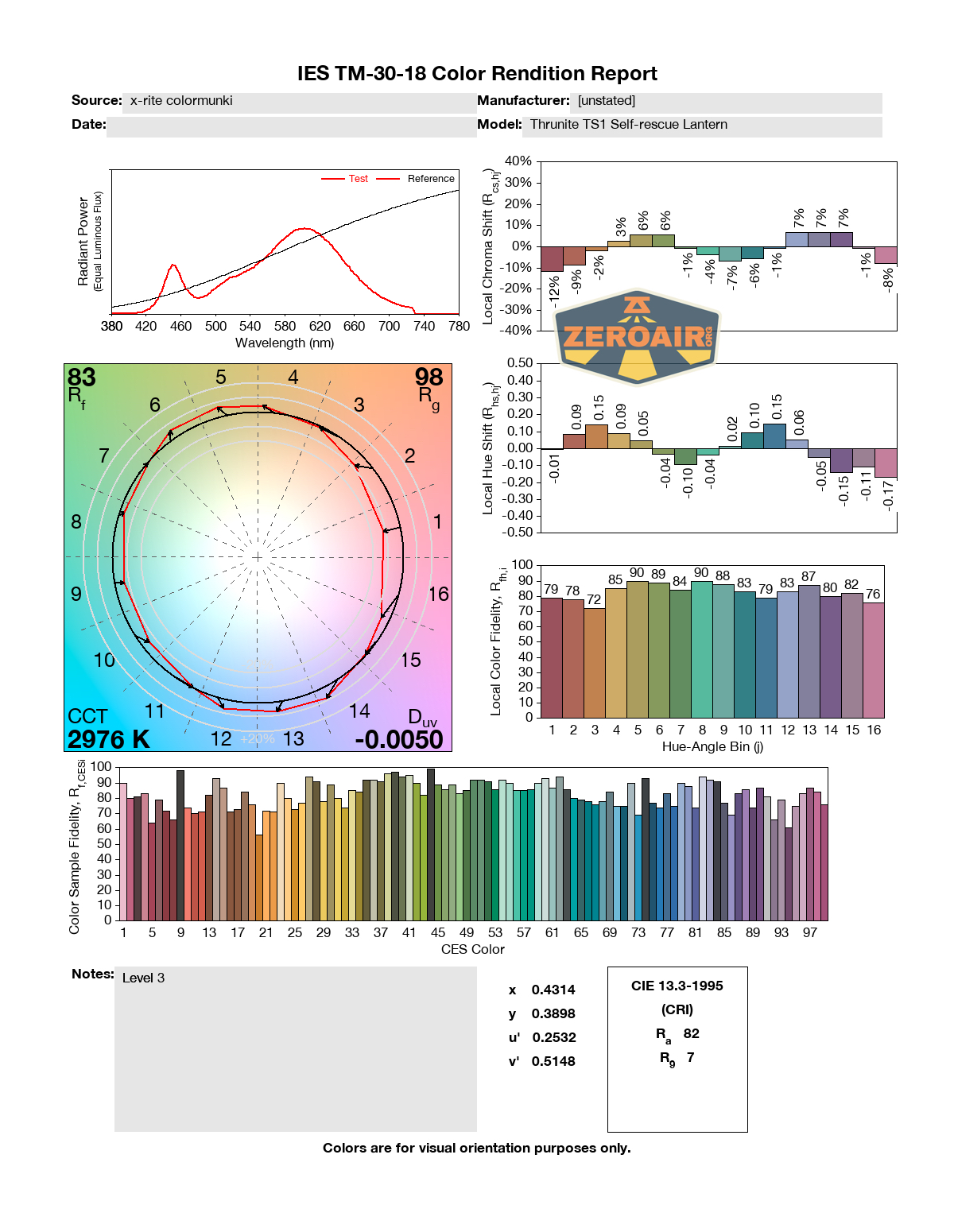

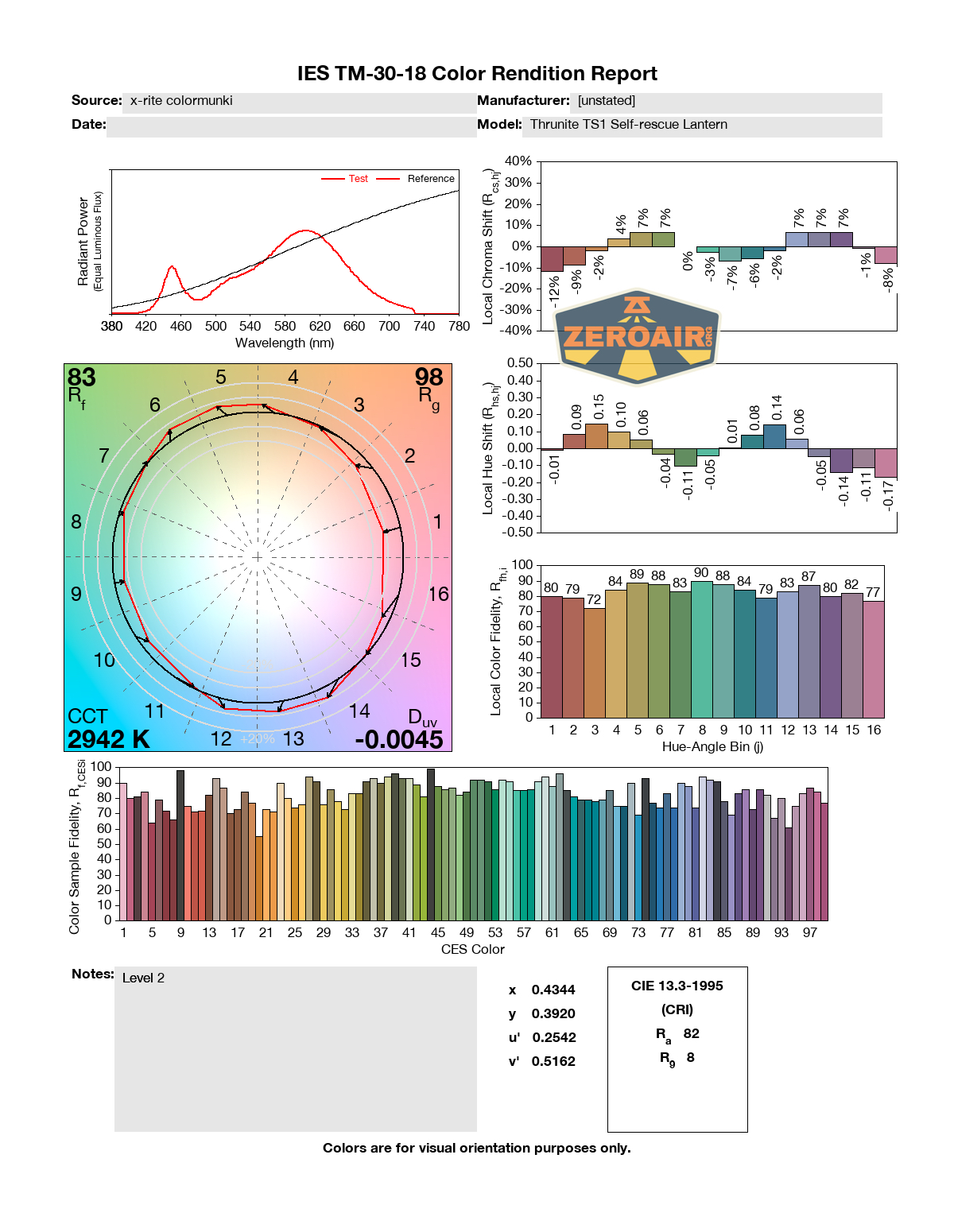

LED Color Report (CRI and CCT)
Looks like the emitters are around 3000K, which is just perfect in this type of lantern. The CRI drops in at around 80 which is possibly not ideal (we’d rather see above 90, of course.) Still, the warm white is very nice.
Beamshots
These beamshots always have the following settings: f8, ISO100, 0.3s shutter, and manual 5000K exposure. These photos are taken at floor level, and the beam hits the ceiling around 9 feet away.
Tint vs BLF-348 (KillzoneFlashlights.com 219b version) (affiliate link)
I keep the test flashlight on the left and the BLF-348 reference flashlight on the right.
I compare everything to the KillzoneFlashlights.com 219b BLF-348 because it’s inexpensive and has the best tint!
Conclusion
What I like
- Very small device
- Standard (maybe “long”) 18650 cell can probably be used in other devices you own
- Powerbank feature (charges iPhone fine)
- USB-C charging
- Magnet base
- The included cable is useful for more than just this device
What I don’t like
- E-switch is a little mashy and not very crisp
- Noticeable PWM on the lower two modes
