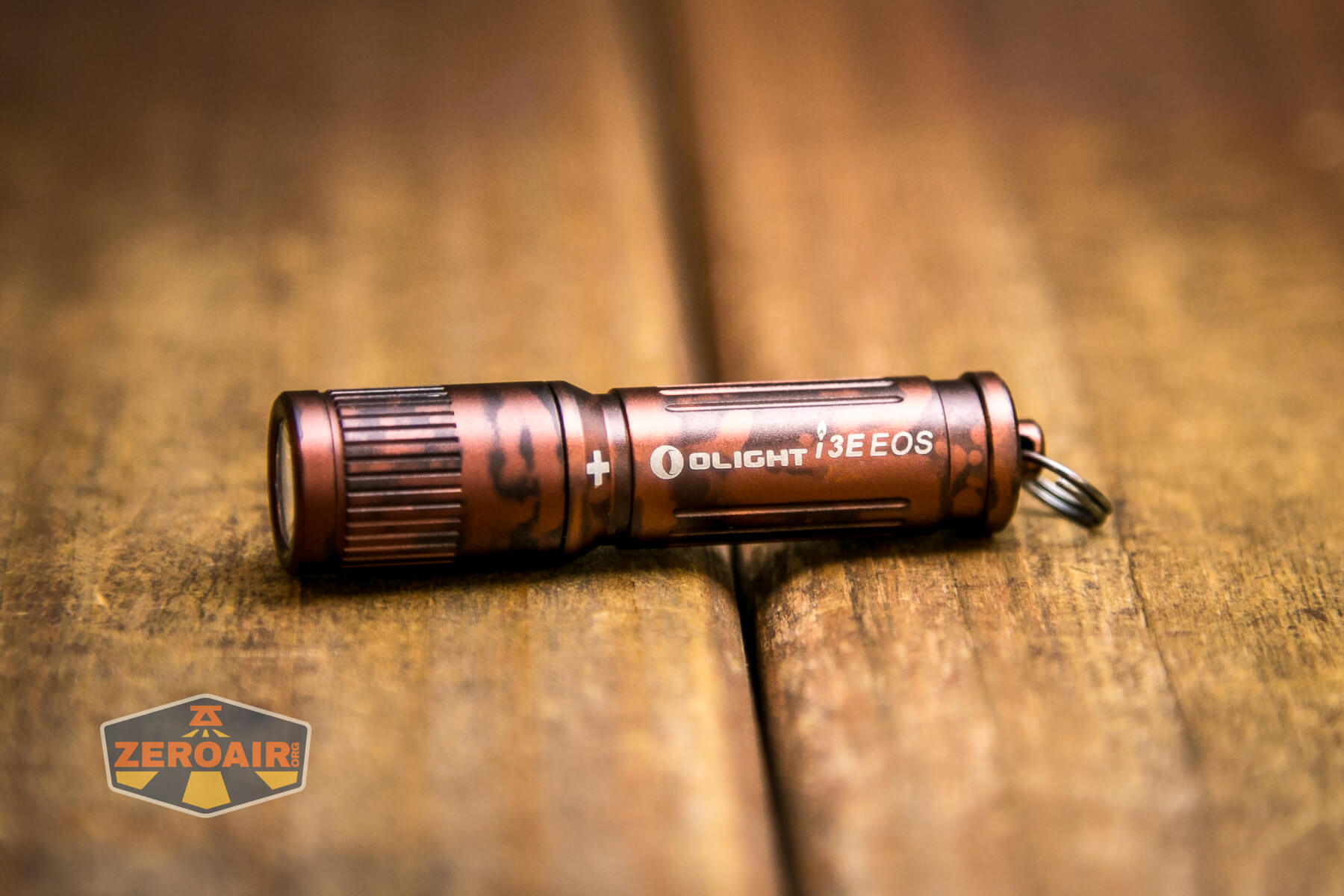

Olight i3E EOS Flashlight Review
Olight has released a new colorway of the i3E EOS flashlight. This little AAA-cell twisty has one mode and a great output level! Read on!
Official Specs and Features
Here’s a referral link to the official product page.
Versions
There are many versions of the i3E EOS. This specific one is an OFan gift though, so that makes it a bit different.
Price
This light is actually free! You’ll have to buy something else, but when you do, just add the Olight i3E EOS flashlight to your cart and the price will be $0.00!
Short Review
This is a fun little light! For the price of free, I don’t think you can beat it. I do think you should grab an Olight Baton 3 Pro to accompany it, though!
Long Review
The Big Table
| Olight i3E EOS flashlight | |
|---|---|
| Emitter: | Philips Luxeon TX |
| Price in USD at publication time: | $0.00 |
| Cell: | 1xAAA |

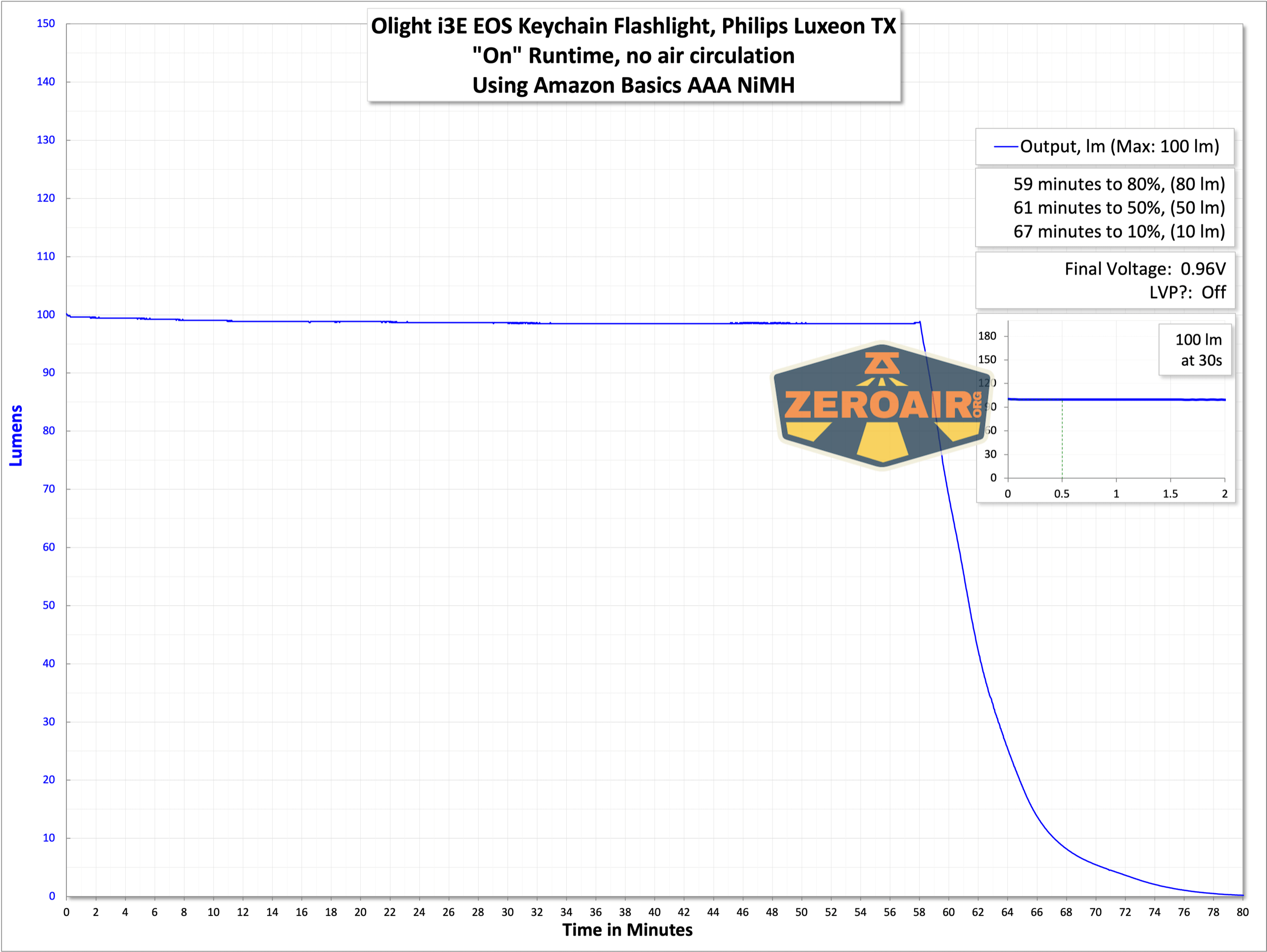

| Turbo Runtime Graph | |
| LVP? | No |
| Switch Type: | Twisty |
| On-Board Charging? | No |
| Claimed Lumens (lm) | 90 |
| Measured Lumens (at 30s) | 100 (111.1% of claim)^ |
| Candela per Lumen | 5.41 |
| Claimed Throw (m) | 44 |
| Candela (Calculated) in cd (at 30s) | 54lux @ 3.228m = 563cd |
| Throw (Calculated) (m) | 47.4 (107.7% of claim)^ |
| Claimed CCT | – |
| Measured CCT Range (K) | 5000 Kelvin |
| Item provided for review by: | Olight |
| All my Olight reviews! | |
^ Measurement disclaimer:Â Testing flashlights is my hobby. I use hobbyist-level equipment for testing, including some I made myself. Try not to get buried in the details of manufacturer specifications versus measurements recorded here; A certain amount of difference (say, 10 or 15%) is perfectly reasonable.

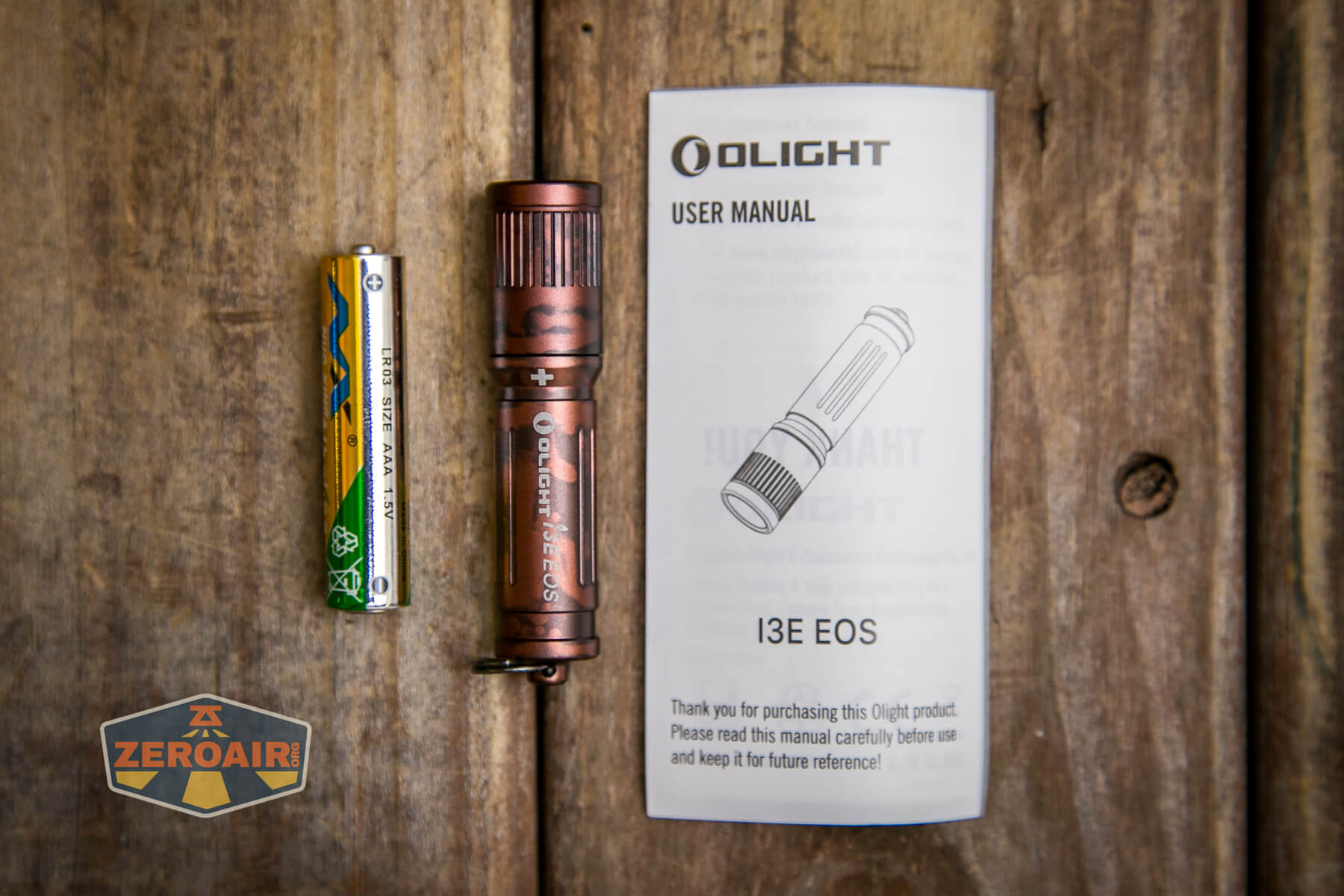

What’s Included
- Olight i3E EOS flashlight
- AAA cell (primary)
- Manual

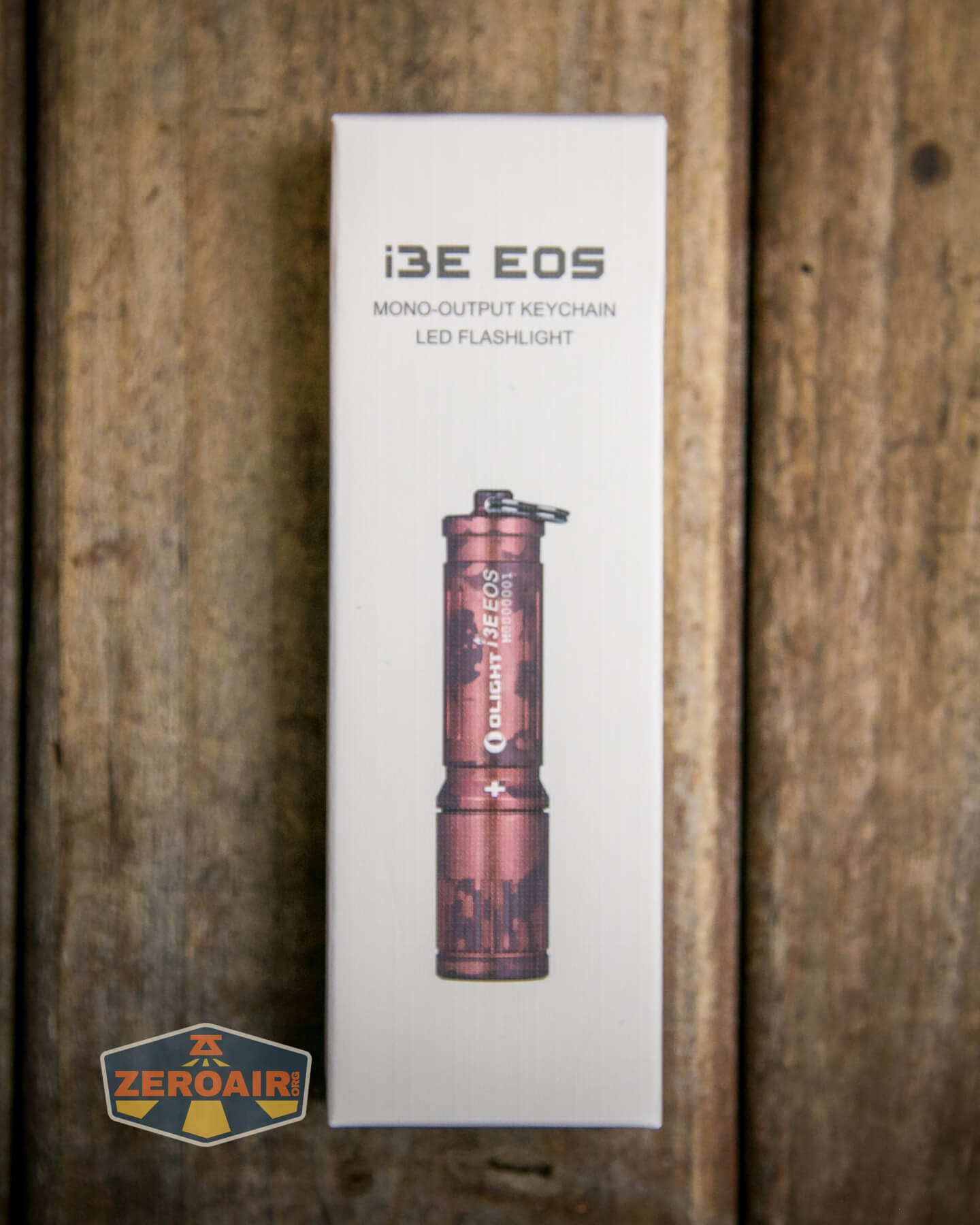

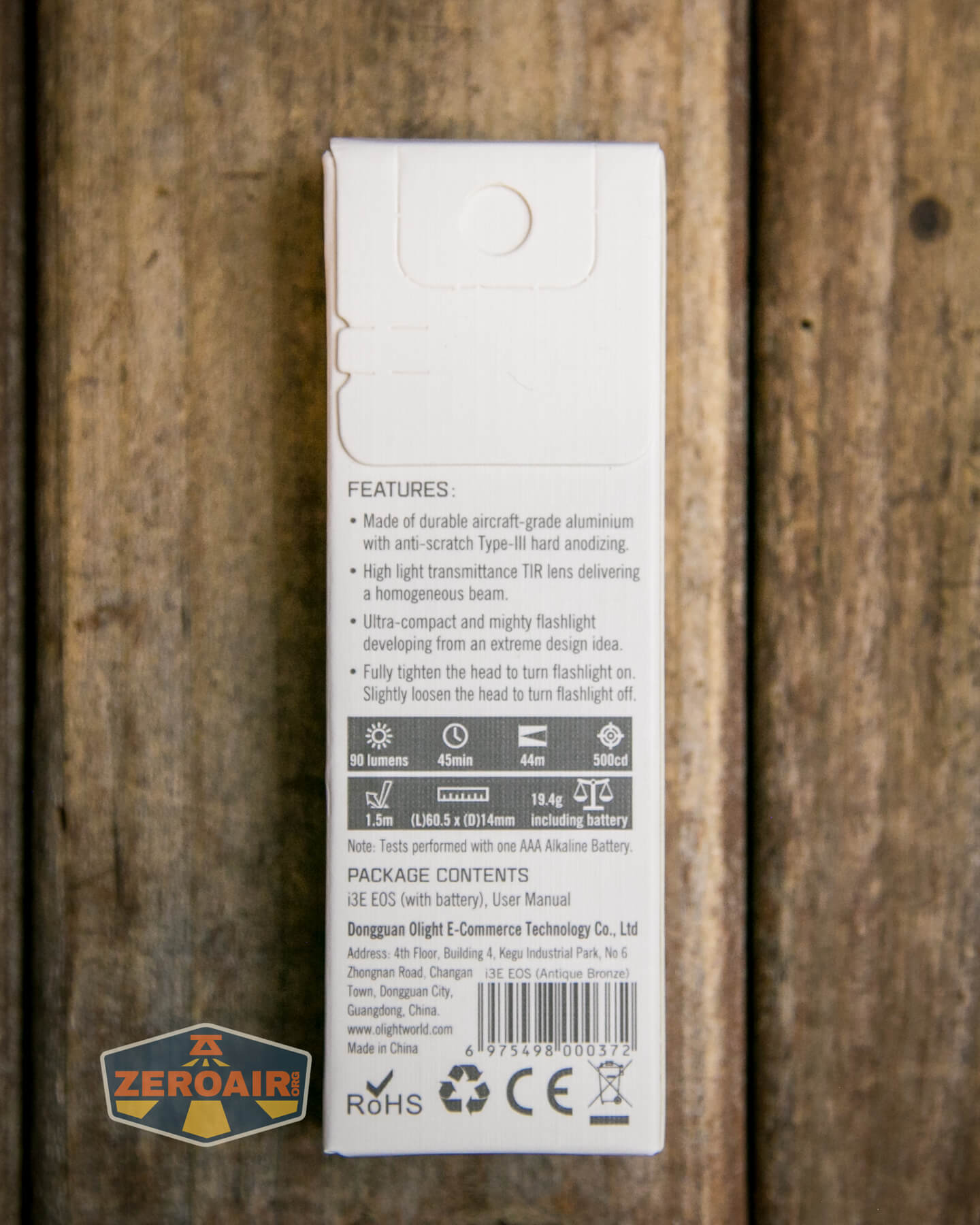

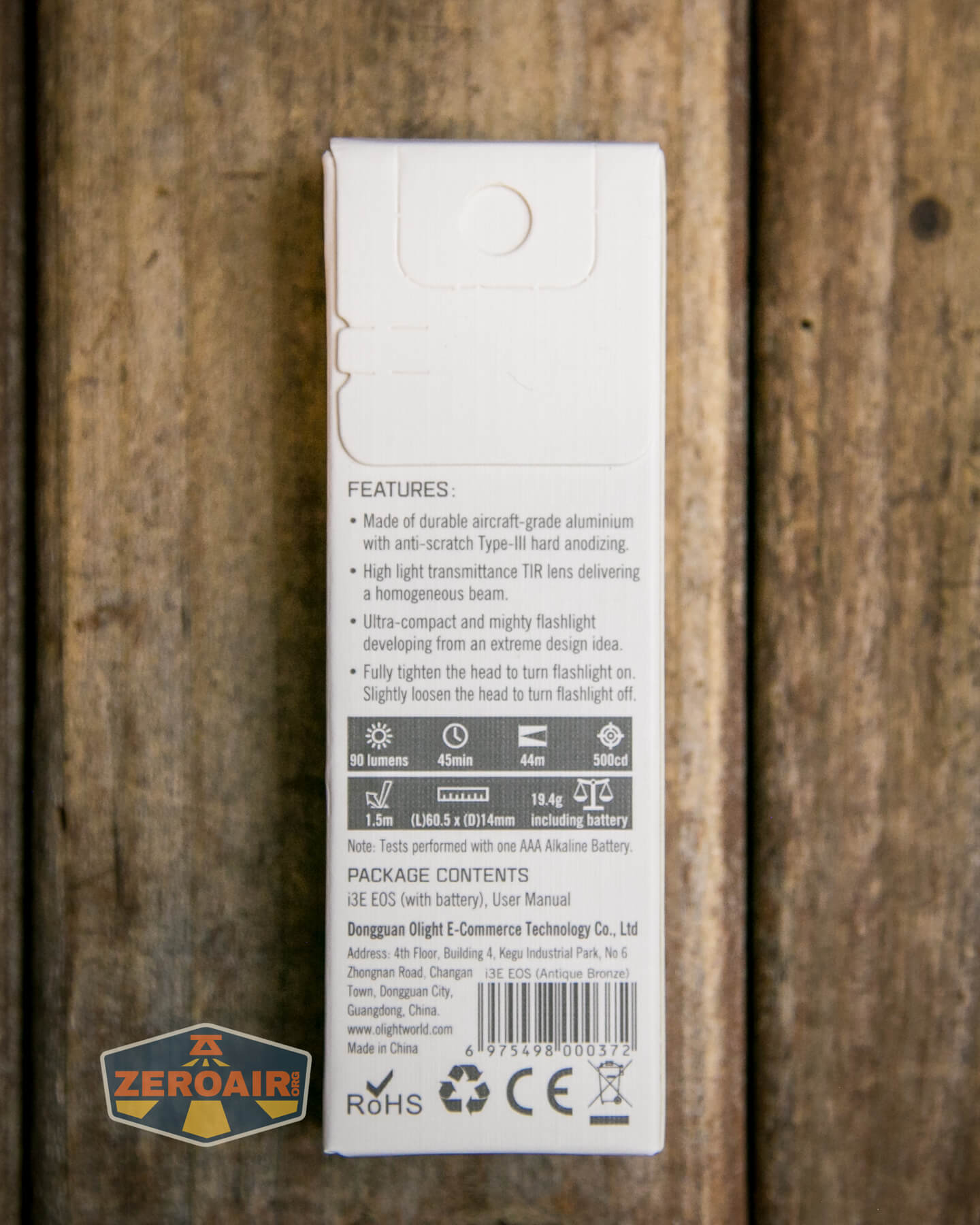

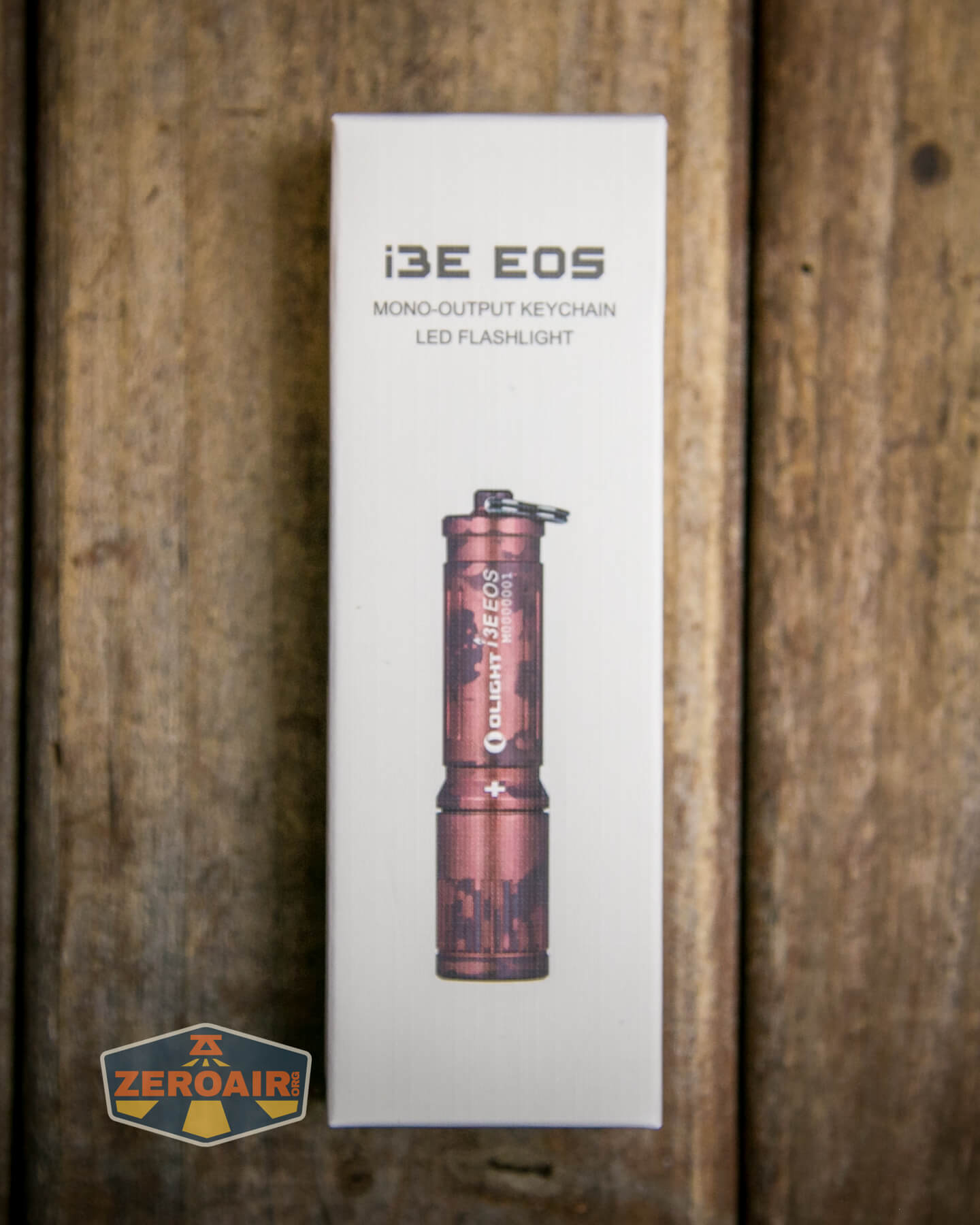

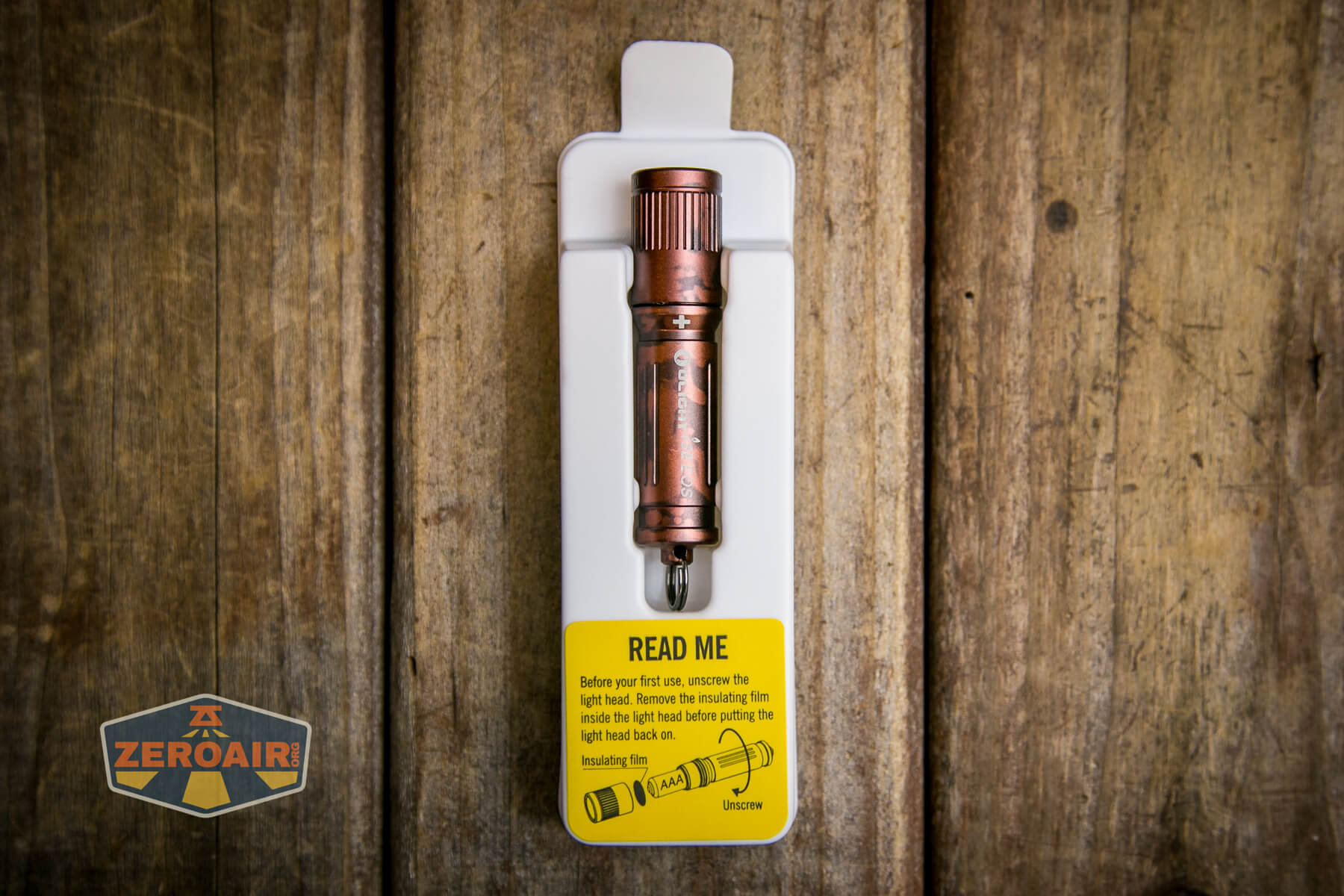

Package and Manual

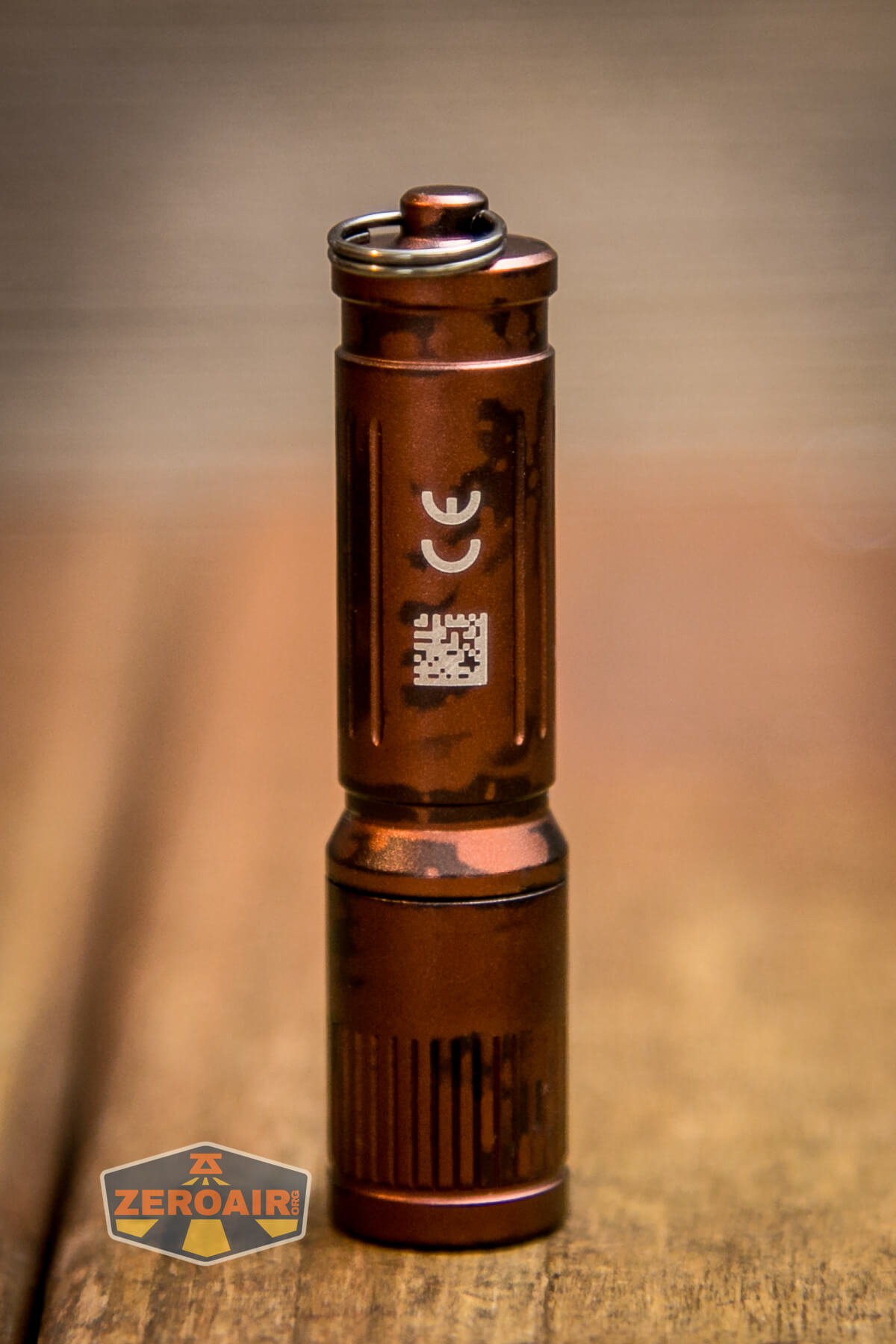

Build Quality and Disassembly

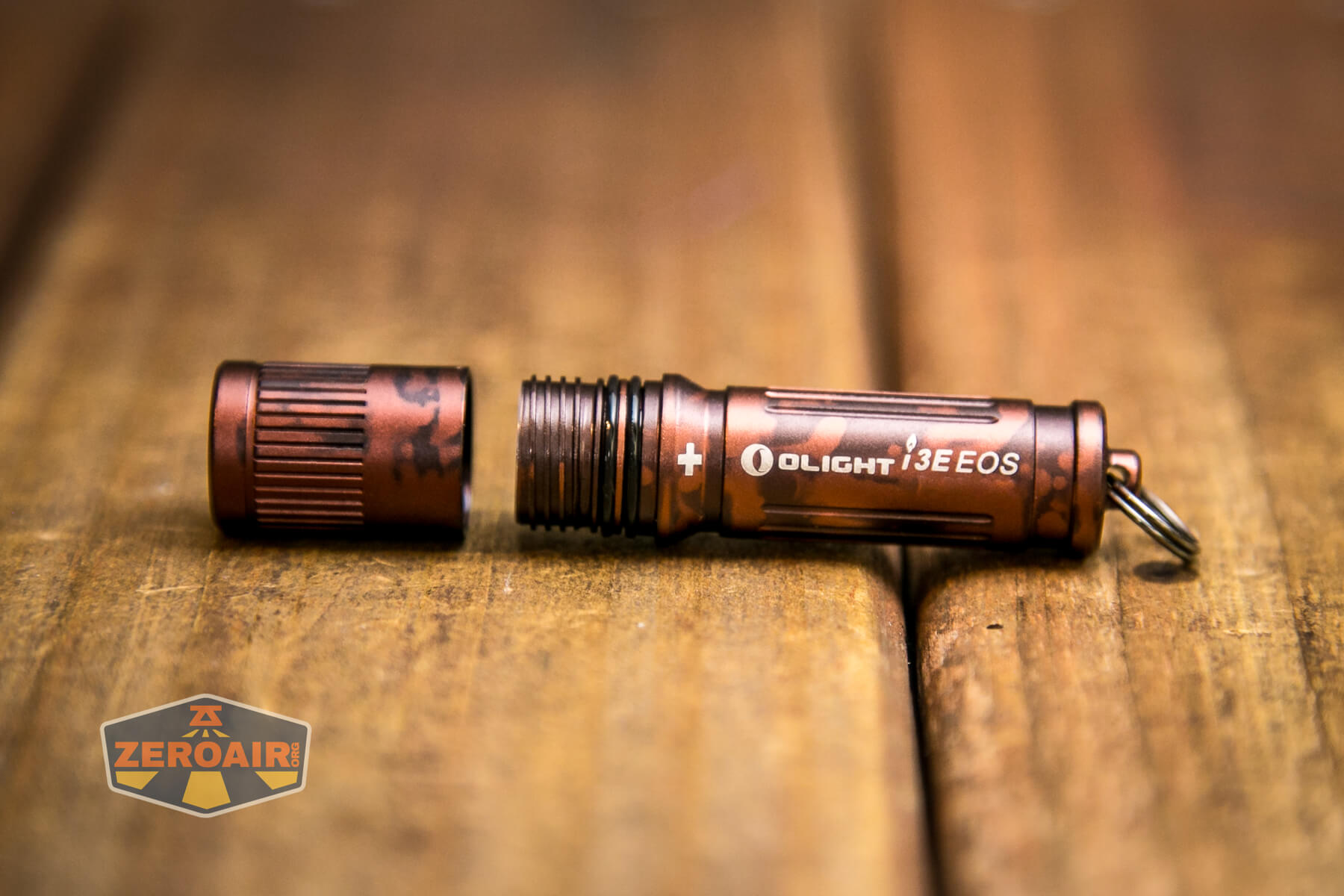

As this is a twisty light, you’ll want nice beefy and smooth threads. The Olight i3E EOS flashlight has that! They’re even long enough that you shouldn’t have to worry about the head falling off, too.

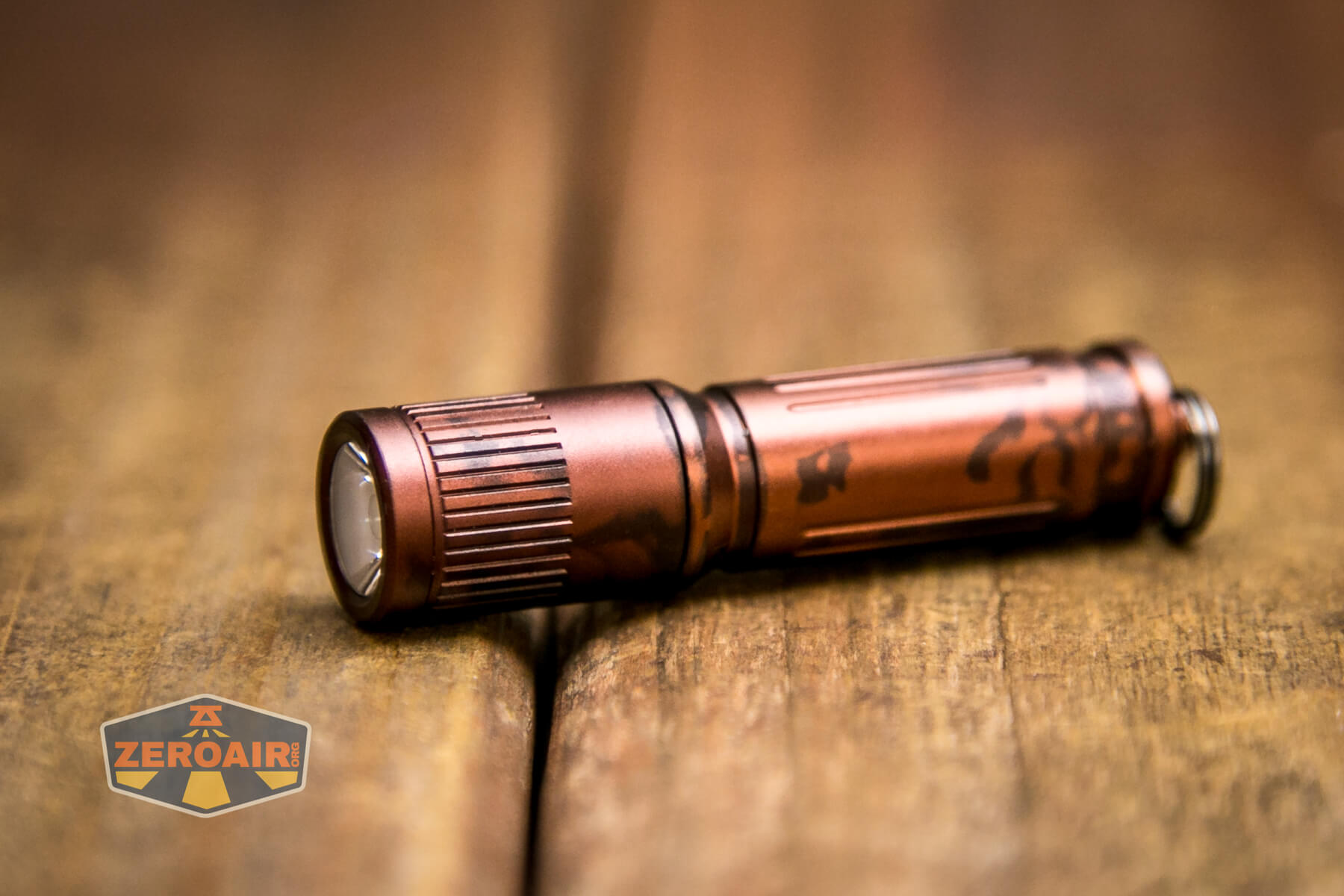

The head also has a bit of grip in the right direction for usability, too.

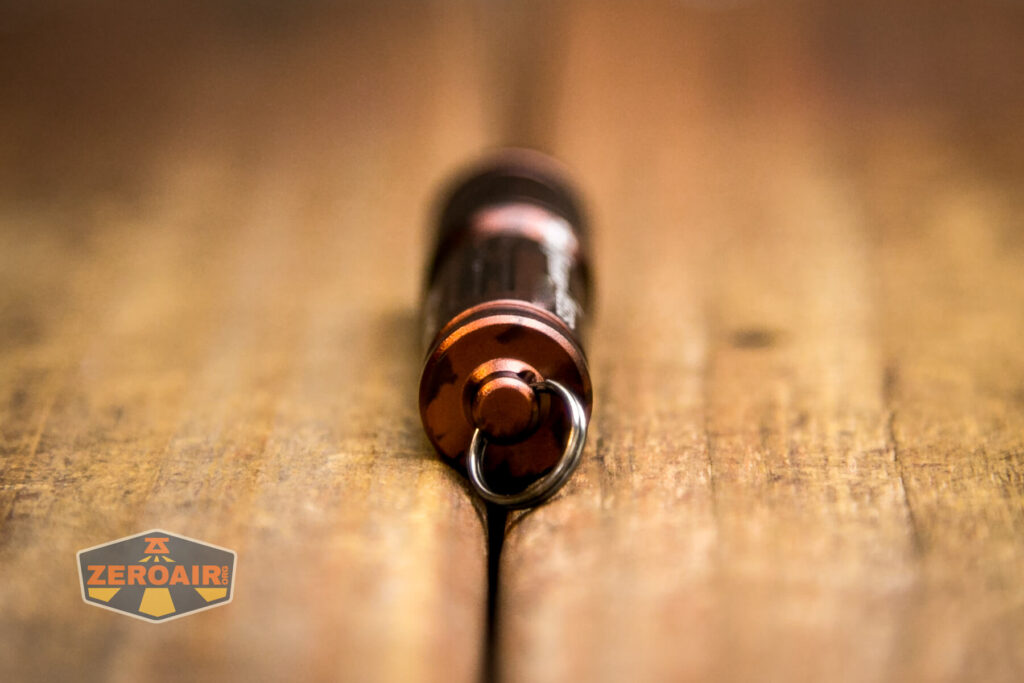

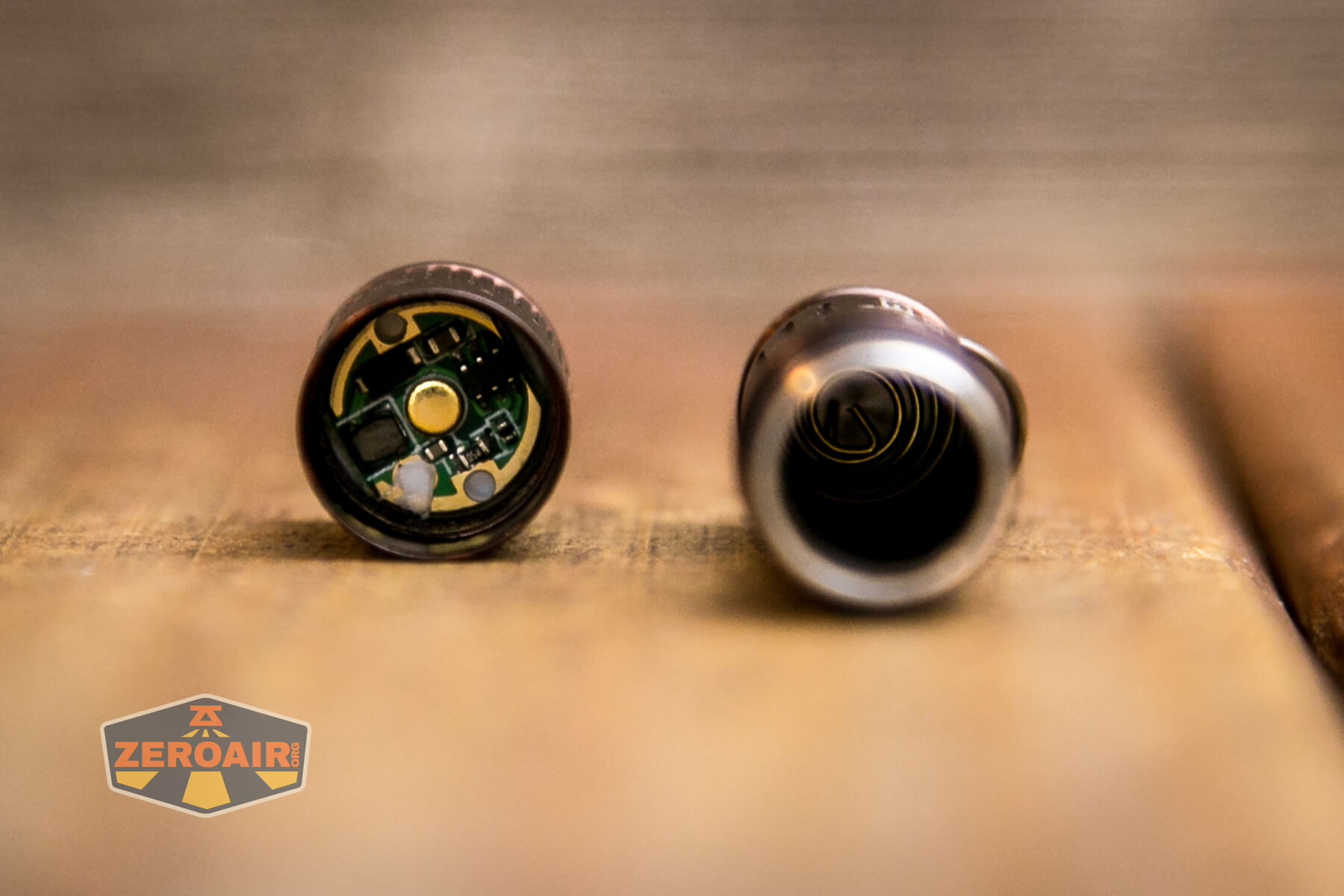

The tail end has a spring, but the head has just a button.

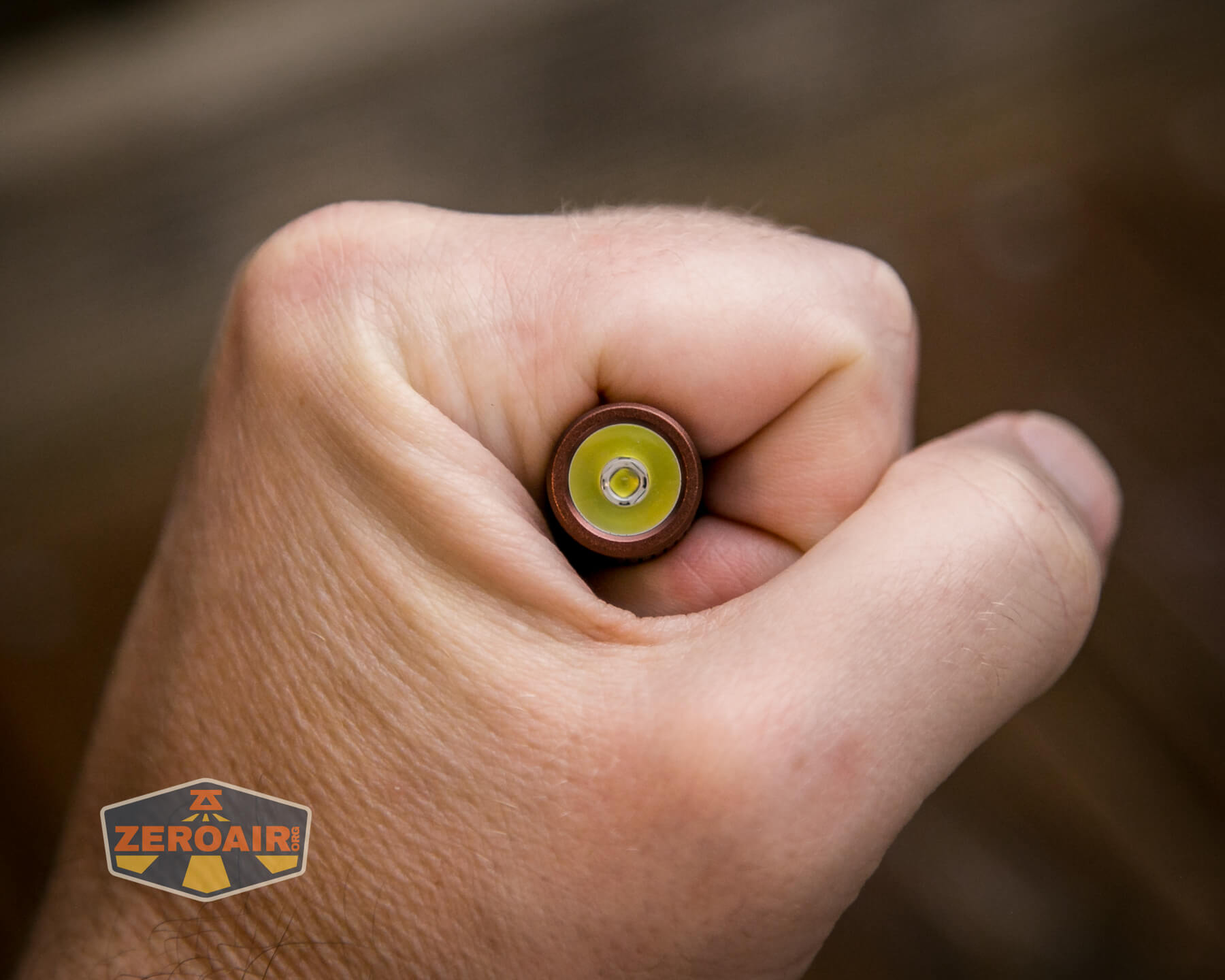

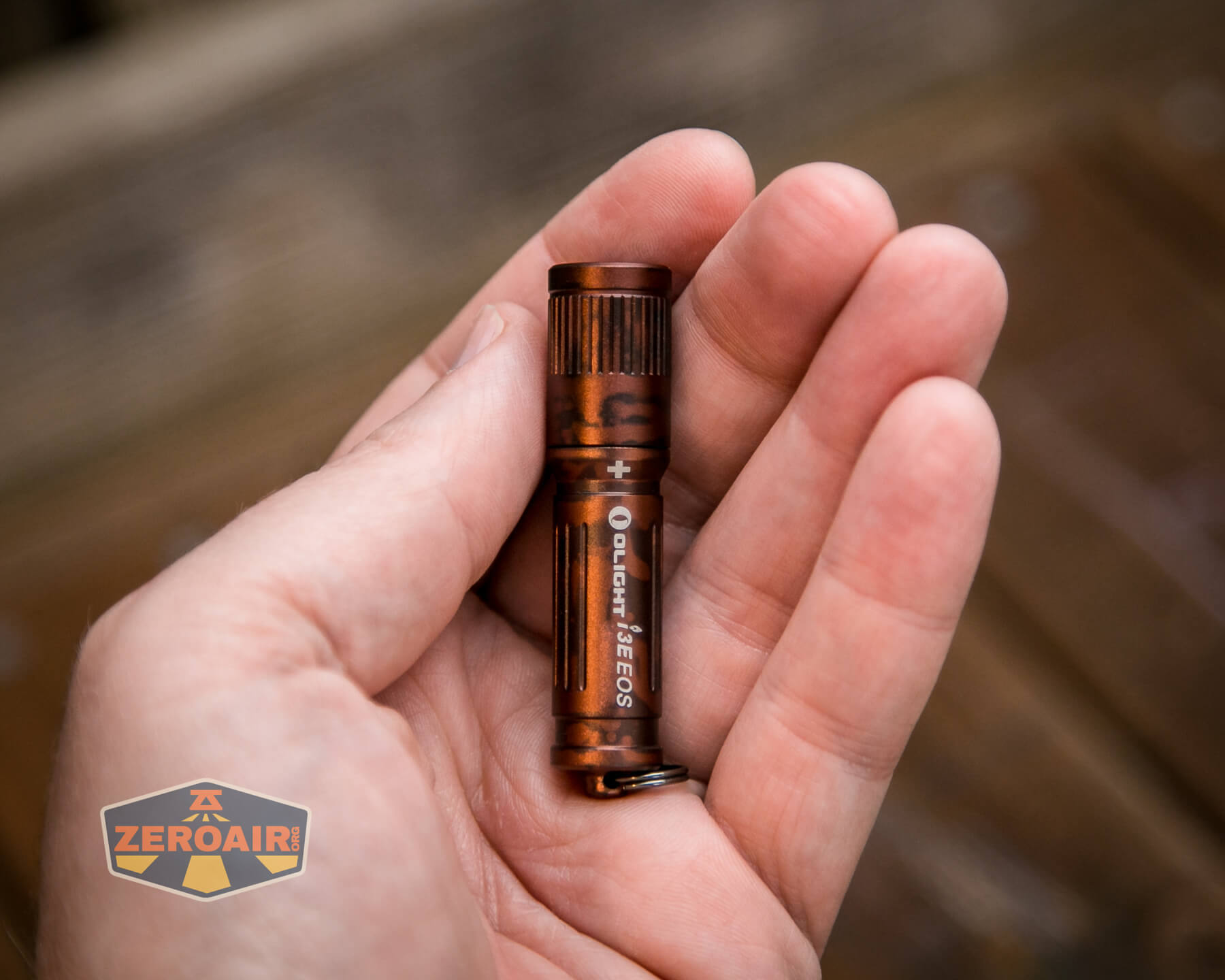

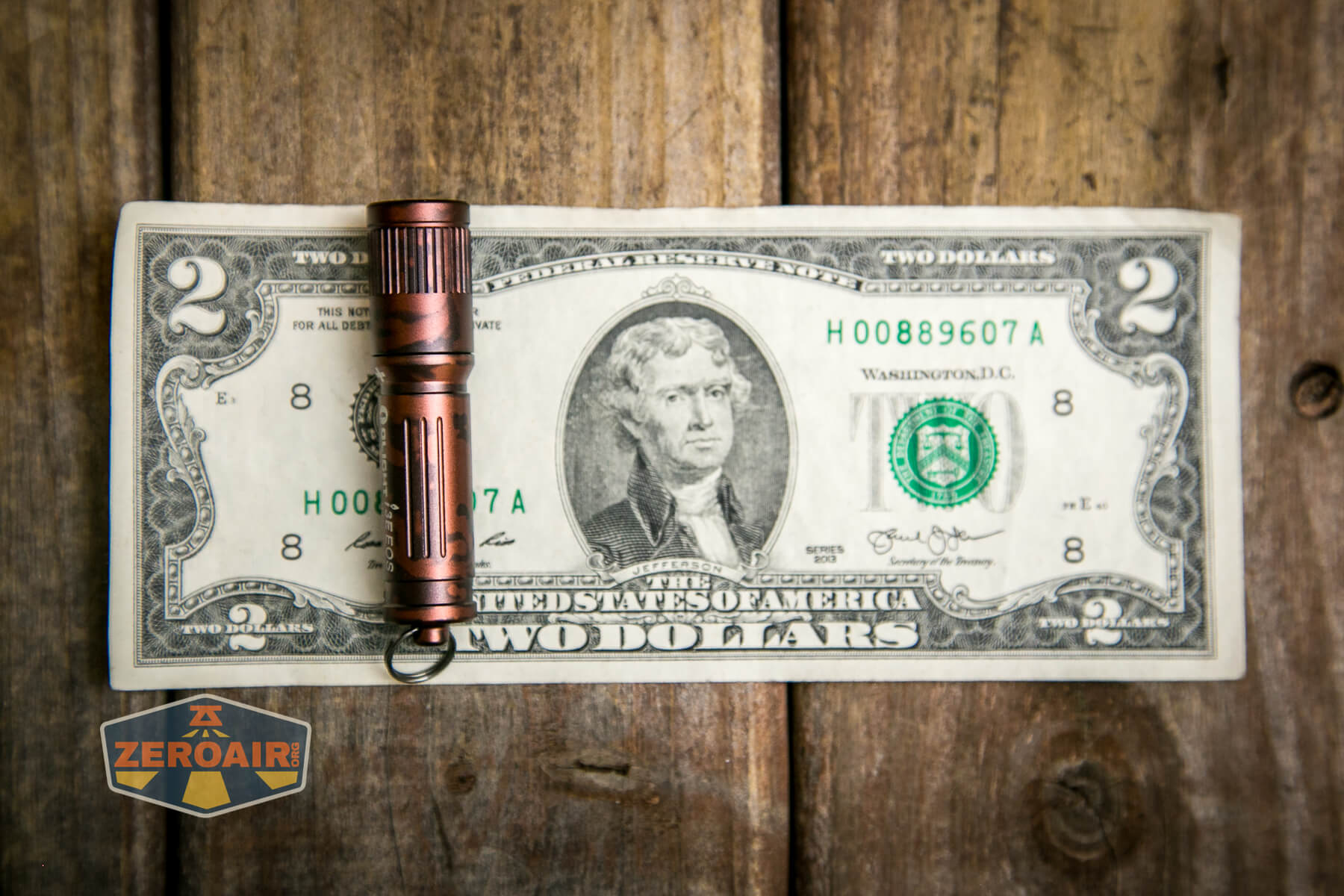

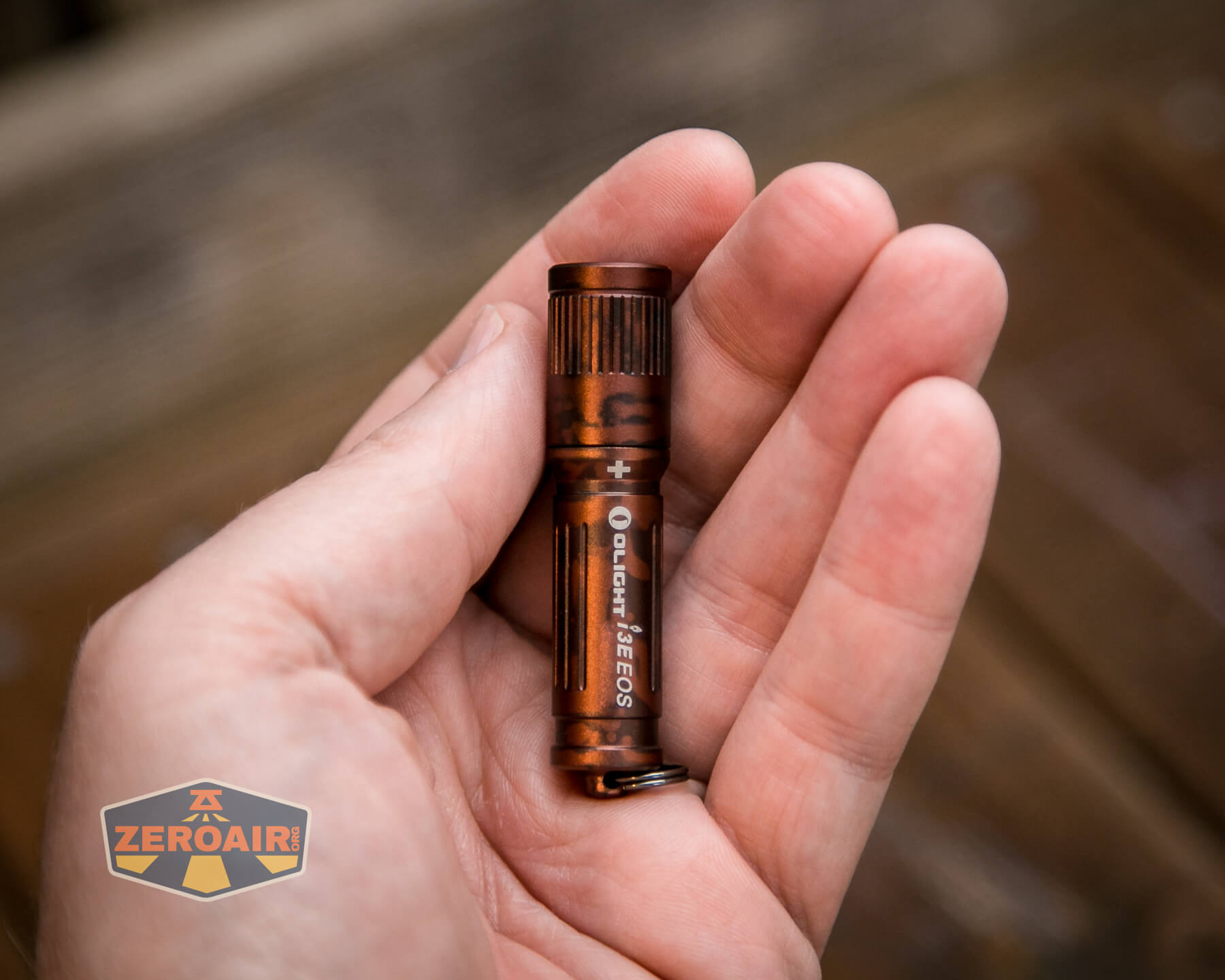

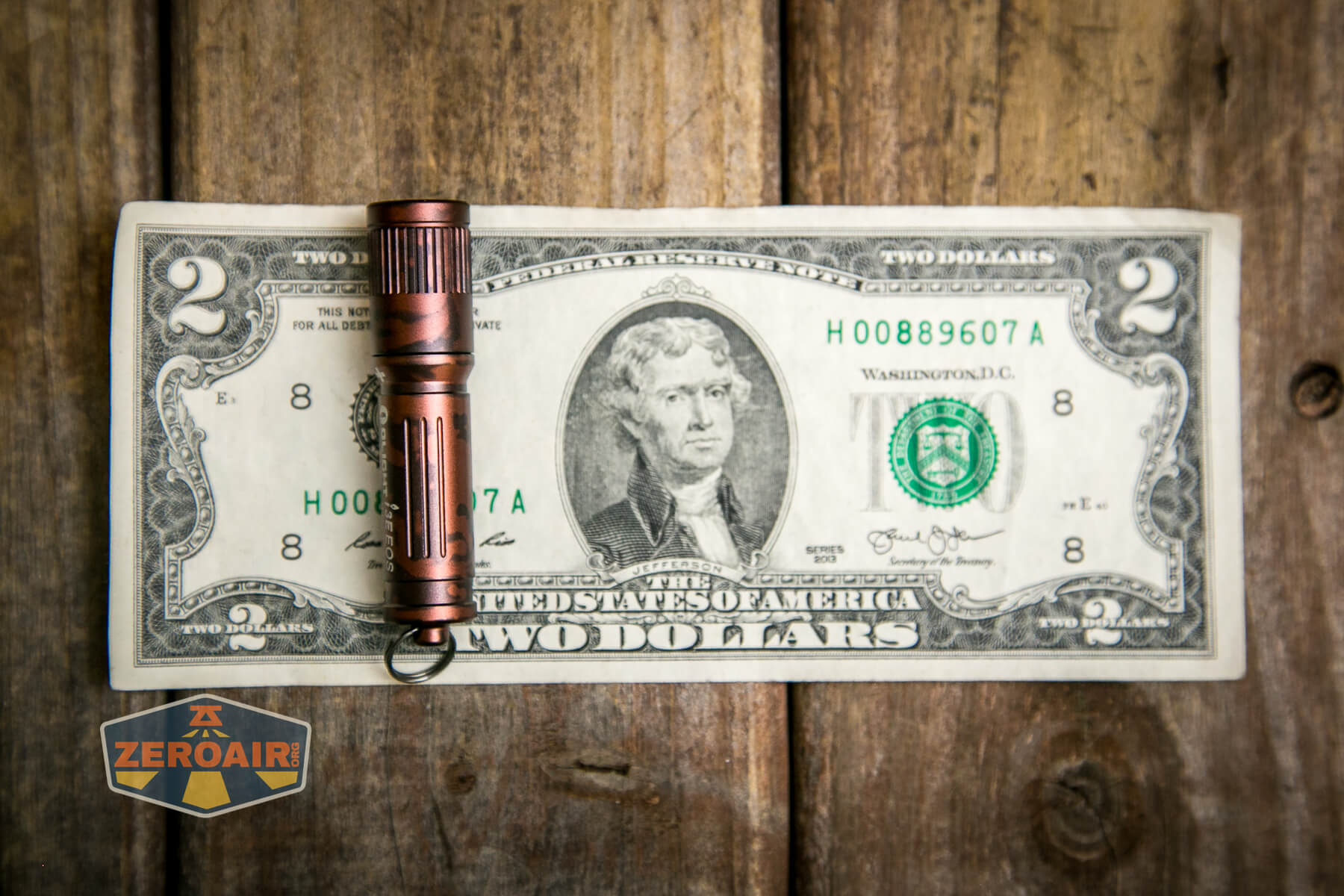

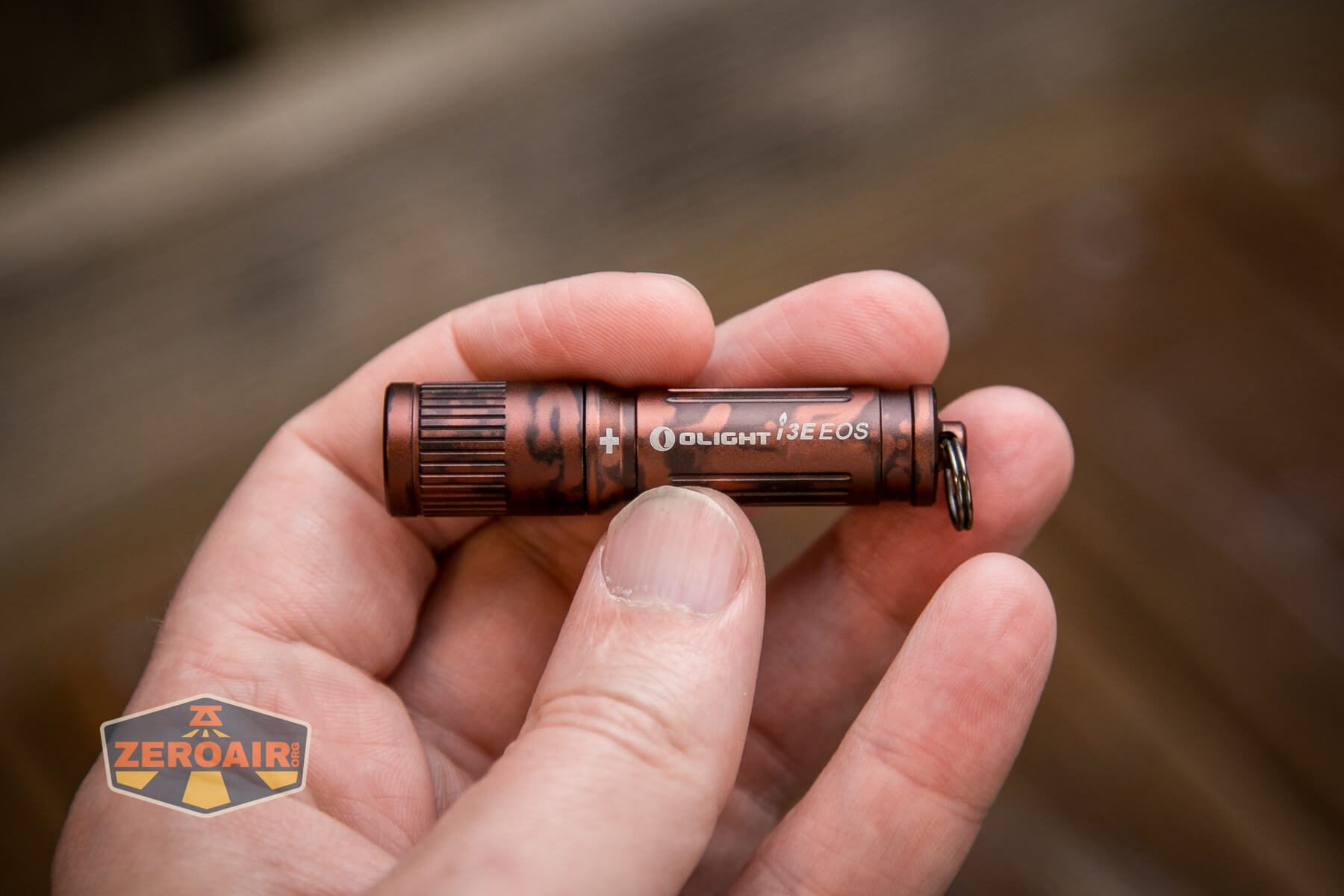

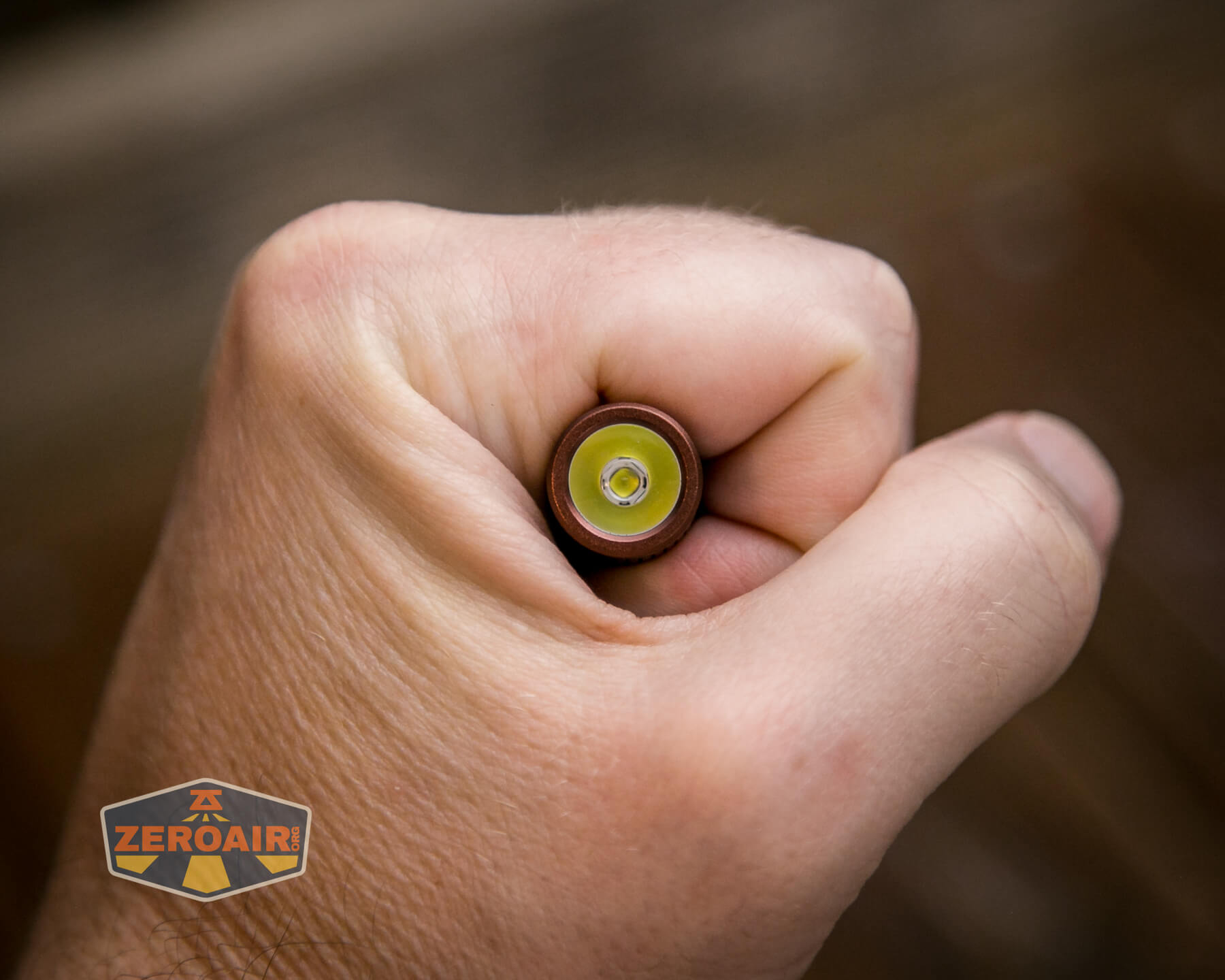

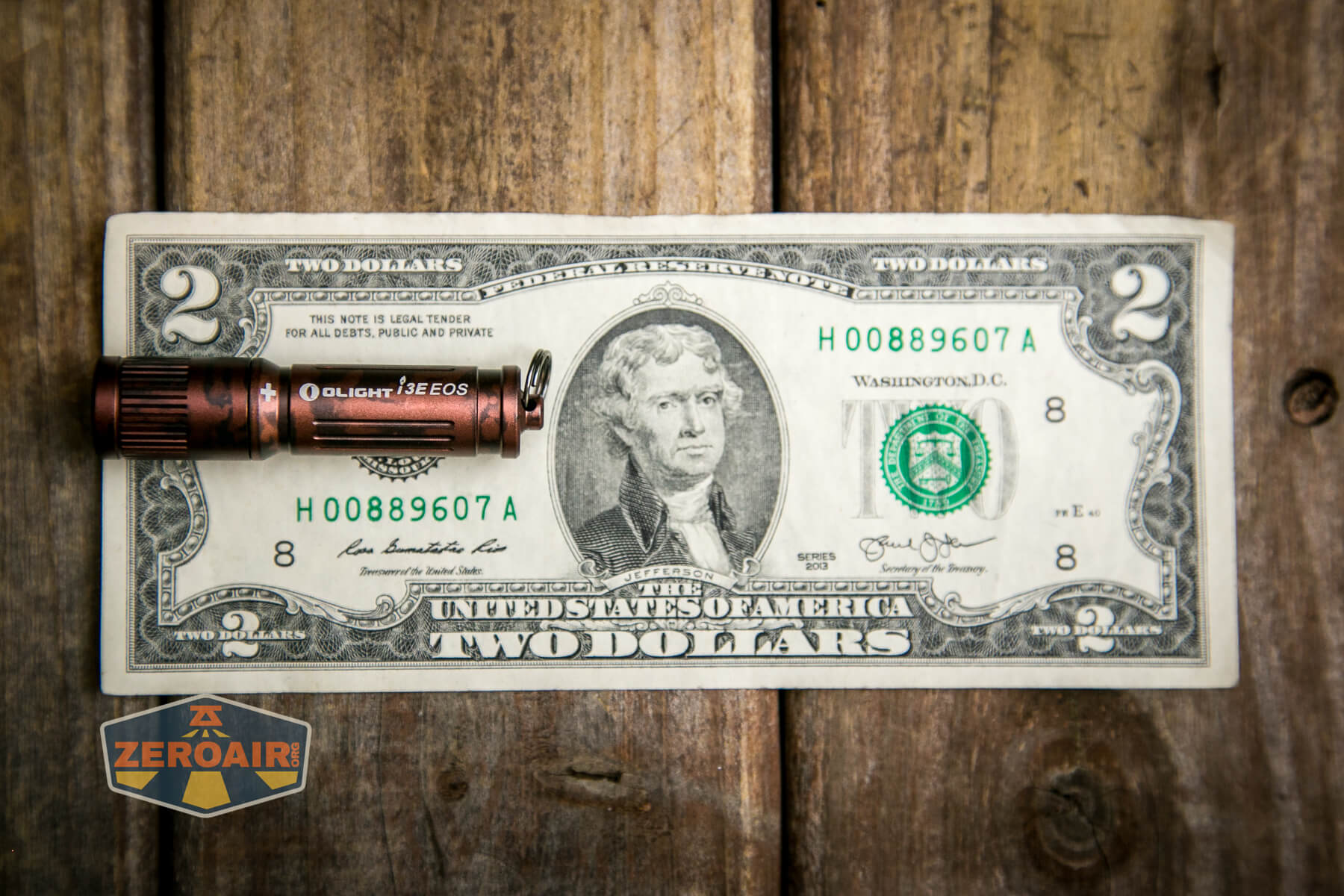

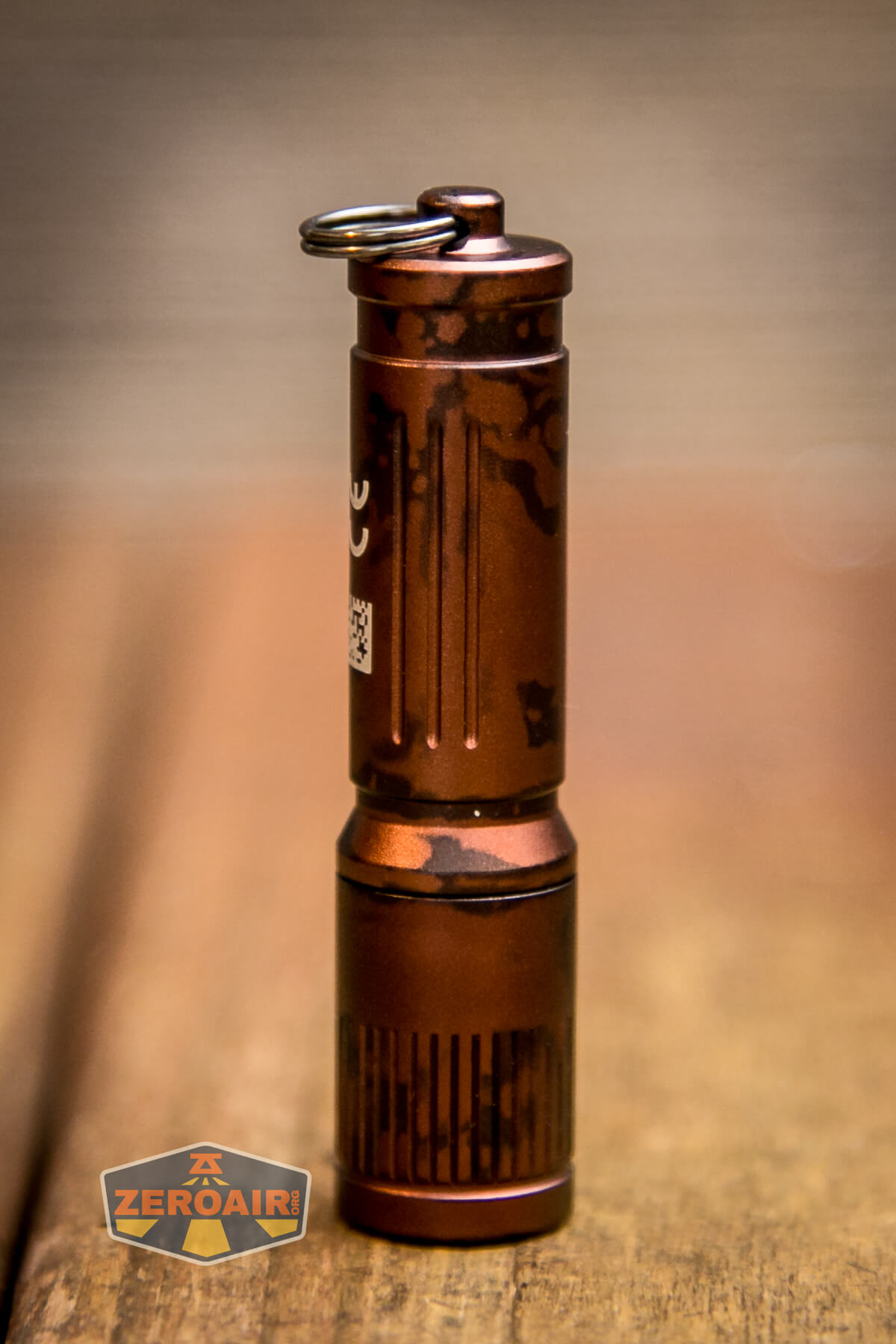

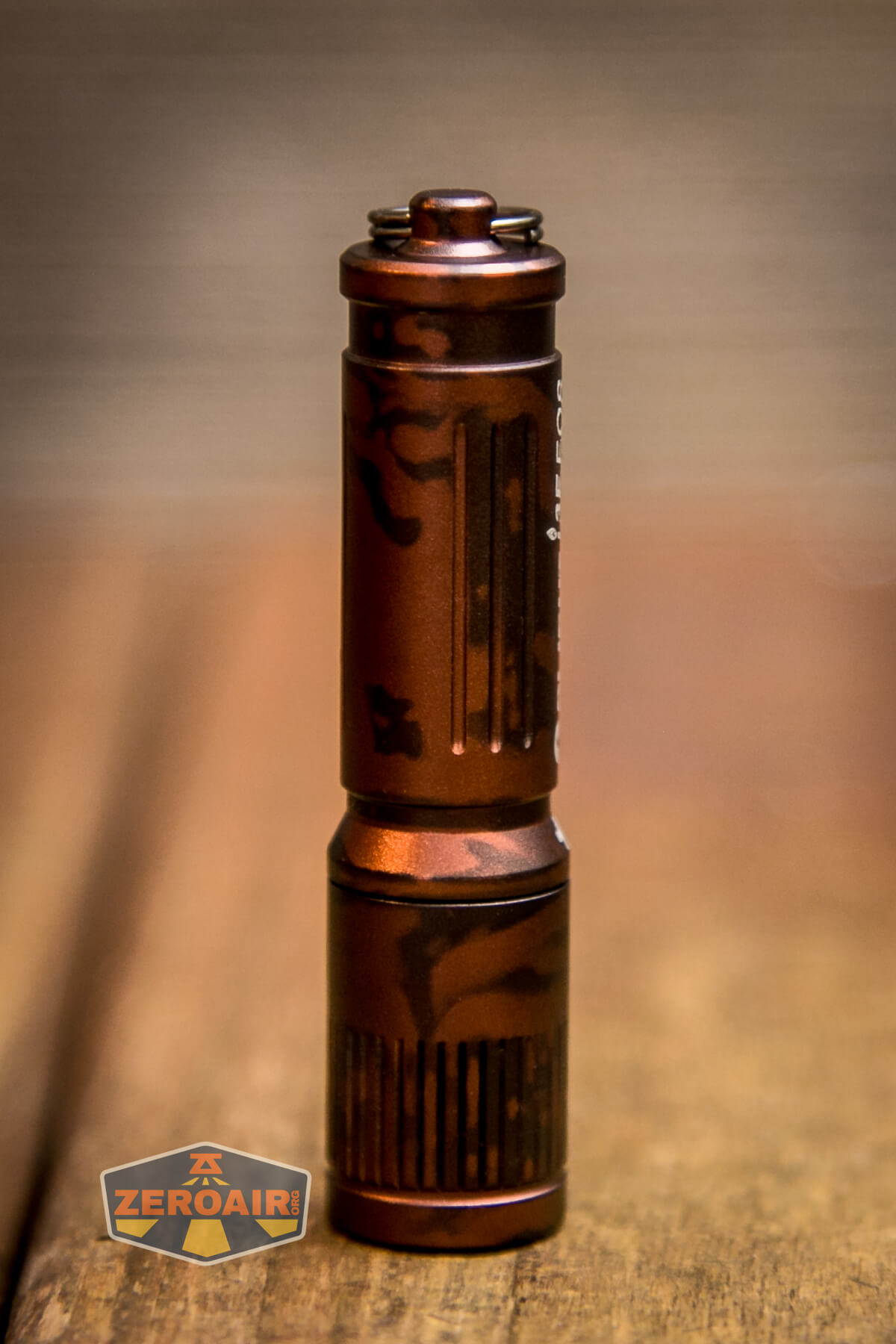

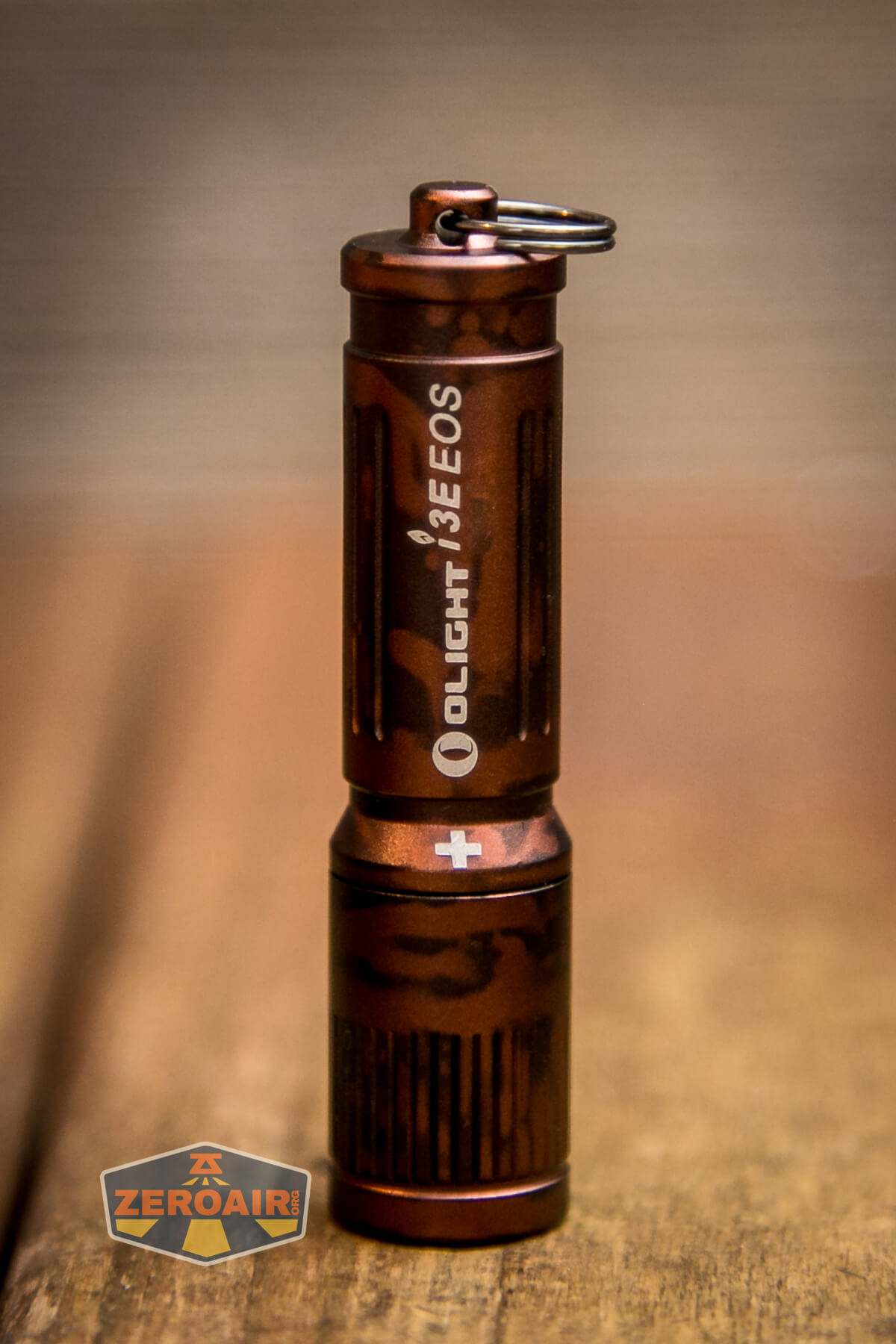

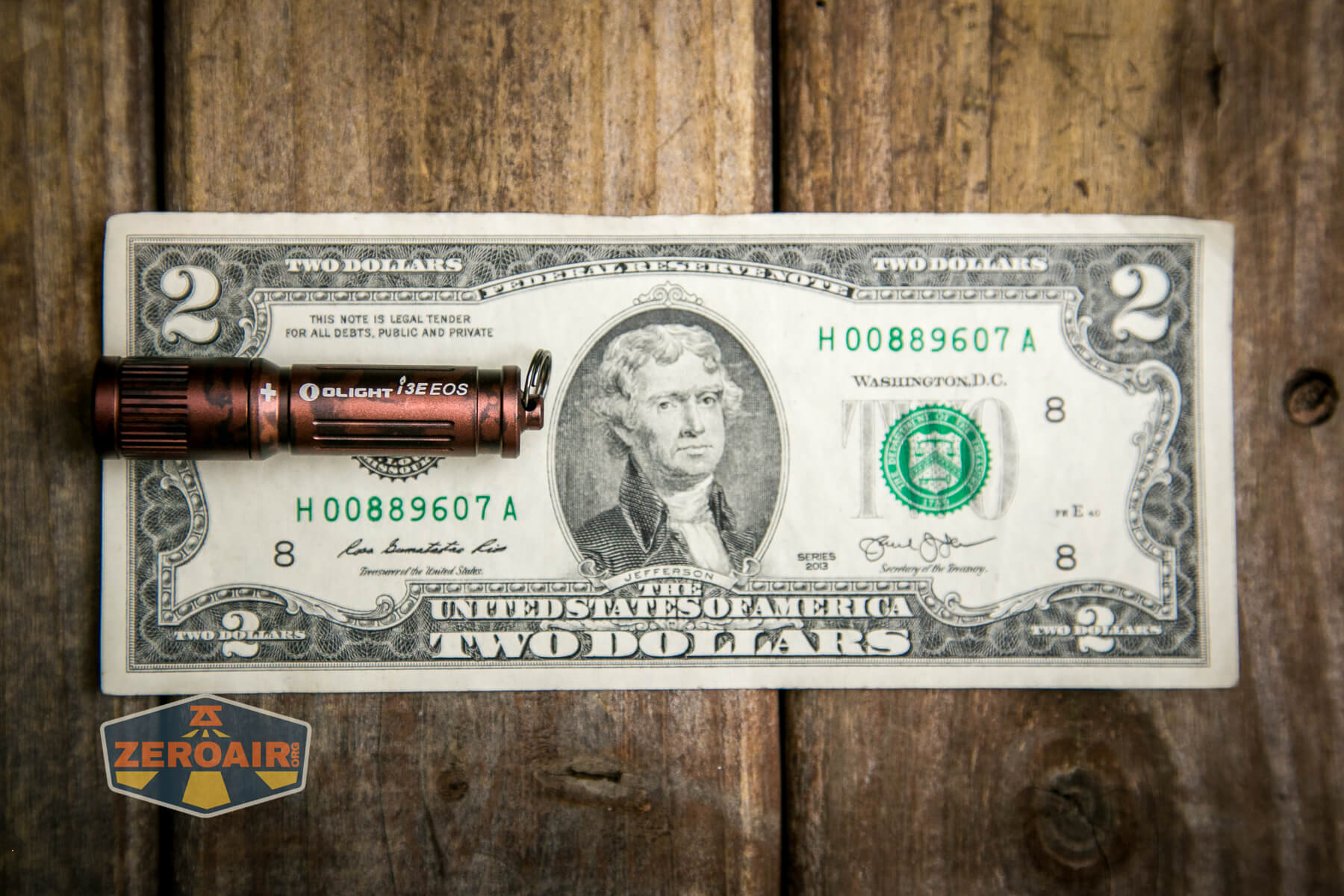

Size and Comps
Weight: 0.68 oz (19.4 g)
Length: 2.38 in (60.5 mm)
Head Diameter: 0.55 in (14 mm)
Body Diameter: 0.49 in (12.5 mm)

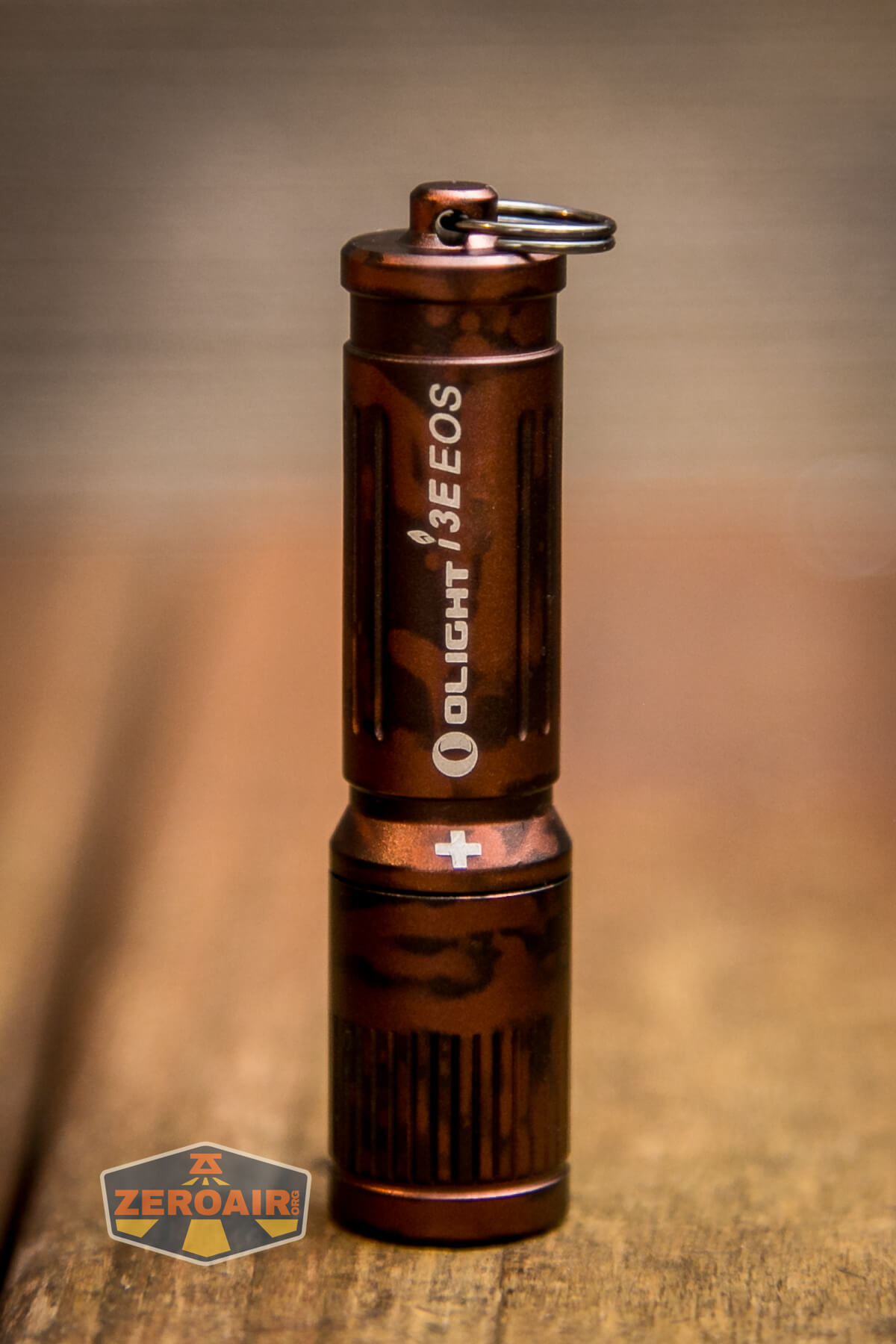

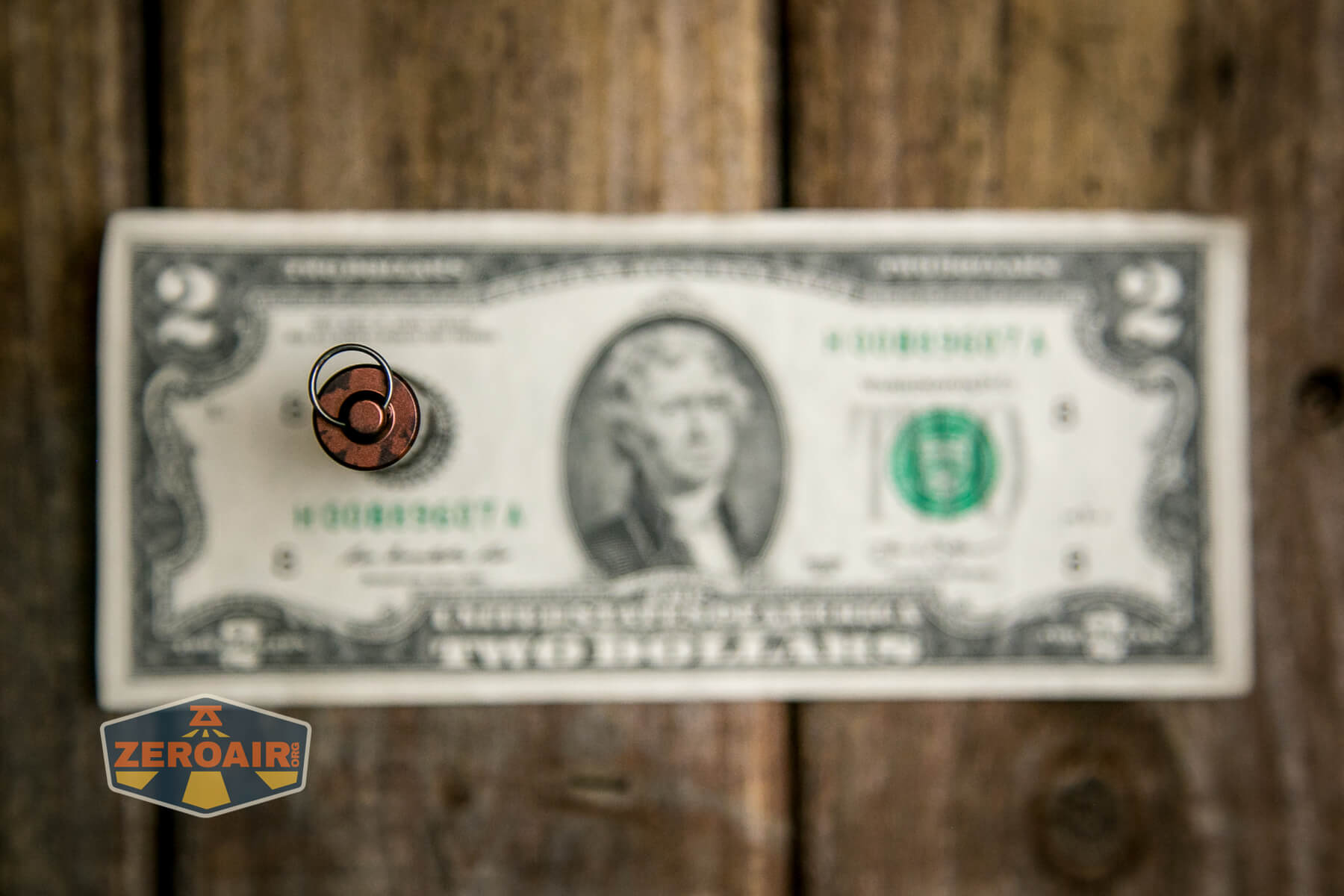

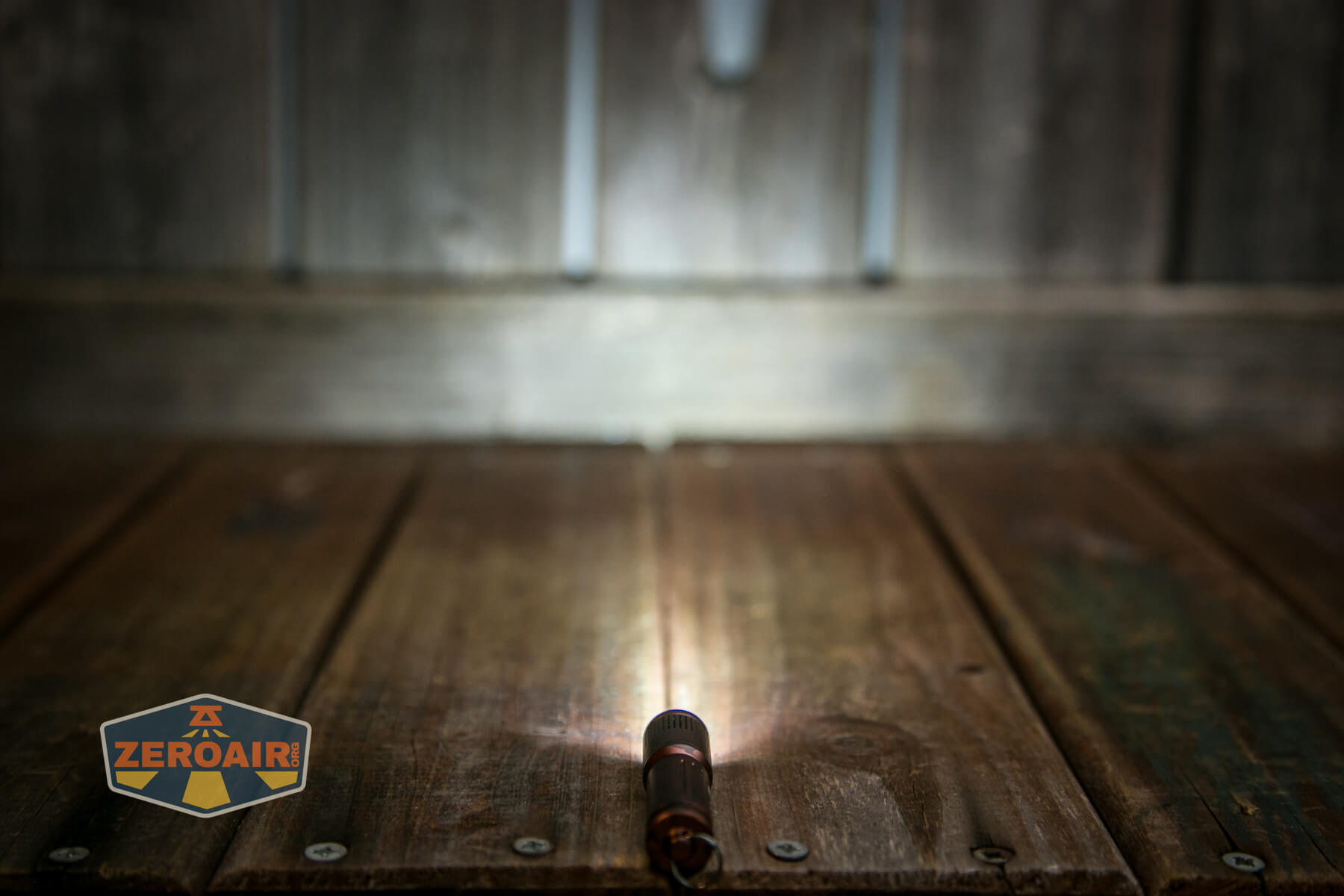

If the flashlight will headstand, I’ll show it here (usually the third photo). If the flashlight will tailstand, I’ll show that here, too (usually the fourth photo).

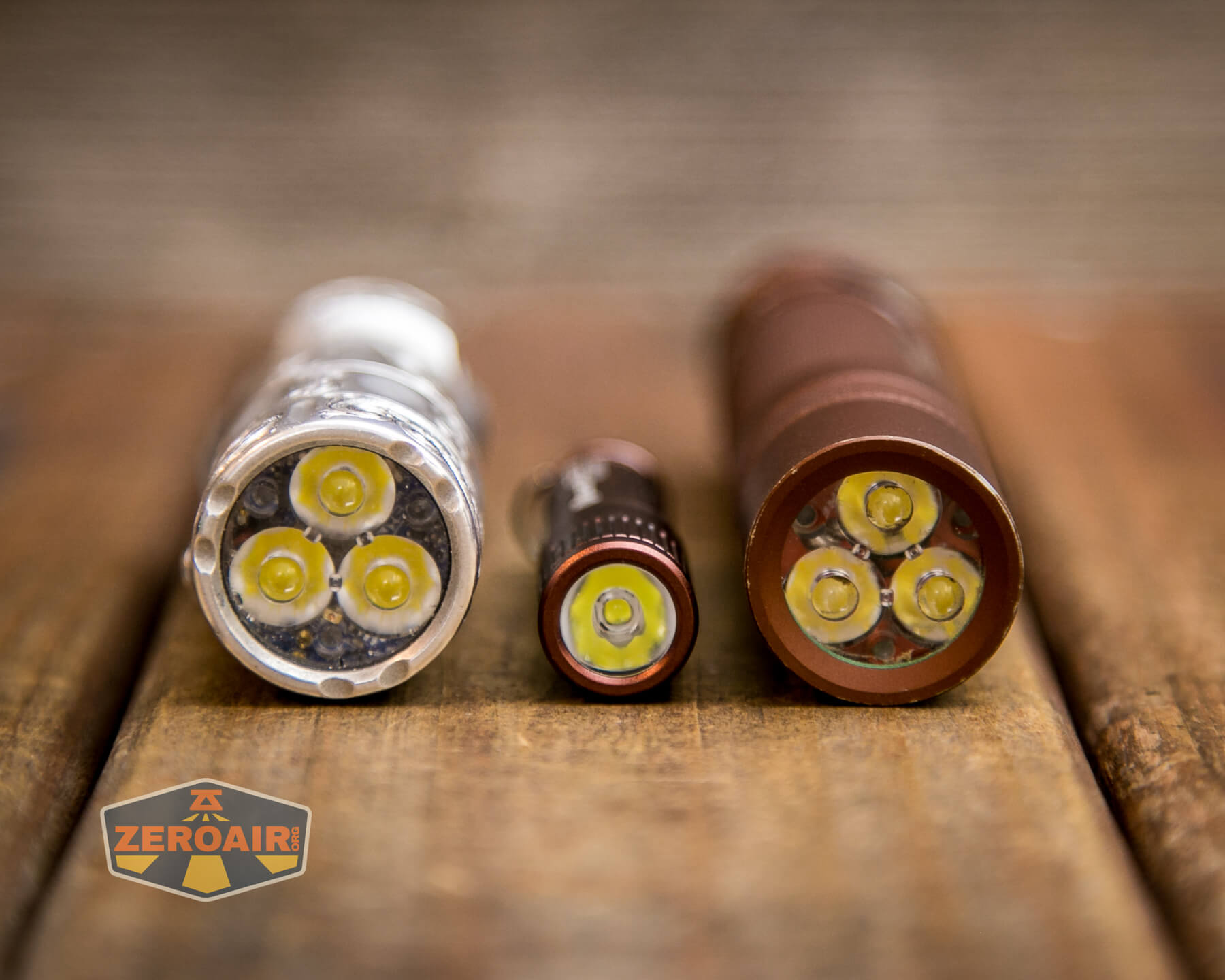

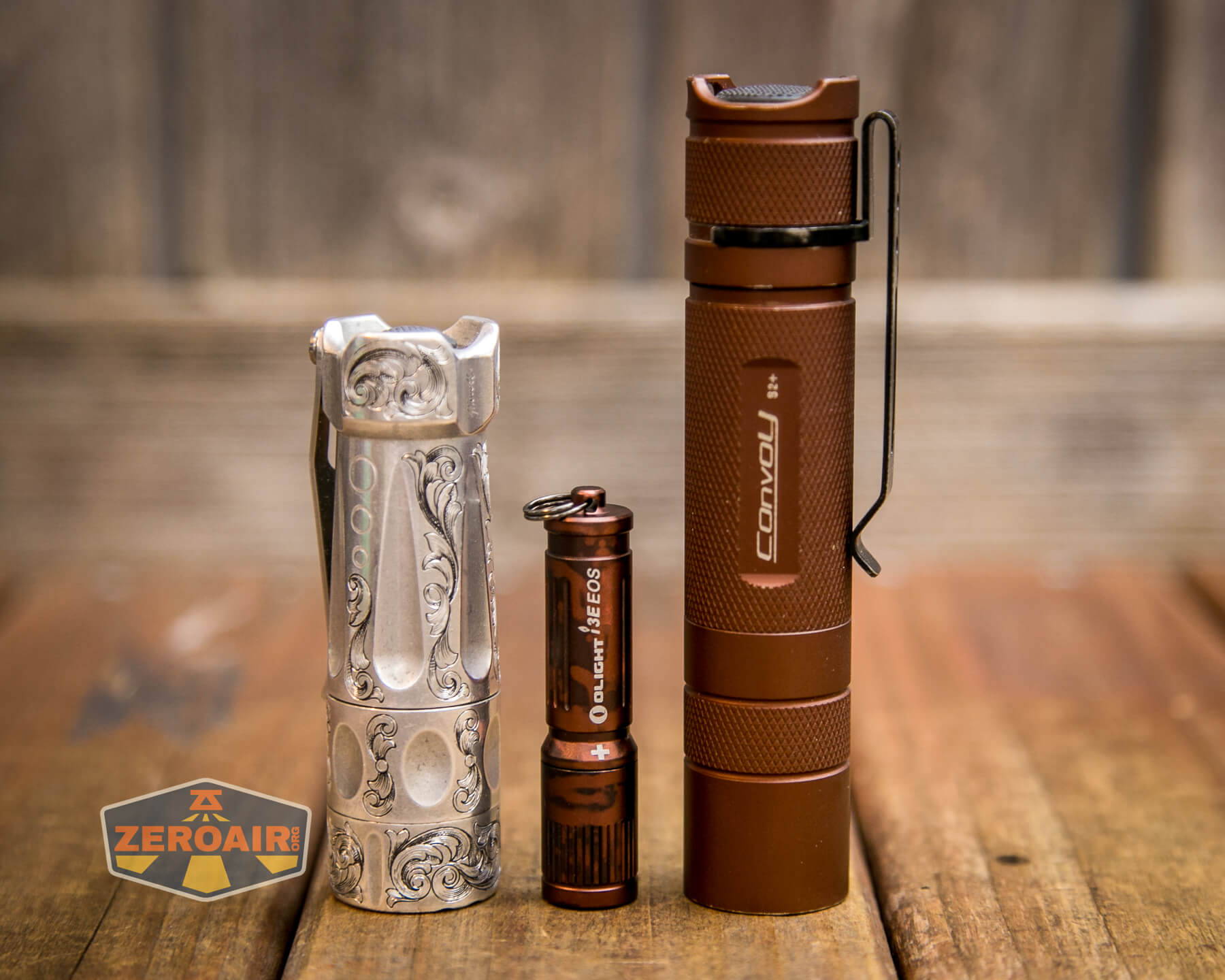

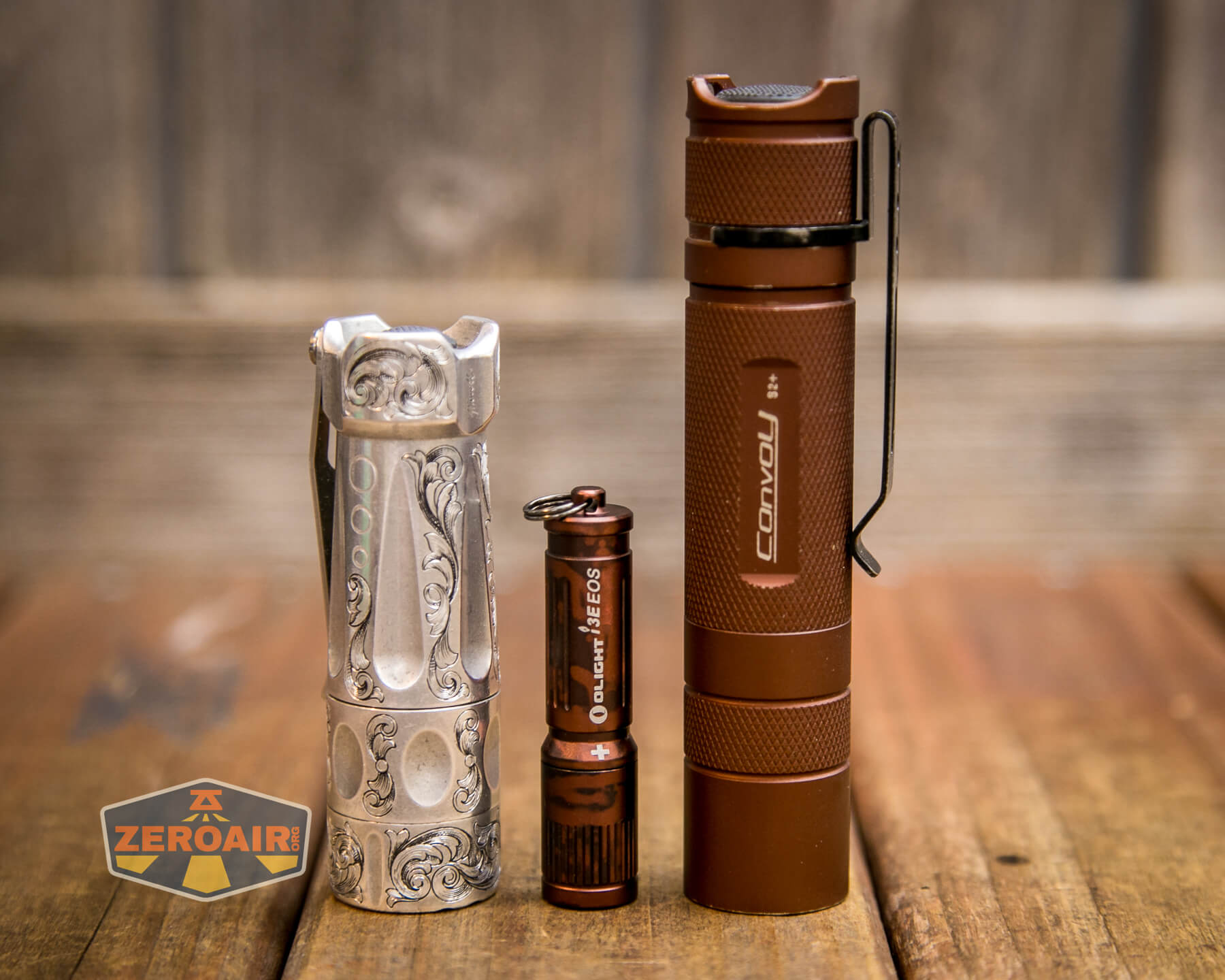

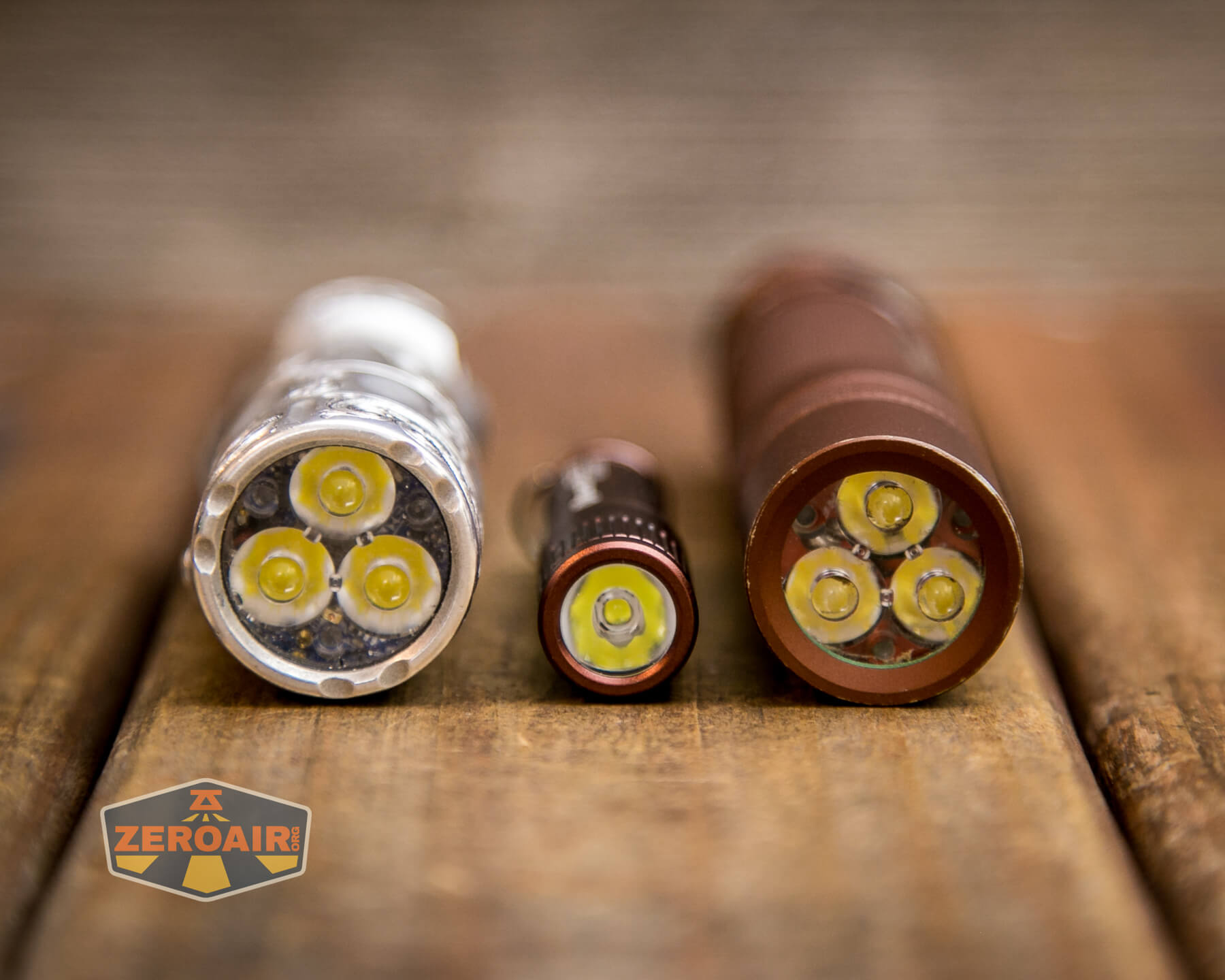

Here’s the test light with the venerable Convoy S2+. Mine’s a custom “baked” edition Nichia 219b triple. A very nice 18650 light.
Also seen above is the light beside my custom engraved TorchLAB BOSS 35, an 18350 light. I reviewed the aluminum version of that light in both 35 and 70 formats.
Retention and Carry

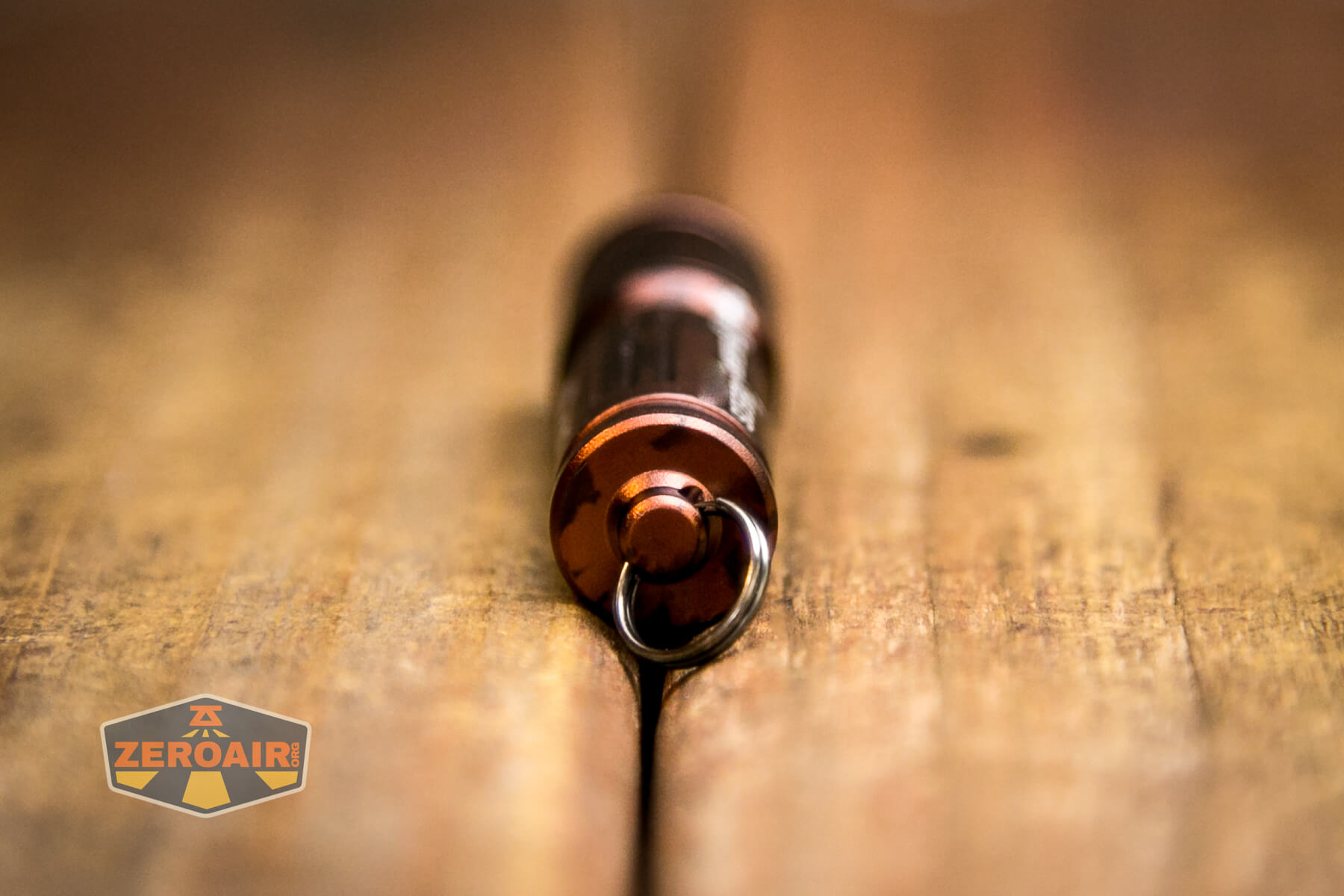

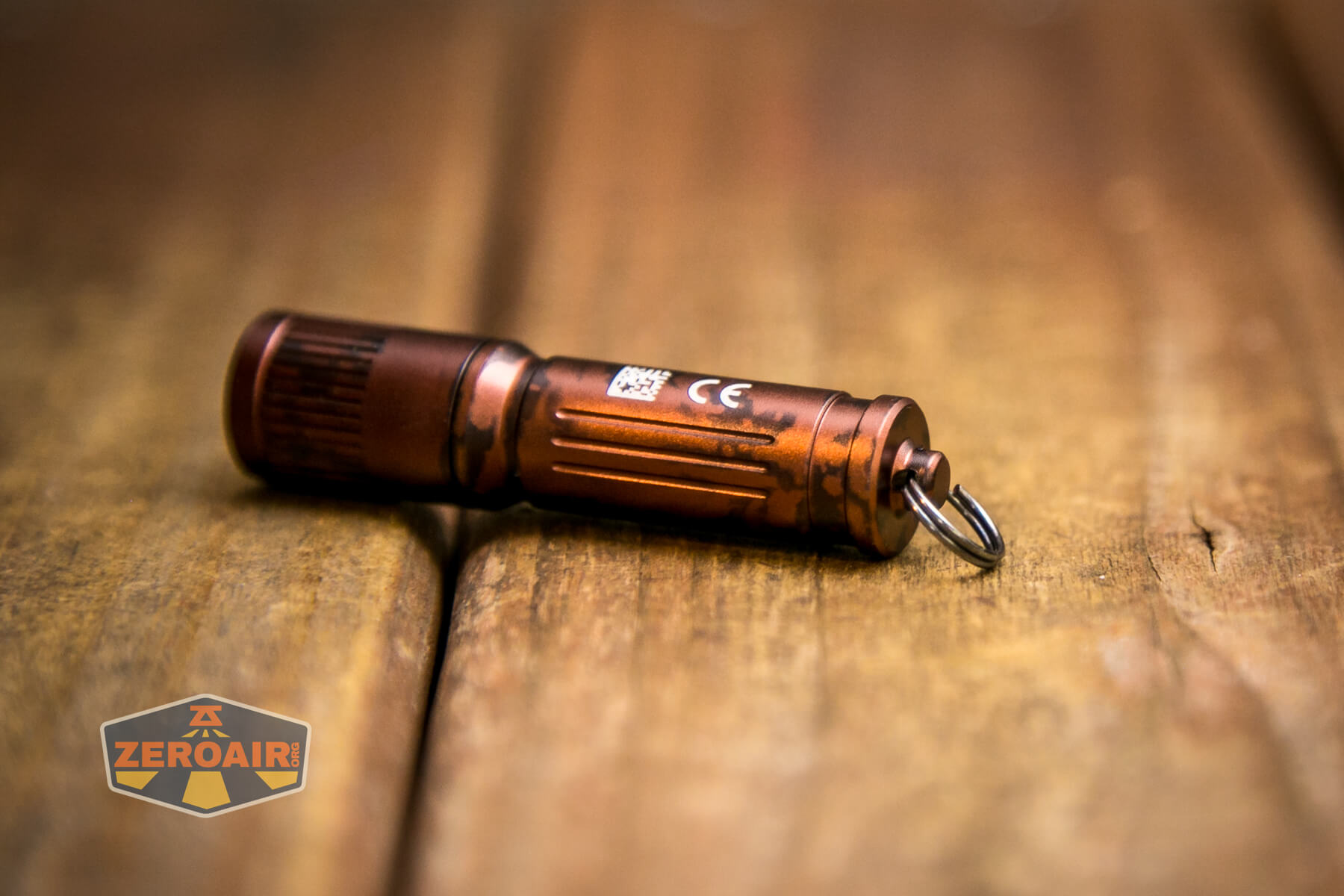

While there is a place for a pocket clip and some packages of the i3E EOS do come with pocket clip, the only included means for carrying this version is the split ring, which you can see below.
Power and Runtime

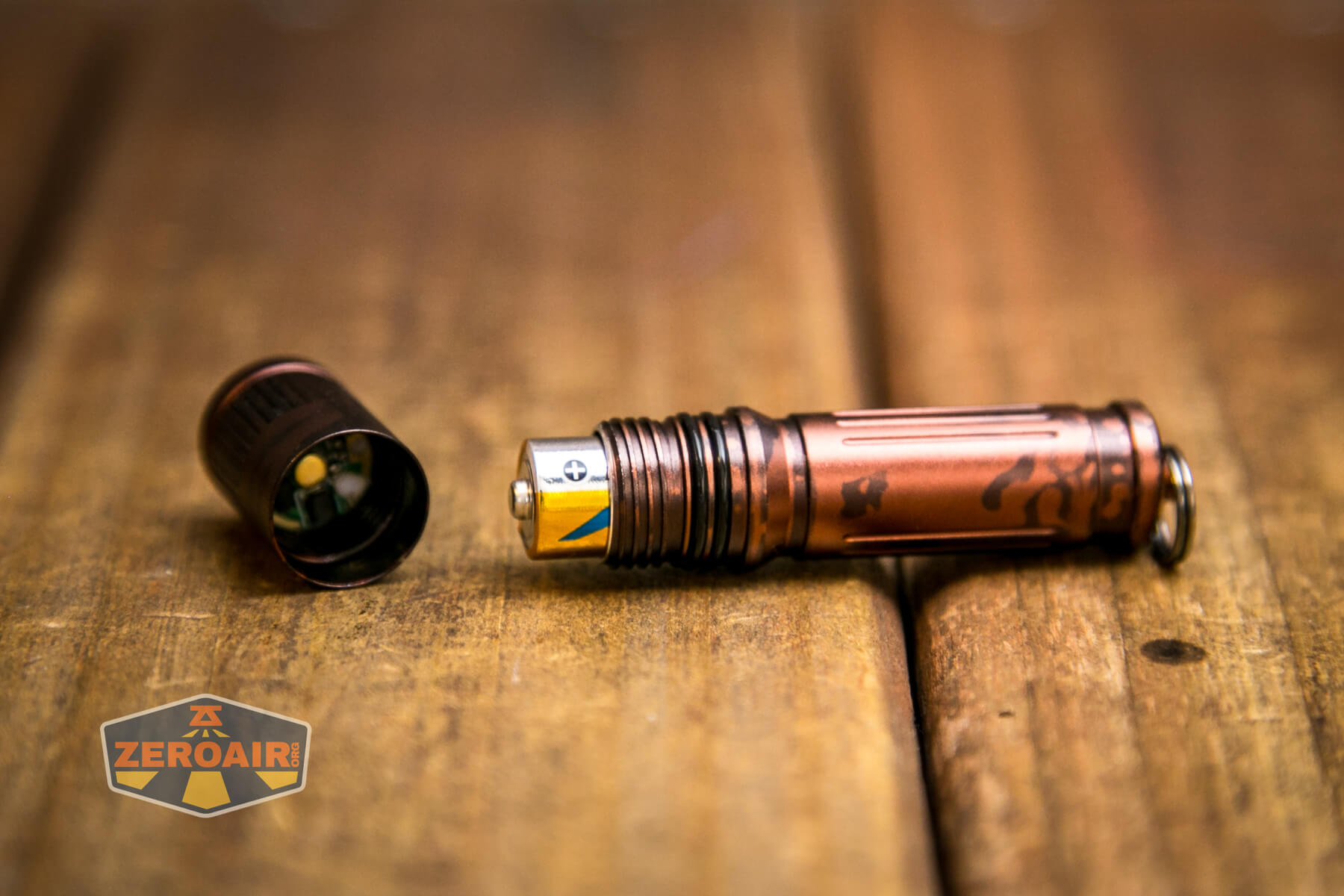

The Olight i3E EOS flashlight runs a single AAA cell. A primary alkaline cell is included, but my testing was performed using a NiMH AAA cell.
The positive terminal goes toward the head in this light.
Modes and Currents
| Mode | Mode Claimed Output (lm) | Claimed Runtime | Measured Lumens | Tailcap Amps |
|---|---|---|---|---|
| On | 90 | 70m (with NiMH) | 100 | 0.6 |

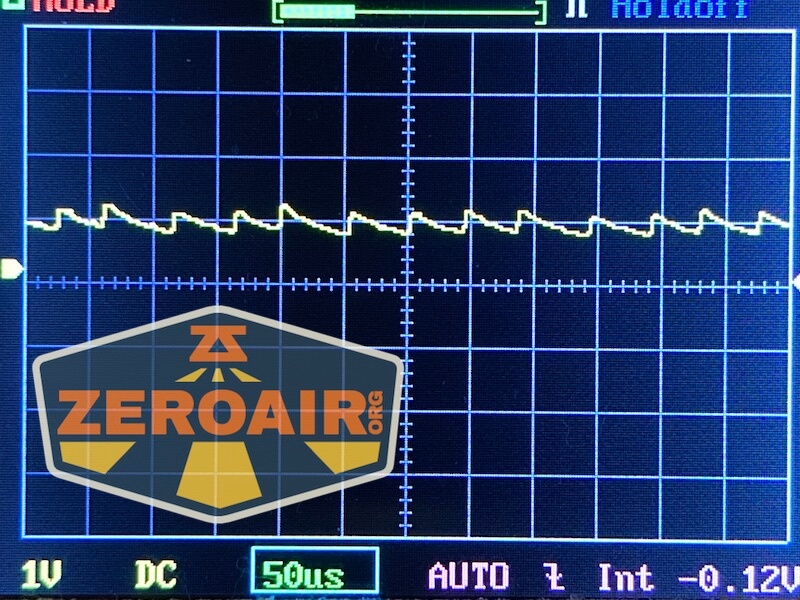

Pulse Width Modulation
No real PWM is seen.
For reference, here’s a baseline shot, with all the room lights off and almost nothing hitting the sensor. Also, here’s the light with the worst PWM I could find. I’m adding multiple timescales, so it’ll be easier to compare to the test light. Unfortunately, the PWM on this light is so bad that it doesn’t even work with my normal scale, which is 50 microseconds (50us). 10ms. 5ms. 2ms. 1ms. 0.5ms. 0.2ms.  In a display faster than 0.2ms or so, the on/off cycle is more than one screen, so it’d just (very incorrectly) look like a flat line. I wrote more about this Ultrafire WF-602C flashlight and explained a little about PWM too.
User Interface and Operation
The Olight i3E EOS flashlight is a twisty light. Twist the head for on, loosen for off.
Here’s a UI table!
| State | Action | Result |
|---|---|---|
| Off | Tighten head | On |
| On | Loosen head | Off |
| Off | Tighten and loosen head quickly 250 times | Probably nothing but please let me know. |

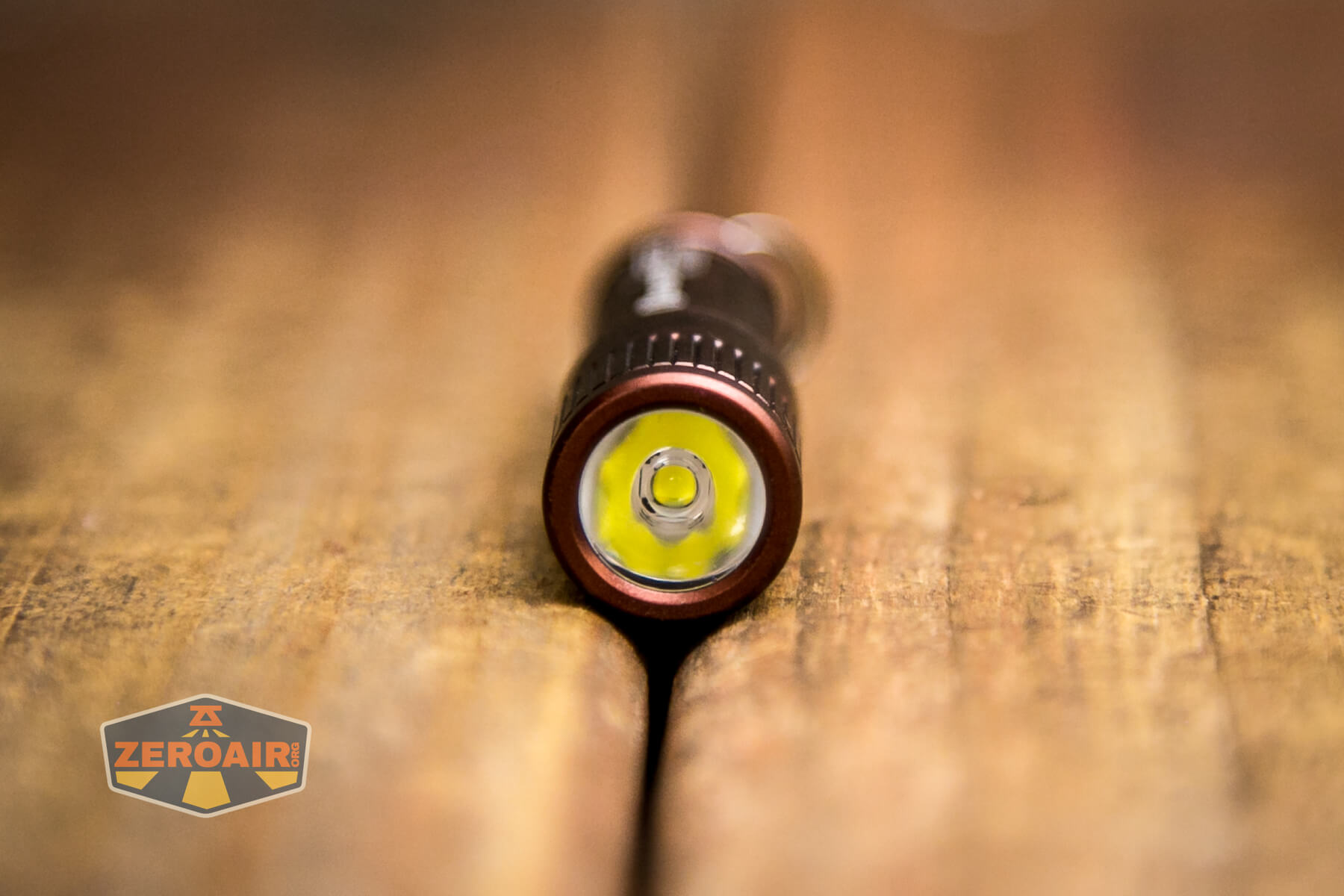

LED and Beam
Other colorways of this light indicate the i3E EOS uses a Philips Luxeon TX emitter.
There’s also a TIR in place.

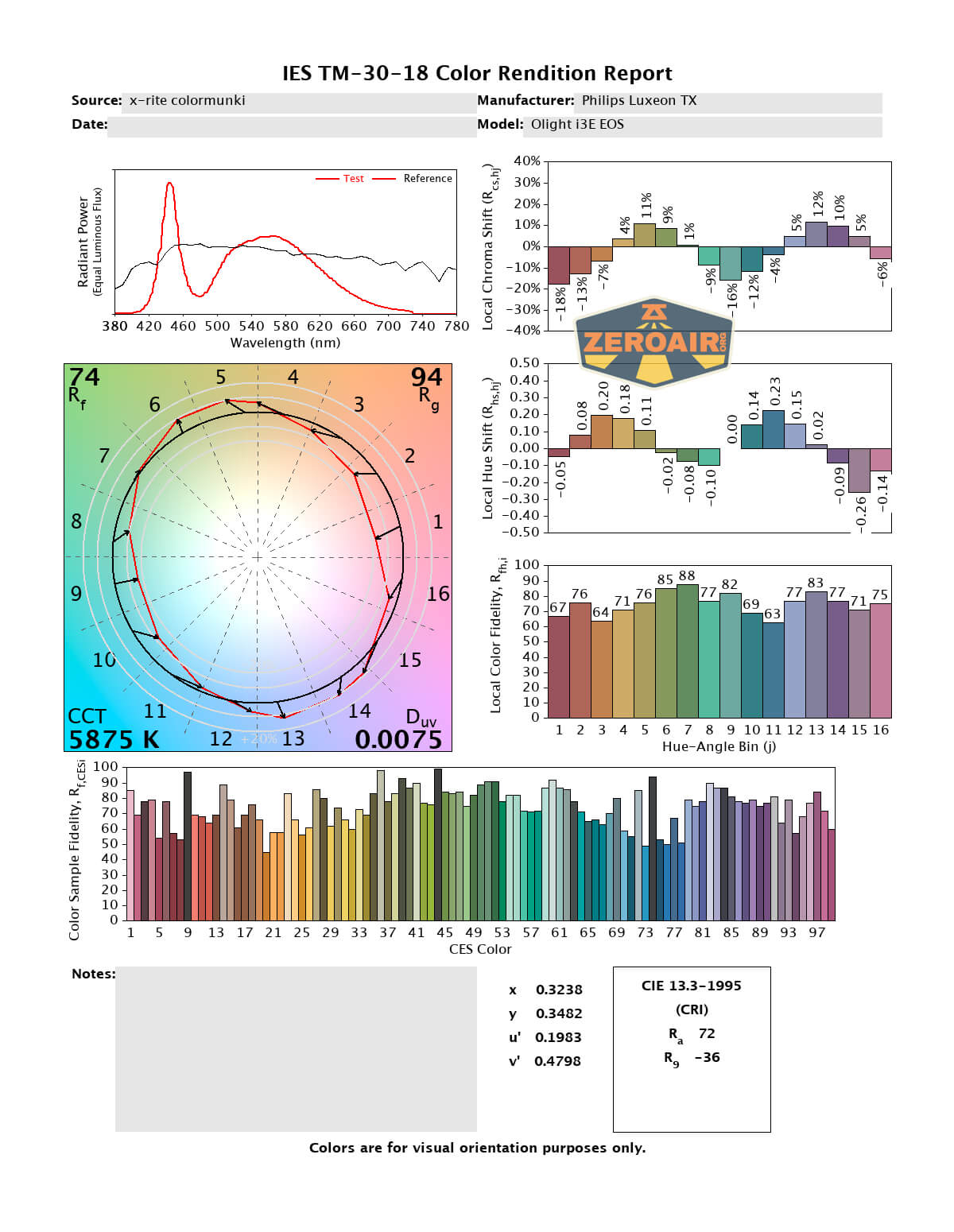

LED Color Report (CRI and CCT)
The CCT is cool at around 5900K. CRI is not high, too, at around 72.
Beamshots
These beamshots are always with the following settings:Â f8, ISO100, 0.3s shutter, and manual 5000K exposure.

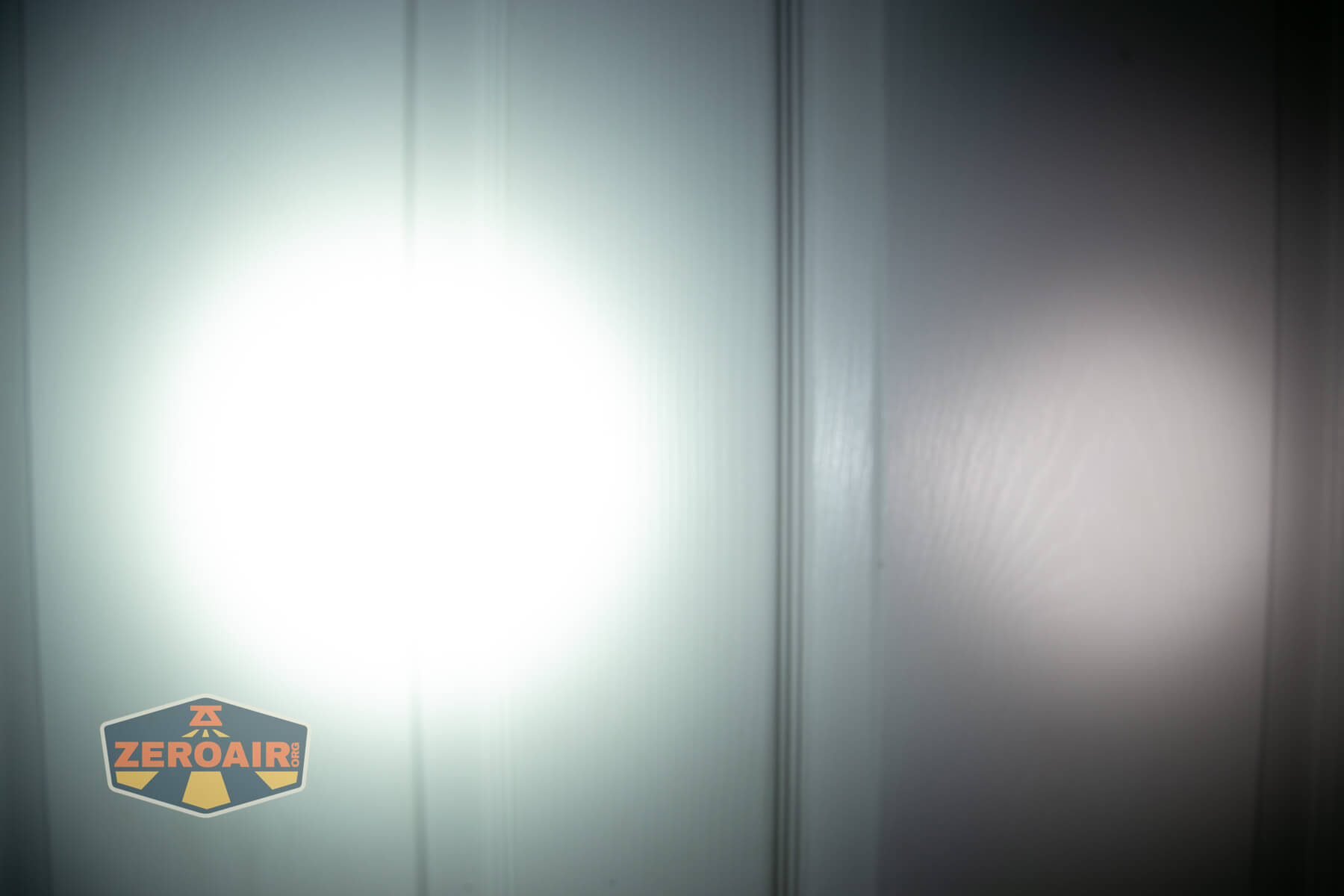

Tint vs BLF-348 (KillzoneFlashlights.com 219b version) (affiliate link)
I keep the test flashlight on the left, and the BLF-348 reference flashlight on the right.
I compare everything to the KillzoneFlashlights.com 219b BLF-348 because it’s inexpensive and has the best tint!
Conclusion
What I like
- Simplicity
- Low cost (even on the ones that aren’t free, they’re only around $10)
- Includes a cell
What I don’t like
- Just one mode – I would love a low on this light, too!
Notes
