Skilhunt EC200S EDC Flashlight Review

The Skilhunt EC200S EDC flashlight is a triple (2 and 1) emitter, USB-C charging, 18650 flashlight. It’s also available as an 18350 and with emitter options!


Skilhunt EC200S EDC Flashlight Official Specs and Features

Here’s a link to the Skilhunt EC200S EDC flashlight product page.

Versions

There are so many versions of the Skilhunt EC200S EDC flashlight! First, there are two body colors: black (seen here) and grey. Then they can be broken down into three categories. The “EC200” is a simple triple; Three of the same emitters. The “EC200S” has a secondary emitter which takes the place of one of the emitters from the triple. There are two main emitters and one secondary. The secondary can be red (which is named “EC200S-Red”), UV (which is named “EC200S-UV), or some CCT of white (just “EC200S”) (seen here).

The third category adds “Mini” to the name and can be both the triple variety (EC200) and the “secondary” variety (EC200S).

Price

These range all the way from $55.90 to around $75.90. This model as reviewed sells for $75.40.


What’s Included

Skilhunt EC200 powerful EDC flashlight what's included

  • Skilhunt EC200S EDC Flashlight
  • Skilhunt 3500mAh 18650
  • Pocket clip
  • Lanyard
  • Charging cable
  • Spare o-rings (2)
  • Magnet delete
  • Manual

Package and Manual

Build Quality and Disassembly

Skilhunt EC200 powerful EDC flashlight

Skilhunt’s build quality for the EC200S EDC Flashlight is great. That’s no surprise. I will note that the price of most current Skilhunt lights seems to continue to creep upward, but note at the same time that the quality is commensurate with the price. This is reasonably a $70 light. Or if you have your own 18650, even better at $55.

One huge improvement here is that charging is by USB-C. I’ll cover that more thoroughly below, but note that this change has no real burden – the light is definitely not too big because of this charging port.

One thing to note is that the EC200, EC200S, EC200S, and EC200S-UV all have the same markings. They are all labeled “EC200.” Of course, you can look at the emitters and tell immediately if you have the S (and which S you have). (Very convenient for review photos!)

Skilhunt EC200 powerful EDC flashlight tailcap and threads

The threads here are very smooth.

I requested that Skilhunt not glue the head to my review sample EC200. They agreed and so you can see below the head removed. There’s a plastic piece that normally covers a bunch of the driver parts and a wavy ring for continuity between the head and cell tube. I requested this because I also got a black Mini body, and now I have my own little “combo set” that can be used interchangeably. Will I ever do that? Probably not! But if you take the parts apart, note that you’ll likely face some glue, and once apart you’ll need to keep up with those two pieces.

Skilhunt EC200 powerful EDC flashlight head removed and showing parts

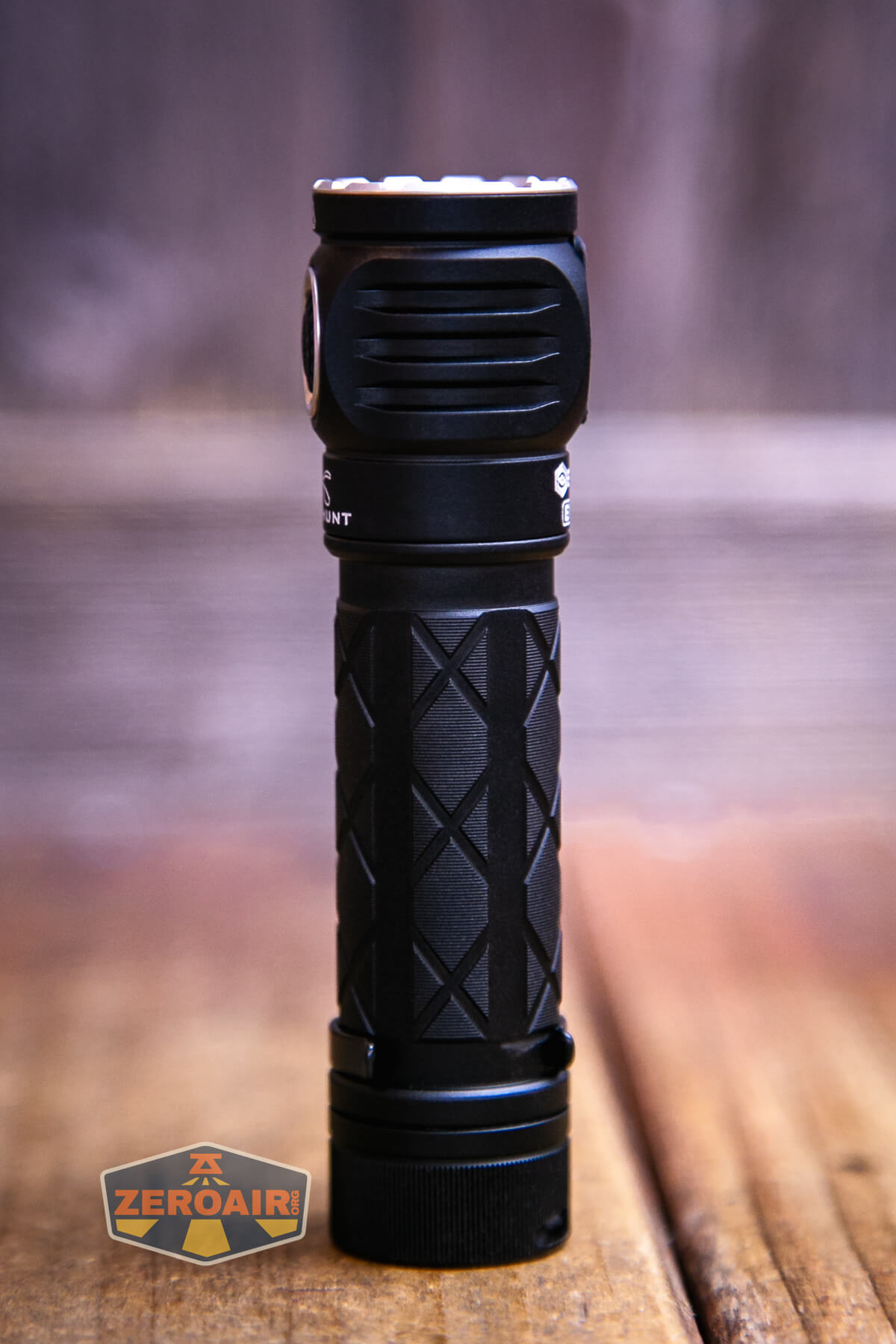

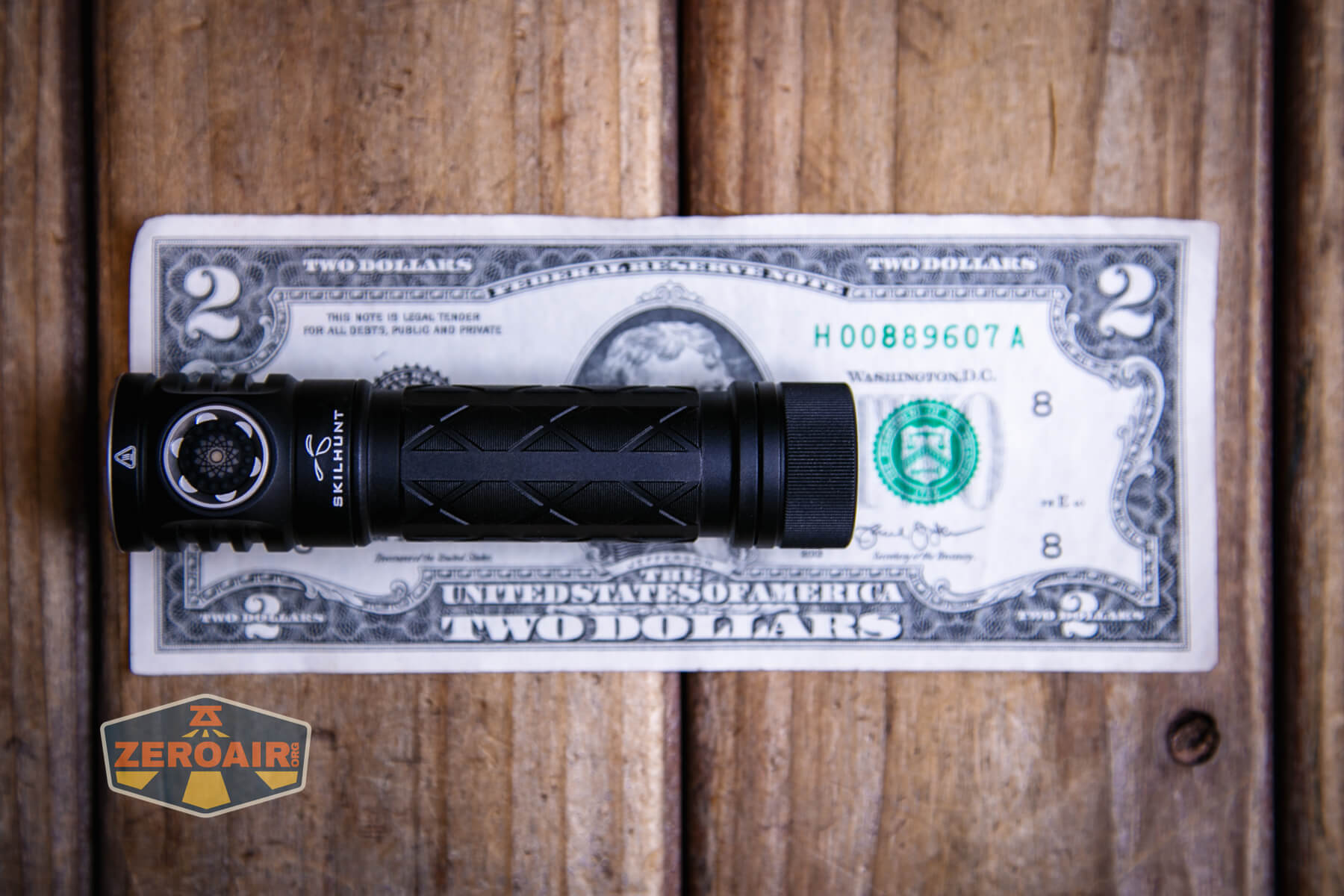

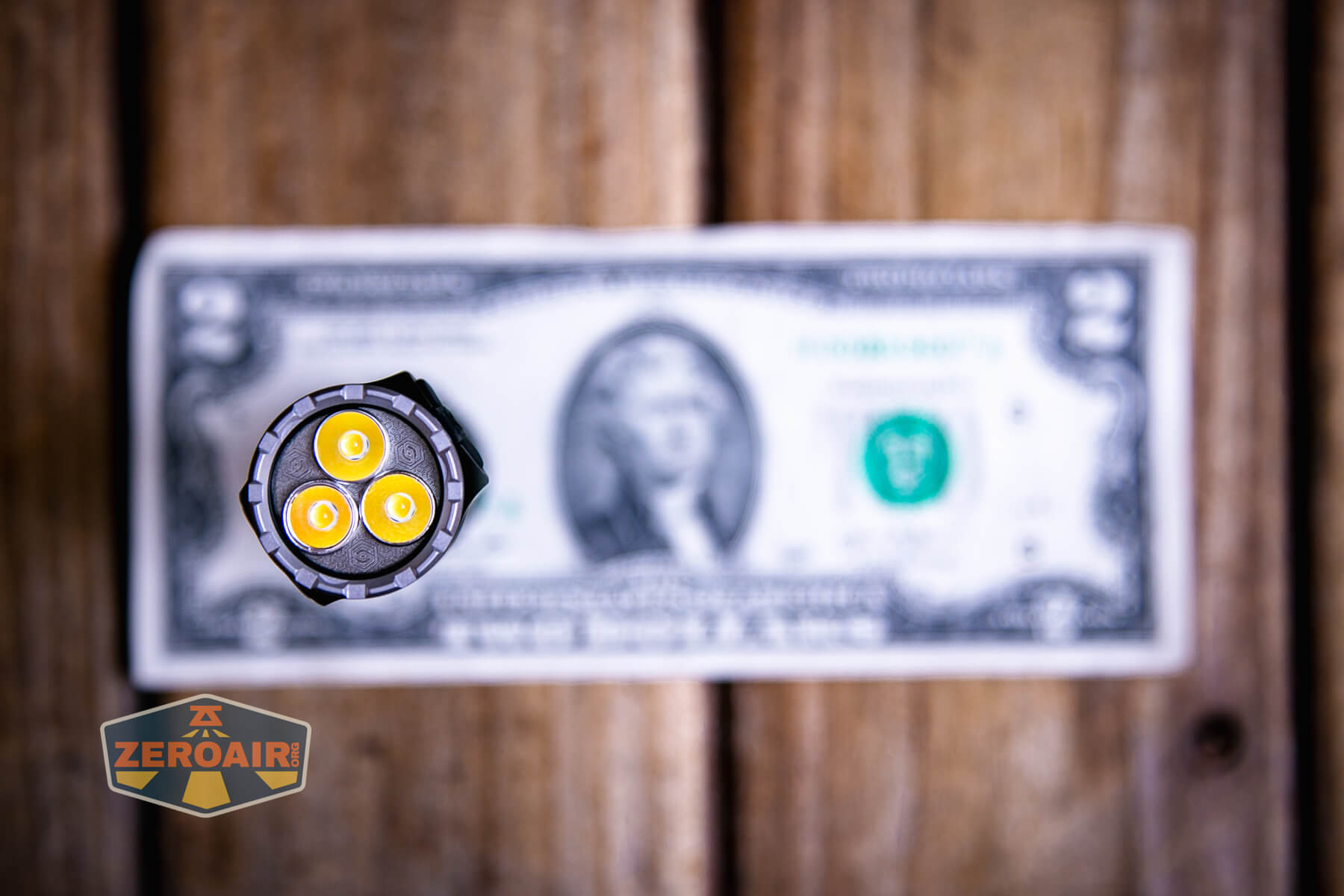

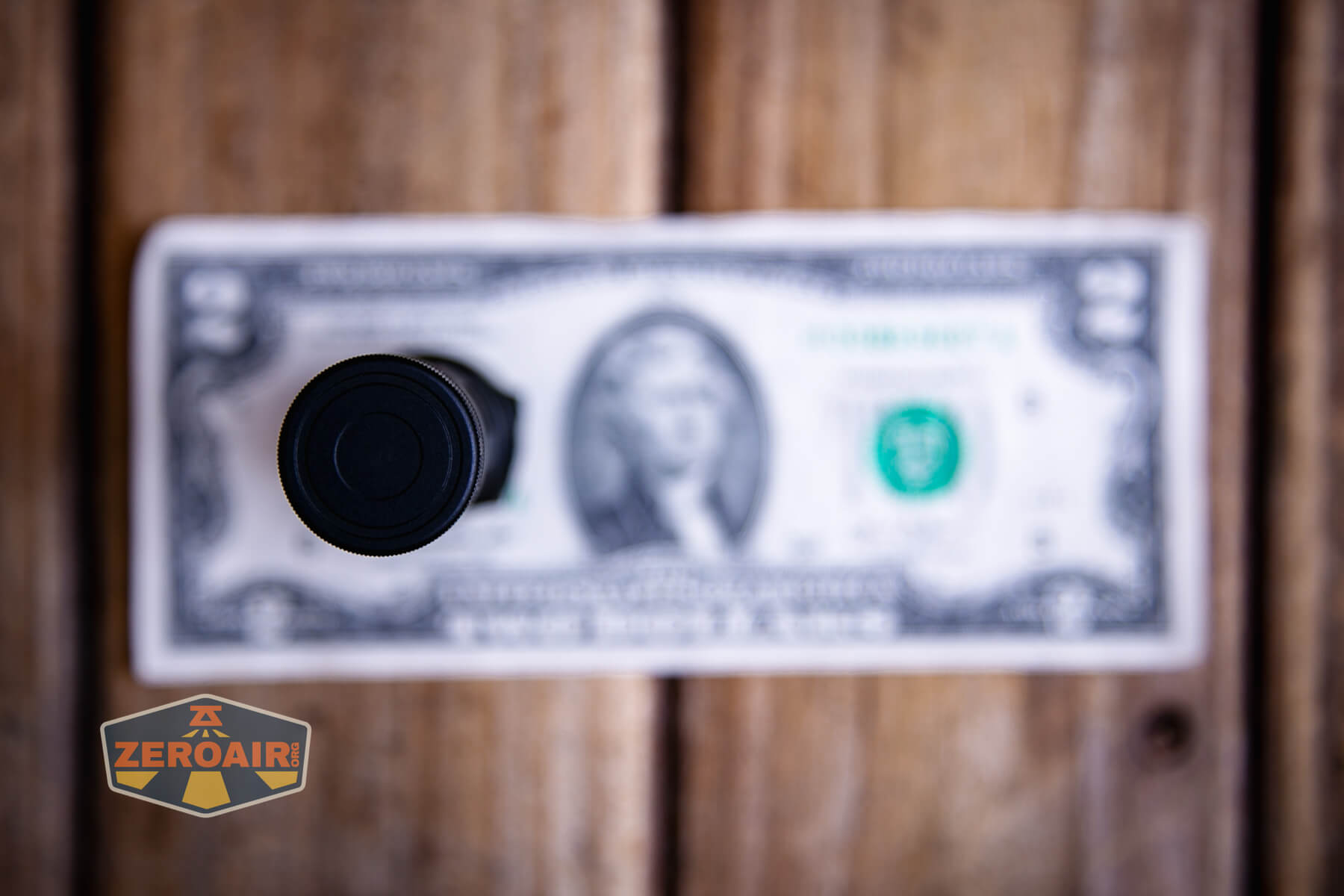

Size and Comps

102mm x 25mm x 22.2mm and 48.5g (without battery)

If the flashlight will headstand, I’ll show it here (usually the third photo). If the flashlight will tailstand, I’ll also show that (usually in the fourth photo).

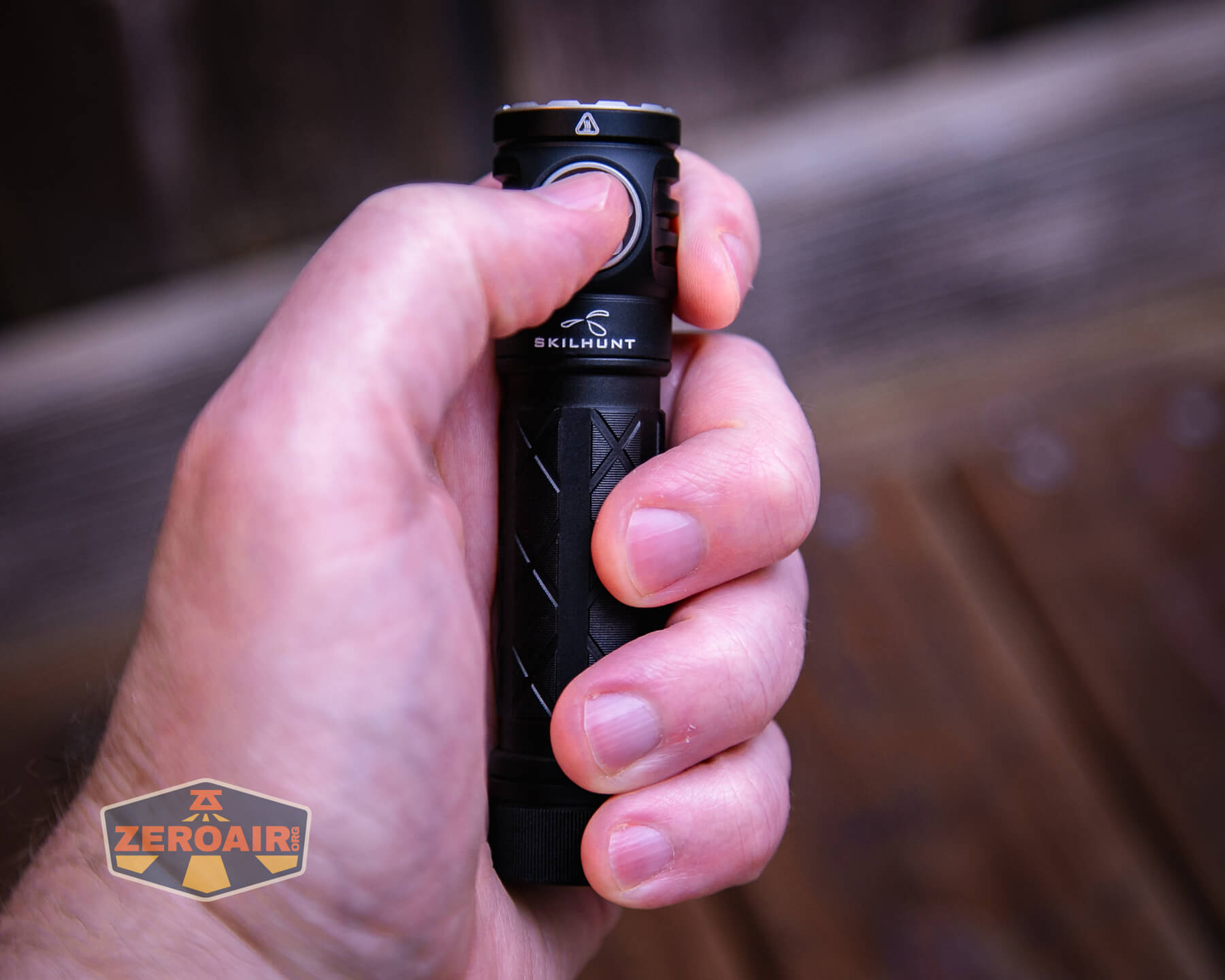

Skilhunt EC200 powerful EDC flashlight in hand

The size is absolutely fantastic, particularly with the light offering USB-C charging!!

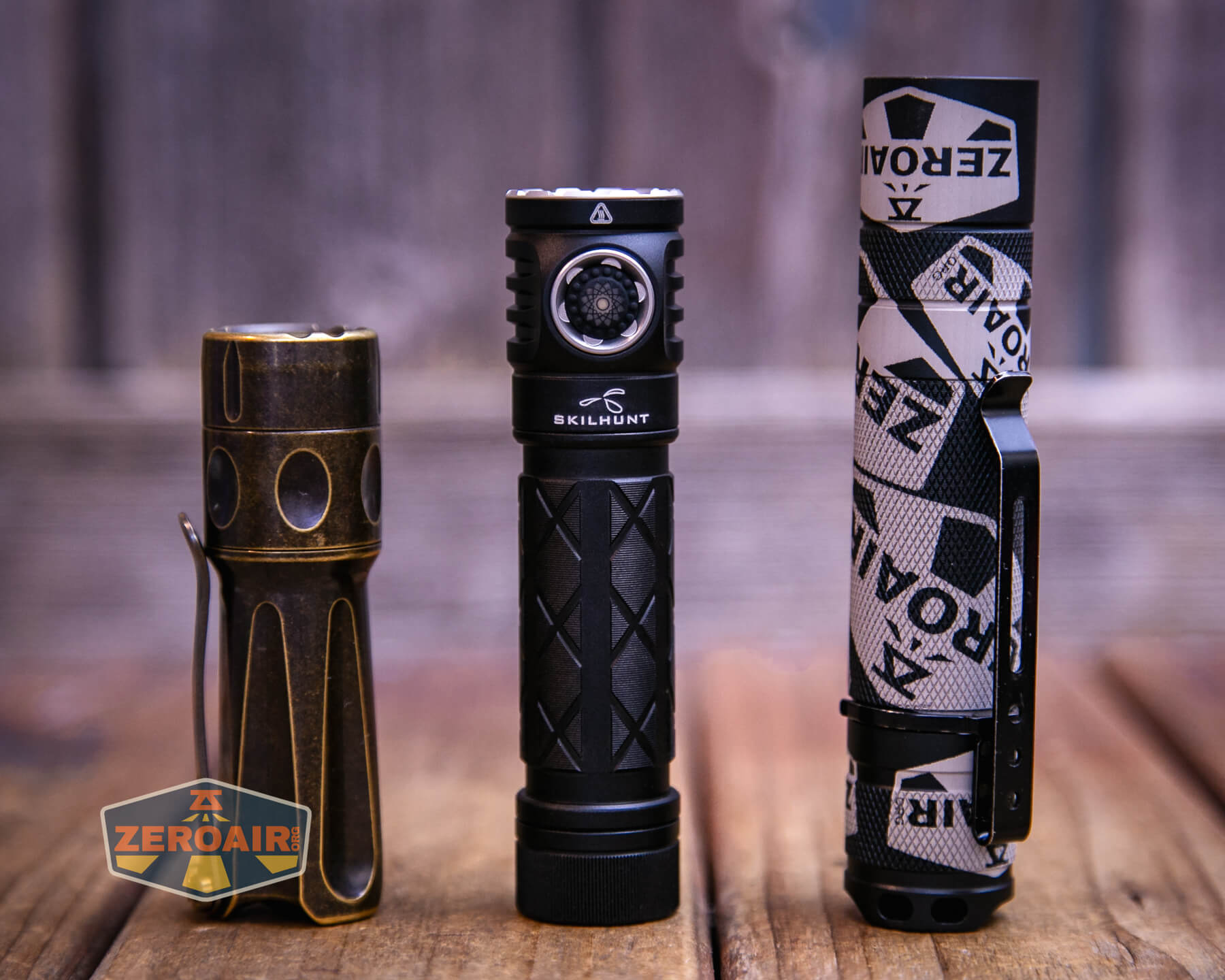

Here’s the test light with the venerable Convoy S2+. The version you see below is a custom Convoy S2+ host that’s been laser engraved by GadgetConnections.com. I did a full post on an engraved orange host right here! Or just go straight to GadgetConnections.com to buy your Convoy S2+ now!

Also above is the light beside a TorchLAB BOSS 35, an 18350 light. I reviewed the aluminum version of that light in both 35 and 70 formats. I also reviewed that specific edition, the “Oveready BOSS FT Collector Vintage Brass” 35. I love it!

Skilhunt EC200S EDC Flashlight Retention and Carry

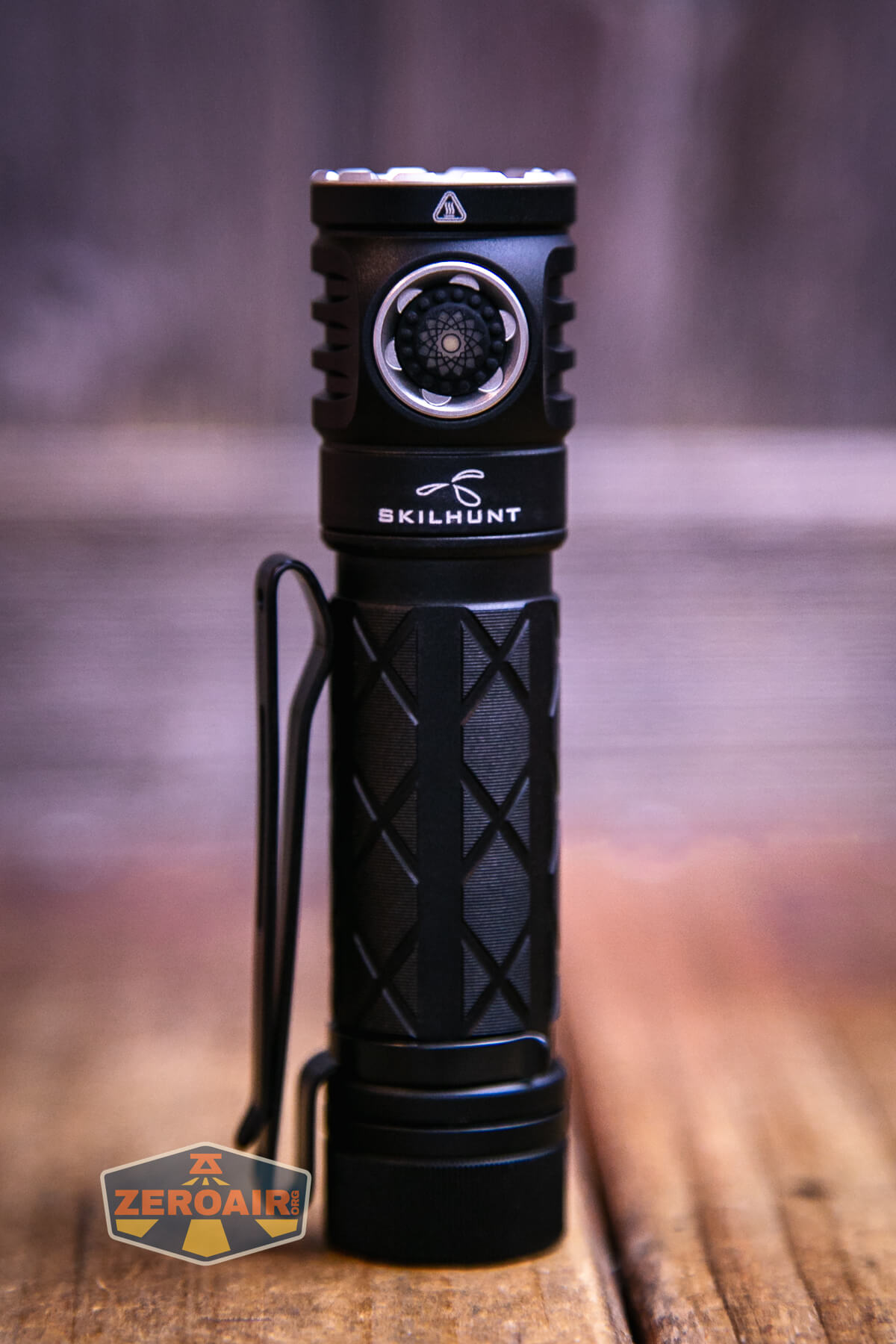

A pocket clip is included with the Skilhunt EC200S EDC flashlight. It ships unattached and is a friction-fit clip.

Skilhunt EC200 powerful EDC flashlight pocket clip off

The clip can go on the head or tail and offers two-way usage. Very versatile! There are also lanyard holes on both ends of the clip.

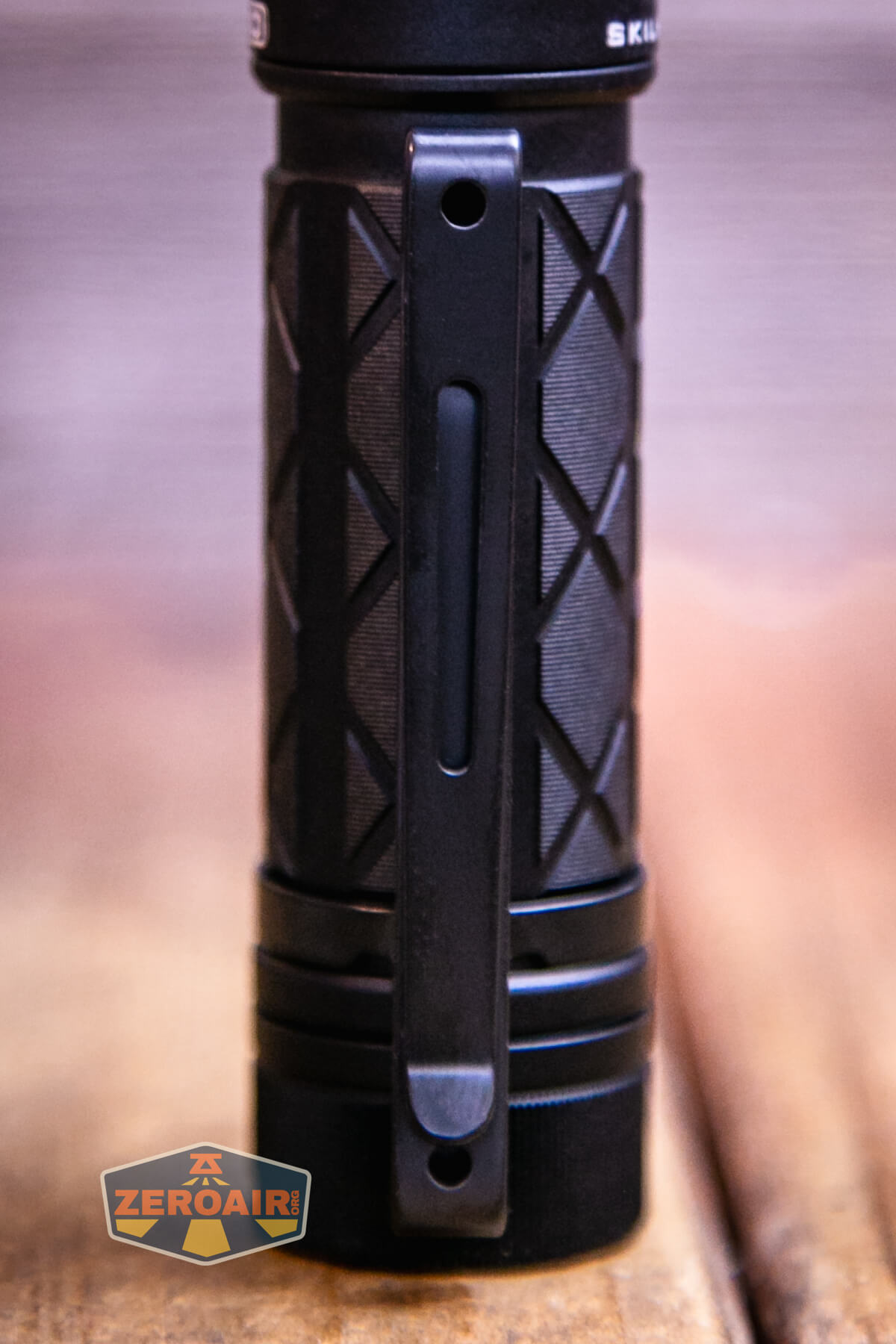

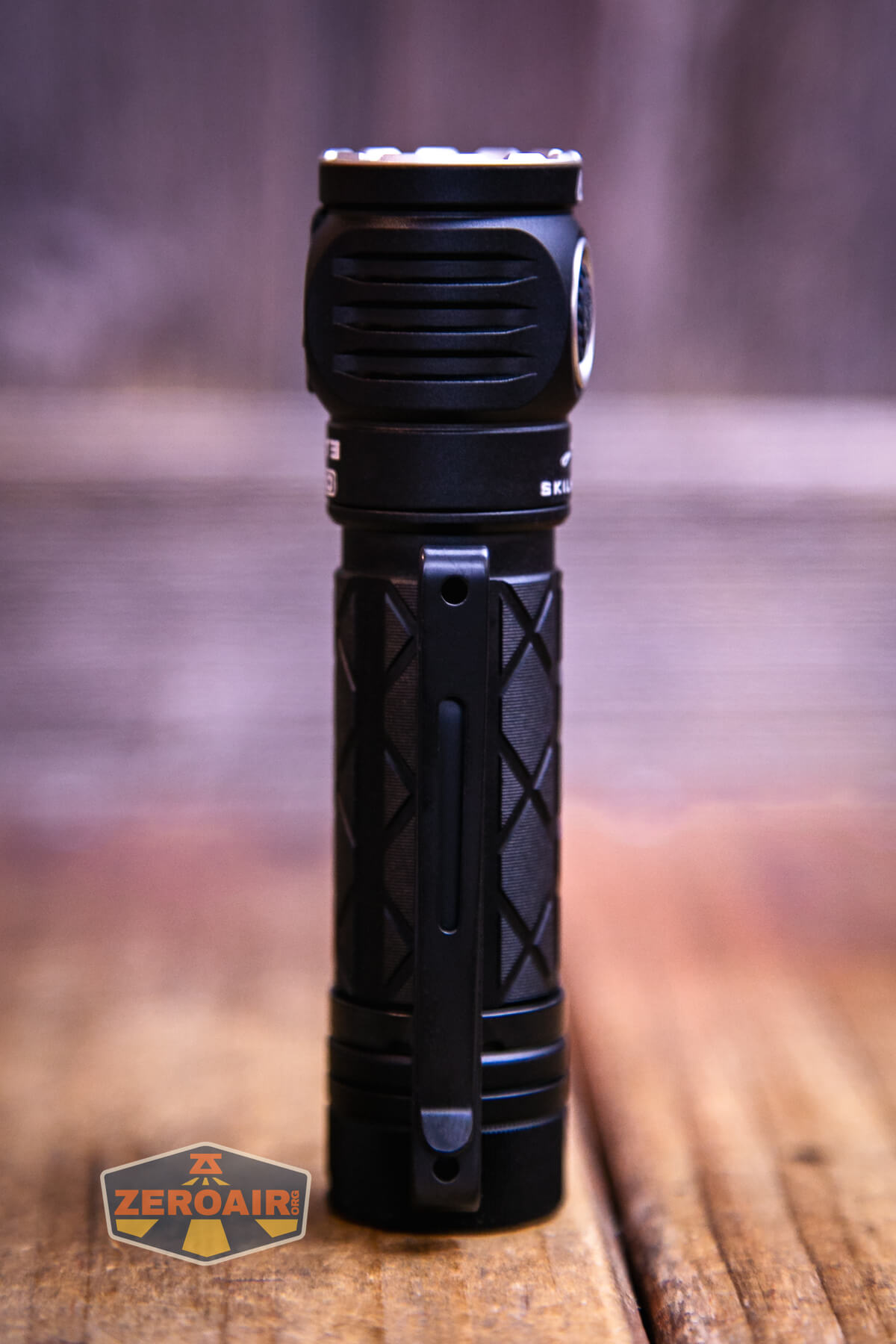

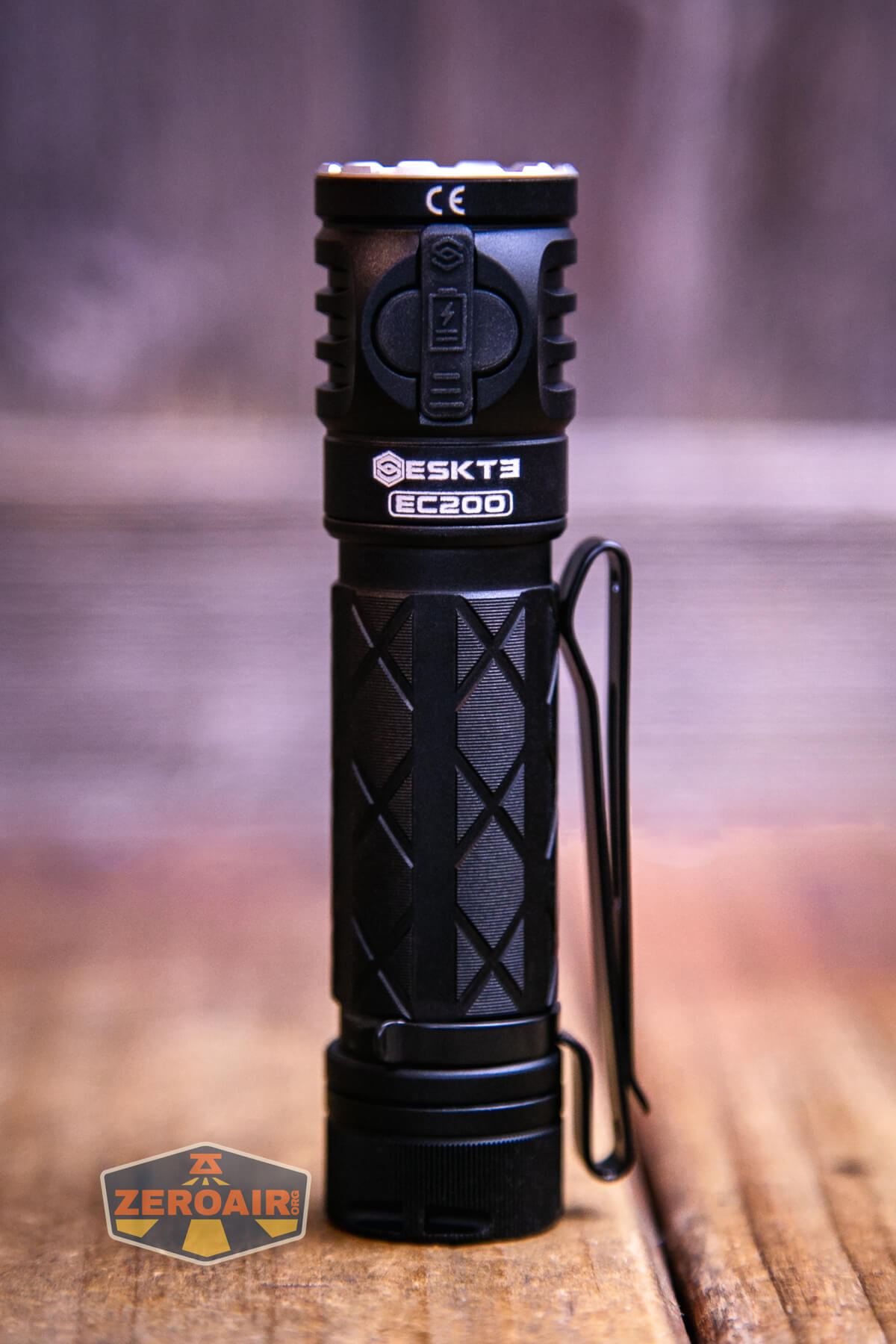

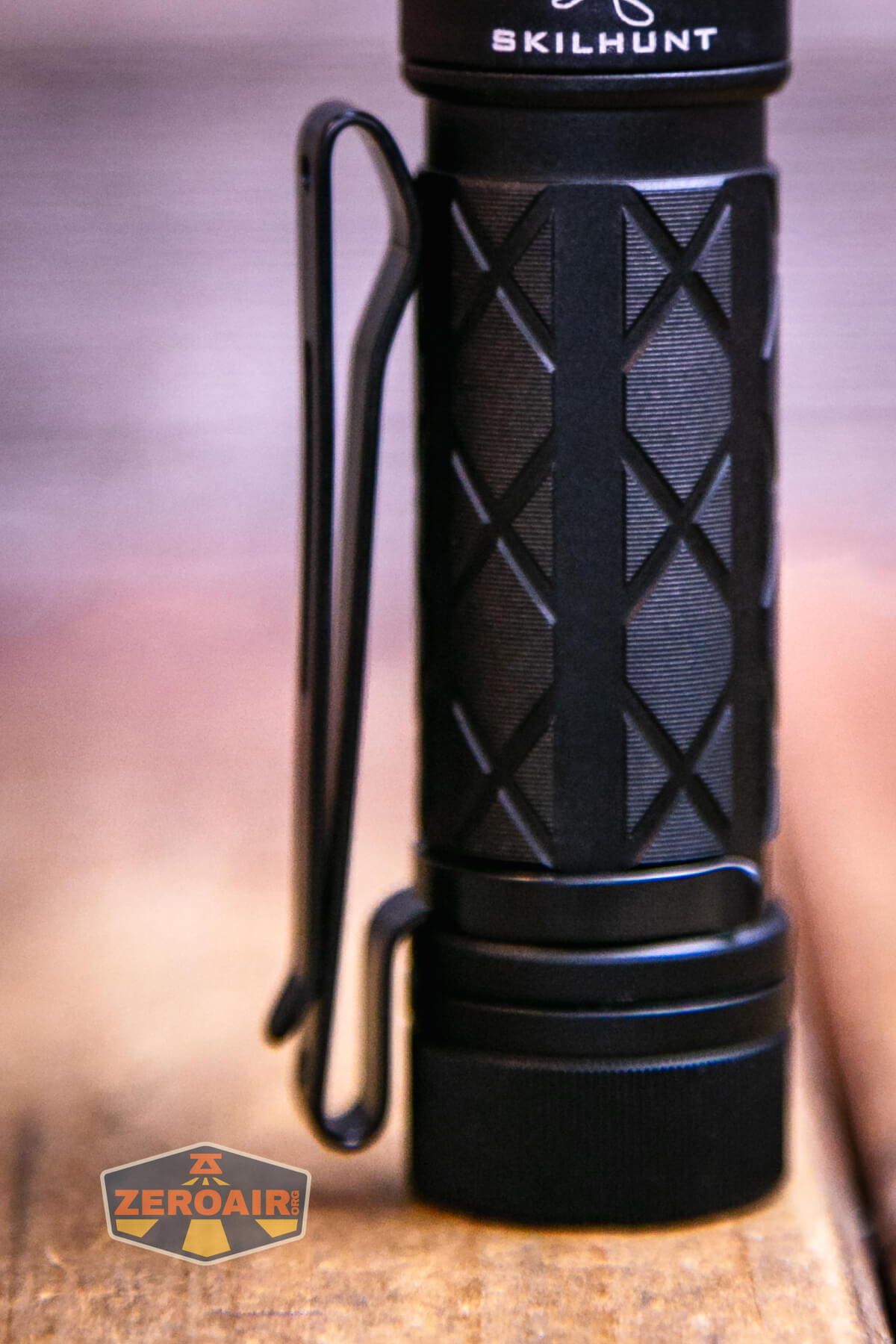

Skilhunt EC200 powerful EDC flashlight pocket clip installed

Skilhunt EC200 powerful EDC flashlight lanyard hole

Skilhunt EC200 powerful EDC flashlight lanyard

There’s a magnet in the tailcap, too. It’s plenty strong for holding the light. But if you don’t want that, you can remove the magnet and place the rubber “blank” where the magnet goes. That’ll keep your spring from being loose.

Skilhunt EC200 powerful EDC flashlight tailcap magnet in use

Finally, there’s a nylon mesh pouch. Skilhunt always ships these separately but I think you’ll get one with your order, too. The 18650 and 18350 use the same size mesh pouch.

Skilhunt EC200 powerful EDC flashlight nylon mesh bag

Power and Runtime

The Skilhunt EC200S EDC flashlight runs on a single lithium-ion cell. It’s sized for an 18650 and an appropriate 3500mAh cell is included.

Skilhunt EC200 powerful EDC flashlight with included 18650 cell

In case you forget which way to install the cell, there’s a cell orientation sticker just inside the cell tube.

Skilhunt EC200 powerful EDC flashlight cell direction sticker

The 18650 fits into the EC200 with the positive terminal toward the head, as seen below. Unlike some other 18650 Skilhunts, this one has a maximum voltage of 4.2V, so don’t try to run two 18350 cells here!

Skilhunt EC200 powerful EDC flashlight with included 18650 cell installed

Here are a few runtime tests. I wouldn’t say there’s anything super surprising here. Output is very stable once a stepdown has happened, and low voltage protection is observed. There’s also a low voltage warning from the indicating e-switch. This graph also shows the single-emitter secondary output.

Skilhunt EC200S EDC flashlight runtime graph

Skilhunt EC200S EDC flashlight runtime graph

Skilhunt EC200S EDC flashlight runtime graph

Skilhunt EC200S EDC flashlight runtime graph

This is the runtime with the highest output of the secondary emitter. The performance is a bit different, but it is still very good. There’s a big stepdown after a couple of minutes but then the output is very stable.

Skilhunt EC200S EDC flashlight runtime graph

Charging on the Skilhunt EC200S EDC Flashlight

I’ve said it over and over already but the Skilhunt EC200S EDC flashlight offers USB-C charging! Congratulations to Skilhunt for making this move on an 18650 light. I liked their old proprietary magnetic charging just fine but now that I see USB-C on here, I like this so much better! And without a real sacrifice to size, too! It’s fantastic. Of course, they’ve had this before (and for a while!) on a bigger light like the EC300 (which I also really like!)

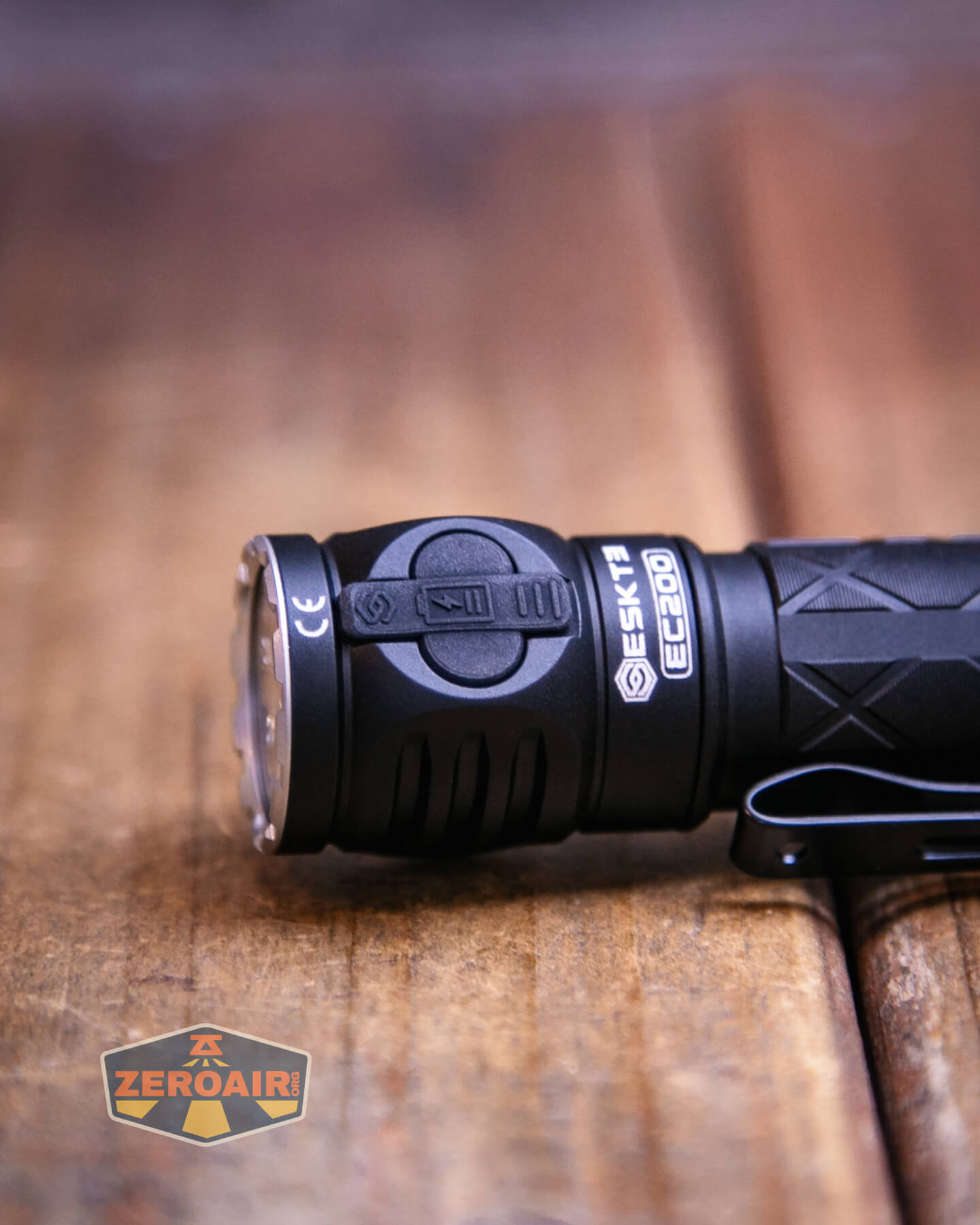

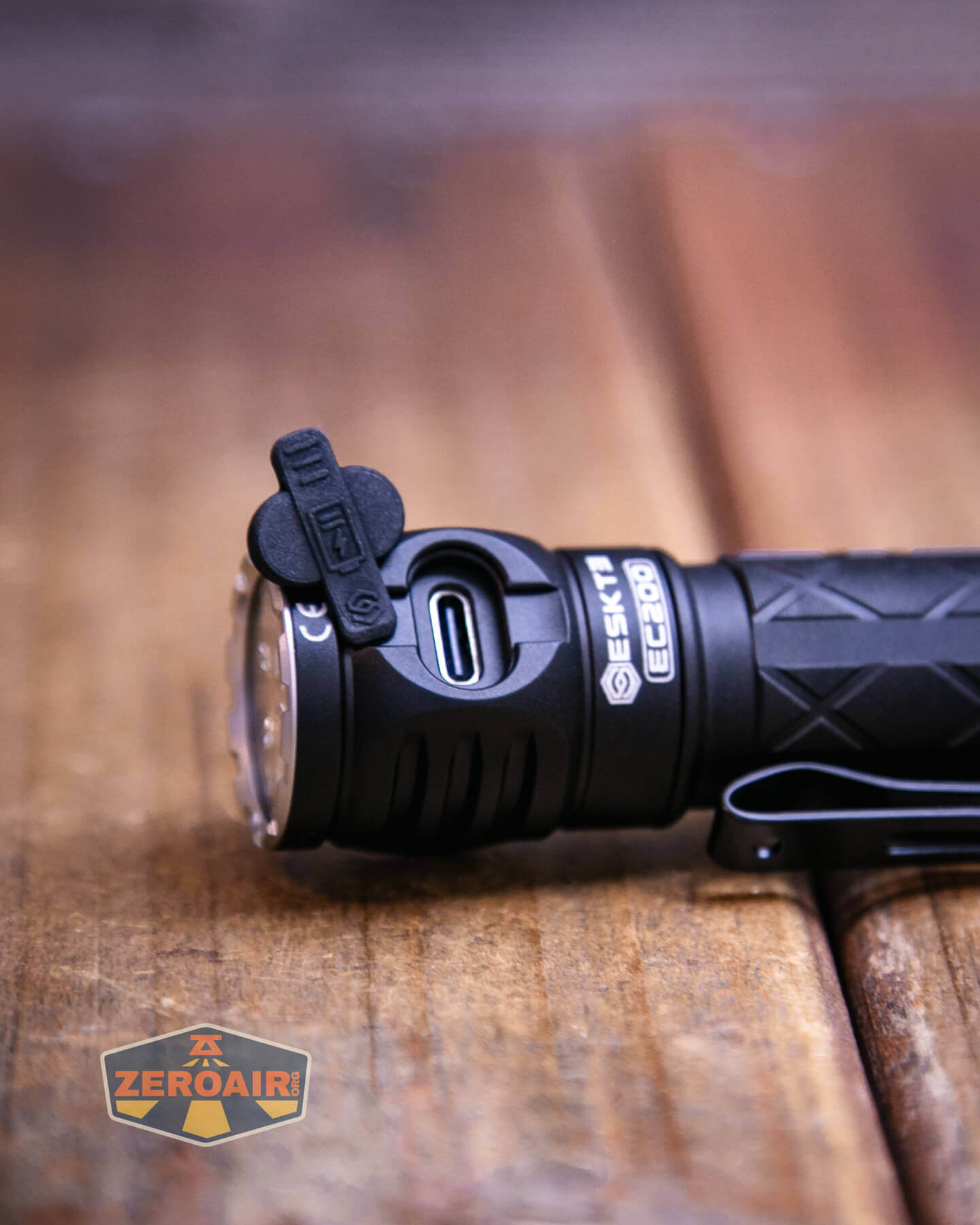

The charge port cover is a press-in silicone bit and seems very sturdy when in place. It’s also fairly sleek when closed so that it doesn’t open needlessly.

Skilhunt includes a USB-A to USB-C cable for charging.

Skilhunt EC200 powerful EDC flashlight cable

Below are tests for C to C and A to C charging. Both work just fine.

Skilhunt EC200S EDC flashlight charging graph

While charging, the switch fades blue in and out (I think the manual has this wrong – it says “red” while charging). When charging is complete, the switch is steady blue. If something is wrong with charging, the switch blinks red.

Modes and Currents

Mode Mode Claimed Output (lm) Claimed Runtime Measured Lumens Tailcap Amps
T1 1400-410-140 1m+180m+30m 1329 (0s)
1235 (30s)
5.91
T2 750-410-140 3m+180m+30m 648 (0s)
640 (30s)
1.97
H1 410-140 180m+30m 349 0.93
M1 140 10h 121 0.29
M2 40 32h 36 0.10
L1 4 100h 2.9 0.03
L1 0.6 0.31 [low]
R1 570-310 3m+180m 538 (0s)
533 (30s)
2.30
R2 115 10h 109 0.30
R3 30 35h 29 0.09
R4 3 95h 3.3 0.03

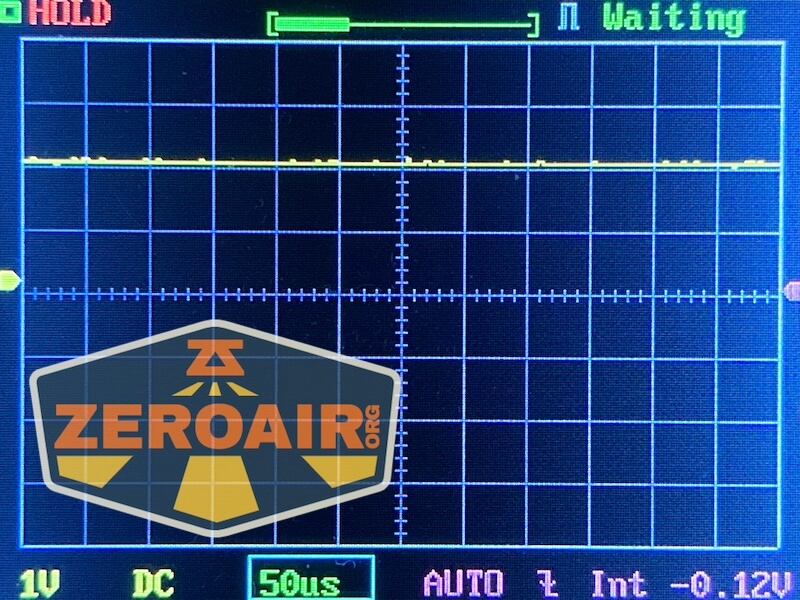

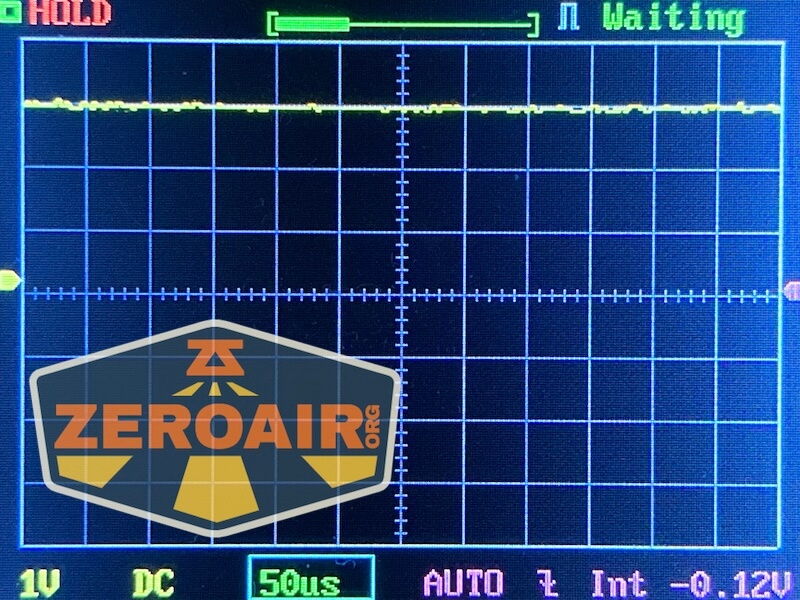

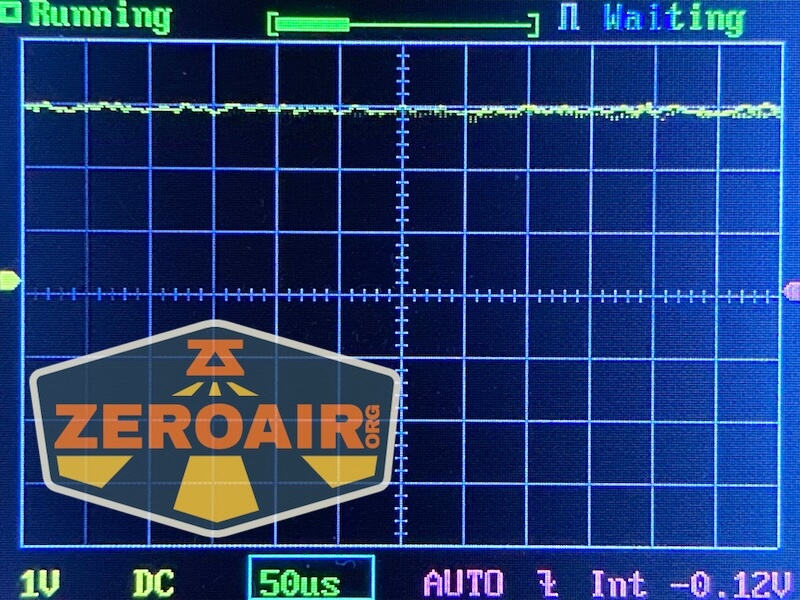

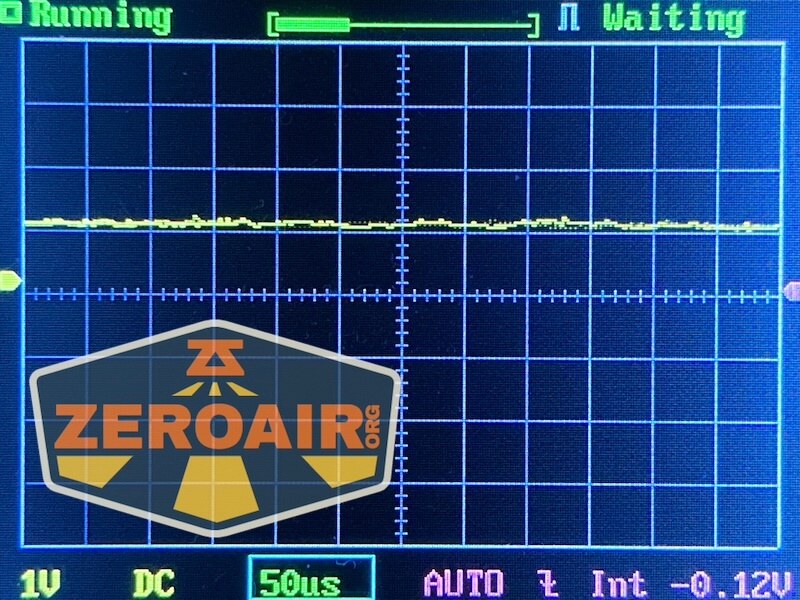

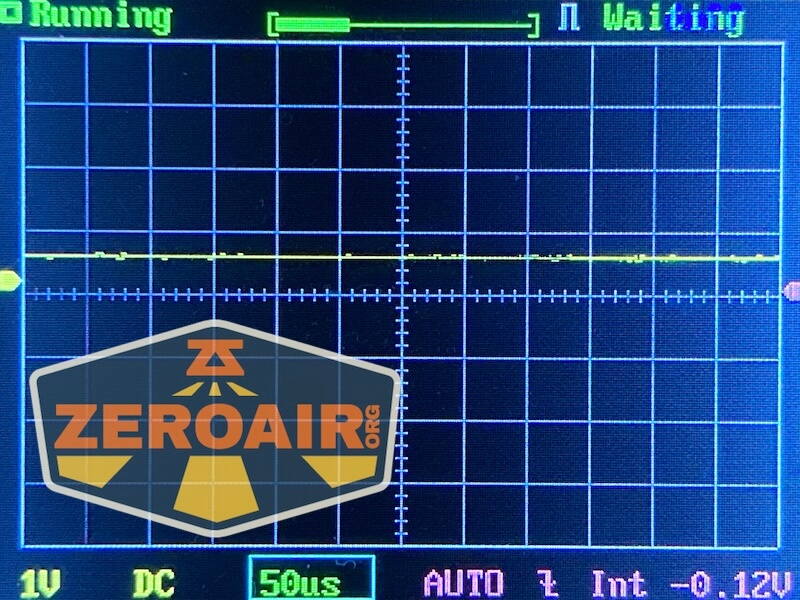

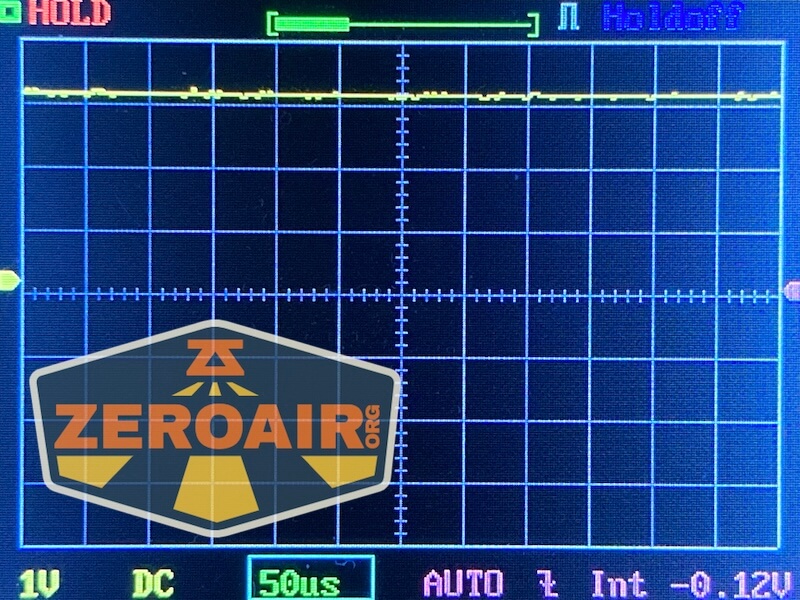

Pulse Width Modulation

None of the modes (even the secondary modes) use PWM! Yay!

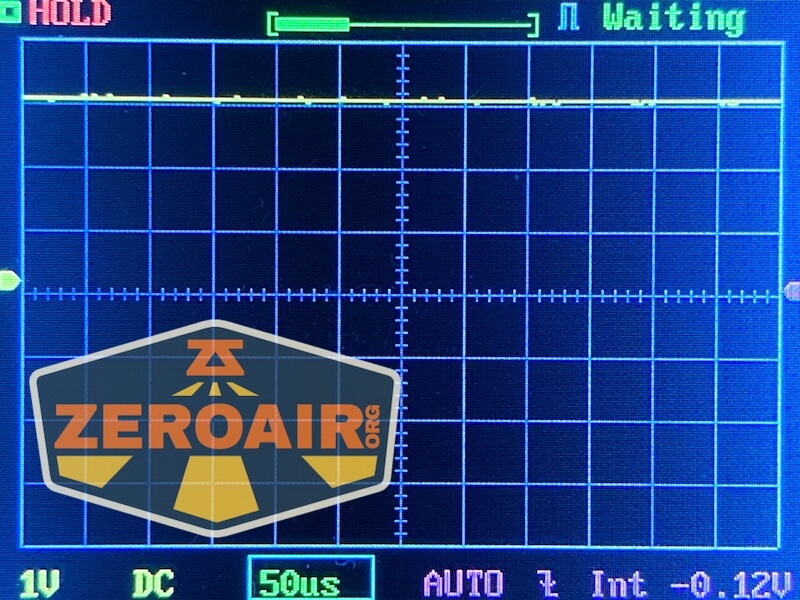

For reference, here’s a baseline shot, with all the room lights off and almost nothing hitting the sensor. Also, here’s the light with the worst PWM I could find. I’m adding multiple timescales, comparing them to the test light will be easier. Unfortunately, the PWM on this light is so bad that it doesn’t even work with my normal scale, which is 50 microseconds (50us). 10ms. 5ms. 2ms. 1ms. 0.5ms. 0.2ms. In a display faster than 0.2ms or so, the on/off cycle is more than one screen, so it’d just (very incorrectly) look like a flat line. I wrote more about this Ultrafire WF-602C flashlight and explained a little about PWM.

User Interface and Operation

The switch on this Skilhunt EC200S EDC flashlight should be very familiar. It’s very much like what Skilhunt has used for a long while (at least back to 2022 on the EC300, for example. A single e-switch controls the light. This switch has a backlight function and can light in red or blue. While the switch has a transparent center, it has an interesting design pattern printed (?) in the center. It’s another thing to like about the EC200! It’s not a functional improvement, but a nice touch.

Skilhunt EC200 powerful EDC flashlight e-switch detail

The switch is just barely proud and the action is very good.

Skilhunt EC200 powerful EDC flashlight e-switch profile

Skilhunt EC200 powerful EDC flashlight e-switch actuation

Here’s the switch lighting in red.

Skilhunt EC200 powerful EDC flashlight e-switch indicating in red
Particularly on the “base model” EC200 (the one with no secondary emitters), the user interface is familiar and simple enough. Anyway, I love the Skilhunt user interface, even if it can be said to be complex. But this one is great!

Here’s a UI table! Note that this user interface is nearly the same as other Skilhunt lights with a switch that looks like this but there’s the wrinkle of that secondary emitter.

State Action Result
Off Hold Low (Mode memory between L1 and L2)
L1 or L2 Hold Iterate between L1 and L2
L1 or L2 Click + Hold Main group (mode memory)
L1 or L2 Click 2x No result
Off Long hold (2s) Memory between L1 and L2 then W4 (specifically W4, not just “warm white group” or “warm white memory”)
Off Click 4x Lockout (Three blinks of main emitters to confirm)
Lockout Click 4x Unlock to Low group (Mode memory between L1 or L2)
Lockout Click 2x Iterate lockout indicator^
Lockout Hold Momentary Output (Appears to be approximately L1)
L1/L2 or Warm White Group Click Off
Off Click On in “Main Group” (Mode memory between M2/M1/H)
Main Group Hold Mode advance (M2 > M1 > H)
Main Group Click Off
L1/L2 or Main Group 2 clicks + hold Mode memory Warm White Group
Main Group or Off Click 2x Turbo Group (Mode memory between T1 and T2)
T1/T2 Hold Iterate between T1 (higher) and T2 (lower) output
T1/T2 Click Off
T1/T2 Click 2x Main Group (memory output)
Main Group, Off, or Turbo Group Click 3x Strobe Group (with memory)
Strobe Group Click 3x Previous Group (T1/T2 or M2/M1/H, depending on how you accessed Strobe Group)^^
Strobe Group Click 2x^^^ Strobe Advance (S1 > S2 > S3)†
Strobe Group Hold No result
Strobe Group 2 clicks + hold Warm White strobe group
Red Strobe Group Click 2x Warm White Strobe Advance (WS1 > WS2 > WS3)† (same strobes, just warm white)

^ The lockout indicator blinks a red switch every 2-3 seconds.

^^ Aside from just general mode memory (which you know I don’t like) this seems to me to be the only place where you may need to immediately remember what mode you were in so you have the experience you expect. However, the difference is getting the two highest white outputs or the three main white outputs – it won’t be that dramatic even if you don’t remember. Also note that if you accessed the strobe group from off, triple-clicking will not return to off. For continuity, it should! If you access the strobe from an off-state, a triple-click sends the light to the Main group!
^^^ Seems like the strobe group is the only group that isn’t advanced by a hold. Since there’s no hold anywhere else into or out of Strobe, I am not sure why that user interface continuity wasn’t maintained here.
† Strobes are like this:

S1: Disorienting strobe (turbo, ish)
S2: SOS (main white, some mid-High output)
S3: Simple blinking

It’s not really covered in the UI table, but the switch does indicate the power level. It does this for around 5 seconds after you turn the light on. The indicators are as follows:

Blue steady: 100-80%
Blue blinking: 80-50%
Red steady: 50-20%
Red blinking: 20-0%

LED and Beam

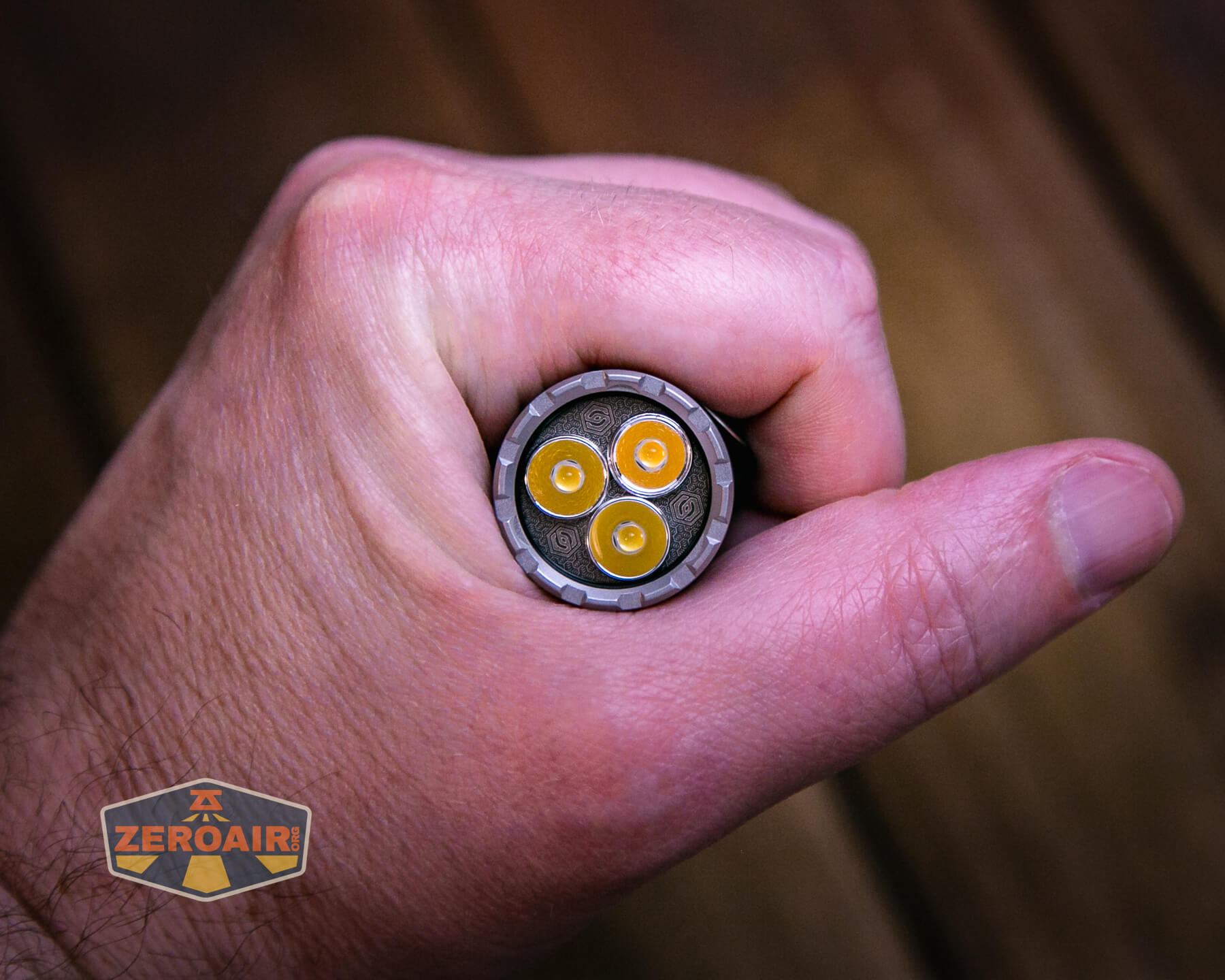

This Skilhunt EC200S EDC flashlight has three Nichia 519a emitters. It’s a “triple” in some sense, and slots right into that “BOSS” category but this model offers a warm white secondary! I love it! It adds USB-C charging to that slot for me though, which is a huge bonus! The “warm white secondary” is different from the BOSS though, since the BOSS has three main emitters then a secondary. Either way…

Skilhunt EC200S EDC flashlight emitter array

It’s hard to see it here I think, but this light does not use an optic – each emitter has a tiny little cup reflector! If you get other “S” variants like the “warm white white” or UV, you may purchase a little filter. If you get the little filter, you will note that the secondary emitter reflector cup has a tiny lip where this filter rests comfortably. You can see that in the image below – the top-most reflector has the lip. The red variant does not have that. Among other nice touches that Skilhunt has offered on these lights, this is one. They could have just thrown all “lipped” reflectors over these secondary emitters. That they didn’t mean (either that) they are exceptionally interested in all the details being right or (/and) that the lipped reflectors are more costly. We’ve seen the driver differences in this 18350 version, so let’s assume the best of those options!

Skilhunt EC200S EDC flashlight reflector cups

It’s a nice detail, anyway. I do have pictures of the amber filter.. somewhere. I’ll add those in a future review! If you didn’t want red but do want non-white secondary, you can use that amber filter!

One more thing to note about these reflectors. The 2x white emitters have different reflectors, too! One is smooth and will offer superior throw. One is orange peel and will diffuse the beam for great smoothness and diminishing of artifacts. It’s a very good setup.

The bezel screws in over and there’s a glass lens over the reflectors. This stainless bezel also has teeth (or “shape”) that allow light to escape when headstanding.

Skilhunt EC200 powerful EDC flashlight headstanding

Below you can see both 4500K emitters on.

Skilhunt EC200S EDC flashlight two emitters on

And here’s just the 3000K emitter. It seems that there are options for the 2-up emitter but the secondary (single) emitter is always 3000K warm white R9080. You can’t, for example, have two 3000K and one 4500K or one Cree.

Skilhunt EC200S EDC flashlight one emitter on

Skilhunt EC200S EDC flashlight emitters on

Skilhunt EC200S EDC flashlight emitter on

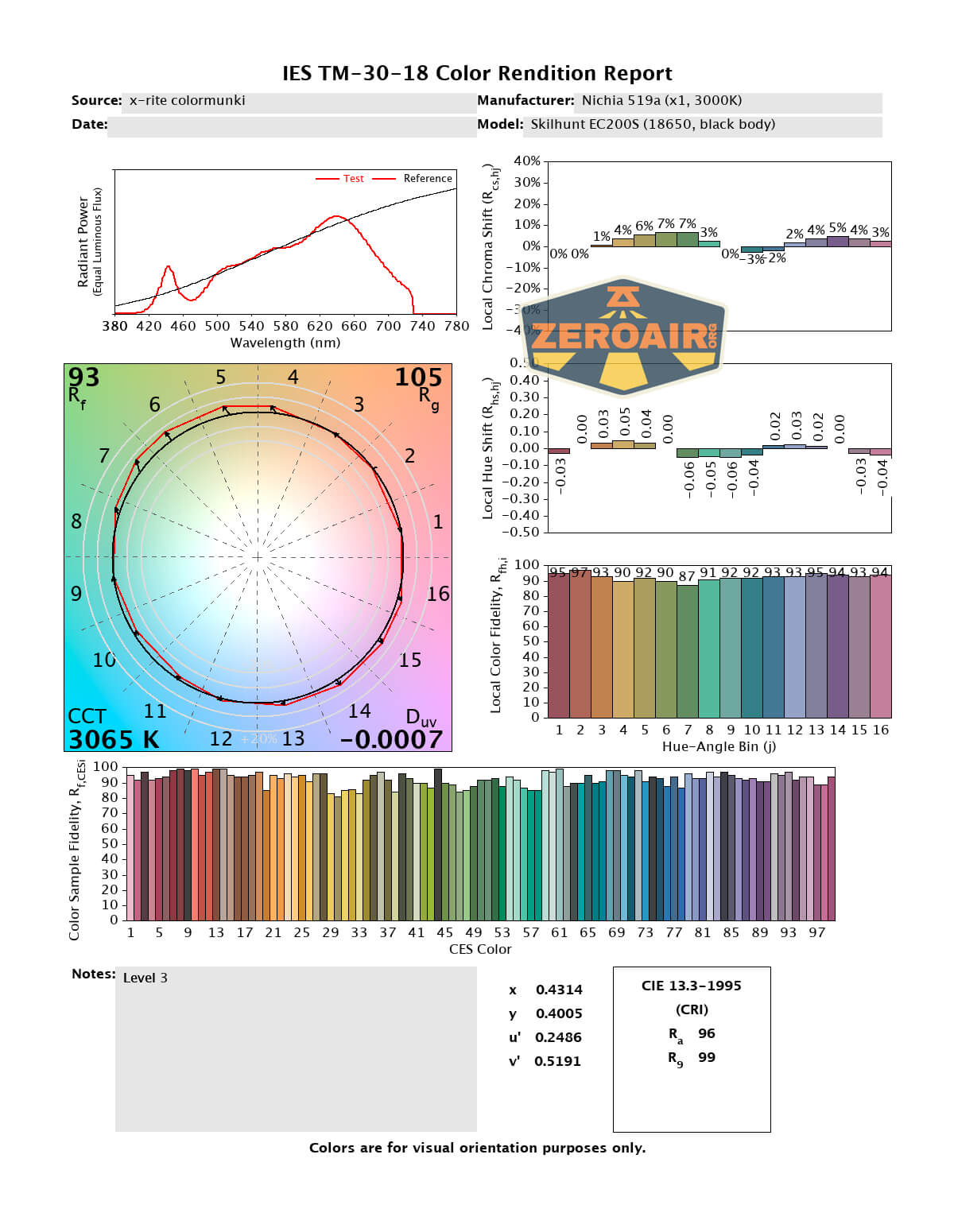

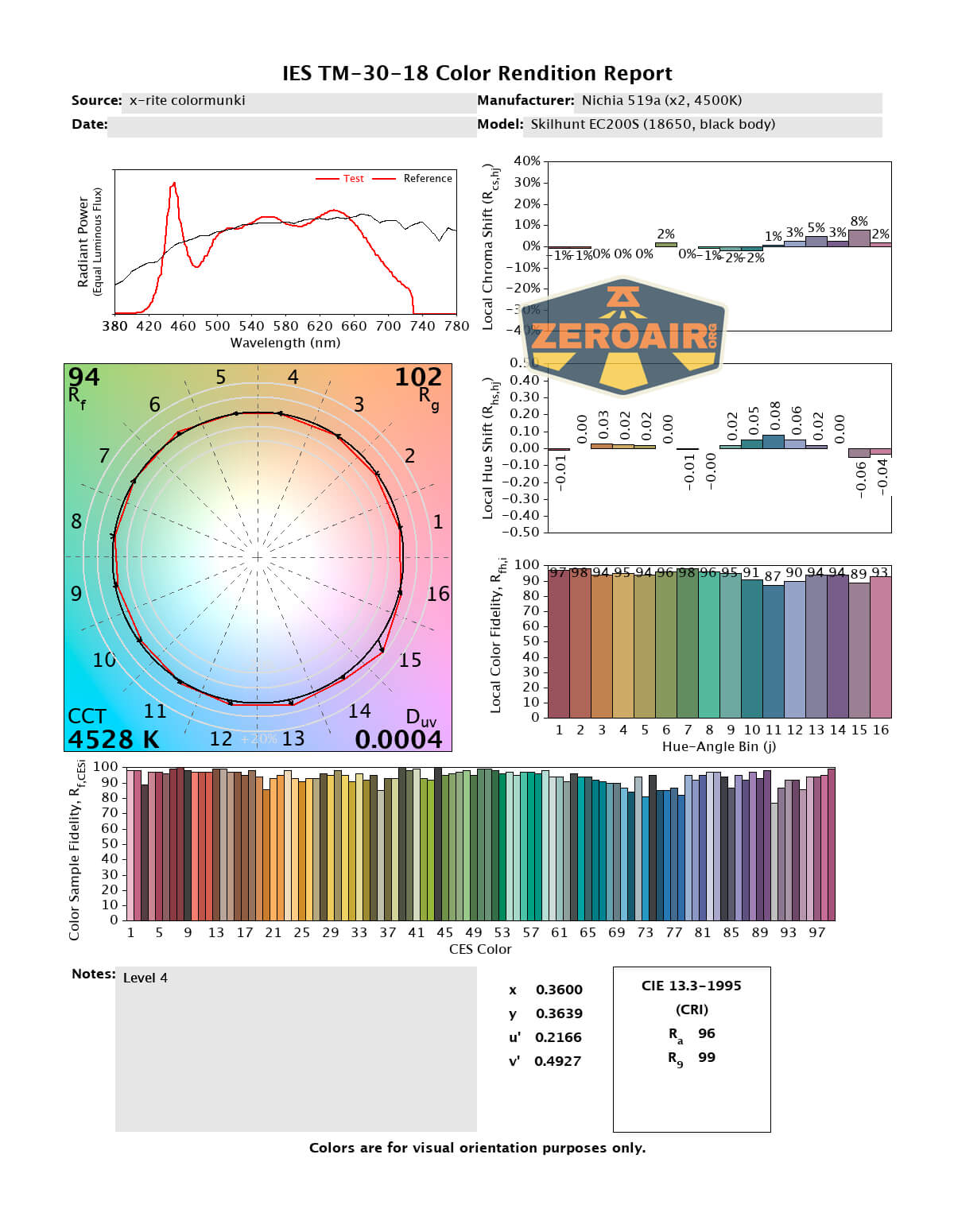

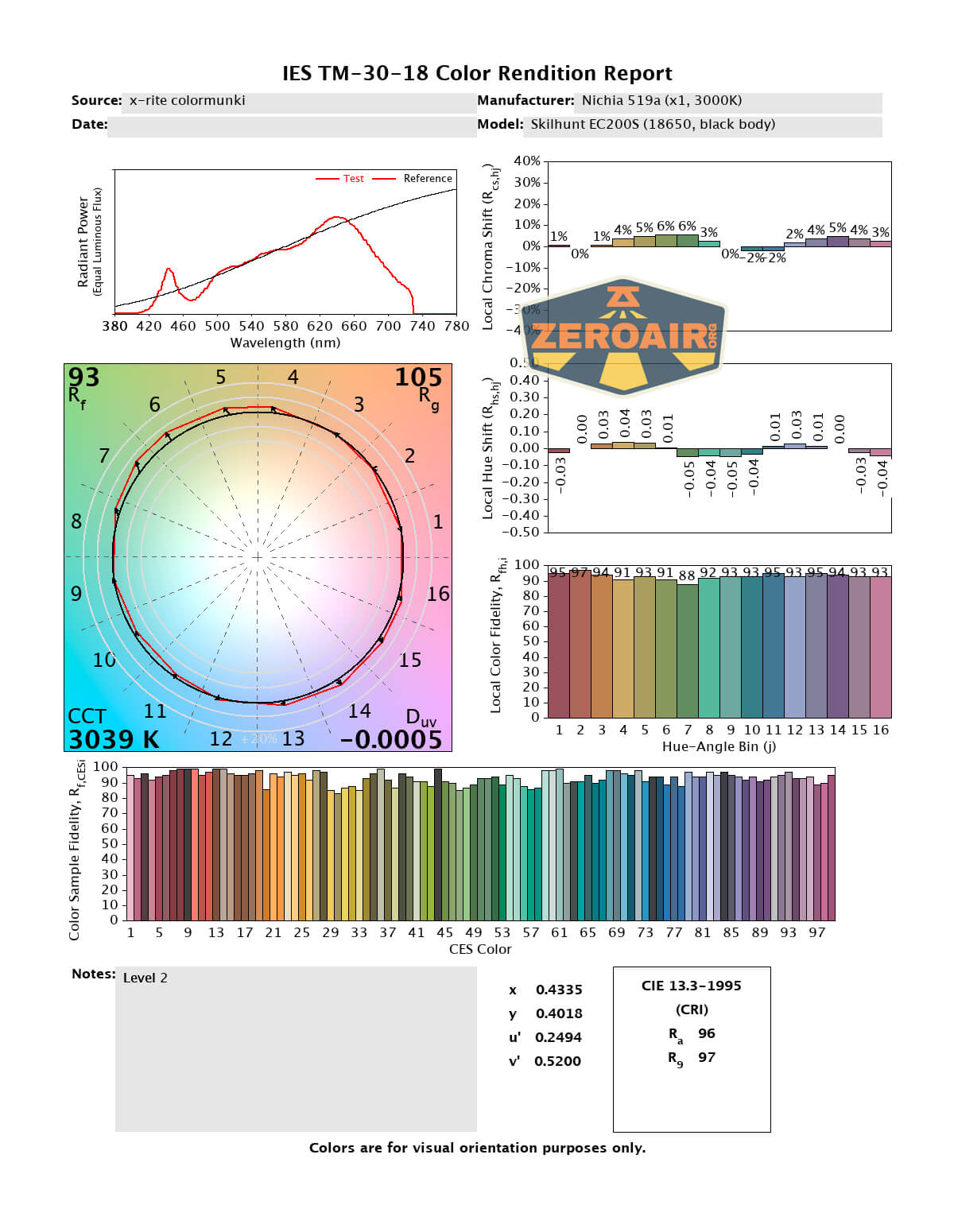

LED Color Report (CRI and CCT)

As you should expect from the incredible Nichia 519a emitters, the output is fantastic. It’s very nearly on the BBL (which is good, that’s what you want) and also has the “as claimed” CCT (ranging from 4300K to around 4500K.) CRI is also very high, at over 96. CCT matches the claim and CRI is very high – that’s true for all three emitters, the 4500K and 3000K, too!

This is very, very good output.

Beamshots

These beamshots are always with the following settings:  f8, ISO100, 0.3s shutter, and manual 5000K exposure. These photos are taken at floor level and the beam hits the ceiling around 9 feet away.

Tint vs BLF-348 (KillzoneFlashlights.com 219b version) (affiliate link)

I keep the test flashlight on the left, and the BLF-348 reference flashlight on the right. These photos are taken around 18 inches from the door.

I compare everything to the KillzoneFlashlights.com 219b BLF-348 because it’s inexpensive and has the best tint!

Summary and Conclusion on the Skilhunt EC200S EDC Flashlight

If it’s not clear from the text above, I’m practically gushing about all versions of this light. I love the “simple” triple version. There are other options if something else suits your needs, but the body is the same. That’s also fantastic. USB-C charging works great. The user interface is great. CRI and CCT are great. Everything here is great. (And if other versions of the Skilhunt EC200 suit your fancy more, stay tuned! I have others from this series to post. 😀 ) I love the 3000K offered here and I love the amber filter!!!

The Big Table

Skilhunt EC200S (Black Body)
Emitter: 2x Nichia 519a (4500K)
Price in USD at publication time: $75.40
Cell: 1×18650
Runtime Graphs
LVP? Yes
Switch Type: E-Switch
Quiescent Current (mA): ?
On-Board Charging? Yes
Charge Port Type: USB-C
Charge Graph
Power off Charge Port with cell: all modes
without cell and/or tailcap: all modes except T1
Claimed Lumens (lm) 1400
Measured Lumens (at 30s) 1235 (88.2% of claim)^
Candela per Lumen 2.74
Claimed Throw (m) 109
Candela (Calculated) in cd (at 30s) 168lux @ 4.581m = 3526cd
Throw (Calculated) (m) 118.8 (109% of claim)^
Claimed CCT 4500
Measured CCT Range (K) 4500-4700 Kelvin
Item provided for review by: Skilhunt
All my Skilhunt reviews!
Skilhunt EC200S (Black Body)
Emitter: 3000K (1x R9080)
Price in USD at publication time: $75.40
Cell: 1×18650
Runtime Graph
Power off Charge Port with cell: all modes
without cell and/or tailcap: all modes except T1
Claimed Lumens (lm) 570
Measured Lumens (at 30s) 538 (94.4% of claim)^
Candela per Lumen 1.76
Claimed Throw (m) 58
Candela (Calculated) in cd (at 30s) 89lux @ 3.552m = 1123cd
Throw (Calculated) (m) 67.0 (115.5% of claim)^
Claimed CCT 3000
Measured CCT Range (K) 3000-3100 Kelvin
Item provided for review by: Skilhunt
All my Skilhunt reviews!

^ Measurement disclaimer:  Testing flashlights is my hobby. I use hobbyist-level equipment for testing, including some I made myself. Try not to get buried in the details of manufacturer specifications versus measurements recorded here; A certain amount of difference (say, 10 or 15%) is perfectly reasonable.

What I like about the Skilhunt EC200S EDC Flashlight

  • Size
  • USB-C charging (particularly for the size)
  • USB-C charging is specific to the body size (the charge rate isn’t too high for the cell)
  • Good emitter options
  • The Nichia 519a seems extra incredible in this light (both CCTs are R9080, which means it should be great)
  • Excellent user interface
  • Available as a “mini” (which makes a great 18350/18650 combo)
  • Very good “lowest” output
  • Reflector cups are smooth and orange peel on the 2x white mode, providing a superior beam shape.

What I don’t like

  • The cell adds a surprising cost to the package
  • Still there are just tiny inconsistencies in the user interface when there’s a secondary emitter involved. It’s very good but could be a little bit better.
