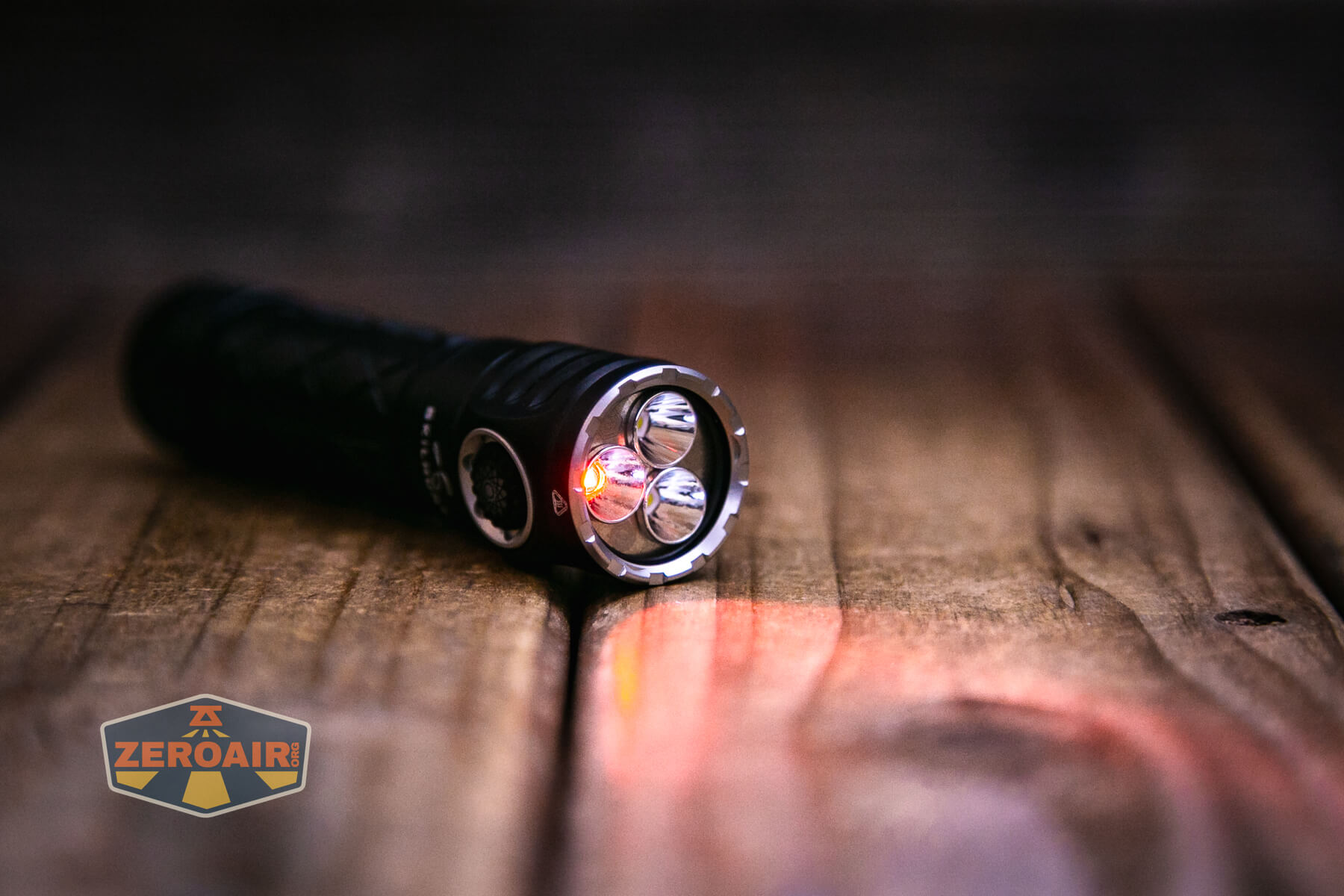

Skilhunt EC200S-Red Luminus SFT25R Flashlight Review
The Skilhunt EC200S-Red Luminus SFT25R flashlight has USB-C charging, runs on one 18650, and uses two white and one red LED. Read on for testing!
Official Specs and Features
Here’s a referral link to the Skilhunt EC200S-Red Luminus SFT25R Flashlight product page.
Versions
There are so many versions of the Skilhunt EC200 flashlight! First, there are two body colors: black (seen here) and grey. Then they can be broken down into three categories. The “EC200” is a simple triple; Three of the same emitters. The “EC200S” has a secondary emitter, which takes the place of one of the emitters from the triple. There are two main emitters and one secondary. The secondary can be red (which is named “EC200S-Red”), UV (which is named “EC200S-UV), or some CCT of white (just “EC200S”). The new thing here is that the Skilhunt EC200S-Red Luminus SFT25R flashlight adds the Luminus SFT25R option to the mix of emitters!
The third category adds “Mini” to the name and can be both the triple variety (EC200) and the “secondary” variety (EC200S).
Price
These range all the way from $55.90 to around $75.90. This model, as reviewed, sells for $66.50.
What’s Included
- Skilhunt EC200S-Red Luminus SFT25R Flashlight
- Skilhunt 3500mAh 18650
- Pocket clip
- Lanyard
- Charging cable
- Spare o-rings (2)
- Magnet delete
- Manual
Package and Manual
Build Quality and Disassembly
Skilhunt’s build quality for the Skilhunt EC200S-Red Luminus SFT25R flashlight is great. That’s no surprise. I will note that the price of most current Skilhunt lights seems to continue to creep upward, but note at the same time that the quality is commensurate with the price.
Also, since there’s a TON of overlap between this light and the EC200 and EC200S (18650 version) and others, you may note a good bit of similar text from other versions of this light that I’ve reviewed. I appreciate Skilhunt’s consistency with these lights!
One thing to note is that the EC200, EC200S, EC200S, and EC200S-UV all have the same markings. They are all labeled “EC200.” Of course, you can look at the emitters and tell immediately if you have the S (and which S you have).
One huge improvement of the EC200S-Red is USB-C charging. I’ll cover that more thoroughly below, but note that there’s no real burden to this change – the light is definitely not too big because of this charging port.
The threads here are very smooth.
Size and Comps
102mm x 25mm x 22.2mm and 48.5g (without battery)
If the flashlight can headstand, I’ll show it here. If it can tailstand, I’ll also show that here!

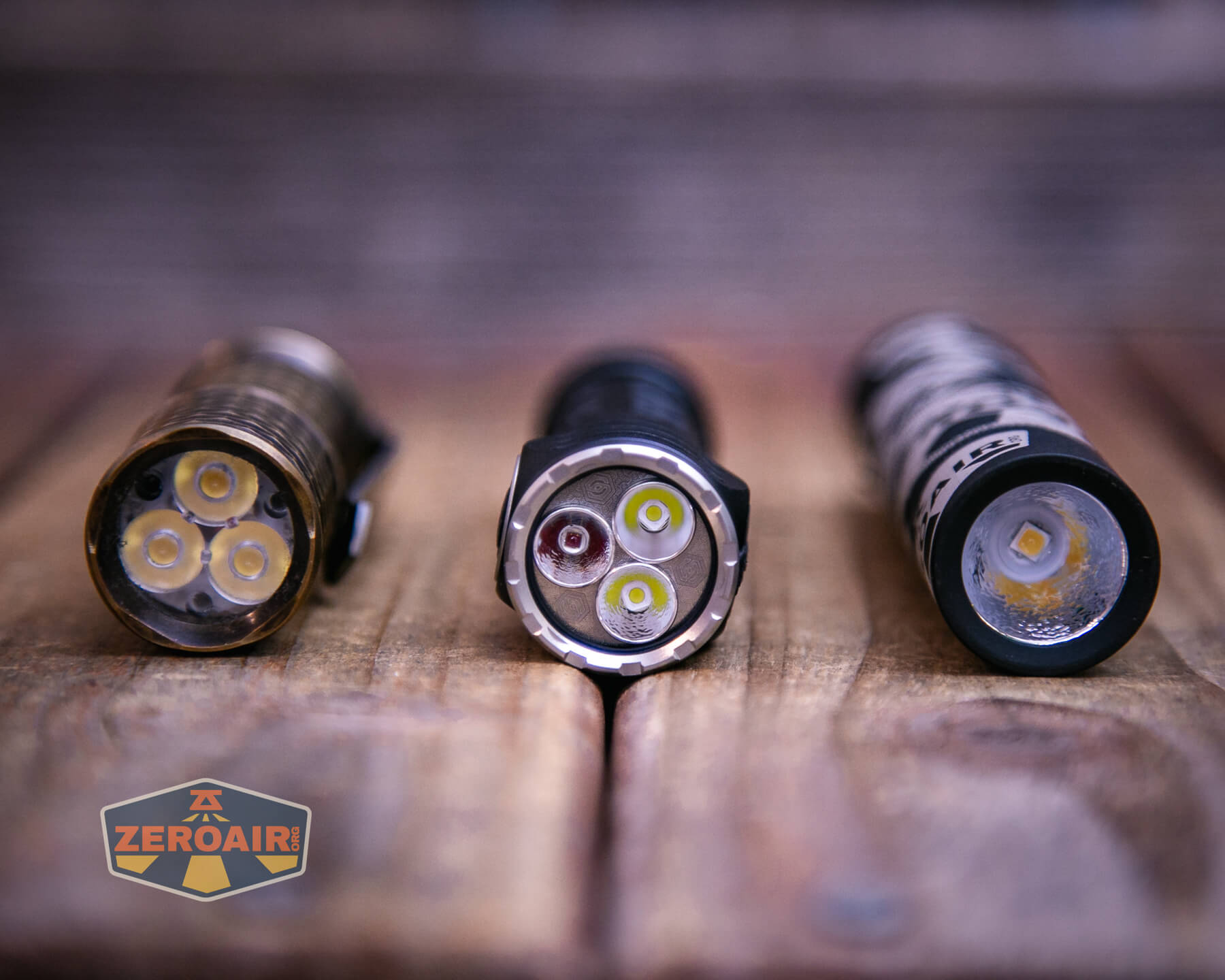

Here’s the test light with the venerable Convoy S2+. The version below is a custom laser-engraved Convoy S2+ host by GadgetConnections.com. I did a full post on an engraved orange host right here! Or go straight to GadgetConnections.com to buy your Convoy S2+ now!
Also in the photo above, my Standard Reference Material (SRM) flashlight is the Hanko Machine Works Trident, an 18350 light. While I have not reviewed or tested the Gunner Grip version seen here, I have tested a Hanko Machine Works Trident Total Tesseract in brass. I love the Trident, and it’s a striking contrast to the inexpensive Convoy S2+, another great SRM.
Retention and Carry

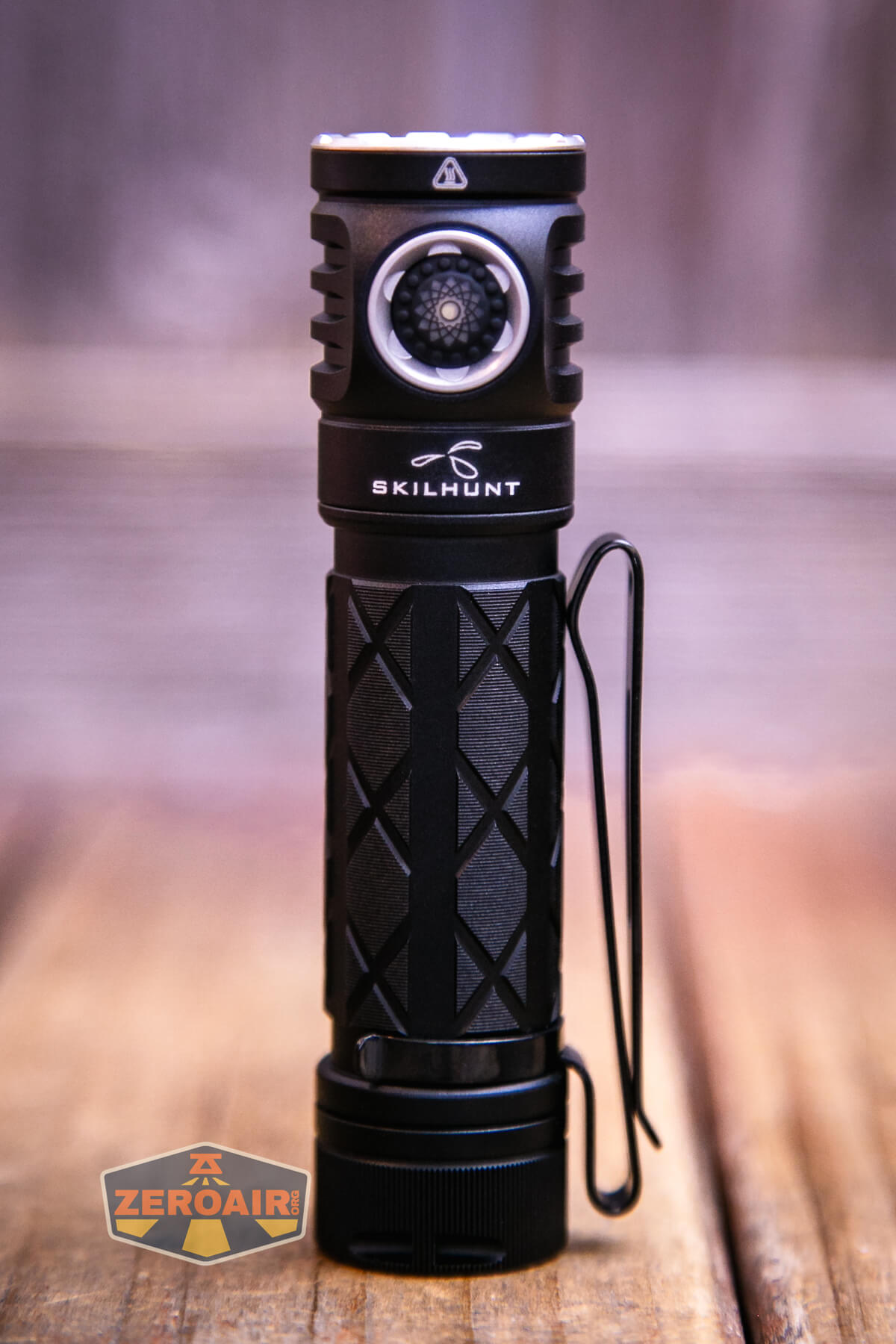

A pocket clip is included with the Skilhunt EC200S-Red Luminus SFT25R flashlight. It ships unattached and is a friction-fit clip.
Despite offering two-way usage, the clip can go on the head or the tail. Very versatile! There are also lanyard holes on both ends of the clip.
Next up is the lanyard, which attaches through a hole in the tailcap (or through the pocket clip holes, if you wish).
Here’s that tailcap hole. The clip includes a little wire for making installation easier.
There’s a magnet in the tailcap, too. It’s plenty strong for holding the light. But if you don’t want that, then you can remove the magnet and place the rubber “blank” where the magnet goes. That’ll keep your spring from being loose.
Finally, there’s a nylon mesh pouch. Skilhunt always ships these separately, but I think you’ll get one with your order, too.
Power and Runtime
The Skilhunt EC200S-Red Luminus SFT25R flashlight runs on a single lithium-ion cell. It’s sized for an 18650, and an appropriate 3500mAh cell is included (technically it’s optional).
The 18650 fits into the EC200S-Red with the positive terminal toward the head, as seen below. Unlike some other 18650 Skilhunts, this one has a max voltage of 4.2V, so no doubling cells in here!
Here are a few runtime tests. I wouldn’t say there’s anything super surprising here. Output is very stable once a stepdown has happened, and low voltage protection is observed. There’s also a low voltage warning from the indicating e-switch. Maybe surprisingly, the difference in output and runtime between this EC200S-Red and the regular-flavored EC200 is minimal. So basically, if you get this option, you get a free red emitter at no “cost” (of runtime or output).
The temperature lines in these charts are included as general context, not precise measurements. The values represent the range (min to max) during testing, but should not be taken as exact readings. Temperature sensors are attached however feasible and not always on the bezel or hottest spot (assuming that can even be clearly defined). Even with ideal placement, too many variables affect temperature to definitively state a specific max value.
Charging
I’ve said it over and over already, but the Skilhunt EC200S-Red Luminus SFT25R flashlight offers USB-C charging! Congratulations to Skilhunt for making this move on an 18650 light. I liked their old proprietary magnetic charging just fine, but now that I see USB-C on here, I like this so much better! And without a real sacrifice to size, too! It’s fantastic. Of course, they’ve had this before (and for a while!) on a bigger light like the EC300 (which I also really like!)
The charge port cover is a press-in silicone bit and seems very sturdy when in place. It’s also fairly sleek when closed, so that it doesn’t open needlessly.
Skilhunt includes a USB-A to USB-C cable for charging.
Below are tests for C to C and A to C charging. Both work just fine.
While charging, the switch is red. When charging is complete, the switch is steady blue. If something is wrong with charging, the switch blinks red.
Modes and Currents
| Mode | Mode Claimed Output (lm) | Claimed Runtime | Measured Lumens | Tailcap Amps |
|---|---|---|---|---|
| T1 | 2100-635-220 | 1m+180m+30m | 1832 (0s) 1719 (30s) |
5.42 |
| T2 | 1150-635-220 | 3m+180m+30m | 882 (0s) 874 (30s) |
1.83 |
| H1 | 635-220 | 180m+30m | 477 | 0.86 |
| M1 | 220 | 10h | 165 | 0.27 |
| M2 | 65 | 32h | 49 | 0.09 |
| L1 | 6 | 100h | 3.6 | 38mA |
| L1 | 1 | – | 0.5 | 6.3mA |
| R1 | 320-160 | 3m+210m | [3460] (relative numbers, not lumens) | 2.21 |
| R2 | 73 | 14h | [865] | 0.24 |
| R3 | 18 | 45h | [86] | 0.06 |
| R4 | 1.5 | 10h | [12] | 0.02 |
Pulse Width Modulation
None of the modes (even the secondary modes) use PWM! Yay!
Click here to see a “baseline” – a chart with almost no light hitting the sensor.
Then there’s the Ultrafire WF-602C flashlight, which has some of the worst PWM I’ve seen. It’s so bad that I used a post about it to explain PWM! Here are multiple timescales (10ms, 5ms, 2ms, 1ms, 0.5ms, 0.2ms) to make comparing this “worst” PWM light to the test light easier. That post also explains why I didn’t test the WF-602C at the usual 50us scale.
User Interface and Operation
The switch on this Skilhunt EC200S-Red Luminus SFT25R flashlight should be very familiar. It’s very much like what Skilhunt has used for a long while (at least back to 2022 on the EC300, for example. The light is controlled by a single e-switch. This switch has a backlight function and can light in red or blue. While the switch has a transparent center, it has an interesting design pattern printed (?) in the center. It’s another thing to like about the EC200! It’s not a functional improvement, but a nice touch.
The switch is just barely proud, and the action is very good.
Here’s the switch lighting in red.
Particularly on the “base model” EC200 (the one with no secondary emitters), the user interface is familiar and simple enough. Anyway, I love the Skilhunt user interface, even if it can be said to be complex. But this one is great!
Here’s a user interface table! Note that this user interface is nearly the same as other Skilhunt lights with a switch that looks like this but there’s the wrinkle of that red emitter.
| State | Action | Result |
|---|---|---|
| Off | Hold | Low (Mode memory between L1 and L2) |
| L1 or L2 | Hold | Iterate between L1 and L2 |
| L1 or L2 | Click + Hold | Main group (mode memory) |
| L1 or L2 | Click 2x | No result |
| Off | Long hold (2s) | Memory between L1 and L2 then R4 (specifically R4, not just “red group” or “red memory”) |
| Off | Click 4x | Lockout (Three blinks of main emitters to confirm) |
| Lockout | Click 4x | Unlock to Low group (Mode memory between L1 or L2) |
| Lockout | Click 2x | Iterate lockout indicator^ |
| Lockout | Hold | Momentary Output (Appears to be approximately L1) |
| L1/L2 or Red Group | Click | Off |
| Off | Click | On in “Main Group” (Mode memory between M2/M1/H) |
| Main Group | Hold | Mode advance (M2 > M1 > H) |
| Main Group | Click | Off |
| L1/L2 or Main Group | 2 clicks + hold | Mode memory Red Group |
| Main Group or Off | Click 2x | Turbo Group (Mode memory between T1 and T2) |
| T1/T2 | Hold | Iterate between T1 (higher) and T2 (lower) output |
| T1/T2 | Click | Off |
| T1/T2 | Click 2x | Main Group (memory output) |
| Main Group, Off, or Turbo Group | Click 3x | Strobe Group (with memory) |
| Strobe Group | Click 3x | Previous Group (T1/T2 or M2/M1/H, depending on how you accessed Strobe Group)^^ |
| Strobe Group | Click 2x^^^ | Strobe Advance (S1 > S2 > S3)† |
| Strobe Group | Hold | No result |
| Strobe Group | 2 clicks + hold | Red strobe group |
| Red Strobe Group | Click 2x | Red Strobe Advance (S1 > S2 > S3)† (same strobes, just red) |
^ The lockout indicator blinks a red switch every 2-3 seconds.
^^ Aside from just general mode memory (which you know I don’t like) this seems to me to be the only place where you may need to immediately remember what mode you were in so you have the experience you expect. However, the difference is getting the two highest white outputs or the three main white outputs – it won’t be that dramatic even if you don’t remember. Also note that if you access the strobe group from off, triple-clicking will not return it to off. For continuity, it should! If you access the strobe from an off-state, a triple-click sends the light to the Main group!
^^^ Seems like the strobe group is the only group that isn’t advanced by a hold. Since there’s no hold anywhere else into or out of Strobe, I am not sure why that user interface continuity wasn’t maintained here.
† Strobes are like this:
S1: Disorienting strobe (turbo, ish)
S2: SOS (main white, some mid-High output)
S3: Simple blinking
It’s not really covered in the user interface table, but the switch does indicate the power level. It does this for around 5 seconds after you turn the light on. The indicators are as follows:
Blue steady: 100-80%
Blue blinking: 80-50%
Red steady: 50-20%
Red blinking: 20-0%
LED and Beam

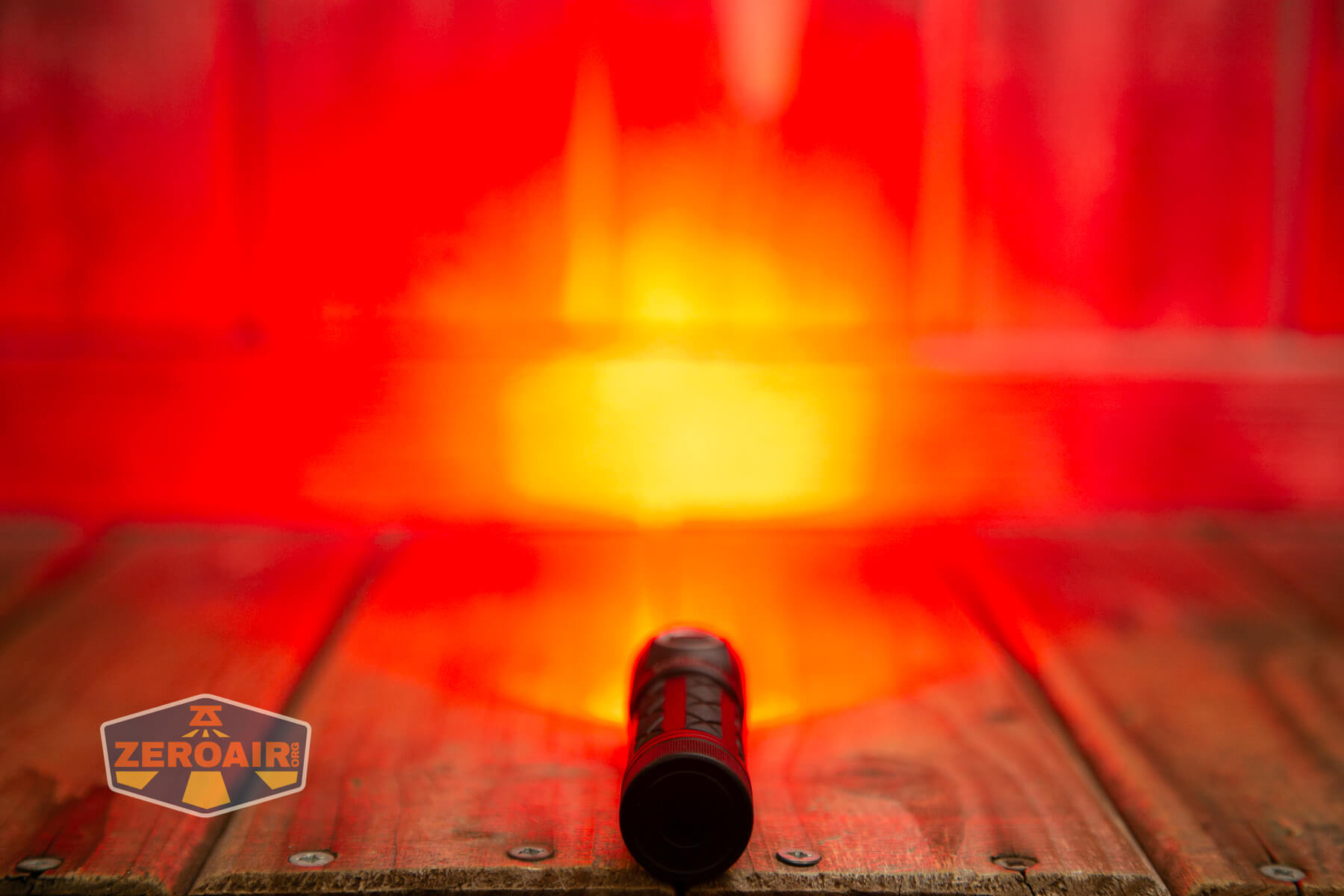

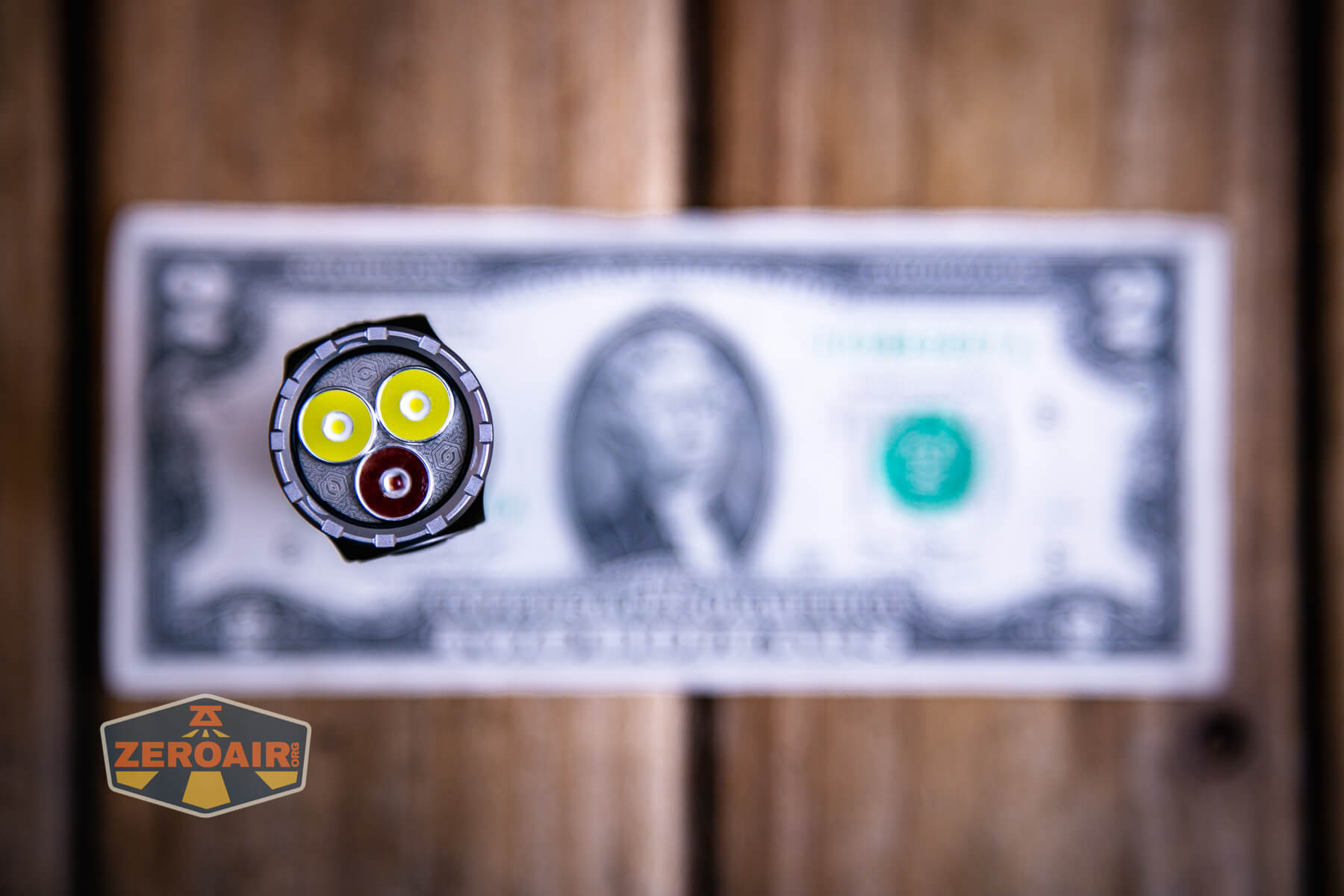

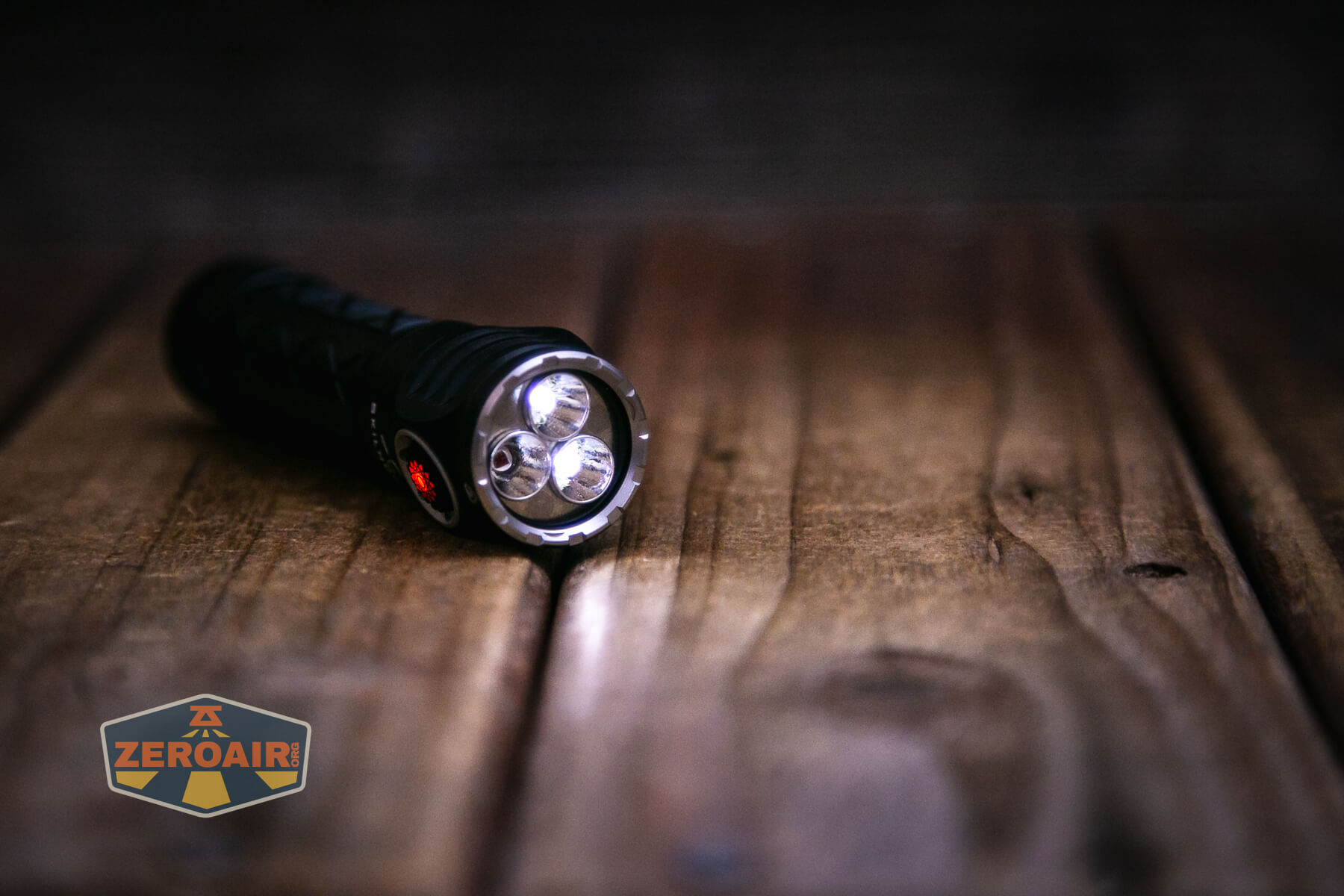

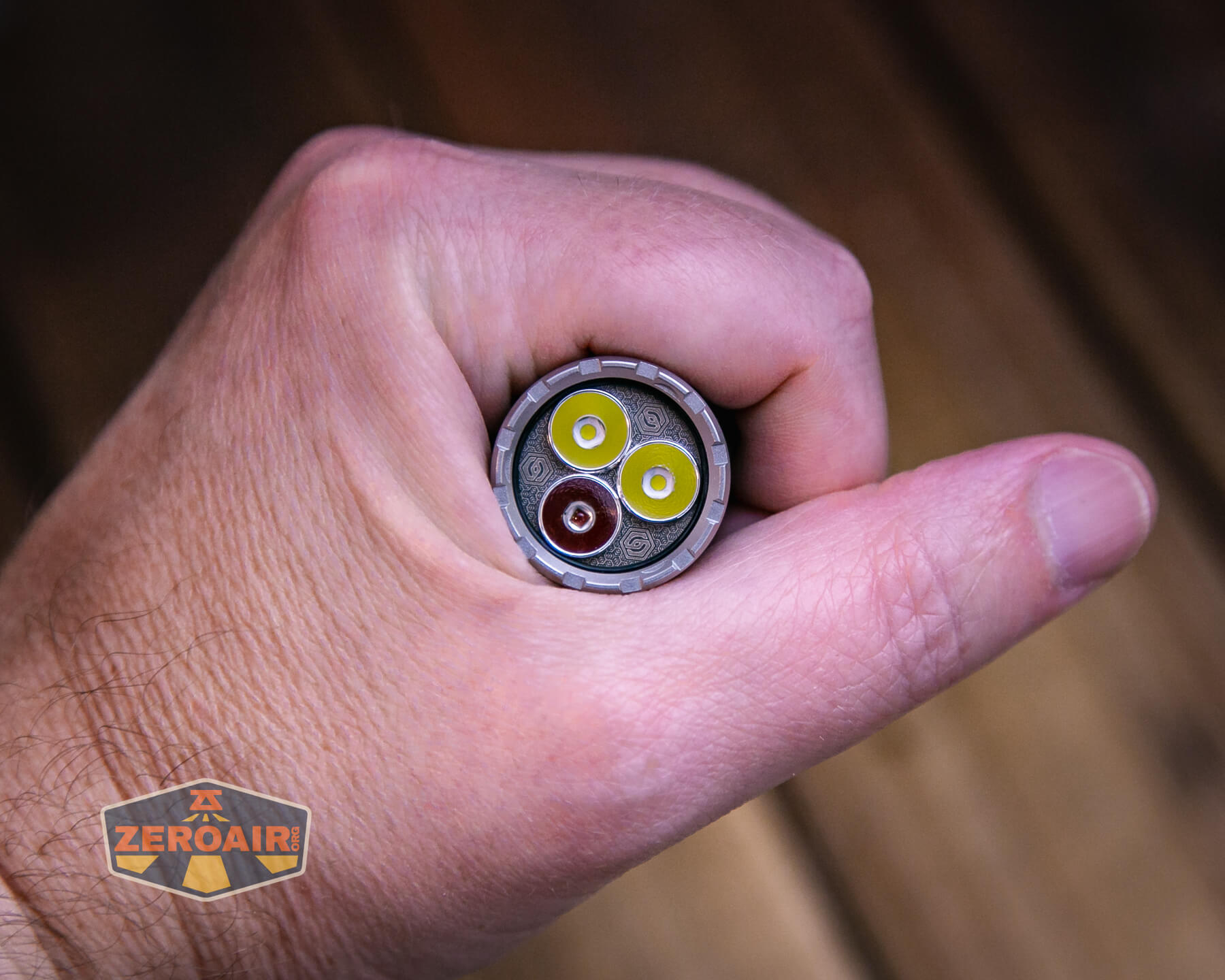

This Skilhunt EC200S-Red Luminus SFT25R flashlight has two (two, not three!) Luminus SFT25R emitters. It’s a “triple” in some sense, and it slots right into that “BOSS” category – it even has a red secondary! I love it! It adds USB-C charging to that slot for me, though, which is a huge bonus! The “red secondary” is different from the BOSS, since the BOSS has three main emitters then a secondary. Either way…
It’s hard to see it here, I think, but this light does not use an optic – each emitter has a tiny little cup reflector! If you get other “S” variants like the “warm white white” or UV, you may purchase a little filter. If you get the little filter, you will note that the secondary emitter reflector cup has a tiny lip where this filter rests comfortably. In those two (but not this red version!), the top-most reflector has the lip. The red variant does not have that. Among other nice touches that Skilhunt has offered on these lights, this is one. They could have just thrown all “lipped” reflectors over these secondary emitters. That they didn’t mean (either that) they are exceptionally interested in all the details being right, or (/and) that the lipped reflectors are more costly. We’ve seen the driver differences in this 18350 version, so let’s assume the best of those options!

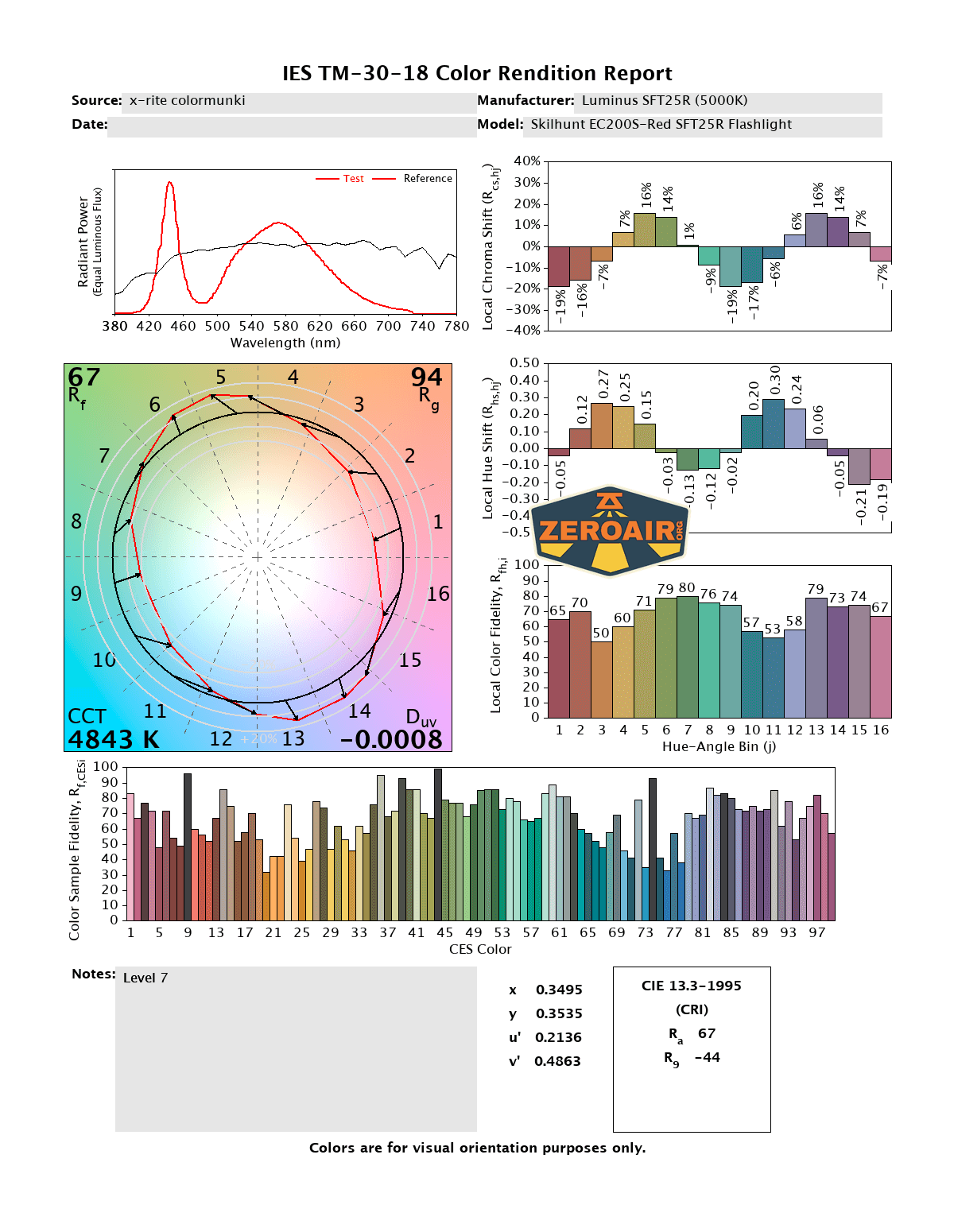

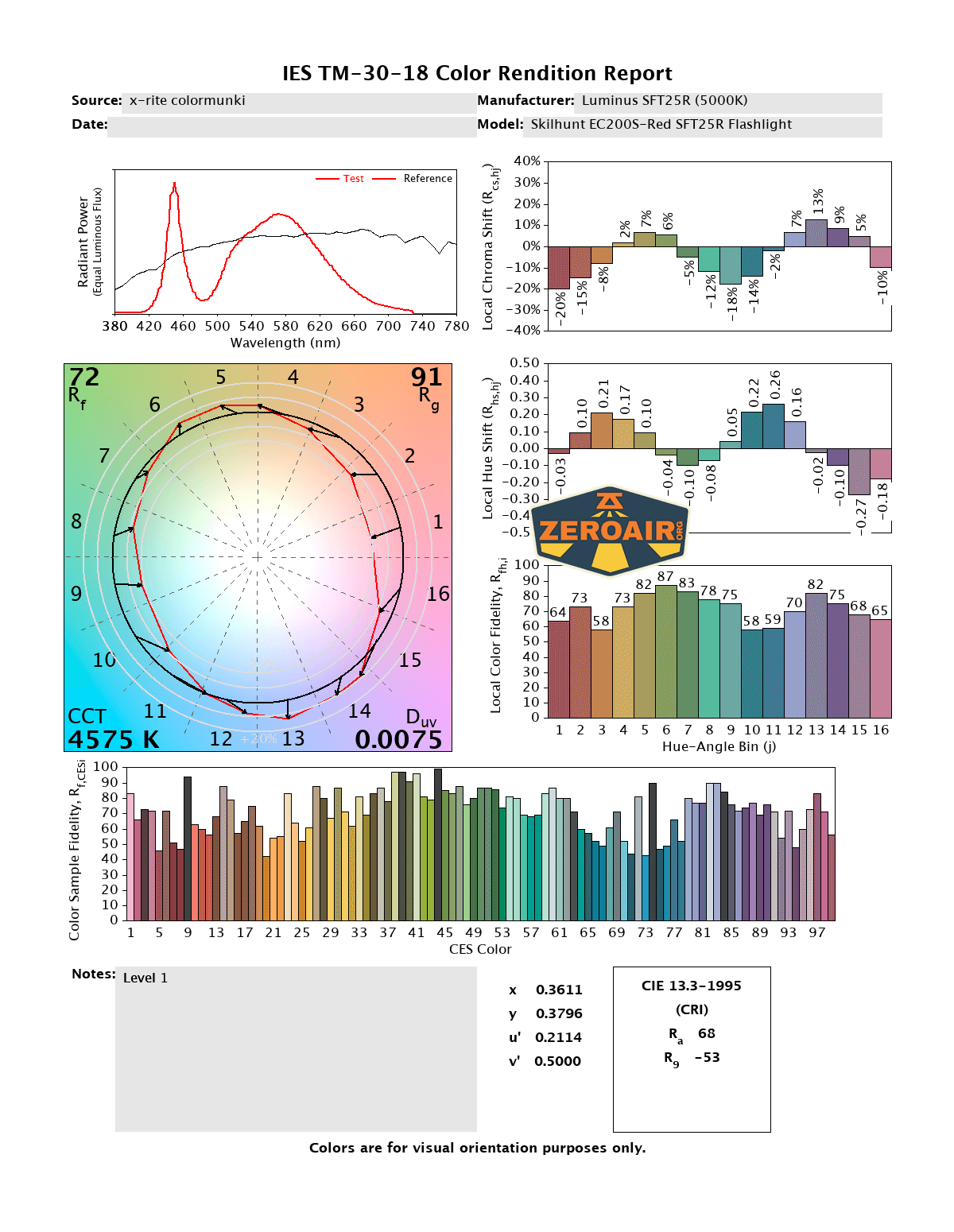

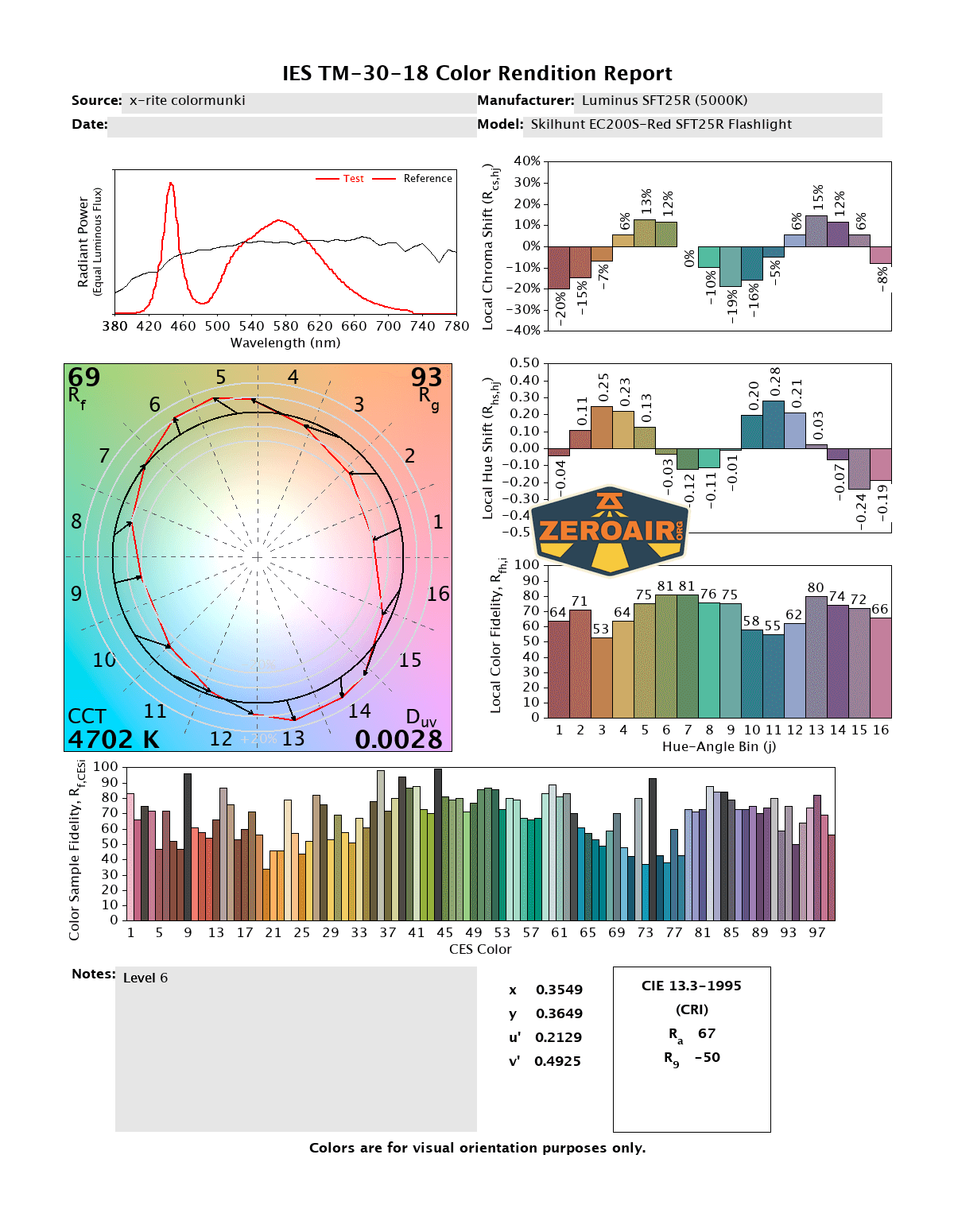

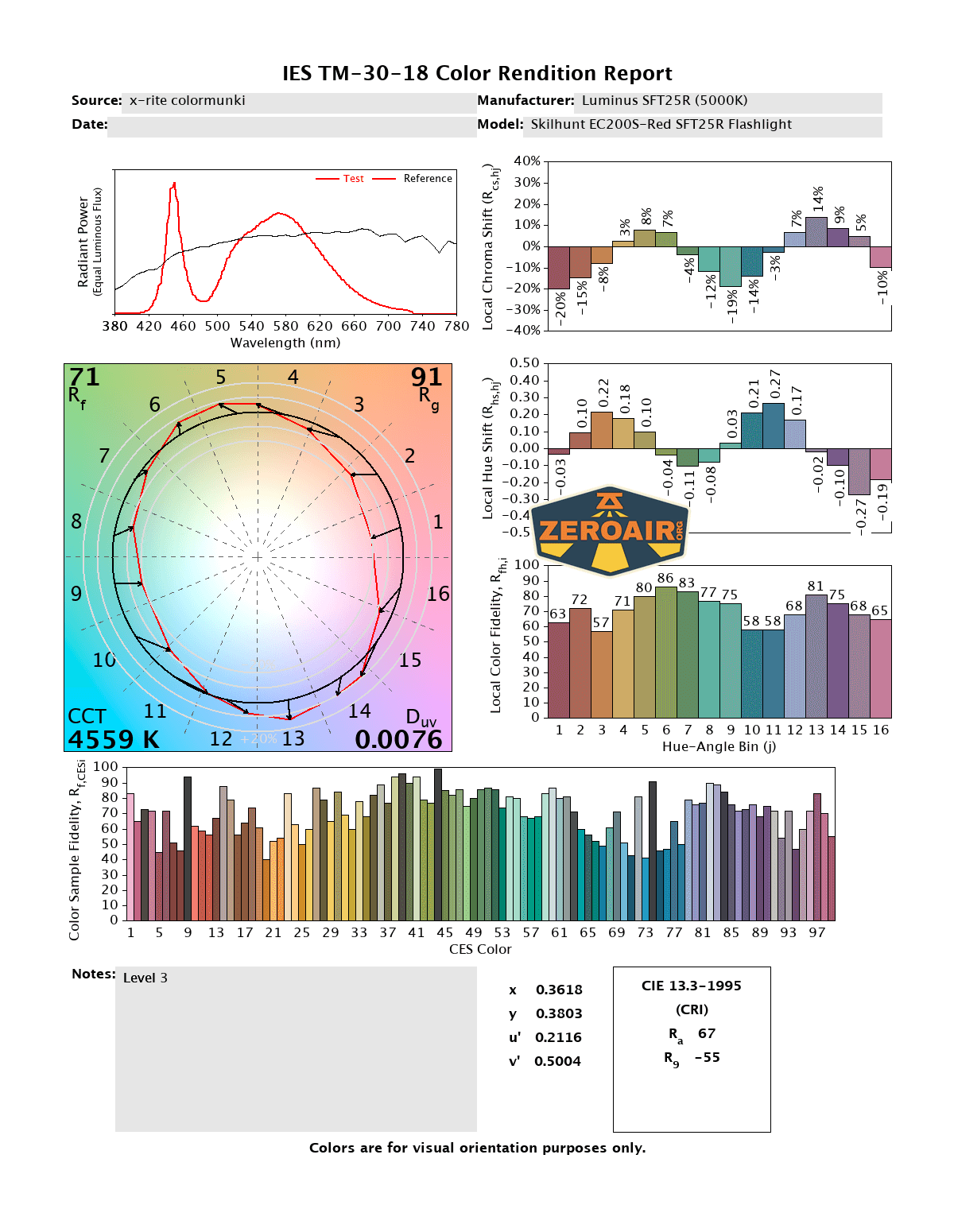

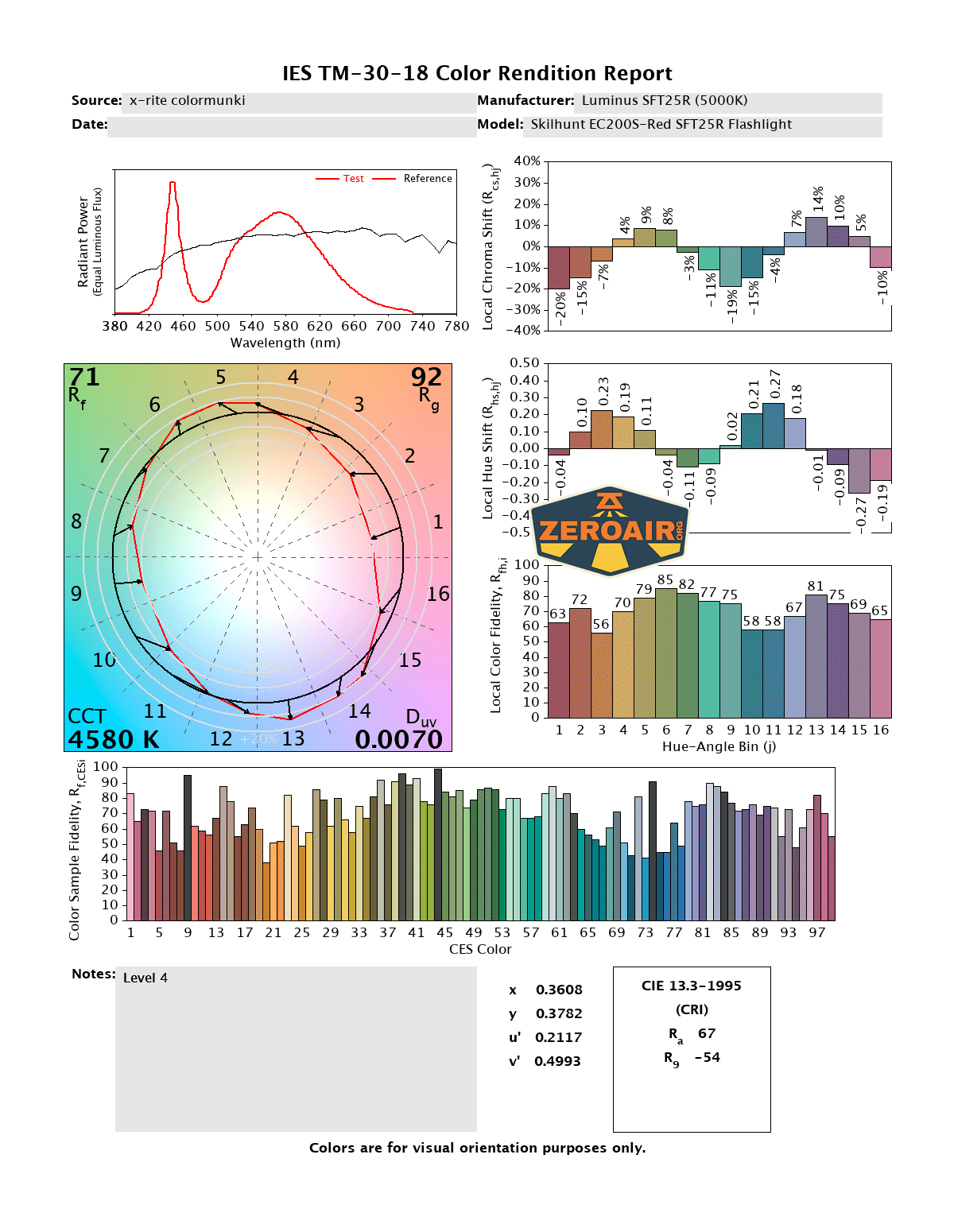

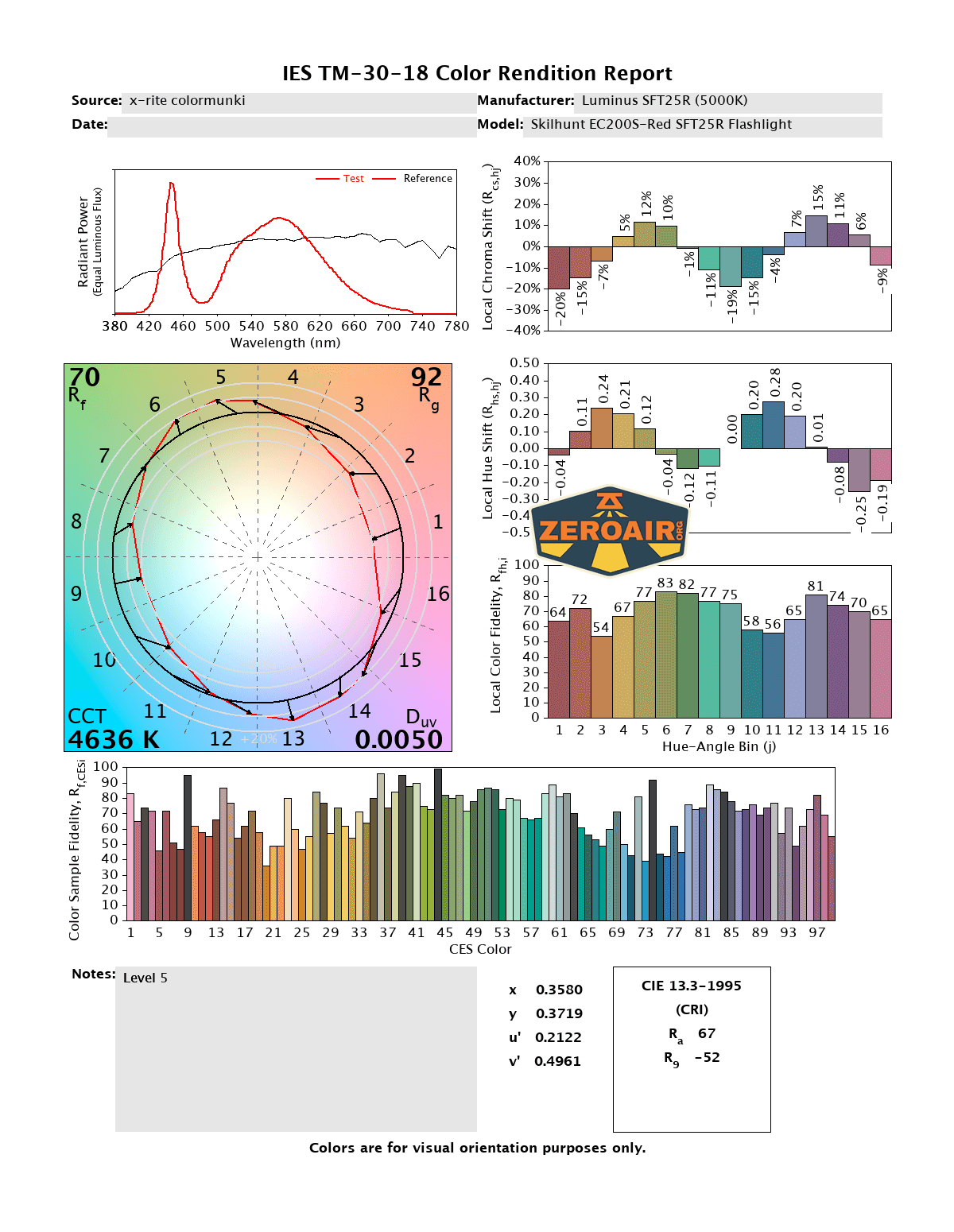

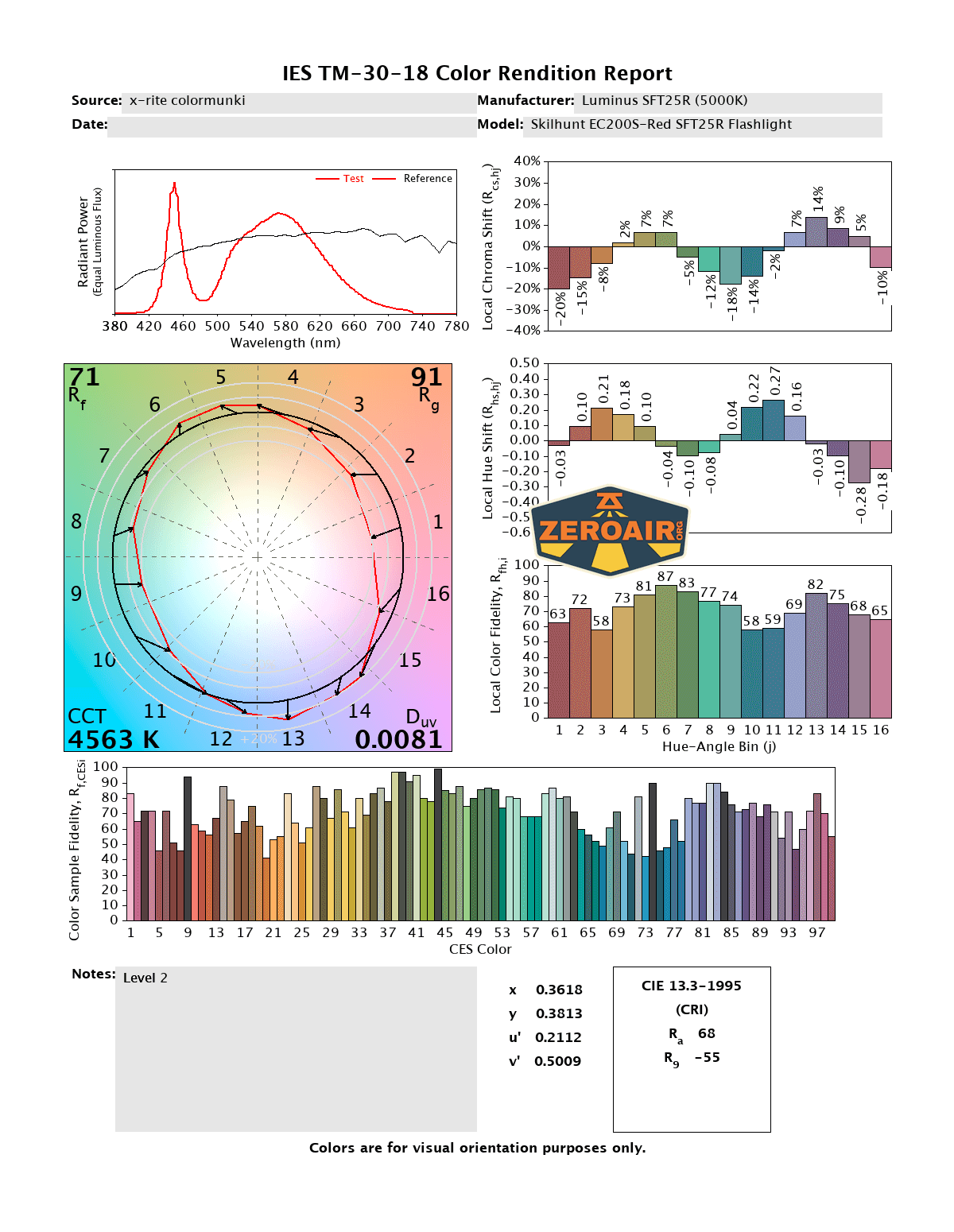

LED Color Report (CRI and CCT)
The manual refers to this emitter option as “Cool White”, but does state that it’s 5000K. I have a suspicion that the manual and product photo aren’t updated to include the Skilhunt EC200S-Red Luminus SFT25R flashlight specifically (it is new). So I’m not sure what the actual output expectations are, but we do know it’s 5000K, not “CW.” I will note that the product page mentions some specifications for the Skilhunt EC200S-Red Luminus SFT25R flashlight specifically, so we’ll take that to mean that the manual isn’t updated. That’s not a huge problem. That said, it measures a good bit warmer, at around 4700K, and is low CRI.
CCT (Correlated Color Temperature) refers to the measurement of the color appearance of light, expressed in Kelvins (K), which indicates whether the light is warm (yellowish) or cool (bluish). A lower CCT (below 3000K) is considered warm light, while a higher CCT (above 5000K) gives cooler, bluish light.
CRI (Color Rendering Index) is a measure of how accurately a light source renders colors in comparison to natural sunlight. Scored on a scale from 0 to 100, higher CRI values indicate that colors appear more true to life and vibrant, similar to how they would look under the sun.
Beamshots
These beamshots always have the following settings: f8, ISO100, 0.3s shutter, and manual 5000K exposure. These photos are taken at floor level, and the beam hits the ceiling around 9 feet away.
Tint vs BLF-348 (KillzoneFlashlights.com 219b version) (affiliate link)
I keep the test flashlight on the left and the BLF-348 reference flashlight on the right. These photos are taken around 18 inches from the door.
I compare everything to the KillzoneFlashlights.com 219b BLF-348 because it’s inexpensive and has the best tint!
Summary and Conclusion
If it’s not clear from the text above, I’m practically gushing about all versions of this light. I love the “simple” triple version. There are other options if something else suits your needs, but the body is the same. That’s also fantastic. USB-C charging works great. The user interface is great. CRI and CCT are great. Everything here is great.
The Big Table
| Skilhunt EC200S-Red Luminus SFT25R flashlight | |
|---|---|
| Emitter: | Luminus SFT-25R (5000K) |
| Price in USD at publication time: | $66.50 |
| Cell: | 1×18650 |
| Runtime Graphs | |
| LVP? | Yes |
| Switch Type: | E-switch |
| Quiescent Current (mA): | ? |
| On-Board Charging? | Yes |
| Charge Port Type: | USB-C |
| Charge Graph | |
| Power off Charge Port | with cell: all modes without cell and/or tailcap: all modes except T1 |
| Claimed Lumens (lm) | 2100 |
| Measured Lumens (at 30s) | 1719 (81.9% of claim)^ |
| Candela per Lumen | 7.8 |
| Claimed Throw (m) | 219 |
| Candela (Calculated) in cd (at 30s) | 596lux @ 4.673m = 13015cd |
| Throw (Calculated) (m) | 228.2 (104.2% of claim)^ |
| Claimed CCT | 5000 |
| Measured CCT Range (K) | 4600-4800 Kelvin |
| Item provided for review by: | Skilhunt |
| All my Skilhunt reviews! | |
^ Measurement disclaimer: Testing flashlights is my hobby. I use hobbyist-level equipment for testing, including some I made myself. Try not to get buried in the details of manufacturer specifications versus measurements recorded here; A certain amount of difference (say, 10 or 15%) is perfectly reasonable.
What I like
- Size
- USB-C Charging (particularly for the size)
- Good emitter options
- Excellent user interface
- Available as a “mini” (which makes a great 18350/18650 combo)
- Very good “lowest” output
- Negligible cost in output or runtime by swapping one white LED for one red LED
What I don’t like
- The cell adds a surprising cost to the package
- From either L mode, click+hold goes to main mode memory (not lowest main mode, as on some versions.)
