Olight ArkPro Lite Flashlight Review

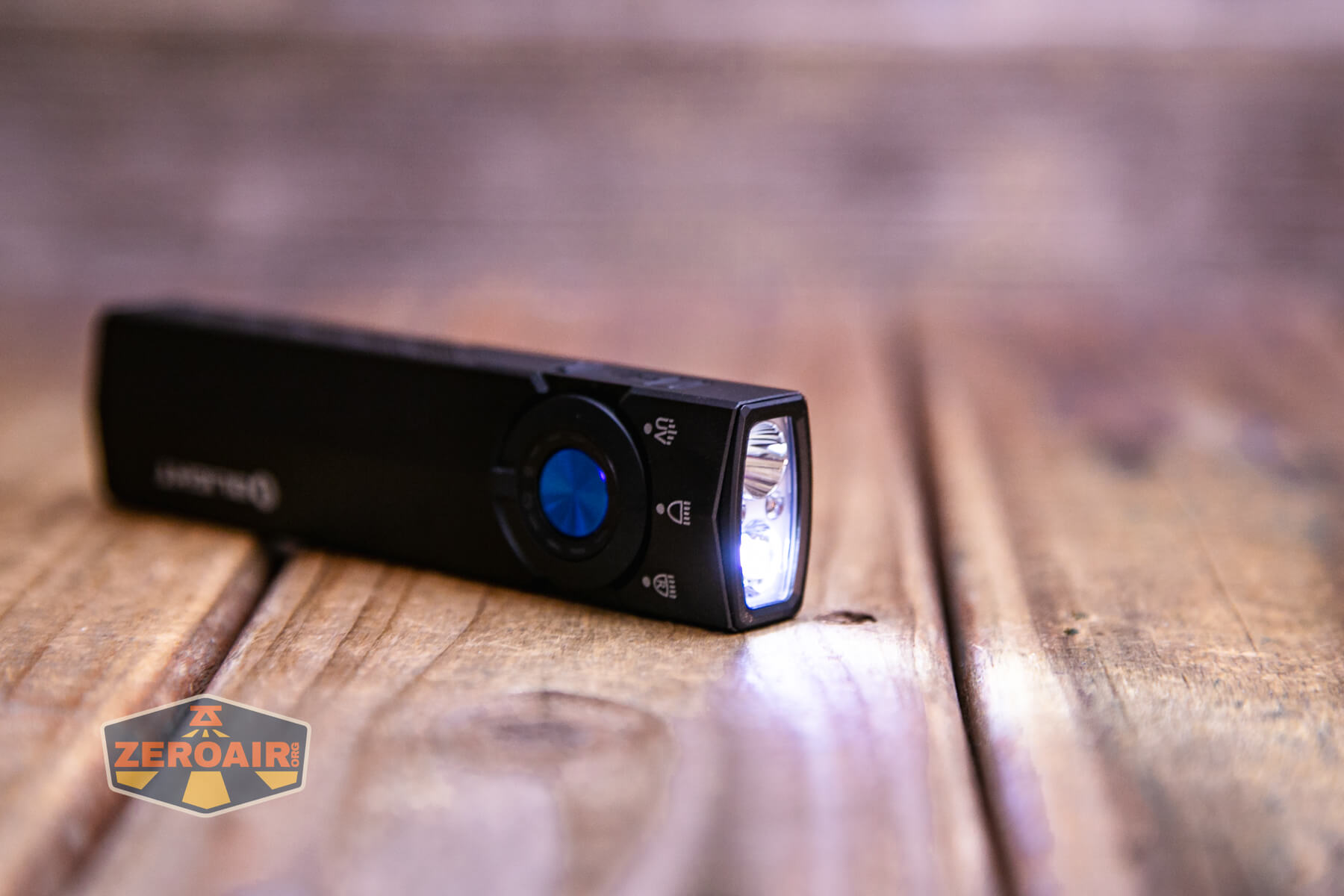

New from Olight is the Olight ArkPro Lite flashlight, a flat light with white, red, and UV all in one light! It’s the smallest ArkPro, but it has USB-C charging!
Official Specs and Features
Here’s a referral link to the Olight ArkPro Lite flashlight product page.
Versions
Of the Olight ArkPro Lite specifically, it looks like there are two body options. There’s black, and black! But one of those has a special “Year of the Horse 2026” engraving along the front. All the Olight ArkPro Lite flashlights are cool white.
There are also two other ArkPro variants: ArkPro and ArkPro Ultra.
Price
MSRP for the Olight ArkPro Lite flashlight is $79.99. That’s also the going price, since the introductory price period has finished.

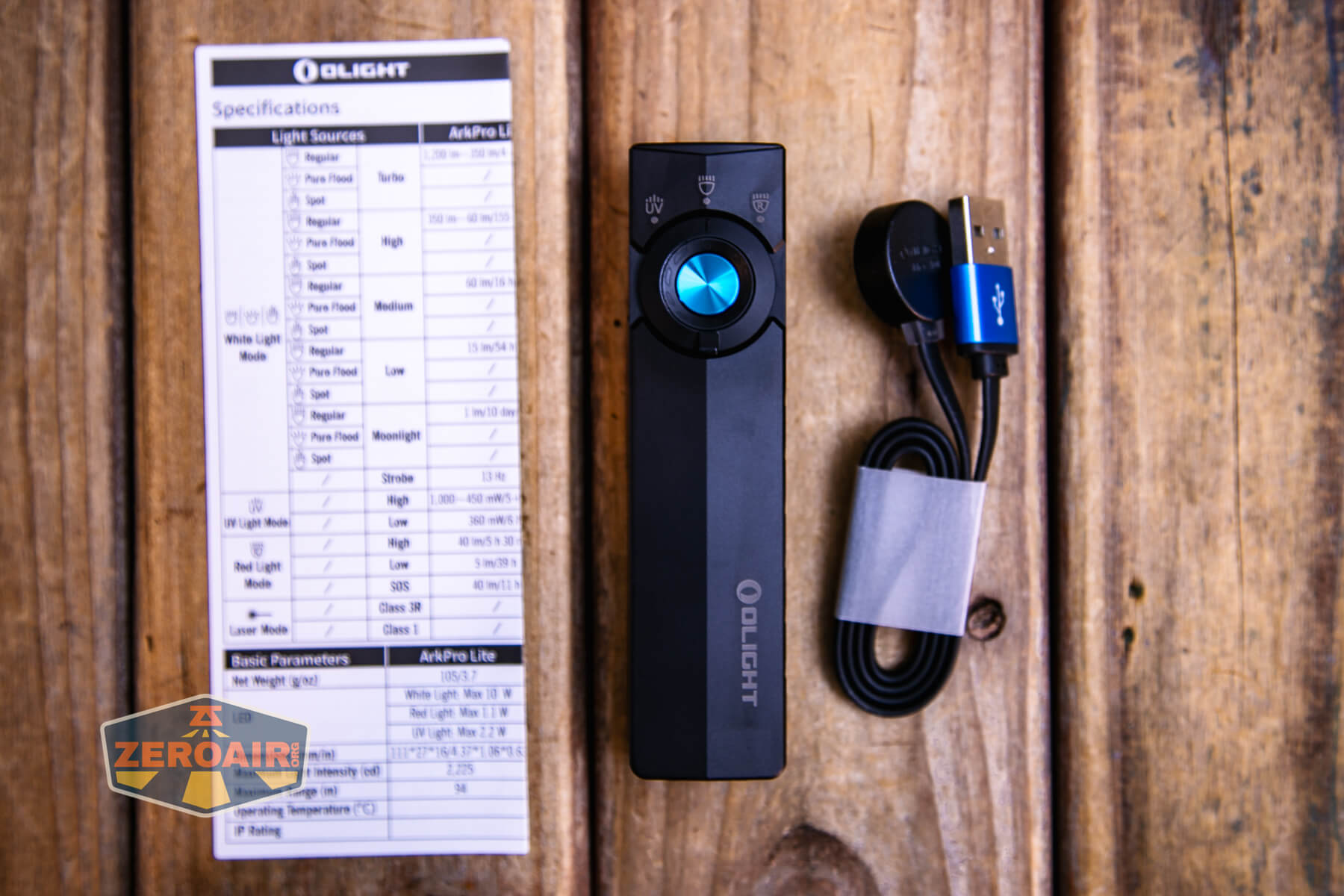

What’s Included
- Olight ArkPro Lite flashlight
- Charging base
- Manual

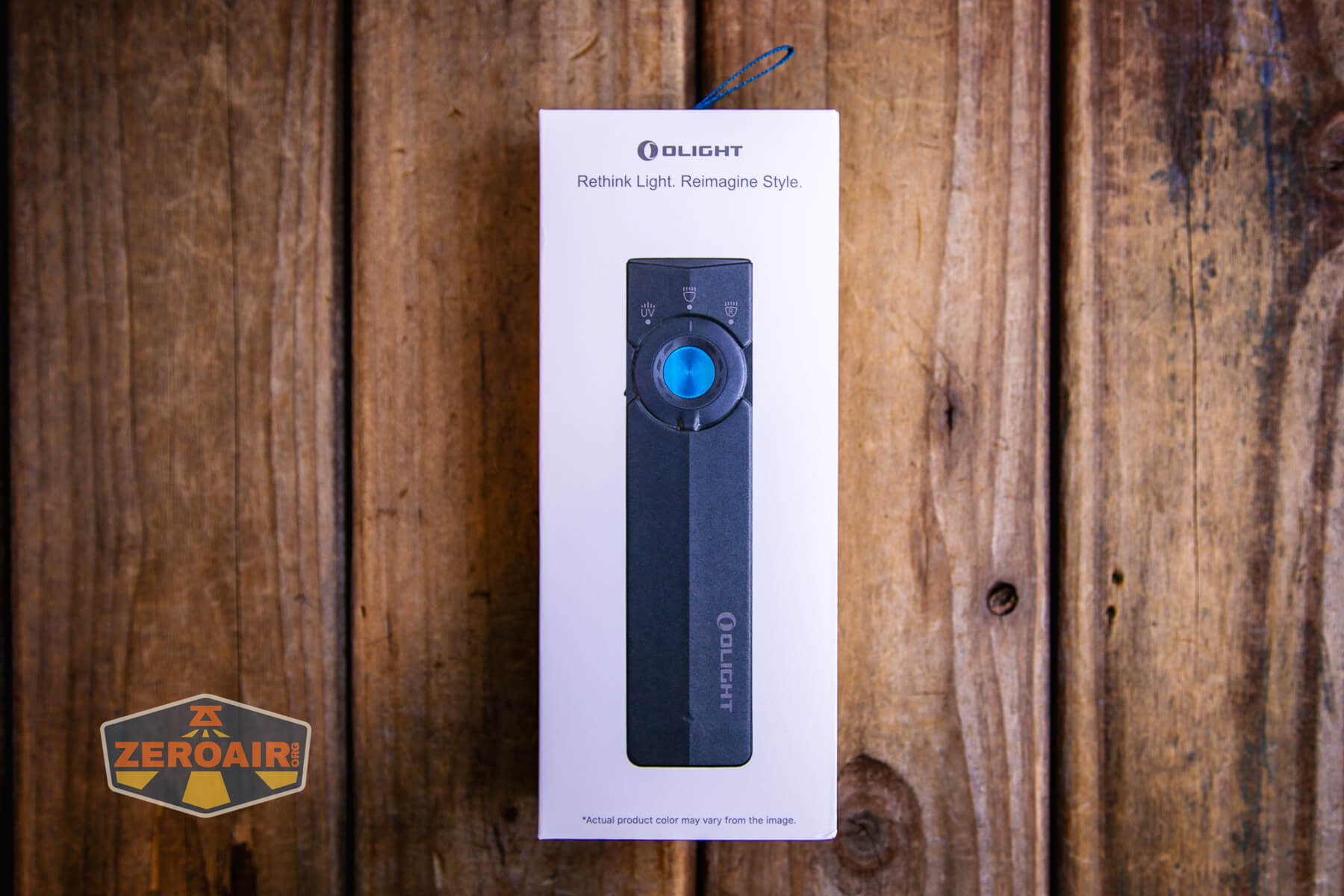

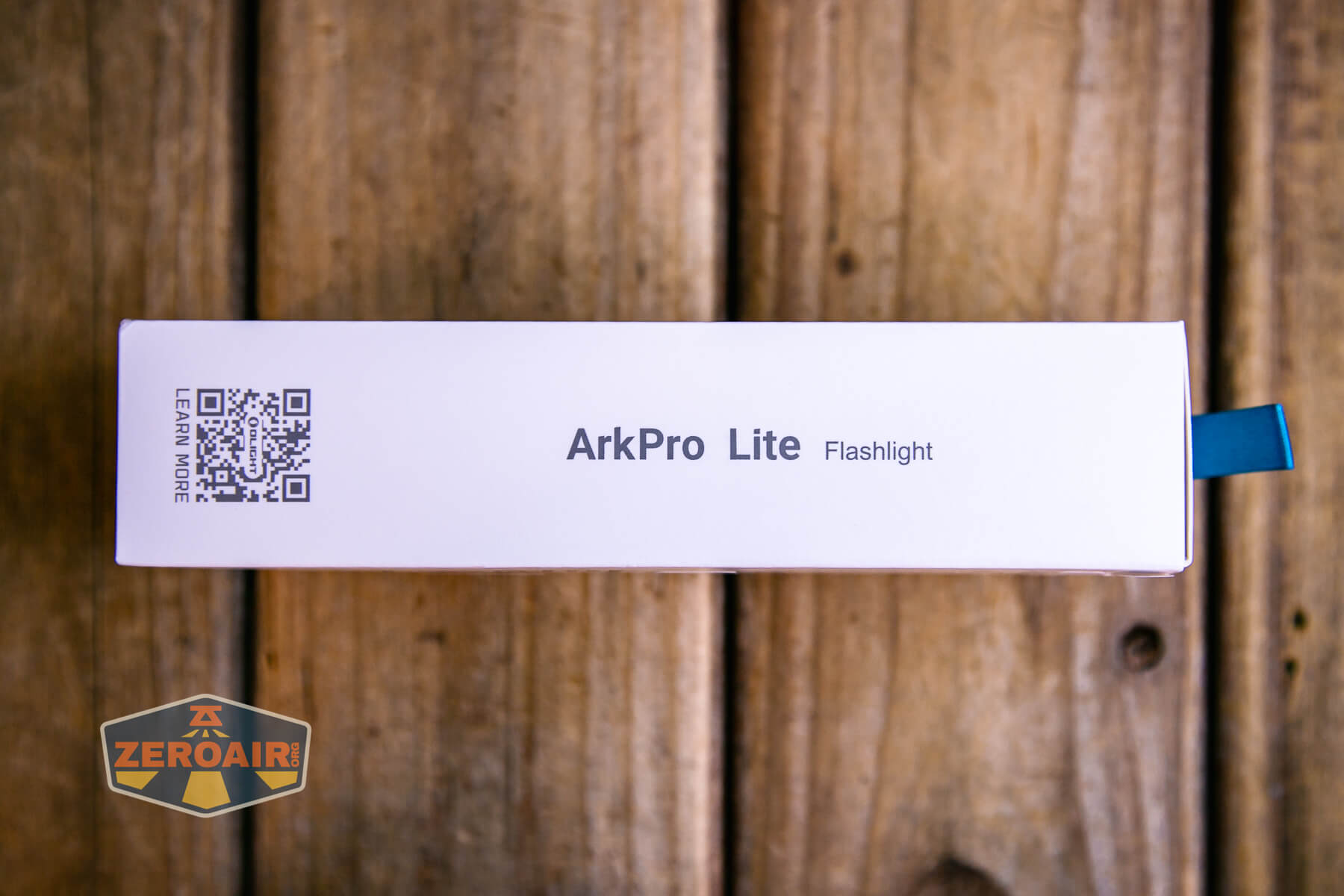

Package and Manual
Note that this manual is for all three versions of the ArkPro, and I do not like that. I found the manual quite hard to follow! But I’m sure a ton of work was put into it (that’s the only way it could be so confusing).
Here’s one little point about the confusion. The image below implies to me that a light might have all three options. But that’s not the case. Only some of the ArkPro versions have some of these three options.

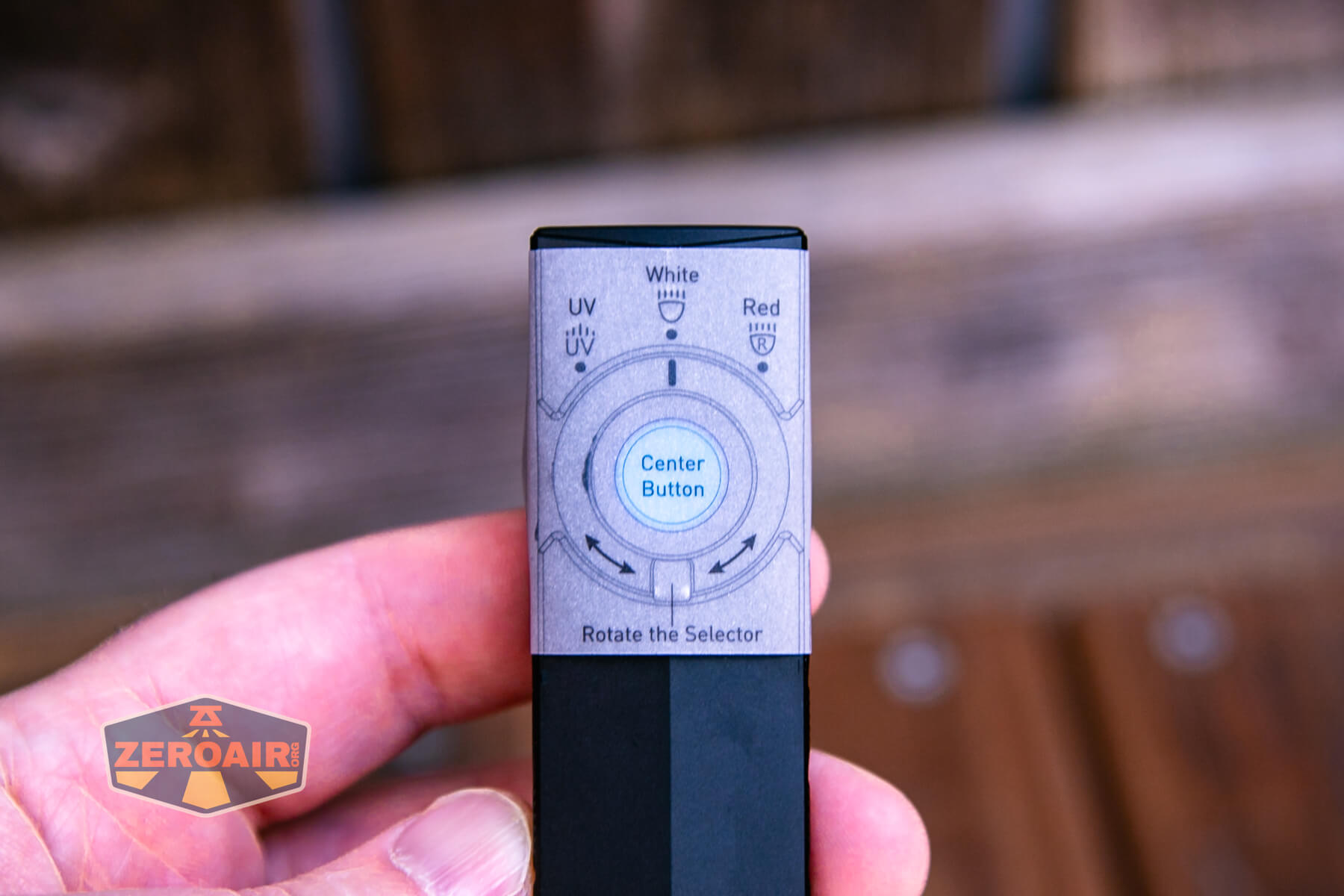

All of the ArkPros I have gotten for review have these three stickers or covers that have to be removed before the first use. In fact, you also need to ping the light on a charging base (such as the one included) to activate the light. I am not sure you can get the light to reenter this “activation needed” state, but it’d be neat!
Build Quality and Disassembly
I didn’t disassemble the Olight ArkPro Lite flashlight at all. The build quality is very solid. Olight promotes this as a unibody construction, with only the back plate, where the pocket clip attaches, coming off.
You’ll probably note that this review is a lot like the ArkPro Orange and ArkPro Silver. Much of the text is the same, but the Lite is the most different among the ArkPro series. It’s smaller and also has a different emitter setup. (It’s probably my favorite one, too.)
Of course, there’s no cylindrical cell in there to rattle around or be removed, or whatever. The cell is 100% built-in. That’s good and bad, of course. Building the cell in means Olight can get reliable performance, but it also means you can’t change the cell when it wears out in a number of years.
Whatever the case may be with the battery, the build here is great. I love the anti-roll shape. Not only that, but the Olight ArkPro Lite flashlight fits into the pocket where I normally carry an 18650 light in a much more comfortable way.
I have already disassembled an Arkfeld, and I did not do so for the Olight ArkPro Lite flashlight version. You’re invited to check out the photos from that review, though. Here’s a link. (Note: I didn’t get too far with disassembly.)
Size and Comps

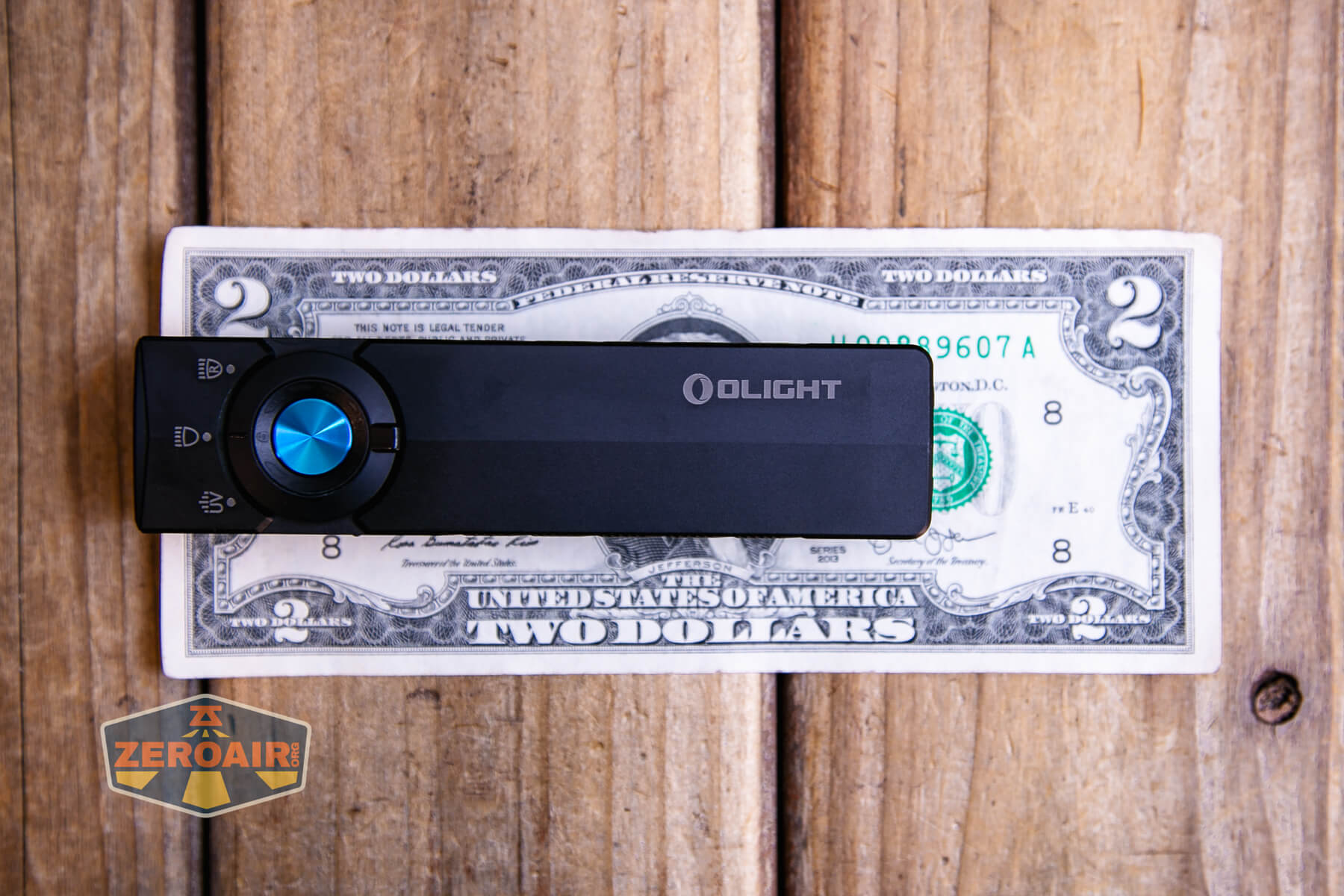

The Olight ArkPro Lite flashlight is 111mm x 27mm x 16mm and 105g. That’s around 13mm shorter and 10g lighter than the bigger ArkPros.

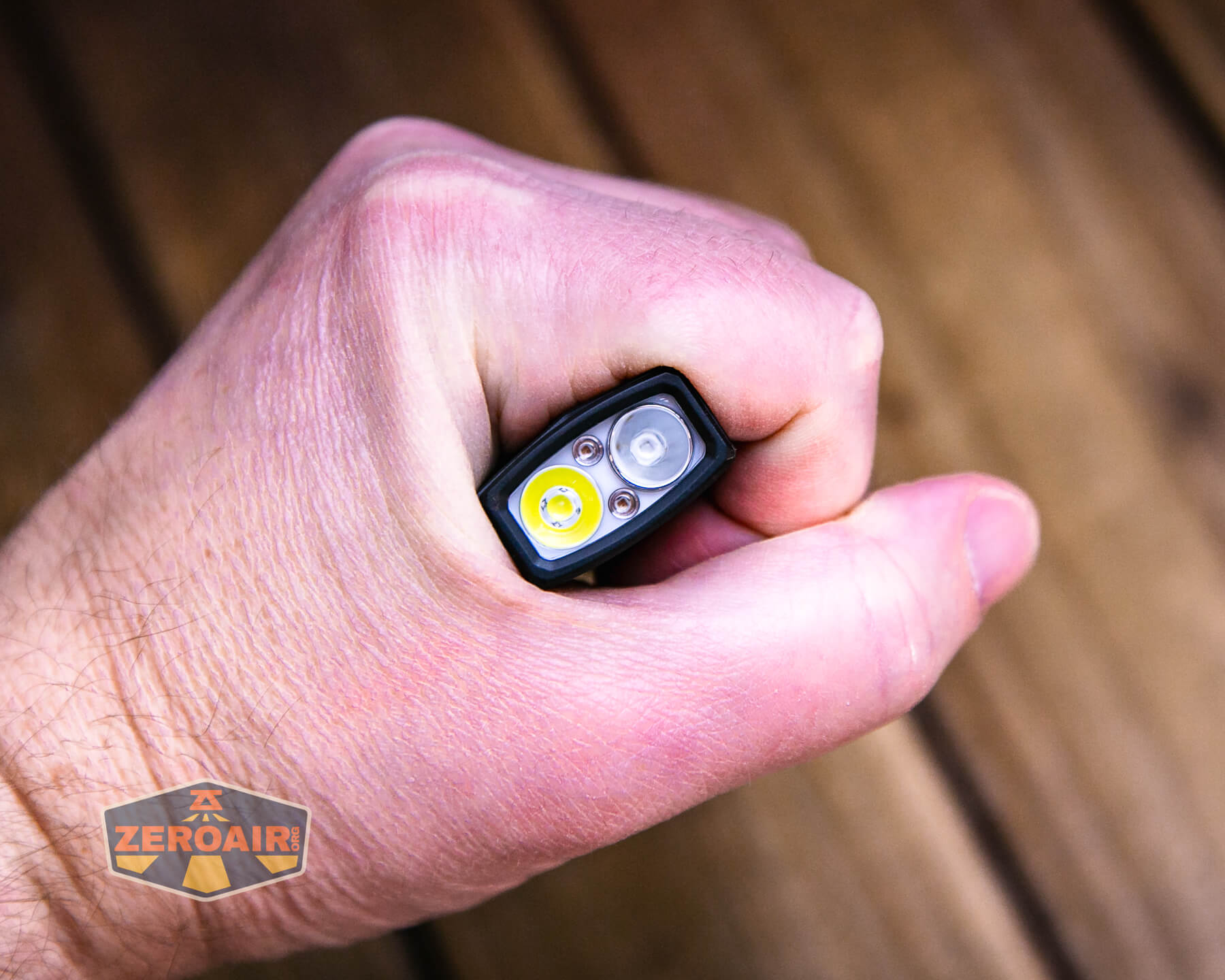

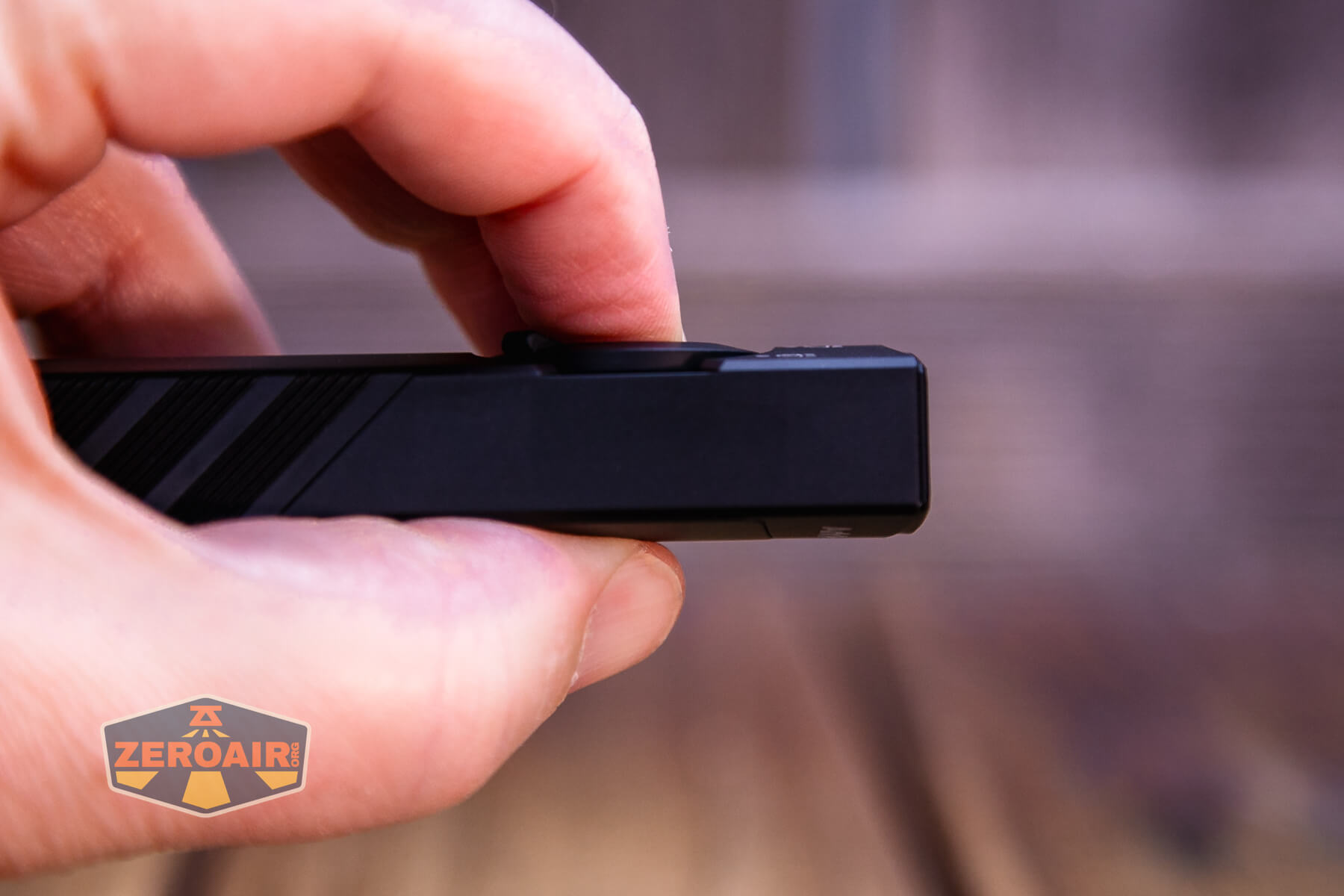

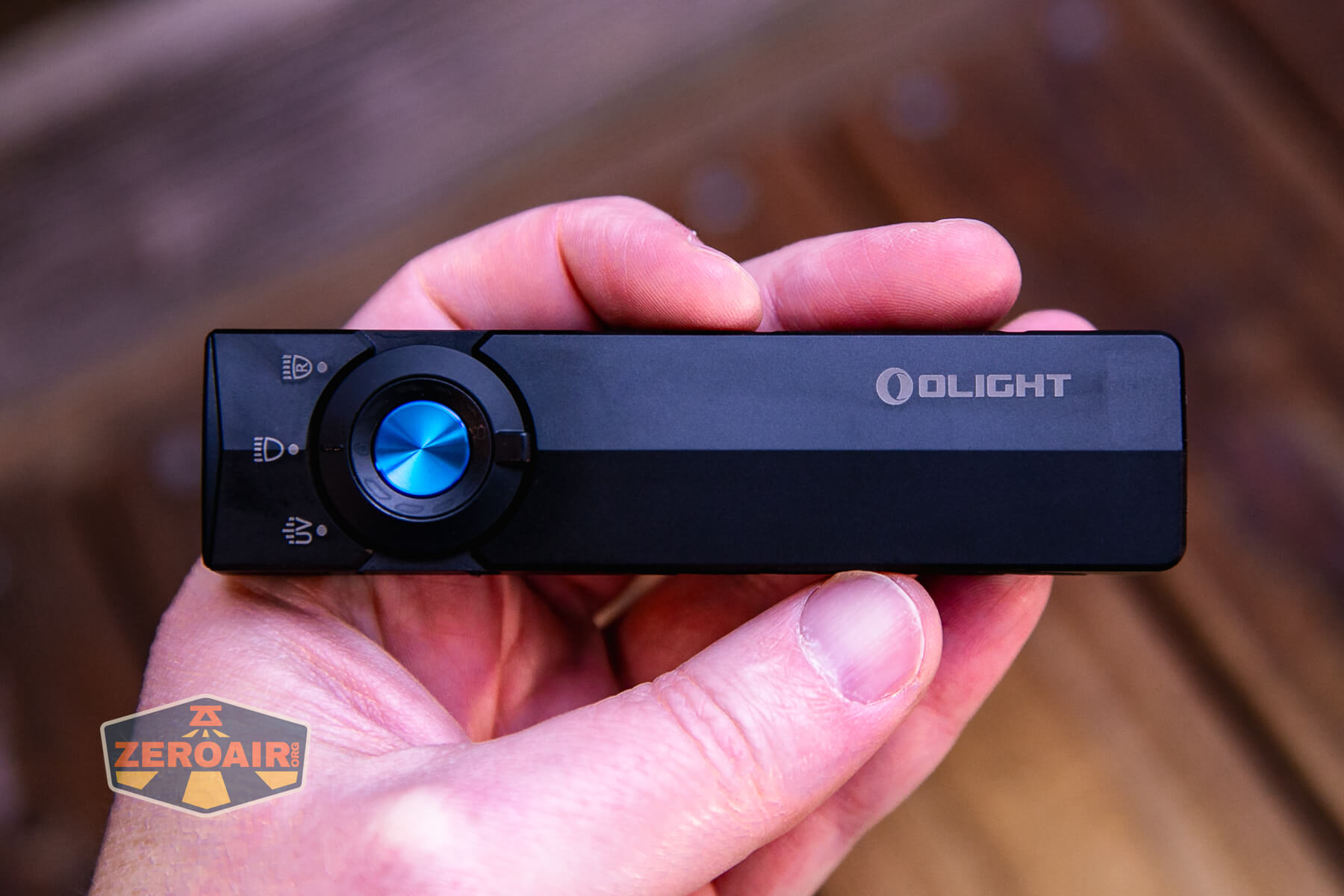

Here’s the light in hand:

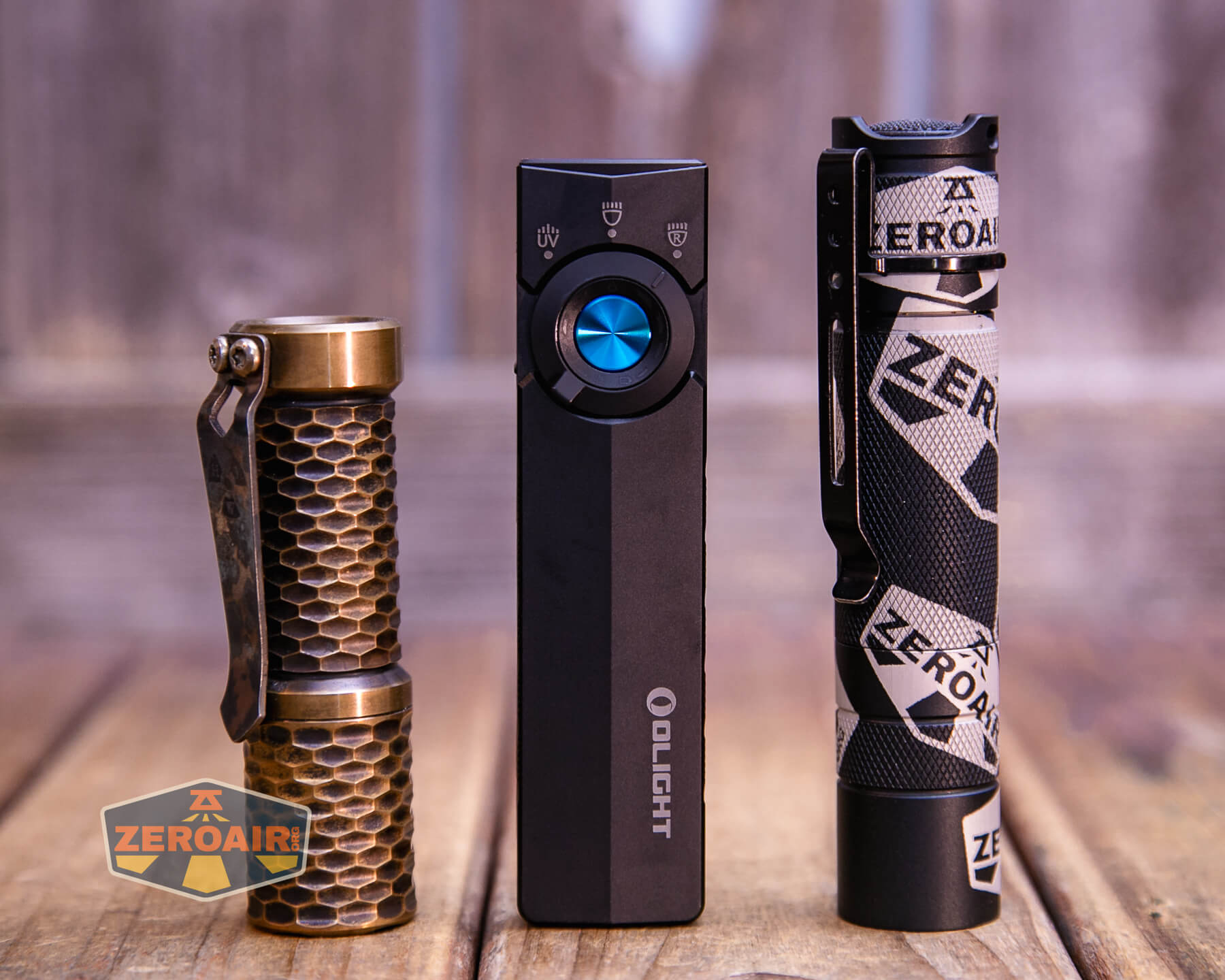

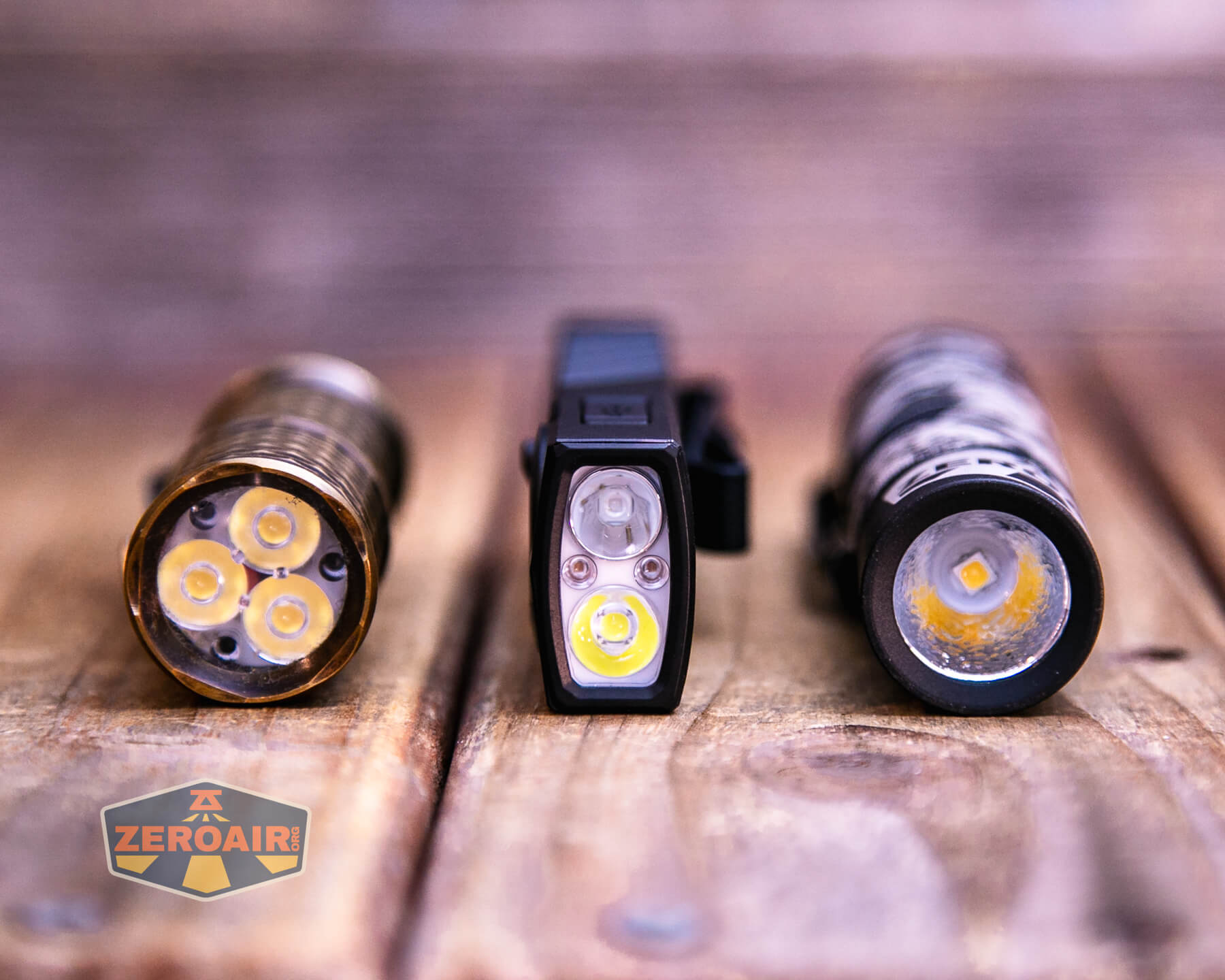

Here’s the test light with the venerable Convoy S2+. The version below is a custom laser-engraved Convoy S2+ host by GadgetConnections.com. I did a full post on an engraved orange host right here! Or go straight to GadgetConnections.com to buy your Convoy S2+ now!
Also in the photo above, my Standard Reference Material (SRM) flashlight is the Hanko Machine Works Trident, an 18350 light. While I have not reviewed or tested the Gunner Grip version seen here, I have tested a Hanko Machine Works Trident Total Tesseract in brass. I love the Trident, and it’s a striking contrast to the inexpensive Convoy S2+, another great SRM.

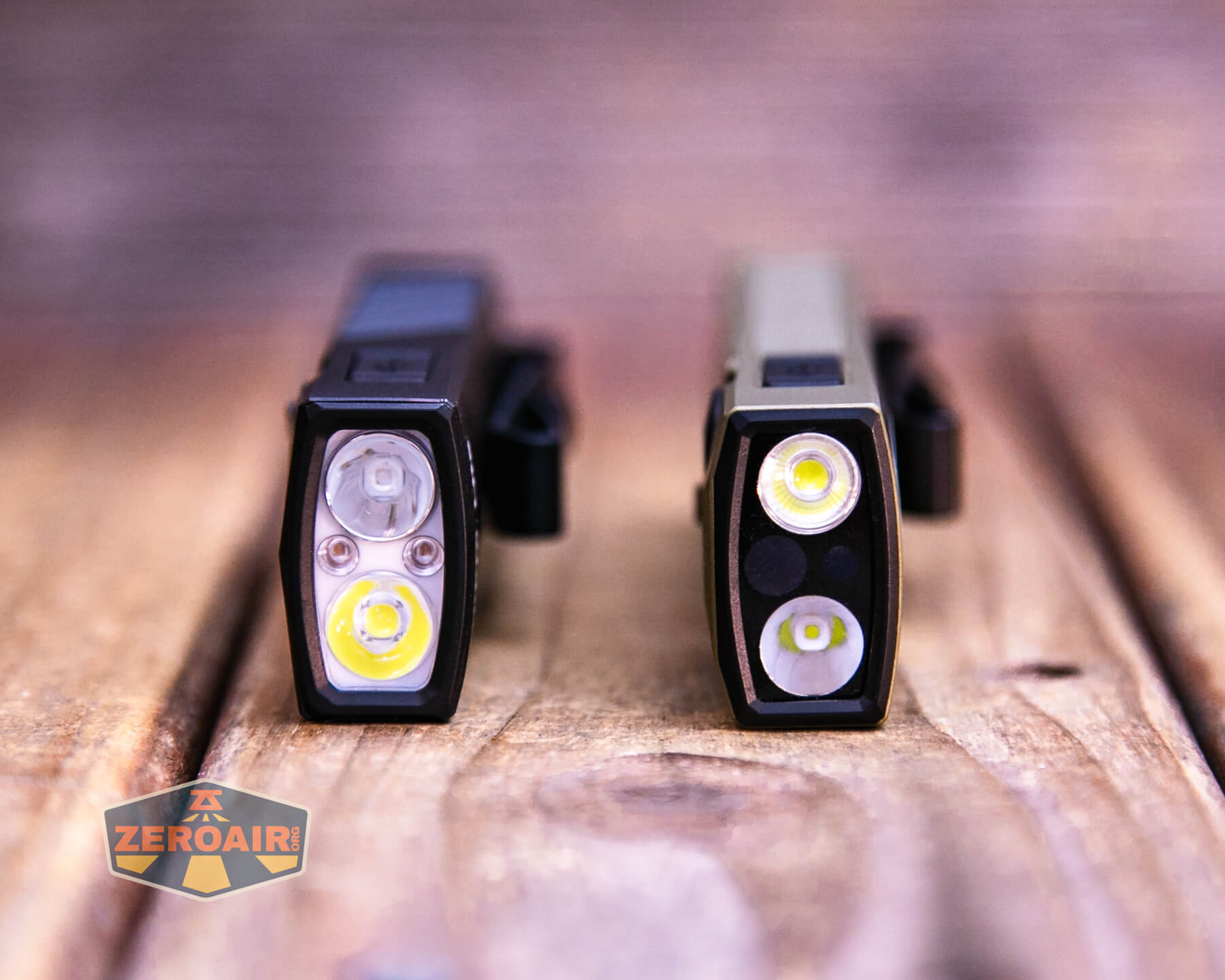

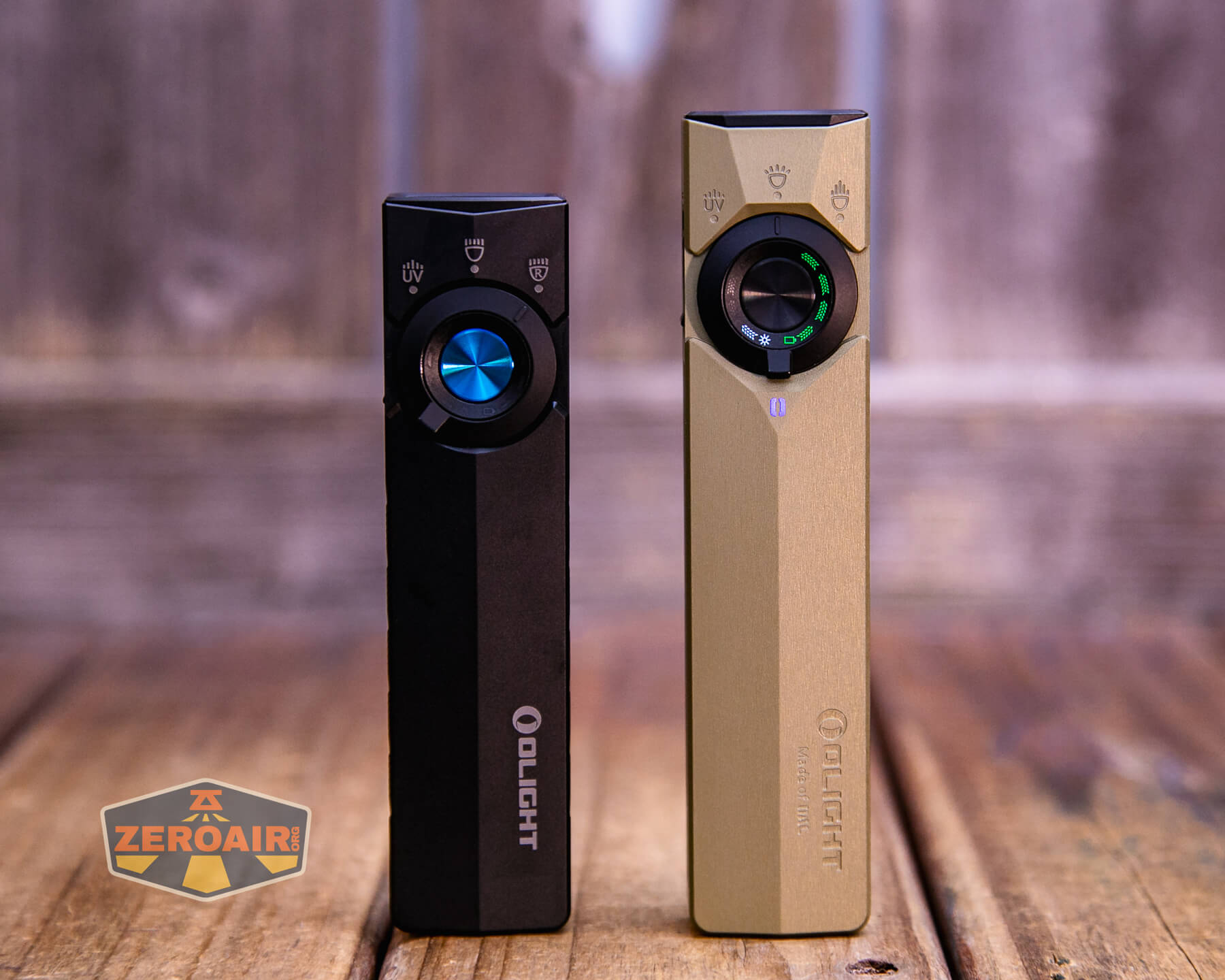

Below you can see the Olight ArkPro Lite flashlight beside the ArkPro Ultra. Notable is the size (height only!) difference as well as the emitter differences.
Below you can see a couple of ArkPros and one ArkPro Ultra, along with a couple of the older Arkfeld versions. I included this one from an old review so you can see how the ArkPro Ultra (pictured above) stacks up against other lights (and thus compare the Olight ArkPro Lite flashlight).
Retention and Carry

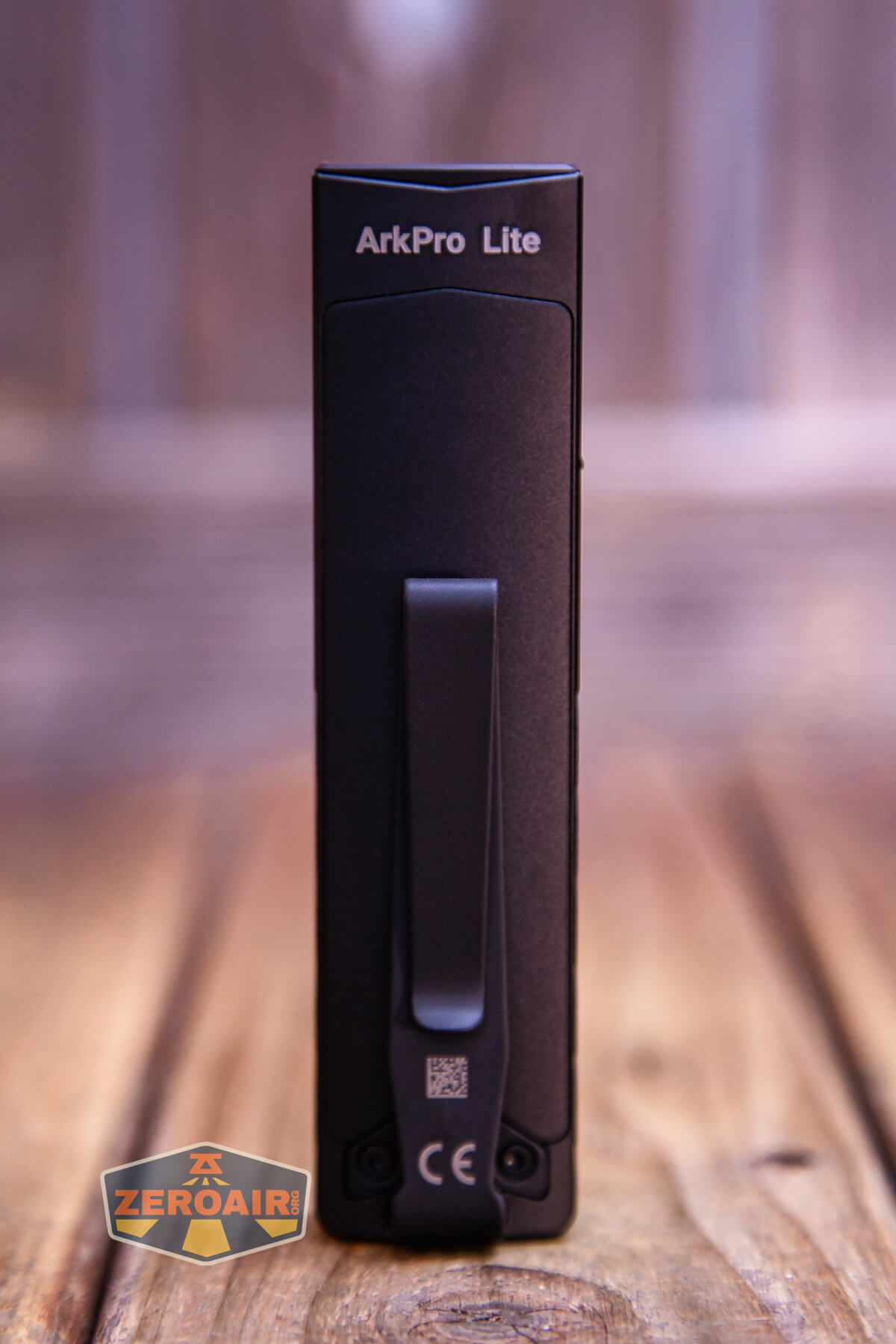

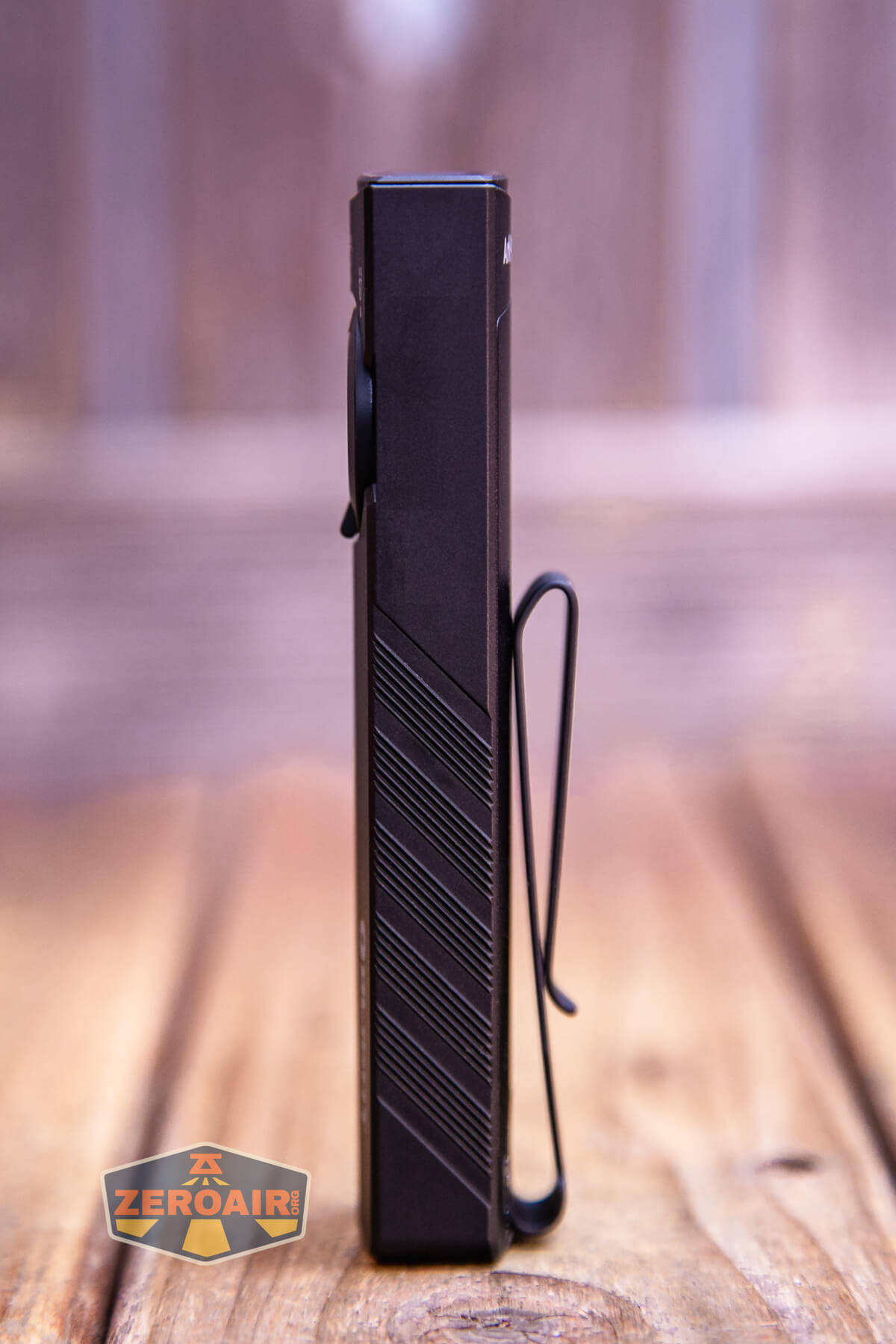

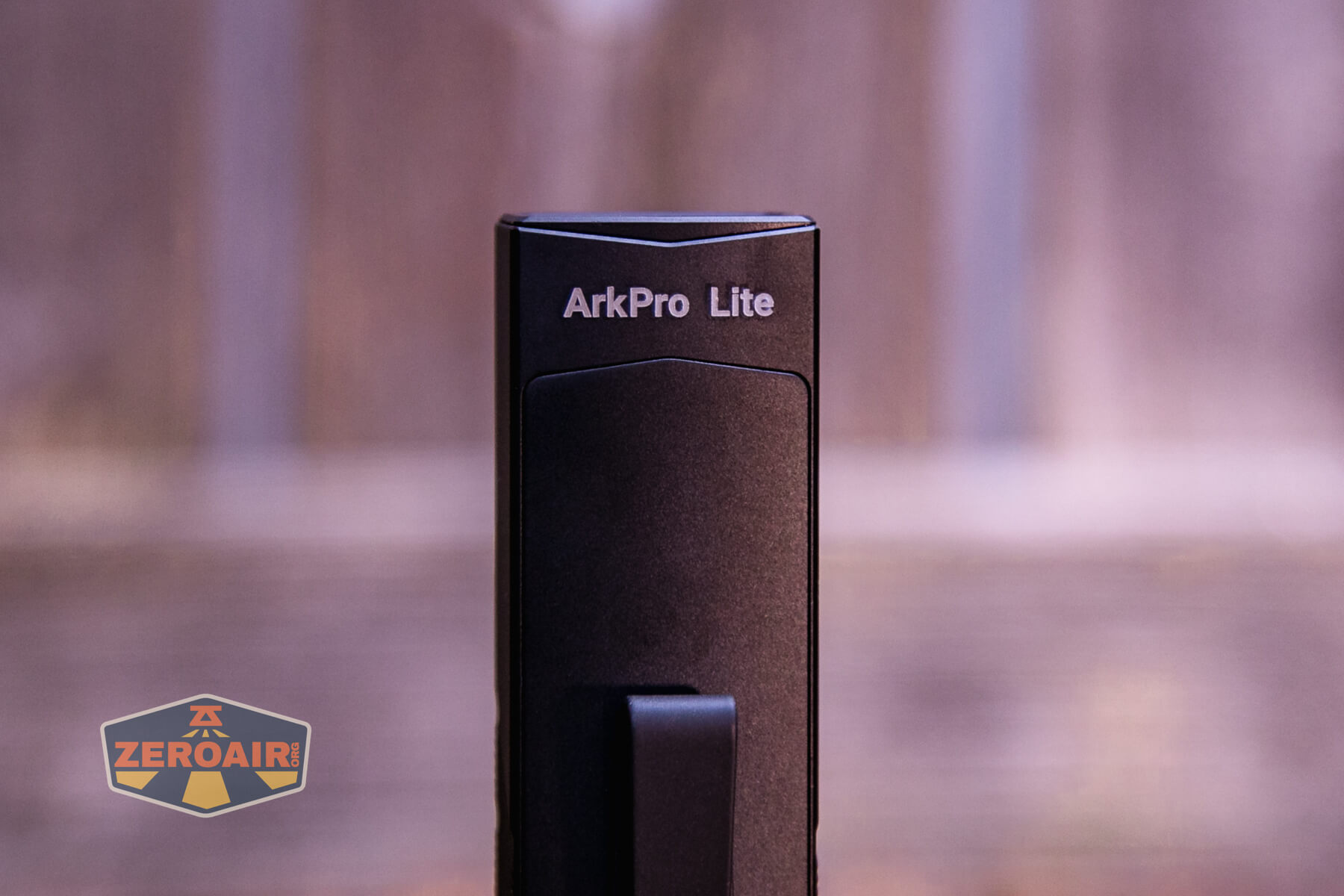

The Olight ArkPro Lite flashlight has a two-way pocket clip, which is so much better than some earlier edition Arkfeld-type lights. This clip allows great deep carry and has a two-way option. I don’t care at all about the two-way, but I love the deeper carry.
Interestingly, the Olight ArkPro Lite flashlight does not have a lanyard hole in the pocket clip like some previous Arkfelds.

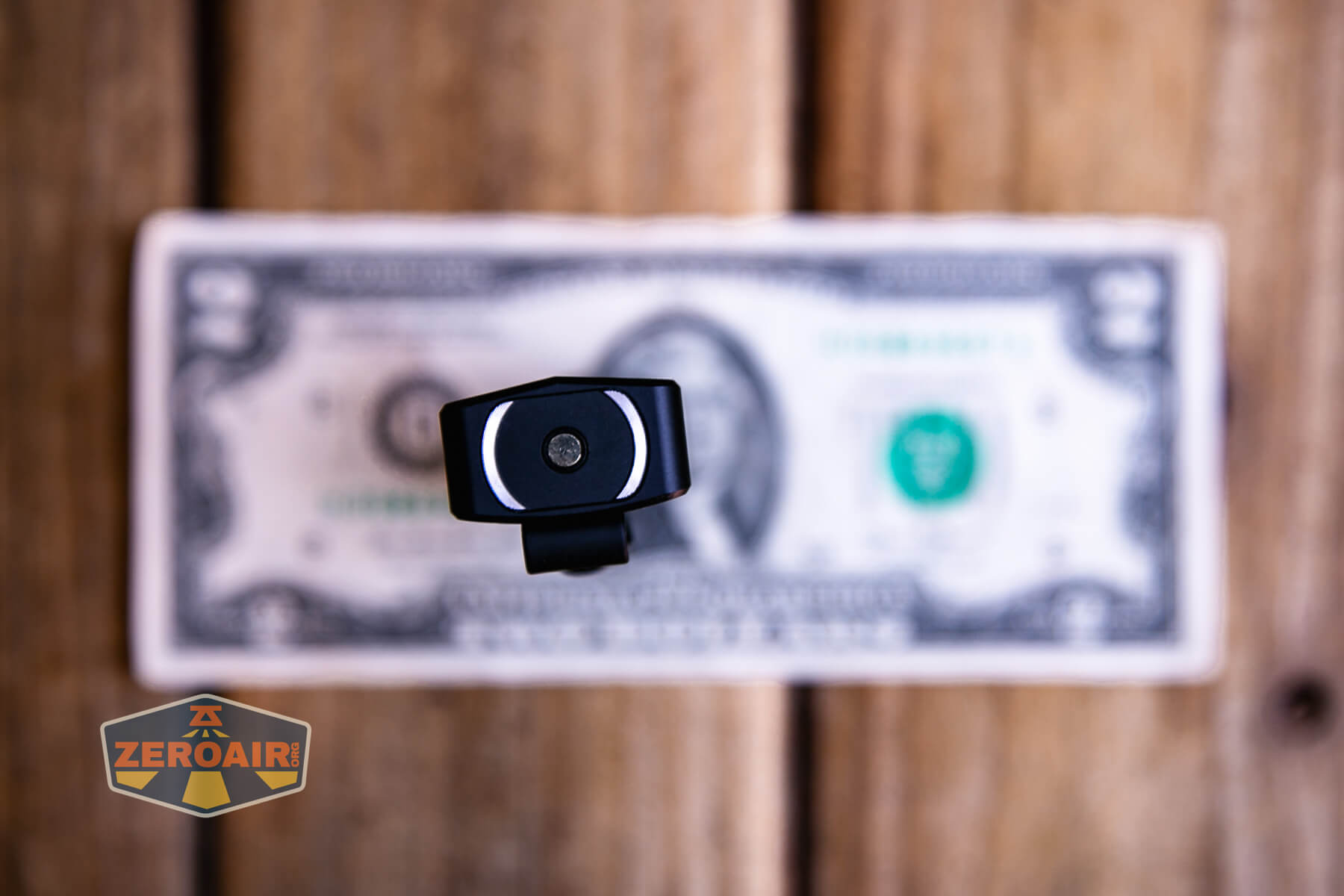

There’s a magnet in the tail because that’s the way the charger connects. It’s also strong enough to hold the ArkPro Lite.
Power and Runtime

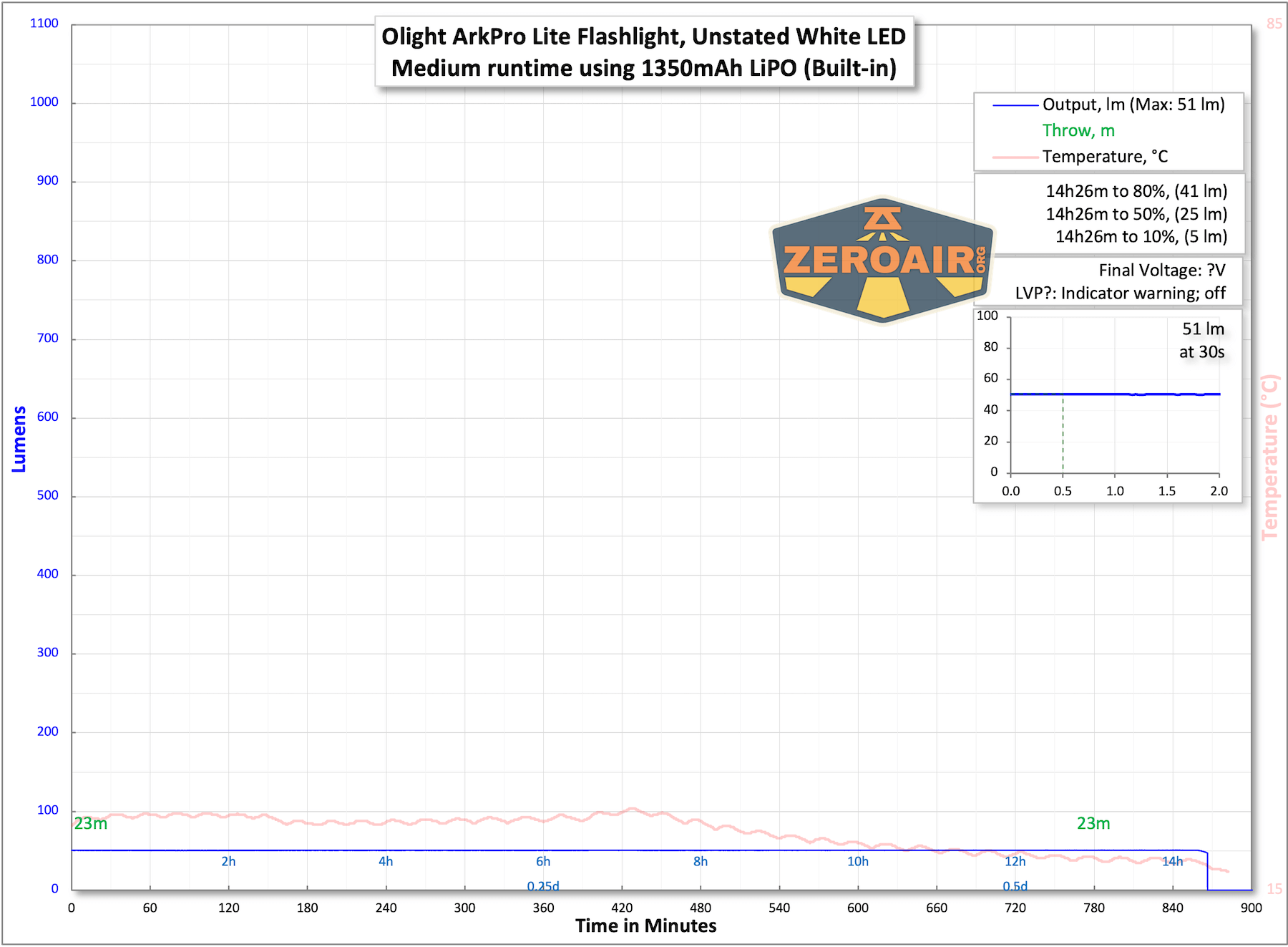

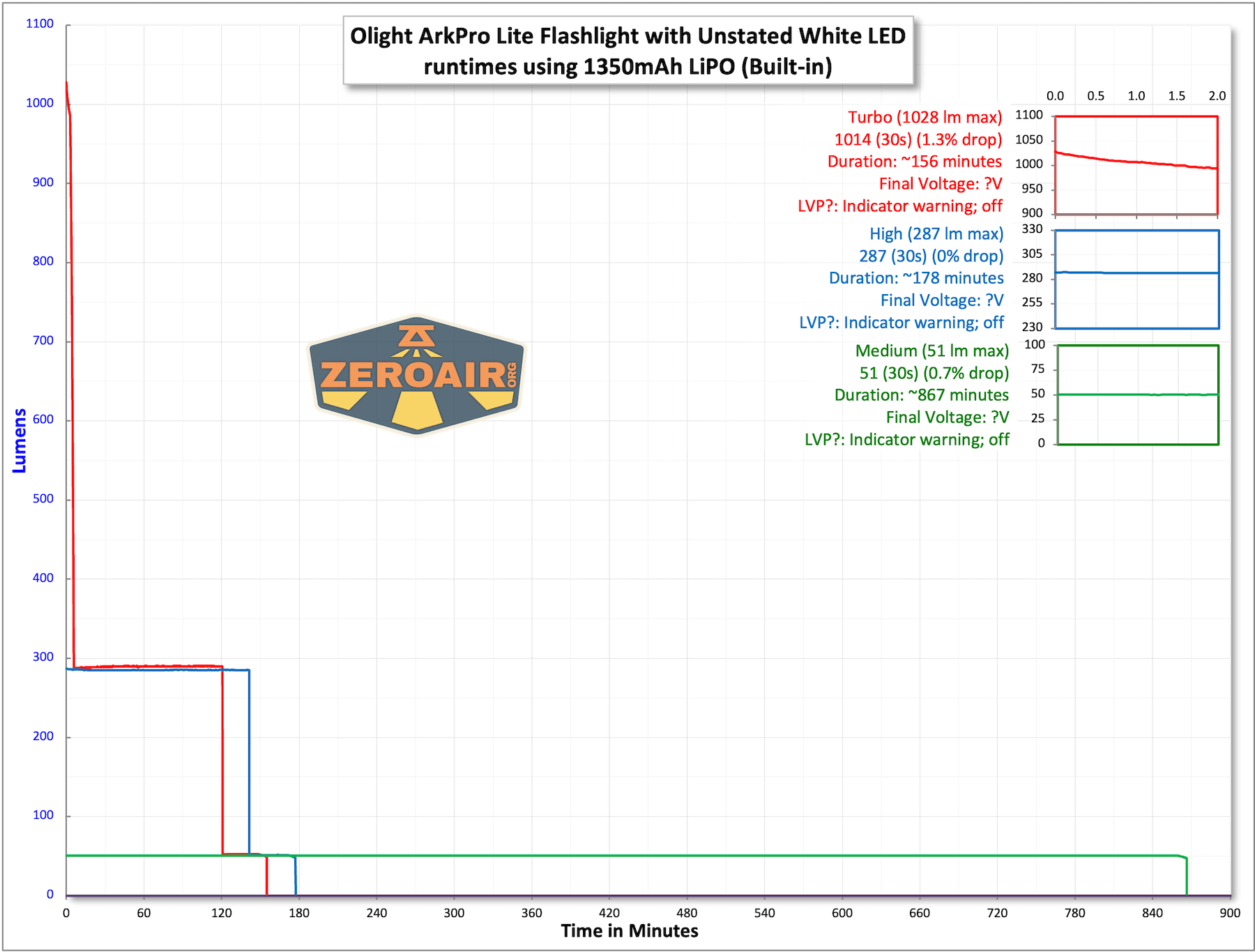

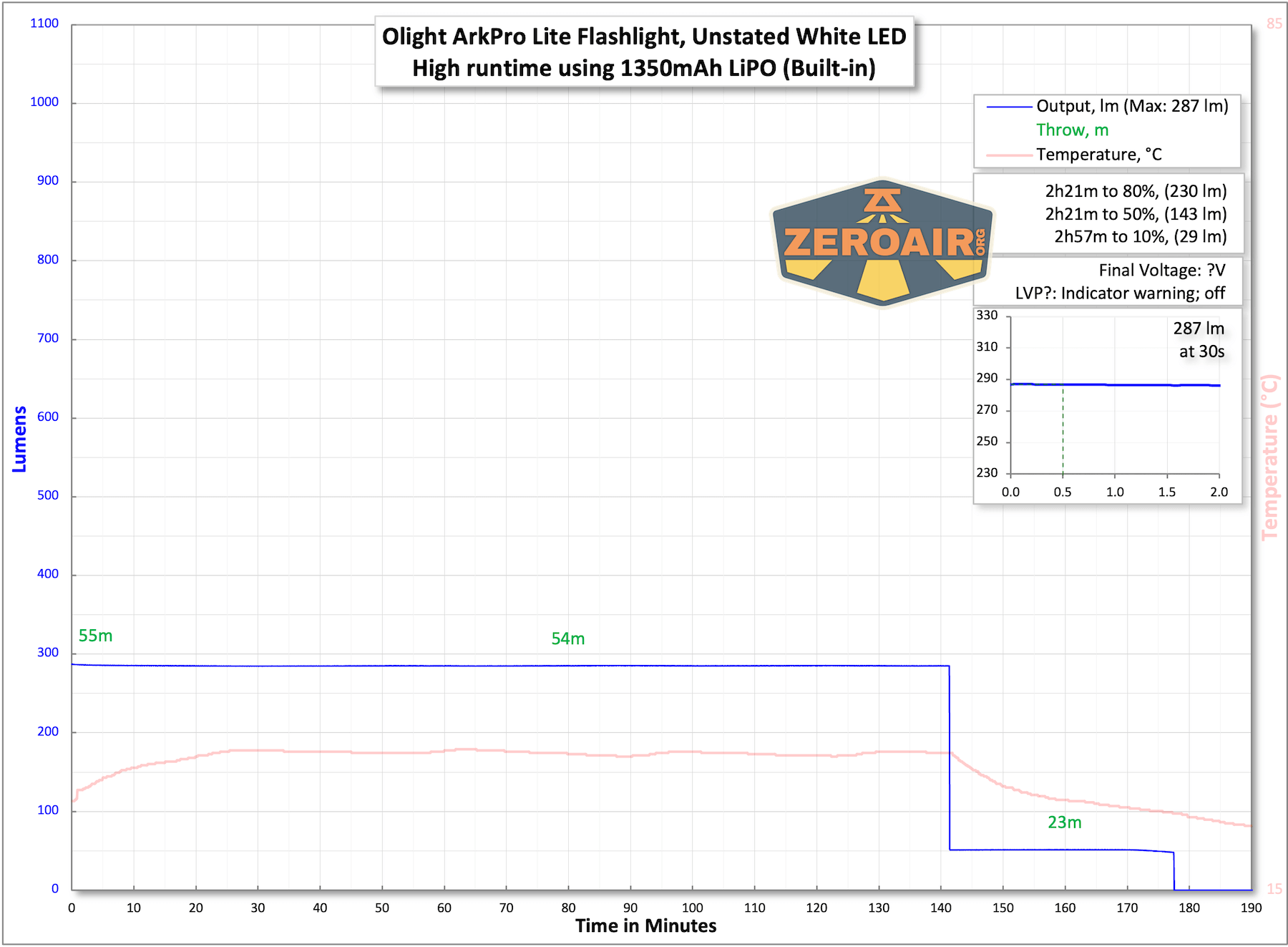

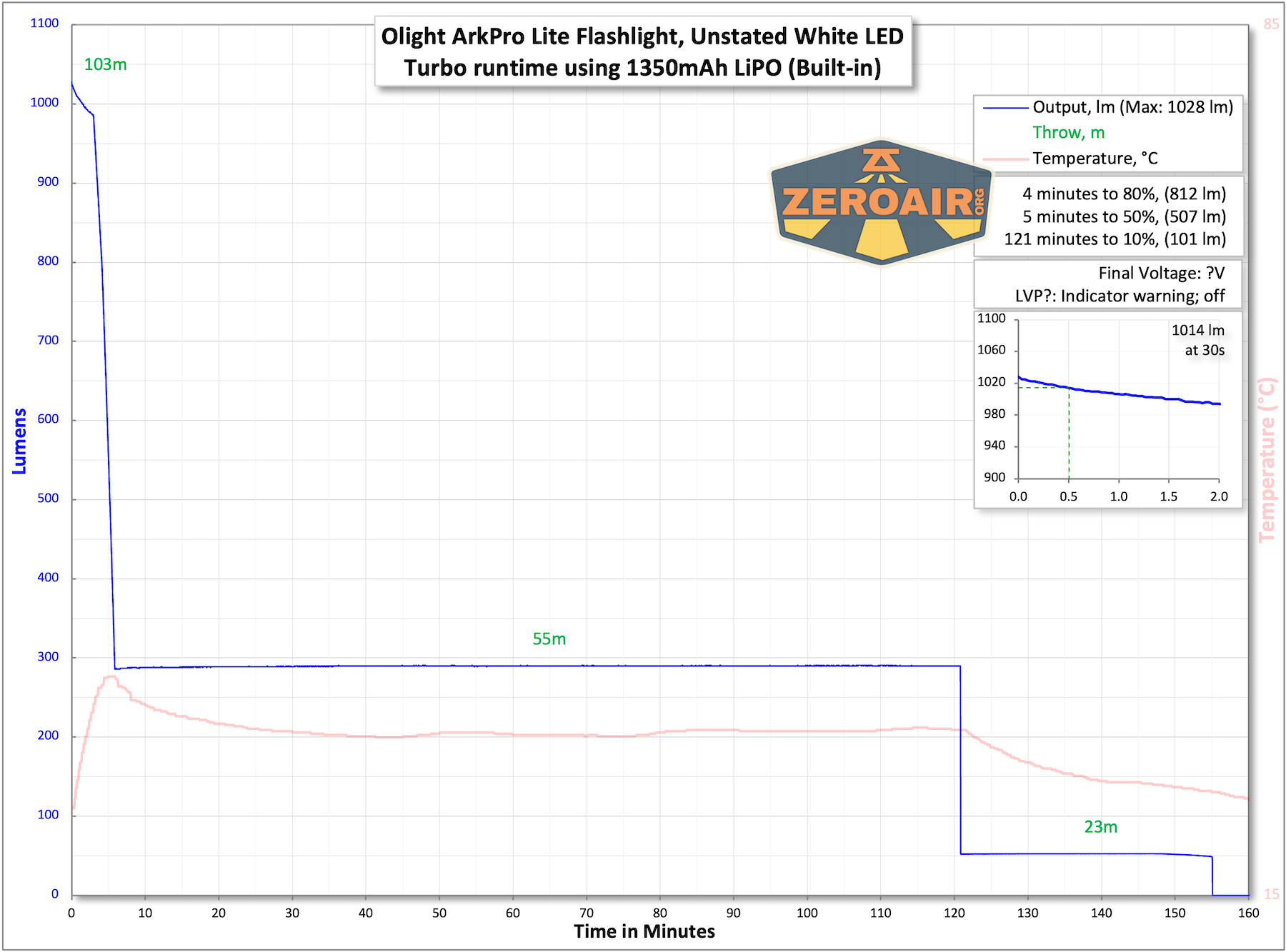

Olight states this as a 1350mAh battery, and that’s perfectly logical for the size. I was unable to gain any access to the LiPO, but I did run a couple of output tests. There is a battery indicator surrounding the switch, and it indicates when the voltage is low. The light finally shuts off, too.
The temperature lines in these charts are included as general context, not precise measurements. The values represent the range (min to max) during testing, but should not be taken as exact readings. A temperature sensor is not always attached to the bezel (or even the hottest spot, assuming that could be defined). Even with ideal placement, too many variables affect temperature to definitively state a specific max value.
Charging

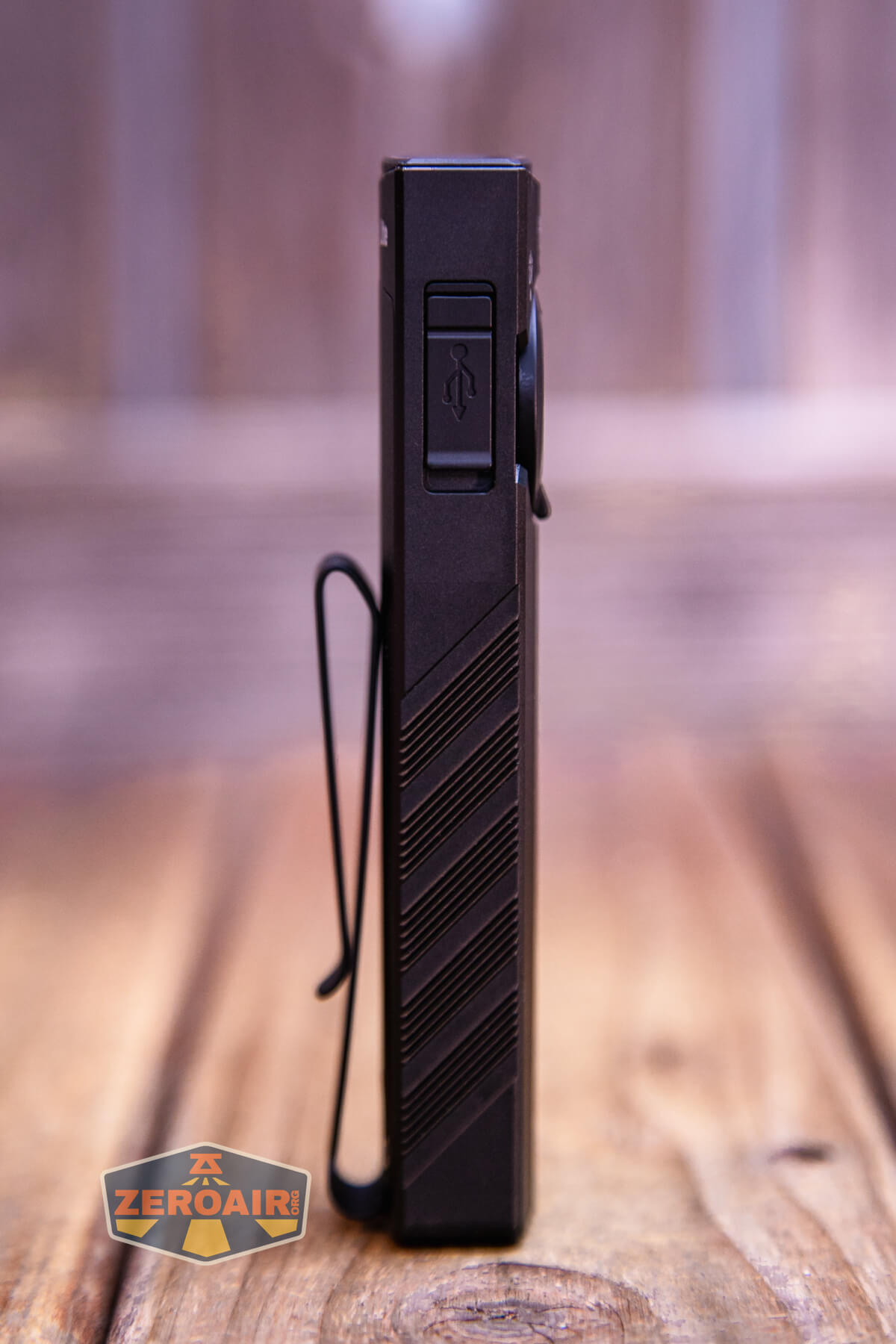

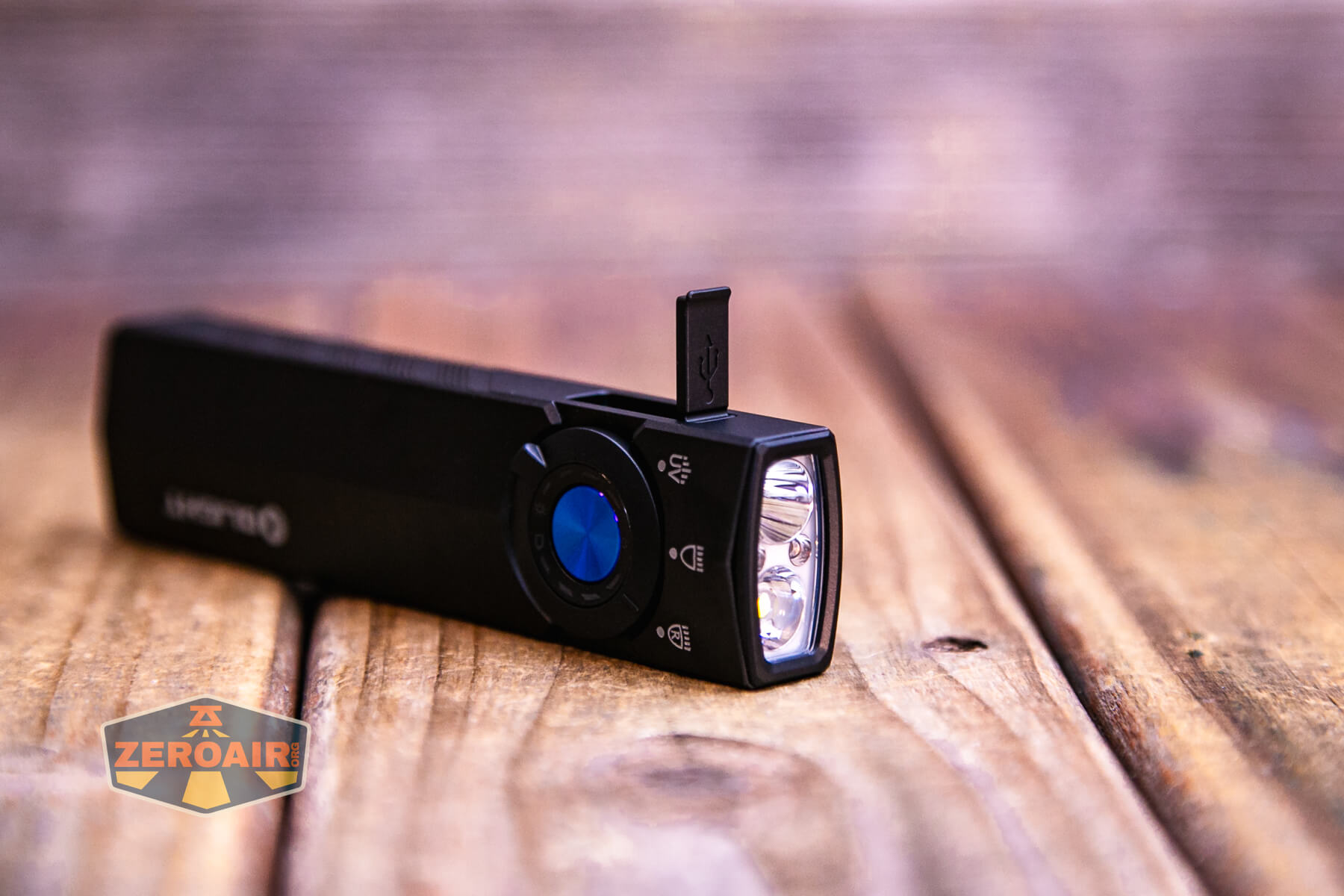

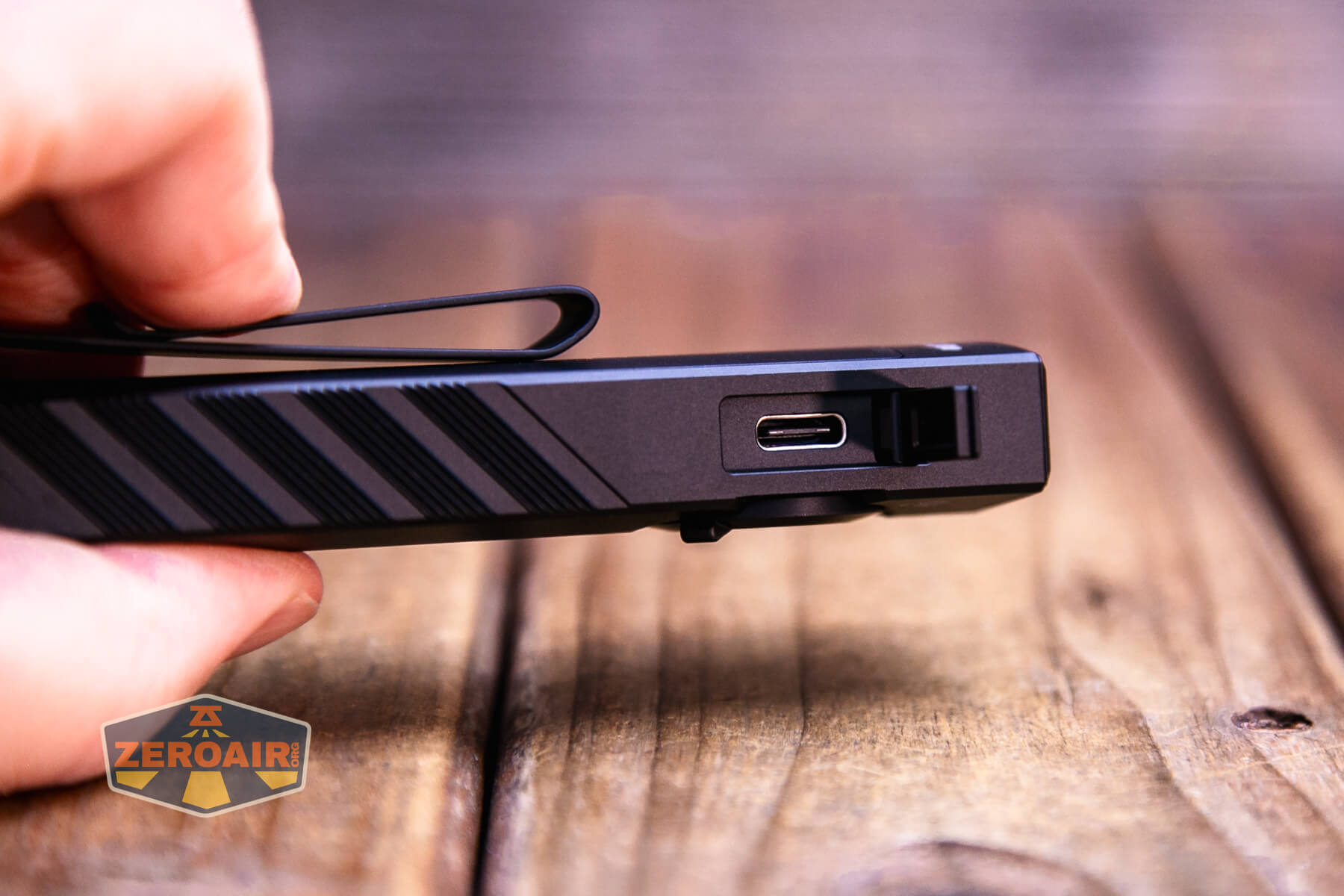

The Olight ArkPro Lite flashlight offers USB-C charging! The charge port is covered by the same type of cover we have seen recently on some of the Oclip lights (for example, the Oclip Pro).
The cover feels metal, and I would guess that the charge port is waterproof, as the hinged door doesn’t have any gaskets.

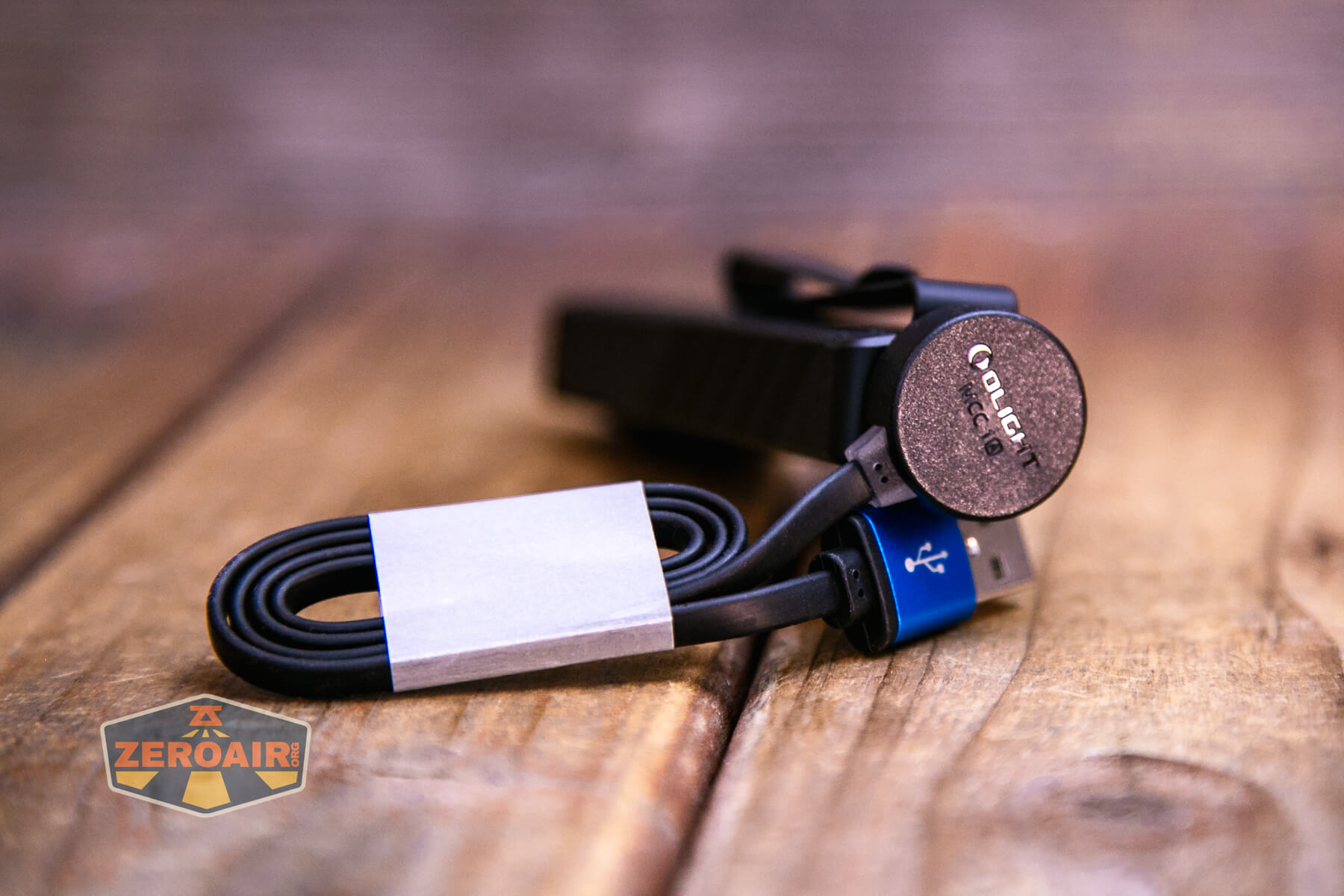

A second option is available for charging, too! Olight includes this proprietary MCC charger.
That works just fine too, but with USB-C as an option now, I don’t anticipate using this charging base!

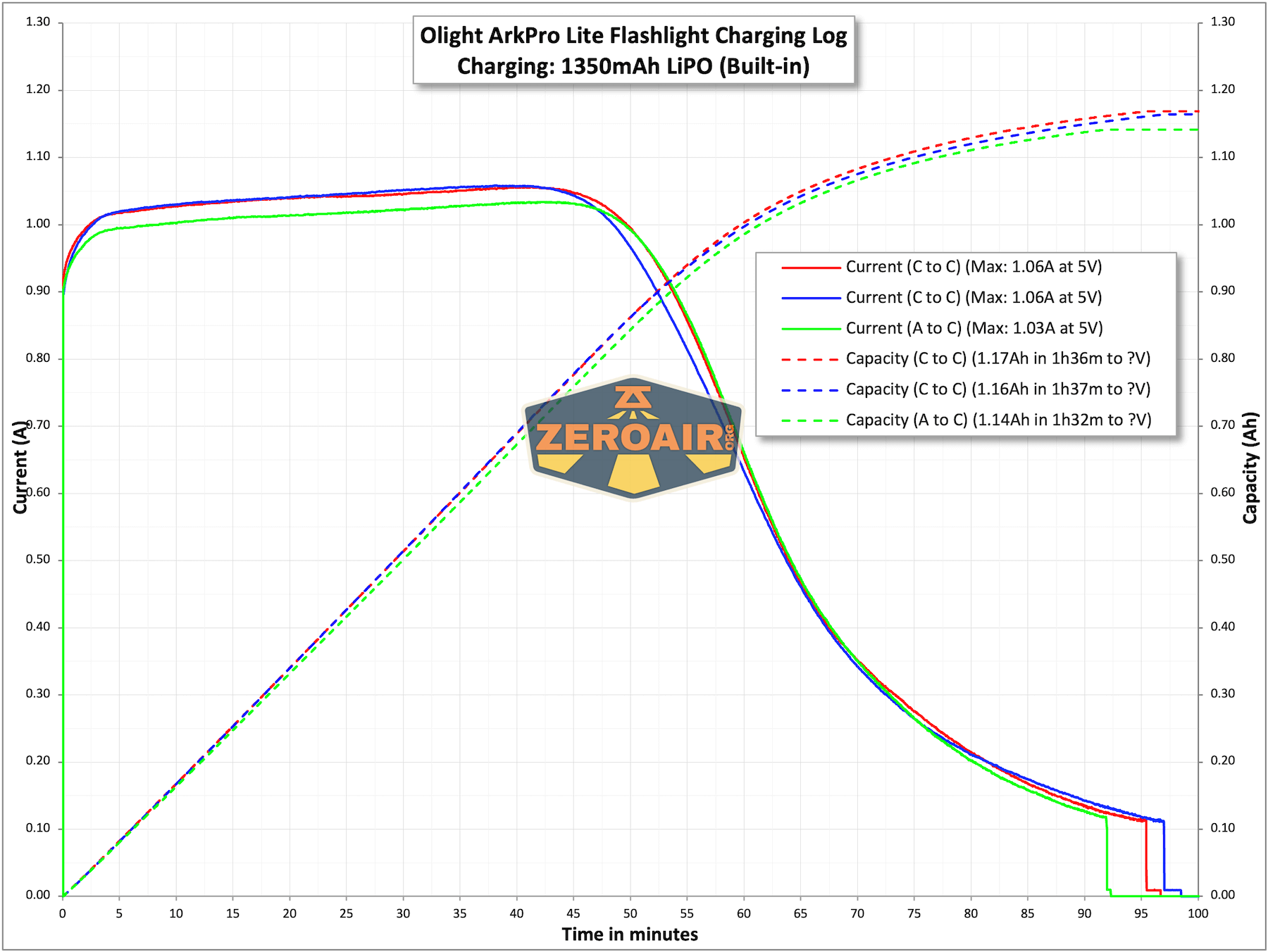

I only tested charging with USB-C. USB-C charging works great with A to C and C to C both. Charging completes in about 1.5 hours.
Modes
| Mode | Mode Claimed Output (lm) | Claimed Runtime | Measured Lumens |
|---|---|---|---|
| Turbo | 1200-350 | 4m+134m | 1028 (0s) 1014 (30s) |
| High | 350-60 | 155m+30m | 287 |
| Med | 60 | 16h | 51 |
| Low | 15 | 54h | 12.4 |
| Moonlight | 1 | 10d | 1.44 |
| High – Red | 40 | 5h30m | – |
| Low – Red | 5 | 39h | – |
| High – UV | 1000mW-450mW | 5m+280m | – |
| Low – UV | 360mW | 6h | – |
| Moonlight – Spot | 1 | 14d | – |

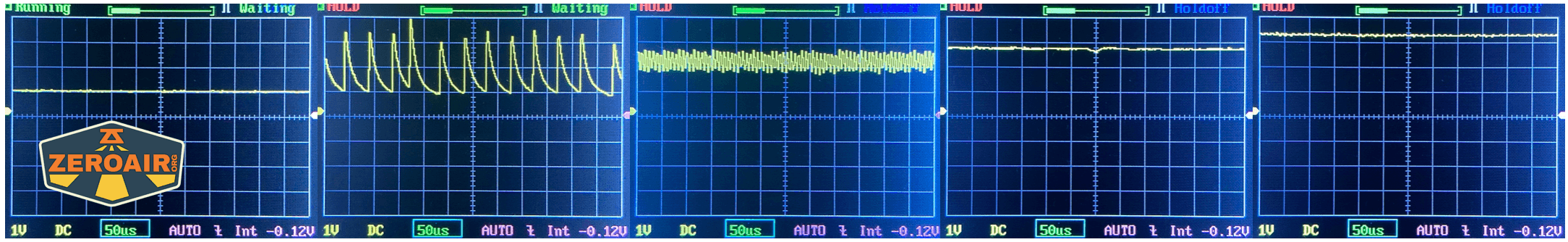

Pulse Width Modulation
Nothing really to mention here. None of the modes seems to be using PWM.

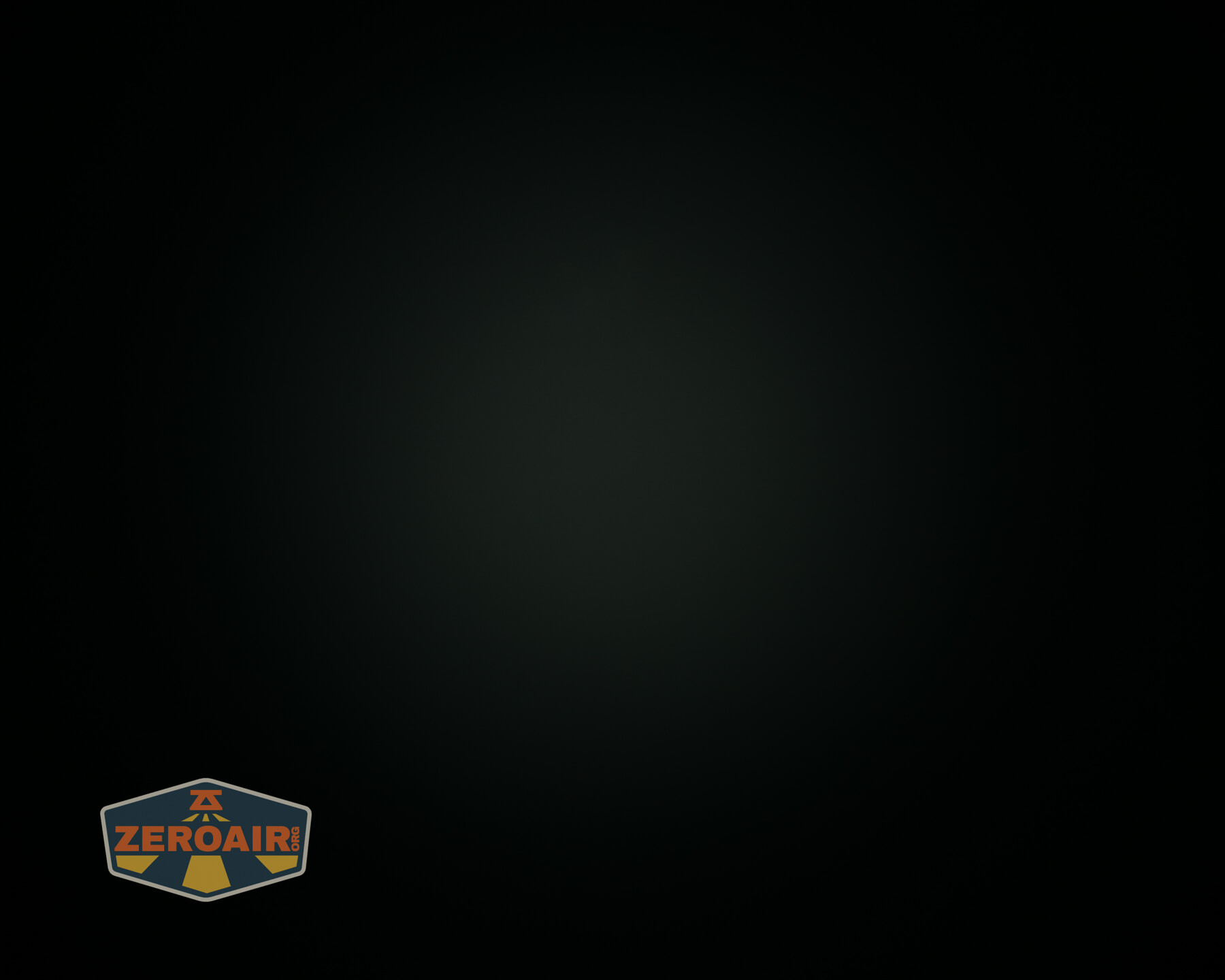

Click here to see a “baseline” – a chart with almost no light hitting the sensor.
Then there’s the Ultrafire WF-602C flashlight, which has some of the worst PWM I’ve seen. It’s so bad that I used a post about it to explain PWM! Here are multiple timescales (10ms, 5ms, 2ms, 1ms, 0.5ms, 0.2ms) to make comparing this “worst” PWM light to the test light easier. That post also explains why I didn’t test the WF-602C at the usual 50us scale.
User Interface and Operation

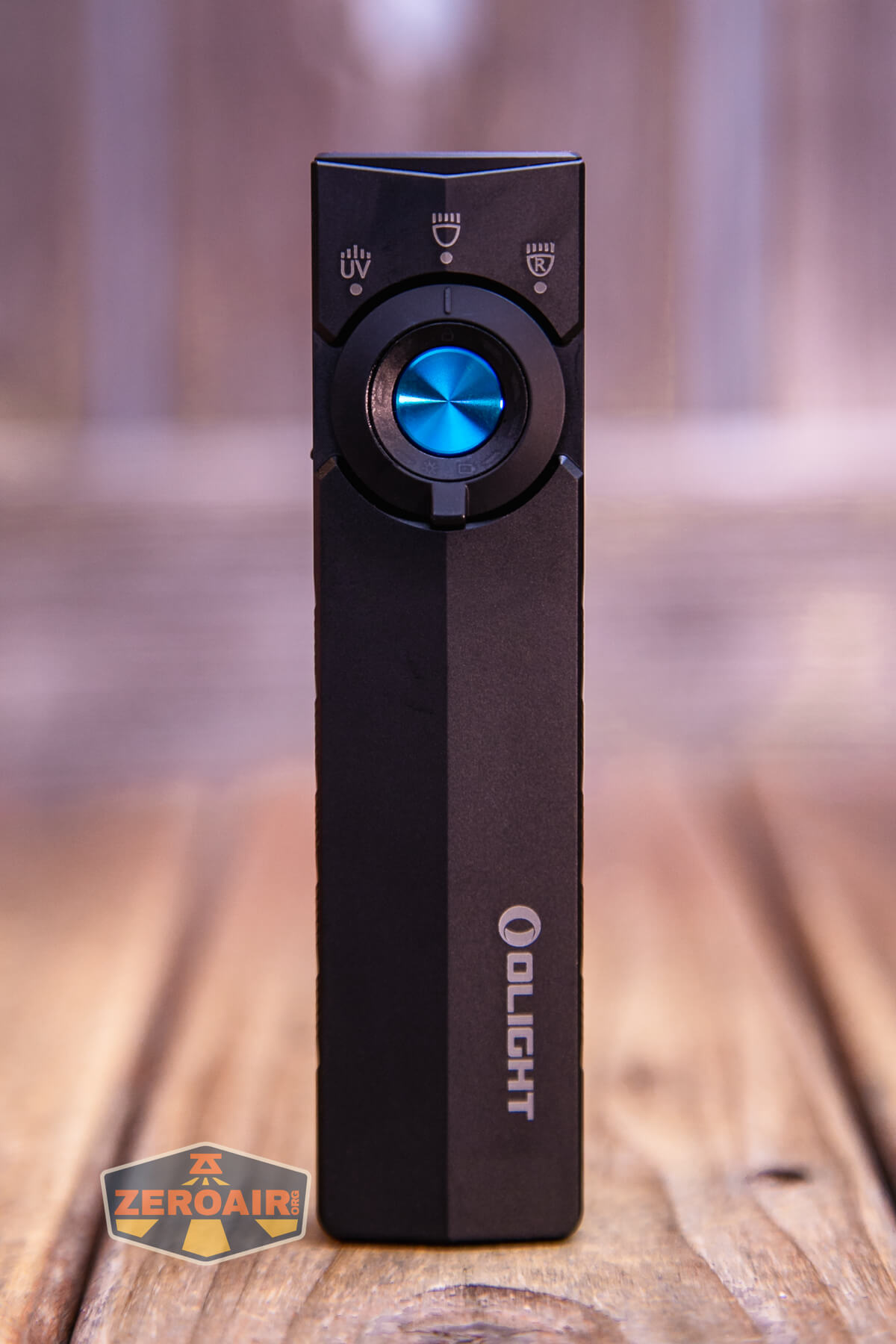

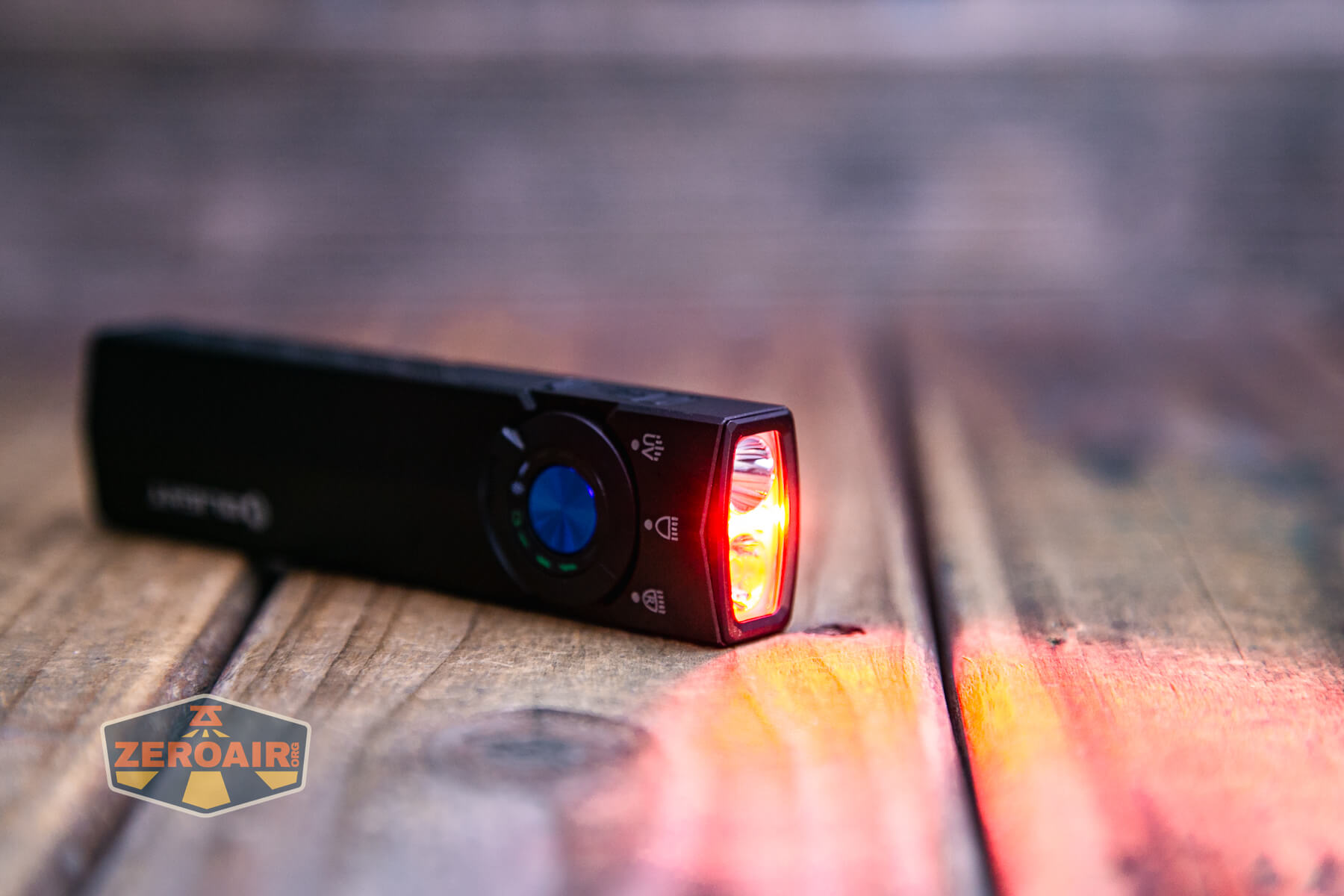

The Olight ArkPro Lite flashlight has two switches! Surrounding that e-switch is a selector knob of sorts, which points to either ultraviolet, white LED output, or red output.

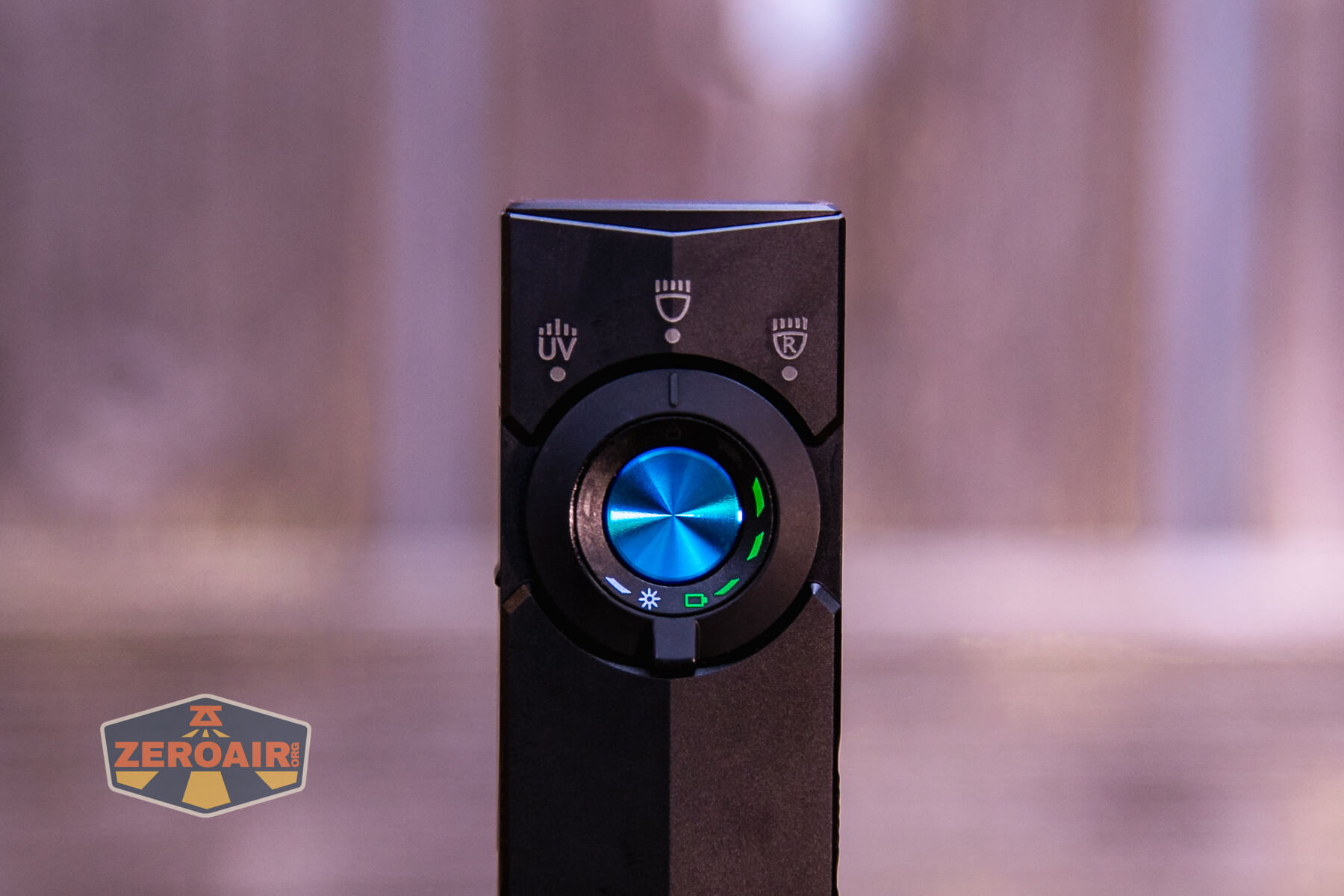

One big and fantastic update is the indicators, seen above. They’re in a ring between the rotary and the e-switch. The left side indicates the output level, while the green right side indicates the charge status. Olight promotes these as “laser-microperforated, color-coded indicators.”

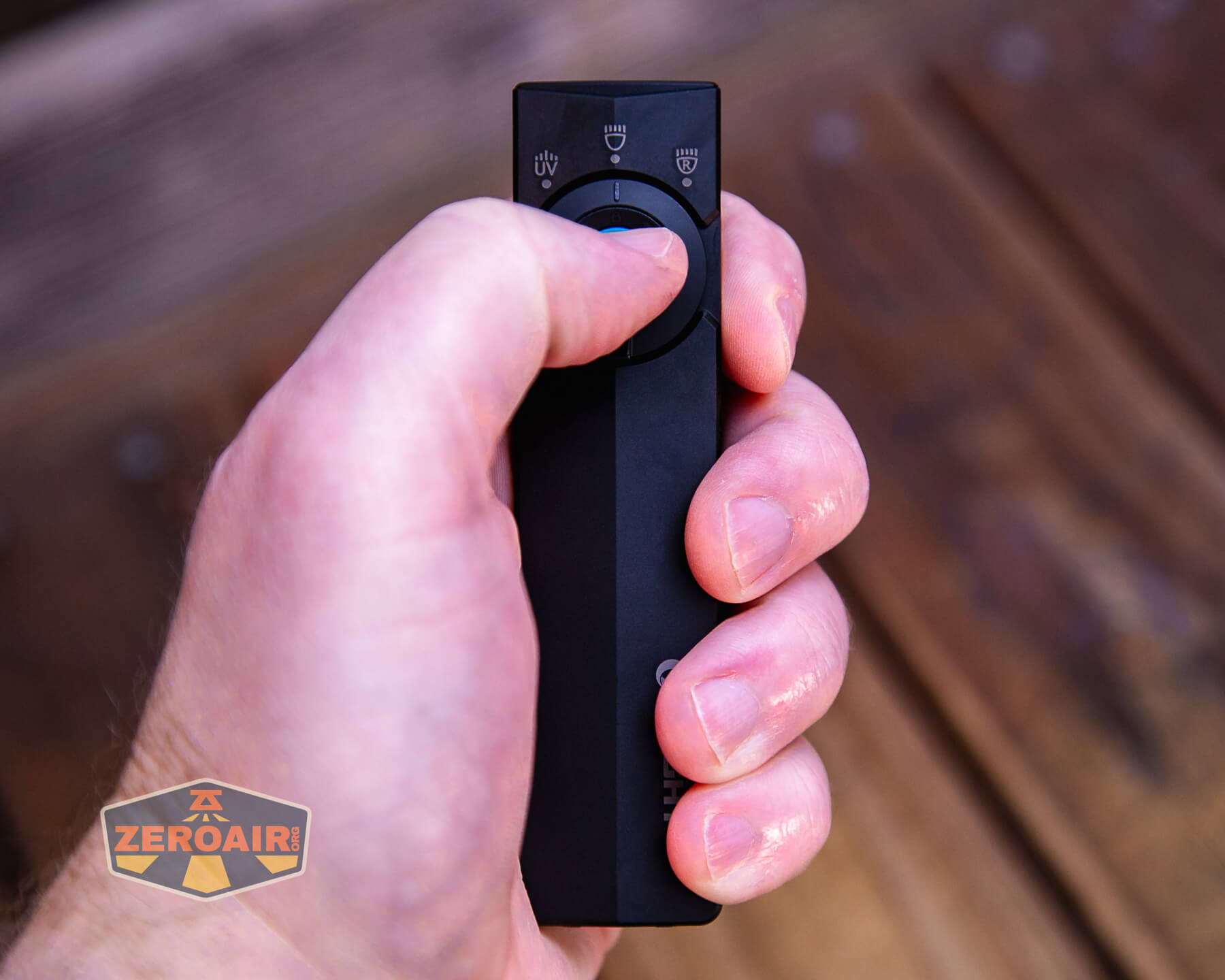

They say the LED e-switch is great for thumb use, and I am inclined to agree. There’s a nicely sized pad area for my thumb to rest. The concave around the rotary helps with this, too. Despite the text, below, I’m using my index thumb to actuate the switch. It’s fully depressed here, just like I must be to invent a term like “index thumb” to go along with a photo that doesn’t match Olight’s promotional material!
This only applies when the selector is in the LED position. The user interface is generally the same as the user interface for the ArkPro and ArkPro Ultra.
| State | Action | Result |
|---|---|---|
| Off | Click | On (mode memory)^ |
| On | Hold (release at desired mode) | Mode cycle (L, M, H) (no Moon or Turbo) |
| Off | Hold | Moonlight |
| Any | Double click | Turbo |
| Any | Triple click | Strobe |
| Strobe | Click | Off |
| Strobe | Hold | Previous Mode (or Moonlight, if strobe from off) |
| Off | Long hold (past Moonlight) | Lockout (indicated by a lock icon near the battery indicator)^ |
| Lockout | Hold | Unlock to Moonlight |
| On | Click then Click and Hold (quickly)^^ | Timer (Single blink: 3 minutes, Double blink: 9 minutes) |
| Timer | Click then Click and Hold (quickly)^^ | Switch between 3- and 9-minute timers. |
| UV selected – Off | Click | UV on low |
| UV on | Hold | Iterate between UV high and low |
| UV on | Click | Off |
^ Moon, Low, Medium, and High are memorized. Turbo is memorized as High.
^^ The manual doesn’t mention the timers as far as I can see.
LED and Beam

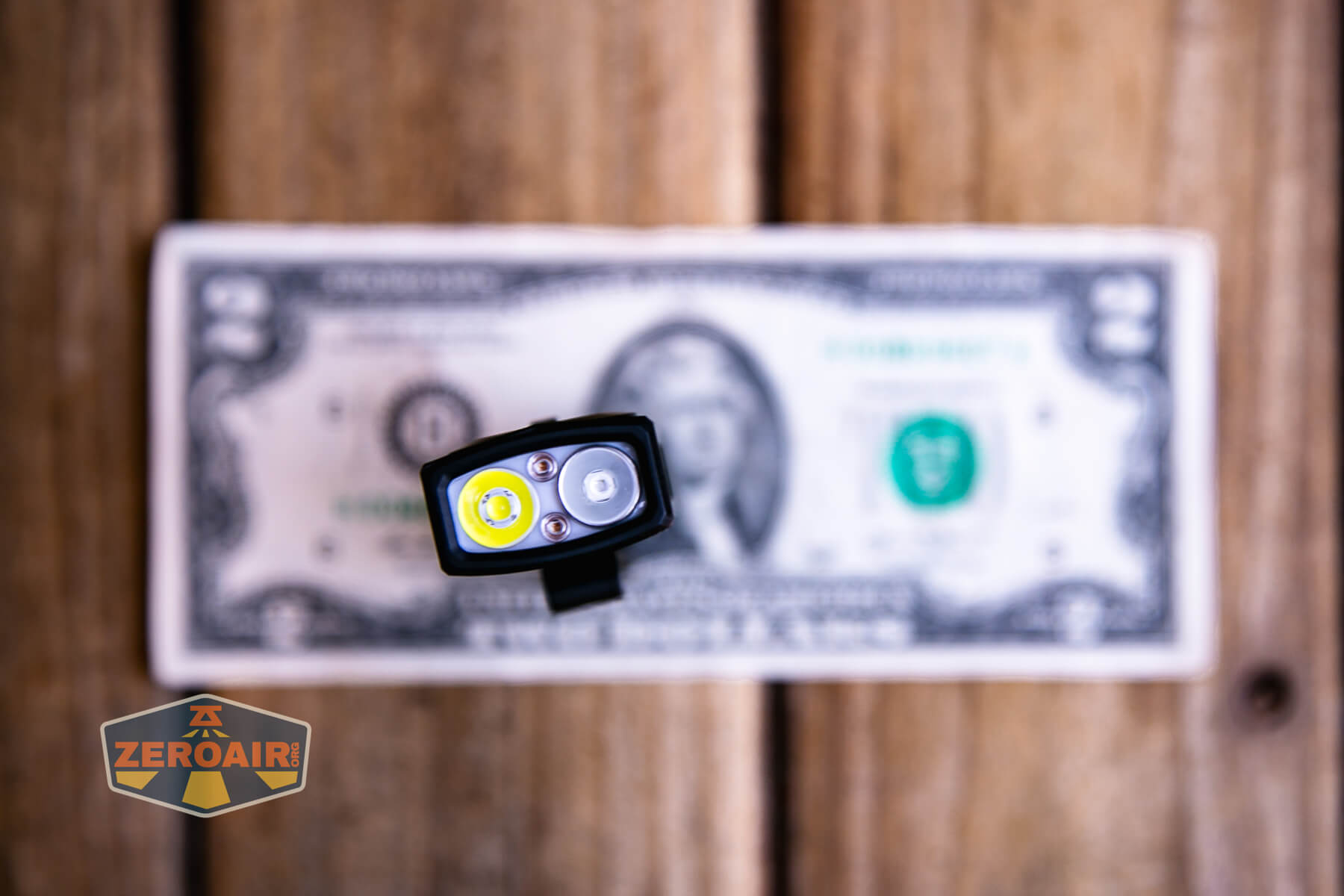

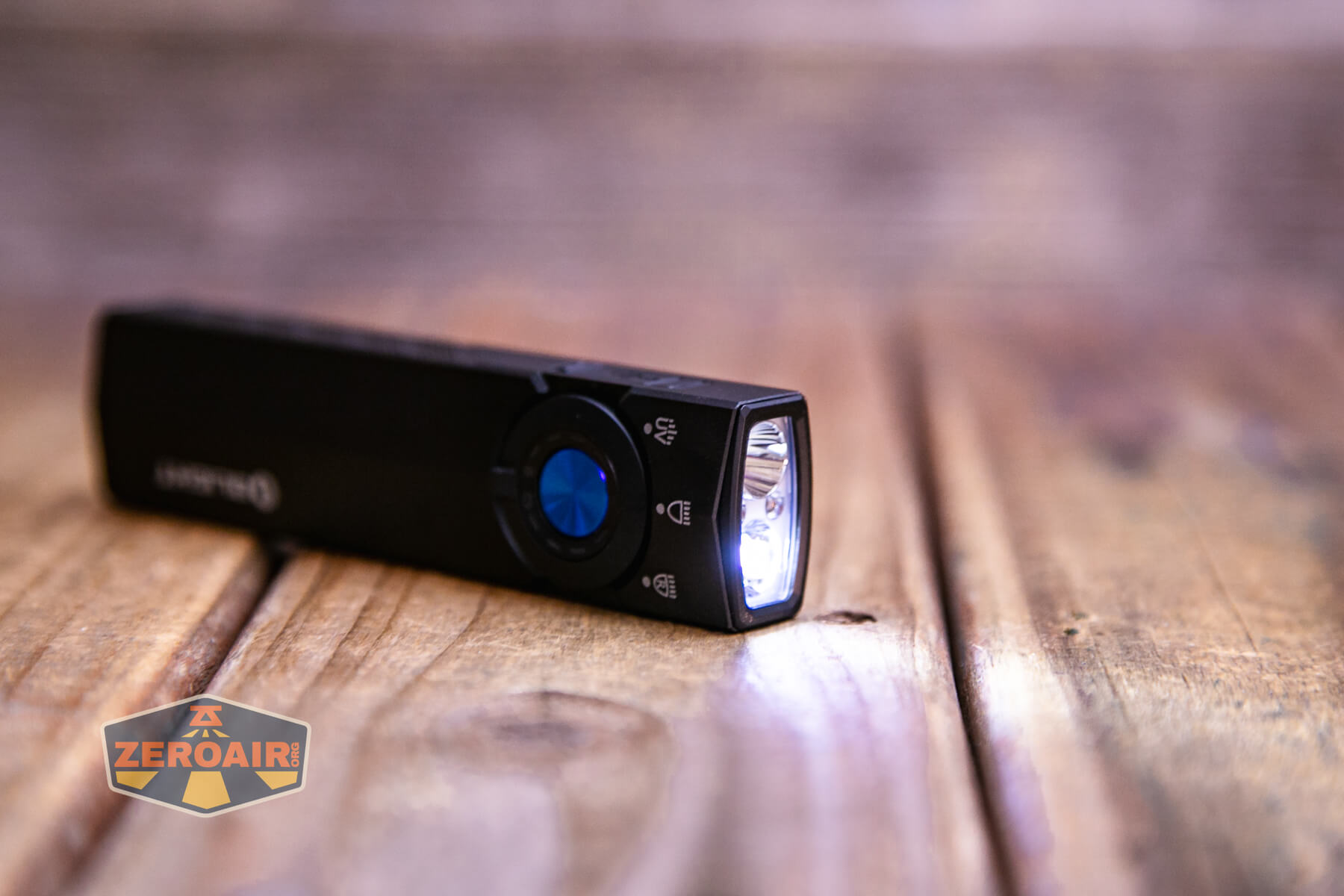

Some of the new ArkPros use Olights new emitter, but I’m not sure the Olight ArkPro Lite flashlight does. I’m not totally sure it matters, since we can see the CRI and CCT in the next section. These emitters have the best type of optic for their purpose. The white LED emitter has a shallow TIR, and the UV emitter has a deep, smooth reflector, and the dual red reflectors have very small TIRs.

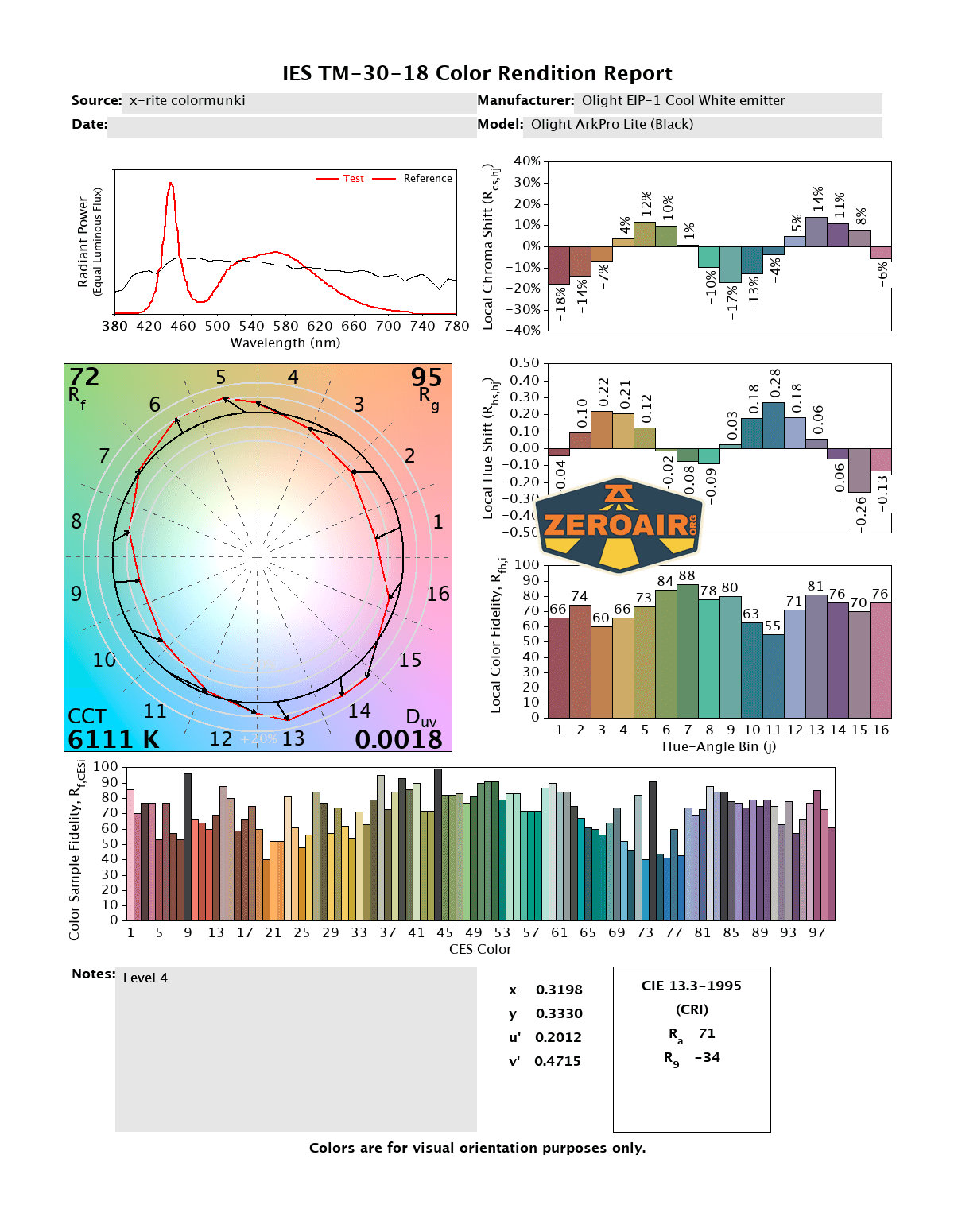

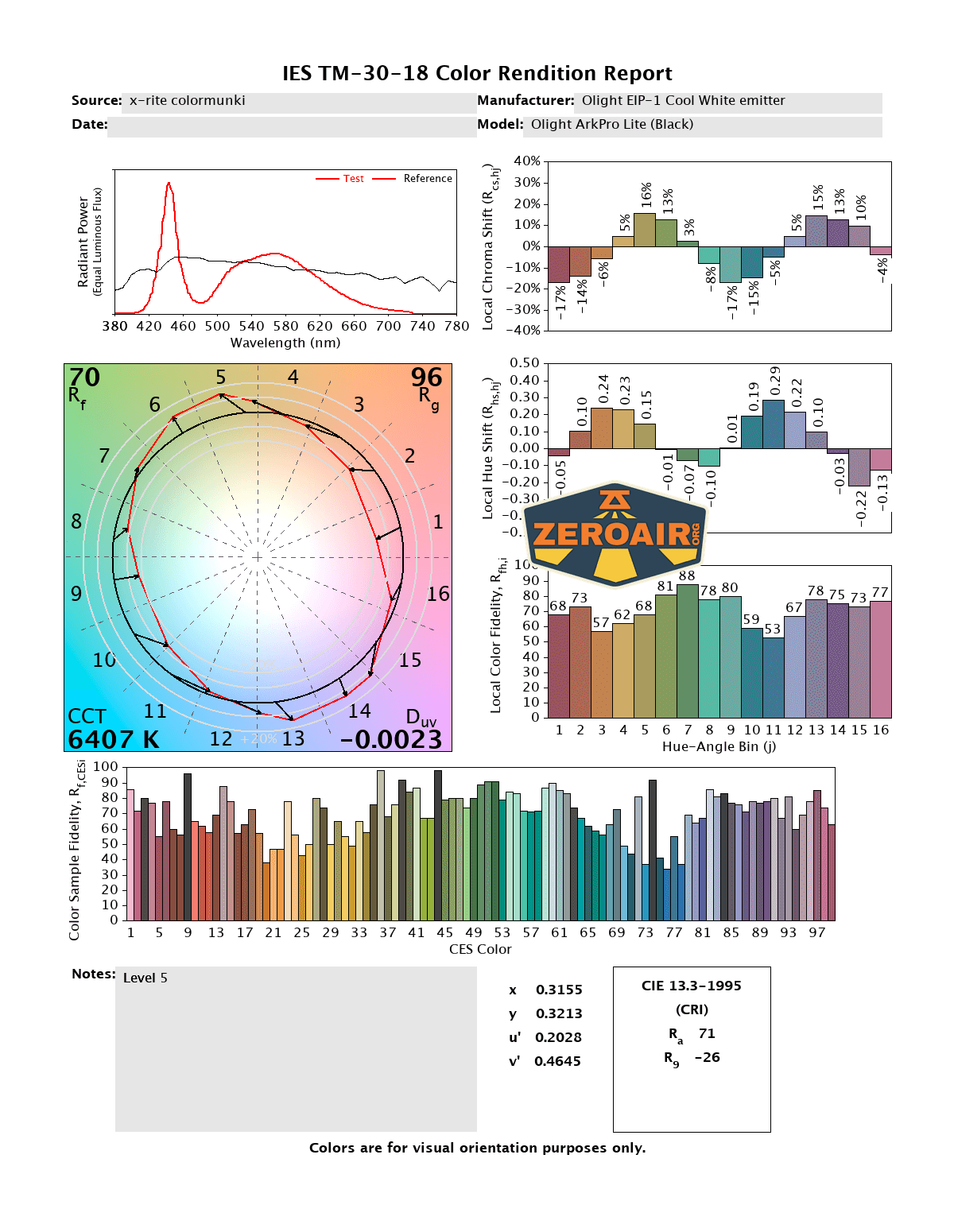

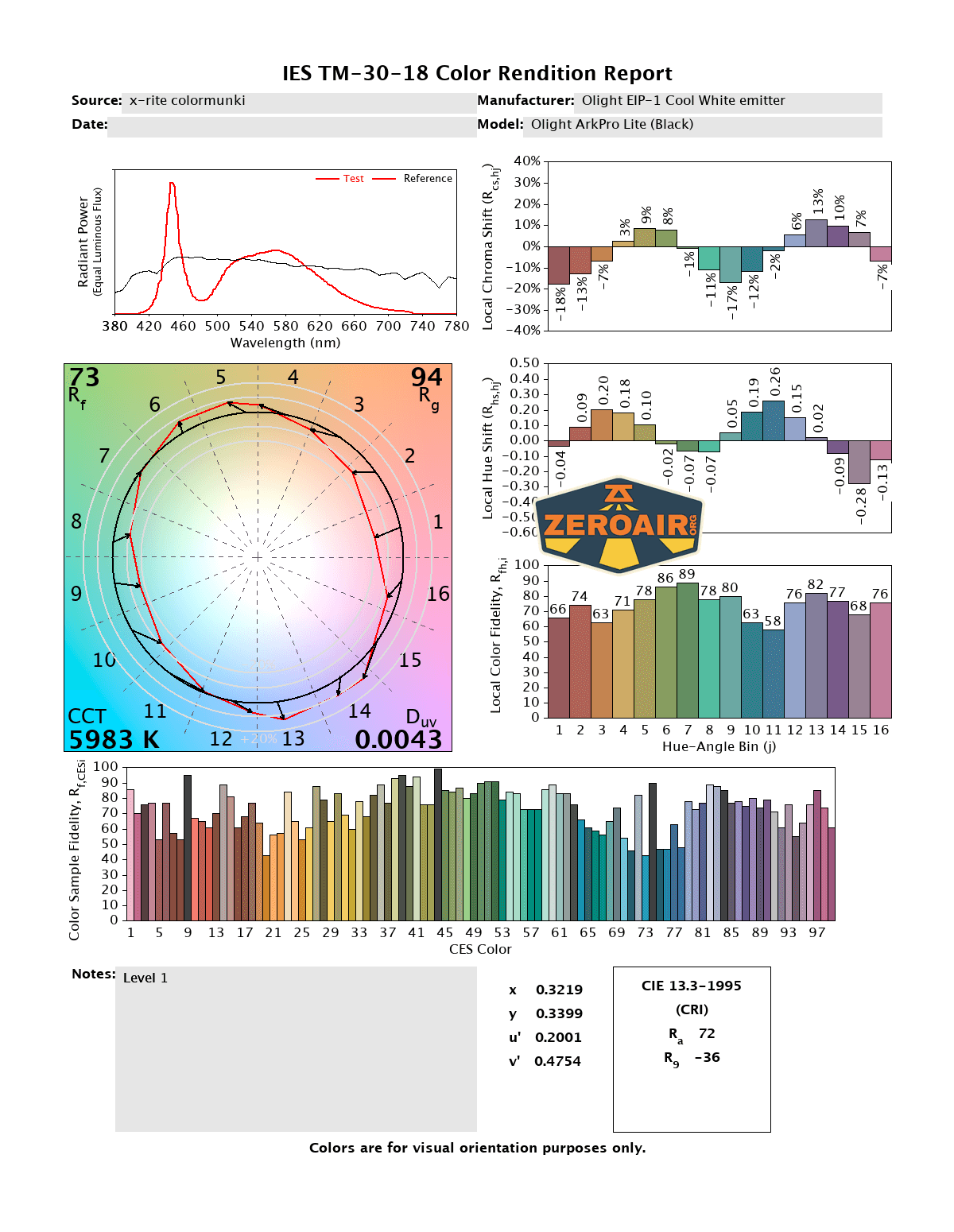

LED Color Report (CRI and CCT)
The CCT for either emitter is cool white (around 6000-6400K). The CRI is also low.
CCT (Correlated Color Temperature) refers to the measurement of the color appearance of light, expressed in Kelvins (K), which indicates whether the light is warm (yellowish) or cool (bluish). A lower CCT (below 3000K) is considered warm light, while a higher CCT (above 5000K) gives cooler, bluish light.
CRI (Color Rendering Index) is a measure of how accurately a light source renders colors in comparison to natural sunlight. Scored on a scale from 0 to 100, higher CRI values indicate that colors appear more true to life and vibrant, similar to how they would look under the sun.
Beamshots

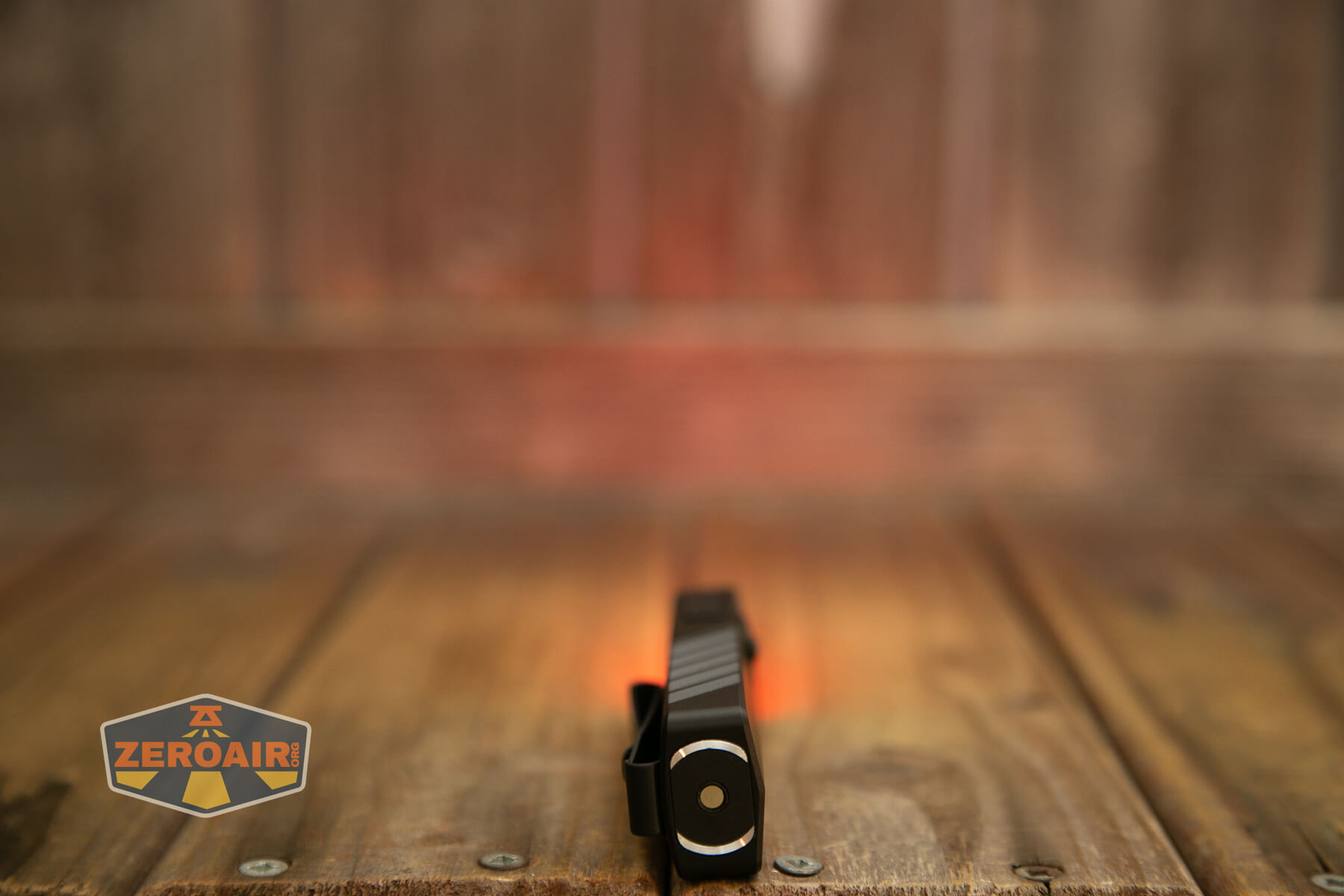

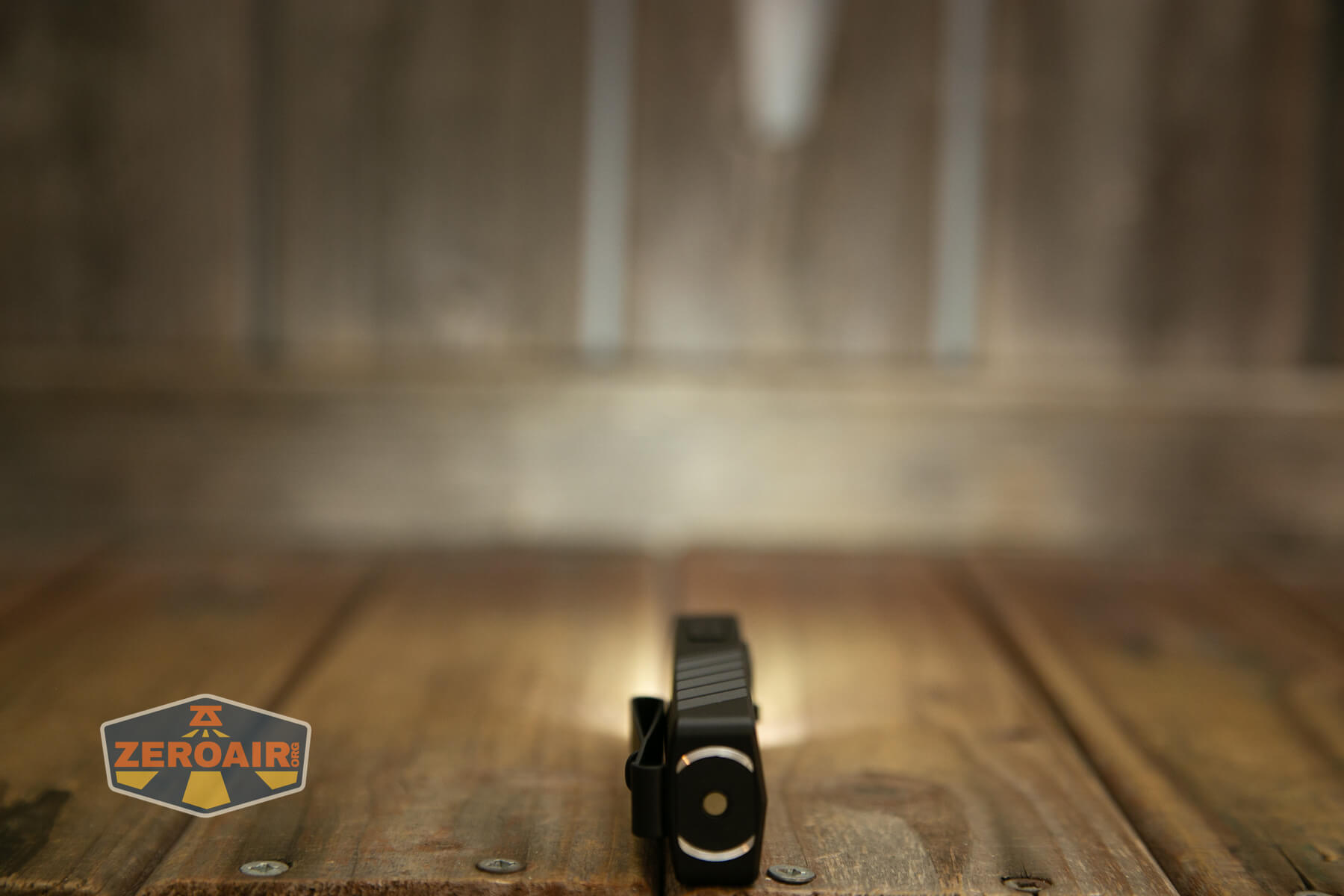

These beamshots always have the following settings: f8, ISO100, 0.3s shutter, and manual 5000K exposure. These photos are taken at floor level, and the beam hits the ceiling around 9 feet away. The last row is UV.
Tint vs BLF-348 (KillzoneFlashlights.com 219b version) (affiliate link)
I keep the test flashlight on the left and the BLF-348 reference flashlight on the right. These photos are taken around 18 inches from the door.
I compare everything to the KillzoneFlashlights.com 219b BLF-348 because it’s inexpensive and has the best tint!
Summary and Conclusion
I didn’t know I needed another in the Ark series, but the Olight ArkPro Lite flashlight is a great light. Olight continues to build on Ark’s success and even improves the lights that were already great! I think the Olight ArkPro Lite flashlight could be the best option of the bunch because I like the shorter size, but a different combination of emitters would suit me much more in this size. For example, a laser in place of the UV. Or the flood/throw combo in place of UV. Or a High CRI flood channel in place of the UV (essentially anything in place of the UV, since I don’t like UV at all.) But for size and performance, and also considering price, I like the ArkPro Lite a lot!
The Big Table
| Olight ArkPro Lite flashlight | |
|---|---|
| Emitter: | Unstated white LED ((UV and Red also)) |
| Price in USD at publication time: | $79.99 |
| Cell: | Internal |
| Runtime Graphs | |
| LVP? | Almost certainly |
| Switch Type: | E-Switch and selector |
| On-Board Charging? | Yes |
| Charge Port Type: | USB-C and proprietary magnetic |
| Charge Graph | |
| Power off Charge Port | All modes except LED turbo |
| Claimed Lumens (lm) | 1200 |
| Measured Lumens (at 30s) | 1014 (84.5% of claim)^ |
| Candela per Lumen | 2.6 |
| Claimed Throw (m) | 94 |
| Candela (Calculated) in cd (at 30s) | 132lux @ 4.708m = 2926cd |
| Throw (Calculated) (m) | 108.2 (115.1% of claim)^ |
| Claimed CCT | (UV and Red also) – |
| Measured CCT Range (K) | (UV and Red also) 6000-6400 Kelvin |
| Item provided for review by: | Olight |
| All my Olight reviews! | |
^ Measurement disclaimer: Testing flashlights is my hobby. I use hobbyist-level equipment for testing, including some I made myself. Try not to get buried in the details of manufacturer specifications versus measurements recorded here; A certain amount of difference (say, 10 or 15%) is perfectly reasonable.
What I like
- USB-C charging
- Smaller size than other ArkPros
- Little LED icons around the switch
- Red channel is a bonus!
What I don’t like
- Built-in battery
- High CCT
- Low CRI
