Thrunite TH20 Flashlight Review
The Thrunite TH20 flashlight (or headlamp) uses a single 14500 or AA cell and has a Cree XP-L HD emitter. Read on for more info!
Official Specs and Features
Here’s a link to the Thrunite TH20 flashlight product page.
- A high output headlamp with max output of 520 lumens in turbo mode powered by one Li-ion 14500 750mAh battery.
- The logarithmic scale brightness adjustment system allows any brightness from 1.6 lumens to 250 lumens. Furthermore, the TH20 features a built-in SOS signaling mode, which is important when roaming out in the wild or confronting dangerous situations.
- Unlike other light-weight headlamps, which are made with plastic, the TH20 is made with aircraft-grade aluminum, which gives it exceptional durability and excellent heat dissipation, allowing it to maintain high output for extended periods of time.
- The advanced design gives the TH20 a lightweight of 76g (battery excluded).
- The TH20 can also use an easy-to-get AA battery, which makes it a great choice for daily reading, camping, and a tool light when you want your hands free.
Specifications
LED: CREE XP-L V6 LED with a lifespan of 20+ years of run time.
Mode & Runtime (Tested by one Eneloop AA 2450mAh NIMH rechargeable battery):
-Firefly (0.3 lumens, 14 days）
-Infinity Low (1.6 lumens, 21 hours）
-Infinity High (230 lumens, 95 minutes)
-Turbo (250 lumens, 93 minutes)
Batteries Applicable: 1x AA battery, 1x 14500 battery.
Working voltage: 0.9-4.2 V.
Reflector: Orange Peel.
Peak Beam Intensity: 1120 cd
Beam Distance: 67 m (max.)
Dimensions: 70 mm * 24.5mm
Weight: 76g (without battery).
Waterproof: IPX-8 (2 m)
Impact Resistance: 1 m.
Material: Aircraft-grade aluminum body with premium type III hard anodized anti-abrasive finish.
Accessories included: O-ring, spare rubber slot.
Versions
There are two versions: A neutral white (as seen in this review) and a cool white version.
MSRP
$29.99
(This is a new section, which I feel like is pertinent information for you when you evaluate the rest of the review, and particularly in comparison to other lights. Value is important, and it’s also important to have expectations realistic to a given price range.)
Short Review
This is a fine little headlamp with a neat user interface.
Long Review
The Big Table
| Thrunite TH20 | |
|---|---|
| Emitter: | Cree XP-L NW (V6) |
| Price in USD at publication time: | $29.99 |
| Cell: | 1×14500 |
| Runtime | |
| LVP? | ? |
| Switch Type: | E-Switch |
| On-Board Charging? | No |
| Claimed Lumens (lm) | 520 |
| Claimed Throw (m) | 67 |
| Candela (Calculated) in cd (at 30s) | 92lux @ 2.639m = 641cd |
| Throw (Calculated) (m) | 50.6 (75.5% of claim)^ |
| All my Thrunite reviews! | |
| Thrunite TH20 | |
|---|---|
| Emitter: | Cree XP-L NW (V6) |
| Price in USD at publication time: | $29.99 |
| Cell: | 1xAA |
| Runtime | |
| LVP? | ? |
| Switch Type: | E-Switch |
| On-Board Charging? | No |
| Claimed Lumens (lm) | 520 |
| Claimed Throw (m) | 67 |
| Candela (Calculated) in cd (at 30s) | 111lux @ 2.524m = 707cd |
| Throw (Calculated) (m) | 53.2 (79.4% of claim)^ |
| All my Thrunite reviews! | |
^ Measurement disclaimer: Testing flashlights is my hobby. I use hobbyist-level equipment for testing, including some I made myself. Try not to get buried in the details of manufacturer specifications versus measurements recorded here; A certain amount of difference (say, 10 or 15%) is perfectly reasonable.

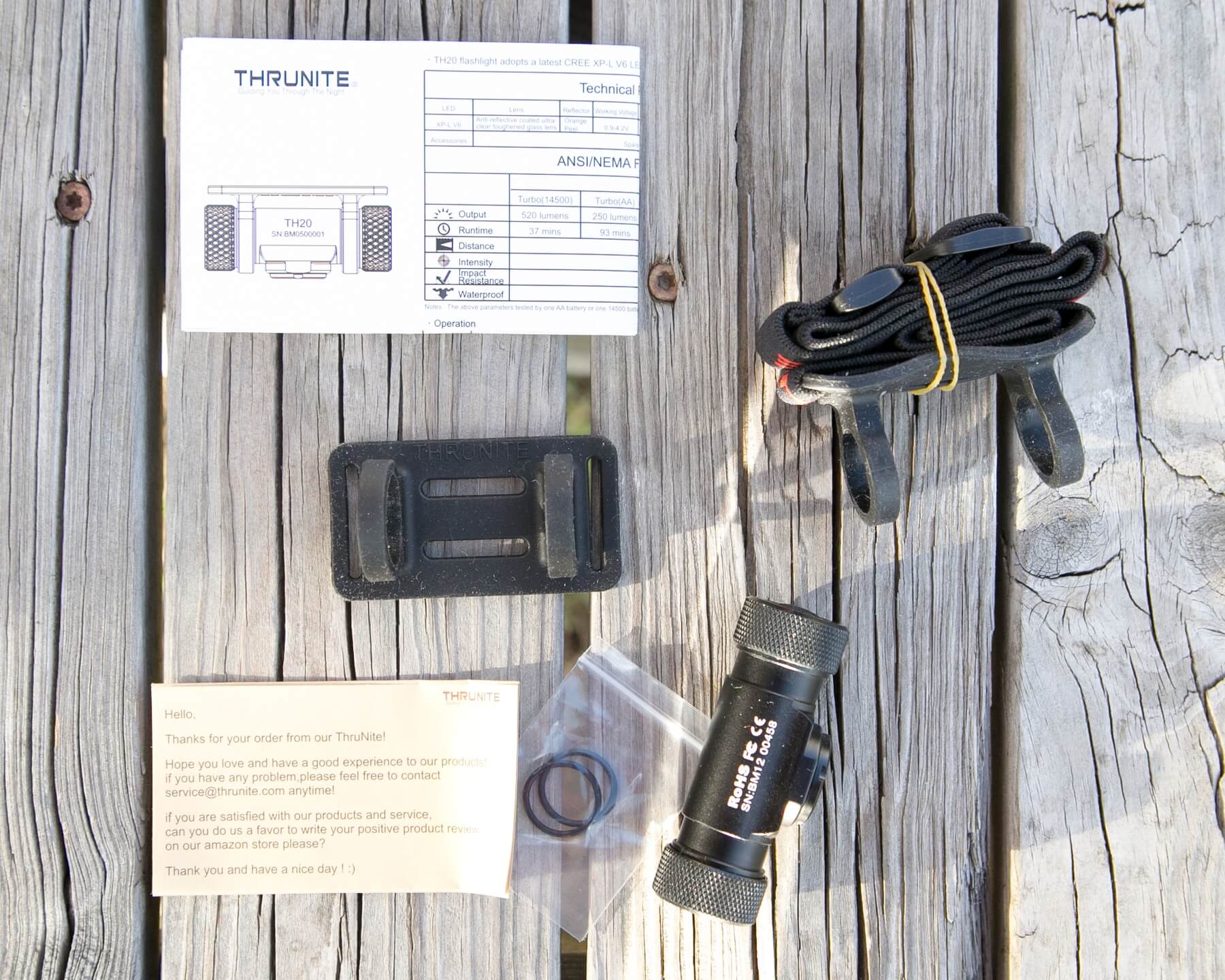

What’s Included
Package and Manual

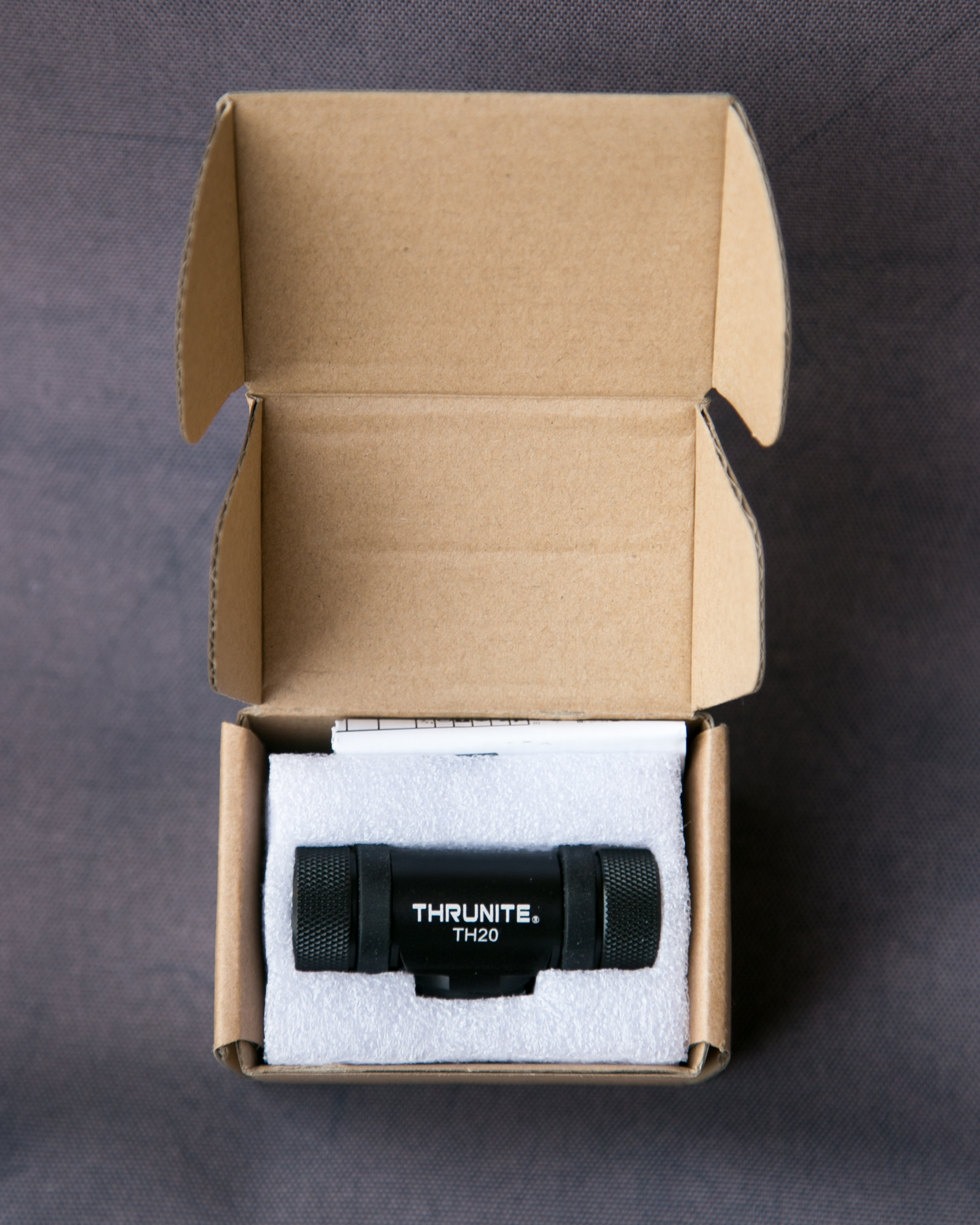

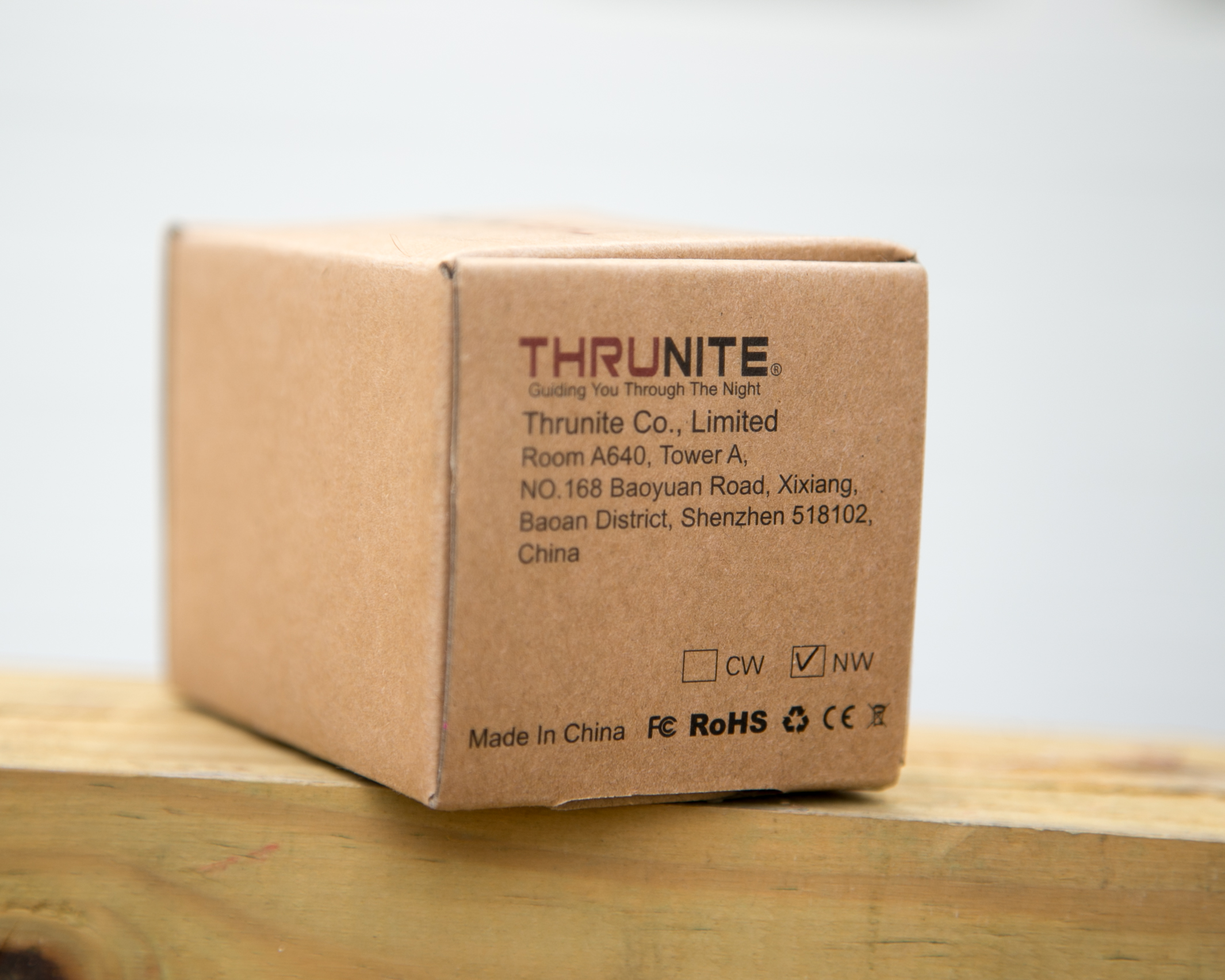

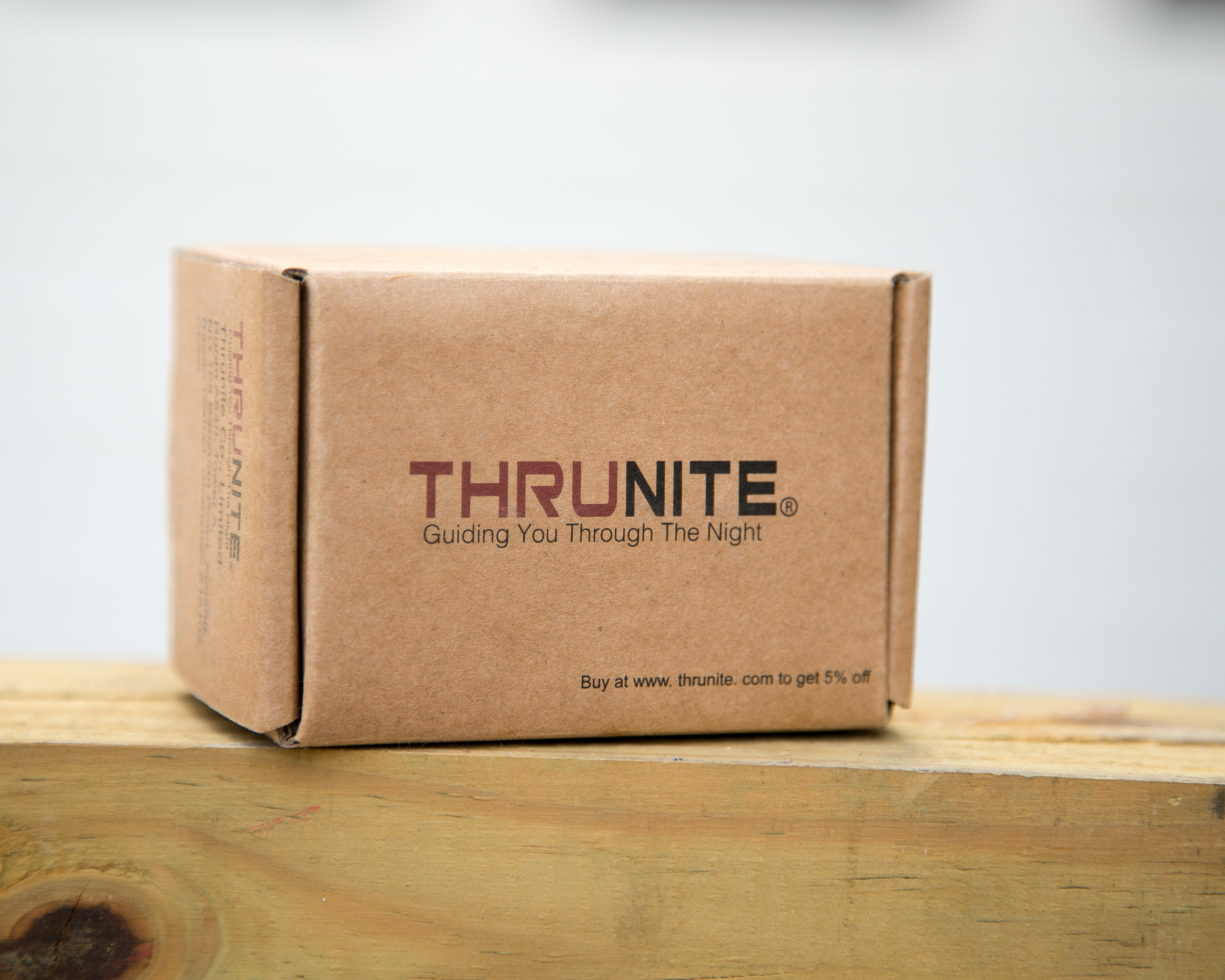

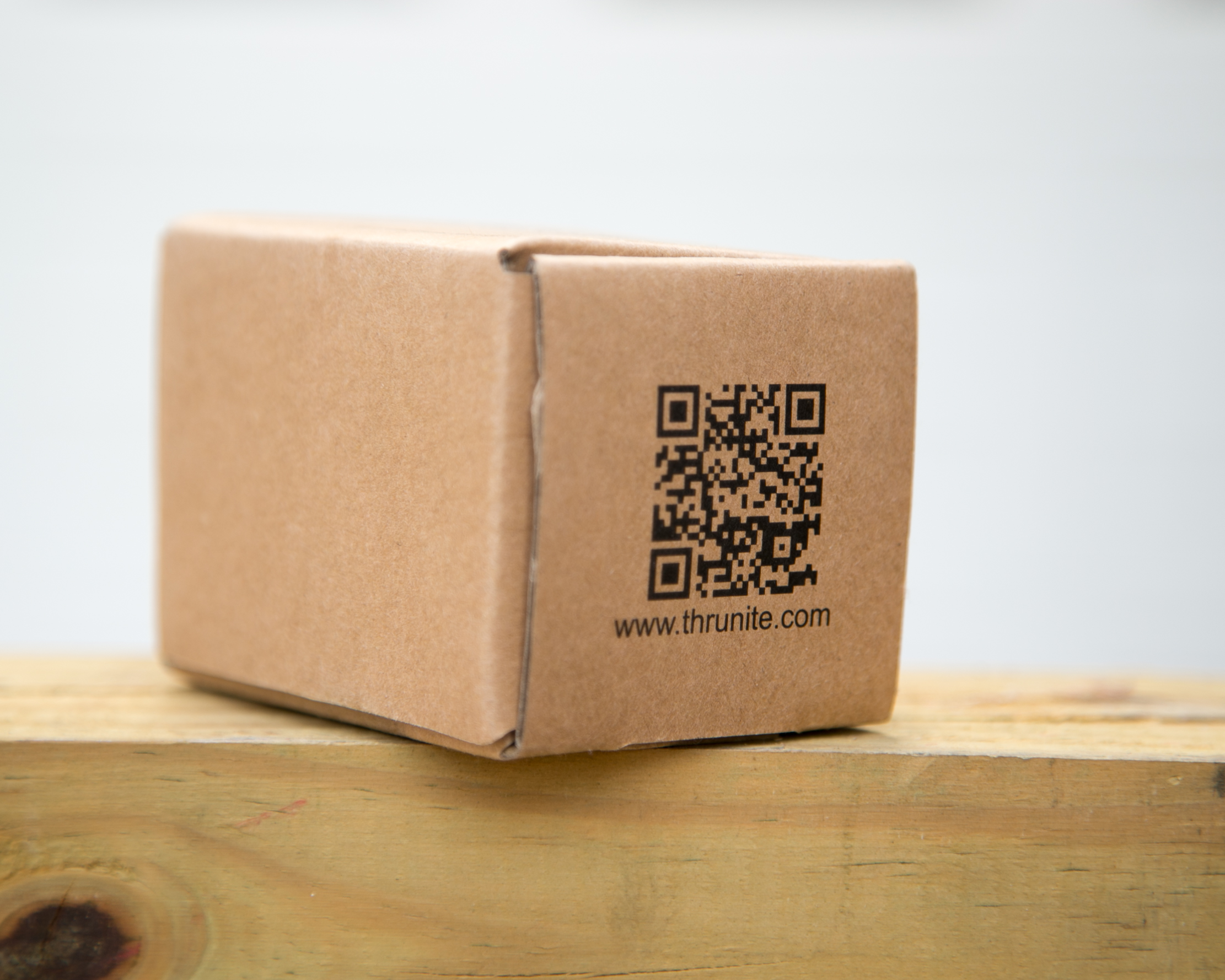

The TH20 is tightly packaged in an almost-cube cardboard box.
There’s a bit of printing on the outside (including a QR code), and a bit of foam padding on the inside.
It’s all very snug and protective. I like these packages a lot.

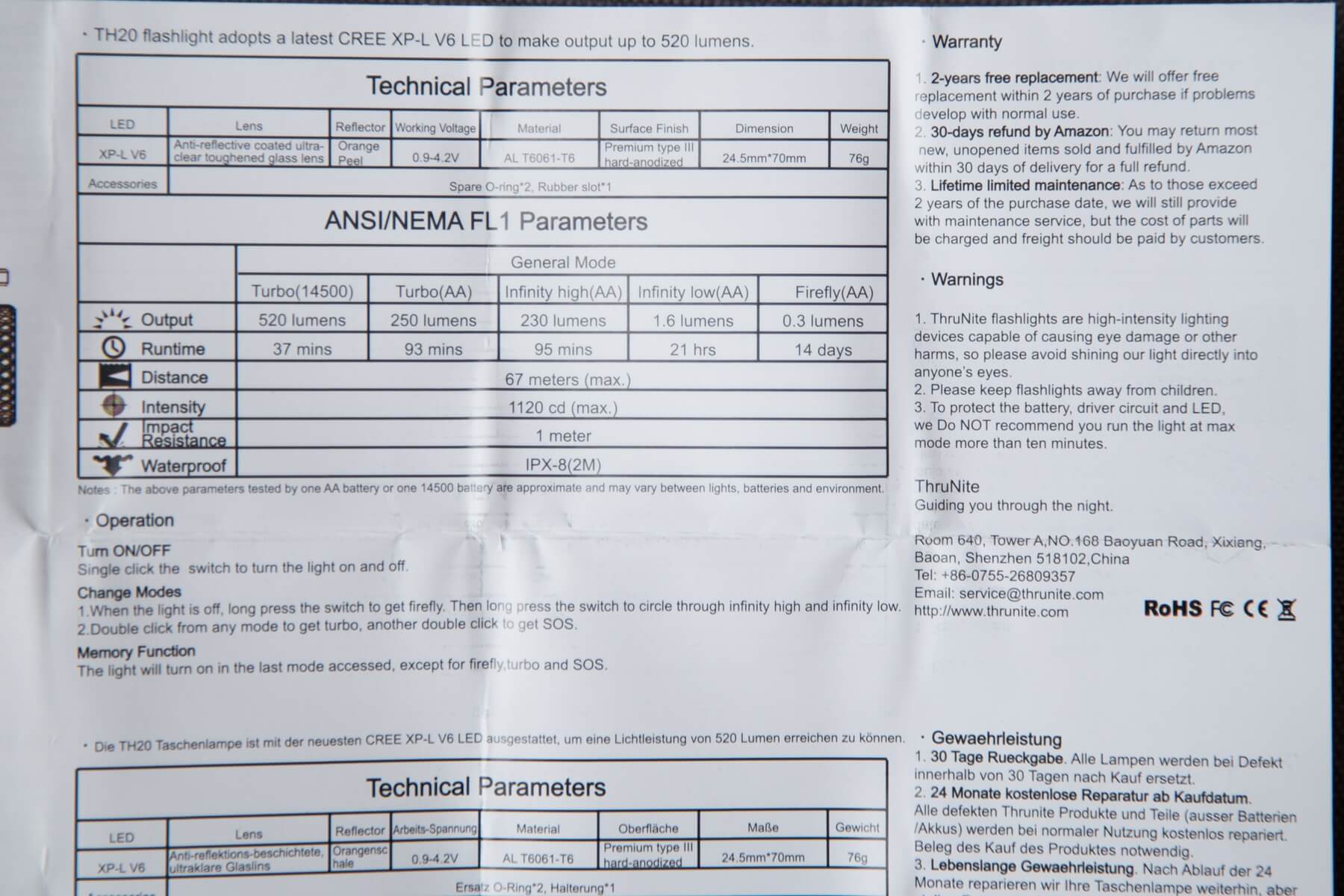

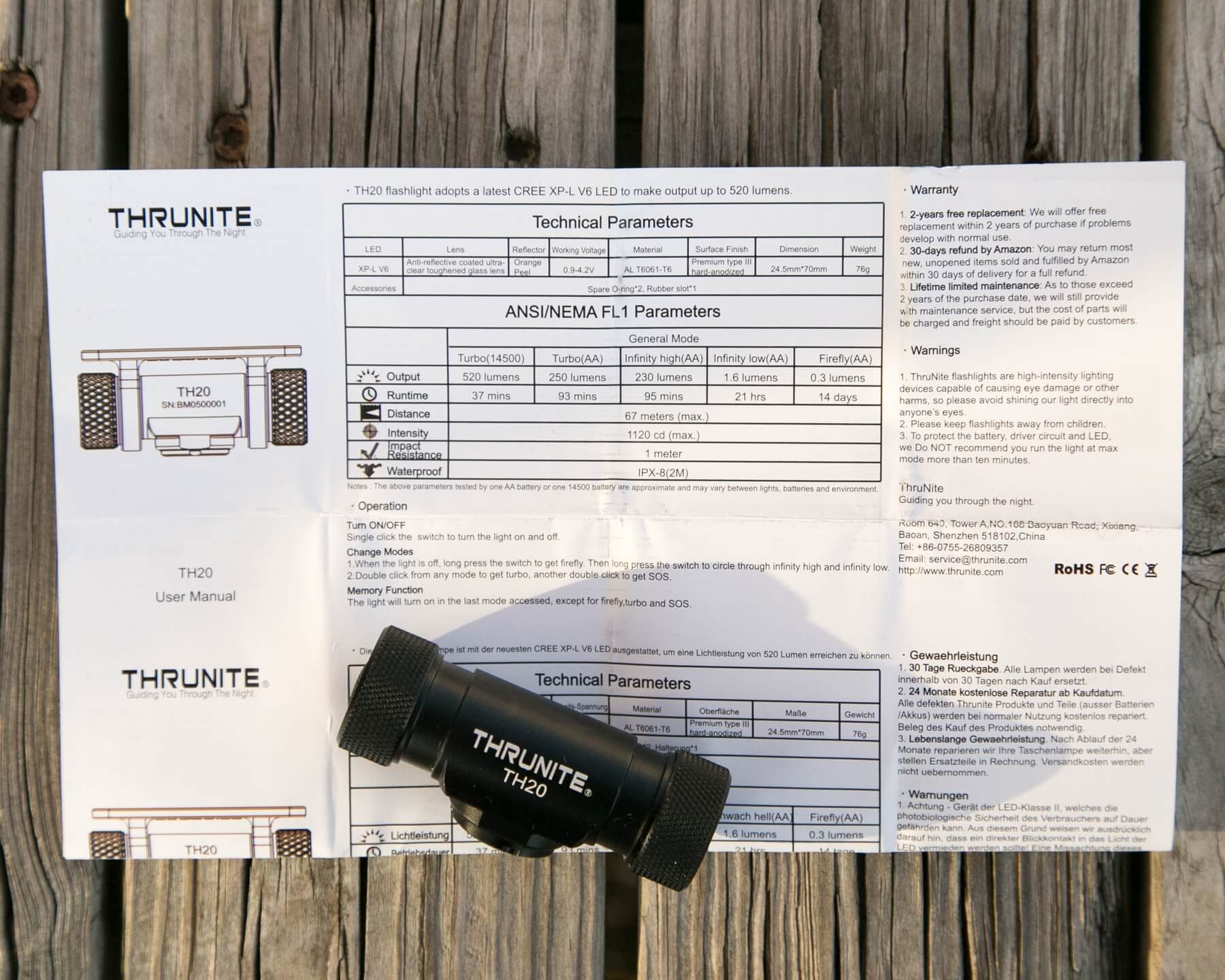

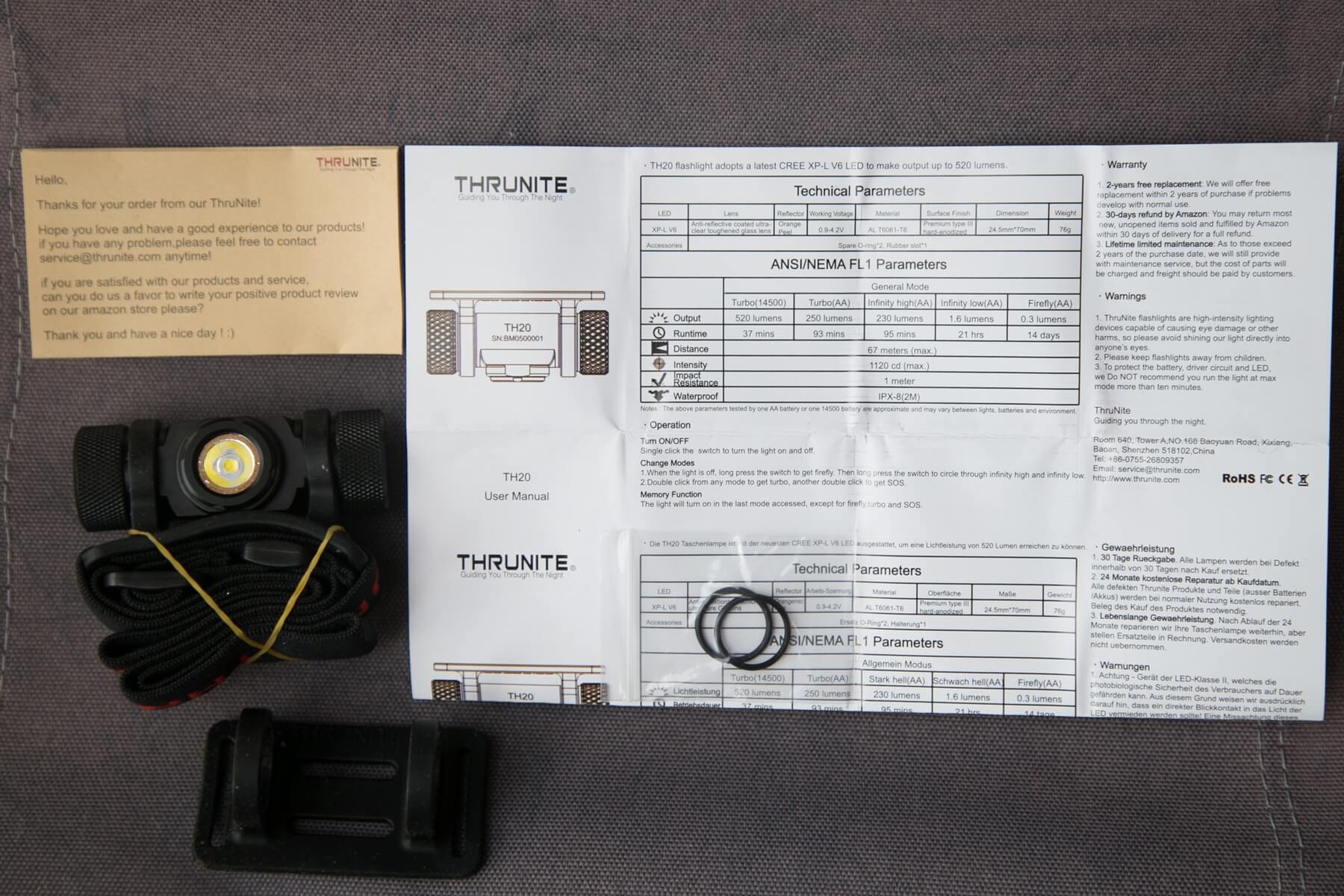

The manual is one big sheet with 6 languages.
I’d love for the fold-outs to be done so that each language would be on its own opened area, but as it stands, you basically just unfold the whole thing and look at the section in your language. It’s ok, not great. The manual does describe the user interface and features of the light adequately, in any case.
Build Quality and Disassembly
There are no complaints about the TH20 build quality. The anodizing seems quality, and the threads are well-lubed.

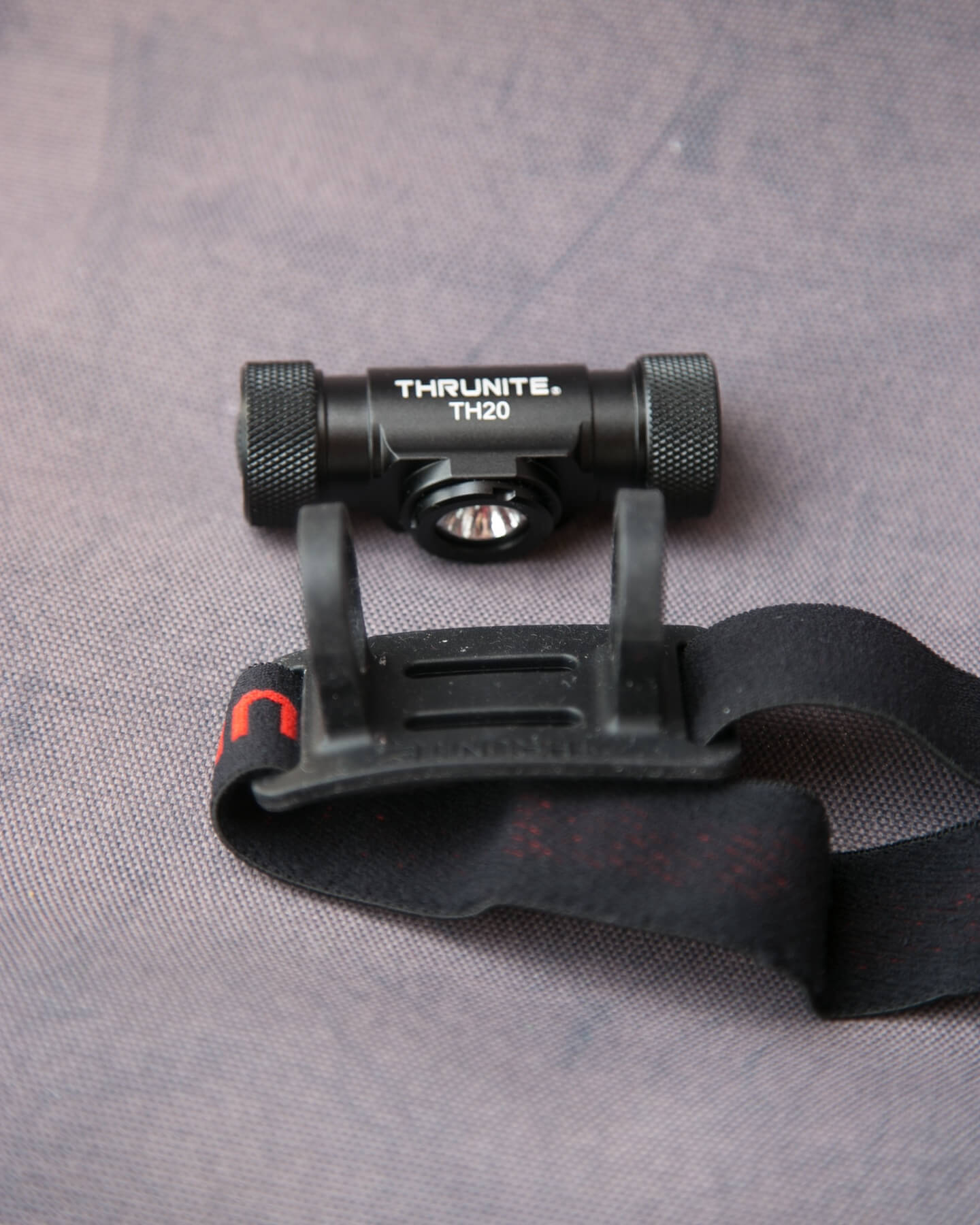

The silicone mount for the headstrap is of normal quality (maybe even “beefy”), and in the event of issues, there is a backup.

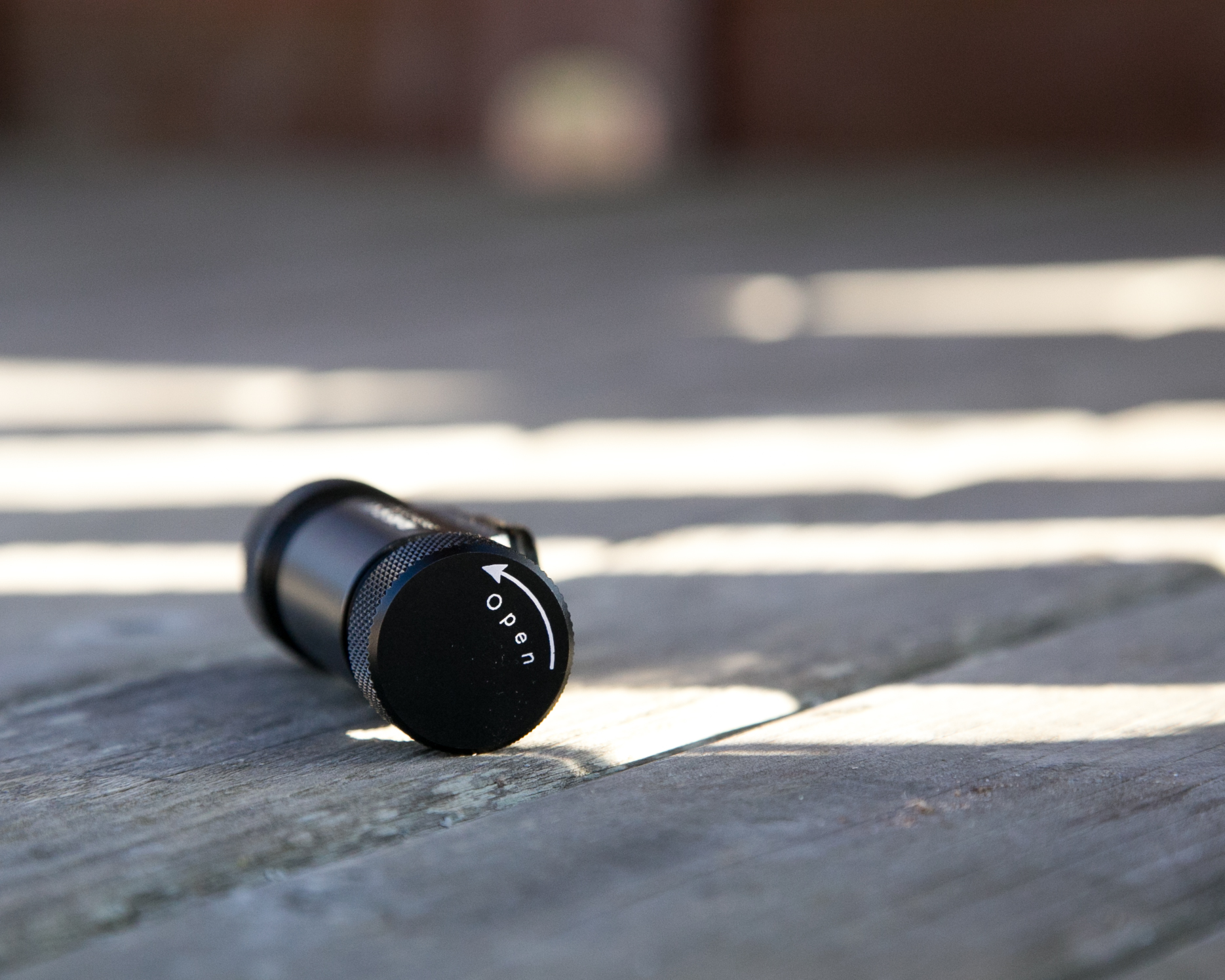

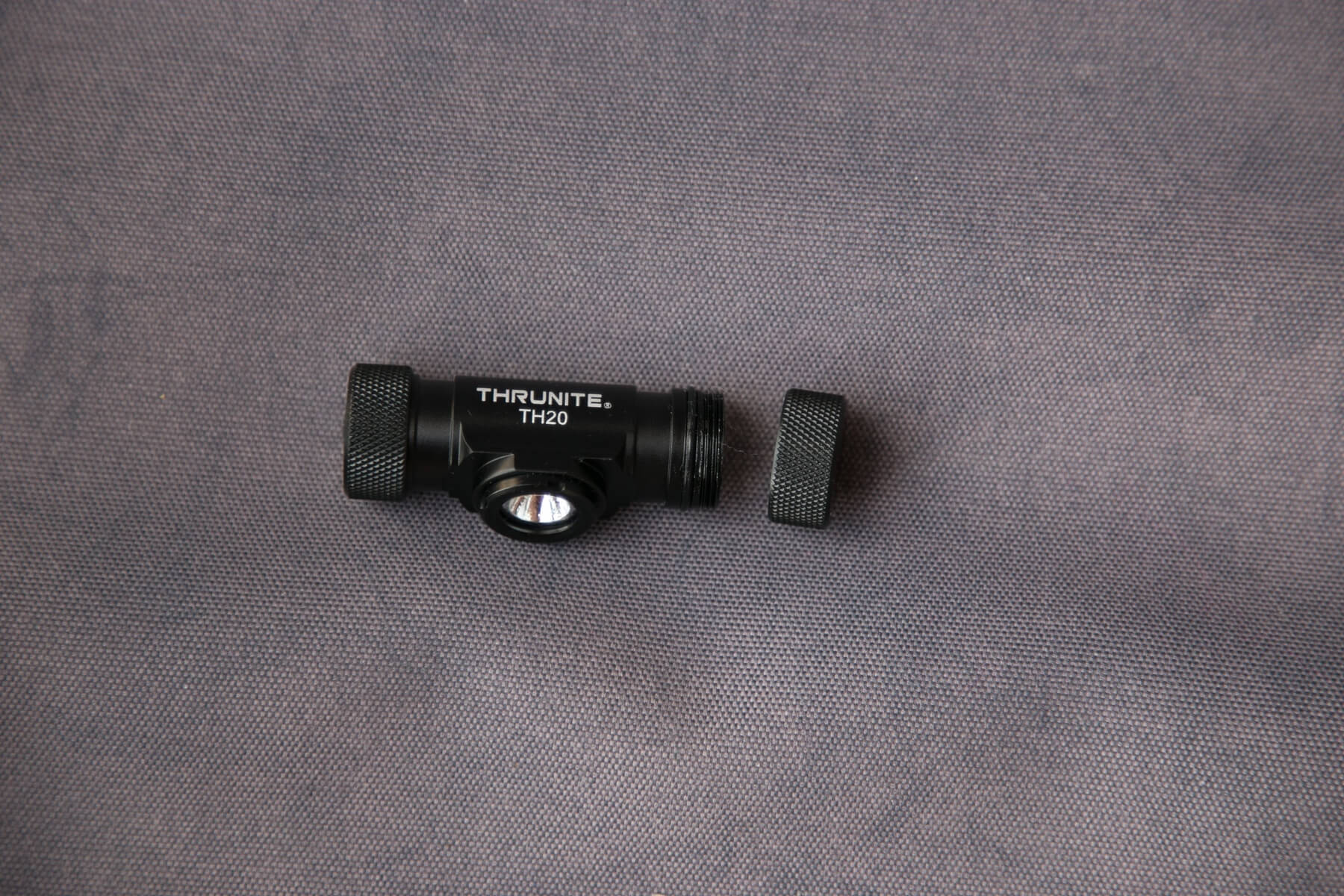

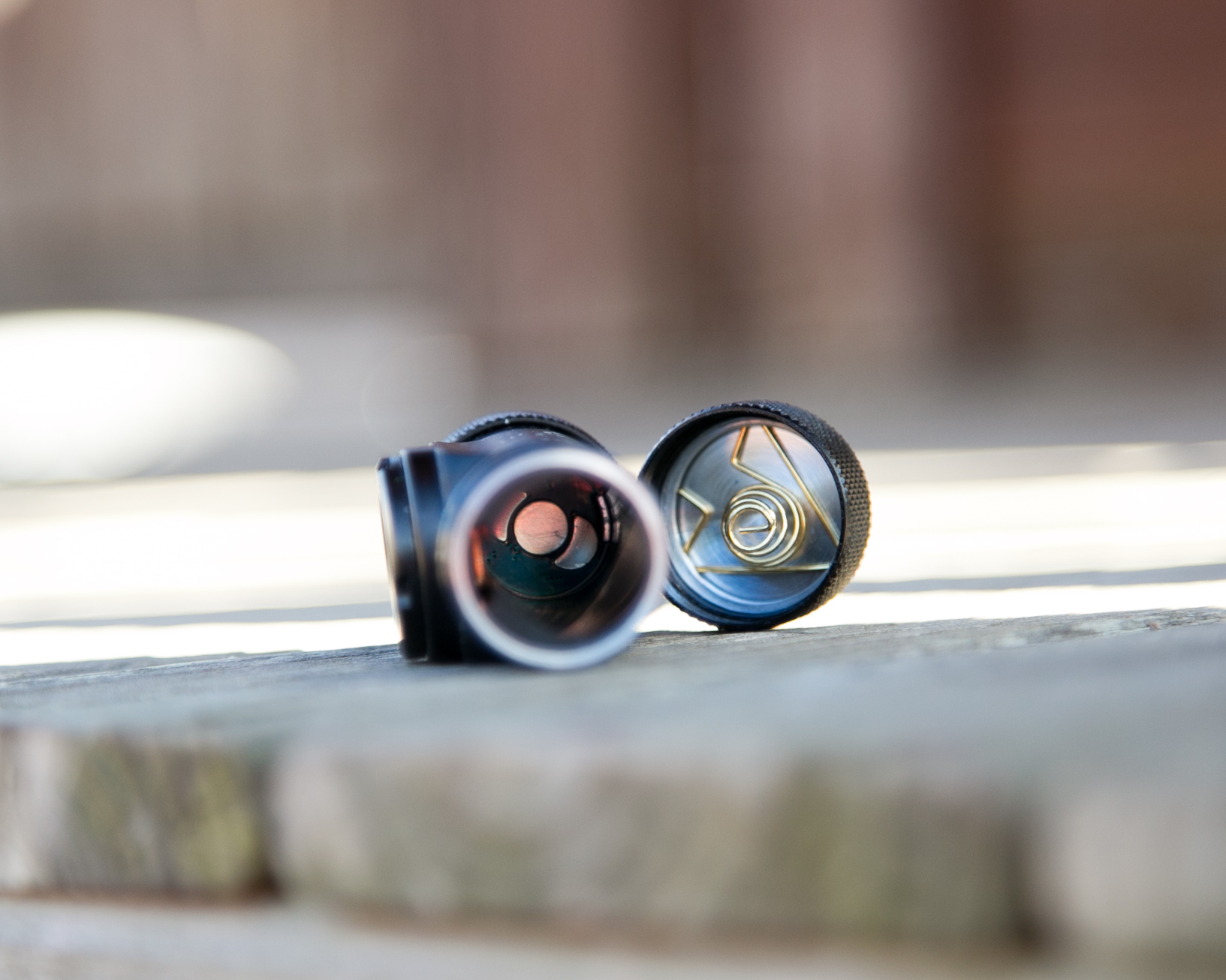

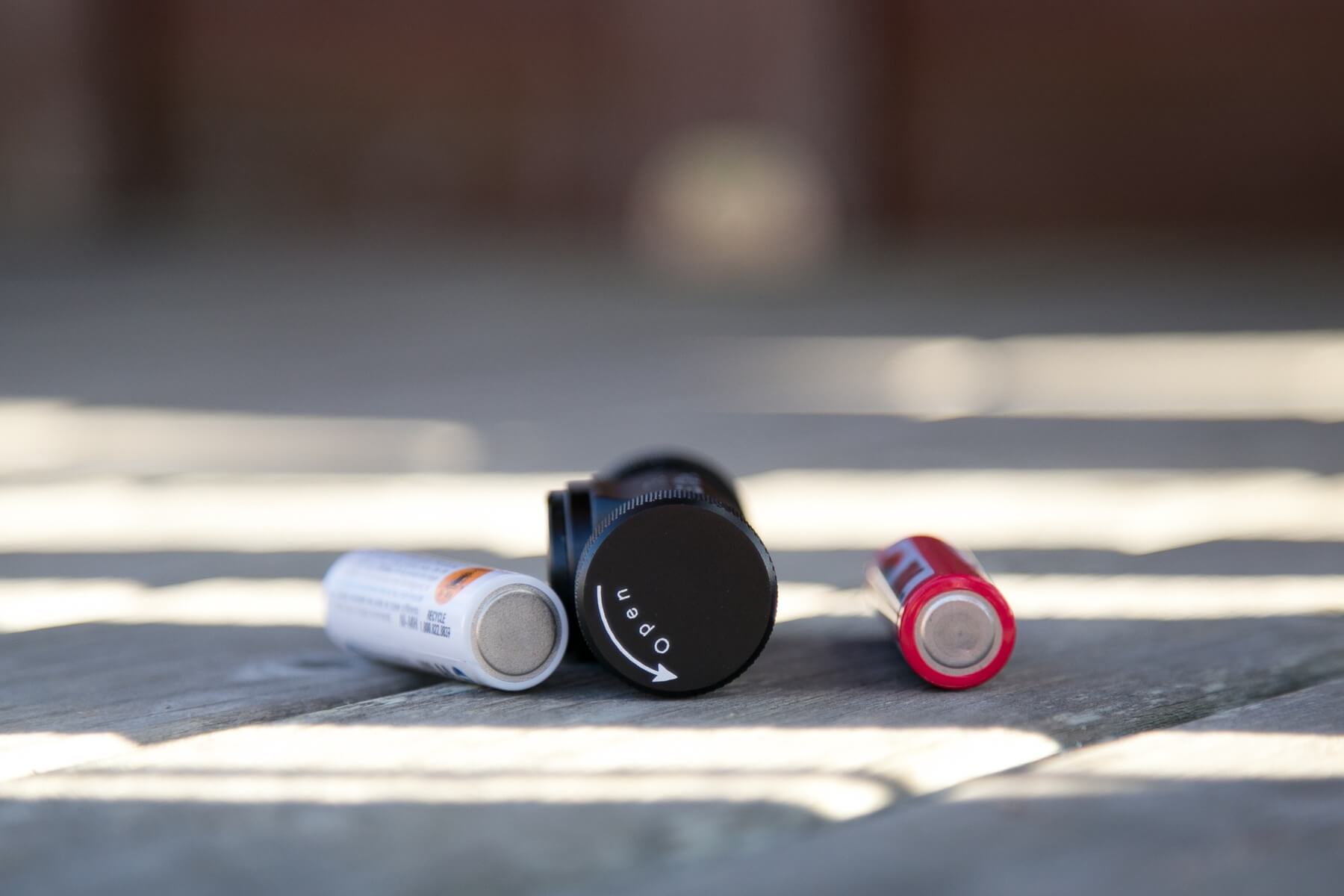

The tailcap has a spring (but no magnet), and the ‘head’ side has a contact (but no spring), and is also printed on the outside telling how to open the light (but not which way to insert the cell!!).

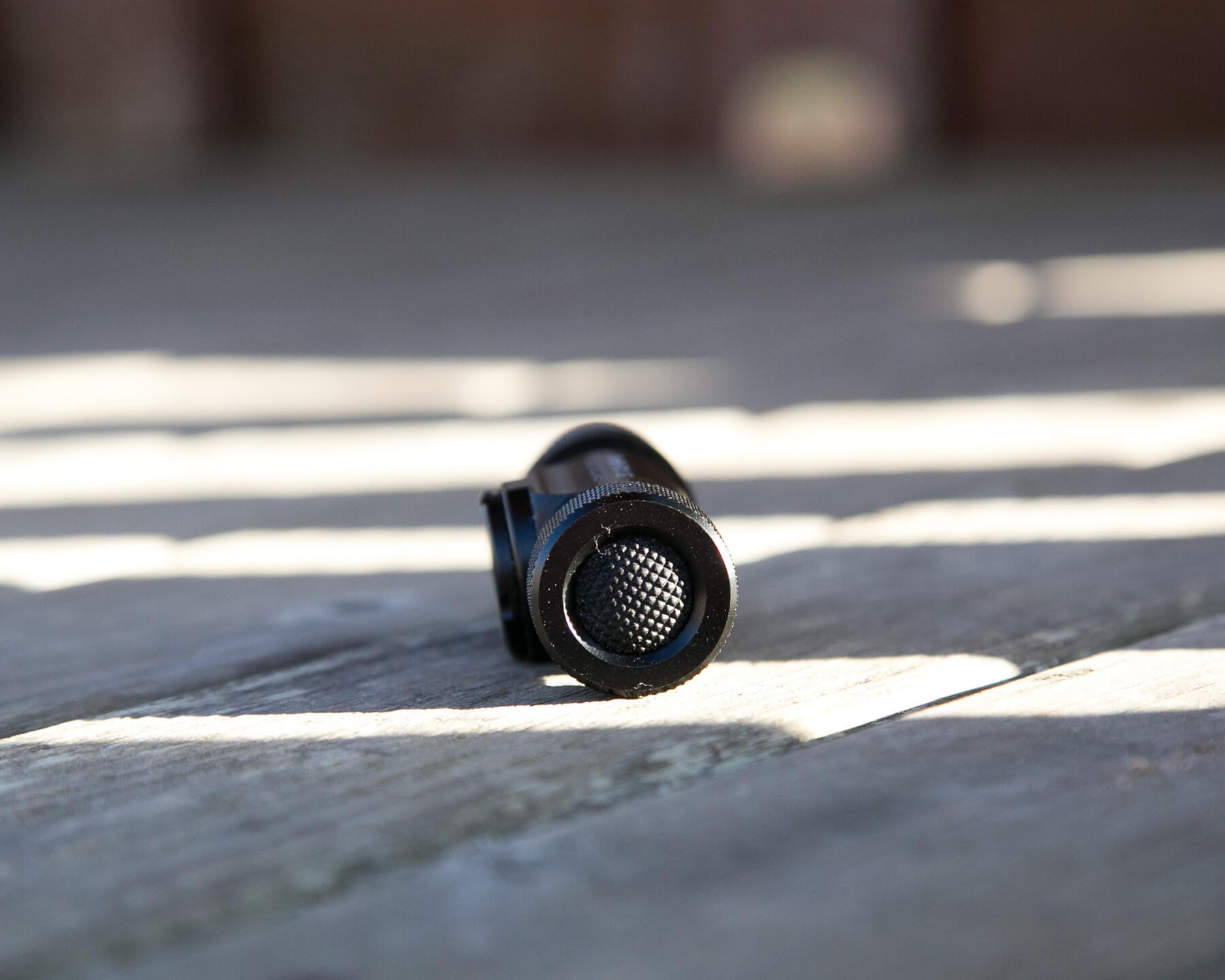

The knurling on the tailcap is also very nice, making unscrewing it very simple.

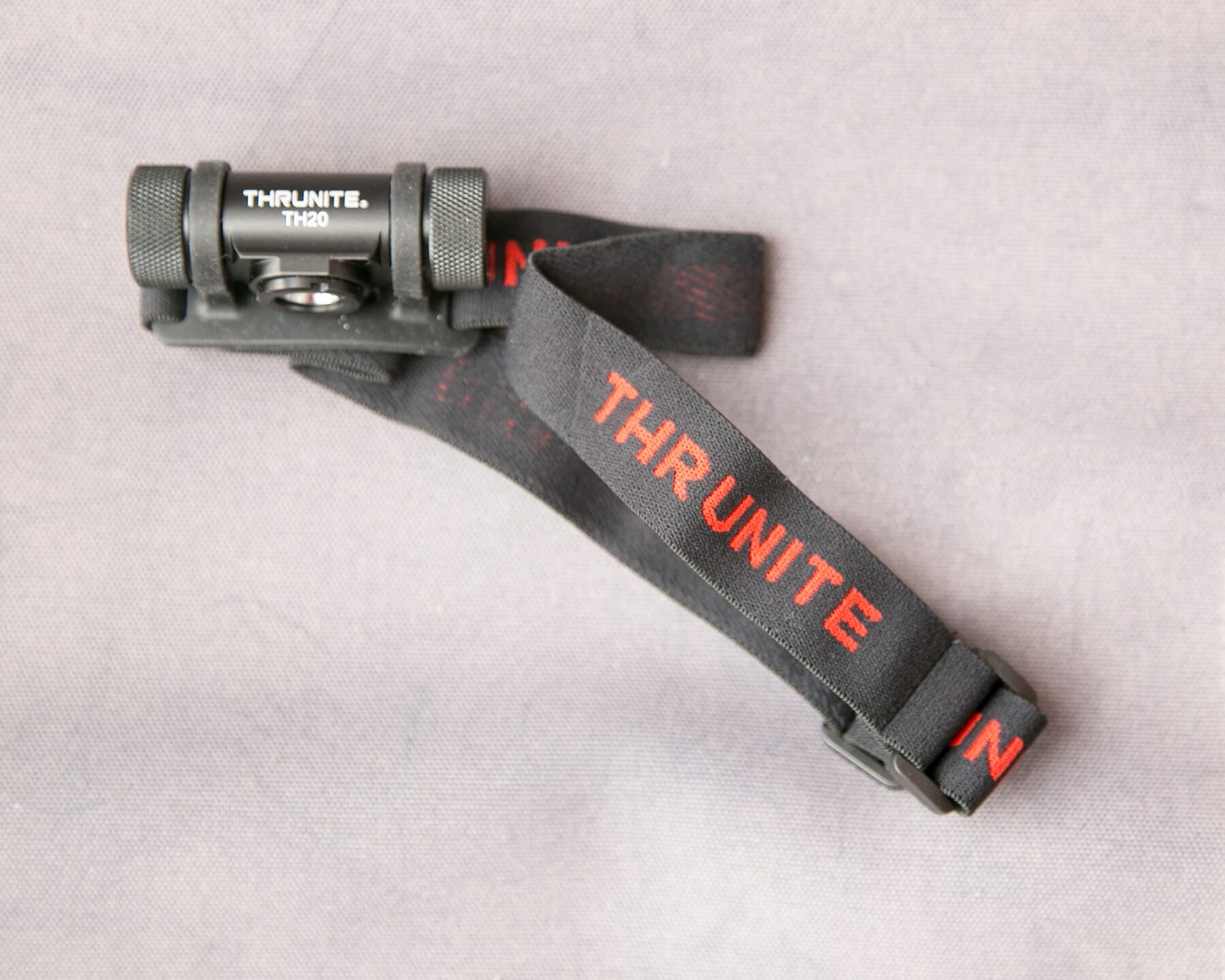

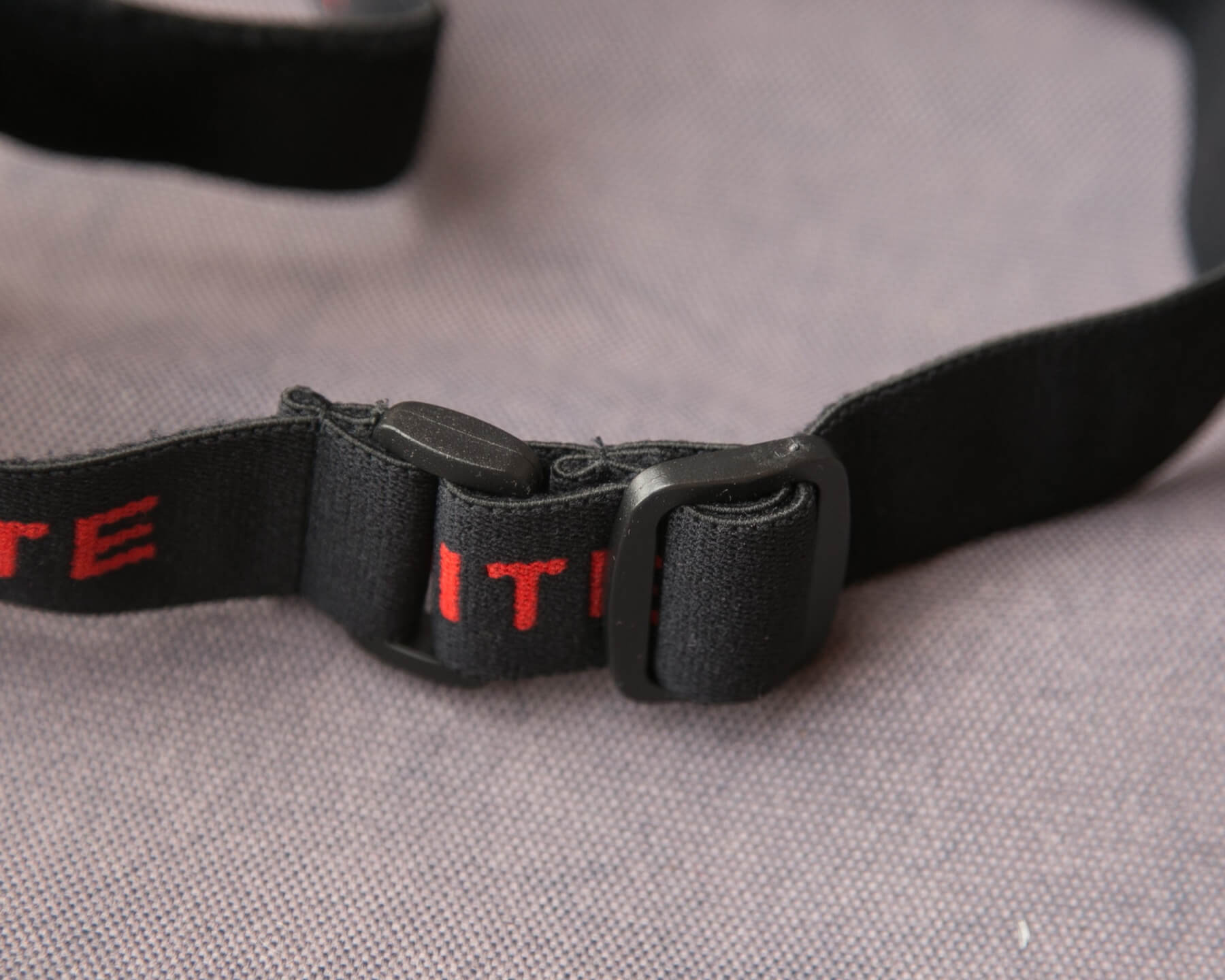

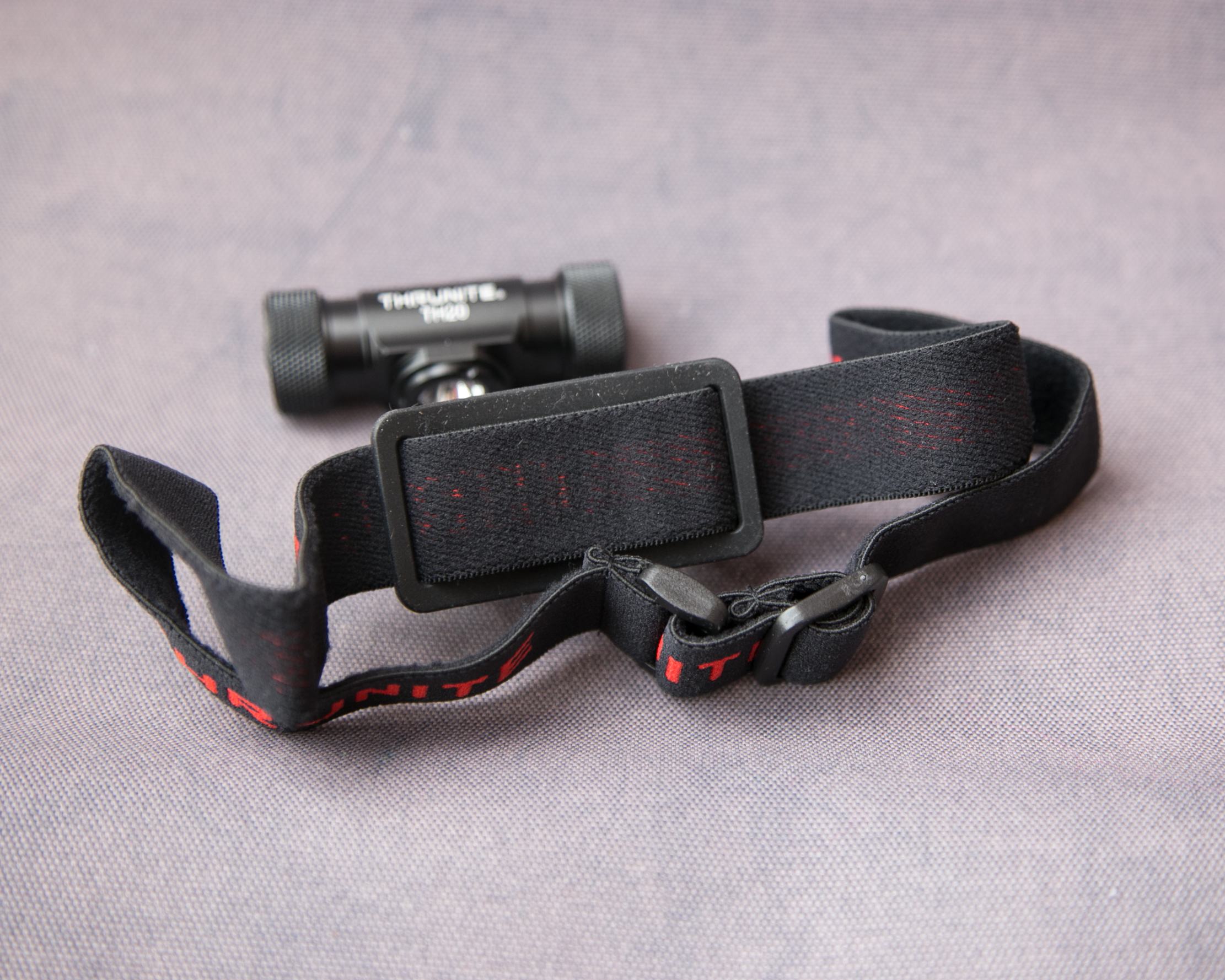

The headstrap is a soft, stretchy band, and the silicone holder makes minimal contact with the forehead.
The band is quite adjustable, too.

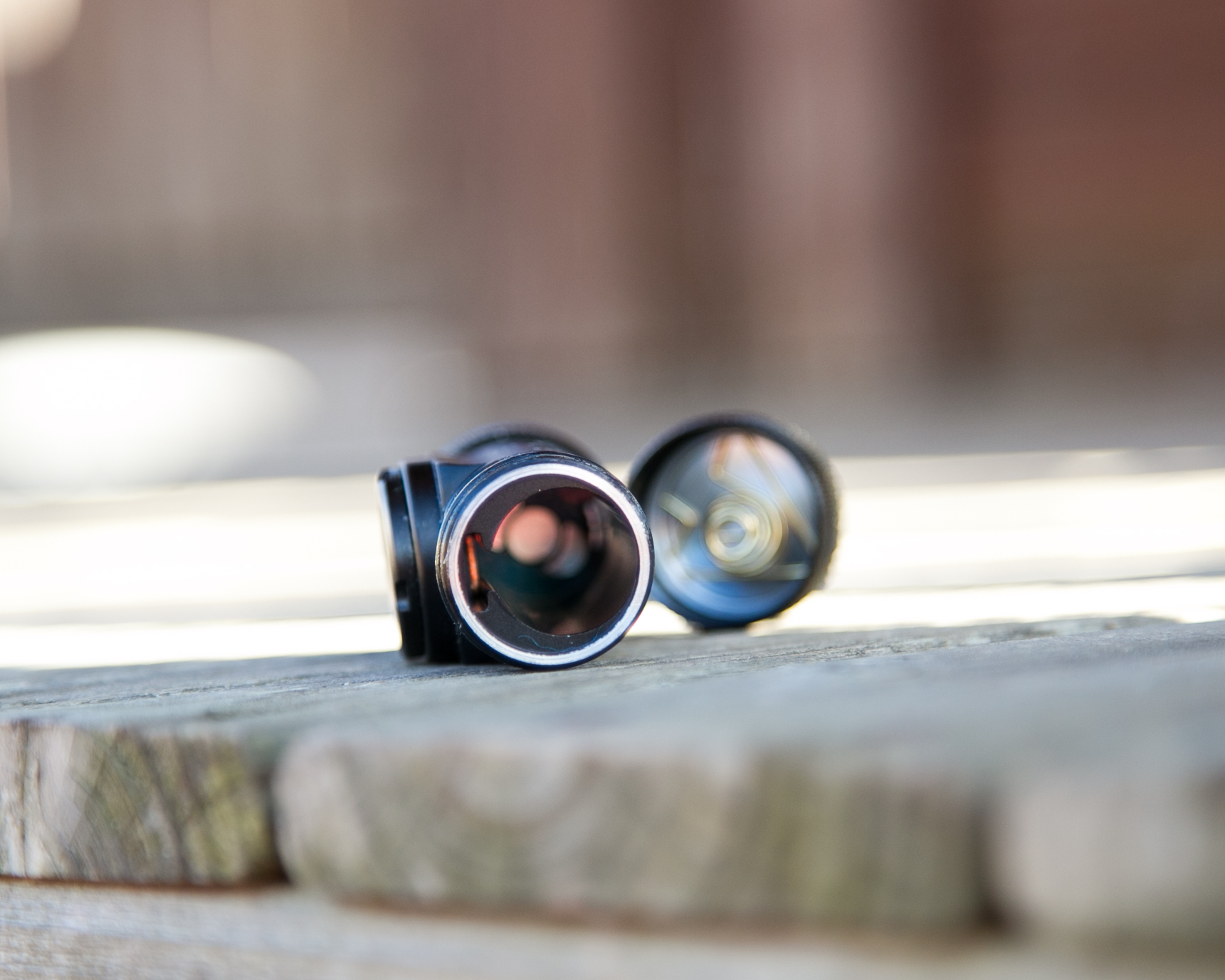

I was surprised that the “head” side of this light (the positive end) didn’t unscrew.
Same as the Thrunite C2 charger – looks like it’ll unscrew, but in fact doesn’t. Not that this is a problem as far as disassembly is concerned: The emitter is on the side of the body of the light. It is held in place by a screw-down bezel, which could most likely be unscrewed with the proper tools.

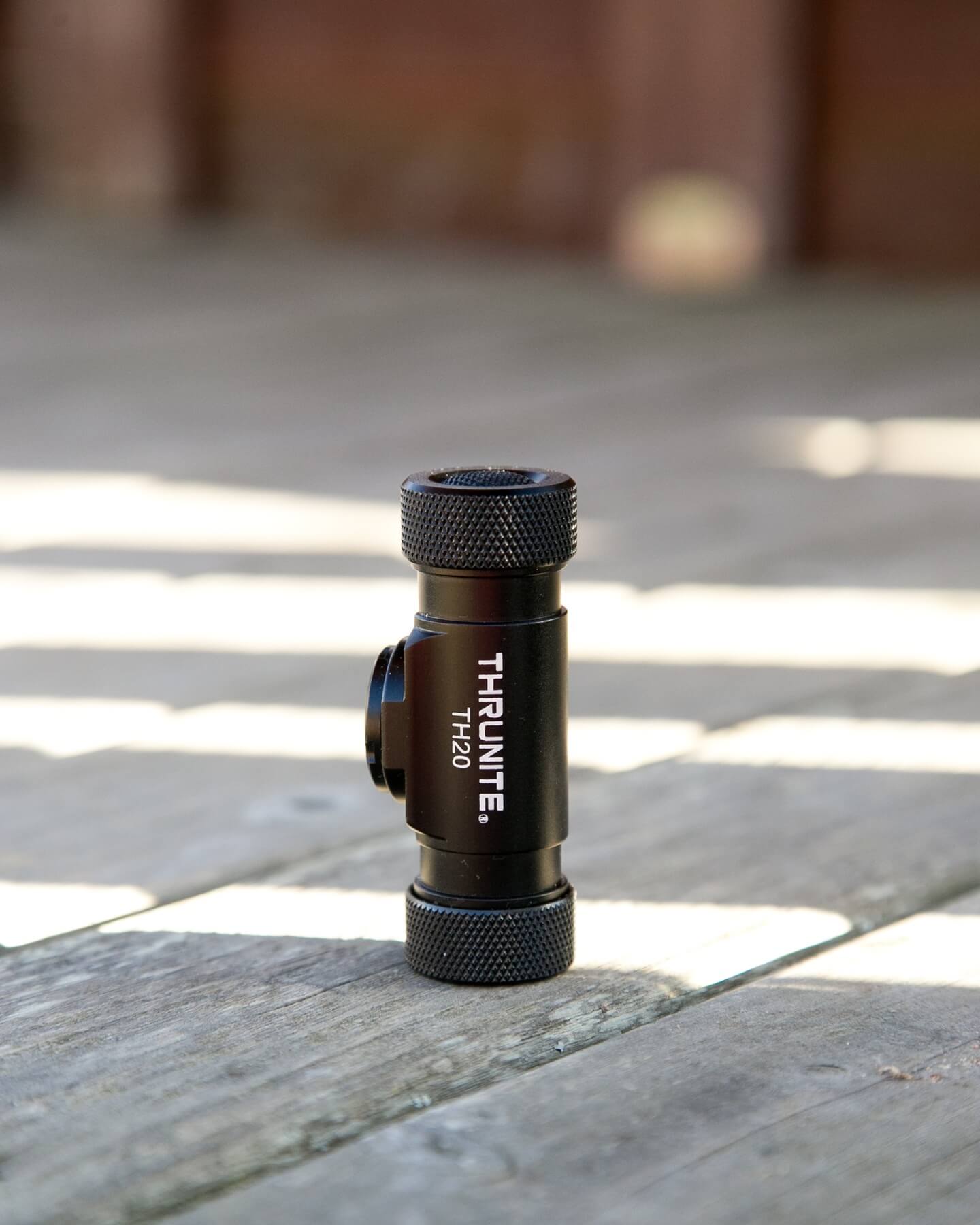

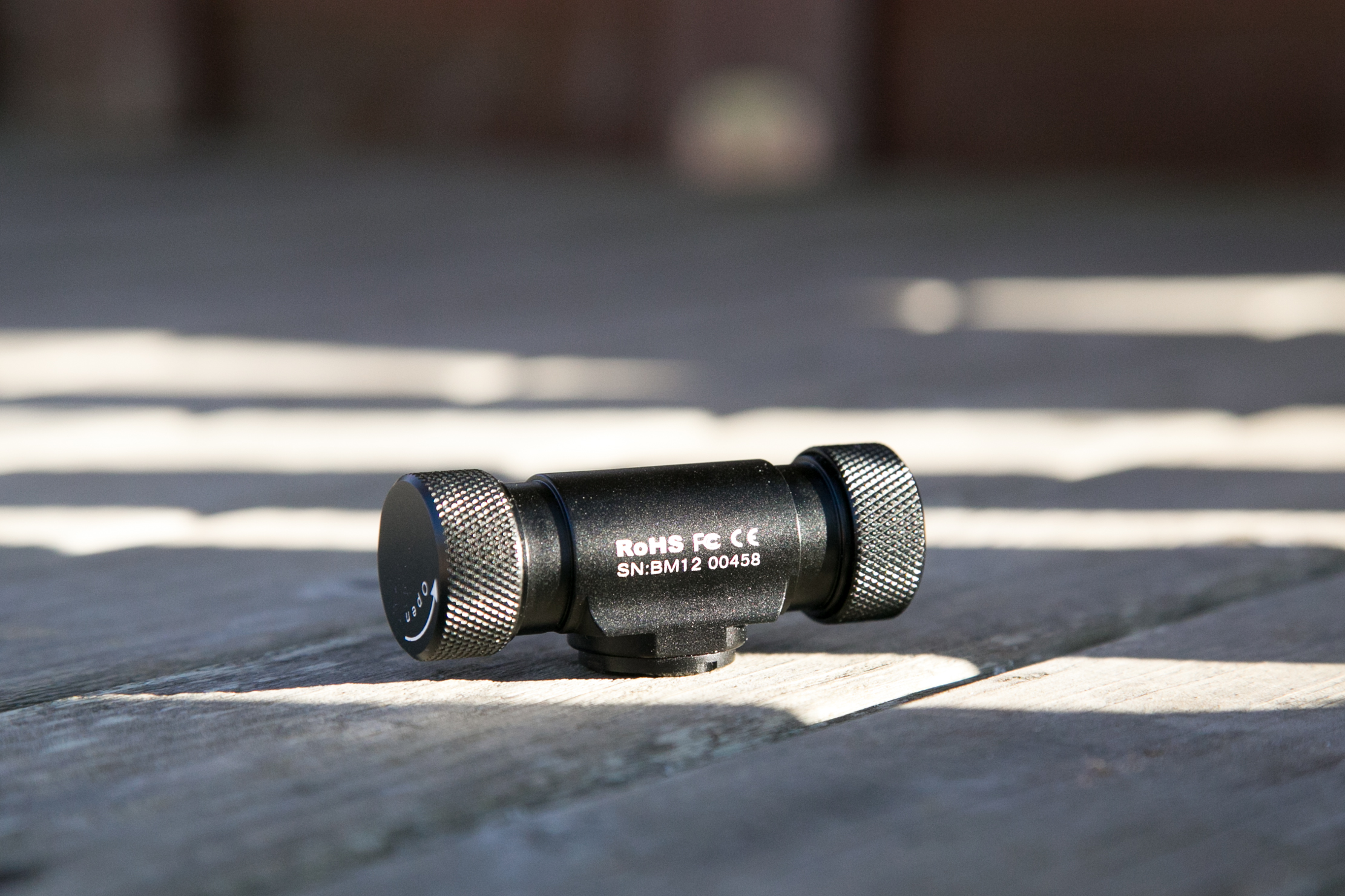

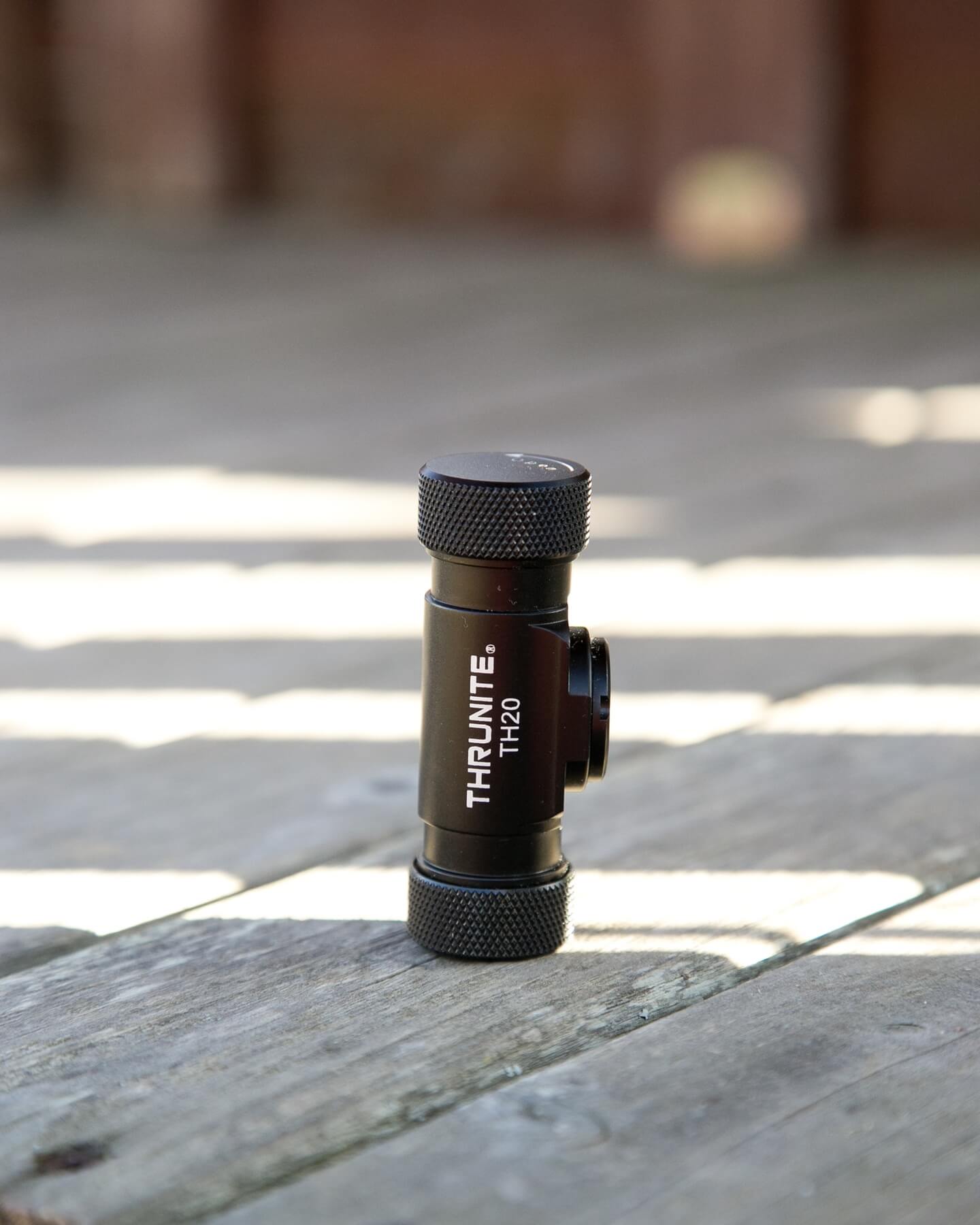

The TH20 will “head” and “tail” stand, but the button protrudes enough that the light sits unevenly on the head side.
Completely flush on the tail side, though.
Size

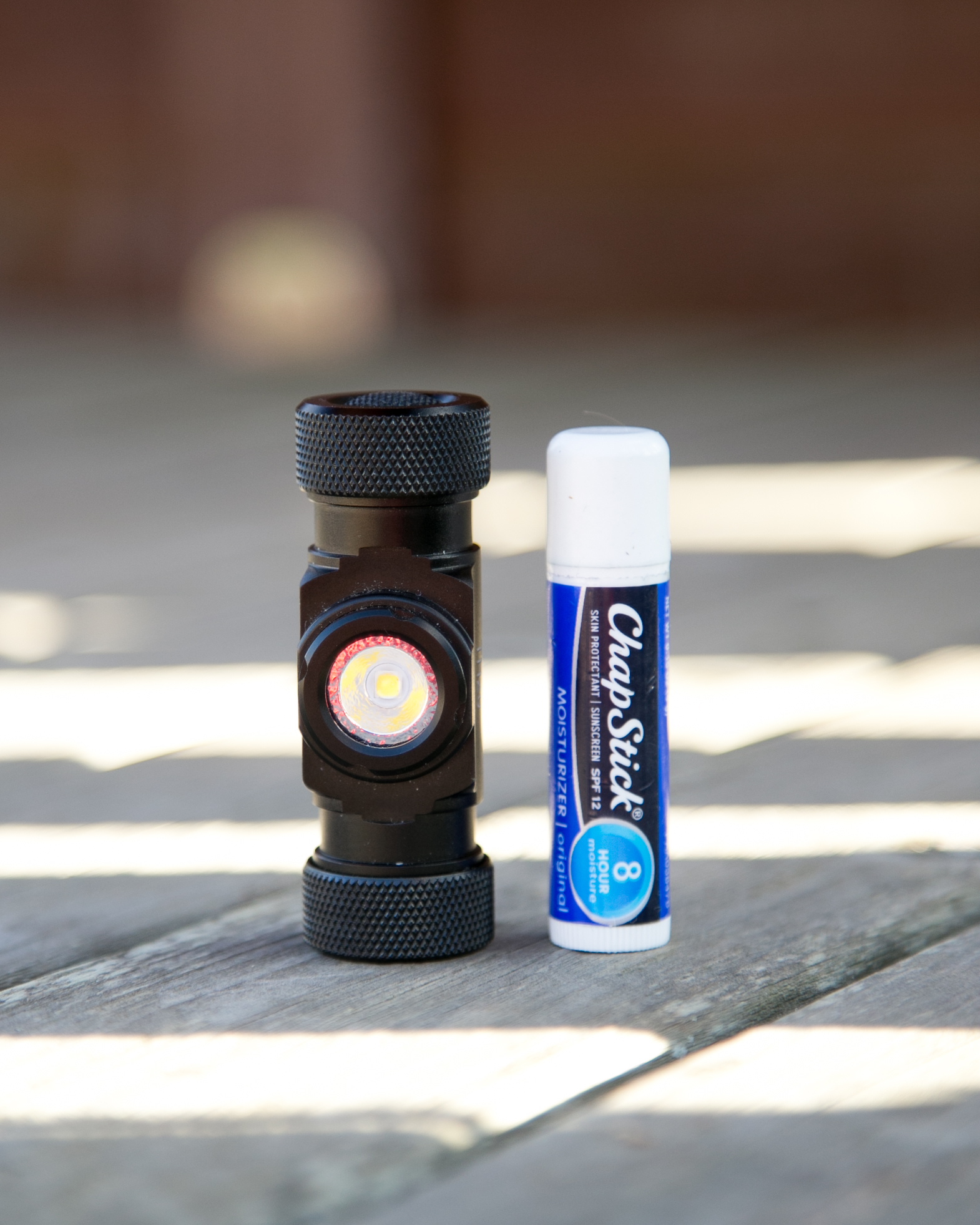

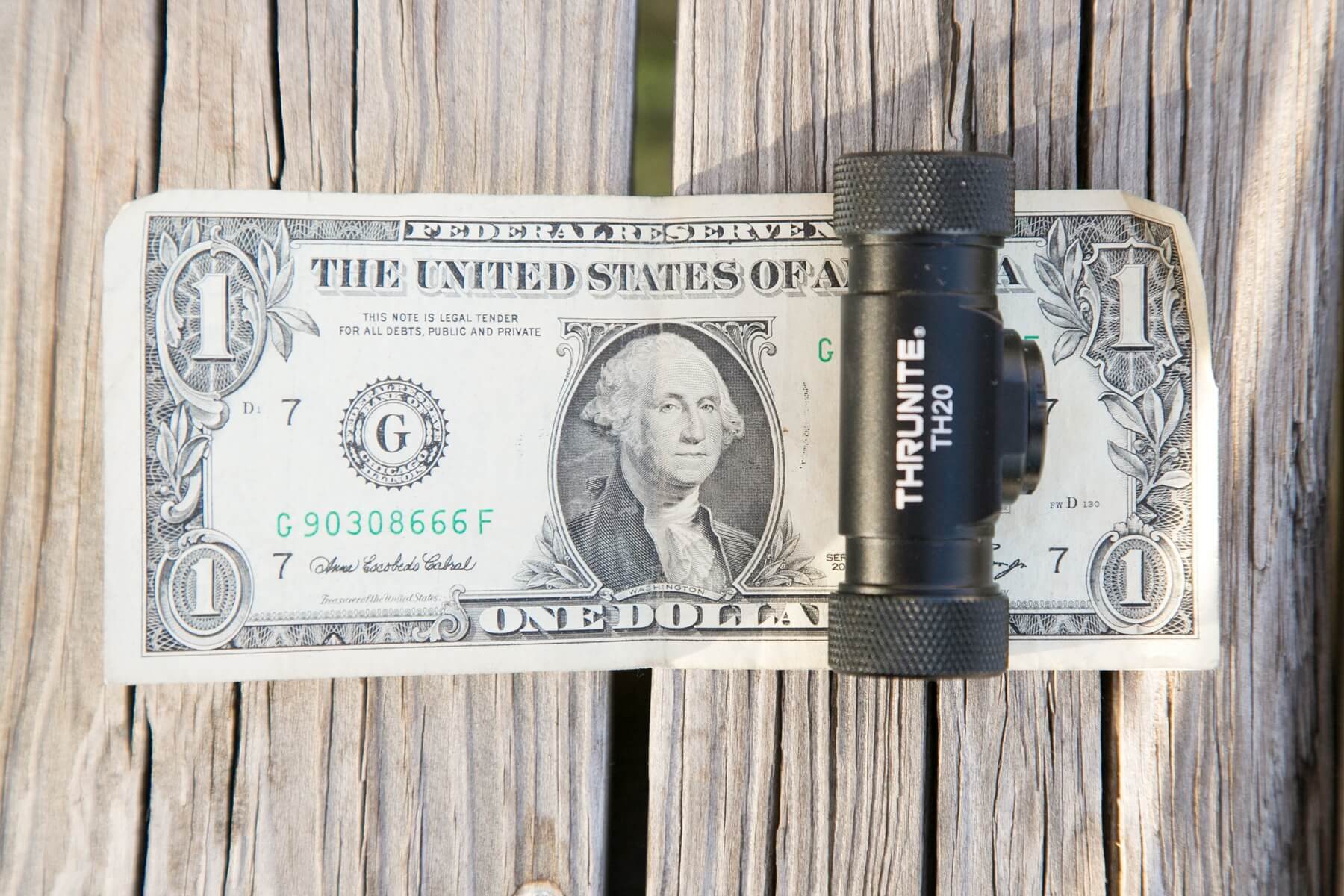

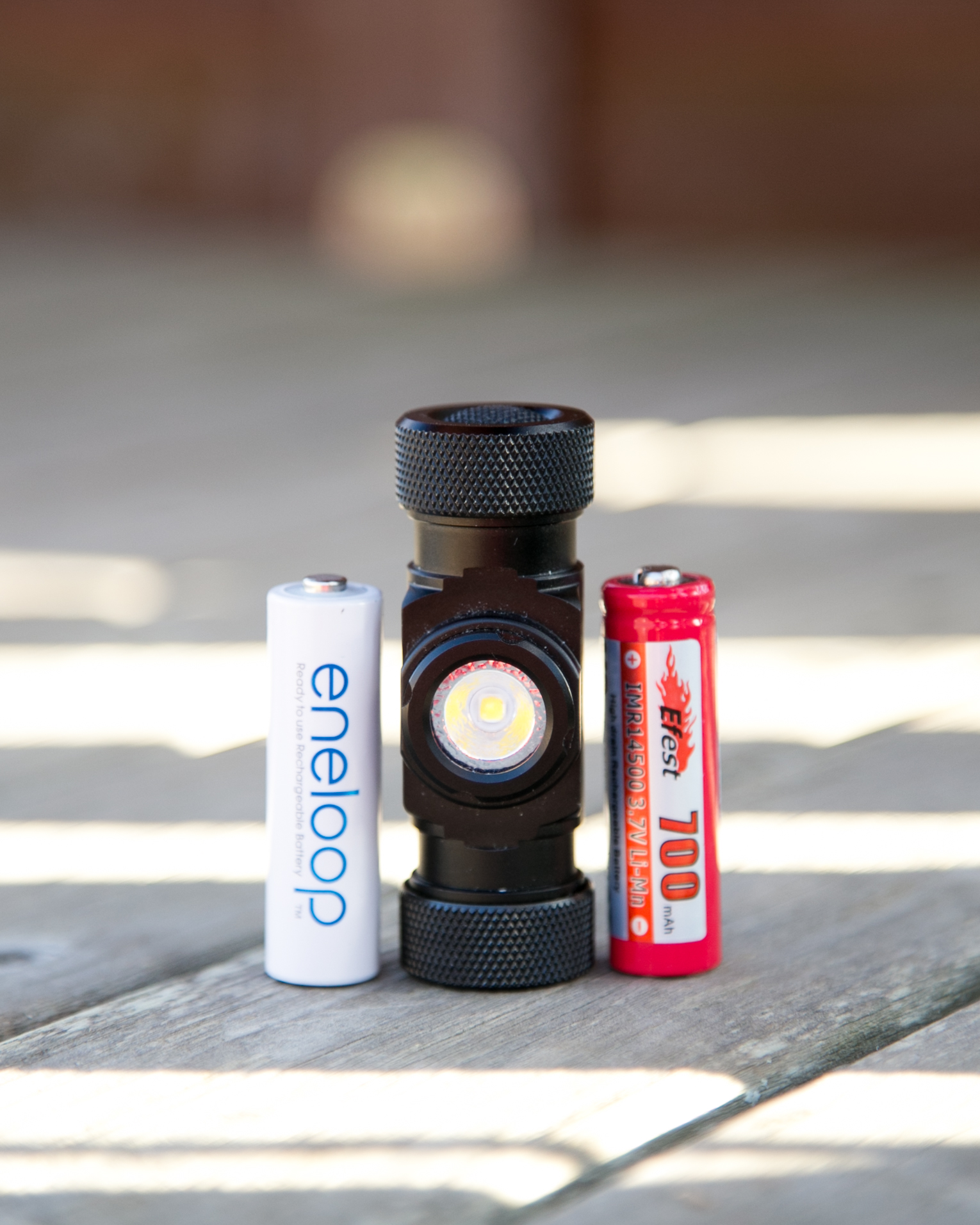

The TH20 is short, at 70 mm, but it does have some girth to it, at 24.5mm. It’s not much longer than an AA cell, and really not all that much wider, either. However, there’s extra room in the cell tube for a few electronics. So the tube is slightly oversized for this. The cell is actually held in place by a plastic shroud, which is not removable.
Retention
The included headstrap is the only option for retention on this light. I typically carry at least one angle light in the bunch of lights I carry day-to-day, and the TH20 thwarted my efforts to use it in that way. This light is really made for and meant for use in the headstrap. Everything about it works best in the headstrap. To wit: there is no magnet or clip or lanyard, or anything else for use with this light. That makes perfect sense for the TH20, though.
Power
This headlamp works with AA-sized cells.

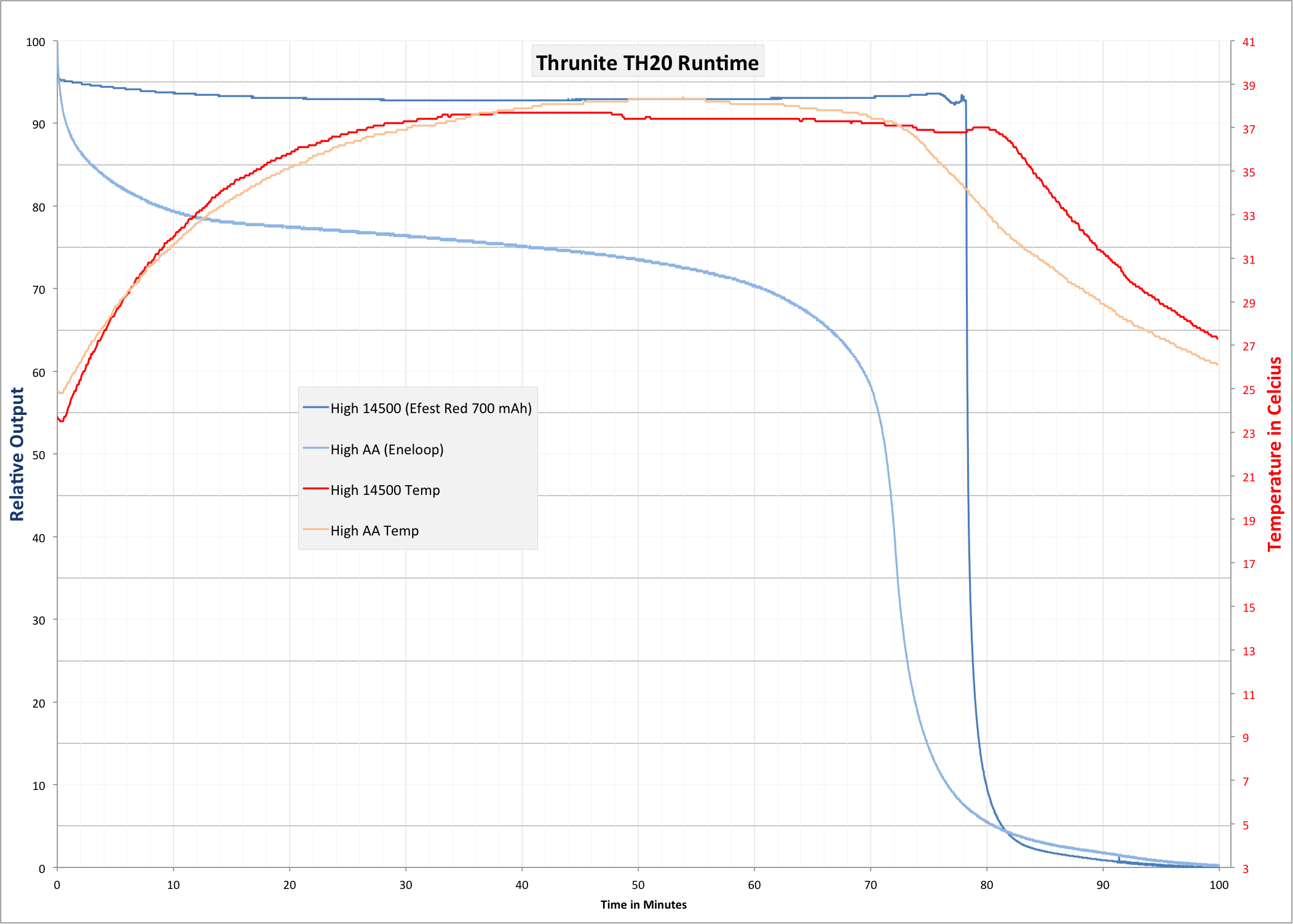

This includes AA primaries and rechargeables like Eneloops, and also 14500 button top cells (not sure about flat tops, I don’t have any of those). However, in my testing (so, unofficially), performance is no better with a 14500. The runtime is slightly different (with a much harder cutoff using the 14500), but performance (i.e., output) is approximately the same.
Furthermore, the Th20 does not seem to have any low voltage protection. High using the 14500 cell, cutoff at 0.46V. I primarily use an unprotected 14500, so the lack of low voltage protection is not too bad. AA (Eneloop) cutoff was around 0.88V – I’m thinking Eneloops may have their own protection, tripping at around this voltage, because I’ve seen test after test with the Eneloops shutting off around 0.88V. I haven’t been able to confirm this, however.
In any case, the lack of low voltage protection and the lack of any warning whatsoever concern me for something whose intended use is directly on my forehead.
The cell is inserted with the positive terminal into the headlamp. Positive goes on the switch end.
User Interface and Operation
There’s a single silicone button on the head end of the light (again, where “head” is the positive terminal side). This switch protrudes just enough to keep the light from head standing level, and the hatching on the switch is quite grippy.
| State | Action | Result |
|---|---|---|
| Off | Click | On |
| On | Click | Off |
| Off | Hold | Firefly |
| Firefly | Hold | “Infinity” Cycle L>H^ |
| Any | Double Click | Turbo |
| Turbo | Double Click | SOS |
^ When holding the button to ramp from Firefly to High, releasing the button switches the ramp direction. So if you’re on your way L>H, and stop and hold again, the light will cycle H>L.
Firefly:
When the light reaches either extreme (H or L) it’ll flash 3x to demonstrate that’s the extreme, and it’s about to start going in the other direction.
LED and Beam

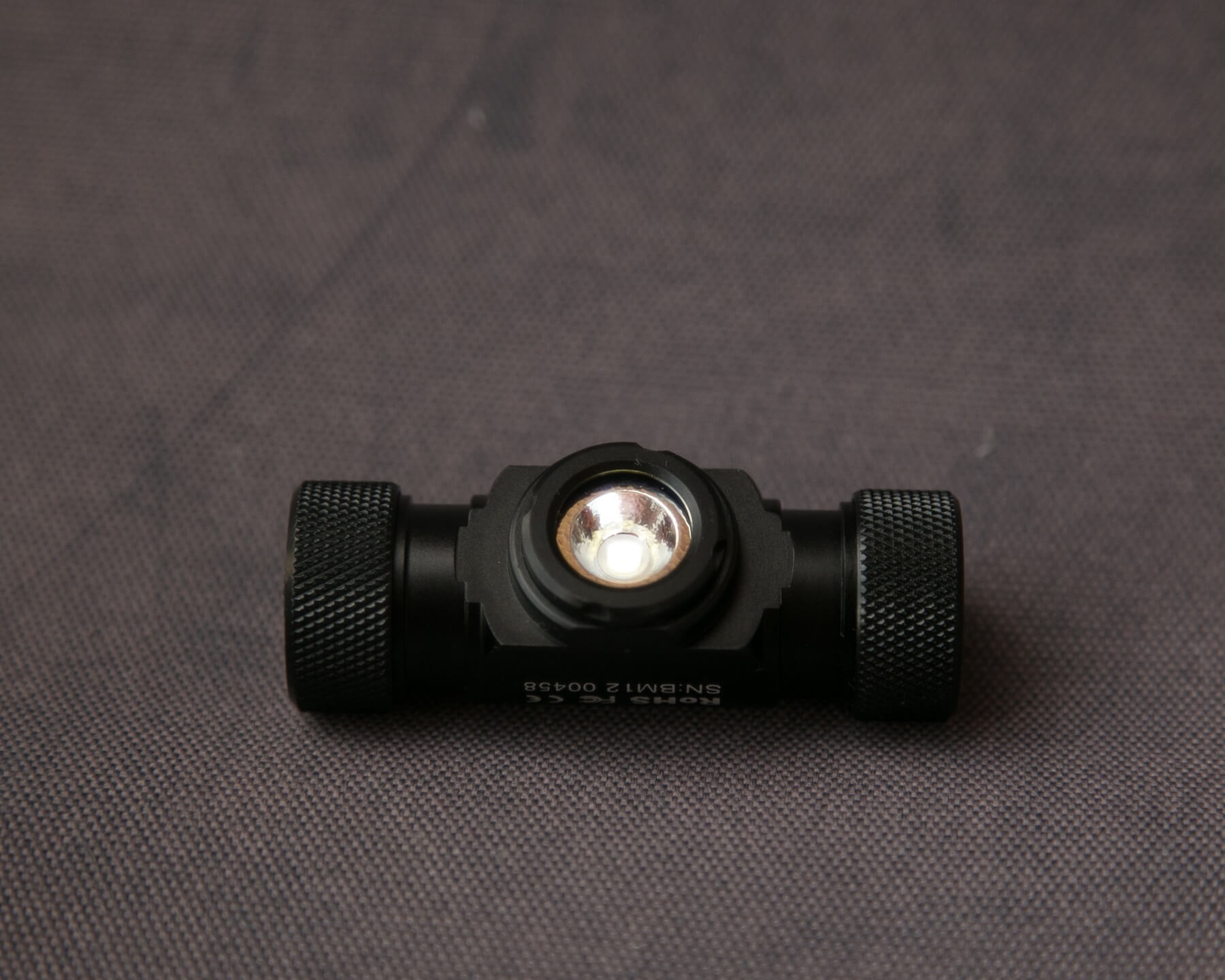

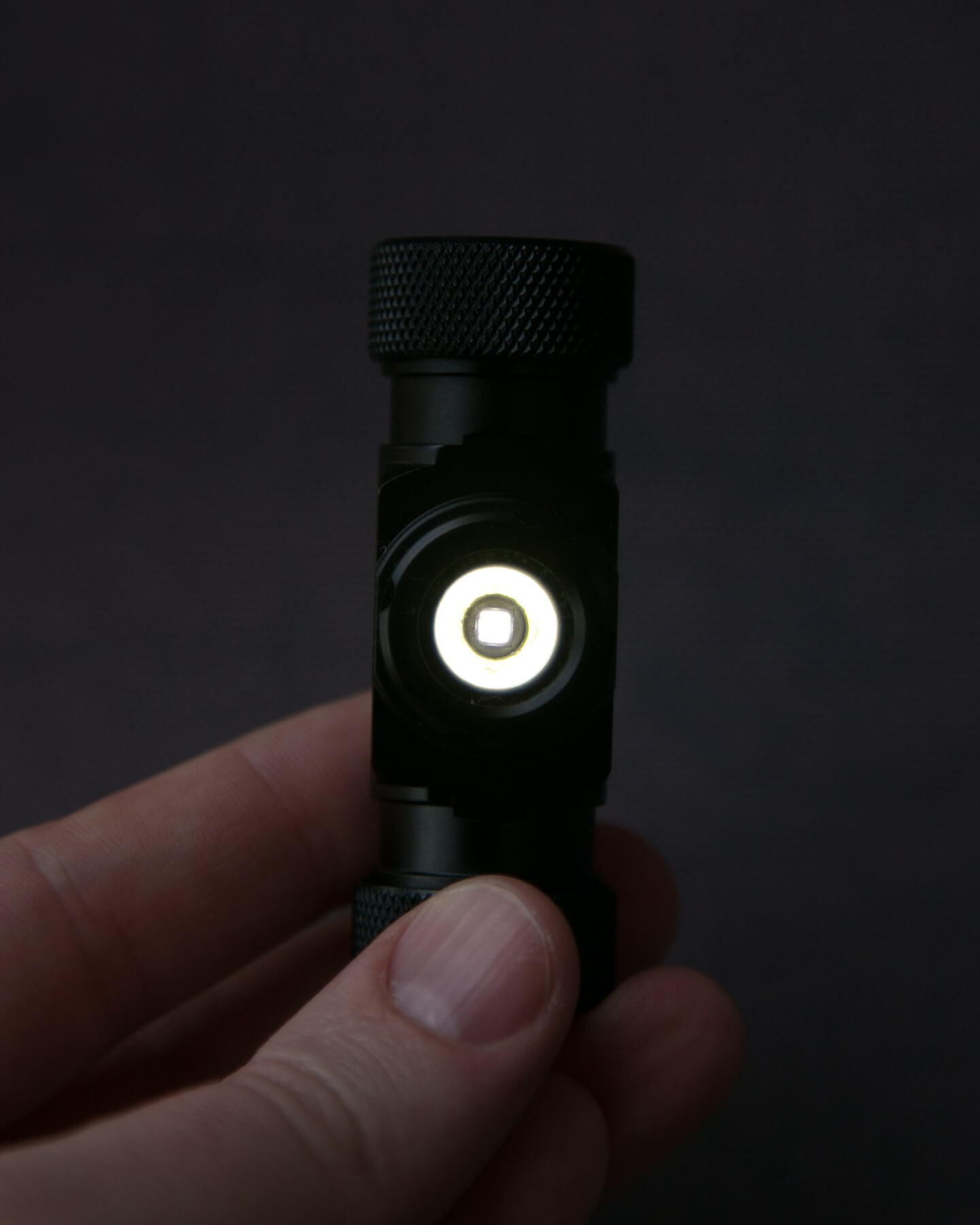

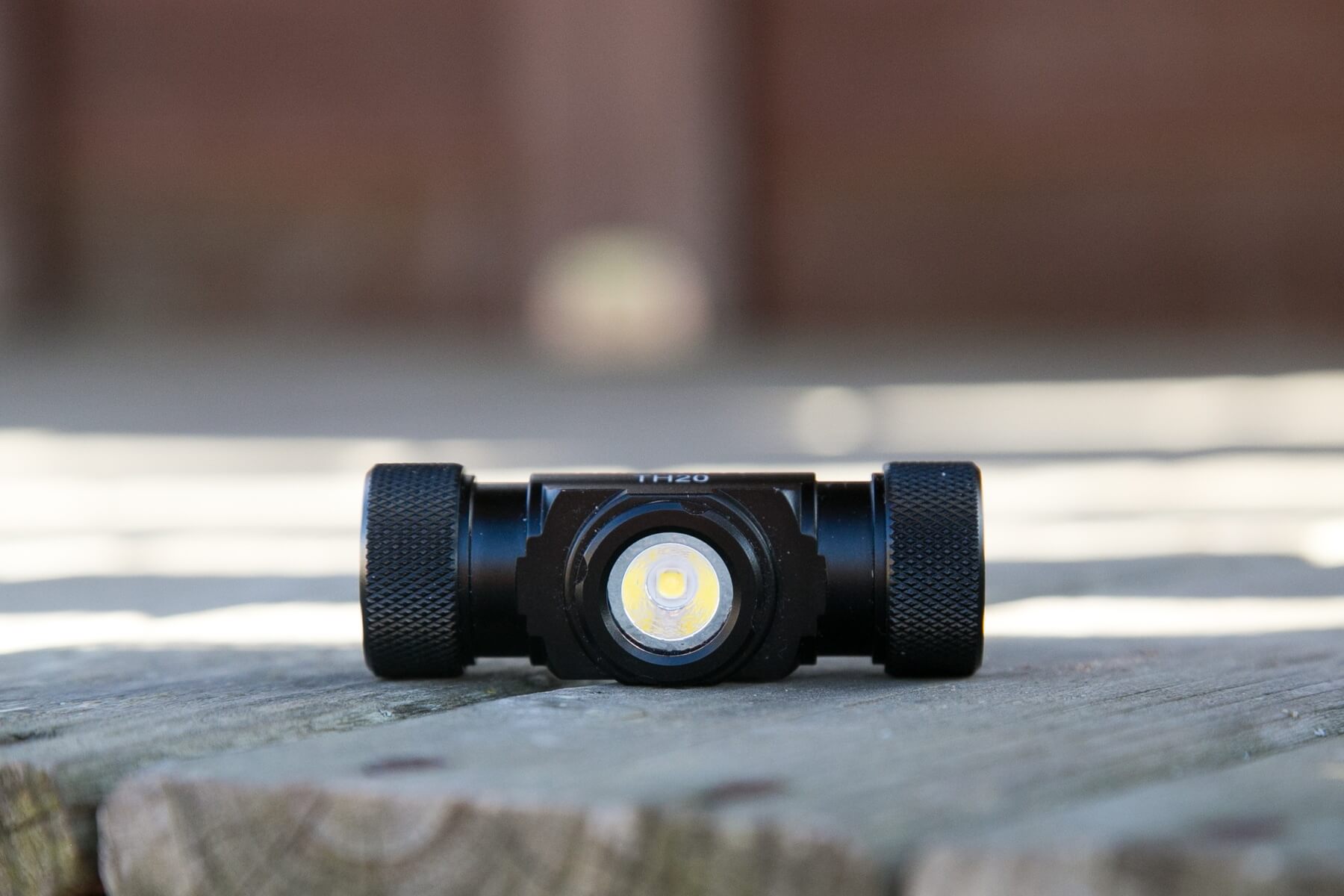

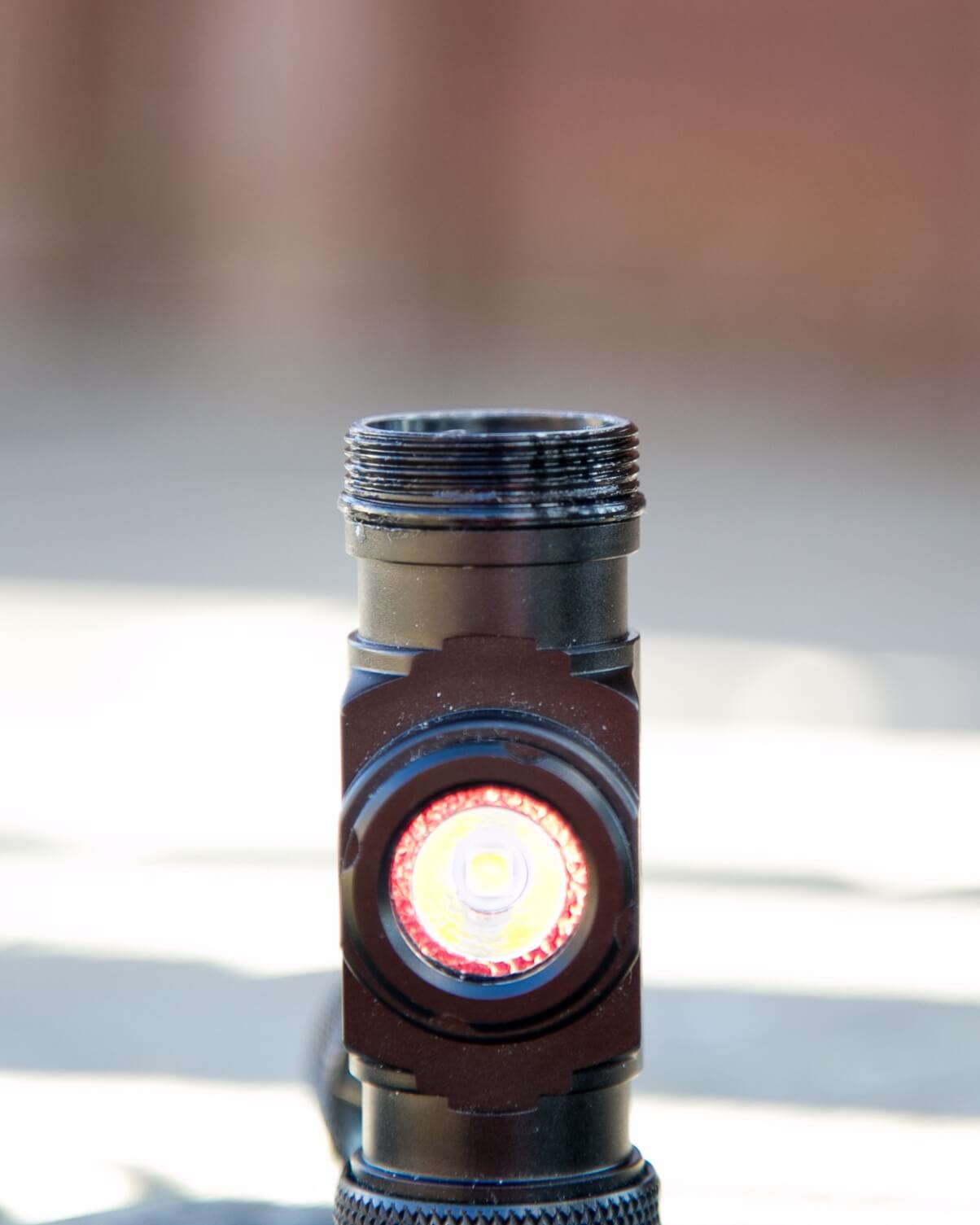

The emitter is a Cree XP-L (V6) and has a shallow orange peel reflector.
This shallow reflector makes the hotspot not very hot, which is probably just about ideal for a headlamp. The hotspot is reminiscent of a TIR, but with much more spill.

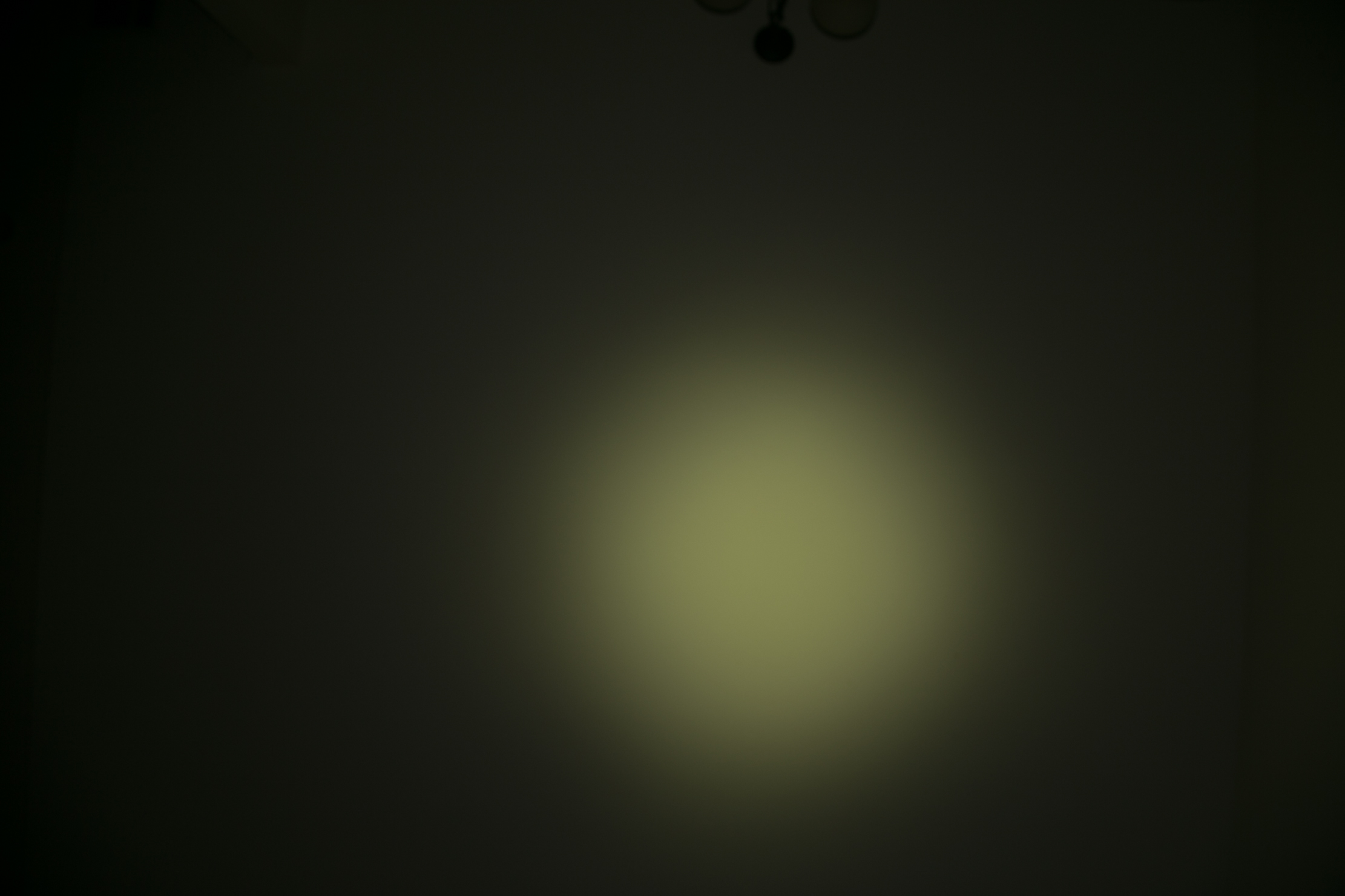

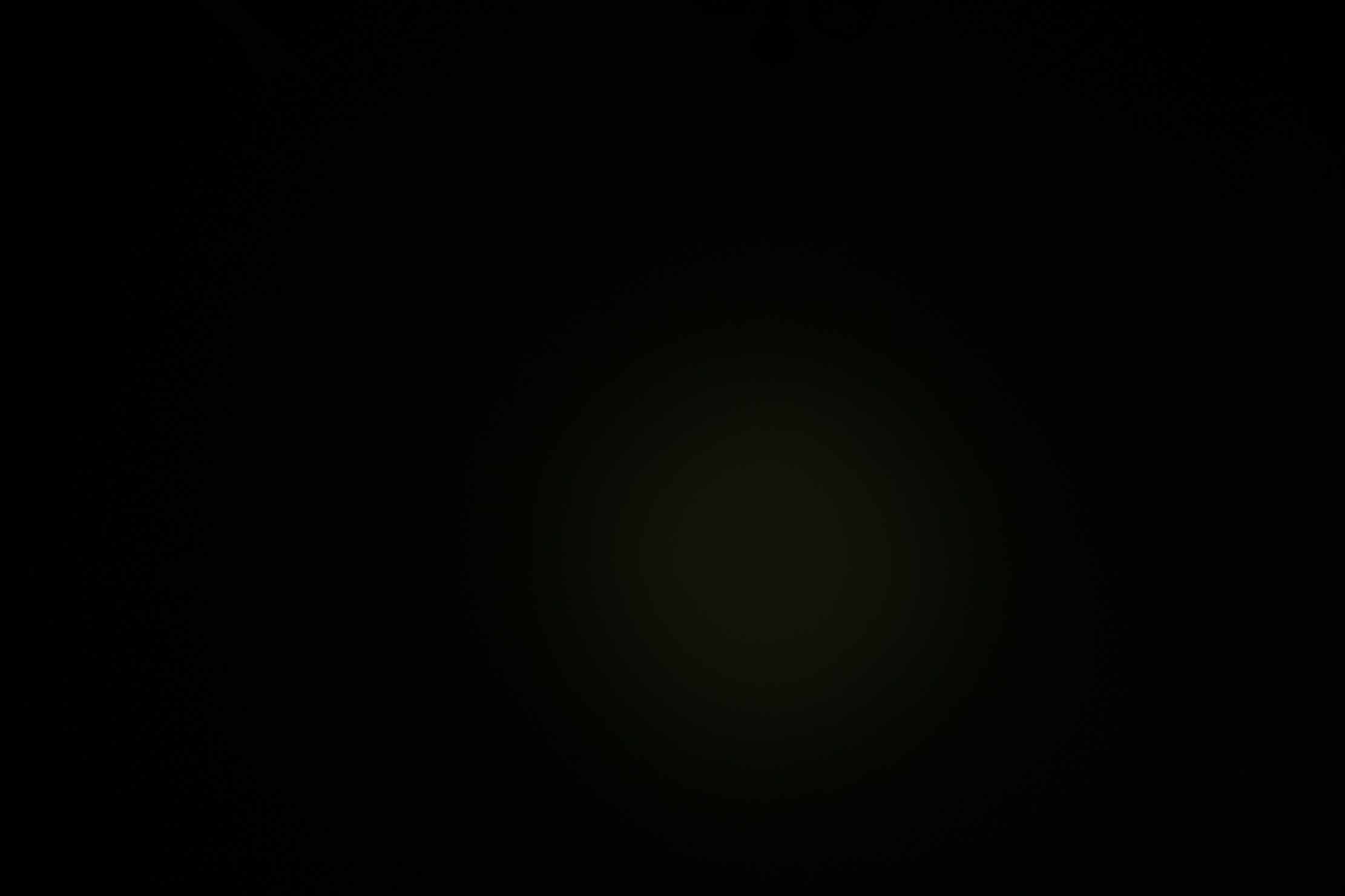

Beamshots
These beamshots always have the following settings: f8, ISO100, 0.3s shutter, and manual 5000K exposure. These photos are taken at floor level, and the beam hits the ceiling around 9 feet away.
AA:
14500:
Tint vs BLF-348 (KillzoneFlashlights.com 219b version) (affiliate link)
I keep the test flashlight on the left and the BLF-348 reference flashlight on the right.

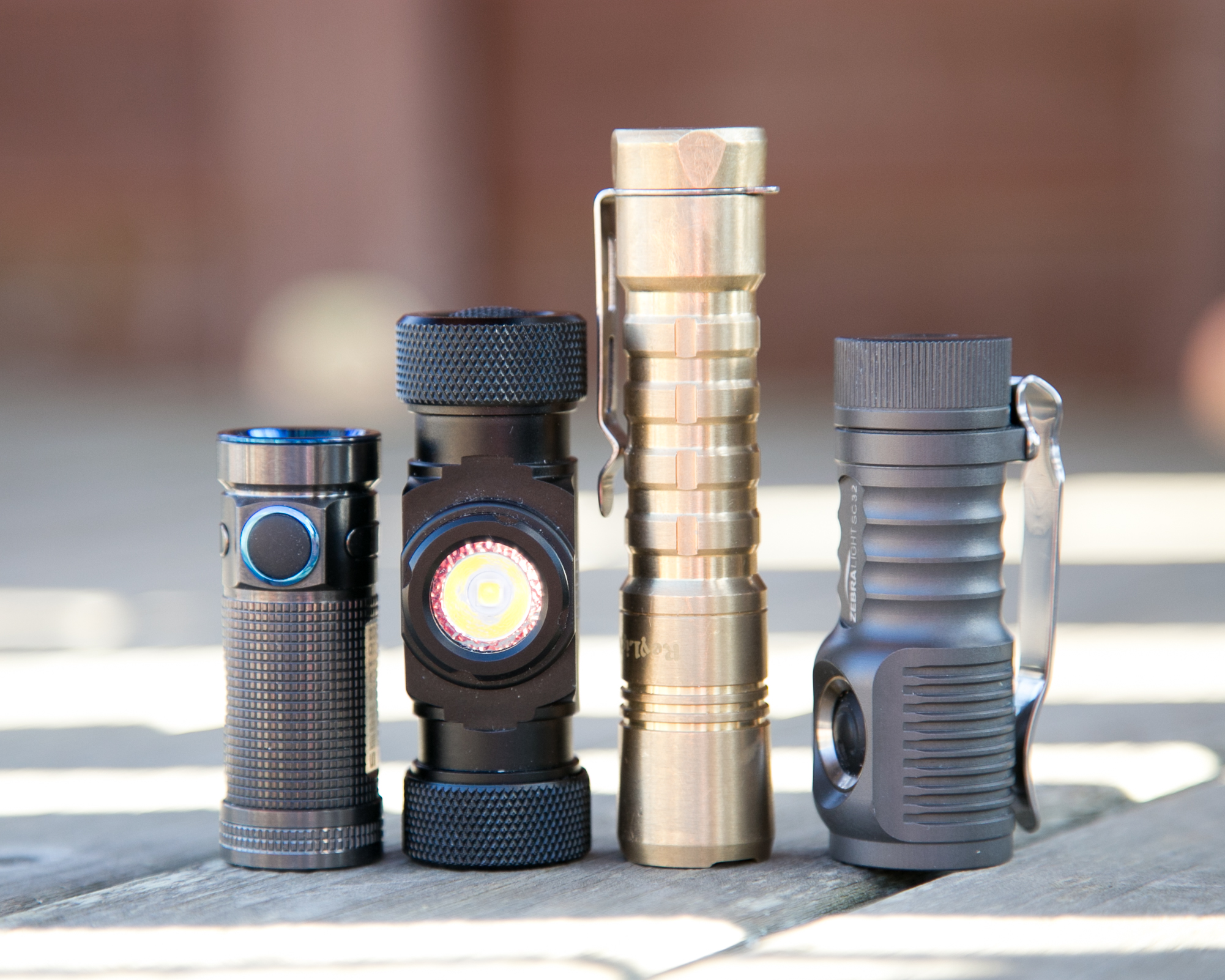

Random Comparisons and Competitive Options
There are a fair few headlamps in this style (AA style, generally), which also accept 14500. Armytek has a bunch (all the Tiara A1’s, for example), Zebralight has a few (all the H52’s, for example), and I expect there are others. None of those lights compete with this Thrunite TH20 on price alone, and also, I think the user interface on this TH20 is unique enough to set it apart. The other lights do have varying emitter options, and are not strictly dedicated headlamps (necessarily) – they’re more of “angle lights” and could serve multiple functions (pocket carry, for example).
Conclusion
When I first saw this light, I thought, “Great, I’ve been wanting to try an 18650 headlamp in this style!” Then I read some more and saw it was AA and got a little disappointed. But it’s a fine light, and users who prefer AA-style lights should definitely consider this Thrunite TH20.
What I like
- Build quality is good
- User interface is unique and useful
- Ramping user interface is good
- The headstrap is nice and comfortable
What I don’t like
- Seems slightly bulky for an AA
- User interface is good if you’re used to it. Can take time to get used to it.
- That the performance on AA and 14500 seems the same is strange.
Notes
