Olight X7R Marauder Flashlight Review

Preface

Olight has iterated the X7, and added charging.  I reviewed the X7 ages ago (back in 2016), and was generally pleased.  Let’s see how (if?) Olight has improved on this venerable design, by adding recharging and an indicating side switch.


Official Specs and Features

Versions

There is only one version of this light, and it includes everything needed to get up and running.

Price

As of writing this review, the price is $279.95 at OlightStore.com.


Short Review

This is a well developed light, and I like it quite a bit. I like the button, and the USB-C charging is a nice upgrade from slower, older tech.

Long Review

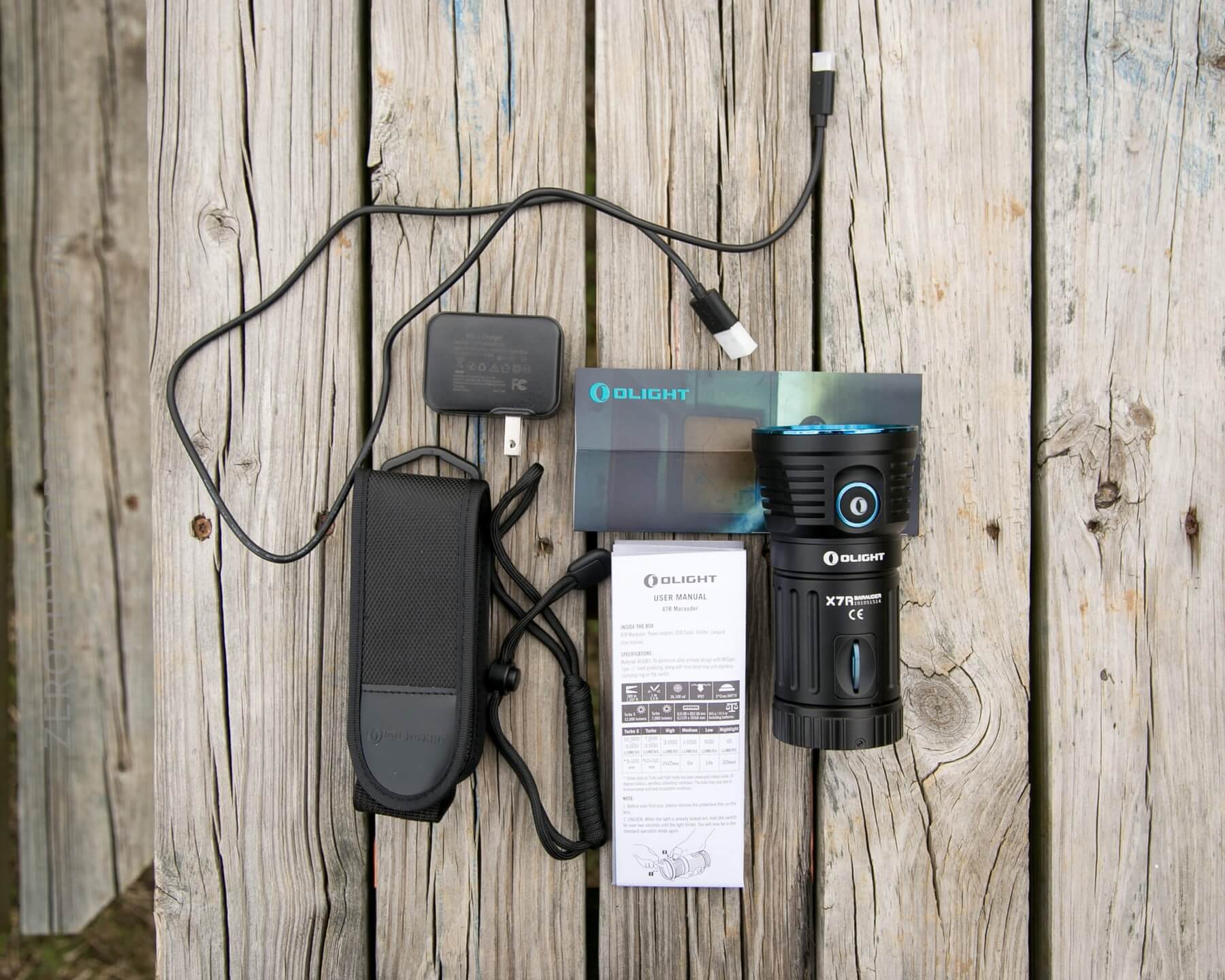

What’s Included

  • Olight X7R Marauder
  • Nylon pouch
  • Charge cable
  • Wall wart
  • Lanyard
  • Manual and paperwork

20180304-IMG_0568

The cell is built into the light, so it’s not listed above.  But the light has the cell built in, so it’s RTR out of the box (after a bit of charging, of course.)

Package and Manual

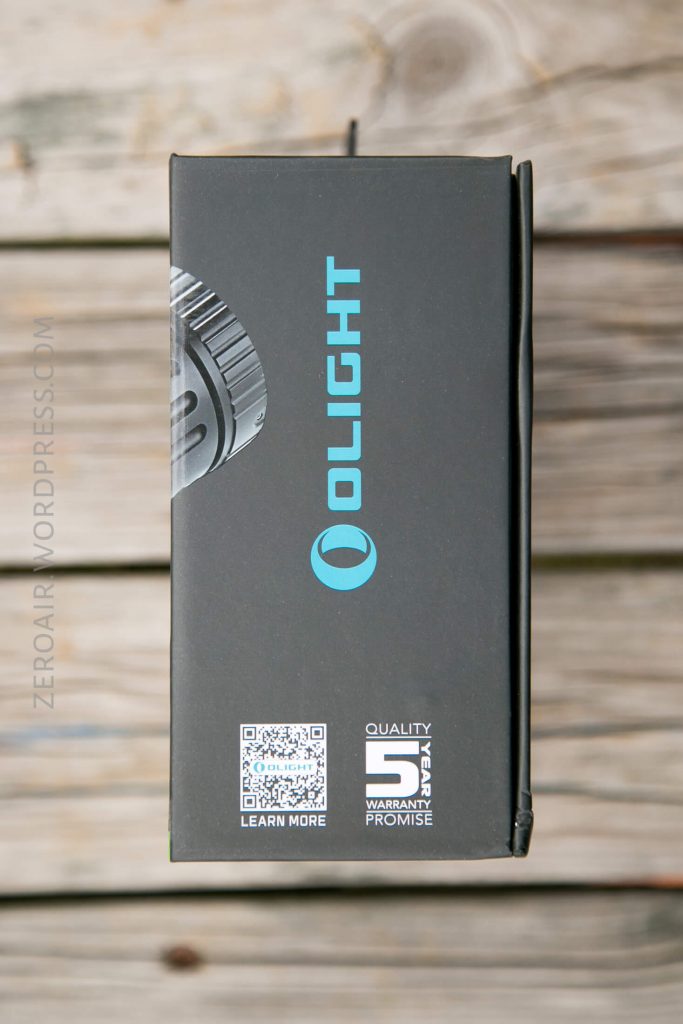

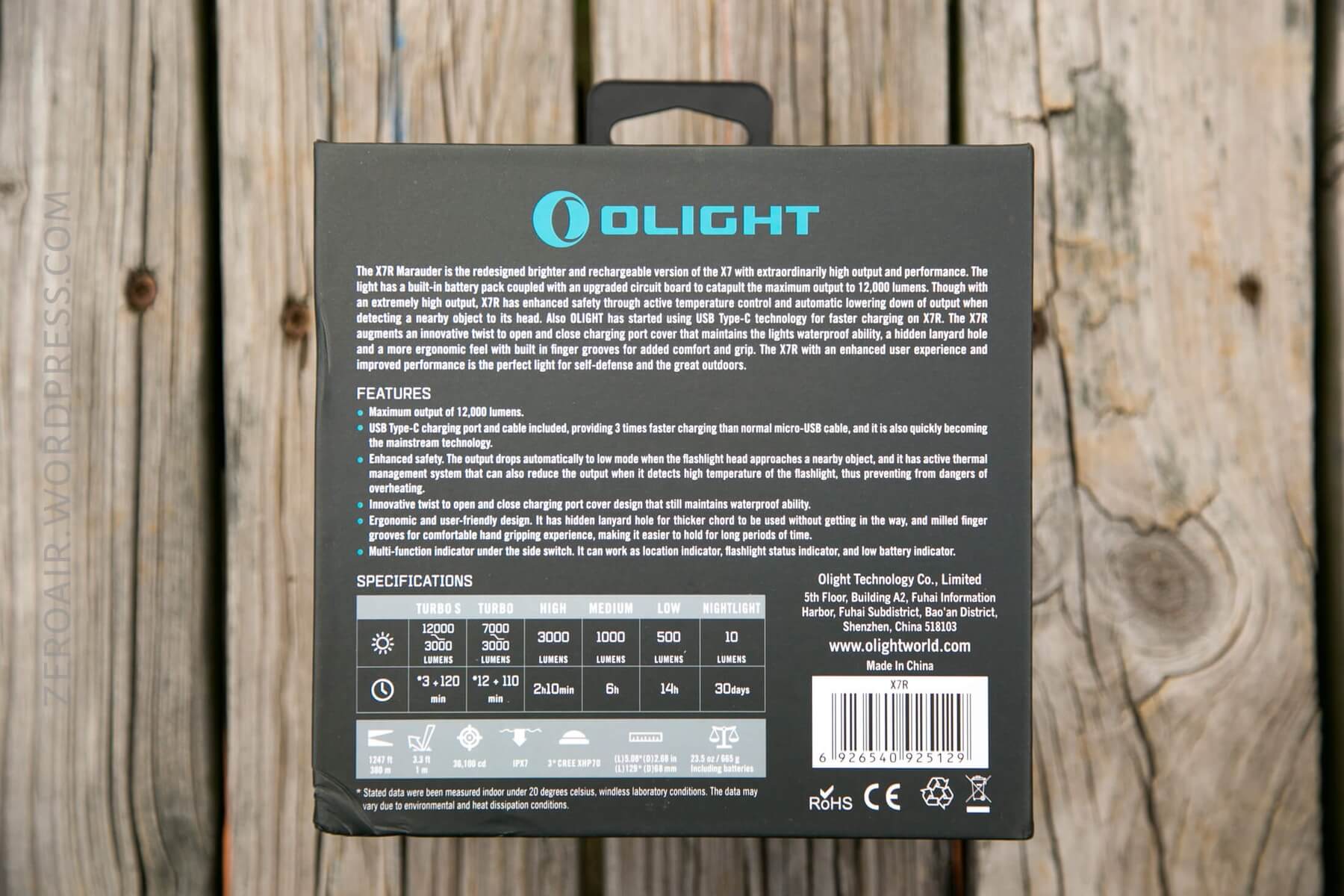

As is common with these larger Olights, the box is a flip top, cardboard, highly printed box.  I really like this style, because it’s so easy to get into, and it’s not like a game of Frac to get things back into the box.

The manual is also typical Olight.  Many languages, all printed on a huge sheet of very-folded paper.  English is toward the front (top/right).  The manual isn’t wordy, but it does seem to cover the needful information.  Notably charging, and UI.  Here’s a pdf of the manual.

Build Quality and Disassembly

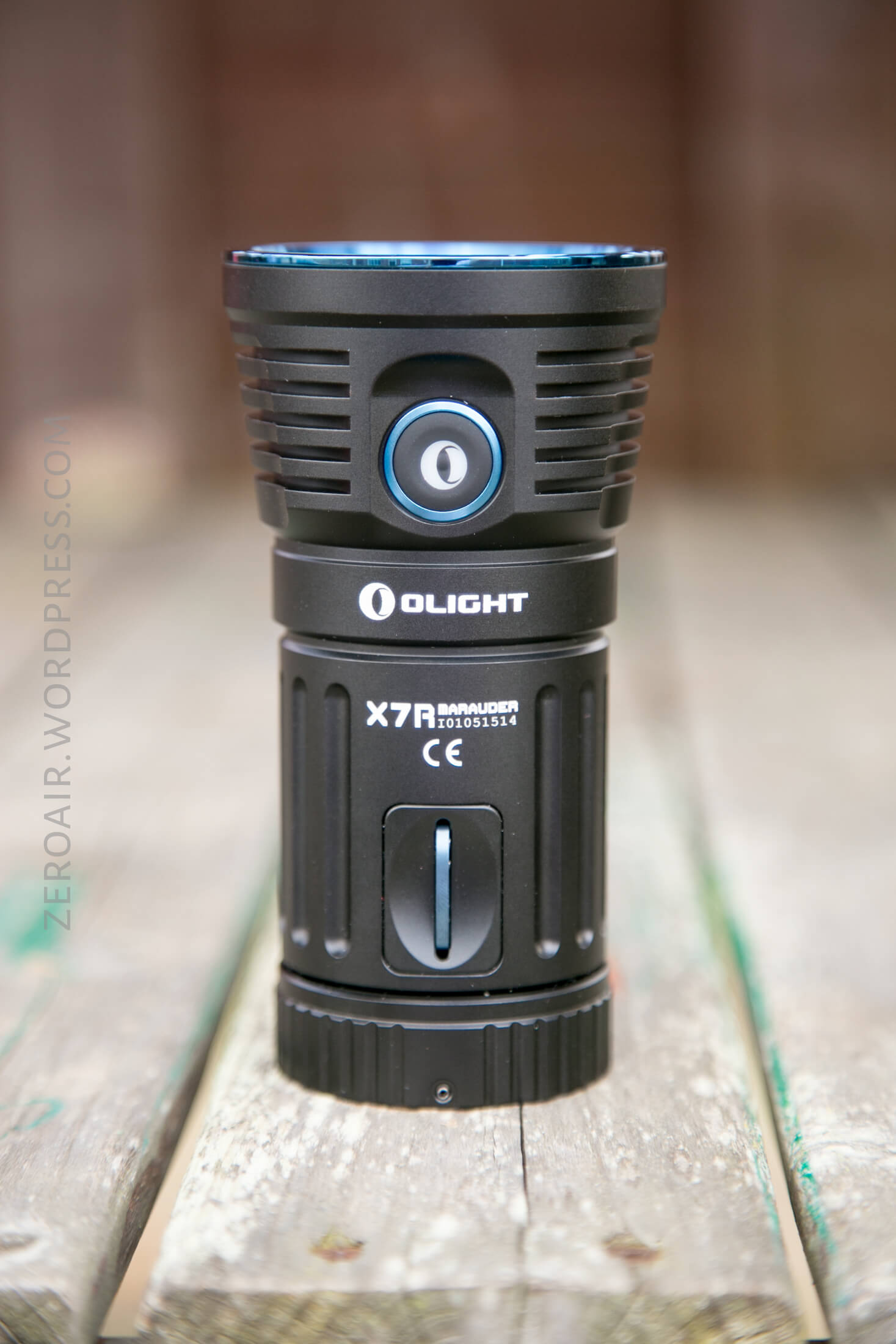

Having had both the X7 and now the X7R it’ll be hard not to compare them.  I find the feel of the X7R to be superior to the X7.  But in more relevant terms, since the X7 is long in the tooth, the X7R has a great feel of quality in-hand.  It also seems to have a deep, glossy coat of anno, a feature I really like.

20180304-IMG_0597

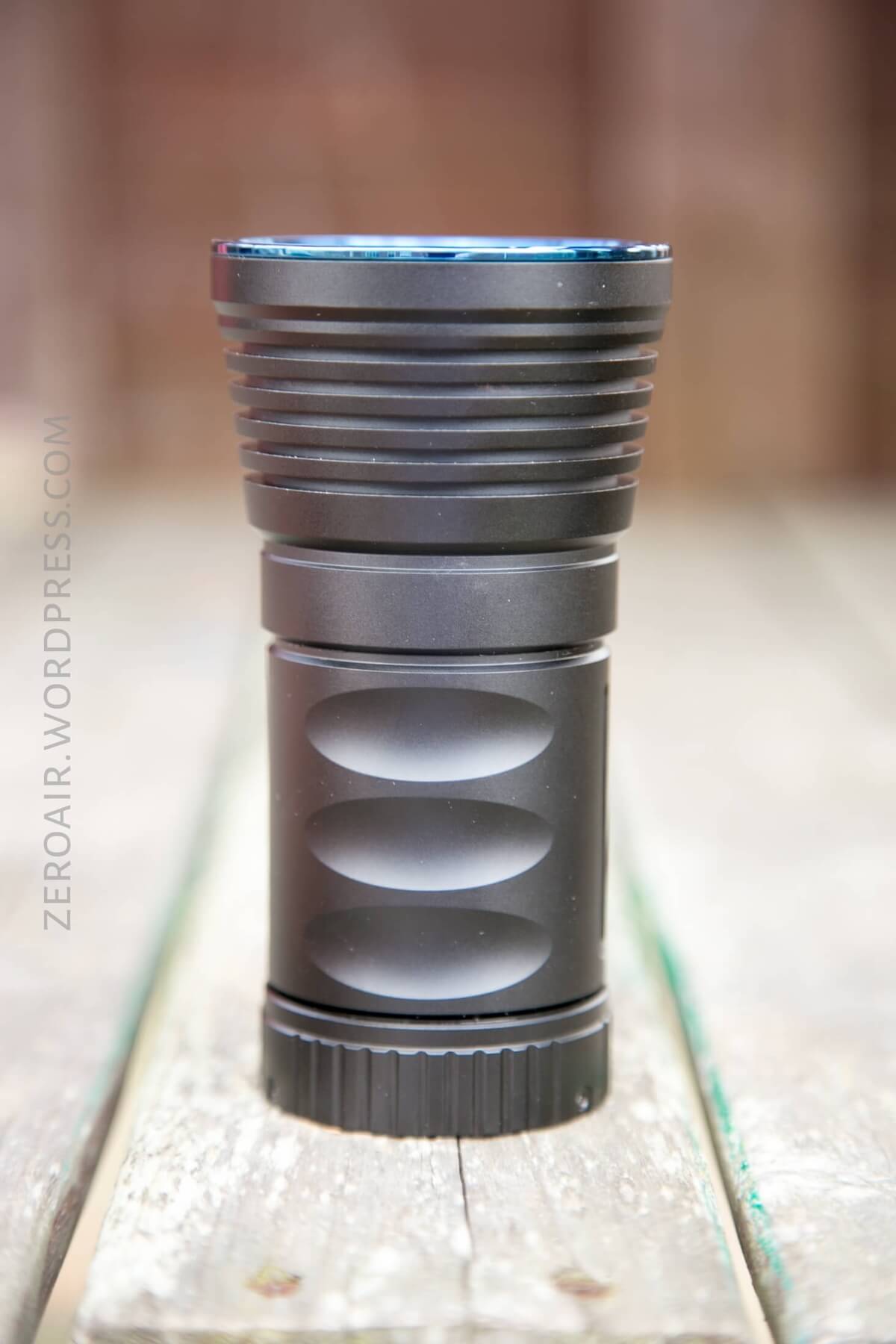

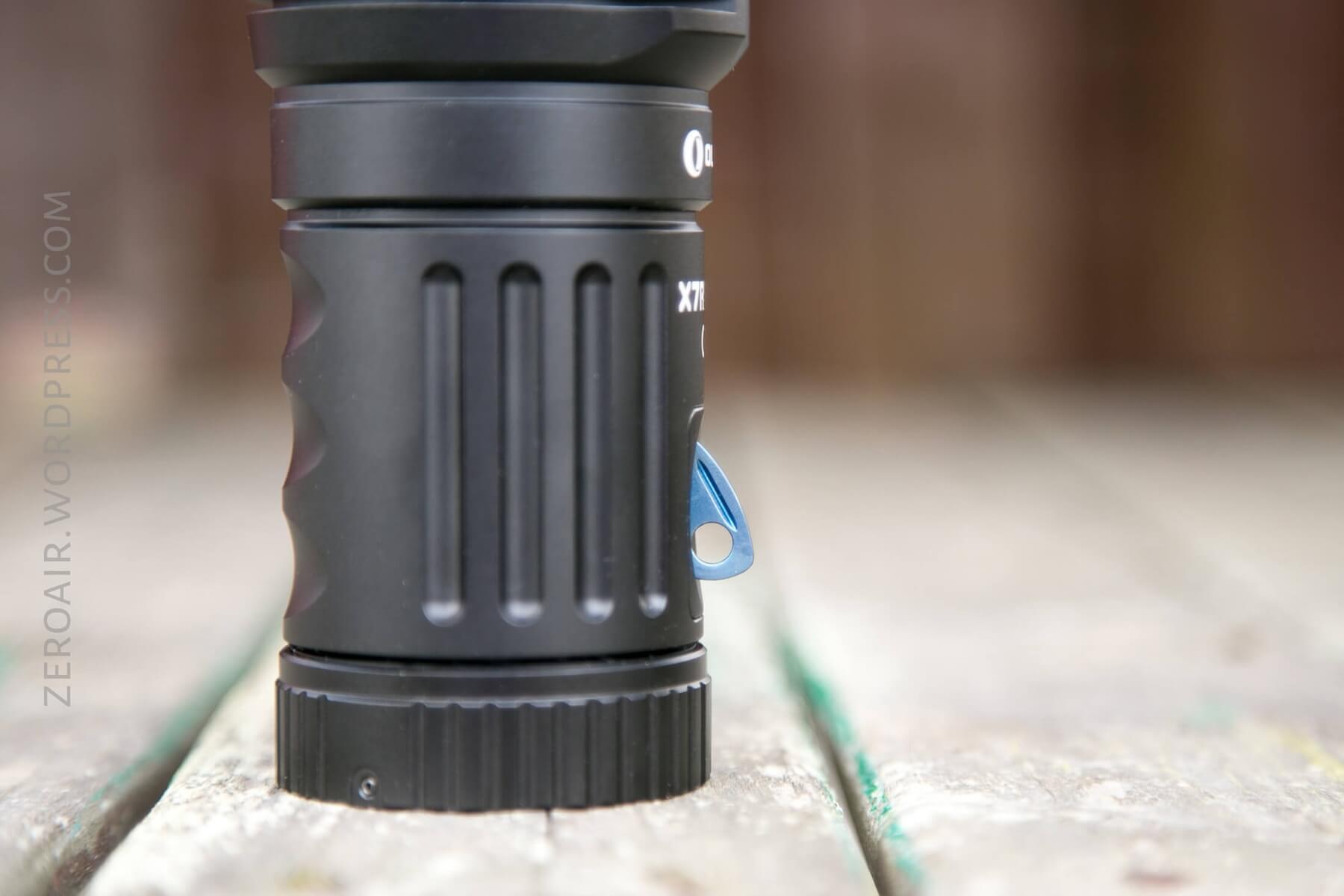

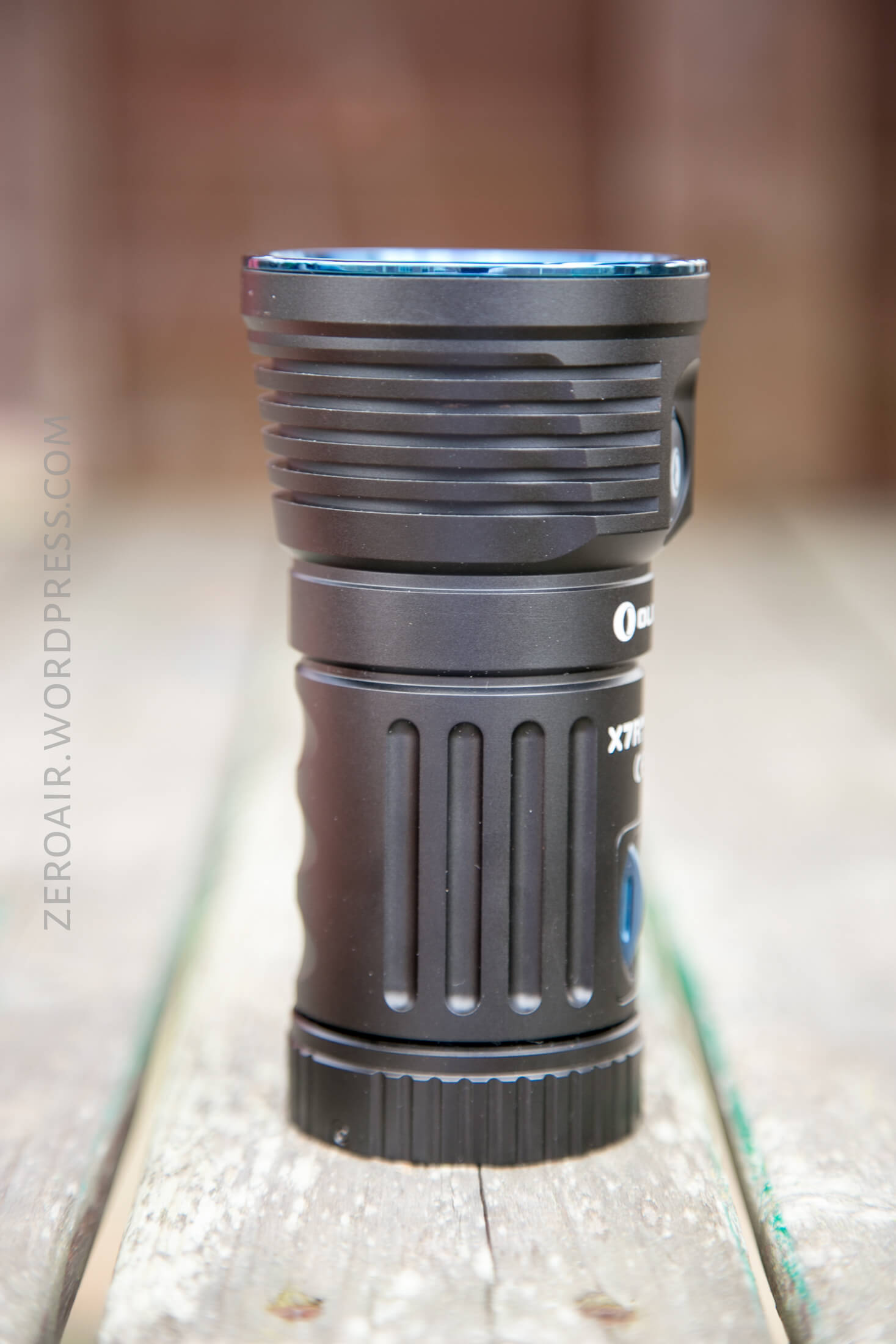

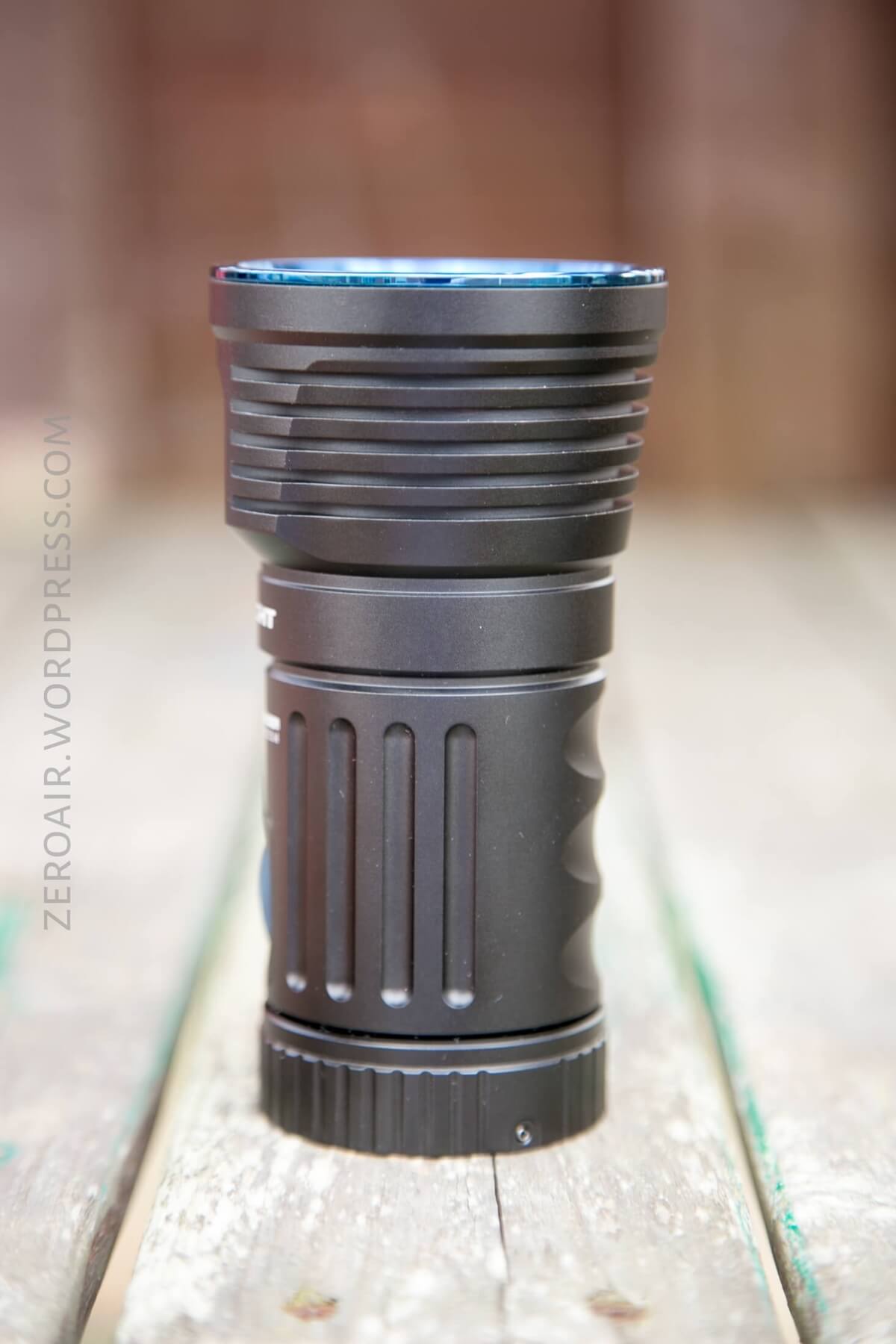

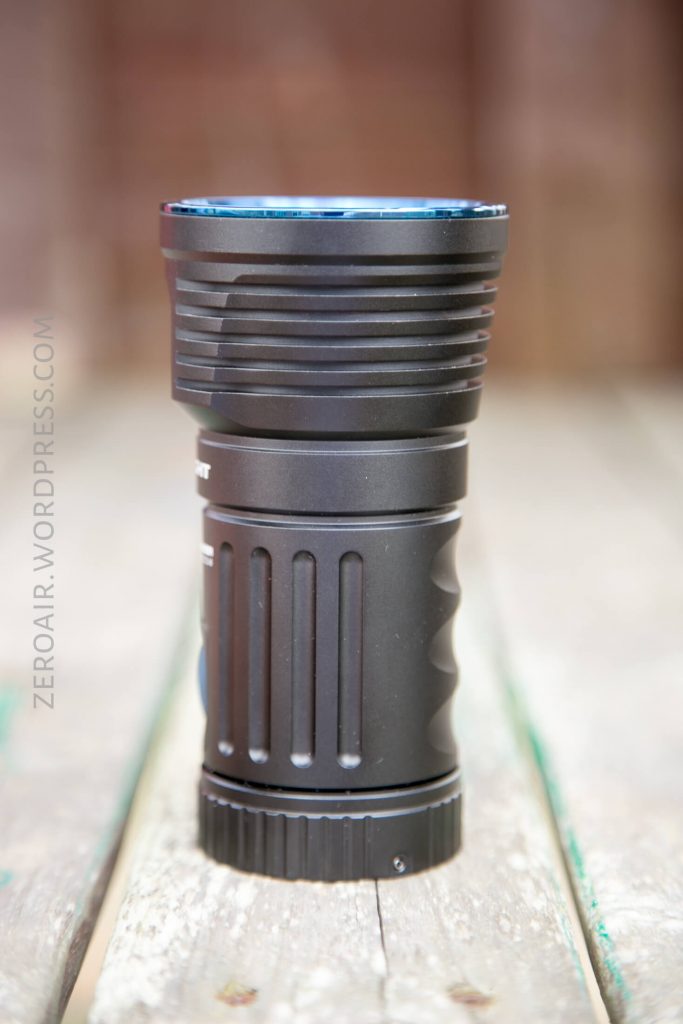

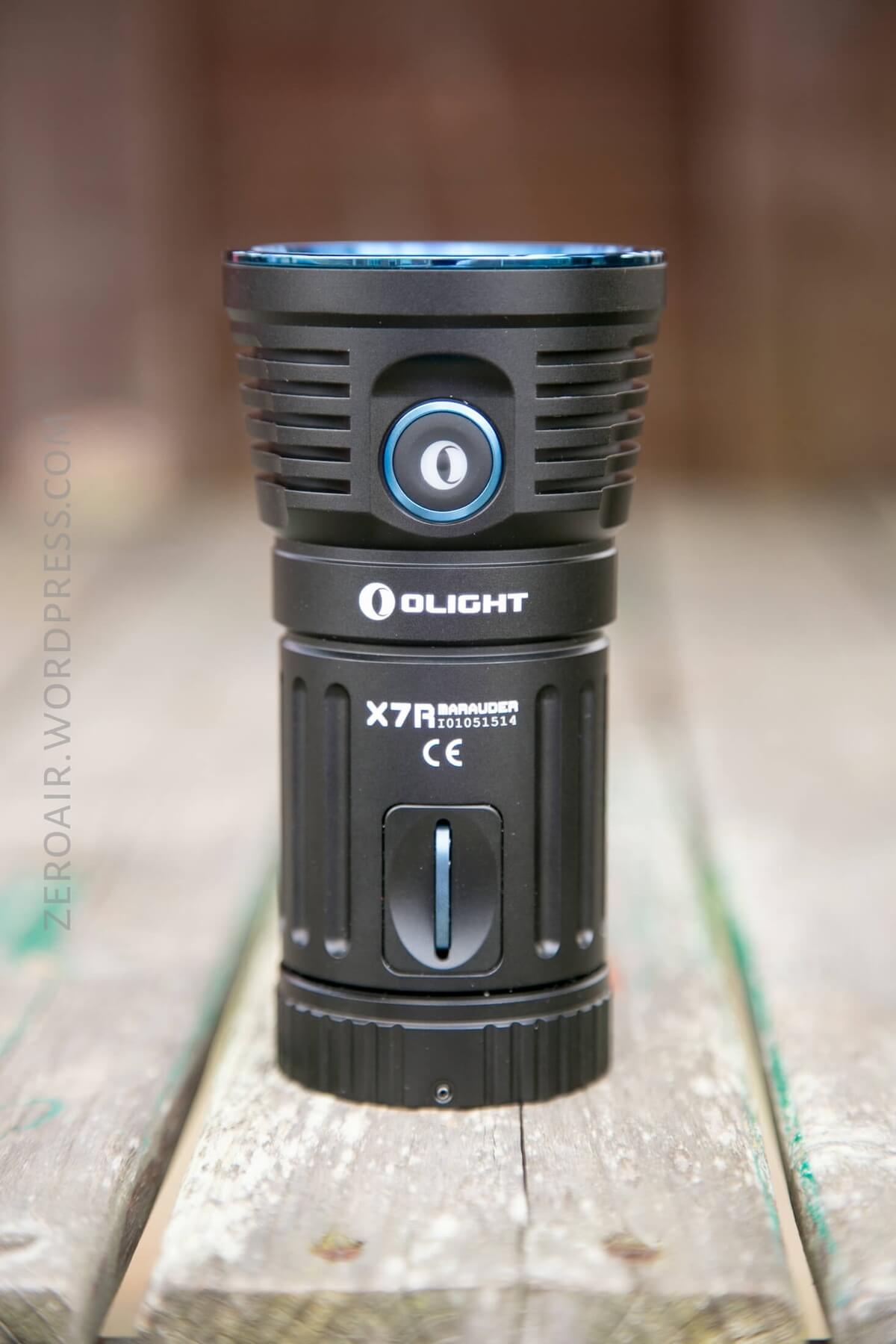

The design has been changed to have finger-sized grooves in the sides of the light, which facilitate holding.  There is no knurling.  Even the tailcap doesn’t have reeding, but just bigger grooves. I haven’t found grip to be an issue, especially since the tailcap never needs to be removed, just twisted to reveal the charge port.

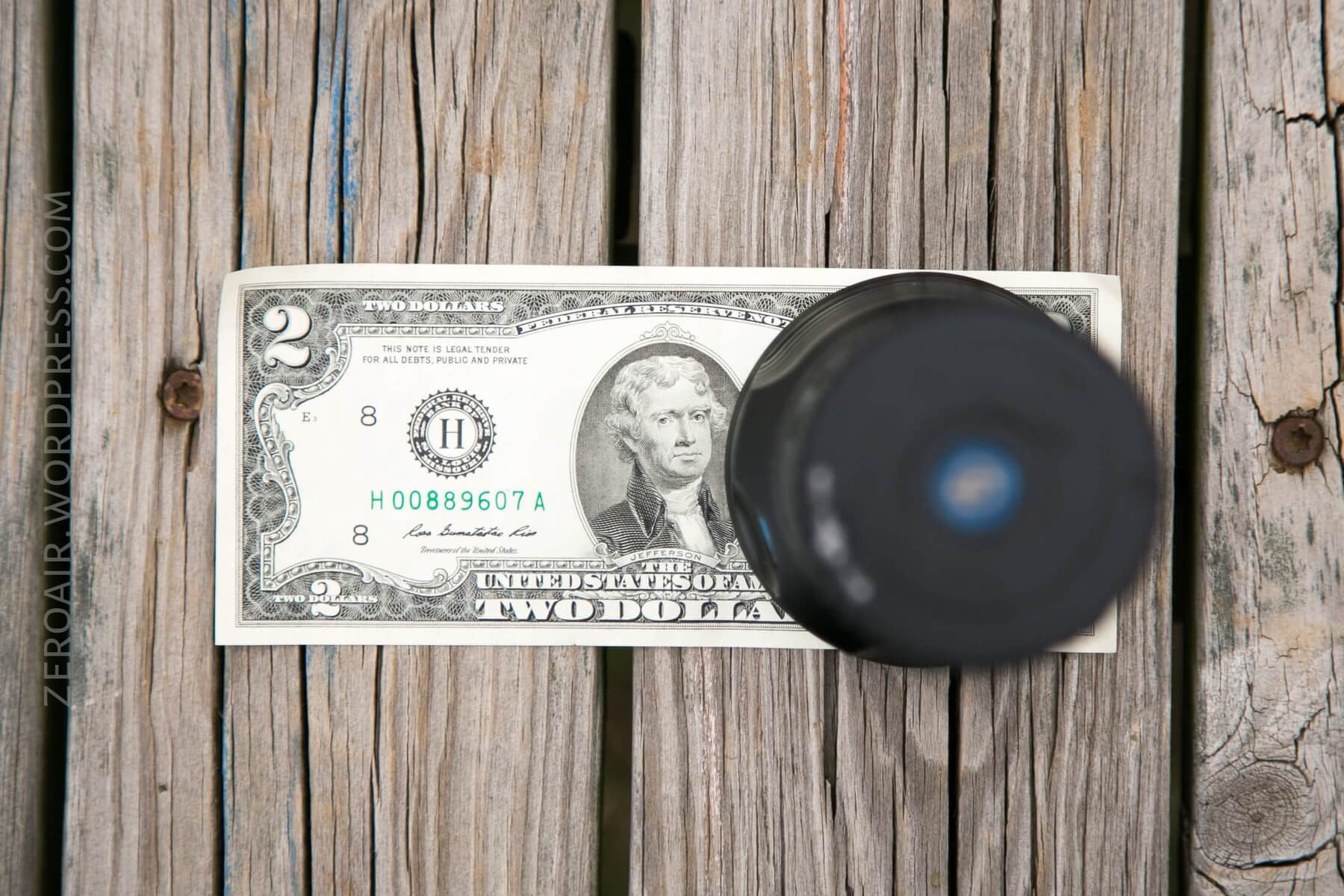

Size

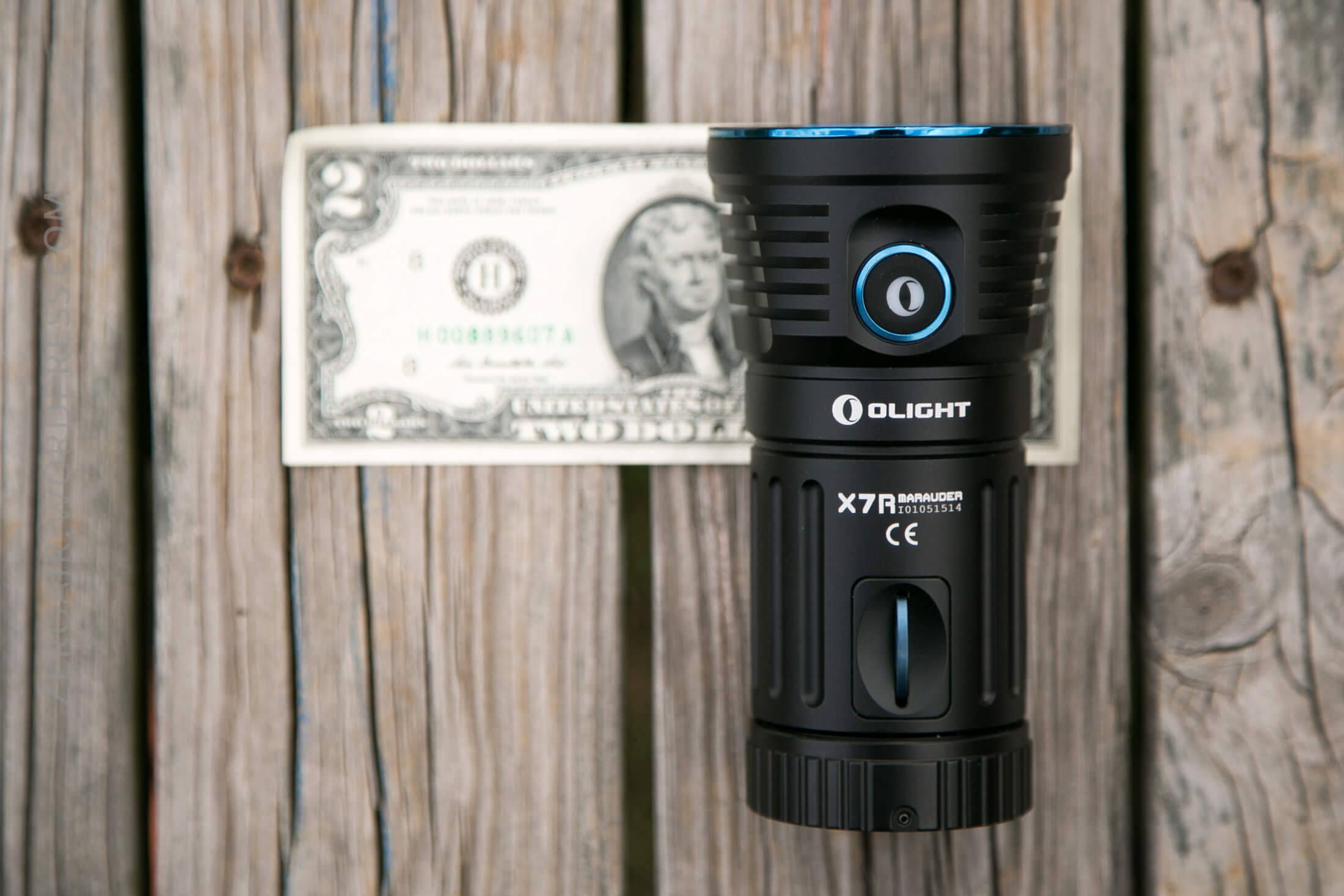

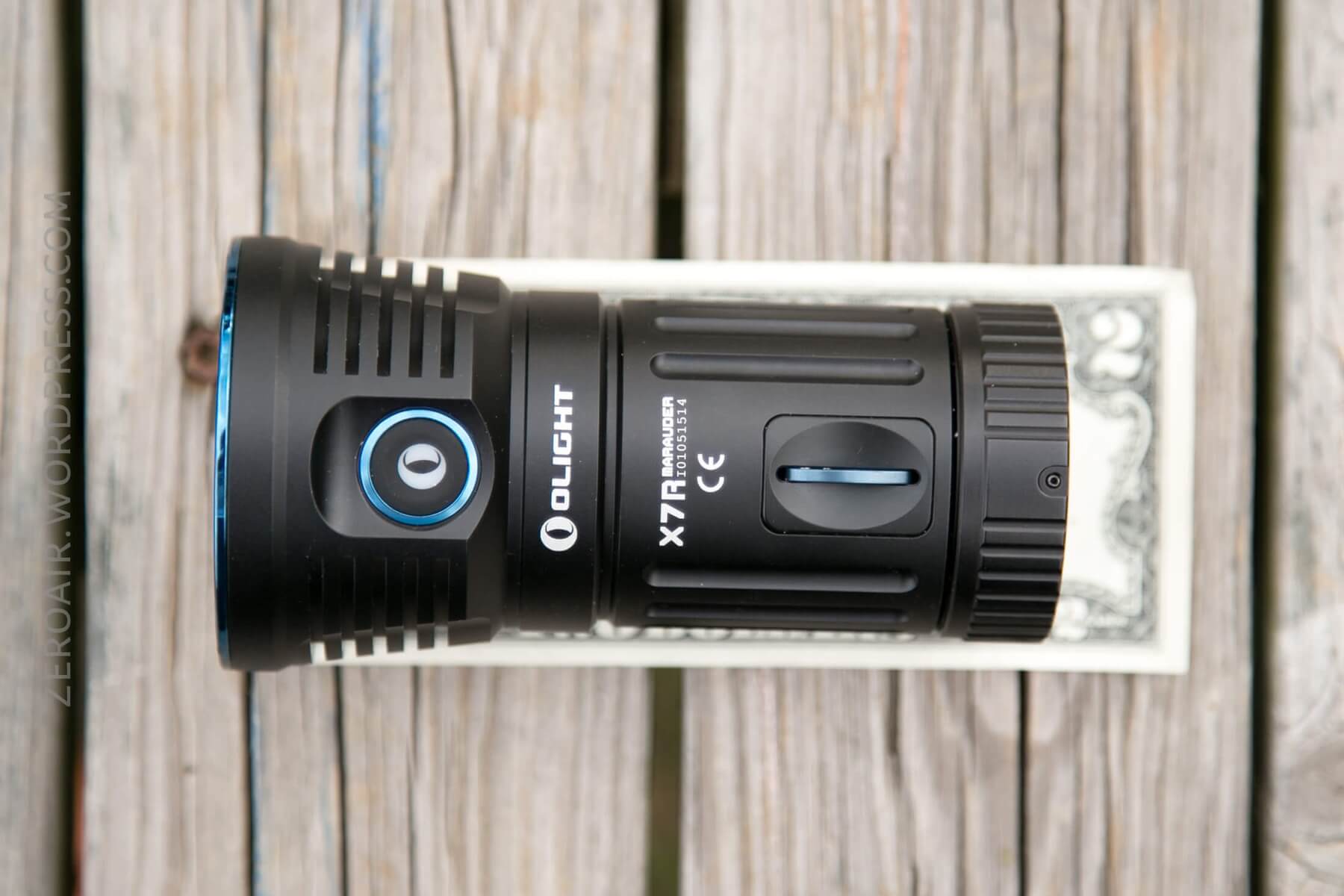

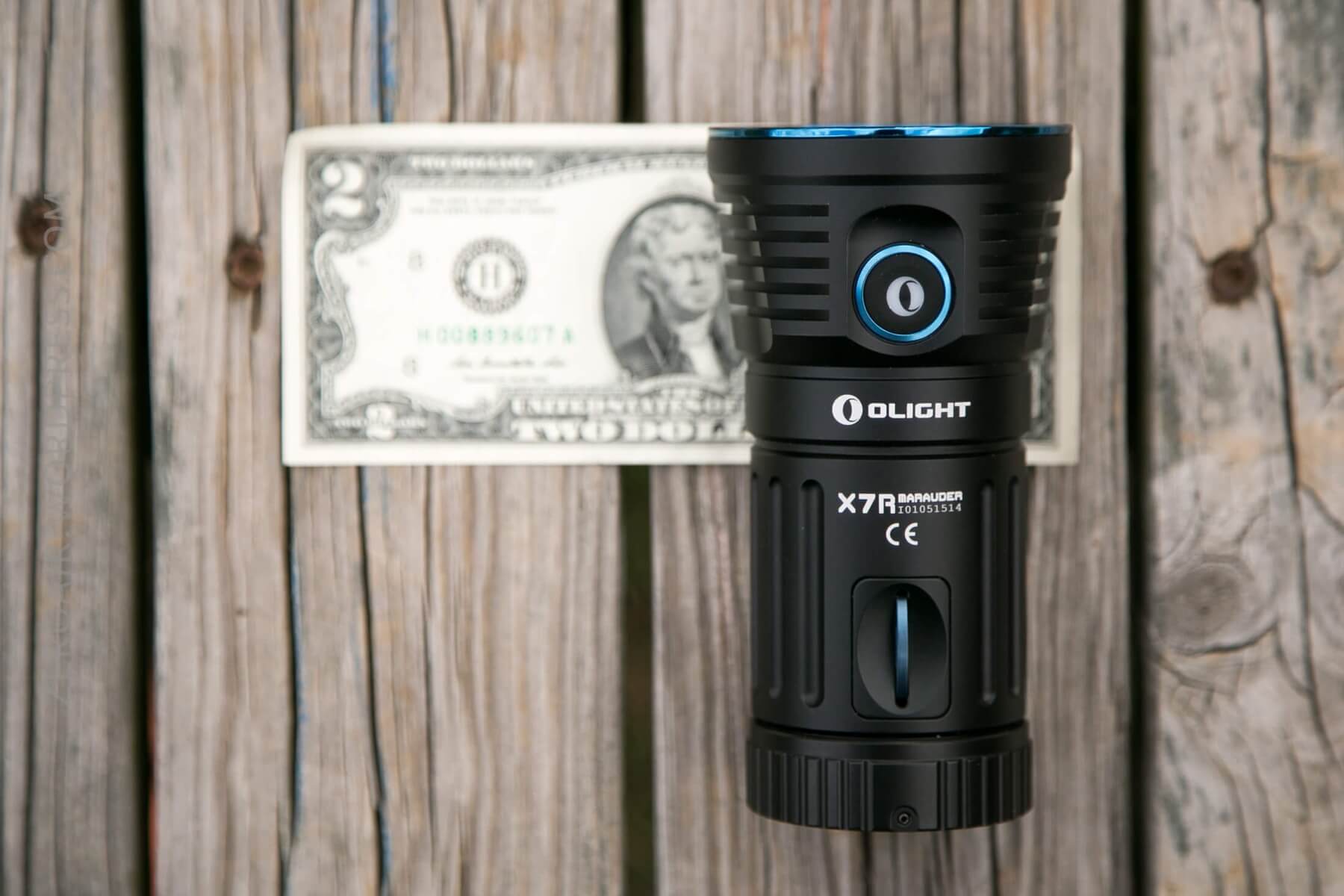

Weight: 665g.  Length: 129mm.  Head Diameter: 68mm.  Body Diameter: 52mm.

This is not a small light.  Even for a can light, it’s probably a bit long.  Notably, however, this is the same size as the original X7, except for being 2mm longer.

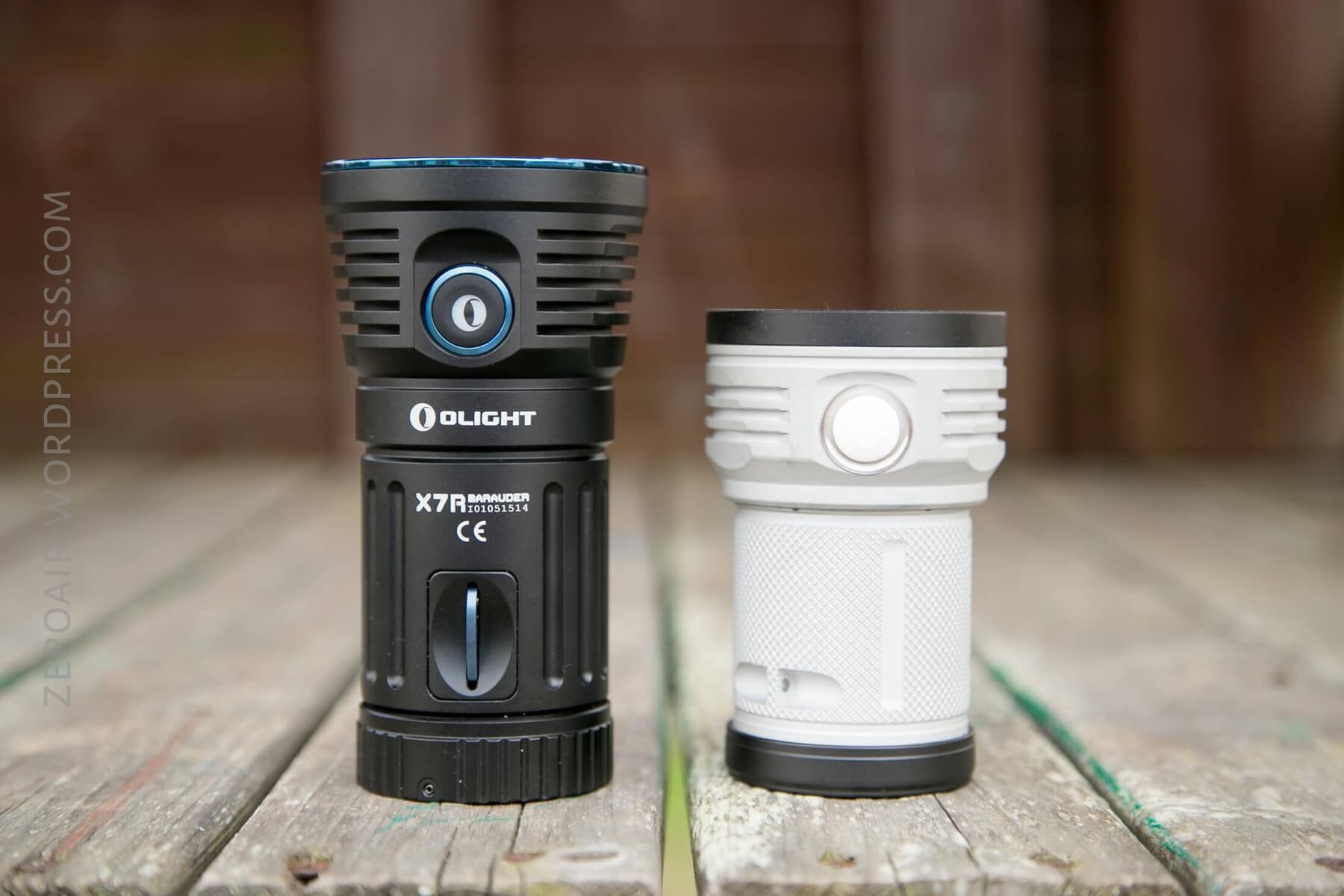

Much longer than the Meteor (albeit that they’re very different lights).

Retention

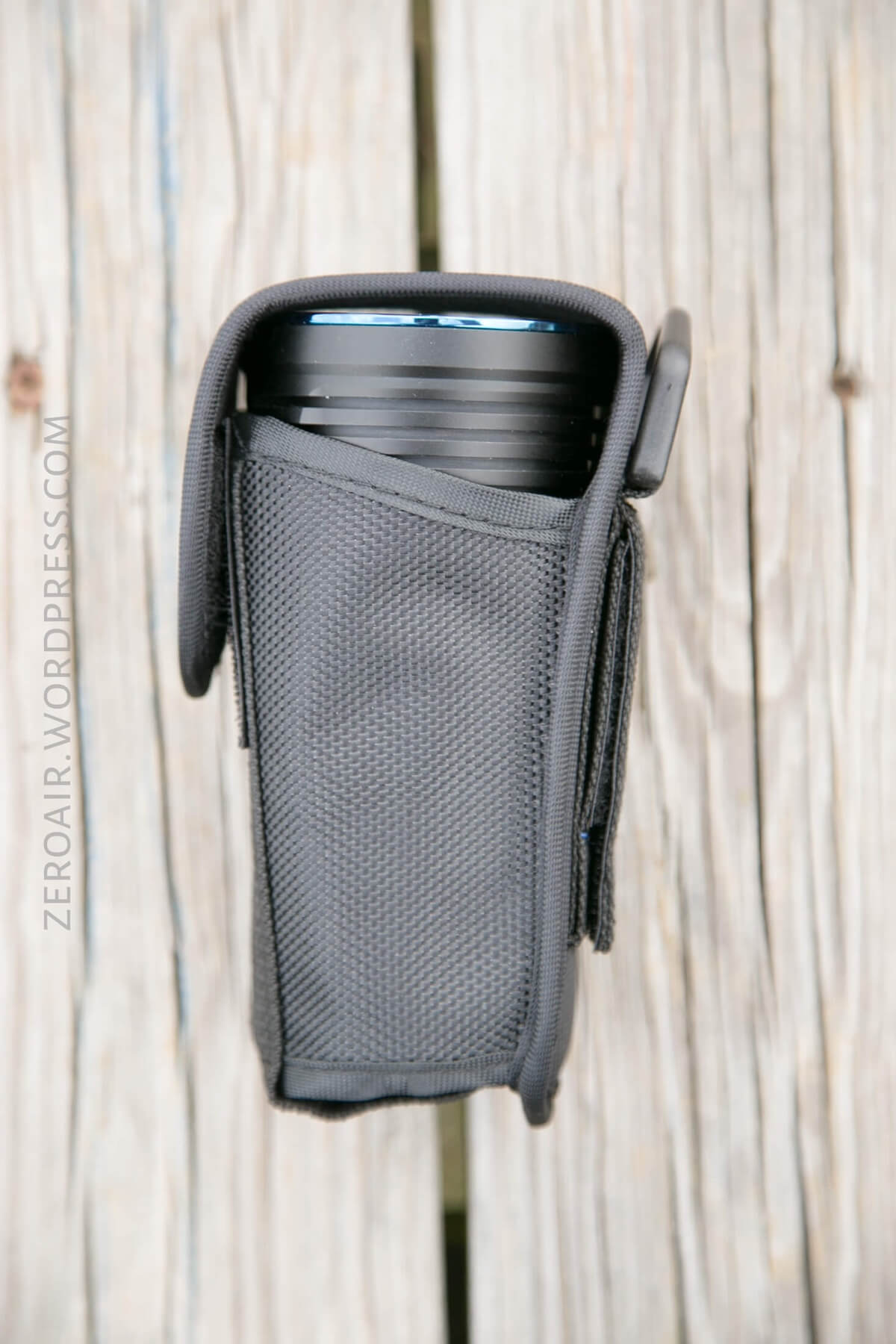

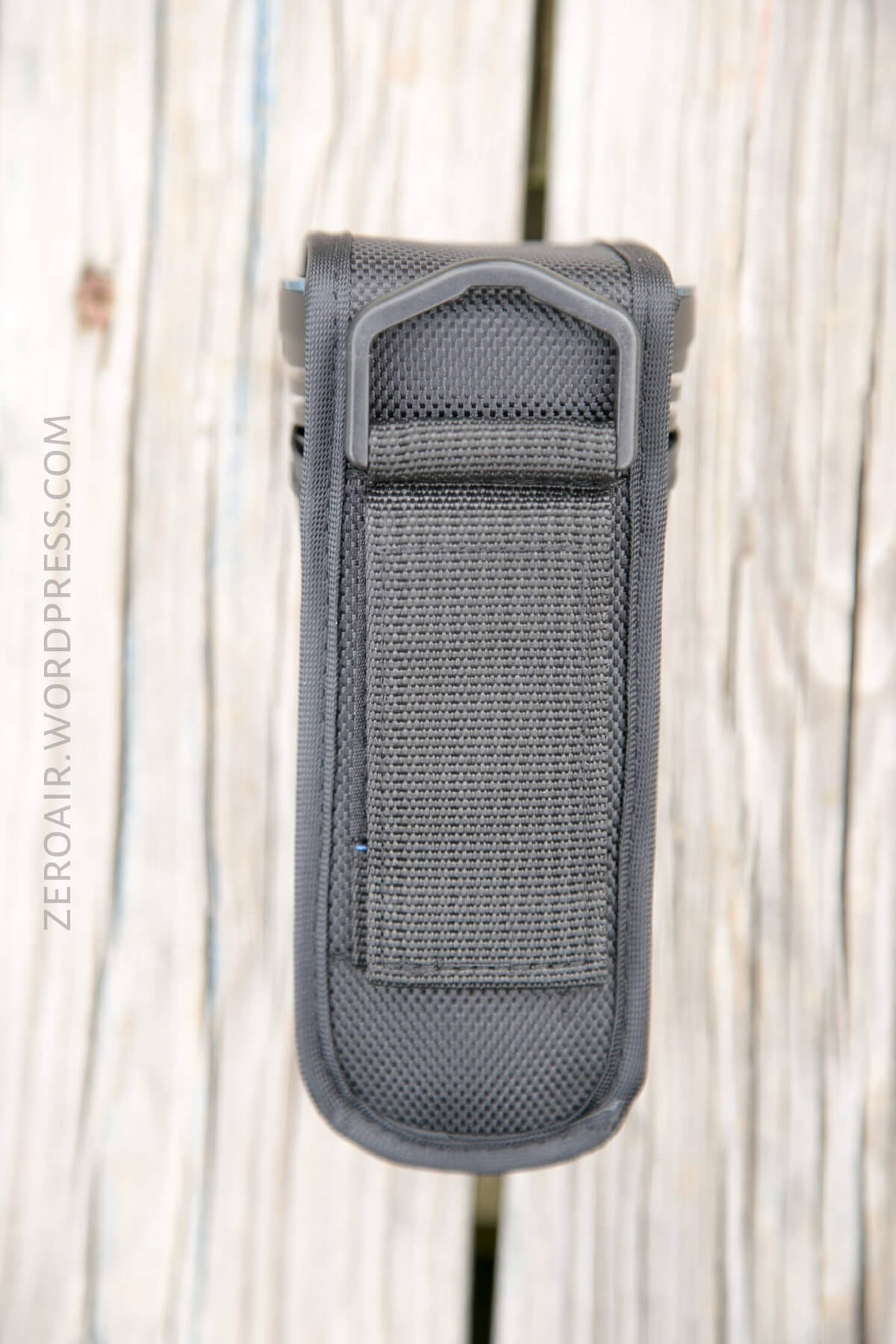

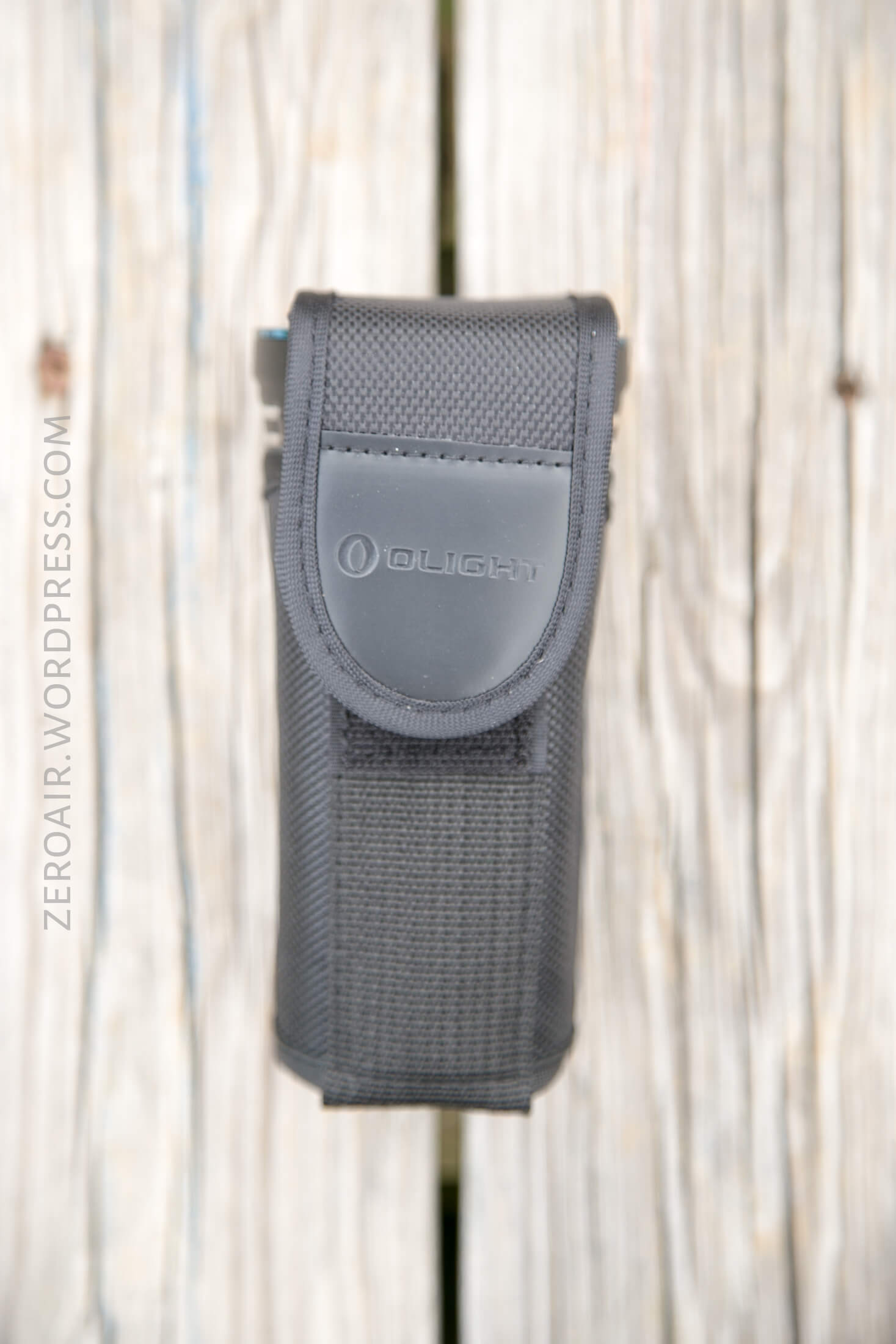

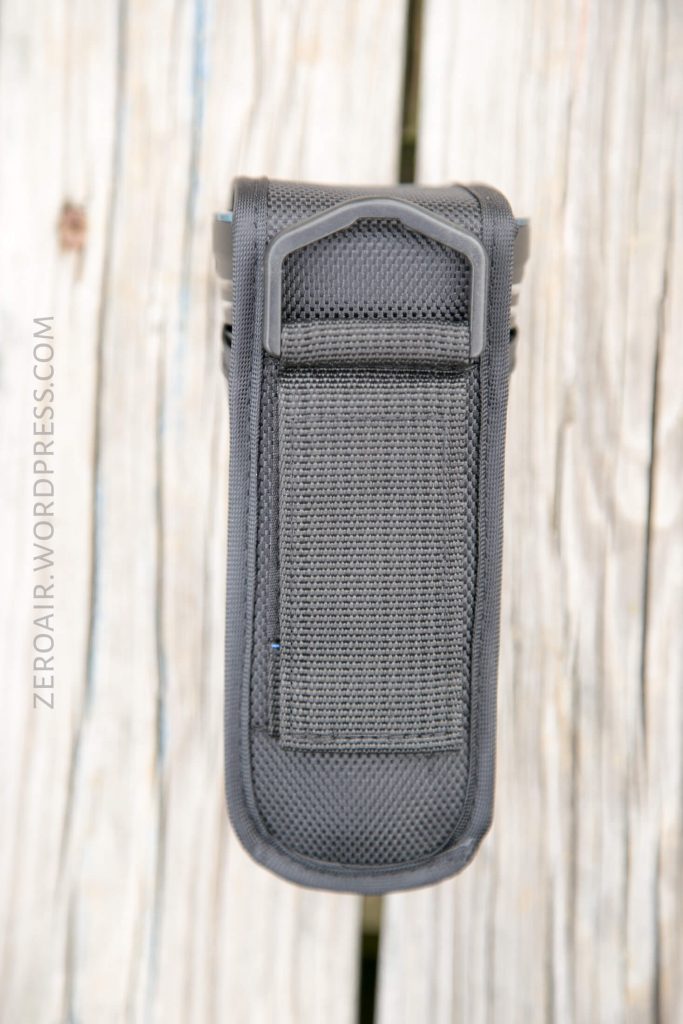

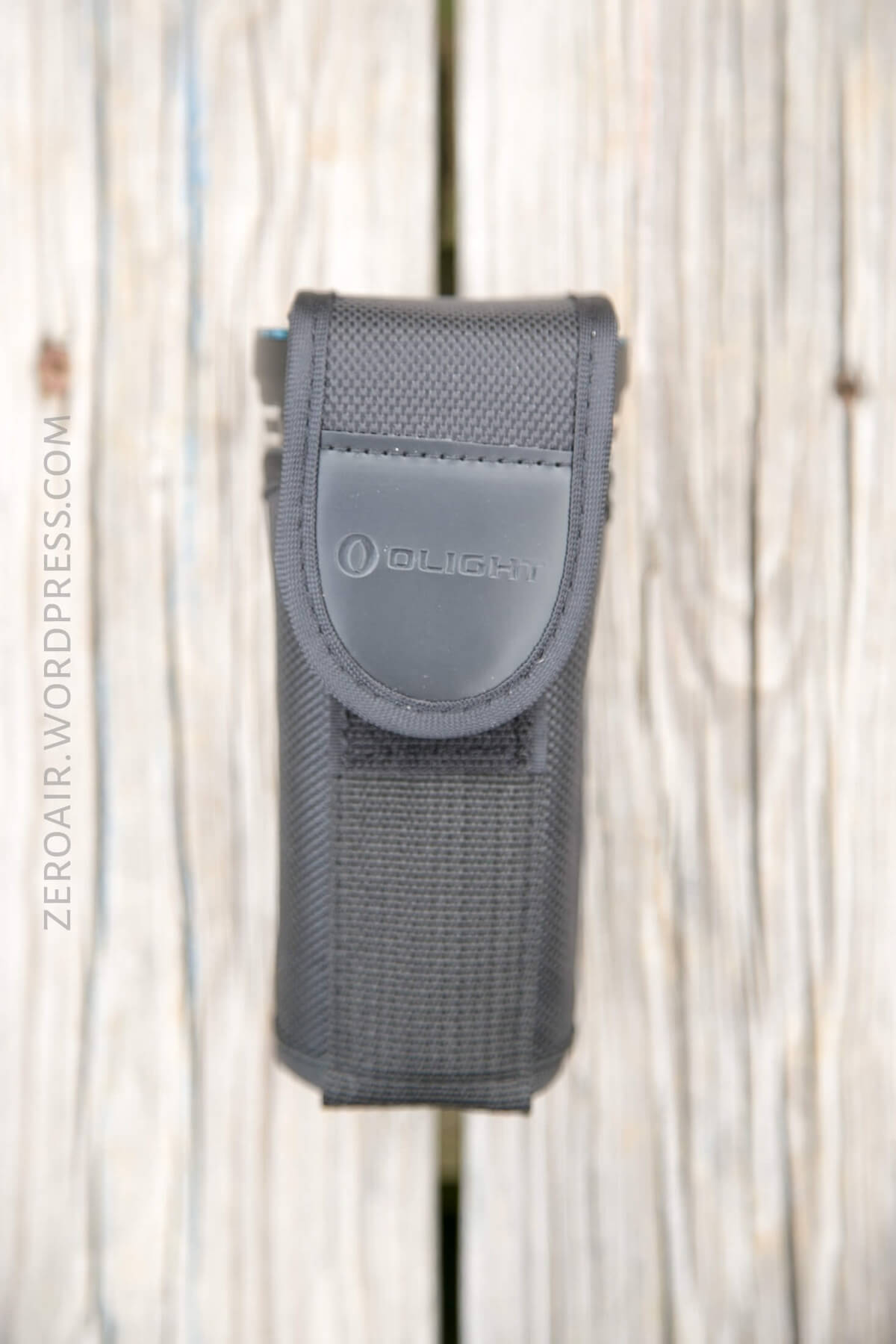

Included with the light is a nice nylon pouch.  The pouch is directional – the X7R will only fit bezel-up.  The light can be oriented so that the pouch doesn’t really interfere with the switch.  But there’s also an electronic lockout, which I’d recommend using with the pouch.

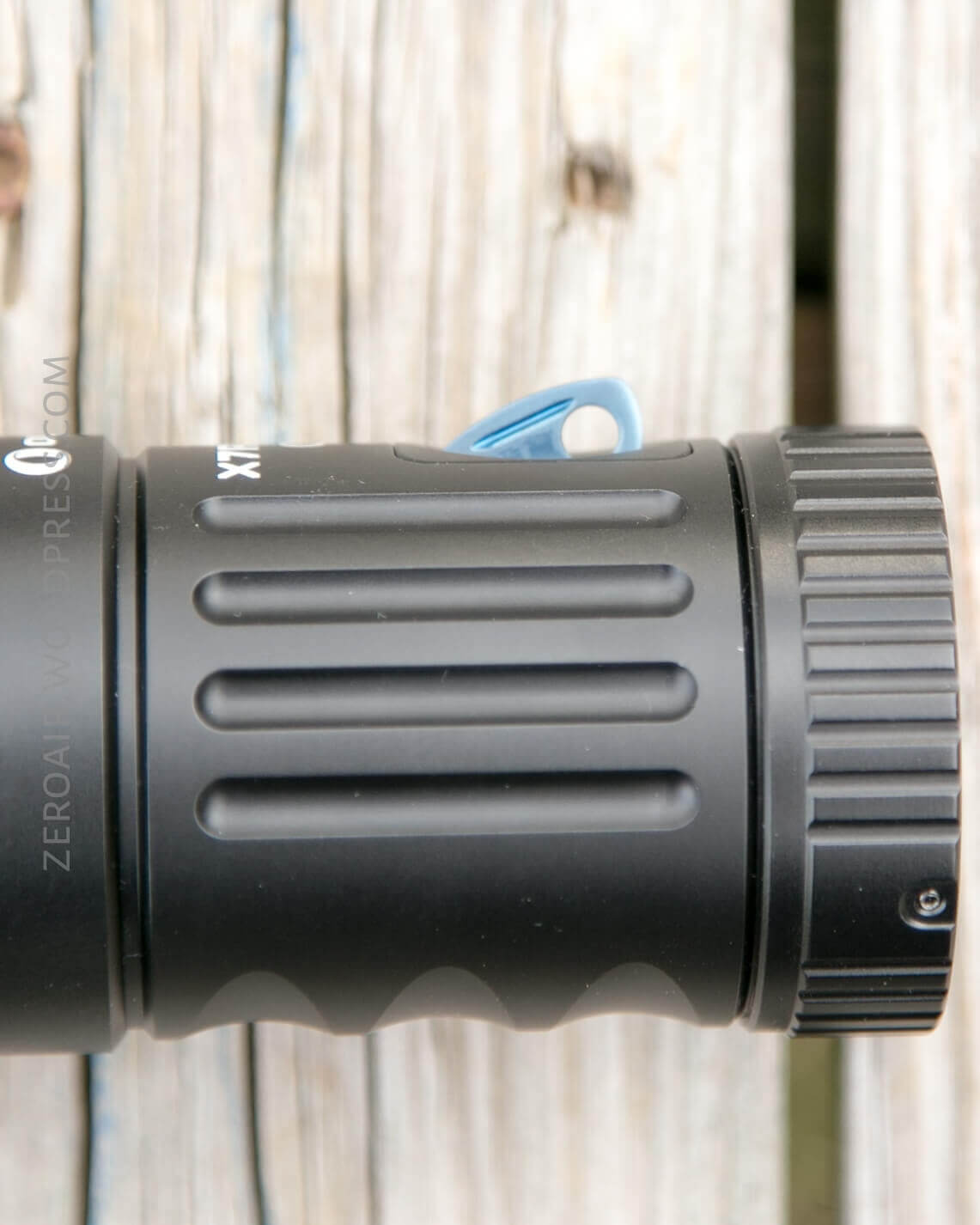

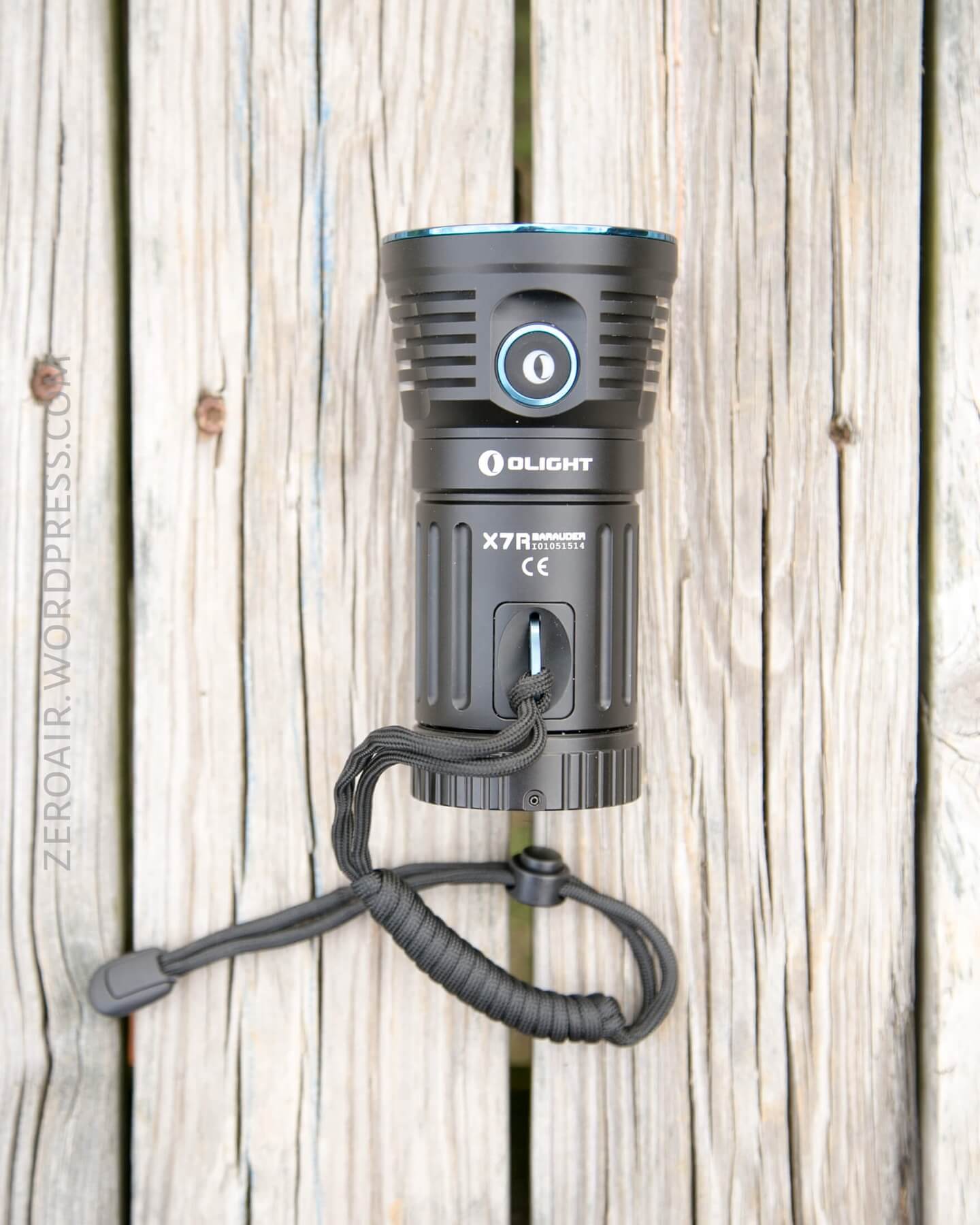

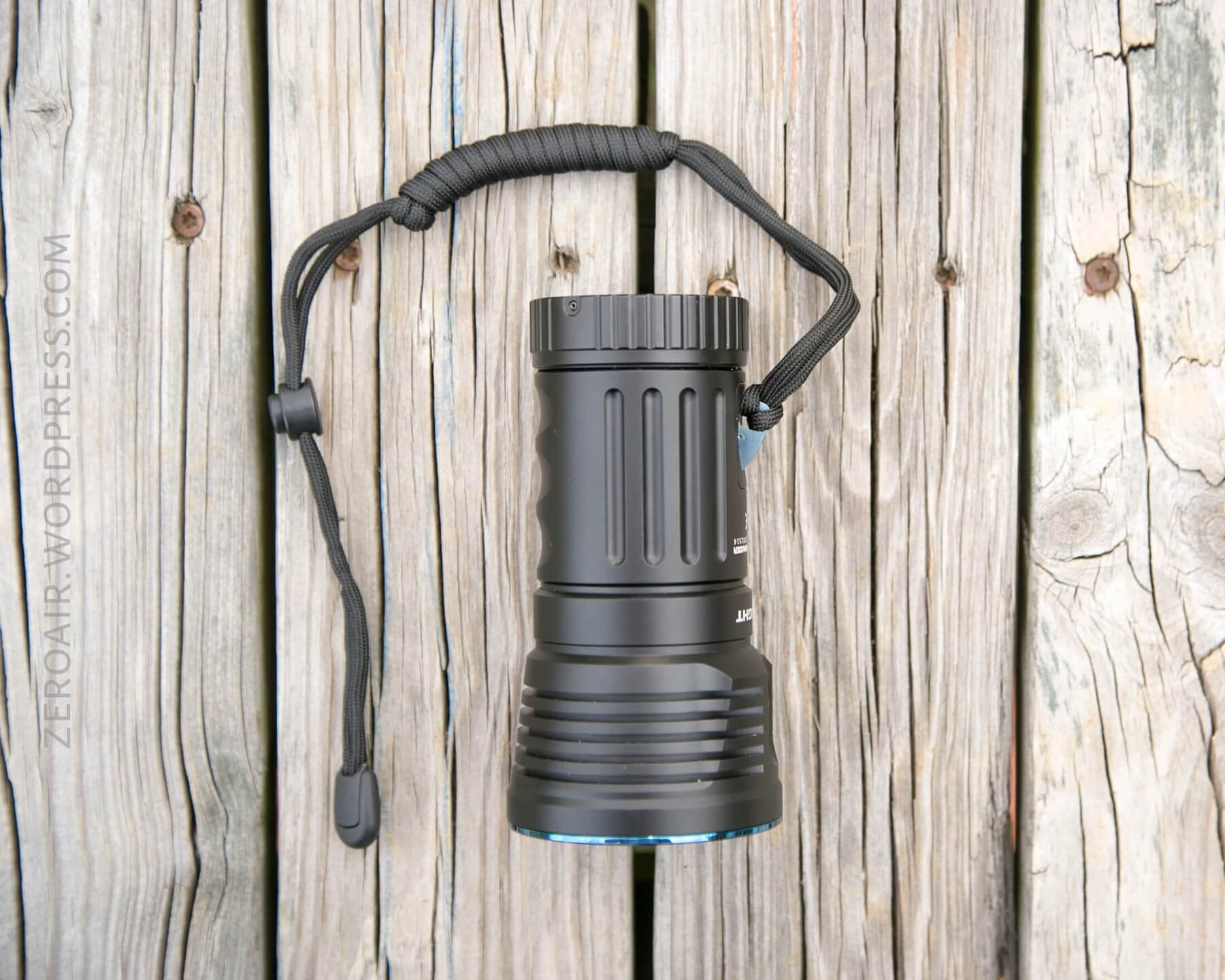

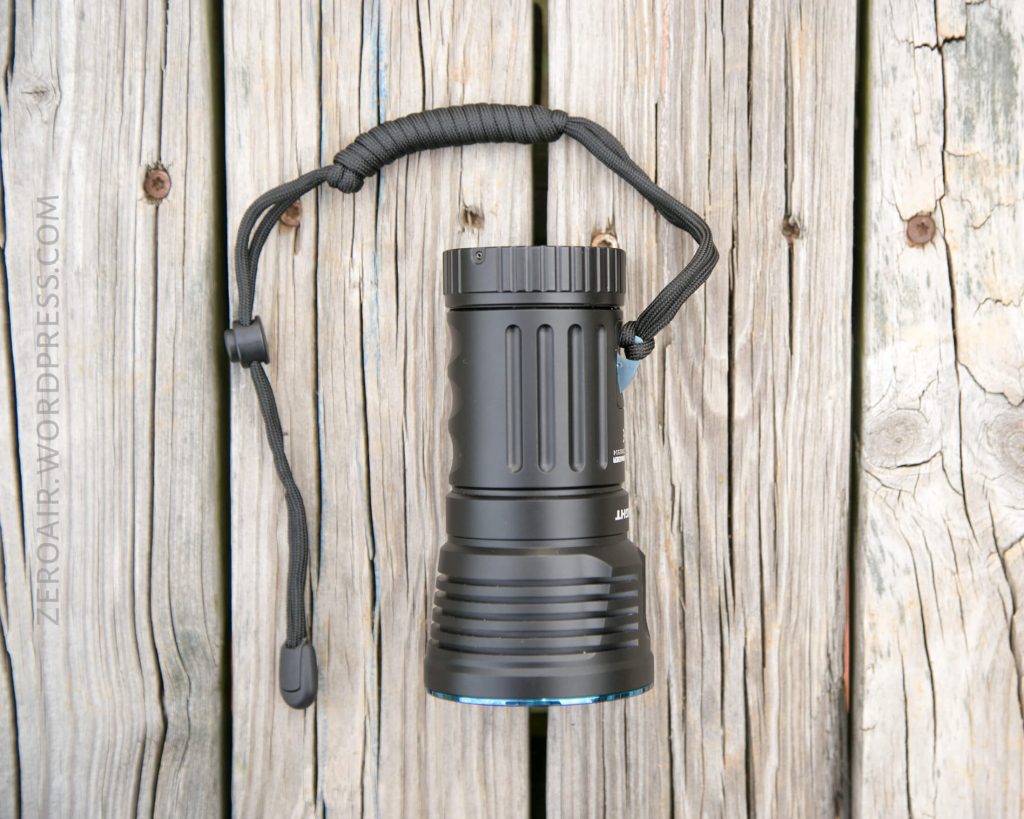

Also included is a lanyard.  One of the longer lanyards I can recall.  There’s a long bit of paracord twisted up for…. I’m not actually sure what the purpose of that is.  Looks?  Survival mode?  Shoulder strap?  In any case, the lanyard attaches to an unusual flip-out aluminum piece, on the side of the body.

Power

The Olight X7R is powered by an internal battery.  It’s very likely the same setup as the original, by which I mean it’s likely 4 18650 cells inside.  But in this case they’re integrated, and aren’t to be removed.  It’s likely possible to remove these with enough determination: there are three set screws around the tailcap.  Very small hex screws….  But I didn’t attempt this.

I performed a runtime on Turbo S.  I have to say this was a bit of a problem (not with the light, but with my setup) for a couple of reasons.  First, the X7R has a “proximity sensor.”  This is designed to lower the output if the sensor senses there’s a lot of reflected light coming back…. ie to prevent pocket-activation-accidents, or burned nylon pouches, or the like.  This was a problem for me because the light didn’t like my integrating sphere….  I had to back the light way off my sphere.  Then I finally just put a piece of electrical tape over the sensor.  That worked very well.  You can see the tape in some of the photos.  So it’s very easy to disable this proximity sensor (not that I recommend doing so).  Just a tiny piece of electrical tape.  Backing the light off my sphere so far does mean that the “measured lux” in the table below is only good for comparing modes of this light, not comparing to other lights and other tables.

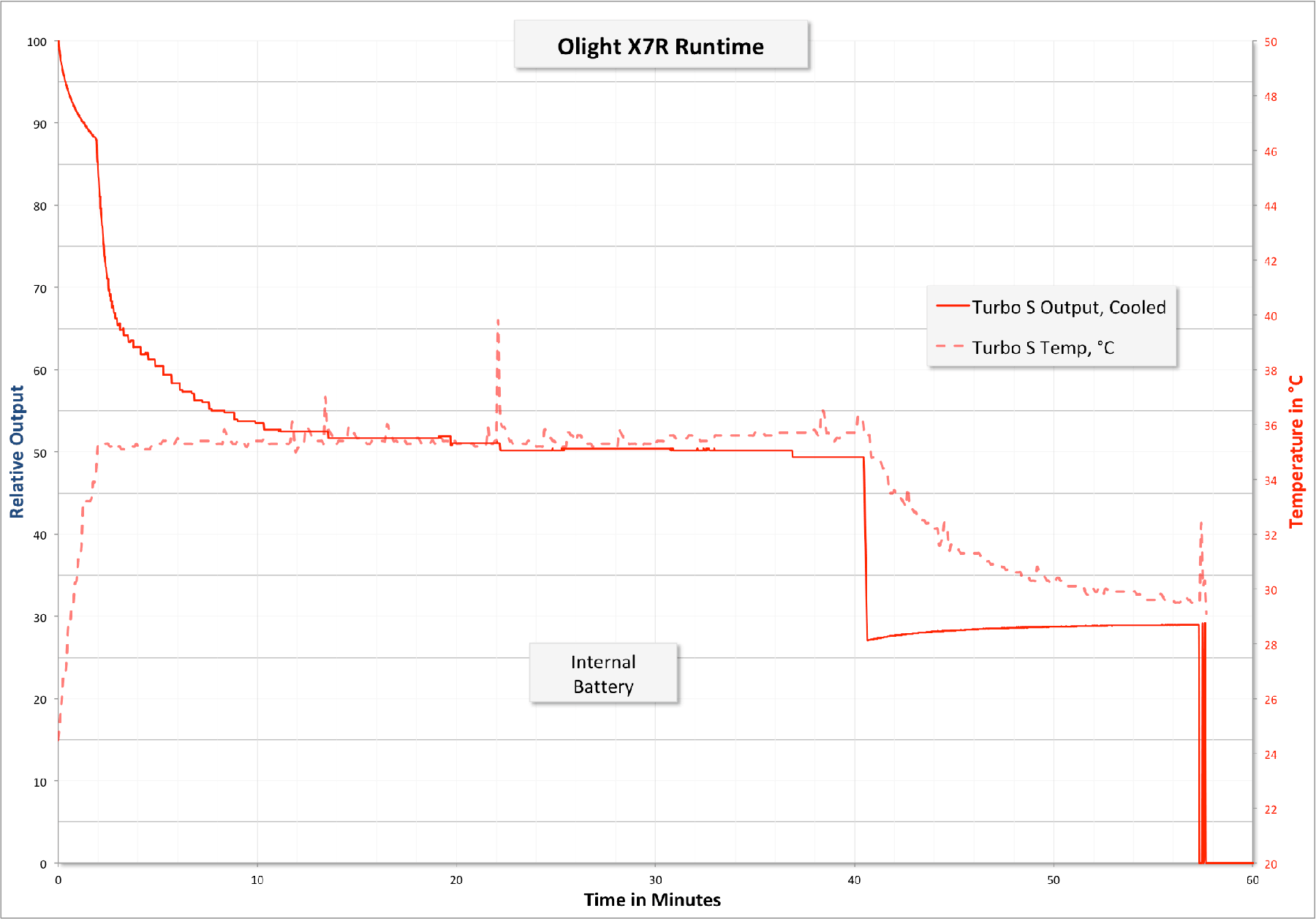

One thing to note from the runtime is that the output graph is almost exactly like the X7 runtime.  There’s a steady decline over a few minutes to aroun d90% output, and then a drop to 50%, then another drop to ~30%.  This is exactly how Turbo S performed on the X7.

Runtime

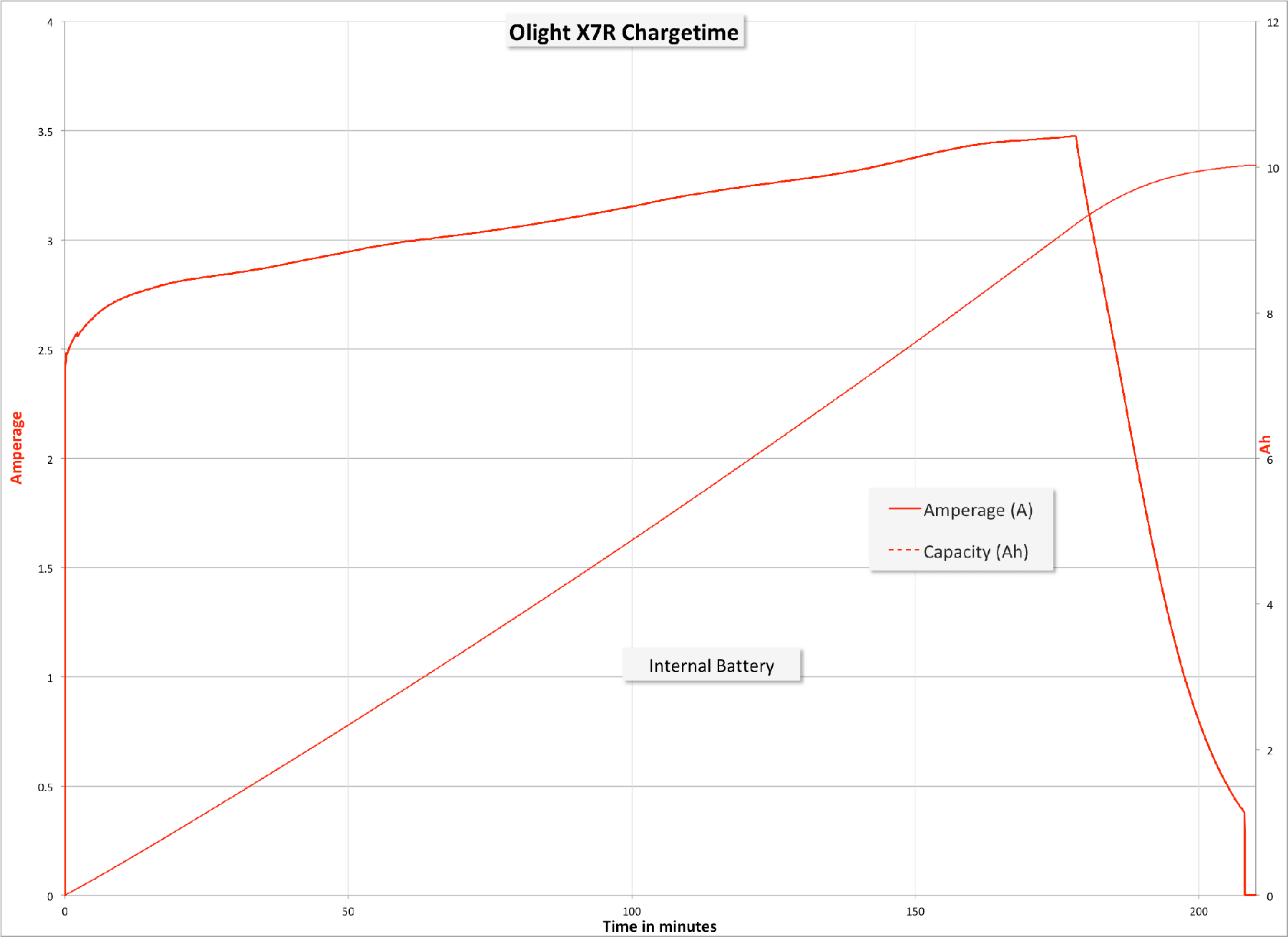

Since the cells are integrated into the X7R, it of course has on-board charging.  This is done by USB-C, which (as far as I recall) is a first in a light that I’ve handled.  USB-C is rated to a higher current, and Olight claims “3 times faster charging than normal micro-USB cable.”  Now, that’s not a hard number claim, but the wall wart provided with the X7R is rated to output 4A.  I’ll also add, regarding the chart below, that the setup I use is really only rated to 3A current.  Yes the recording goes above 3A, but take this as an… example only… of how the charging works.  I believe charging will probably go faster than the 2.5A-3.5A shown below, if not using a logging meter as I was.

Chargetime

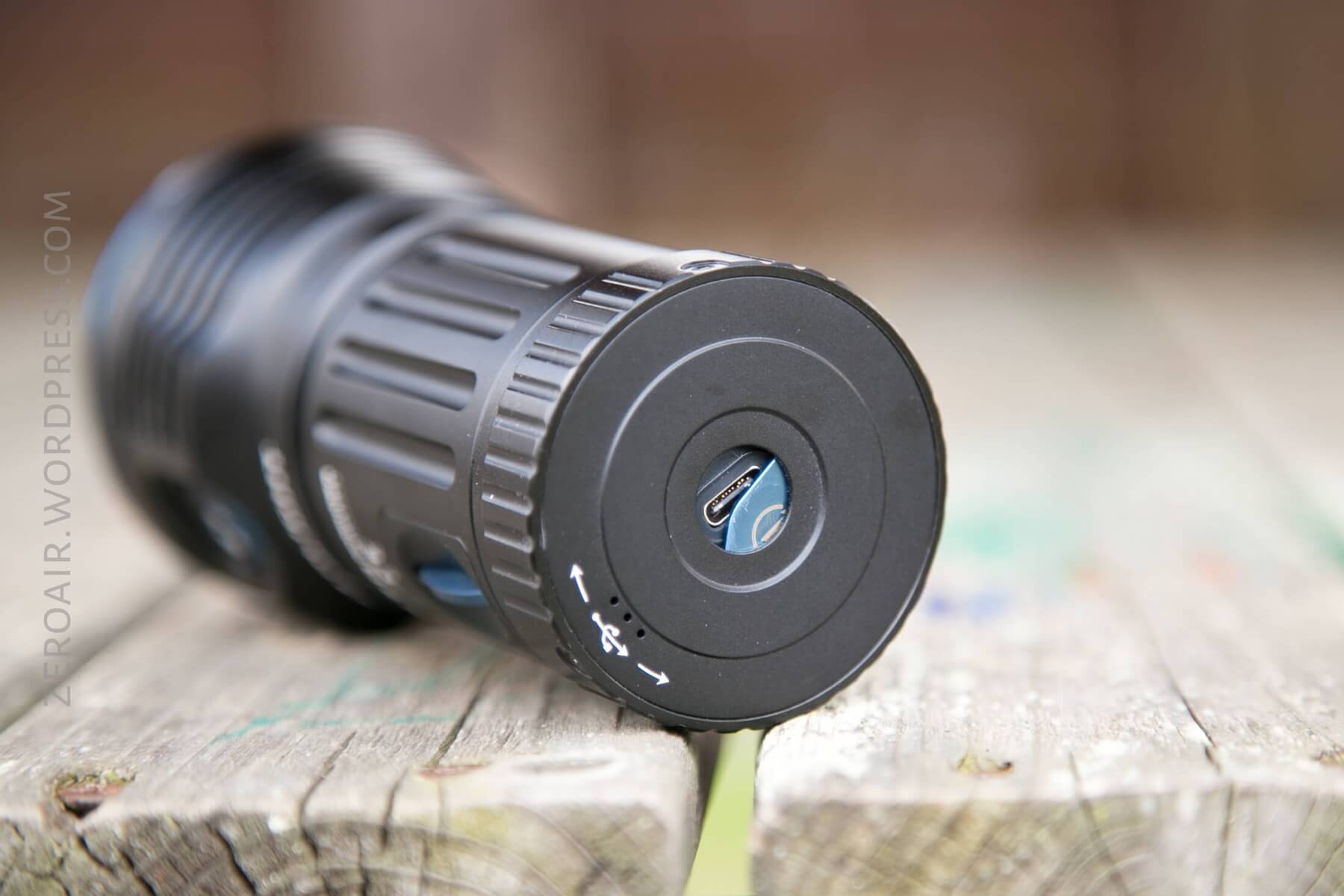

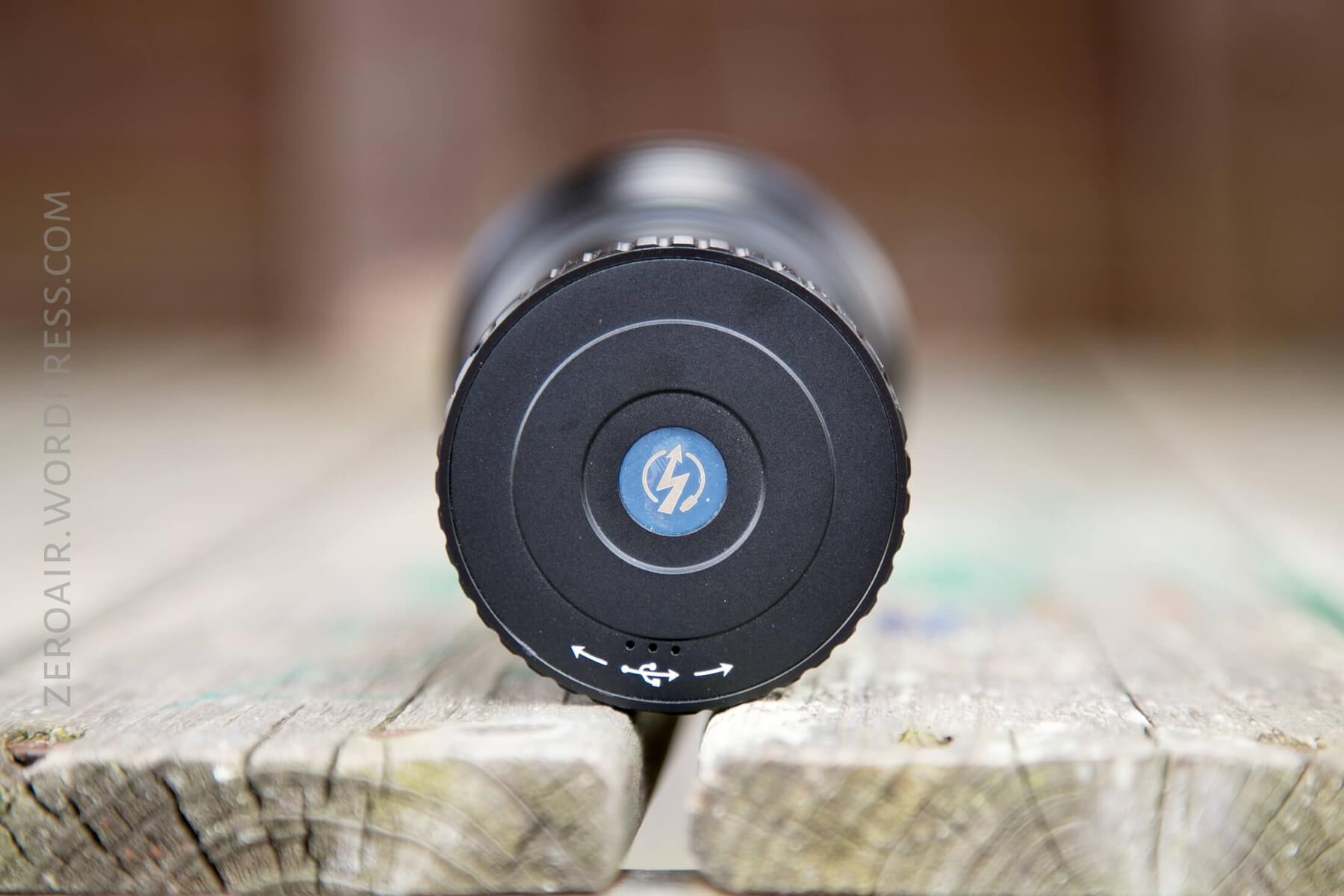

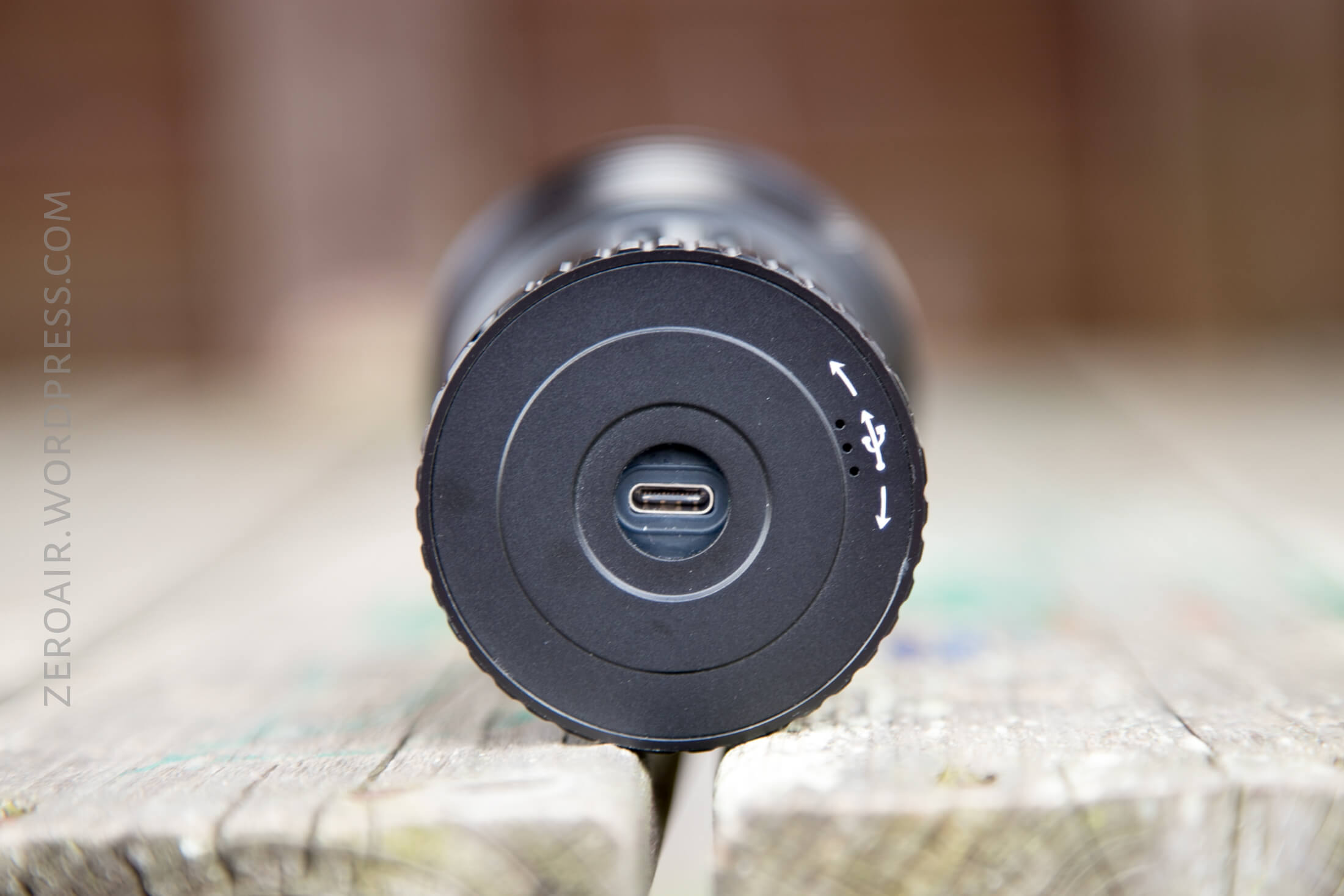

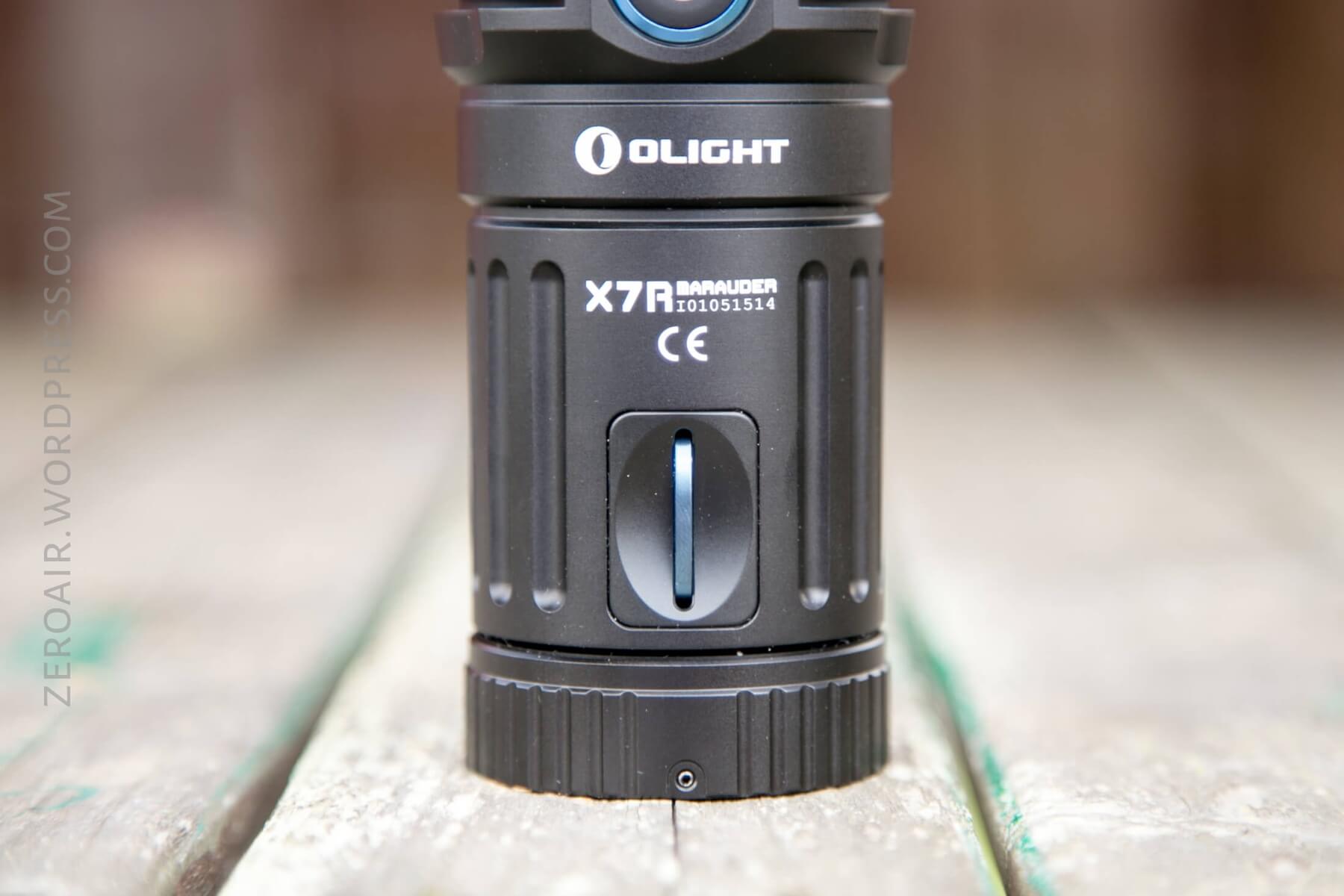

The USB-C port is on the tail of the light, accessed by twisting the tailcap.  When the tailcap is twisted, the little blue door slides out of the way to reveal the port.

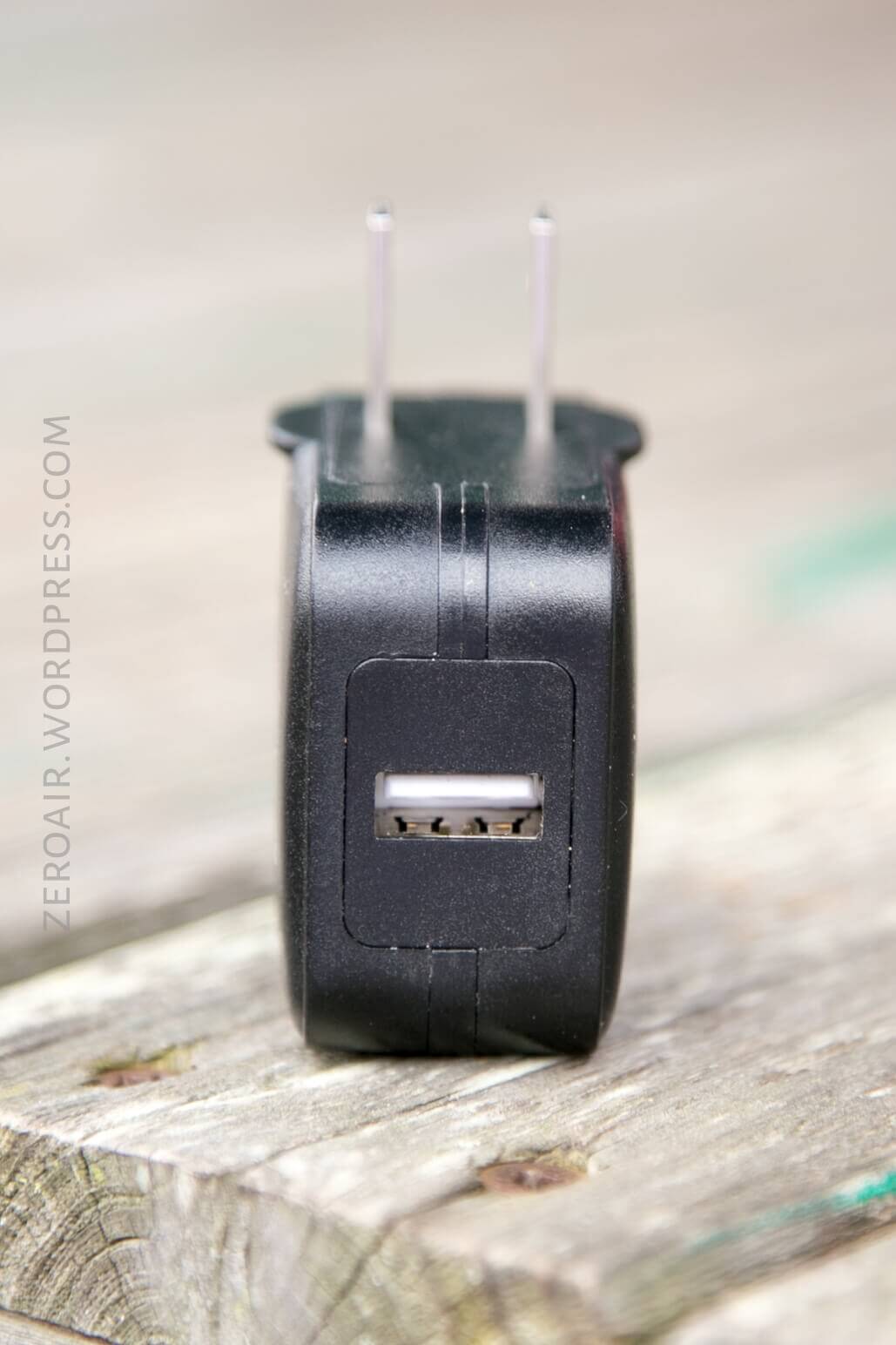

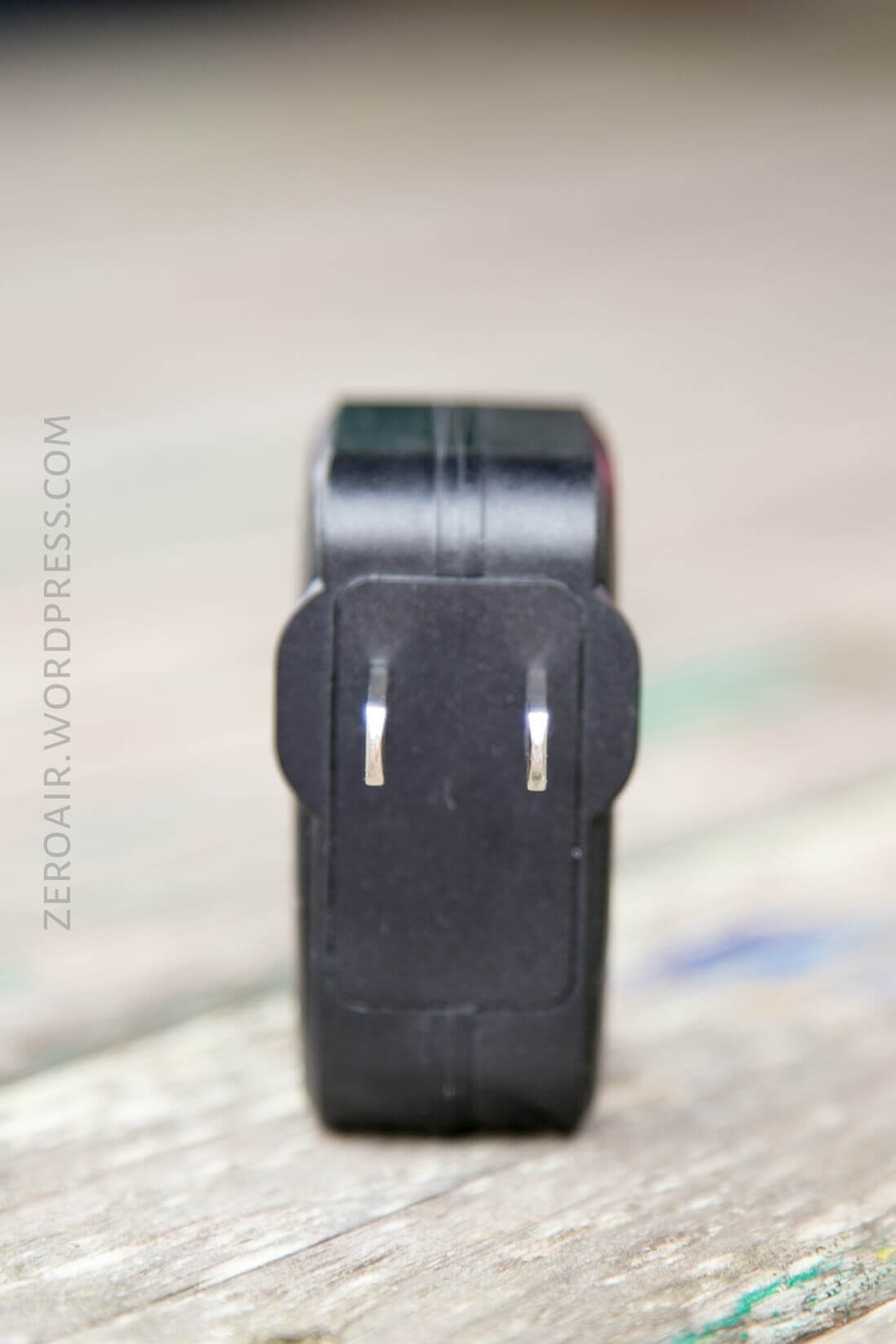

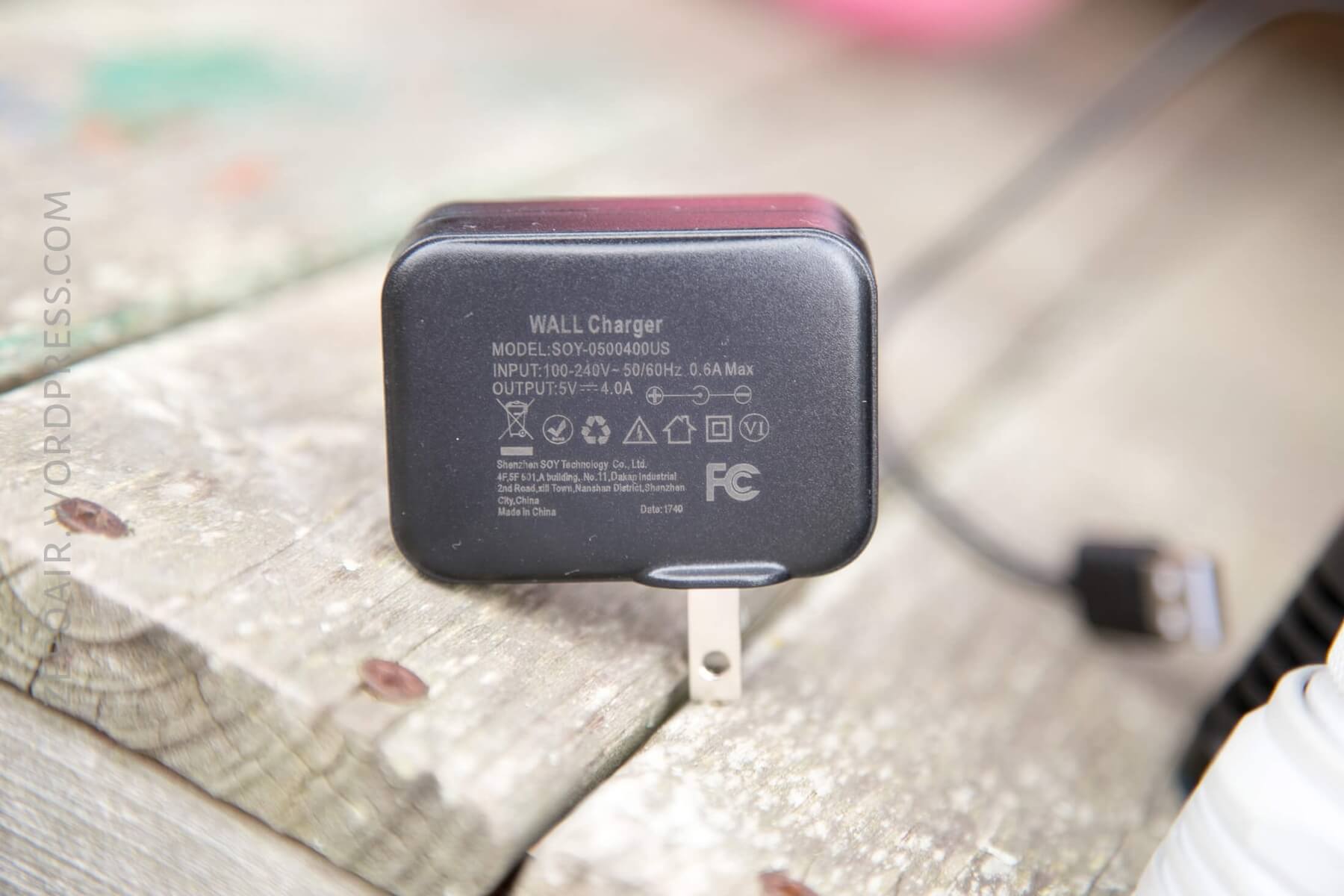

The wall wart is a regular USB-out.  It’s rated to 4A at 5V, and seems as if it can actually meet that claim (as I logged above, 3.5A to the light).

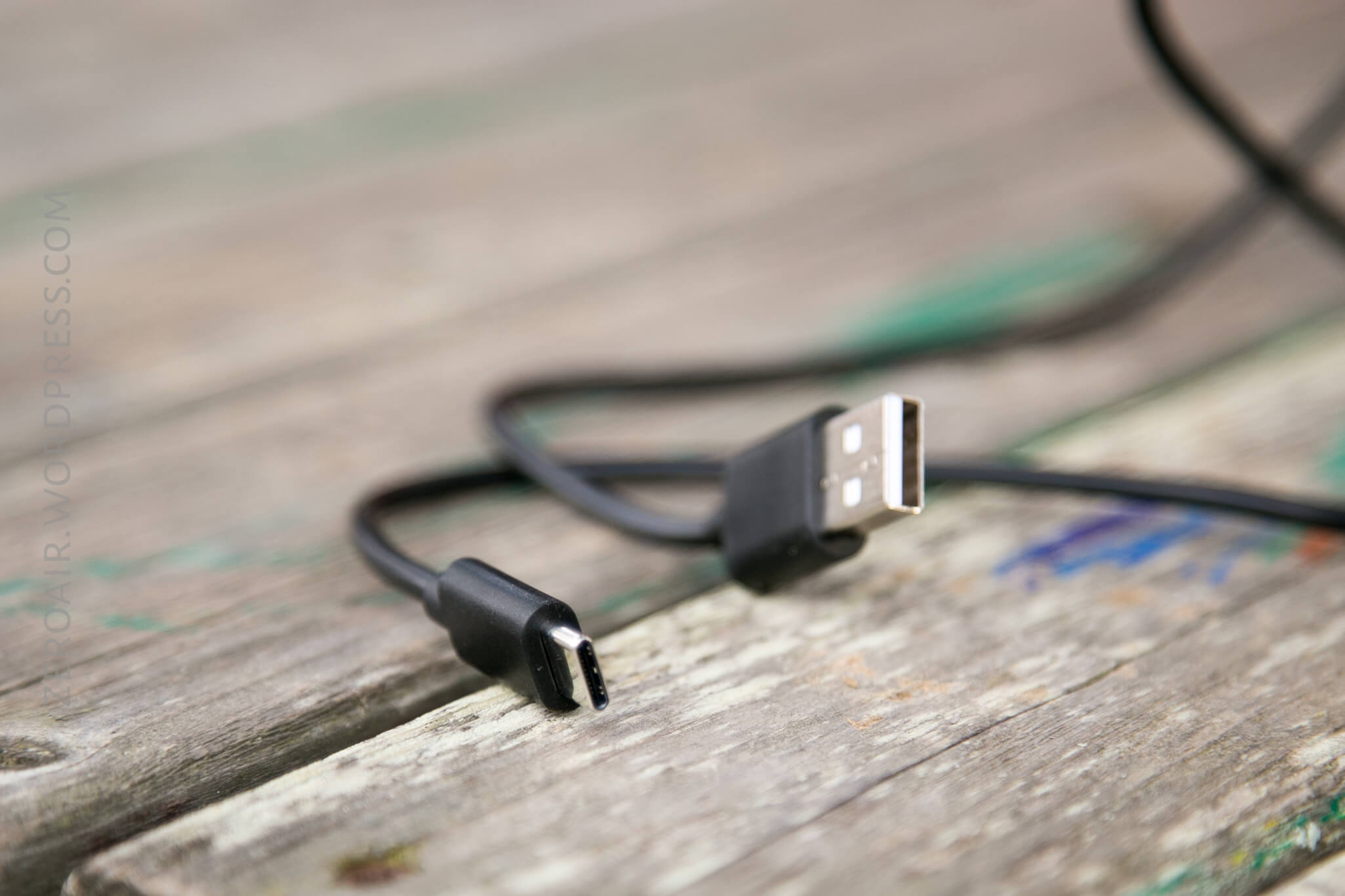

The cable provided is a USB to USB-C.

20180304-IMG_0581

User Interface and Operation

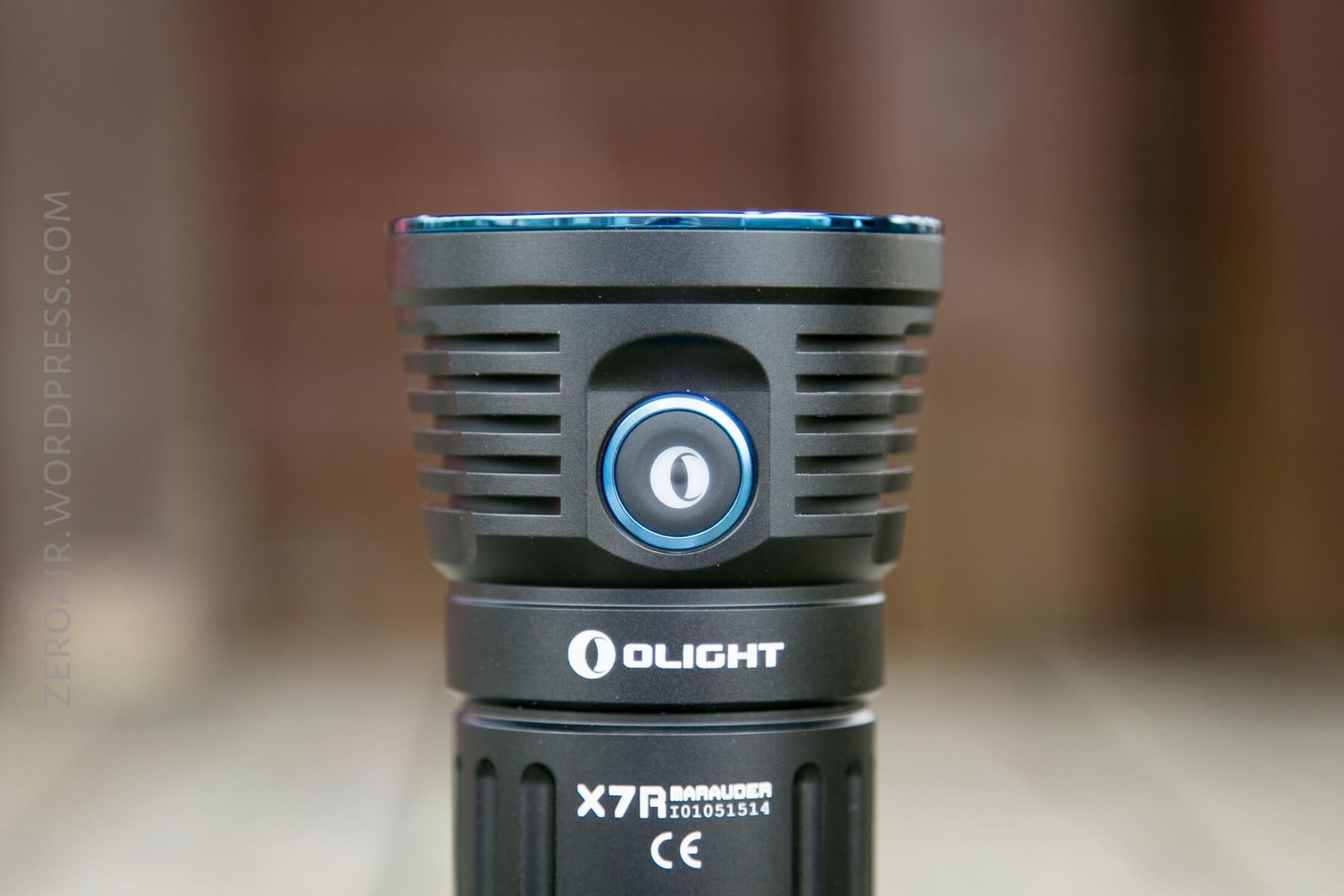

There’s a single button on the Olight X7R.  It’s a clicky, silicone button, with a bit of a double shape.  The button is rounded, but in the larger center, has a crater.  In the center of the crater is a little button.  It’s an unusual button, but quite pleasant to click.

20180304-IMG_0586

There’s also a green indicator beneath the switch, which shines through the white Olight logo.  The indicator has some kind of motion sensor, whereby it only lights when the light is moved, or there’s motion in front of the switch.  It’s neat, and useful, but to be honest, a little faint.

20180304-IMG_0821

Here’s a UI table!

State Action Result
Off On Mode Memory (Nightlight, LMH*)
Off Hold Nightlight
Off Long Hold Lockout
On Hold Mode cycle (Nightlight, LMH)
Any Double Click Turbo
Turbo Double Click Turbo S
Turbo S Double Click Turbo
 Any Triple Click (or >3 Clicks) Strobe
 Strobe Click Off
 Lockout Click Momentary Nightlight
 Lockout Hold Unlock

*High is memorized for only 10 minutes, then the light switches to Medium. Turbo and Turbo S are memorized as High.

Modes

Mode Mode Claimed Output (lm) Claimed Runtime Mode Measured Lux*
Turbo S 12000/3000 3m/120m 48000
Turbo 7000/3000 12m/110m 29500
High 3000 2h10m 15030
Medium 1000 6h 4970
Low 500 14h 1750
Nightlight 10 30d 36

*This light was so bright I had to modify my setup, so only compare these numbers to each other, not to other tables I’ve made.

LED and Beam

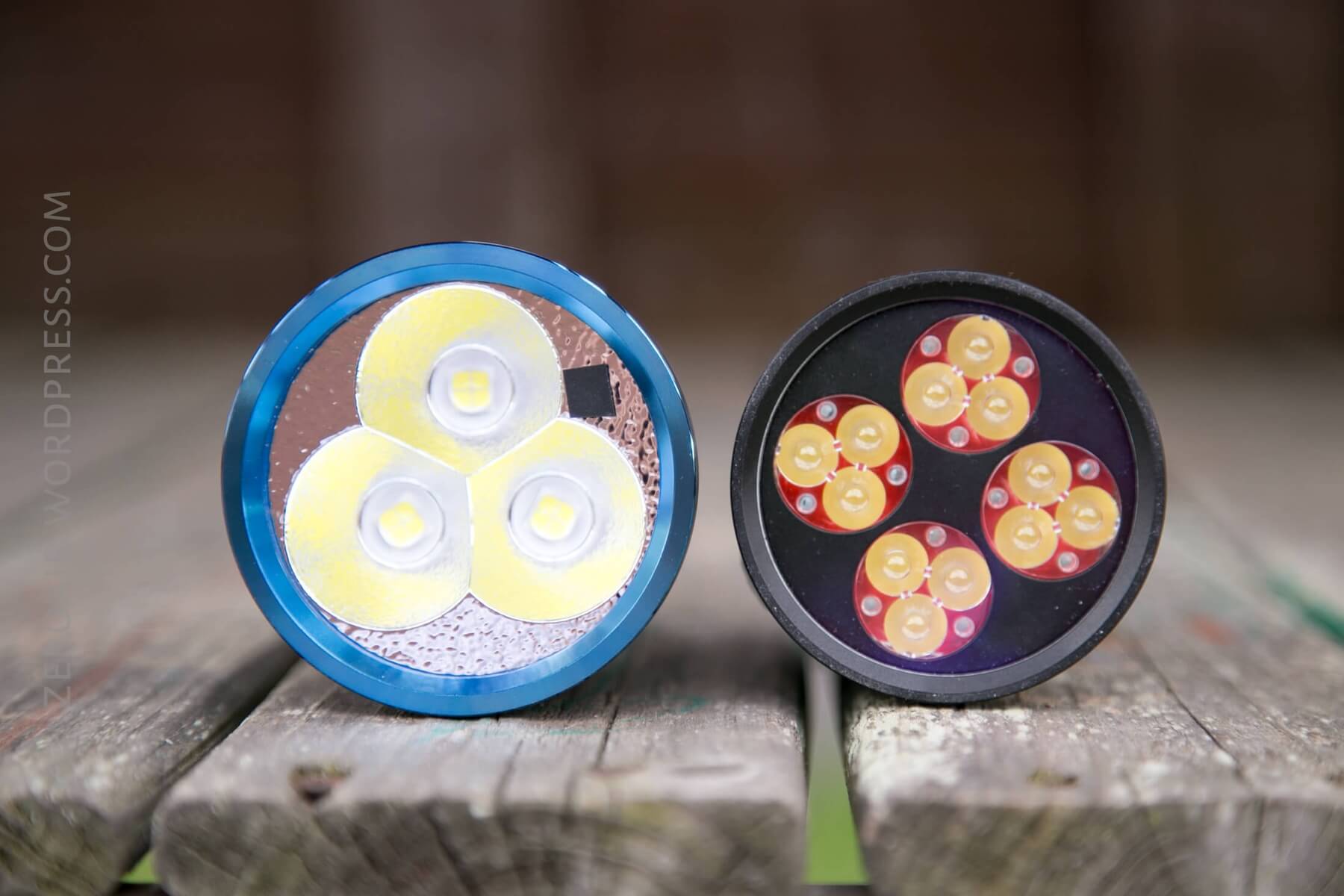

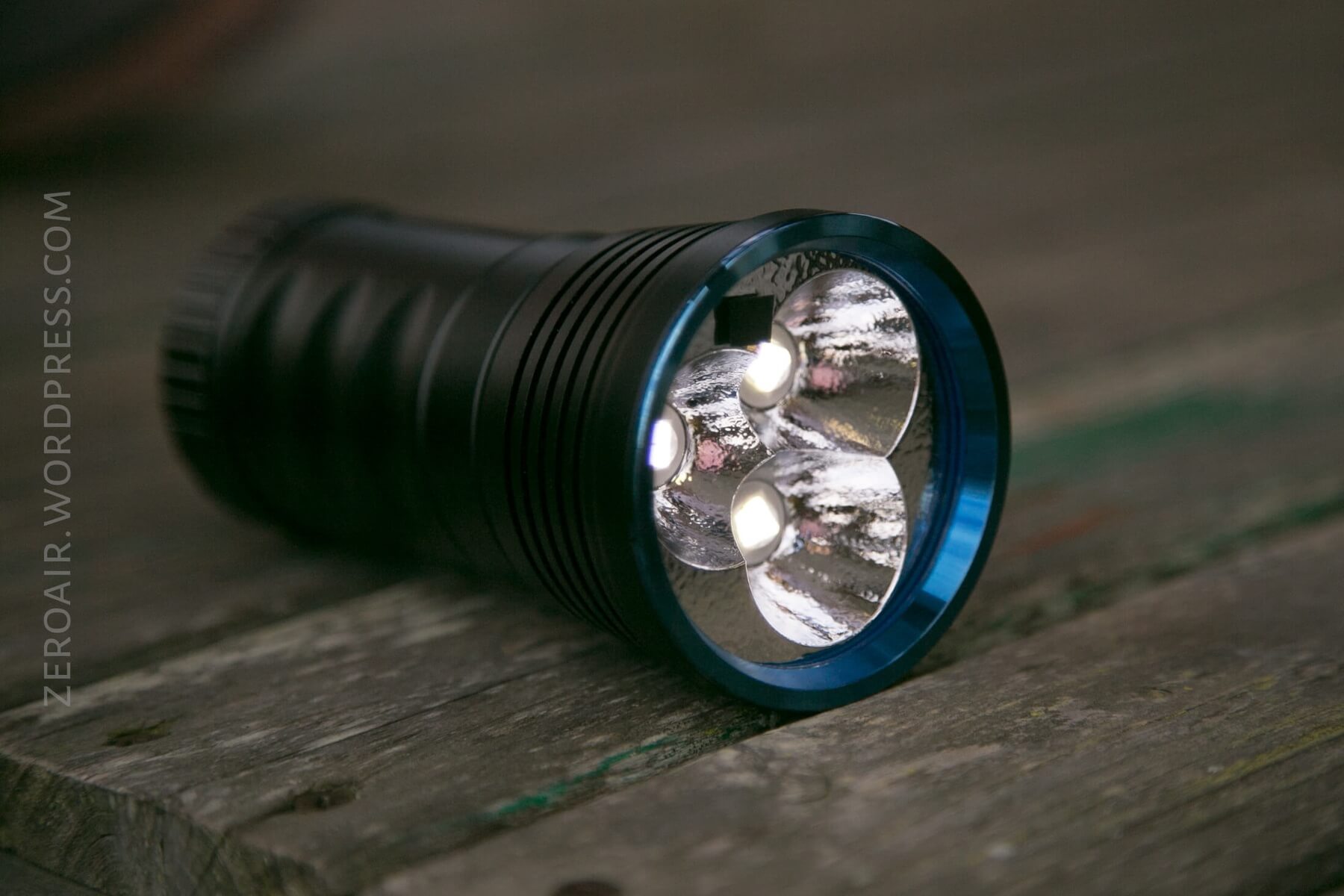

The emitters of choice in the X7R are Cree XHP70, in Cool White.  This is the same emitter setup as with the X7.  These emitters are centered in shallow orange peel reflectors, and provide a beam that has a spot with soft edges, transitioning into a good bit of spill.  Essentially what you’d want from a can light.

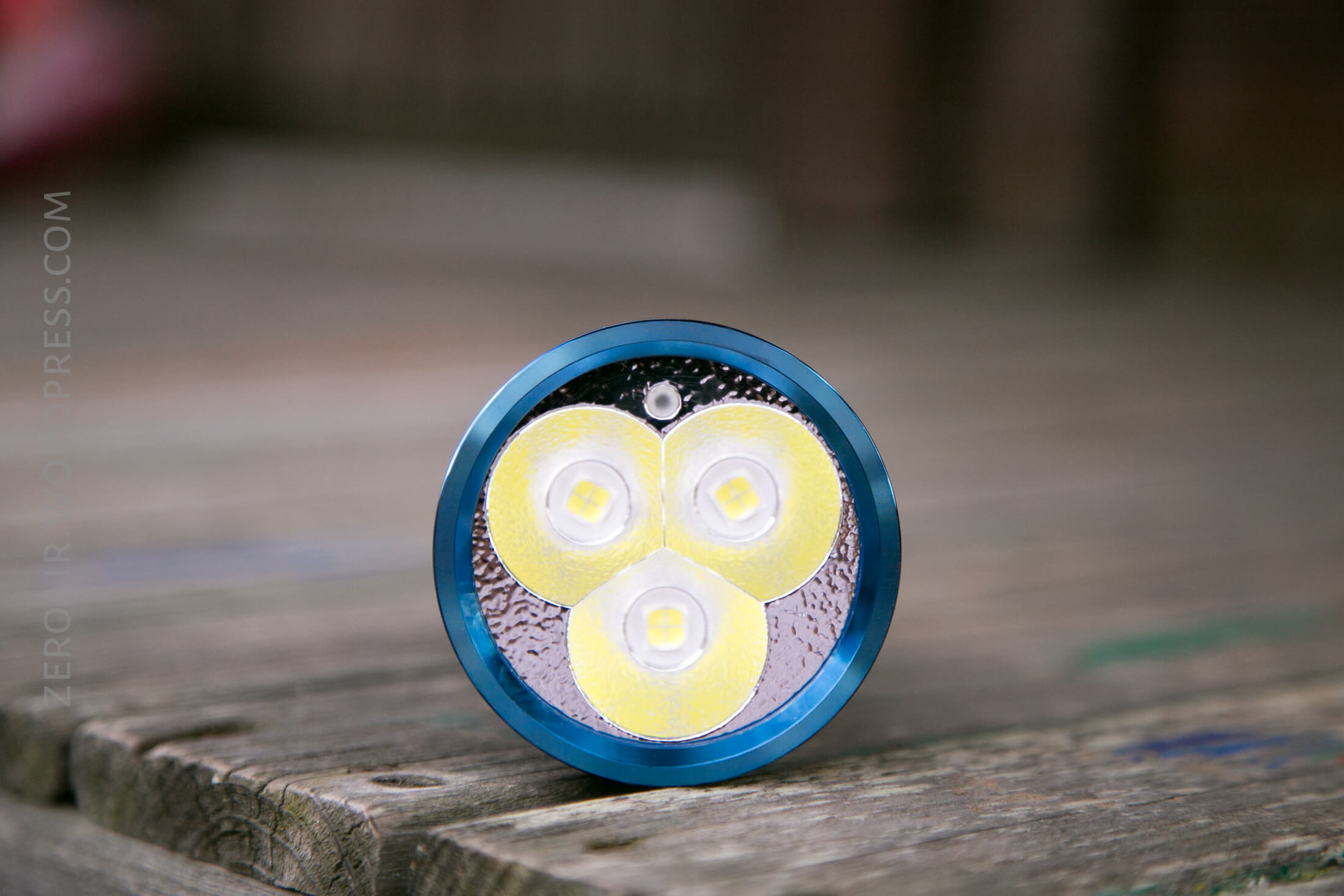

Note the proximity sensor at the 12 o’clock position in the photo below.

20180304-IMG_0605

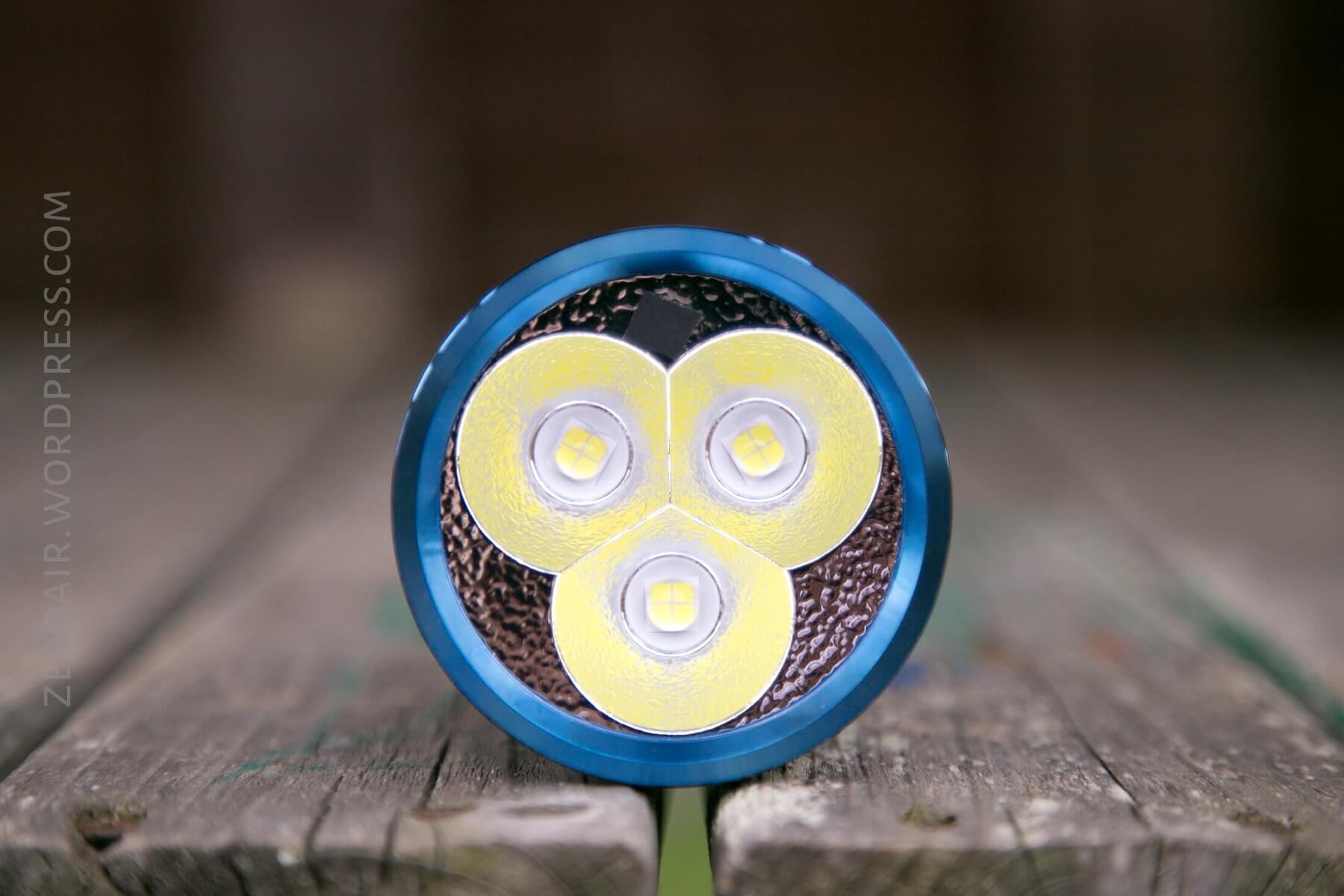

Also note the electrical tape covering the sensor in the photo below.  This is very effective in disabling the sensor, and doesn’t seem to melt off when the light is used on the get-hot modes.

20180304-IMG_0590

20180304-IMG_0601

Tint vs BLF-348

20180304-IMG_0824

Beamshots, Runtime, and Lux Measurements

Olight X7R
Emitter Cree XPH70
Emitter Notes CW
Cell Custom Internal
Glamour Shots Beamshots [0.3″, f/8, ISO 100, 5000k]
Runtime Chargetime
LVP? Yes
Claimed Lumens (lm) 12000
Lux (Measured) 1555 lux @ 5.119 m
Candela (Calculated) in cd 40747.5
Throw (Calculated) (m) 403.7
Throw (Claimed) (m) 380



Random Comparisons and Competitive Options….

From the link above, really the only light that compares is the Fenix TK72R. I’d probably still lump in the original X7, because it’s still a viable contender if one doesn’t want on-board charging.

Conclusion

What I like

  • Very nice indicating switch
  • Complete package with internal battery and fast charger
  • Charges at 3.5A (minimum)
  • High quality feel in-hand
  • Proximity sensor prevents pouch/pocket burns (and is easy to disable)

What I don’t like

  • Same emitters as the X7 (but the XHP70.2 might have actually been a worse choice?)
  • Not possible to change battery
  • Light is a little long

Up Next

Next week I’ll most likely have another couple of Olights, and possibly the new Nitecore V2 charger!  Might just make next week Olight week! (I have 3 more!)

Notes

  • This light was provided by Olight for review. I was not paid to write this review.
  • This content originally appeared at zeroair.wordpress.com.  Please visit there for the best experience!
  • Whether or not I have a coupon for this light, I do have a bunch of coupons!!  Have a look at my spreadsheet for those coupons. It’s possible to subscribe and get notifications when the sheet is edited!!
