Sofirn C01S AAA Flashlight Review (three versions)

Sofirn C01S AAA Flashlight Review

Sofirn has released the C01S AAA flashlight, which is an updated take on a much simpler C01S. This features modes and more! Read on!

---

Official Specs and Features

Here’s a link to a Sofirn C01S AAA Flashlight product page.  This is Sofirn’s official sales page, so it’s as official as anything.

Versions

There are a number of versions.  There are two UI’s – the standard, which has High then Low.  And the BLF special, which has Low then High.

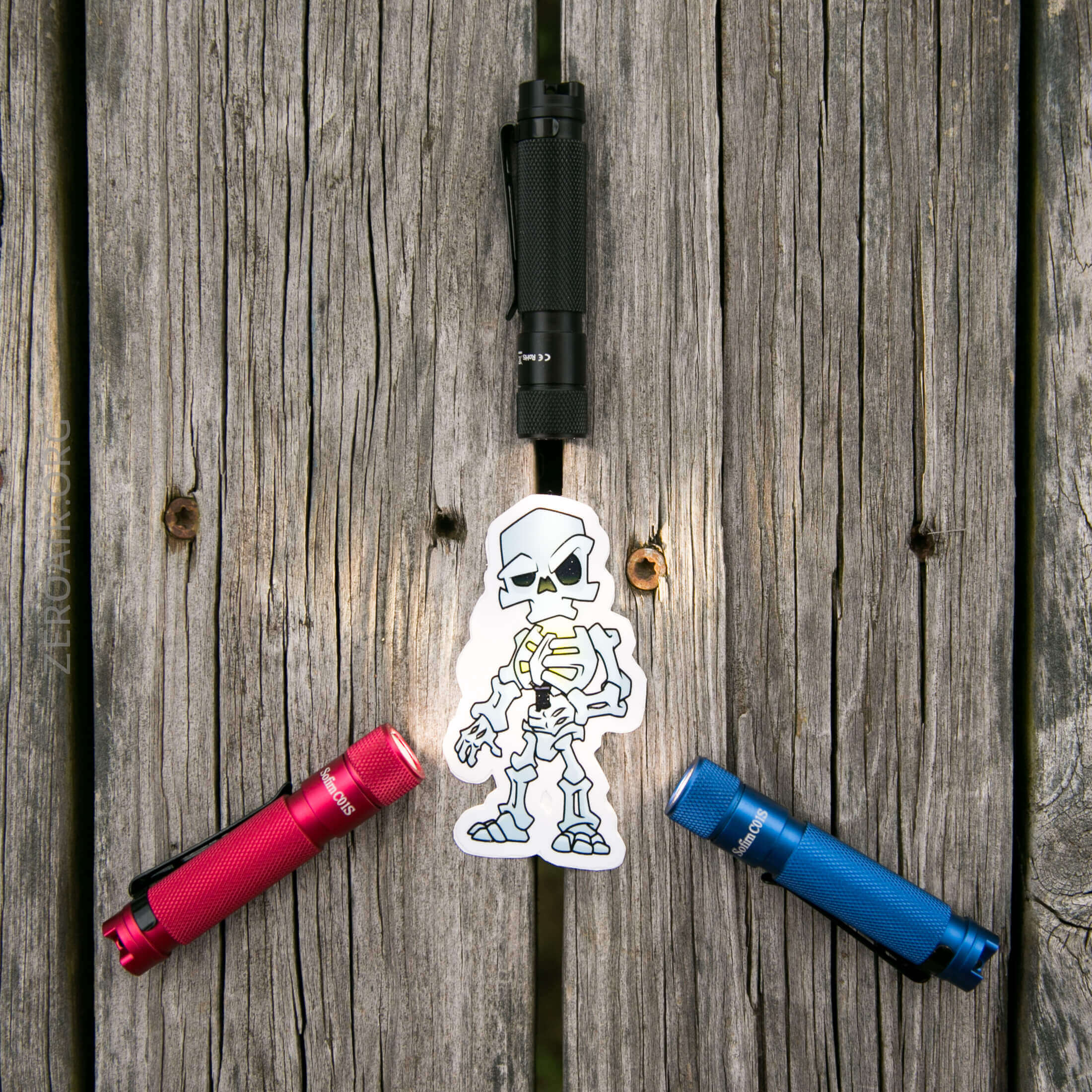

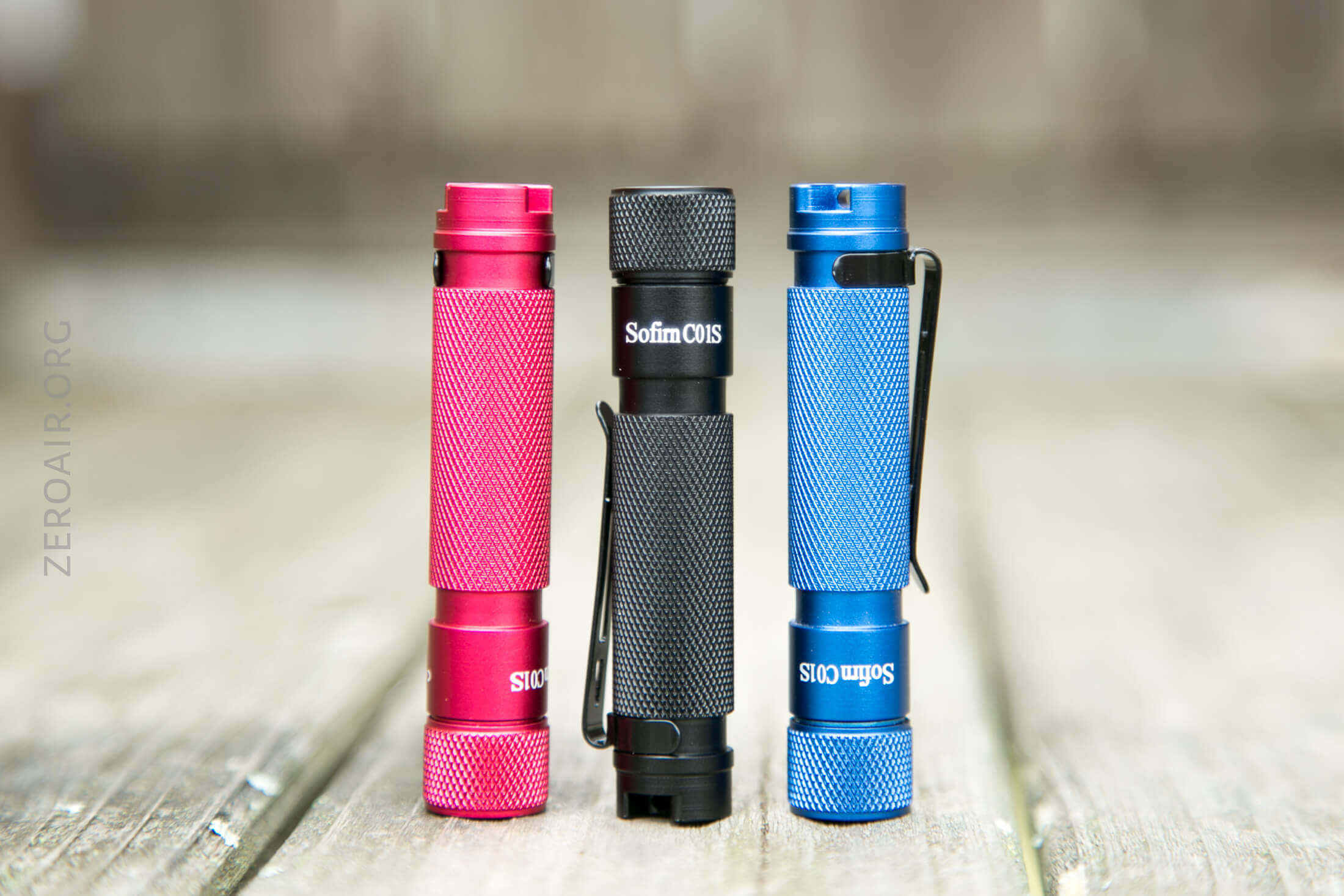

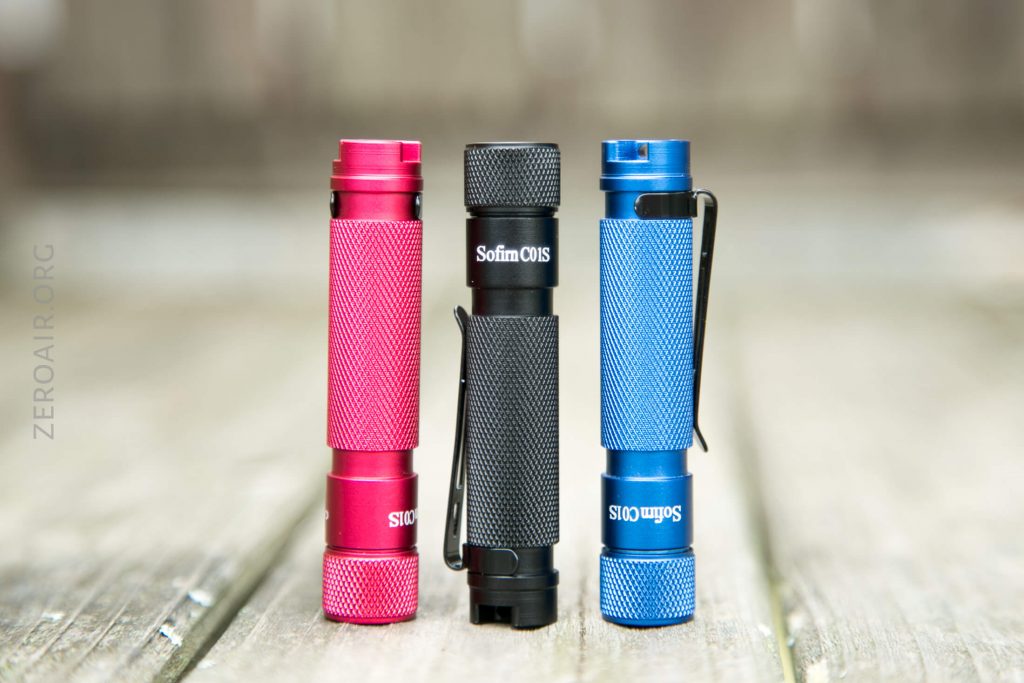

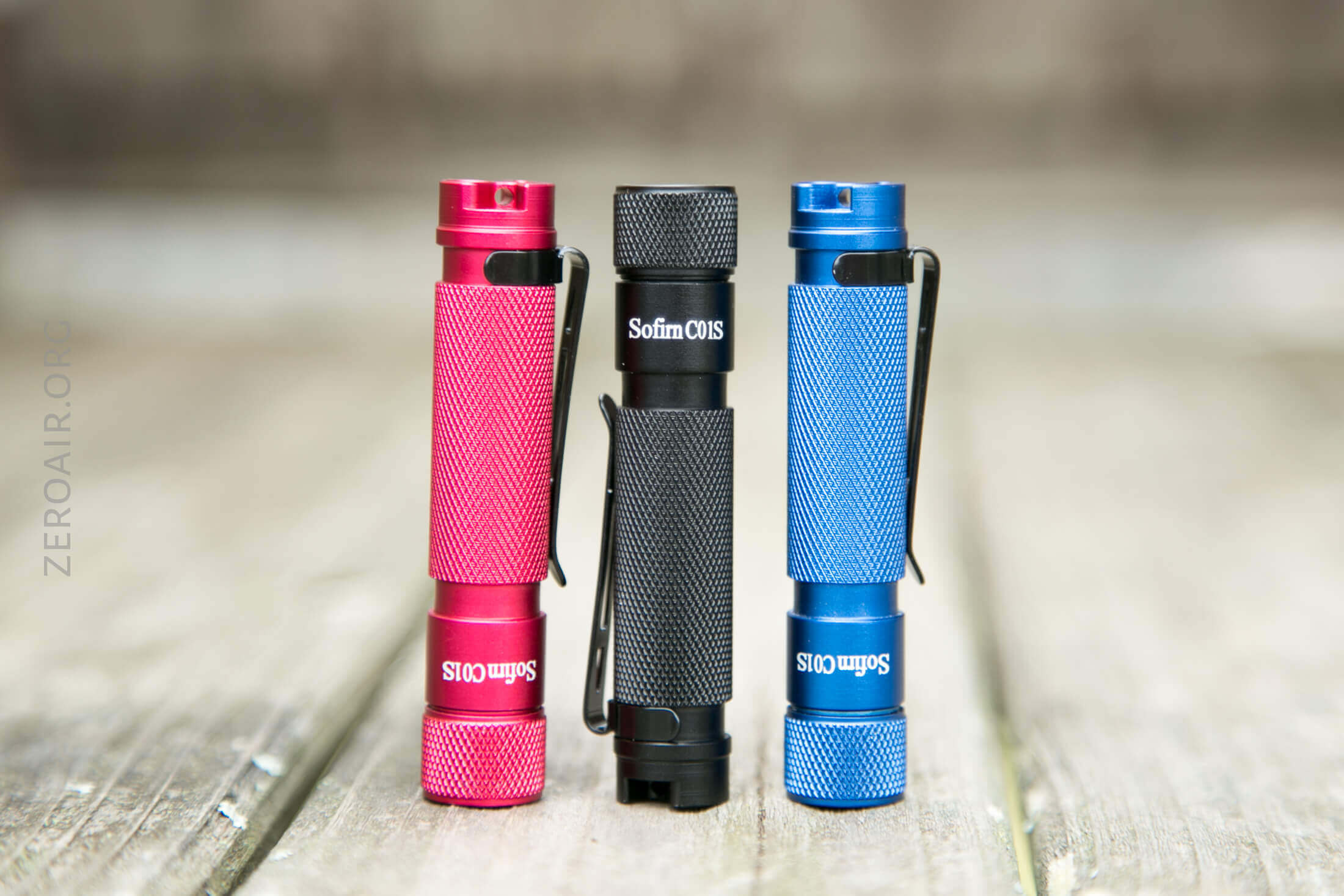

Also, there are at least 4 body colors – red, blue, black, and silver (which I think it limited to the BLF edition.)

Price

Buy these at aliexpress, for $9.89.

---

Short Review

This is a wonderful update to the C01.  I liked it but my normal use cases don’t require that light all that often.  The C01S on the other hand has many scenarios of usefulness.  Also it’s just a great little light!

Long Review

The Big Table

Sofirn C01S – Black
Emitter:	Luminus SST20 (4000K)
Price in USD at publication time:	$9.89
Cell:	1xAAA
High Runtime
LVP?
Switch Type:	Twist
On-Board Charging?	No
Claimed Lumens (lm)	100
Measured Lumens (at 30s)	100 (100% of claim)^
Claimed Throw (m)	42
Candela (Calculated) in cd (at 30s)	83lux @ 2.723m = 615cd
Throw (Calculated) (m)	49.6 (118.1% of claim)^
All my Sofirn reviews!



Sofirn C01S – Red
Emitter:	Luminus SST20 (4000K)
Price in USD at publication time:	$9.89
Cell:	1xAAA
High Runtime
LVP?
Switch Type:	Twist
On-Board Charging?	No
Claimed Lumens (lm)	100
Measured Lumens (at 30s)	100 (100% of claim)^
Claimed Throw (m)	42
Candela (Calculated) in cd (at 30s)	61lux @ 3.124m = 595cd
Throw (Calculated) (m)	48.8 (116.2% of claim)^
All my Sofirn reviews!



Sofirn C01S – Blue
Emitter:	Luminus SST20 (4000K)
Price in USD at publication time:	$9.89
Cell:	1xAAA
Turbo Runtime
LVP?
Switch Type:	Twist
On-Board Charging?	No
Claimed Lumens (lm)	100
Measured Lumens (at 30s)	100 (100% of claim)^
Claimed Throw (m)	42
Candela (Calculated) in cd (at 30s)	73lux @ 3.111m = 707cd
Throw (Calculated) (m)	53.2 (126.7% of claim)^
All my Sofirn reviews!

^ Measurement disclaimer:  Testing flashlights is my hobby. I use hobbyist-level equipment for testing, including some I made myself. Try not to get buried in the details of manufacturer specifications versus measurements recorded here; A certain amount of difference (say, 10 or 15%) is perfectly reasonable.

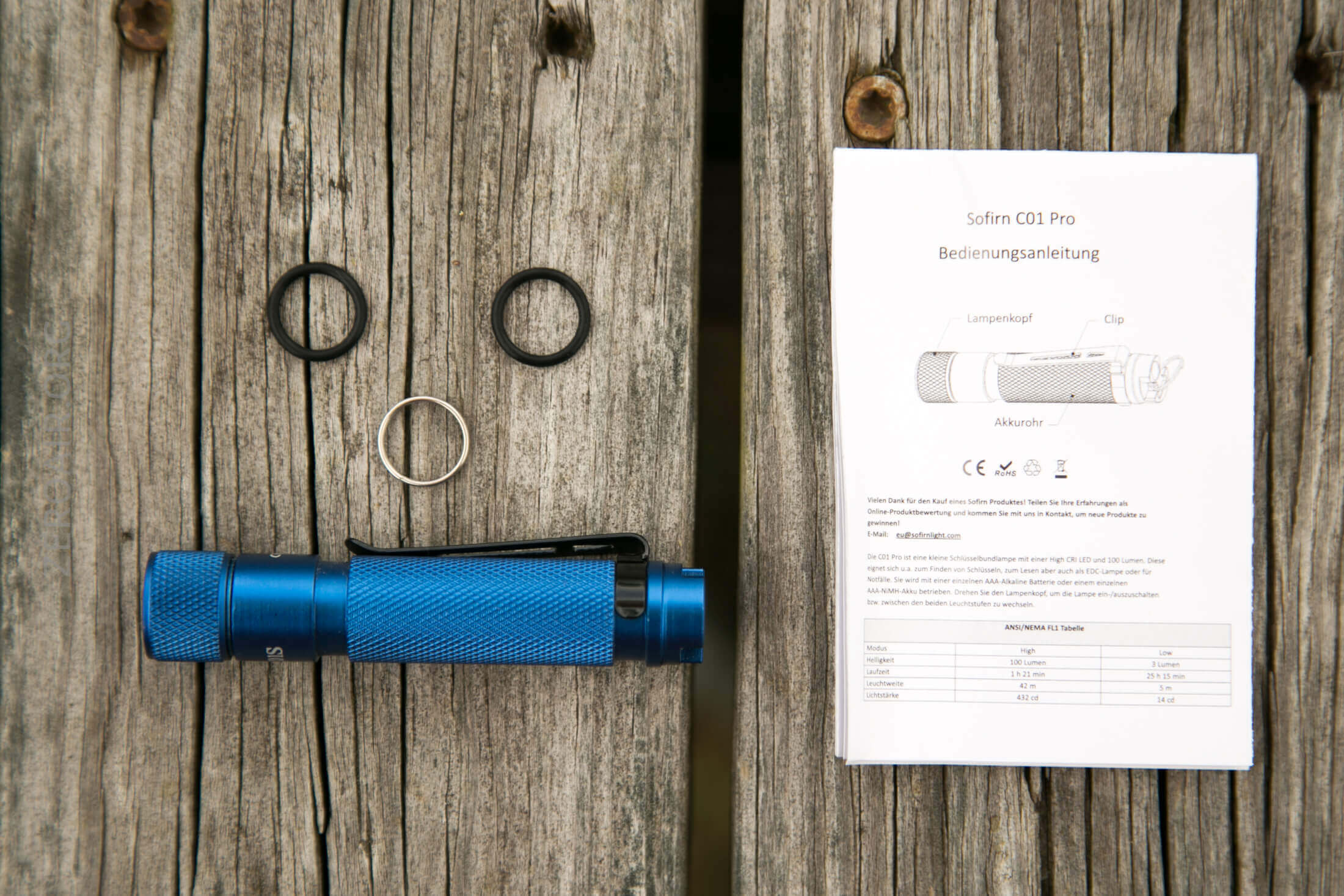

What’s Included

• Sofirn C01S
• Split ring
• Spare o-rings (2)
• Manual

Package and Manual

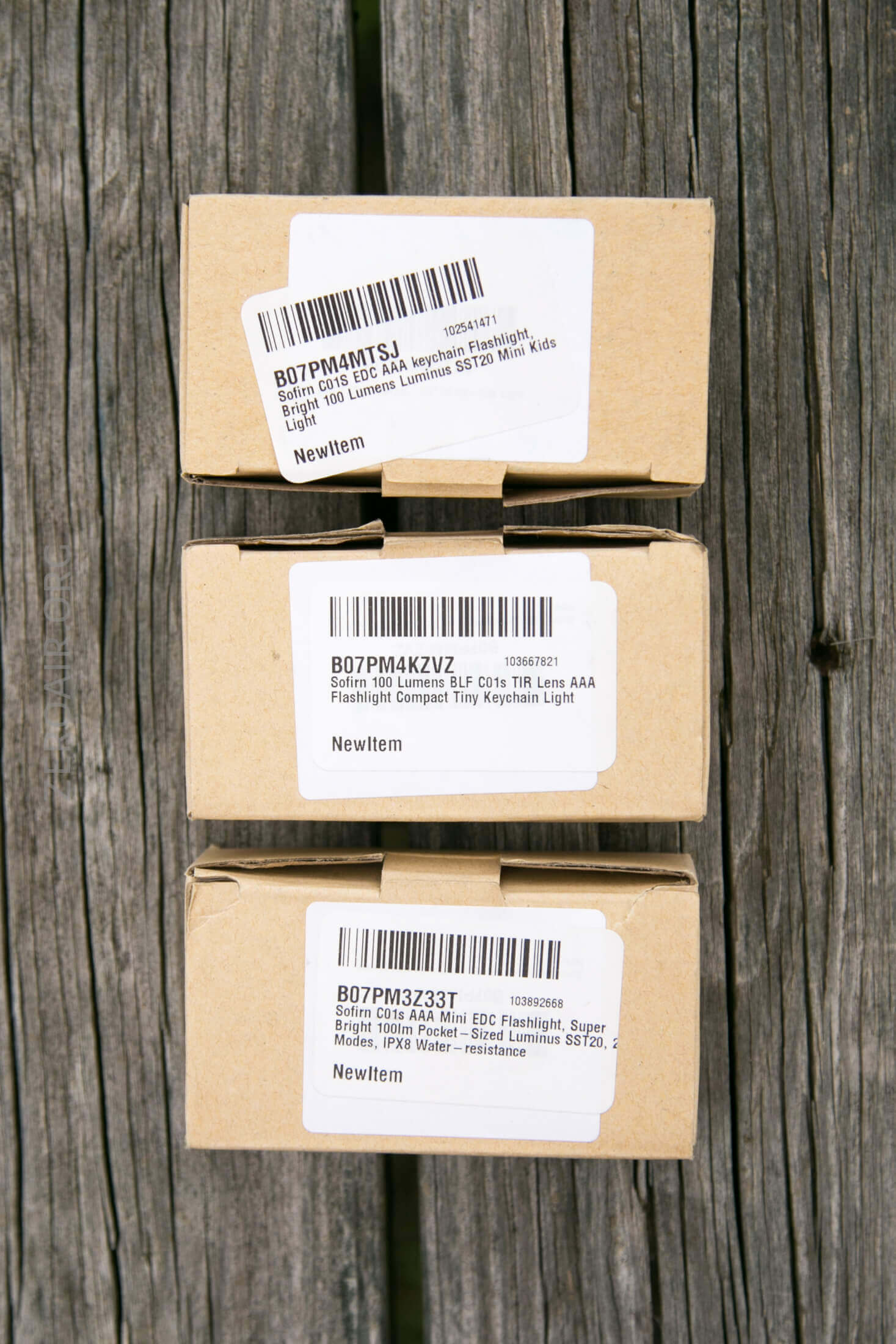

The box these are in is a simple cardboard box.  Inside is a bubble wrapper for all the parts.  Despite one of those boxes above saying “BLF edition,” none of my lights are the BLF edition.  I think the only difference is the UI direction (H>L vs L>H).  Still, I’d like to have experienced both (and in fact, would like L>H of the BLF better.)

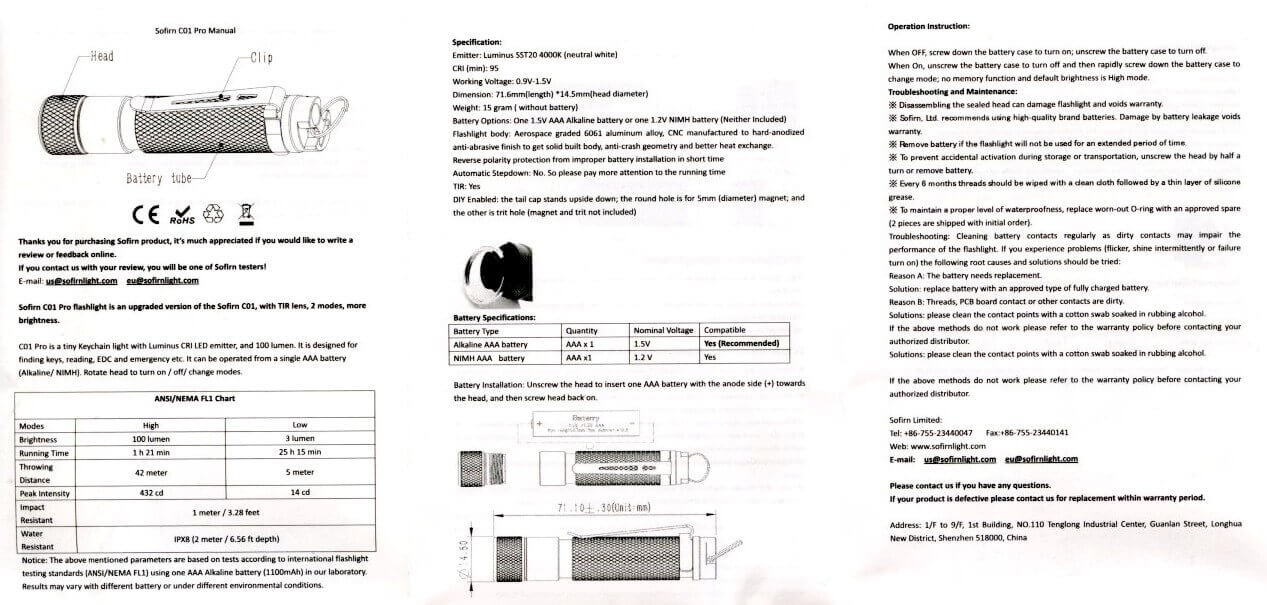

Here’s the manual for the C01 “Pro” which is really the C01S.

Build Quality and Disassembly

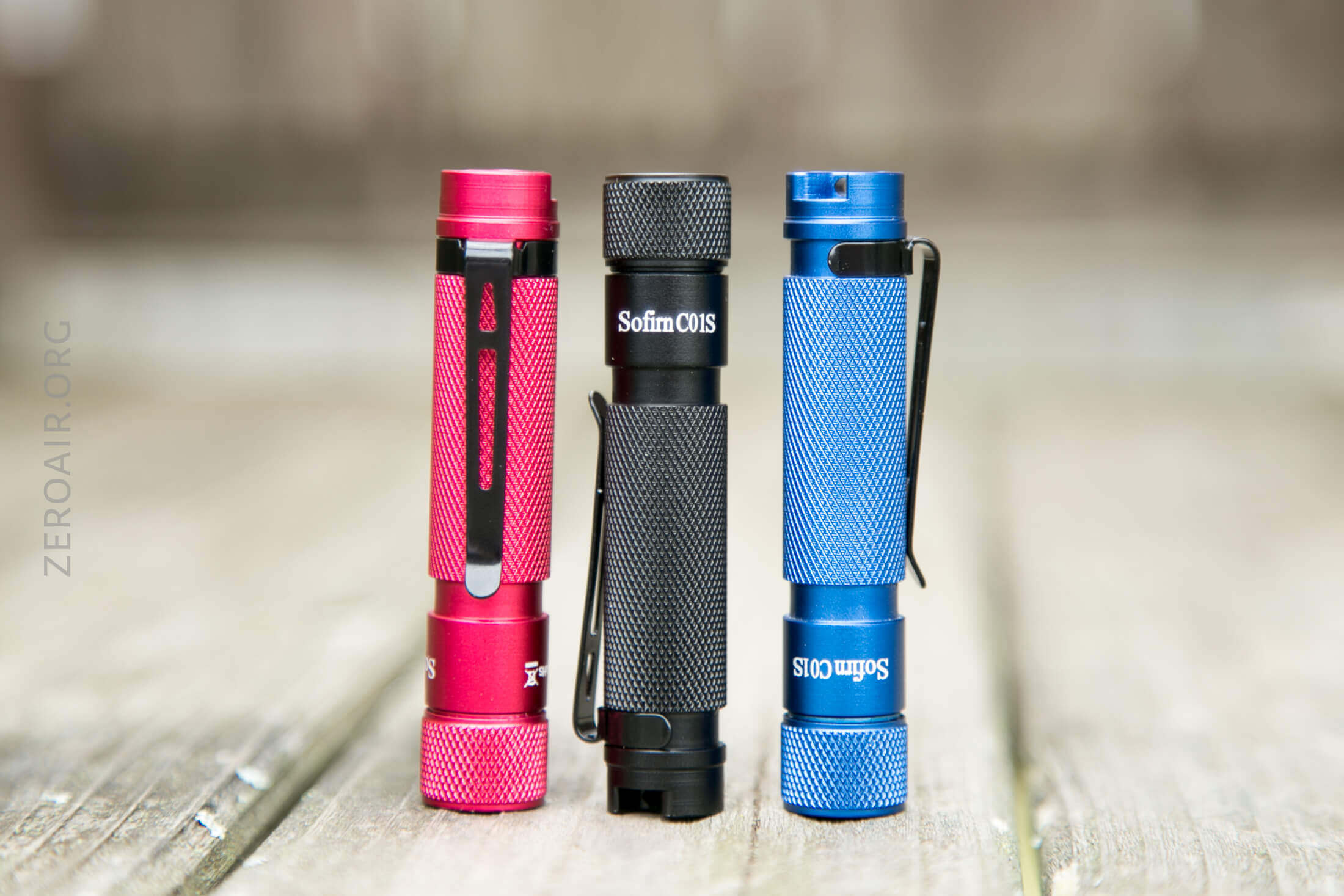

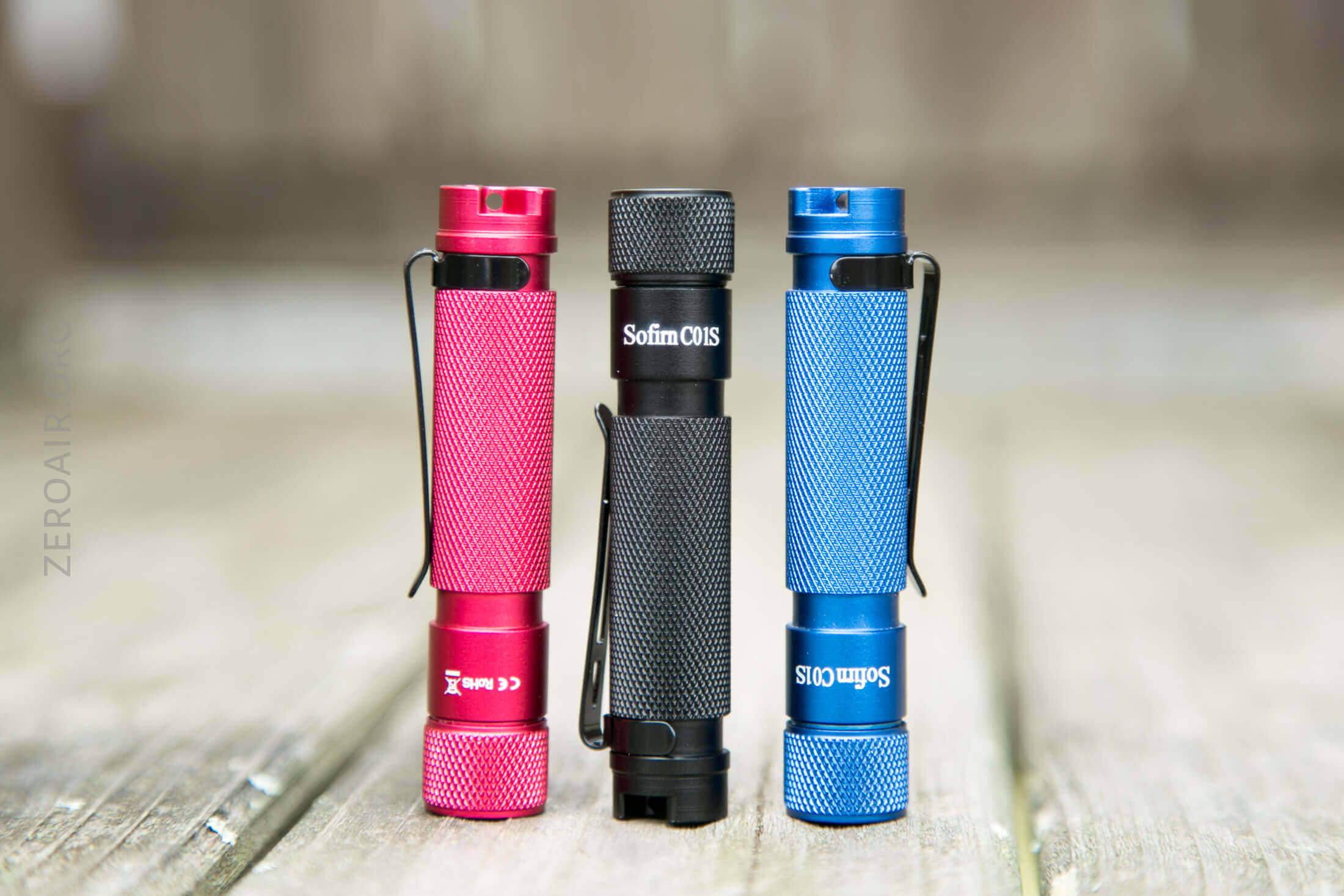

These are nicely built little lights.  There’s nothing bad at all to mention, and the build is commensurate with the price.  On the other hand, I’ve had $200 AAA-sized lights, and I wouldn’t necessarily say that these are more poorly built.  So the build is good!

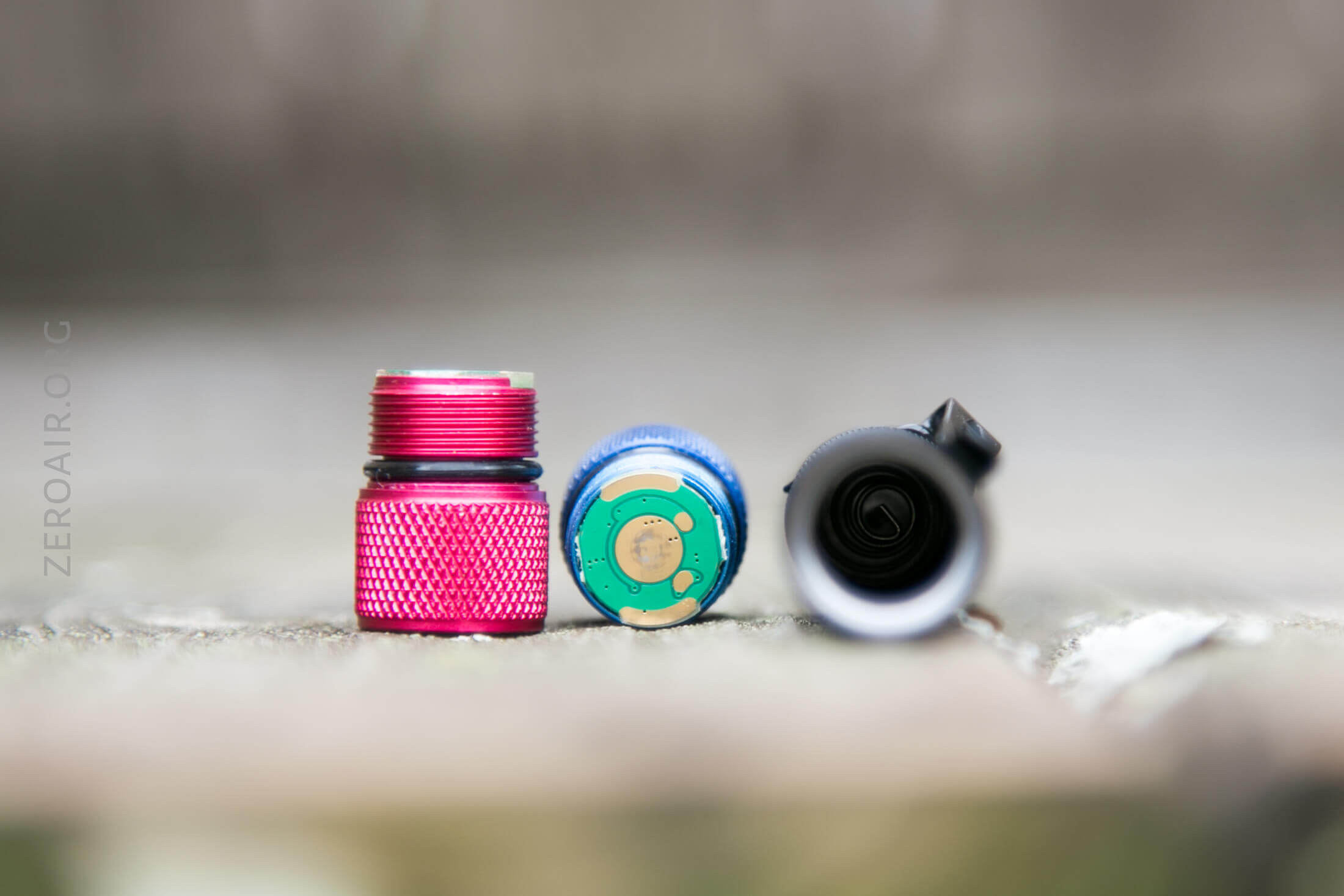

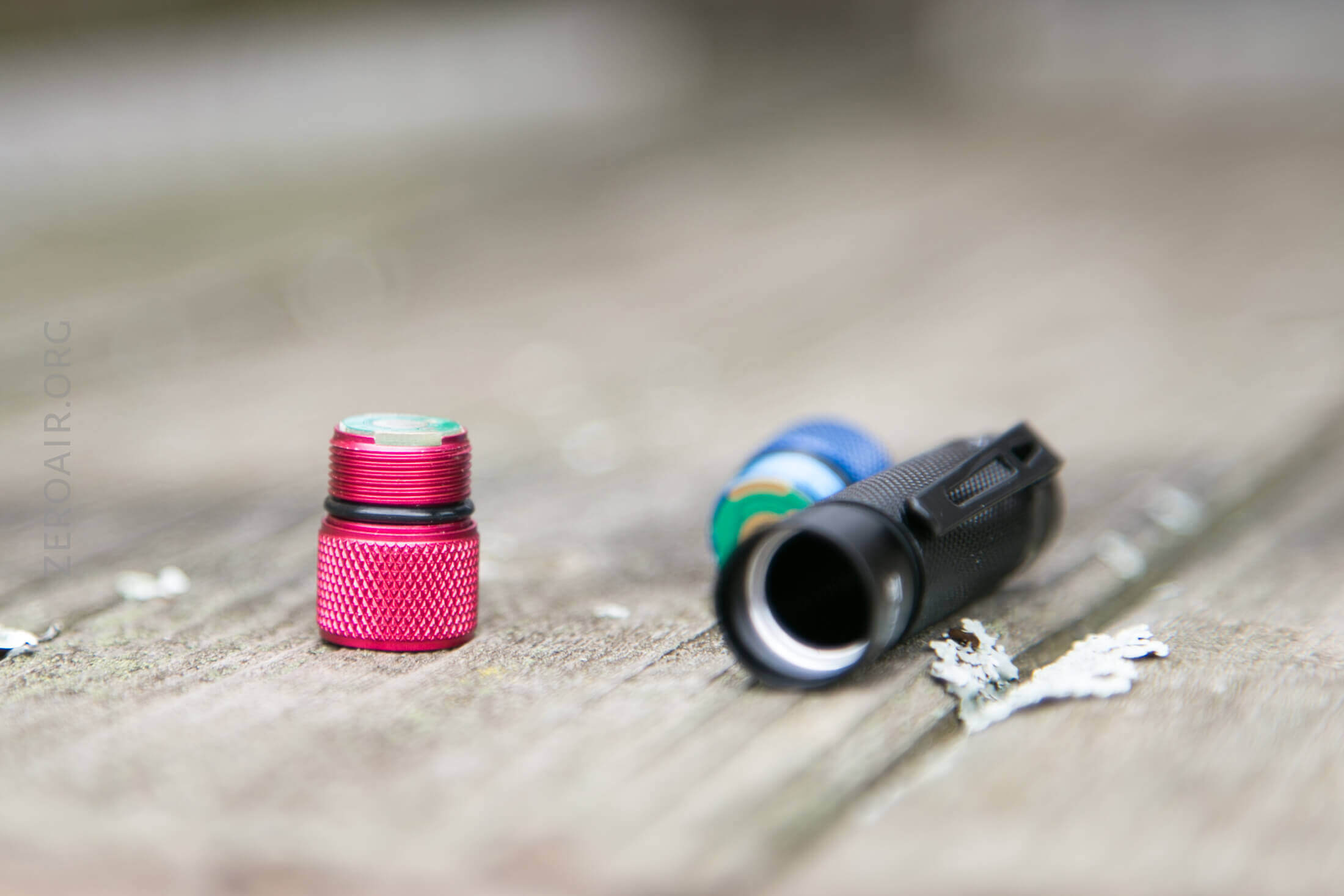

The body is a two-part build – the head comes off but the tail is built into the cell tube.  There’s a spring on the tail end, and the head has only a little contact point.  It’s not a pressure switch like many two-mode twisty lights, so the UI is handled in the electronics.

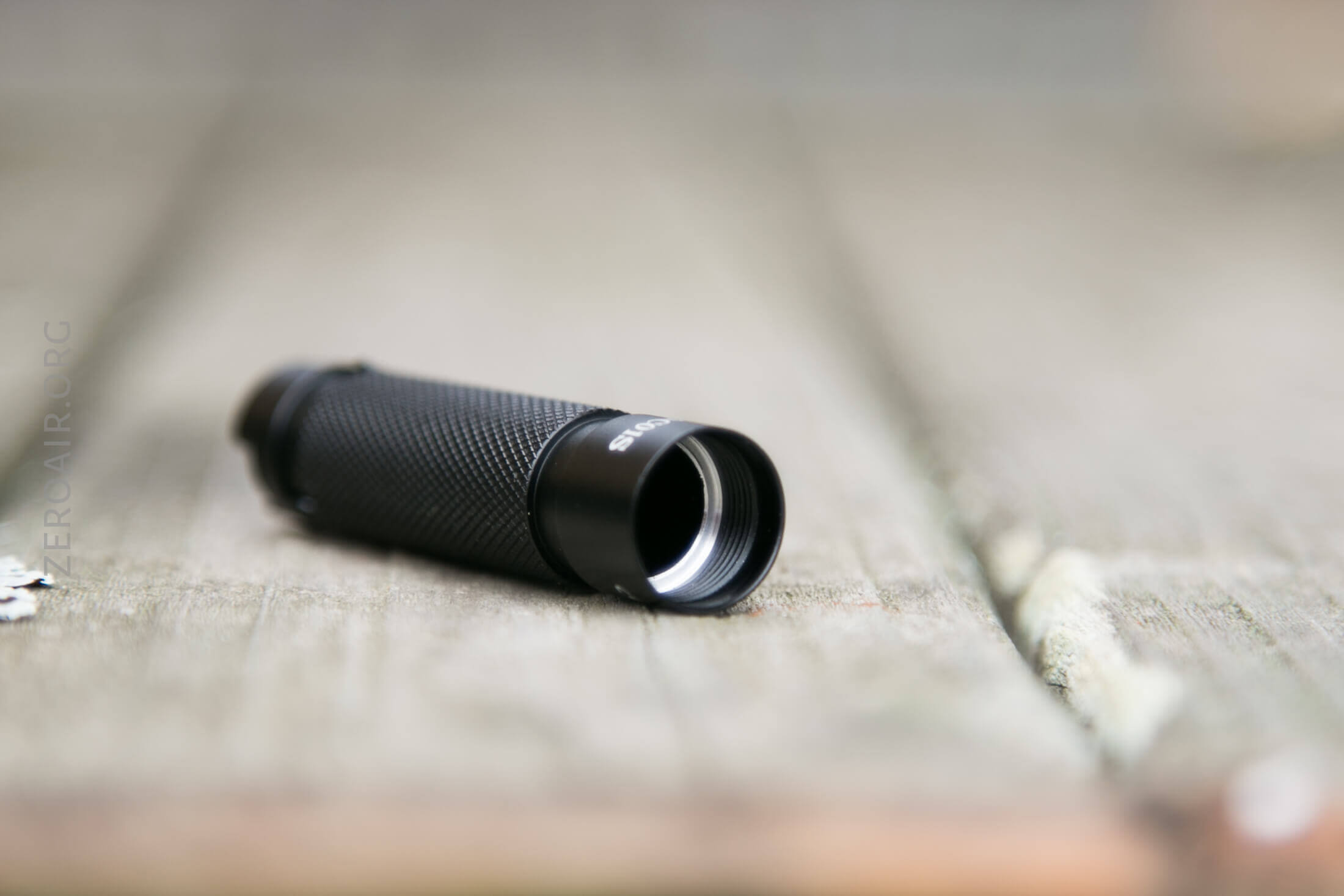

Also, note that the threads are fully anodized.

Only the body has a tiny strip of unanodized area, which is where the mcpcb makes contact with the negative end of the cell.

Size and Comps

Officially

Dimension: 71.6mm (length) *14.5mm (head diameter)
Weight: 15 gram (without battery)

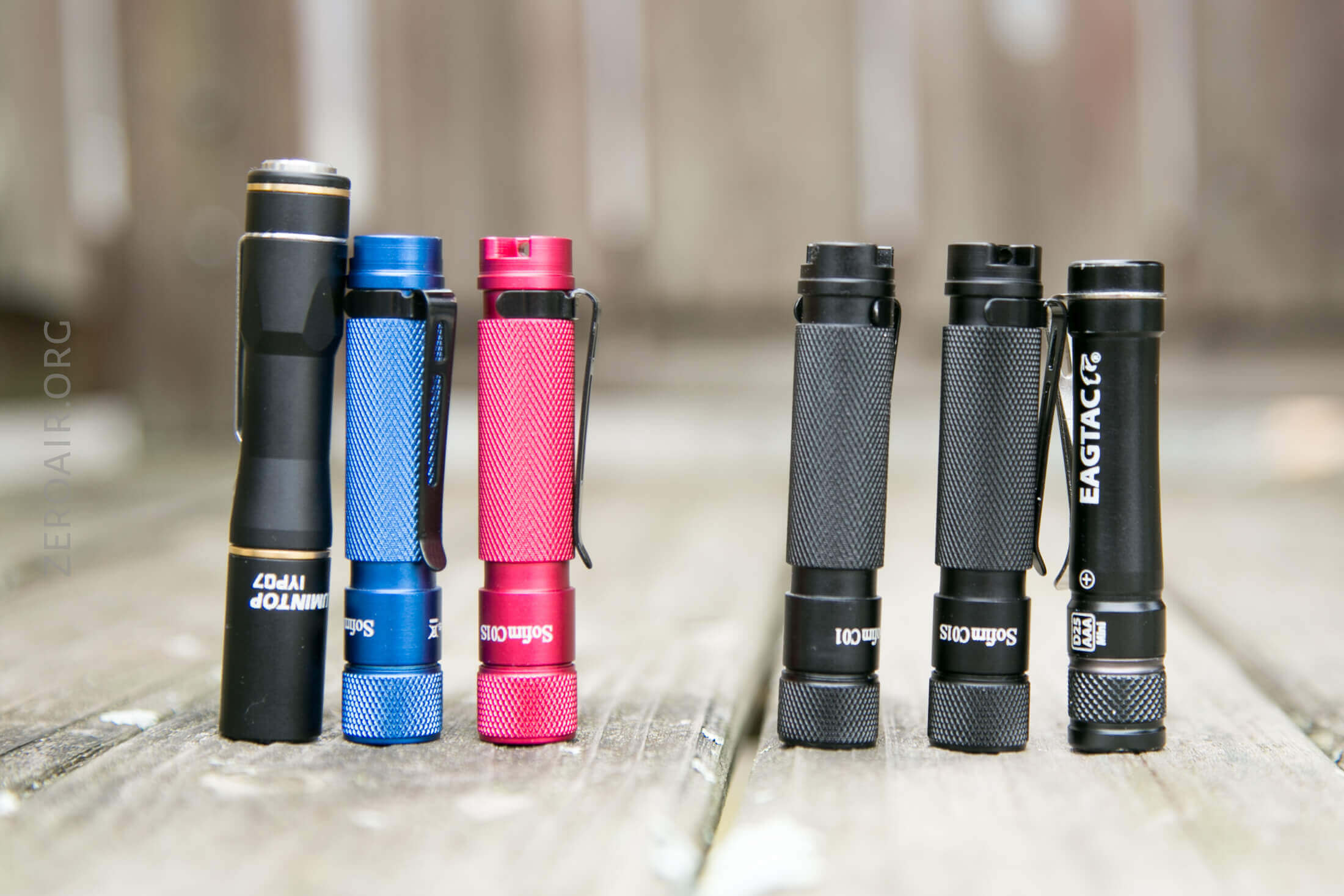

Here’s the C01S vs some other common AAA lights (including the original C01).  That little Eagtac…. love that thing.

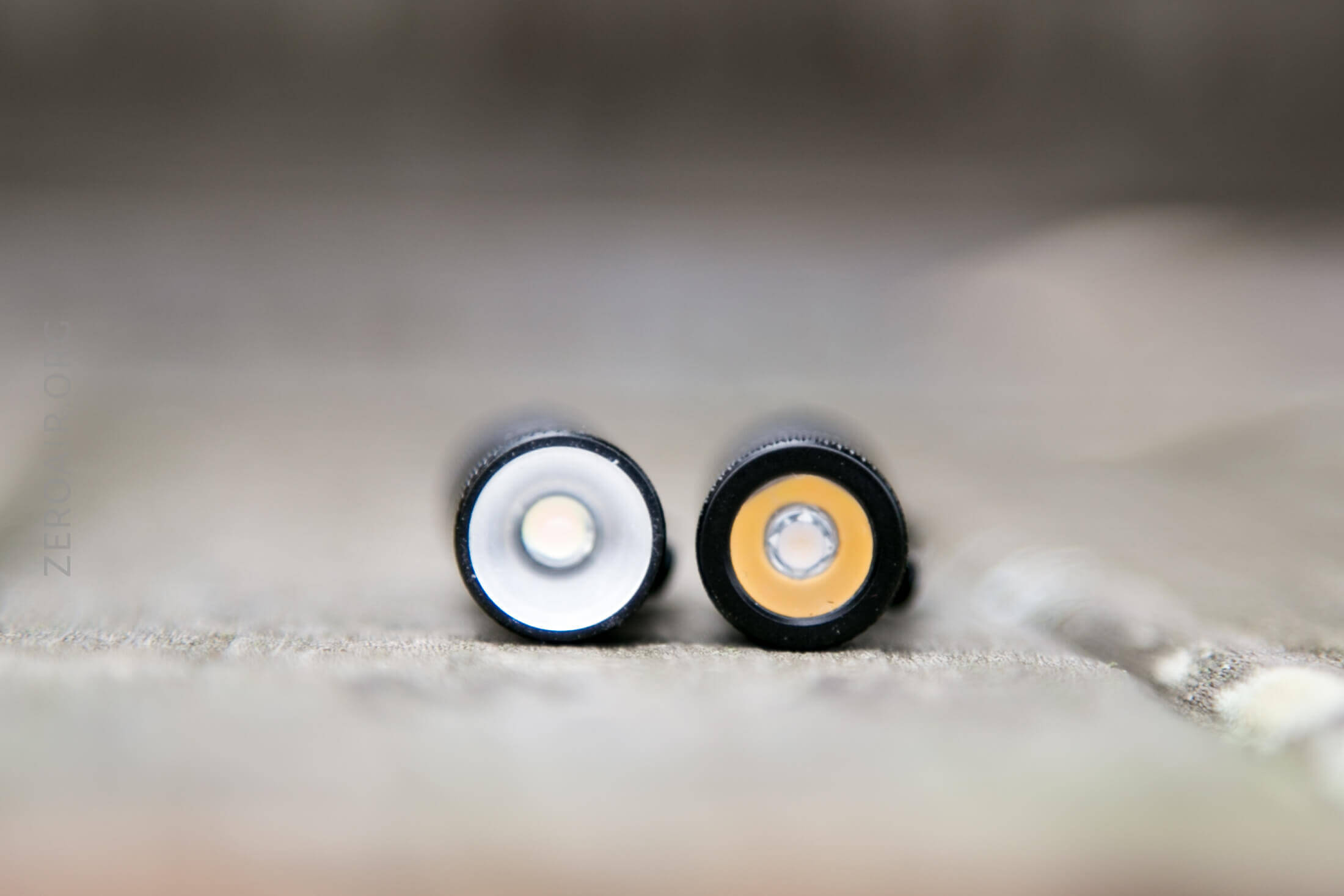

And here’s the C01 (left) vs the C01S.  The bezel is much chanced because now it has to hold in the TIR – before the reflector was the bezel (same metal!).

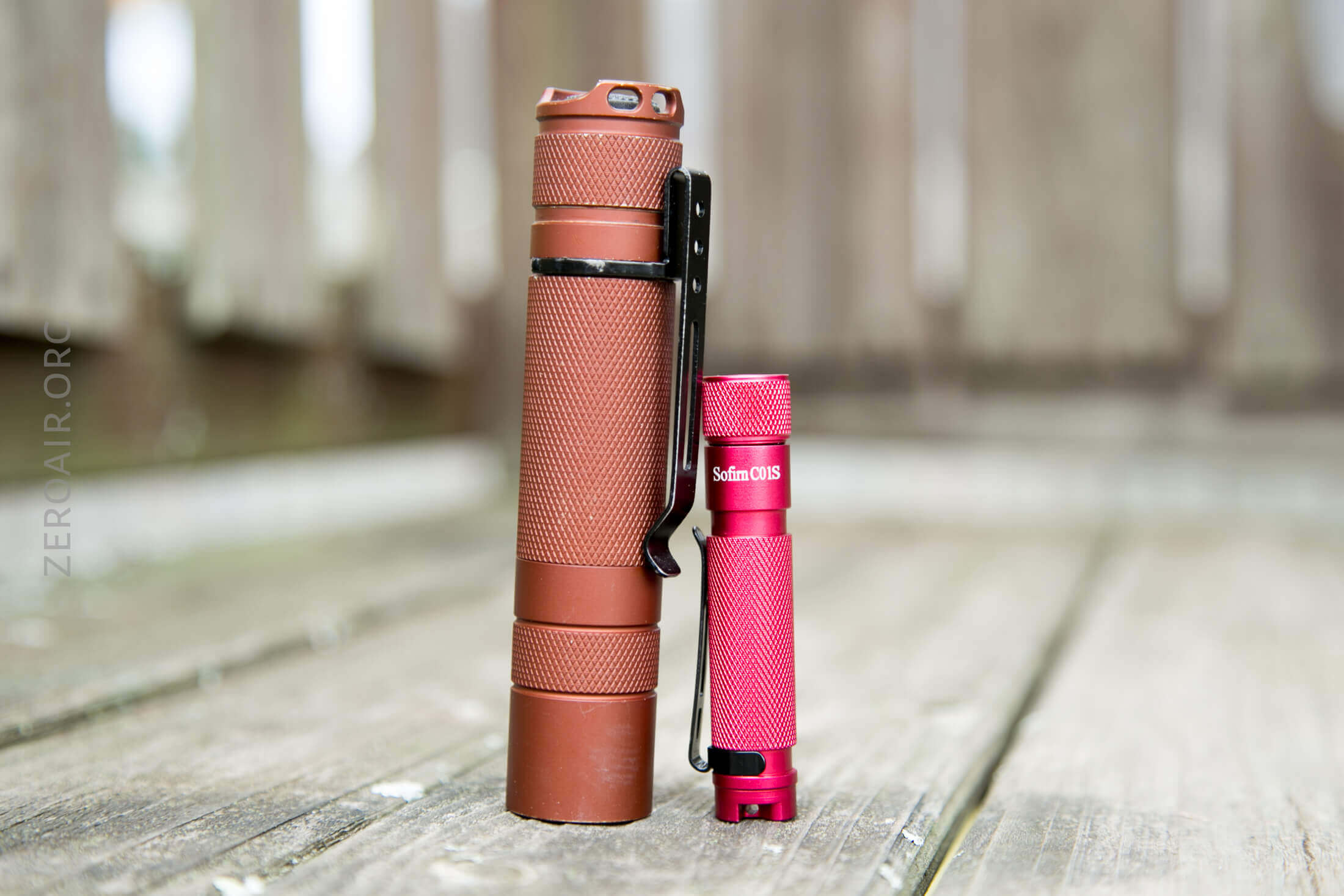

Here’s the test light with the venerable Convoy S2+.  Mine’s a custom “baked” edition Nichia 219b triple.  A very nice 18650 light.

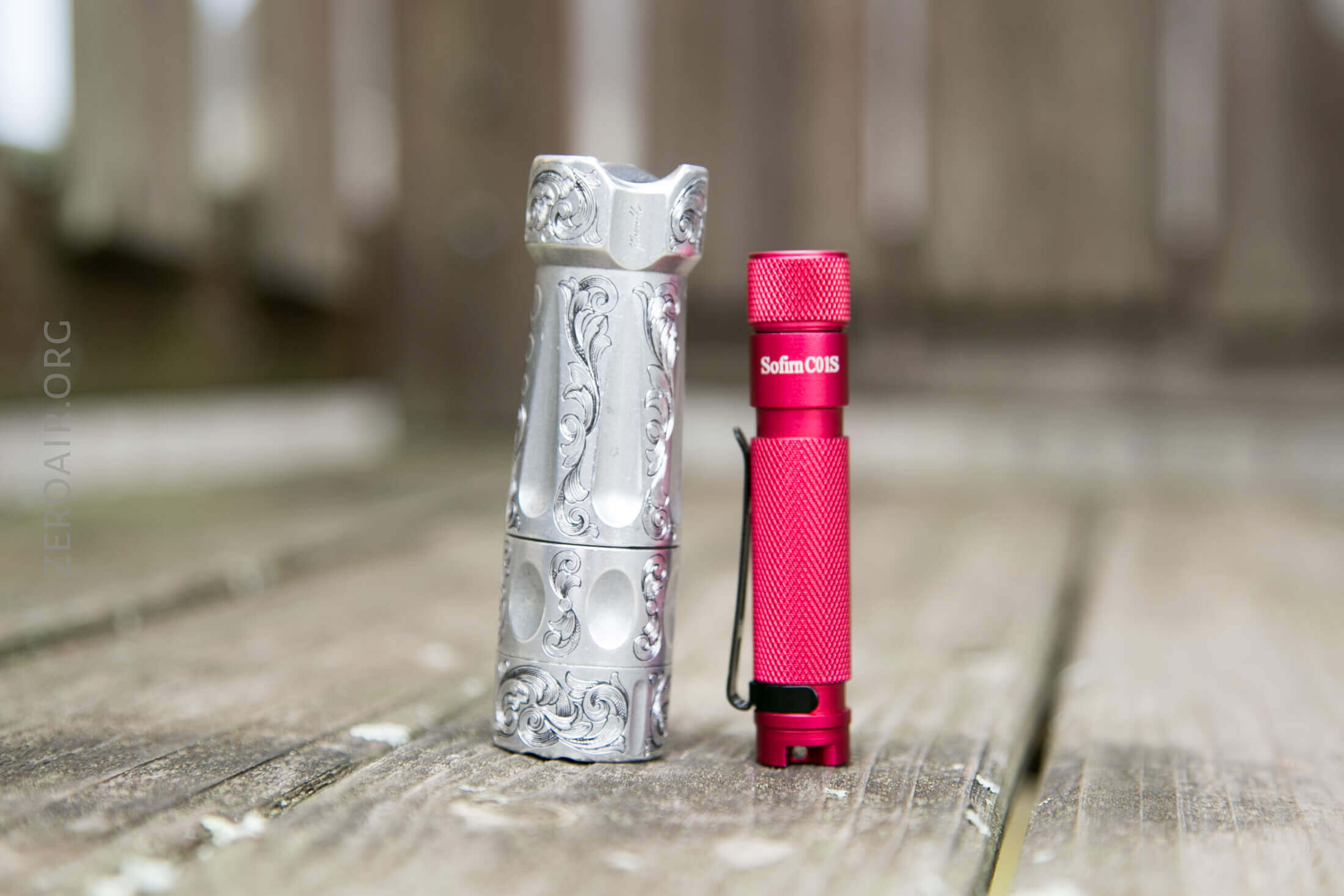

And here’s the light beside my custom engraved TorchLAB BOSS 35, an 18350 light.  I reviewed the aluminum version of that light in both 35 and 70 formats.

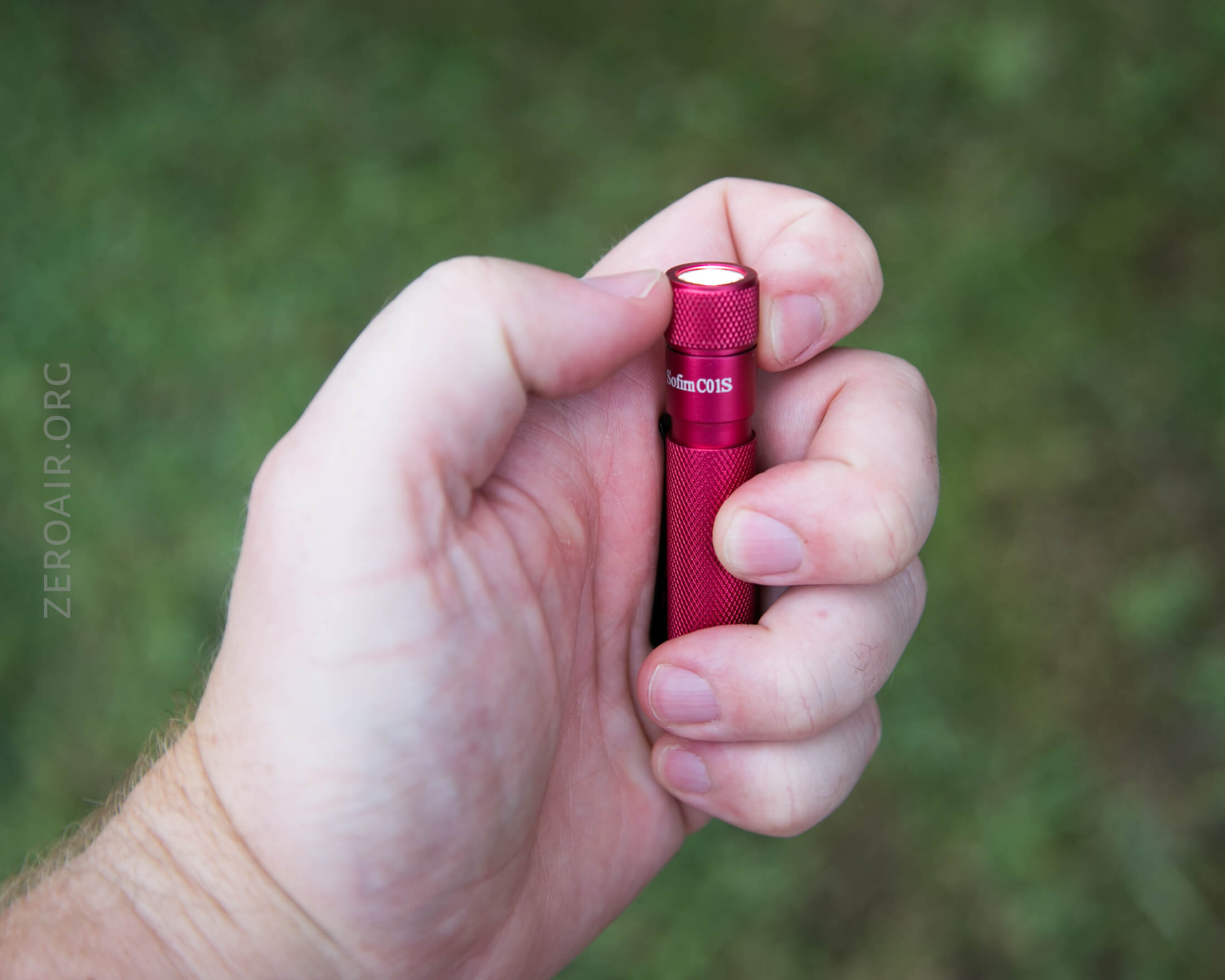

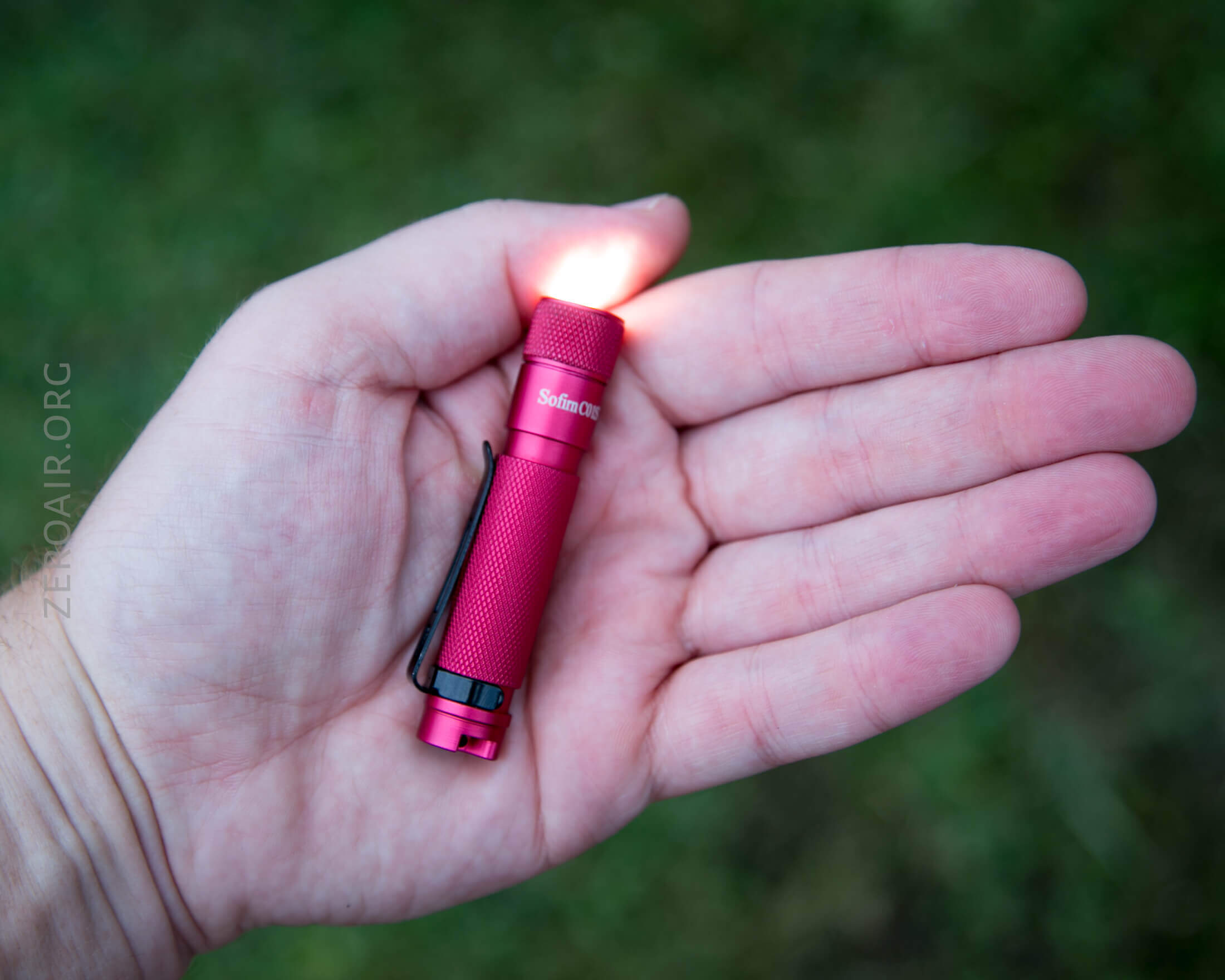

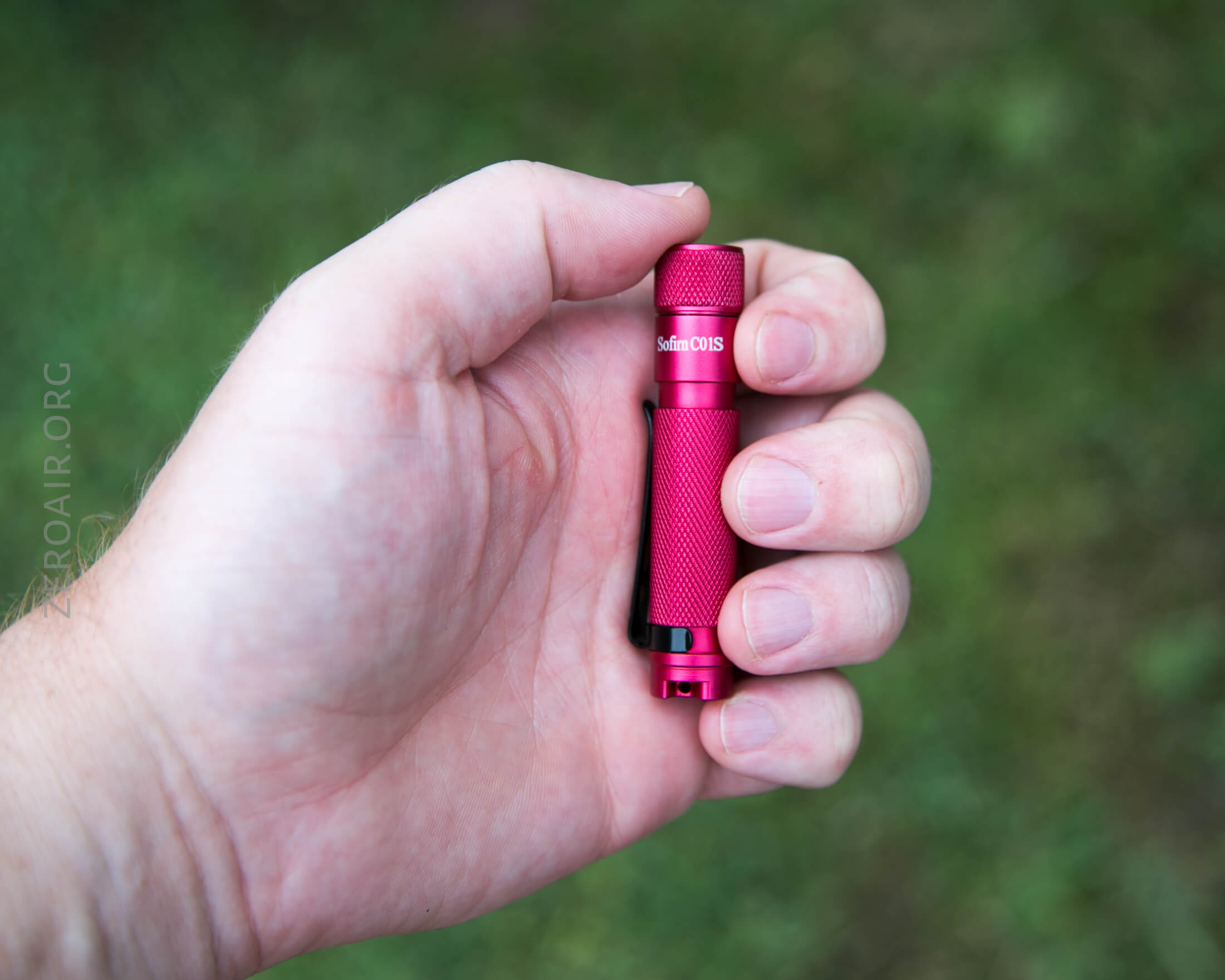

Retention and Carry

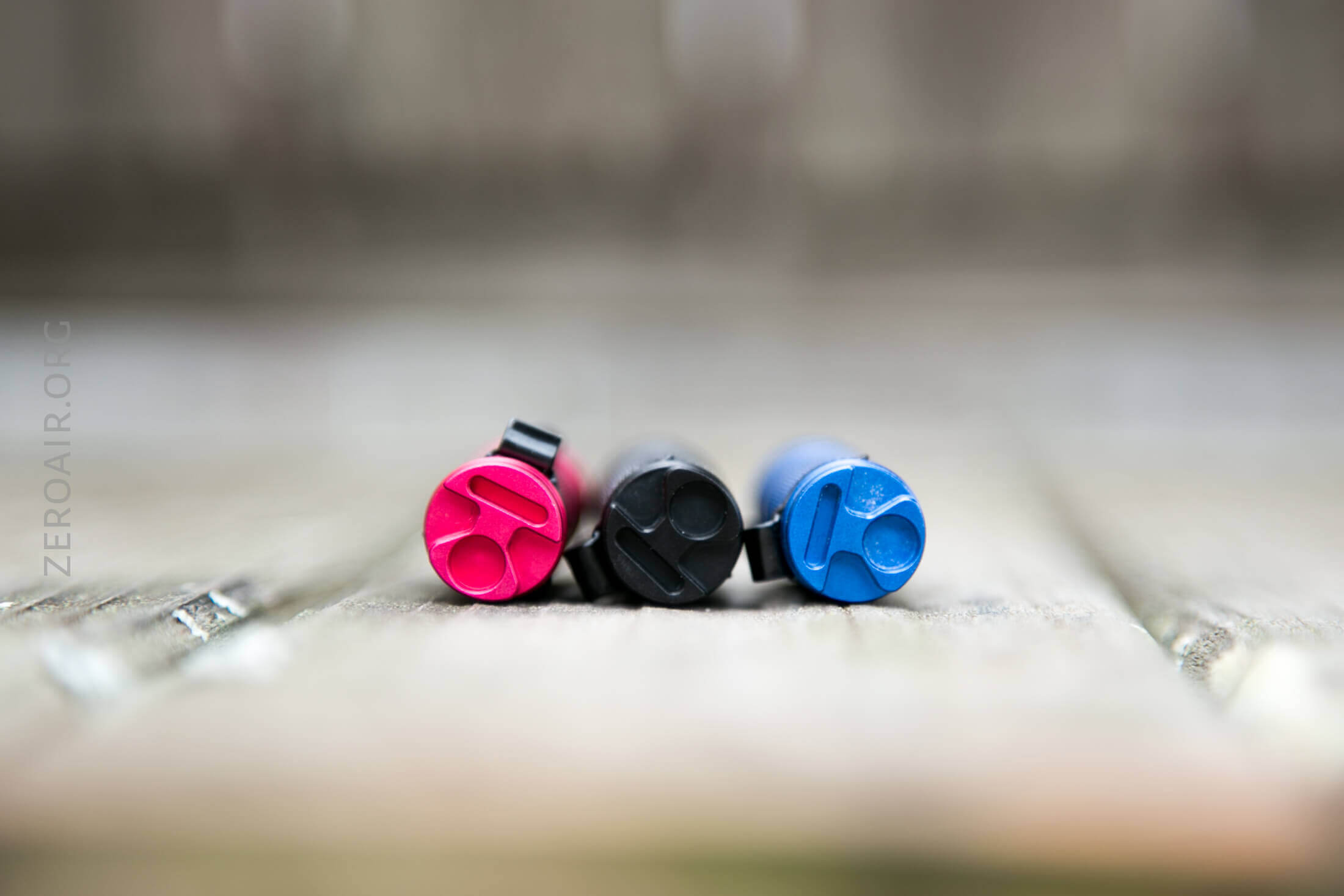

The tailcap has the same design as the original – there’s space for a 5mm magnet.  (The other slot is for a tritium vial.)  Though the hole can’t be seen from this angle, the hole for the split ring is between the magnet and tritium slots.

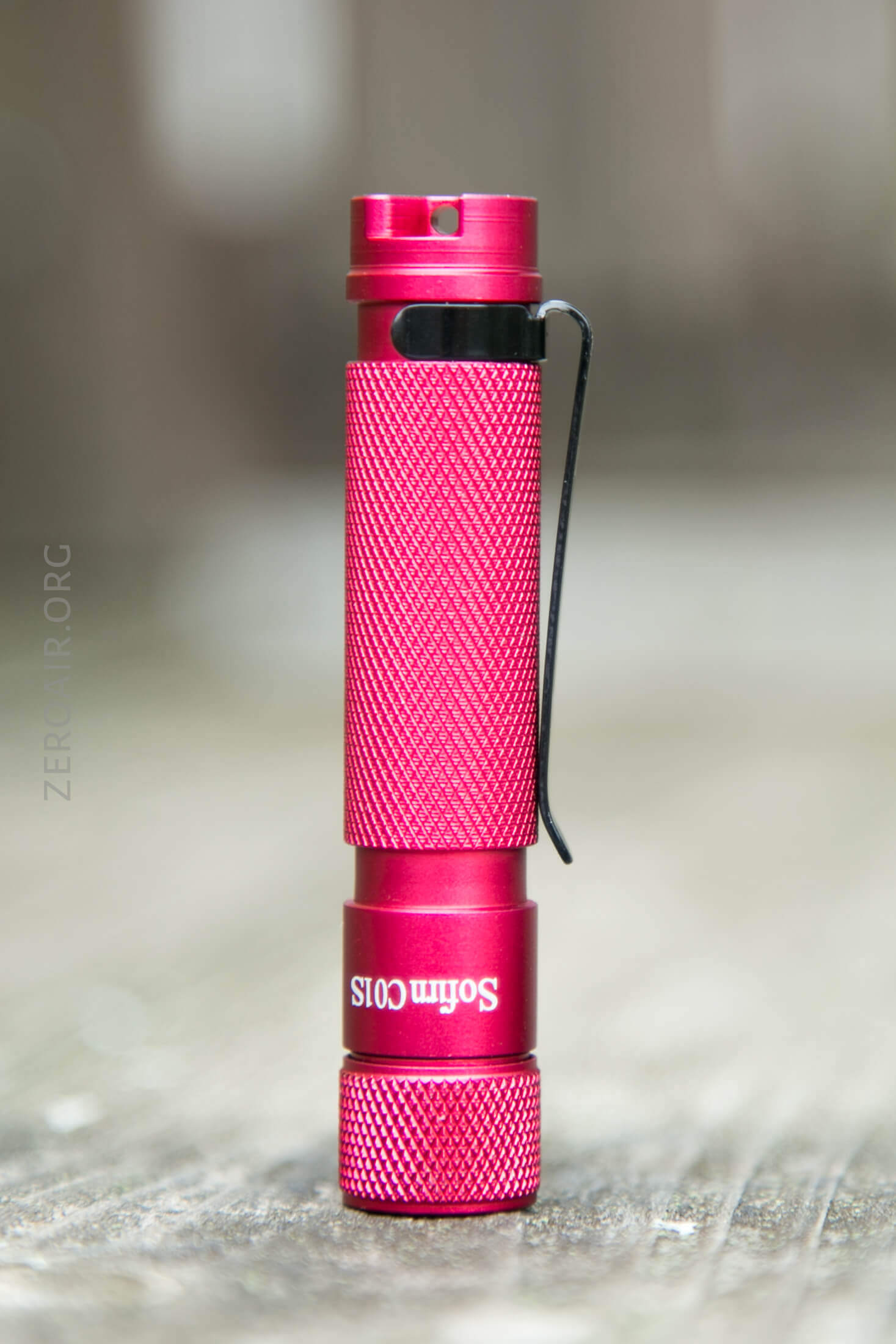

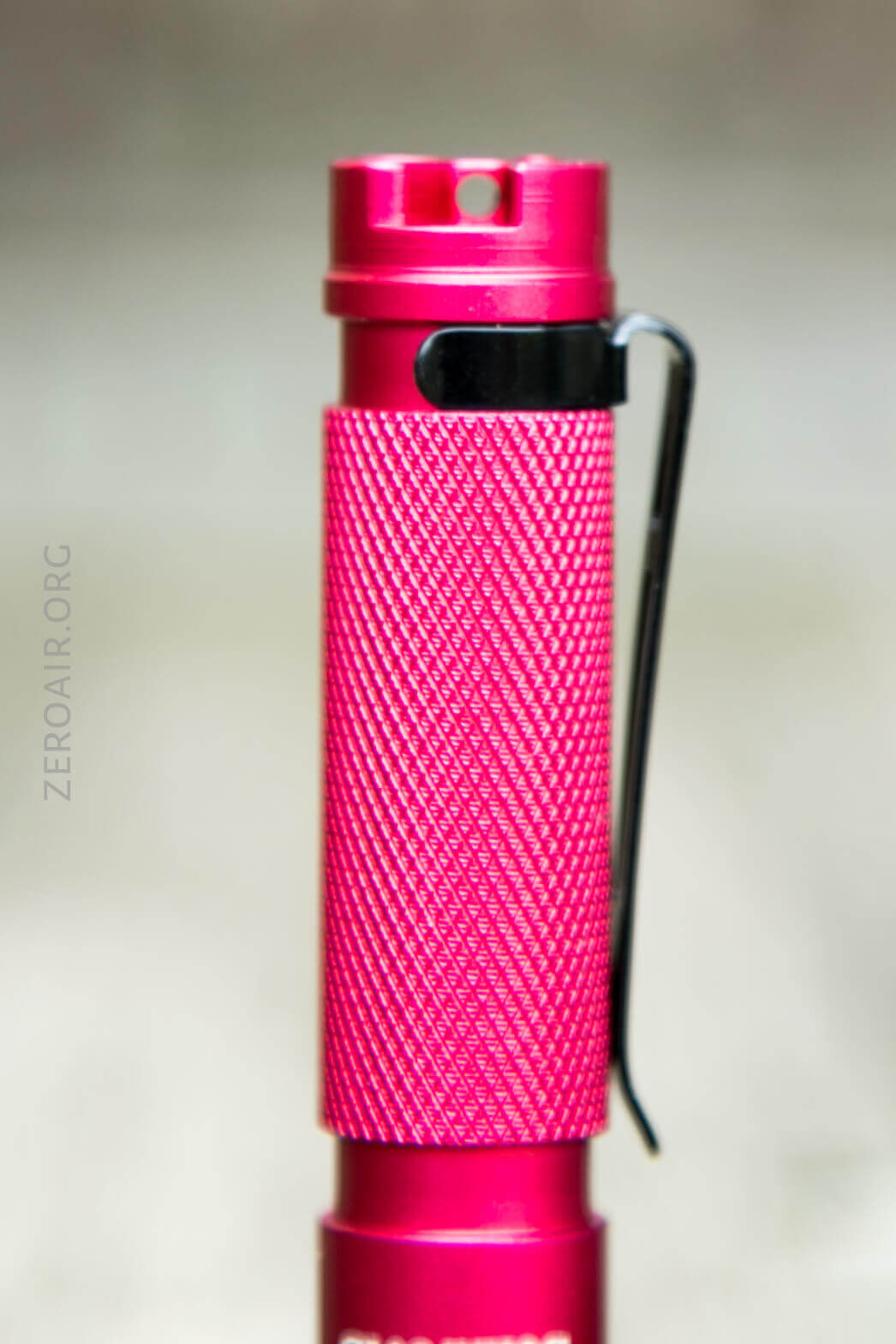

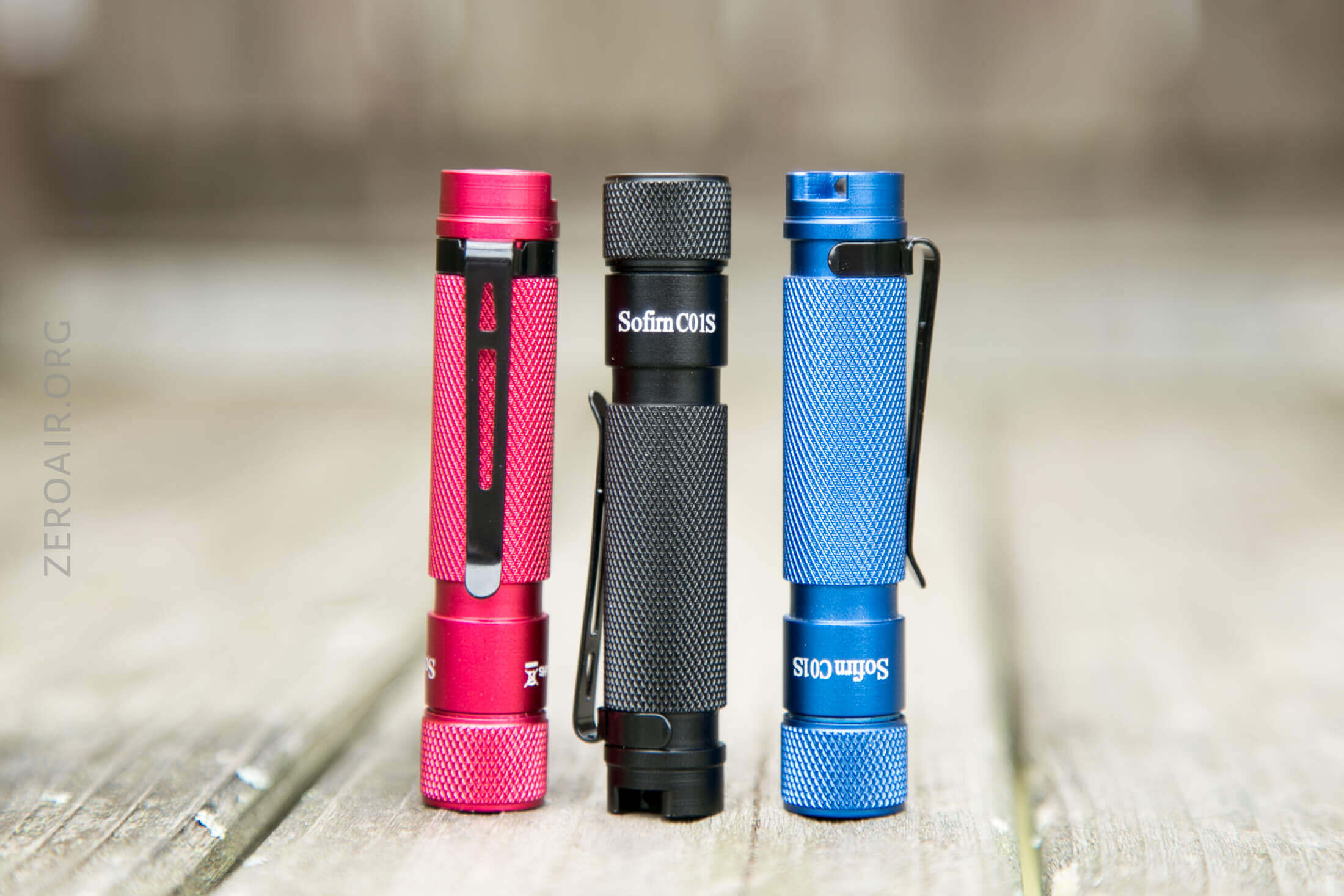

More important for carrying is the friction pocket clip.  The mouth isn’t quite big enough for me (hard to get on pockets) but it holds well once on.  Also, the balance when clipped is great (practically deep carry).  In these photos, you can also see the split ring hole.

Power and Runtime

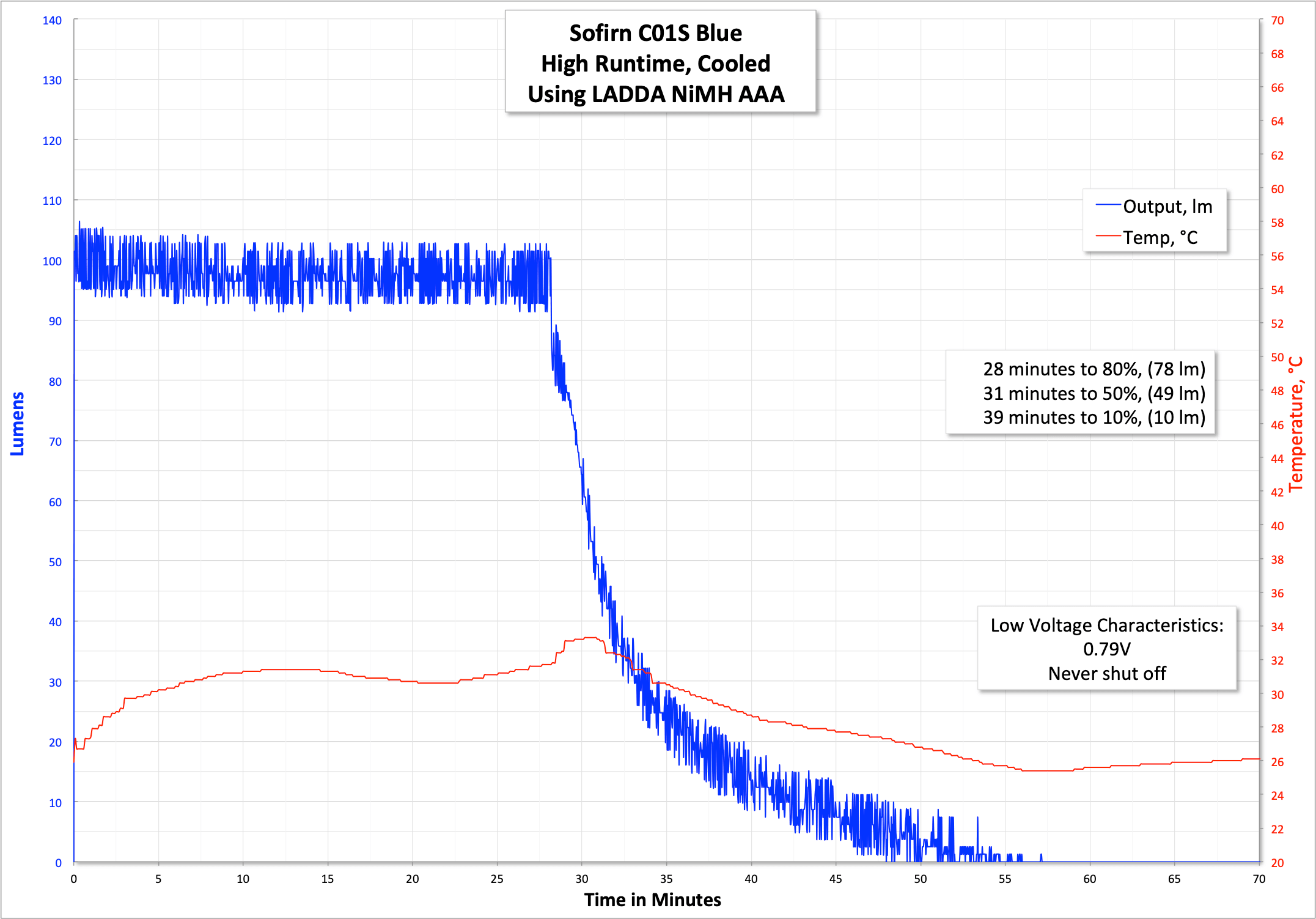

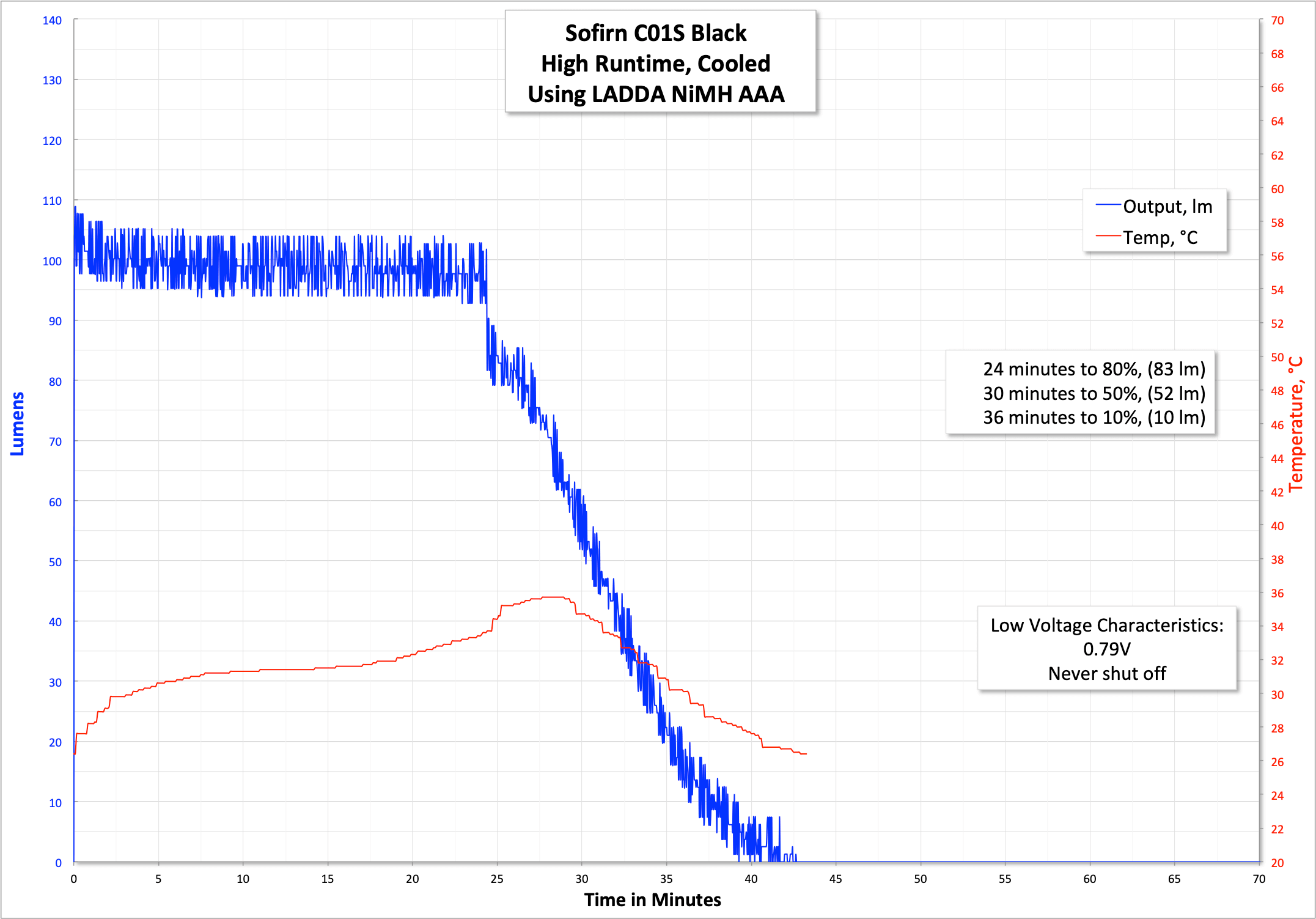

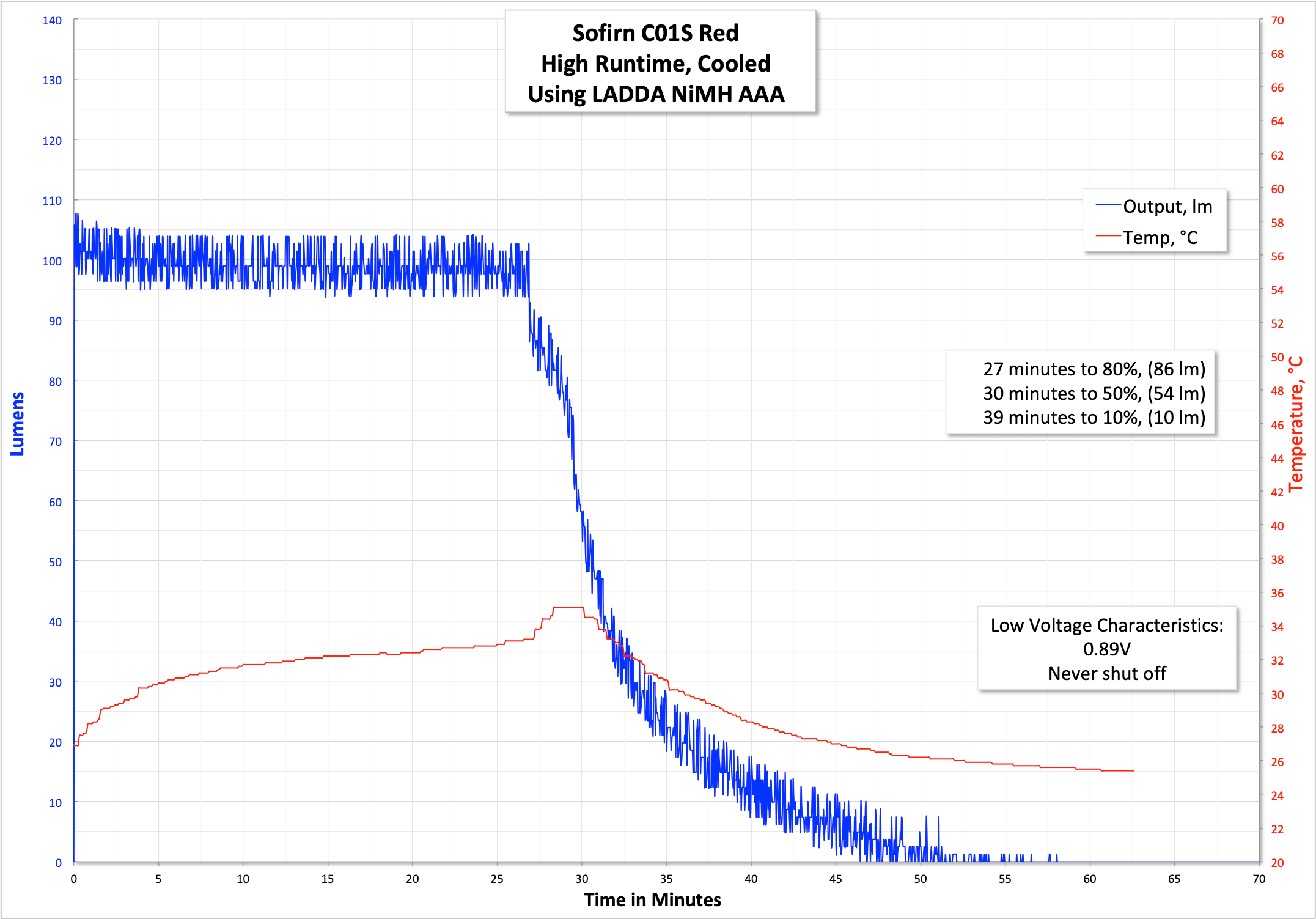

I performed runtime a test for each of my 3 C01S lights.  The color of the light doesn’t seem to play a role in performance, and none of my lights are the BLF edition, so as you might expect, the runtimes are essentially the same.  That’s good confirmation of build quality though, so there’s that. 🙂

The lights don’t seem to have LVP necessarily – they do shut off but it’s likely only because the forward voltage isn’t being reached any more.  For NiMH cells, lack of LVP isn’t the end of the world.

Modes and Currents

Mode	Mode Claimed Output (lm)	Claimed Runtime	Measured Lumens	Tailcap Amps
Black High	100	1h21m	100	0.83
Black Low	3	25h15m	~	0.02
Red High	100	1h21m	100	0.79
Red Low	3	25h15m	~	0.02
Blue High	100	1h21m	100	0.75
Blue Low	3	25h15m	~	0.02

Pulse Width Modulation

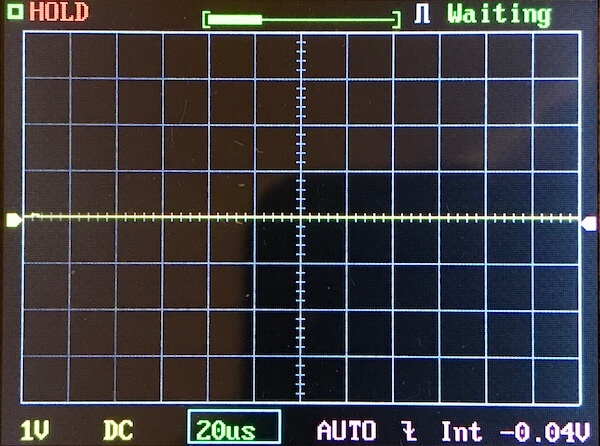

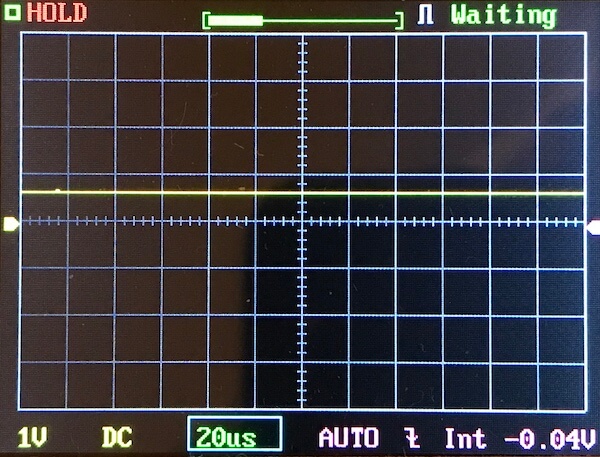

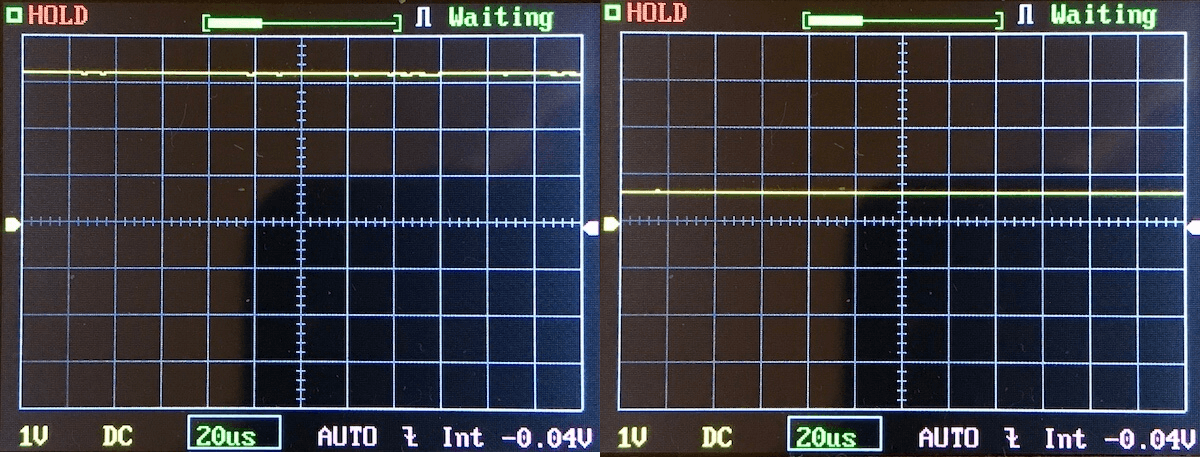

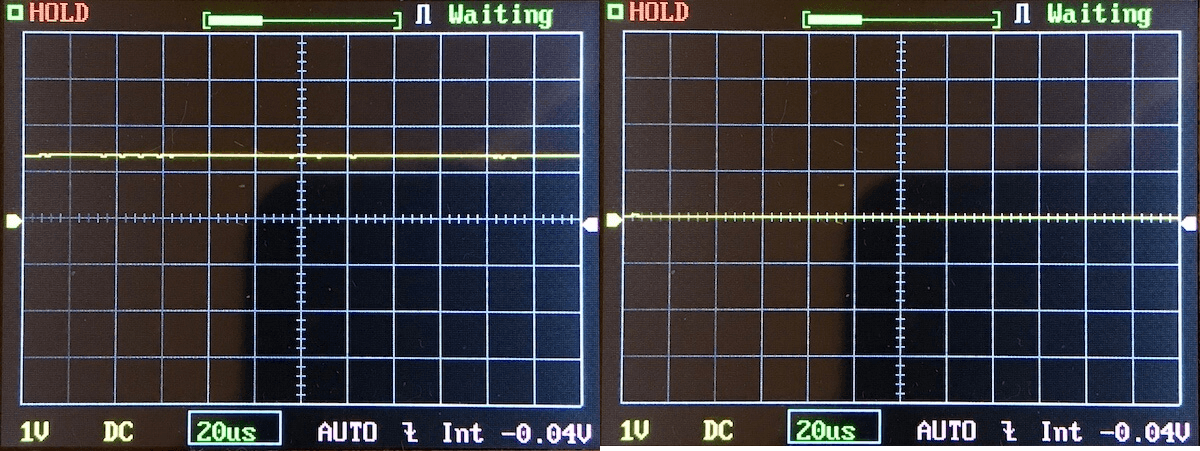

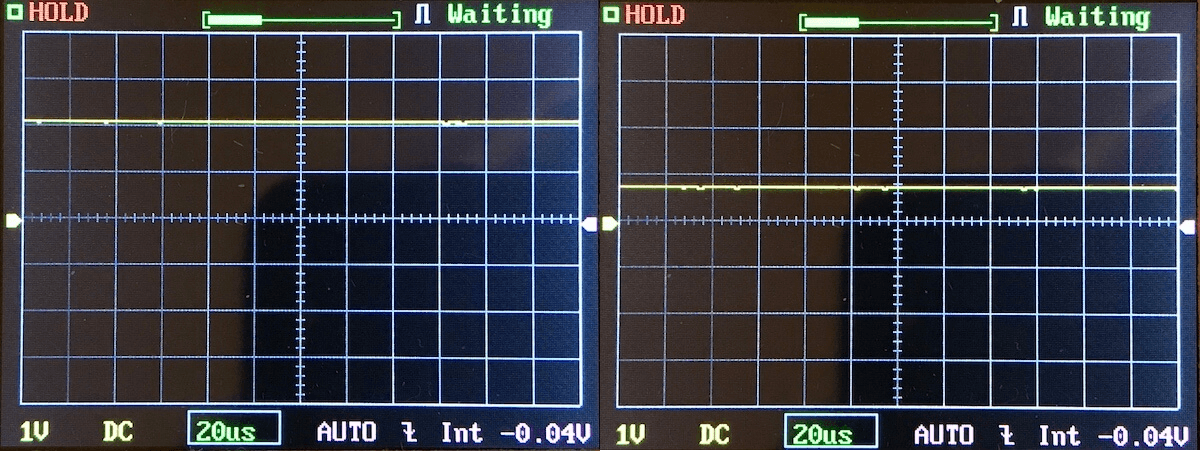

These lights don’t utilize PWM for mode differences.  Photos are High then Low, as the UI dictates.

Blue:

Red:

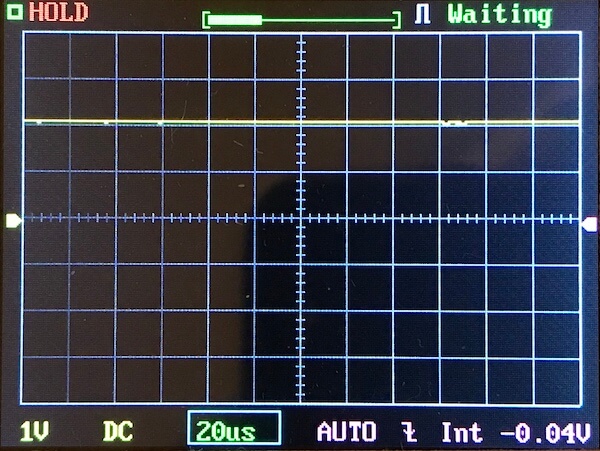

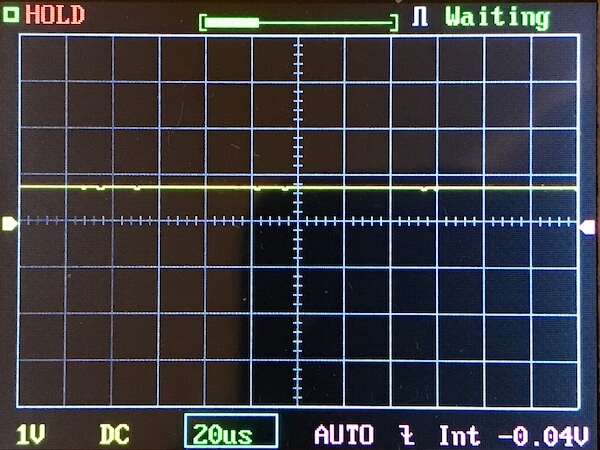

Black:

For reference, here’s a baseline shot, with all the room lights off and almost nothing hitting the sensor.  Also, here’s the light with the worst PWM I could find.  I’m adding multiple timescales, so it’ll be easier to compare to the test light.  Unfortunately, the PWM on this light is so bad that it doesn’t even work with my normal scale, which is 50 microseconds (50us). 10ms.  5ms.  2ms.  1ms.  0.5ms.  0.2ms.  In a display faster than 0.2ms or so, the on/off cycle is more than one screen, so it’d just (very incorrectly) look like a flat line.  I wrote more about this Ultrafire WF-602C flashlight and explained a little about PWM too.

User Interface and Operation

The switch on this light is a twisty head.  There’s ample knurling all over the light (including the head) for one-handed operation.  The UI is twist for High.  If you want Low, you need to twist for High, then twist the light off, then twist again for Low.  The reset to avoid low is around 5 seconds.  That is if you turn the light on to High, then off, and wait around 5 seconds, the next mode will be High.

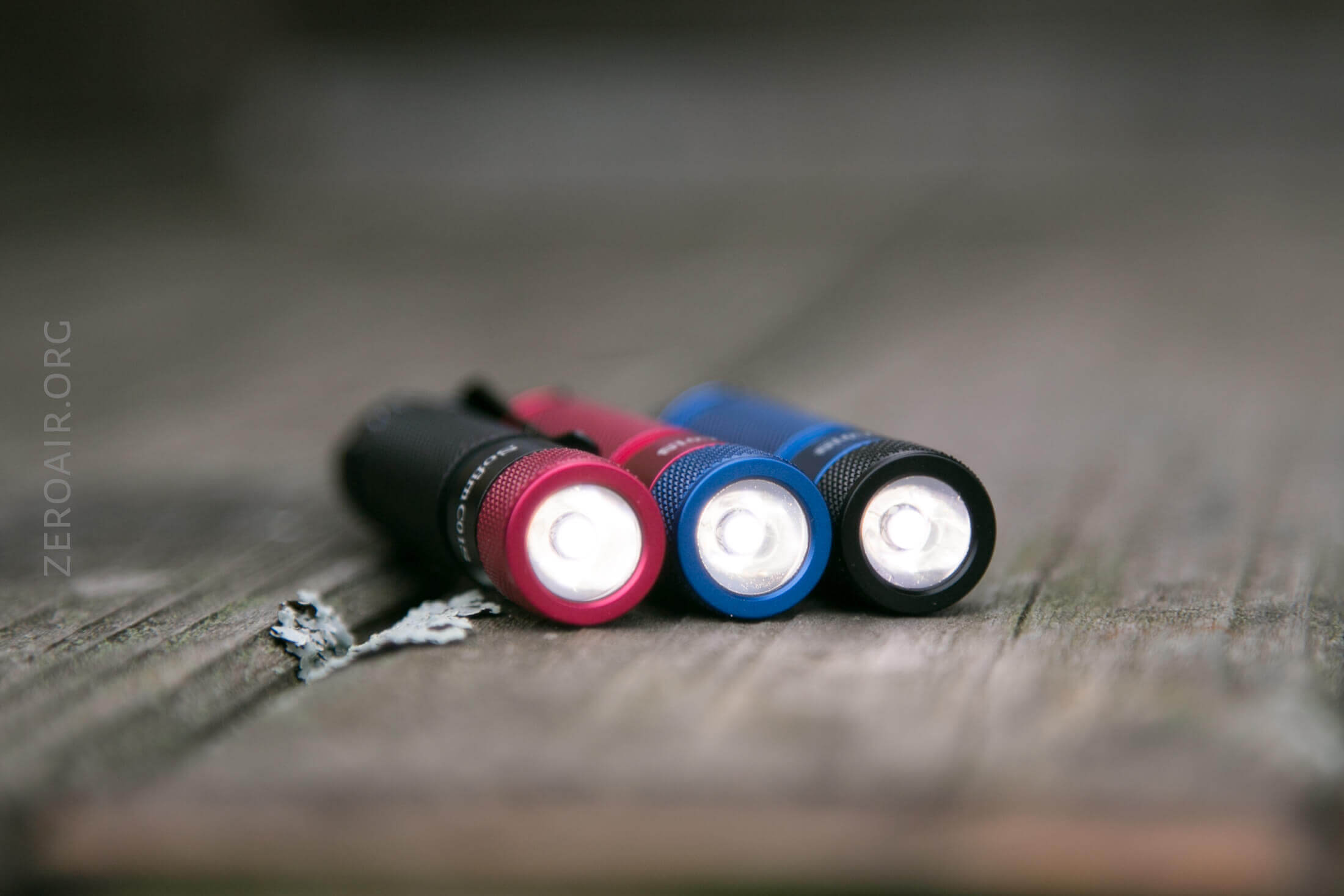

LED and Beam

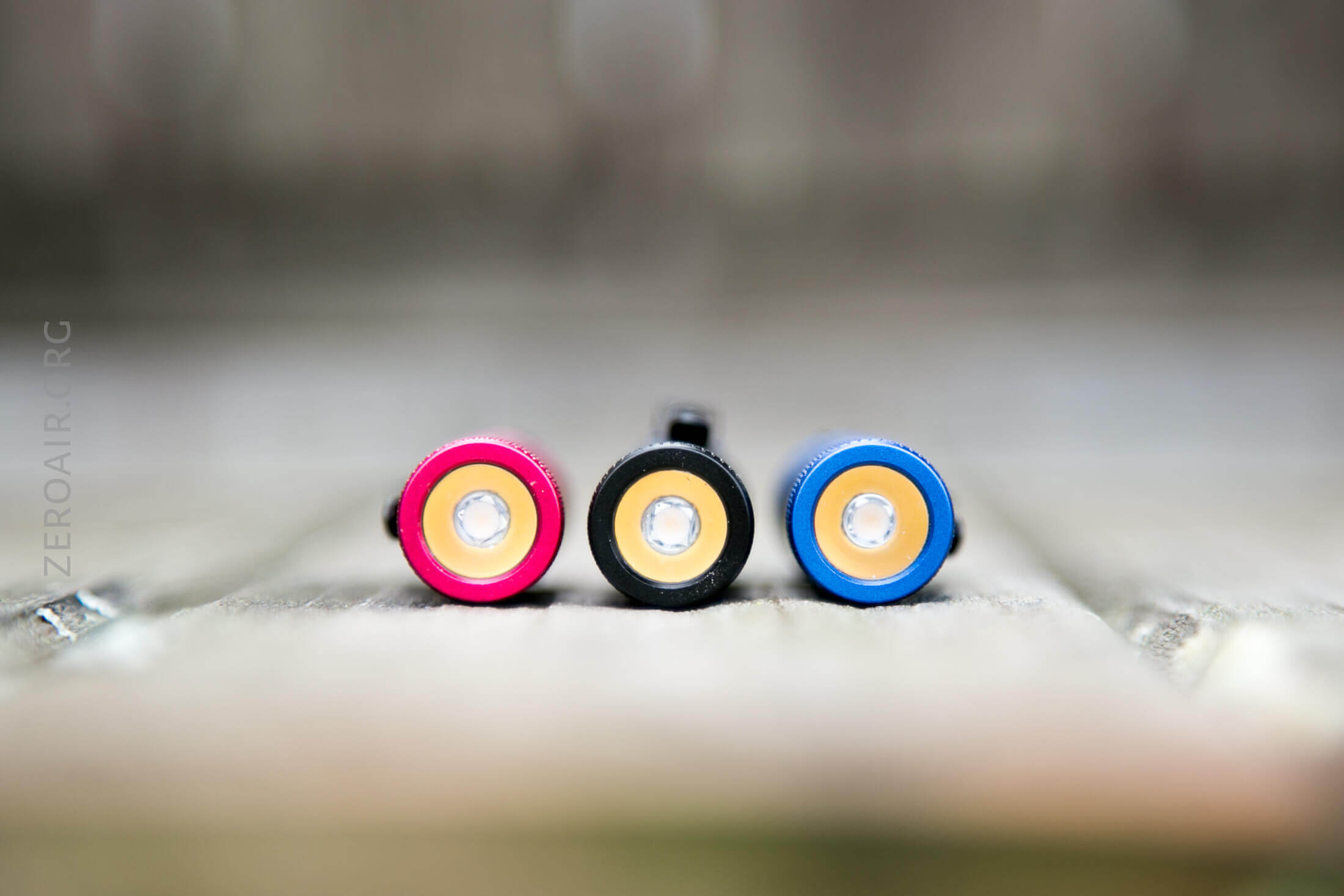

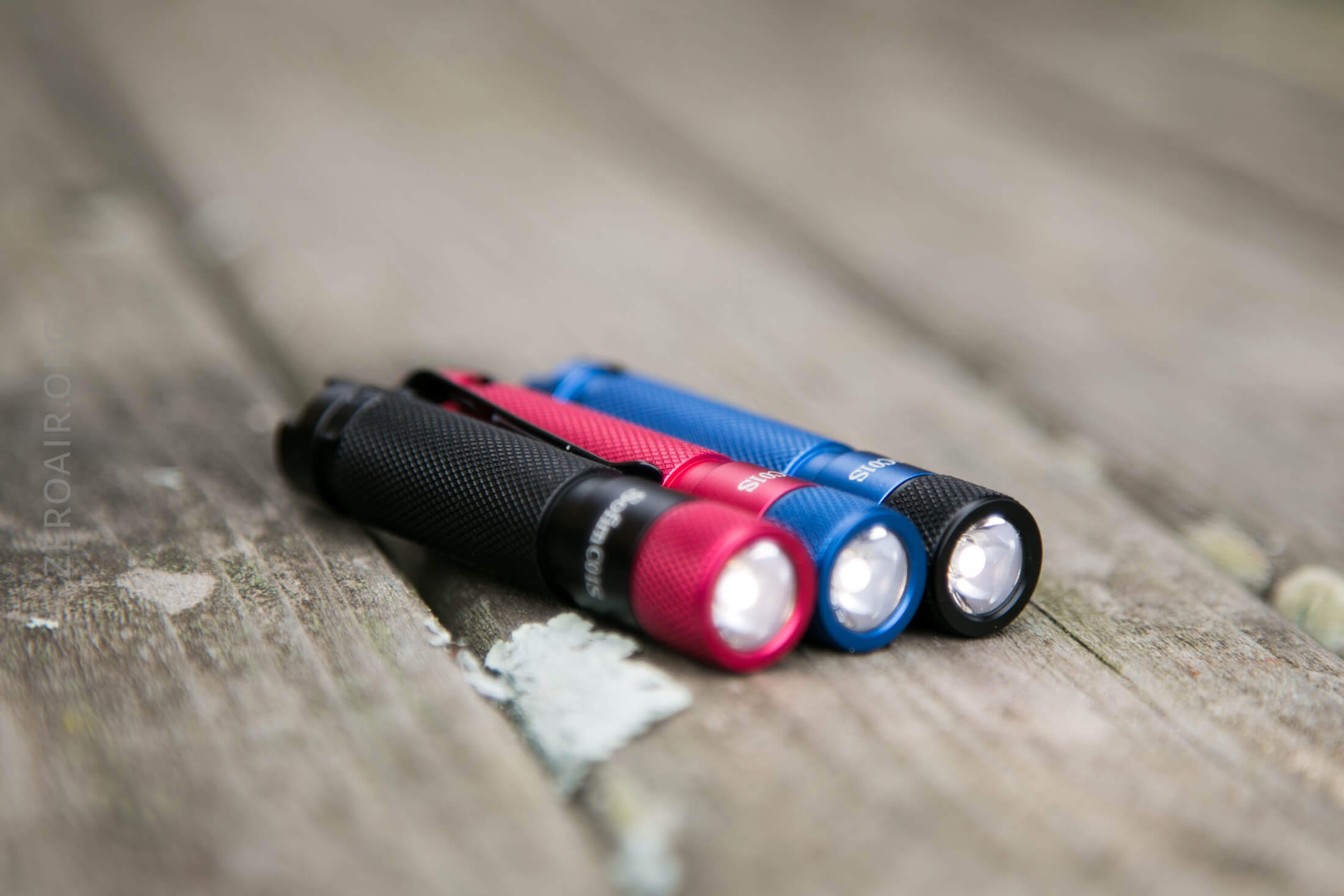

The emitter in the C01S is a Luminus SST-20, in 4000K.  This emitter is a high CRI as well, at 95 CRI.  Also used is a TIR.  This TIR is similar to what’s in my beloved D25AAA and provides a very tight and even hotspot.

These beamshots are always with the following settings:  f8, ISO100, 0.3s shutter, and manual 5000K exposure.

Blue:

Red:

Black:

Tint vs BLF-348 (KillzoneFlashlights.com 219b version) (affiliate link)

Again, Blue Red Black.

I compare everything to the Killzone 219b BLF-348 because it’s inexpensive and has the best tint!

Conclusion

What I like

• High CRI!
• Great color
• Even beam with this TIR
• Tritium slot
• Magnet slot

What I don’t like

• I’d like to see a short version, without the lanyard hole, magnet slot, and trit slot.
• The mouth of the clip is less than perfect (needs to be bigger and grabbier)

---
