Coast HP7R Flashlight Review

Coast HP7R Flashlight Review

The Coast HP7R flashlight is a custom lithium-ion or 4xAAA battery light.  It’s a zoomie and has a very fetching orange color body.  Read on!

Official Specs and Features

Here’s a link to the Coast HP7R Flashlight product page.


There’s only one version, but the body is available in orange (seen here), red, blue, black, and green.


MSPR on this light looks to be $129, with a street price of $99.  Possibly less, depending on which color you pick.

Short Review

I was unimpressed with the other Coast light I reviewed recently, and while this one is better overall, it’s still not one I can recommend.  It’s too big, the UI is not feature-rich enough, it’s overly complicated internally, … it’s a zoomie…  and on top of all of that (which I could overlook except for this):  It’s massively expensive.

Long Review

The Big Table

Coast HP7R
Price in USD at publication time: $99.00
Cell: 1xCustom Liion
High Runtime
LVP? Possibly
Switch Type: Mechanical
On-Board Charging? Yes
Power off Charge Port with no Cell? No (All modes while charging, though).
Claimed Lumens (lm) 300
Measured Lumens (at 30s) 229 (76.3% of claim)^
Claimed Throw (m) 352
Candela (Calculated) in cd (at 30s) 811lux @ 5.871m = 27954cd
Throw (Calculated) (m) 334.4 (95% of claim)^
All my Coast reviews!

^ Measurement disclaimer:  I am an amateur flashlight reviewer.  I don’t have $10,000 or even $1,000 worth of testing equipment.  I test output and such in PVC tubes!!  Please consider claims within 10% of what I measure to be perfectly reasonable (accurate, even).

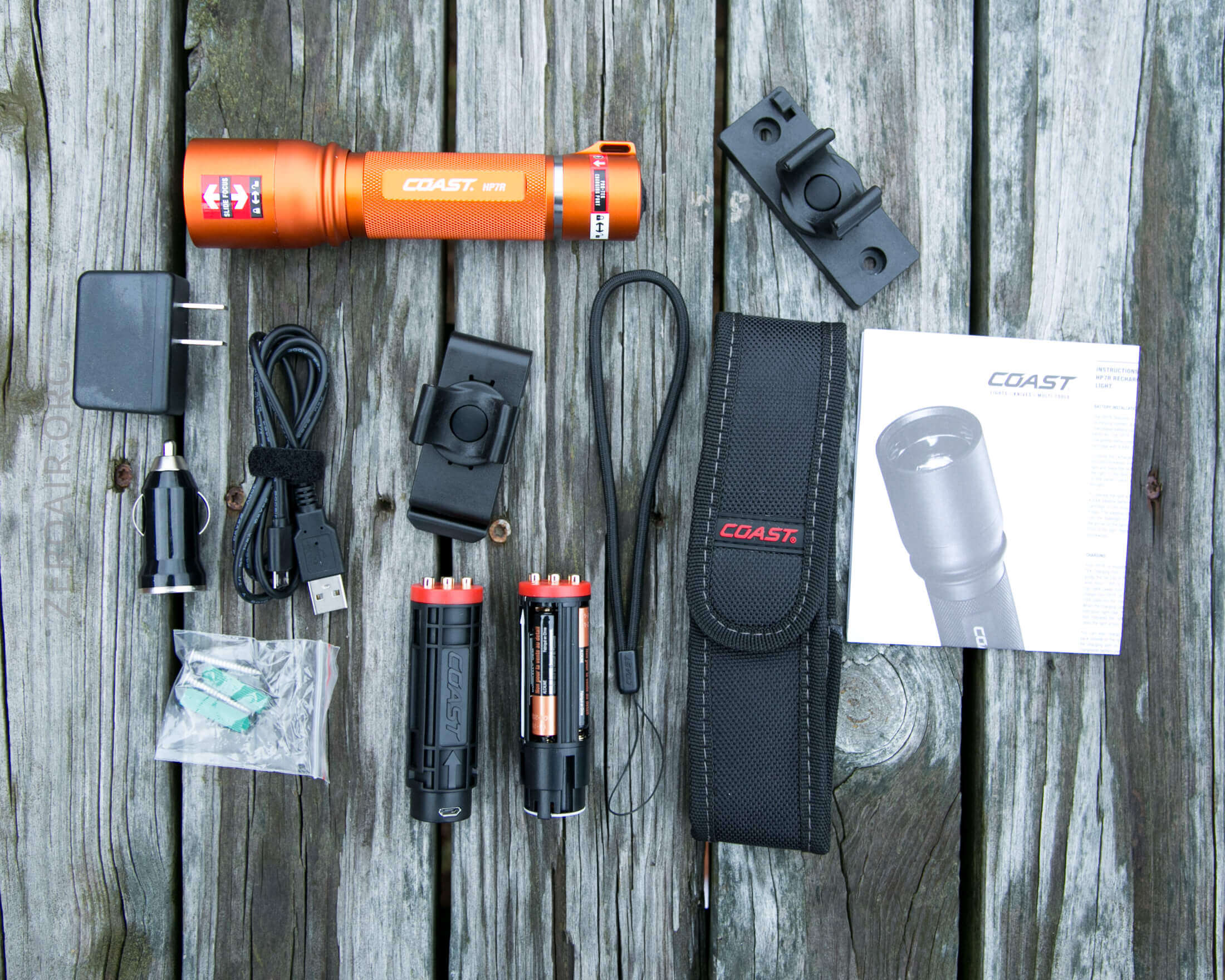

What’s Included

  • Coast HP7R Zoomie flashlight
  • AAAx4 battery caddy (including batteries)
  • Custom lithium-ion battery (2)
  • Nylon pouch
  • Wall mount bracket
  • Belt mount bracket
  • Lanyard
  • Cigarette adapter for USB charging
  • Charging cable (USB to micro-USB)
  • Wall adapter for USB charging
  • Manual

Package and Manual

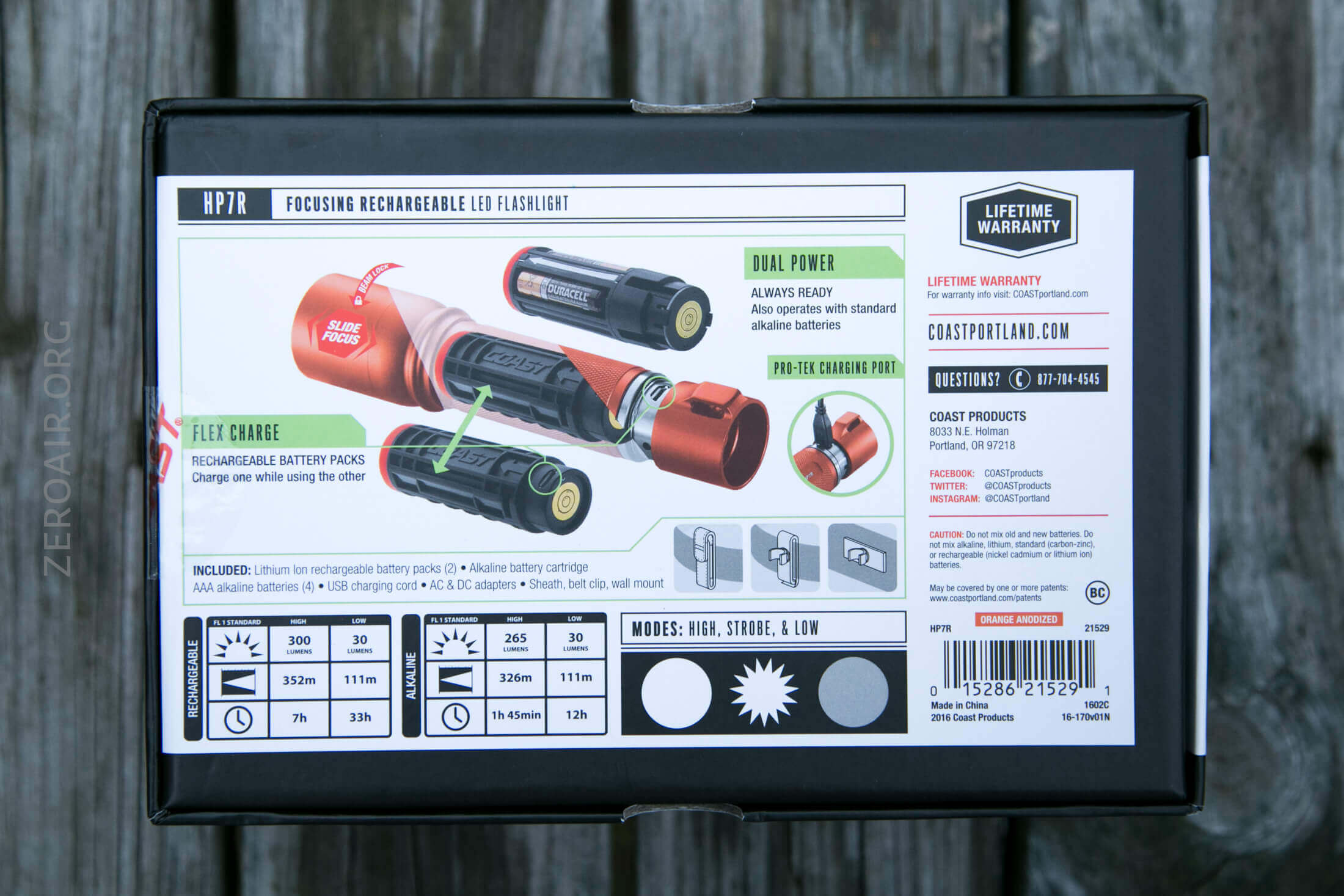

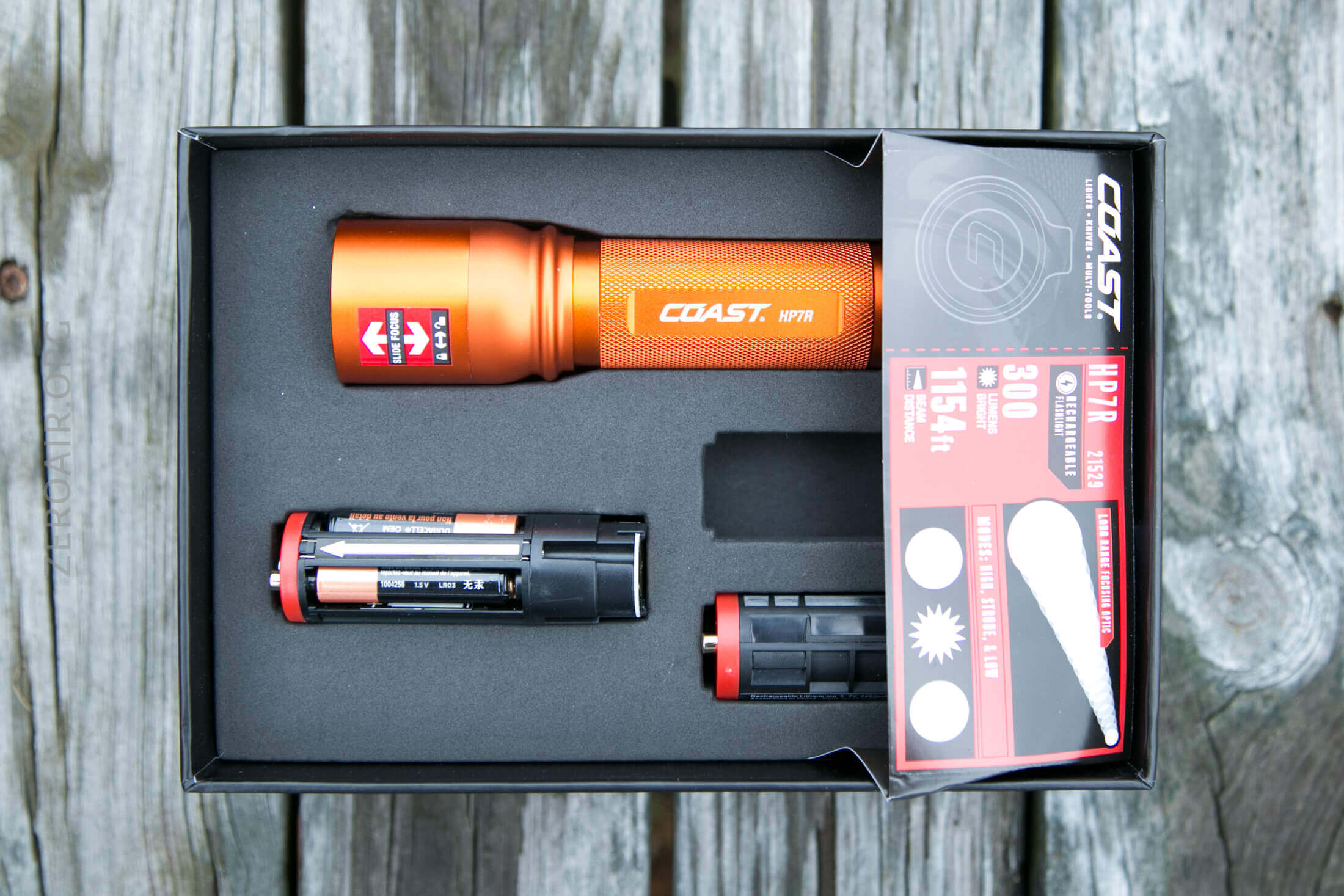

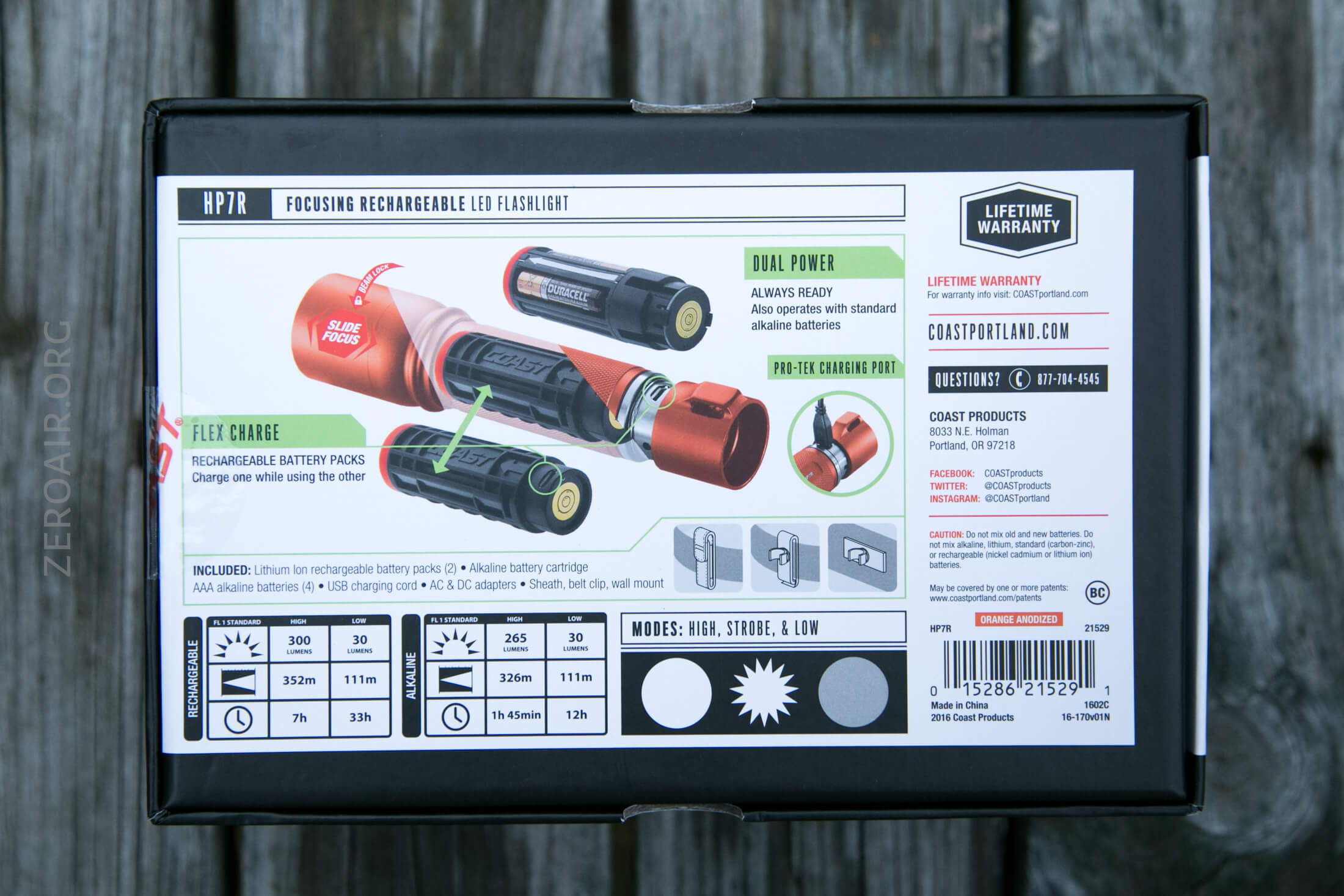

The box is very nicely printed.  It’s a big box.

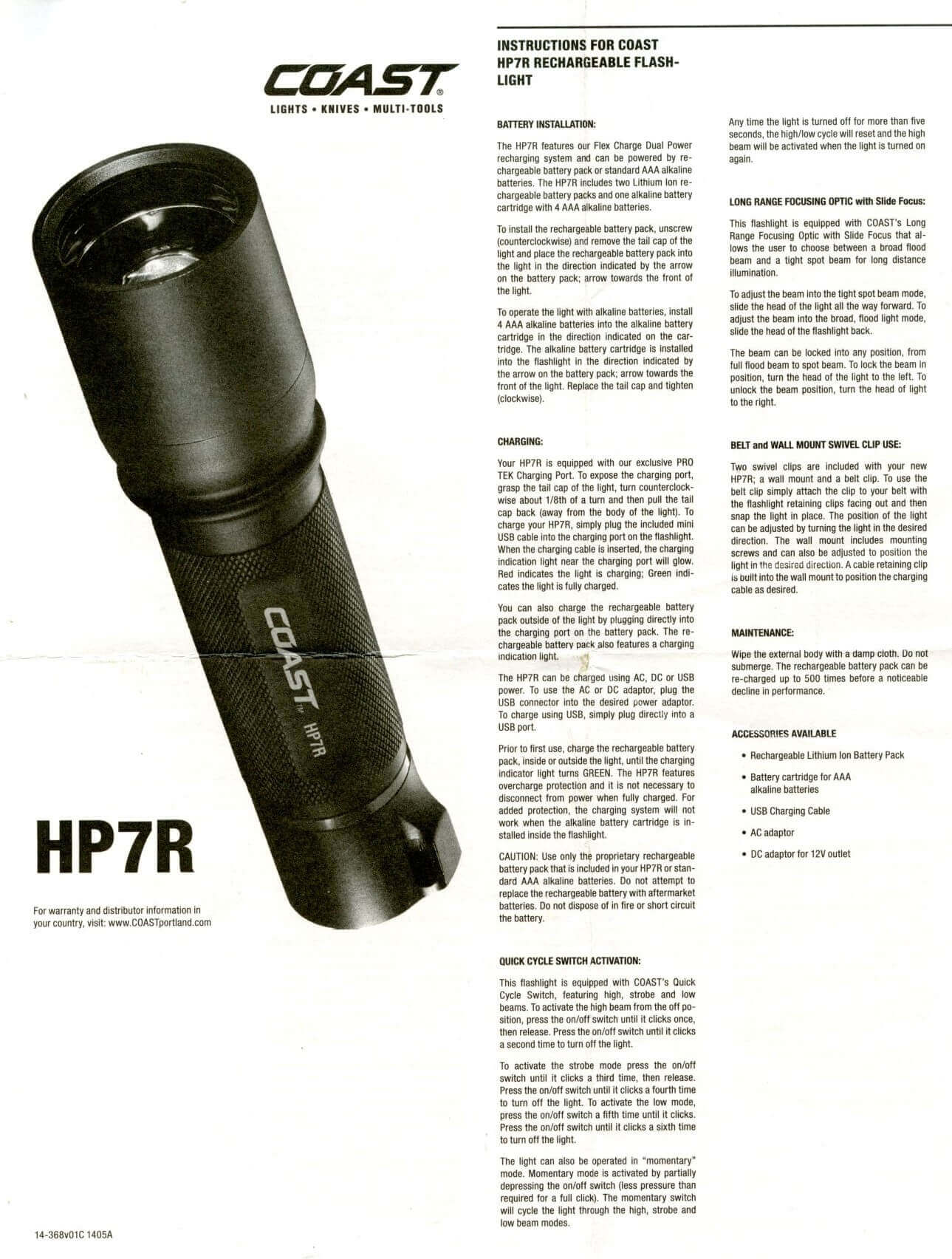

The manual is a bit short really, for all the accessories/features the light has.  Also, it doesn’t include any specs, which all seem to be on the box or other places in the package.

Build Quality and Disassembly

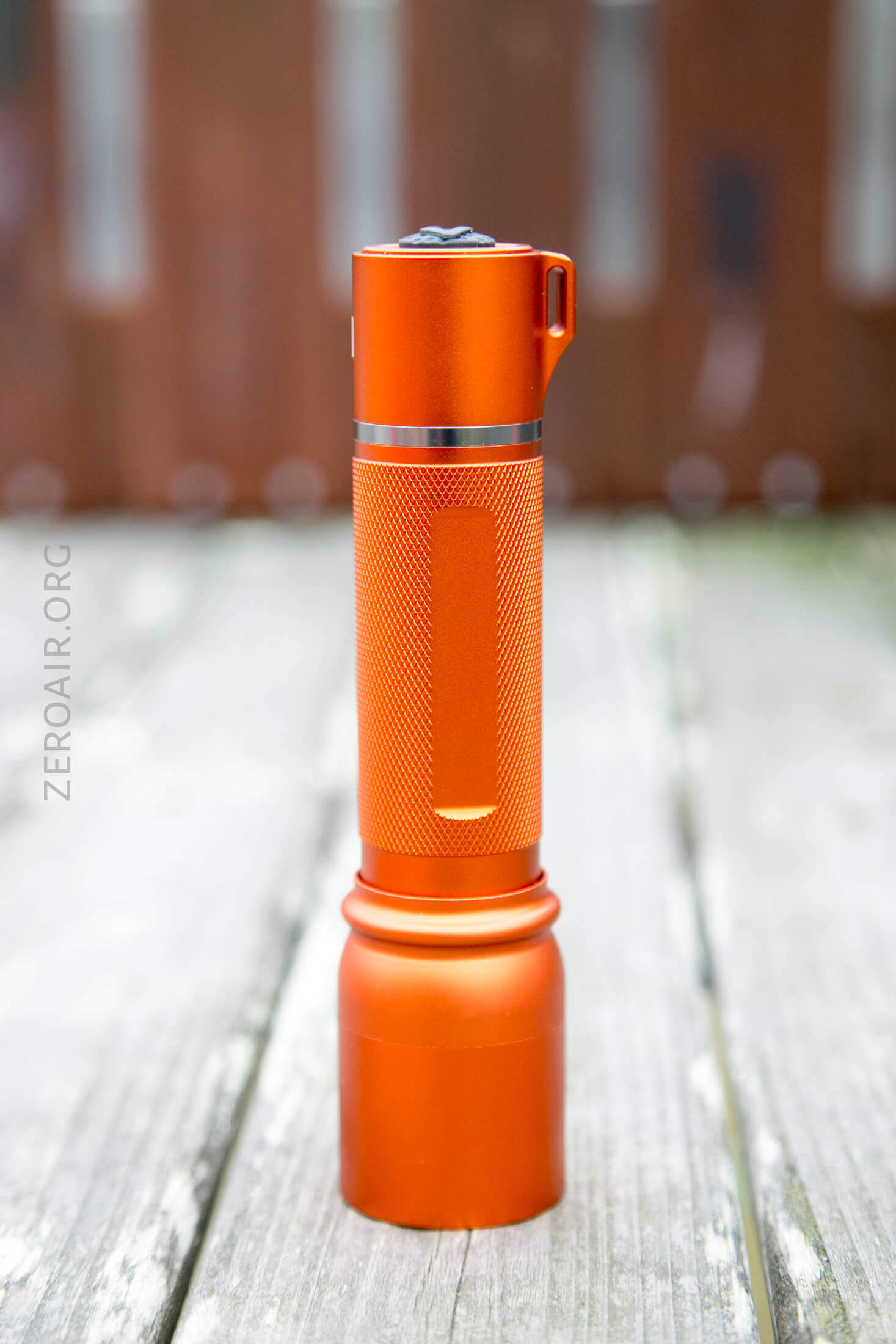

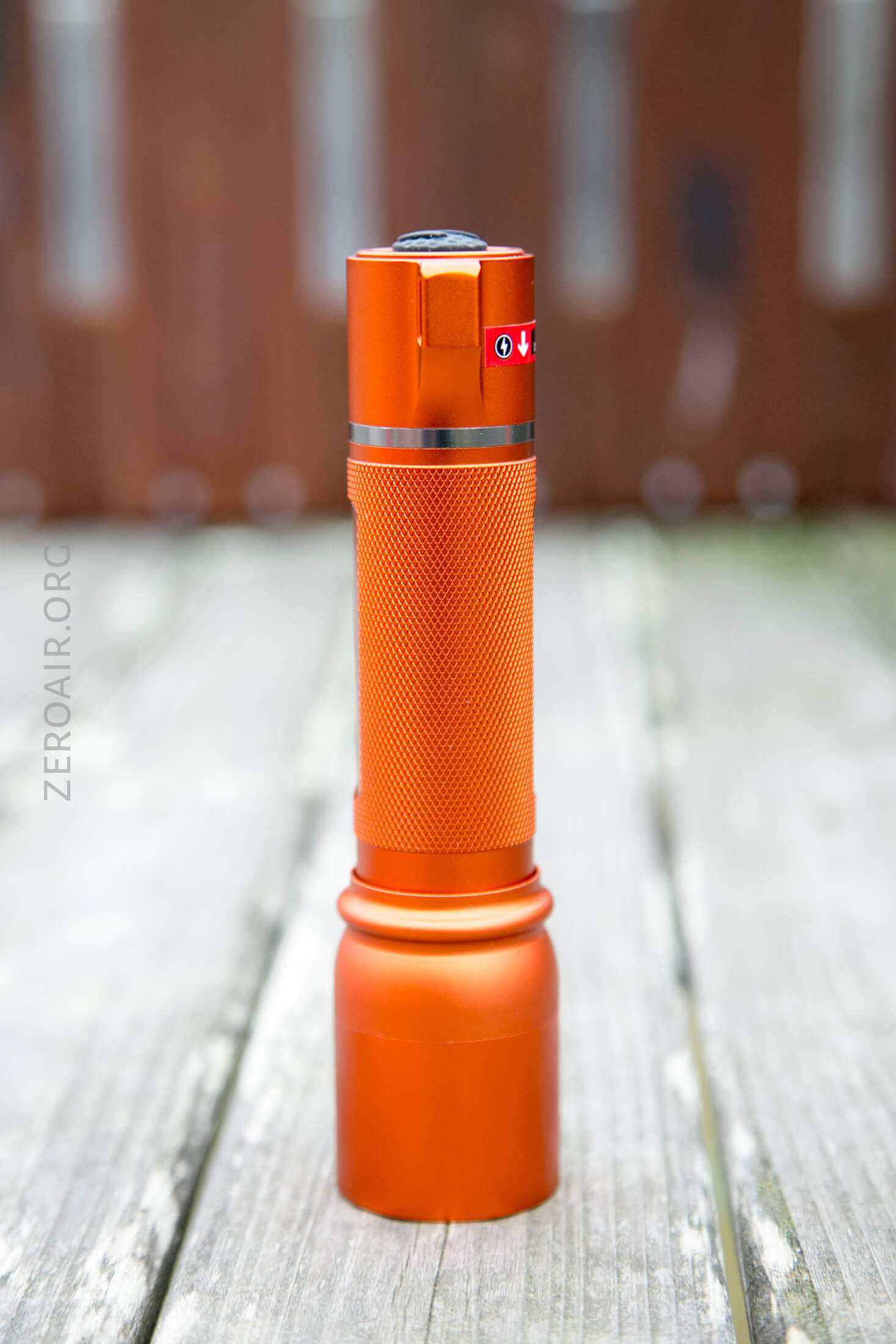

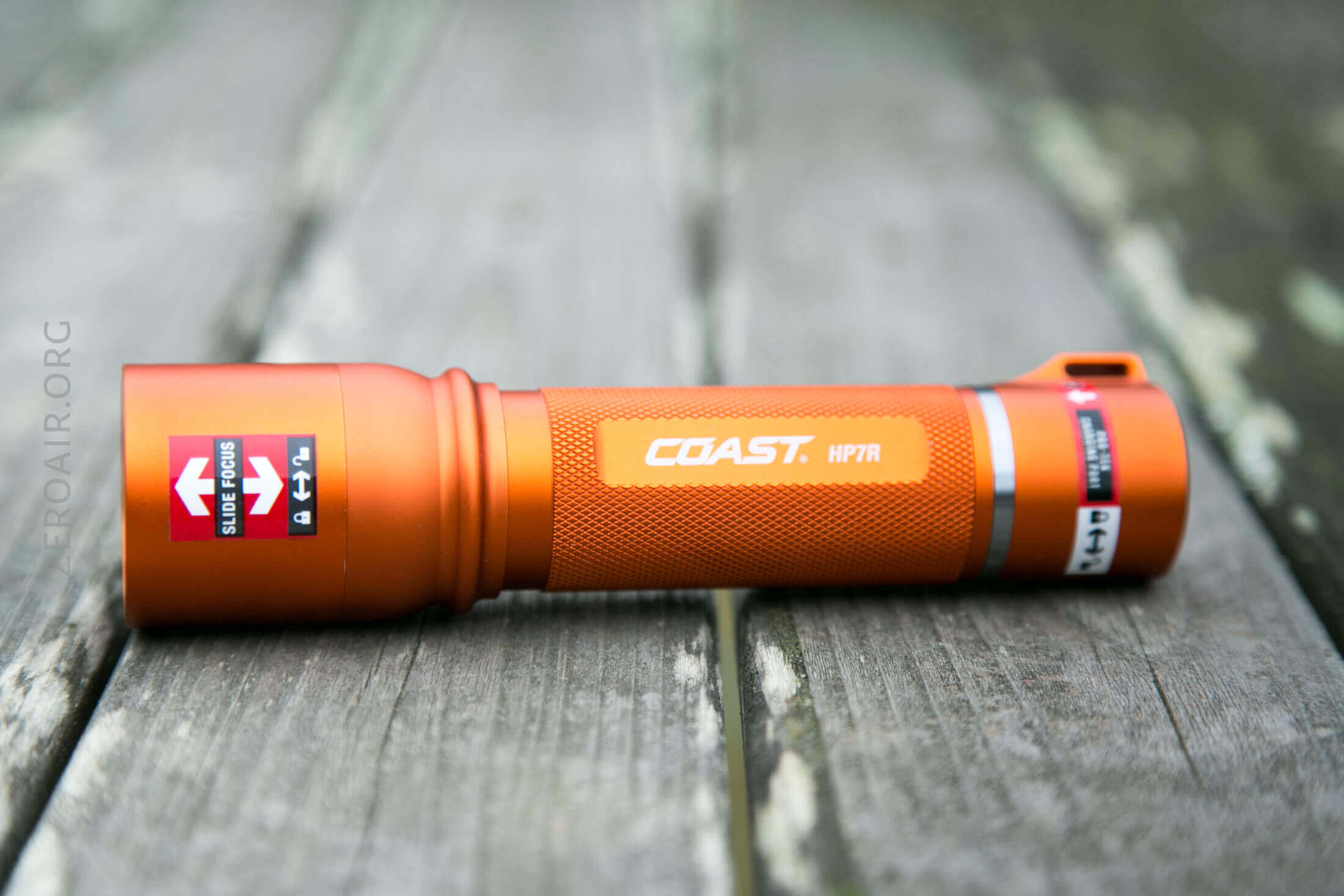

This is a big light.  It’s not as big as the bigger brother Polysteel 600R and is much more manageable for carrying, though.  The size is understandable because of the 4xAAA support.  Those cells organized that way takes up a lot of space.

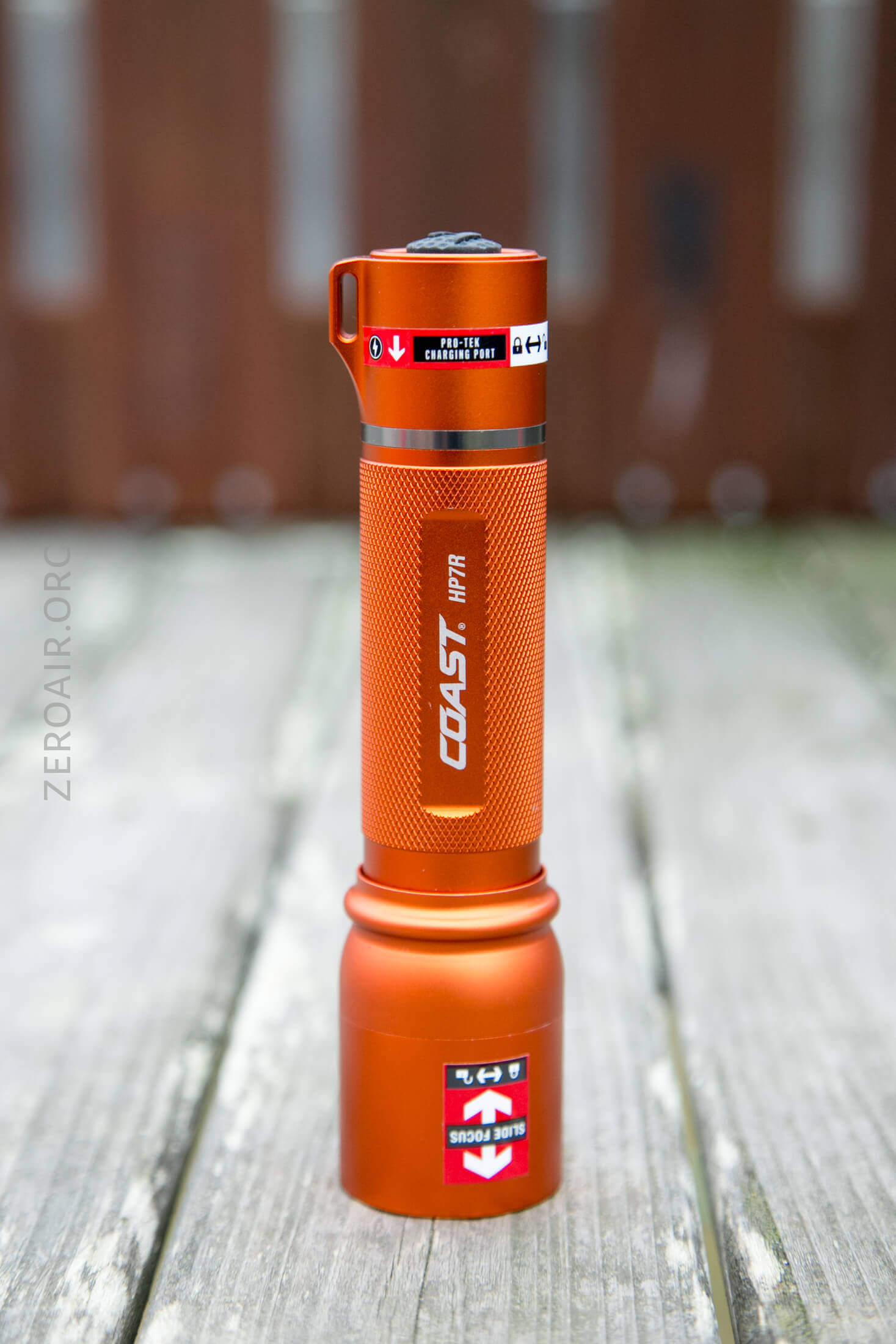

The body color is quite nice, but unfortunately (as is evident above) not all the parts match in color exactly.

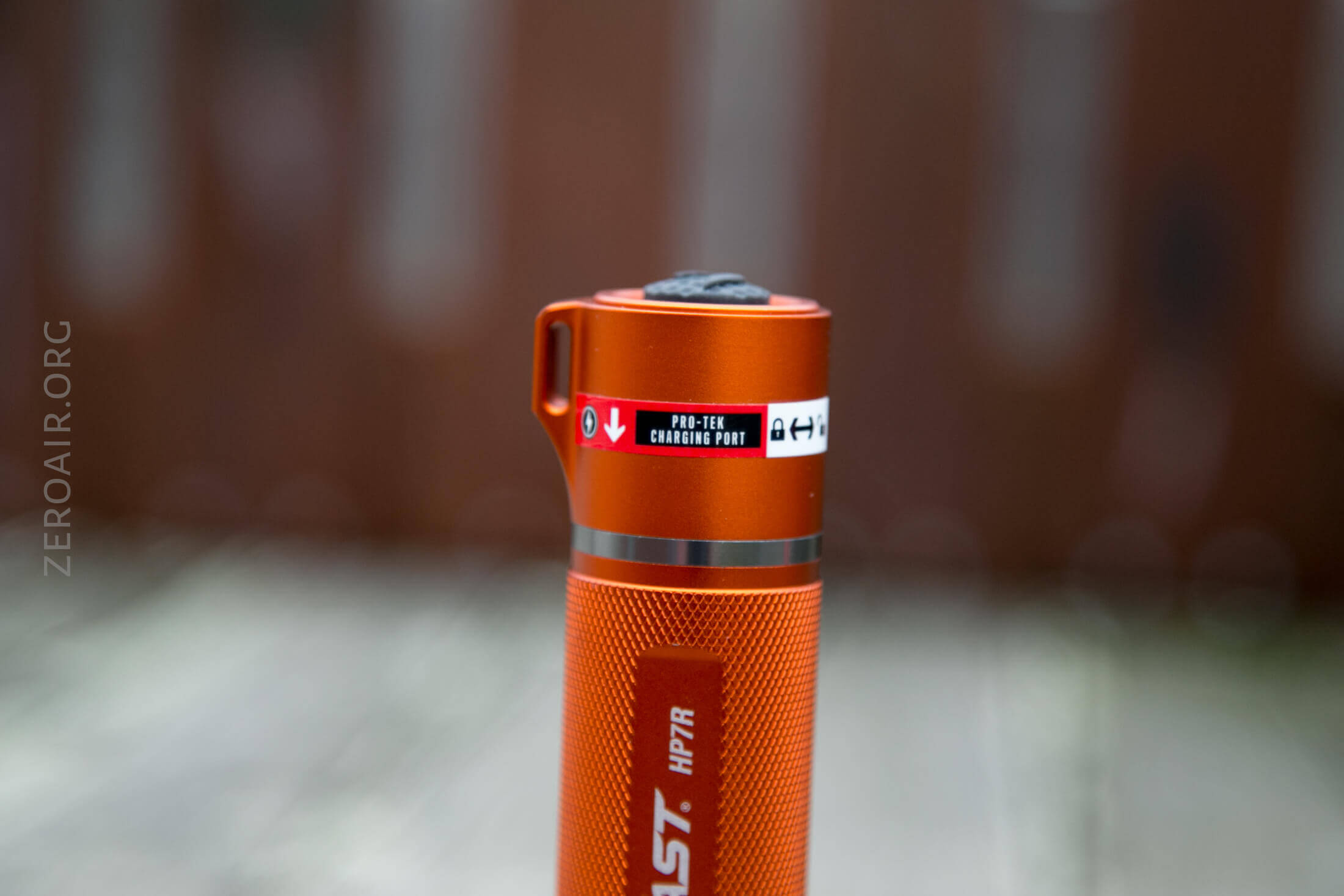

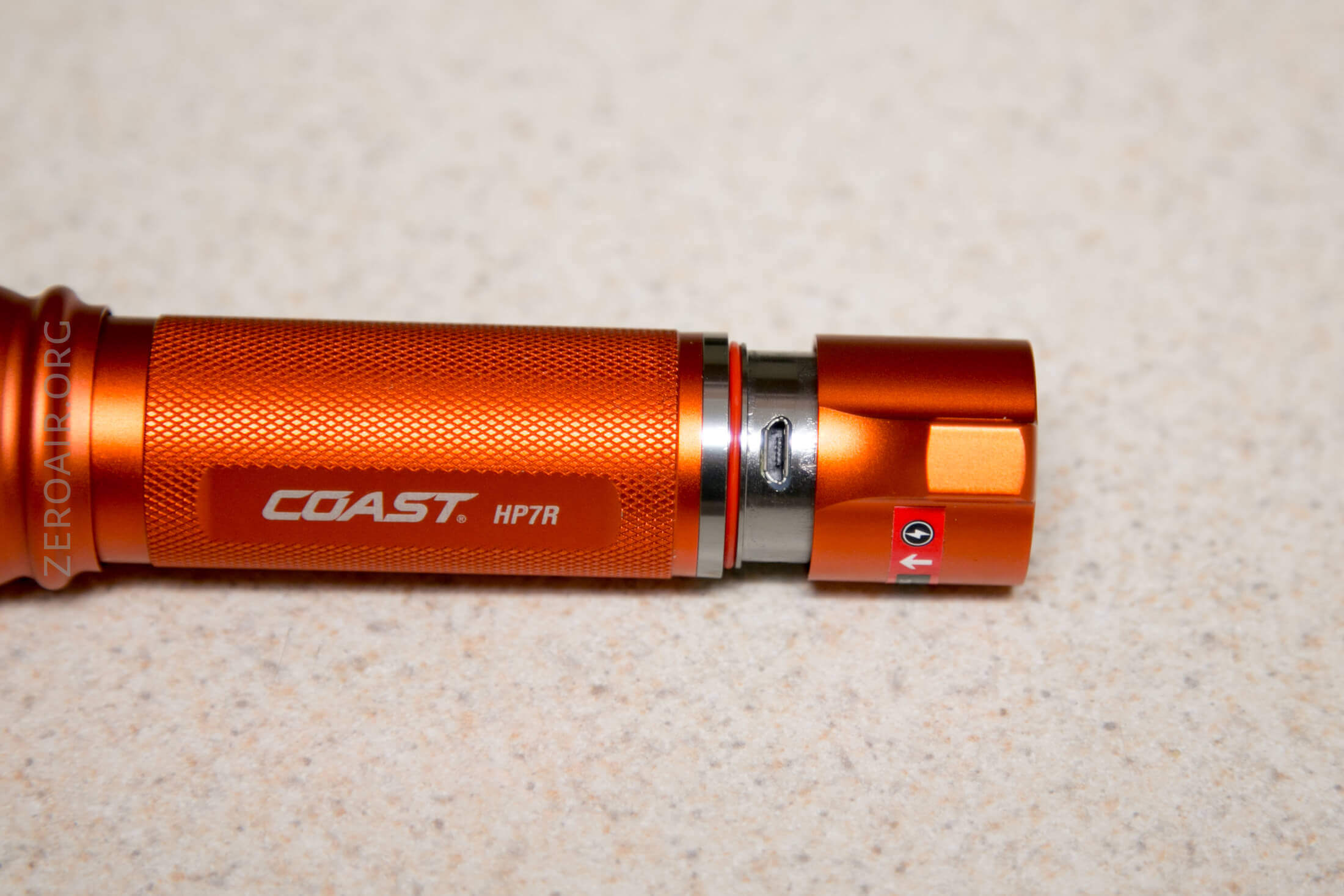

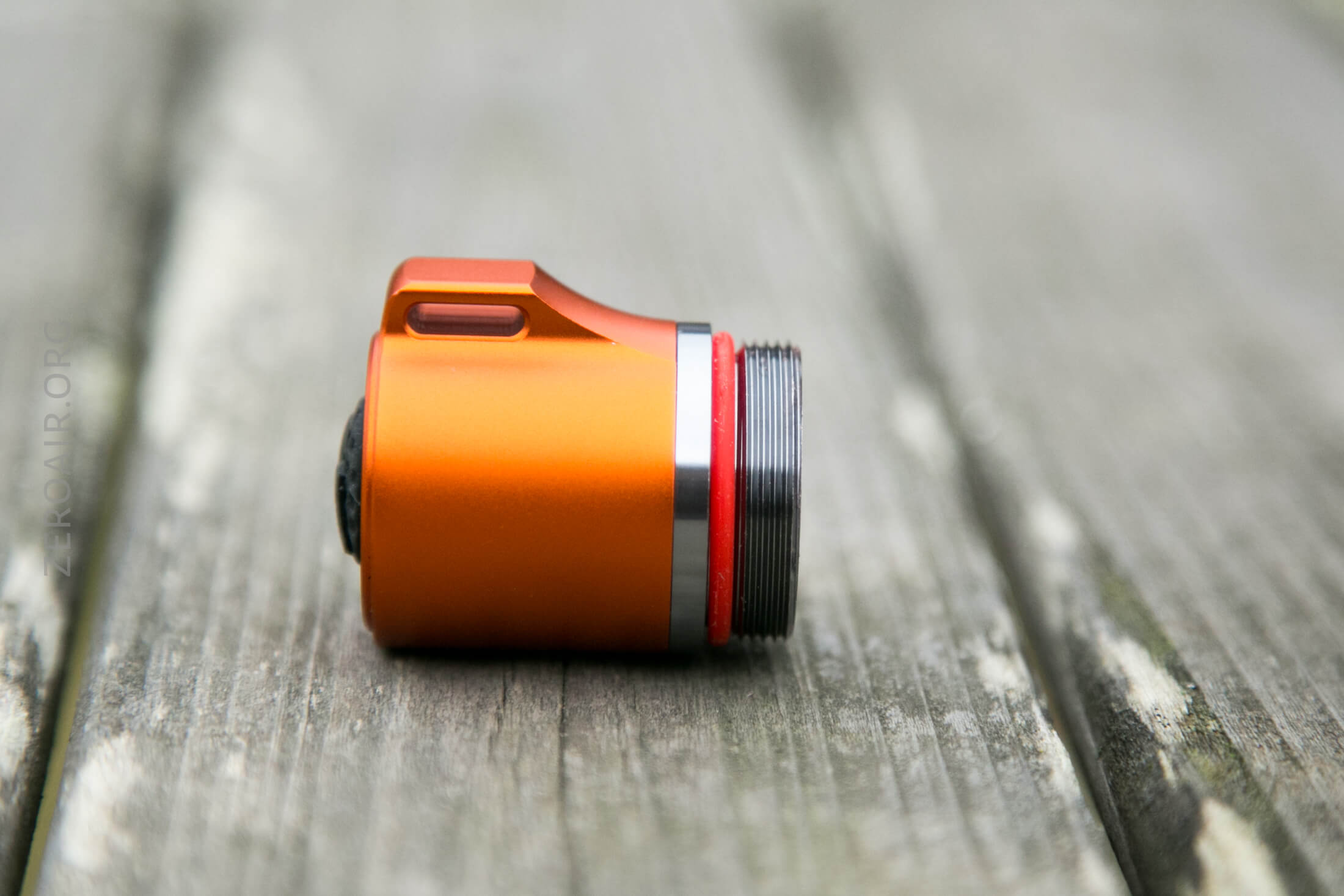

The body of the light ships with various stickers here and there.  One, in particular, perplexed me until just sitting here and writing.  The sticker indicates the tailcap may be locked in some way.  Well, what way?  Turns out that when locked, the tailcap can be pulled away from the cell tube, revealing the charge port without having to remove the tailcap completely.  This is a nice feature.  There’s an o-ring in there to help with waterproofness when the tailcap is down (as seen below).

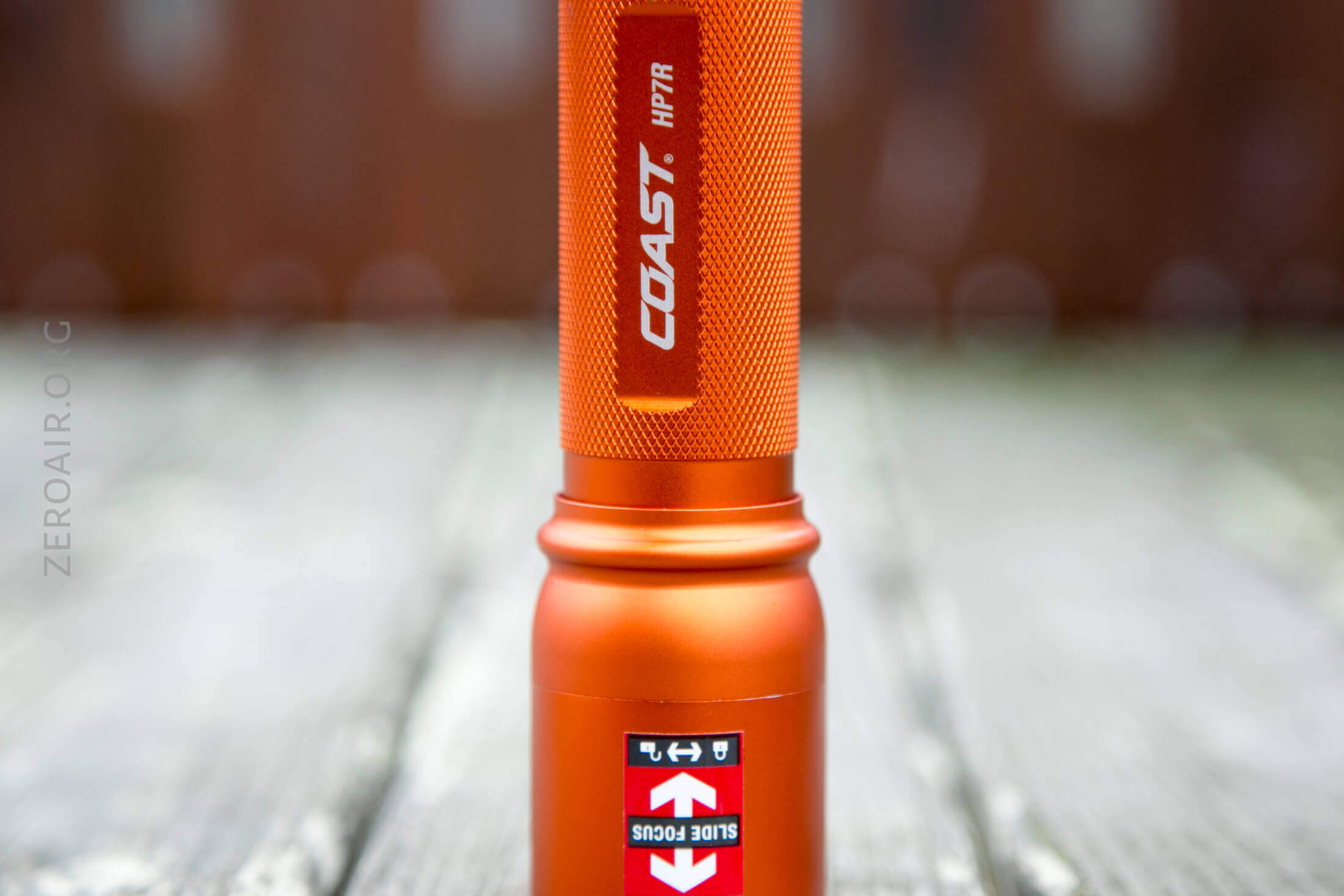

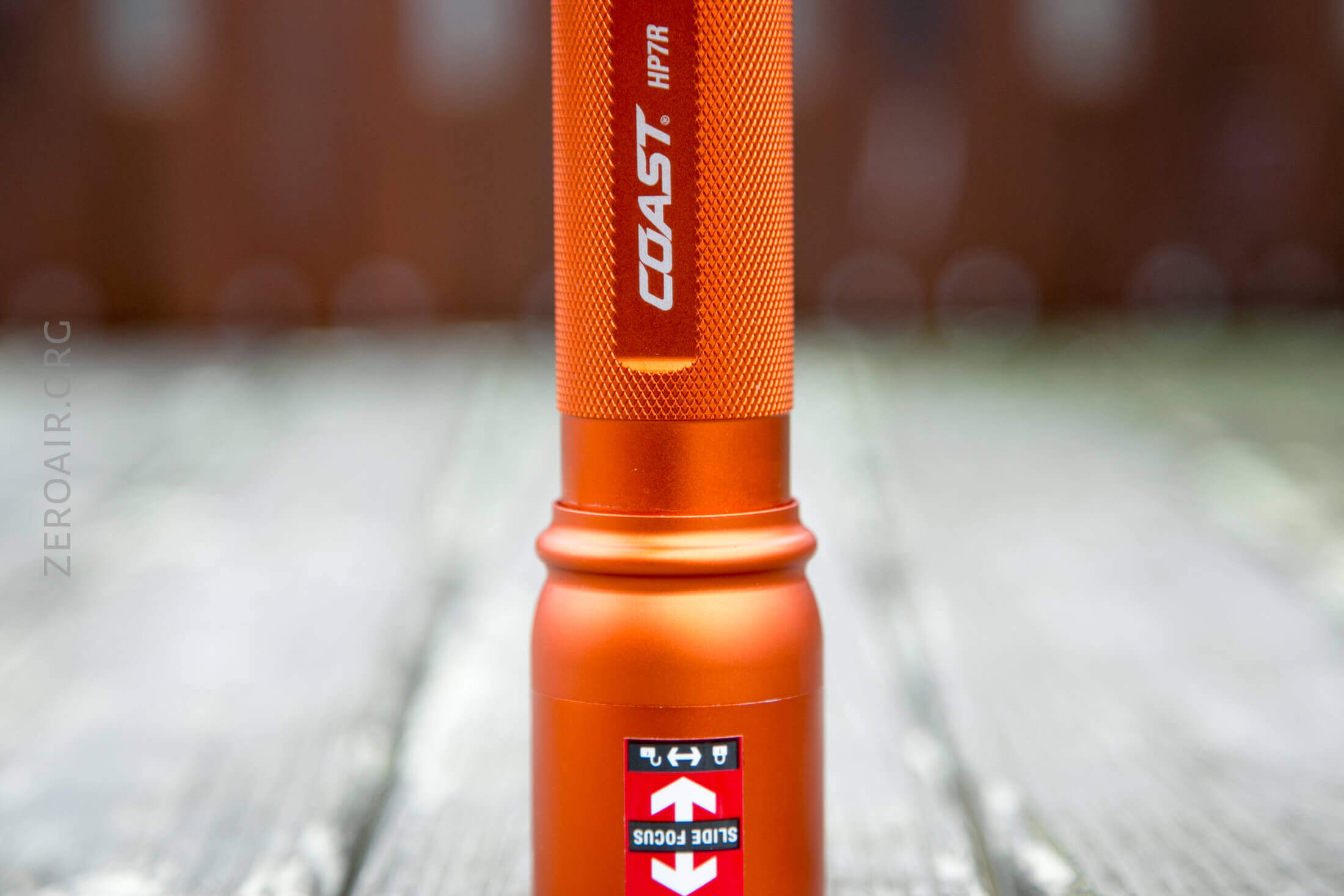

One thing I do like about the setup as far as zoomies go is that this isn’t a twist zoomie.  The head may be pulled directly out or pushed directly in with no twisting required, to zoom in or out.  Below can be seen the extent of travel.

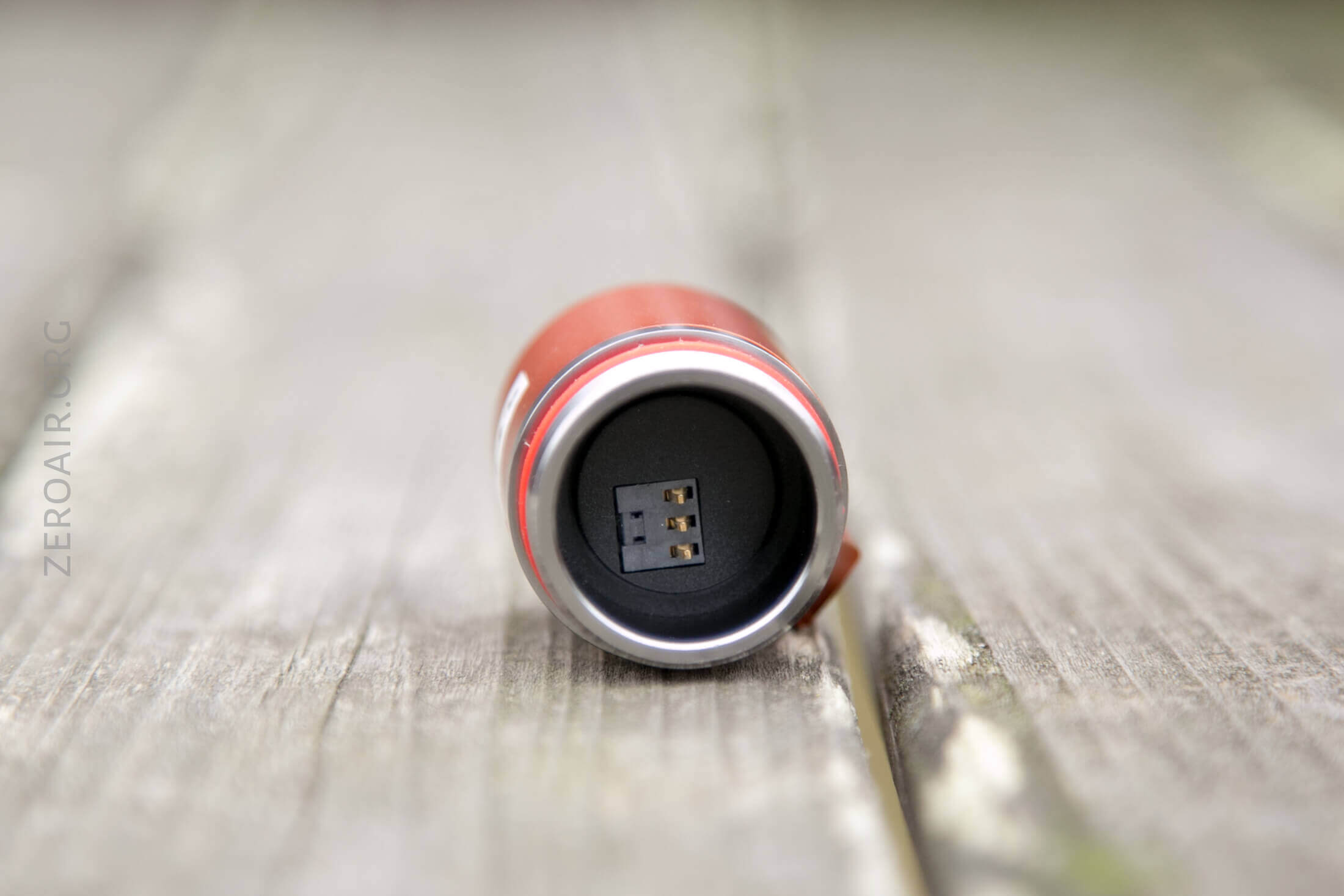

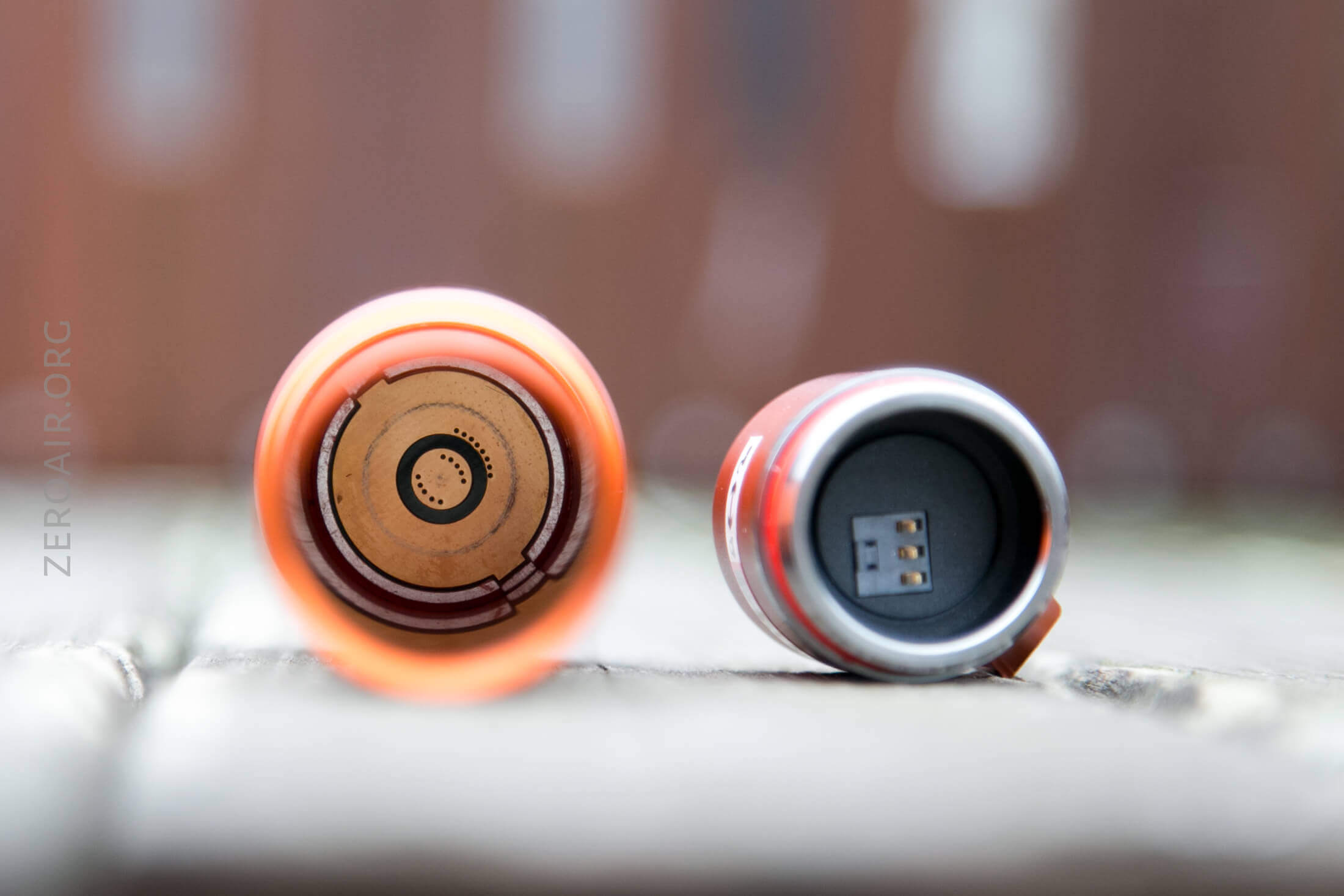

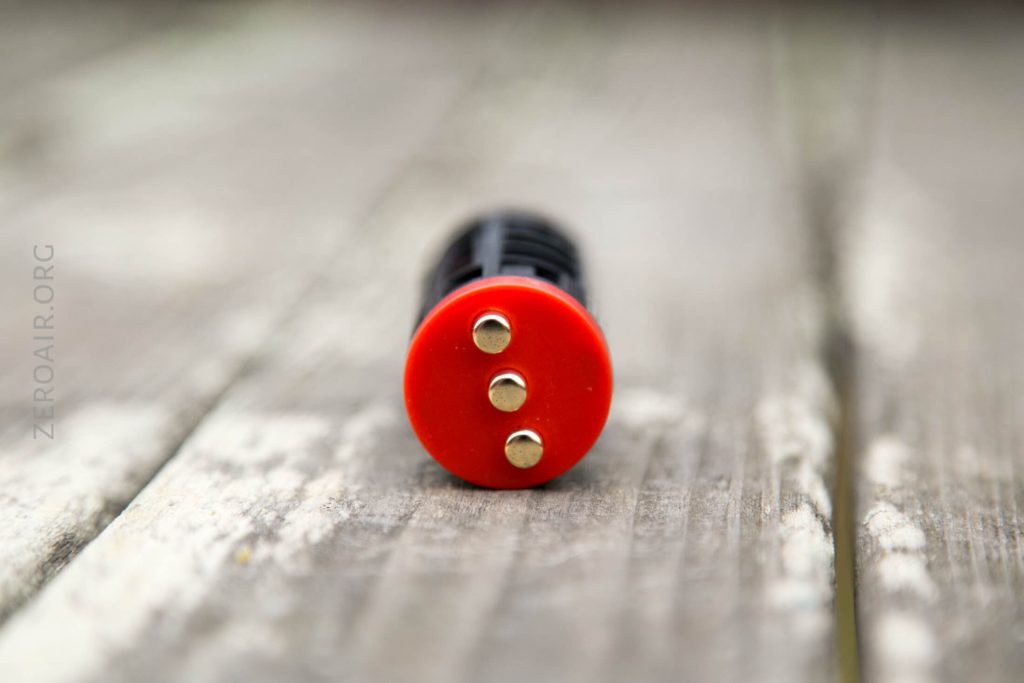

The tailcap is absolutely required to run this light.  You’ll see the batteries later, but the batteries will not output energy without signals from these three fingers seen below.  That’s a good safety feature for the batteries (but really thwarts testing of current, etc).

There are no springs on the head or tail.  Both styles of the battery pack have springy terminals, though.

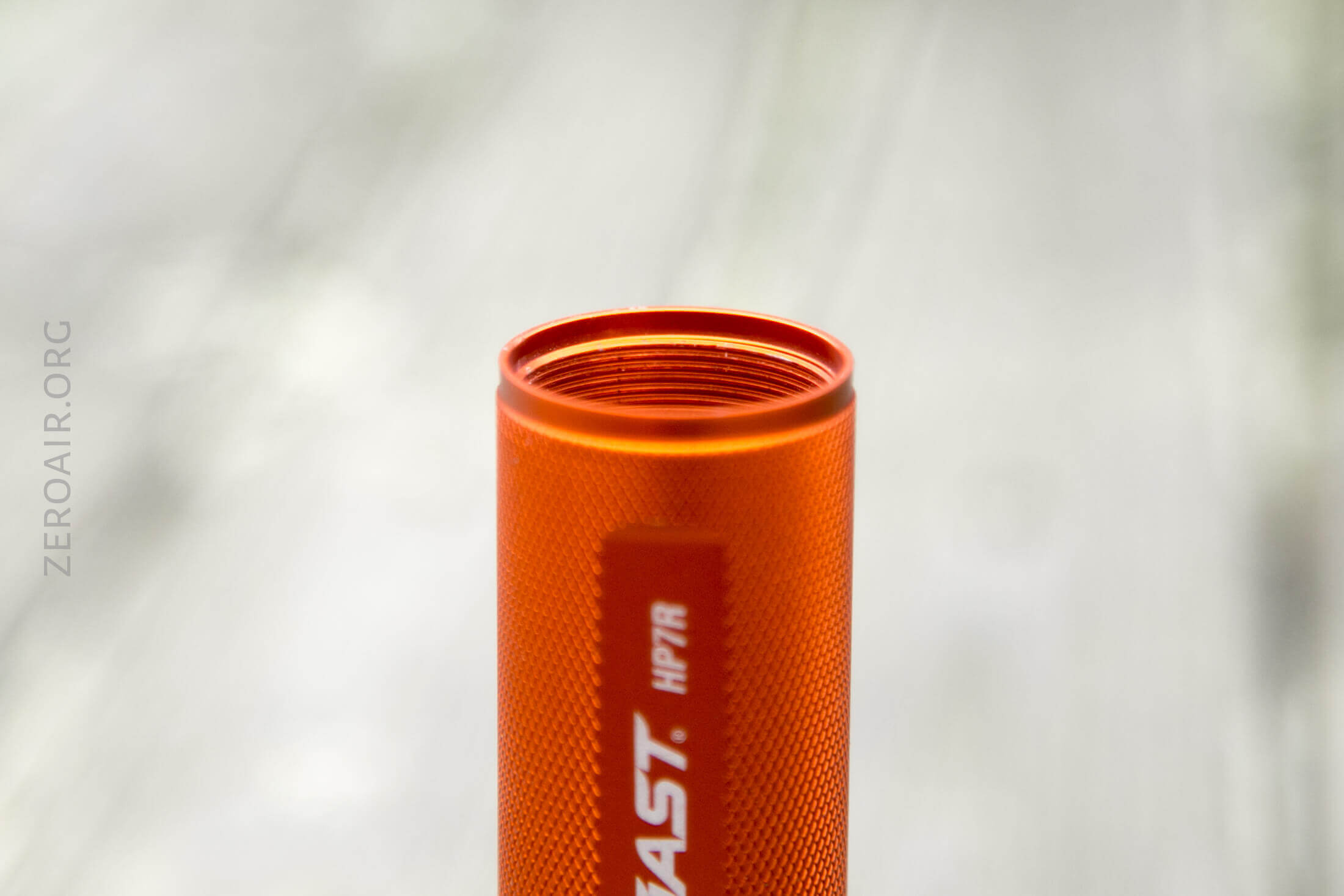

The body has anodized threads, too.

Size and Comps

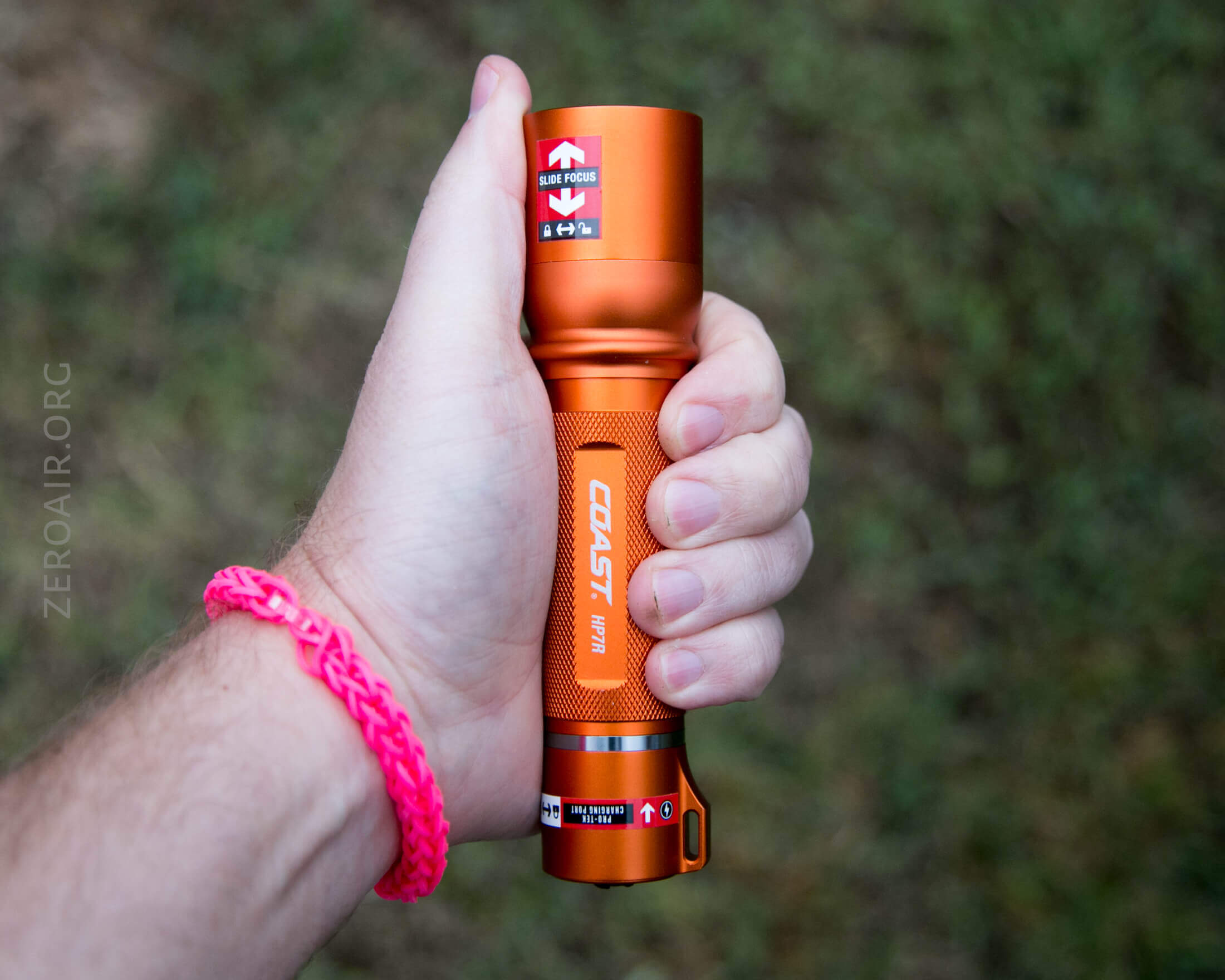

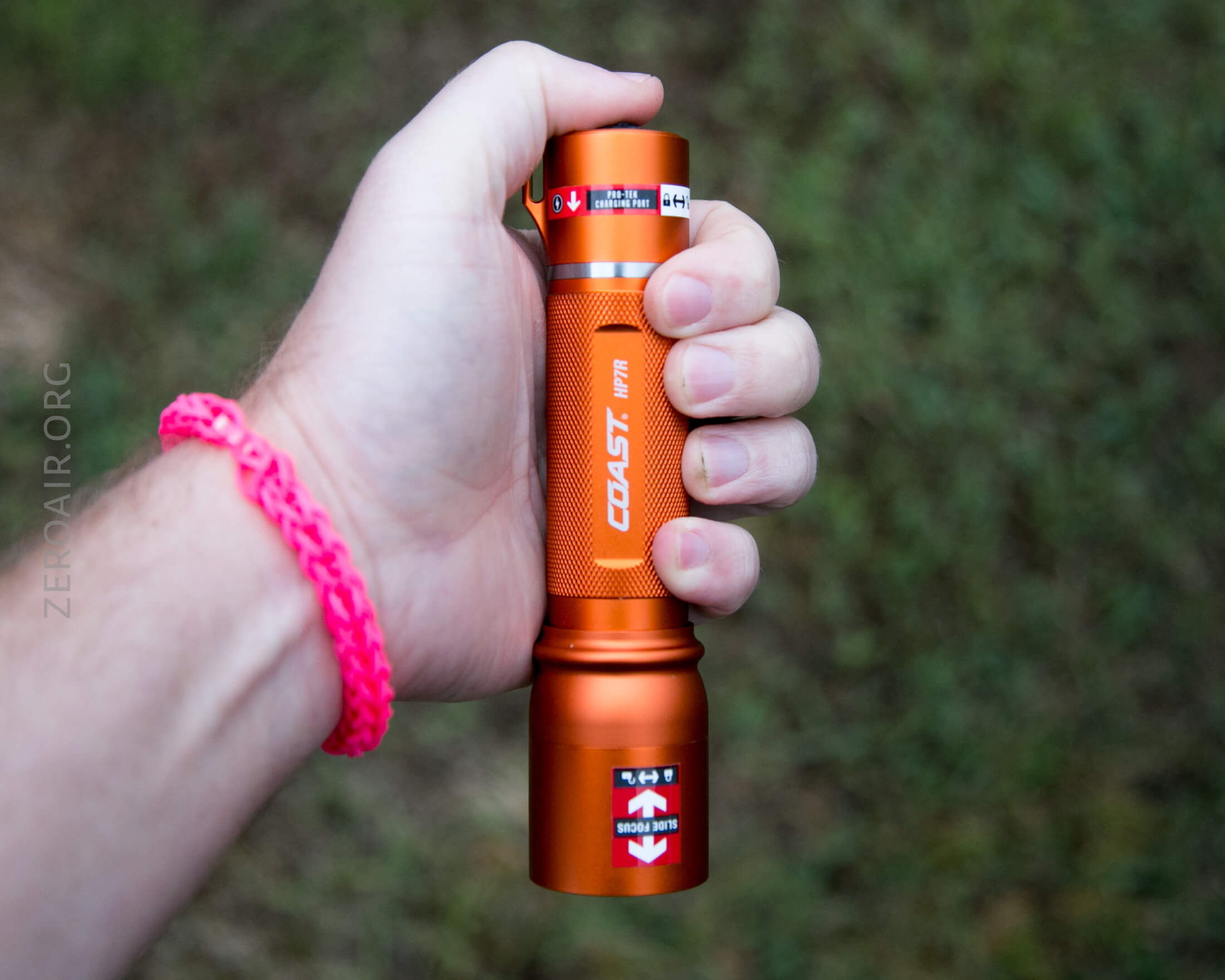

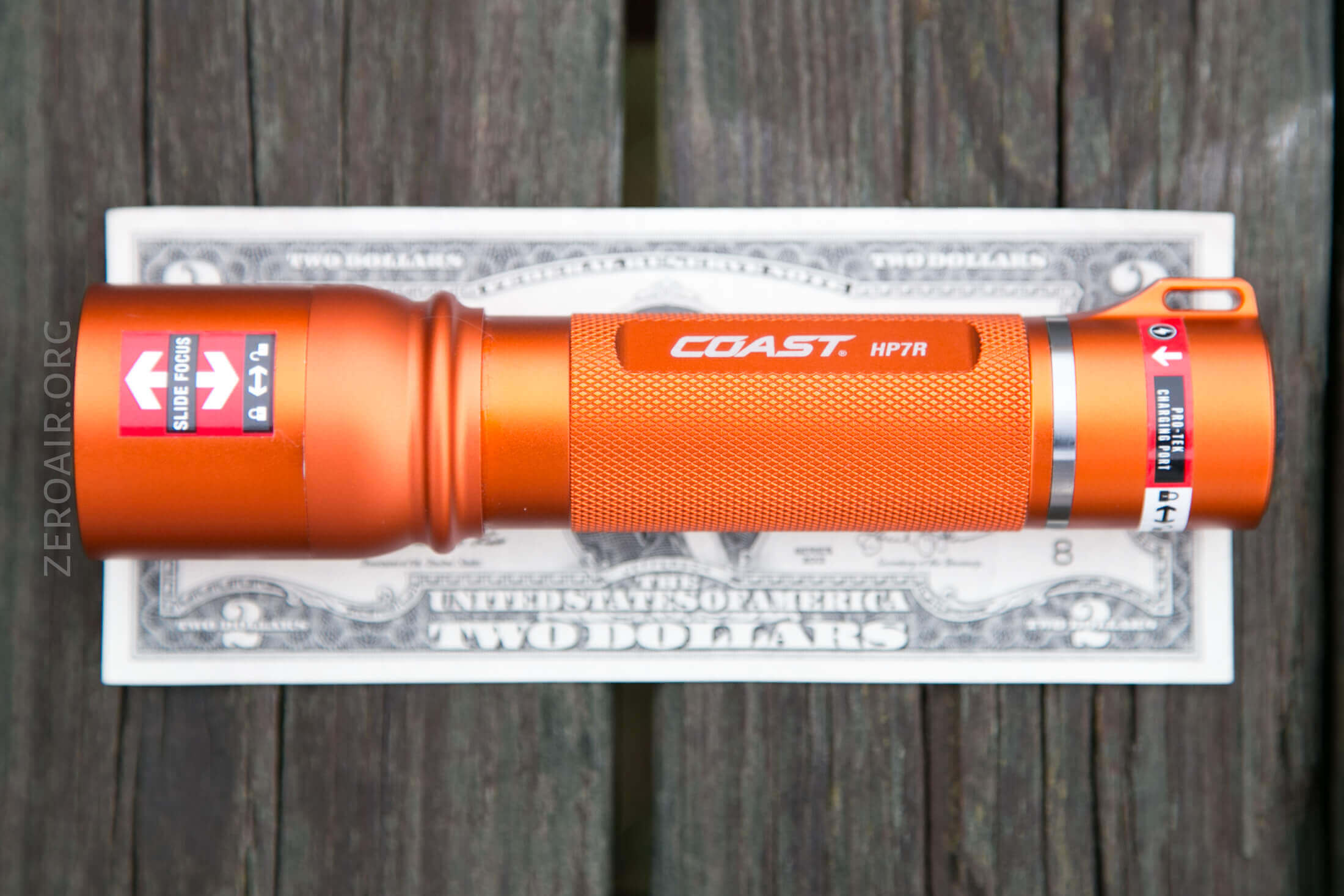

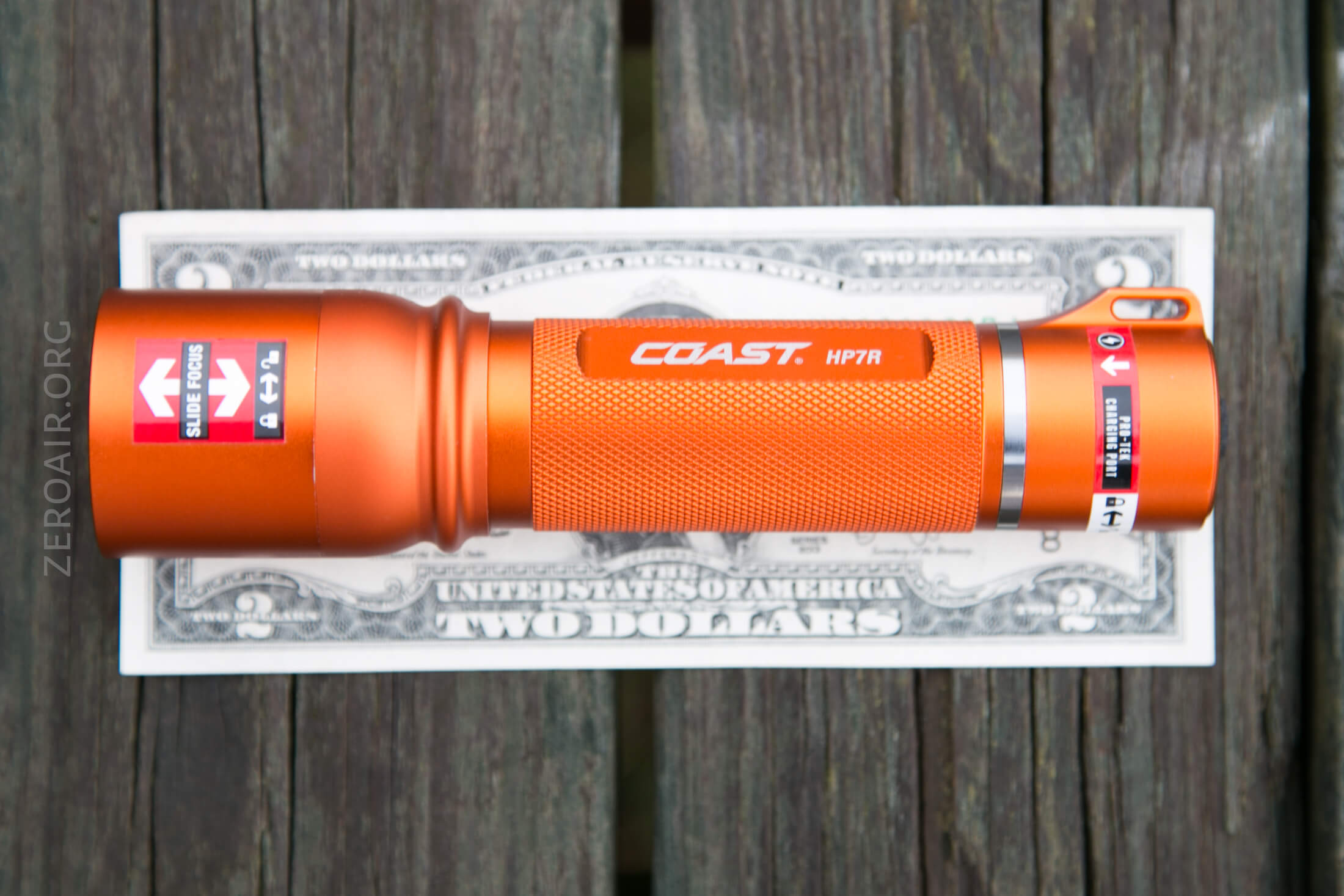

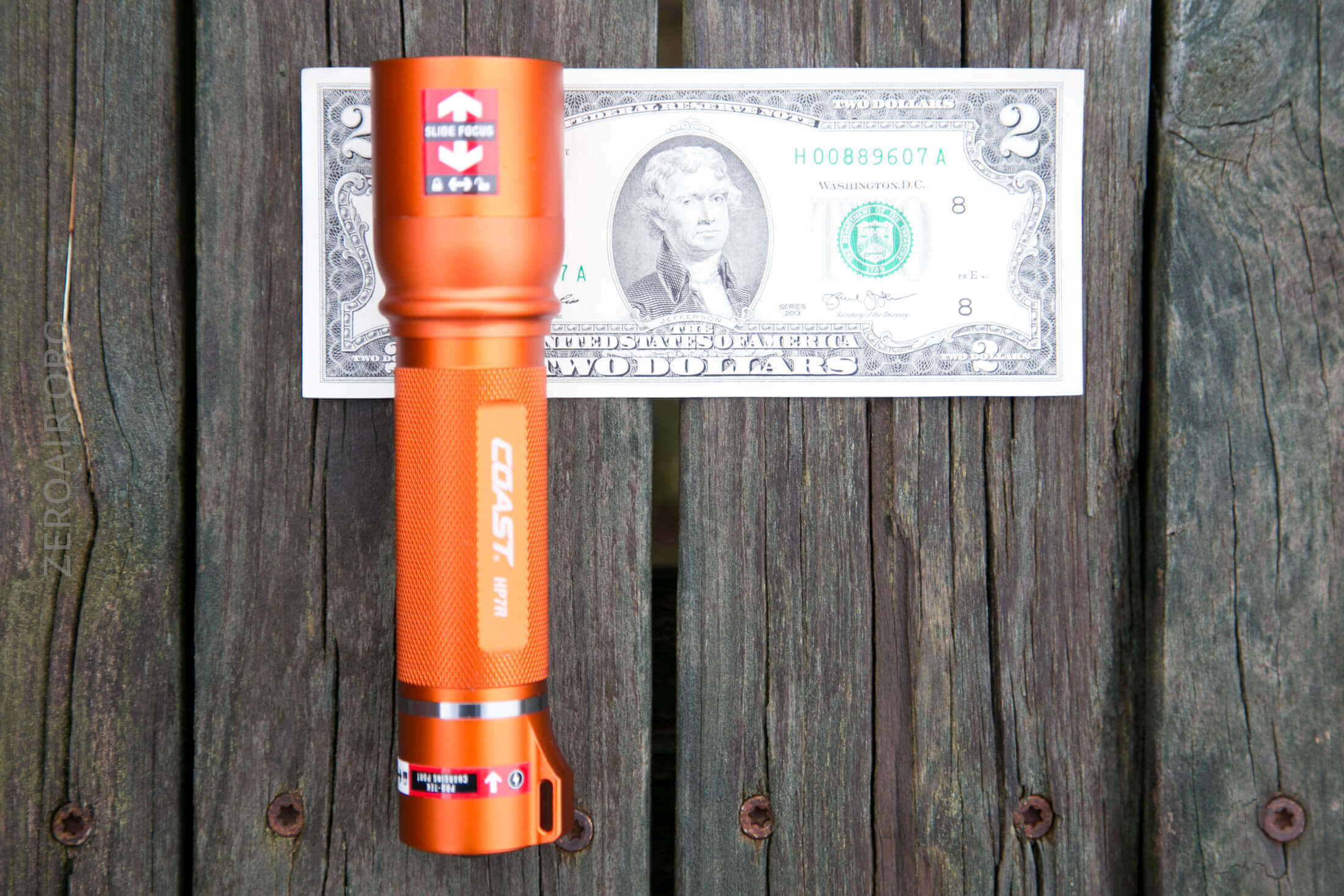

The light is 15.6 cm long and weighs 204g (officially).

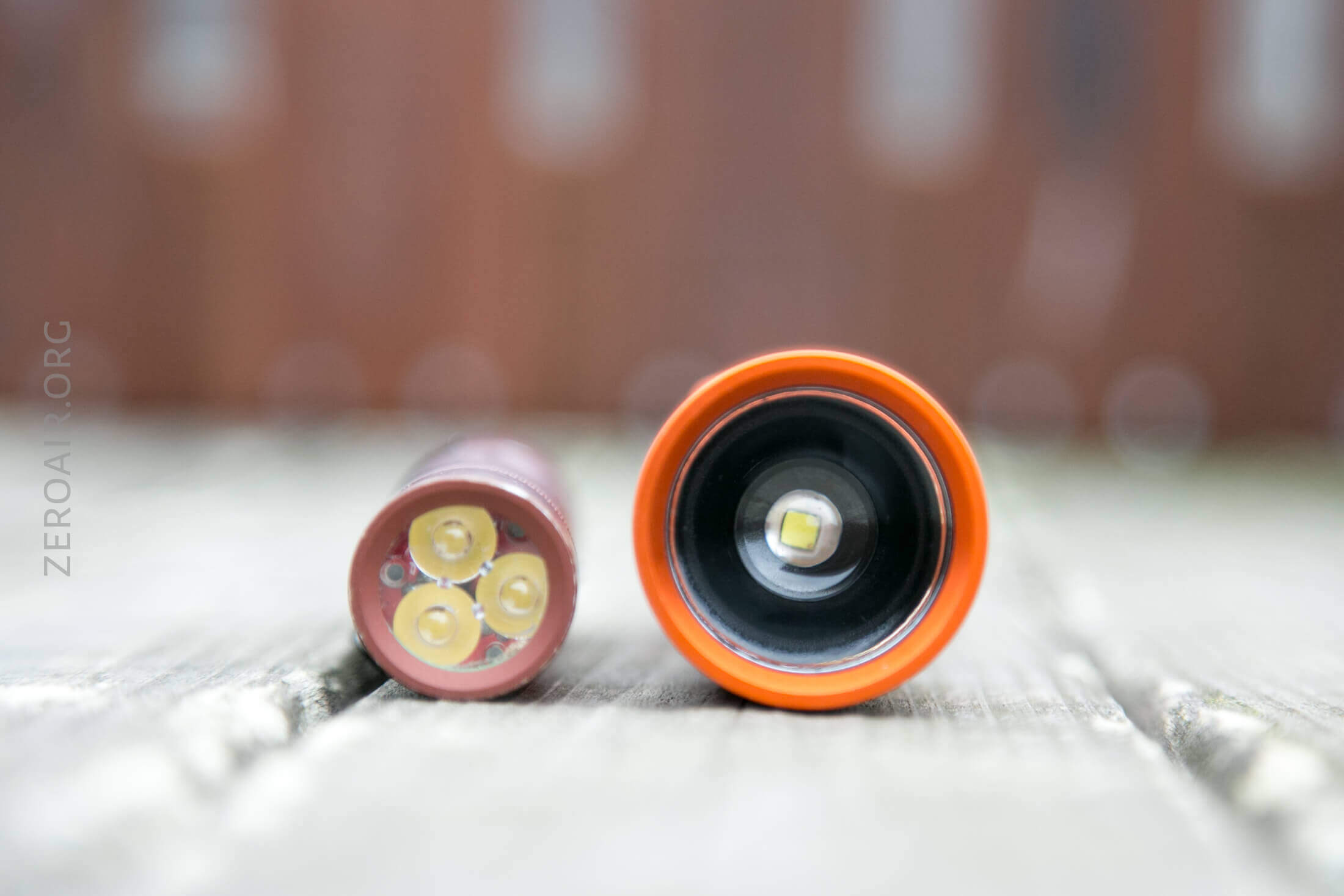

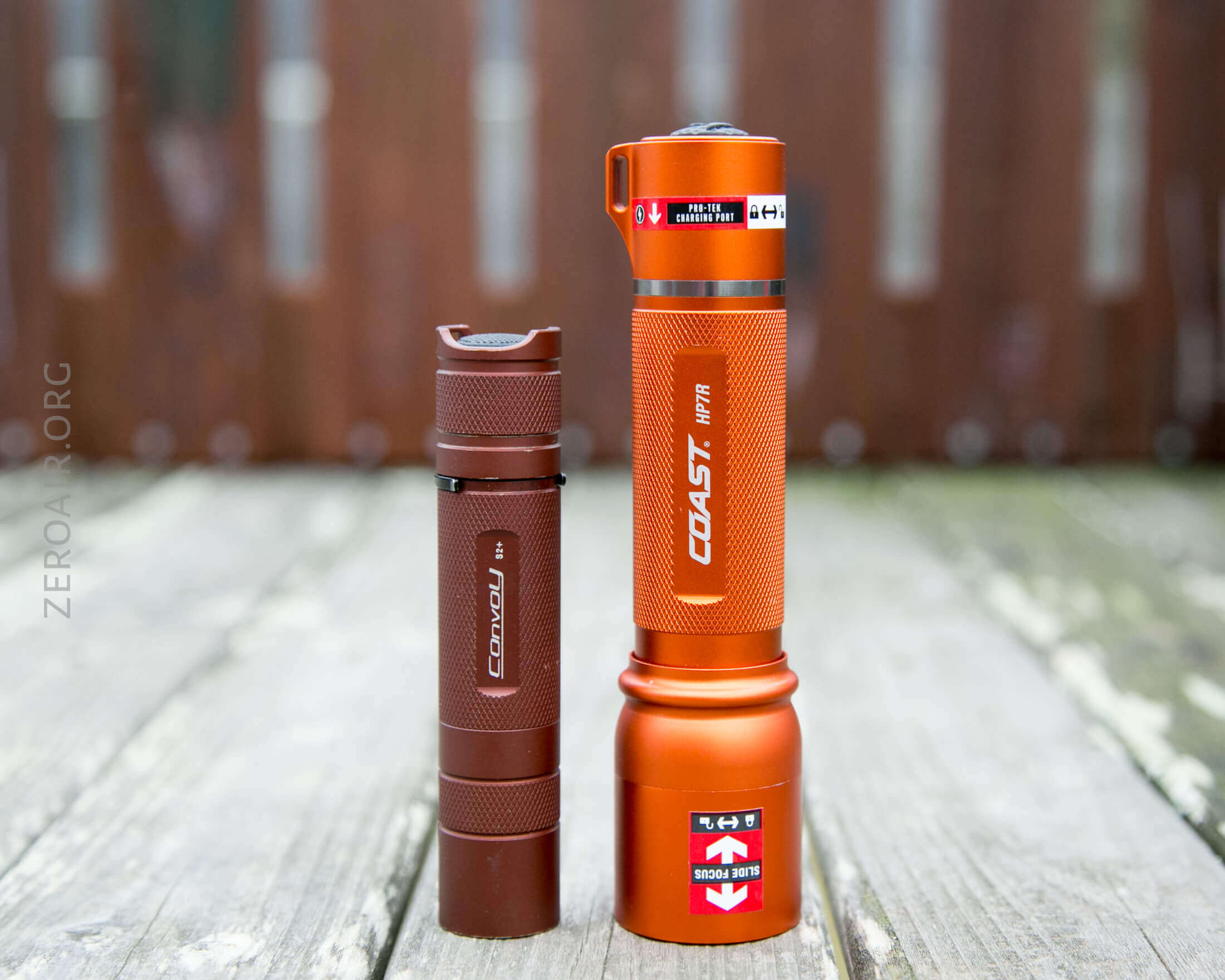

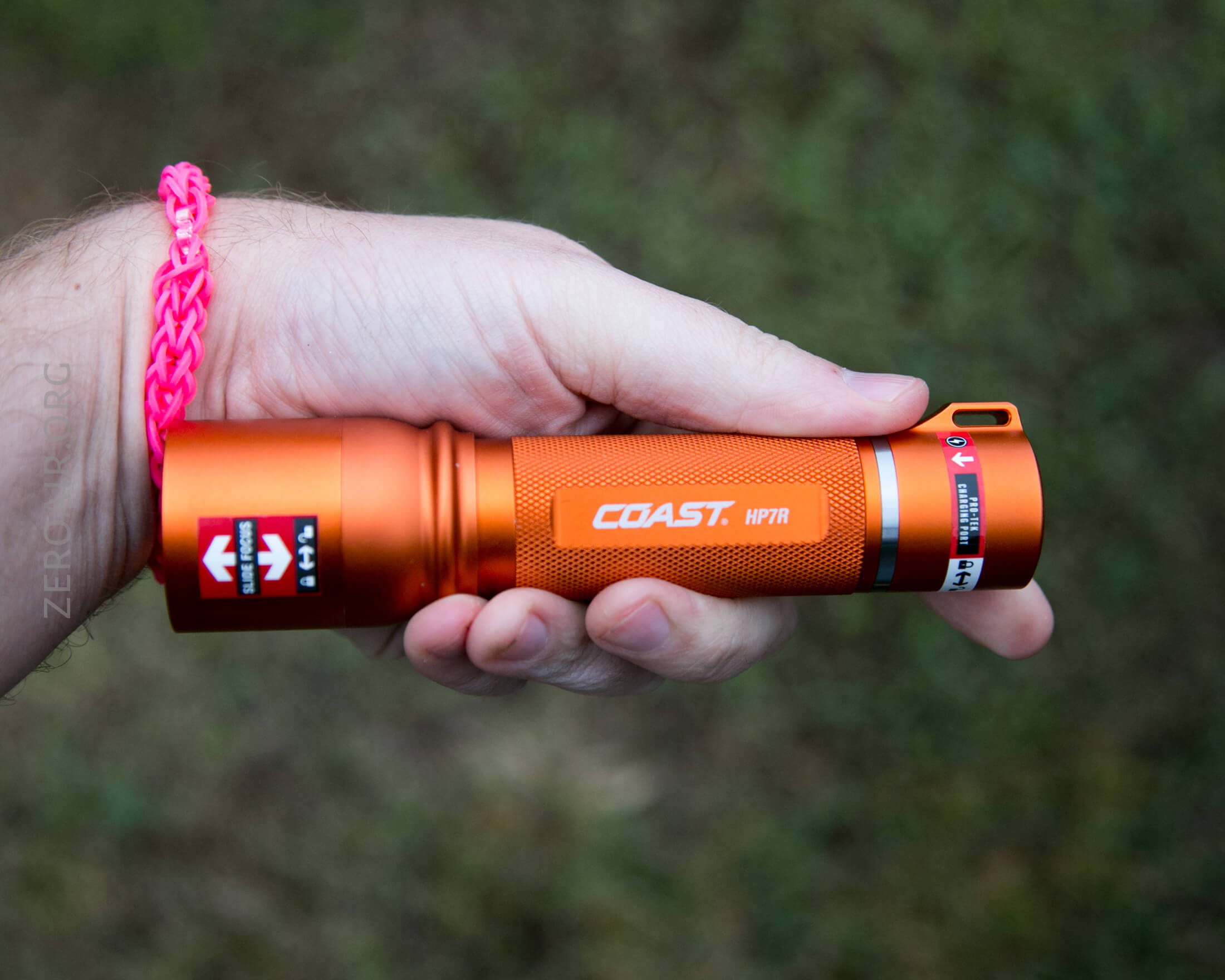

It’s not a small light, but that’s not necessarily a problem.  It’s a good flashlight shape.  Here’s the test light with the venerable Convoy S2+.  Mine’s a custom “baked” edition Nichia 219b triple.  A very nice 18650 light.

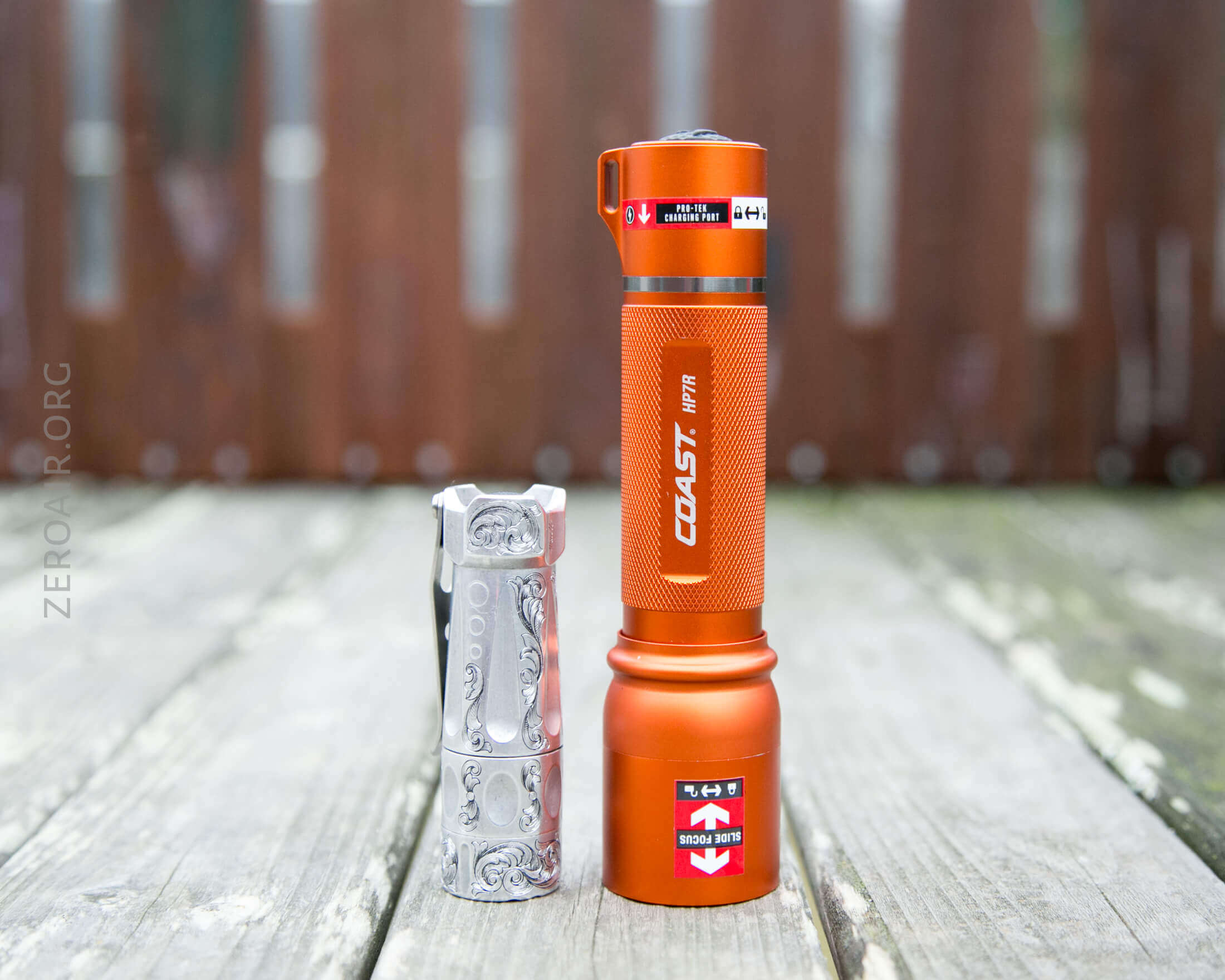

And here’s the light beside my custom engraved TorchLAB BOSS 35, an 18350 light.  I reviewed the aluminum version of that light in both 35 and 70 formats.

Retention and Carry

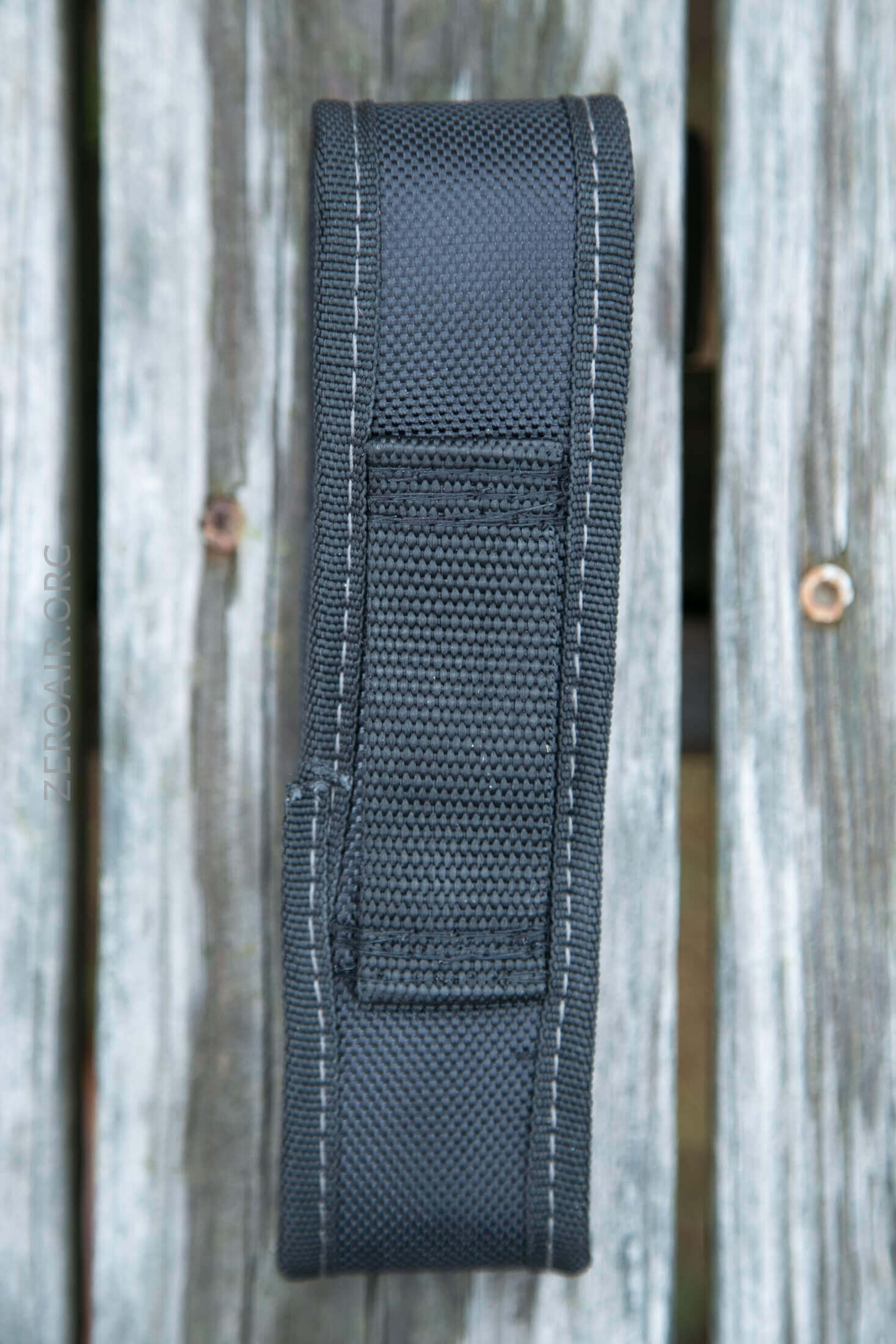

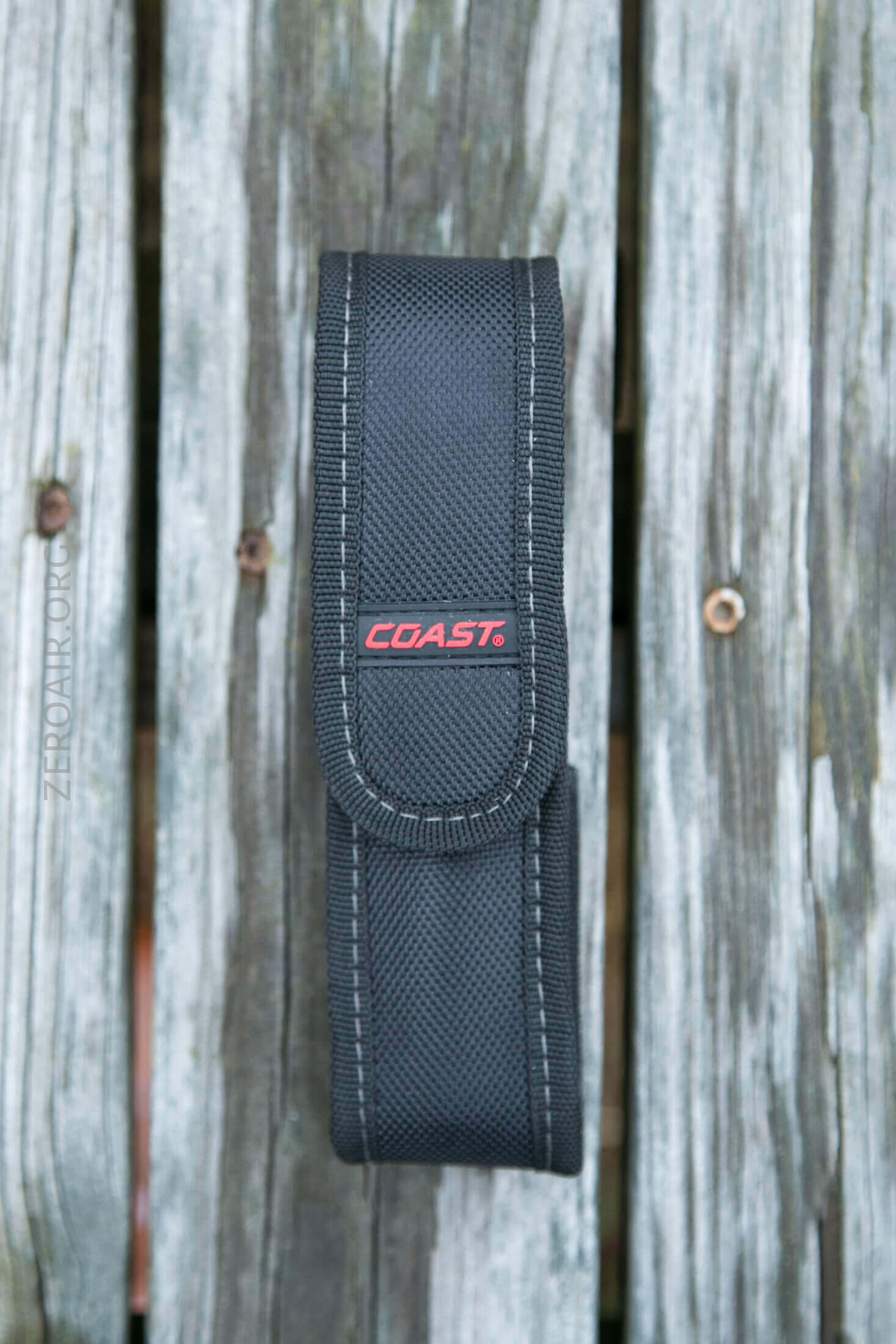

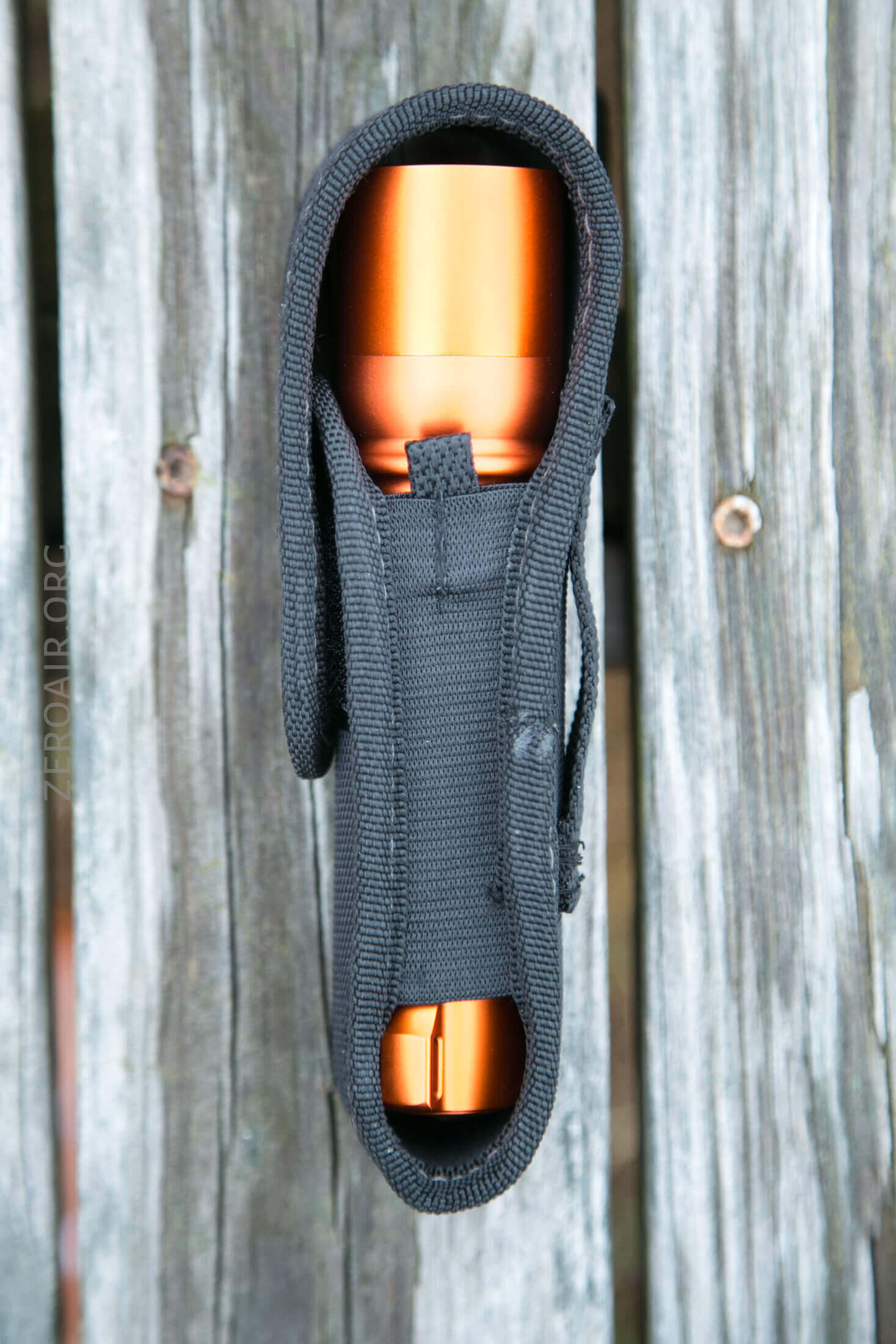

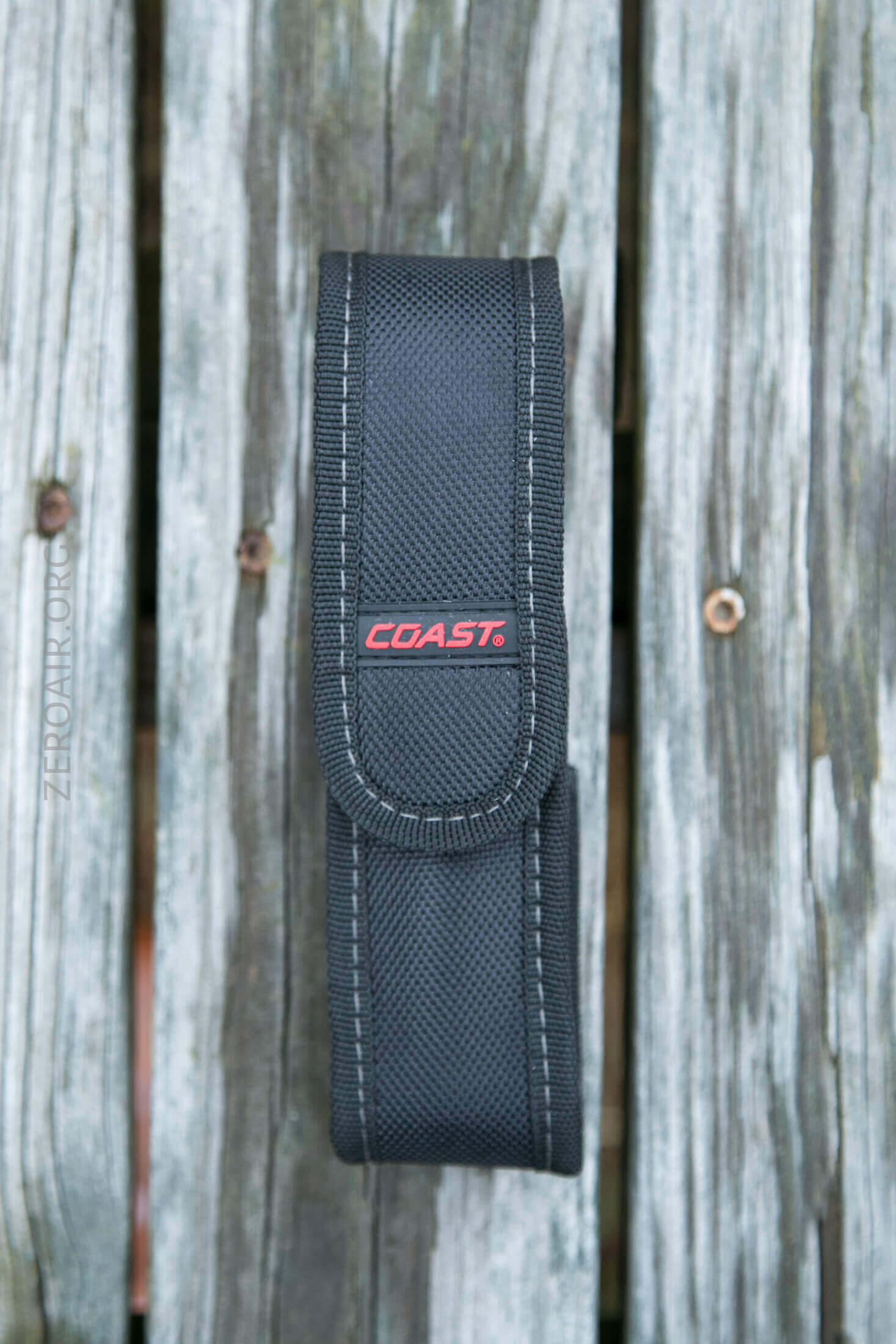

There are a number of carry options for the HP7R.  First is the pouch, which is a typical pouch.

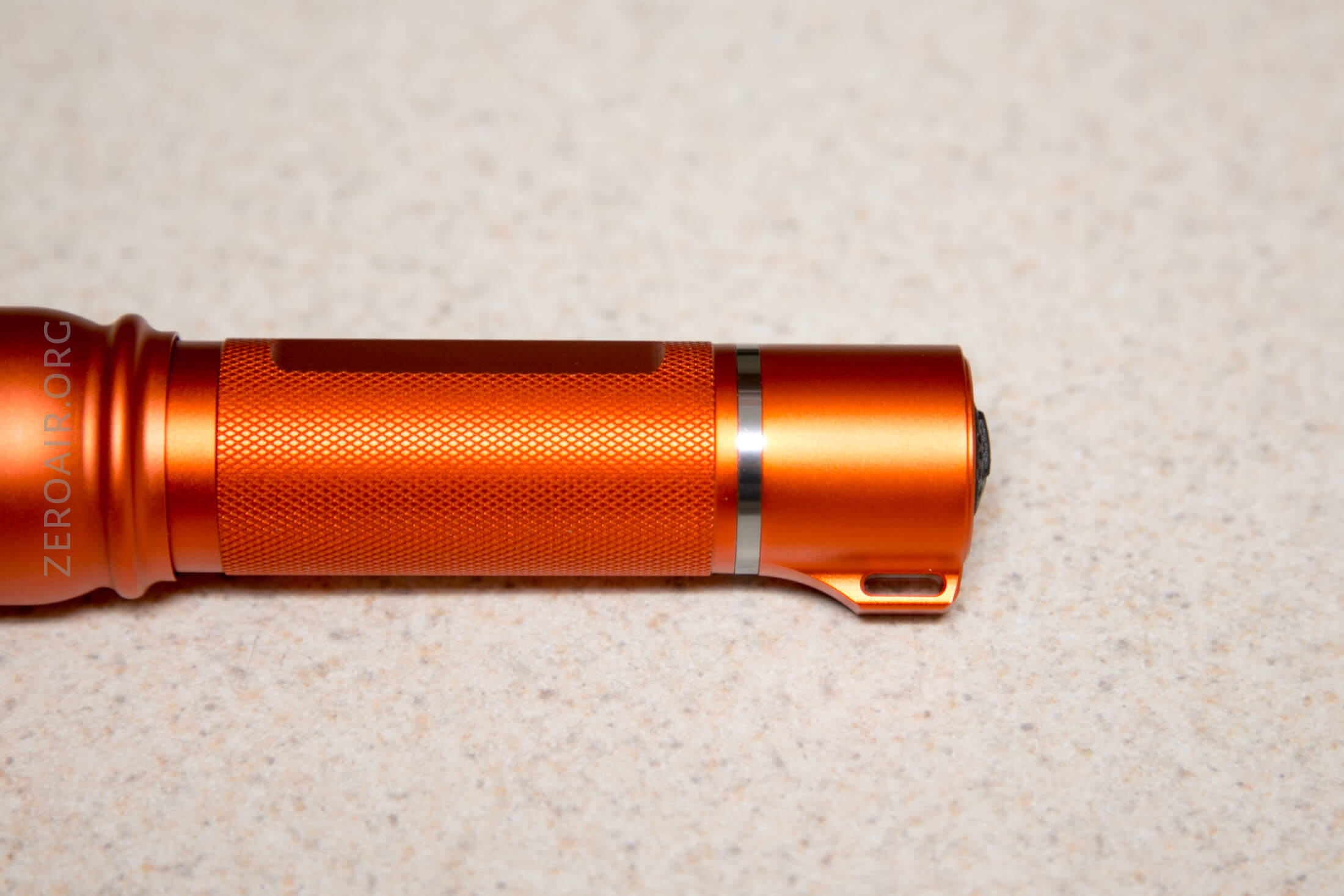

There is no pocket clip.  The tailcap has a nice loop for the included lanyard.

There are two other mounts, too.  Both friction mounts.  One is a belt clip, and the other is a wall mount.

Power and Runtime

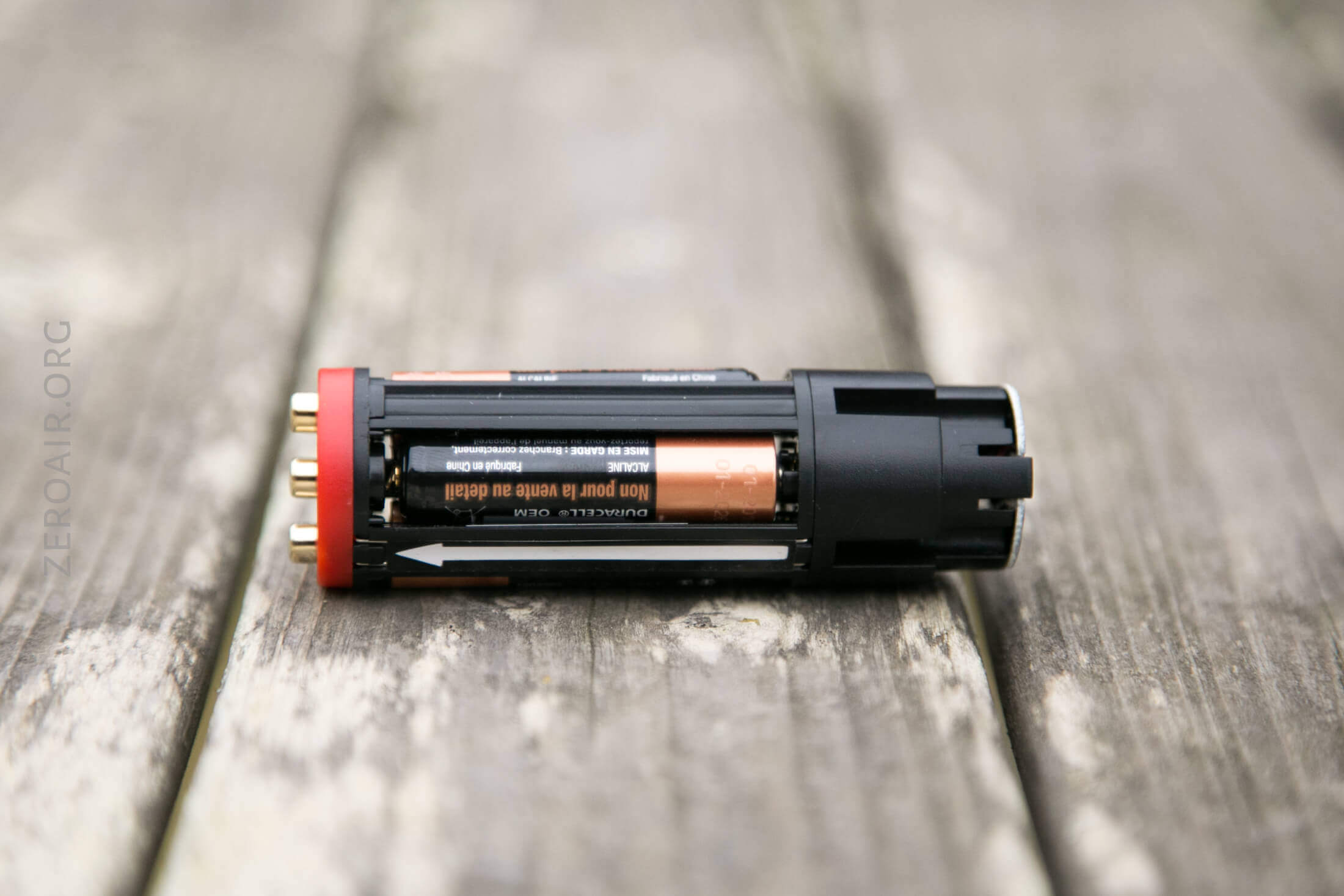

The HP7R package includes all the possible options for powering the HP7R.  First is a triple-A option, which requires 4 cells.

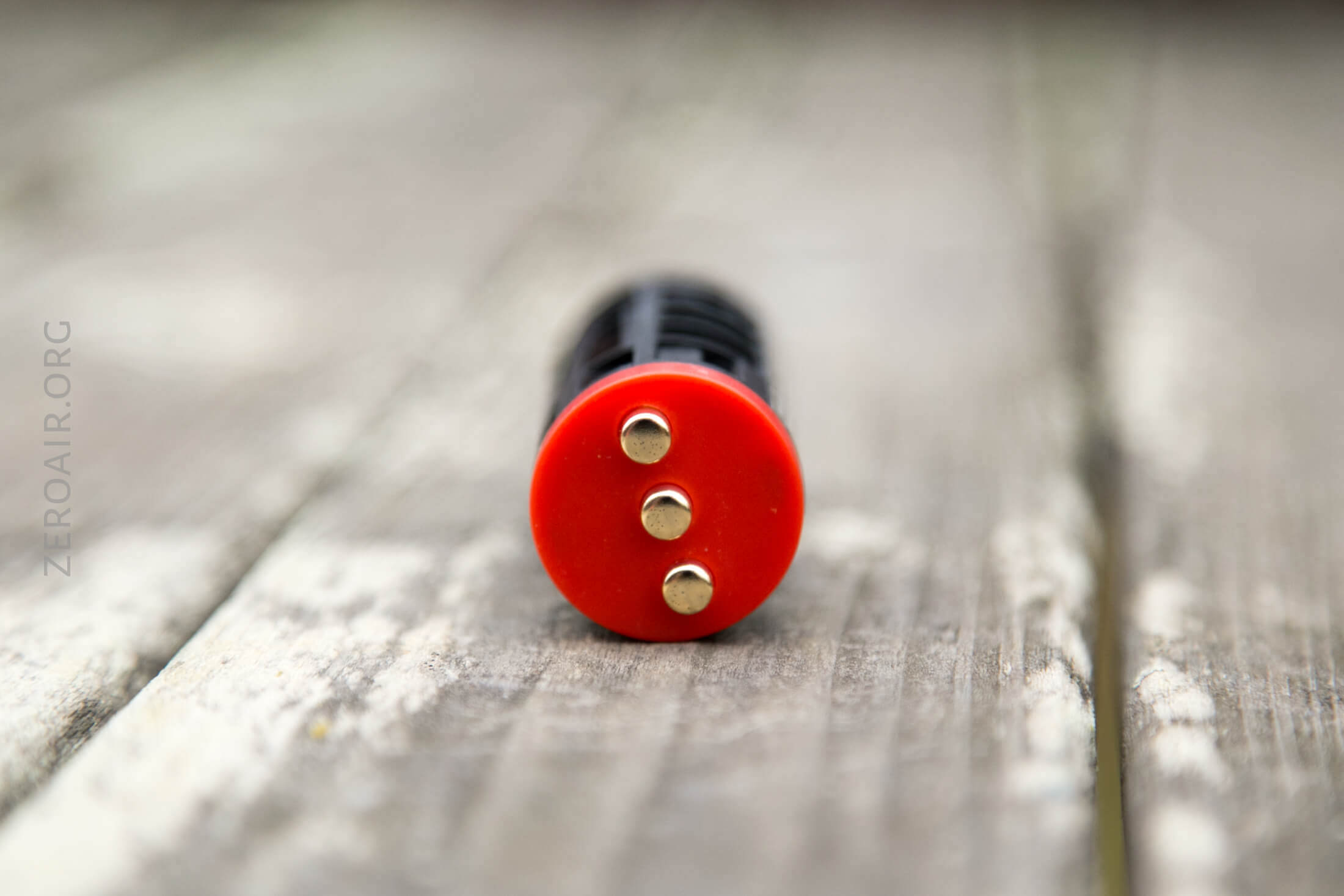

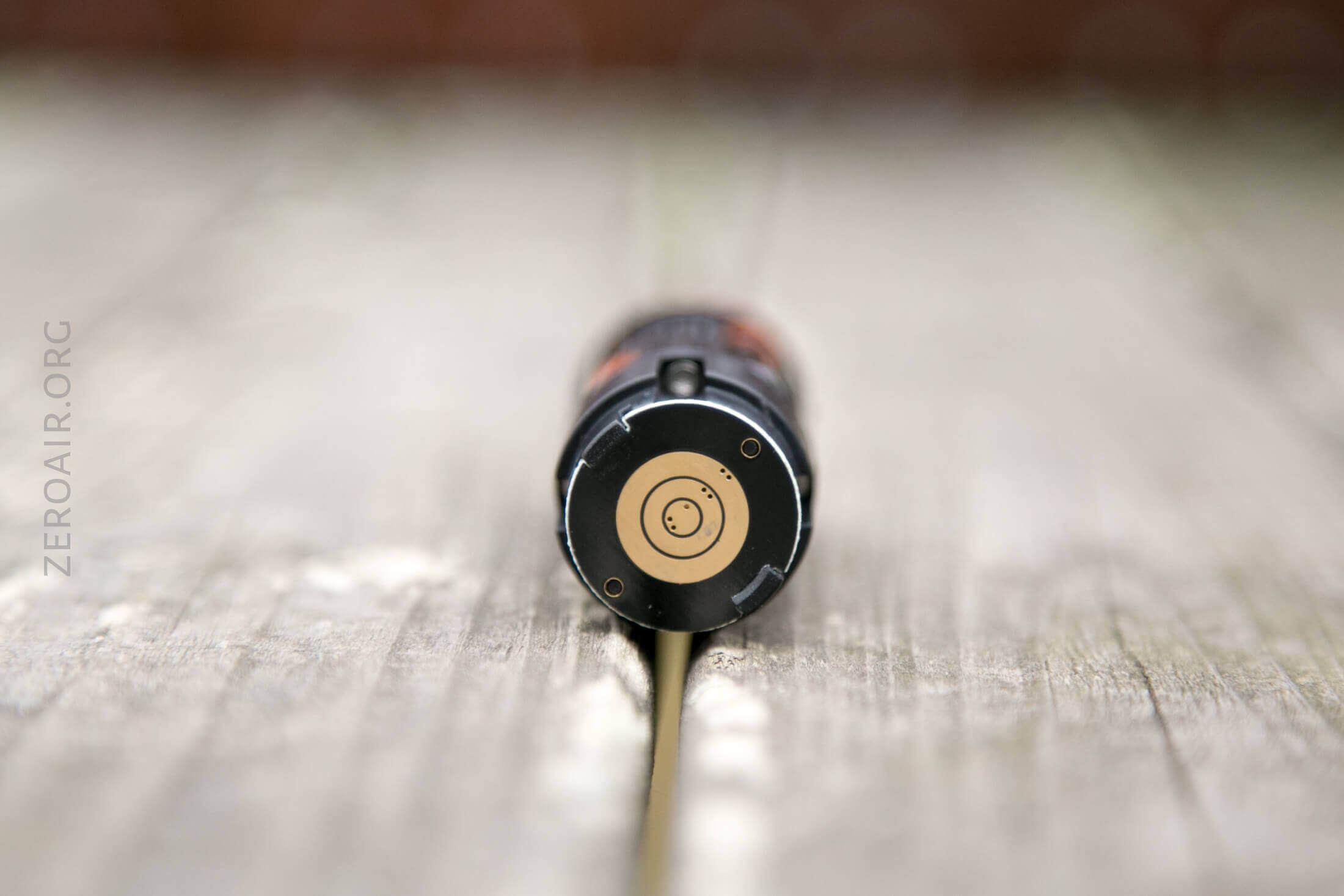

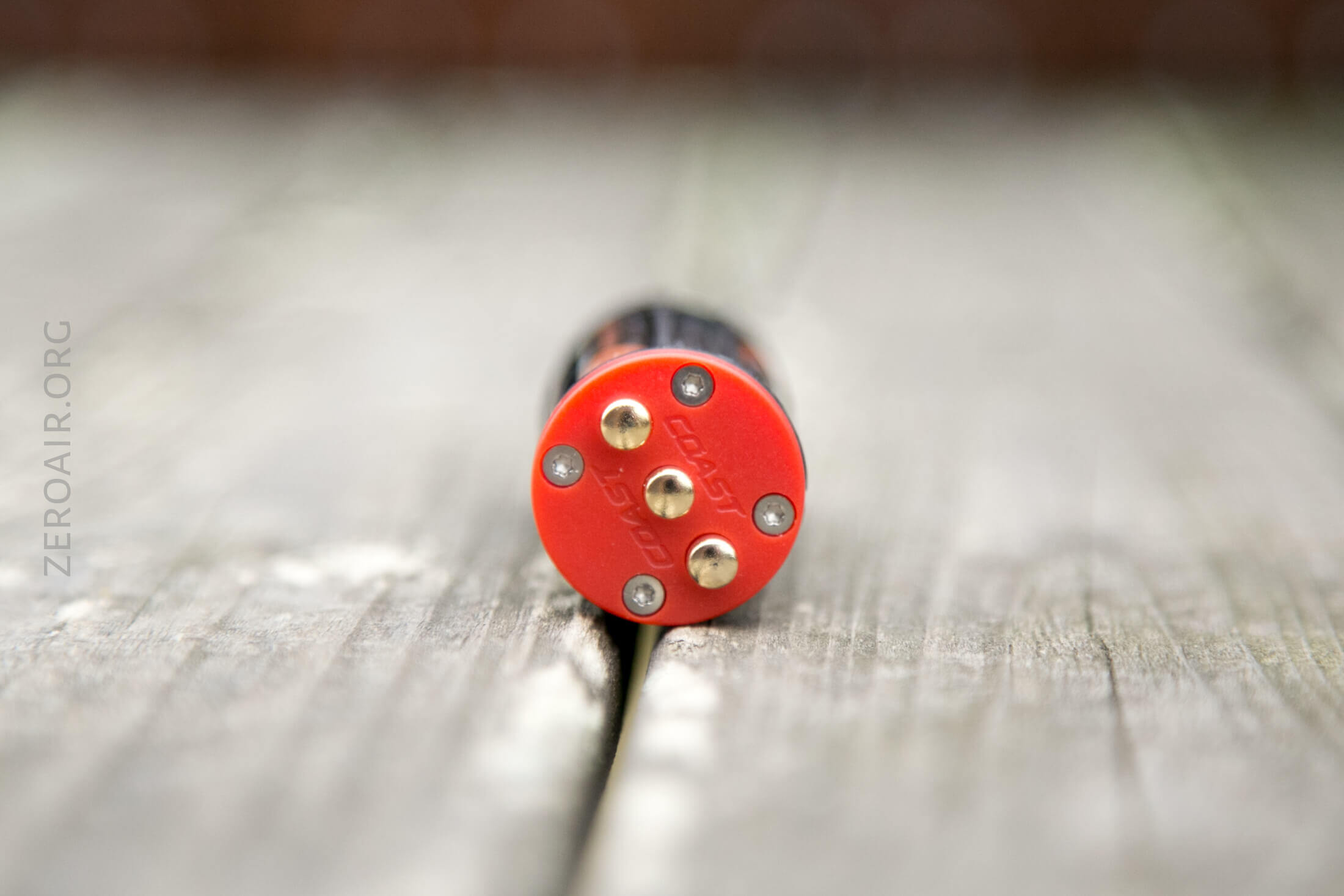

The photo at the left shows the springy terminals.  And the photo at right shows the connections for the tailcap, which are required for the battery pack to work.

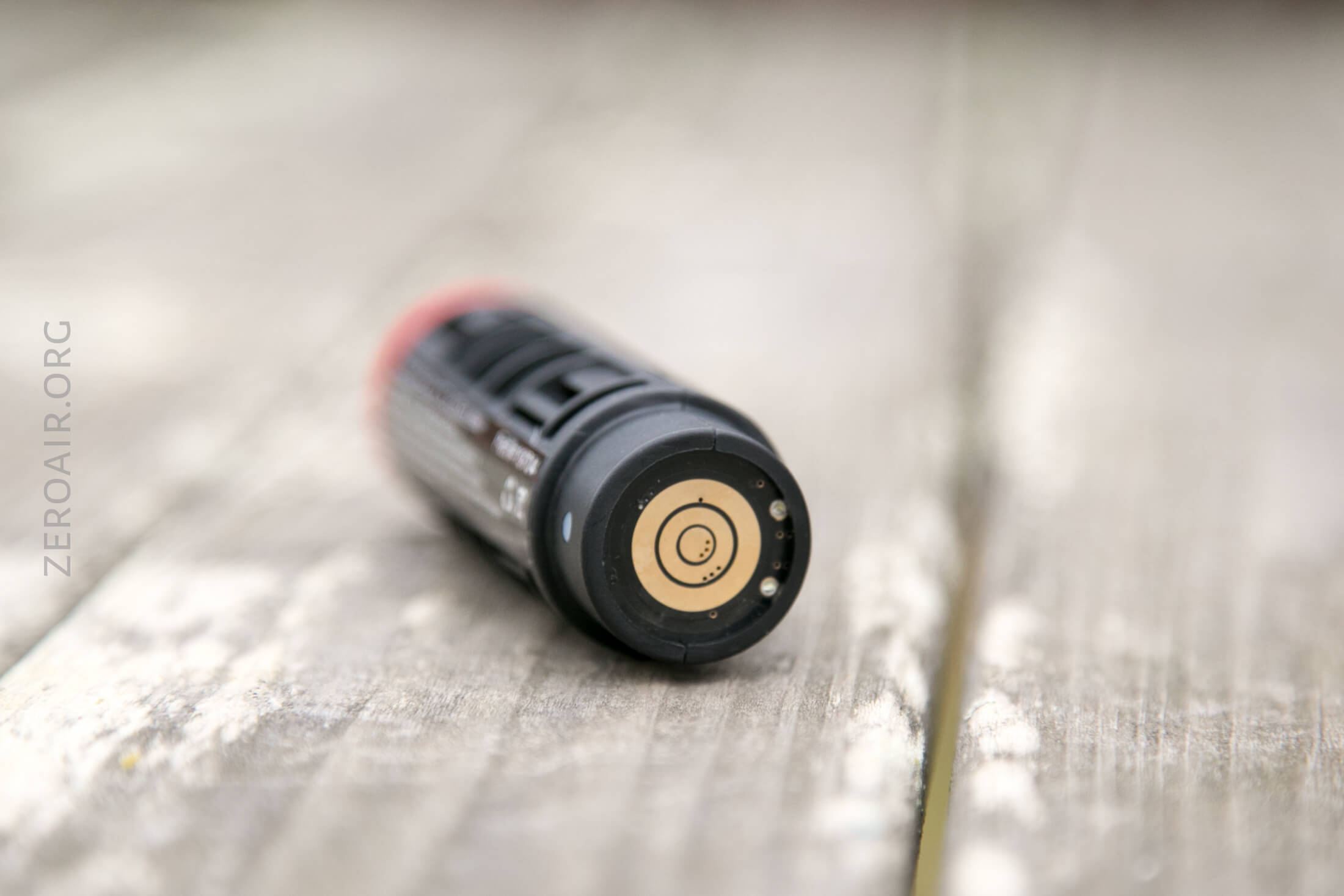

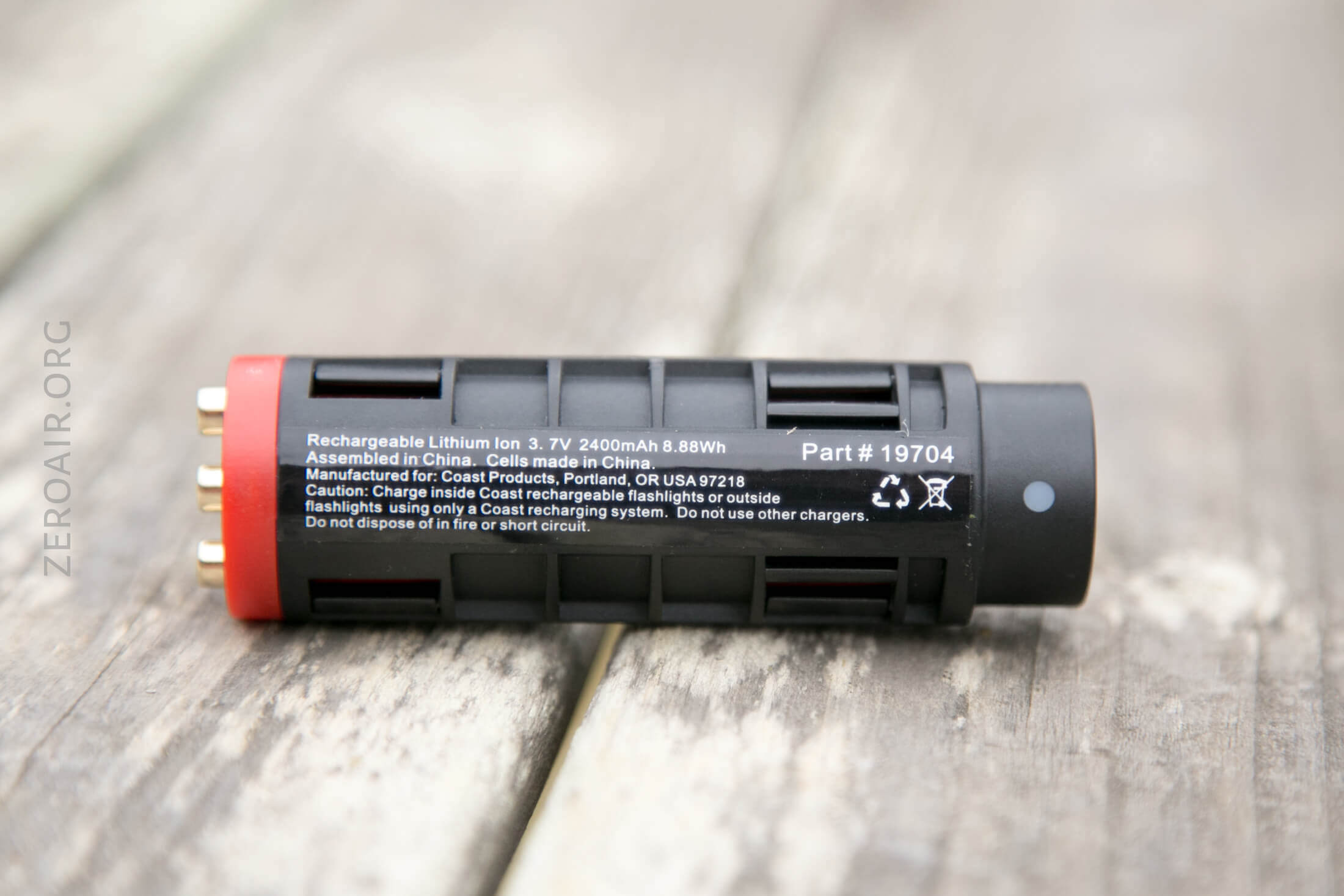

Also included is a lithium-ion battery pack, which is almost certainly a single 18650 cell.  Onboard charging is included, and there’s a charge indicator, too.

As far as I can tell (and unlike the Polystell 600R), these two battery packs perform exactly the same.

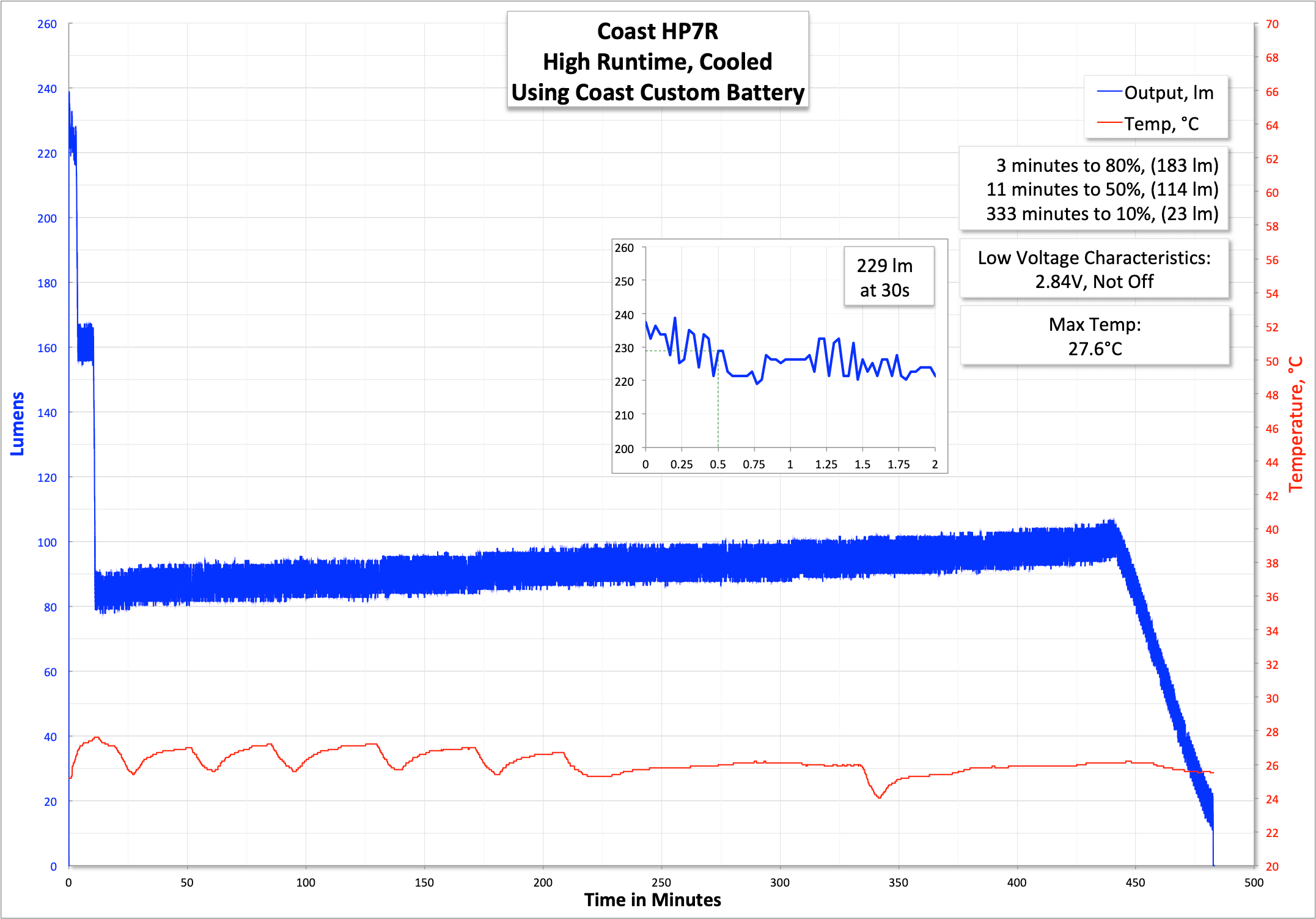

I tested only one runtime, and that was with the rechargeable battery pack.  The output didn’t hit the specification and had a couple of stepdowns.  The HP7R just ran and ran and ran at the lower output of around 90 lumens.

Because of the extended runtime, I stopped the test when it was around 10% of initial output.  Also because there was no good way to test the light on my bench power, I wasn’t able to determine if there’s Low Voltage Protection.

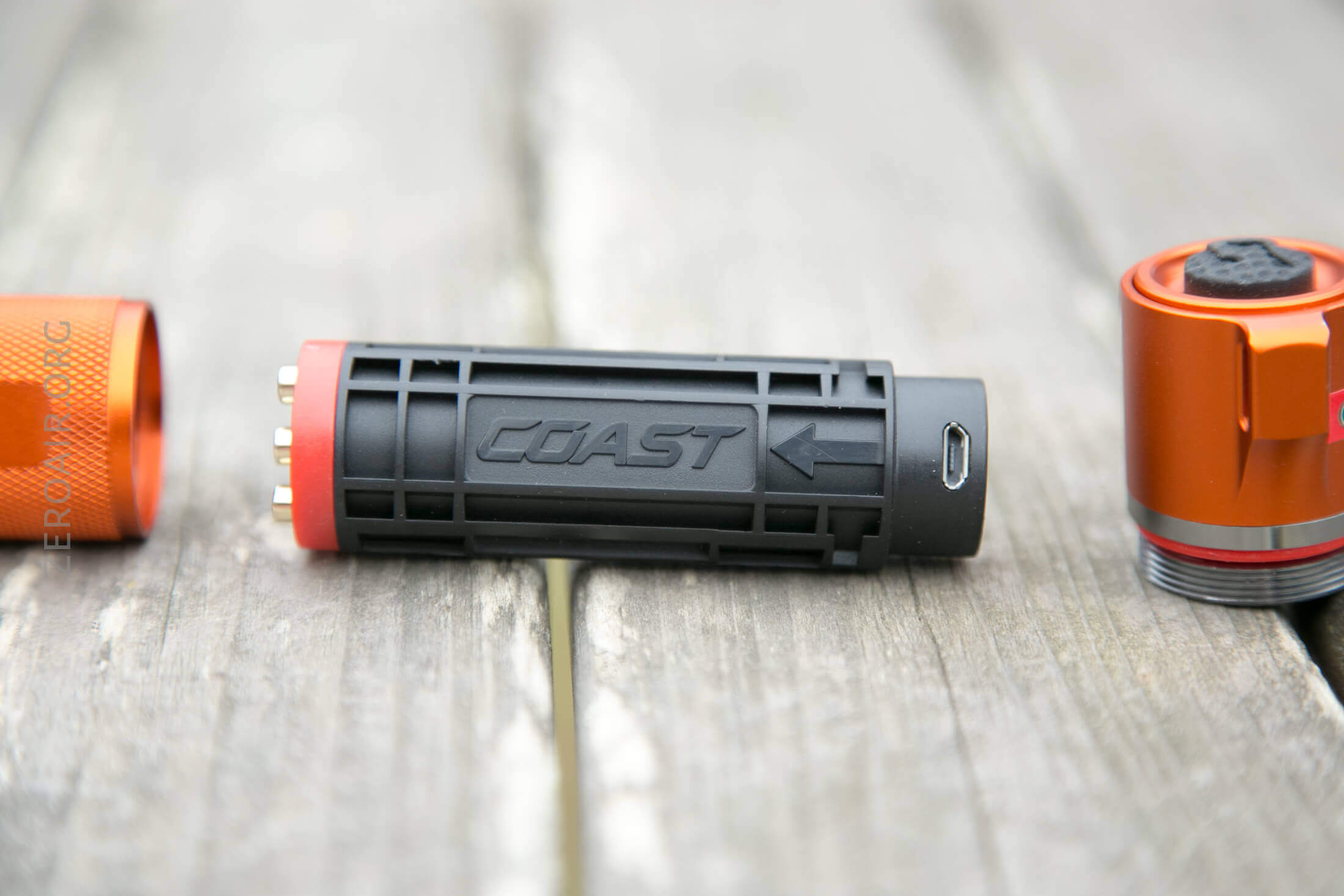

The battery pack has built-in charging, by micro-USB.  The battery can be charged in or out of the light, and all modes work while charging inside the light.

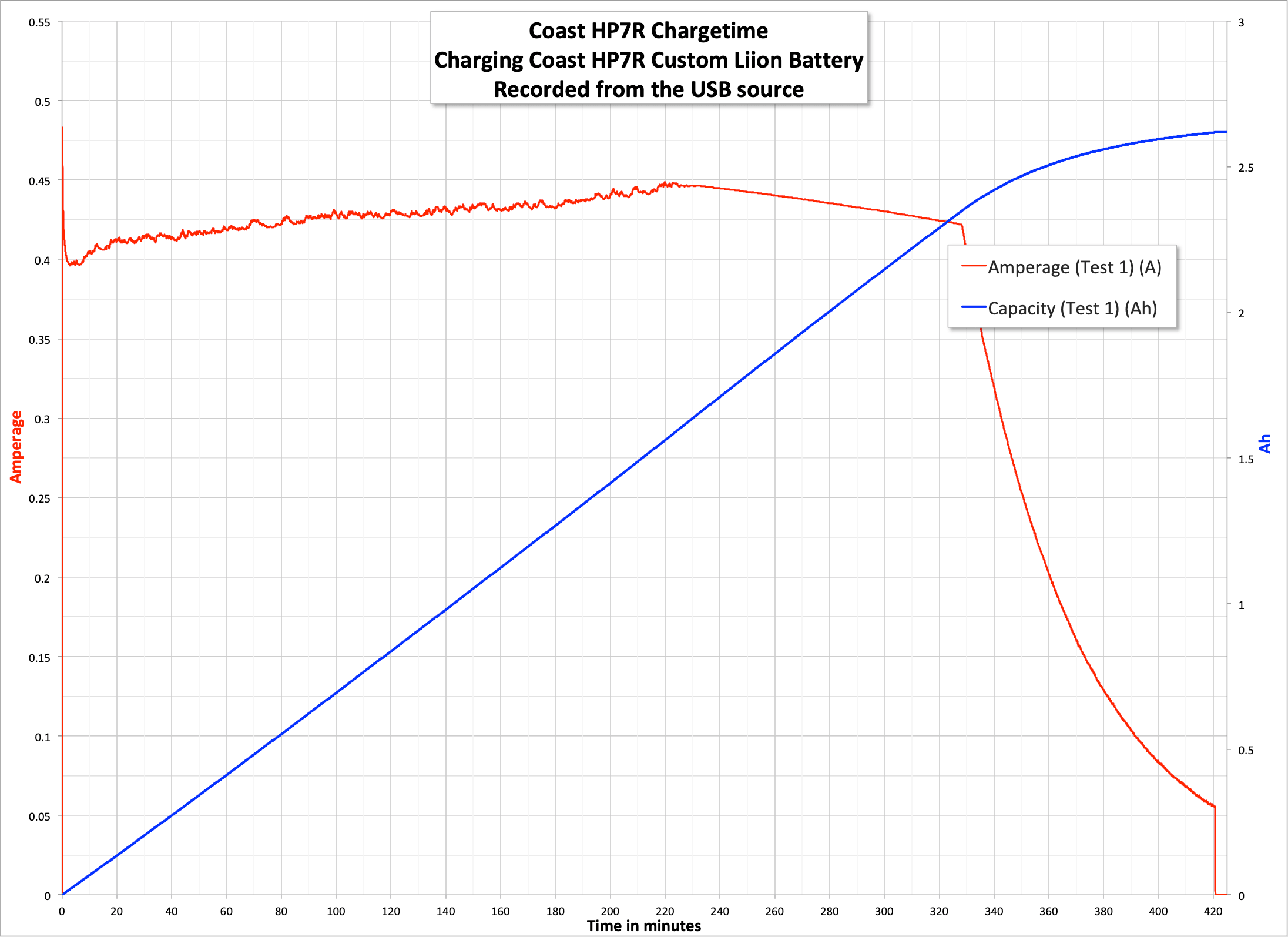

Charging takes quite a long while, at under half an amp.  But the profile in general looks pretty good.

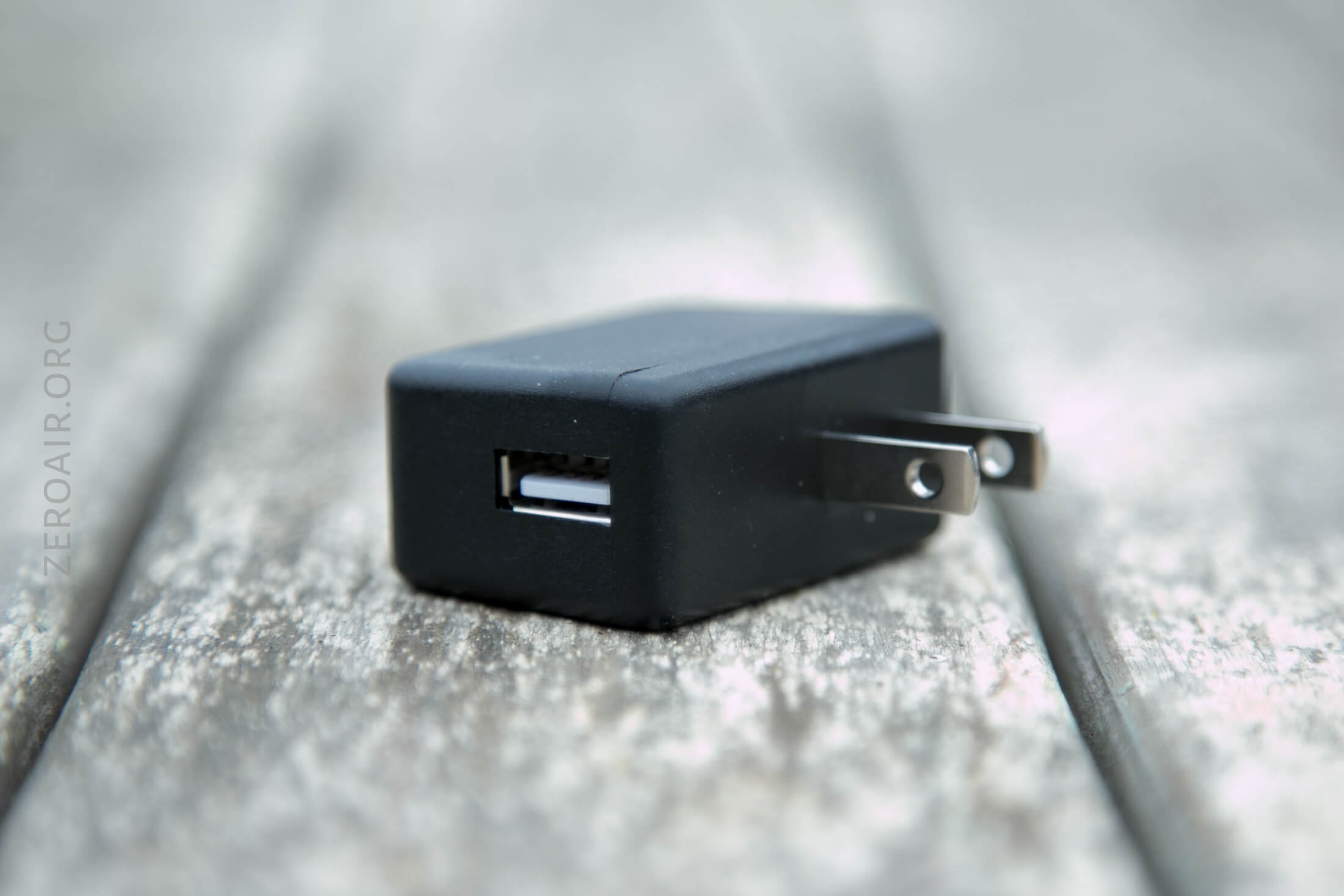

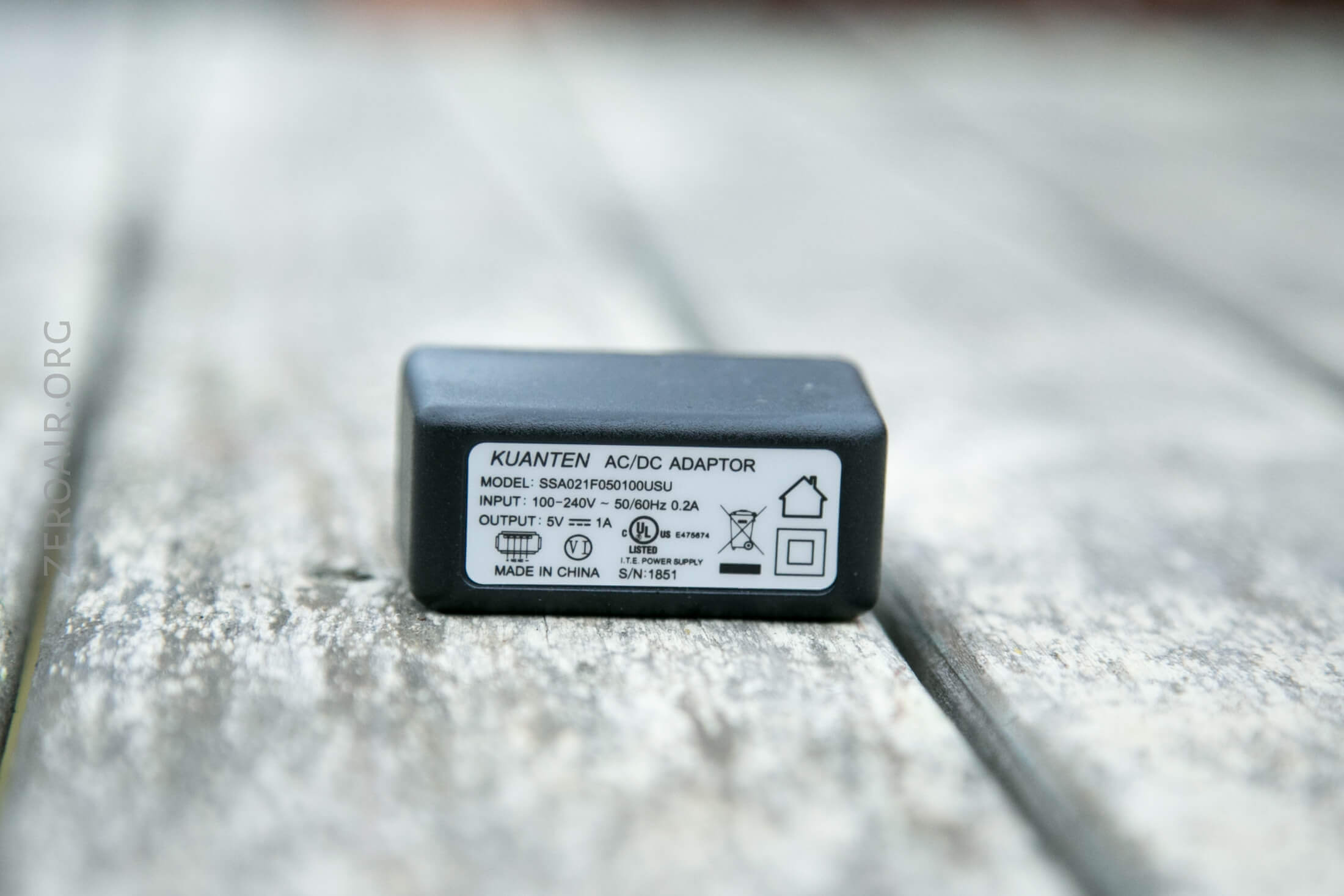

Coast includes a wall wart capable of outputting 1A, but the light won’t utilize that rate.  Also included (not pictured here) is a car cigarette lighter adapter.

Modes and Currents

Mode Mode Claimed Output (lm) Claimed Runtime Measured Lumens
High (Lithium-ion) 300 7h 229
Low (Lithium-ion) 30 33h 30
High (AAA) 300 7h 230
Low (AAA) 30 33h 25

Pulse Width Modulation

Both modes have PWM.  It’s not so noticeable on High, but it’s present.  PWM is extremely noticeable on Low.

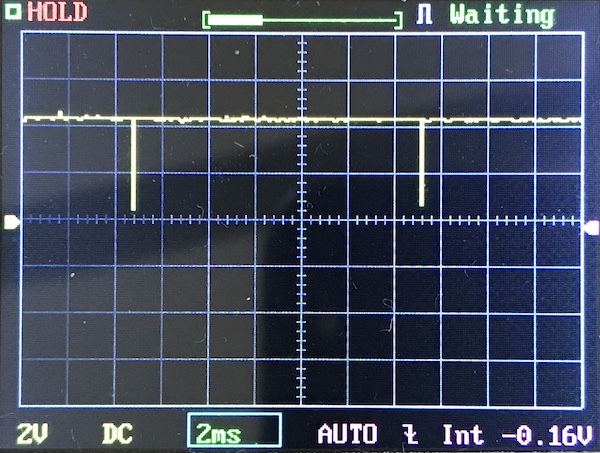

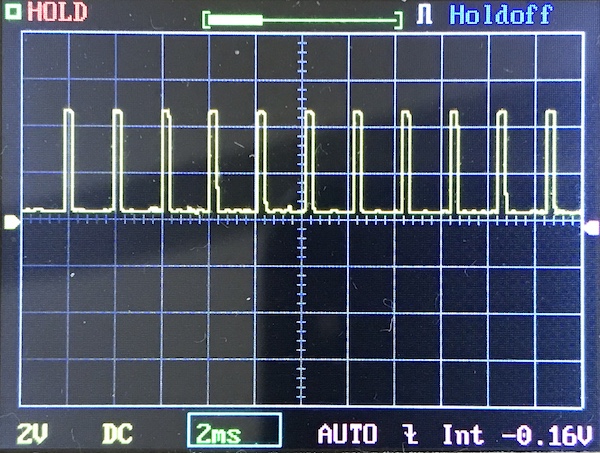

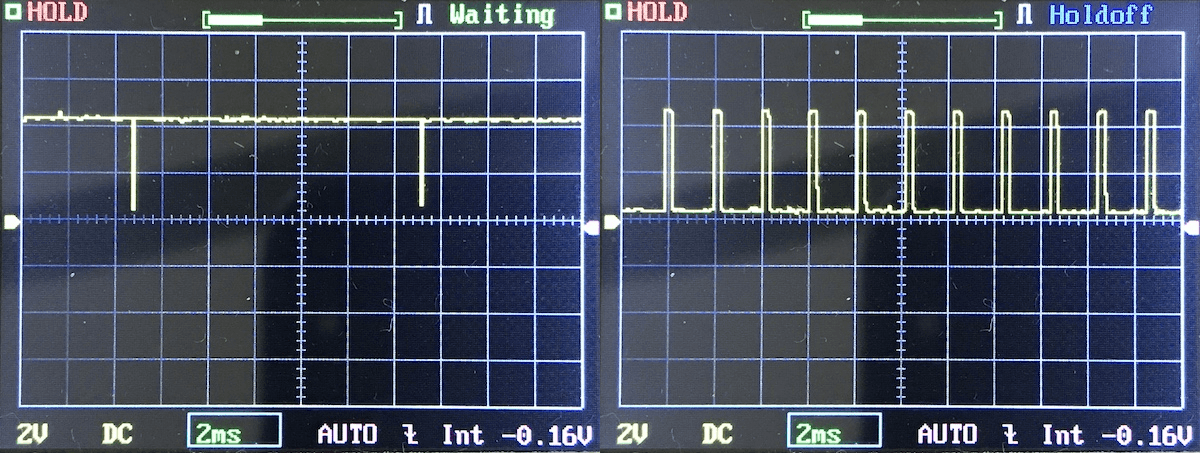

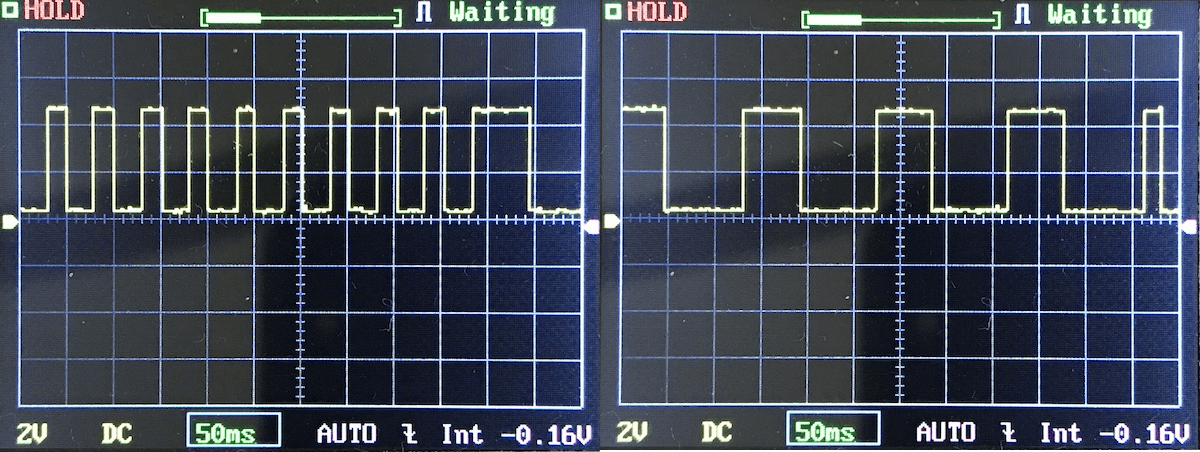

Here’s a photo of the PWM in action – at 1/640s.

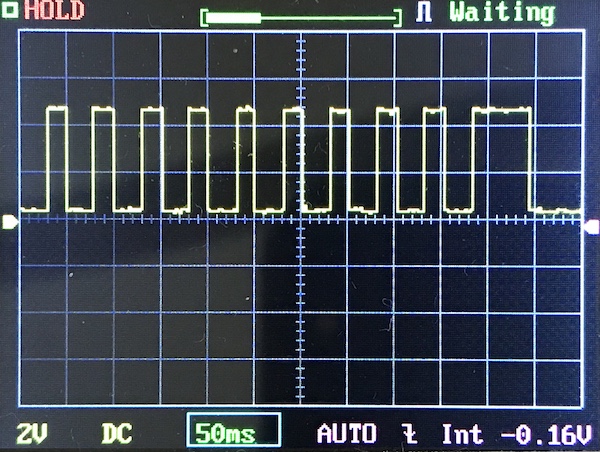

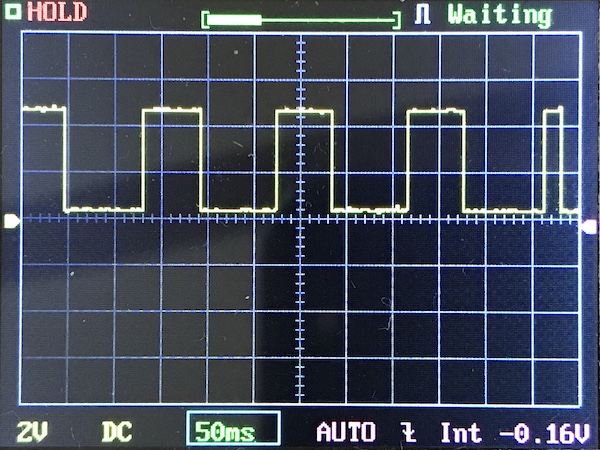

Below just out of curiosity (and notably on a different timescale!) is the Strobe.

For reference, here’s a baseline shot, with all the room lights off and almost nothing hitting the sensor.  Also, here’s the light with the worst PWM I could find.  I’m adding multiple timescales, so it’ll be easier to compare to the test light.  Unfortunately, the PWM on this light is so bad that it doesn’t even work with my normal scale, with is 50 microseconds (50us).  10ms5ms2ms1ms0.5ms0.2ms.  In a display faster than 0.2ms or so, the on/off cycle is more than one screen, so it’d just (very incorrectly) look like a flat line.  I wrote more about this Ultrafire WF-602C flashlight and explained a little about PWM too.

User Interface and Operation

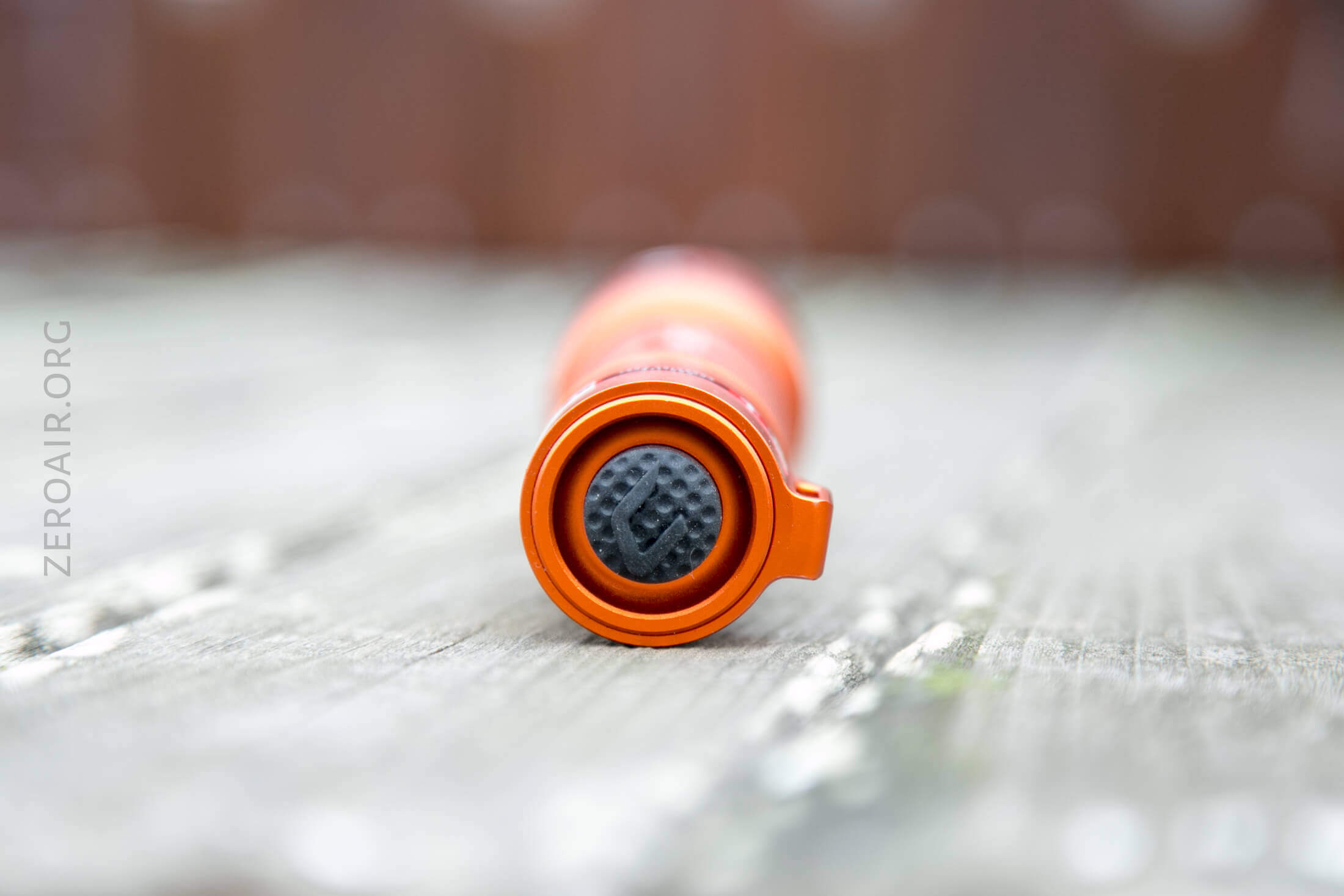

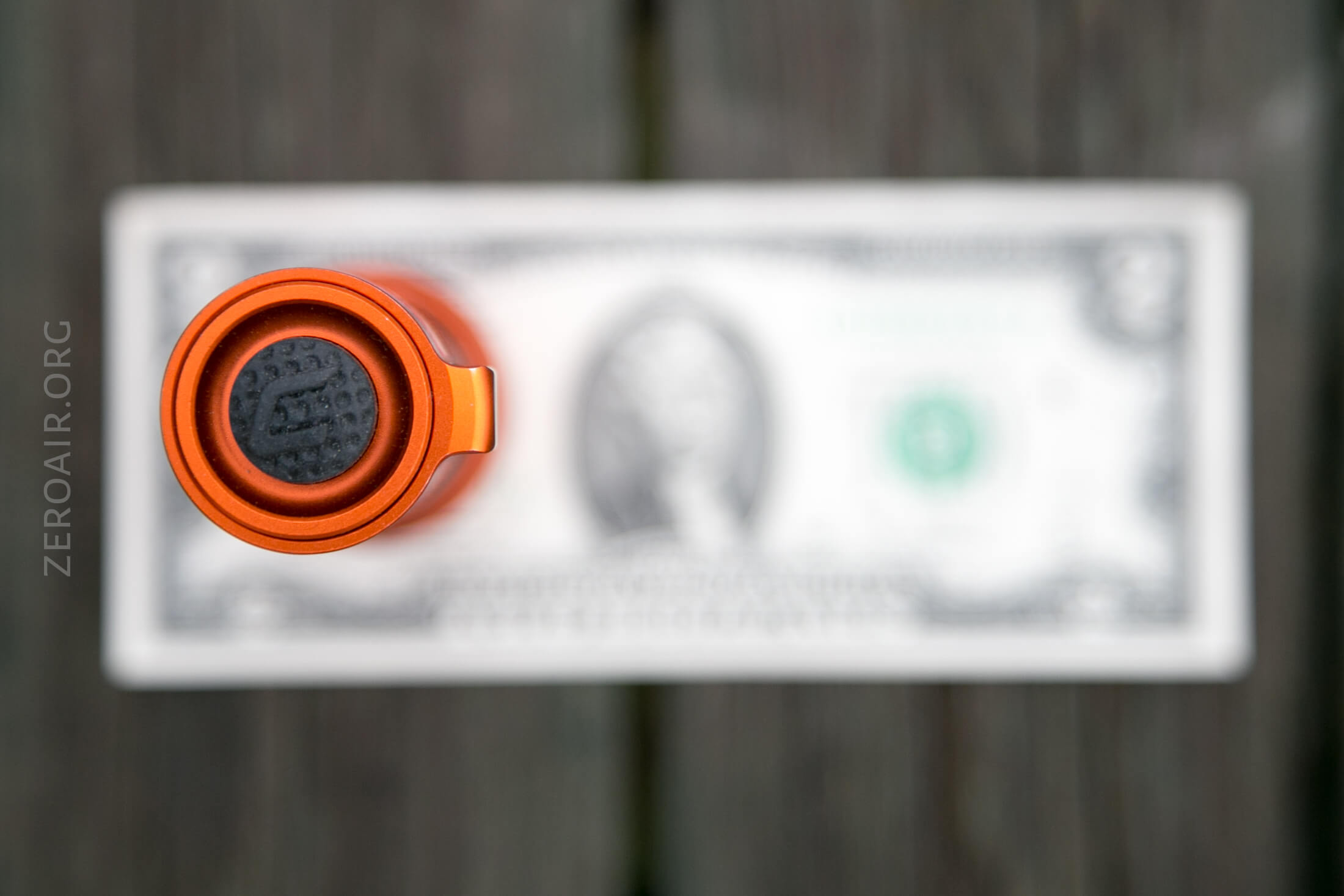

There’s a single button on the HP7R.  It’s a mechanical forward clicky on the tailcap.  The button is nicely dimpled, and has the Coast C logo.  The forward clicky allows momentary in any mode.

Here’s a UI table!

State Action Result
Off Click High
High Click off then on Strobe
Strobe Click off then on Low
On Click Off

If the light isn’t operated for 5 seconds, the next cycle will be to High again.

And you read that right.  To get to Low, you must go through Strobe.

LED and Beam

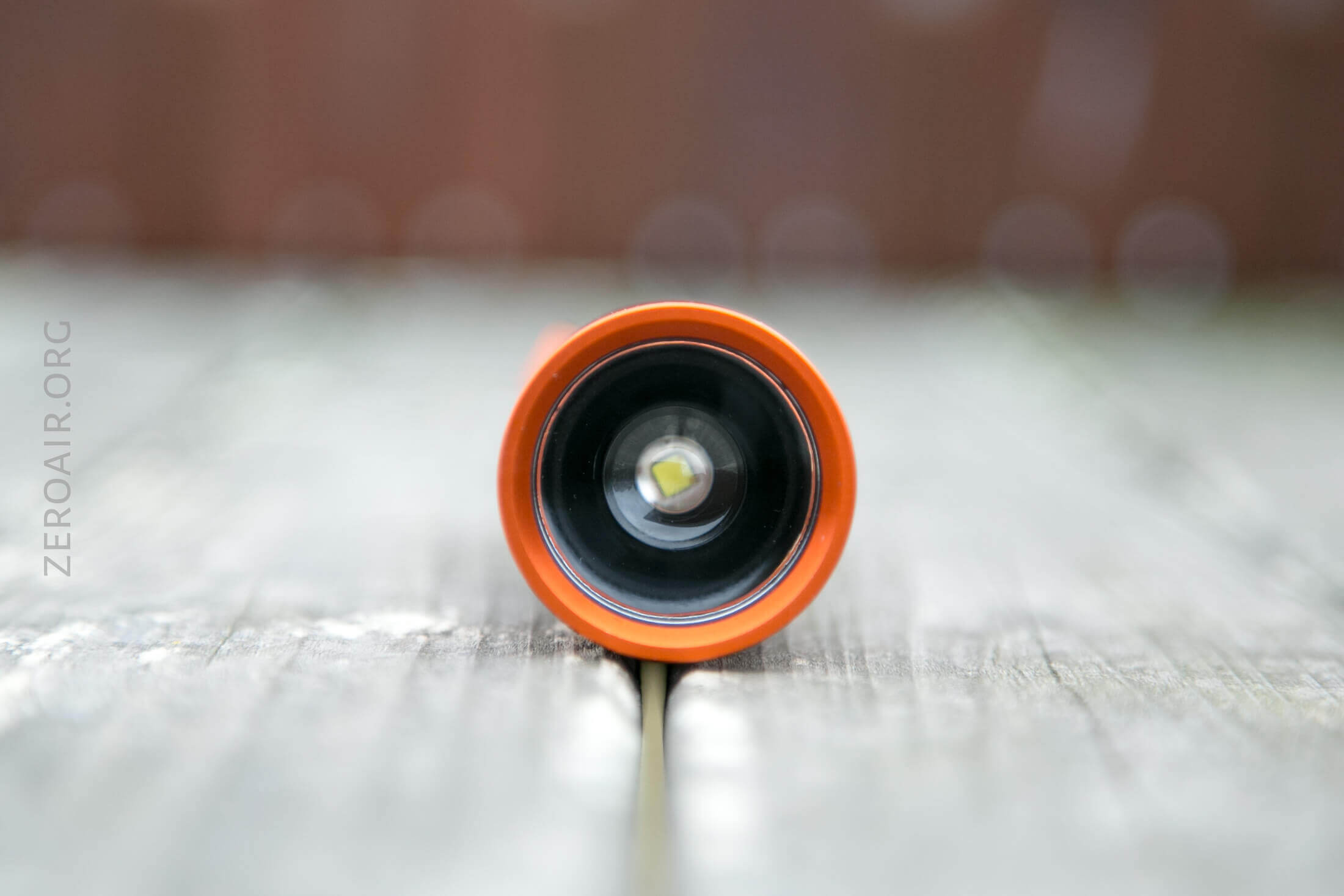

The emitter is unspecified for this light.  It’s cool white though.

There’s a very interesting feature of the zoomie aspect, though.  The head is a push-pull type zoomie, but it can be twisted a 16th of a turn til it clicks, and the head will be locked into any specific zoom level!  That’s a feature I haven’t seen before, and it’s clever.

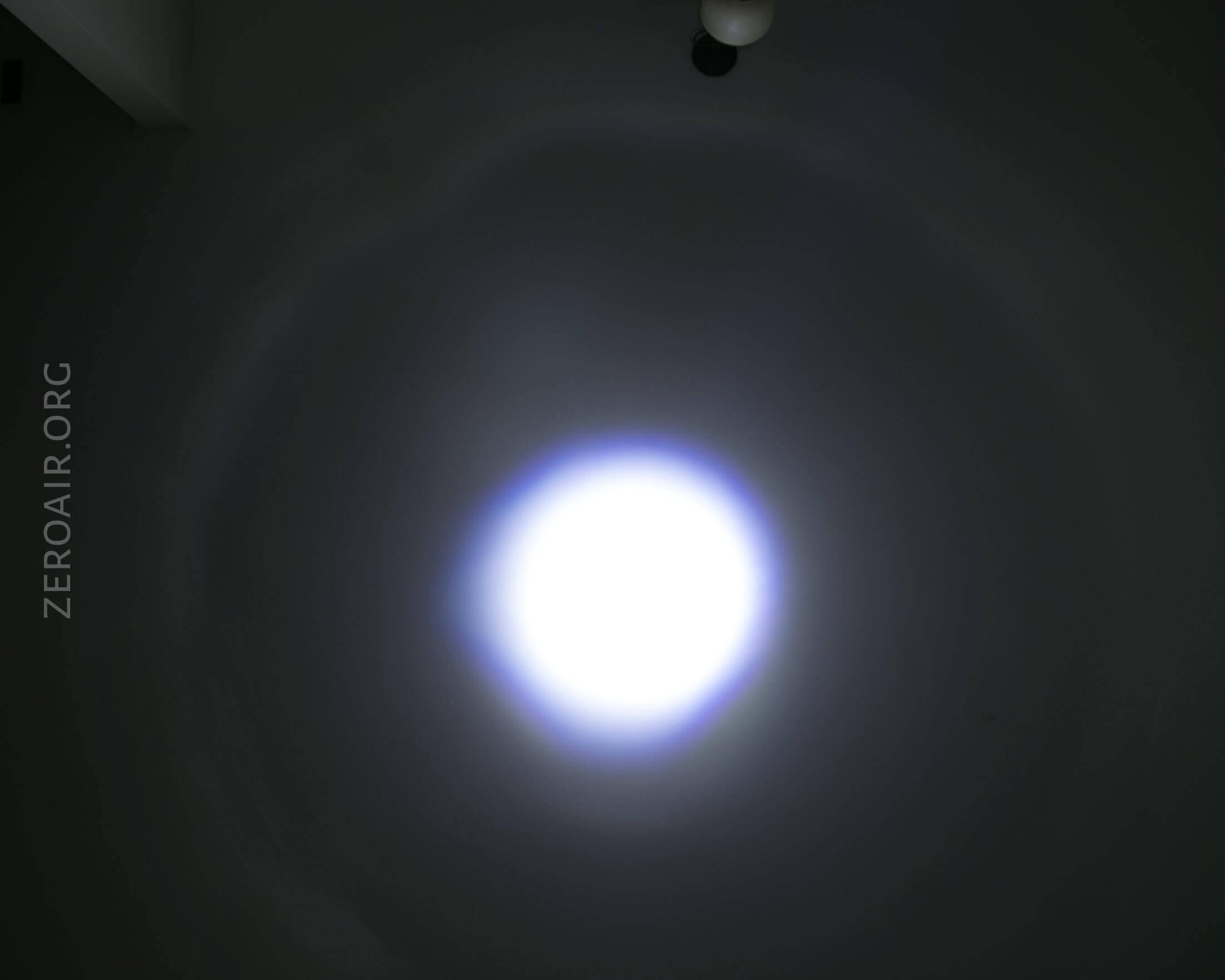

These beamshots are always with the following settings:  f8, ISO100, 0.3s shutter, and manual 5000K exposure.

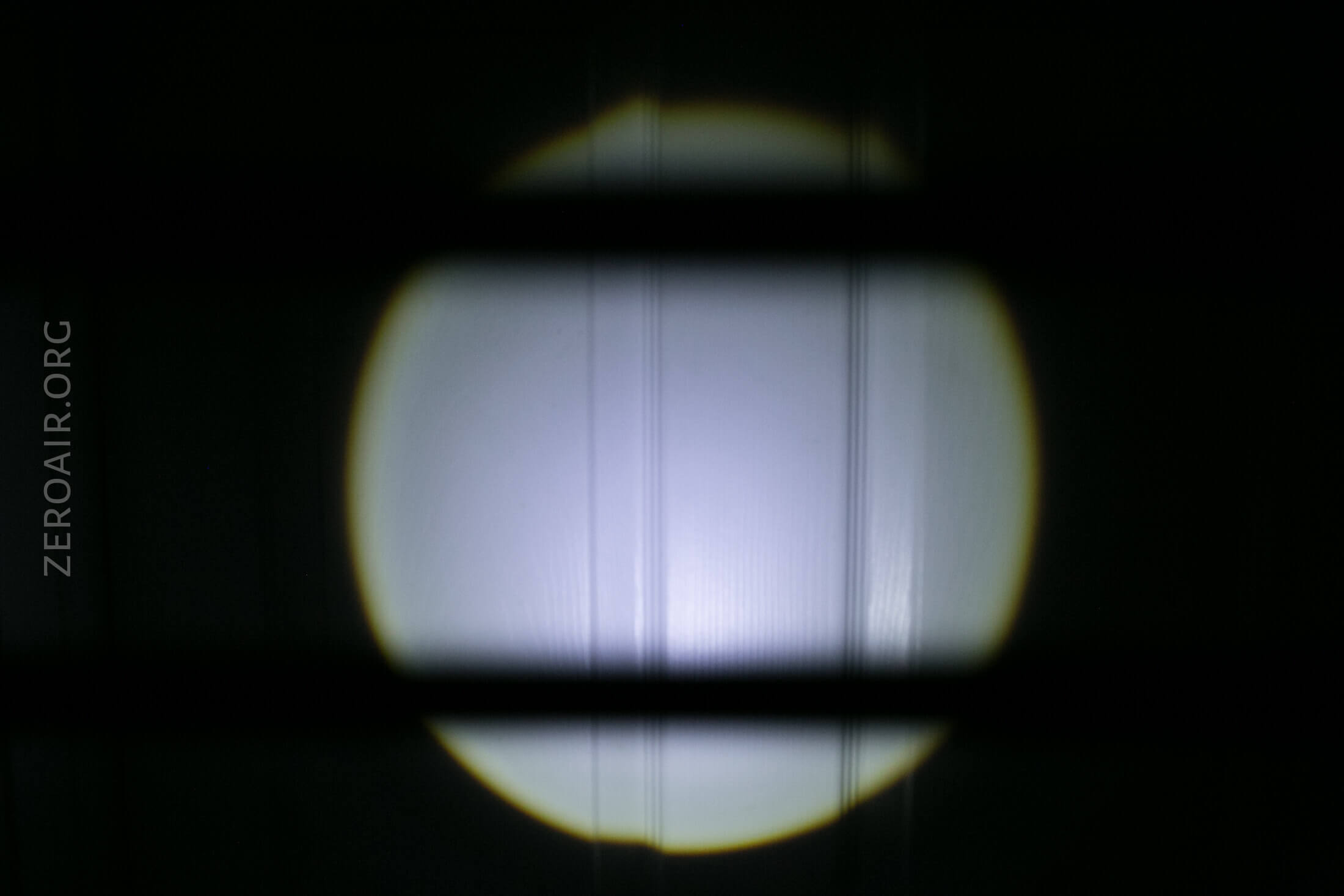

High first, then low.  Zoomed out all the way first, then zoomed in all the way.

Tint vs BLF-348 ( 219b version) (affiliate link)

I compare everything to the Killzone 219b BLF-348 because it’s inexpensive and has the best tint!


What I like

  • Clever zoomie feature with a locking head
  • Access to the micro-USB port without removing the tailcap
  • Push pull zoomie
  • Zoomie aspect is well focused (no picture of the LED on the wall!)

What I don’t like

  • Orange parts don’t match
  • Big
  • Expensive
  • Cool white
  • High Strobe Low
  • Seriously, High then Strobe then Low
  • The PWM is very bad


  • This light was provided by Coast for review. I was not paid to write this review.
  • This content originally appeared at  Please visit there for the best experience!
  • For flashlight-related patches, stickers, and gear, head over to!
  • Use my referral link if you’re willing to help support making more reviews like this one!
  • Please support me on Patreon!  Feeding flashlights is expensive!  And funding Fun Fund Friday even more so.  I deeply appreciate your support!
