Convoy T2 14500/AA Flashlight Review

Convoy updated the T2 – the new version supports both AA and 14500 cells! My copy has a warm Samsung LH351d, too. Read on for thoughts and testing!


Official Specs and Features of the Convoy T2 14500/AA Flashlight

Here’s a link to the product page at mohrlumens.com.

Versions

Of course there’s the original version of this little light.  That version supports only AA cells.  Of this version (which surprisingly, frustratingly doesn’t seem to officially be called “v2”) there seems to be just one body but multiple emitters.  MohrLumens offers two of those – Nichia 219c 4000K, and Samsung LH351d 3500K (seen here).

Price

The Convoy T2 (14500/AA Version) Flashlight is selling for $13.95 right now.  I recommend MohrLumens.com, which is shipping from the US, and has stock right now!


Convoy T2 14500/AA Flashlight Short Review

Long Review

The Big Table

Convoy T2 14500/AA Flashlight
Emitter: Samsung LH351d (3500K)
Price in USD at publication time: $13.95
Cell: 1xAA
High Runtime Graph Medium Runtime Graph
LVP? No
Switch Type: Mechanical
On-Board Charging? No
Claimed Lumens (lm) 320
Measured Lumens (at 30s) 136 (42.5% of claim)*
Candela per Lumen 6.6
Claimed Throw (m) 50
Candela (Calculated) in cd (at 30s) 70lux @ 3.607m = 911cd
Throw (Calculated) (m) 60.4 (120.8% of claim)*
All my Convoy reviews!



Convoy T2 14500/AA Flashlight
Emitter: Samsung LH351d (3500K)
Price in USD at publication time: $13.95
Cell: 1×14500
High Runtime Graph Medium Runtime Graph
LVP? Yes
Switch Type: Mechanical
On-Board Charging? No
Claimed Lumens (lm) 320
Measured Lumens (at 30s) 464 (145% of claim)*
Candela per Lumen 6.2
Claimed Throw (m) 50
Candela (Calculated) in cd (at 30s) 137lux @ 4.875m = 3256cd
Throw (Calculated) (m) 114.1 (228.2% of claim)*
All my Convoy reviews!
  • Measurement disclaimer:  I am an amateur flashlight reviewer.  I don’t have $10,000 or even $1,000 worth of testing equipment.  I test output and such in PVC tubes!!  Please consider claims within 10% of what I measure to be perfectly reasonable (accurate, even).

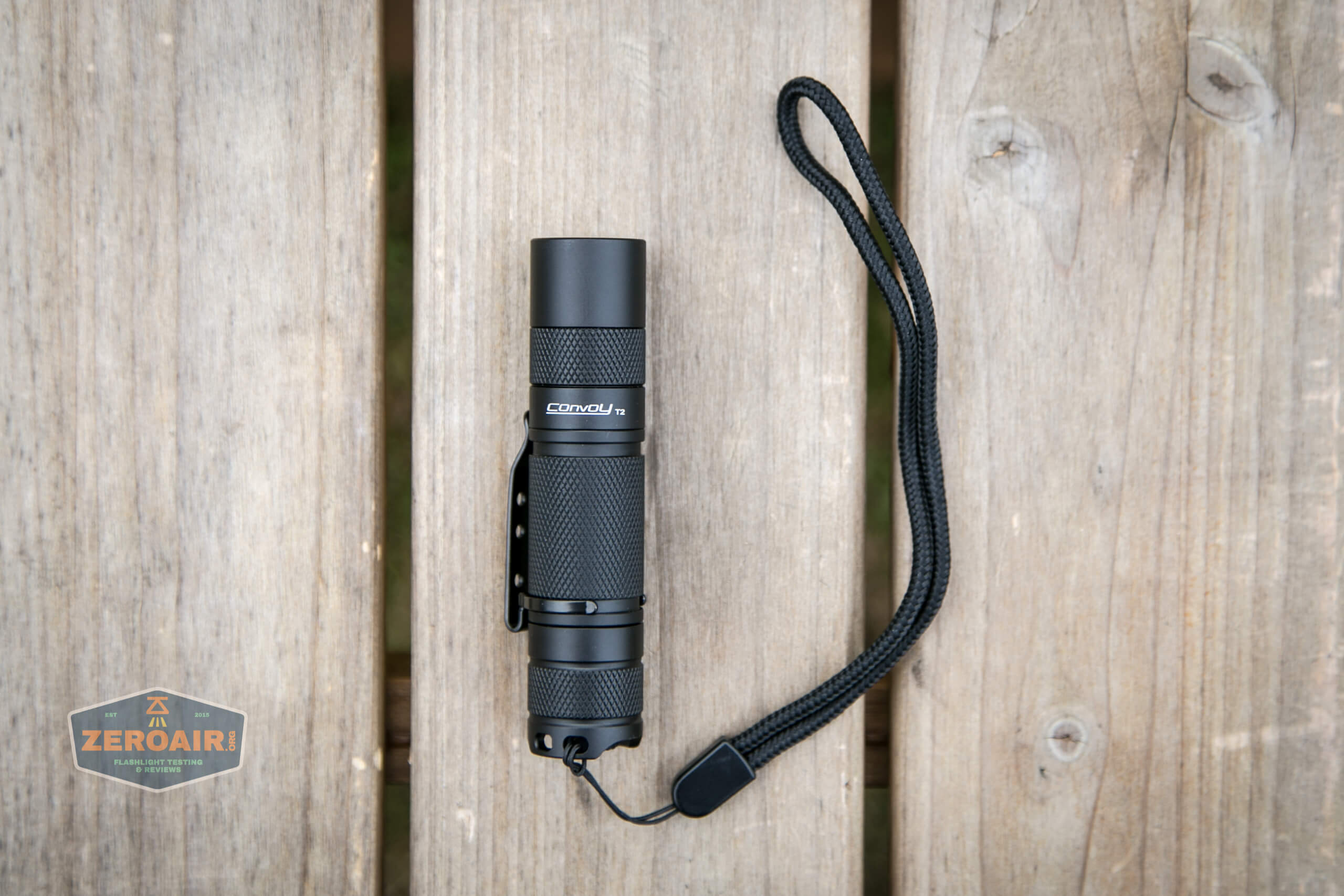

What’s Included

convoy t2 updated 14500/AA flashlight what's included

  • Convoy T2 14500/AA Flashlight

  • Lanyard (attached)

  • Pocket clip (attached)

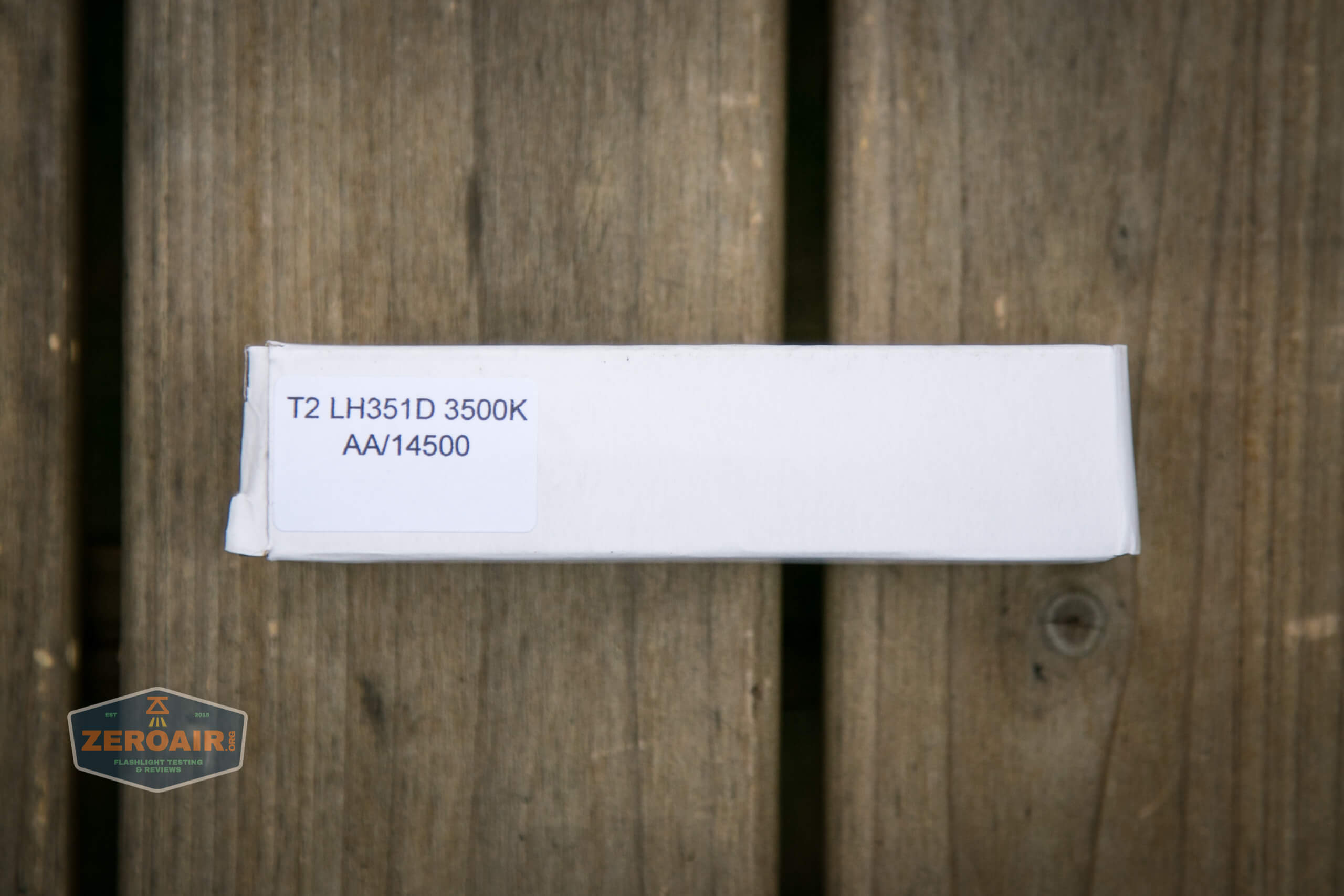

Package and Manual

convoy t2 updated 14500/AA flashlight box

There is no manual.

Build Quality and Disassembly

convoy t2 updated 14500/AA flashlight feature photo

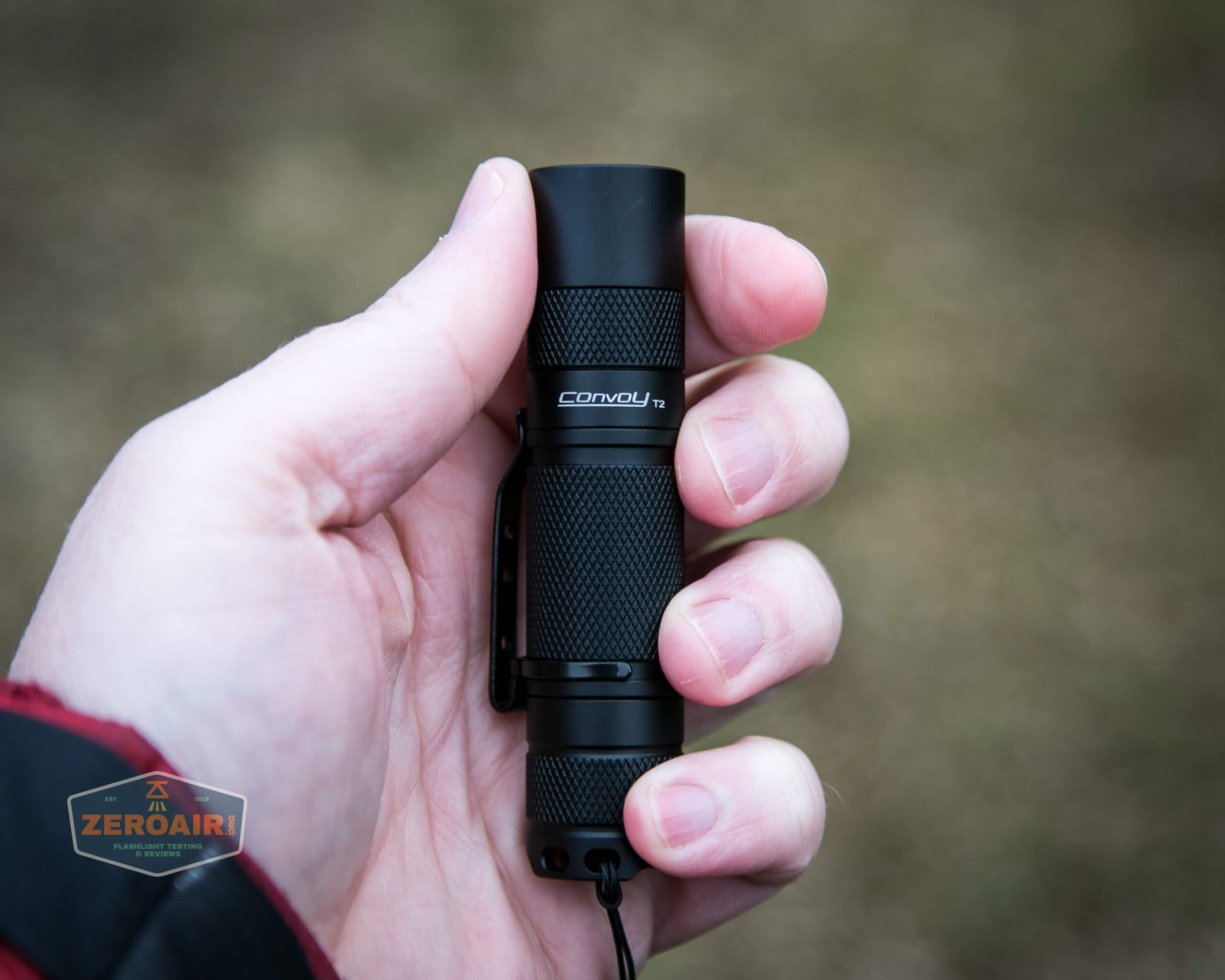

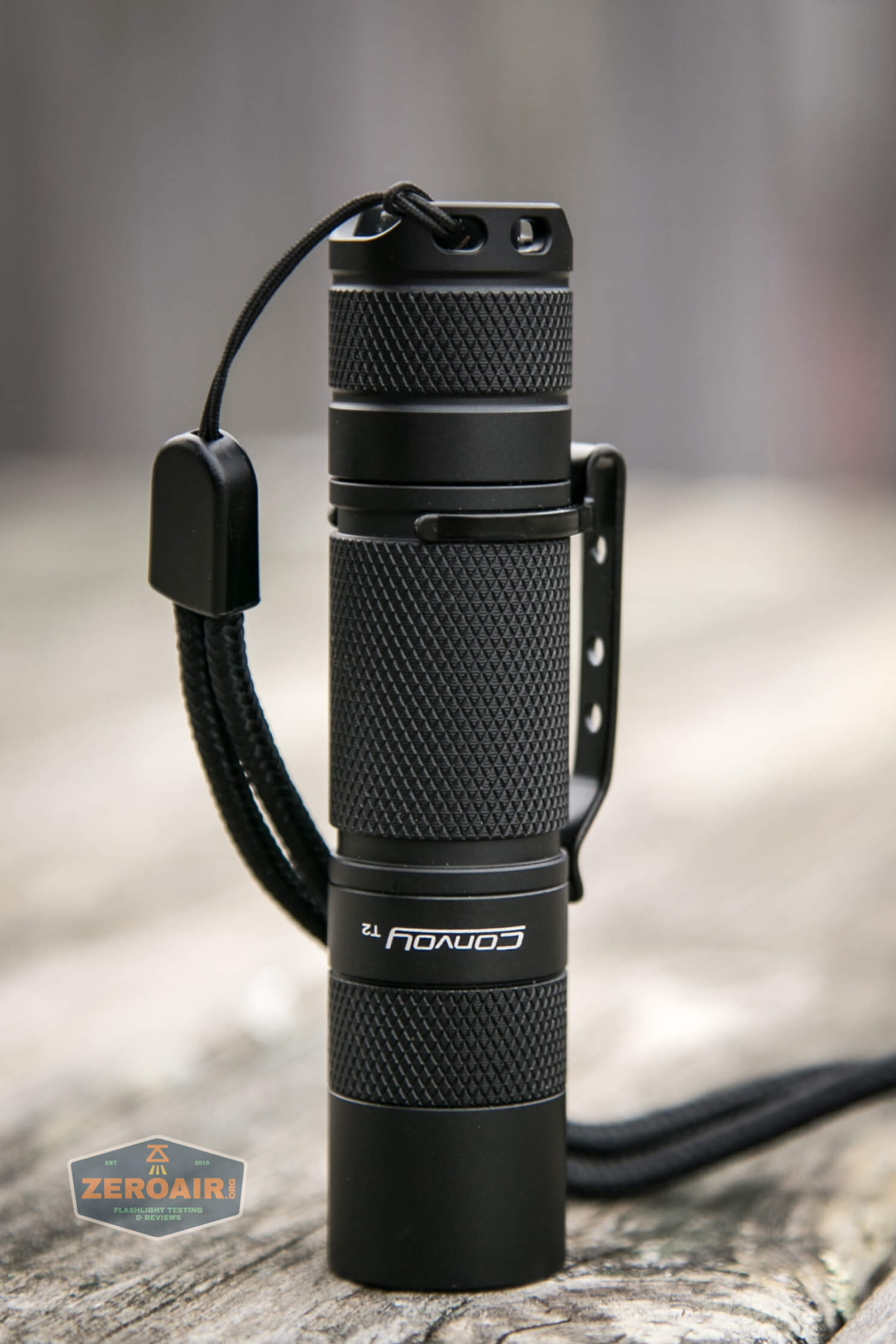

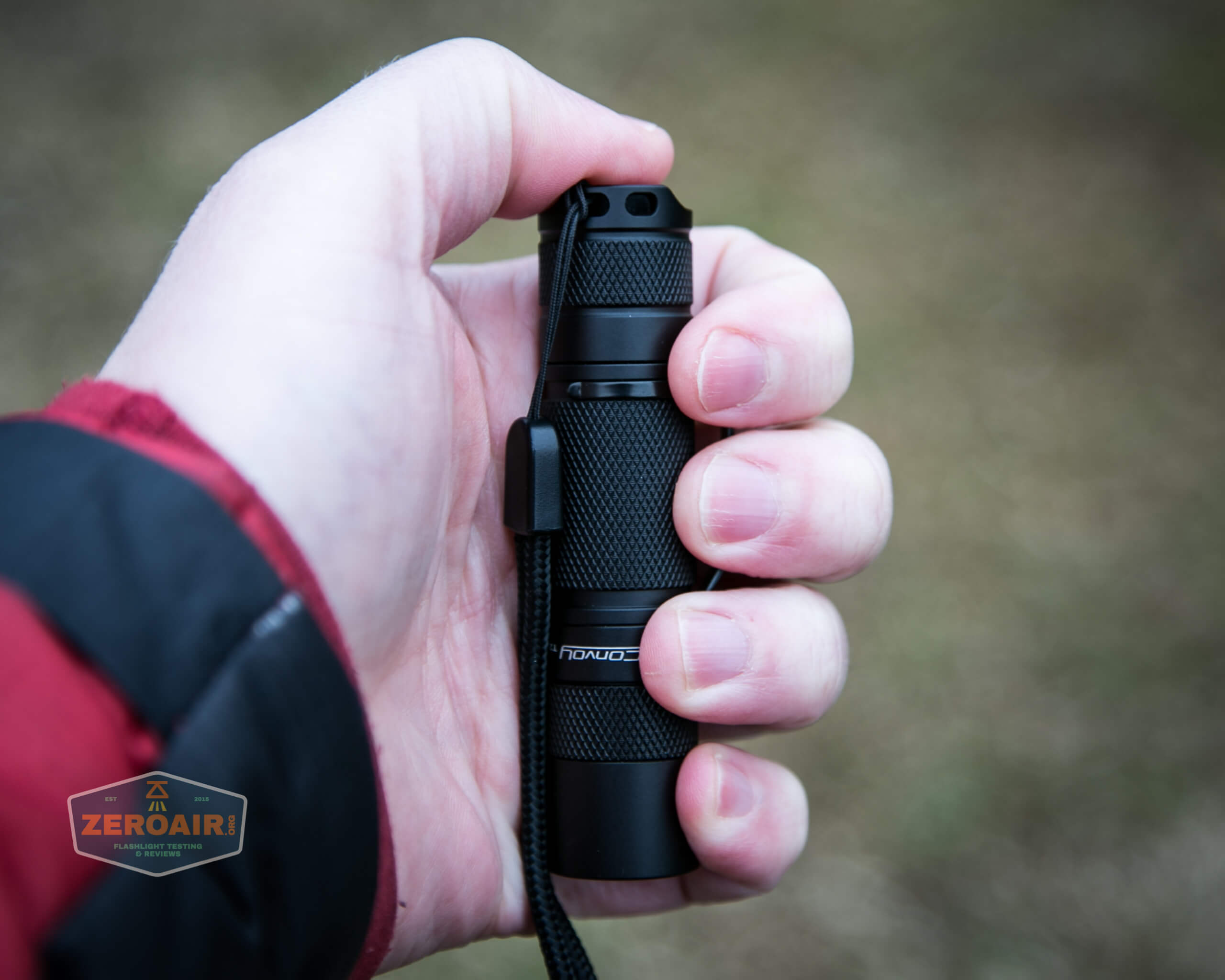

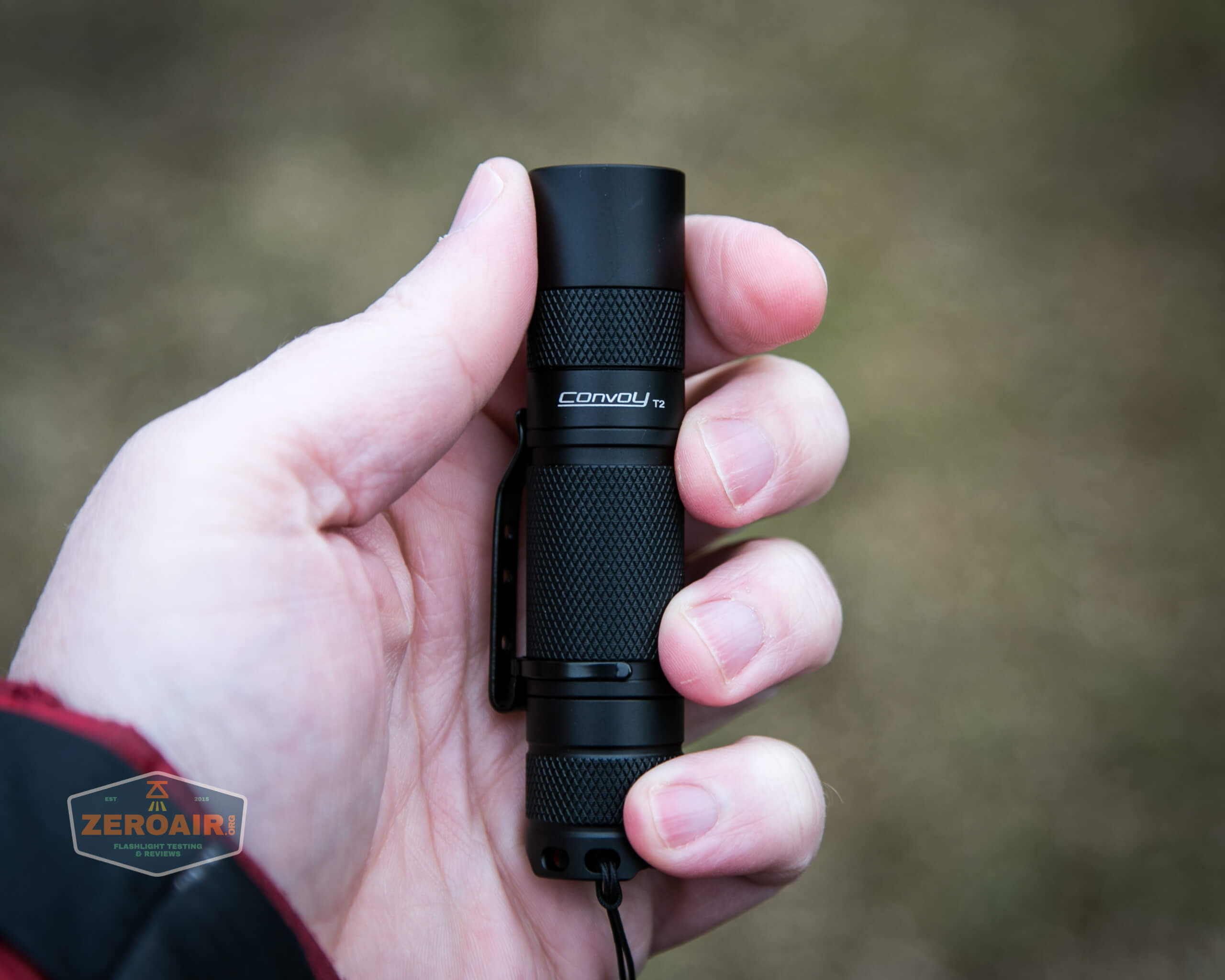

Standard Convoy fare here.  This is like a tiny S2+ in hand.

In fact as far as the build goes, I wouldn’t say there’s anything at all different from the original Convoy T2, which I reviewed here.  The build quality is the same, exactly.

I would actually venture a guess that only the driver and emitter has been updated, in fact.

convoy t2 updated 14500/AA flashlight lanyard

This lanyard ships installed.  So does that pocket clip.

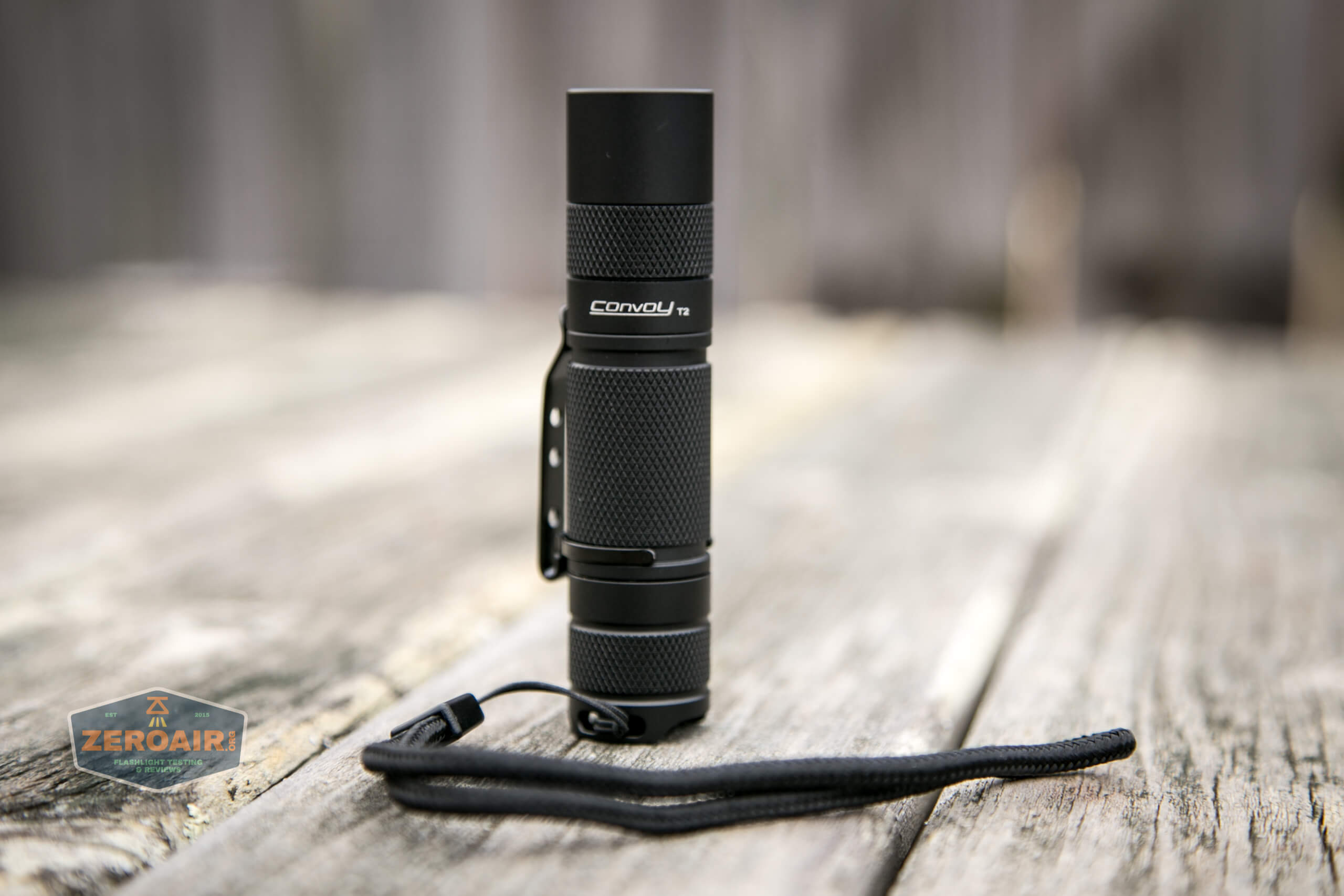

convoy t2 updated 14500/AA flashlight tailstanding

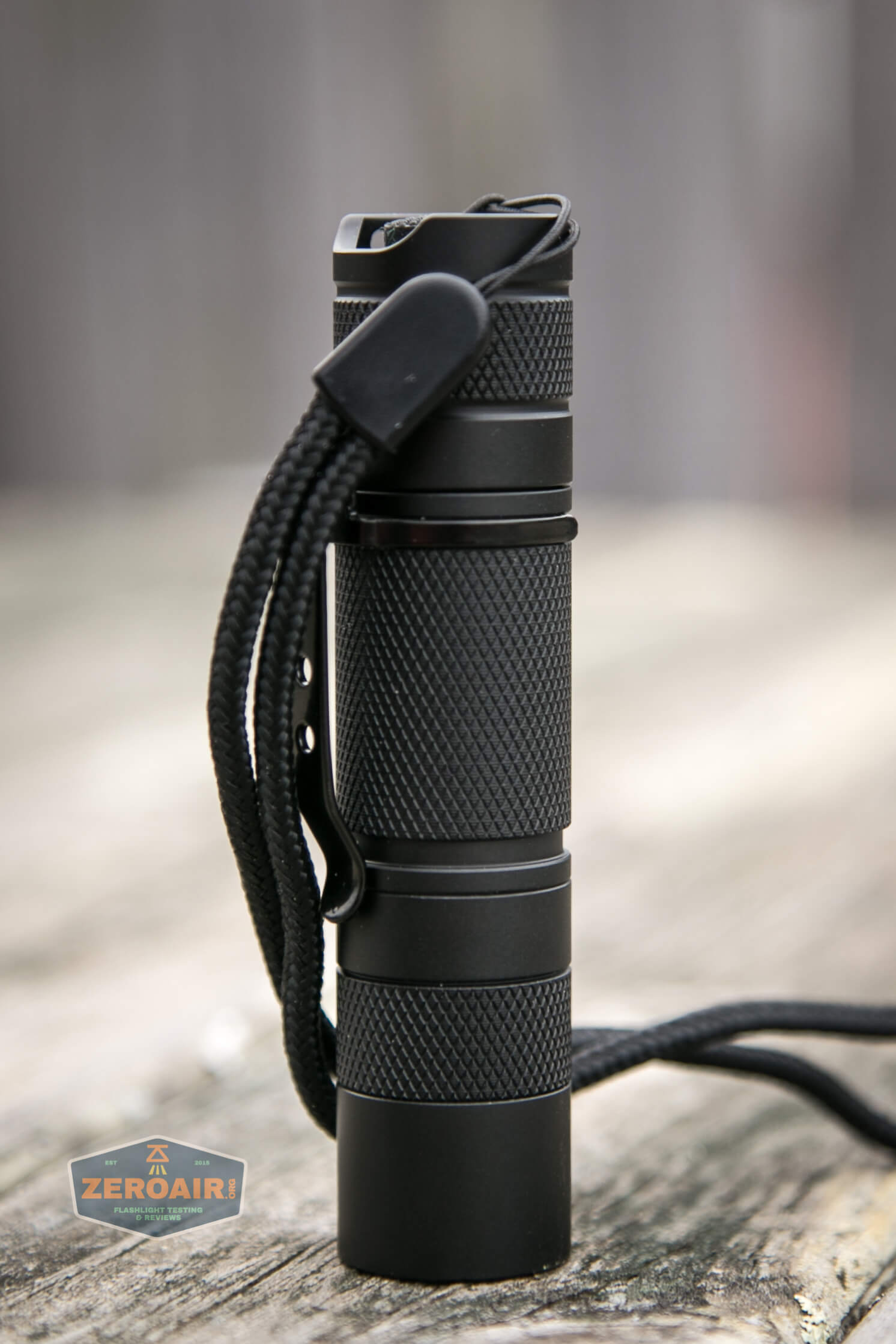

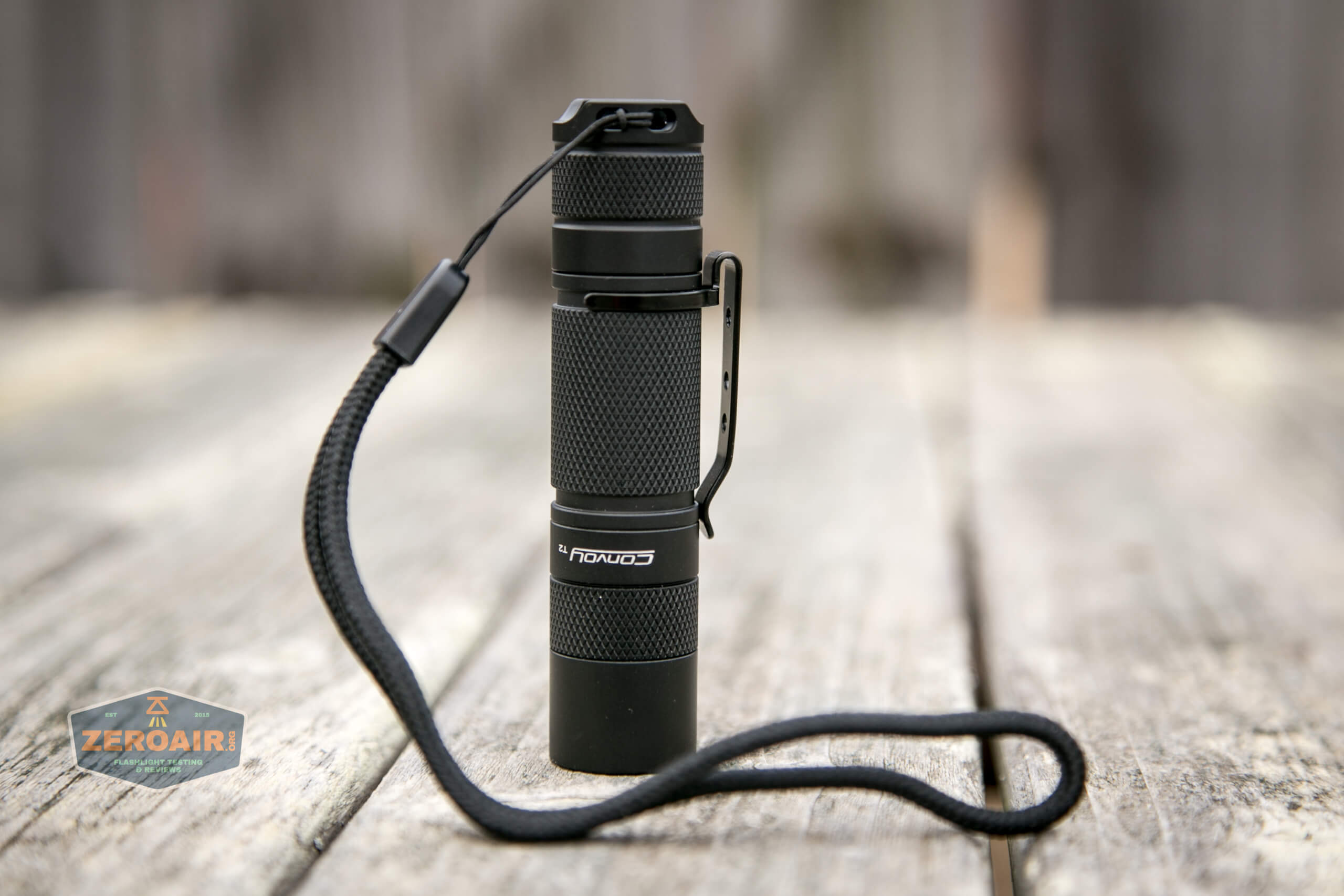

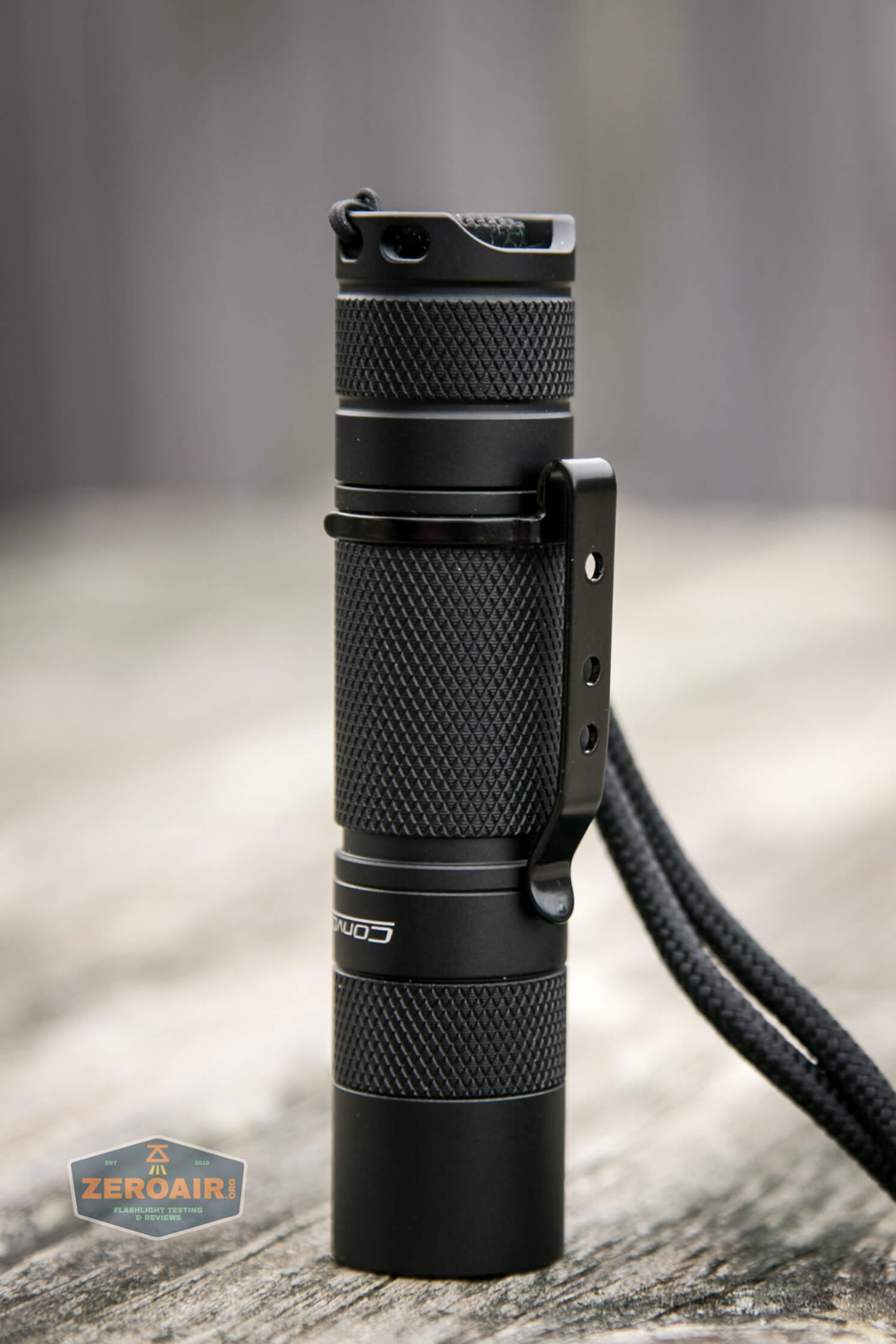

Headstanding is a breeze!

convoy t2 updated 14500/AA flashlight headstanding

The knurling here is perfect; no complaints.

convoy t2 updated 14500/AA flashlight pocket clip profile

convoy t2 updated 14500/AA flashlight pocket clip

convoy t2 updated 14500/AA flashlight pocket clip hug

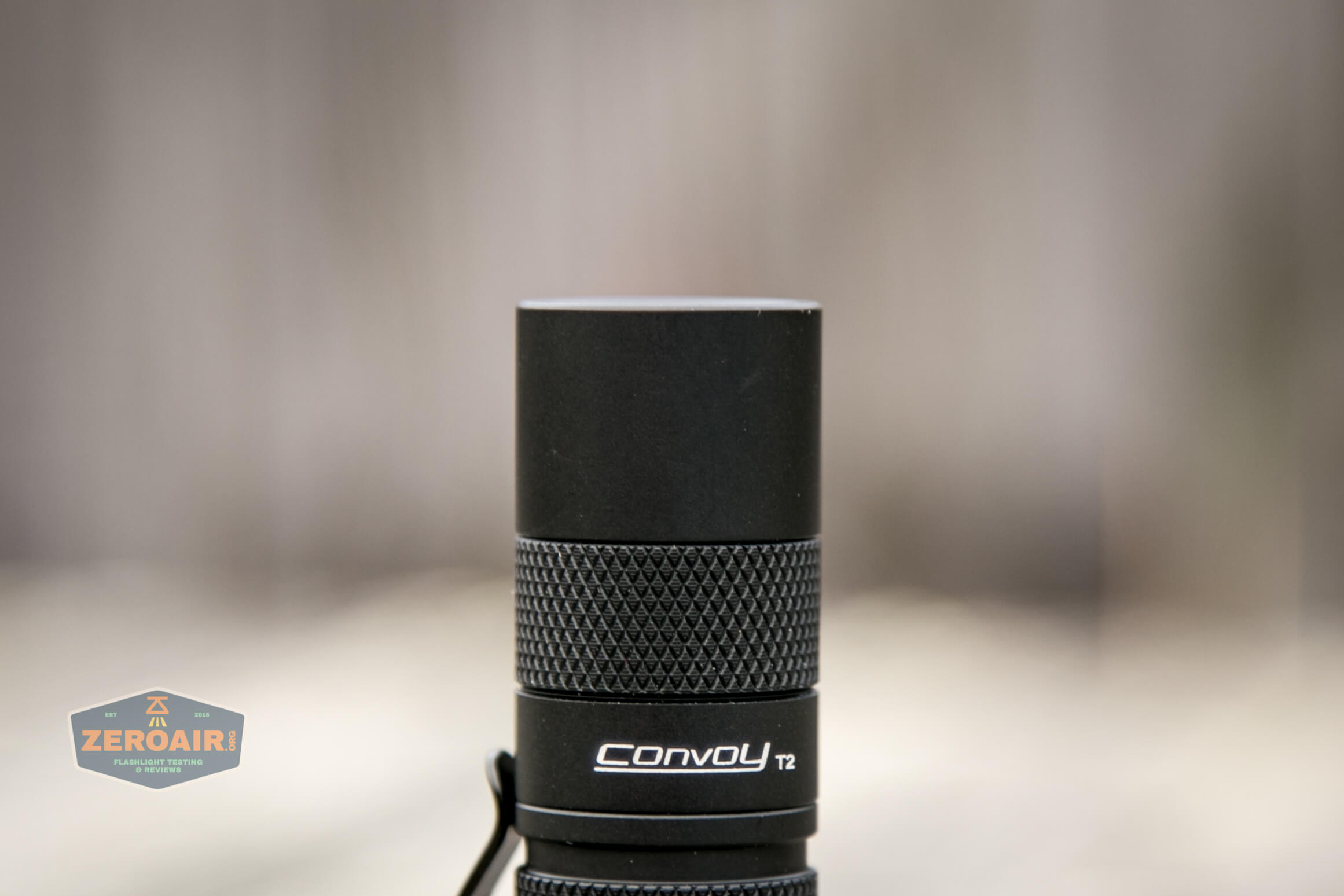

Starting at the top and going down – you’ll notice some knurling on the head where you should grab if you’re a “head removing” kind of cell swapper.  I’m not.  Note that the bezel will unscrew too, so be sure you grab on the knurling (and not the bezel) when removing the head.

convoy t2 updated 14500/AA flashlight head

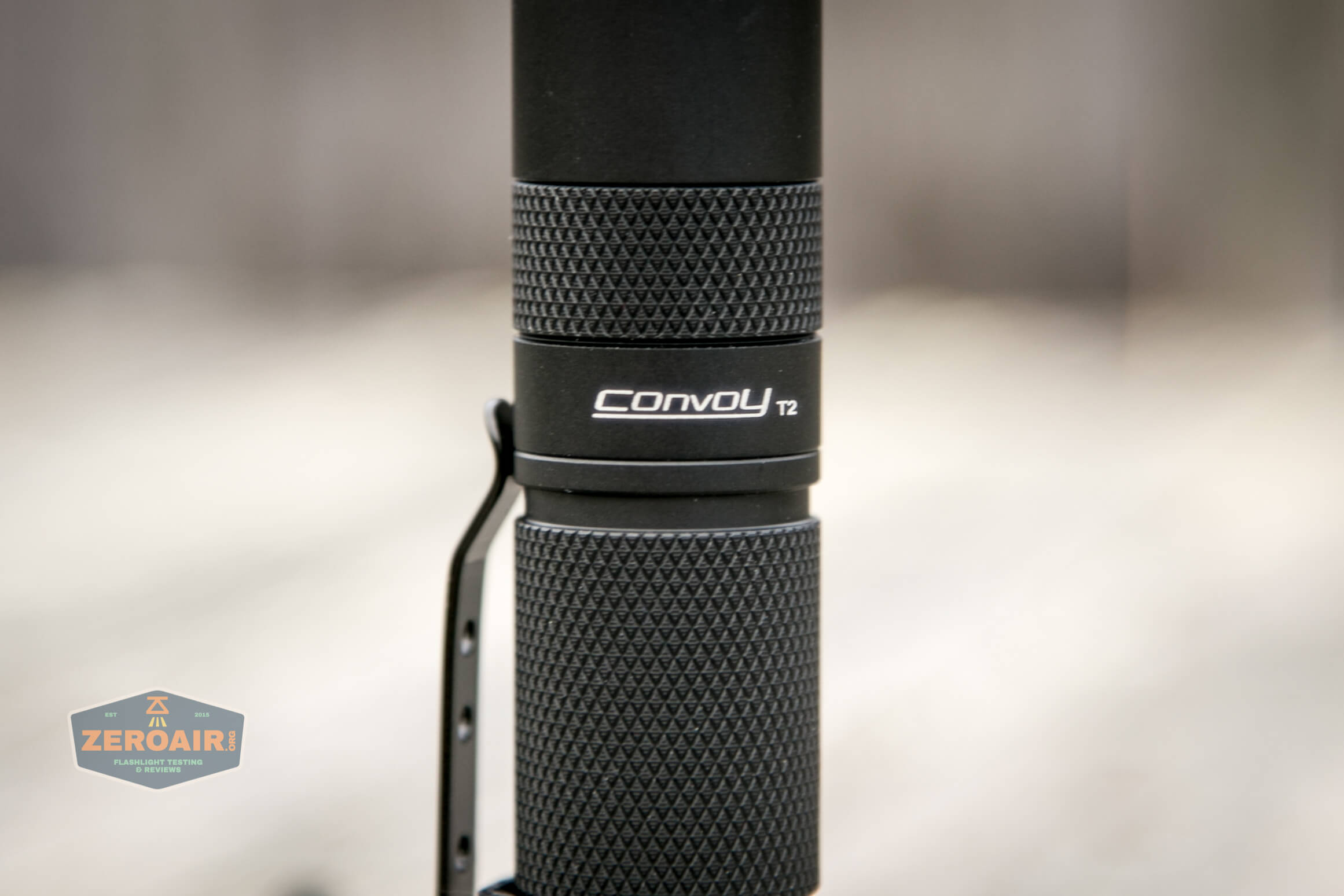

There’s limited printing on the body.  Just brand and model.

convoy t2 updated 14500/AA flashlight body

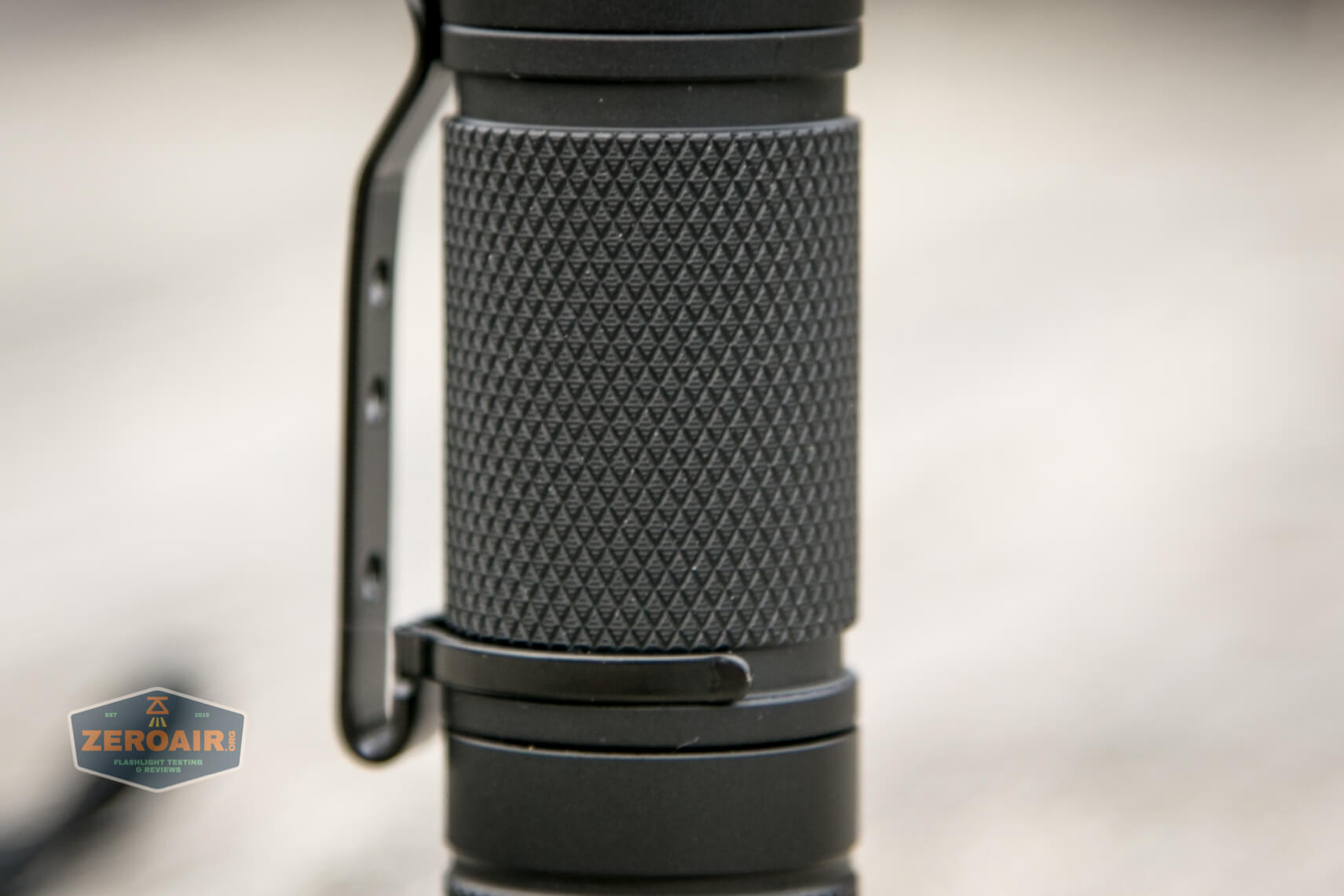

Again, the knurling is great.

convoy t2 updated 14500/AA flashlight knurling

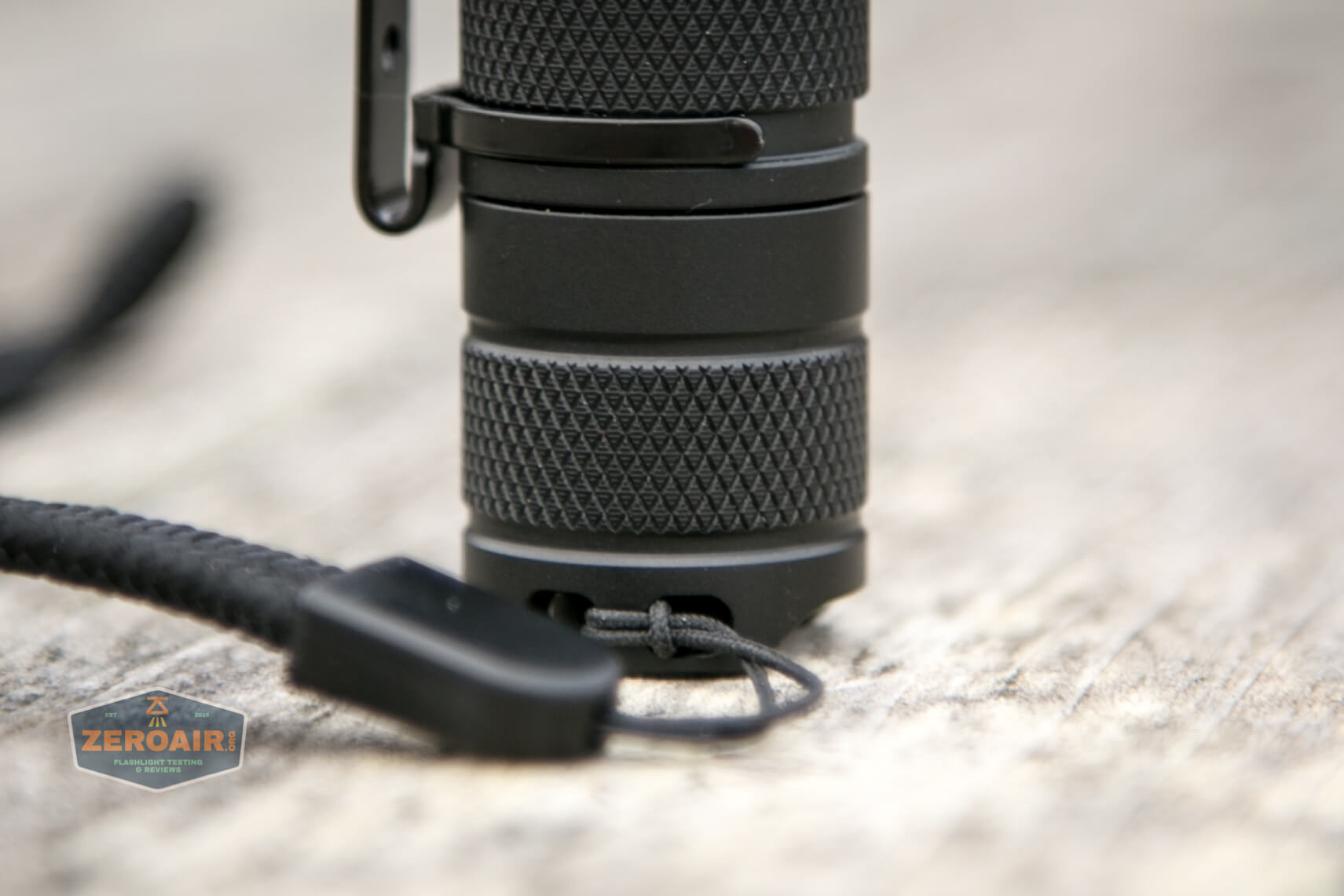

And the tailcap has some knurling too, which aids in tailcap removal.  I opt to use the tailcap for cell swaps, because the threads on this end are anodized, and I prefer that level of smoothness.

convoy t2 updated 14500/AA flashlight tailcap

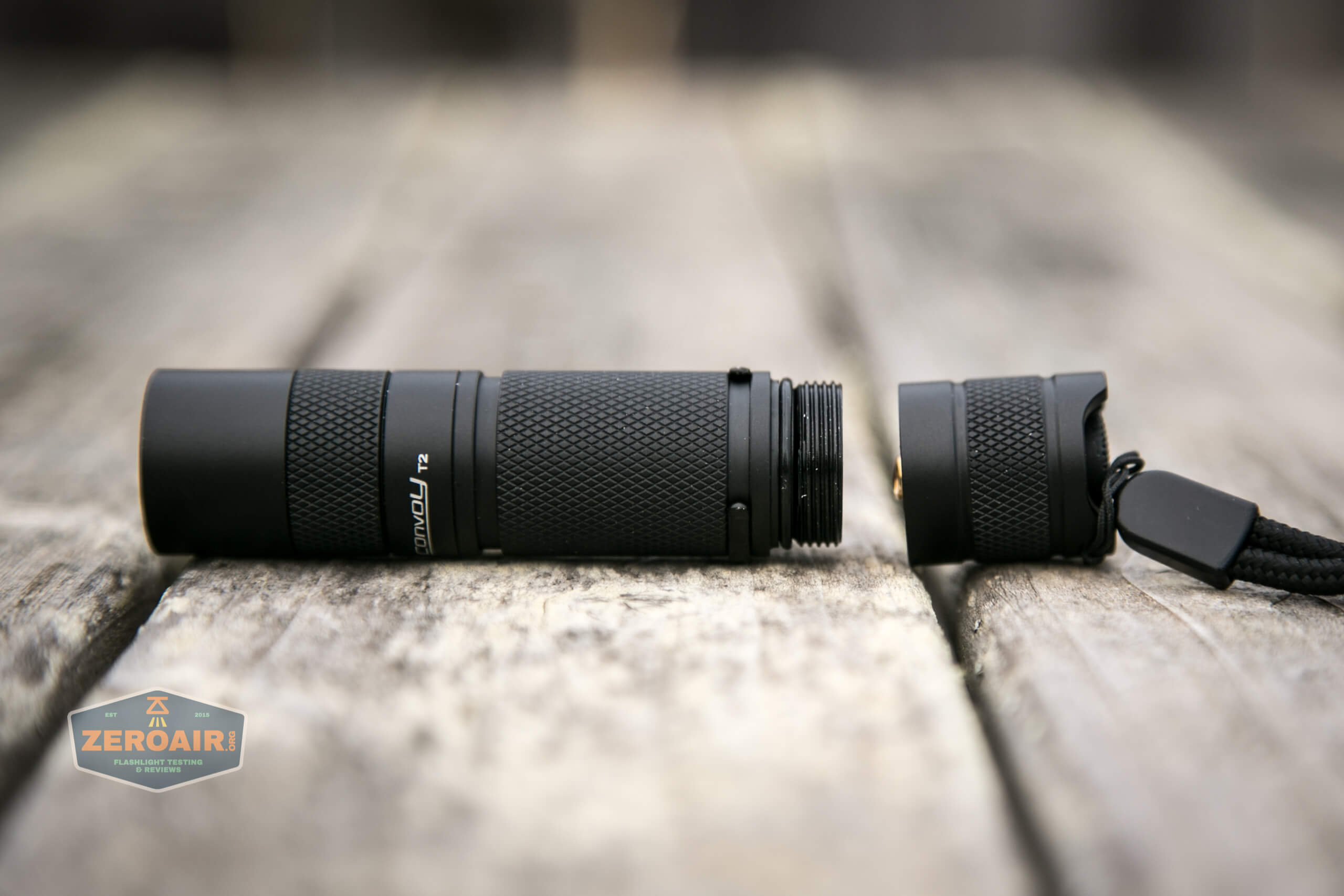

Here are those threads.  Anodized, not too long, and very smooth.

convoy t2 updated 14500/AA flashlight tailcap off

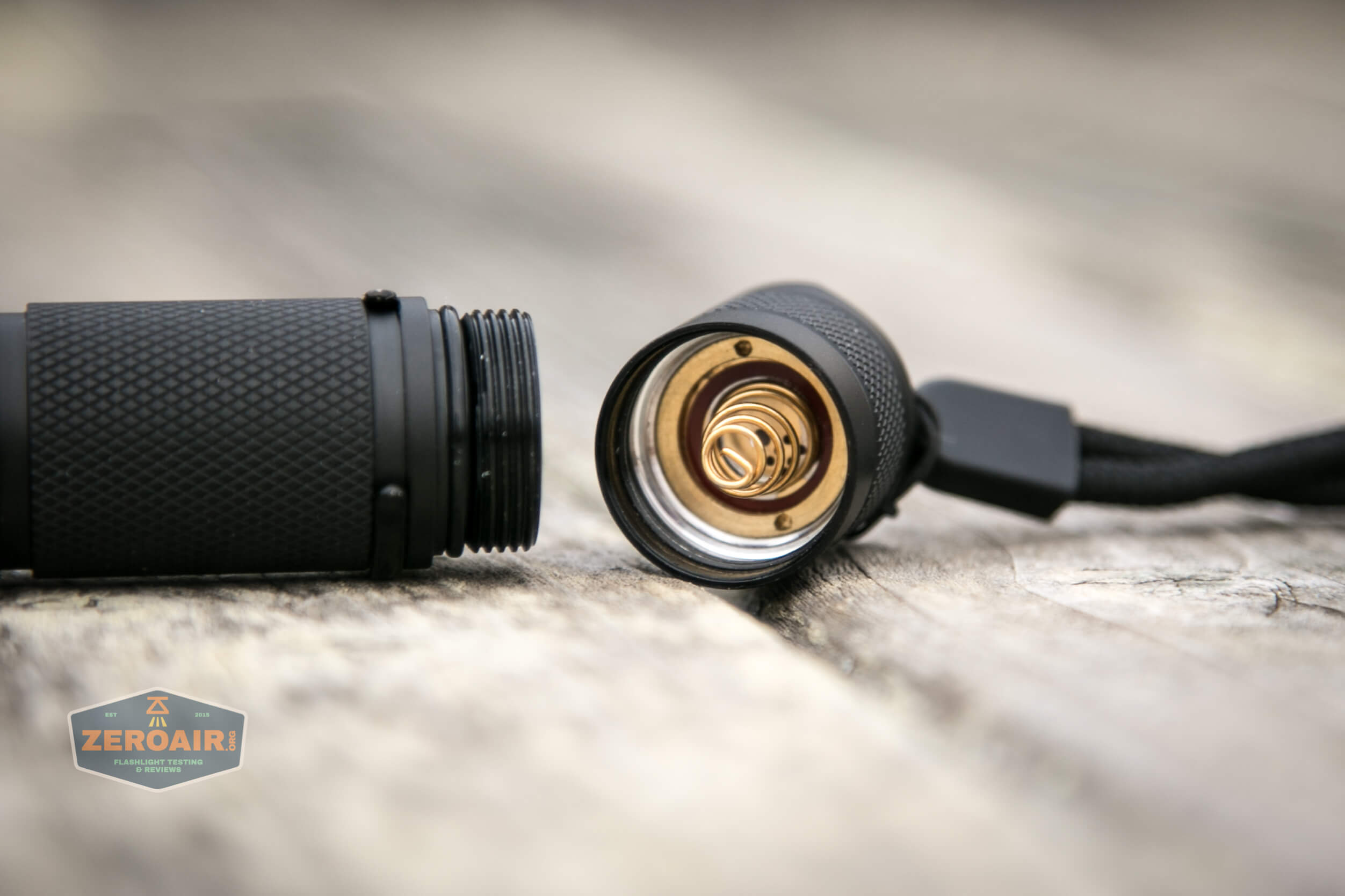

That tailcap has a nice beefy spring too.  Also note the brass retaining ring.  The reverse clicky switch is very accessible for maintenance.

convoy t2 updated 14500/AA flashlight tailcap spring

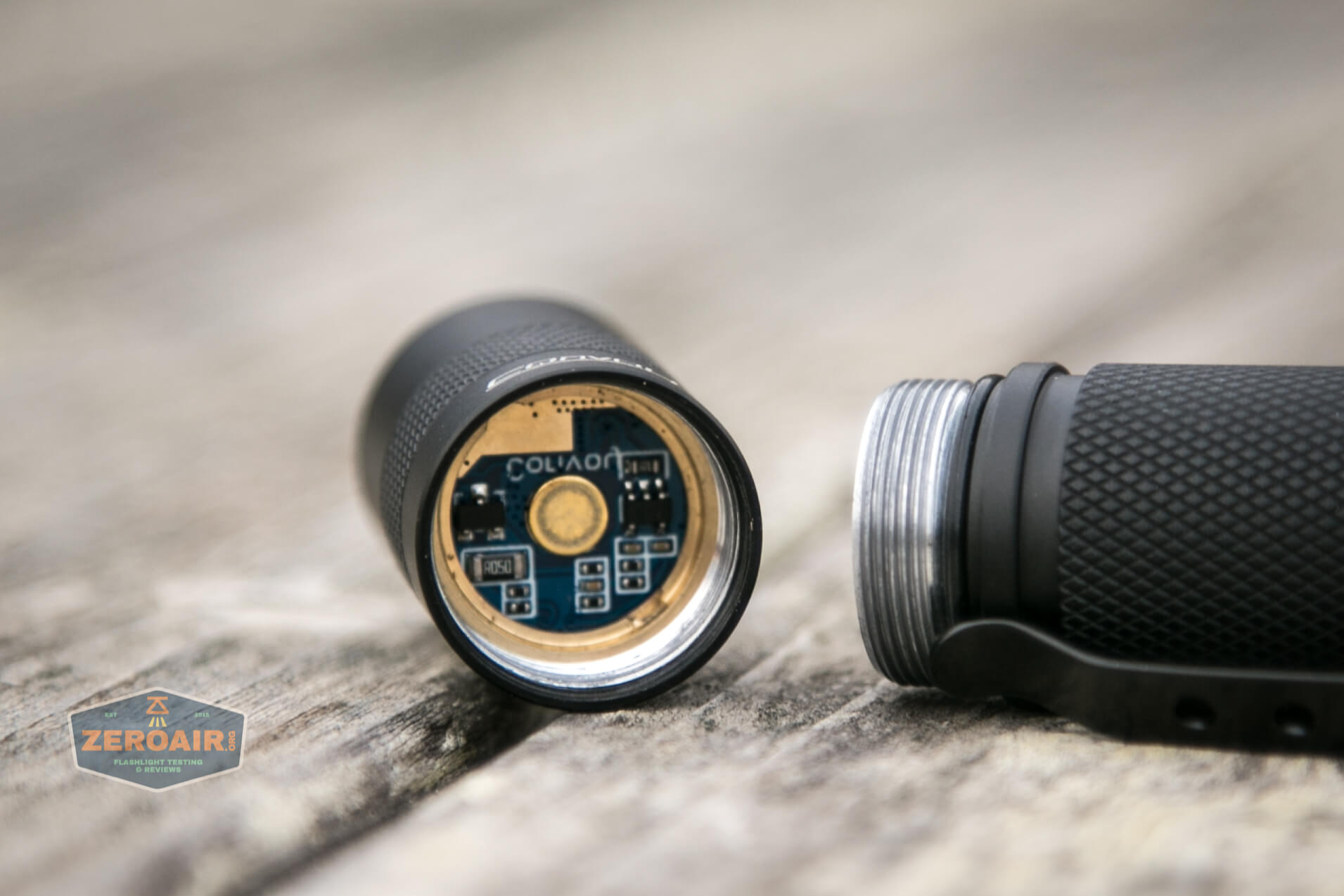

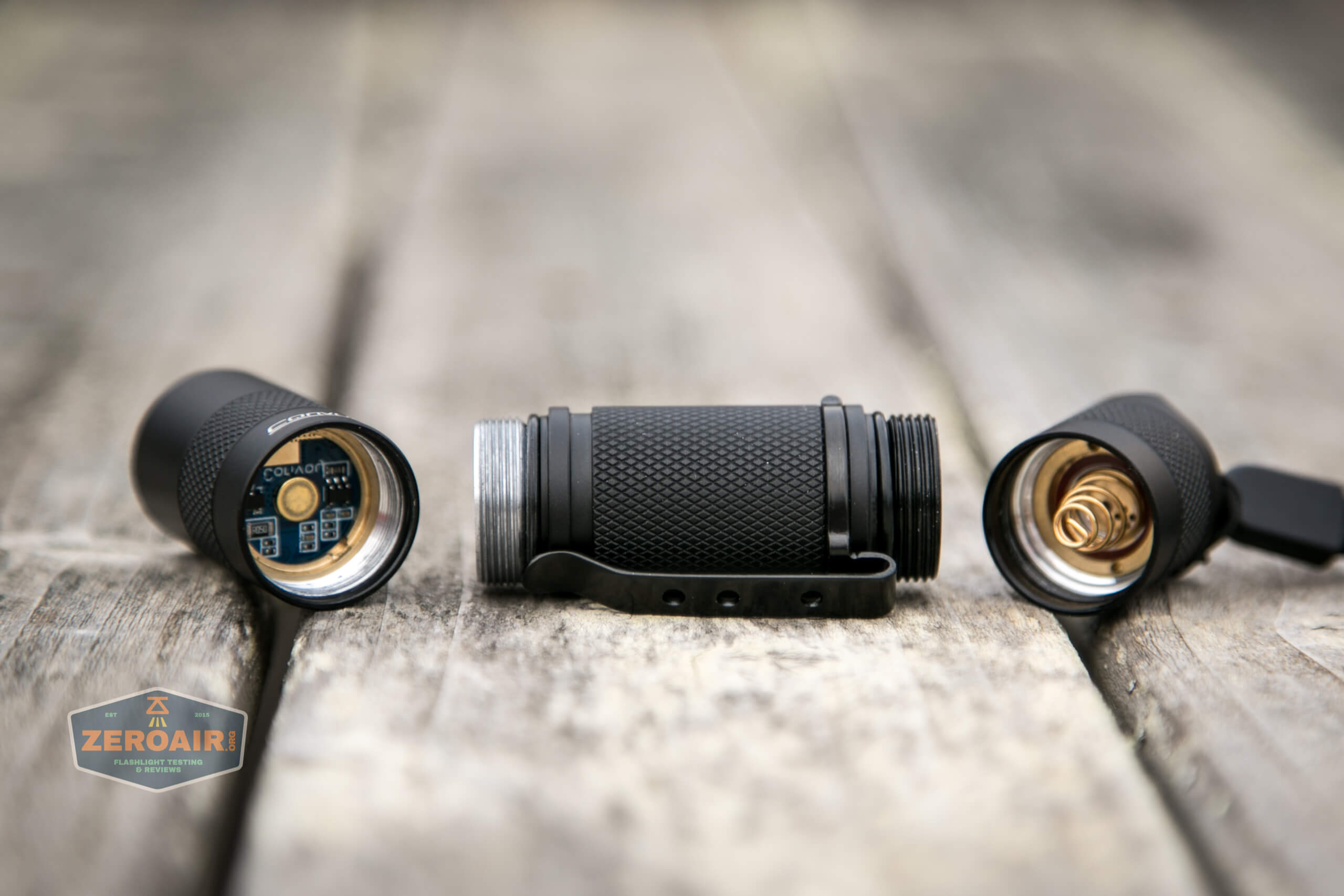

The head has only a brass button.  Also note the unanodized threads on the head end.

convoy t2 updated 14500/AA flashlight head and tail off

convoy t2 updated 14500/AA flashlight head button

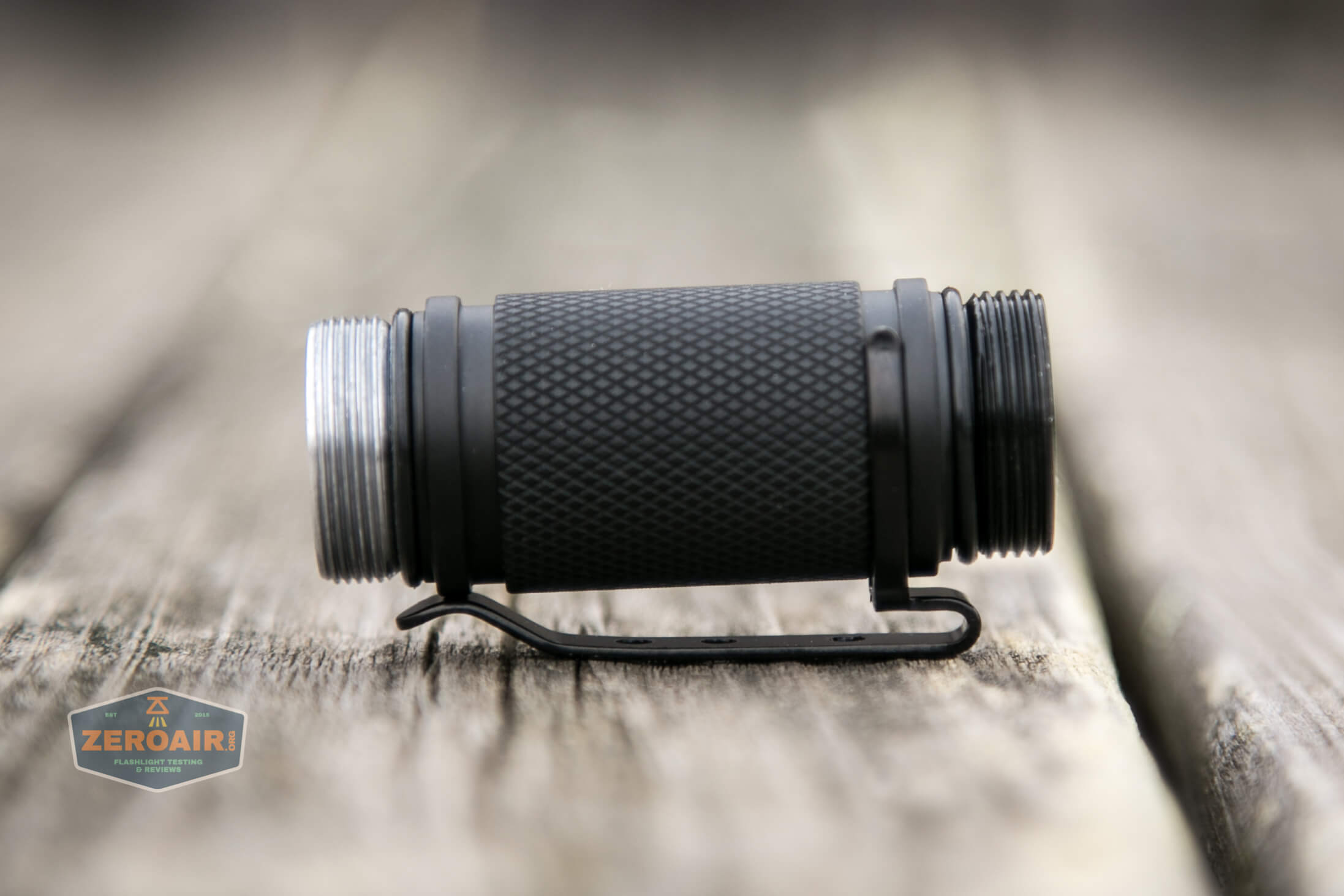

The cell tube is positively not reversible, and not just because one end has anodized threads and the other doesn’t.  The threads are not the same, and don’t mate!

convoy t2 updated 14500/AA flashlight cell tube

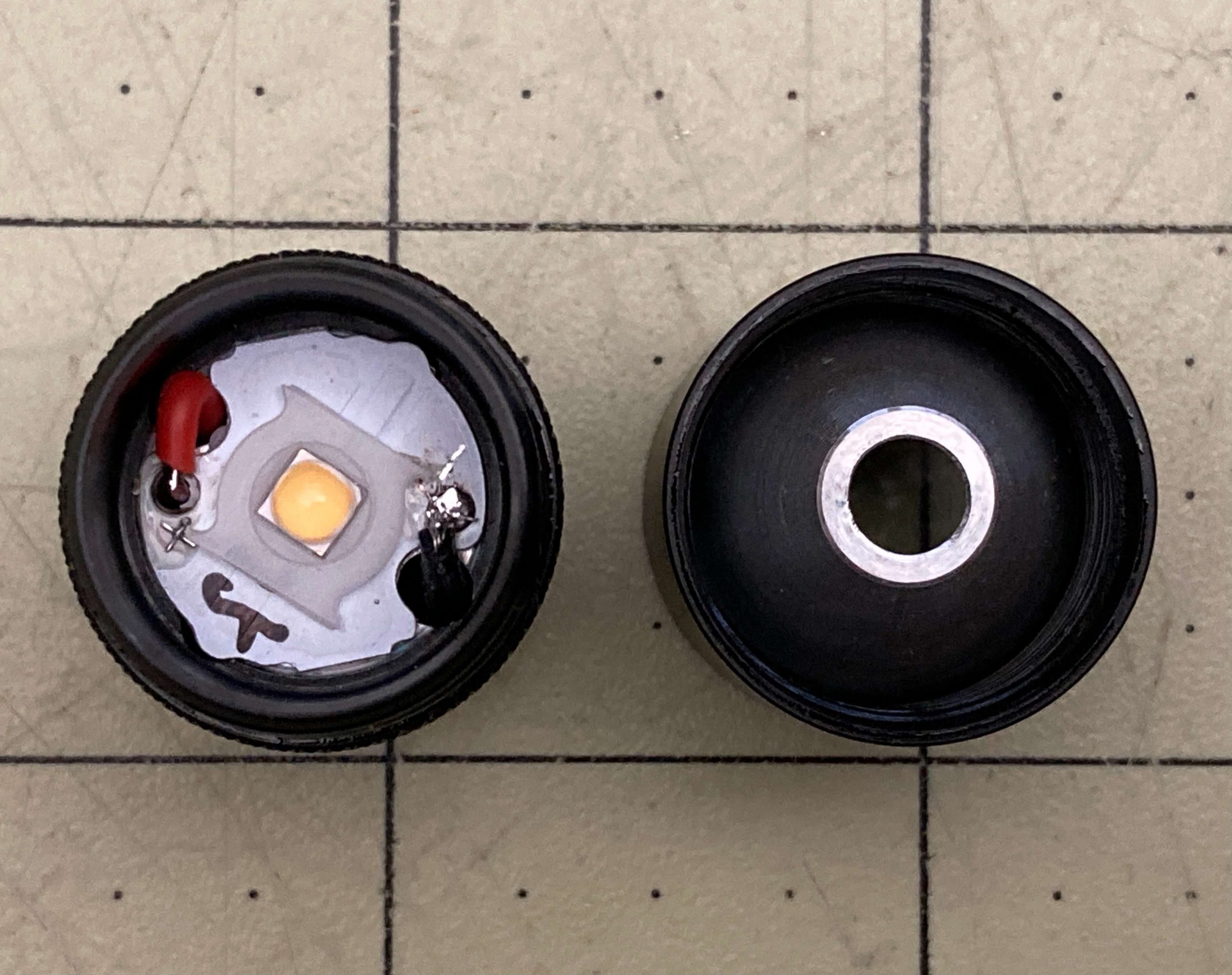

There’s the emitter, with the bezel removed.

convoy t2 updated 14500/AA flashlight bezel off

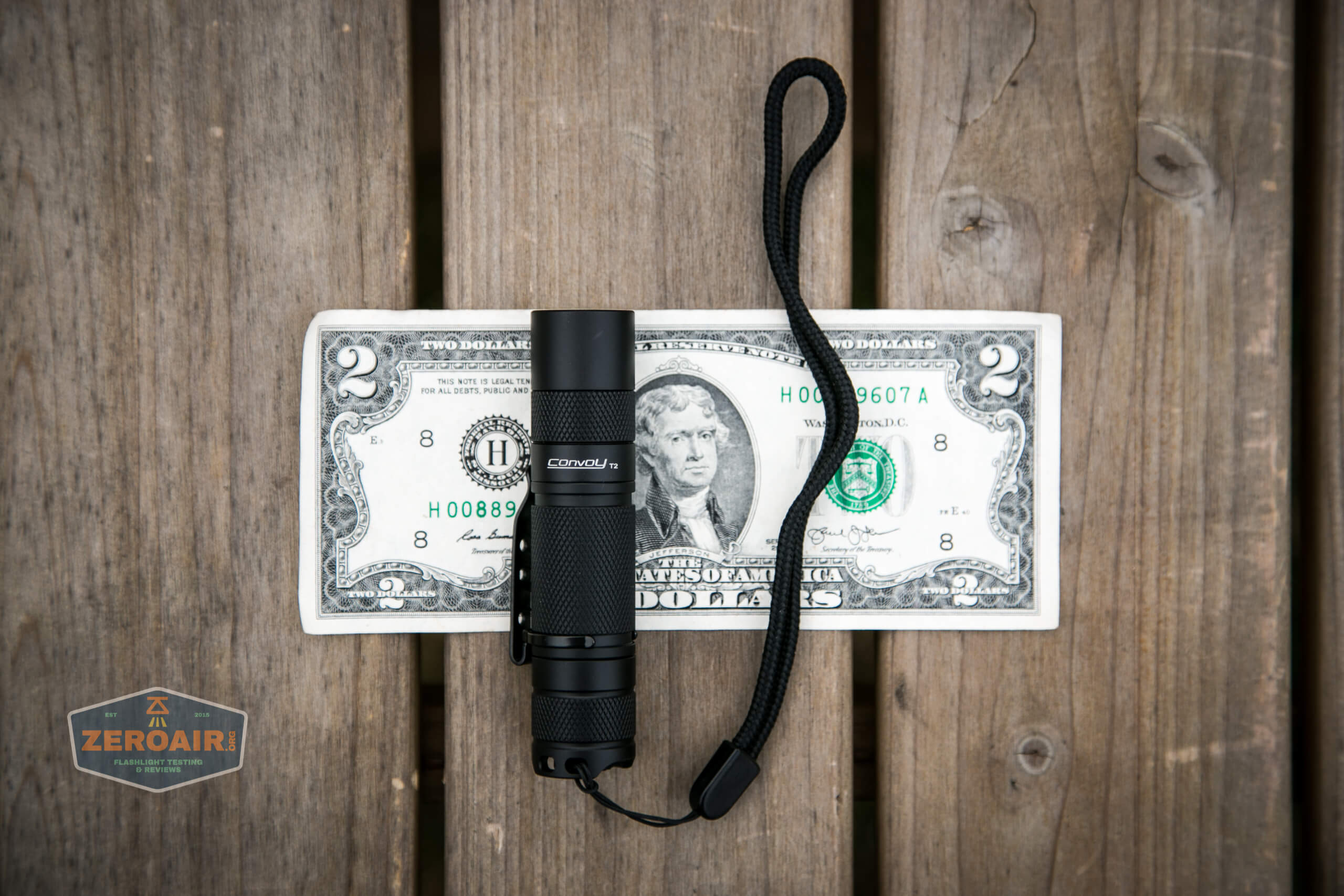

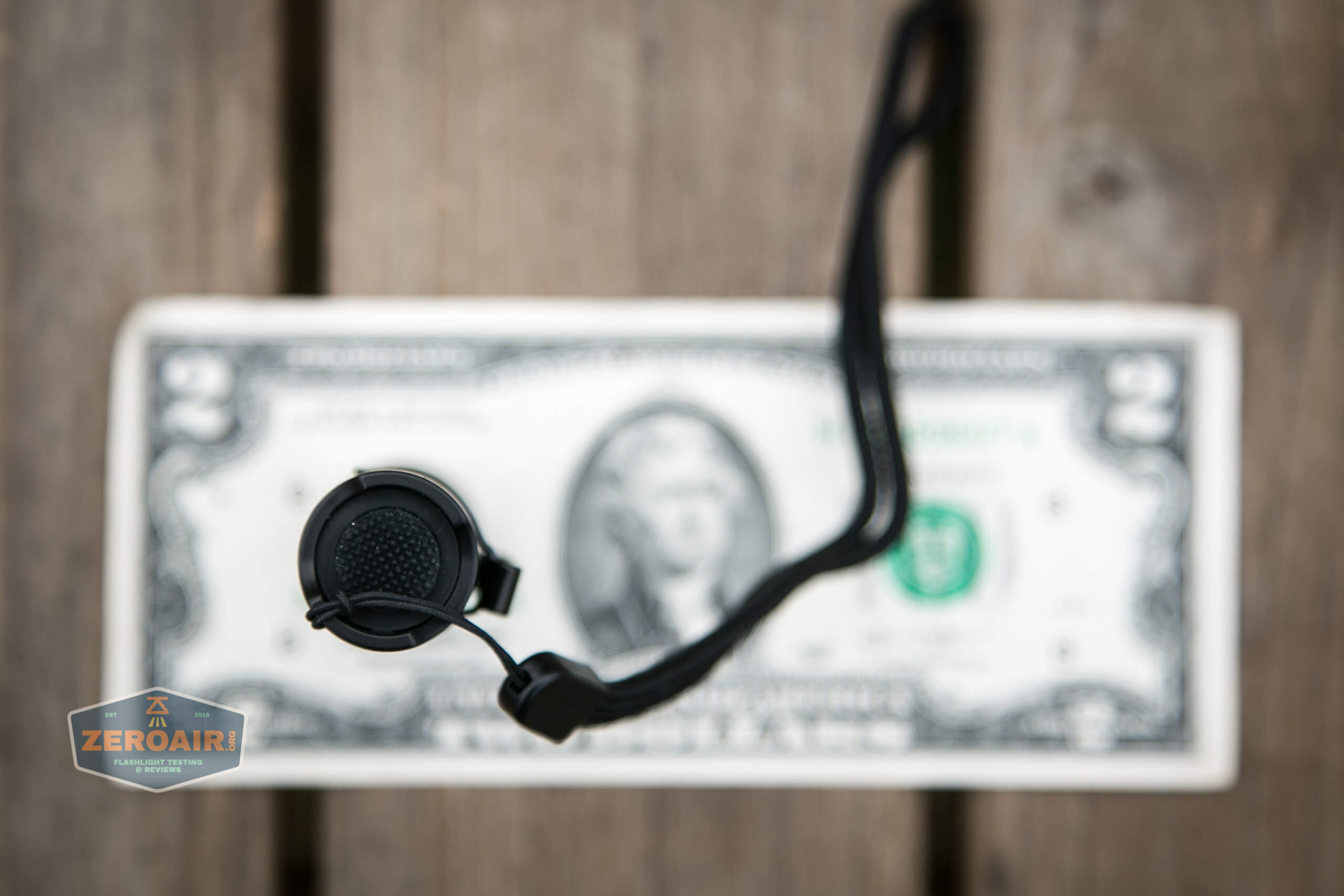

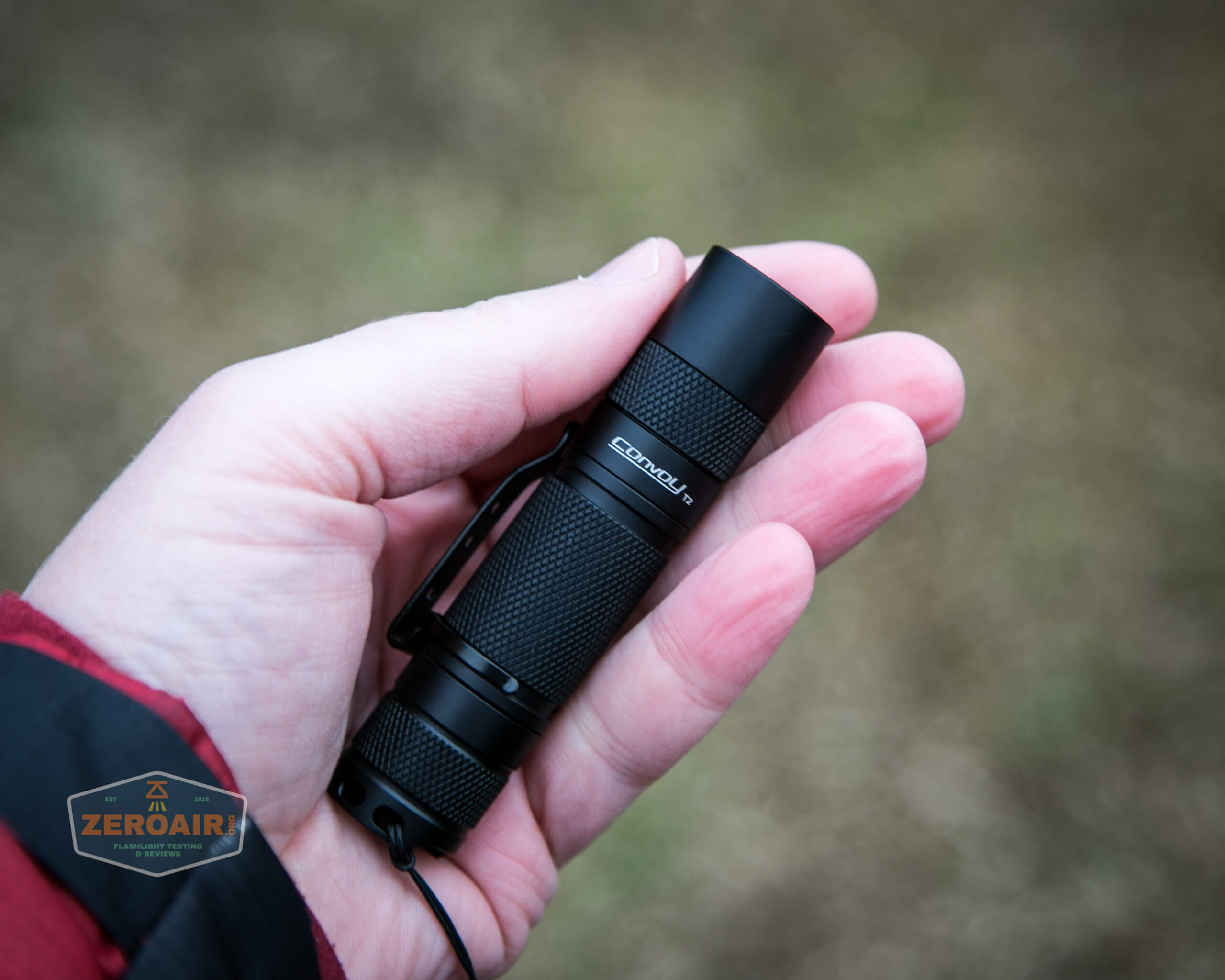

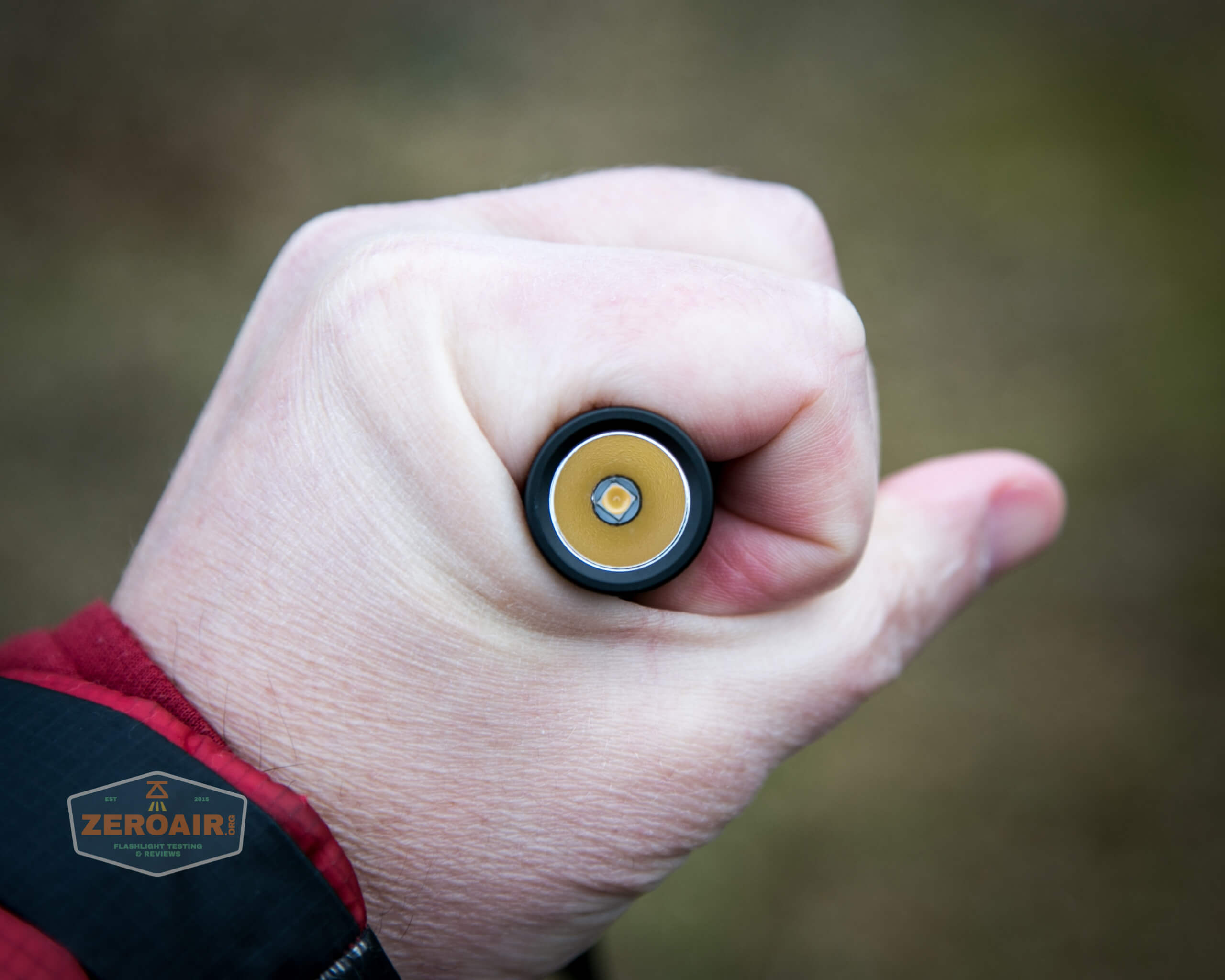

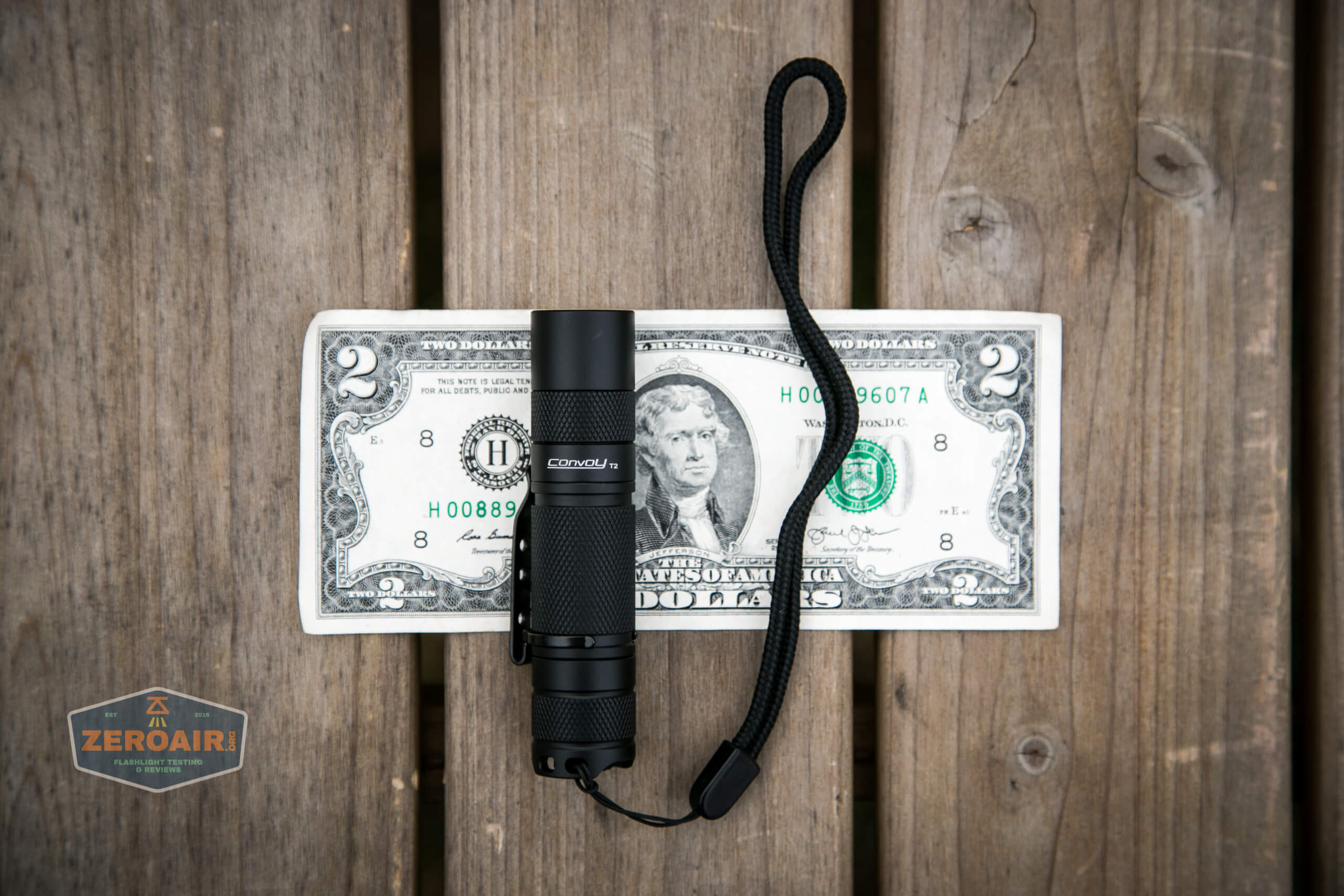

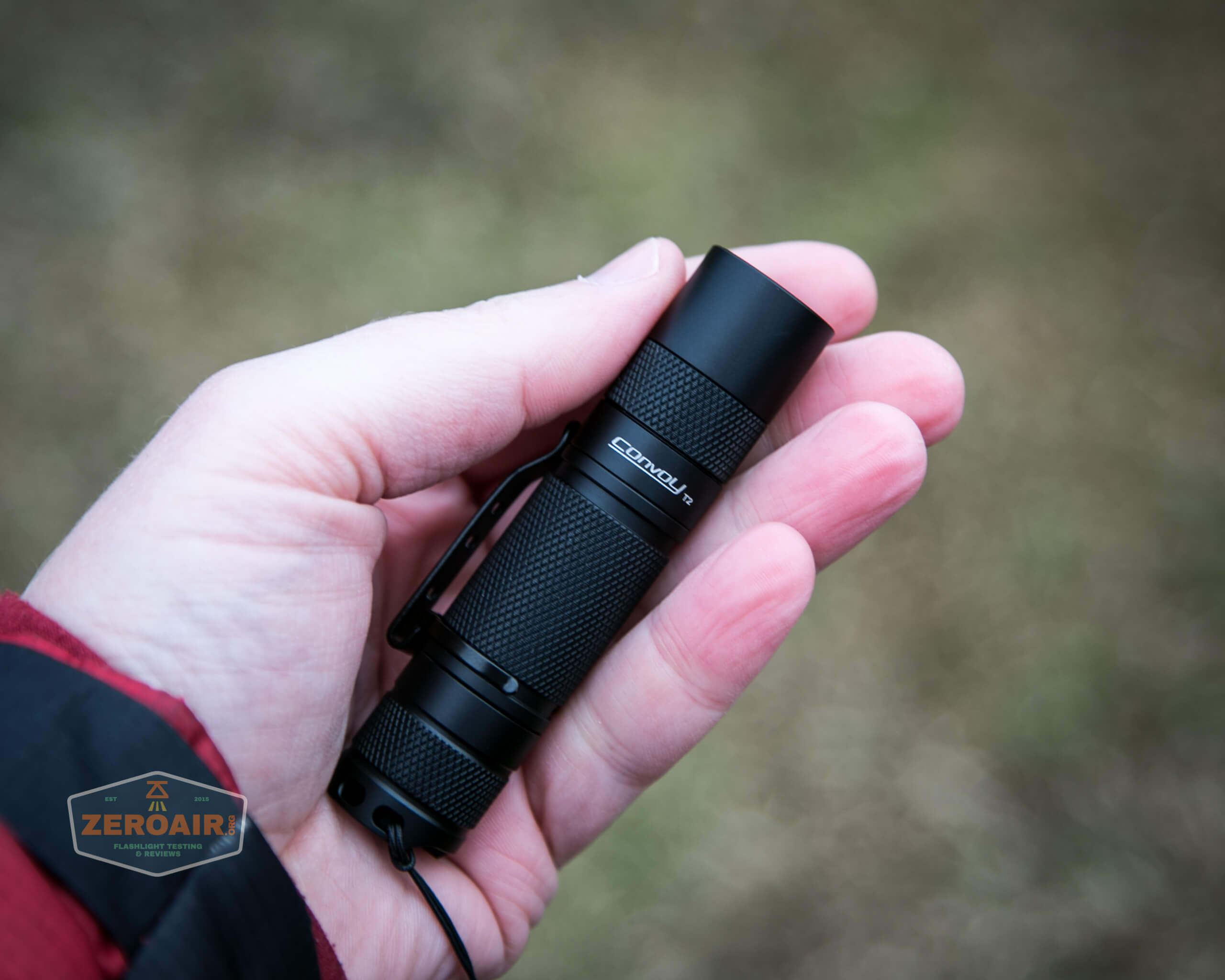

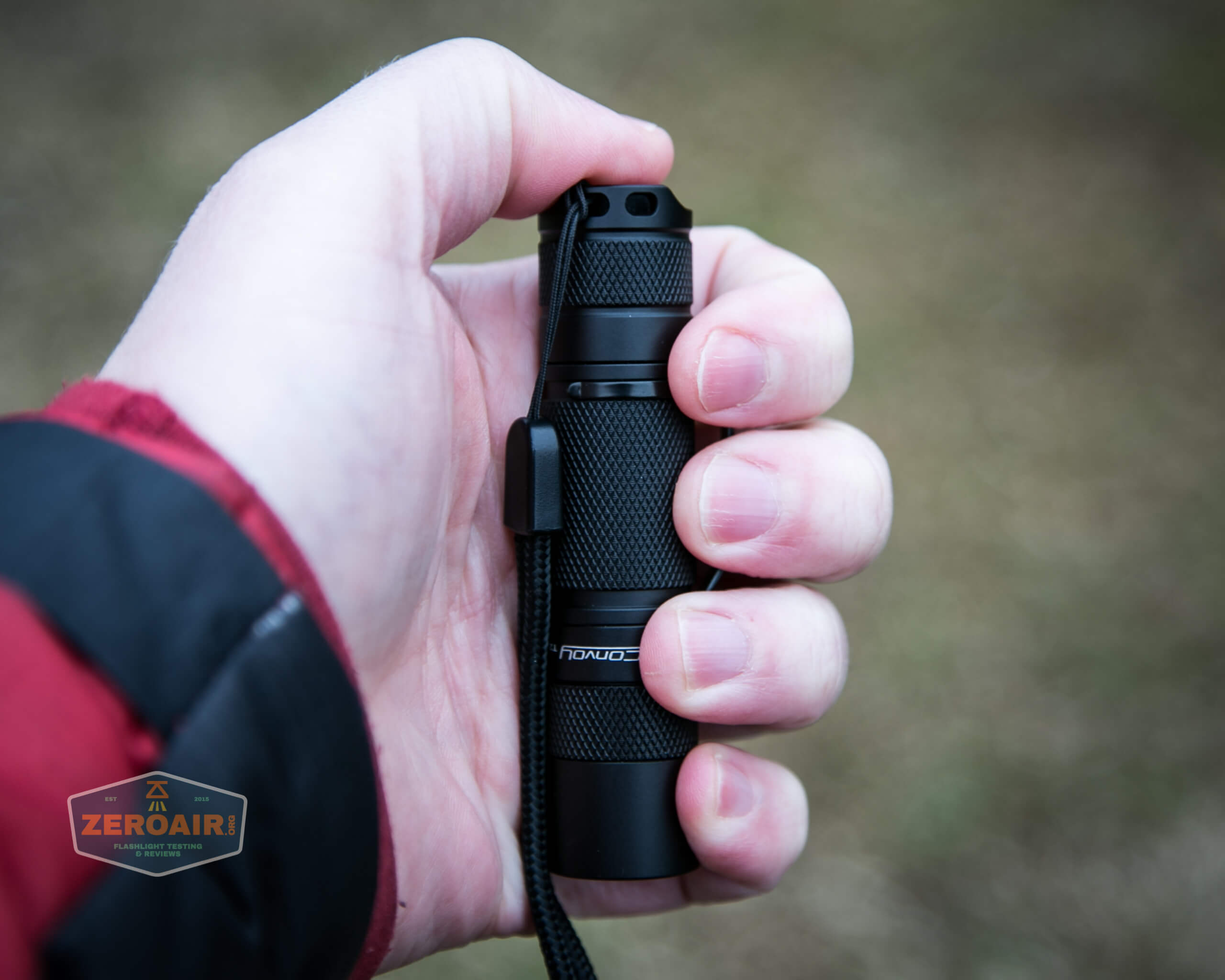

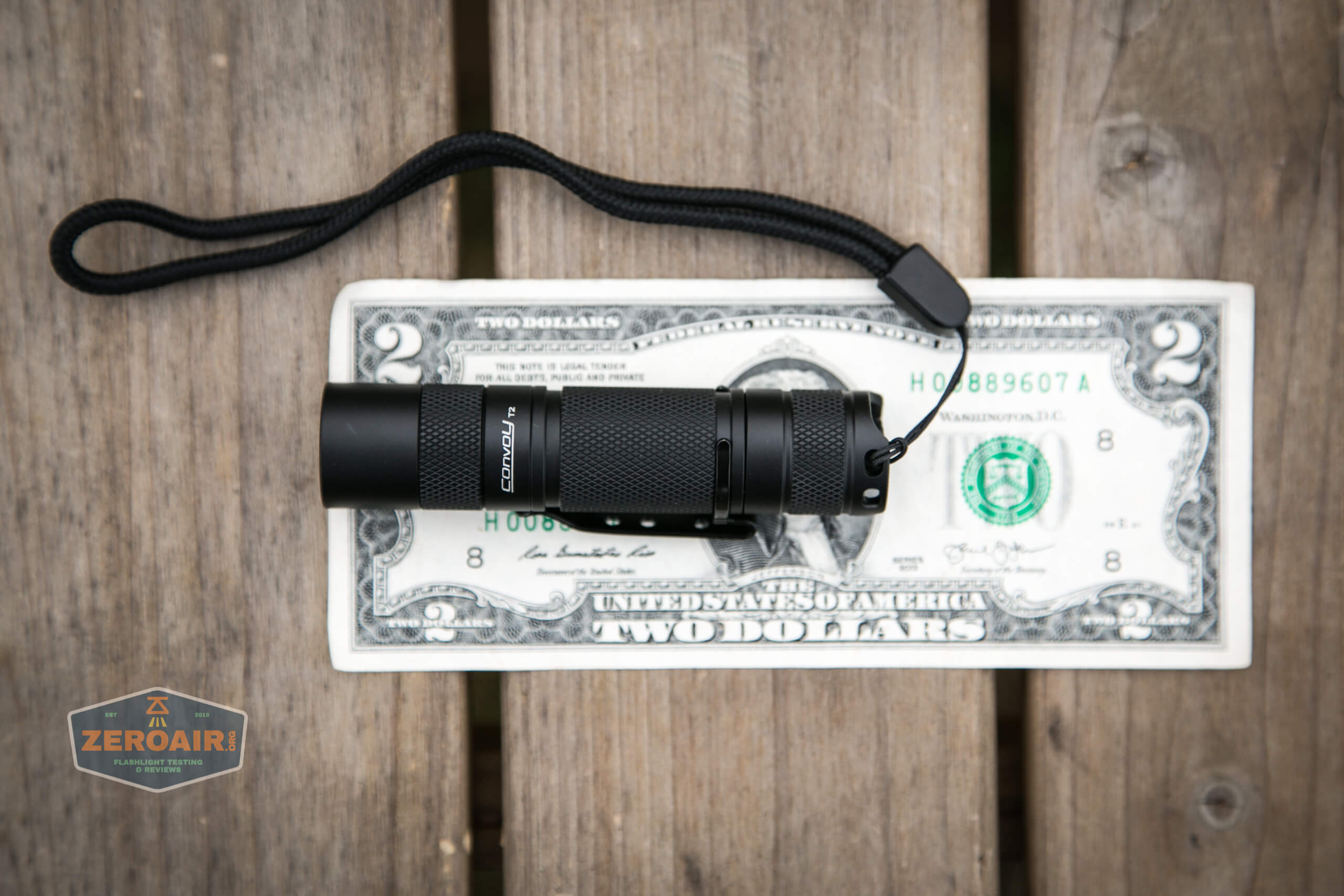

Size and Comps

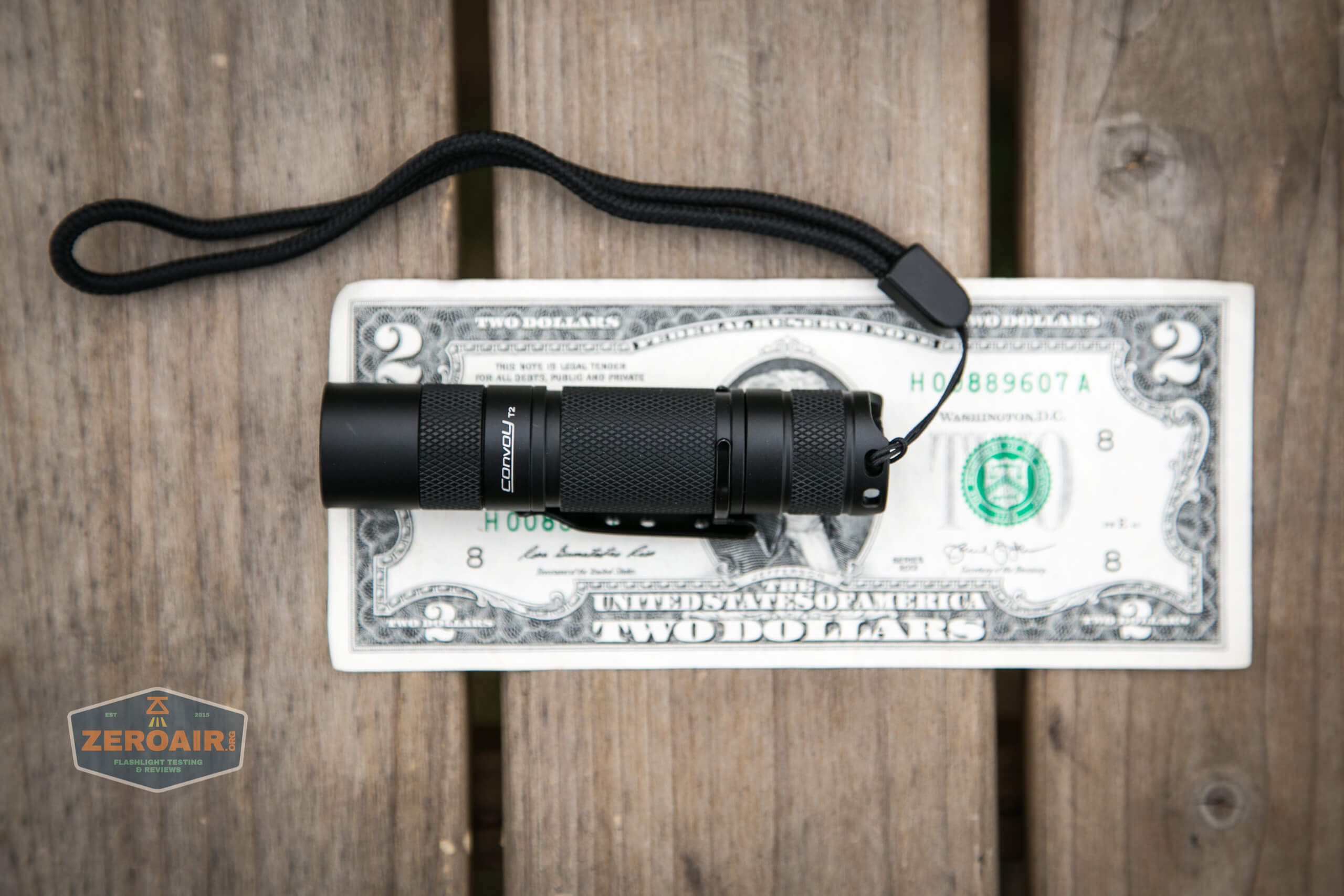

Size: 21mm (diameter), 93.3mm (length)
Weight: 51g

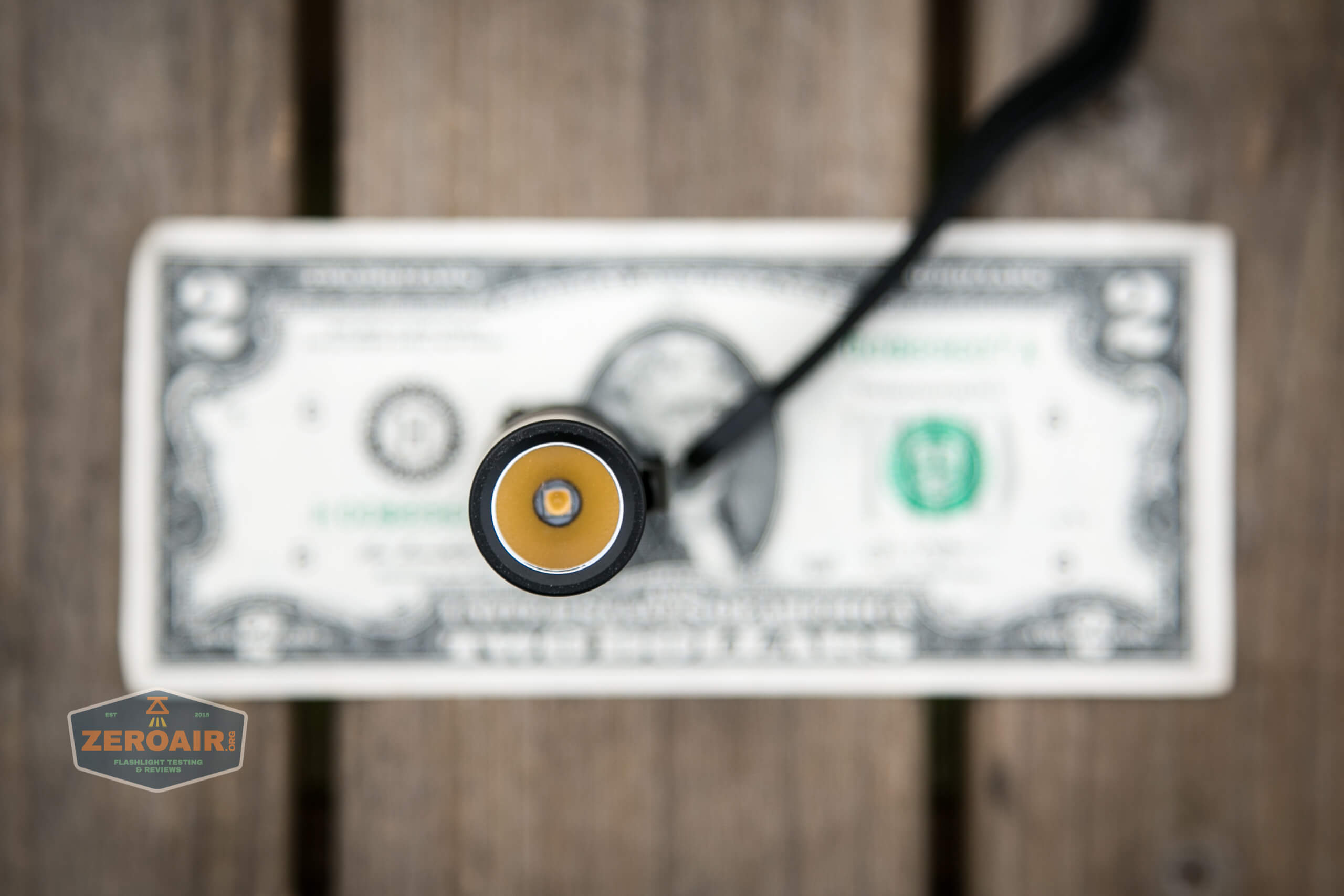

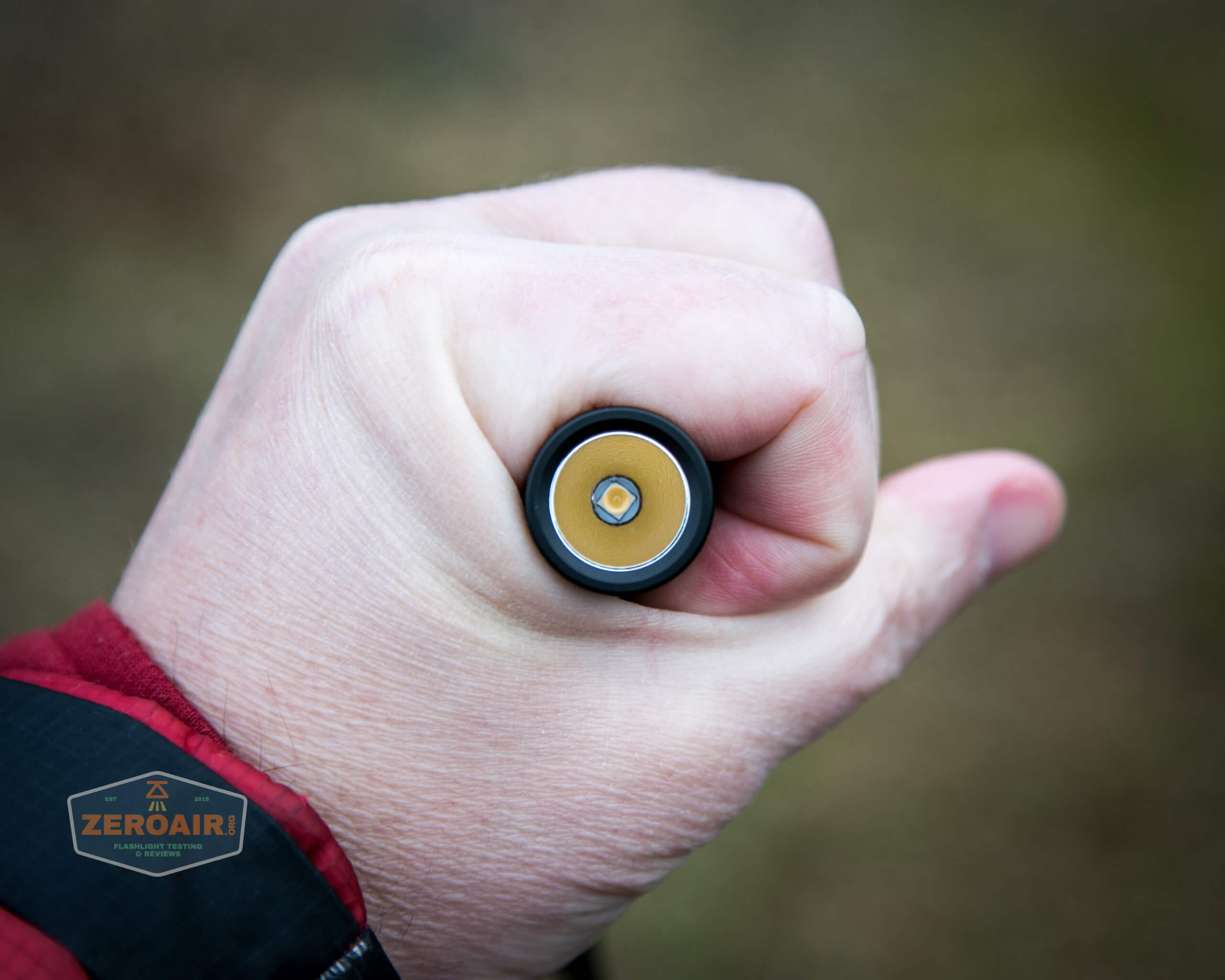

If a light will headstand, I’ll show it here (usually the third photo).  If a light will tailstand, I’ll show that here, too (usually the fourth photo).

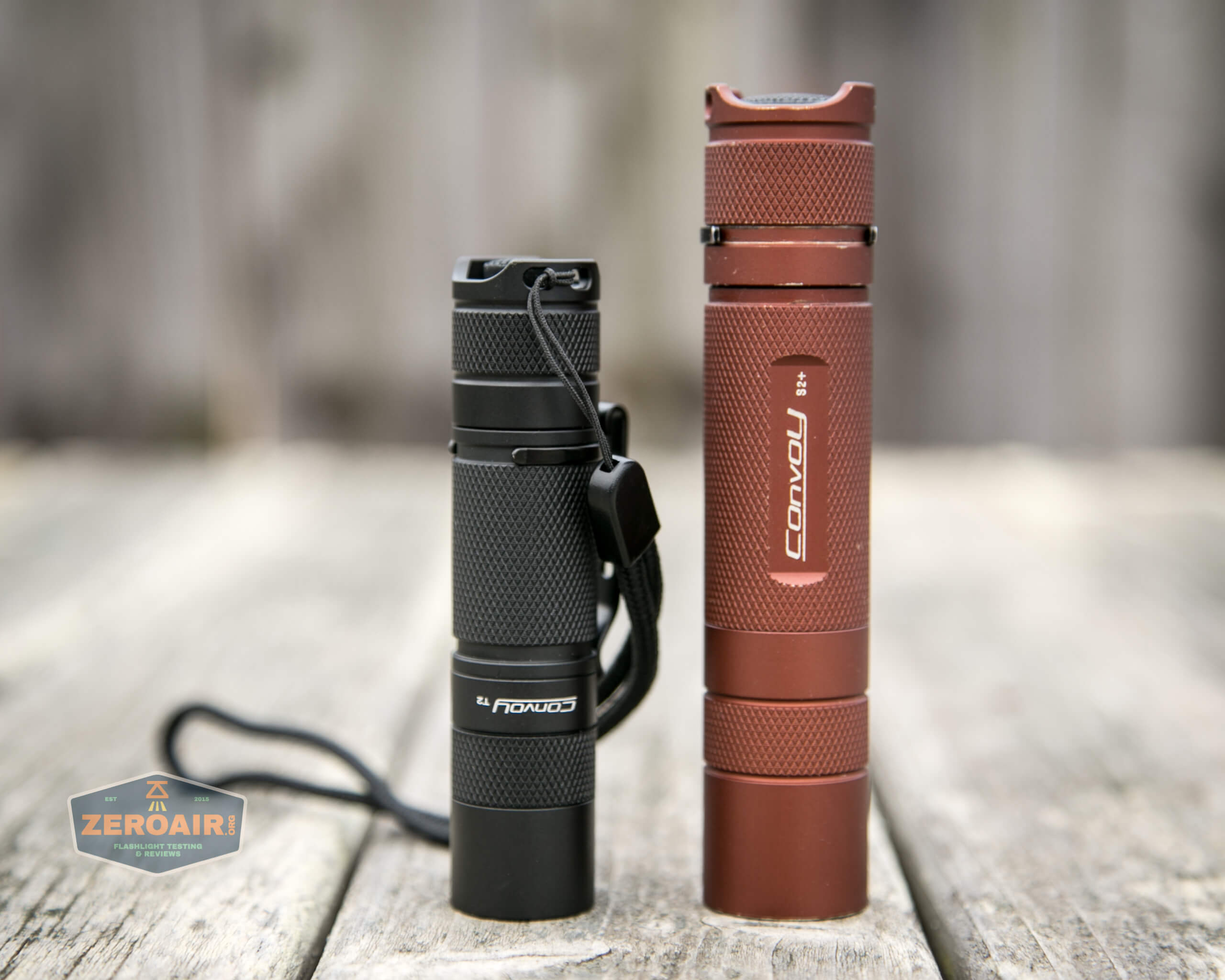

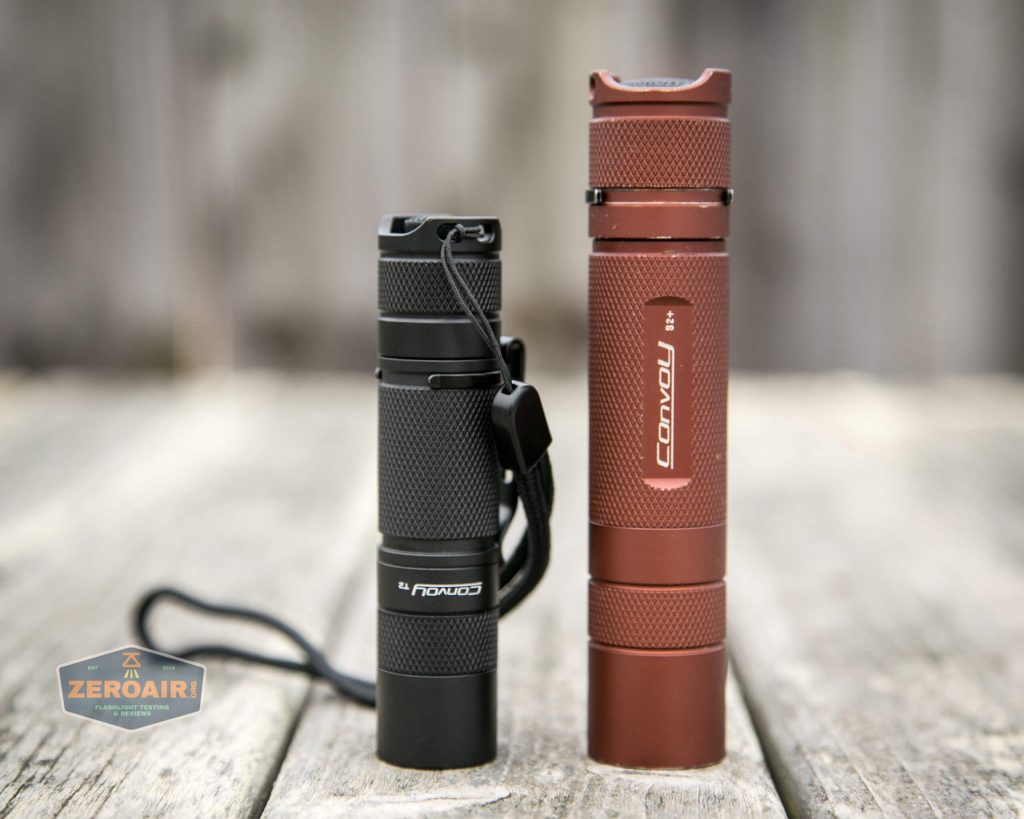

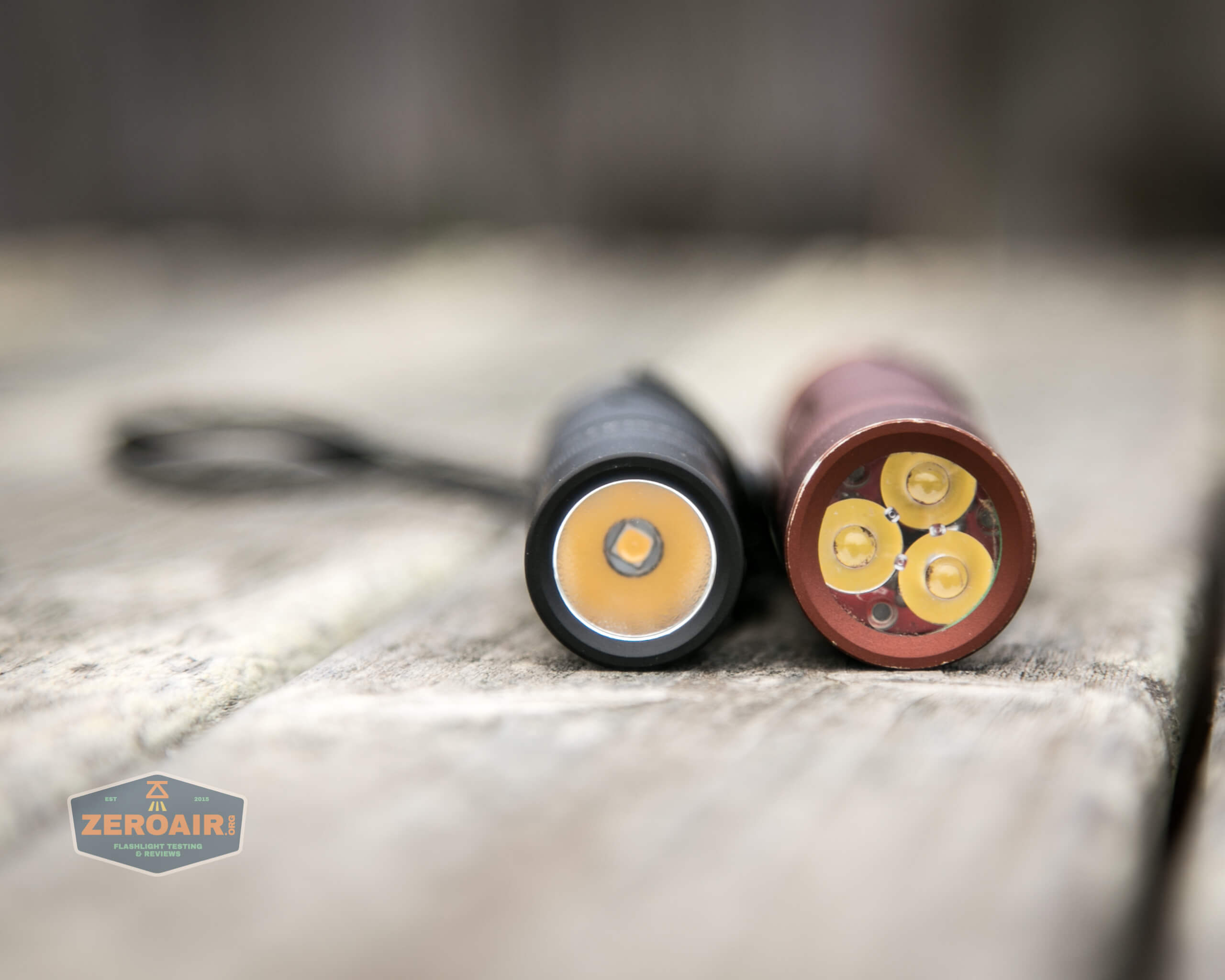

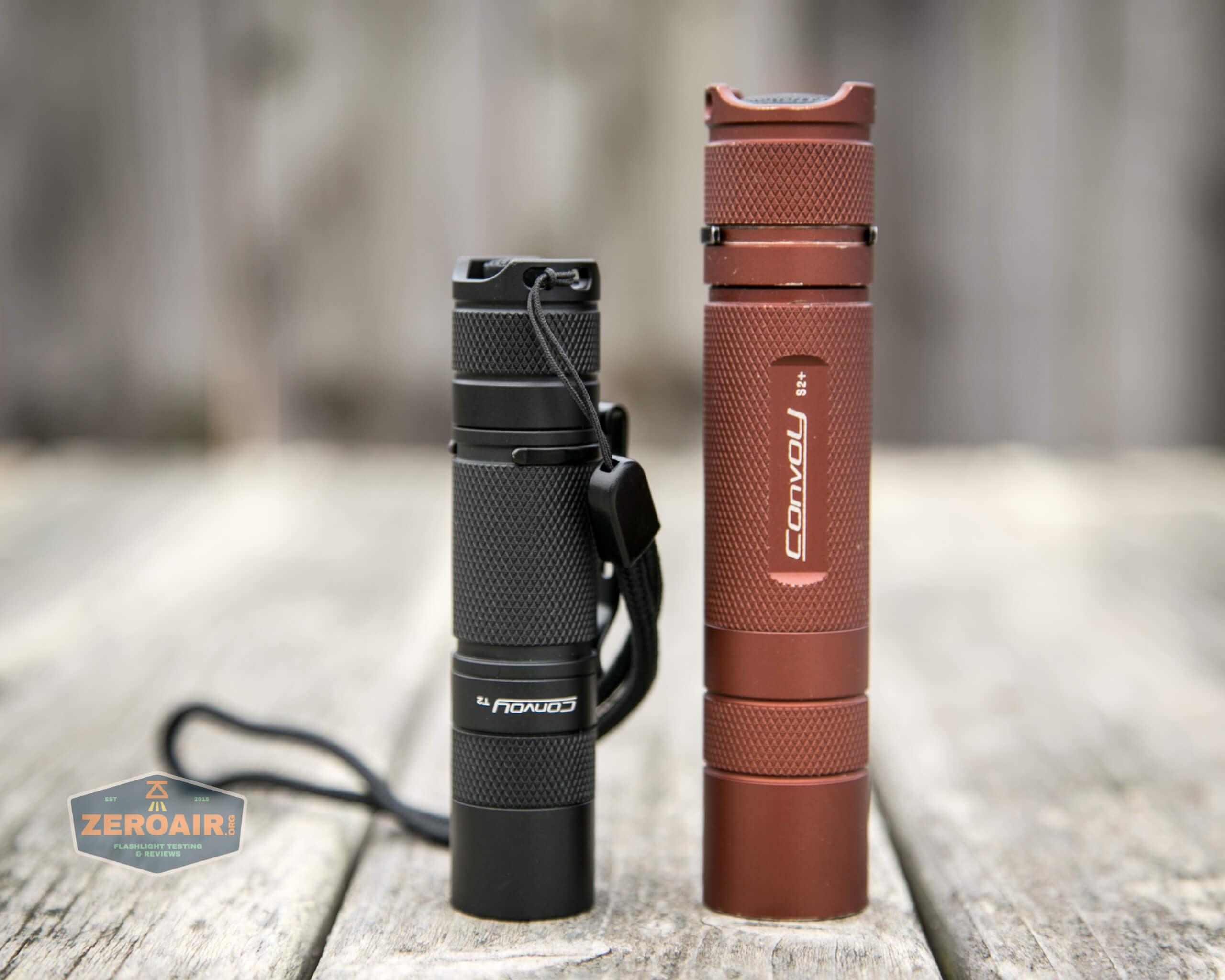

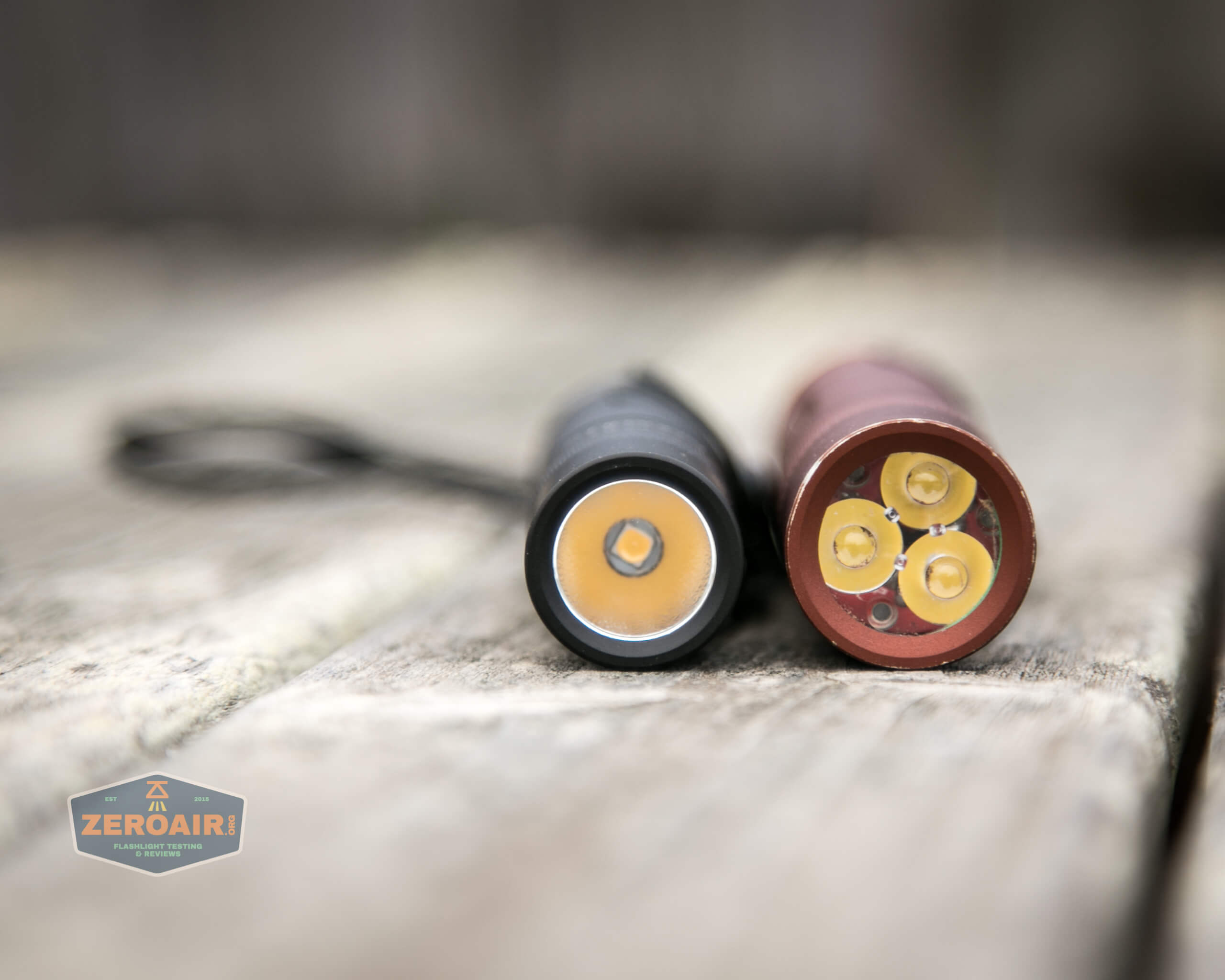

Here’s the test light with the venerable Convoy S2+.  Mine’s a custom “baked” edition Nichia 219b triple.  A very nice 18650 light.

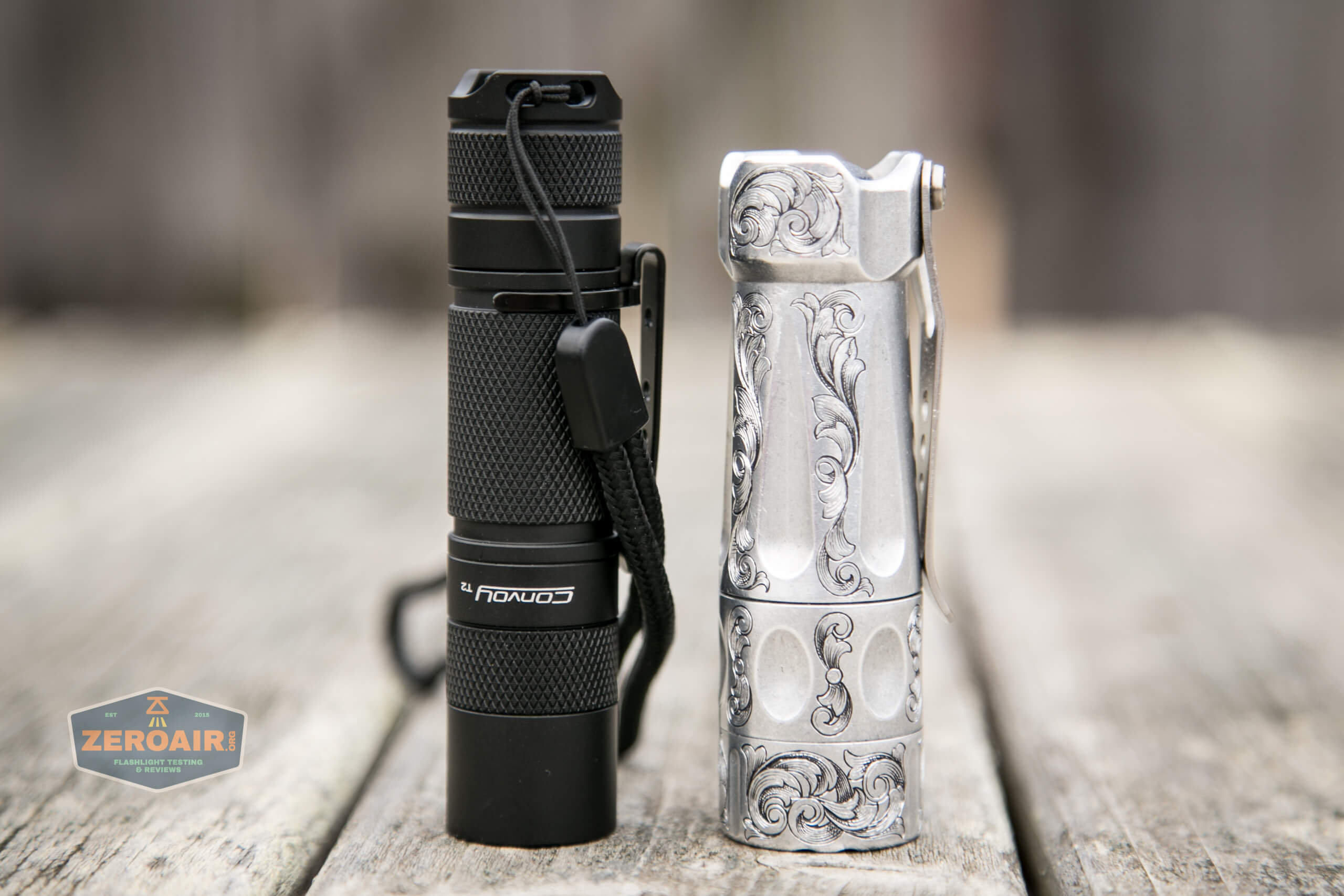

And here’s the light beside my custom engraved TorchLAB BOSS 35, an 18350 light.  I reviewed the aluminum version of that light in both 35 and 70 format.

convoy t2 updated 14500/AA flashlight beside torchlab boss 35

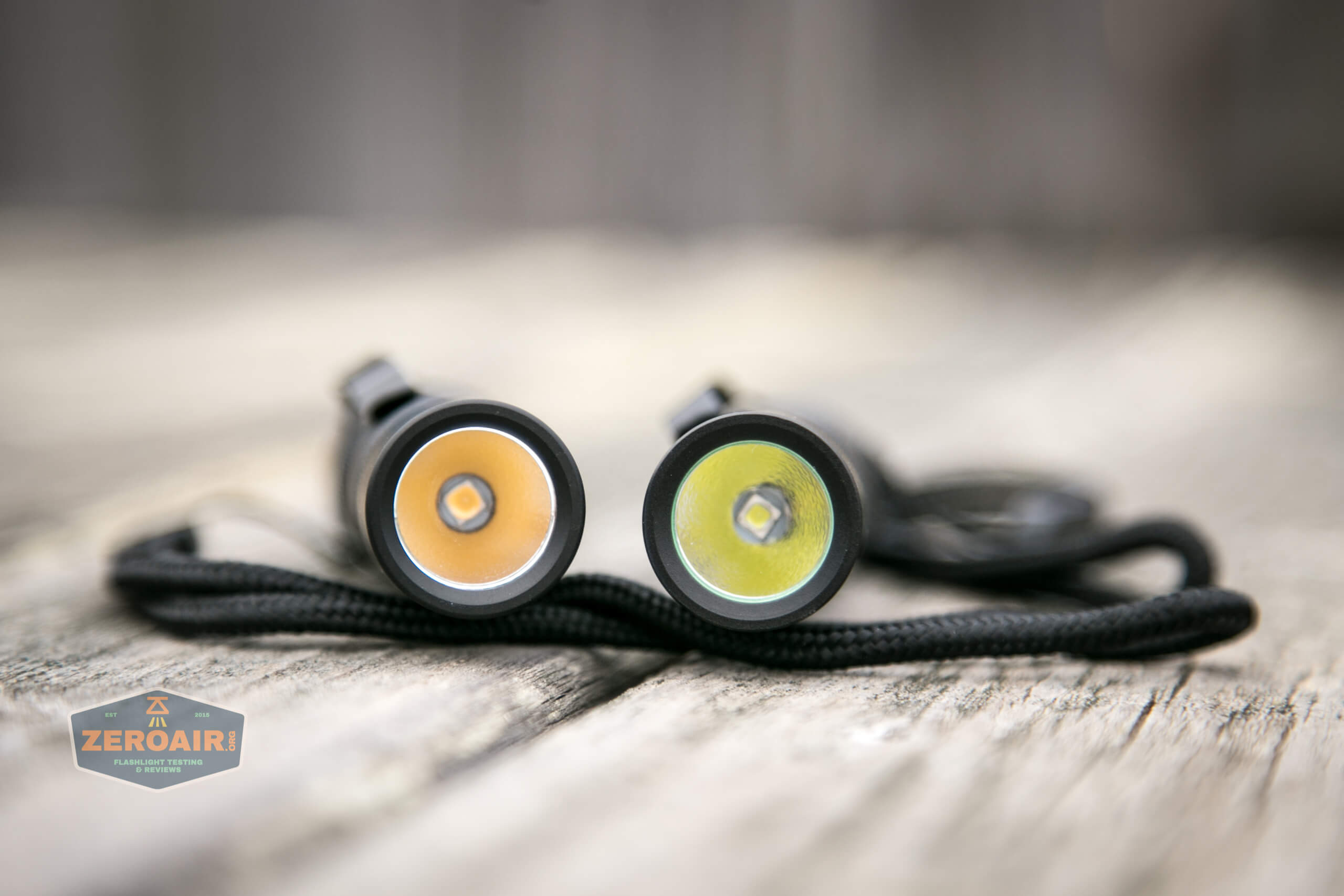

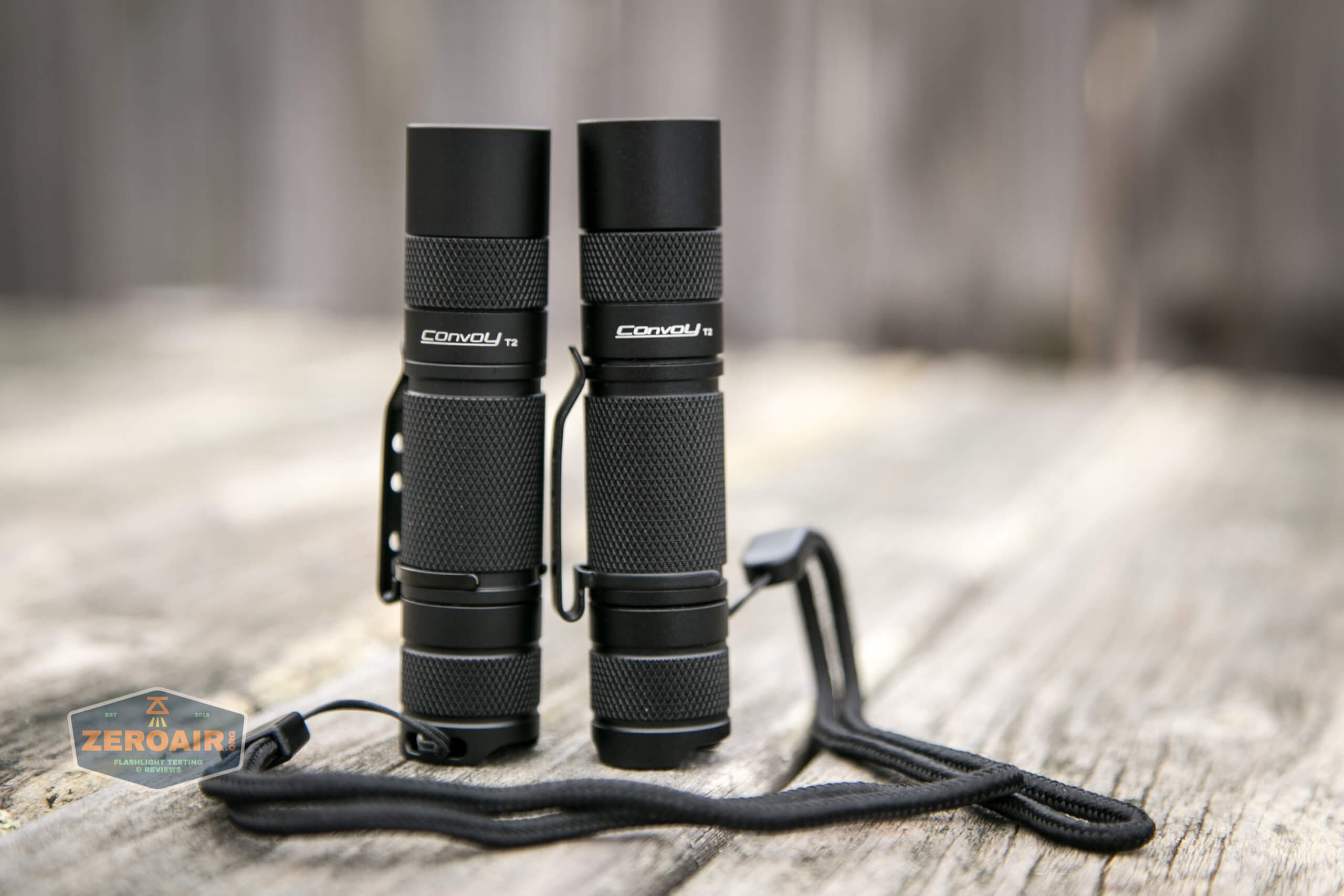

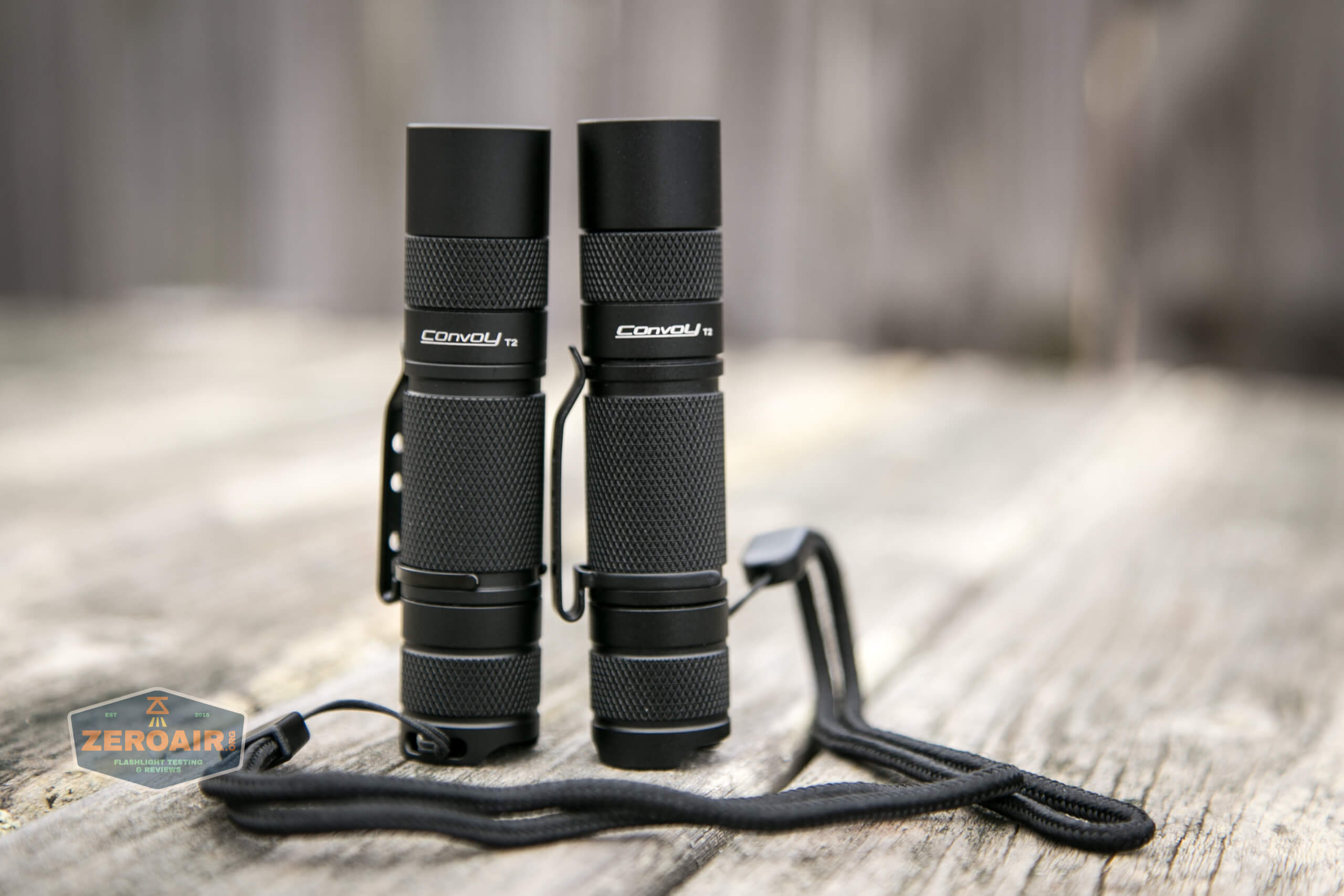

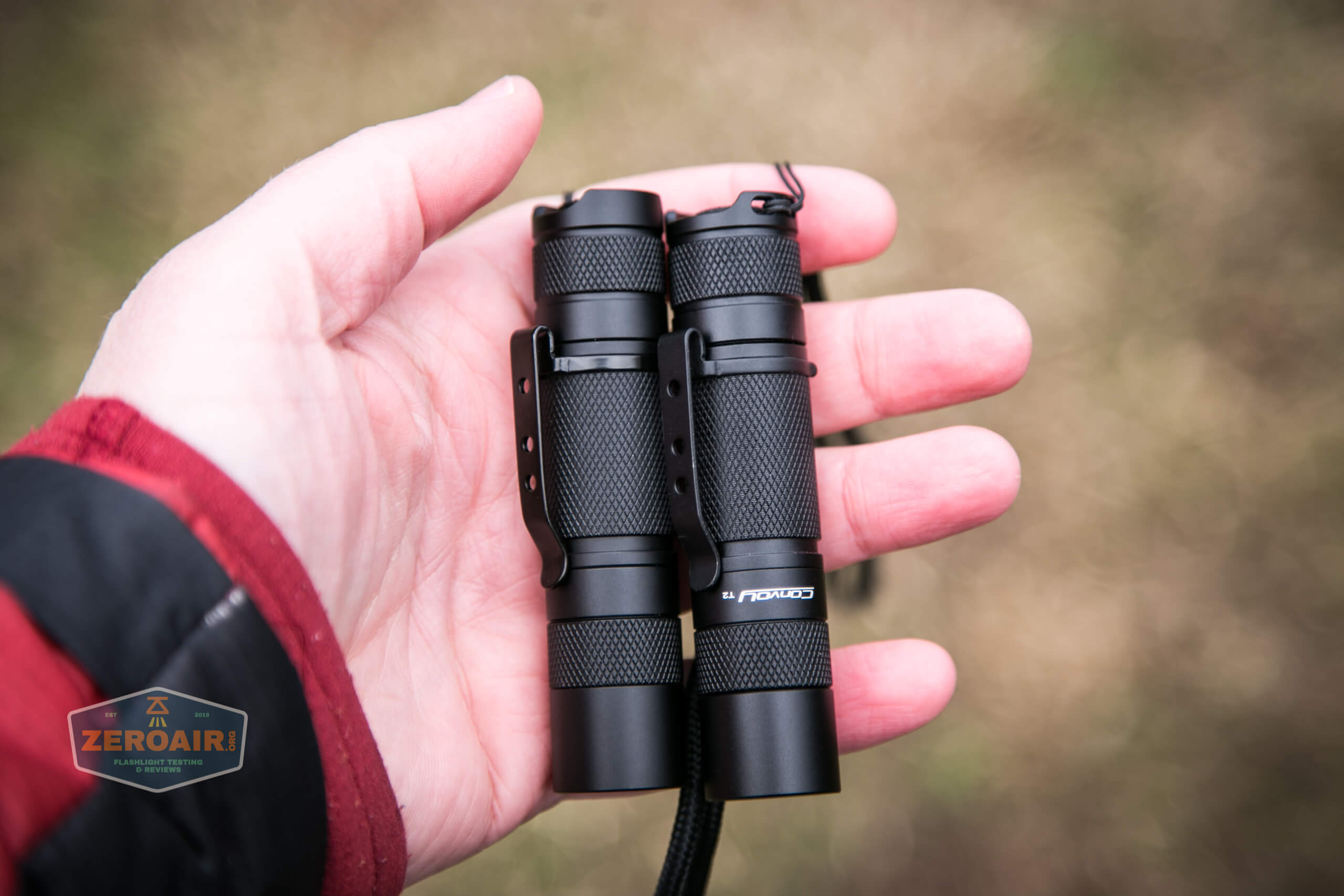

Here’s the new T2 with the original T2.  On my original (right, below) I didn’t actually have the parts snugged tight (I keep it mechanically locked out, despite it being a mechanical clicky).  Sorry about that – but they are the same!

The photo below is after I’d tightened the parts….

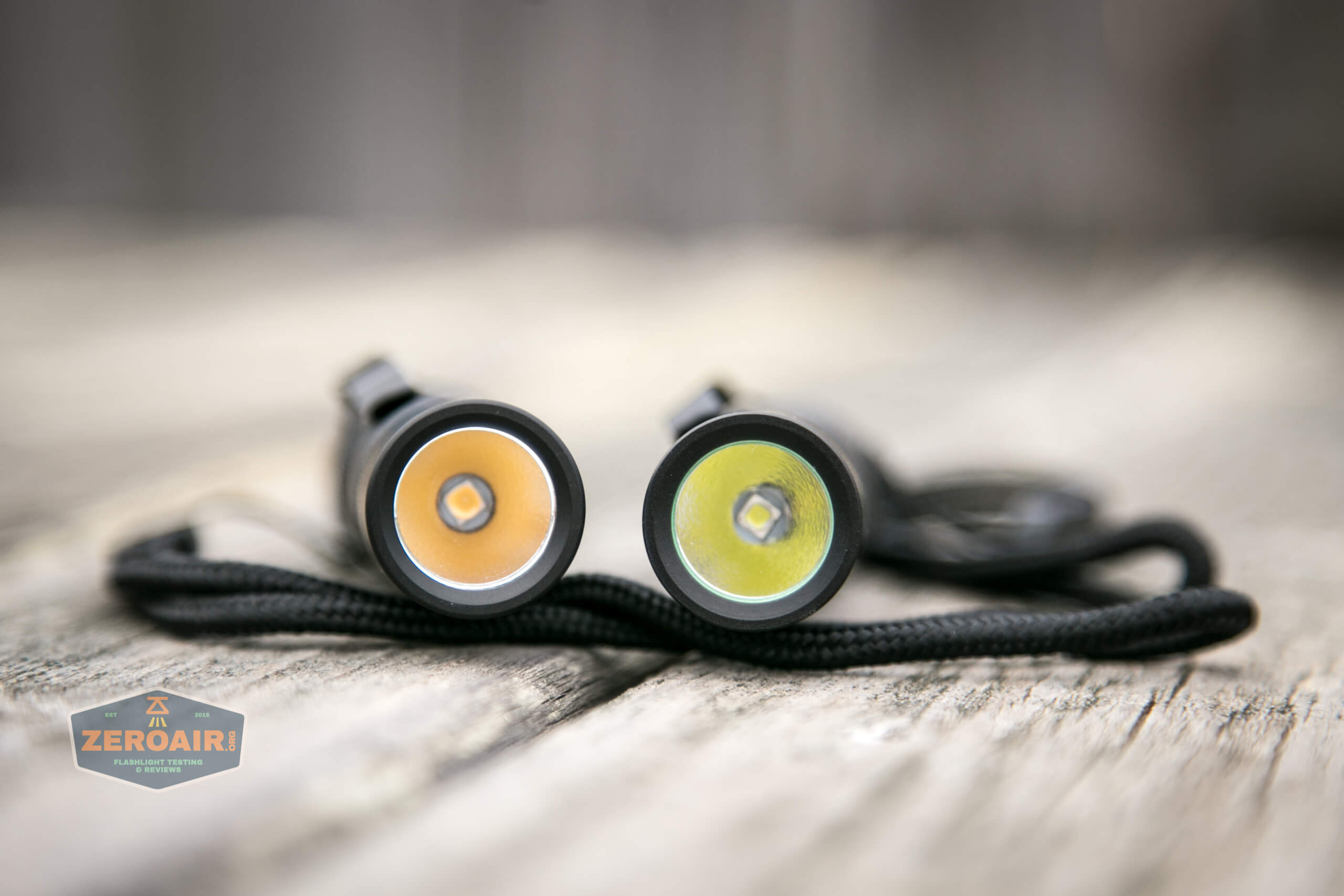

convoy t2 updated 14500/AA flashlight beside convoy t2 original

Retention and Carry

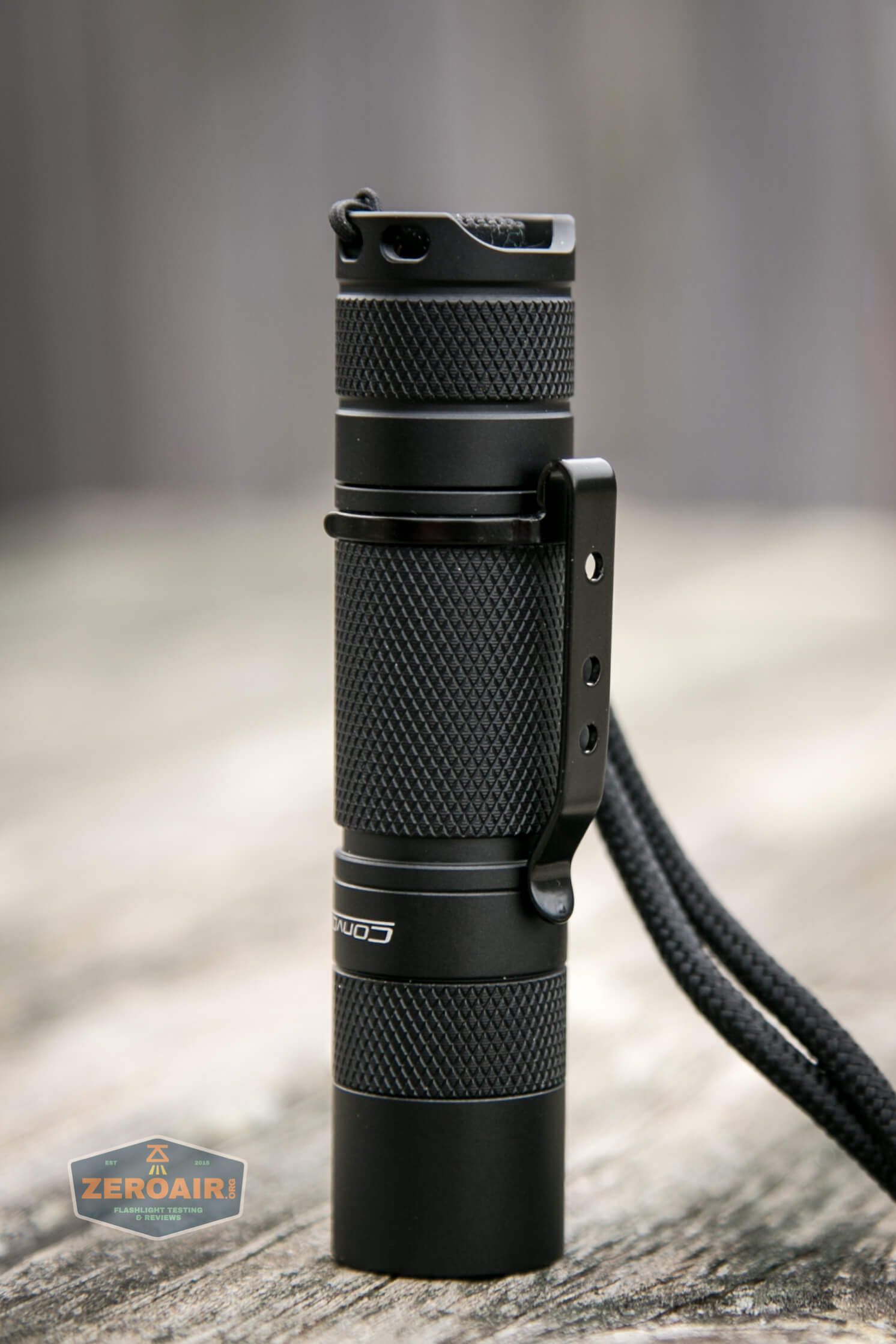

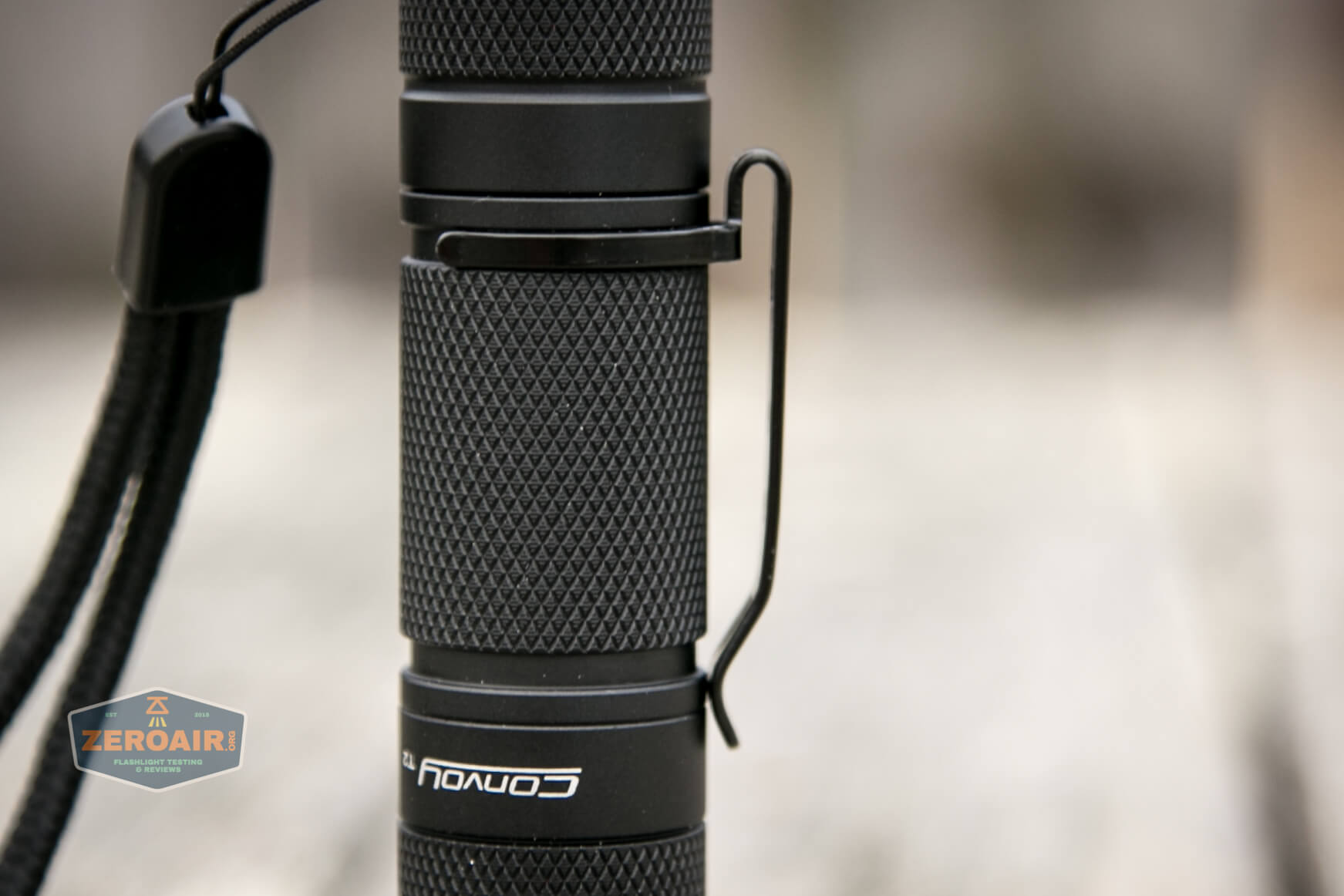

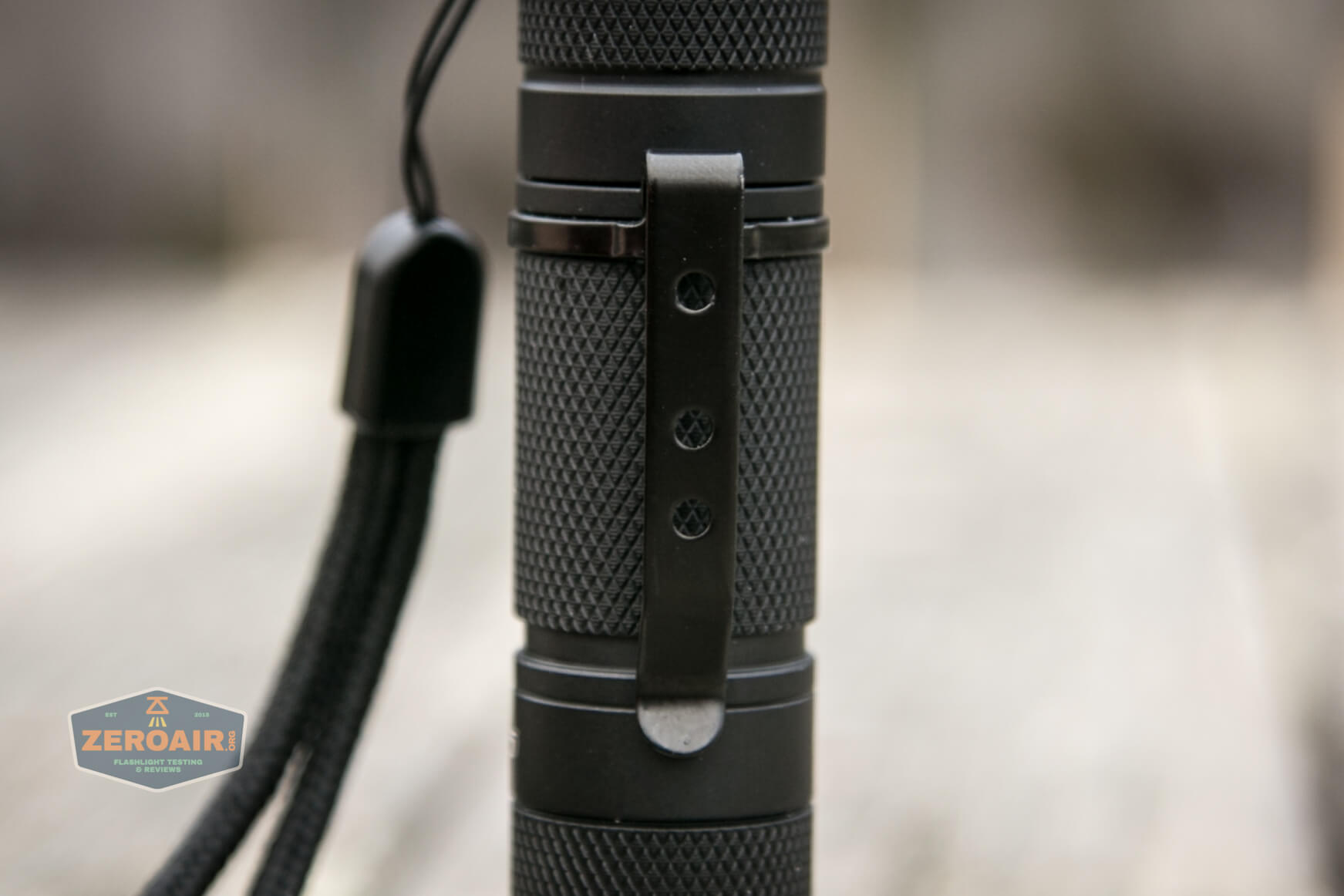

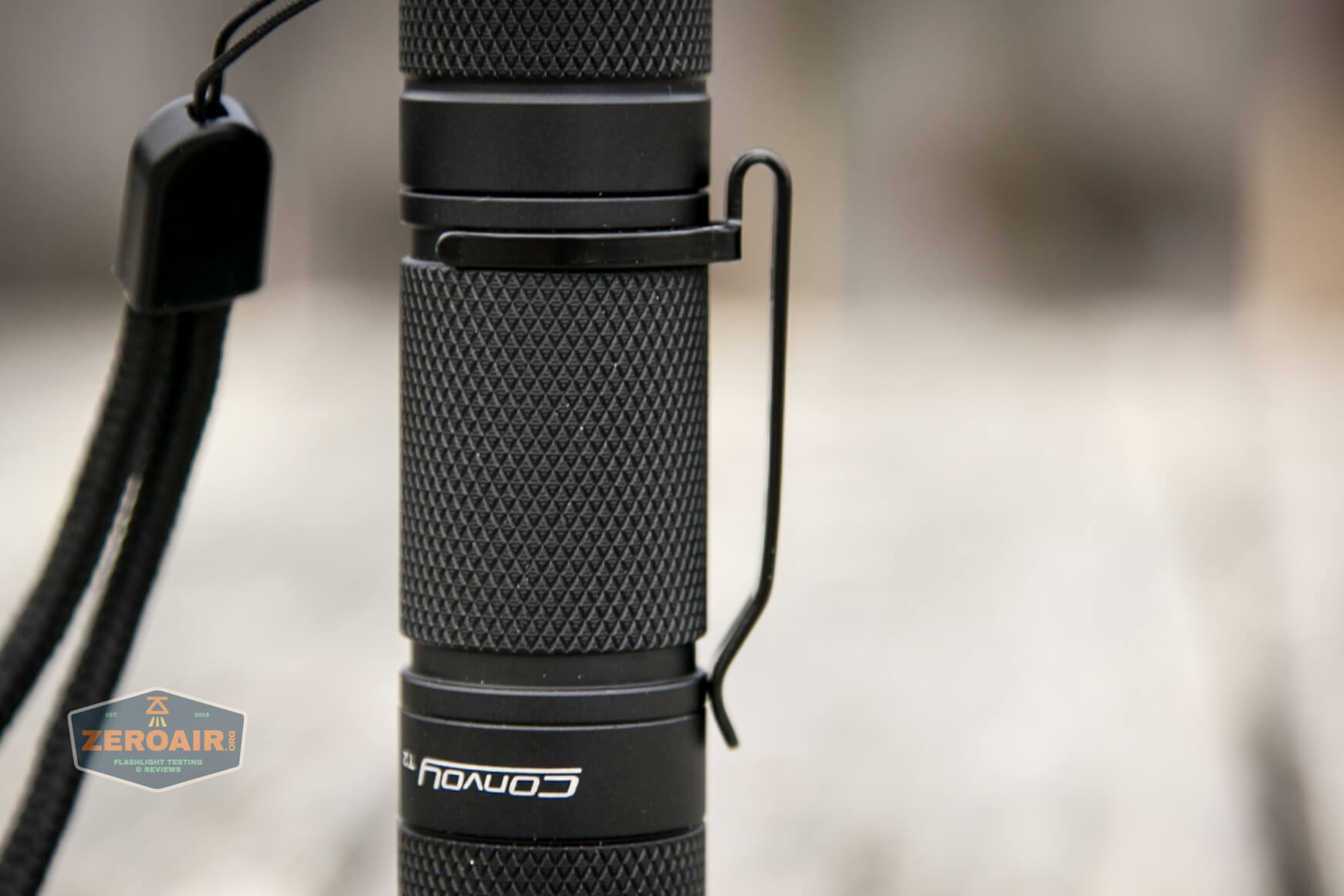

There are two means of carry for this T2.  They both ship already attached.  First is the pocket clip, which is a fairly standard friction fit non-deep carry clip.

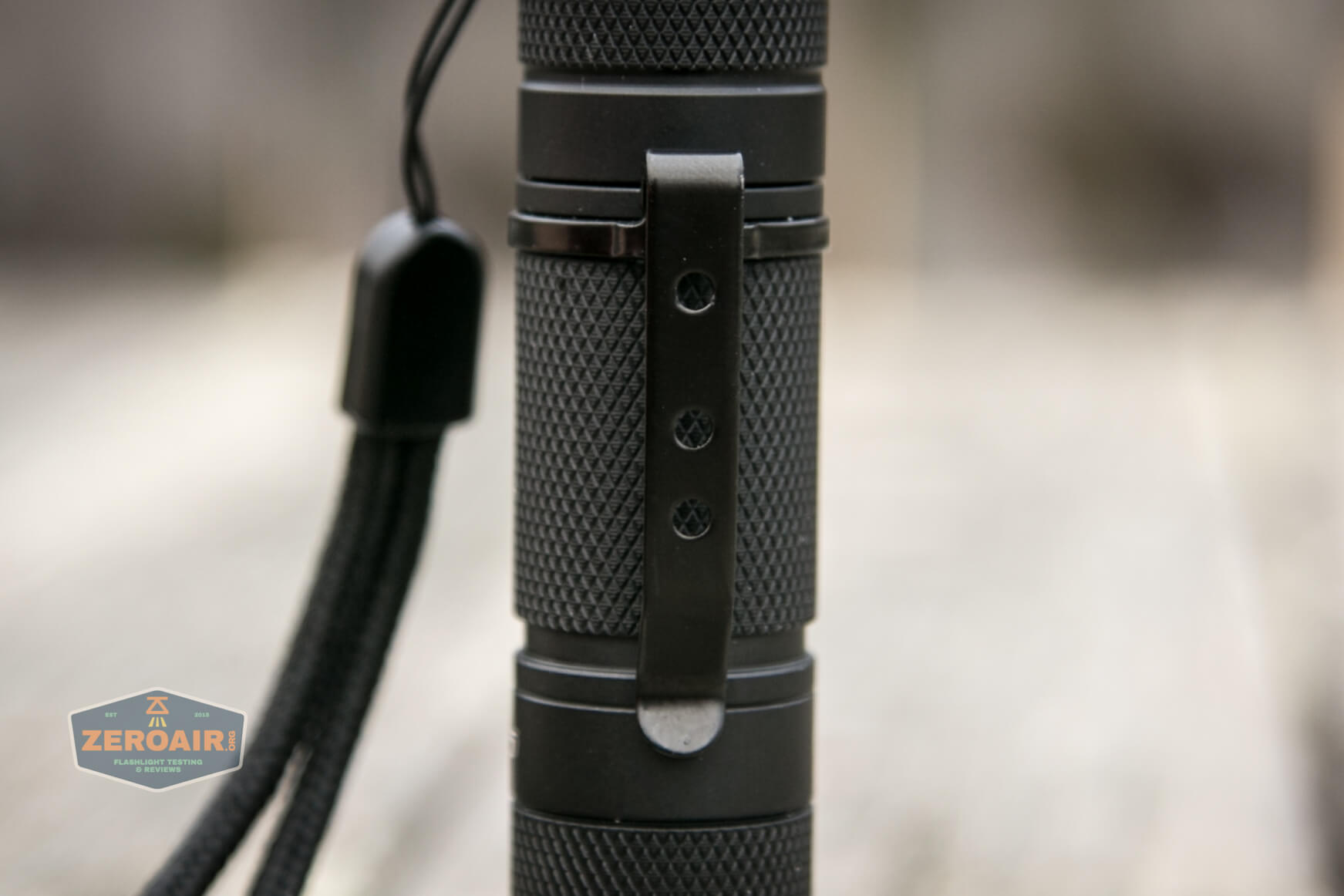

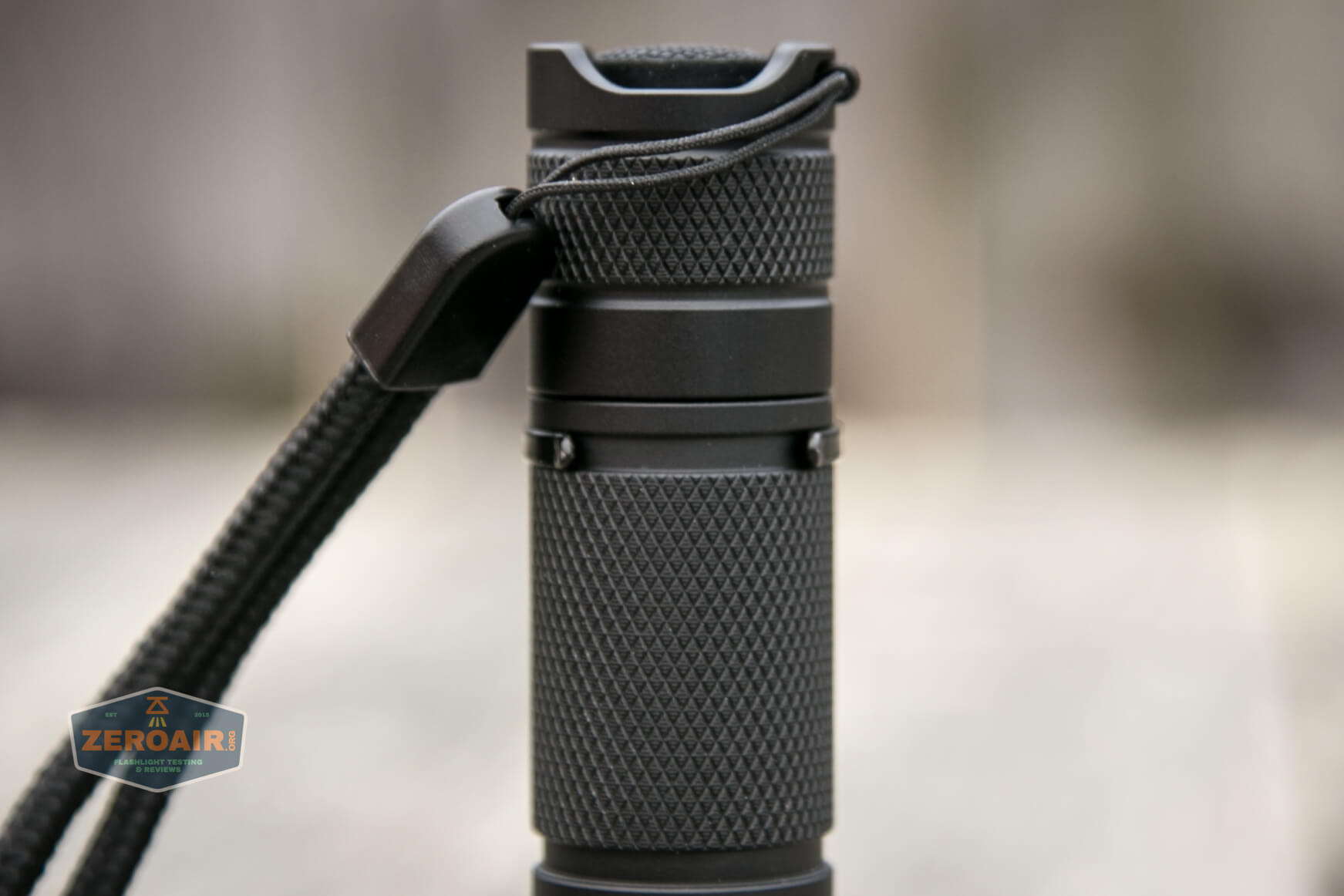

The clip hug on this one is TIGHT!

convoy t2 updated 14500/AA flashlight pocket clip hug

So tight in fact that I couldn’t remove it to display that it can go on the head or tail end with ease.  There’s a groove on both ends of the cell tube.

convoy t2 updated 14500/AA flashlight pocket clip

Because of this, the T2 could reasonably be used as a hatlight.

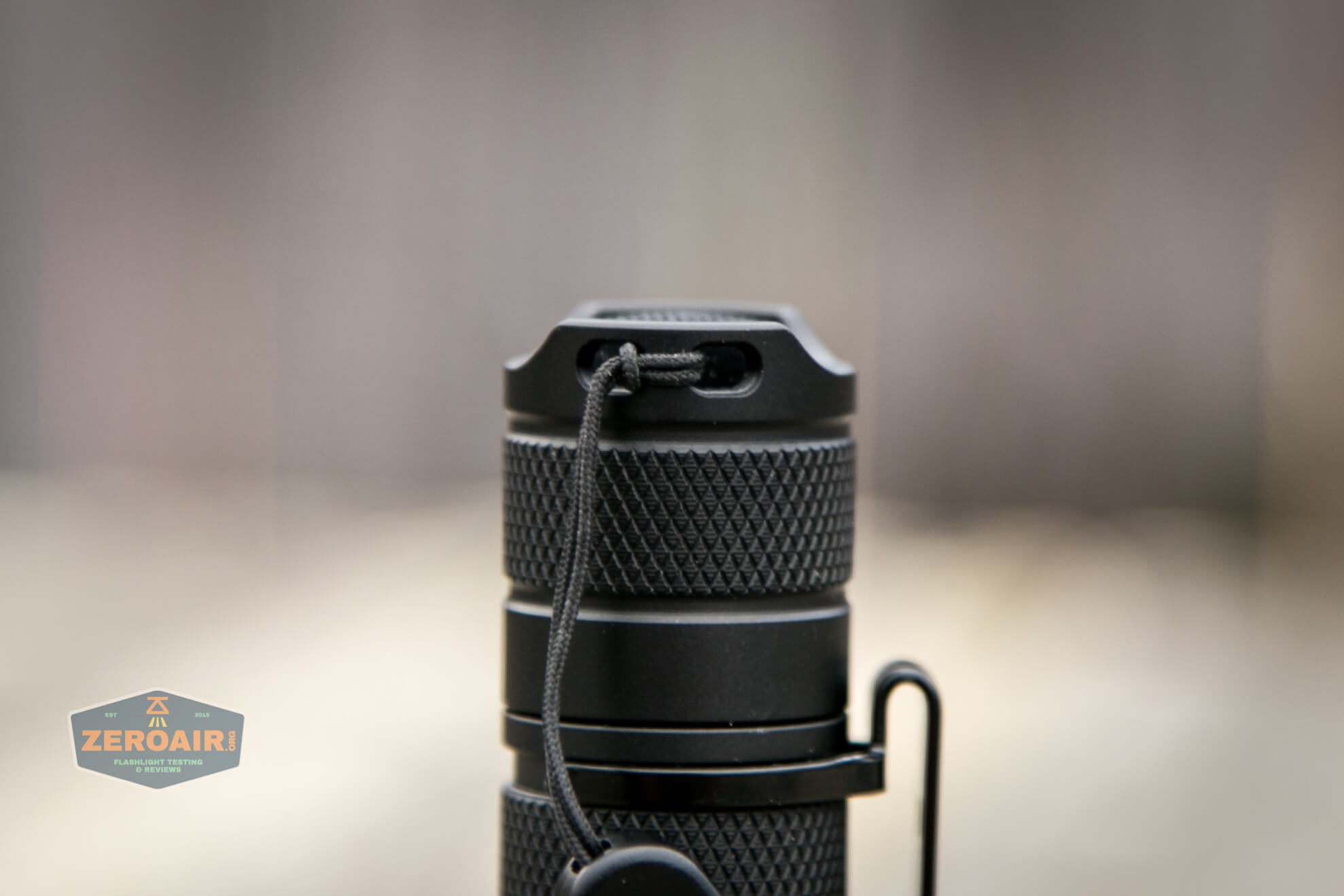

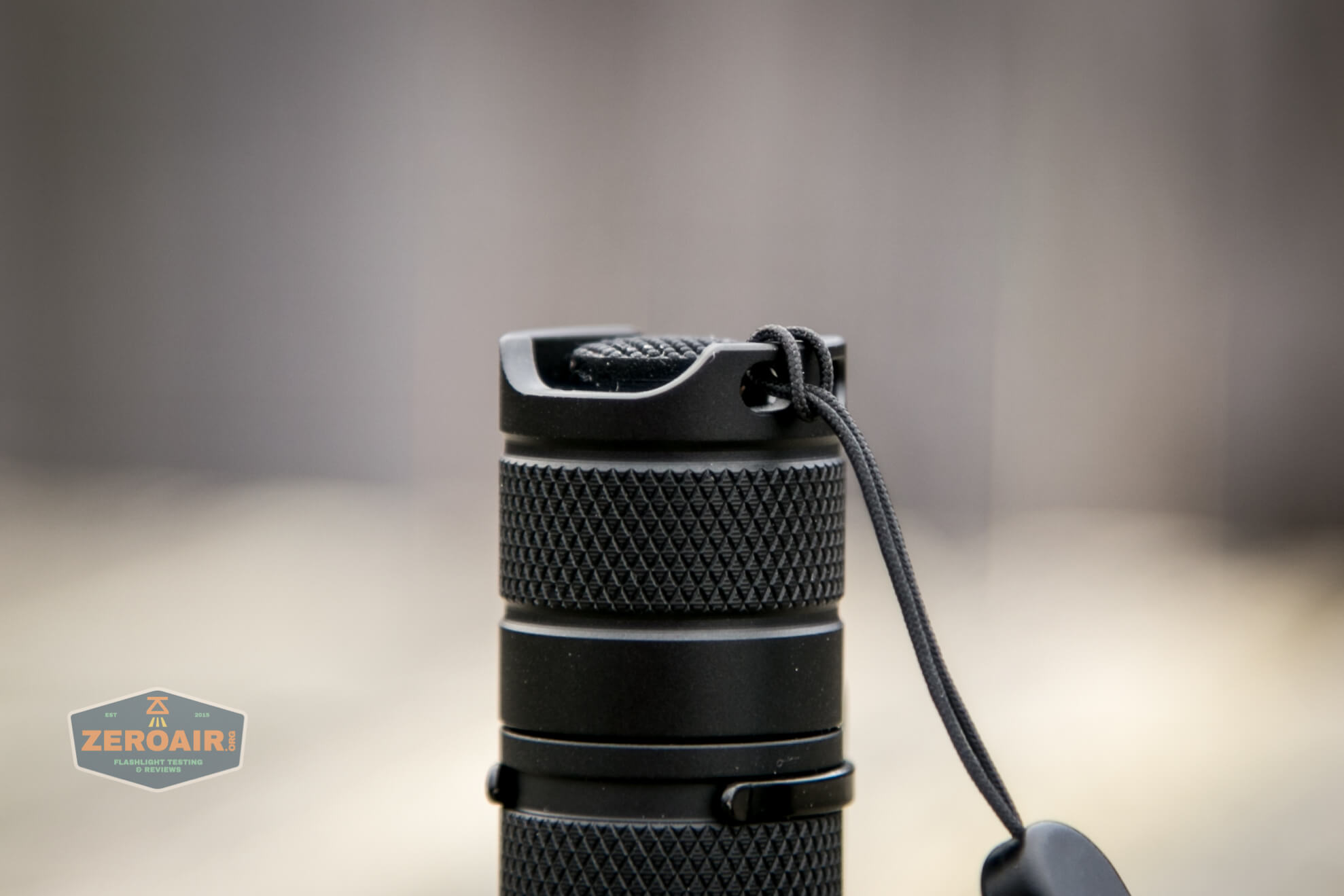

There’s also a lanyard included.  It ships already attached, as follows:

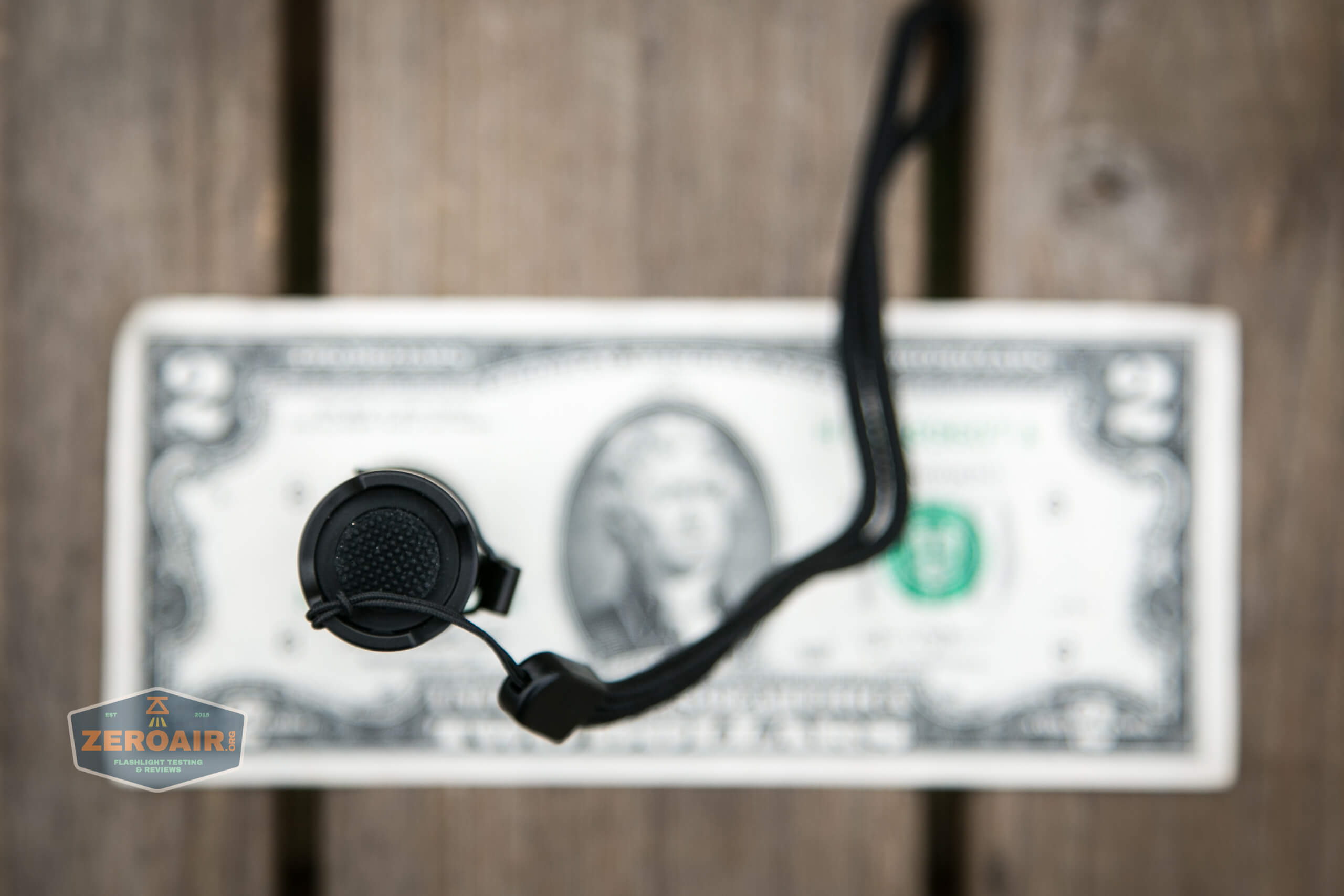

convoy t2 updated 14500/AA flashlight lanyard

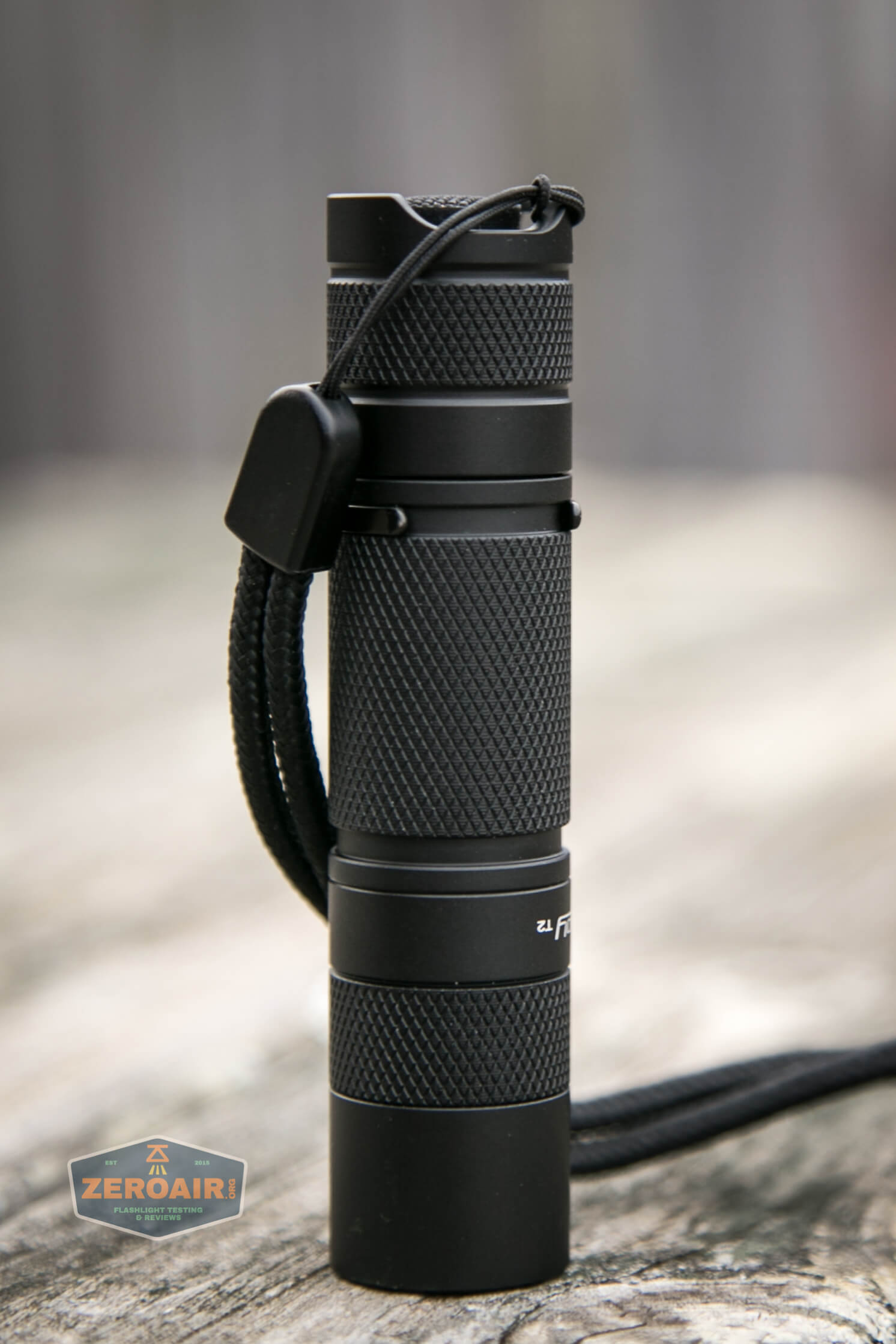

I feel like that’s the “wrong” way, and I swap it over to the way seen below:

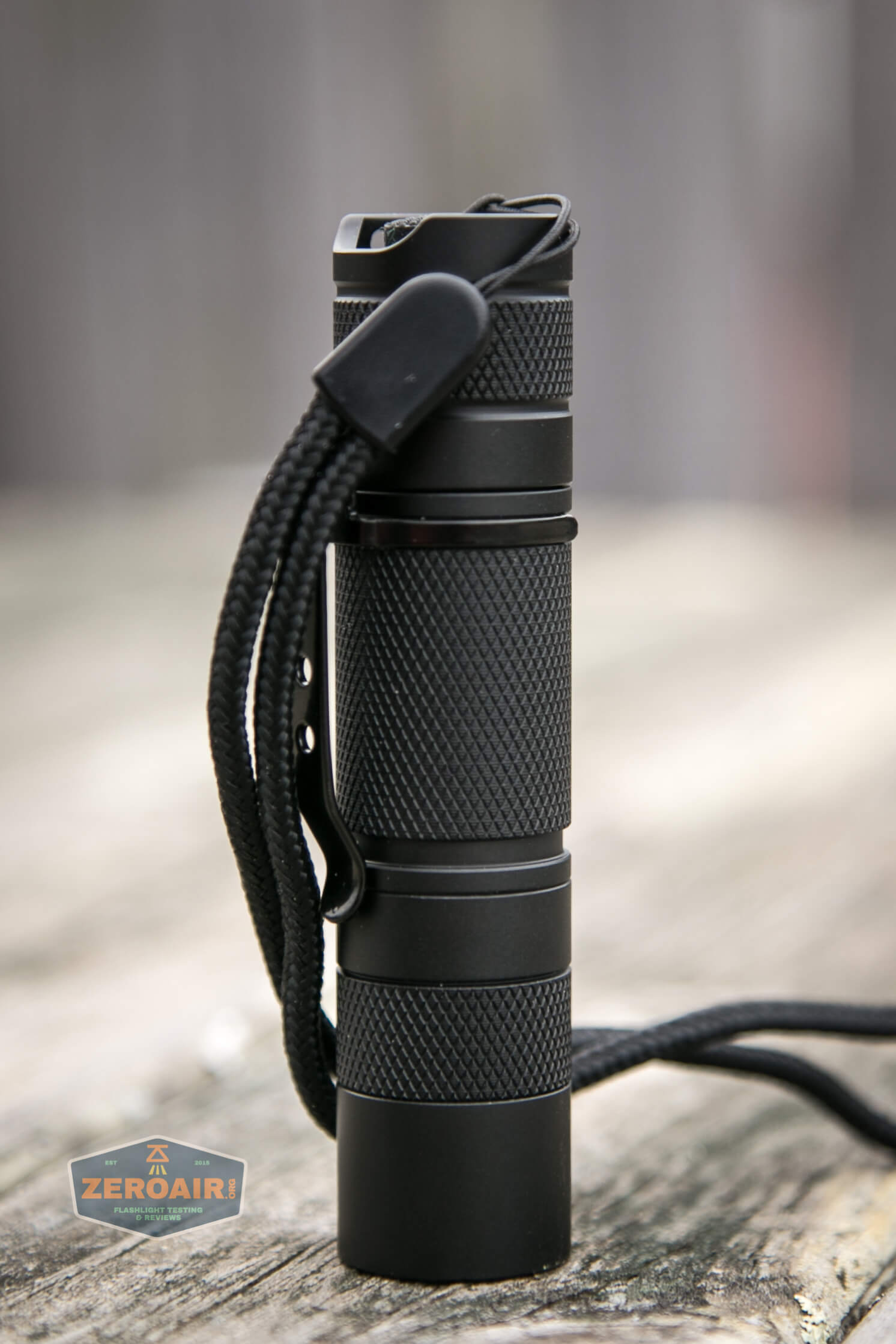

convoy t2 updated 14500/AA flashlight lanyard

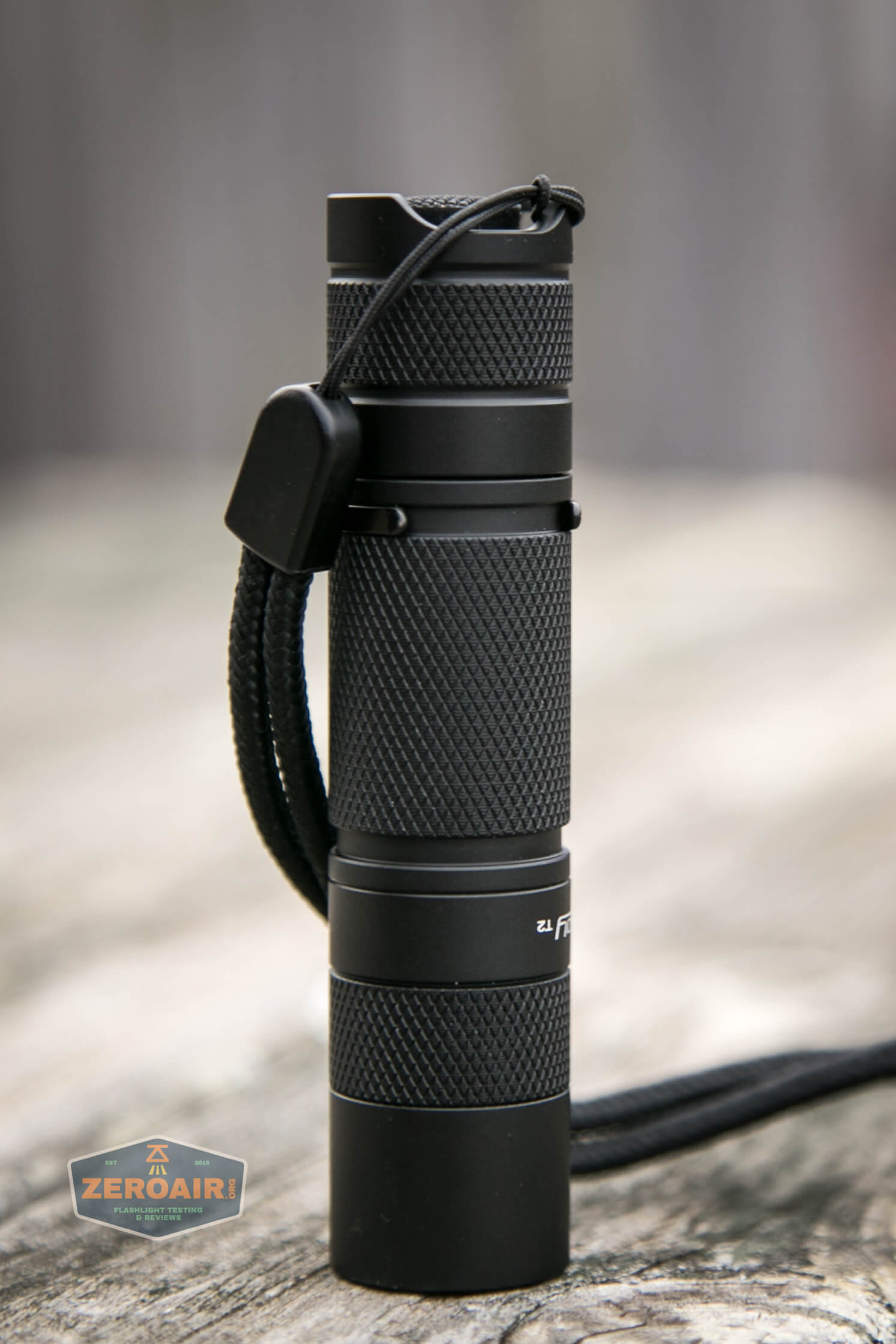

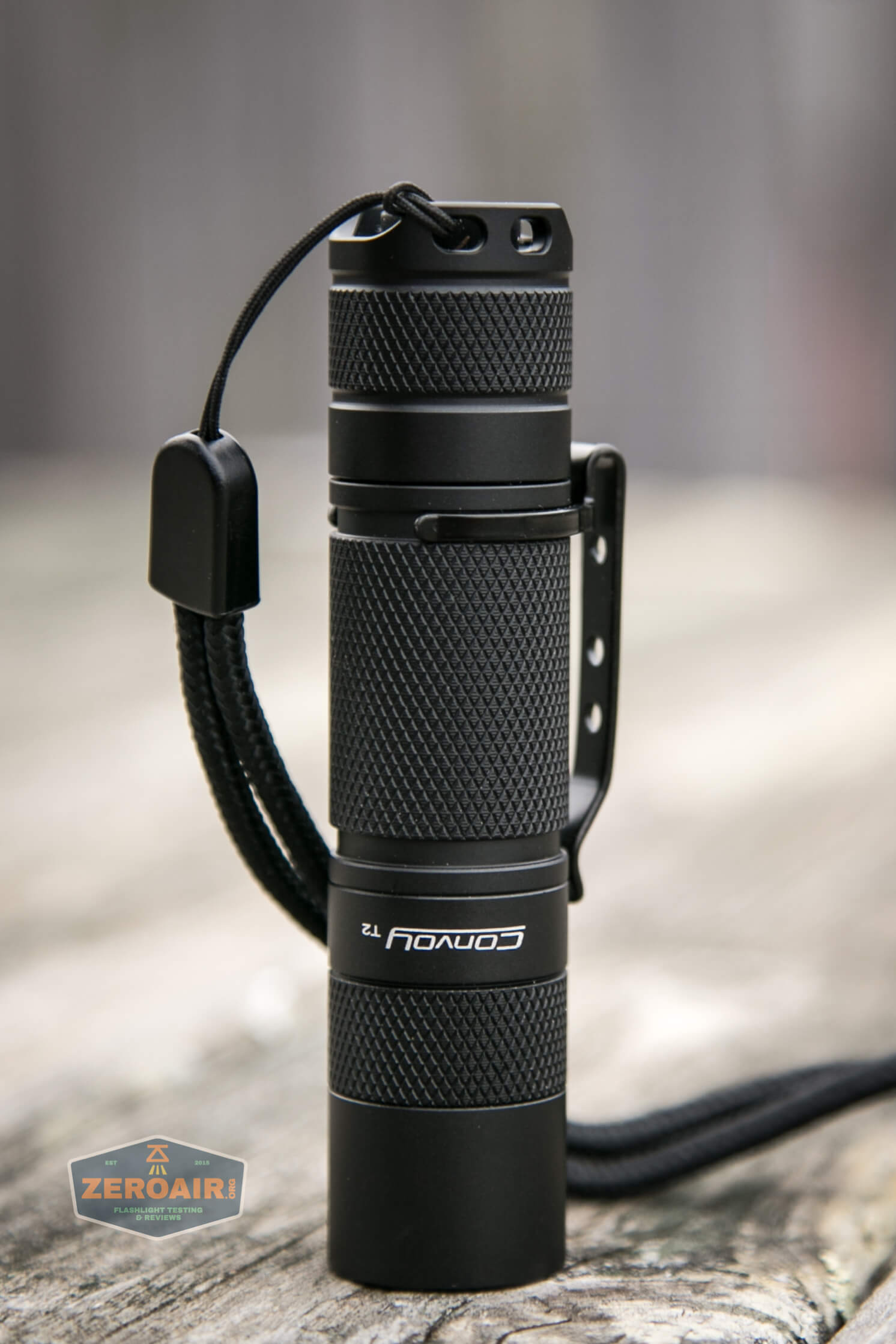

Importantly, this allows smooth tailstanding.

convoy t2 updated 14500/AA flashlight lanyard

Power and Runtime

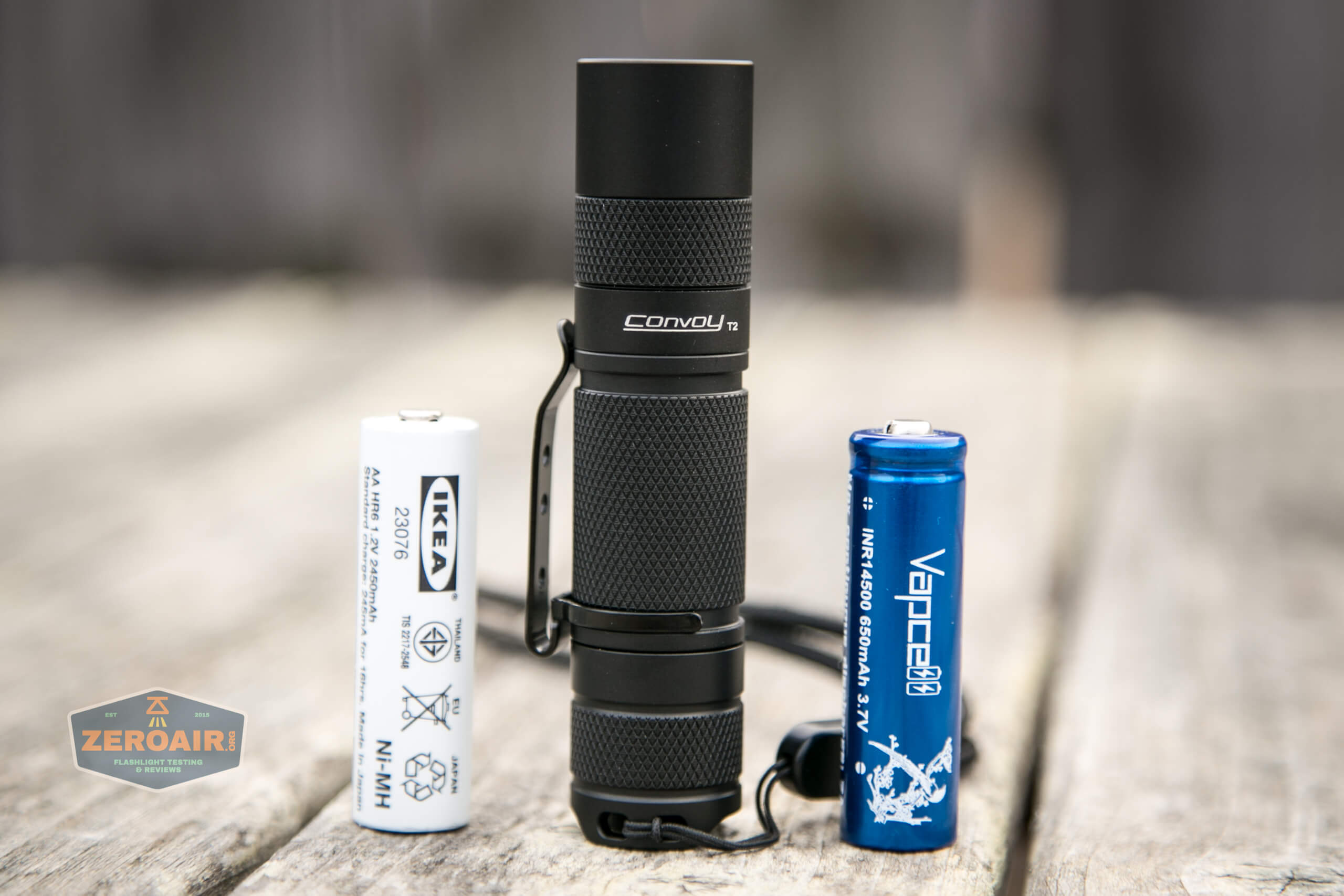

The coup of this new version is that it supports both lithium ion cells (aka 14500), and AA sized cells (primary, alkaline, NiMH, etc).

convoy t2 updated 14500/AA flashlight both cells

Two things about that.  The cell tube is surprisingly … tight… and wider diameter cells will not fit.  I had at least 14500 cell that was too wide, and wouldn’t even slide into the cell tube.  Secondly, button tops seem to be required.

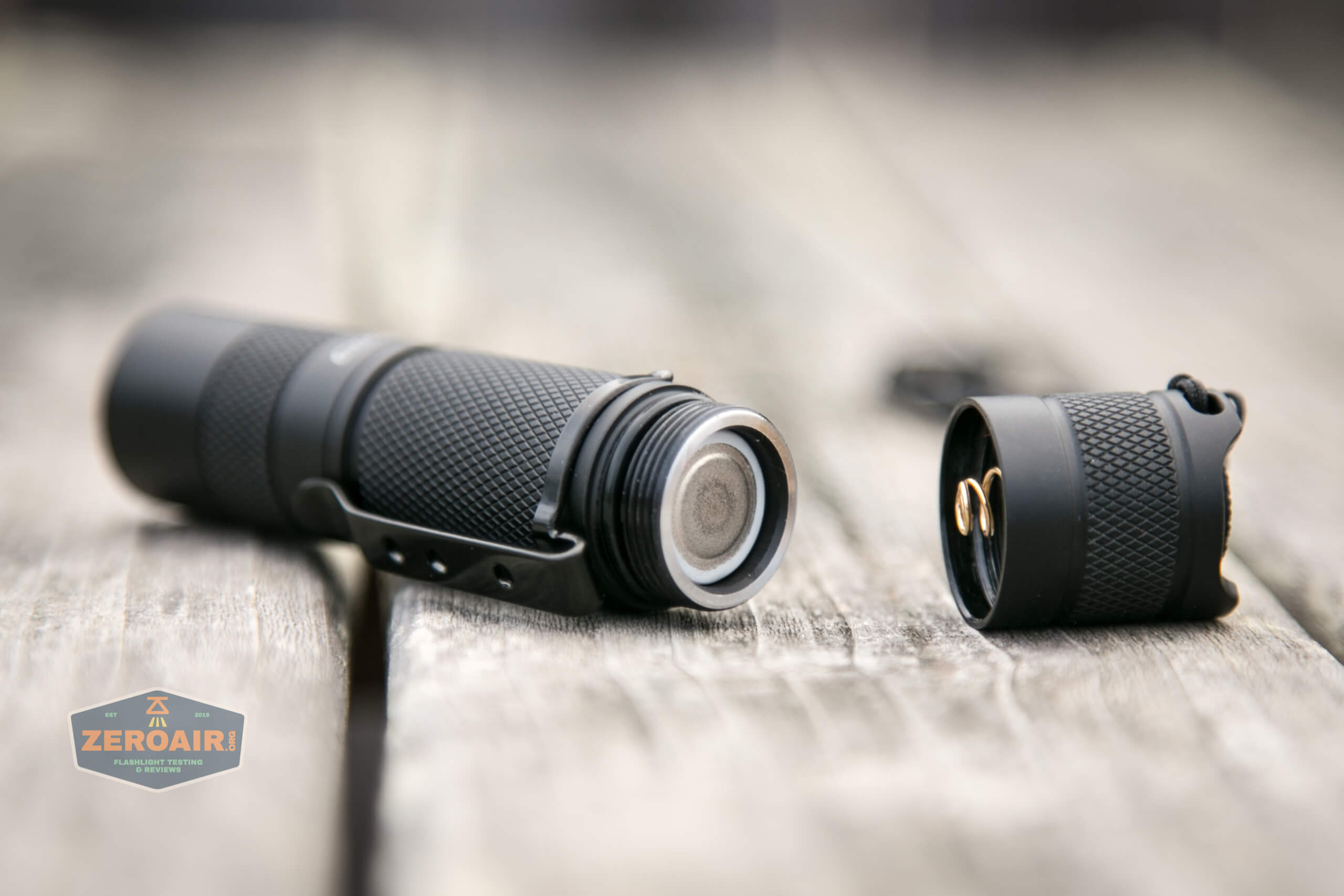

The cell installs in the usual way – positive end toward the head.

convoy t2 updated 14500/AA flashlight aa installed

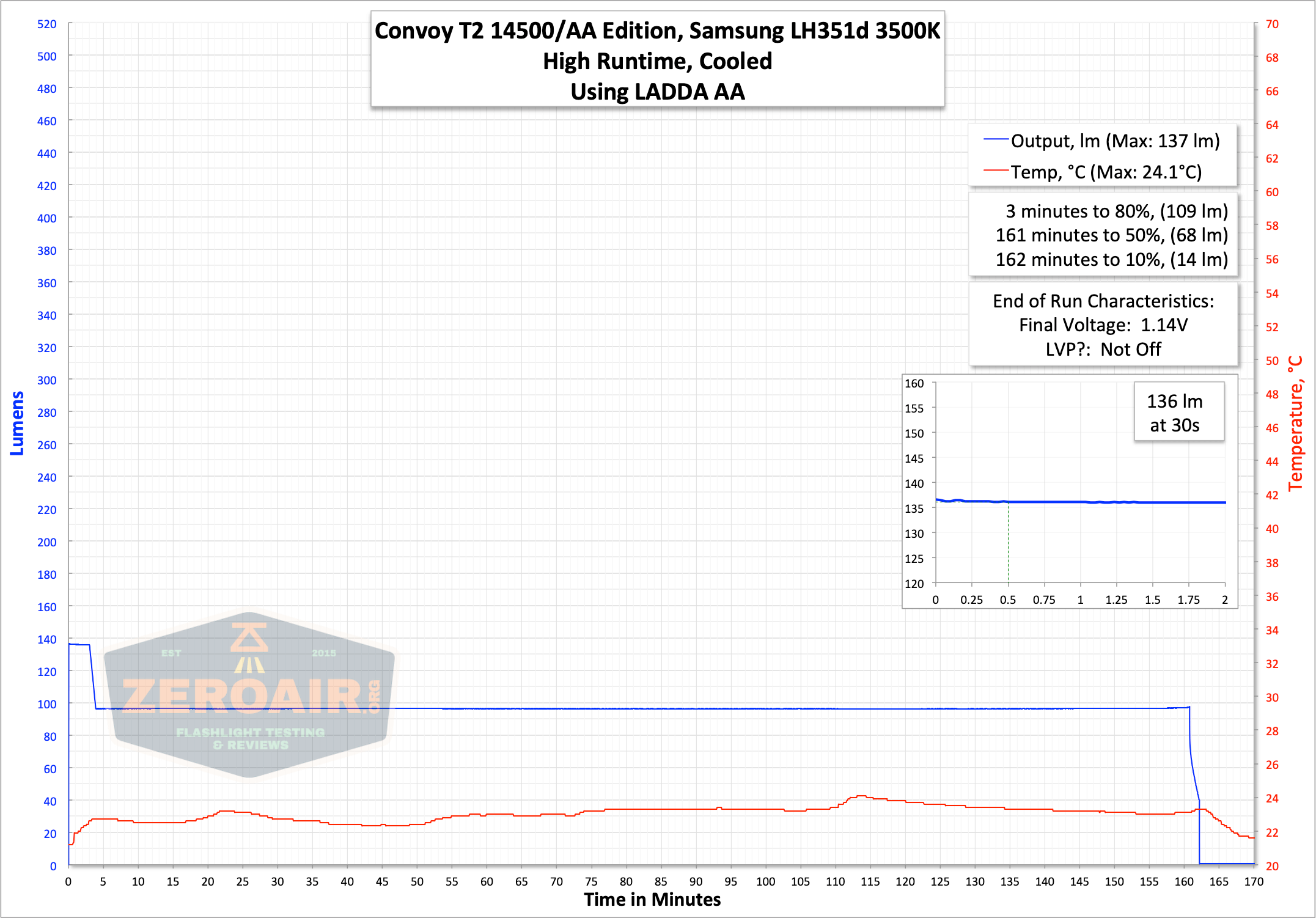

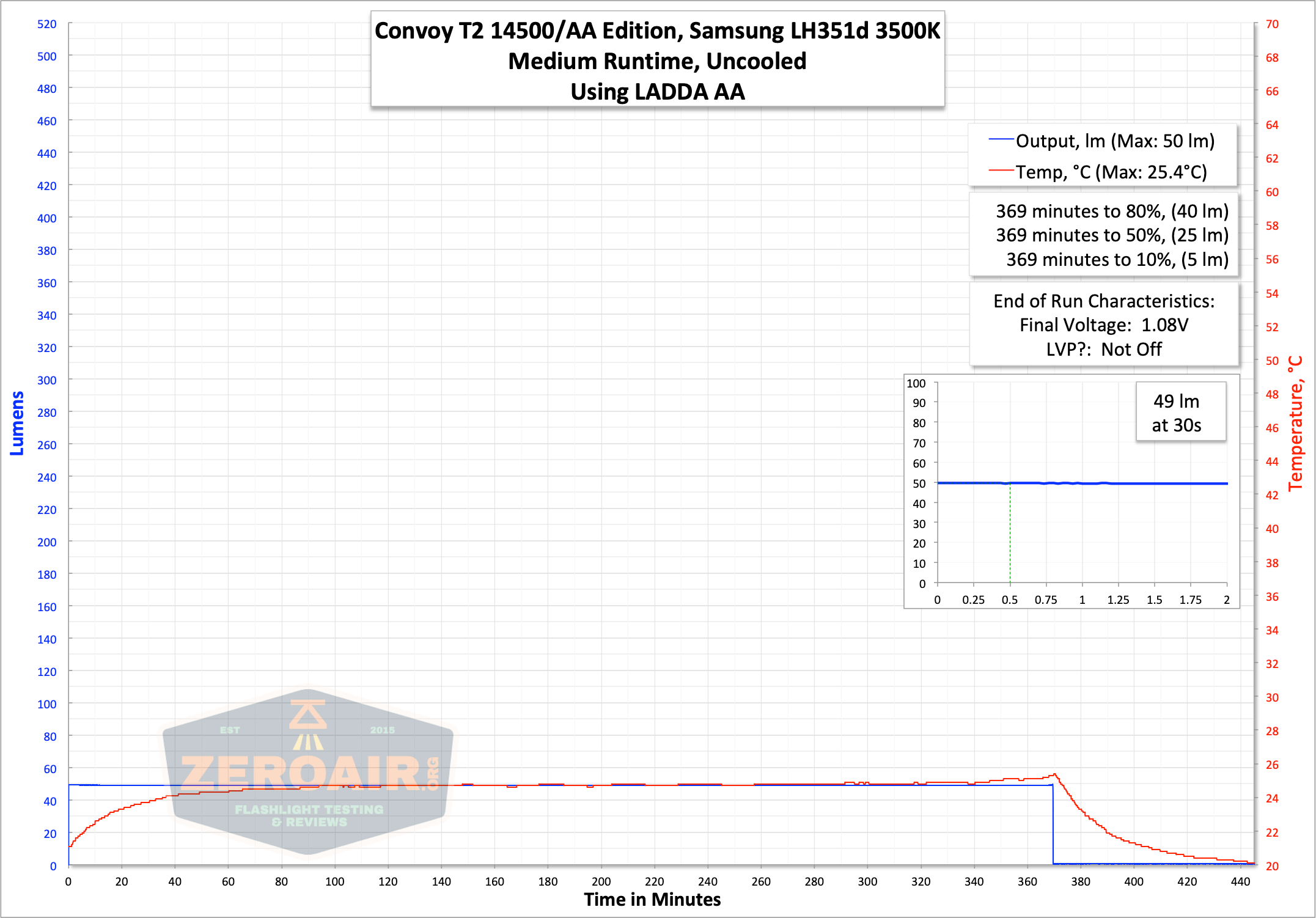

Below are a couple of AA runtimes.  I used an NiMH cell for these tests.  Output is very stable with NiMH.

convoy t2 updated 14500/AA flashlight aa runtime graph high

I did not note low voltage protection with 1.5V cells, but the light does step down to “practically negligible” output when the cell voltage gets low.

convoy t2 updated 14500/AA flashlight aa runtime graph medium

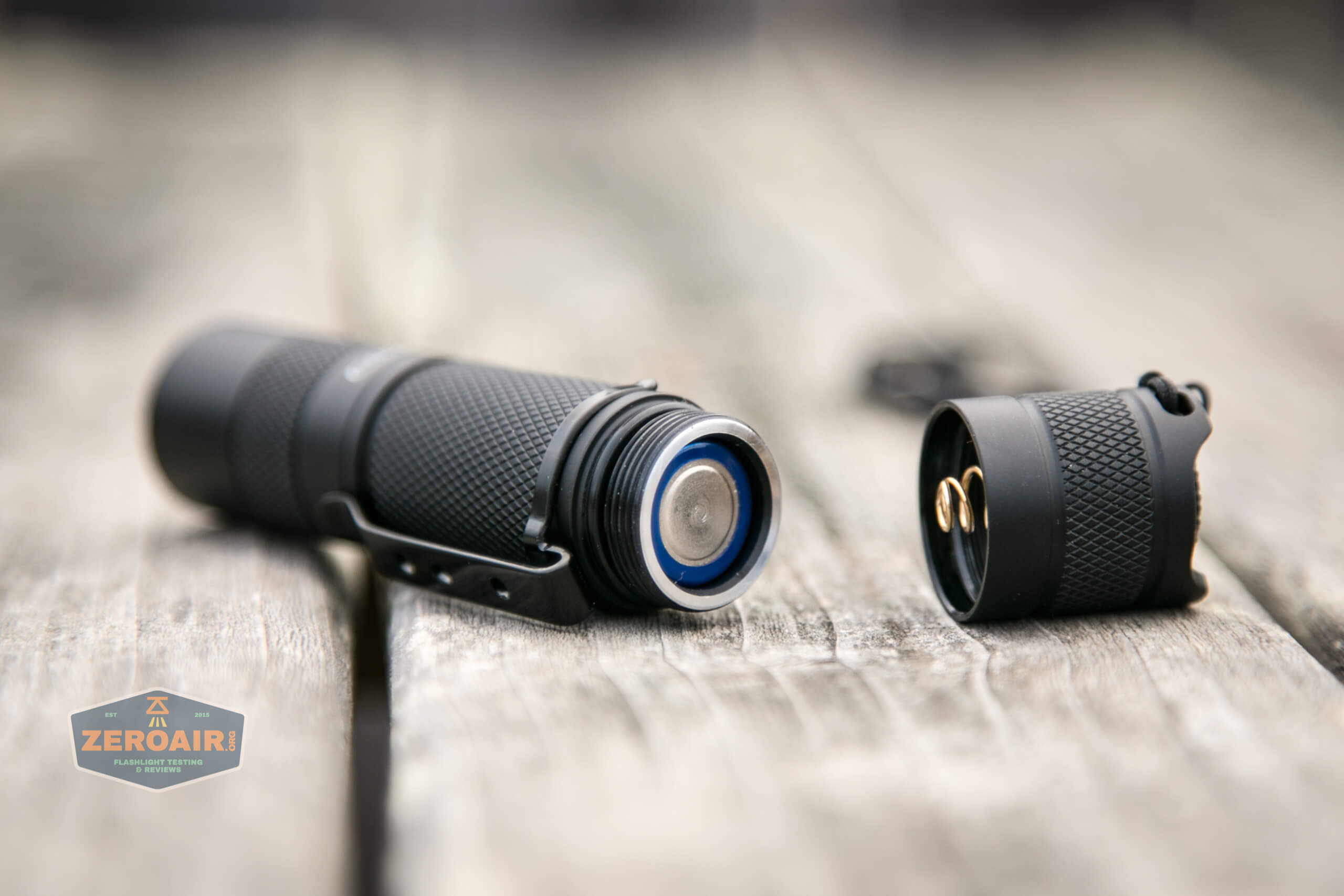

convoy t2 updated 14500/AA flashlight 14500 installed

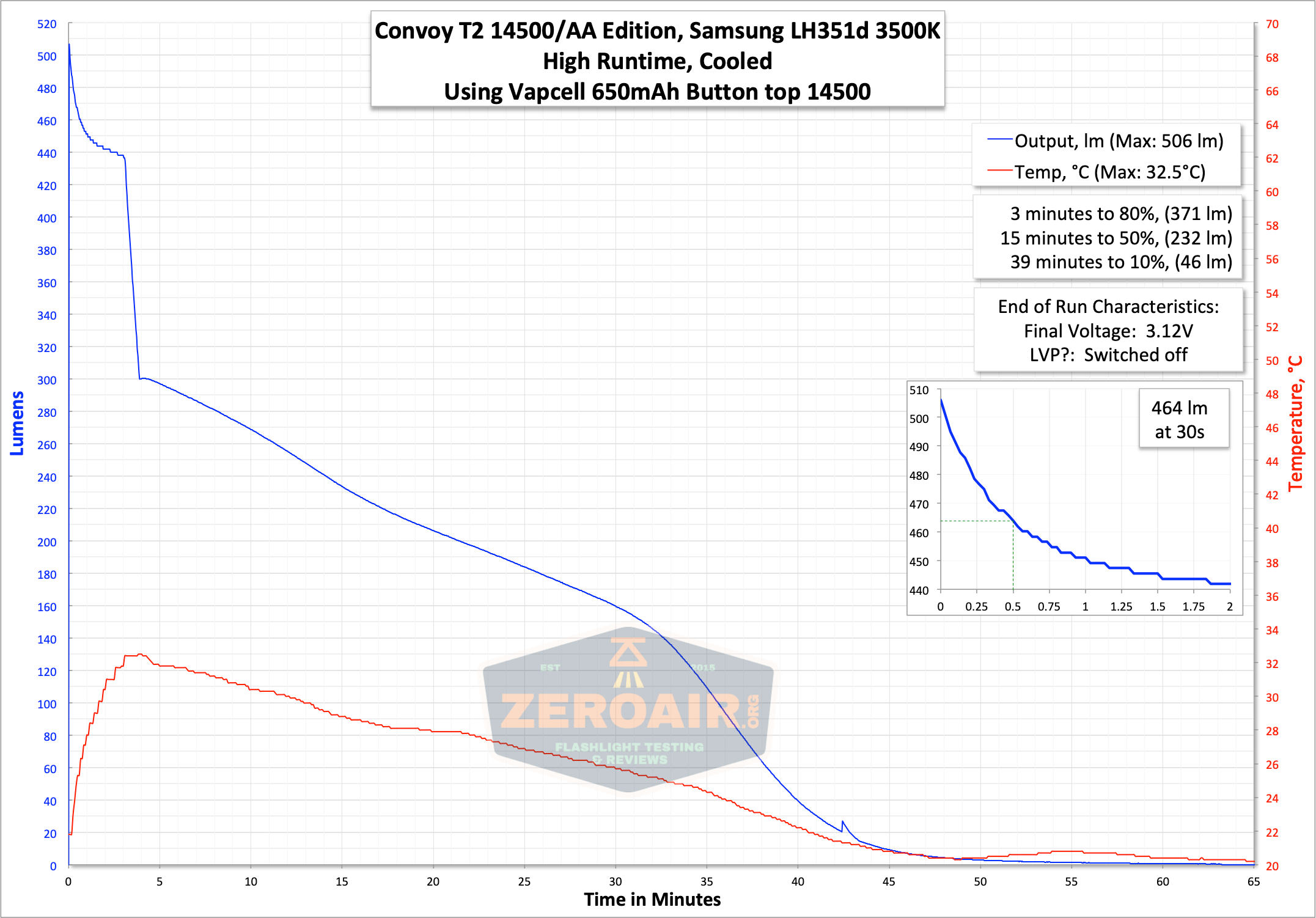

And here are a couple of runtimes with a Vapcell 650mAh 14500.  Output is much higher with the lithium ion cell, and actually holds output for a reasonable amount of time before stepping down.  Then the output becomes unregulated, and eventually the light shuts off.

convoy t2 updated 14500/AA flashlight 14500 runtime graph high

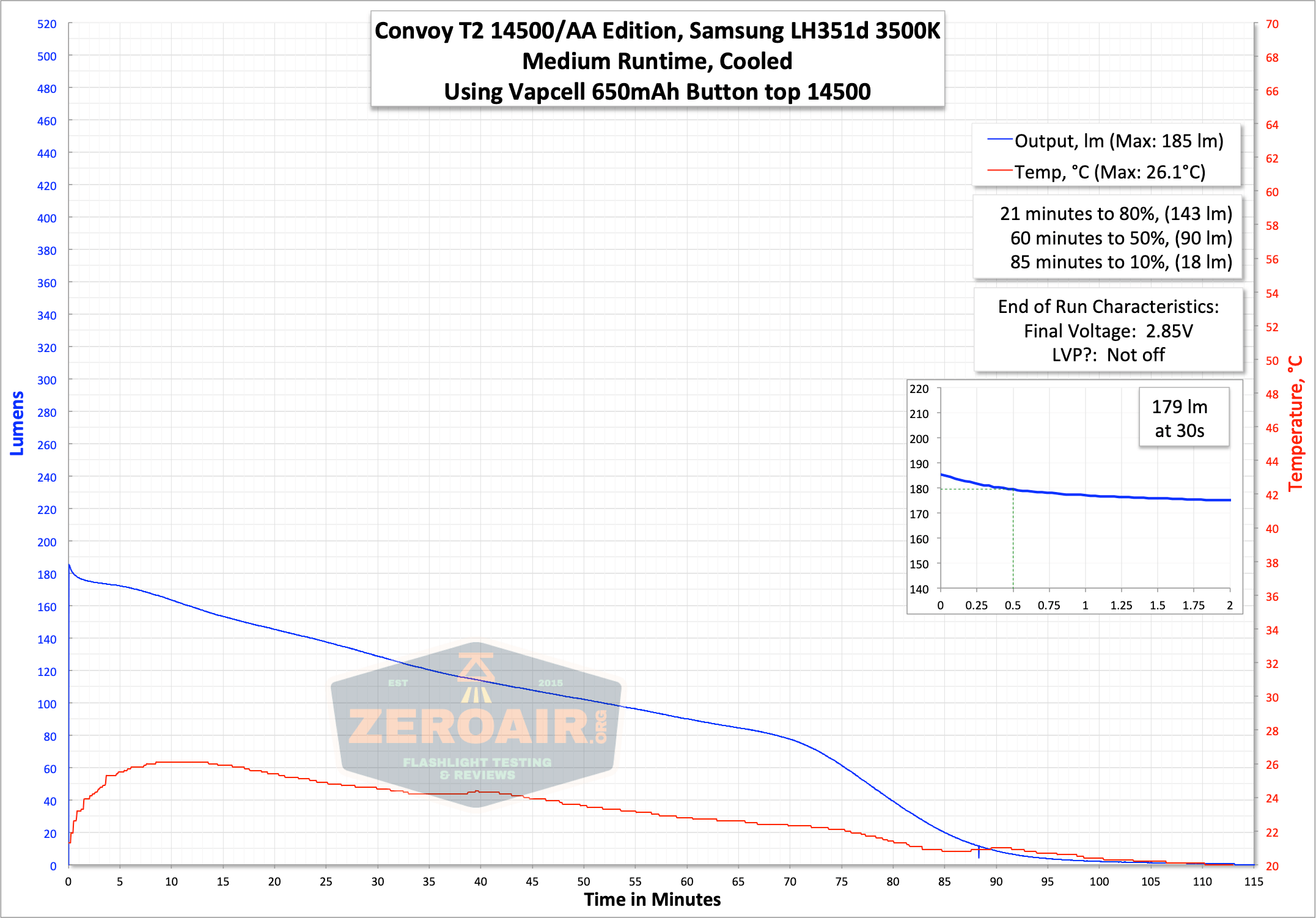

Output on medium looks as above, after the stepdown.  Drifting downward with the cell voltage.  In this case the light didn’t shut off, but on bench power I did observe the light shutting off at 2.7V.  So I’m satisfied with the low voltage protection on this light.

convoy t2 updated 14500/AA flashlight 14500 runtime graph medium

Modes and Currents

AA (or “1.5V” power)

Mode Mode Claimed Output (lm) Claimed Runtime Measured Lumens Tailcap Amps
100% 136 1.05
35% 49 0.32
10% 9 0.09
1% 0 0.01

14500 (or “4.2V” power)

Mode Mode Claimed Output (lm) Claimed Runtime Measured Lumens Tailcap Amps
100% 464 2.74
35% 179 0.85
10% 47 0.21
1% 0 0.01

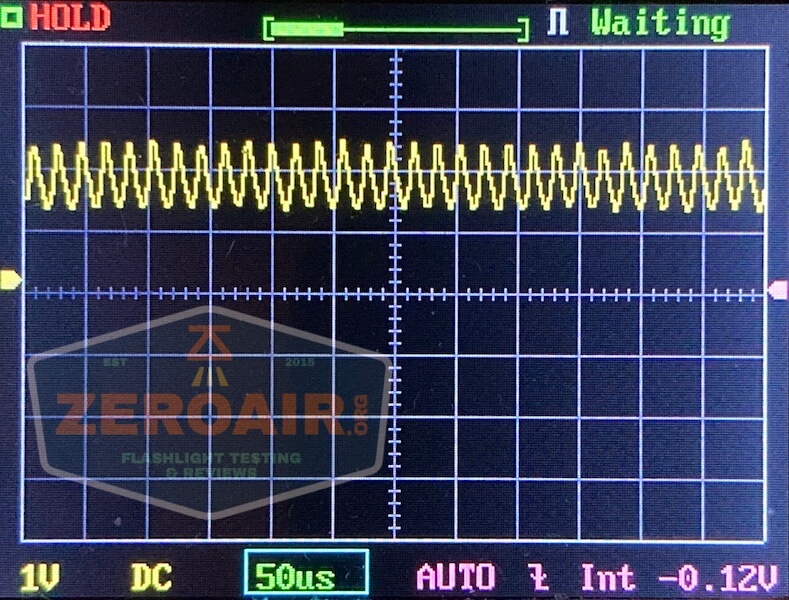

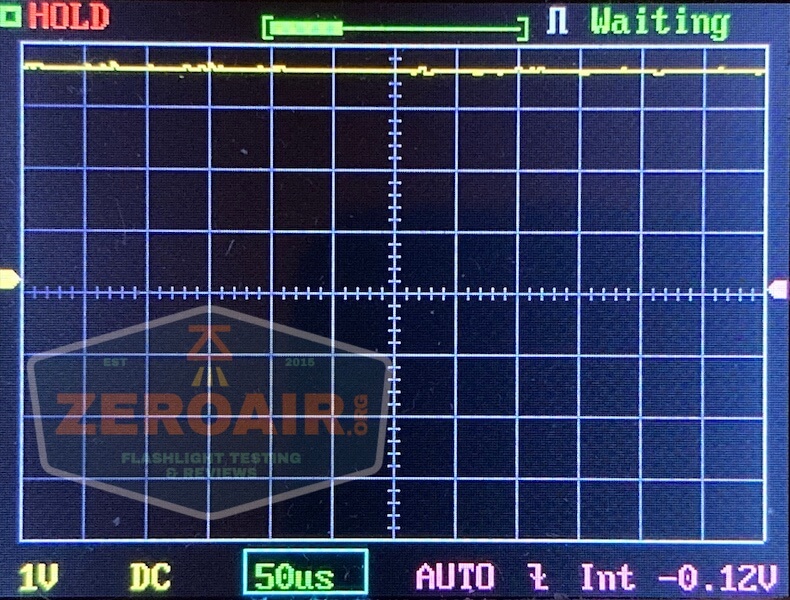

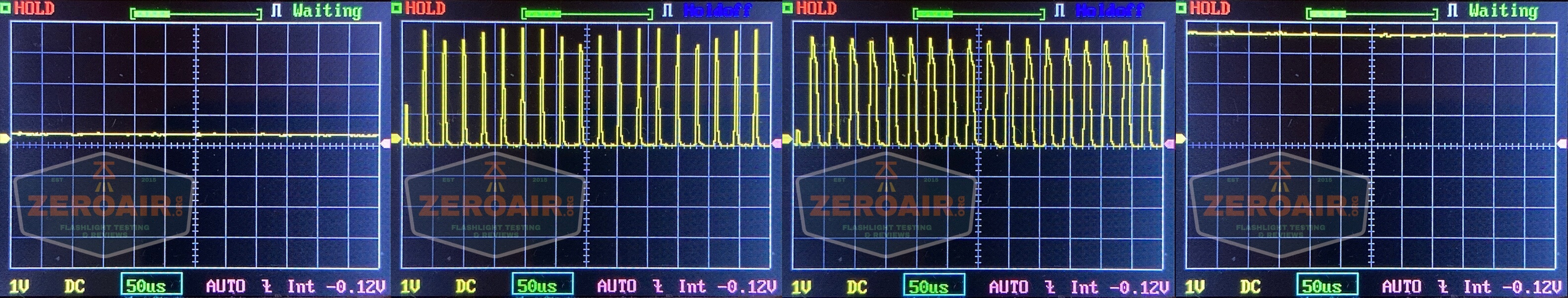

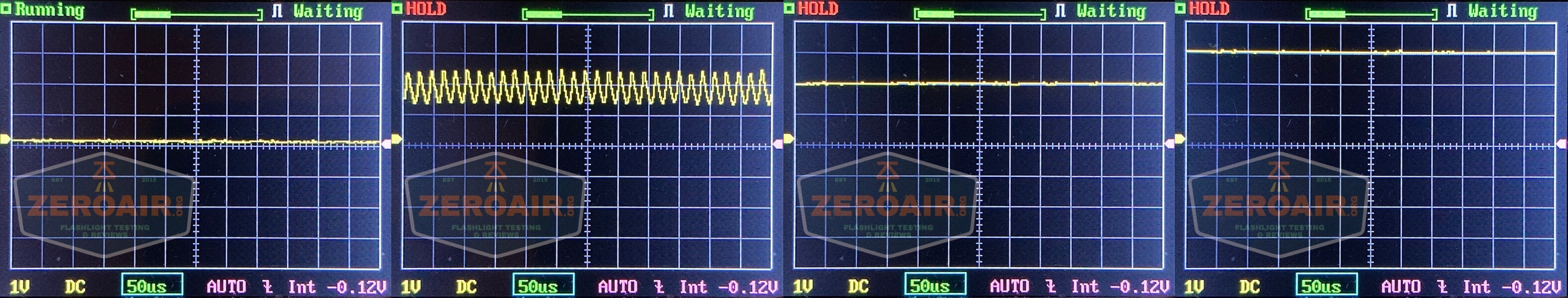

Pulse Width Modulation

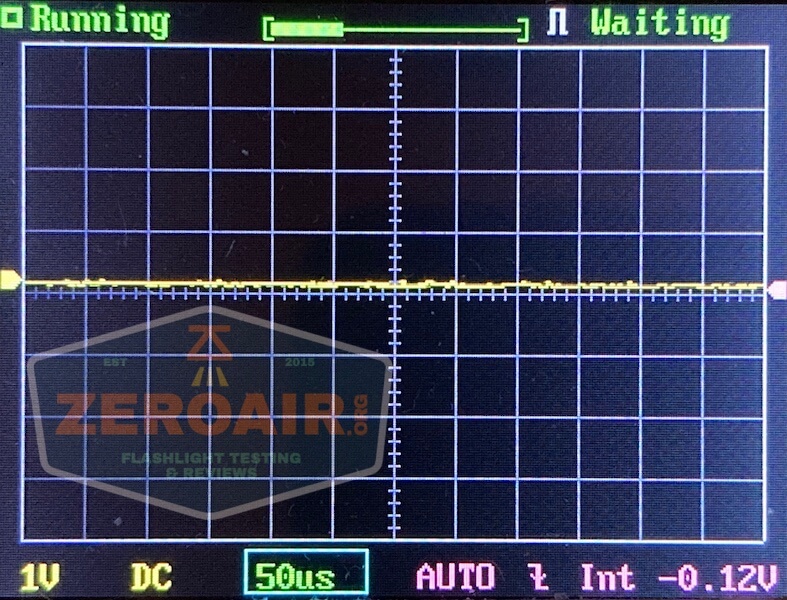

AA:

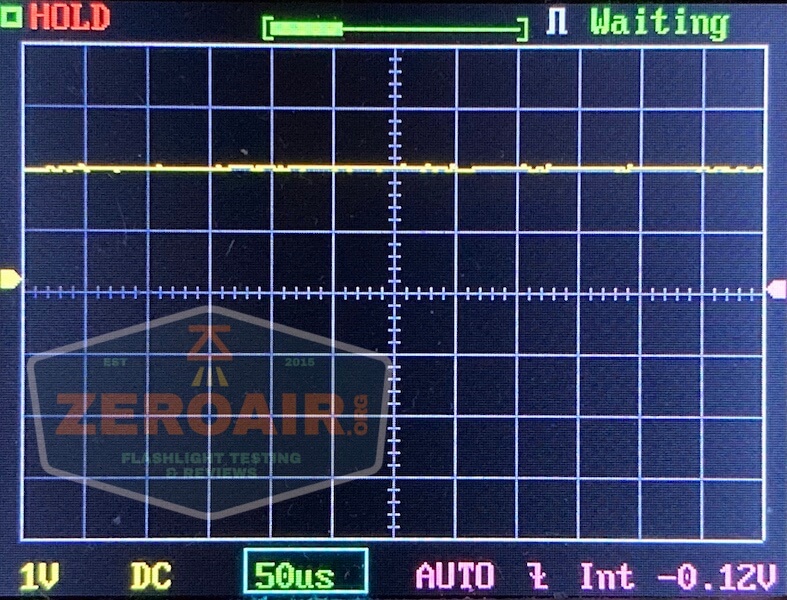

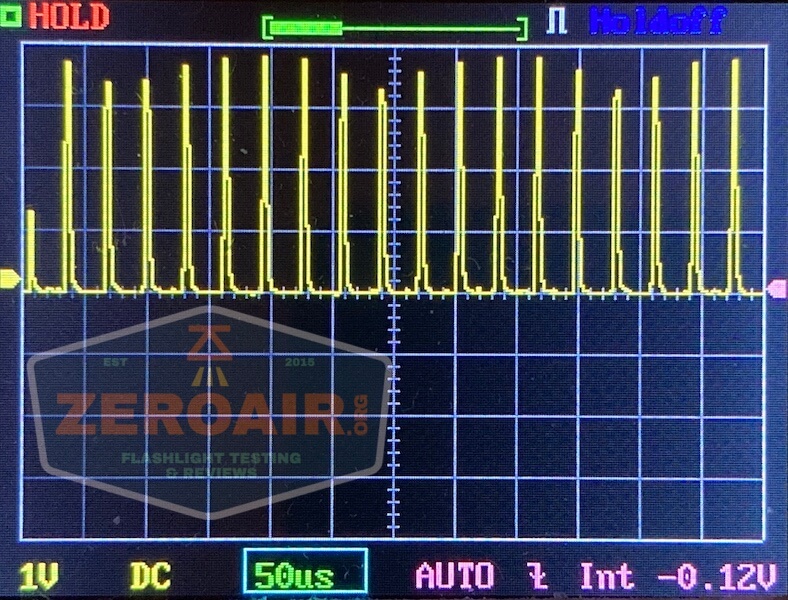

14500:

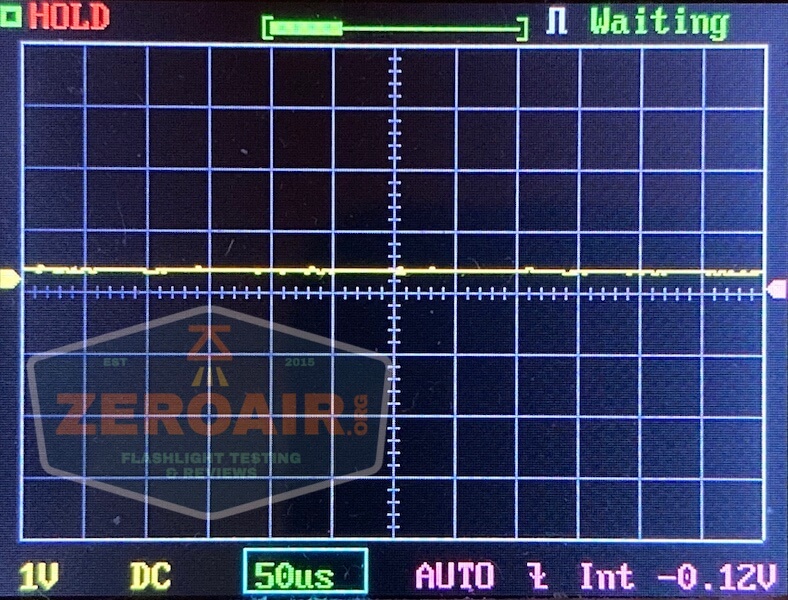

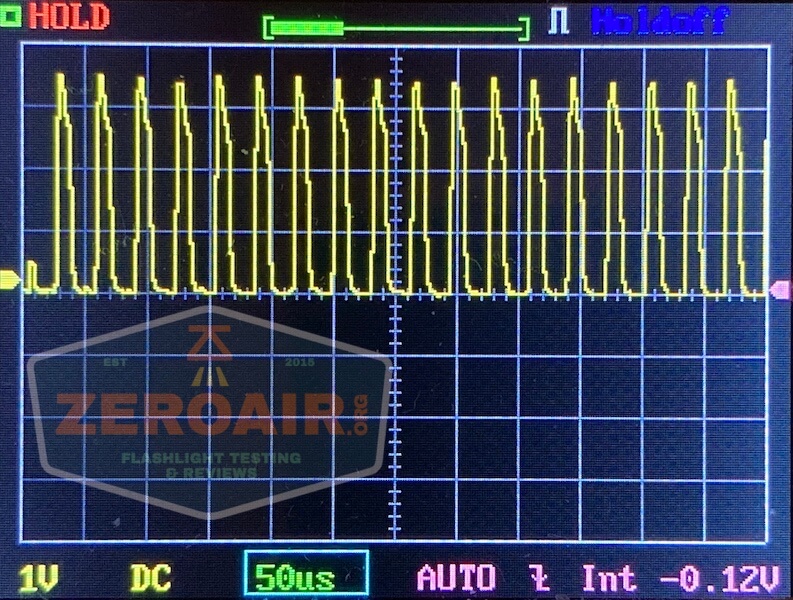

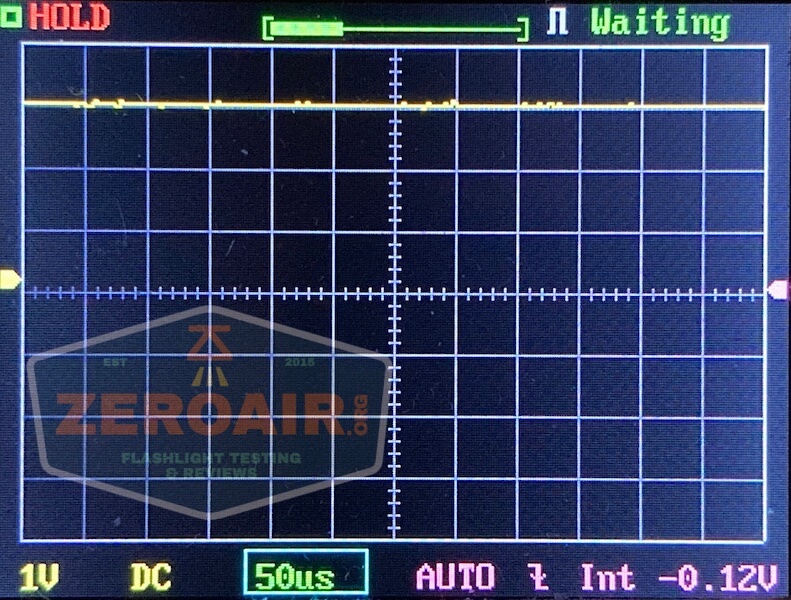

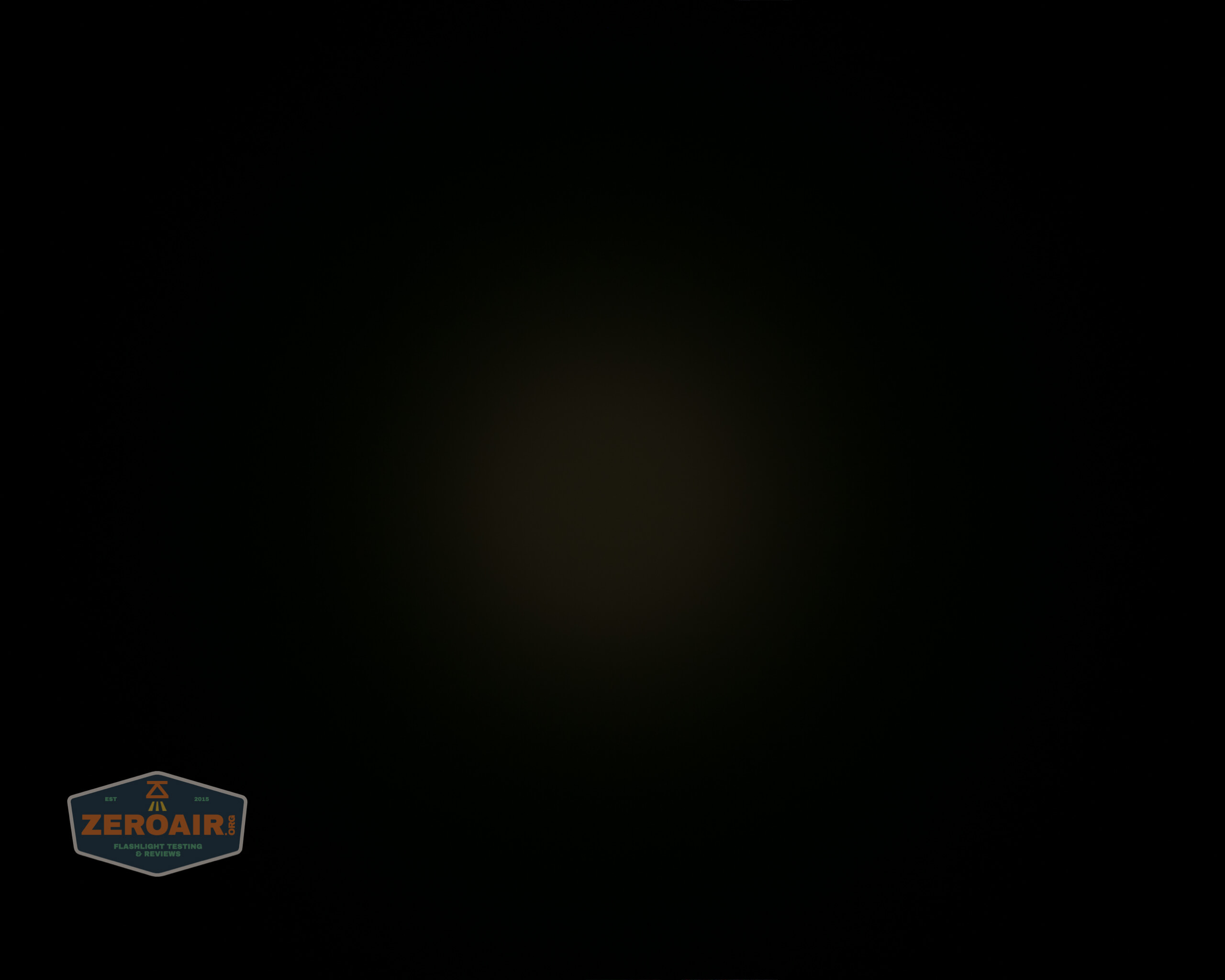

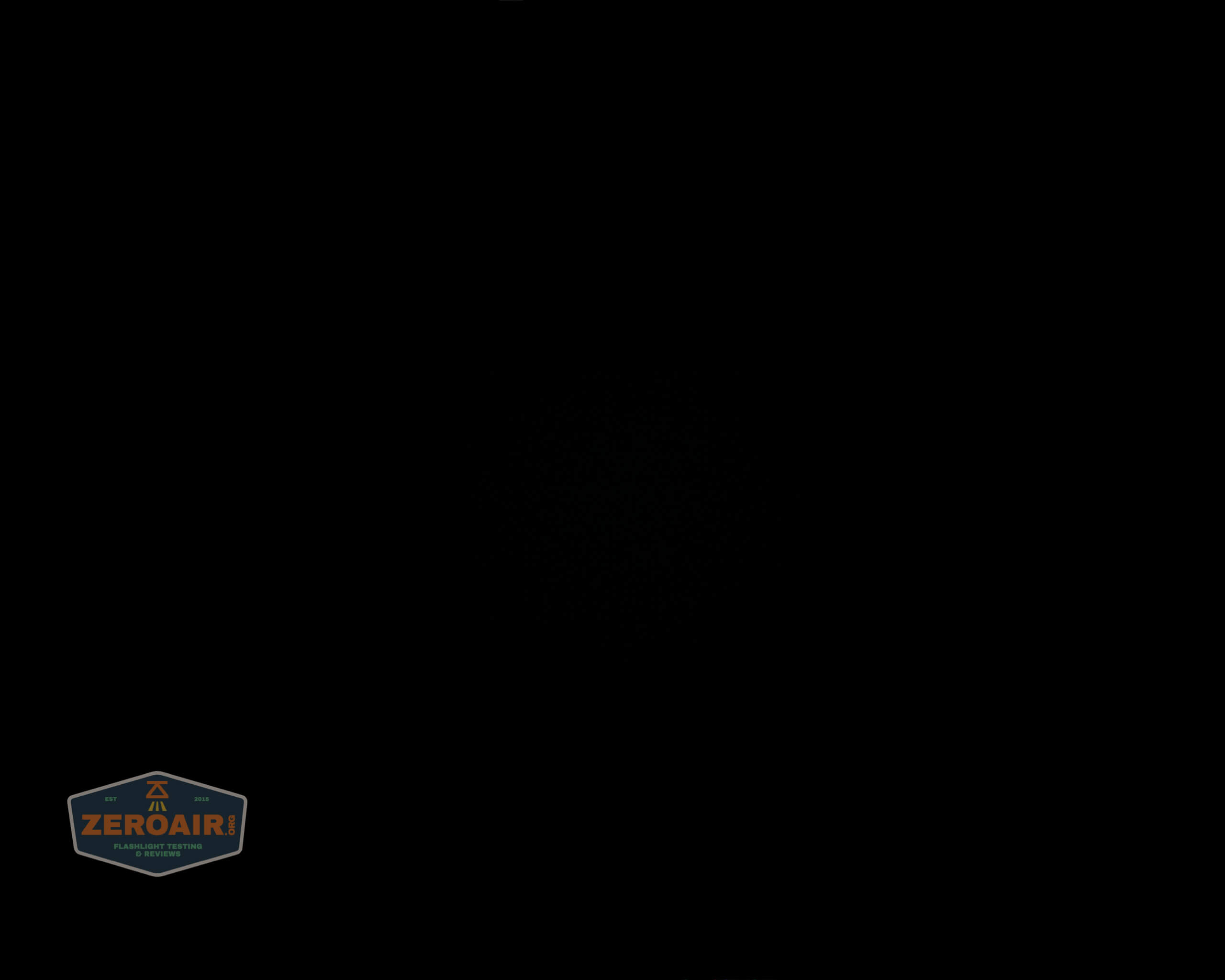

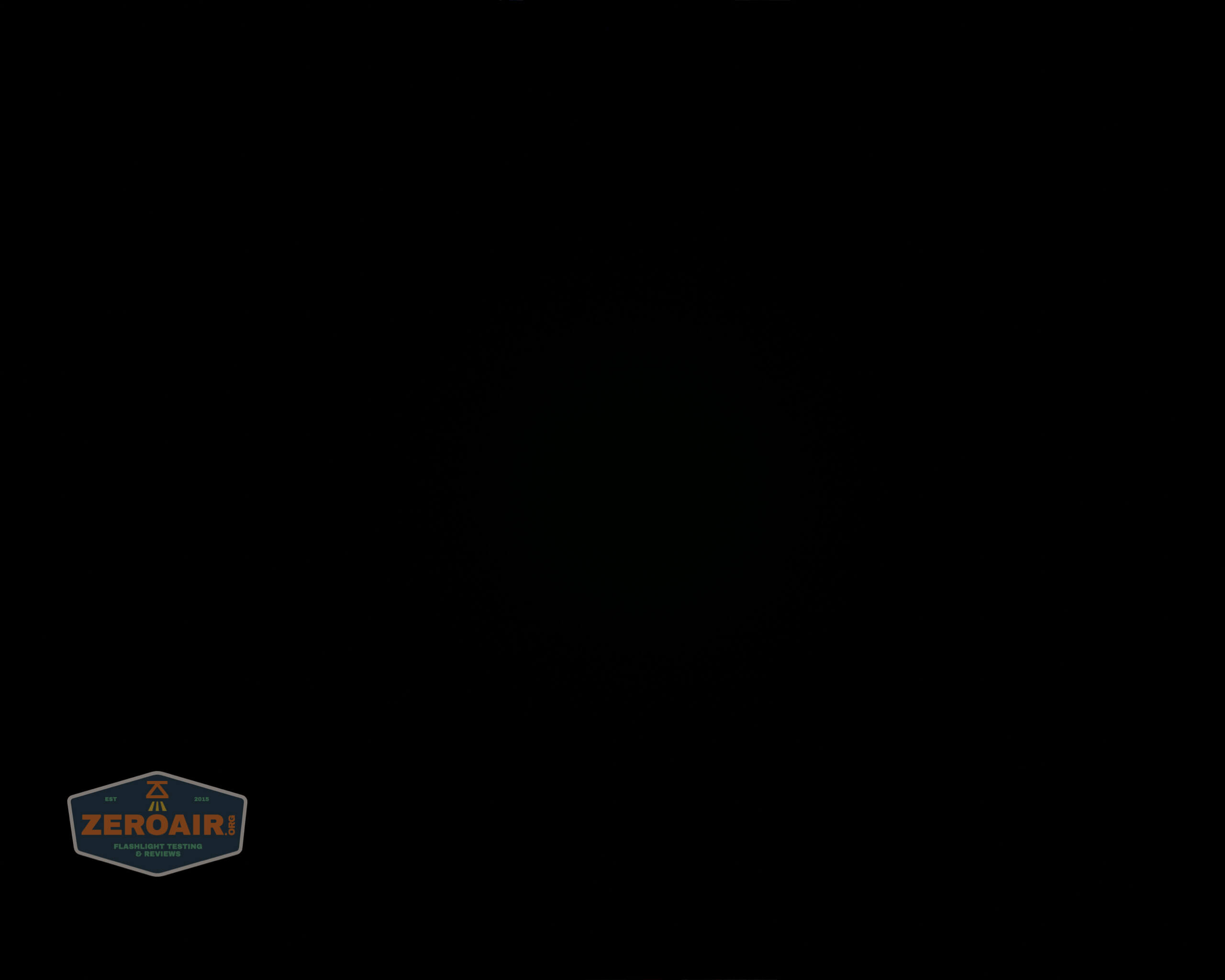

For reference, here’s a baseline shot, with all the room lights off and almost nothing hitting the sensor.  And here’s the worst PWM light I have ever owned.  Also one of the very first lights I ordered directly from China!

User Interface and Operation

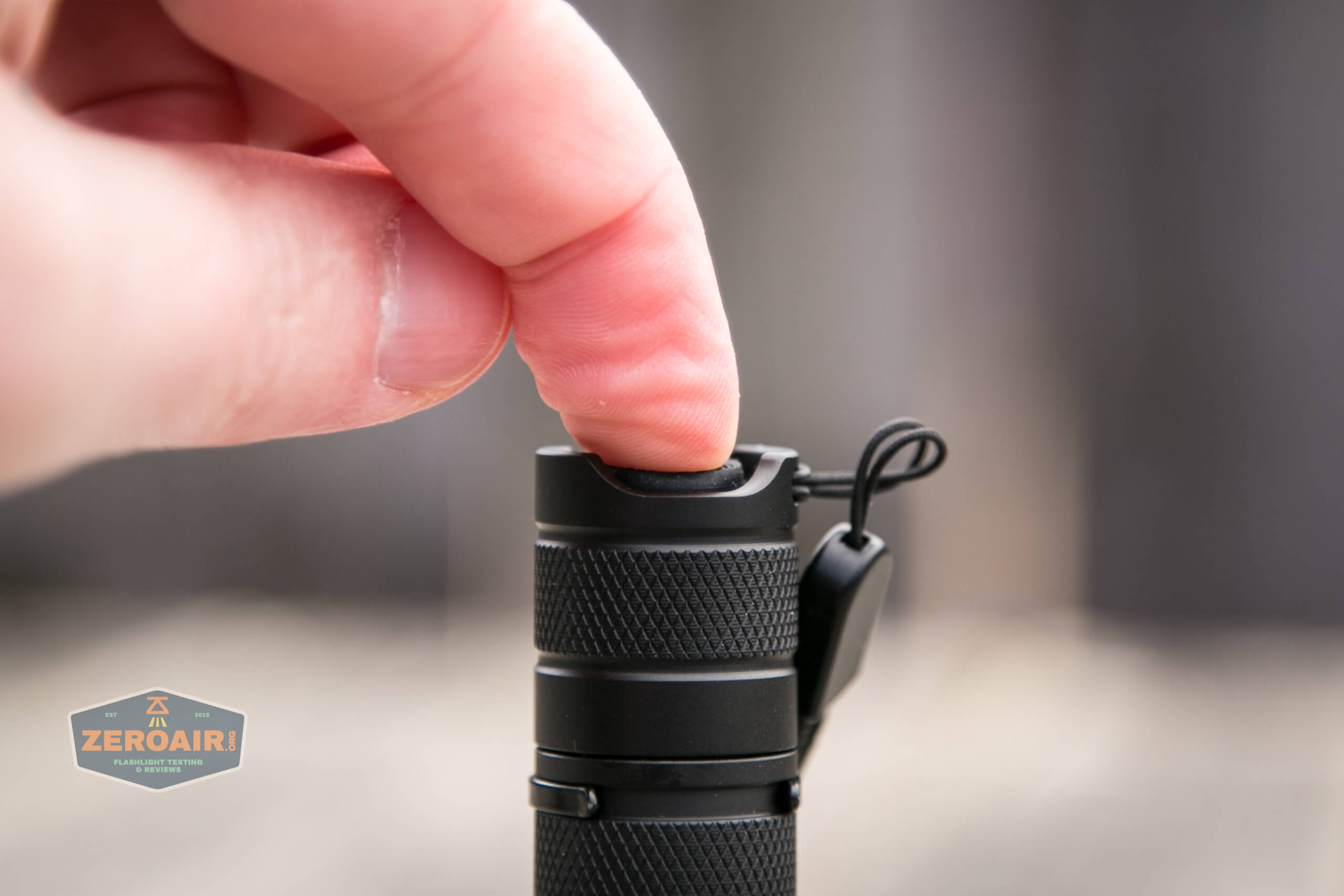

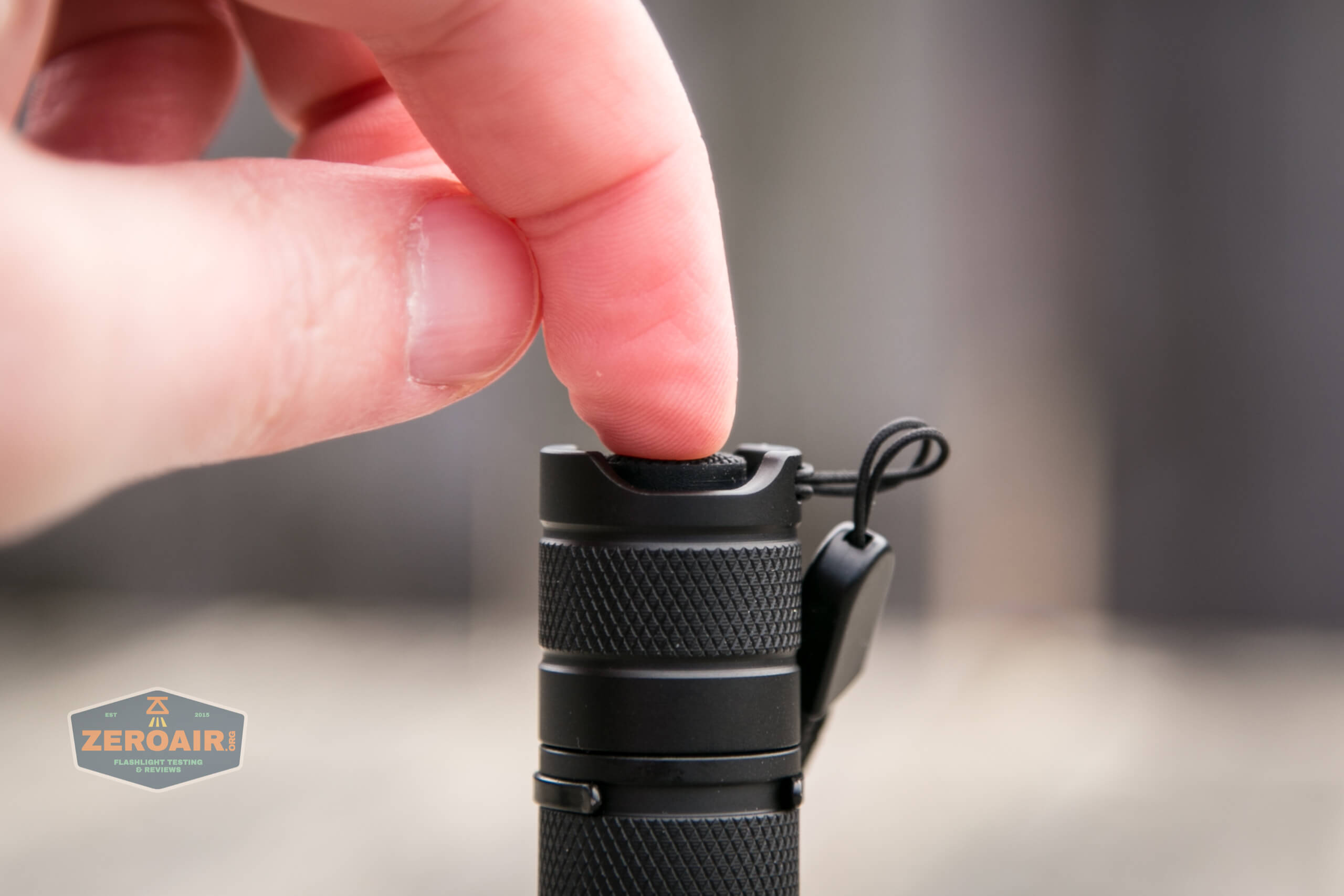

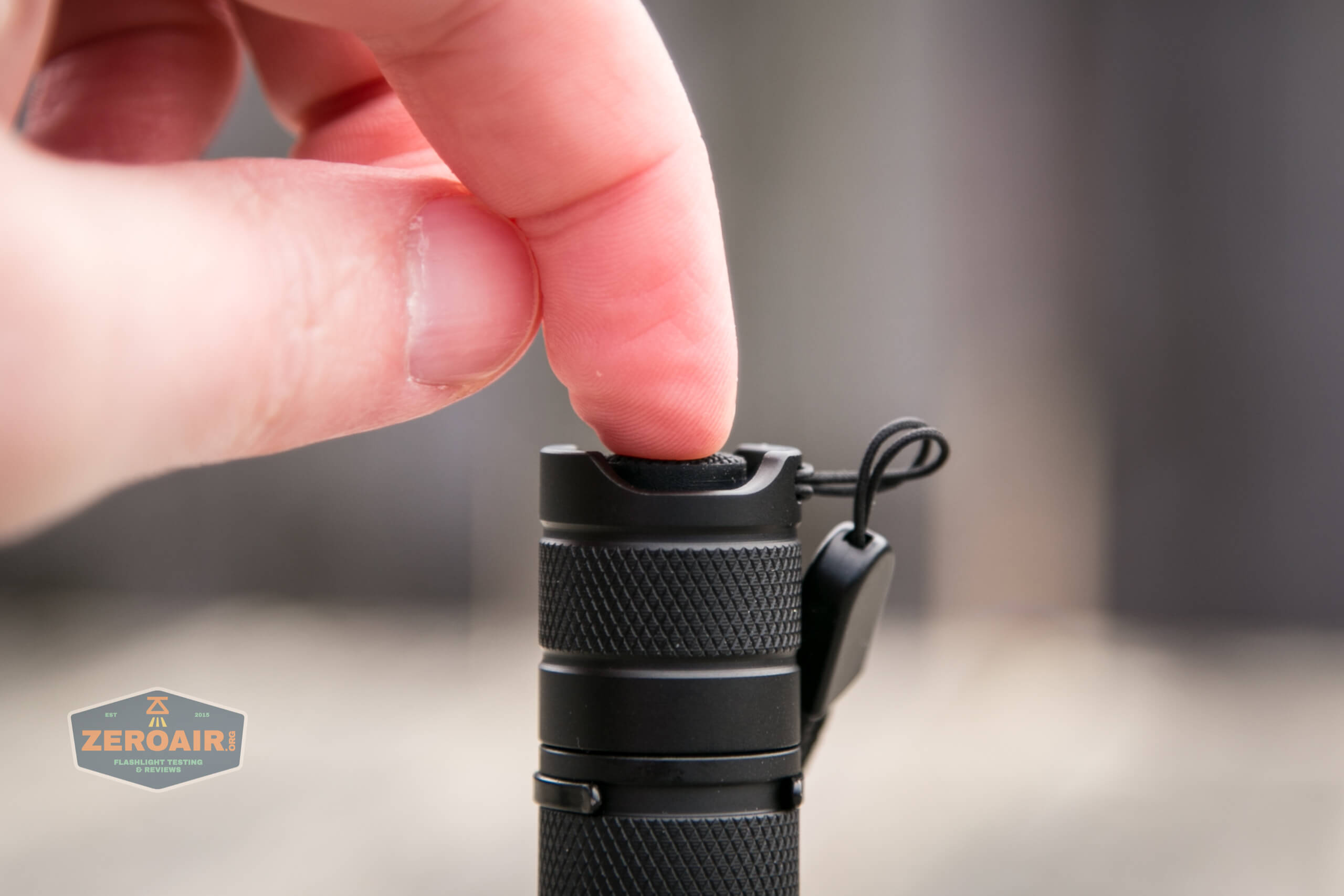

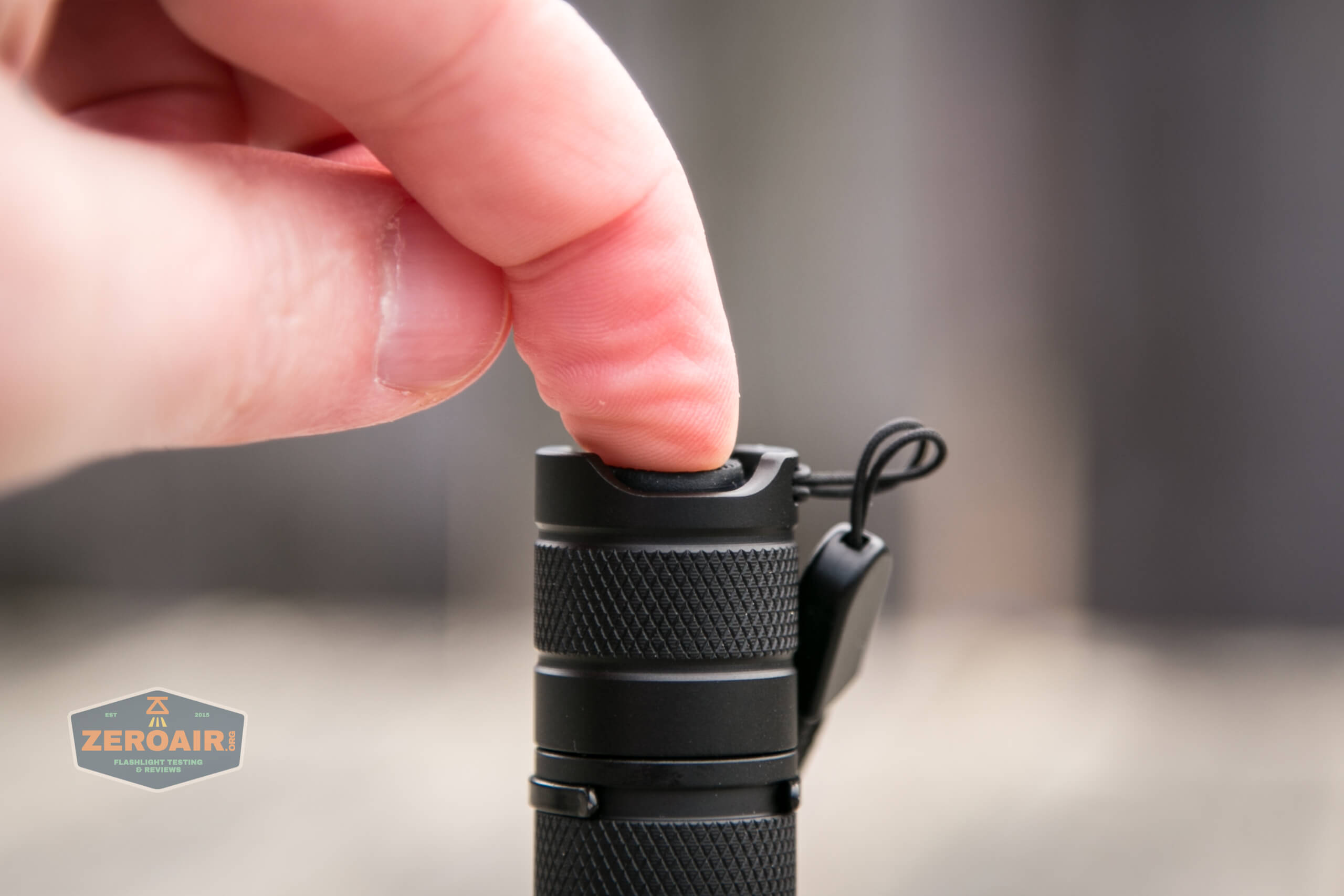

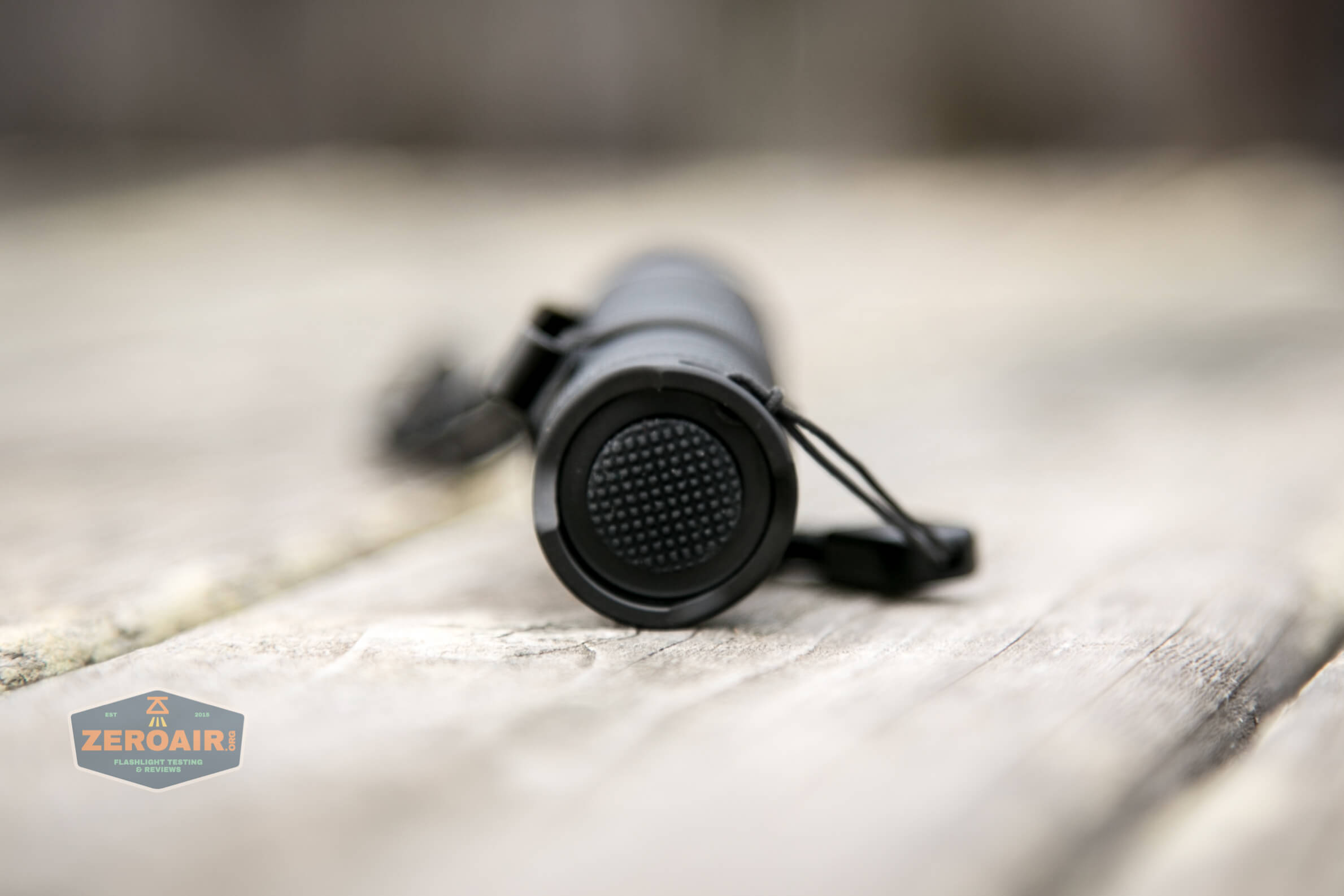

The UI is simple.  It’s a tail switch – a reverse mechanical clicky.

convoy t2 updated 14500/AA flashlight reverse clicky

Here’s a UI table!

State Action Result
Off Click On (Mode Memory)
Off Half Press No Action
On Half Press Mode advance (1%>10%>35%>100%)
On Click Off

Compared to the previous version, the user interface is greatly improved.  There’s an added mode (4 instead of just 3) and there are no strobe modes.

LED and Beam

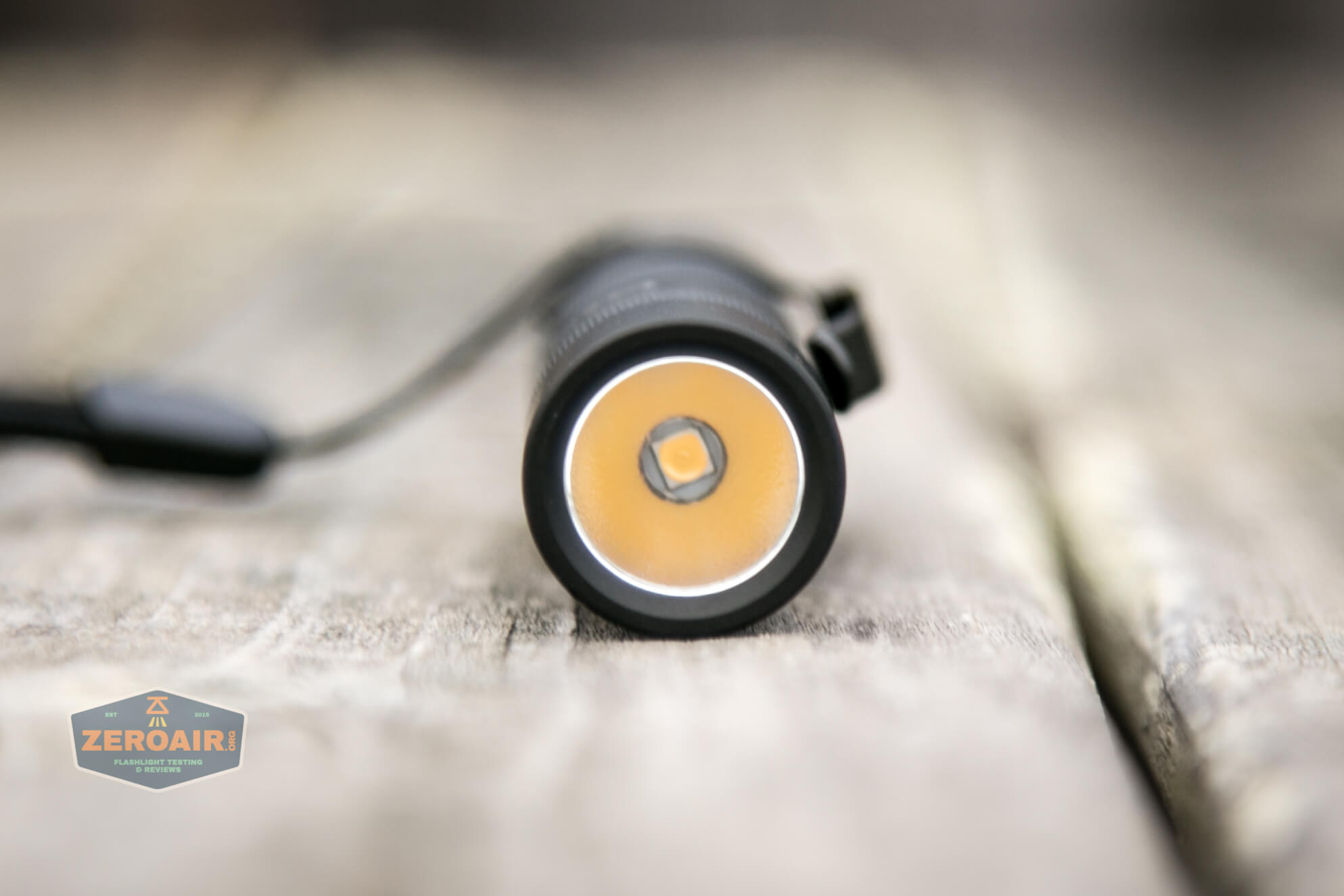

The emitter in this new Convoy T2 edition is a Samsung LH351d, in 3500K temperature.  It’s quite nice, and certainly worth the $14 you’ll pay if you’re just interested in testing out this emitter.

convoy t2 updated 14500/AA flashlight emitter

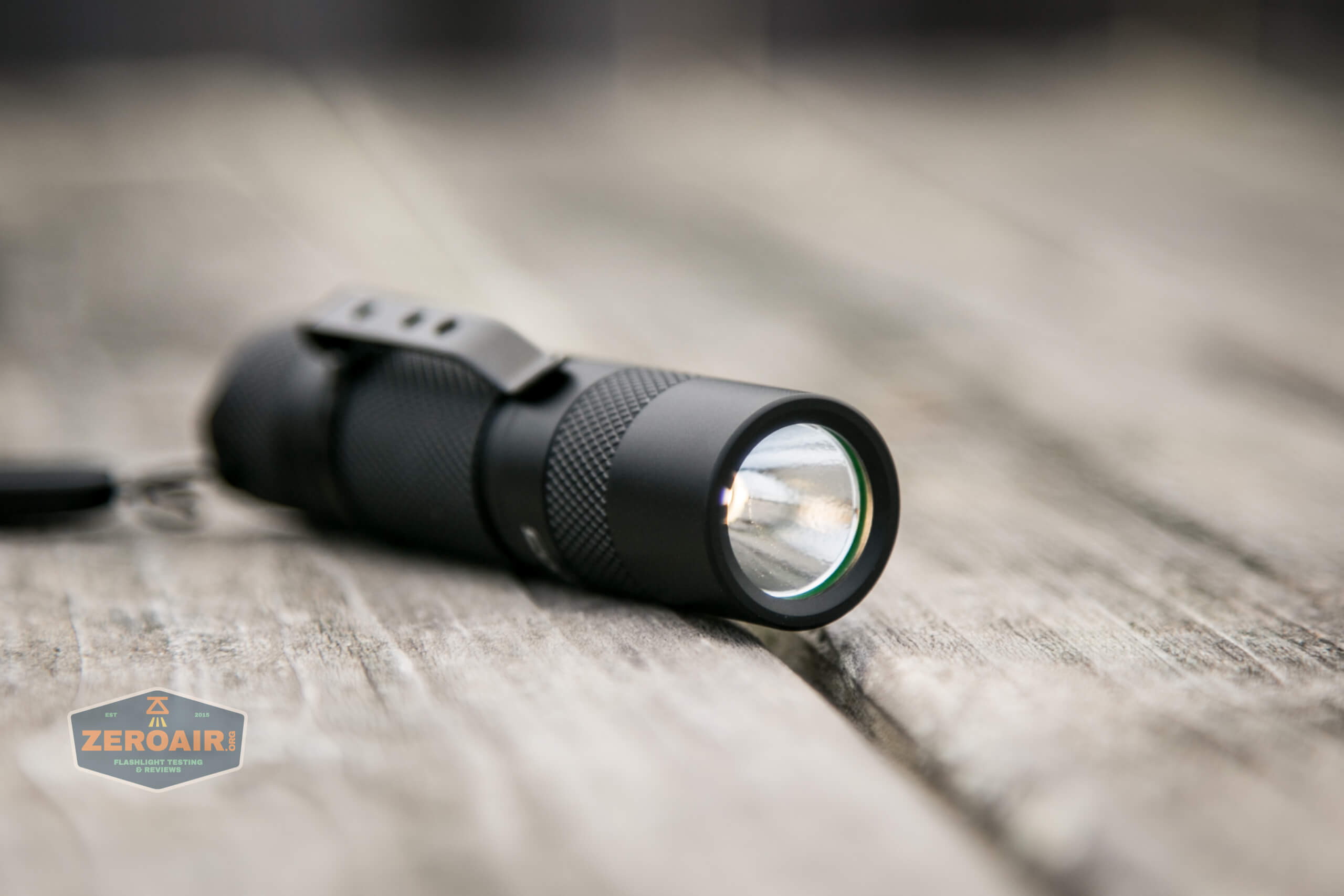

The reflector is smooth with just the lightest bit of orange peel finish.

convoy t2 updated 14500/AA flashlight reflector

There’s a green o-ring in there too.  I don’t think that o-ring glows, though.

convoy t2 updated 14500/AA flashlight reflector

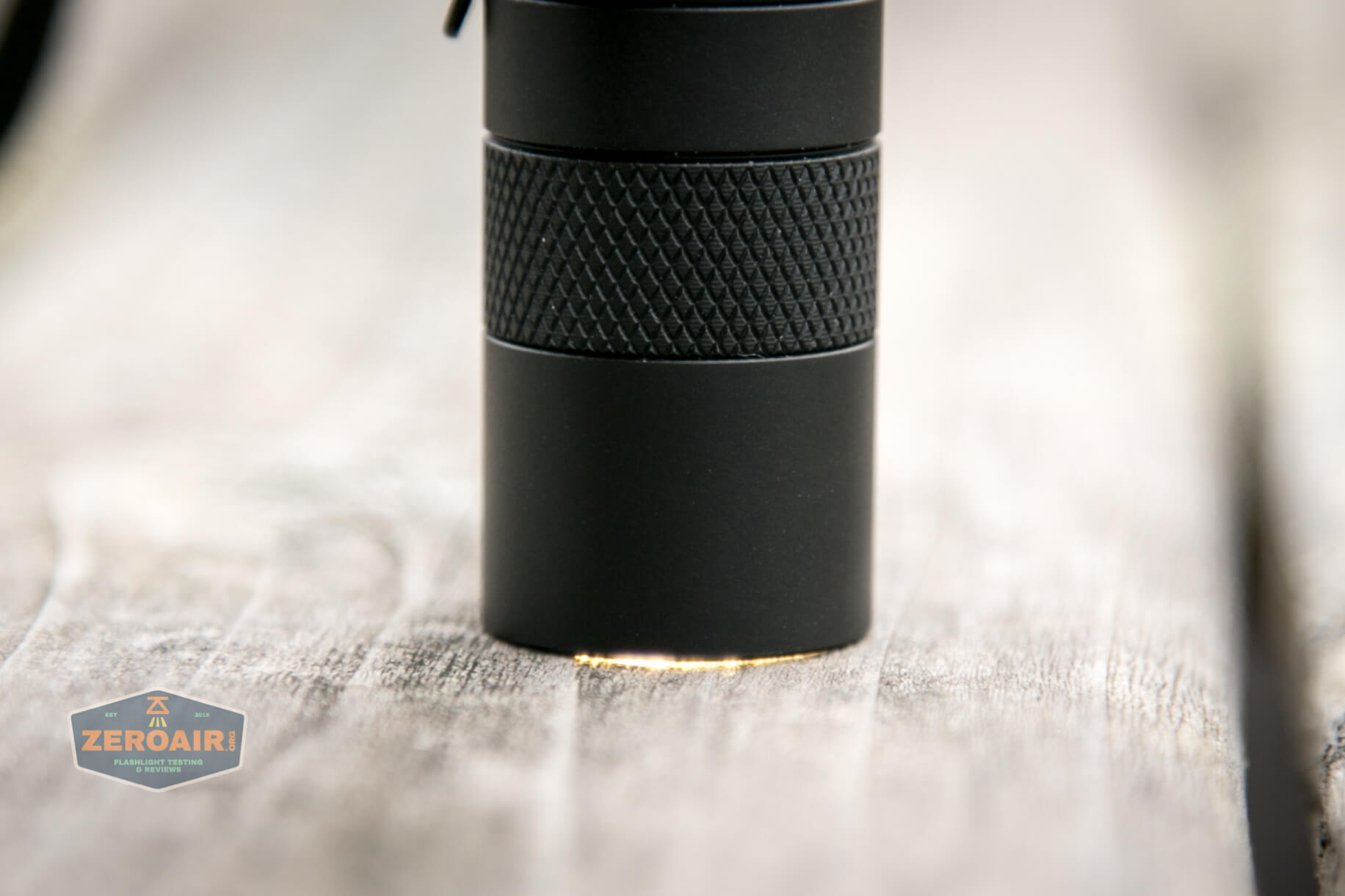

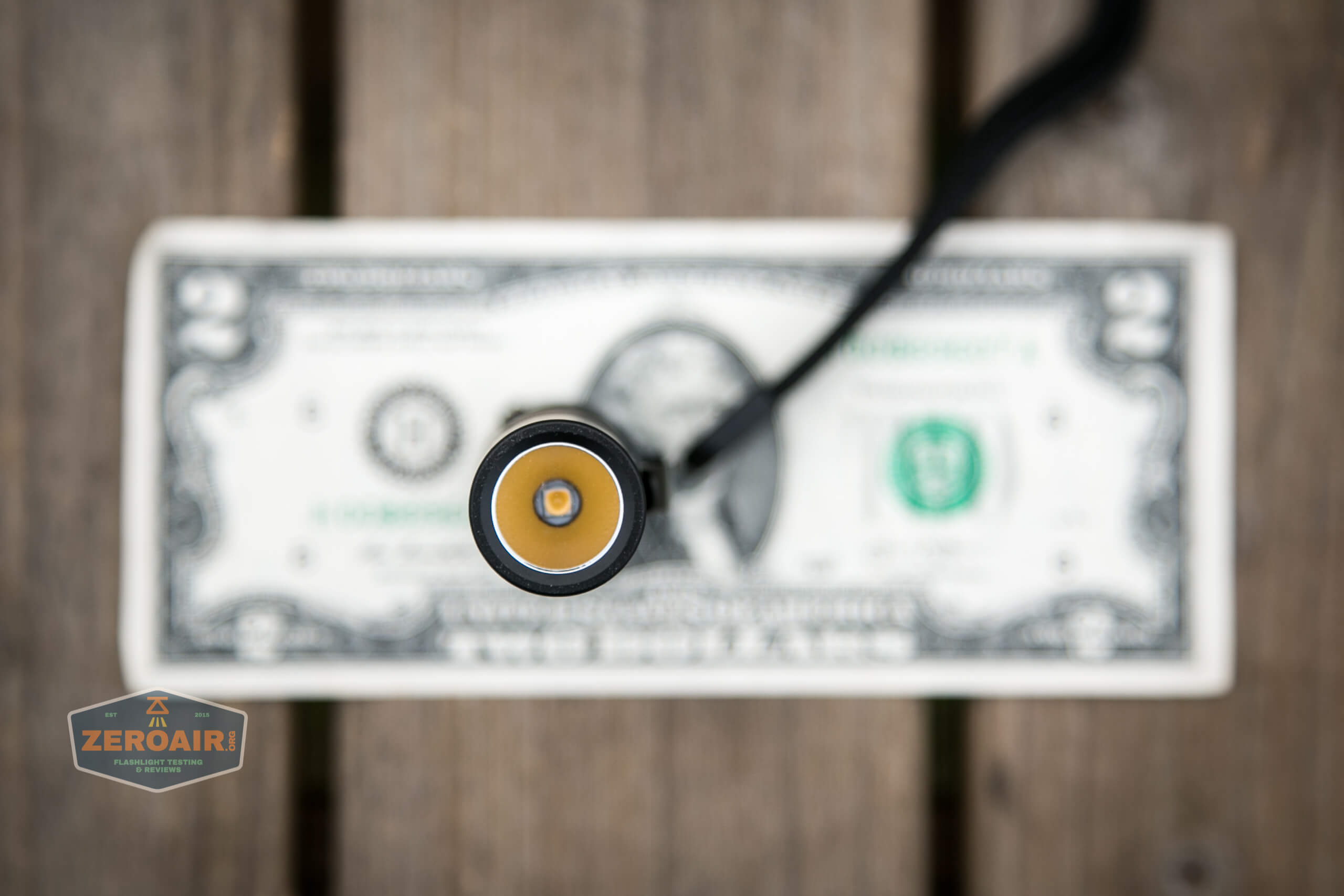

The bezel is flat, so no light escapes when headstanding with the light on.

convoy t2 updated 14500/AA flashlight

These beamshots are always with the following settings:  f8, ISO100, 0.3s shutter, and manual 5000K exposure.

AA:

14500:

As you can see, 14500 is noticeably brighter.

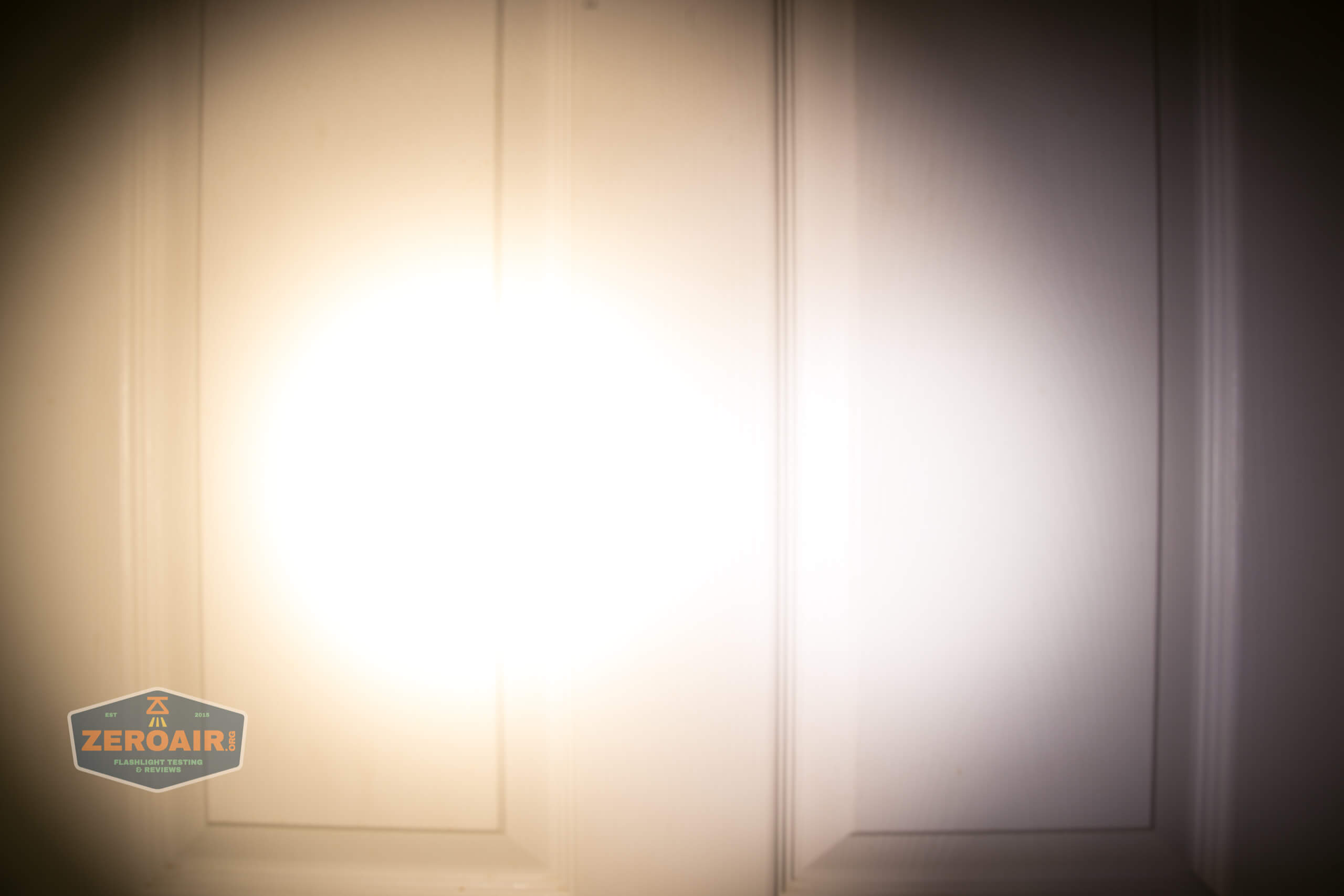

Tint vs BLF-348 (KillzoneFlashlights.com 219b version) (affiliate link)

Test light is on the left!

AA:

14500:

I compare everything to the KillzoneFlashlights.com 219b BLF-348, because it’s inexpensive and has the best tint!

Conclusion

What I like

  • Supports “all” the (common) cells that can fit into the tube!  (14500/AA)
  • Great emitter
  • Good user interface (and certainly better than the old one!)
  • Build quality is good
  • Great price, at $14.

What I don’t like

  • No other colors than black!  Let’s see this one in as many flavors as the S2+.

Notes

  • This light was provided by MohrLumens.com for review. I was not paid to write this review.
  • This content originally appeared at zeroair.org.  Please visit there for the best experience!
  • For flashlight related patches, stickers, and gear, head over to PhotonPhreaks, another site where I write!
  • Use my amazon.com referral link if you’re willing to help support making more reviews like this one!

Author: zeroair

3 thoughts on “Convoy T2 14500/AA Flashlight Review

  1. A bit curious how you find this one compared to the Skilhunt E2A, which also takes both AA and 14500 cells.

    1. Build quality of the Skilhunt is better (maybe even “much better”). Also I like the size better on the E2A… The extra mode on the Convoy is appreciated.

    2. I have both and I generally prefer the Convoy (mine has the Nichia 4k emitter) for a couple of reasons. The first is that the clip is reversible and the light can be used on the bill of a ball cap, which I actually have done many times. It’s a little heavy to be perfect, but sure does come in handy sometimes. Skilhunt missed an opportunity by not machining the gap near the head of the light a touch wider to accept the clip.
      The switch on the Skilhunt is super stiff and changes modes nearly every time the light is switched off. To be fair, the Convoy also does this, but not every single stinkin’ time. Also, low mode on the Skilhunt is not low enough.
      It is a well made light and noticeably smaller than the Convoy.

      The only con I have on the Convoy is that the tube is tight and I have had to unwrap some rebranded cells to get them to fit inside.
