Here’s a special post – the Olight Javelot Turbo Thrower Flashlight.  Not a new light really, but I love these throwers, and I love these Osram emitters.  So it’s a fun light to test!  Read on!


Official Specs and Features

Here’s a link to the Olight Javelot Turbo Thrower flashlight product page.

Versions

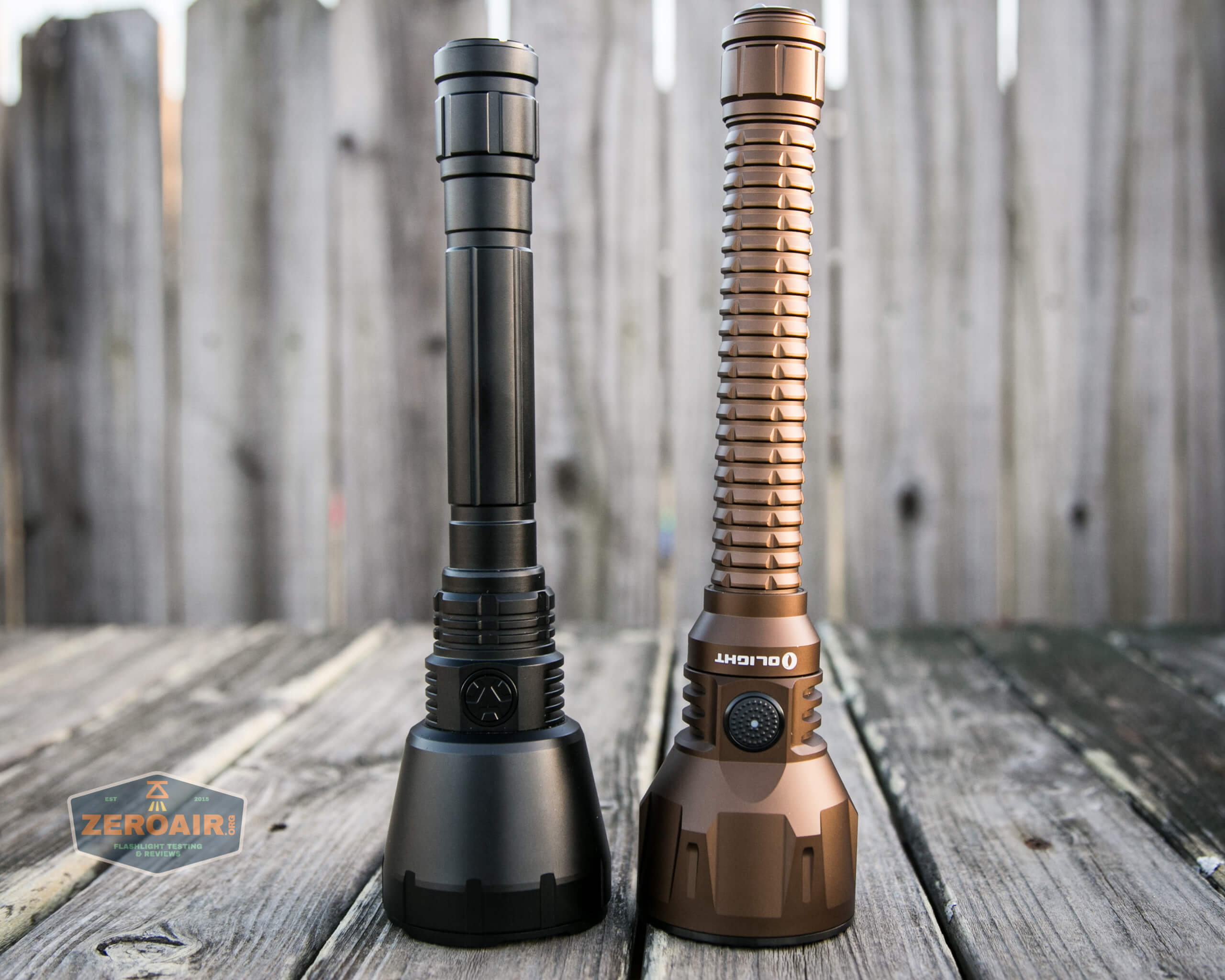

There are at least two versions of this light – black (standard) and Brown (or maybe “FDE,” not really sure), but the brown is no longer listed on site.  There are also many versions of Javelot, this of course being the “Javelot Turbo” version.  I actually have never tested a Javelot in any variety before this one!

Price

The brown version seen here isn’t available (in fact, not even listed on the site), but the black is going for $229.95.  Here’s a shareasale link!


Short Review

I honestly did not expect this light to meet either of its main specs (close sure, but… 1300/1300?  eesh).  But it 100%’s both of those!  Massive throw and massive output – just incredible.  As a result, I like this light way more than I expected to.  It’s a great light and the form factor is very nice, too.

Long Review

The Big Table

Olight Javelot Turbo Thrower Flashlight
Emitter: Osram KW CULPM1.TG
Price in USD at publication time: $229.95
Cell: Internal (two 5000mAh 21700 battery pack)
Turbo Runtime Graph High Runtime Graph
LVP? Yes
Switch Type: E-Switch
Quiescent Current (mA): ?
On-Board Charging? Yes
Charge Port Type: Proprietary Magnetic
Charge Graph
Power off Charge Port All modes
Claimed Lumens (lm) 1300
Measured Lumens (at 30s) 1311 (100.8% of claim)*
Candela per Lumen 342.4
Claimed Throw (m) 1300
Candela (Calculated) in cd (at 30s) 8450lux @ 7.265m = 445993cd
Throw (Calculated) (m) 1335.7 (102.7% of claim)*
All my Olight reviews!
  • Measurement disclaimer:  I am an amateur flashlight reviewer.  I don’t have $10,000 or even $1,000 worth of testing equipment.  I test output and such in PVC tubes!!  Please consider claims within 10% of what I measure to be perfectly reasonable (accurate, even).

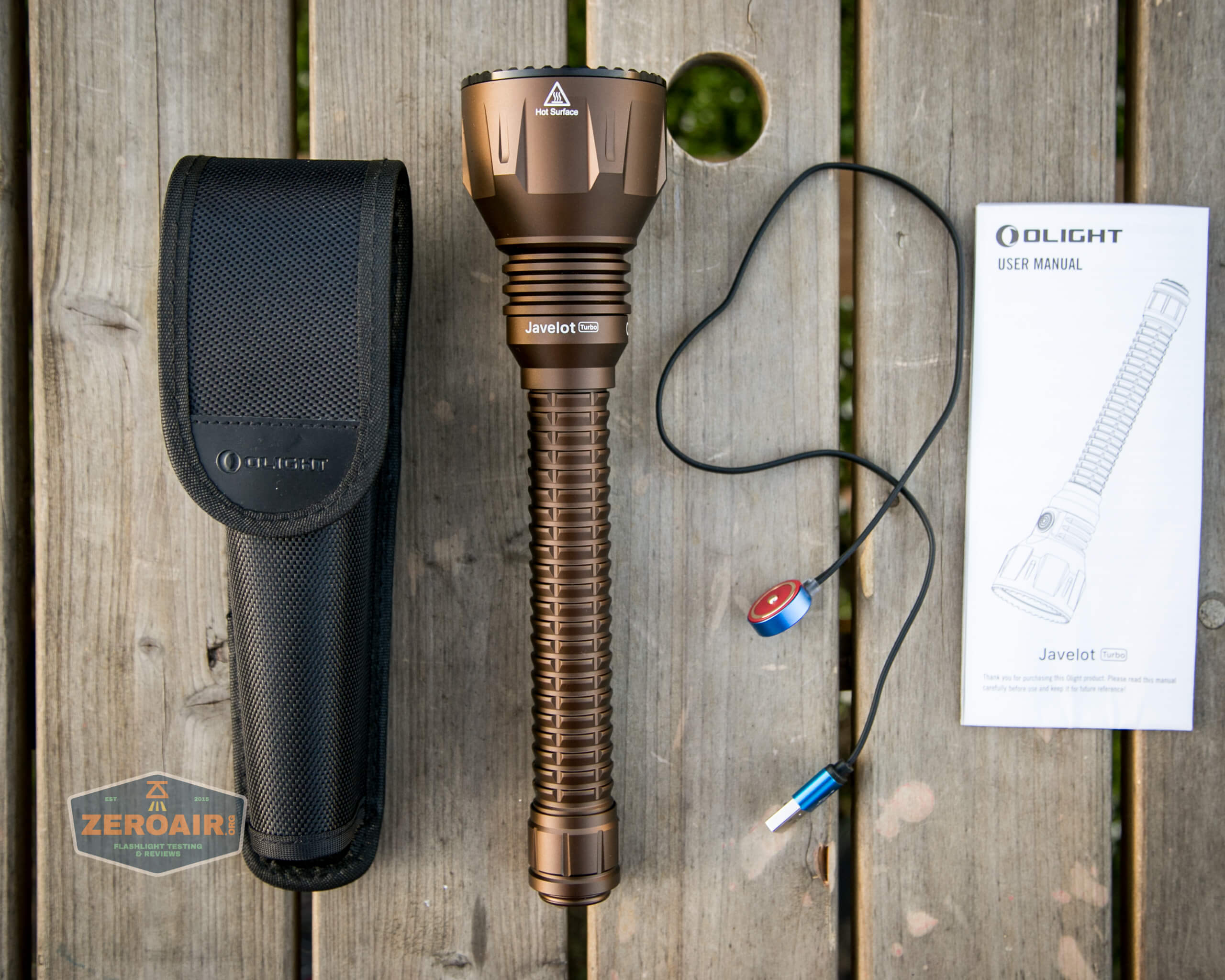

What’s Included

what's included

  • Olight Javelot Turbo Thrower Flashlight
  • Charge cable (USB to proprietary magnetic)
  • Nylon carry pouch
  • Manual
  • Hard carry case (seen below)

Package and Manual

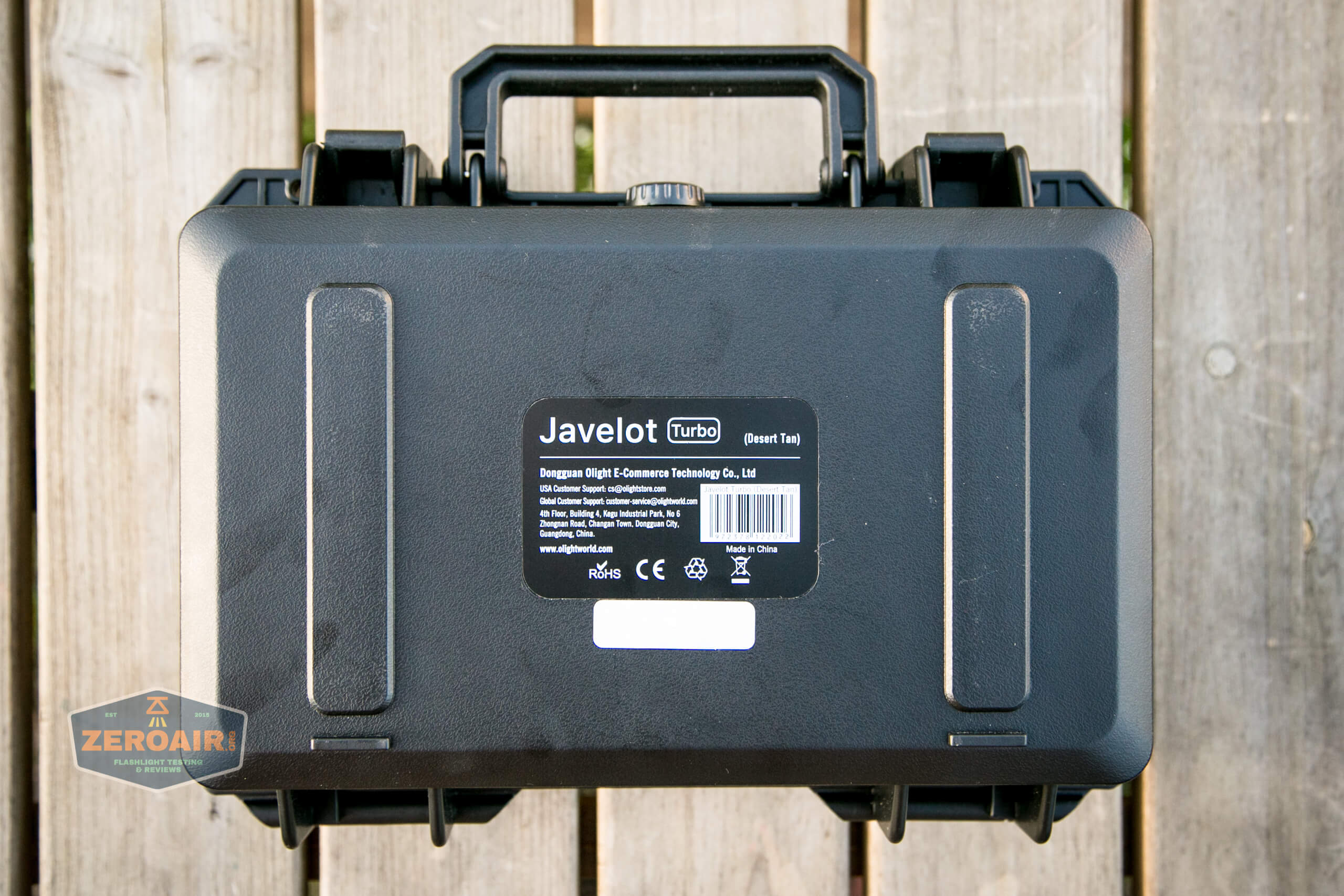

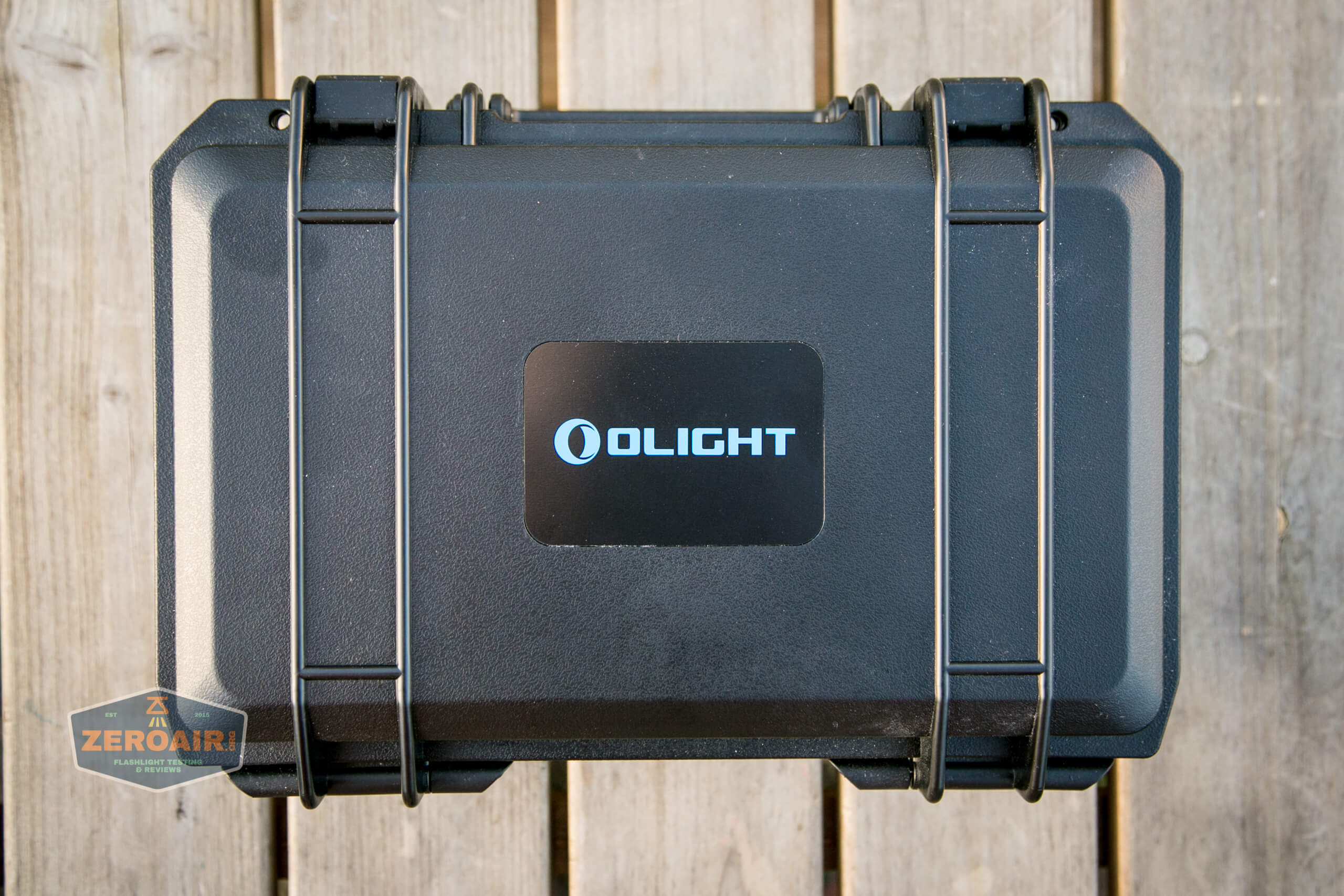

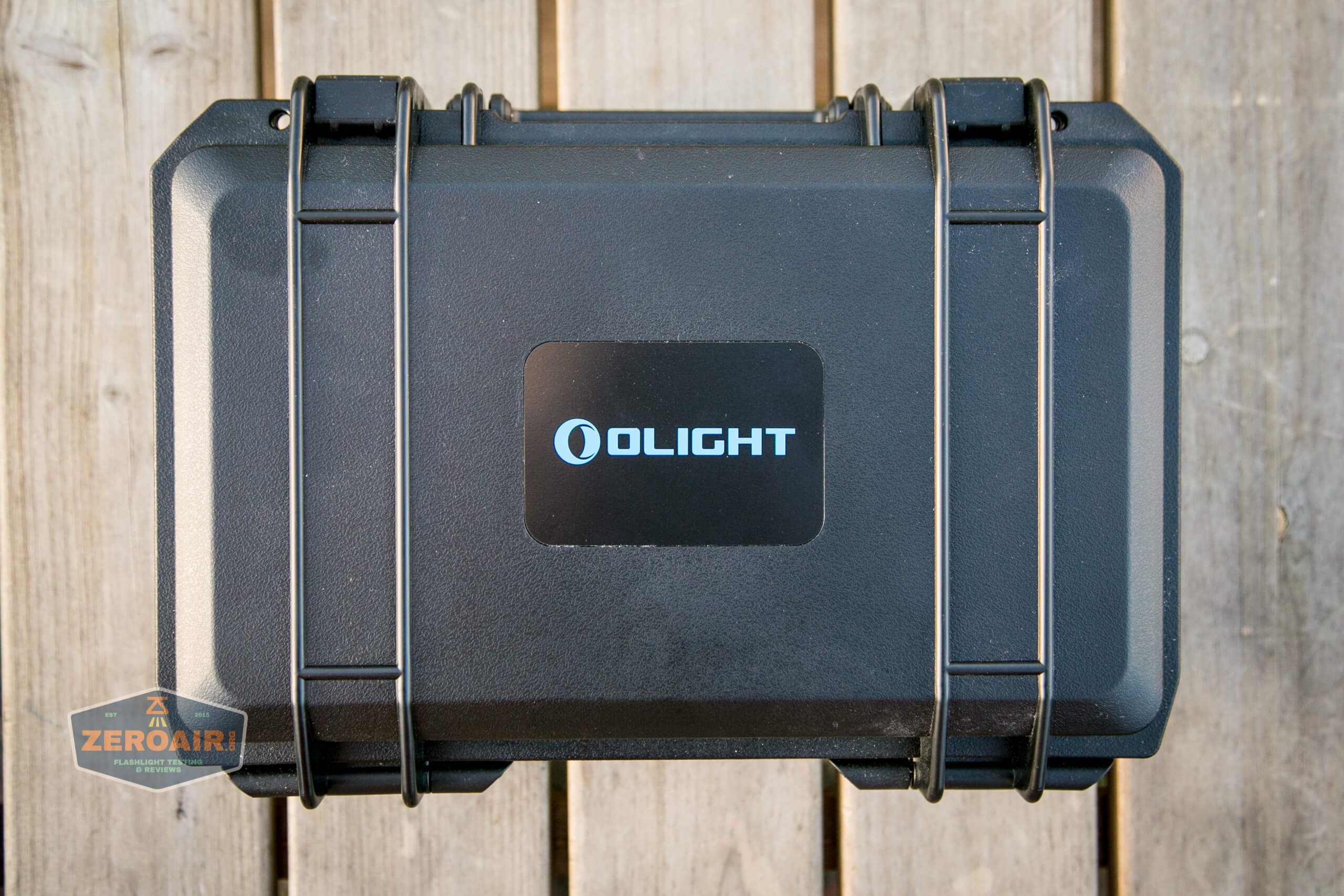

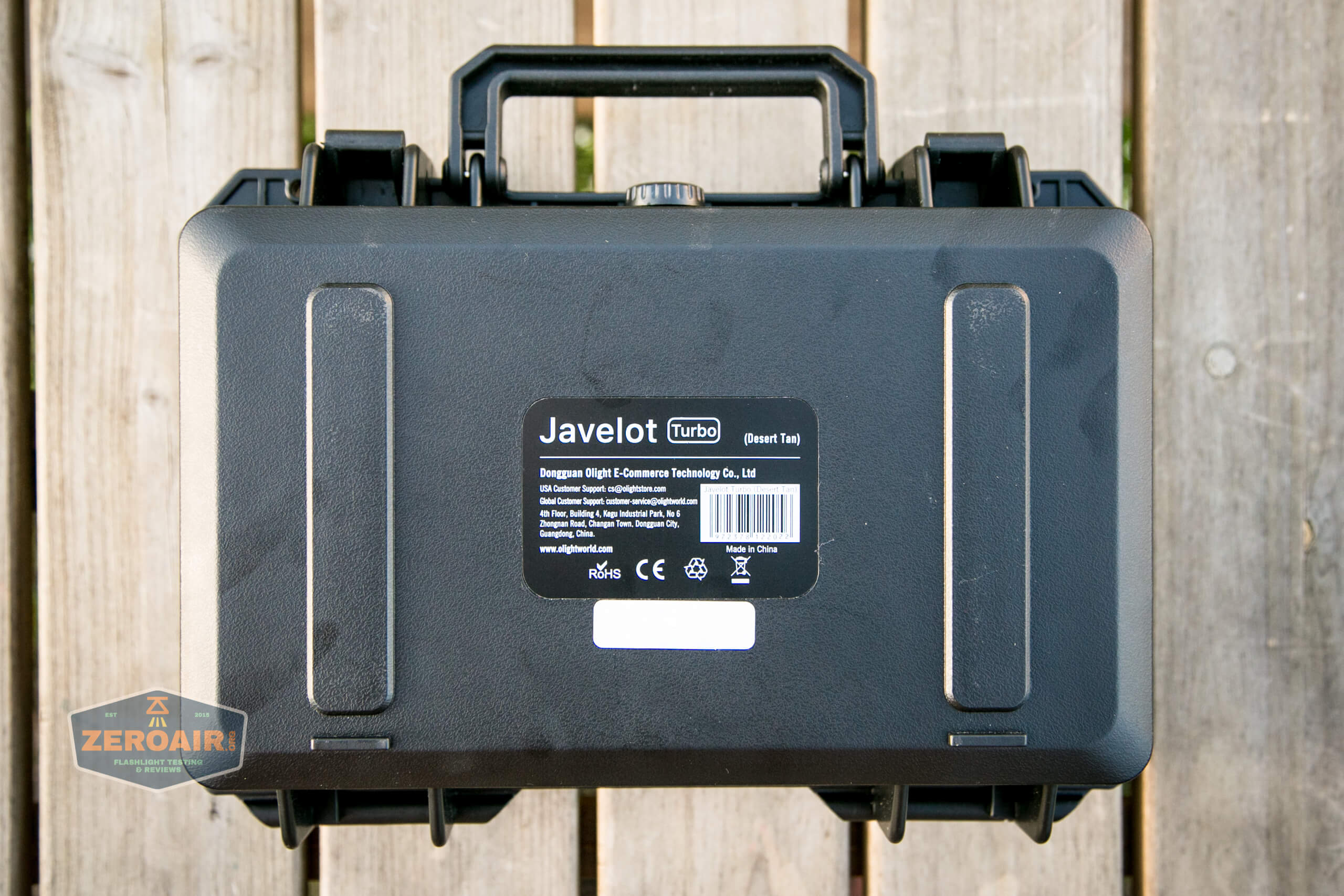

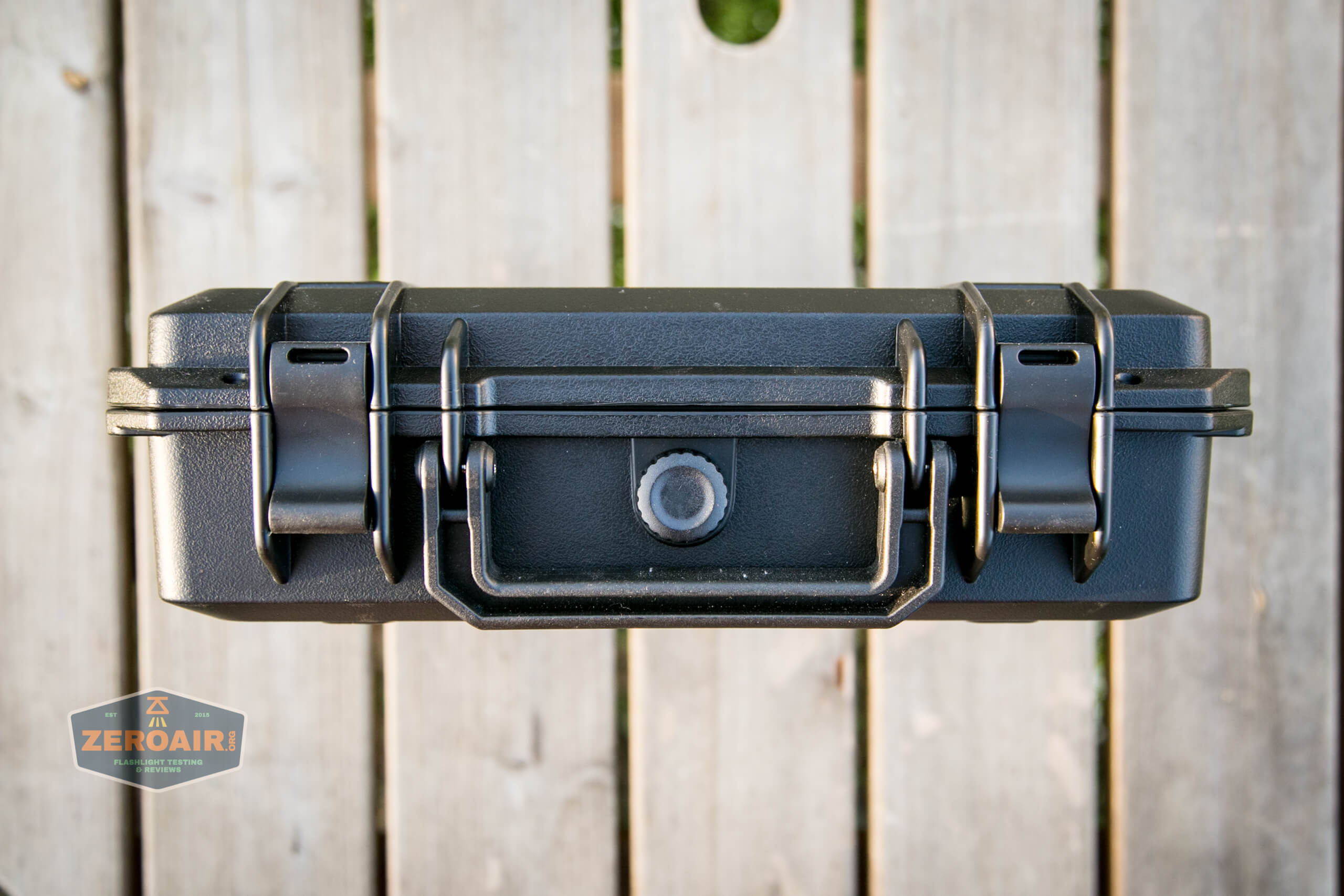

plastic case

I’ll be honest, this is another thing I didn’t think I’d like about the Olight Javelot Turbo Thrower flashlight.  I don’t typically like hard cases….  Hard to stack, hard to store (and I keep everything).  But this case is “Pelican-level” (or like 95%).  It’s a very good case.

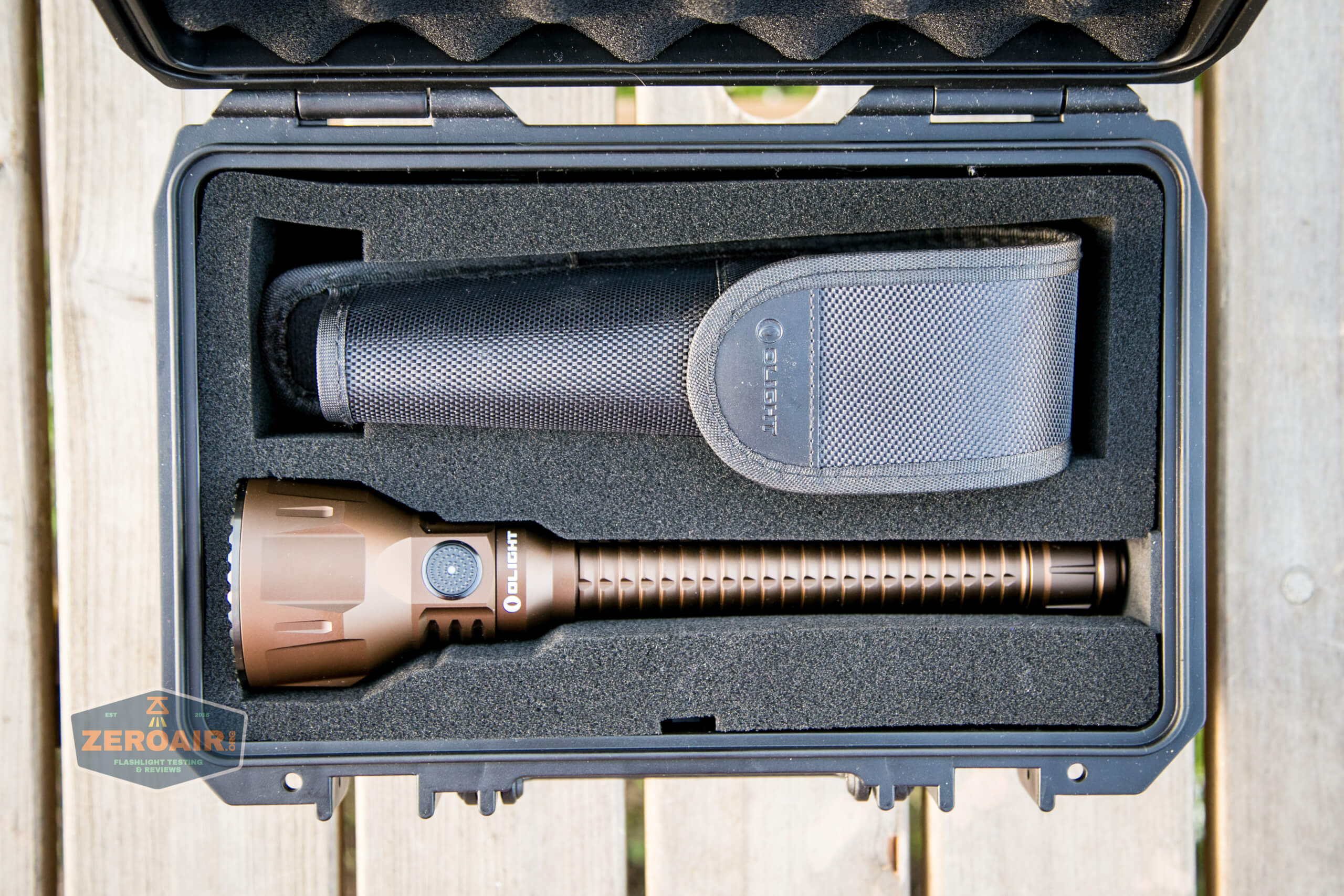

inside plastic case

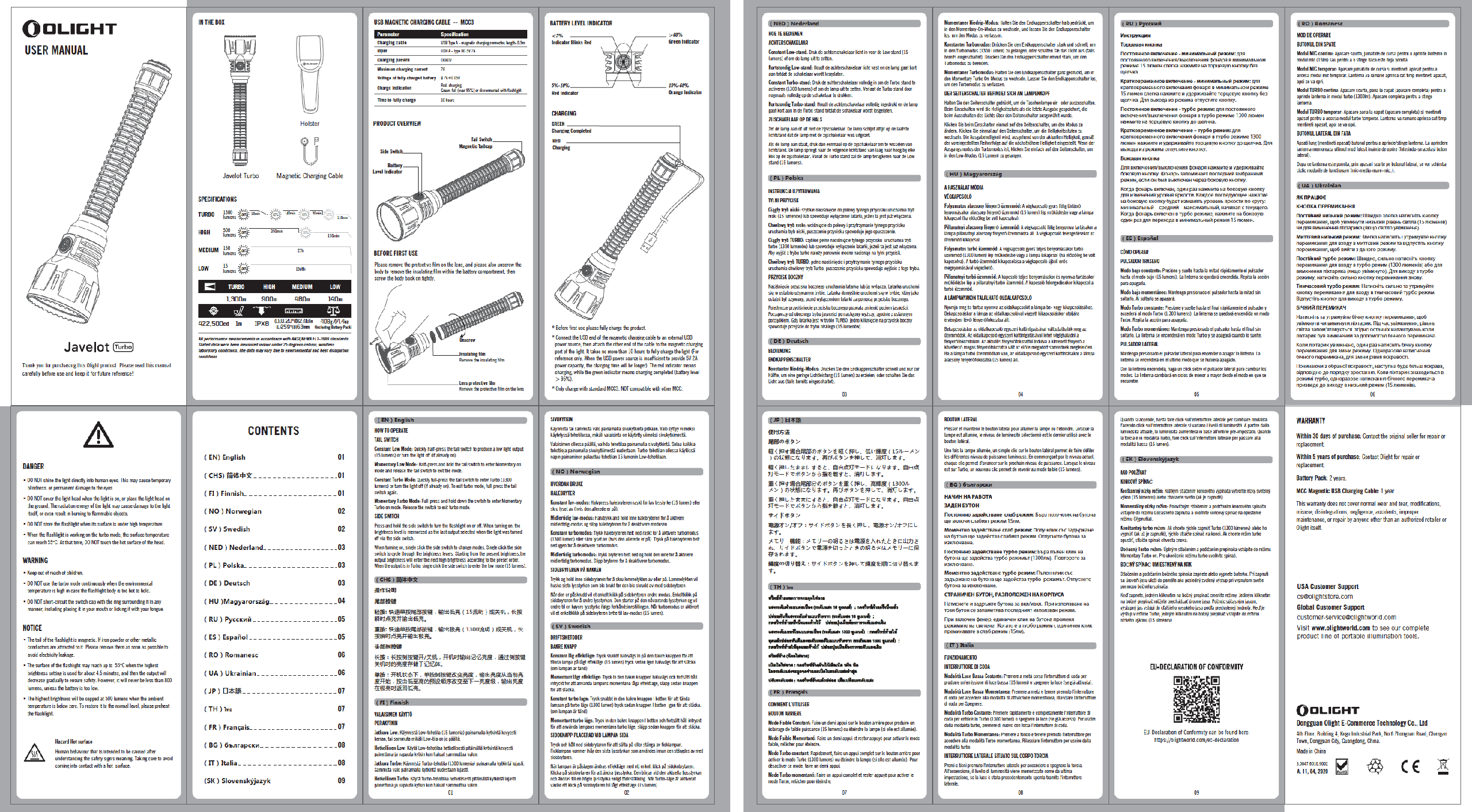

manual

Build Quality and Disassembly

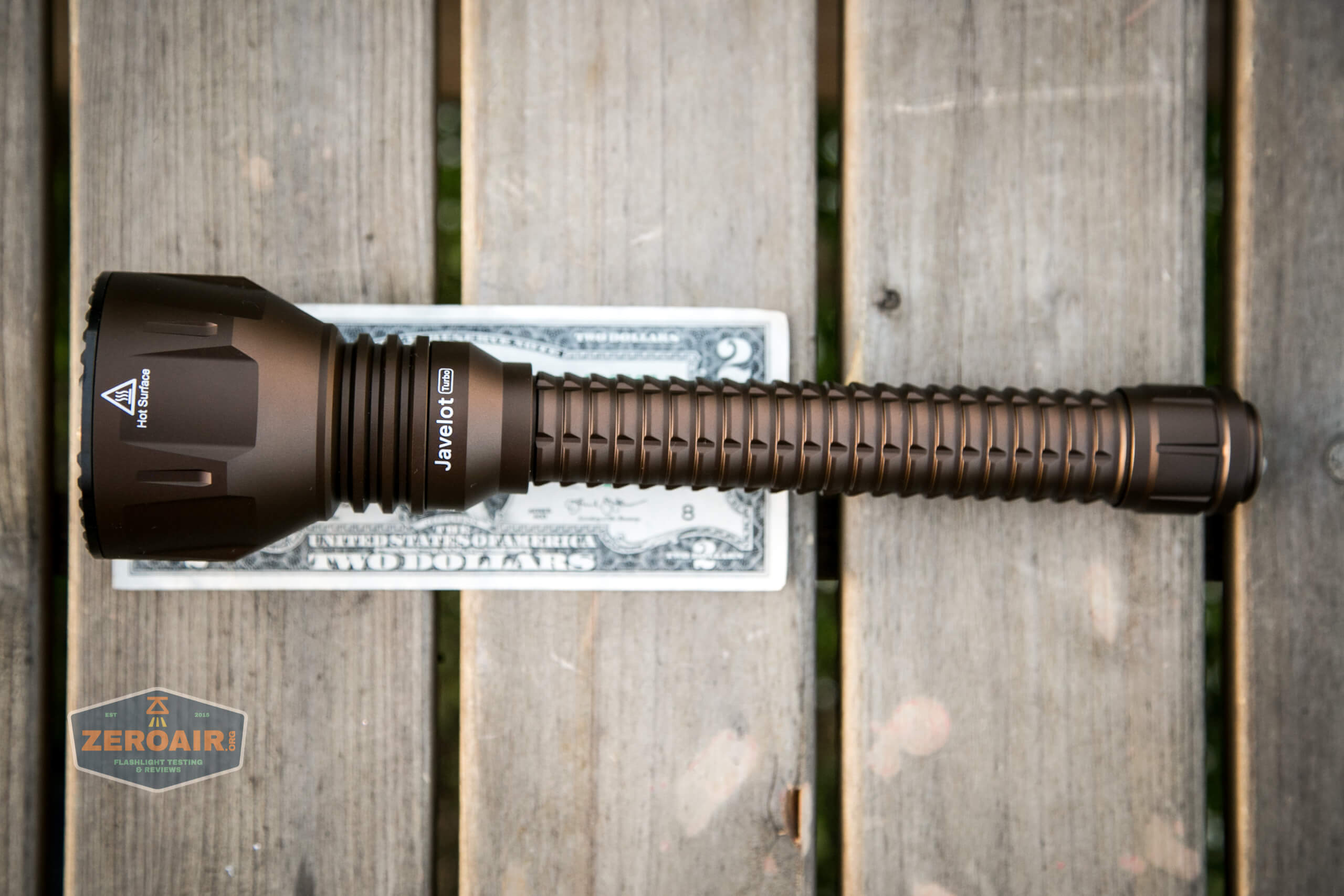

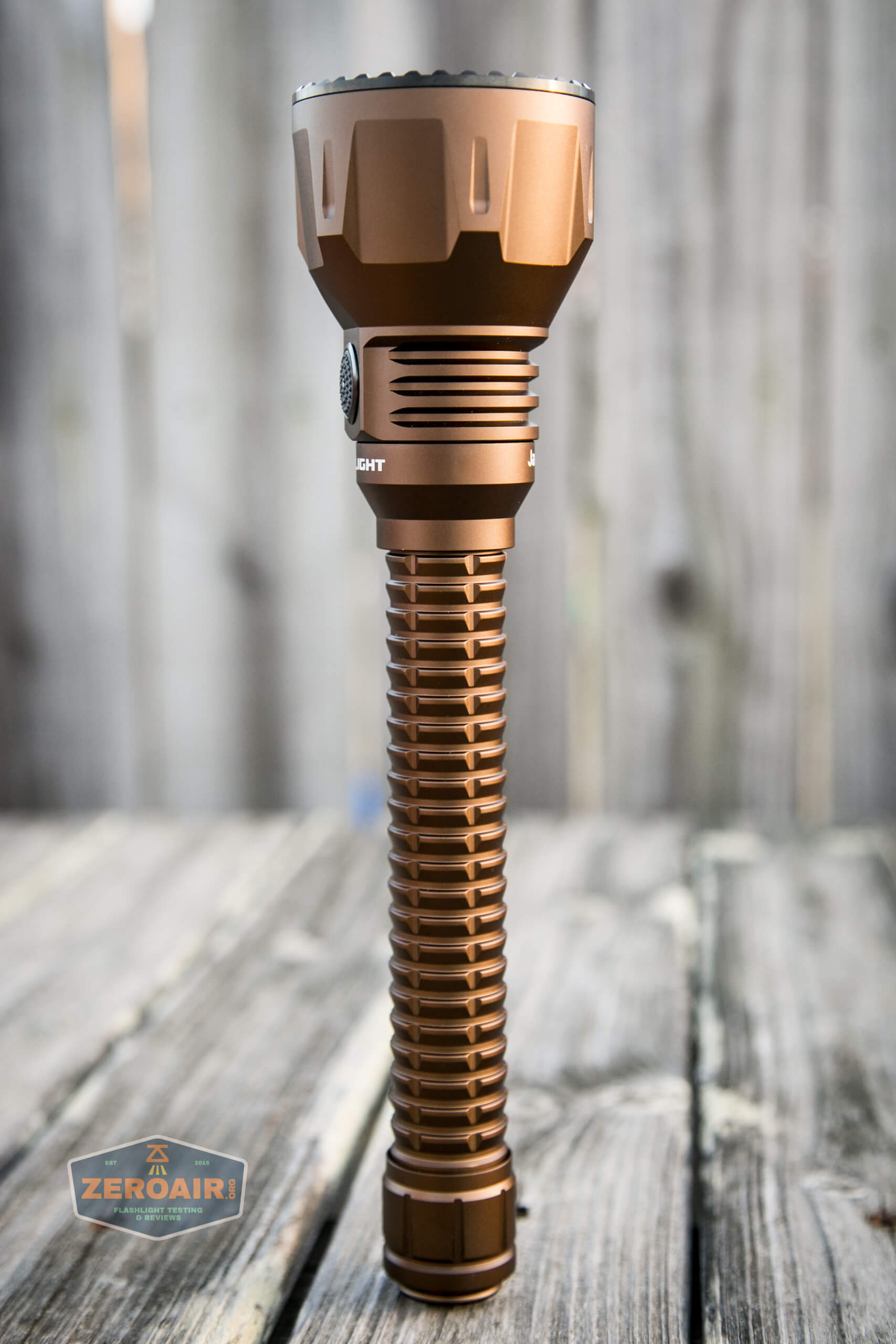

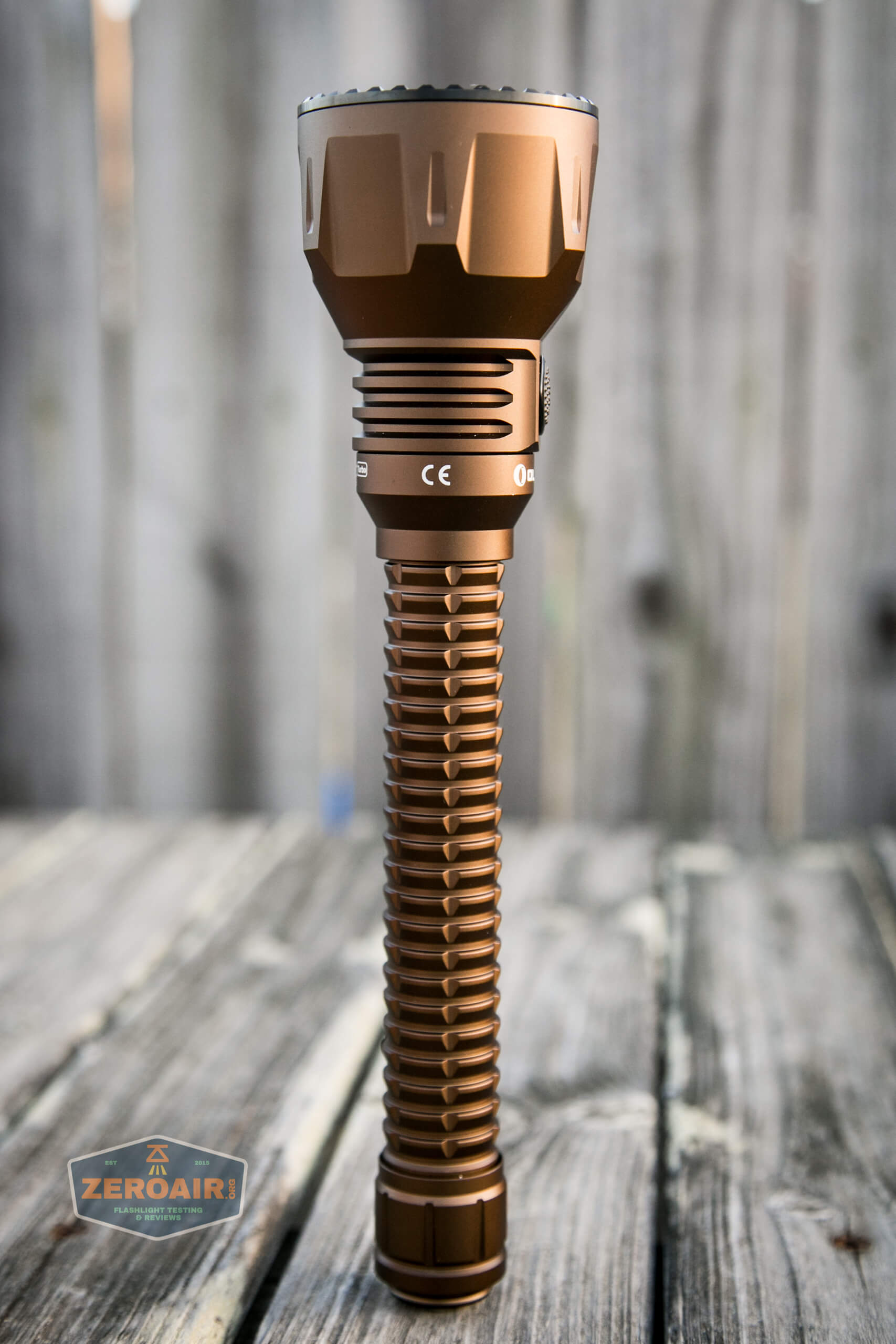

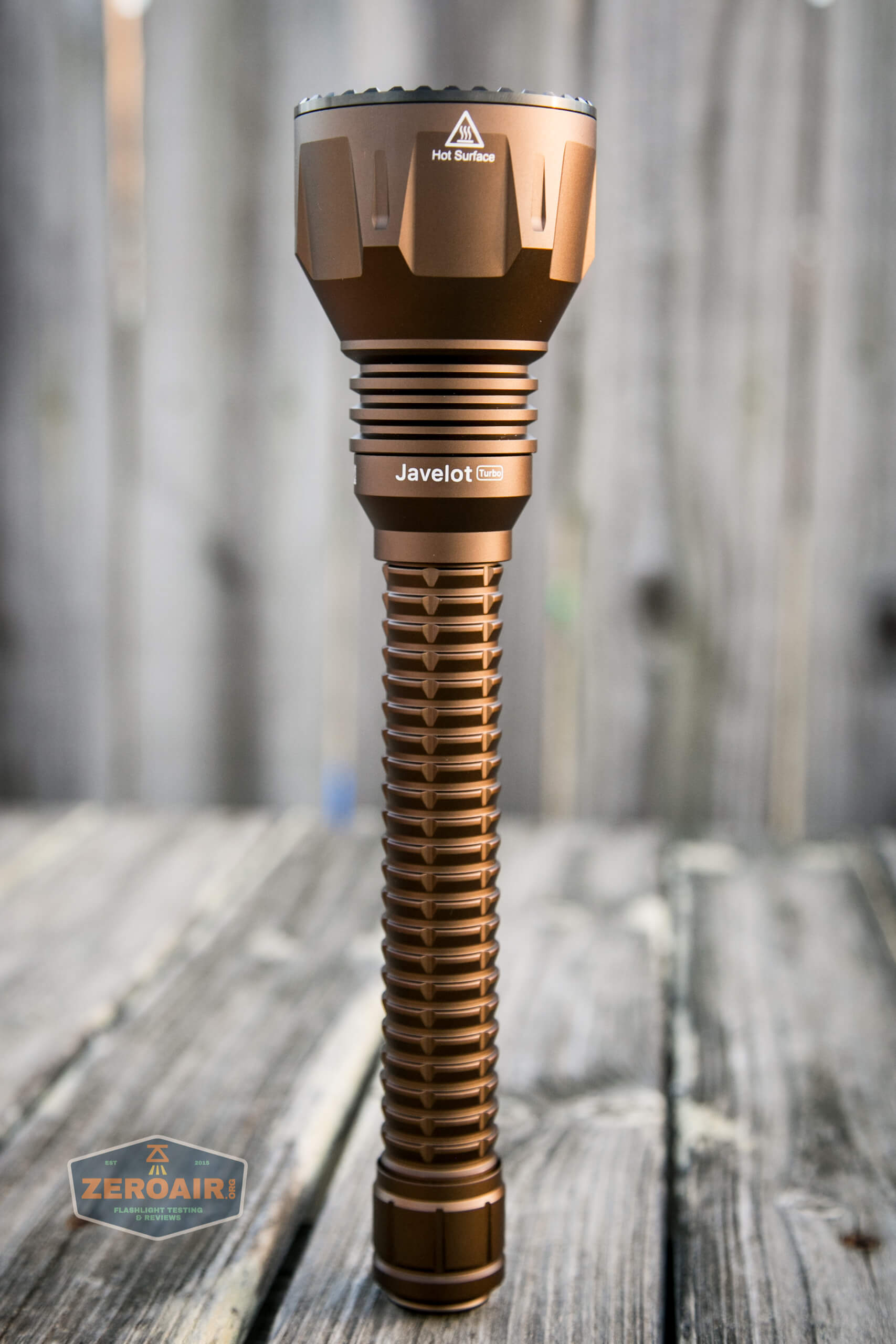

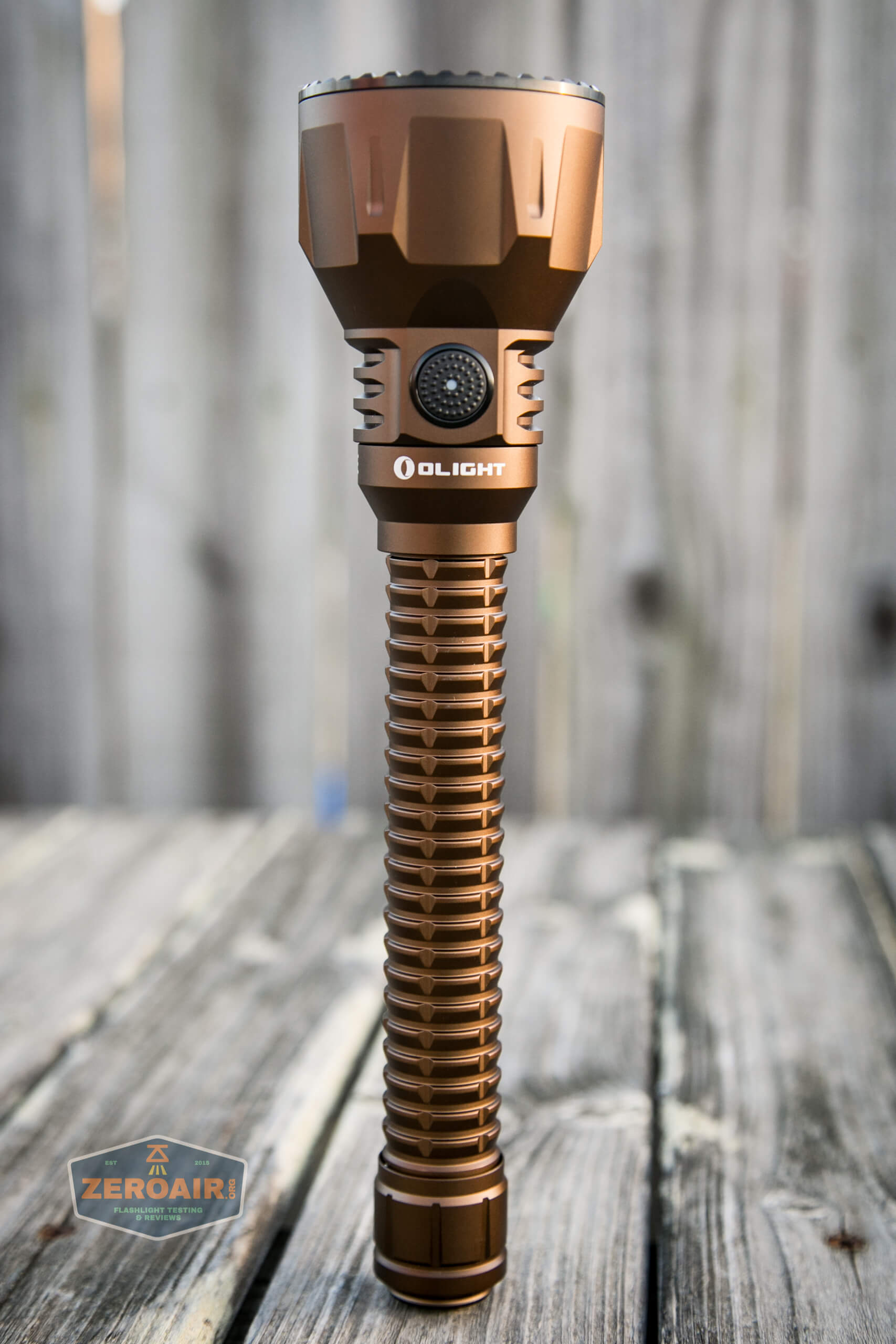

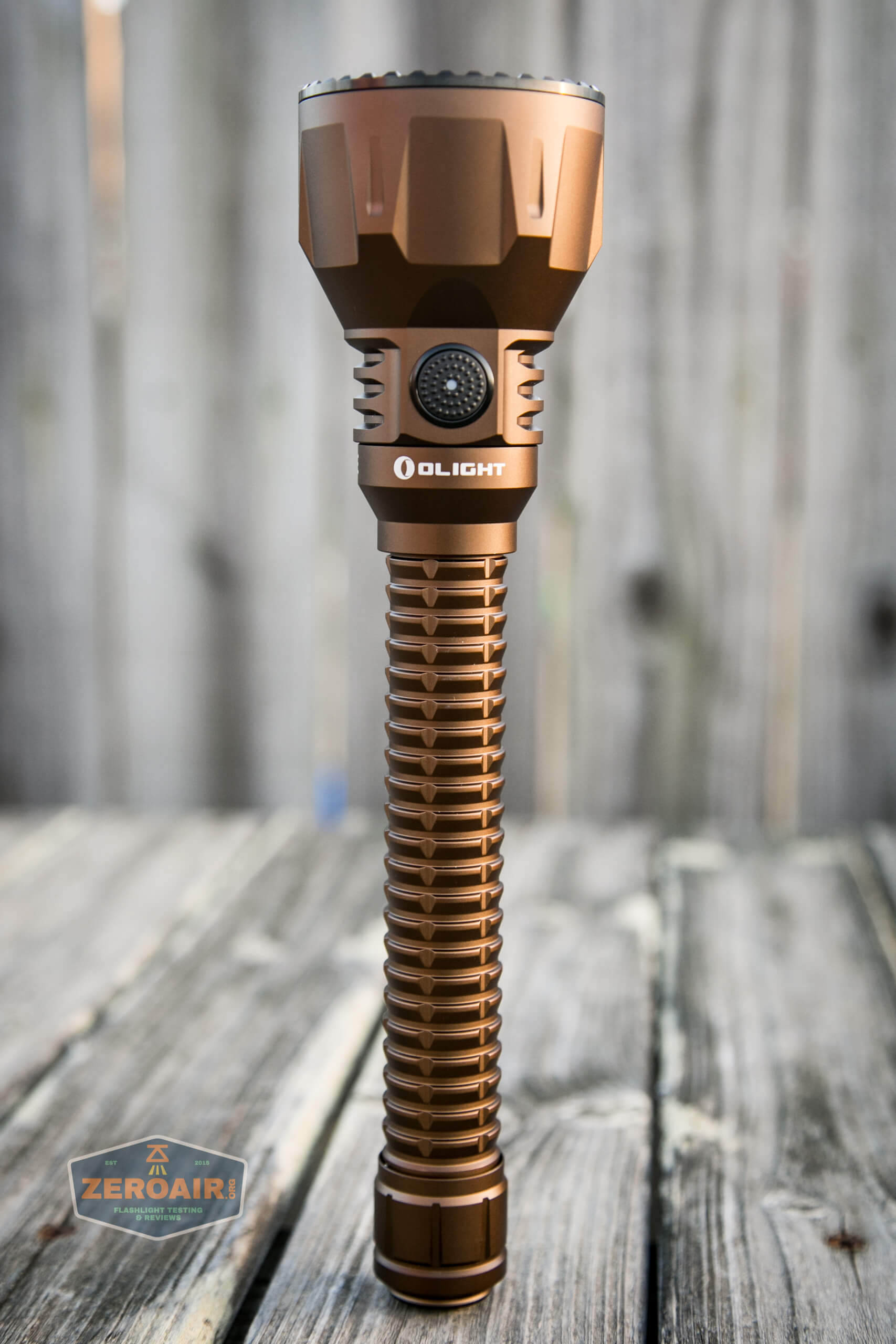

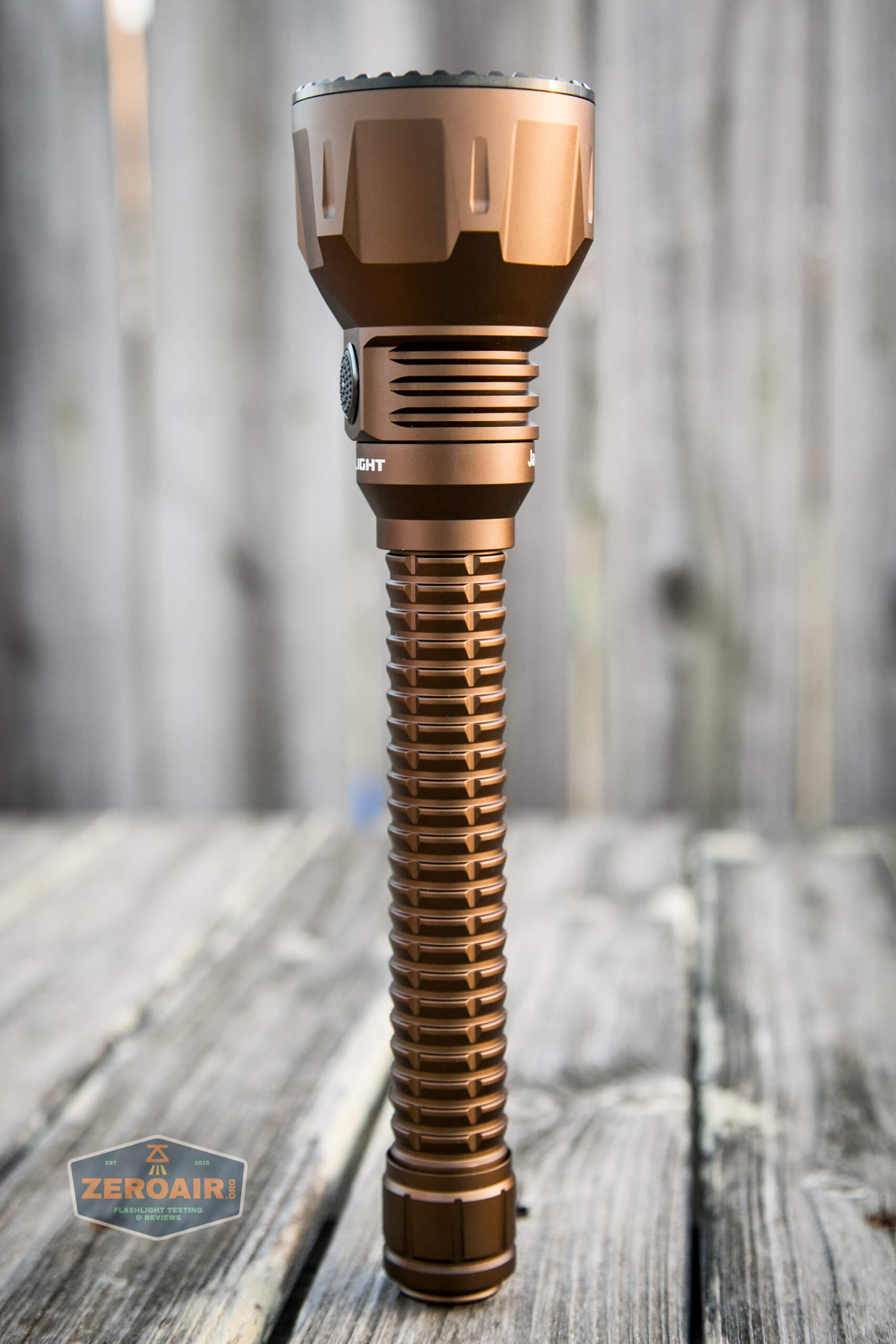

olight javelot turbo

The build here is very good.  This is a sturdy, nice light.  I’m not quite sure I’d use it as a weapon (I mean a swinging weapon) but … maybe?  The heft and balance of it is definitely right for that!

Top down:

tailcap

cell tube

neck

head

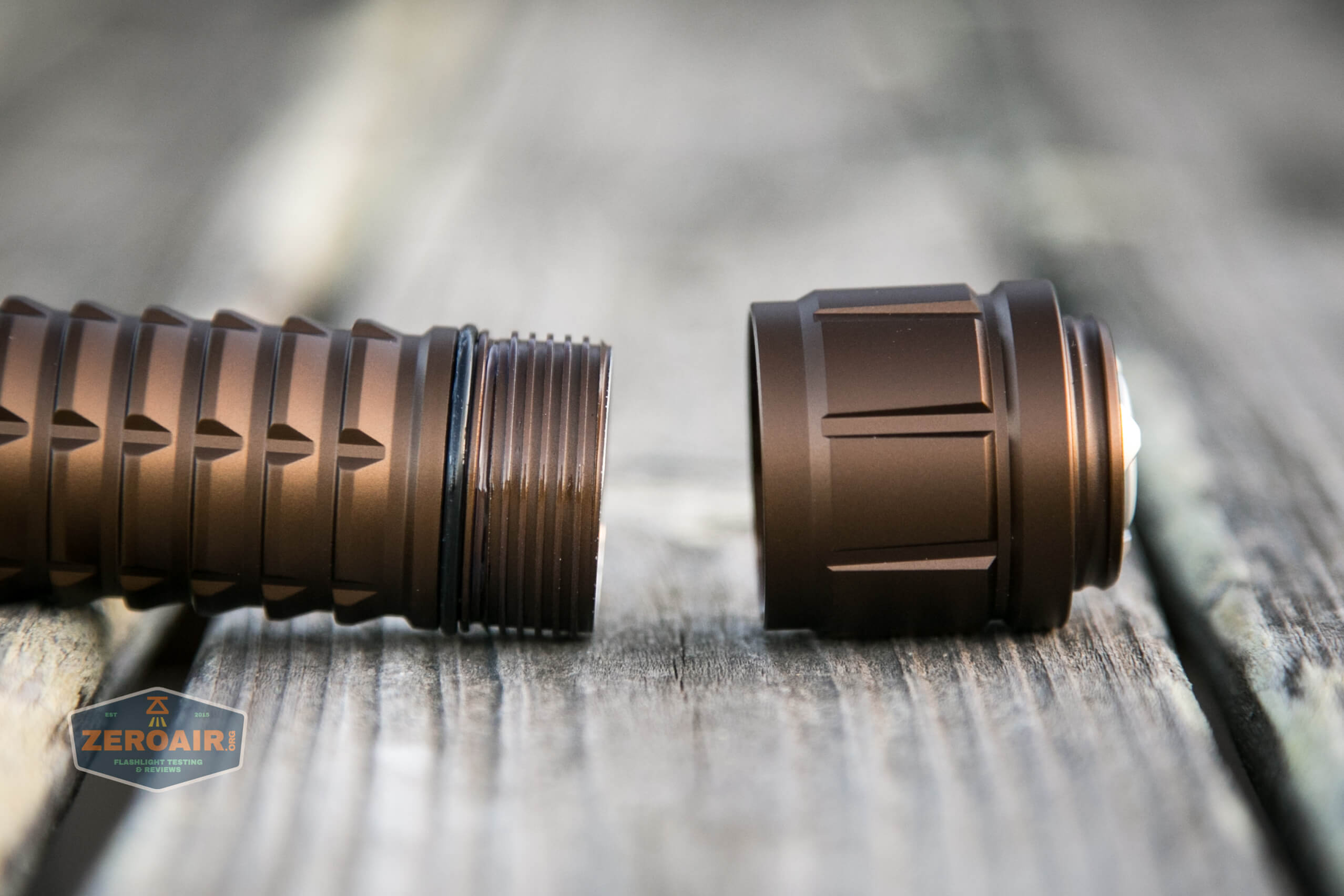

The threads are like all these other 21700 Olights – very smooth.  Anodized and square cut and in this case a little long.

tailcap off

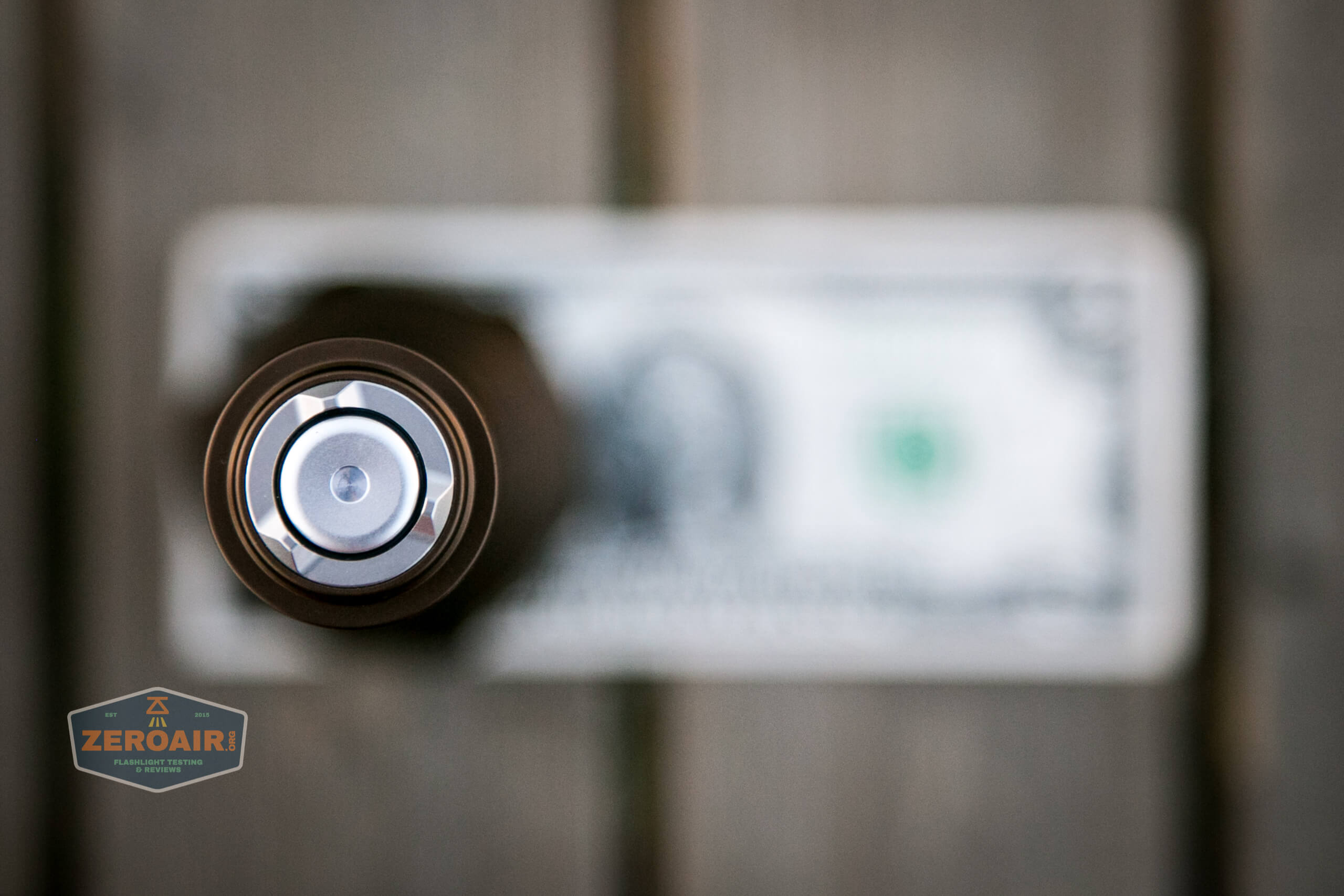

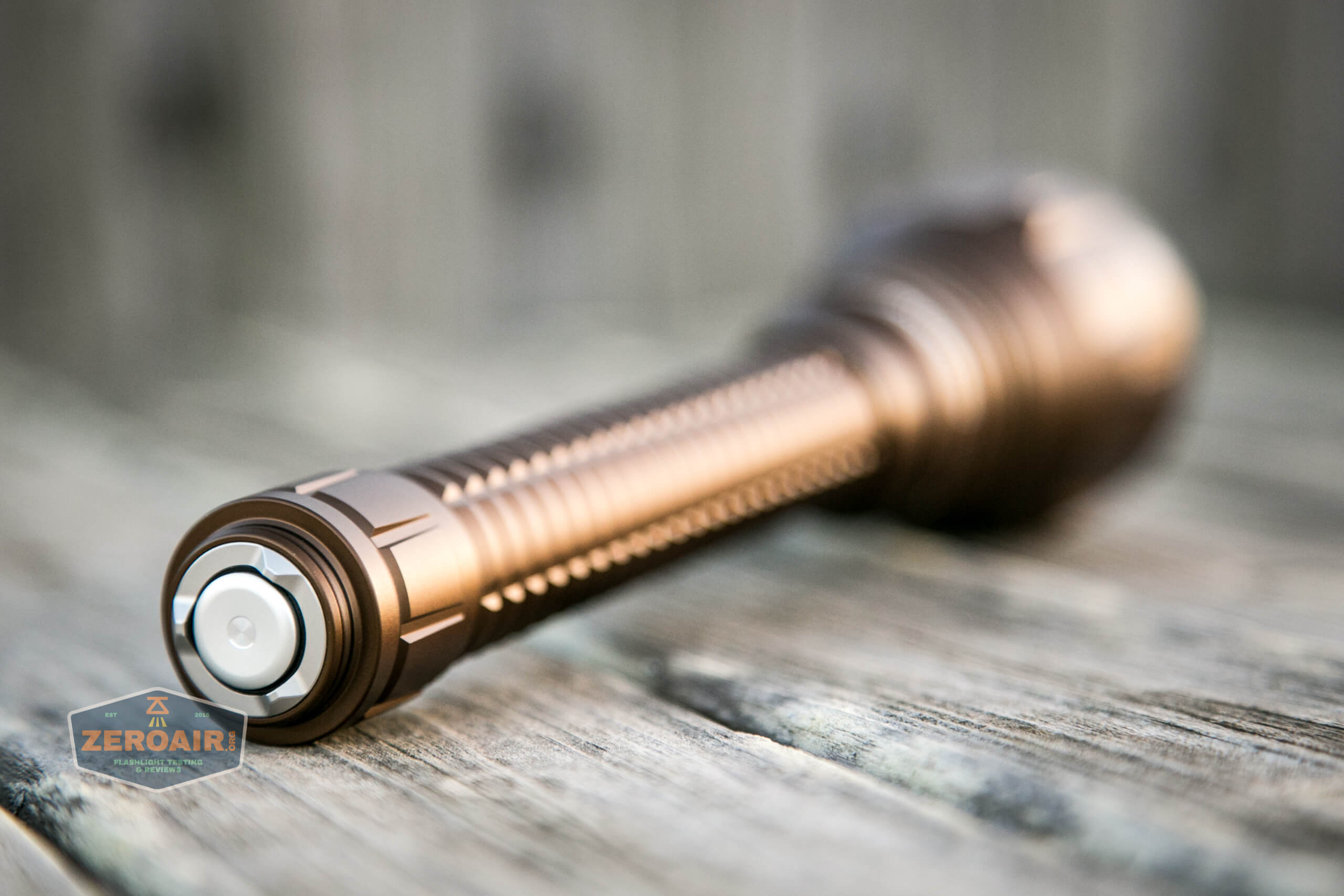

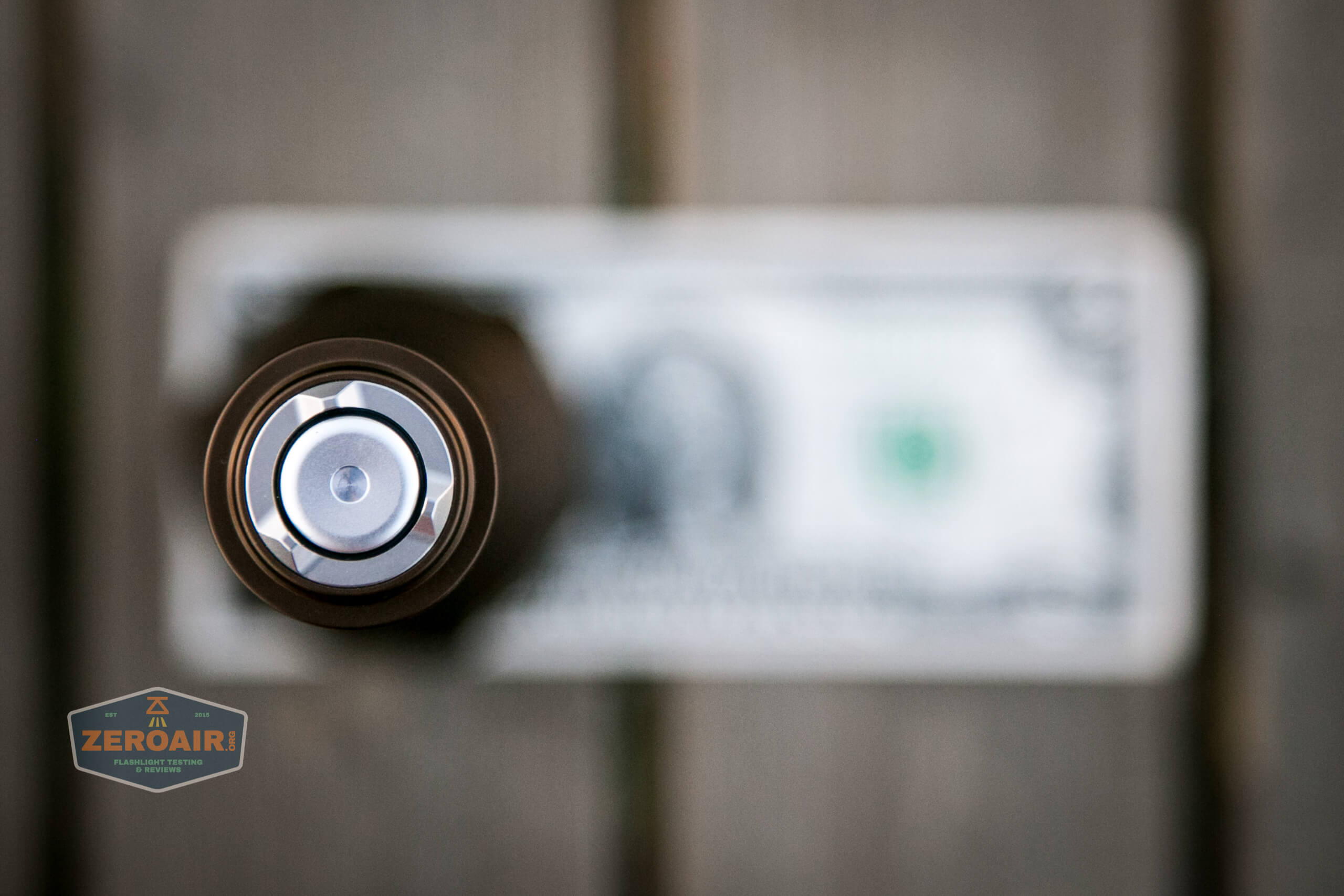

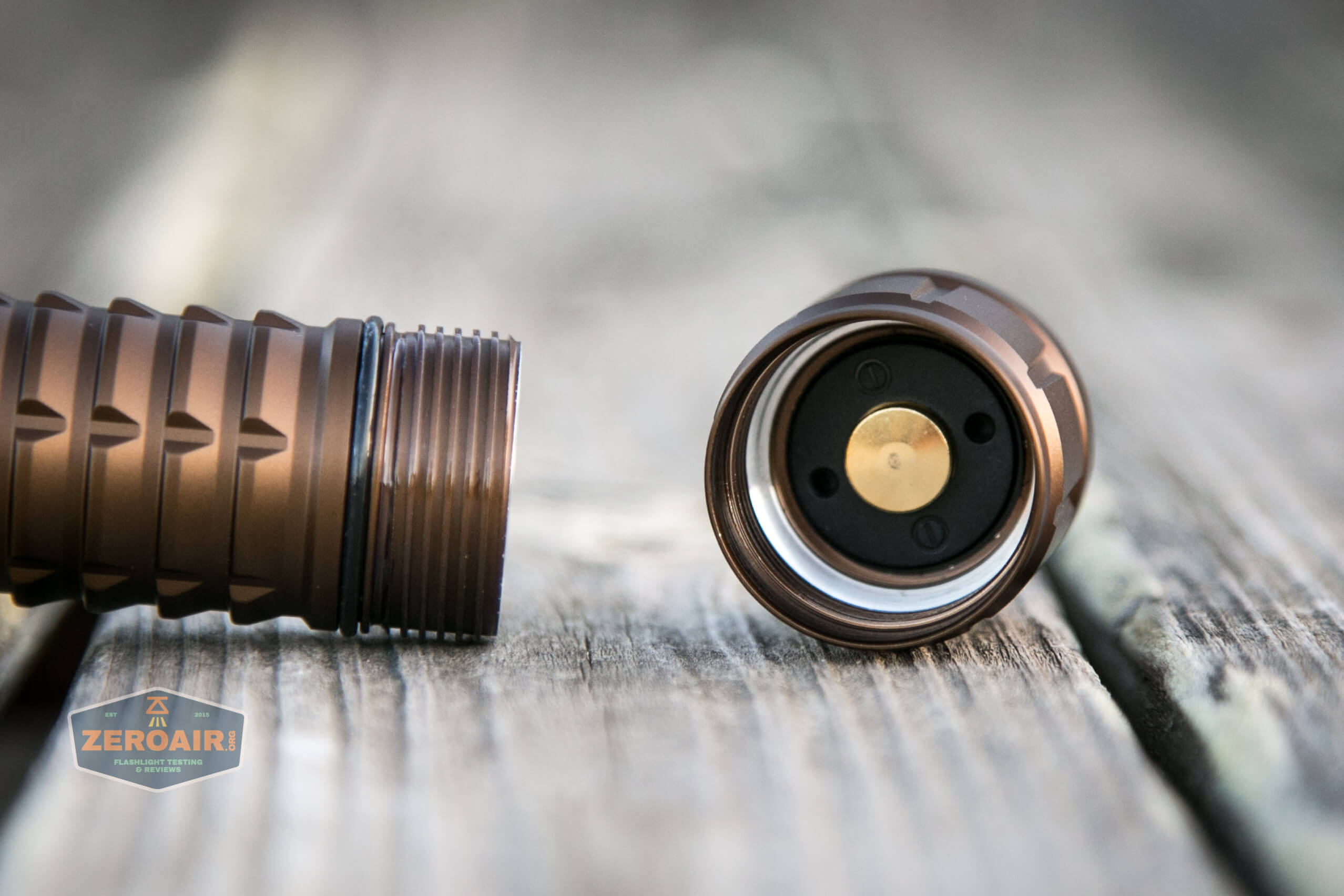

The tailcap has a brassy contact button.

tailcap contacts

Downside: the 21700 (x2) are built into the cell tube.  This isn’t my light (it’s a loaner) and so I didn’t disassemble this battery pack.  More on that later.

cell tube contacts

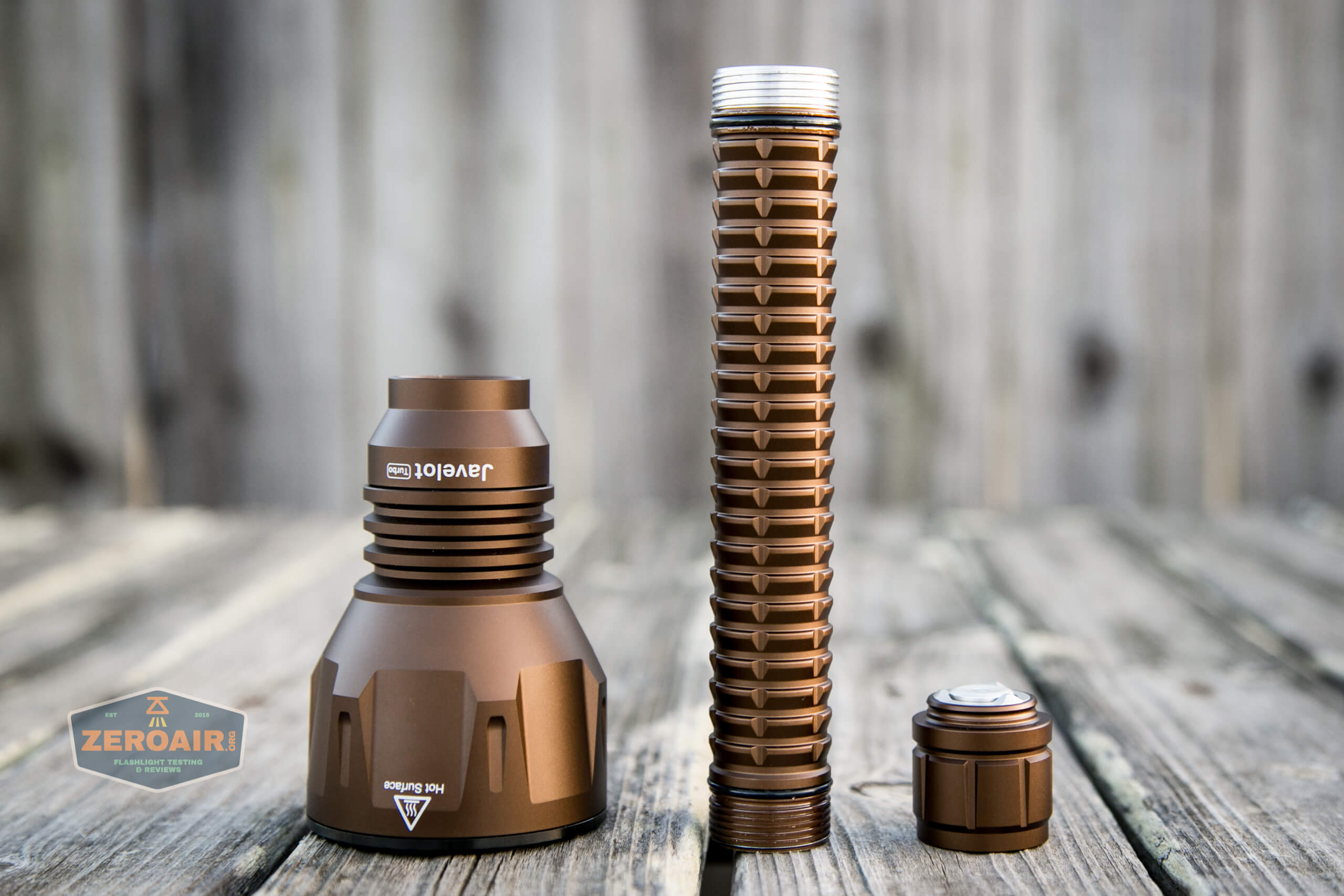

parts disassembled

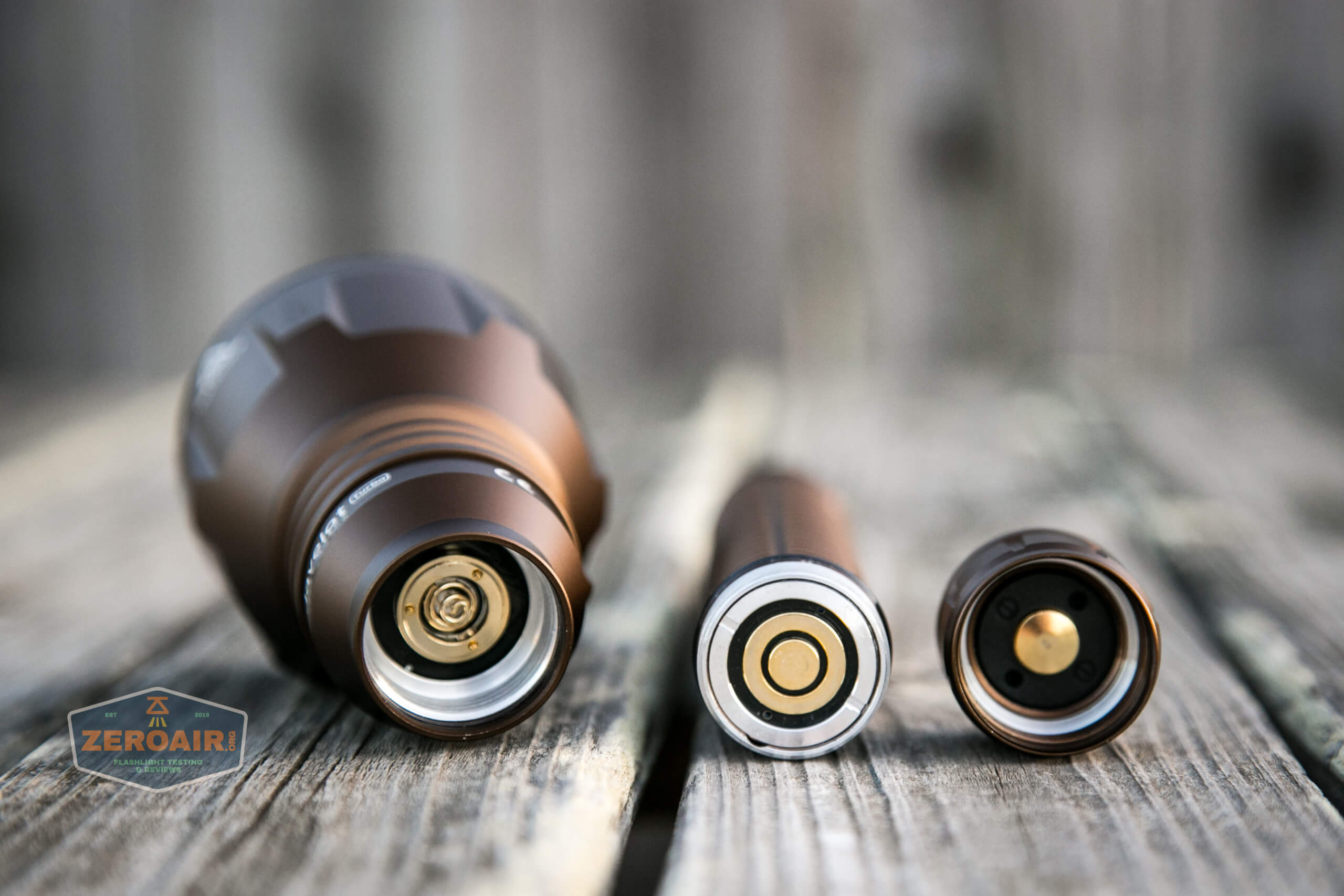

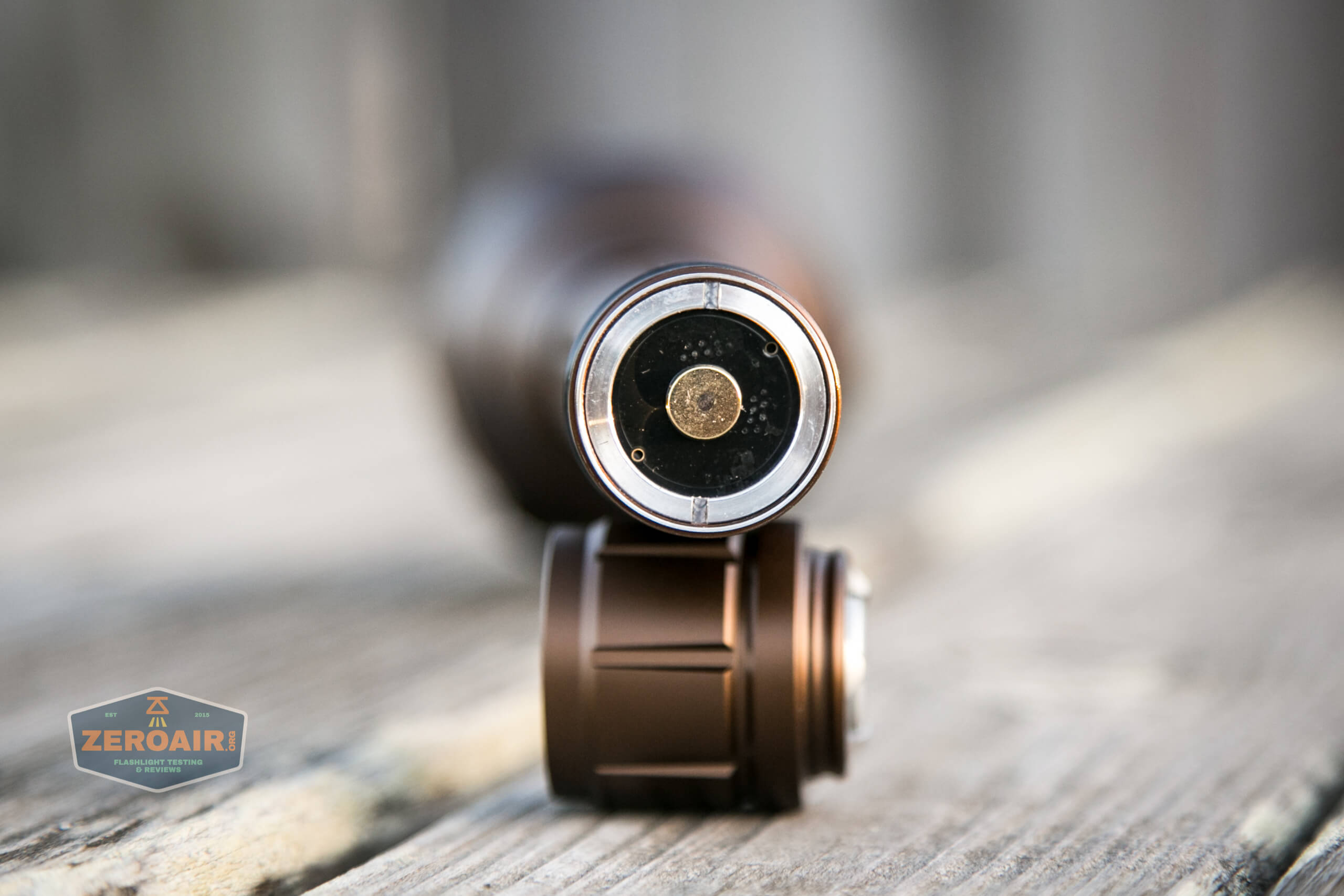

The head has the typical contact points that all these new style Olights have.  Spring in the center for positive contact, and a ring around the edge for negative contact.  Now this battery pack is built in and thus standard, but the setup should allow use of the regular (but customized) Olight 21700 cells.

olight javelot turbo contact points

The battery tube is not reversible.

battery pack

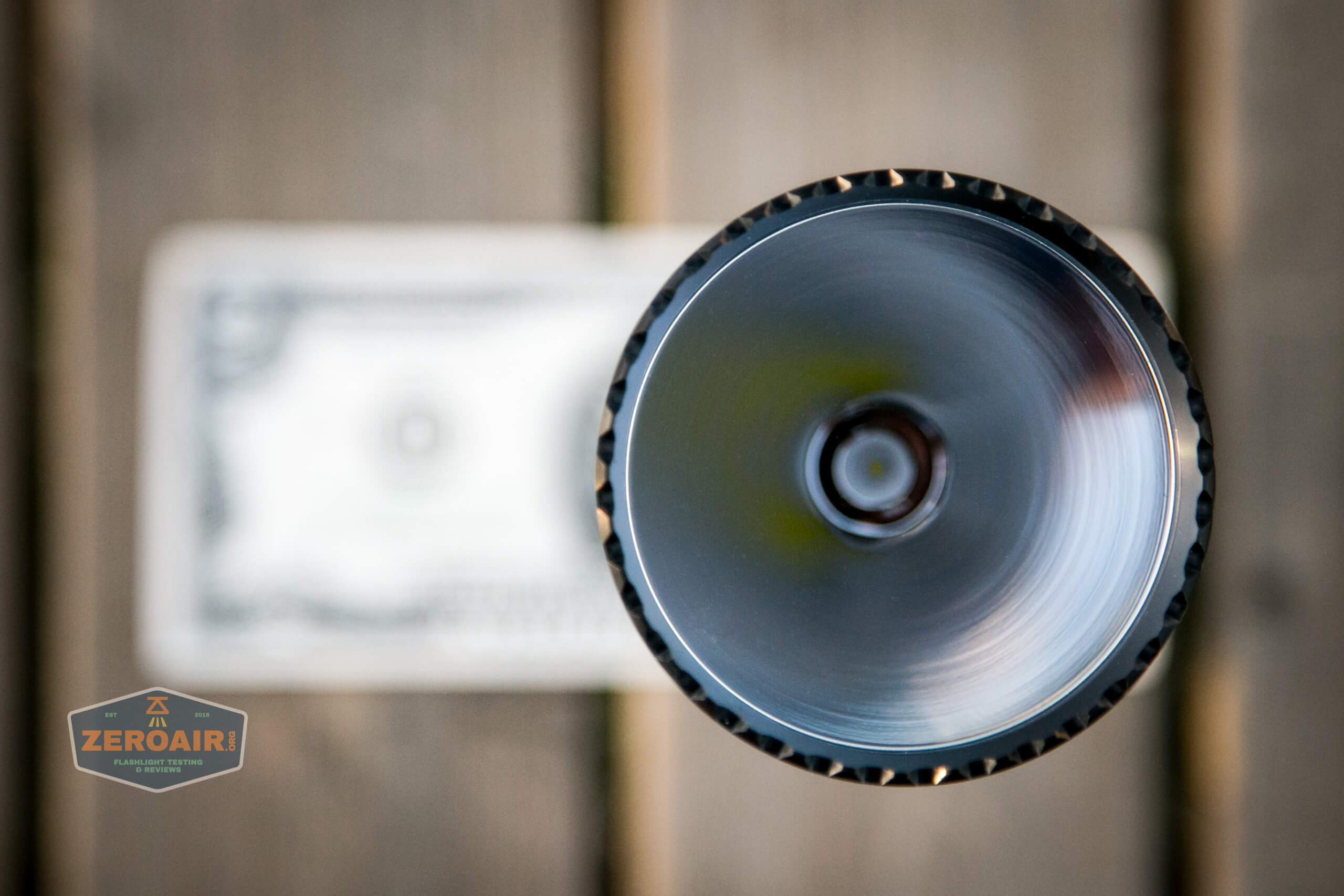

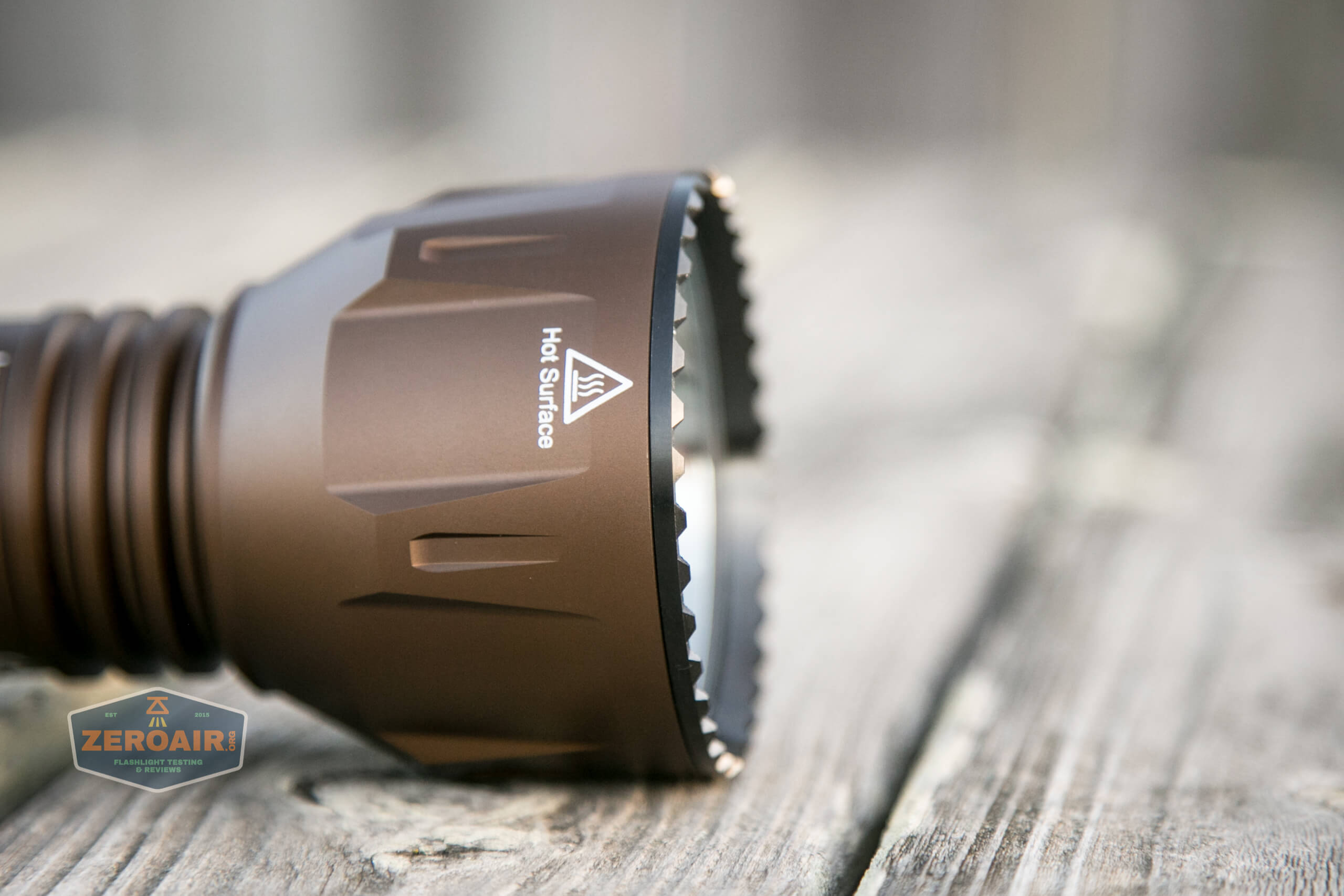

Here you can see this toothy bezel.  Those teeth are short but quite grippy.

bitey bezel

bezel

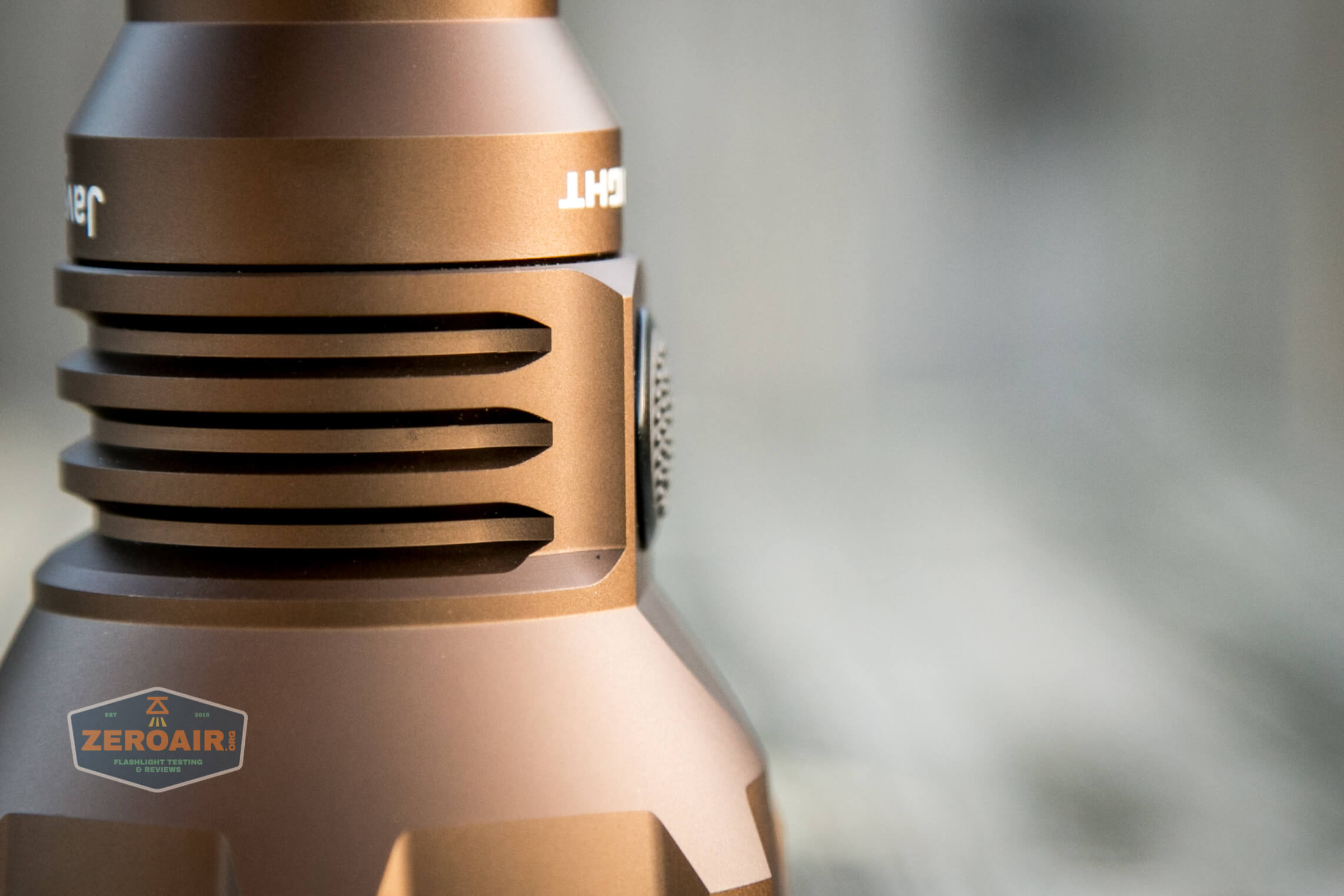

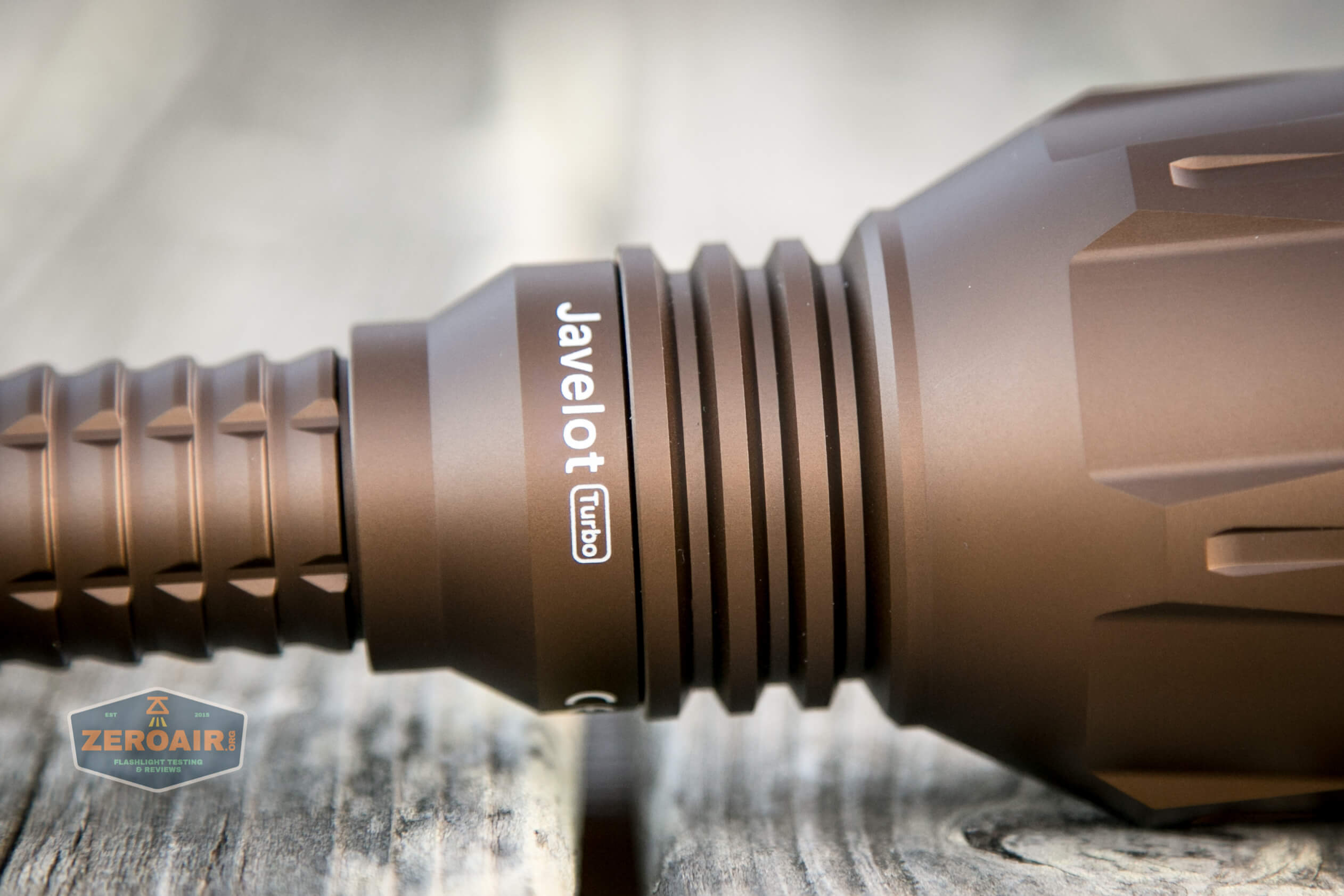

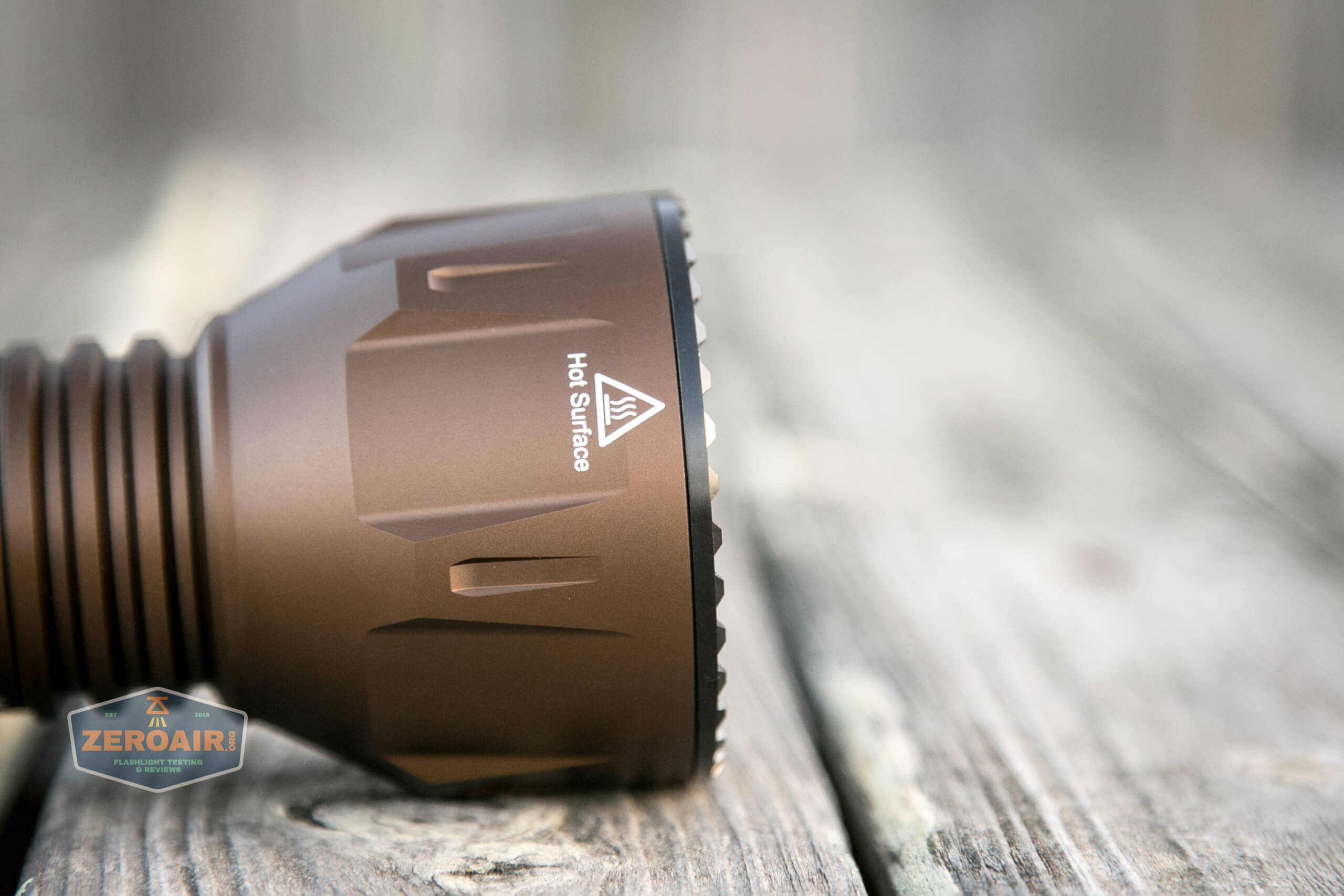

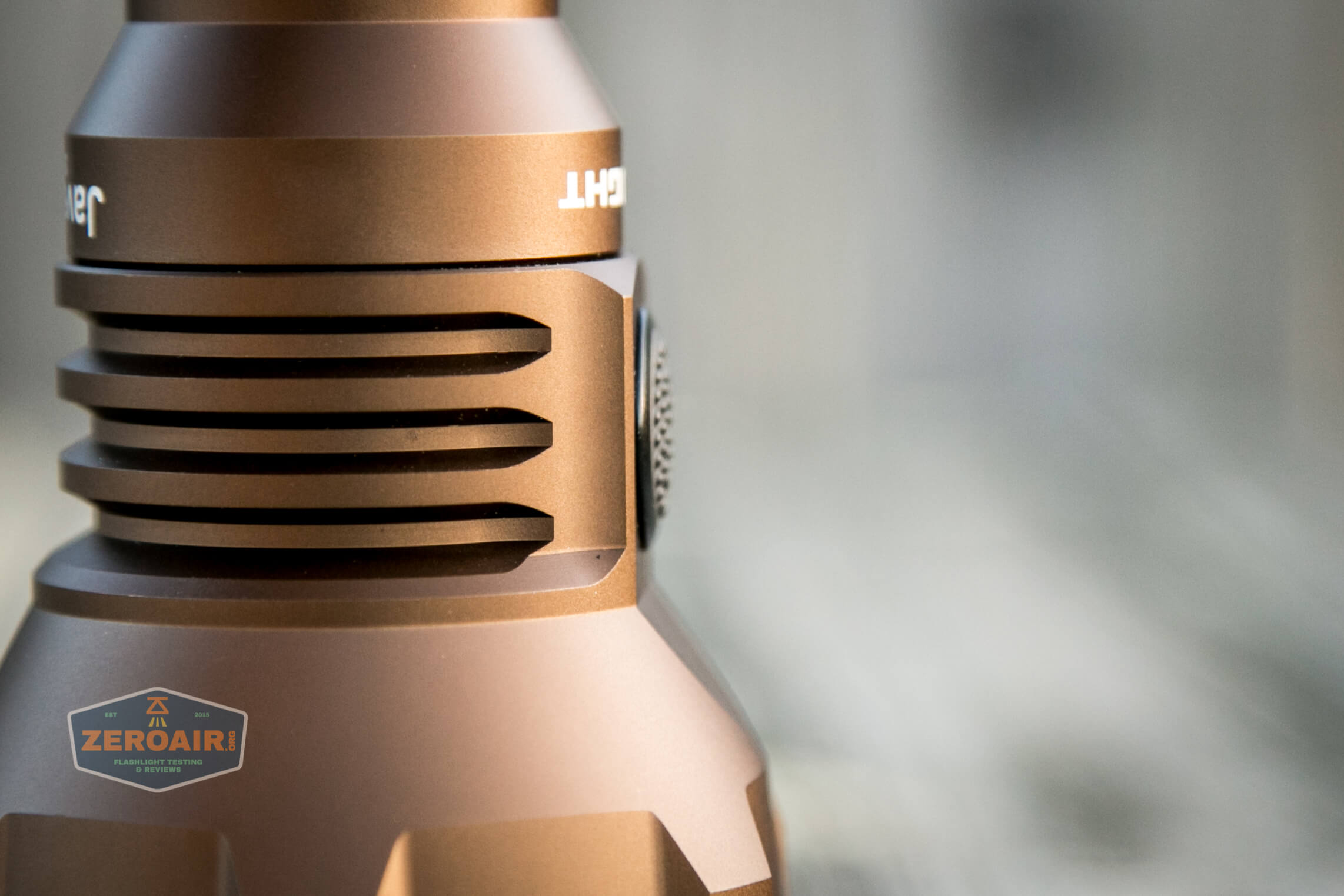

The neck has cooling fins.

cooling fins

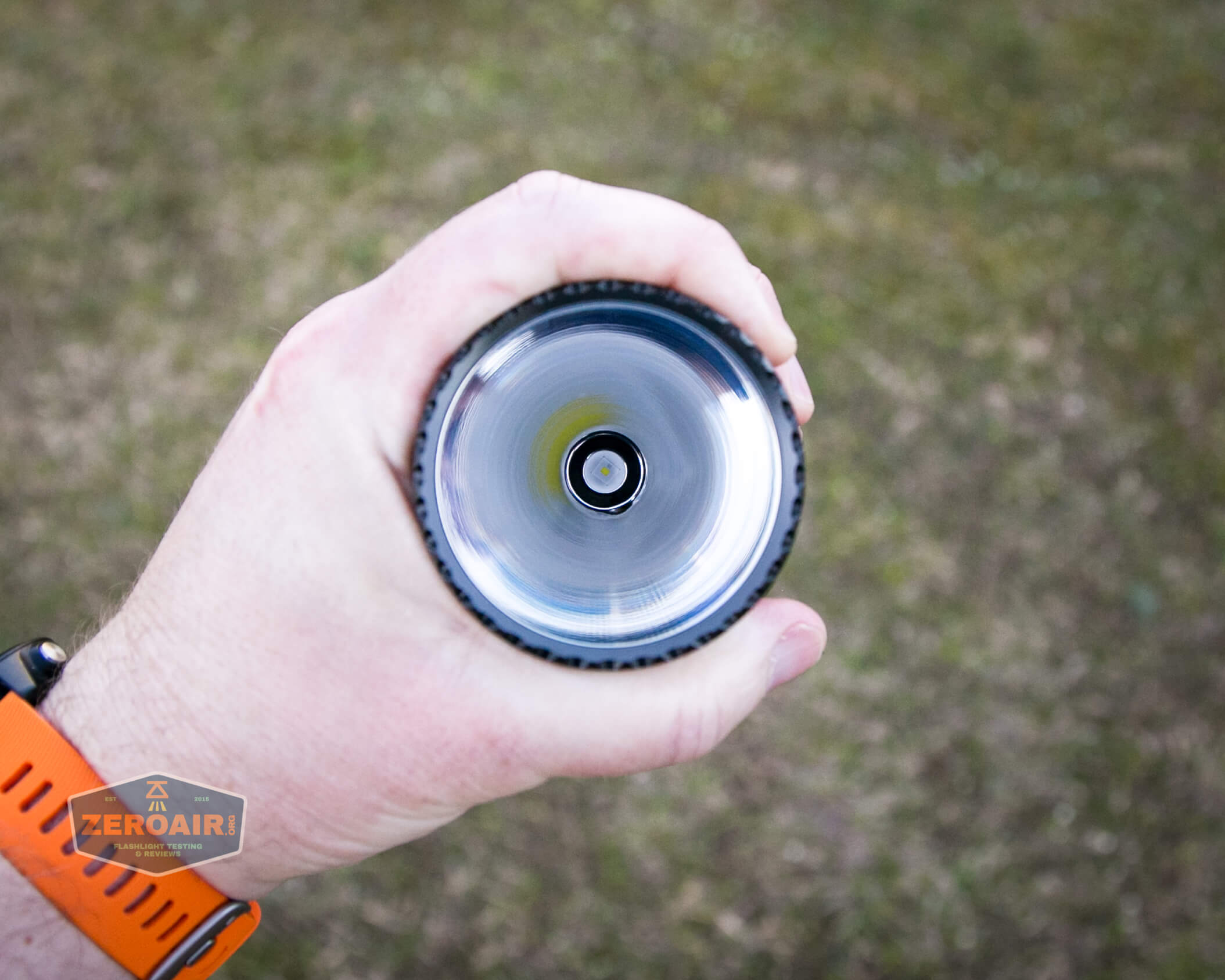

grip for days

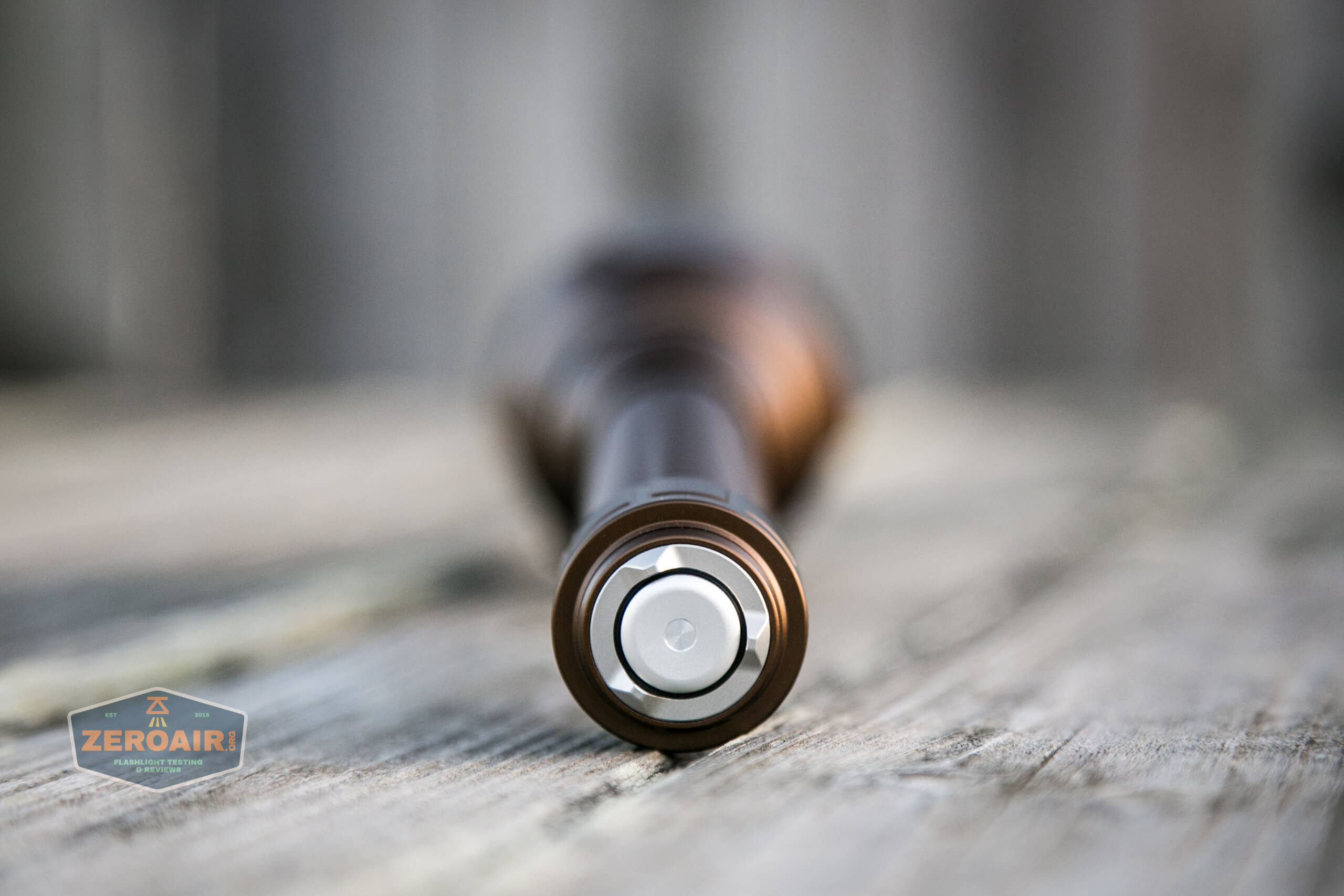

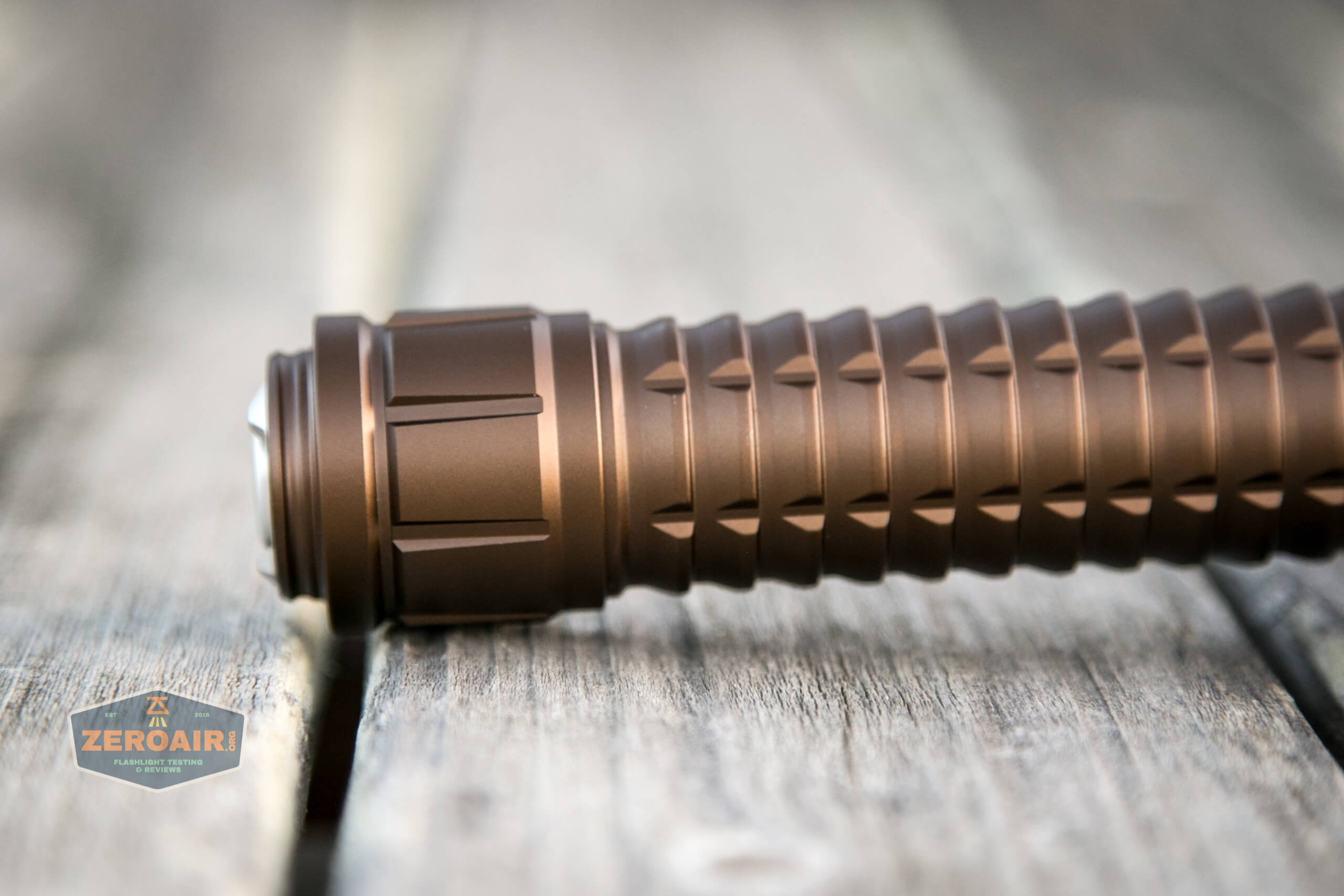

tailcap

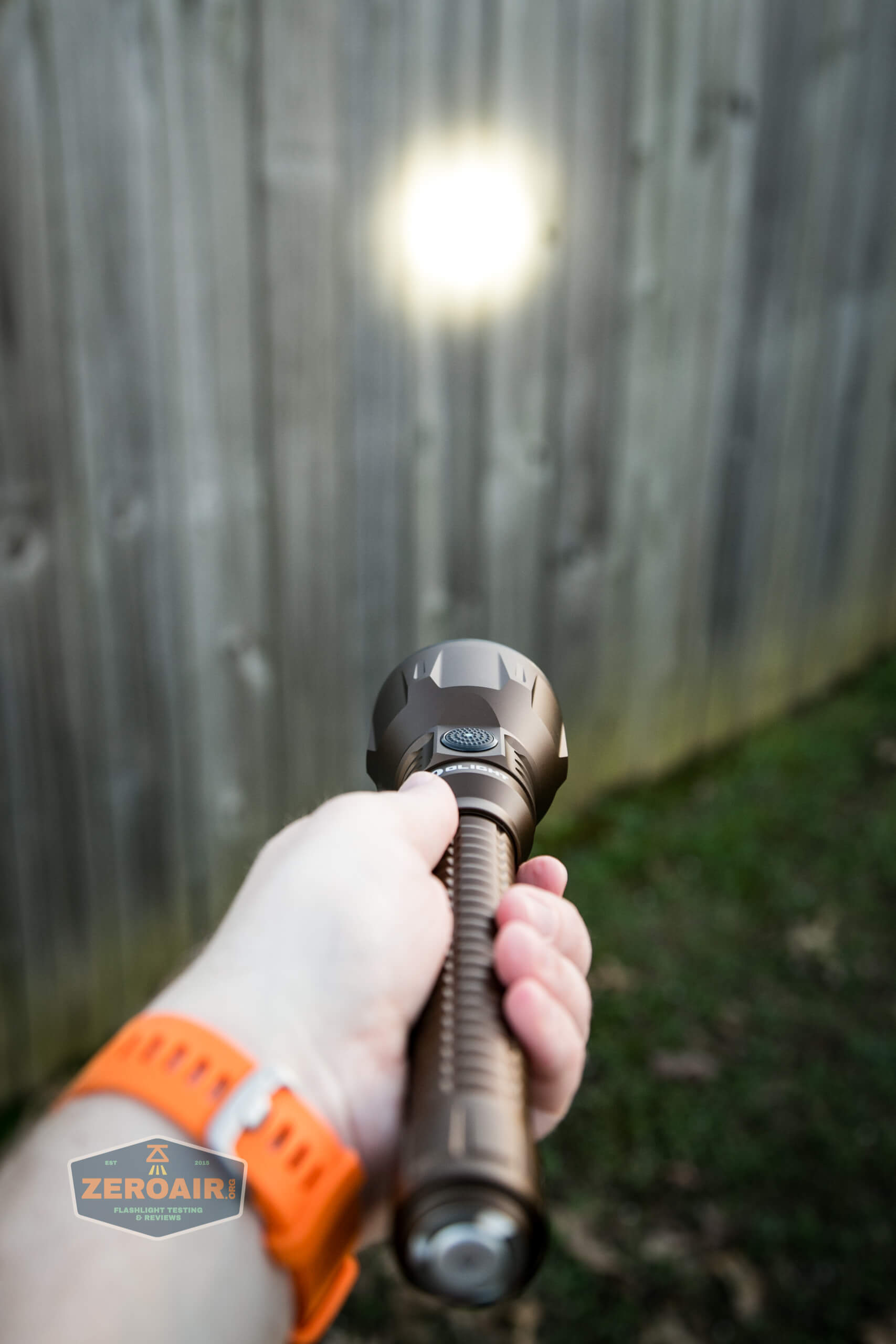

bokeh for days

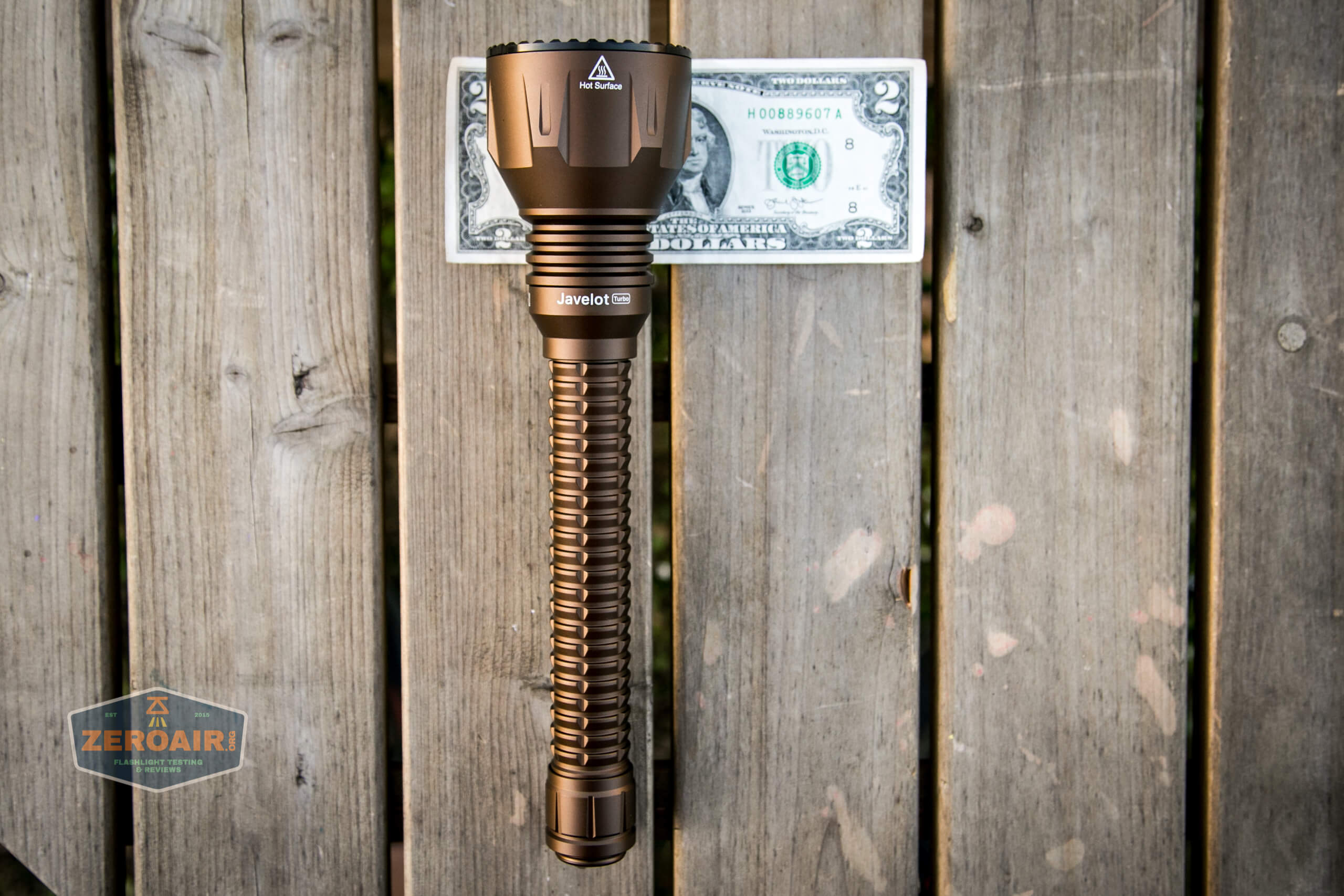

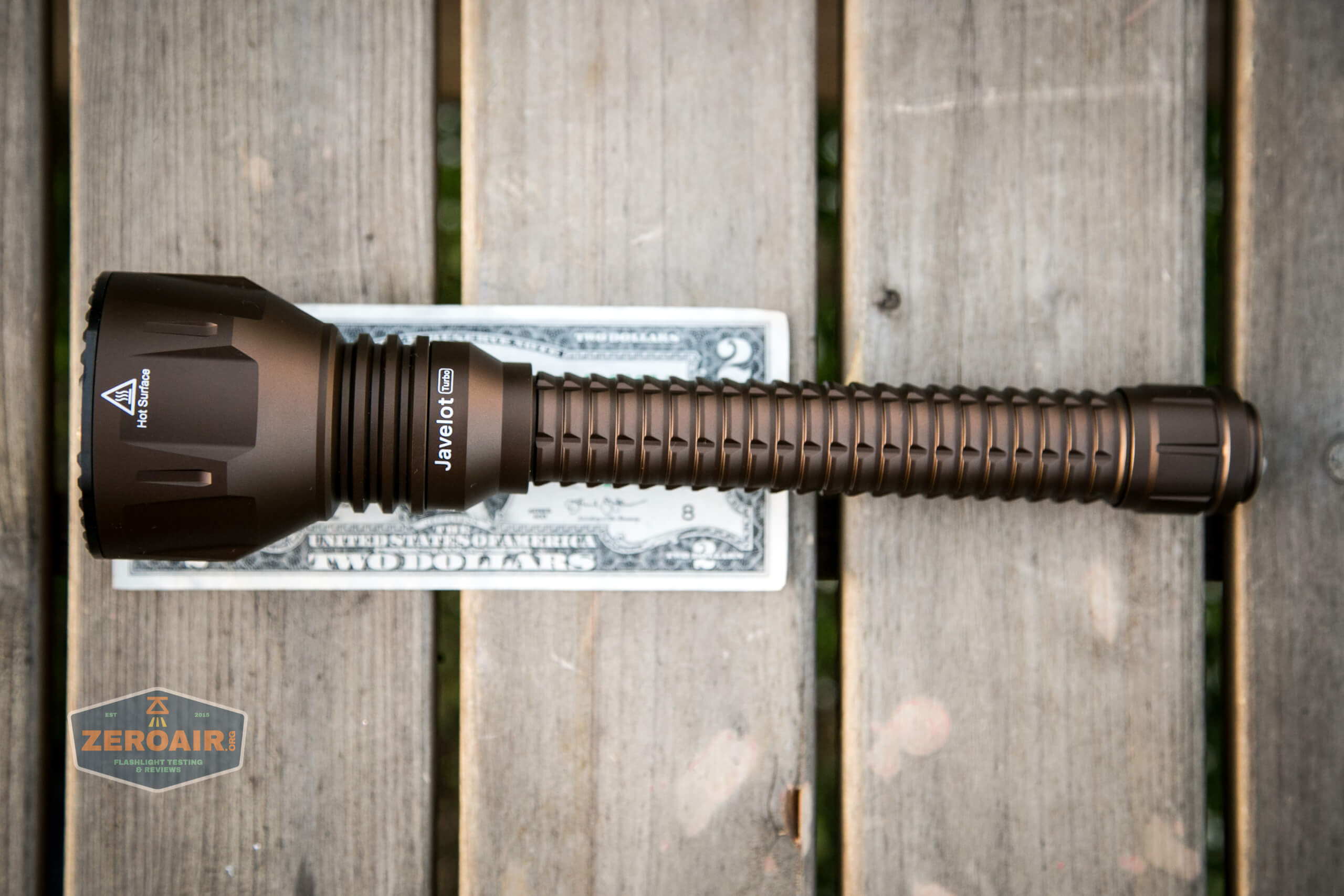

Size and Comps

Weight (g / oz) 408g / 14.40oz
Length (mm / in) 259mm/10.20in
Head Diameter (mm / in) 63mm/2.48in
Body Diameter (mm / in) 25.8mm/1.02in

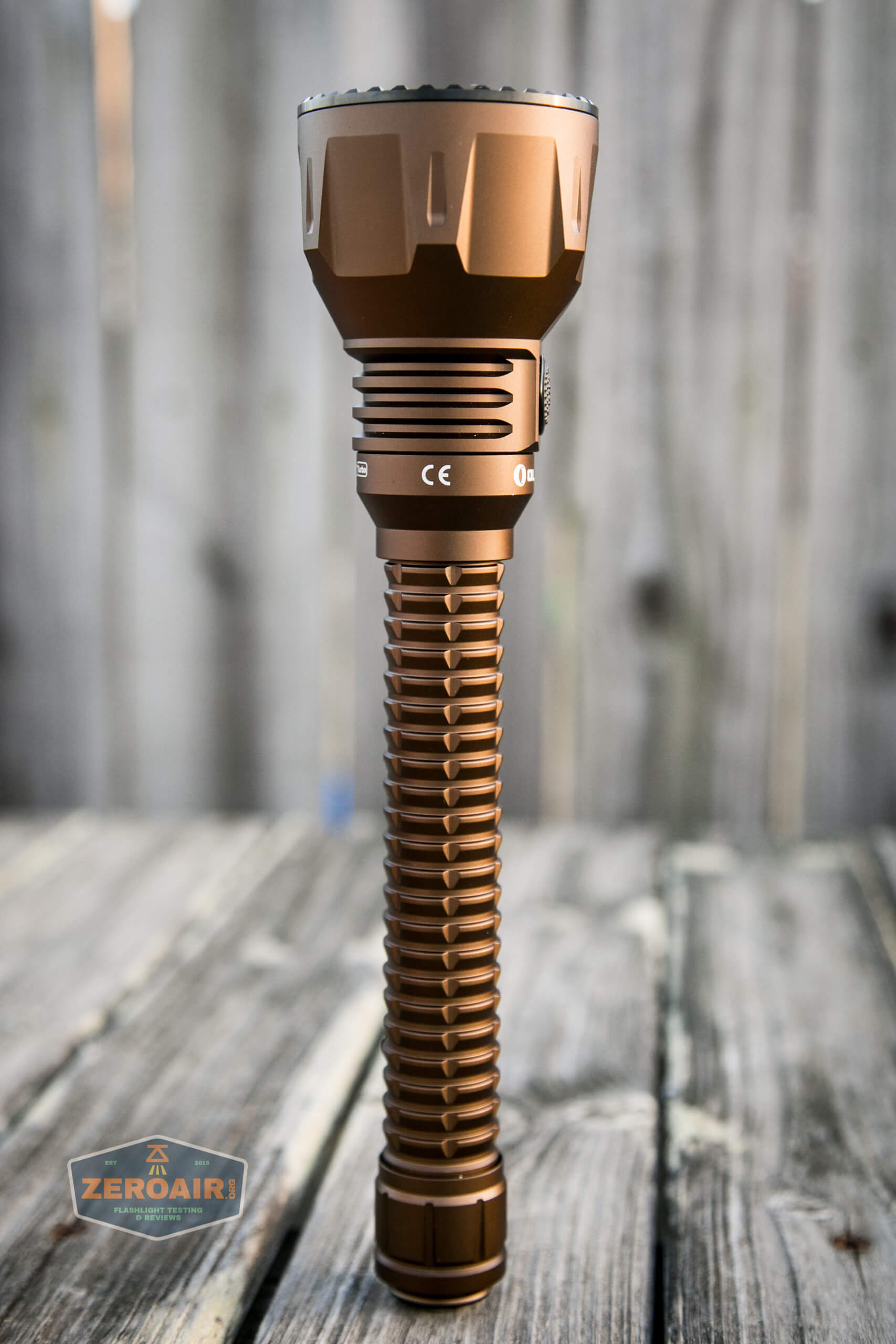

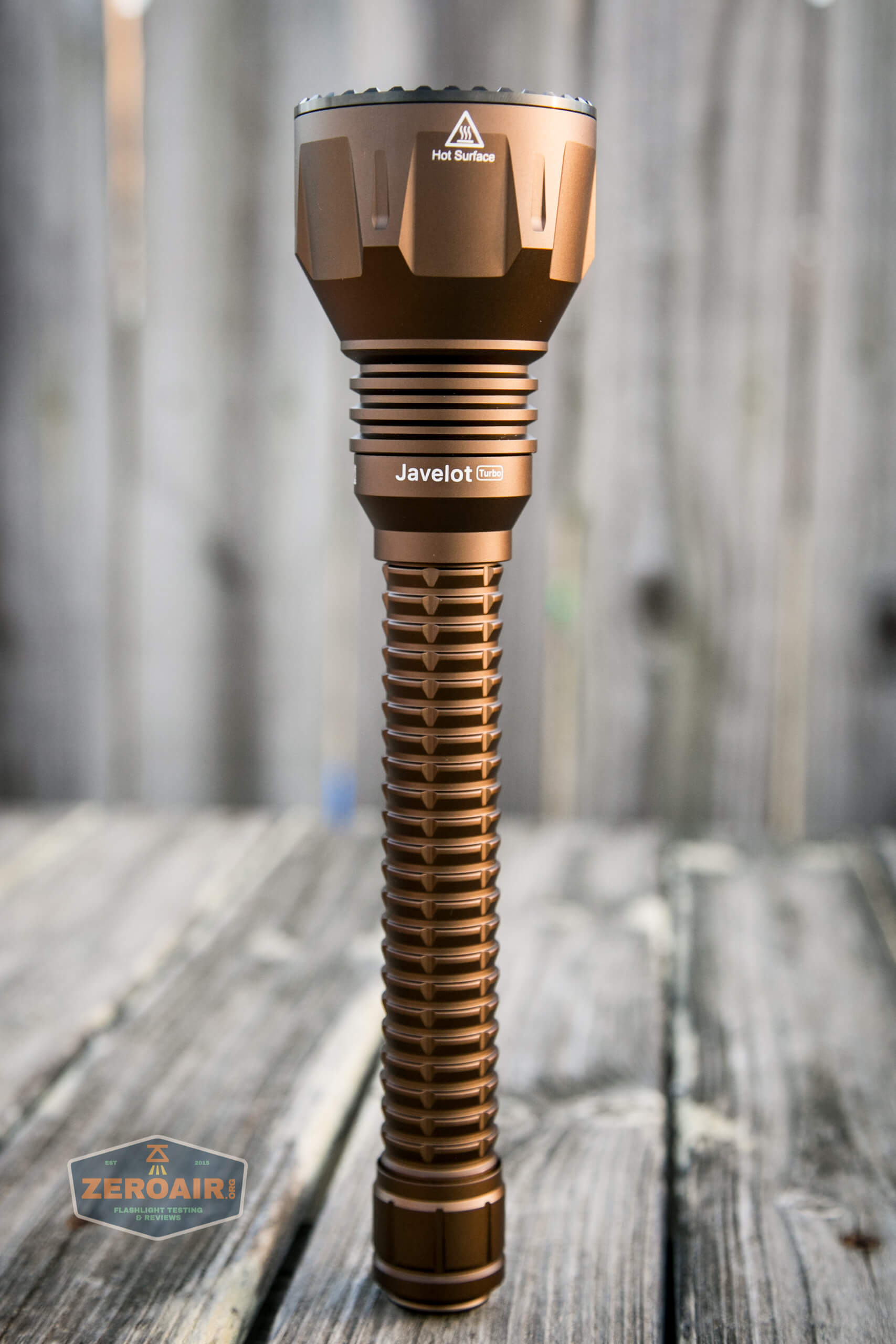

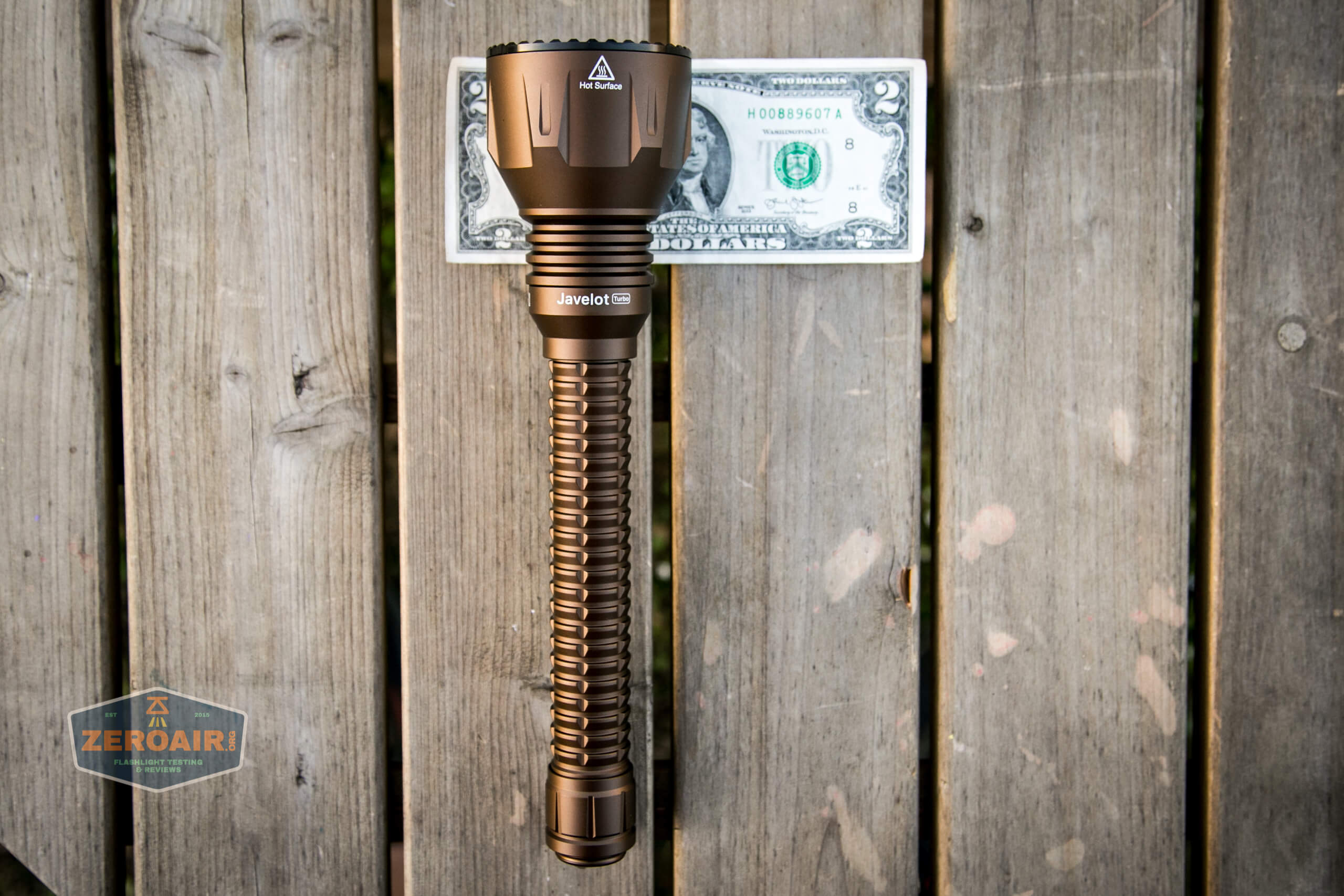

If a light will headstand, I’ll show it here (usually the third photo).  If a light will tailstand, I’ll show that here, too (usually the fourth photo).

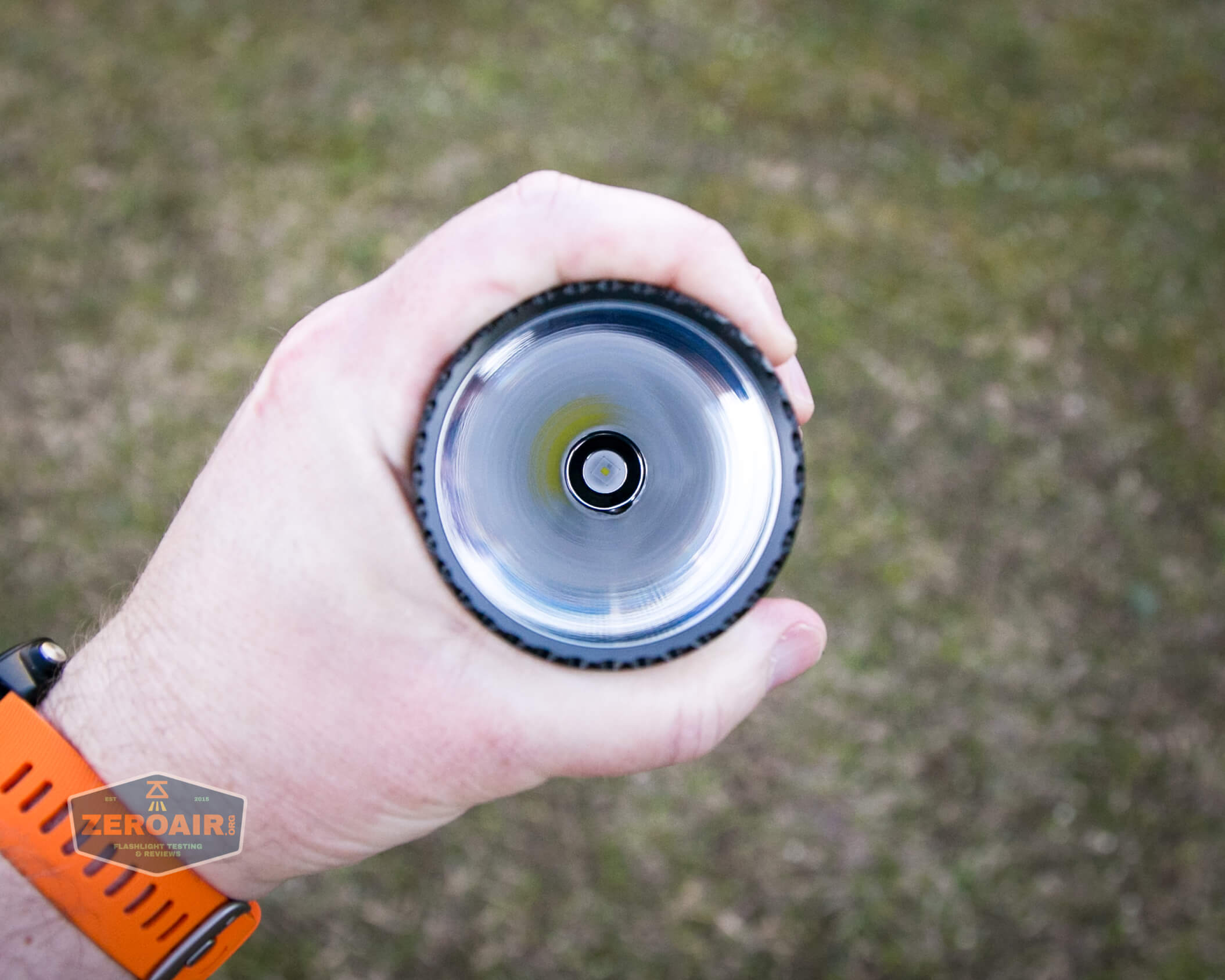

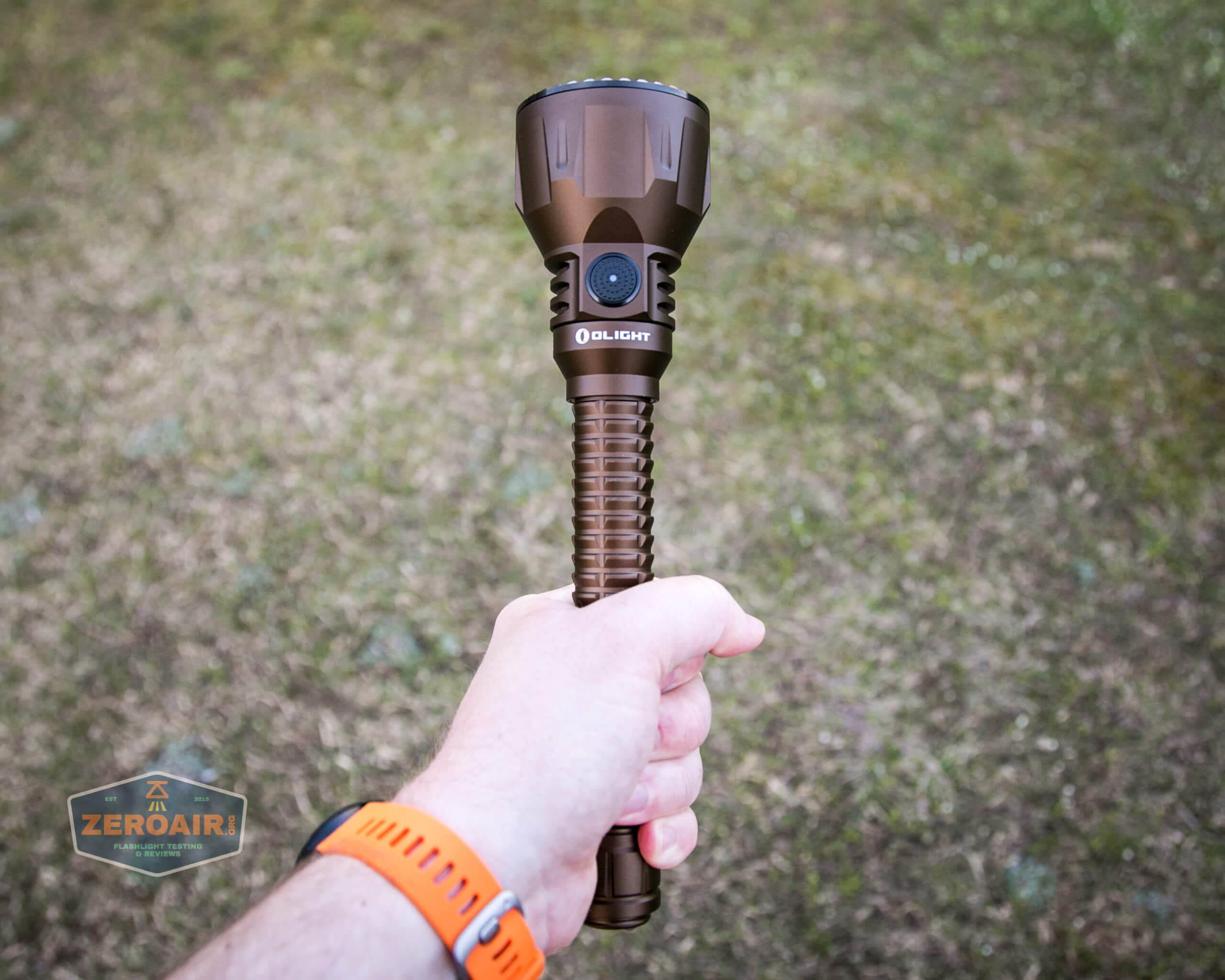

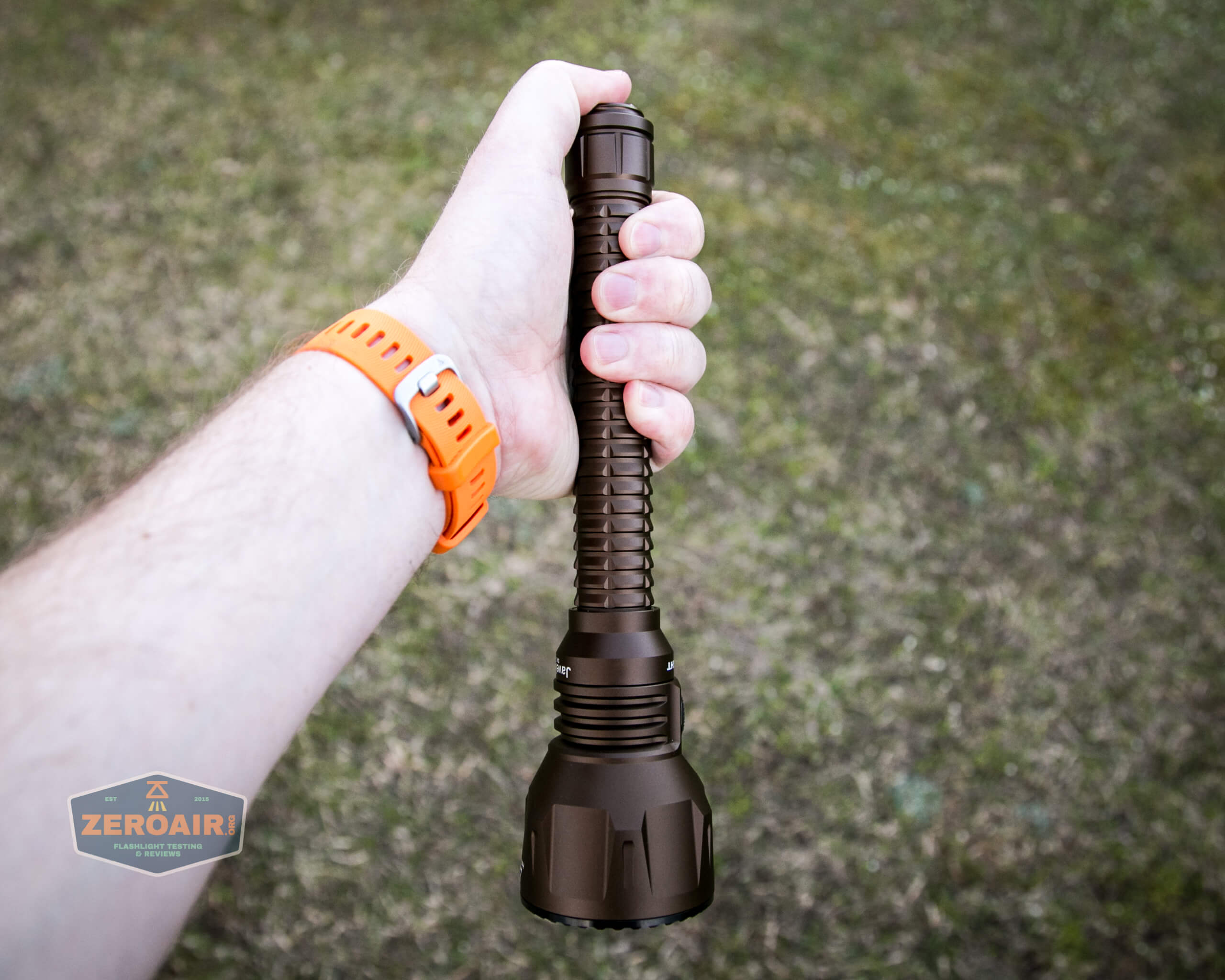

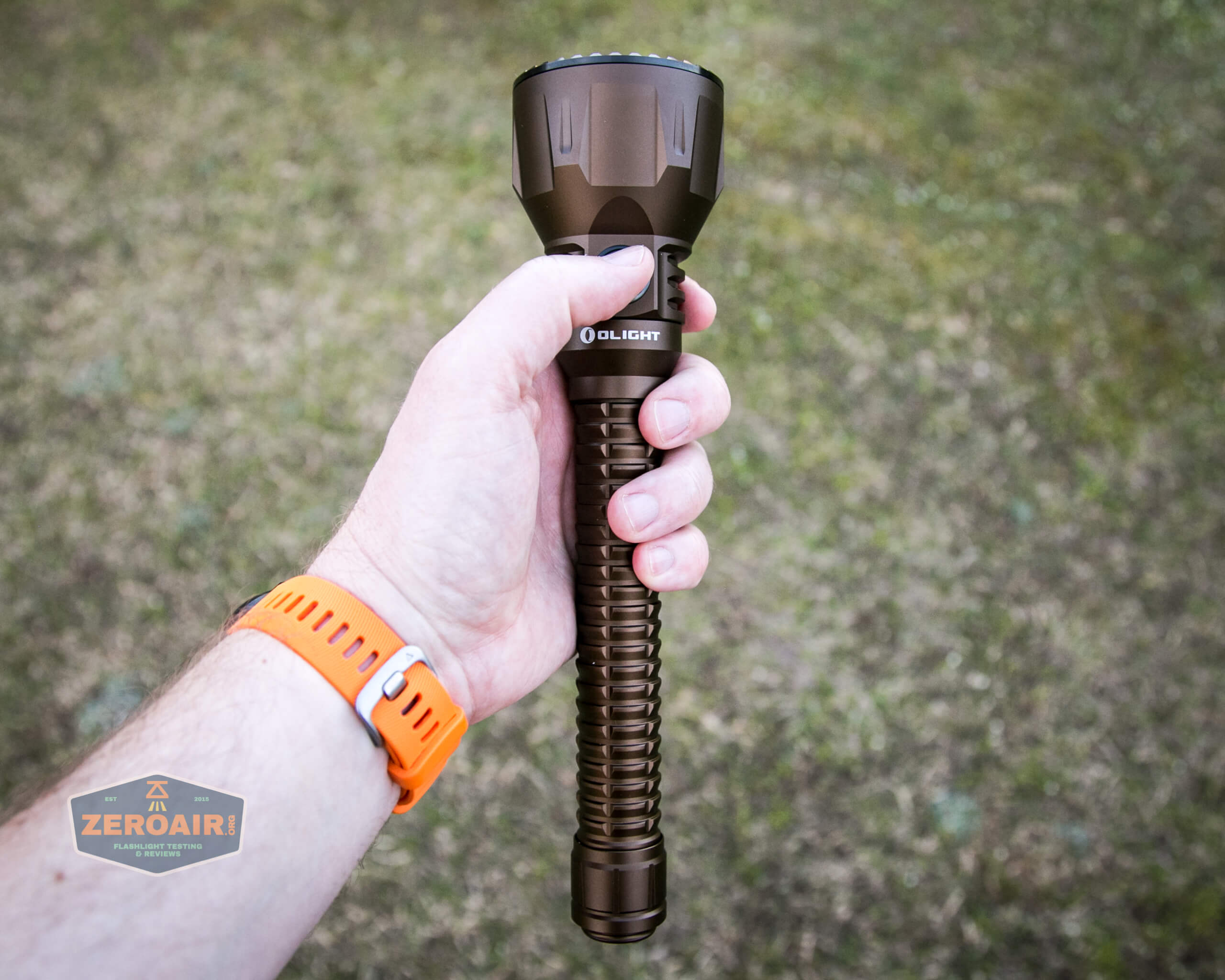

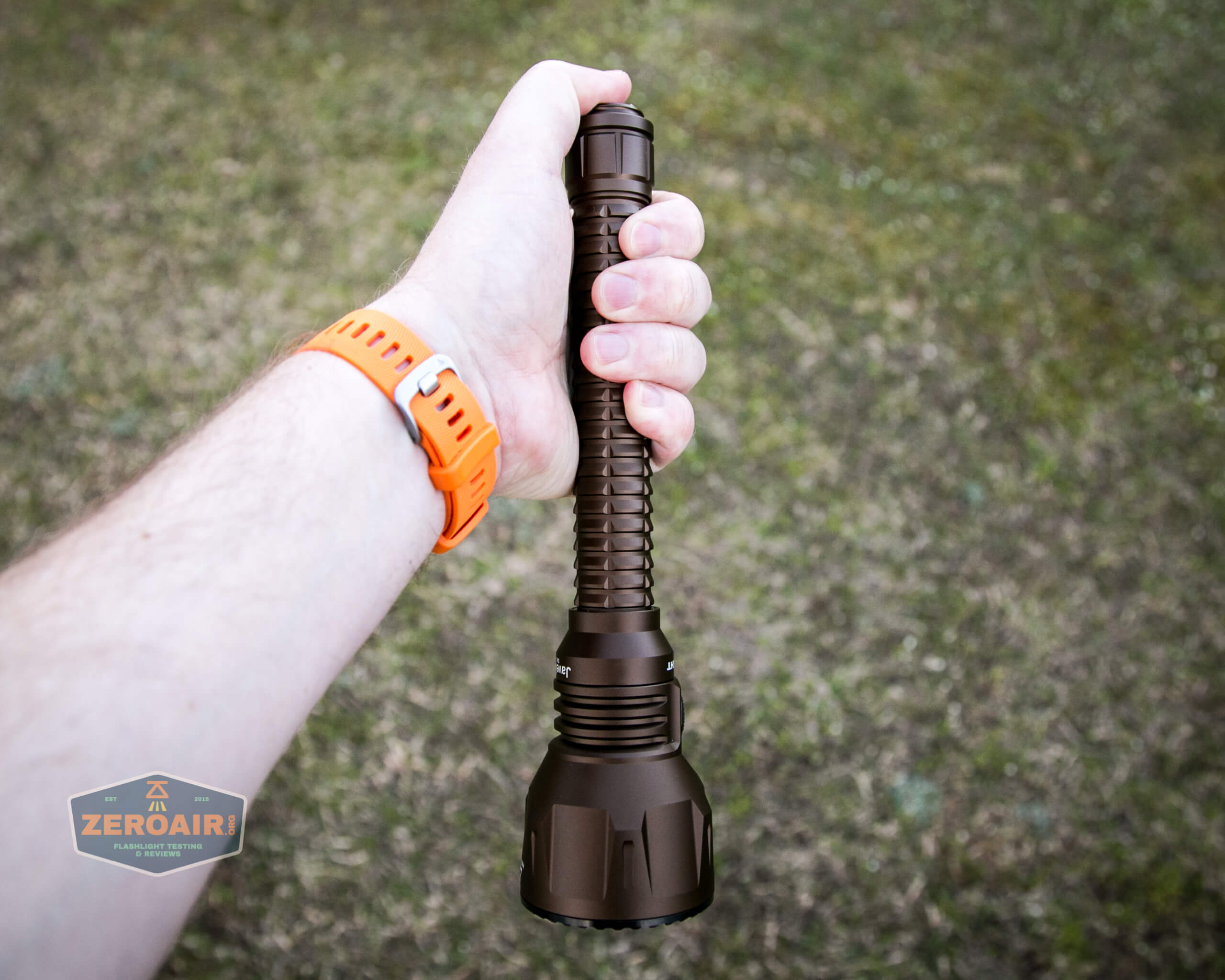

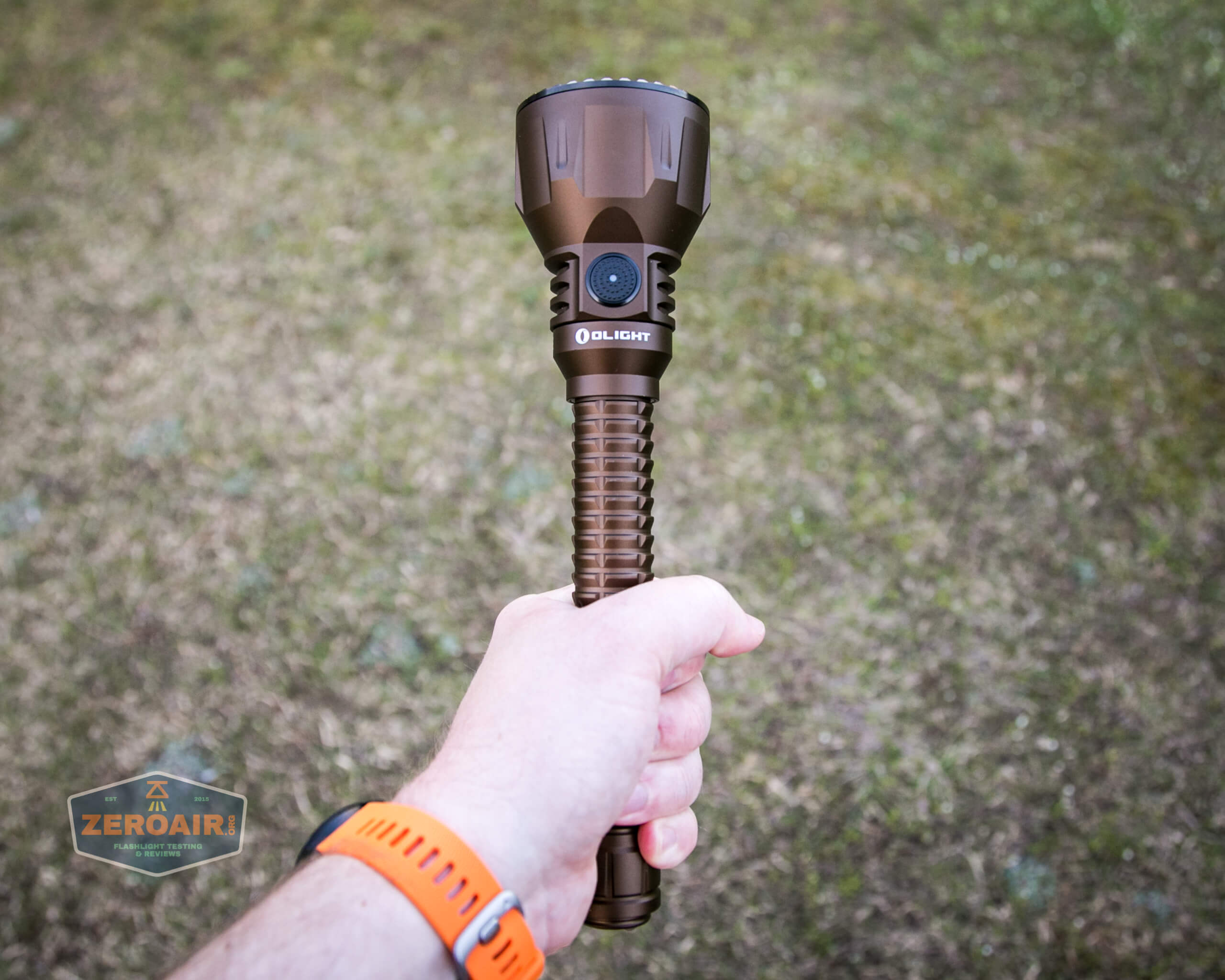

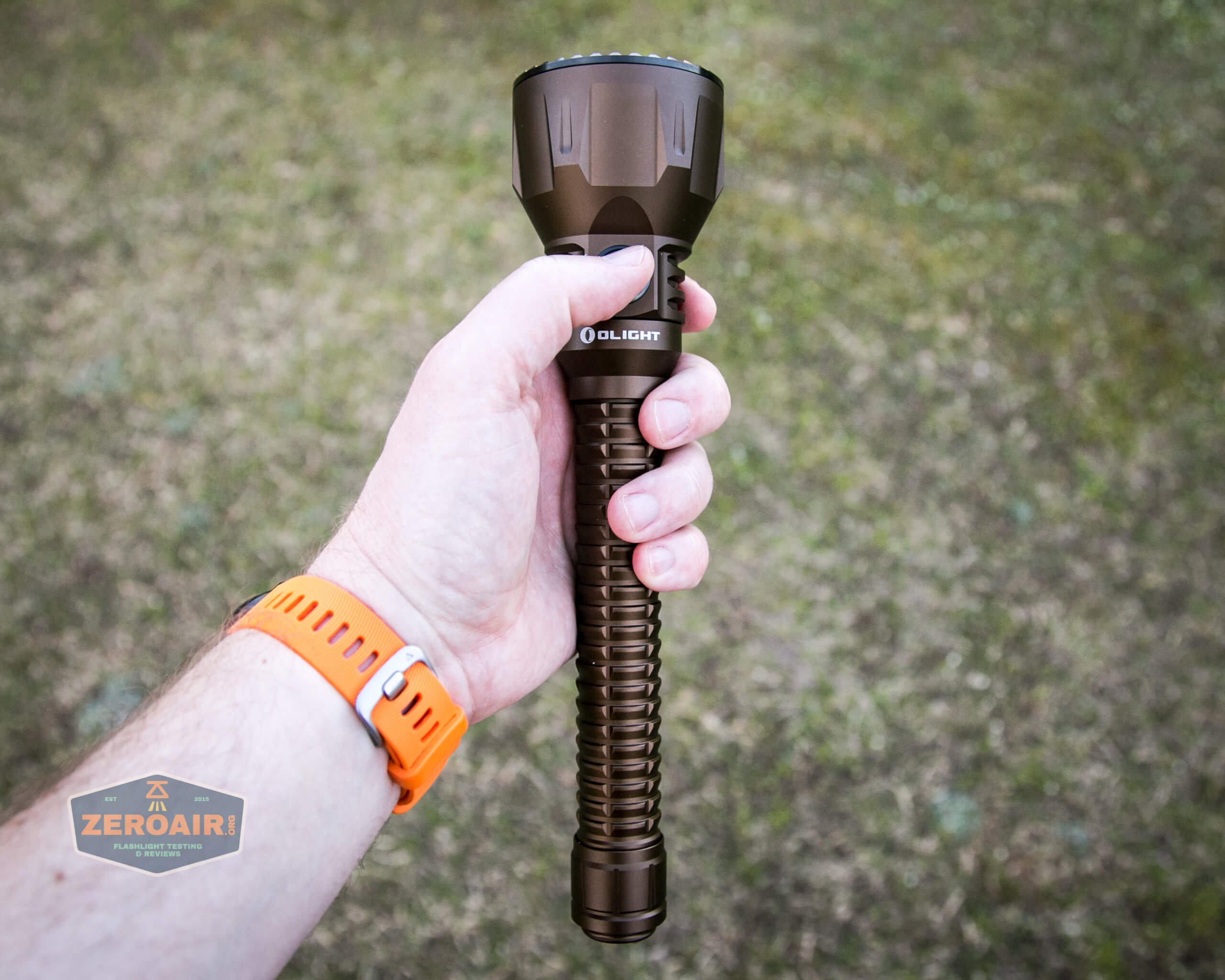

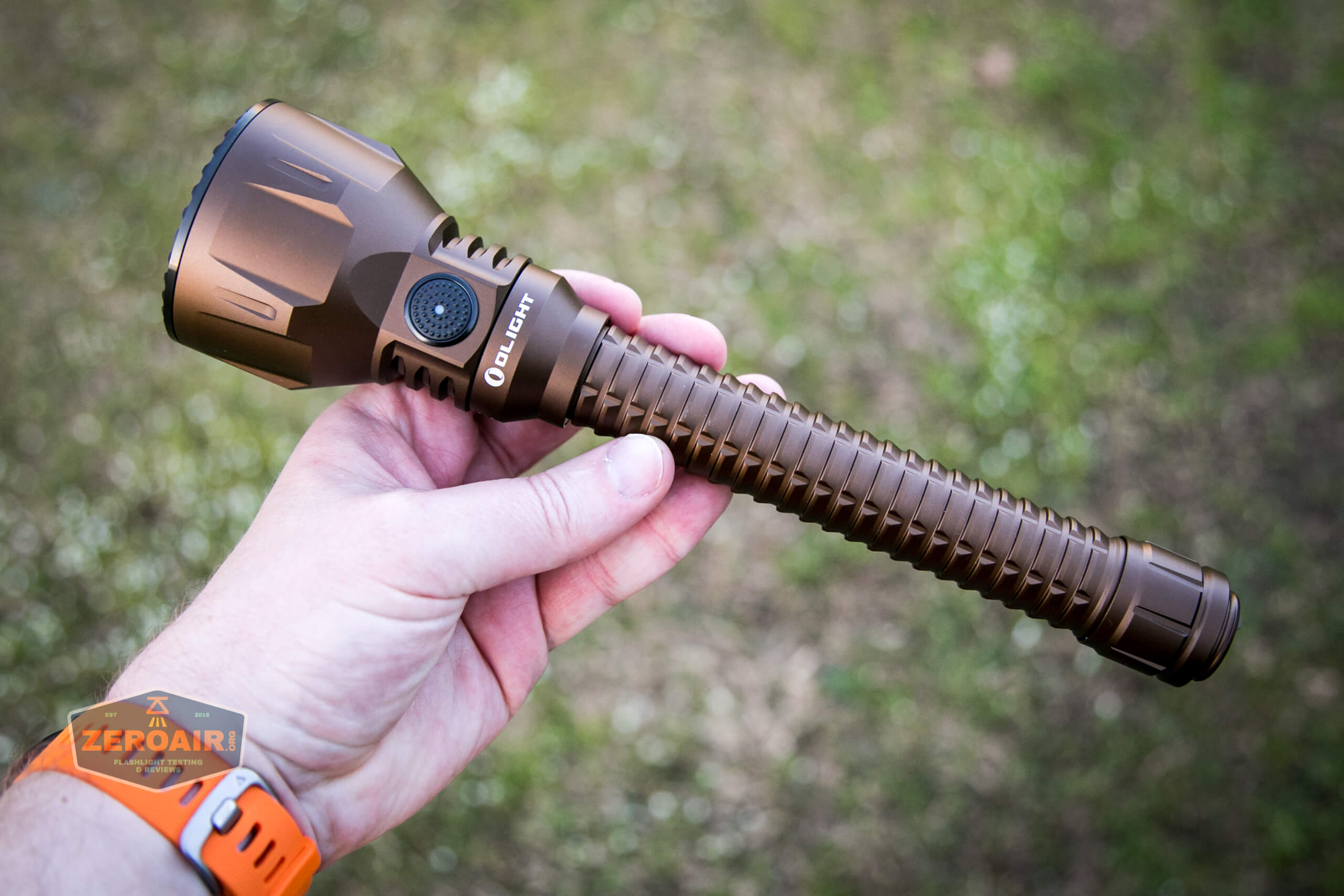

in hand

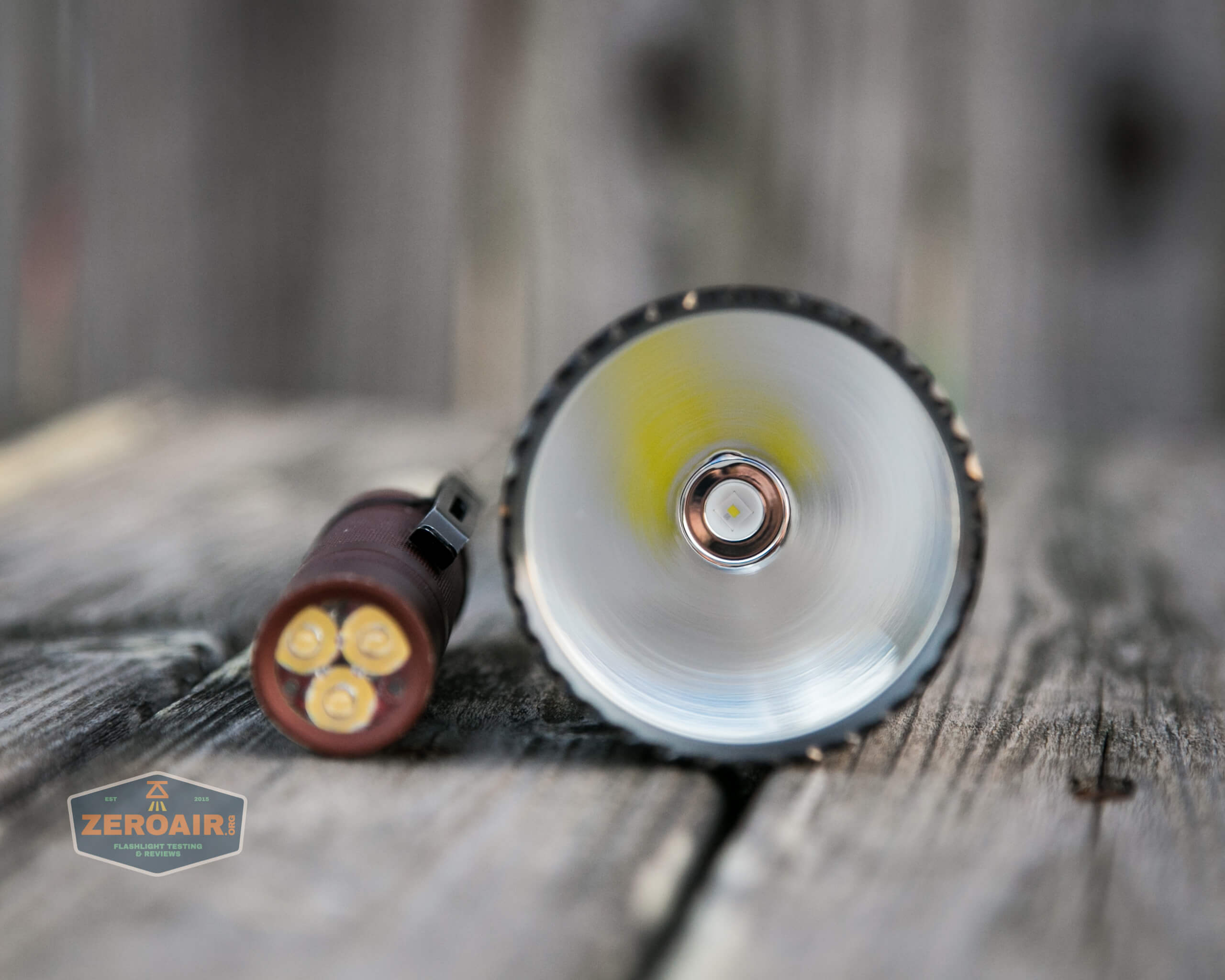

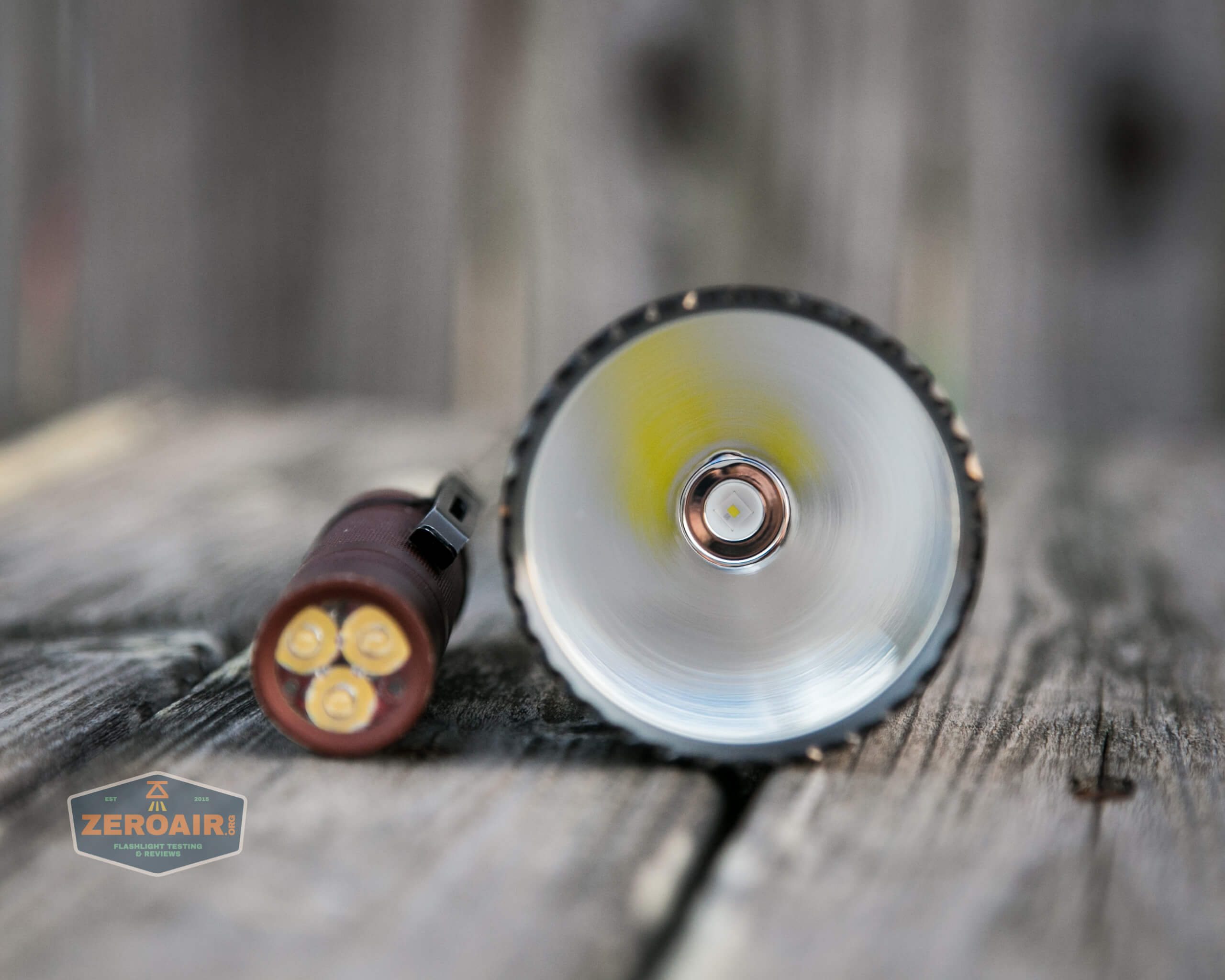

Here’s the test light with the venerable Convoy S2+.  Mine’s a custom “baked” edition Nichia 219b triple.  A very nice 18650 light.

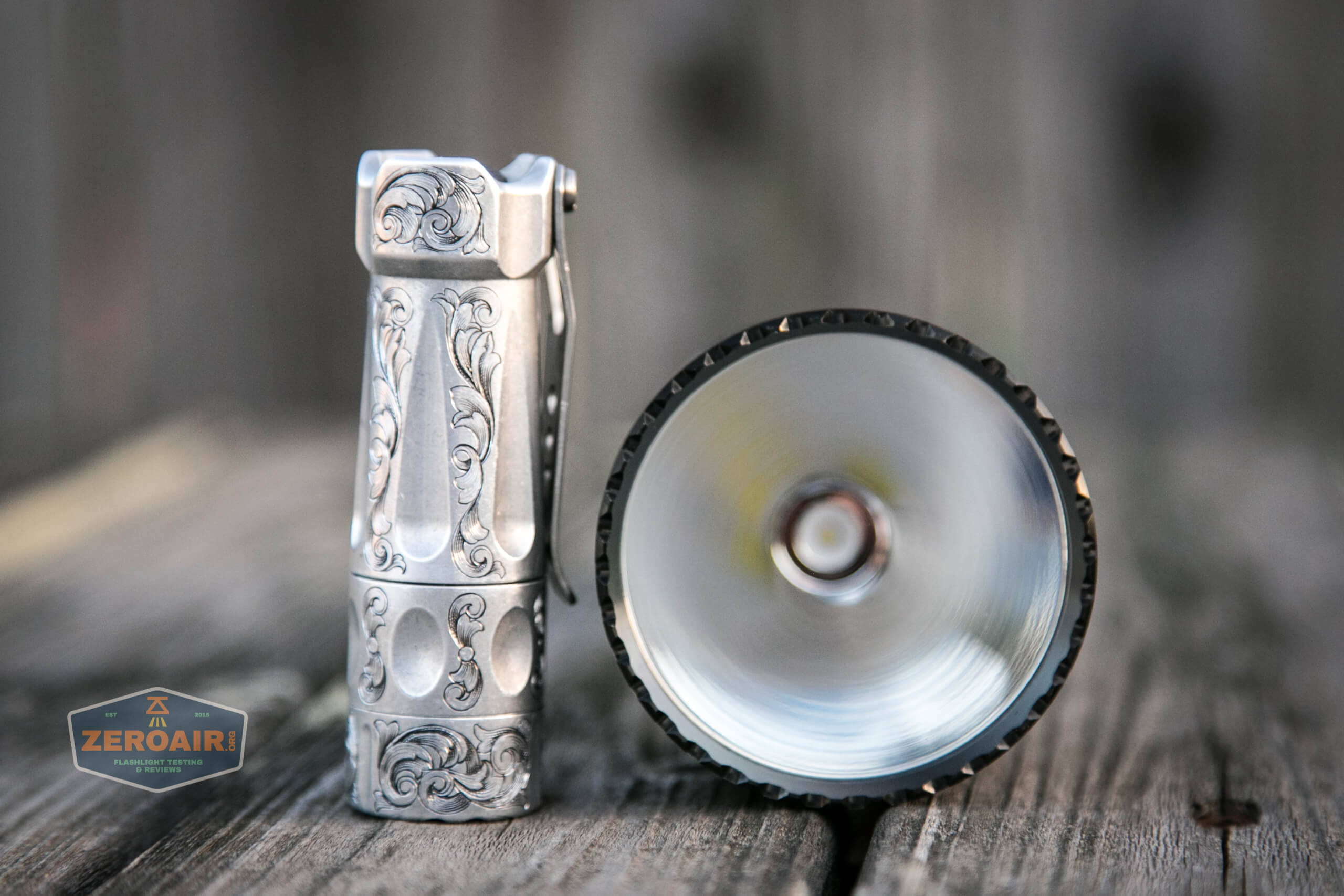

And here’s the light beside my custom engraved TorchLAB BOSS 35, an 18350 light.  I reviewed the aluminum version of that light in both 35 and 70 format.

beside torchlab boss 35

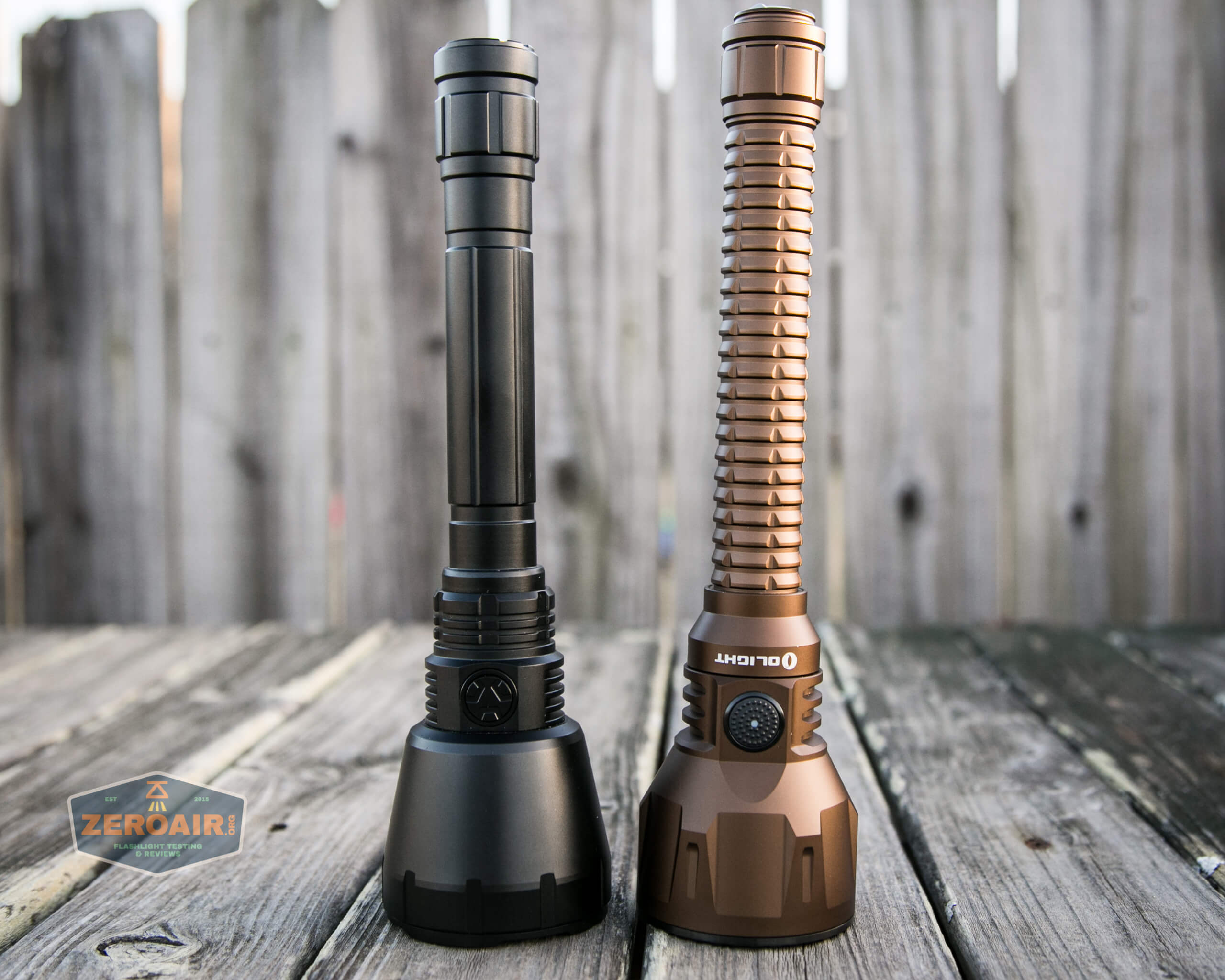

Here’s the Olight Javelot Turbo Thrower flashlight beside another similar sized lights.  These are very different lights though!  The Imalent UT90 uses a Luminus SBT90.2 emitter, and does throw but the main goal is just massive output.  So similar in look, but very different lights!

And here’s a joke shot of the Olight – head and tail with the battery tube removed.  No it doesn’t work, of course.  It’s not even screwed together.

joke!

Retention and Carry

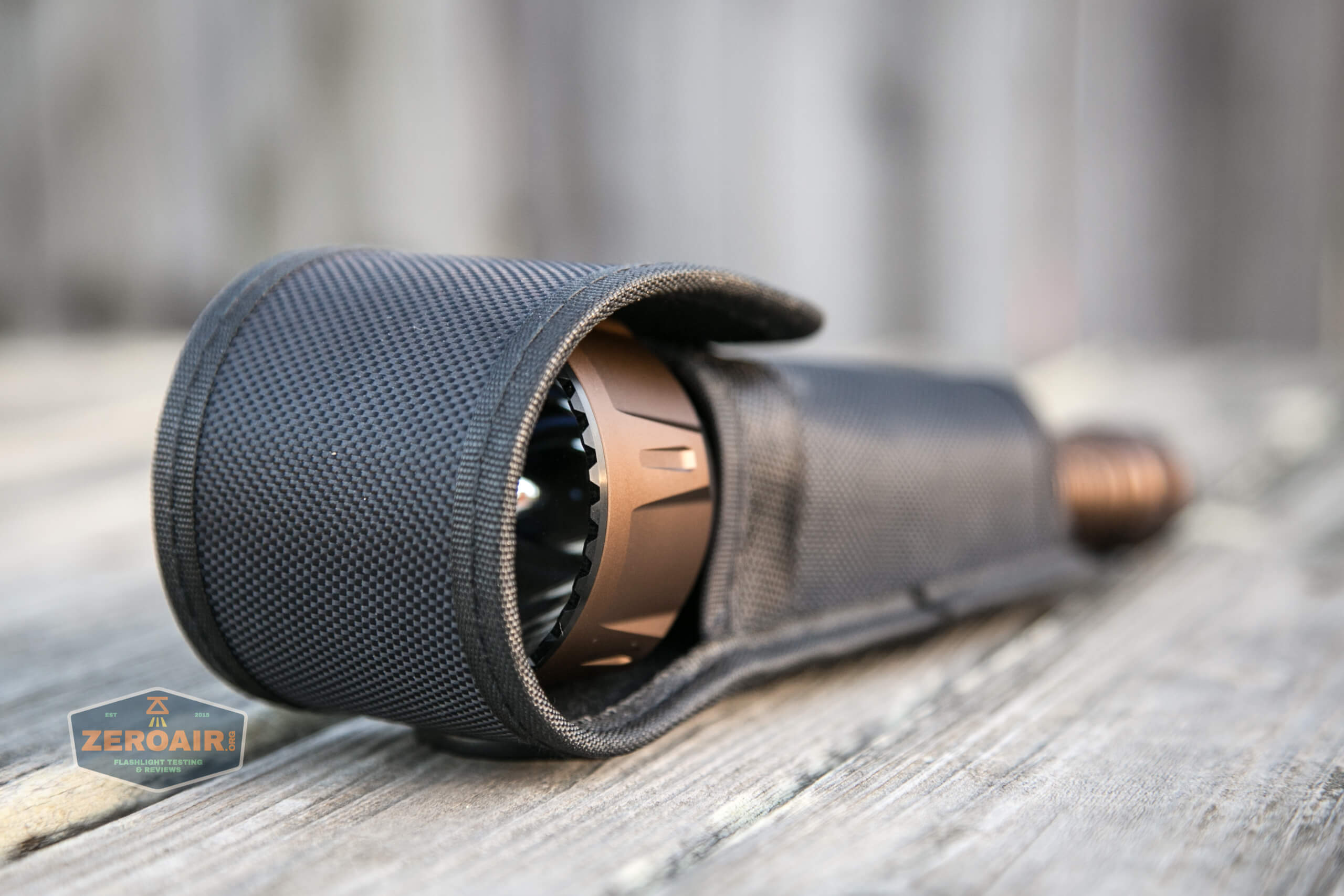

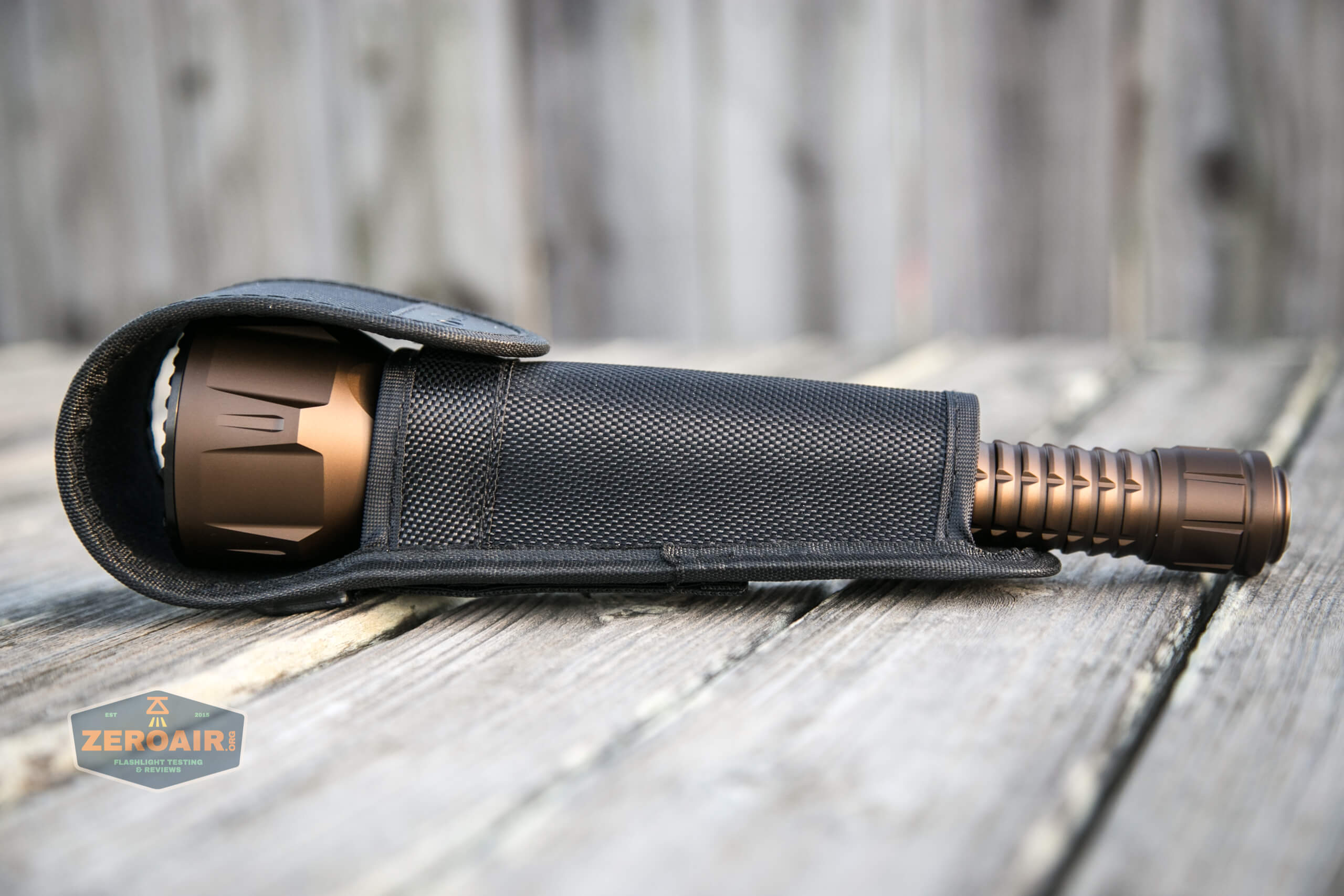

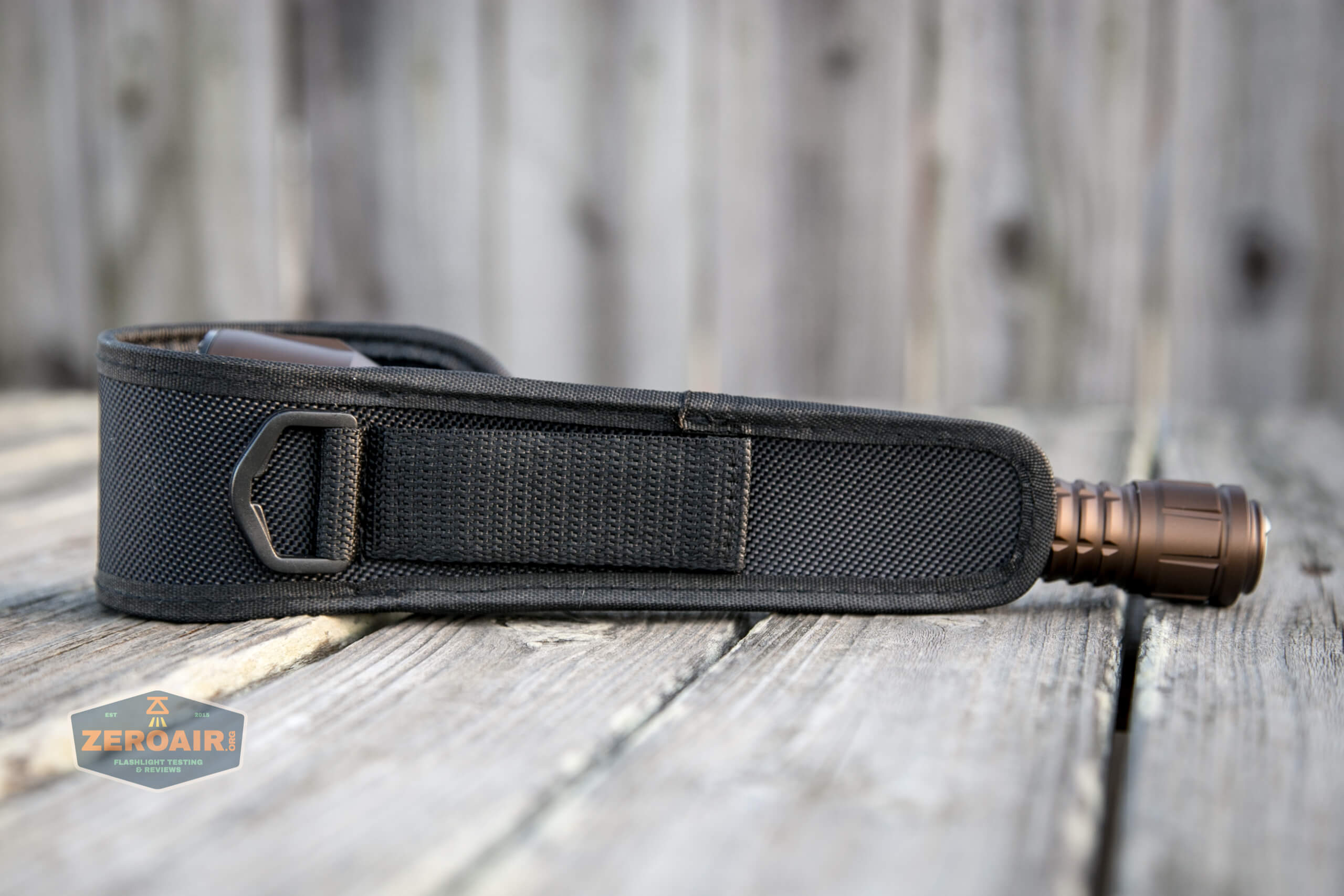

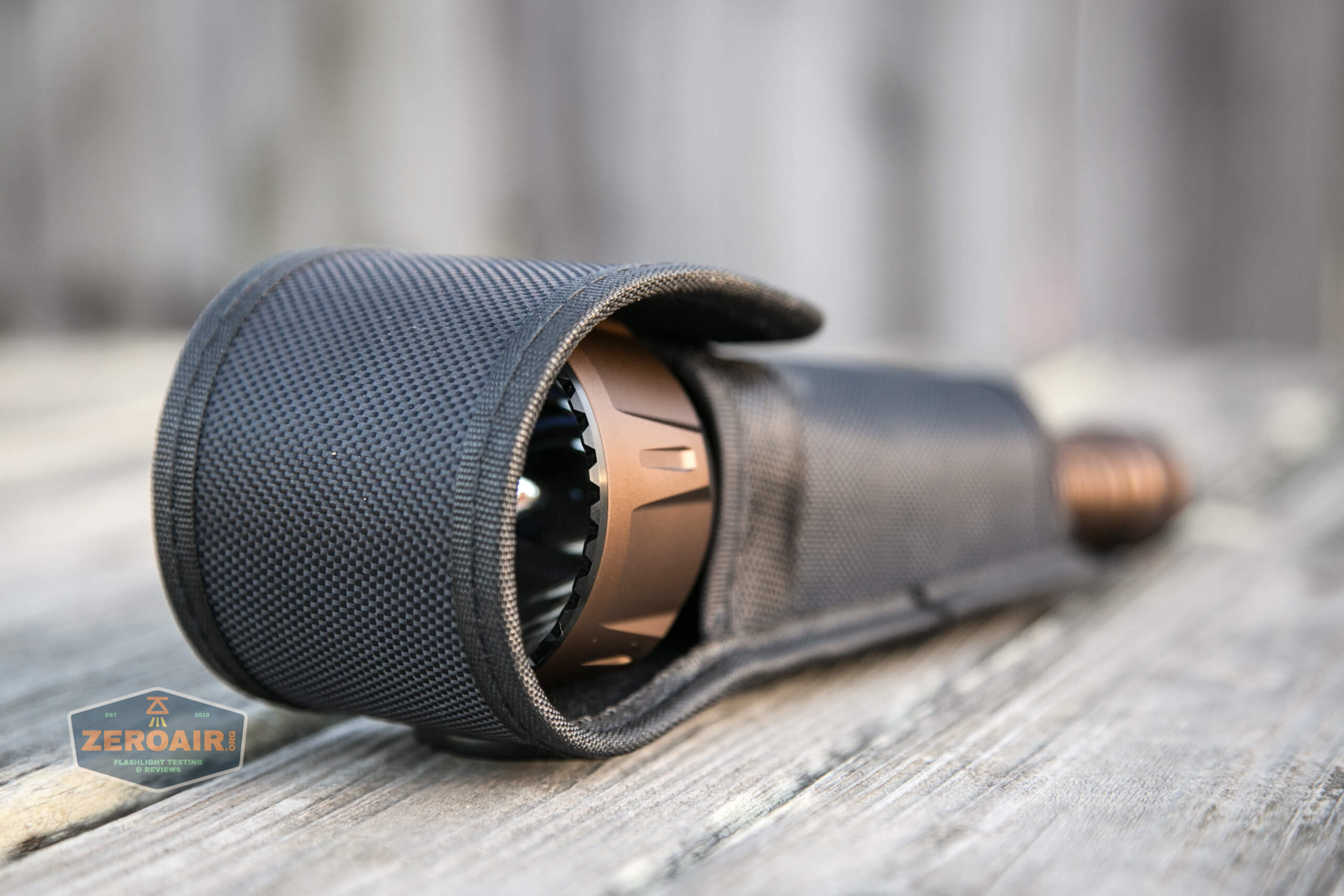

Carry of the Olight Javelot Turbo Thrower flashlight is by way of a nylon pouch.

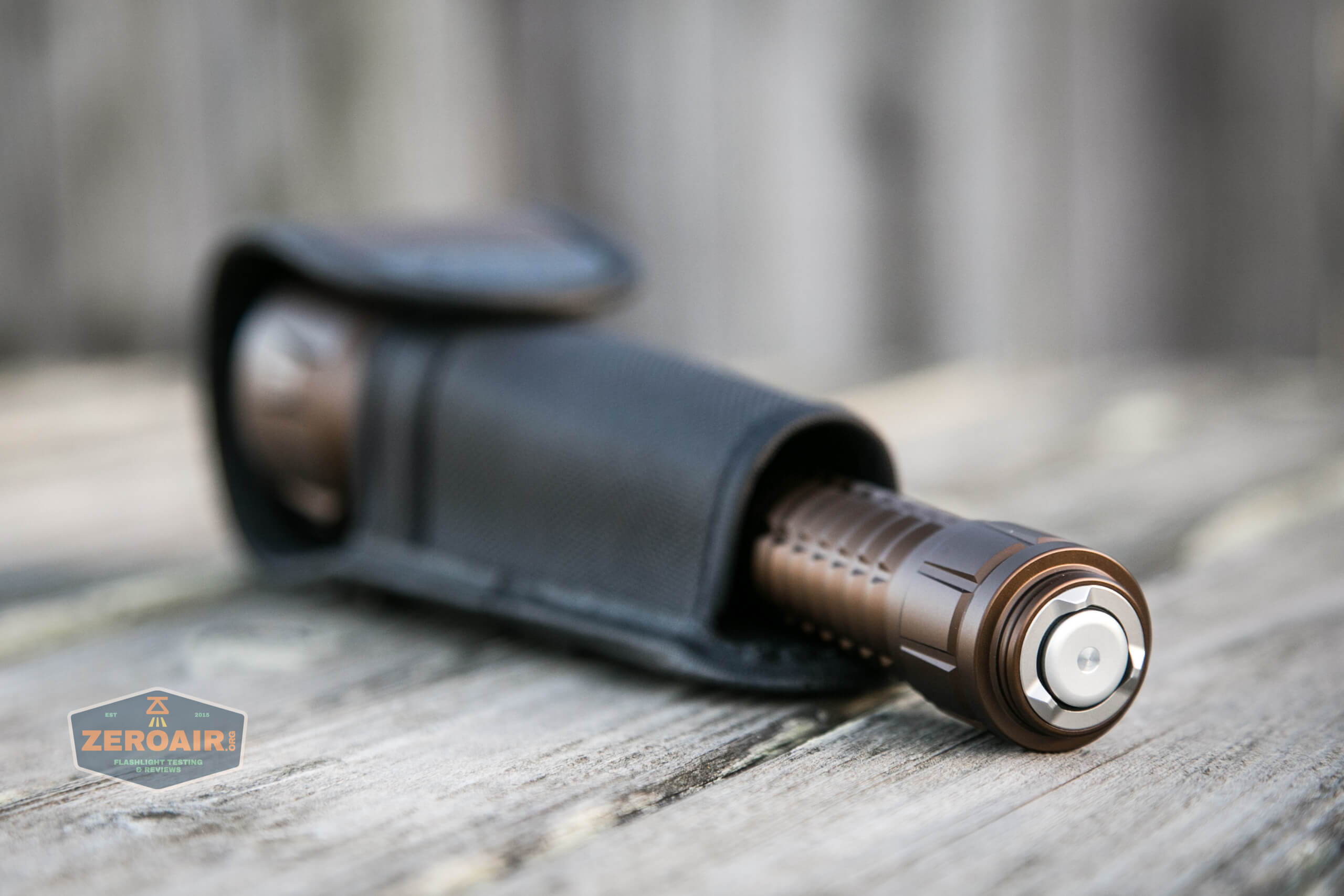

in nylon pouch

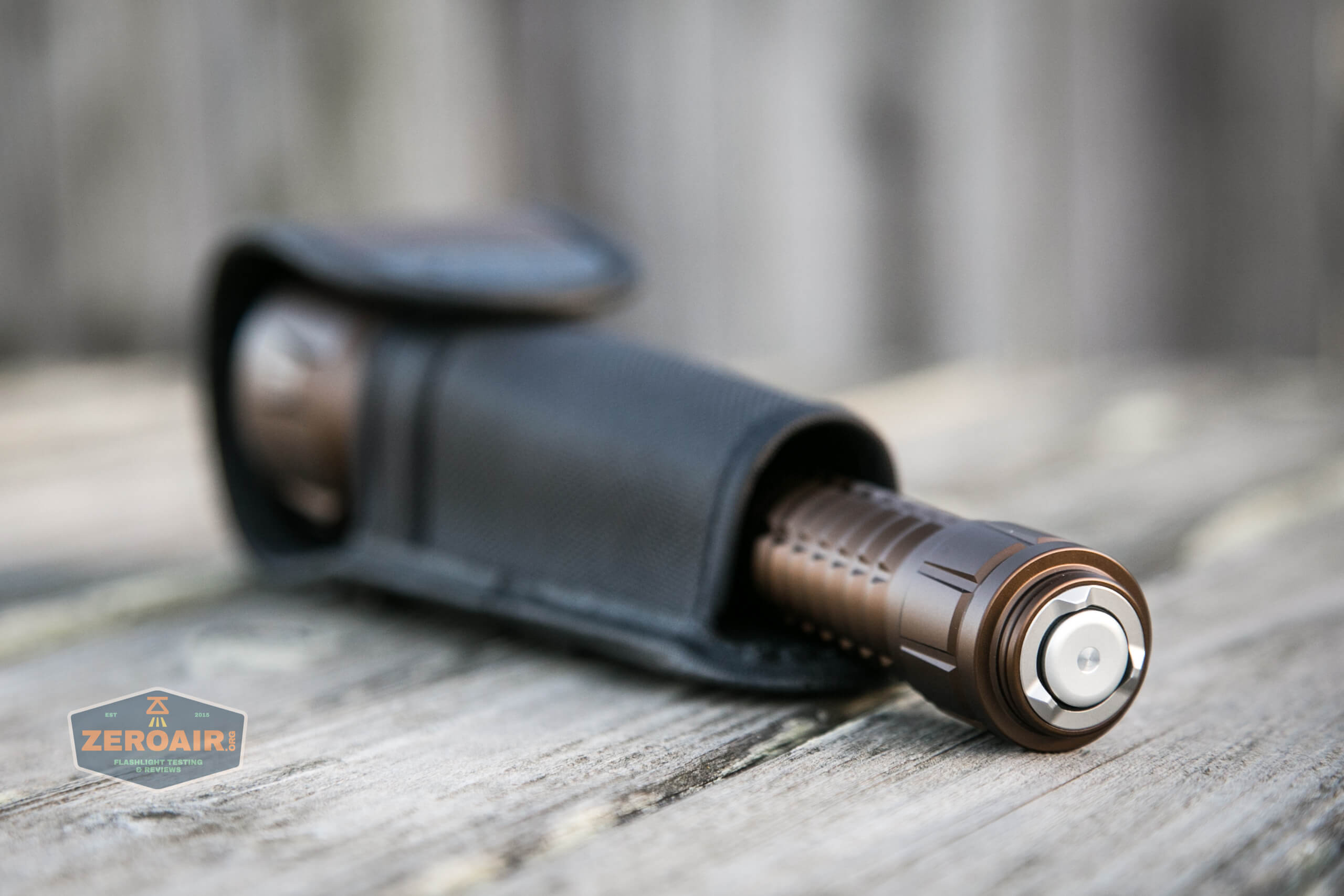

The pouch is directional, with the light sort of “hanging” inside, resting at the top against the head.

The tailswitch is accessible, but the top isn’t open.

in nylon pouch

There are no other carry options here.

Power and Runtime

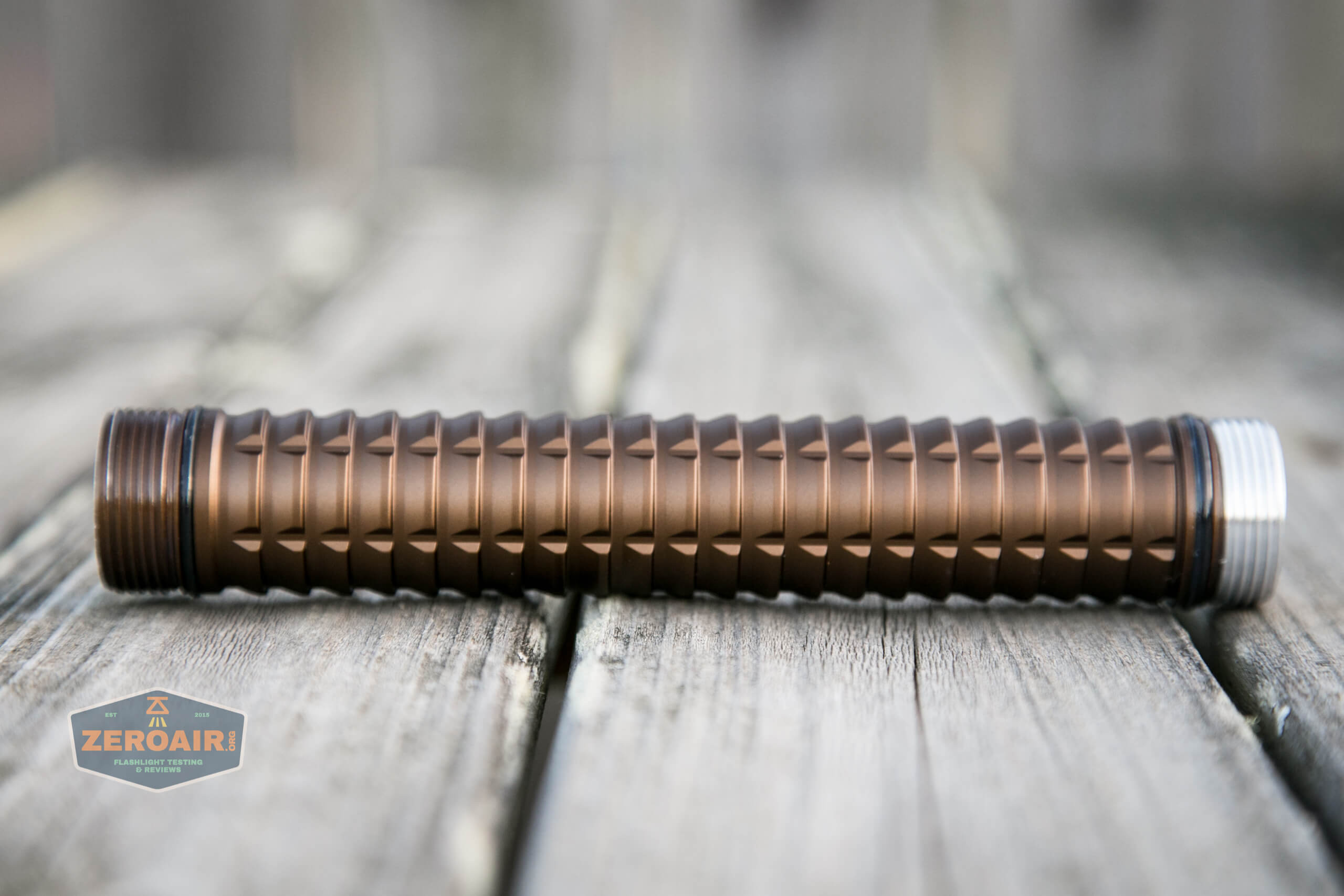

Power is provided to the Olight Javelot Turbo Thrower flashlight by this included battery pack cell tube.  Inside this is two 5000mAh 21700 cells.

battery tube

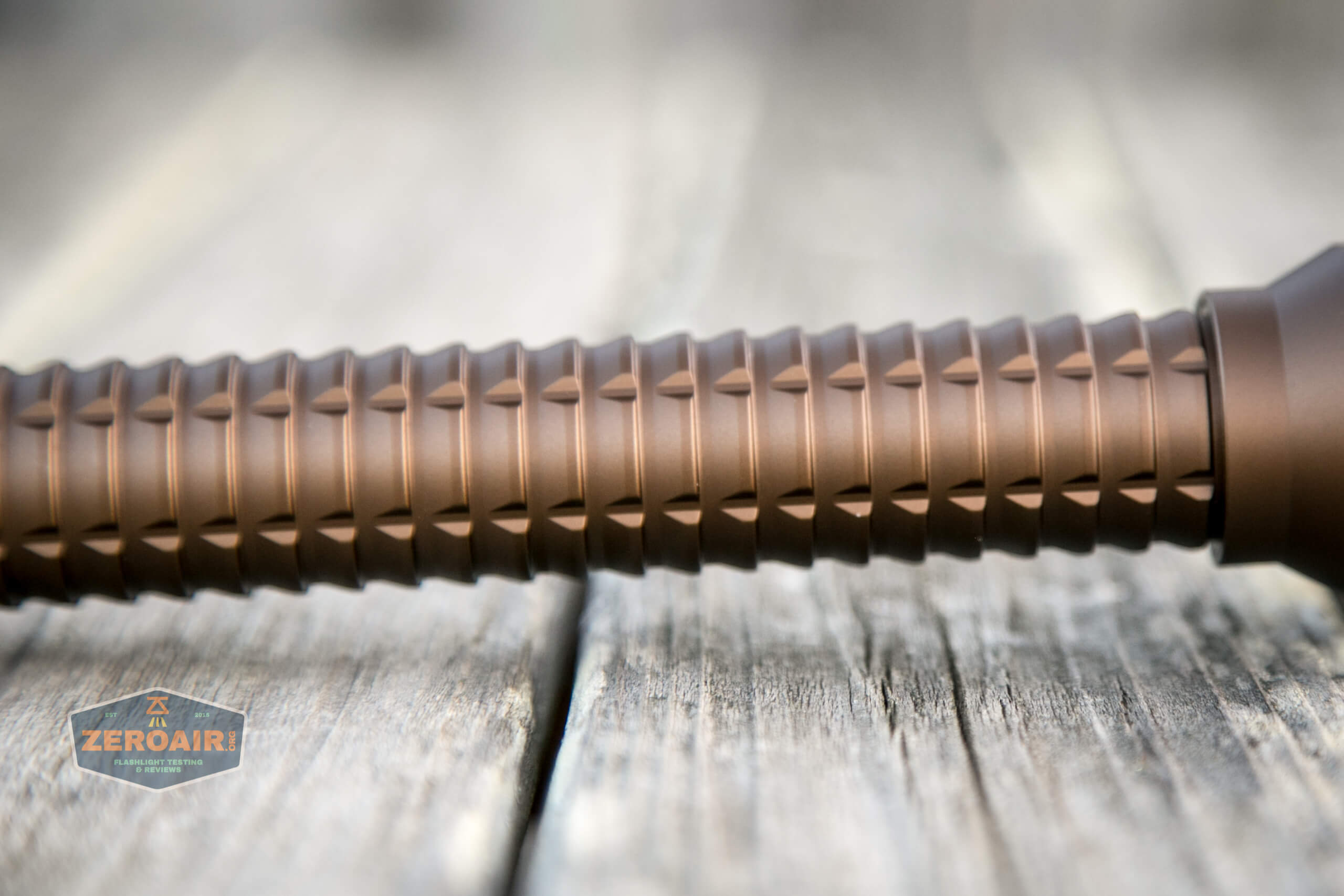

This battery makes for a very nice grip, and for holding the light.

battery tube contacts

Note the contacts on the head there – typical of the new Olights.  That means that the battery pack has the usual contacts – positive center with a negative surround.

battery tube

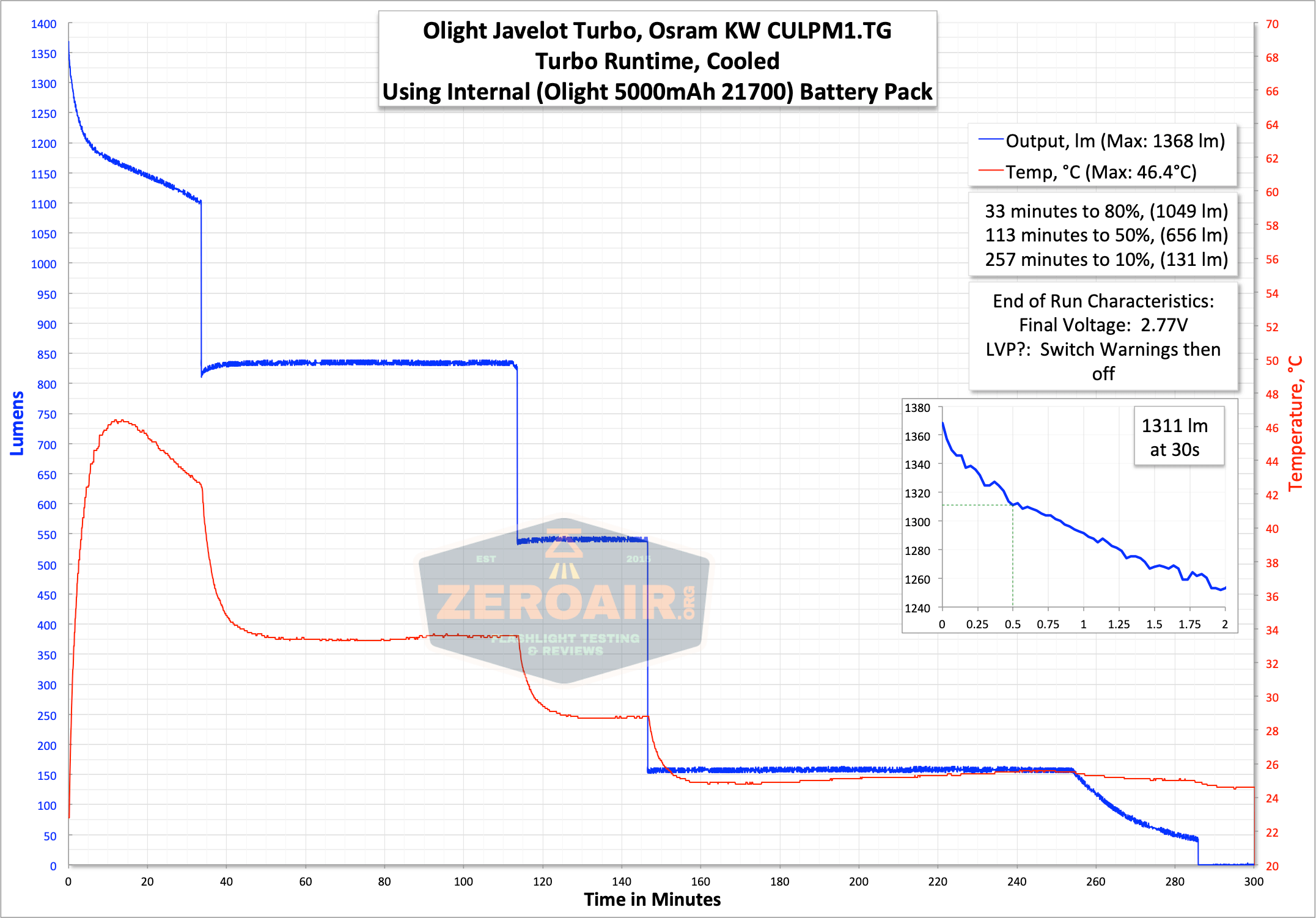

Here are three runtime tests (three of the four modes!)  Turbo notably hits the 1300 lumen claim at 30 seconds, which is great (peaking at 1368 initially).  Then there are a number of stepdowns, and finally the light shuts off with low voltage protection.

runtime graph turbo

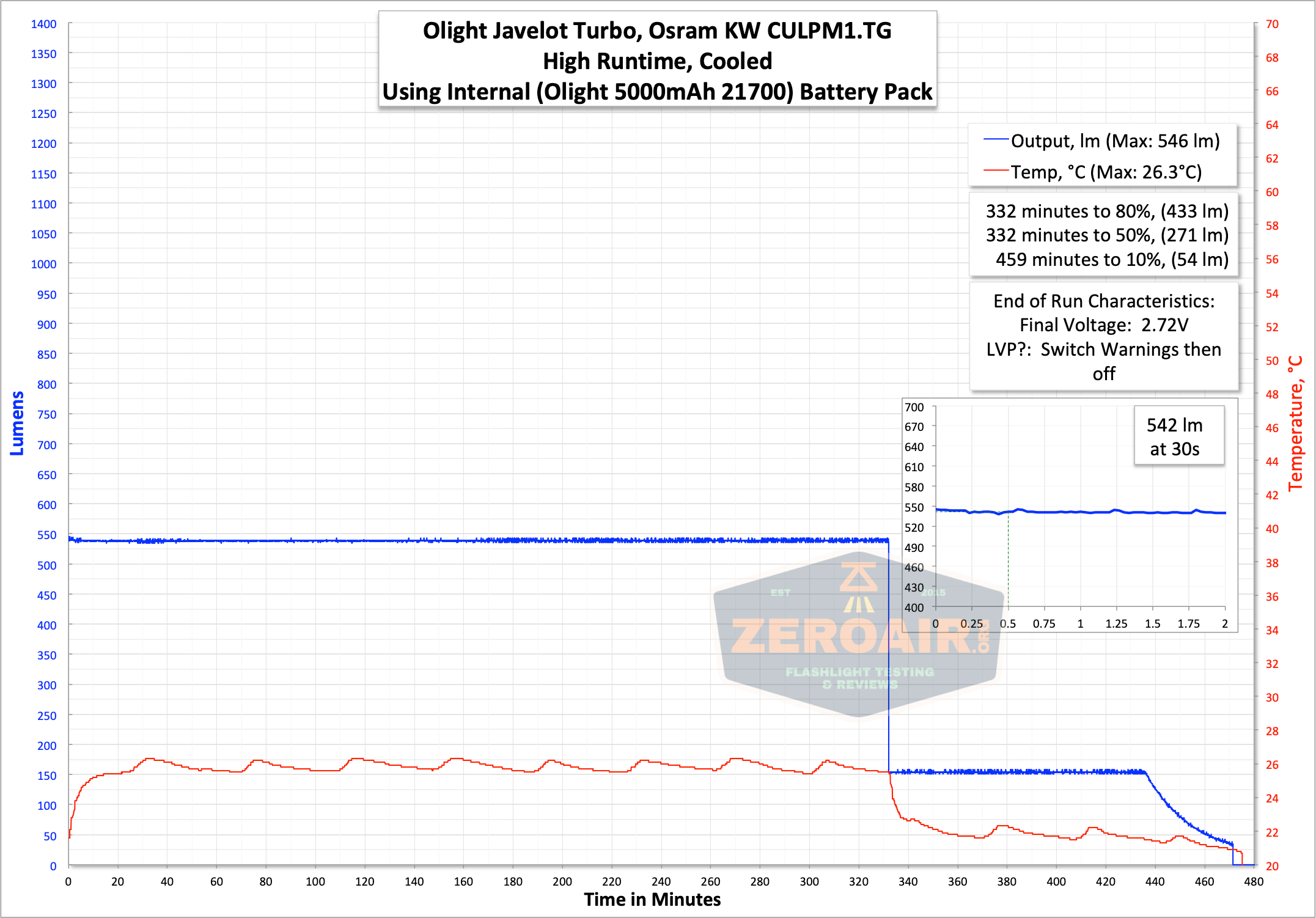

High output is very flat for nearly the duration, until a stepdown, and finally shutting off.

runtime graph high

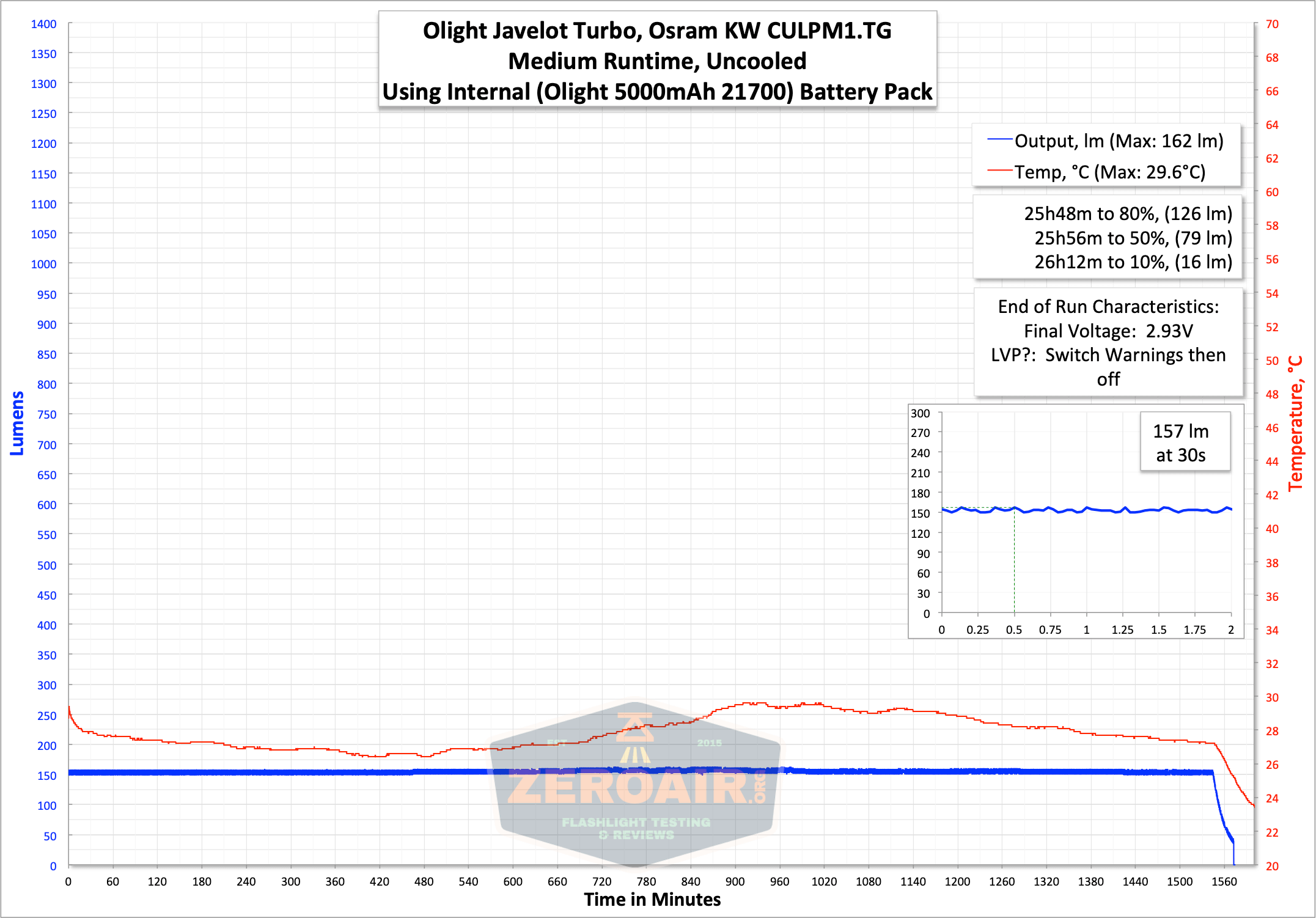

And medium, whew this one took a while!  Not only did the test take over 26 hours, the processing of data took probably an hour.  My computer just does not like these files!!

runtime graph medium

In all cases, the light shut off with low voltage protection after multiple switch warnings.  First the switch will be green, then orange, then red, then red flashing, then off.

Charging

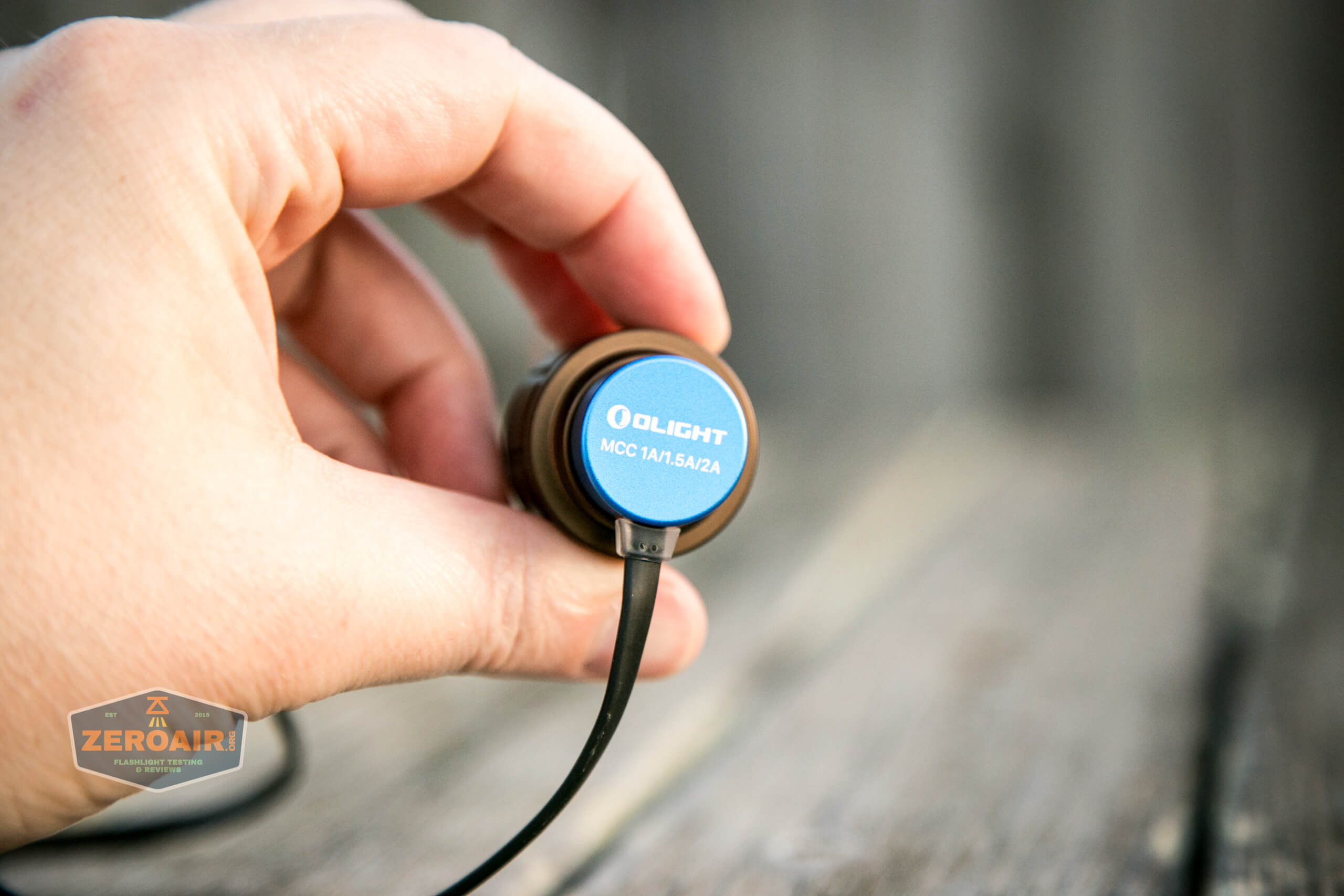

The Olight Javelot Turbo Thrower flashlight charges by way of the standard MCC charge connector.

charger mcc

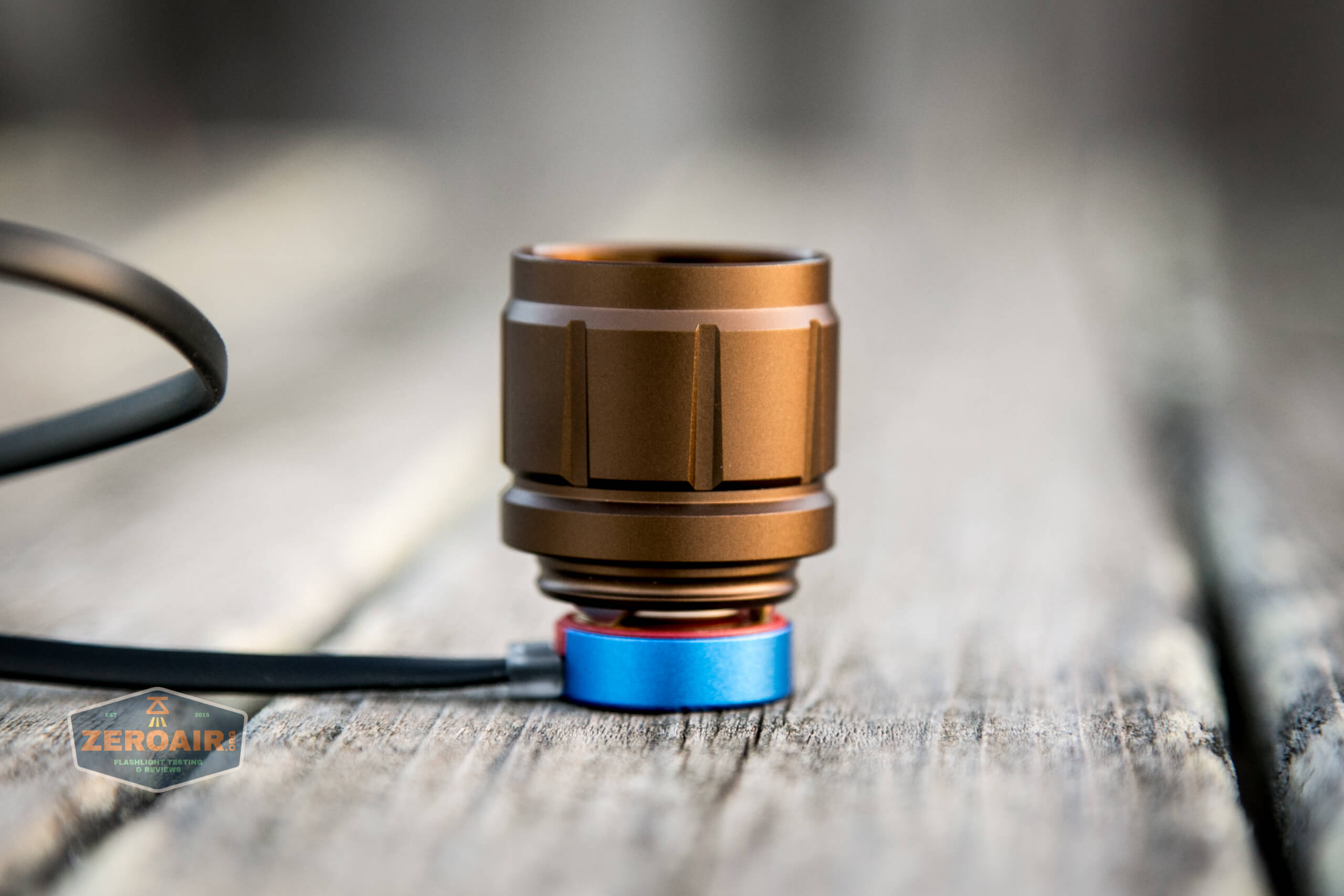

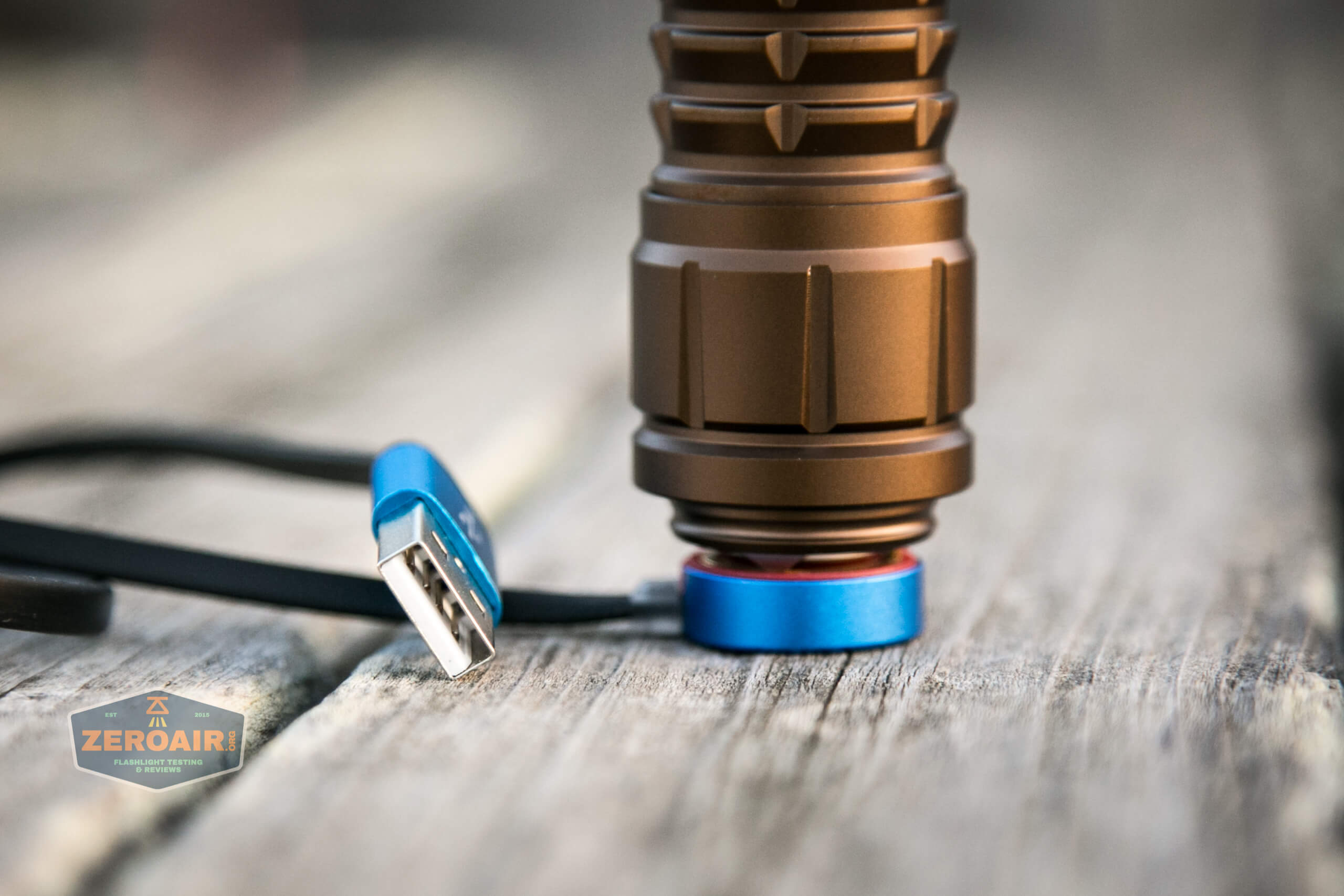

This proprietary magnetic charger snaps to the tailcap of the light.

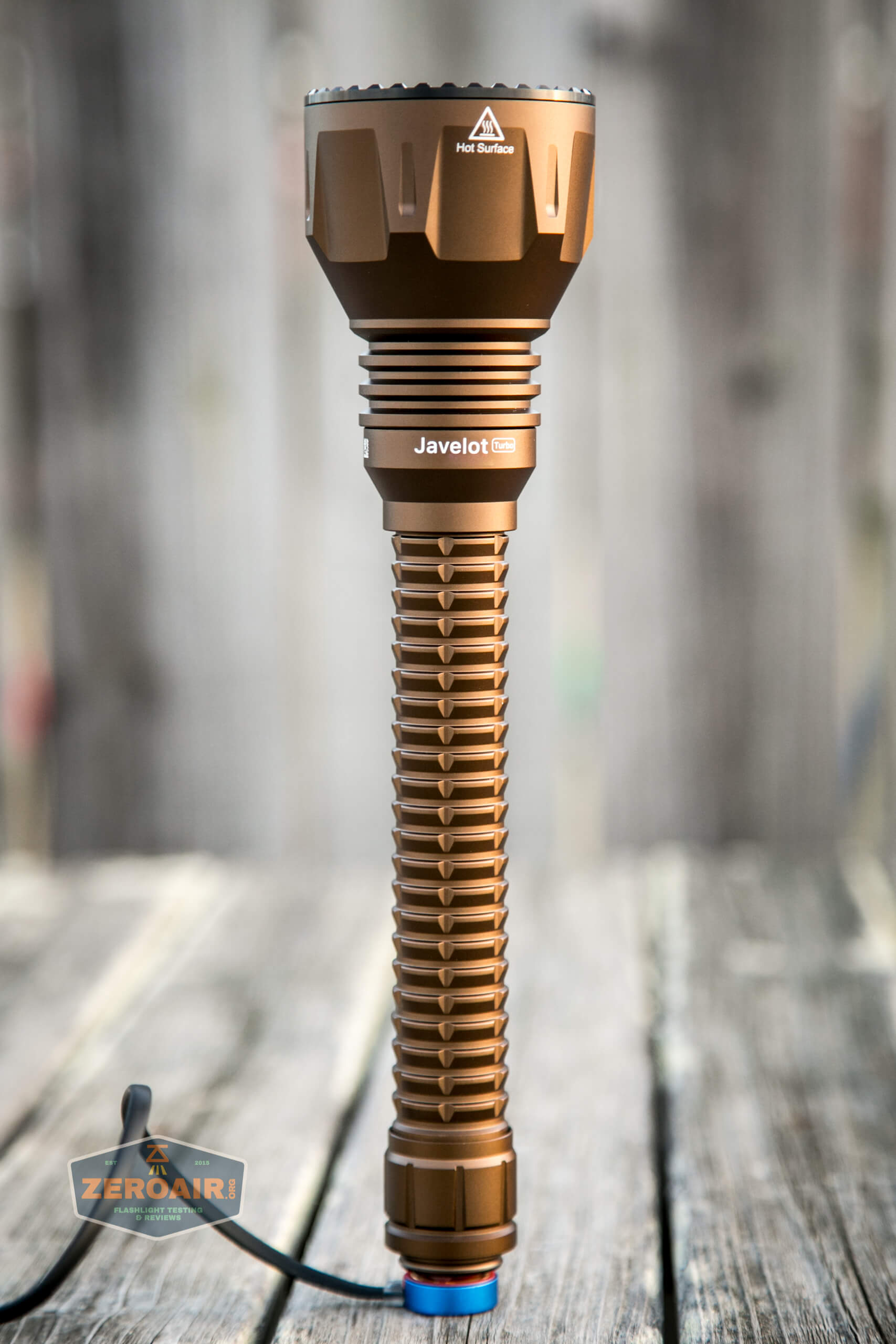

charger mcc on tailcap

The light will tailstand while on the charger, too.

charger mcc tailstanding

Interestingly, the head must be on the battery pack for charging to proceed.  This is just a little frustrating, because of two reasons.  It means you can’t really buy a backup battery for swapping while the other is charging.

charger mcc tailstanding

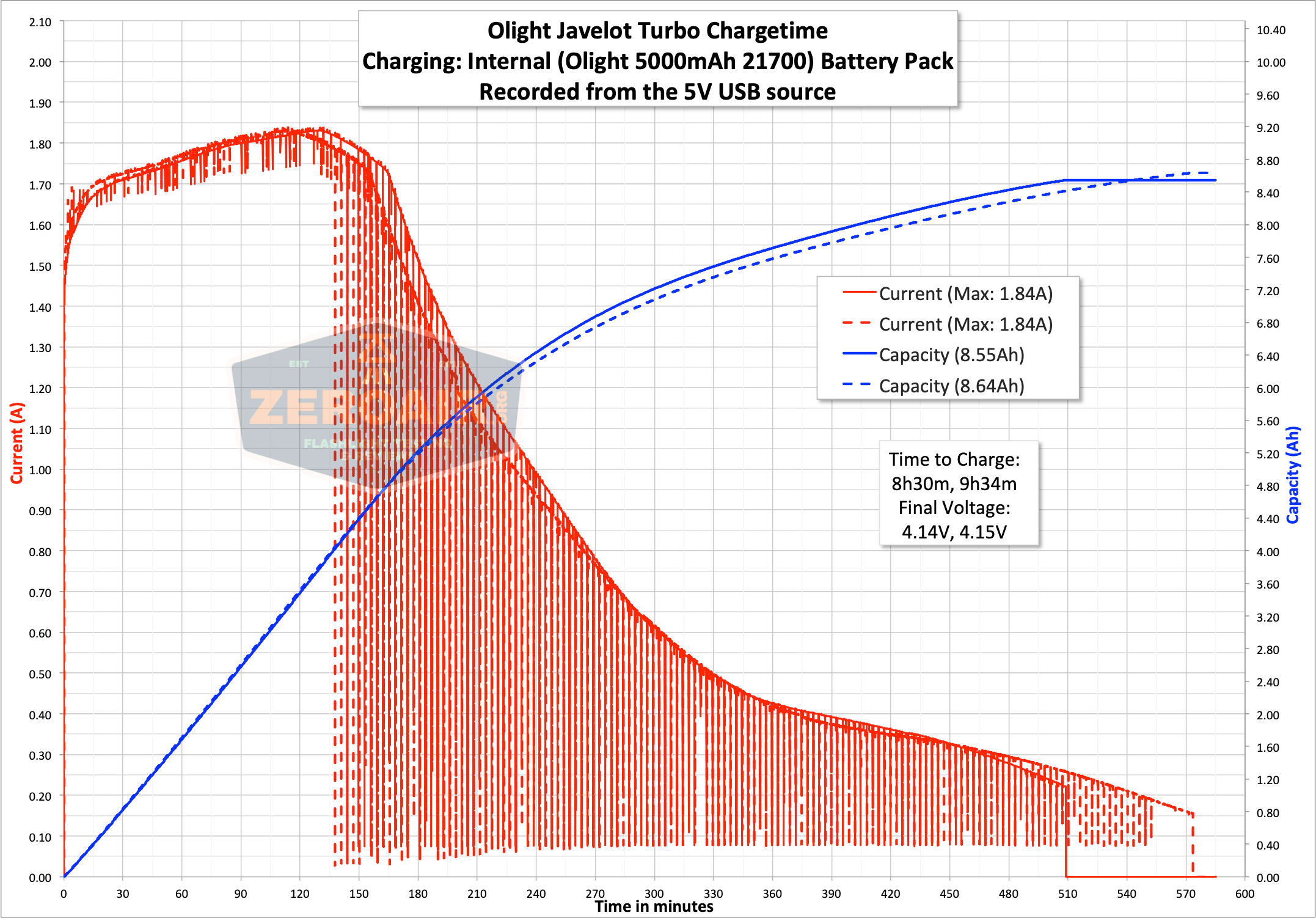

It’s also frustrating because charging takes so long.  At an average of 9 hours, this is a long charge cycle.  It’s not really “slow” though – peak current is around 2A.

charge graph

One more thing – those two 21700 cells are in parallel connection.  That means the battery pack voltage is peak 4.2V, and so charging at 2A is probably around the peak current recommendation per cell (just under 1C).

Now the fact that this battery is parallel is interesting…. How they’re making two cells end to end be parallel I do not know, but it’s definitely something more than just two 21700 cells slid into the tube.  It also means something like this is possible:

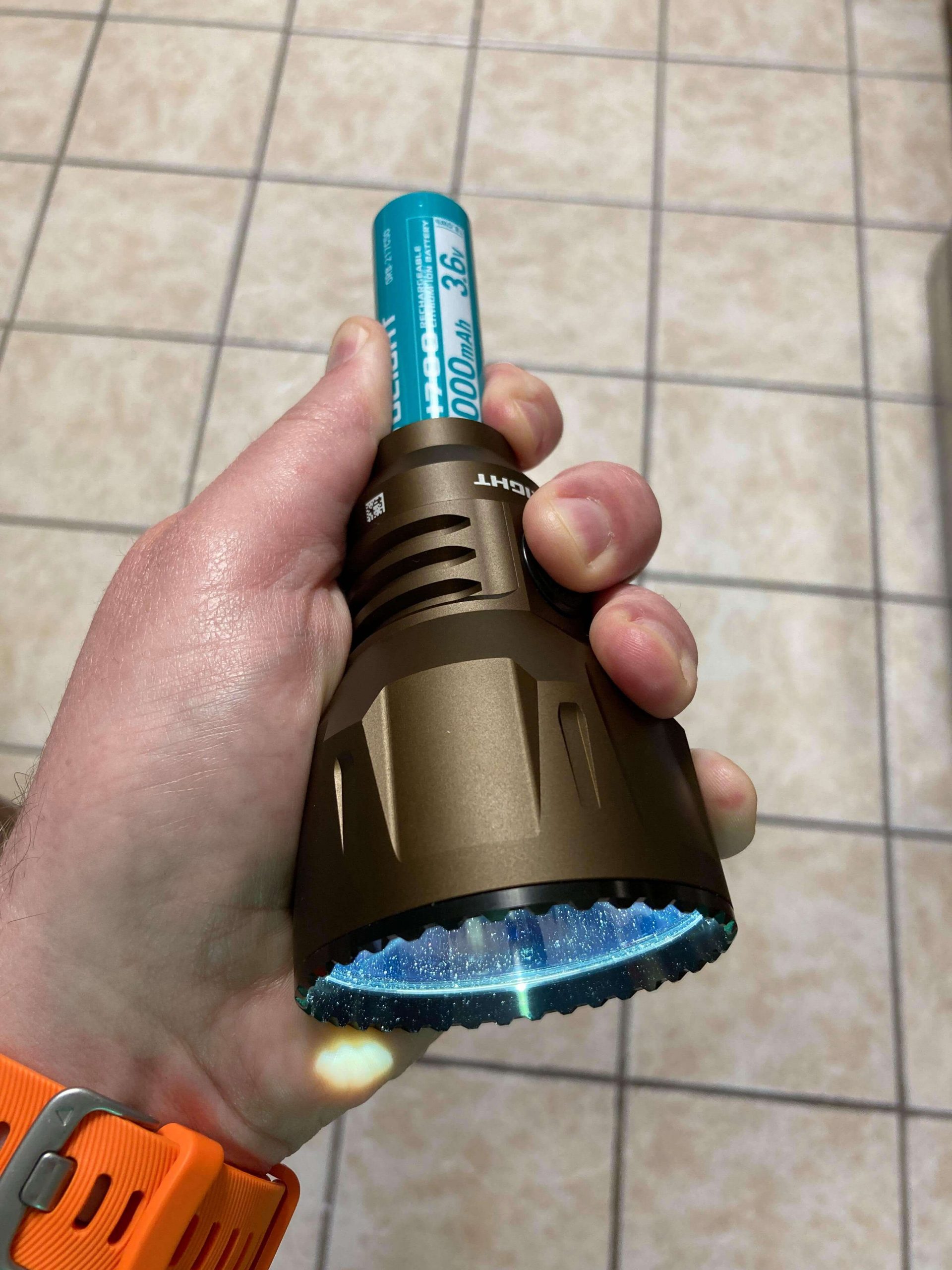

on single 21700

The cell contact points are the same, the voltage is the same…. There’s no reason a single 21700 tube just like on other lights (like the M2R Pro Warrior) wouldn’t work.  And also this “shorty” configuration would be absolutely fantastic (maybe it exists, maybe I should check.)

Modes and Currents

Mode Mode Claimed Output (lm) Claimed Runtime Measured Lumens Tailcap Amps
Turbo 1300/800/500/150 10m/140m/30m/110m 1311 6.72
High 500/150 350m/130m 542 1.35
Medium 150 27h 157 0.31
Low 15 318h 12 0.04

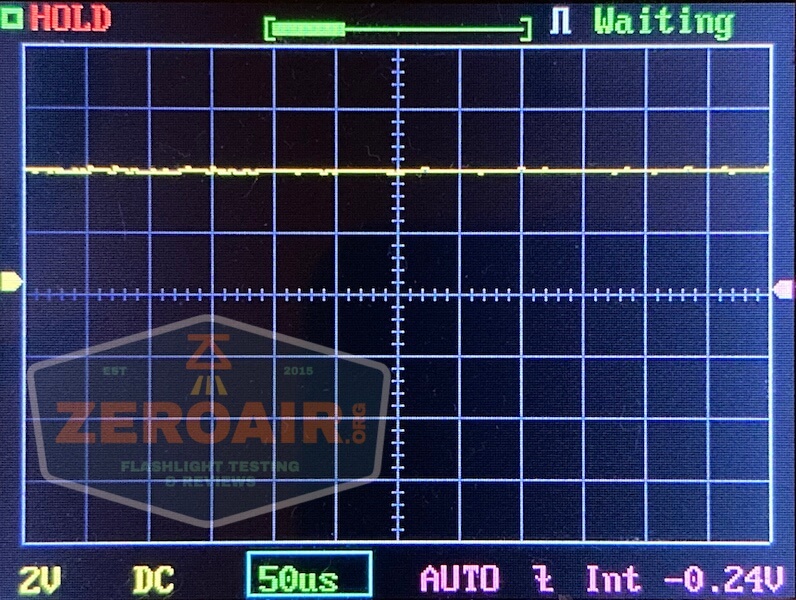

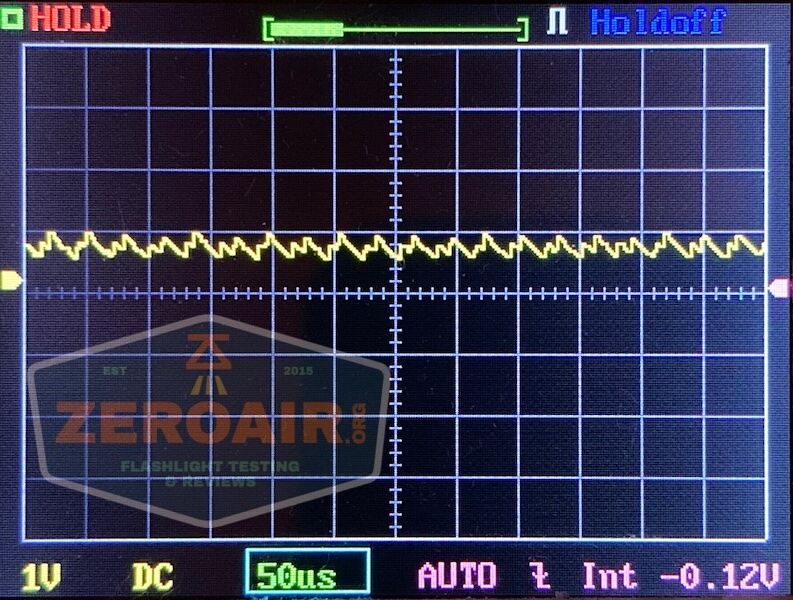

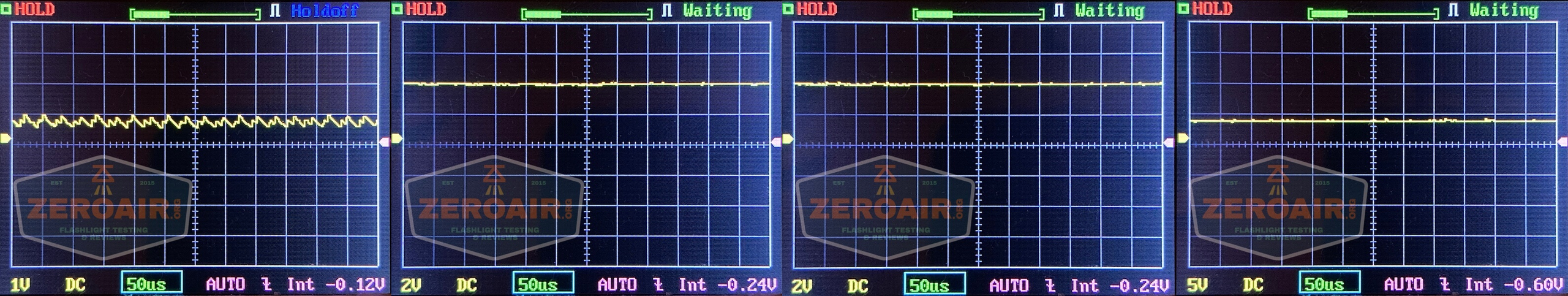

Pulse Width Modulation

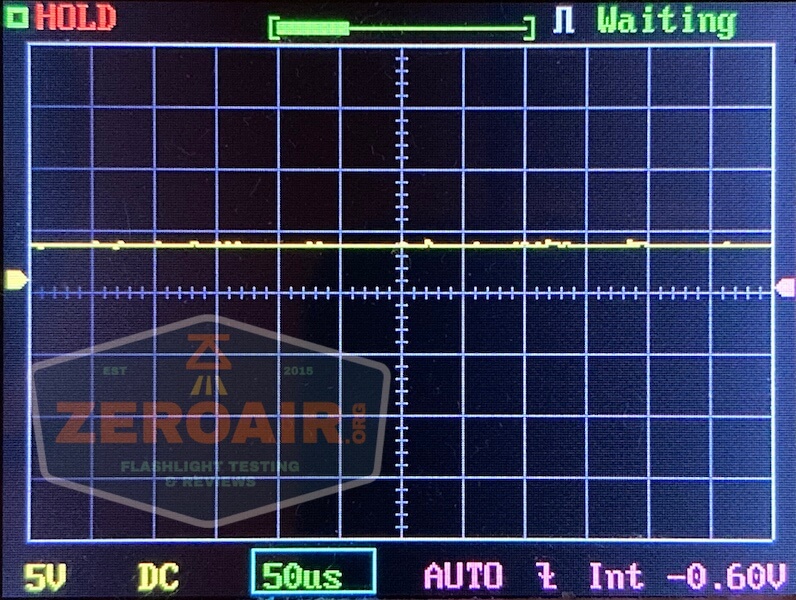

No pwm at all!

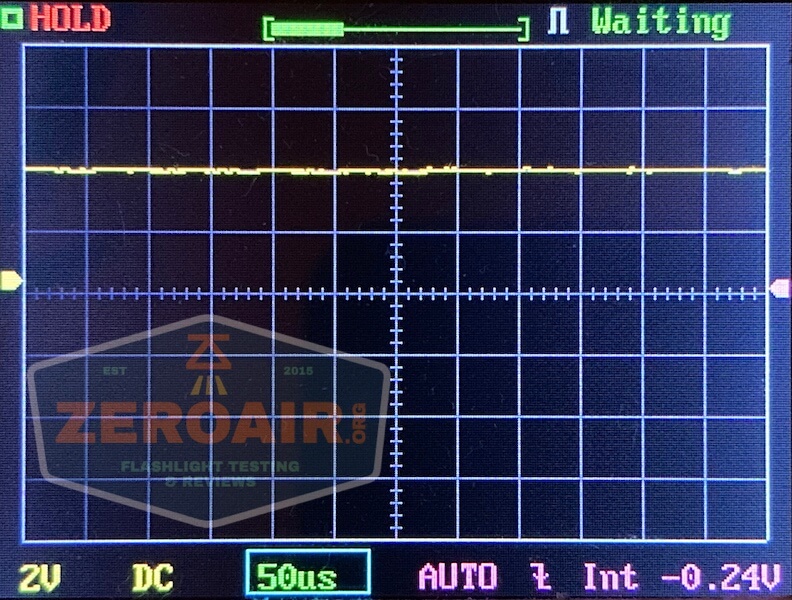

For reference, here’s a baseline shot, with all the room lights off and almost nothing hitting the sensor.  And here’s the worst PWM light I have ever owned.  Also one of the very first lights I ordered directly from China!

User Interface and Operation

There are two switches on the Olight Javelot Turbo Thrower flashlight.  First is the metal tail switch which also is used in charging.

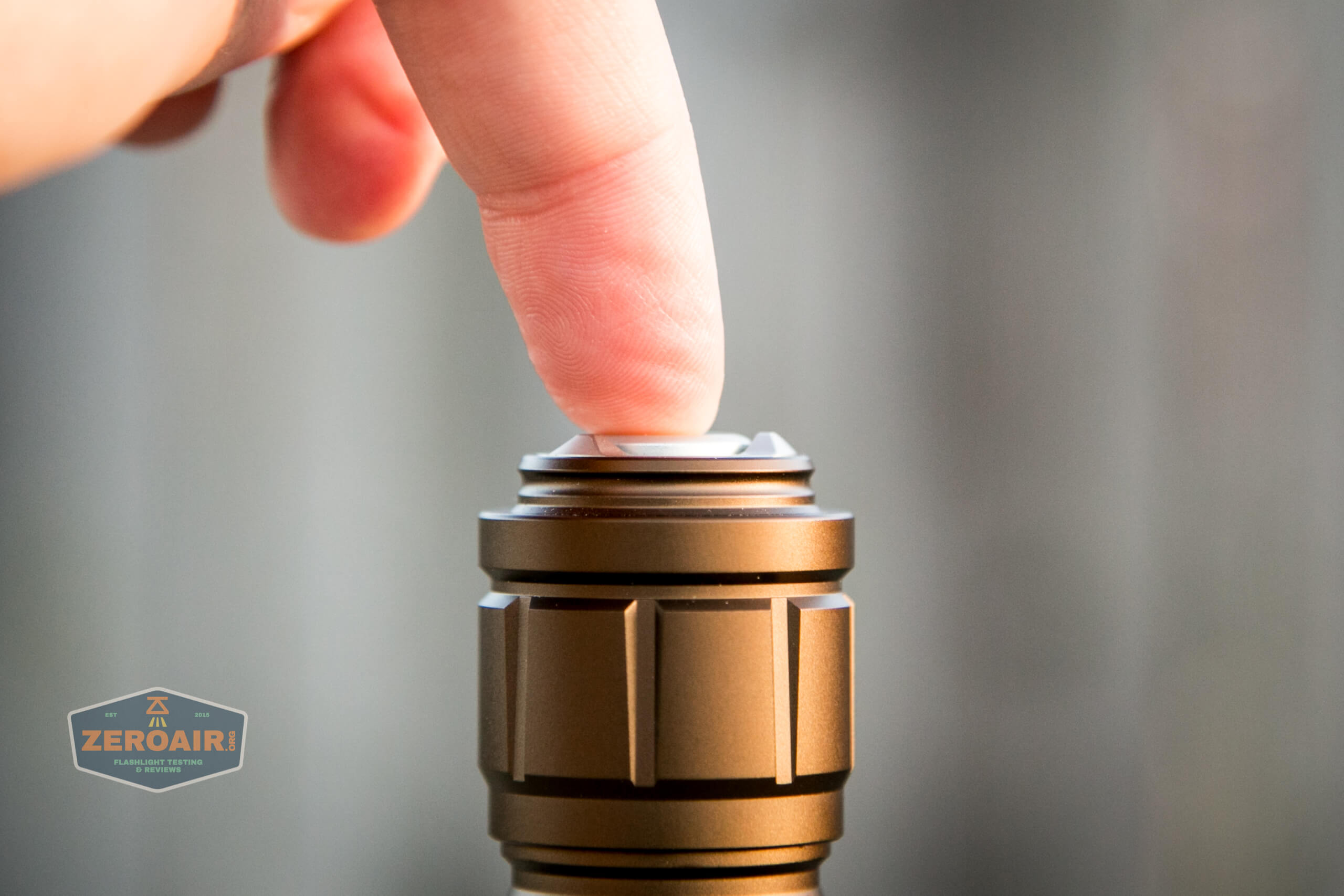

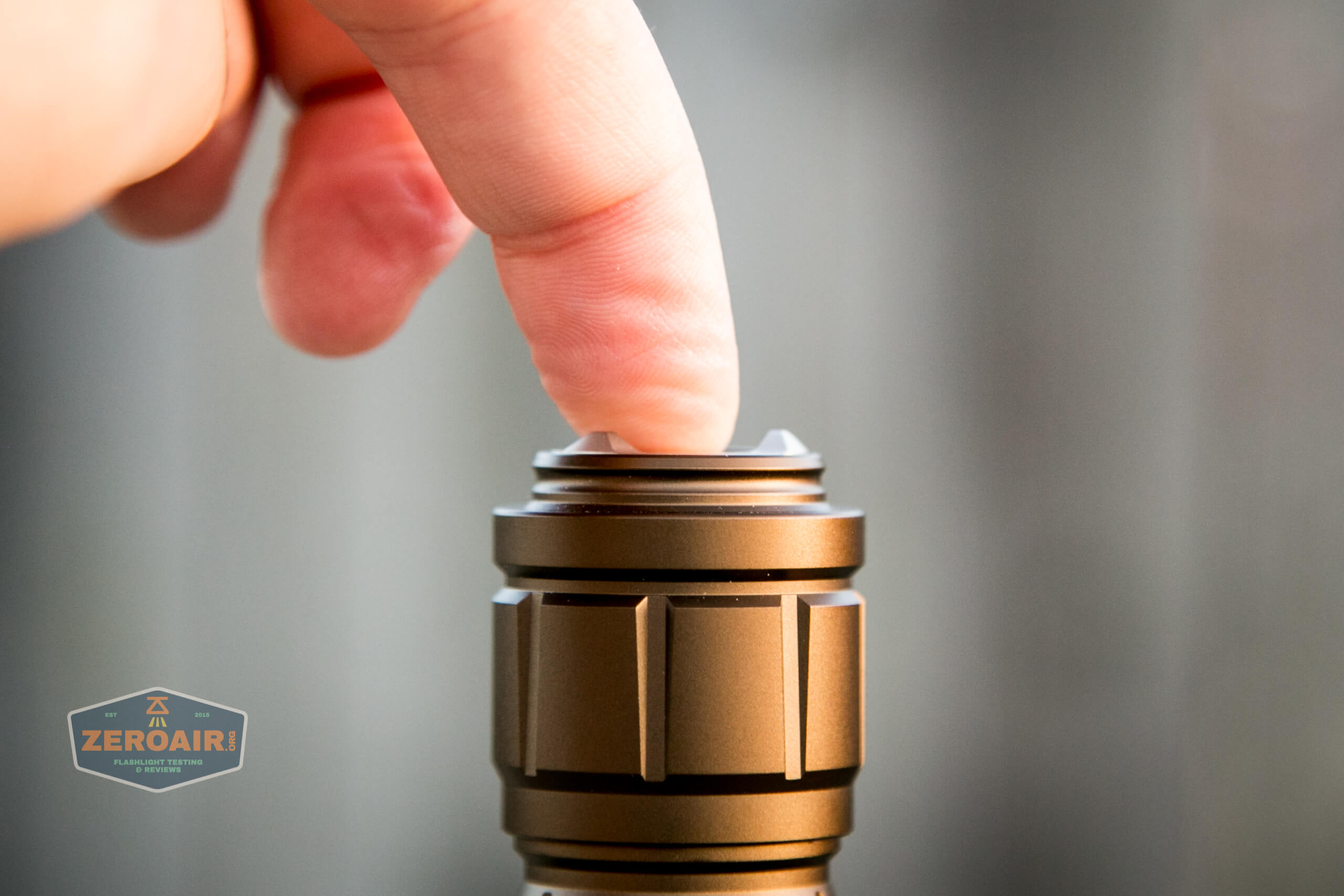

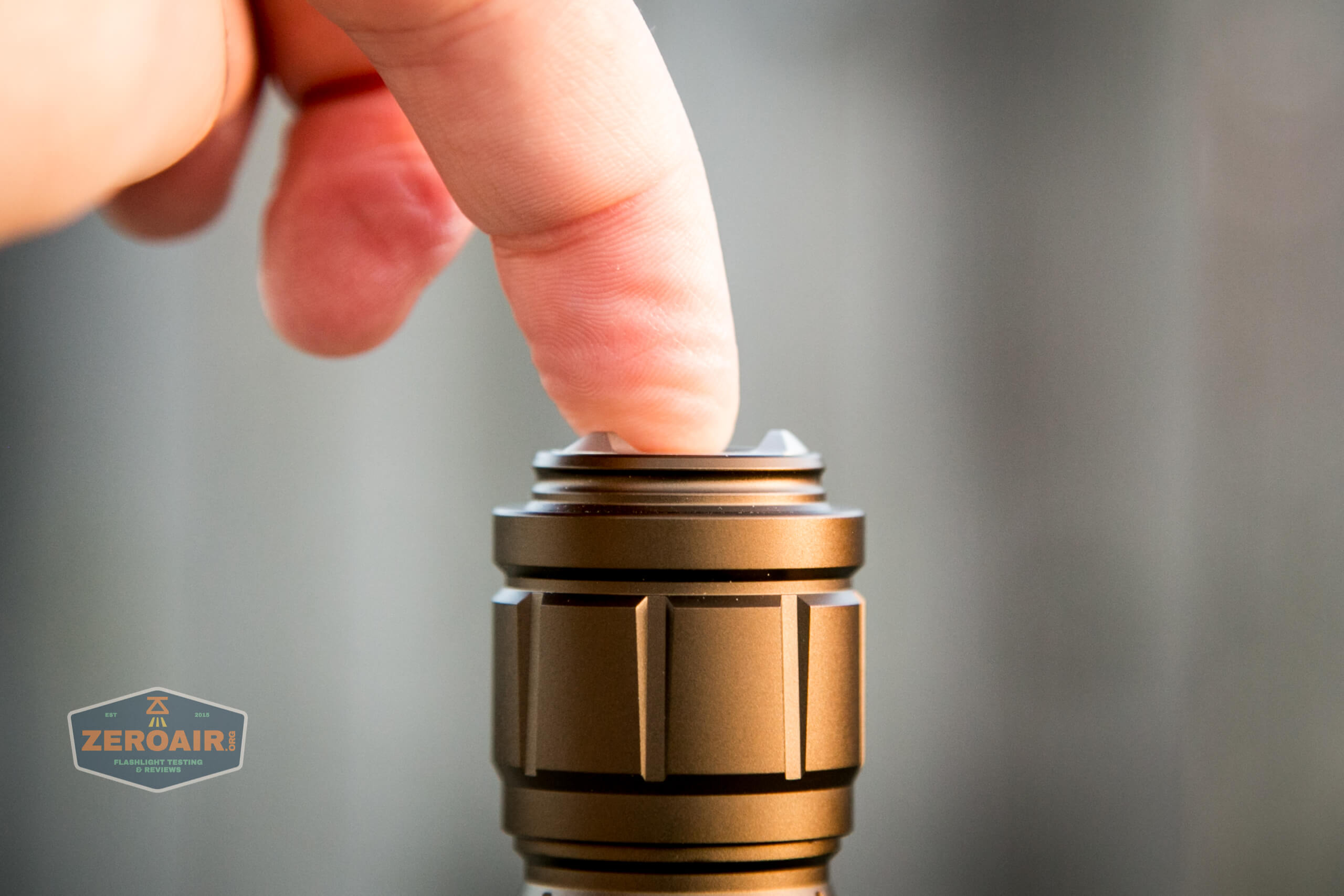

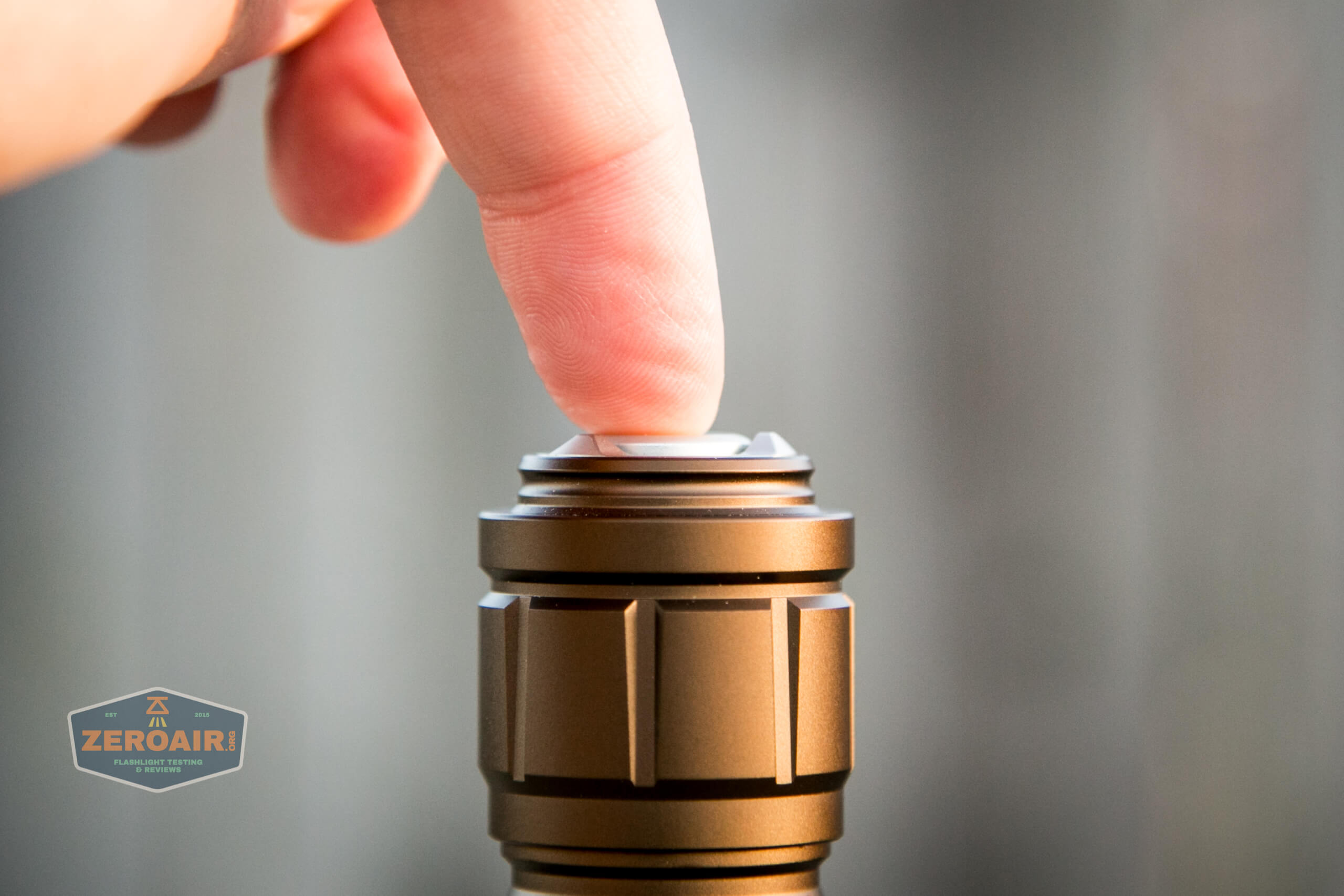

two stage tailswitch

love the two stage switch on these 21700 lights.  It’s less perfect on the smaller 18650 versions BUT that doesn’t stop me from wanting it in an 18350 format.  I really love it.

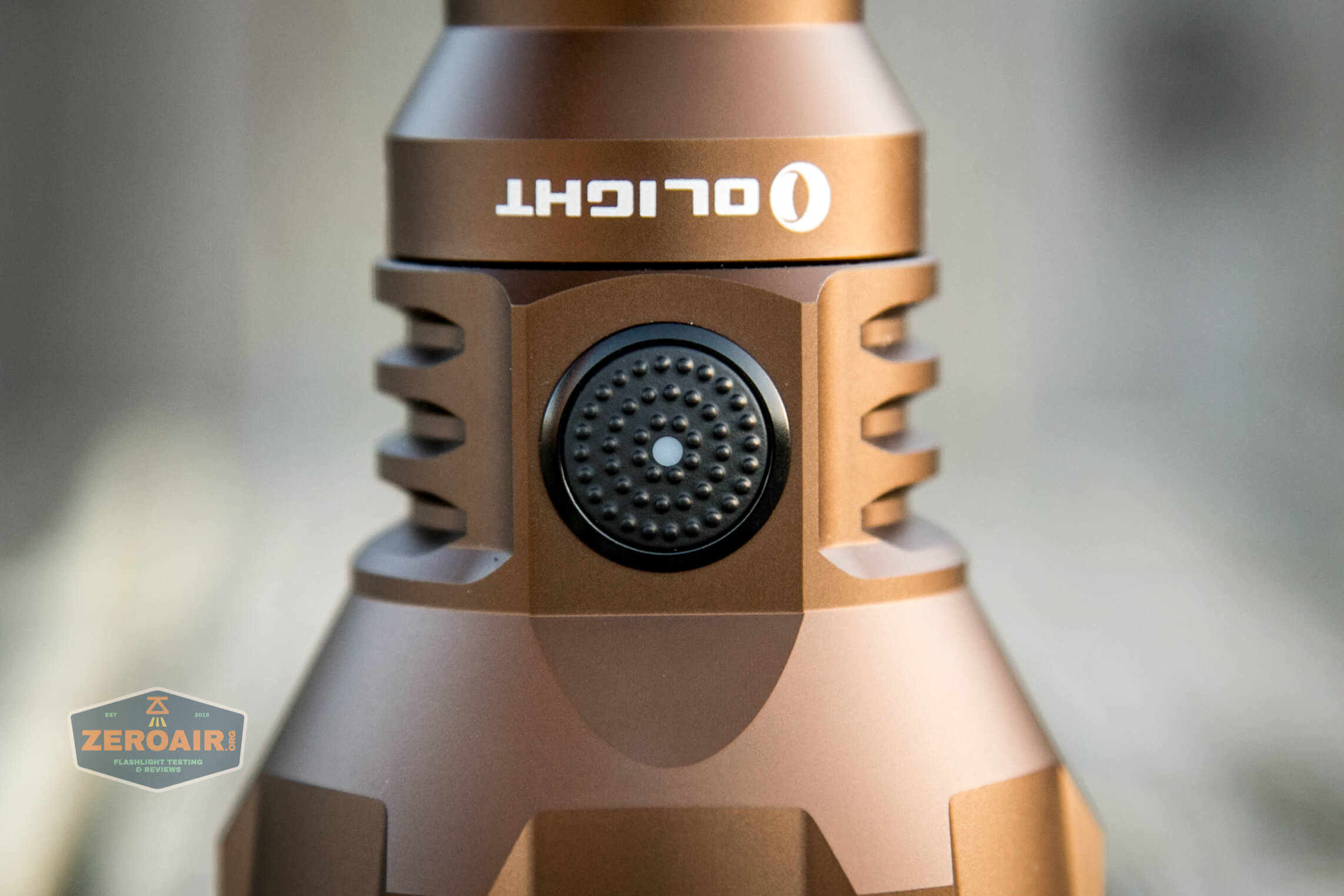

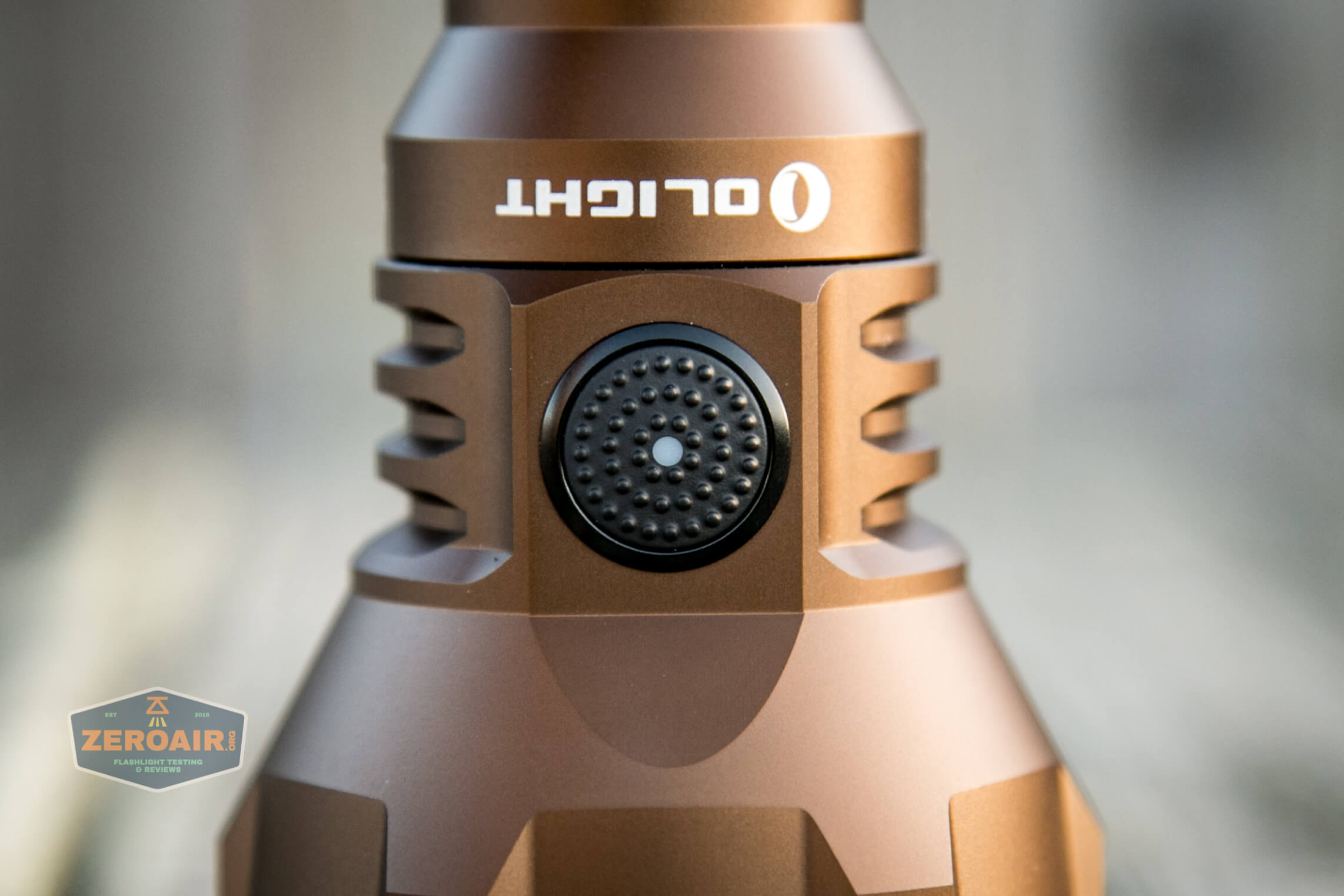

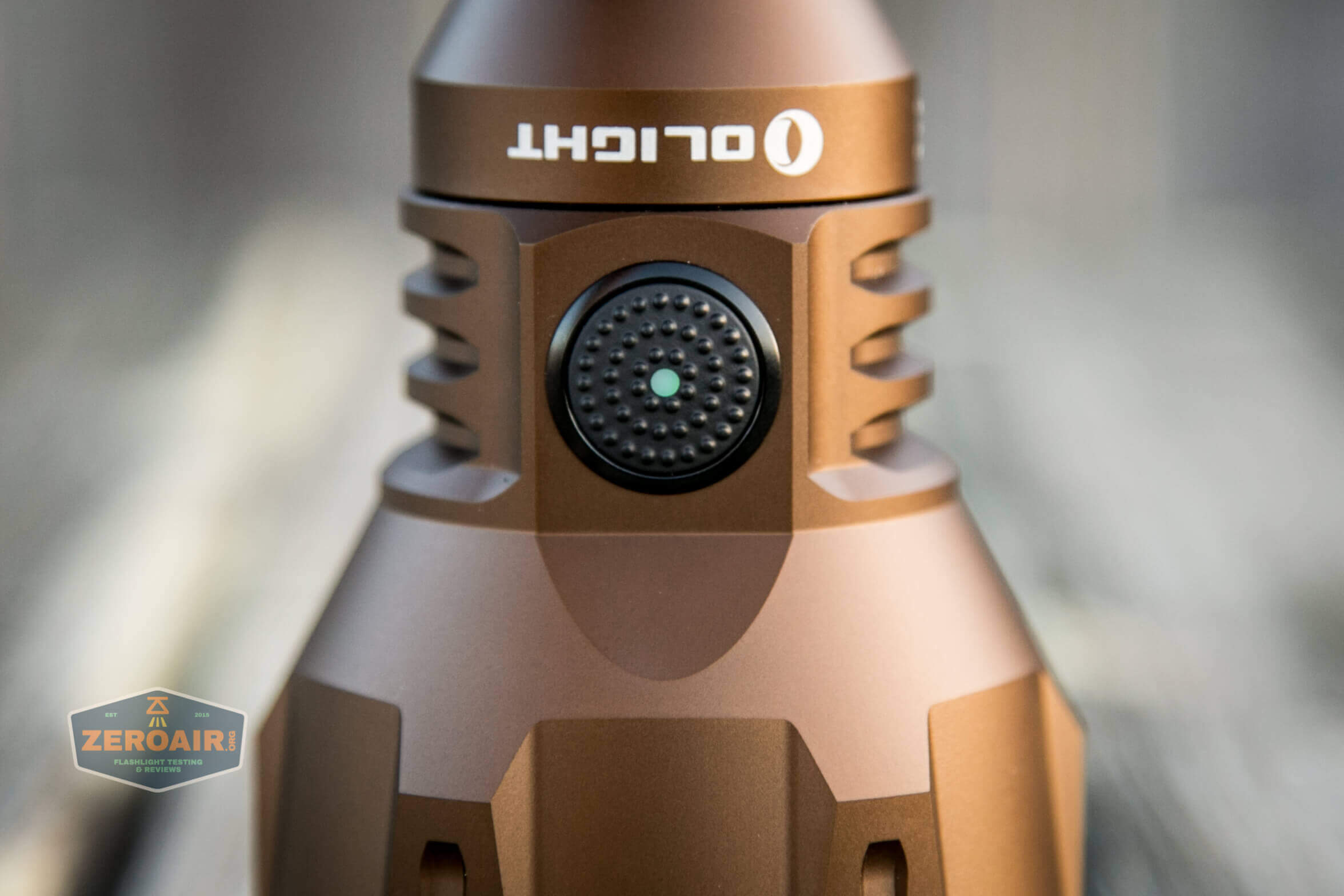

Next is the indicating side e-switch.

e-switch

I have to say, the bigger switch on this light (vs something like the M2R Pro Warrior) is very nice.

Here’s a UI table!

State Action Result
Off Click Side Switch Battery indicator
Off Shallow Click Tail Switch Low (Steady)
Off Deep Click Tail Switch Turbo (Steady)
Off Shallow Hold Tail Switch Low (Momentary)
Off Deep Hold Tail Switch Turbo (Momentary)
On Deep Tap Tail Switch Off
On Deep Click Tail Switch Turbo
Off Hold Side Switch Low
On Click Side Switch Mode advance (LMHT direction)
On Hold Side Switch Off

LED and Beam

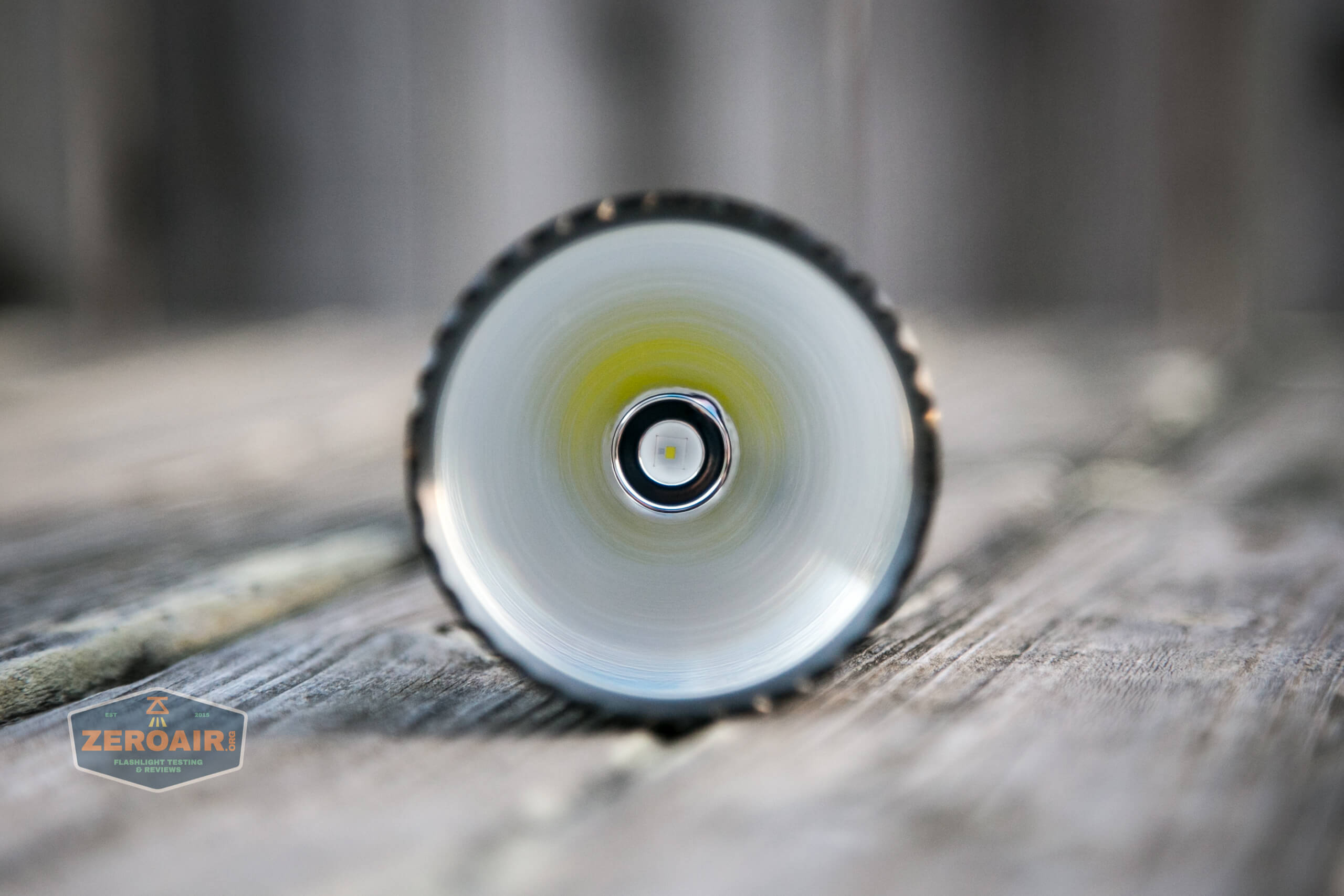

This Olight uses a Osram KW CULPM1.TG emitter.  This is a great choice for massive throw!

osram emitter

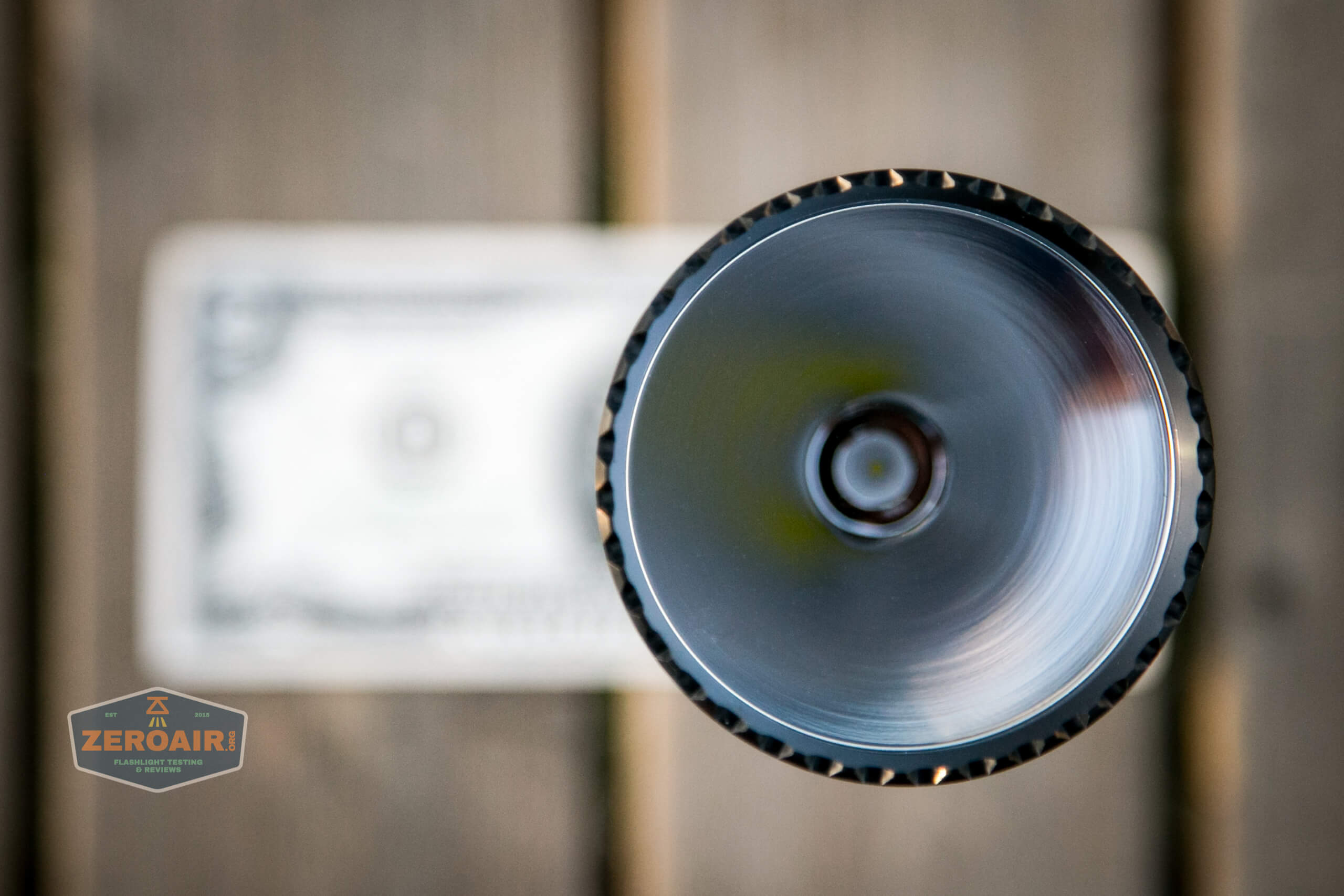

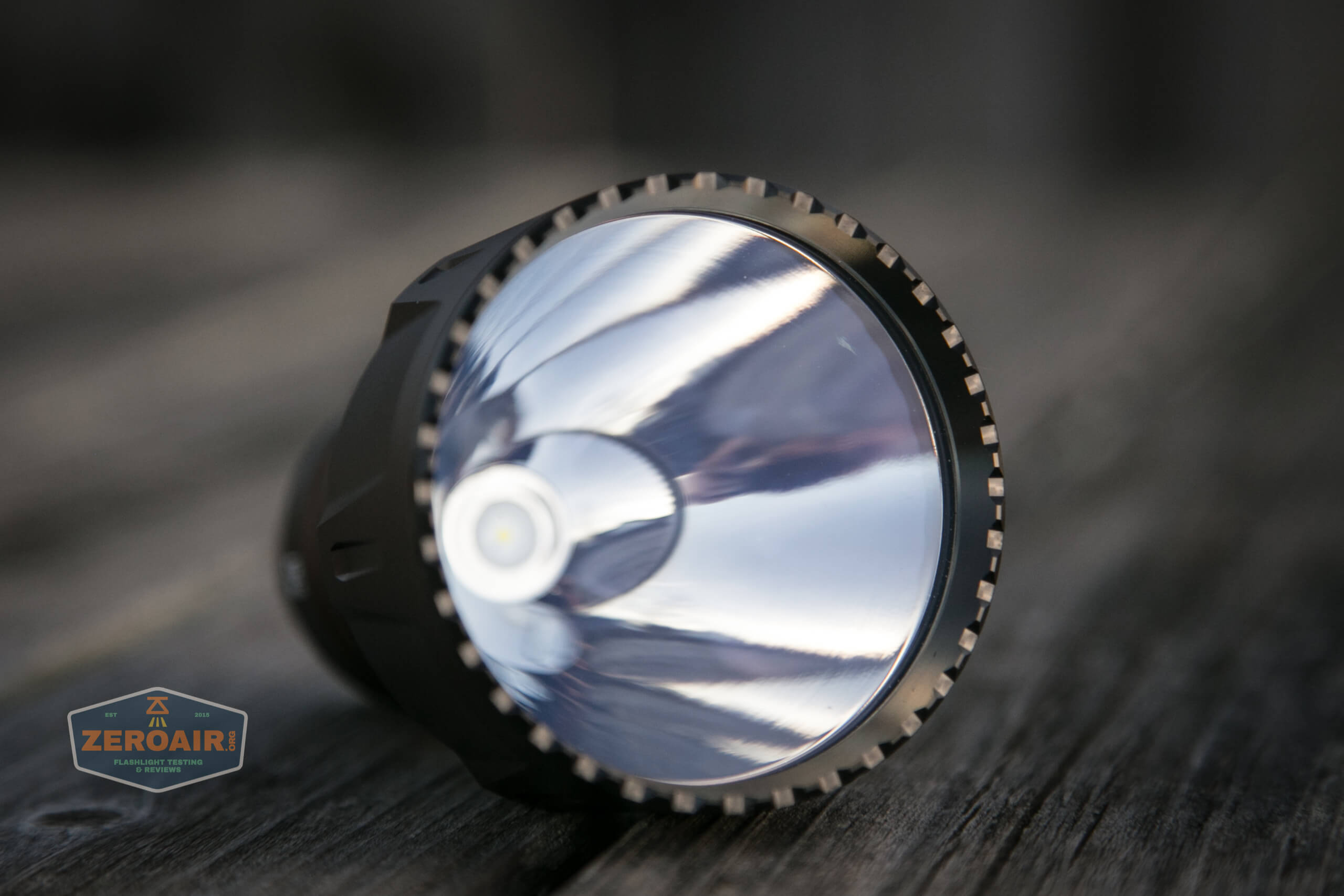

The reflector used here is smooth, but just “pretty smooth.”

osram emitter

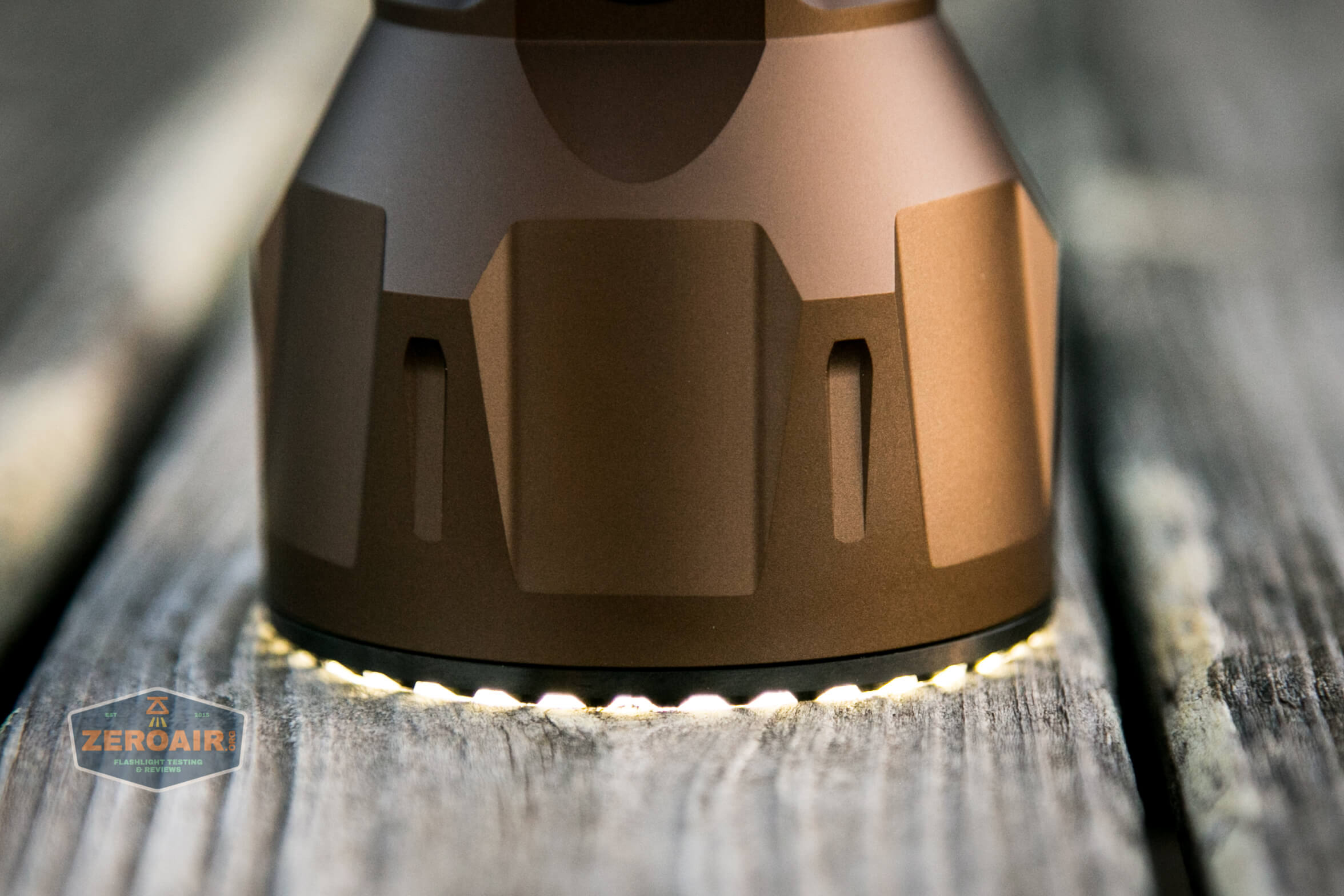

This spikey, bitey bezel allows a bit of light to escape when headstanding.

headstand light escape

reflector

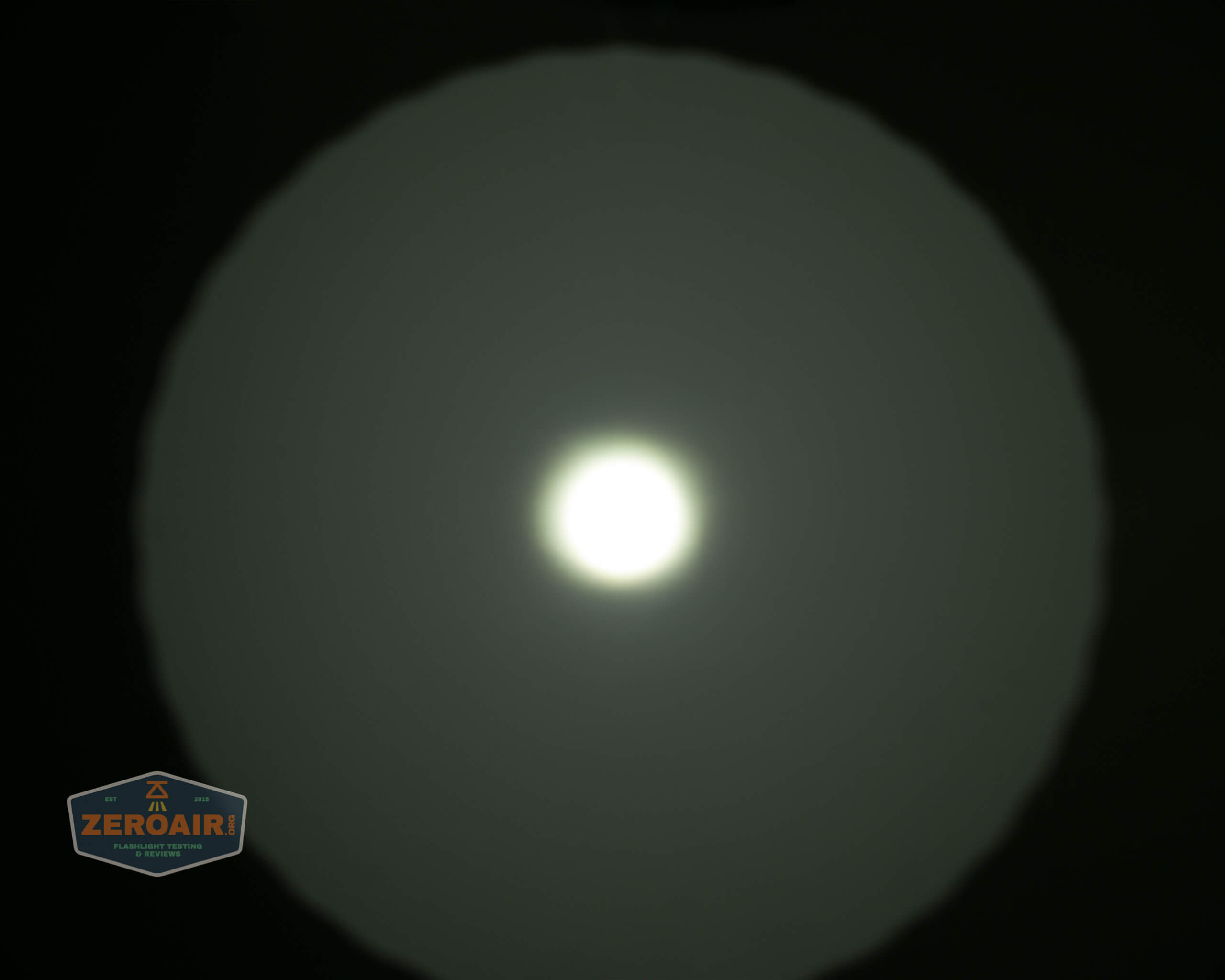

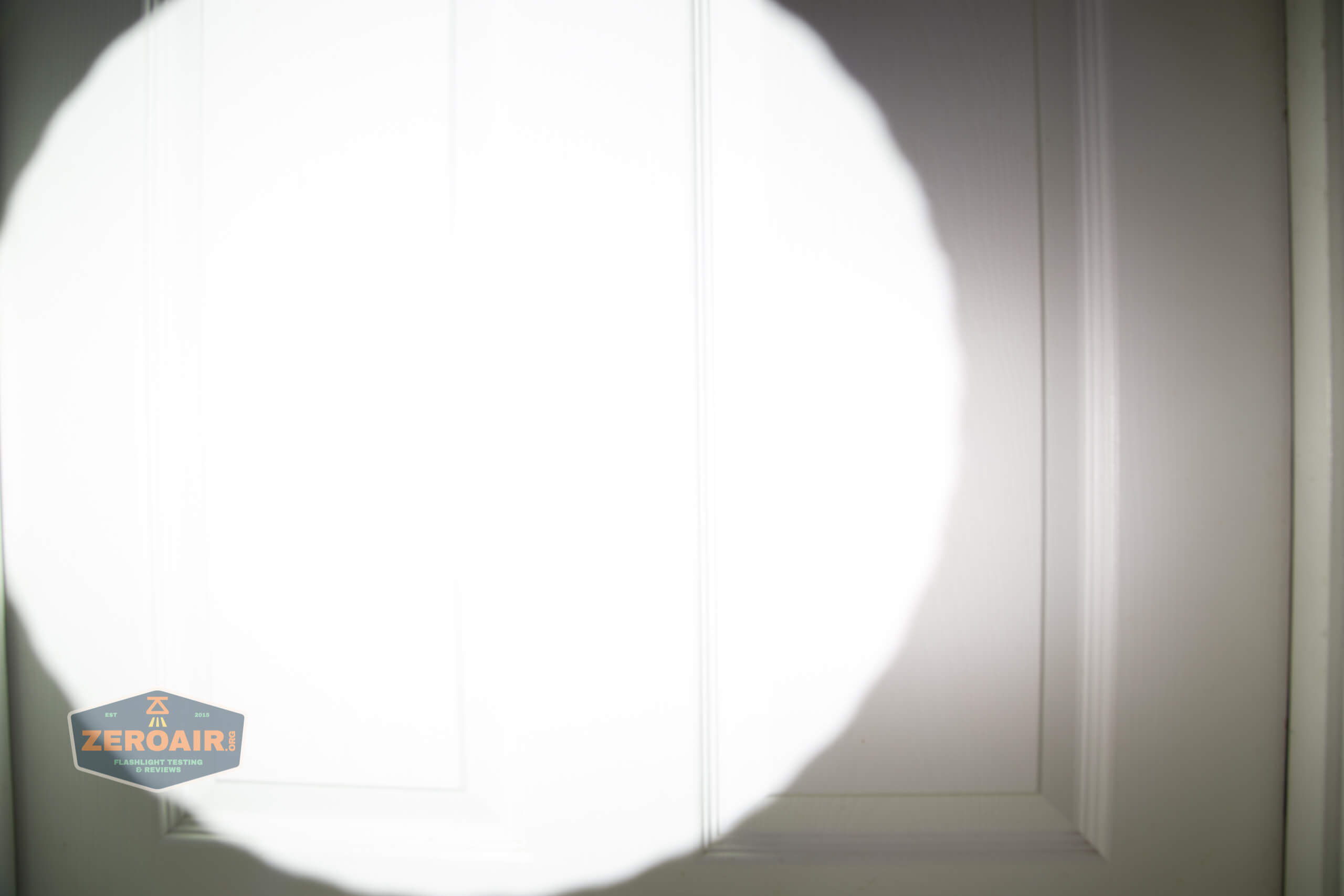

The beam afforded by this setup is very tight!

beamshot



These beamshots are always with the following settings:  f8, ISO100, 0.3s shutter, and manual 5000K exposure.

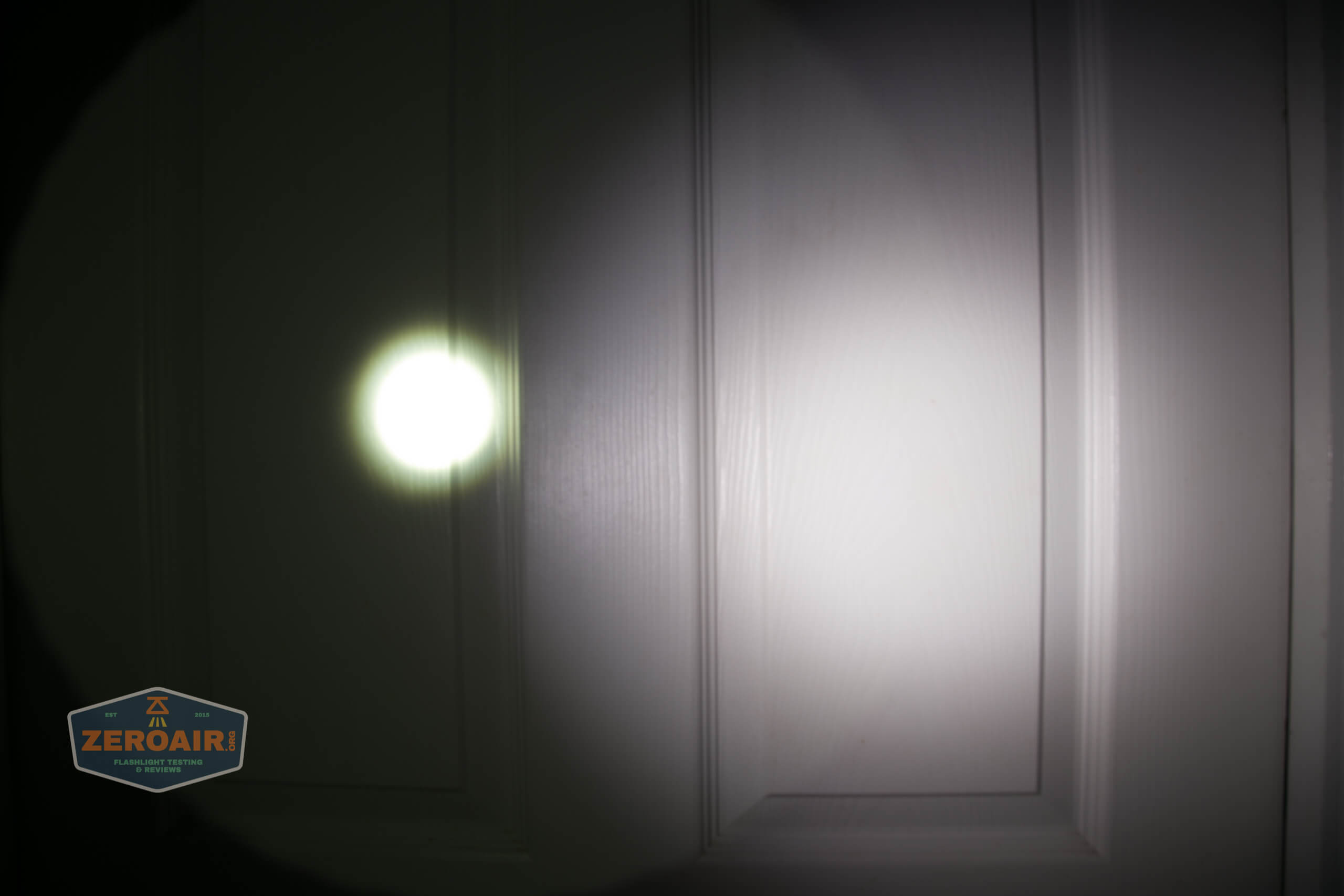

Tint vs BLF-348 (KillzoneFlashlights.com 219b version) (affiliate link)

Test light is on the left!

I compare everything to the KillzoneFlashlights.com 219b BLF-348, because it’s inexpensive and has the best tint!

Conclusion

What I like

  • Massive throw!
  • Fantastic output!
  • 4.2V battery opens the door for a shorty (single 21700) version!
  • Has low voltage protection
  • Great build quality

What I don’t like

  • Proprietary cell tube/battery setup
  • Charging seems to take forever
  • Something about the UI isn’t as intuitive as I want.  It’s not exactly like the other similar Olights.
