Fenix E02R Keychain Flashlight Review
Today I have the Fenix E02R keychain flashlight, a two mode flashlight with twisty user interface, and micro-USB charging. Read on for testing!
Official Specs and Features of the Fenix E02R Keychain Flashlight
Here’s a link to the Fenix E02R Keychain flashlight product page.
Fenix E02R Keychain Flashlight Versions

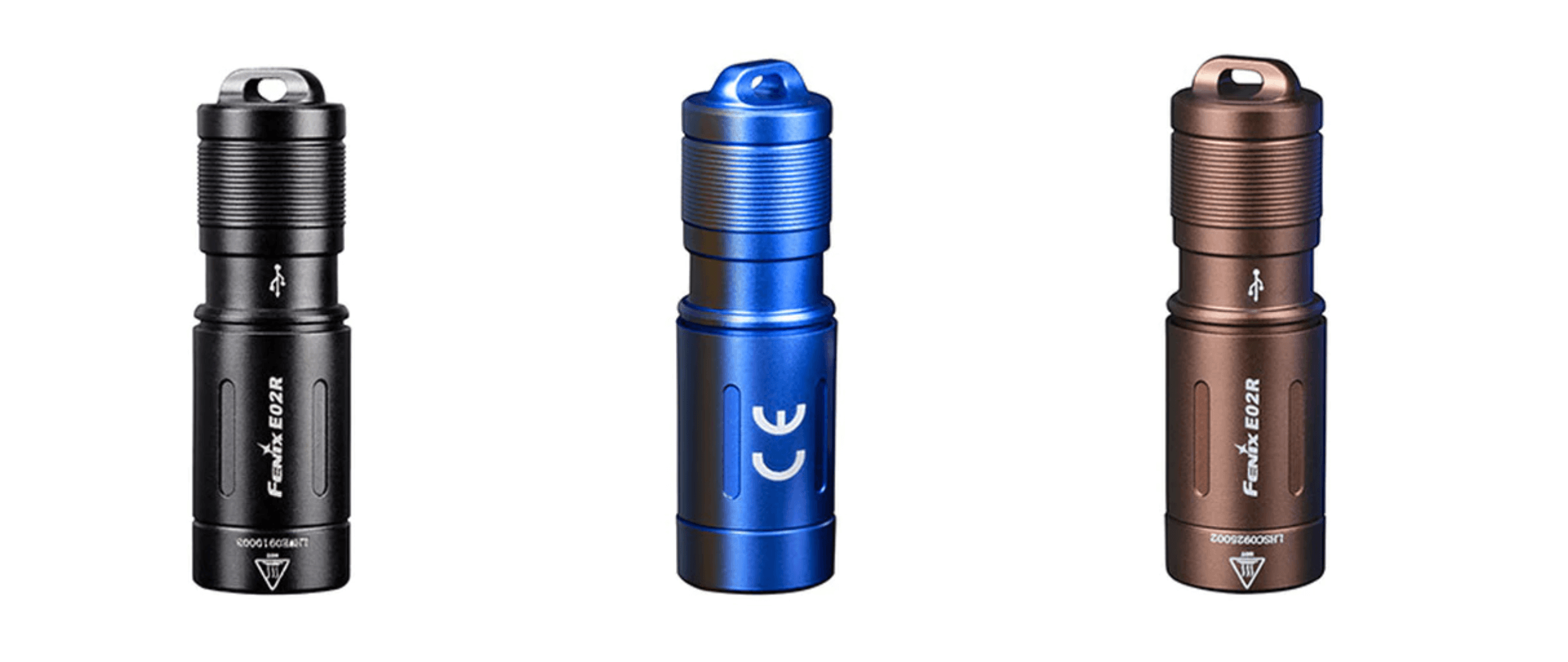

There are three body colors, but just one version of the Fenix E02R Keychain flashlight.
Price
The Fenix E02R Keychain flashlight is going for $23.95, and it’s available at Fenix-Store.com right now!
Short Review
This is a predictable little keychain light, with fairly standard features, and seems reliable.
Long Review
The Big Table
Fenix E02R Keychain Flashlight | |
---|---|
Emitter: | Cree XP-G2 |
Price in USD at publication time: | $23.95 at Fenix-Store.com |
Cell: | Internal |
High Runtime Graph | Low Runtime Graph |
LVP? | |
Switch Type: | Twisty |
On-Board Charging? | Yes |
Charge Port Type: | micro-USB |
Charge Graph | |
Power off Charge Port | No |
Claimed Lumens (lm) | 200 |
Measured Lumens (at 30s) | 168 (84% of claim)^ |
Candela per Lumen | 5.3 |
Claimed Throw (m) | 49 |
Candela (Calculated) in cd (at 30s) | 64lux @ 2.826m = 511cd |
Throw (Calculated) (m) | 45.2 (92.2% of claim)^ |
All my Fenix reviews! |
^ Measurement disclaimer:Â Testing flashlights is my hobby. I use hobbyist-level equipment for testing, including some I made myself. Try not to get buried in the details of manufacturer specifications versus measurements recorded here; A certain amount of difference (say, 10 or 15%) is perfectly reasonable.

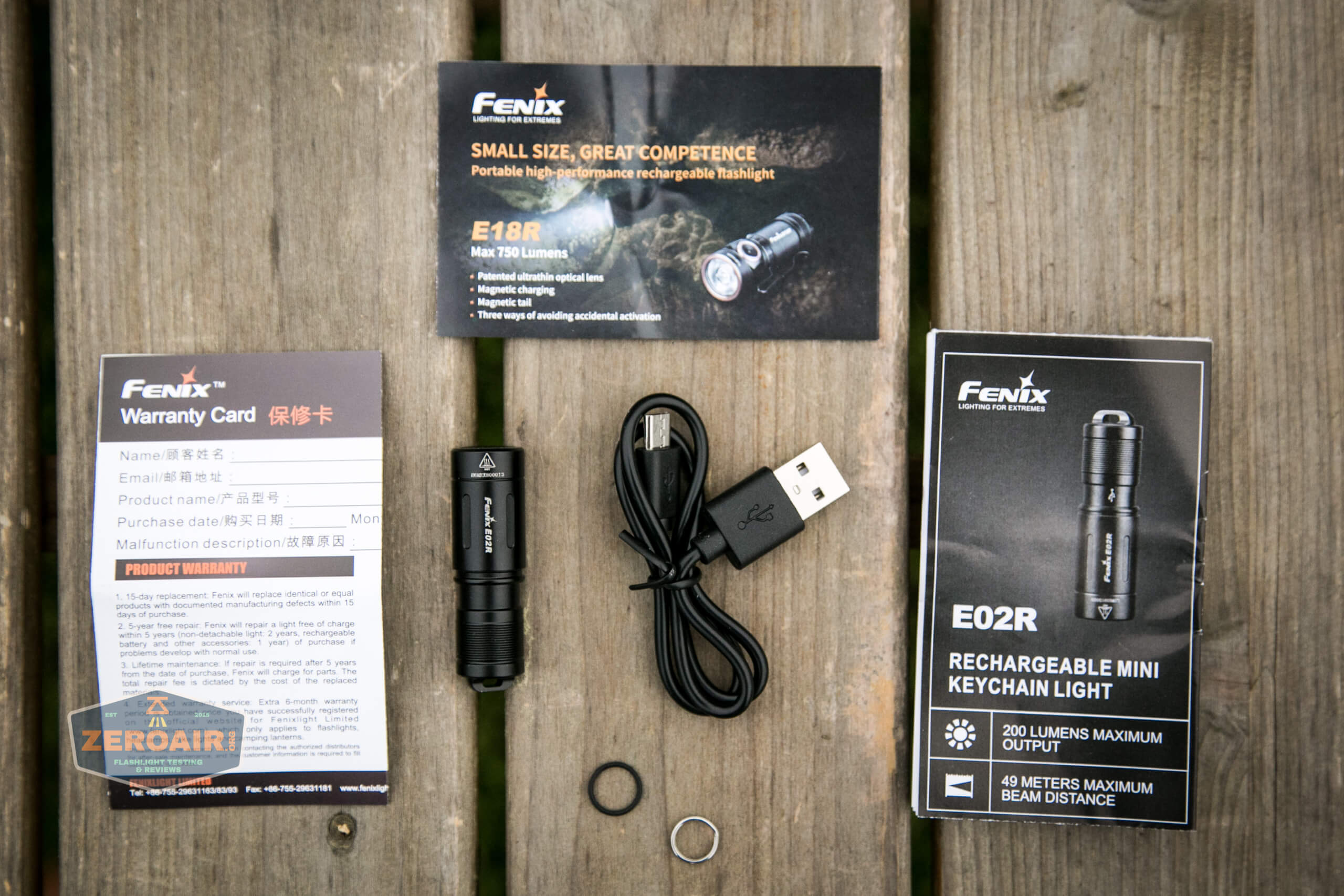

What’s Included in the Fenix E02R Keychain Flashlight Package
- Fenix E02R Keychain Flashlight
- Charge cable (USB to micro-USB)
- Split ring
- Spare o-rings
- Manual and papers

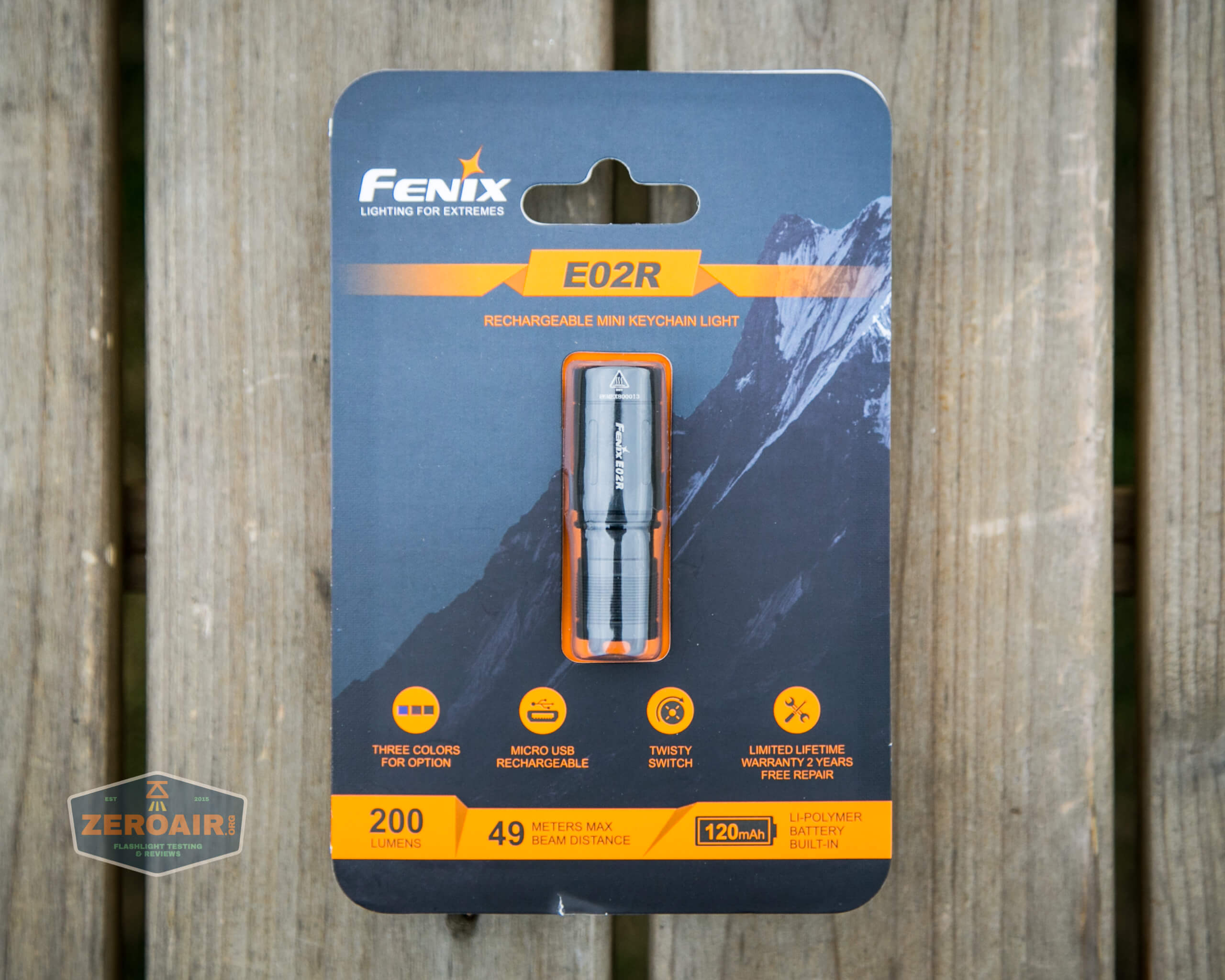

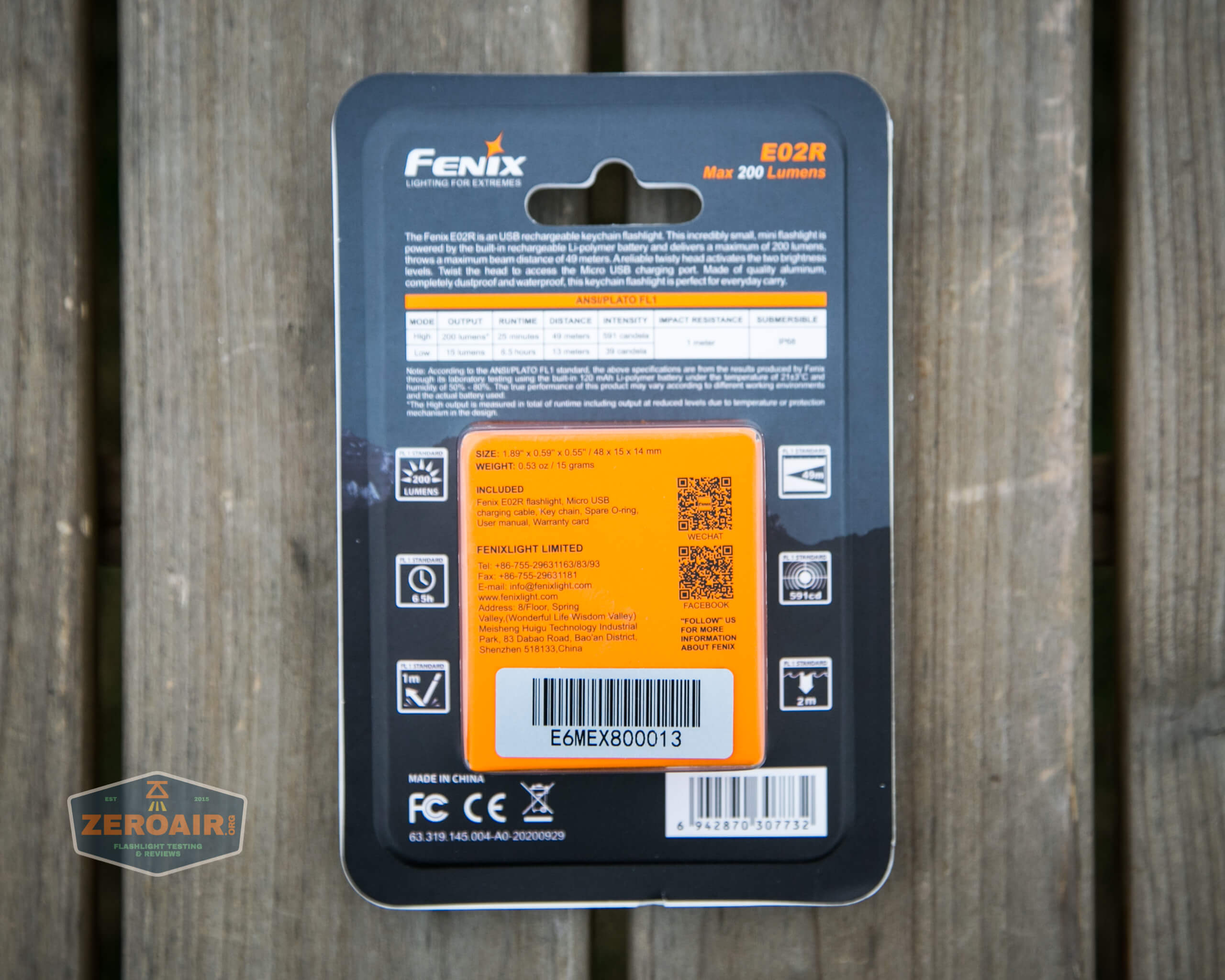

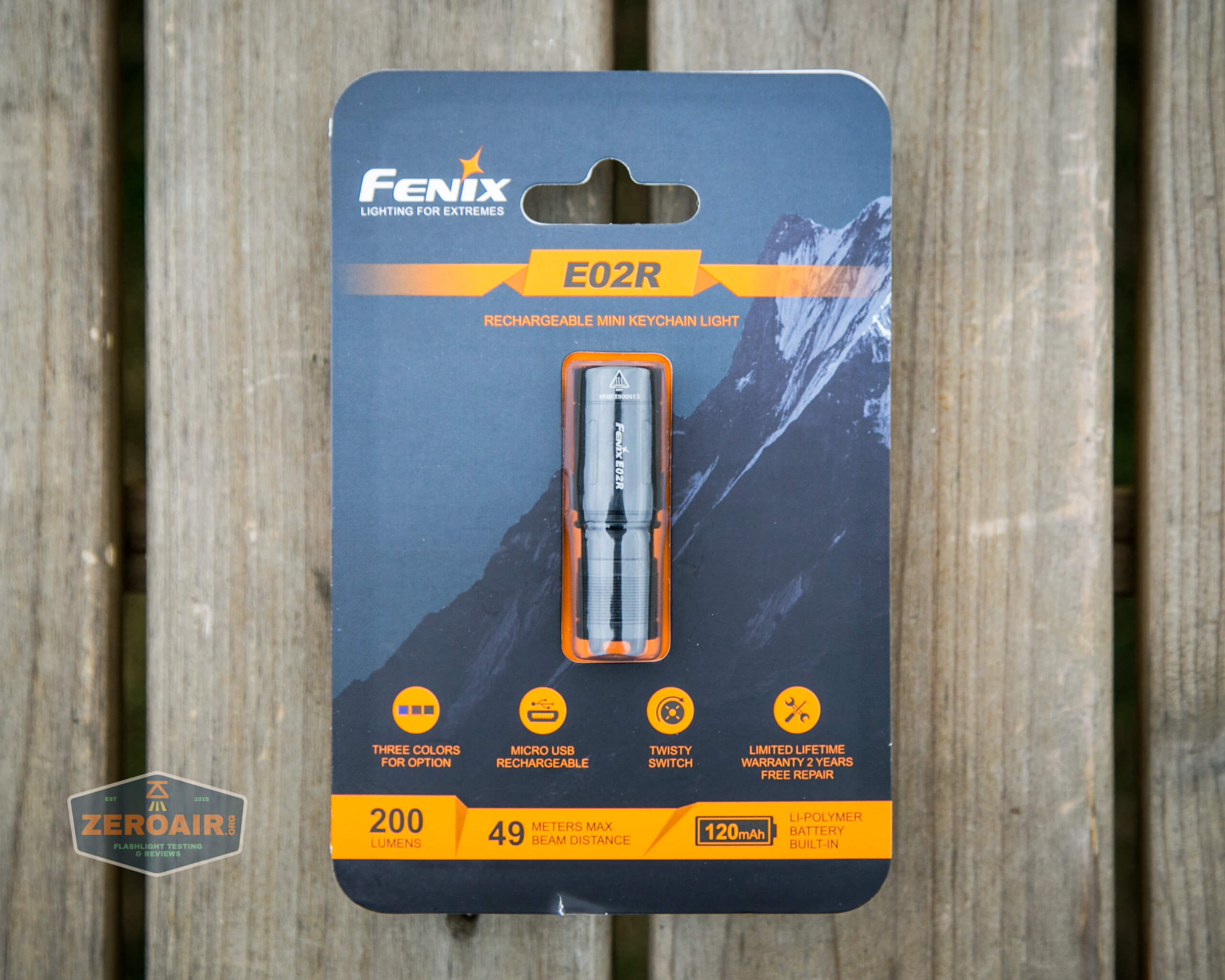

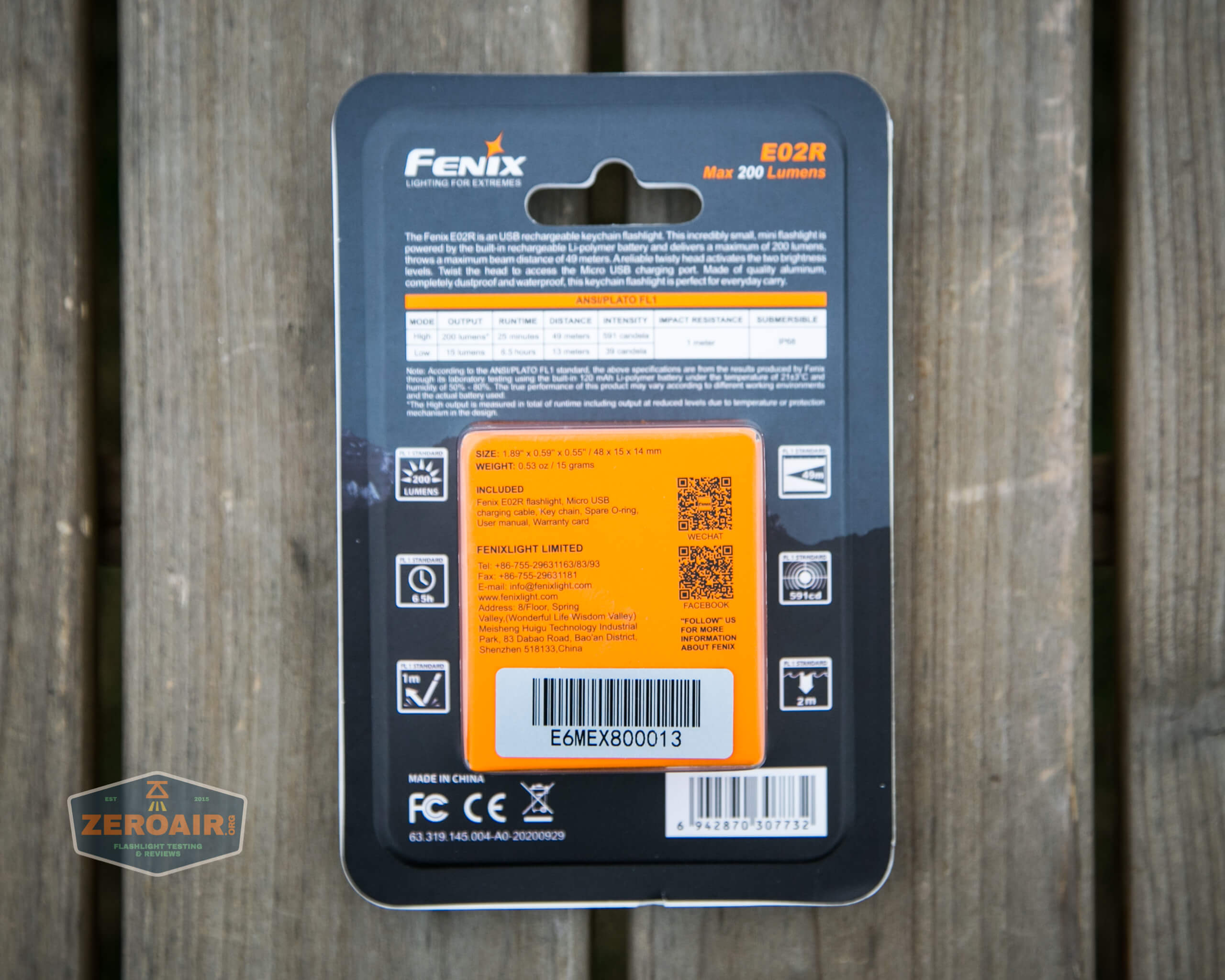

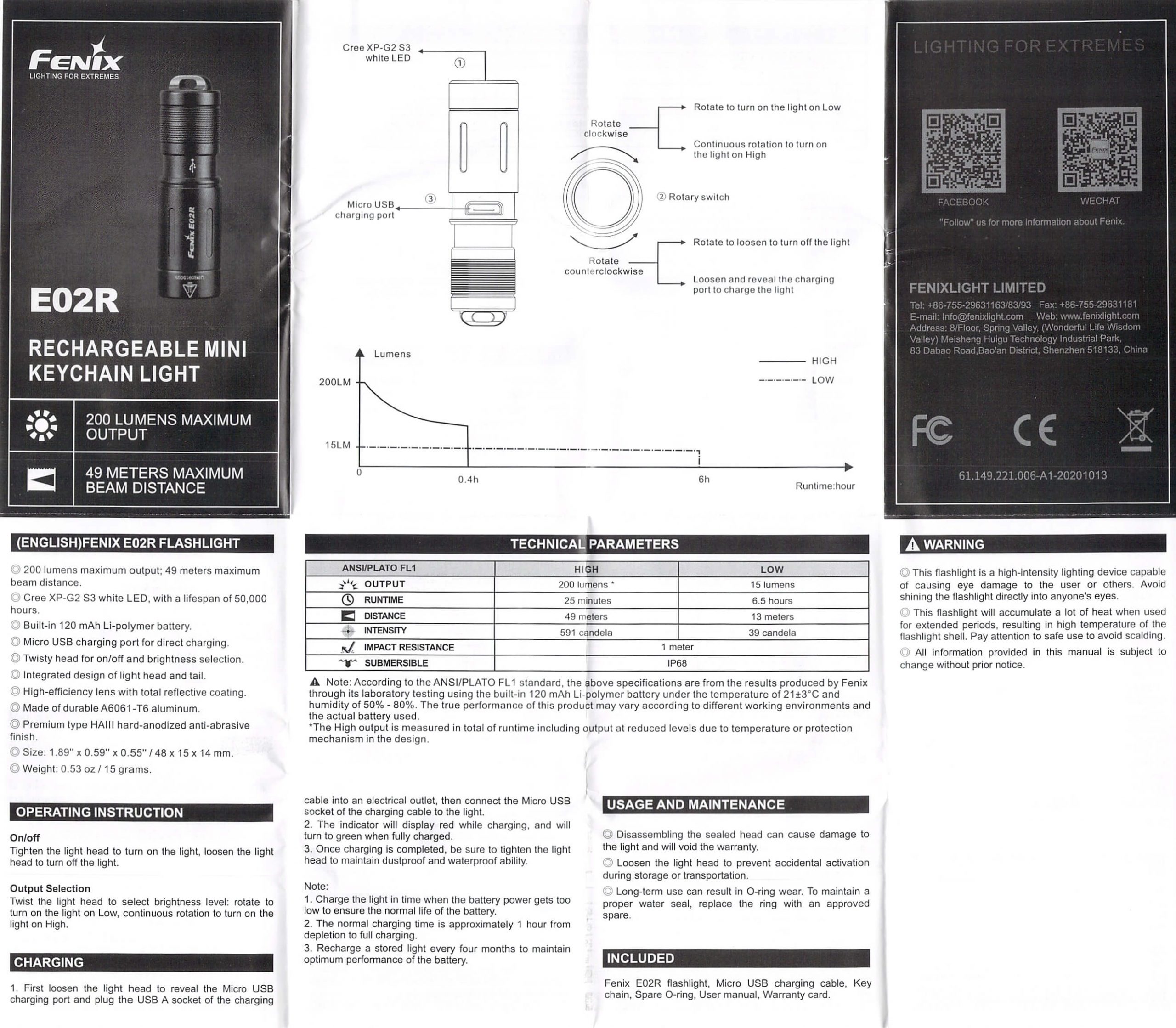

Package and Manual
Build Quality and Disassembly

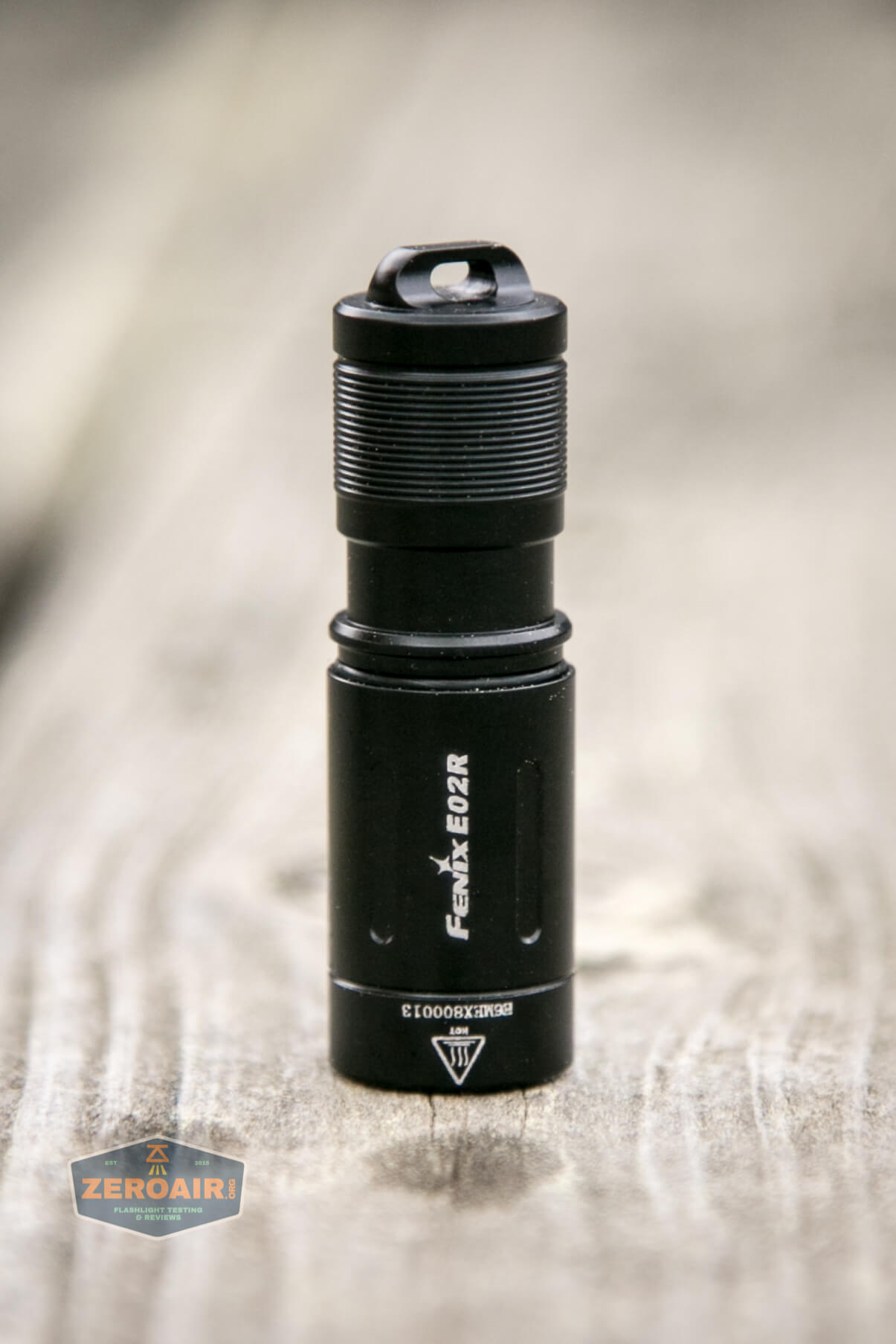

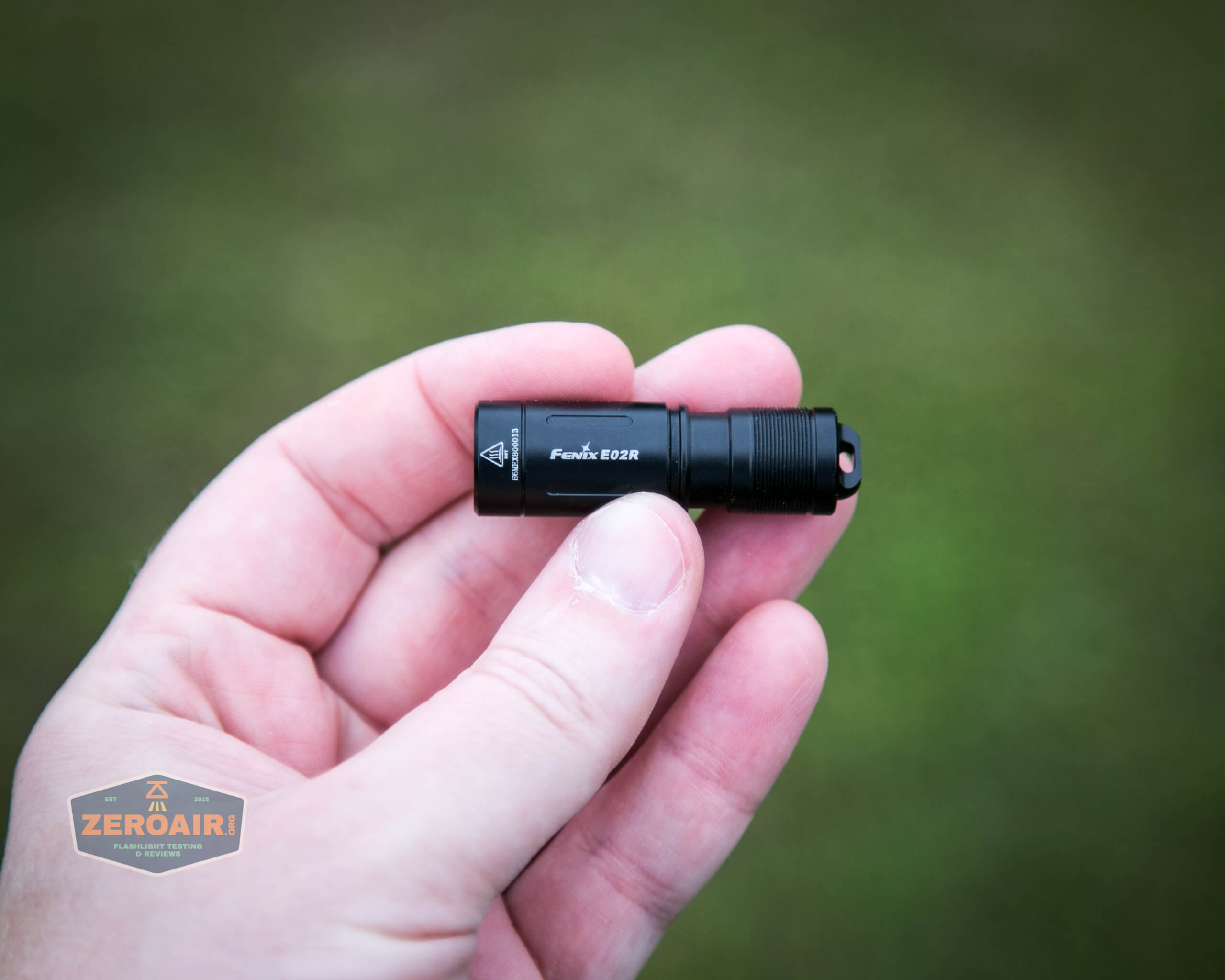

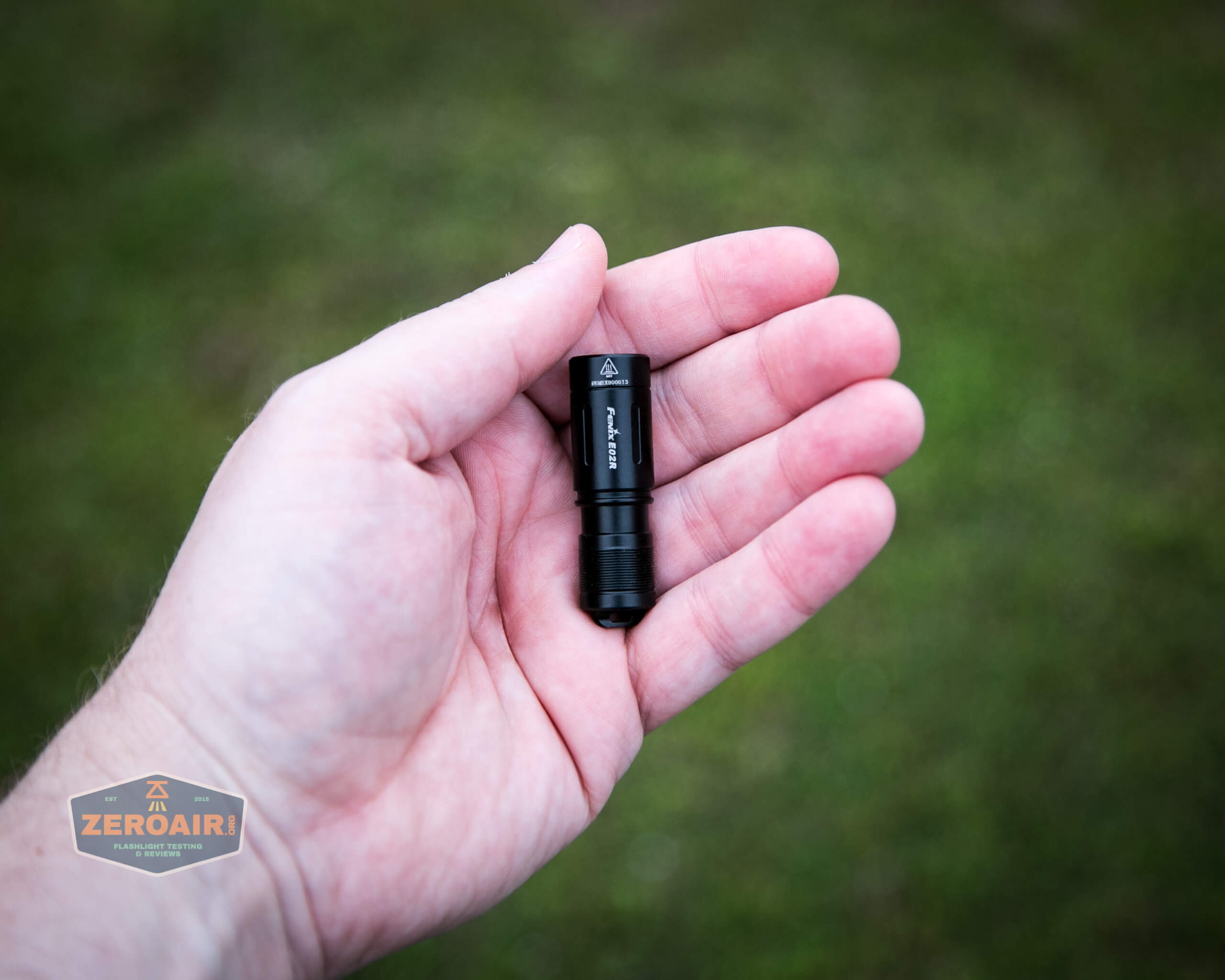

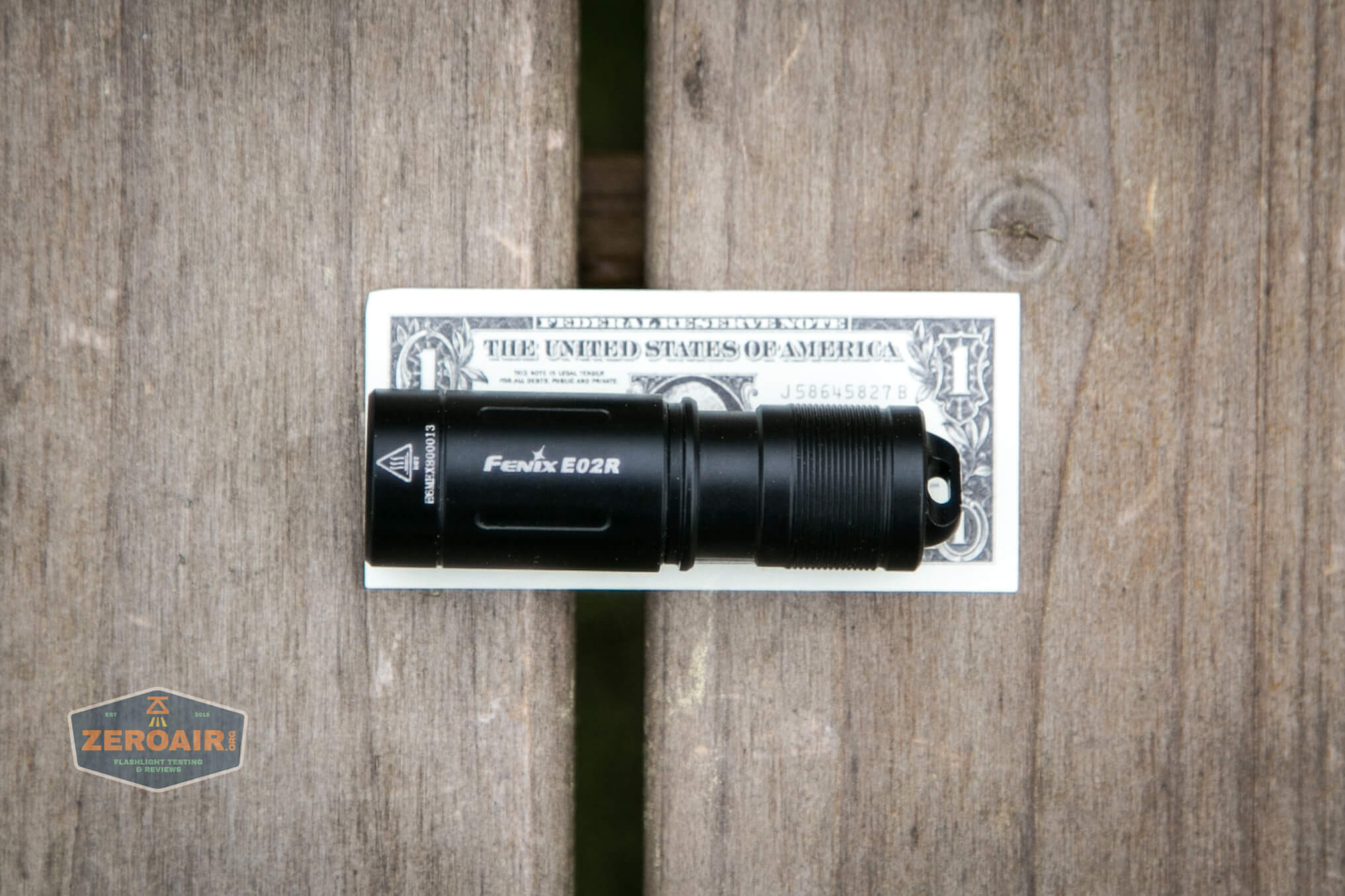

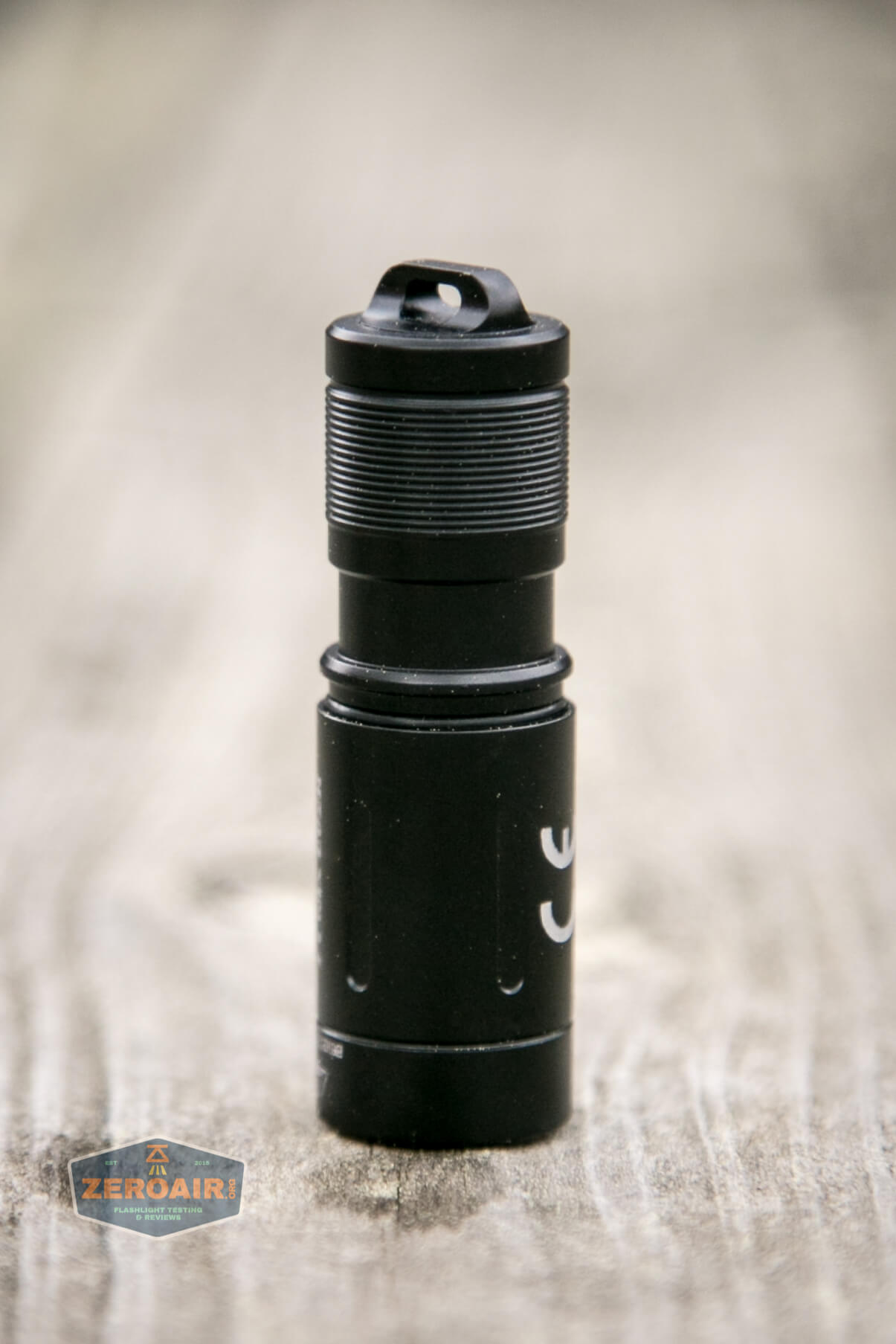

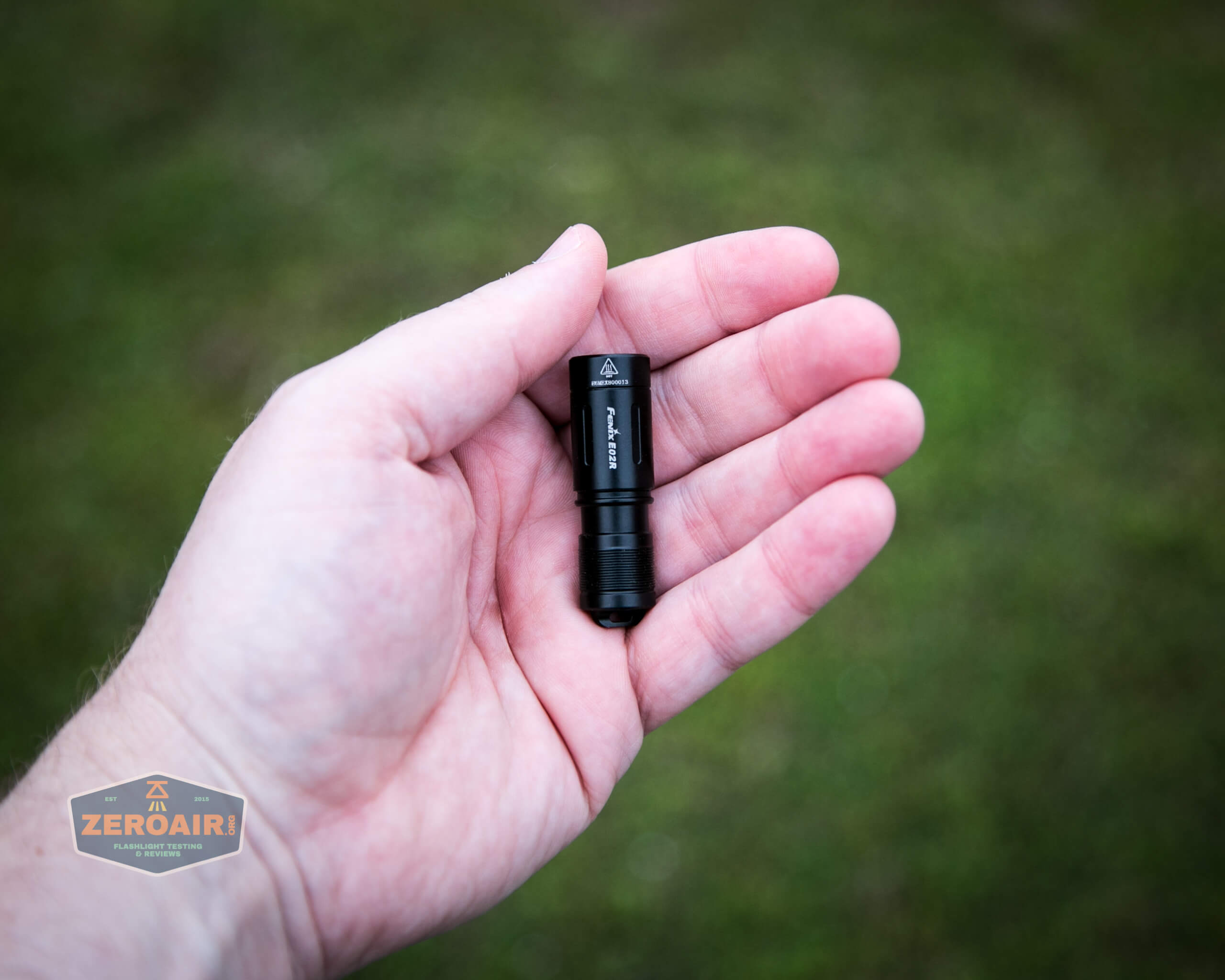

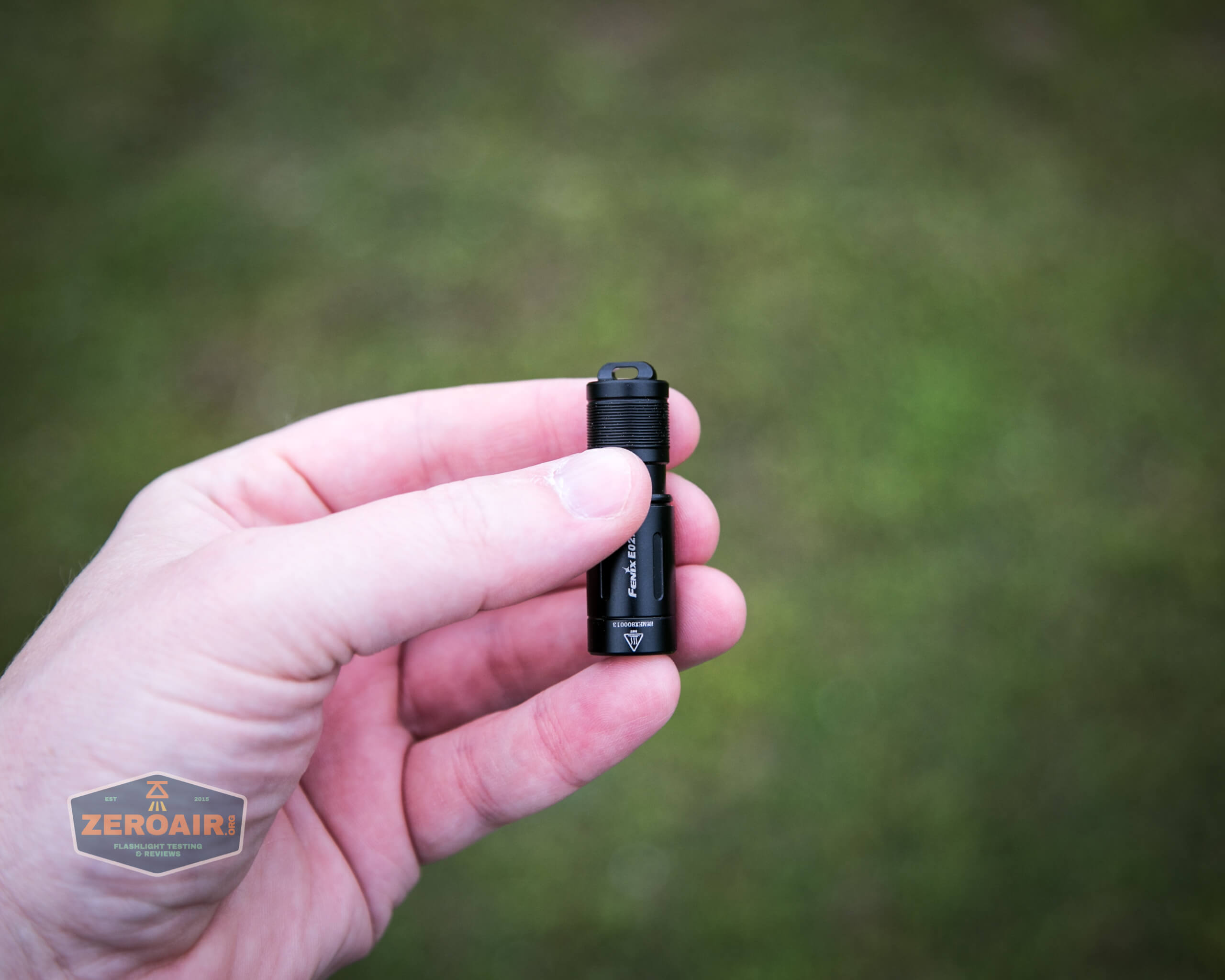

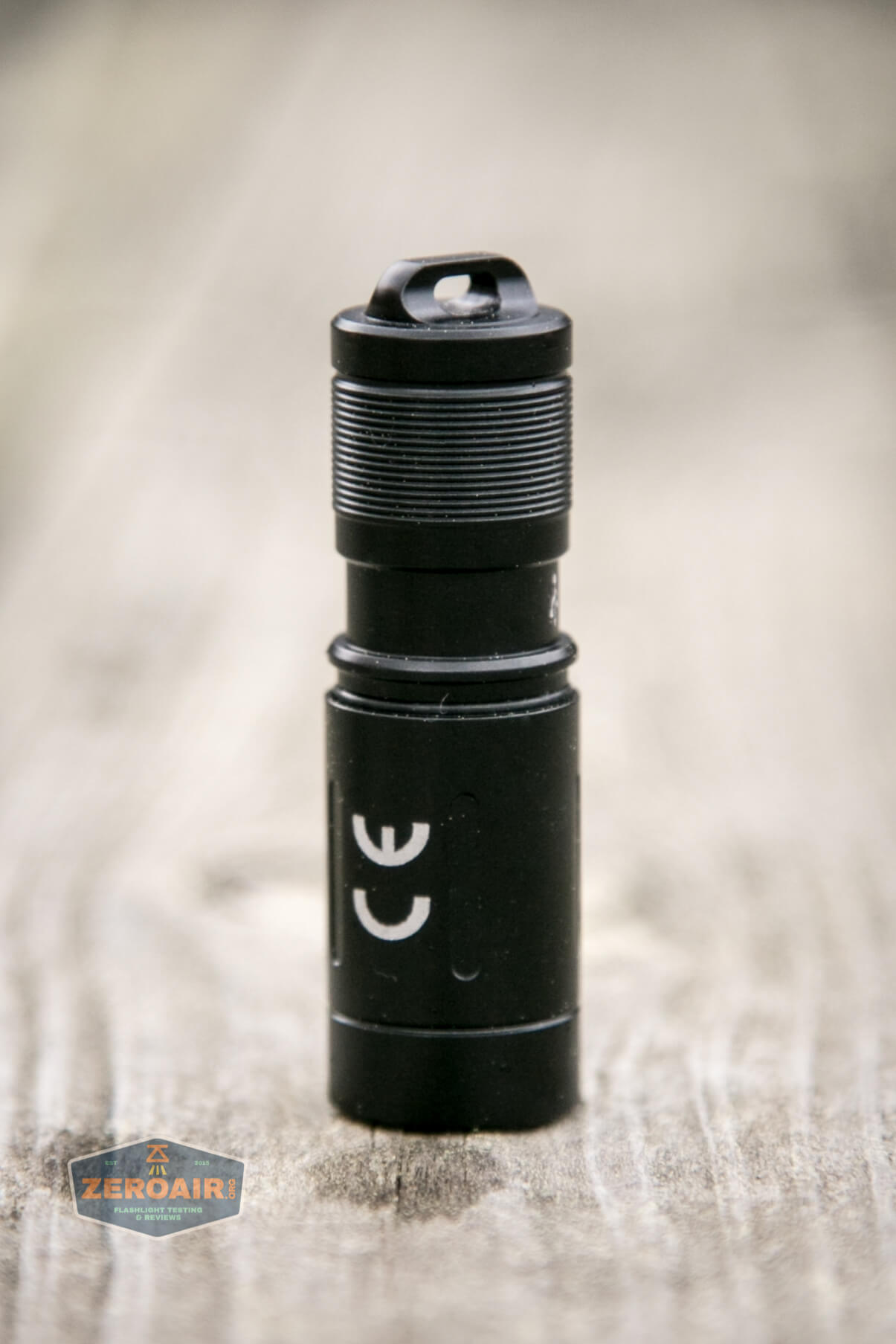

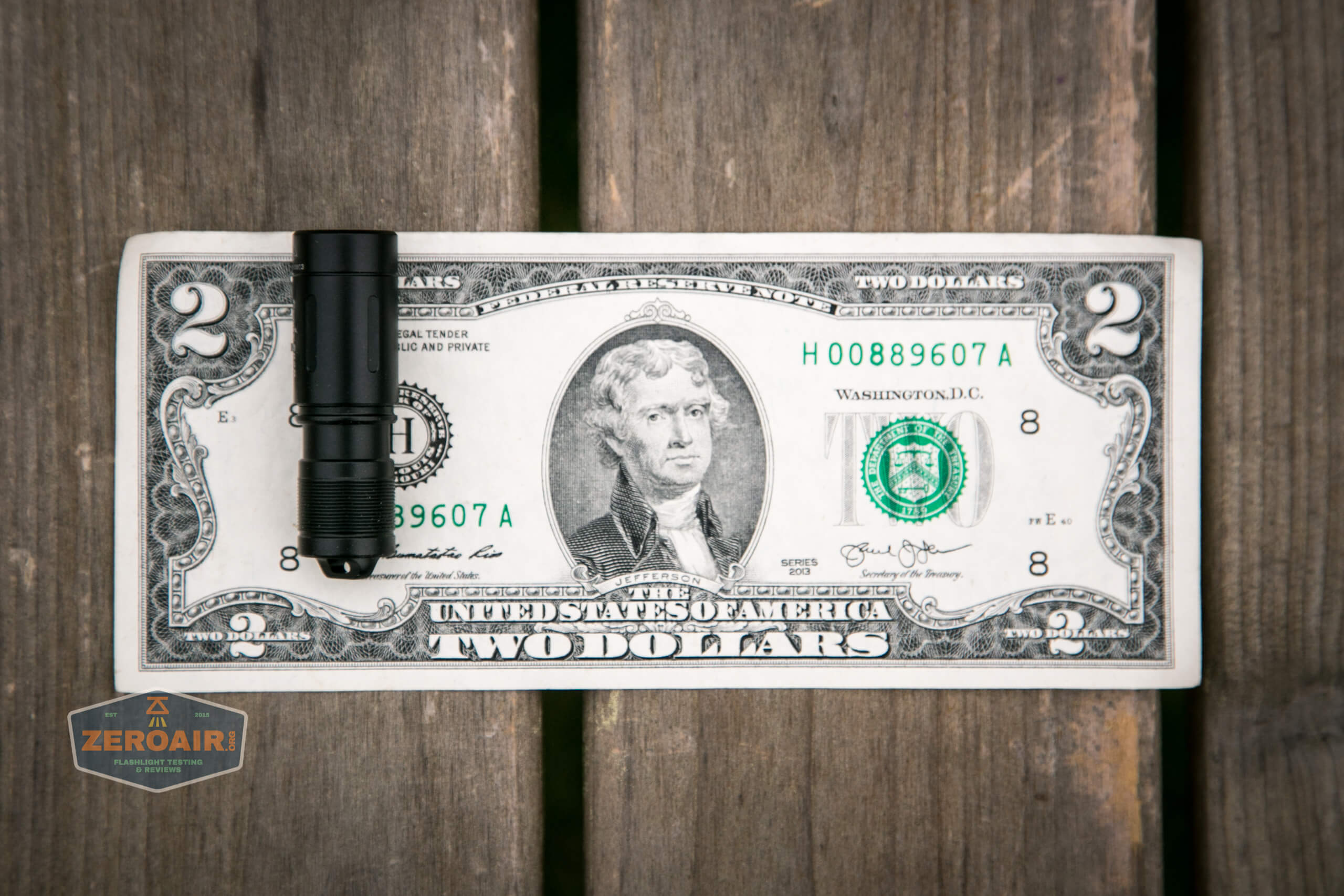

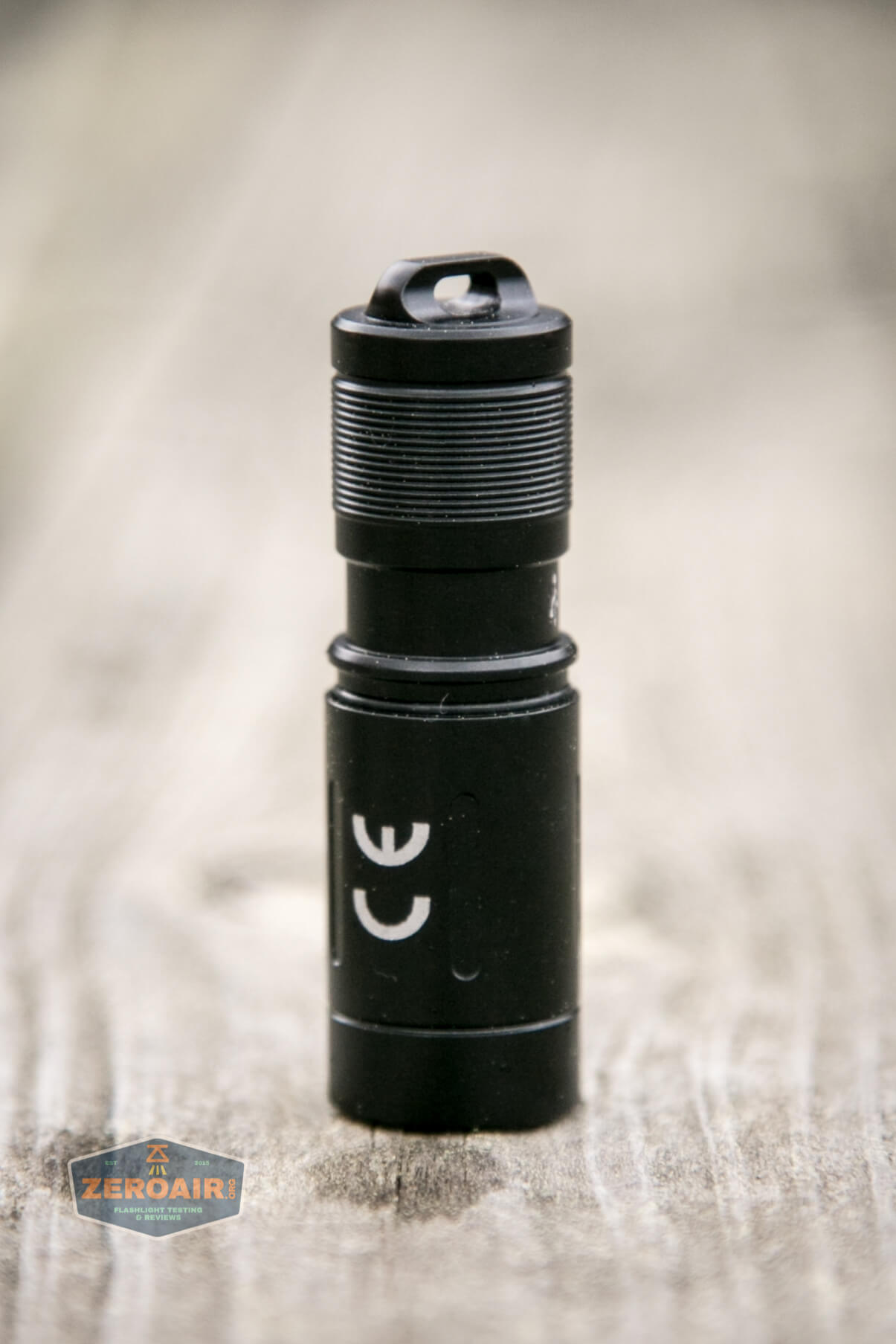

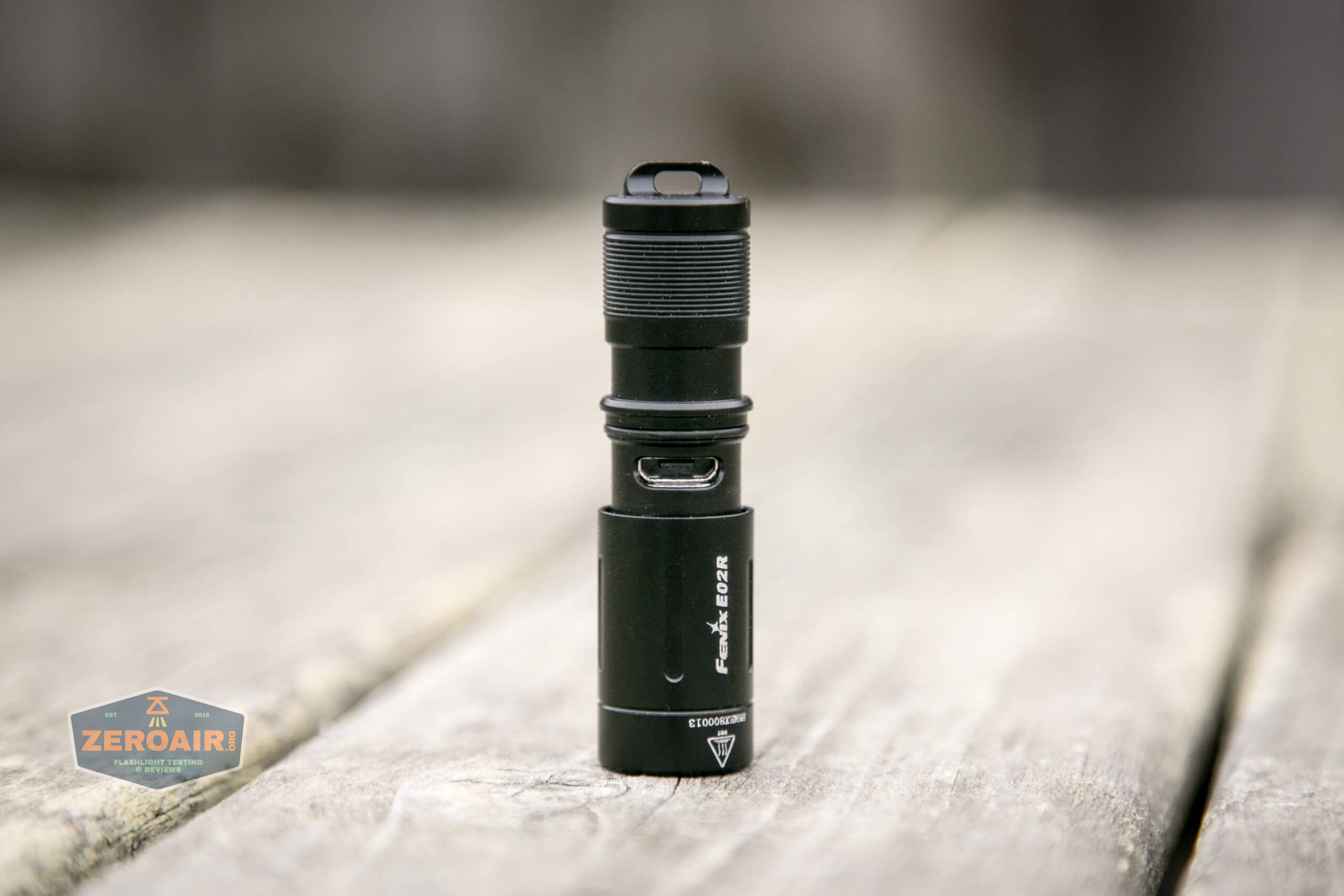

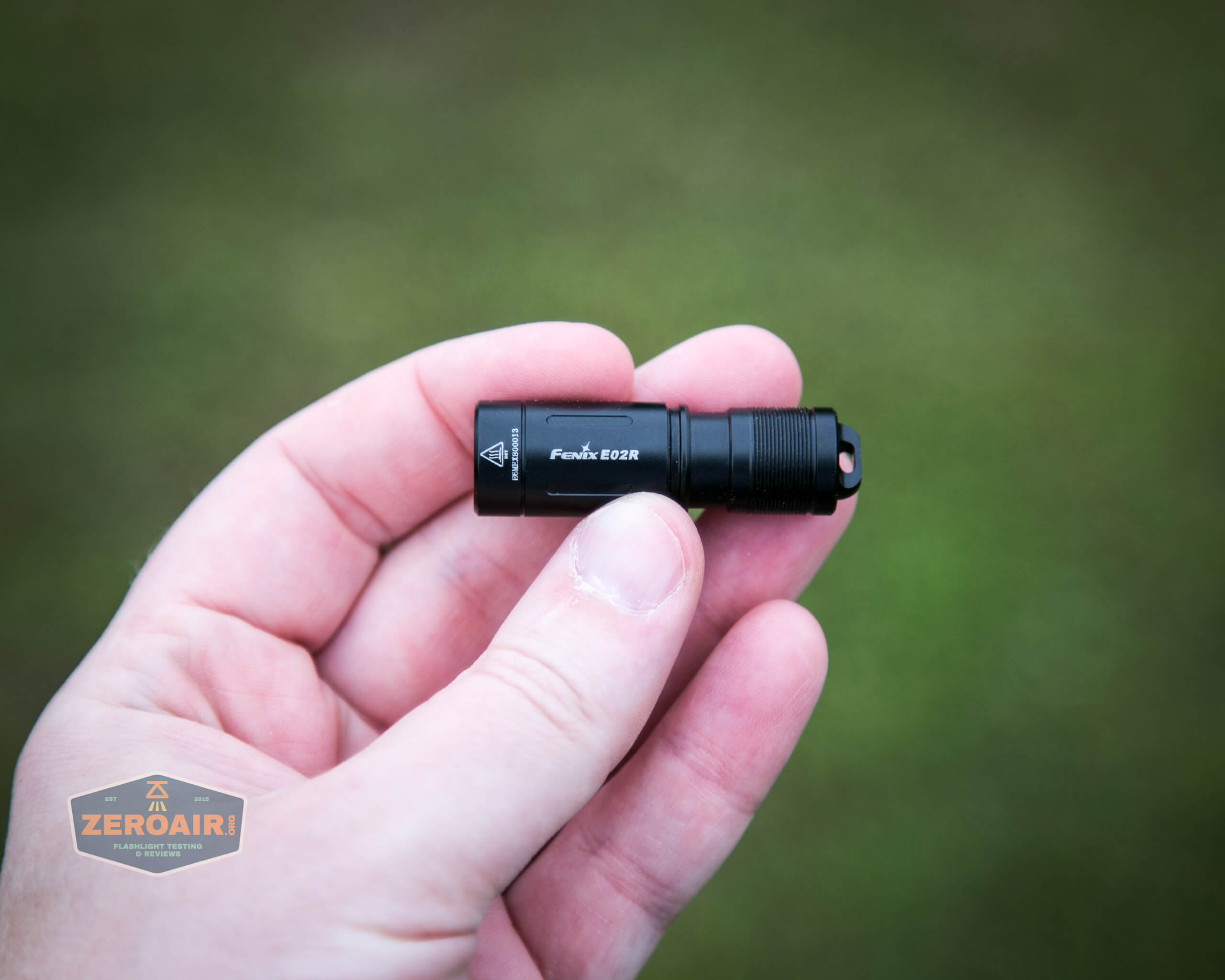

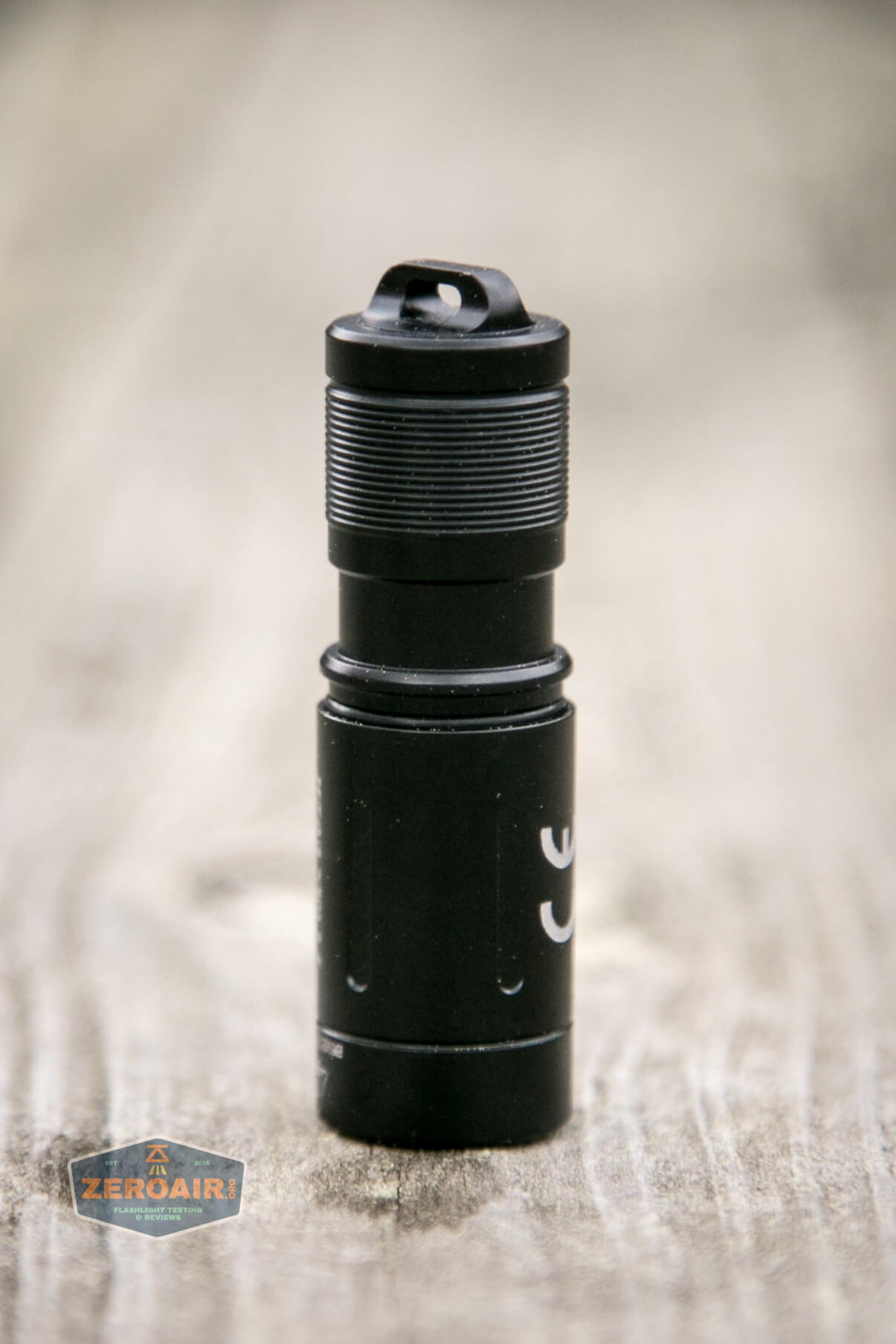

The pictures might not tell the story immediately, but this is a tiny little light.

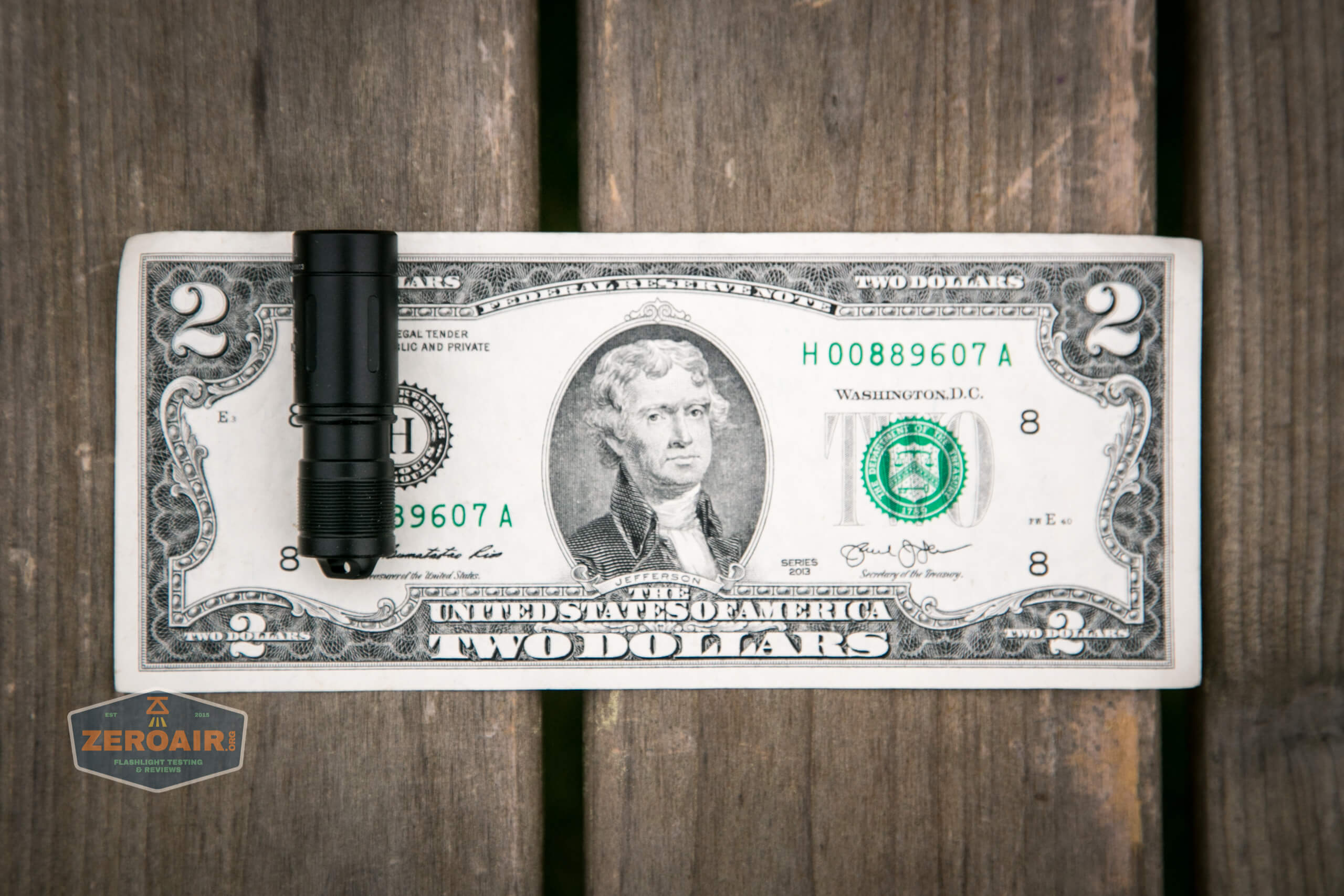

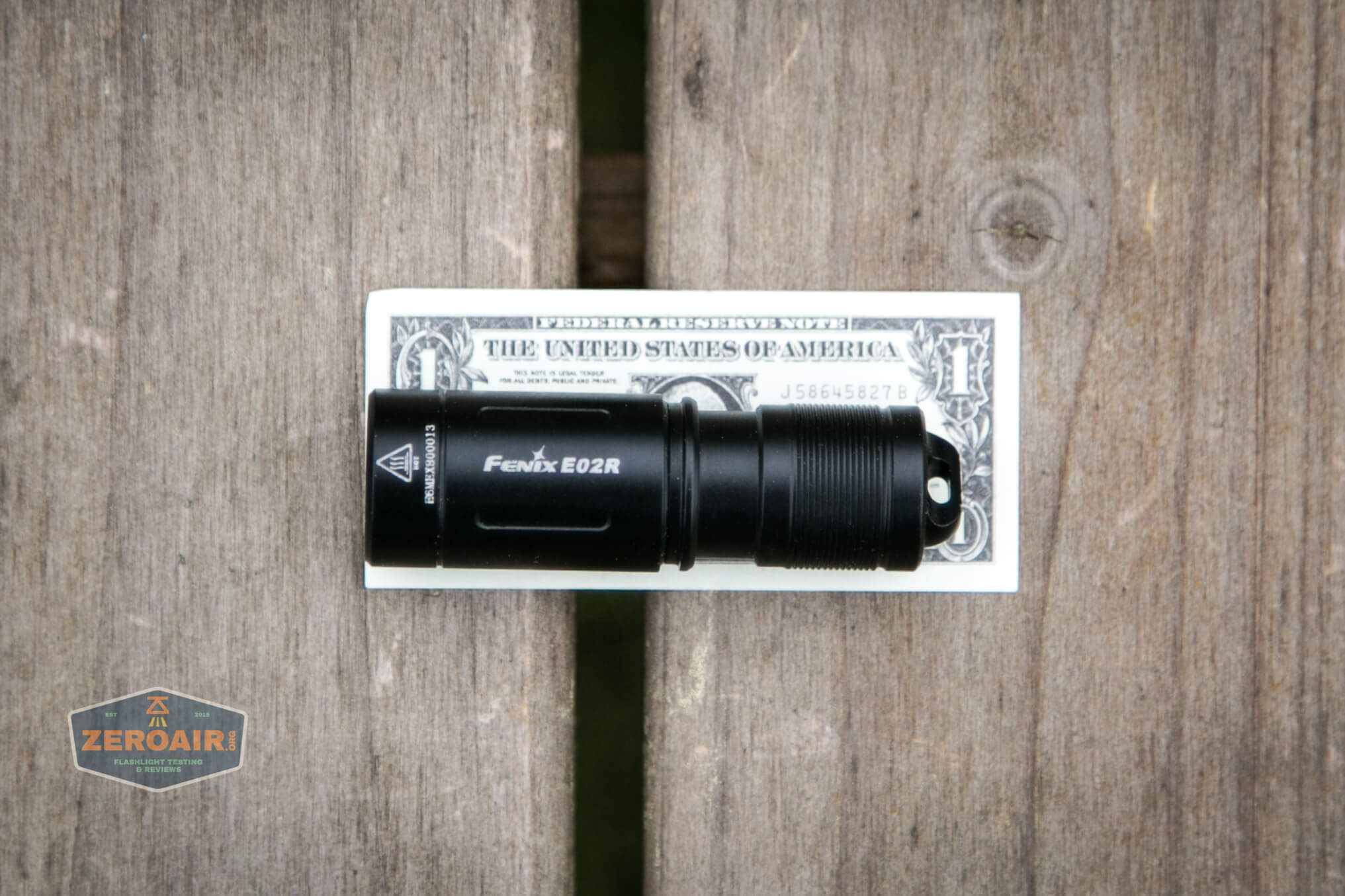

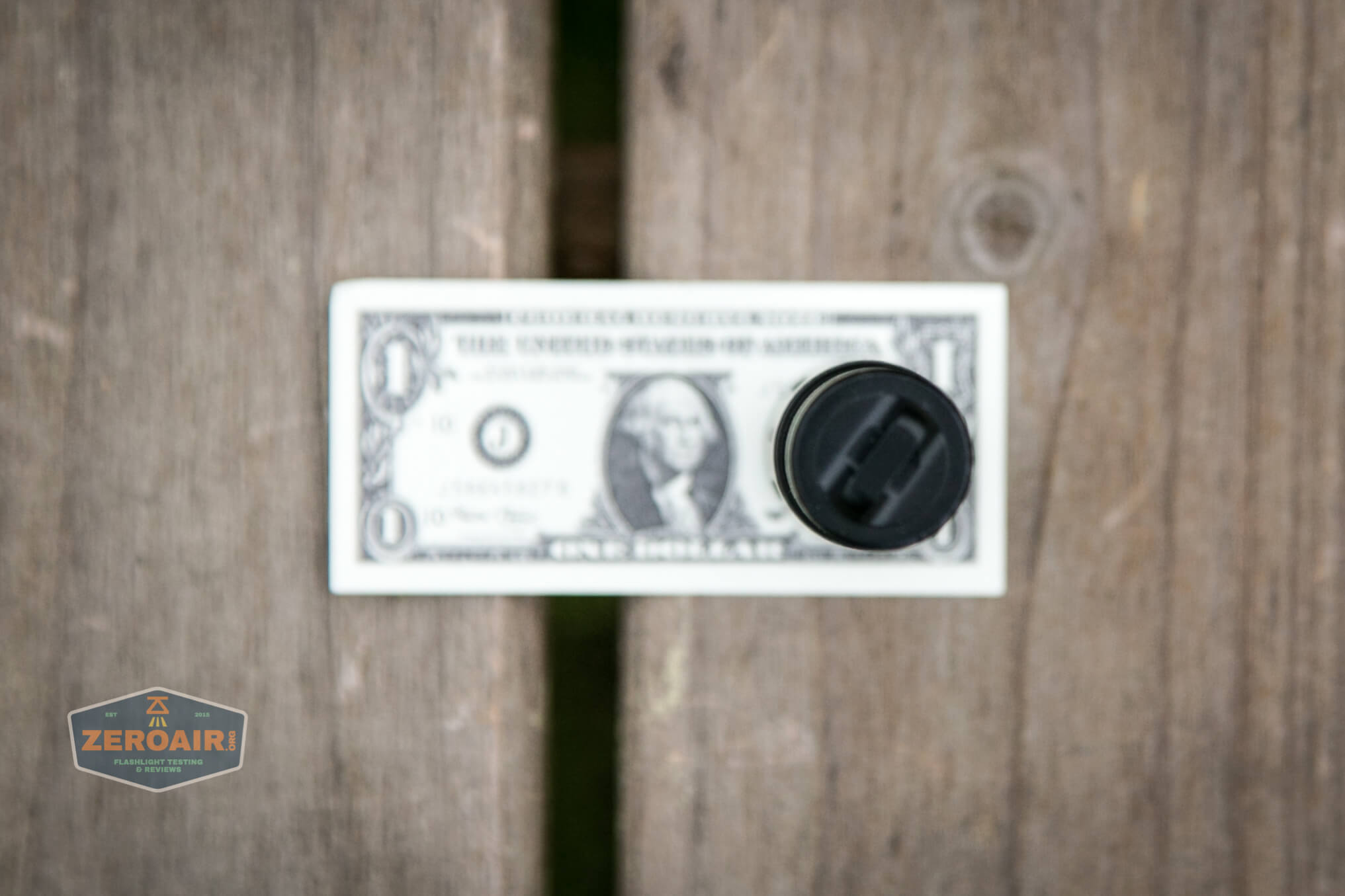

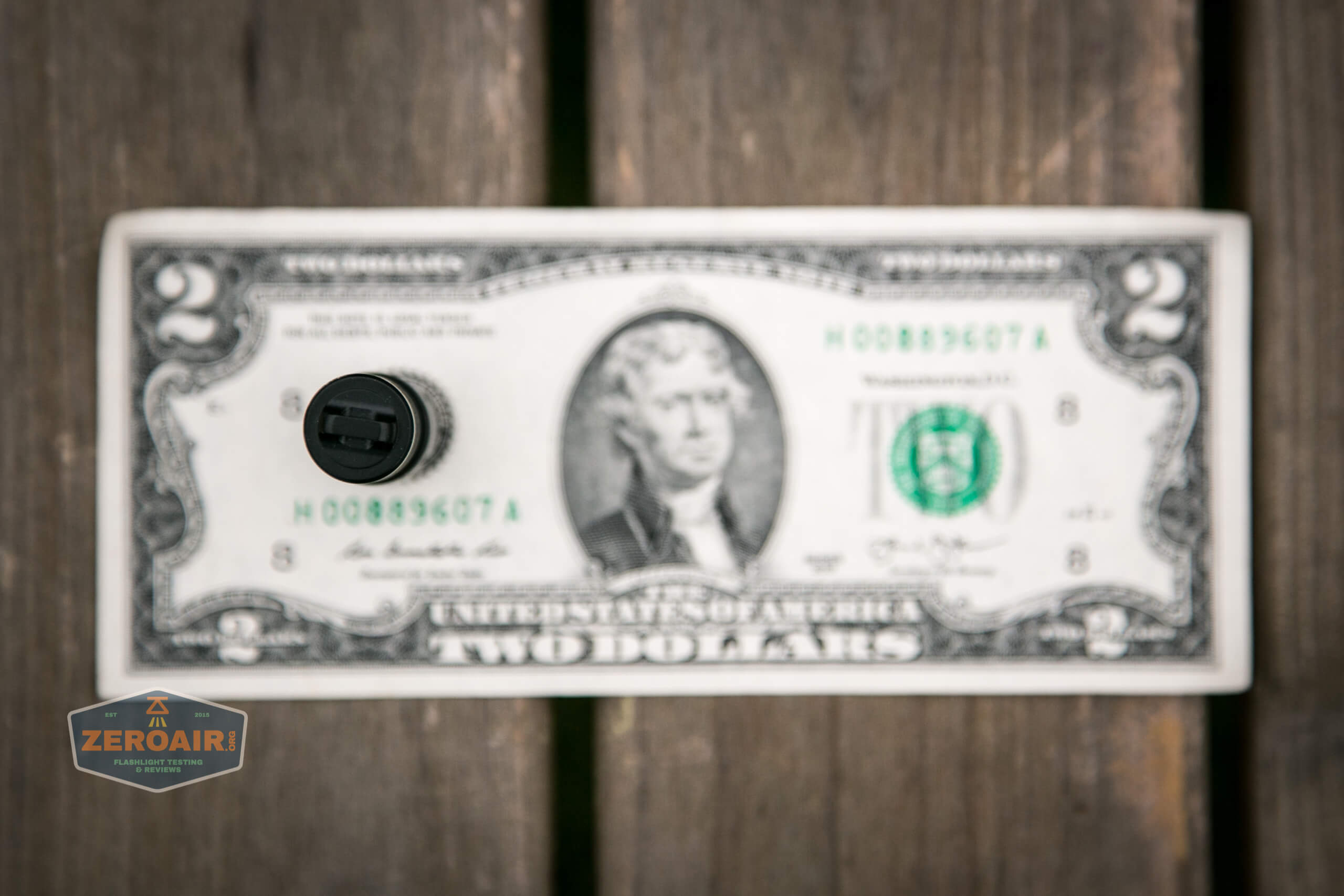

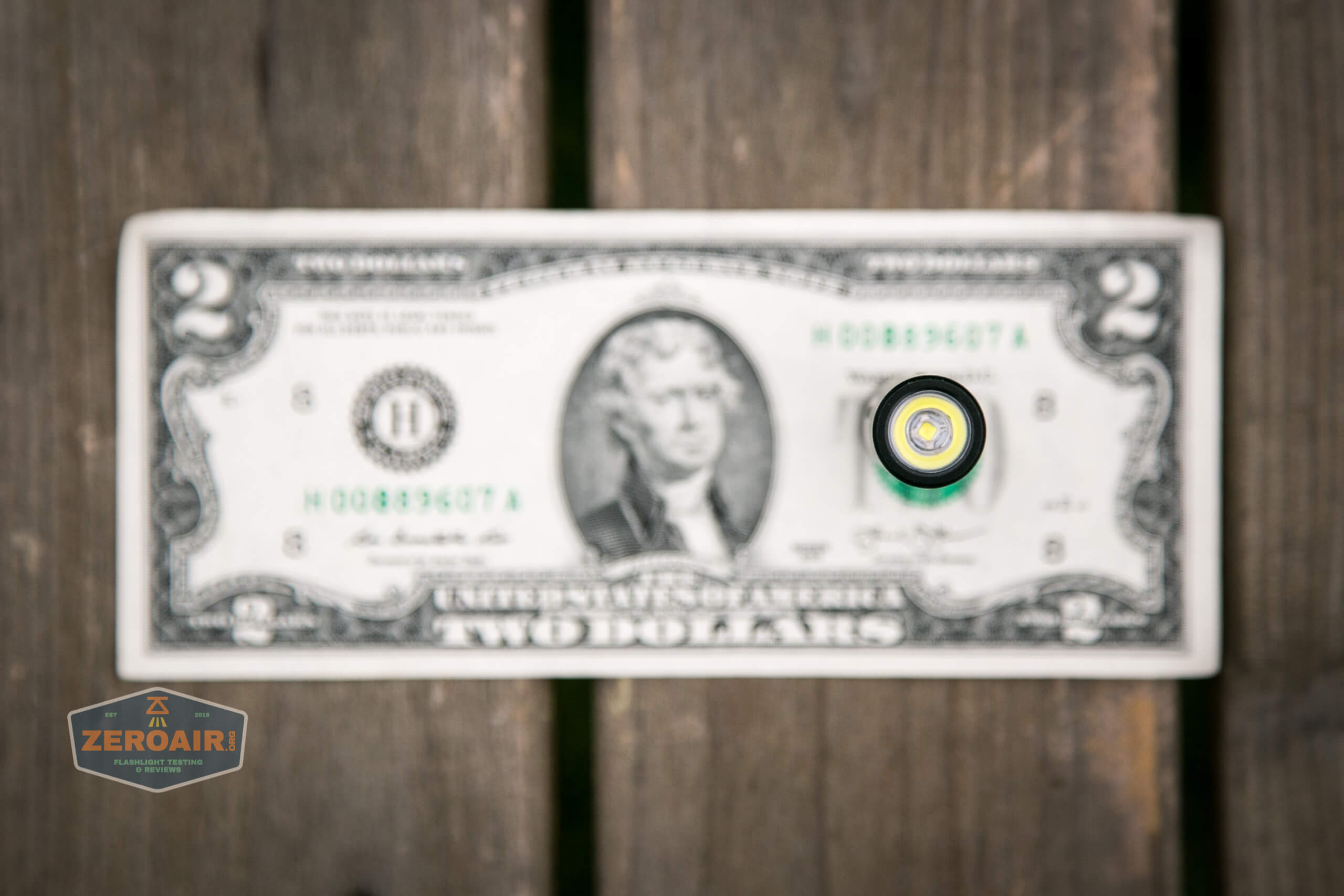

Here’s a top-down view:

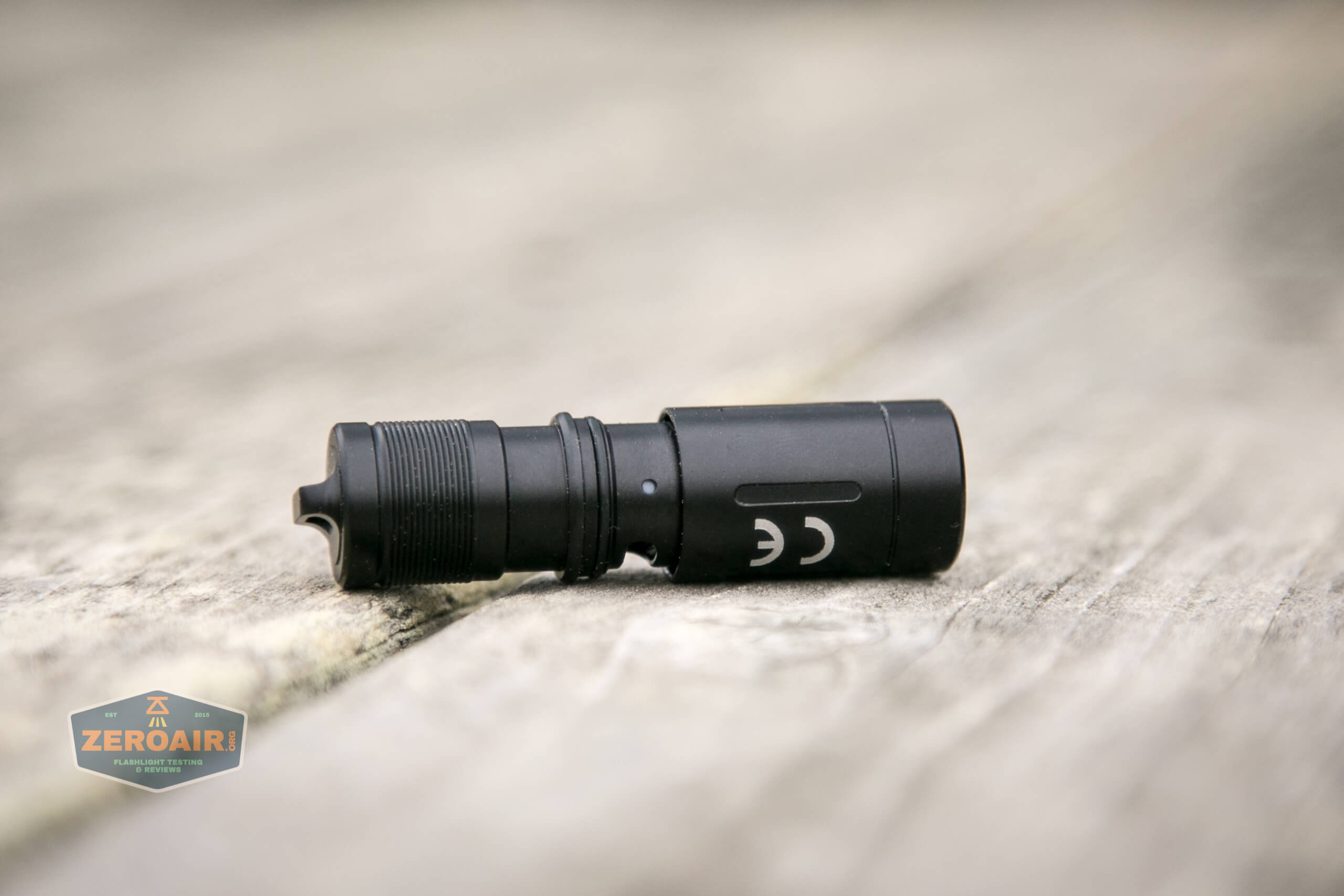

The Fenix E02R keychain flashlight unscrews to the point you see below. I could make it go no further, and I persuaded it not-so-gently. Maybe there are some press-fit pieces or some loctite, but I couldn’t get these parts to part.
So no real disassembly photos…. sorry!

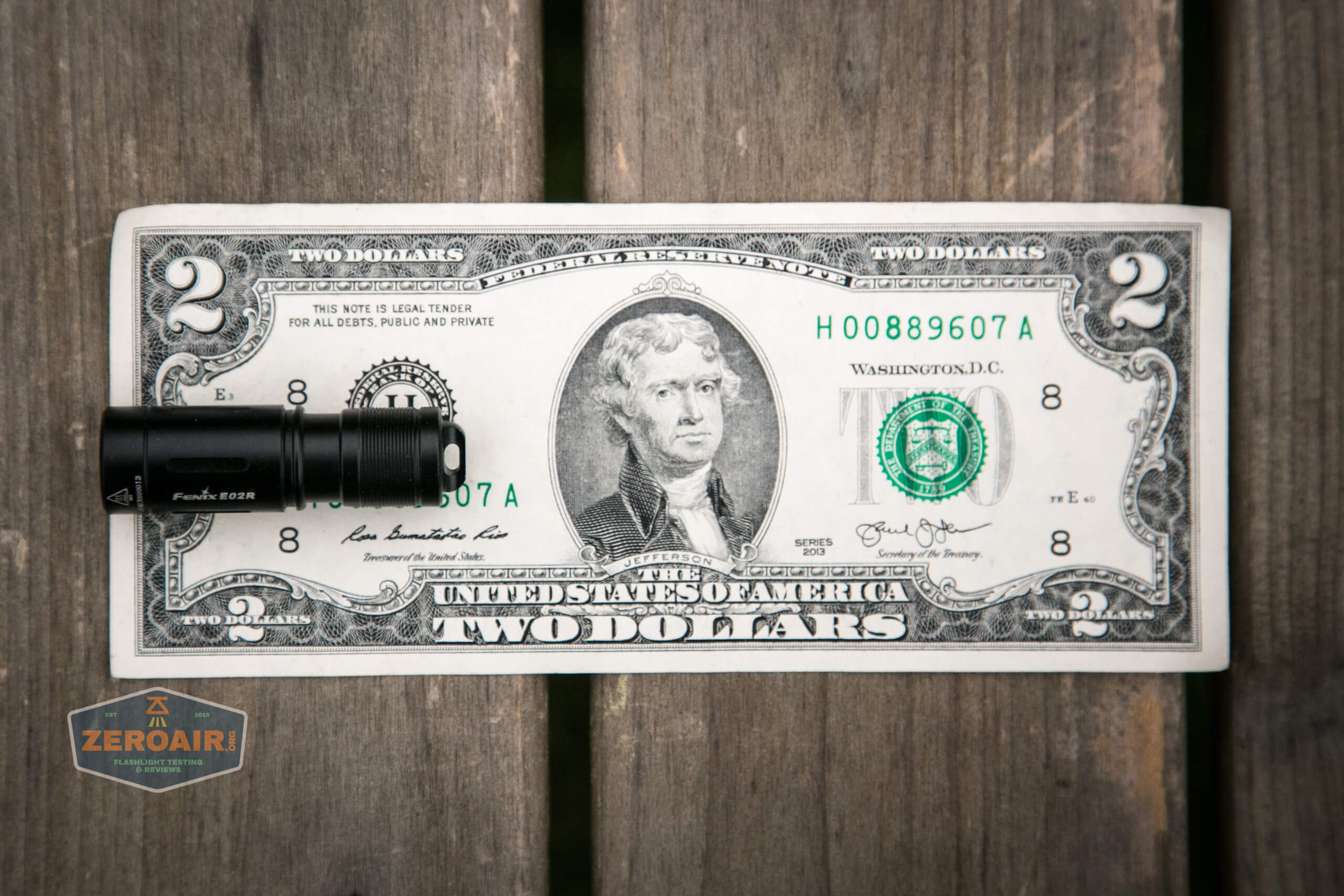

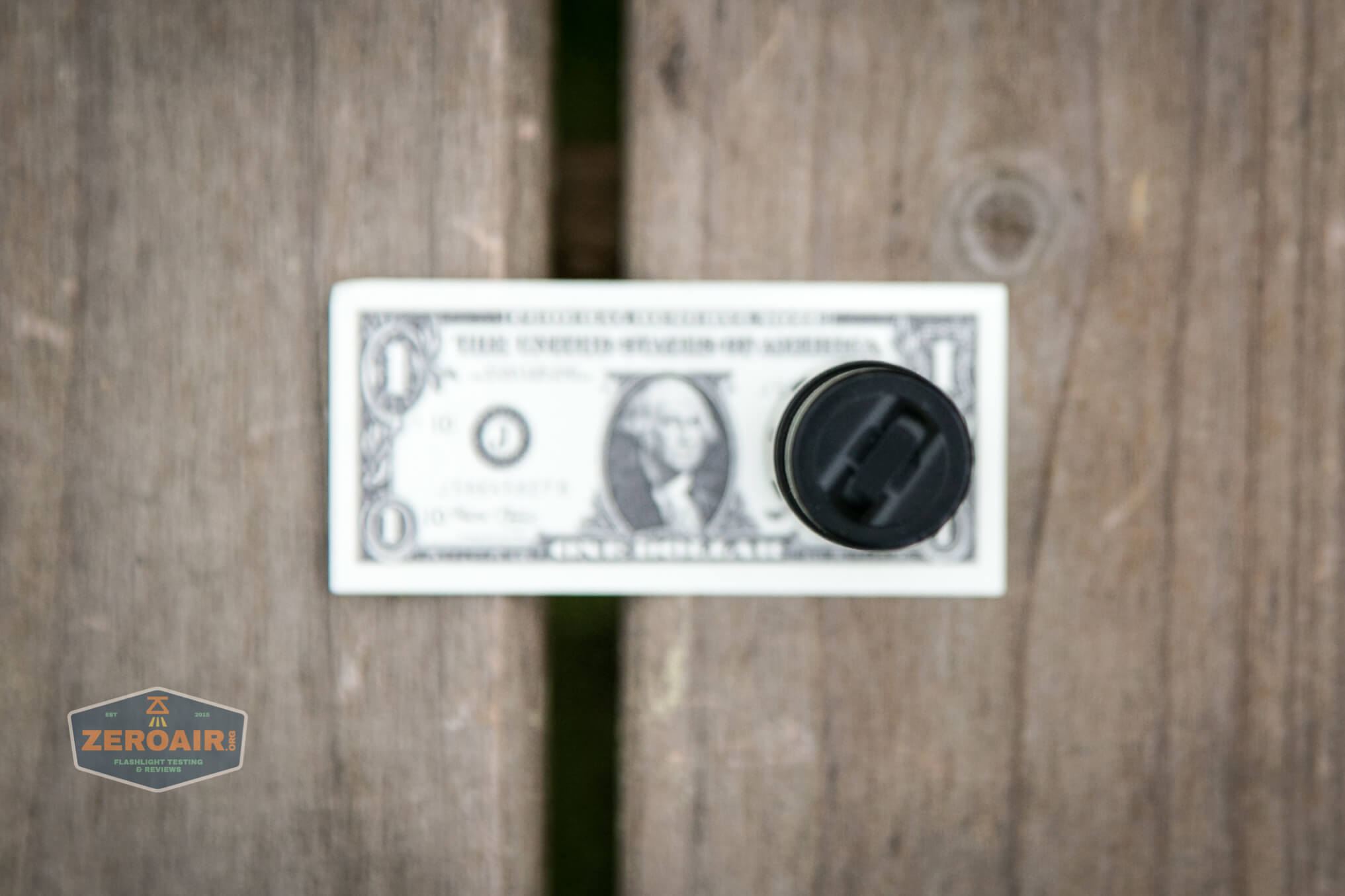

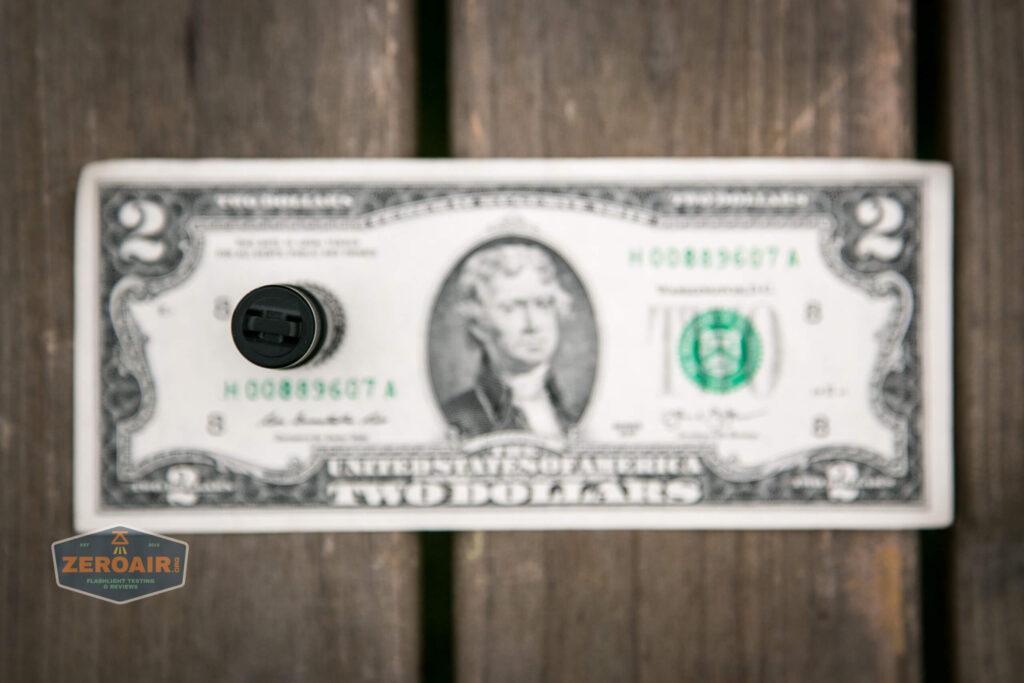

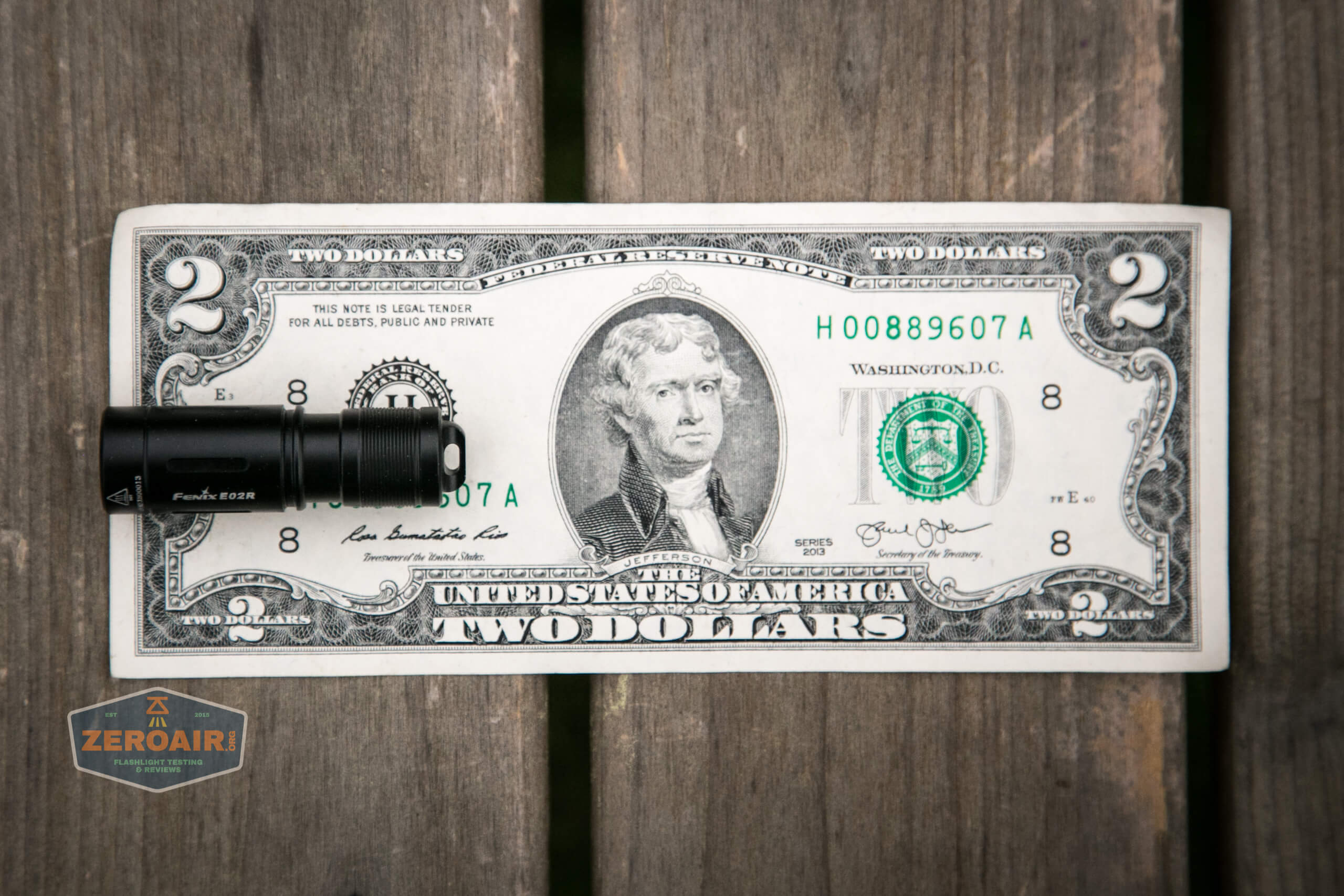

Size and Comps
Length: 1.89″
Head Diameter: .59″
Body Diameter: .55″
Weight: .52 oz (Excluding Battery)
Funny that Fenix would list the weight without a battery. This just leads me to believe I never figured out how to remove the cell…..

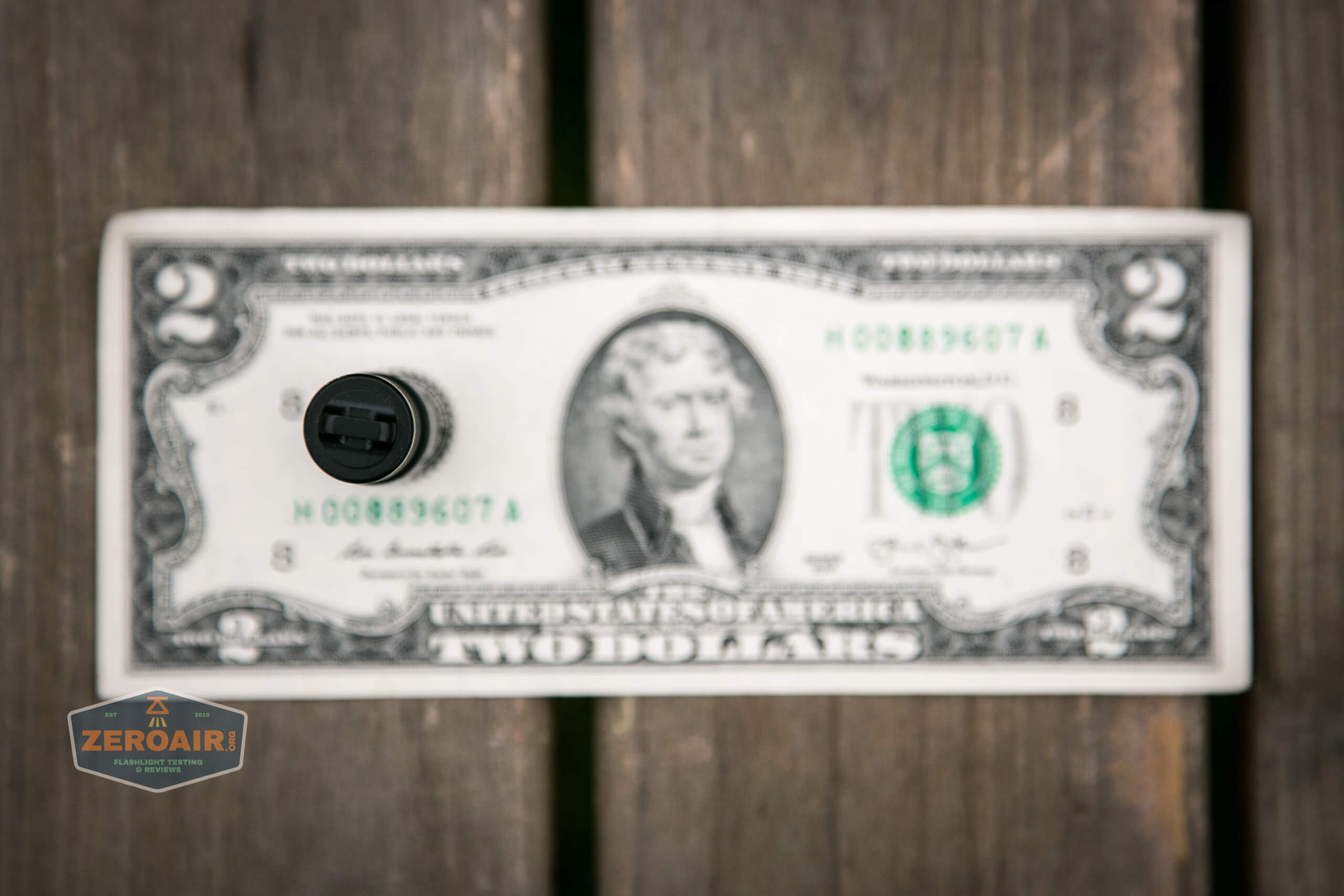

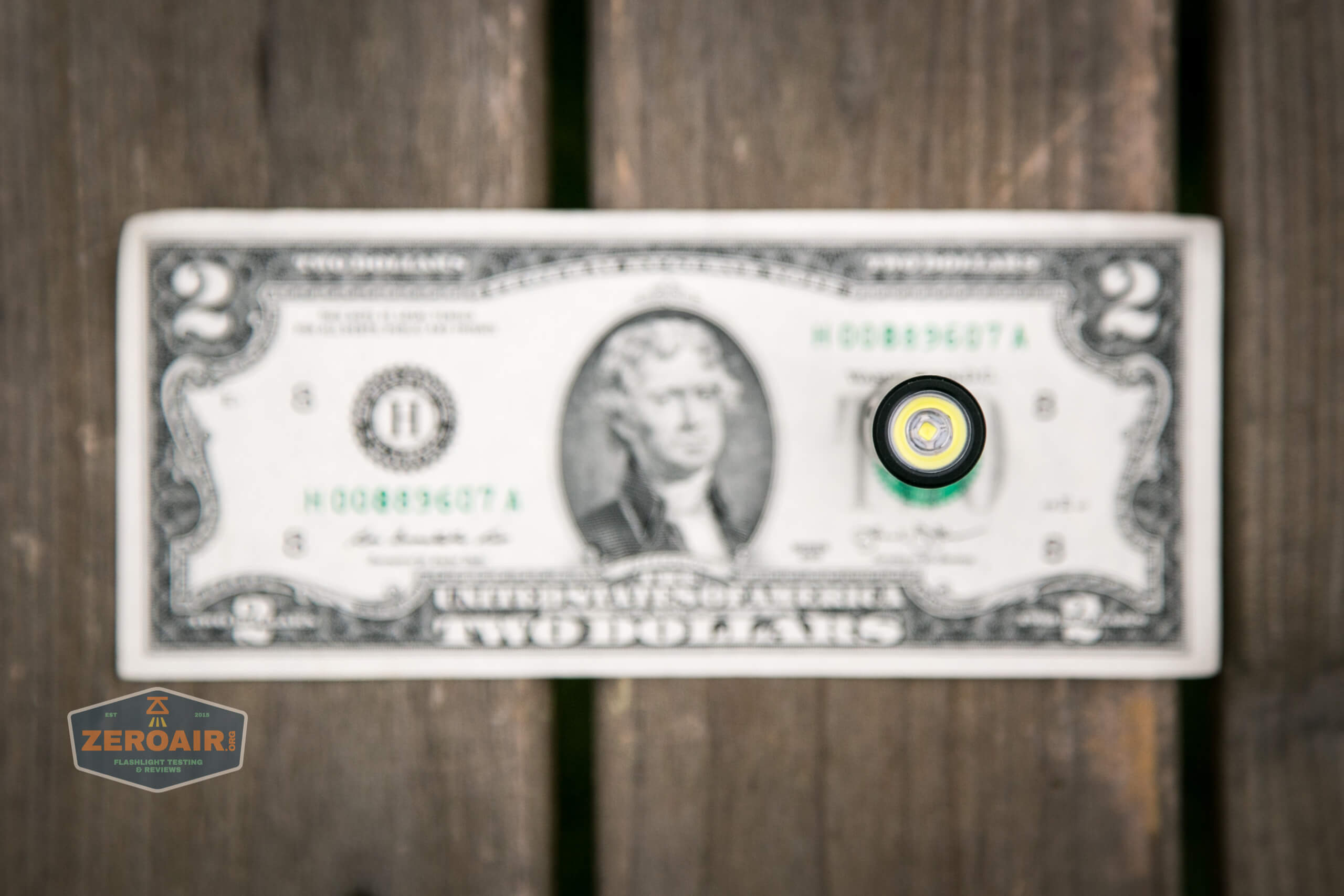

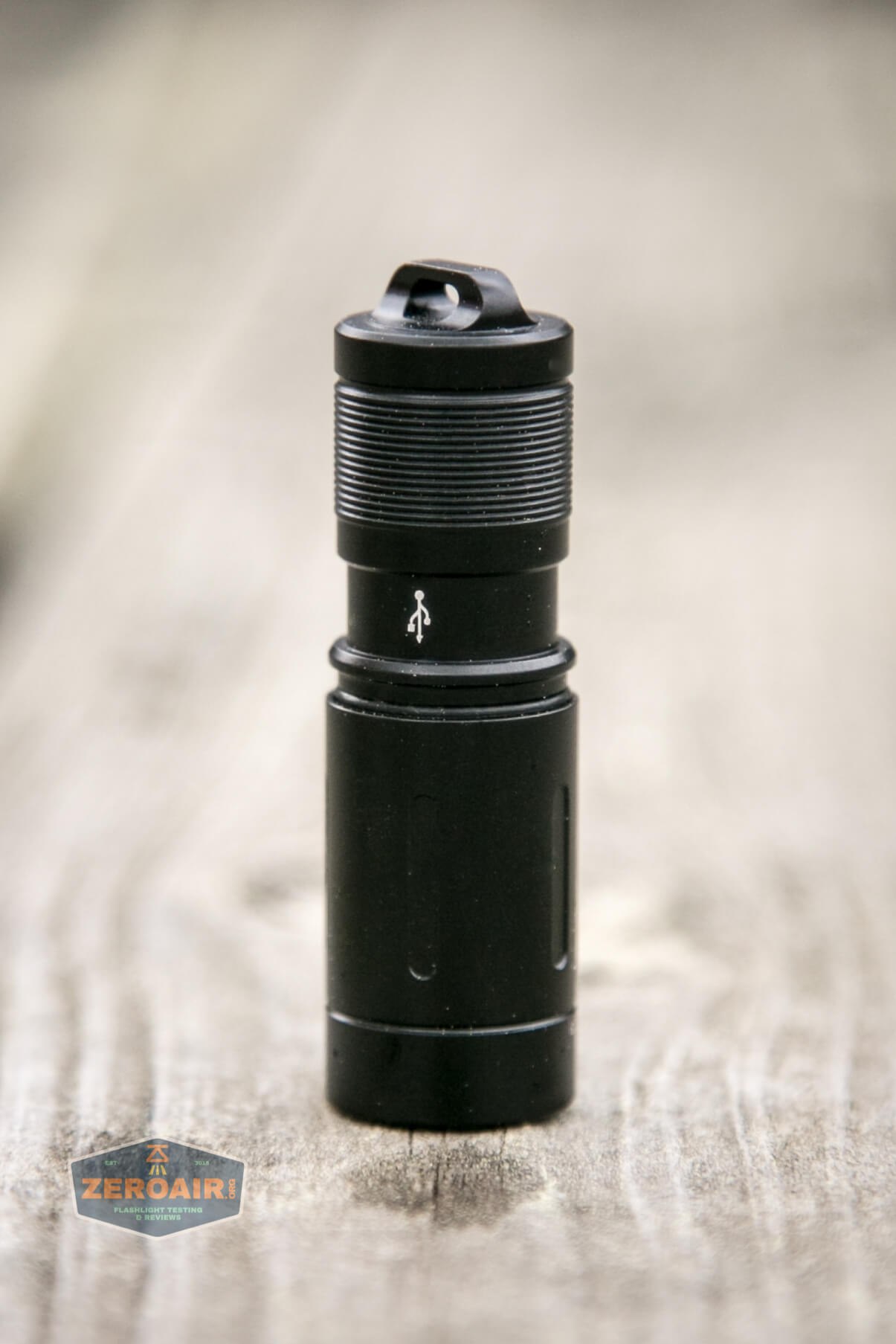

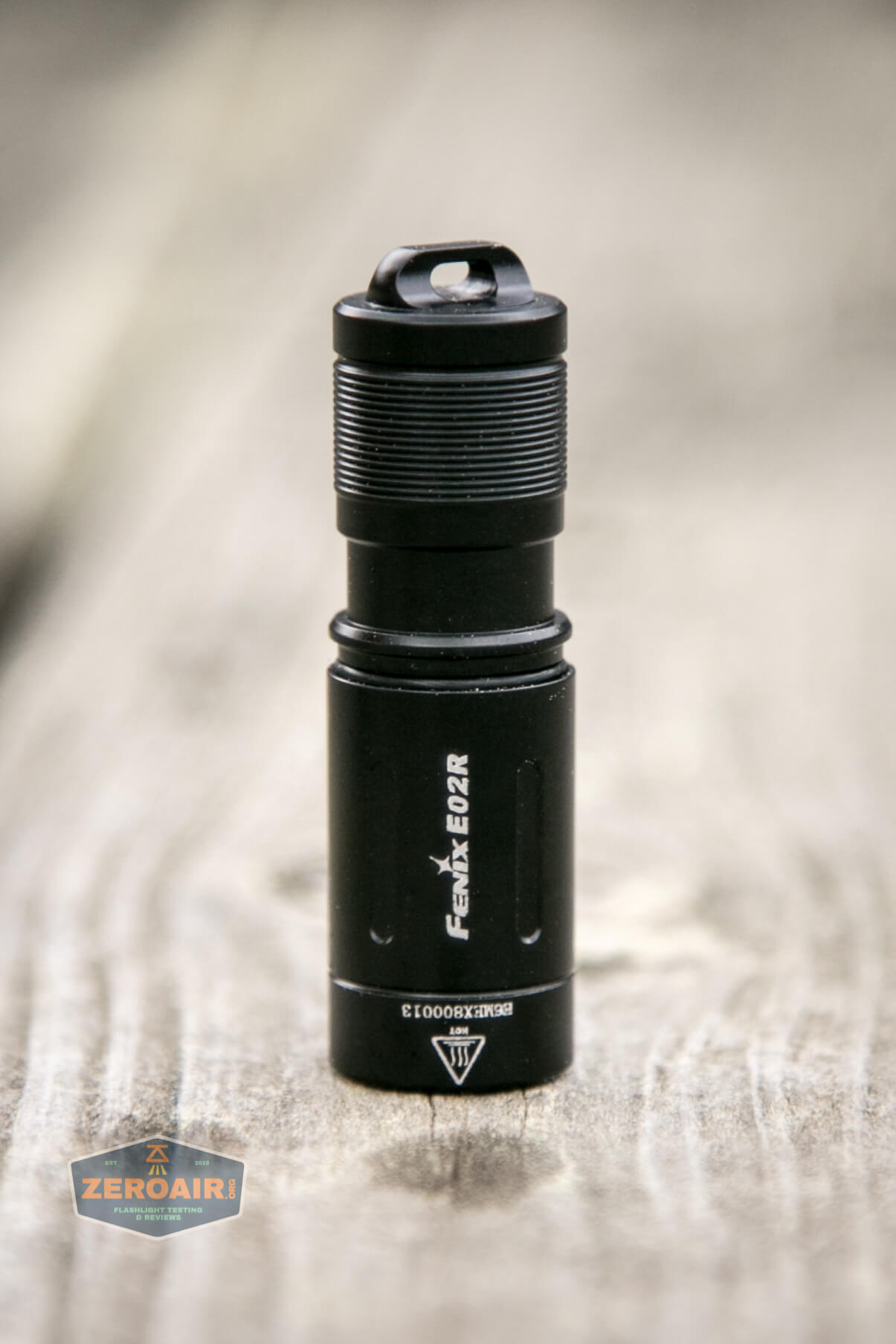

If the flashlight will headstand, I’ll show it here (usually the third photo). If the flashlight will tailstand, I’ll show that here, too (usually the fourth photo).

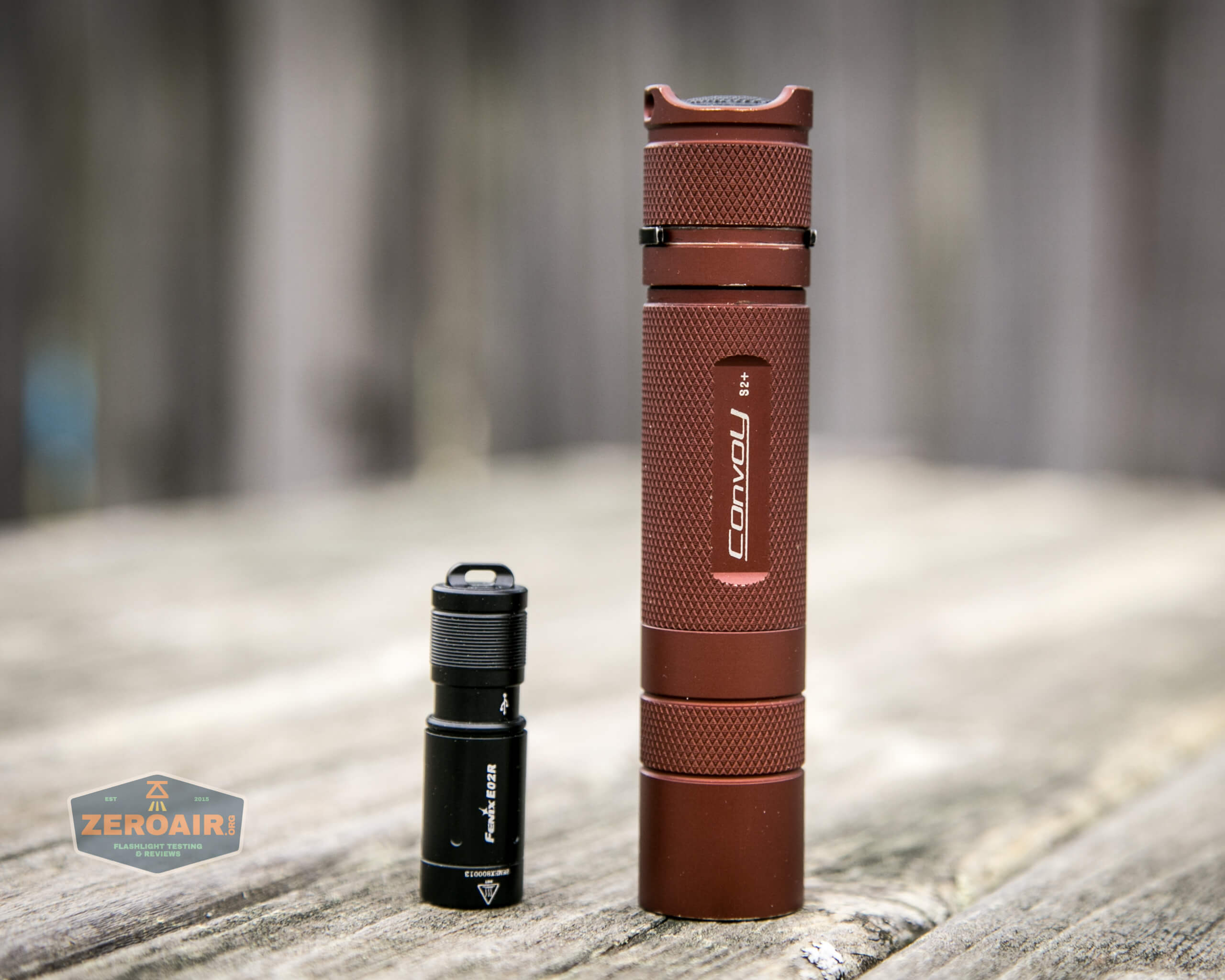

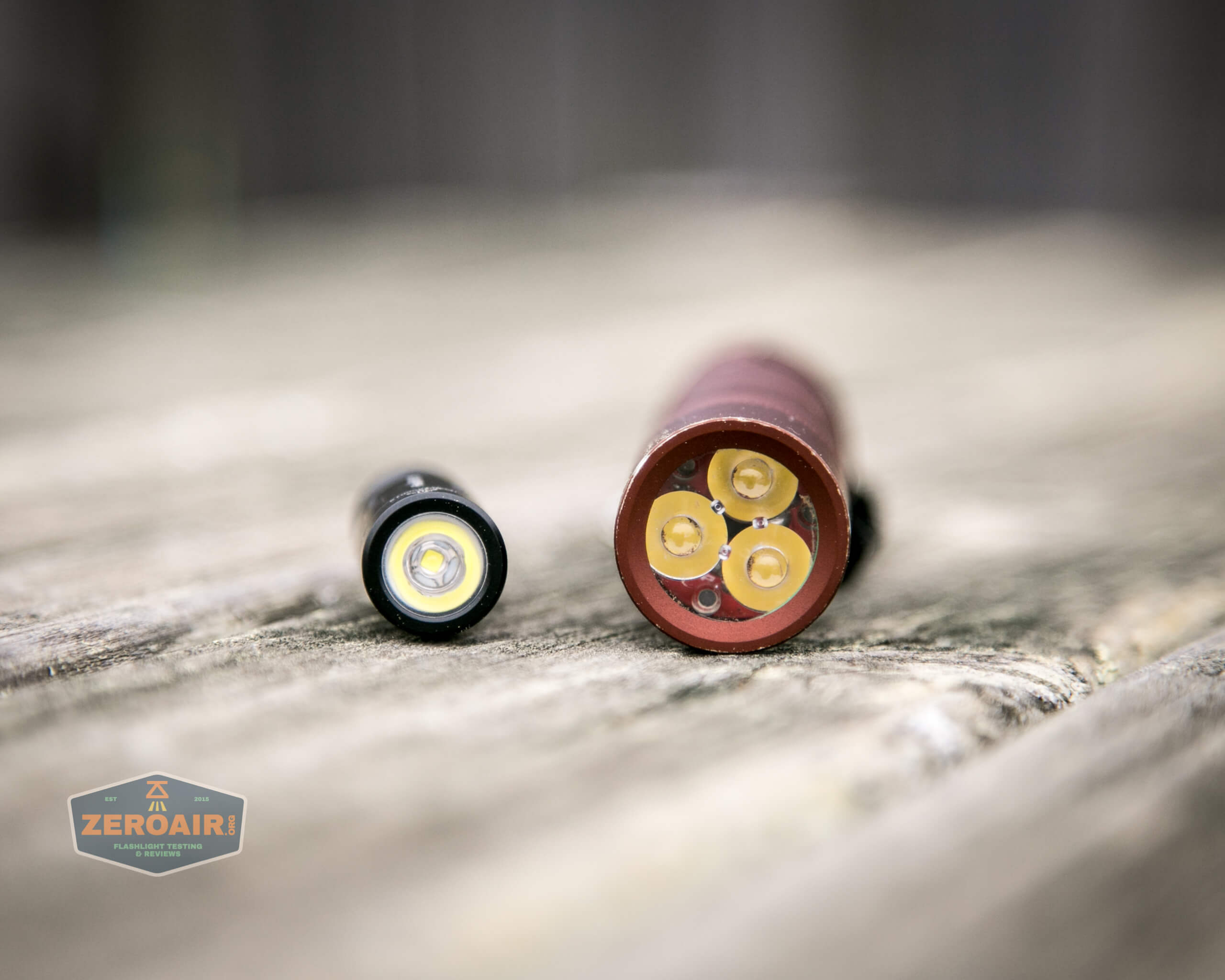

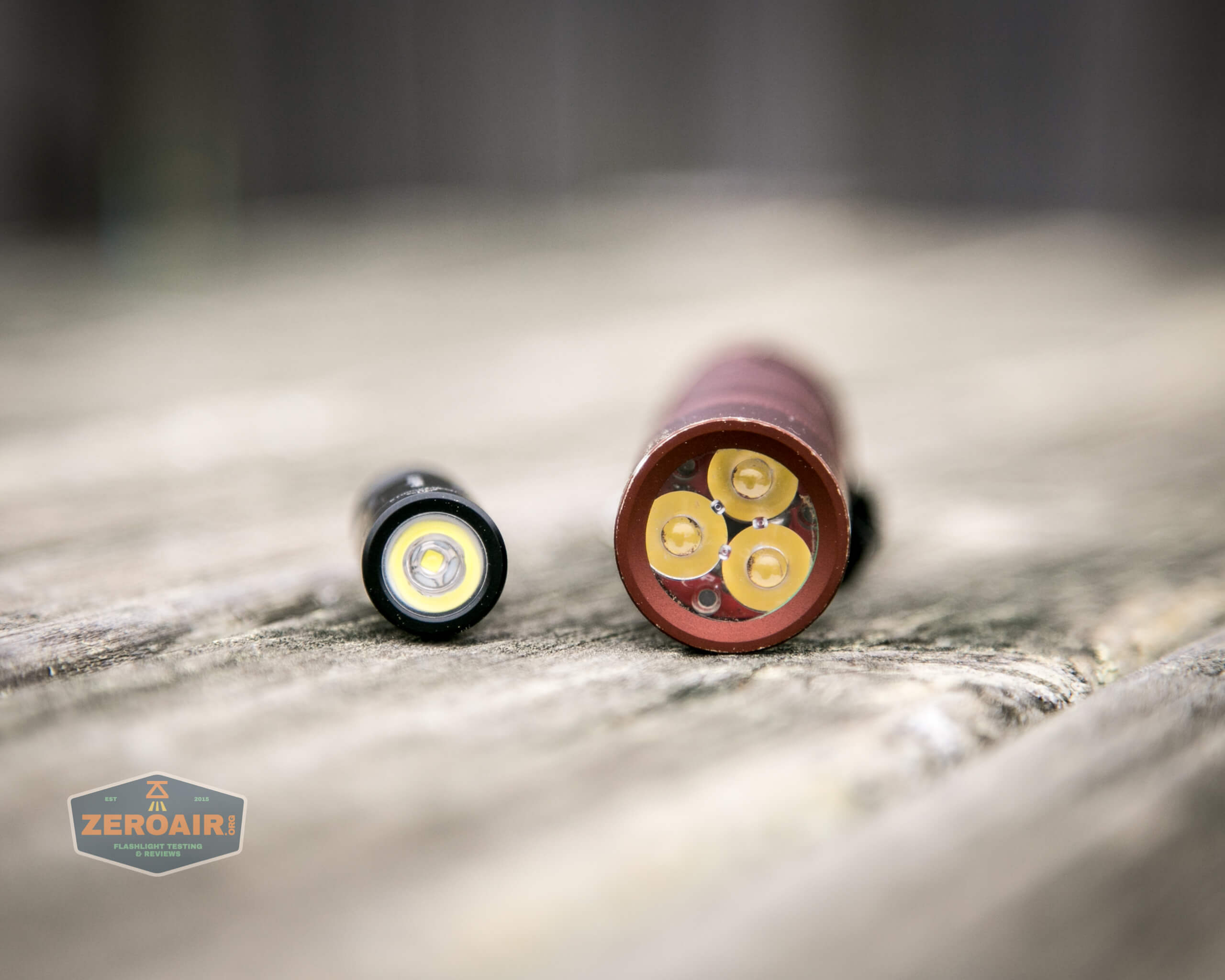

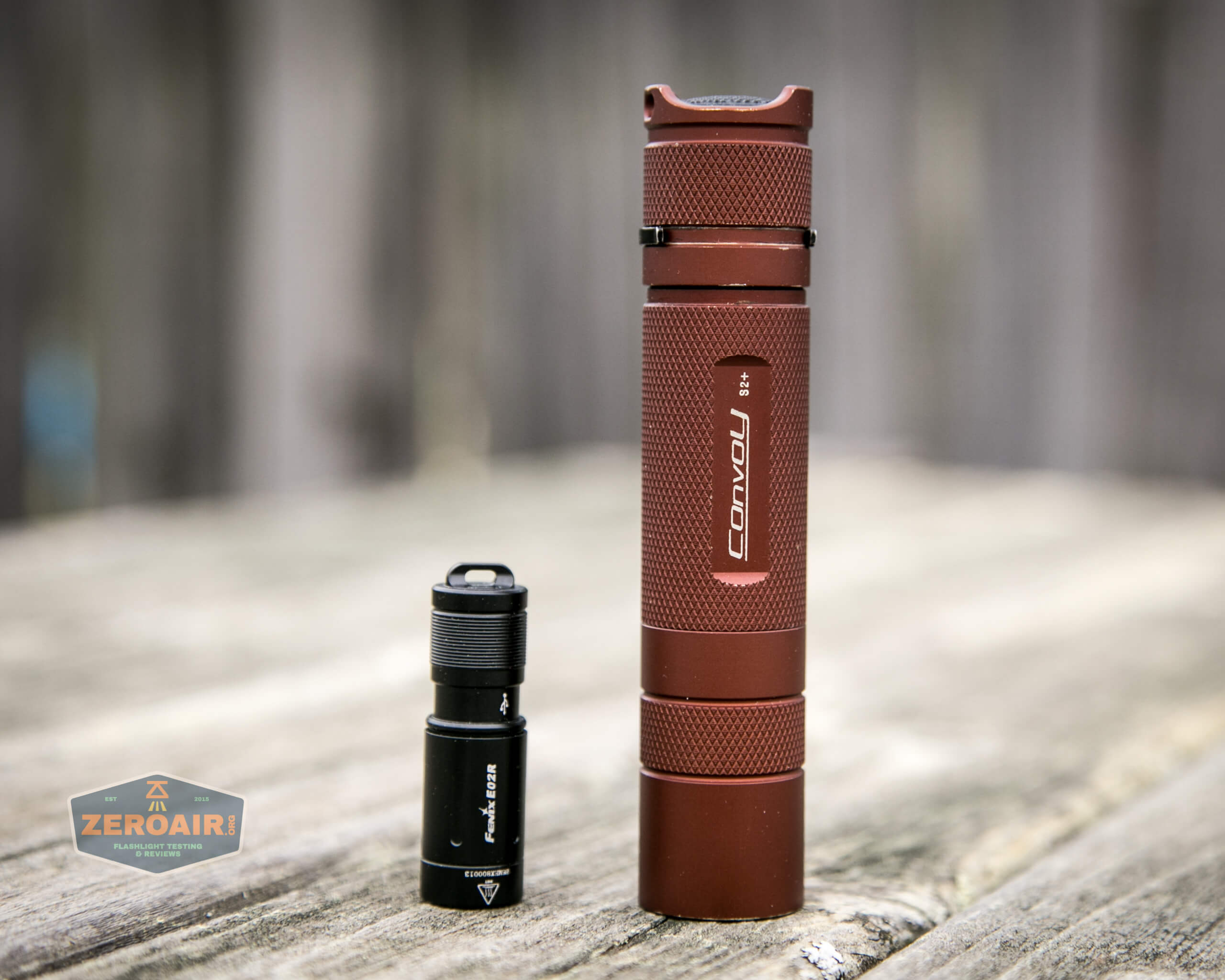

Here’s the test light with the venerable Convoy S2+. Mine’s a custom “baked” edition Nichia 219b triple. A very nice 18650 light.

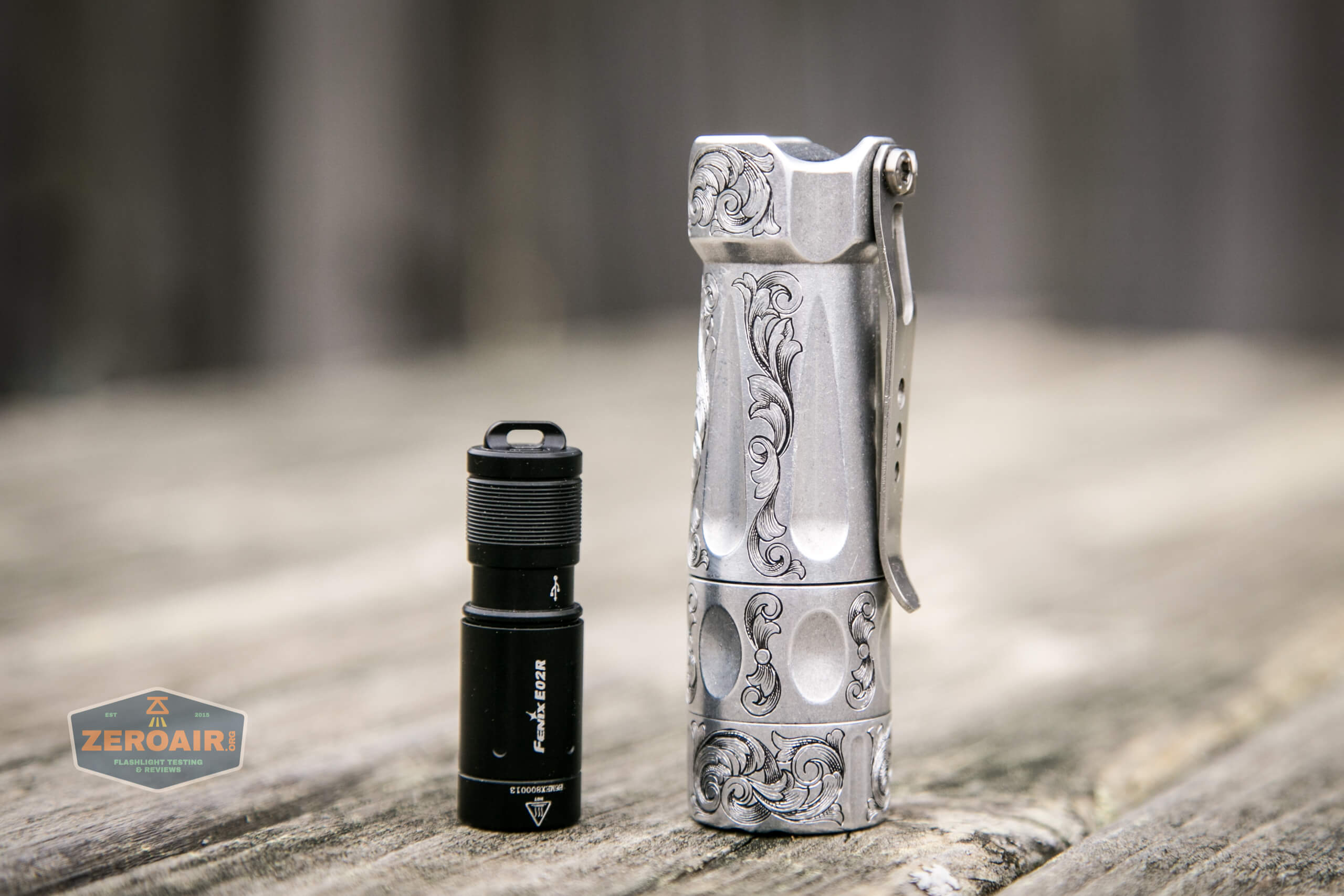

And here’s the light beside my custom engraved TorchLAB BOSS 35, an 18350 light. I reviewed the aluminum version of that light in both 35 and 70 formats.

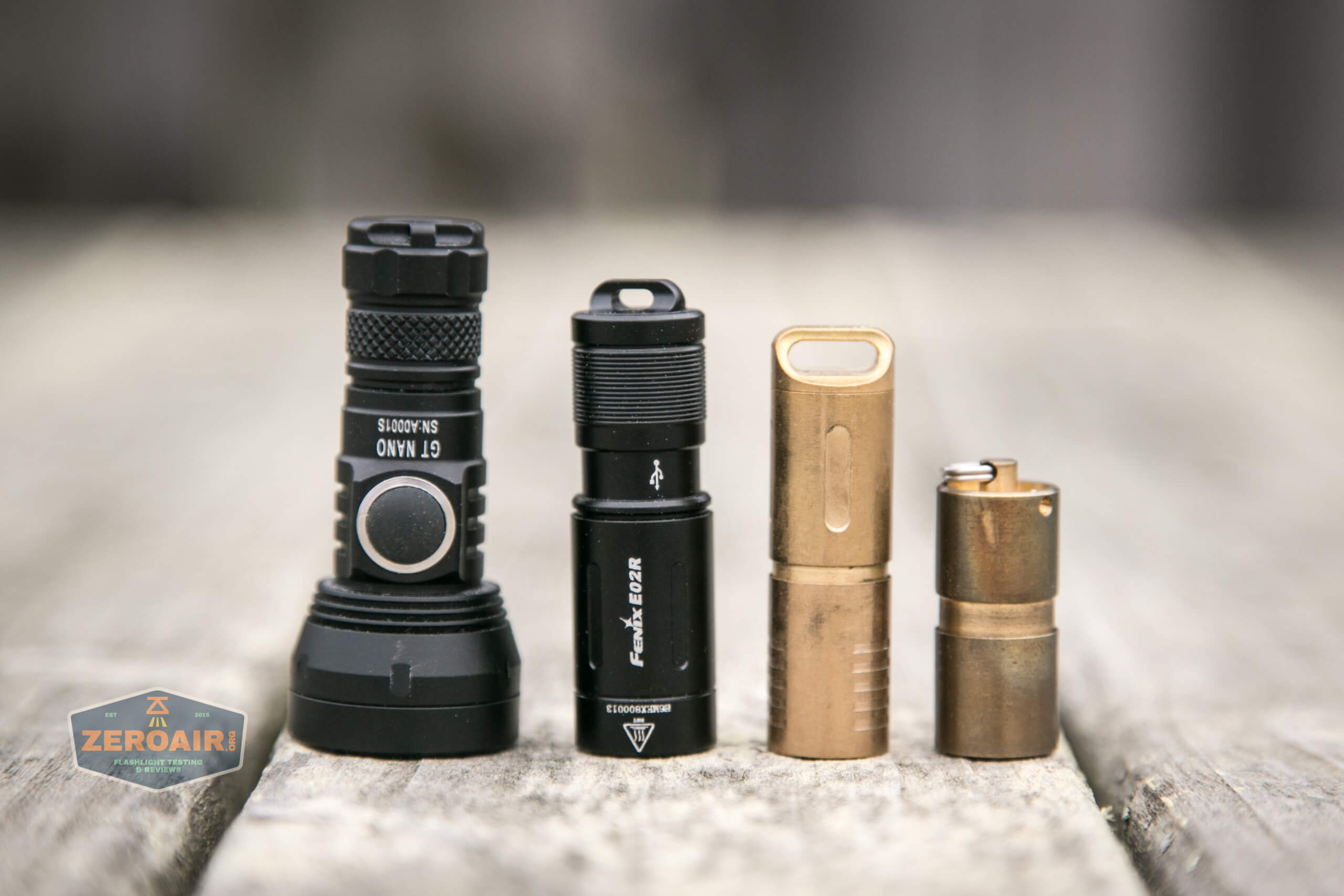

A few other small lights, which are all 10180 powered. I presume this Fenix E02R Keychain flashlight is too, but I don’t think Fenix states that.
Retention and Carry
There’s not much in the way of carry options for the Fenix E02R Keychain flashlight. The split ring can attach through this tailcap.
There is no pocket clip or magnet or otherwise.
Power and Runtime
As stated above, I was unable to disassemble this light, to see what cell is inside. Almost certainly it’s a single 10180 cell though. It’d be nice for this to be user-replaceable, but that doesn’t seem like an option.

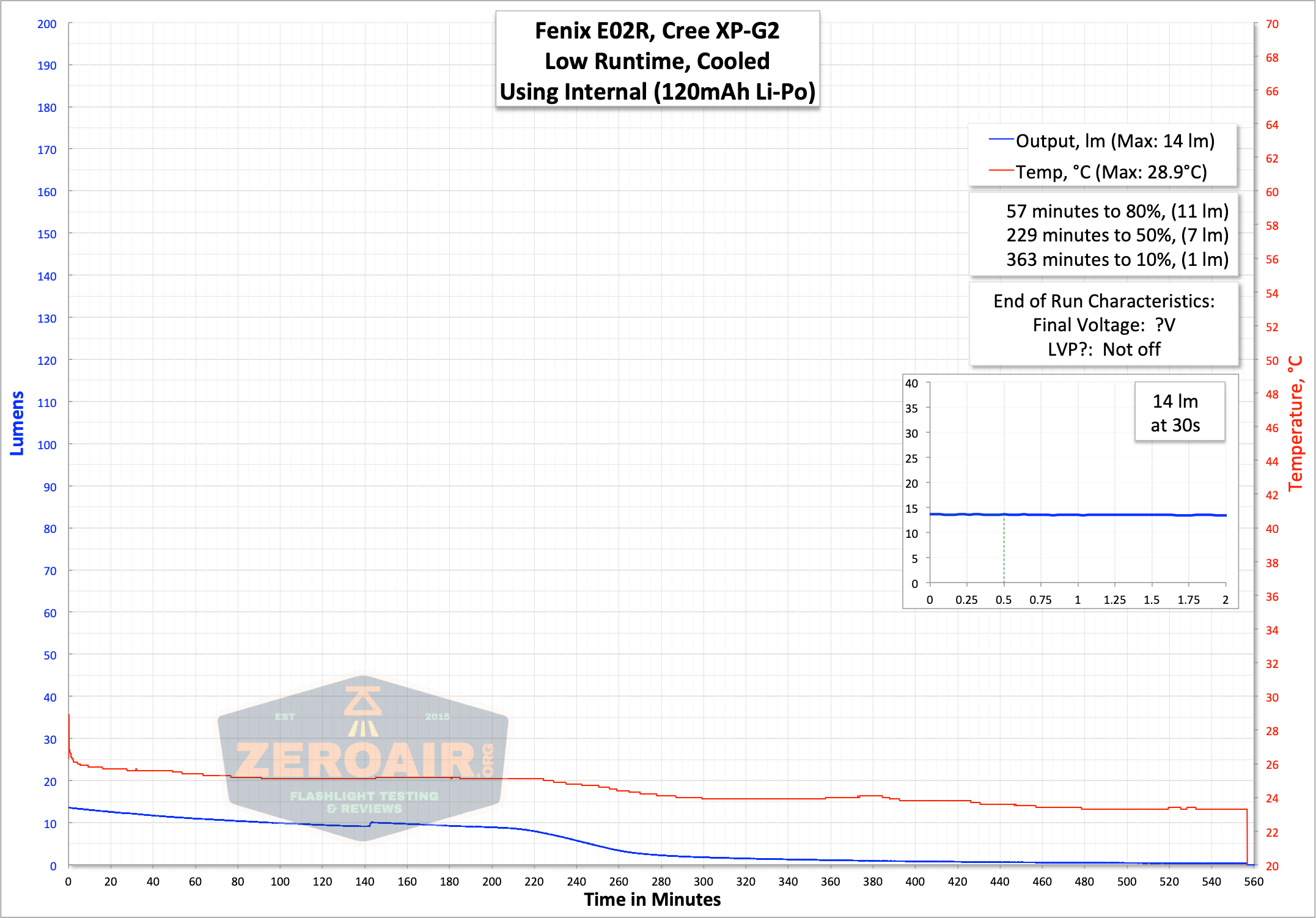

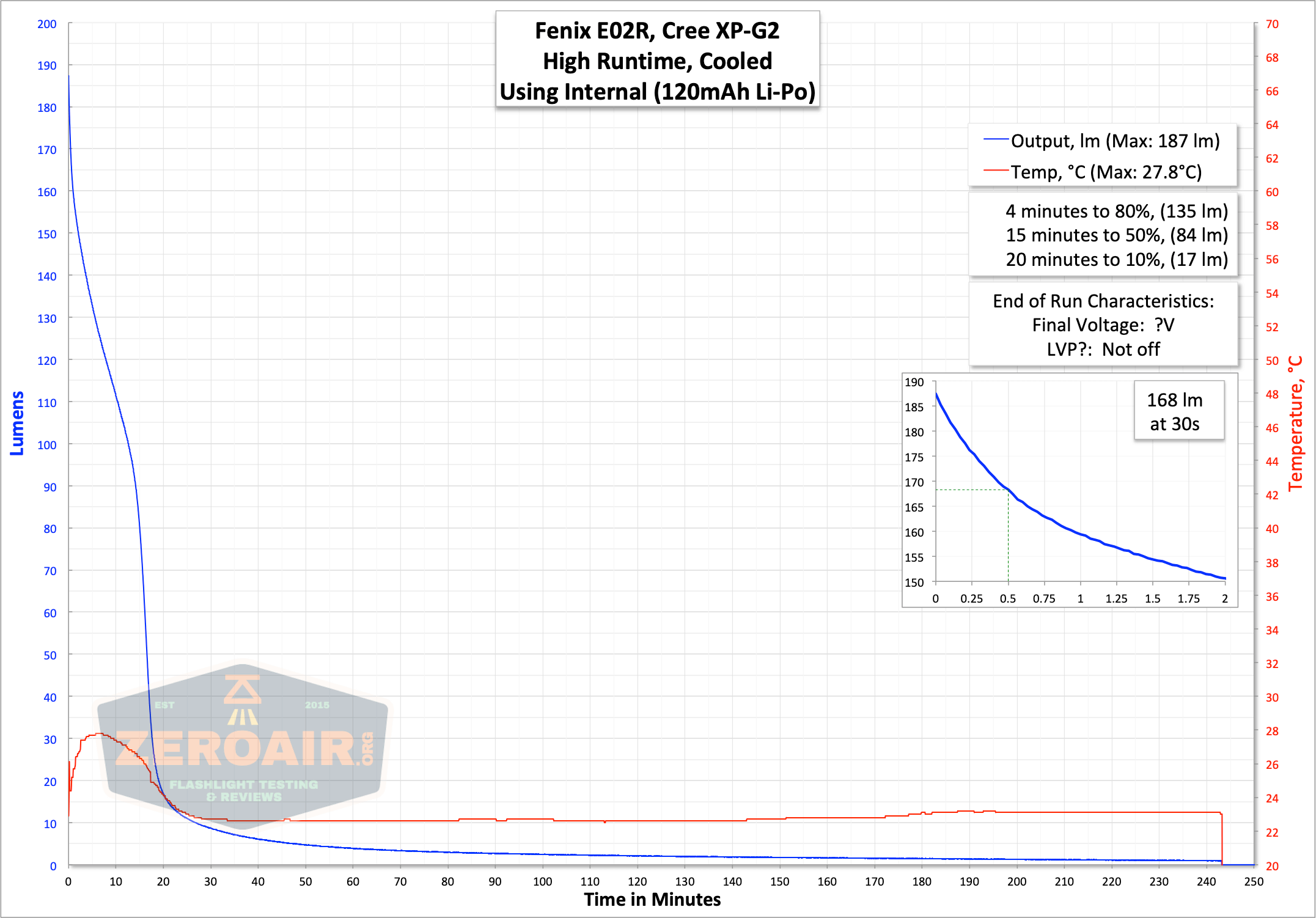

Here are runtimes for both modes.
Output on High drops dramatically, and in both runtimes, the output trails off without seeming to offer low voltage protection at all.

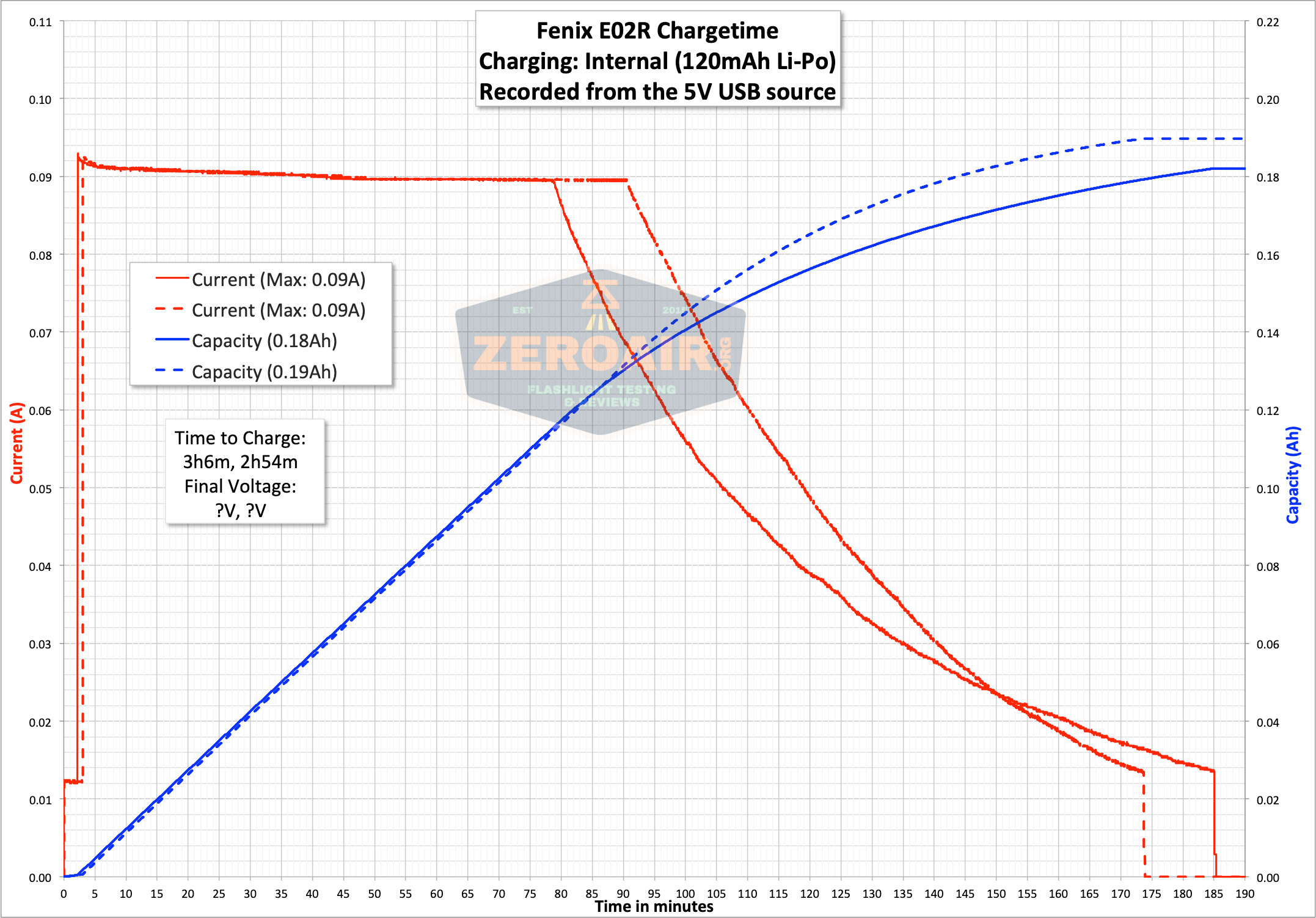

Charging

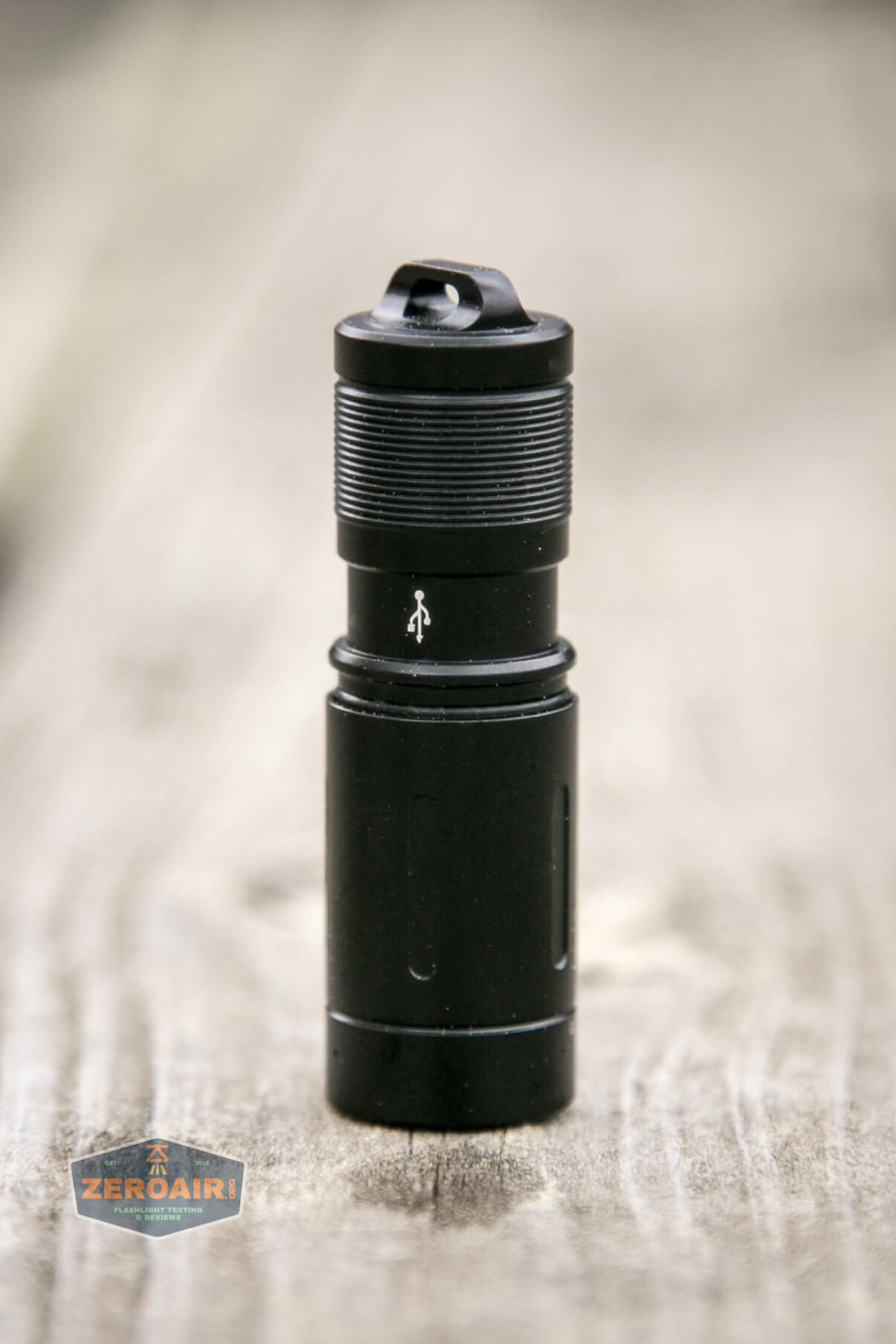

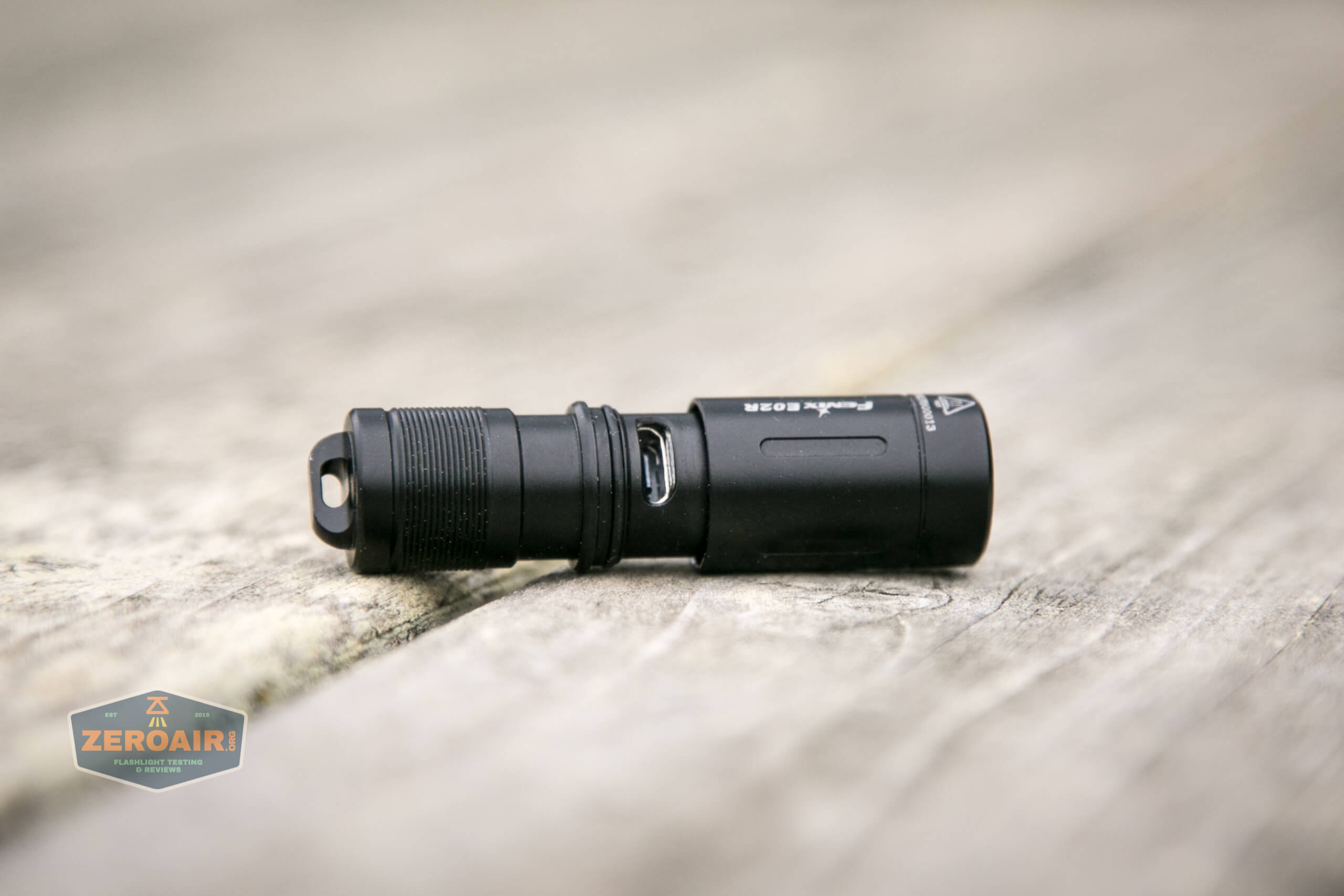

With the built-in battery, you’d expect on-board charging – and you’ll get it. It’s in the form of a micro-USB port, which is revealed by unscrewing the body.
An appropriate cable is included – USB to micro-USB.
There’s also a charge indicator just beside the charge port. When charging, the translucent dot is red. When charge is complete, the dot turns to…. greenish – not quite green, but decidedly not red, too.
Charging is consistently around 0.1A, which should be fine for the built-in battery. This does take a while, at around 3 hours in my tests, though.
Modes and Currents
Mode | Mode Claimed Output (lm) | Claimed Runtime | Measured Lumens | Tailcap Amps |
---|---|---|---|---|
High | 200 | 25m | 168 | ? |
Low | 15 | 6.5h | 14 | ? |
Pulse Width Modulation

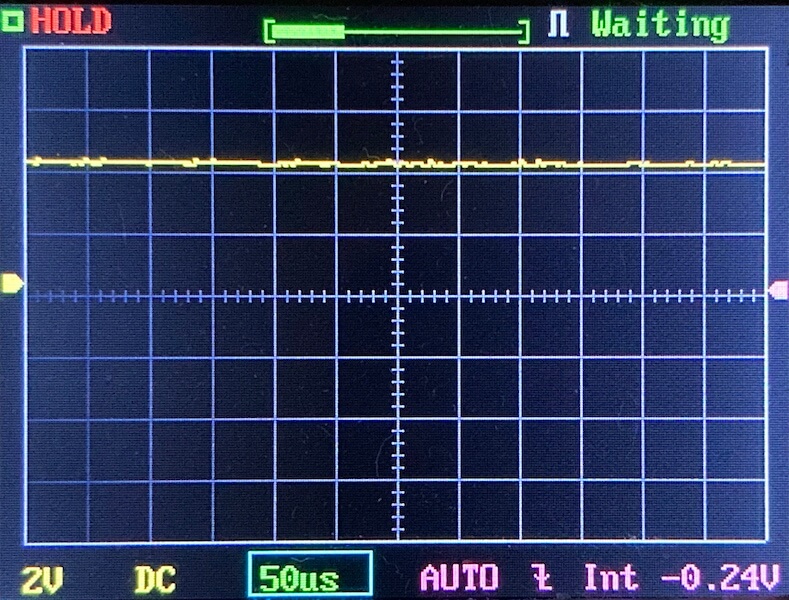

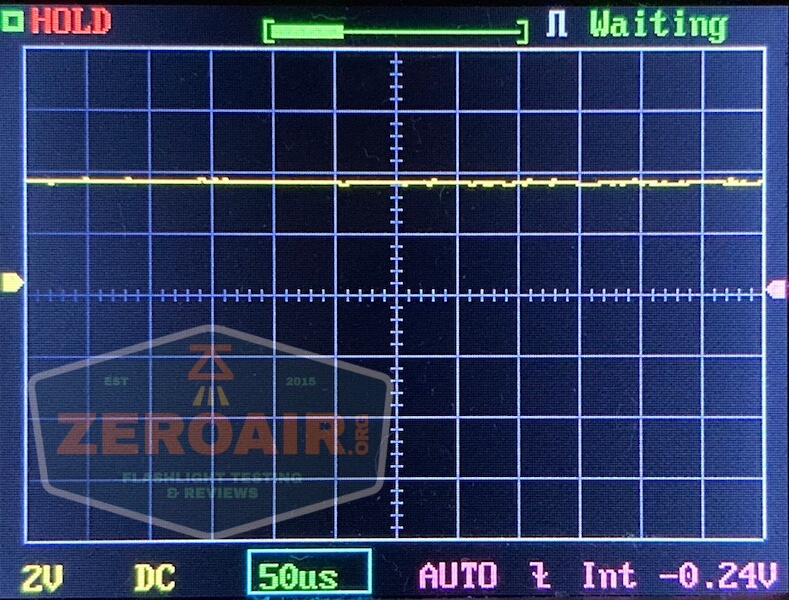

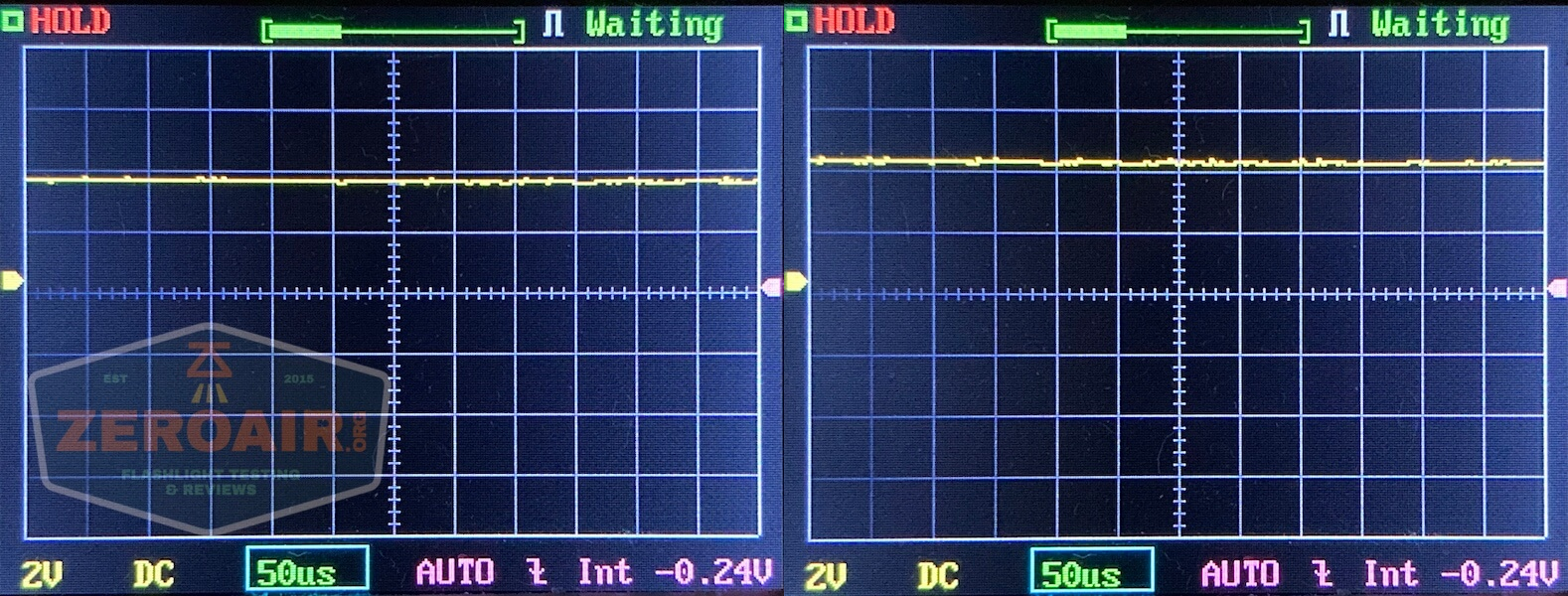

No pwm is to be seen on either mode.
For reference, here’s a baseline shot, with all the room lights off and almost nothing hitting the sensor. Also, here’s the light with the worst PWM I could find. I’m adding multiple timescales, so it’ll be easier to compare to the test light. Unfortunately, the PWM on this light is so bad that it doesn’t even work with my normal scale, which is 50 microseconds (50us). 10ms. 5ms. 2ms. 1ms. 0.5ms. 0.2ms.  In a display faster than 0.2ms or so, the on/off cycle is more than one screen, so it’d just (very incorrectly) look like a flat line. I wrote more about this Ultrafire WF-602C flashlight and explained a little about PWM too.
User Interface and Operation
The Fenix E02R keychain flashlight is a twist-operated light. But it’s unusual (ish) in that it’s a progressive twisty.

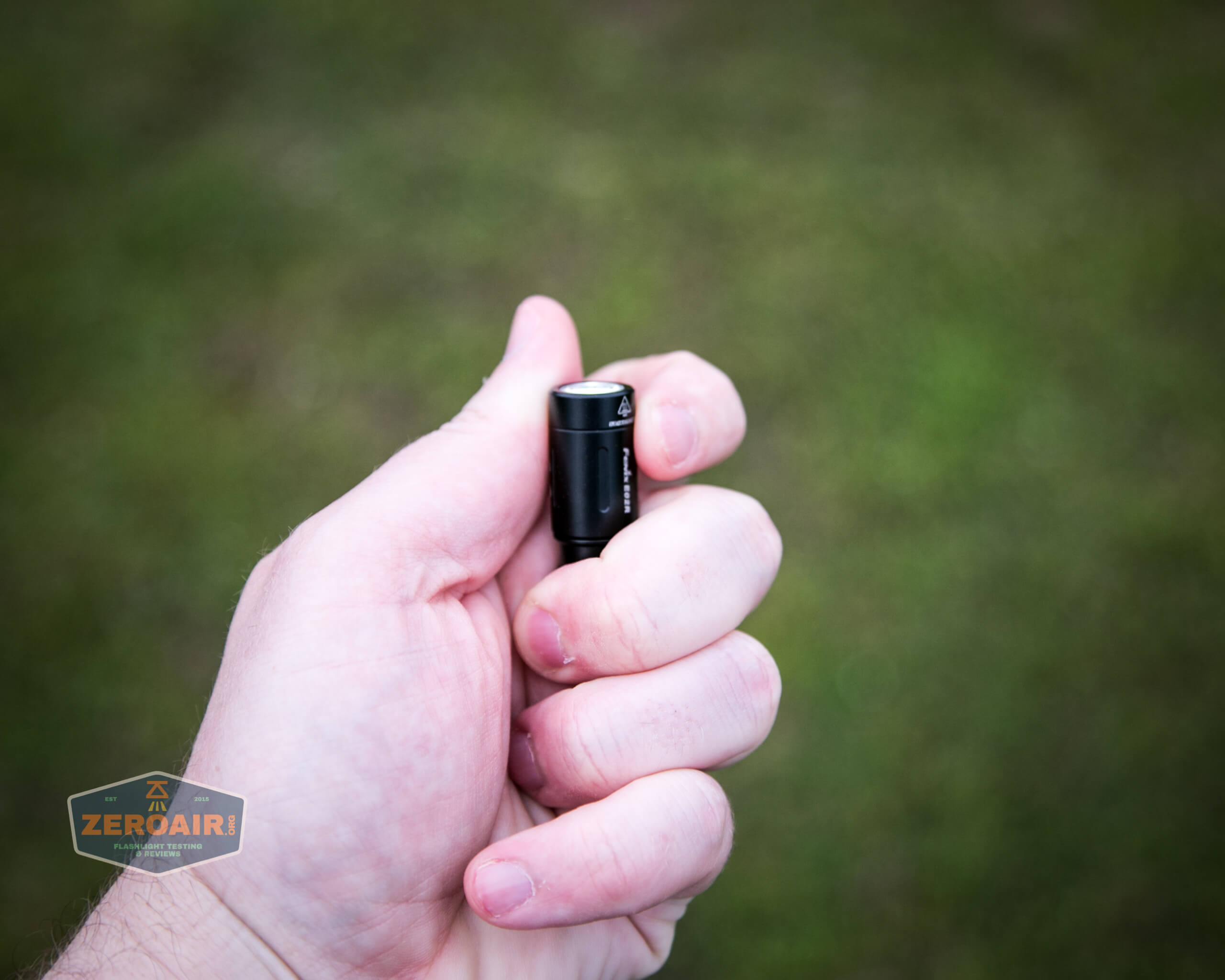

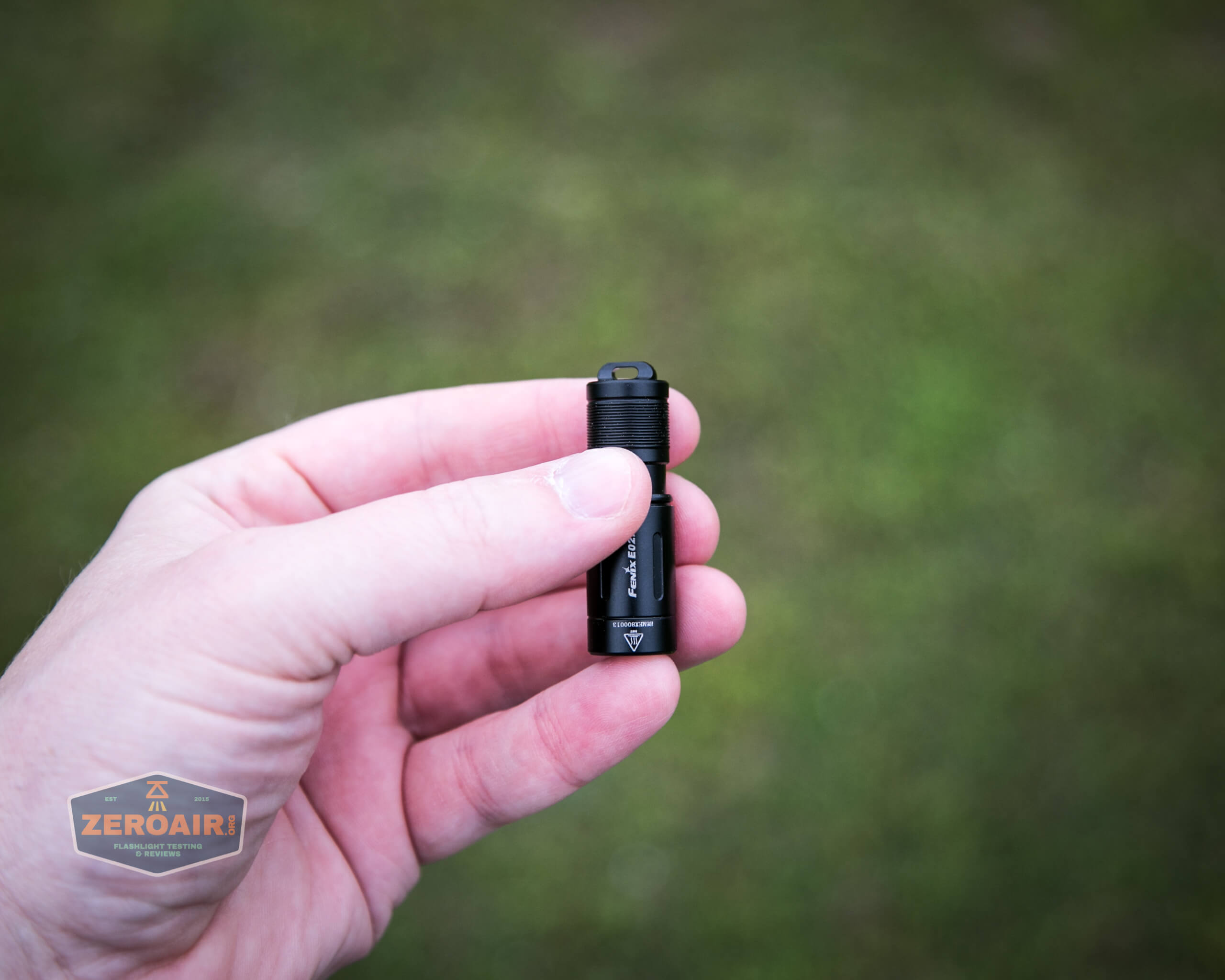

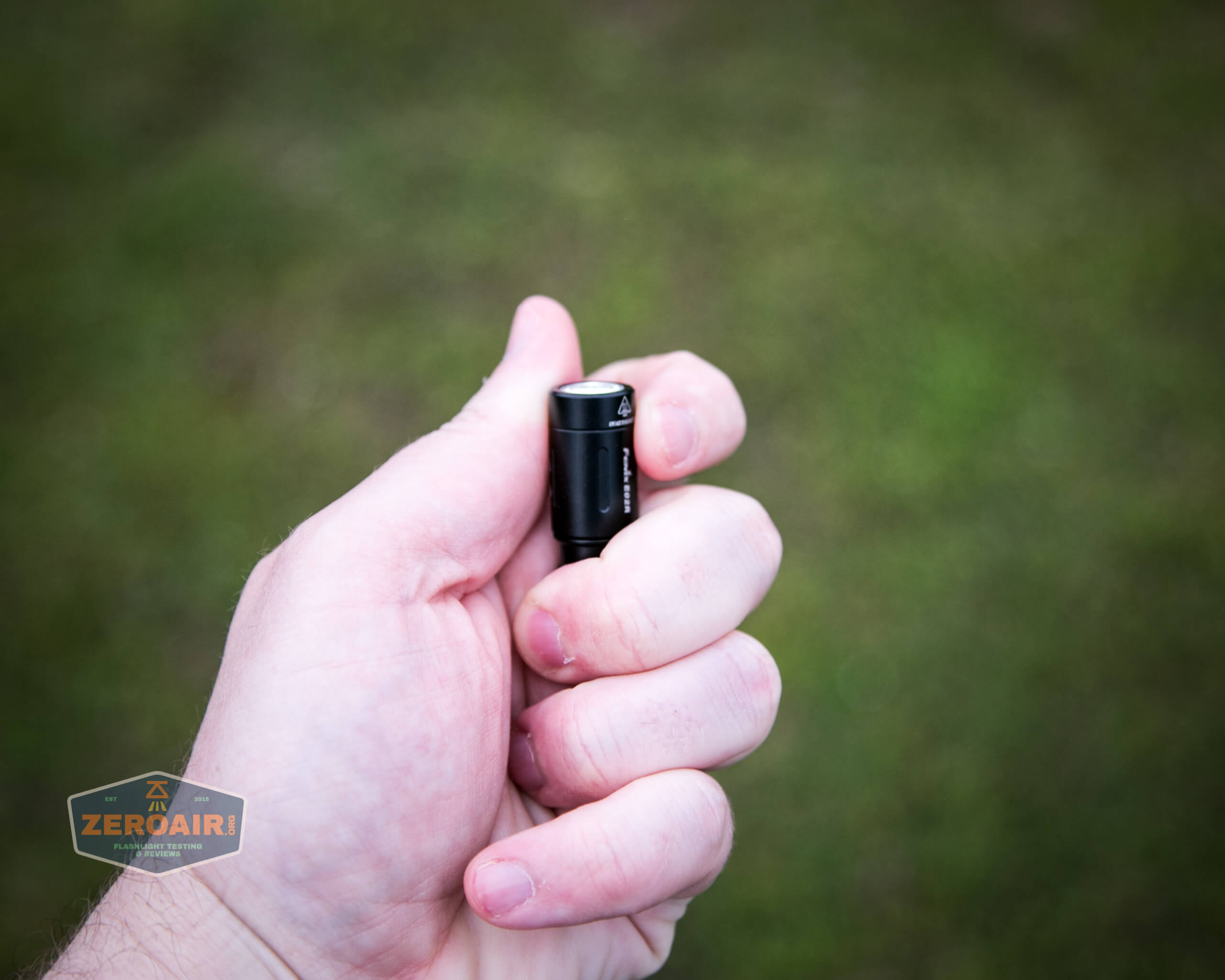

It’s possible to twist the light with one hand, though the small size does complicate that.
Here’s a UI table!
State | Action | Result |
---|---|---|
Off | Tighten Head | Low |
Low | Tighten Head | High |
High | Loosen Head | Low |
Low | Loosen Head | Off |
LED and Beam

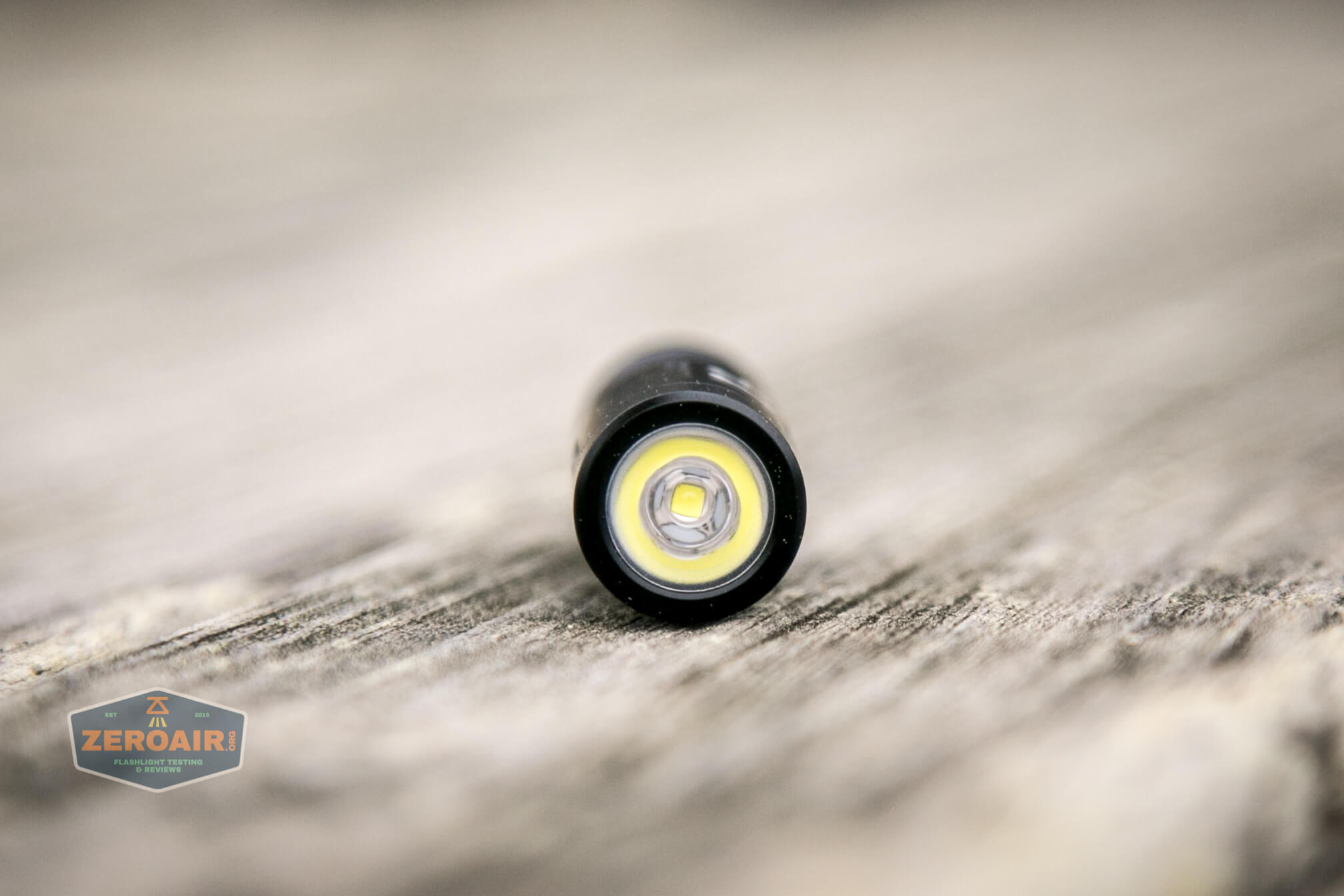

The product page says the Fenix E02R keychain flashlight has a Cree XP-G2 emitter. I believe it’s cool, and the photos below support this.
Fenix uses a very short TIR in the light, too.

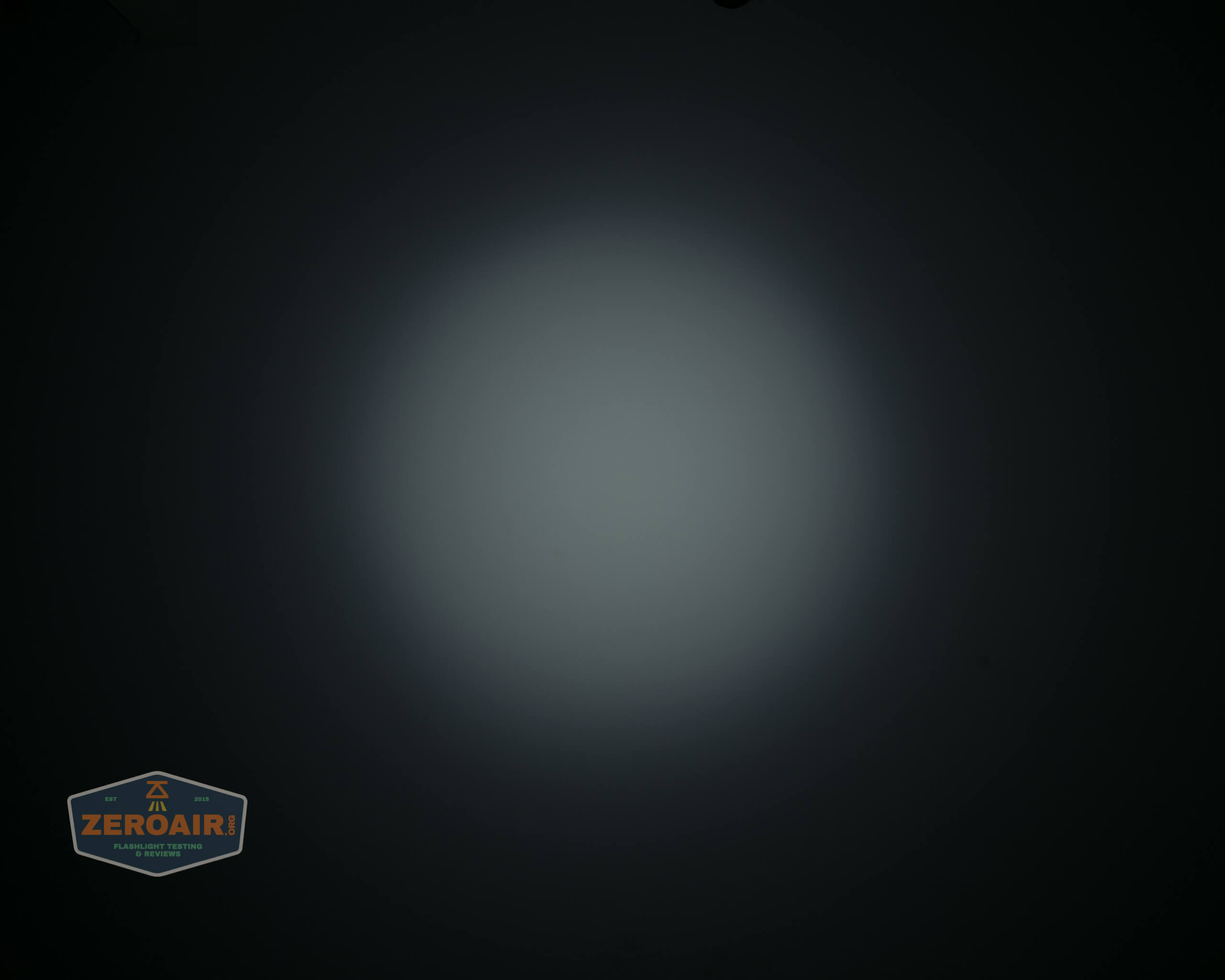

These beamshots are always with the following settings:Â f8, ISO100, 0.3s shutter, and manual 5000K exposure.

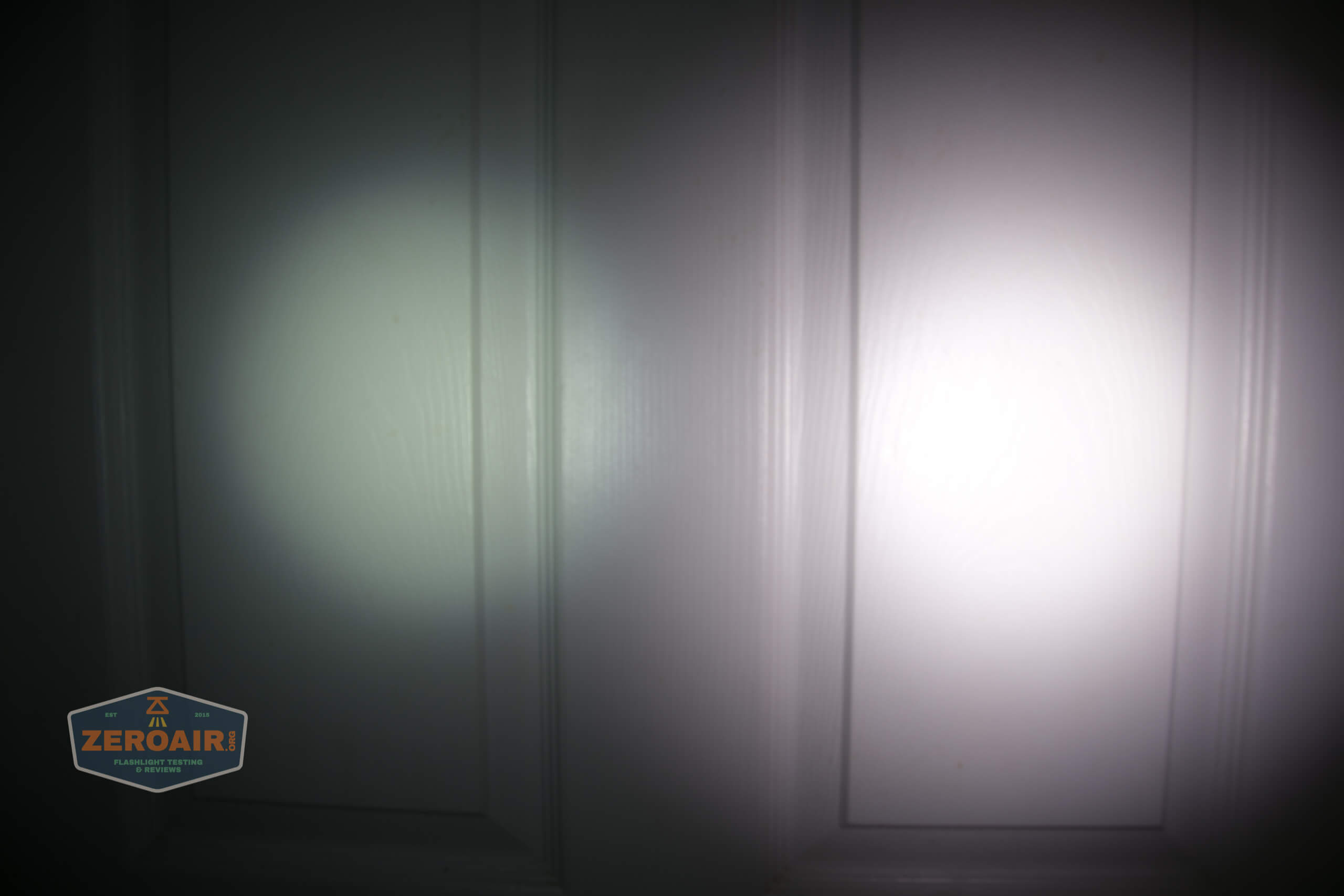

Tint vs BLF-348 (KillzoneFlashlights.com 219b version) (affiliate link)
I keep the test flashlight on the left, and the BLF-348 reference flashlight on the right.
I compare everything to the KillzoneFlashlights.com 219b BLF-348 because it’s inexpensive and has the best tint!
Conclusion
What I like
- Small size
- Progressive twisty
- Built-in charging seems good
What I don’t like
- Not able to be taken apart
- Cool/green emitter
