Olight has released the Perun Mini Kit Headlight, which features a very nice (and quite unusual) yellow color!  Read on for some testing.


Official Specs and Features

Here’s a shareasale link to the Olight Perun Mini Kit Headlight product page.

Versions

The versions of the Perun Mini are many, but of this specific yellow iteration, there is only the kit or a couple of bundle options.

Price

The kit as seen here sells for $52.46.  The other two options sell for $55.19 (with a MCC wall-wart charger) or $64.94 (with Obulb MC).

These are all promotional prices.


Short Review

I like the Olight Perun Mini Kit quite a bit.  It’s really unchanged from the orange model I have and already reviewed, but that’s a solid headlamp, too.

Long Review

The Big Table

Olight Perun Mini Kit Headlight
Emitter: Osram P9 (CW)
Price in USD at publication time: $52.46.  Here’s my shareasale link.
Cell: 1×16340
Turbo Runtime Graph High Runtime Graph
LVP? Yes
Switch Type: E-Switch
Quiescent Current (mA): 0.8uA
On-Board Charging? Yes
Charge Port Type: Proprietary Magnetic
Charge Graph
Power off Charge Port with cell: all modes
without cell: no modes
Claimed Lumens (lm) 1000
Measured Lumens (at 30s) 1004 (100.4% of claim)^
Candela per Lumen 2.8
Claimed Throw (m) 100
Candela (Calculated) in cd (at 30s) 182lux @ 3.884m = 2746cd
Throw (Calculated) (m) 104.8 (104.8% of claim)^
All my Olight reviews!

^ Measurement disclaimer:  I am an amateur flashlight reviewer.  I don’t have $10,000 or even $1,000 worth of testing equipment.  I test output and such in PVC tubes!!  Please consider claims within 10% of what I measure to be perfectly reasonable (accurate, even).

What’s Included

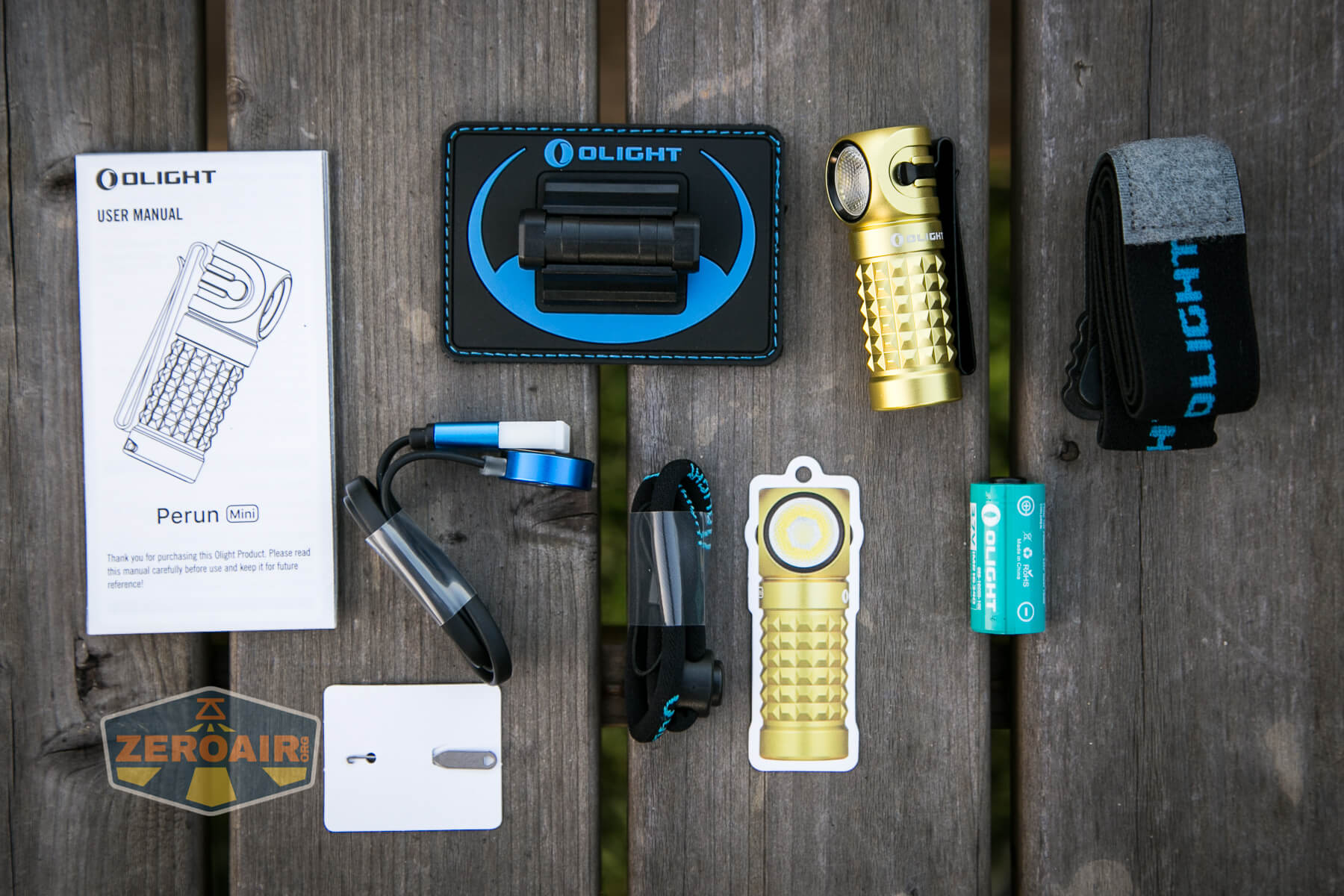

Olight Perun Mini Kit Headlight what's included

  • Olight Perun Mini Kit Headlight
  • Olight “Customized” 550mAh 16340
  • Olight Velcro patch with attachment for flashlight clip
  • Lanyard
  • Charge cable (USB to proprietary magnetic)
  • Lanyard puller
  • Headband
  • Flashlight hangtag (that’s not a sticker)
  • Manual

Package and Manual

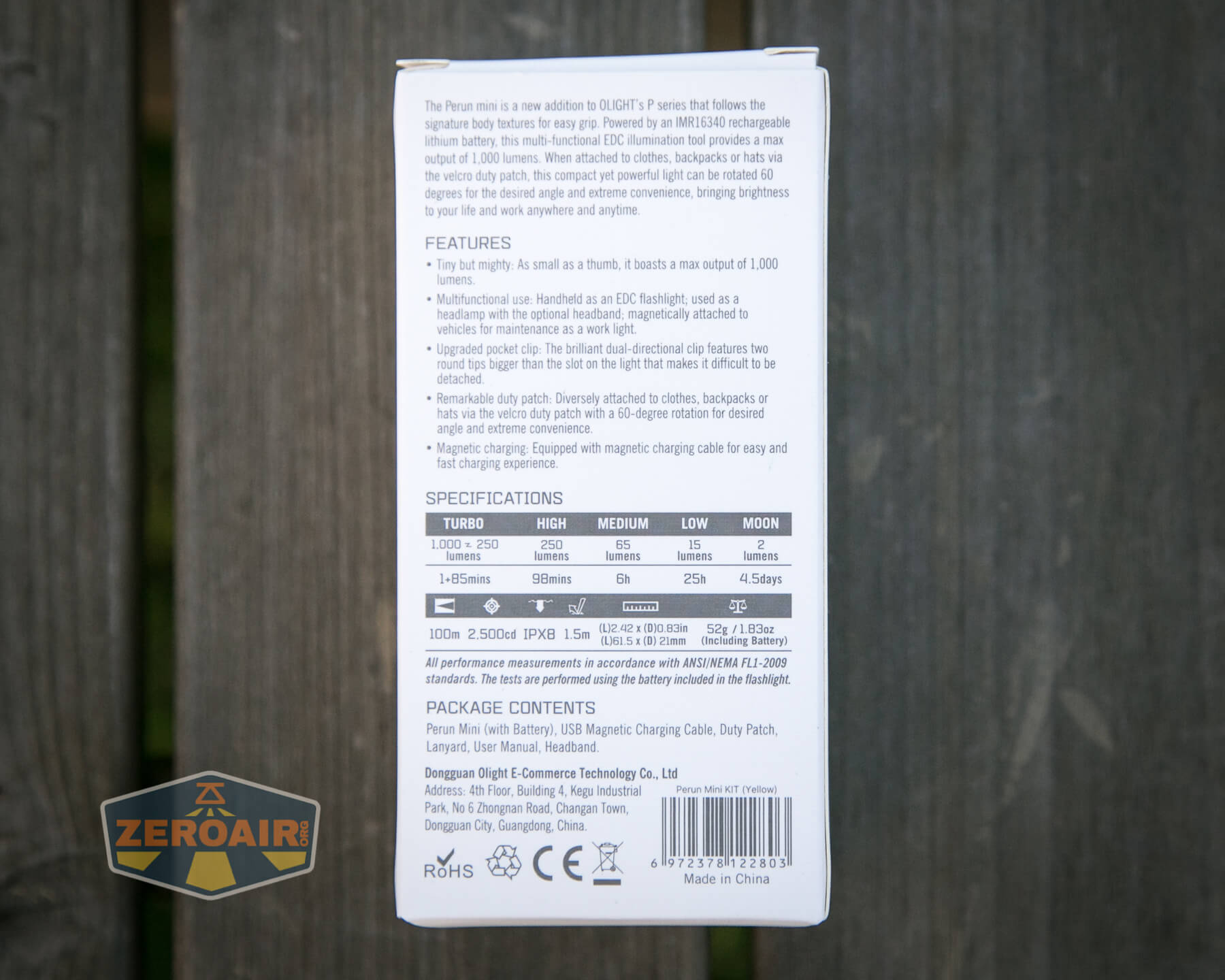

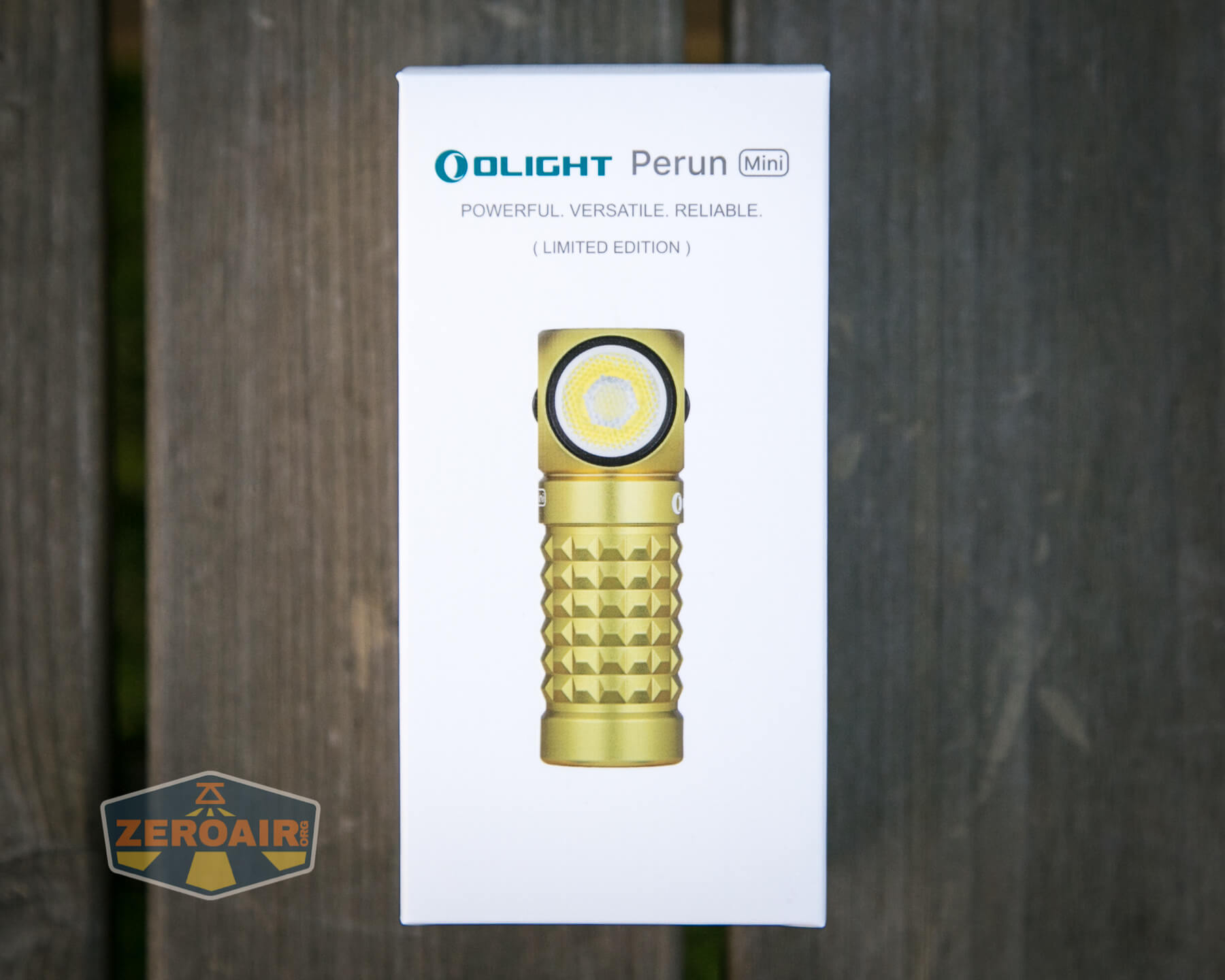

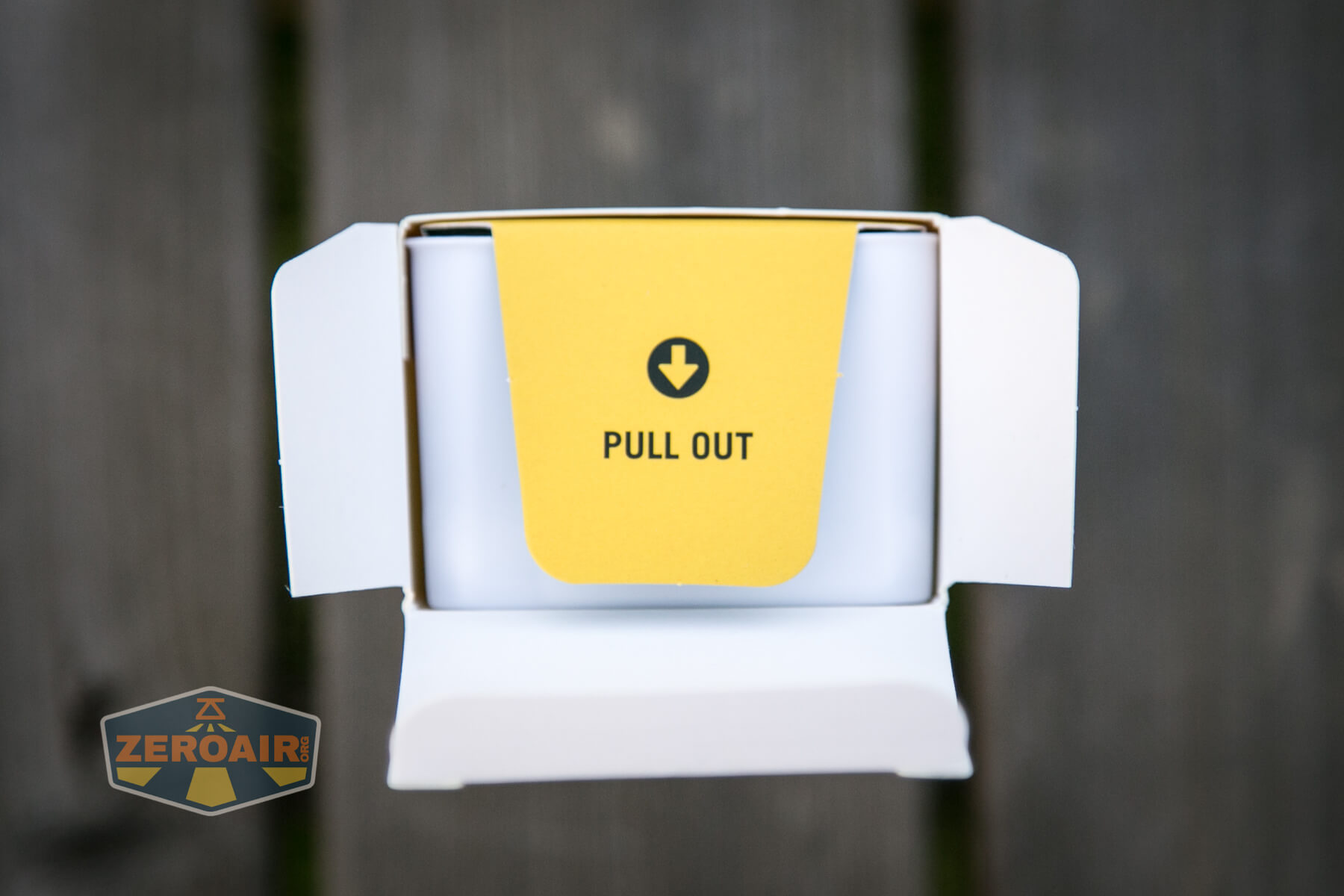

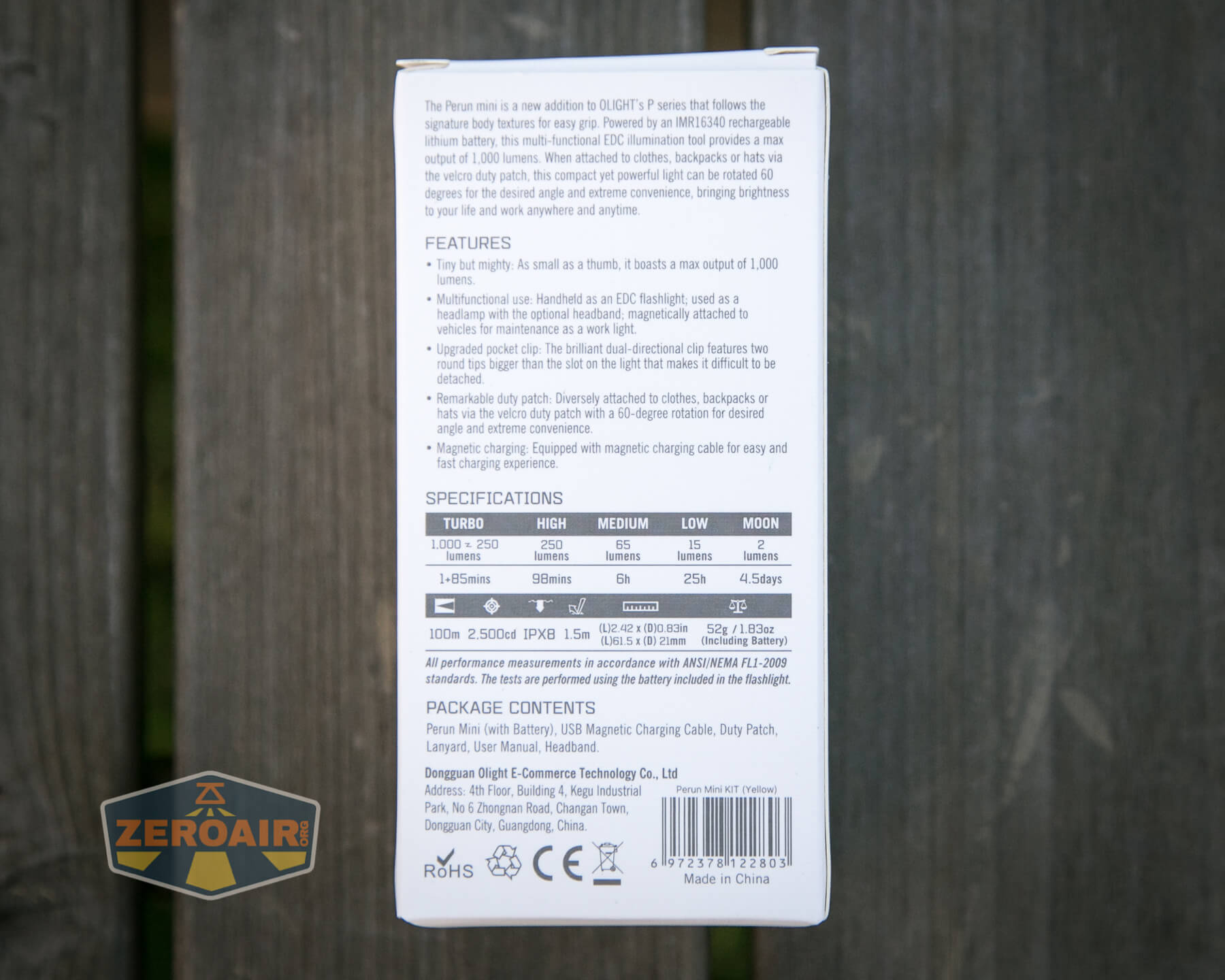

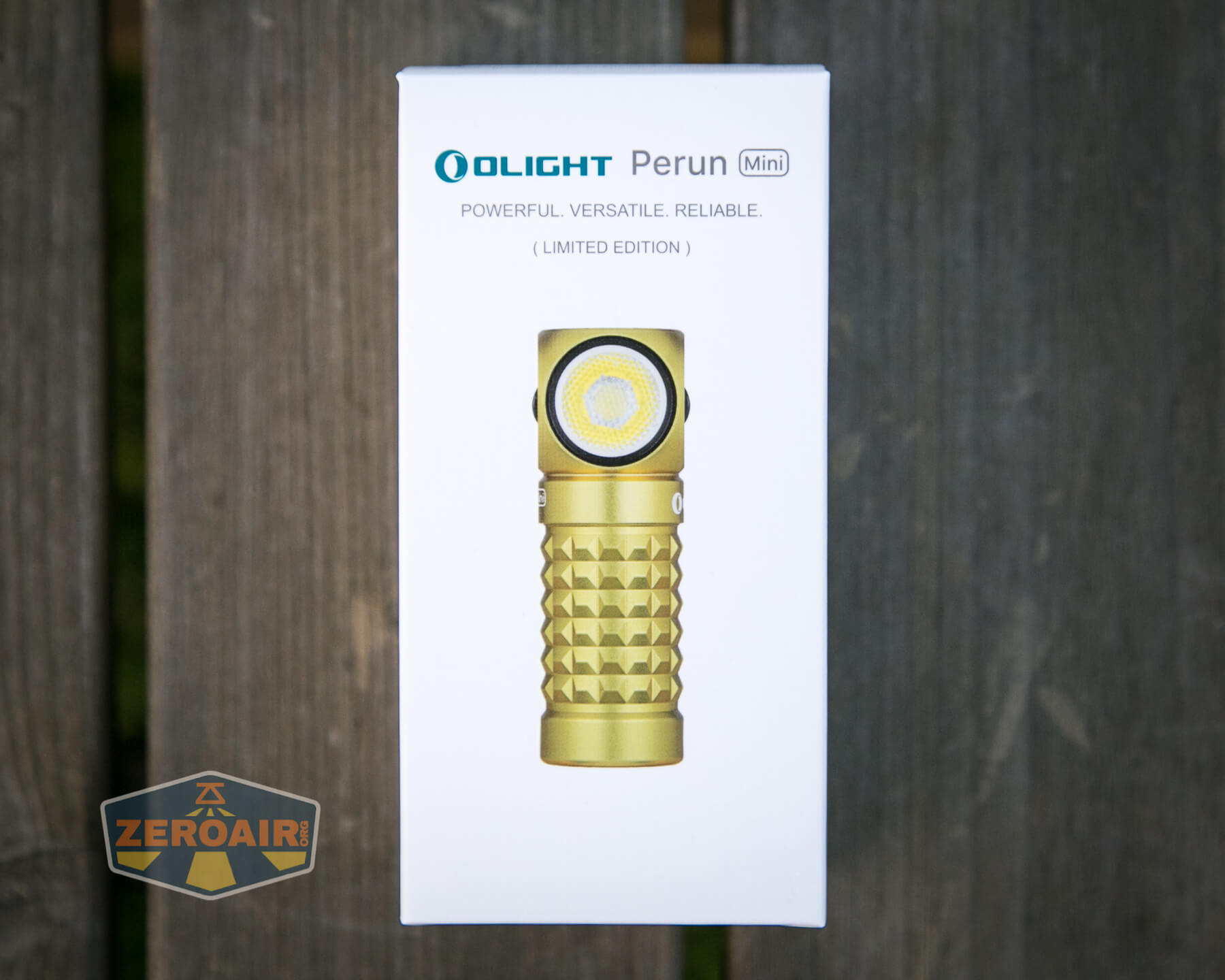

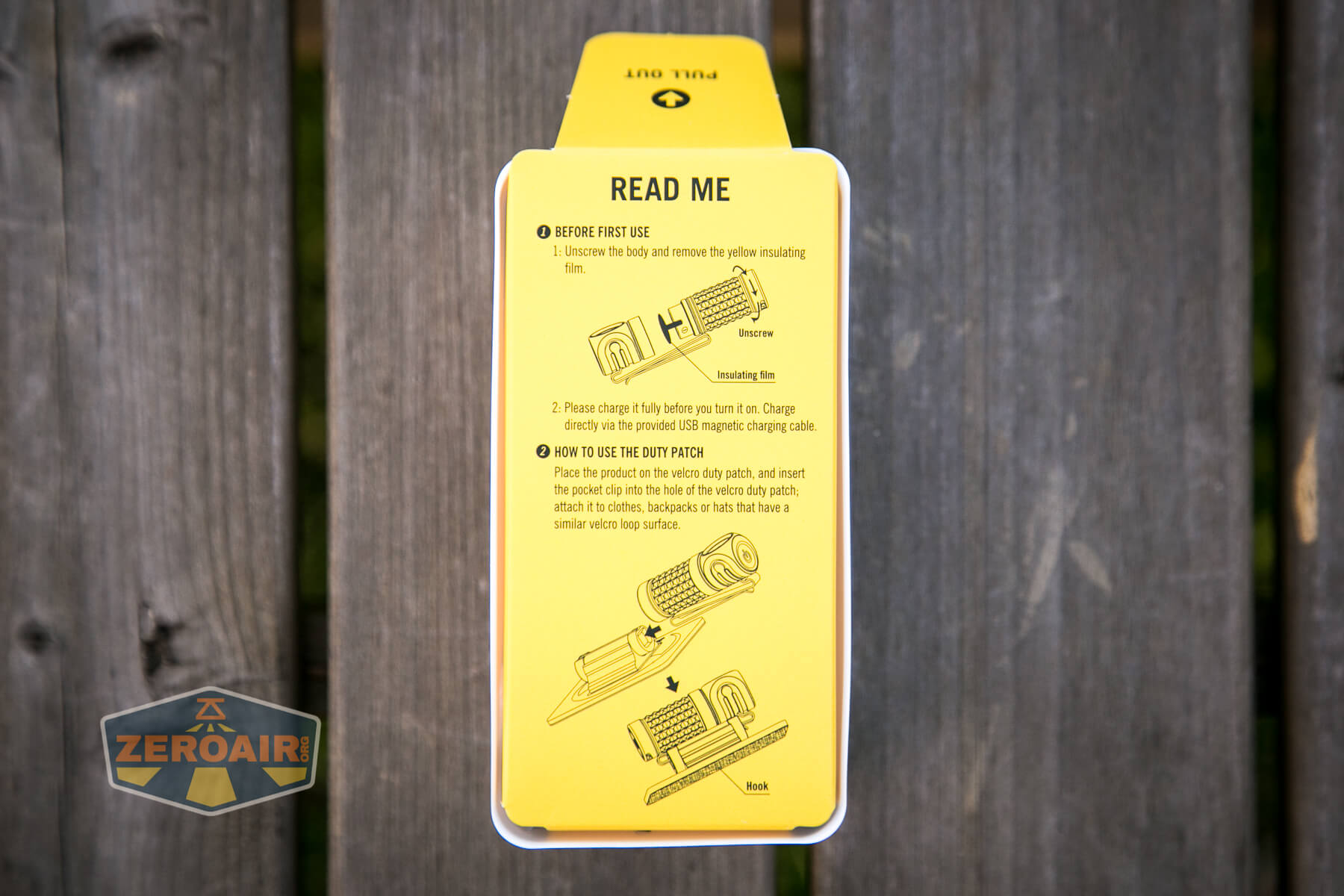

Olight Perun Mini Kit Headlight box Olight Perun Mini Kit Headlight box

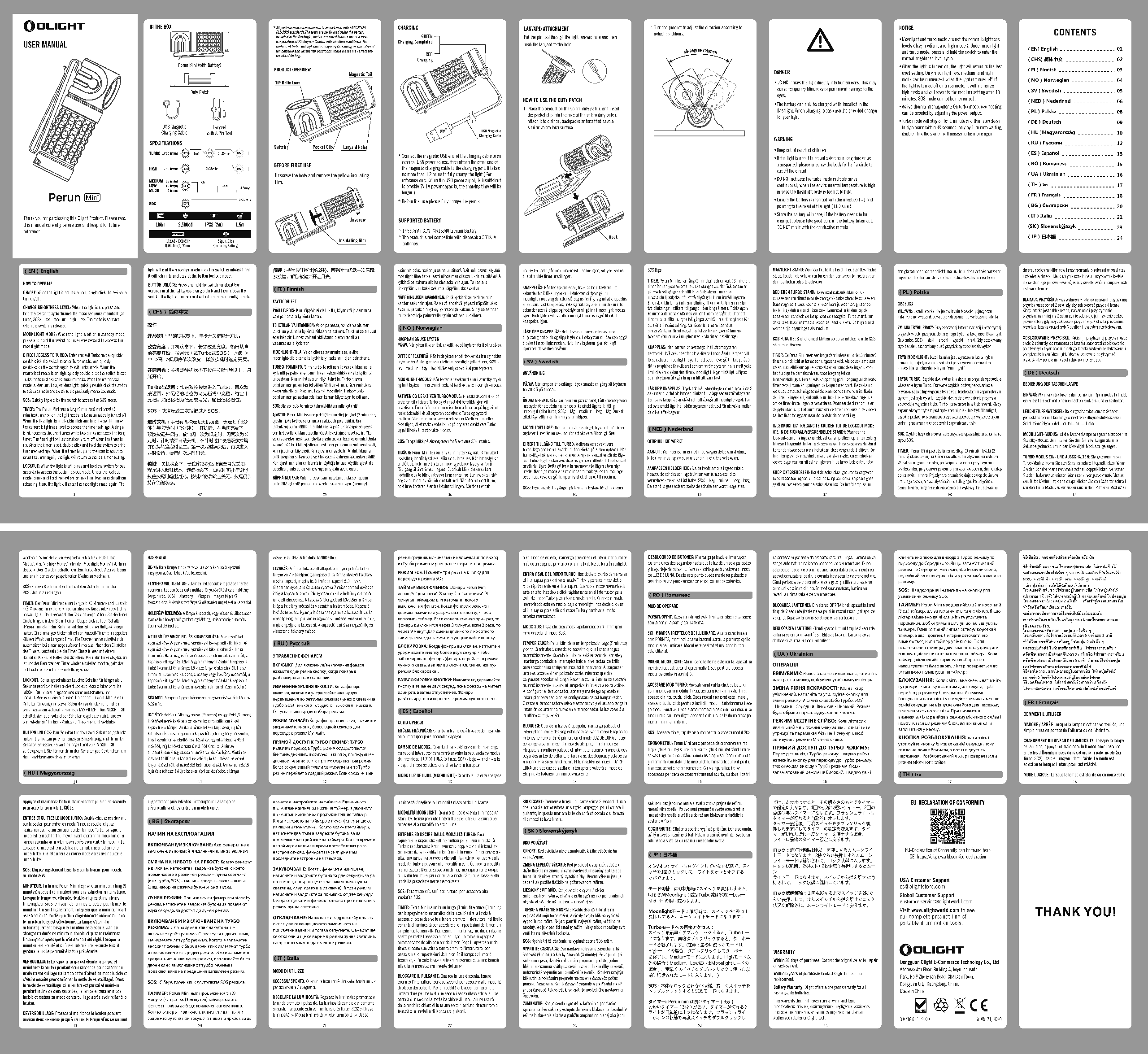

Olight Perun Mini Kit Headlight manual

Build Quality and Disassembly

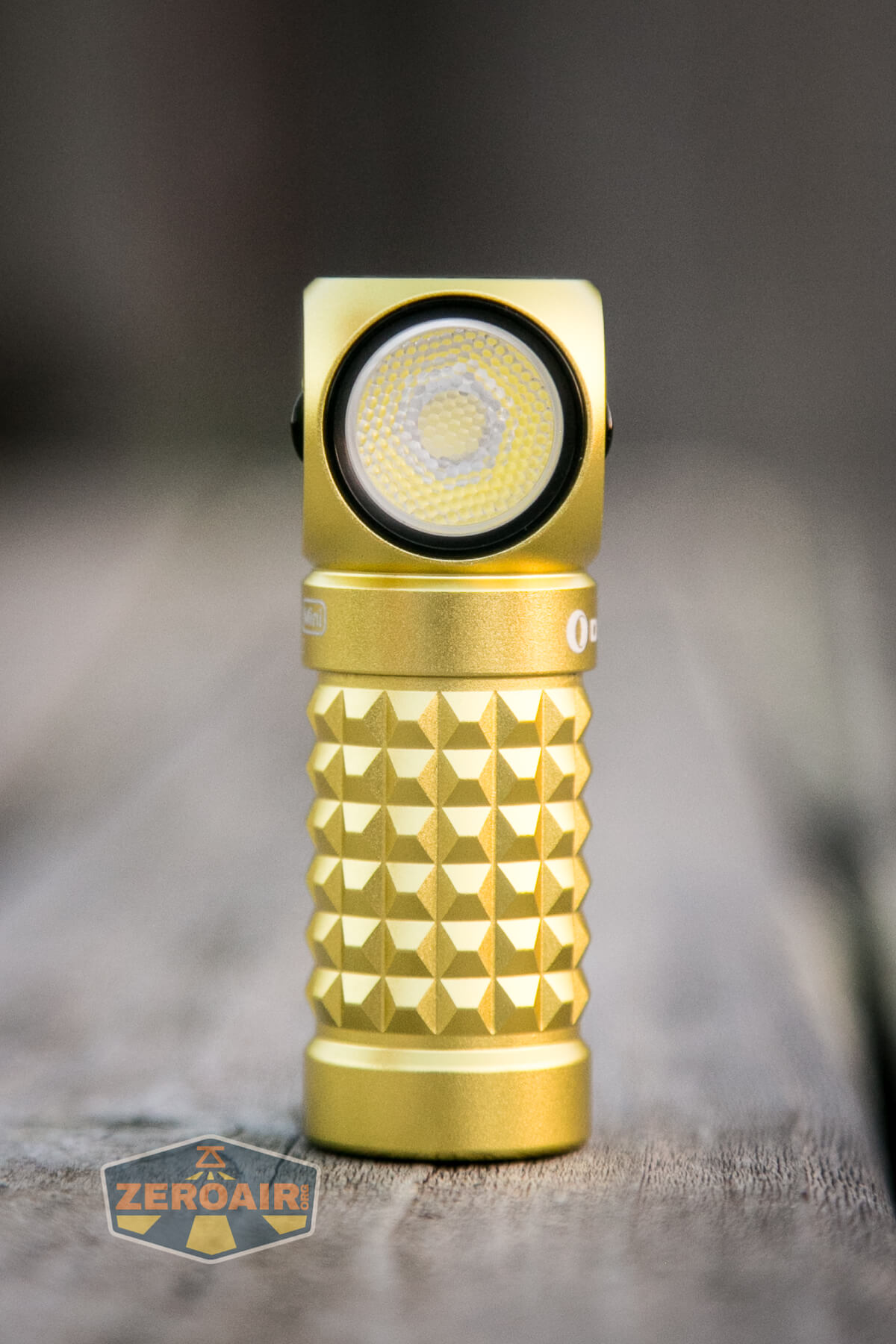

Olight Perun Mini Kit Headlight

The build quality is good as you’d expect.  The light feels smooth in hand, and the body provides adequate grip for unscrewing the body.

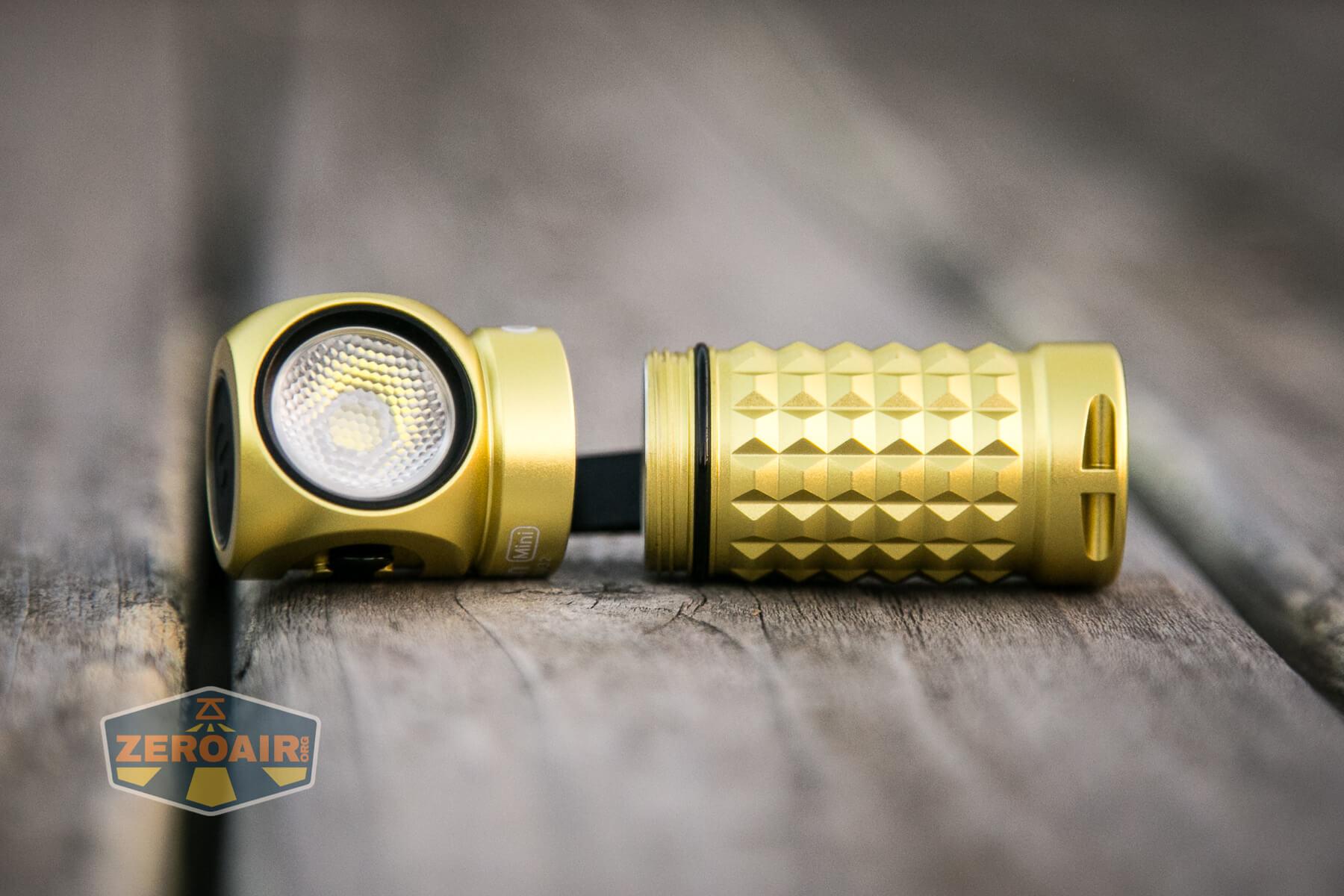

The head unscrews from the body – and that’s the extent of the parts.

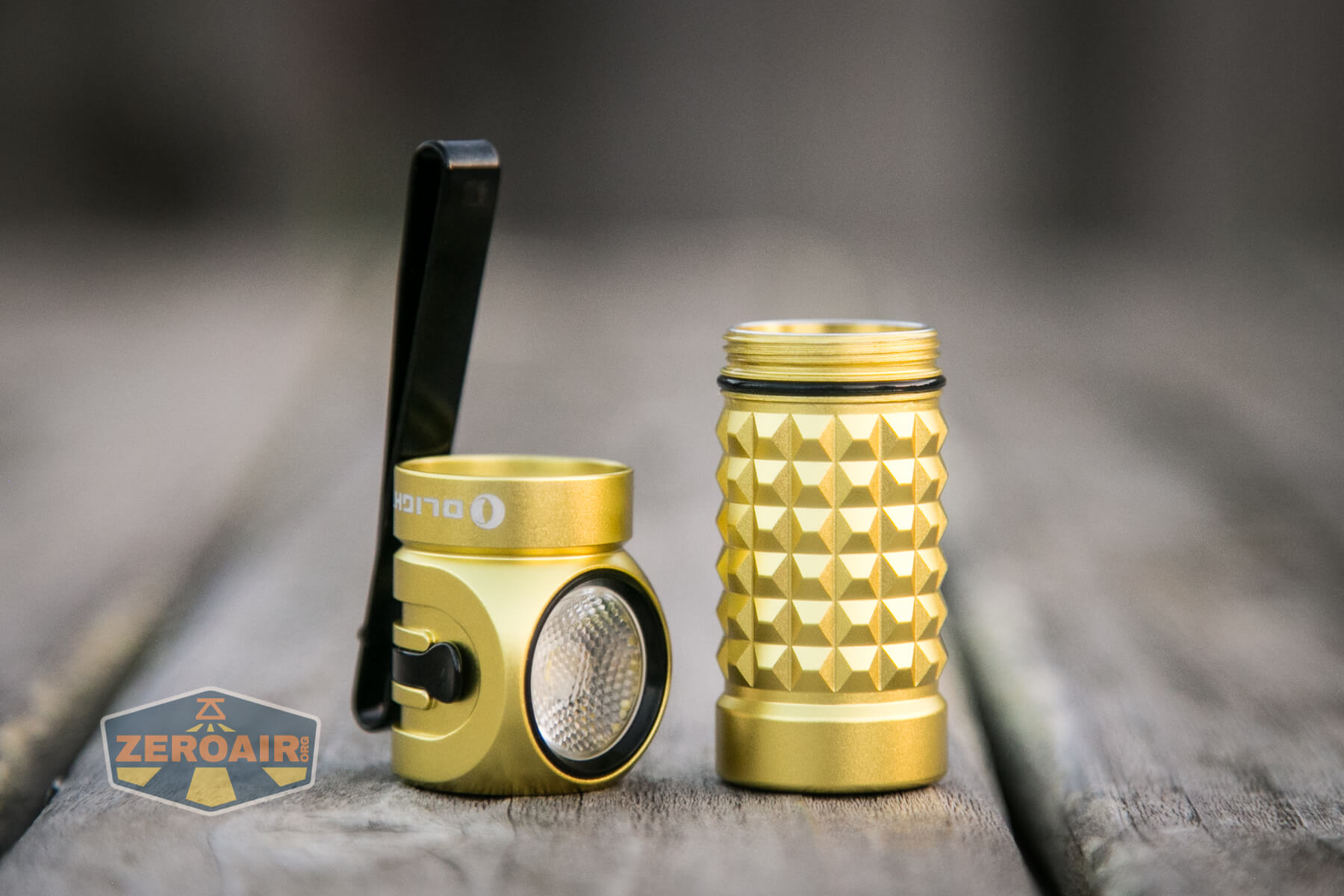

Olight Perun Mini Kit Headlight head off

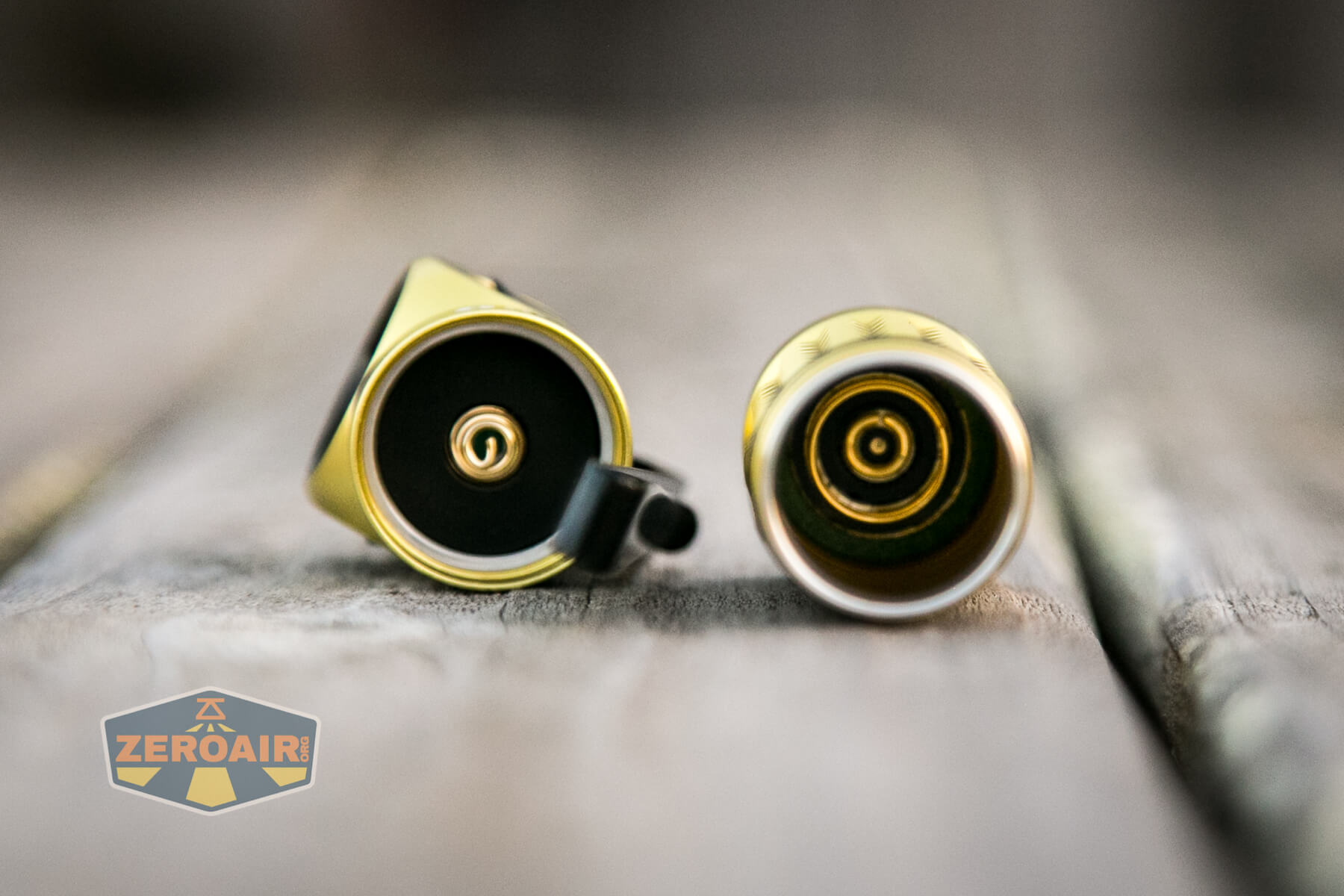

Olight Perun Mini Kit Headlight springs

The head end has a short spring and a rubber gasket.  That gasket more or less prevents the cell from being installed incorrectly.  The tail end does not have a spring but has multiple contact points for the positive end of the cell.

Olight Perun Mini Kit Headlight head off

The threads are short, anodized, and square cut.  Short threads are kind of nice, because you’re fighting against the pocket clip to get the body back on to the head.

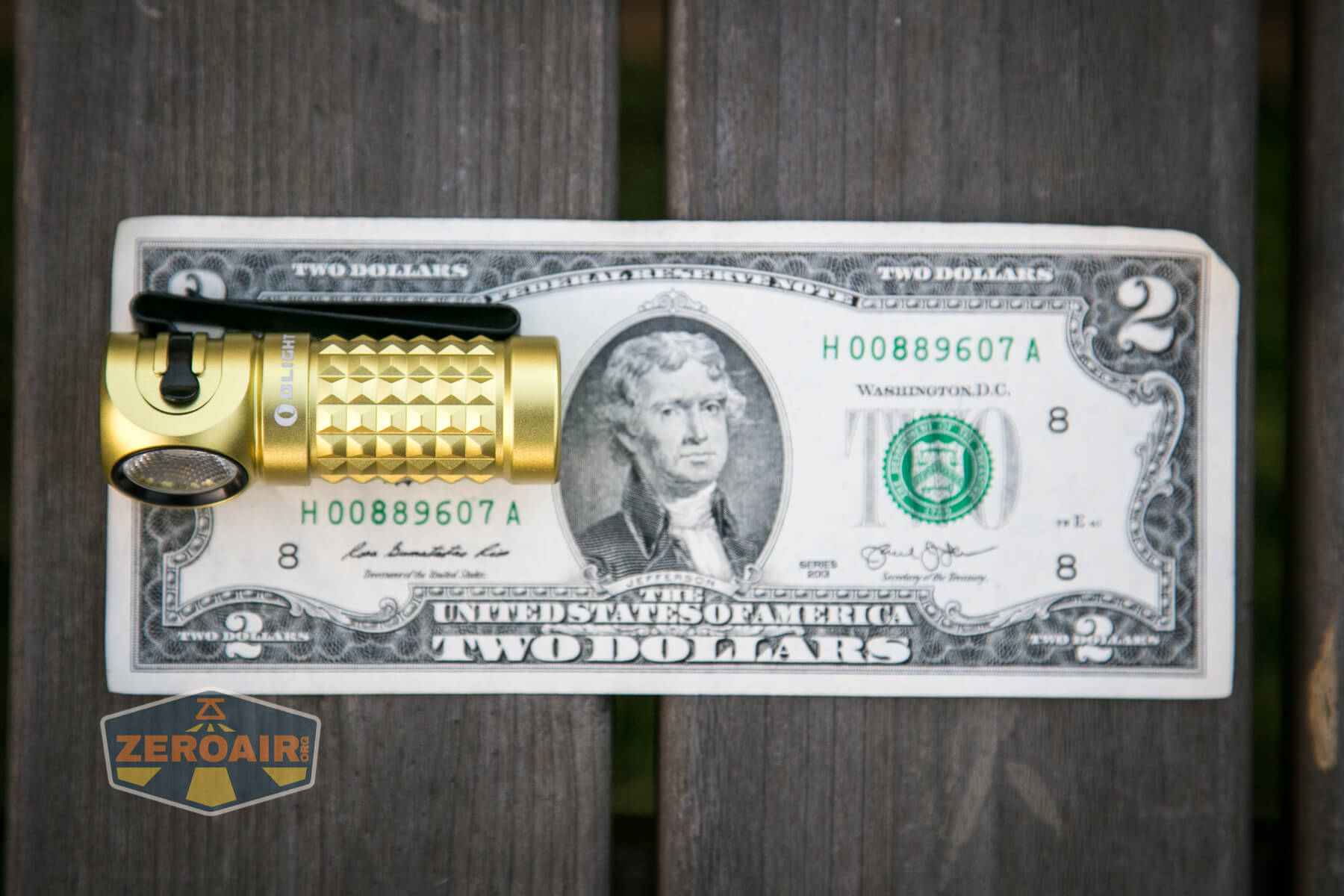

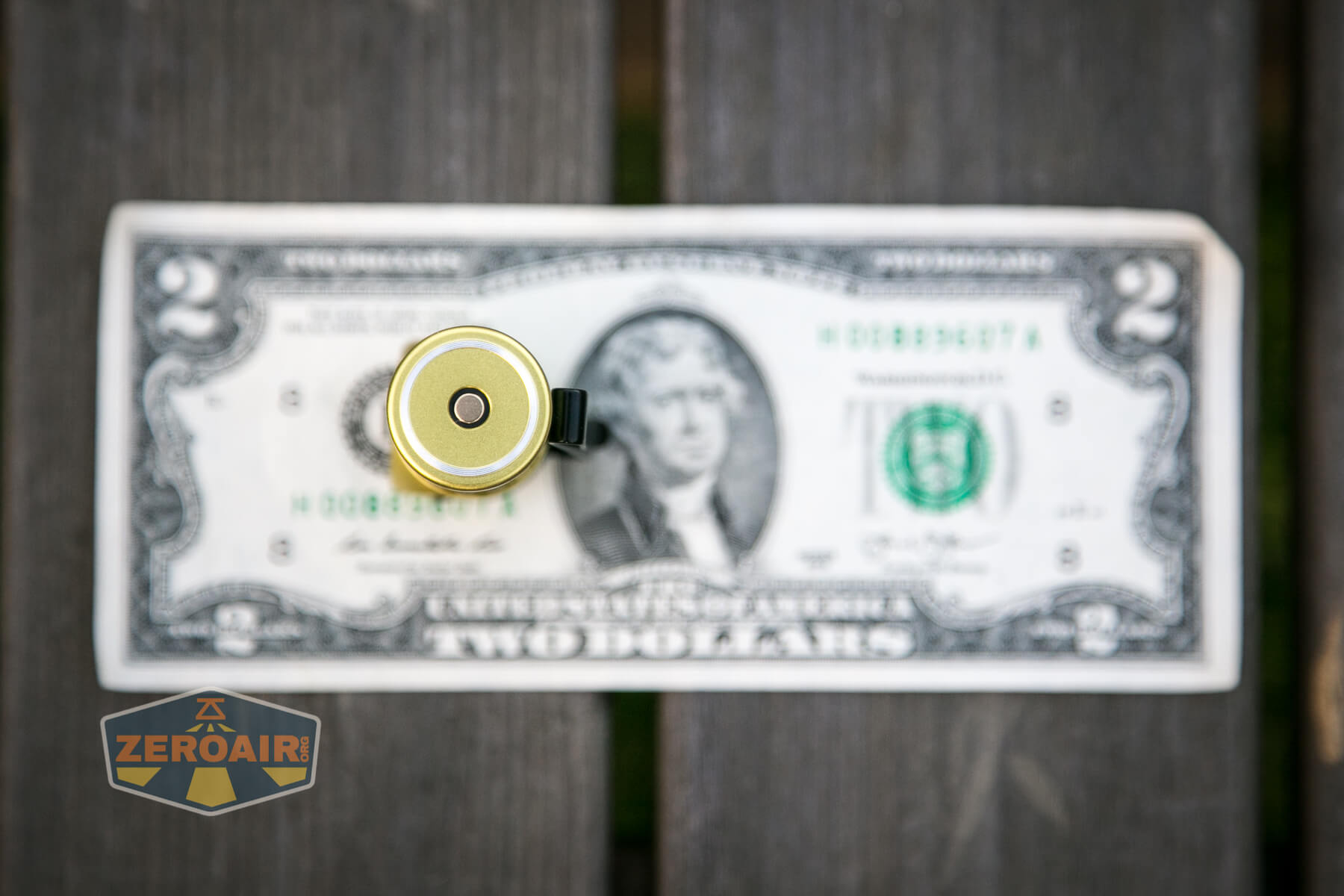

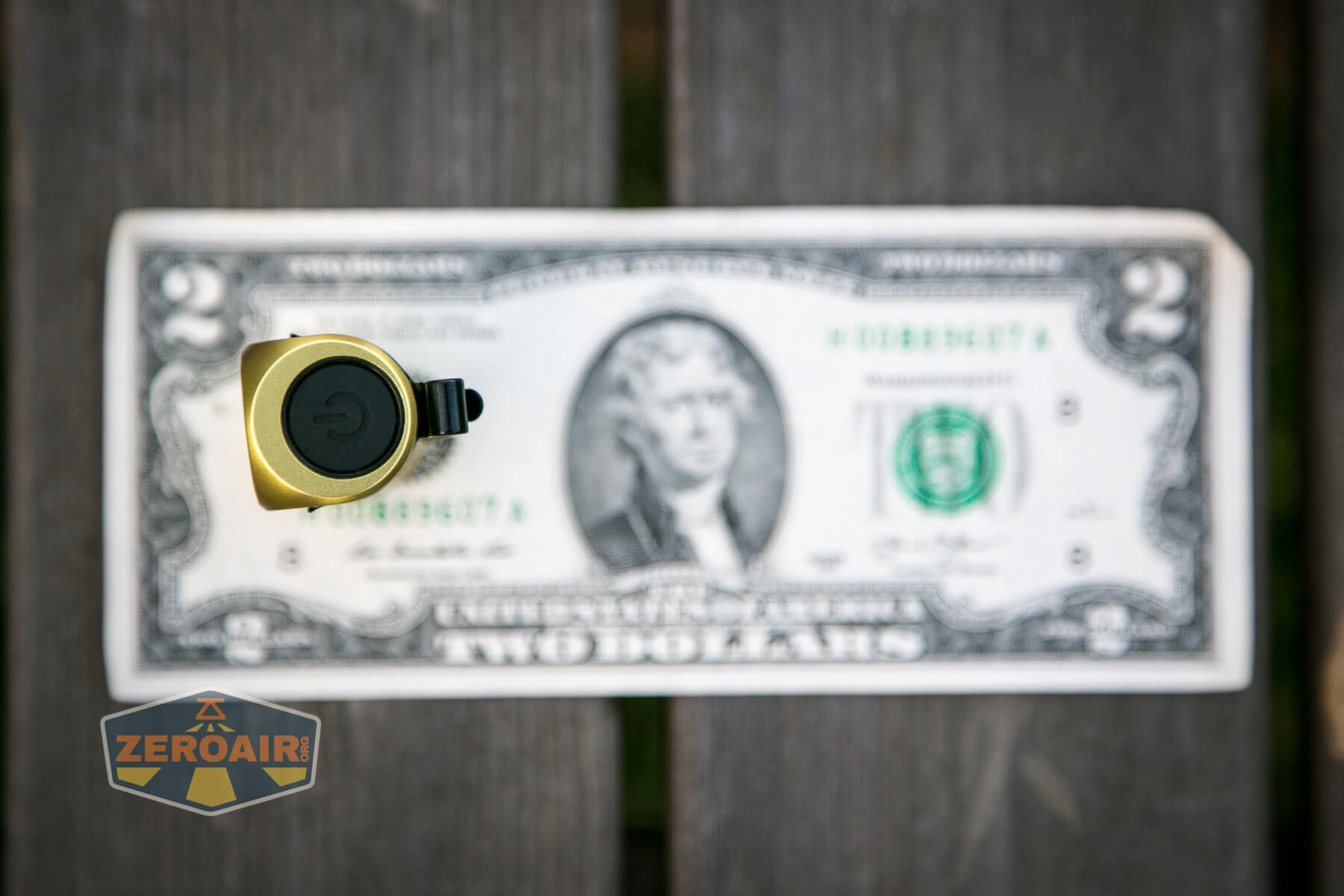

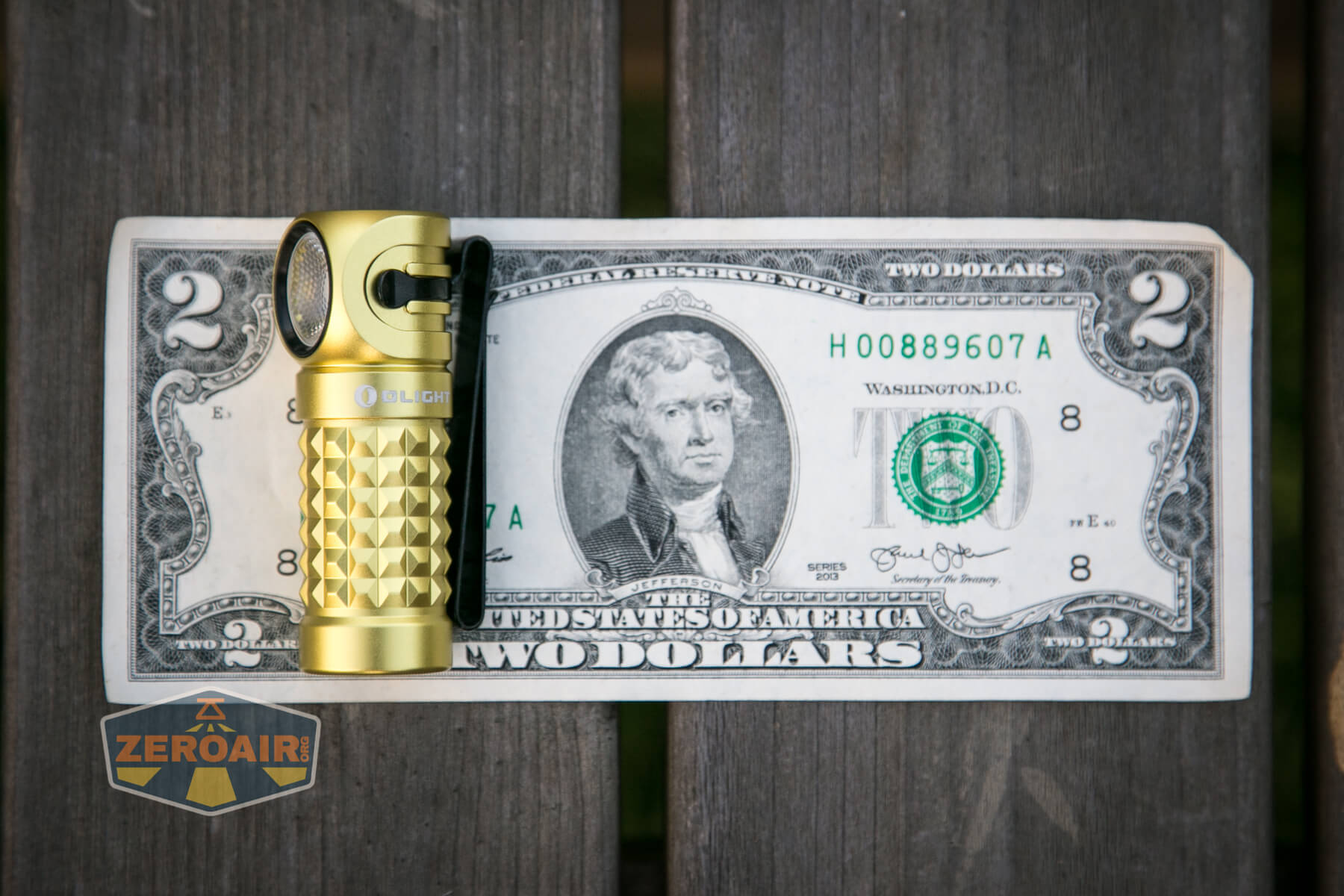

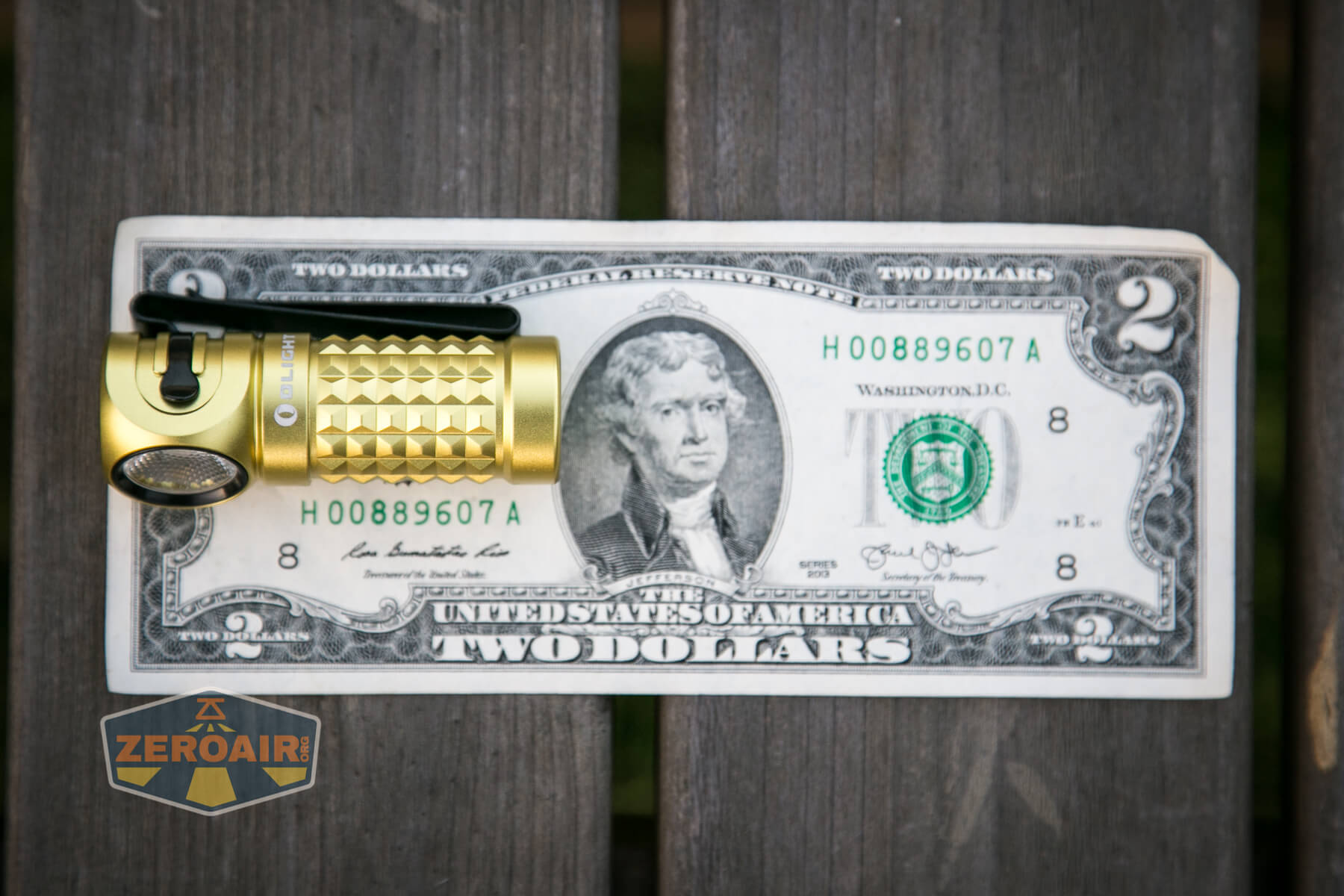

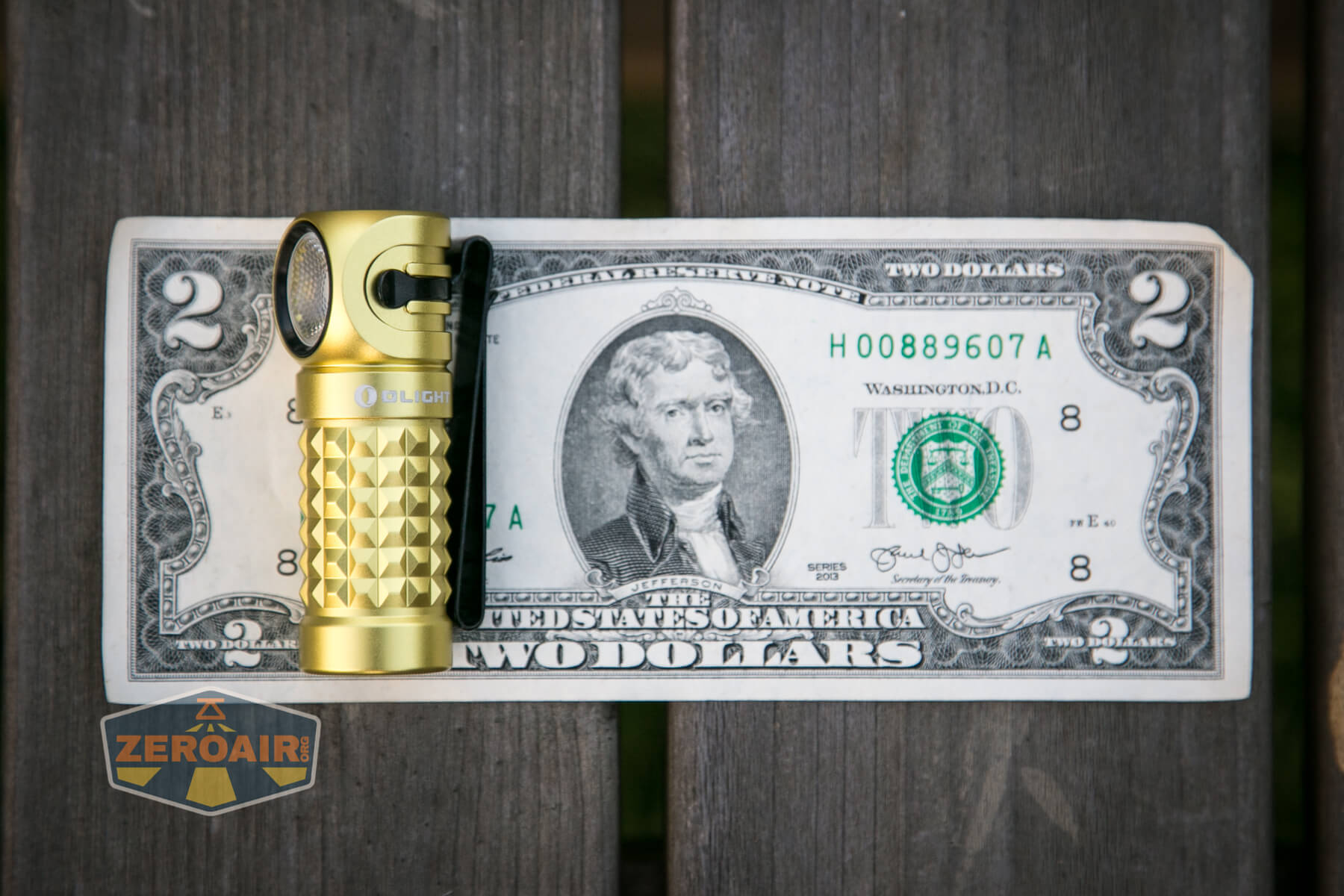

Size and Comps

Officially:

61.5mm x 21mm and 52g (cell included!).

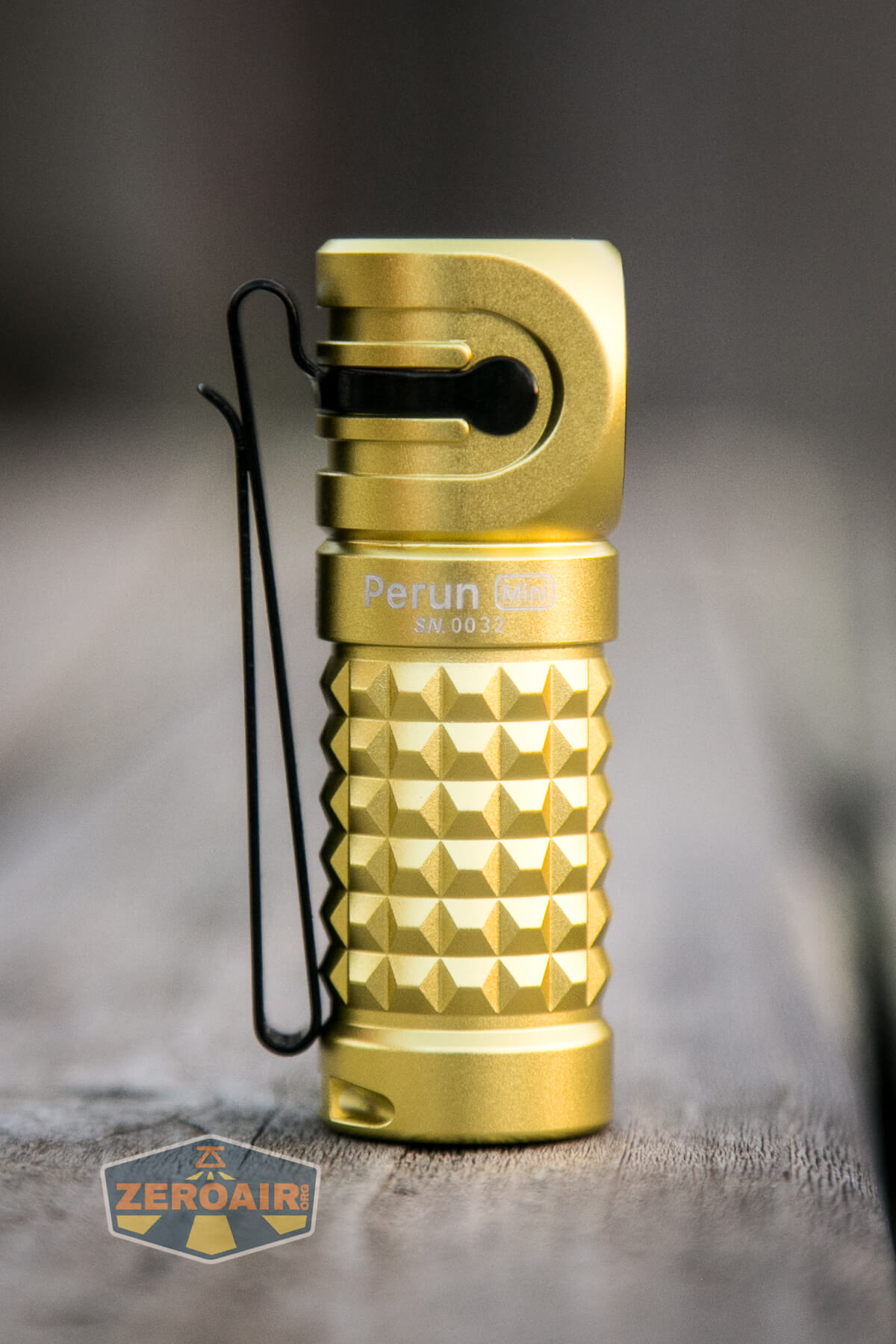

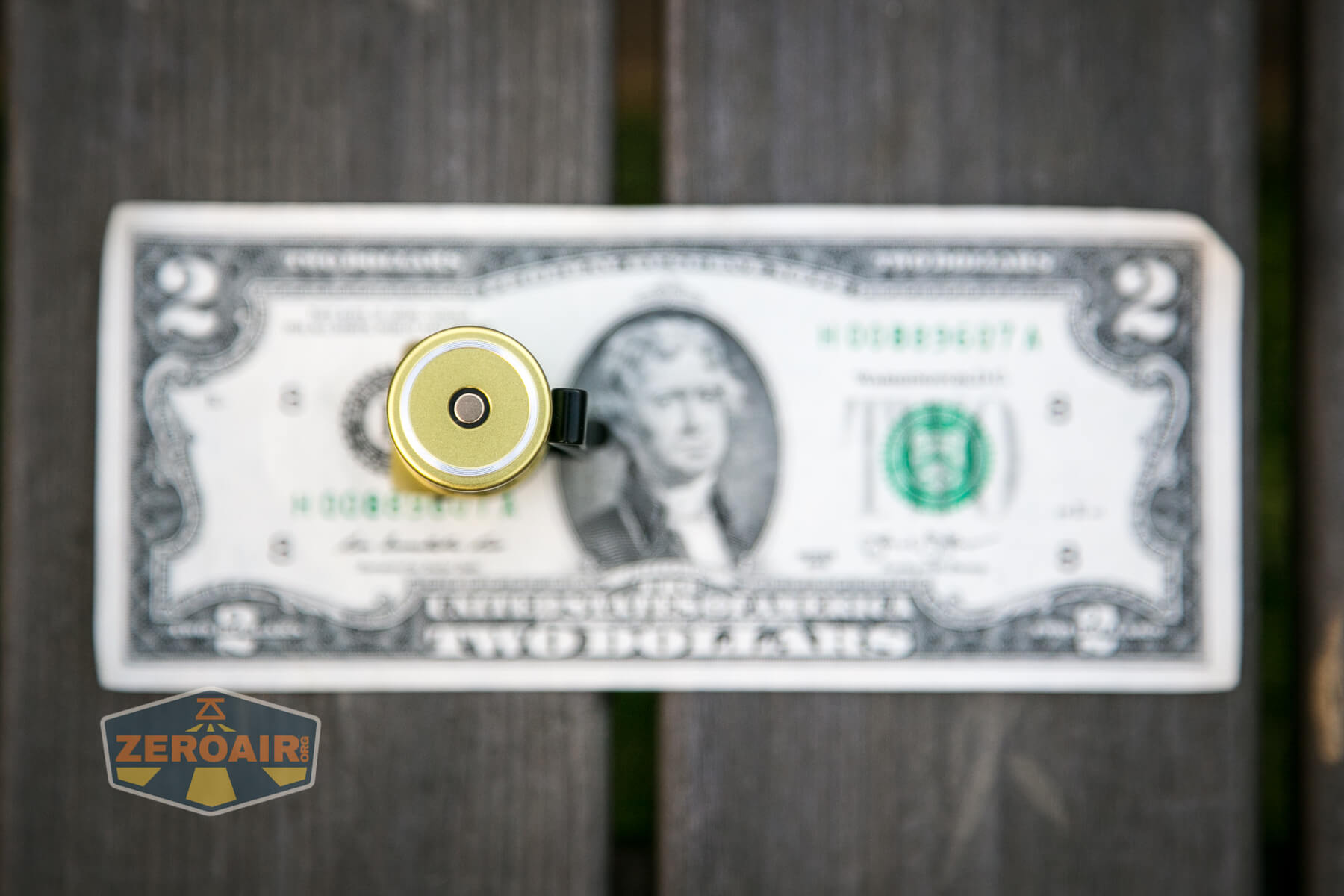

If a light will headstand, I’ll show it here (usually the third photo).  If a light will tailstand, I’ll show that here, too (usually the fourth photo).

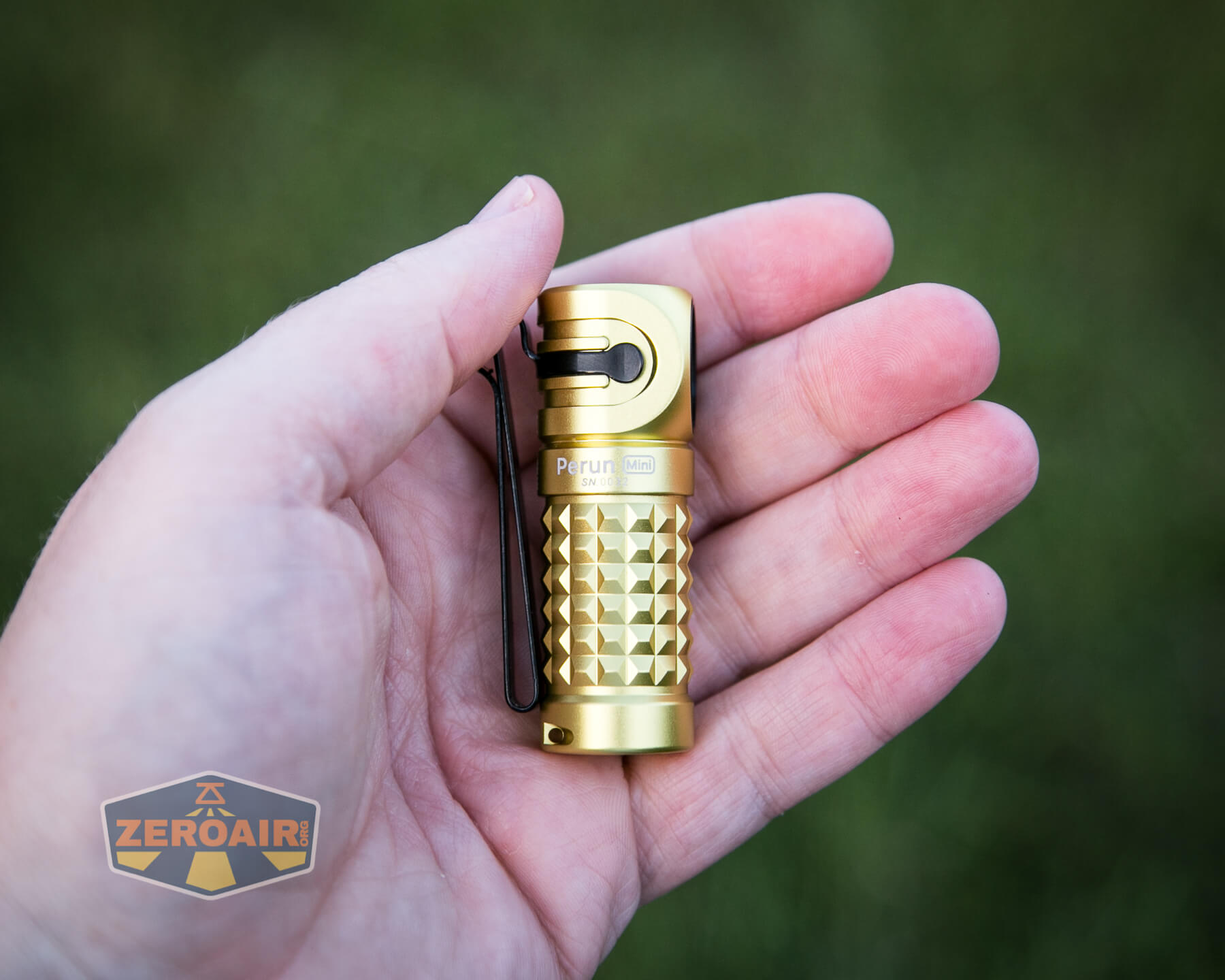

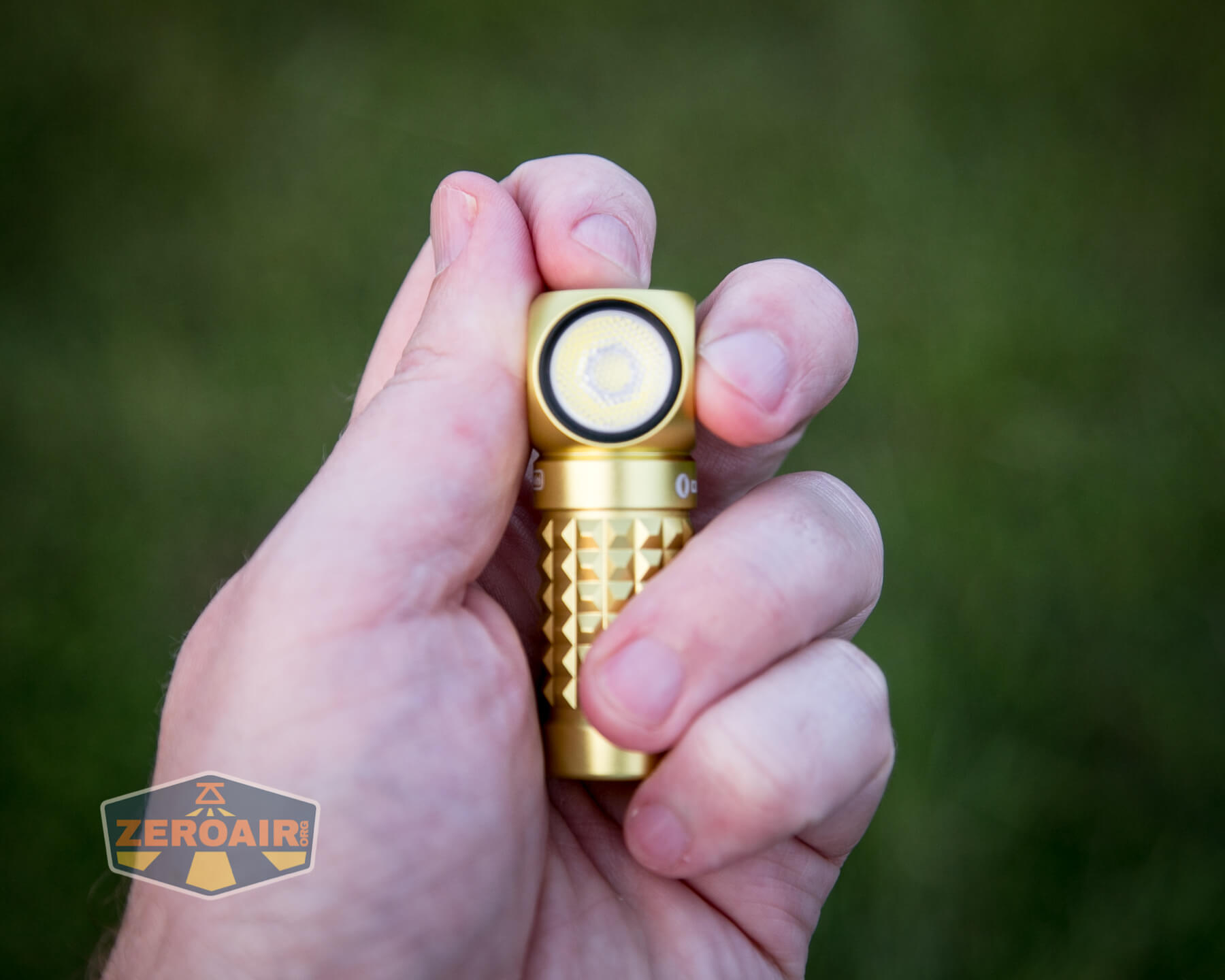

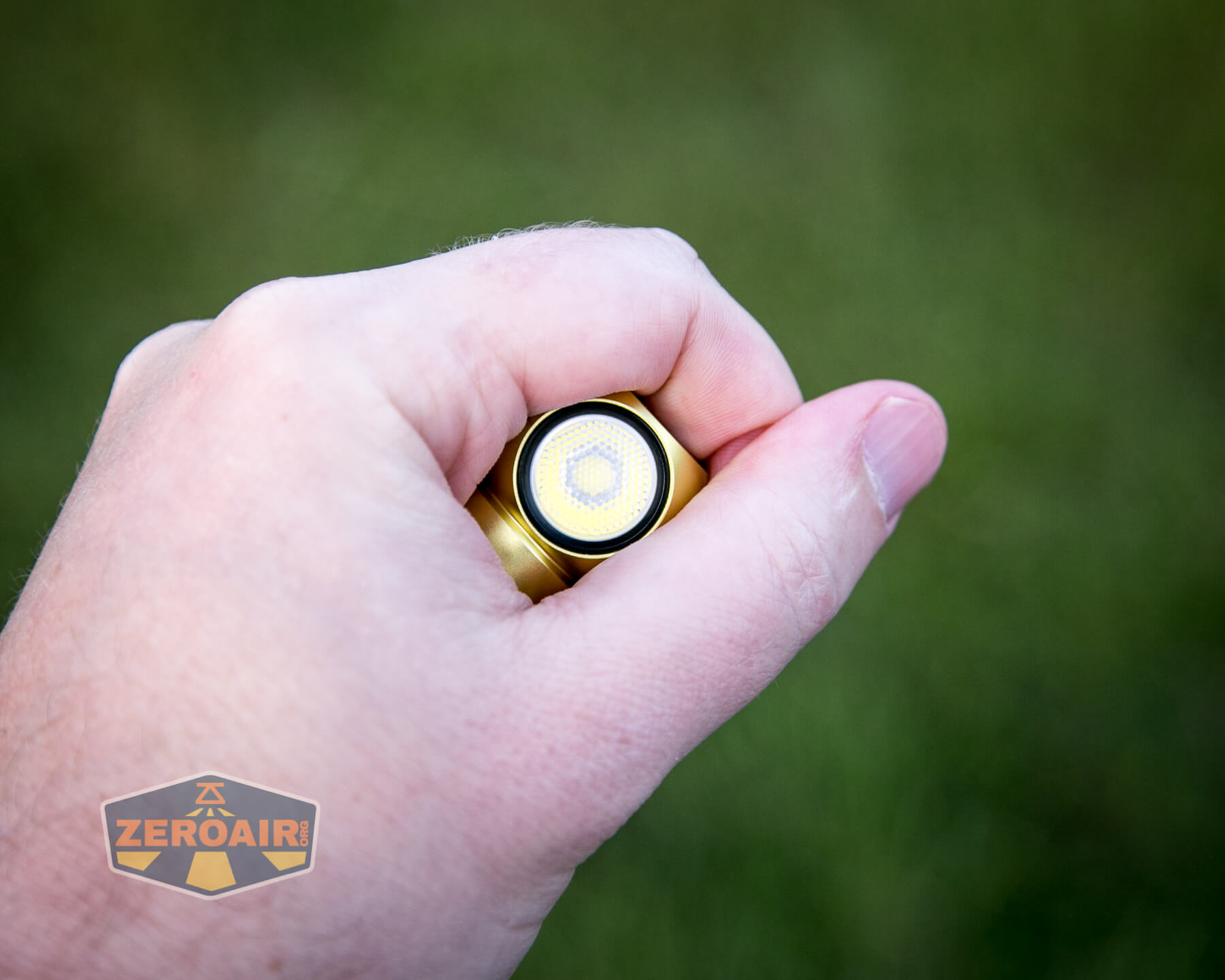

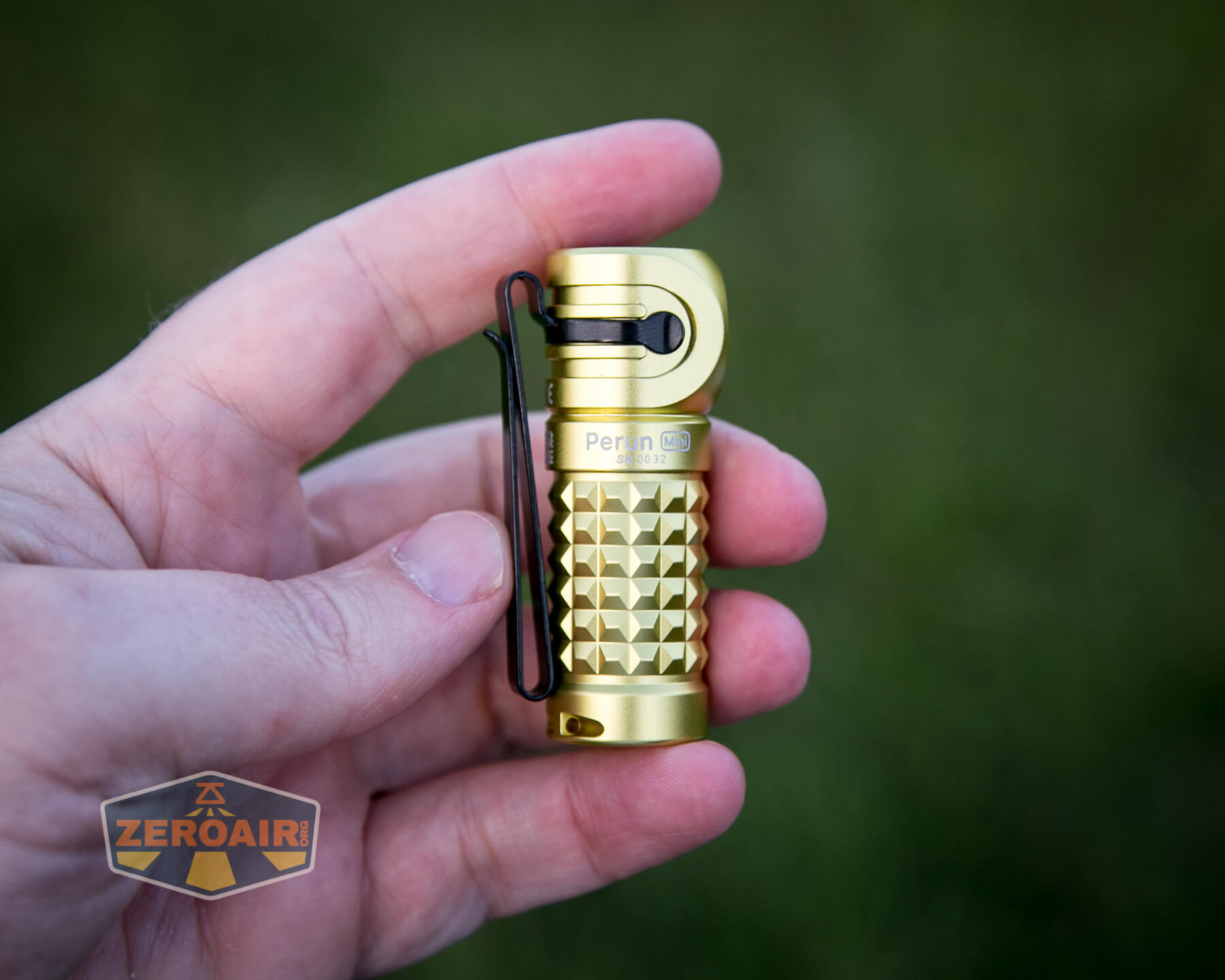

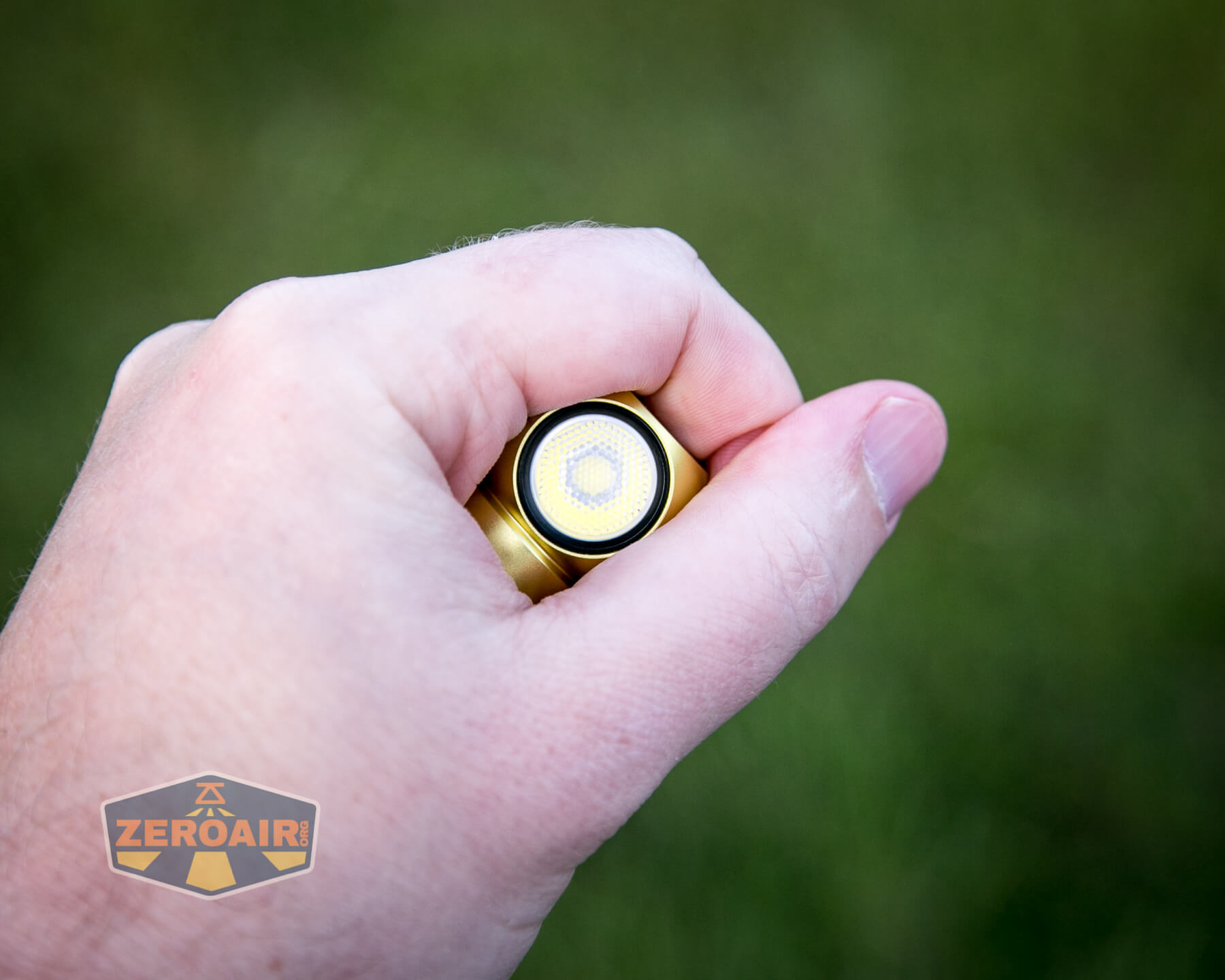

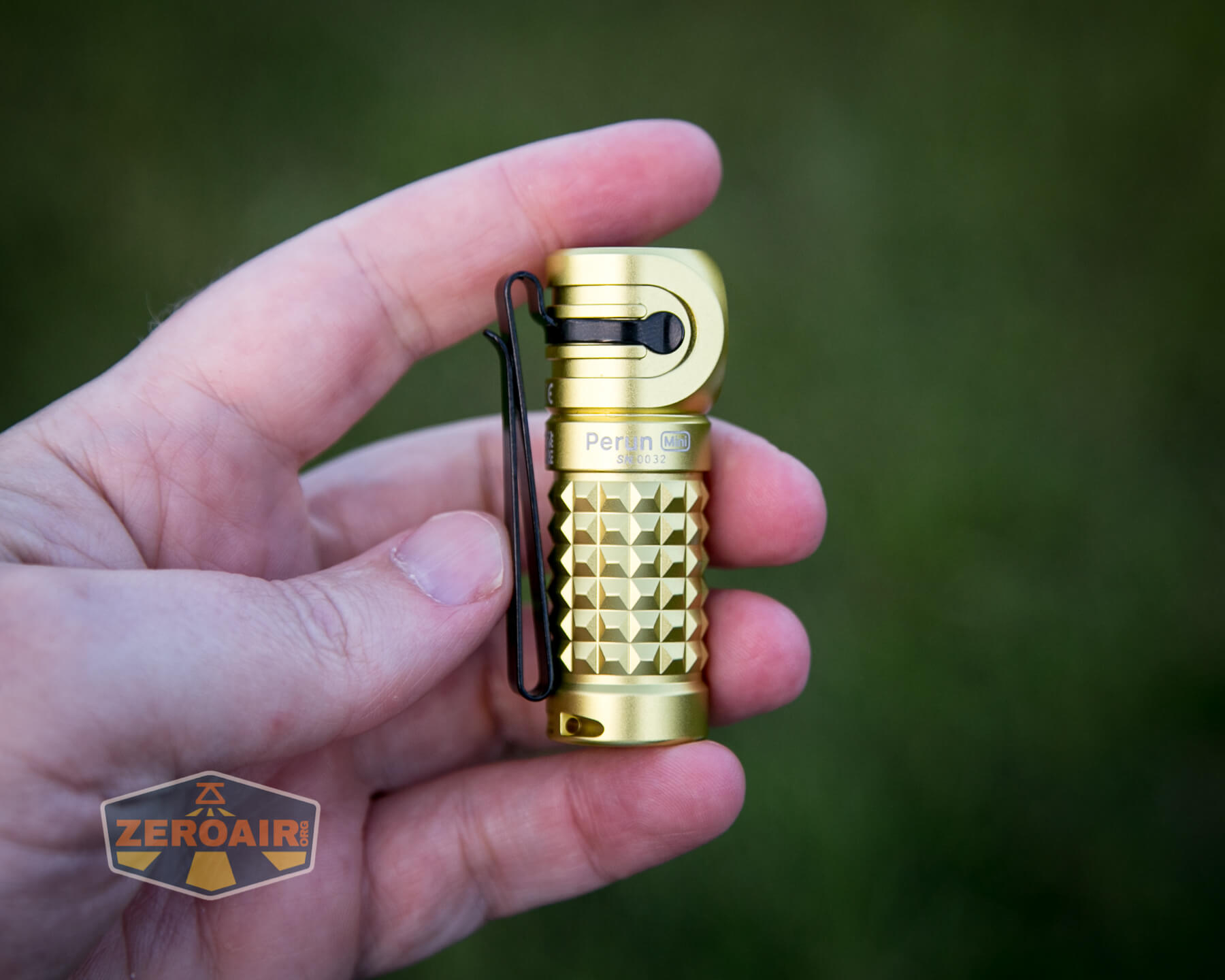

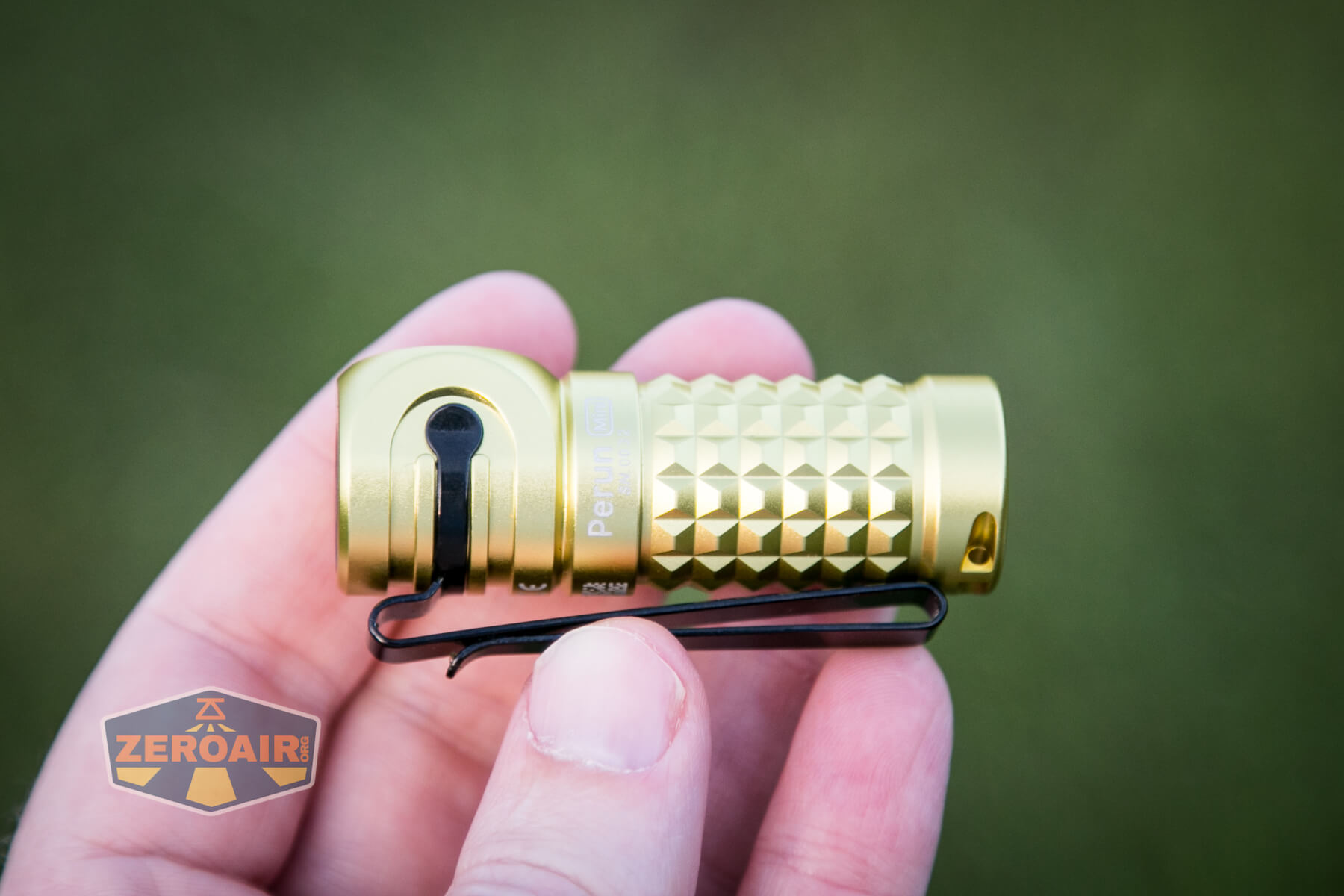

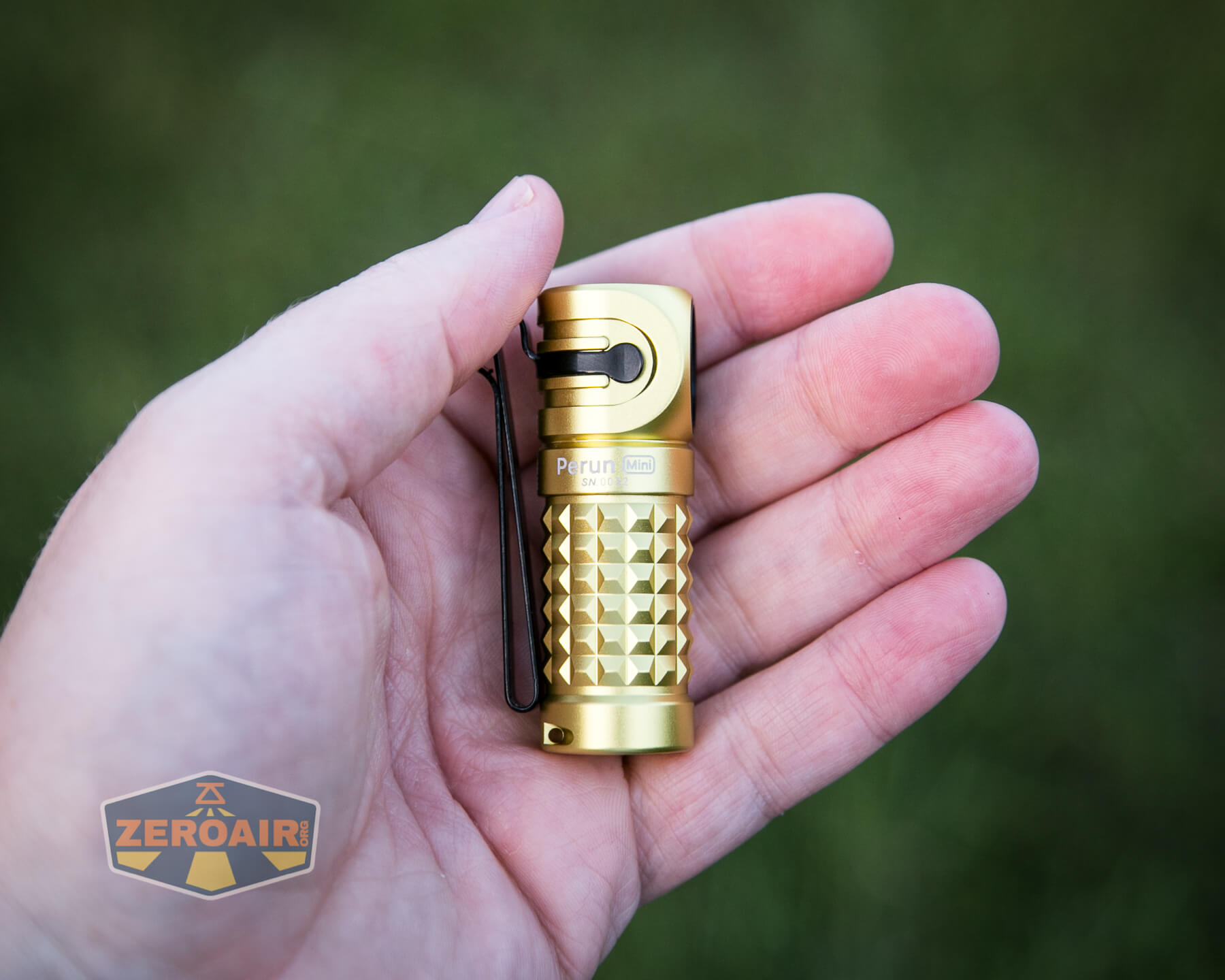

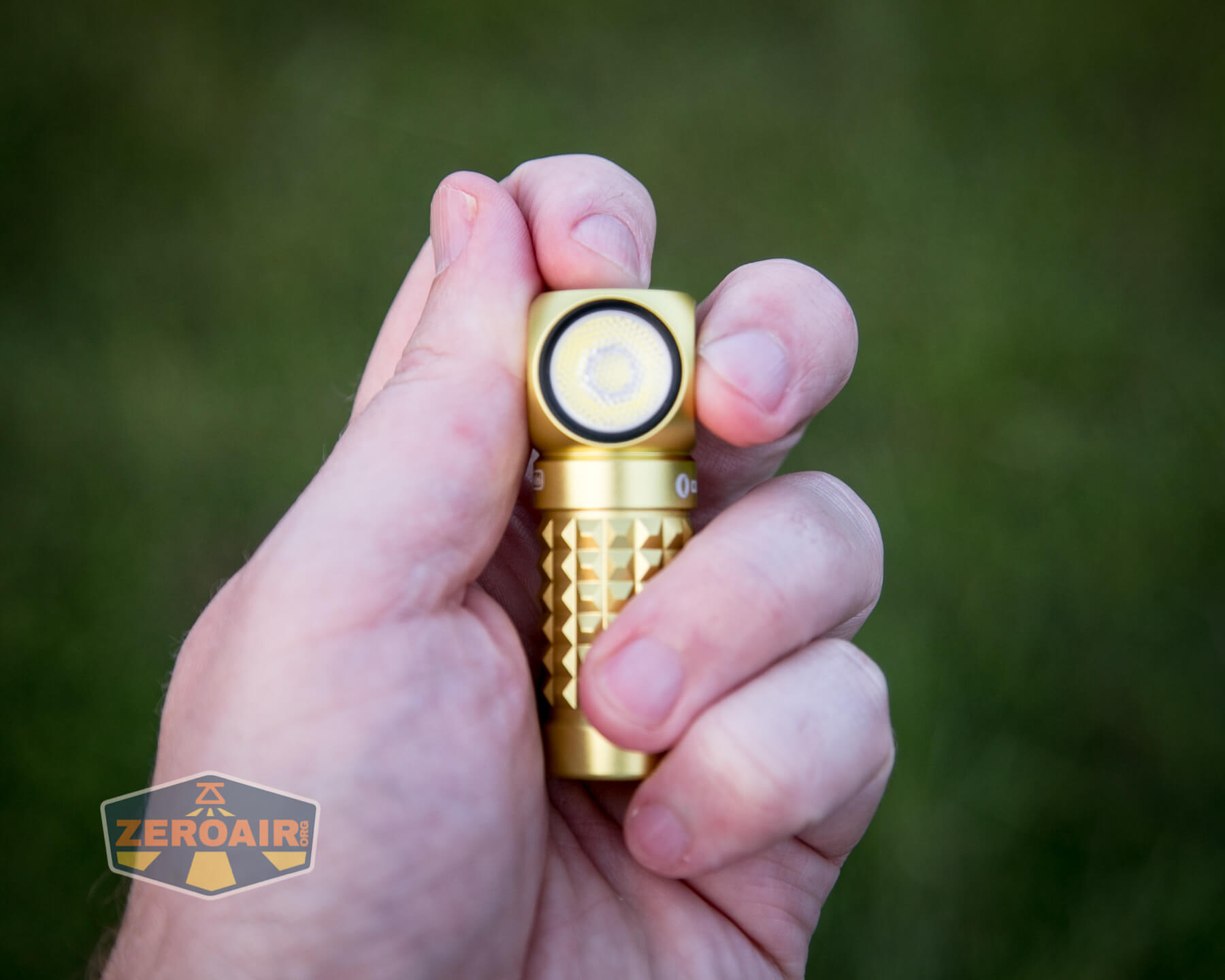

Olight Perun Mini Kit Headlight in hand

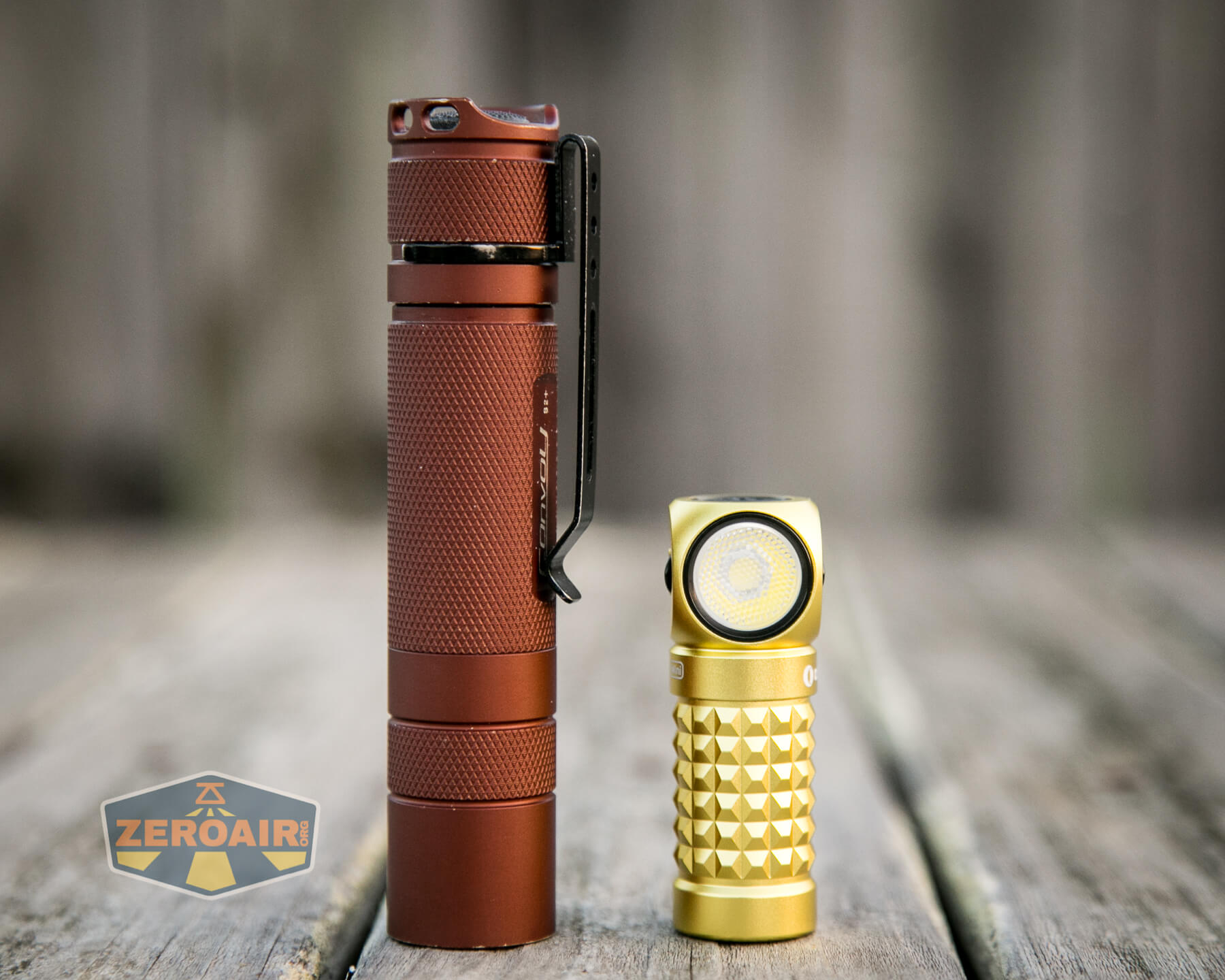

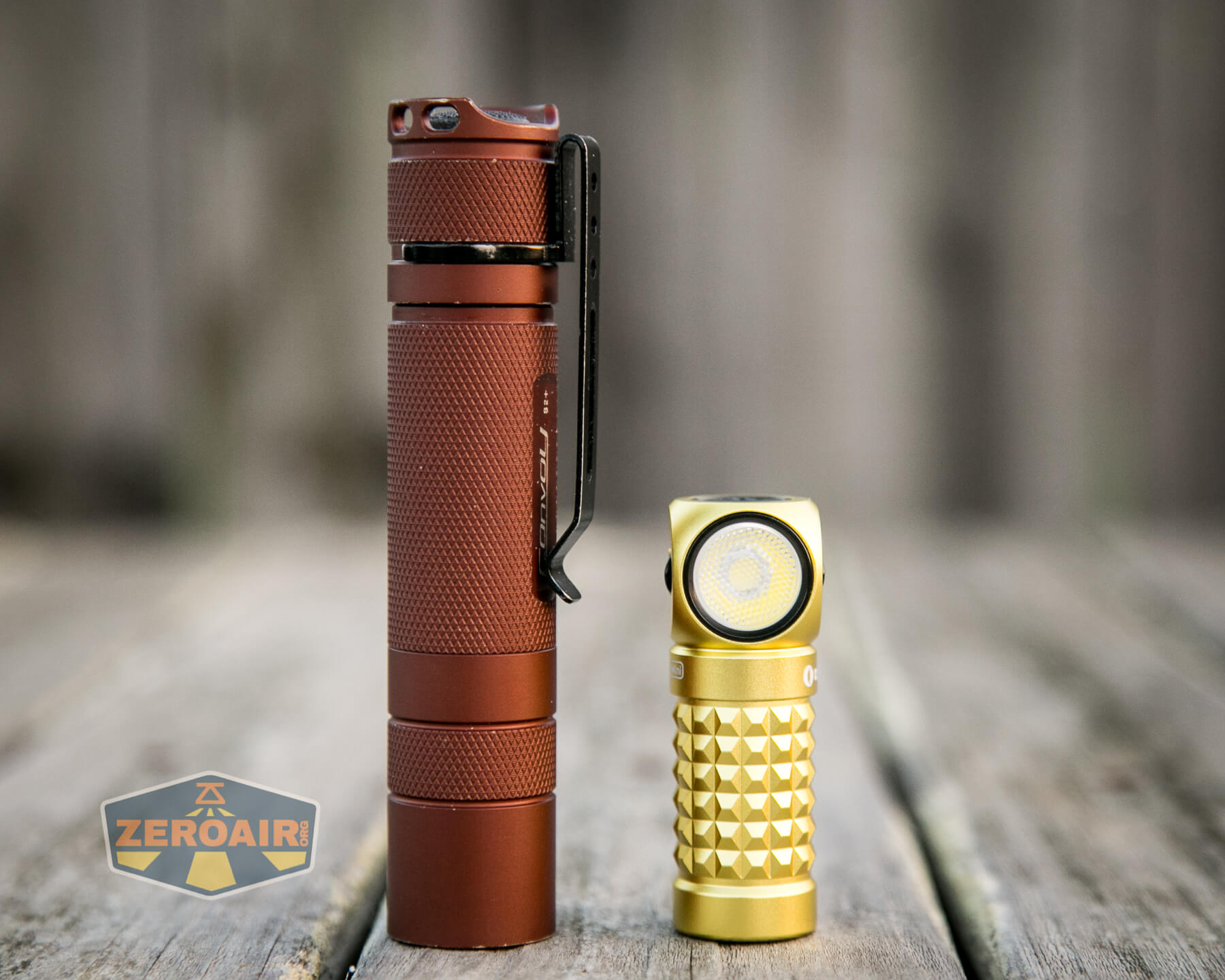

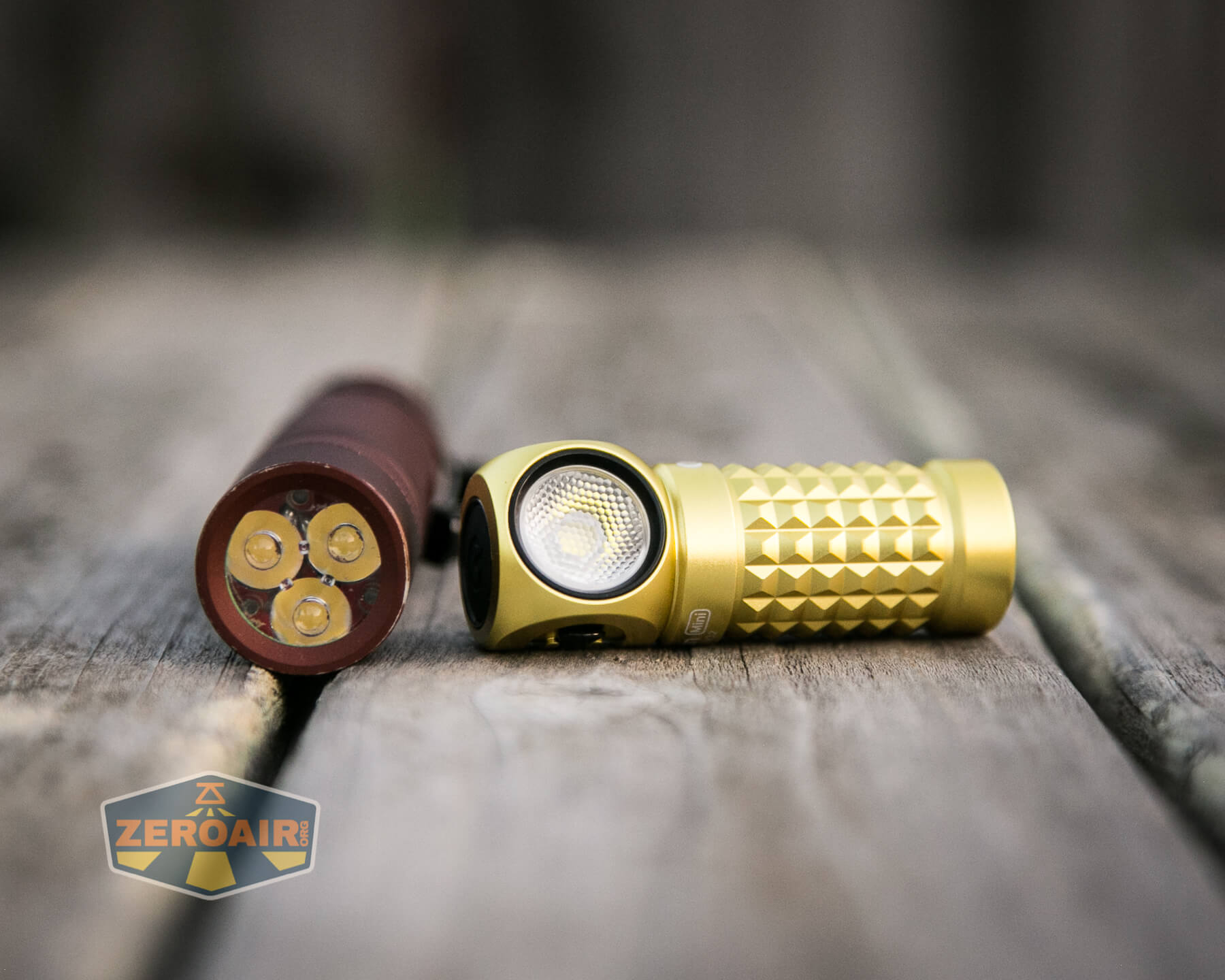

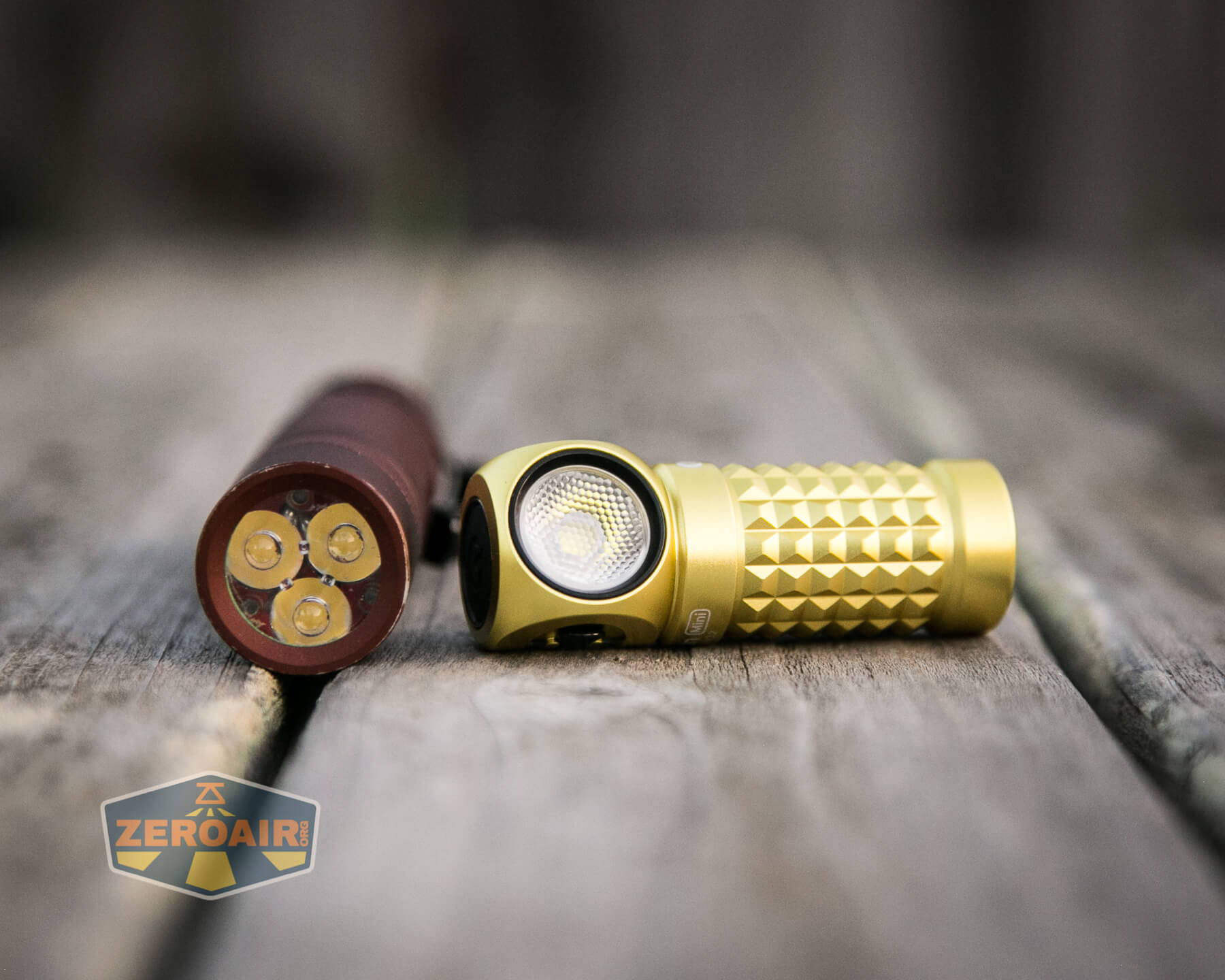

Here’s the test light with the venerable Convoy S2+.  Mine’s a custom “baked” edition Nichia 219b triple.  A very nice 18650 light.

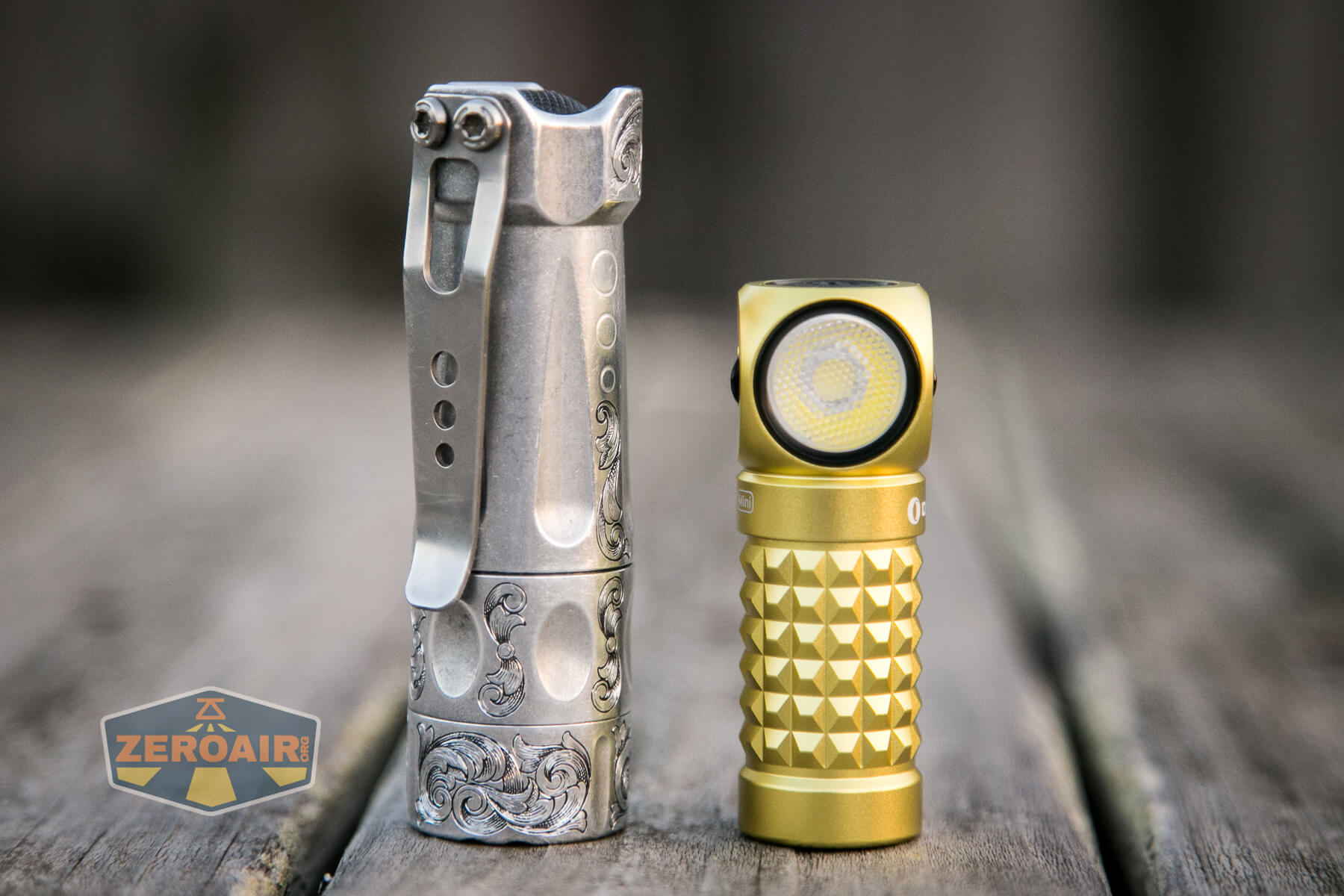

And here’s the light beside my custom engraved TorchLAB BOSS 35, an 18350 light.  I reviewed the aluminum version of that light in both 35 and 70 formats.

Olight Perun Mini Kit Headlight beside torchlab boss 35

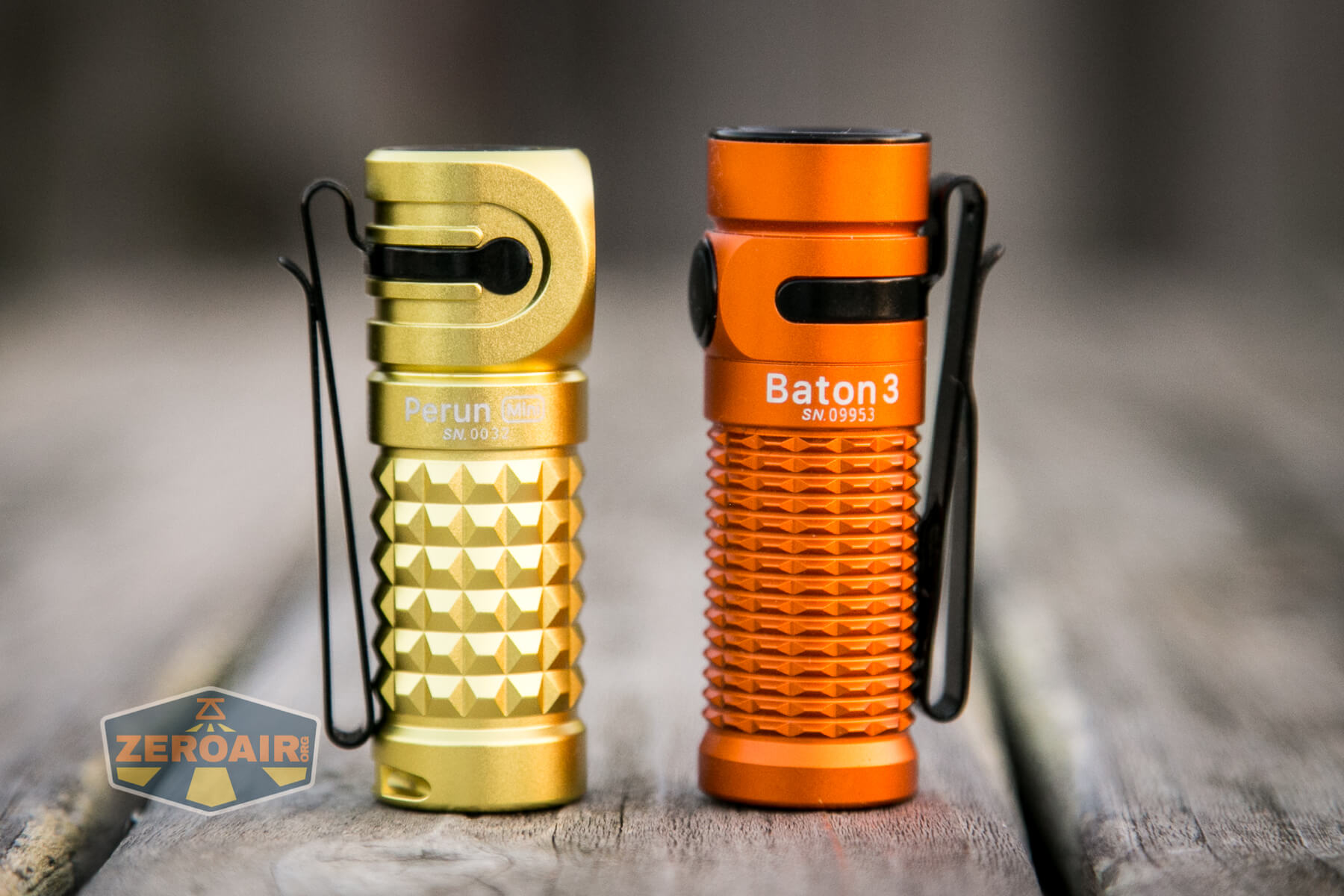

Olight Perun Mini Kit Headlight with baton 3

Retention and Carry

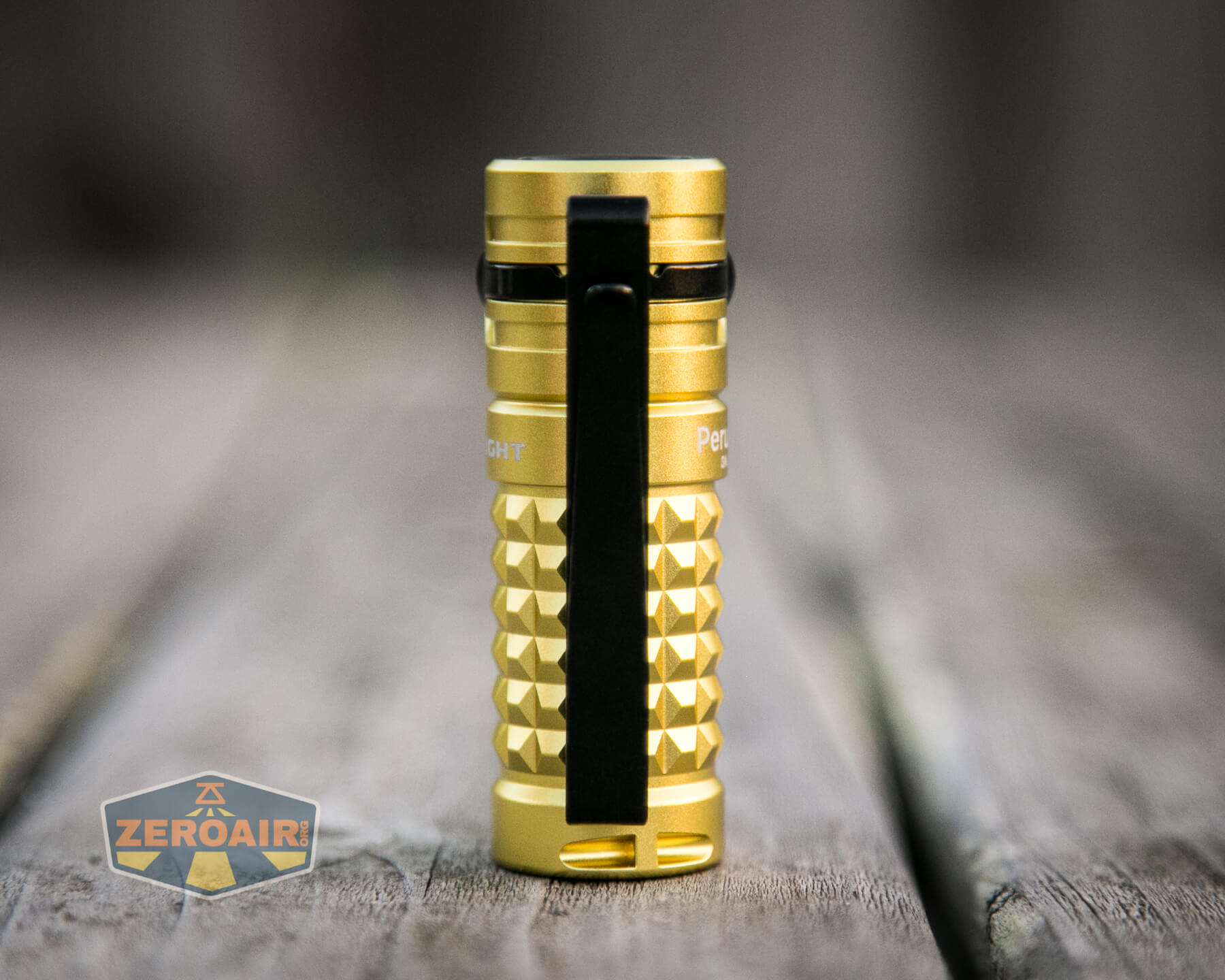

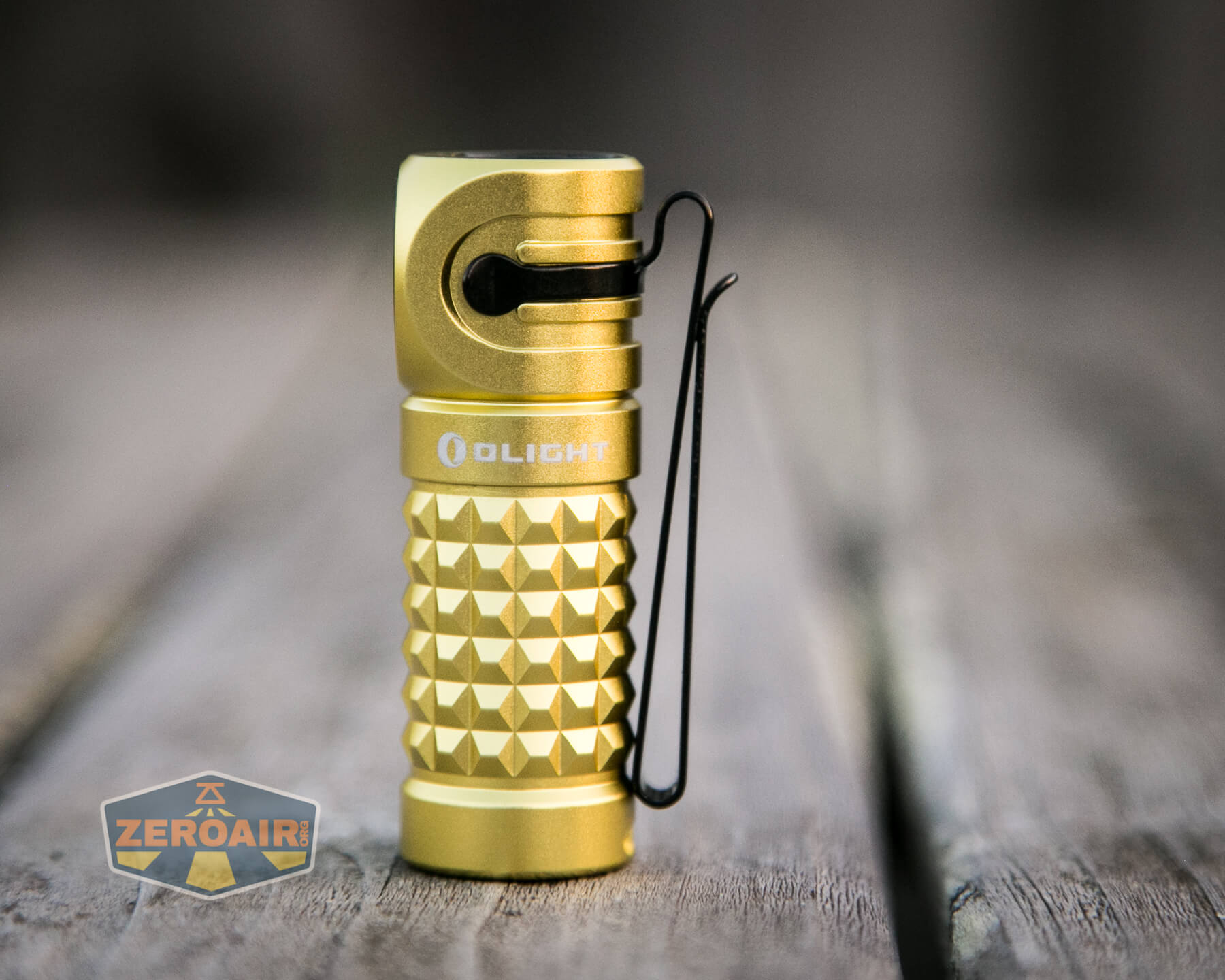

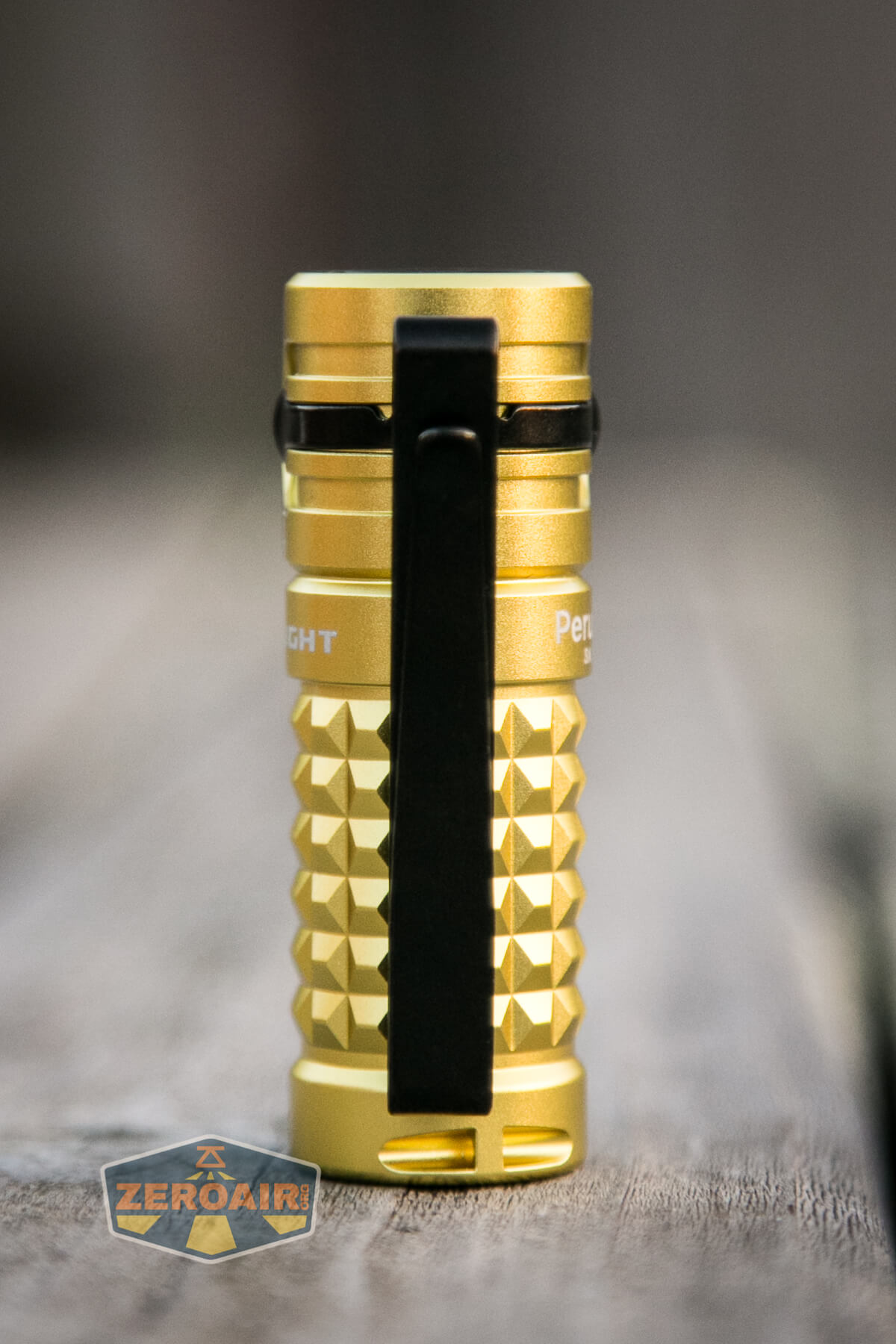

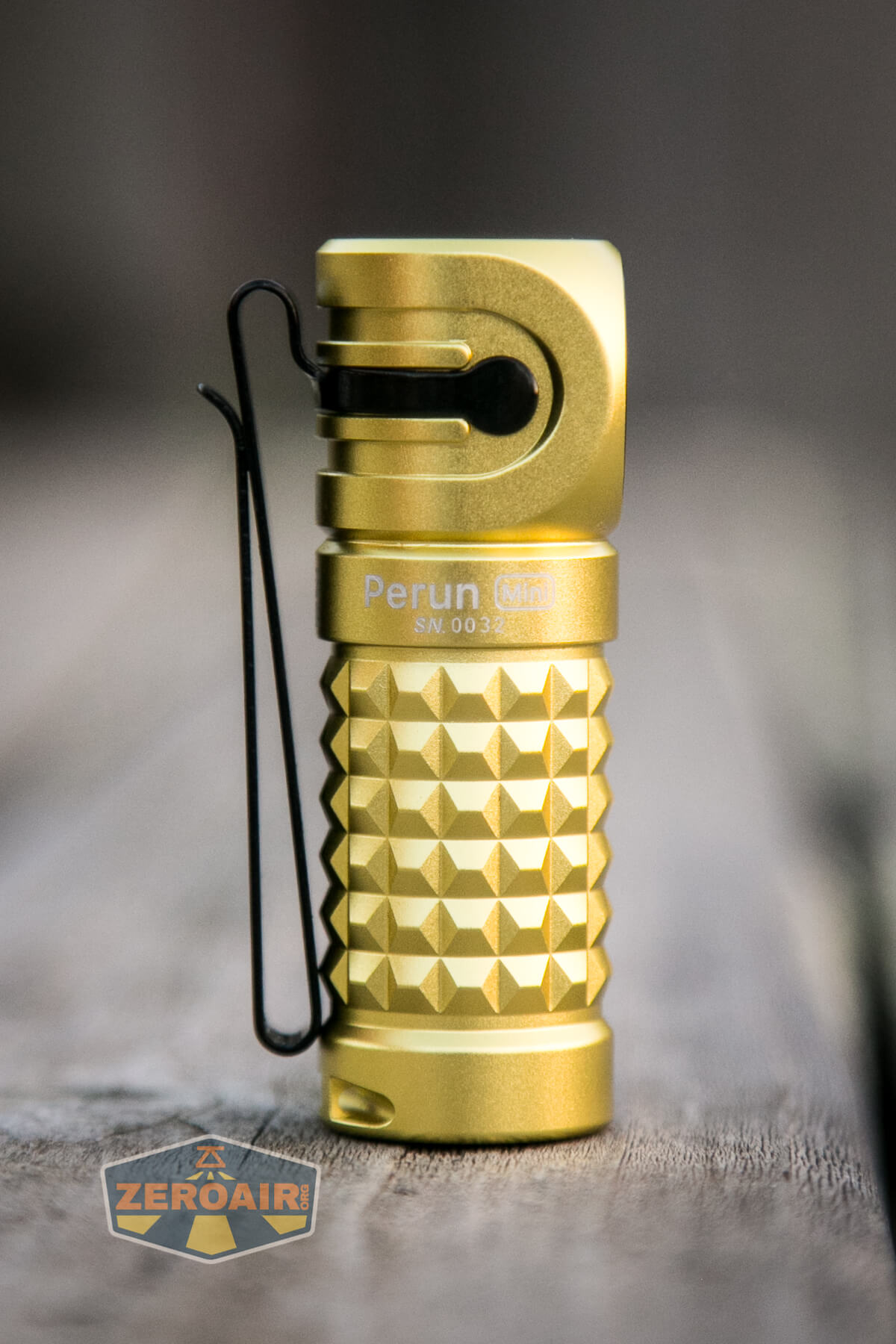

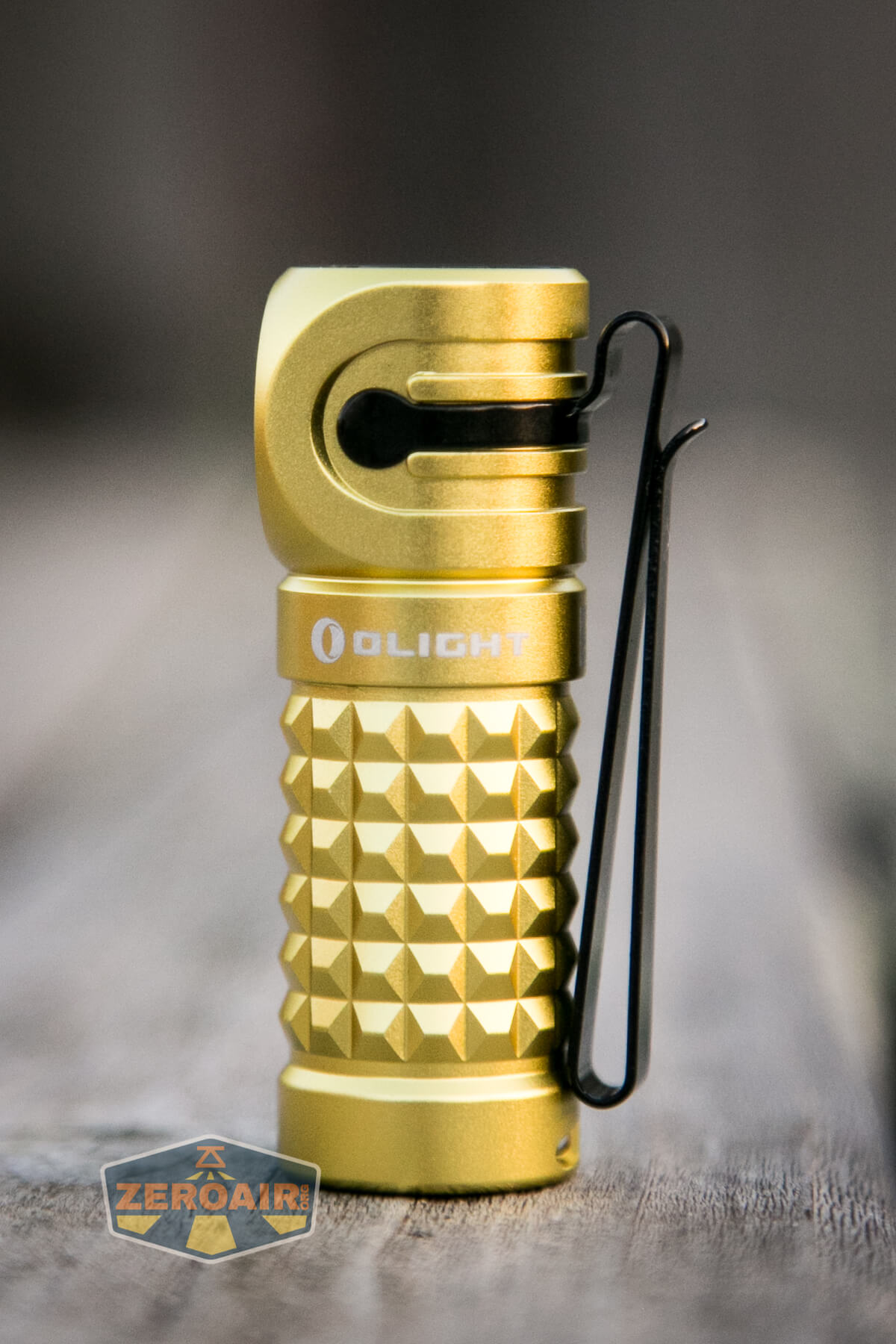

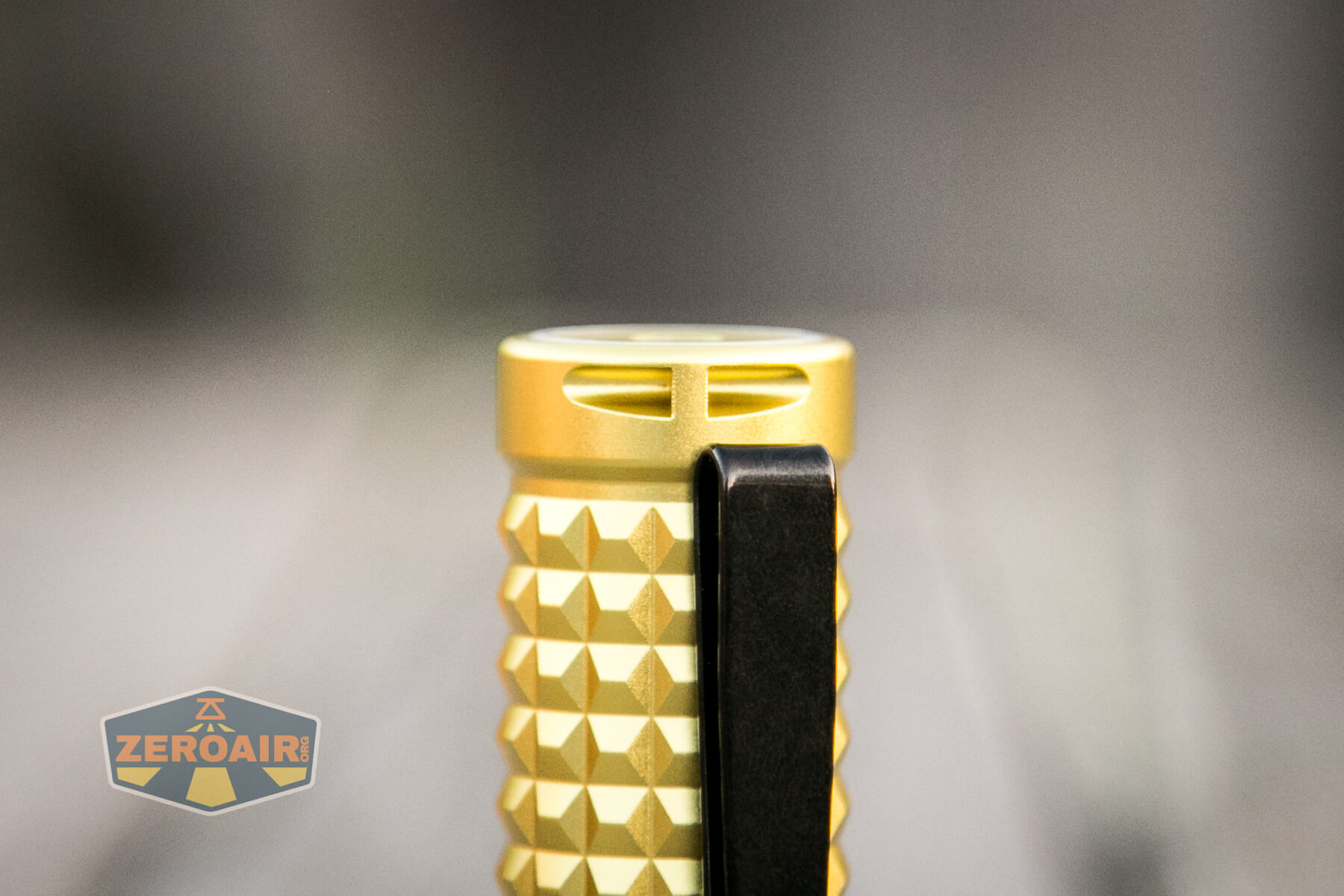

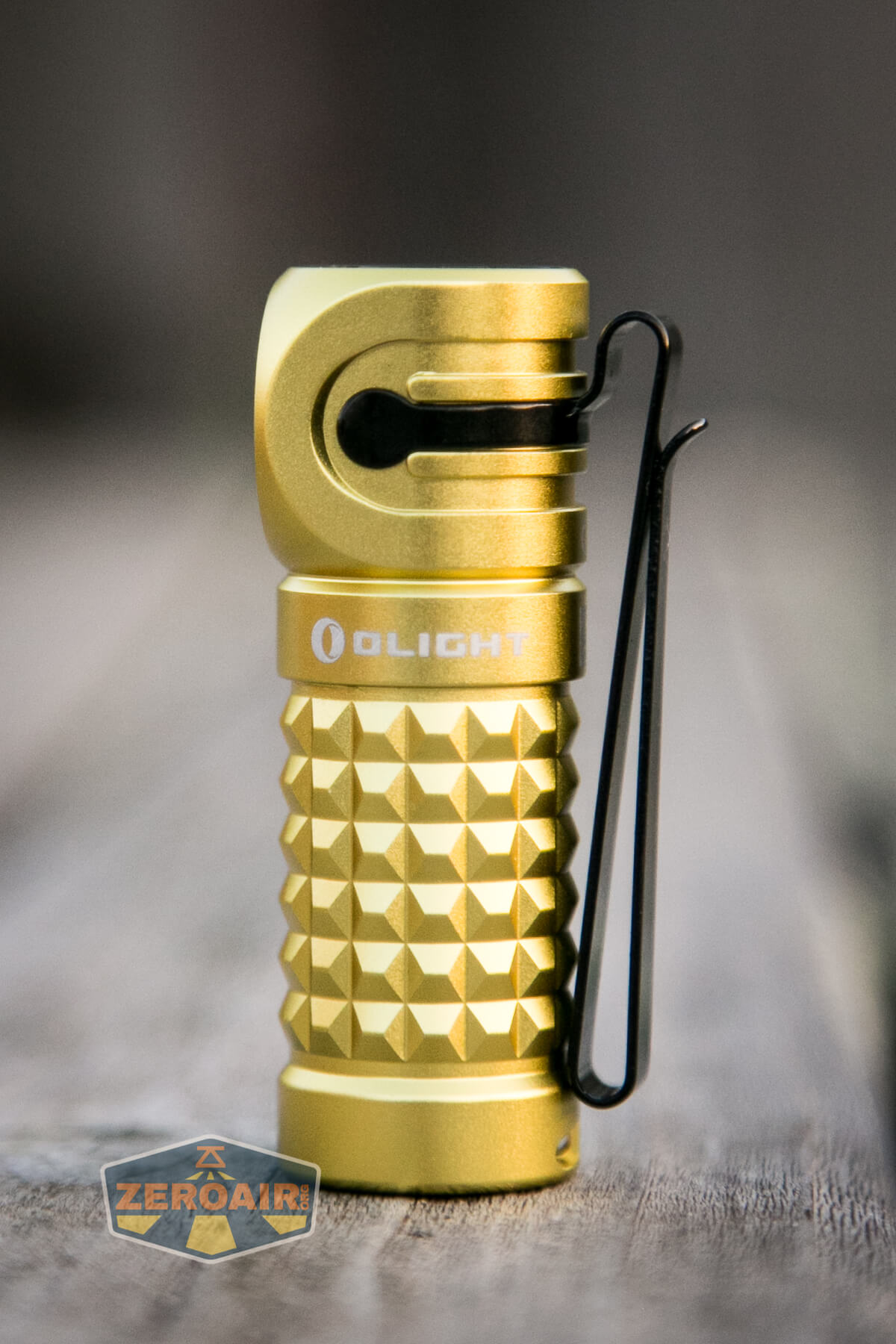

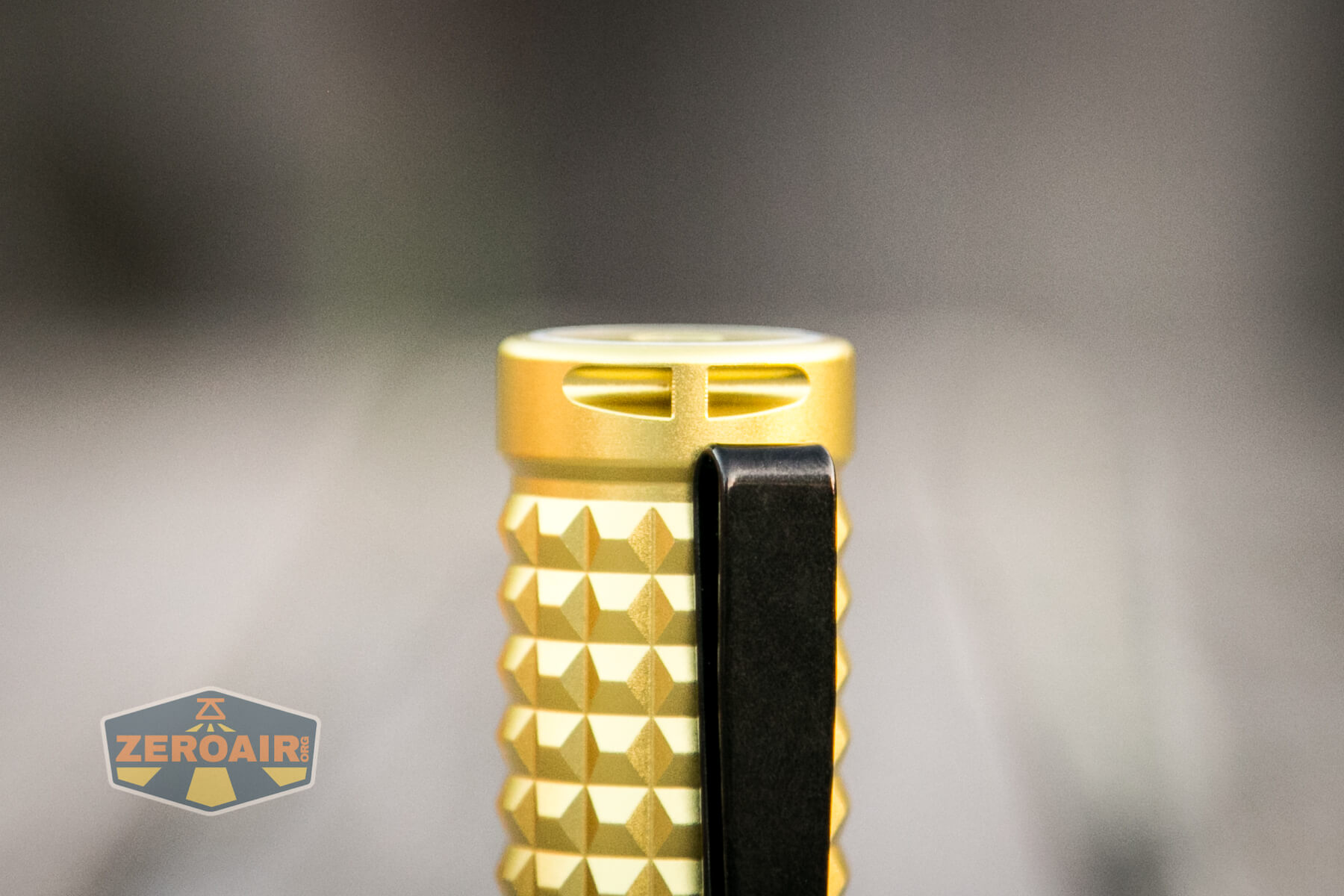

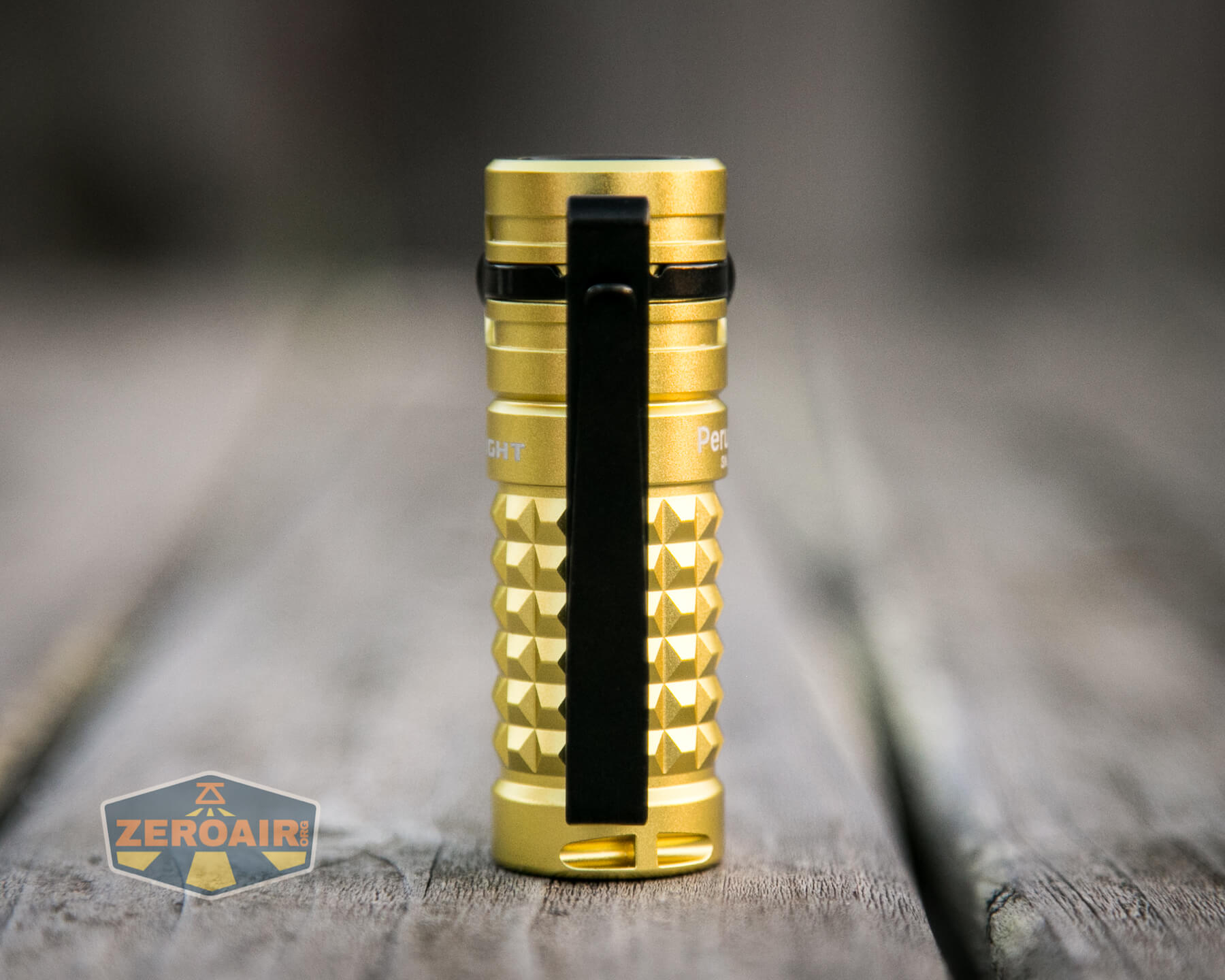

Since it ships attached to the light, let’s talk about the pocket clip first.  It’s a black friction fit clip, which has the typical Olight connection.  I like this because it means the light is in a reliable place in relation to the clip.  Olight has added a little dot at the end of the arms to keep the clip from twisting off, too.  Finally, the clip is a “both ways” clip, which I normally don’t like at all.  The “primary” way to use the clip works well (that is, clipping with pants nearest the body of the light) but the second way is less ideal.

This clip would allow attachment to the bill of a cap, though this being a right angle light means that won’t be that ideal.

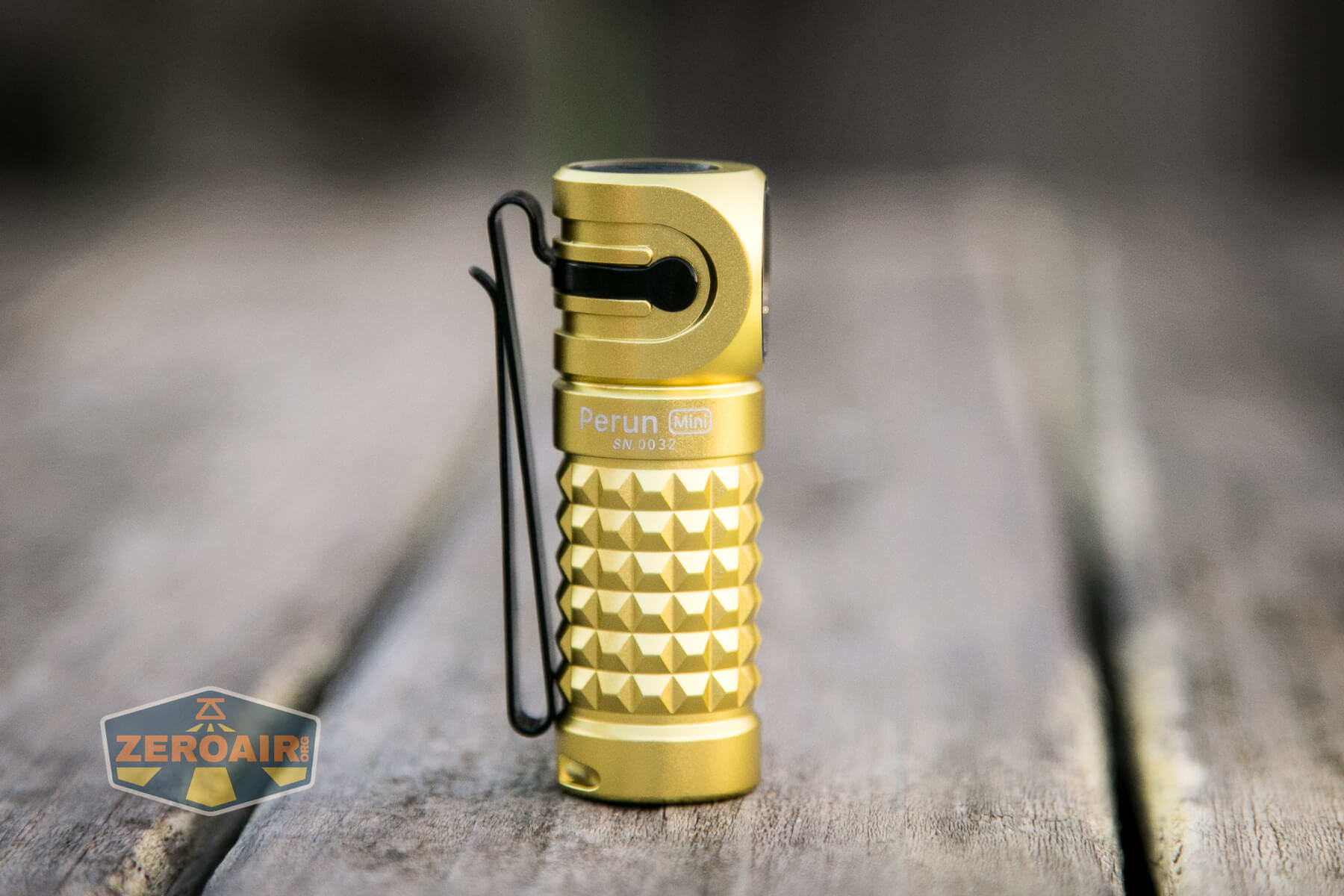

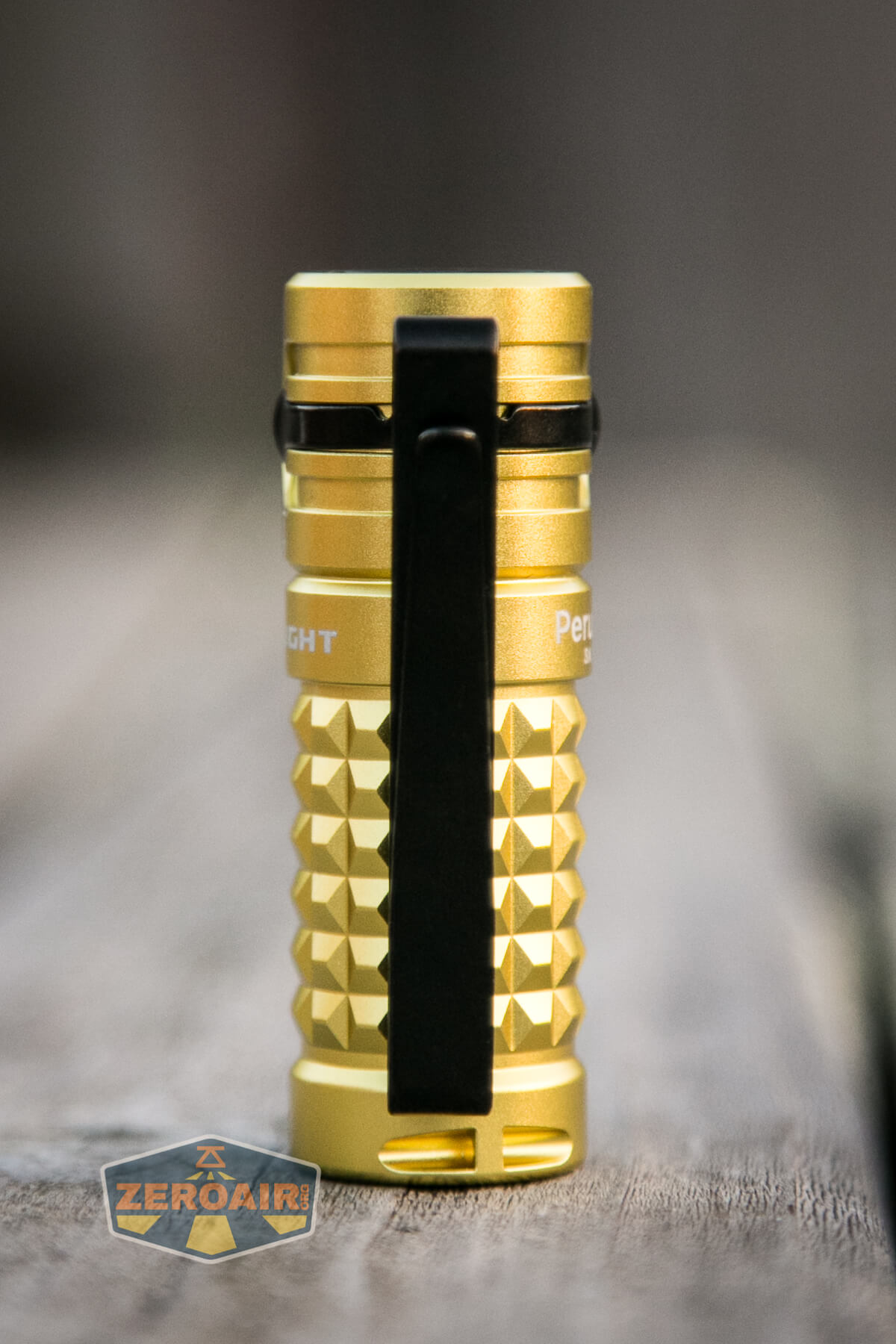

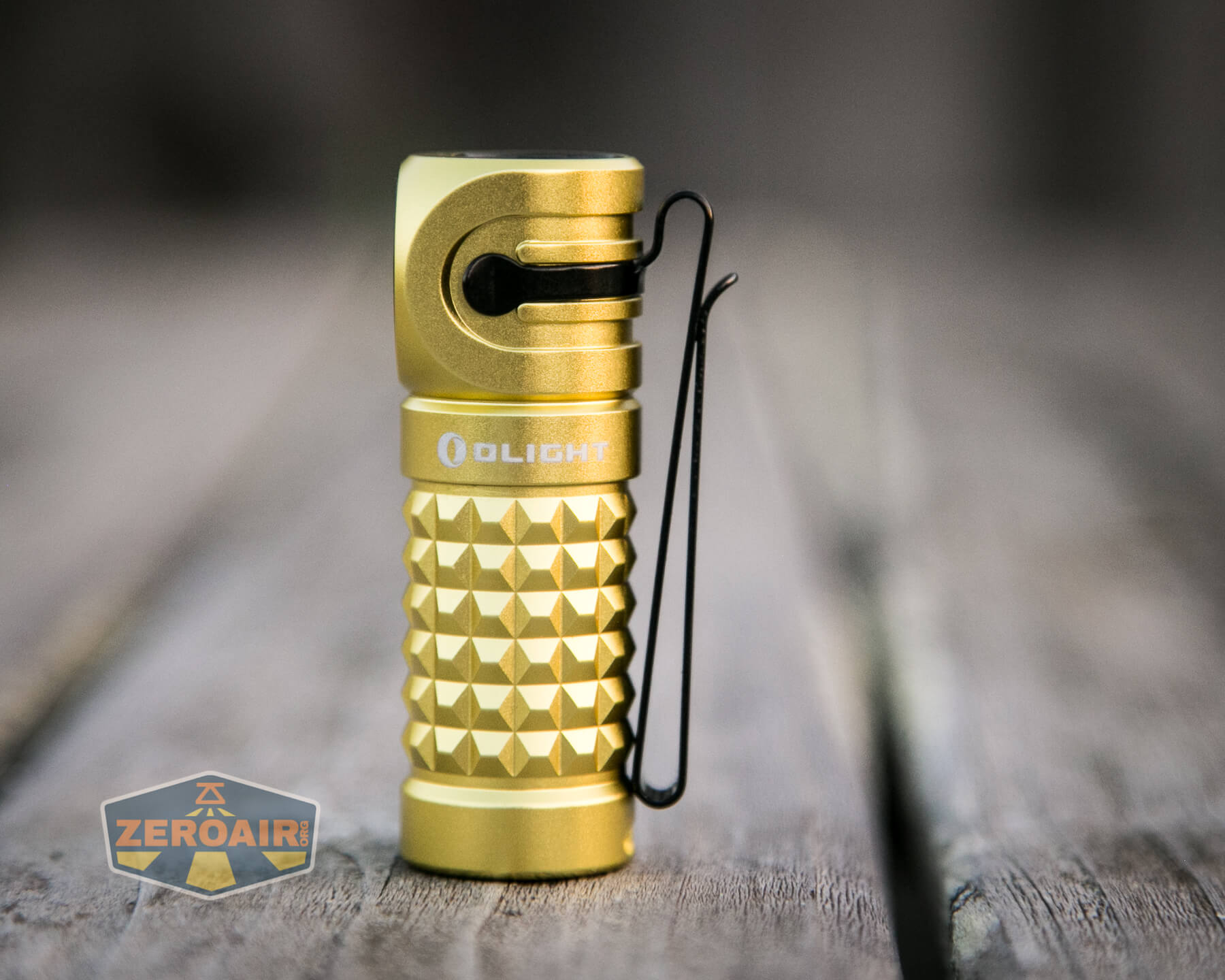

Olight Perun Mini Kit Headlight pocket clip

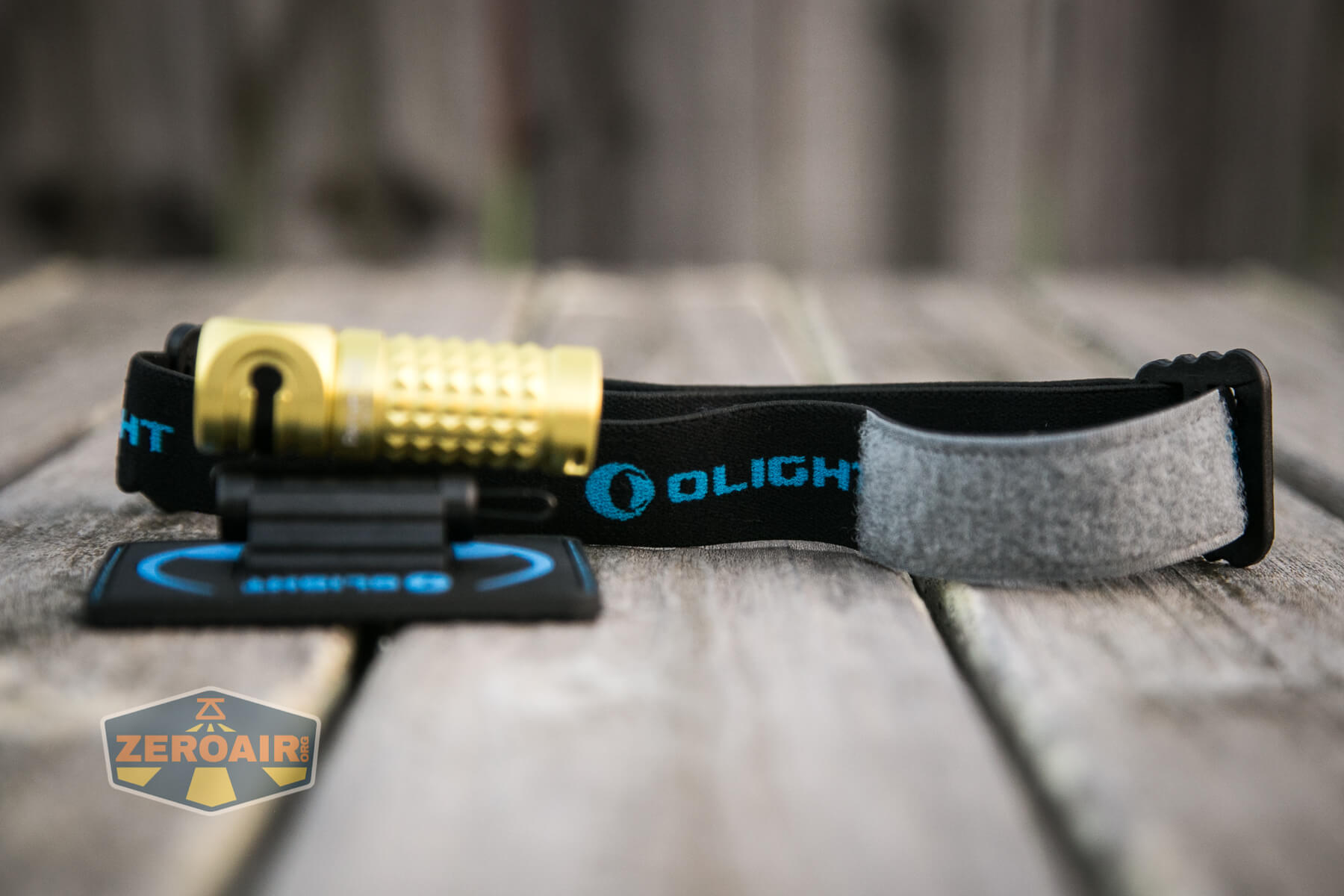

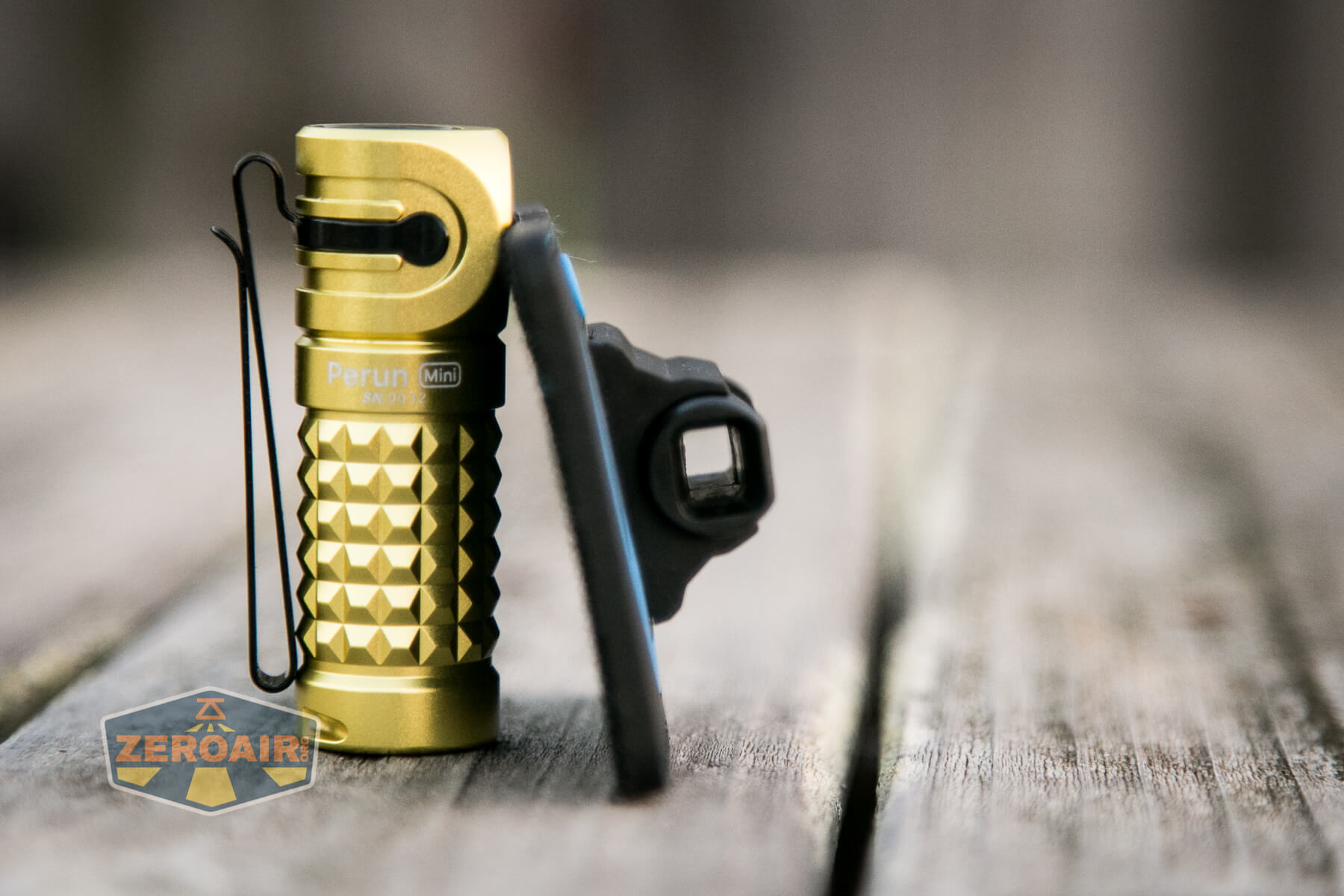

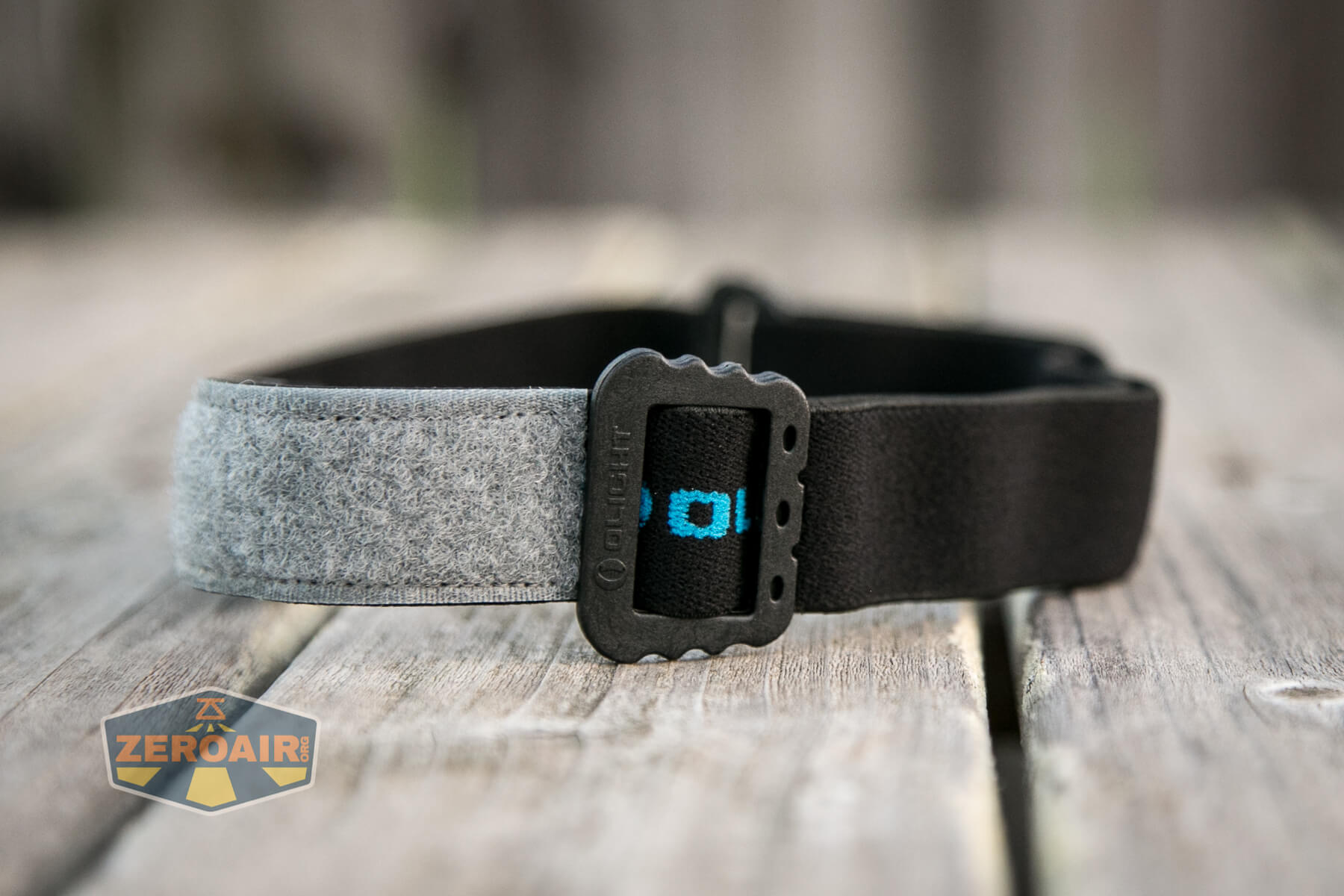

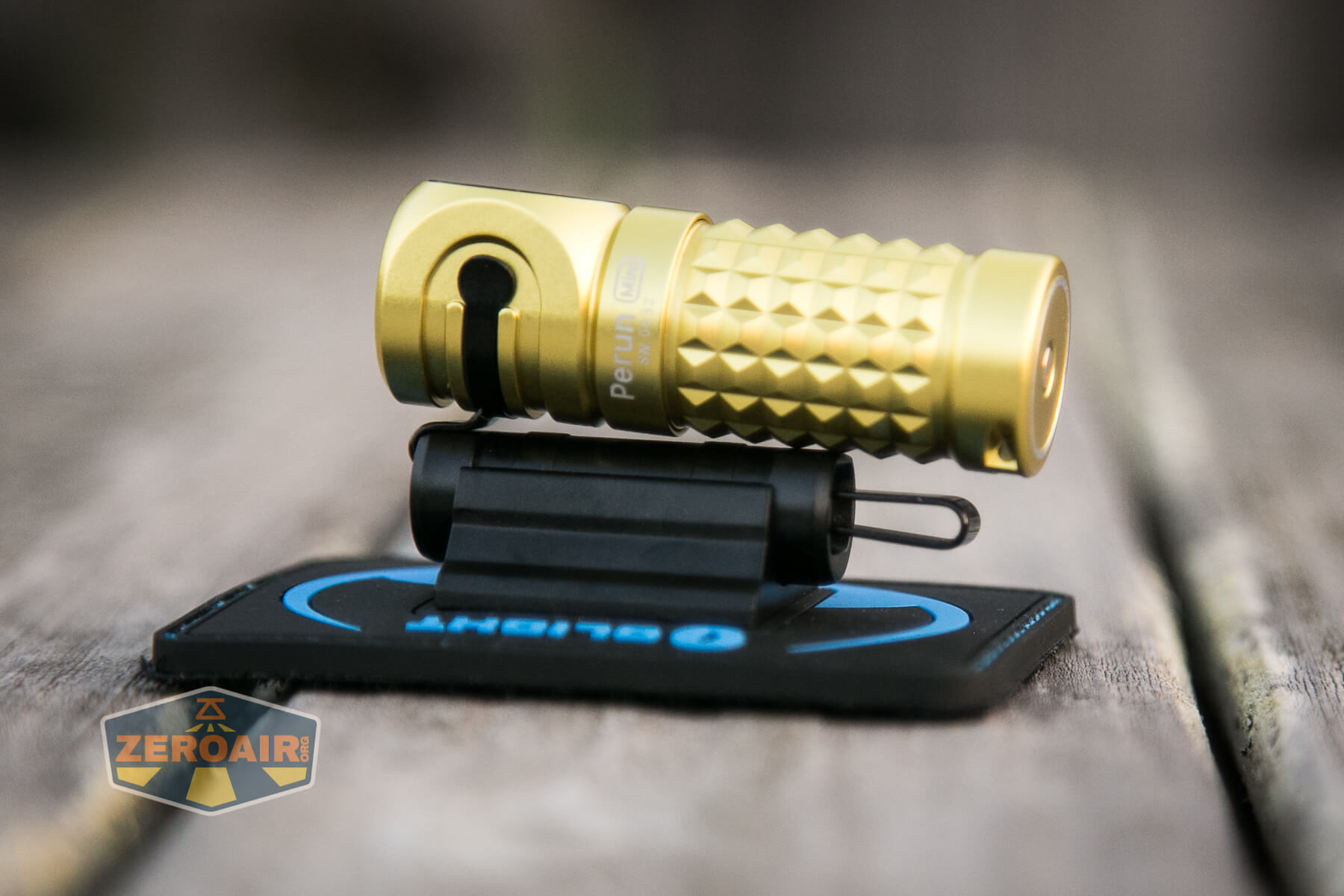

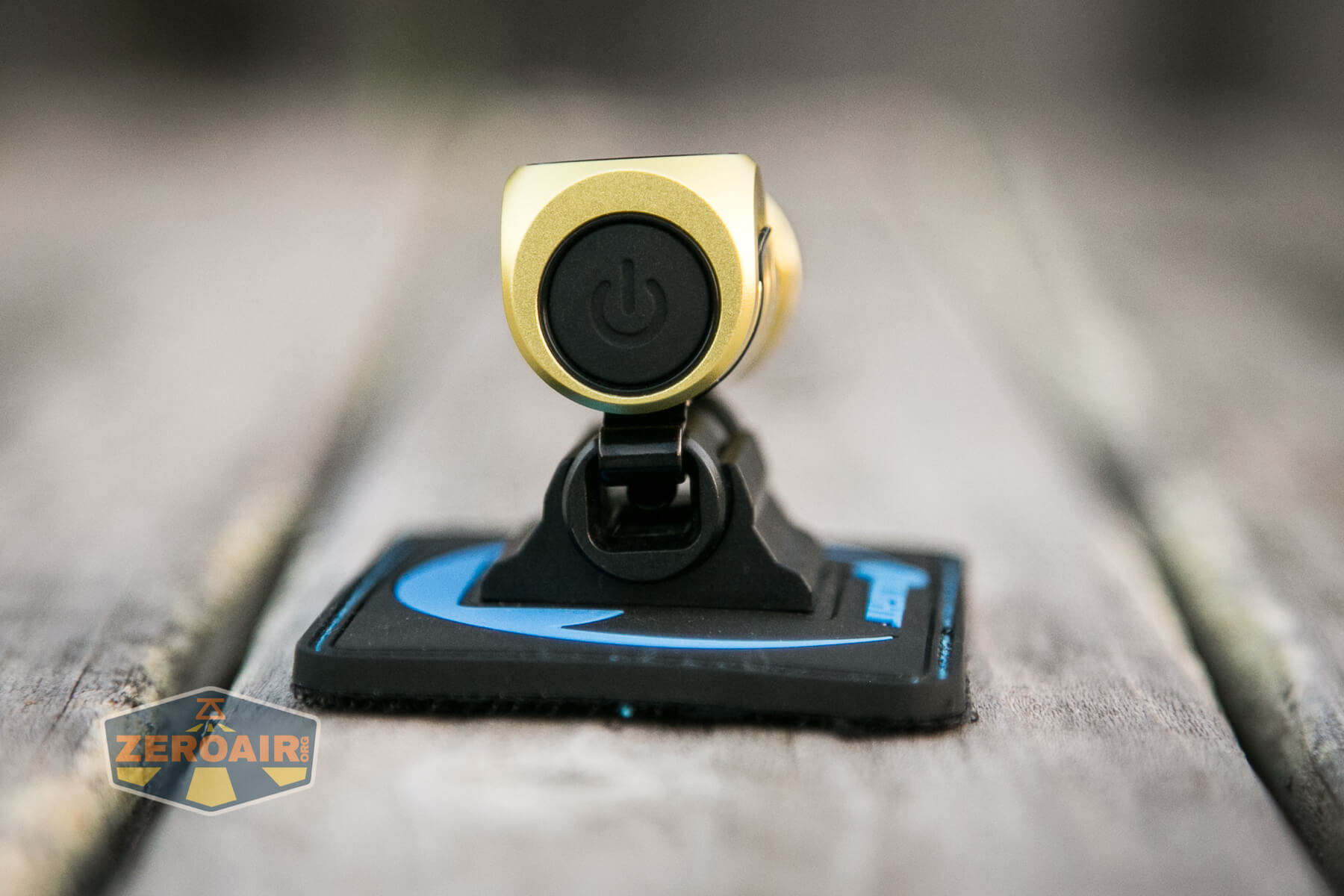

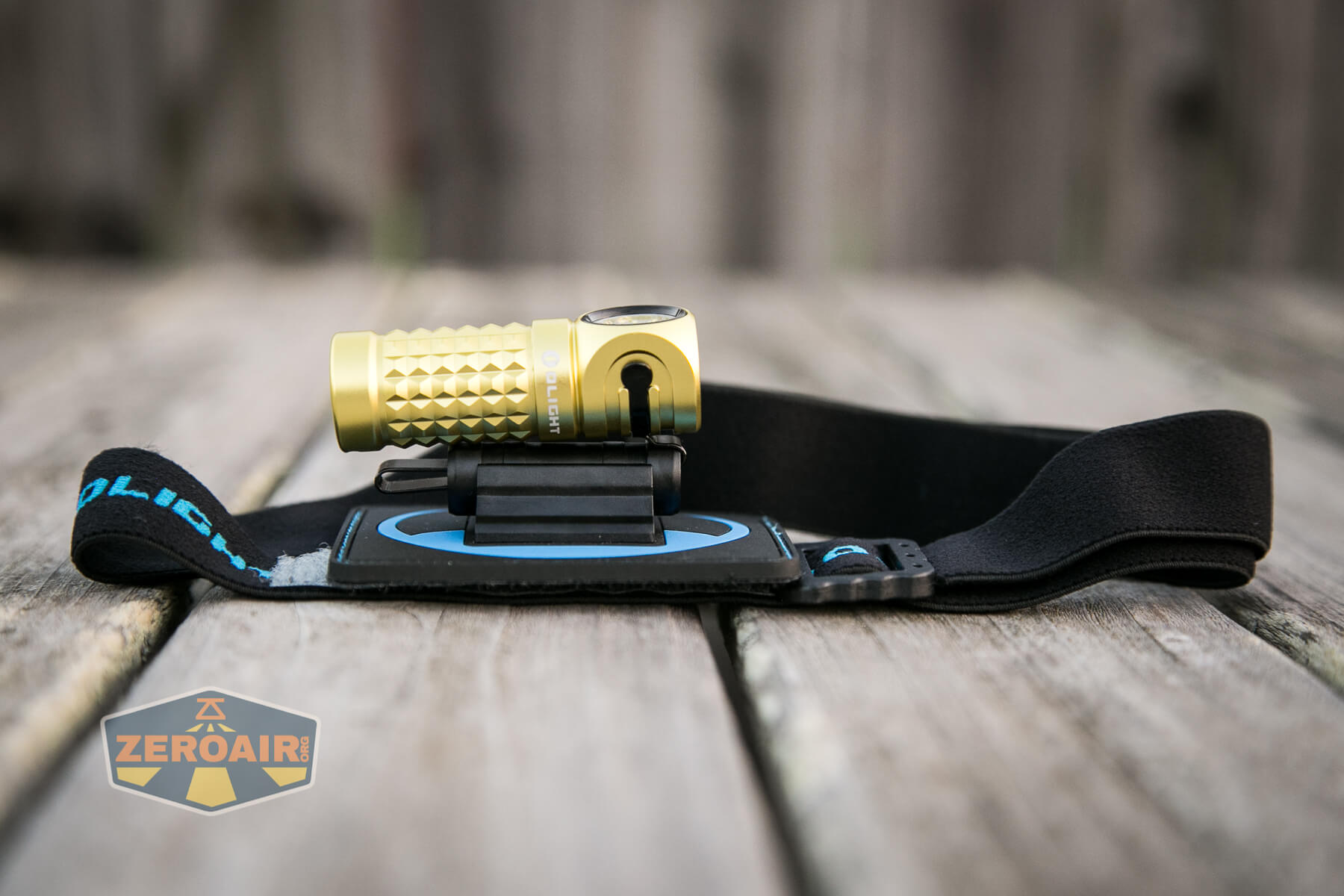

Olight Perun Mini Kit Headlight headband Olight Perun Mini Kit Headlight headband Olight Perun Mini Kit Headlight headband

The manual states a 60-degree rotation, and that looks about right.  I haven’t calibrated my eye-protractor in a while though.

Olight Perun Mini Kit Headlight headband Olight Perun Mini Kit Headlight headband

This is a very simple headband.  Just the around the head part, and just around one inch thick.

Olight Perun Mini Kit Headlight headband

Also very adjustable.

Olight Perun Mini Kit Headlight headband

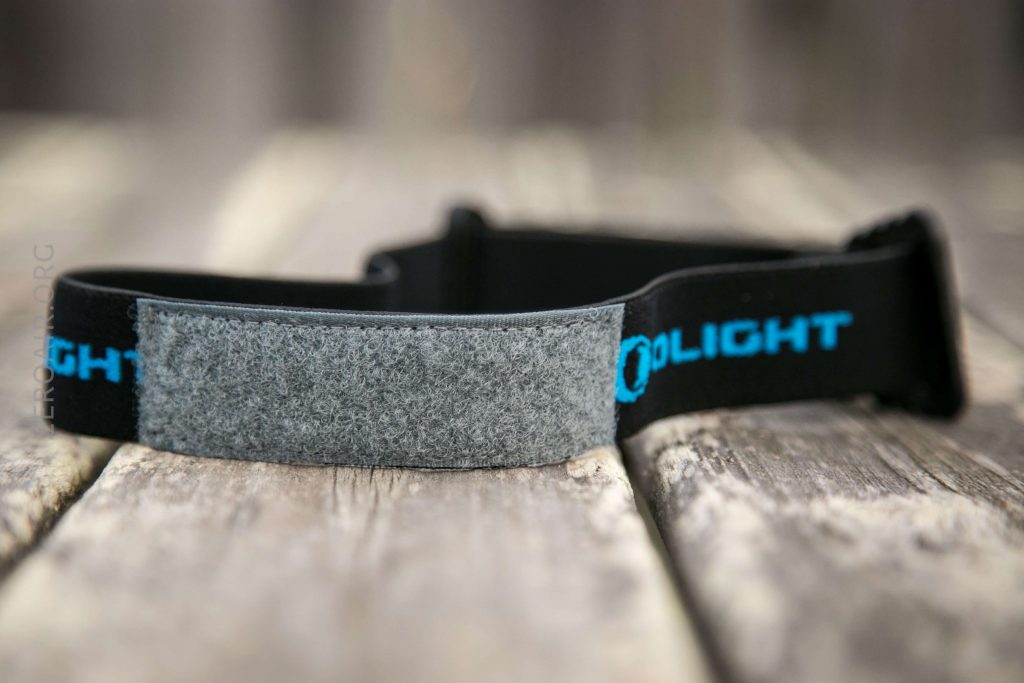

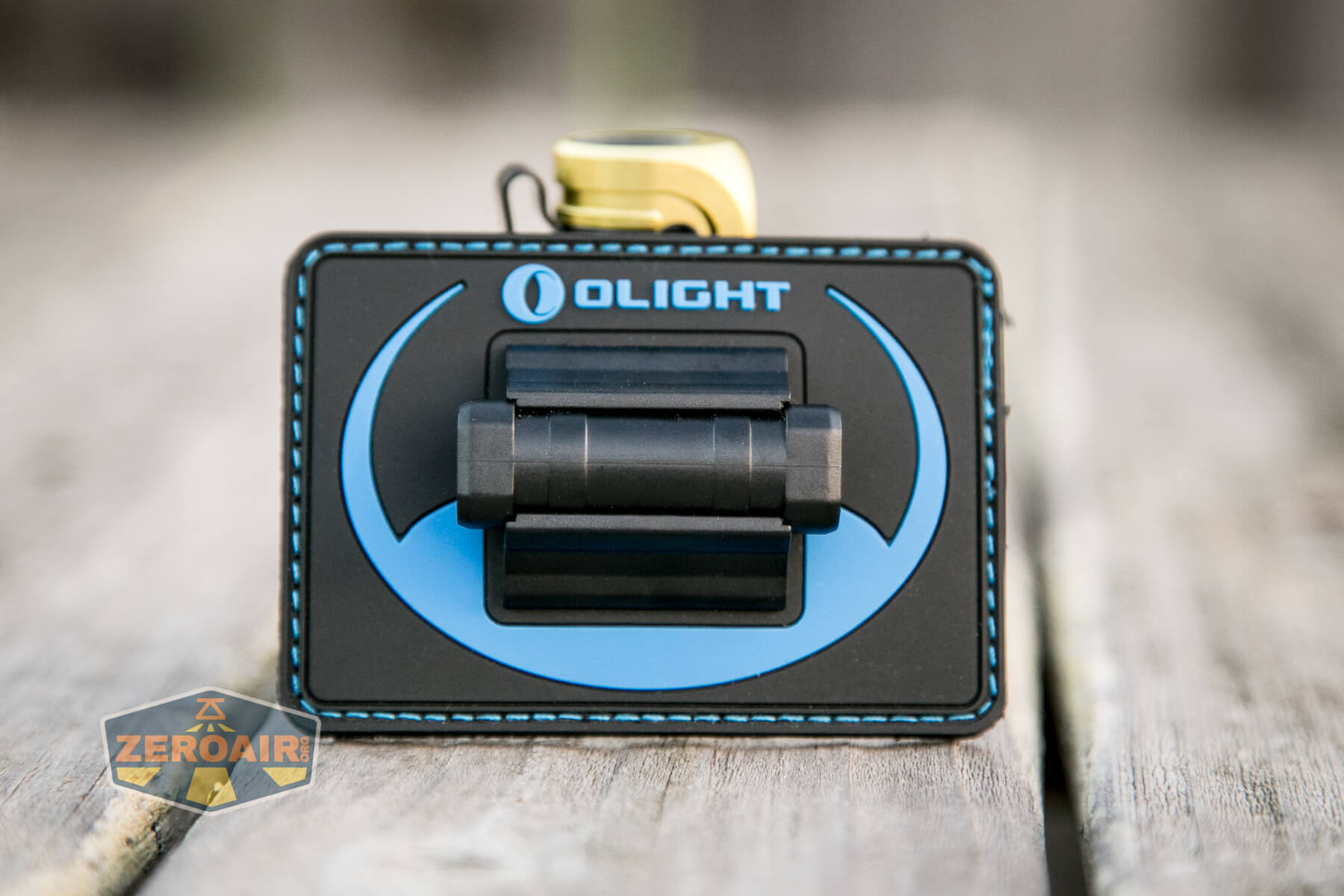

The loop portion of the velcro is on the headband.  It’s around 4 inches long.

The real thing with this setup is that the hook of the patch is what can potentially contact your forehead.  If you push the light around to adjust it, you’ll definitely feel that hook.  Does it work though?  Sure, it’s effective.

Olight Perun Mini Kit Headlight headband

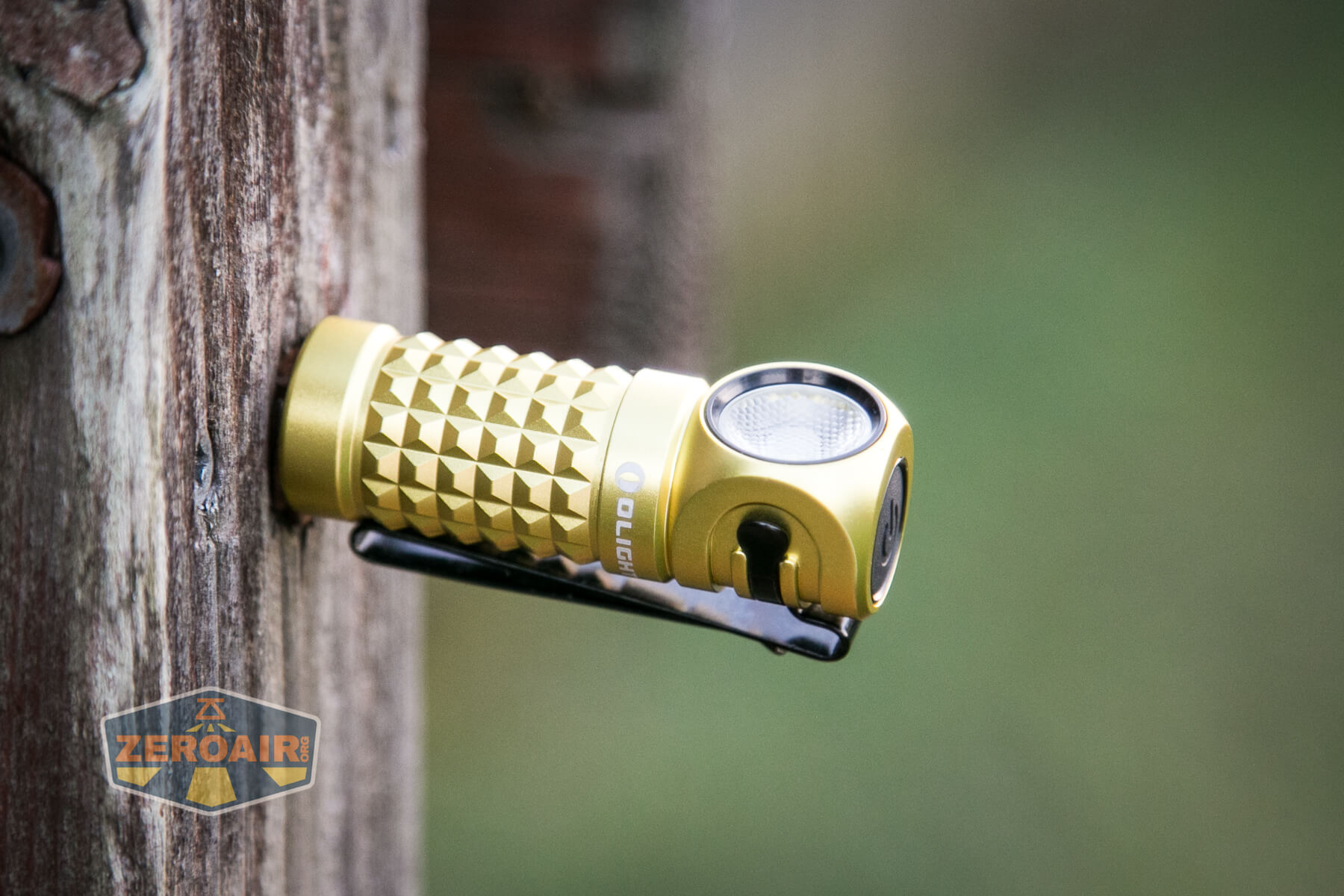

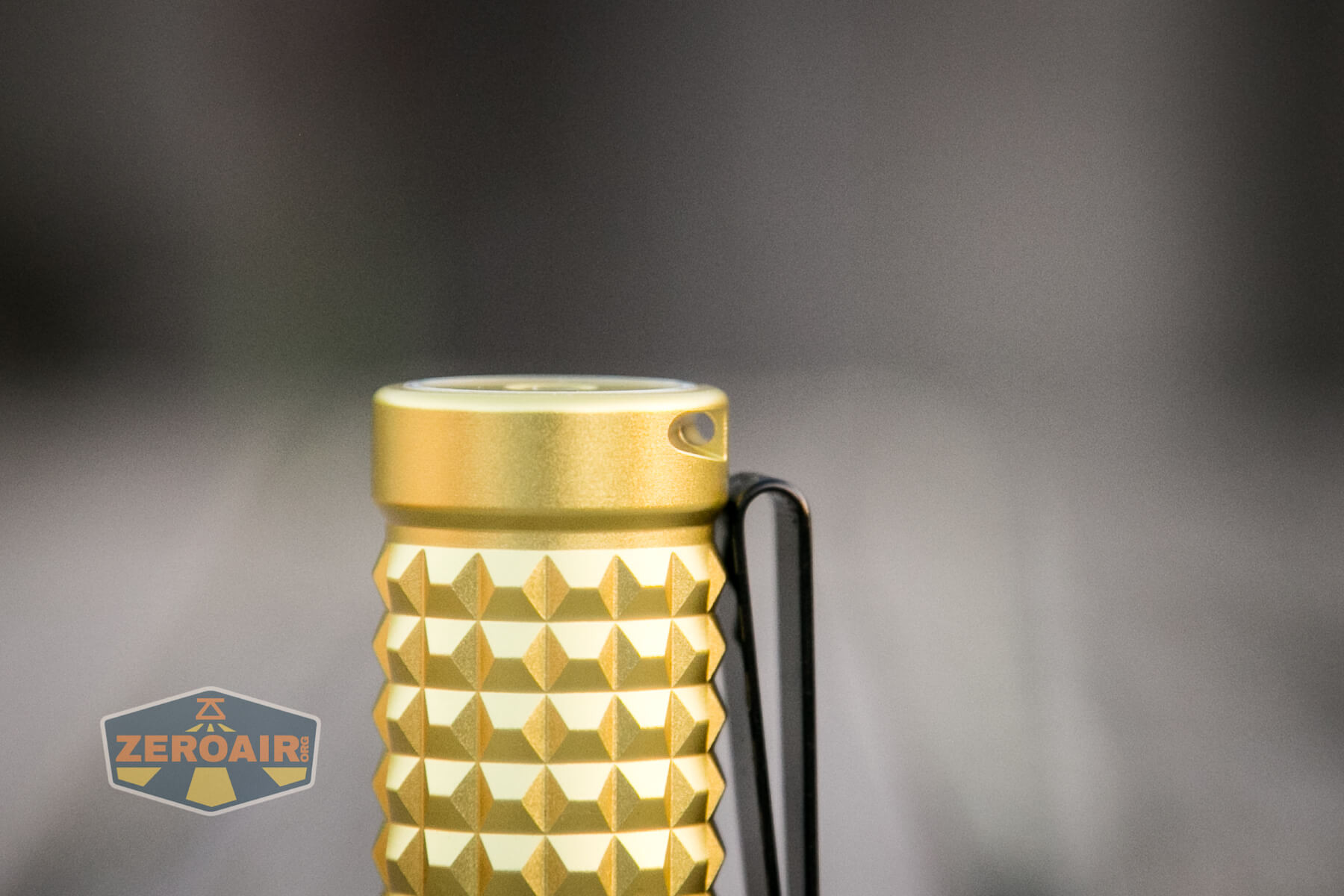

The magnet in the tailcap for charging also holds the light fairly reliably, too.

Olight Perun Mini Kit Headlight magnet

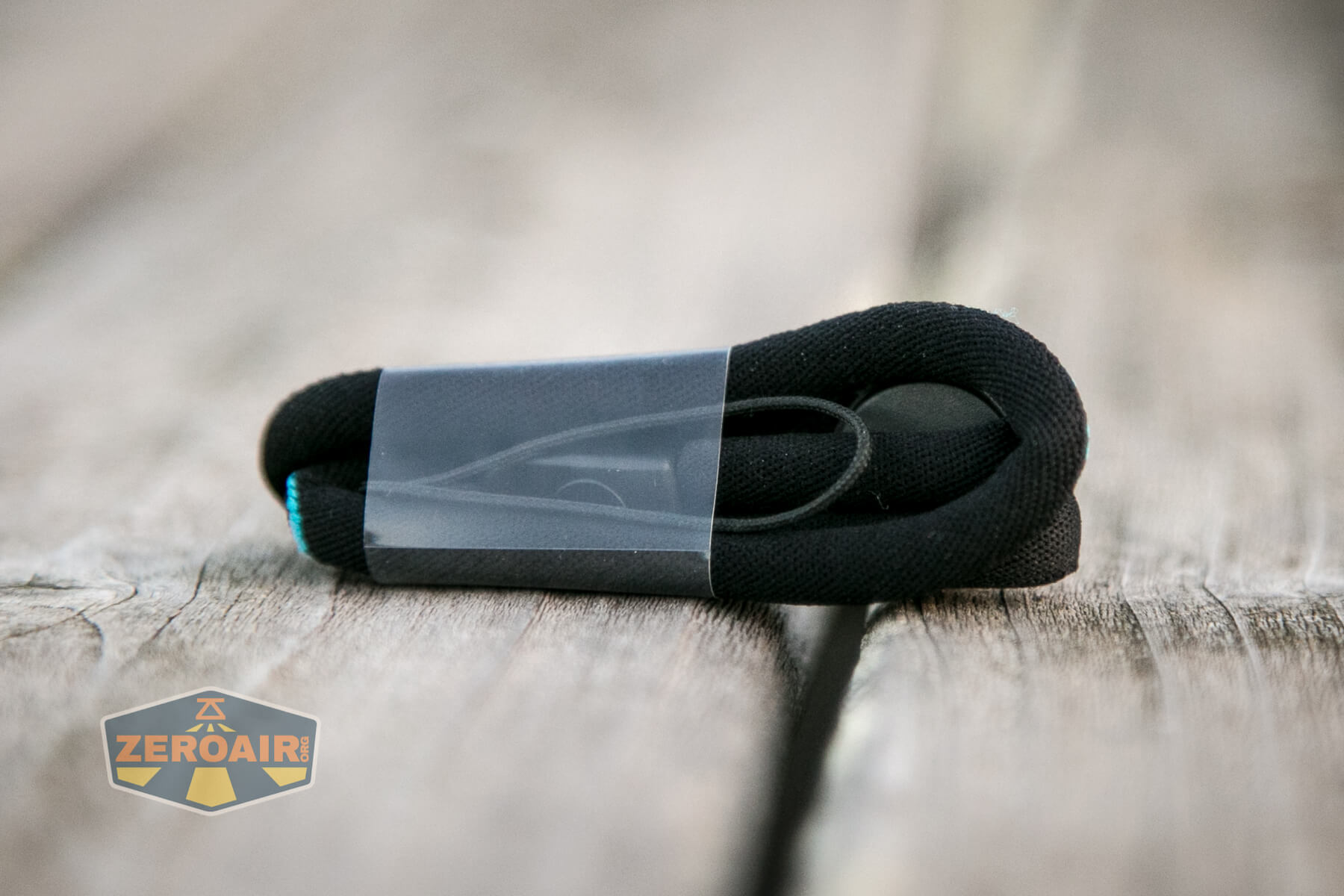

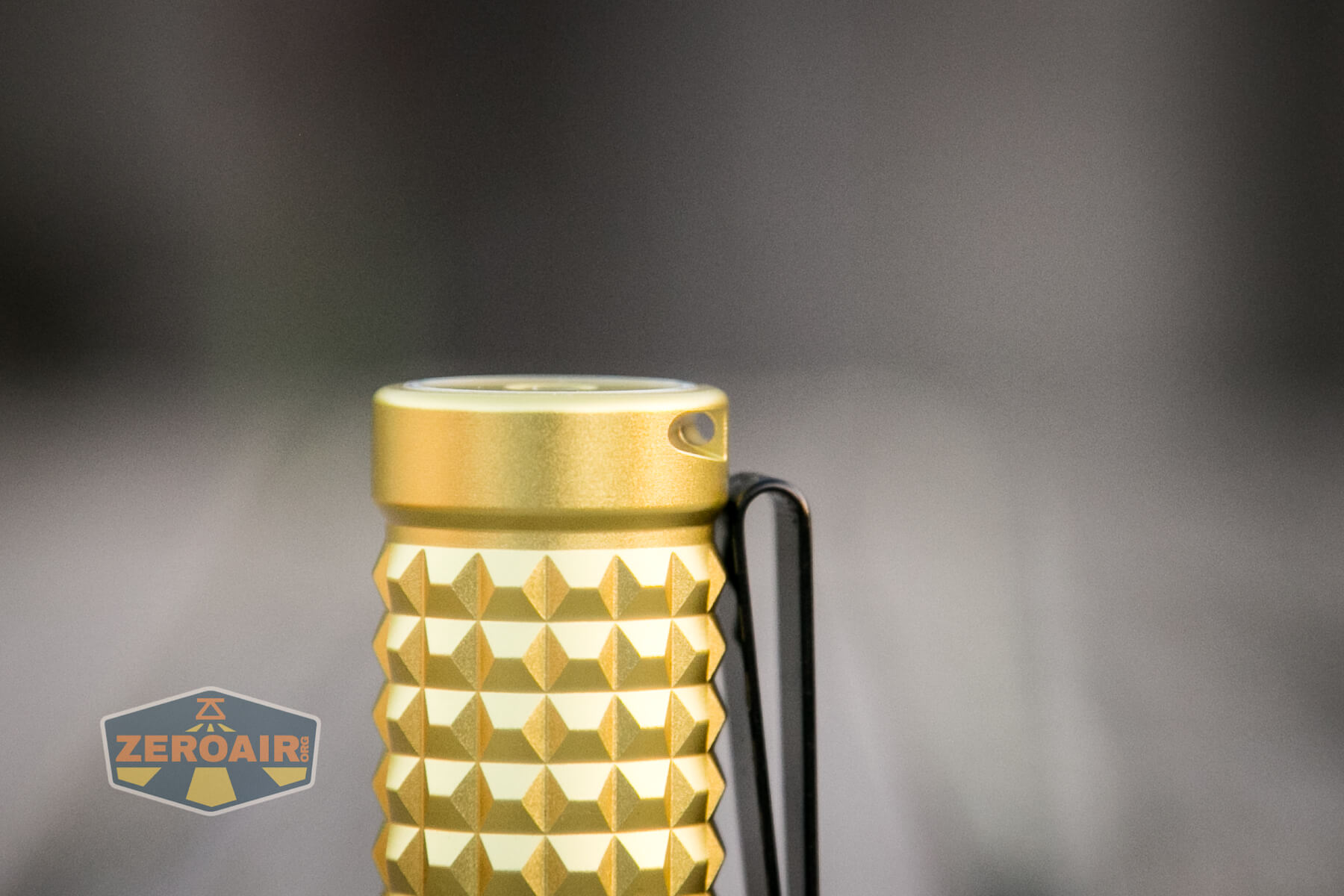

A final option for carrying is the included lanyard, which connects through the hole in the tailcap.

Olight Perun Mini Kit Headlight lanyard

Power and Runtime

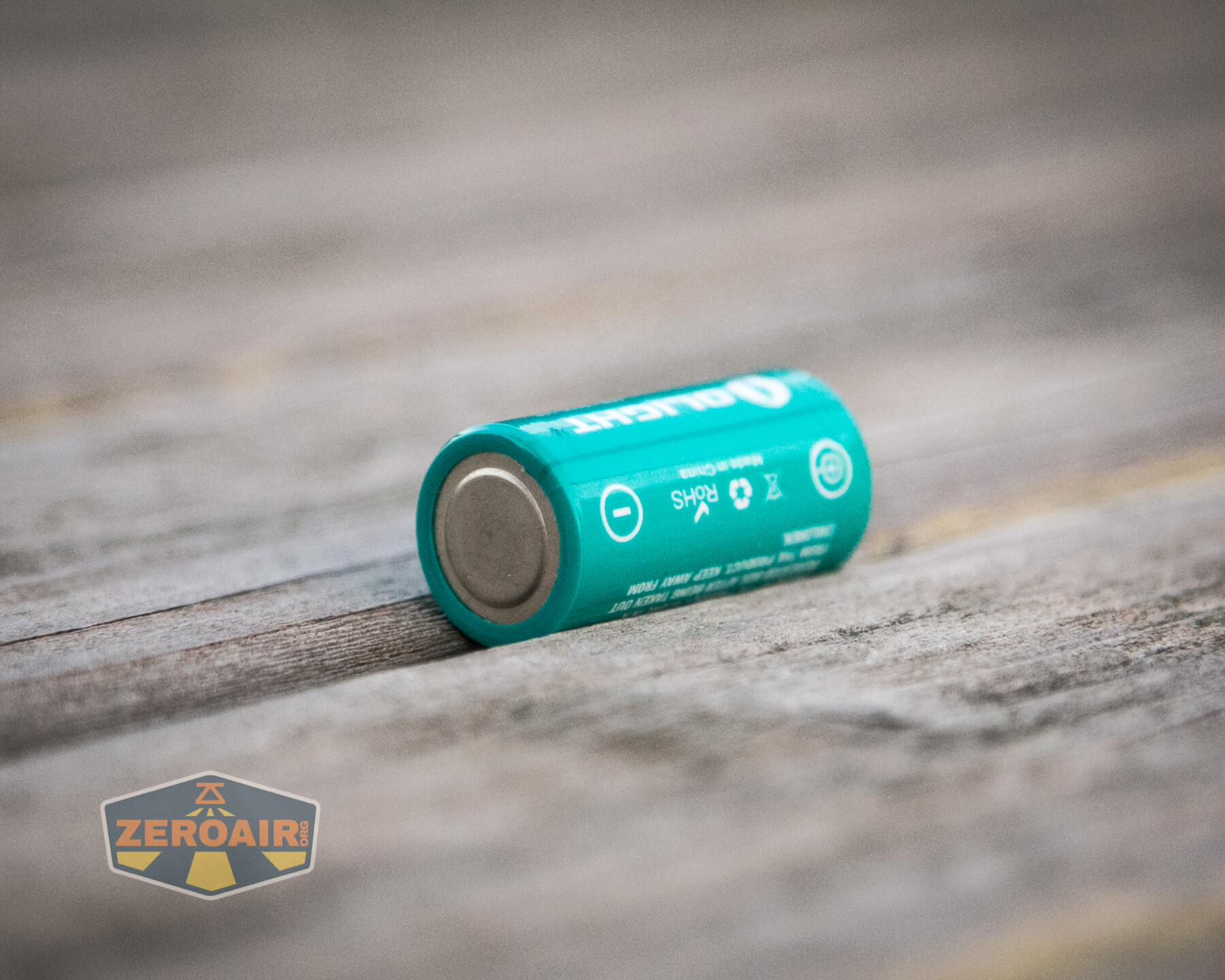

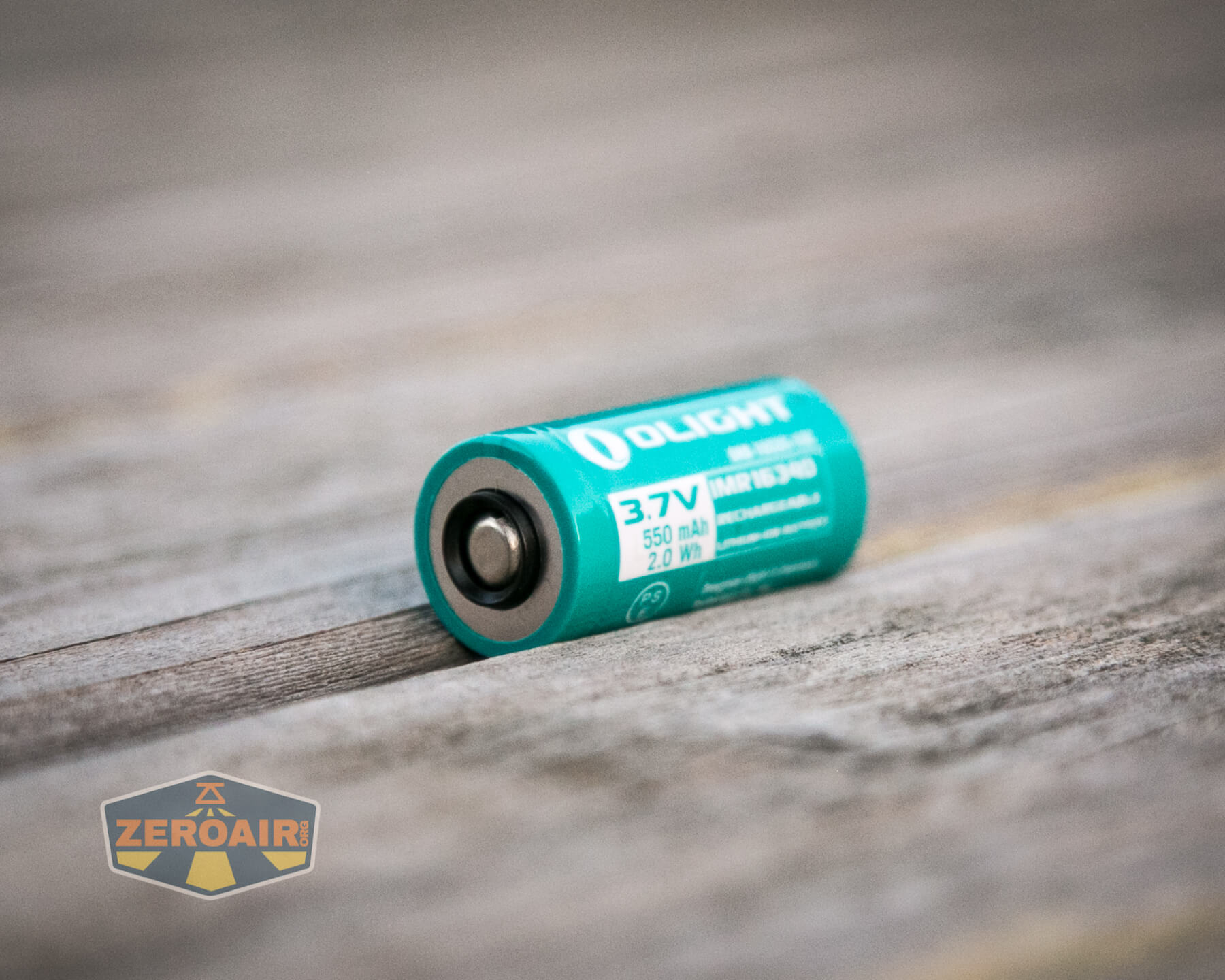

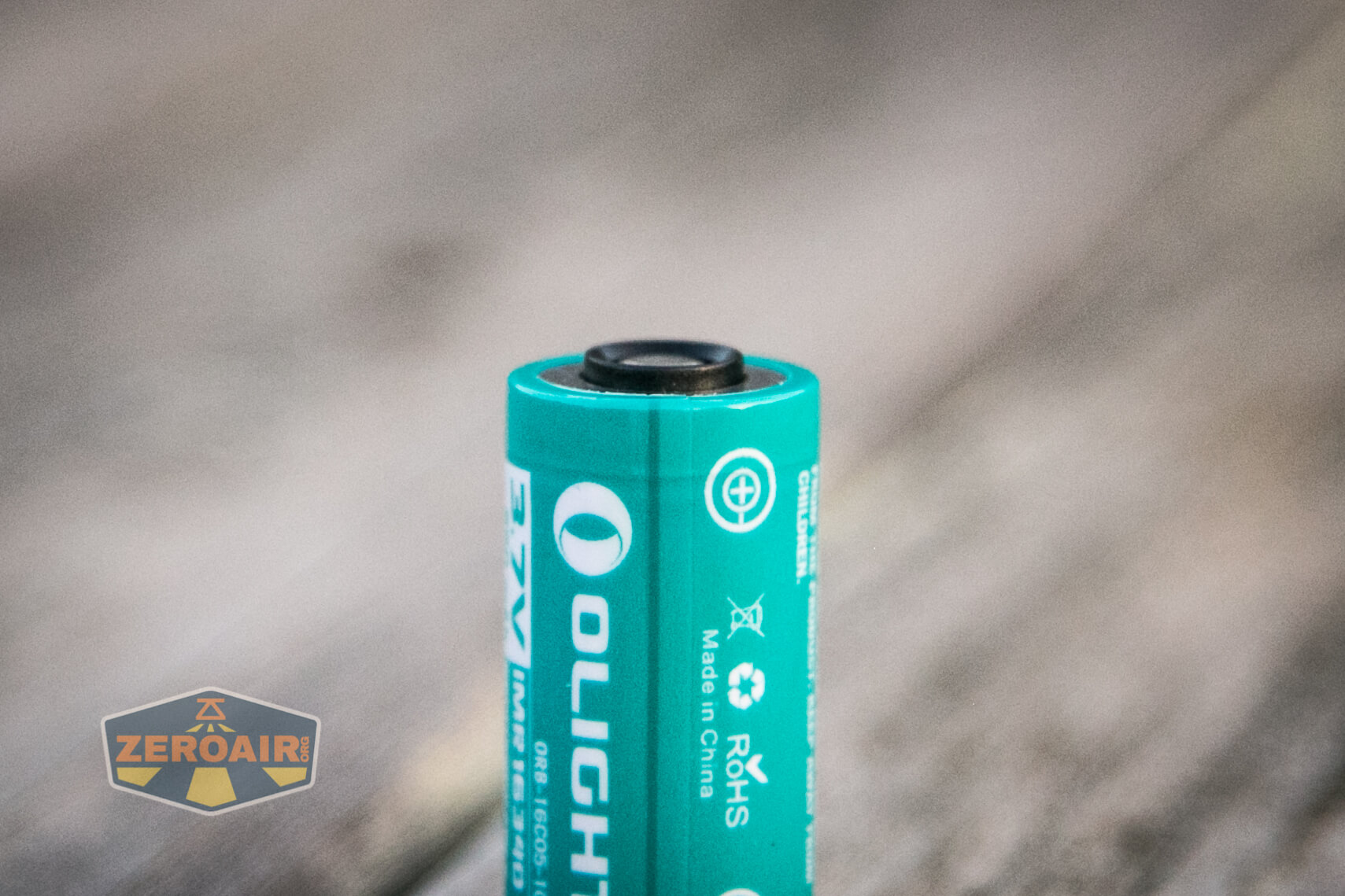

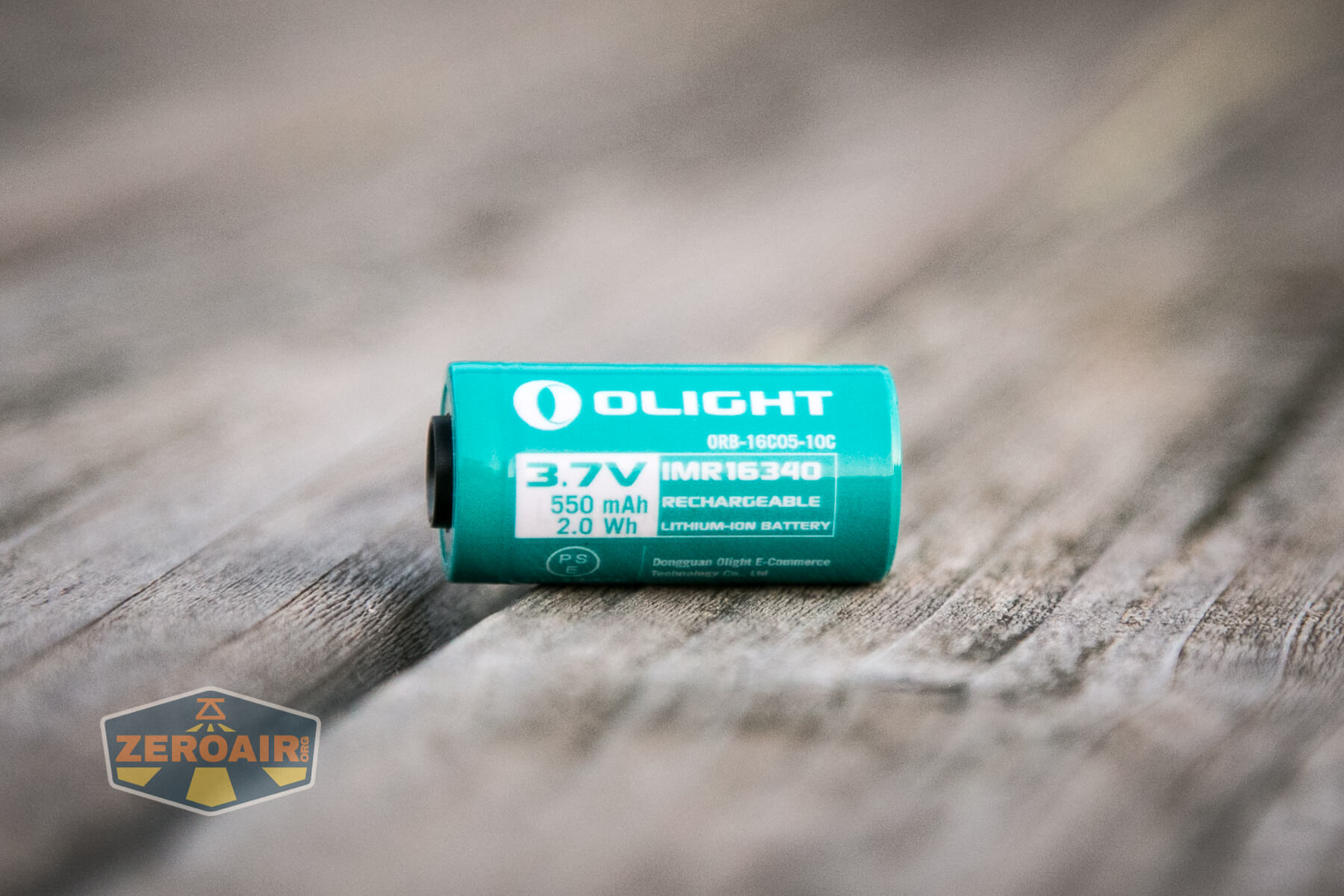

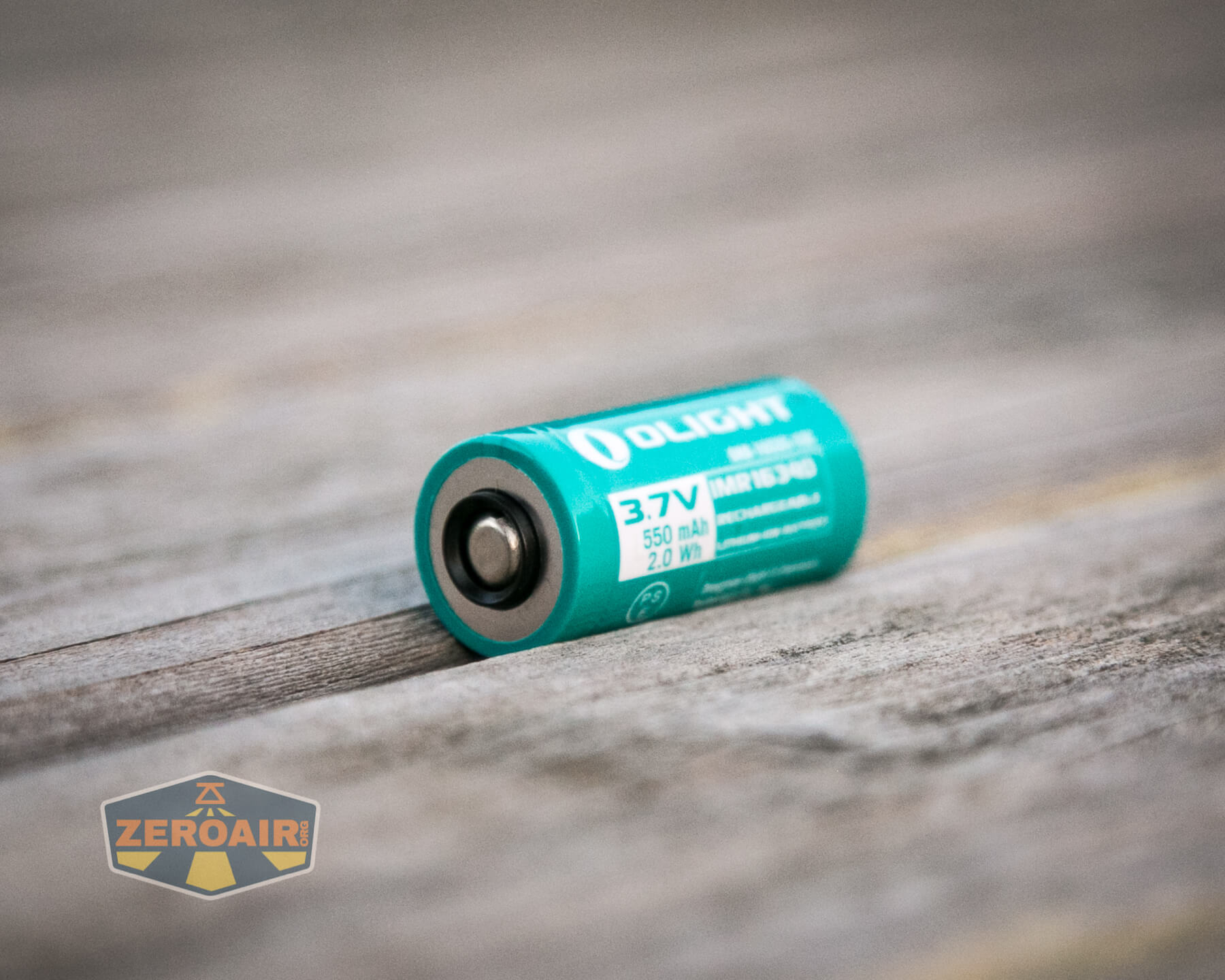

Olight includes the cell required for the Olight Perun Mini Kit Headlight.  It’s a “customized” 16340, with a claimed 550mAh.  “Customized” in this case means the positive is in the usual place, but there’s a ring of negative surrounding that.

Olight Perun Mini Kit Headlight 16340

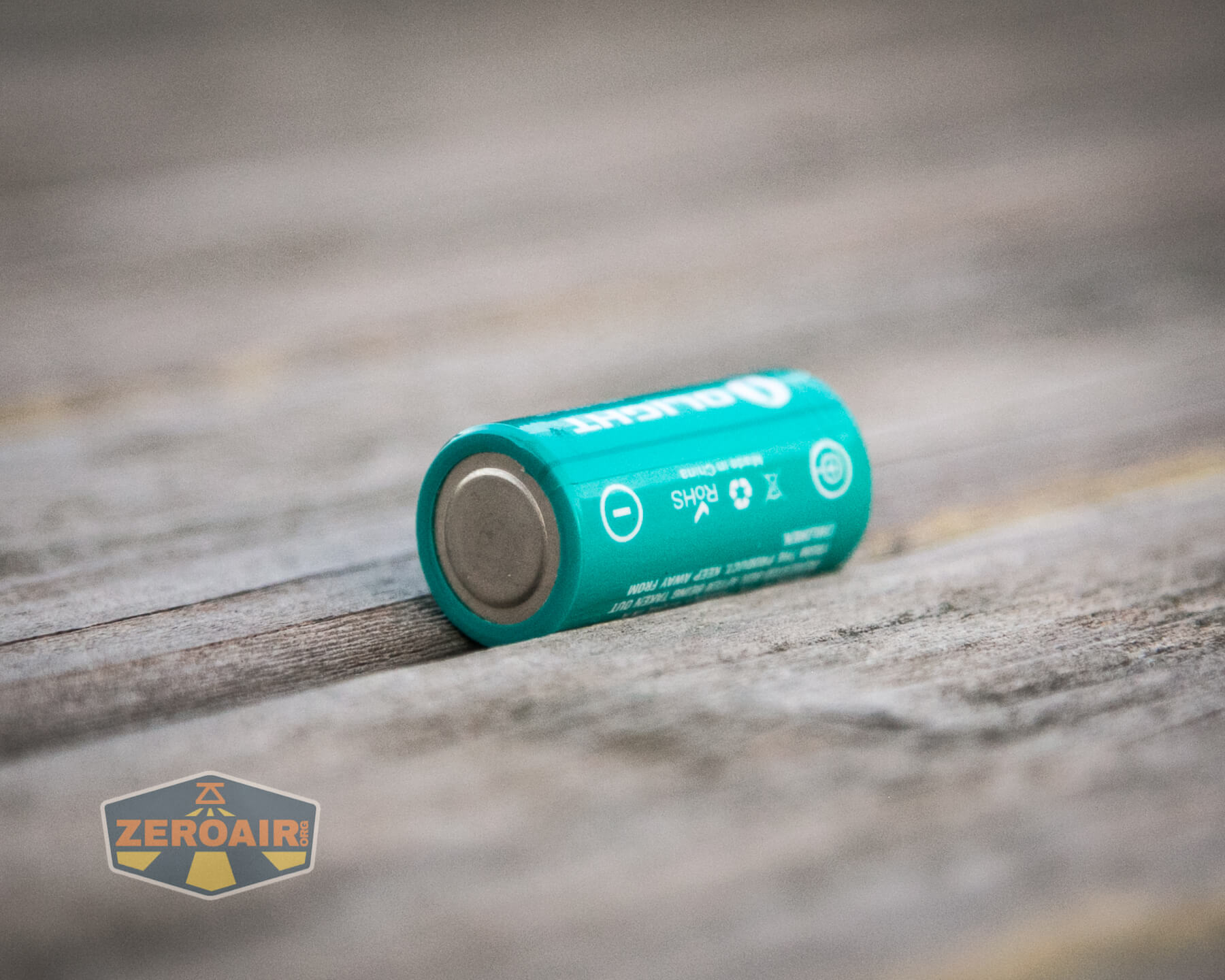

Below see both ends of the cell.  The negative end is normal.

All this does mean that non-customized 16340 cells will not charge in the Perun Mini.  However, conveniently, non-proprietary 16340 cells will operate fully on all modes.

Olight Perun Mini Kit Headlight 16340

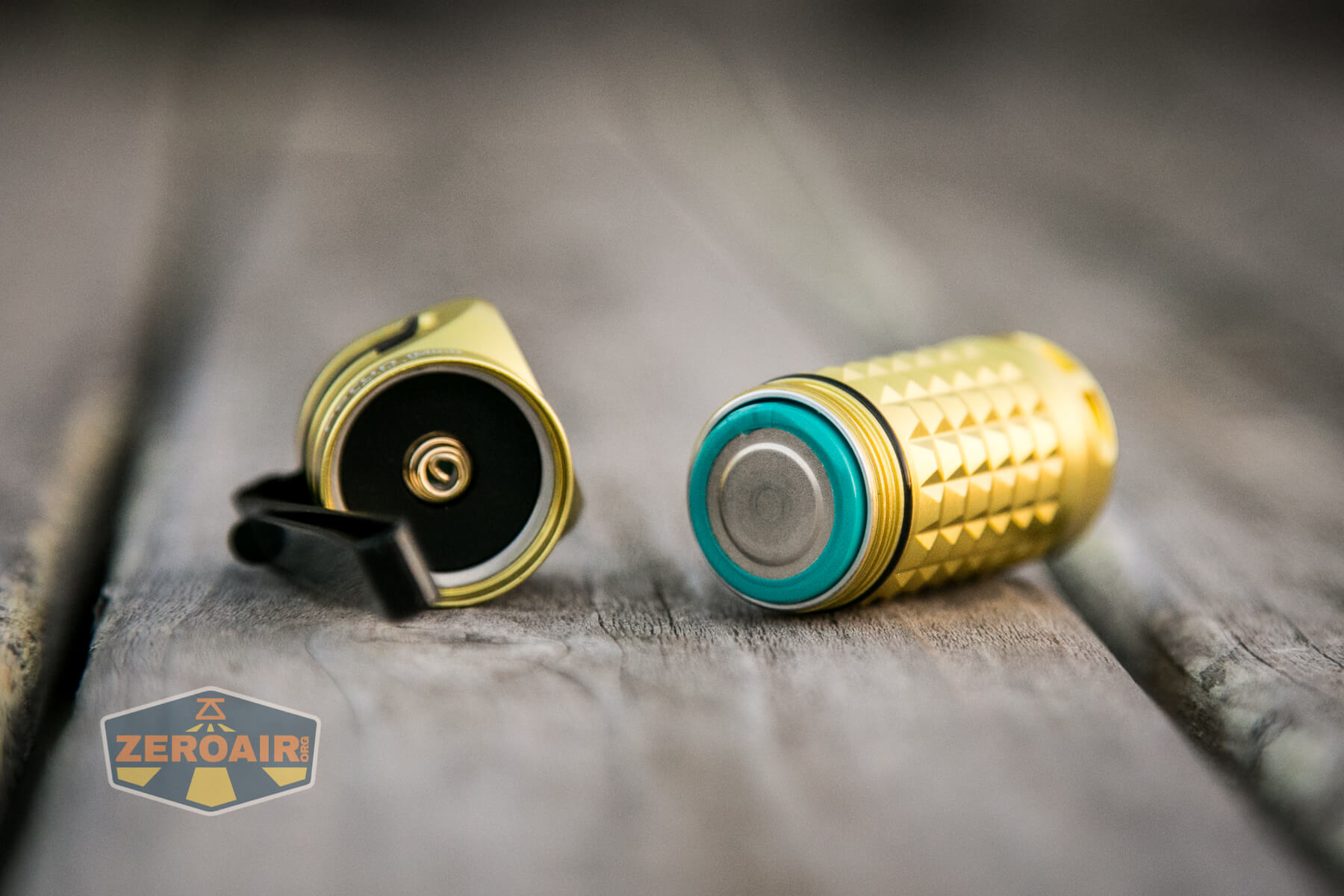

The cell does not go into the Olight Perun Mini Kit Headlight in the “normal” way.  In this light, you should put the end with the positive terminal away from the head.

Olight Perun Mini Kit Headlight 16340 installed

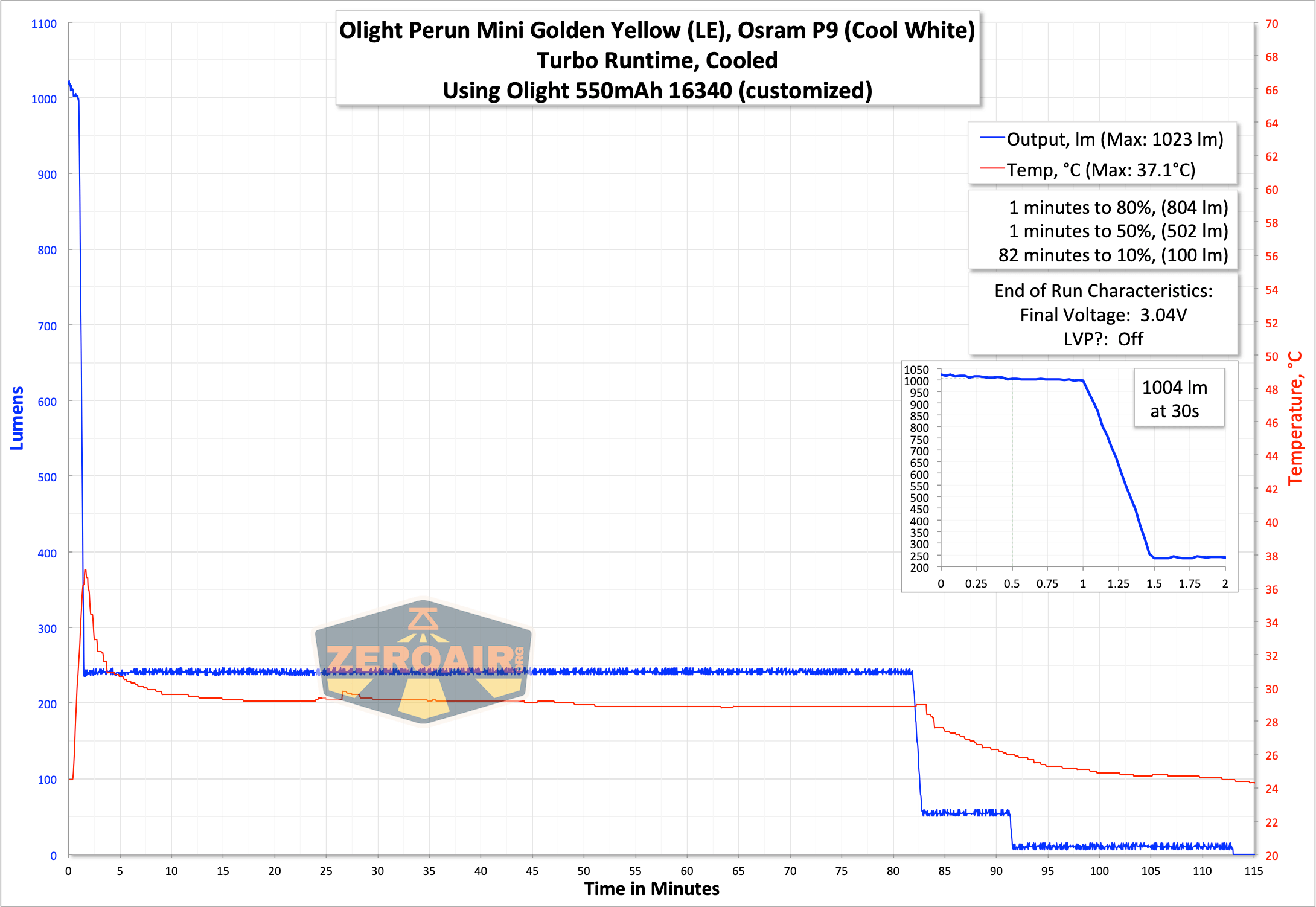

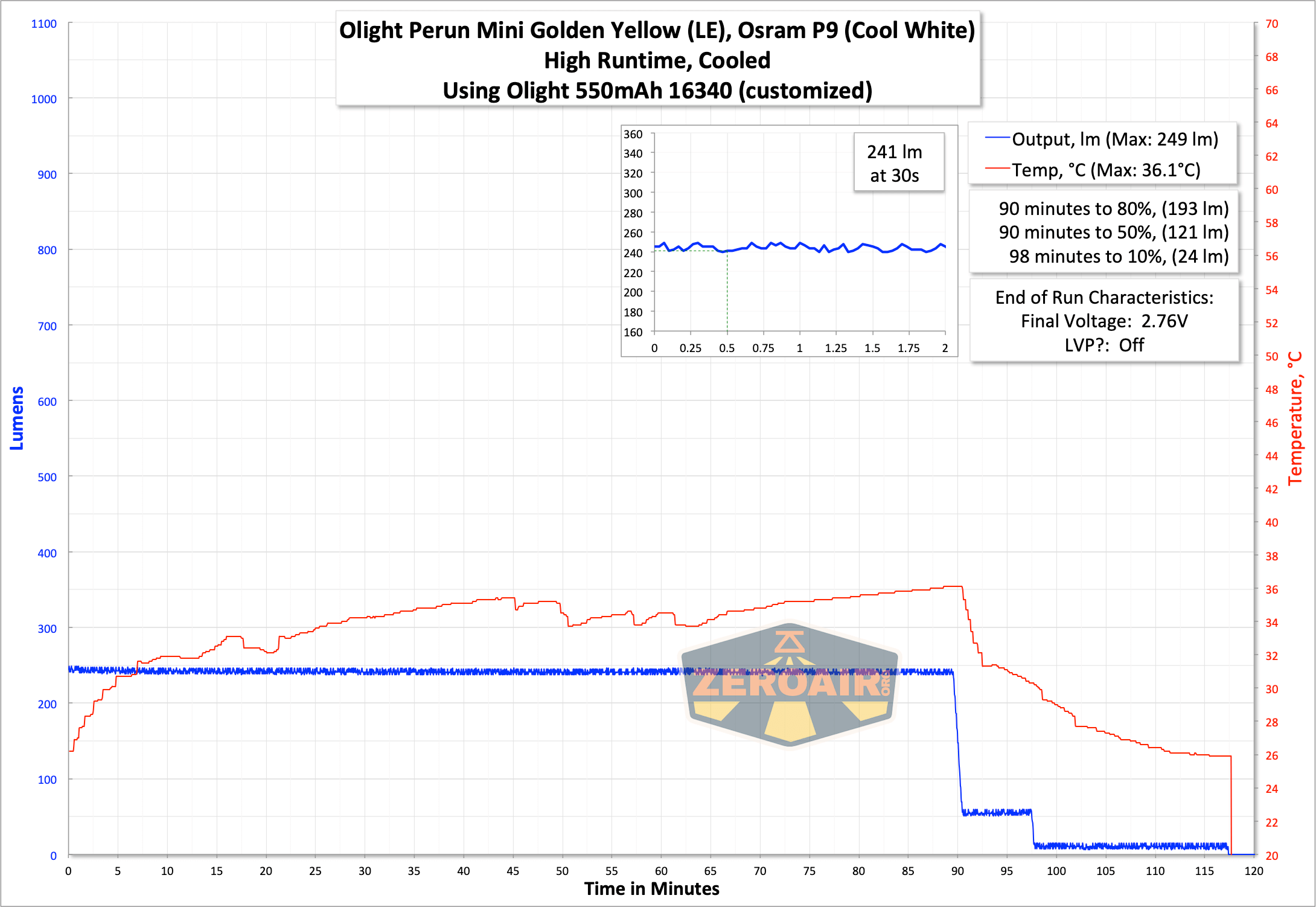

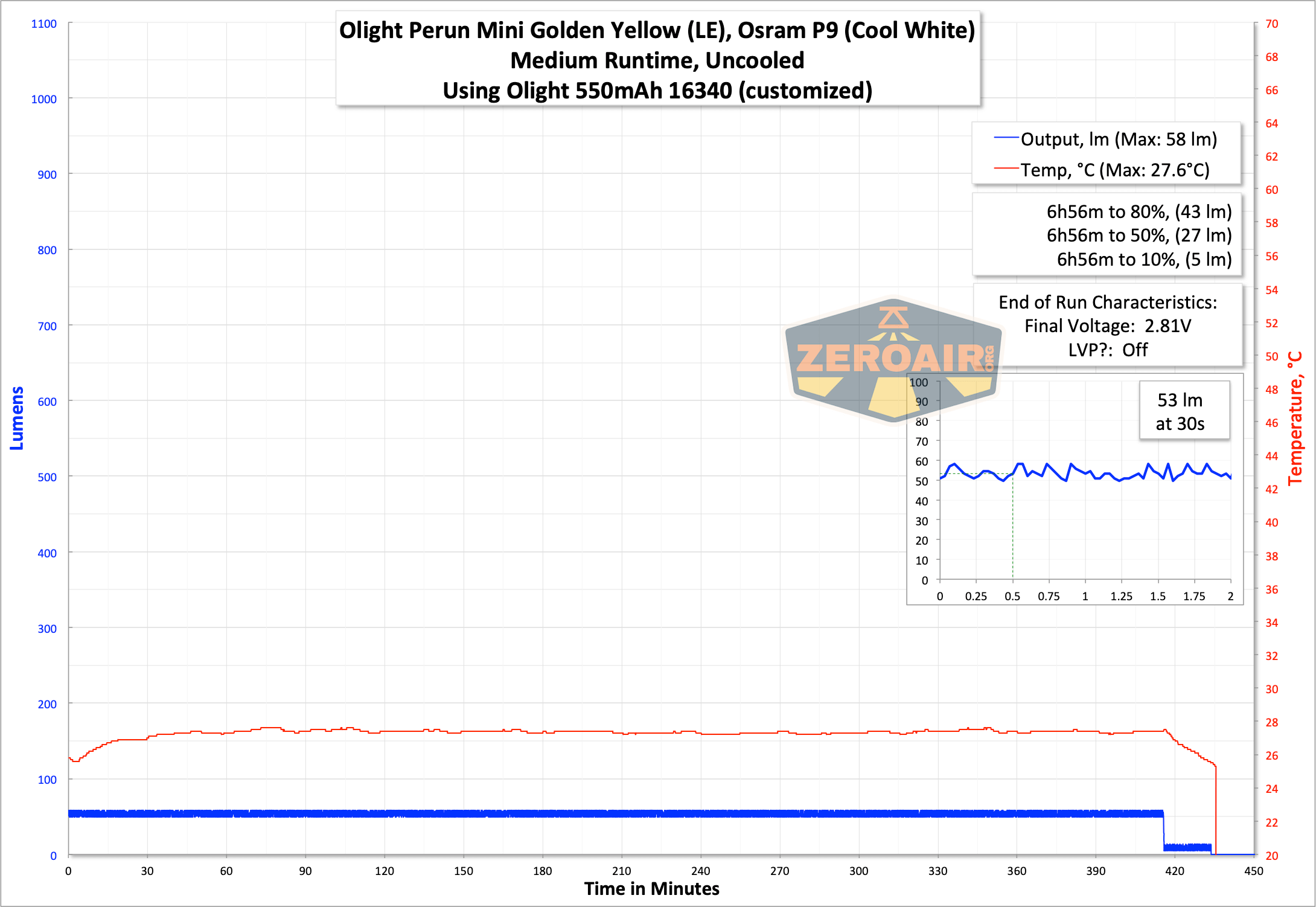

Here are a couple of runtimes.

Olight Perun Mini Kit Headlight runtime graph Olight Perun Mini Kit Headlight runtime graph

Low voltage protection was observed in all tests.

Charging

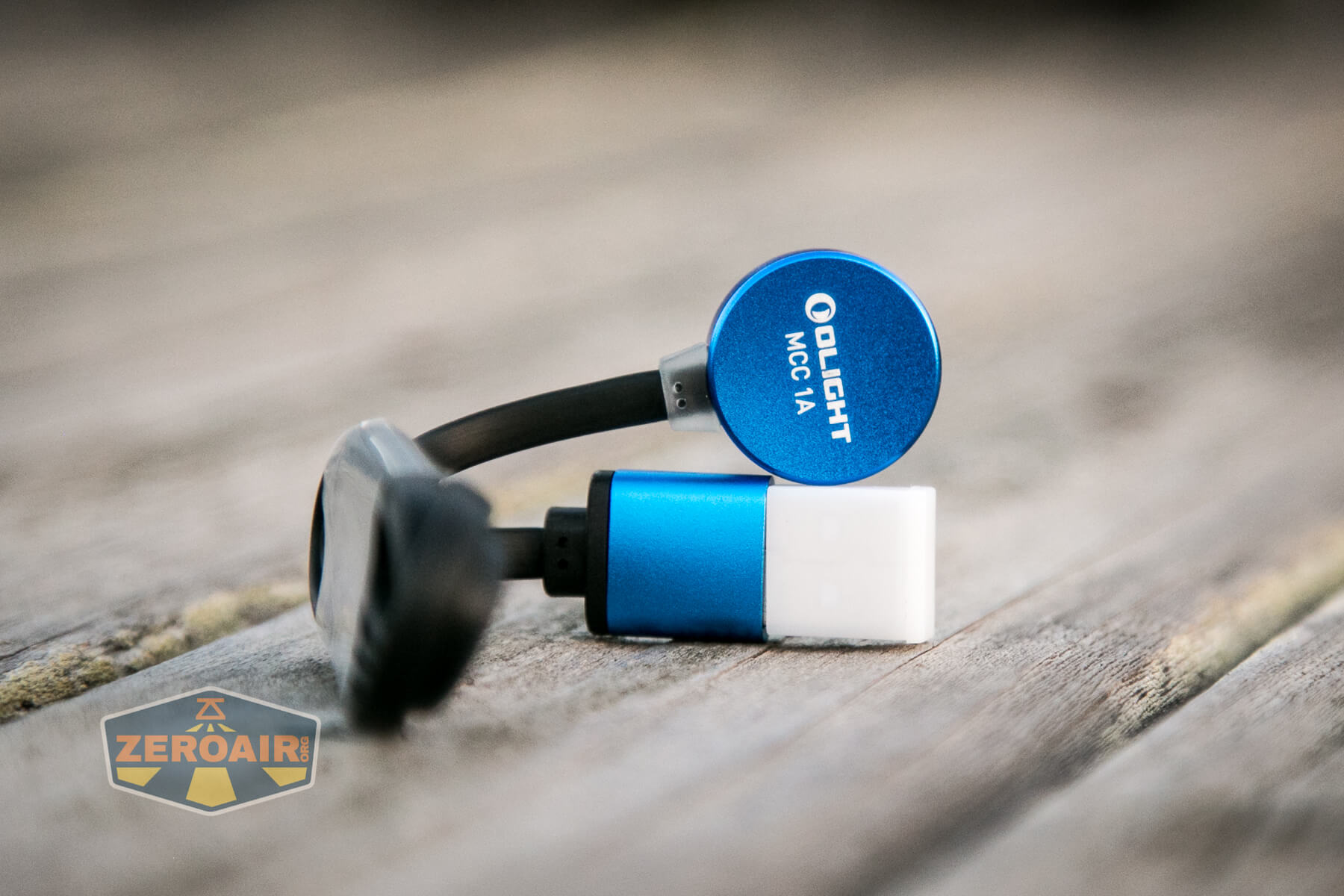

The light has built-in charging as well.  Included is a cable – USB to magnetic connector.  This one is the “MCC 1A” and that’s important since there are many versions that look just about the same.

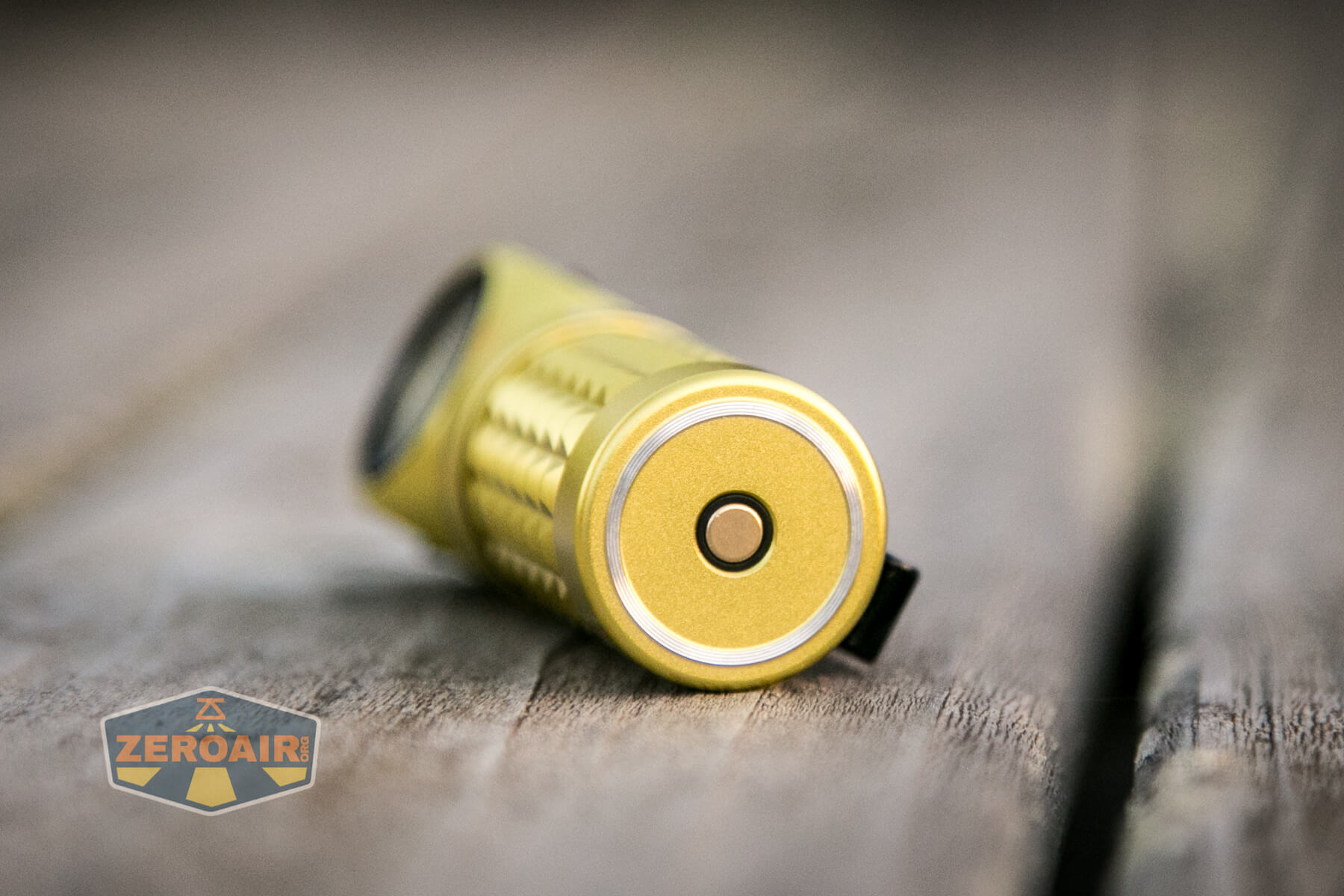

Olight Perun Mini Kit Headlight charge base

Olight Perun Mini Kit Headlight mcc charger

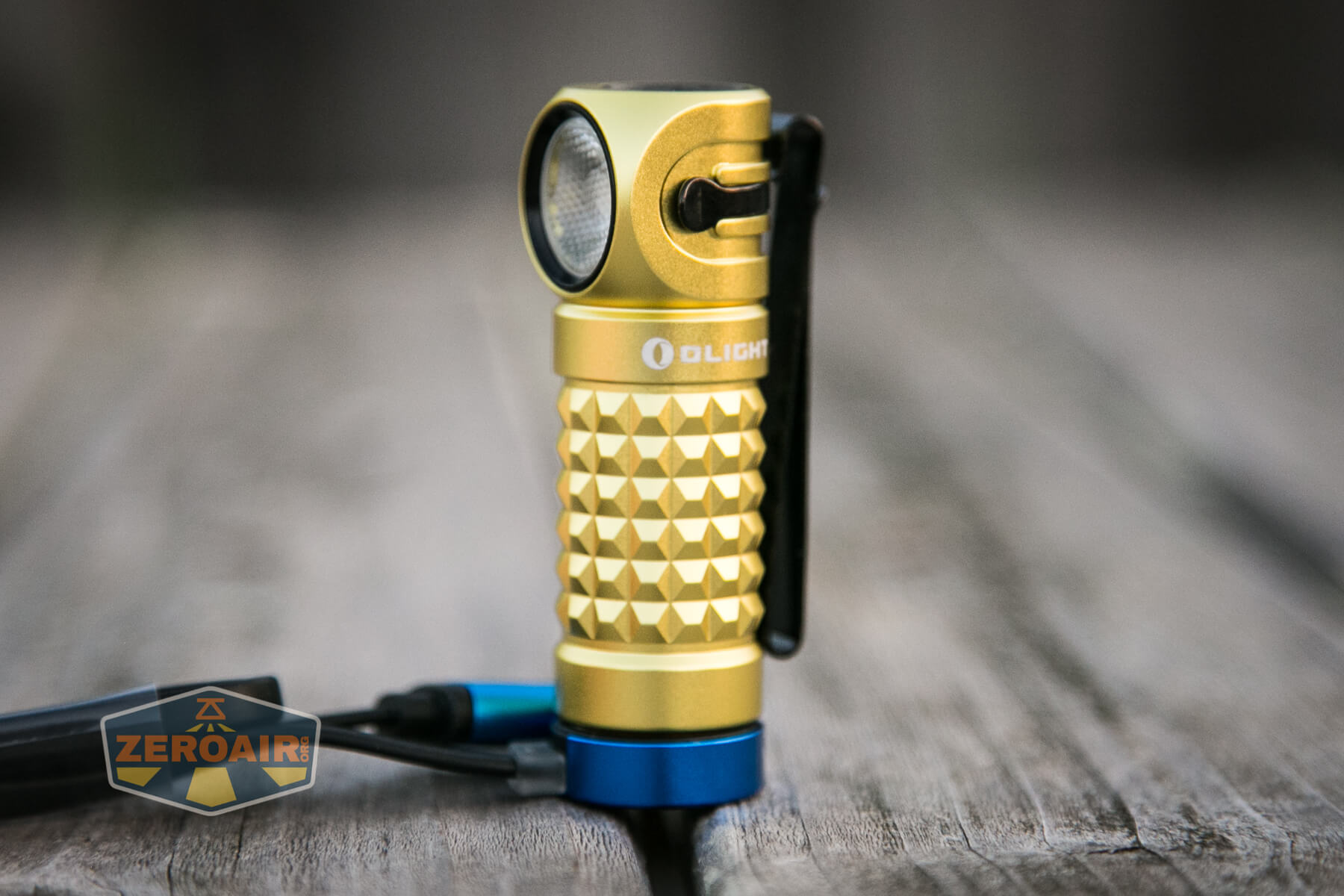

The charger snaps very cleanly to the light, and the light will sit upright on the base, too.

Olight Perun Mini Kit Headlight

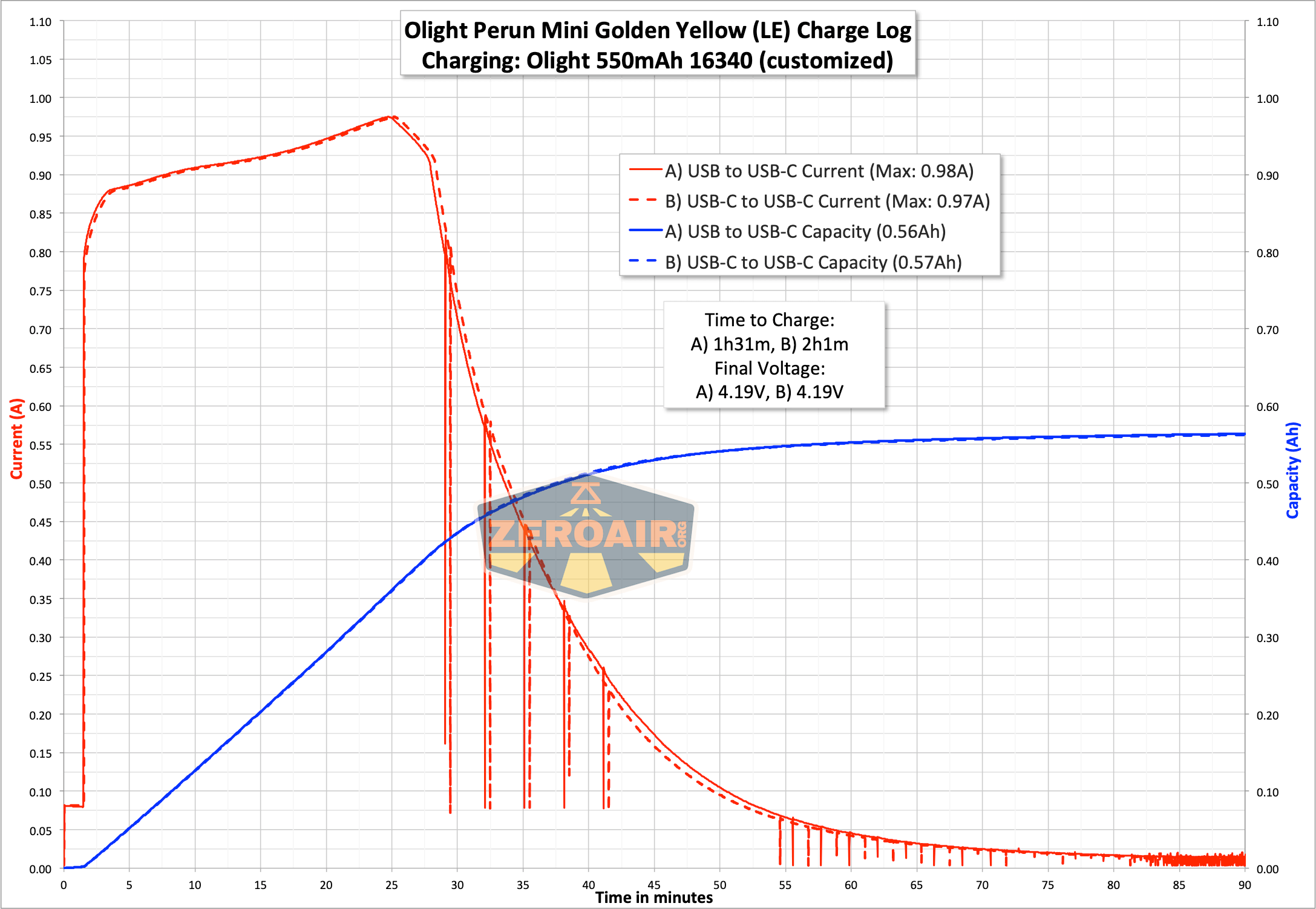

Here’s a charge graph.  Charging is good, and well over 1C.

Olight Perun Mini Kit Headlight charge graph

The charge indicator on the MCC 1A charger is red while charging but turns green …. sometime.  It’s not specifically when charging is “complete” but it’s sometime around that.  My experience with charging leads me to believe that the indicator turns green when the cell is “full enough” but probably not at 4.20V.

Modes and Currents

Mode Mode Claimed Output (lm) Claimed Runtime Measured Lumens Tailcap Amps
Turbo 1000/250 1m/1h25m 1004 2.22
High 250 1h38m 241 0.37
Medium 65 6h 53 0.08
Low 15 25h 15 0.02
Moon 2 4.5d 2 0.00

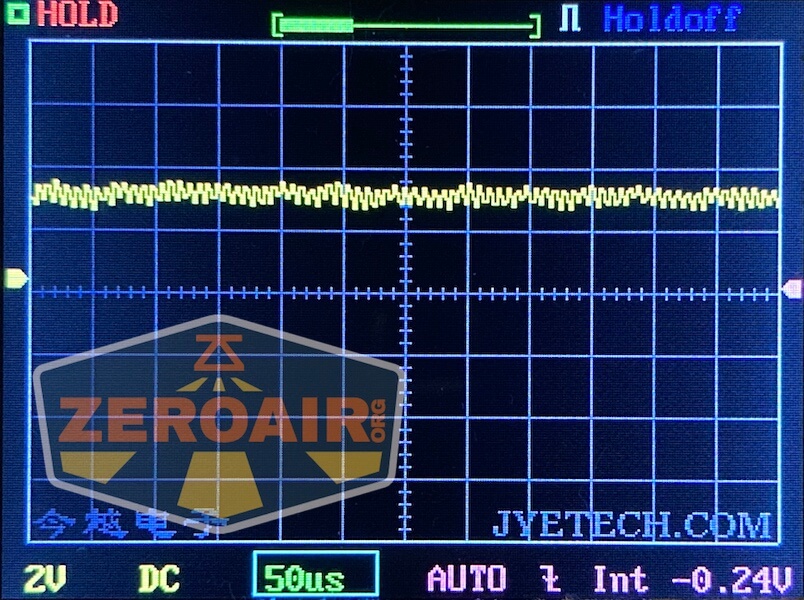

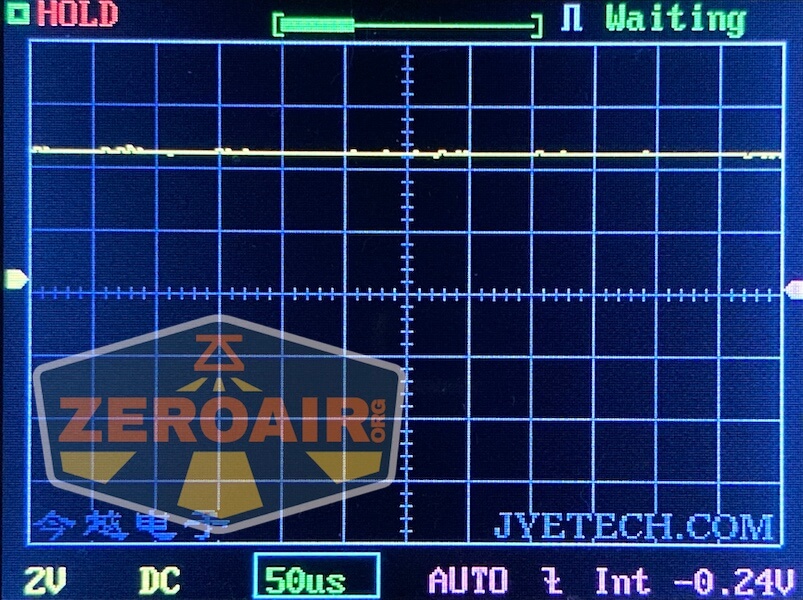

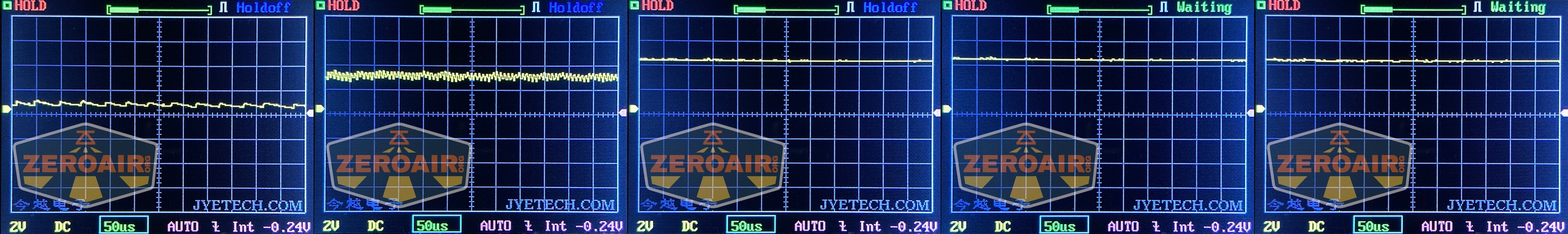

Pulse Width Modulation

No PWM on any mode.  Yay!

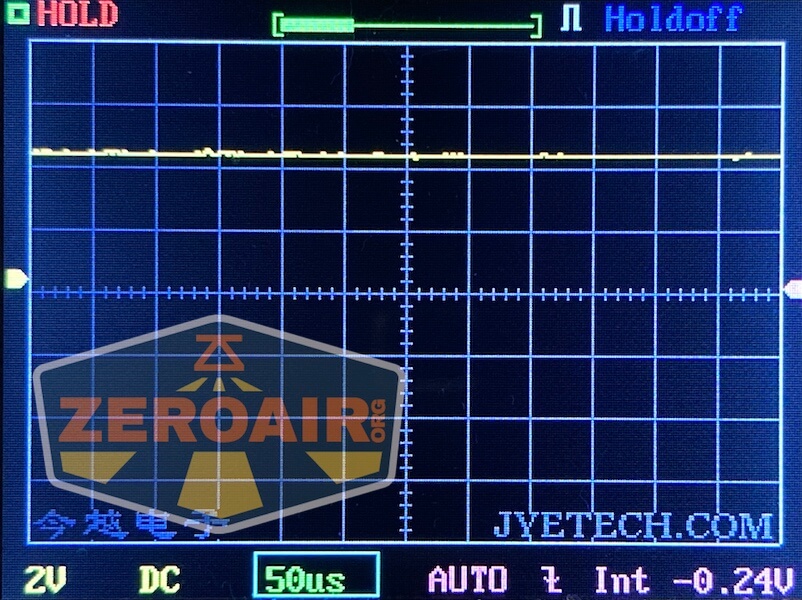

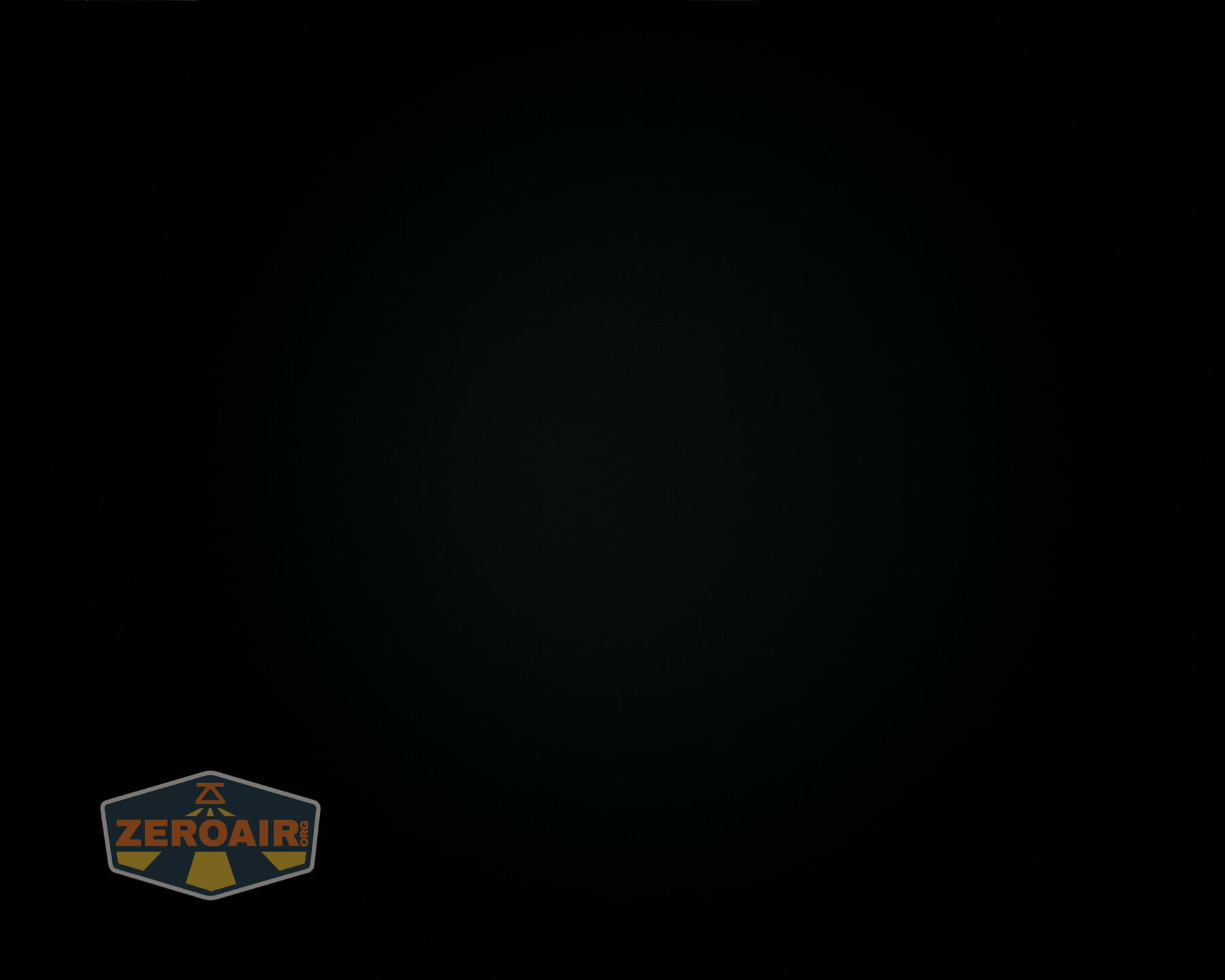

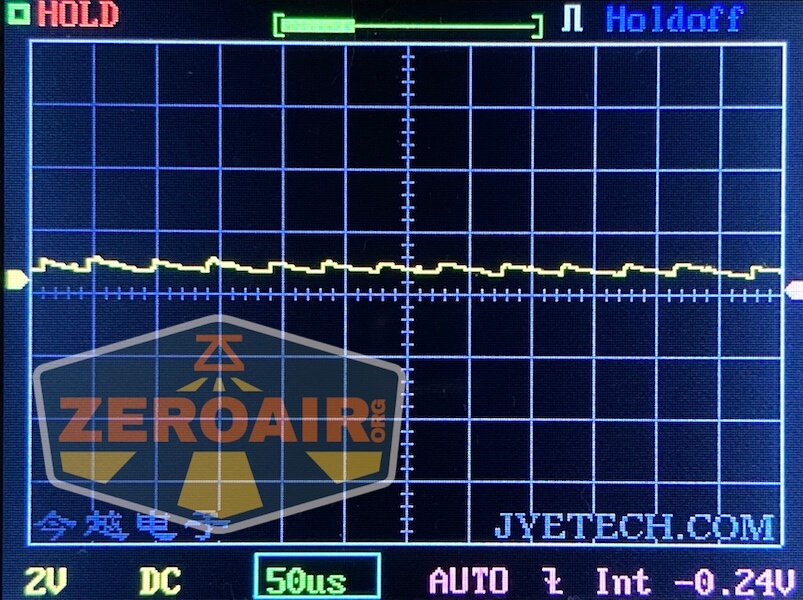

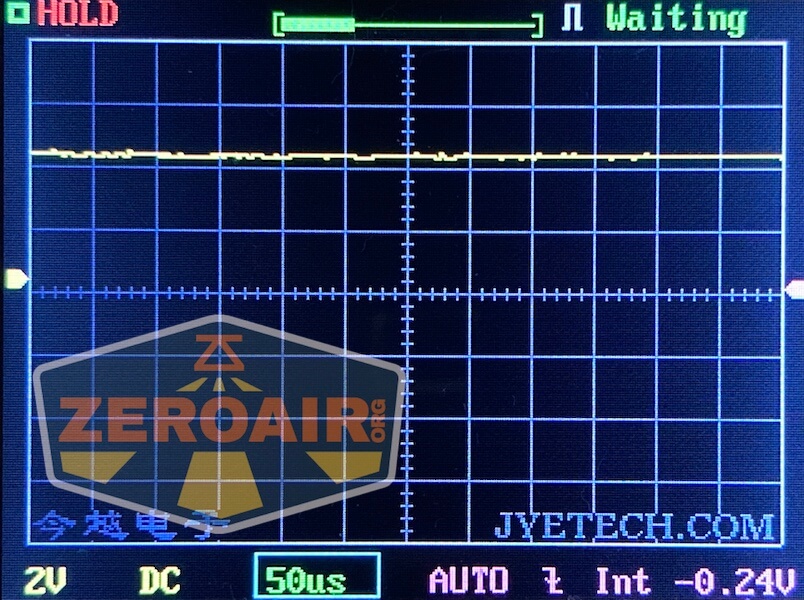

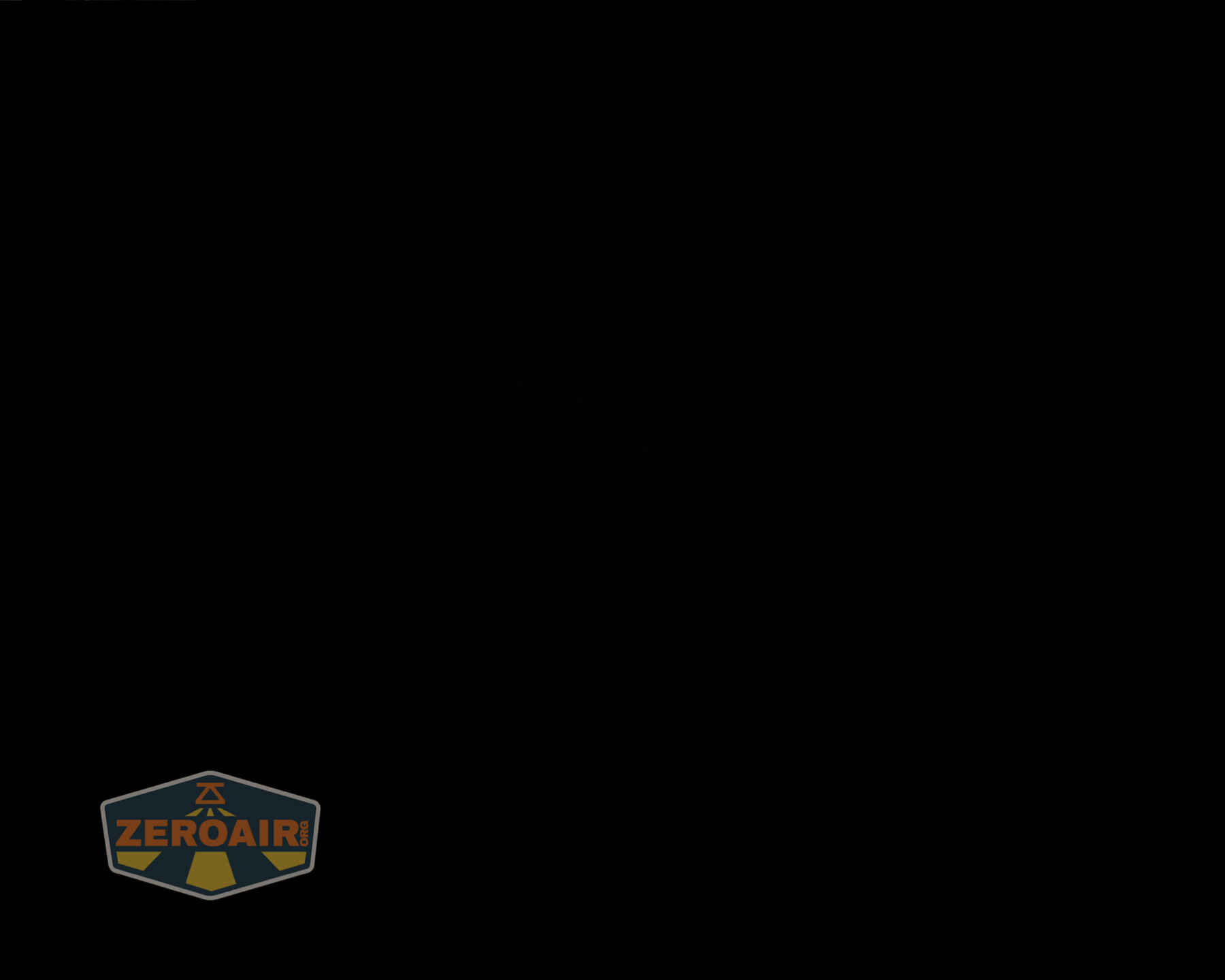

For reference, here’s a baseline shot, with all the room lights off and almost nothing hitting the sensor.  Also, here’s the light with the worst PWM I could find.  I’m adding multiple timescales, so it’ll be easier to compare to the test light.  Unfortunately, the PWM on this light is so bad that it doesn’t even work with my normal scale, with is 50 microseconds (50us).  10ms5ms2ms1ms0.5ms0.2ms.  In a display faster than 0.2ms or so, the on/off cycle is more than one screen, so it’d just (very incorrectly) look like a flat line.  I wrote more about this Ultrafire WF-602C flashlight and explained a little about PWM too.

User Interface and Operation

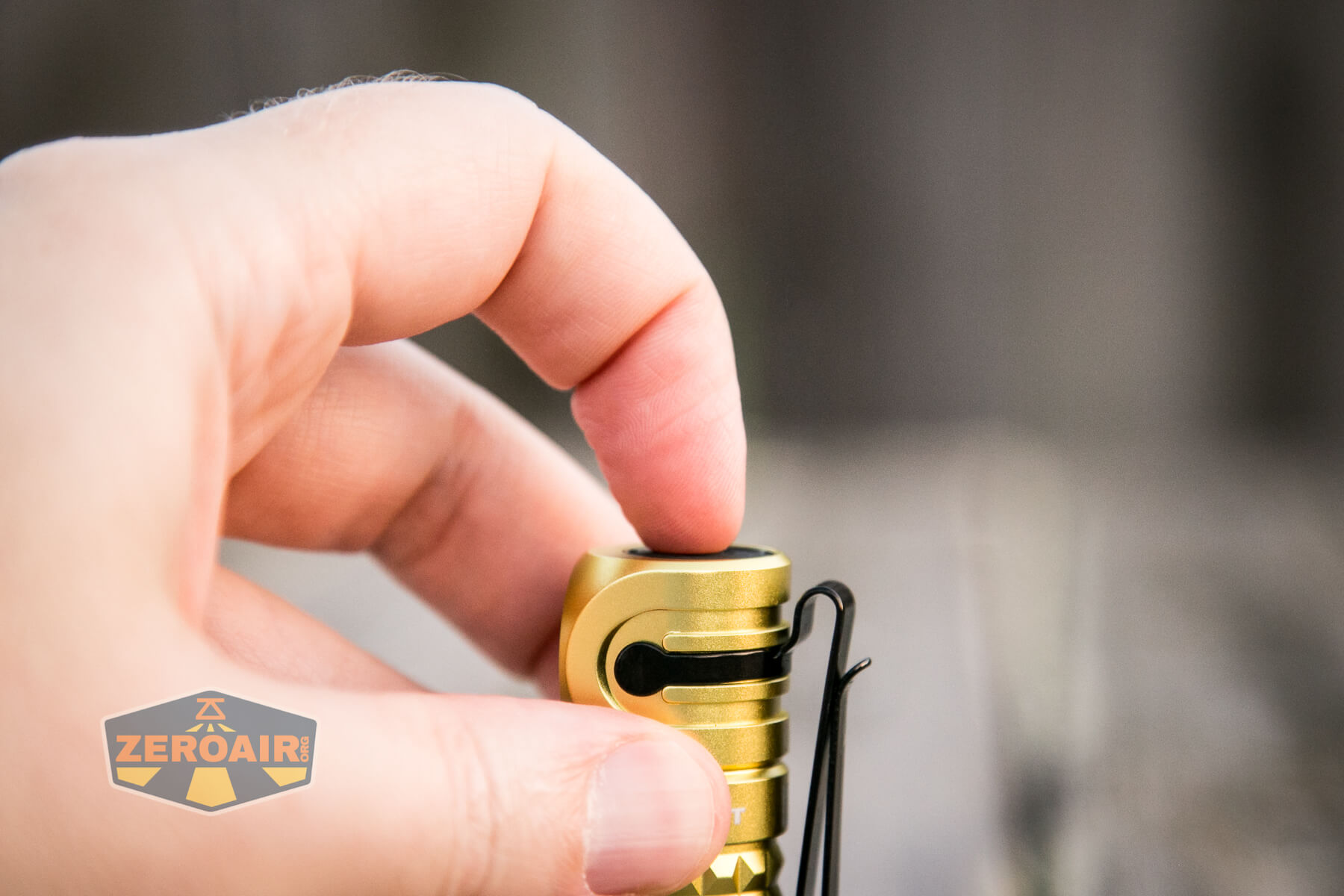

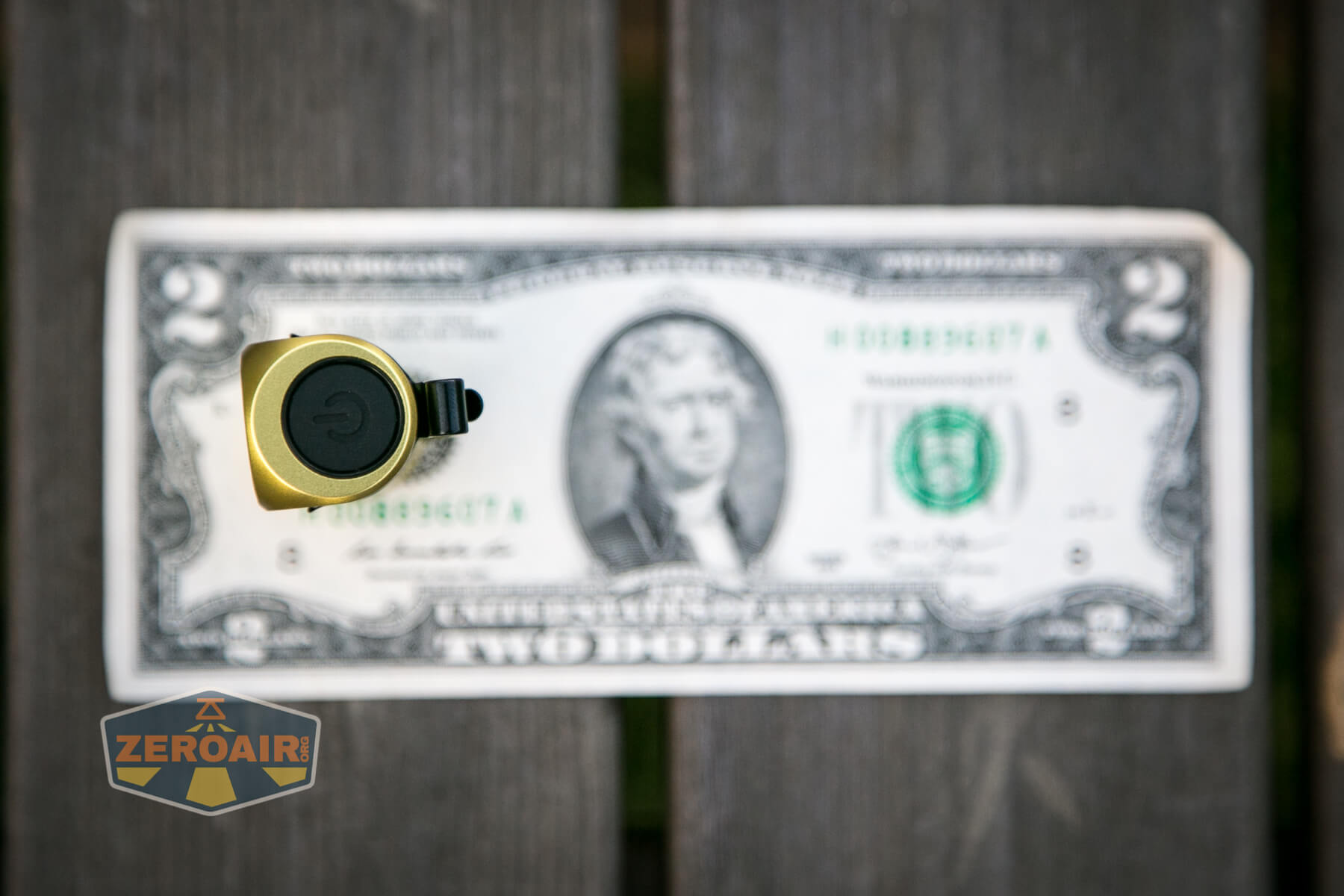

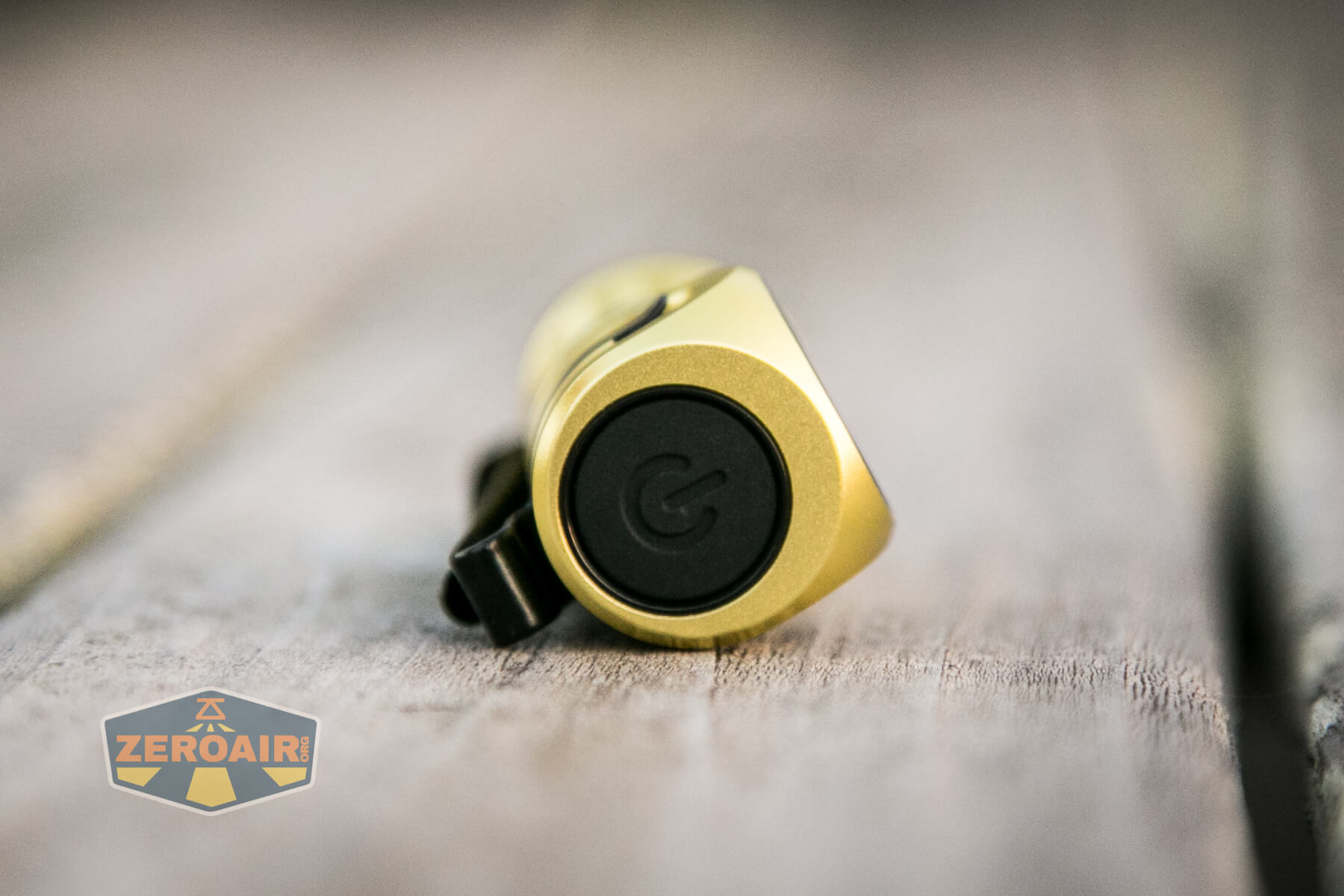

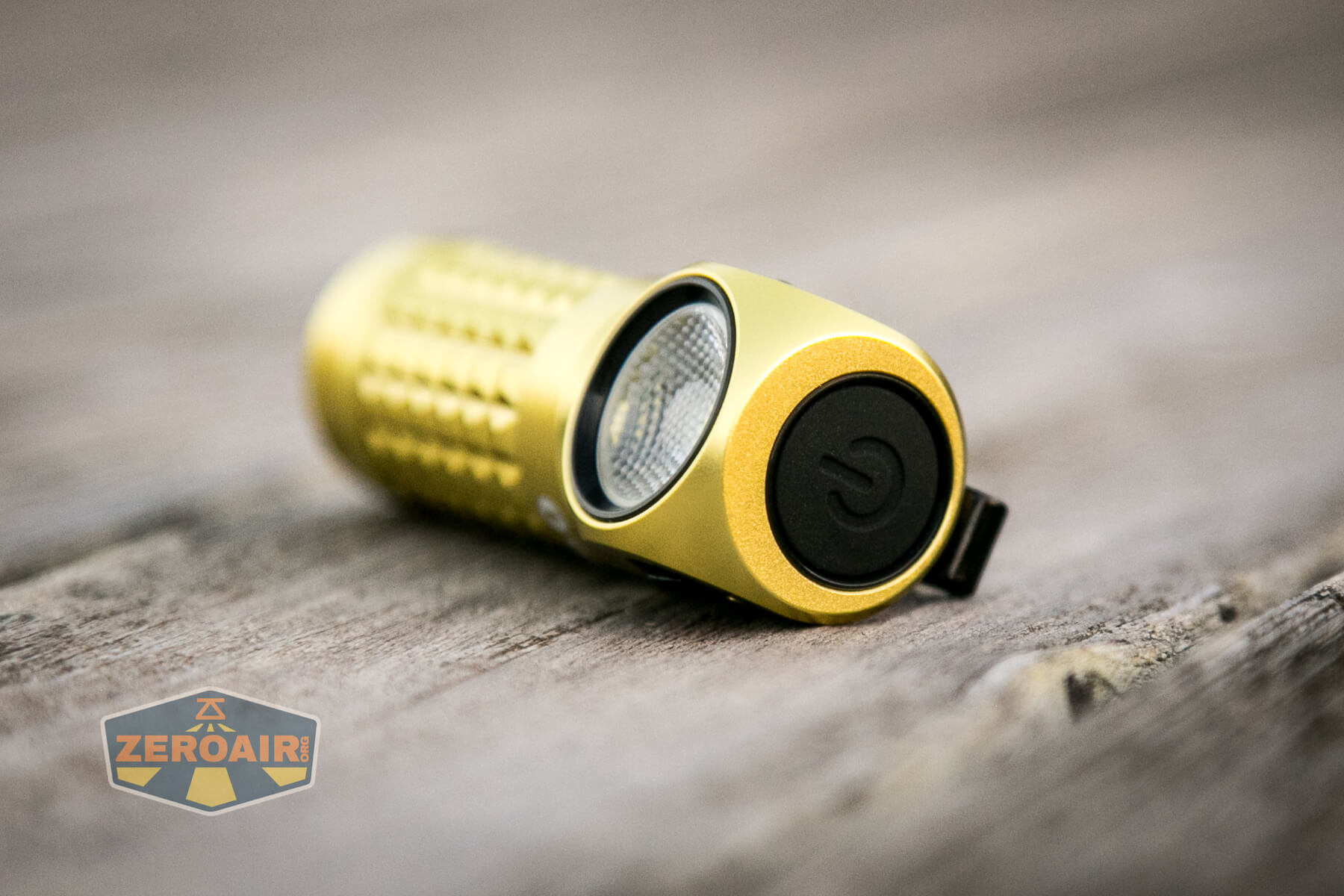

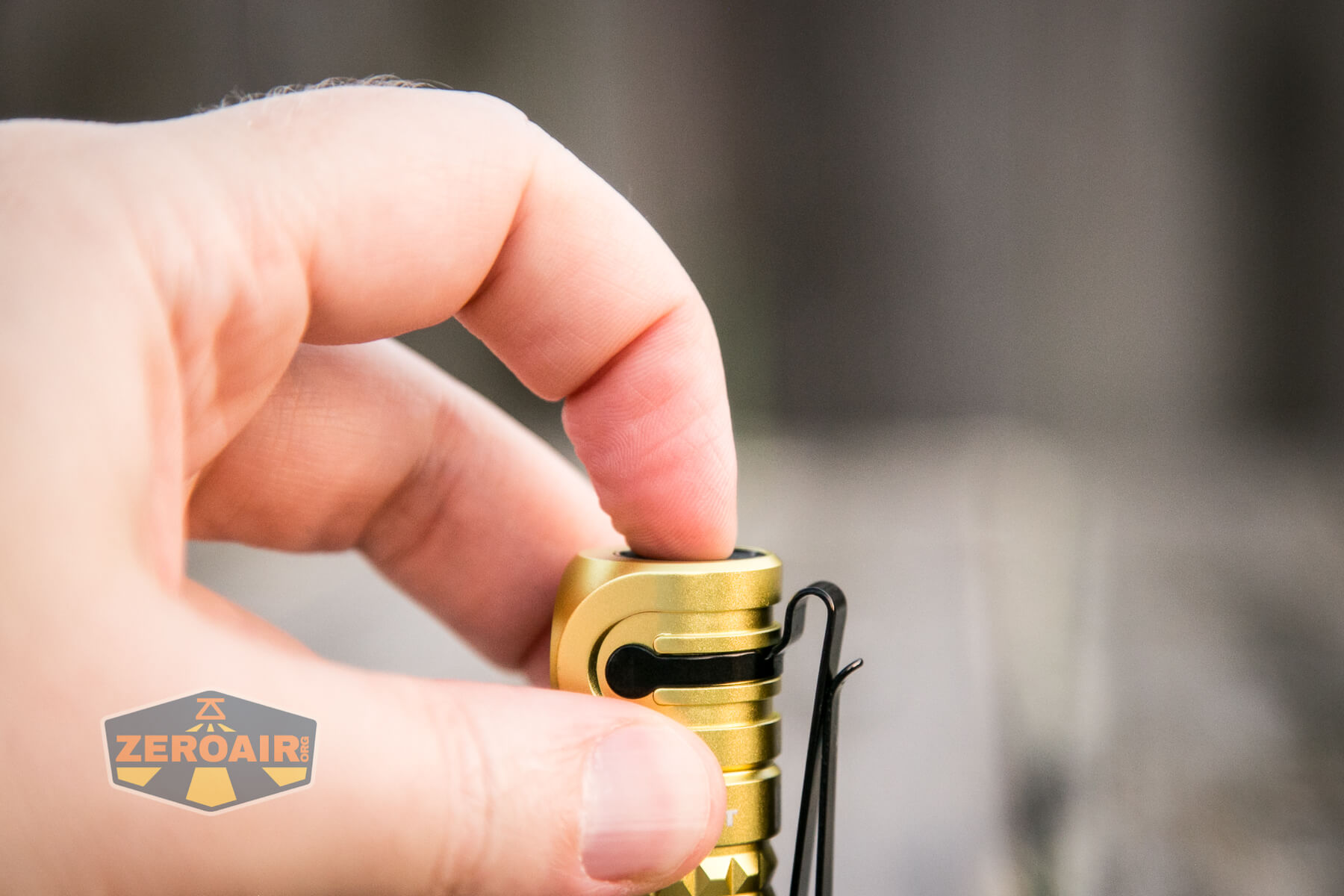

The Olight Perun Mini Kit Headlight uses a single e-switch on the head.  It’s a big flat switch, and nice and soft.  It is not the least bit proud, which allows the light to headstand.  The Perun Mini is perfectly vertical when headstanding, too.

Olight Perun Mini Kit Headlight e-switch

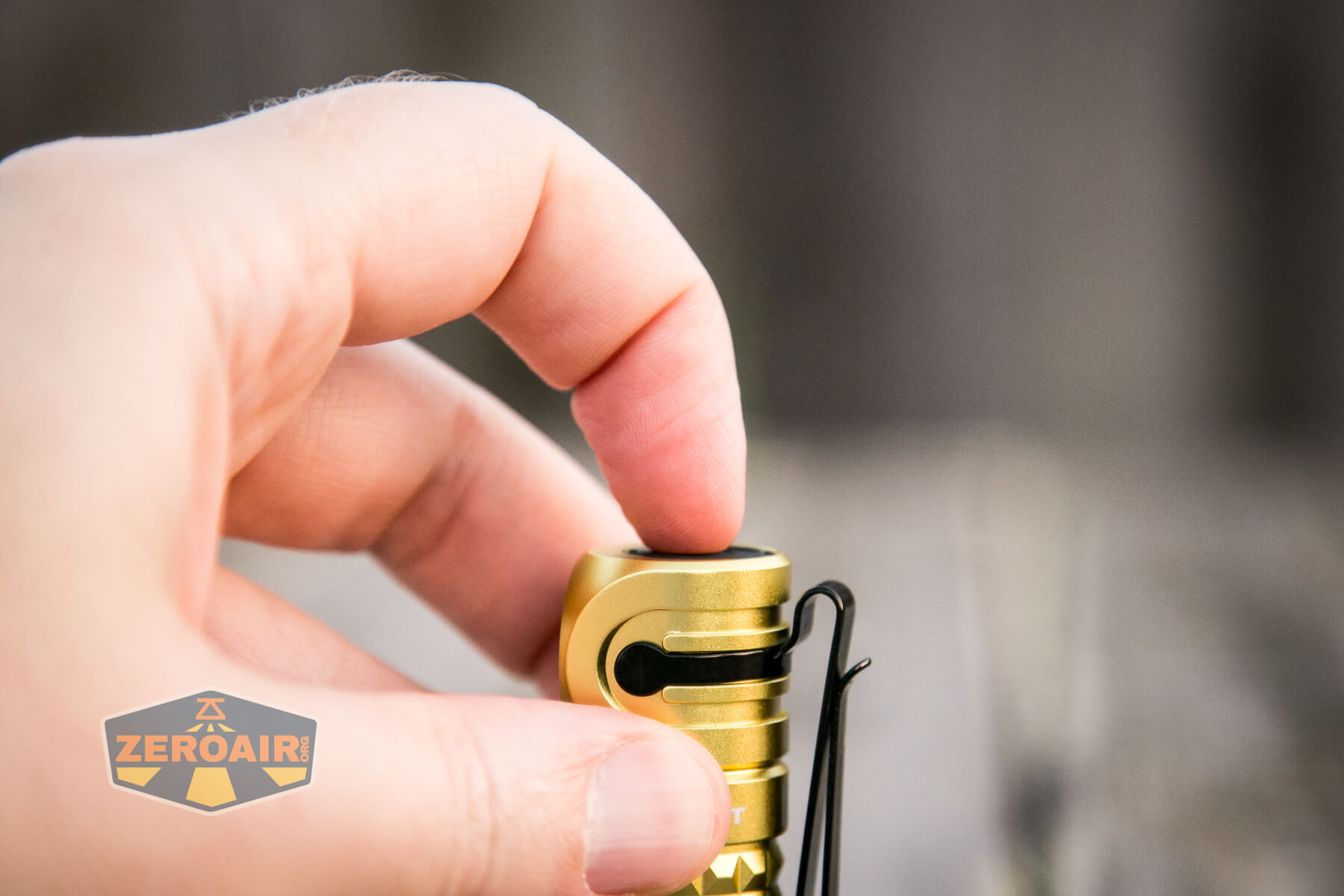

The switch is also just the least bit clicky.  If your attack angle is exactly straight down, you’ll feel it.  But if you are off-axis even a little, you’ll wonder if you’re pressing it right, and you might have to fiddle with it a bit.

Olight Perun Mini Kit Headlight e-switch

Here’s a UI table!

State Action Result
Off Click On (Mode Memory, Moon, LMH only)
Off Hold Moon
Any Double Click Turbo
On Hold Mode advance (Moon, LMH only)
Turbo Double Click Exit Turbo to the previous mode (except if previous was high, then results in Medium)
Any Triple Click SOS
SOS Click Off
On Click Off
On Click and Hold (quickly)** Timer (Single blink: 3 minutes, Double blink: 9 minutes)
Timer Click and Hold (quickly)** Switch between 3 and 9-minute timers.
Off Hold (>2s) Lockout
Lockout Hold (~2s) Unlock (and goes to Moonlight)

LED and Beam

The emitter in this light is unspecified.  That bothers me more than it probably should, but really how simple is it to just state the emitter.  I reached out to Olight and at the time of this release, they have still not commented with an update.

I believe the emitter used in this Perun Mini is an Osram P9.  It’s stated as CW, at least.

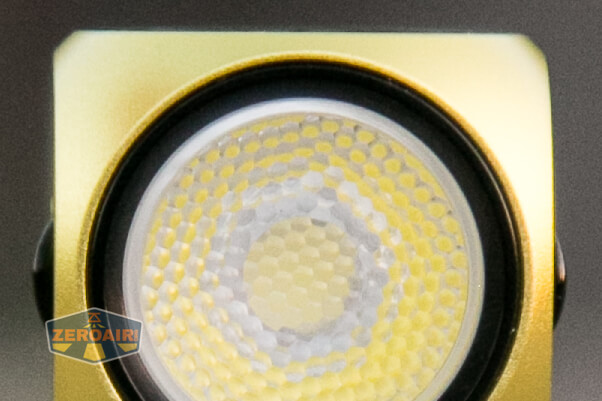

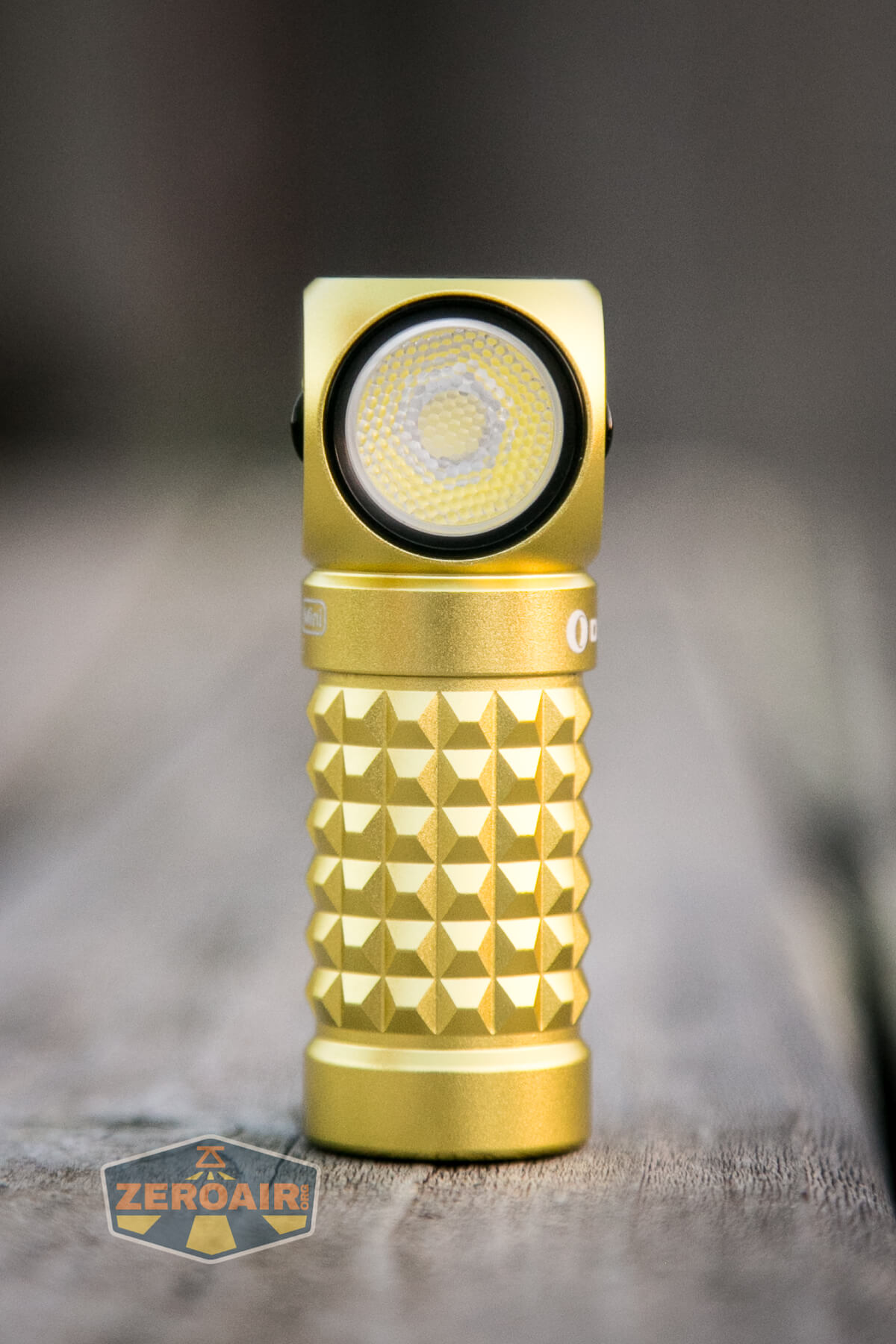

There’s a dimpled TIR, which gives a very smooth roll-off throughout the beam.

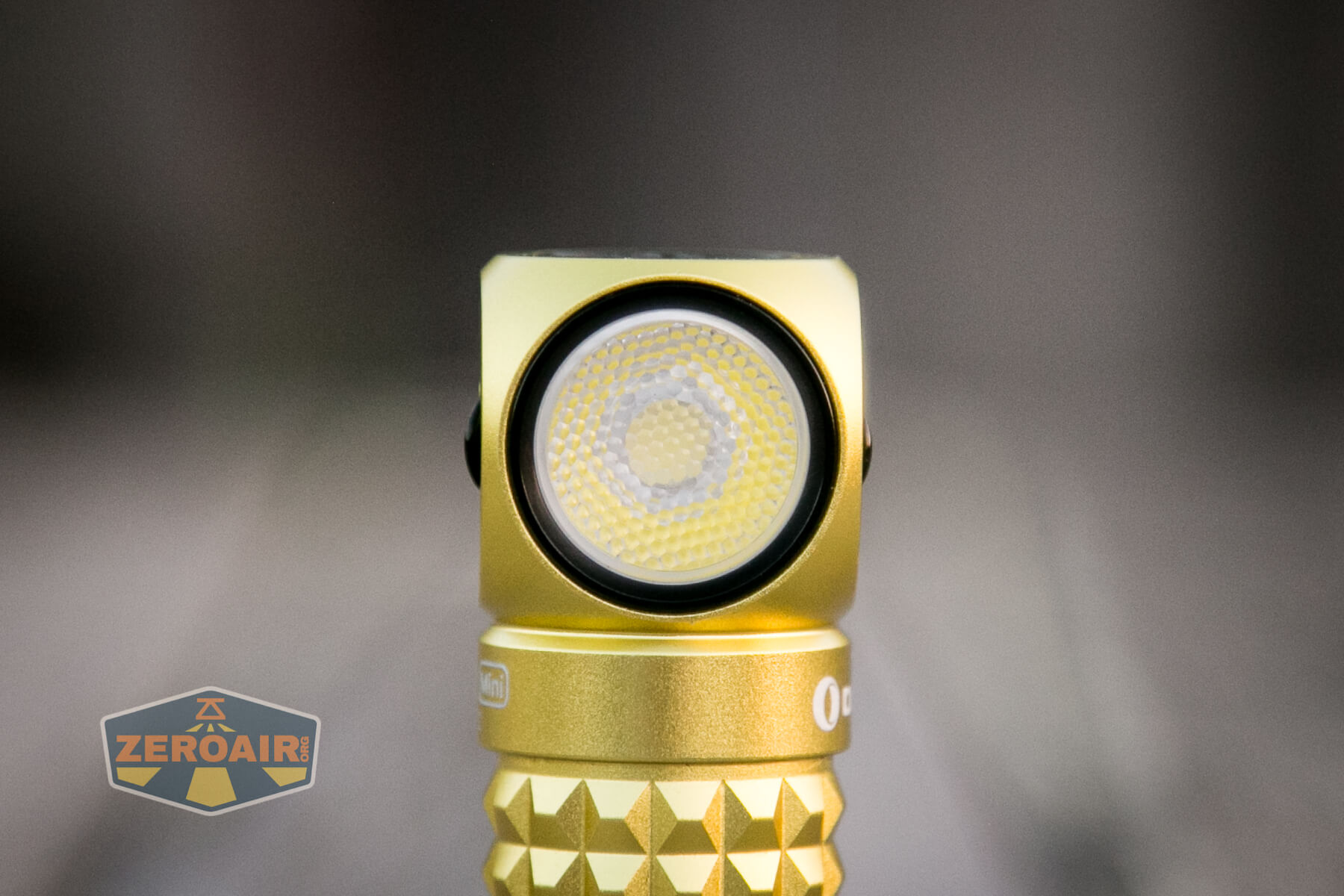

Olight Perun Mini Kit Headlight TIR

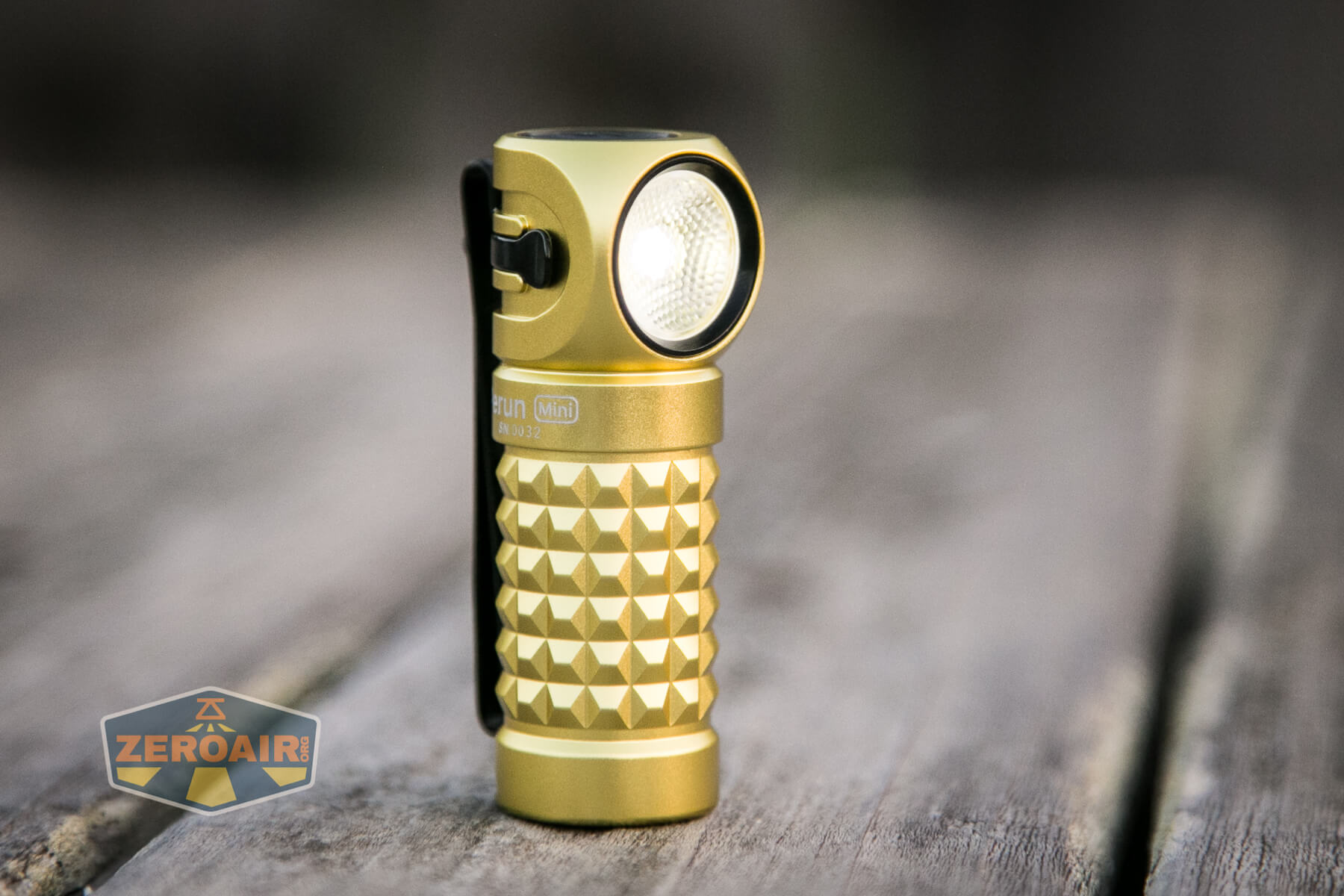

Olight Perun Mini Kit Headlight on

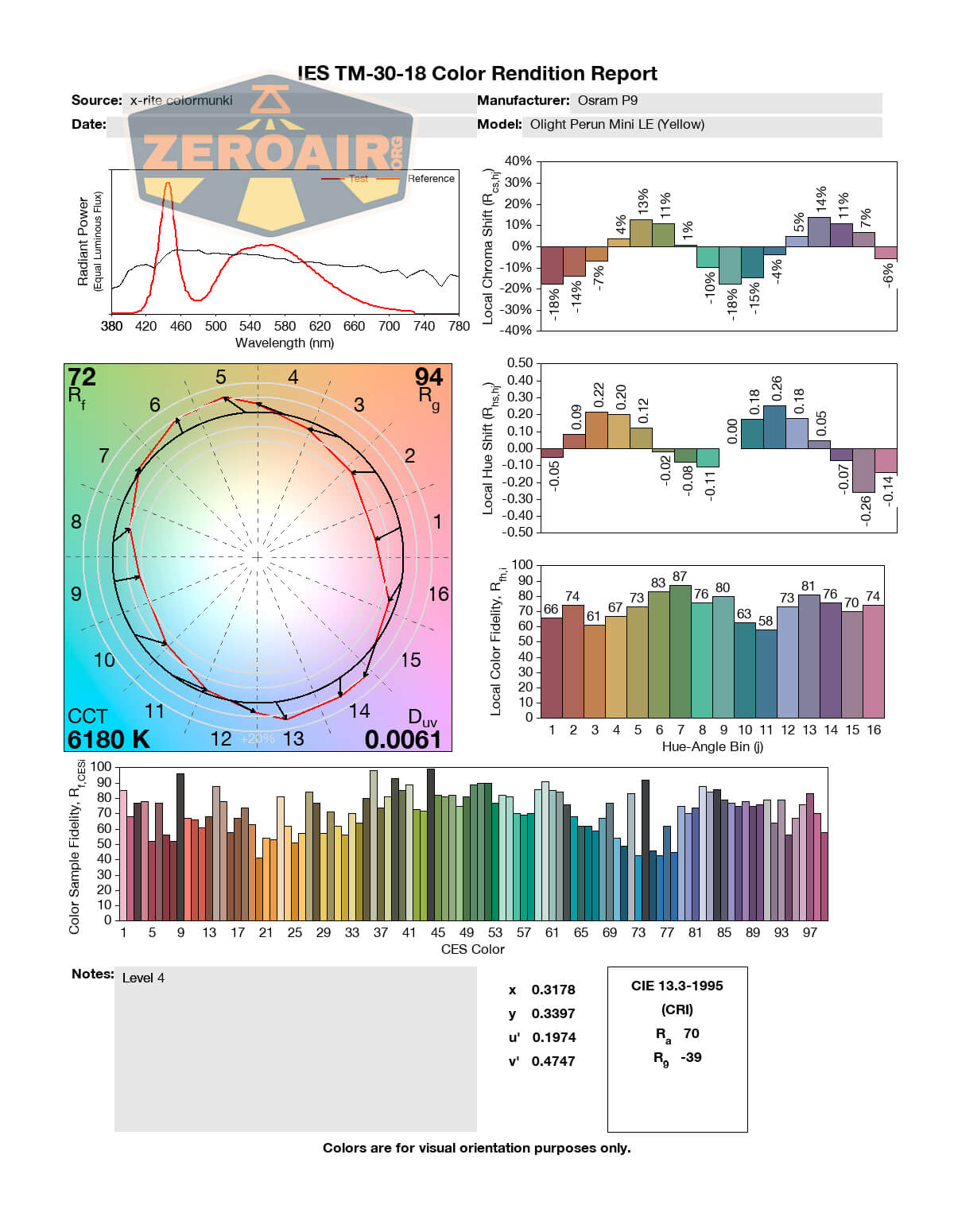

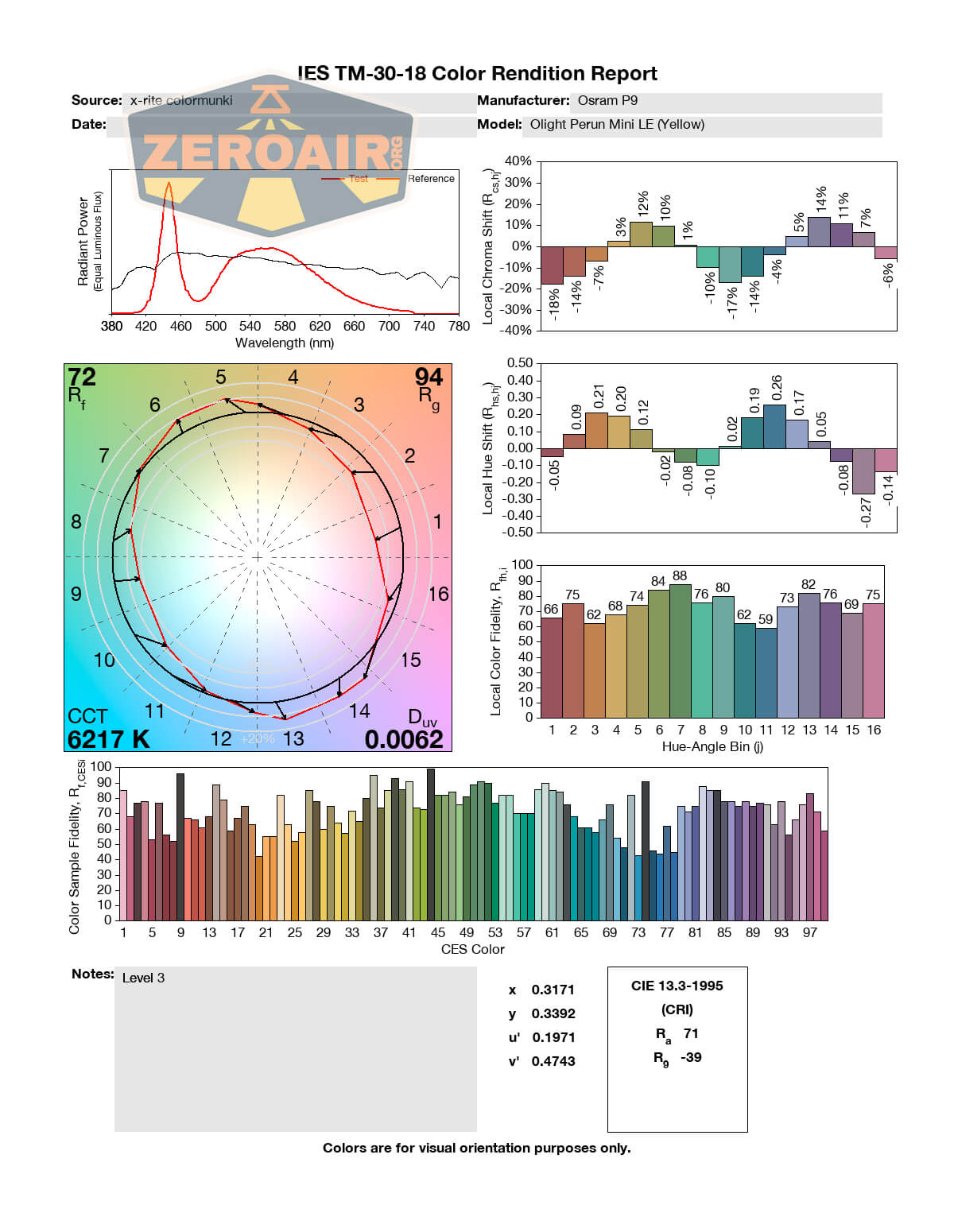

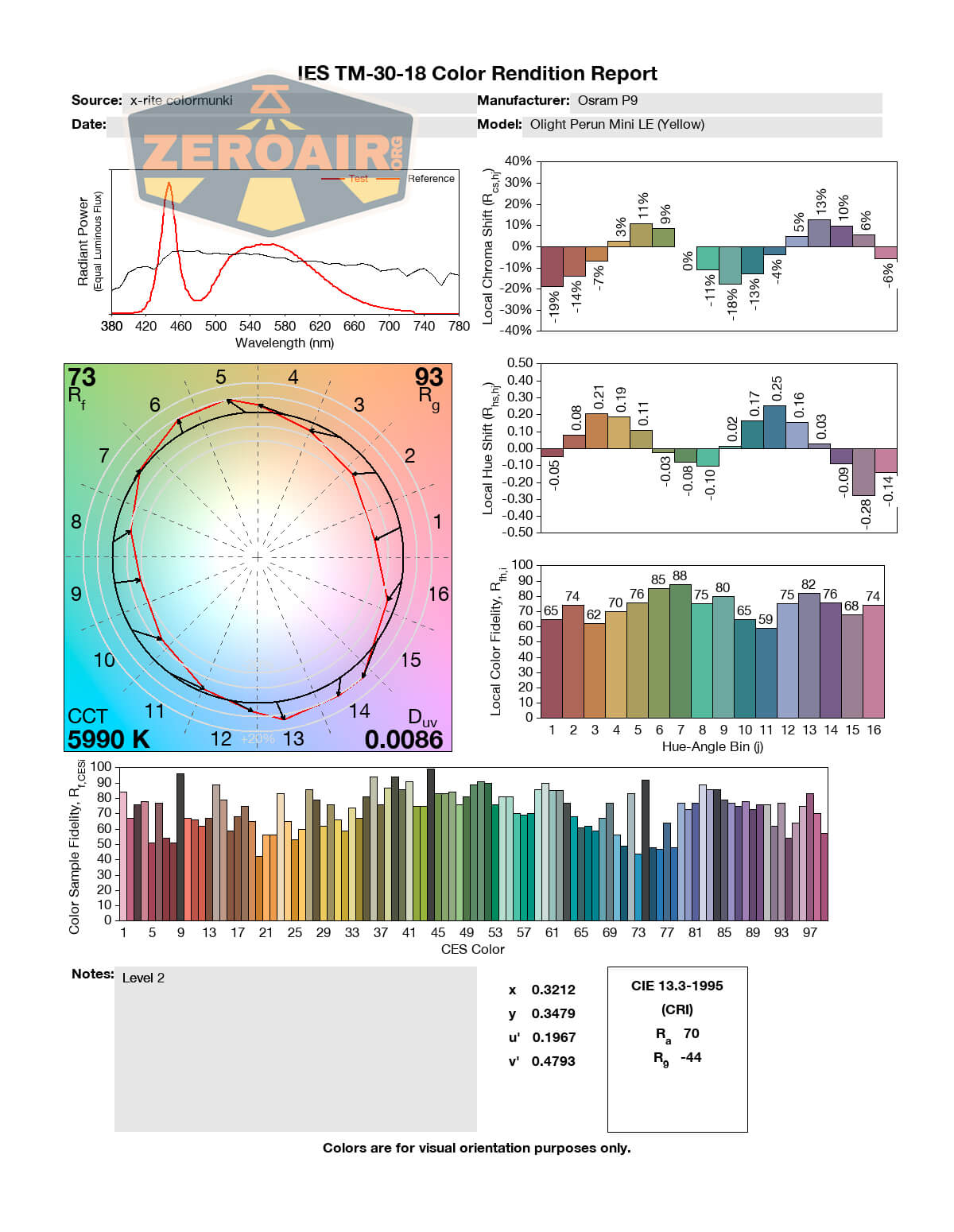

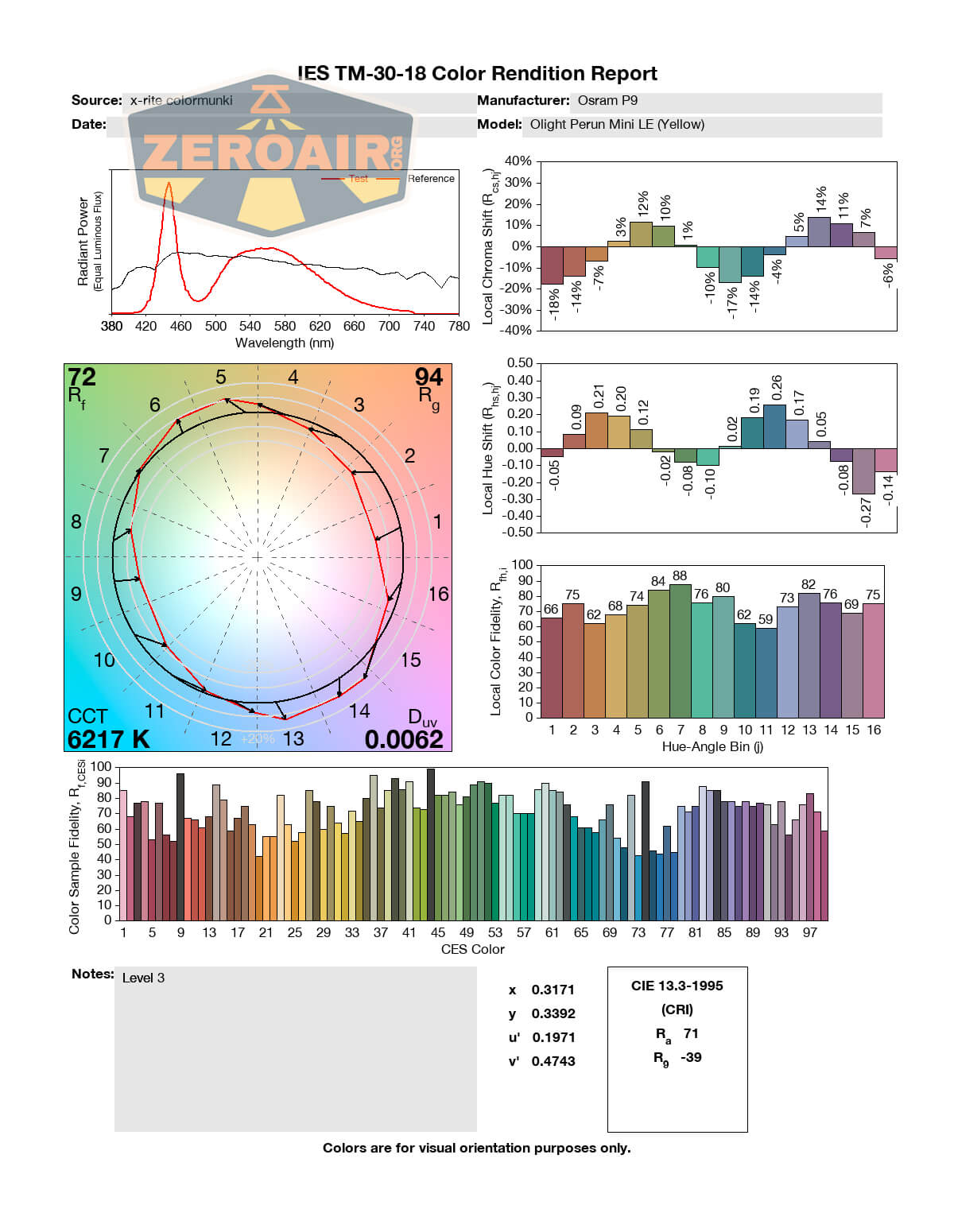

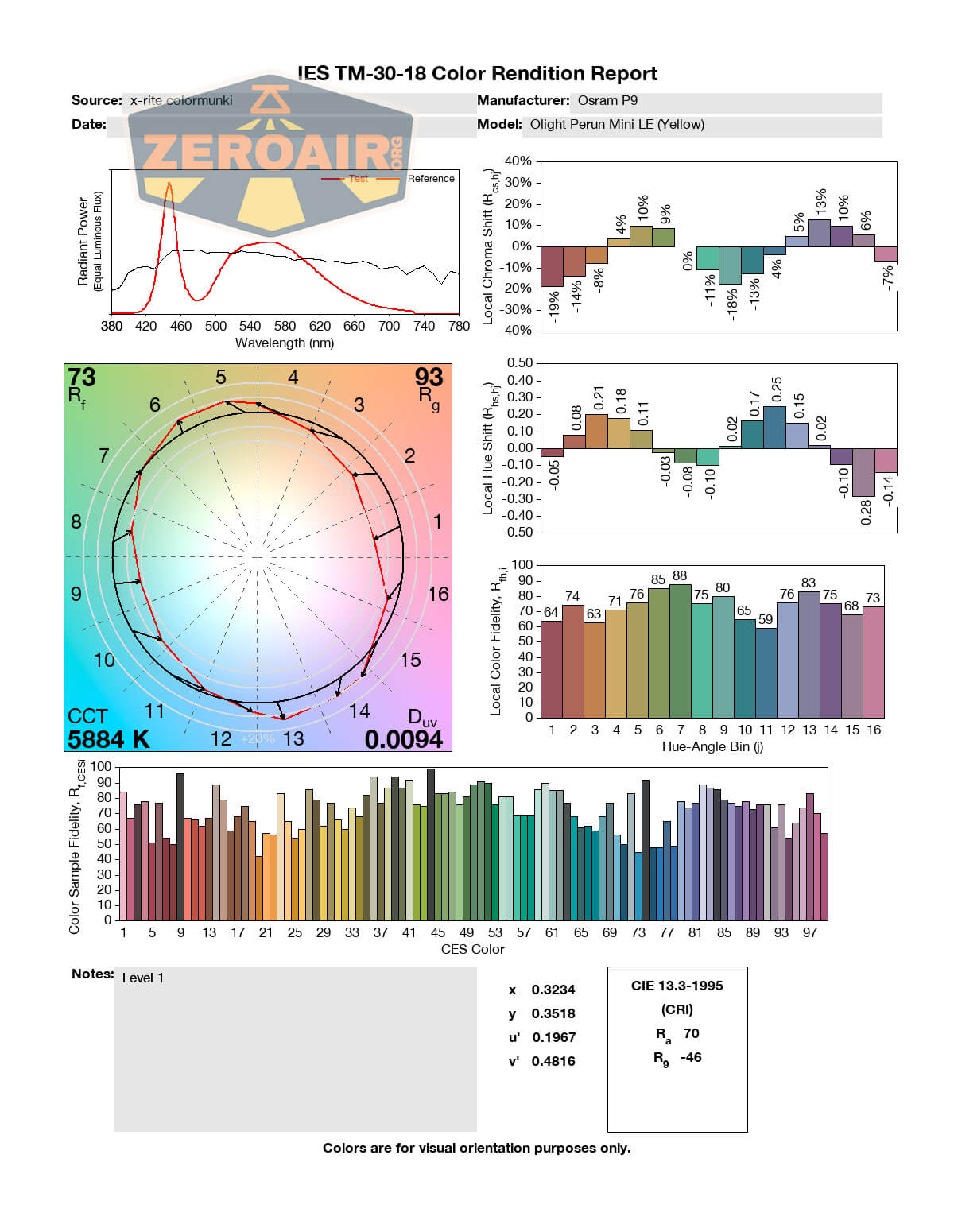

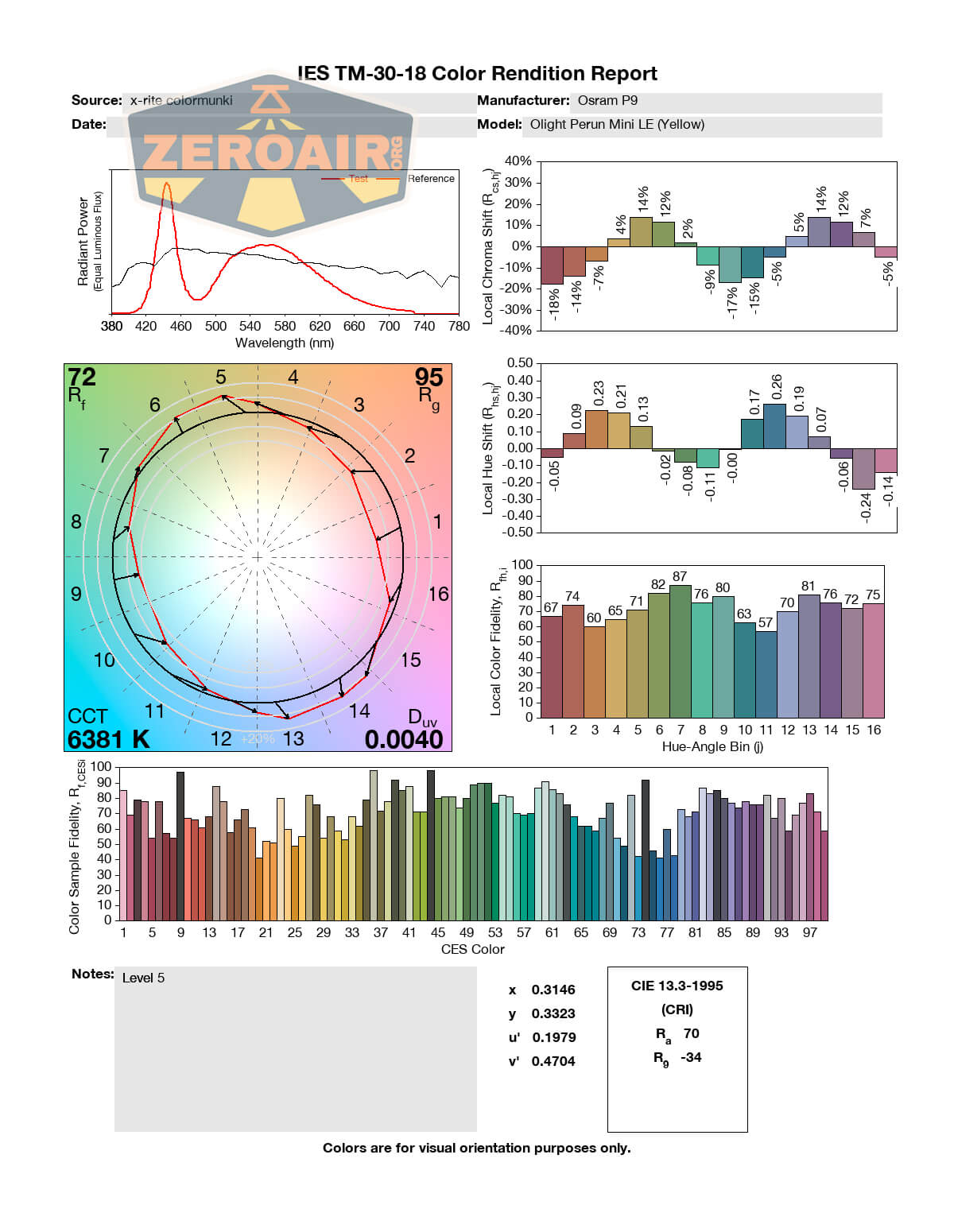

LED Color Report (CRI and CCT)

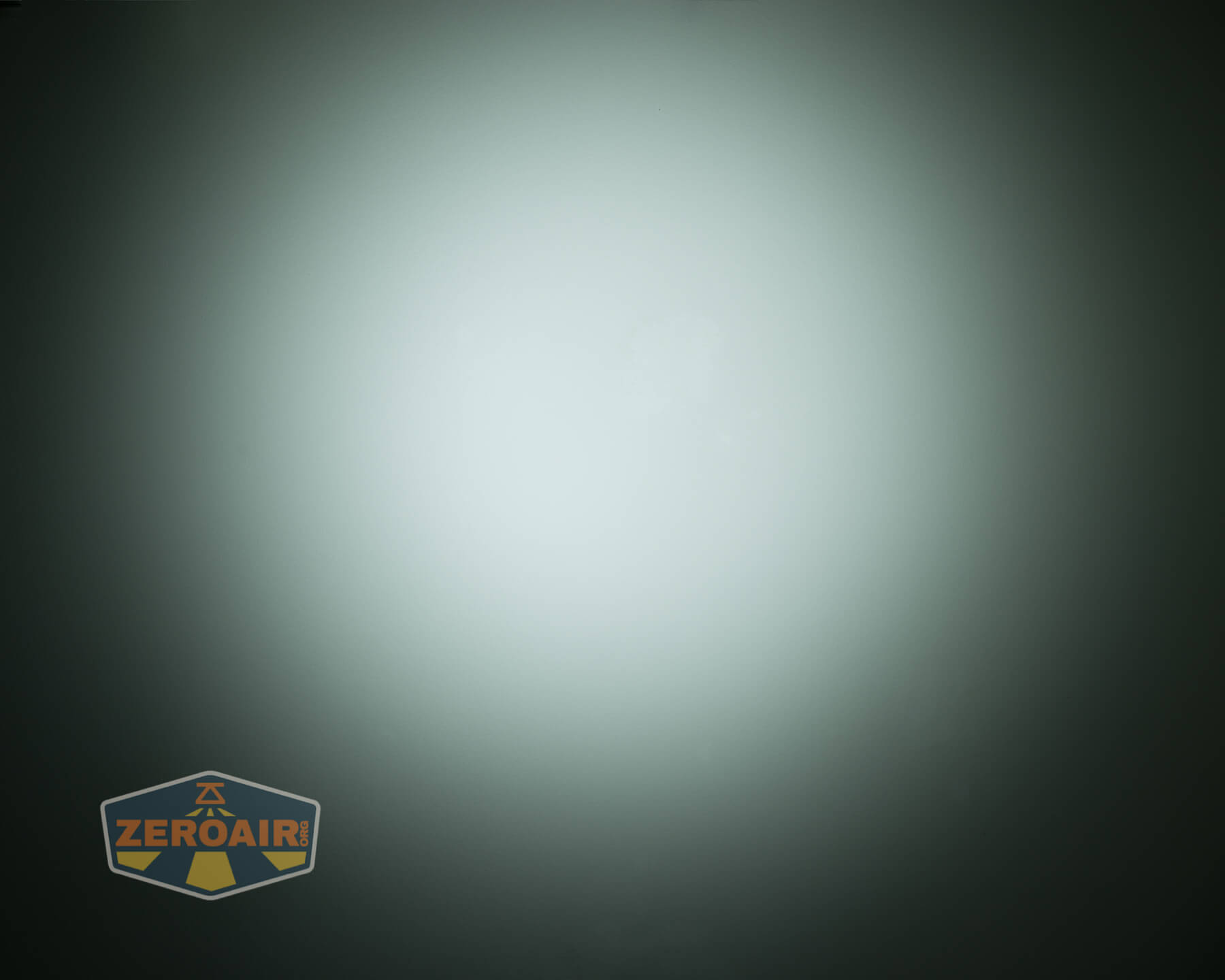

Beamshots

These beamshots are always with the following settings:  f8, ISO100, 0.3s shutter, and manual 5000K exposure.

Tint vs BLF-348 (KillzoneFlashlights.com 219b version) (affiliate link)

I keep the test flashlight on the left, and the BLF-348 reference flashlight on the right.

I compare everything to the KillzoneFlashlights.com 219b BLF-348 because it’s inexpensive and has the best tint!

Conclusion

What I like

  • Complete package
  • Onboard charging looks good
  • Small
  • Hits specifications
  • Can headstand (on switch end)

What I don’t like

  • Unspecified emitter!
  • Velcro patch has hooks that touch the skin

Buy the Olight Perun Mini Golden Yellow Kit Headlight at OlightStore.com!!
