Cyansky HS6R Headlamp Review

Cyansky HS6R Headlamp Review

The Cyansky HS6R “triple output” headlamp has two white and a set of red emitters for many output variations. It even has USB-C charging!


Cyansky HS6R Headlamp Official Specs and Features

Here’s a link to the Cyansky HS6R Headlamp product page.

Versions

There is just one version of the Cyansky HS6R headlamp.

Price

Looks like these are selling for $74.95 at the moment, and I believe the package does include the 18650 cell seen in this review.


Short Review

Aside from the target output numbers not being reached, this is a nice headlamp.  The spot and flood are individually useful, and the combination has good output too.  Red is a nice bonus, but I could use a lower red, too.

Long Review of the Cyansky HS6R Headlamp

The Big Table

Three big tables, actually!

Cyansky HS6R Headlamp
Emitter: Luminus SST-20 (Both)
Price in USD at publication time: $74.95
Cell: 1×18650
Turbo Runtime Graph
LVP? Yes
Switch Type: E-Switch
Quiescent Current (mA): 17uA
On-Board Charging? No
Claimed Lumens (lm) 1400
Measured Lumens (at 30s) 956 (68.3% of claim)^
Candela per Lumen 5.1
Claimed Throw (m) 170
Candela (Calculated) in cd (at 30s) 786lux @ 3.304m = 8580cd
Throw (Calculated) (m) 185.3 (109% of claim)^
All my Cyansky reviews!
Cyansky HS6R Headlamp
Emitter: Luminus SST-40 (Spot)
Price in USD at publication time: $74.95
Cell: 1×18650
Turbo Runtime Graph High Runtime Graph
LVP? Yes
Switch Type: E-Switch
Quiescent Current (mA): 17uA
On-Board Charging? Yes
Charge Port Type: USB-C
Charge Graph
Power off Charge Port With or without cell: No
Claimed Lumens (lm) 1200
Measured Lumens (at 30s) 776 (64.7% of claim)^
Candela per Lumen 8.1
Claimed Throw (m) 170
Candela (Calculated) in cd (at 30s) 562lux @ 3.798m = 8107cd
Throw (Calculated) (m) 180.1 (105.9% of claim)^
All my Cyansky reviews!
Cyansky HS6R Headlamp
Emitter: Luminus SST-20 (Flood)
Price in USD at publication time: $74.95
Cell: 1×18650
High Runtime Graph
LVP? Yes
Switch Type: E-Switch
Quiescent Current (mA): 17uA
On-Board Charging? Yes
Charge Port Type: USB-C
Charge Graph
Power off Charge Port With or without cell: No
Claimed Lumens (lm) 500
Measured Lumens (at 30s) 390 (78% of claim)^
Candela per Lumen 2.1
Claimed Throw (m) 63
Candela (Calculated) in cd (at 30s) 64lux @ 3.517m = 792cd
Throw (Calculated) (m) 56.3 (89.4% of claim)^
All my Cyansky reviews!

^ Measurement disclaimer:  I am an amateur flashlight reviewer.  I don’t have $10,000 or even $1,000 worth of testing equipment.  I test output and such in PVC tubes!!  Please consider claims within 10% of what I measure to be perfectly reasonable (accurate, even).

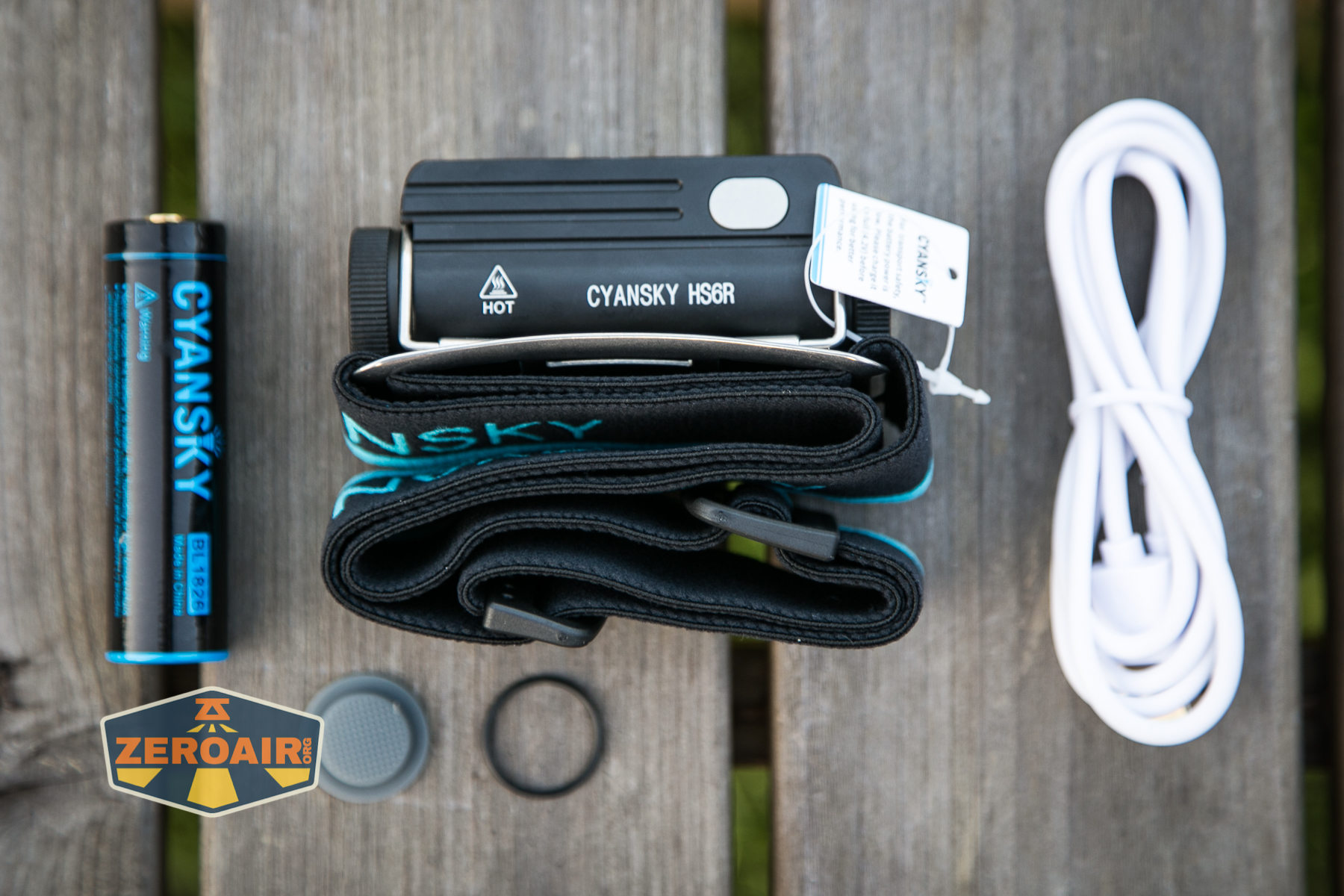

What’s Included

Cyansky HS6R Headlamp what's included

  • Cyansky HS6R Headlamp
  • Cyansky 2600mAh 18650

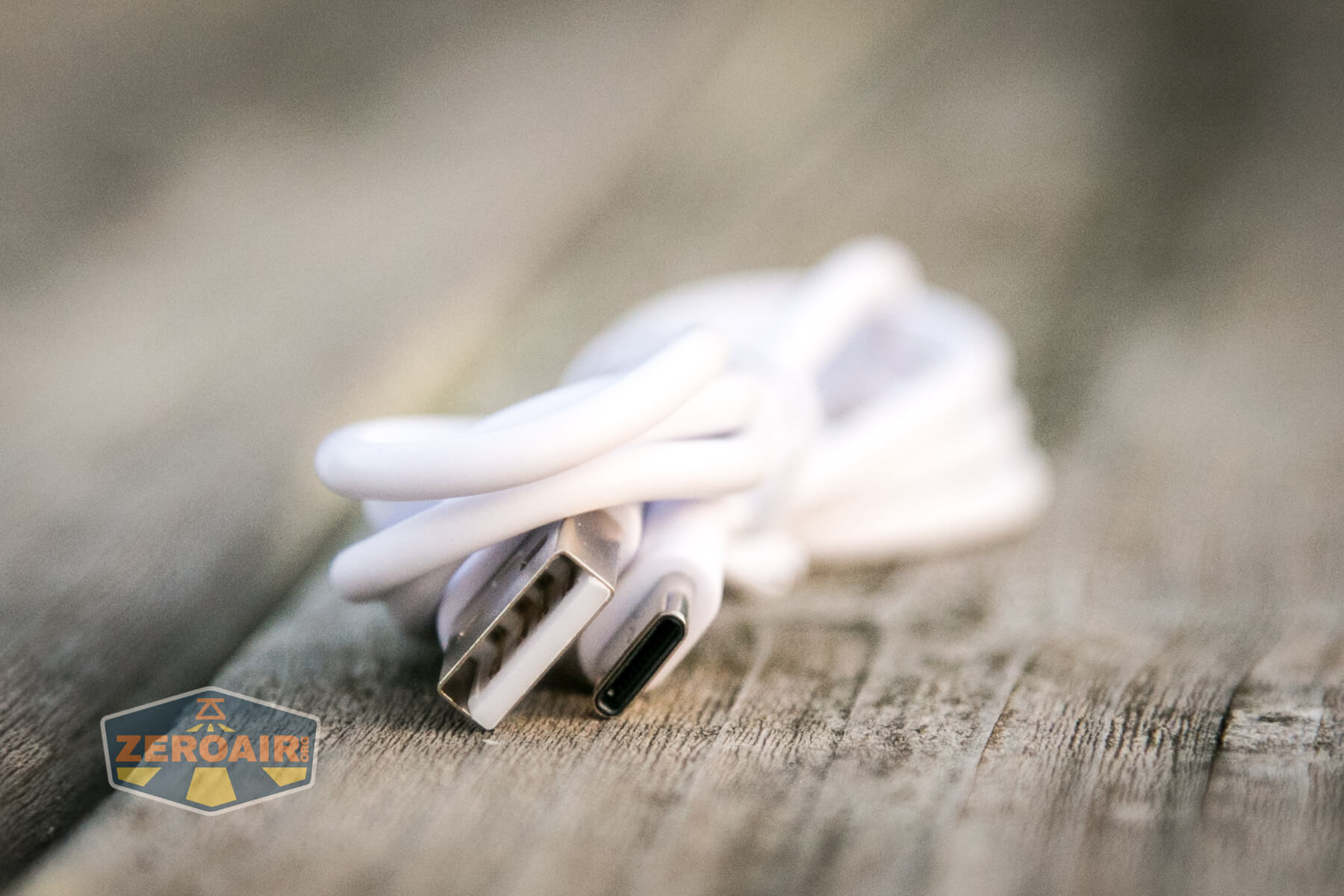

  • Charge cable (USB to USB-C)
  • Spare o-ring
  • Spare switch cover

Package and Manual

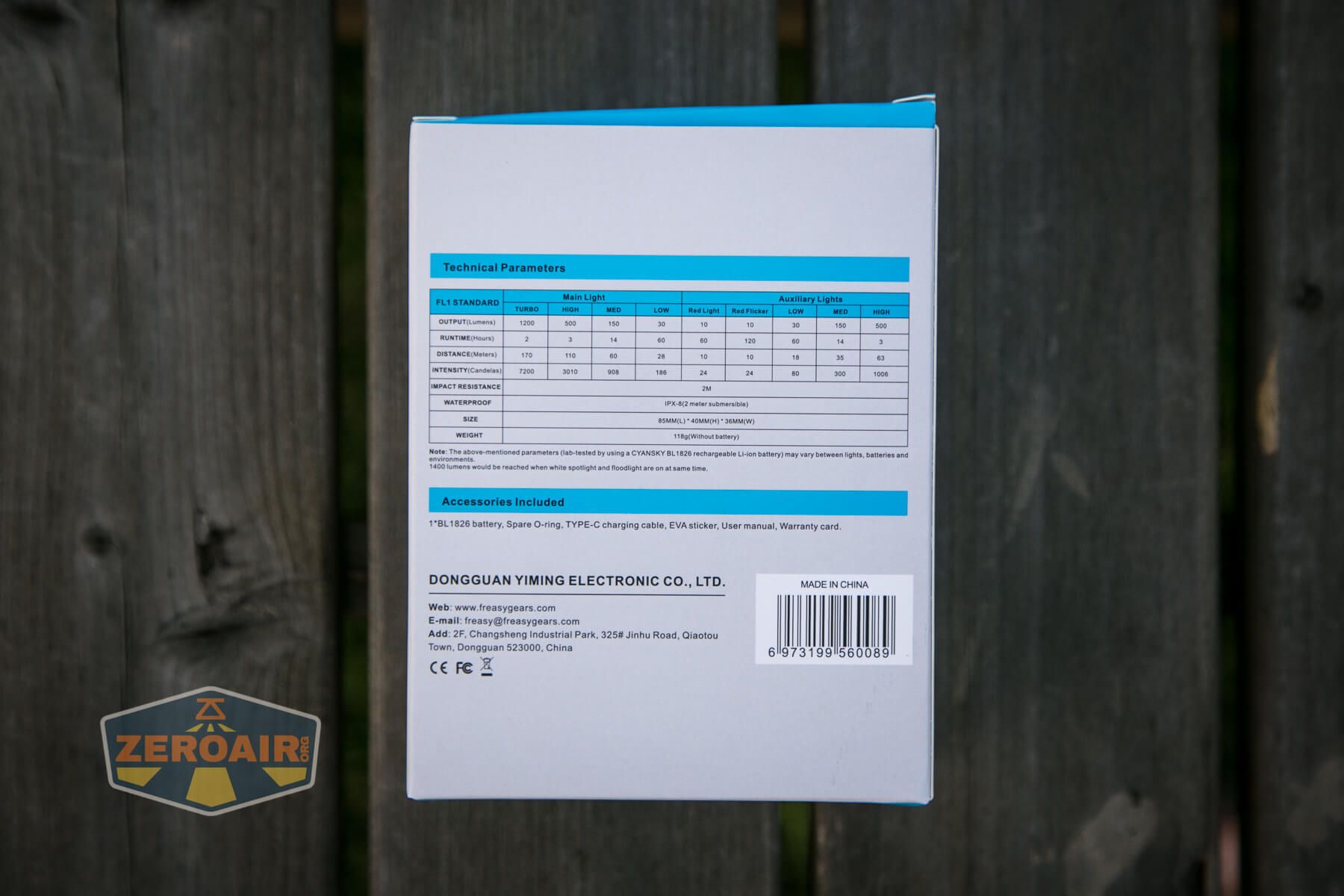

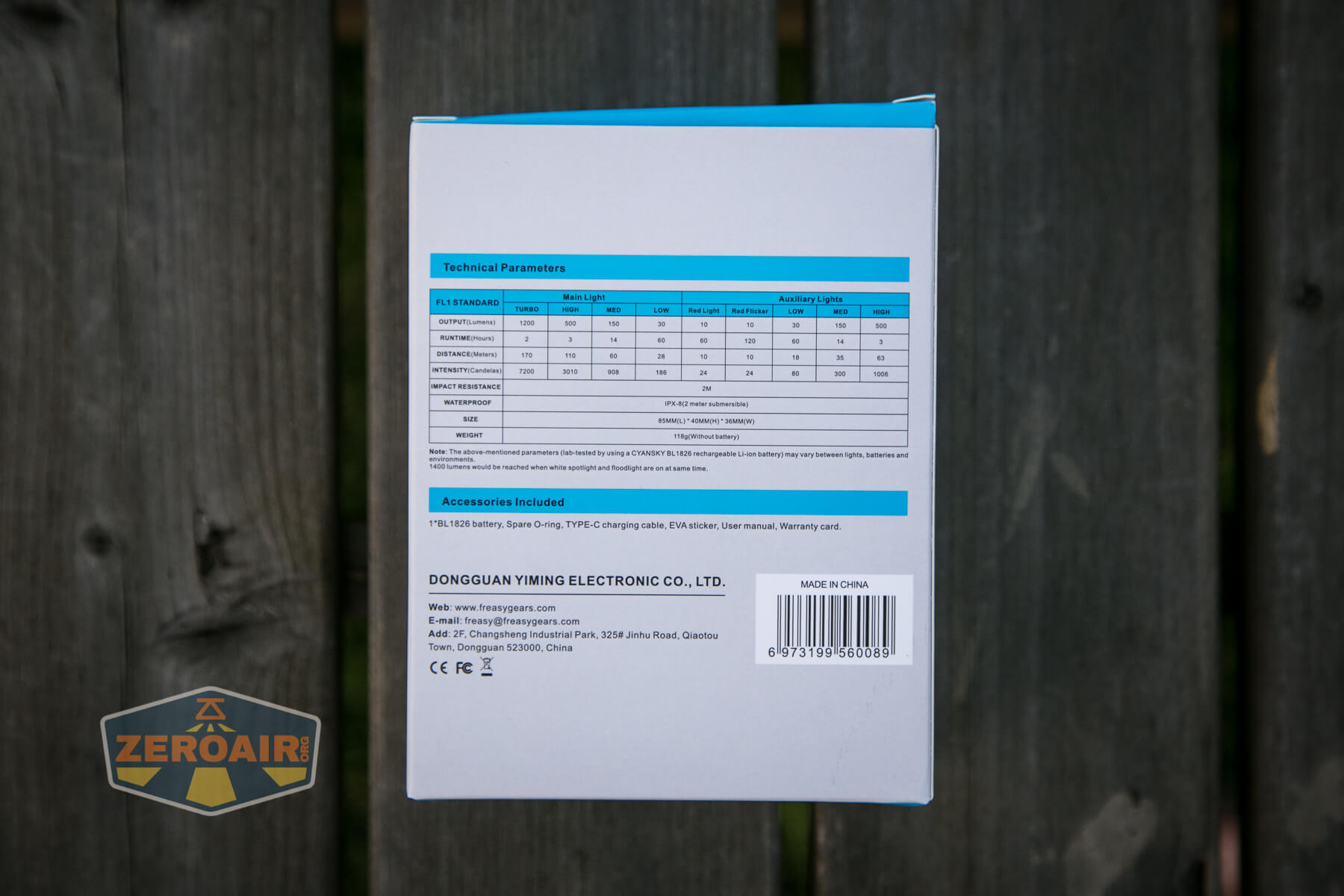

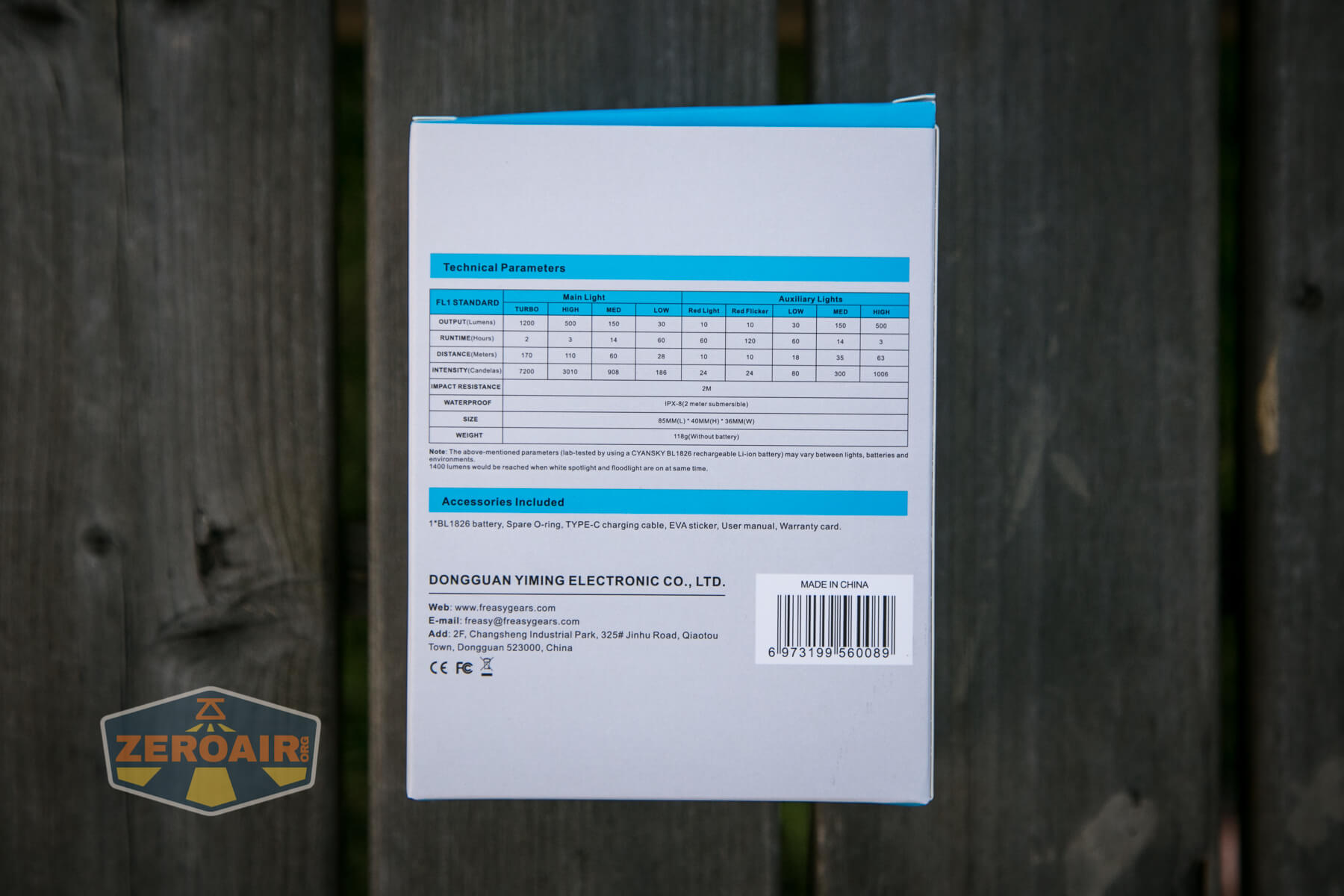

Cyansky HS6R Headlamp package

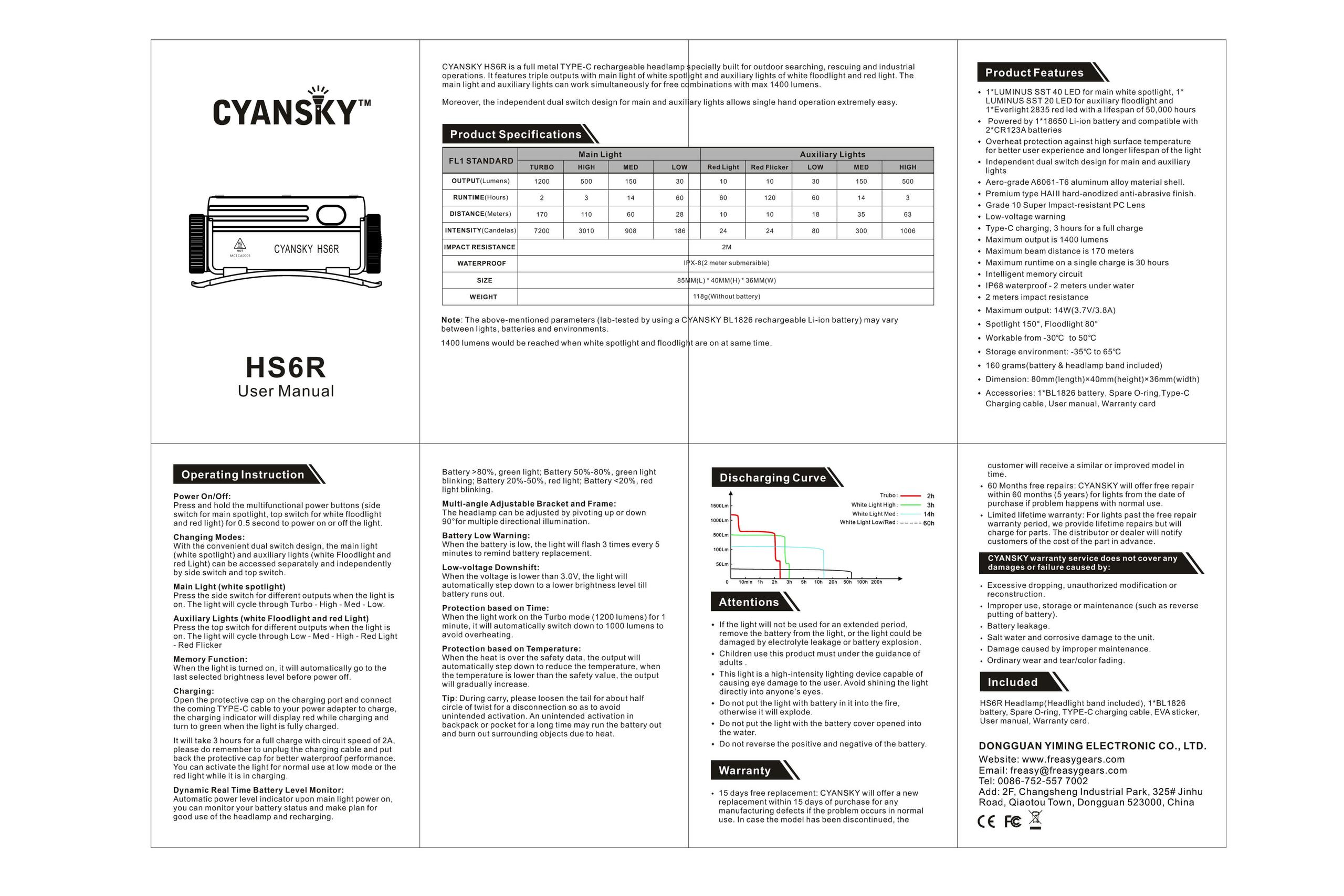

Cyansky HS6R Headlamp manual

Build Quality and Disassembly

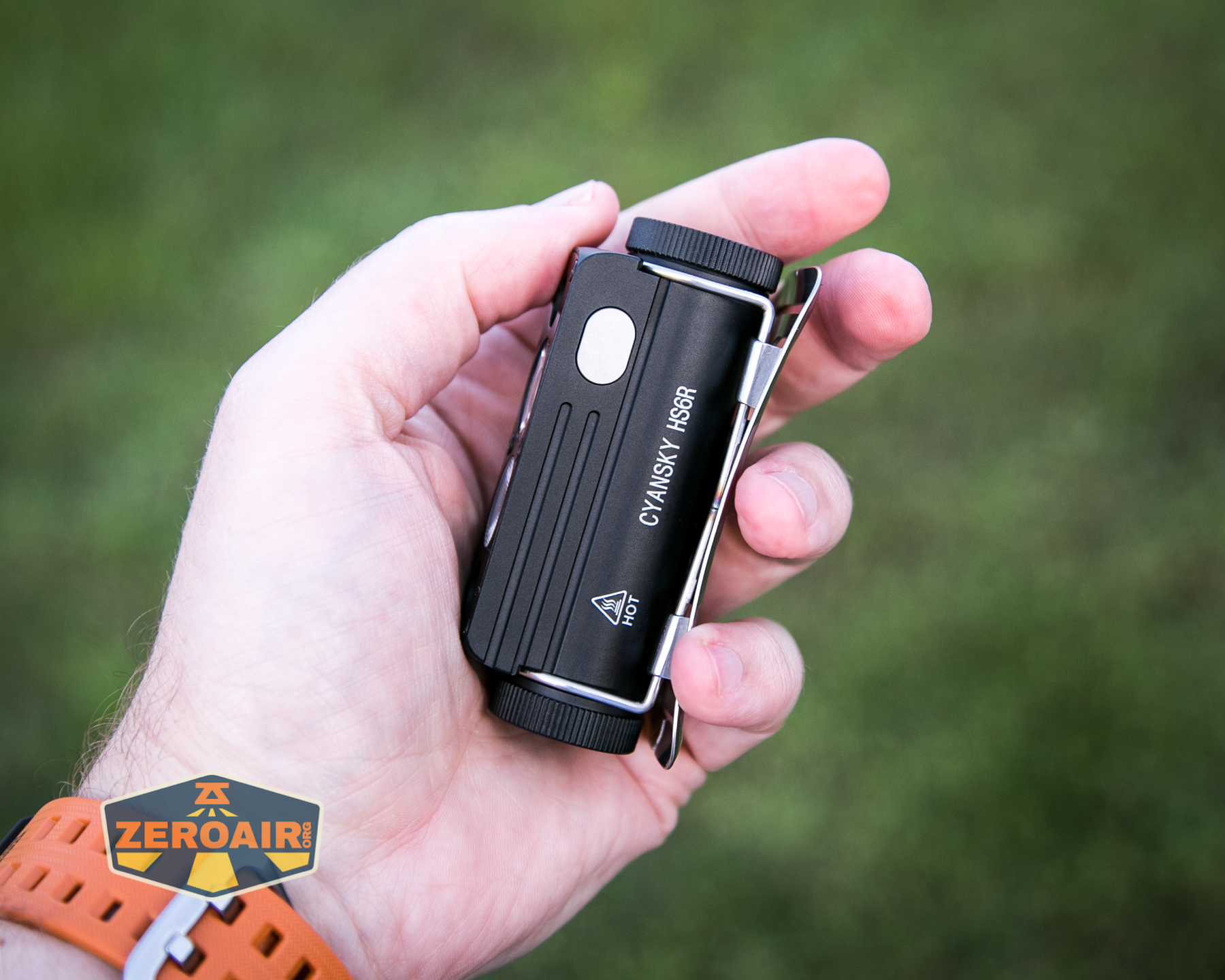

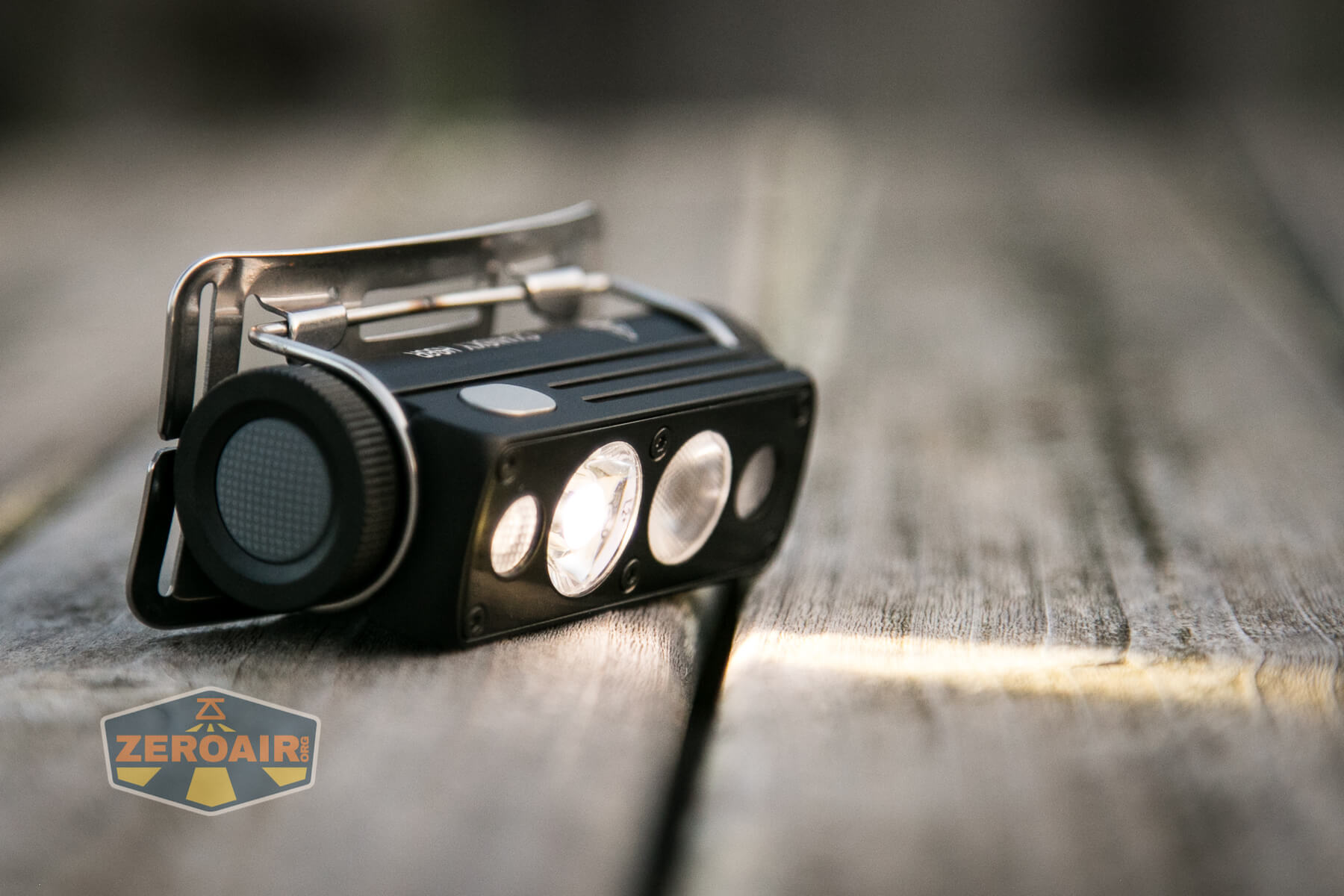

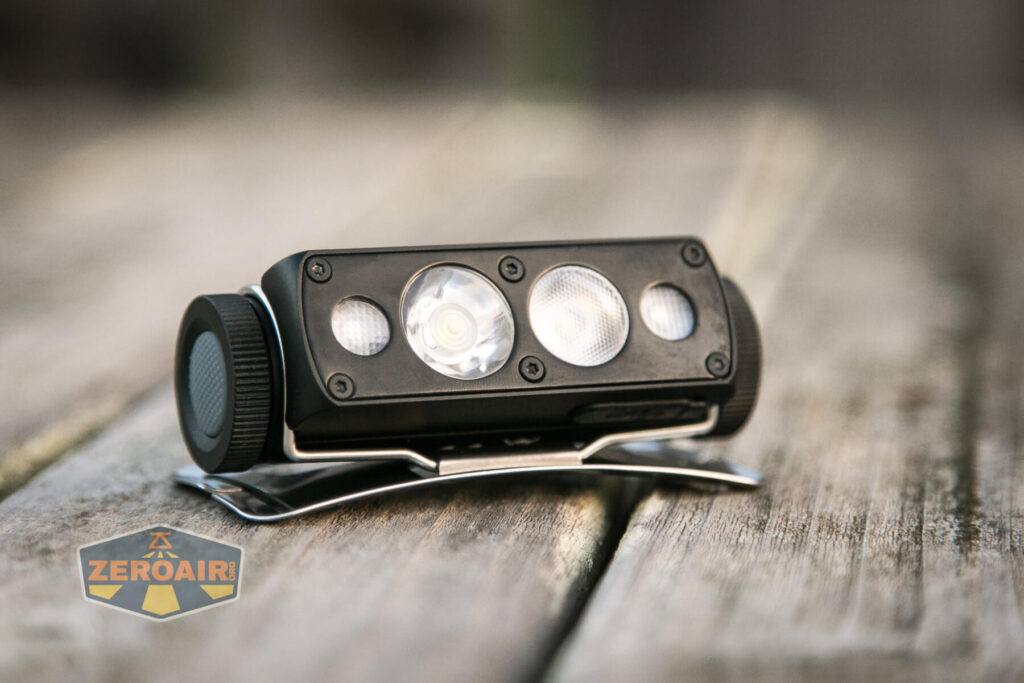

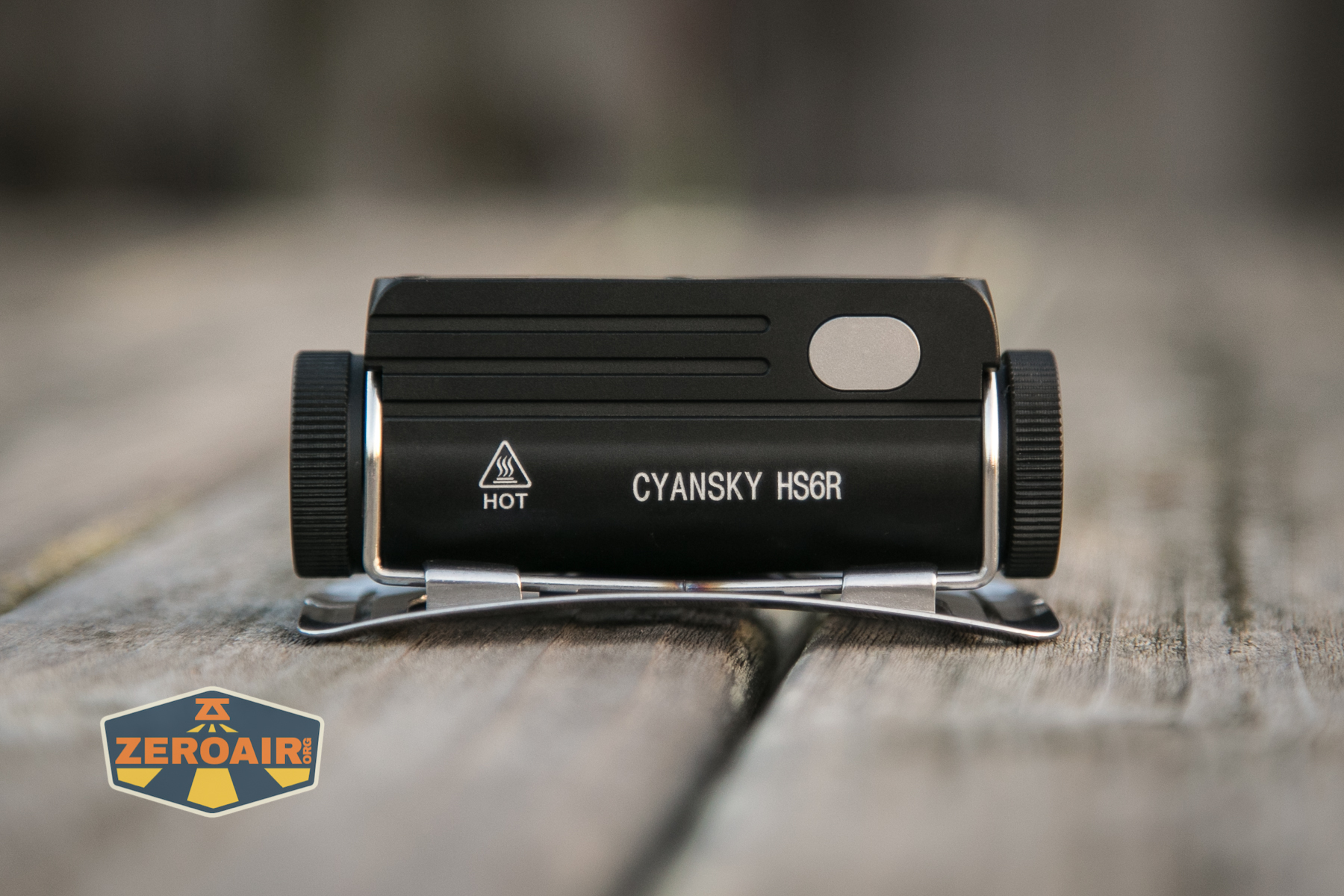

Cyansky HS6R Headlamp body

As far as I am aware, this is Cyansky’s first venture into headlamps.  There are a few interesting aspects, for sure, but overall it’s a solid build.

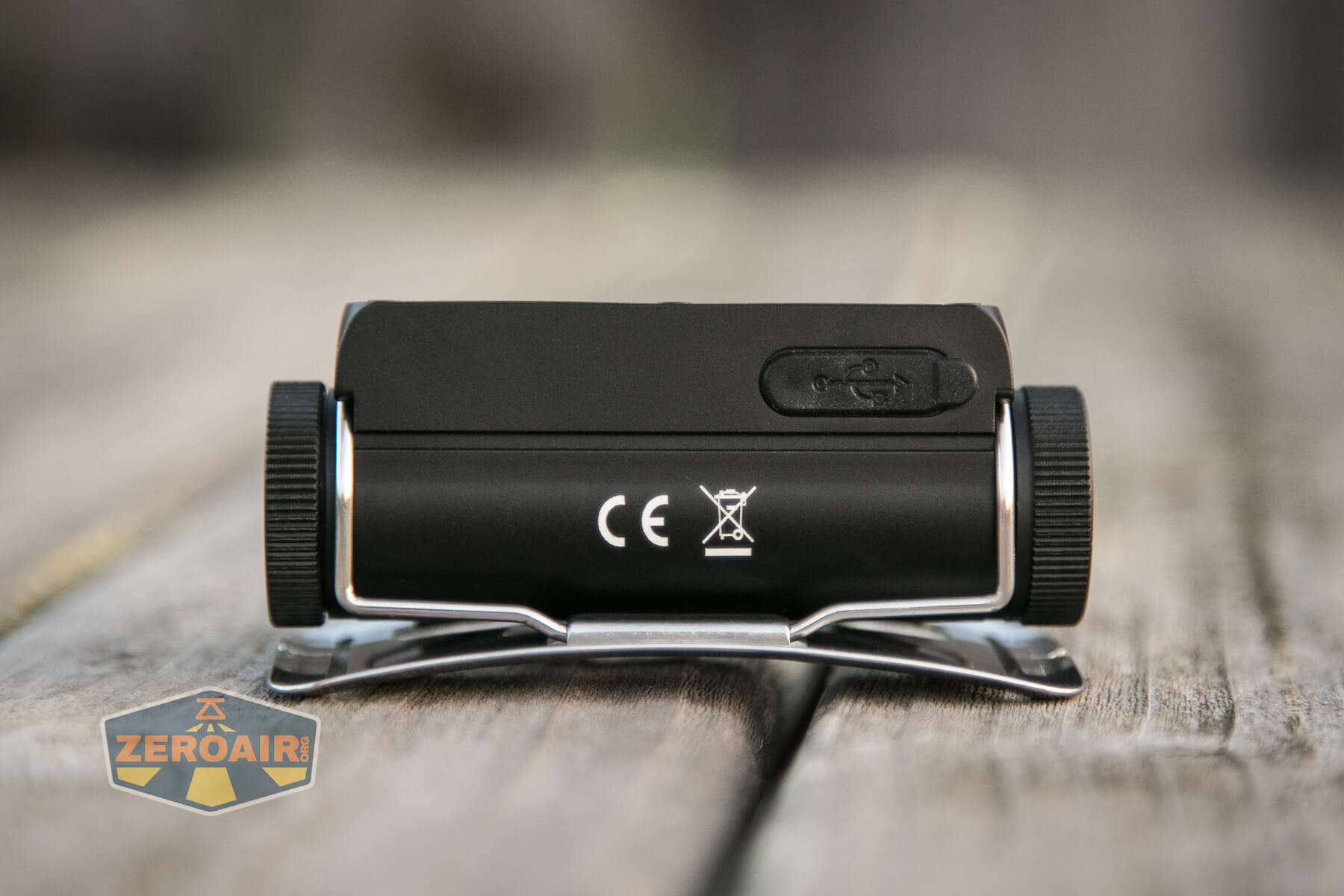

Cyansky HS6R Headlamp body

Interestingly the piece connecting the HS6R to the headband is metal.  Most of the time, that’s a plastic piece.

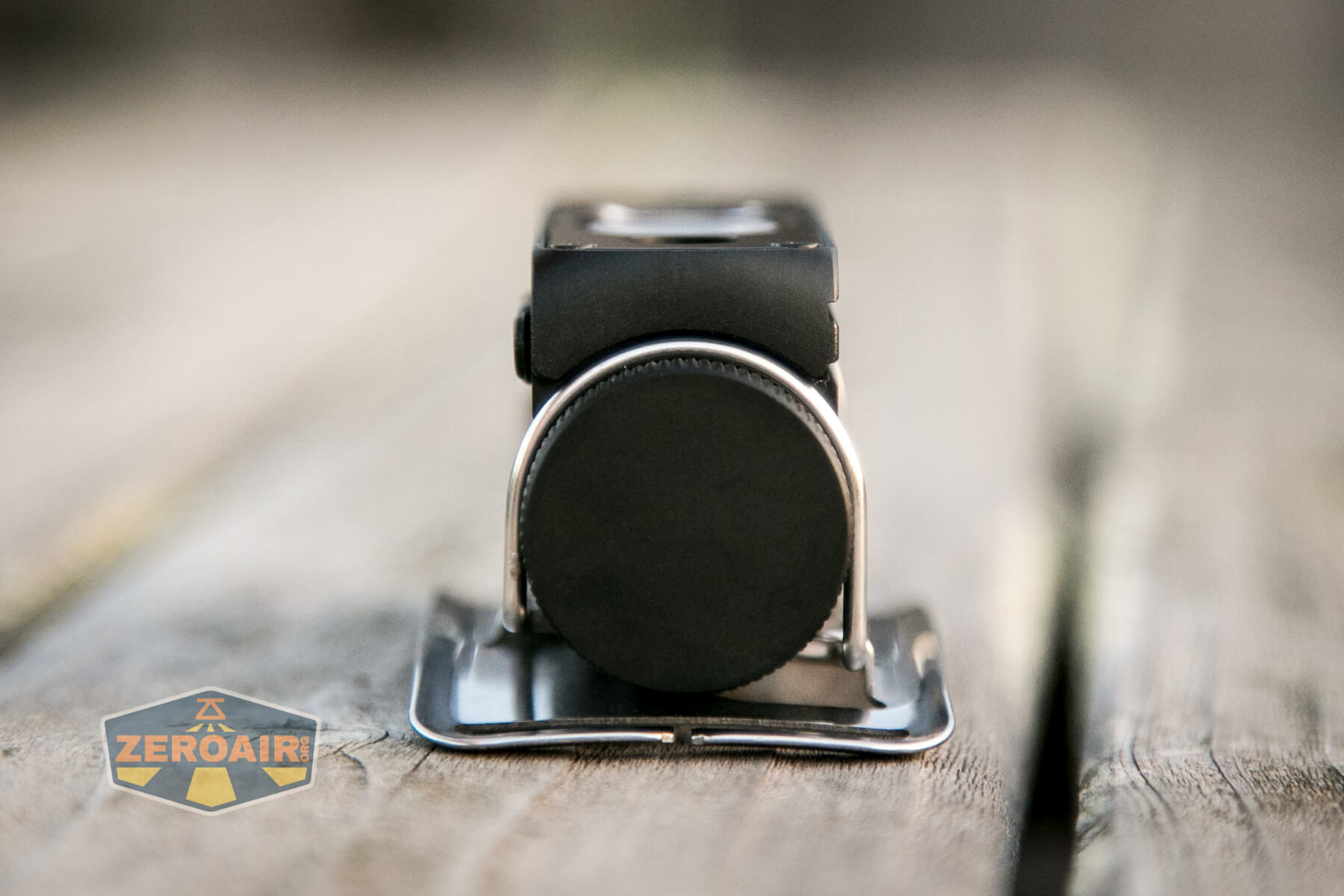

Cyansky HS6R Headlamp tailcap

This metal piece, however, has a nice curl along all edges, which keeps the metal edge away from your forehead.  It’s a good design!

The tailcap has very short threads, which is great for cell swaps.

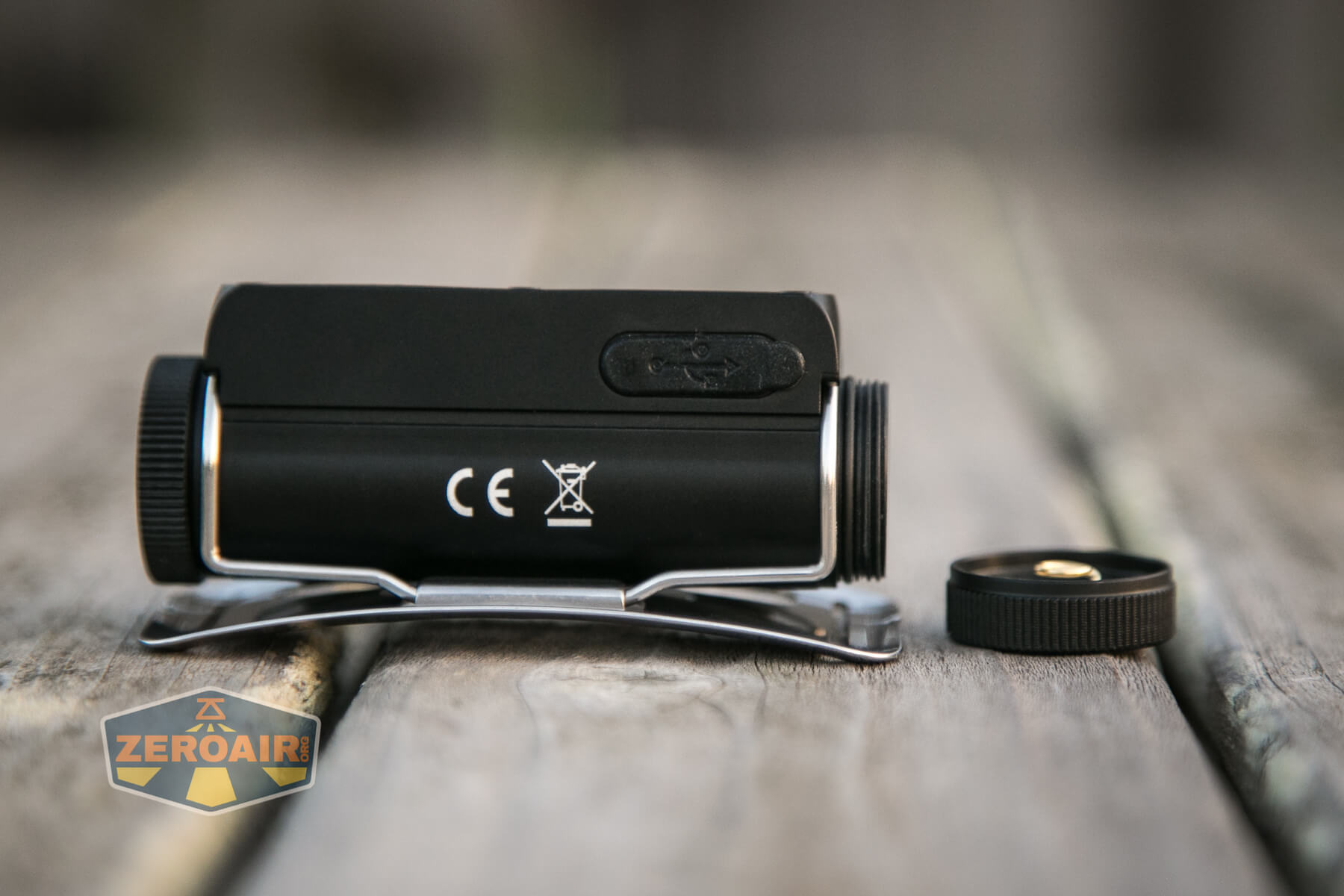

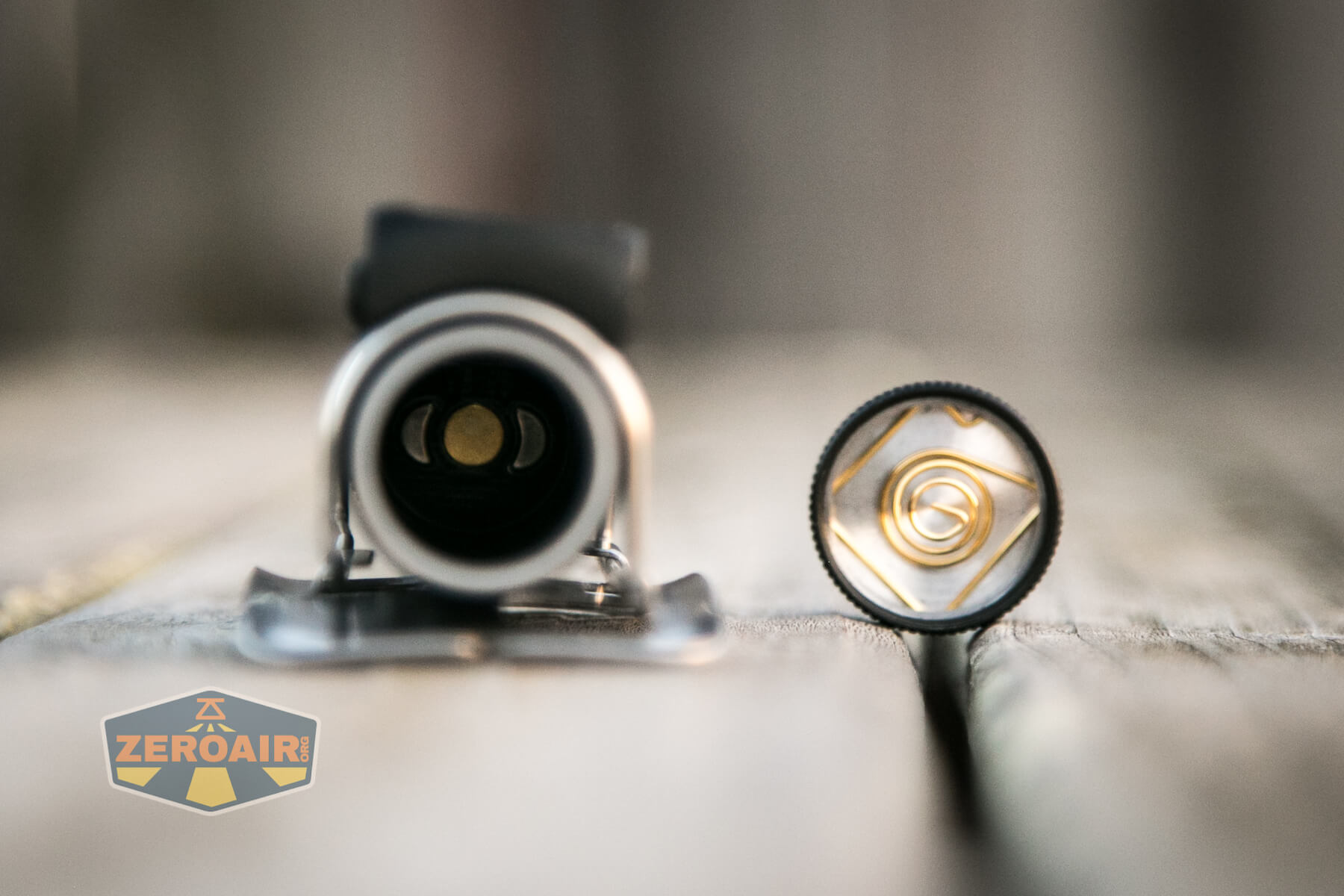

Cyansky HS6R Headlamp tailcap removed

Cyansky HS6R Headlamp tailcap removed

Inside the cell tube is just a button for positive contact on the cell.  The tailcap gets a spring.

Cyansky HS6R Headlamp tailcap removed

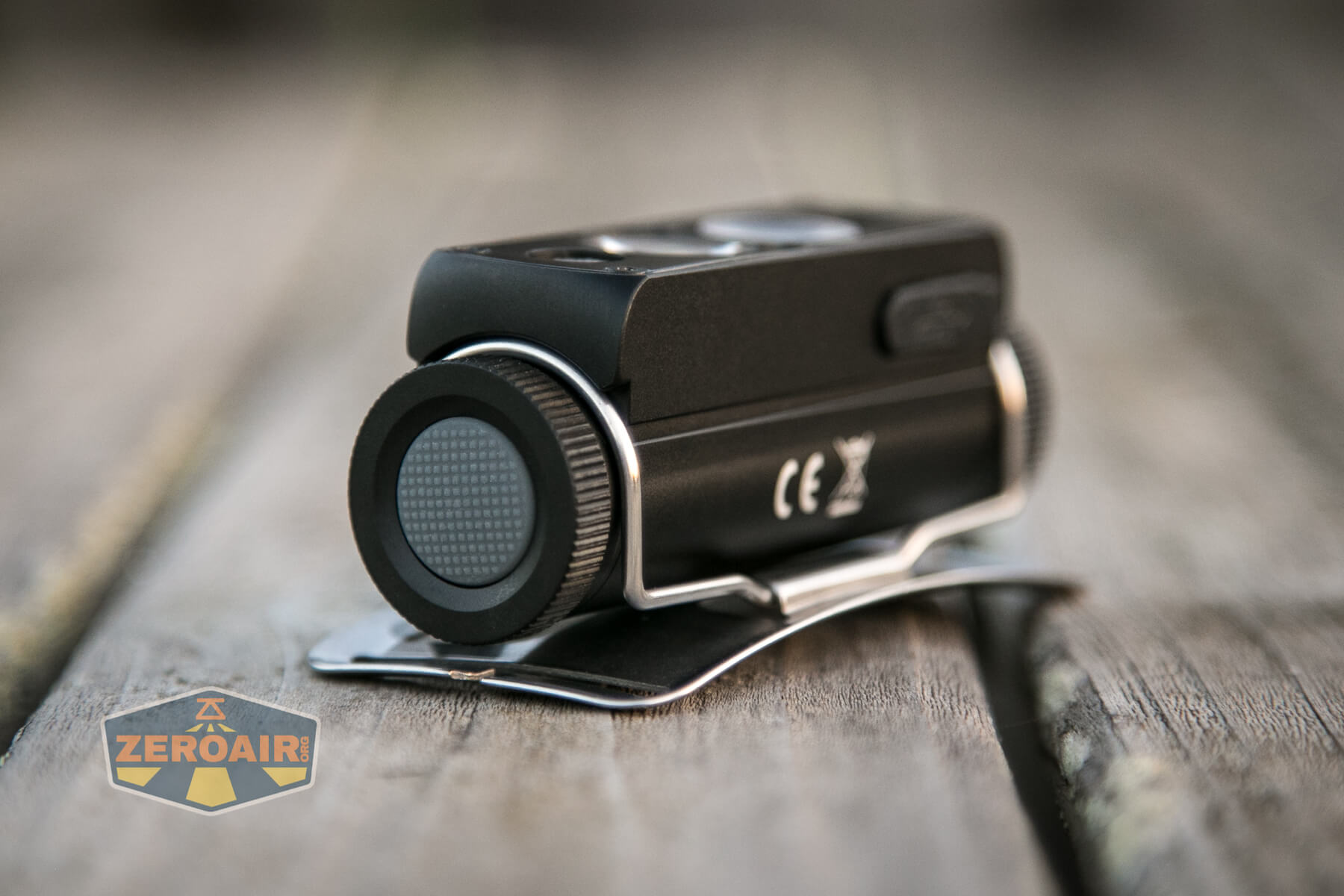

Cyansky HS6R Headlamp Cyansky HS6R Headlamp

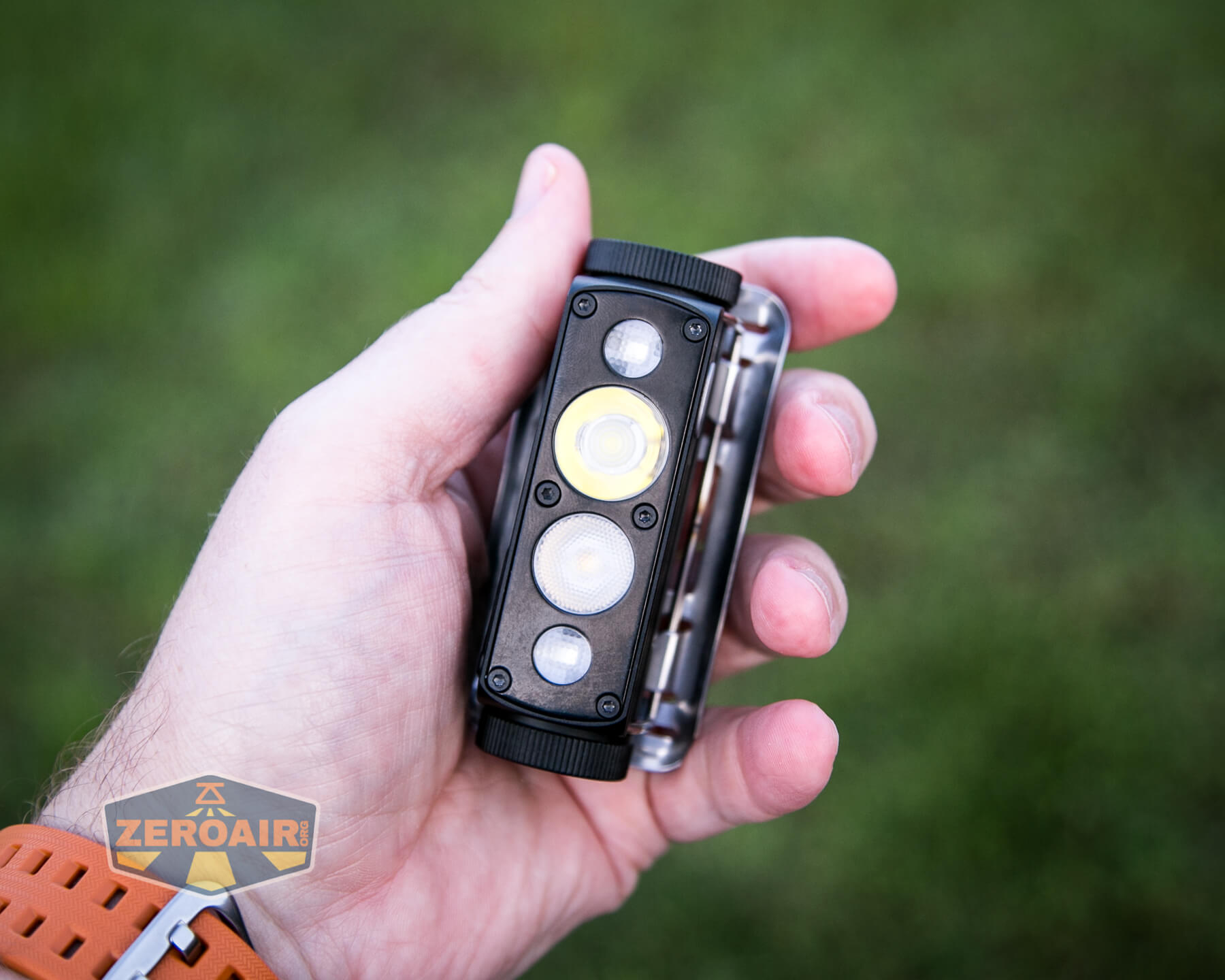

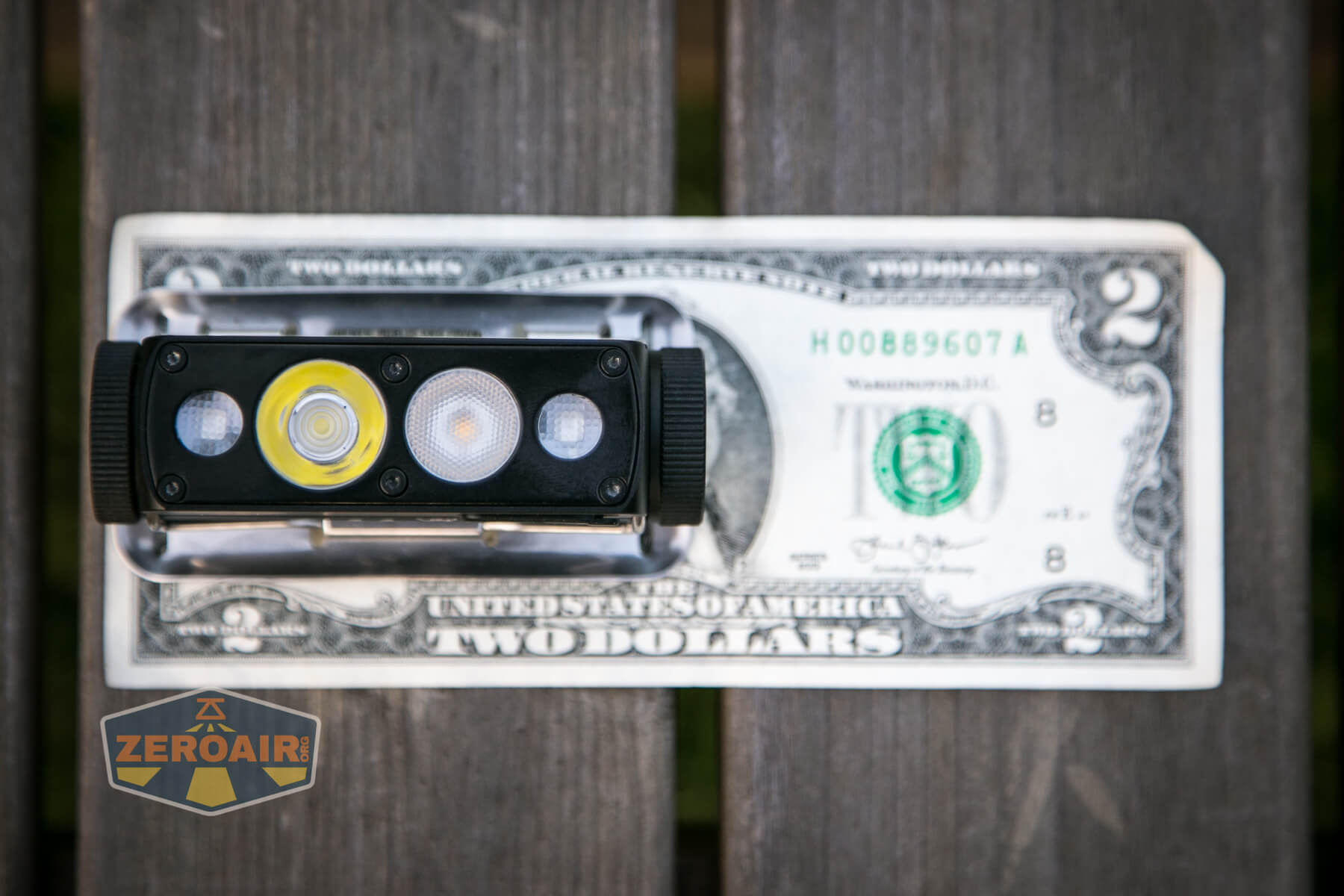

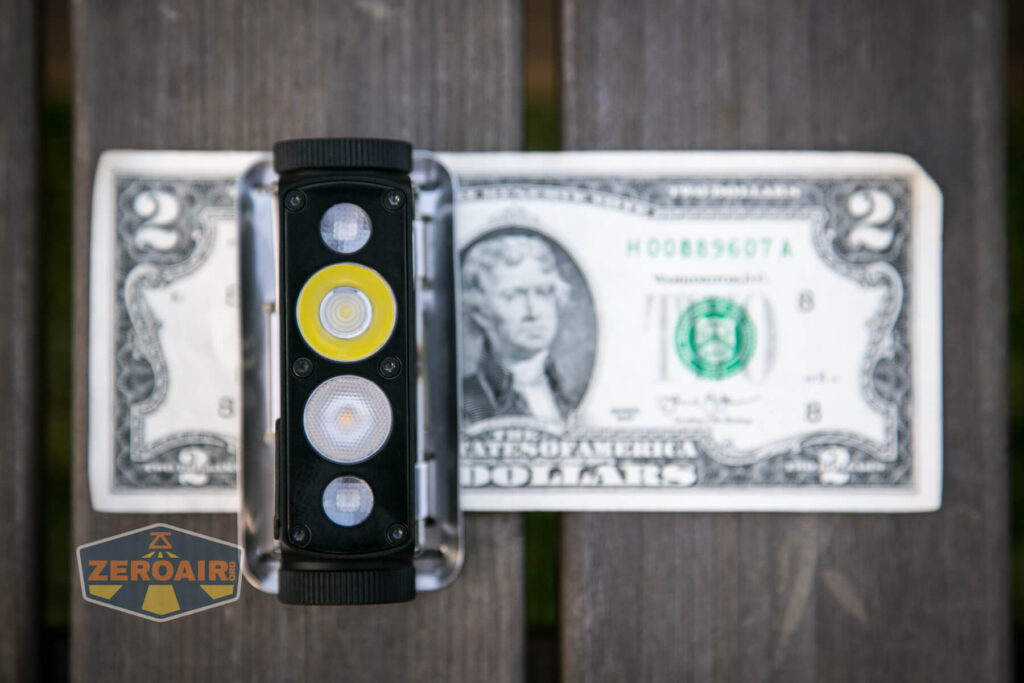

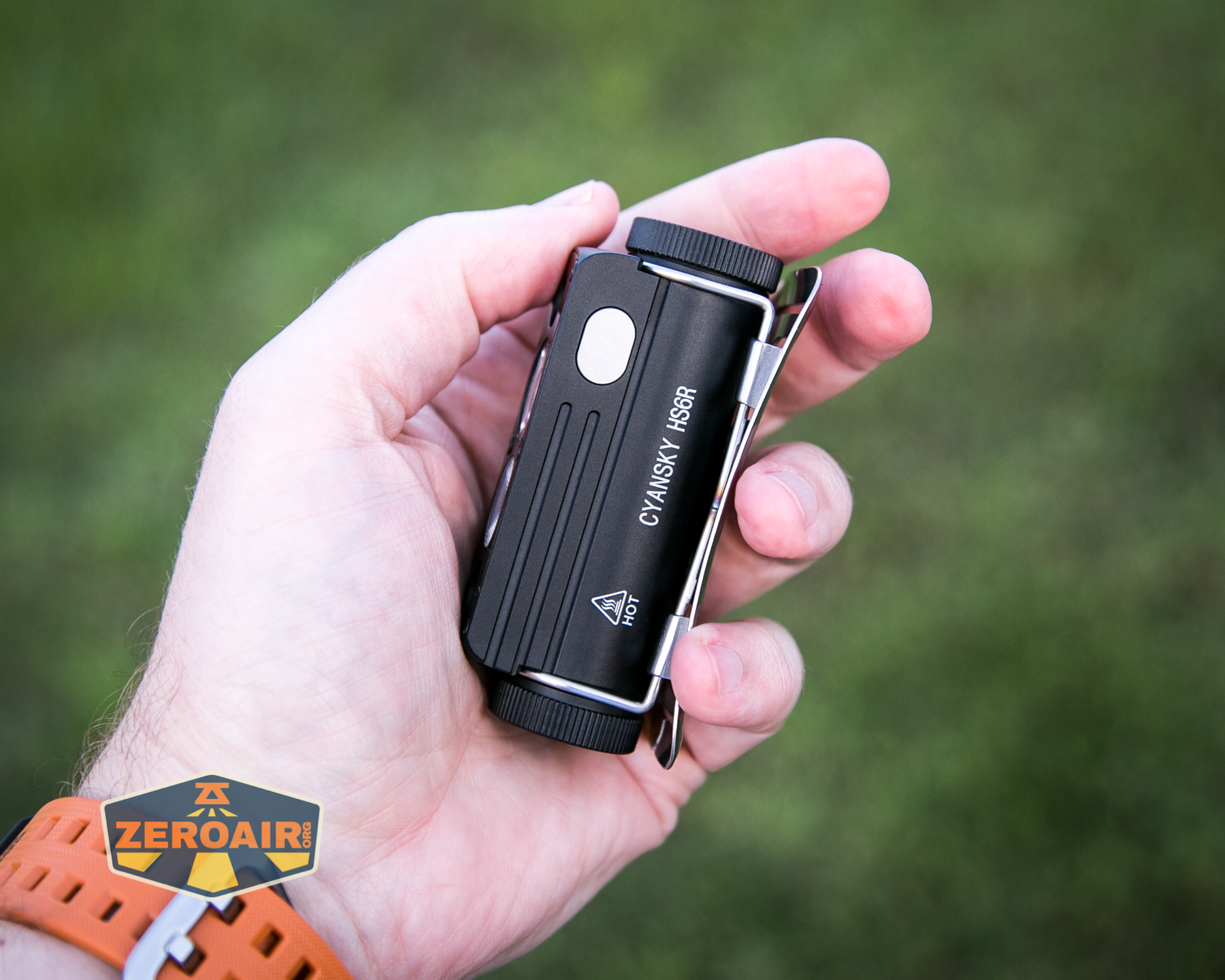

Size and Comps

Dimension: 80mm (length) × 40mm (height) × 36mm (width)

160 grams (battery & headlamp band included)

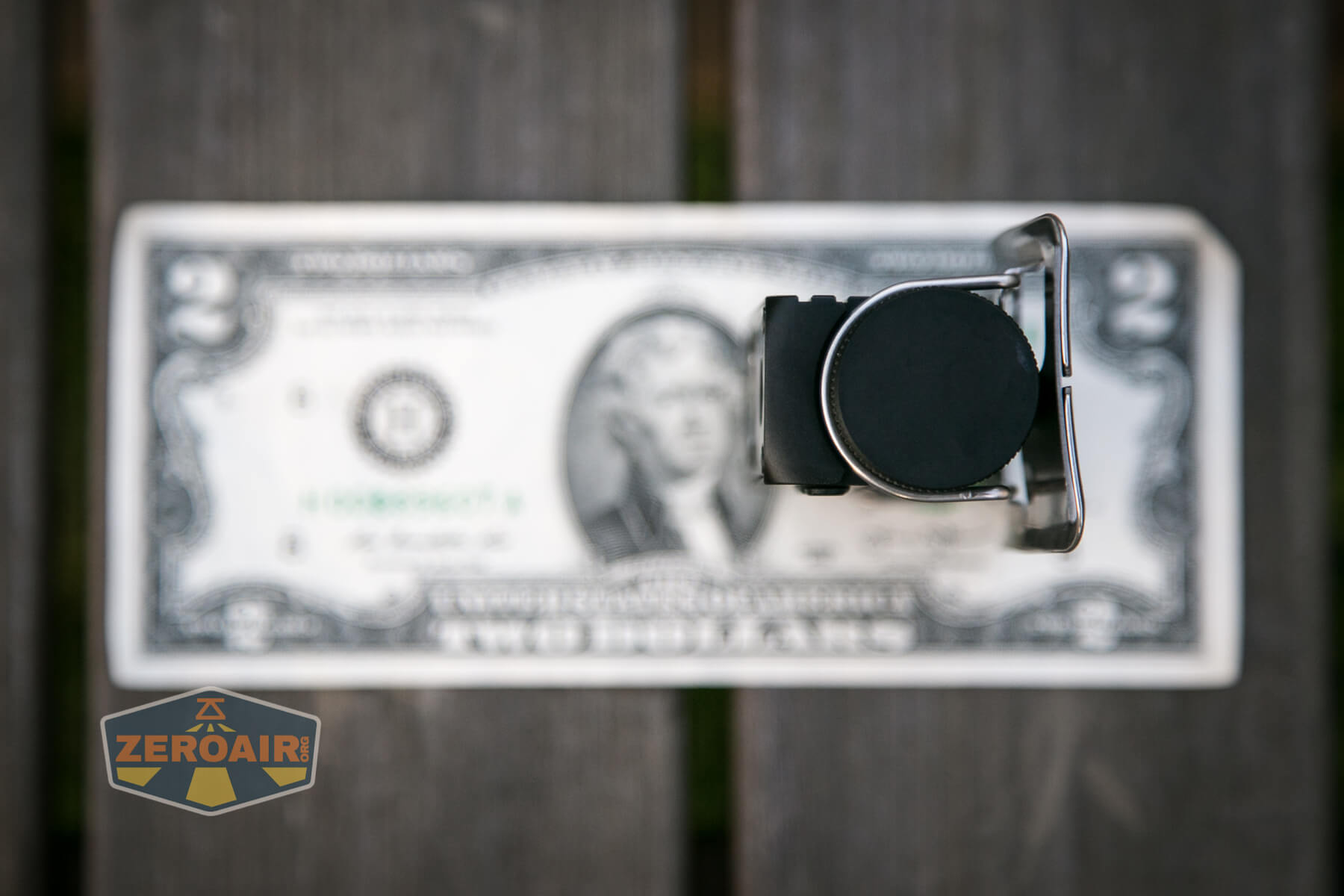

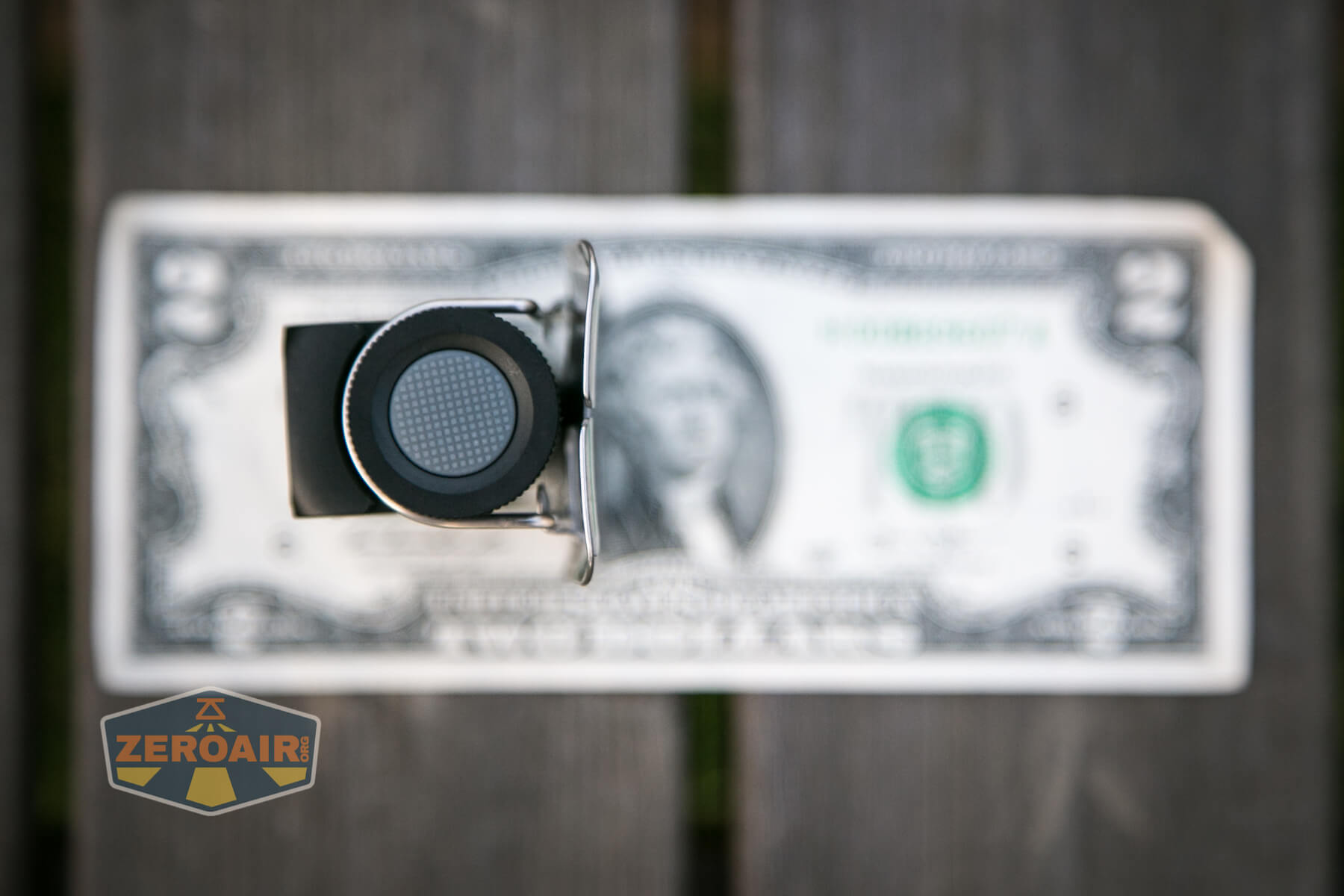

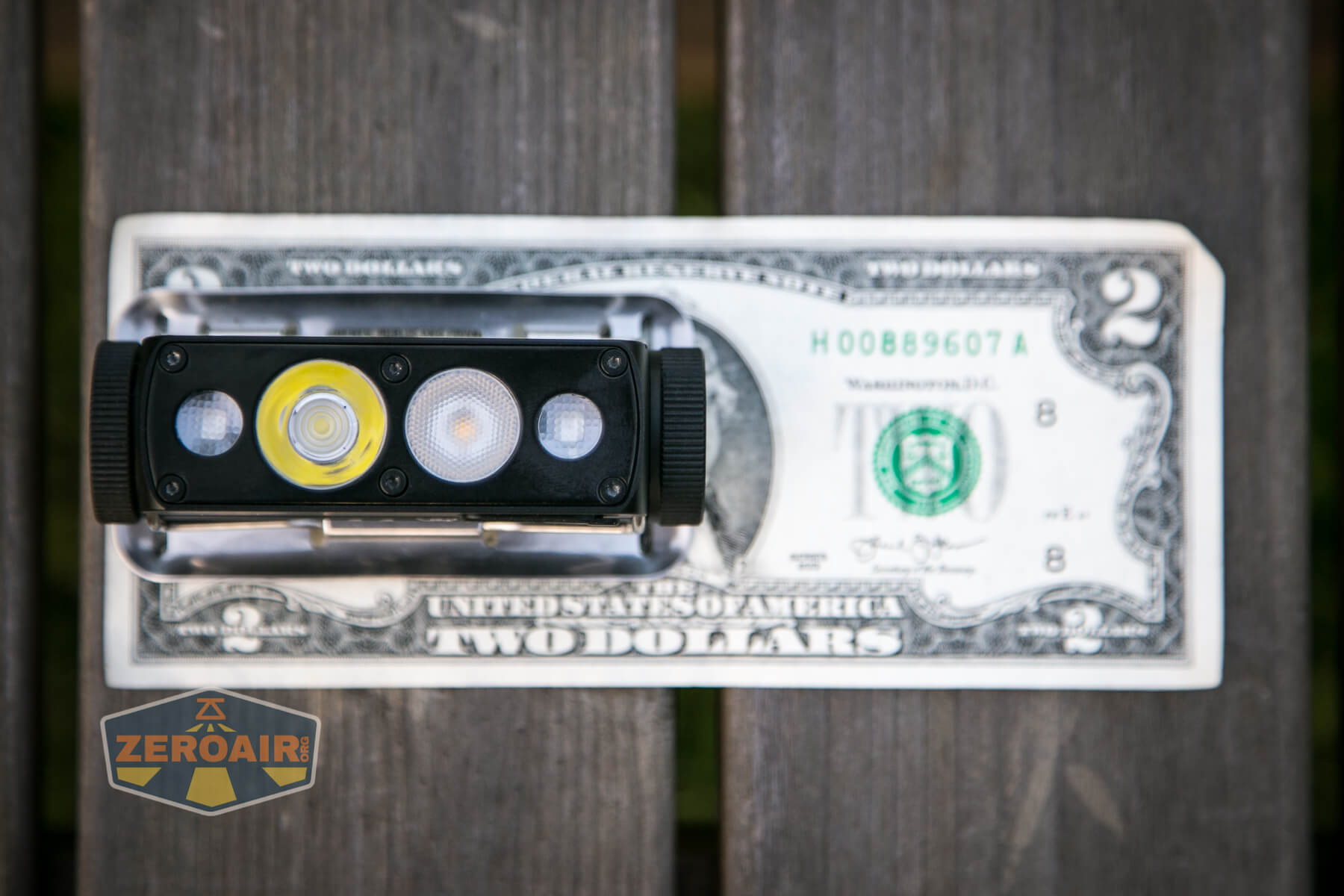

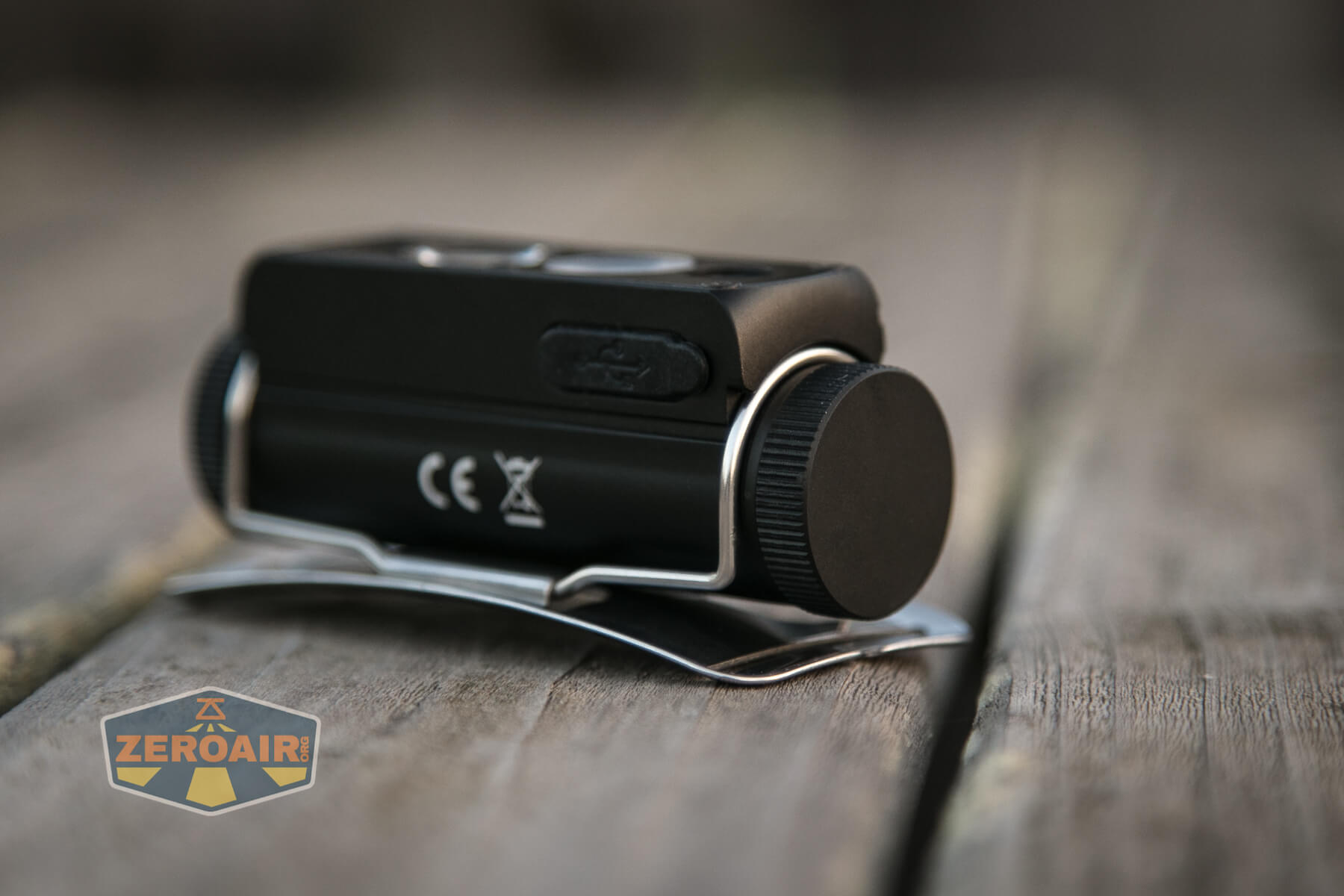

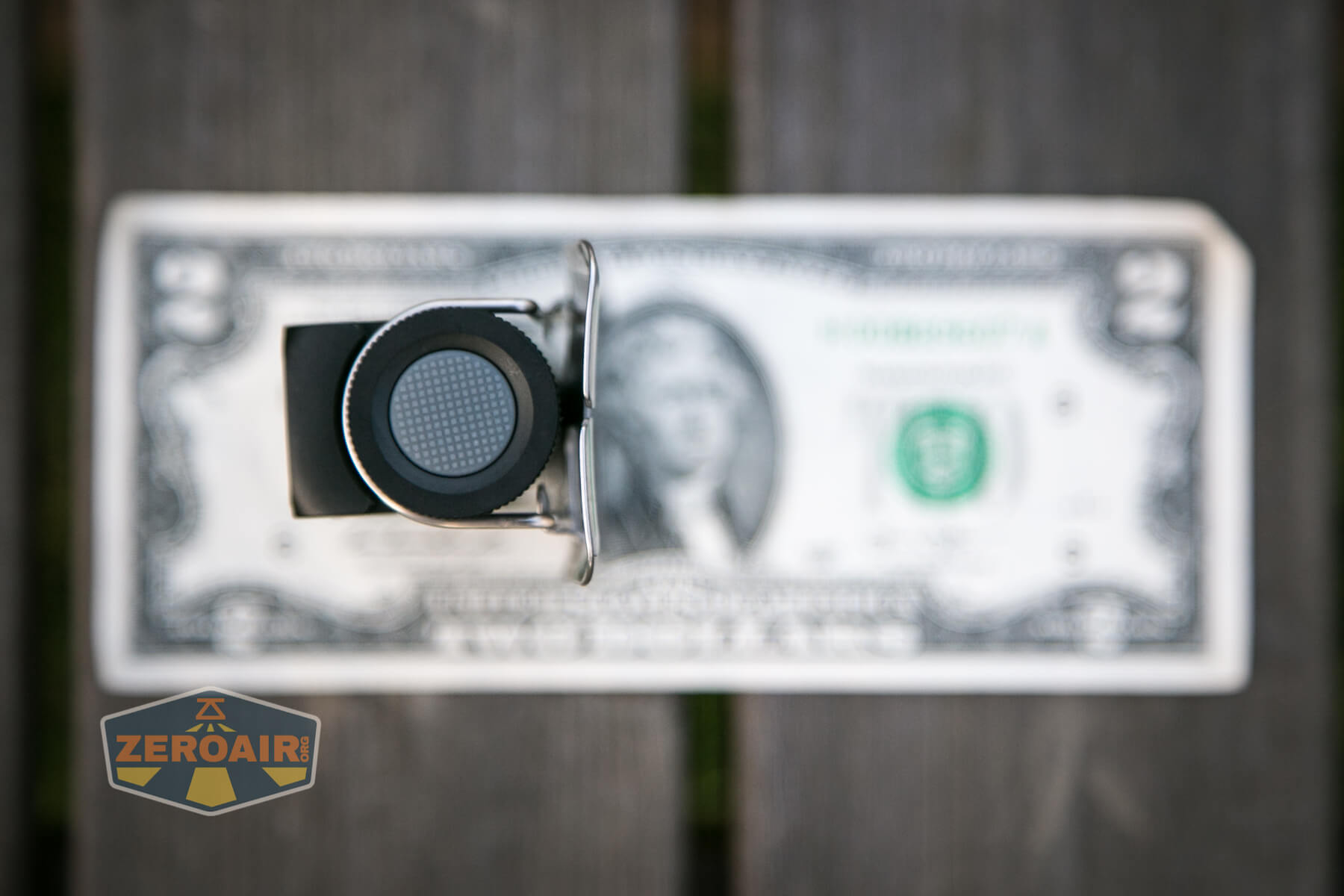

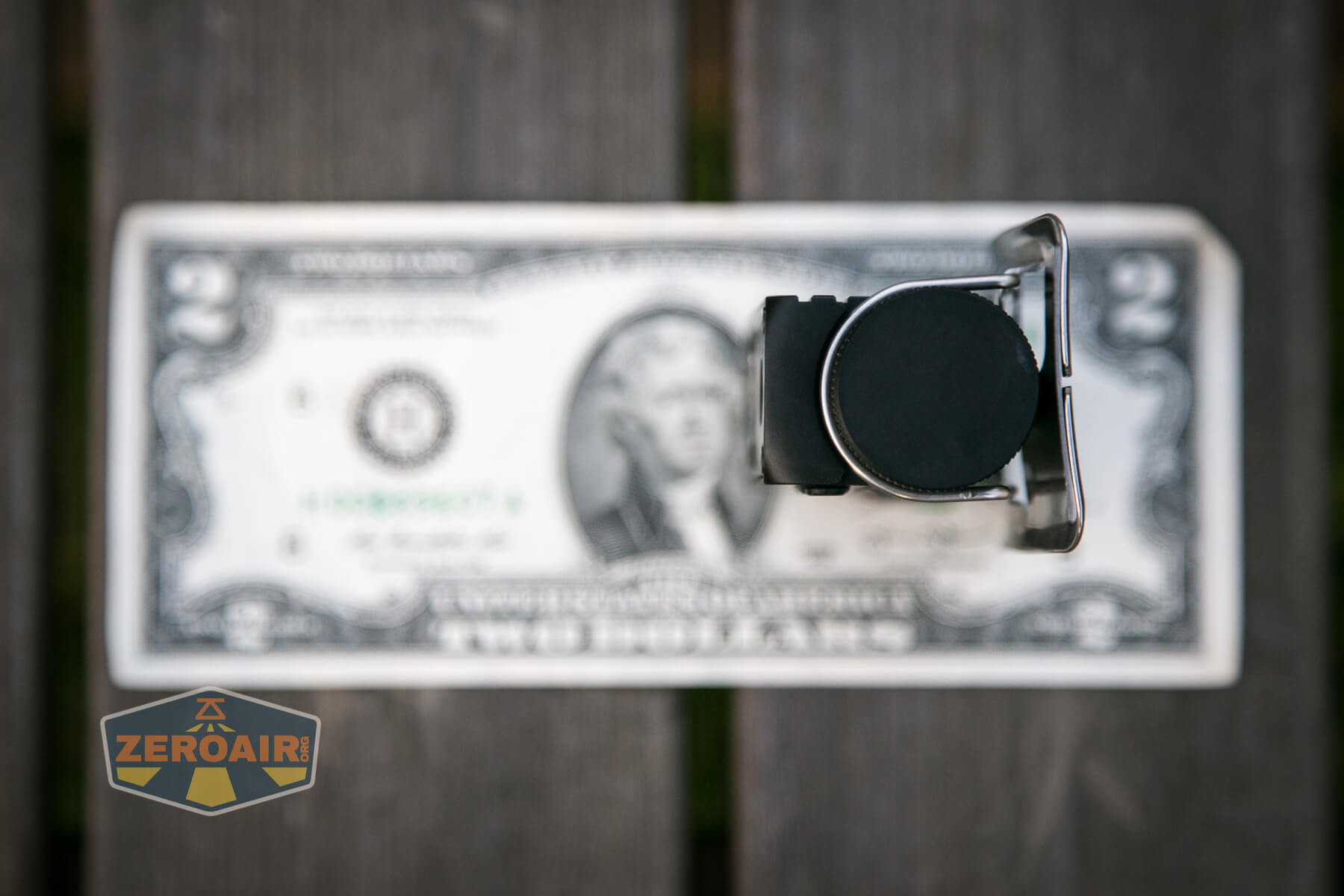

If a light will headstand, I’ll show it here (usually the third photo).  If a light will tailstand, I’ll show that here, too (usually the fourth photo).

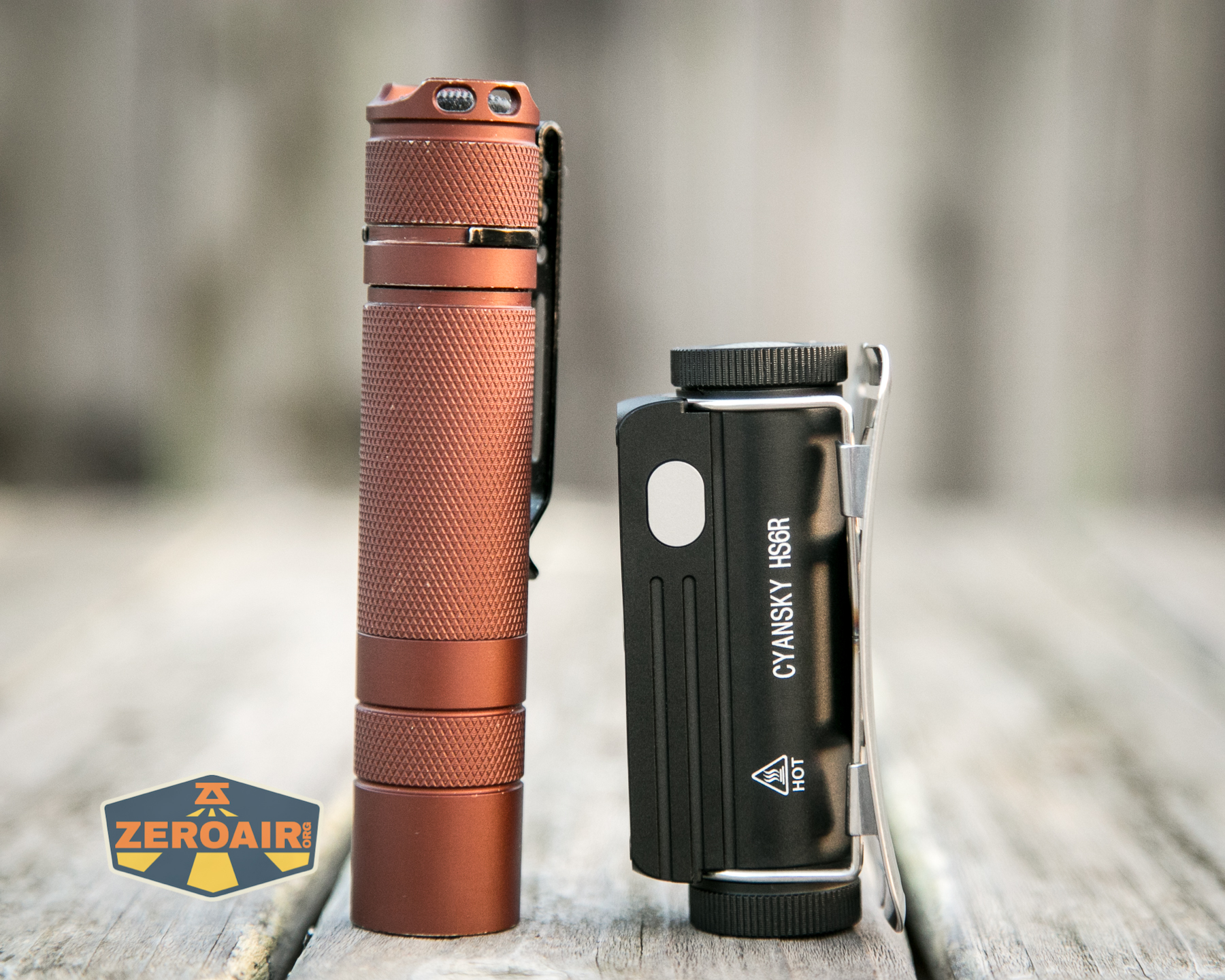

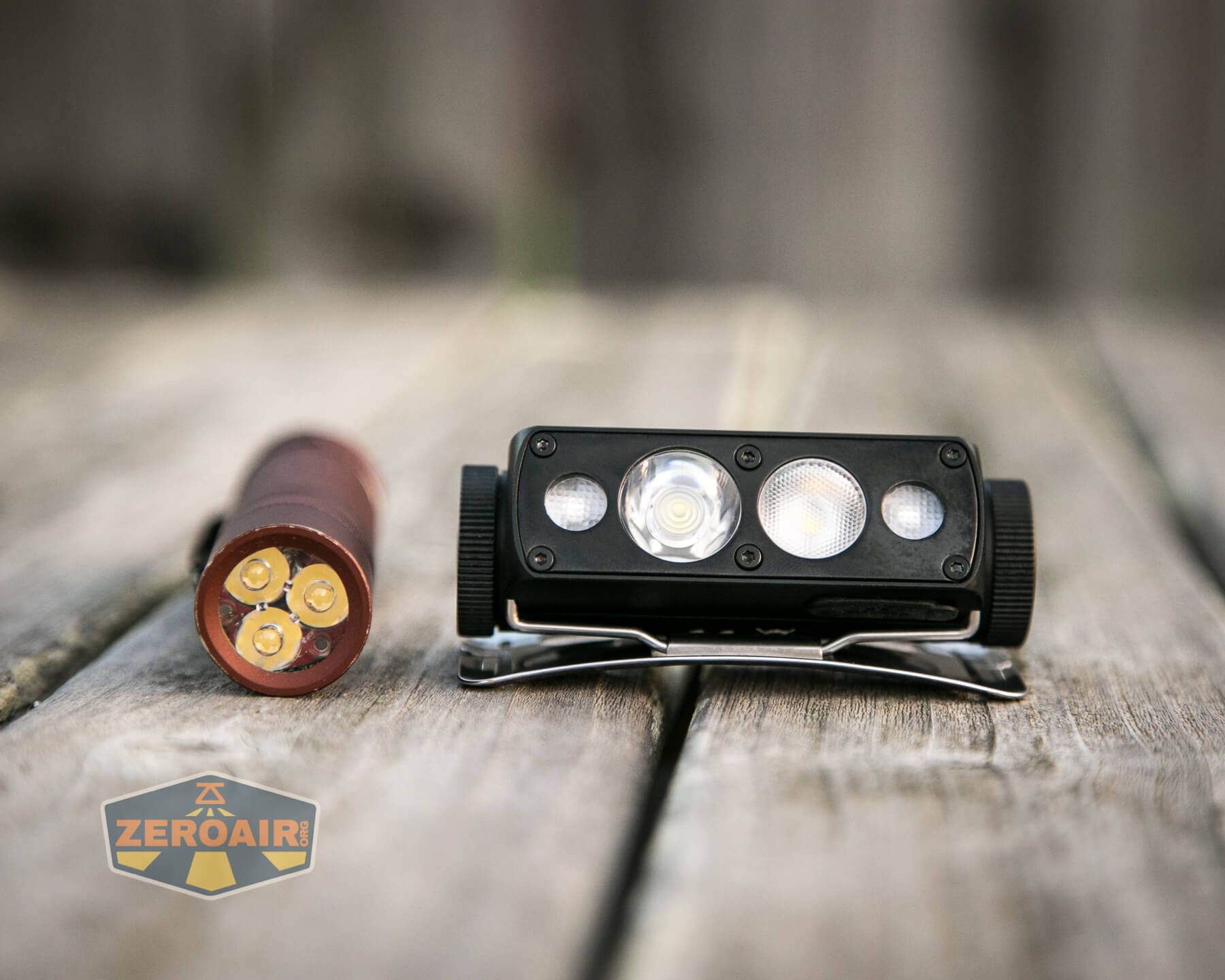

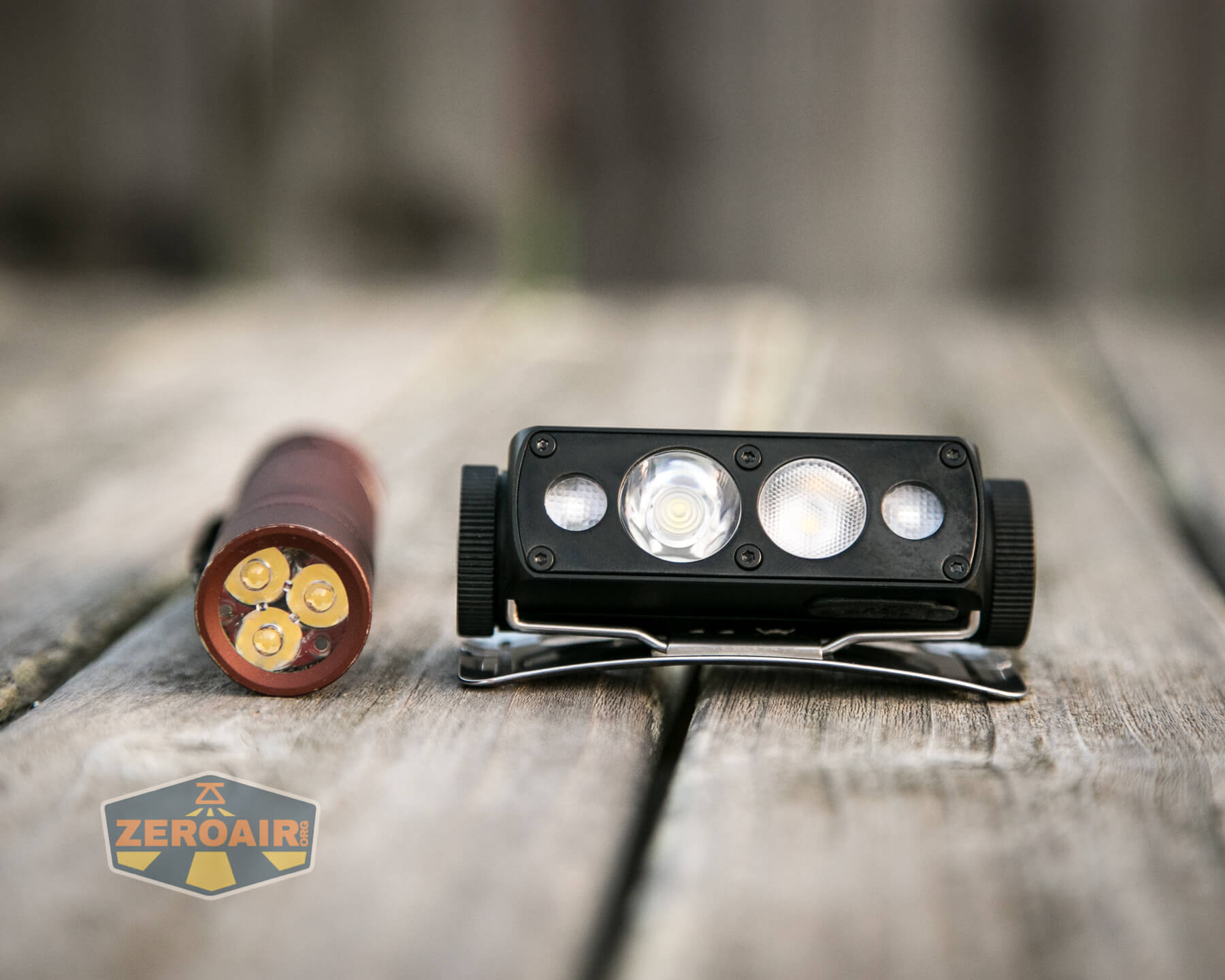

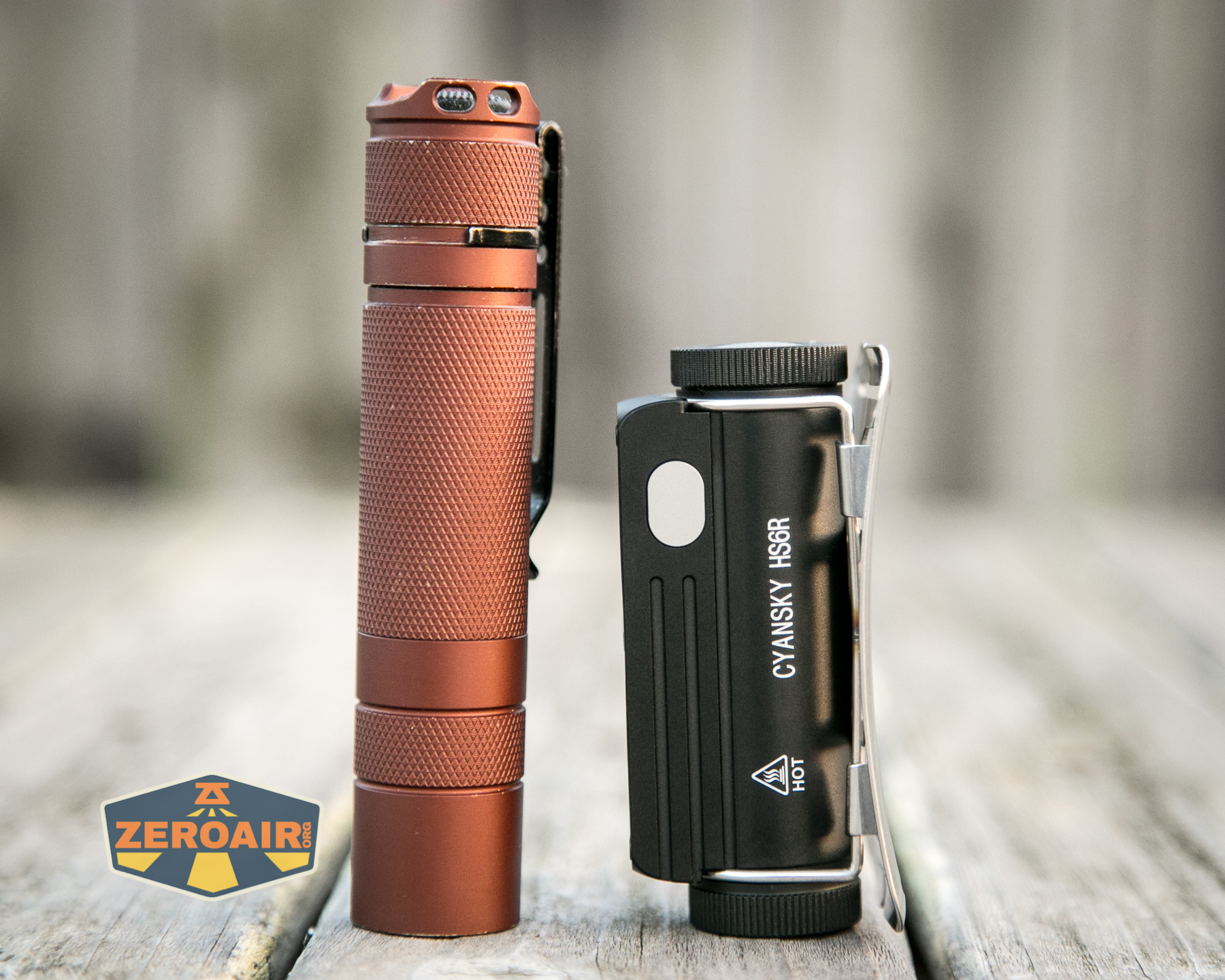

Here’s the test light with the venerable Convoy S2+.  Mine’s a custom “baked” edition Nichia 219b triple.  A very nice 18650 light.

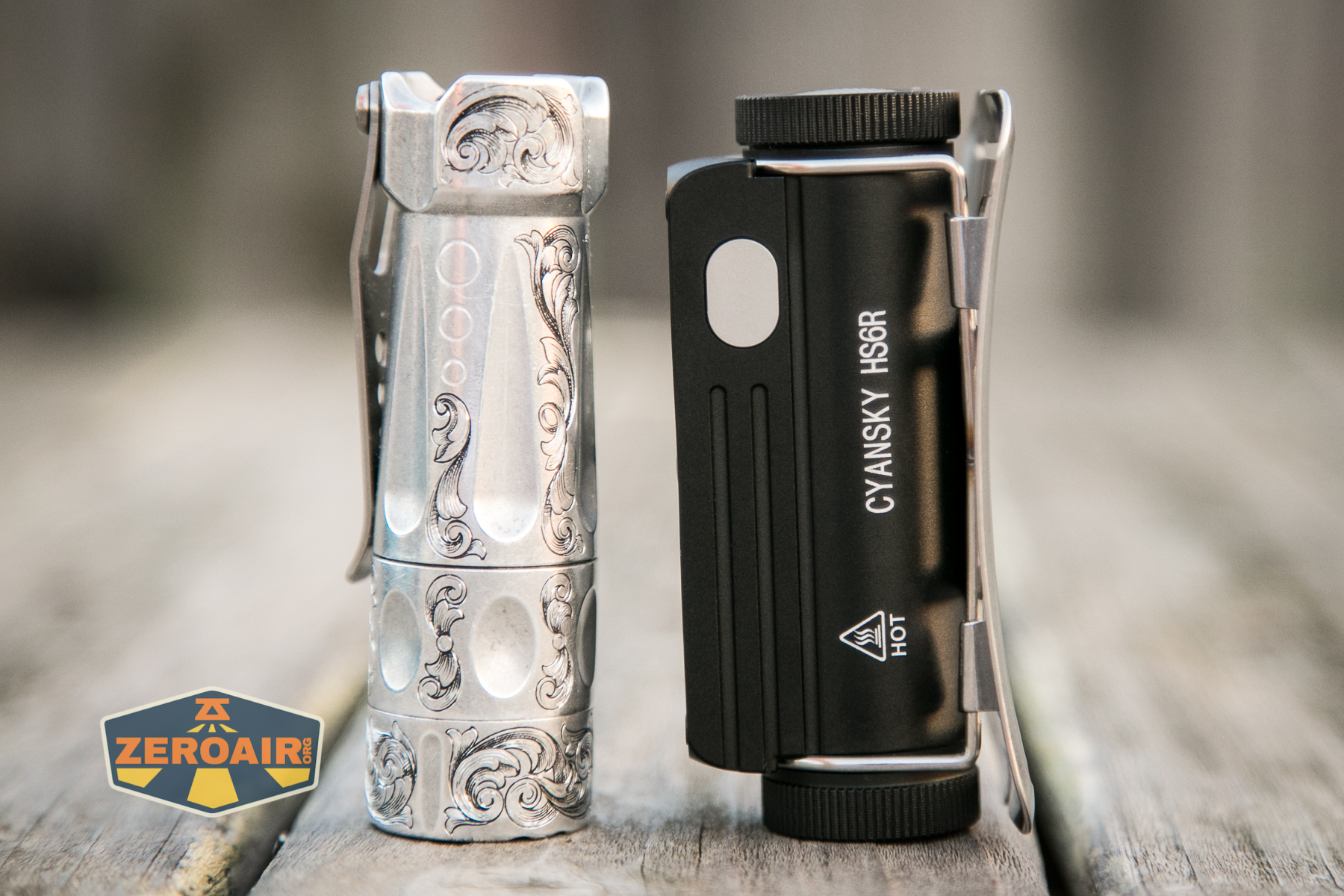

And here’s the light beside my custom engraved TorchLAB BOSS 35, an 18350 light.  I reviewed the aluminum version of that light in both 35 and 70 formats.

Cyansky HS6R Headlamp with torchlab boss 35

Retention and Carry

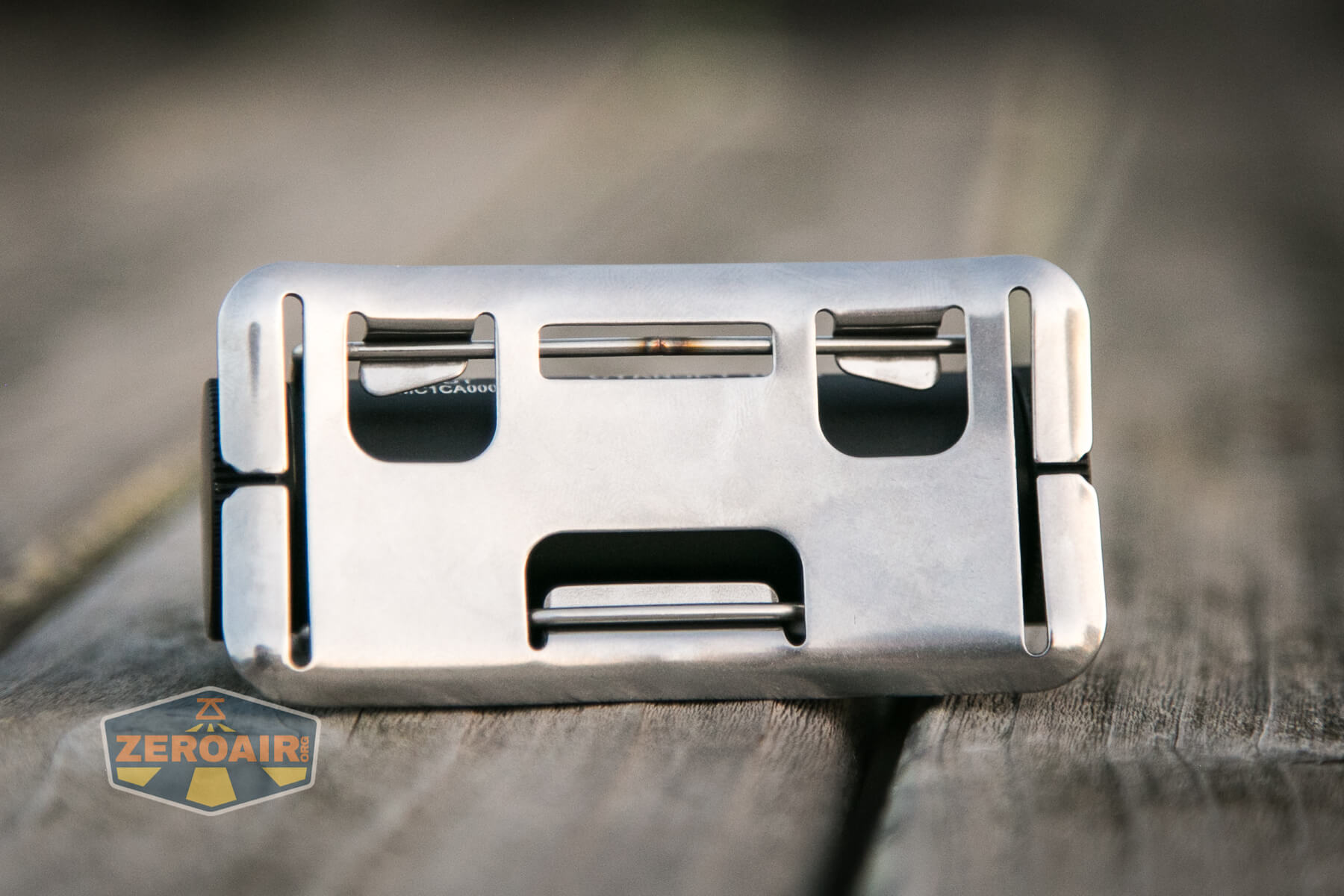

As stated above, the connector is metal.  It’s a nice metal though and has a design that allows it to be comfortable when worn.  So don’t let the fact that its metal makes you think it’s also going to be uncomfortable.

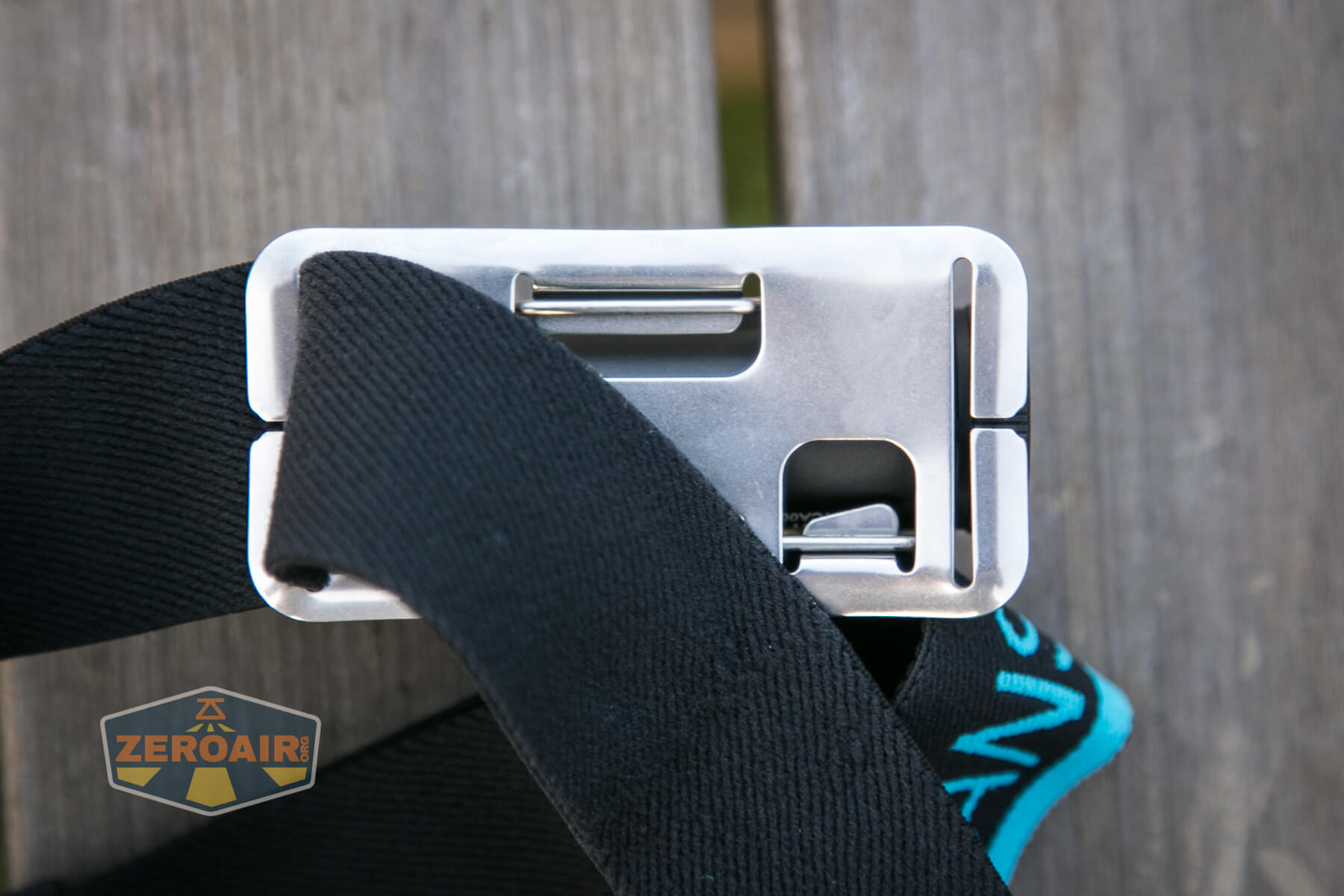

Cyansky HS6R Headlamp metal

It’s a simple task to remove the headband from this connector, too.

Cyansky HS6R Headlamp metal

There’s probably enough give in that thin metal bar to remove the back plate, but I didn’t force mine.  Even if you remove that, though, you’re still left with the thin metal bar being attached to the light itself.  I believe it can all come off, but as I’m not sure how (or really… why…), I did not pursue it.

Cyansky HS6R Headlamp metal

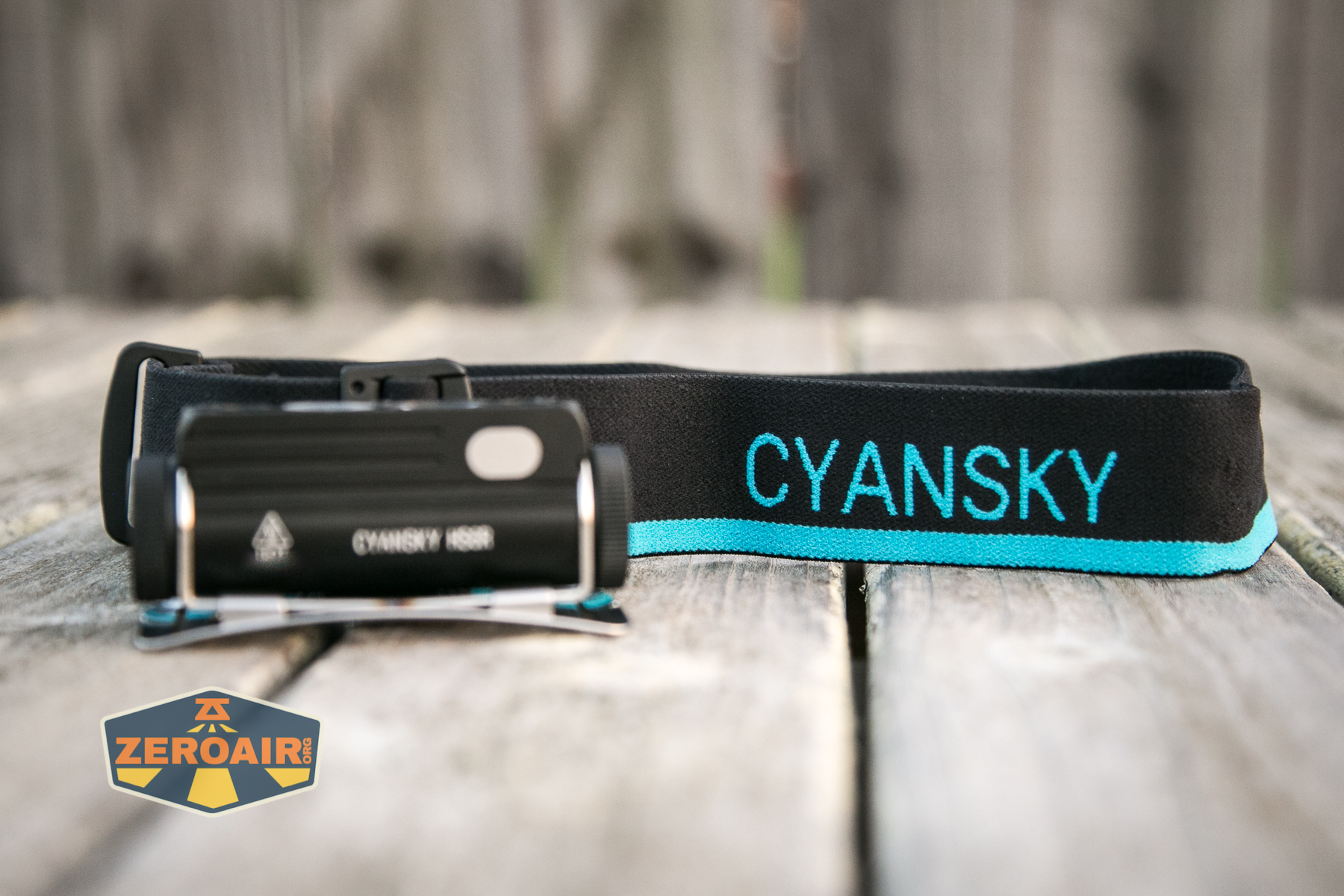

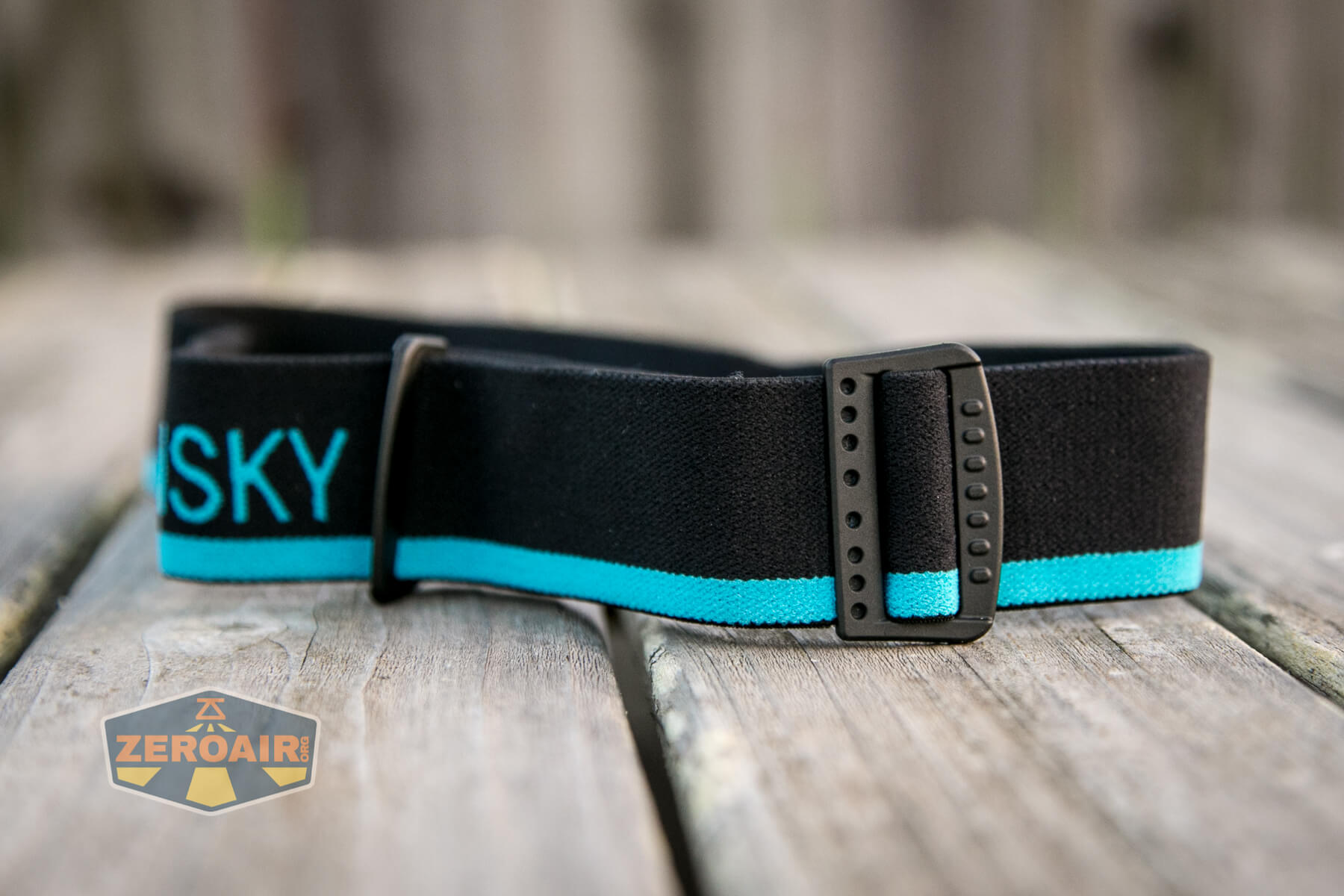

The headband is simple and has Cyansky branding.  There is no over-the-top option.

Cyansky HS6R Headlamp headband

The one band is adjustable.

Cyansky HS6R Headlamp headband

Power and Runtime

The Cyansky HS6R headlamp is powered by a single lithium-ion cell.  Cyansky includes an appropriate cell – a 2600mAh 18650.

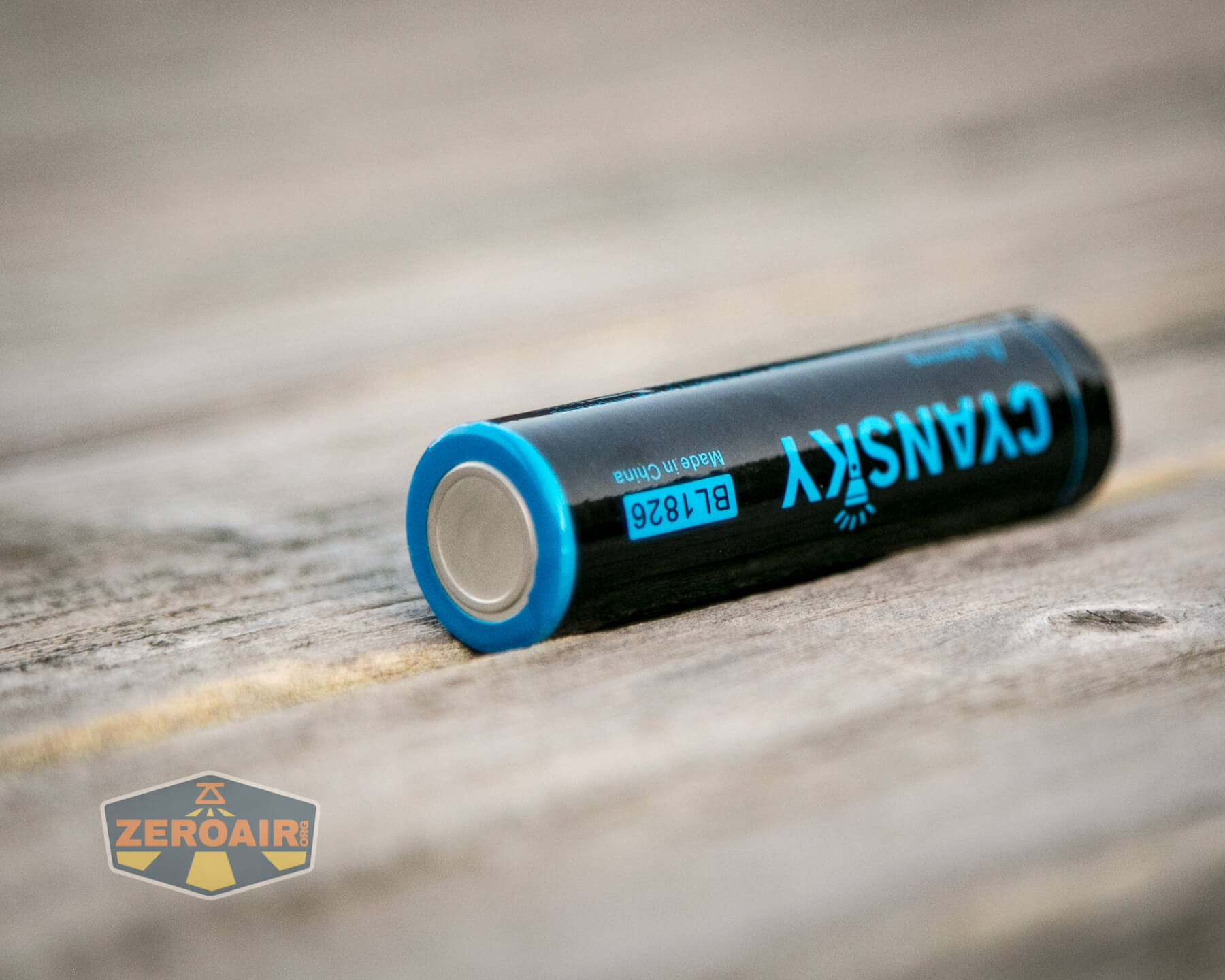

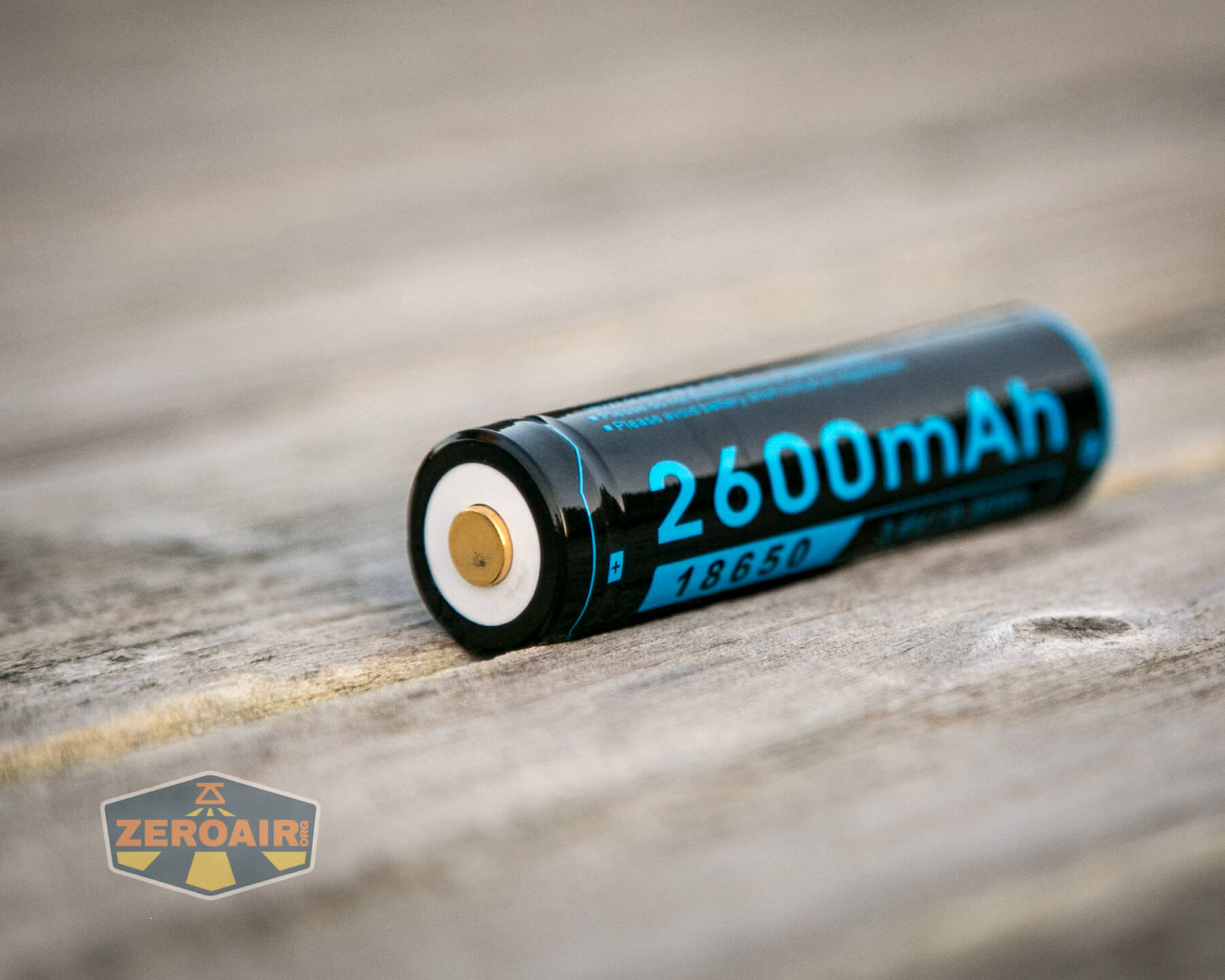

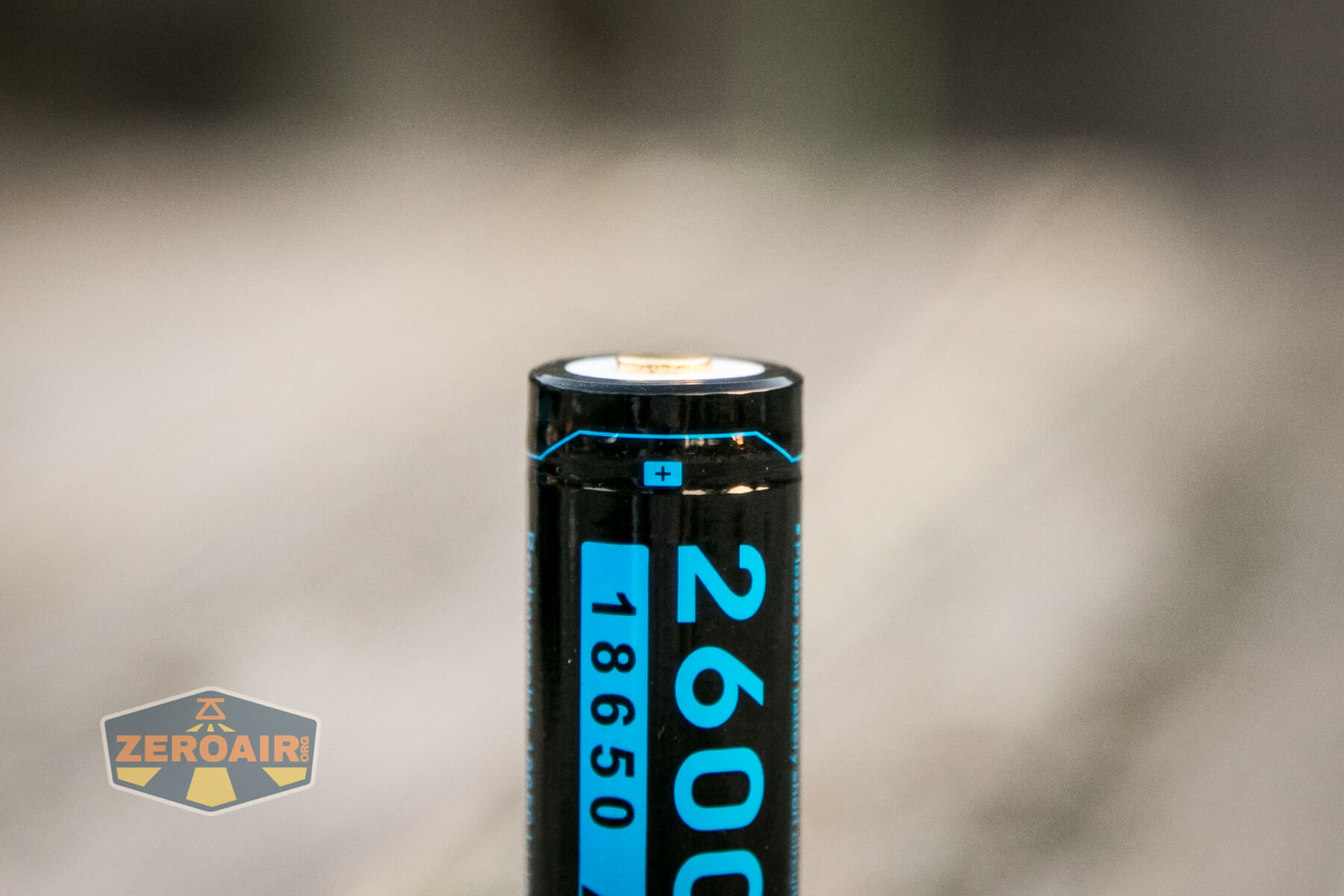

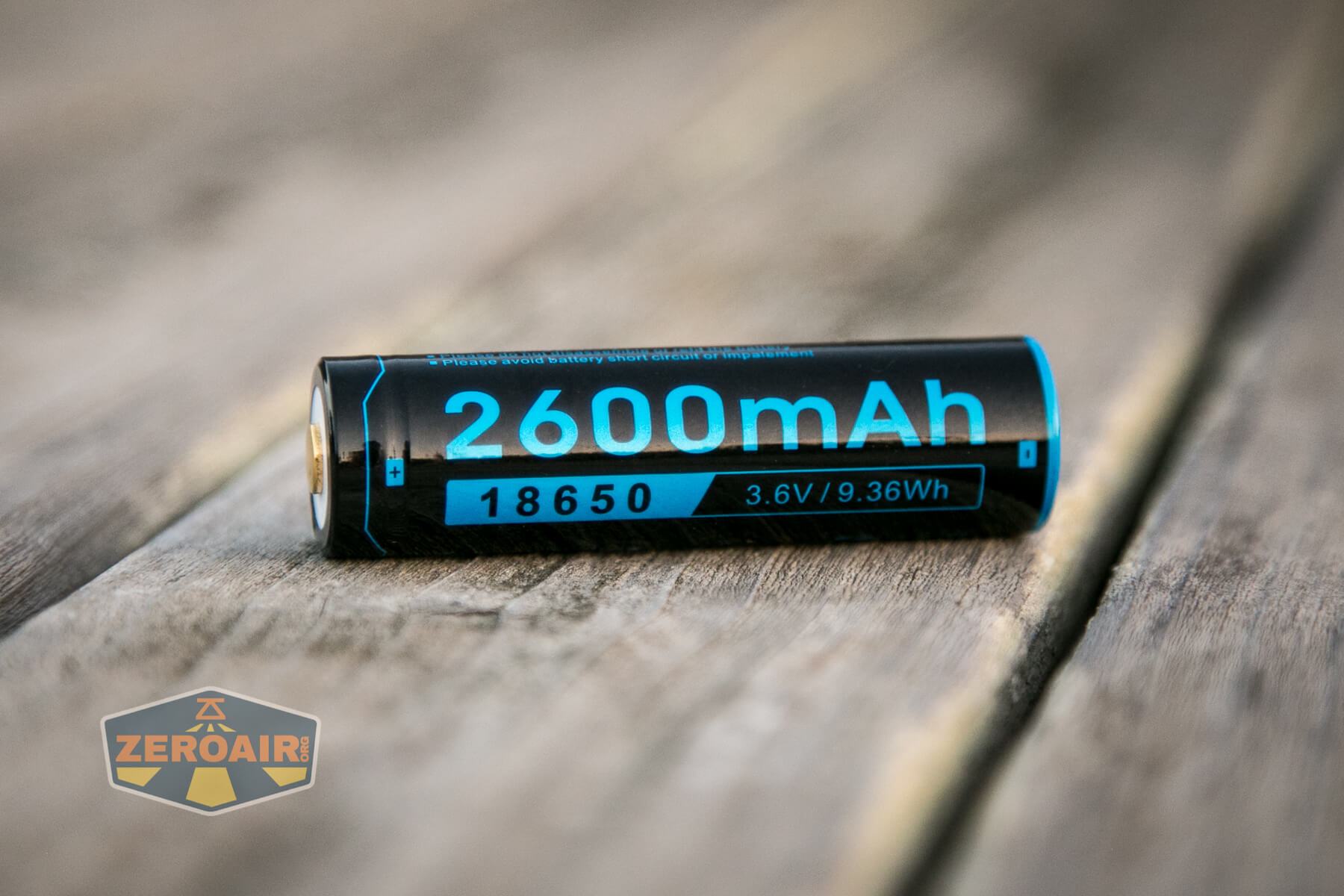

Cyansky HS6R Headlamp included 18650

As far as usage goes, this is a standard button top 18650.

Cyansky HS6R Headlamp included 18650

The cell fits into the Cyansky HS6R headlamp in the usual way – positive terminal toward the “head.”

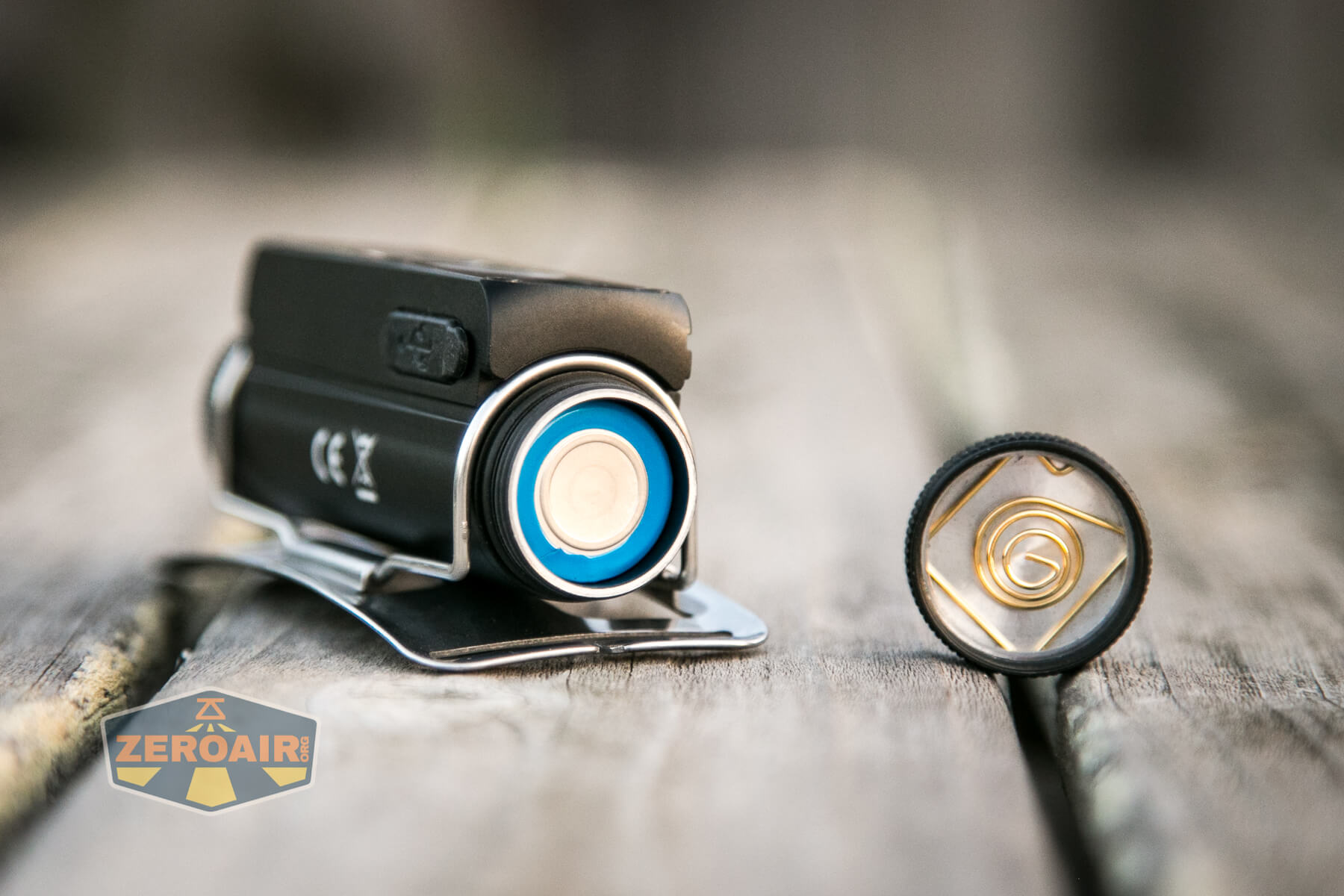

Cyansky HS6R Headlamp included 18650 installed

Here are a few runtimes – five actually. It’s possible to run the main (Spot) emitter with either red or Flood, but I tested the highest possible settings as my only “Both” mode.  I believe the Flood output is limited to “Medium” when the Spot emitter is on Turbo (but only Turbo – the Flood emitter retains all 3 settings if the Spot is off or on any of the lower 3 output levels.)

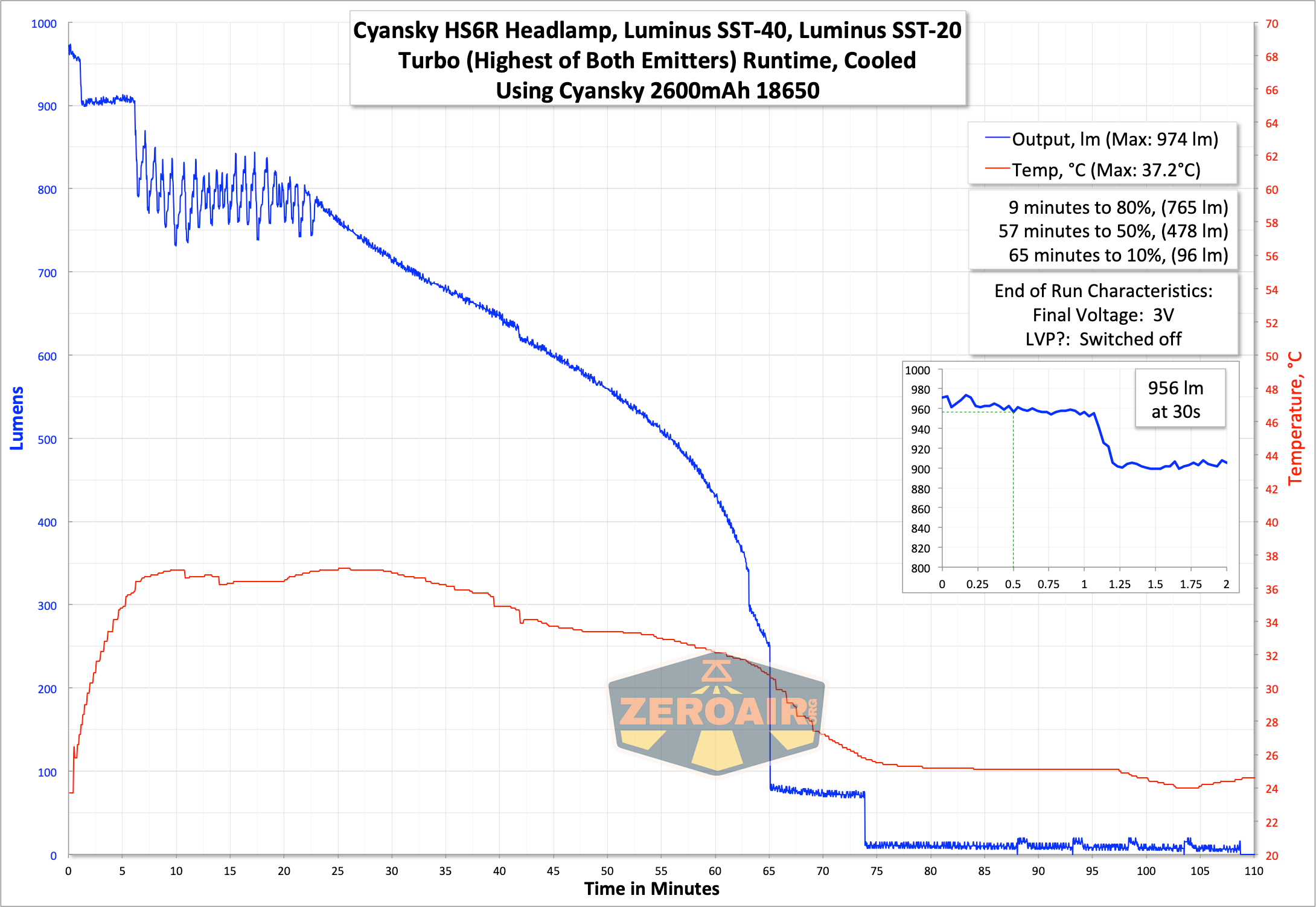

Cyansky HS6R Headlamp runtime graph

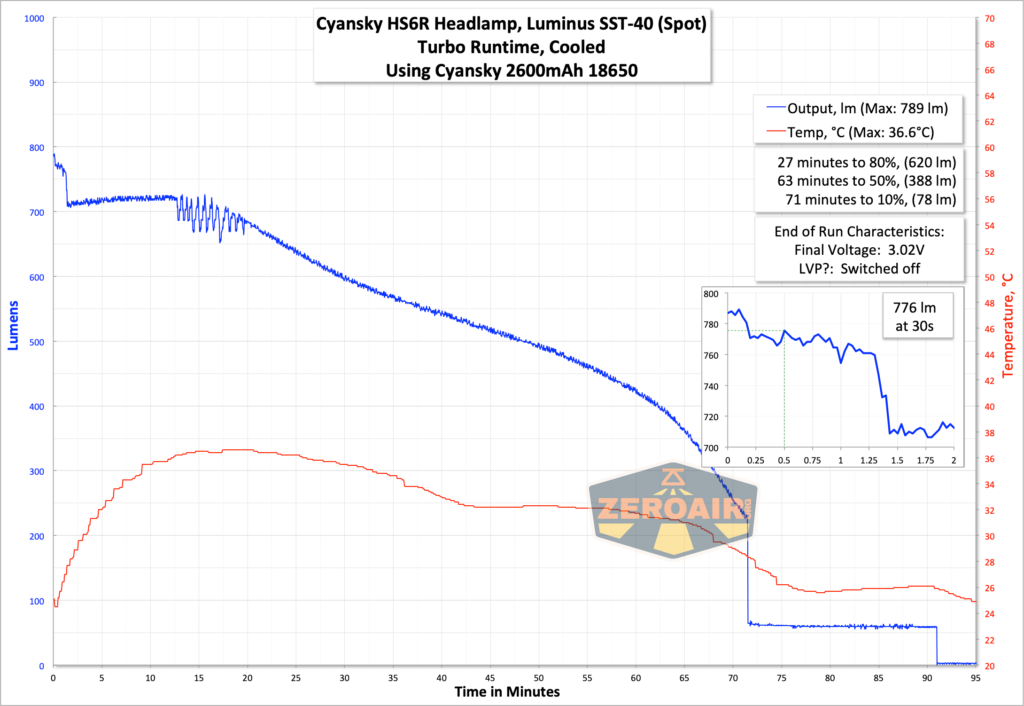

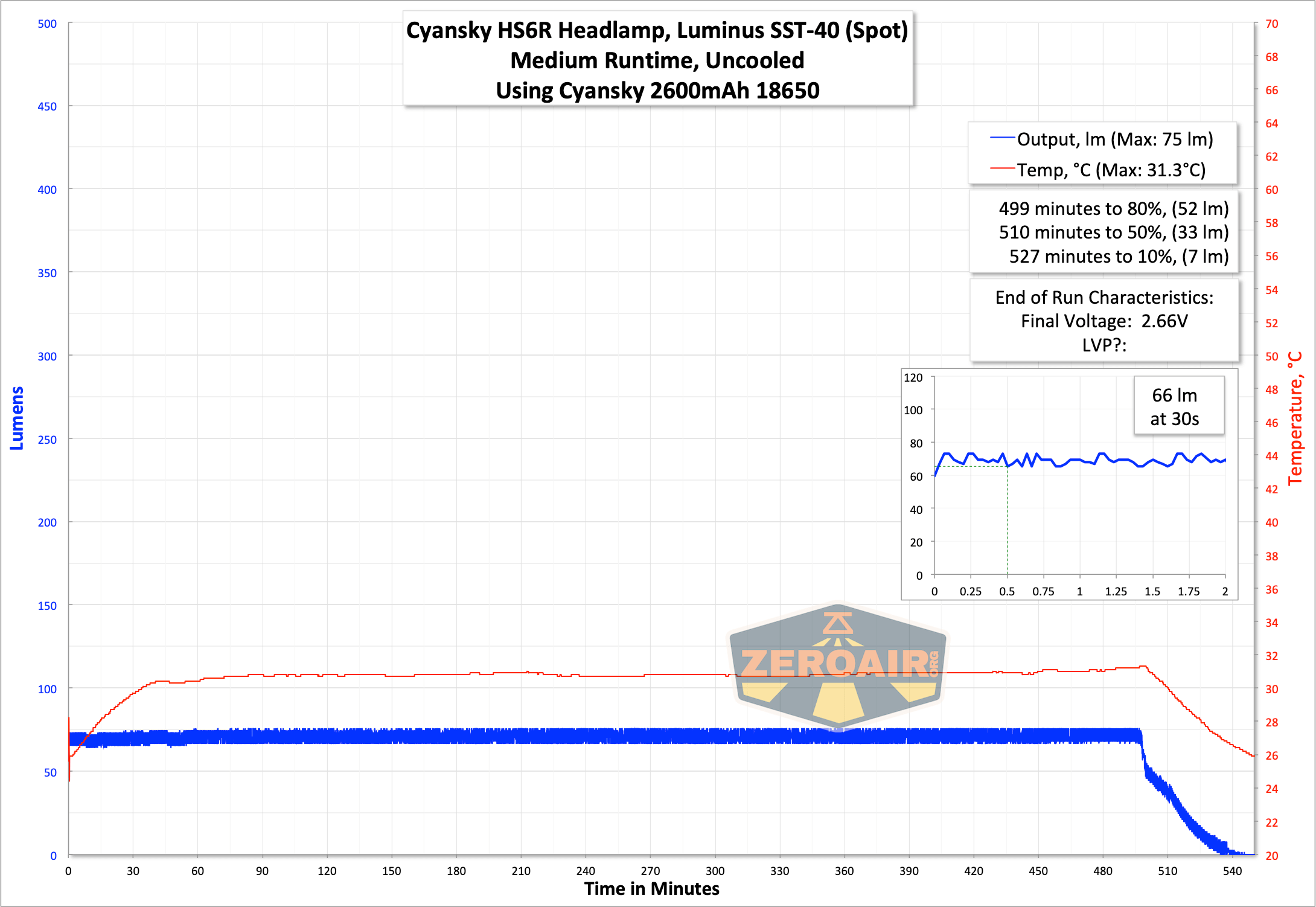

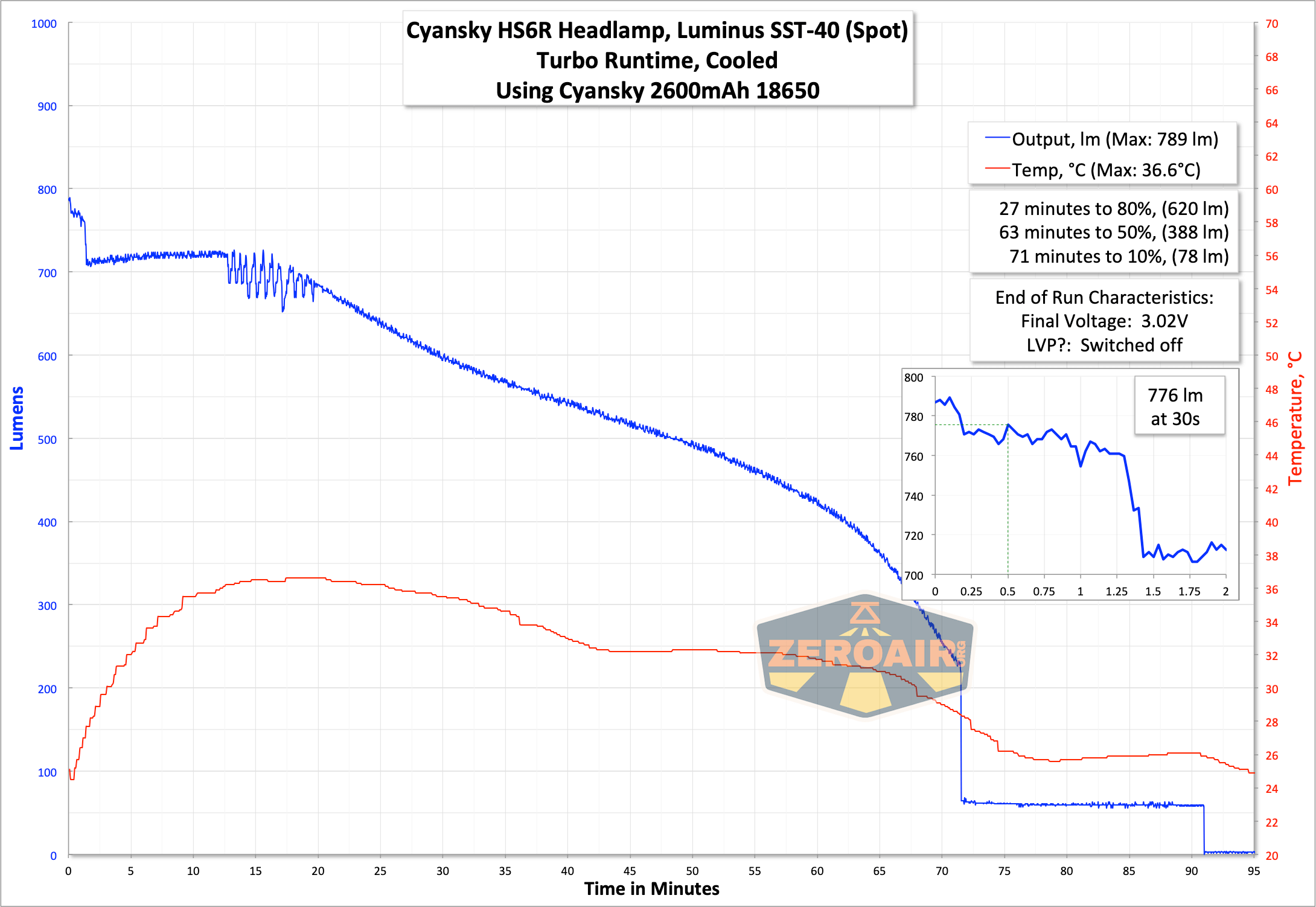

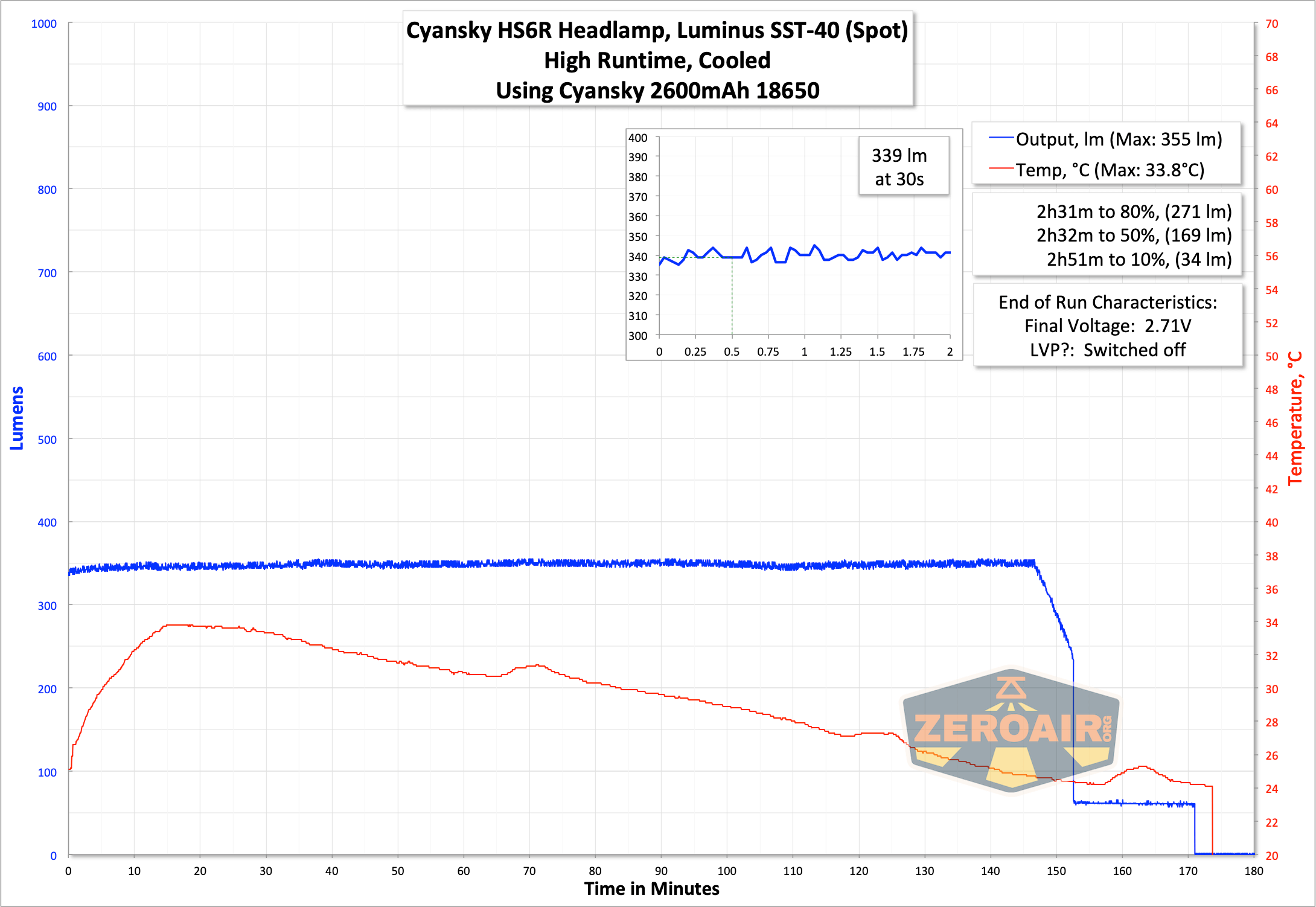

Next is a few output tests for the Spot emitter.

Cyansky HS6R Headlamp runtime graph Cyansky HS6R Headlamp runtime graph

Cyansky HS6R Headlamp runtime graph

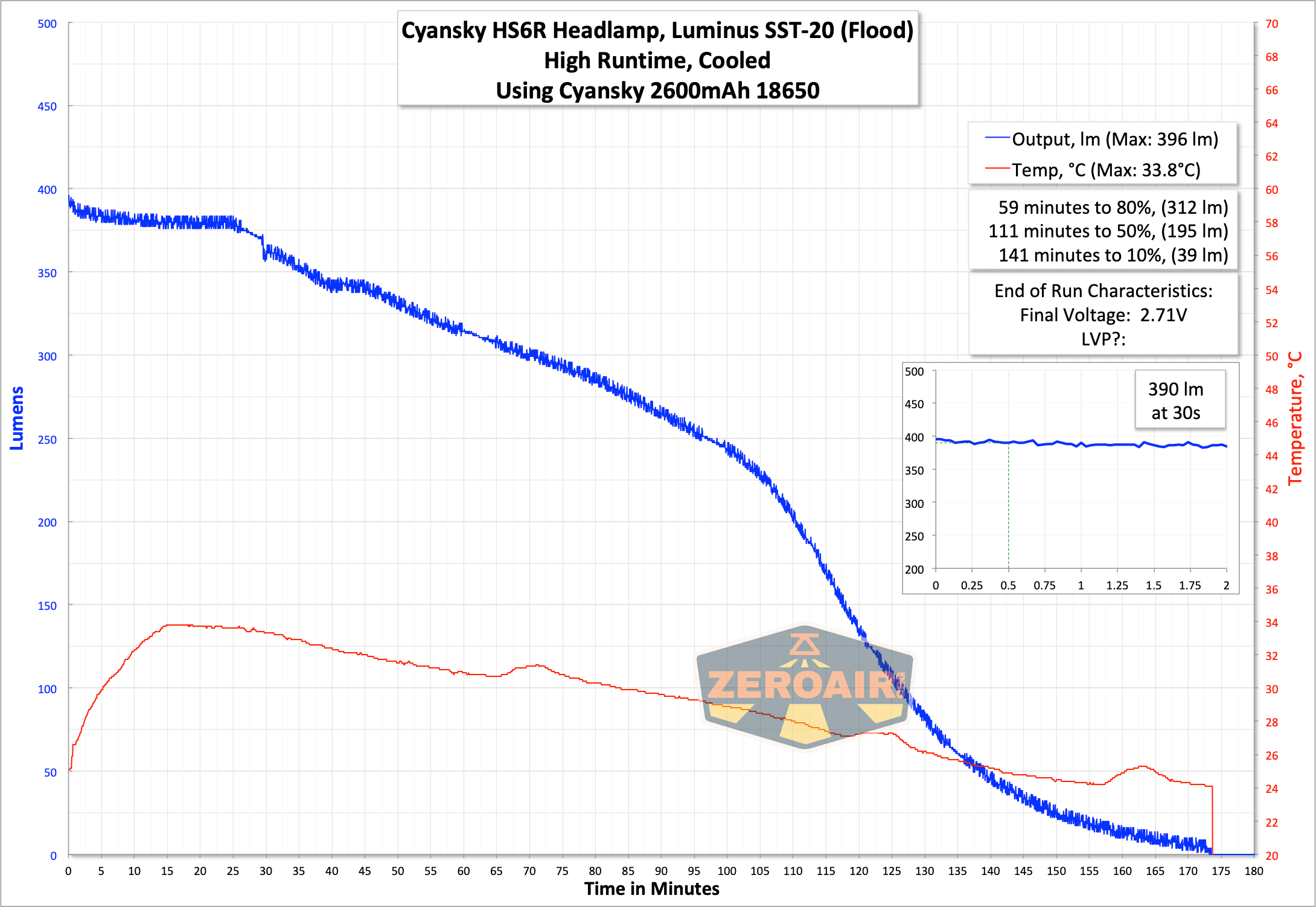

And finally, one output test for the Flood emitter.

Cyansky HS6R Headlamp runtime graph

In this and some other tests, you may note (as on the last runtime graph above) that the blue output line is “thick” – that’s not evidence of the output jumping around… just essentially just some sensor noise.  I’m unable to account for it in my graphing, but the output is flat at around 65 lumens.  It’s nothing to worry about.

The manual states that there’s a low voltage warning – the light will flash 3x every 5 minutes – but I didn’t experience this.  The output just went very low, and sometimes the light would shut off.

Charging

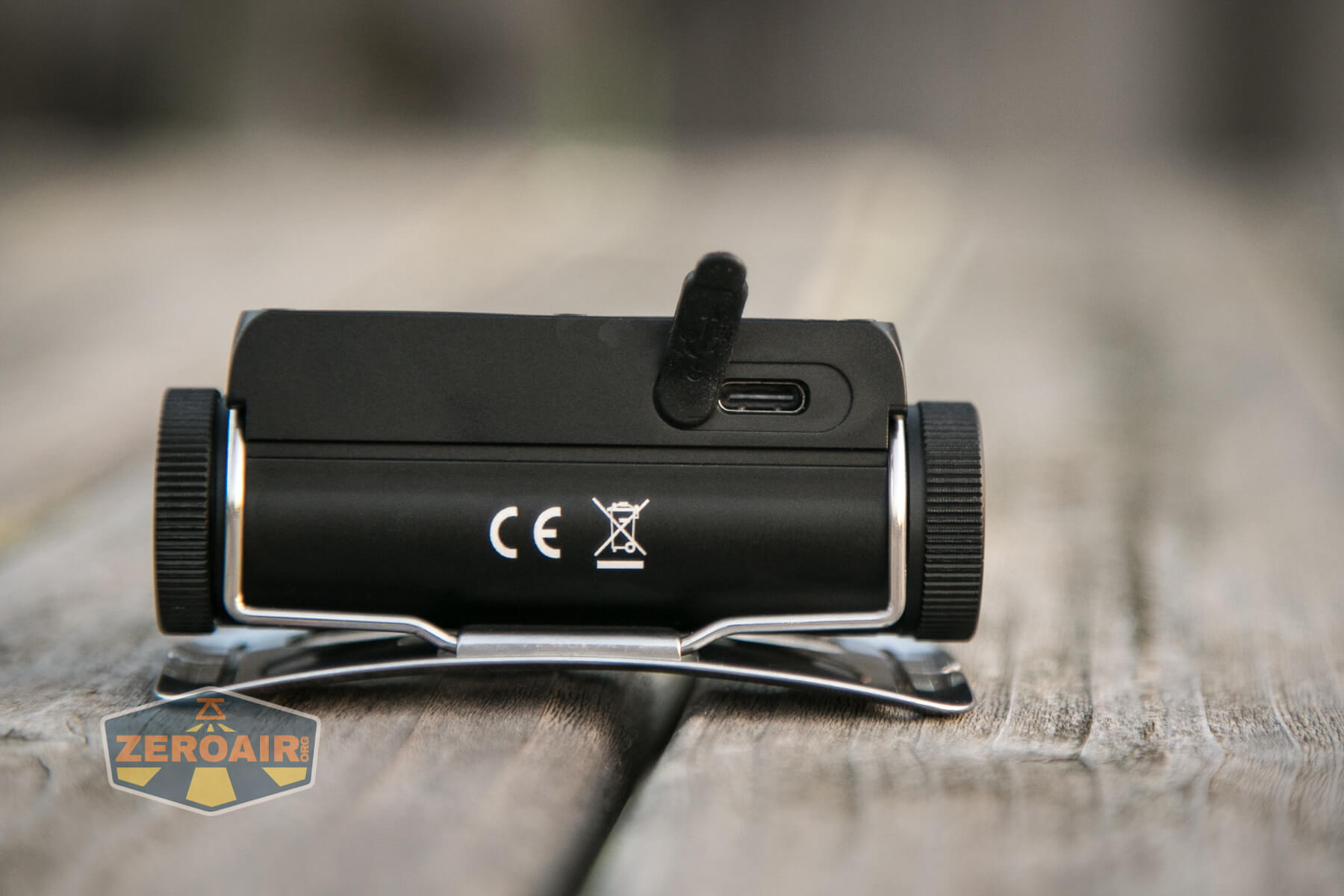

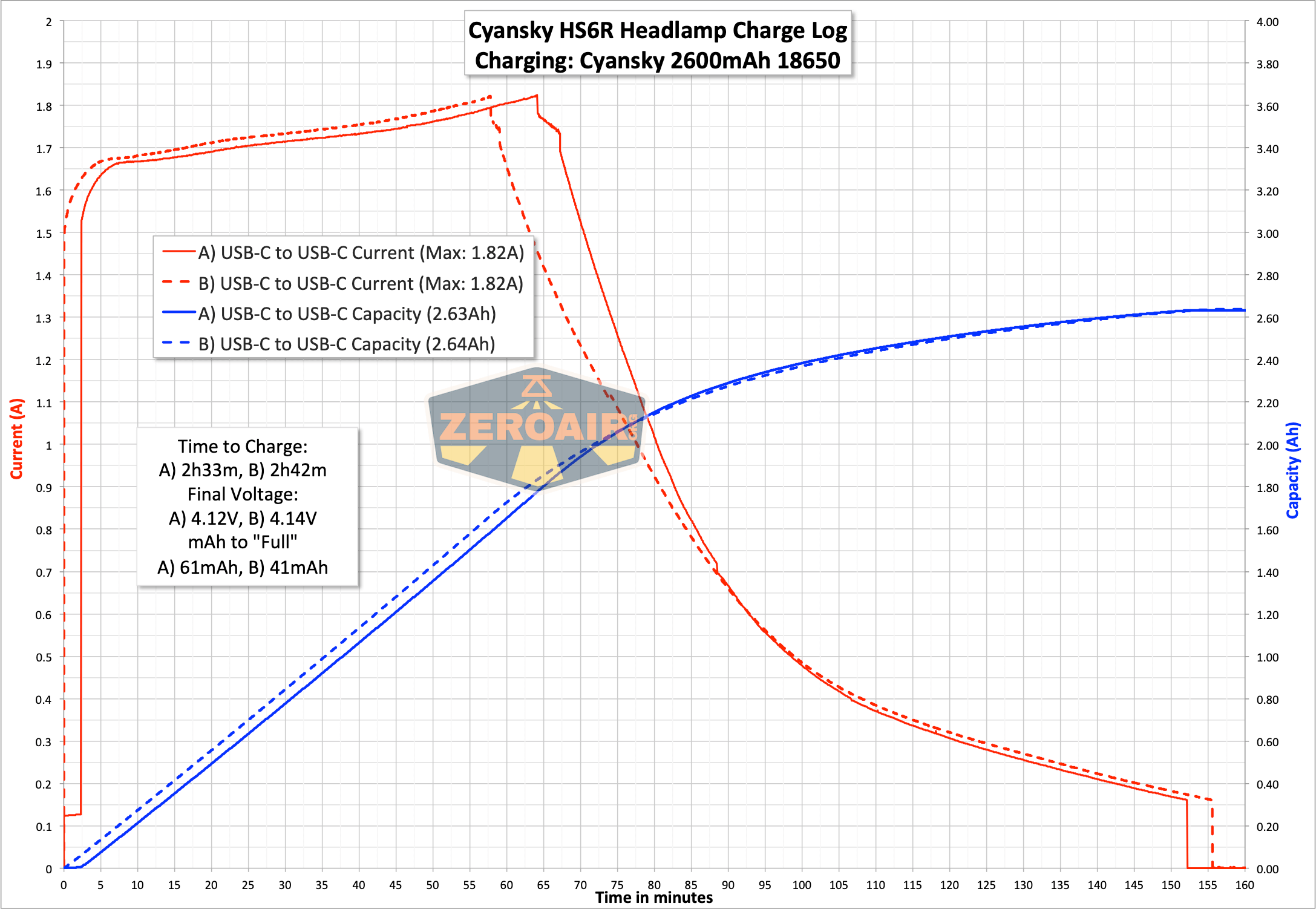

Unlike other Cyansky lights I’ve tested, the Cyansky HS6R headlamp actually has the charge port built into the flashlight.  It’s a USB-C port, and it’s on the side opposite the switch.

I tested with both USB to USB-C (as that’s what cable is provided) and with C to C.  Both worked fine, and have similar profiles and charge time.

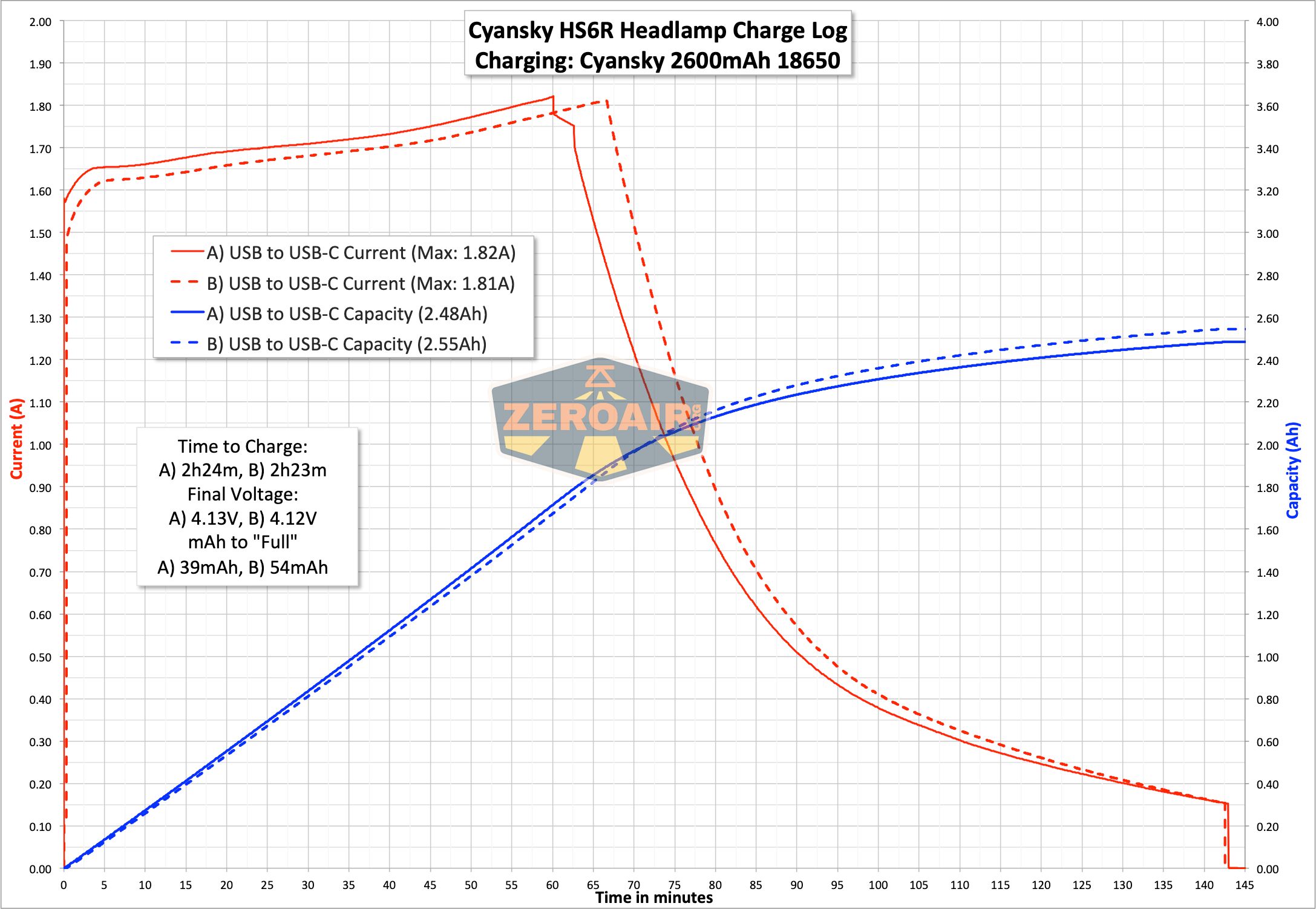

Cyansky HS6R headlamp charge graph Cyansky HS6R headlamp charge graph

In both cases, charging terminated under 4.15V.  The remaining energy to get the cell to 4.20V was marginal though.  Essentially, when the switch goes from red (“charging”) to green (“complete”), it’s “complete enough” to not worry about.

Modes and Currents

Mode Mode Claimed Output (lm) Claimed Runtime Measured Lumens Tailcap Amps
Turbo (Both) 1400 2h 956 3.63
Turbo (Main) 1200 2h 776 3.21
High (Main) 500 3h 339 0.85
Med (Main) 150 14h 66 0.19
Low (Main) 30 60h 8 0.07
High (Secondary, White) 500 3h 390 1.60
Med (Secondary, White) 150 14h 111 0.27
Low (Secondary, White) 30 60h 12 0.03
Red 10 60h 6 0.09

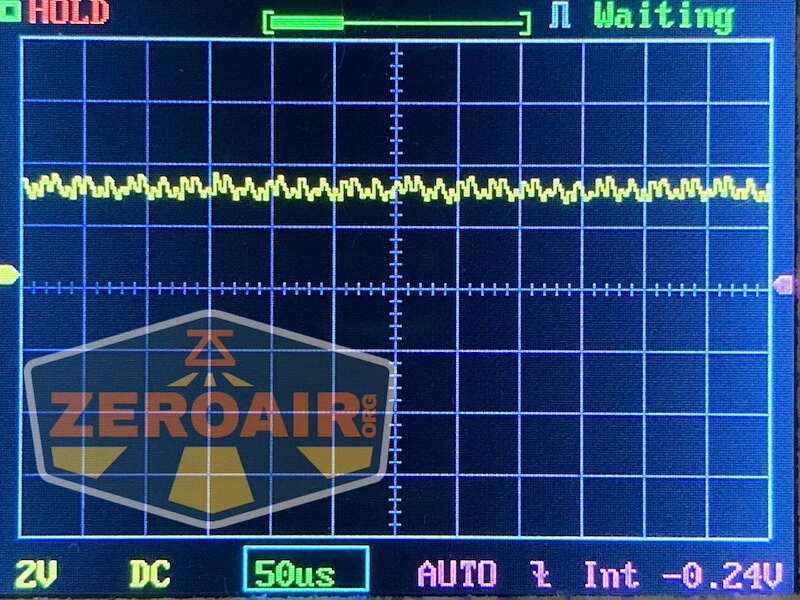

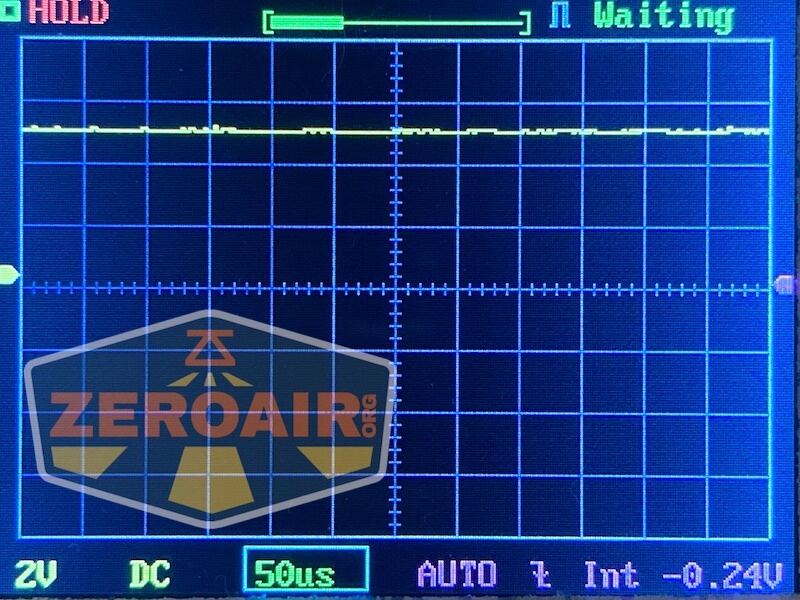

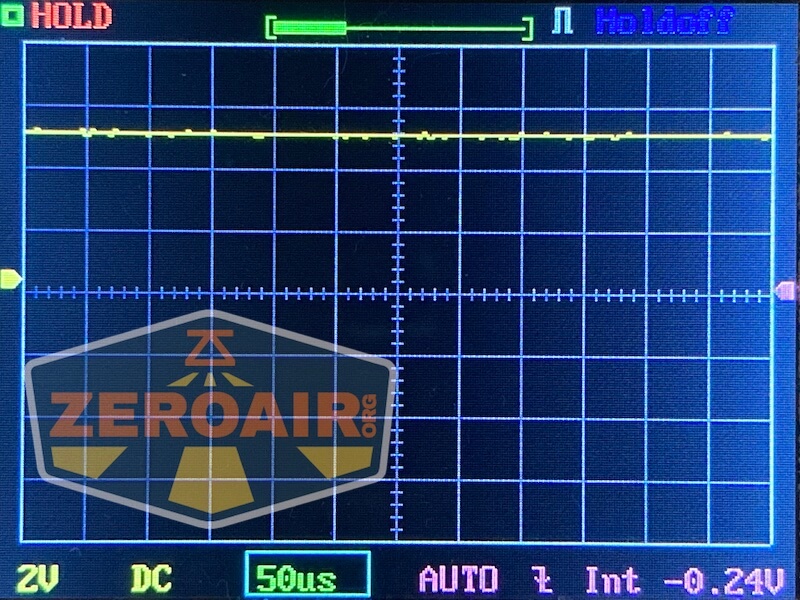

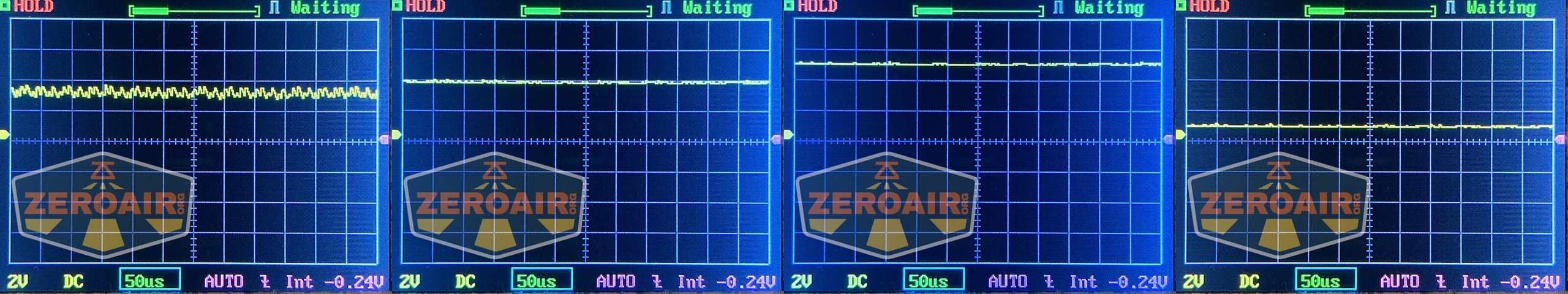

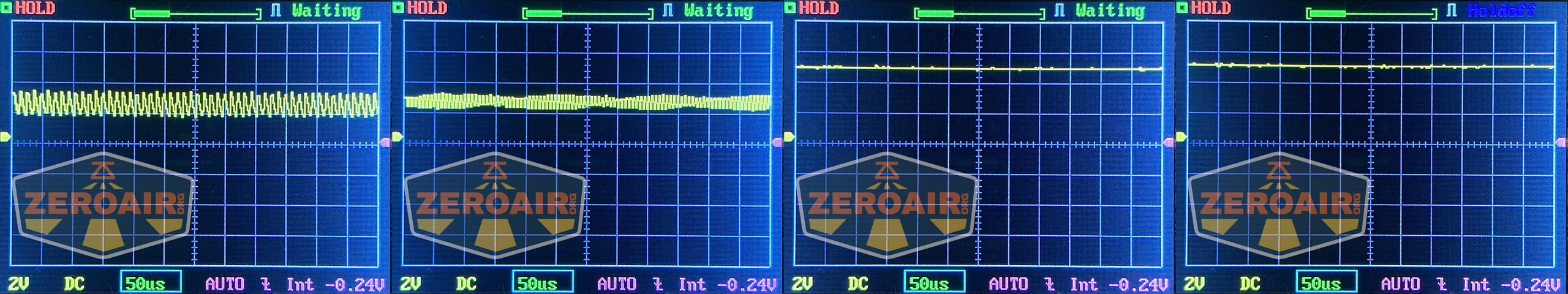

Pulse Width Modulation

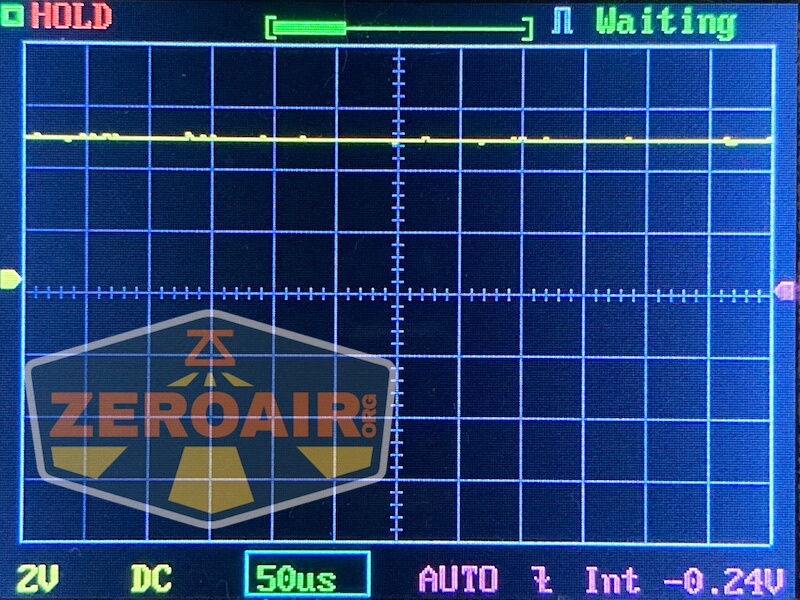

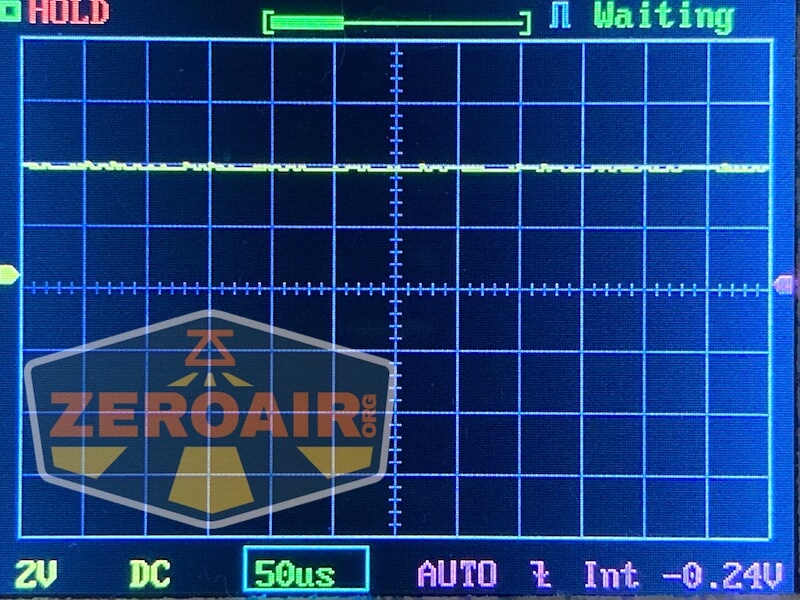

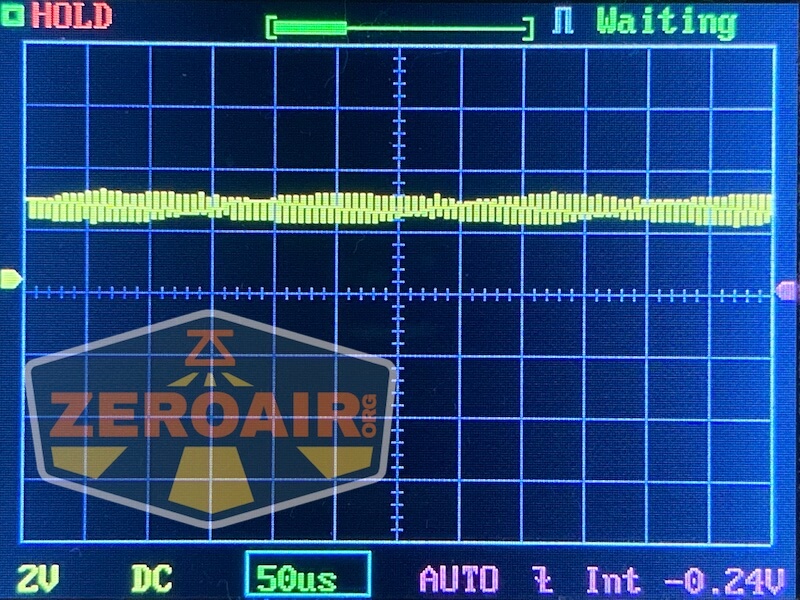

None of the 8 modes are really displaying PWM.

Spot:

Flood (3) then Red (1):

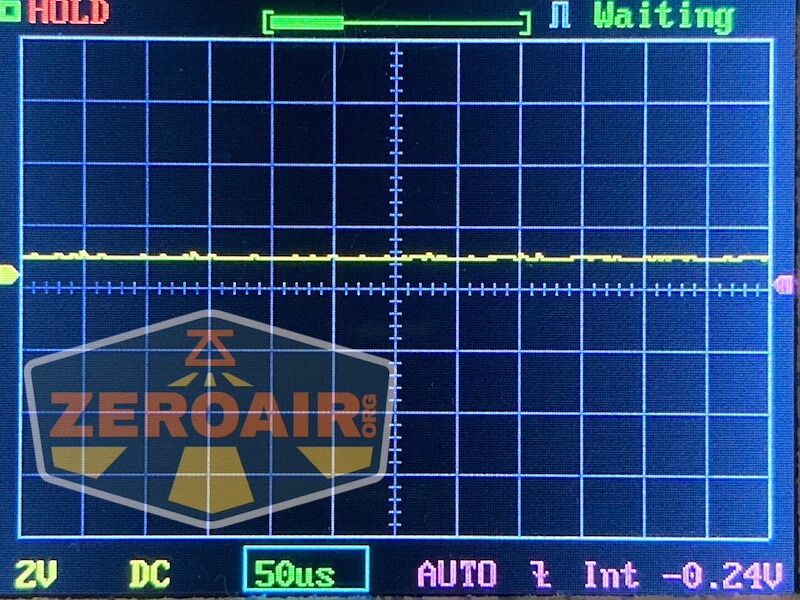

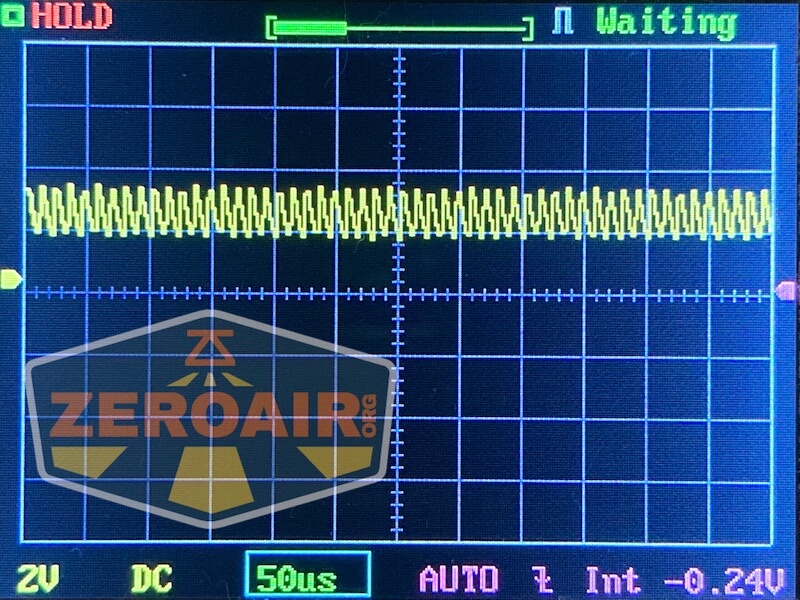

For reference, here’s a baseline shot, with all the room lights off and almost nothing hitting the sensor.  Also, here’s the light with the worst PWM I could find.  I’m adding multiple timescales, so it’ll be easier to compare to the test light.  Unfortunately, the PWM on this light is so bad that it doesn’t even work with my normal scale, with is 50 microseconds (50us).  10ms5ms2ms1ms0.5ms0.2ms.  In a display faster than 0.2ms or so, the on/off cycle is more than one screen, so it’d just (very incorrectly) look like a flat line.  I wrote more about this Ultrafire WF-602C flashlight and explained a little about PWM too.

User Interface and Operation

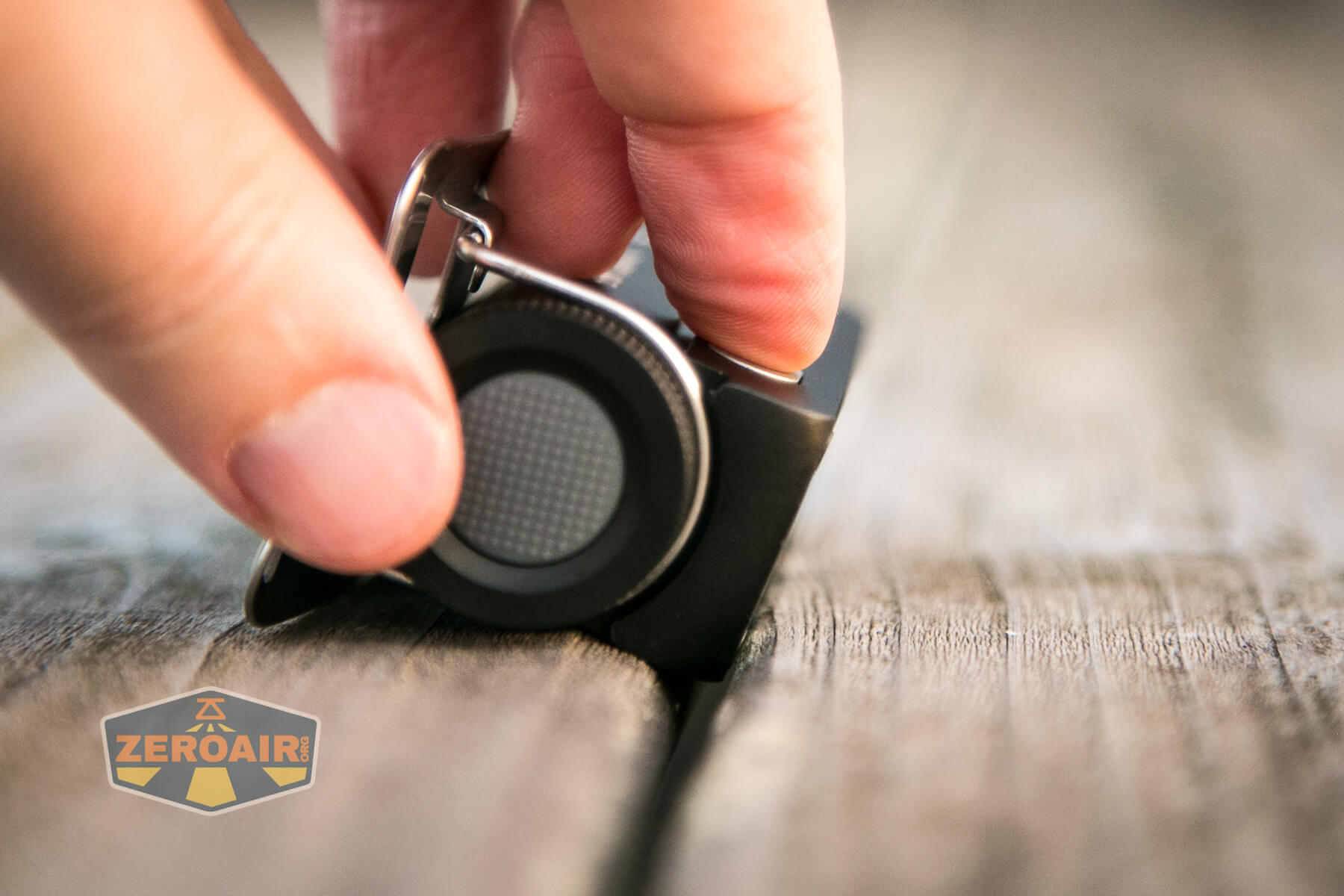

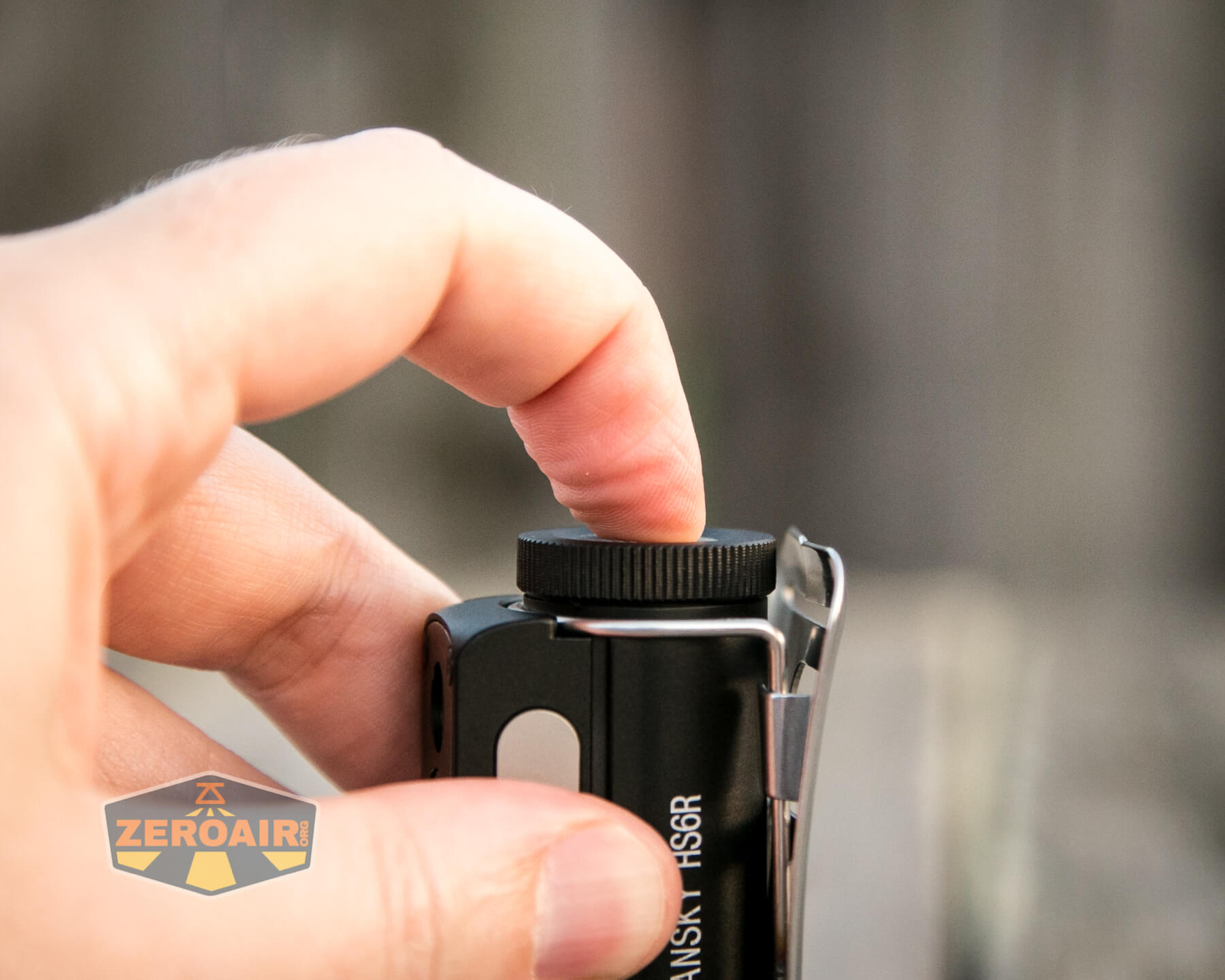

There are two switches on the Cyansky HS6R headlamp.  Both of these switches are e-switches, but they feel quite different.  The “Spot” emitter is considered the main emitter, so the switch seen below should be considered the main switch, too.  It’s a “tail switch” and has a nice big pad.

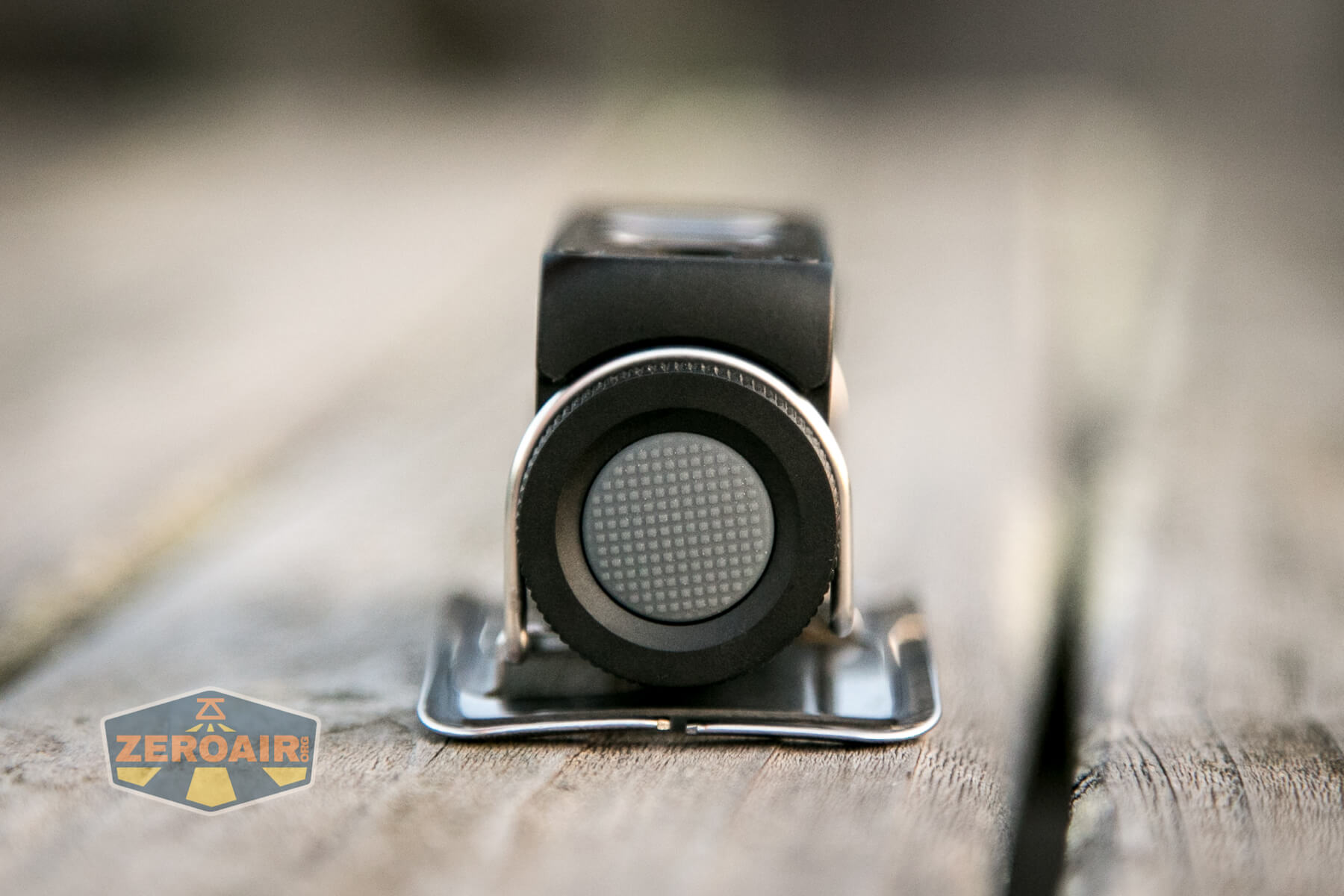

Cyansky HS6R Headlamp tailswitch

I wouldn’t call this tailcap (with the switch) to be “removable” but Cyansky does provide a spare switch cover.  So there must be a way!

Cyansky HS6R Headlamp tailswitch

This is an indicating switch, too!  It can be red or green, as seen below.

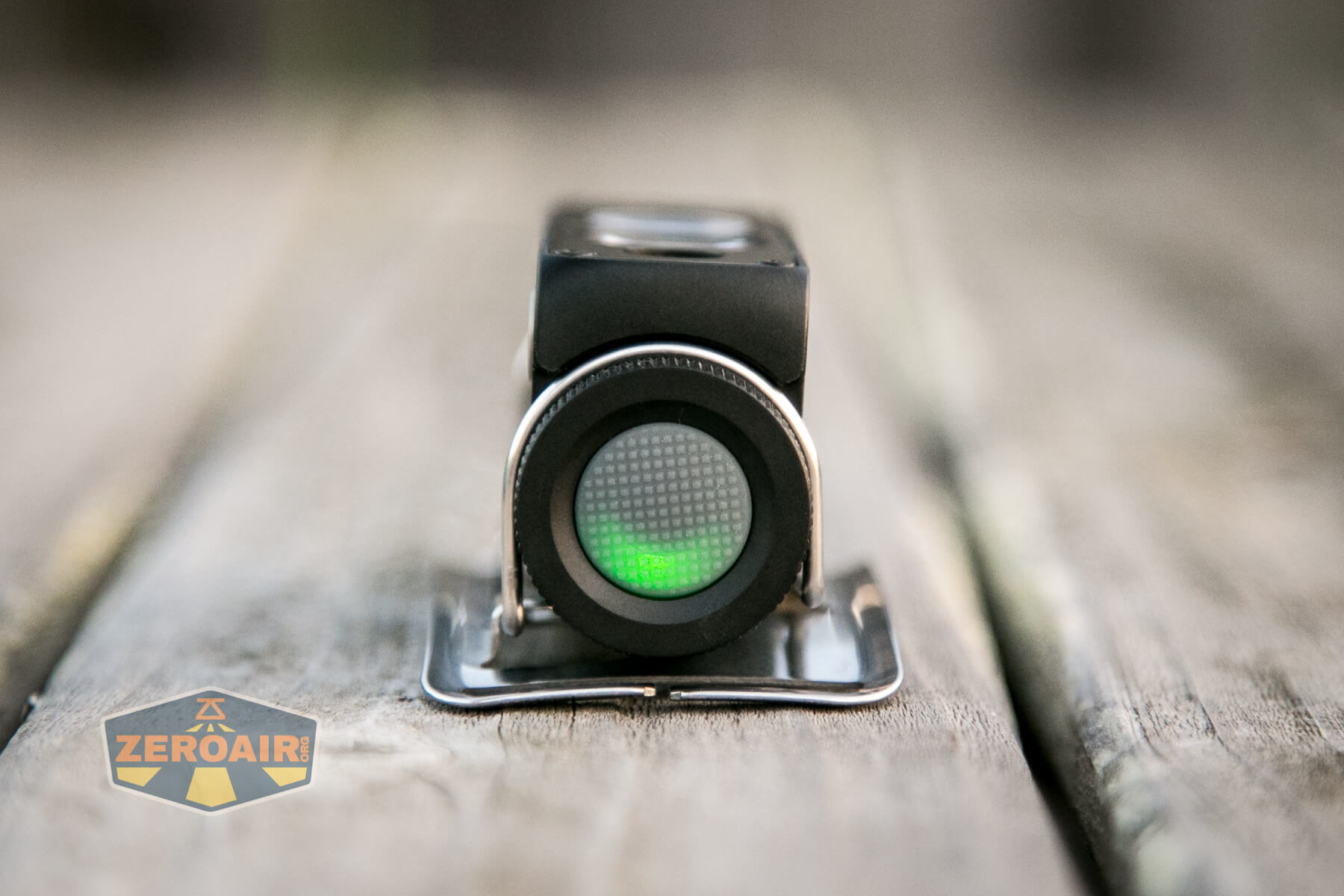

Cyansky HS6R Headlamp tailswitch indicating green

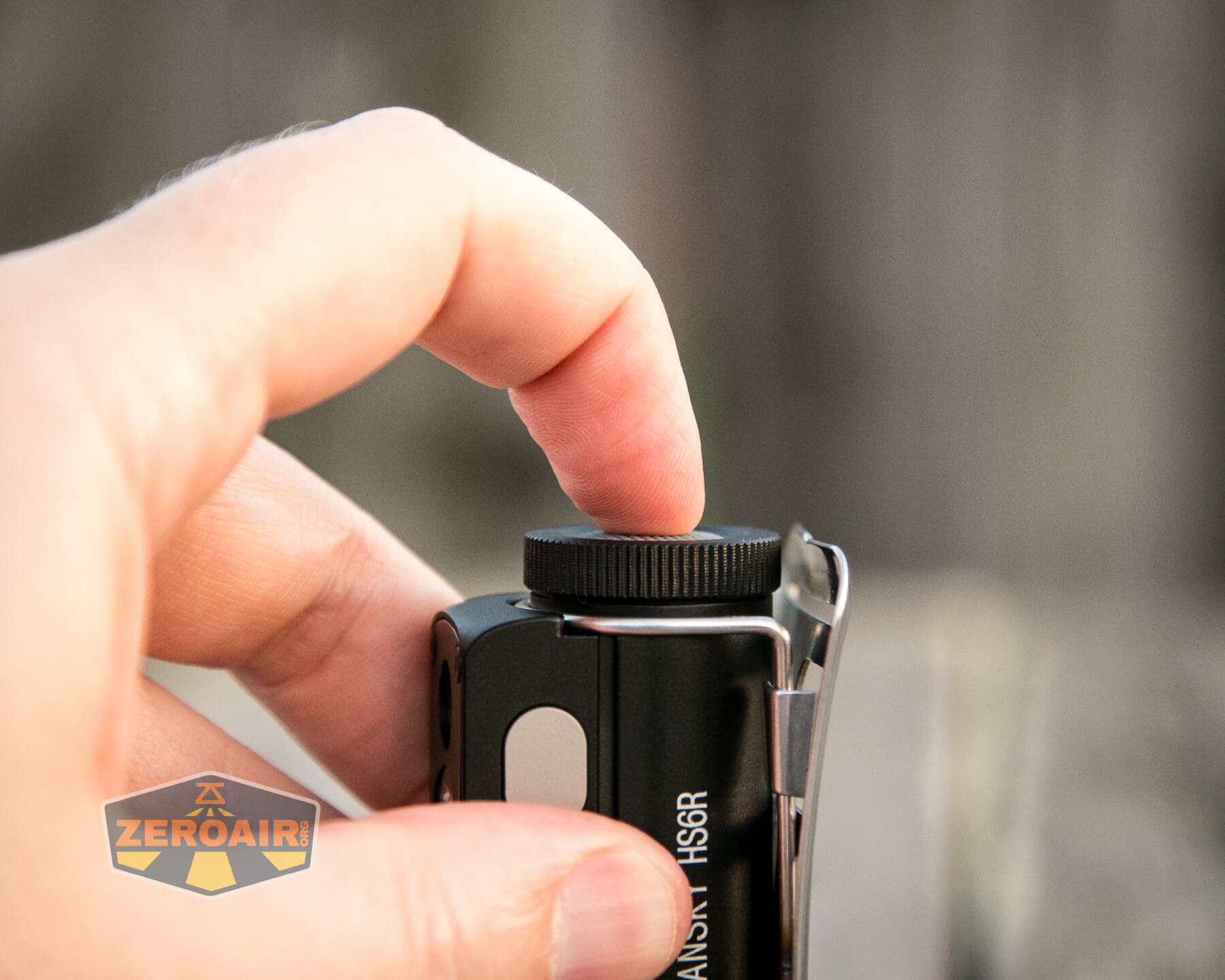

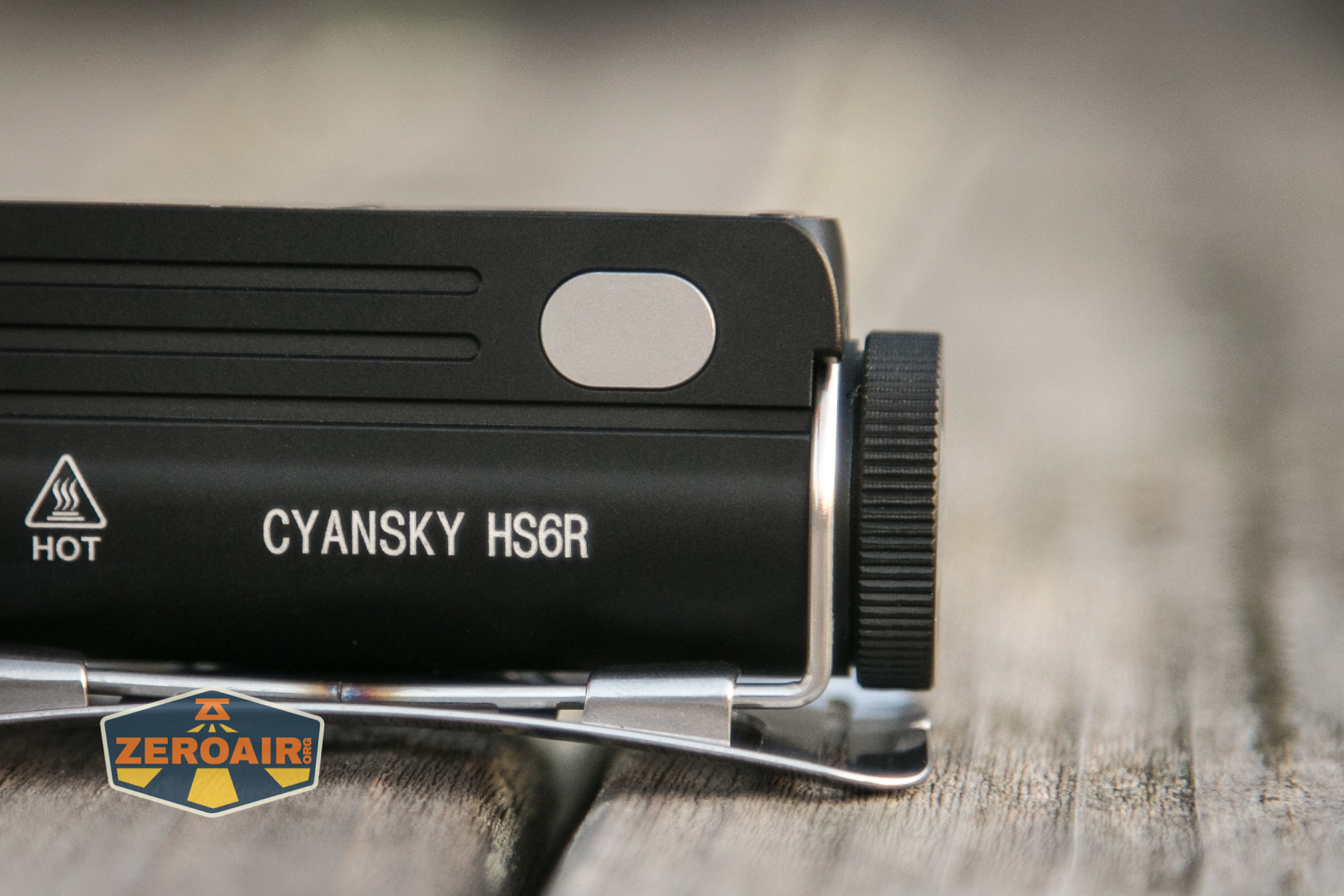

Next is this hard cover switch on the body of the Cyansky HS6R headlamp.  This is a familiar switch to Cyansky, used on other lights like the Cyansky H3.

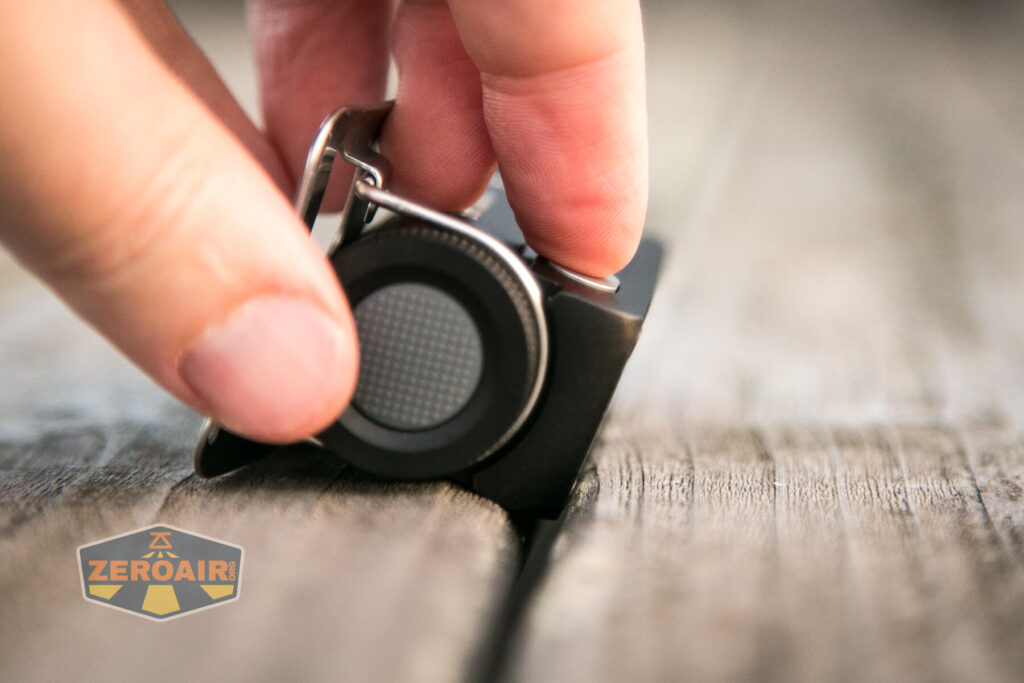

Cyansky HS6R Headlamp e-switch

It’s a nice large e-switch with a very solid click, and low action.

These switches essentially do the same thing for their respective output.  The main (tail, indicating) switch controls the Spot light.  The secondary (side/body) switch controls the Flood and Red light.  They can be used independently.  Here’s a UI table!

State Action Result
Off Click Either Battery check ^
Off Hold Tail Switch Spot On (Mode Memory)
Spot On Click Tail Switch Mode advance (LMHT)
Spot On Hold Tail Switch Spot Off
Off Hold Side Switch Flood On (Mode Memory)
Flood On Click Side Switch Mode advance (LMH, Red, Red Blink)
Flood On Hold Side Switch Flood (or Red) off

^ Battery check indicates as follows:
Green: >80%
Green Blinking:  50-80%
Red: 20-50%
Red Blinking: <20%

There does not seem to be an electronic lockout feature.

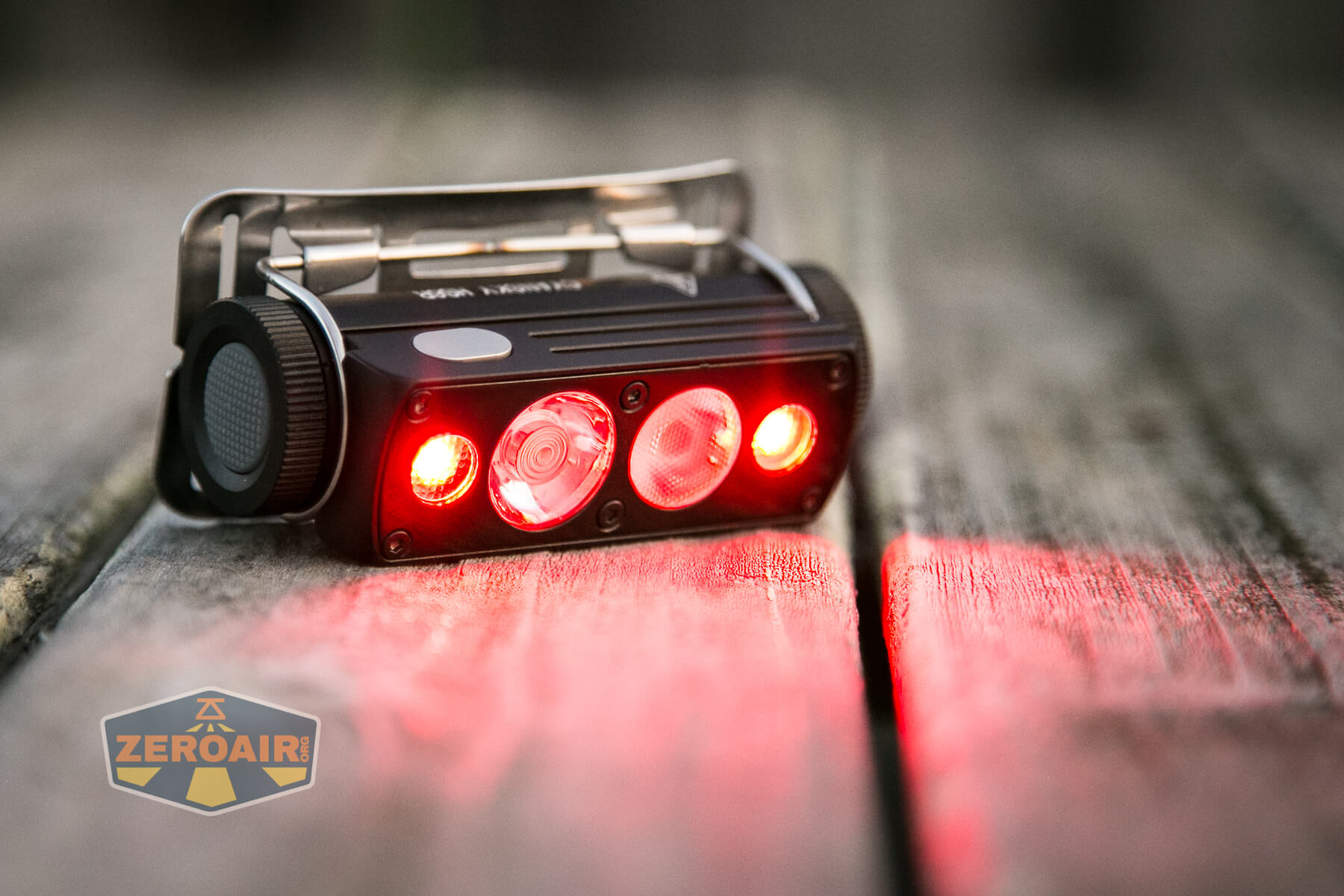

There are no strobes.  There’s red blinking, but it’s slow, maybe 1Hz.

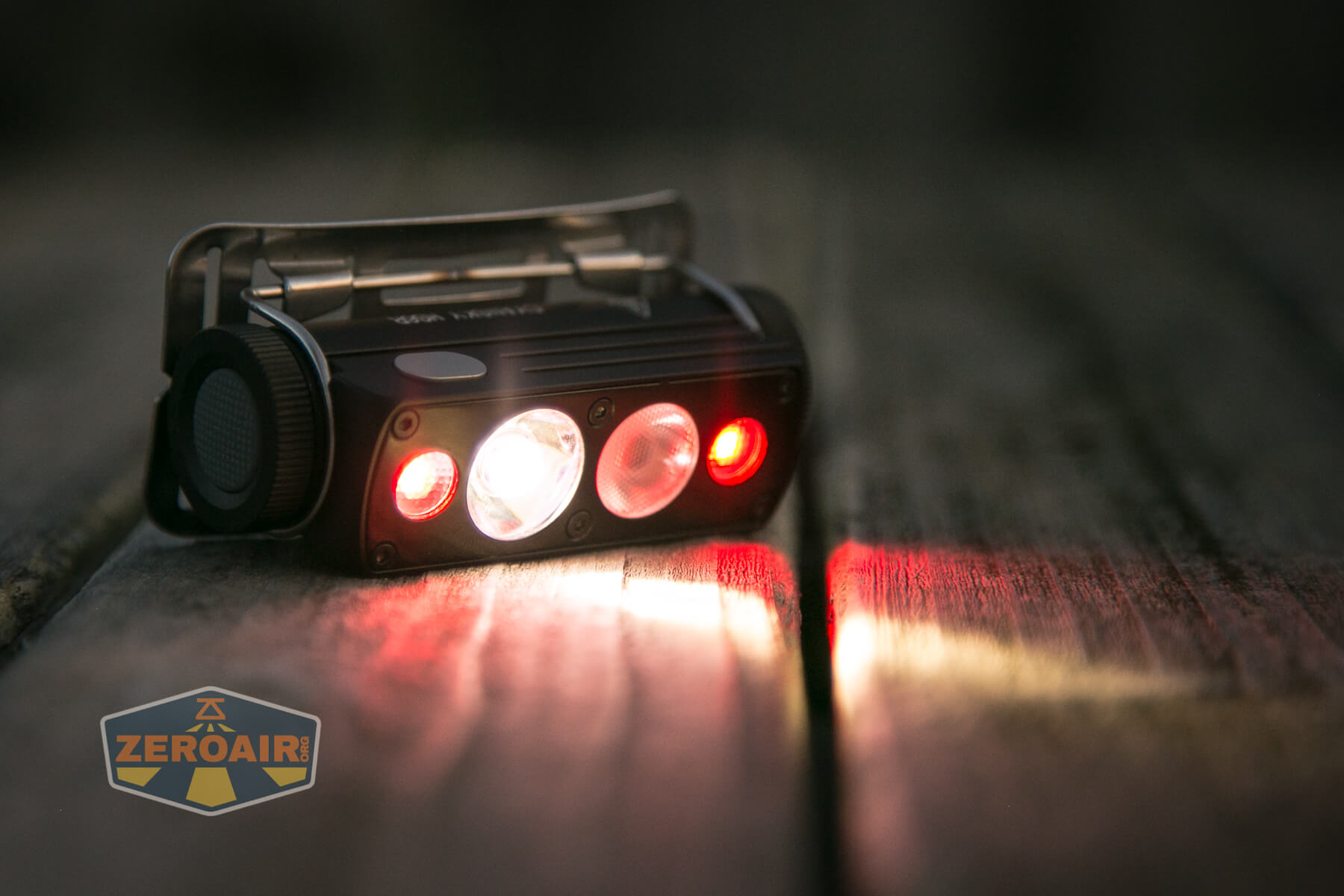

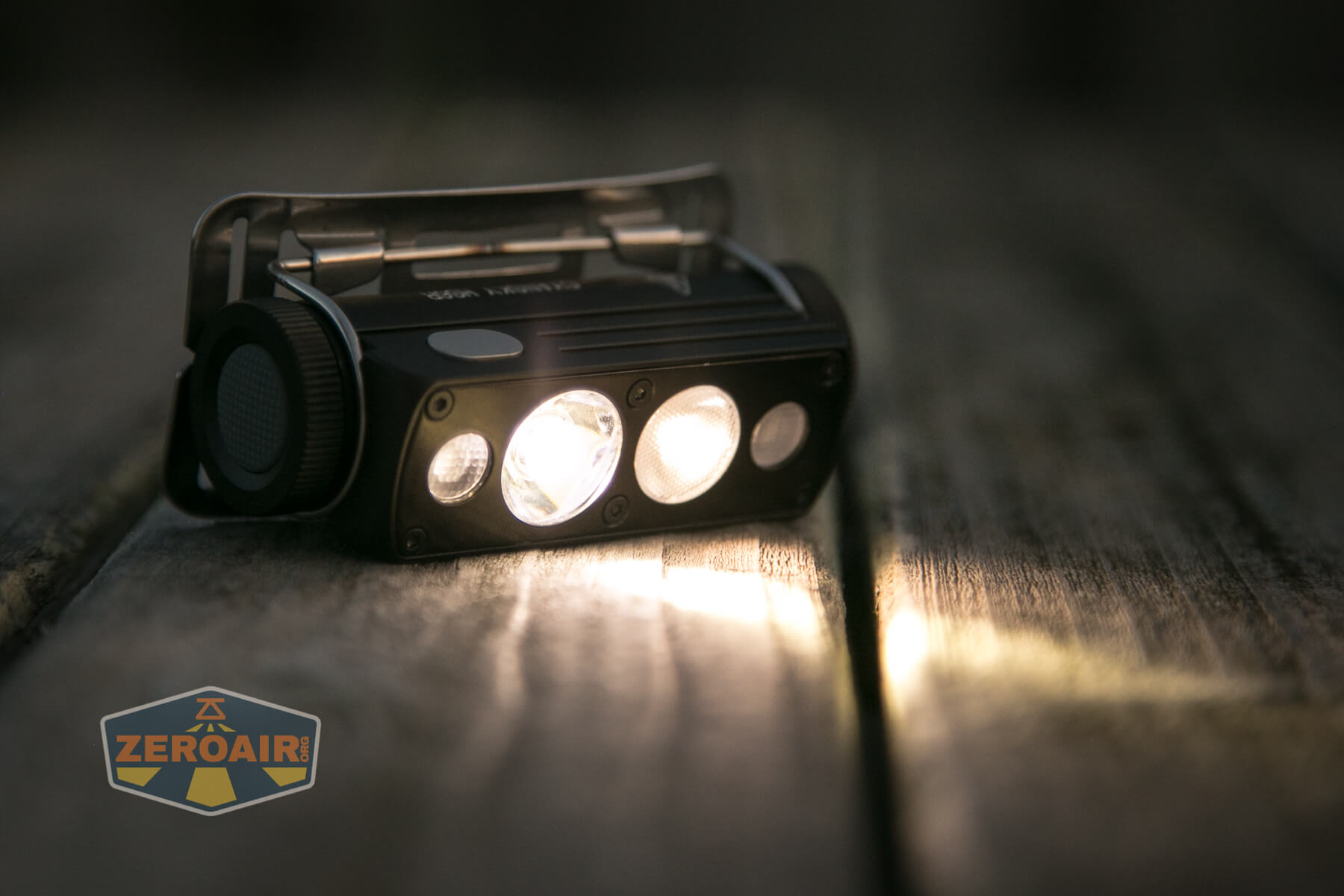

LED and Beam

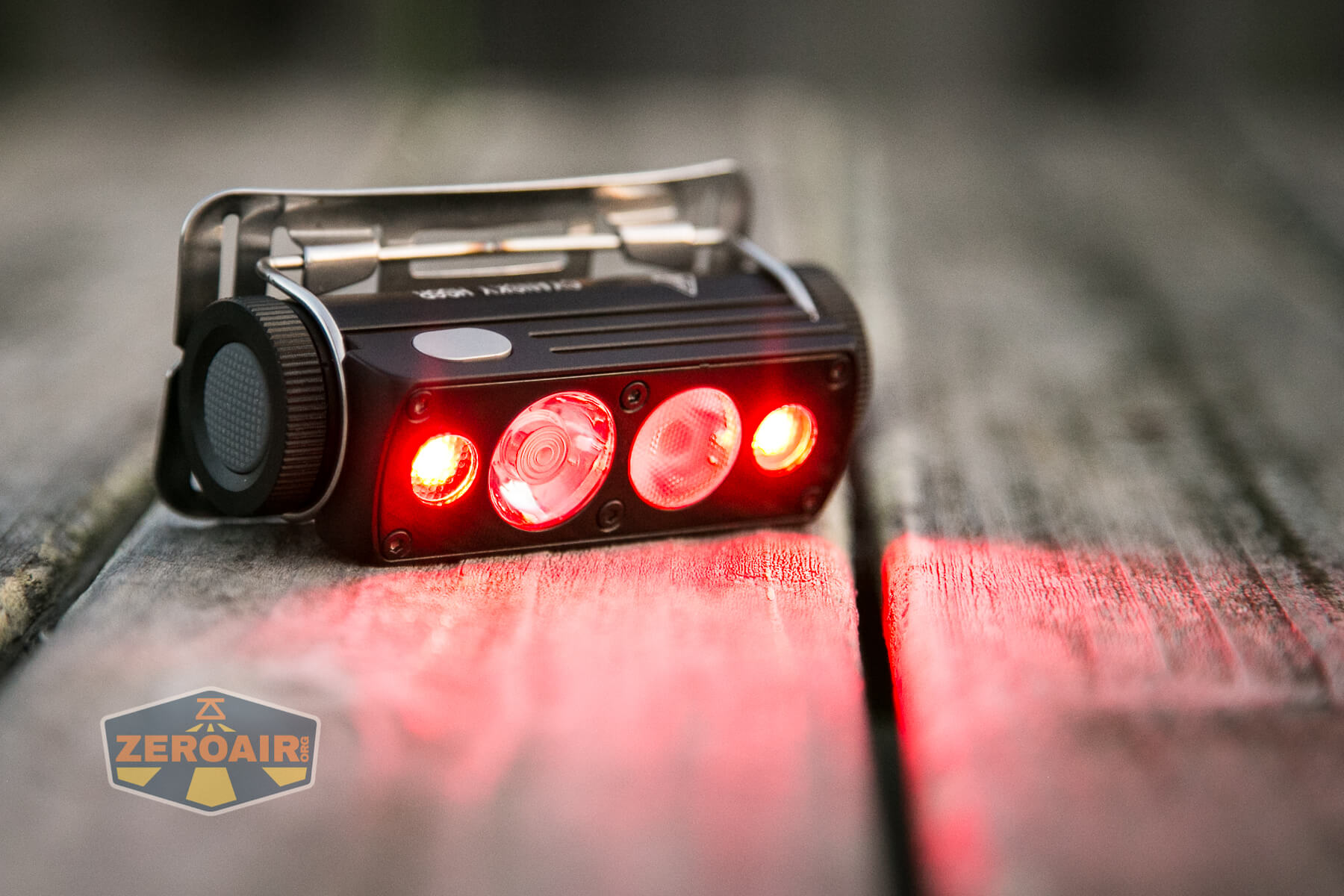

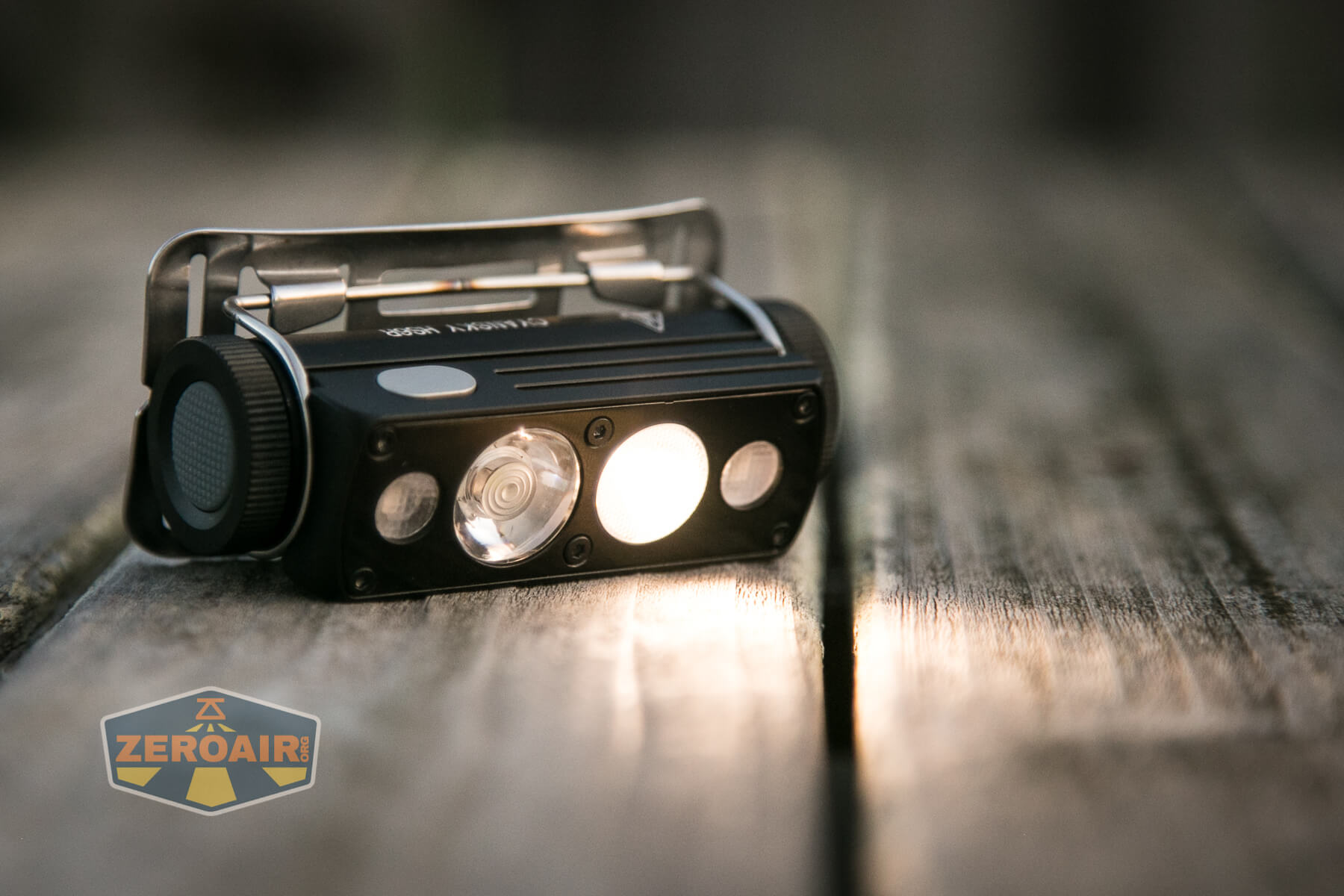

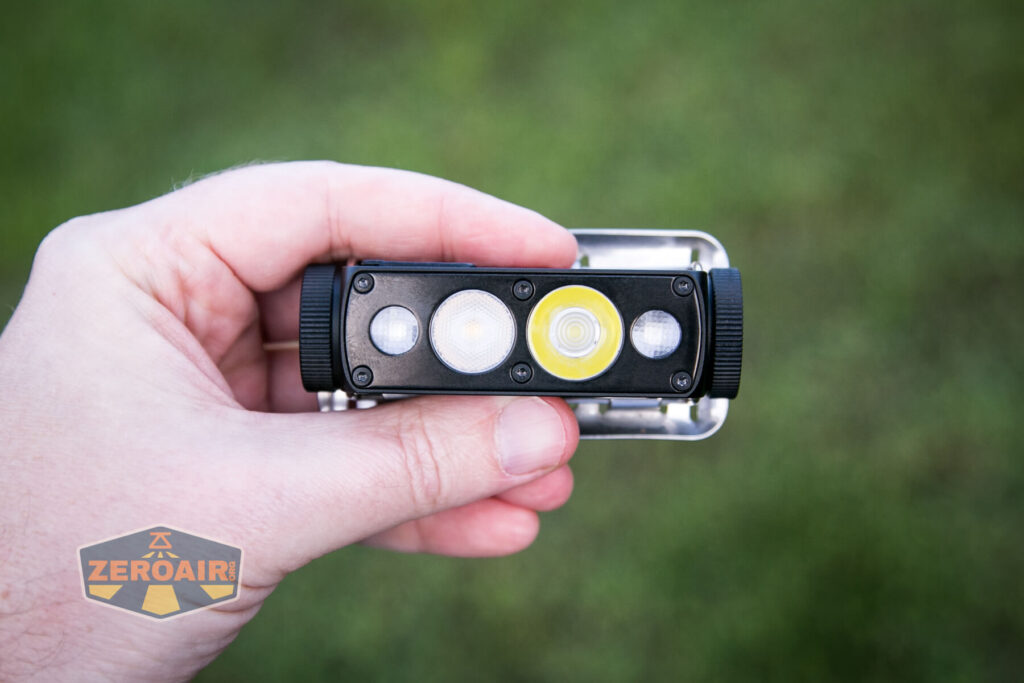

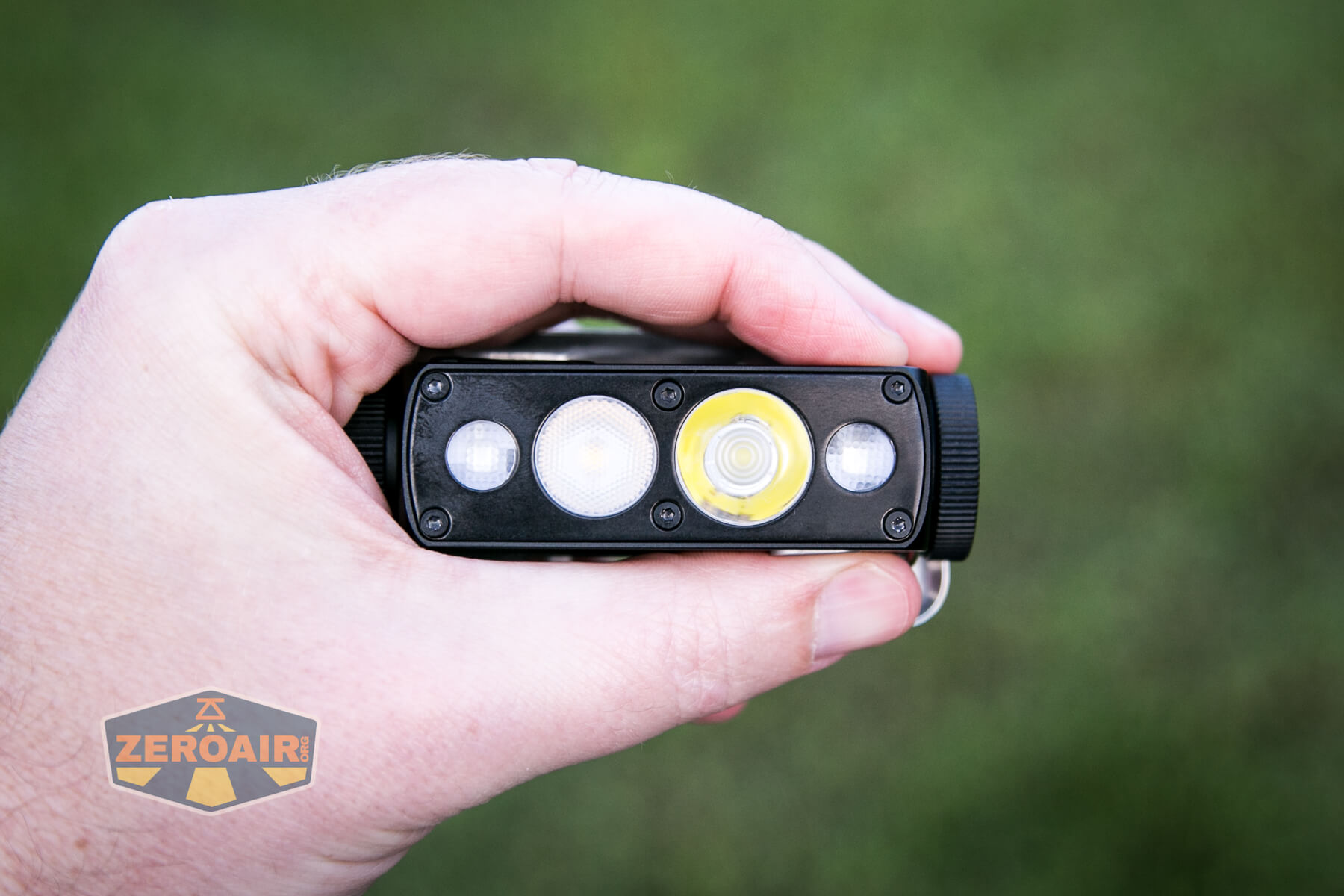

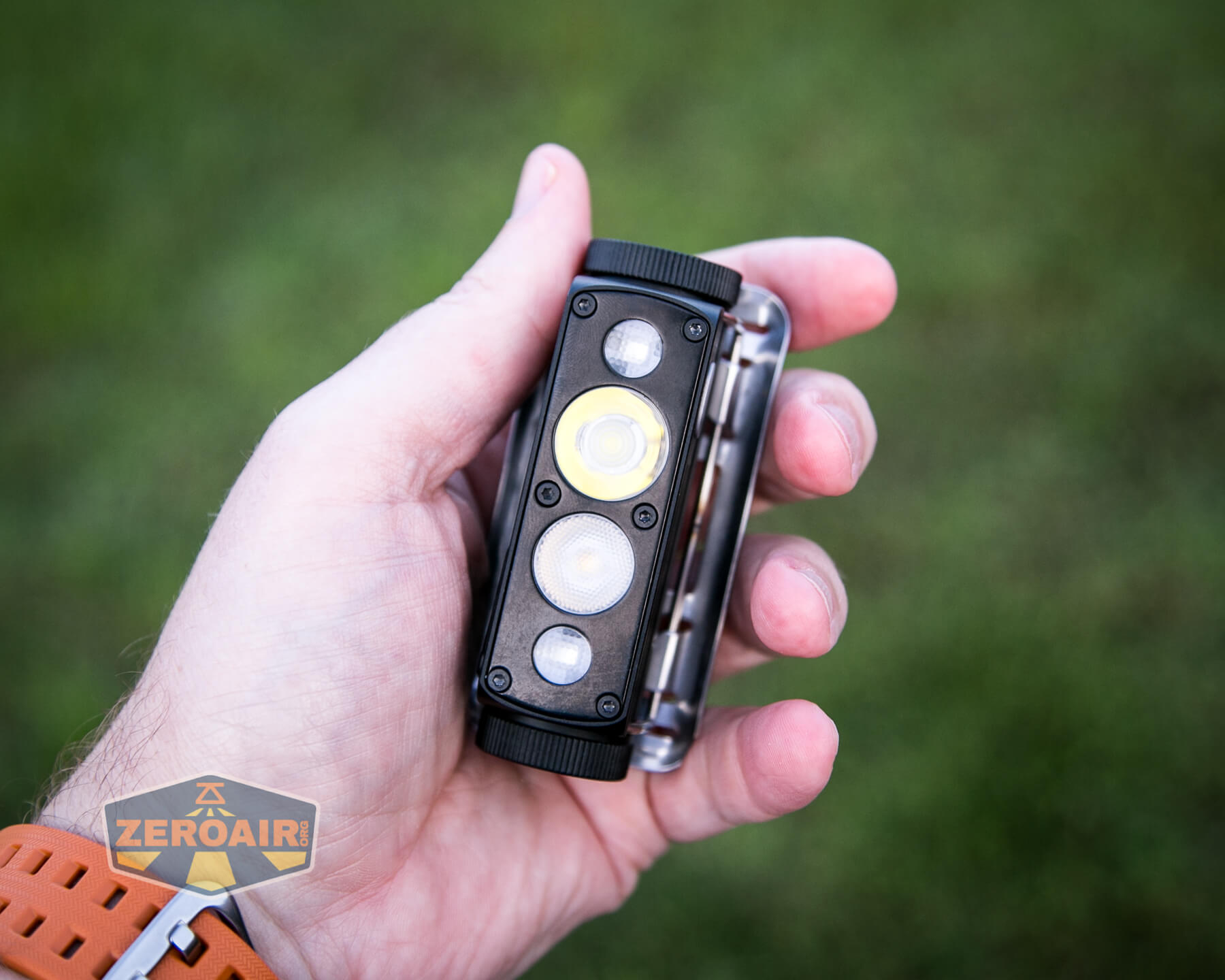

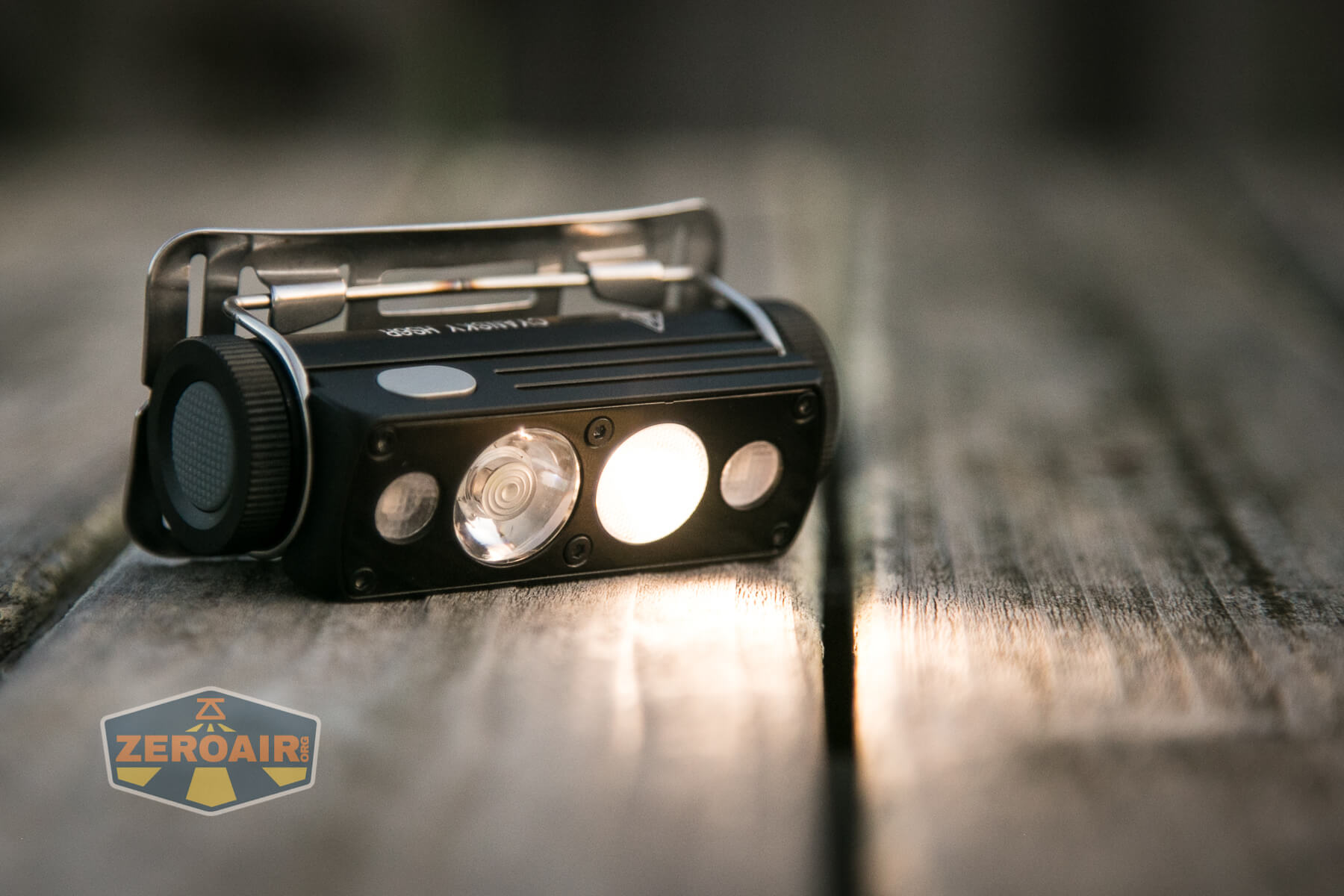

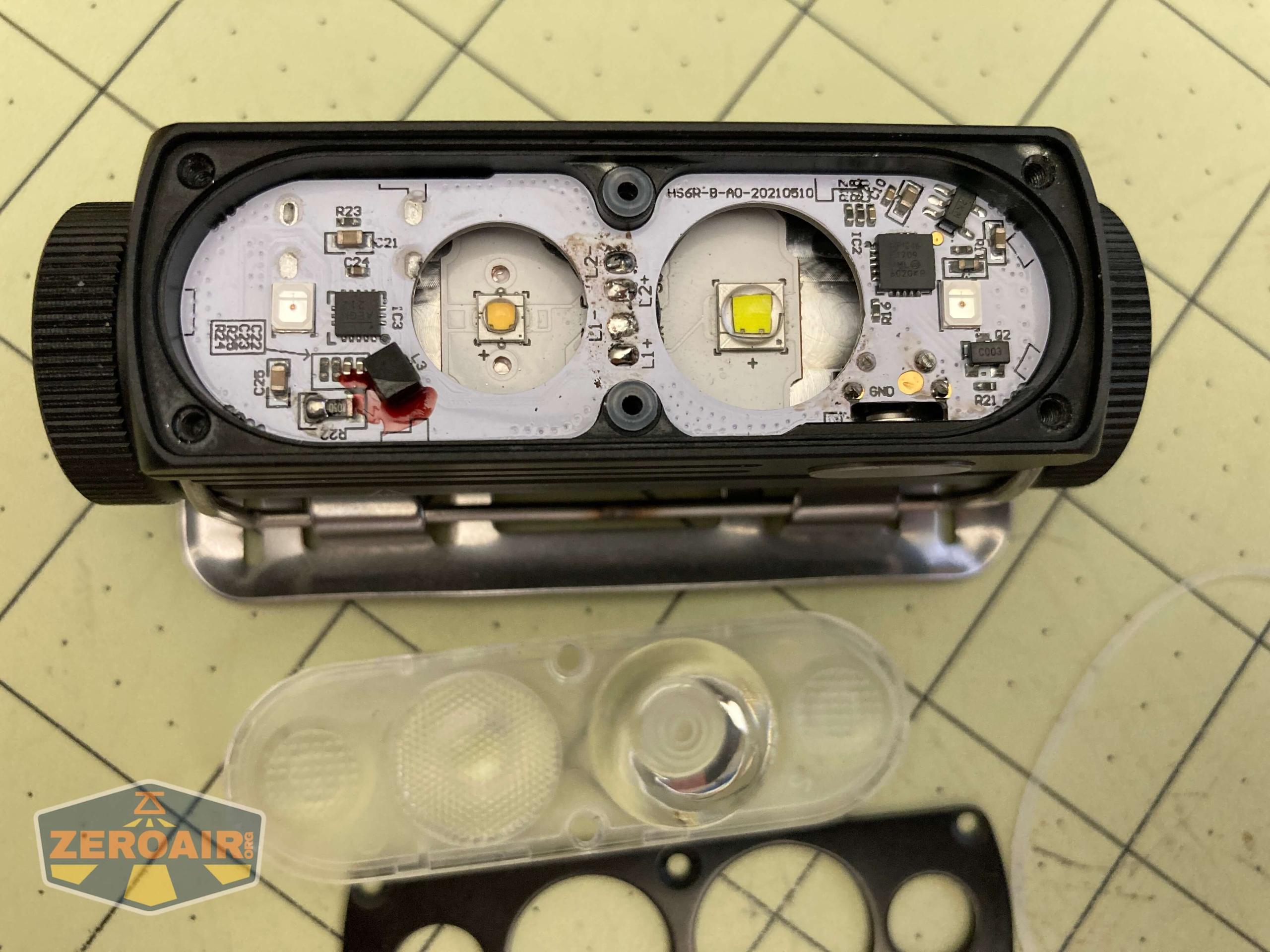

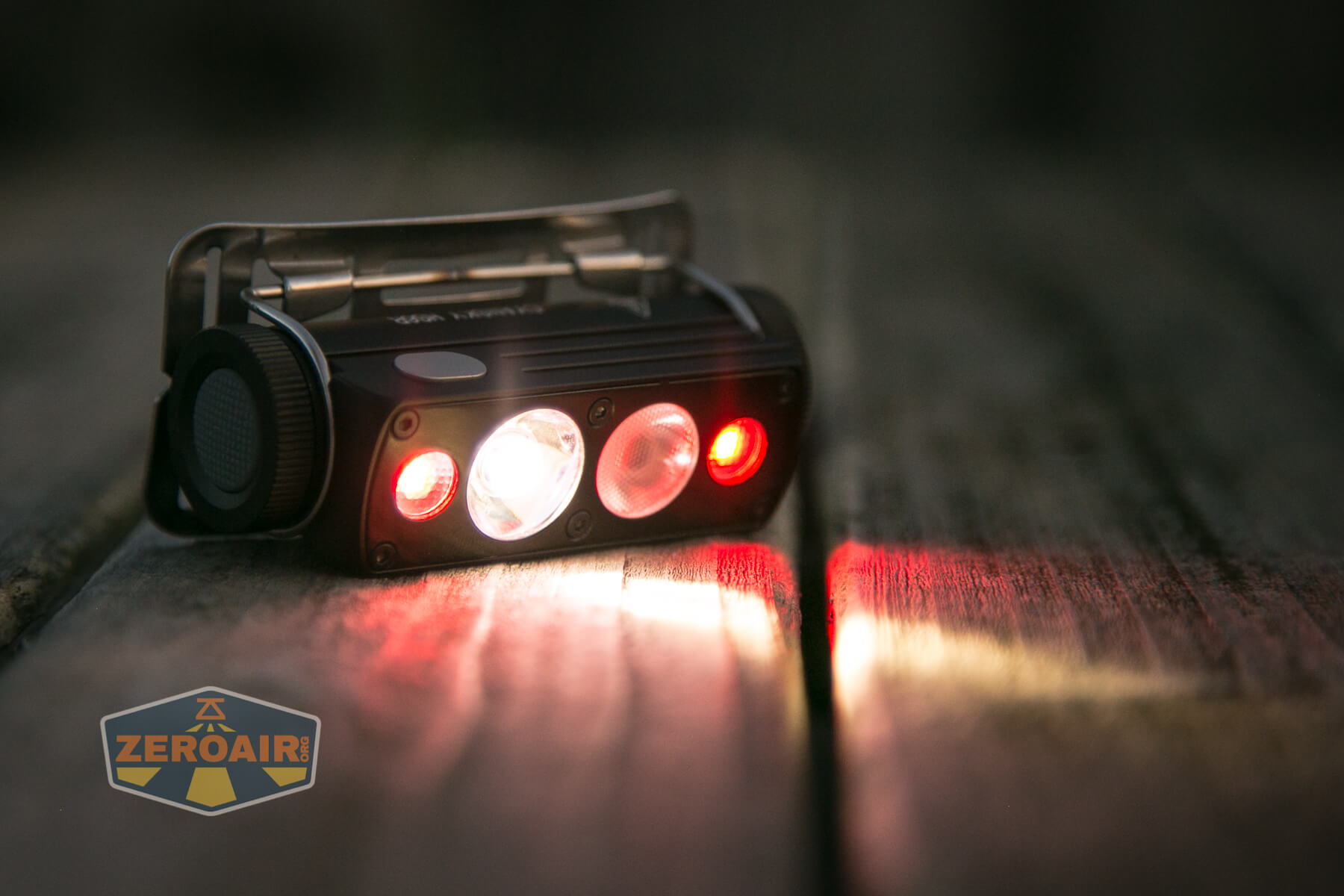

Three emitters are on the Cyansky HS6R headlamp.  The Spot is a Luminus SST-40, and has a larger opening TIR.  There’s another Luminus for the flood – a SST-20.  And finally, the two smaller openings are red emitters that always act together (and count as “one”).

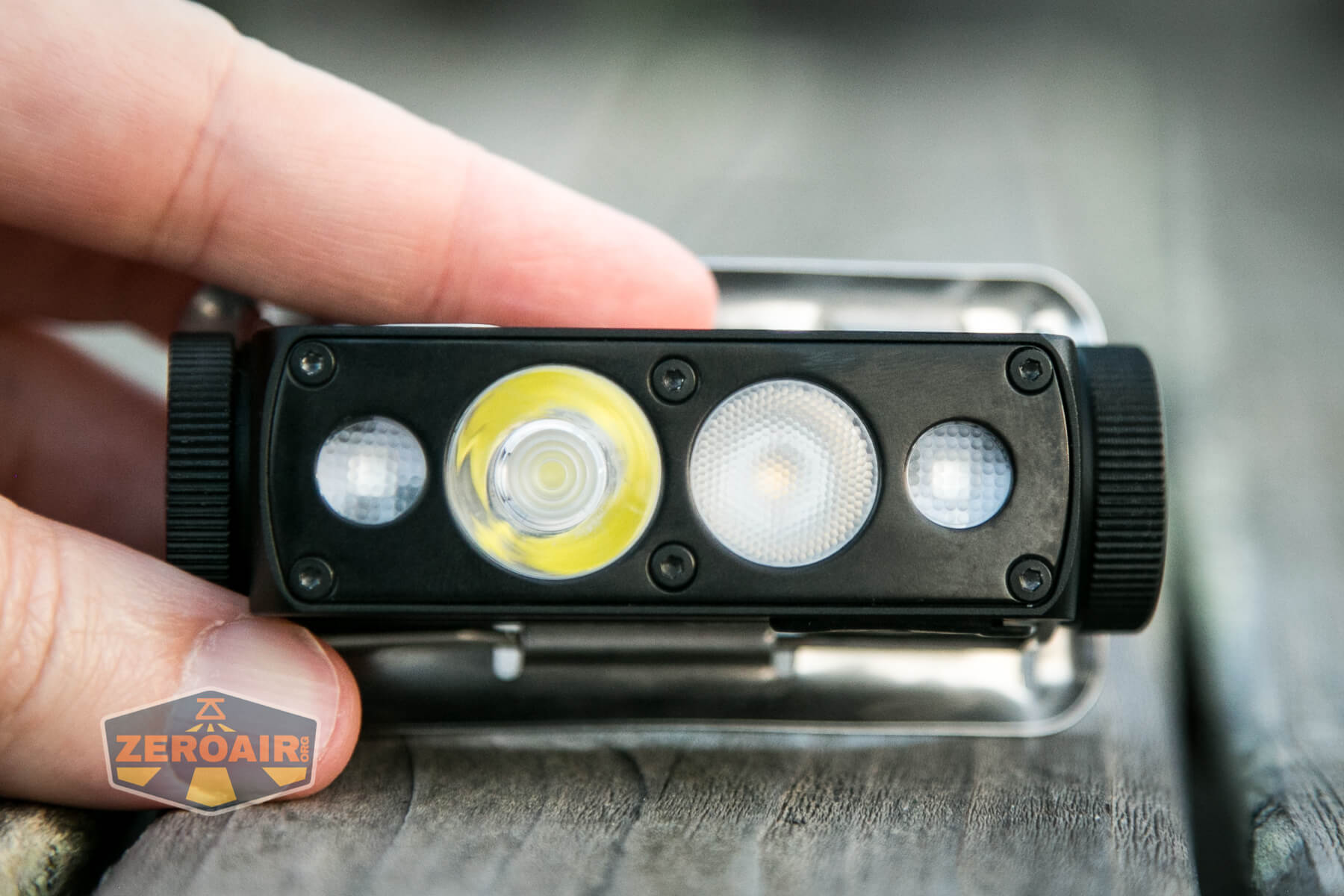

Cyansky HS6R Headlamp emitter array

All of these are behind their own TIR, but it’s actually one long TIR!

Cyansky HS6R Headlamp emitter array

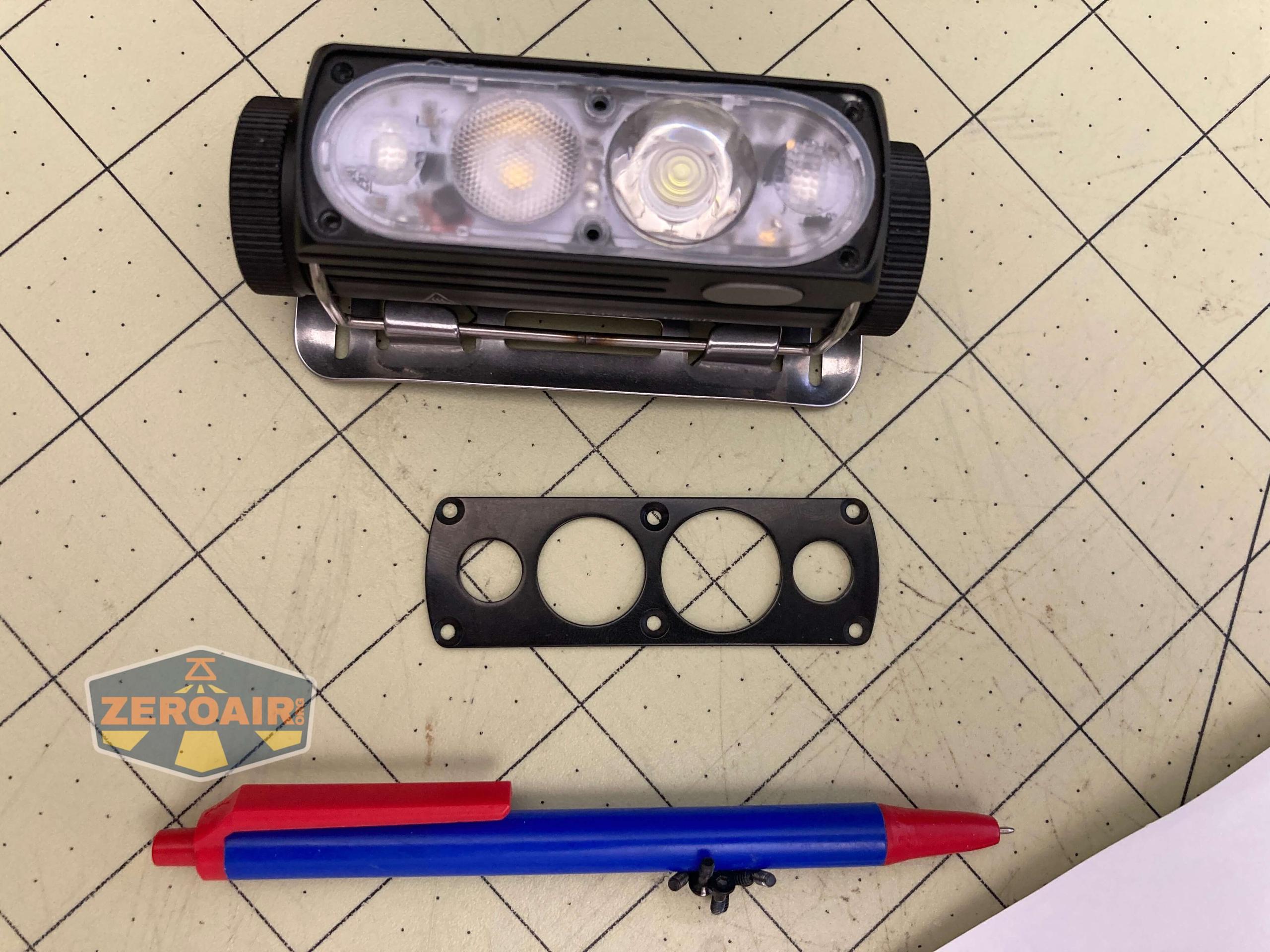

People sometimes ask why I put a magnet in my Bic Clic Stic (custom) pen.  Here’s one good reason!!

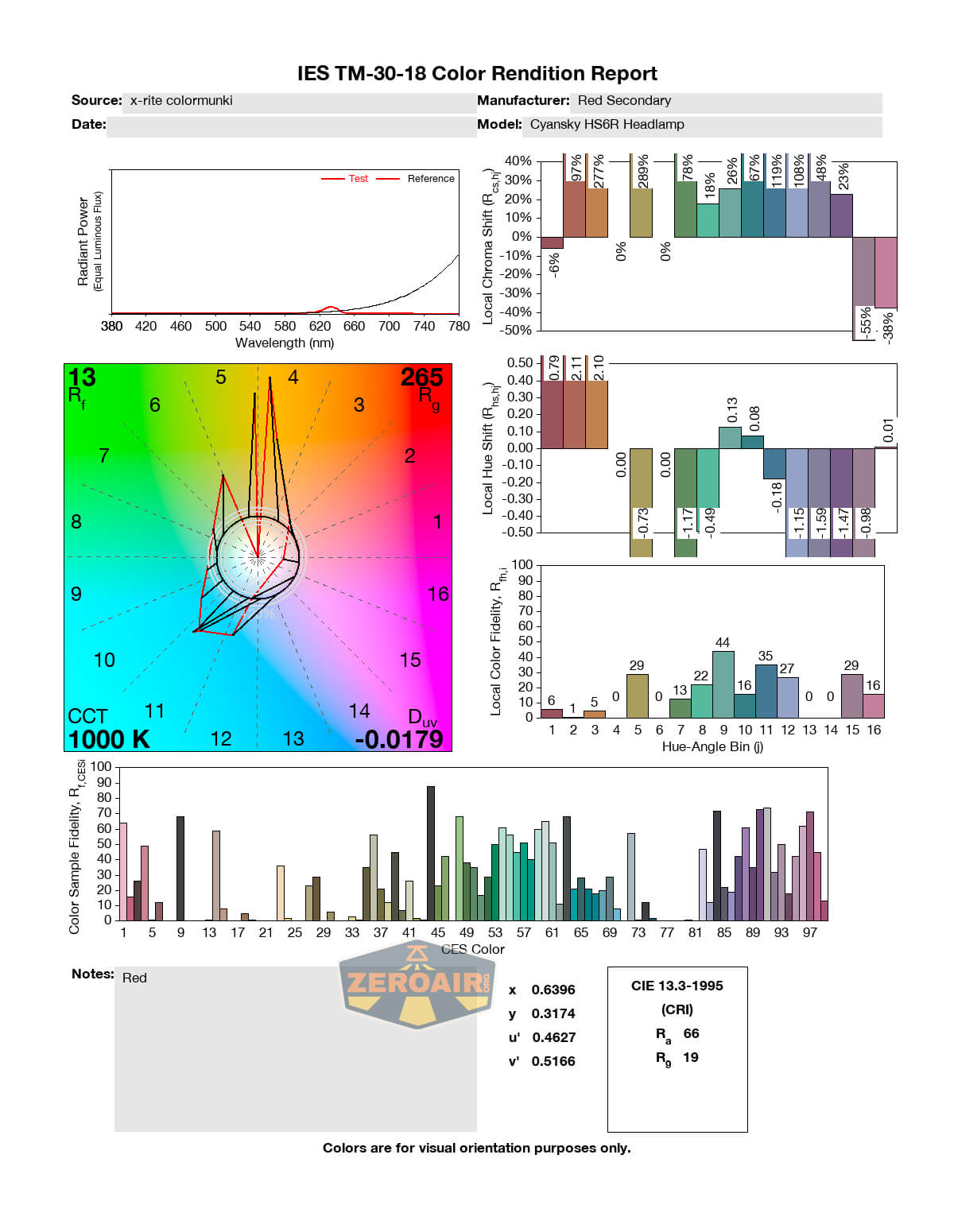

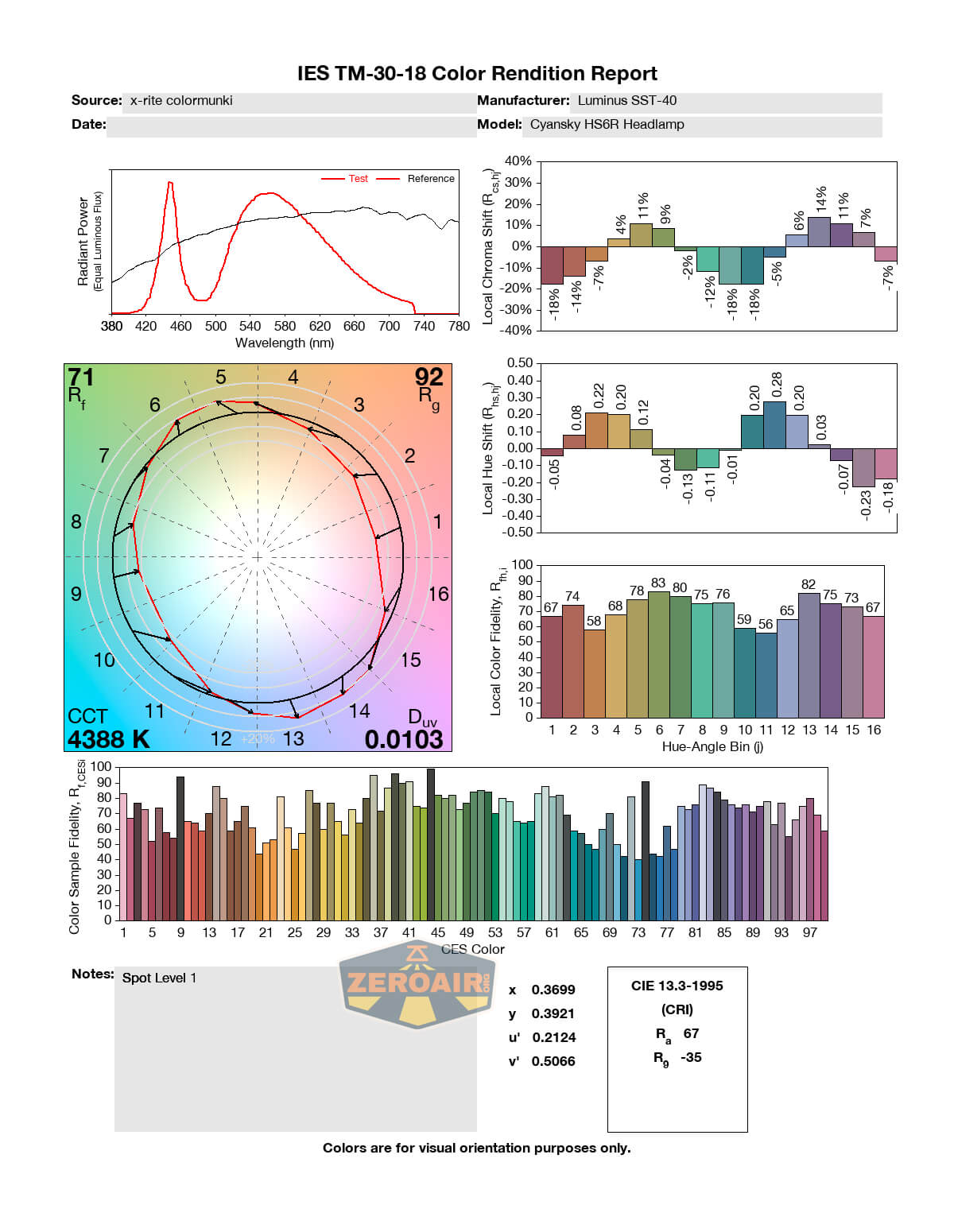

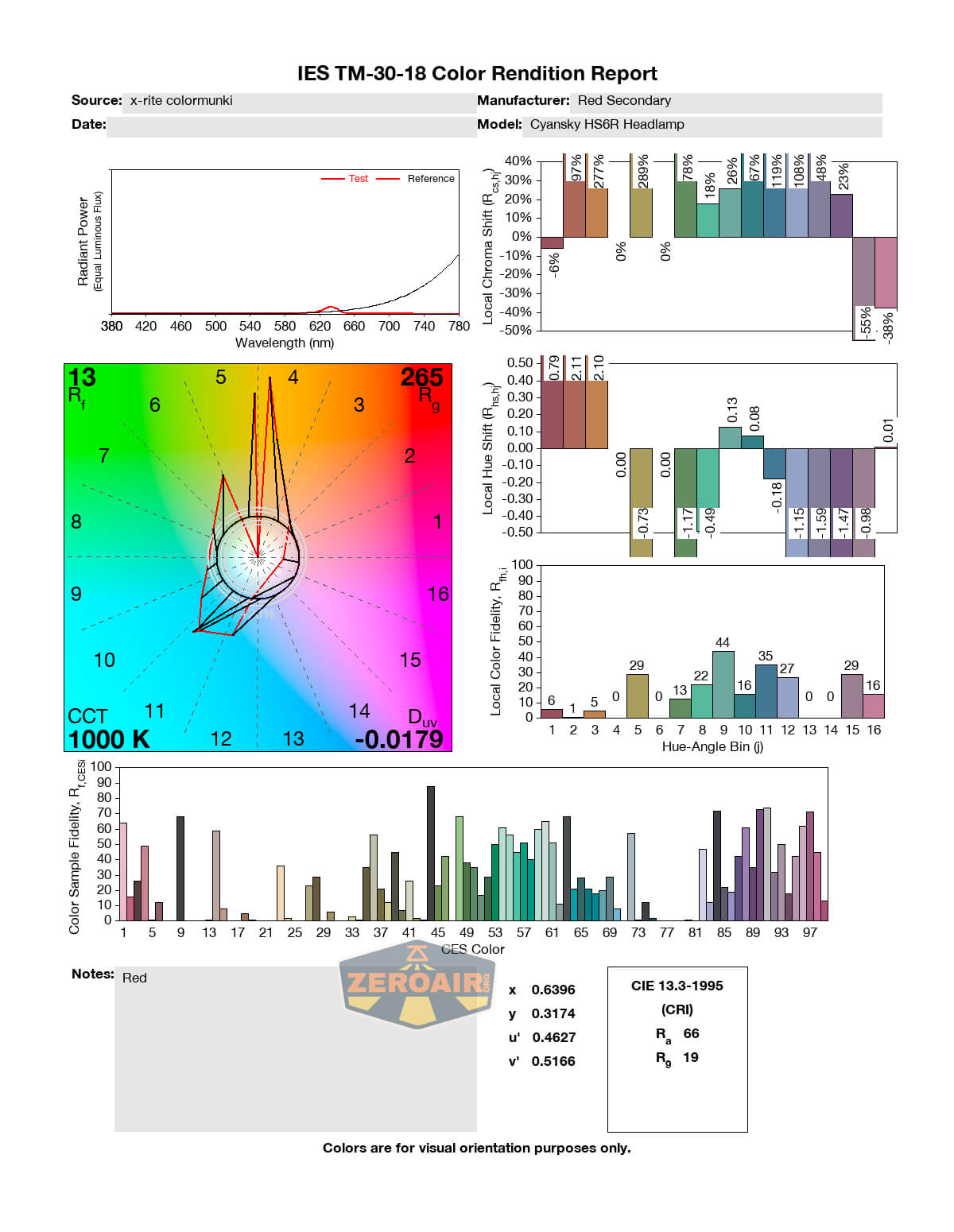

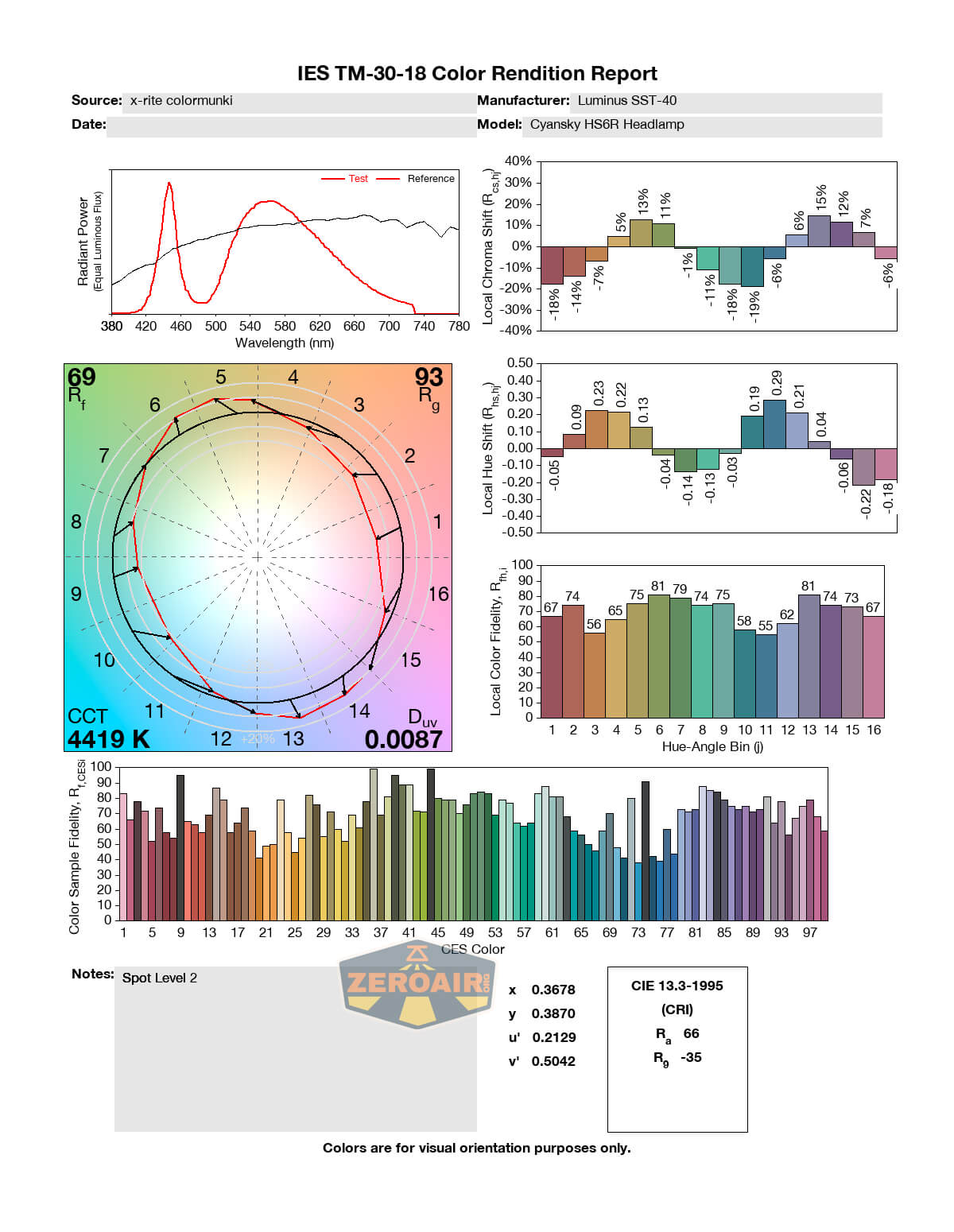

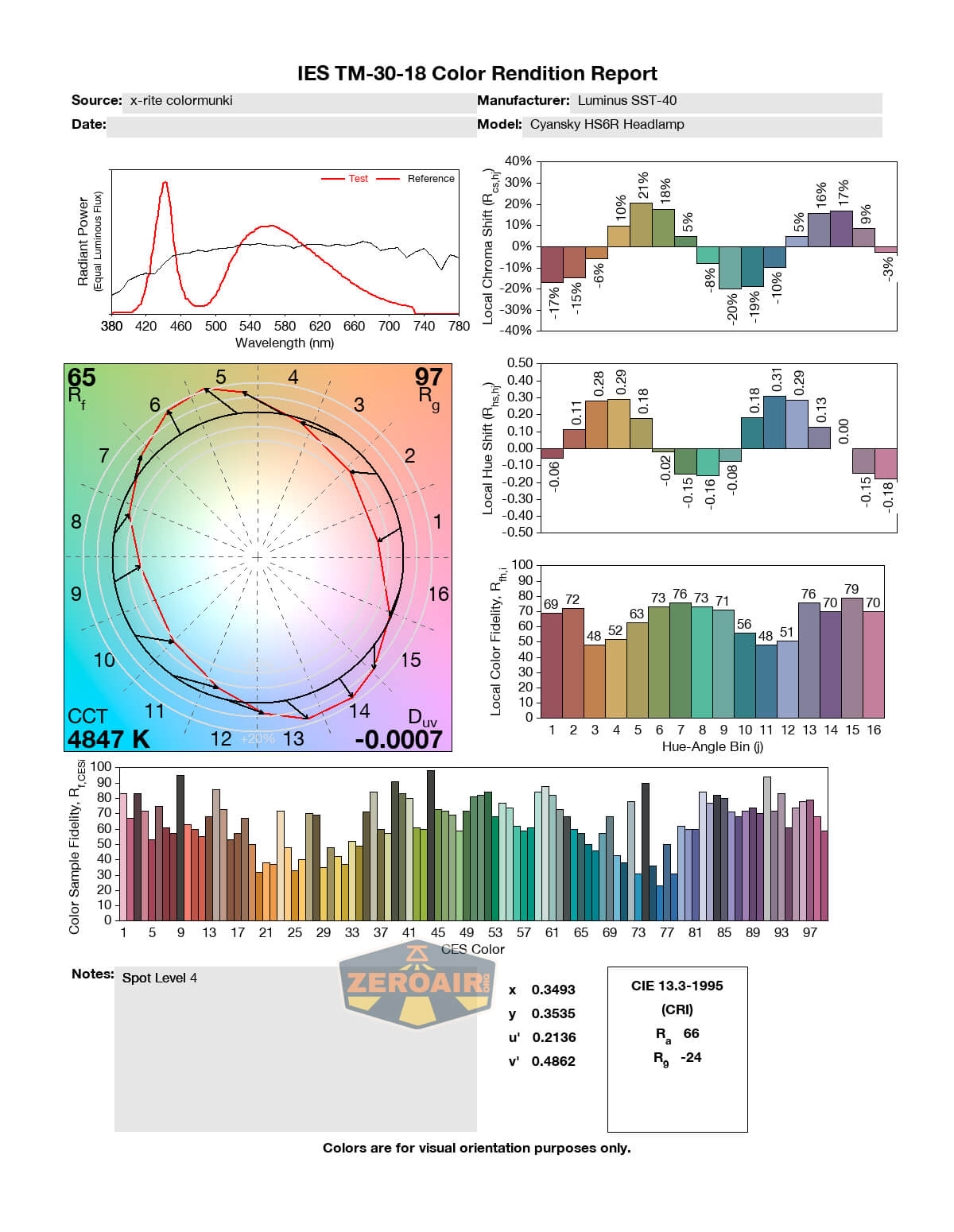

LED Color Report (CRI and CCT)

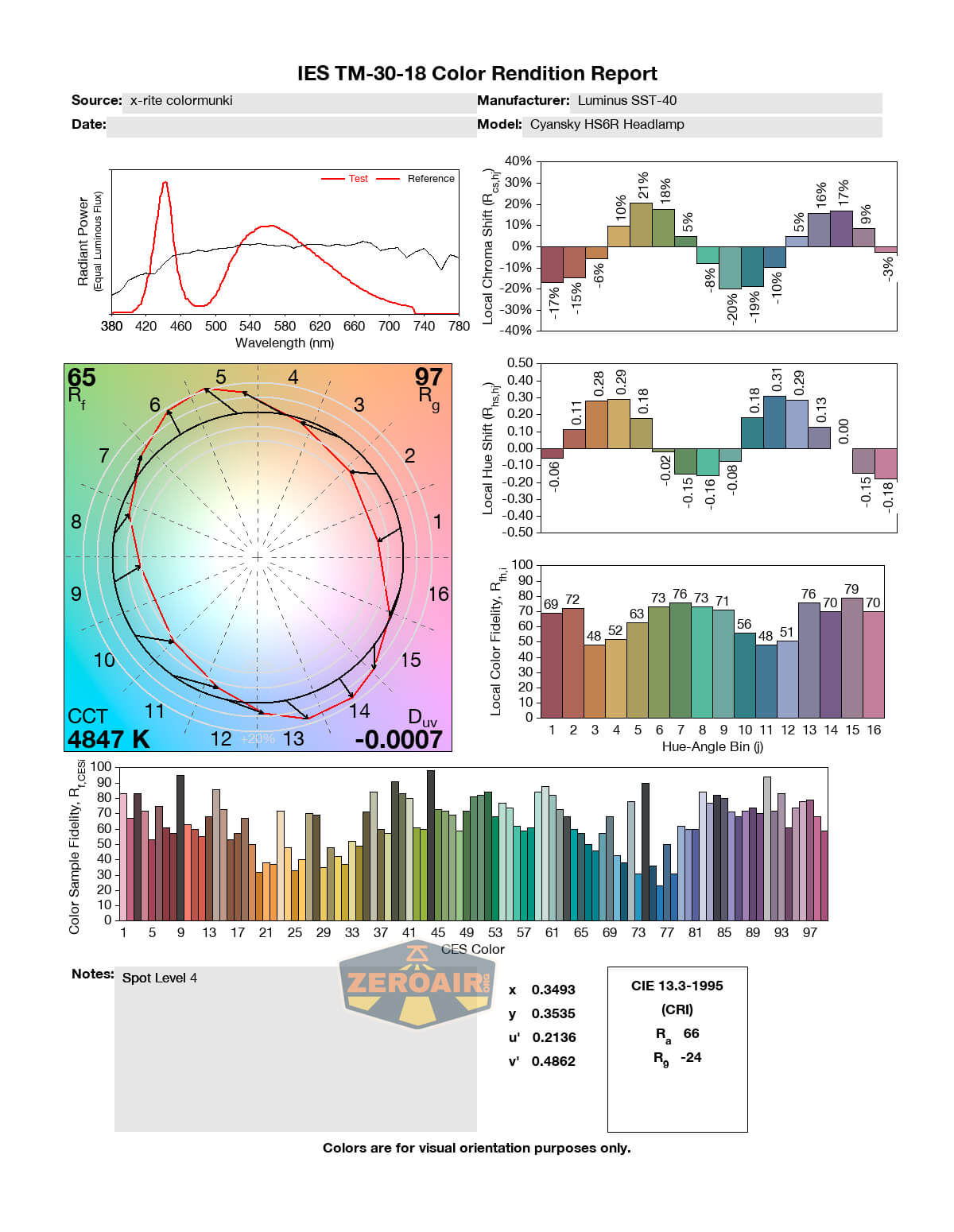

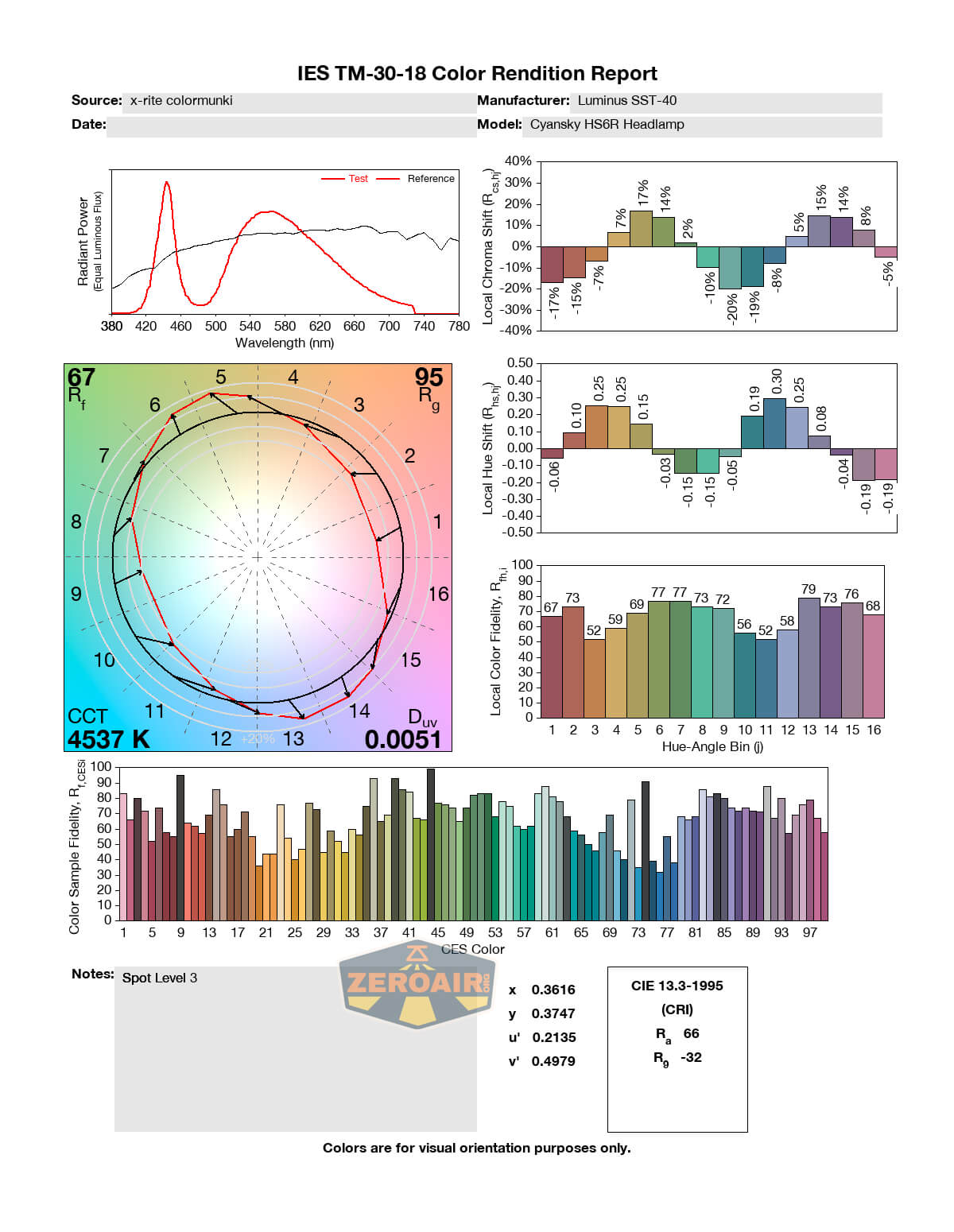

The Spot emitter actually comes in at around 4500K, which is altogether respectable!

Spot:

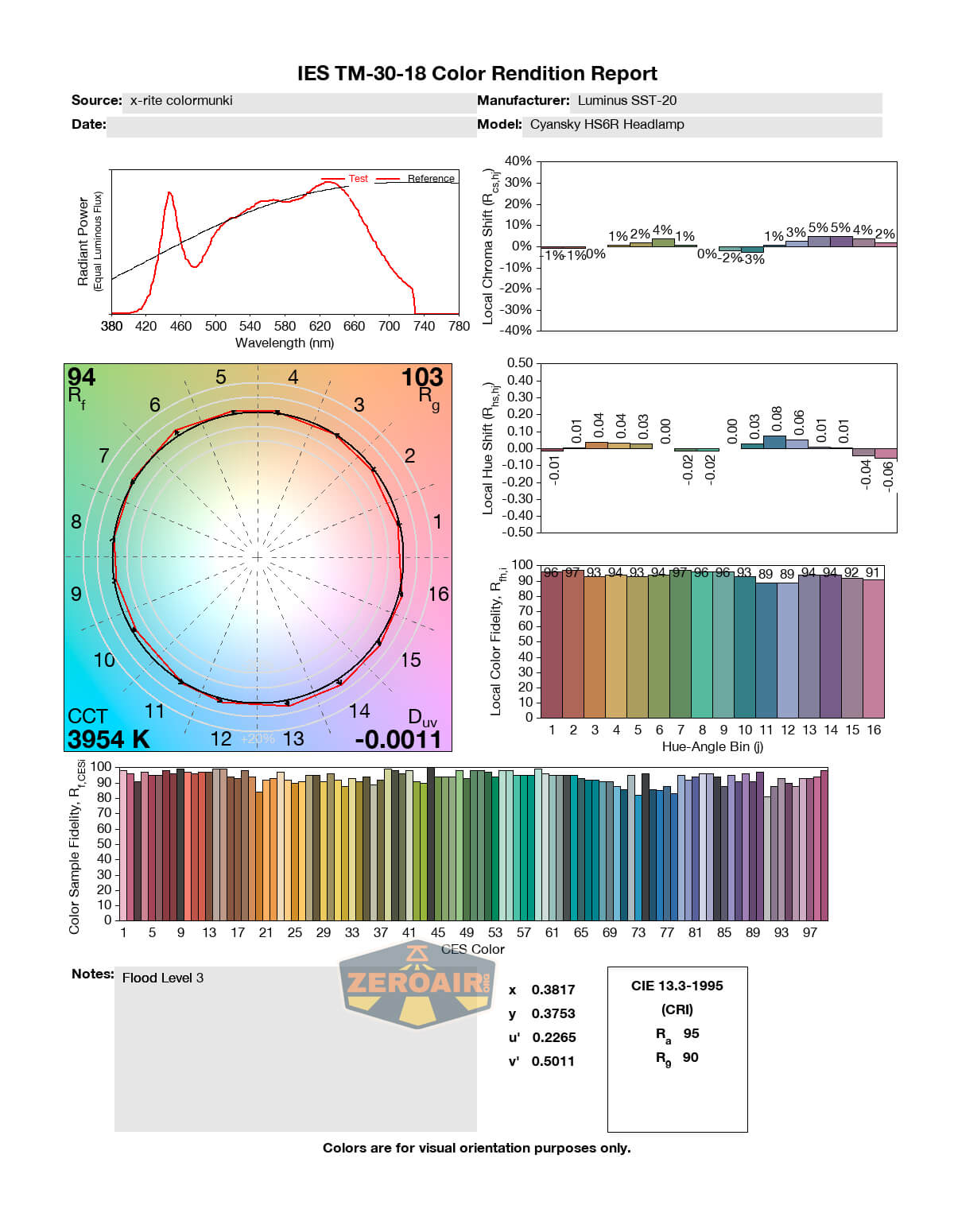

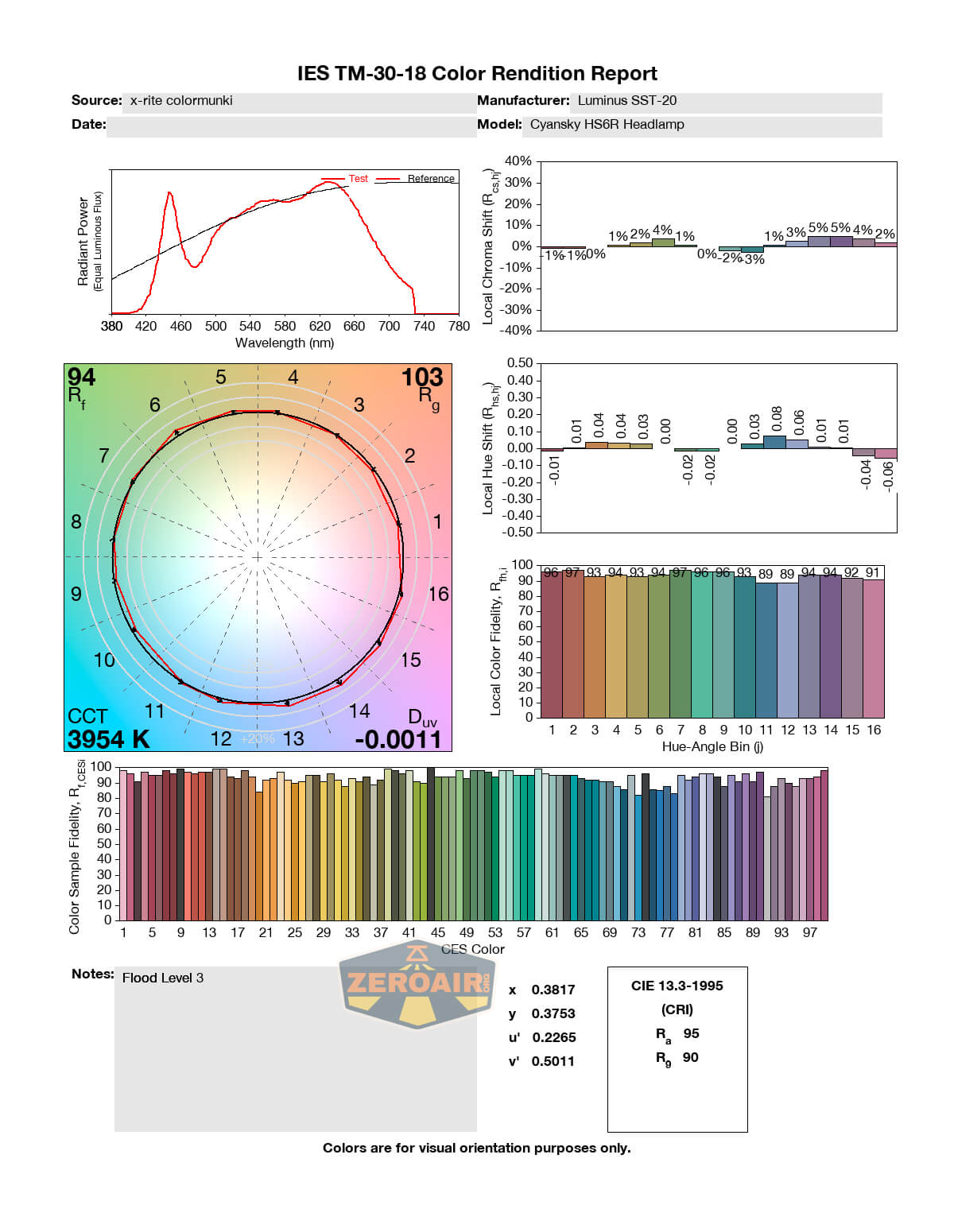

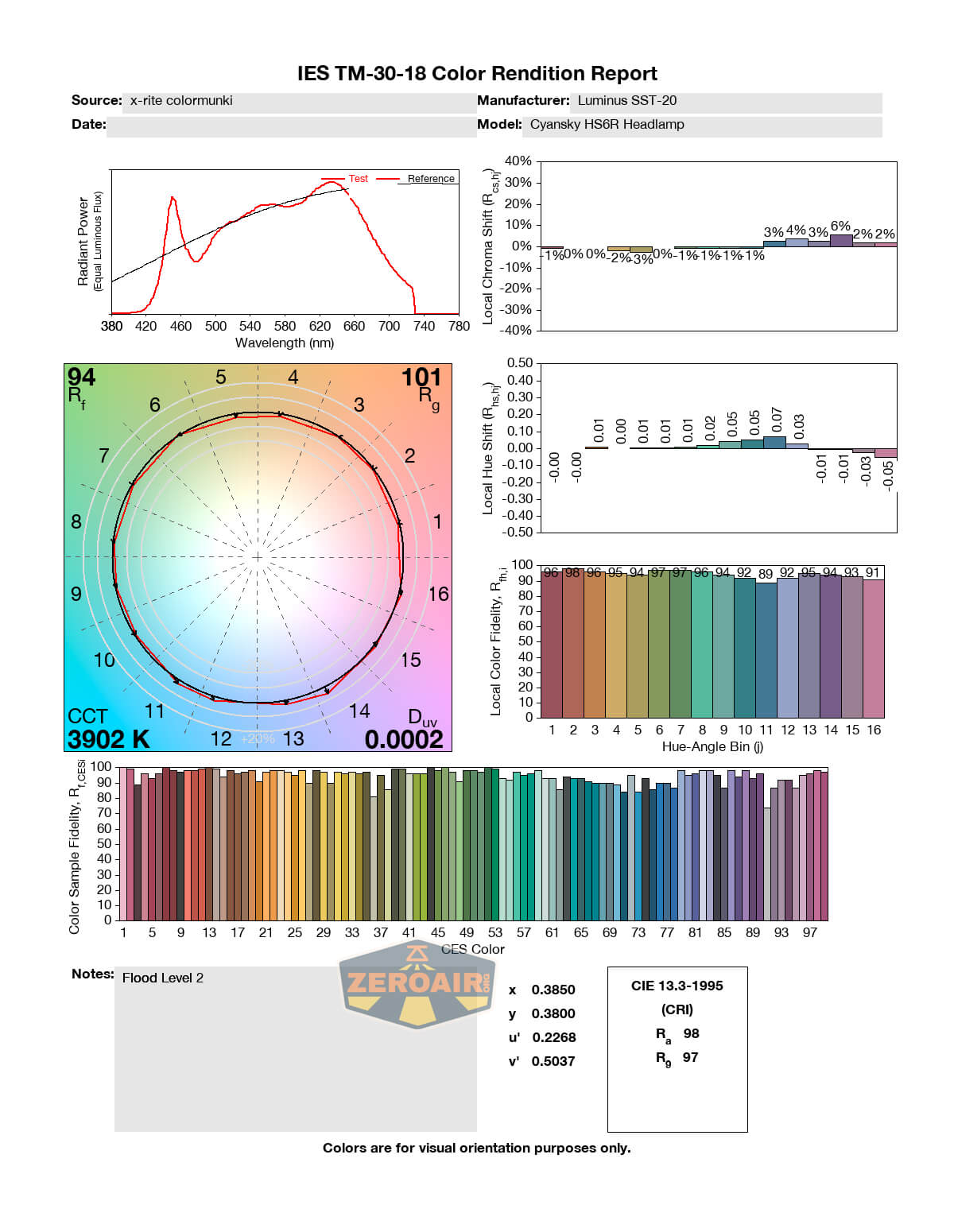

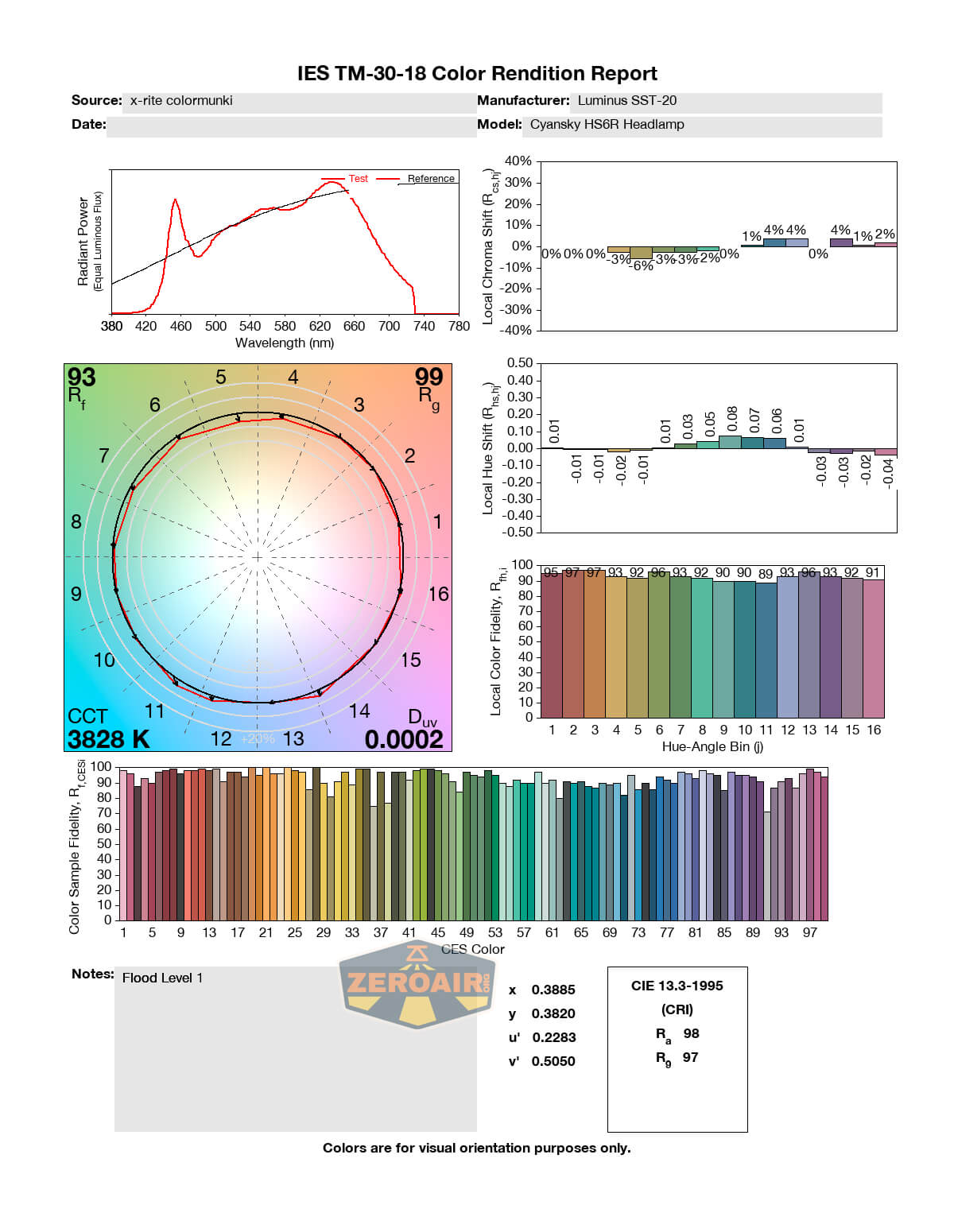

Flood is even warmer, at around 3800-4000K, but notably is a very high CRI version of the Luminus SST-20.

Flood (3) then Red (1):

Beamshots

These beamshots are always with the following settings:  f8, ISO100, 0.3s shutter, and manual 5000K exposure.

Spot:

Flood (3) then Red (1):

Both:

Tint vs BLF-348 (KillzoneFlashlights.com 219b version) (affiliate link)

I keep the test flashlight on the left, and the BLF-348 reference flashlight on the right.

Spot:

Flood (3) then Red (1):

Both:

I compare everything to the KillzoneFlashlights.com 219b BLF-348 because it’s inexpensive and has the best tint!

Conclusion on the Cyansky HS6R Headlamp

What I like

  • Good build quality
  • Comfortable when being worn (don’t let that metal bracket fool you)
  • Warm (ish?) Spot light
  • Even warmer Flood light
  • Flood light is very high CRI
  • Red emitters are a great option
  • C to C charging works
  • Charging is plenty fast
  • Throw numbers look good

What I don’t like

  • $75 seems a little pricey for this headlamp
  • Red should have low and high, and probably drop the blink
  • Output numbers were not hit on any level

Notes

  • This light was provided by Cyansky for review. I was not paid to write this review.
  • This content originally appeared at zeroair.org.  Please visit there for the best experience!
  • For flashlight-related patches, stickers, and gear, head over to PhotonPhreaks.com!
  • Use my amazon.com referral link if you’re willing to help support making more reviews like this one!
  • Please support me on Patreon!  Feeding flashlights is expensive!  And funding Fun Fund Friday even more so.  I deeply appreciate your support!
