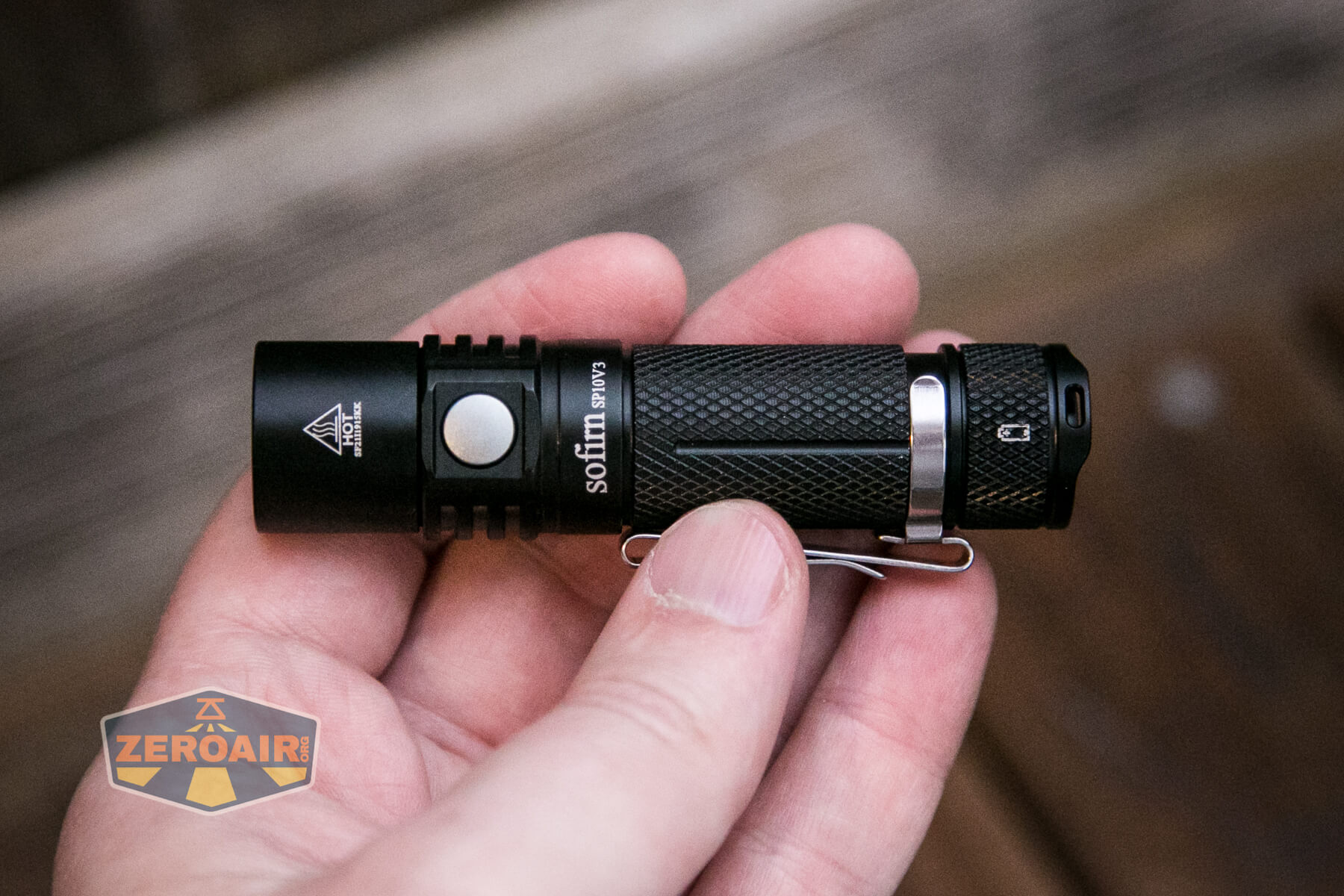

Sofirn SP10 V3 Flashlight Review
The Sofirn SP10 V3 is a dual-fuel (14500/AA) flashlight with a simple user interface and great emitter choice too! An all-around great one!
Official Specs and Features
Here’s a link to the Sofirn SP10 V3 flashlight product page.
Versions
Of the Sofirn SP10 V3 flashlight there is just one version.  There are two purchase options though – kit or no kit. What you see here is the kit option, and that’s what I’d recommend. It includes a 14500 cell and a charger for just $2 extra. There are other versions of the SP10 of course, as this is version 3.
Price
The no-kit is $20.99. A kit with a cell and single-bay charger adds only $2, for a total of $22.99. Buy the kit!
Short Review
Just like I loved the Sofirn SC21, I love the Sofirn SP10 V3, too. What a great little flashlight. I would argue that the SP10 V3 is probably better than the SC21 though because it can run both lithium-ion and primary AA-sized cells too!
Long Review
The Big Table
| Sofirn SP10 V3 Flashlight (Set) | |
|---|---|
| Emitter: | Samsung LH351d (90 CRI) |
| Price in USD at publication time: | $20.99 |
| Cell: | 1×14500 |
| Turbo Runtime Graph | High Runtime Graph |
| LVP? | With lithium-ion: Warning (double blink) around 3V With 1.5V cell: Does not seem to have LVP |
| Switch Type: | E-Switch |
| Quiescent Current (mA): | 0.12 |
| On-Board Charging? | Separate charger (micro-USB) |
| Charge Port Type: | Separate charger uses micro-USB |
| Charge Graph | |
| Power off Charge Port | – |
| Claimed Lumens (lm) | 1000 |
| Measured Lumens (at 30s) | 910 (91% of claim)^ |
| Candela per Lumen | 5.5 |
| Claimed Throw (m) | 121 |
| Candela (Calculated) in cd (at 30s) | 307lux @ 4.13m = 5236cd |
| Throw (Calculated) (m) | 144.7 (119.6% of claim)^ |
| Item provided for review by: | Sofirn |
| All my Sofirn reviews! | |
| Sofirn SP10-V3 (Set) | |
|---|---|
| Emitter: | Samsung LH351d (90 CRI) |
| Price in USD at publication time: | $20.99 |
| Cell: | 1xAA |
| Turbo Runtime Graph | |
| LVP? | |
| Switch Type: | E-Switch |
| Quiescent Current (mA): | 0.05 |
| On-Board Charging? | Yes |
| Charge Port Type: | – |
| Power off Charge Port | – |
| Claimed Lumens (lm) | 300 |
| Measured Lumens (at 30s) | 280 (93.3% of claim)^ |
| Candela per Lumen | 5.7 |
| Claimed Throw (m) | 61 |
| Candela (Calculated) in cd (at 30s) | 103lux @ 3.779m = 1471cd |
| Throw (Calculated) (m) | 76.7 (125.7% of claim)^ |
| Item provided for review by: | Sofirn |
| All my Sofirn reviews! | |
^ Measurement disclaimer:Â Testing flashlights is my hobby. I use hobbyist-level equipment for testing, including some I made myself. Try not to get buried in the details of manufacturer specifications versus measurements recorded here; A certain amount of difference (say, 10 or 15%) is perfectly reasonable.

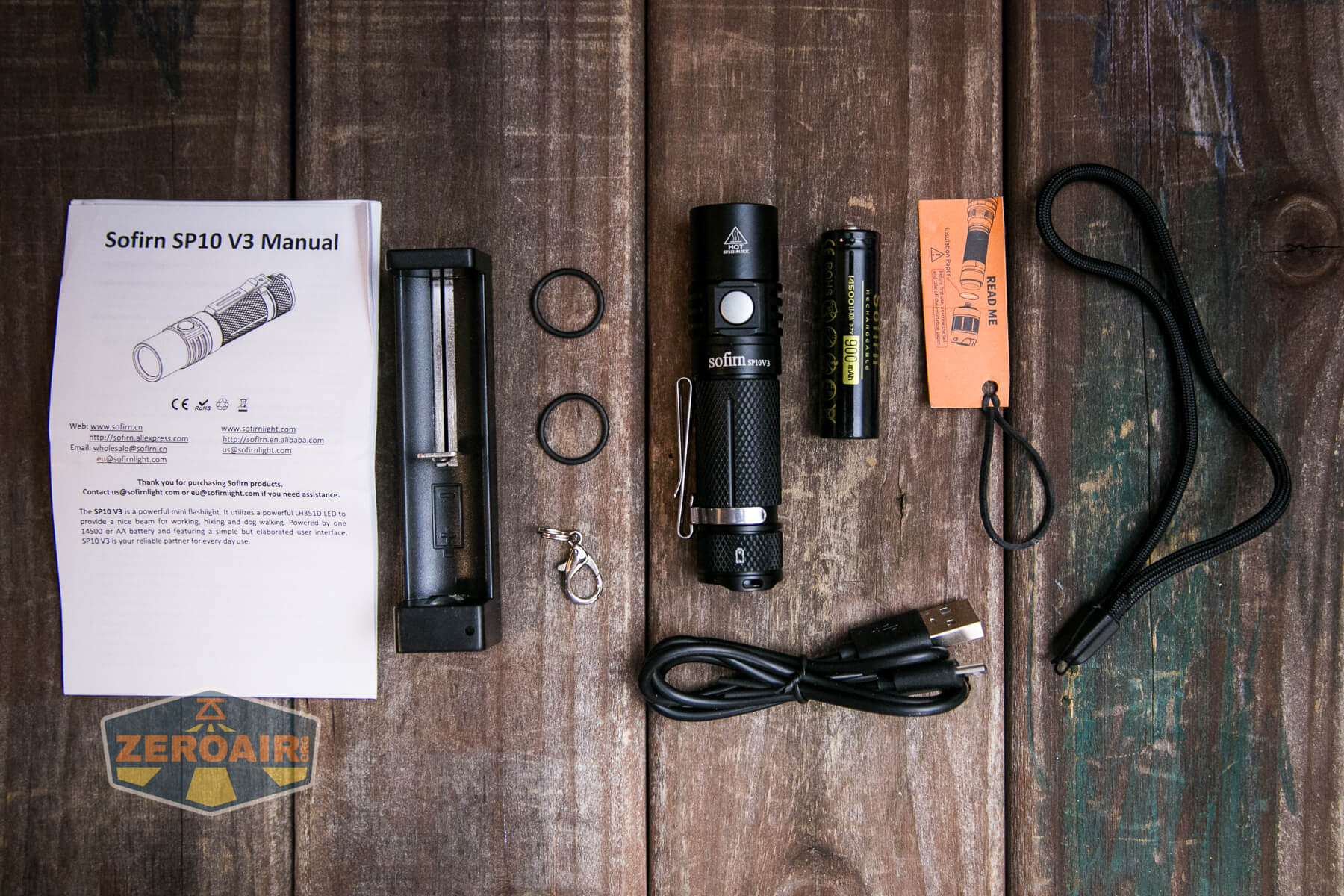

What’s Included
- Sofirn SP10 V3 Flashlight
- Sofirn 900mAh 14500 lithium-ion cell
- Single-bay charger (lithium-ion only)
- Metal ring attachment with split-ring
- Charger cable (USB to micro-USB)
- Lanyard
- Spare o-rings (2)
- Manual etc

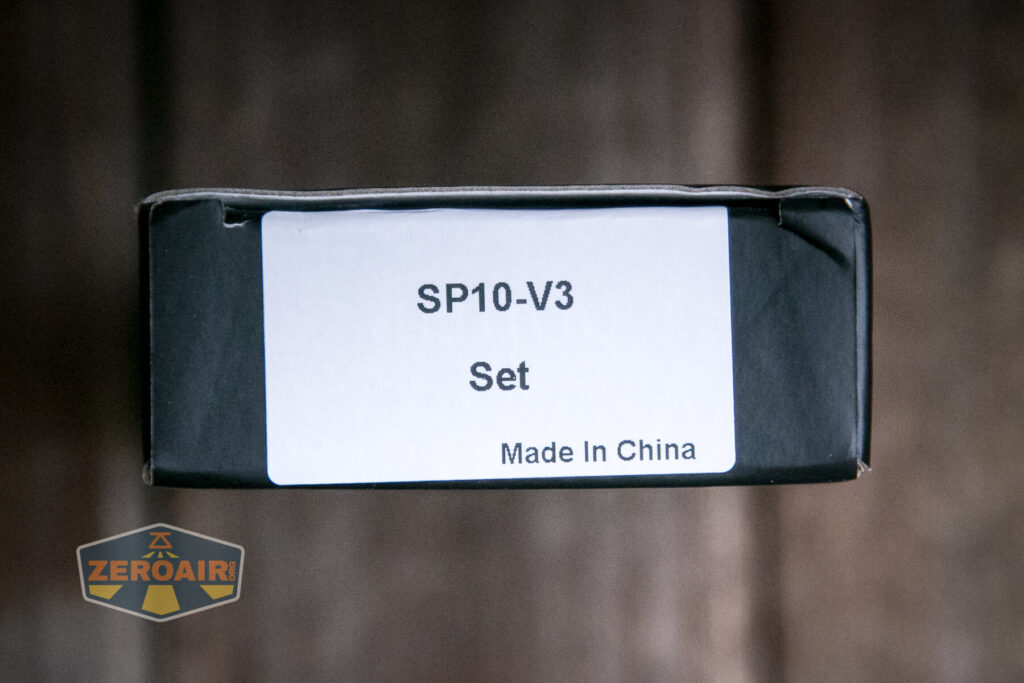

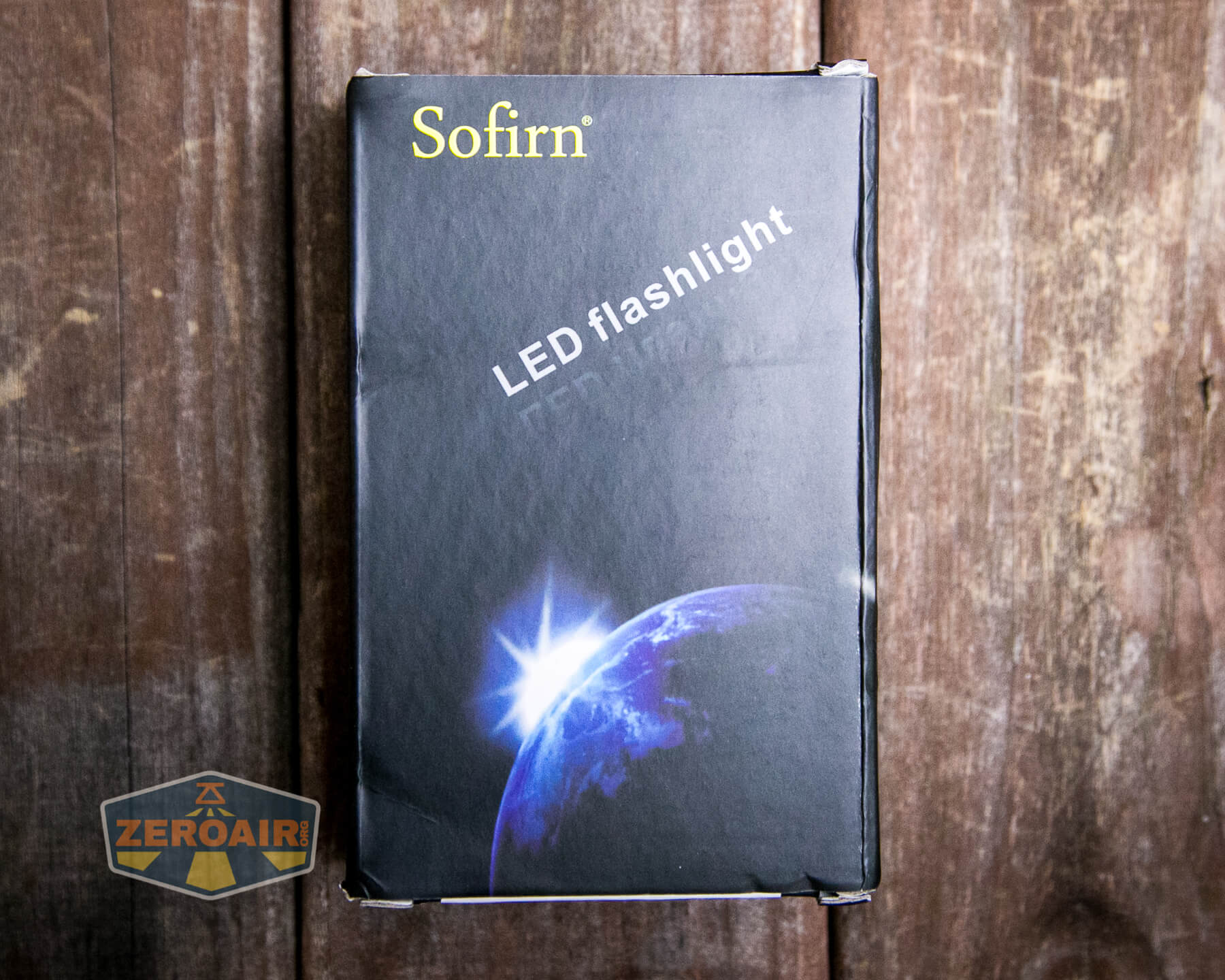

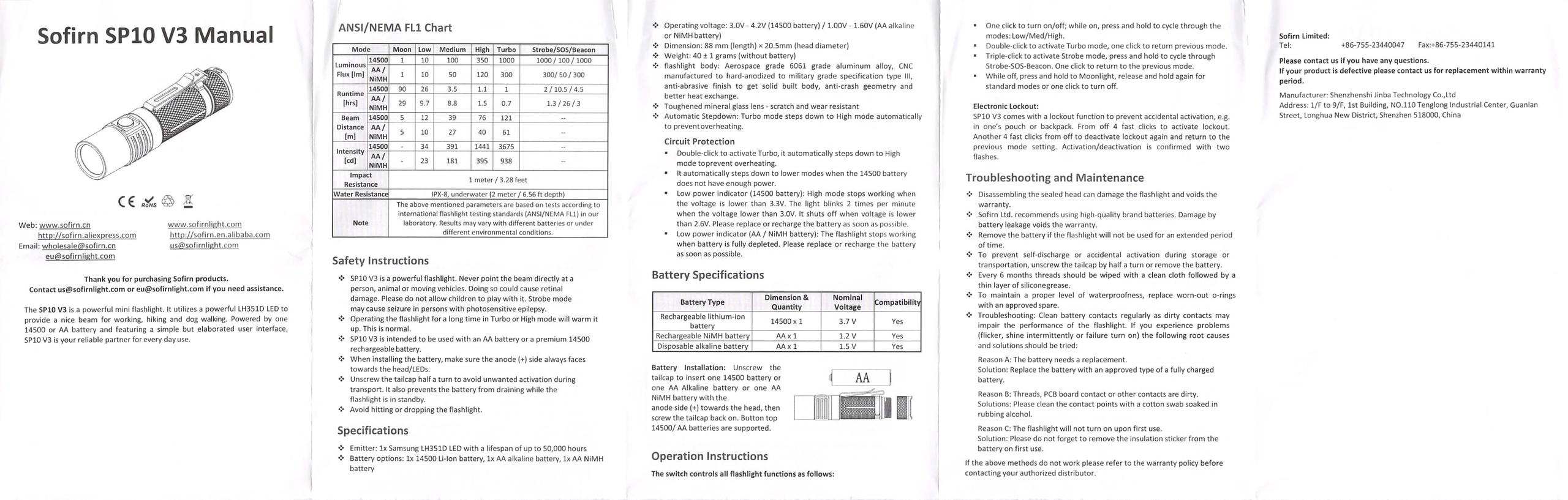

Package and Manual
Build Quality and Disassembly
The build quality is good. No issues to speak of, particularly given that this is a $23 flashlight!

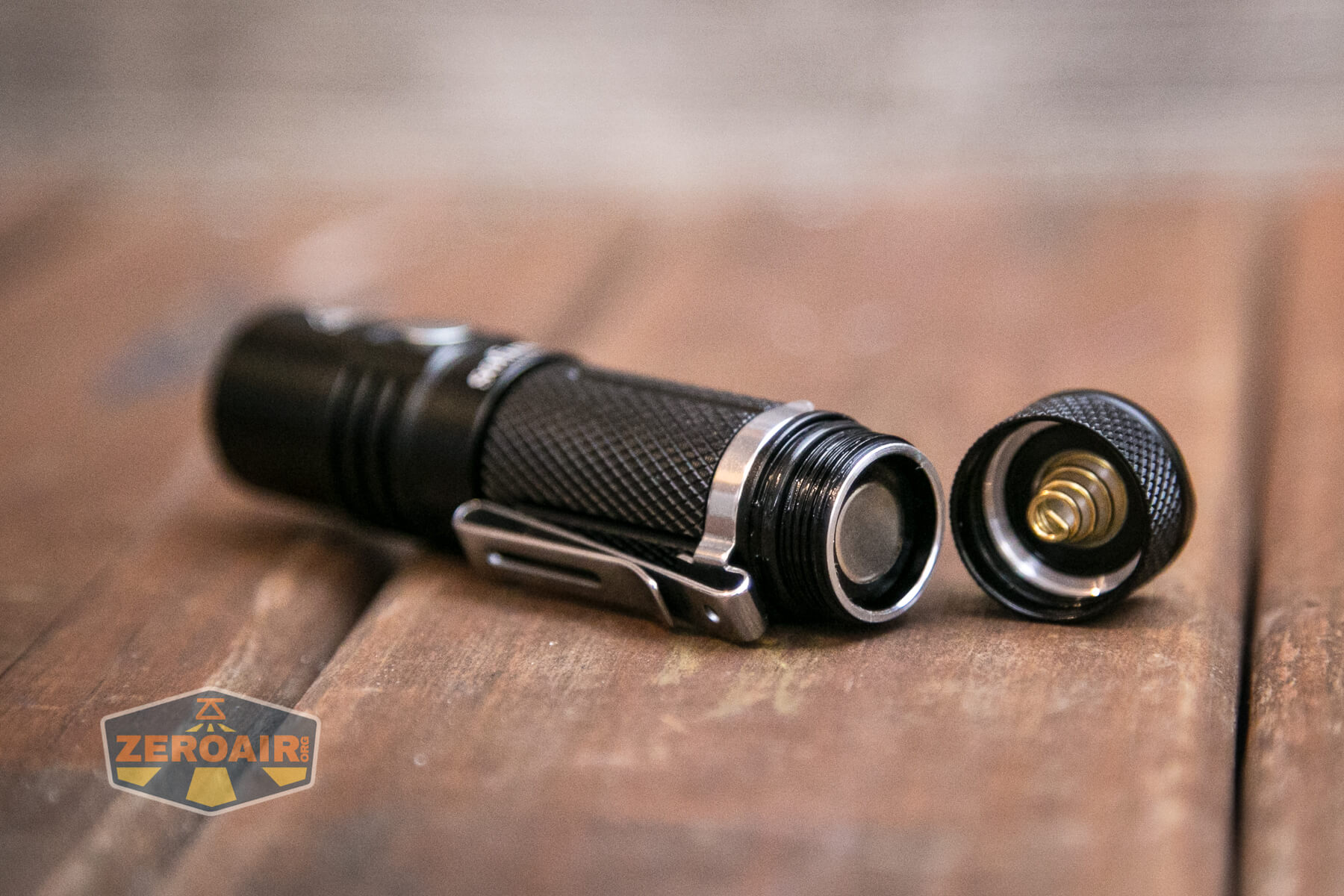

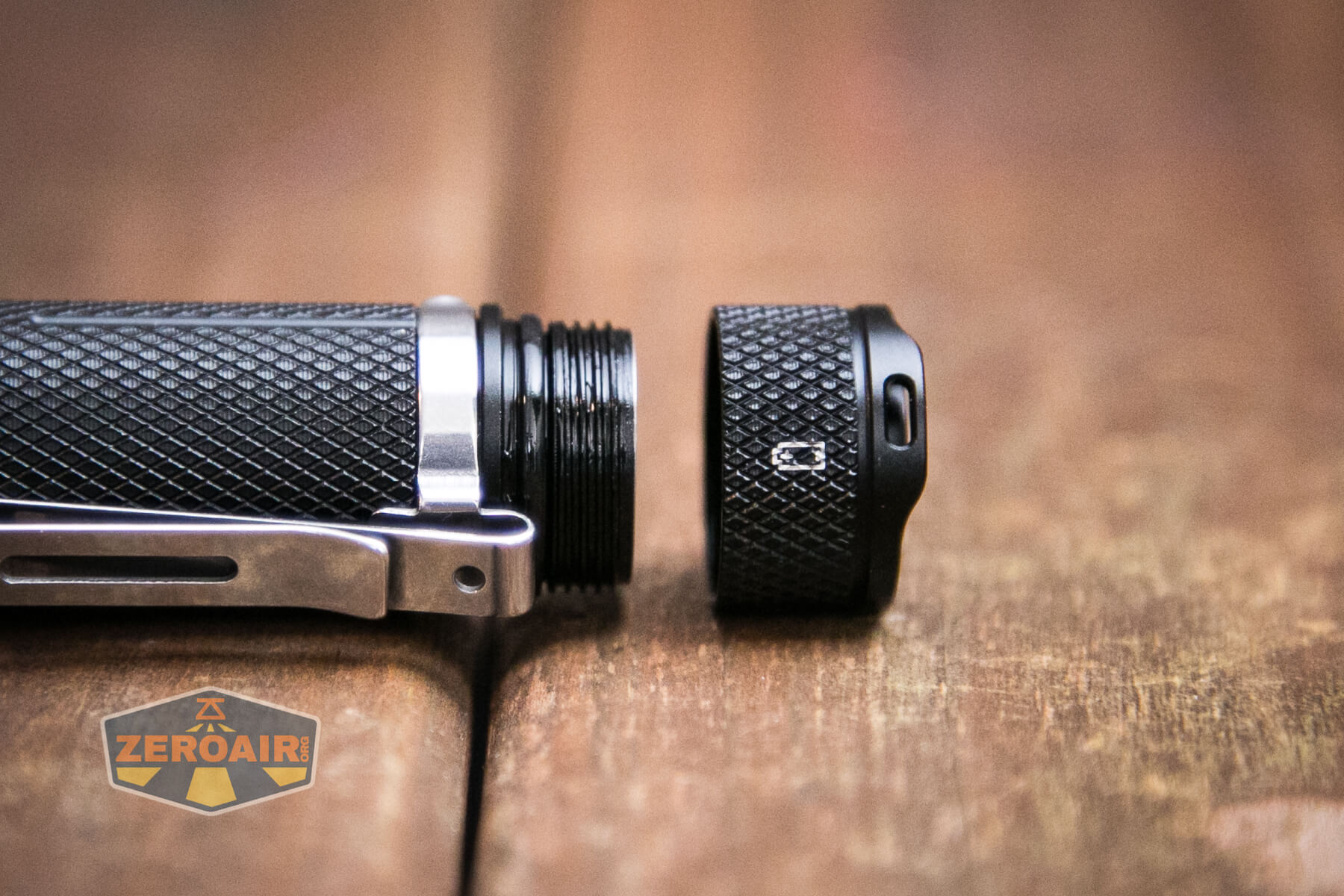

The threads are square-cut, not too long, and have plenty of lube. Note that Sofirn has updated where the cell orientation label goes – it’s on the tailcap here, which is a smarter place (than the cell tube, which has happened before.)

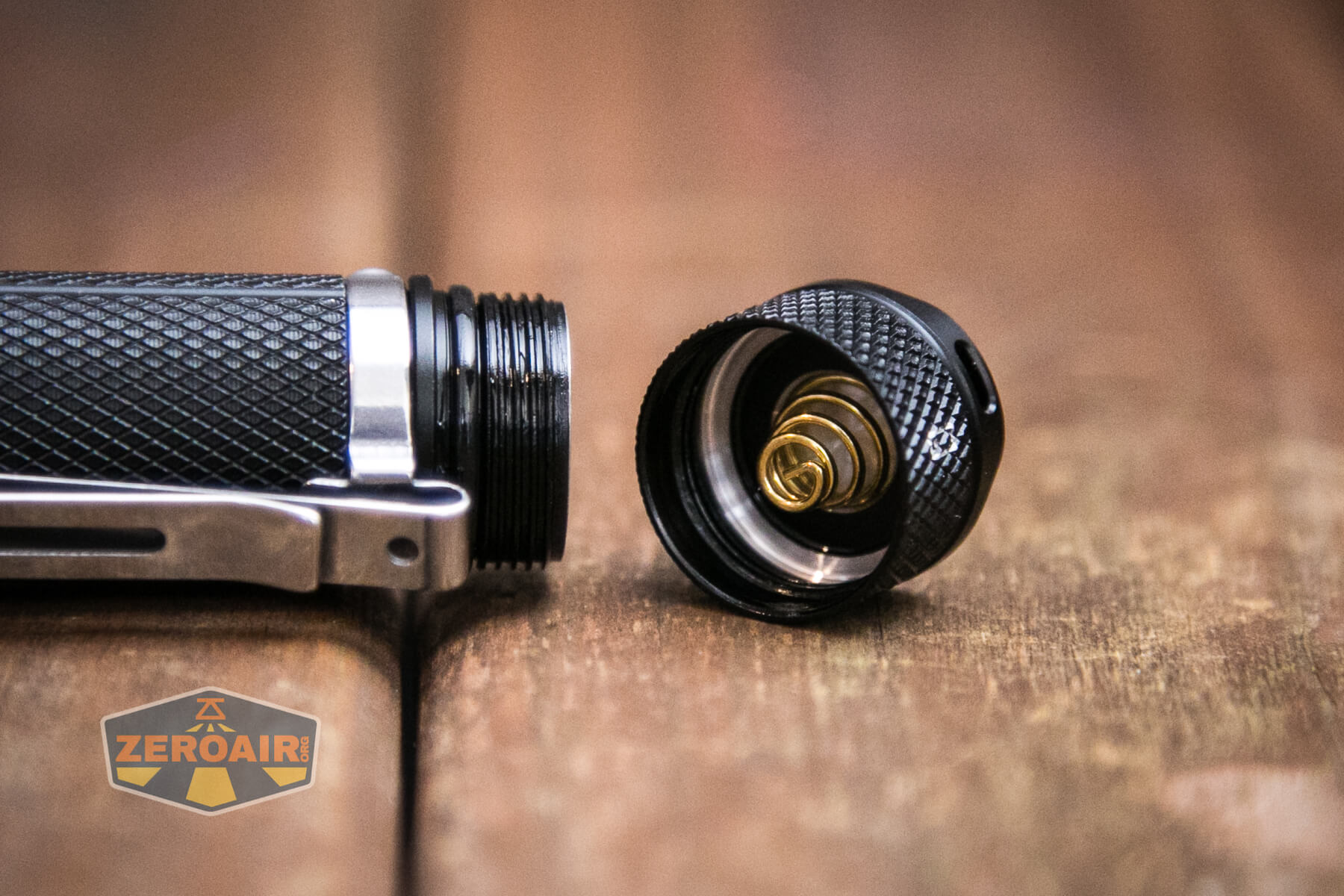

The tail has a nice beefy spring.

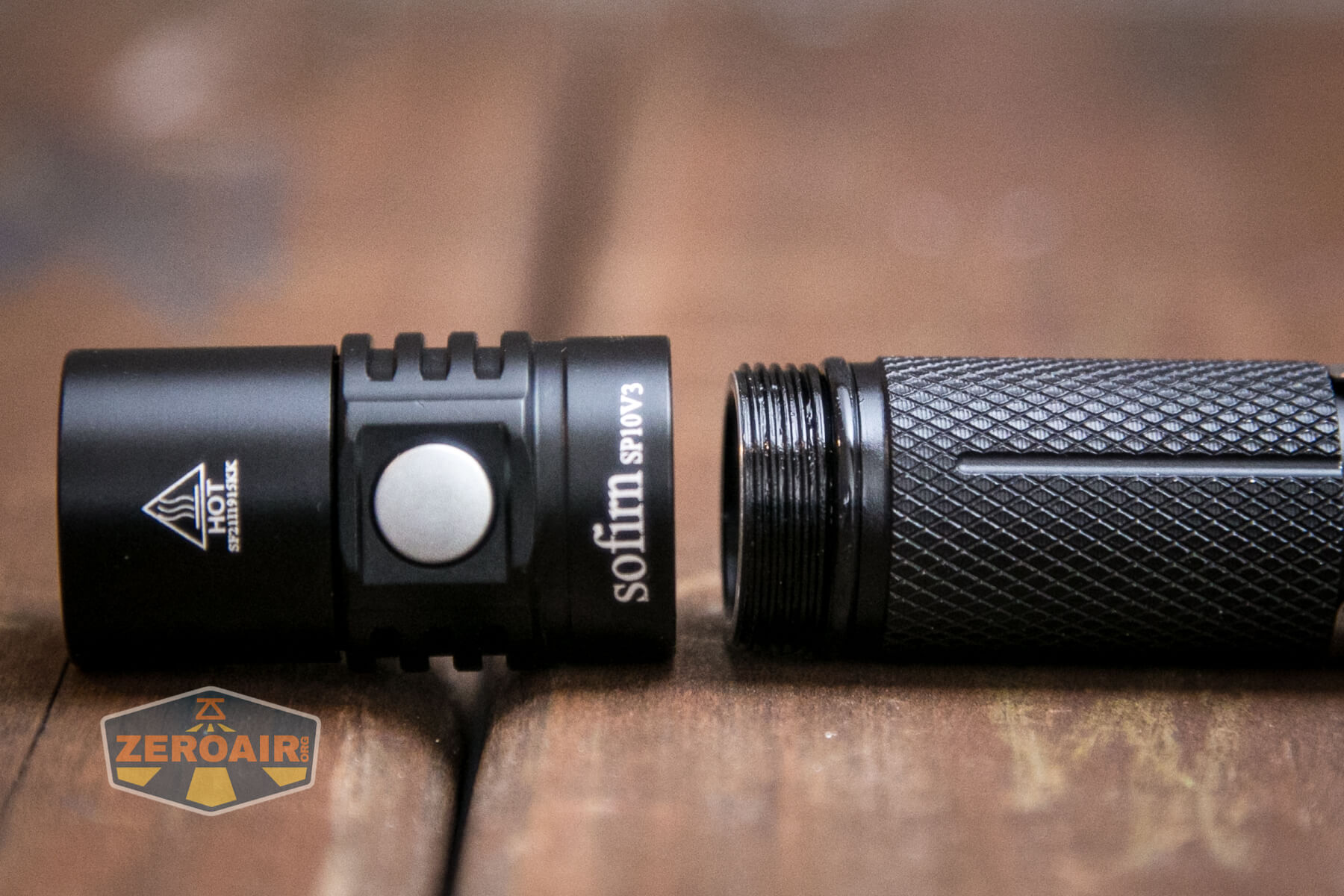

The head end has similar threads but the cell tube is not reversible.

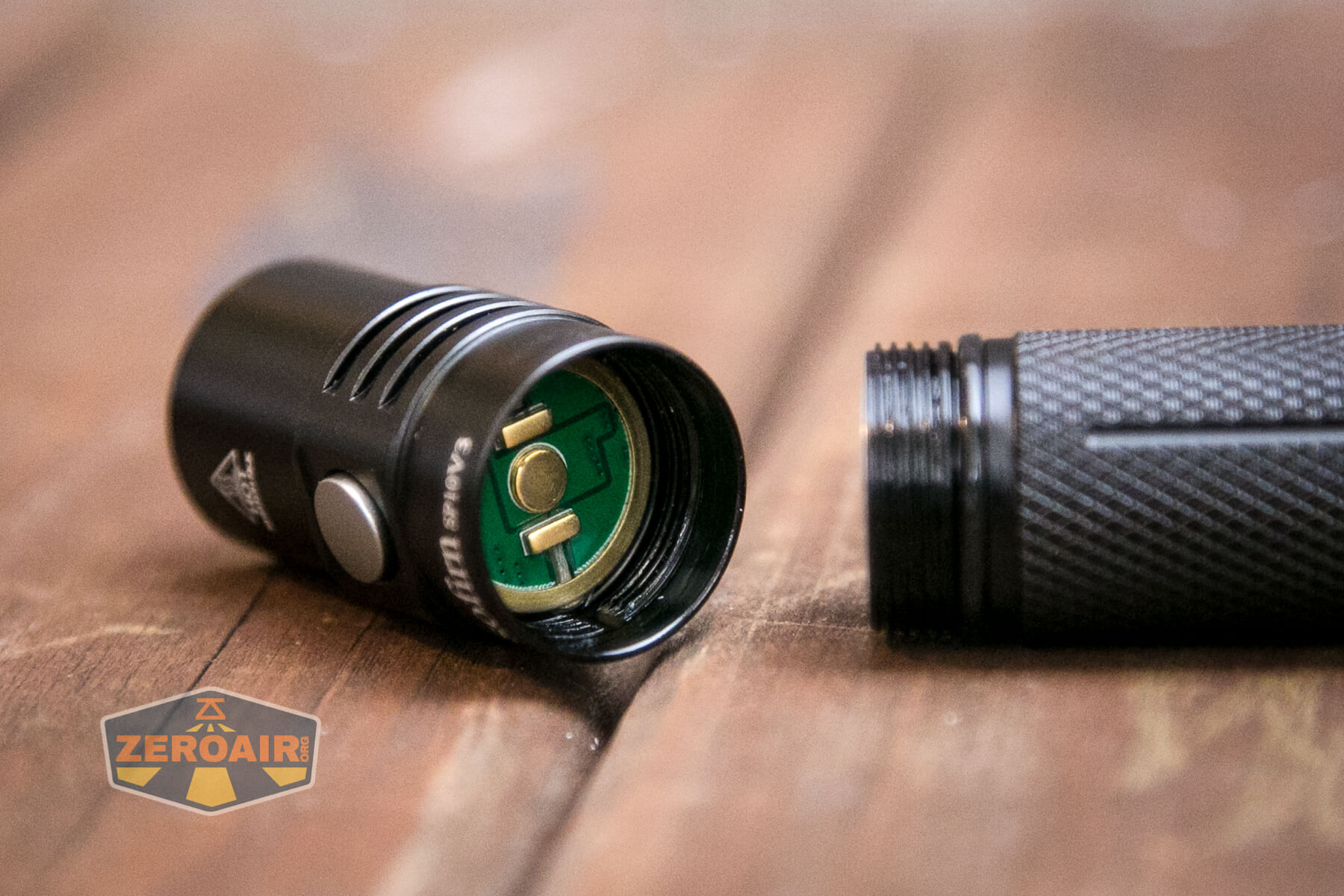

The head end gets only a button and no spring.

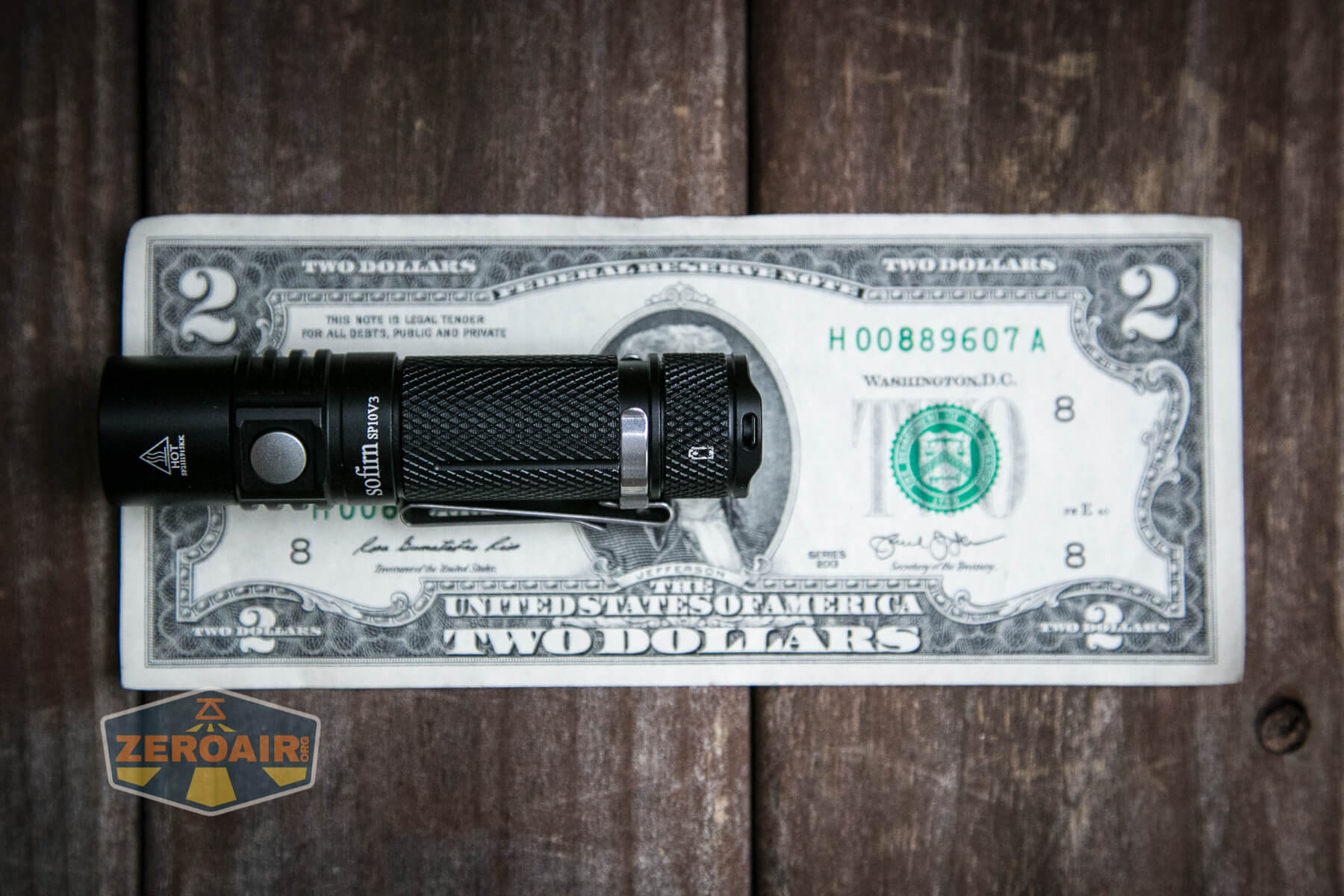

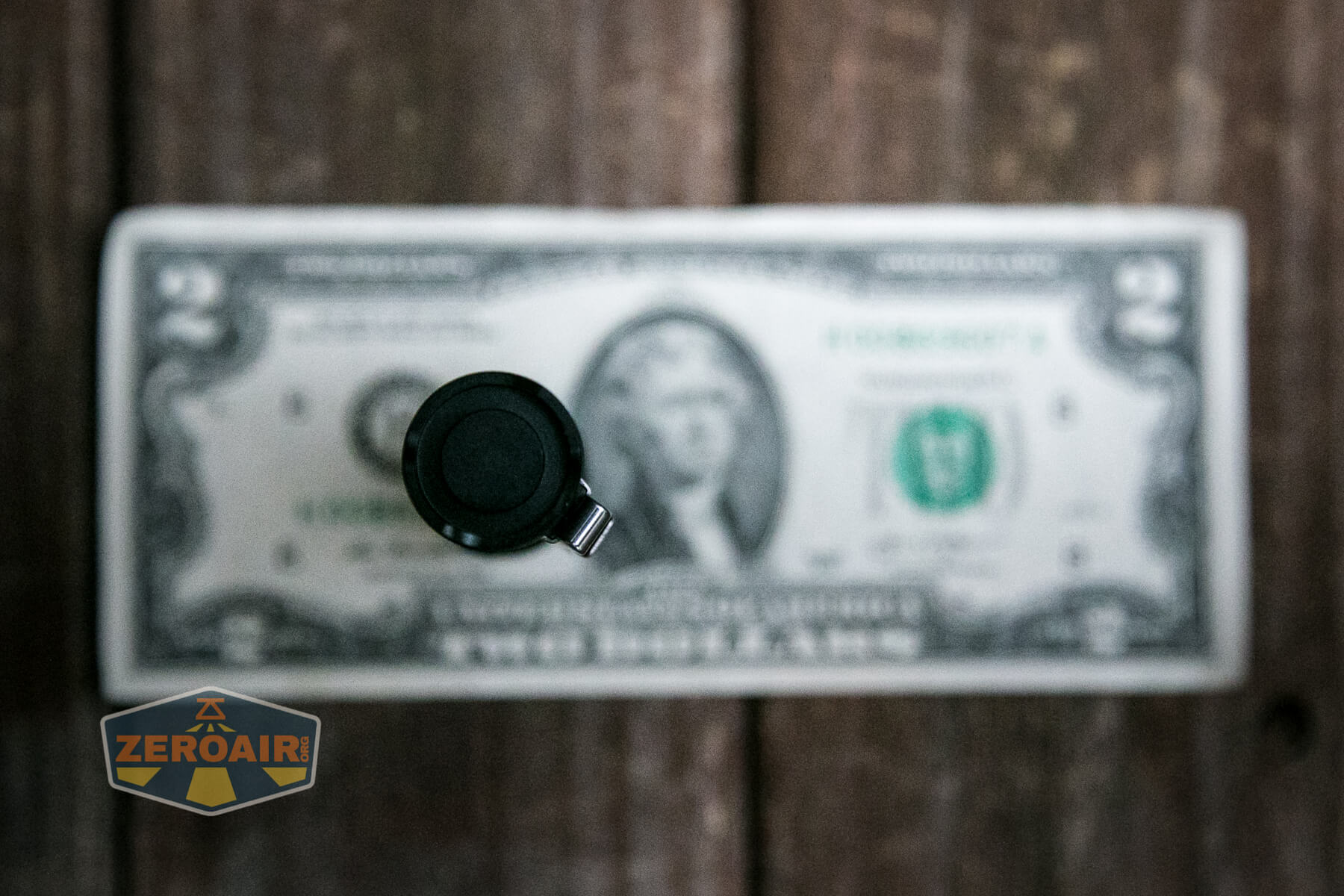

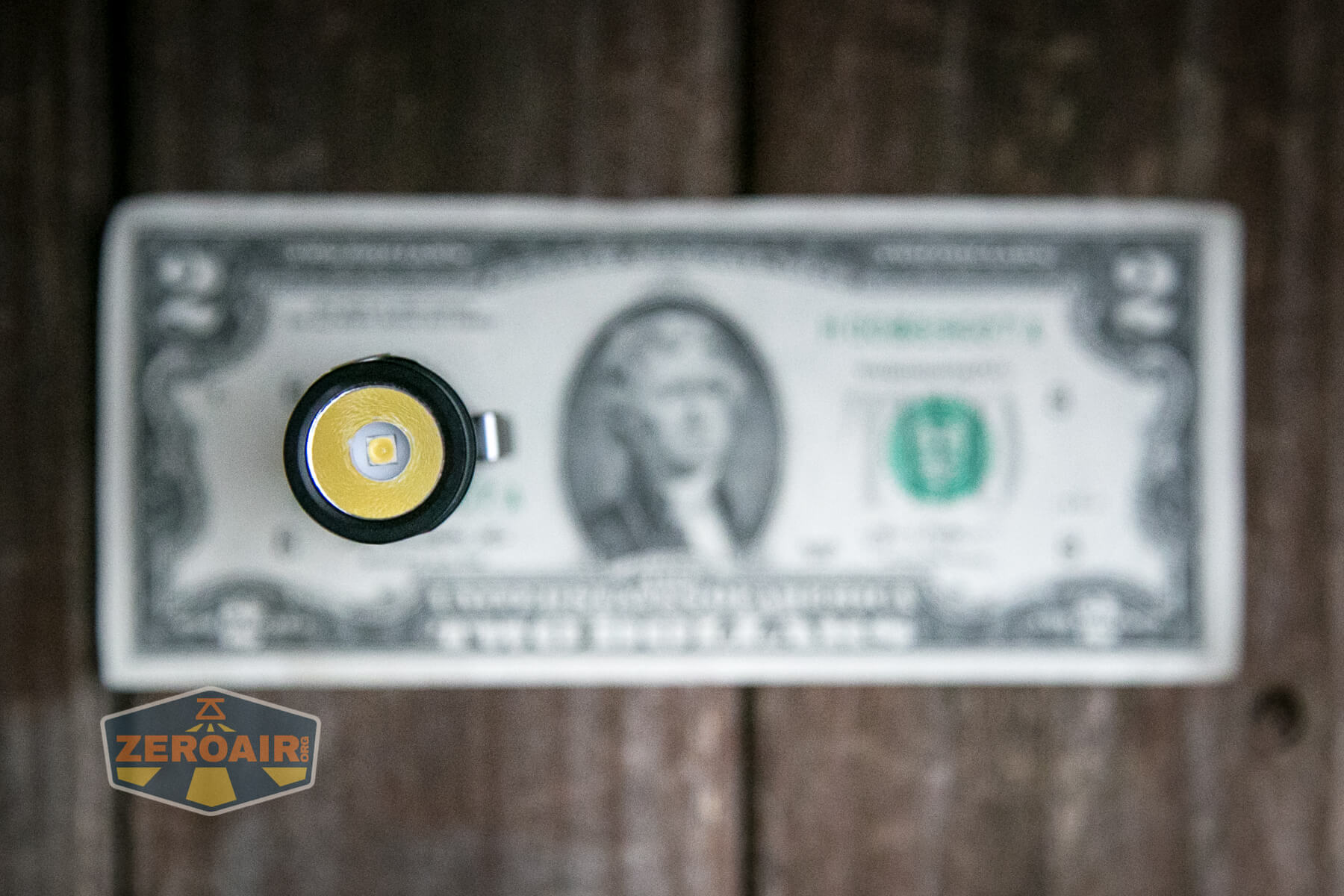

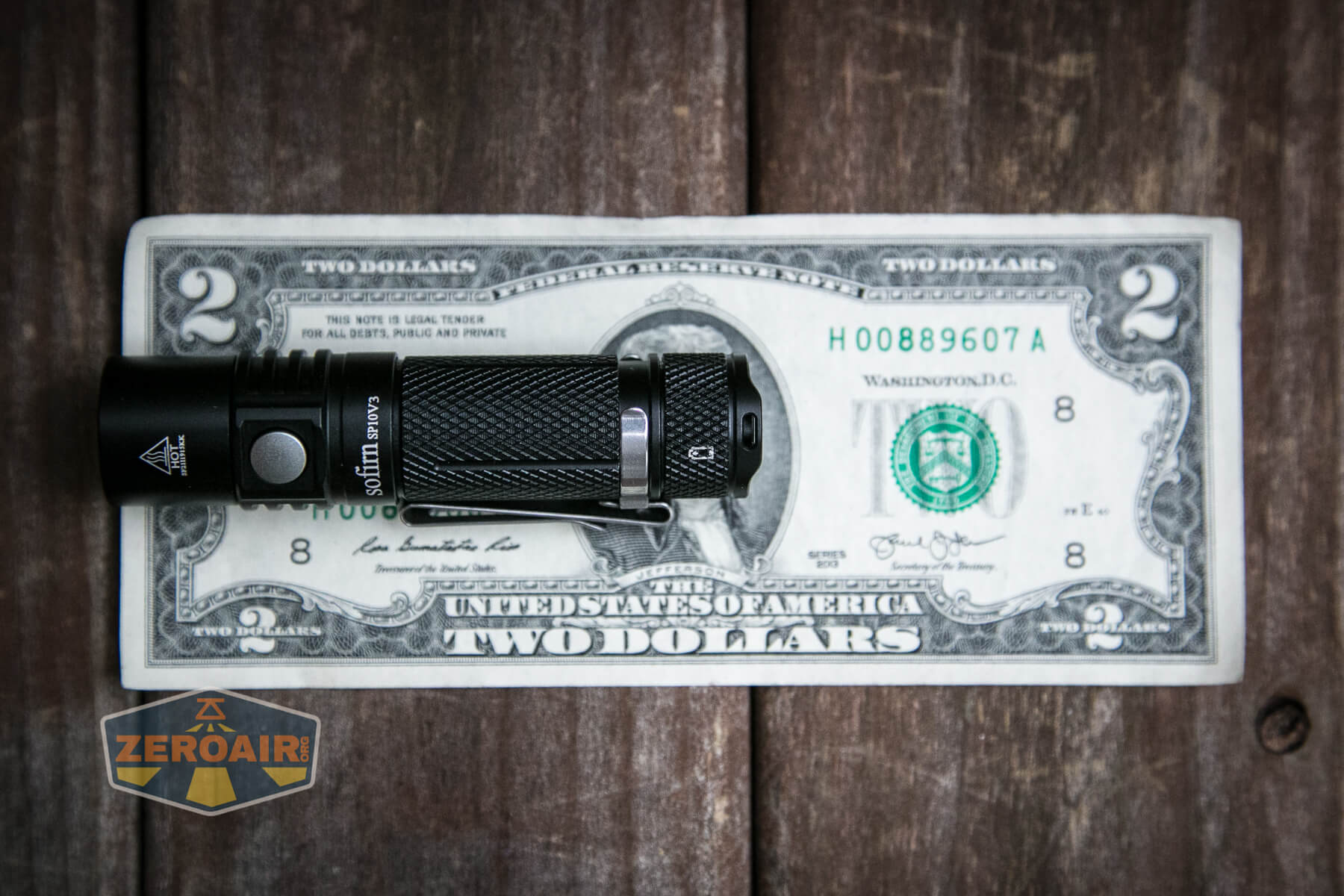

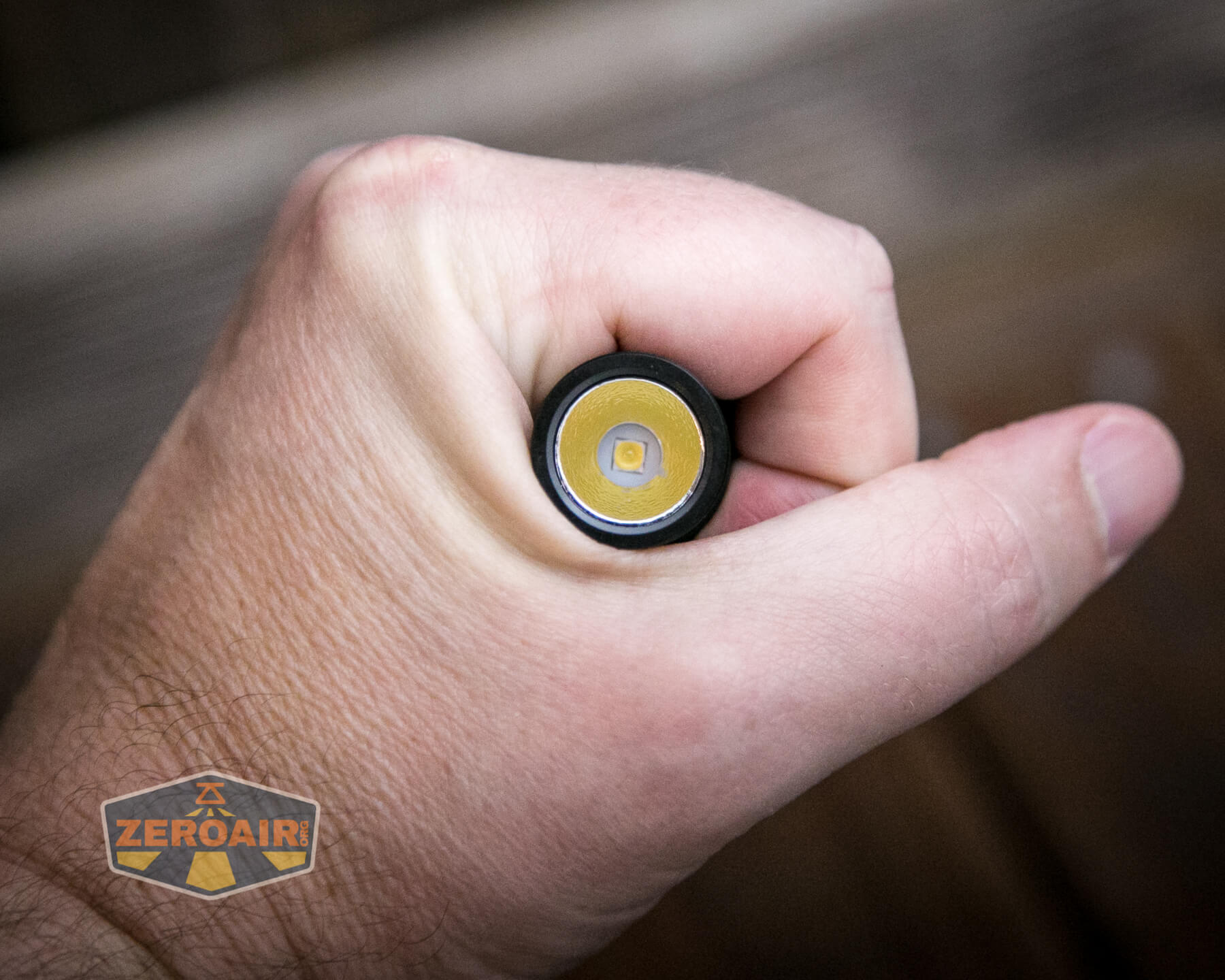

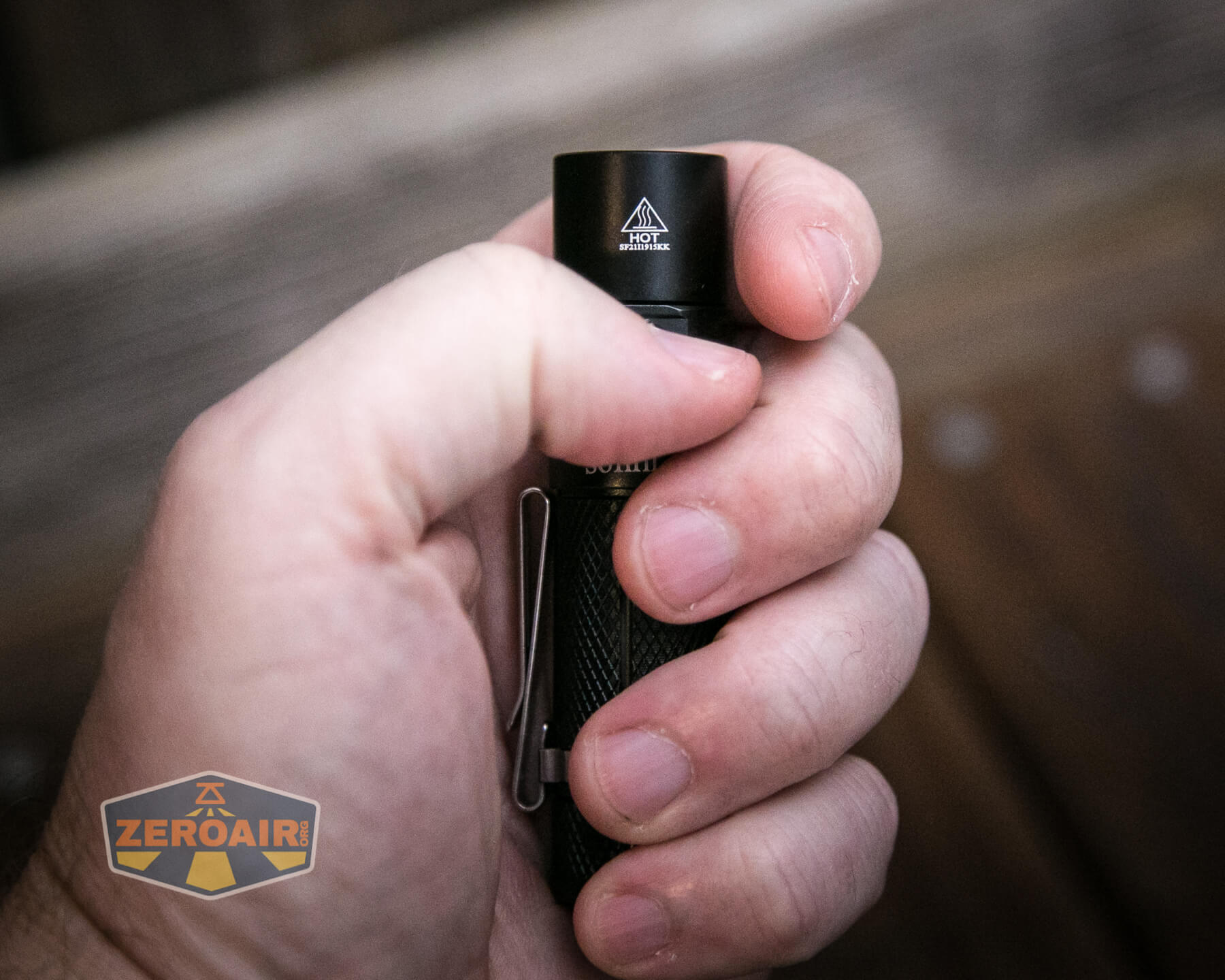

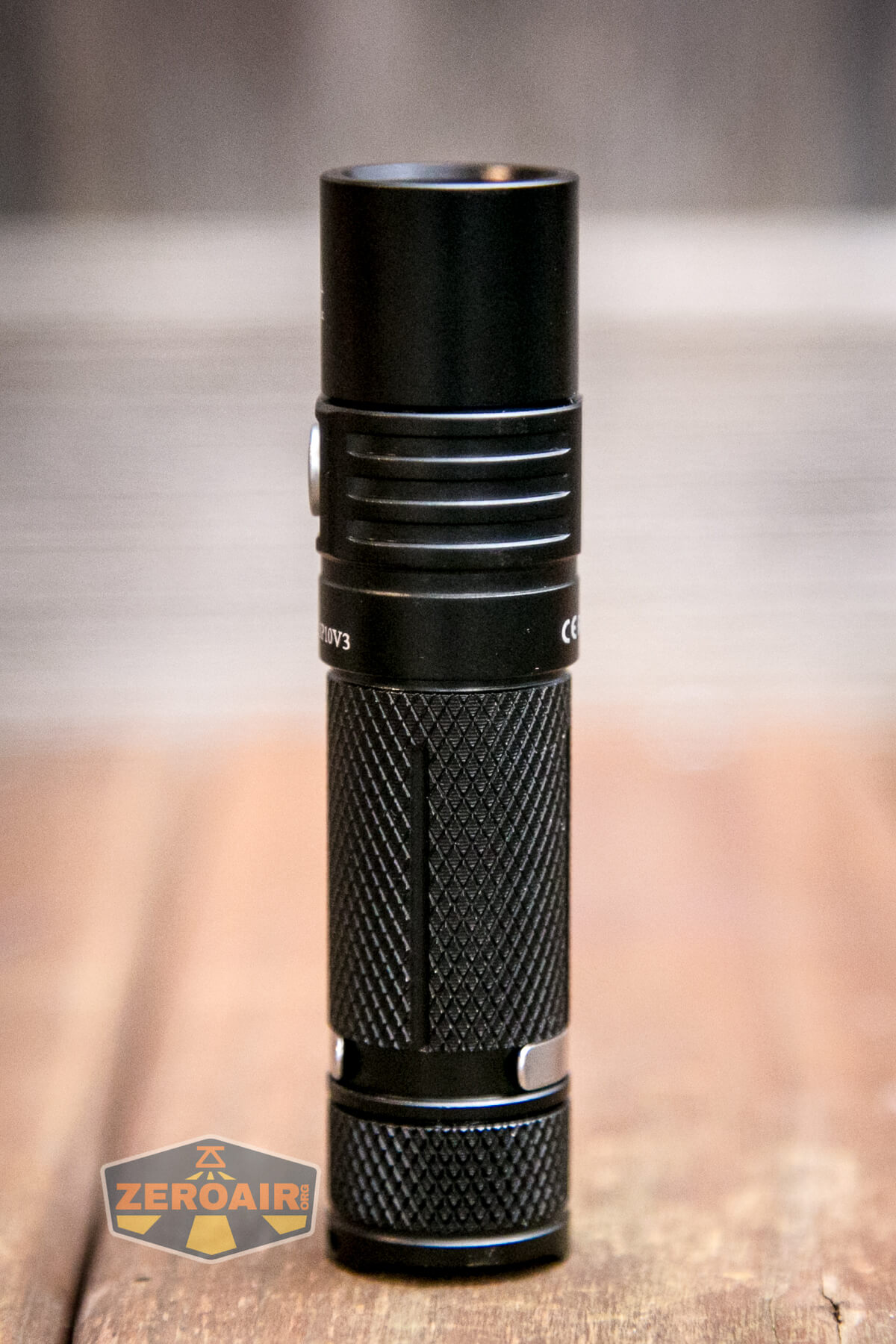

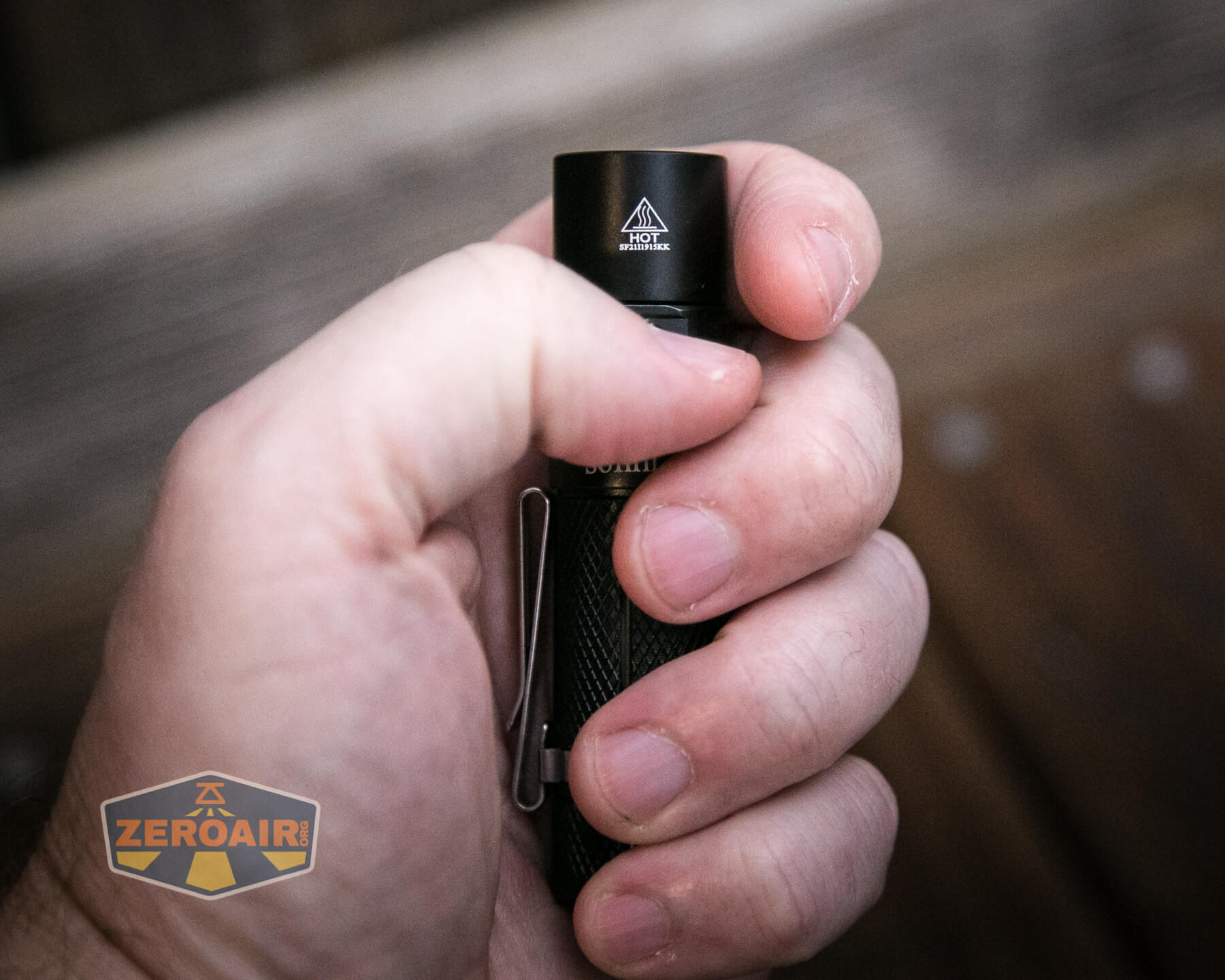

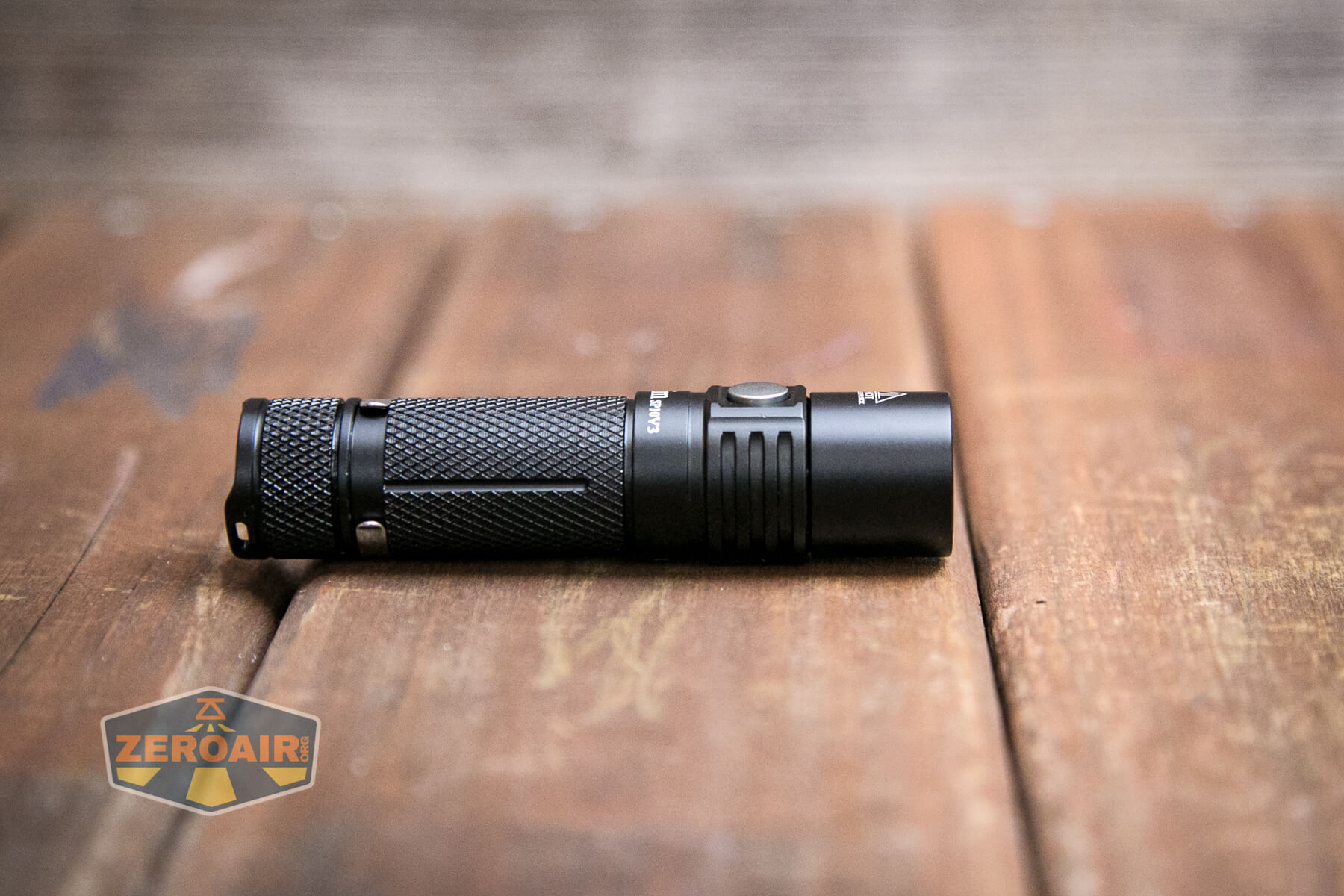

Size and Comps
Dimension: 88 mm (length) × 20.5mm (head diameter)
Weight: 40 ± 1 grams (without battery)

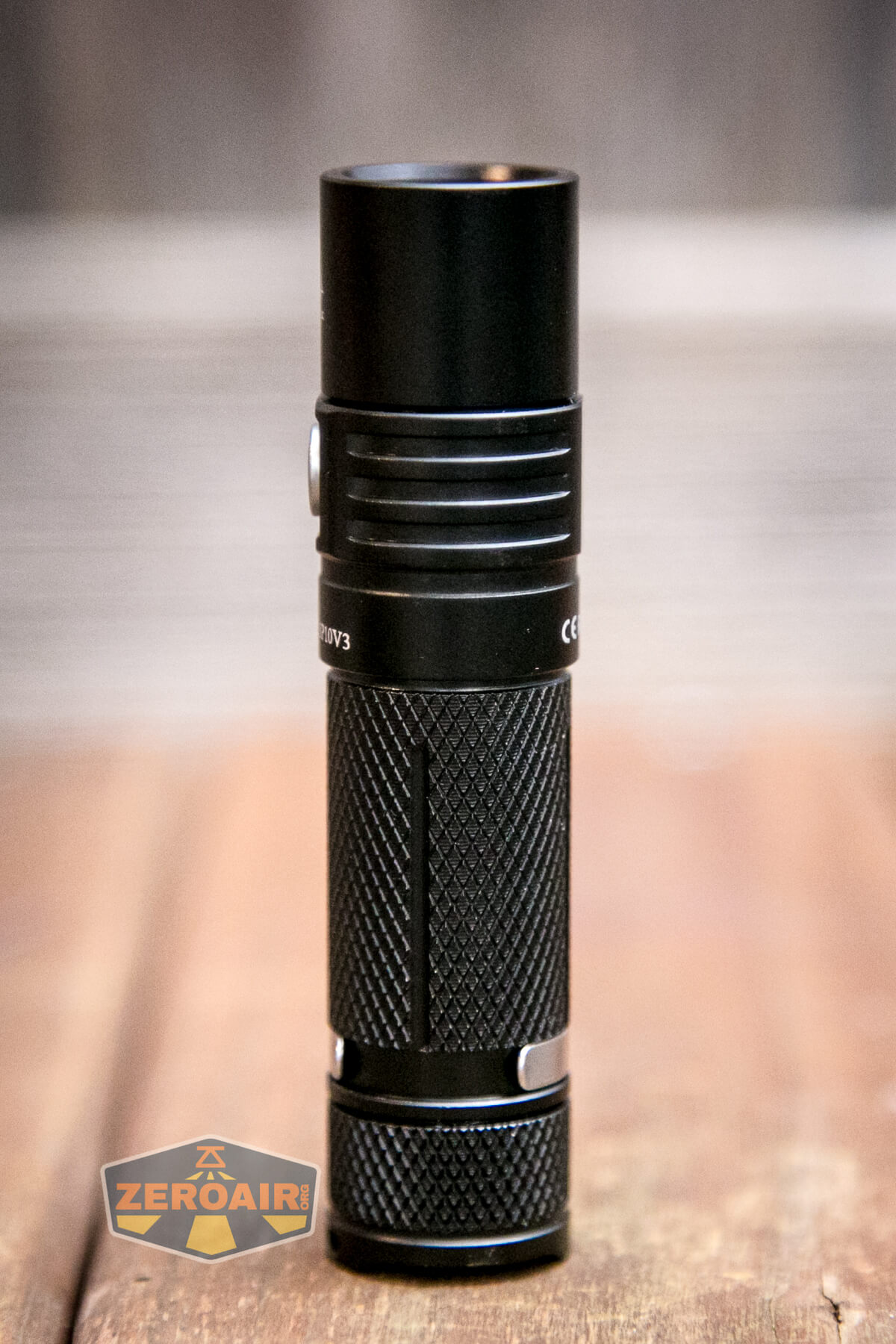

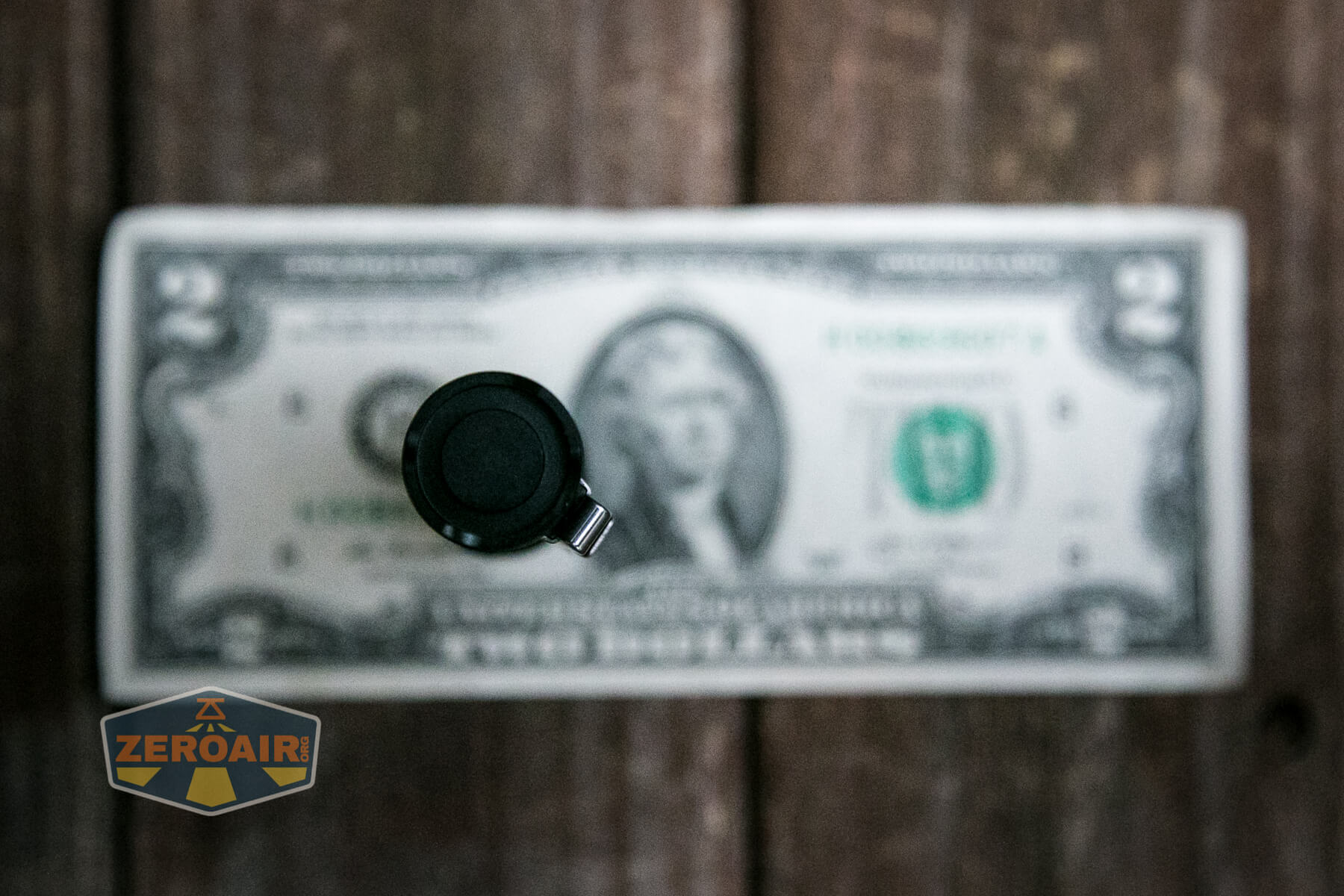

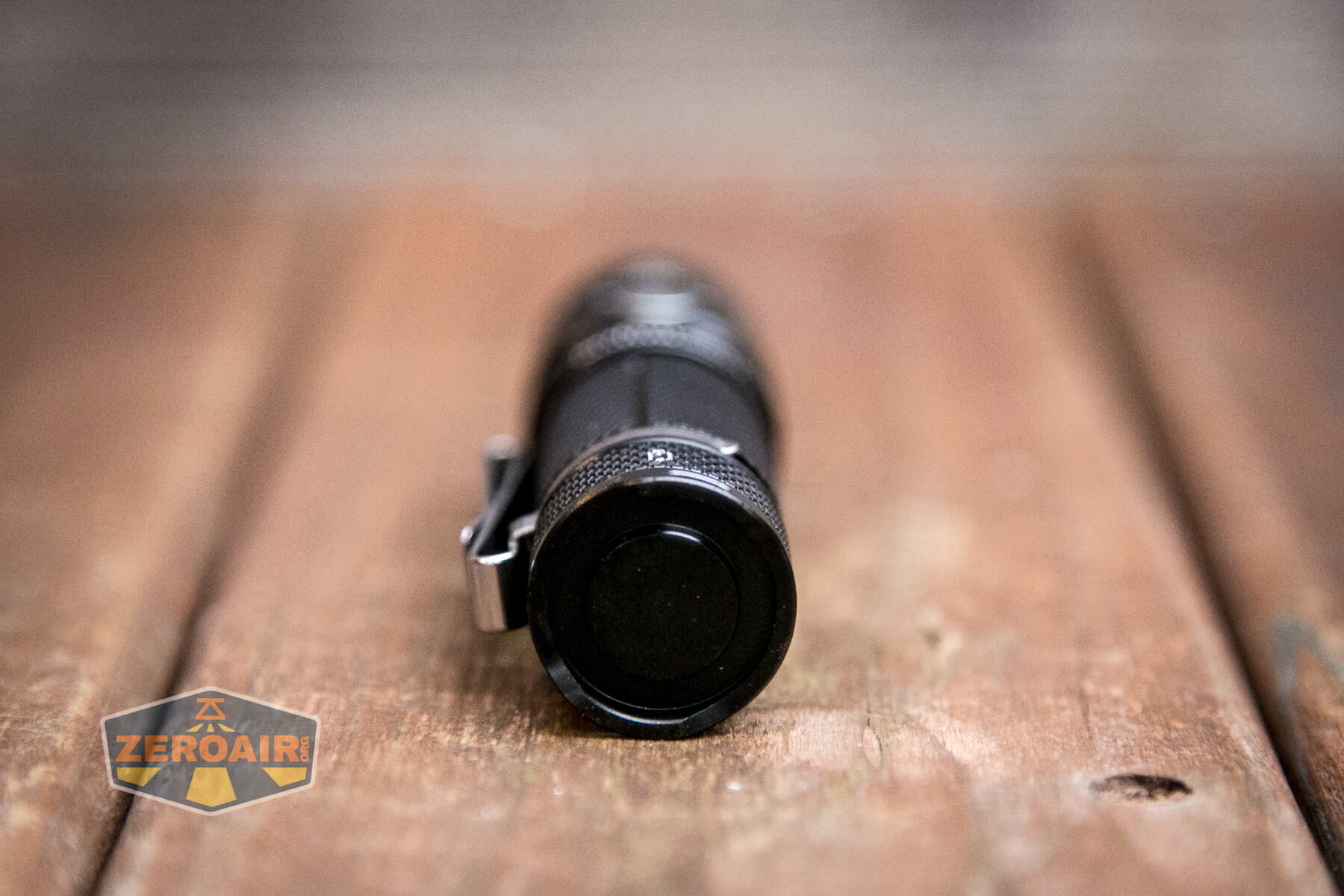

If the flashlight will headstand, I’ll show it here (usually the third photo). If the flashlight will tailstand, I’ll show that here, too (usually the fourth photo).

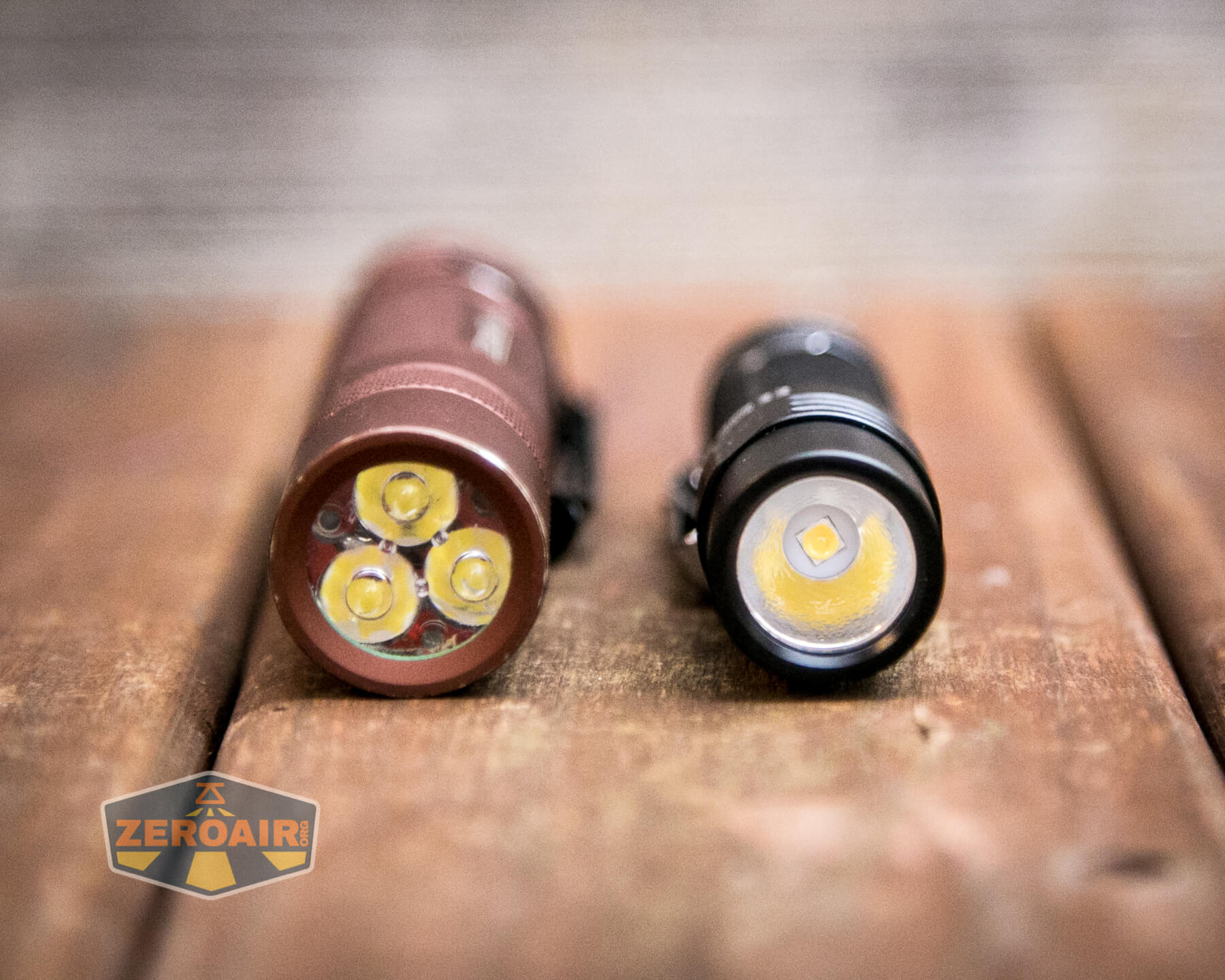

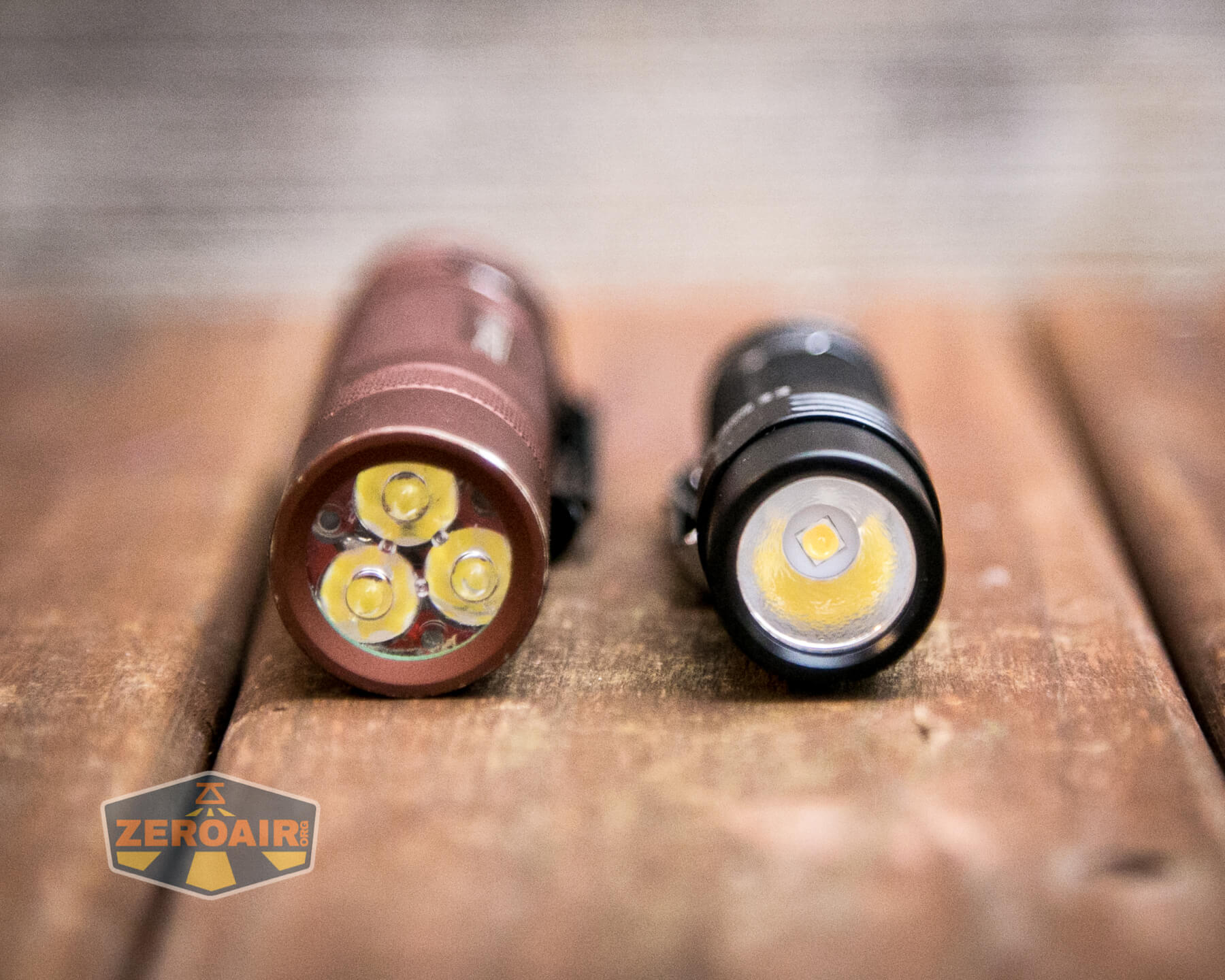

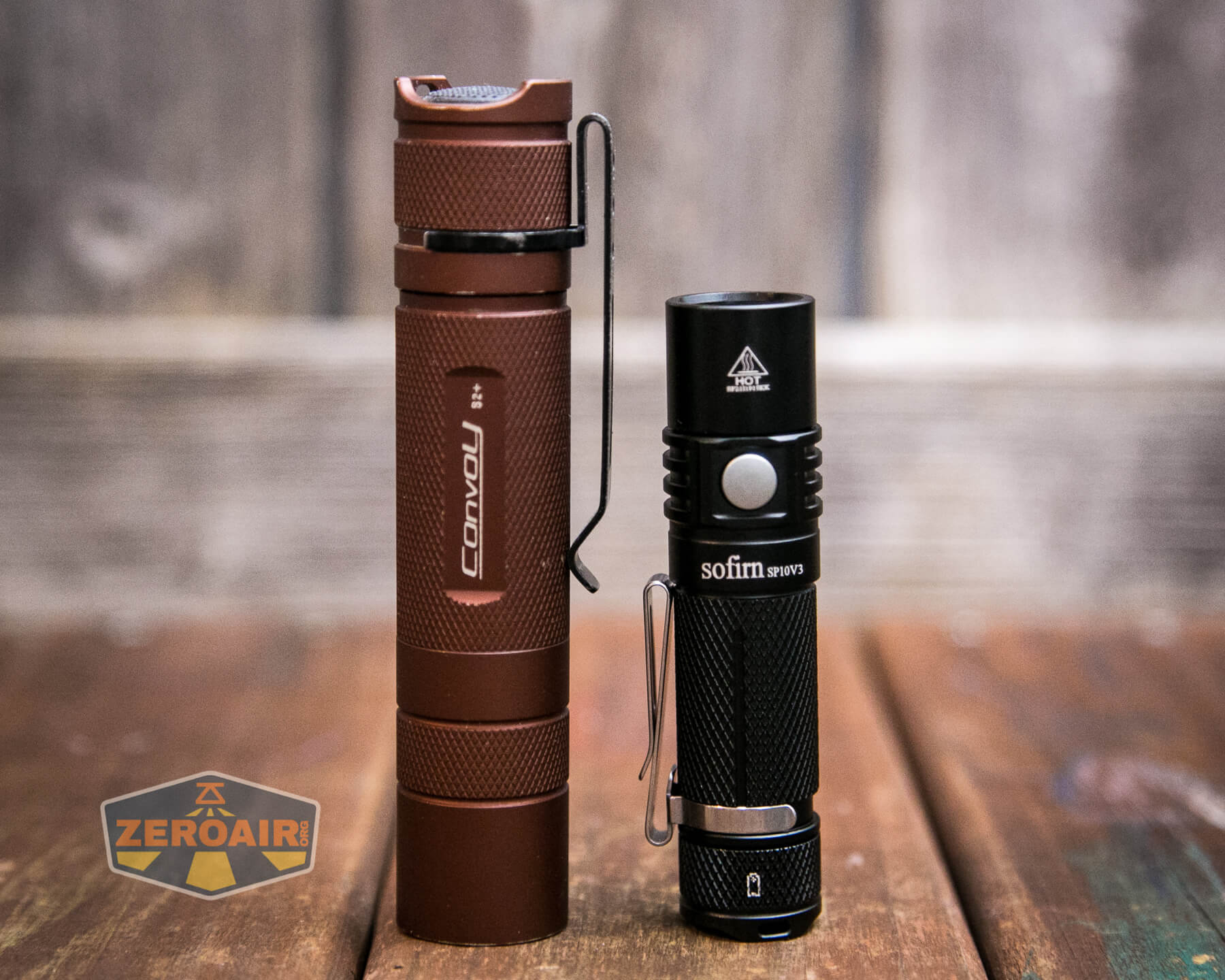

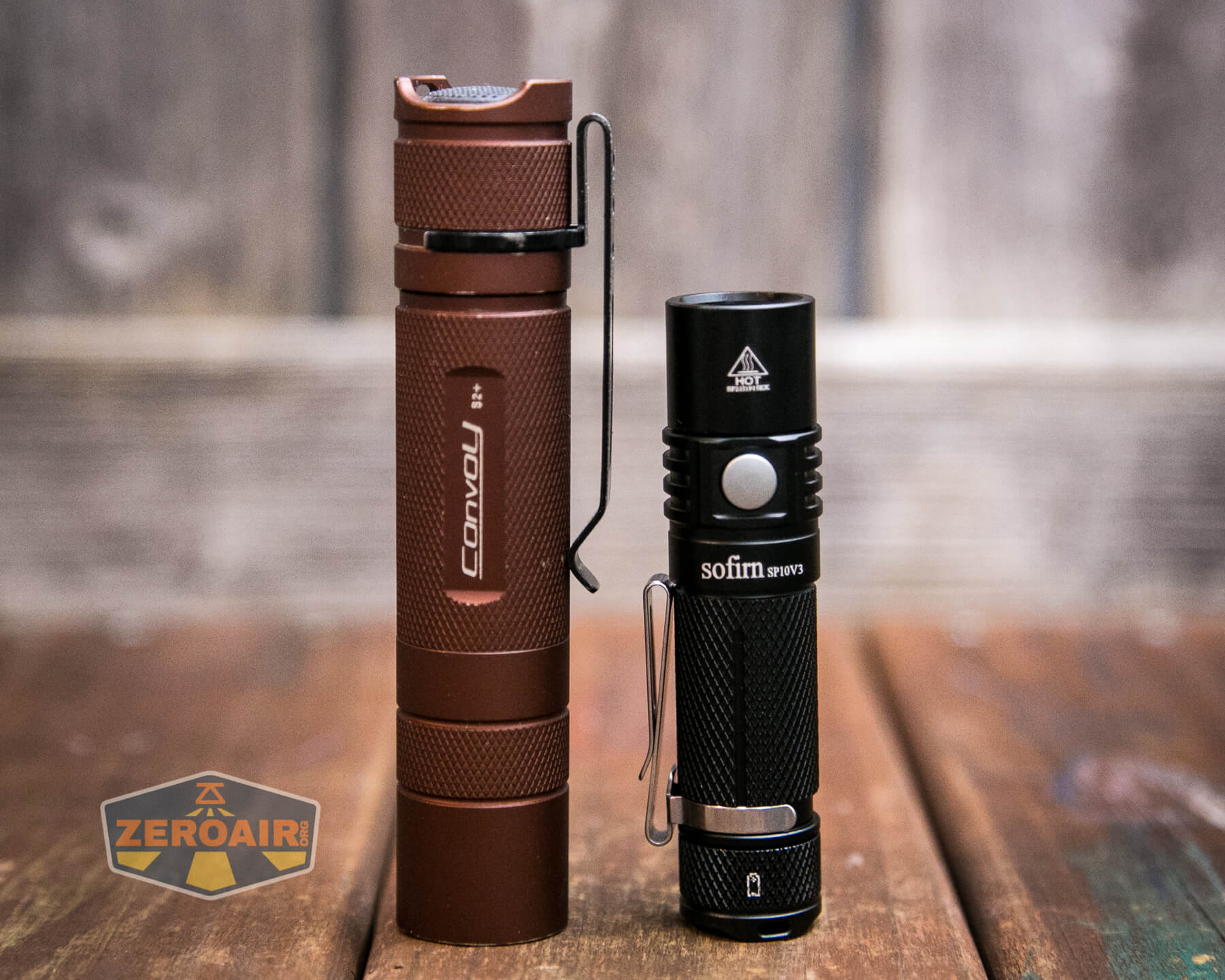

Here’s the test light with the venerable Convoy S2+. Mine’s a custom “baked” edition Nichia 219b triple. A very nice 18650 light.

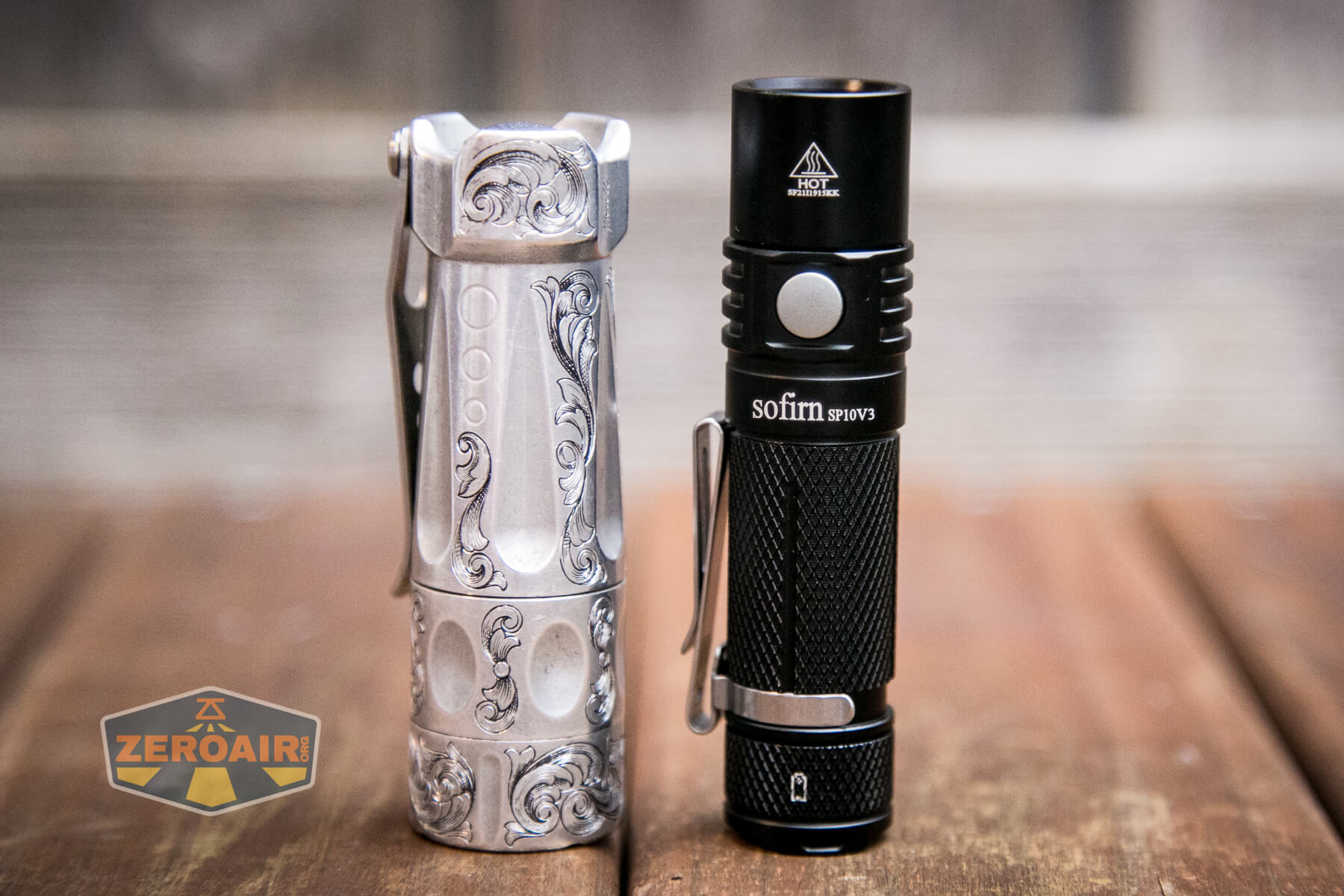

And here’s the light beside my custom engraved TorchLAB BOSS 35, an 18350 light. I reviewed the aluminum version of that light in both 35 and 70 formats.

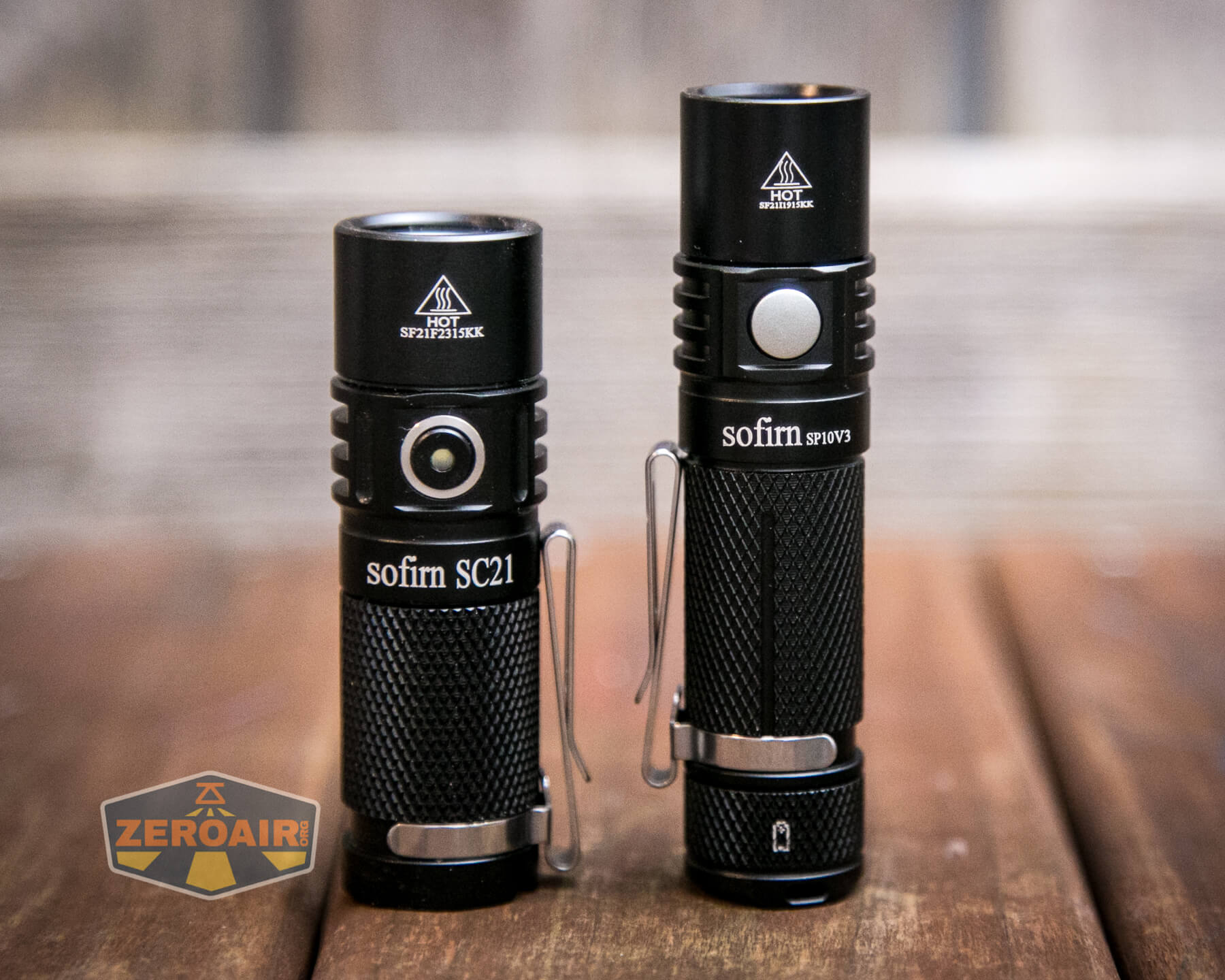

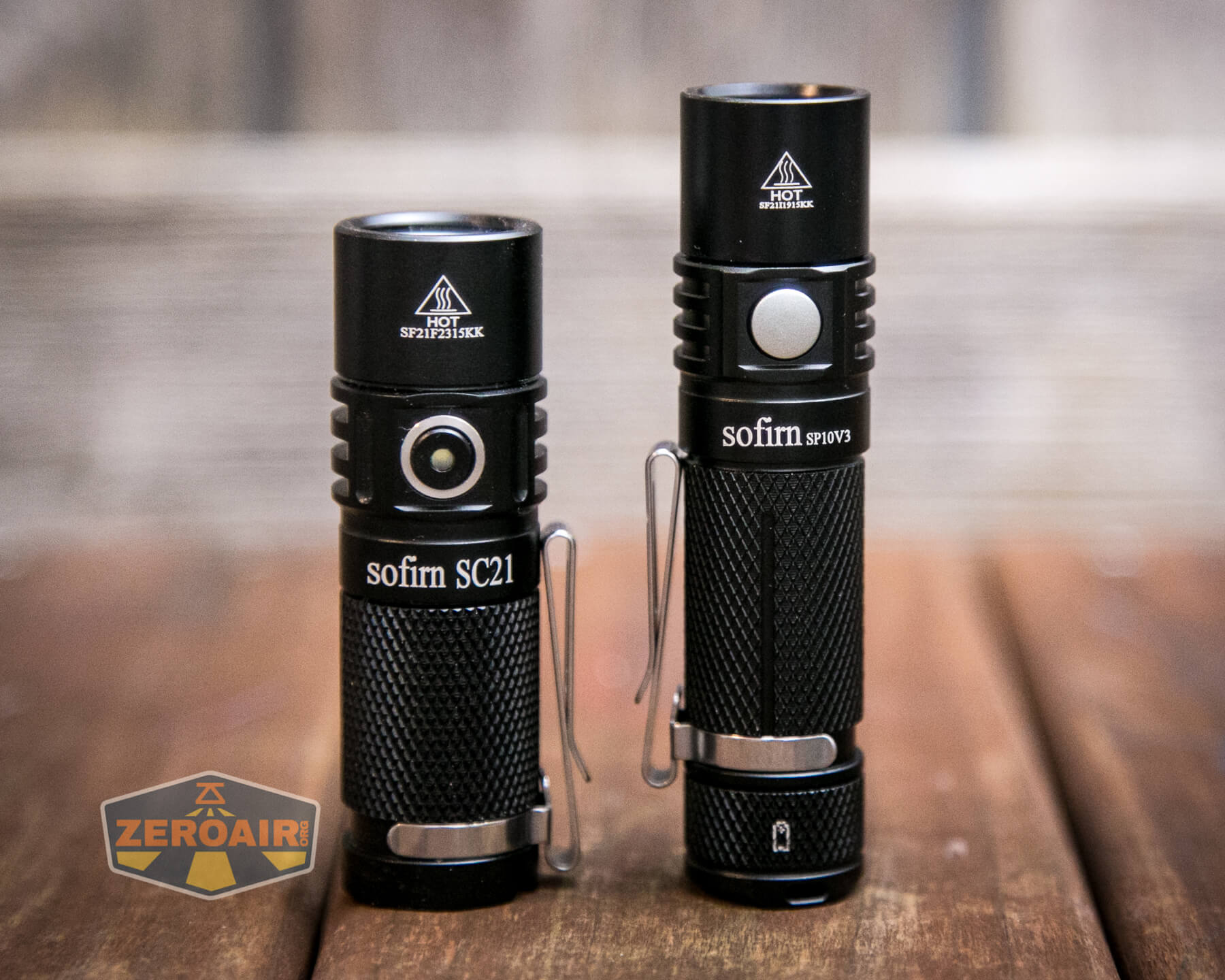

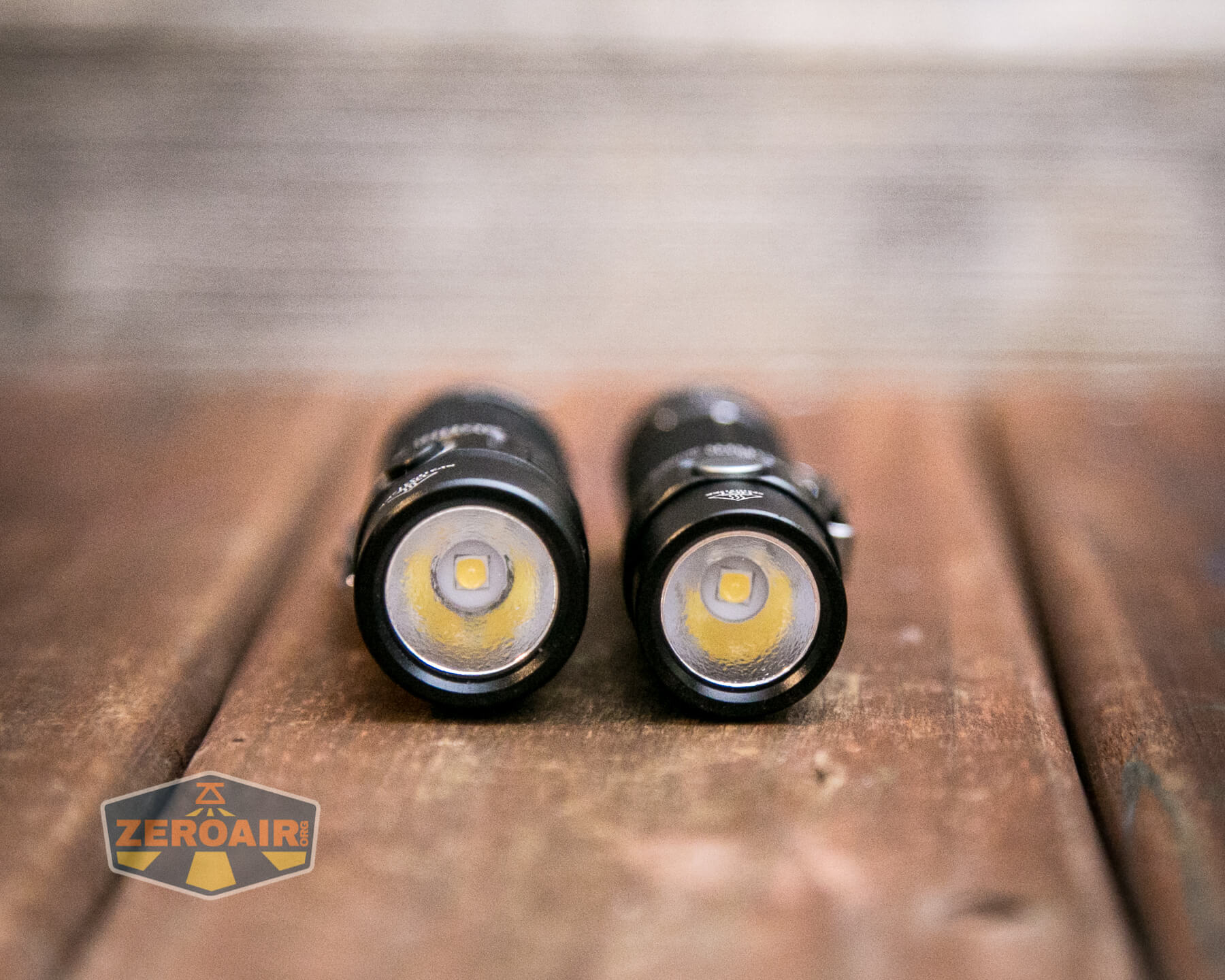

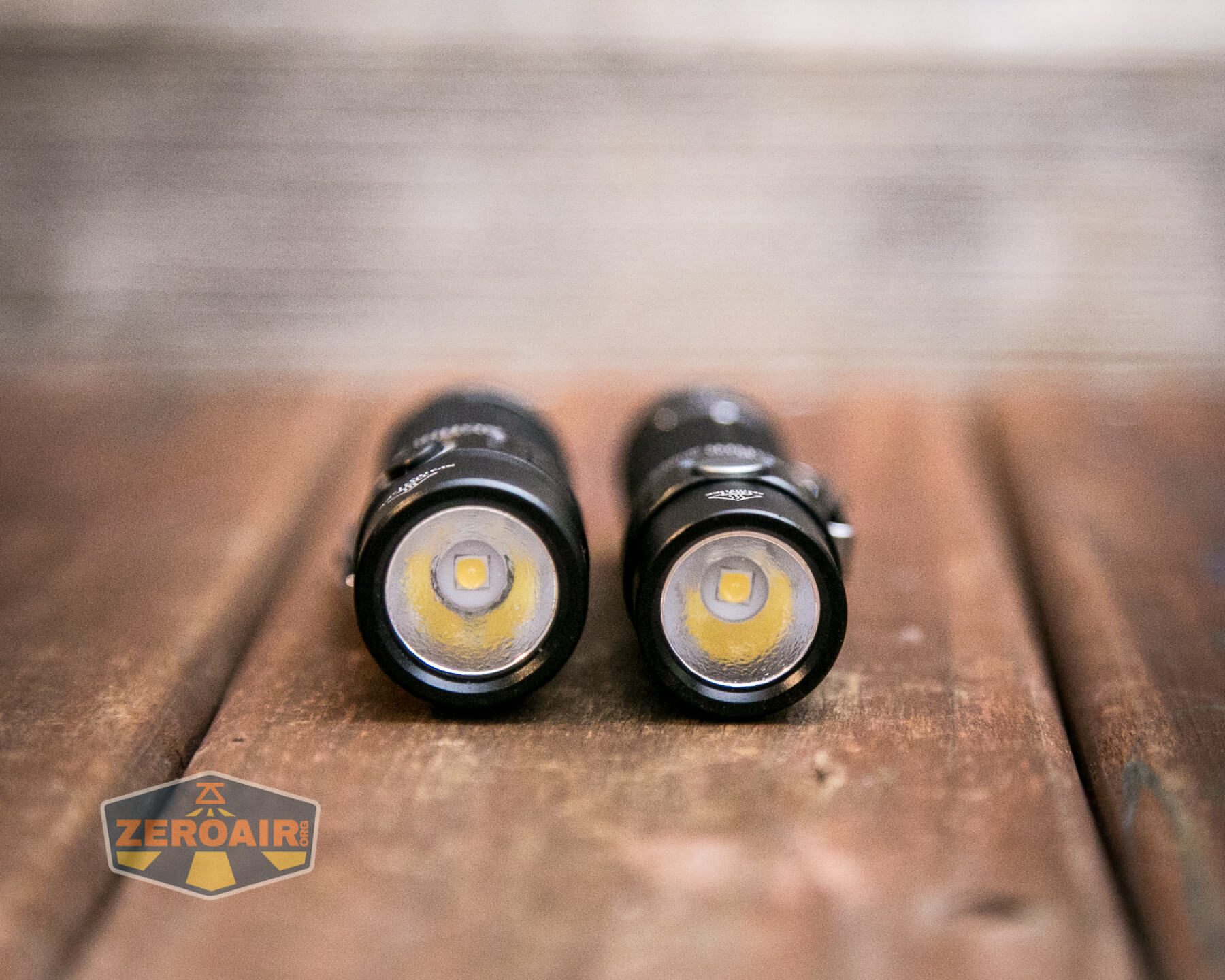

I mentioned the SC21 above – here’s a size comparison. I love the SC21, and I even love 16340 cell flashlights. But the SP10 V3 has dual-chemistry support, which makes it a winner!
Retention and Carry

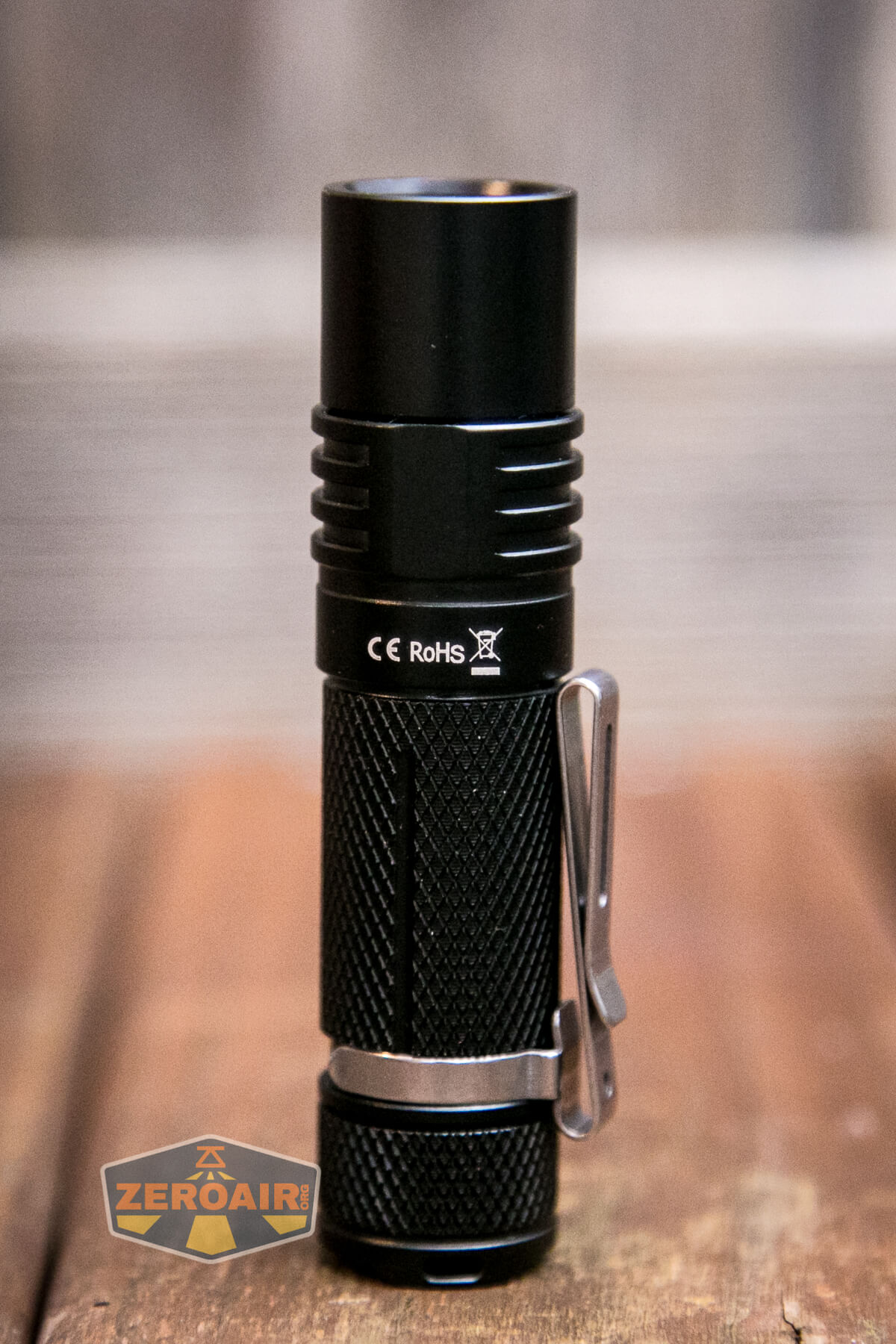

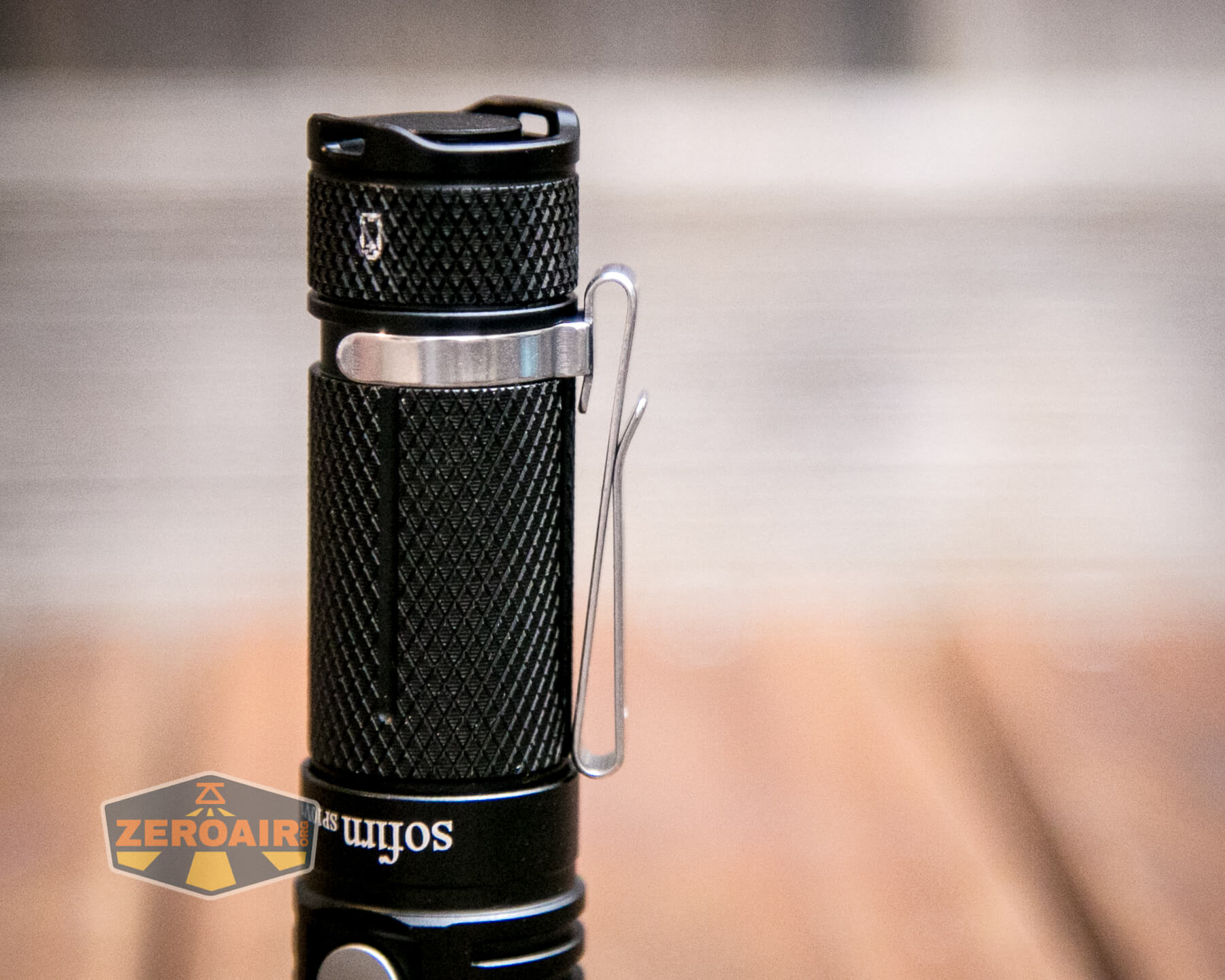

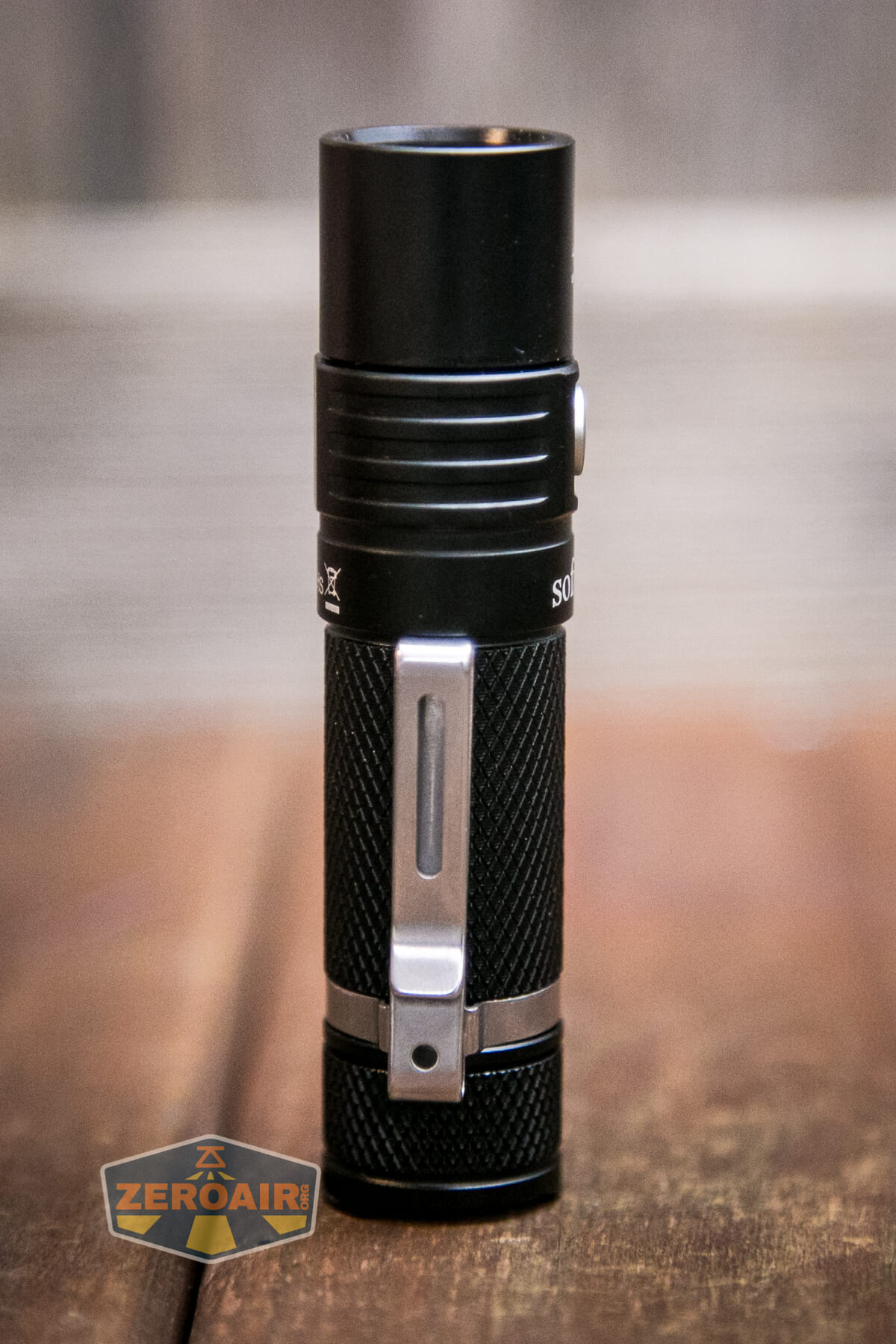

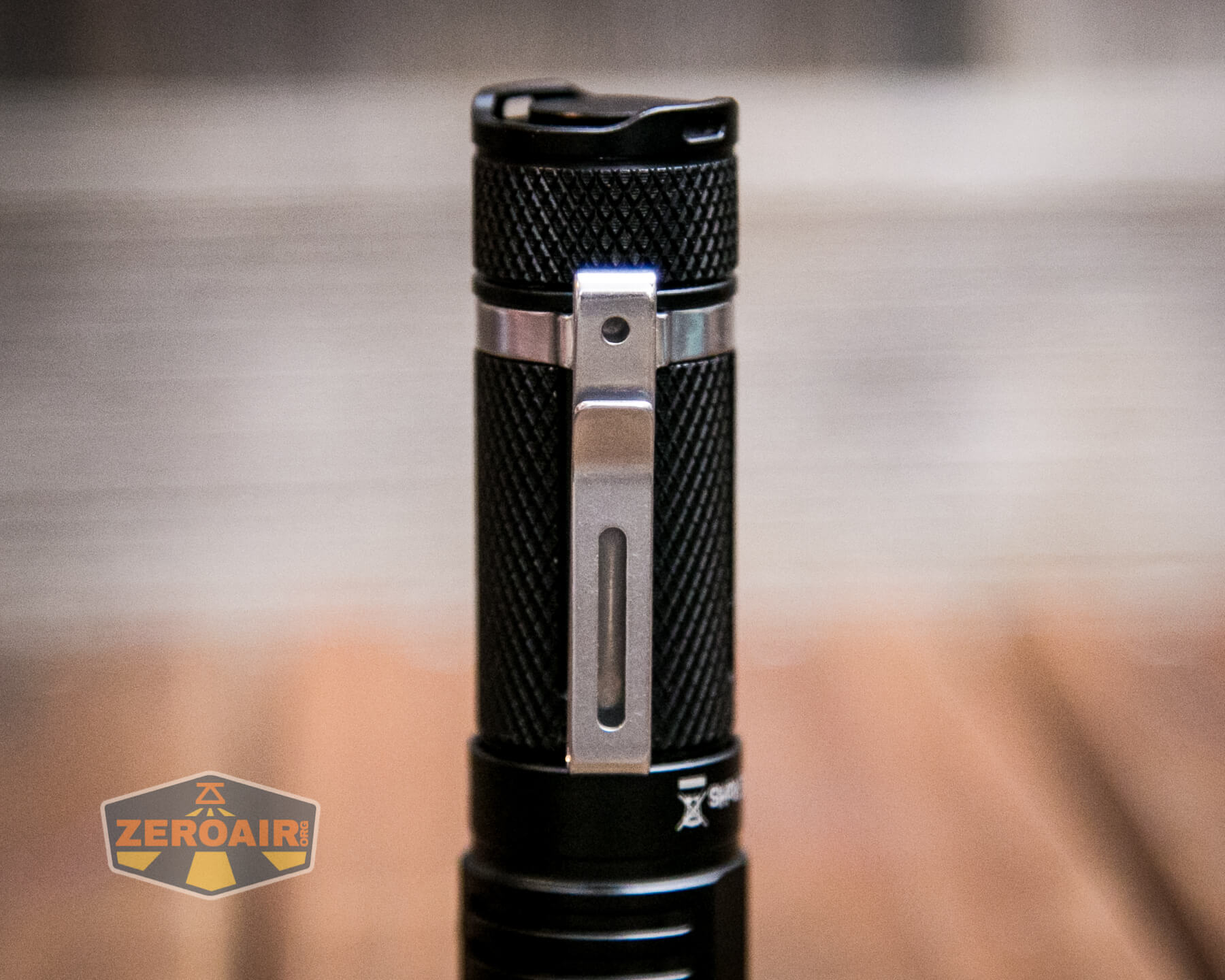

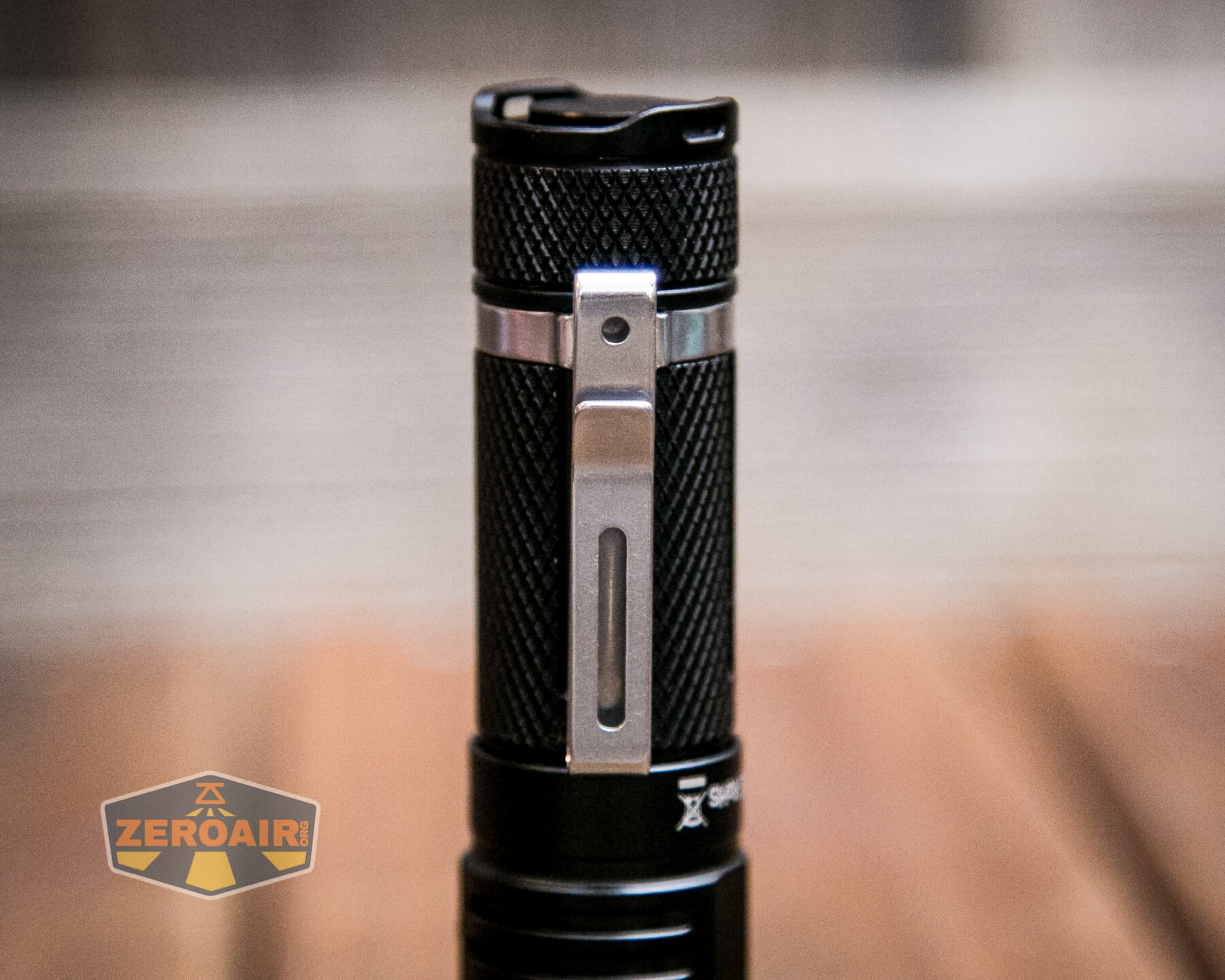

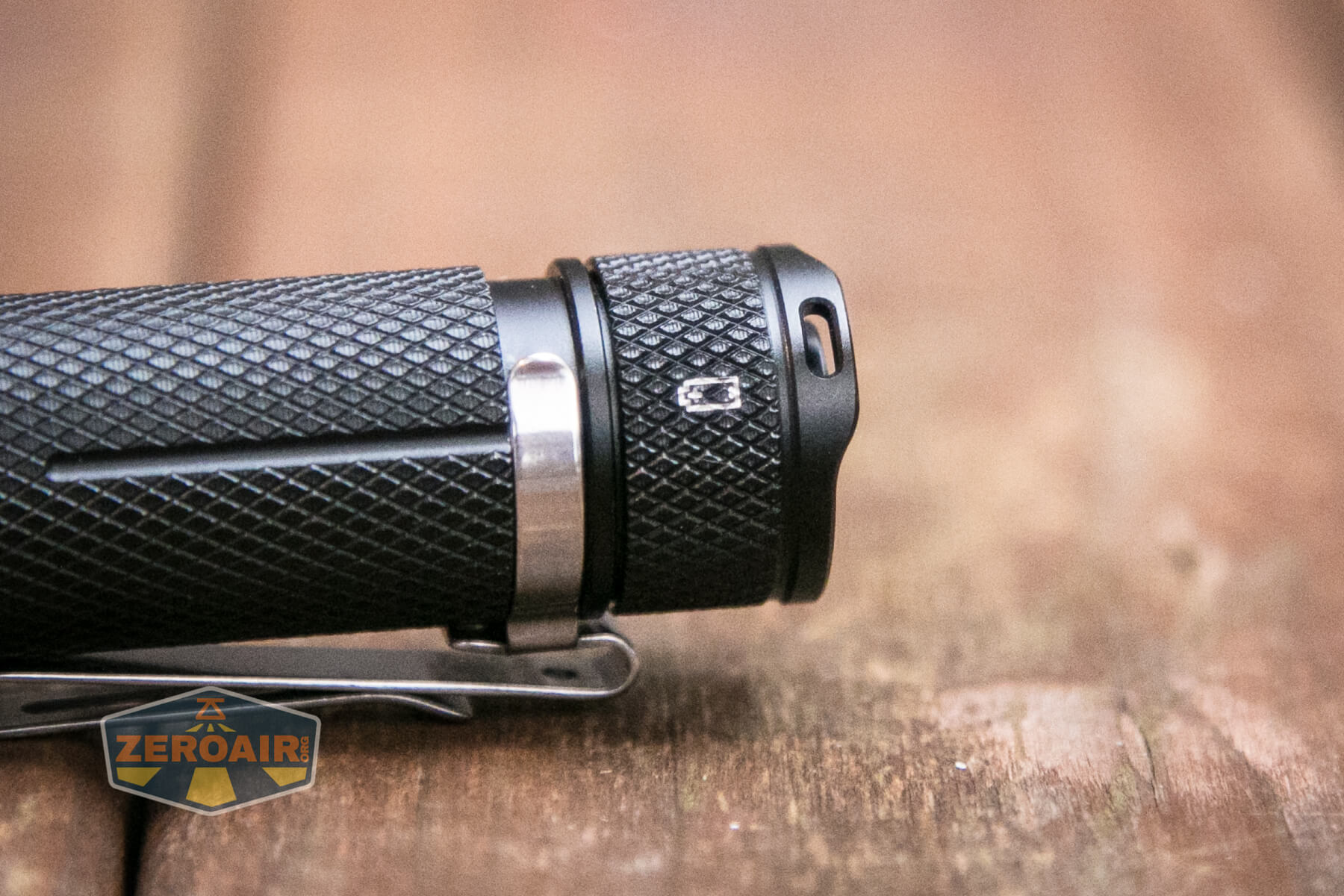

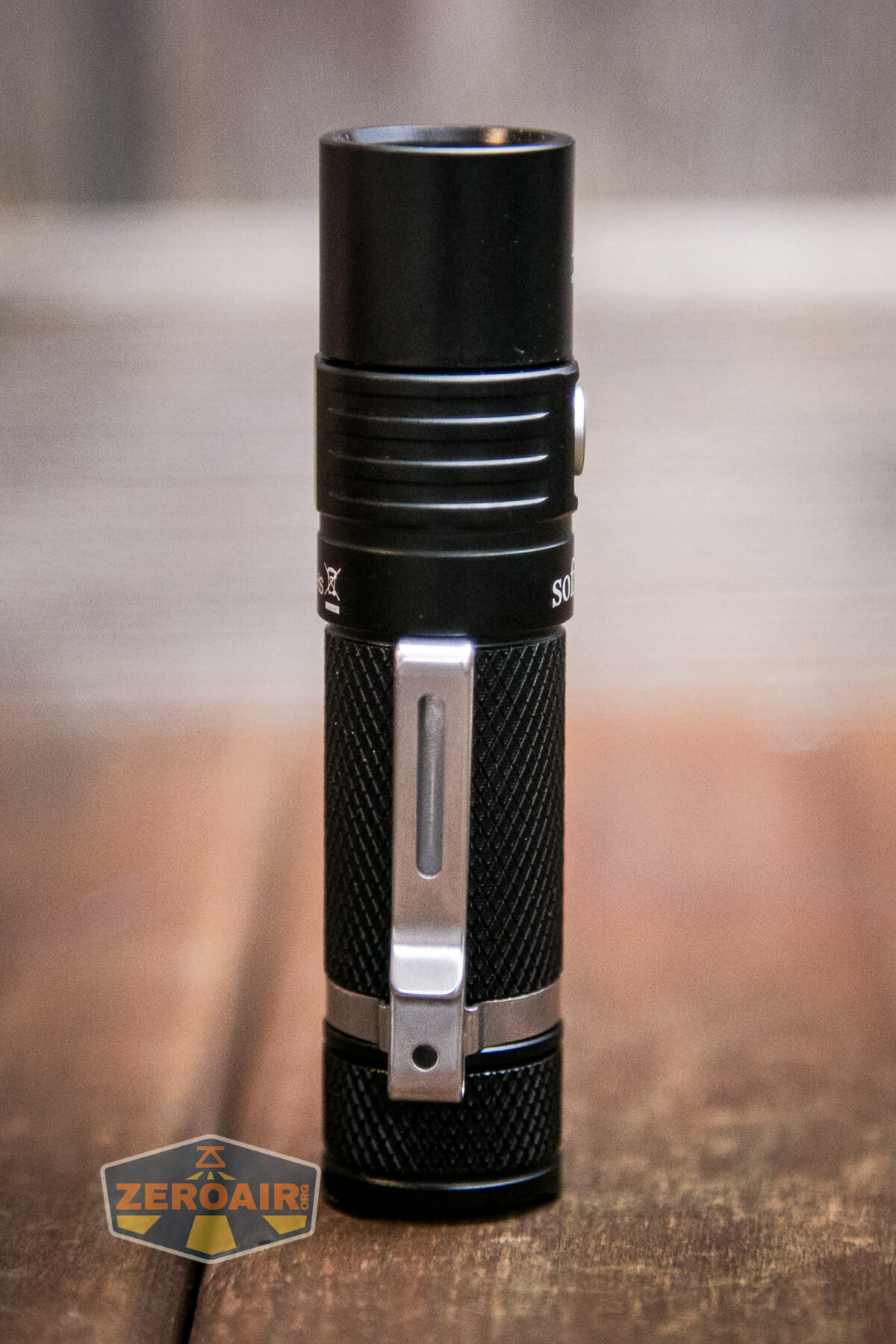

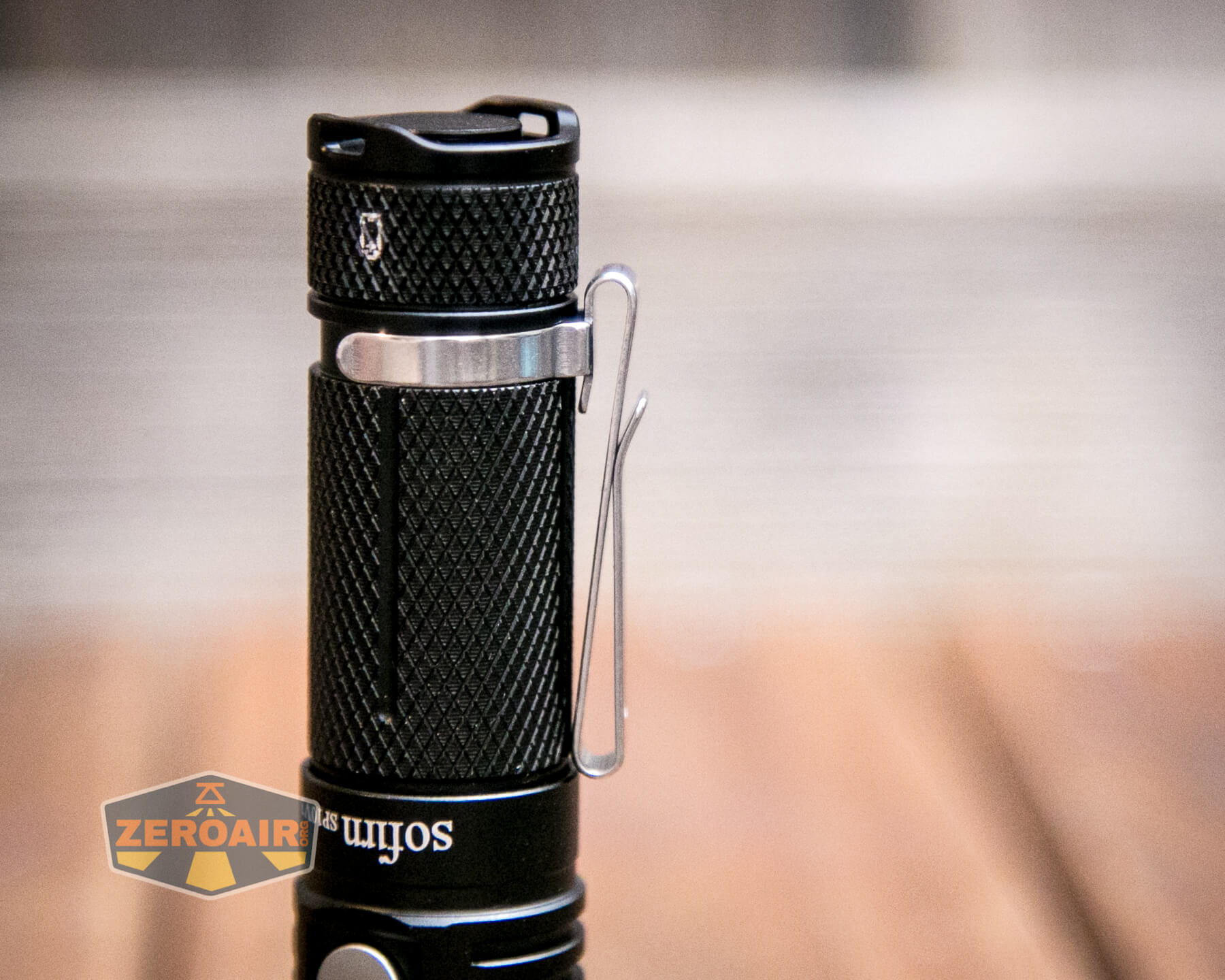

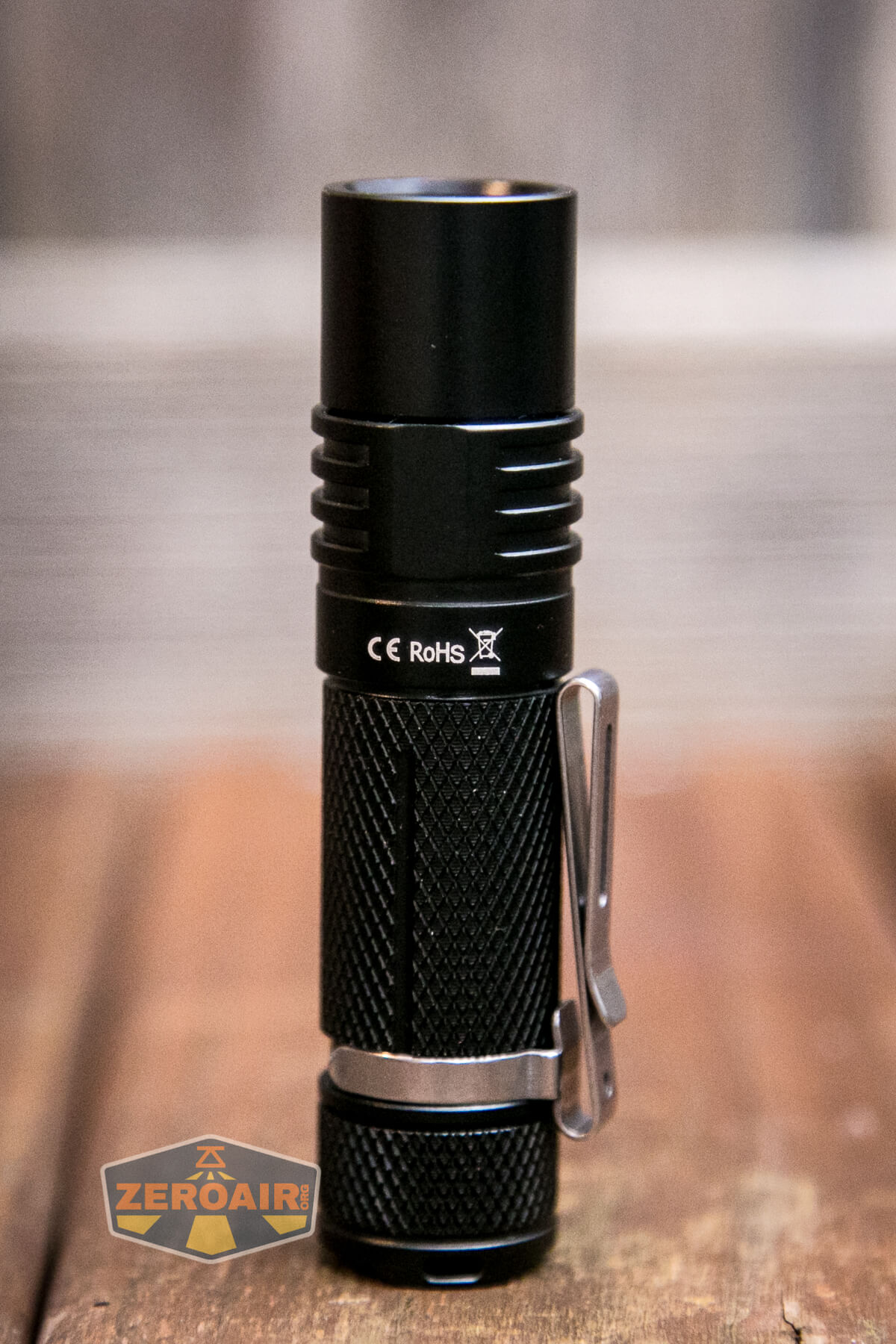

The primary means for carrying the SP10 V3 is the two-way pocket clip. This is a very short two-way clip. It fits only on the tail end of the light; there is no spot on the head end to connect the clip (and the cell tube isn’t reversible).
This clip setup makes it a little less than ideal for use on the brim of a cap, but it could still probably work.
Friction holds the clip in place very well.

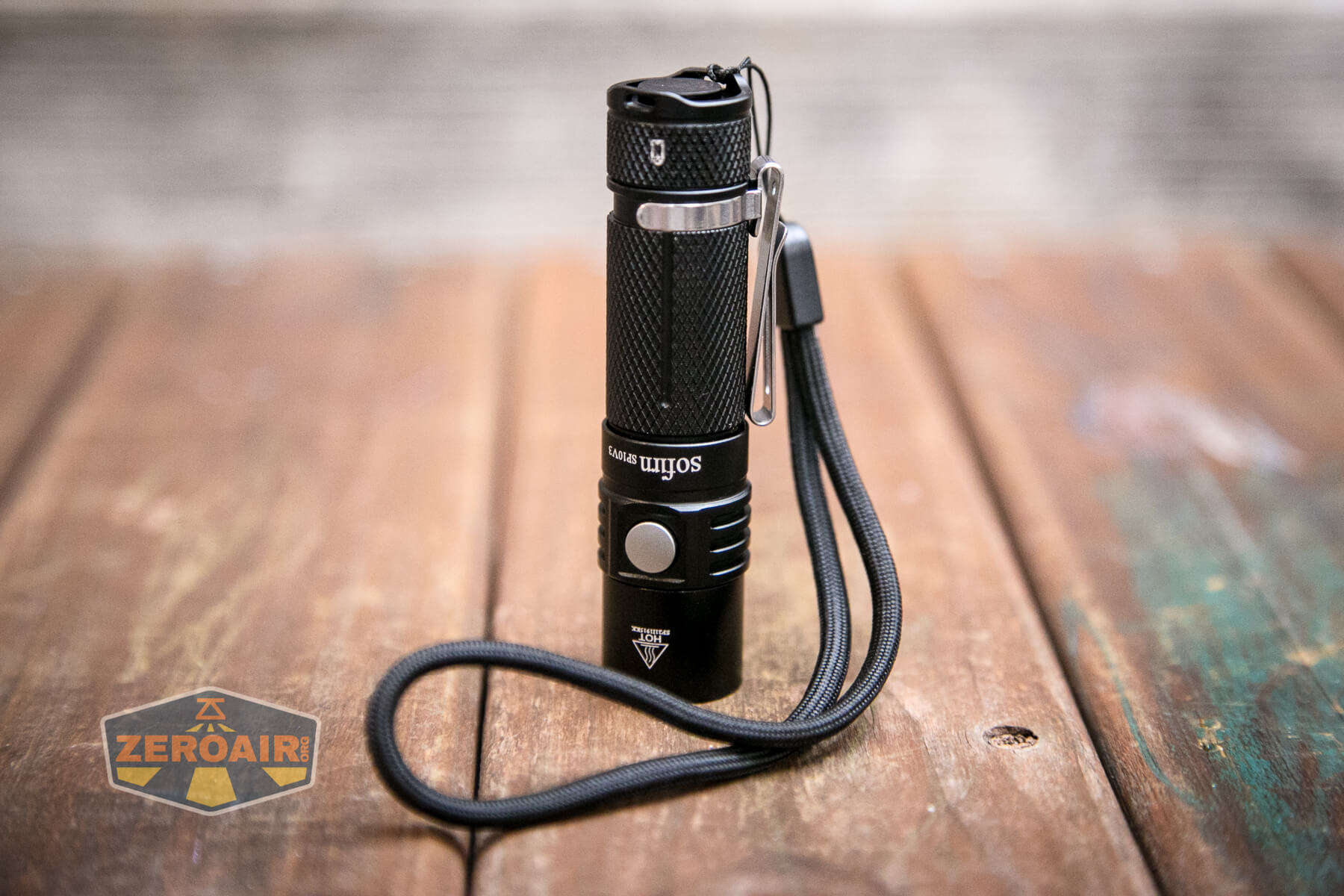

Next up is the lanyard, which attaches on the tailcap.

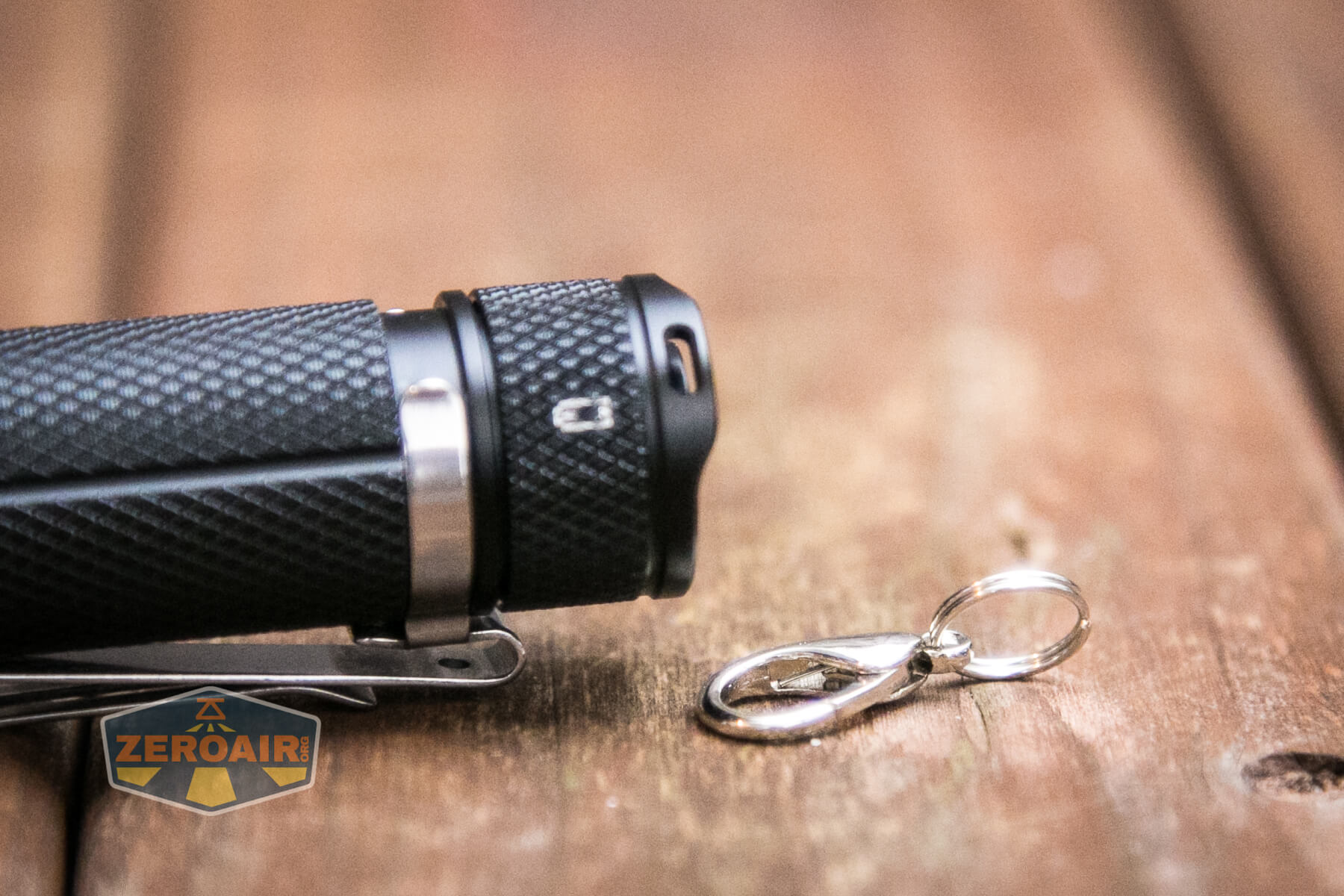

Technically you could attach the lanyard by this metal split-ring type attachment piece.
The lanyard is fine but nothing special.
Power and Runtime

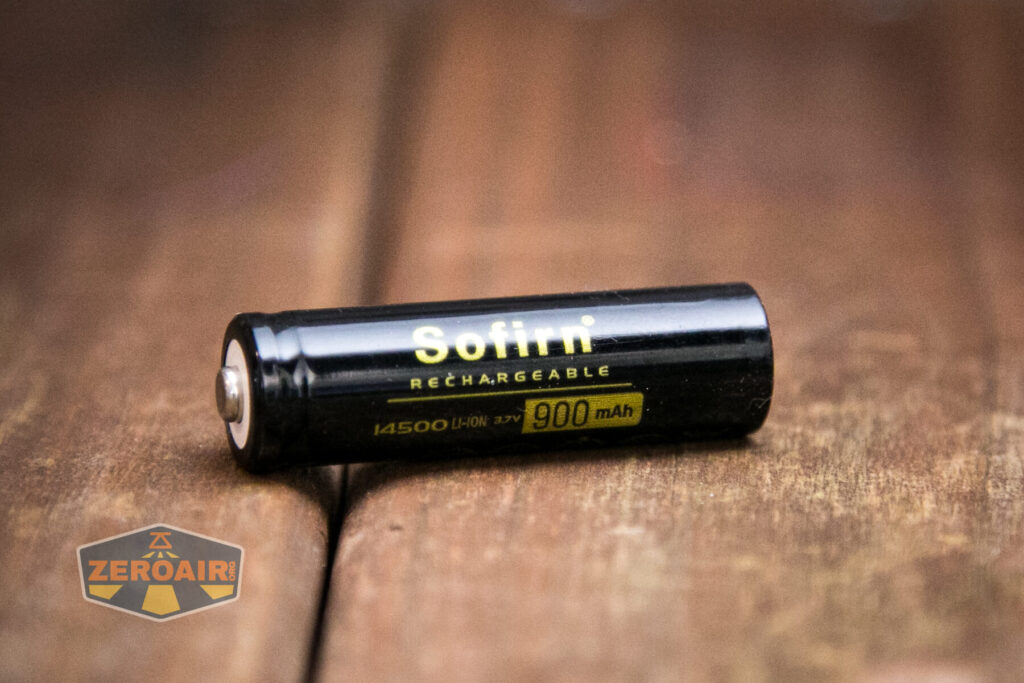

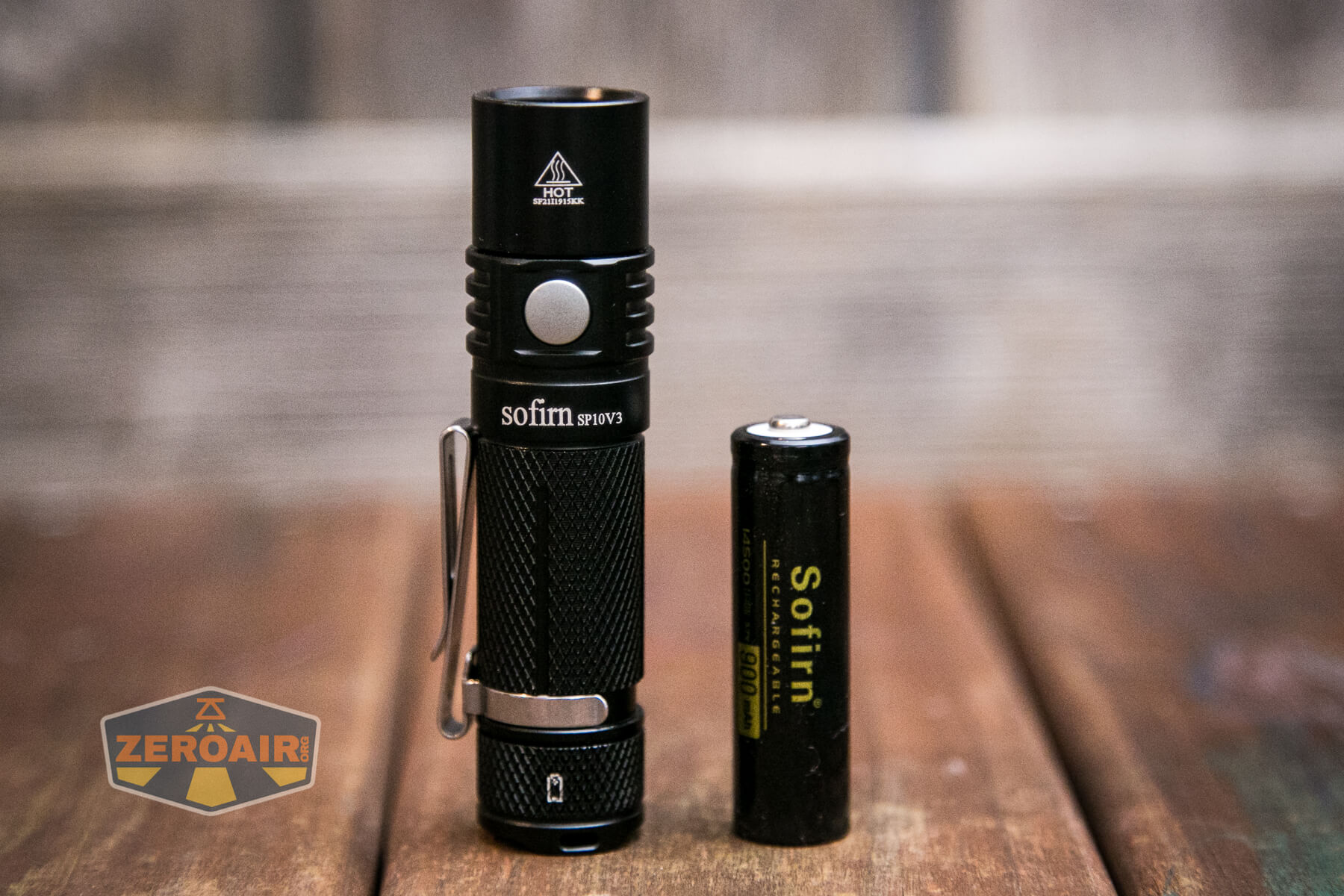

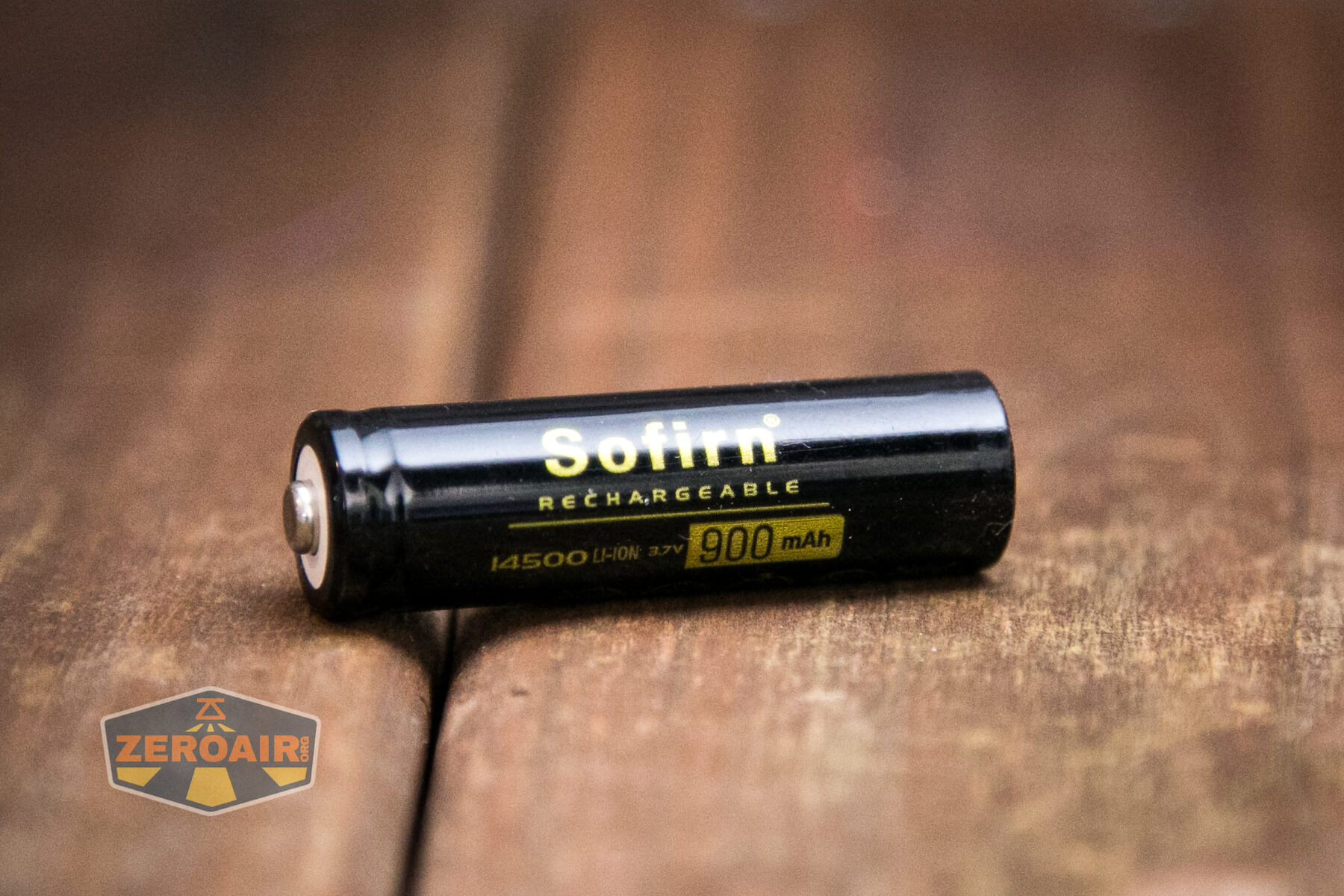

Sofirn includes (with the kit) a 900mAh 14500 cell. This is why I recommend the kit! For $2 you get a good quality cell.
This is a standard button-top cell.
The cell goes into the SP10 V3 in the usual way:Â the positive terminal (button) goes toward the head.
As stated above, and one of my favorite reasons to love this light, is that the SP10 V3 runs on AA cells too! AA: primary or NiMH or 1.5V otherwise. They work.

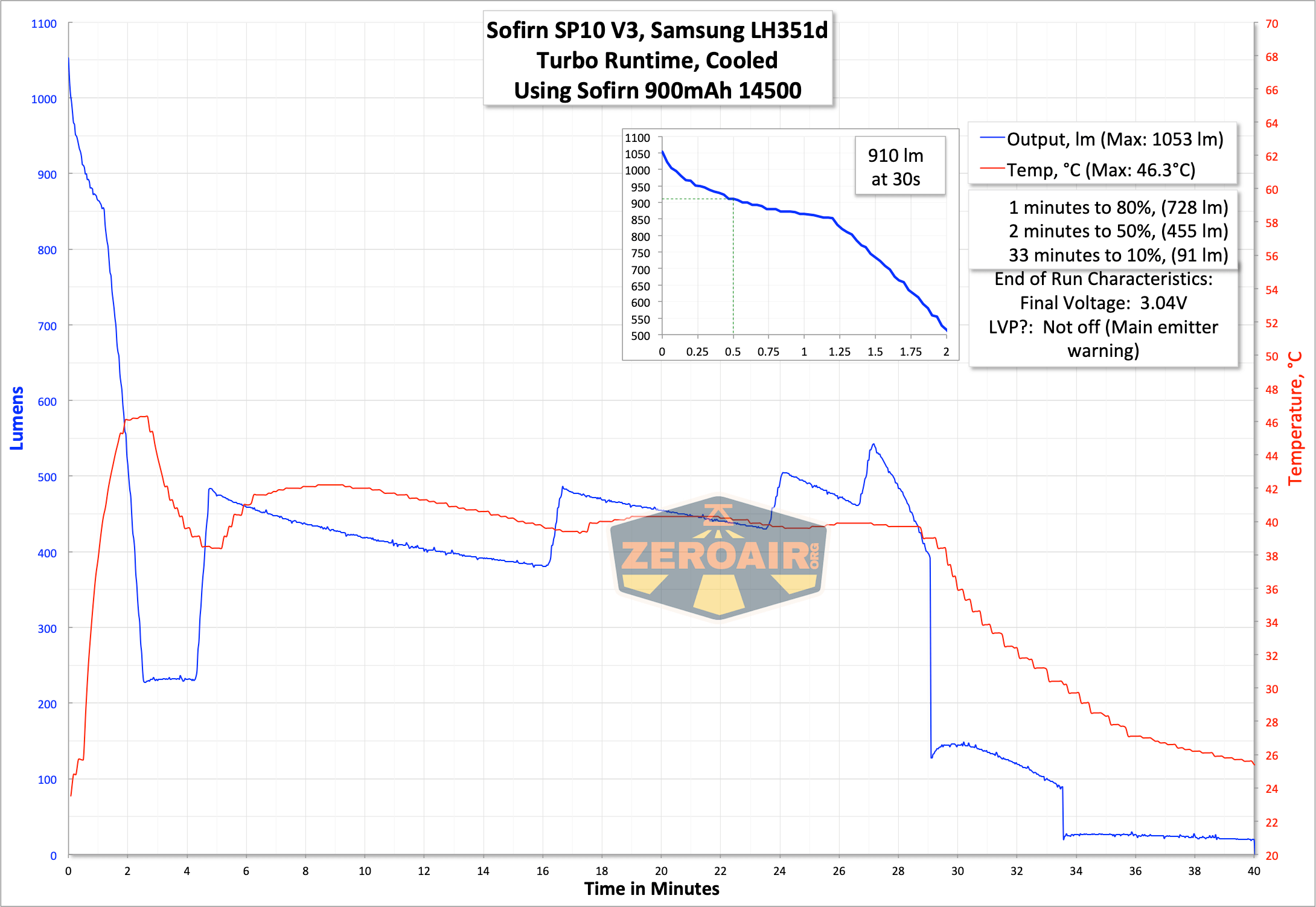

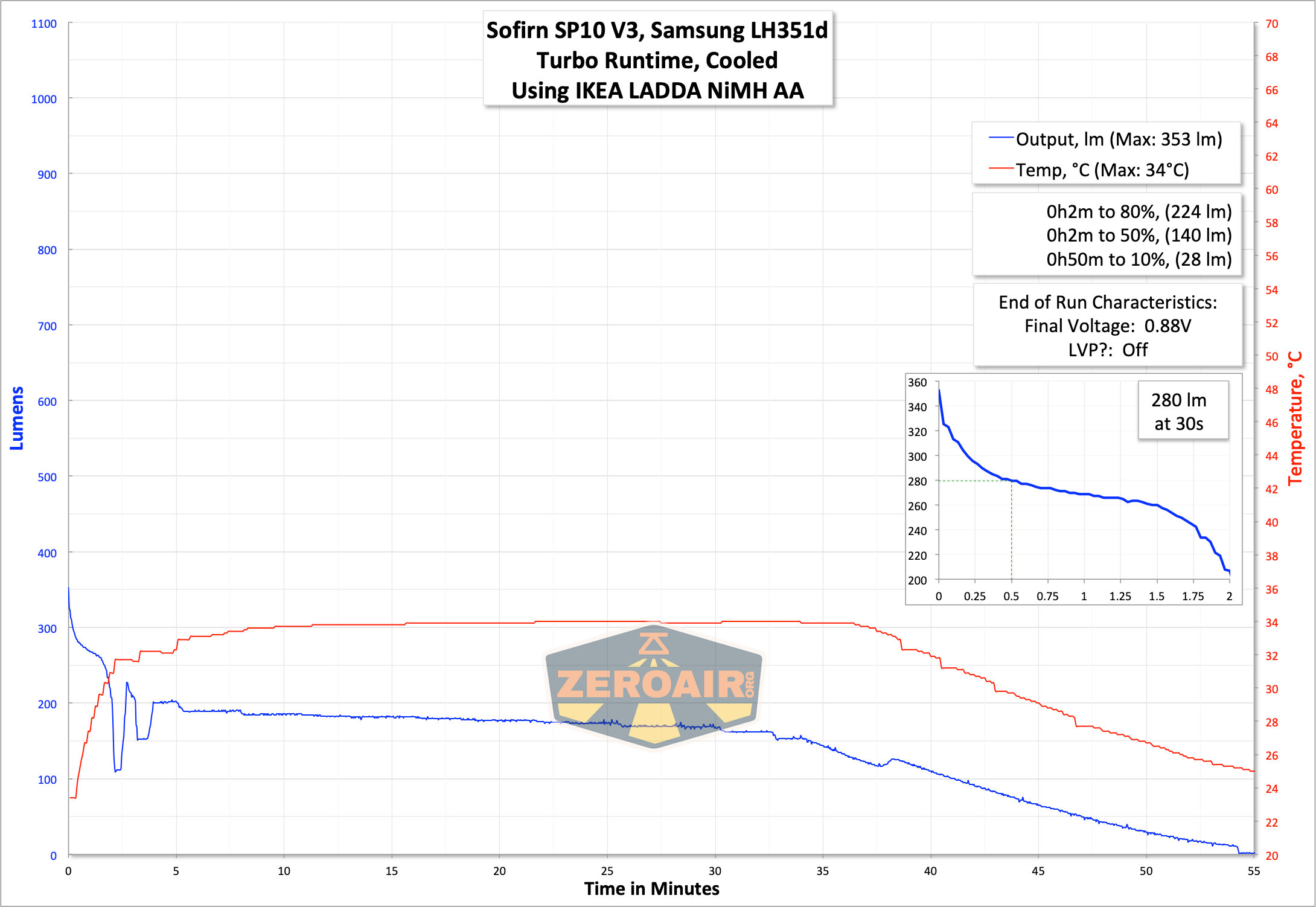

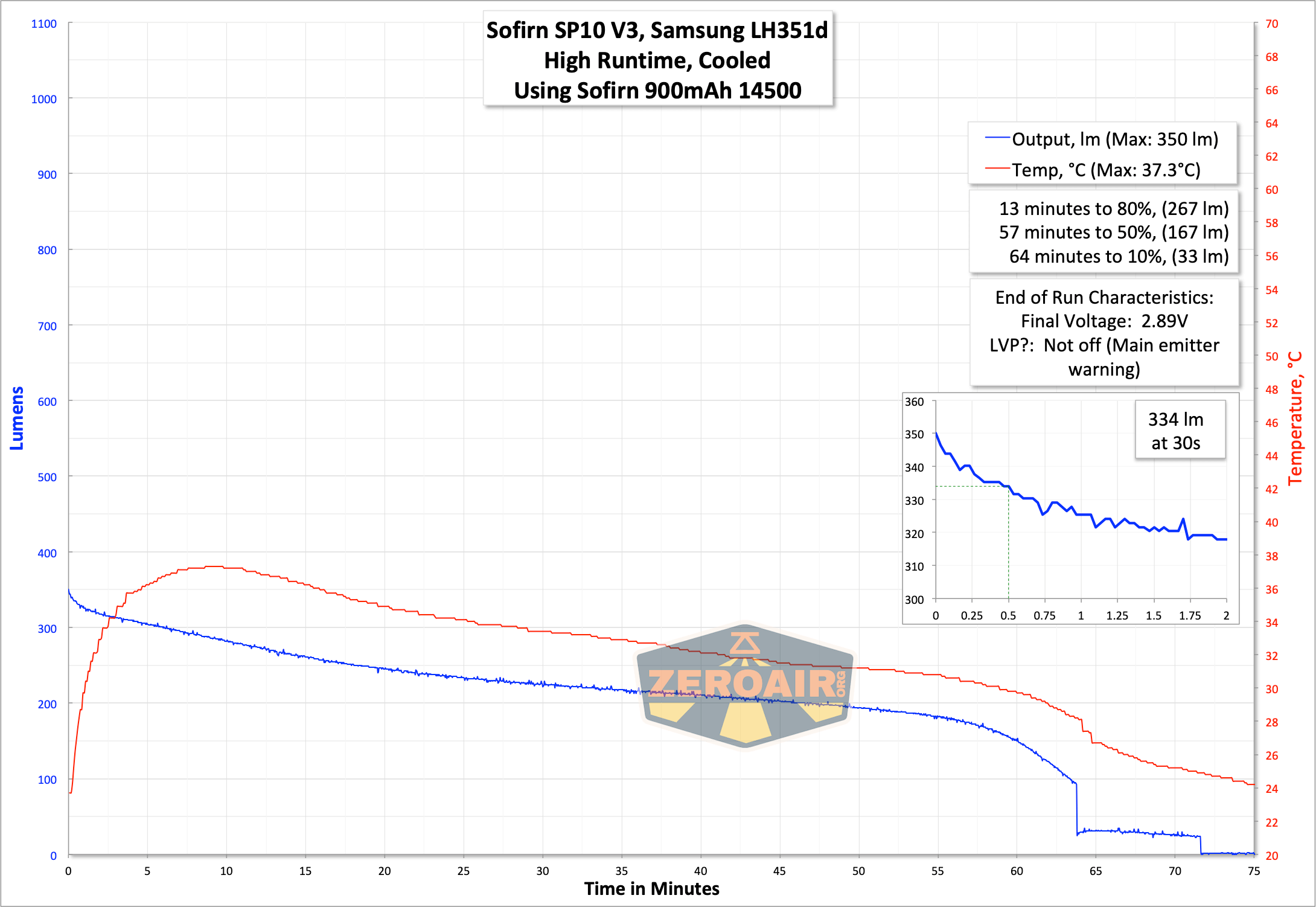

Here are a few runtime tests.
Charging

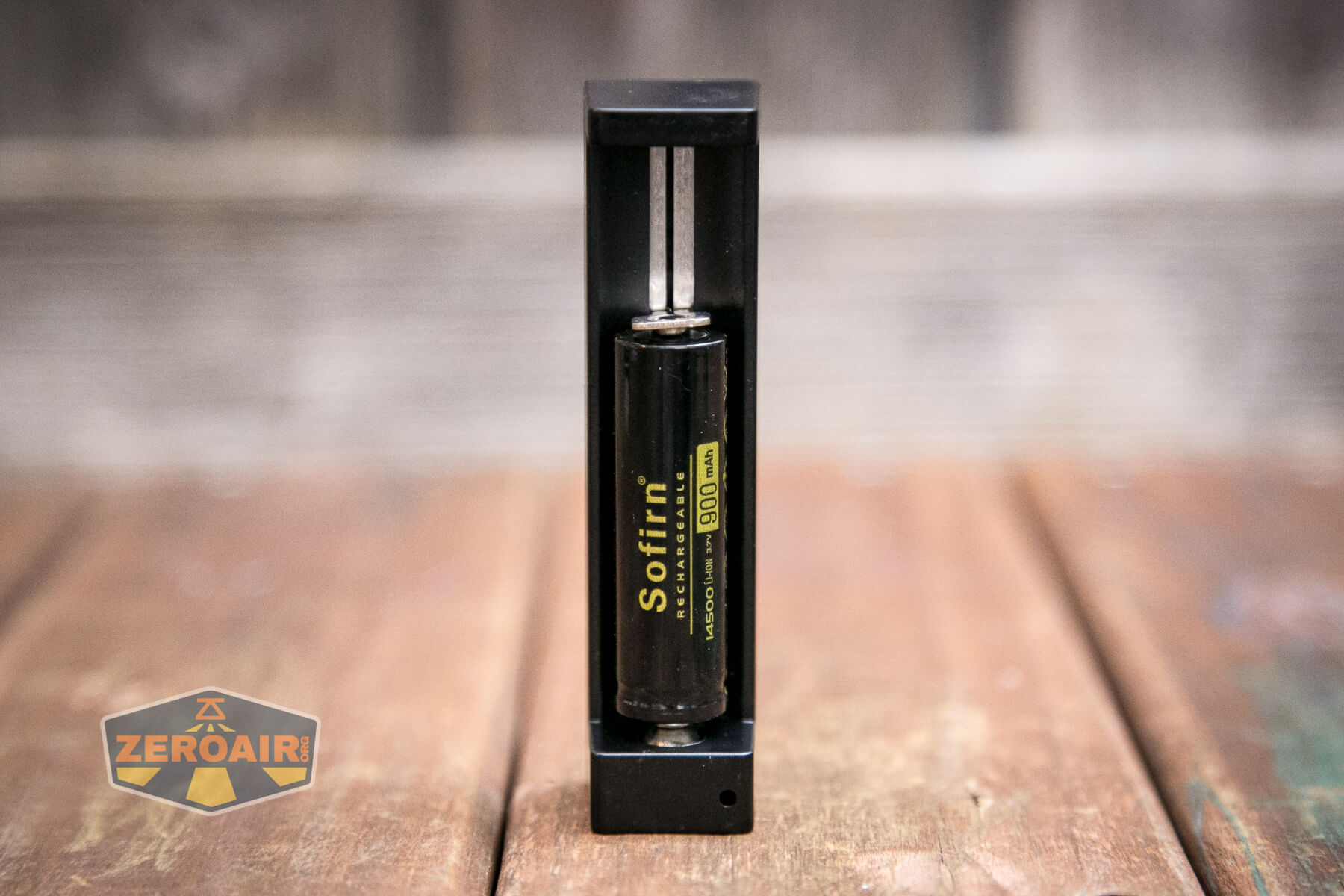

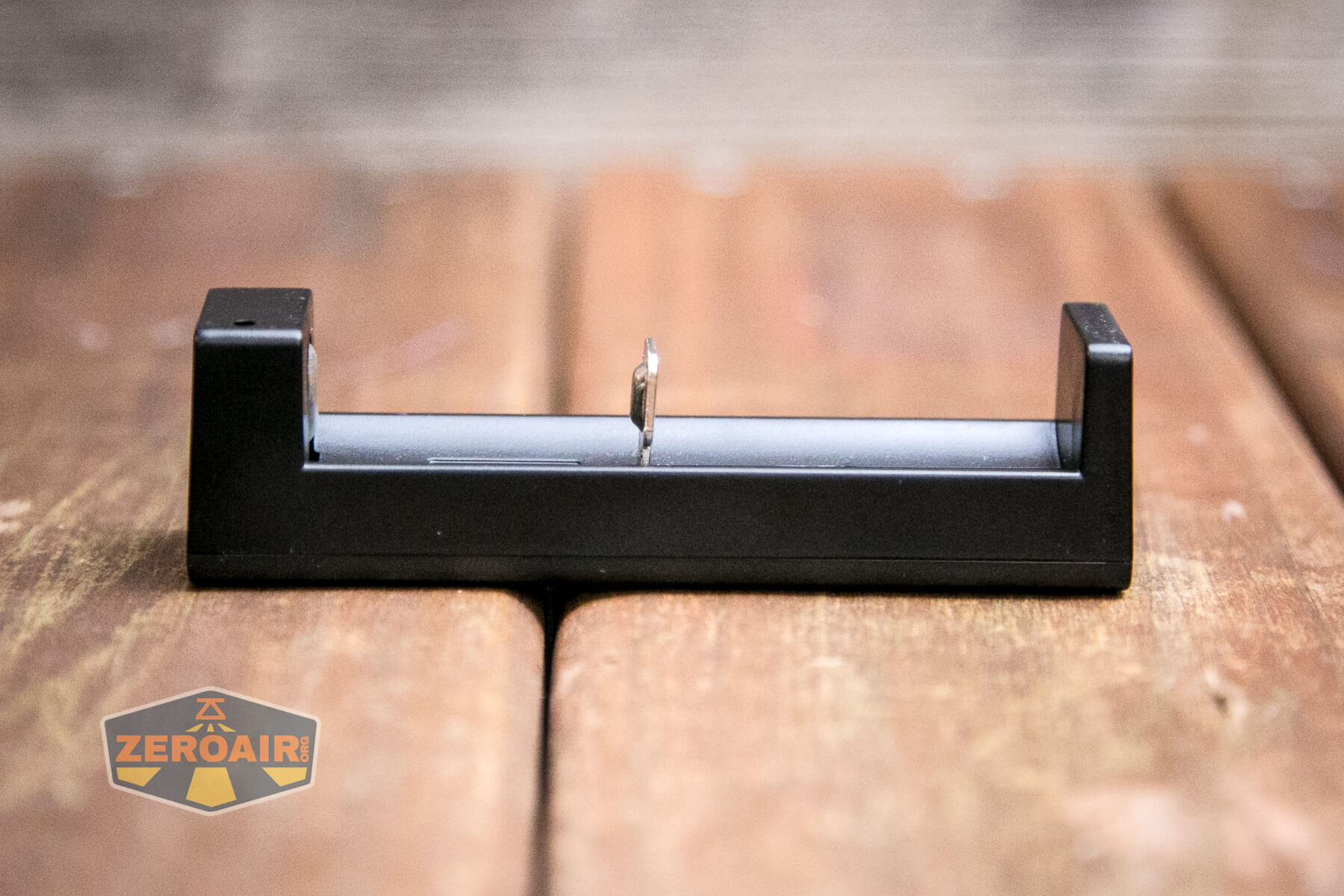

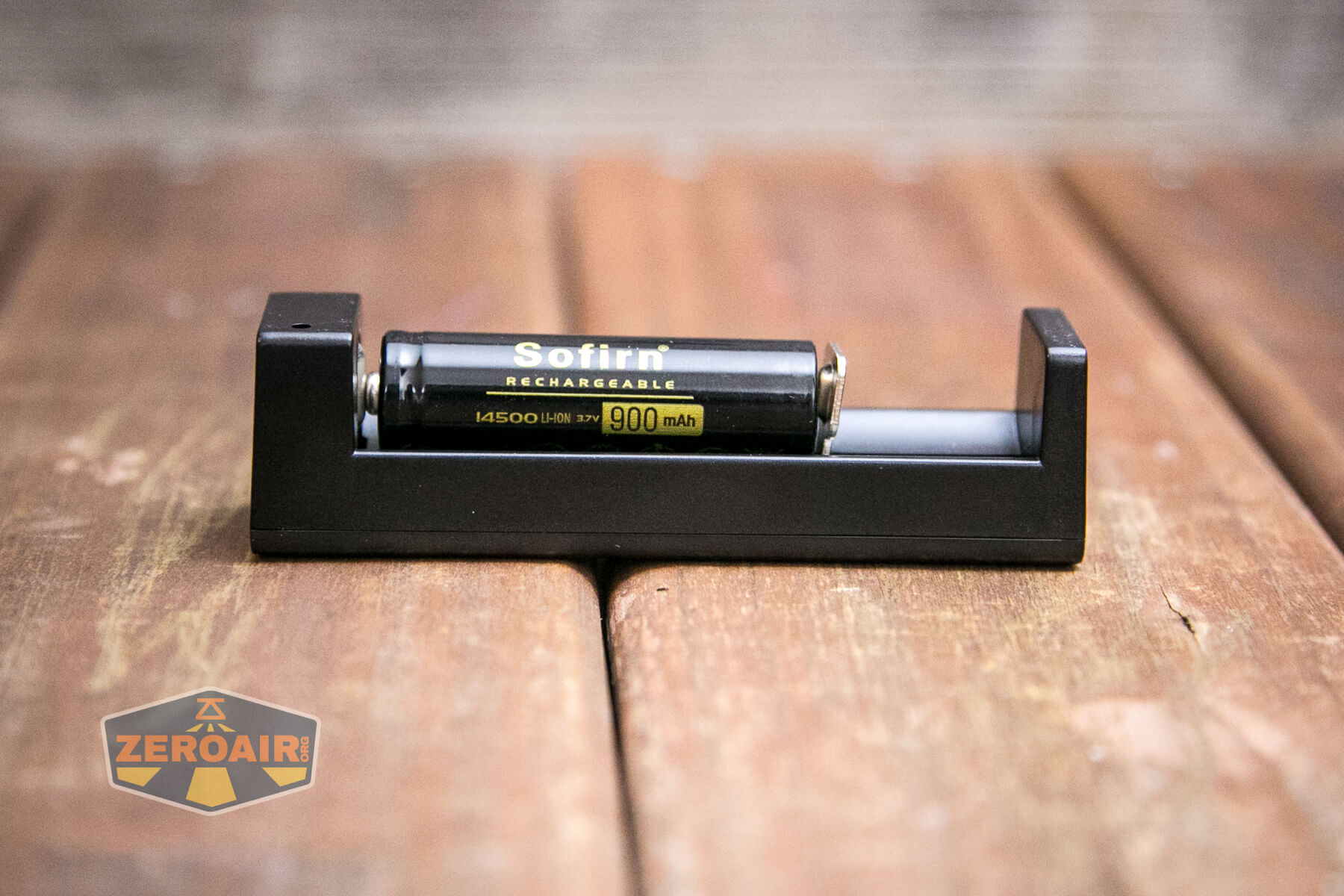

While the SP10 V3 doesn’t include charging, the kit does include a single-bay charger. It’s fine but nothing special. Don’t worry about the charger though – the kit is worth purchasing just for the cell!

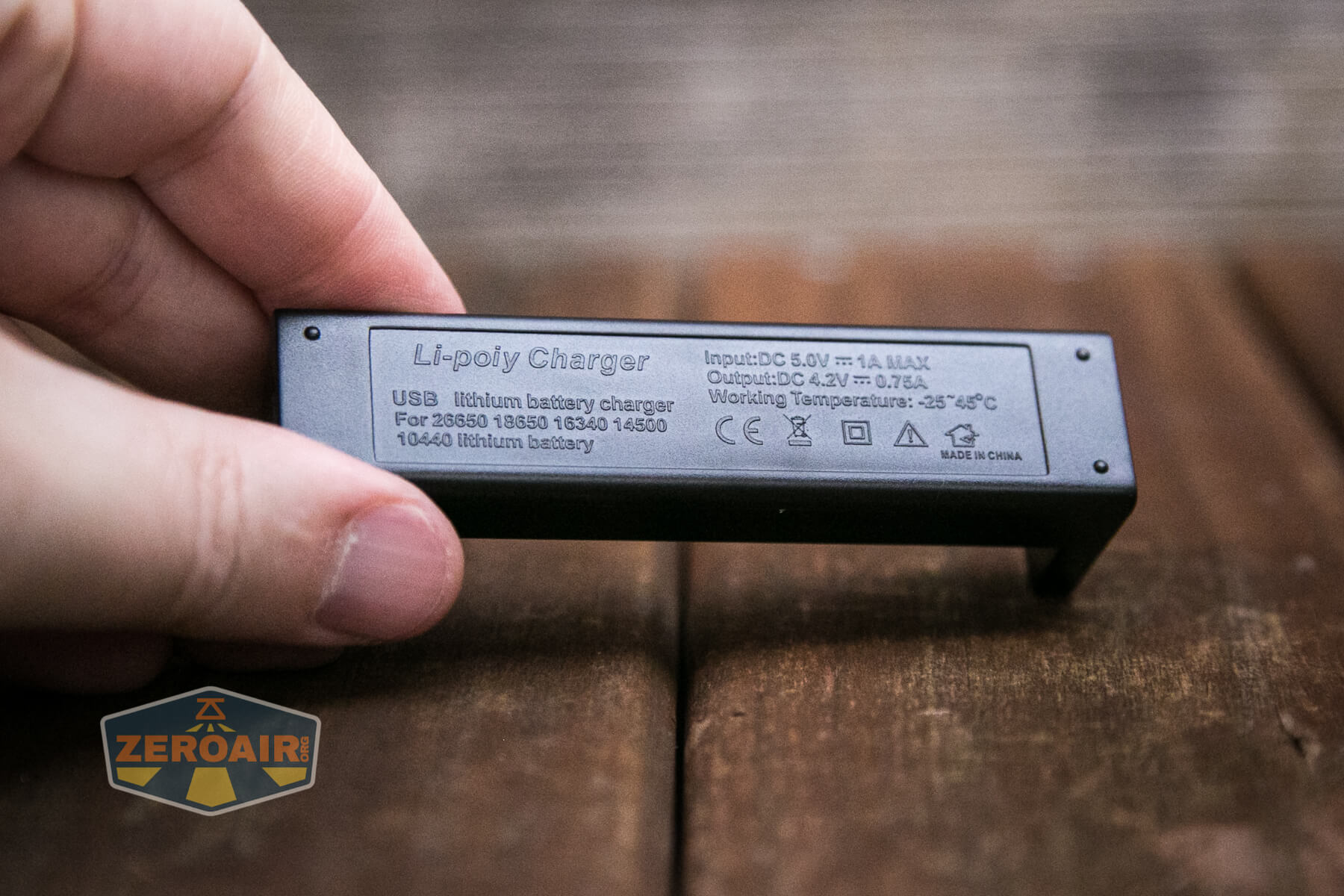

The back indicates it’ll only charge lithium-ion cells.

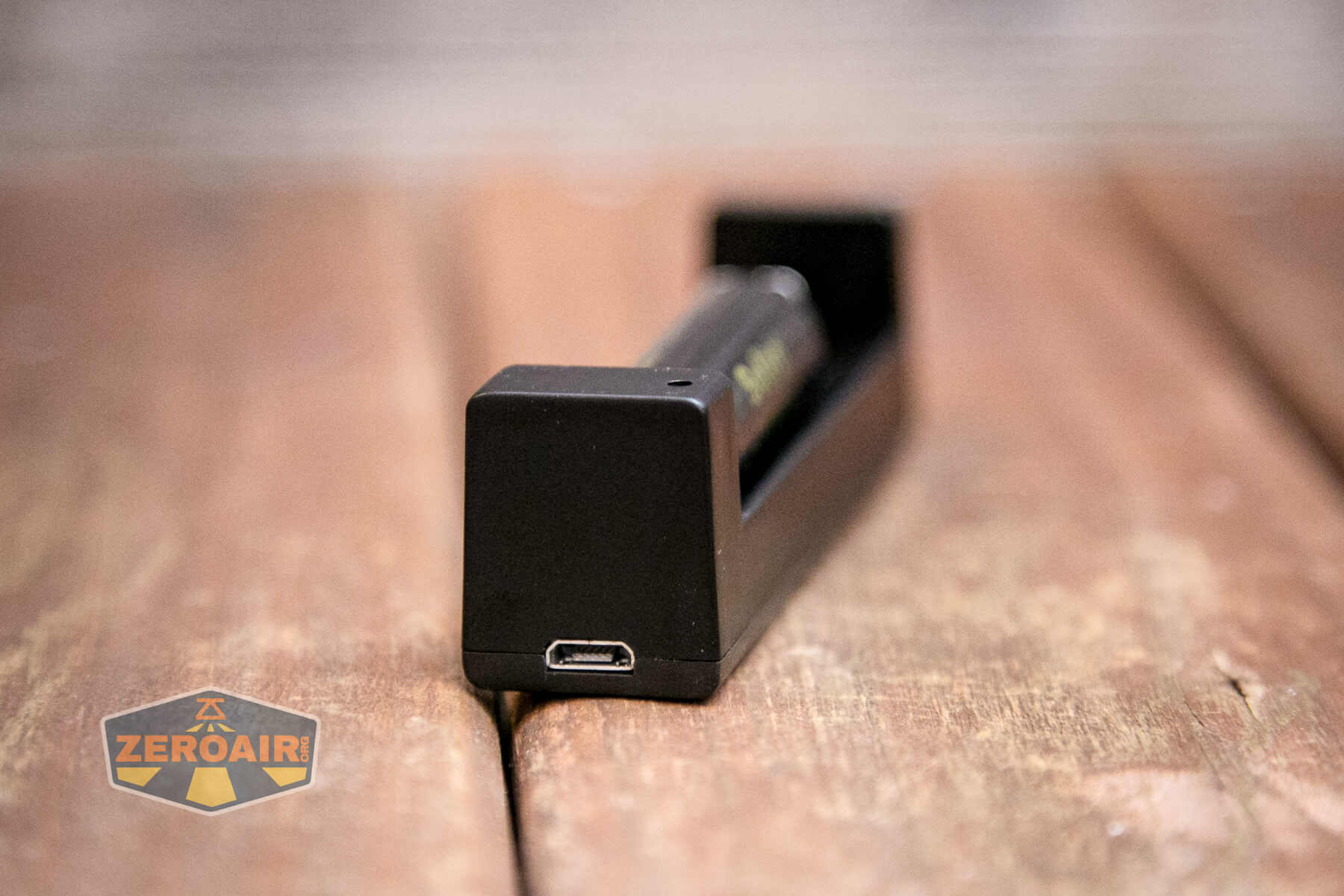

The charger uses micro-USB for power.

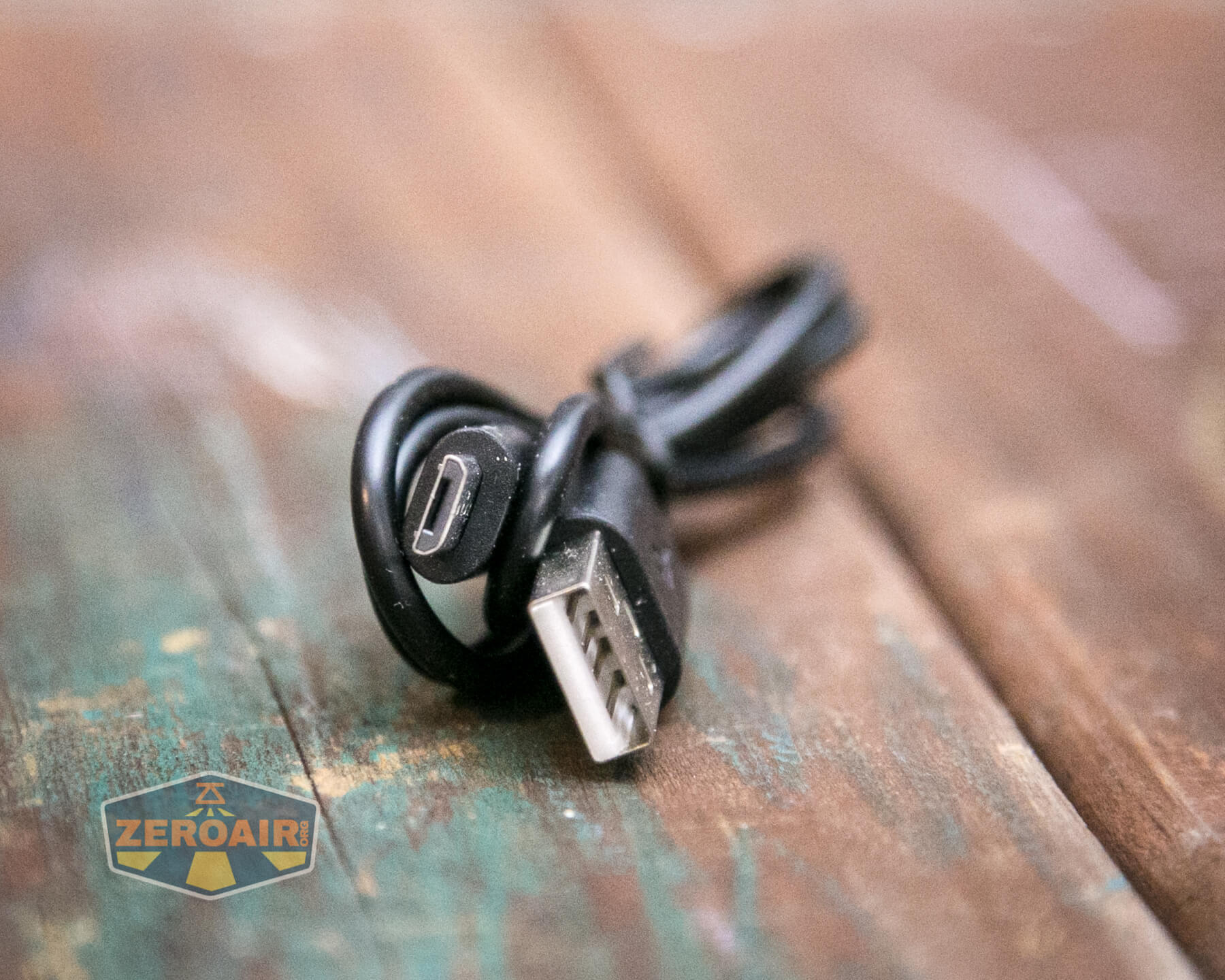

Sofirn includes a USB to micro-USB cable.

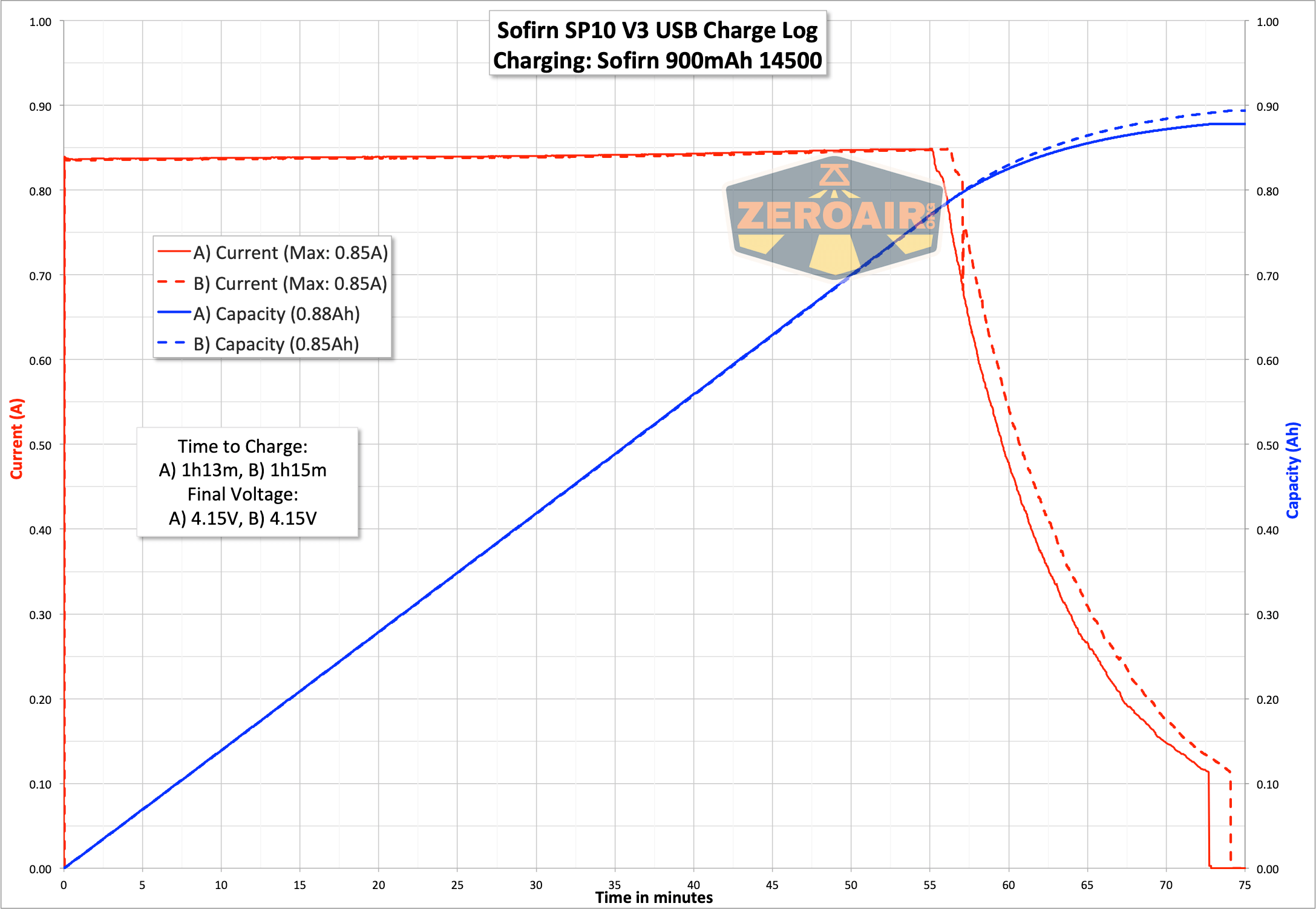

Here are a couple of charge cycles of the included charger and 14500 cell.
Modes and Currents
14500 (4.2V)
| Mode | Mode Claimed Output (lm) | Claimed Runtime | Measured Lumens | Tailcap Amps @4.2V |
|---|---|---|---|---|
| Turbo | 1000 | 1h | 910 | 4.15 |
| High | 350 | 1.1h | 334 | 1.31 |
| Medium | 100 | 3.5h | 99 | 0.40 |
| Low | 10 | 26h | 12.4 | 0.03 |
| Moon | 1 | 90h | 1.7 | 6.93mA |
AA (1.5V):
| Mode | Mode Claimed Output (lm) | Claimed Runtime | Measured Lumens | Tailcap Amps @1.5V |
|---|---|---|---|---|
| Turbo | 300 | 0.7h | 280 | 5.00 |
| High | 120 | 1.5h | 74 | 0.91 |
| Medium | 50 | 8.8h | 37 | 0.44 |
| Low | 10 | 9.7h | 7.2 | 0.08 |
| Moon | 1 | 29h | 0.8 | 18.80mA |

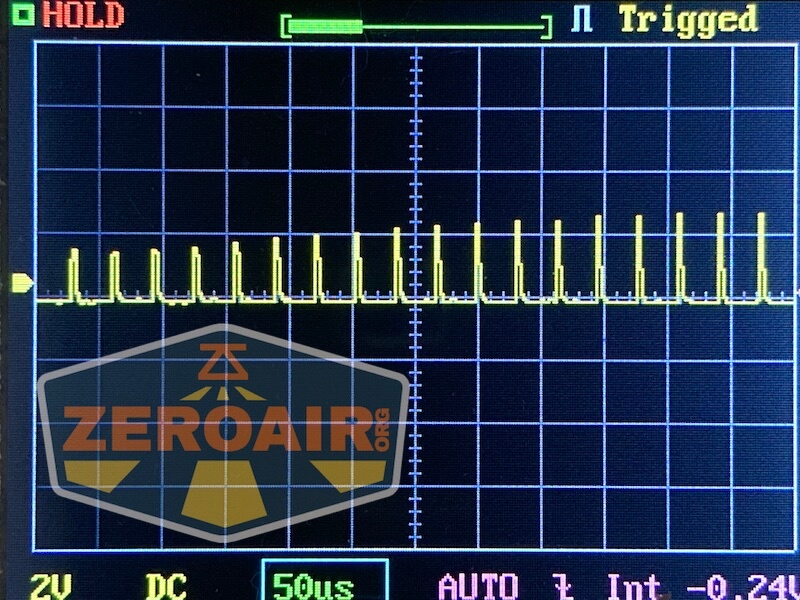

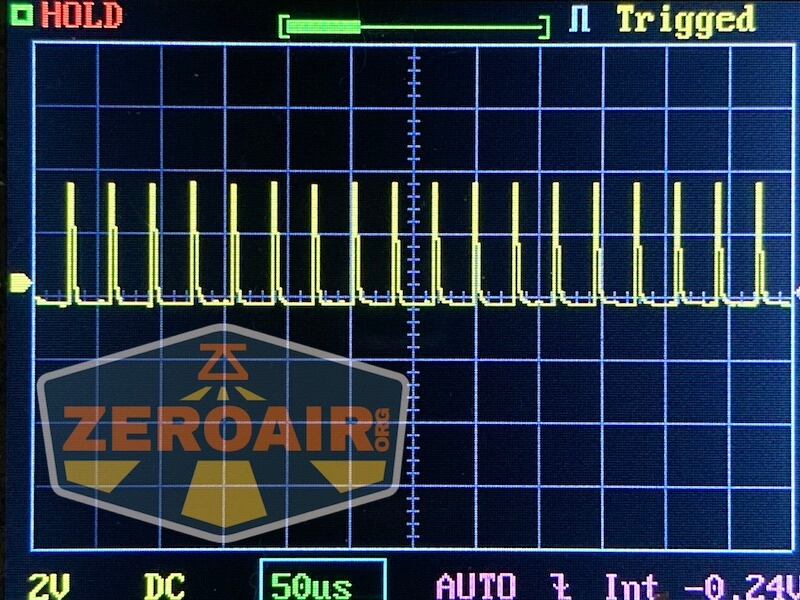

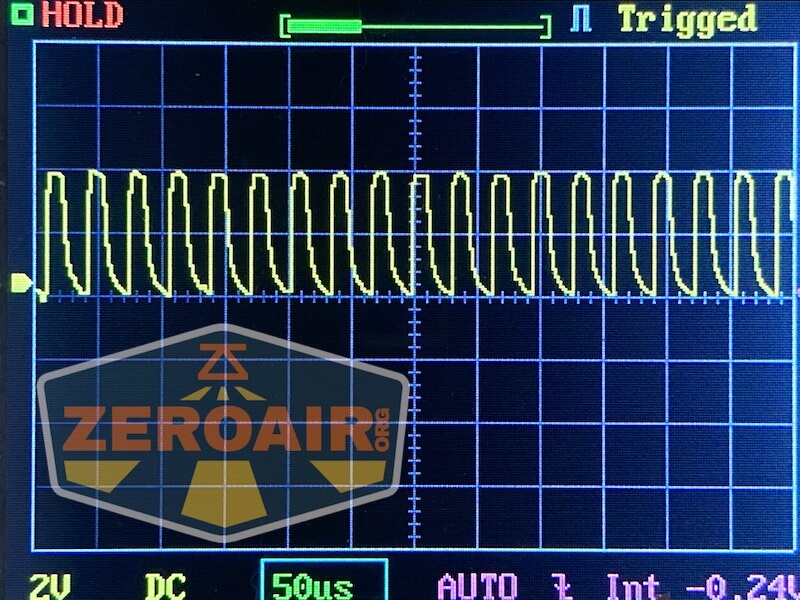

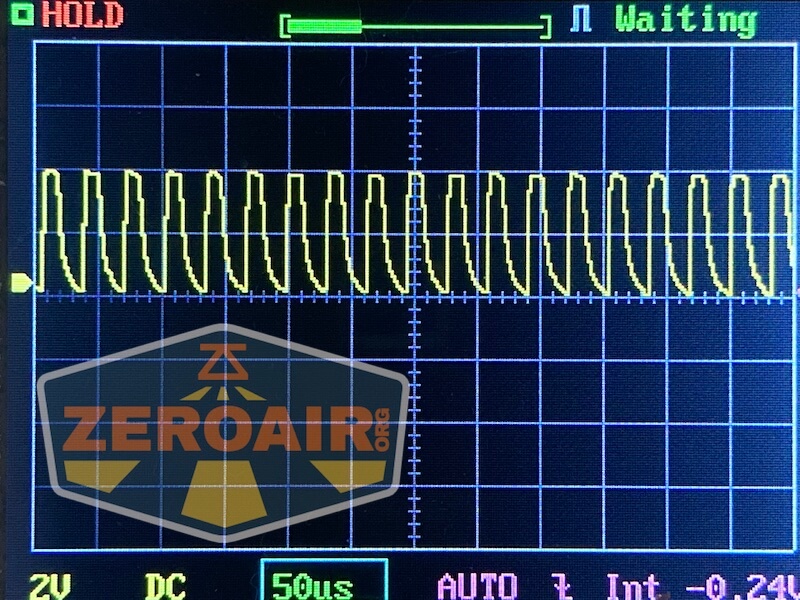

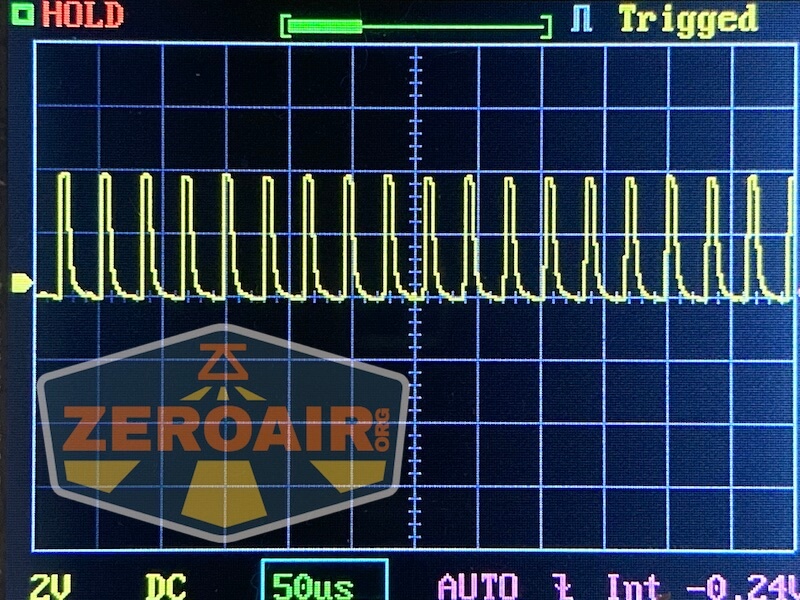

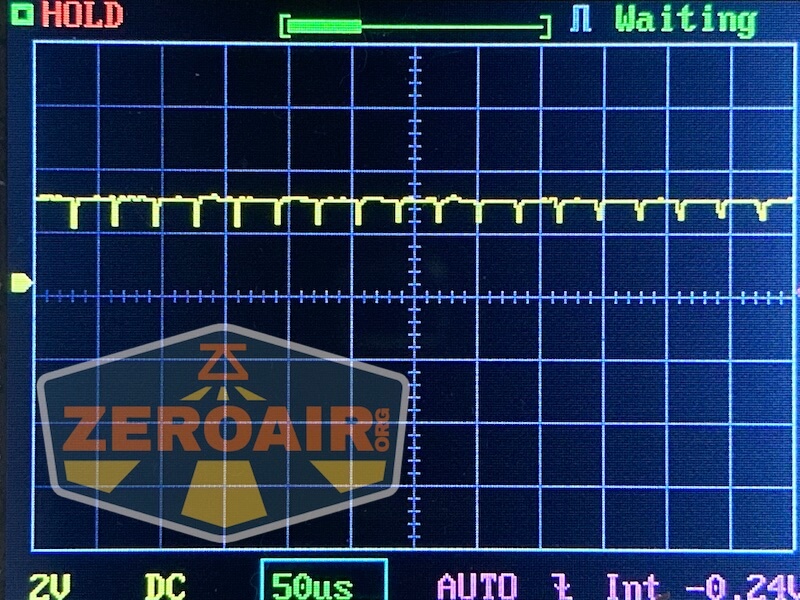

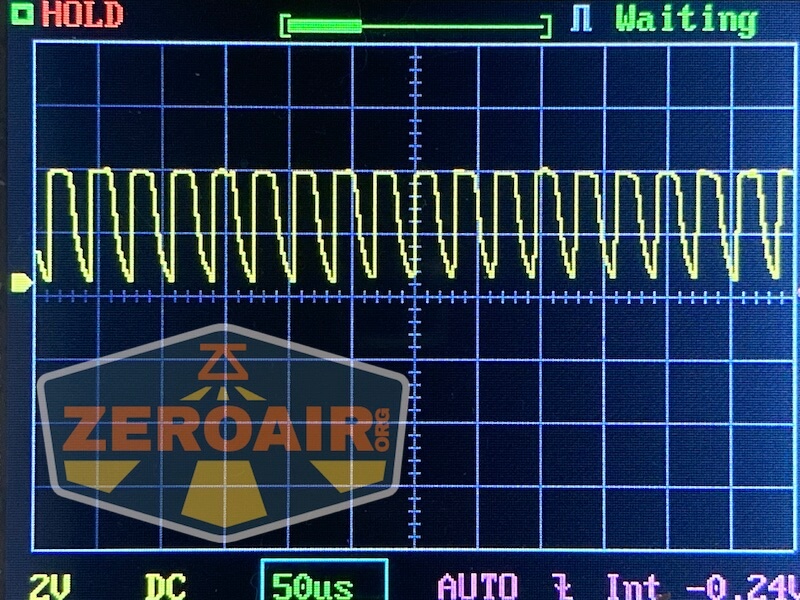

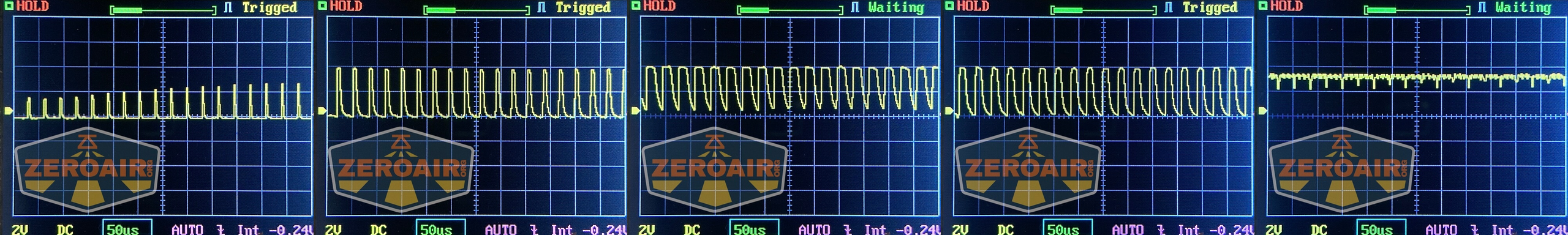

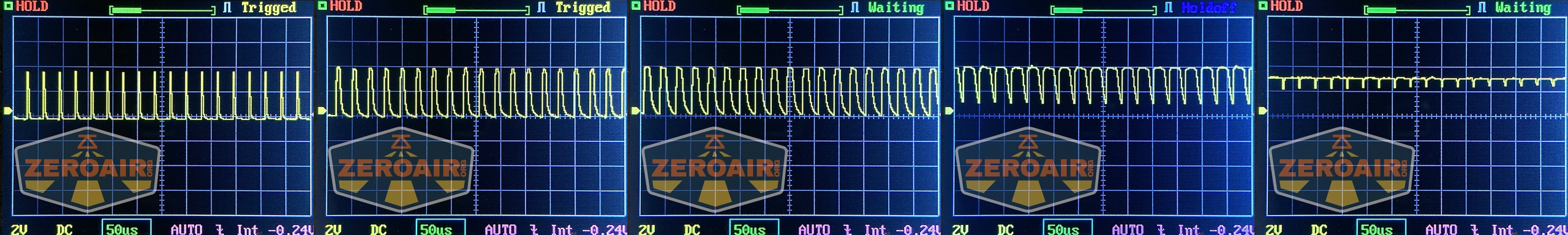

Pulse Width Modulation

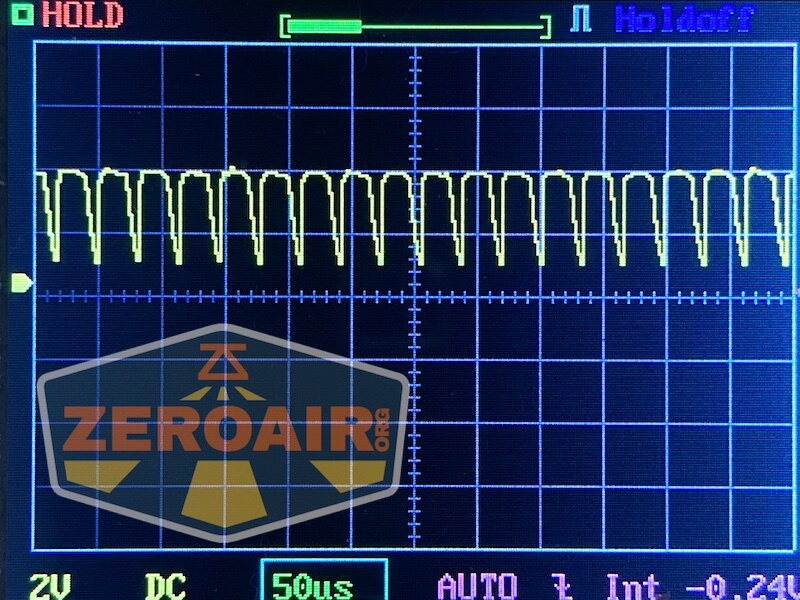

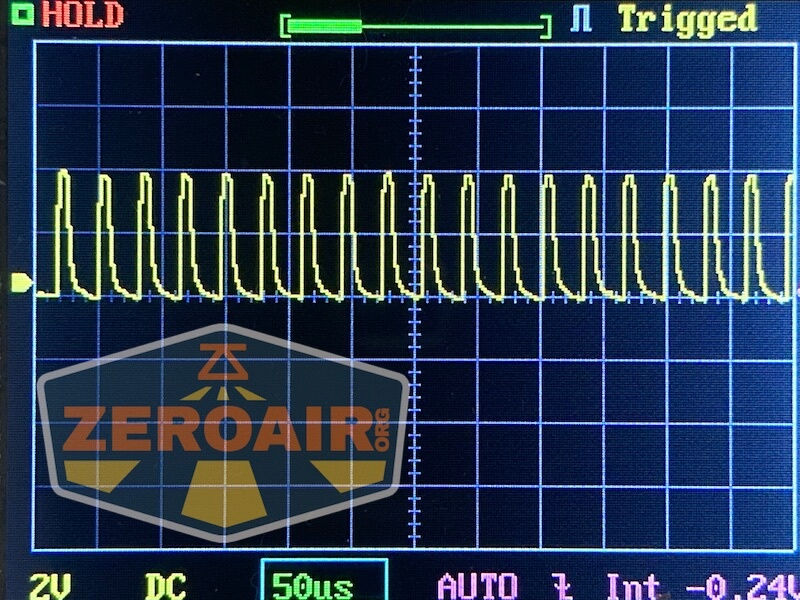

There’s PWM on every level of every mode. It’s fast enough though to not be a concern.
14500:
AA:

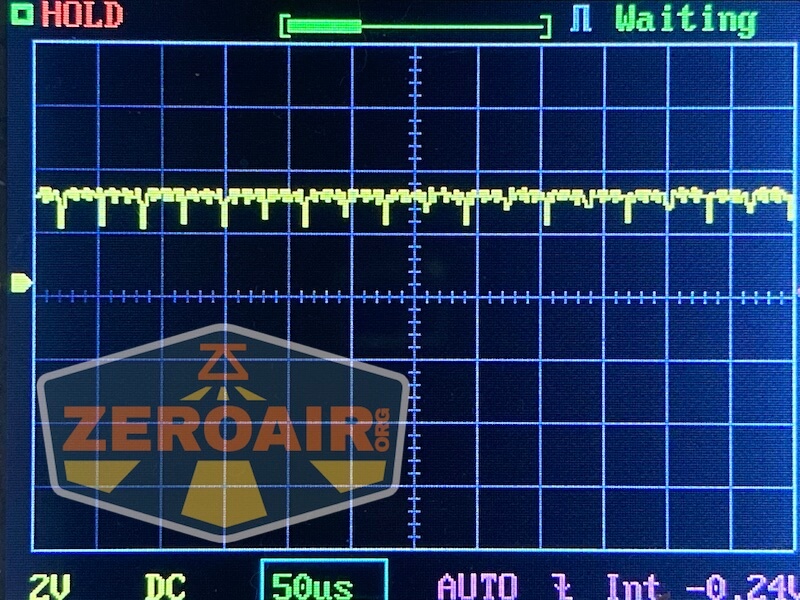

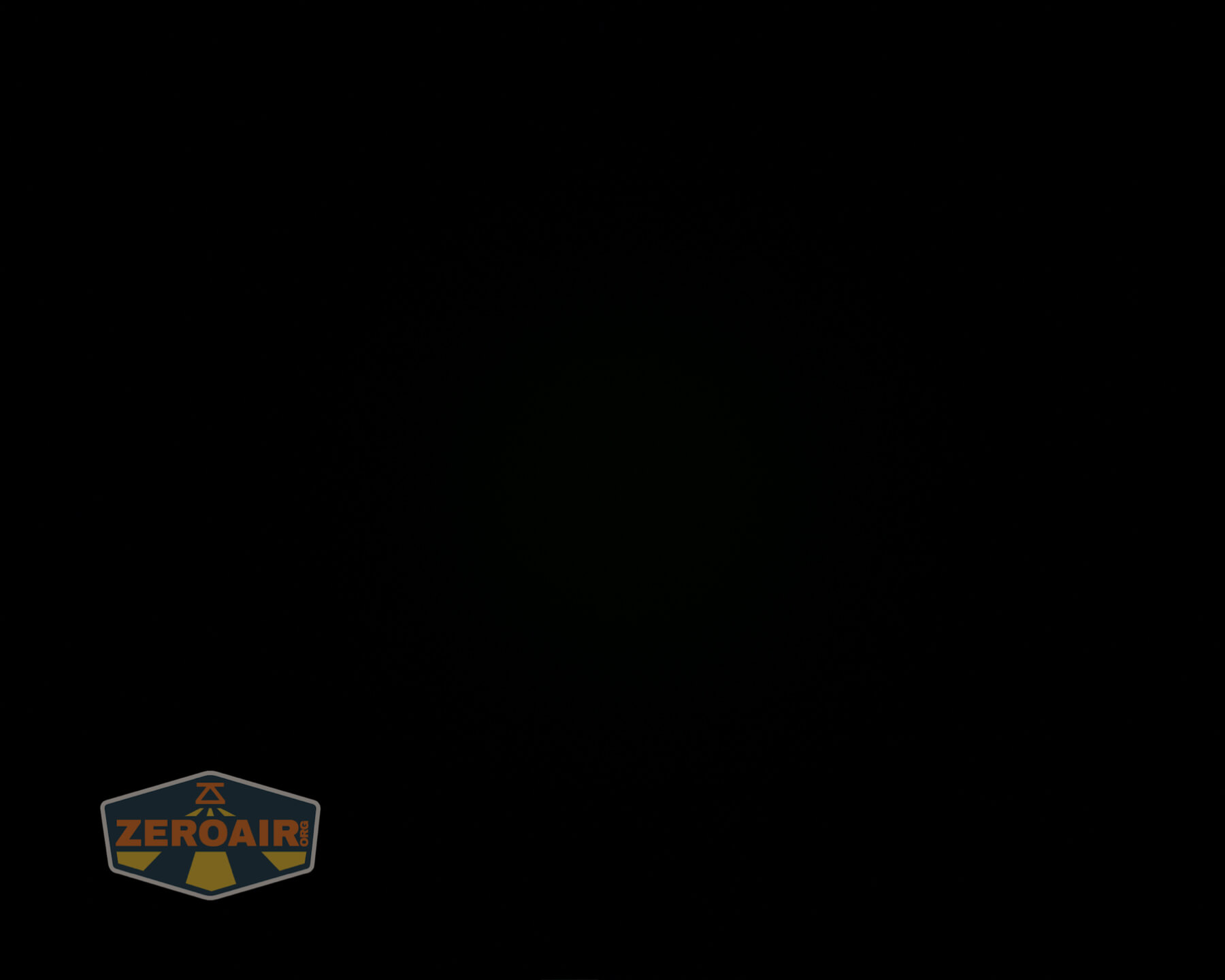

For reference, here’s a baseline shot, with all the room lights off and almost nothing hitting the sensor. Also, here’s the light with the worst PWM I could find. I’m adding multiple timescales, so it’ll be easier to compare to the test light. Unfortunately, the PWM on this light is so bad that it doesn’t even work with my normal scale, which is 50 microseconds (50us). 10ms. 5ms. 2ms. 1ms. 0.5ms. 0.2ms.  In a display faster than 0.2ms or so, the on/off cycle is more than one screen, so it’d just (very incorrectly) look like a flat line. I wrote more about this Ultrafire WF-602C flashlight and explained a little about PWM too.
User Interface and Operation

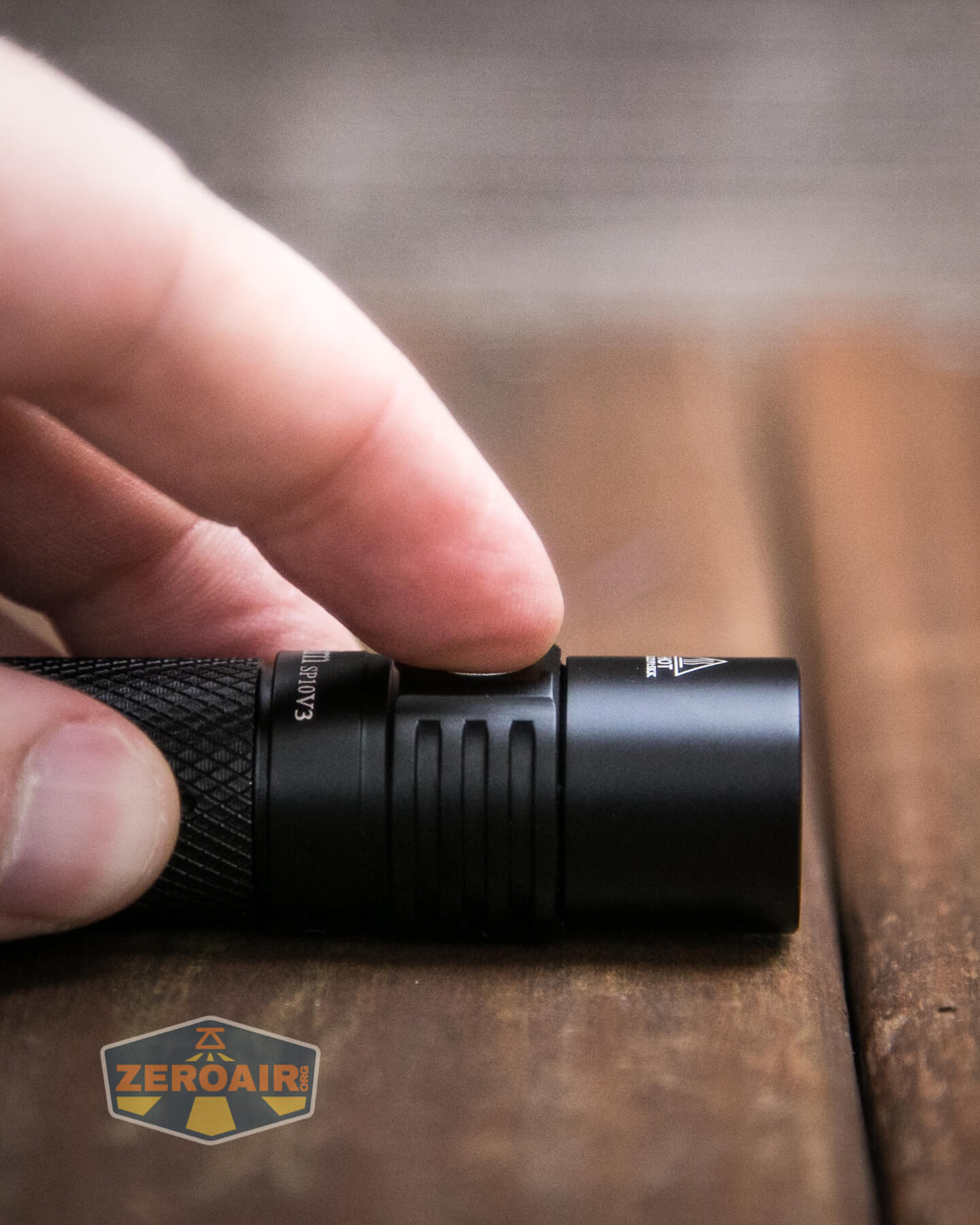

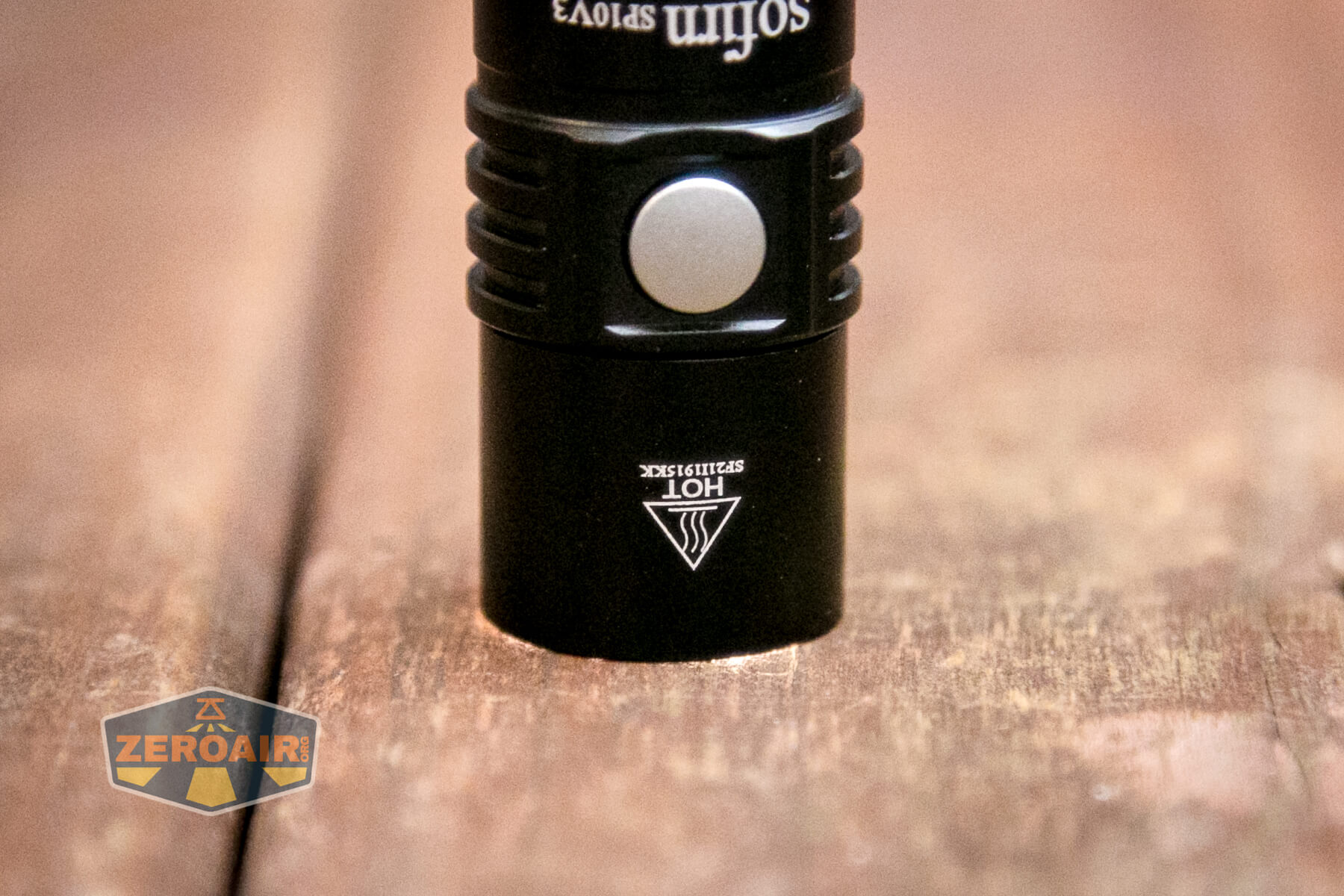

A single switch controls the Sofirn SP10 V3 flashlight. It’s a very nice “metal cover” e-switch on the side of the head and has no indicating functions. The cover has a very light dome which makes it very pleasant to interact with.
The action is very low.
Here’s a UI table!
| State | Action | Result |
|---|---|---|
| Off | Click | On (Mode Memory) |
| Off | Hold | Moon |
| On | Click | Off |
| Any | Double click | Turbo |
| Turbo (Or strobe) | Click | Previous mode |
| Any | Triple click | Strobe |
| Strobe | Hold | Strobe advance (Strobe, SOS, Beacon) |
| On | Hold | Mode advance (cycle is LMH only) |
| Off | Click 4x | Lockout (double blink to indicate) |
| Lockout | Click 4x | Unlock (Low) |
| Lockout | Click | Double blink to indicate lockout |

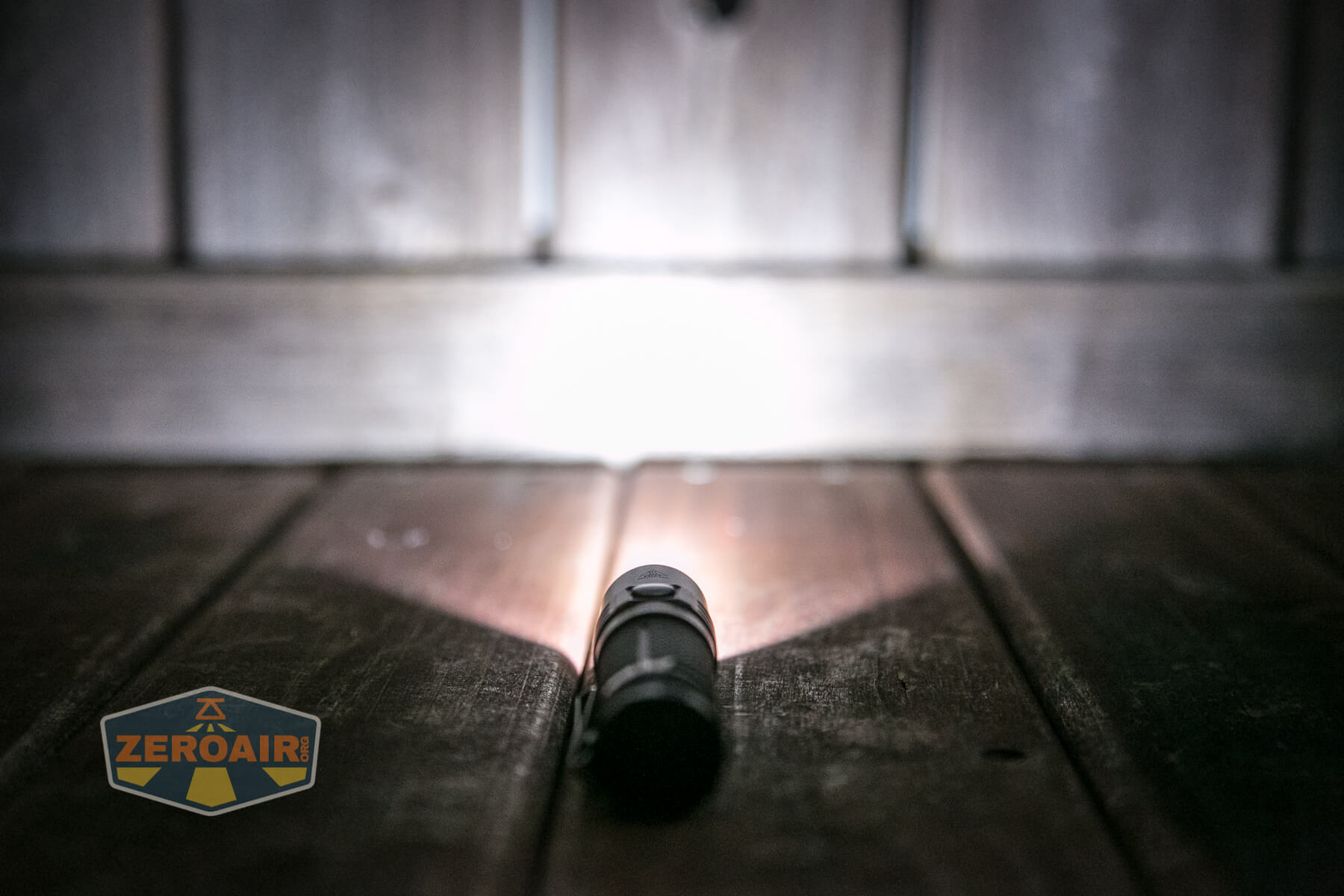

LED and Beam

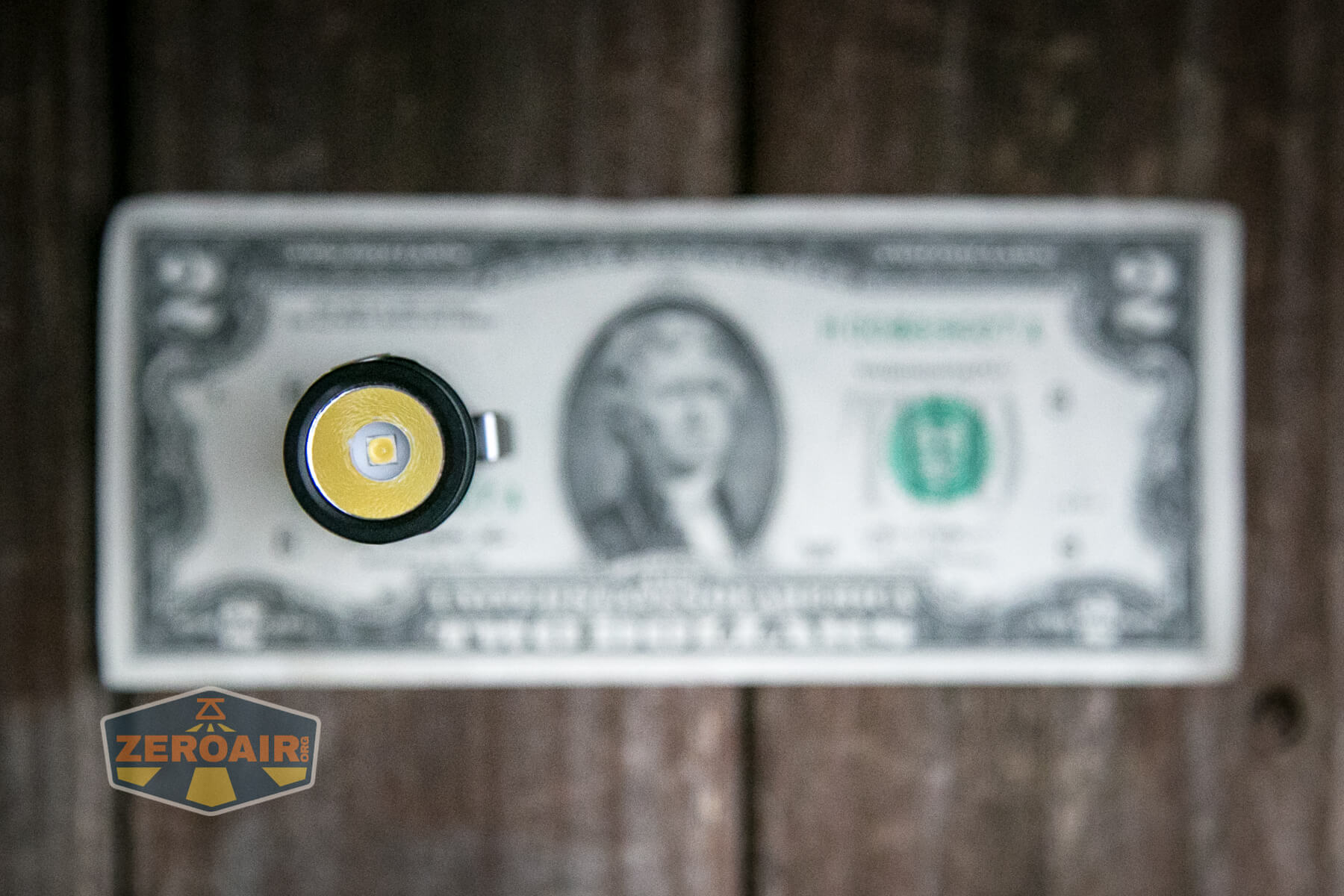

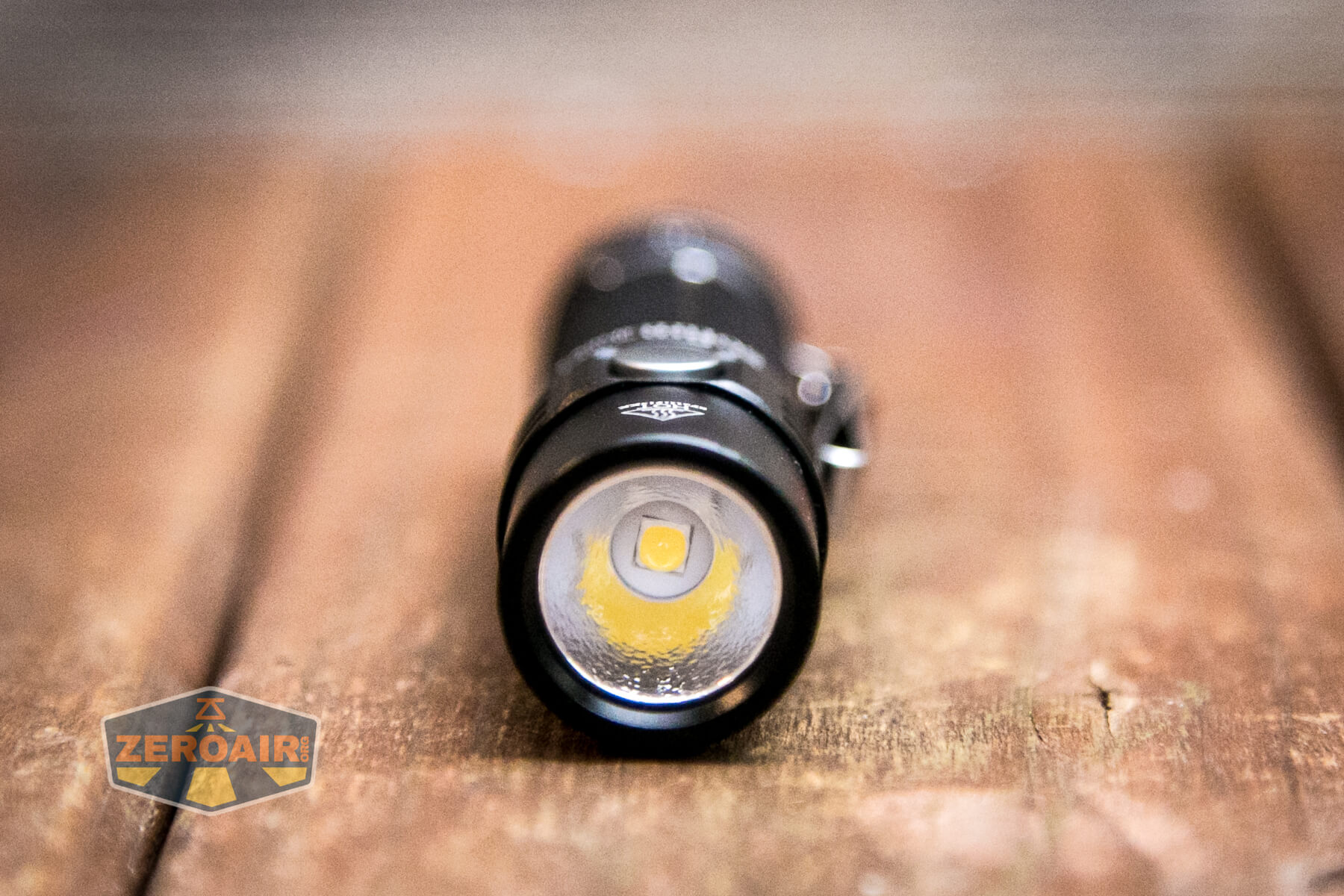

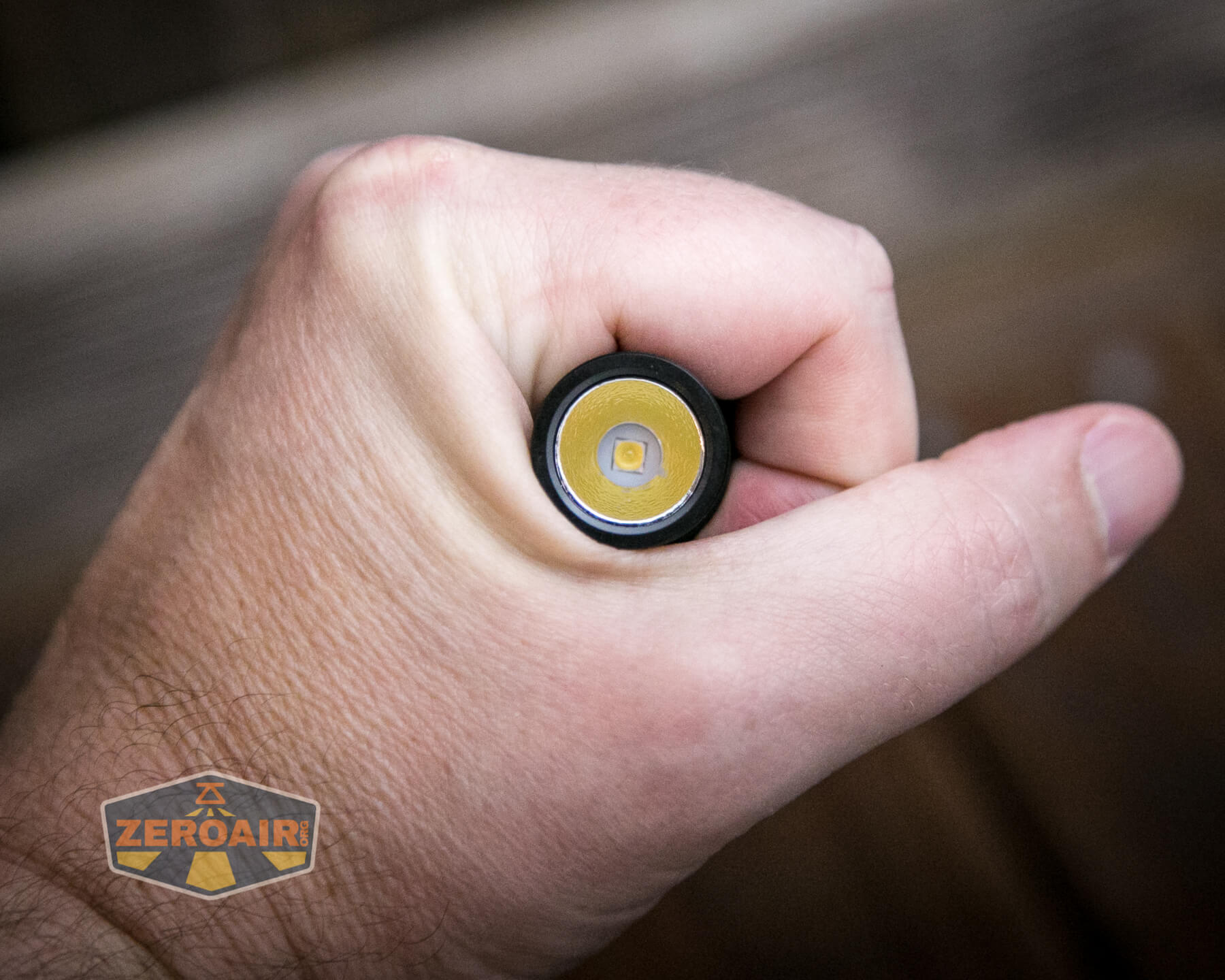

Sofirn smartly put a Samsung LH351d emitter in this little light.
It uses a lightly orange peel reflector, just like the SC21.
The bezel is flat, so light doesn’t escape when headstanding.

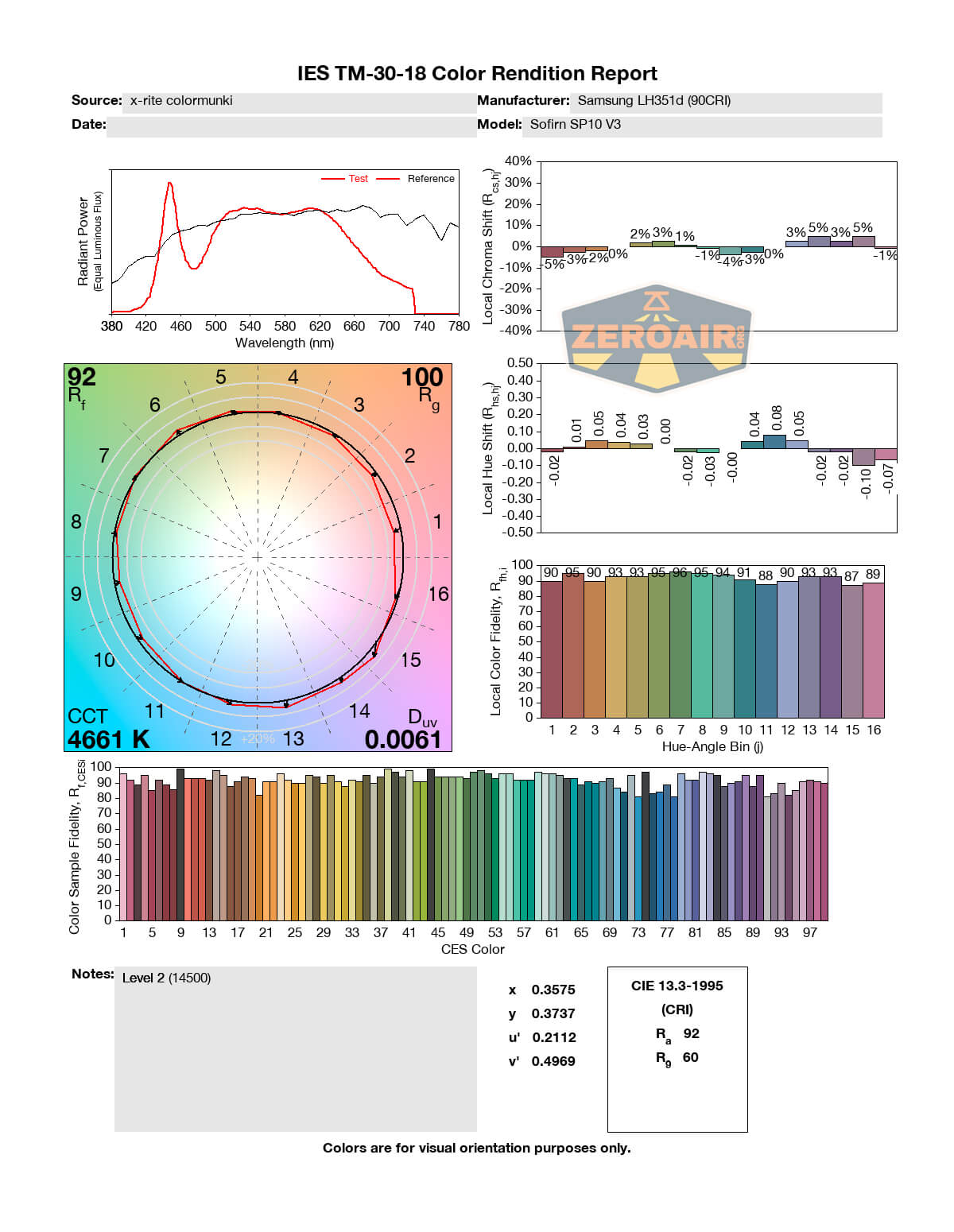

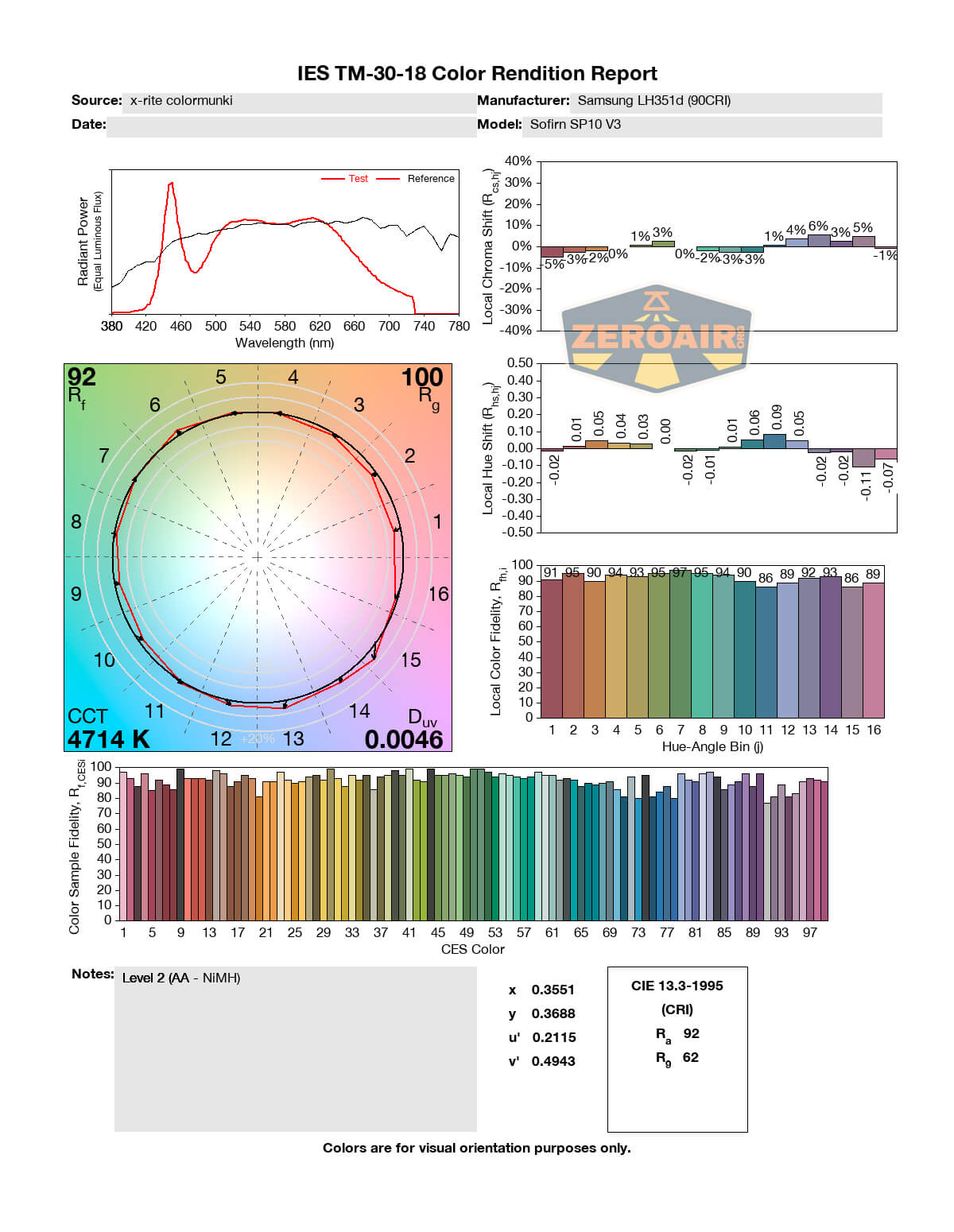

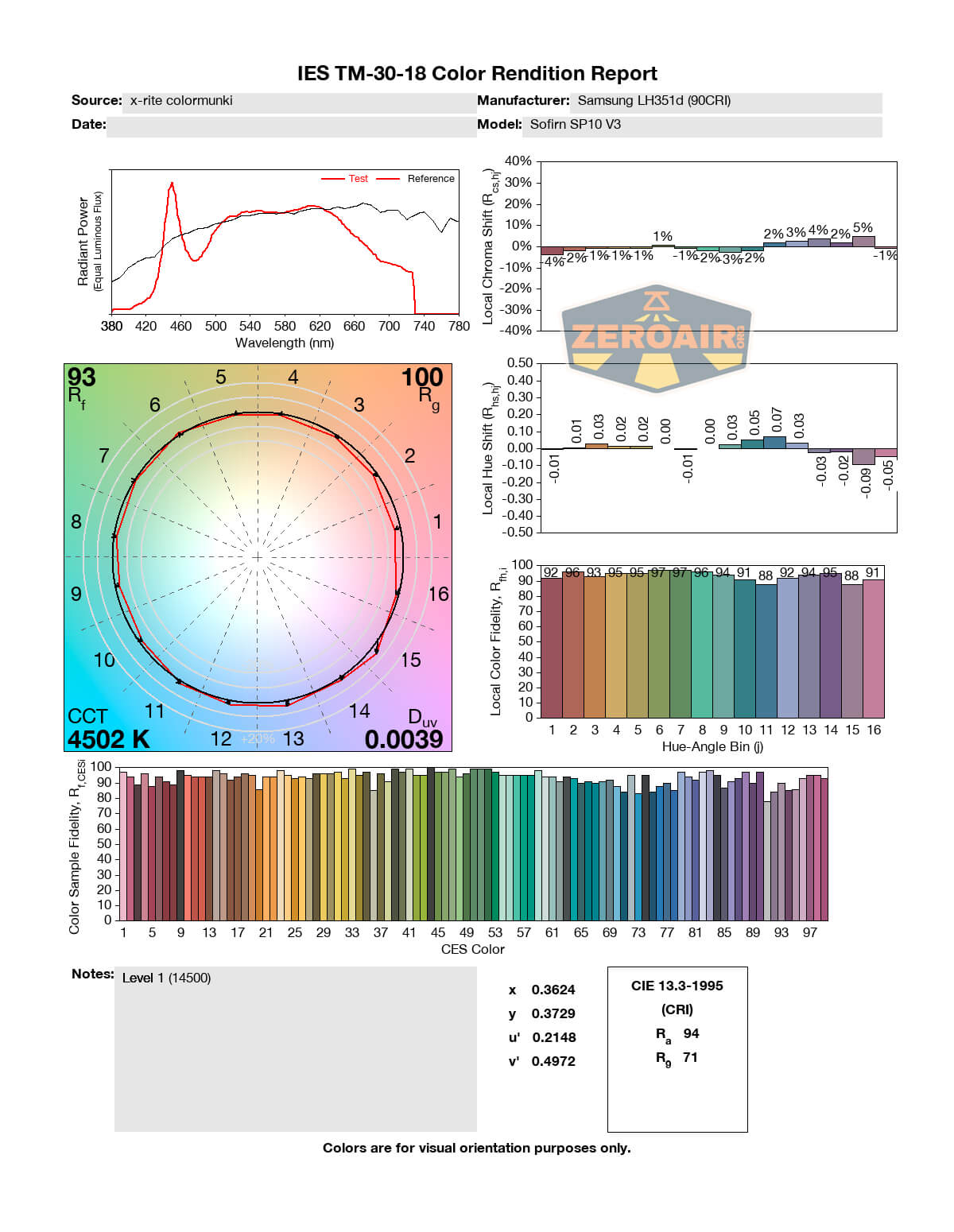

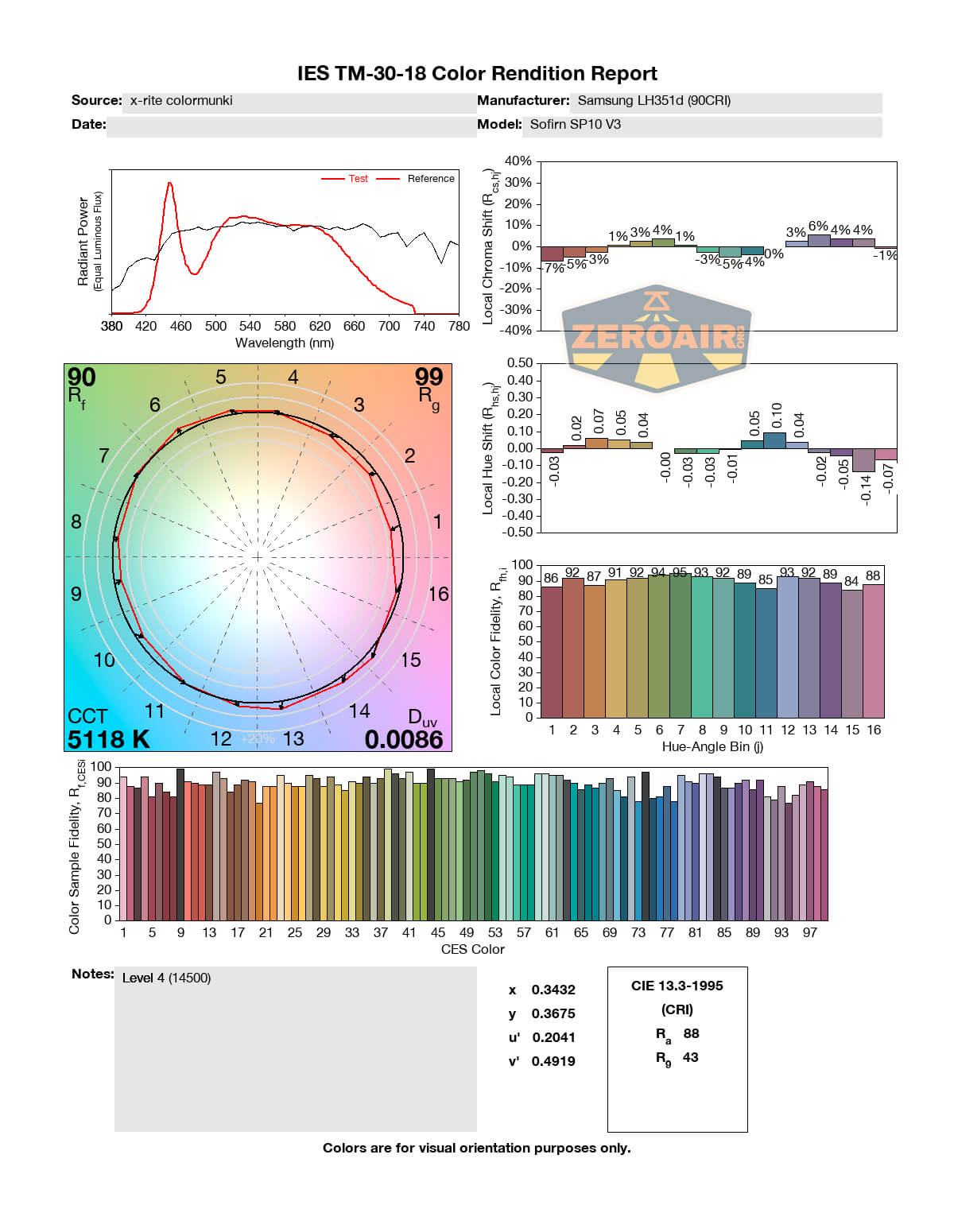

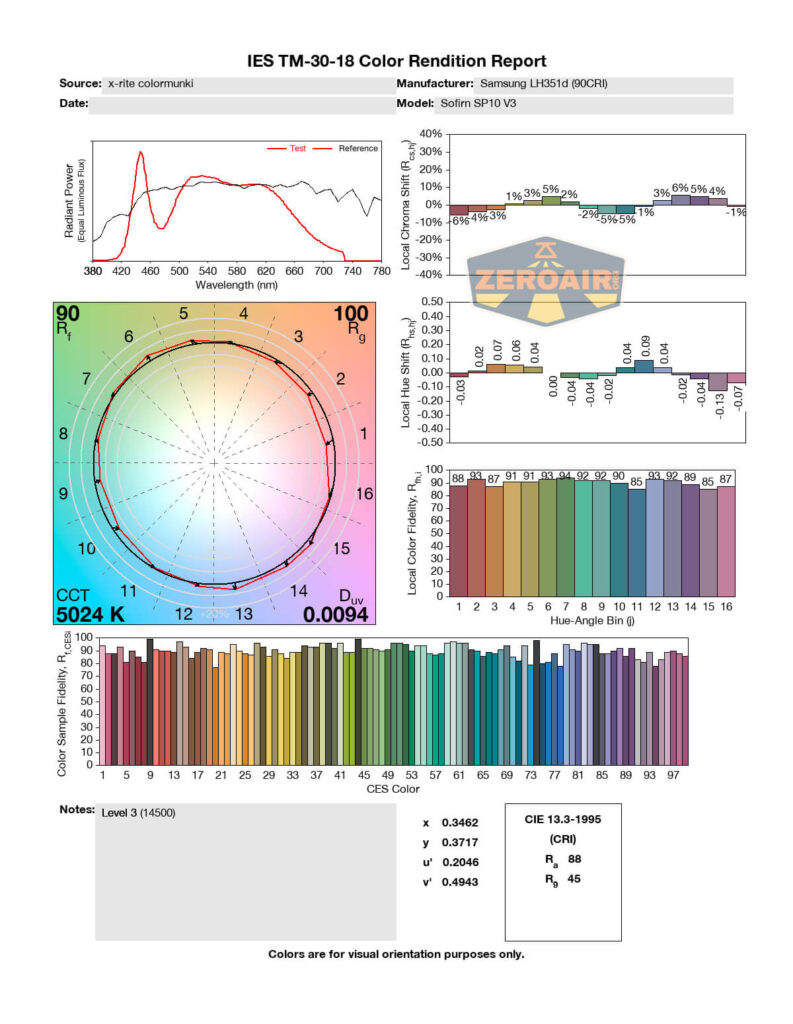

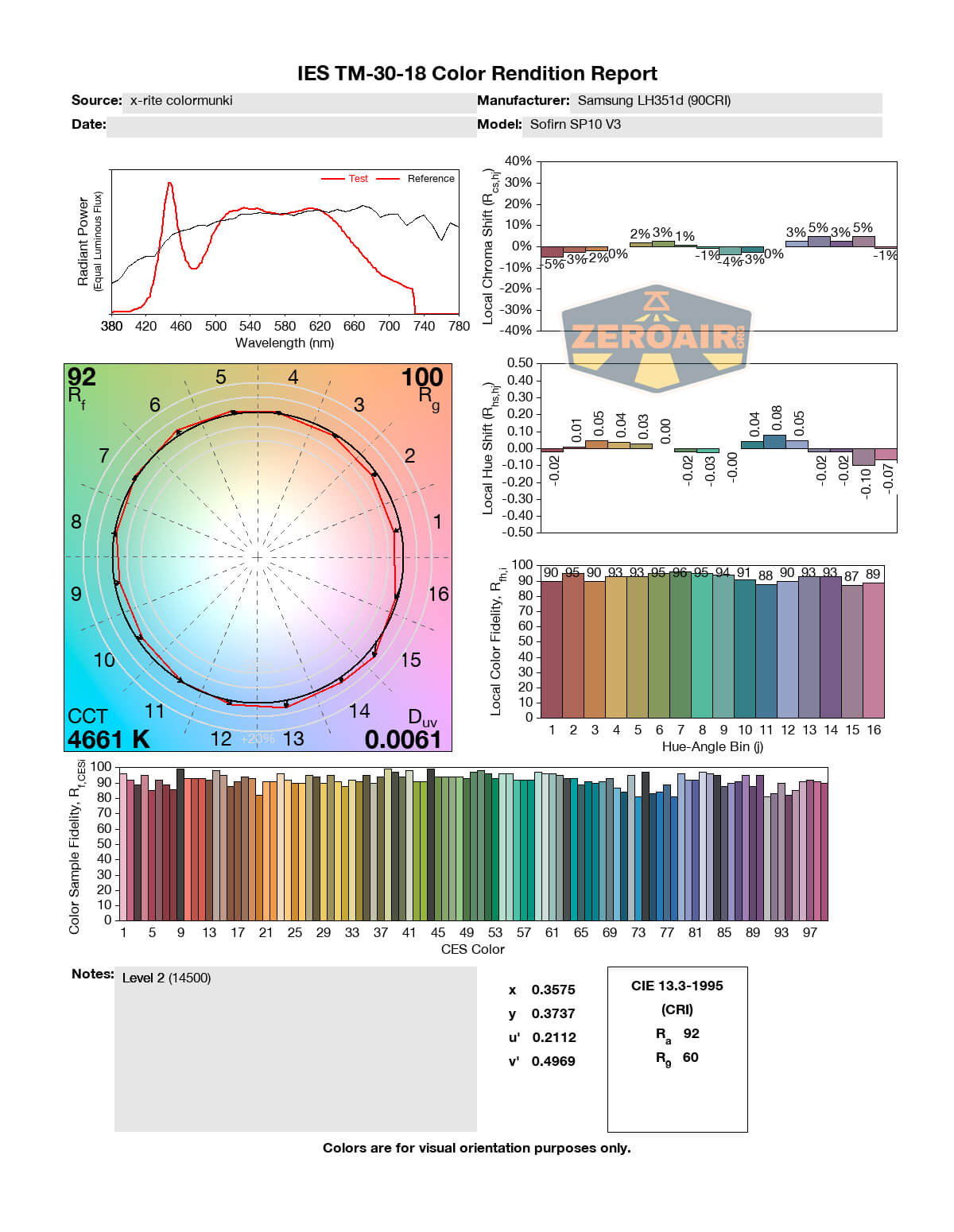

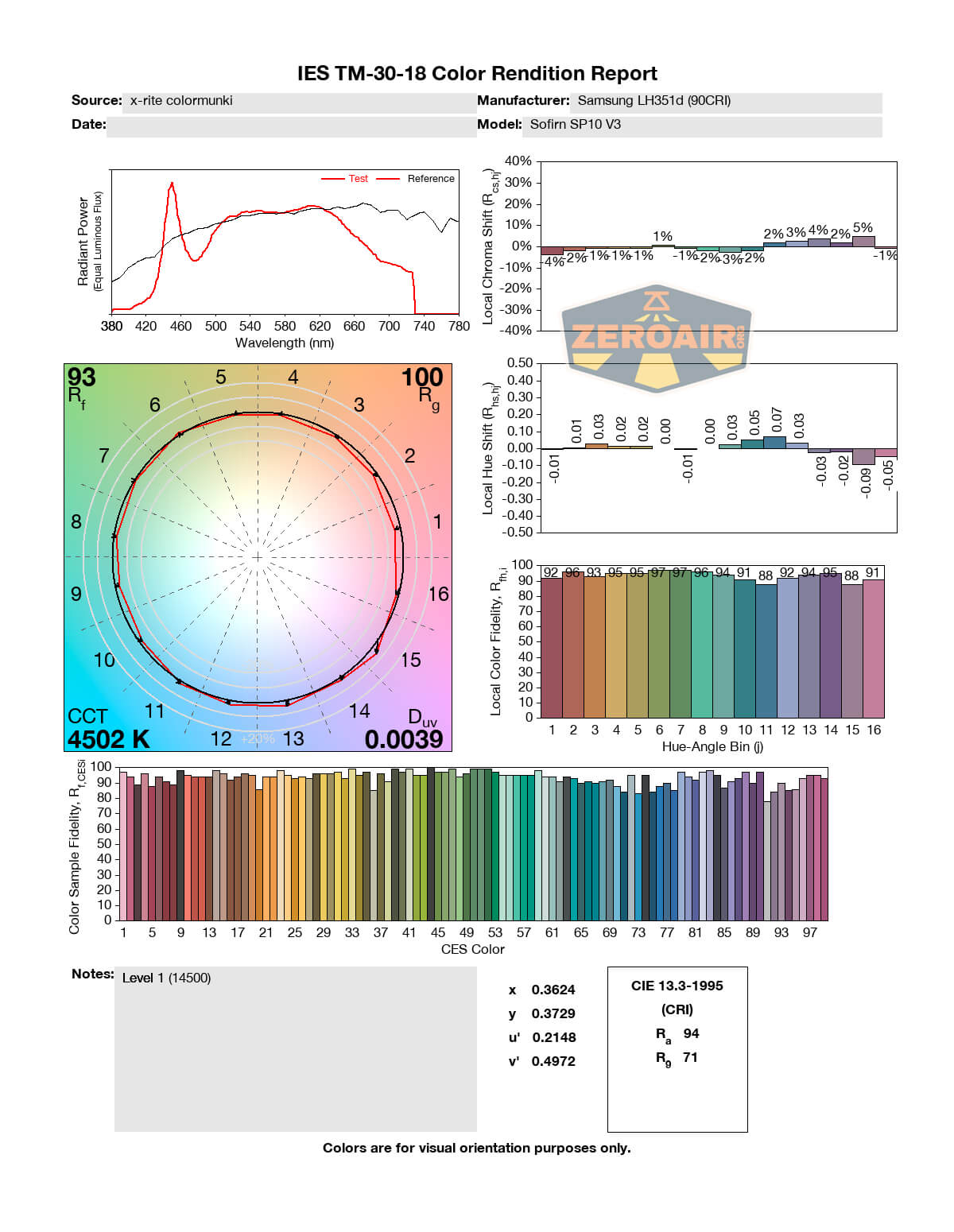

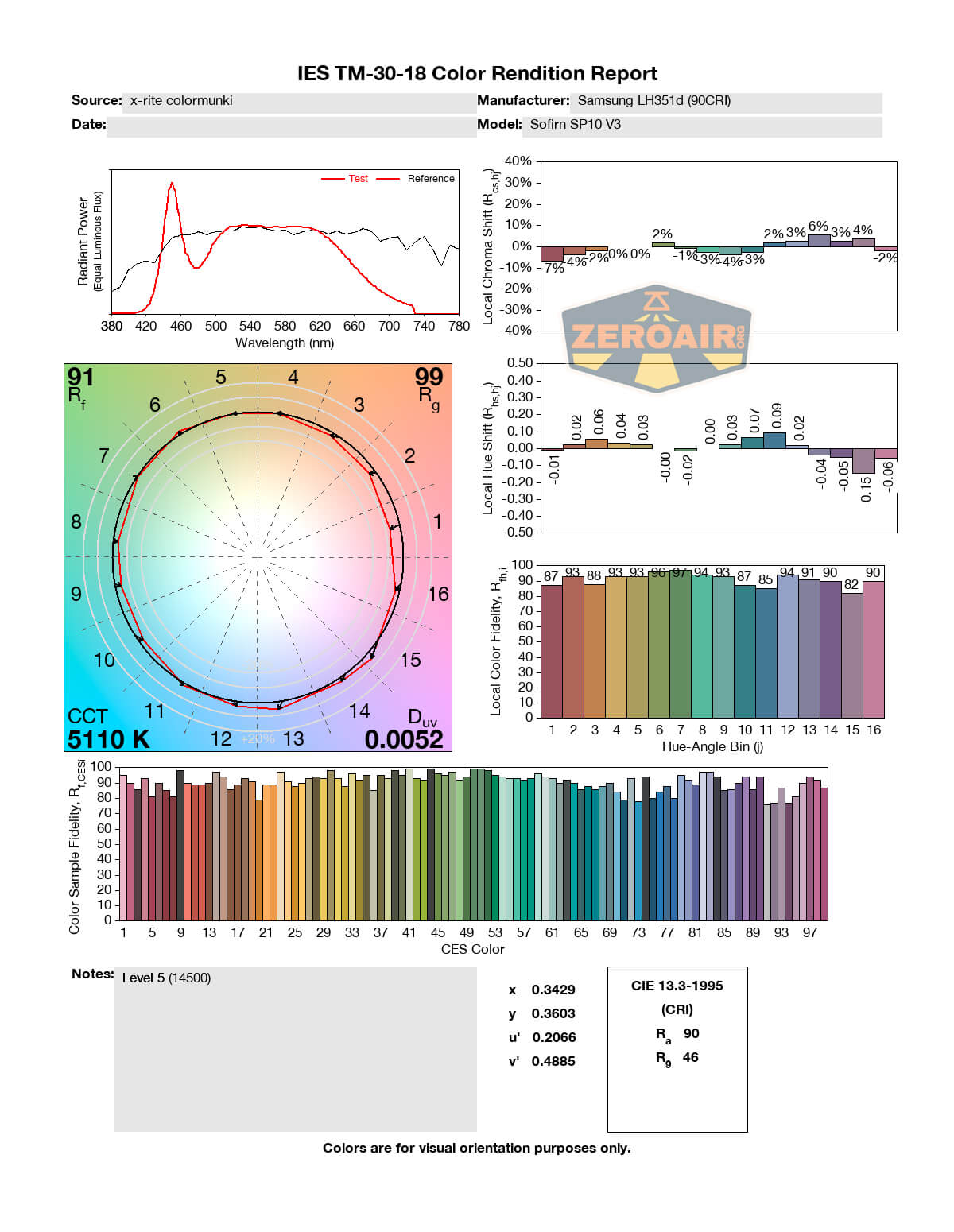

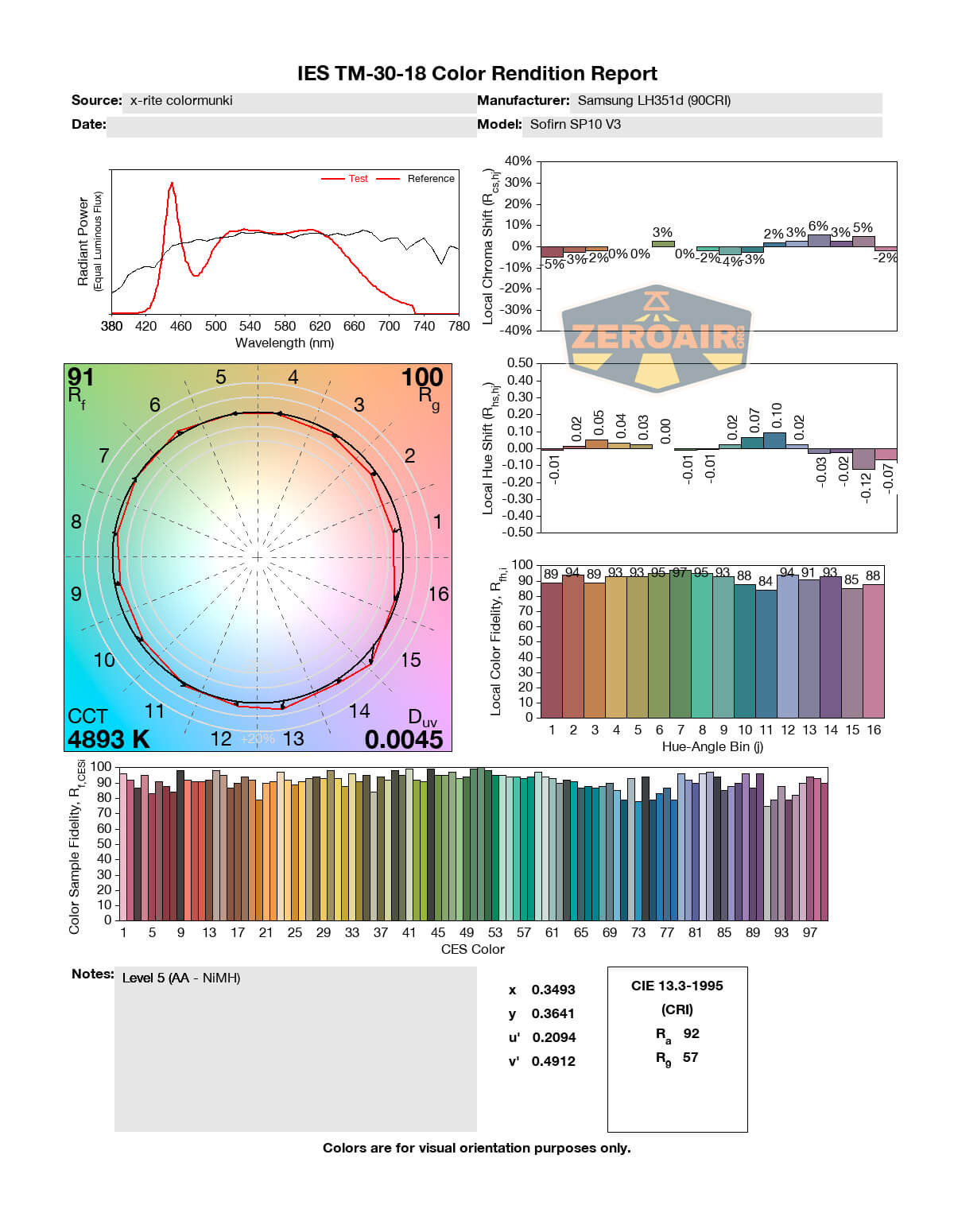

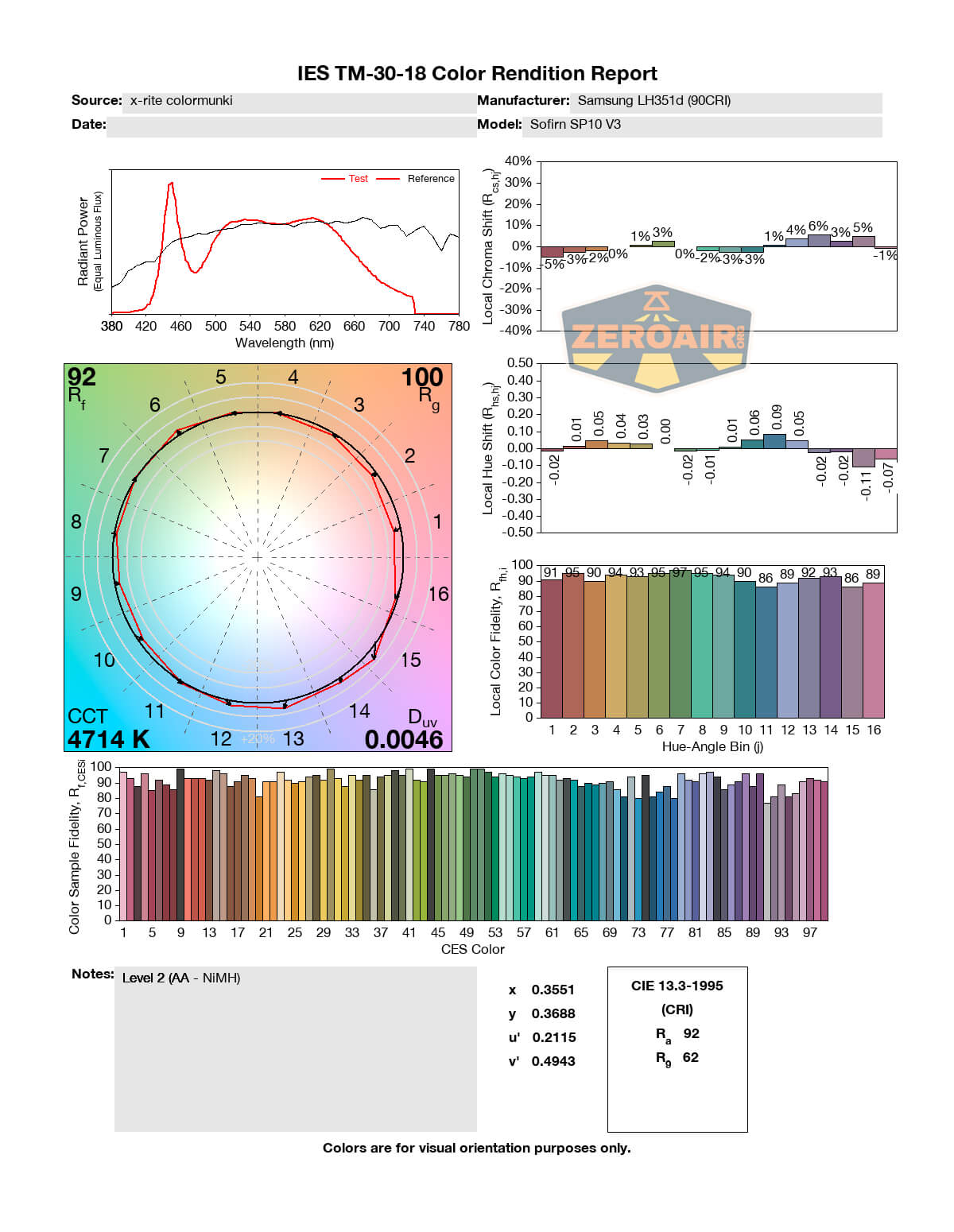

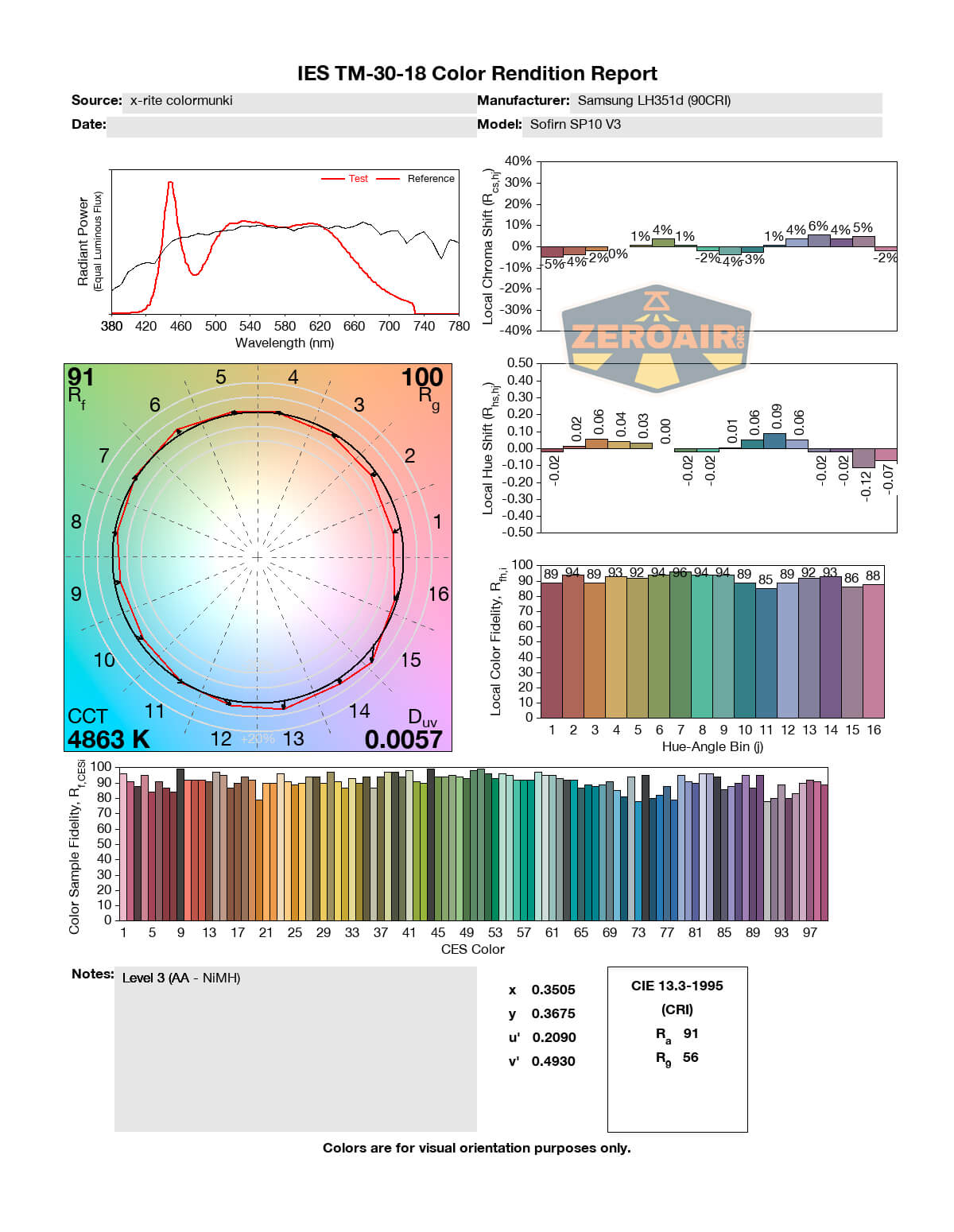

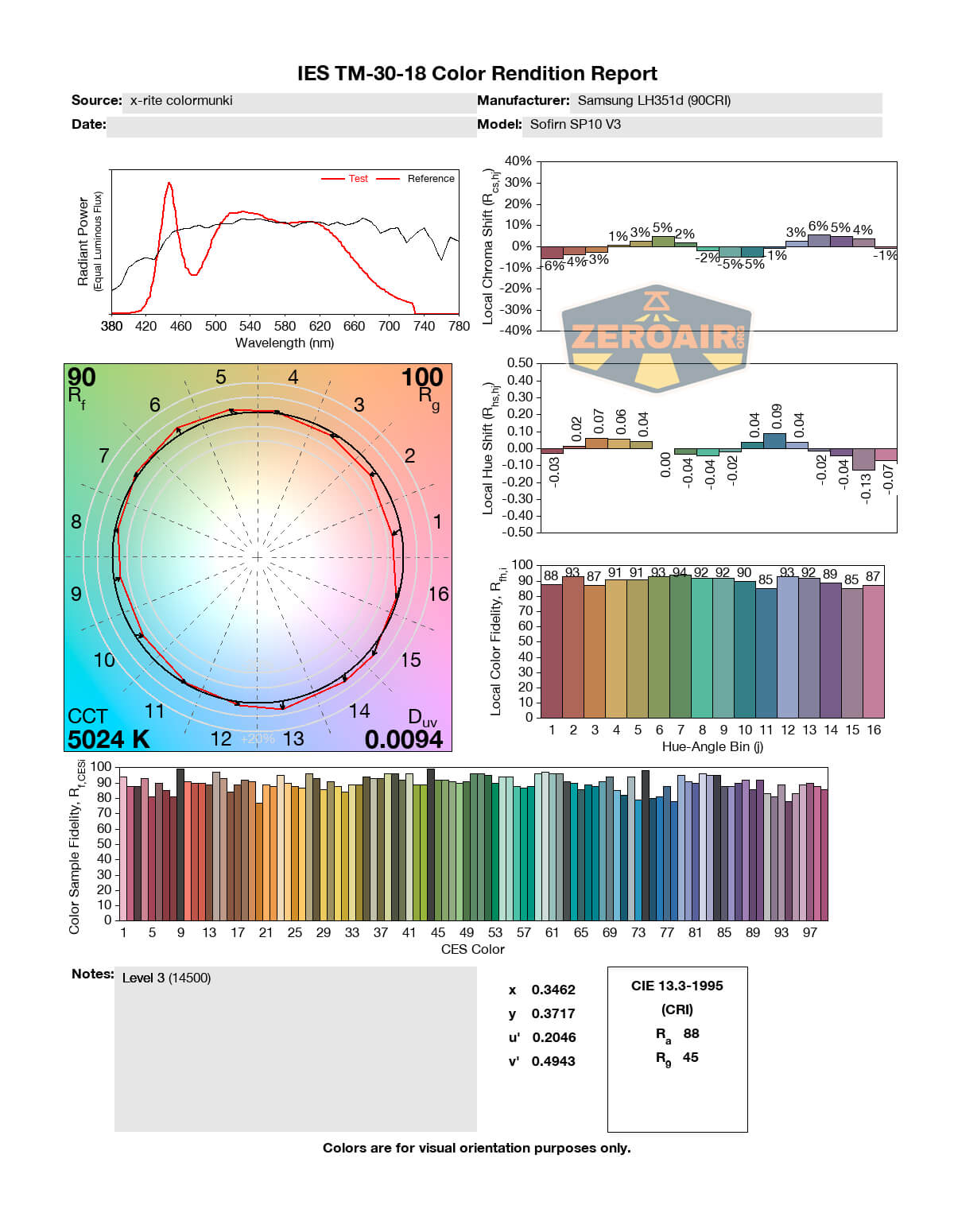

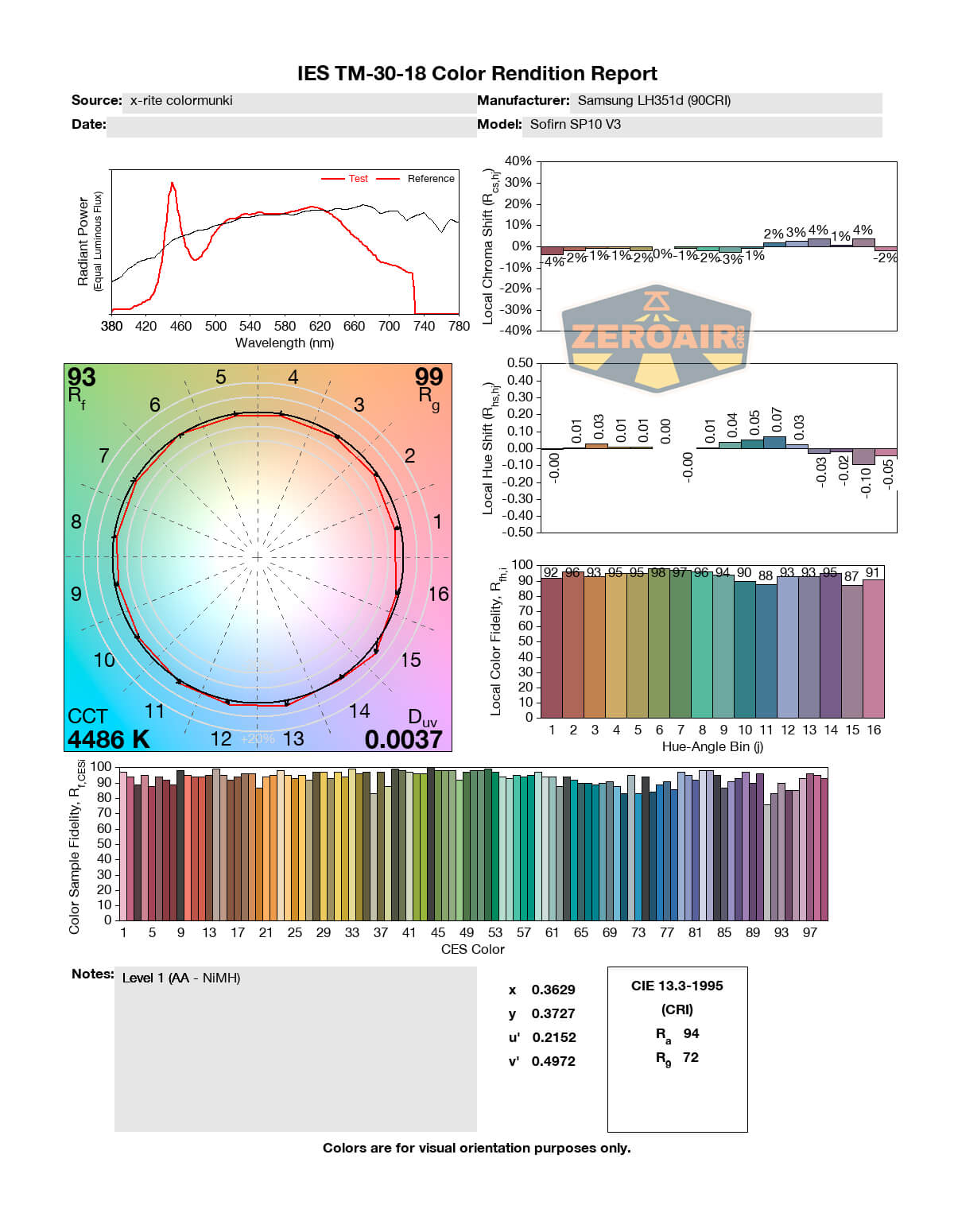

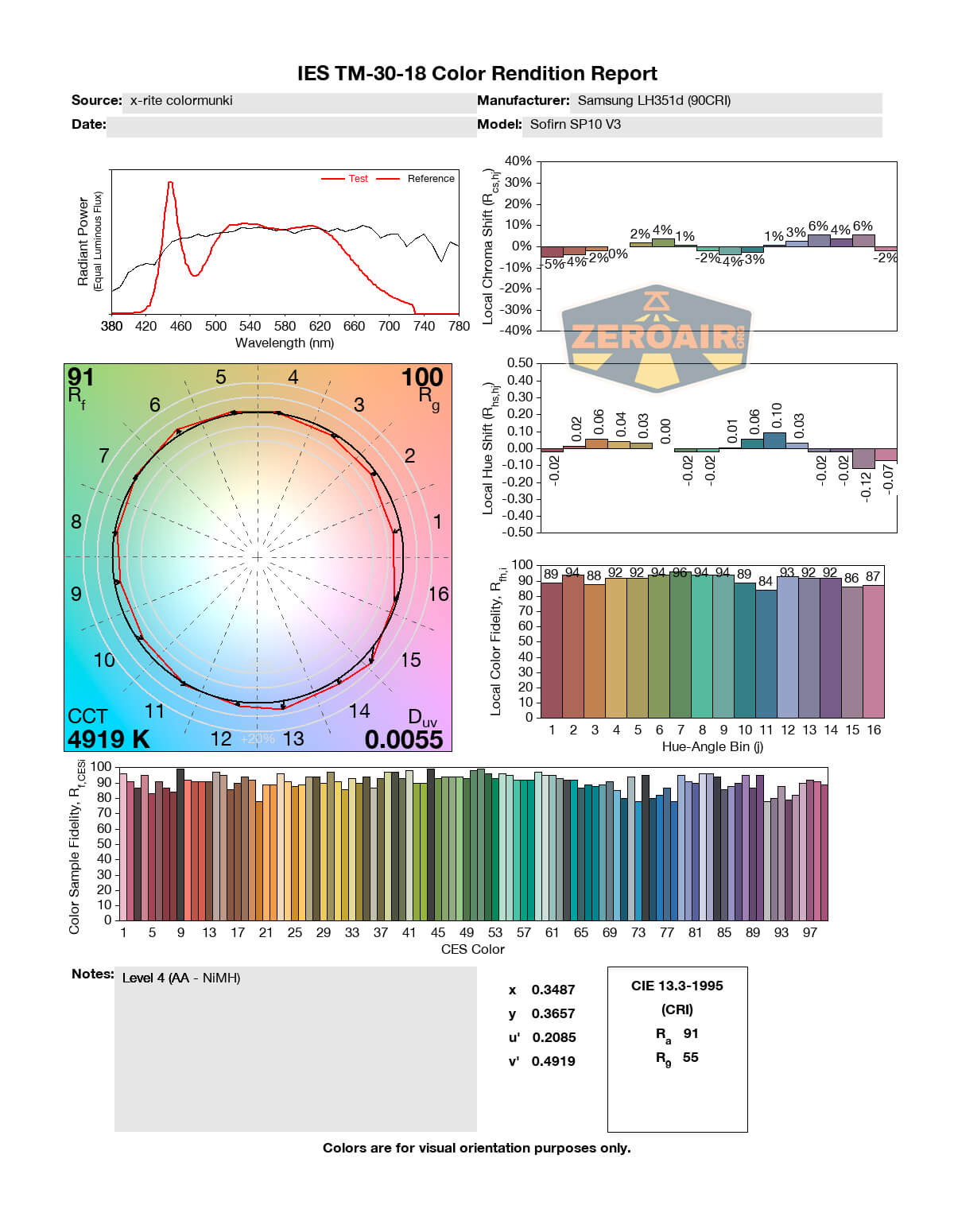

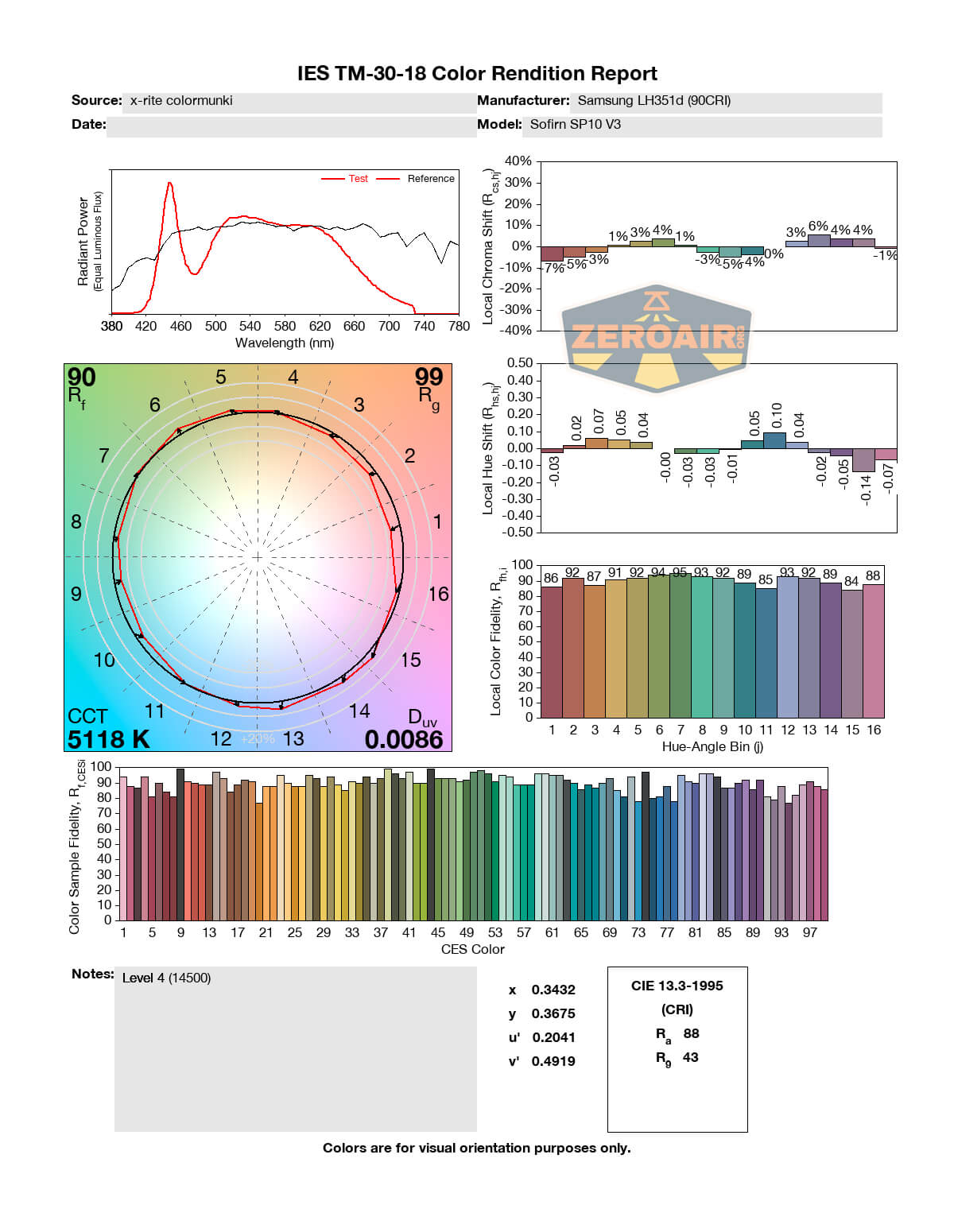

LED Color Report (CRI and CCT)
CRI/CCT look great – low 90s for CRI, which puts this in the “High CRI” category. The CCT of 5000 Kelvin isn’t bad either.
14500:

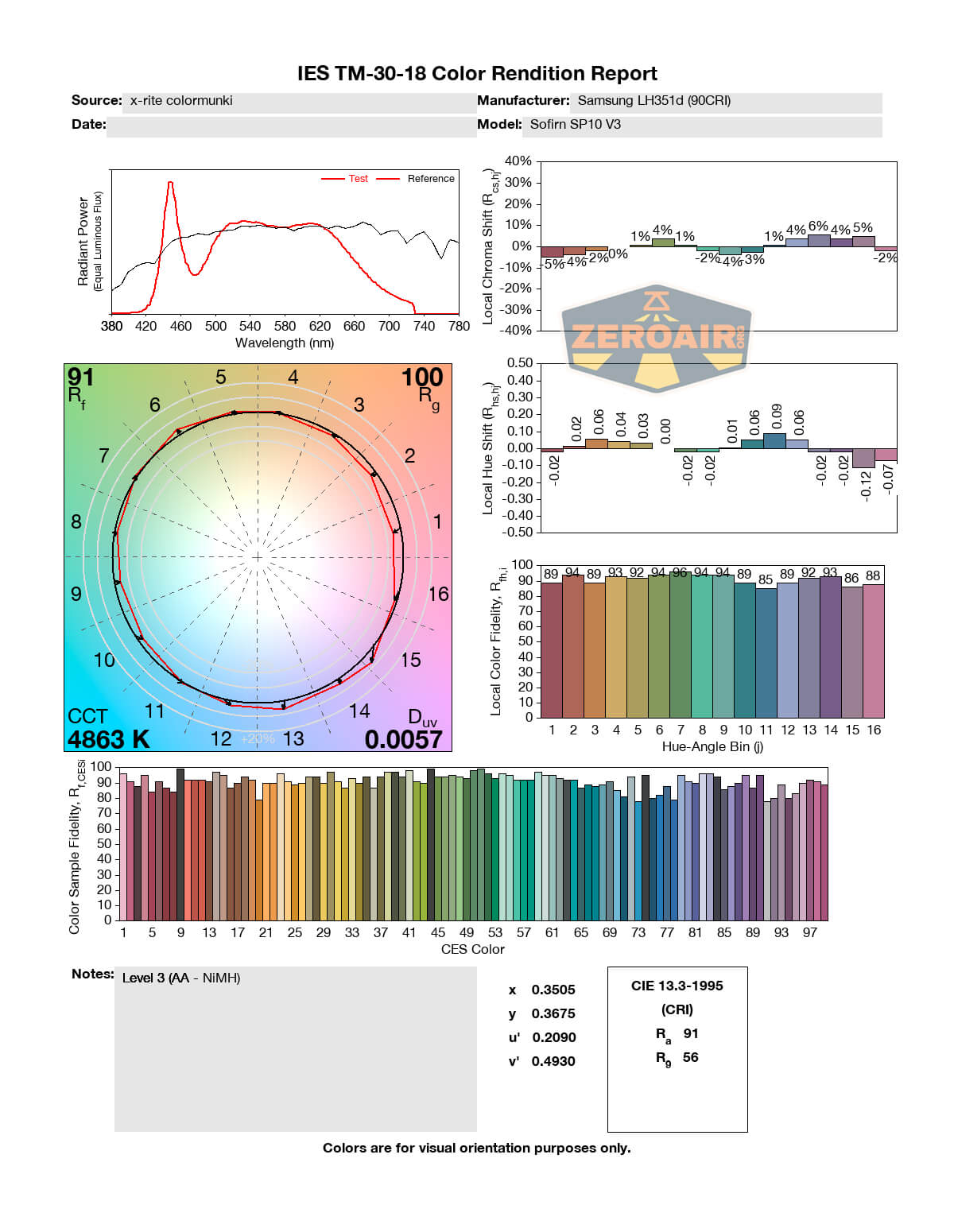

AA:
Beamshots
These beamshots are always with the following settings:Â f8, ISO100, 0.3s shutter, and manual 5000K exposure.
14500:
AA:
Tint vs BLF-348 (KillzoneFlashlights.com 219b version) (affiliate link)
I keep the test flashlight on the left, and the BLF-348 reference flashlight on the right.
14500:
AA:
I compare everything to the KillzoneFlashlights.com 219b BLF-348 because it’s inexpensive and has the best tint!
Conclusion
What I like
- Dual fuel support (lithium-ion and 1.5V cells too)
- Easy user interface
- High CRI
- Good beam profile
- Very low cost
What I don’t like
- I would probably like something warmer than 5000K but it’s good enough
- Pocket clip not reversible
