Thrunite Archer Mini Flashlight Review

Thrunite Archer Mini Flashlight Review

Thrunite has introduced the Archer Mini, a flashlight featuring a built-in 10400 cell, two modes, and USB-C charging. Read on!


Official Specs and Features

Here’s a link to the Thrunite Archer Mini flashlight product page.

Versions

There’s just one version.

Price

The going price of the Thrunite Archer Mini flashlight is $25.95. That seems to be the MSRP, so maybe street price will be just a bit lower.


Short Review

I very much appreciate the idea of this light. A small, simple, two-mode light in an AAA-size format. USB-C charging is great (and works C to C!). I would rather that the cell be removable, and also prefer that the light could accept AAA (1.5V) cells. The beam profile is great, but the tint is just a bit green. Still, at around 5500K, it’s not a bad emitter.

Long Review

The Big Table

Thrunite Archer Mini Flashlight
Emitter: Luminus SST-20
Price in USD at publication time: $25.95
Cell: 1xInternal 320mAh 10400
High Runtime Graph Low Runtime Graph
LVP? Yes
Switch Type: E-Switch
Quiescent Current (mA): ?
On-Board Charging? Yes
Charge Port Type: USB-C
Charge Graph
Power off Charge Port Yes
Claimed Lumens (lm) 405
Measured Lumens (at 30s) 345 (85.2% of claim)^
Candela per Lumen 5.3
Claimed Throw (m) 87
Candela (Calculated) in cd (at 30s) 114lux @ 4.438m = 2245cd
Throw (Calculated) (m) 94.8 (109% of claim)^
Claimed CCT
Measured CCT Range (K) 5500 Kelvin
Item provided for review by: Thrunite
All my Thrunite reviews!

^ Measurement disclaimer:  I am an amateur flashlight reviewer.  I don’t have $10,000 or even $1,000 worth of testing equipment.  I test output and such in PVC tubes!!  Please consider claims within 10% of what I measure to be perfectly reasonable (accurate, even).

What’s Included

Thrunite Archer Mini flashlight what's included

  • Thrunite Archer Mini flashlight

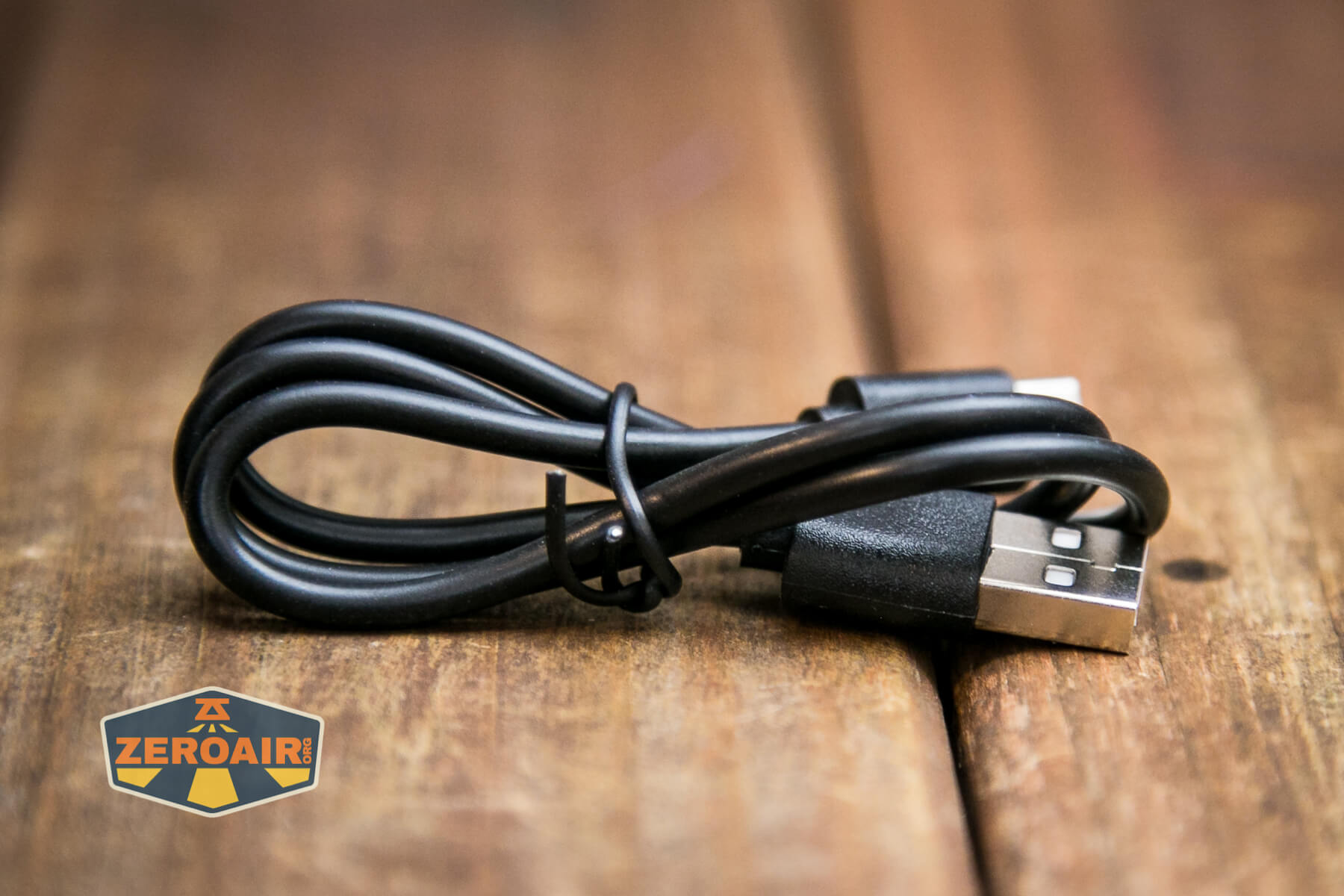

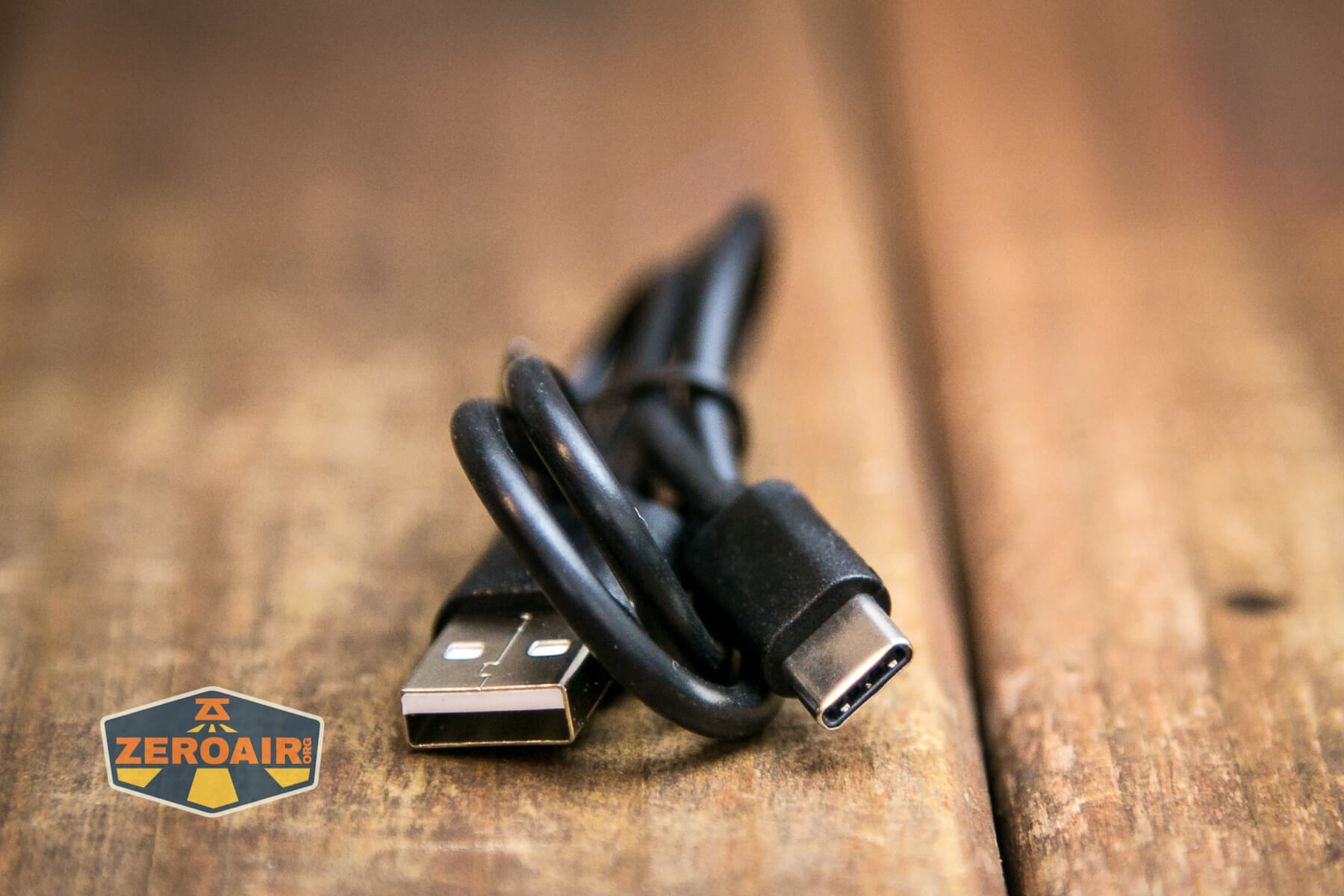

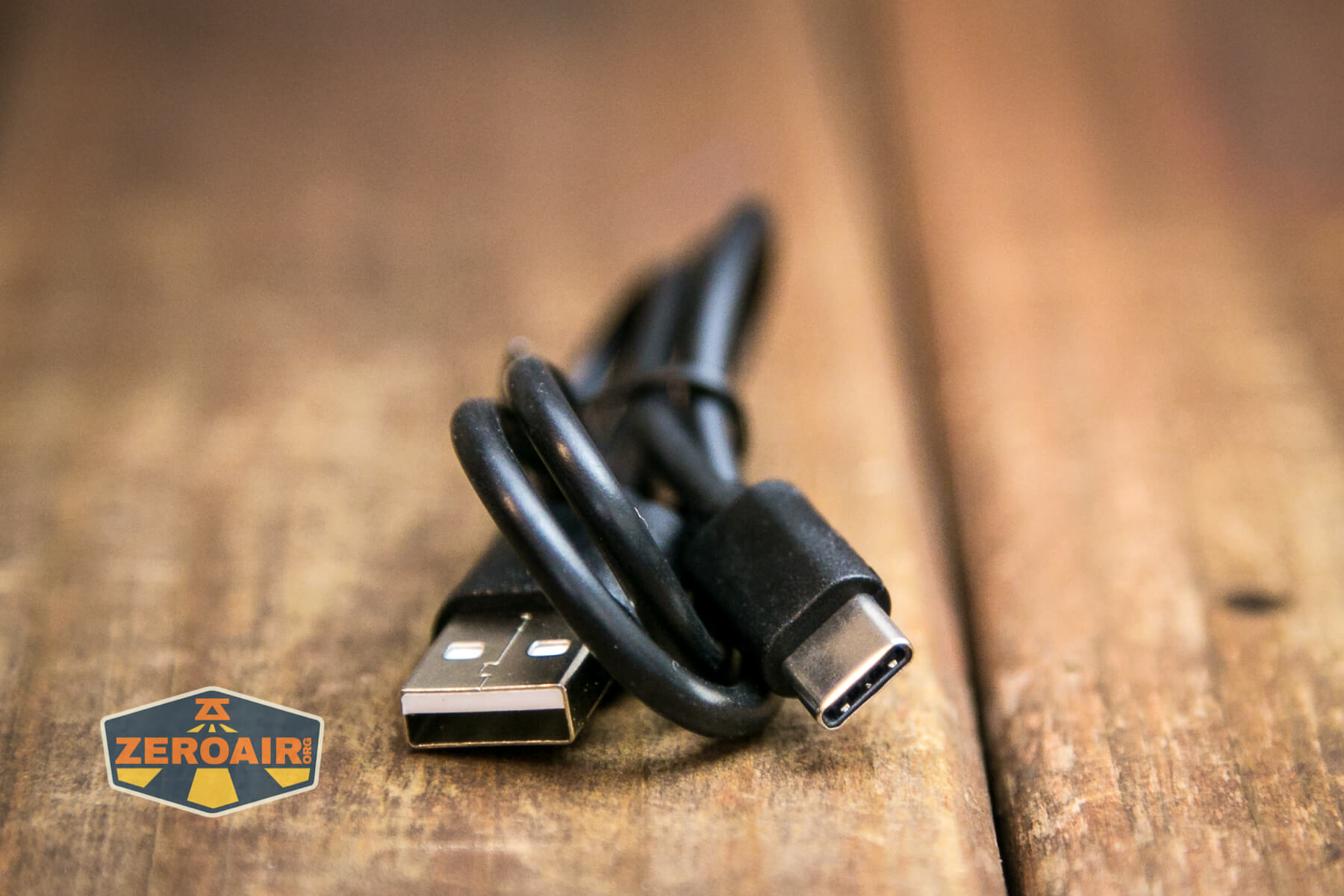

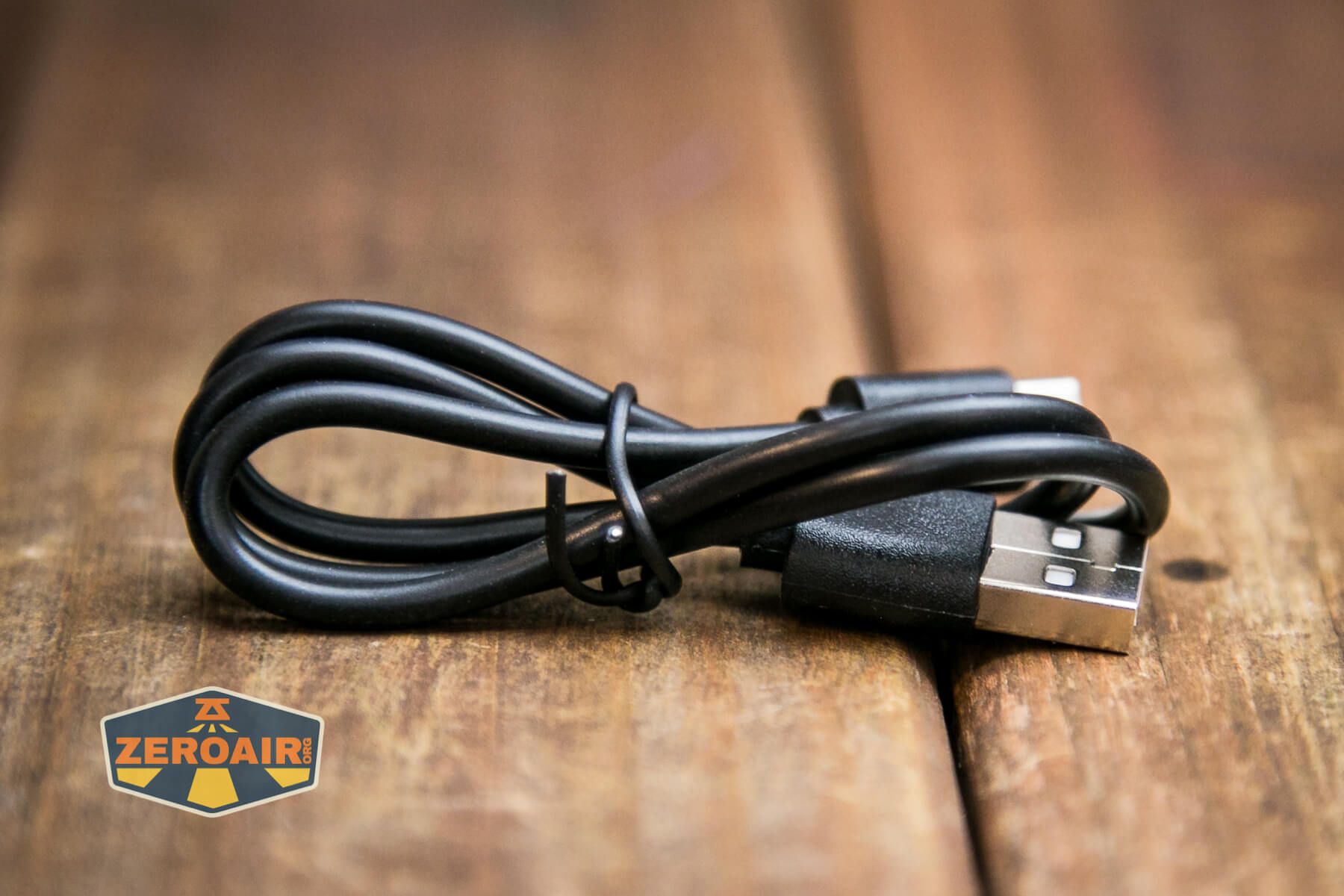

  • Charging cable (USB to USB-C)
  • Manual

Package and Manual

Thrunite Archer Mini flashlight manual

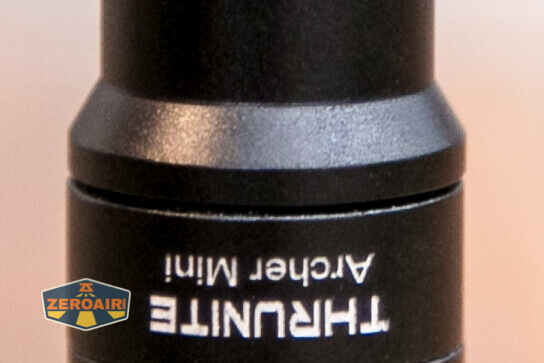

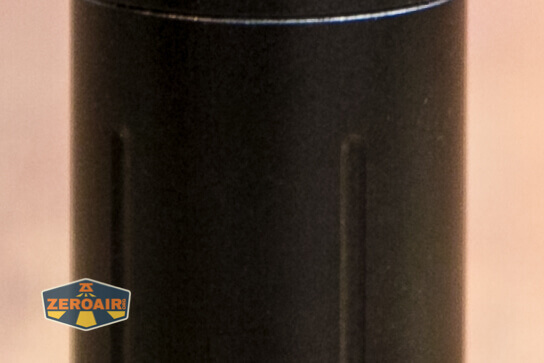

Build Quality and Disassembly

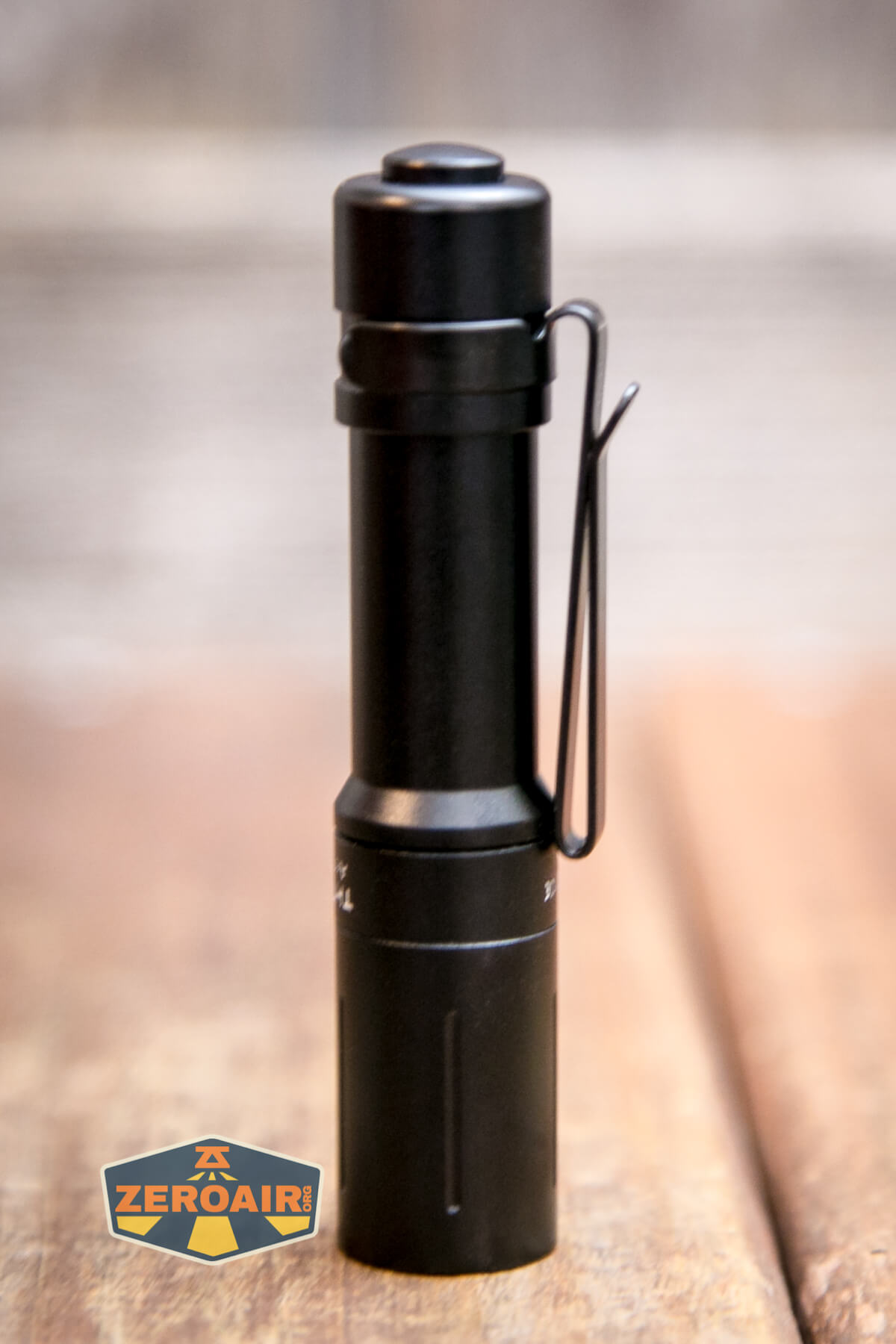

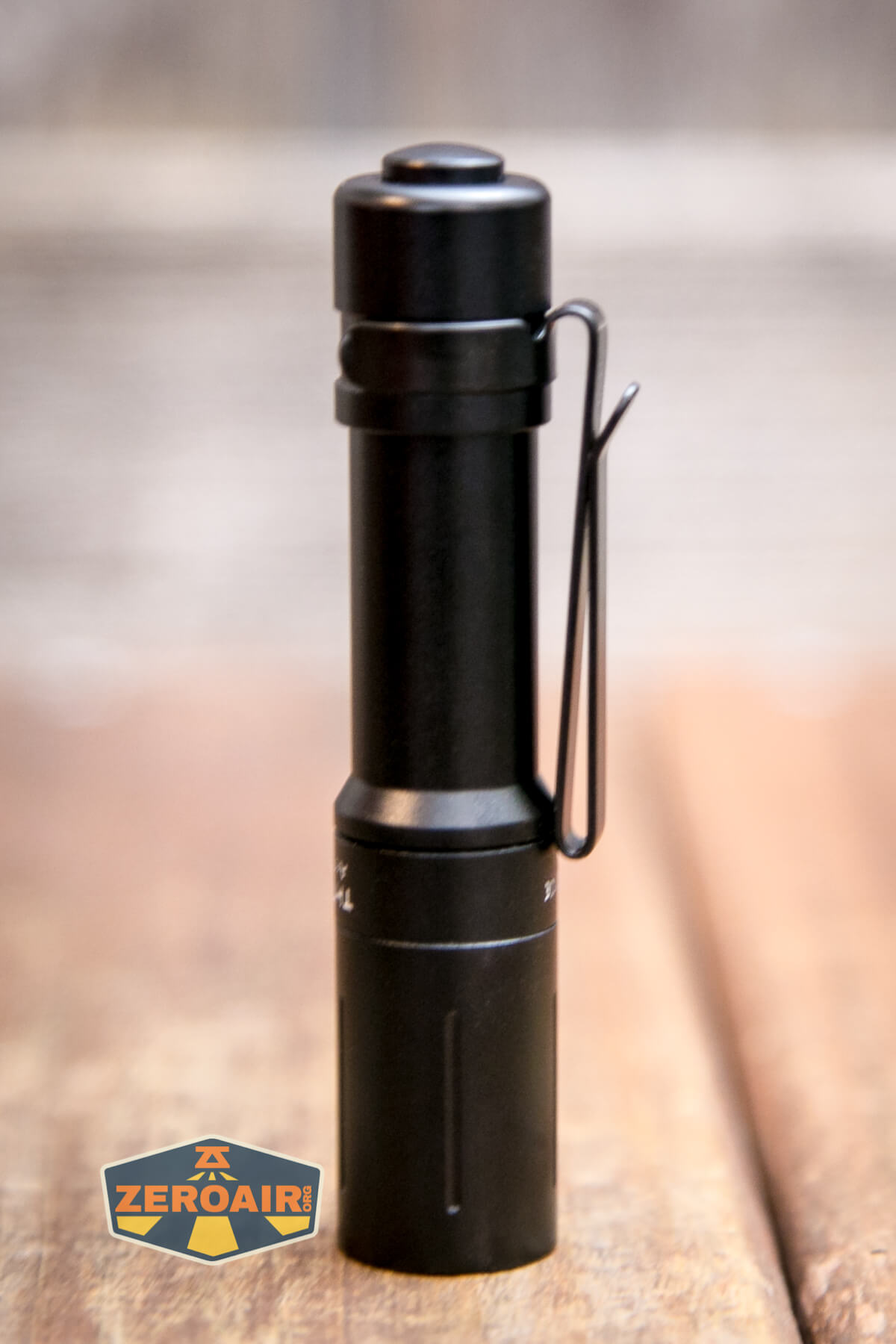

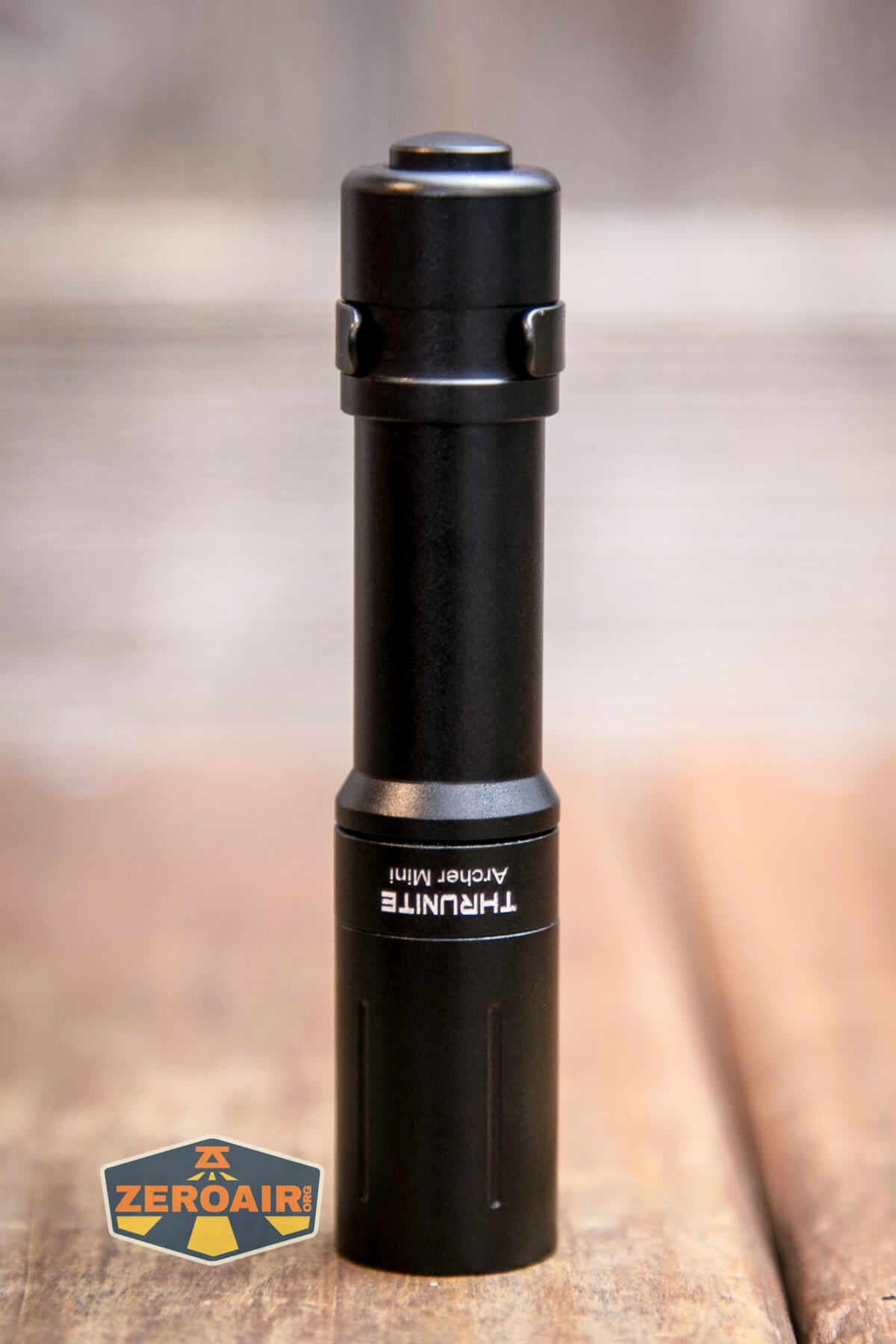

Thrunite Archer Mini flashlight

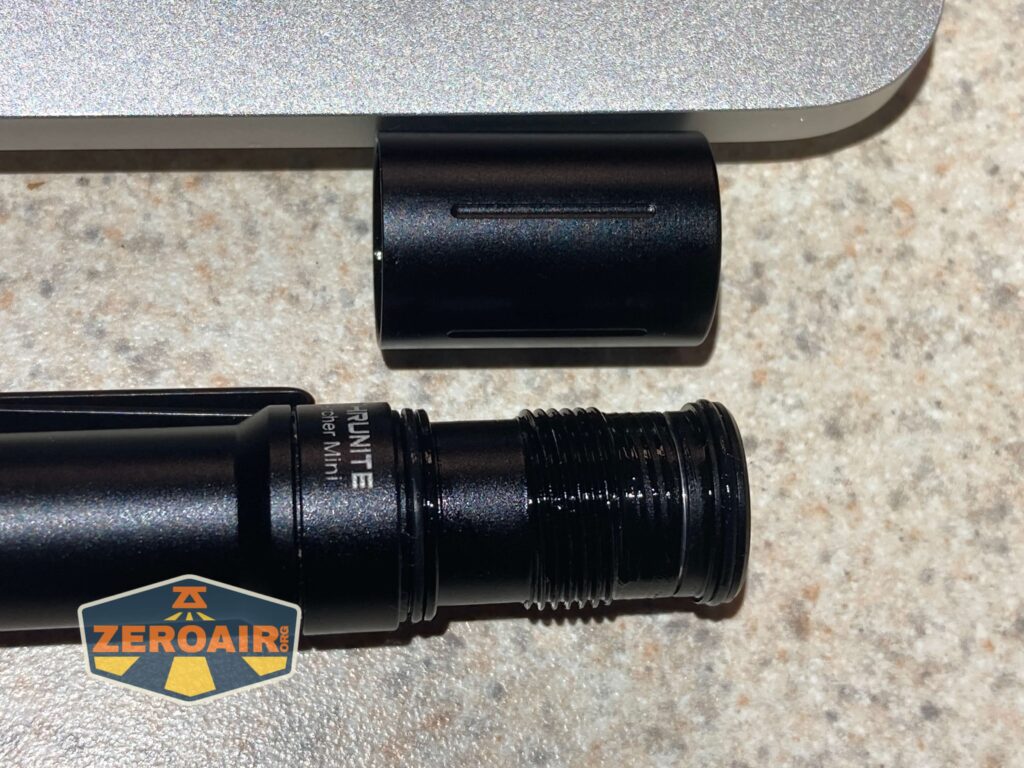

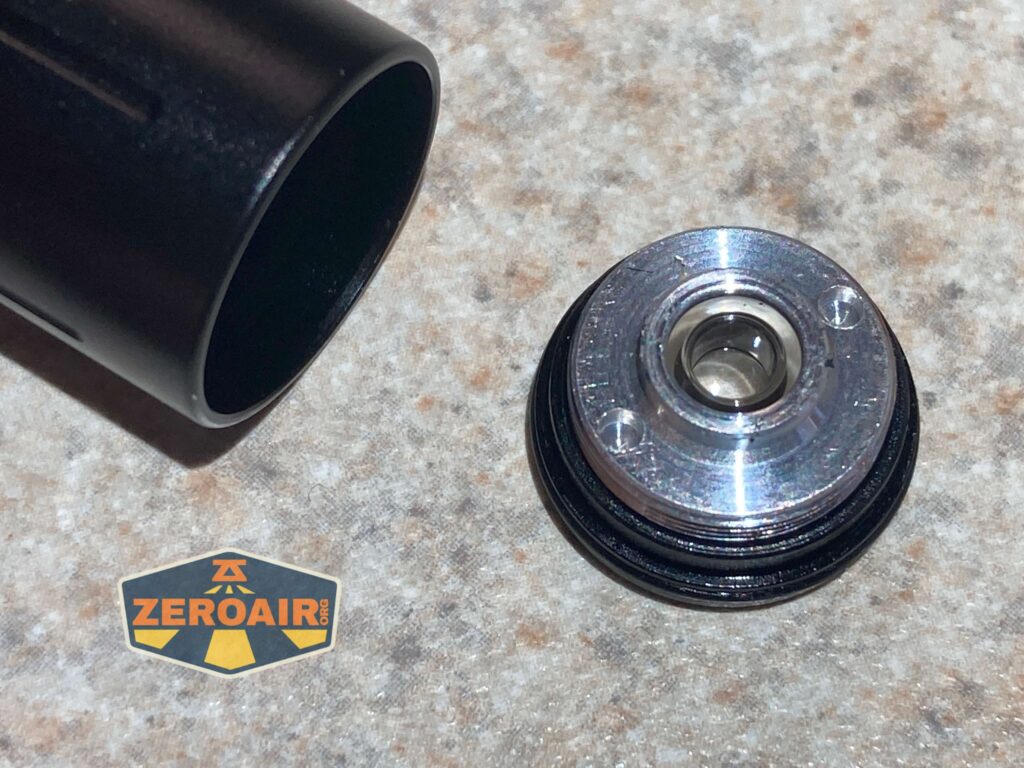

Thrunite Archer Mini flashlight head disassembly Thrunite Archer Mini flashlight head disassembly Thrunite Archer Mini flashlight head disassembly Thrunite Archer Mini flashlight head disassemblySize and Comps

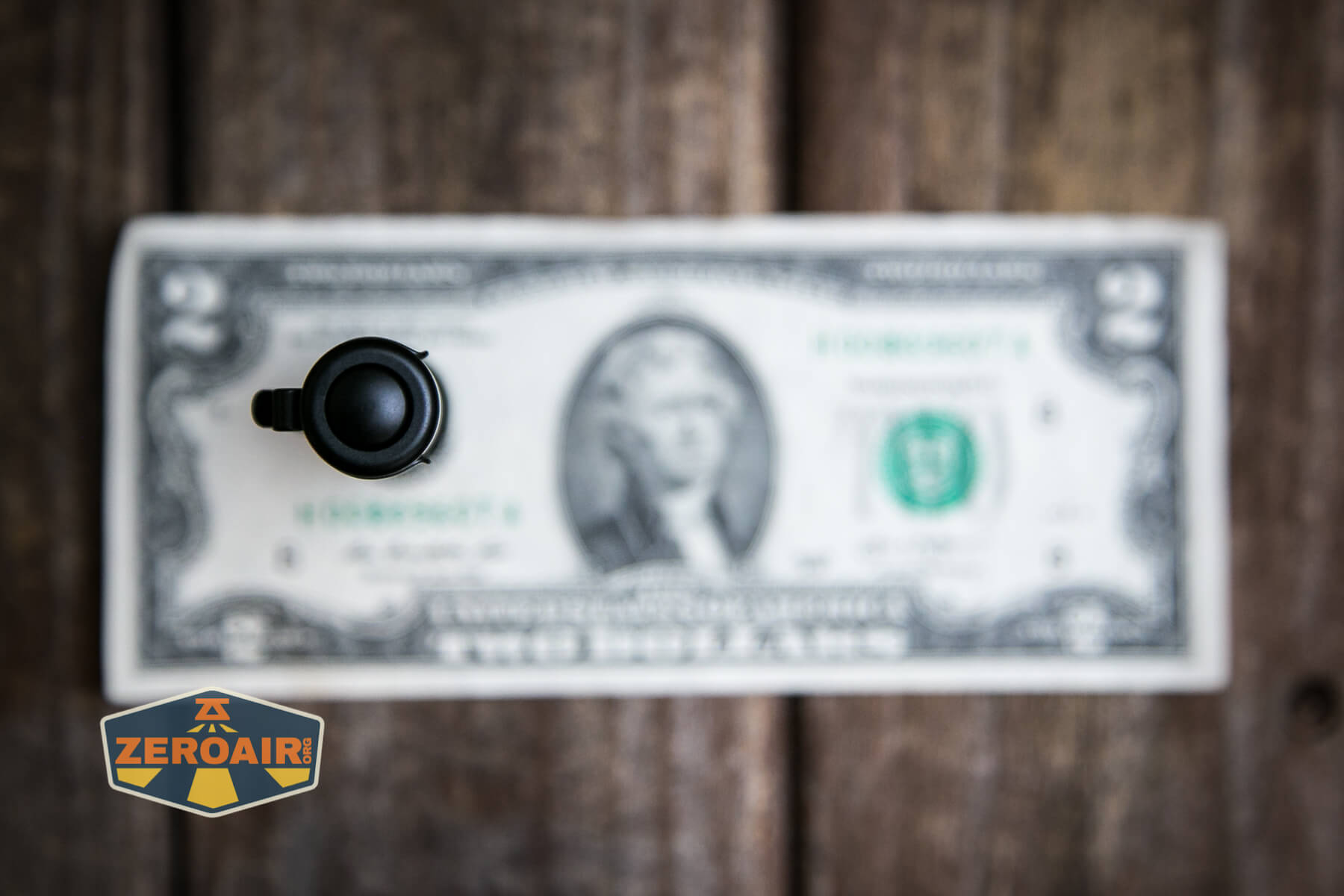

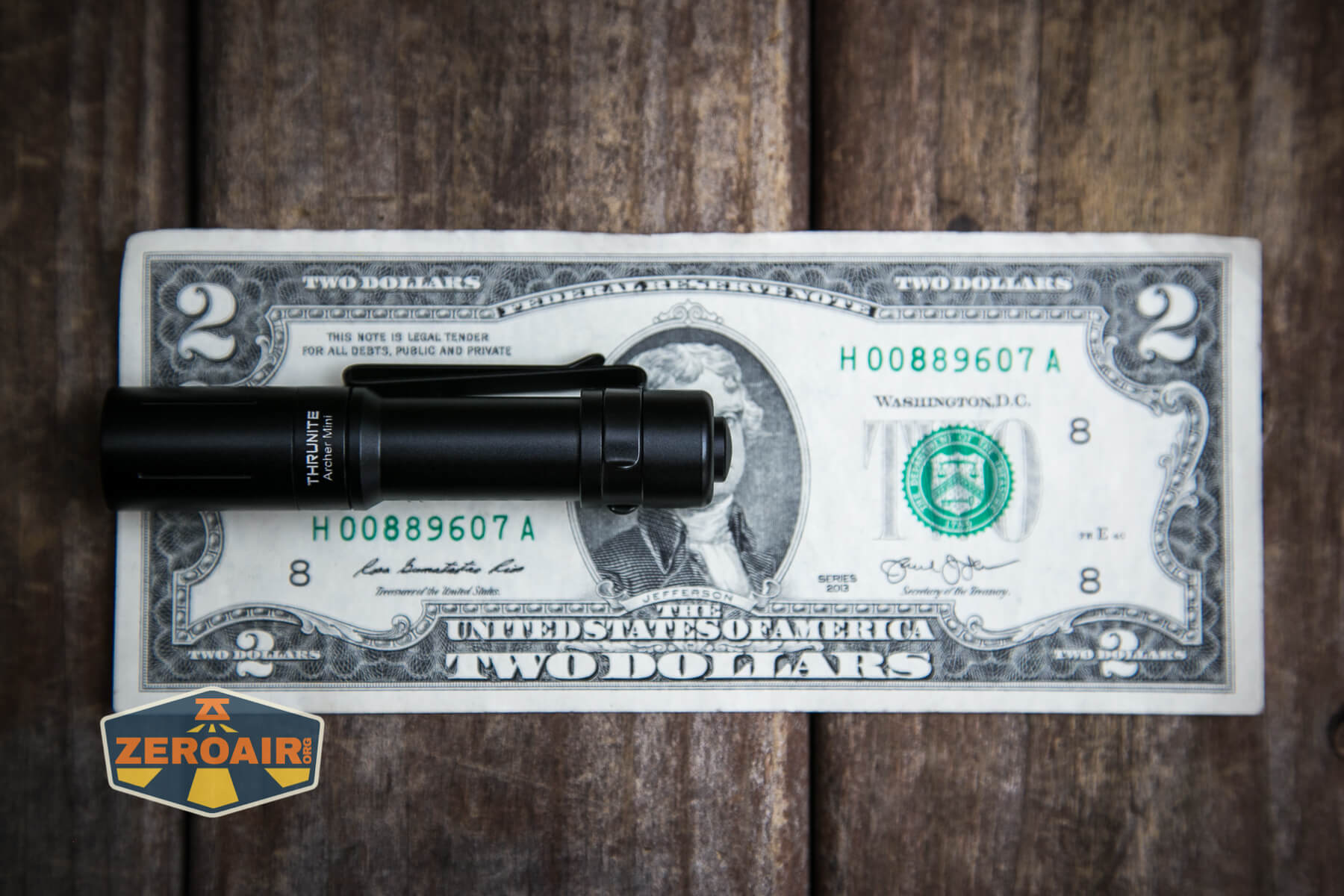

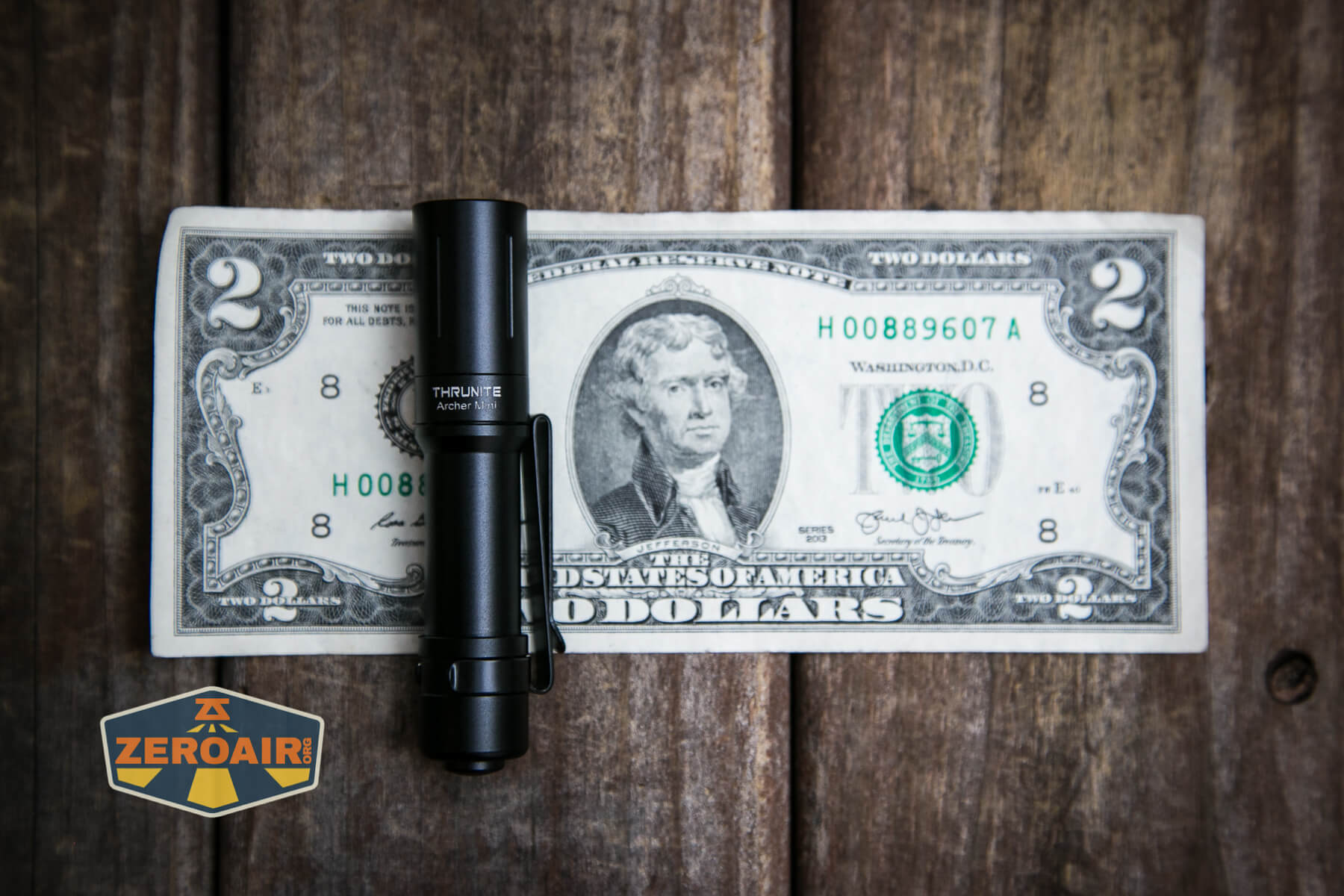

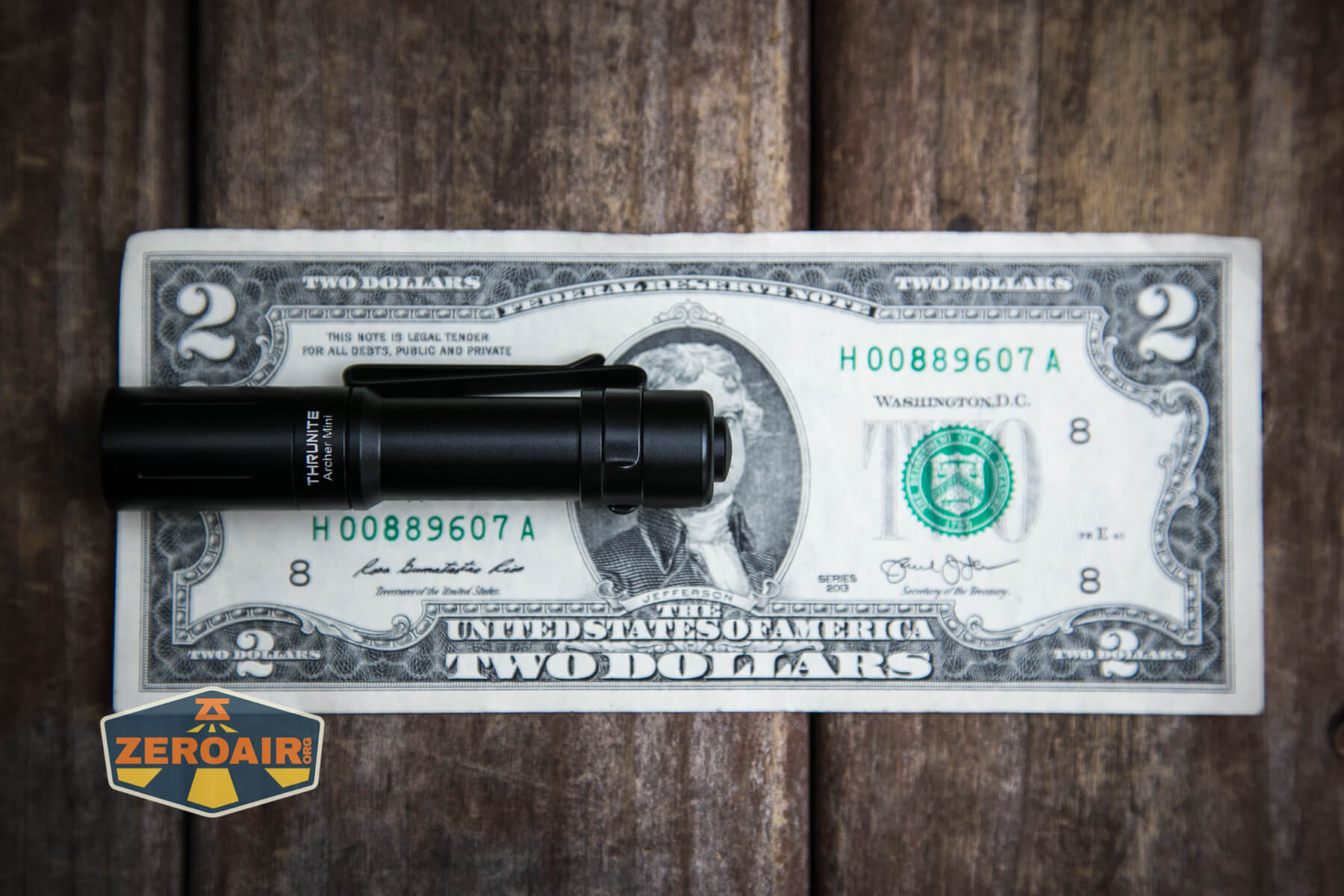

83mm x 16.7mm
34g

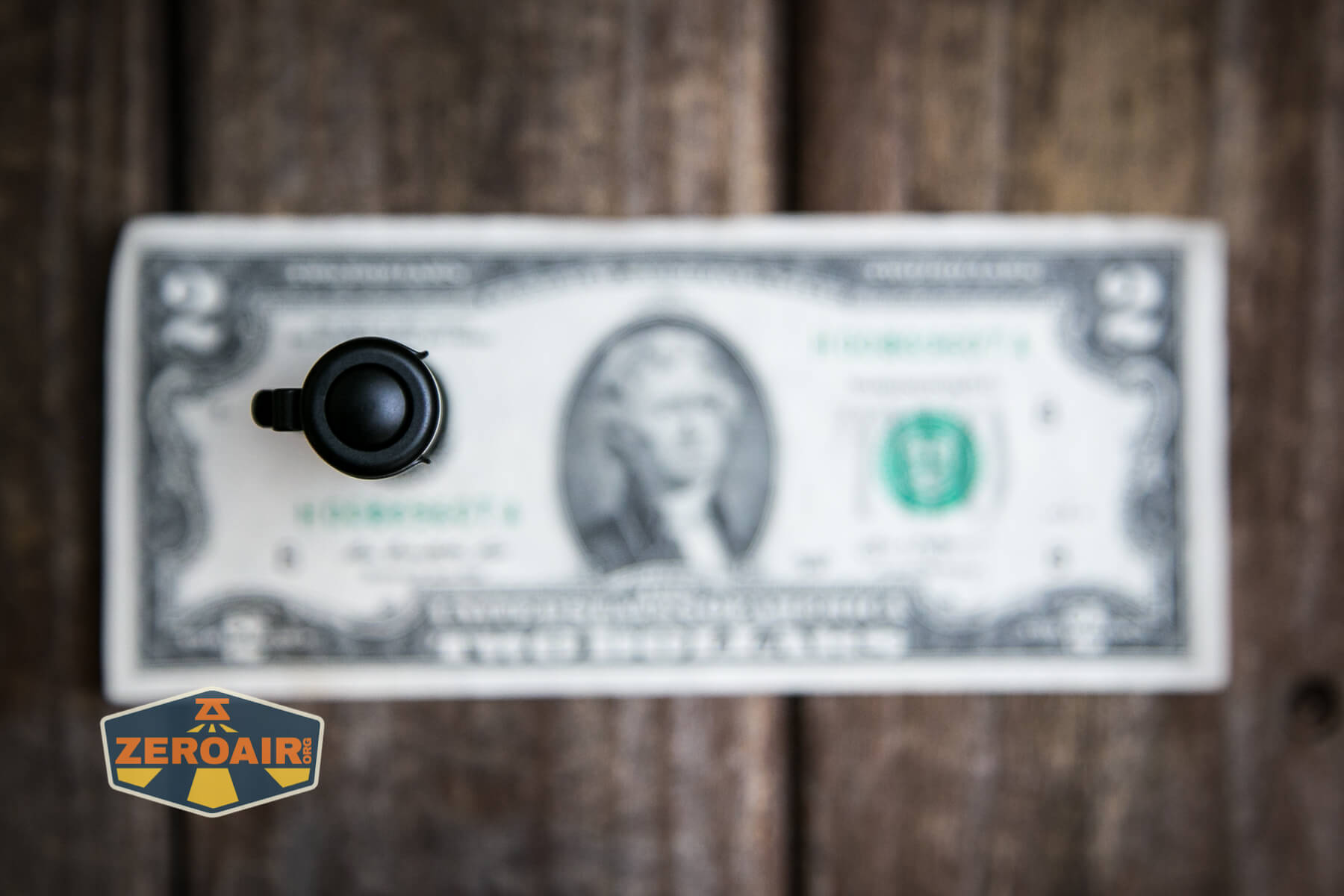

If the flashlight will headstand, I’ll show it here (usually the third photo).  If the flashlight will tailstand, I’ll show that here, too (usually the fourth photo).

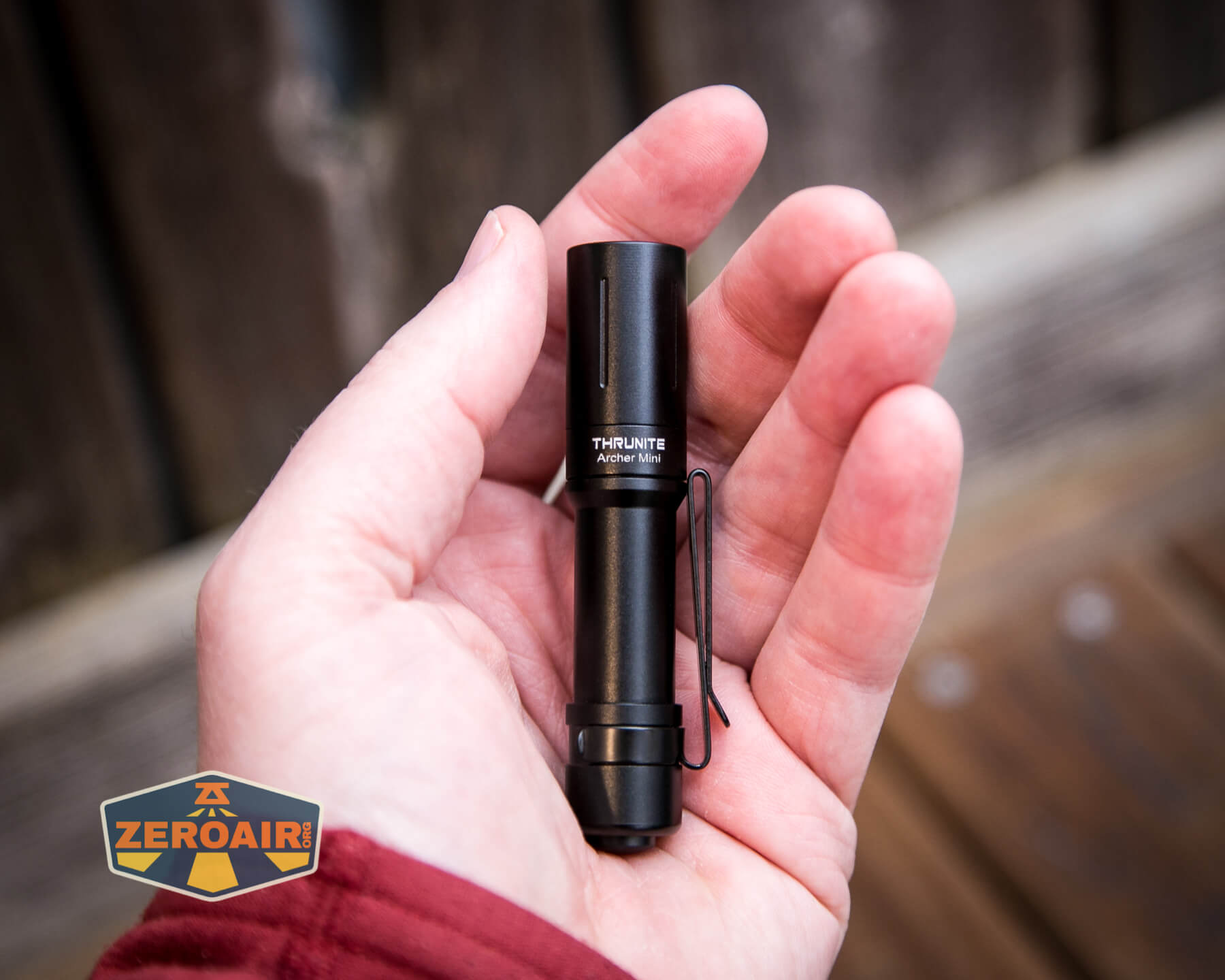

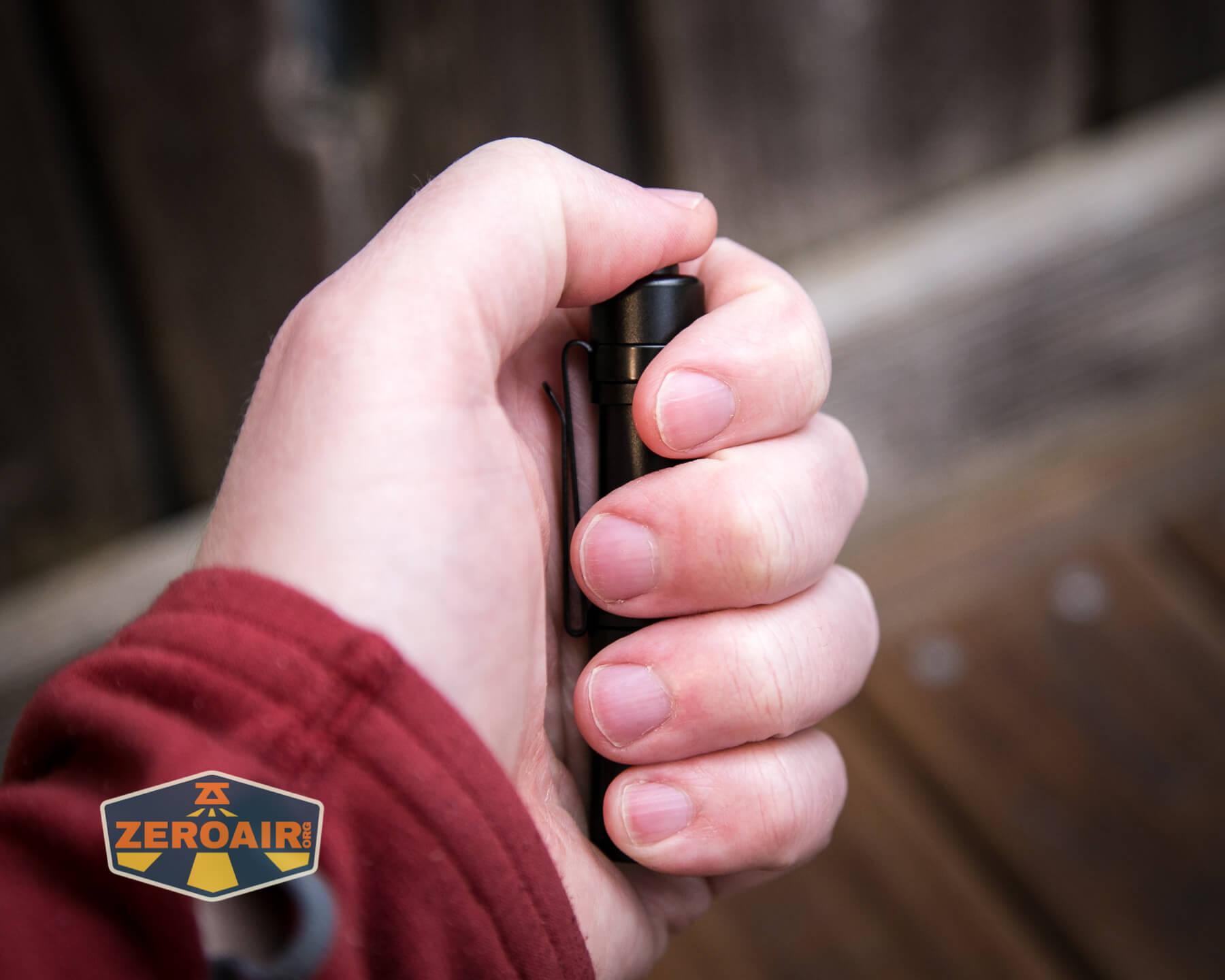

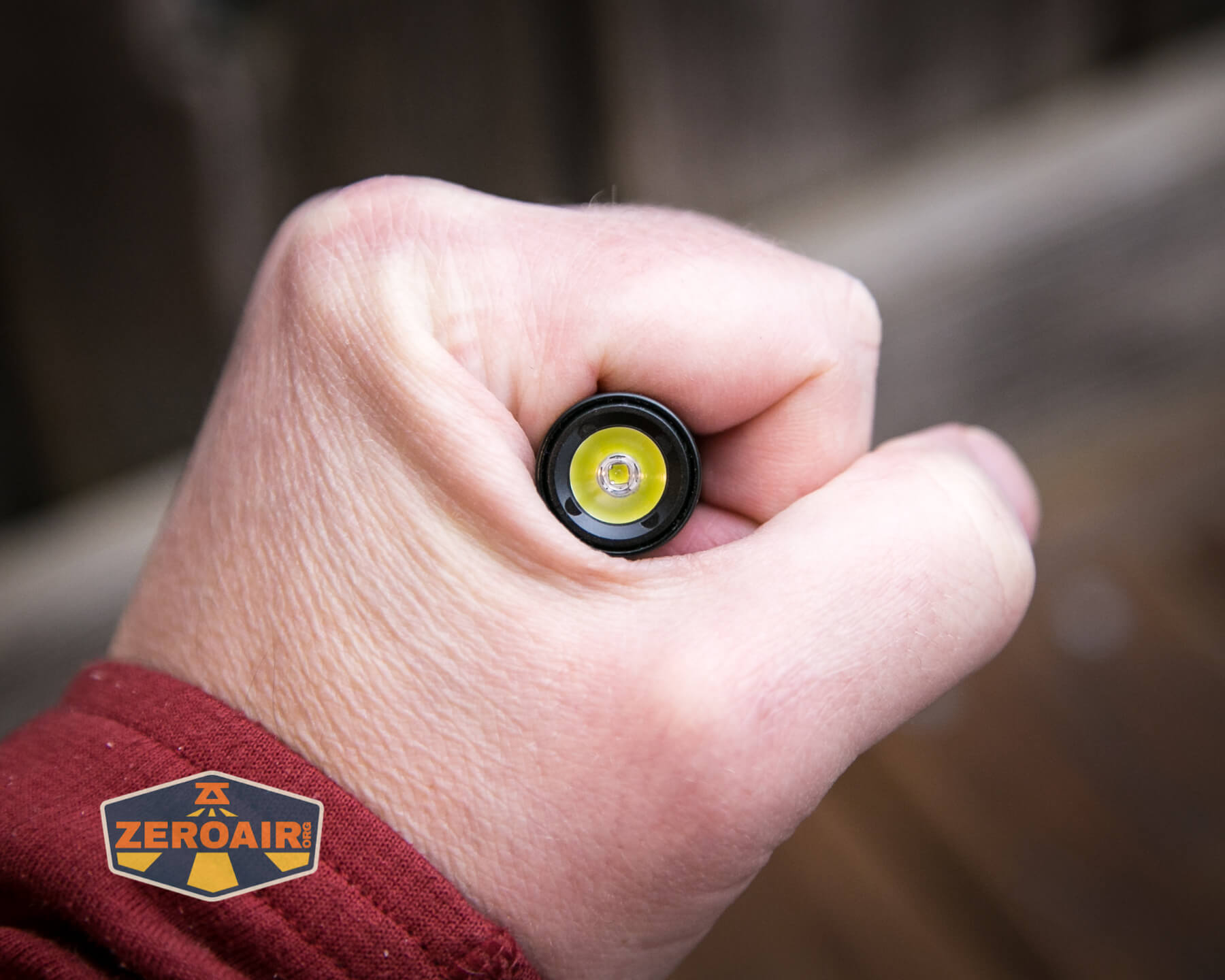

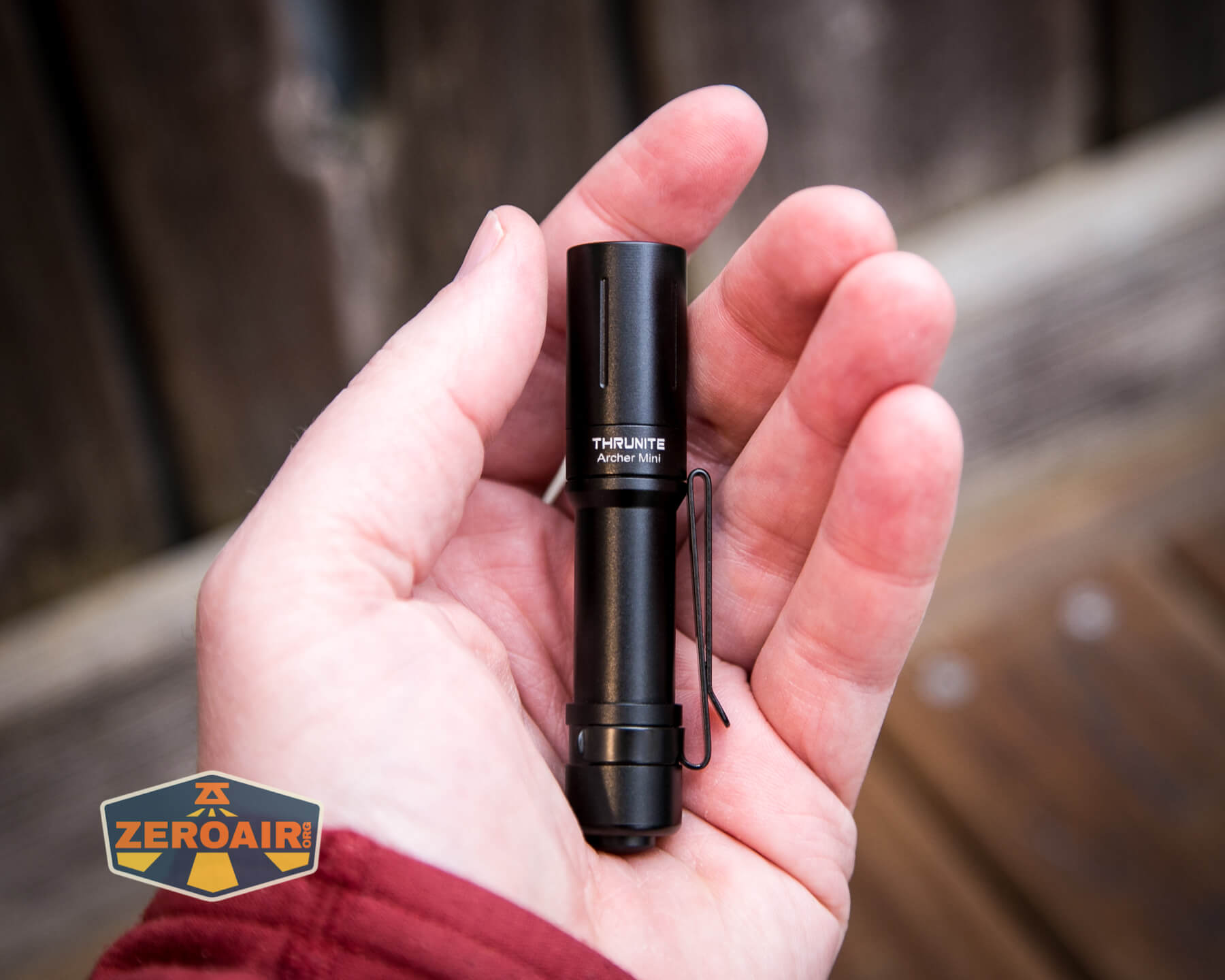

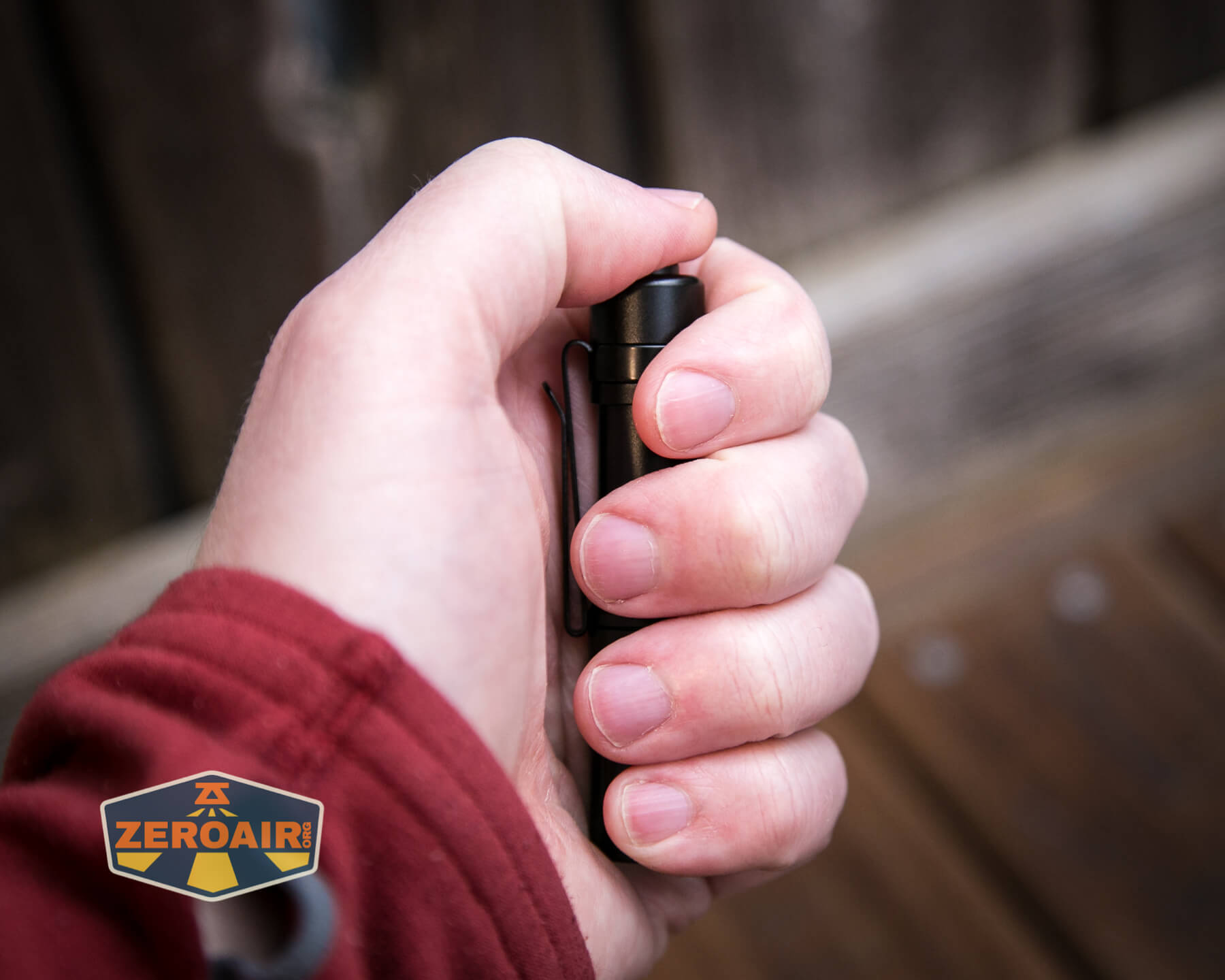

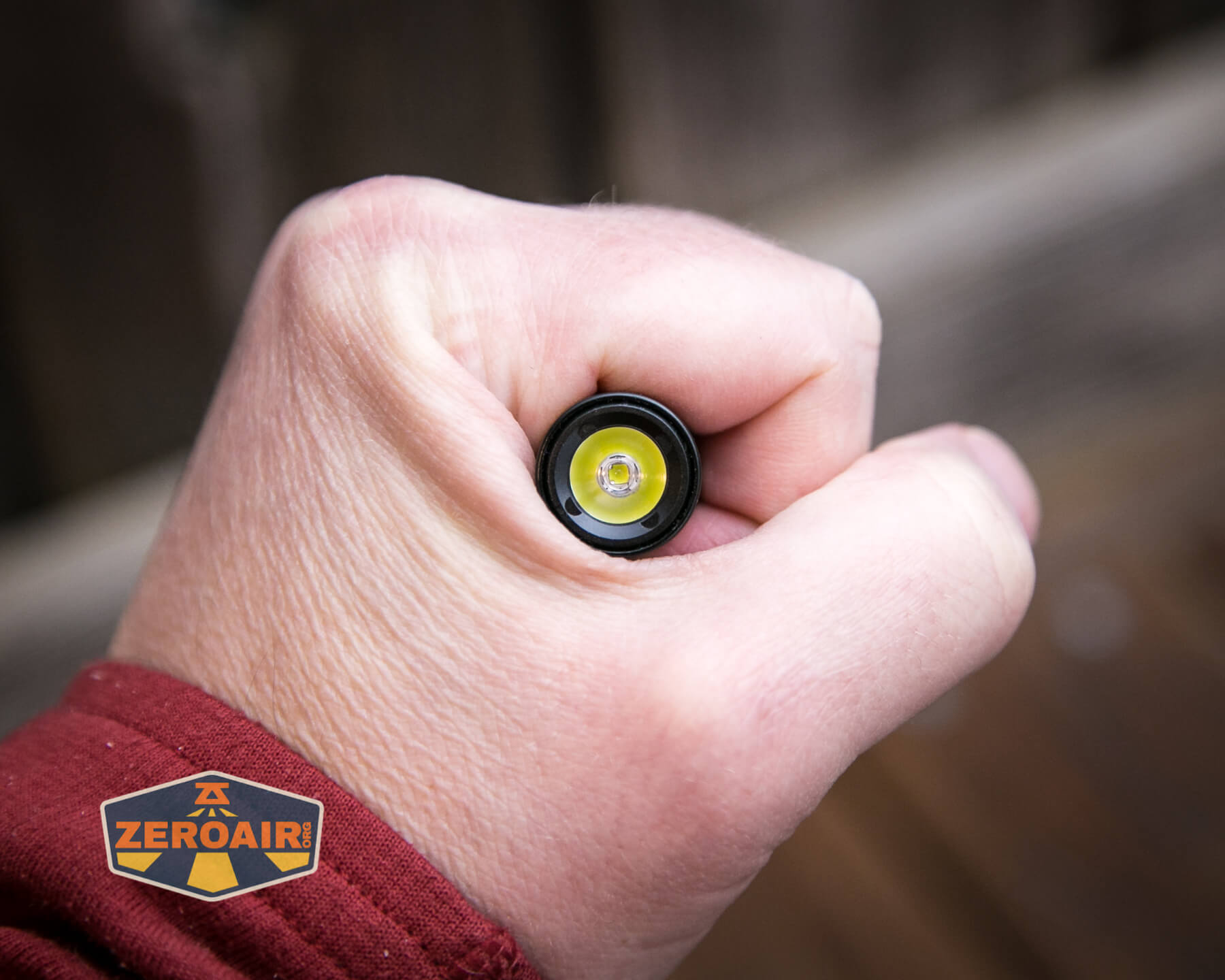

Thrunite Archer Mini flashlight in hand

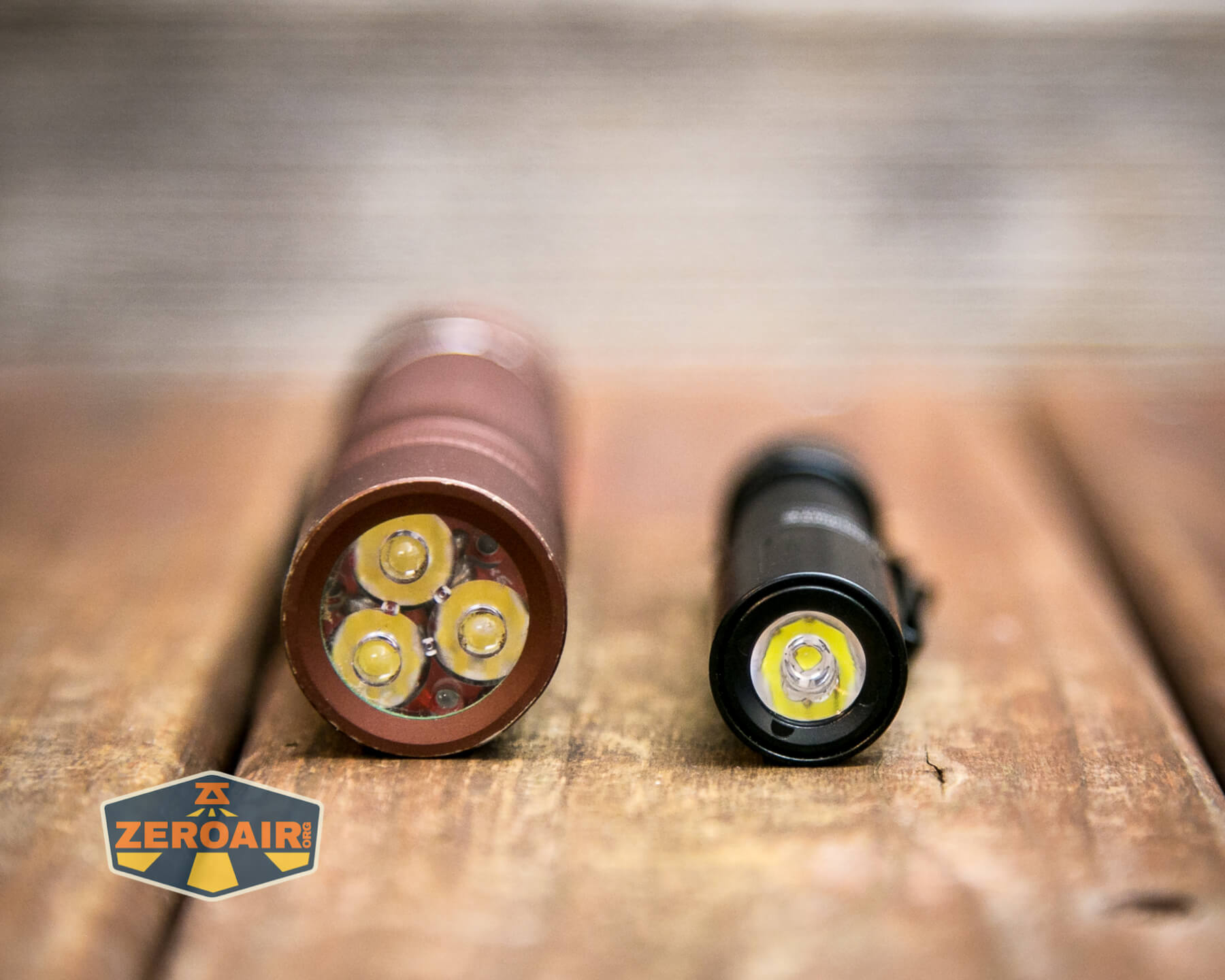

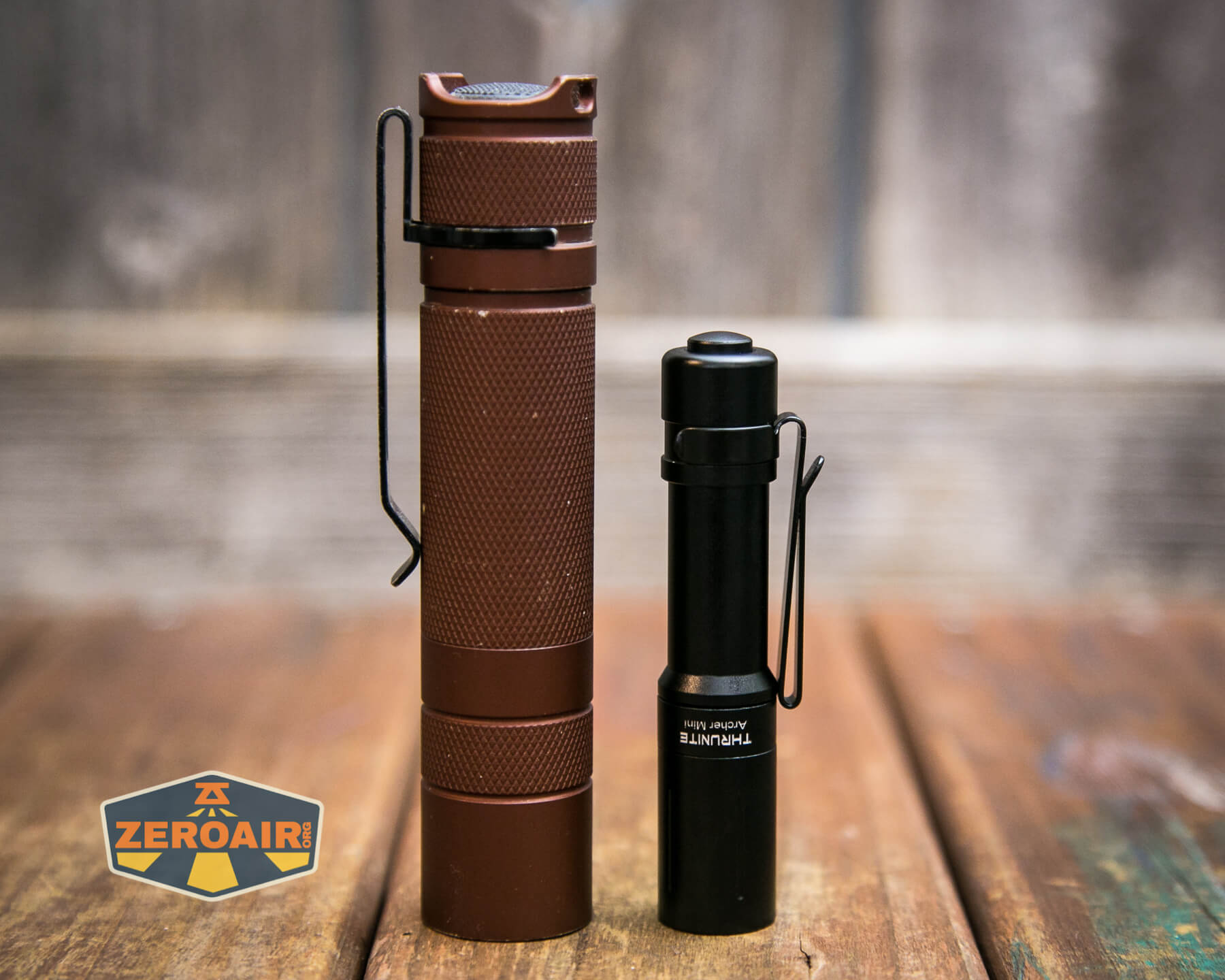

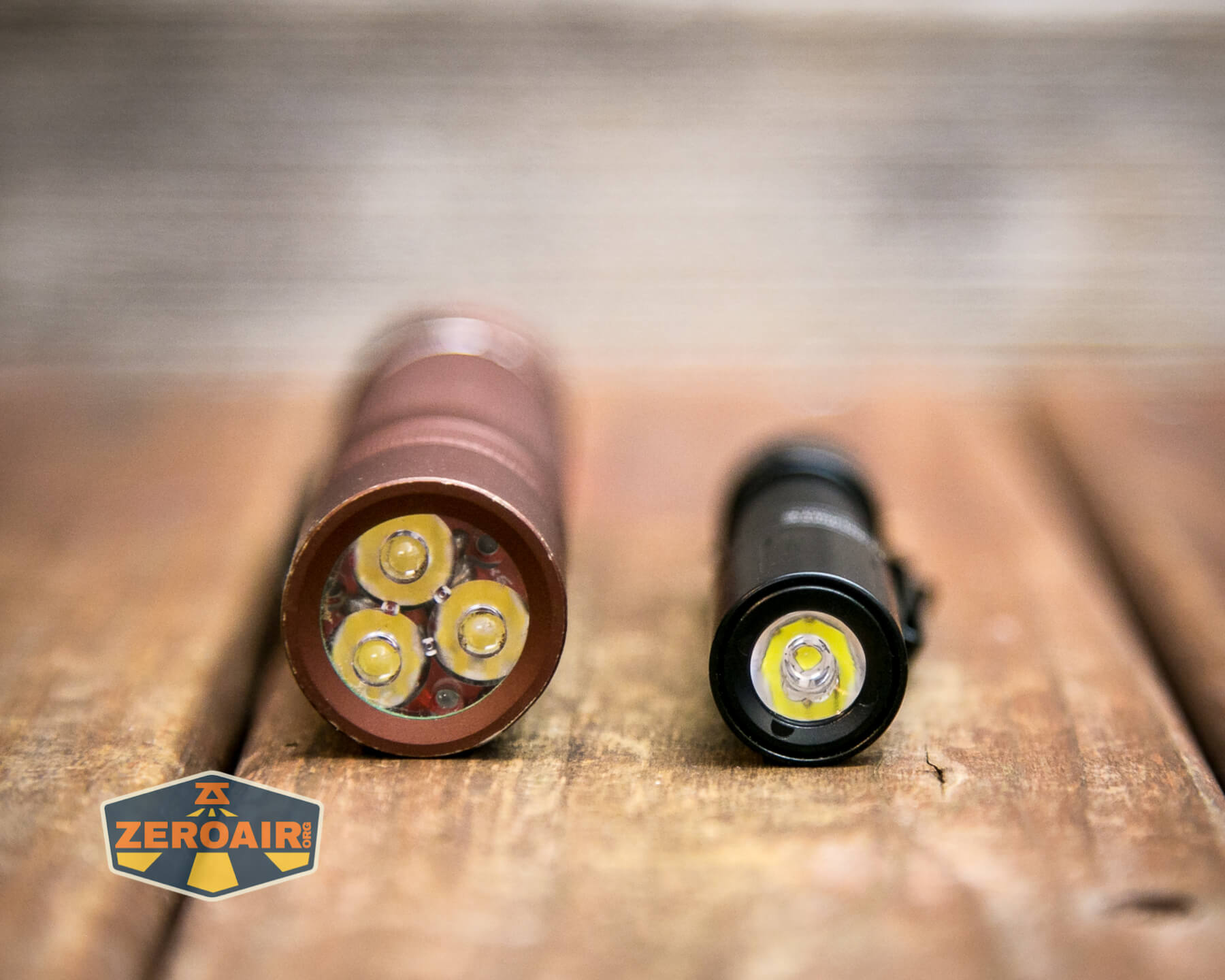

Here’s the test light with the venerable Convoy S2+.  Mine’s a custom “baked” edition Nichia 219b triple.  A very nice 18650 light.

And here’s the light beside my custom engraved TorchLAB BOSS 35, an 18350 light.  I reviewed the aluminum version of that light in both 35 and 70 formats.

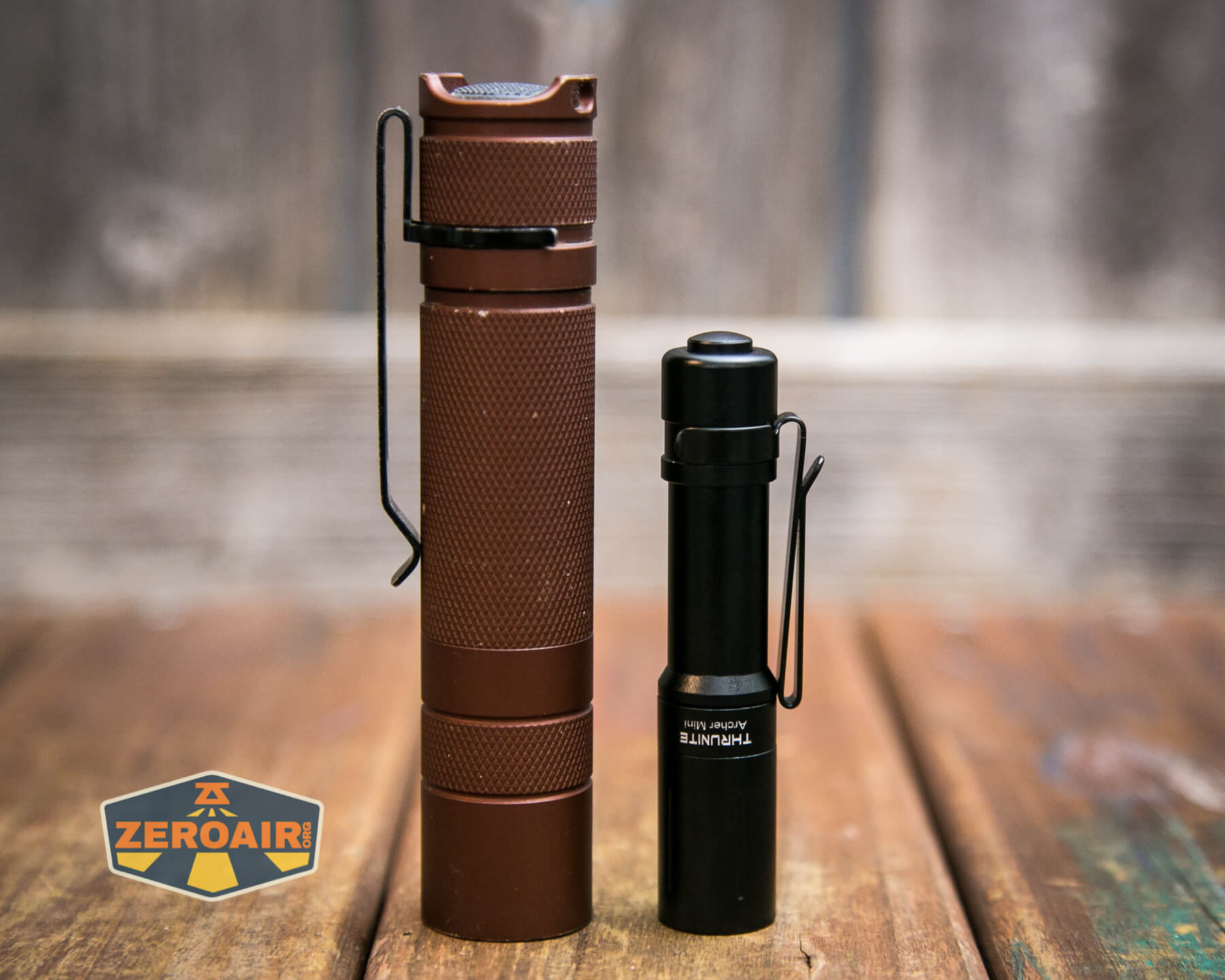

Thrunite Archer Mini flashlight beside the TorchLAB BOSS 35 (custom engraved)

Retention and Carry

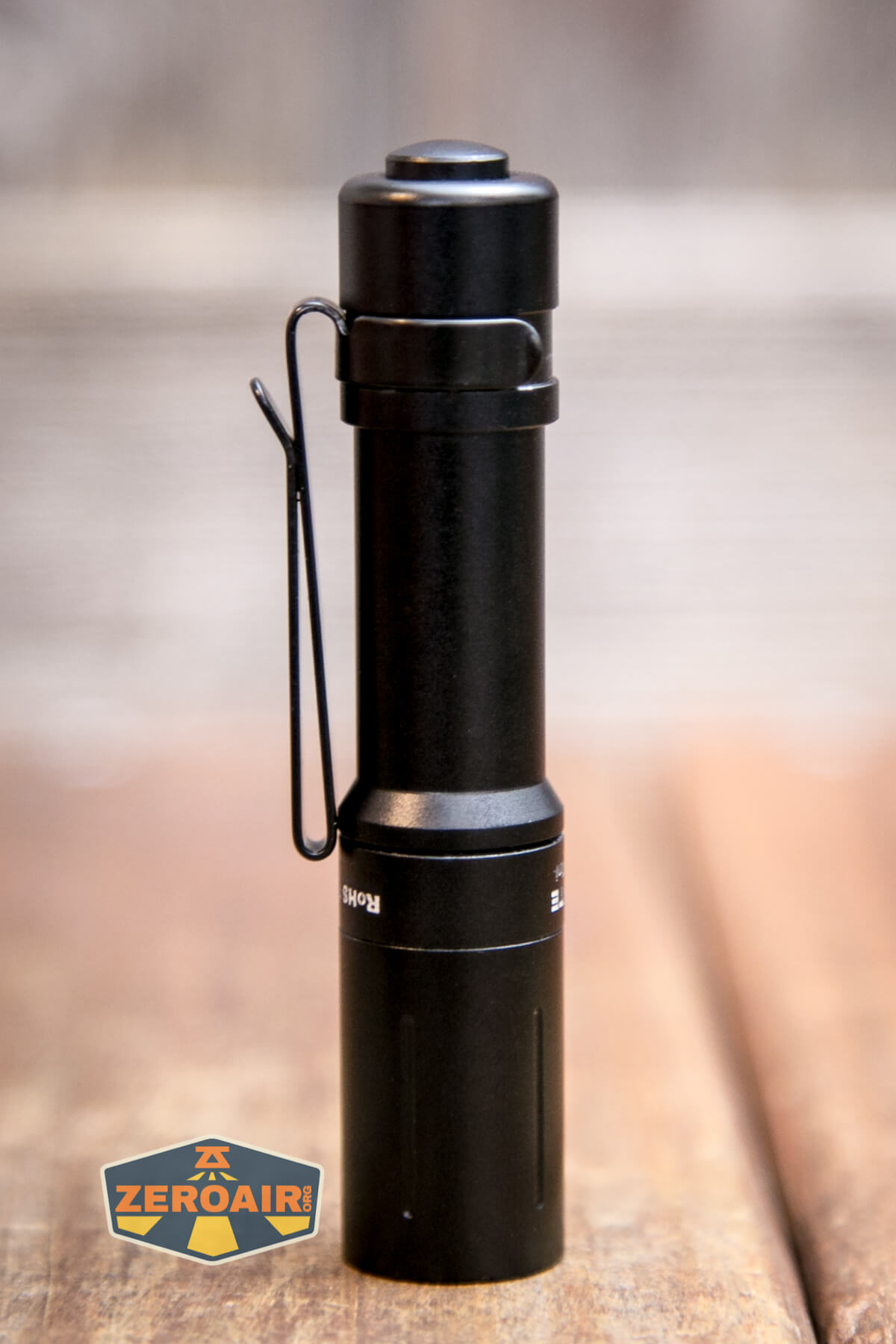

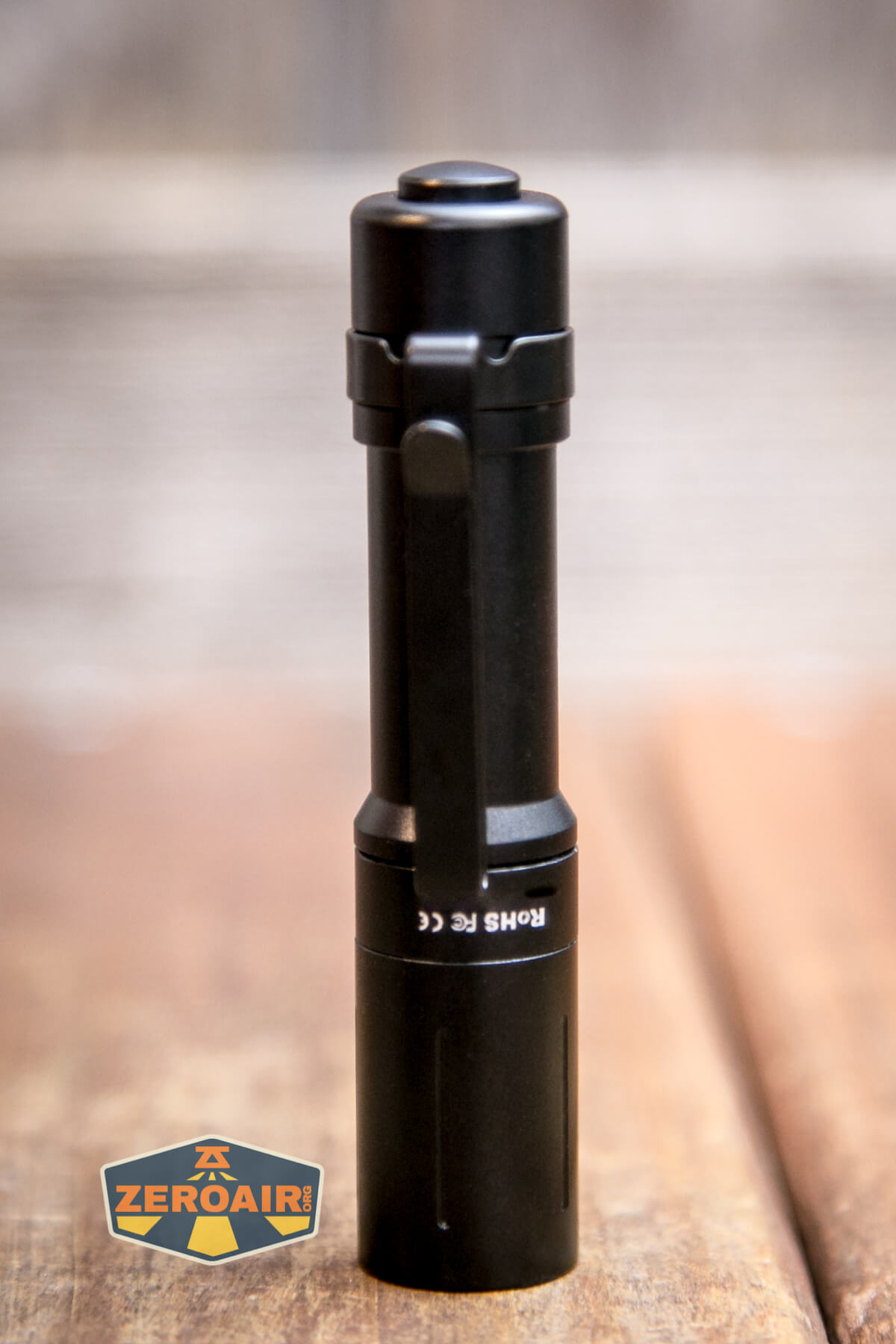

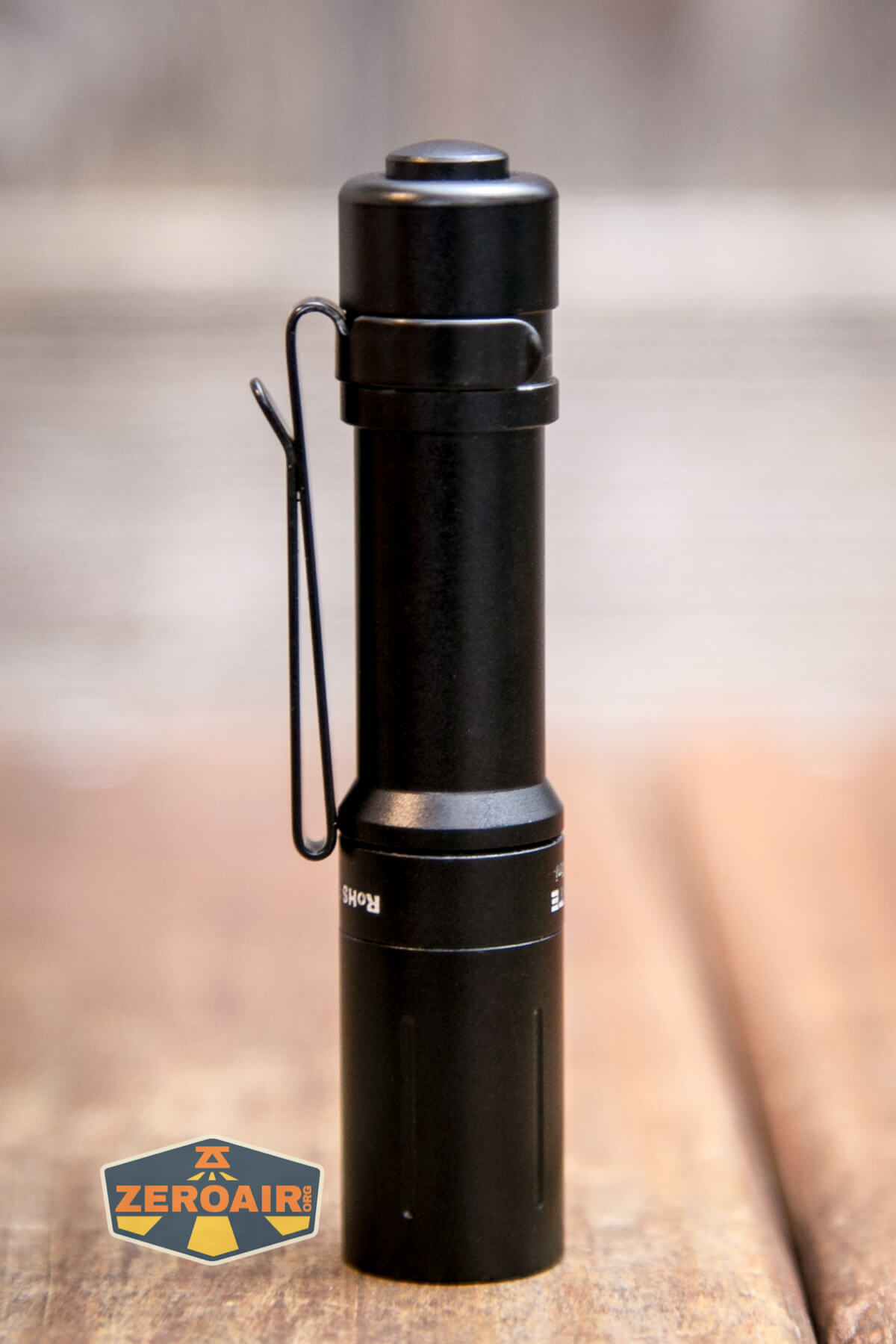

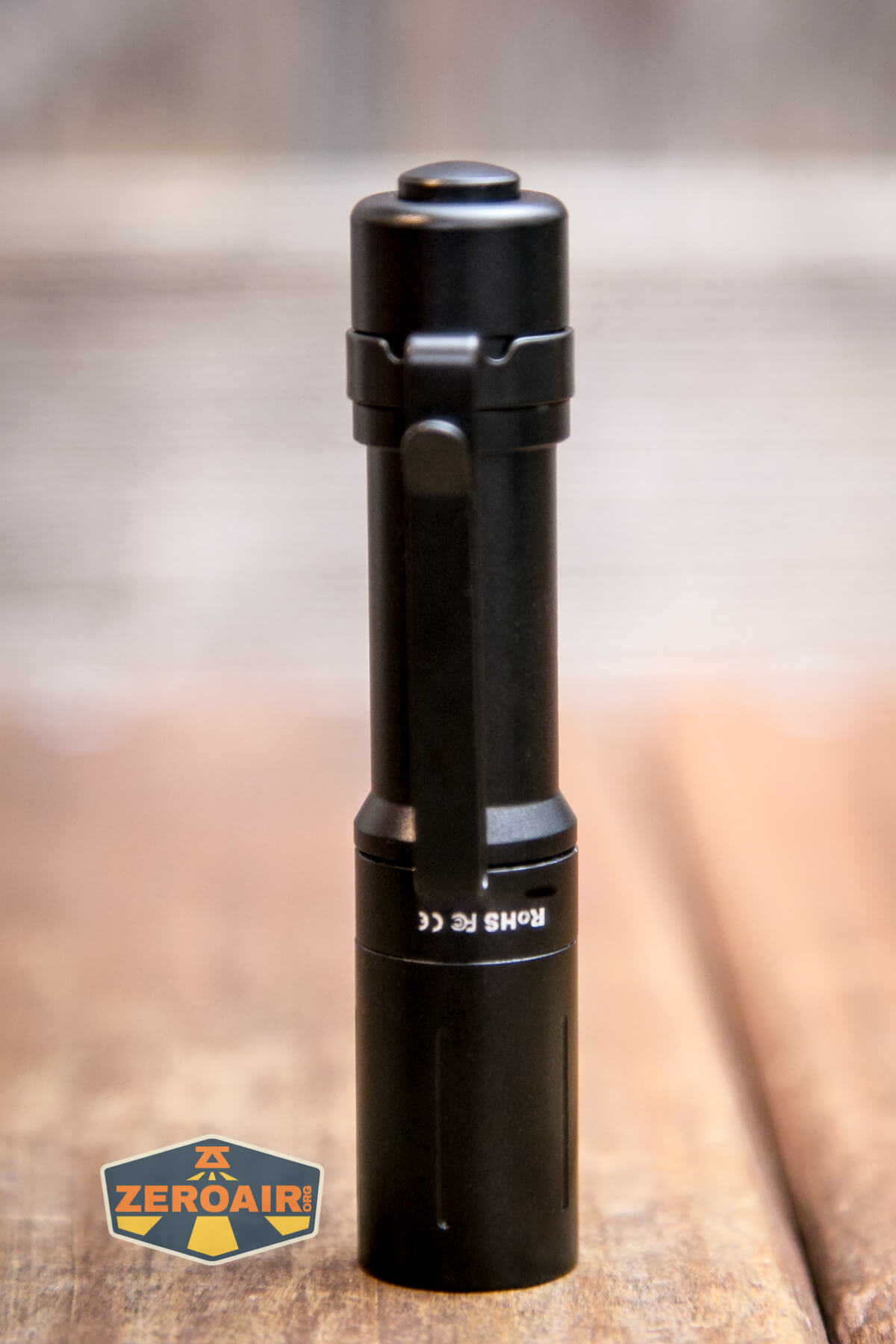

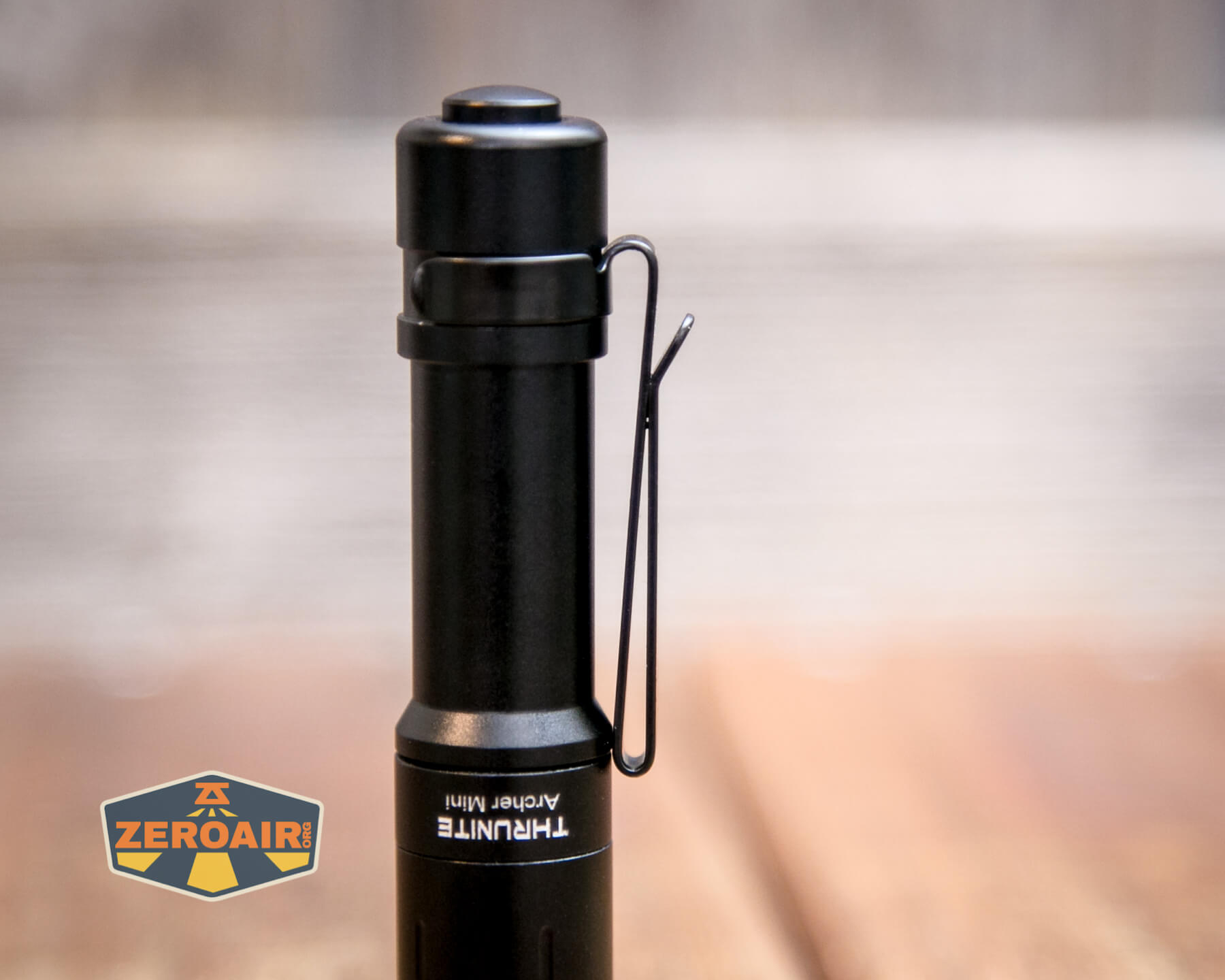

Thrunite Archer Mini flashlight pocket clip

There’s a two-way pocket clip attached on the tail end. The clip can’t go on the head end, but again, it’s a two-way clip.

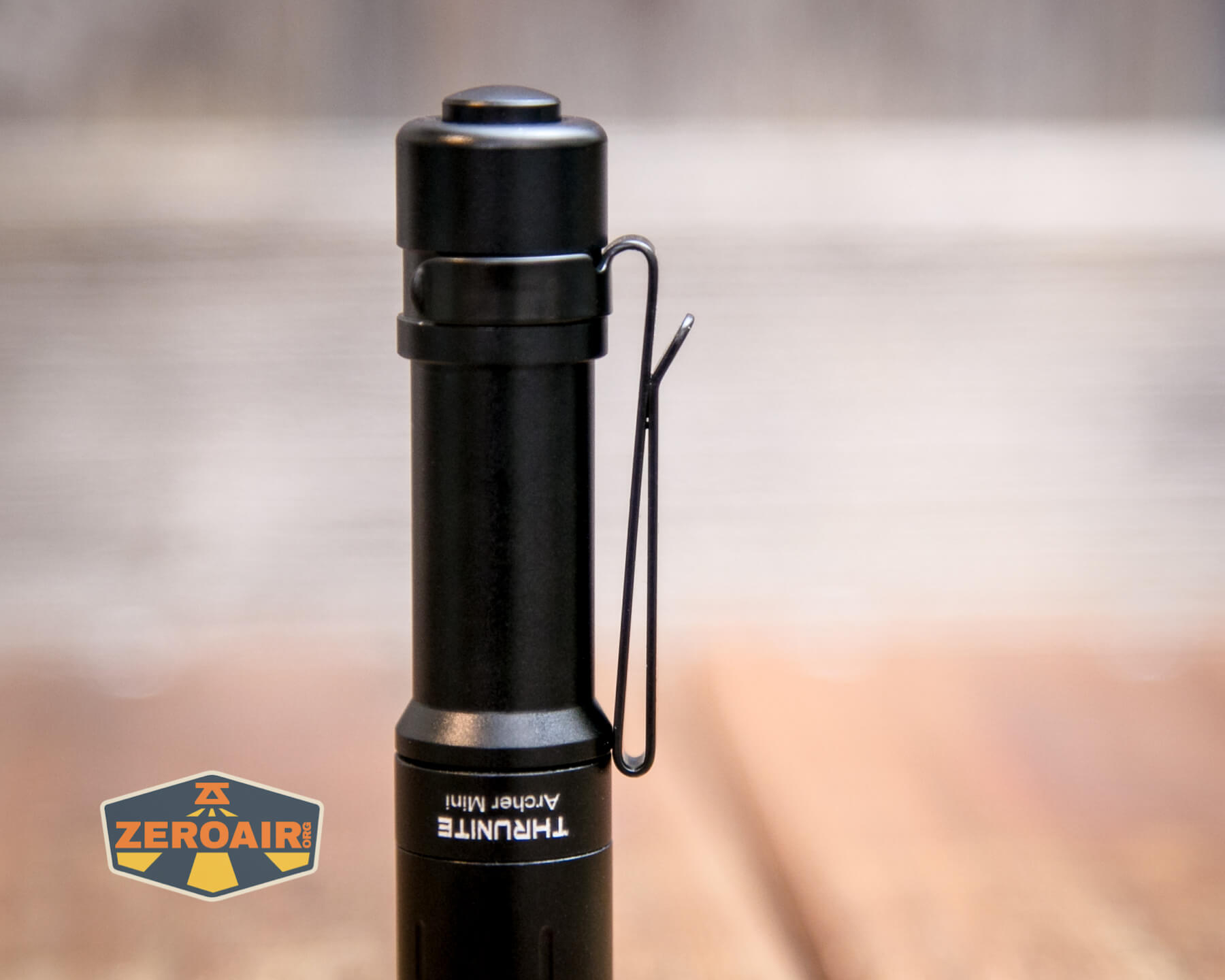

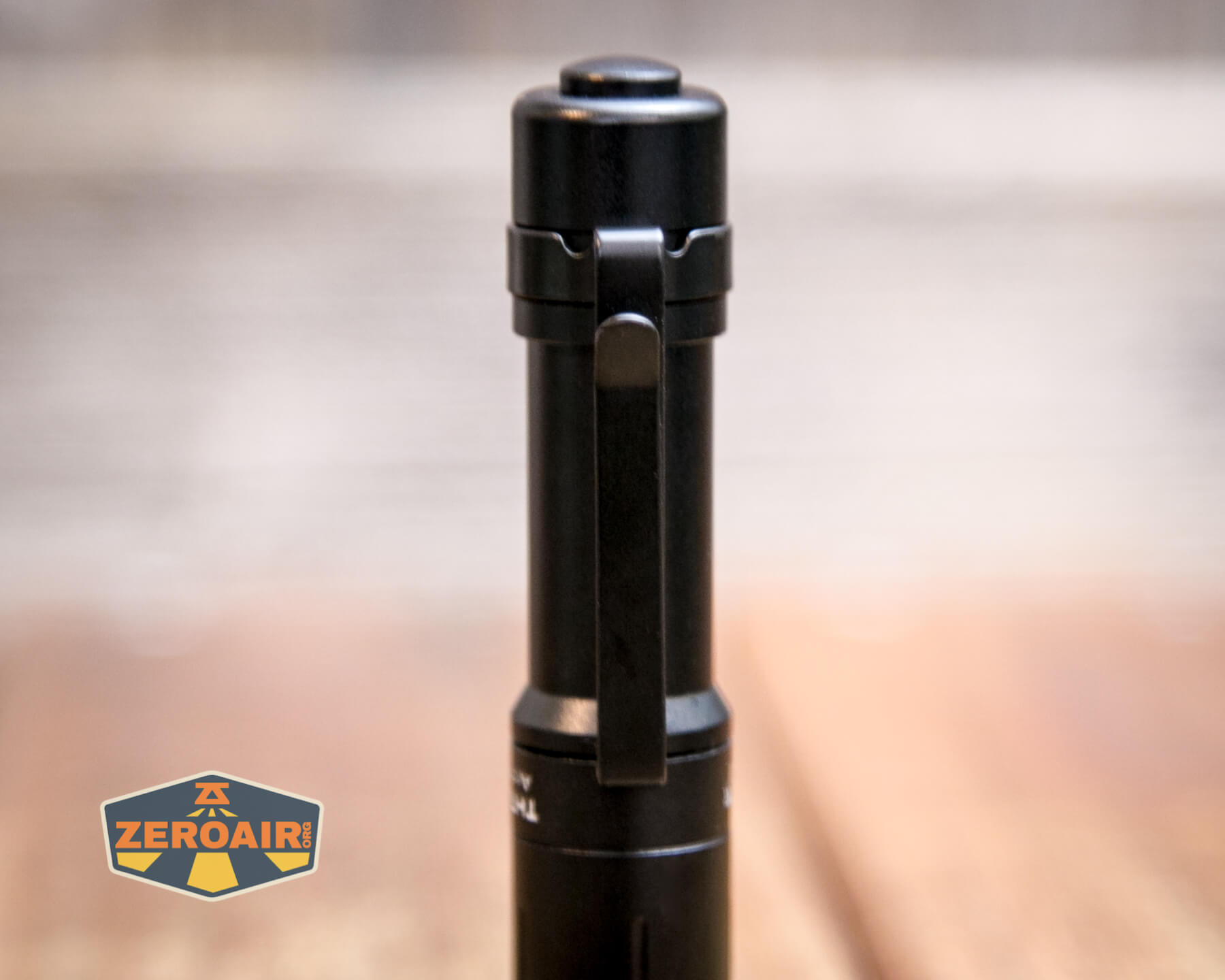

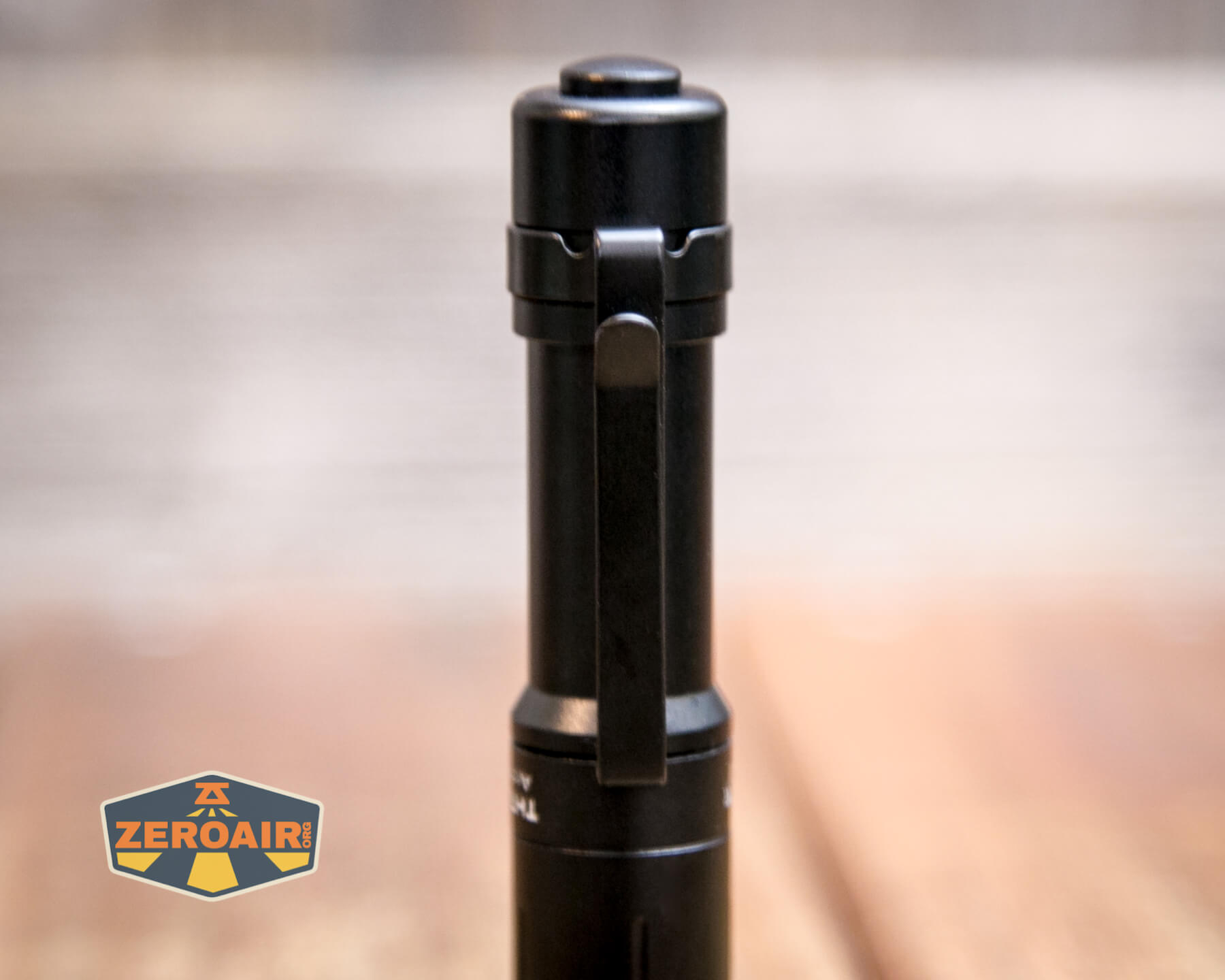

Thrunite Archer Mini flashlight pocket clip

While the clip can be removed, the light does look a bit naked without it.

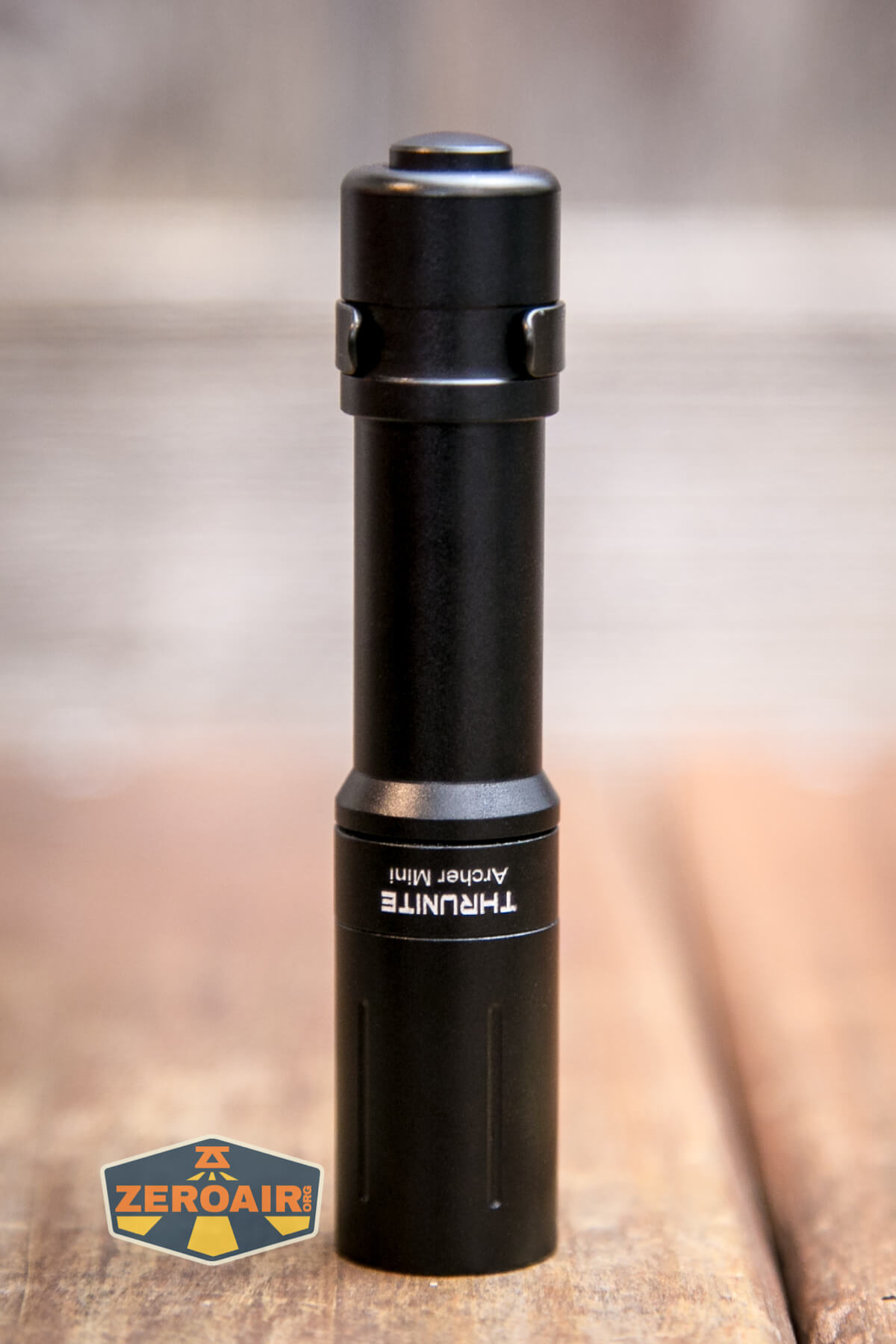

Thrunite Archer Mini flashlight pocket clip off Thrunite Archer Mini flashlight pocket clip

Nothing else is included for carry of the Thrunite Archer Mini flashlight.

Power and Runtime

A single cell powers the Thrunite Archer Mini flashlight. It’s not [really] removable, and appears to be a single 320mAh 10400 cell.

The light has just two modes, and here are runtime graphs for both.

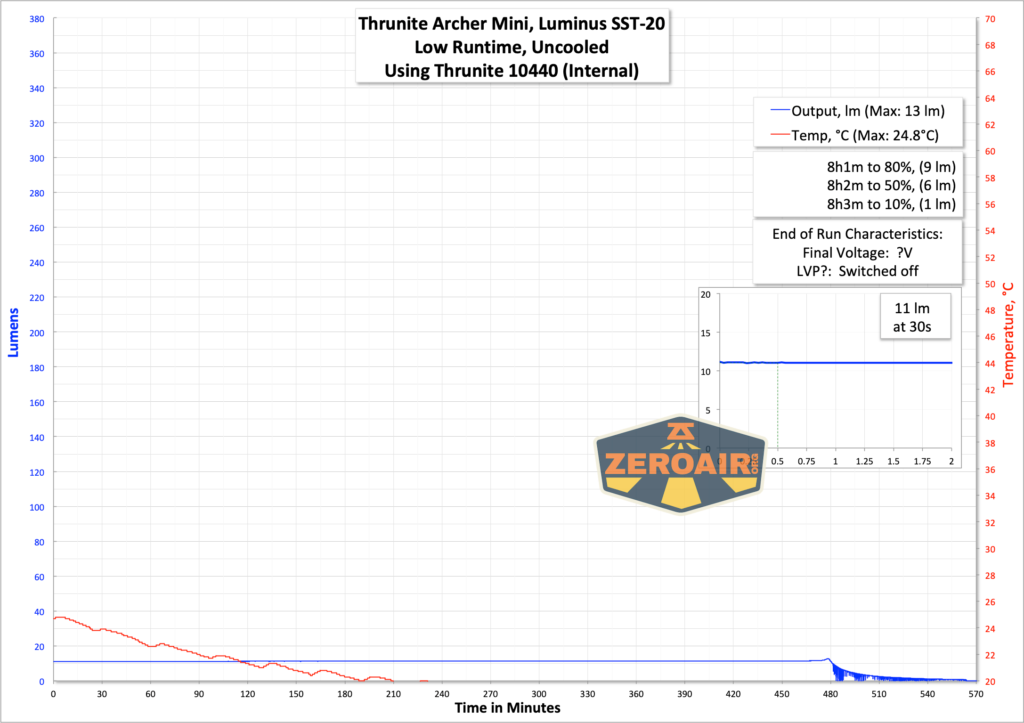

Thrunite Archer Mini flashlight runtime graph Thrunite Archer Mini flashlight runtime graph

You can see after the very flat regulated output stops, the light begins blinking to indicate the cell voltage is low. Eventually the light does shut off.

Charging

Thrunite put USB-C charging on the Archer Mini. To reveal the charging port, one just unscrews the head.

Thrunite Archer Mini flashlight charging port

The head is “captured” though – it doesn’t unscrew all the way off. It unscrews to the point you can see below. You can also see the charging indicator. This indicator blinks blue while charging is happening, and switches to solid blue when charging is complete.

Thrunite Archer Mini flashlight charging indicator

Both types of charging (A to C and C to C) work fine.

Thrunite Archer Mini flashlight charging graph Thrunite Archer Mini flashlight charging graph

Modes and Currents

Mode Mode Claimed Output (lm) Claimed Runtime Measured Lumens Tailcap Amps
High 405 2.8m+52m 345
Low 18 7.5h 11

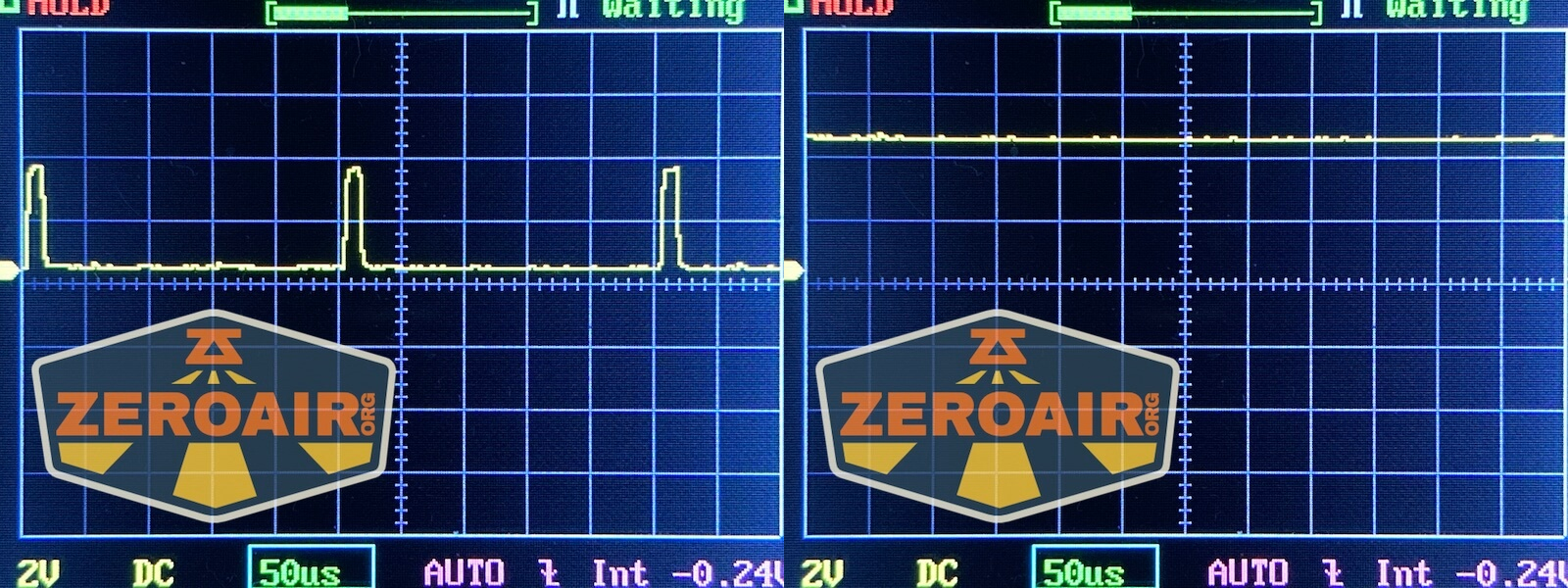

Pulse Width Modulation

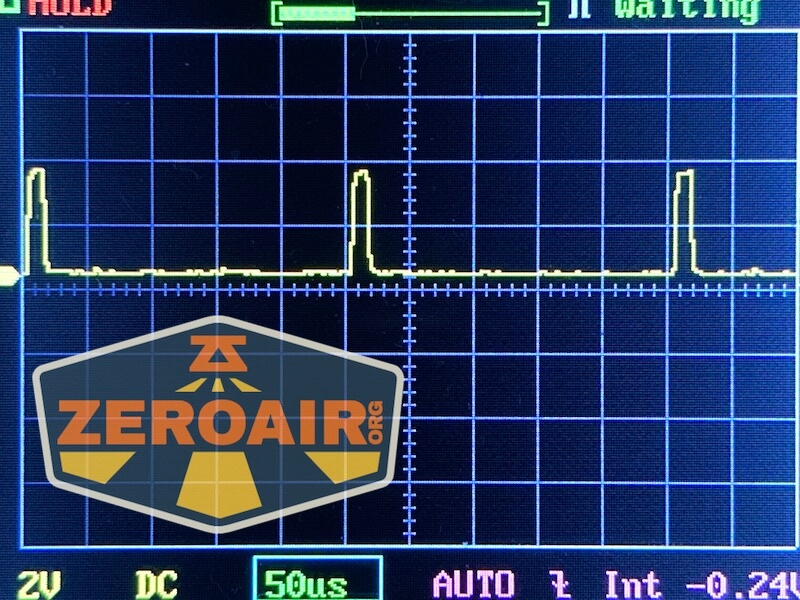

Low has PWM that’s surprisingly slow. It’s visible if you typically find PWM visible, but surprisingly doesn’t seem all that bothersome in this light.

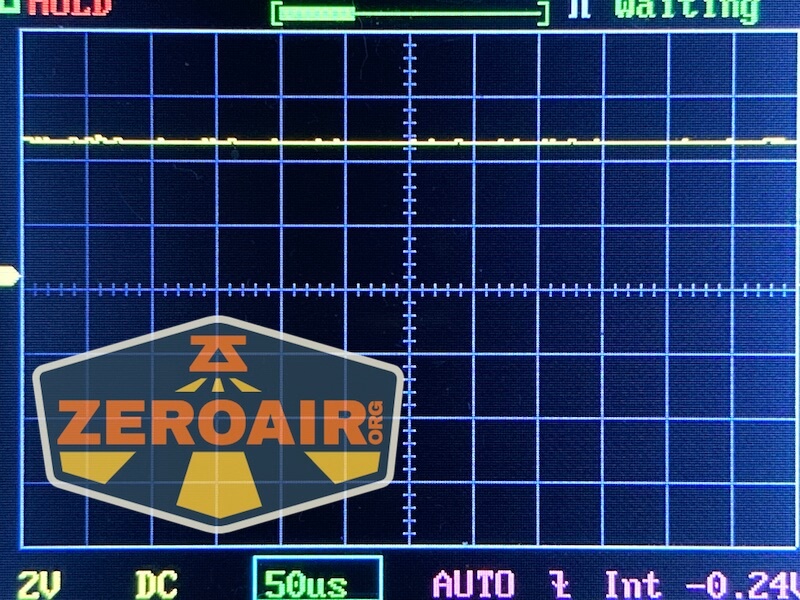

For reference, here’s a baseline shot, with all the room lights off and almost nothing hitting the sensor.  Also, here’s the light with the worst PWM I could find.  I’m adding multiple timescales, so it’ll be easier to compare to the test light.  Unfortunately, the PWM on this light is so bad that it doesn’t even work with my normal scale, with is 50 microseconds (50us).  10ms5ms2ms1ms0.5ms0.2ms.  In a display faster than 0.2ms or so, the on/off cycle is more than one screen, so it’d just (very incorrectly) look like a flat line.  I wrote more about this Ultrafire WF-602C flashlight and explained a little about PWM too.

User Interface and Operation

A single switch is used on the Thrunite Archer Mini flashlight. It’s a tail switch and has a rounded cover.

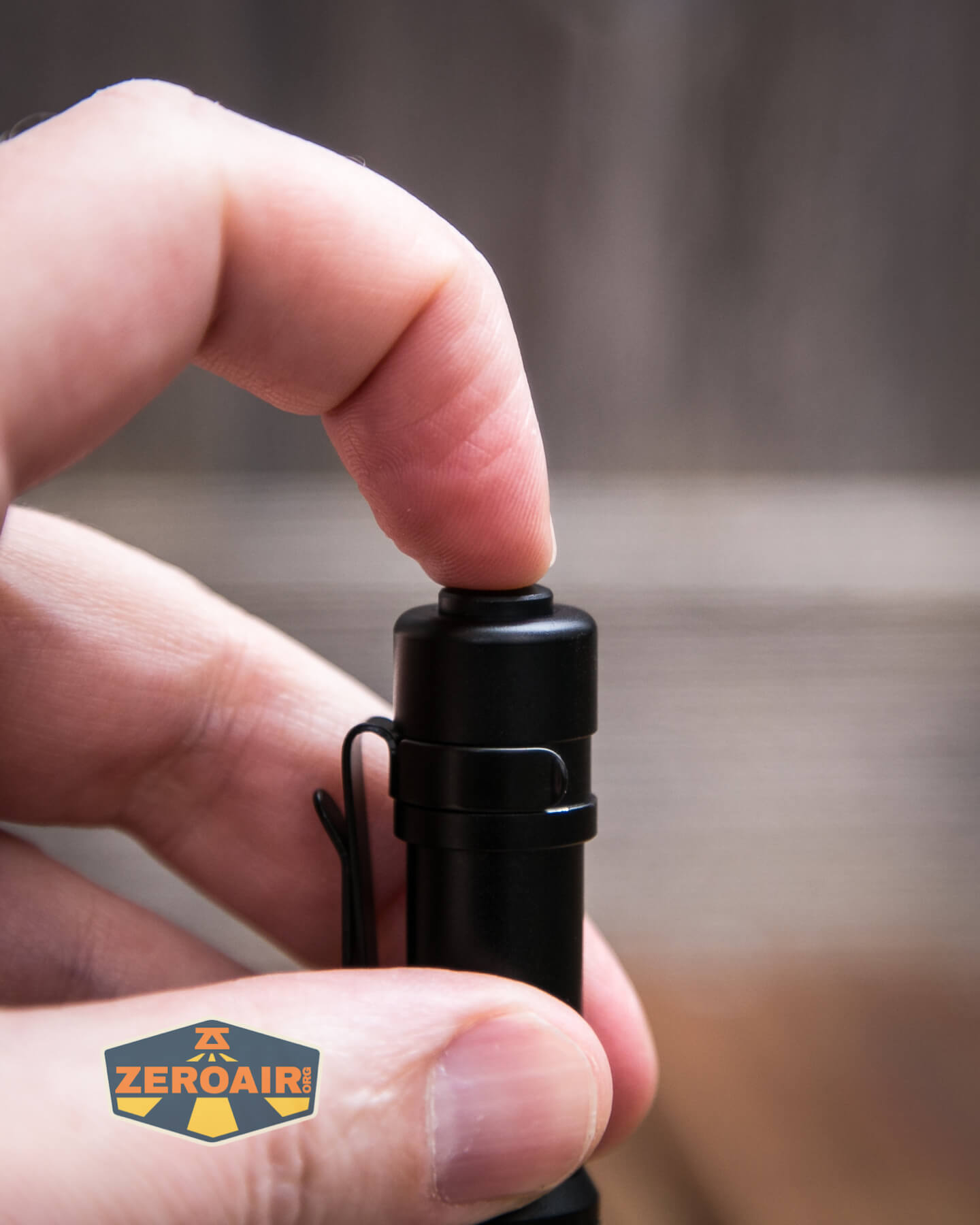

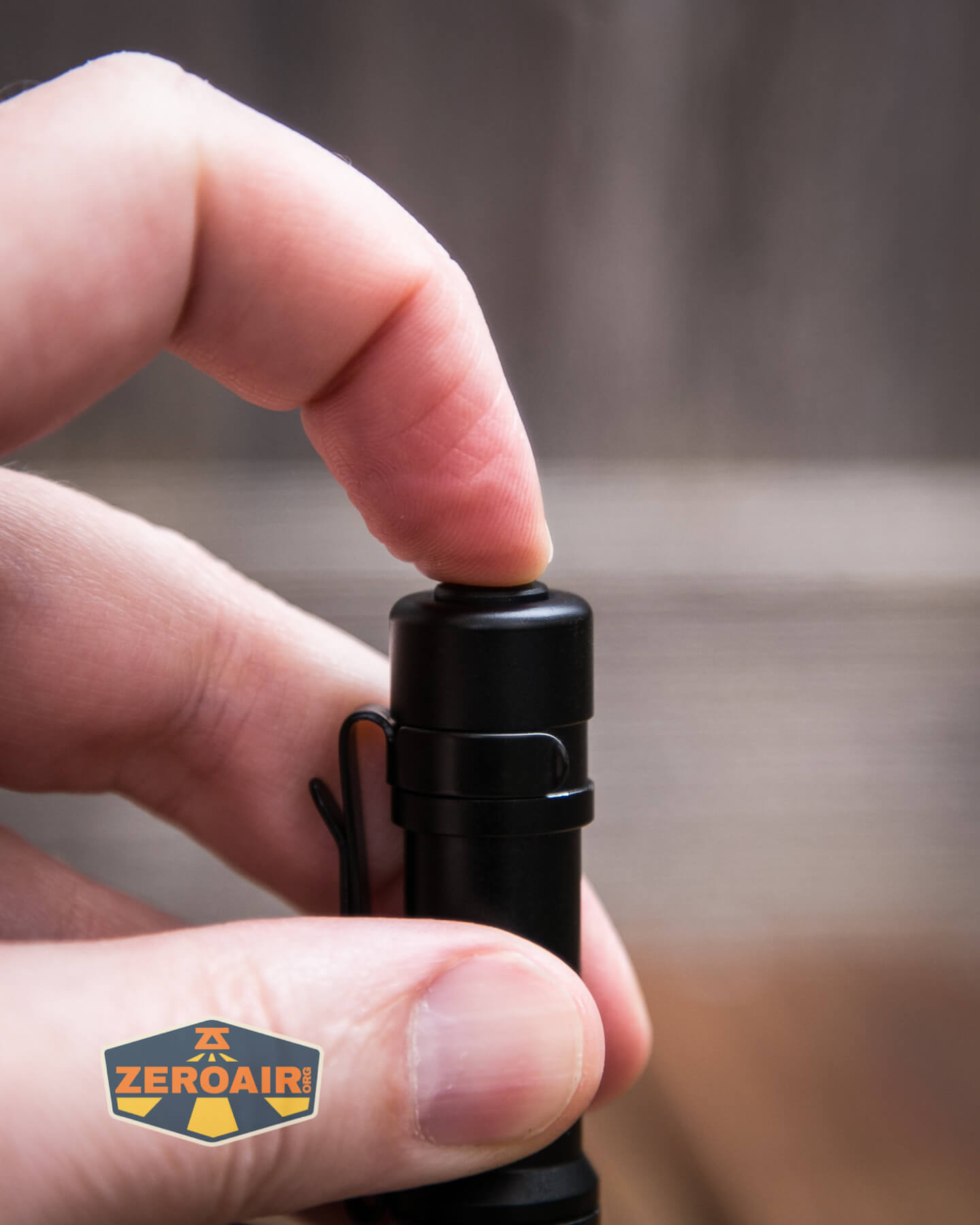

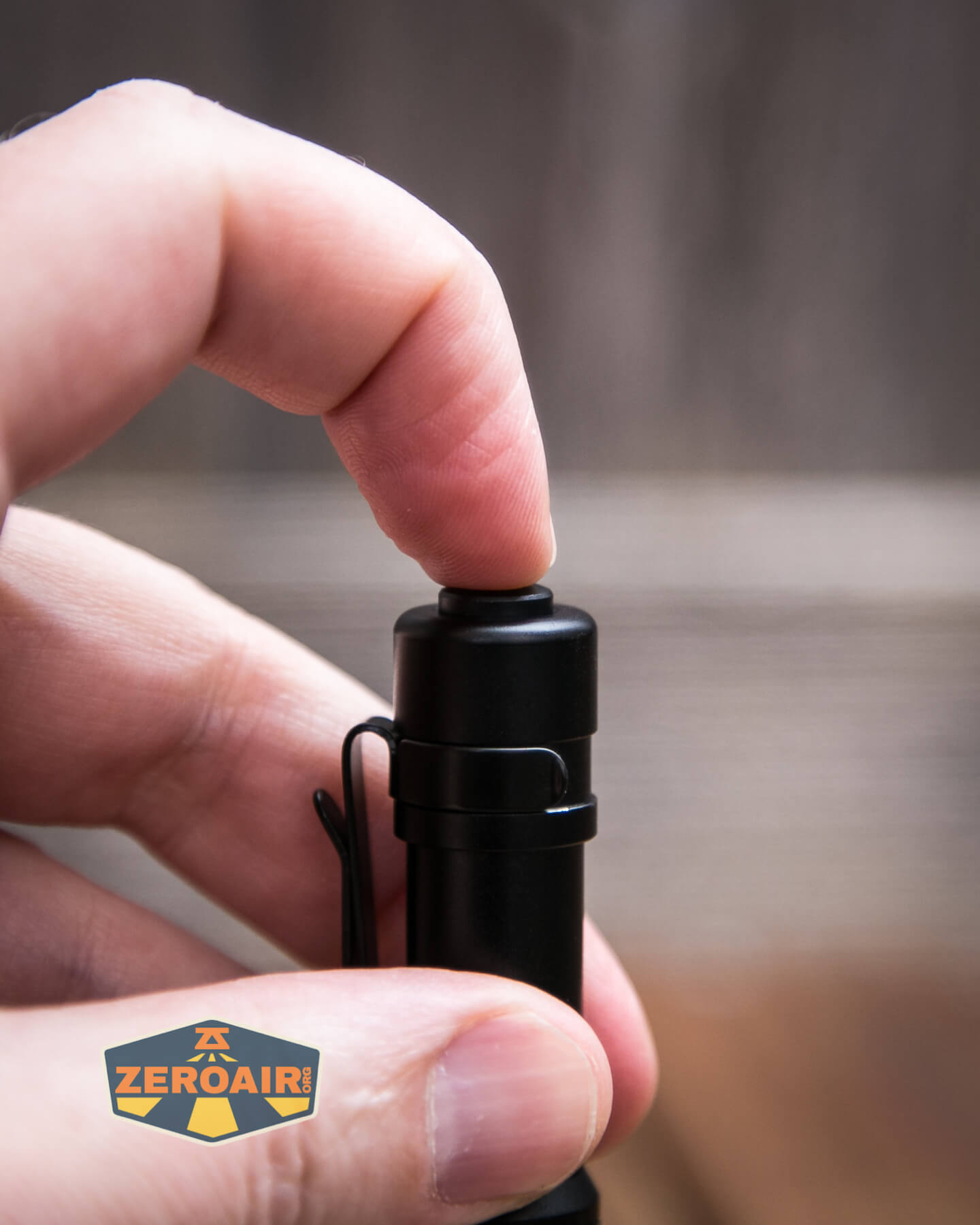

Thrunite Archer Mini flashlight tail switch

Despite appearances of being a mechanical switch, I’m fairly sure this is an e-switch of some sort. I reason this because when you hold the switch down, the light will come on after about a full second. A mechanical switch would not do this.

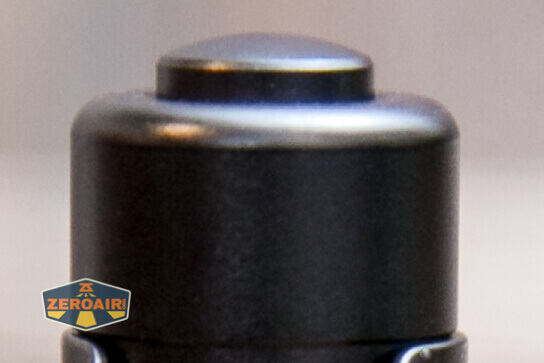

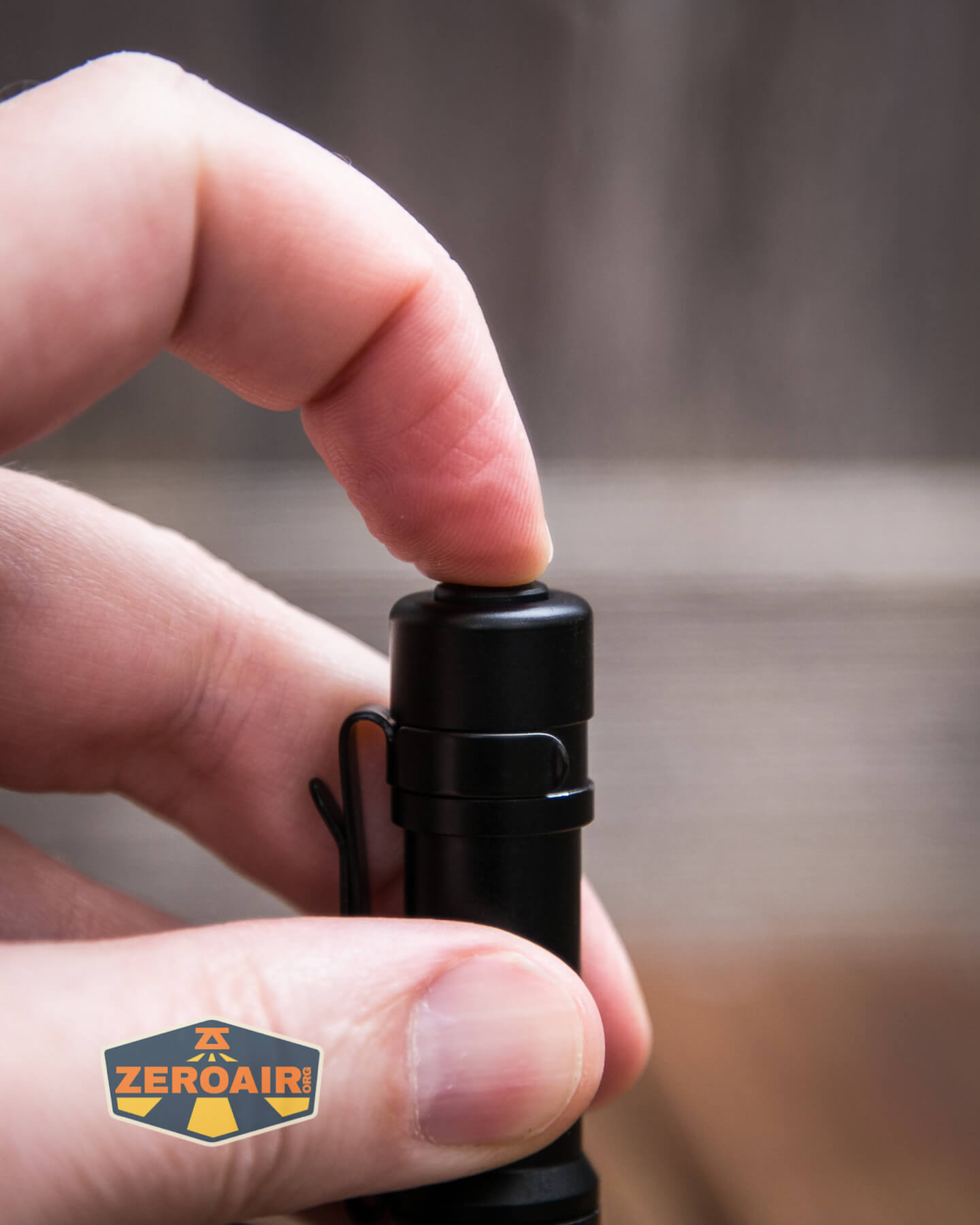

Thrunite Archer Mini flashlight tail switch

The dome of the switch and also the rounded shoulders you can see above make

I will add that I had a number of accidental activations in my pocket during use. You’ll probably want to use the lockout feature.

Here’s a UI table!

State Action Result
Off Click Low
Low Hold Lockout
Lockout Hold Unlock
Any (Unlocked) Double Click High
Lockout Click Single Low blink to indicate lockout
Any (Unlocked) Click 3x Strobe
On Click Off

LED and Beam

Thrunite uses a Luminus SST-20 emitter and a TIR optic.

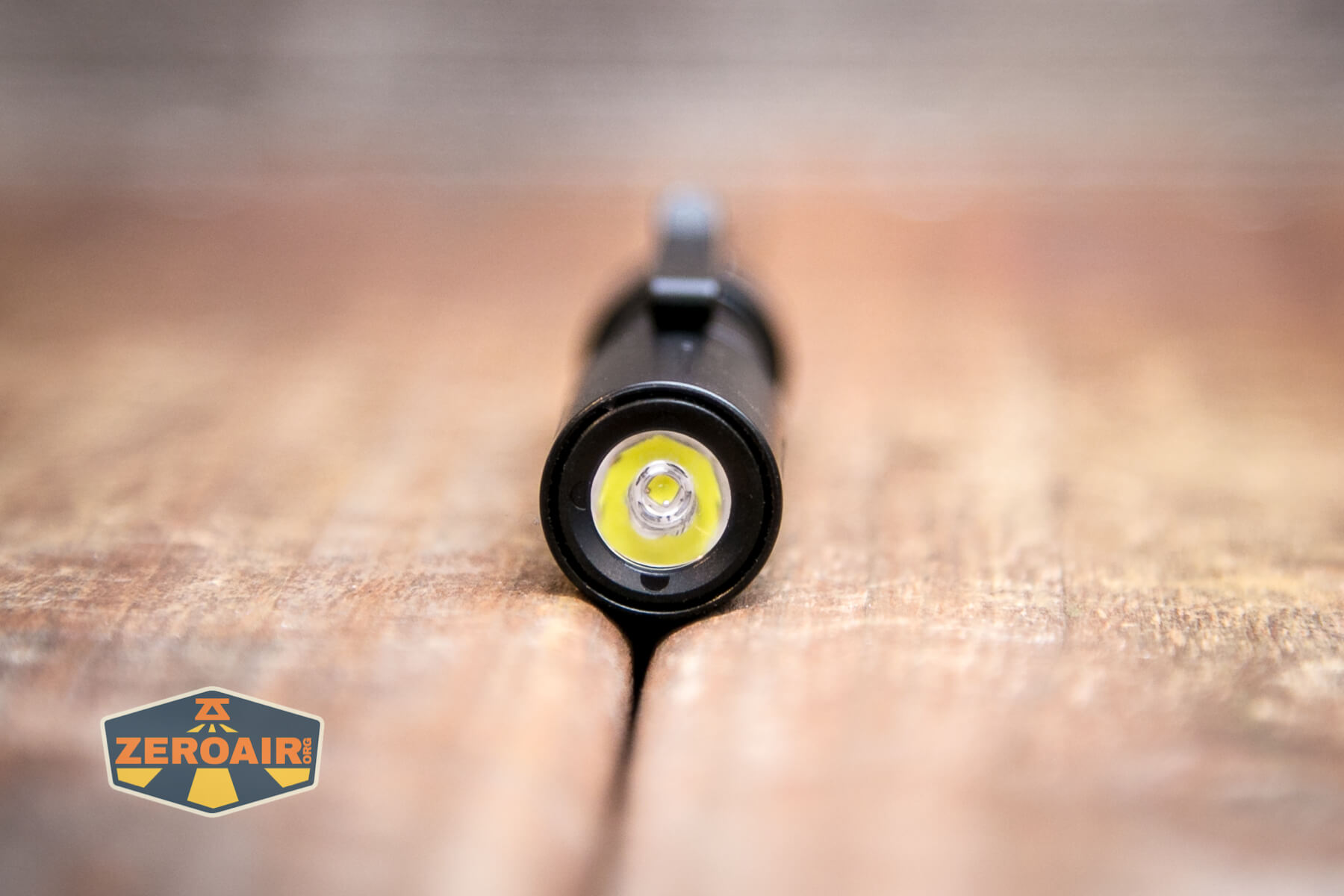

Thrunite Archer Mini flashlight emitter

The bezel is smooth so no light escapes when headstanding.

Thrunite Archer Mini flashlight headstanding

Thrunite Archer Mini flashlight beamshot

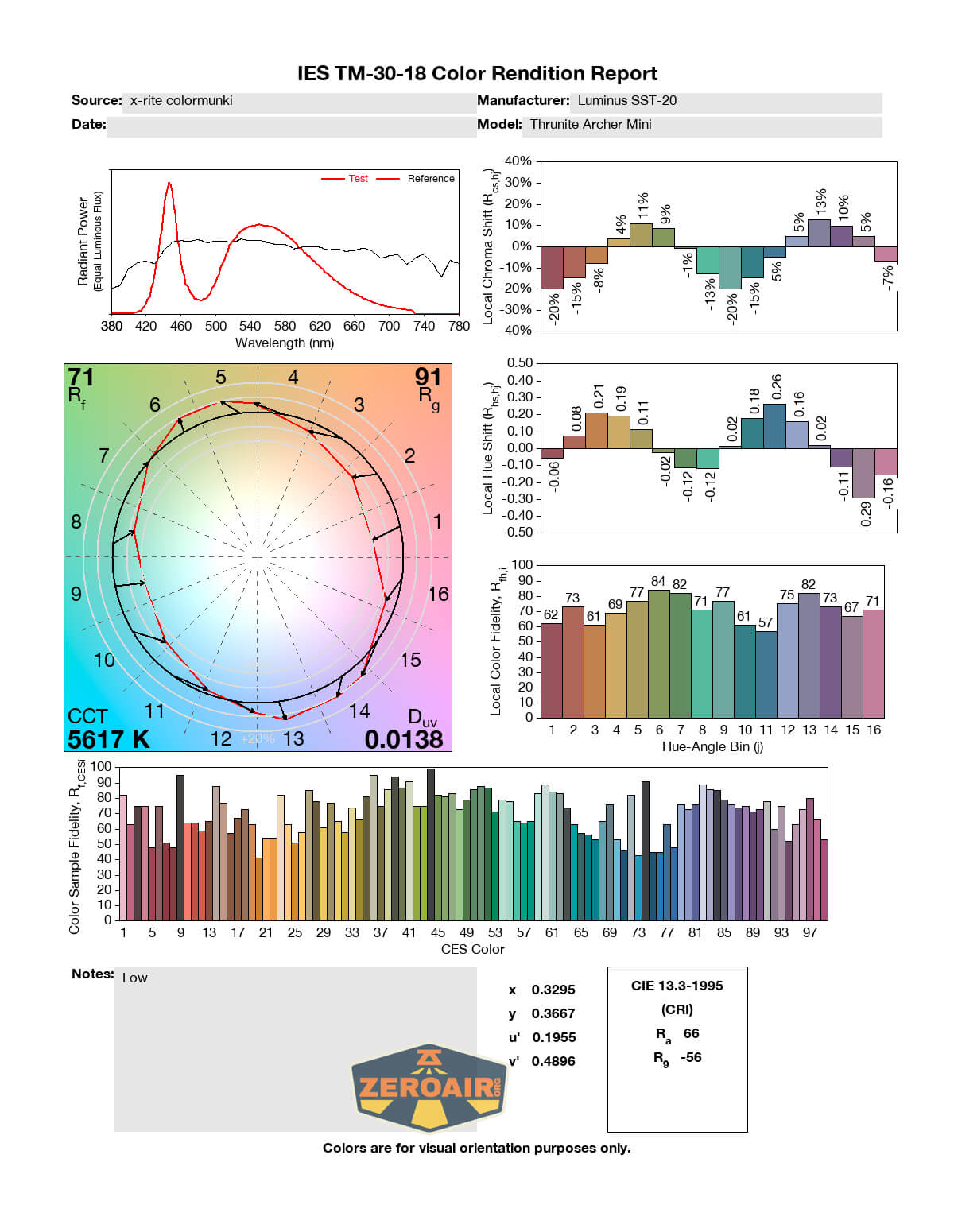

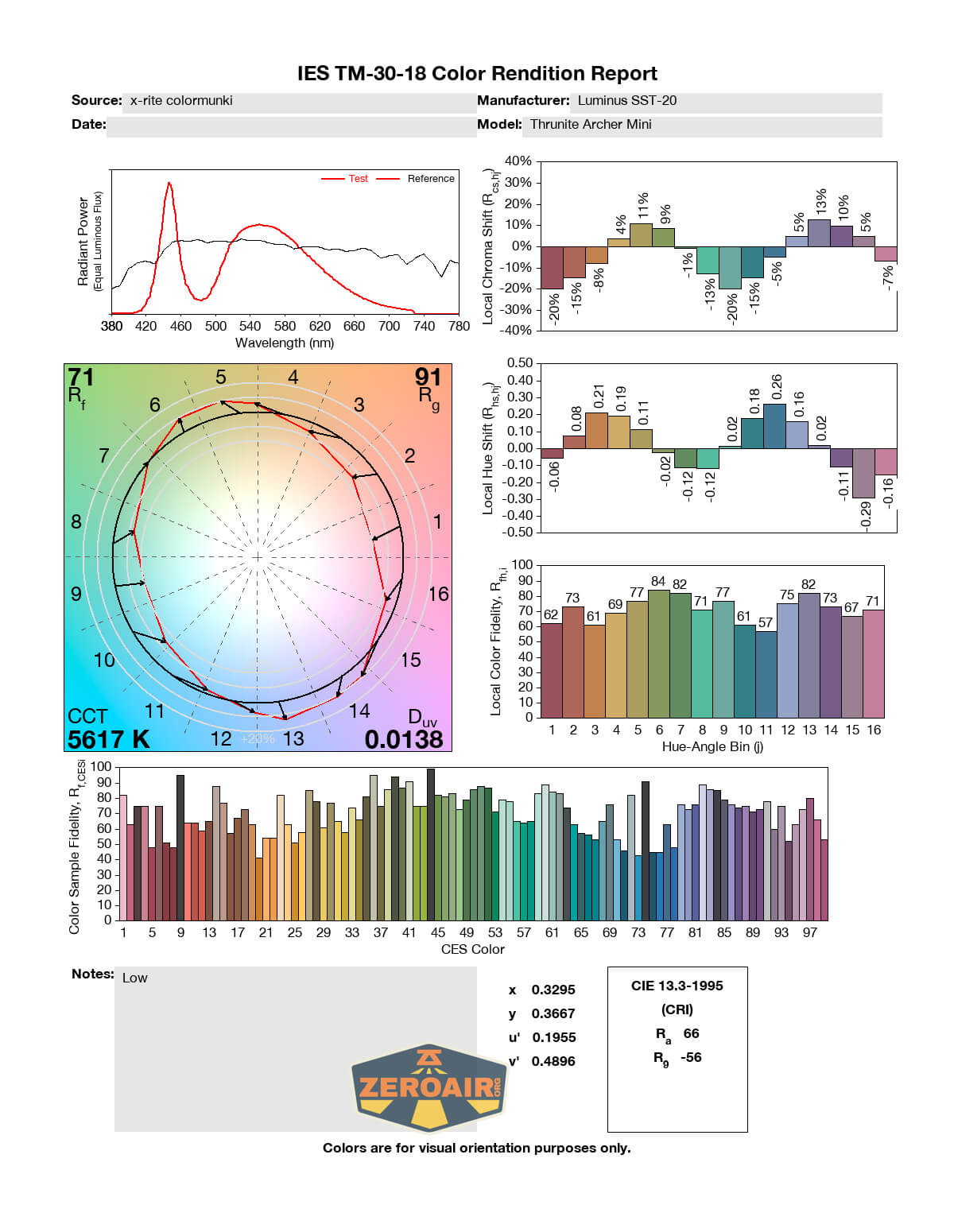

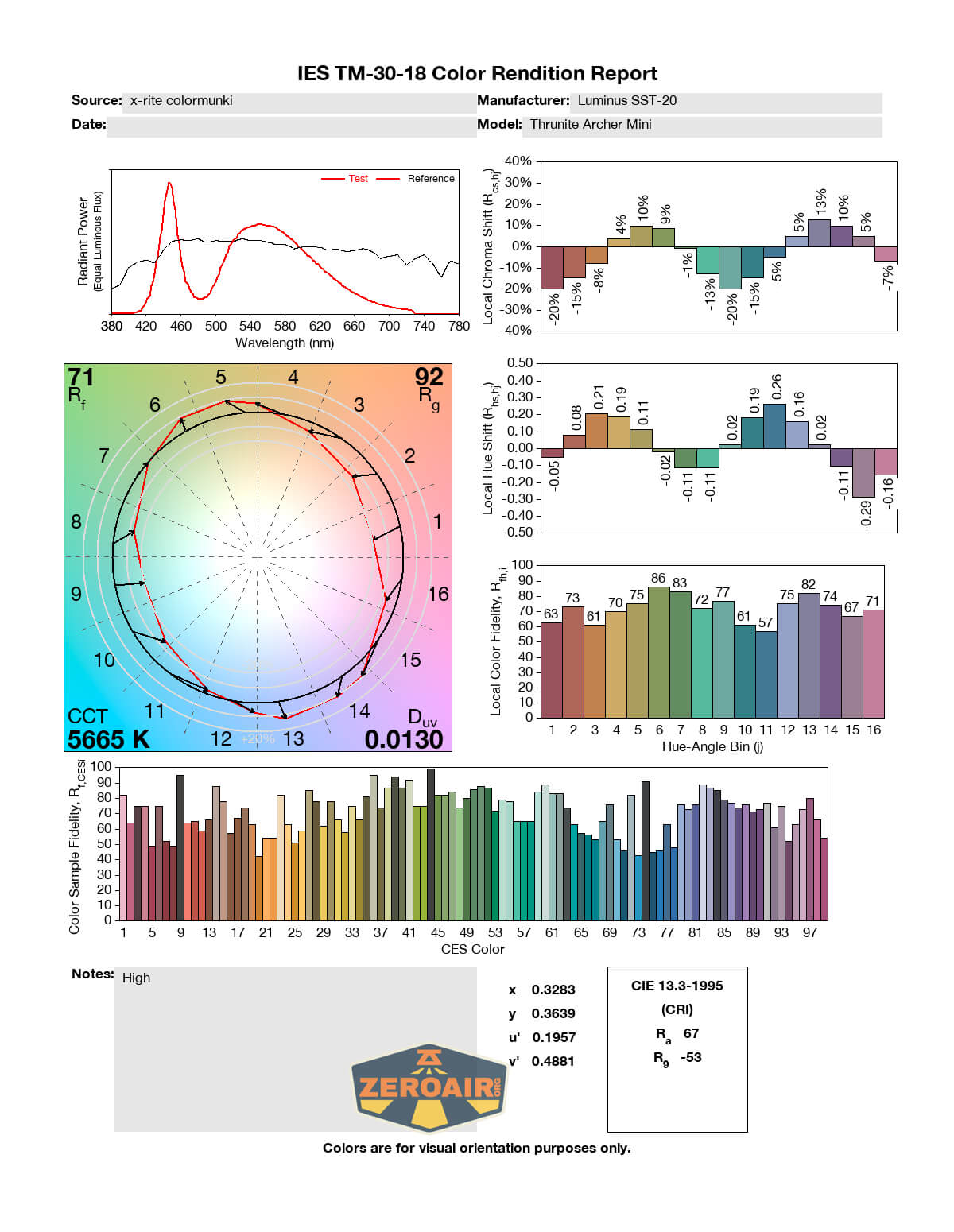

LED Color Report (CRI and CCT)

Thrunite logs this as a cool white emitter. I measure it at around 5500K, which is sort of “barely” into the CW realm.  It’s quite positive in the dUV though, which readily explains the green nature of the output. CRI is fairly low, too.

Beamshots

These beamshots are always with the following settings:  f8, ISO100, 0.3s shutter, and manual 5000K exposure.

Tint vs BLF-348 (KillzoneFlashlights.com 219b version) (affiliate link)

I keep the test flashlight on the left, and the BLF-348 reference flashlight on the right.

I compare everything to the KillzoneFlashlights.com 219b BLF-348 because it’s inexpensive and has the best tint!

Conclusion

What I like

  • Inexpensive
  • Simple user interface
  • Just two modes
  • USB-C charging (with C to C working, too)
  • Beam profile provided by this TIR
  • Rounded switch and tail end of the light are comfortable to press.

What I don’t like

  • Green tint in the beam
  • Not a mechanical clicky (potential for parasitic drain)
  • The internal 10400 cell is not replaceable
  • 10400 cell is a weird size anyway, even if it’s not replaceable

Notes

  • This content originally appeared at zeroair.org.  Please visit there for the best experience!
  • For flashlight-related patches, stickers, and gear, head over to PhotonPhreaks.com!
  • Use my amazon.com referral link if you’re willing to help support making more reviews like this one!
  • Please support me on Patreon!  Feeding flashlights is expensive!  And funding Fun Fund Friday even more so.  I deeply appreciate your support!
