Sofirn SC18 Flashlight Review

Sofirn SC18 Flashlight Review

The Sofirn SC18 is a low-cost 18650-based flashlight that offers USB-C charging and a nice range of output! It makes a great gift!


Official Specs and Features

Here’s a link to the Sofirn SC18 flashlight product page.

Versions

There’s only one version of the Sofirn SC18 flashlight but it’s available with or without the 18650 seen in this review.

Price

The Sofirn SC18 flashlight sells for the remarkable price of $14.99 or $16.99 with cell. Buy the cell package!


Short Review

I can’t even imagine how they make this light for such a low cost. It’s a nice one, too! The build quality is good and charging works great. A complete package USB-C charging flashlight for under $17 just seems crazy!

Long Review

The Big Table

Sofirn SC18 Flashlight
Emitter: Luminus SST-40
Price in USD at publication time: $14.99
Cell: 1×18650
Runtime Graphs
LVP?
Switch Type: E-Switch
Quiescent Current (mA): 0.01
On-Board Charging? Yes
Charge Port Type: USB-C
Charge Graph
Power off Charge Port With or without cell or tailcap: one mode (medium)
Claimed Lumens (lm) 1800
Measured Lumens (at 30s) 1453 (80.7% of claim)^
Candela per Lumen 11.2
Claimed Throw (m) 217
Candela (Calculated) in cd (at 30s) 530lux @ 5.366m = 15261cd
Throw (Calculated) (m) 247.1 (113.9% of claim)^
Claimed CCT
Measured CCT Range (K) 6300-6600 Kelvin
Item provided for review by: Sofirn
All my Sofirn reviews!

^ Measurement disclaimer:  I am an amateur flashlight reviewer.  I don’t have $10,000 or even $1,000 worth of testing equipment.  I test output and such in PVC tubes!!  Please consider claims within 10% of what I measure to be perfectly reasonable (accurate, even).

What’s Included

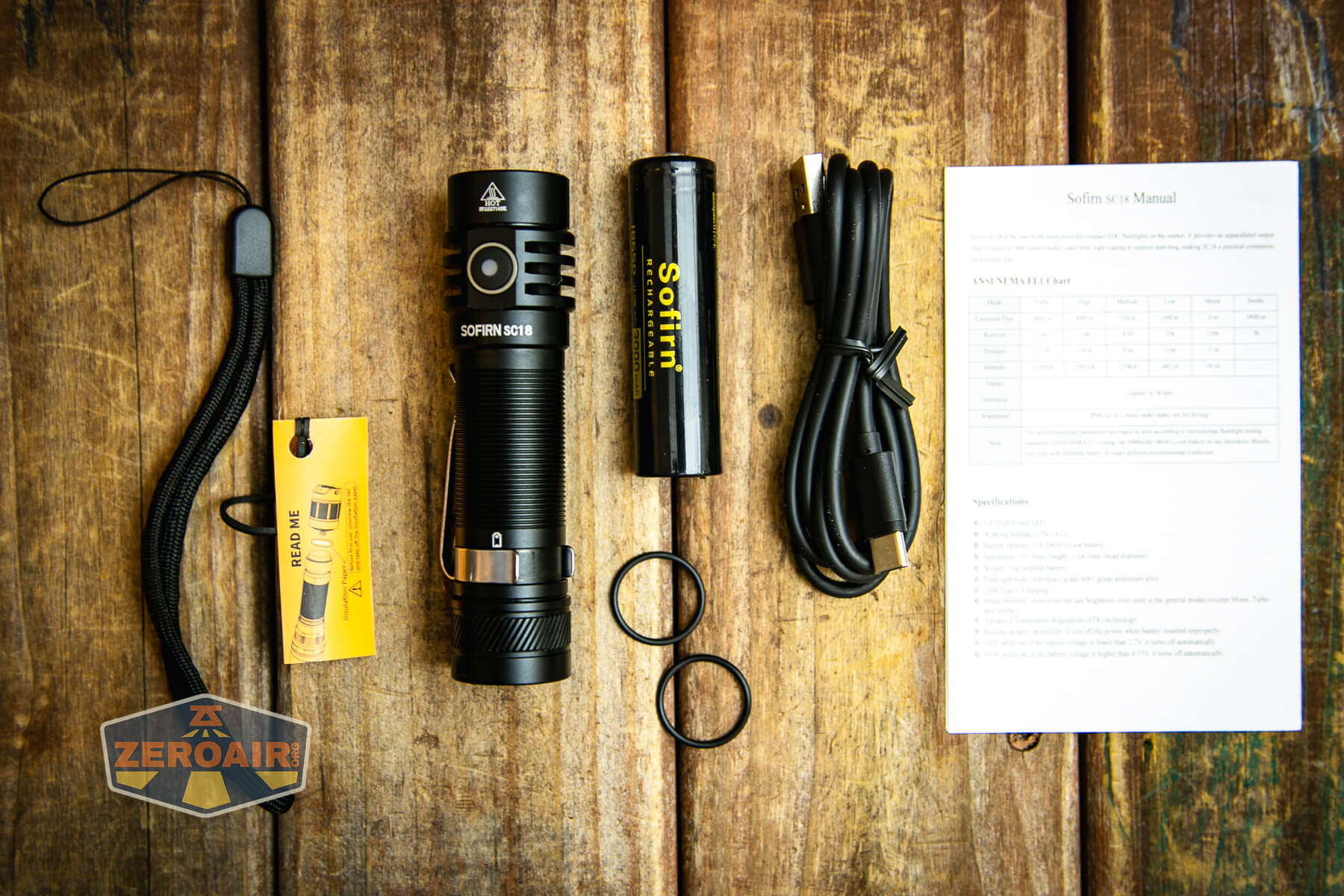

Sofirn SC18 flashlight what's included

  • Sofirn SC18 flashlight
  • Sofirn 3000mAh 18650
  • Charging cable (USB to USB-C)
  • Lanyard
  • Spare o-rings (2)
  • Manual, etc.

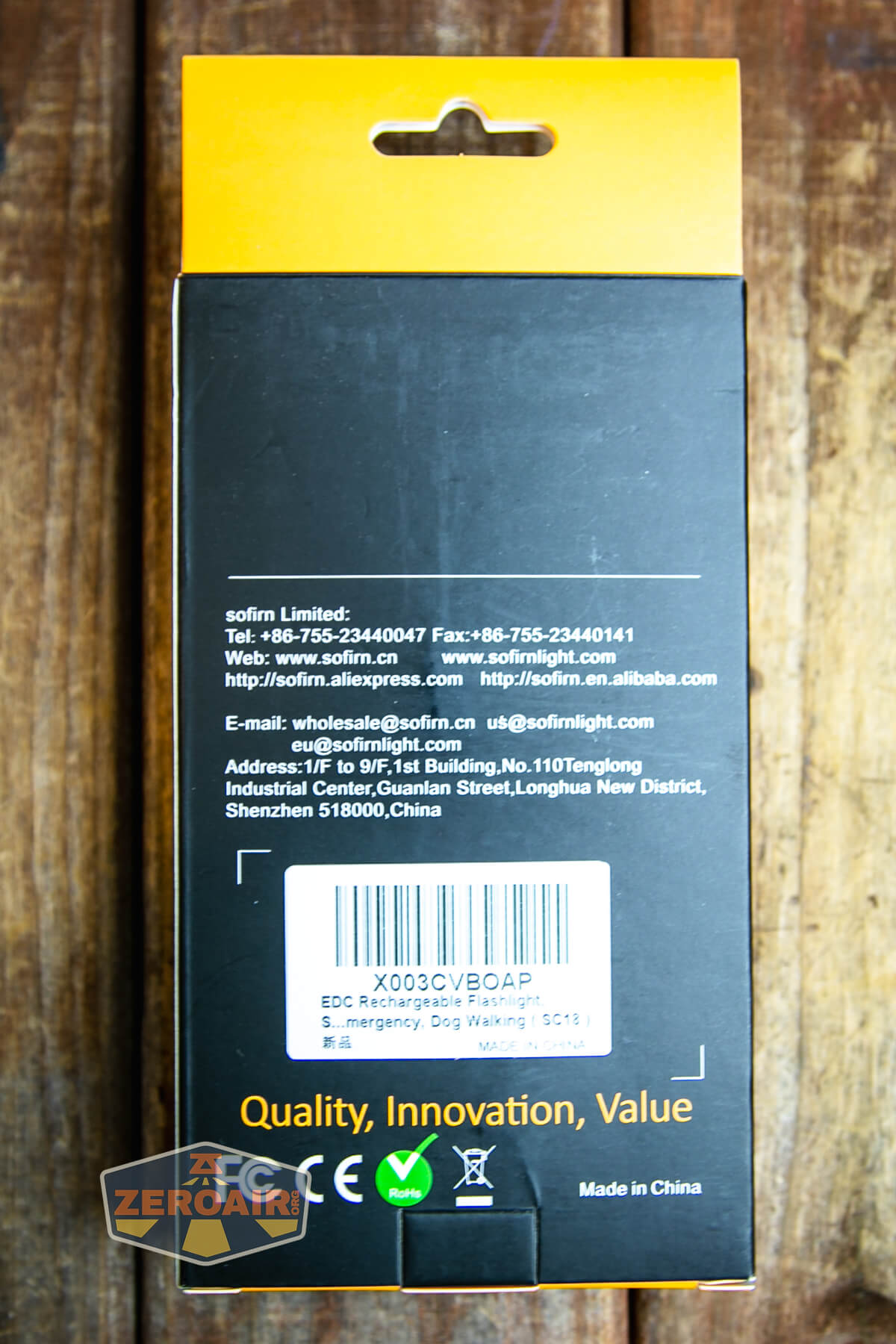

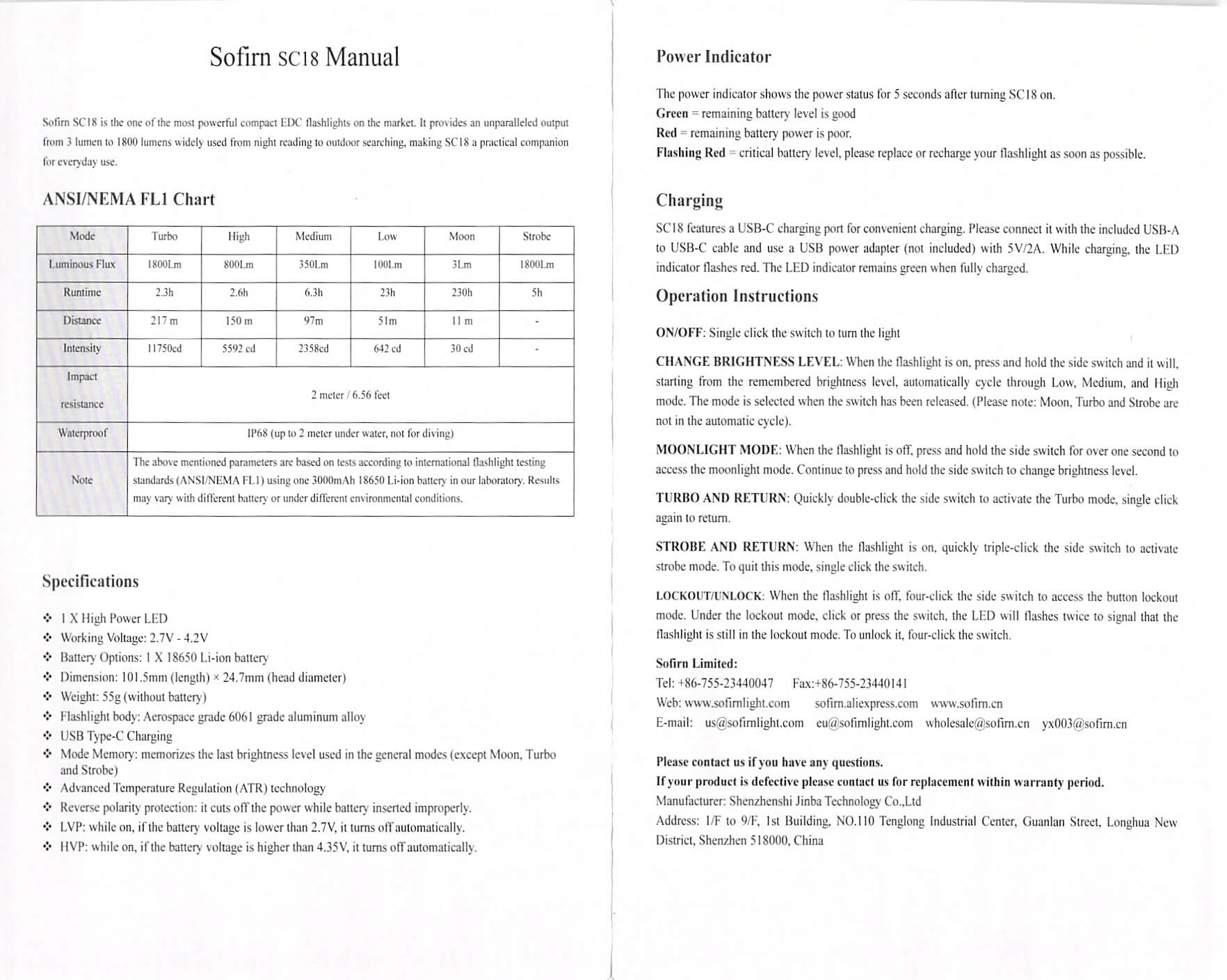

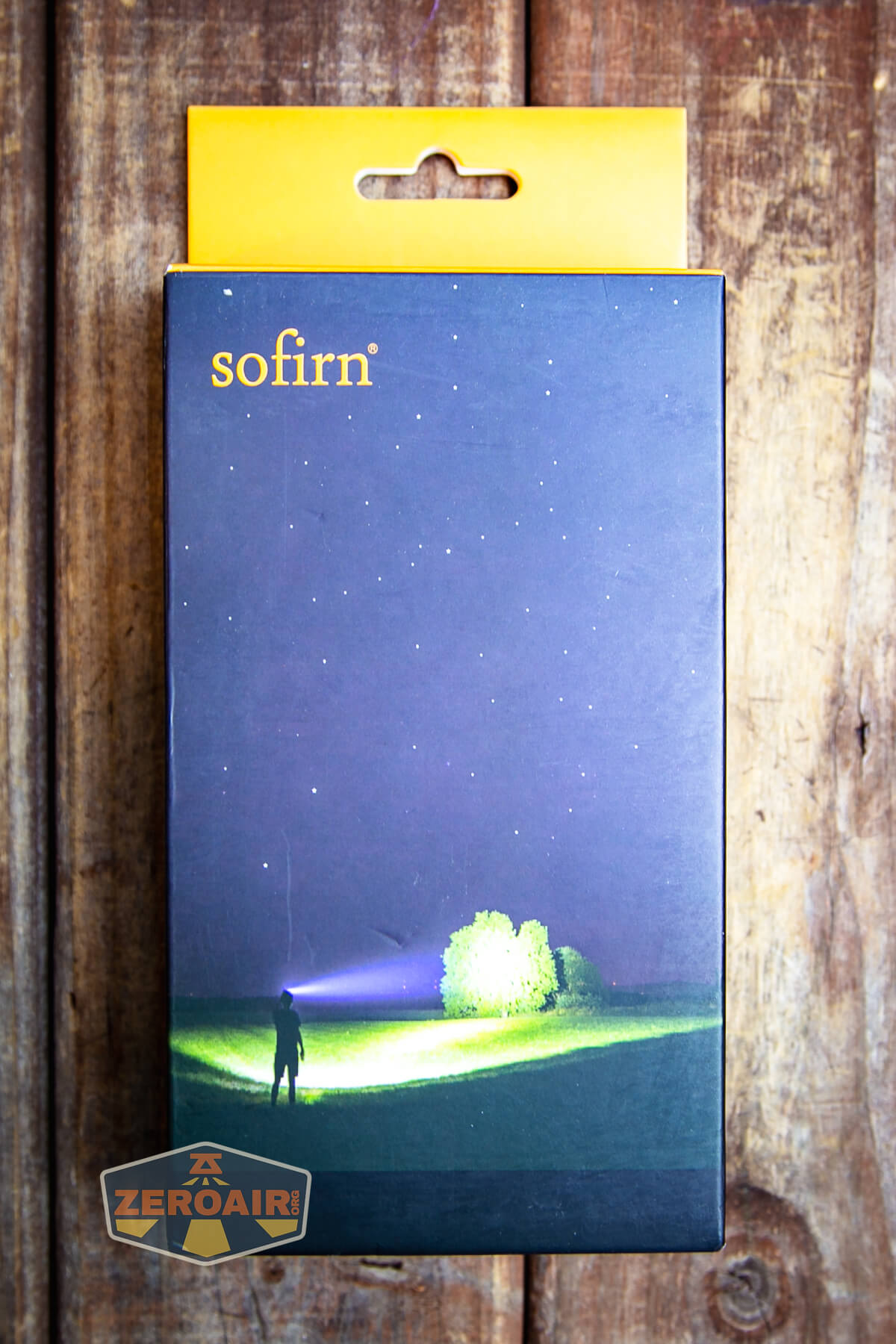

Package and Manual

Sofirn SC18 flashlight manual

Sofirn SC18 flashlight manual

Build Quality and Disassembly

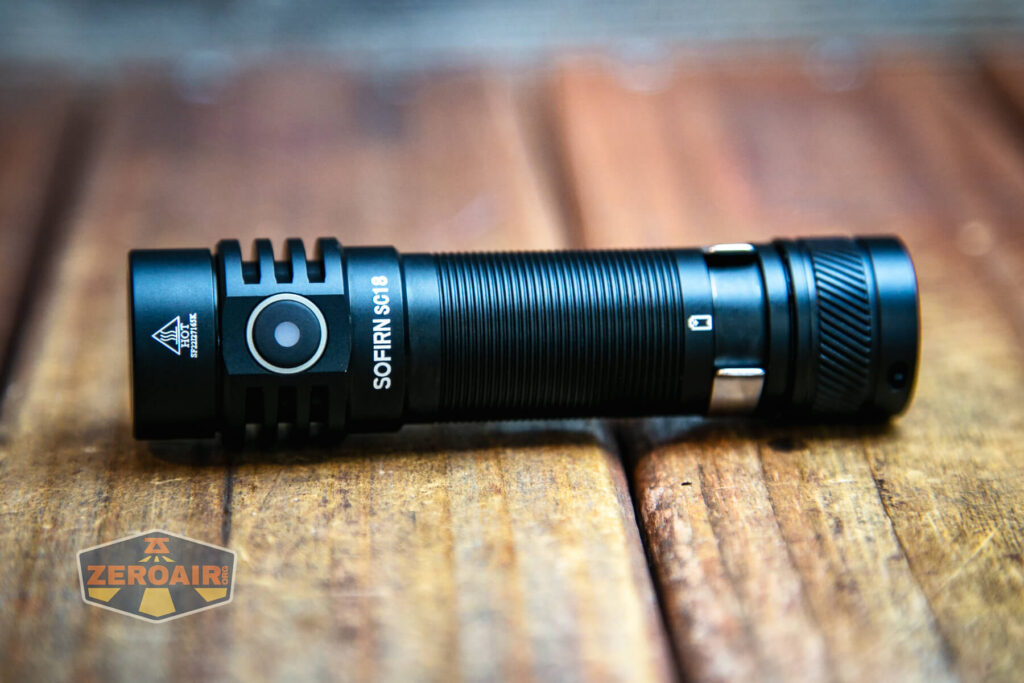

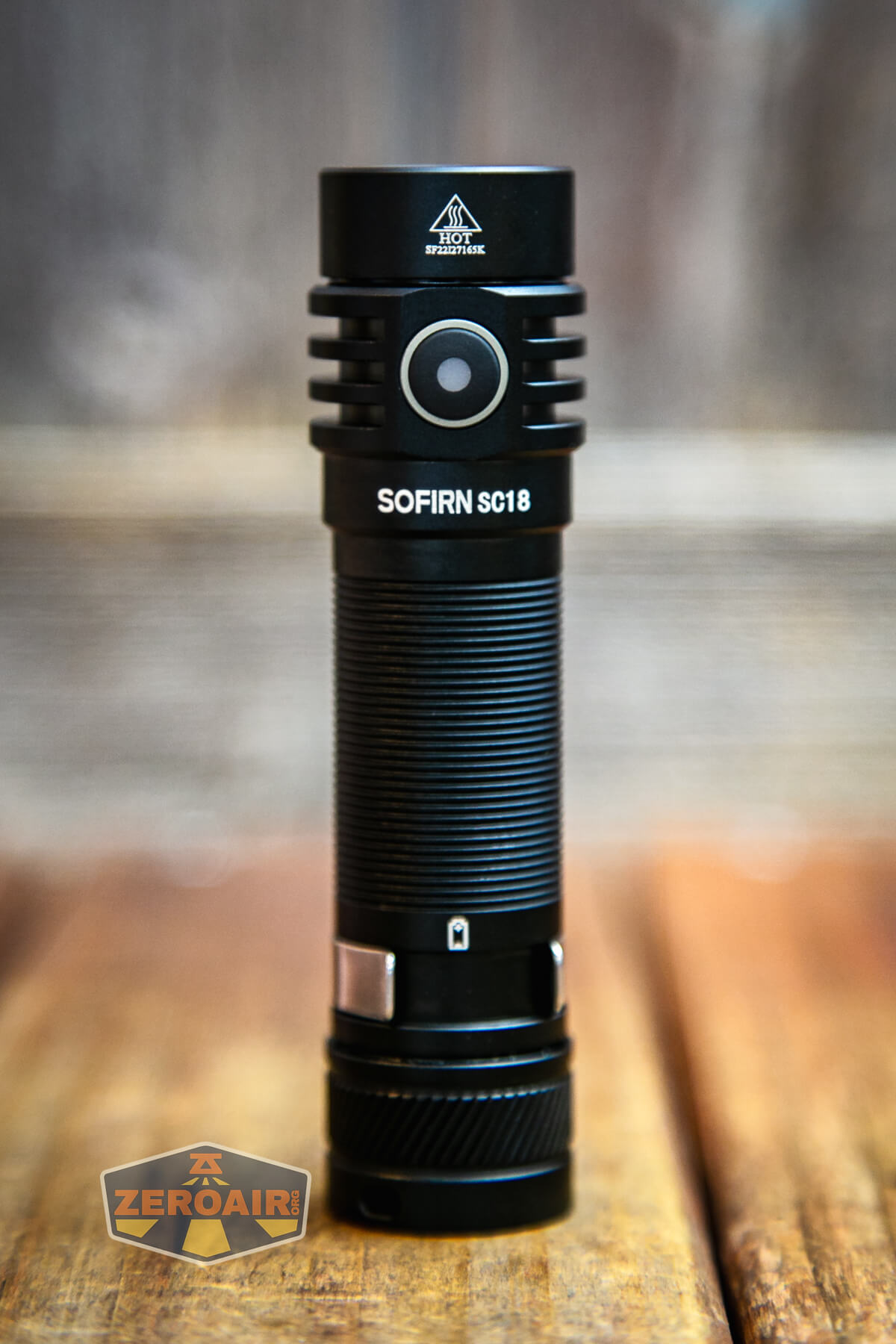

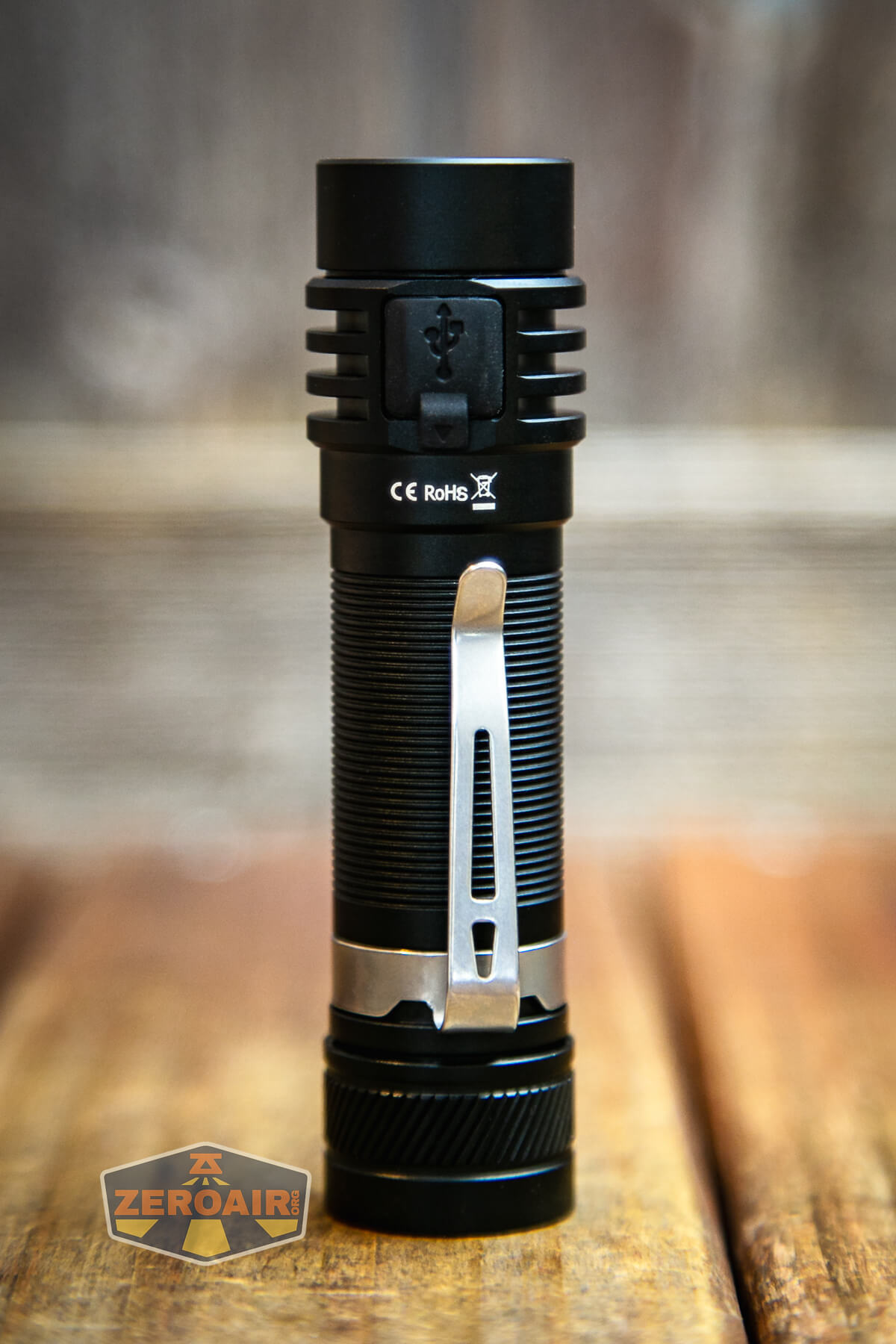

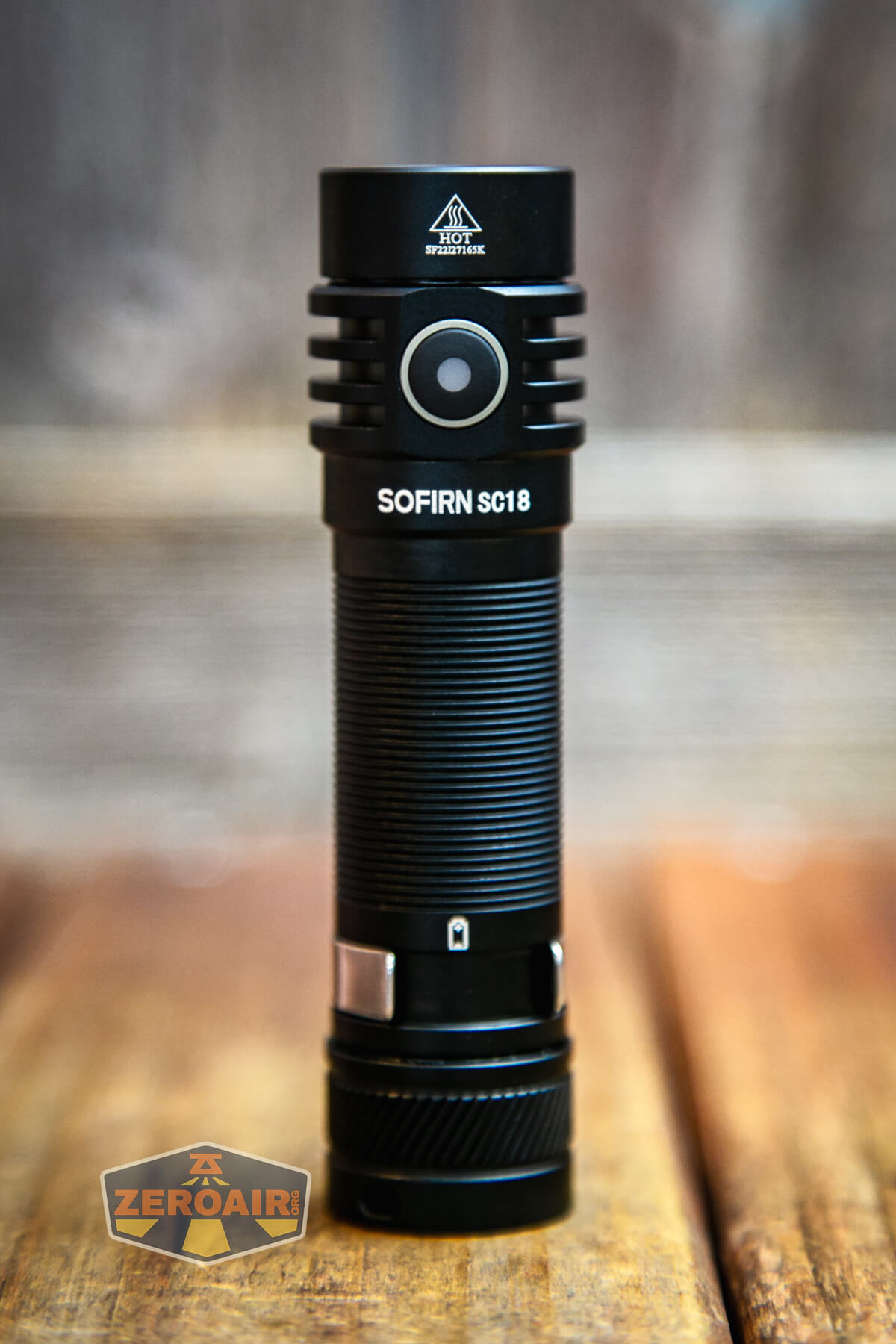

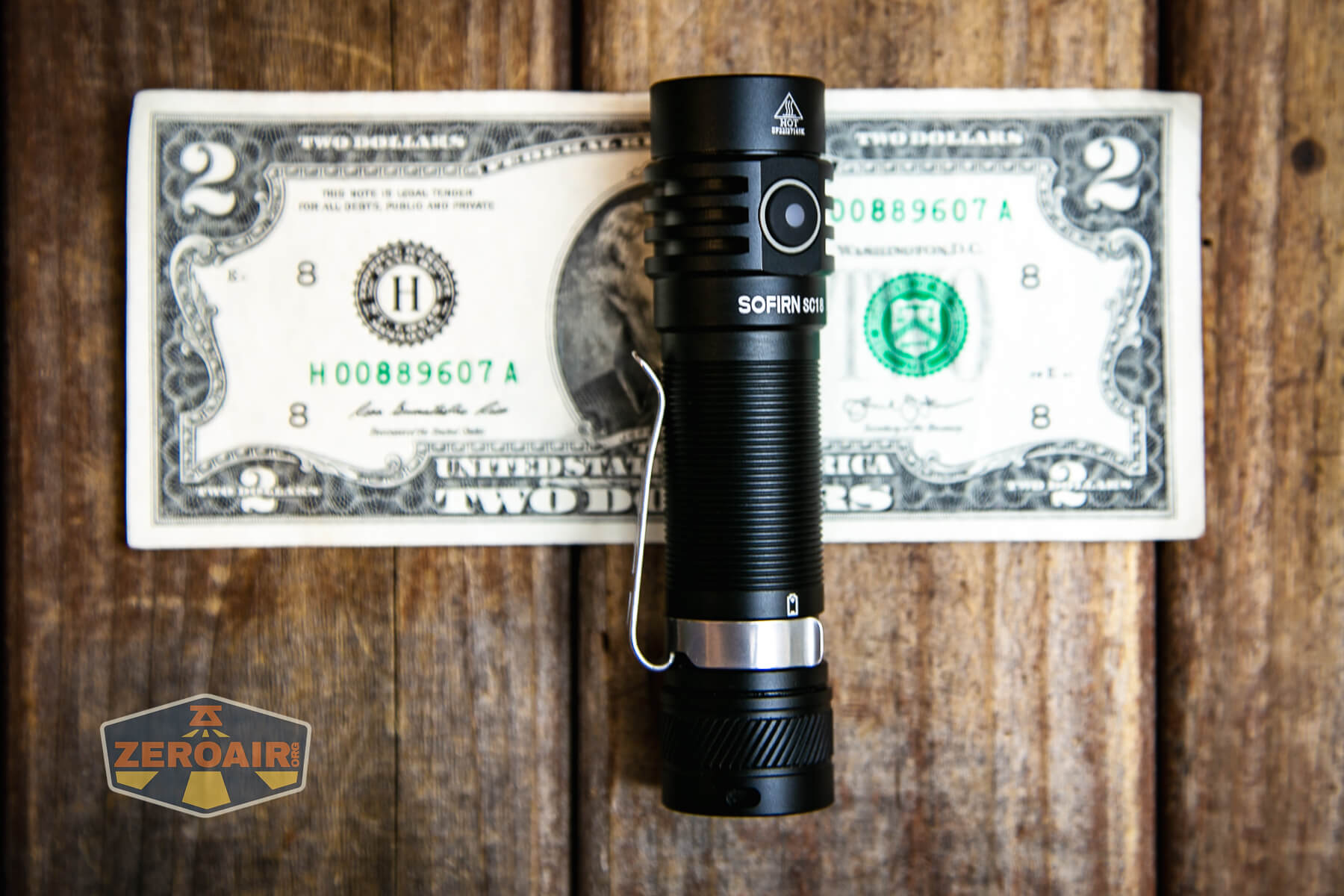

Sofirn SC18 flashlight

The build quality is great! This light punches WAY above $15.

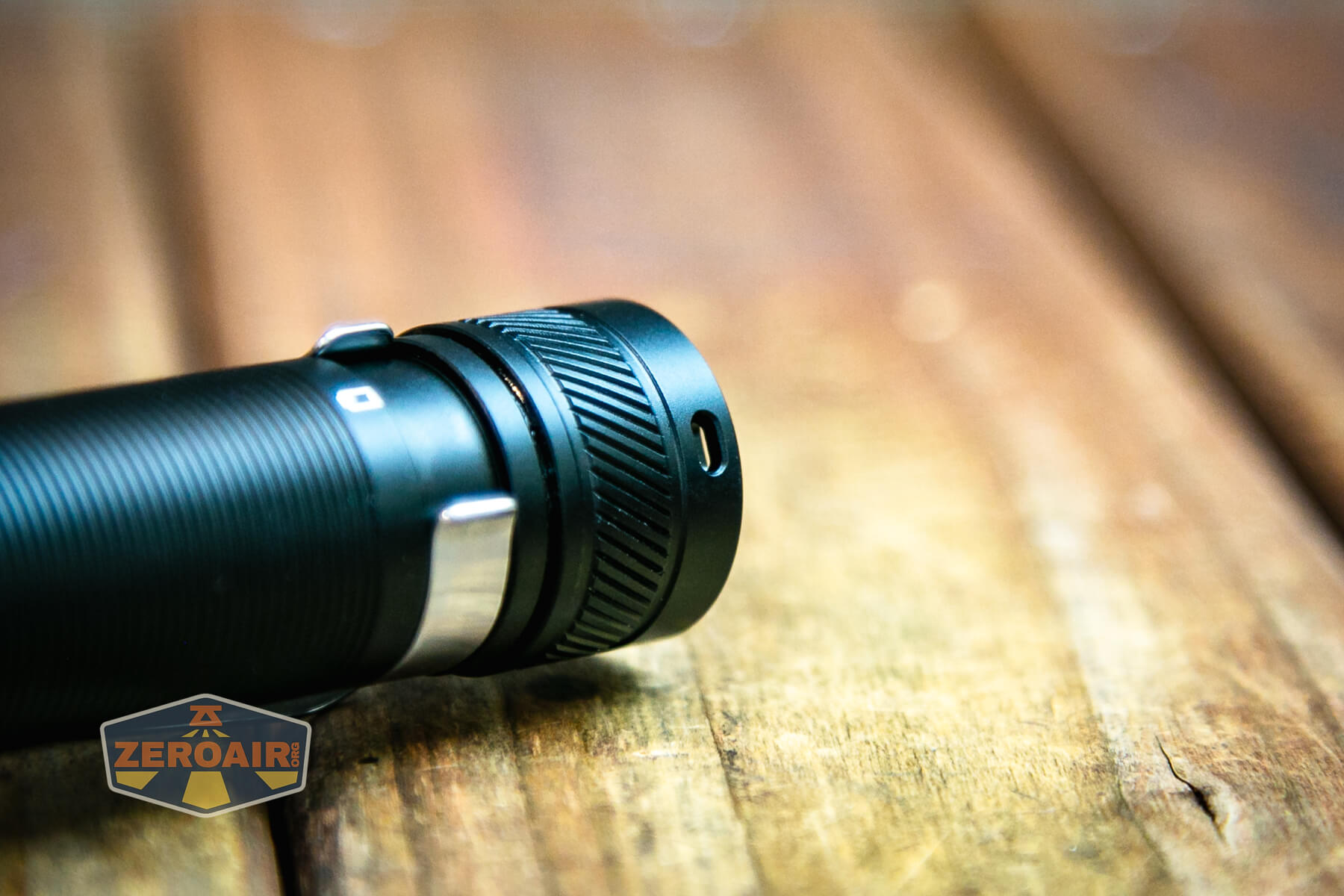

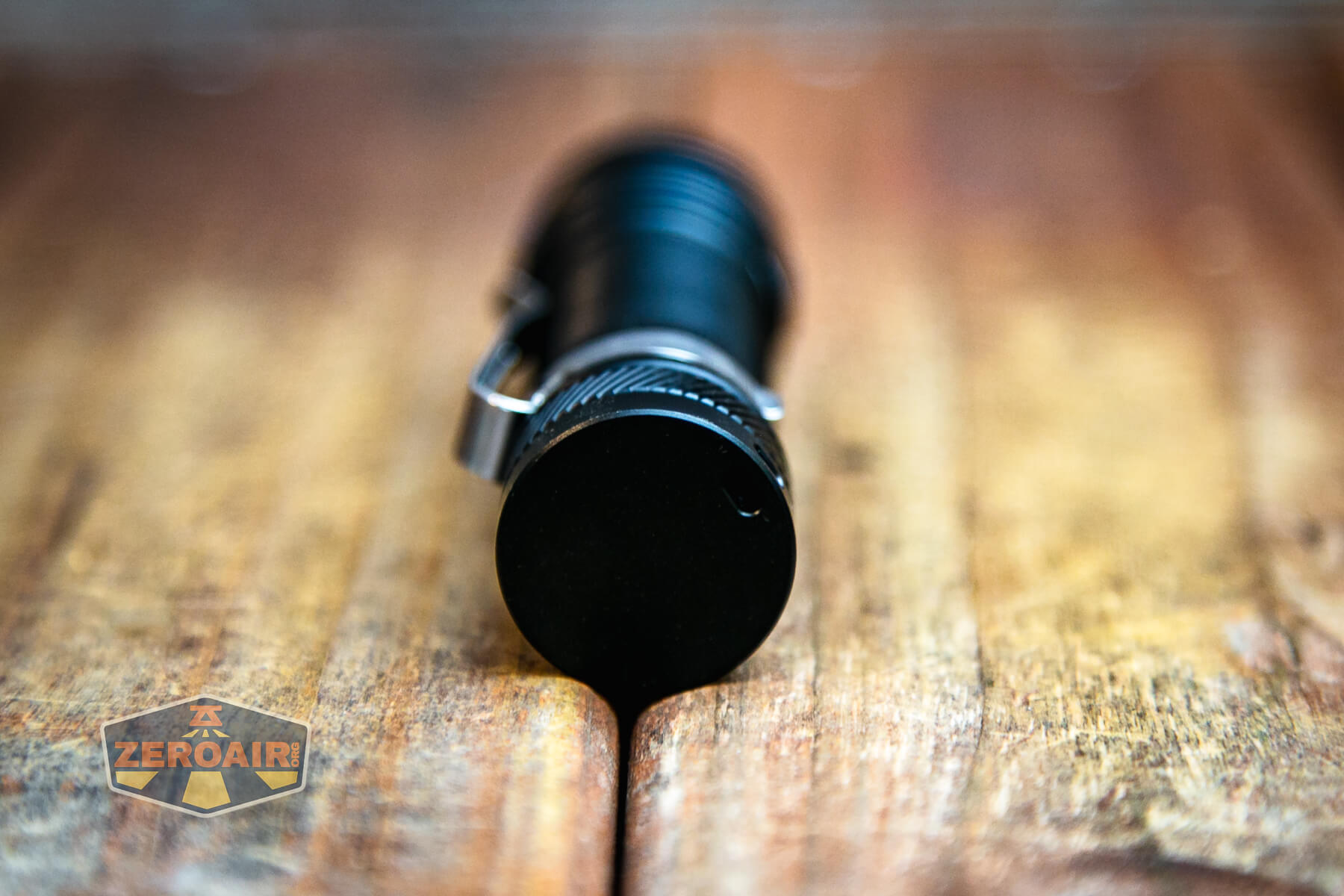

Sofirn SC18 flashlight tailcap

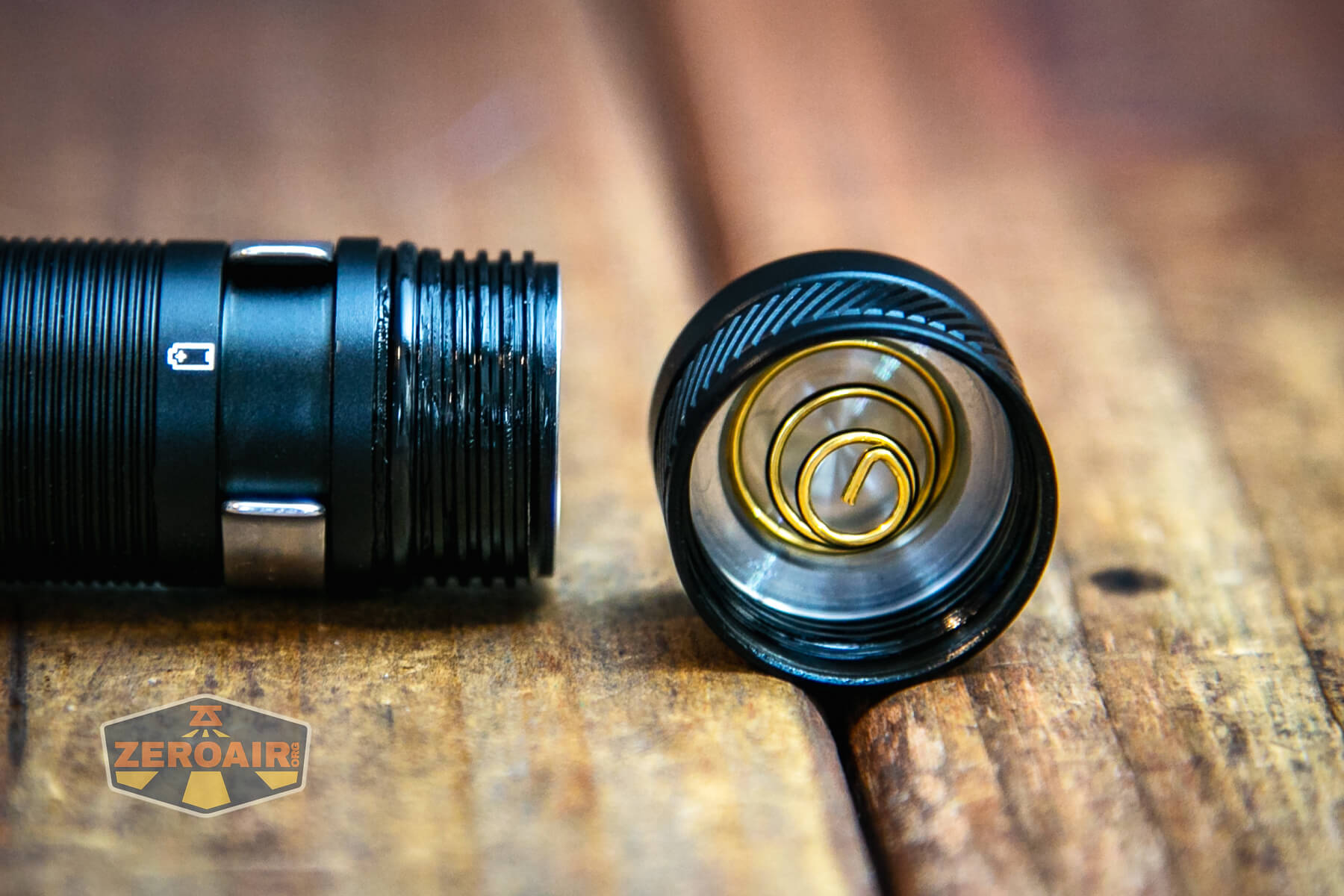

Sofirn SC18 flashlight tailcap off showing threads and springs

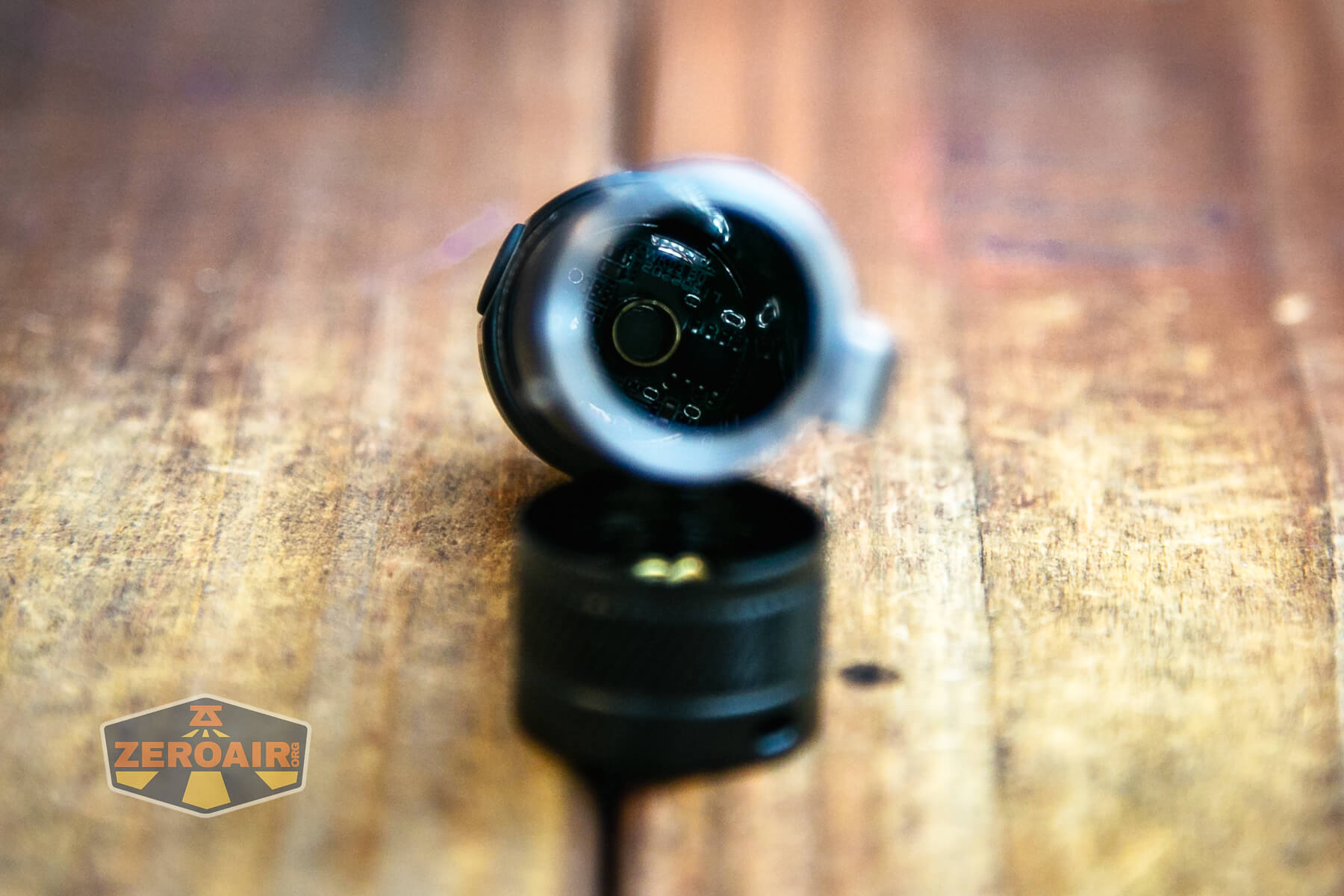

Sofirn SC18 flashlight inside cell tube showing spring

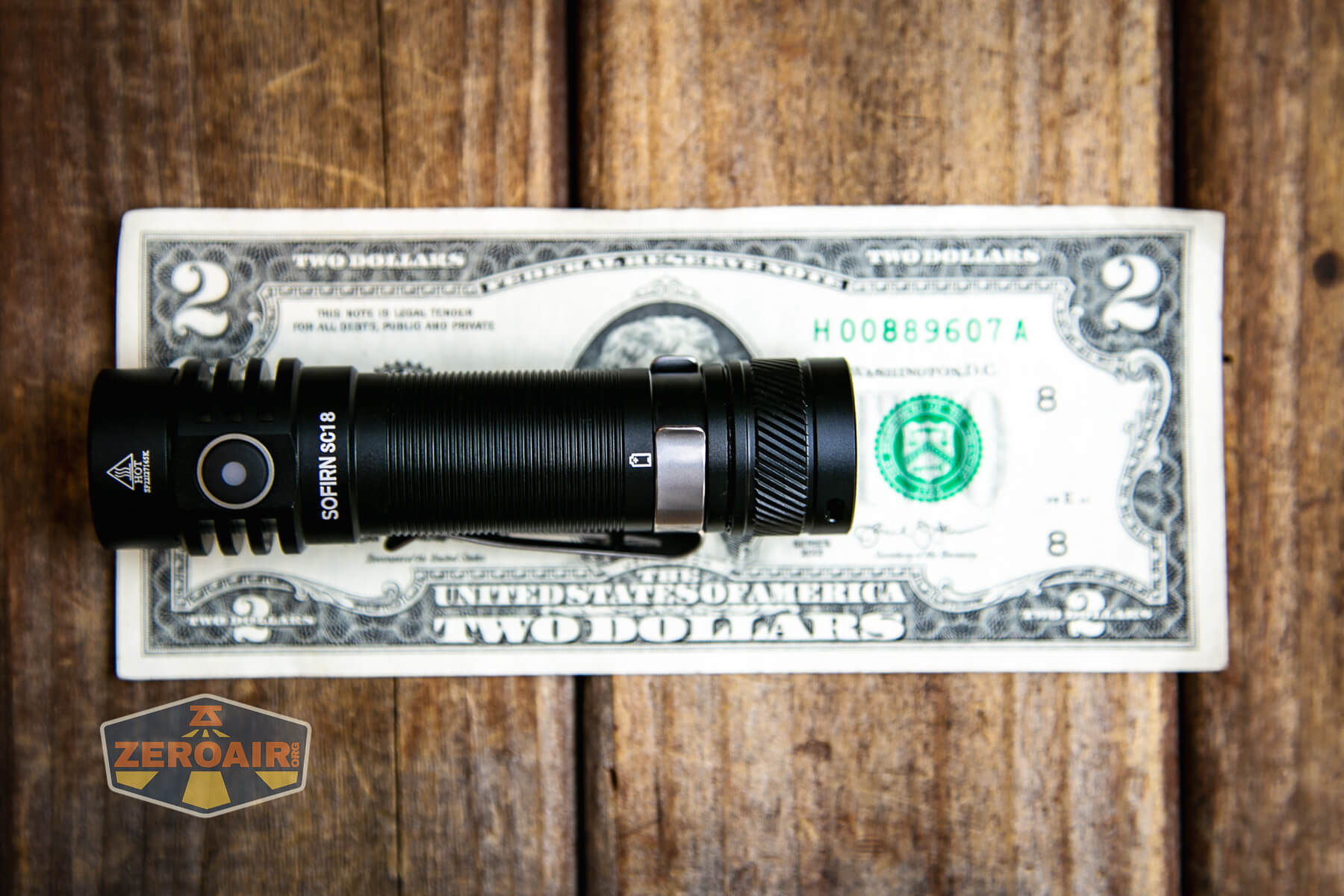

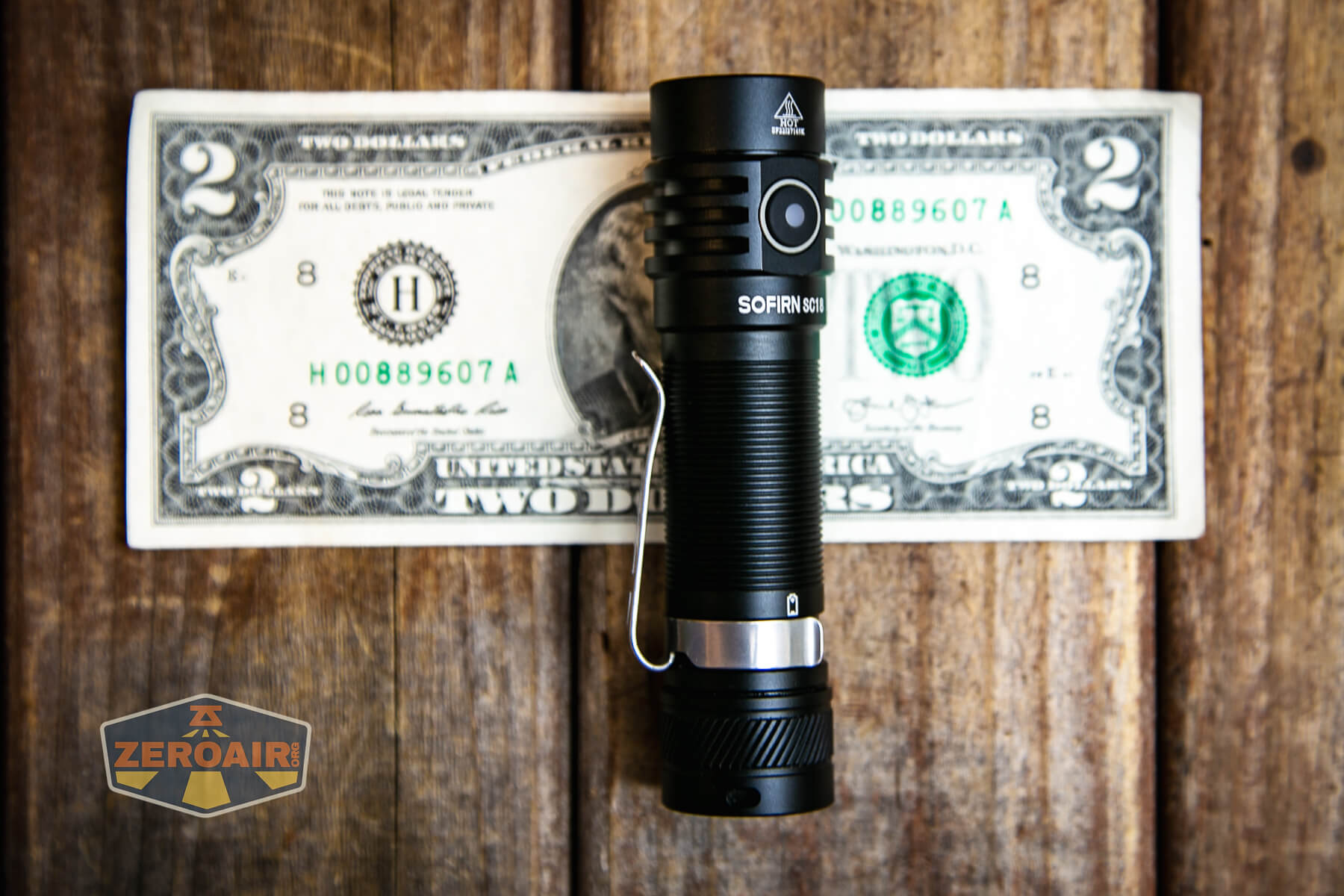

Size and Comps

Dimension: 101.5mm (length) × 24.7mm (head diameter)
Weight: 55g (without battery)

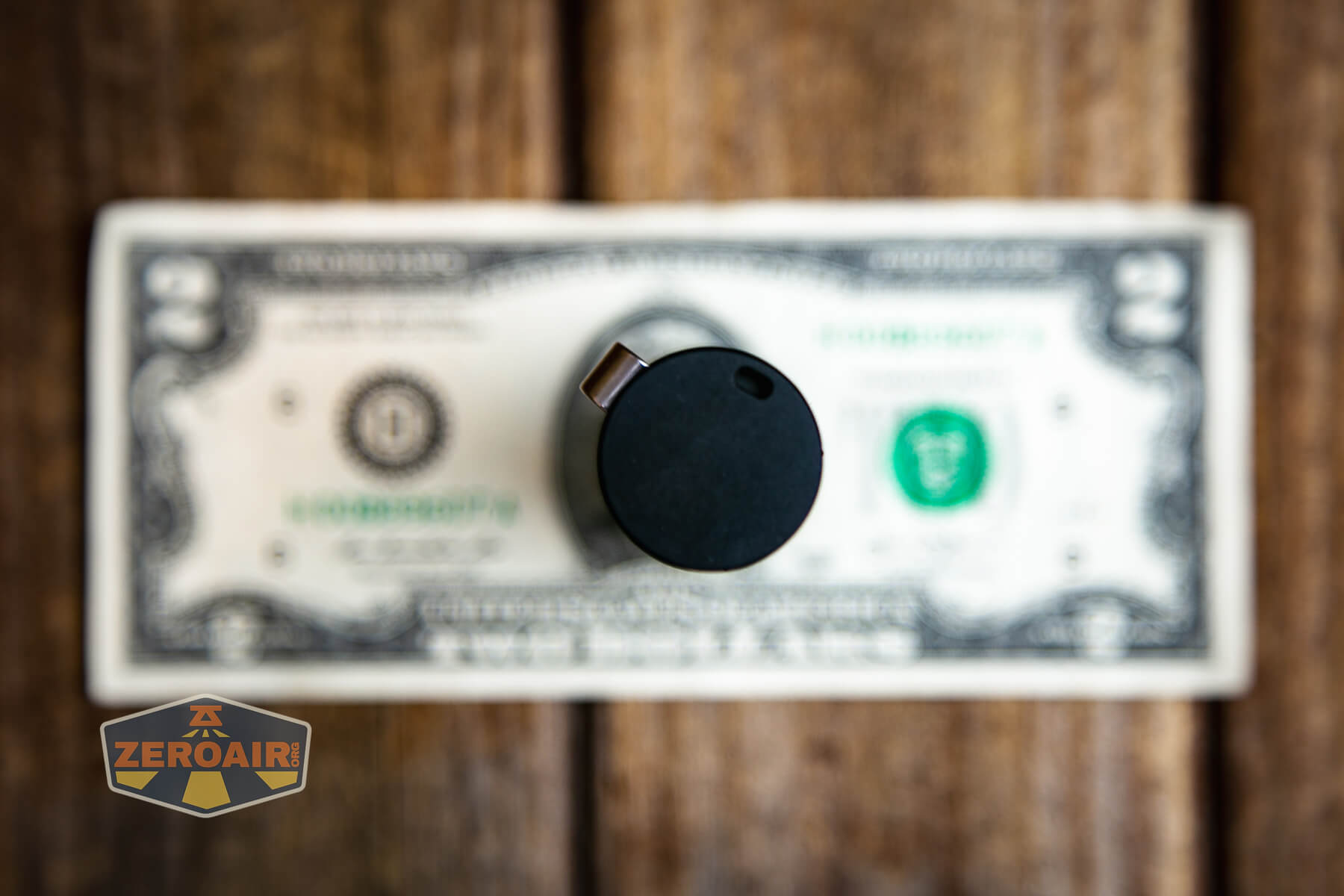

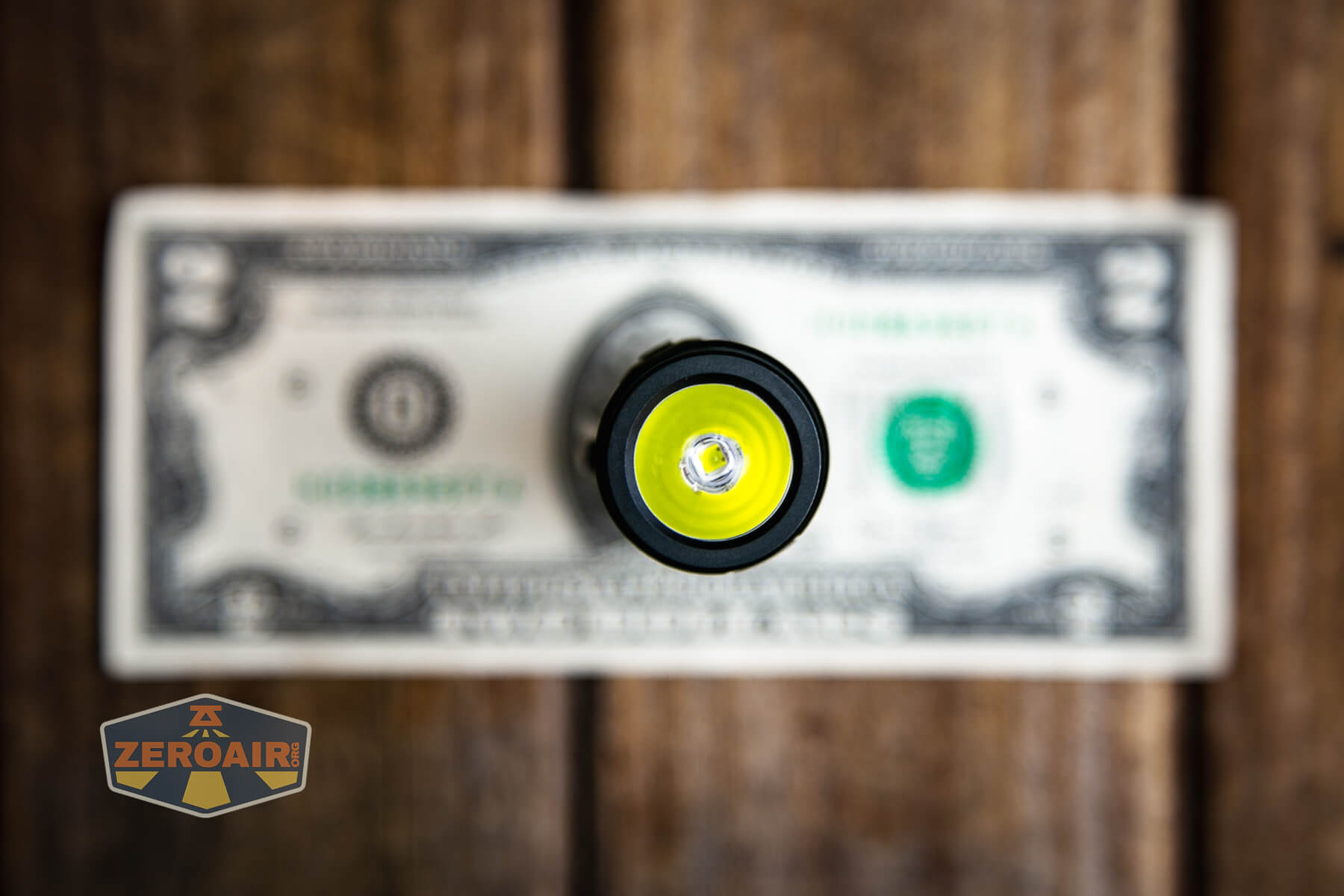

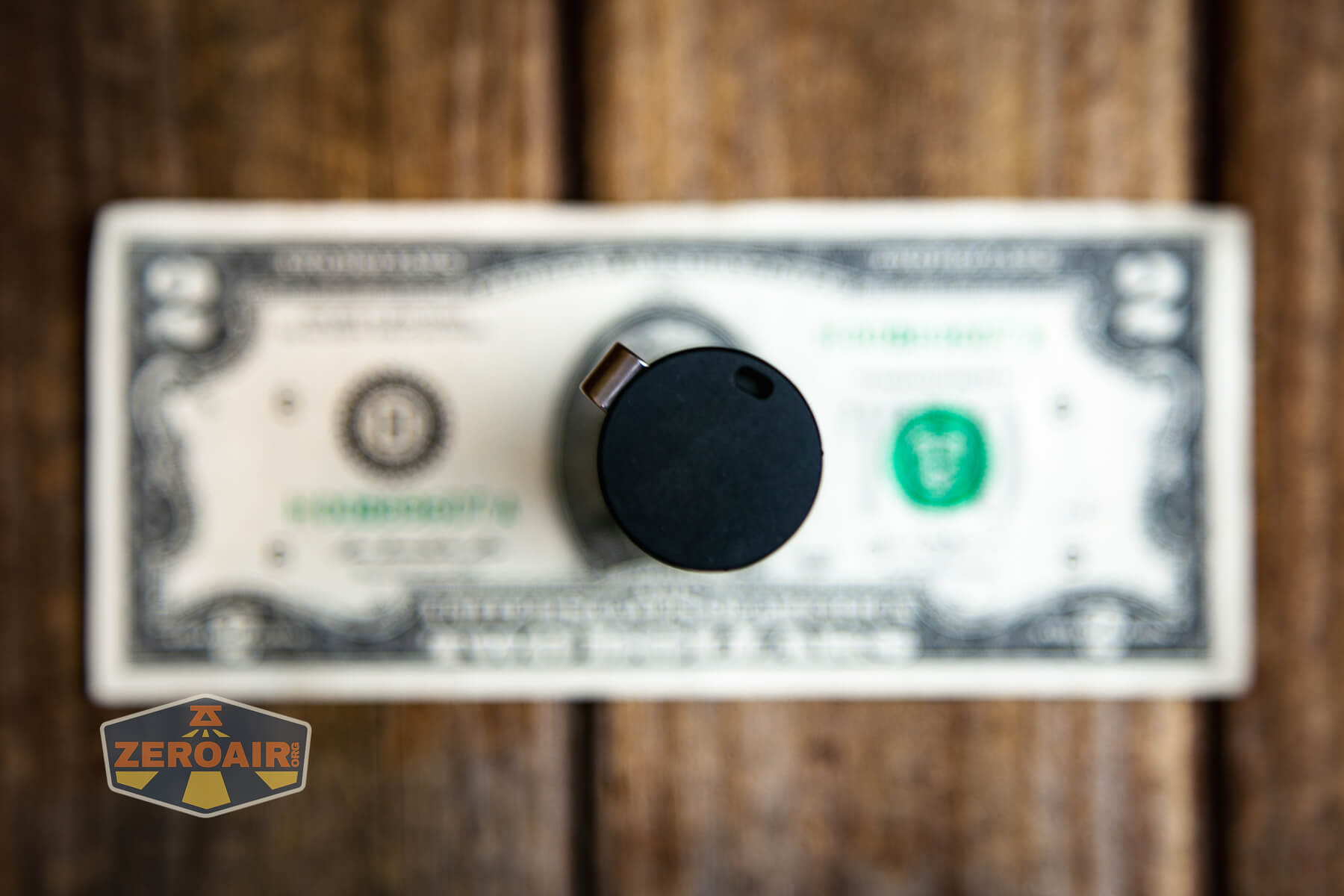

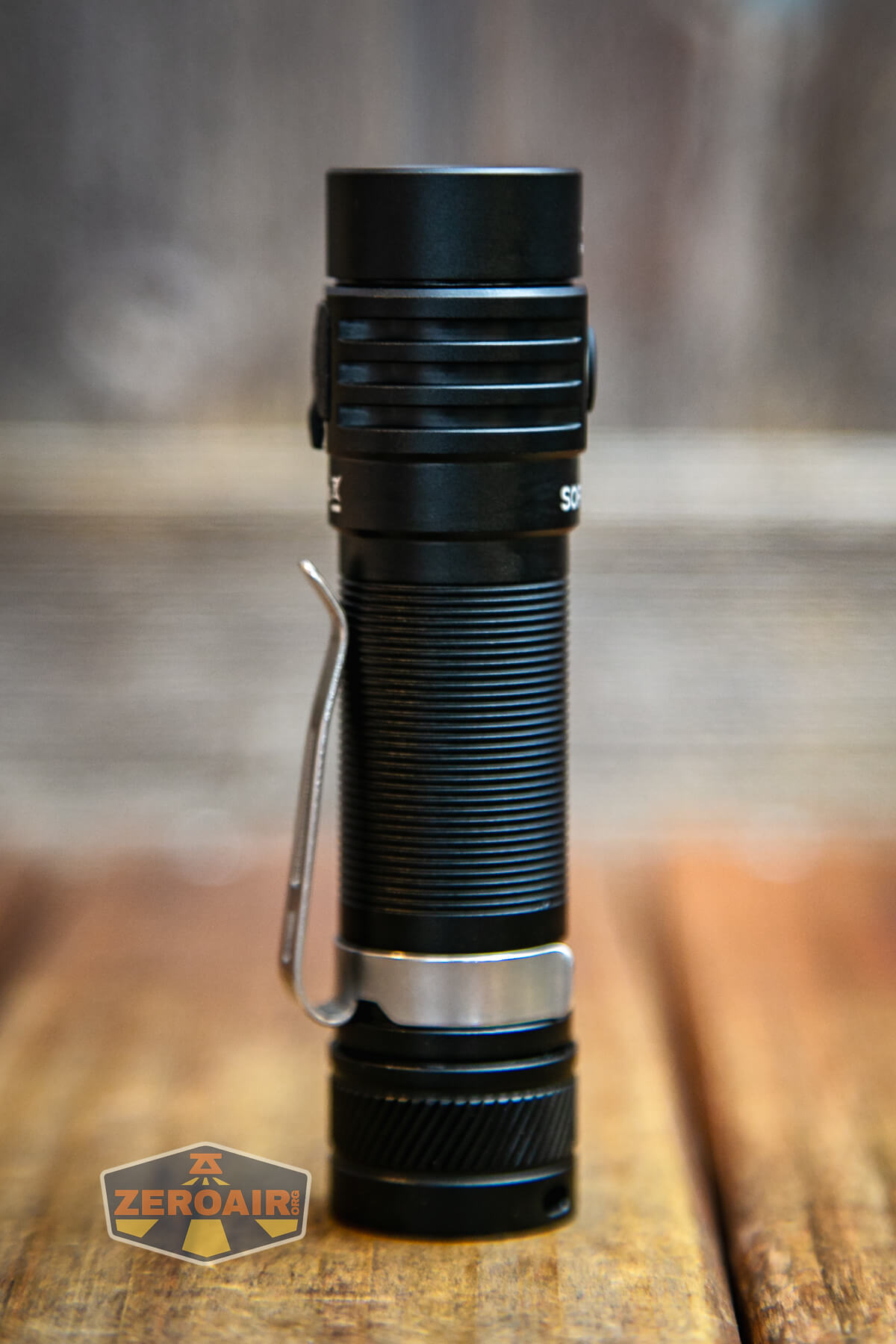

If the flashlight will headstand, I’ll show it here (usually the third photo).  If the flashlight will tailstand, I’ll show that here, too (usually the fourth photo).

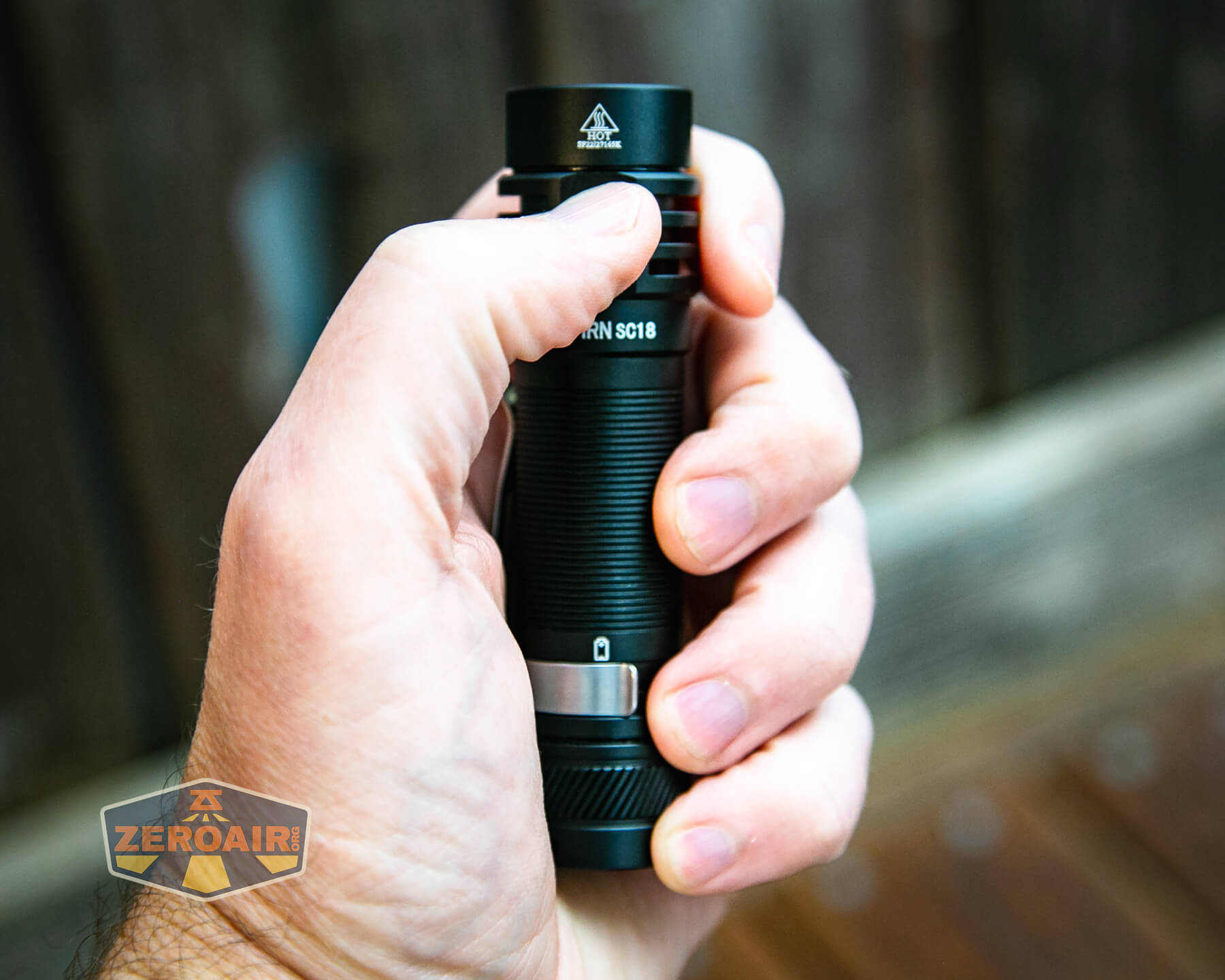

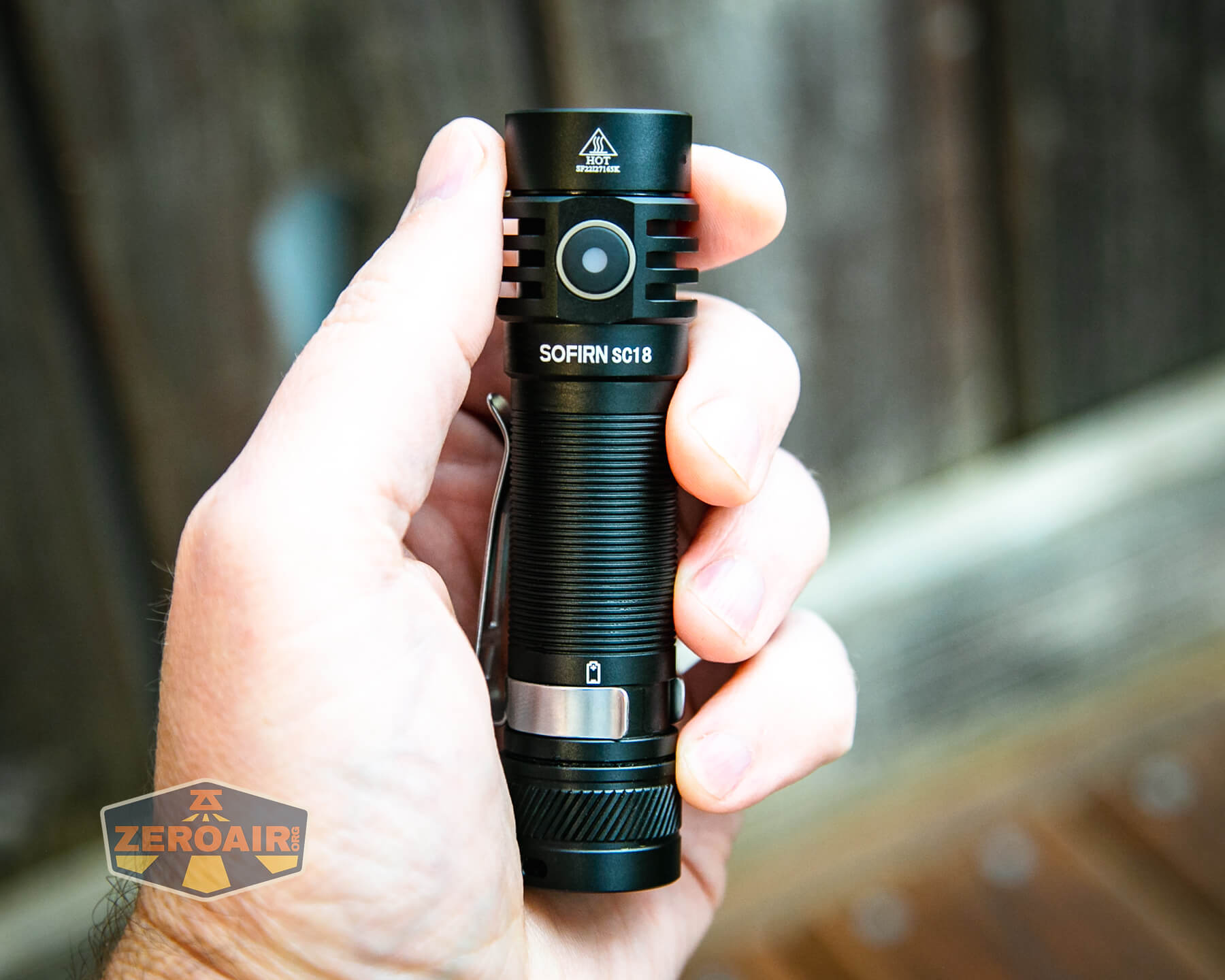

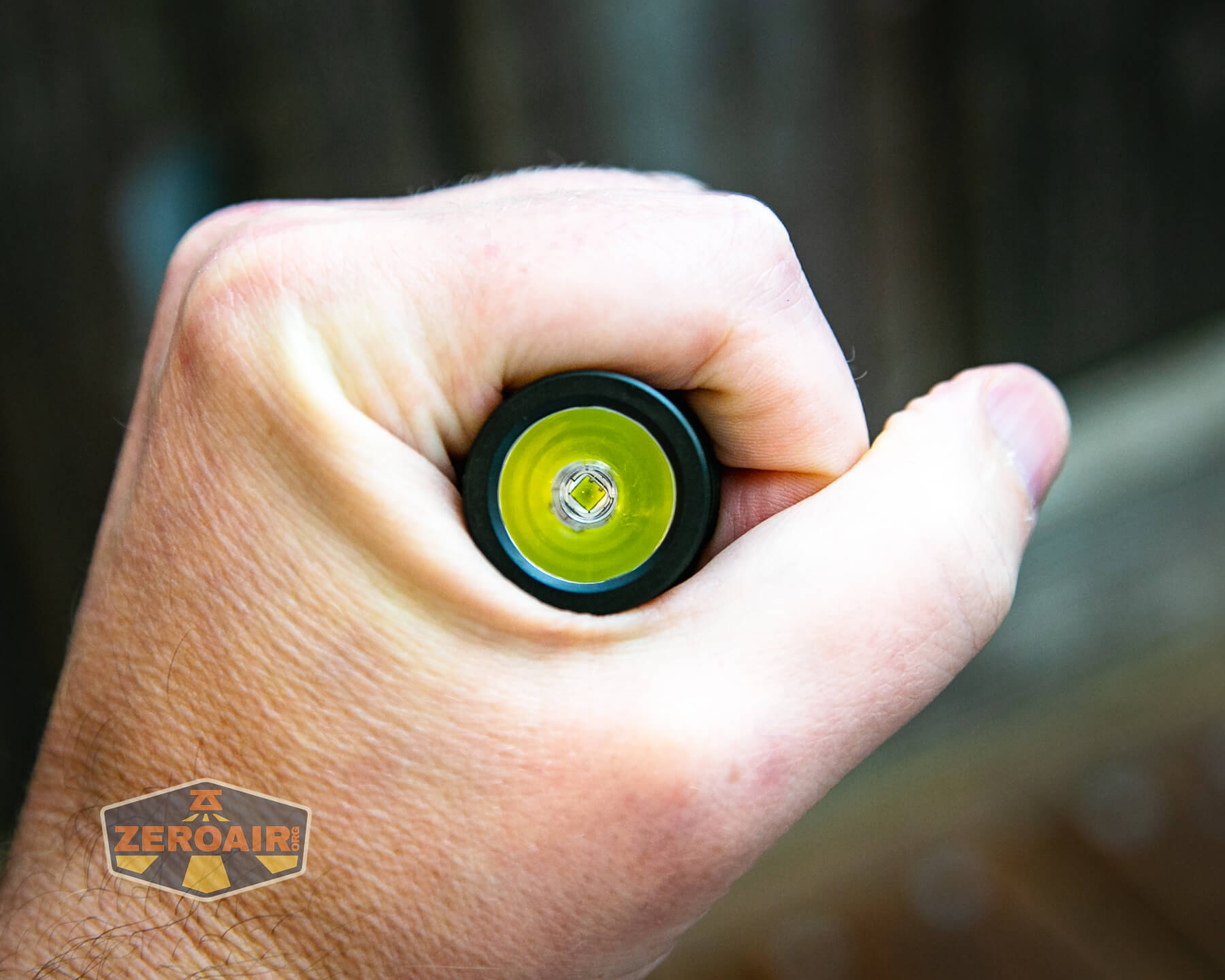

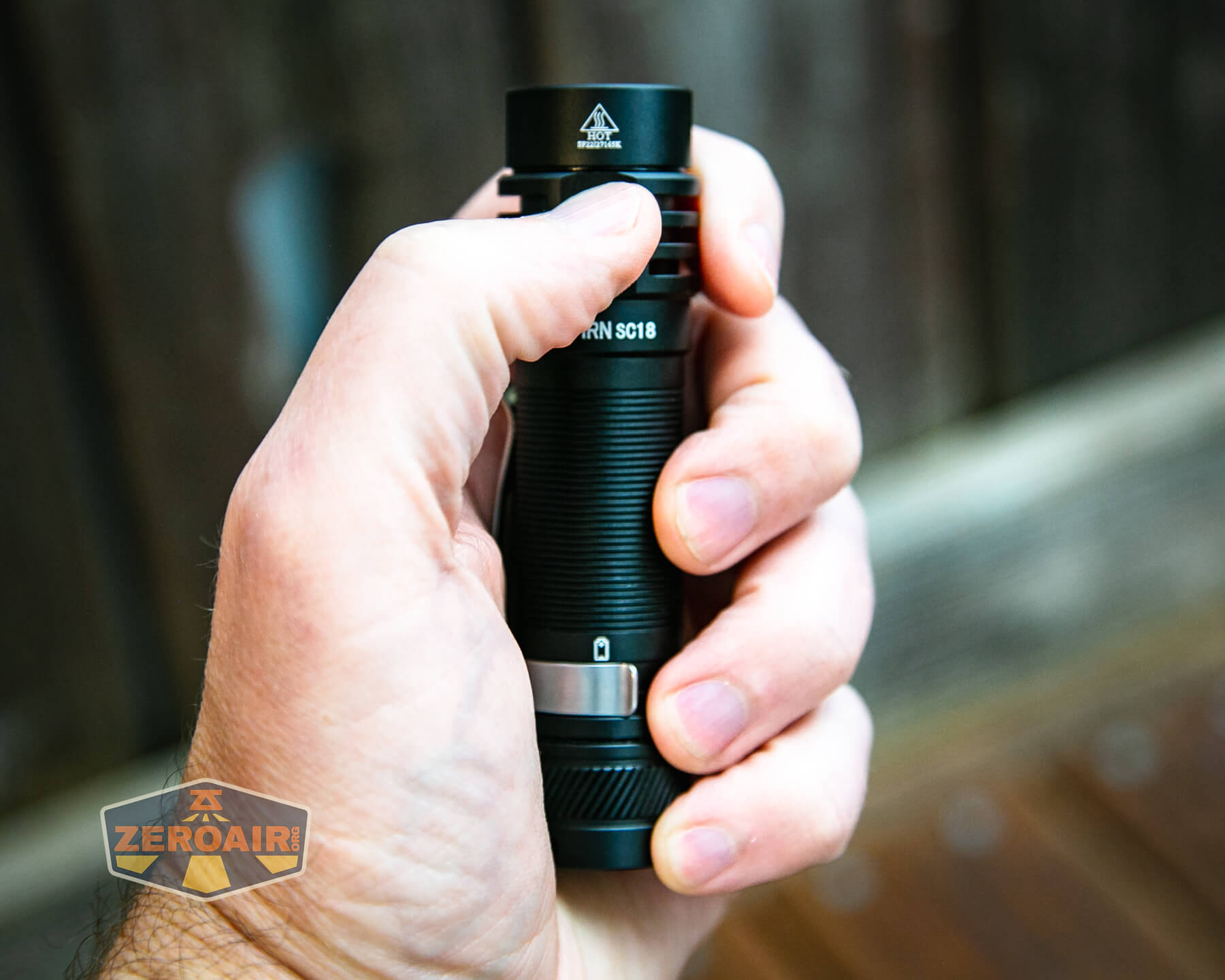

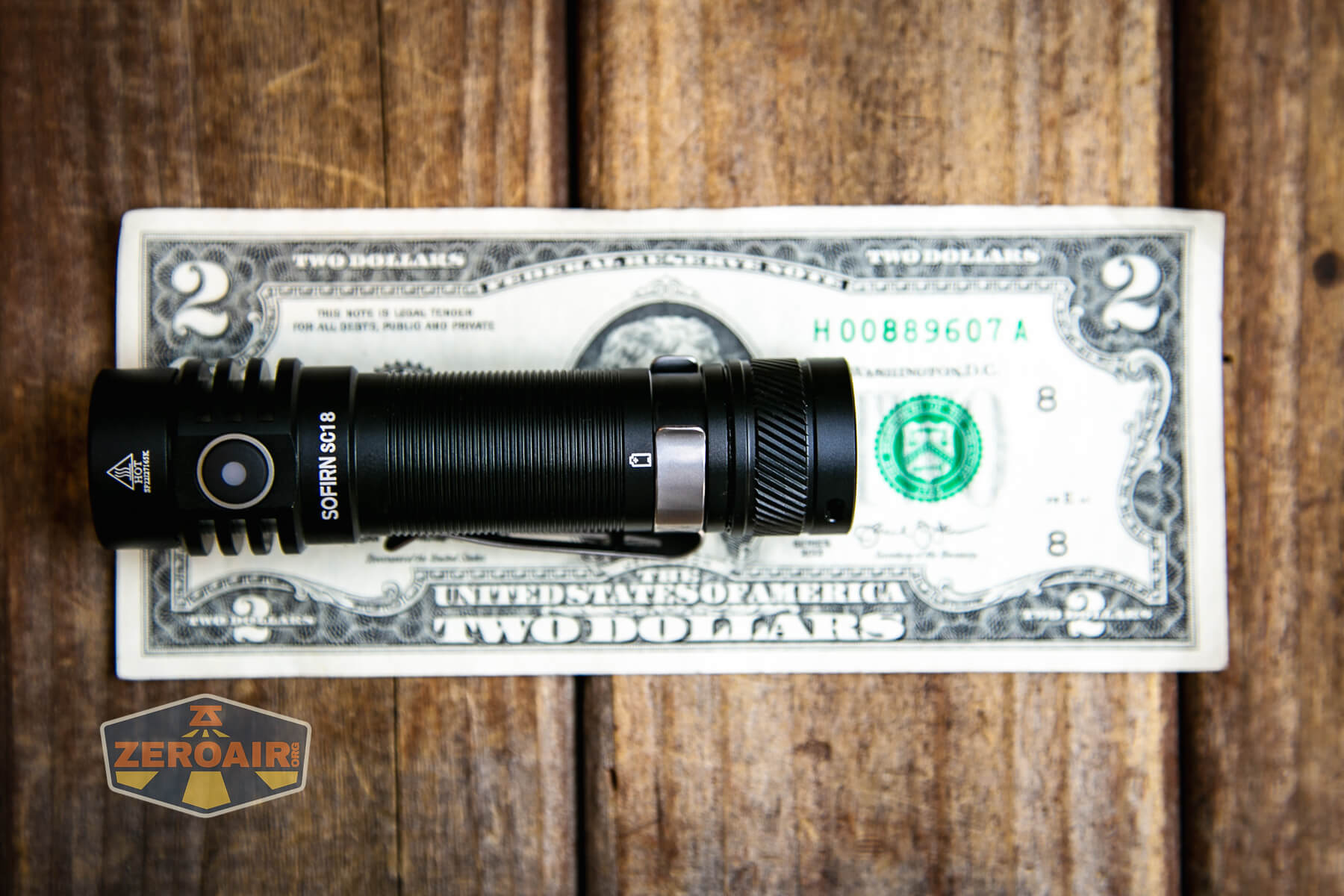

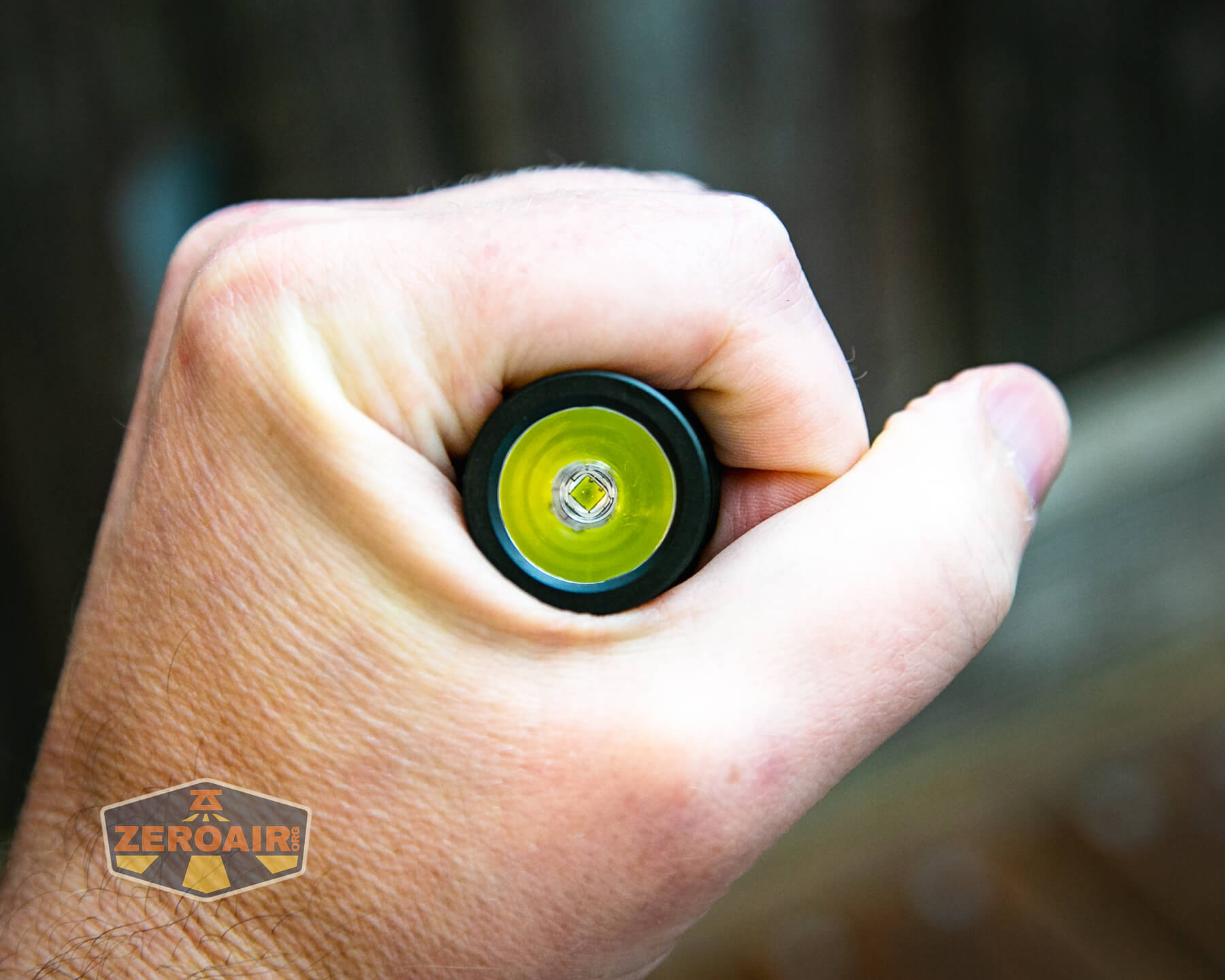

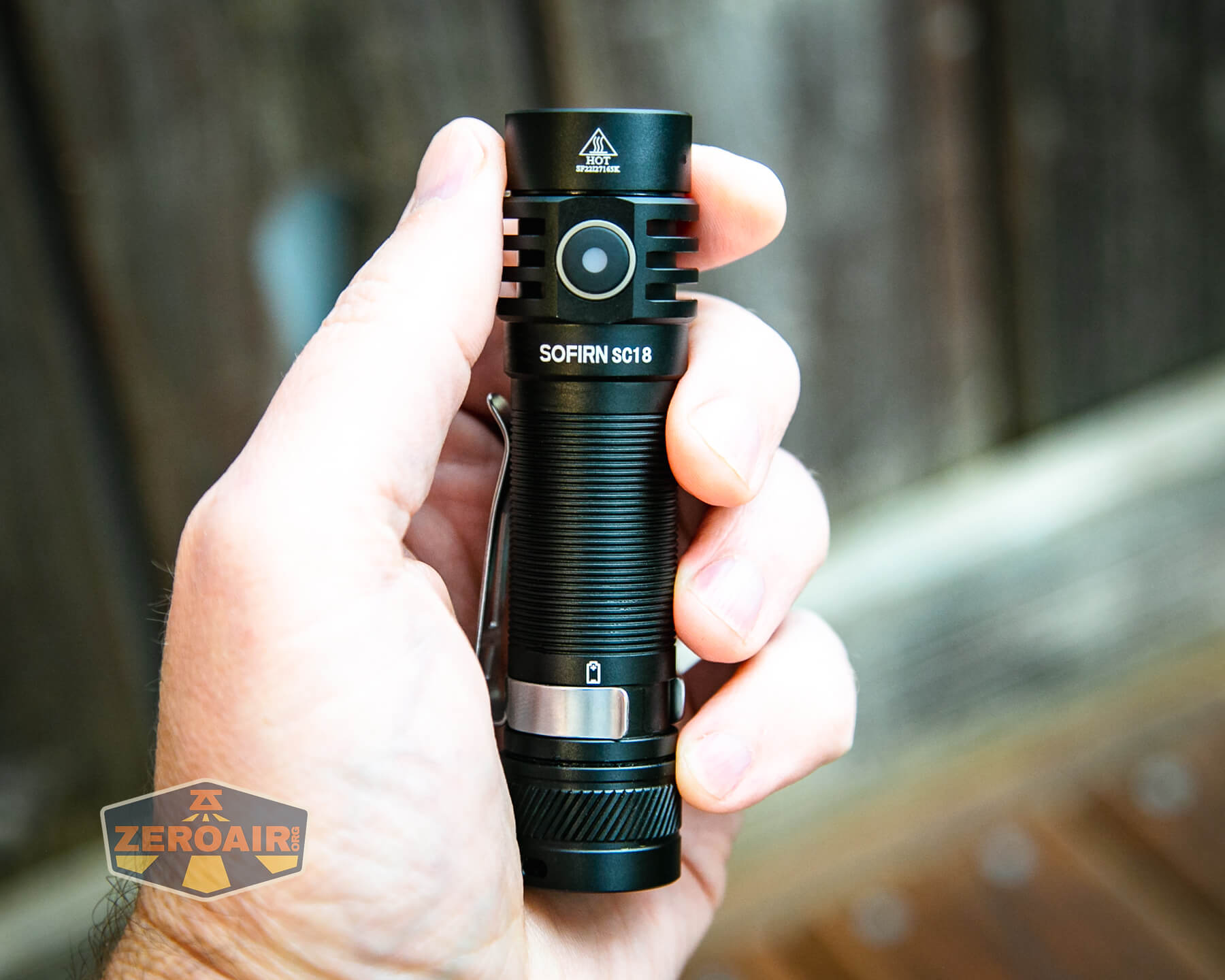

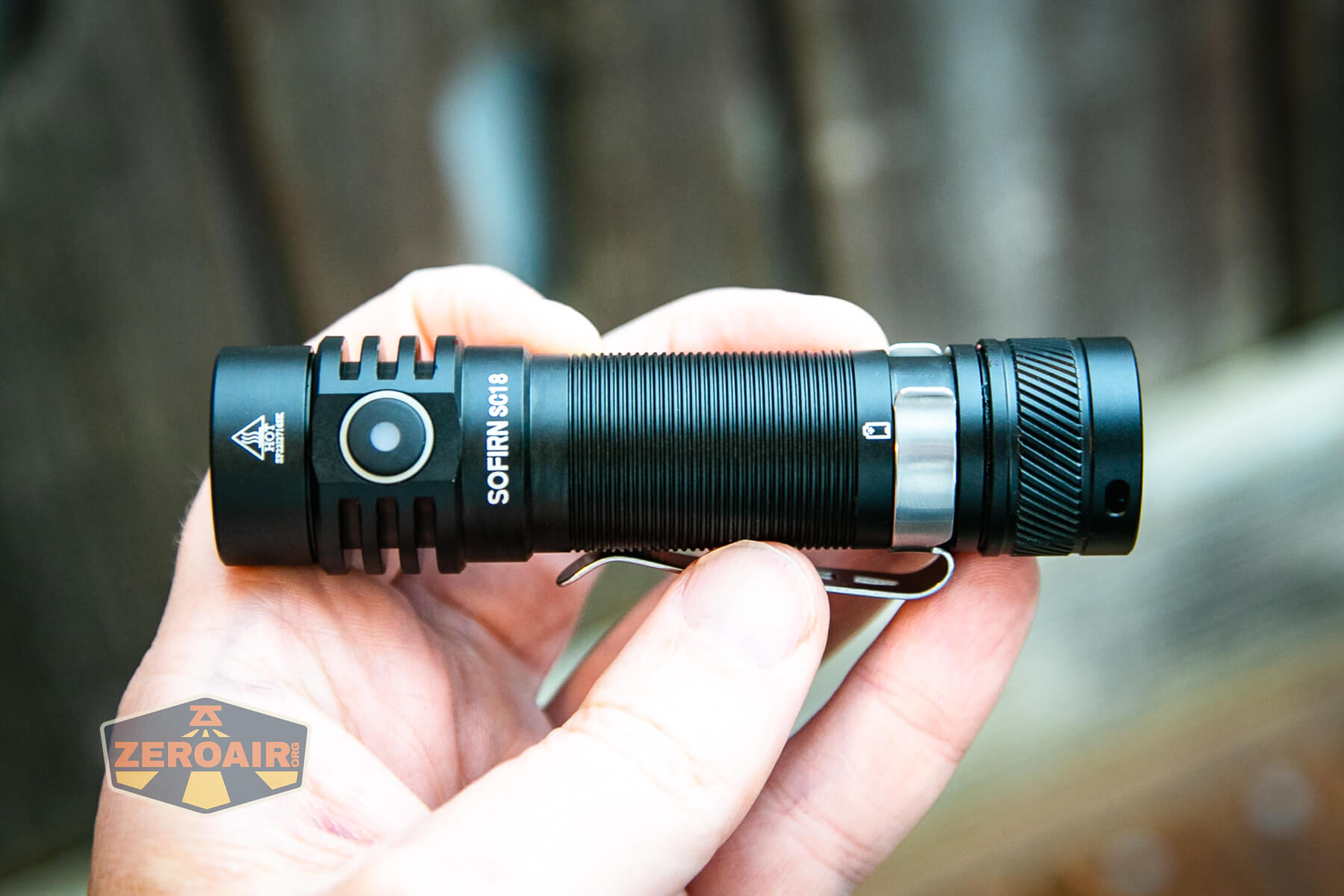

Sofirn SC18 flashlight in hand

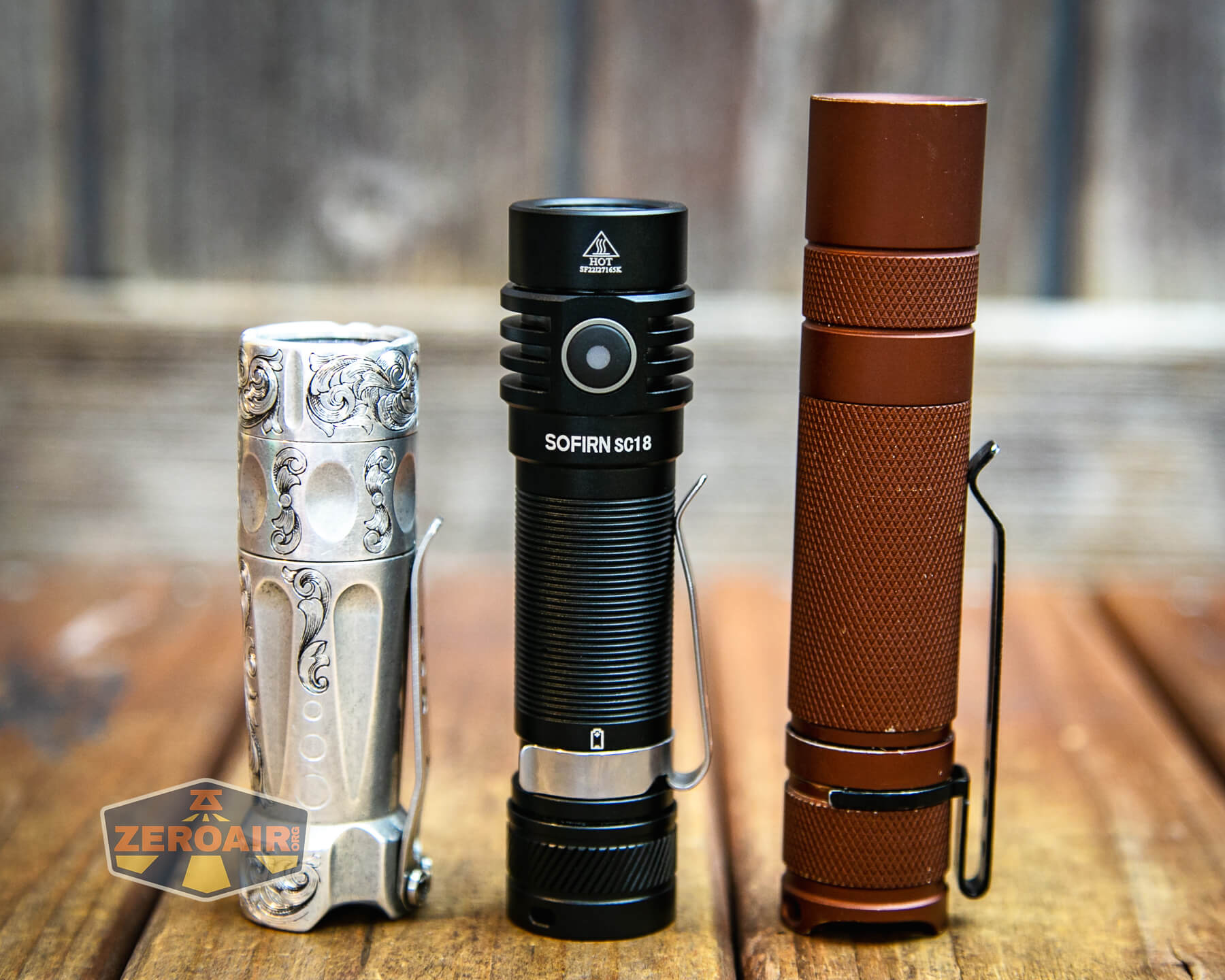

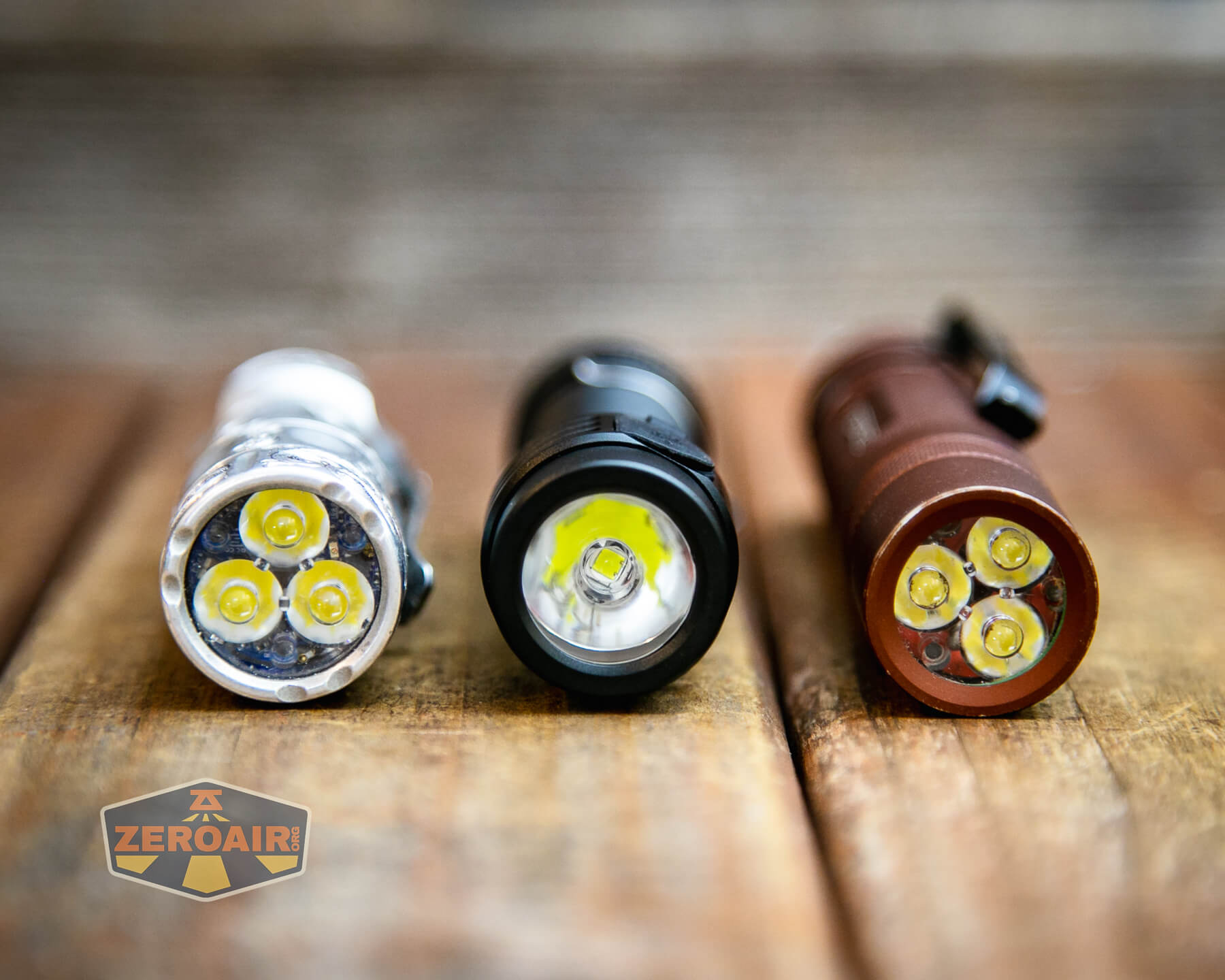

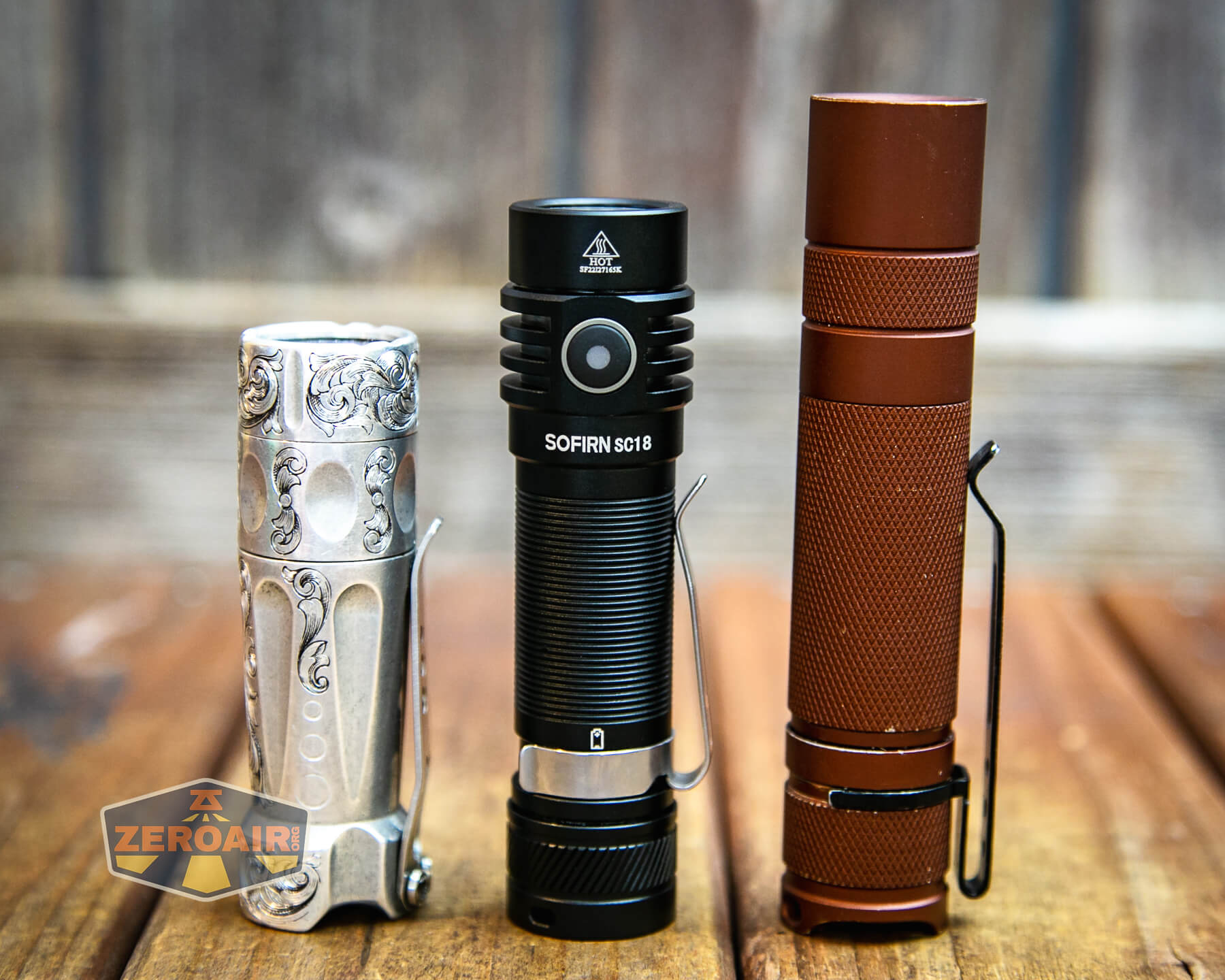

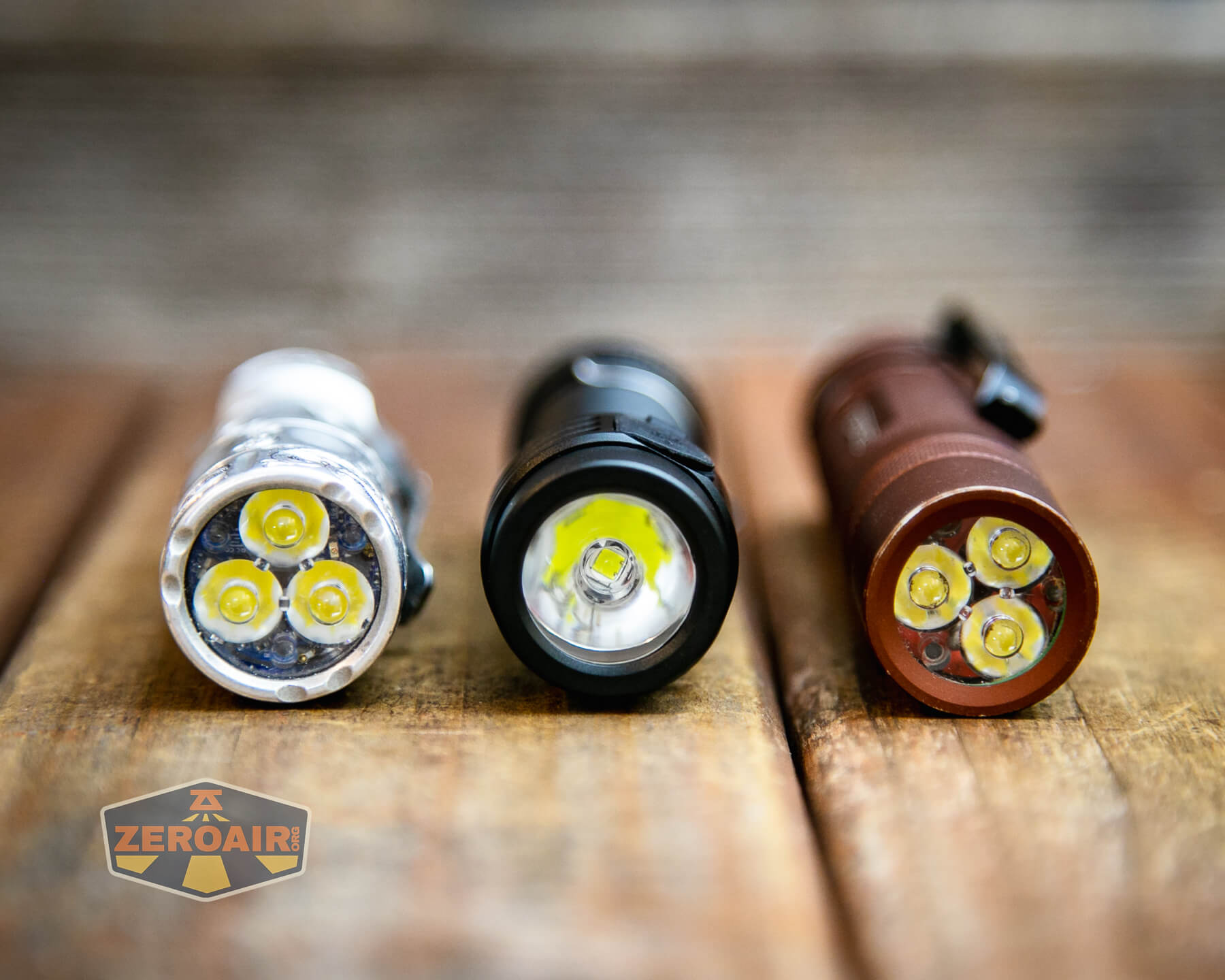

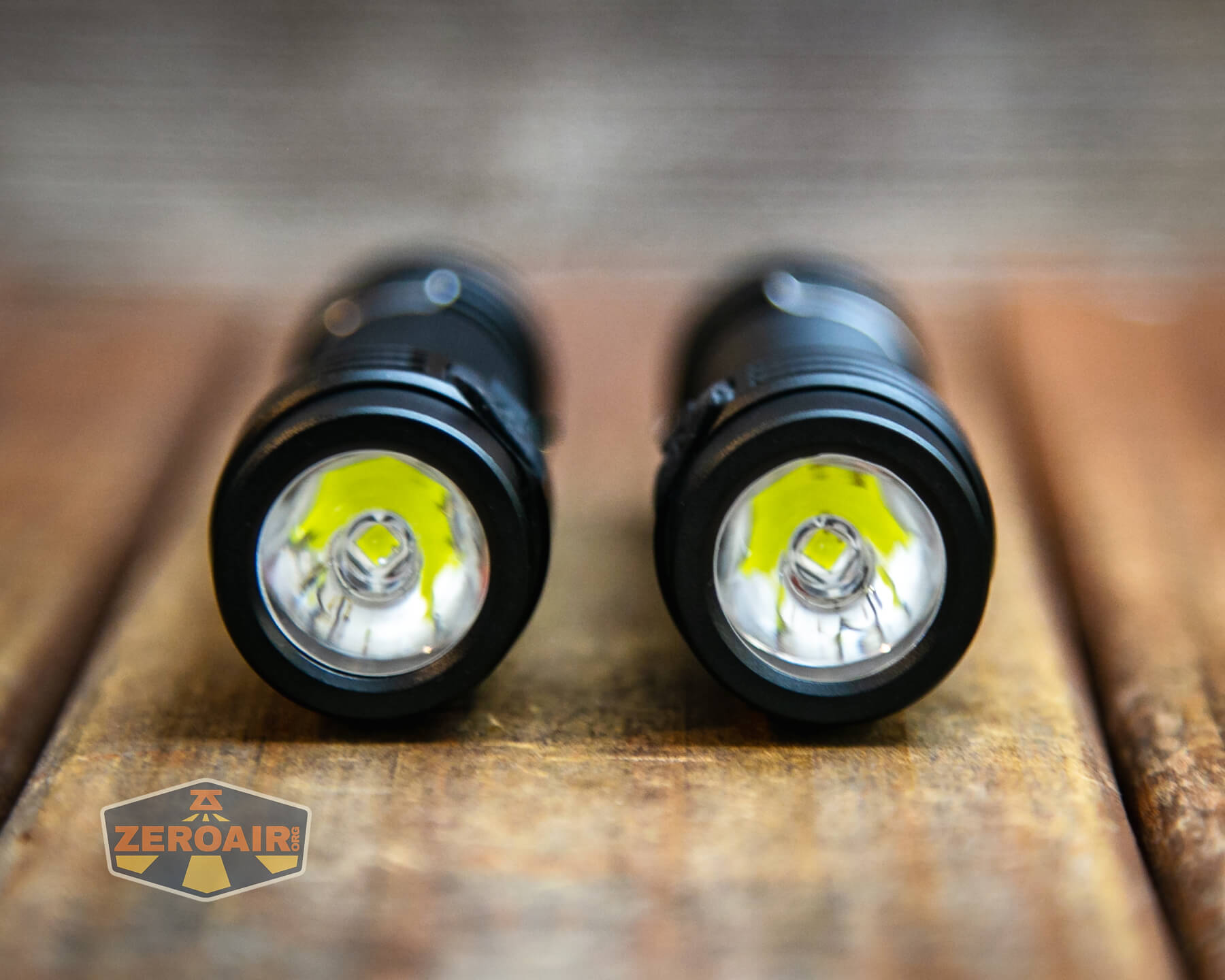

Here’s the test light with the venerable Convoy S2+.  Mine’s a custom “baked” edition Nichia 219b triple.  A very nice 18650 light.

Also above is the light beside my custom engraved TorchLAB BOSS 35, an 18350 light.  I reviewed the aluminum version of that light in both 35 and 70 formats.

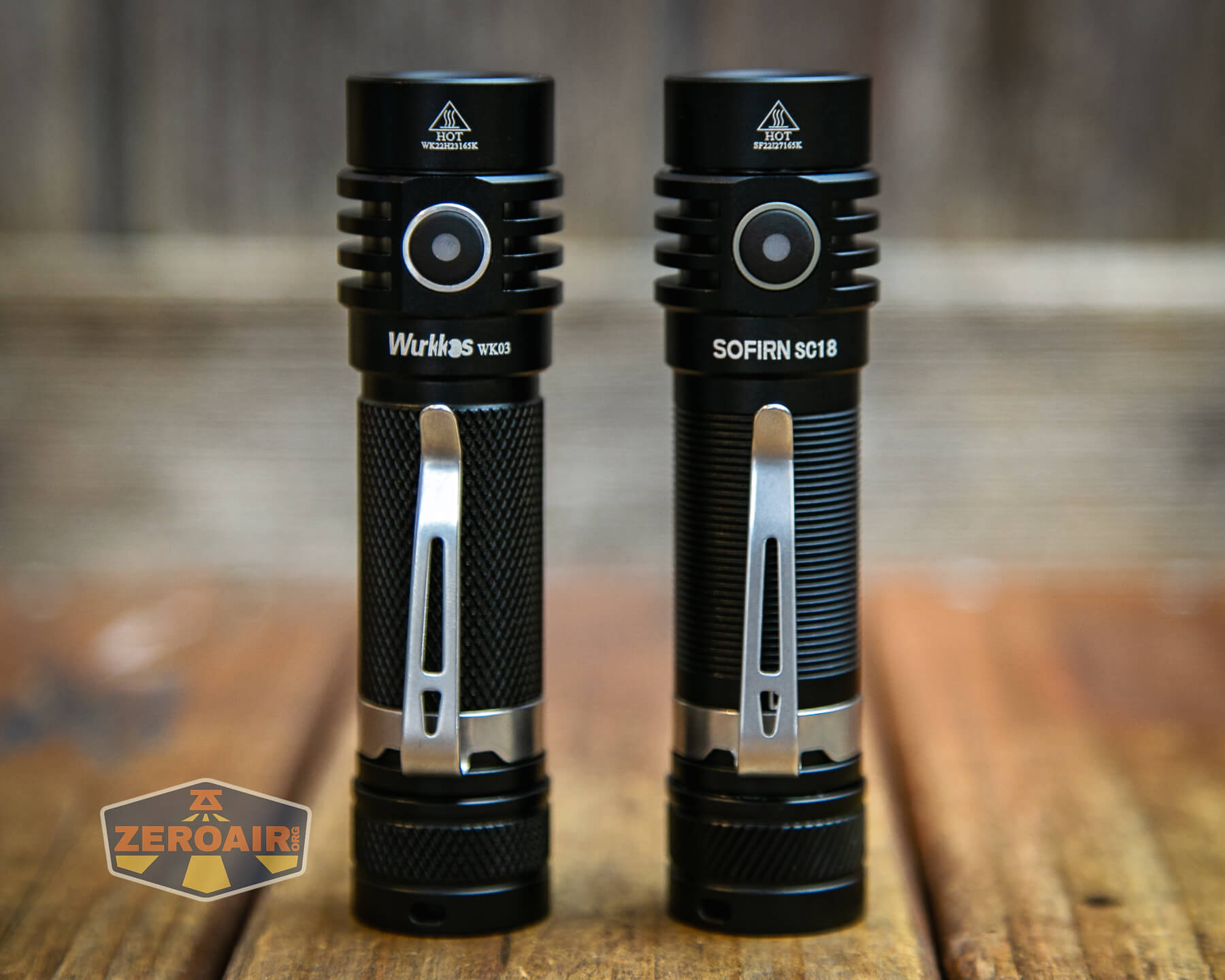

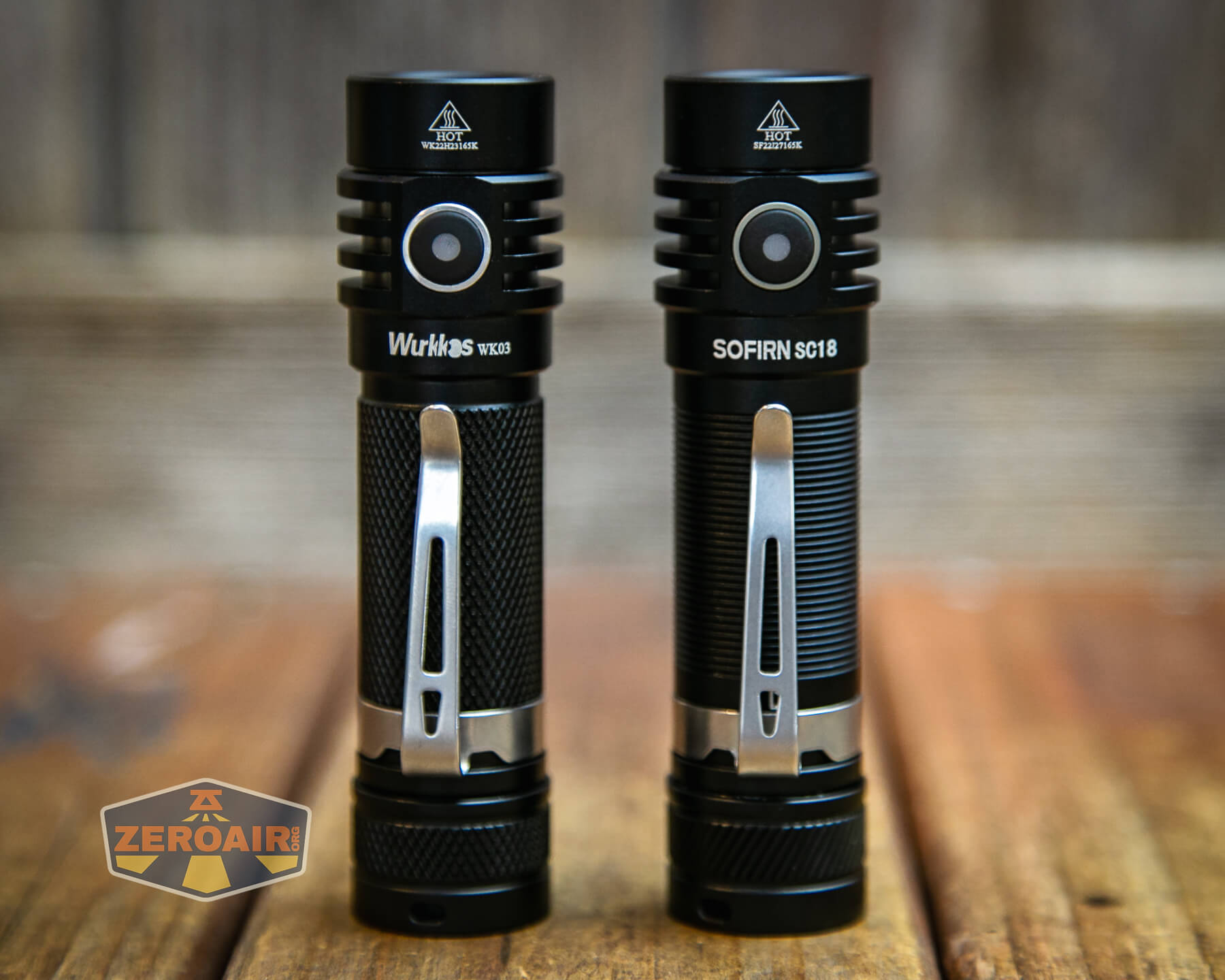

Here’s the Sofirn SC18 flashlight alongside a Wurkkos WK03. You might notice that they have similar design!

Retention and Carry

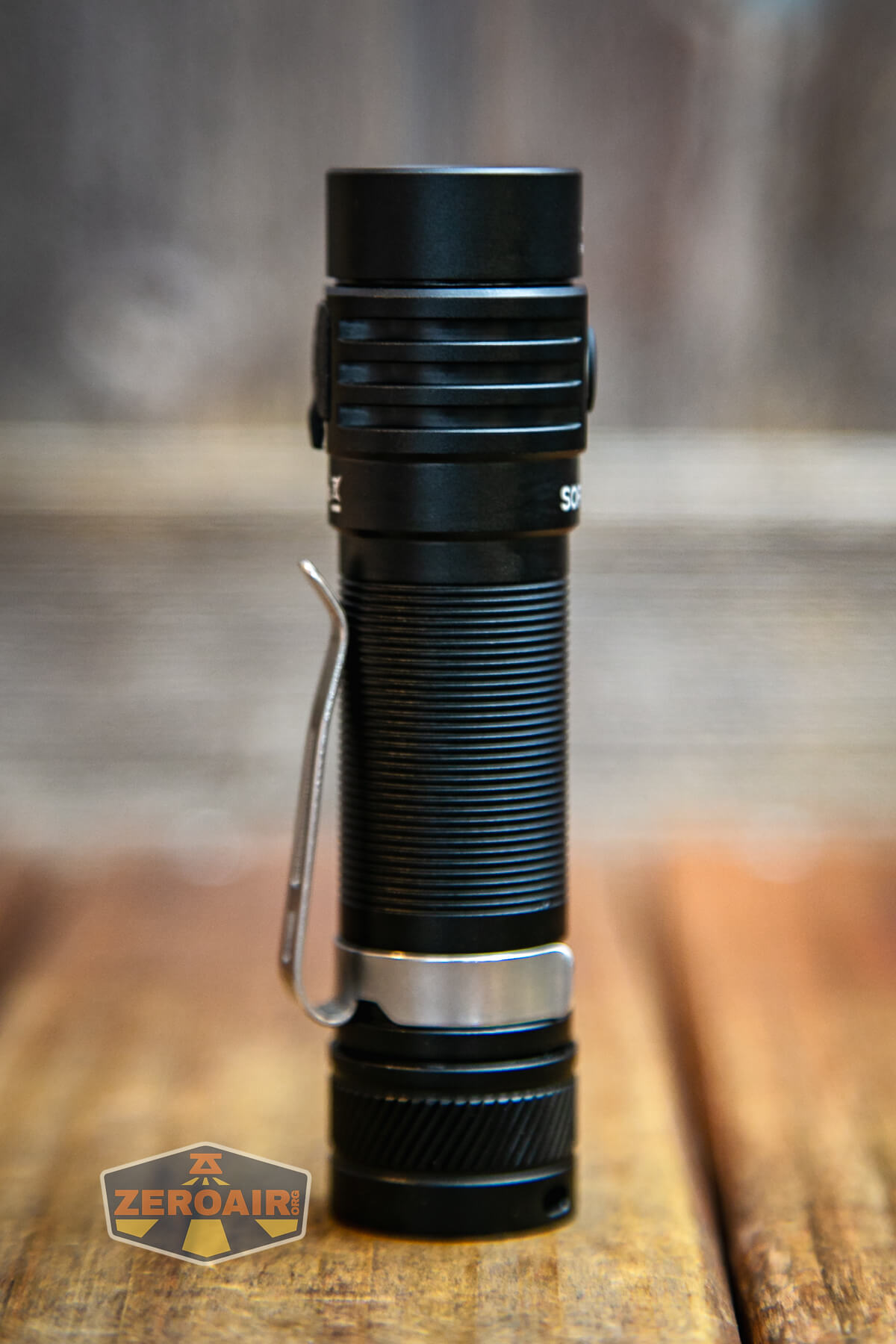

There’s a friction-fit pocket clip included for carrying the Sofirn SC18 flashlight.

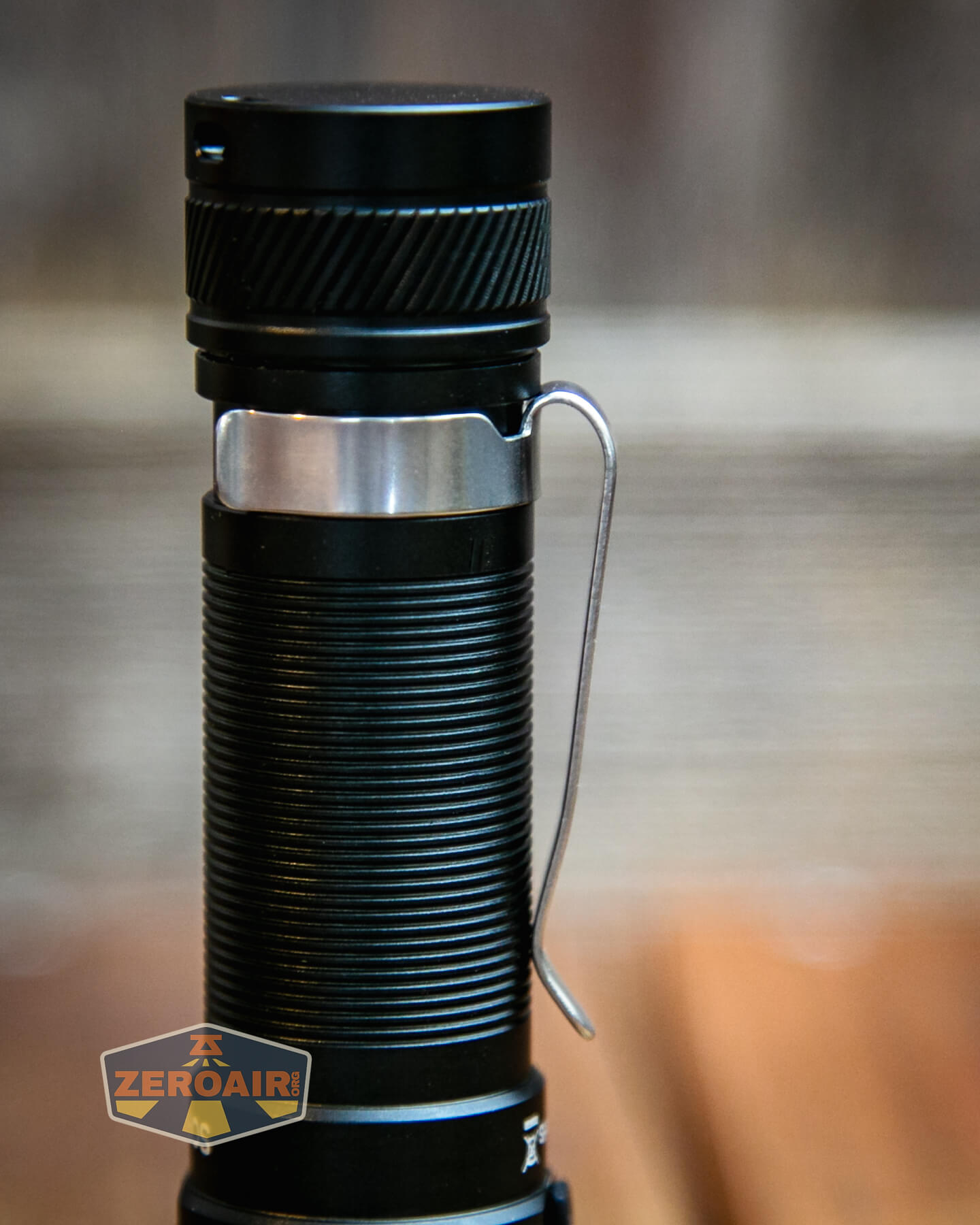

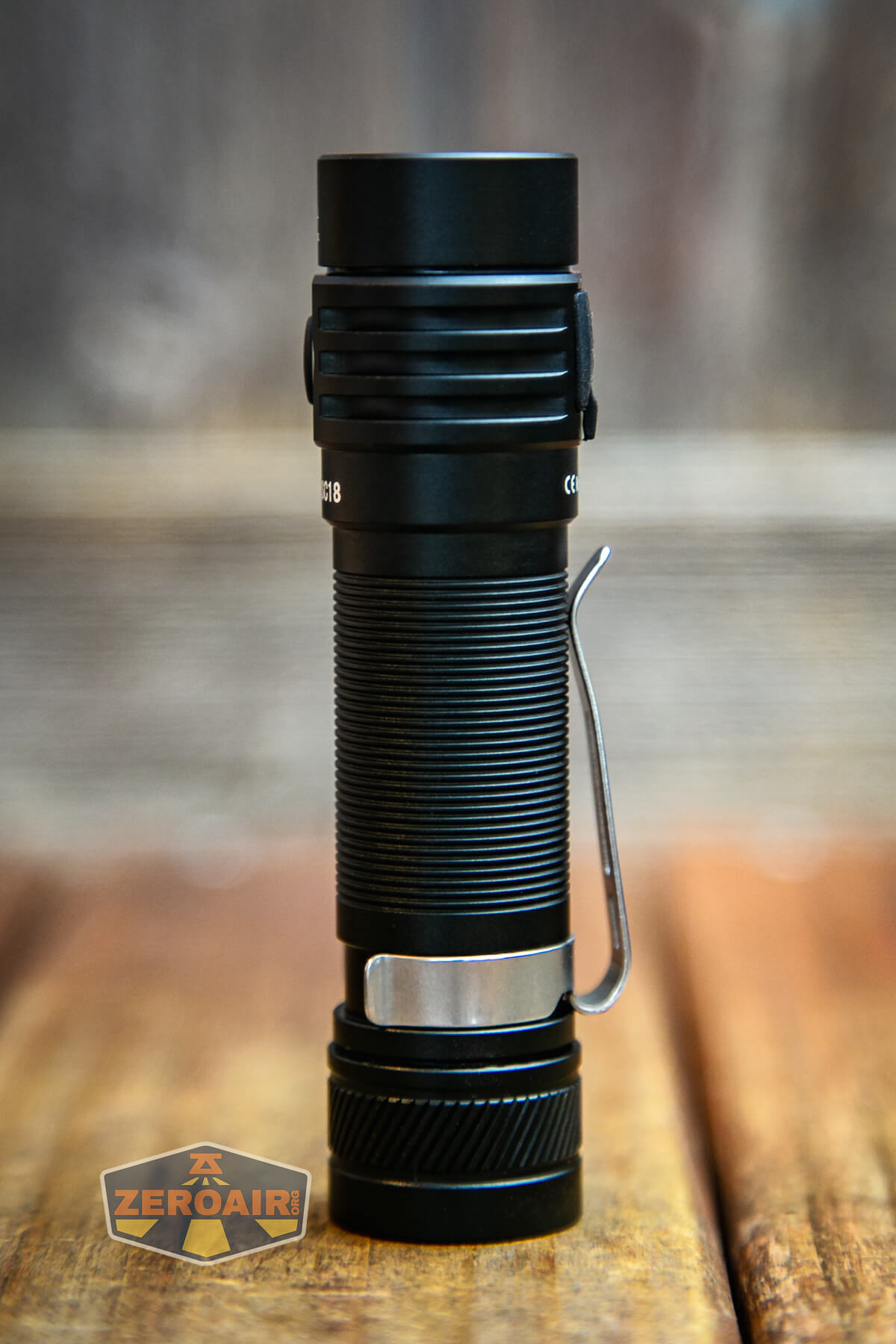

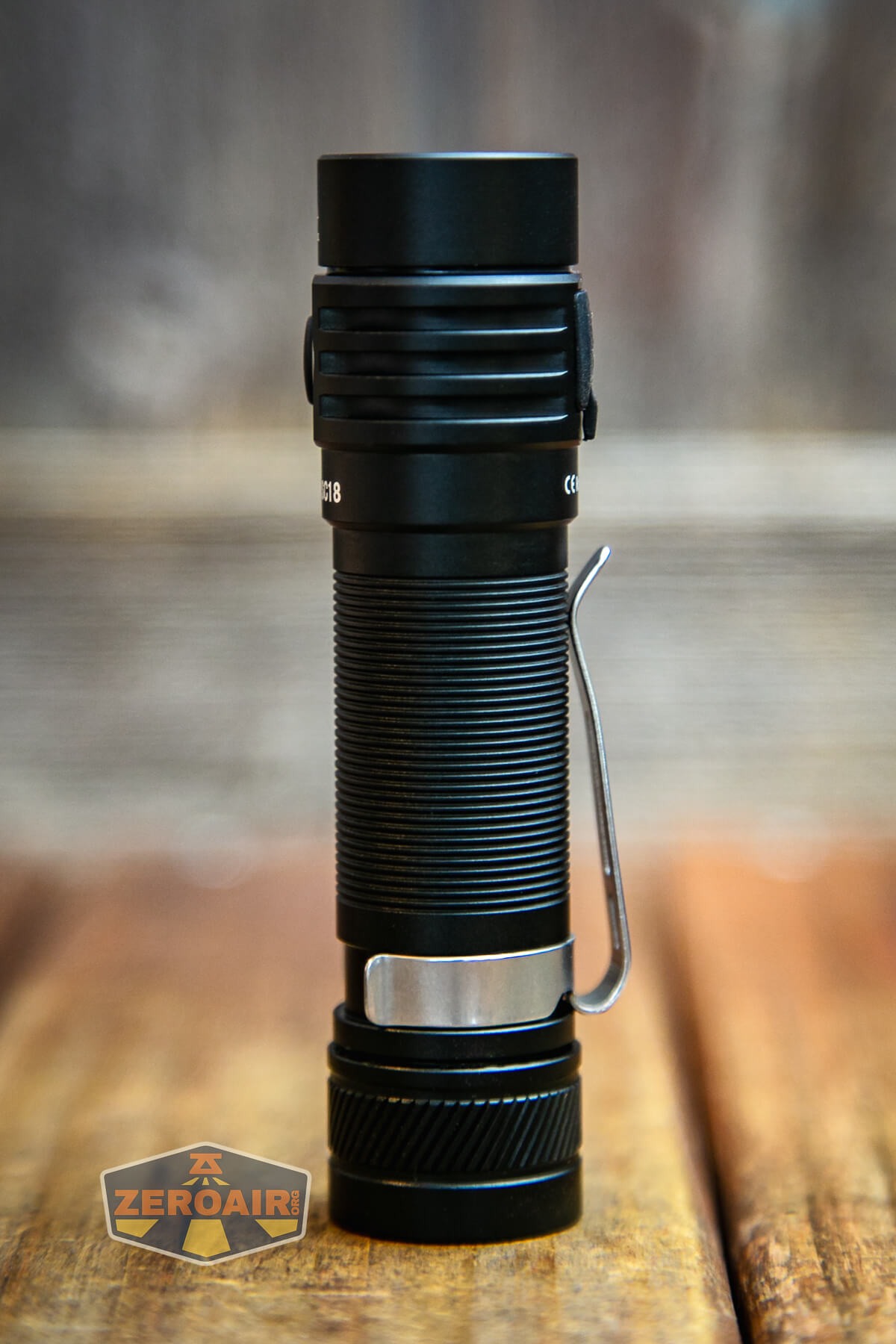

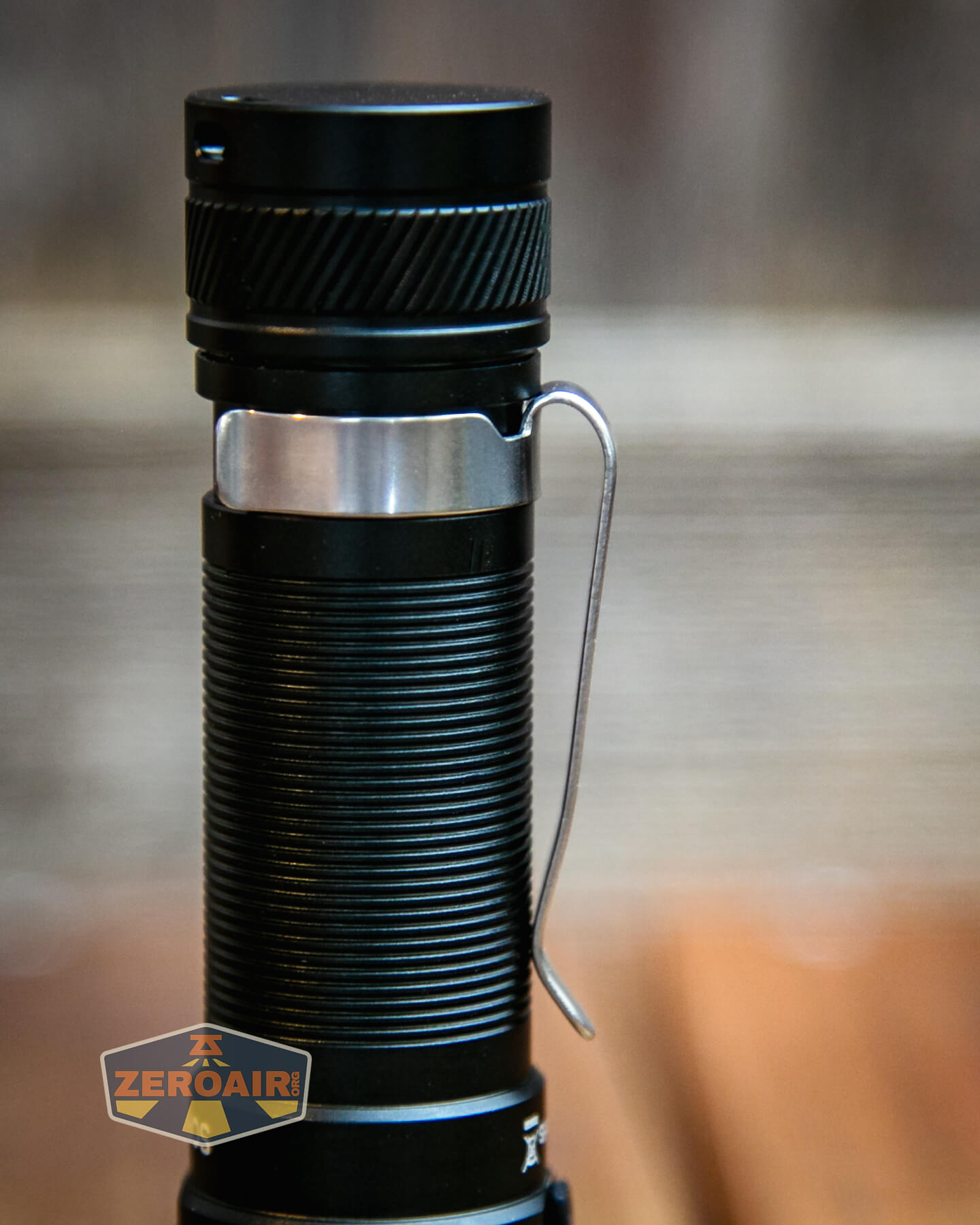

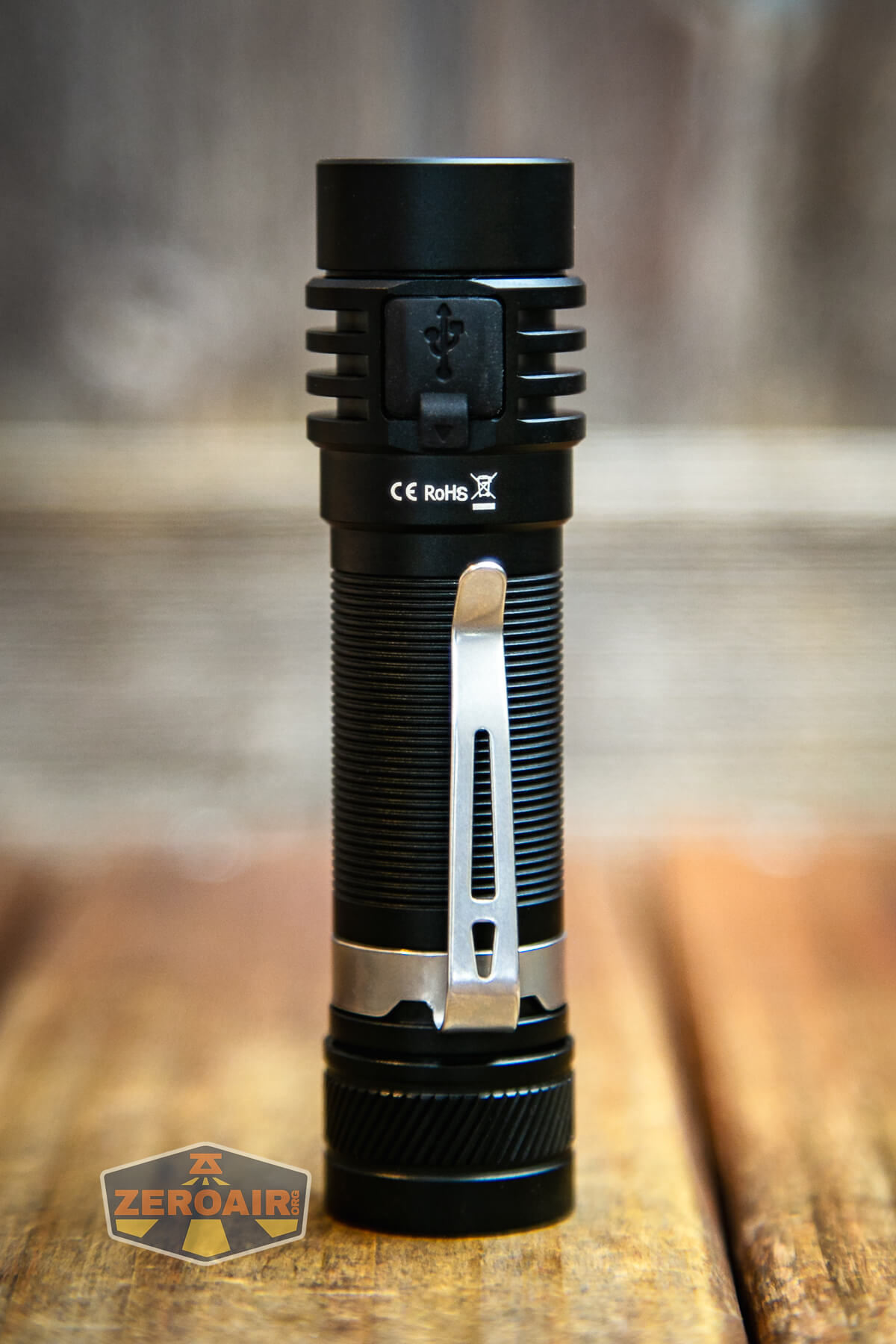

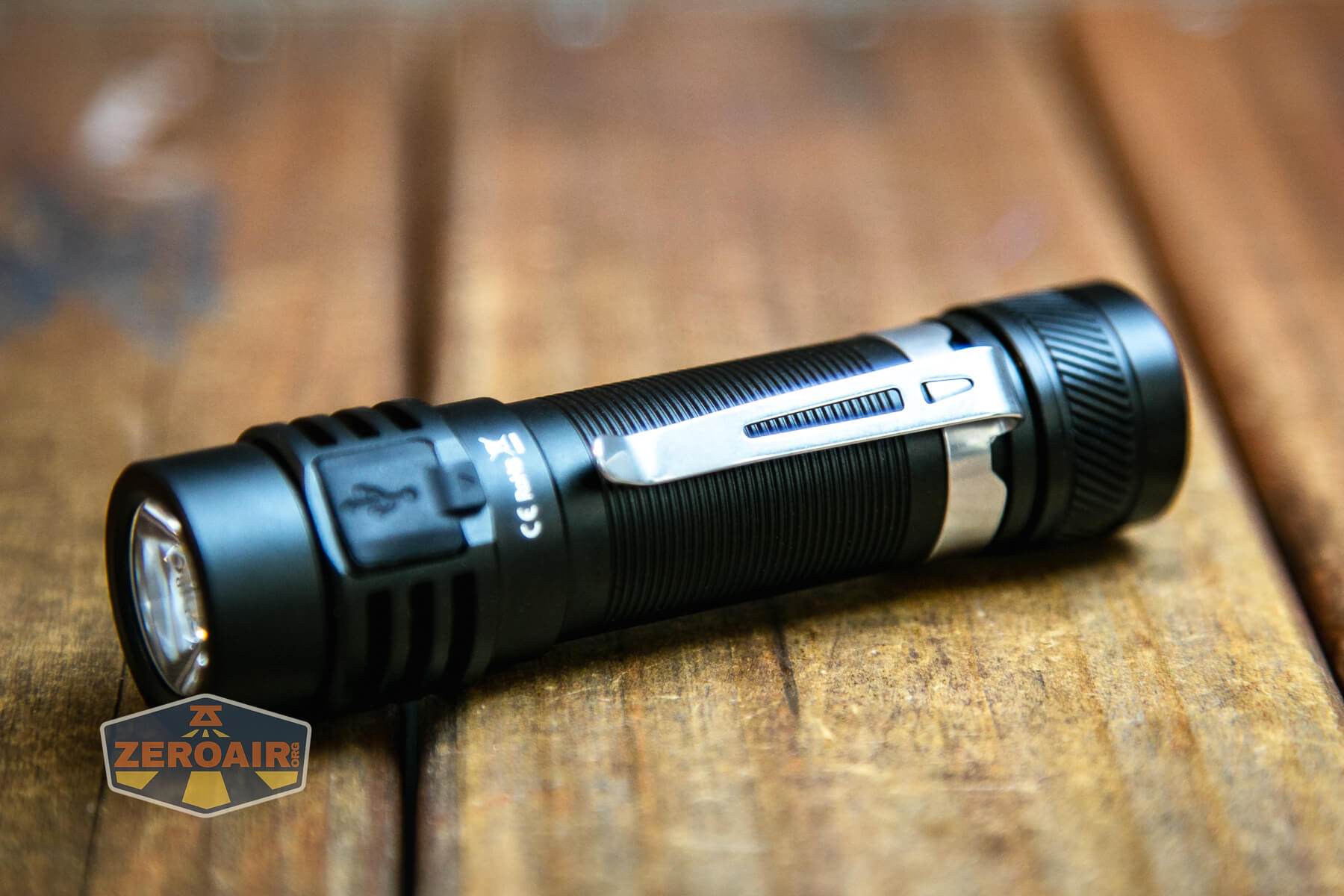

Sofirn SC18 flashlight pocket clip

This is a pretty simple pocket clip but does attach securely.

Clip hug!

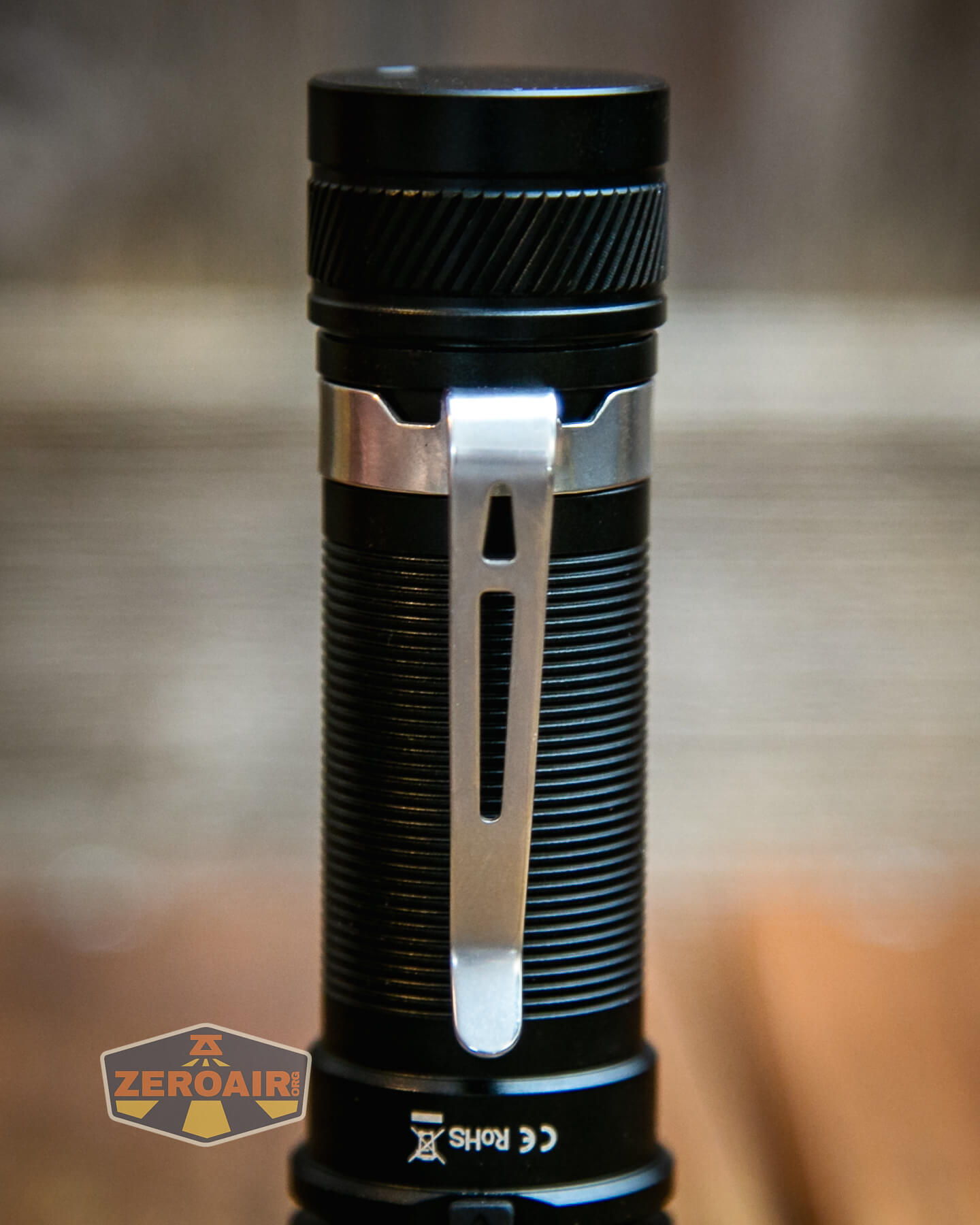

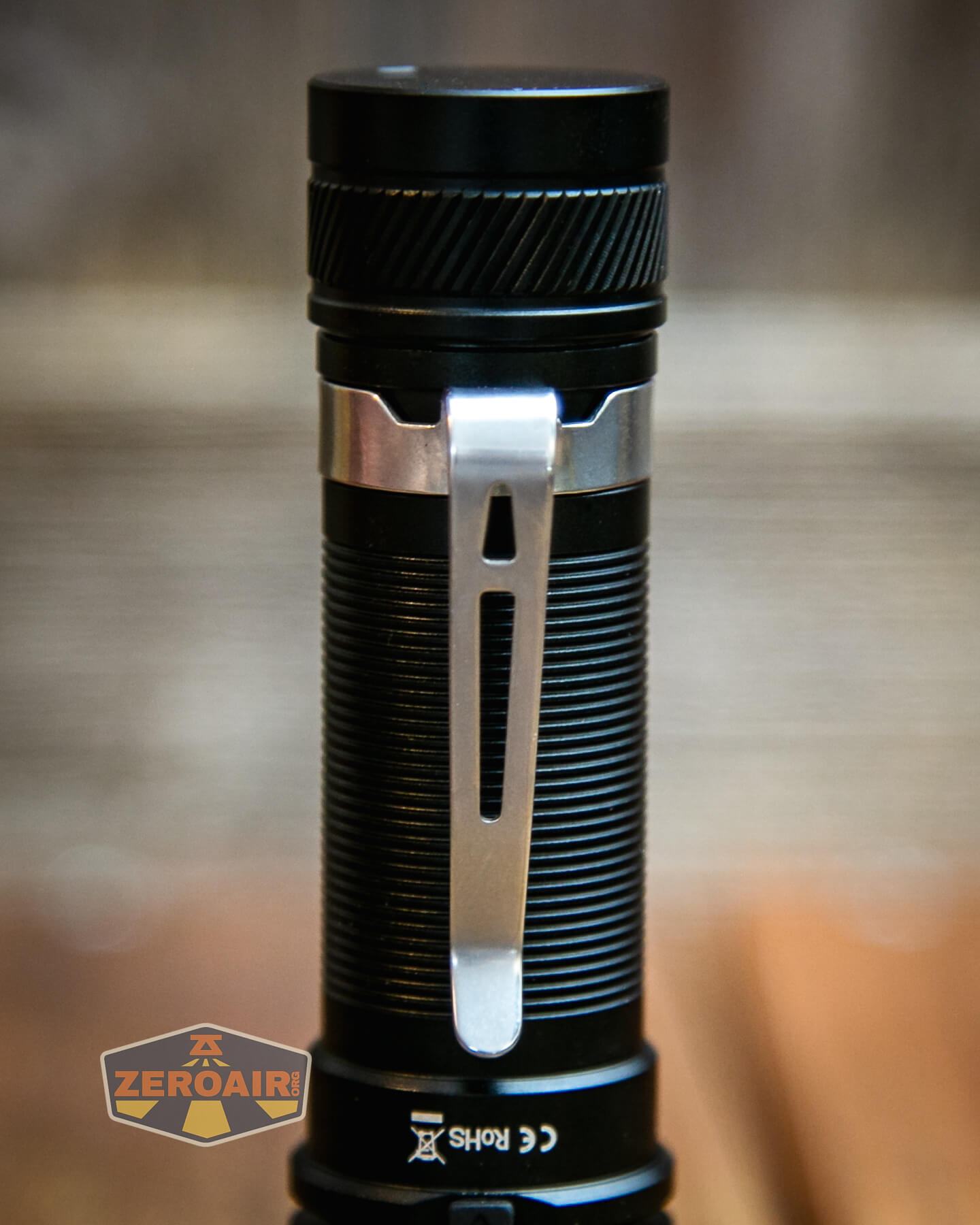

Sofirn SC18 flashlight pocket clip hug

Next up for carry is the included lanyard. This lanyard attaches through a hole in the tailcap.

Sofirn SC18 flashlight lanyard hole

There’s just one hole and this prevents clean tailstanding when the lanyard is in use.

Sofirn SC18 flashlight lanyard installed

No magnet or anything else is included.

Power and Runtime

The Sofirn SC18 flashlight operates on a single lithium-ion cell.  I have a package that had a cell included.  It’s a 3000mAh button top and is a completely standard cell.

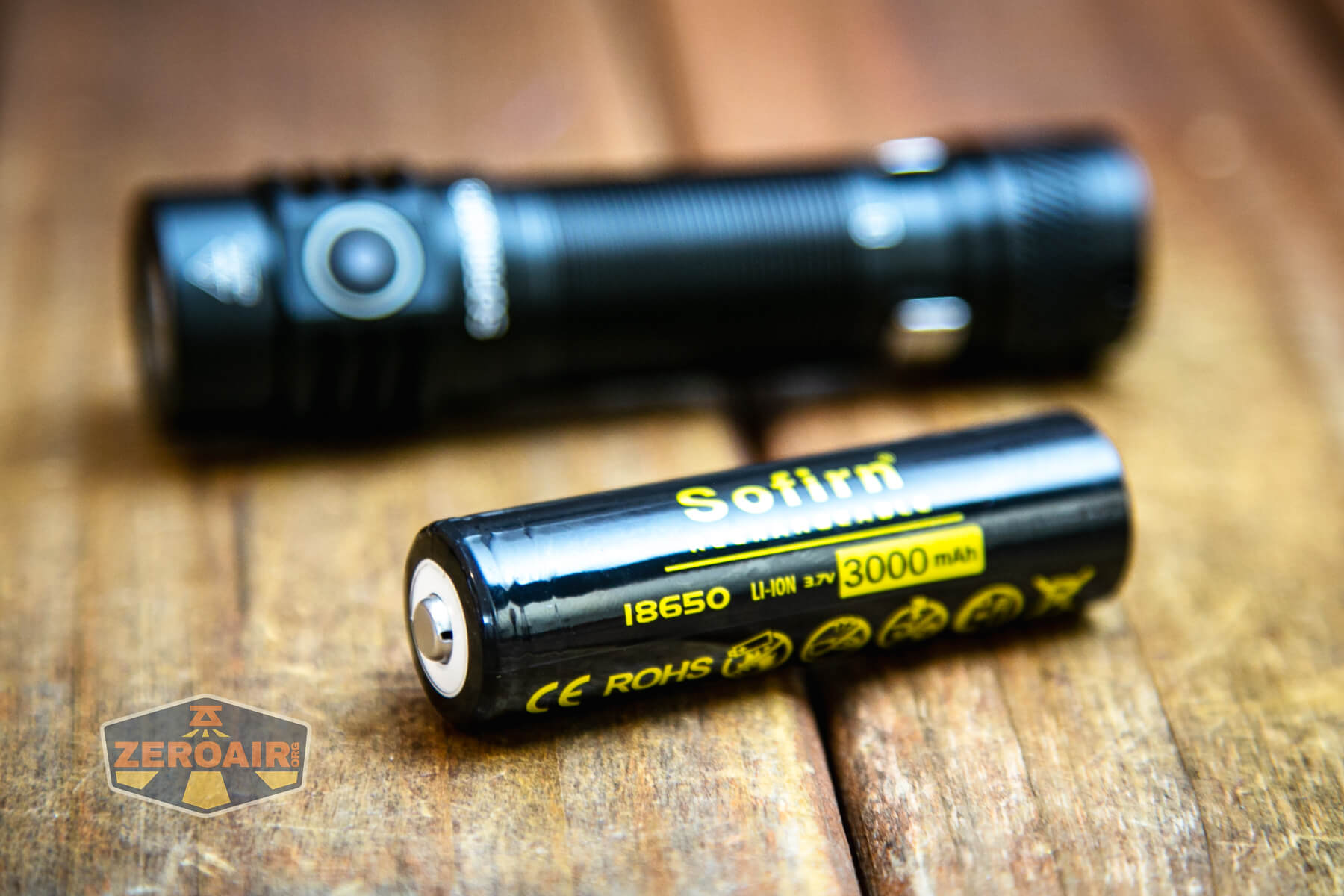

Sofirn SC18 flashlight with 18650

The cell goes into the light in the “usual way” (which is to say that the positive terminal of the cell goes into the light).

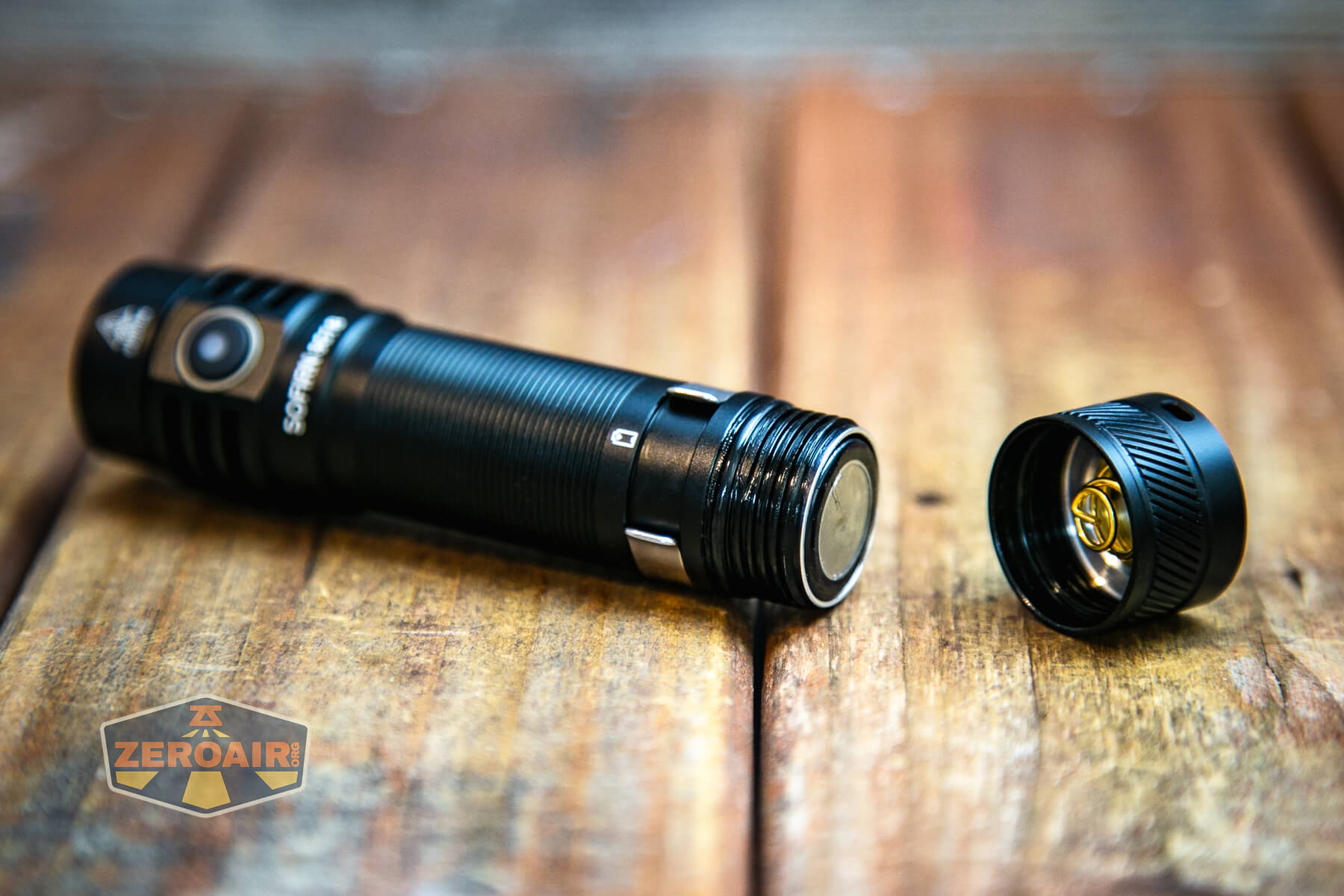

Sofirn SC18 flashlight with 18650 installed

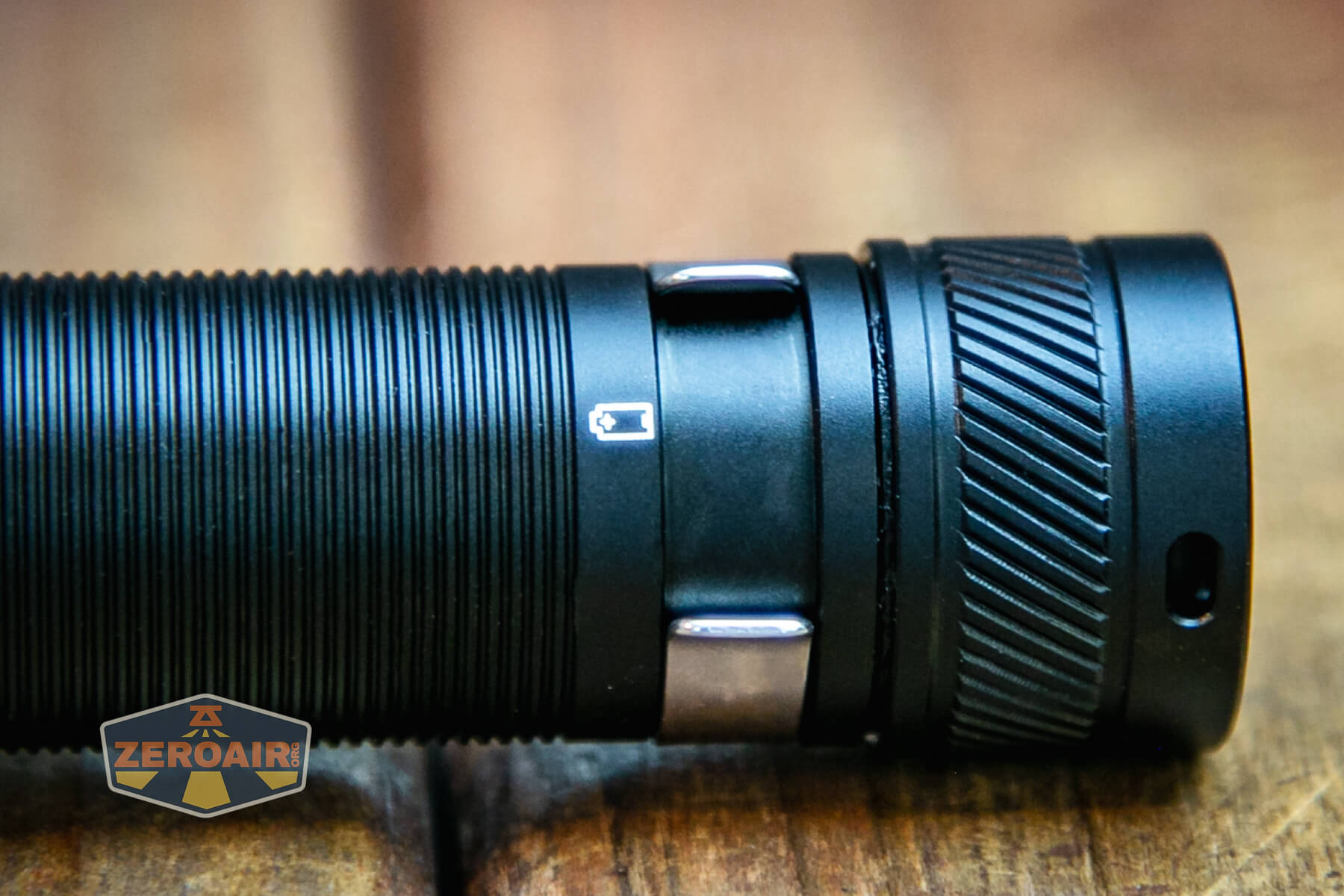

There’s a little silk-screened logo on the side of the body to help with orientation, too.

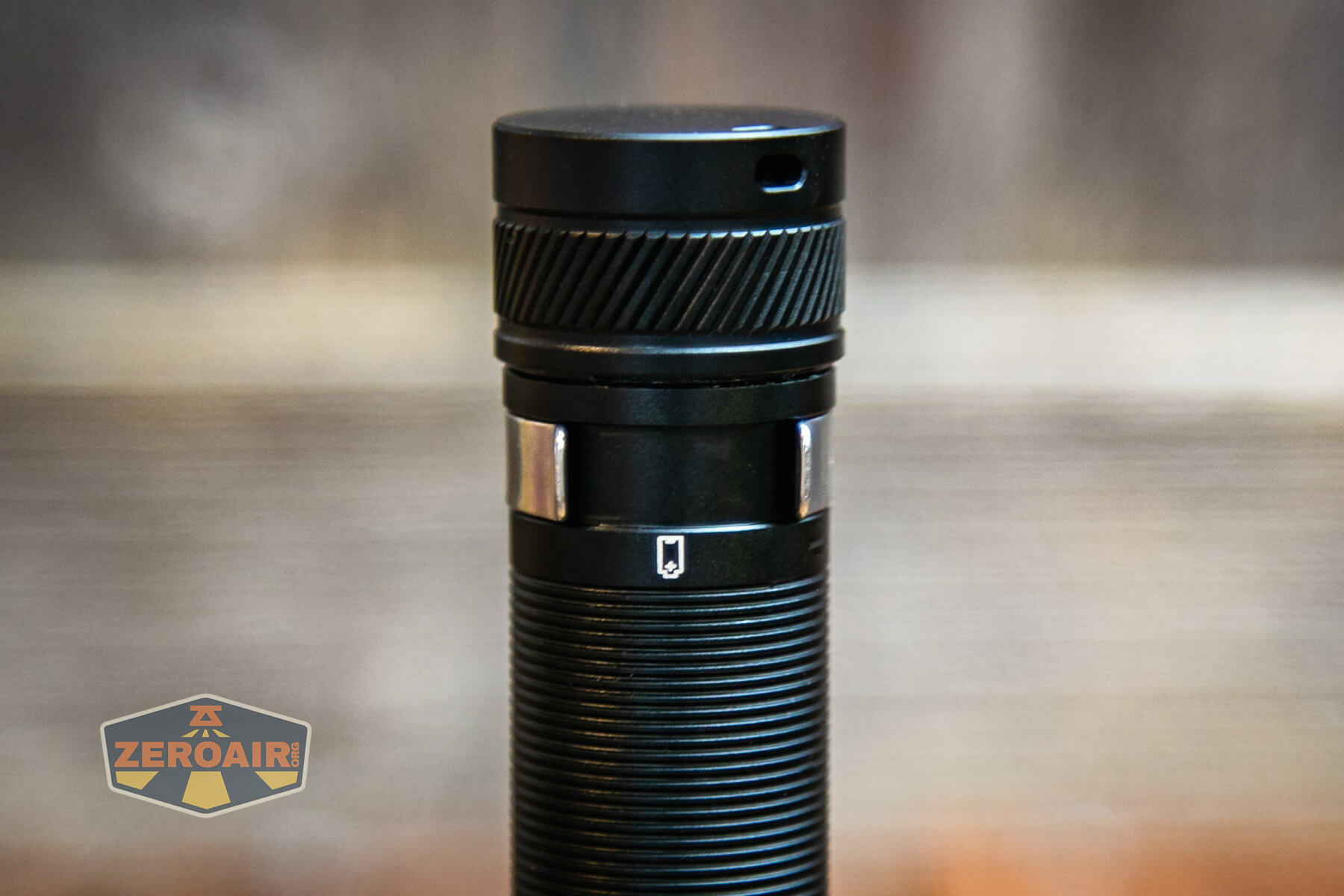

Sofirn SC18 flashlight cell direction logo

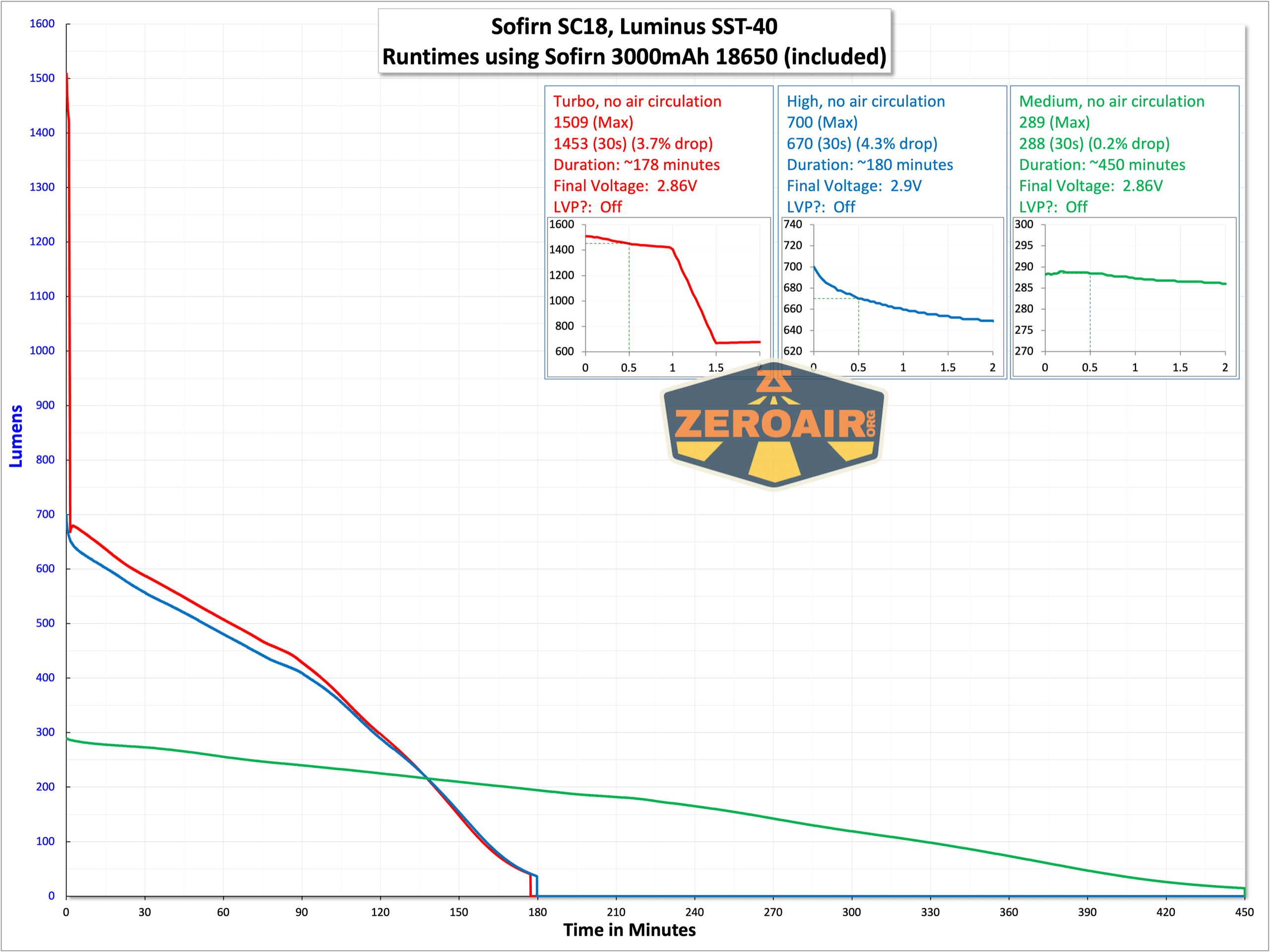

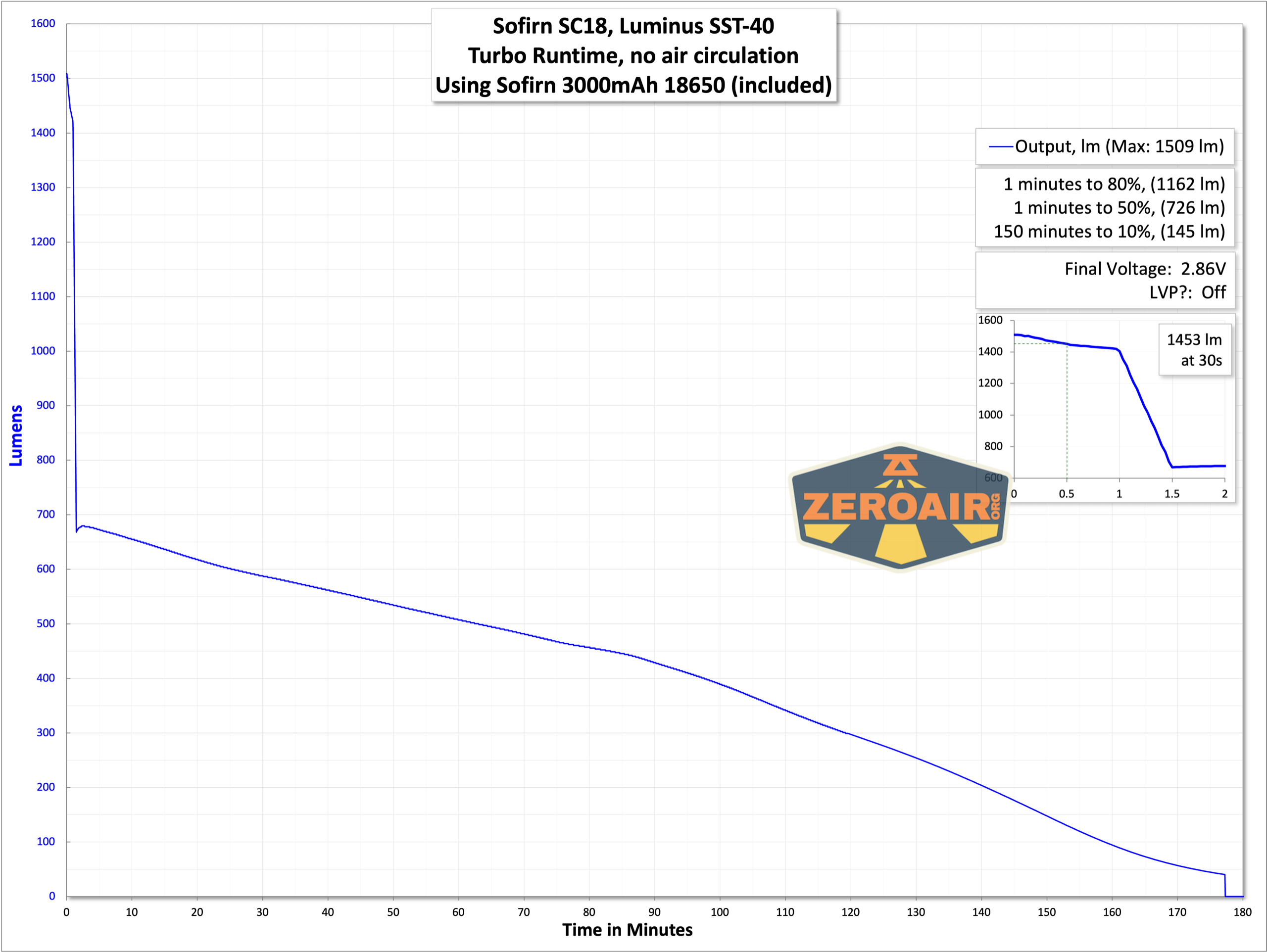

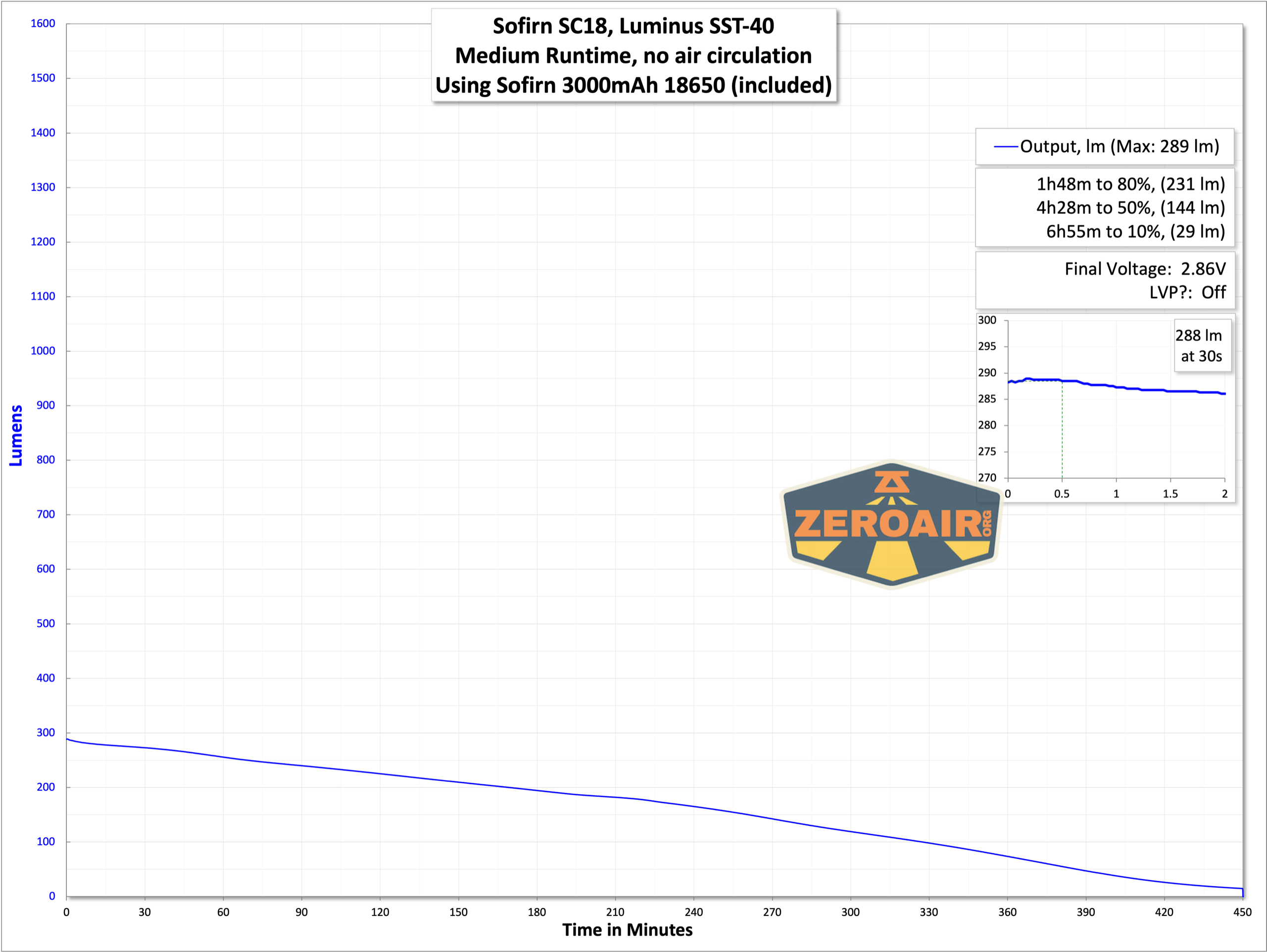

Here are a number of runtime tests.

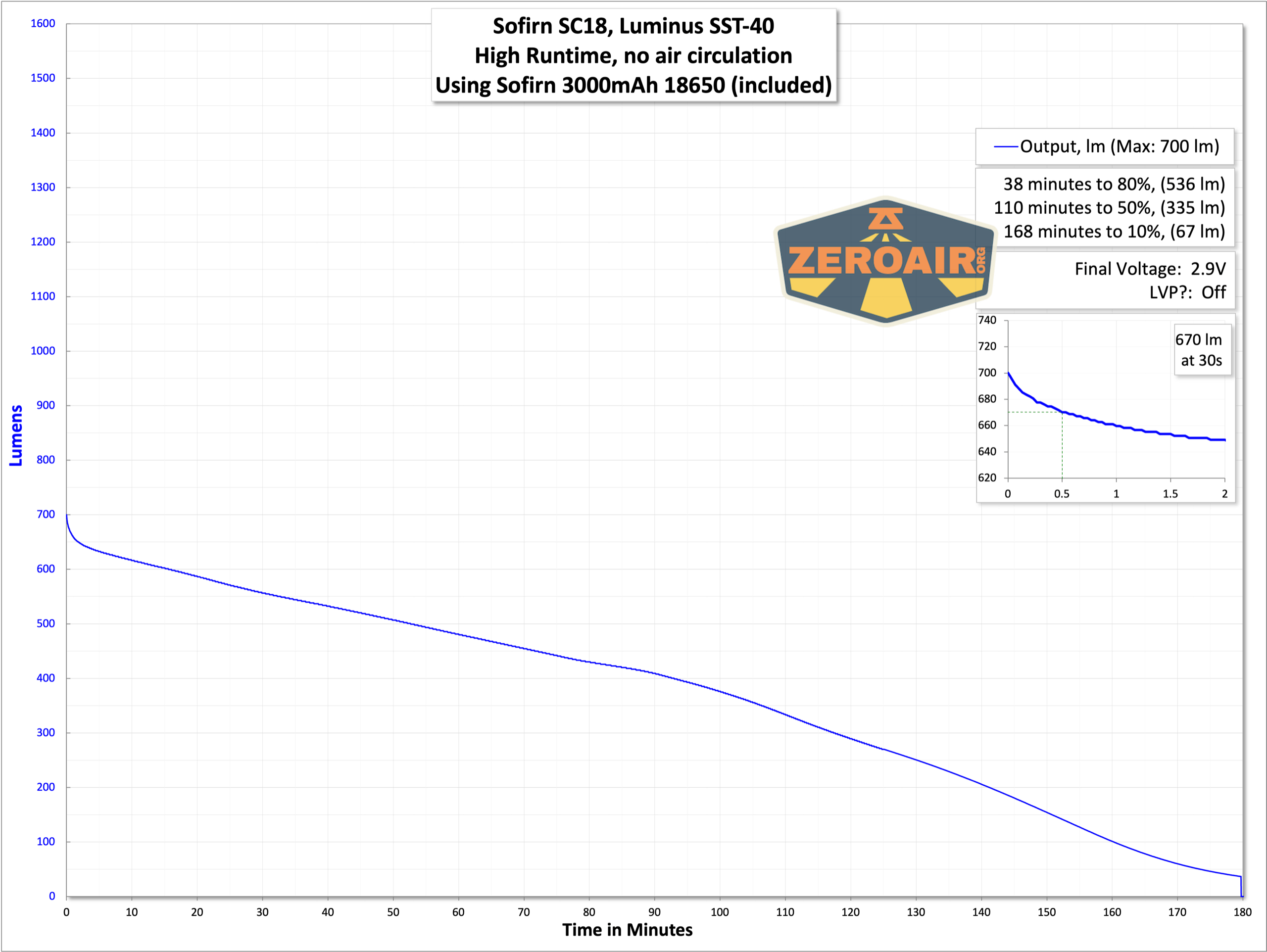

Sofirn SC18 flashlight runtime graph

Sofirn SC18 flashlight runtime graph

Sofirn SC18 flashlight runtime graph

Sofirn SC18 flashlight runtime graph

Low voltage protection is observed in all tests.

Charging

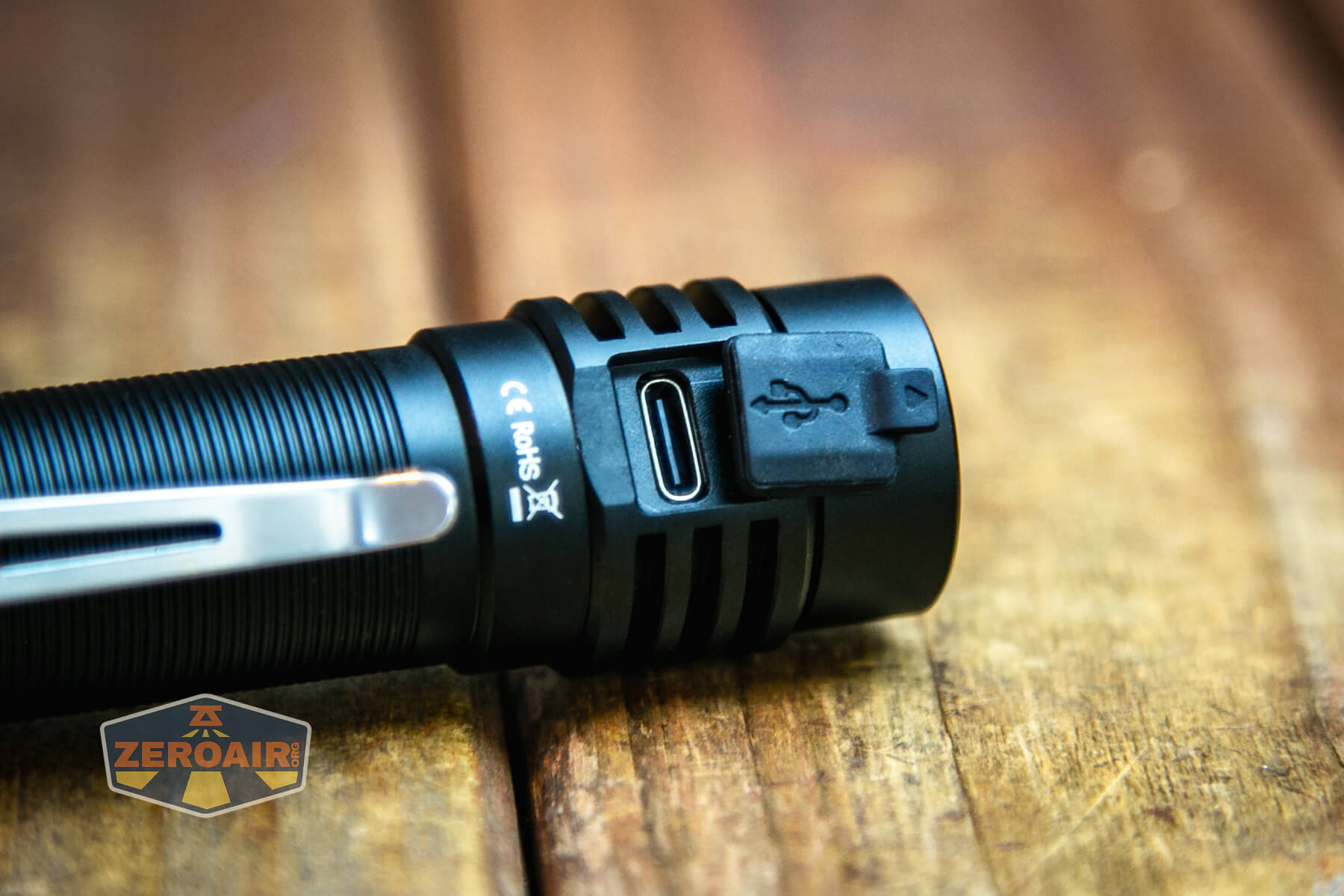

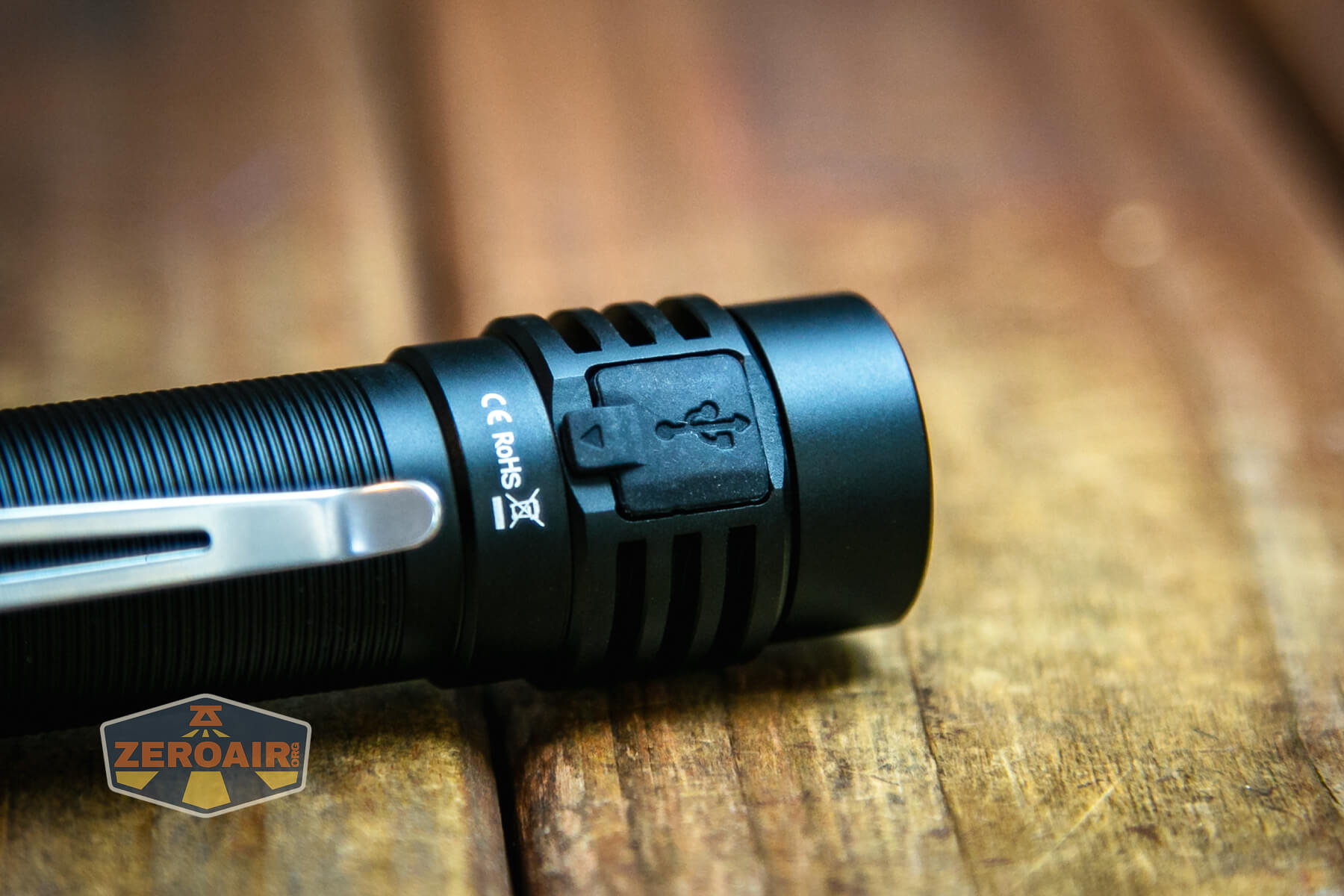

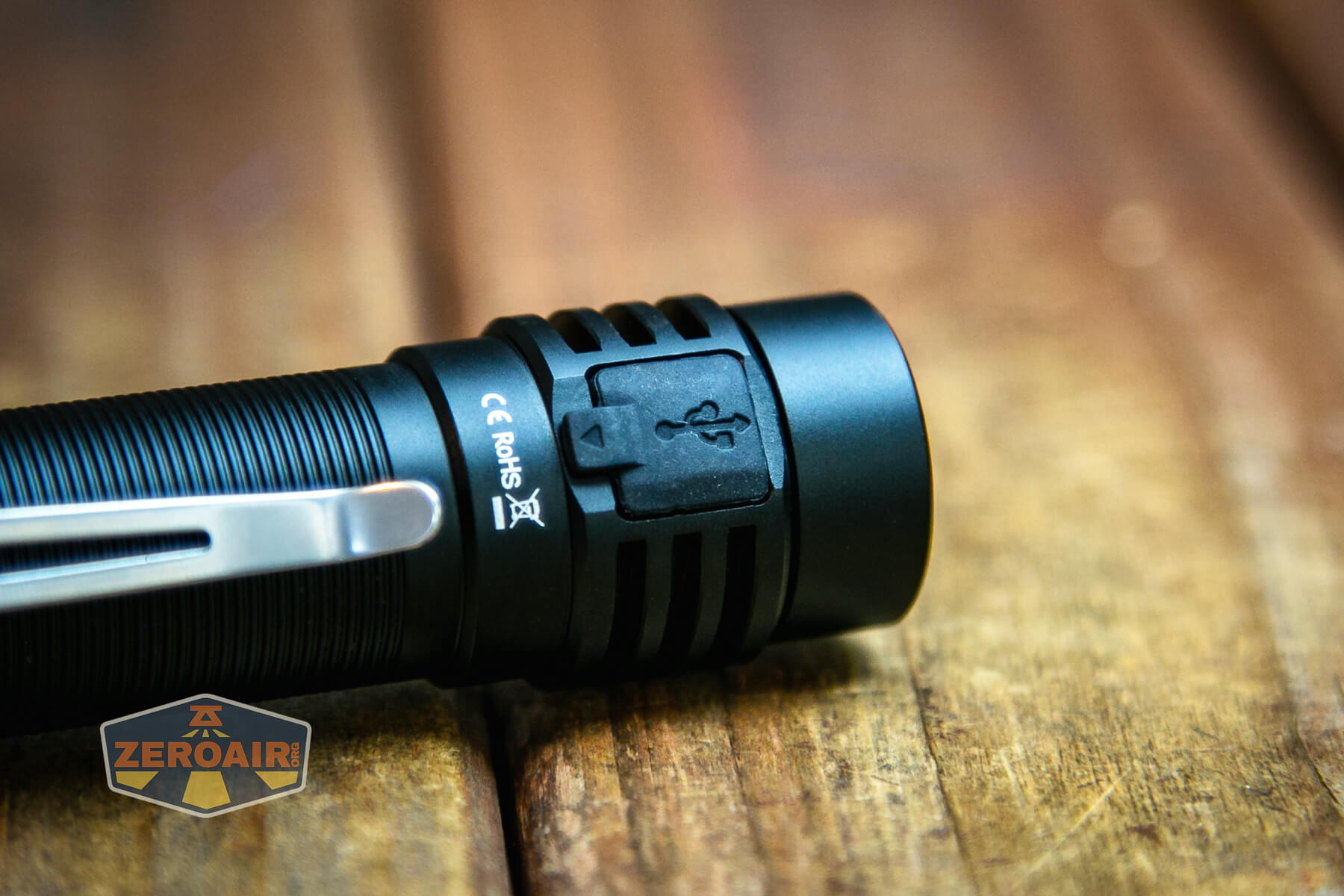

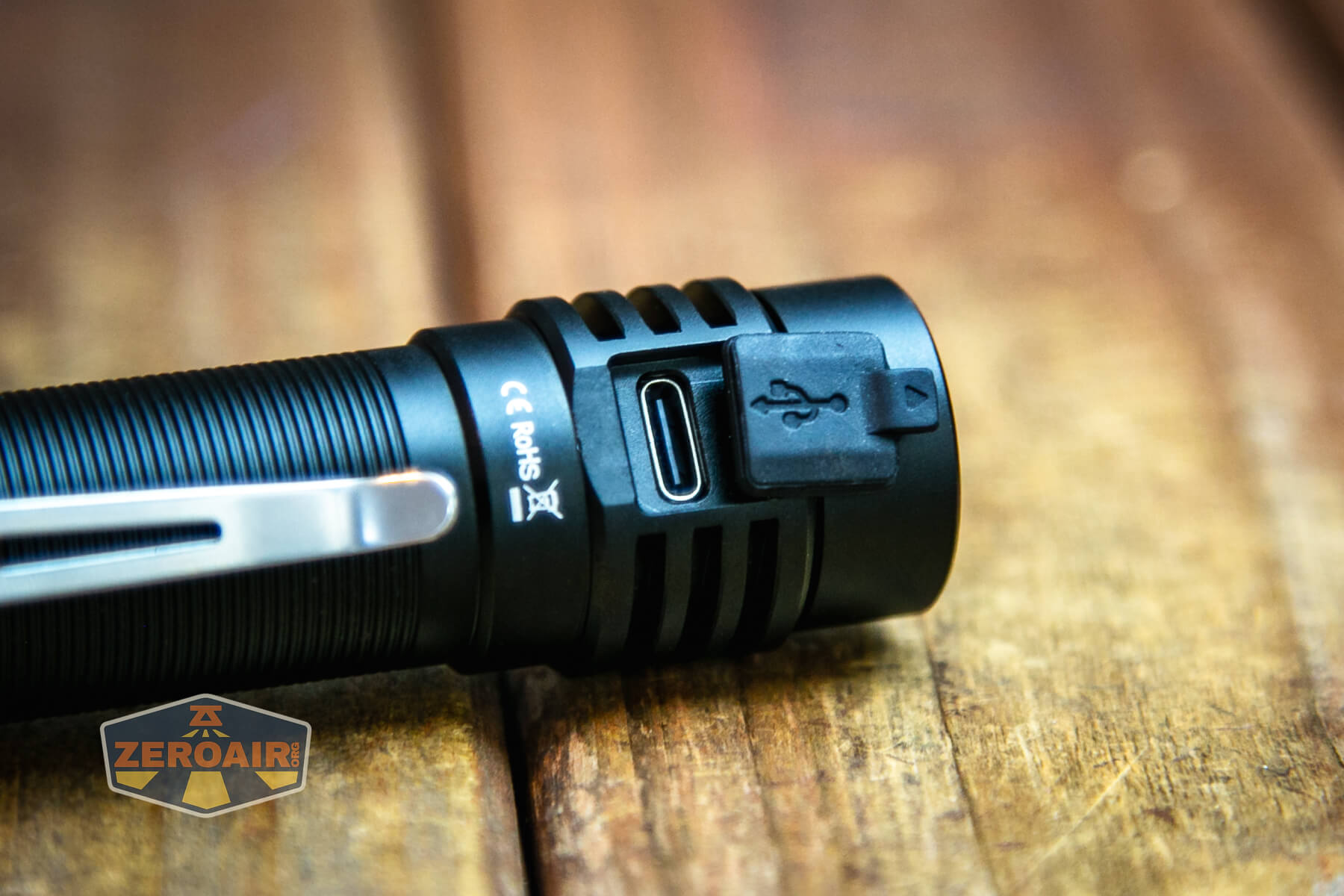

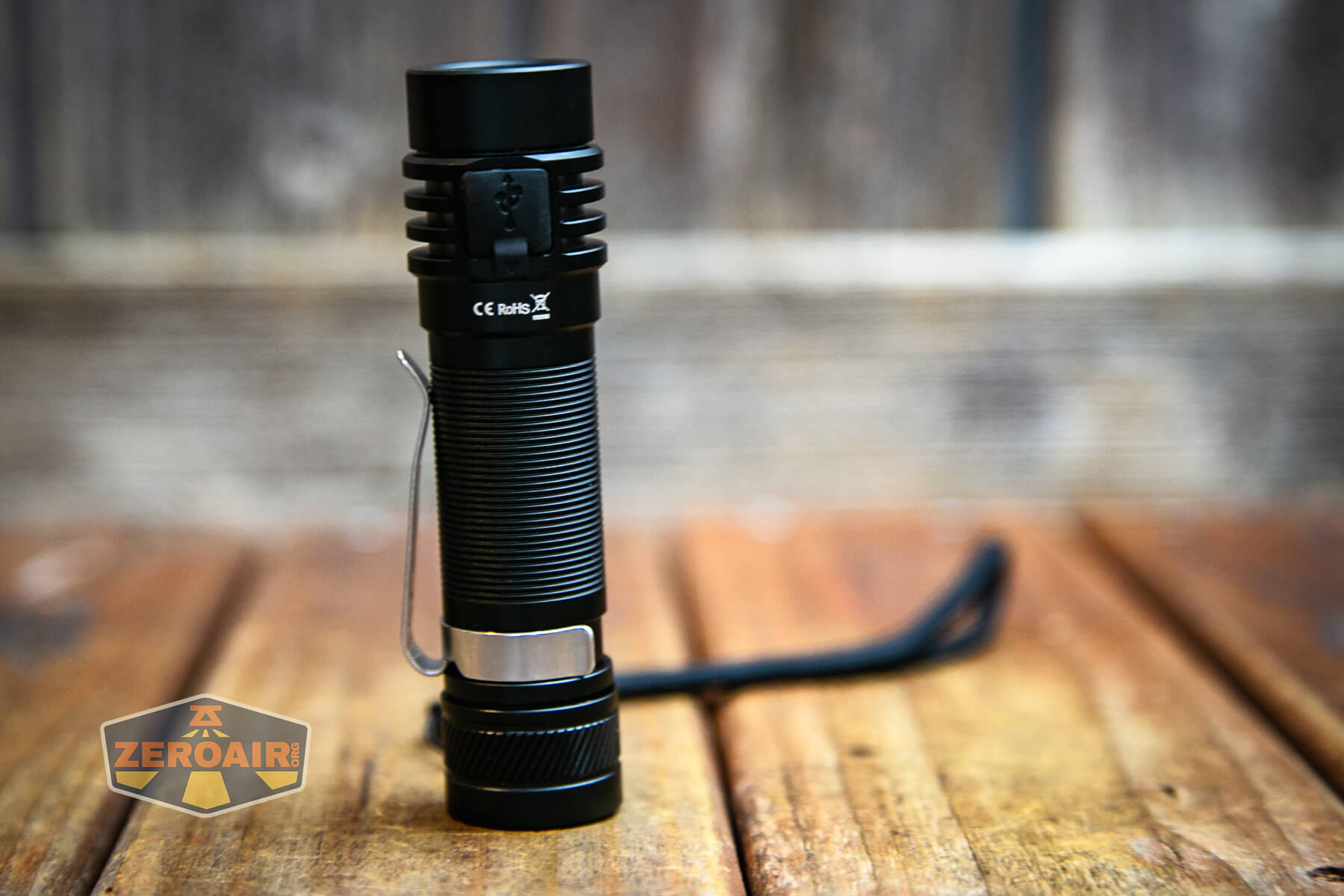

The Sofirn SC18 flashlight also has built-in charging, by way of a USB-C port on the head.

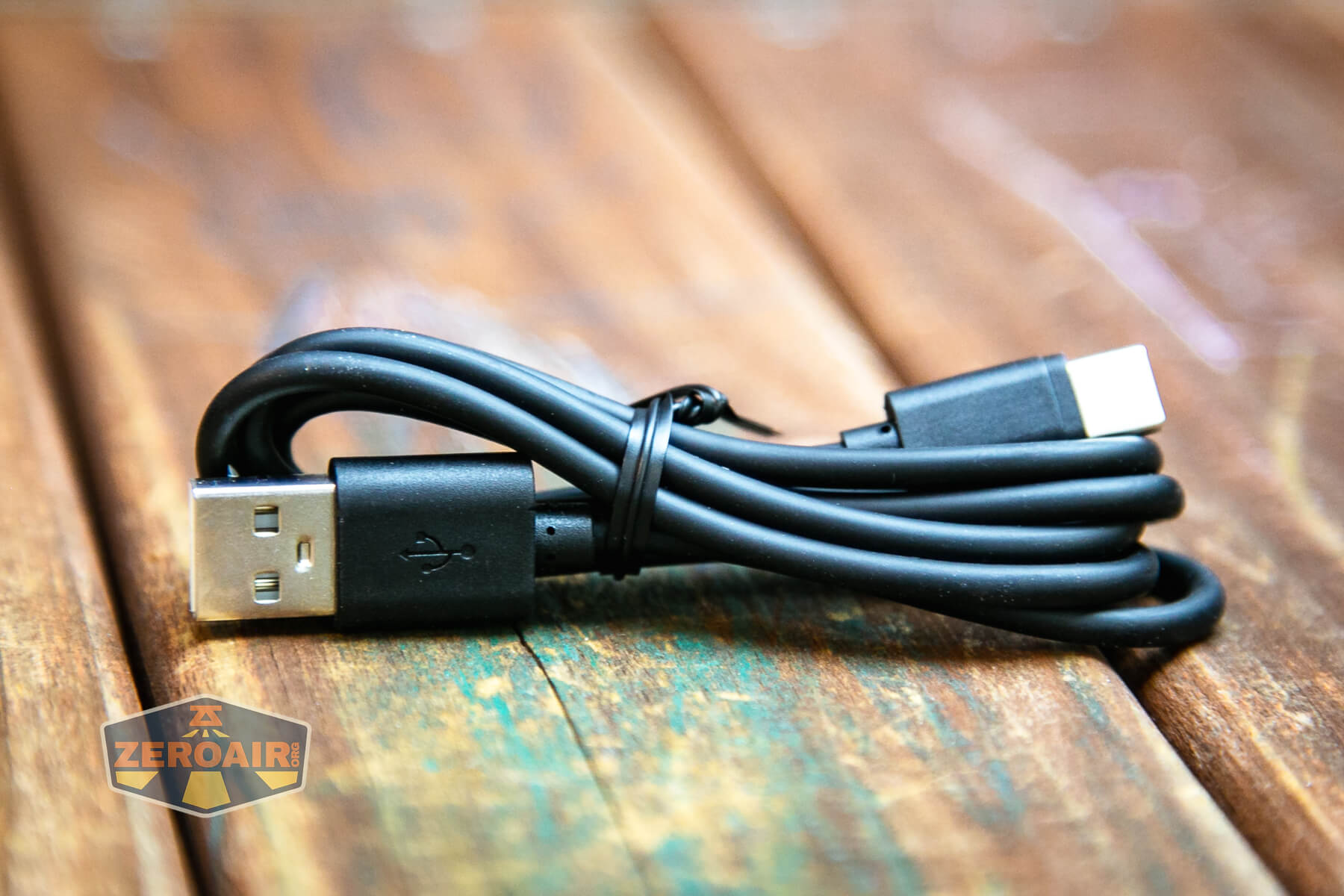

Sofirn SC18 flashlight charging cable

Charging works great and only takes around 2.25 hours to complete.

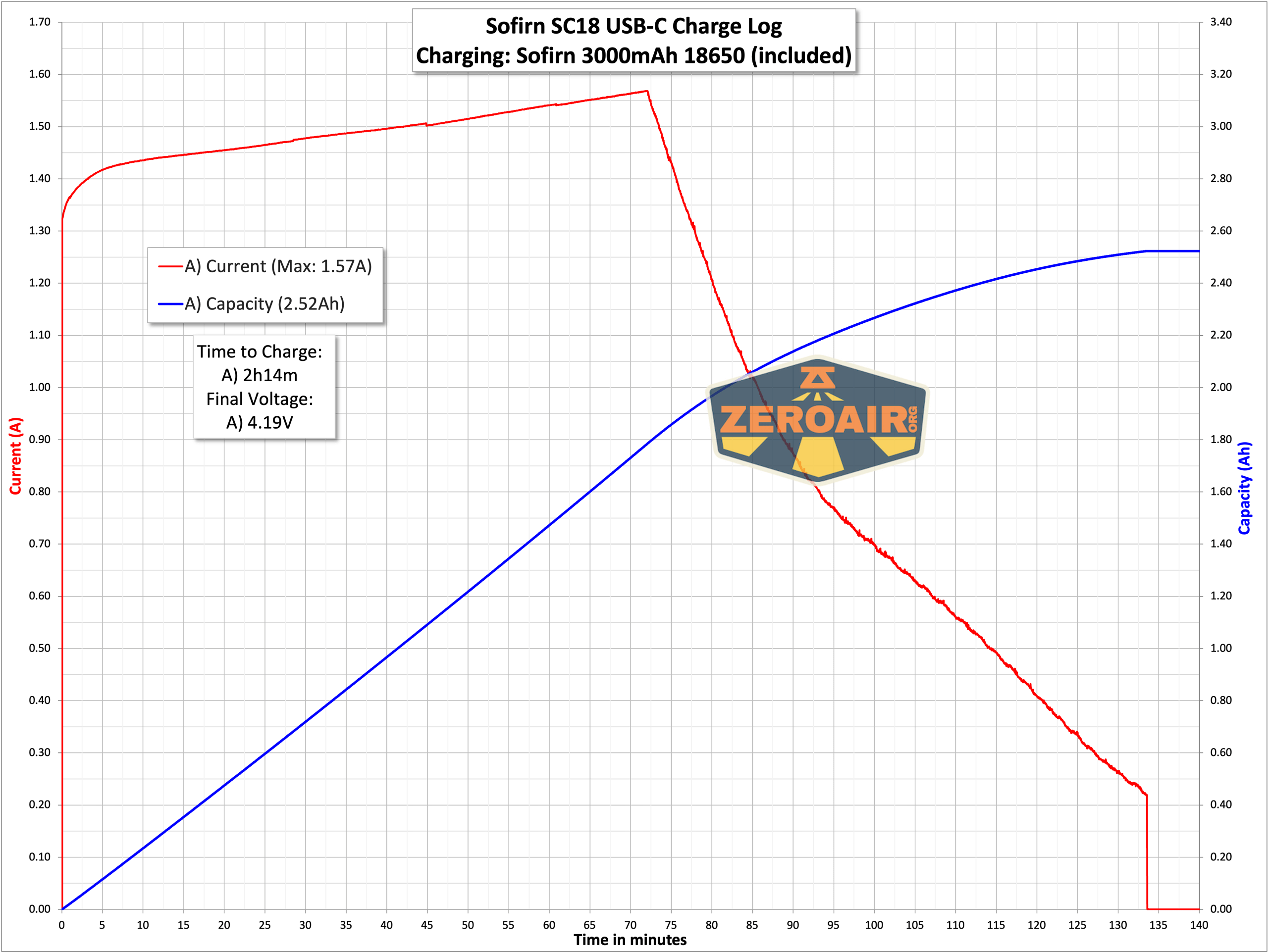

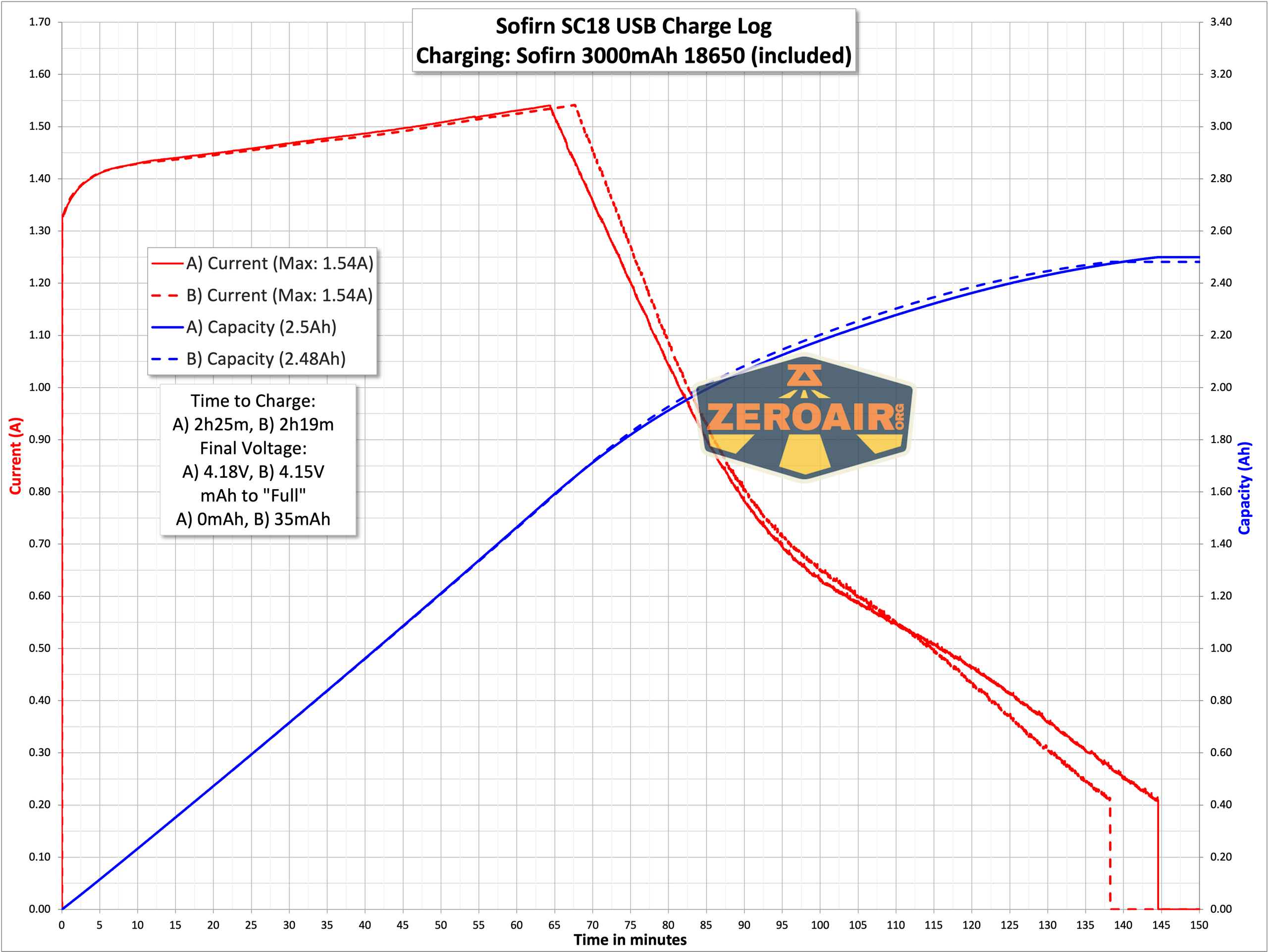

Sofirn SC18 flashlight charging graph

C to C charging even works great, too! Again, for $15….

Sofirn SC18 flashlight c to c charging

Modes and Currents

Mode Mode Claimed Output (lm) Claimed Runtime Measured Lumens Tailcap Amps
Turbo 1800 2.3h 1453 3.91
High 800 2.6h 700 1.58
Medium 350 6.3h 289 0.66
Low 100 23h 75 0.21
Moon 3 230h 2.9 11.4mA

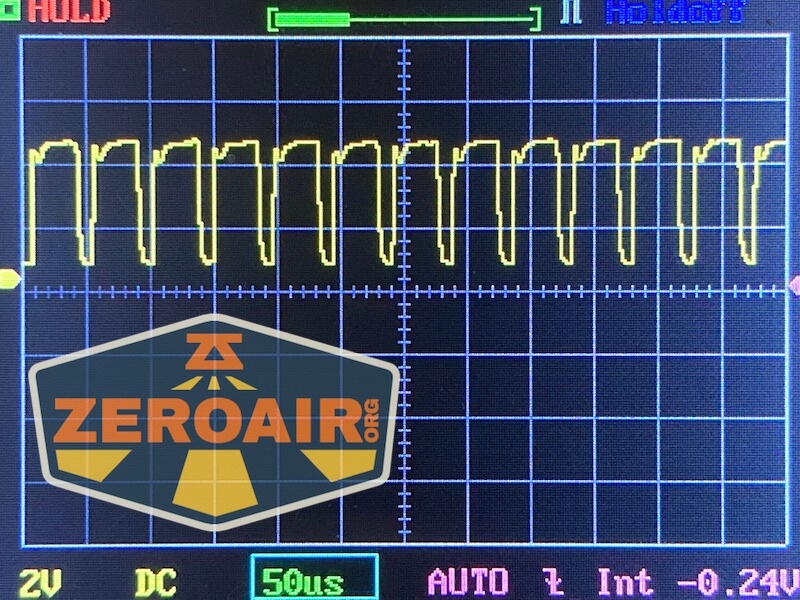

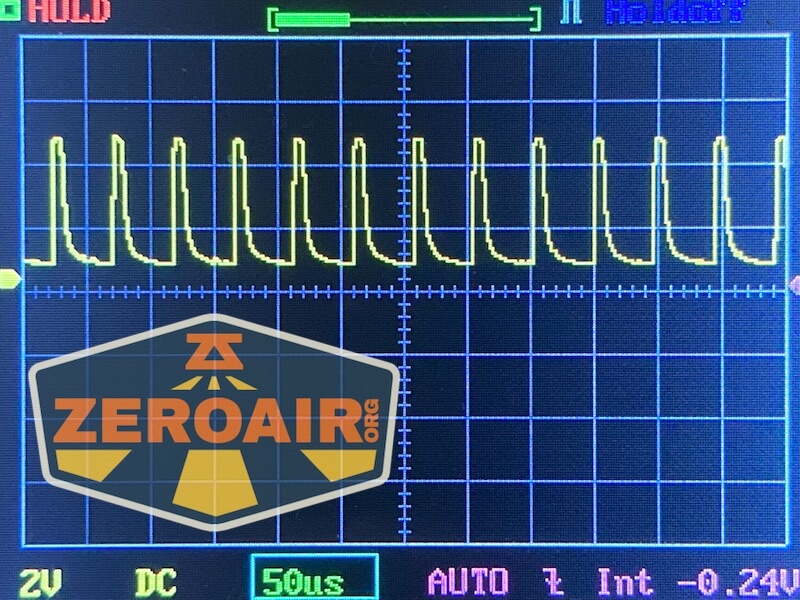

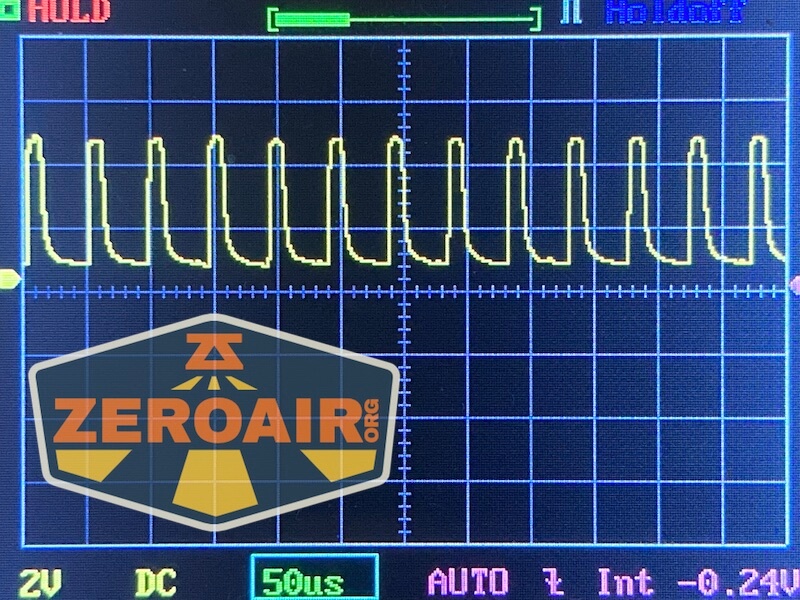

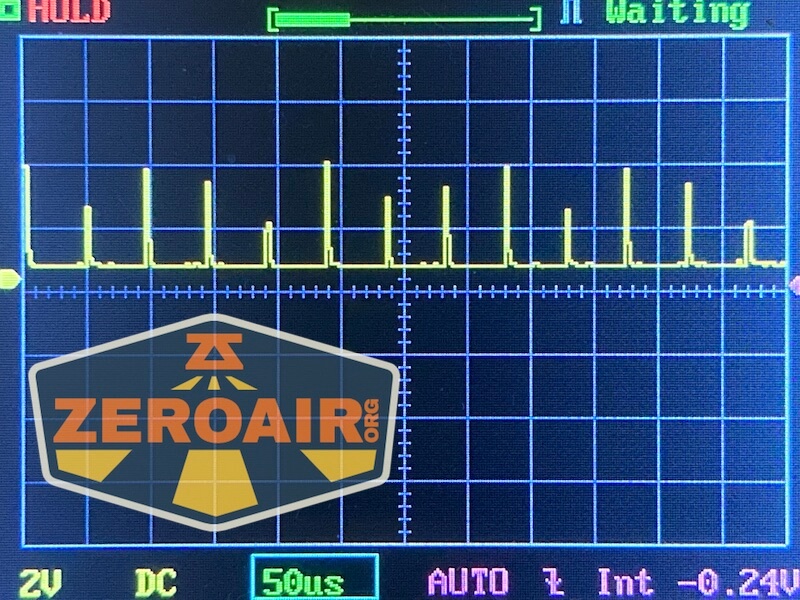

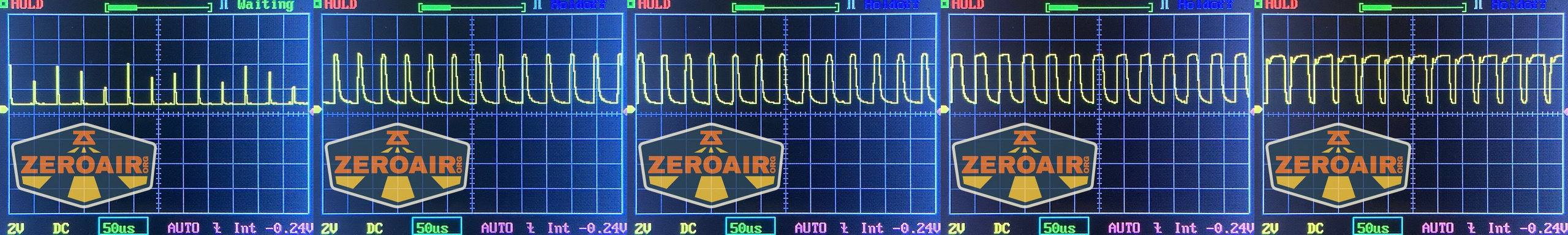

Pulse Width Modulation

Every mode uses PWM. It’s fairly fast PWM and I can’t say I noticed it during use.

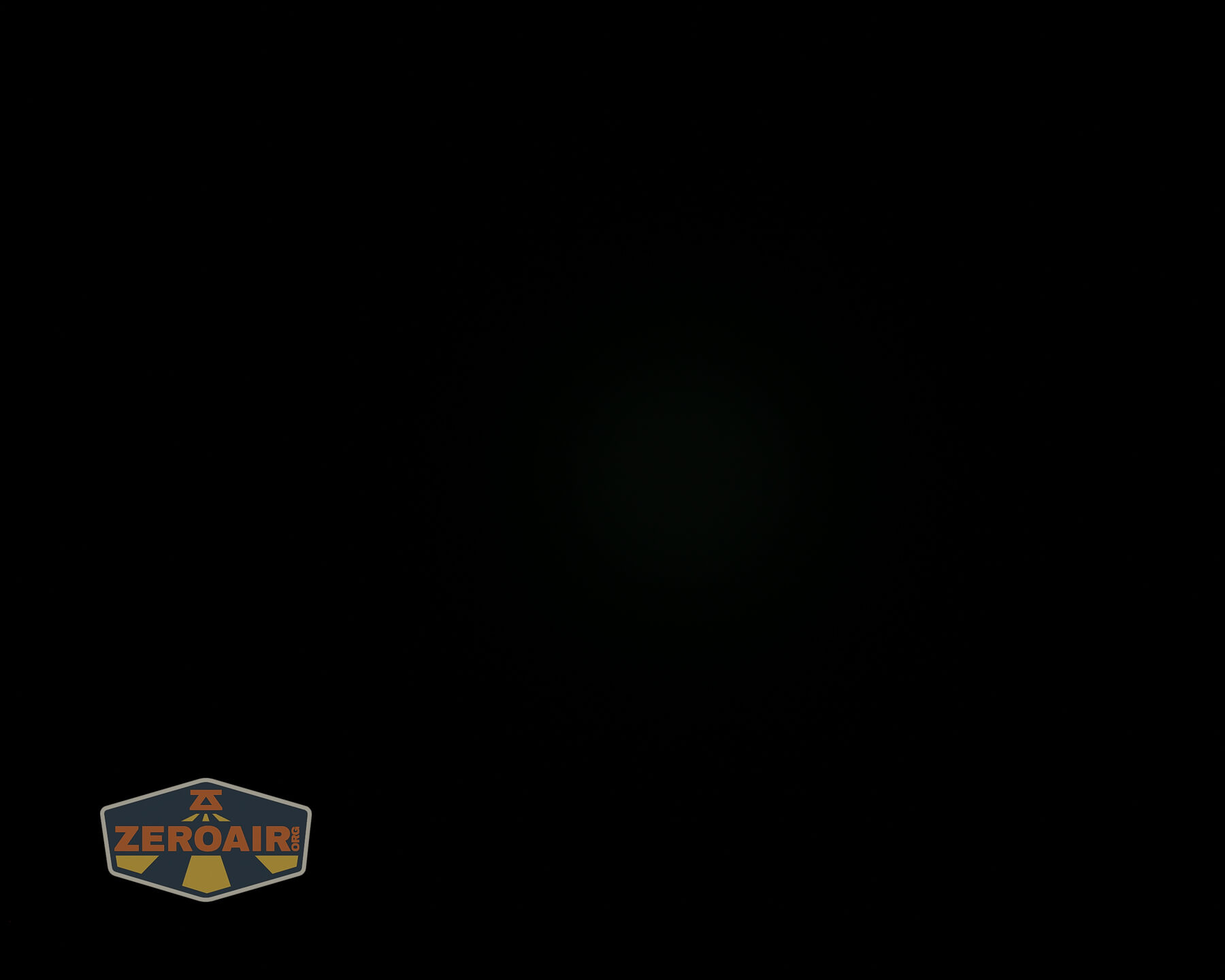

For reference, here’s a baseline shot, with all the room lights off and almost nothing hitting the sensor.  Also, here’s the light with the worst PWM I could find.  I’m adding multiple timescales, so it’ll be easier to compare to the test light.  Unfortunately, the PWM on this light is so bad that it doesn’t even work with my normal scale, with is 50 microseconds (50us).  10ms5ms2ms1ms0.5ms0.2ms.  In a display faster than 0.2ms or so, the on/off cycle is more than one screen, so it’d just (very incorrectly) look like a flat line.  I wrote more about this Ultrafire WF-602C flashlight and explained a little about PWM too.

User Interface and Operation

The Sofirn SC18 flashlight is controlled by a single e-switch. This is a soft switch and has an indication function in the center.w

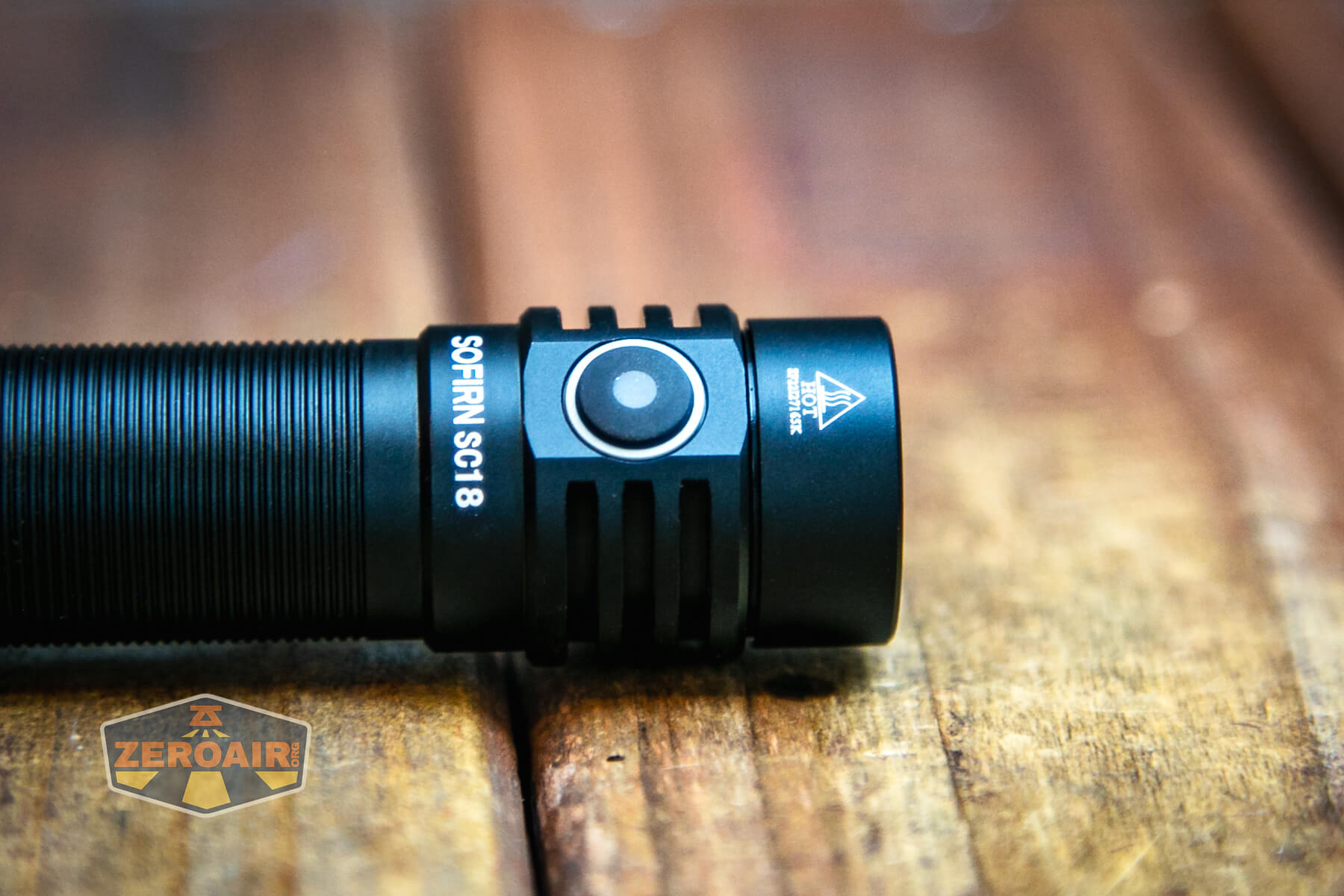

Sofirn SC18 flashlight e-switch

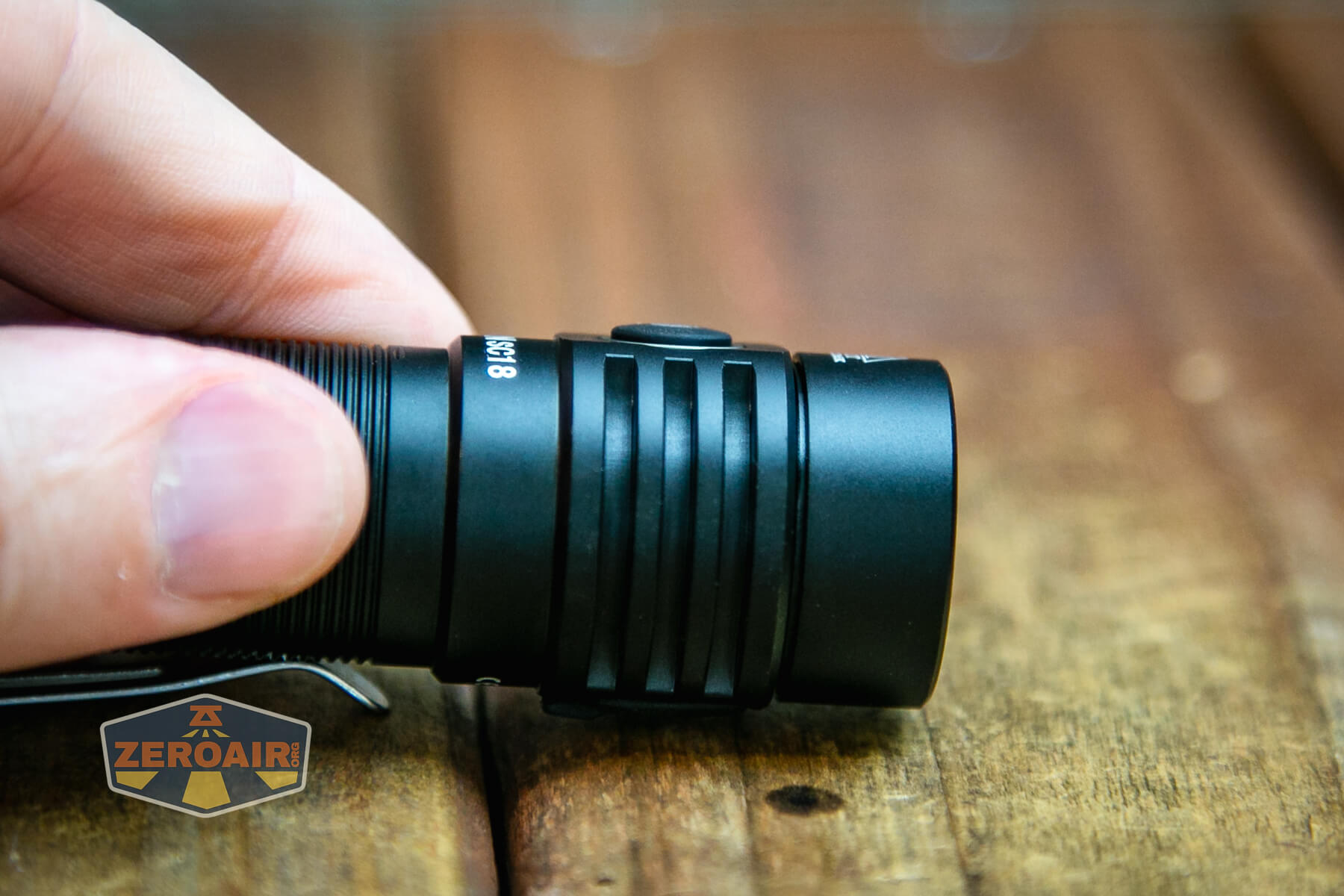

Sofirn SC18 flashlight e-switch profile

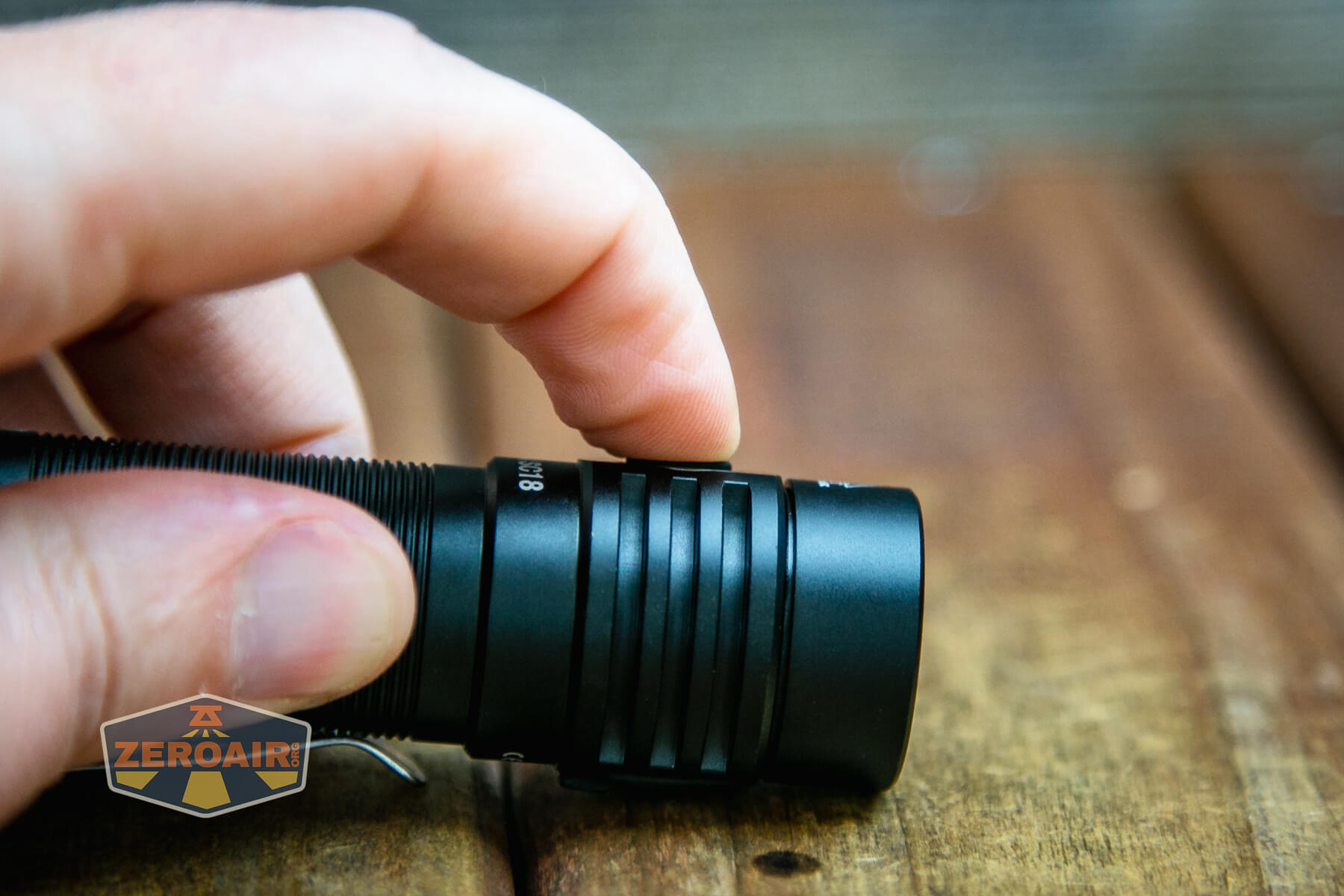

Sofirn SC18 flashlight e-switch actuation

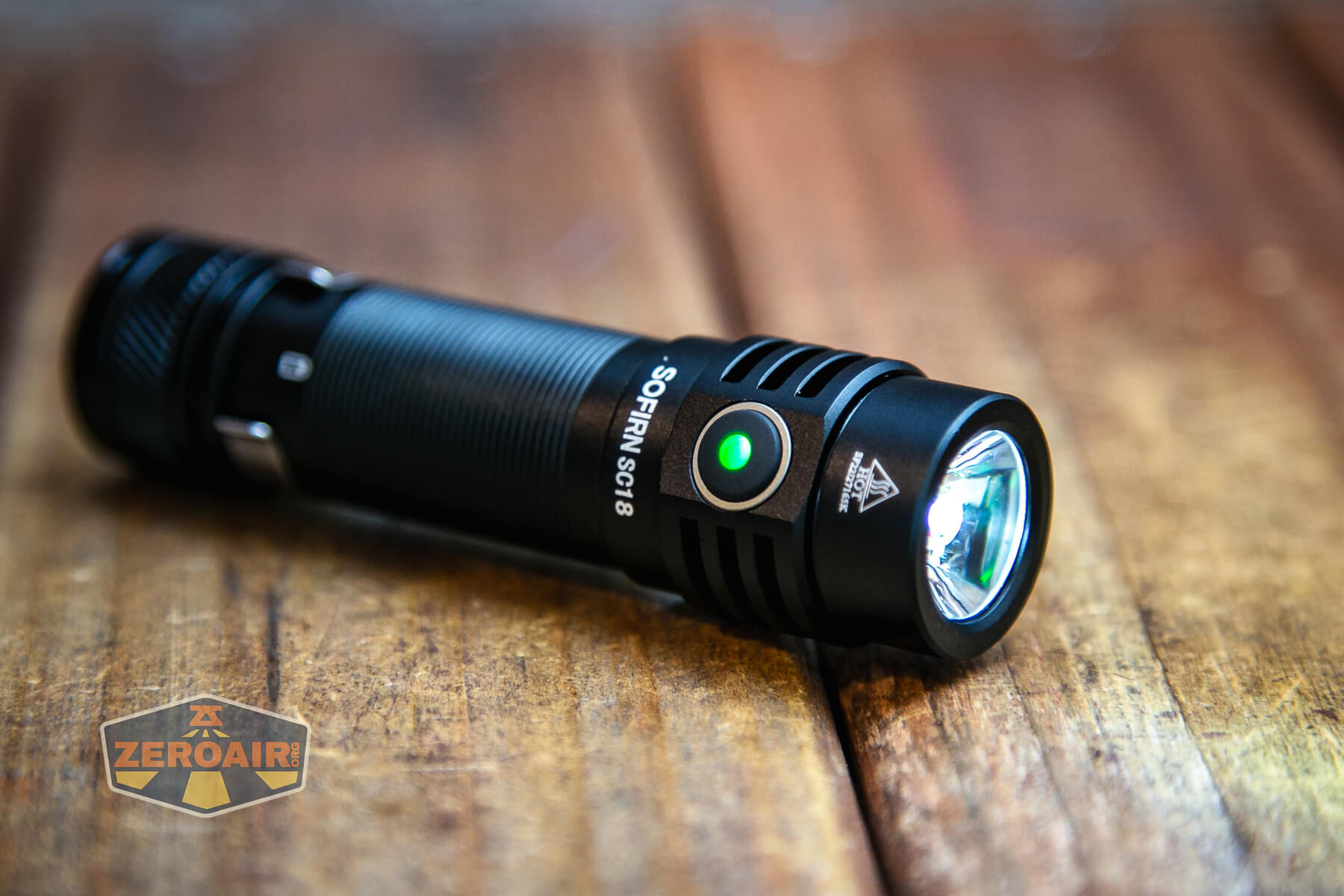

Below you can see the switch indicating in green. When the Sofirn SC18 flashlight is turned on, the switch will indicate the approximate battery level for around 5 seconds. Green means “good” and red means “poor” (or “low”). Flashing red means recharge immediately.

Sofirn SC18 flashlight e-switch indicating green

Here’s a UI table!

State Action Result
Off Hold Moon
Off Click On (Mode Memory)
On Hold Mode advance (LMH)
Any Double click Turbo
Turbo or Strobe Click Previous state
Any Click 3x Strobe
Off Click 4x Lockout
Lockout Click Main emitter flashes 2x to indicate lockout
Lockout Click 4x Unlock (to mode memory)
Lockout Hold Momentary moonlight mode

LED and Beam

Sofirn is using a Luminus SST-40 emitter in the SC18. This emitter is coupled with a TIR, and offers a great beam profile.

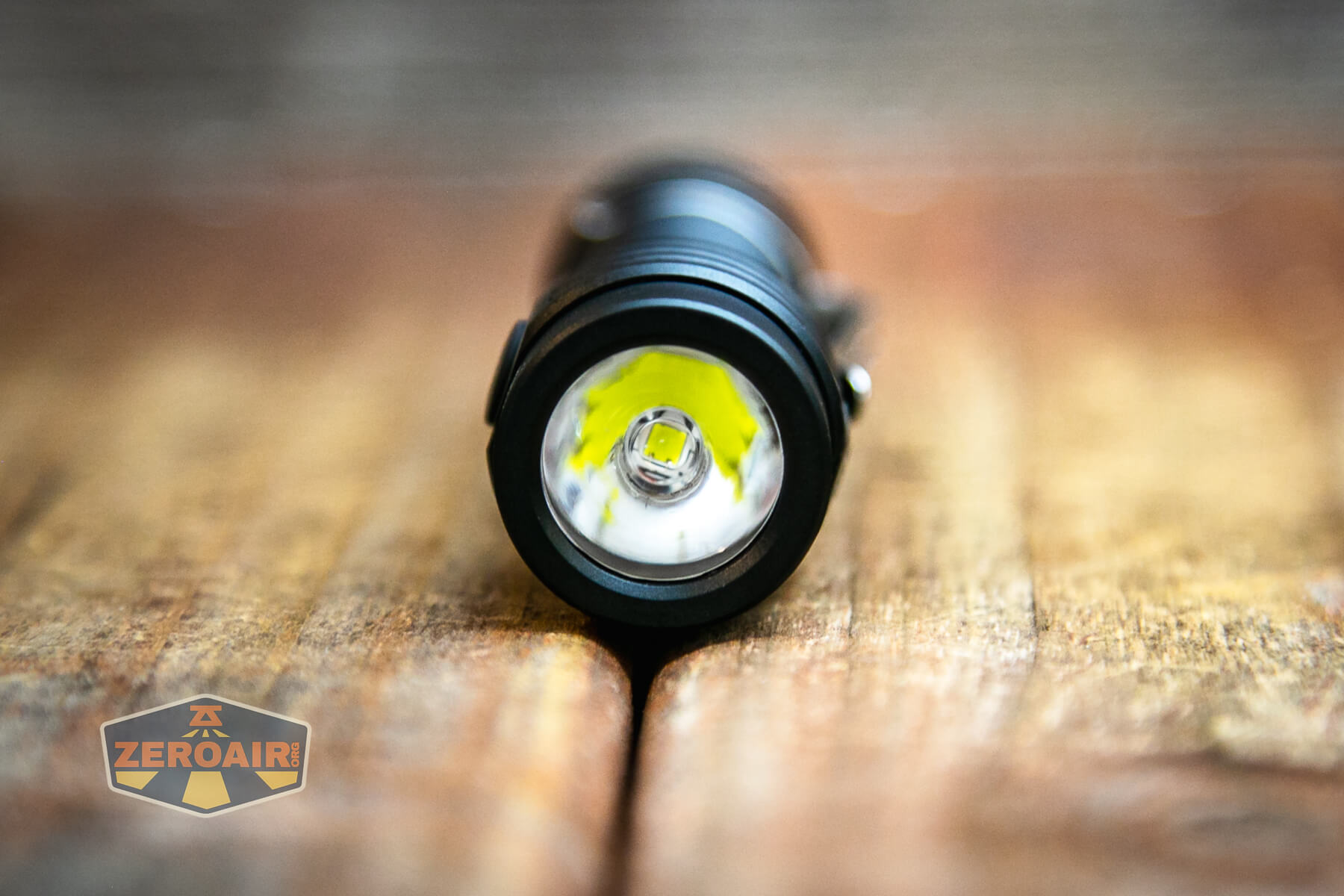

Sofirn SC18 flashlight emitter and TIR

Sofirn SC18 flashlight emitter and TIR

Sofirn SC18 flashlight emitter on

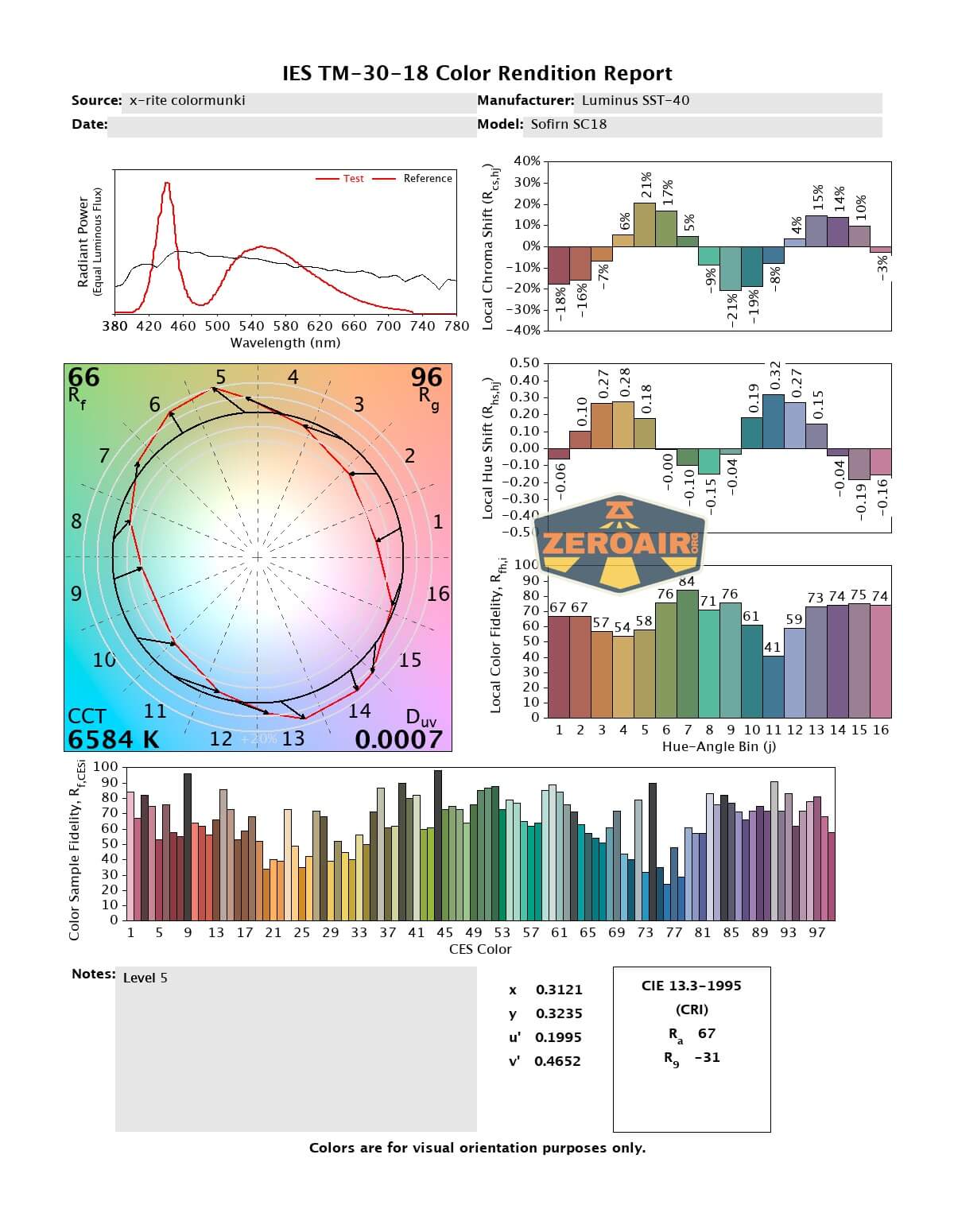

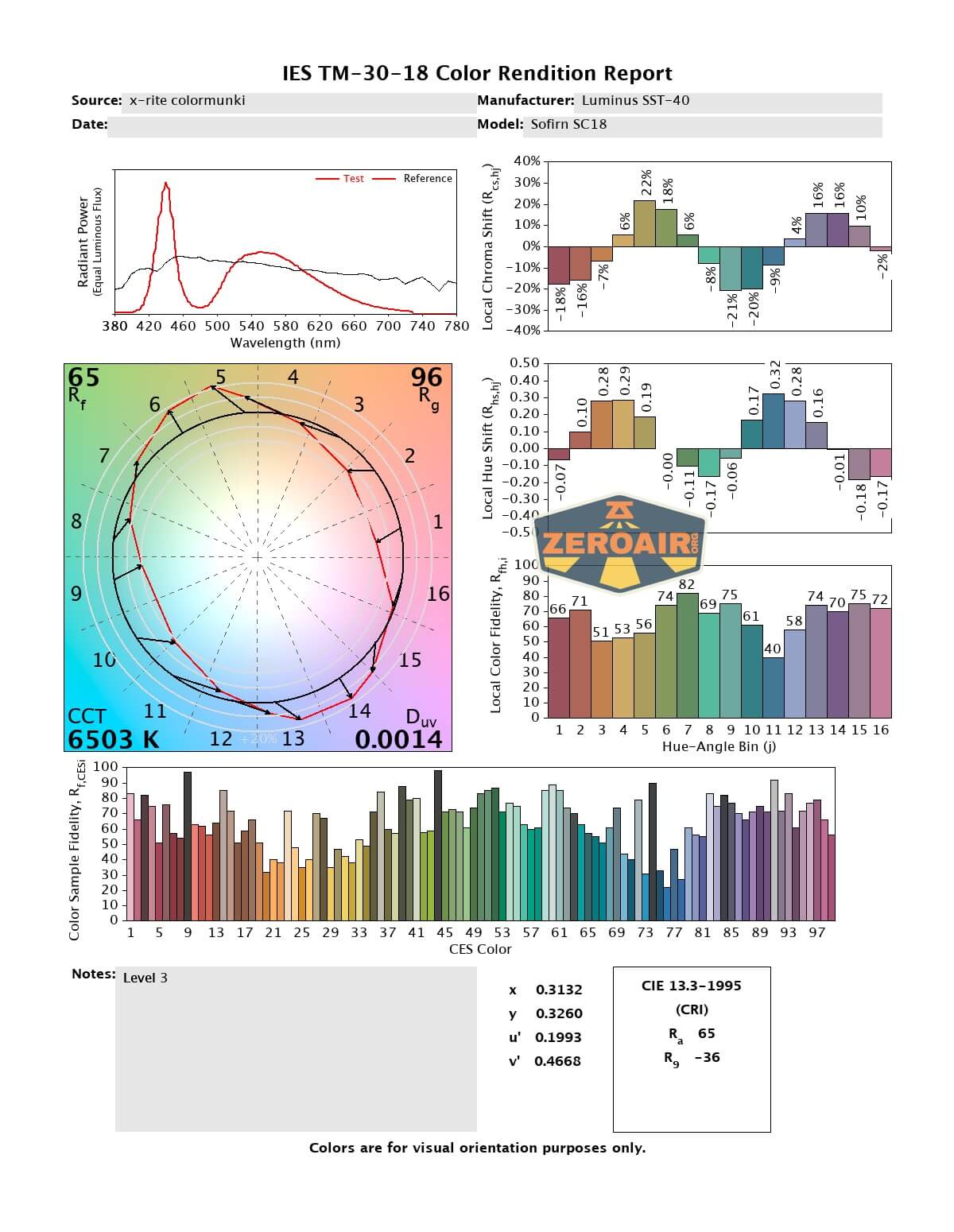

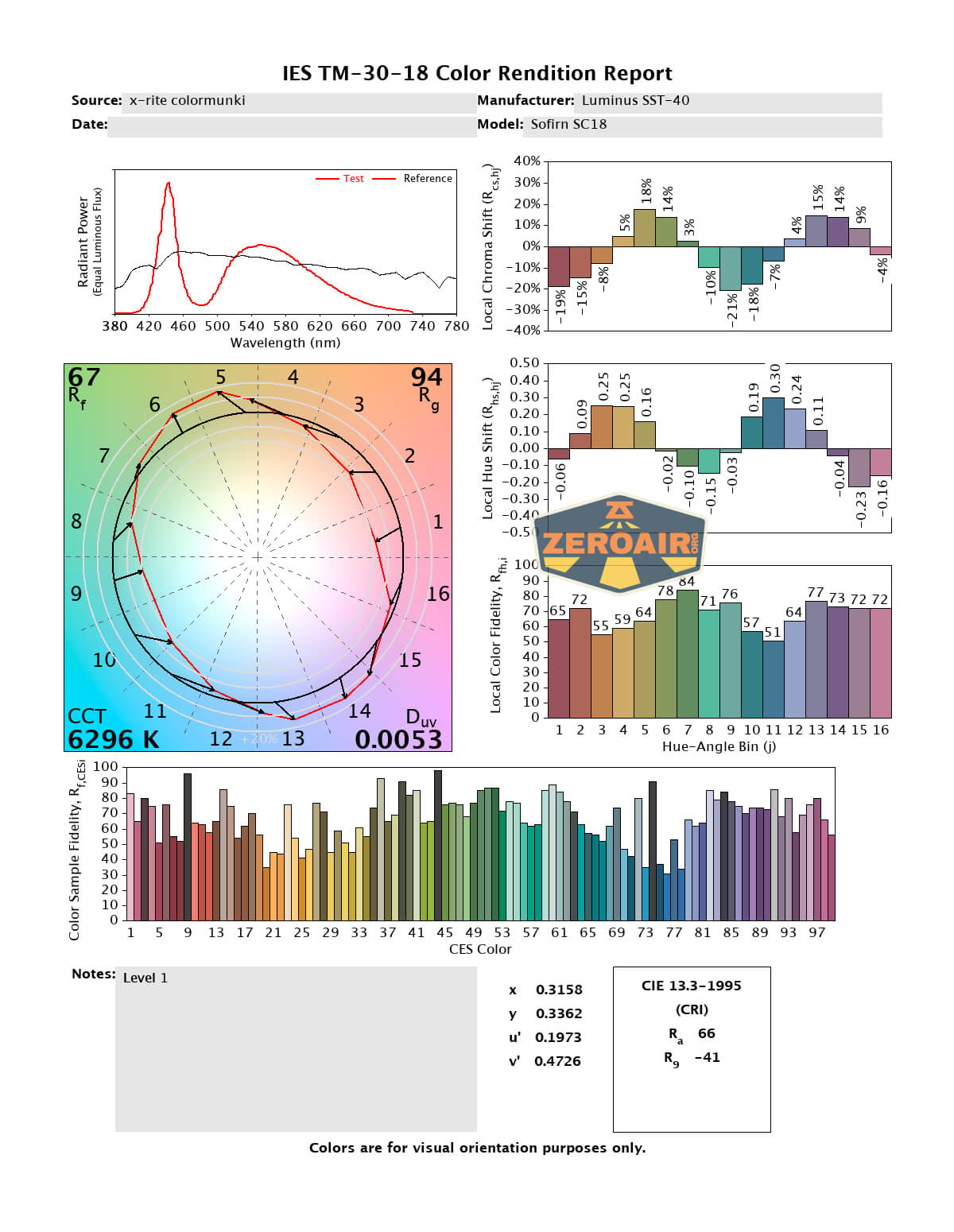

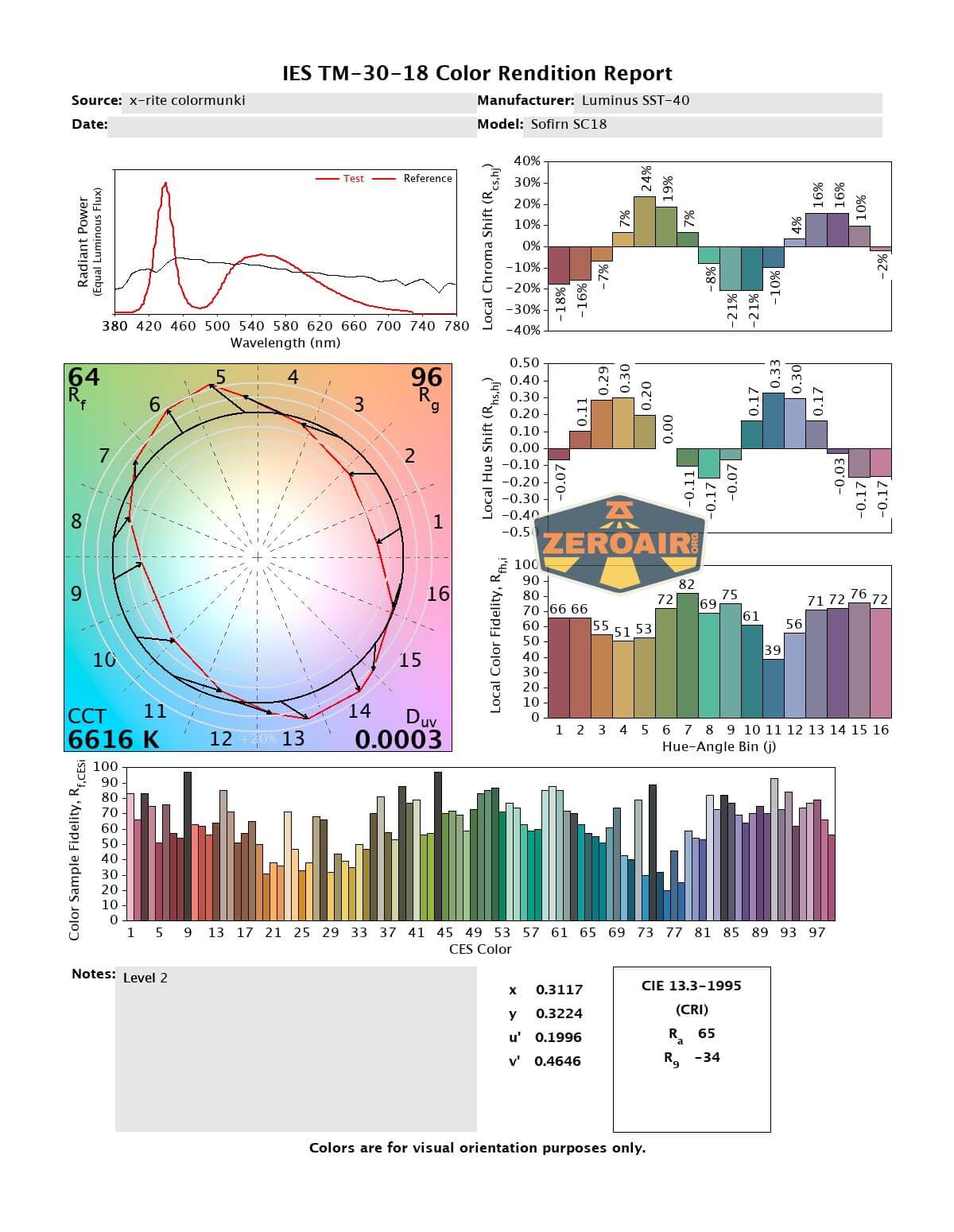

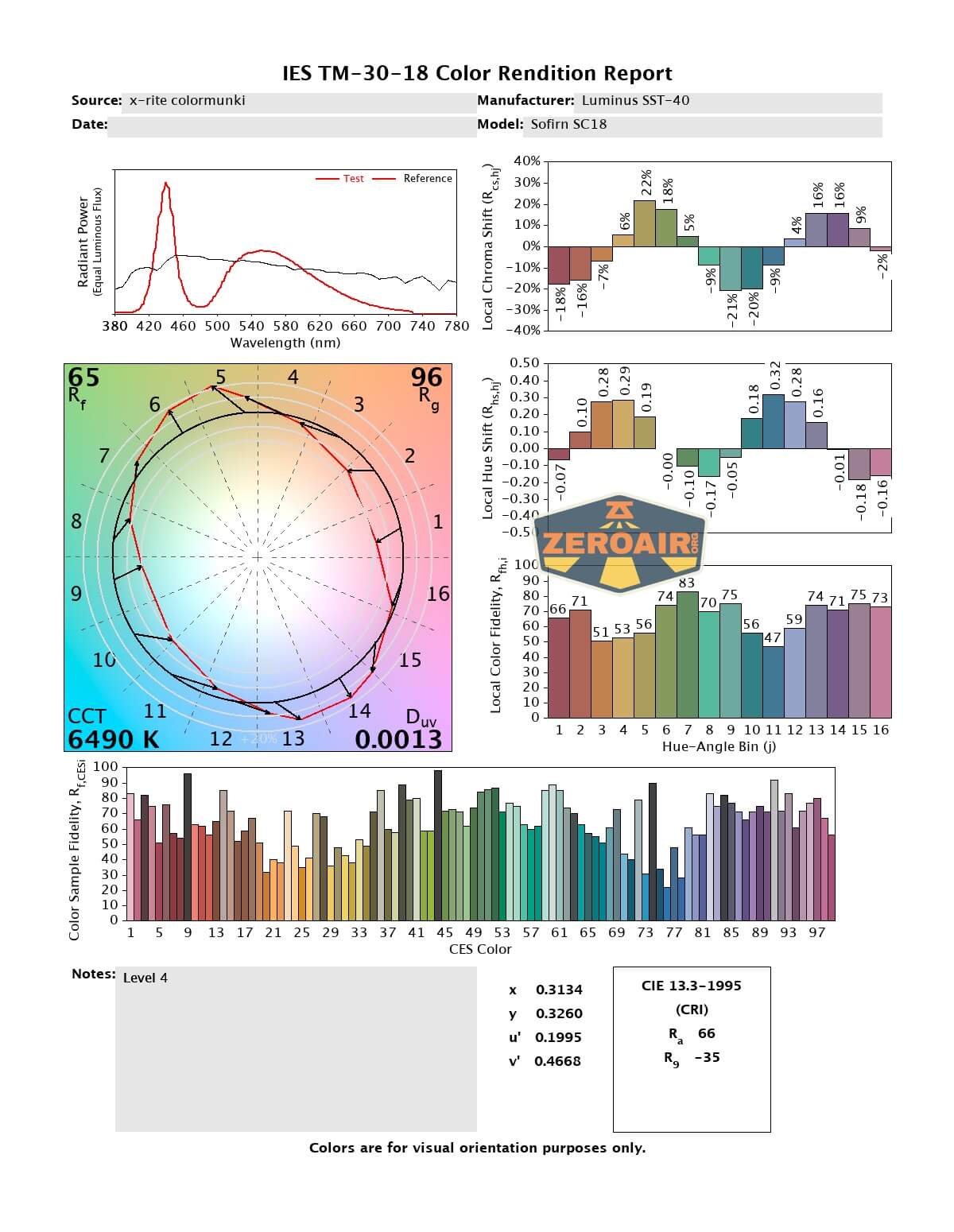

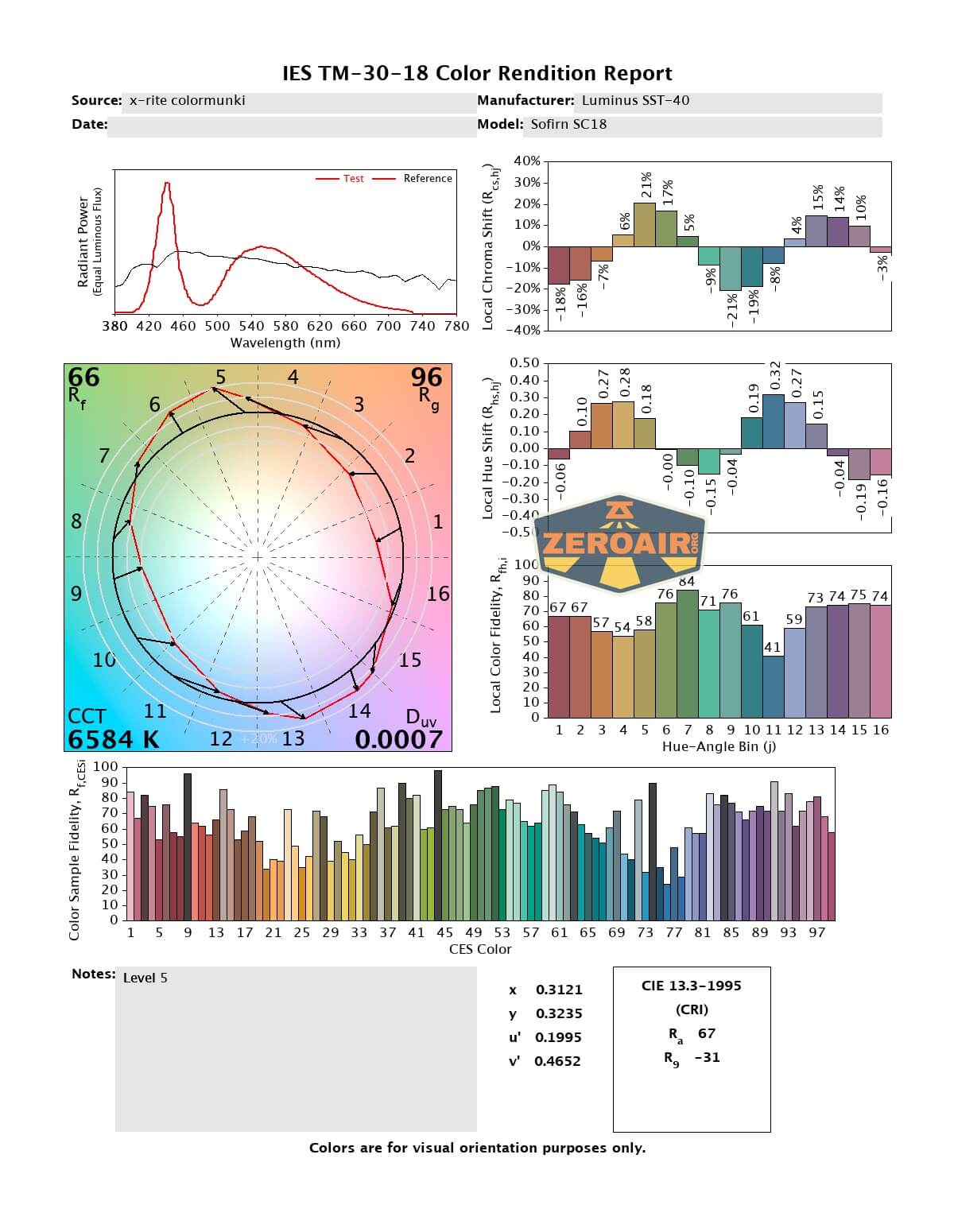

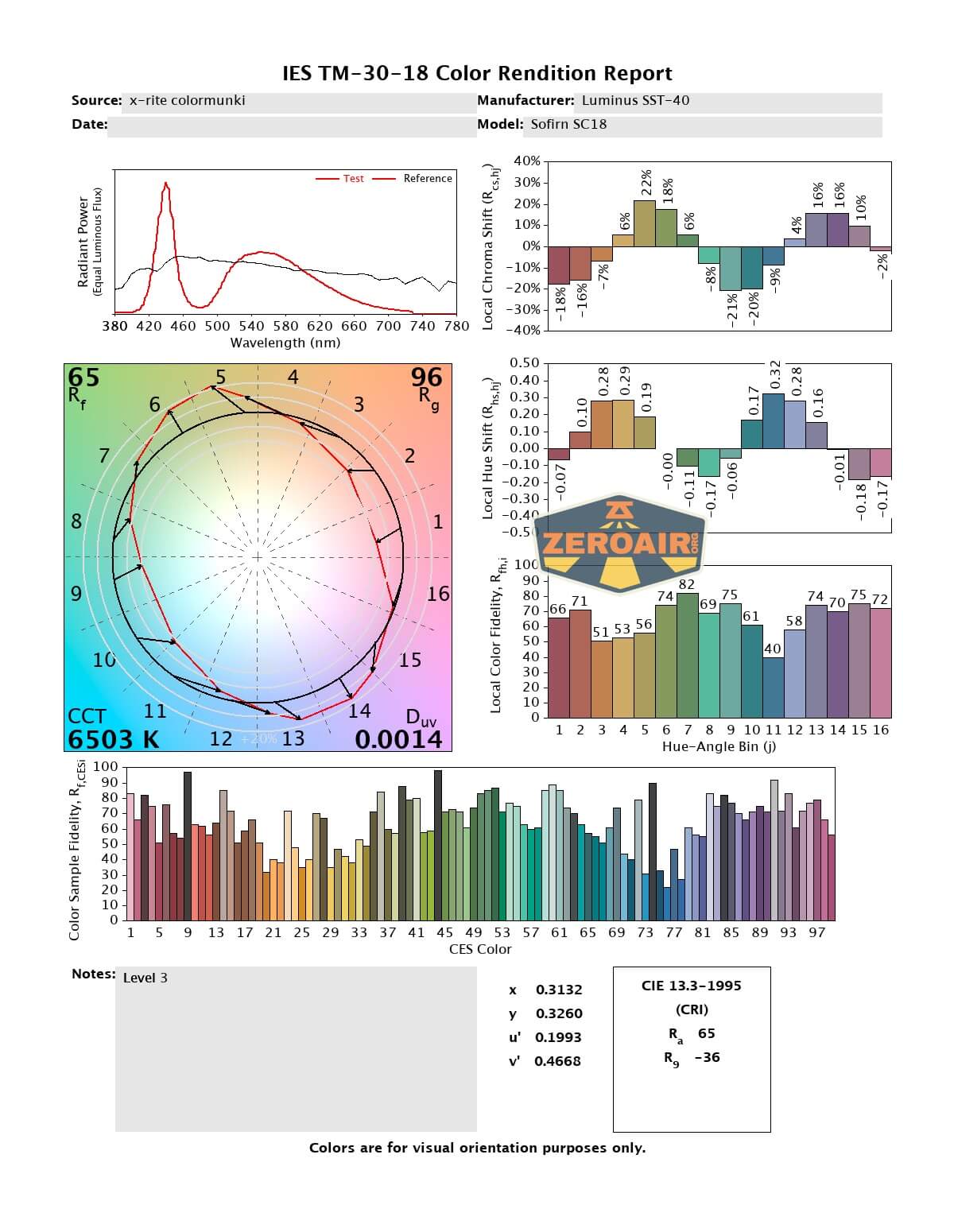

LED Color Report (CRI and CCT)

CCT for this Luminus SST-40 is fairly cool at around 6500K.  CRI is low too, at under 70.

Beamshots

These beamshots are always with the following settings:  f8, ISO100, 0.3s shutter, and manual 5000K exposure.

Tint vs BLF-348 (KillzoneFlashlights.com 219b version) (affiliate link)

I keep the test flashlight on the left, and the BLF-348 reference flashlight on the right.

I compare everything to the KillzoneFlashlights.com 219b BLF-348 because it’s inexpensive and has the best tint!

Conclusion

What I like

  • Very low cost!
  • USB-C charging
  • C to C charging works great
  • Very nice beam profile
  • Cell included for just $2 extra, still under $17
  • Indicating switch

What I don’t like

  • Very cool CCT
  • Lockout goes to main modes (memory)
  • No tailcap magnet

Notes

  • This content originally appeared at zeroair.org.  Please visit there for the best experience!
  • For flashlight-related patches, stickers, and gear, head over to PhotonPhreaks.com!
  • Use my amazon.com referral link if you’re willing to help support making more reviews like this one!
  • Please support me on Patreon!  Feeding flashlights is expensive!  And funding Fun Fund Friday even more so.  I deeply appreciate your support!
