Acebeam E75 Nichia Flashlight Review

Acebeam just introduced the E75 flashlight, and it’s available with Nichia 519a emitters. Four of them! This light has great CRI but also offers high output!

---

Official Specs and Features

Here’s a link to the Acebeam E75 Nichia flashlight product page.

Versions

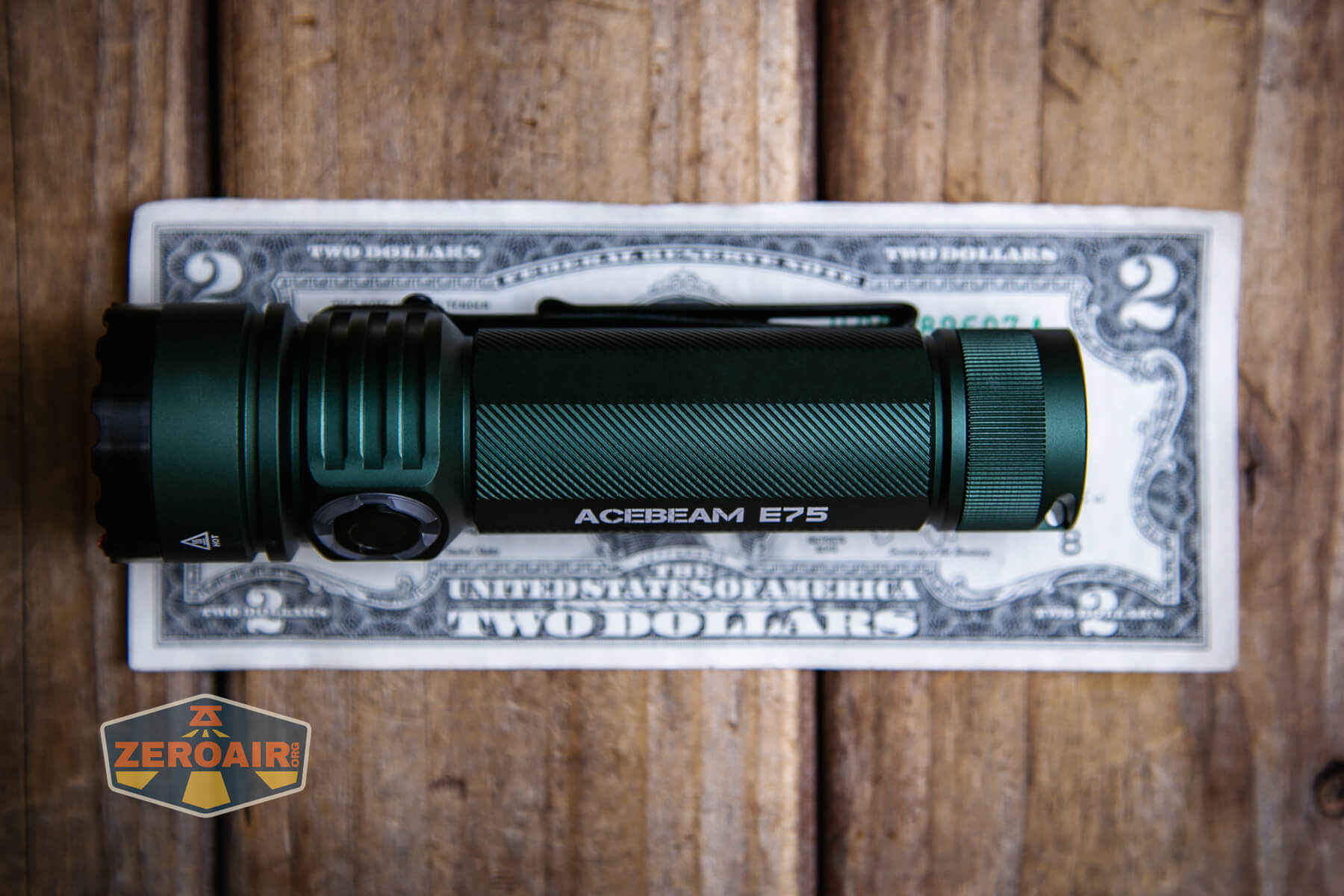

There are four body colors of the Acebeam E75 Nichia flashlight. There’s black, gray, teal, and green (seen here.) Each is also available in two emitter varieties – 6500K Cool White and Nichia 519a 5000K CRI90 (seen here). The 6500K will offer higher output. An additional traffic wand is available too, in both red and white.

Price

The going price for the Acebeam E75 Nichia flashlight is $99.90. This price includes the cell seen in this review. Each wand is available for $1.90 more. The Acebeam E75 is available on Amazon.com (referral link)!

---

Short Review

From the first instant this light was mentioned, it was immediately compared to the Olight Seeker. Well, for me, that’s great because I love the Seeker! That the Acebeam E75 flashlight is available with four Nichia 519a emitters is a massive win by Acebeam, and makes the light easy to recommend. If you’re in the 21700/quad emitter/high output search, the E75 is a great choice!

Long Review

The Big Table

Acebeam E75 Nichia Flashlight
Emitter:	Nichia 519a (four) (5000K CRI90)
Price in USD at publication time:	$99.90 on Amazon.com
Cell:	1×21700
Runtime Graphs
LVP?	Yes
Switch Type:	E-Switch
Quiescent Current (mA):	?
On-Board Charging?	Yes
Charge Port Type:	USB-C
Charge Graph
Power off Charge Port	with or without cell: lowest three modes without tailcap: lowest two modes
Claimed Lumens (lm)	3000
Measured Lumens (at 30s)	2553 (85.1% of claim)^
Candela per Lumen	3.88
Claimed Throw (m)	210
Candela (Calculated) in cd (at 30s)	459lux @ 5.429m = 13529cd
Throw (Calculated) (m)	232.6 (110.8% of claim)^
Claimed CCT	5000
Measured CCT Range (K)	4600-5000 Kelvin
Item provided for review by:	Acebeam
All my Acebeam reviews!

^ Measurement disclaimer:  Testing flashlights is my hobby. I use hobbyist-level equipment for testing, including some I made myself. Try not to get buried in the details of manufacturer specifications versus measurements recorded here; A certain amount of difference (say, 10 or 15%) is perfectly reasonable.

What’s Included

• Acebeam E75 Nichia flashlight
• 5000mAh 21700
• Charging cable (USB to USB-C)
• Lanyard
• Spare o-ring (2)
• Spare charge port cover
• Manual etc

Package and Manual

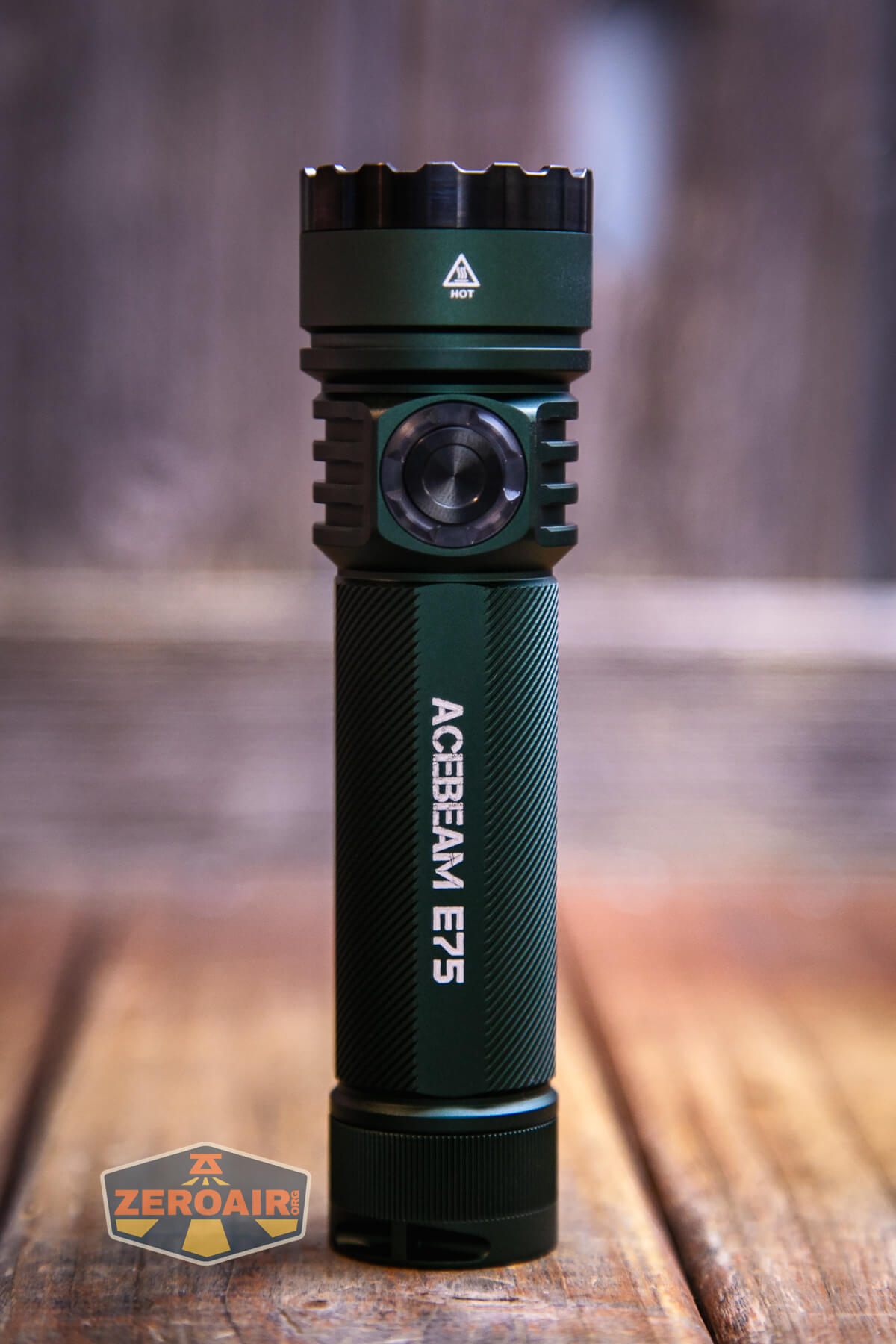

Build Quality and Disassembly

It’s an Acebeam, so you’d expect (and get) very good build quality. I have historically not been a huge fan of spirals on flashlights and have to say that’s probably one of my least favorite features of this light. (I’m a big fan of good ol’ fashioned knurling!). But these are subtle and shallow and look and work just fine, so it’s all good. They certainly don’t detract from usability of the E75.

On the other hand, I am a big fan of the bezel. I like it both because it seems very robust, but also because it has the teeth, and even more so because it follows the last year or two design theme from Acebeam. This light matches the other recent Acebeams!

Inside the cell tube, both head and tail have springs.

The tail spring is very beefy. Though I didn’t try, I think the spring can be removed and the tailcap magnet probably removed, too.

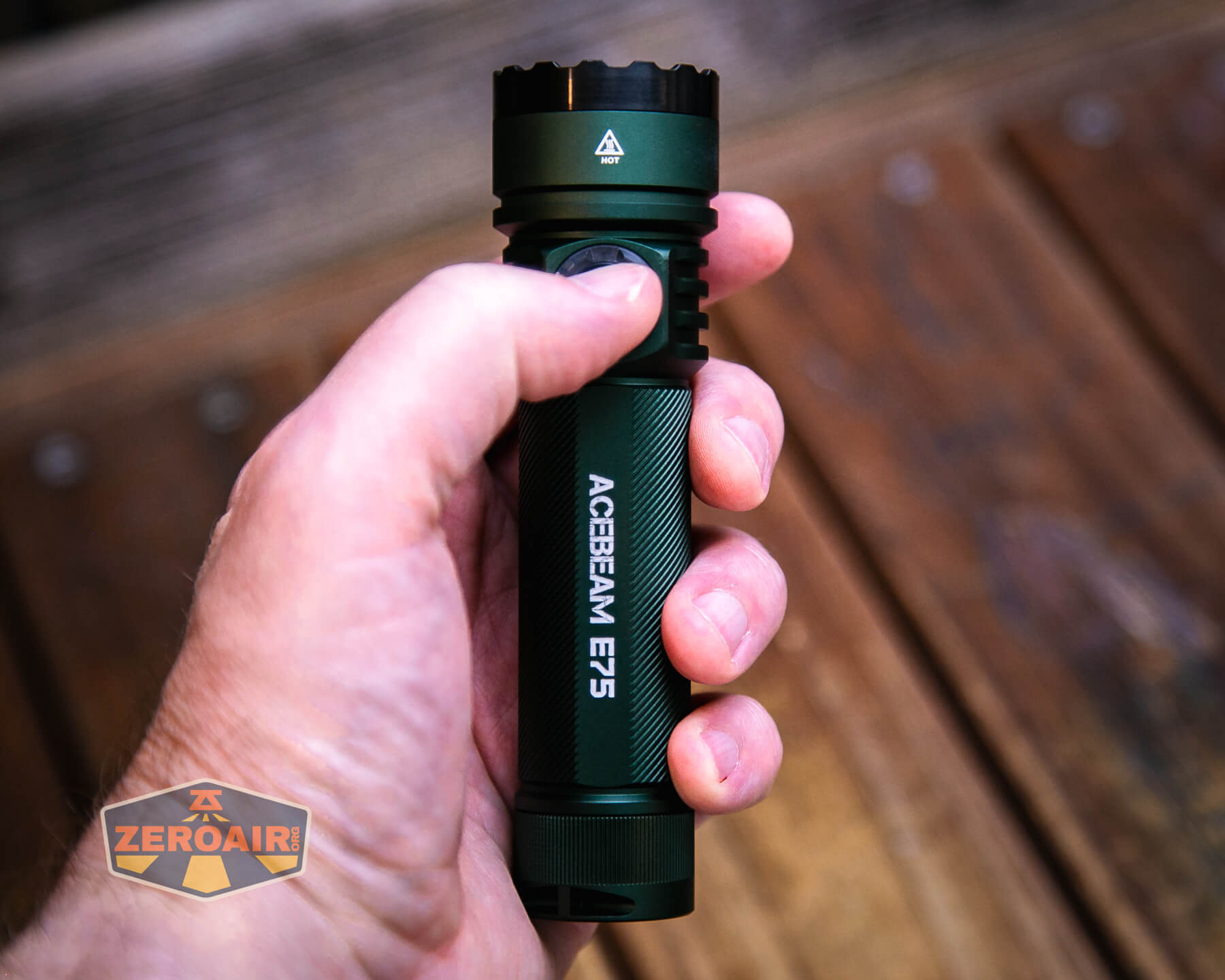

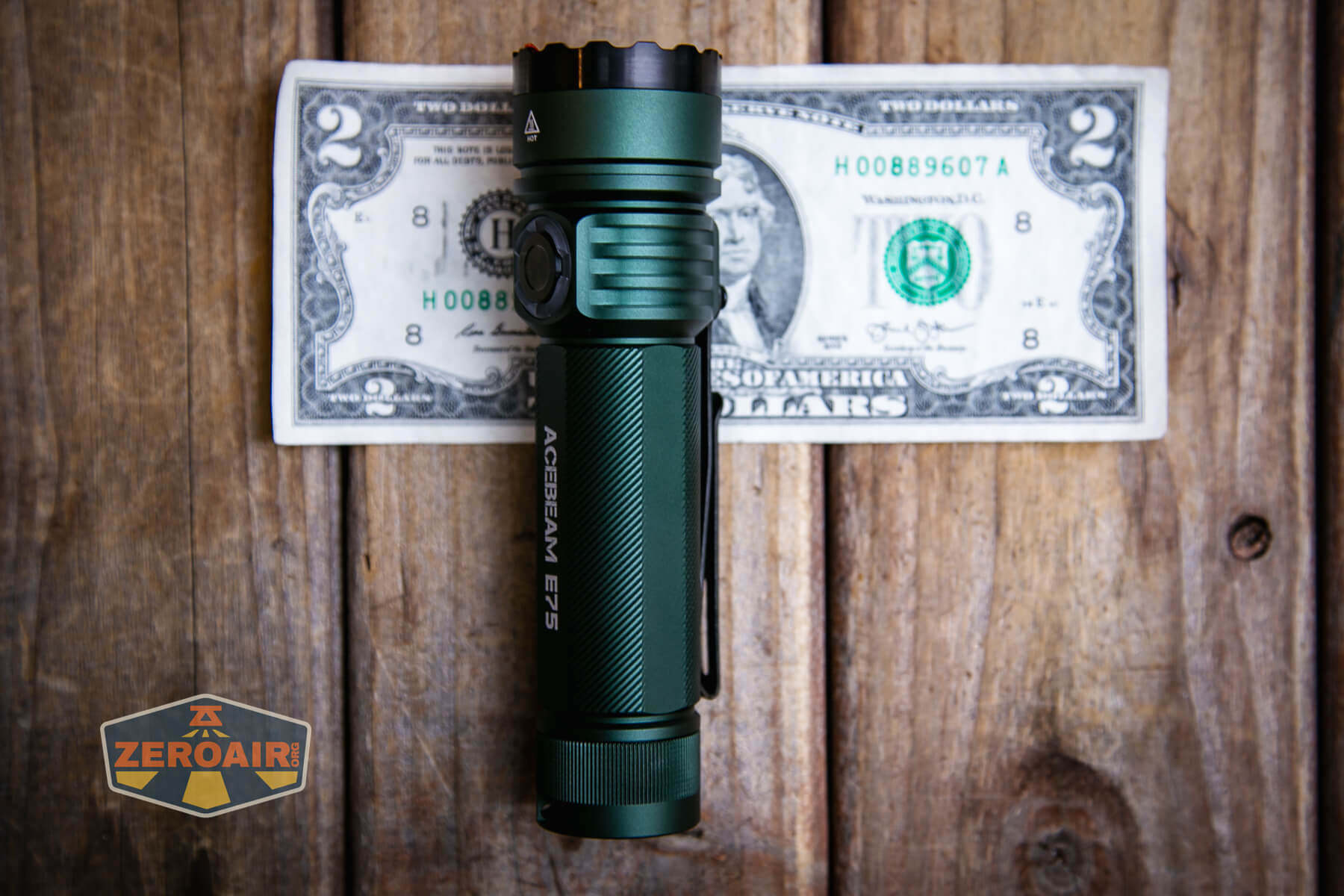

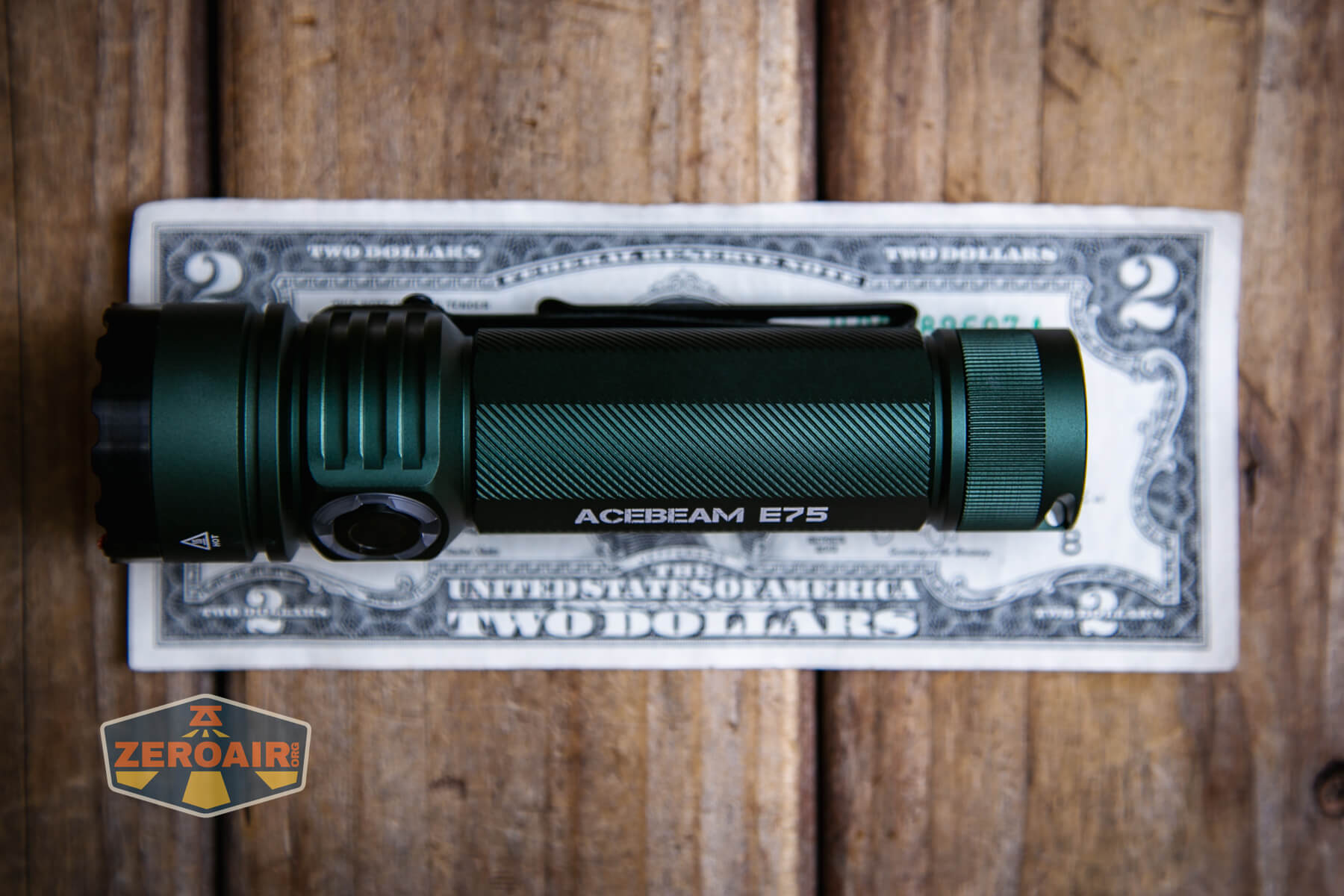

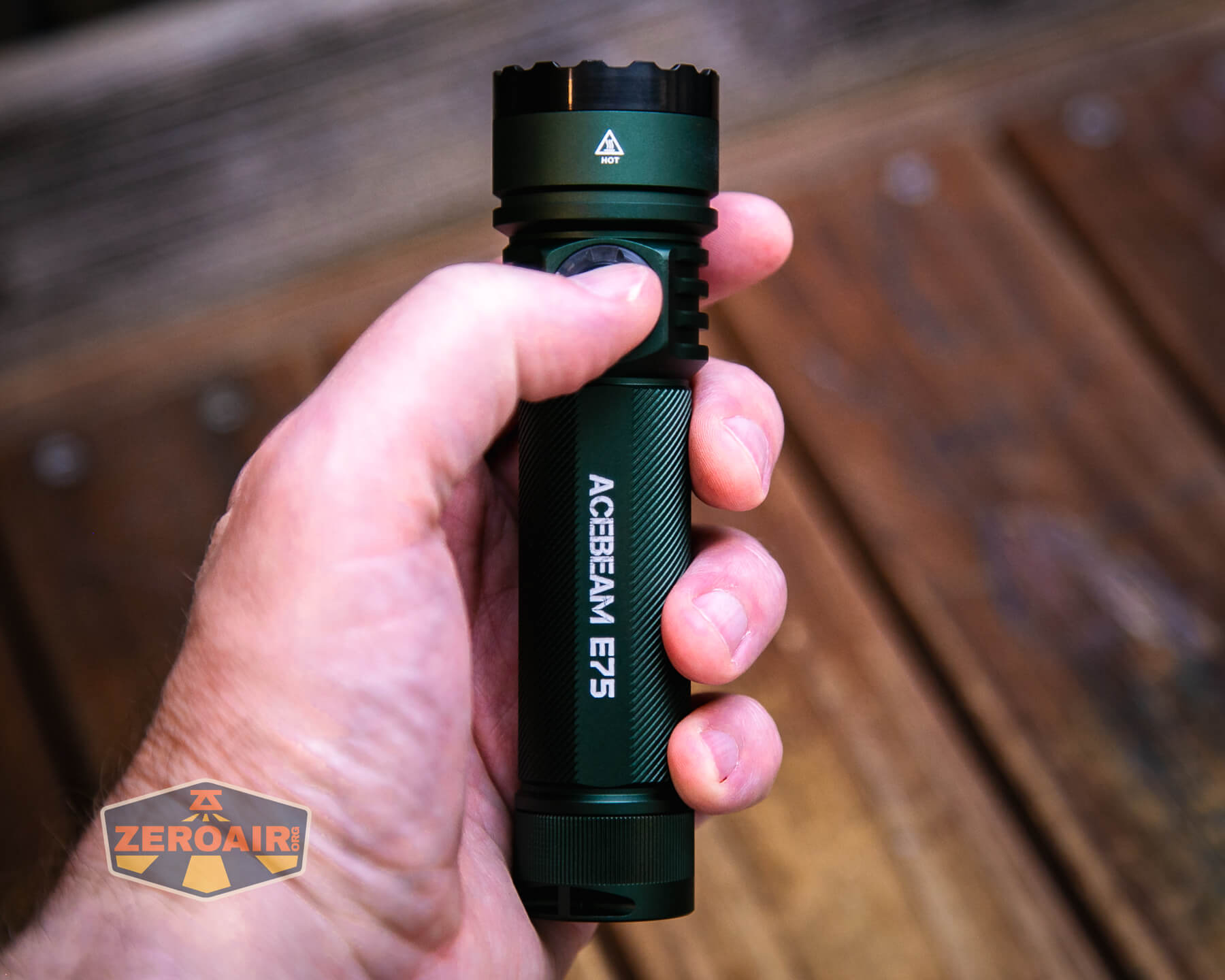

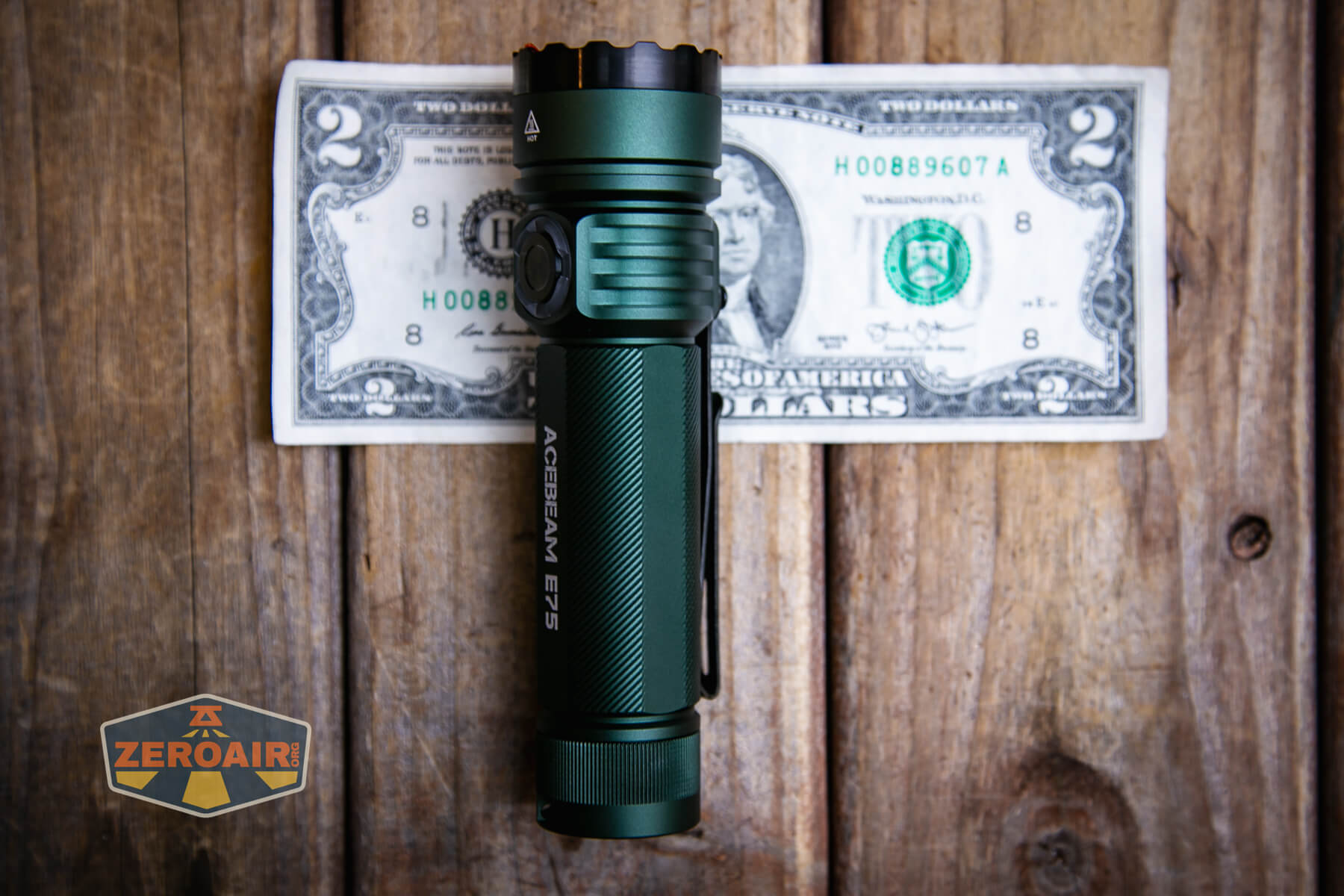

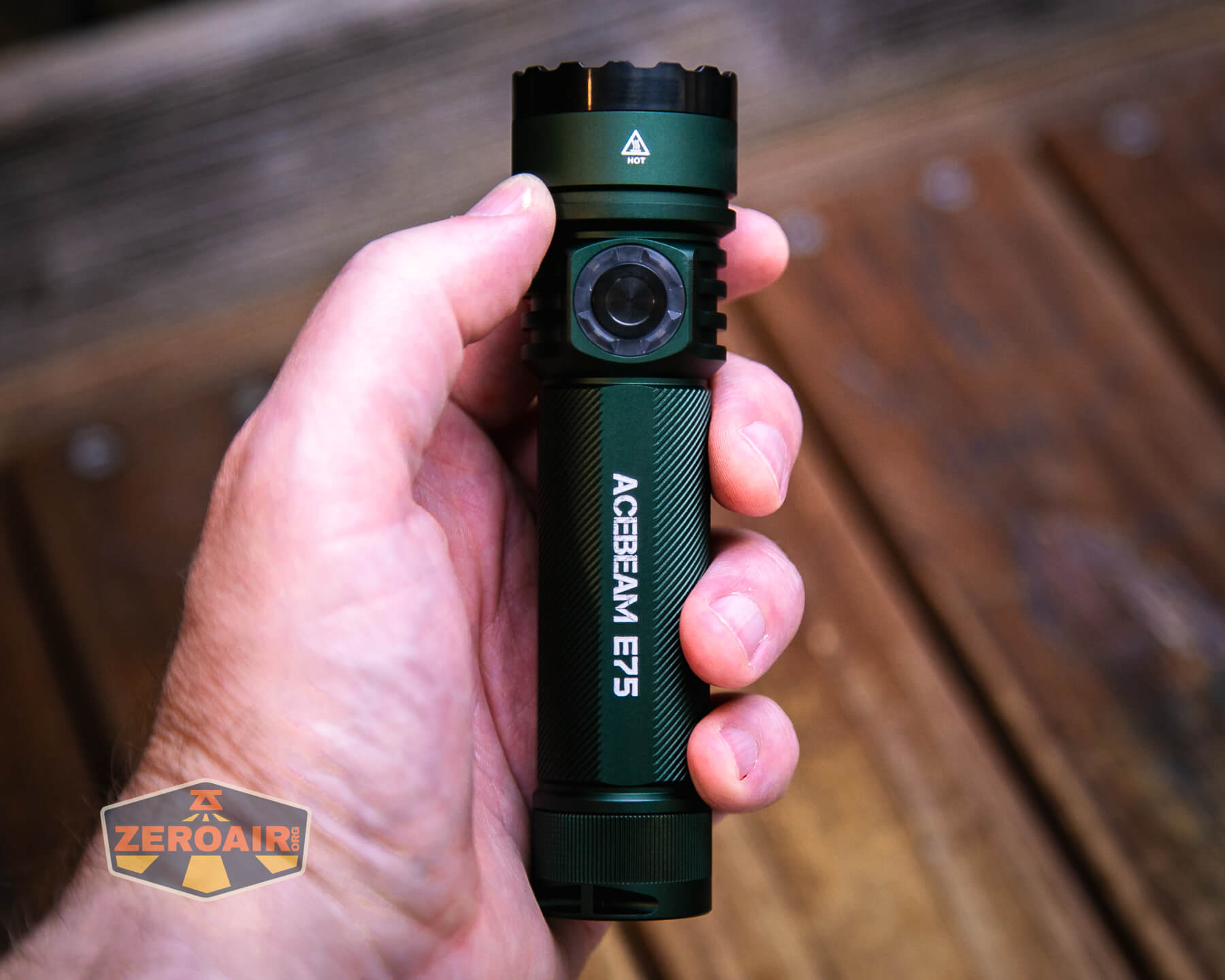

Size and Comps

Size: 129.3(Length) x 35 (Head Diameter) x 28mm (Tube Diameter)
Weight: 145g(5.11oz.) w/o battery, 217g/7.65 oz w/ battery

If the flashlight will headstand, I’ll show it here (usually the third photo). If the flashlight will tailstand, I’ll also show that (usually in the fourth photo).

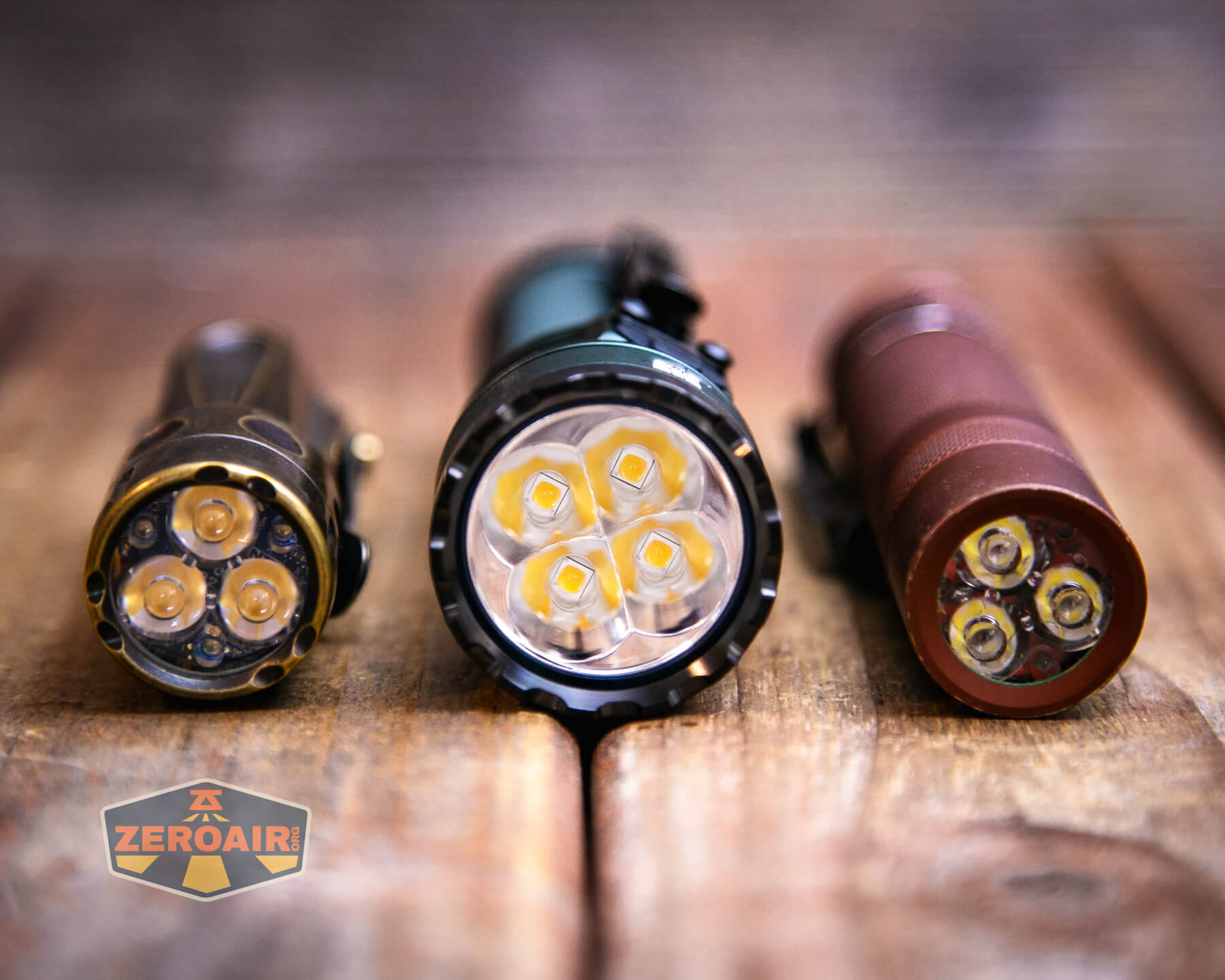

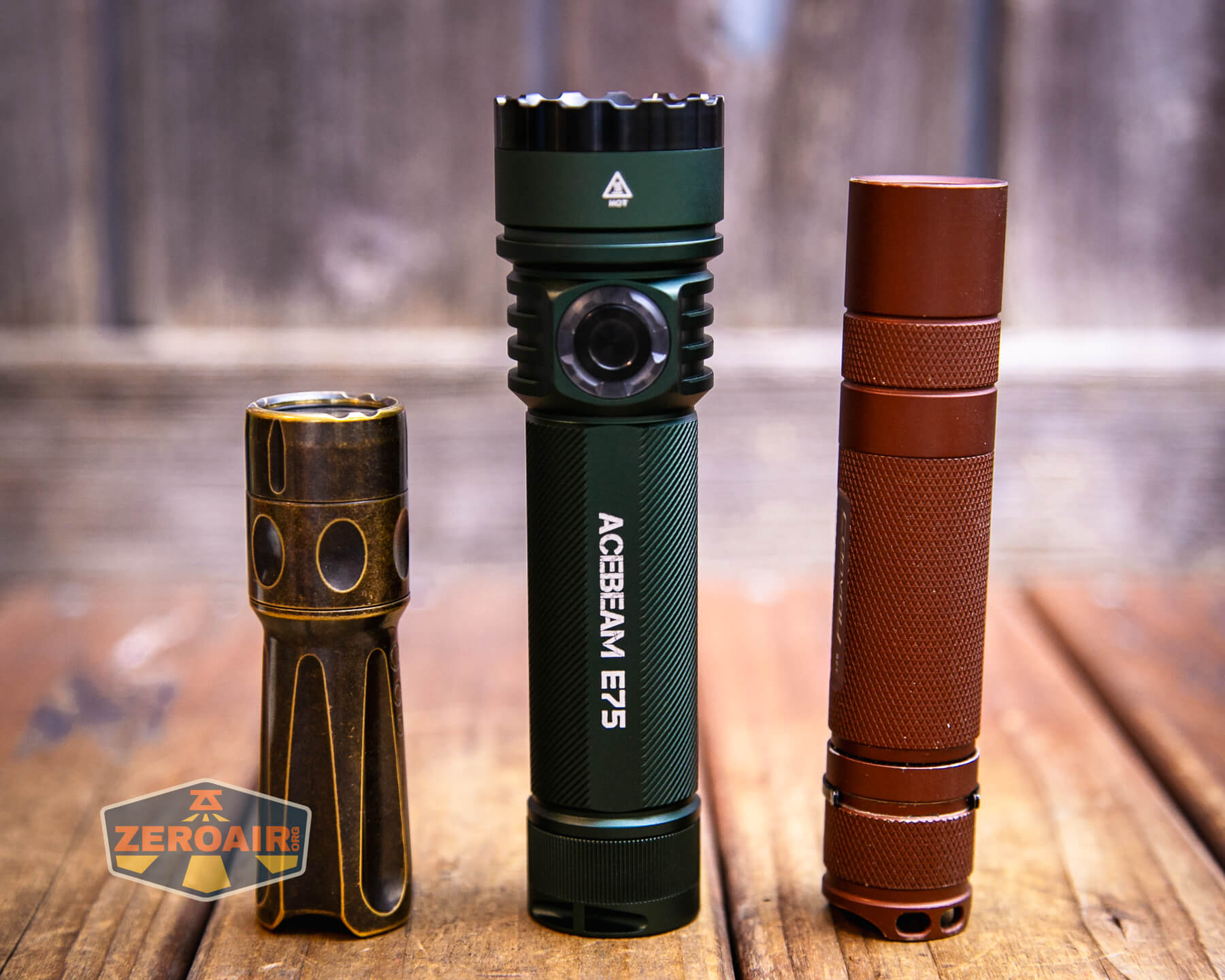

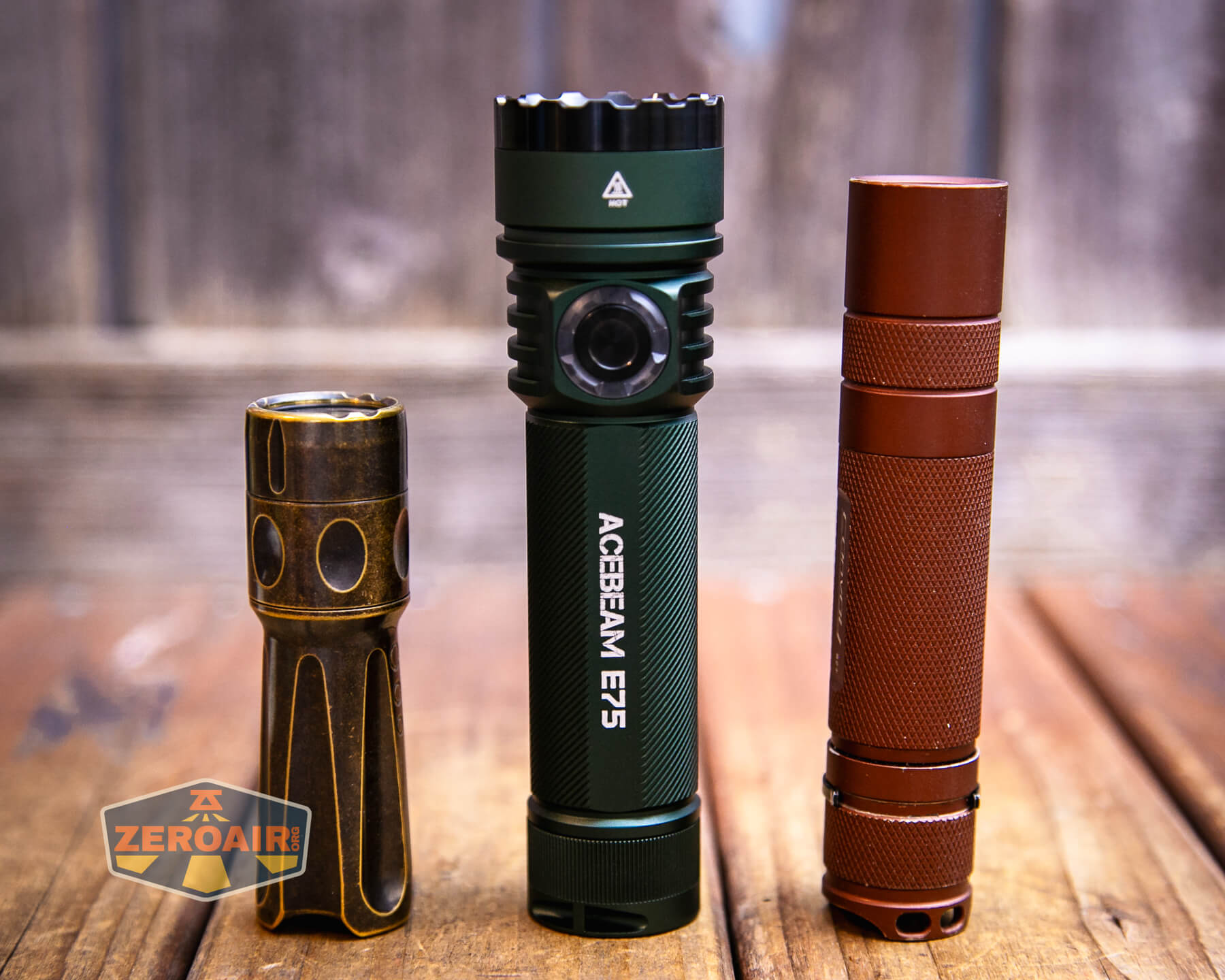

Here’s the test light with the venerable Convoy S2+. Mine’s a custom “baked” edition Nichia 219b triple. A very nice 18650 light.

Also above is the light beside my custom engraved TorchLAB BOSS 35, an 18350 light. I reviewed the aluminum version of that light in both 35 and 70 formats. I also reviewed that specific edition, the “Oveready BOSS FT Collector Vintage Brass” 35. I love it!

Retention and Carry

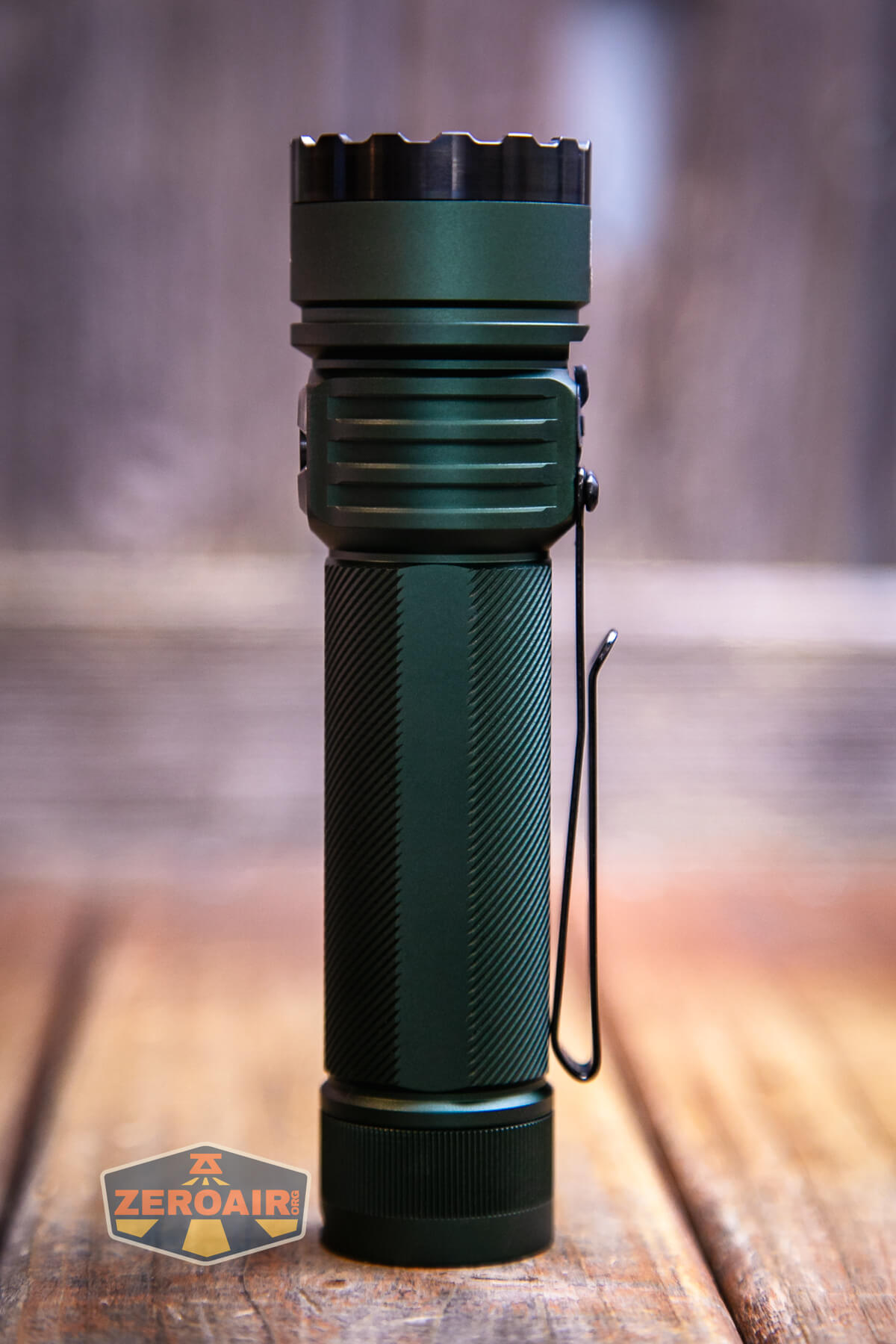

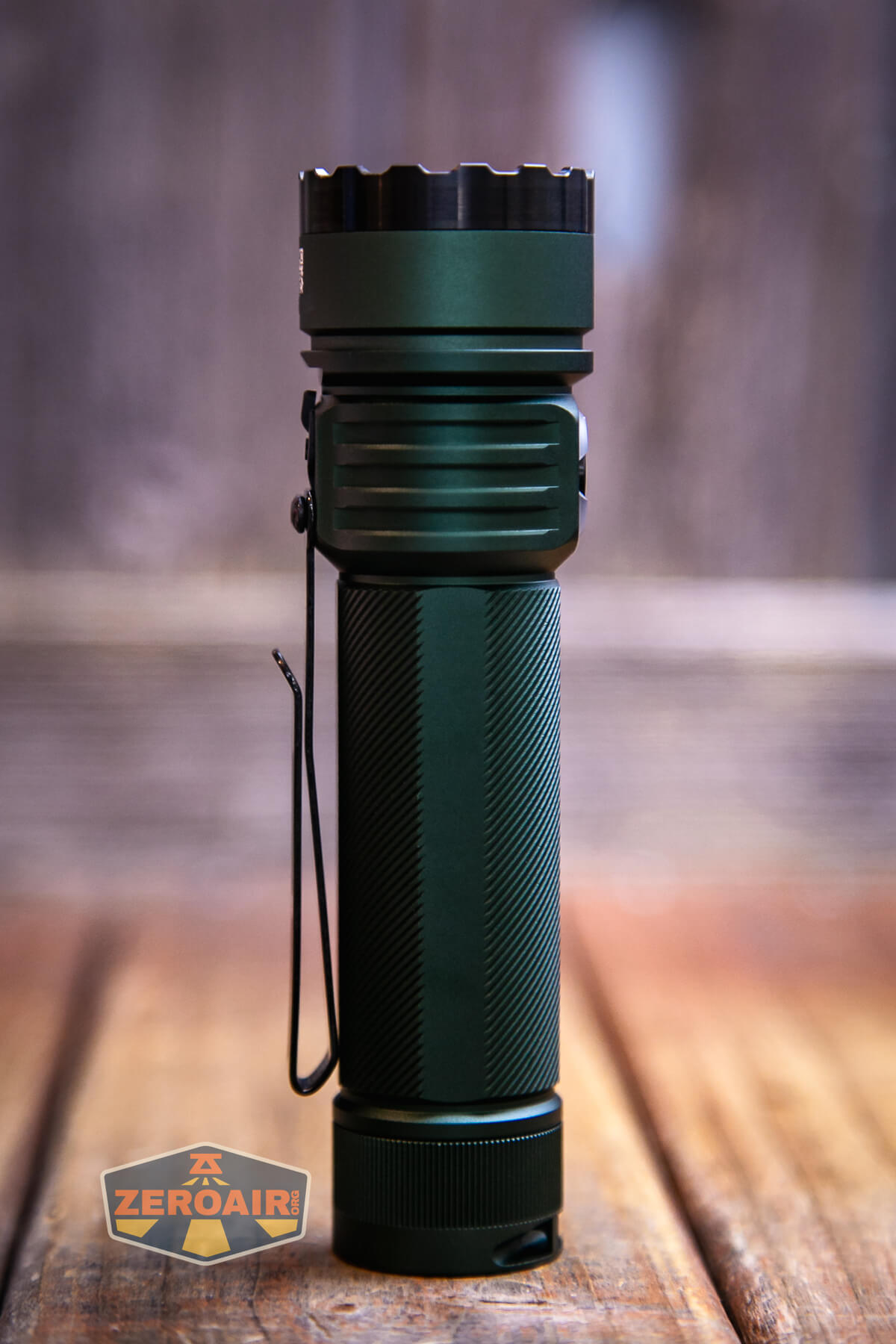

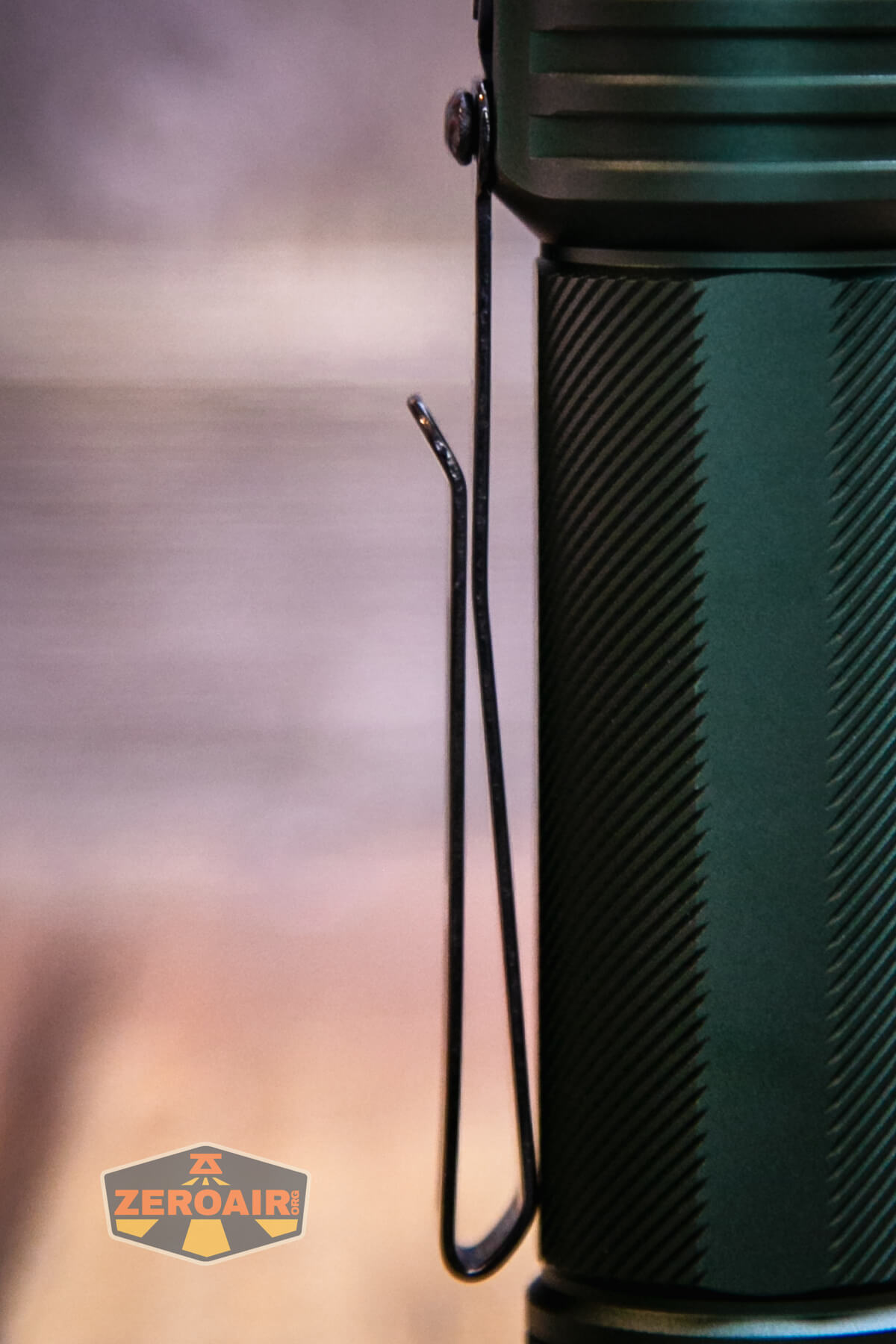

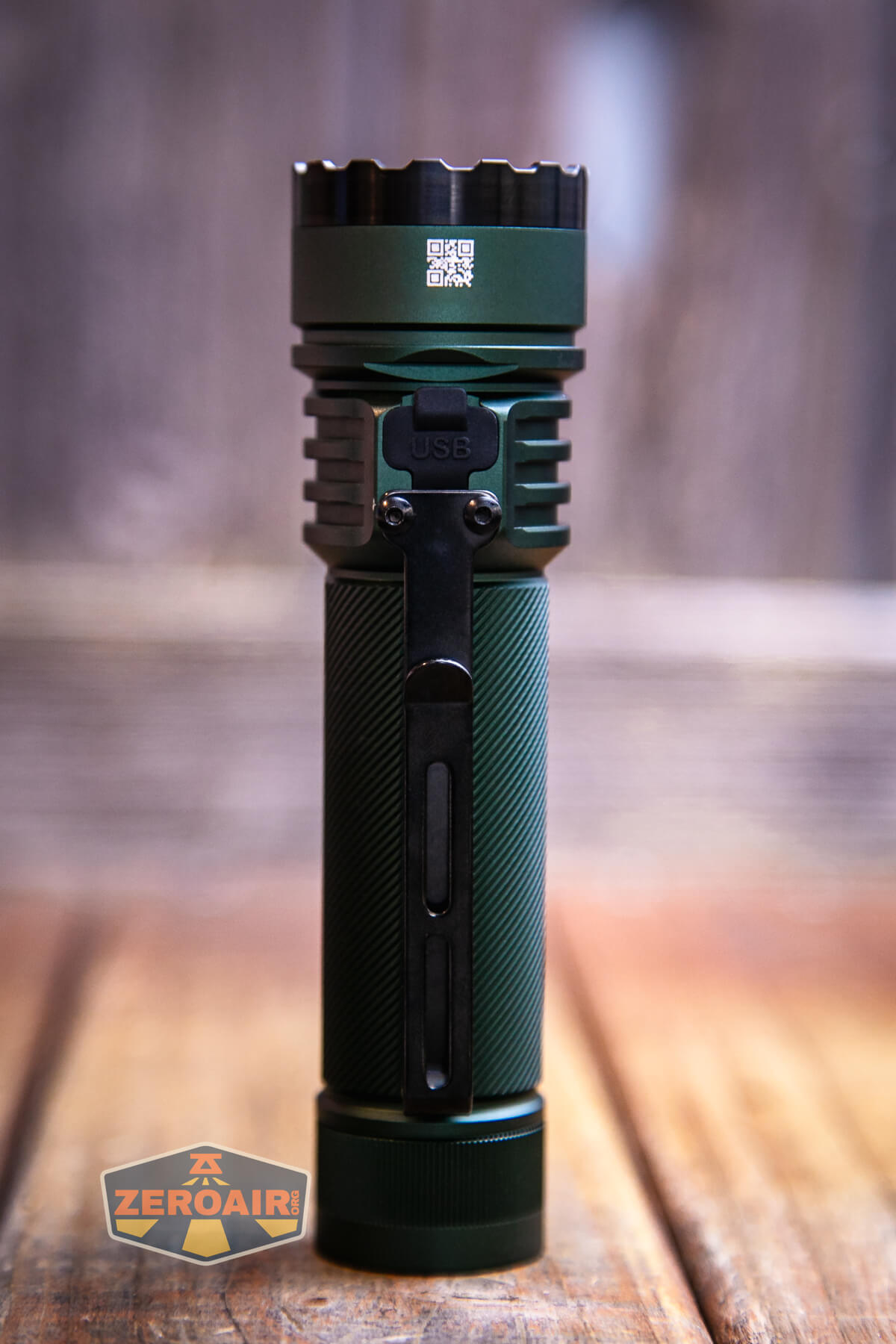

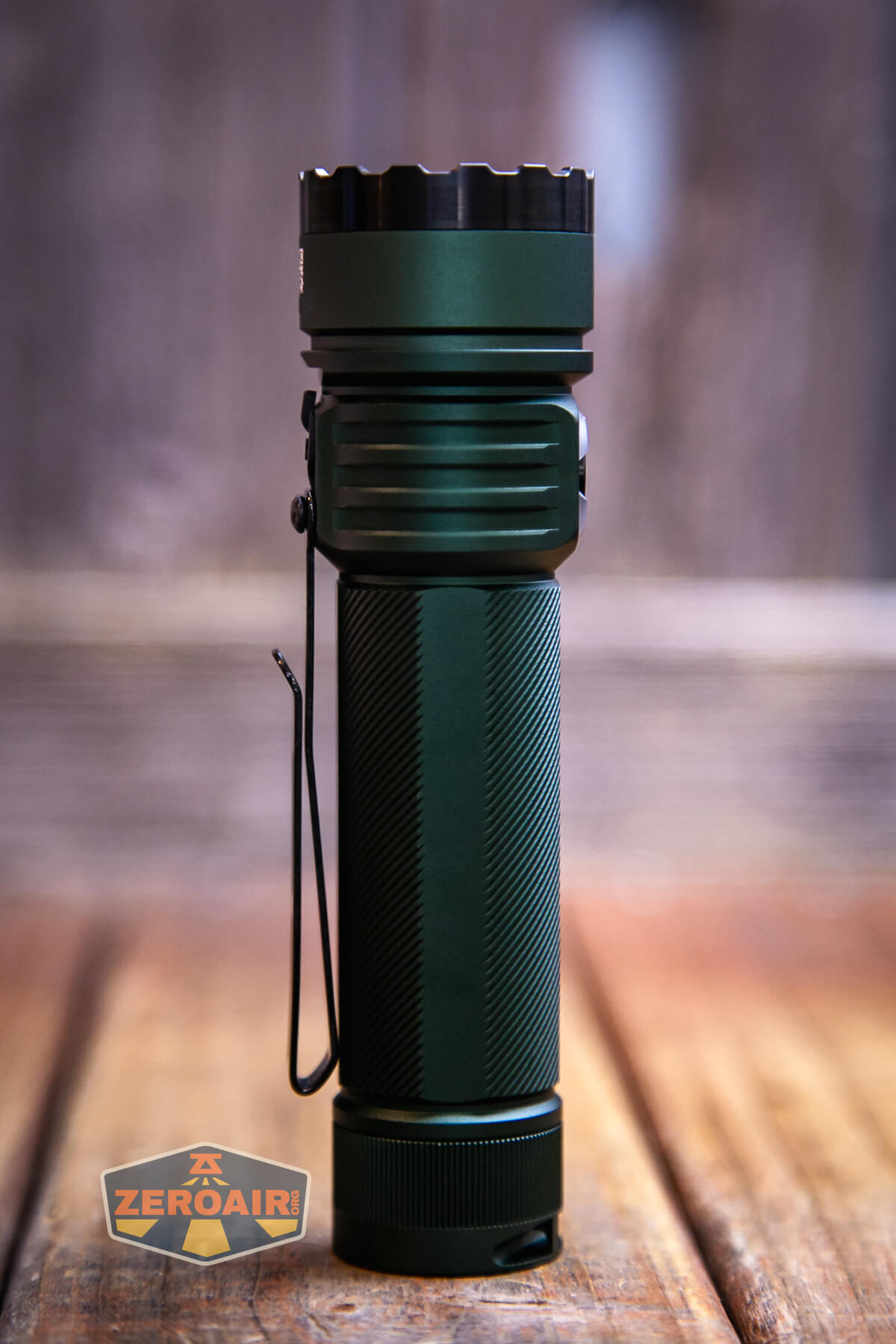

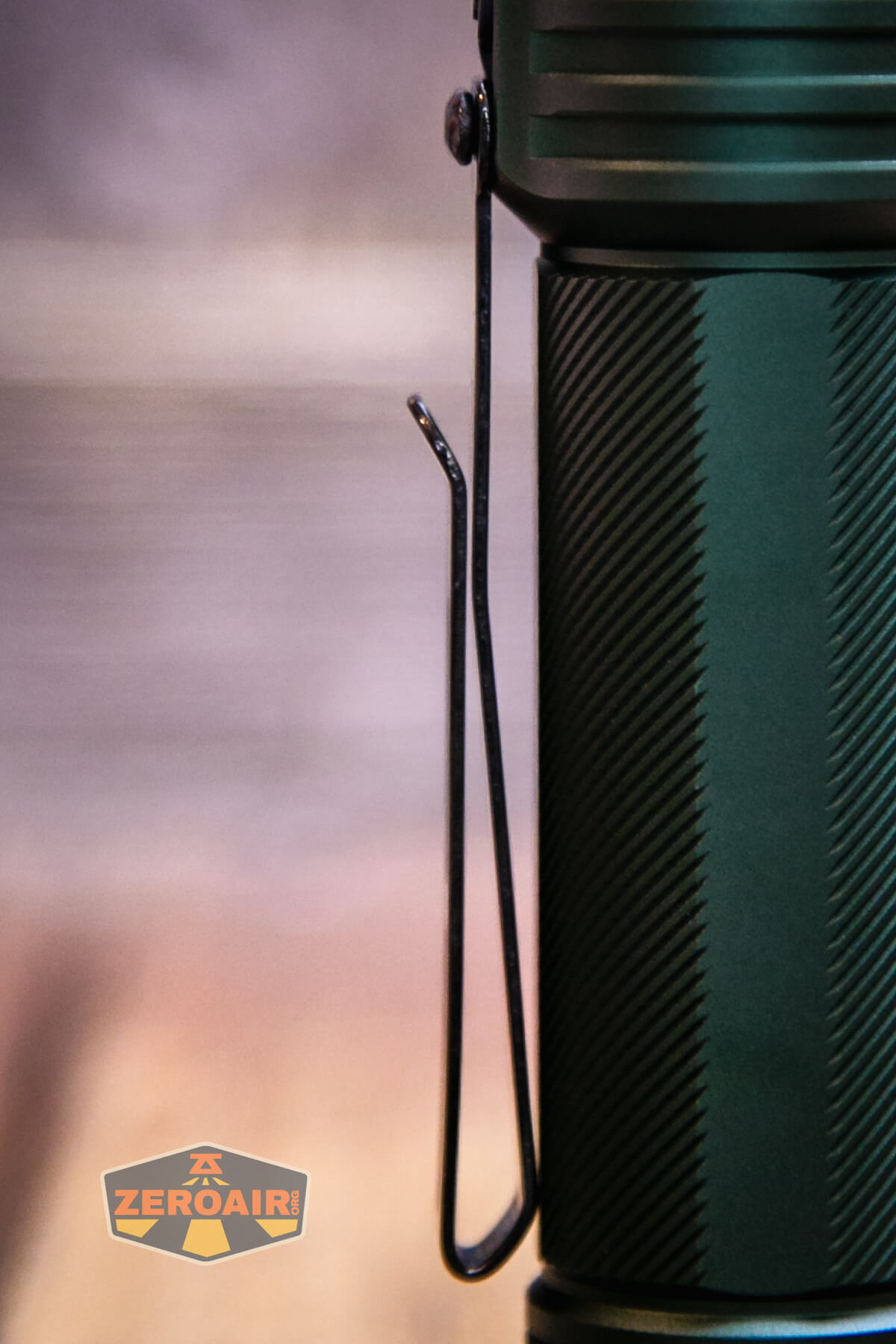

Included for carry of the Acebeam E75 Nichia flashlight is this two-way screw-in pocket clip. The pocket clip has a lanyard hole, too.

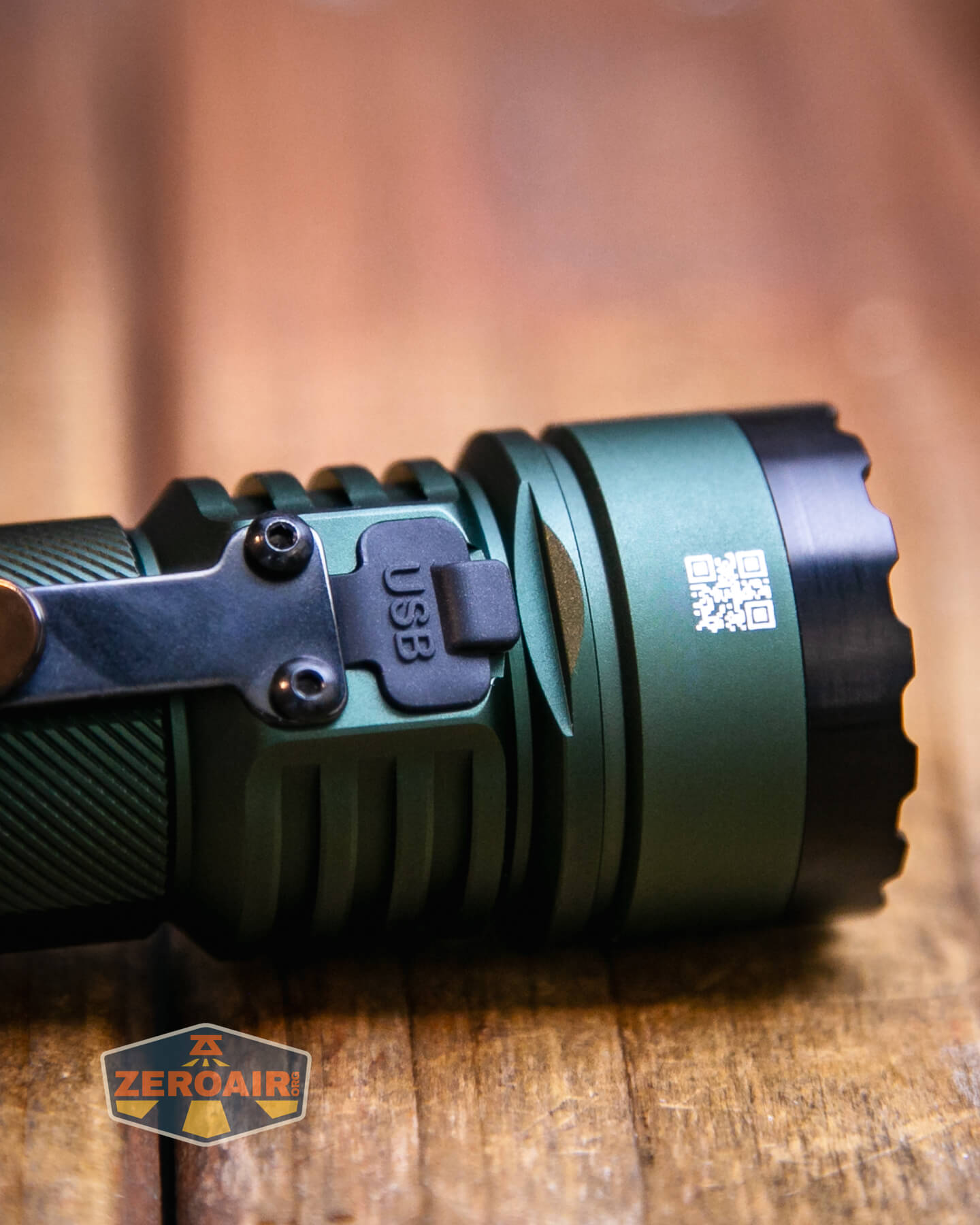

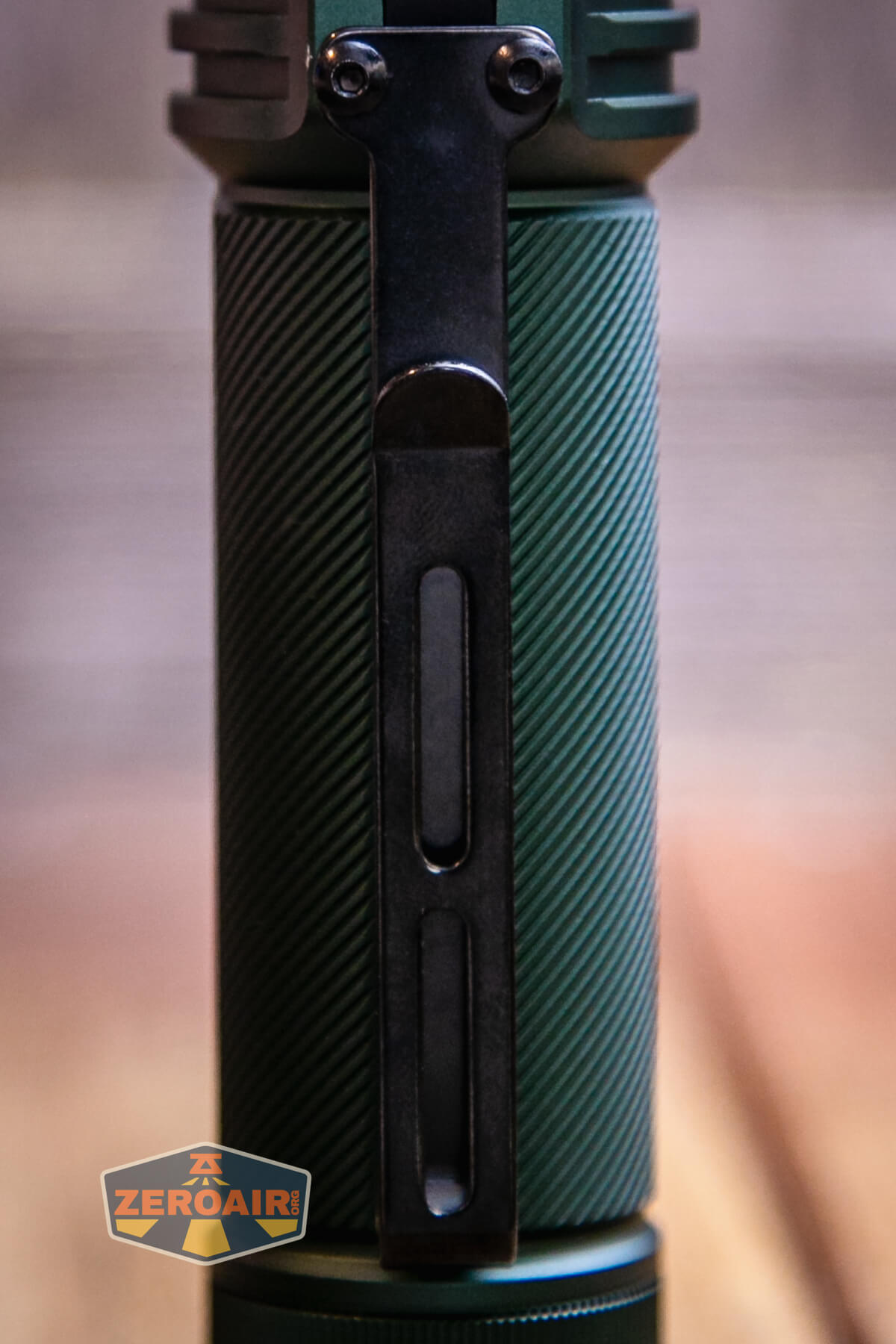

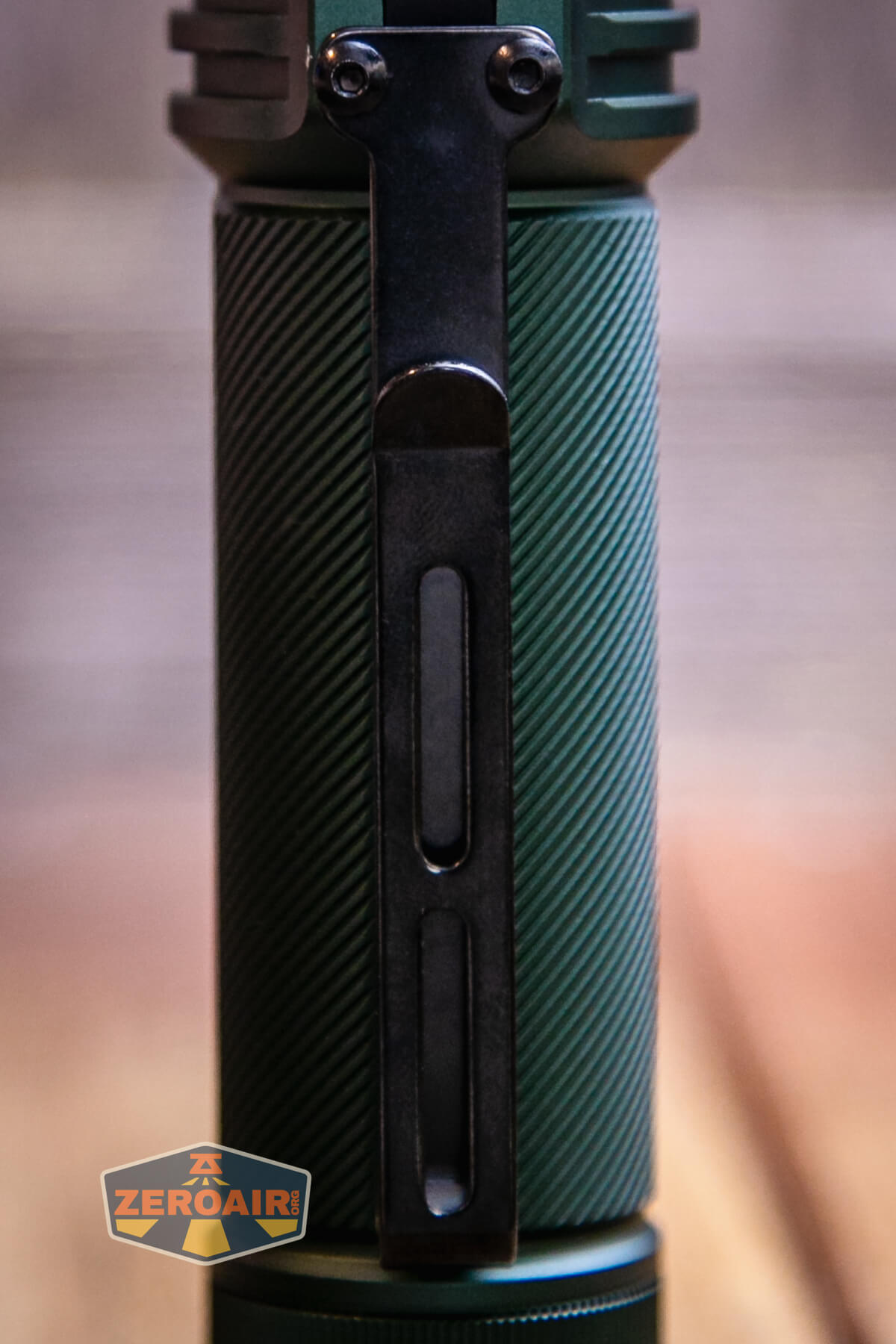

The clip is held in place by these two screws. Note that the USB charging port cover is also captured by the top edge of the clip. This is a nice thoughtful design. It should also make replacing the charge port cover easier.

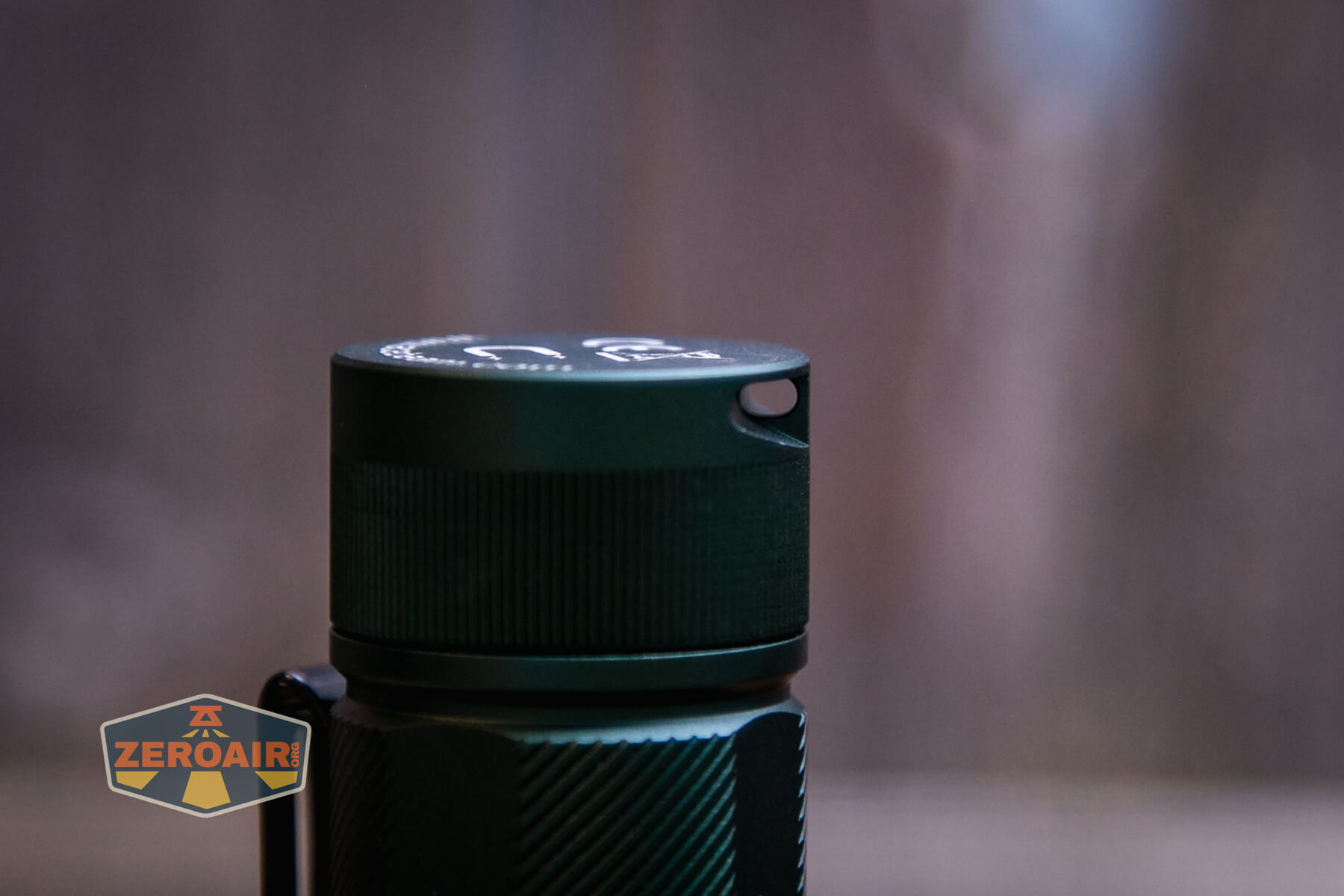

In the tailcap is a decent-sized hole for attaching the lanyard.

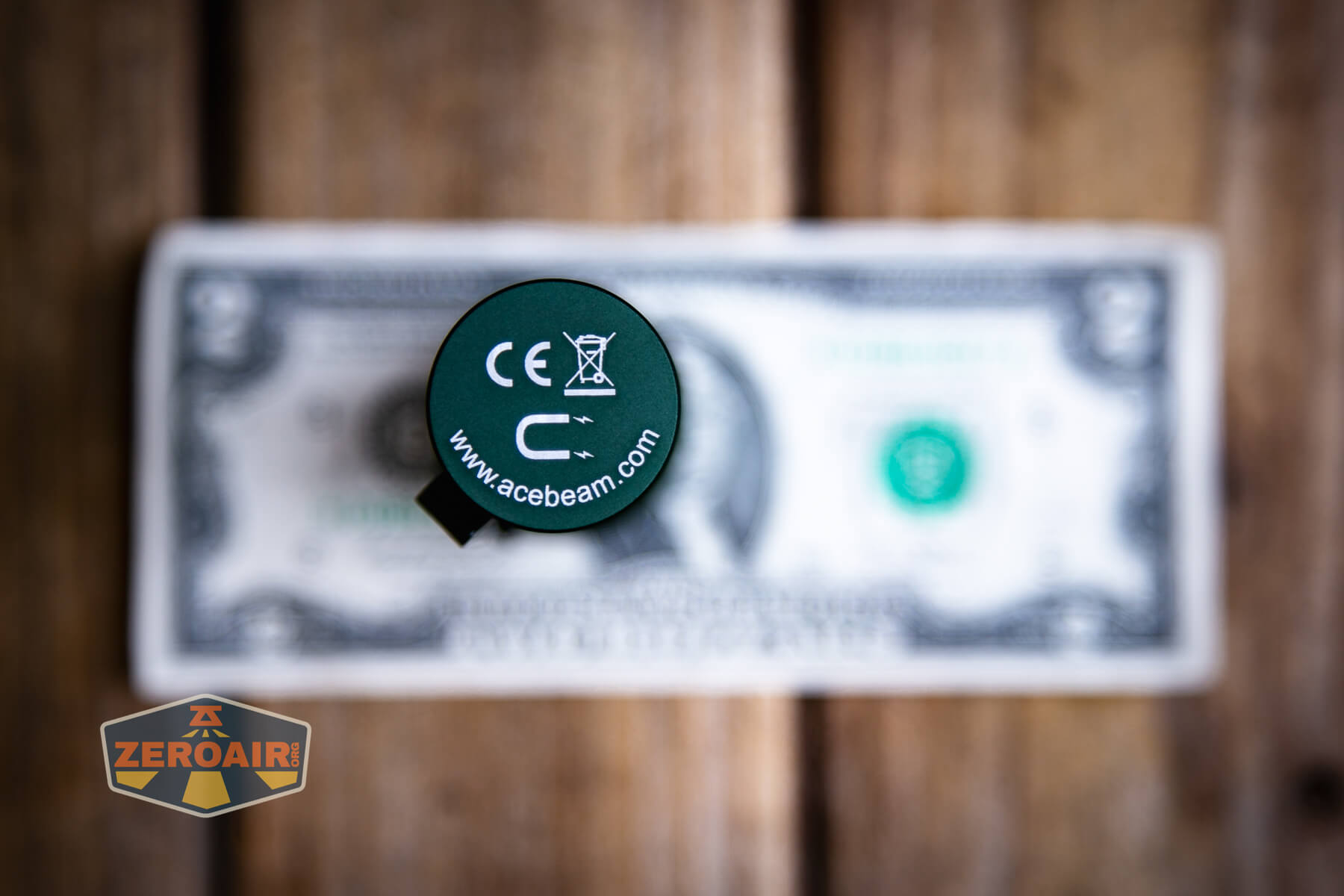

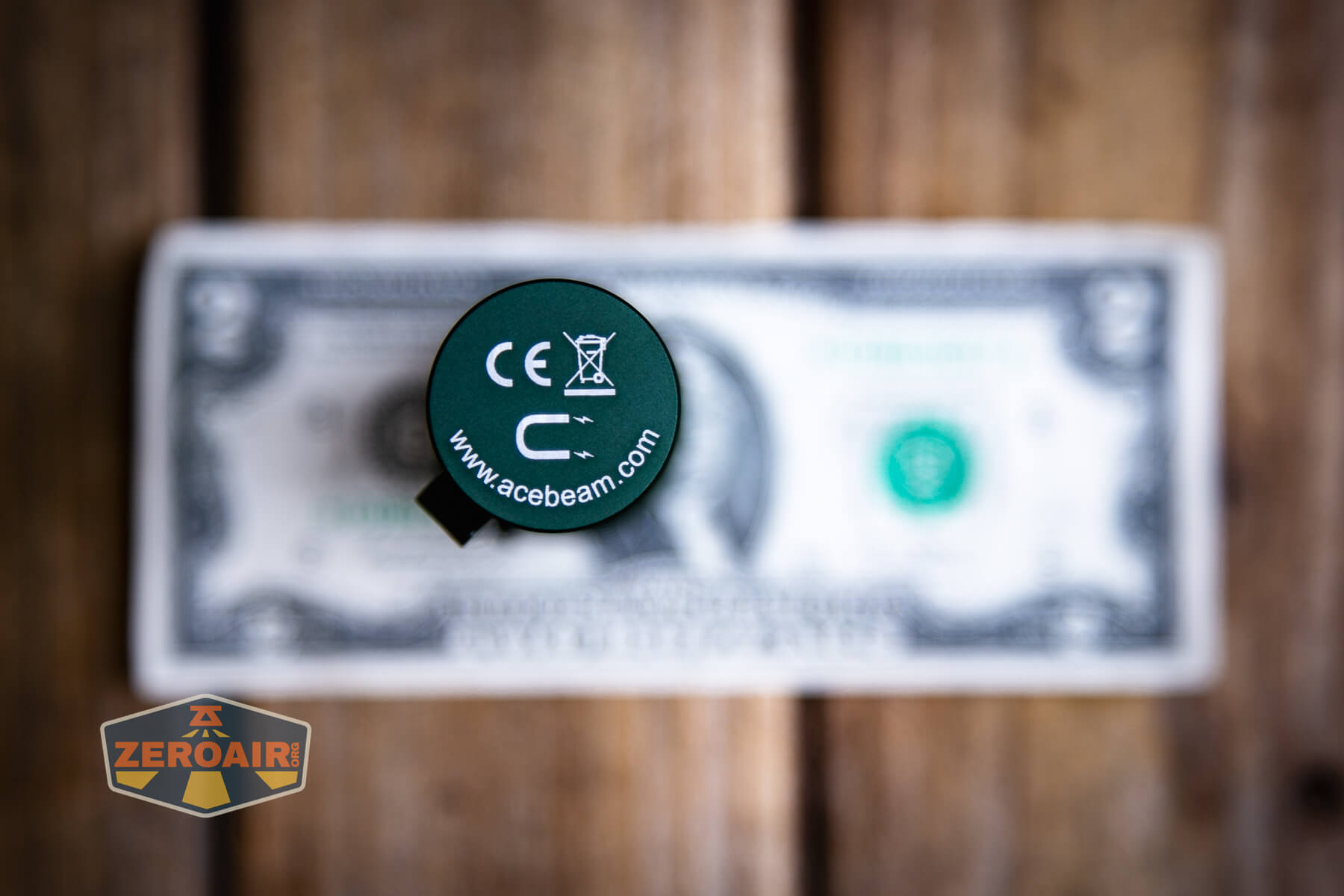

This tailcap magnet is quite strong!

Power and Runtime

Power to the Acebeam E75 Nichia flashlight is from a single lithium-ion cell. My package included a cell, and this cell is included at the purchase price. The cell is a 5000mAh 21700.

The cell is installed into the E75 in the usual way – positive terminal toward the head.

Below are a few runtime tests. The light shuts off when cell voltage is low (around 3V).

I love these flat output from Acebeam. I find this to be very trustworthy, even if “trustworthy” isn’t the best way to describe it. Just… if Acebeam does this aspect of the light right, there are so many other things that I don’t even understand that I trust that they’re also doing right.

Charging

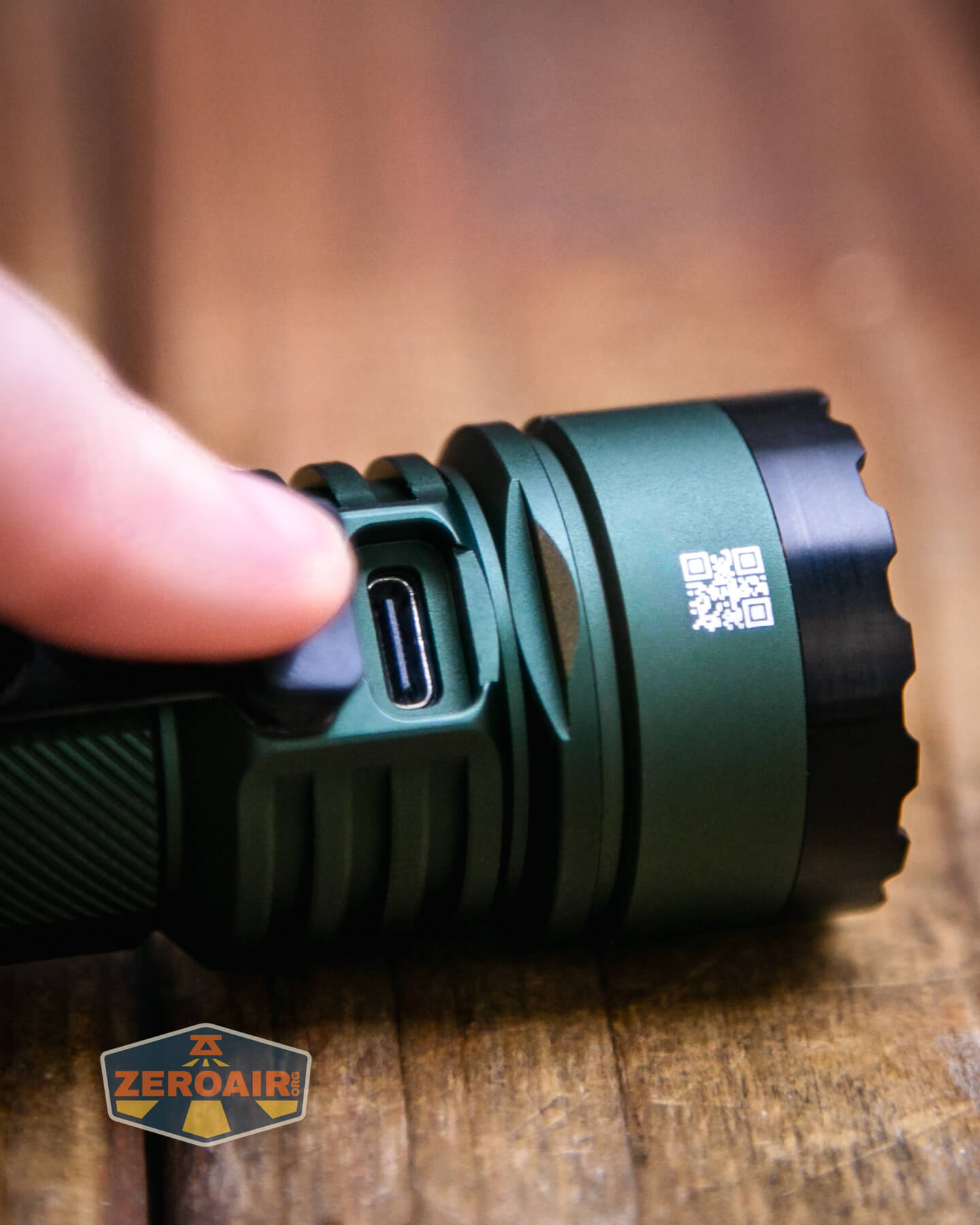

Acebeam incorporated USB-C charging into the E75 itself. The charging port is in the head and is protected by a press-in silicone cover that again, is secured further by the screw-in pocket clip.

A USB to USB-C cable is included.

When charging, the LEDs surrounding the switch light in red. When charging is completed, these turn green.

Charging is quick at around 2A, but then holds for hours at a very low current. In reality, “full charge” takes about 3 hours (reasonable), but will sort of continue for a long while after.

Modes and Currents

Mode	Mode Claimed Output (lm)	Claimed Runtime	Measured Lumens	Tailcap Amps
Turbo	3000+1000	1m+1h45m	2672 (0s) 2553 (30s)	6.72
High	1000	1h50m	922	2.55
Med2	450	4h40m	368	0.84
Med1	150	16h	123	0.26
Low	30	2d12h	21.4	0.04
Moonlight	1	26d	0.26	[low]

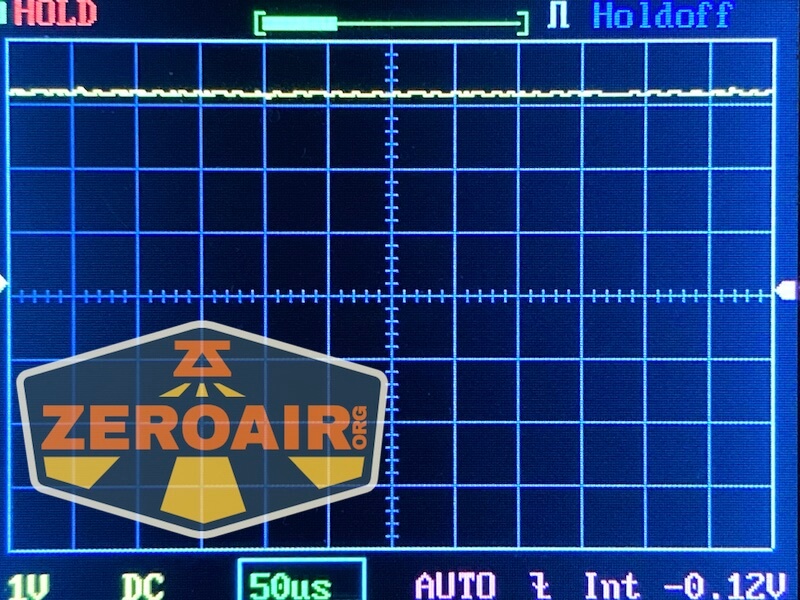

Pulse Width Modulation

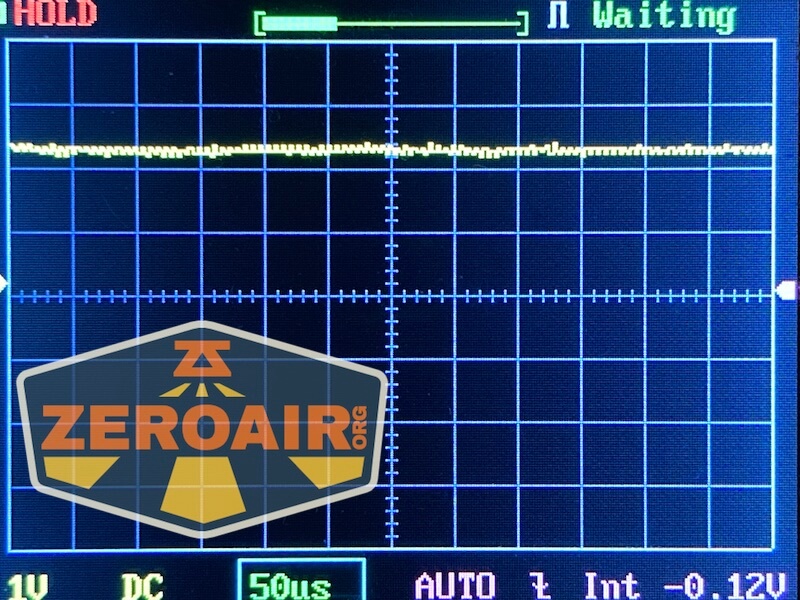

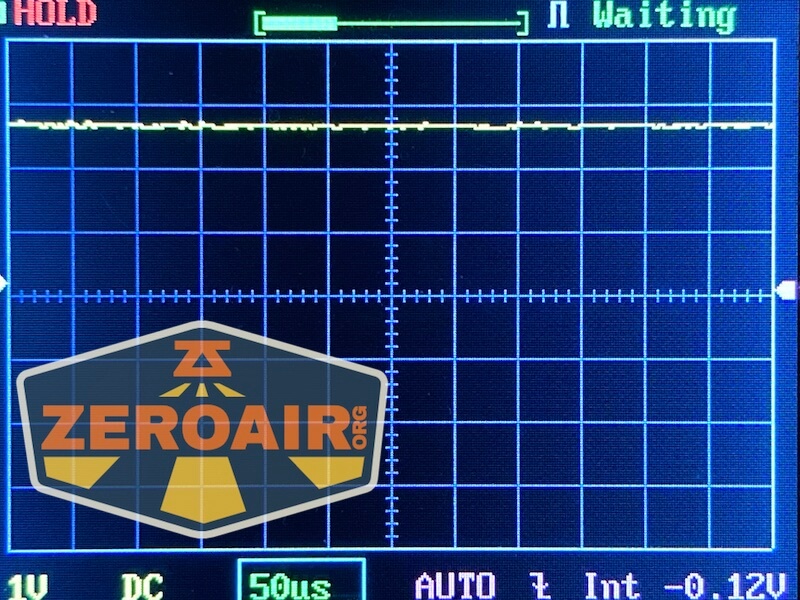

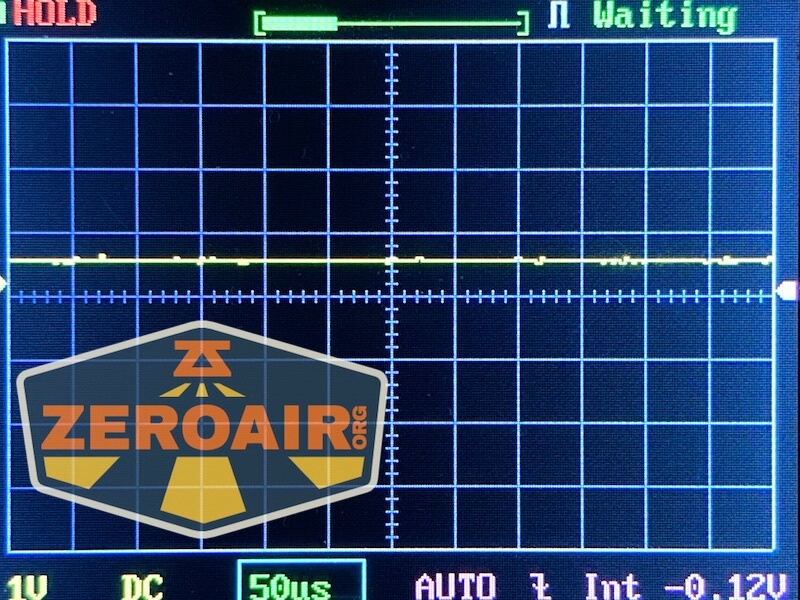

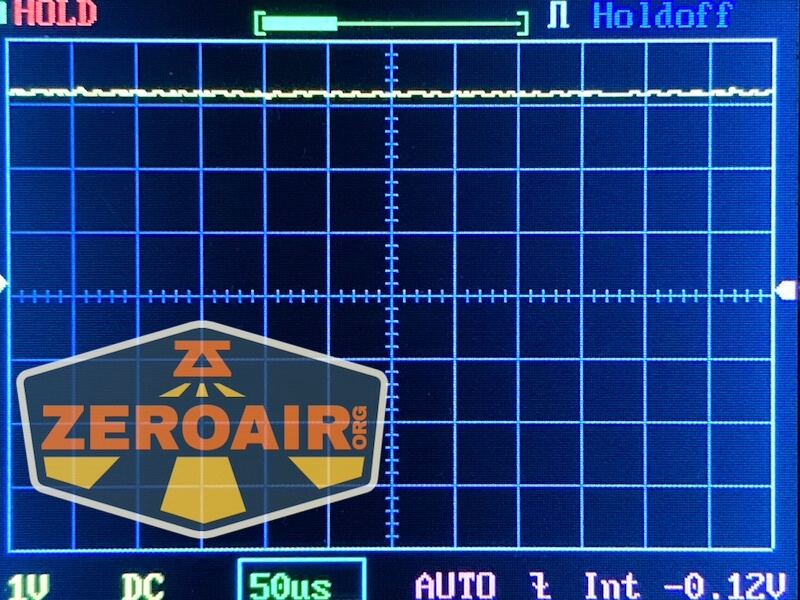

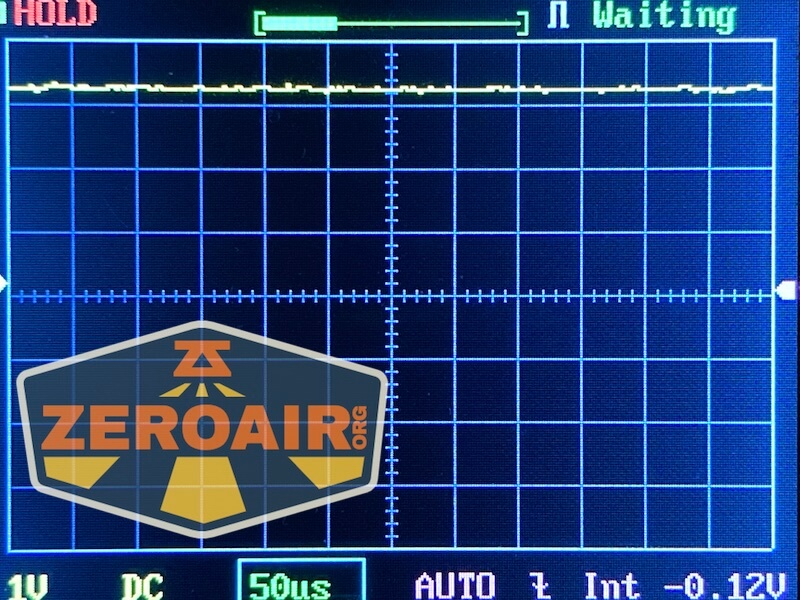

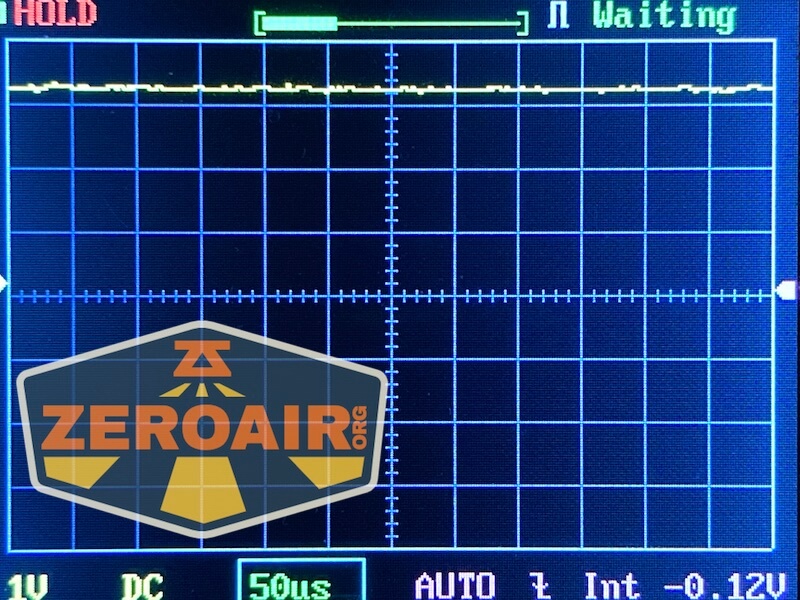

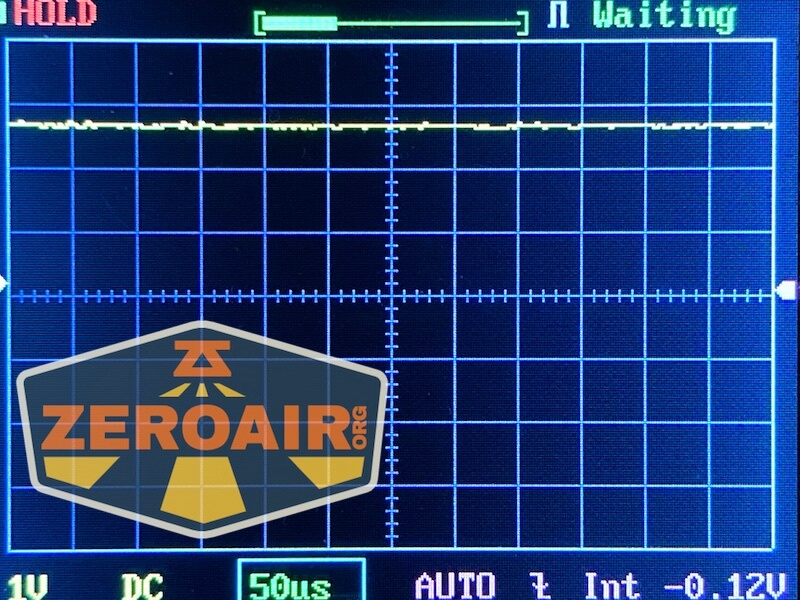

The Acebeam E75 Nichia flashlight does not have PWM in any mode! That’s great. And one of the things I love about Acebeam flashlights.

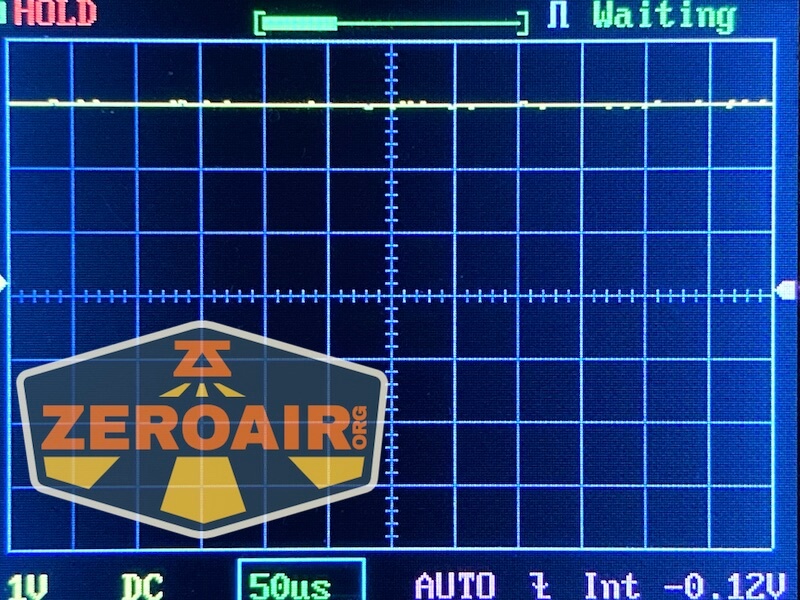

For reference, here’s a baseline shot, with all the room lights off and almost nothing hitting the sensor. Also, here’s the light with the worst PWM I could find. I’m adding multiple timescales, so it’ll be easier to compare to the test light. Unfortunately, the PWM on this light is so bad that it doesn’t even work with my normal scale, which is 50 microseconds (50us). 10ms. 5ms. 2ms. 1ms. 0.5ms. 0.2ms. In a display faster than 0.2ms or so, the on/off cycle is more than one screen, so it’d just (very incorrectly) look like a flat line. I wrote more about this Ultrafire WF-602C flashlight and explained a little about PWM too.

User Interface and Operation

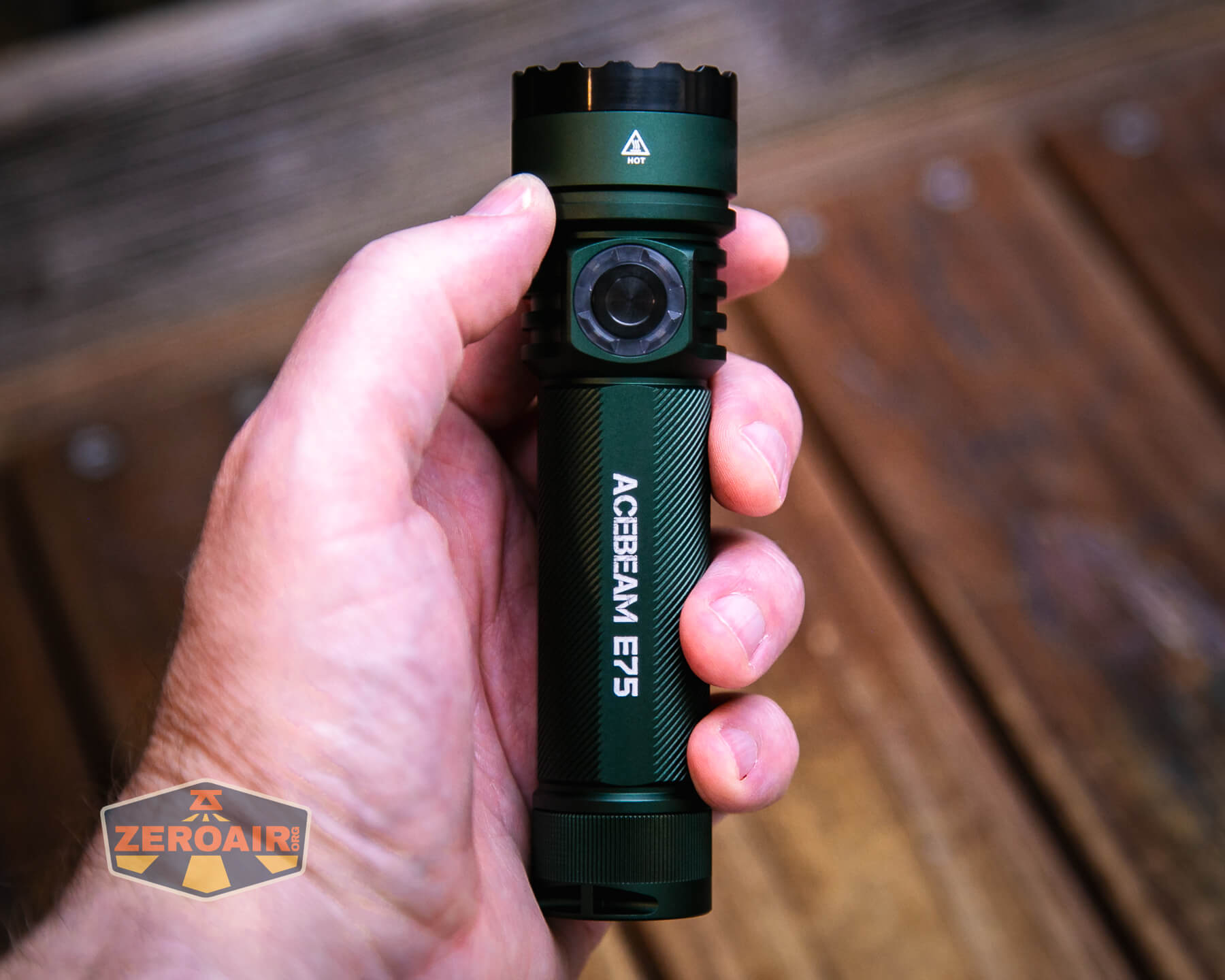

The Acebeam E75 Nichia flashlight uses a single e-switch for operation. The switch is much like on the other namesake X75 (except obviously that the E75 doesn’t have a handle, and just has one switch).

The switch doesn’t have any indicator function but surrounding the switch is an array of emitters that do indicate various things.

Action on this switch is low and pleasant.

Here’s a UI table!

State	Action	Result
Off	Click	On (Mode Memory)
On	Click	Off
On	Hold	Mode advance (Low>Med1>Med2>High)
Unlocked	Double click	Turbo
Turbo	Double click	Memorized mode
Unlocked	Click 3x	Strobe
Off	Hold	Moonlight
Off	Hold >2s	Lockout
Lockout	Hold >2s	Unlock to Moonlight
Lockout	Click	Switch LED array blinks red and green

LED and Beam

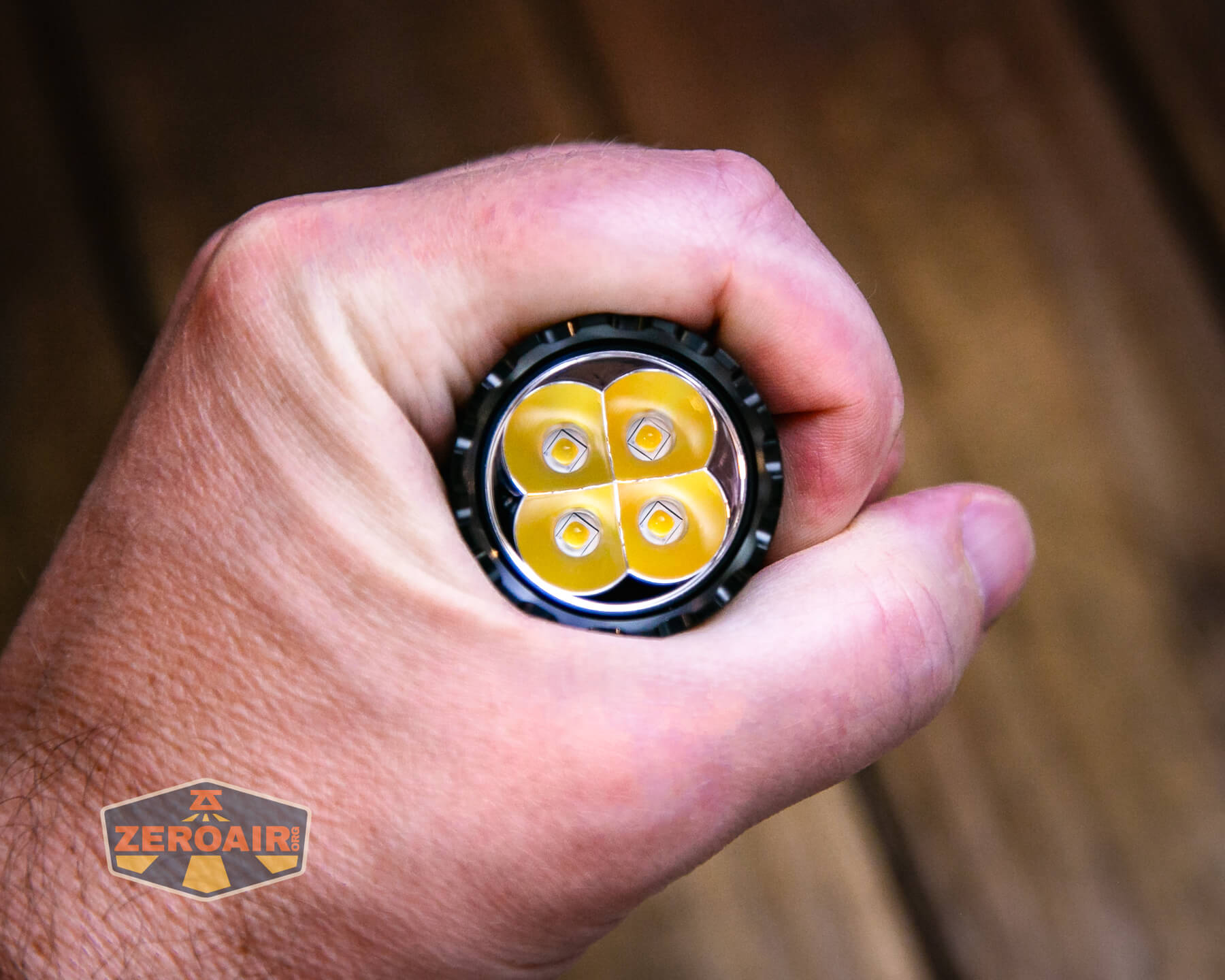

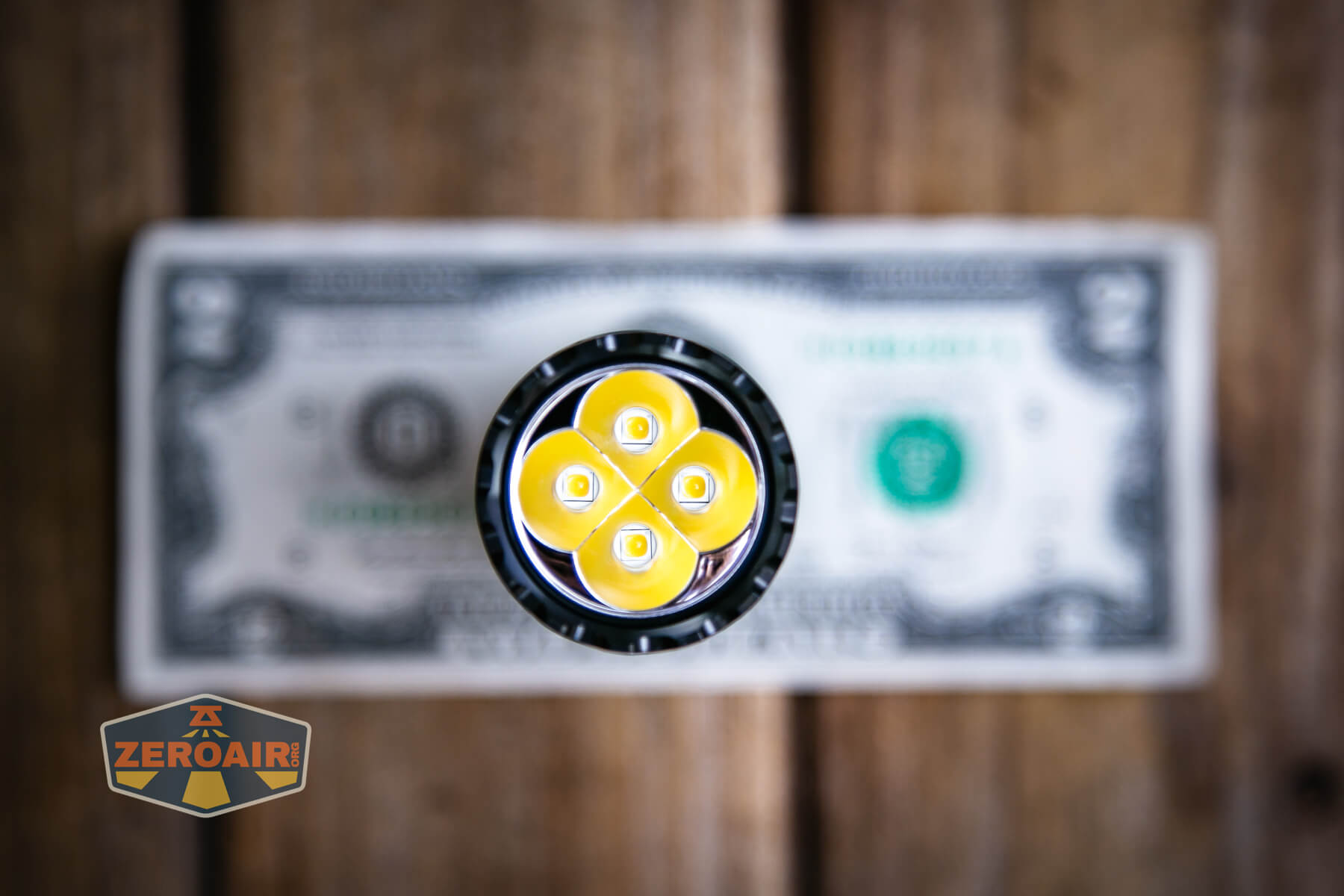

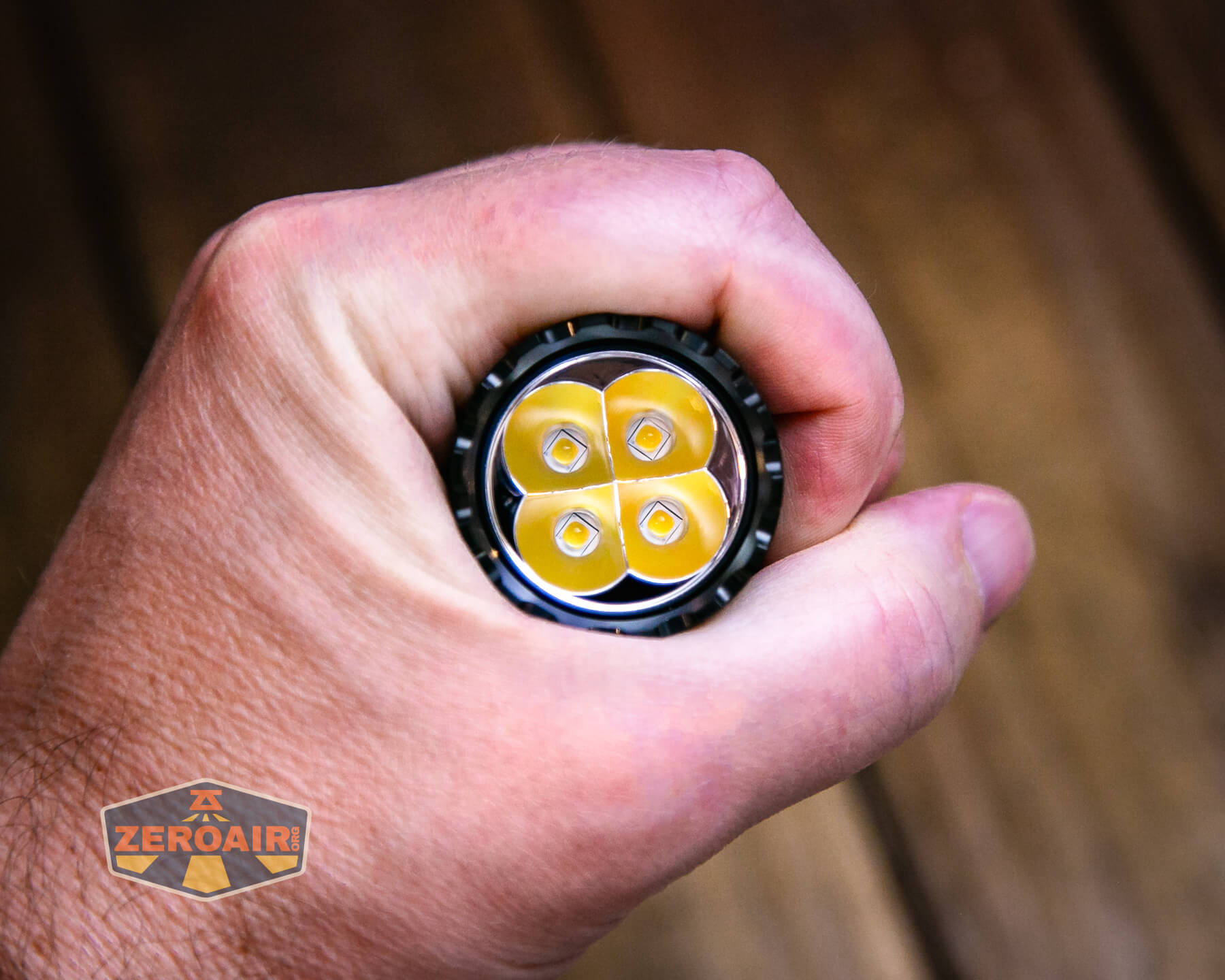

The emitters used by Acebeam in this light are four Nichia 519a in 5000K with 90 CRI. This is a great combination. They each have a small reflector, too.

Again, I like the toothy bezel. This one in particular is not sharp but might be a bit more aggressive than you’d guess. I like it quite a bit.

Acebeam included one of these wands in my package. It fits nicely and works well.

The wand will not change runtimes, of course.

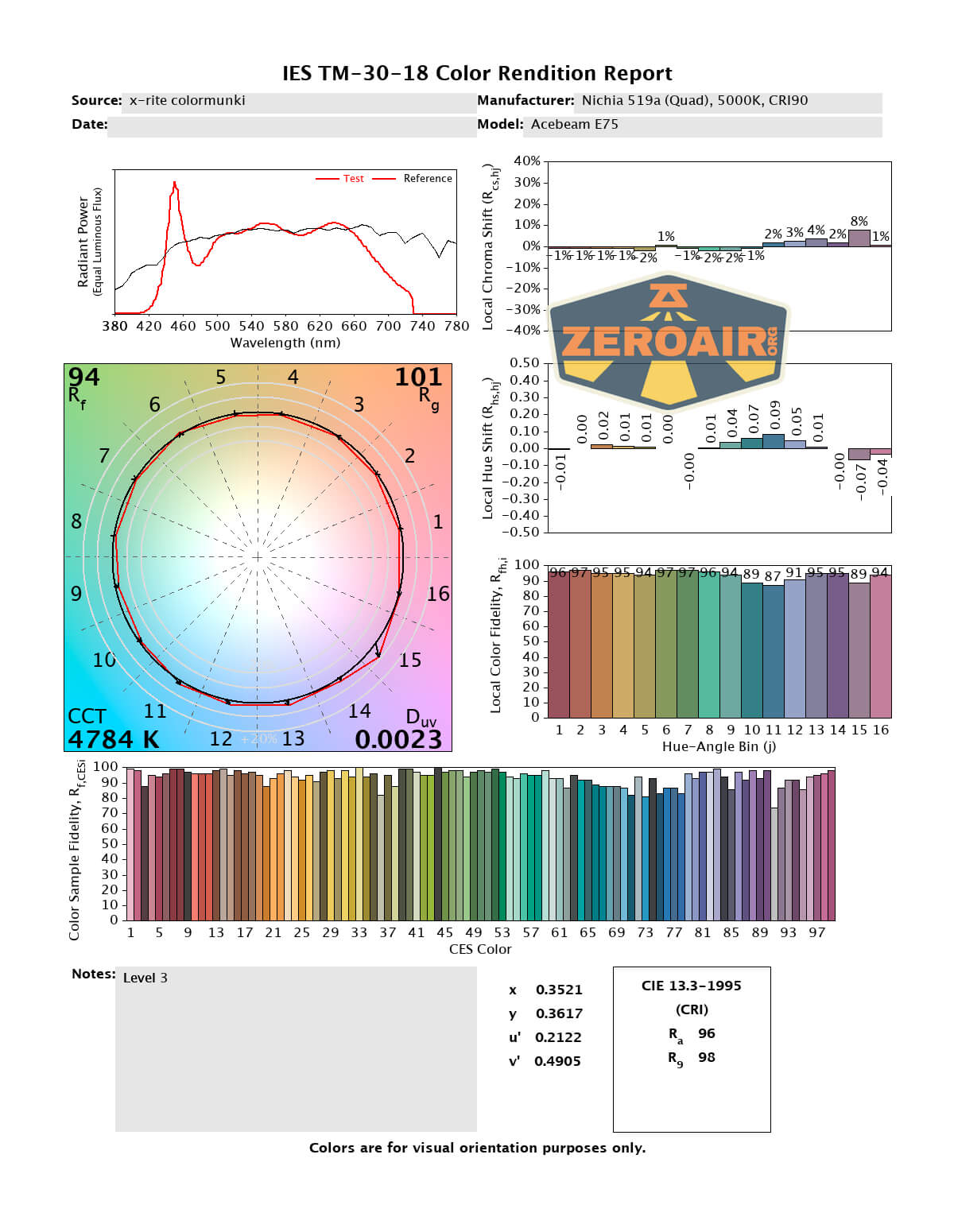

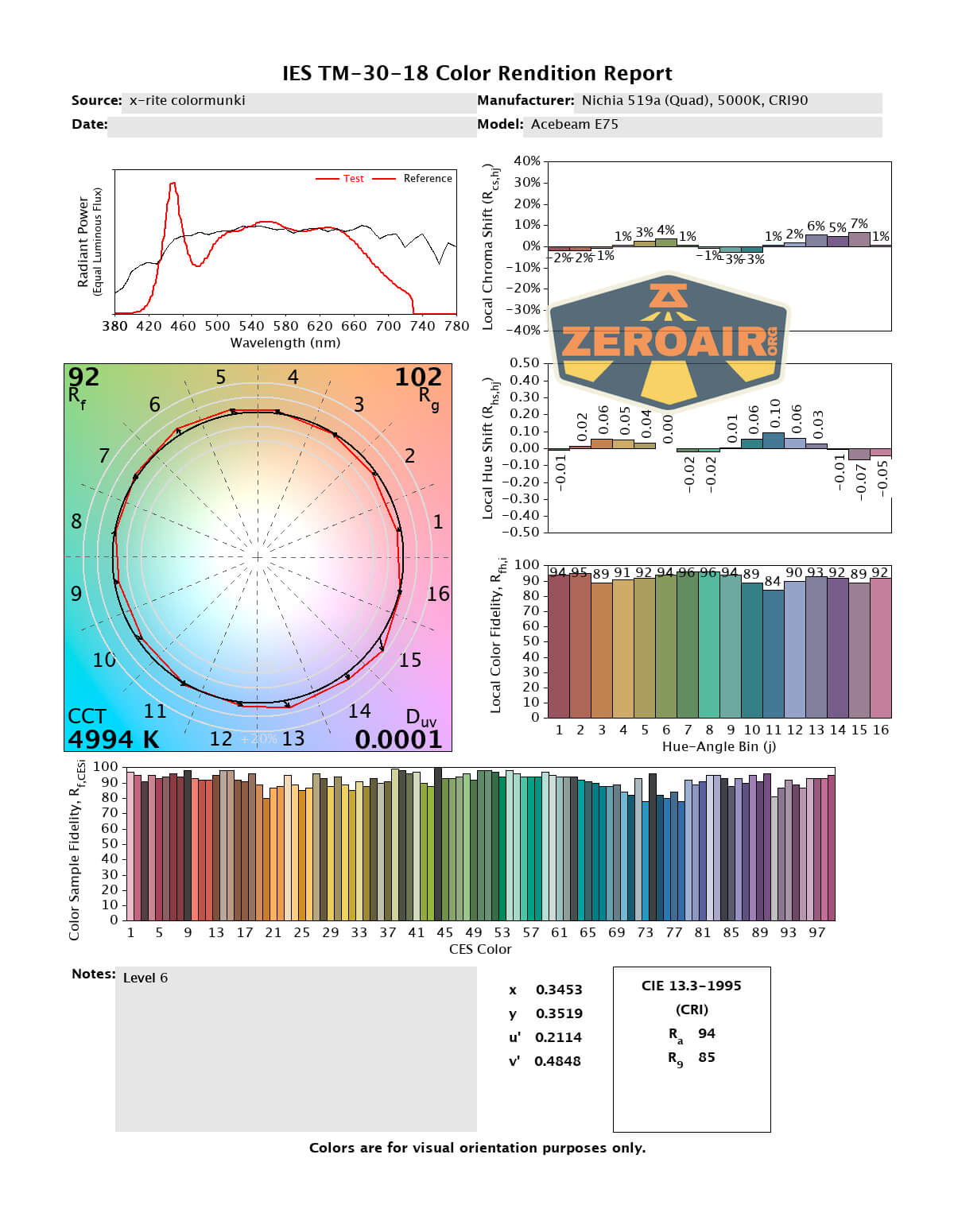

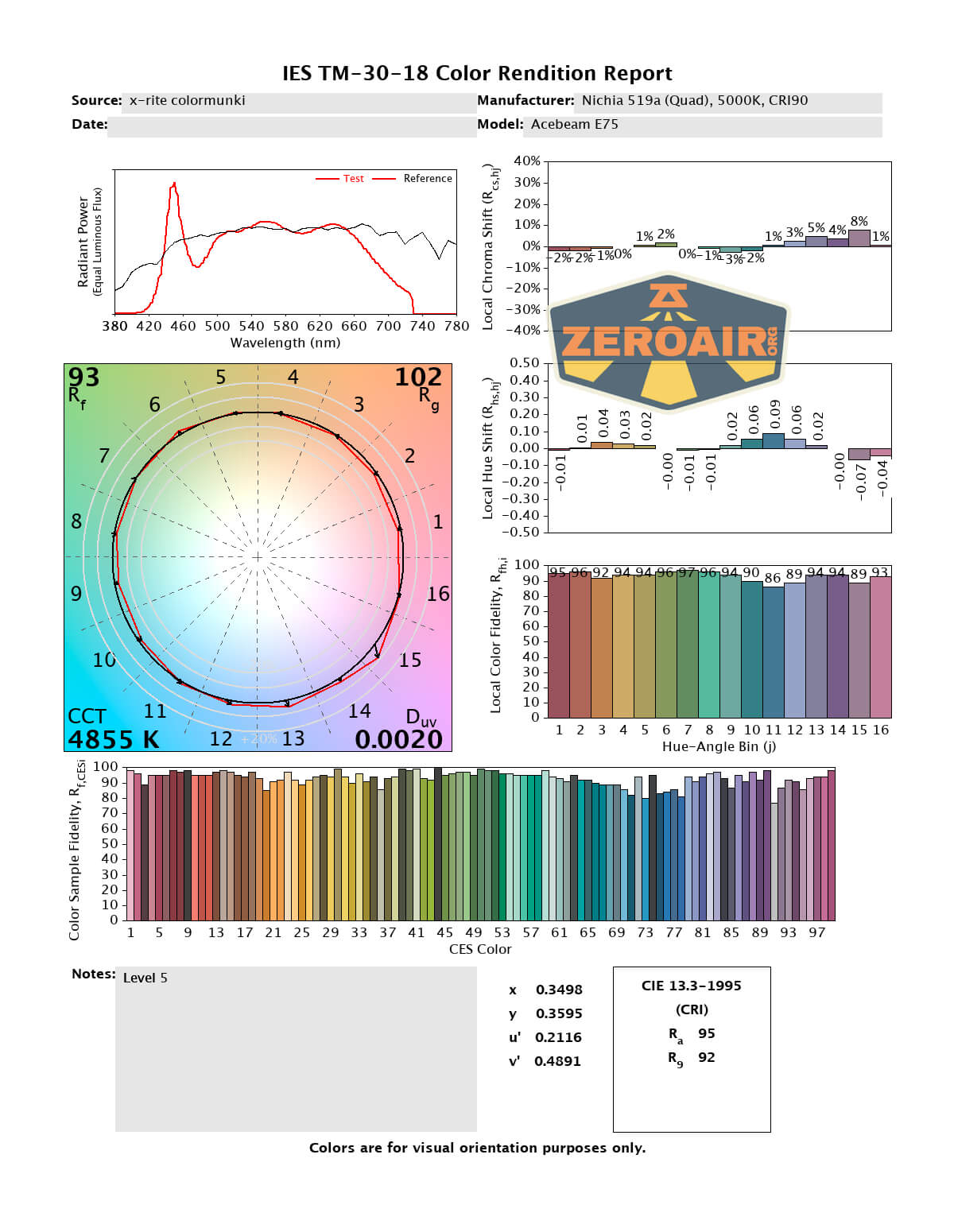

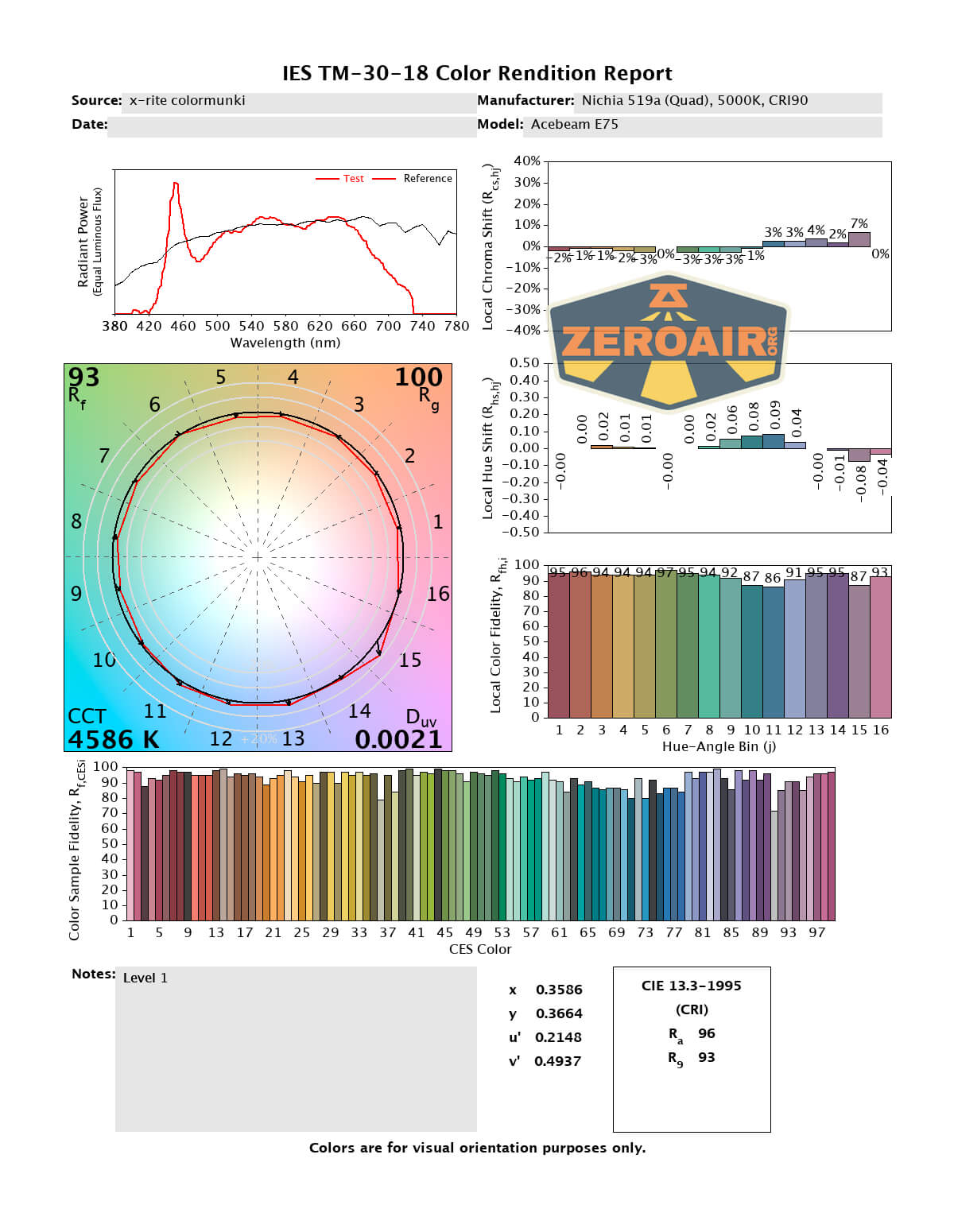

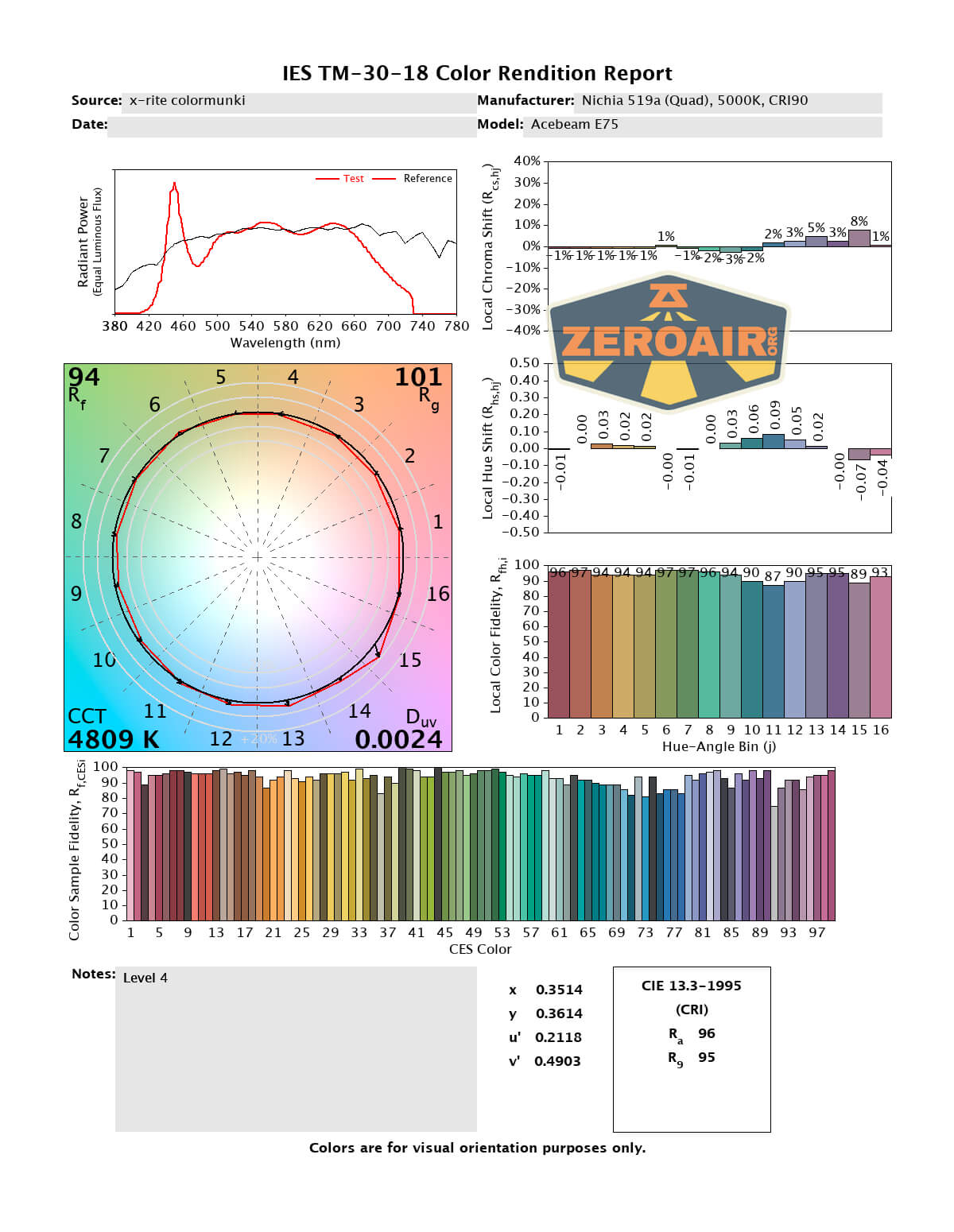

LED Color Report (CRI and CCT)

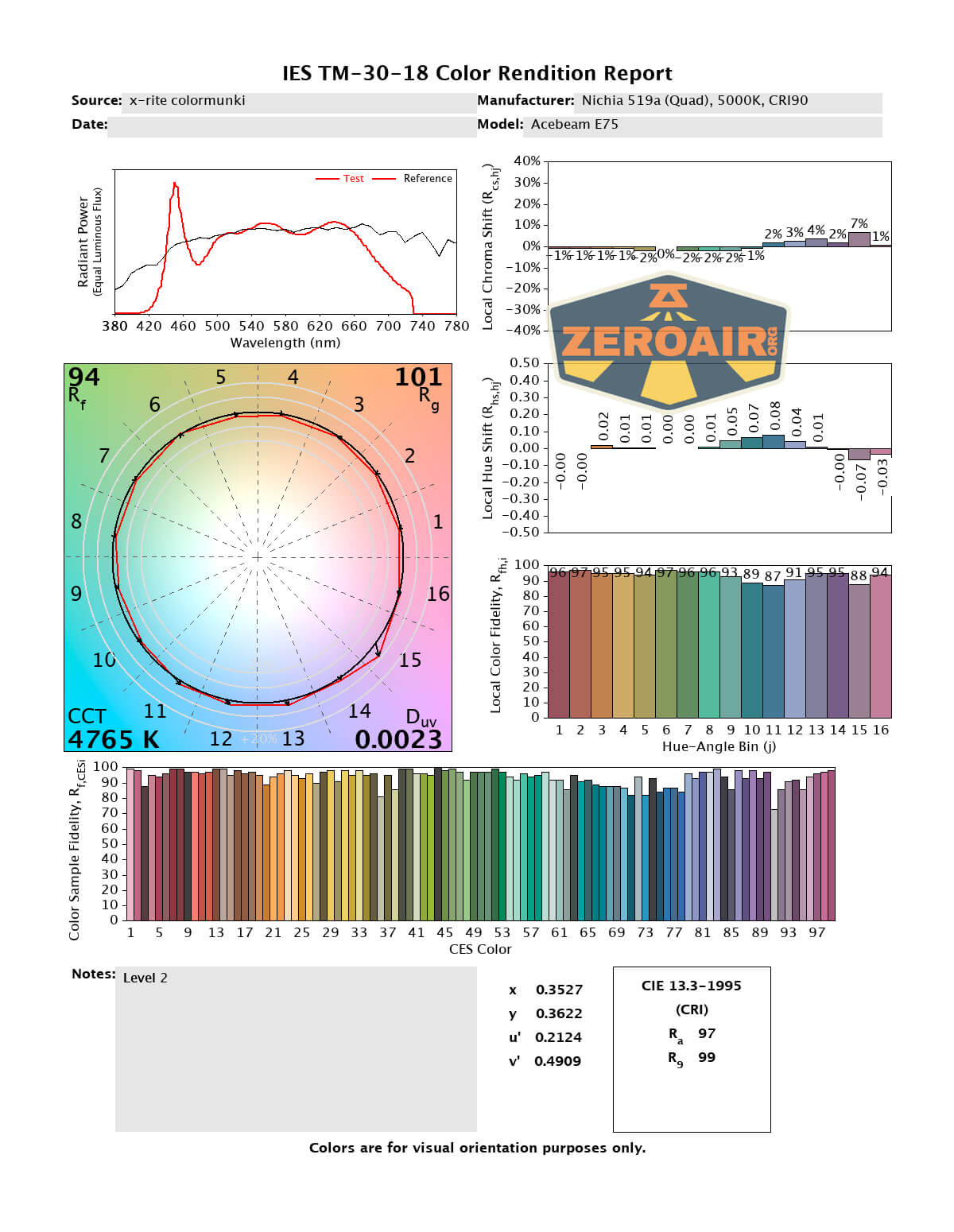

Acebeam claimed 5000K and 90 CRI for the Acebeam E75 Nichia flashlight and they were right on. The light ranges from warmer than 5000K (at around 4600K) on the low levels to right at 5000K for turbo. CRI is also much higher than 90, at around 95. This is incredible output!

Beamshots

These beamshots are always with the following settings:  f8, ISO100, 0.3s shutter, and manual 5000K exposure.

Tint vs BLF-348 (KillzoneFlashlights.com 219b version) (affiliate link)

I keep the test flashlight on the left, and the BLF-348 reference flashlight on the right.

I compare everything to the KillzoneFlashlights.com 219b BLF-348 because it’s inexpensive and has the best tint!

Conclusion

What I like

• Great output
• Nichia 519A in 5000K and high CRI is an option
• User interface is nice and easy (also familiar to Acebeam users)
• The switch LEDs provide useful information
• A stainless bezel matches the

What I don’t like

• I don’t love spirals like these (but wow what a truly trivial thing to mention in the What I don’t like section, am I right?)

---
