Deadwood Huckleberry Topo Flashlight Review

Grant Spitz announced the aluminum version of the Deadwood Huckleberry Topo Flashlight with the option of a 219b single. Read on!

---

Official Specs and Features

Here’s a link to the Deadwood Huckleberry Topo Flashlight product page.  (That wasn’t available when I purchased – I joined through the Facebook group.)

Versions

There are many versions of the Huckleberry.  Too many for me to reliably cover them all…  First off, the metals.  Available now (for preorder anyway) is aluminum (seen here) and titanium.  These have also been offered in at least copper, brass, bronze, zirconium, and possibly some mixed metals (damasteel, timascus, etc).  And probably more.  Grant seems willing to work with many metals.

There are also finishes available.  Bare metal or cerakoted (seen here).  There is all manner of cerakote options.

Also, there are some options for how the body looks – some have flutes, some have a wrap of “barb wire” or the like, some have nothing (like mine).  There are even versions onto which have been laser-etched… pretty much anything.  More than any other maker I could name offhand, Deadwood Custom Works has finish options.

Price

This exact light was $300.  This is essentially the base price for this light, and options go up in price from there.

---

Short Review

Probably my most carried light right now (save the Eagtac D25AAA, which I always have.)  I love that it’s a single, and love the output.  H17f let me dial in what I needed, but that could be confusing for someone who doesn’t have a bench power on hand, so be aware of that.  But I absolutely love the light.  I like that it’s aluminum, and I love the cerakote finish.

Long Review

The Big Table

Deadwood Huckleberry Topo Flashlight
Emitter:	Nichia 219b
Price in USD at publication time:	$300.00
Cell:	1×18350
Highest Tested Runtime^	Medium (ish) Runtime^
LVP?	Yes
Switch Type:	Mechanical
On-Board Charging?	No
Claimed Lumens (lm)	–
Measured Lumens (at 30s)	308^
Candela per Lumen	12.2
Claimed Throw (m)	–
Candela (Calculated) in cd (at 30s)	209lux @ 5.151m = 5545cd
Throw (Calculated) (m)	148.98
All my Deadwood reviews!

^ Measurement disclaimer:  Testing flashlights is my hobby. I use hobbyist-level equipment for testing, including some I made myself. Try not to get buried in the details of manufacturer specifications versus measurements recorded here; A certain amount of difference (say, 10 or 15%) is perfectly reasonable.
^ The very customizable H17f driver kind of thwarts attempts at extreme measurements here.  I dialed the output back right out of the box, to prevent frying the Nichia 219b, so I can’t say what the measurements are out of the box.  But you shouldn’t push FET level currents through that emitter, so while you should take these measurements as indicative of the performance of the light, they might not be exactly what you’ll experience.  It all depends on programming.

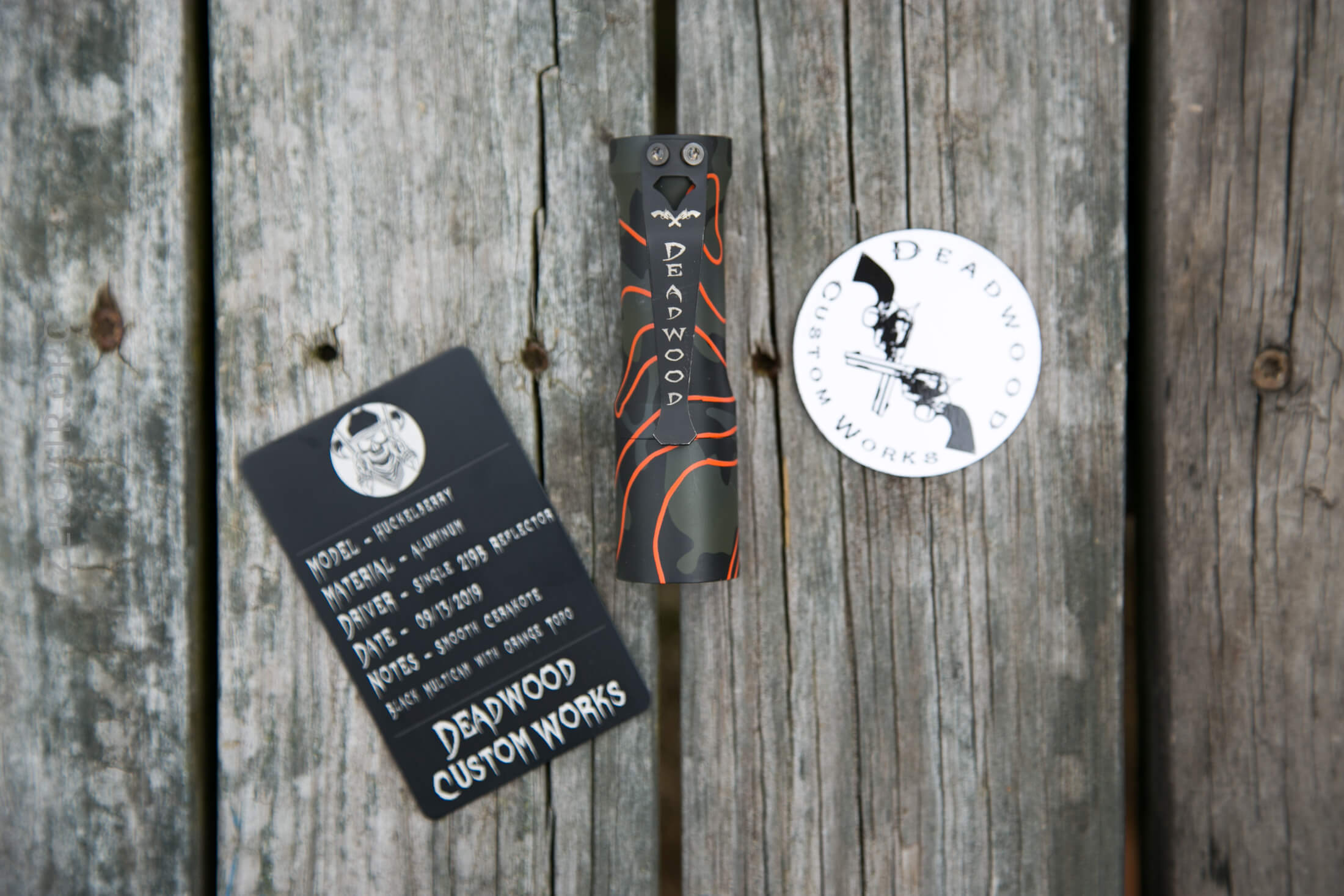

What’s Included

• Deadwood Custom Works Huckleberry Flashlight

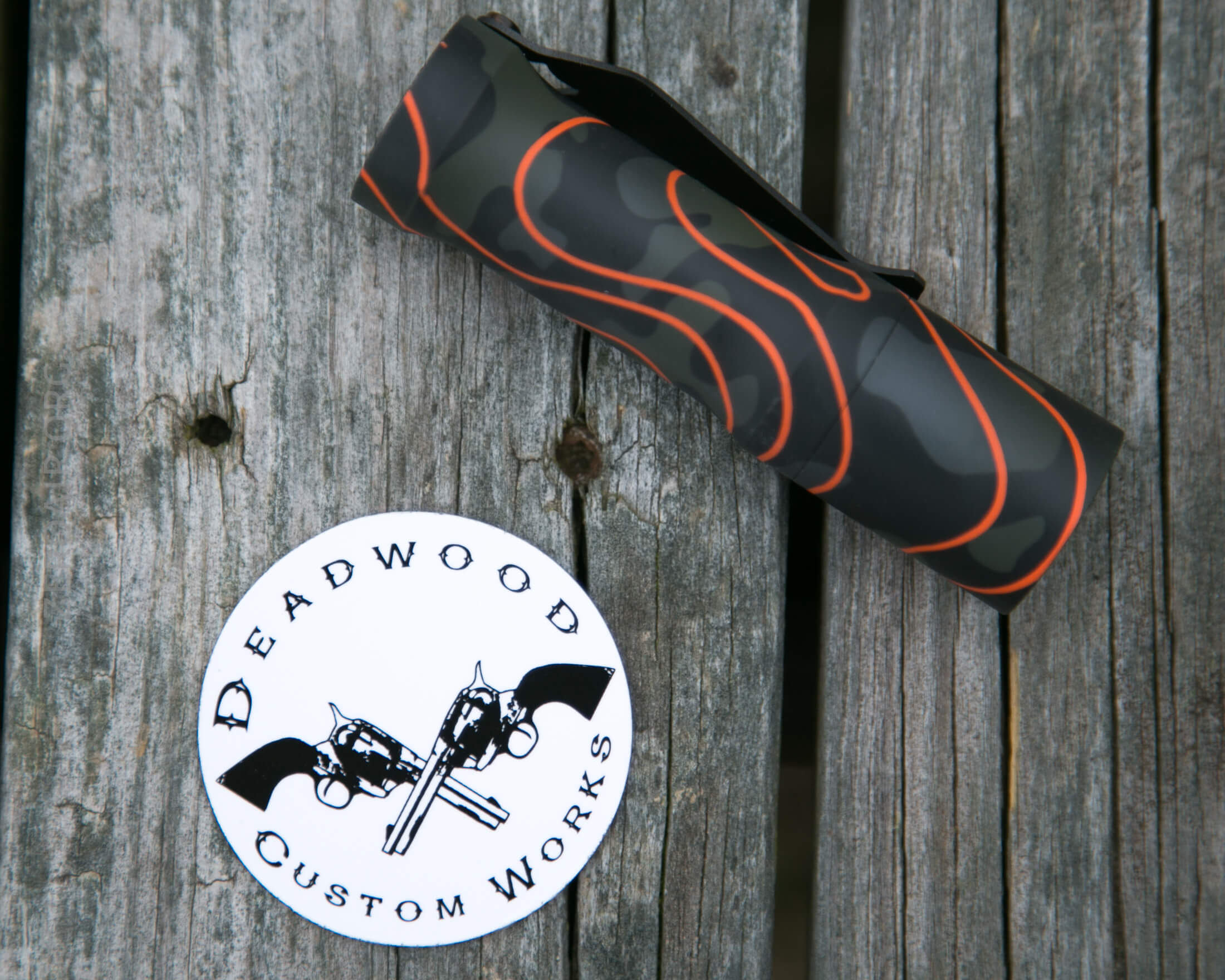

• Deadwood Custom Works sticker
• Laser-etched proof of authenticity, with light specifics

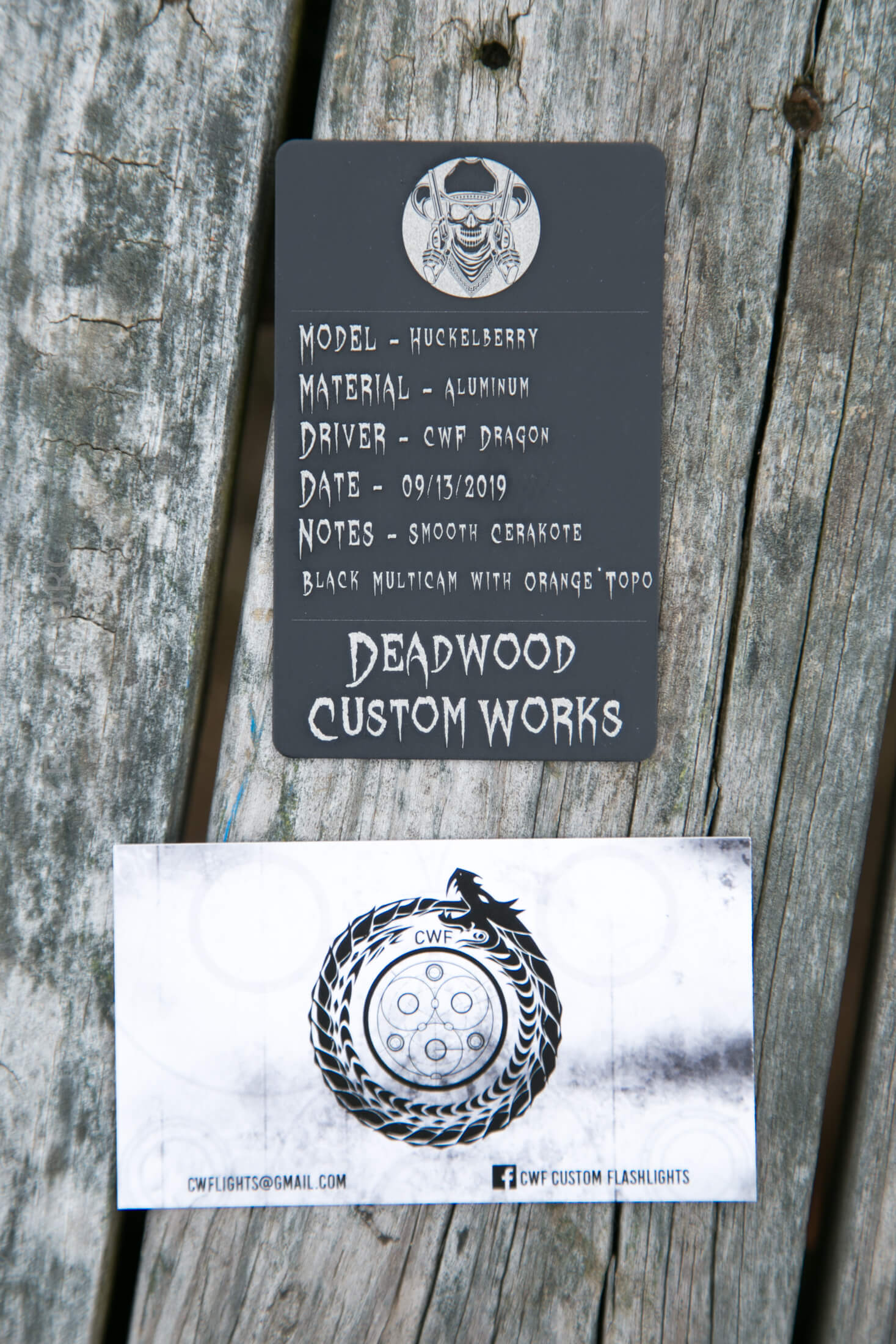

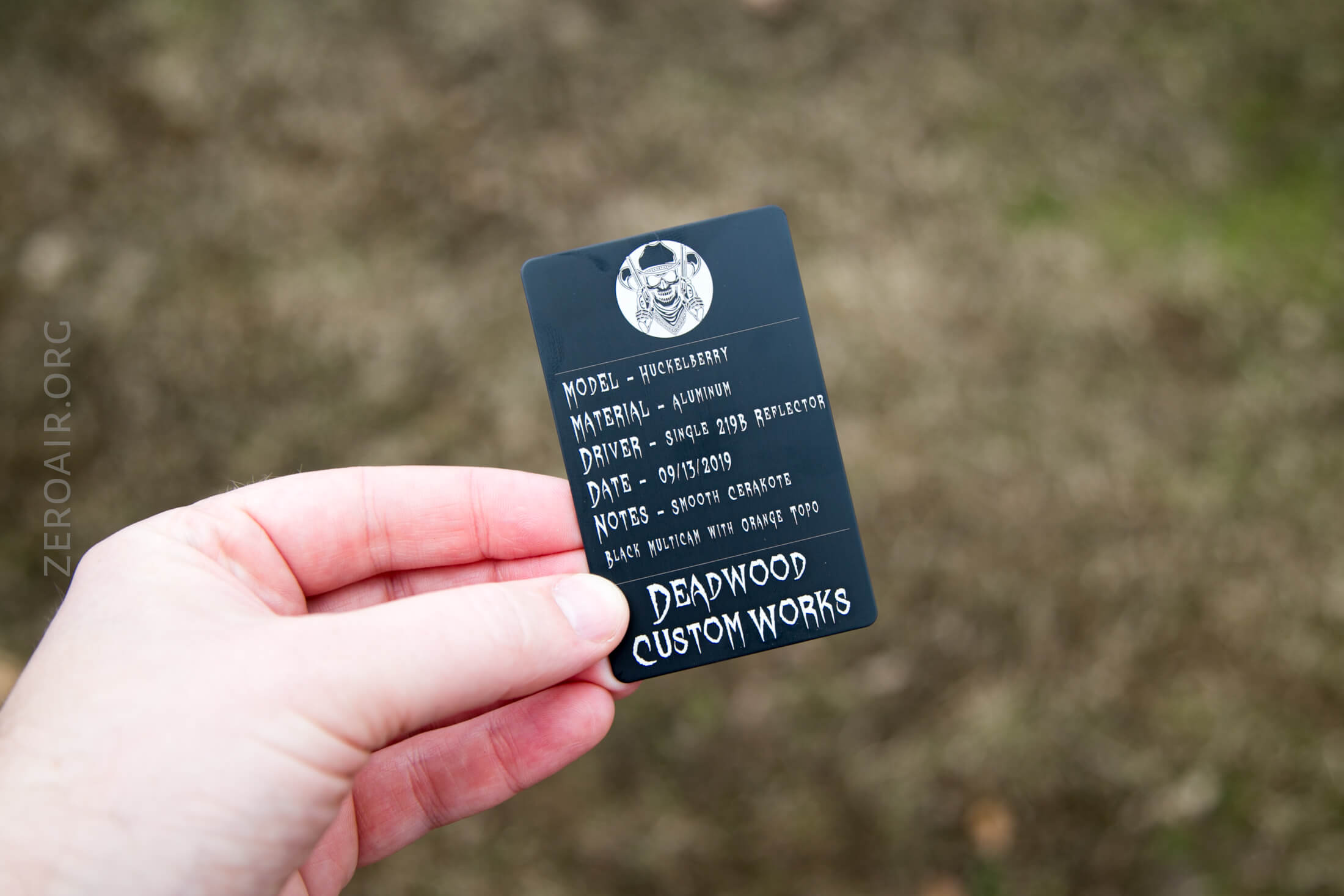

See the card, above.  It is metal and includes the full light info and is great.  Unfortunately, my light shipped with the wrong one (seen below), but Grant made it right by sending the proper card.  This sort of shows how uncommon the single version was – many more Dragon driver lights were sold.

Package and Manual

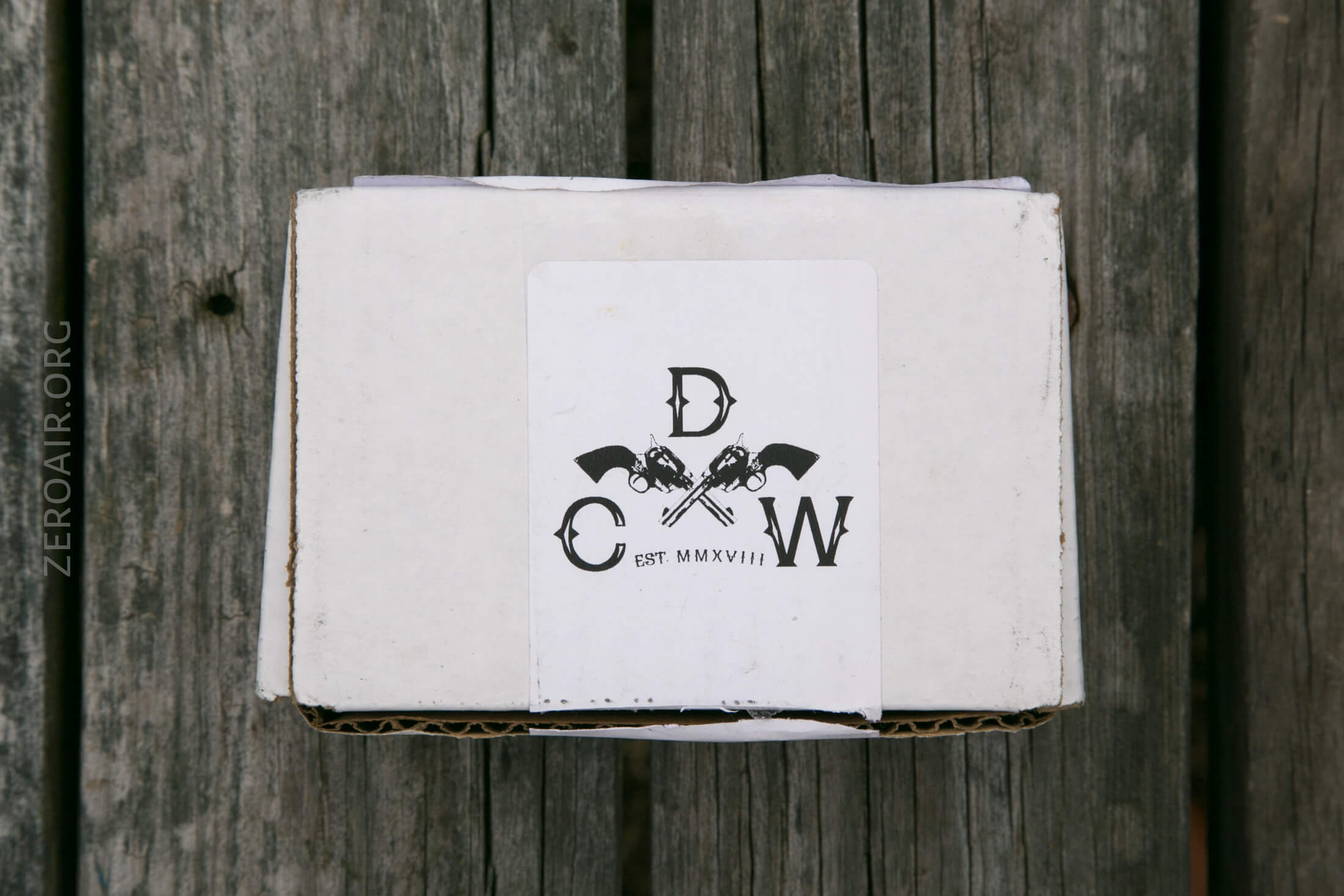

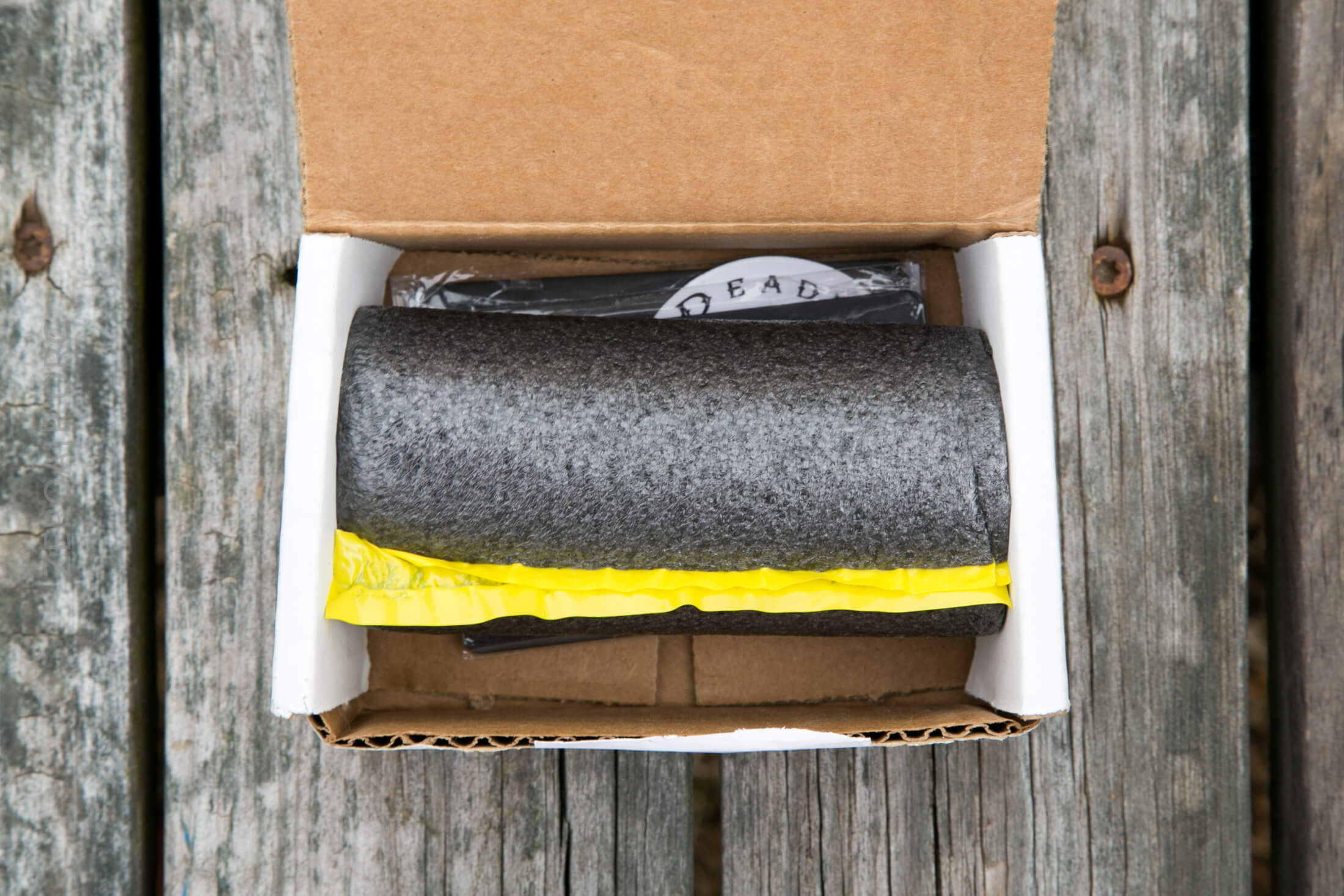

The light ships in a cardboard box.  Inside that box is the light, which is contained safely in some pipe insulation.  This is standard-level packaging and keeps the light safe.  It’s not “keepsake-level” packaging, though.

There is no manual.

Build Quality and Disassembly

The first few times I saw the Huckleberry, I was not too excited.  Only when the cerakoted version was released did I get interested.  And I got even luckier… Grant was willing to replace the standard gray topo line with an orange one for me, which just pushed me further over the edge to buy this one.  I am very pleased with the look and happy that as of now this is one of a kind.  The body of the Huckleberry is still fairly plain, but if you need features, there are other finishes available.

The build quality is very good.  Also, and again, it’s an aluminum light.  That might be common in the production world, but for a maker like this, it’s unusual.  I love the weight of it.

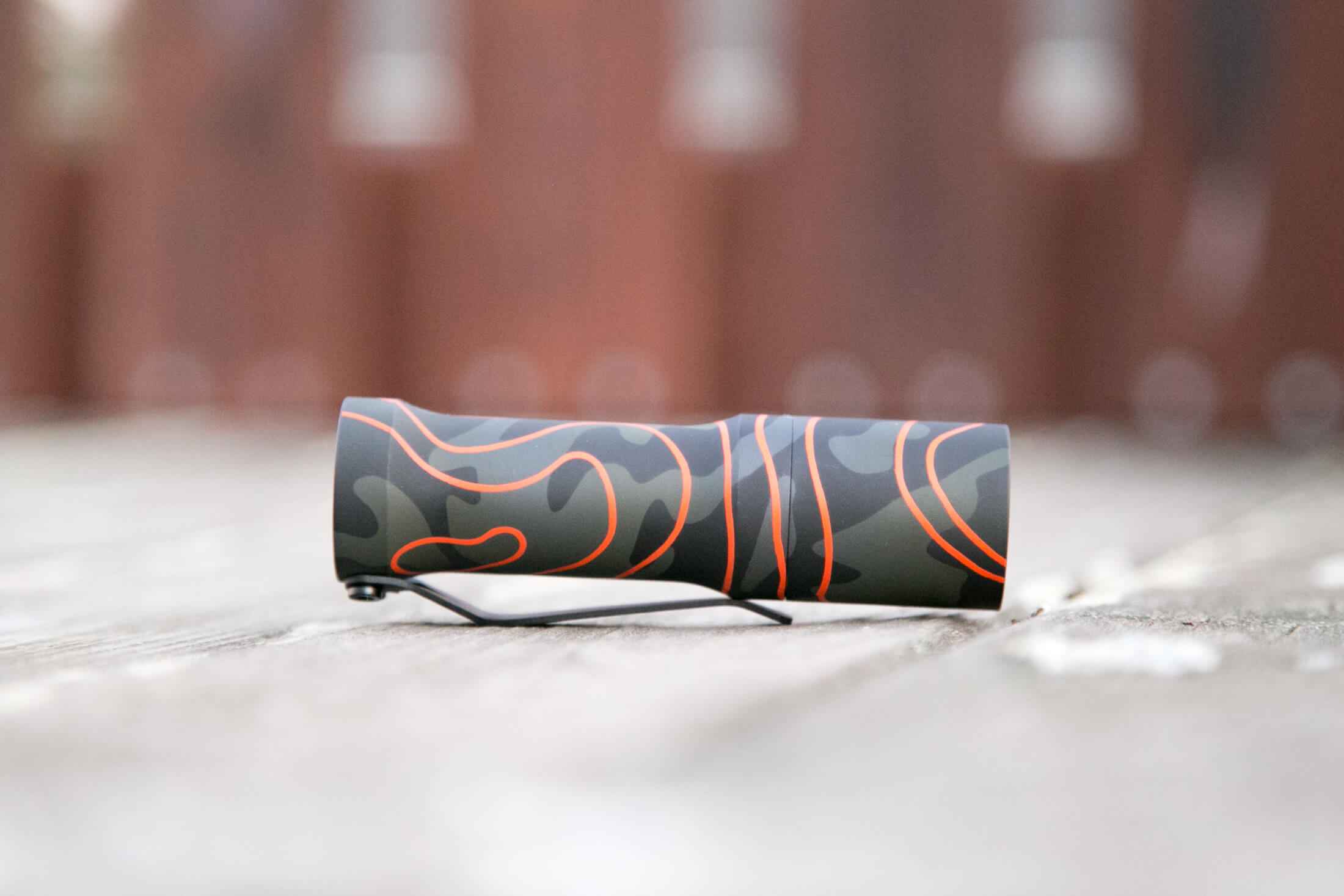

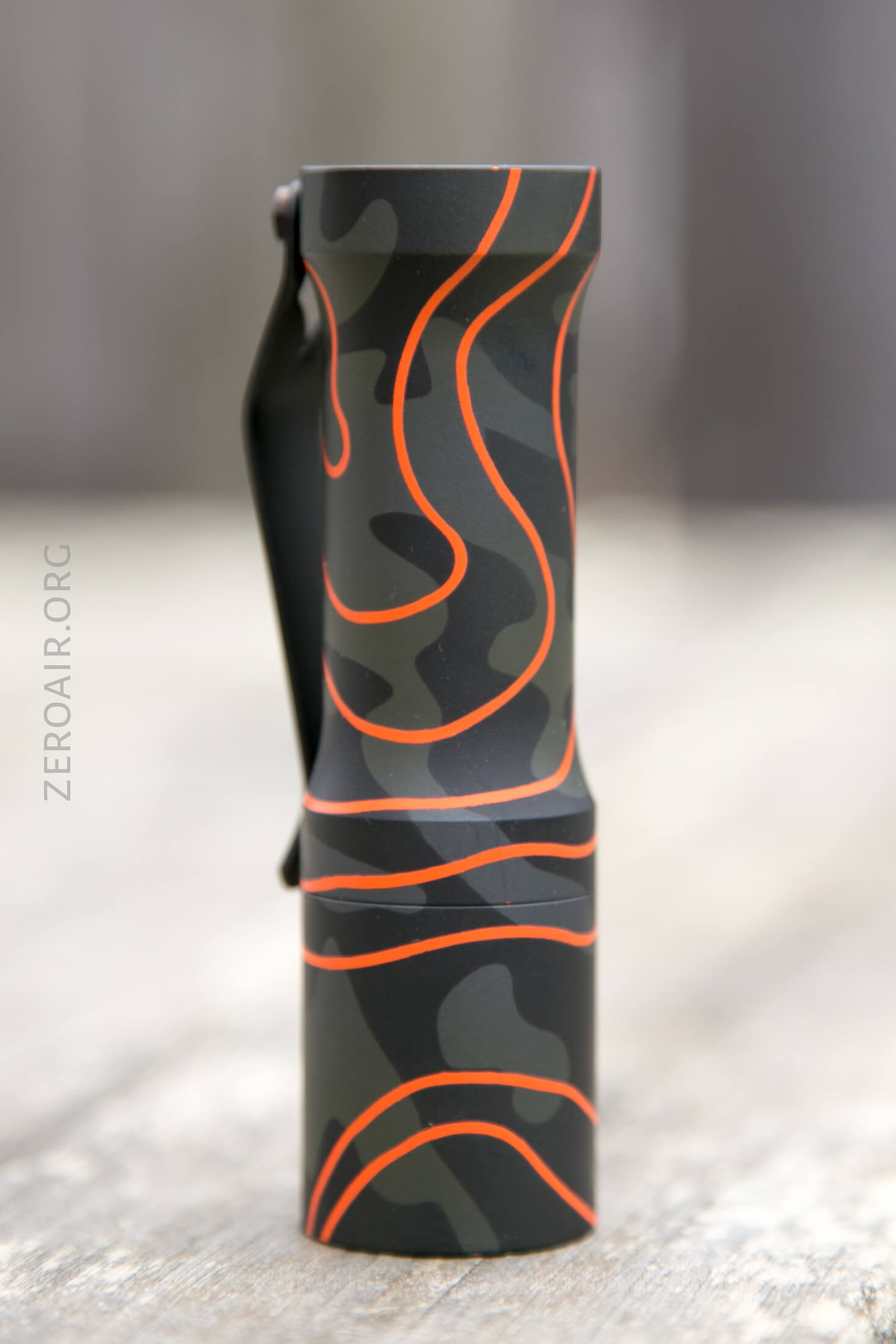

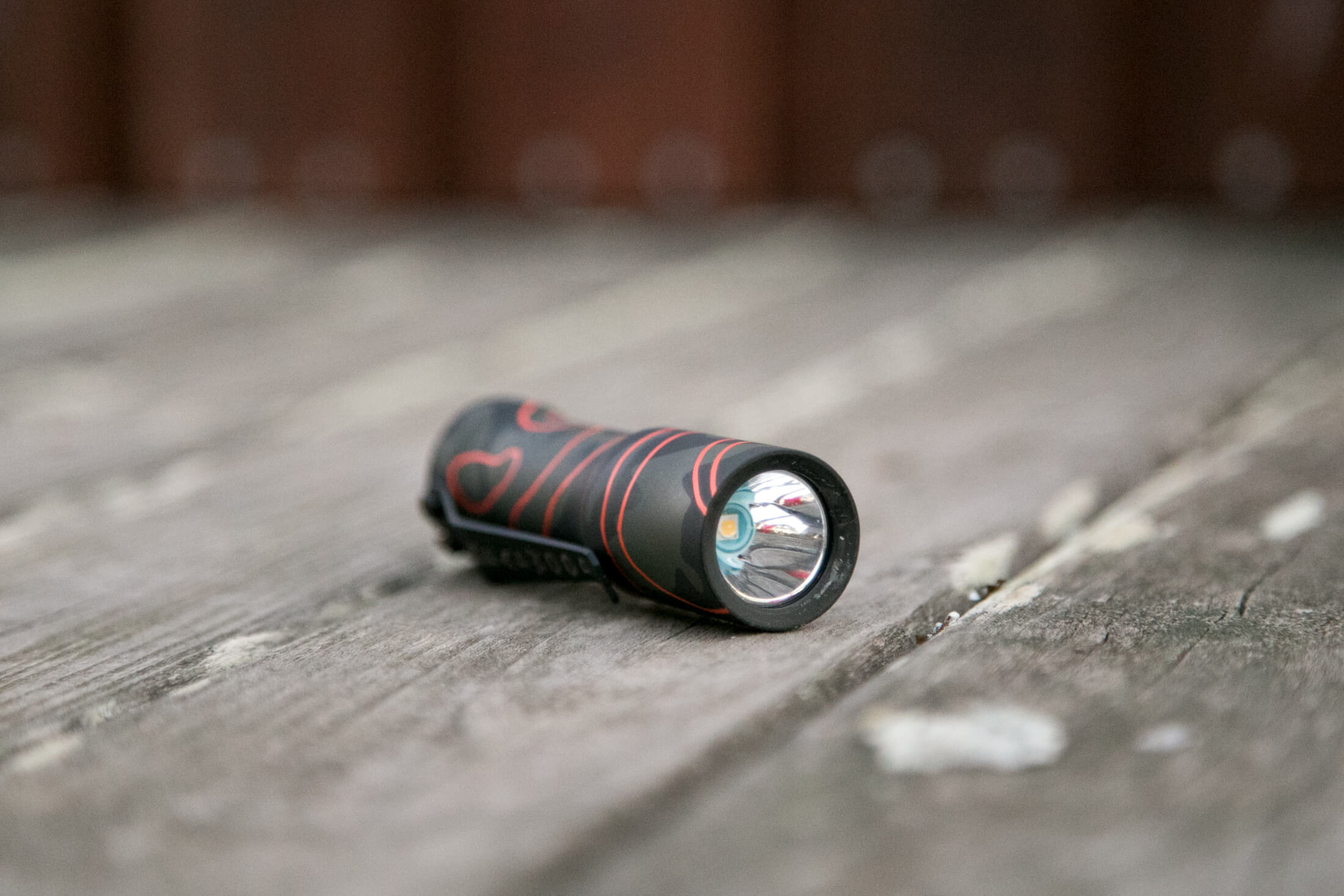

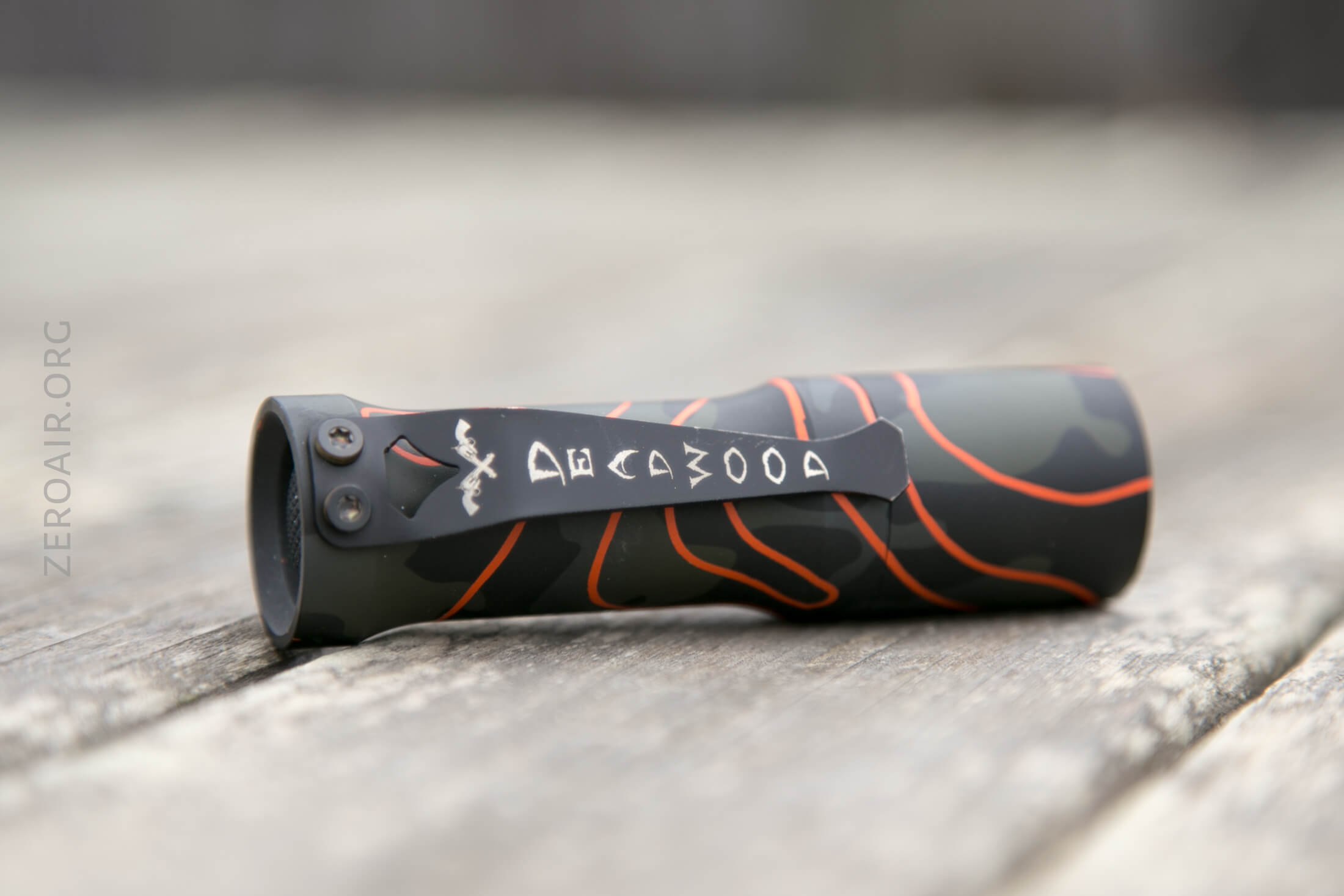

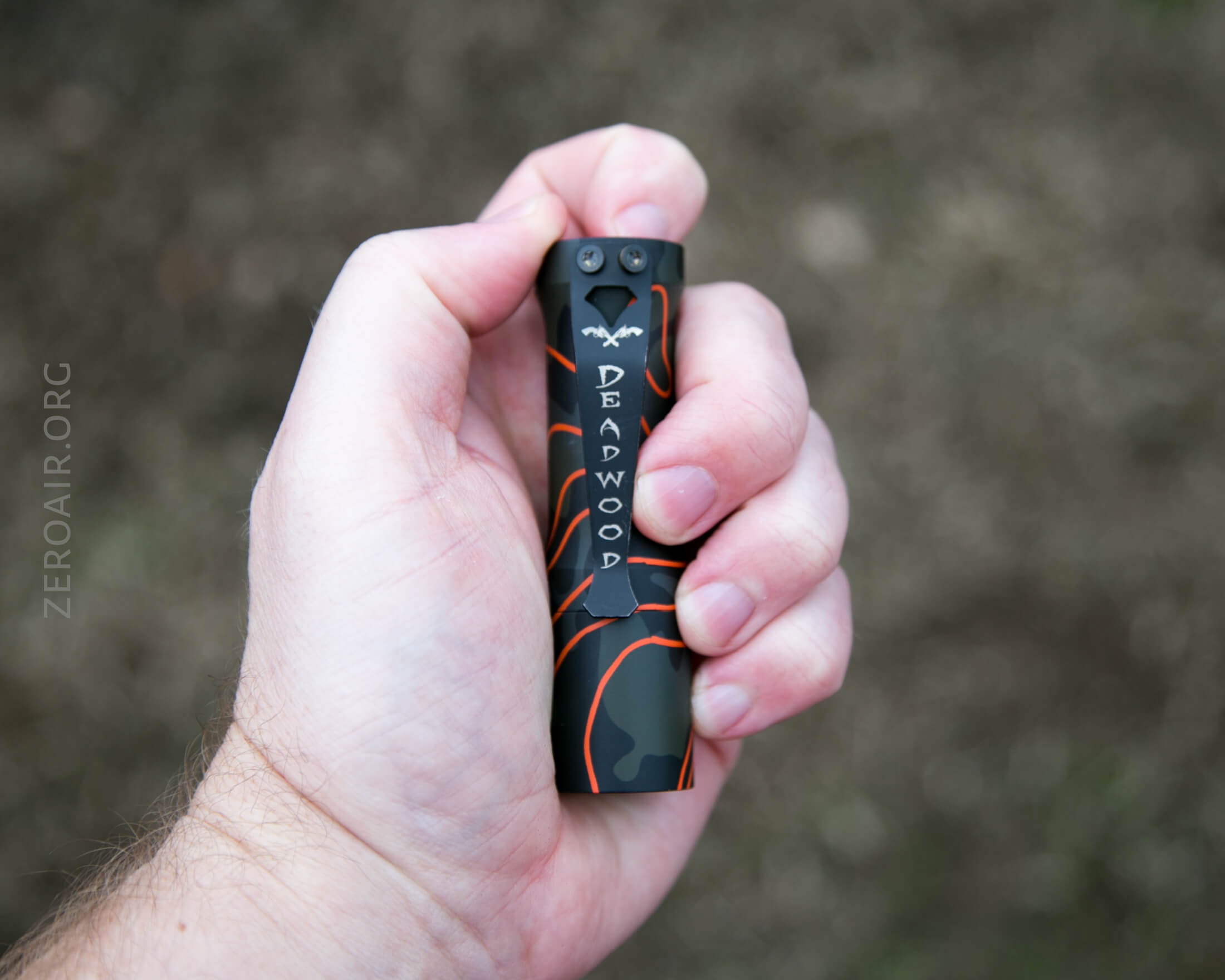

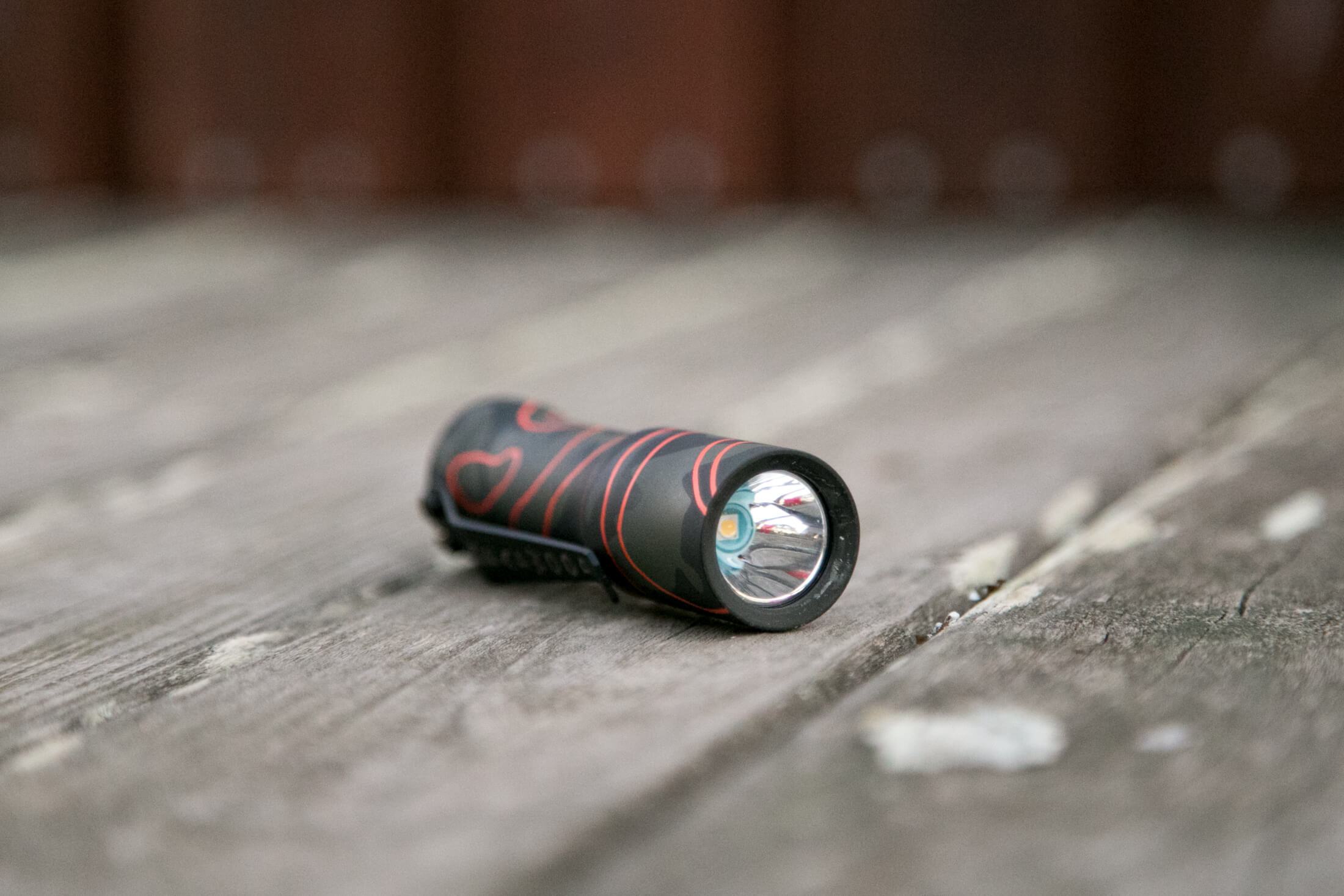

Just a few glamour shots from my NLD post on Reddit:

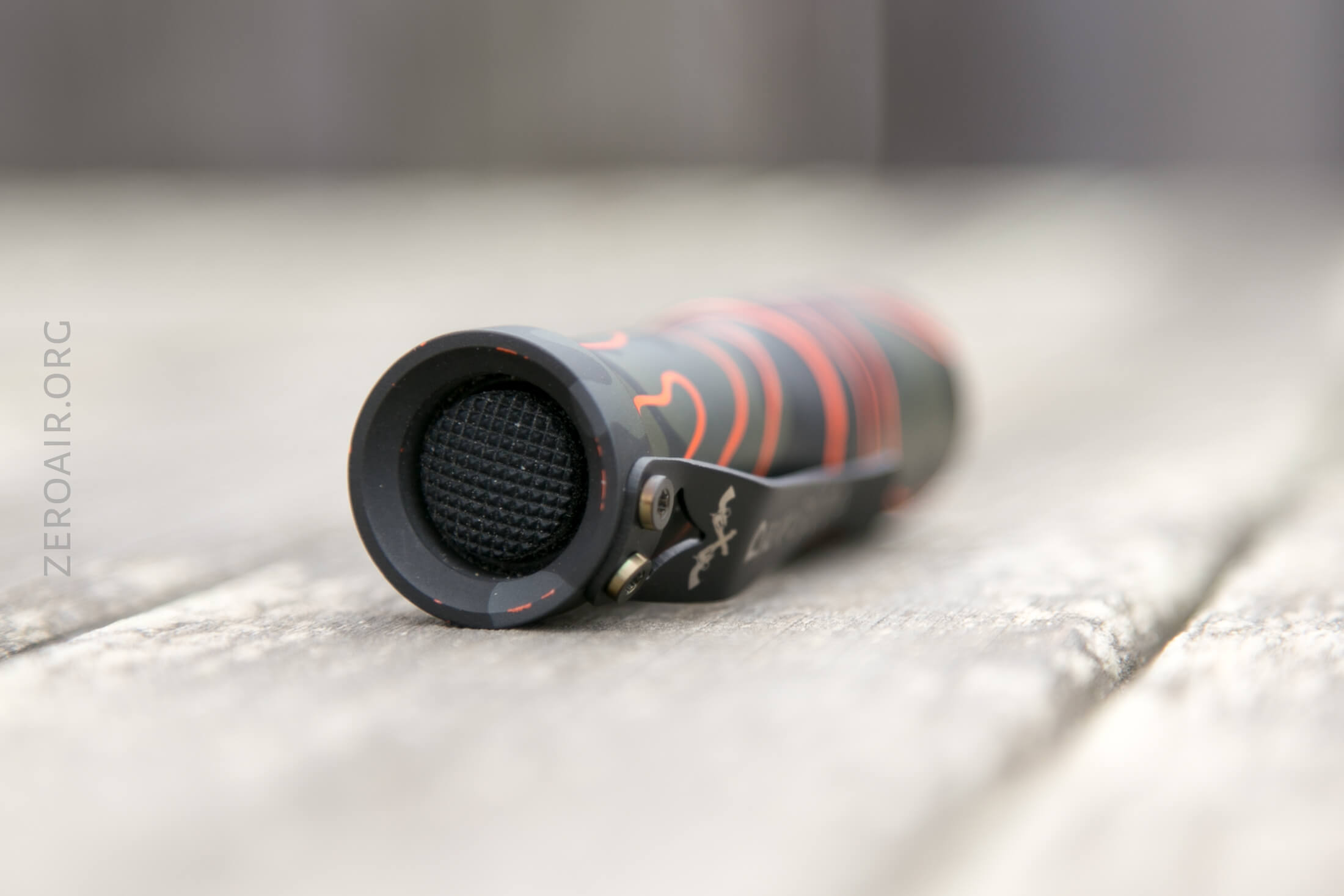

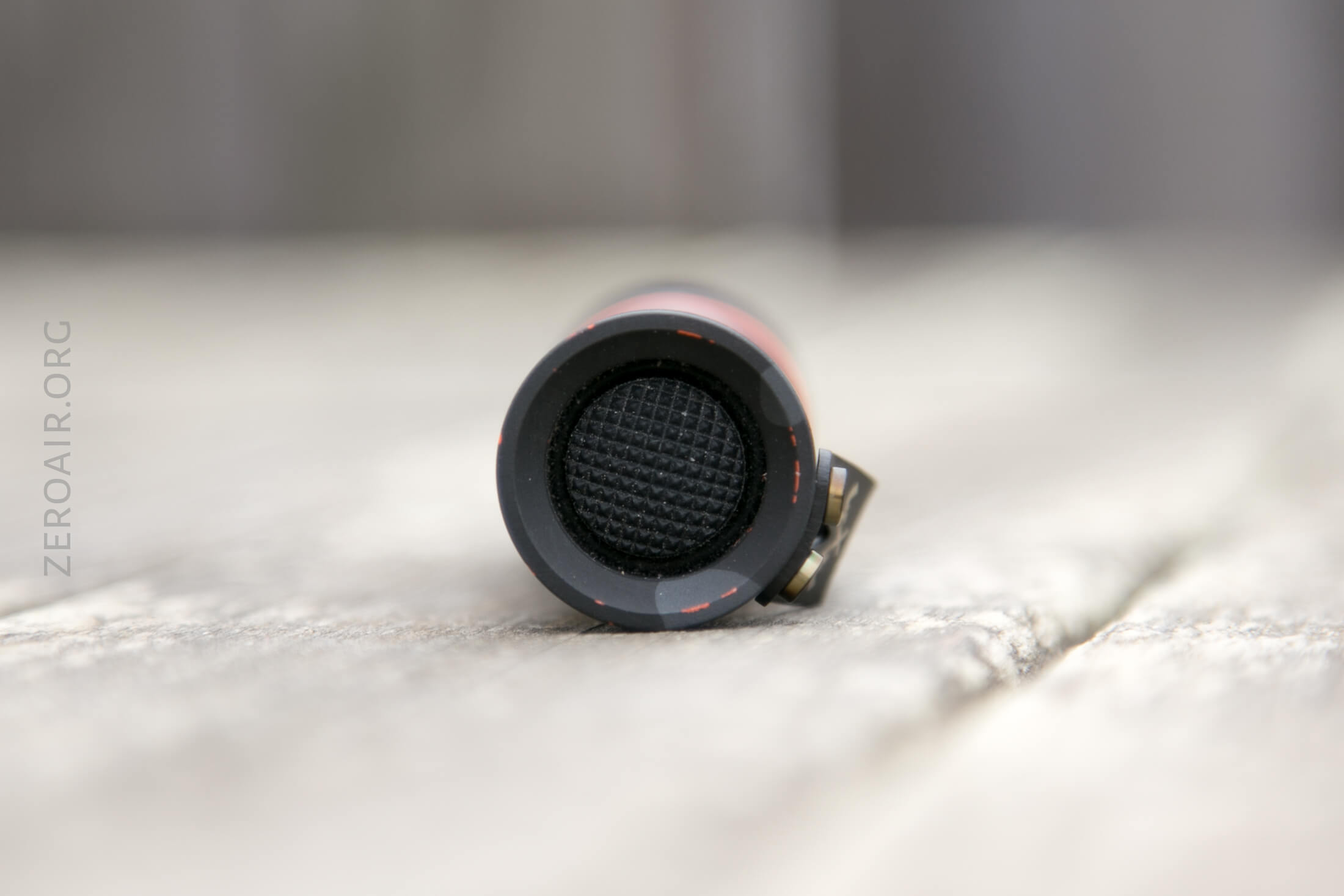

The switch is somewhat recessed, which allows easy tailstanding.  But not so much that it’s hard to actuate.

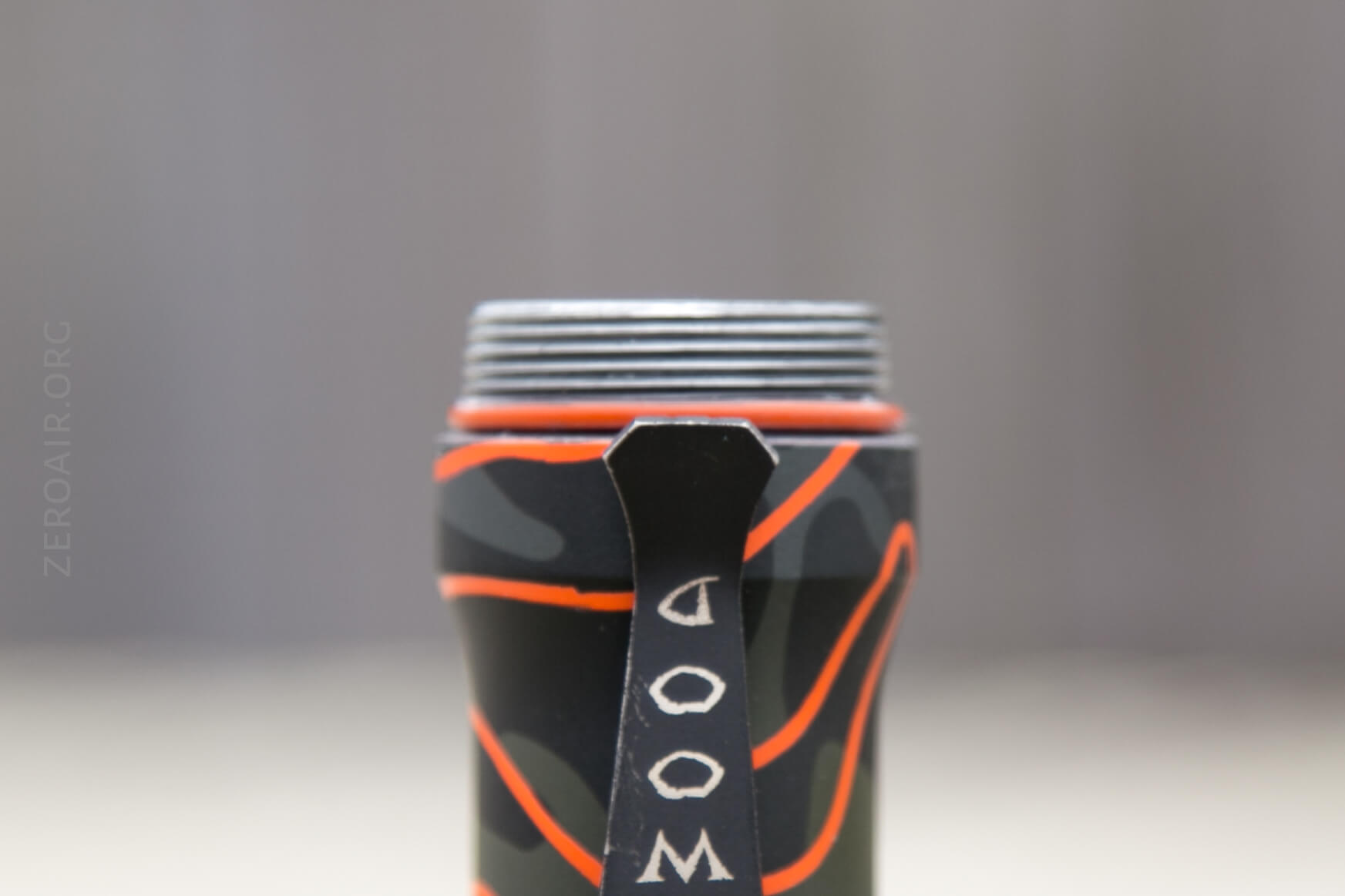

The pocket clip hits just right on the collar.  It could have a bigger mouth, but it works well.

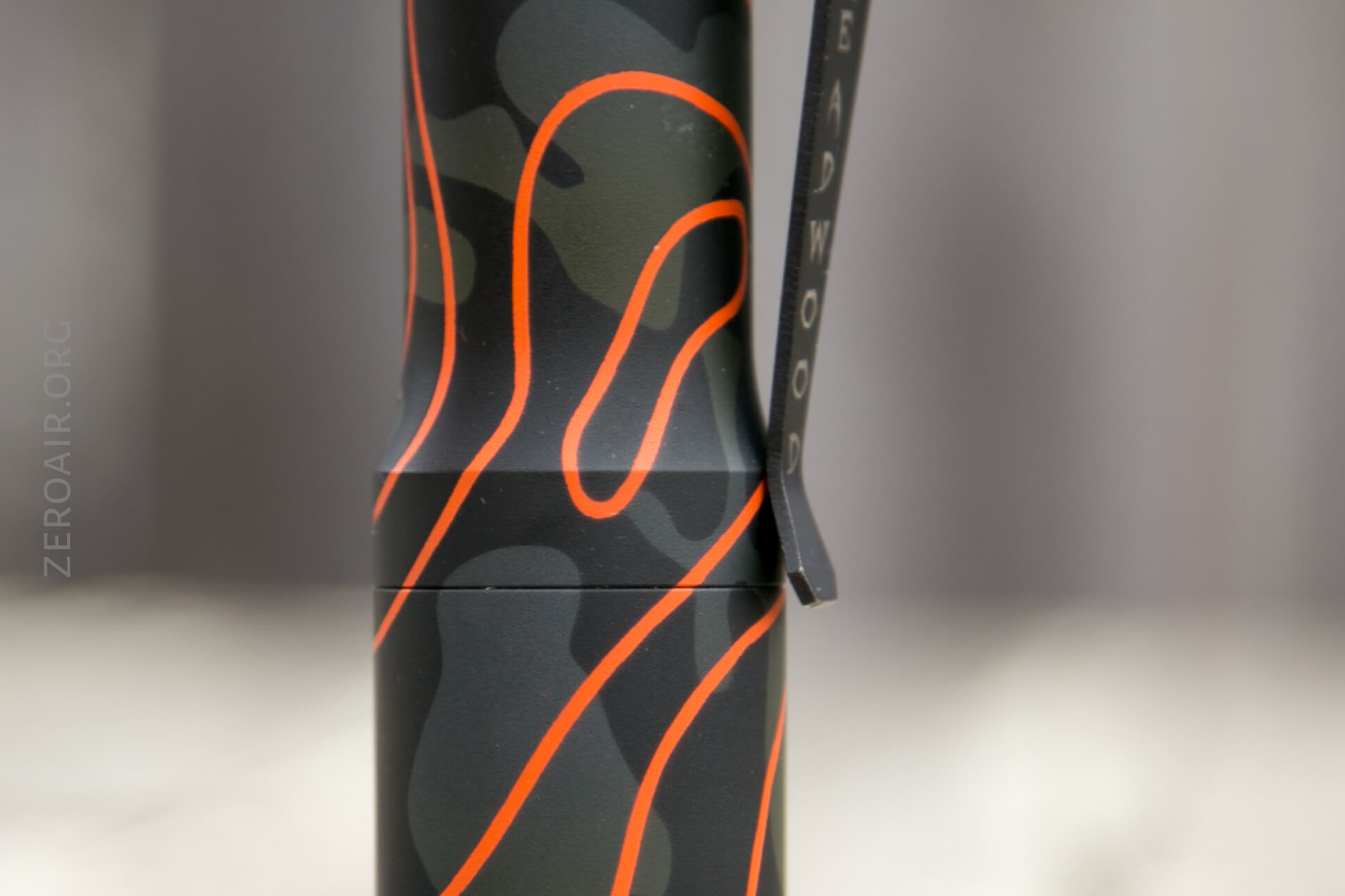

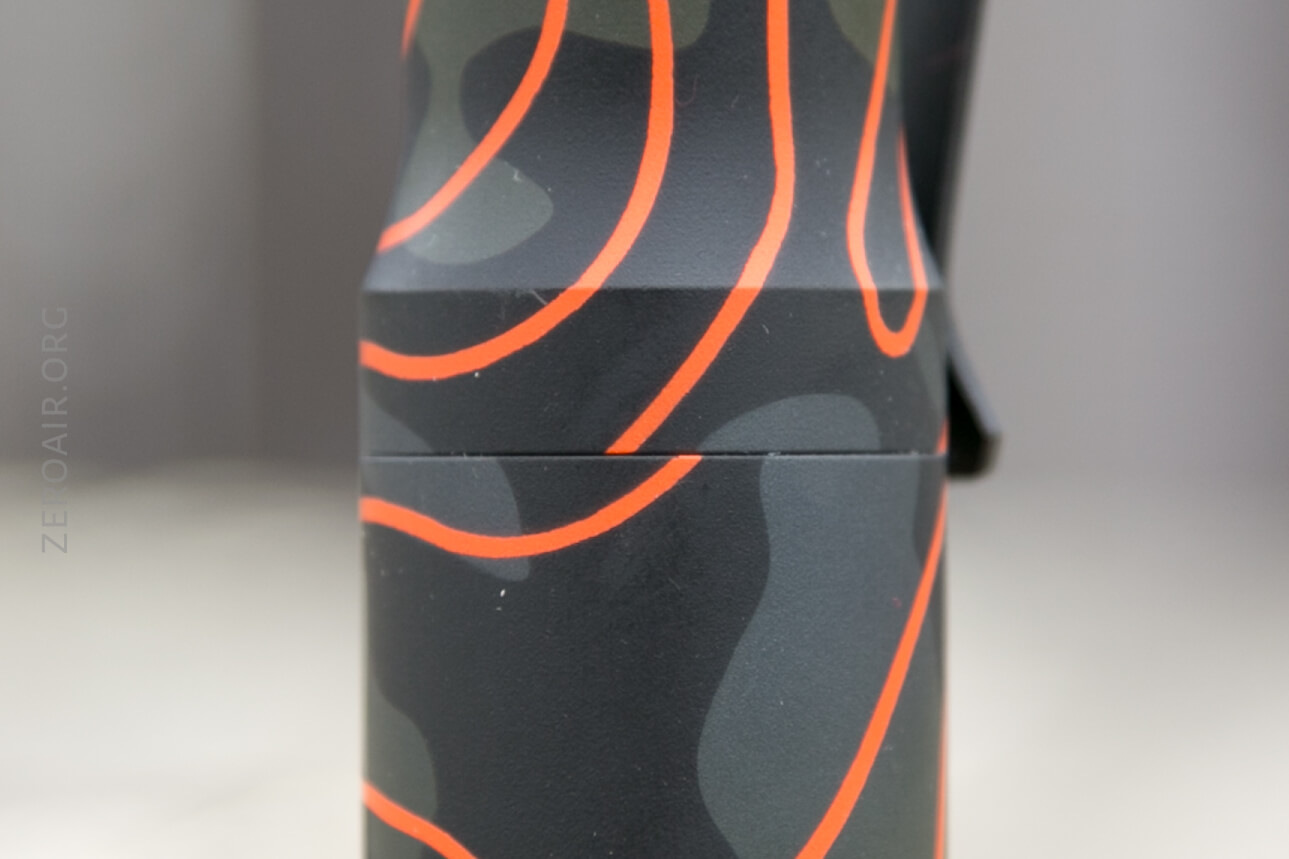

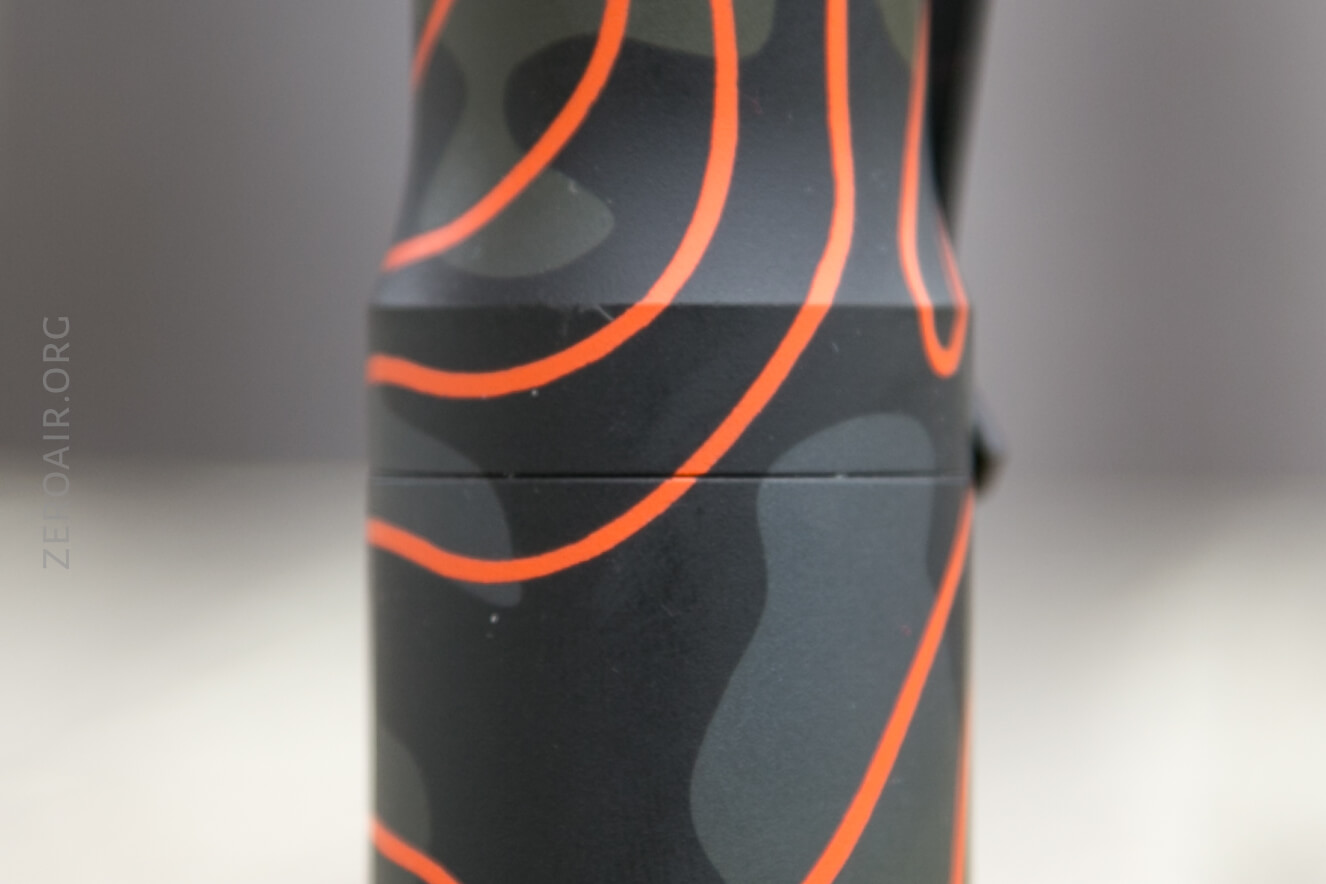

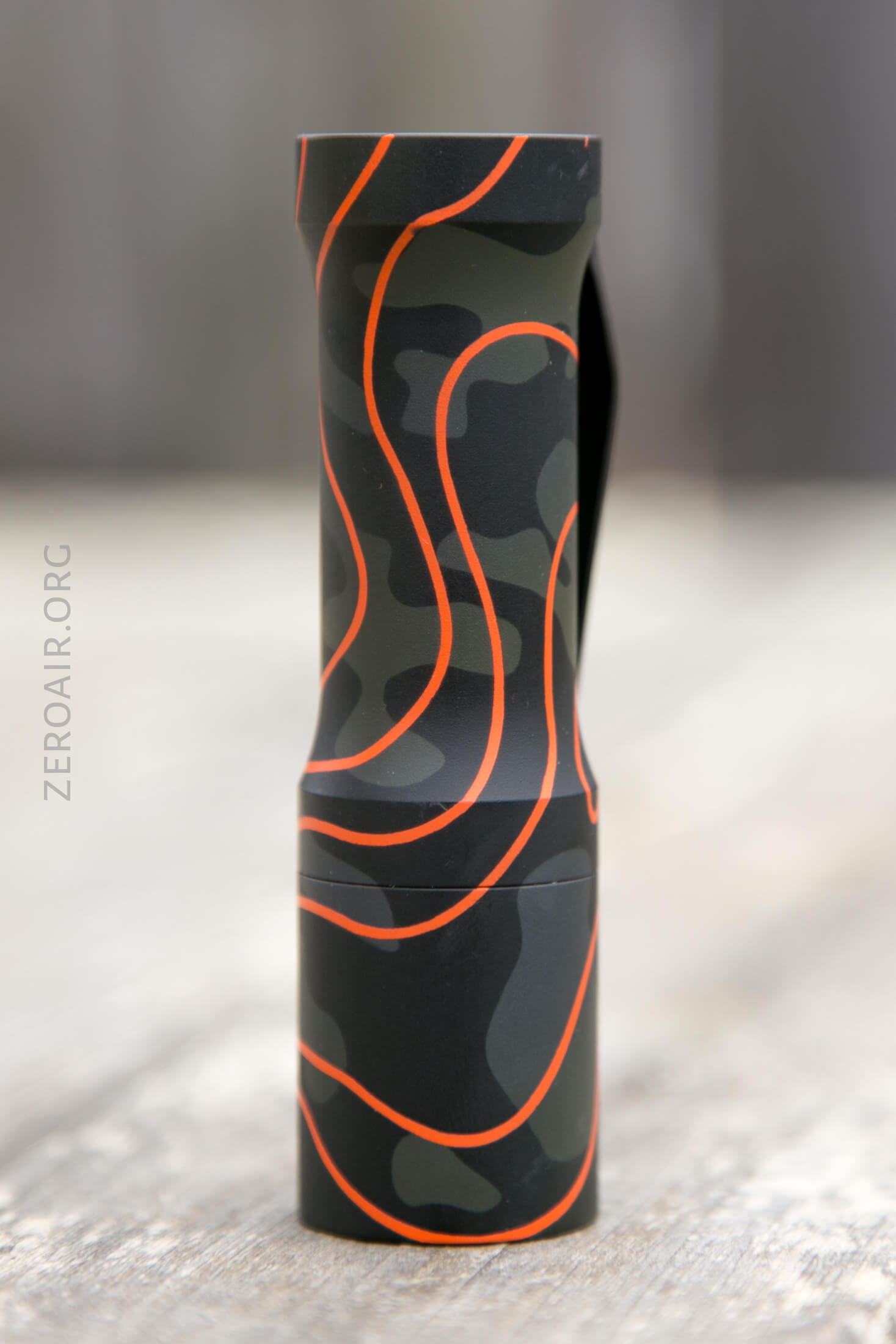

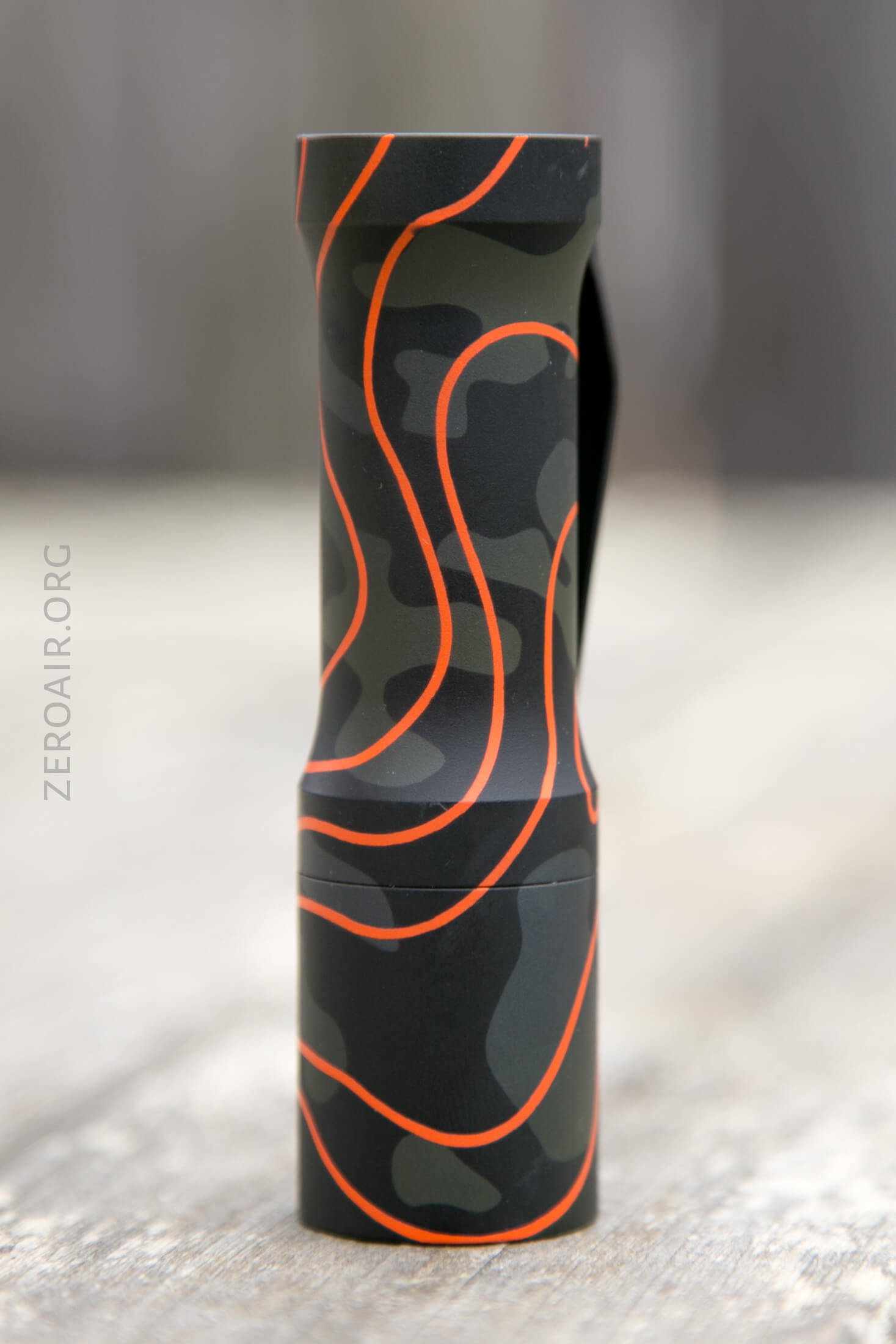

Now here’s one massive failing for my tastes on a light like this…  In the photo above, the topo lines that cross the head to tail are matched up perfectly.  But if I tighten the head fully as seen below, the lines do not, in fact, match.  This should be indexed.  You’ll note that the gap between the two parts looks the same whether it’s matched or not, so of course, functionally there’s no difference.

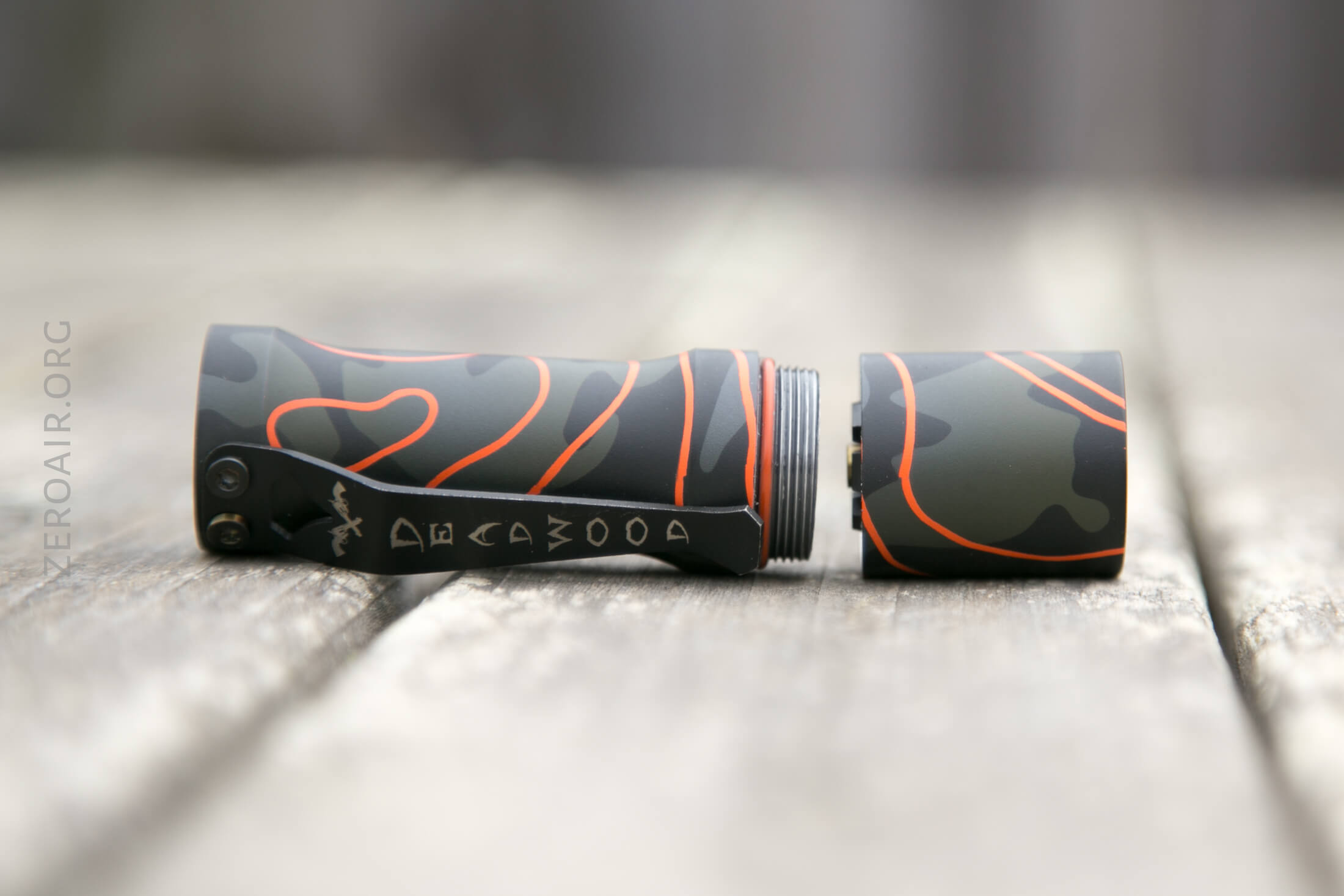

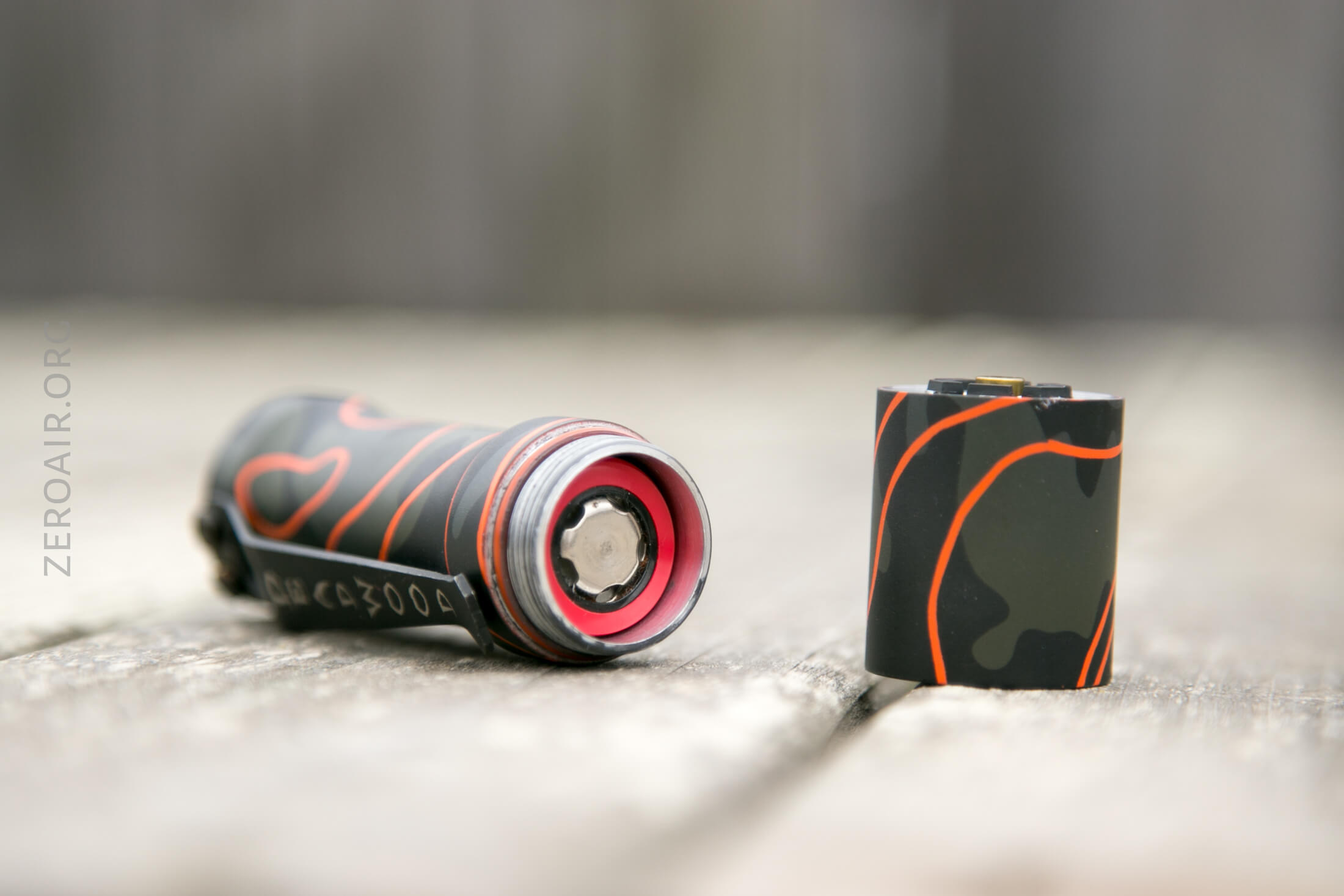

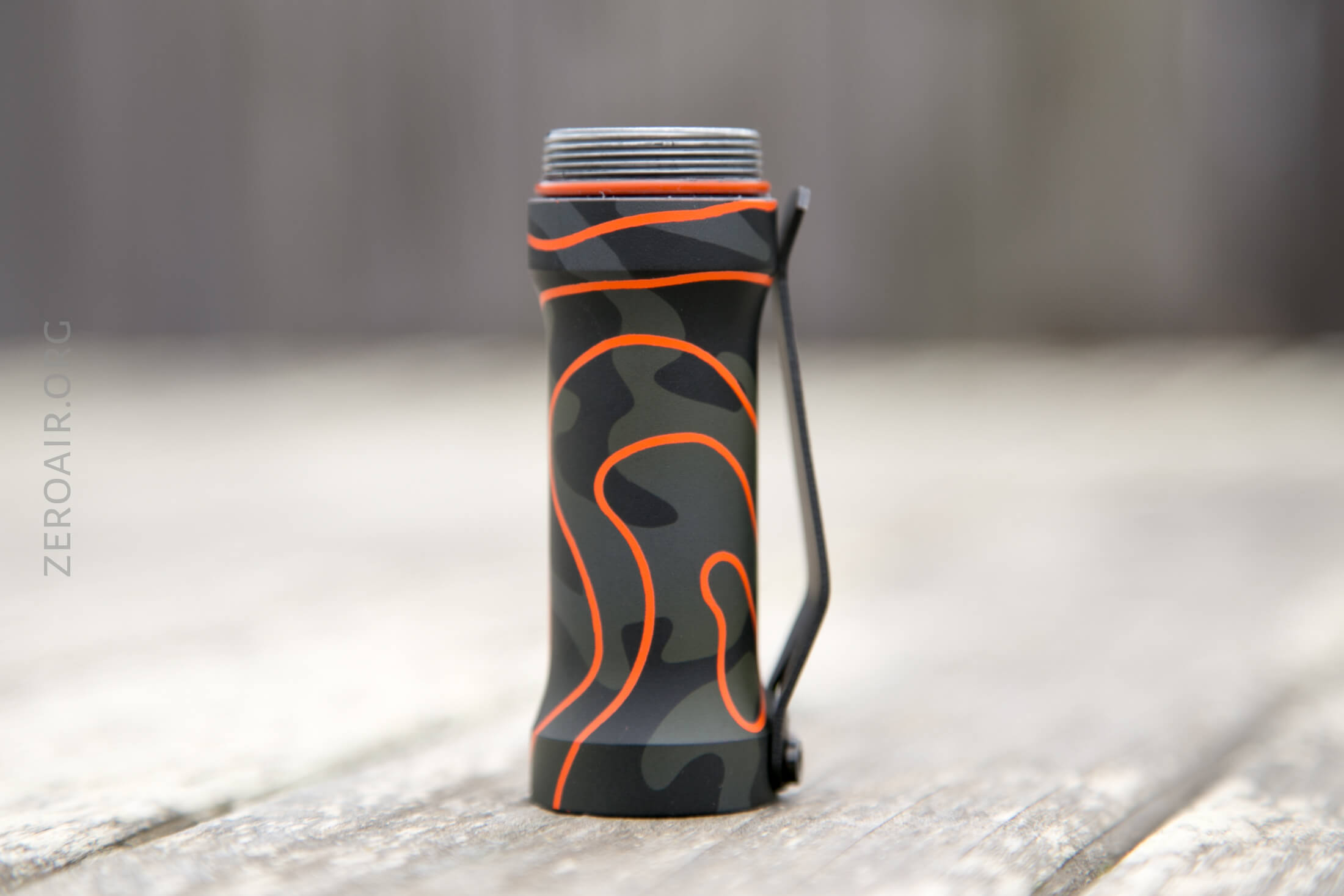

The threads here are not all that long and are unanodized aluminum threads.

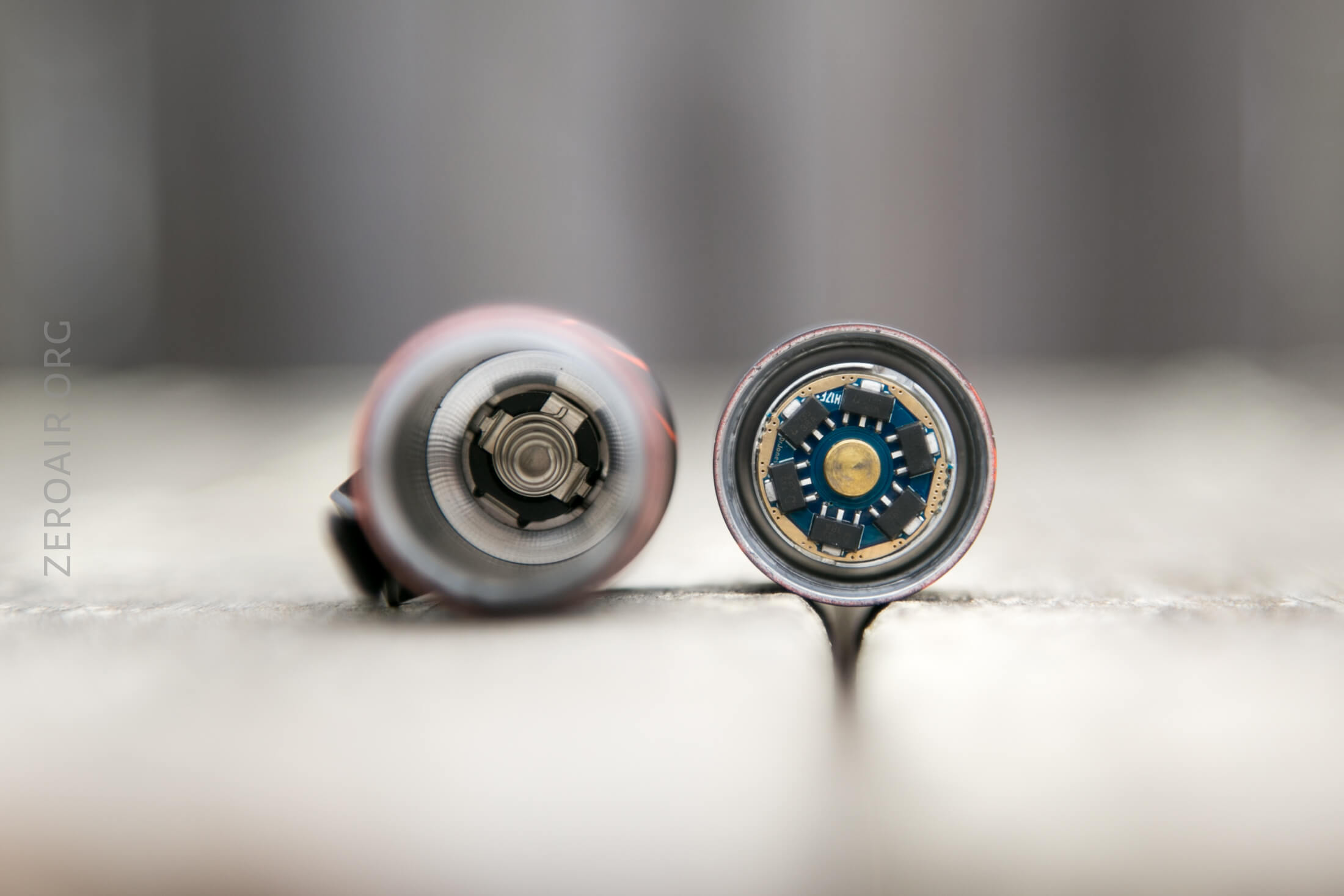

The head end has a brass button, and the tail has a nice thick spring.

The threads could be cleaner, but I’ve shot these photos after a bit of use.  I’m not sure if this is an issue with the lube used, or what, but I’m surprised the threads have blackened as they have.

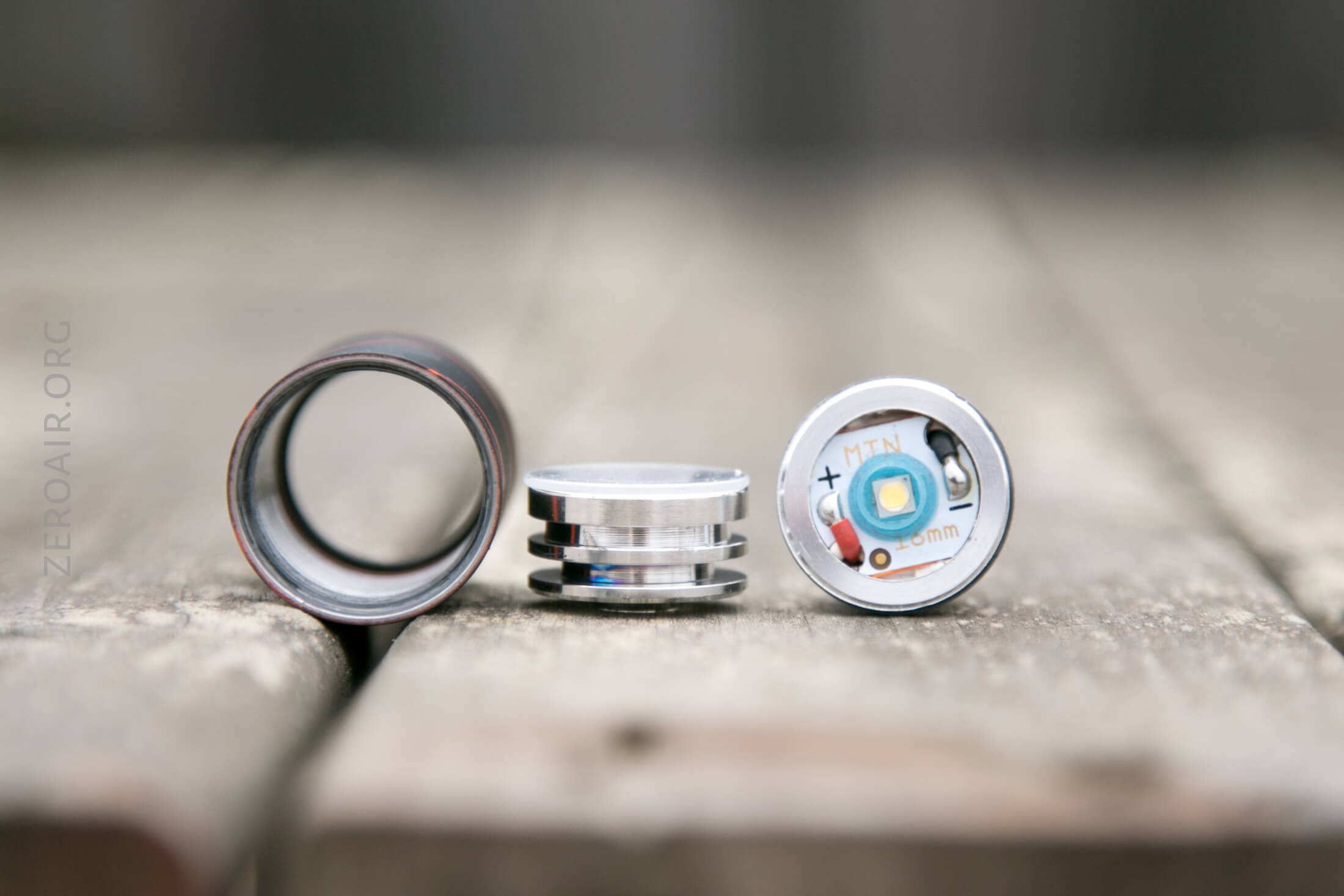

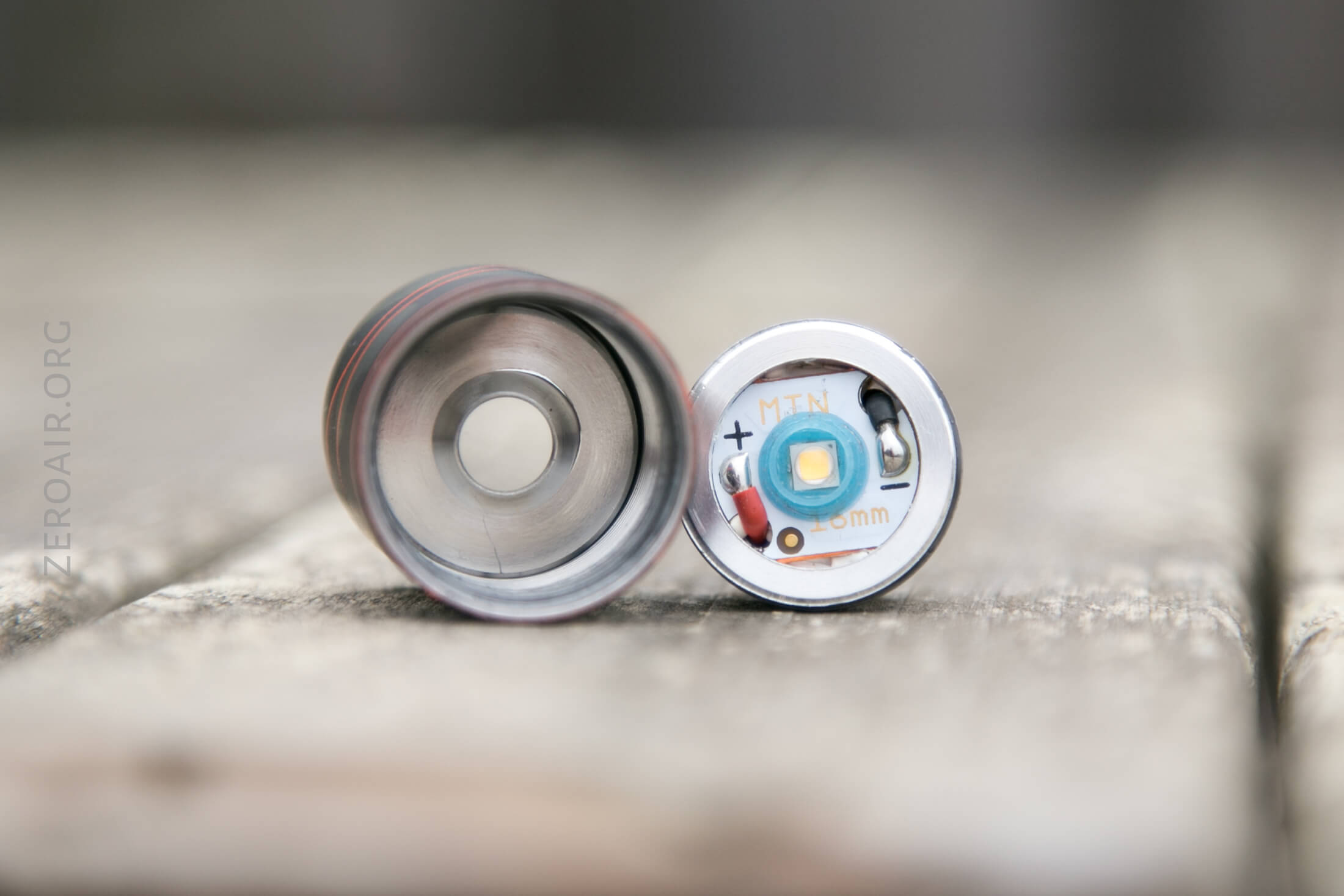

The pill unscrews easily and could be modified if desired.  The pill in the aluminum light is aluminum, which again, helps keep the weight down.  Note below a nice view of the glow gasket – that’s not even mentioned in the product literature, so it’s a nice (free) touch.  Non-aluminum versions have a copper pill.

The reflector is also aluminum.

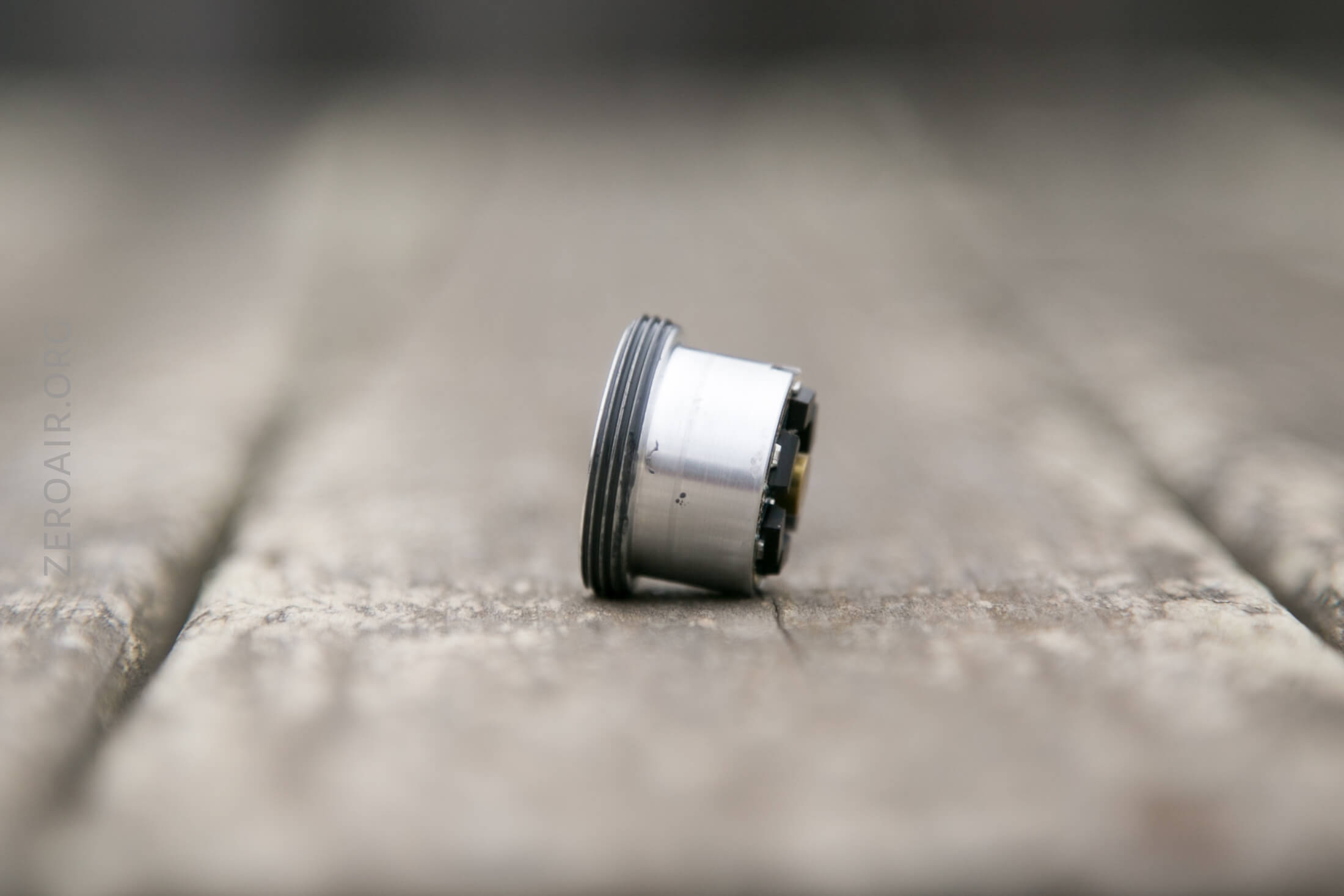

Below, the pill.

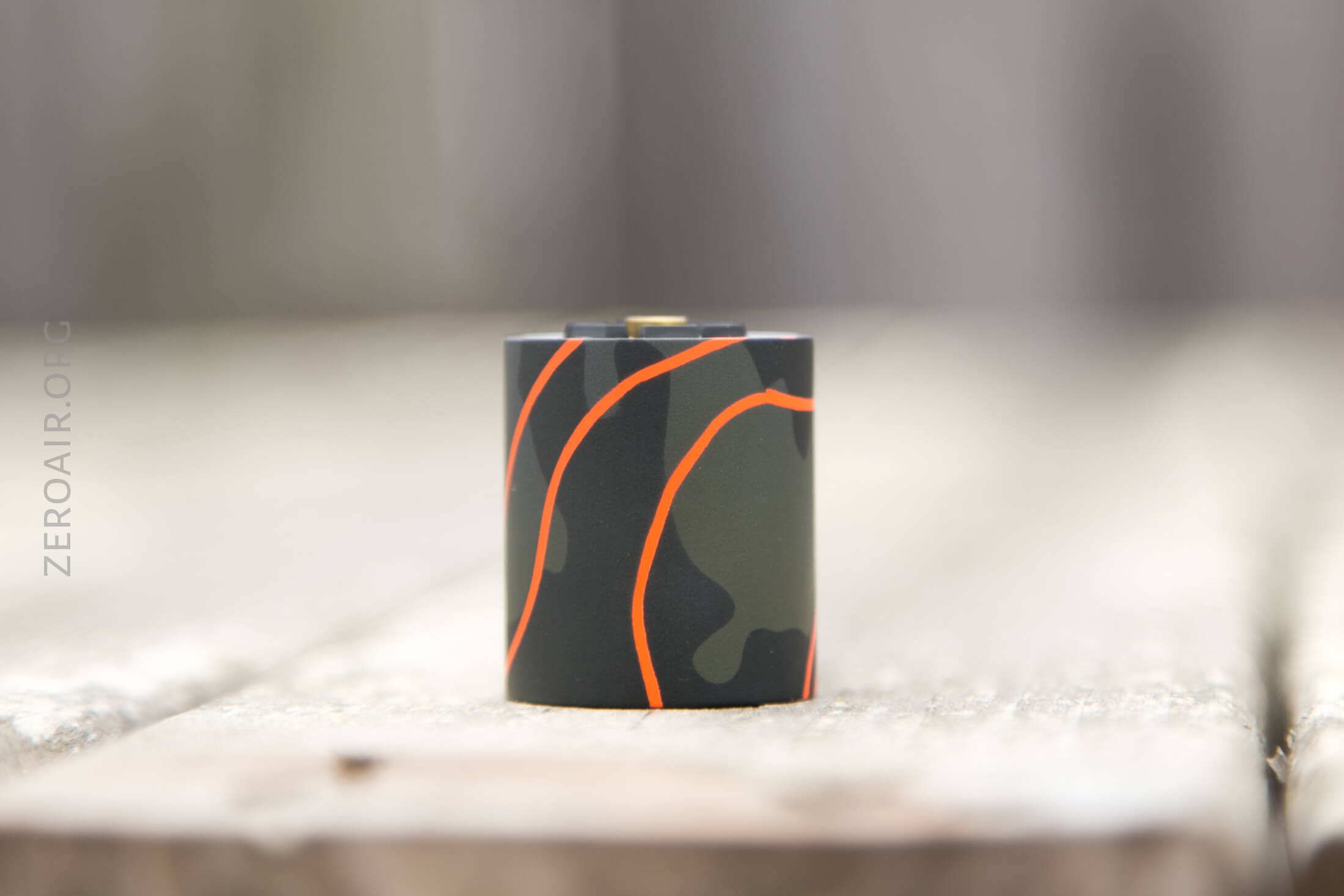

The driver sticks out of the head just a bit when the head is off.

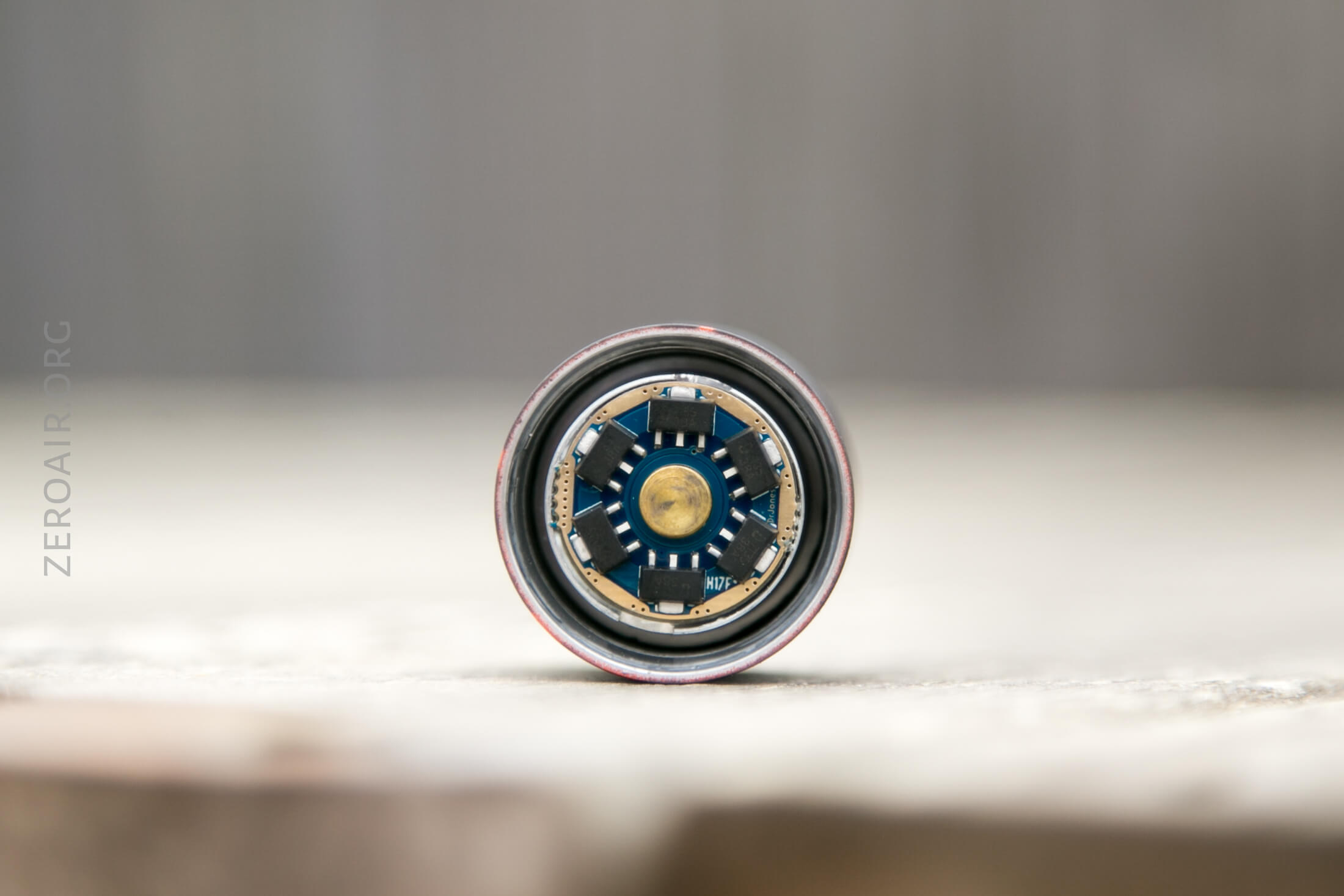

Here’s a shot of the H17F driver.

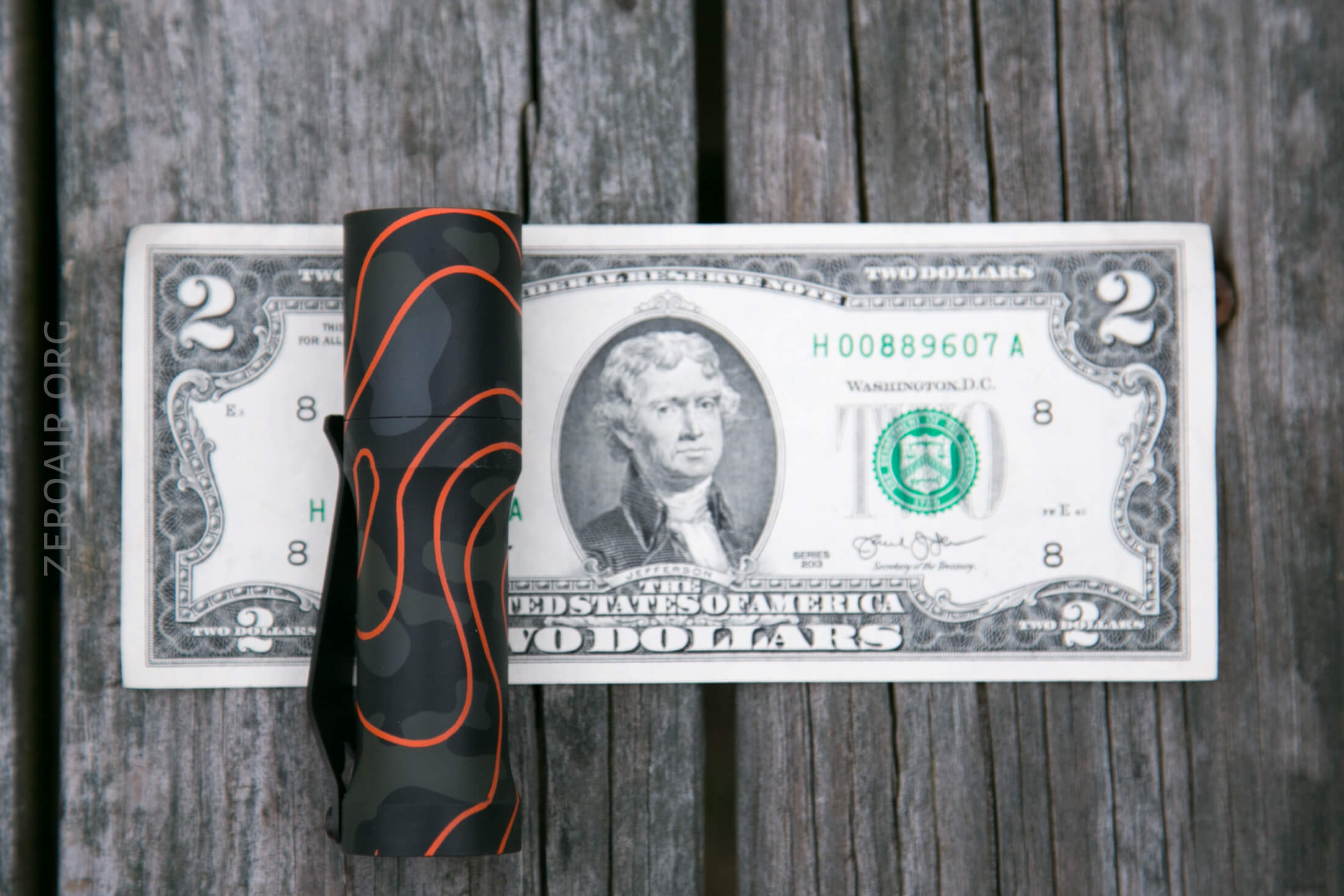

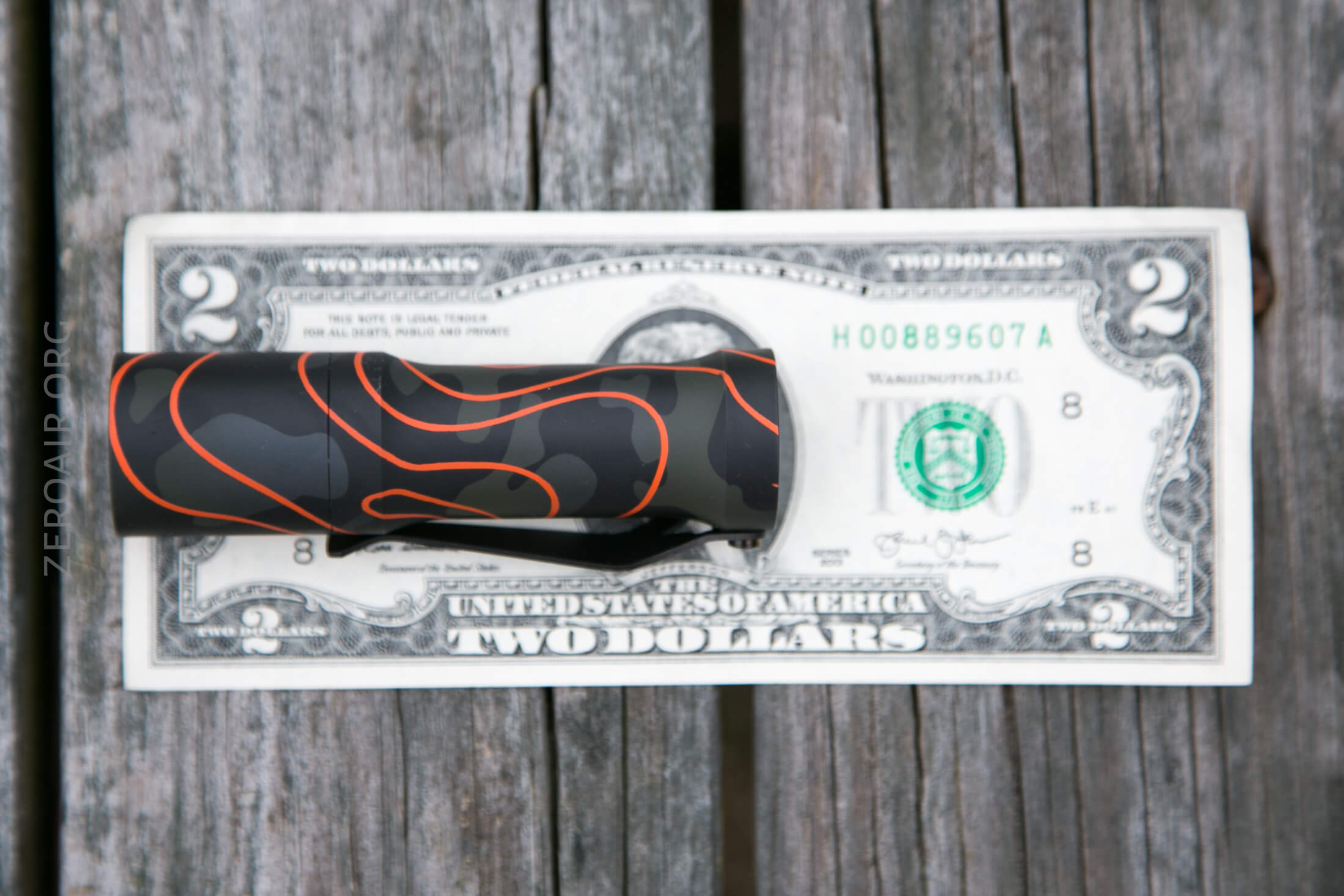

Size and Comps

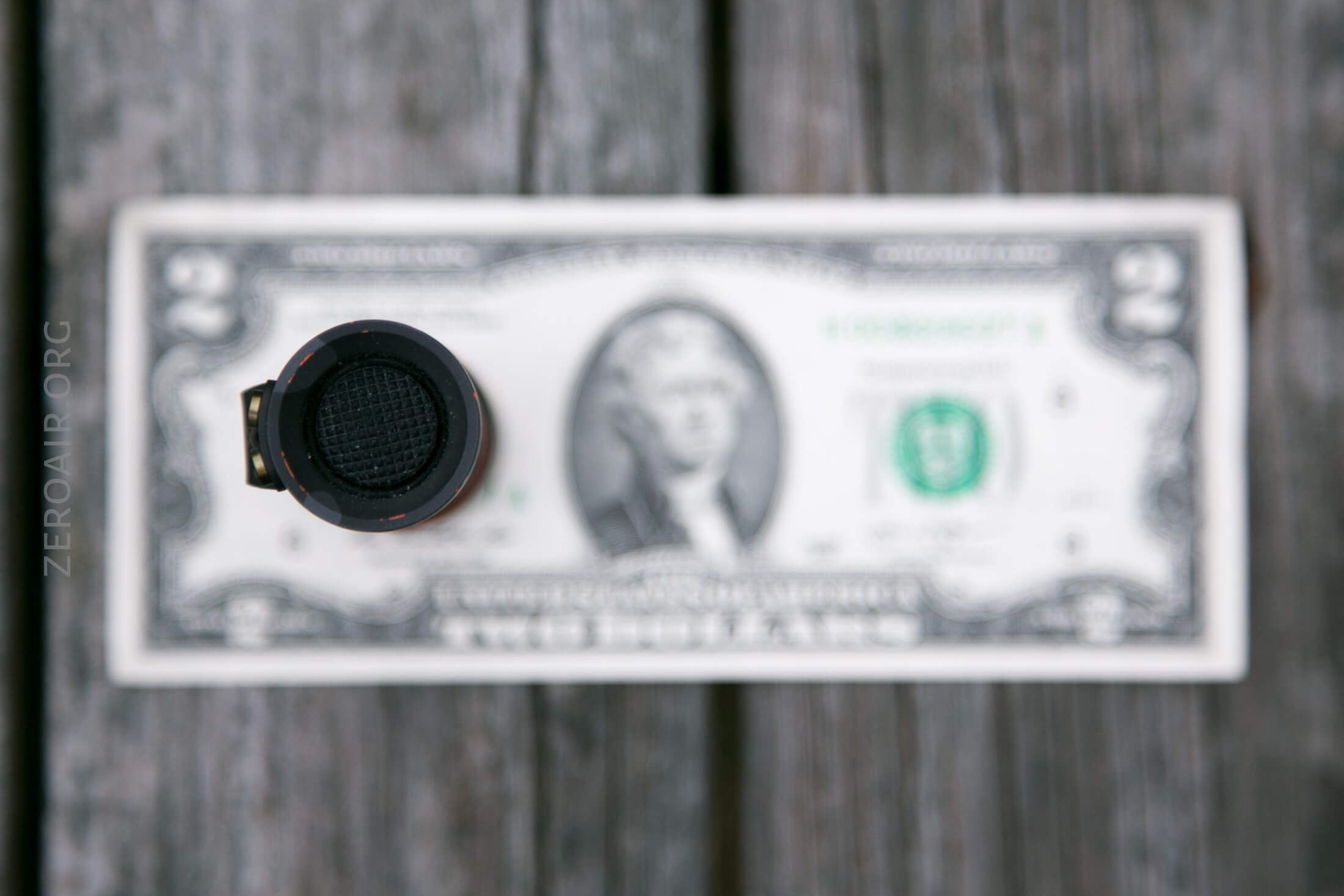

No official measurements are given.  So here are mine.

89.46mm long.

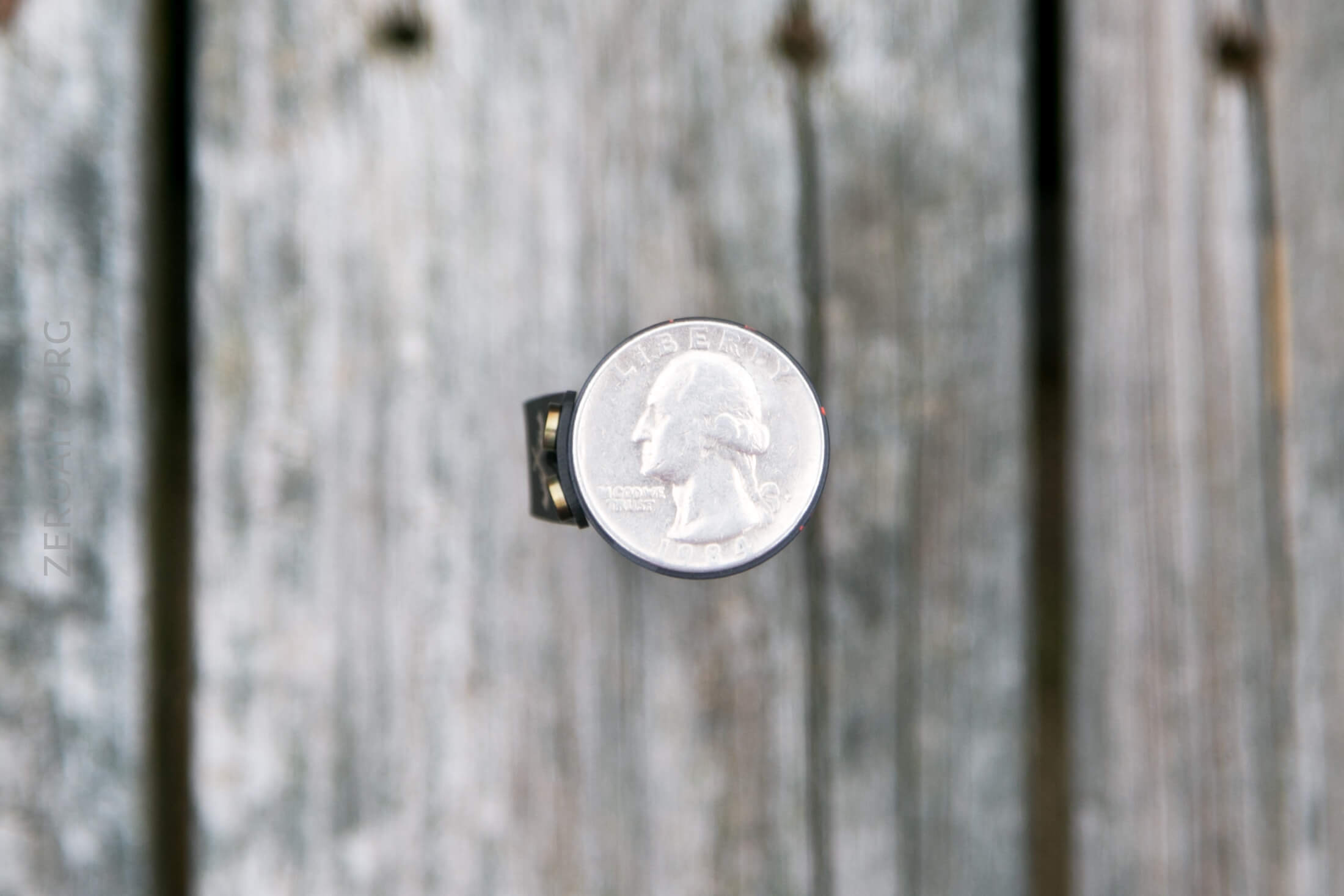

25.38mm in head diameter.
21.35mm at the thinnest body diameter.
~28mm, the thickest area including the clip.

Without cell, this light weighs in at 53.9g.  The 18350 I used brings it up to 75.2g.  That’s a light light.

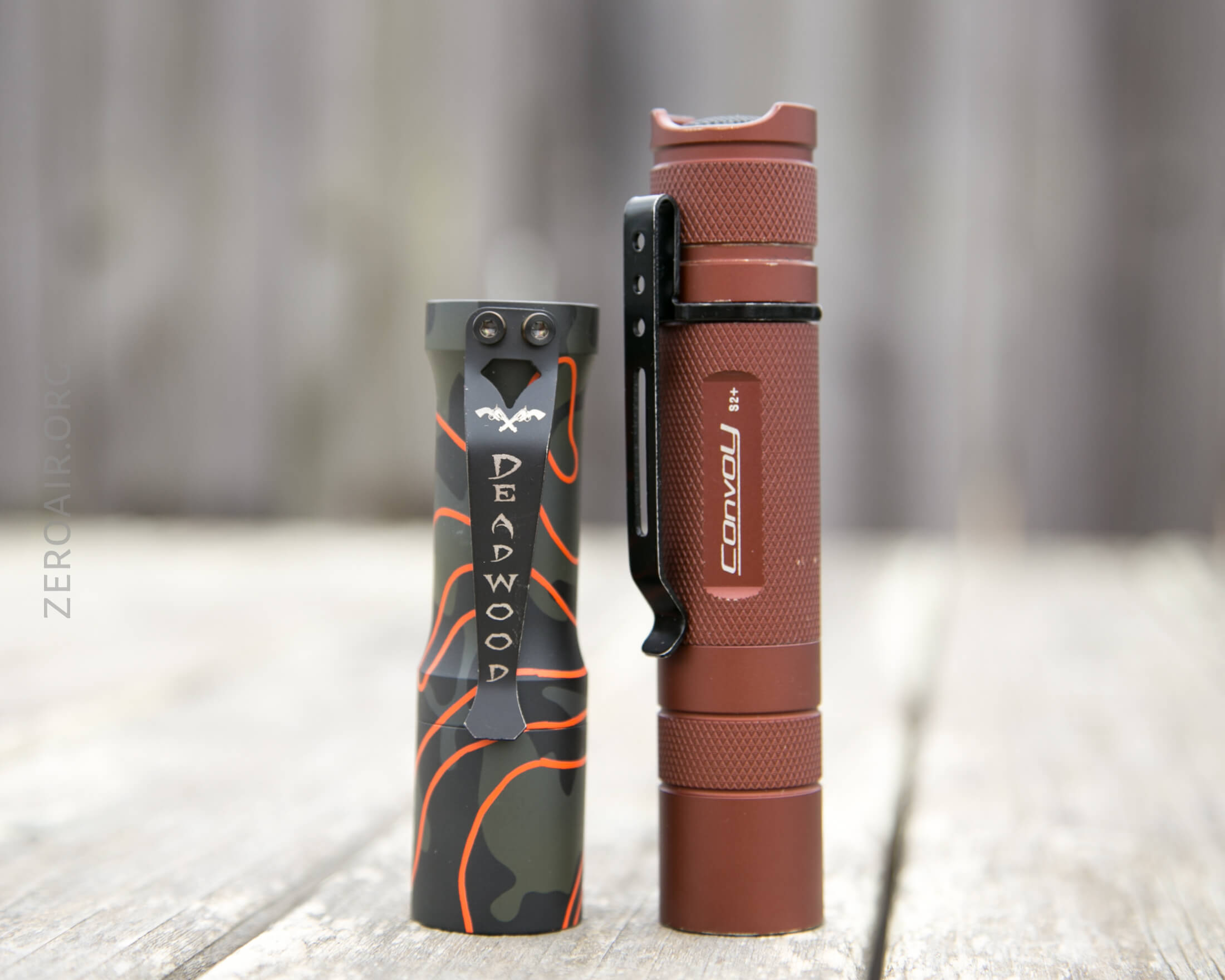

For weight reference, the anodized BOSS weighs 56g.  So this light, while longer, weighs less.

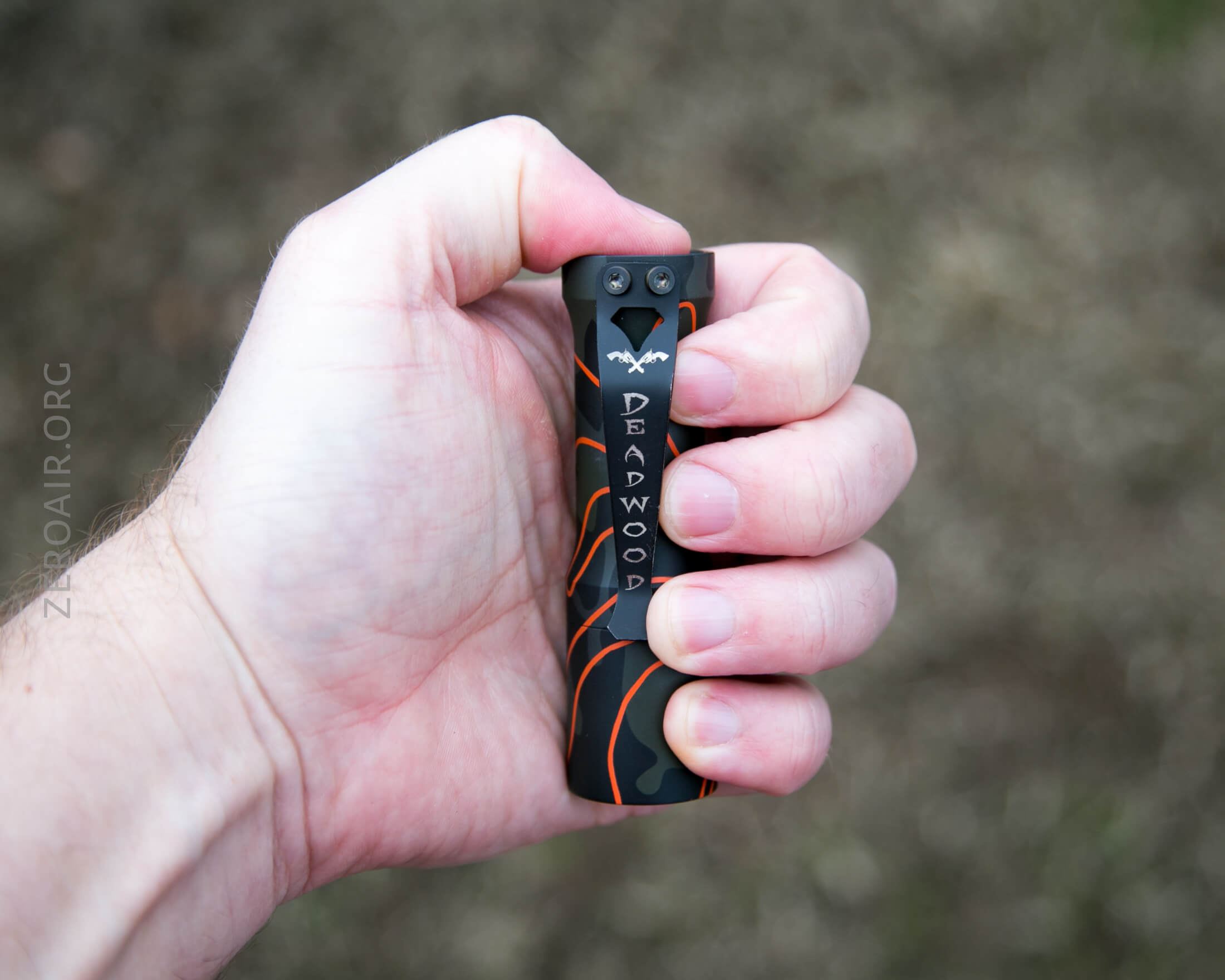

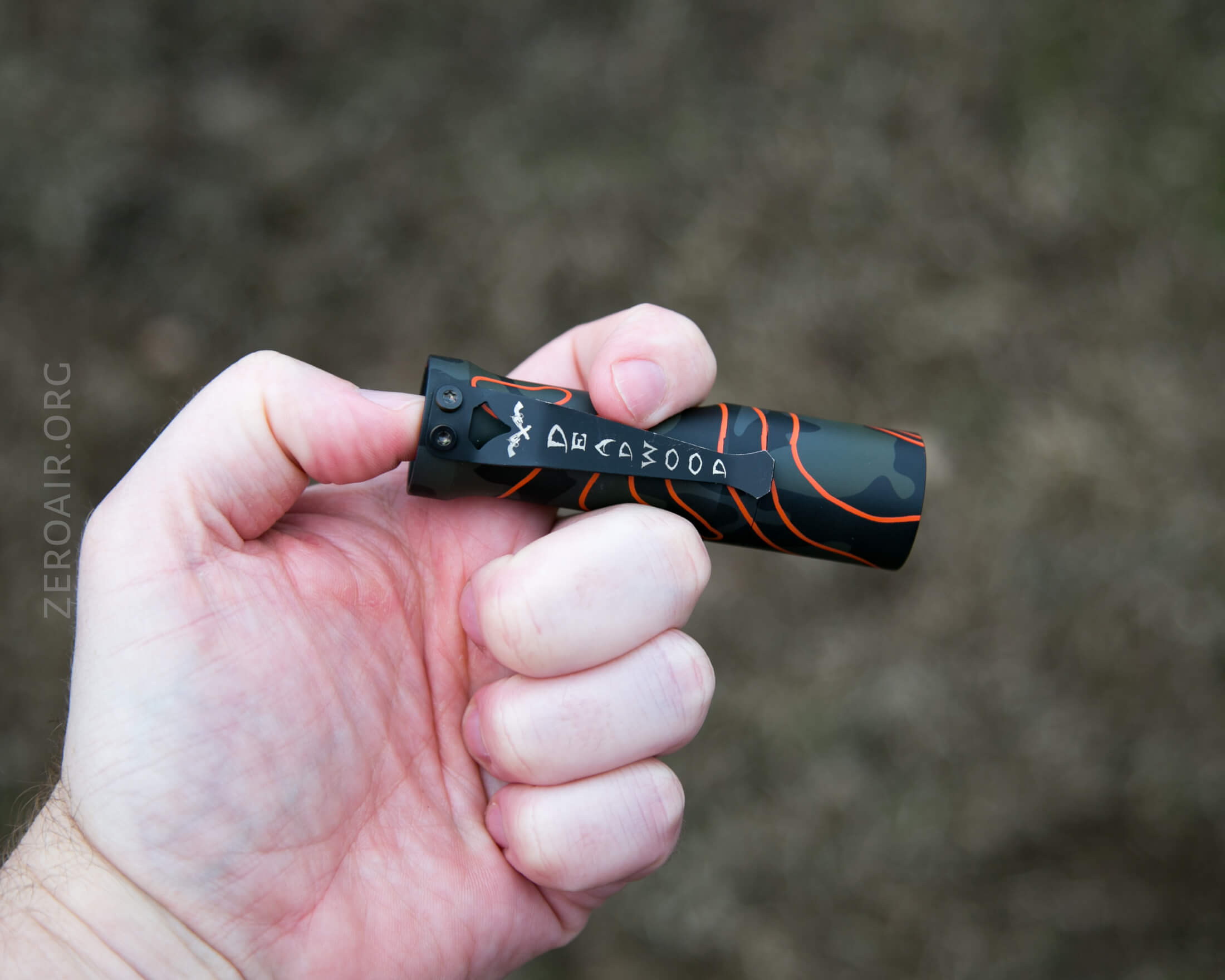

Retention and Carry

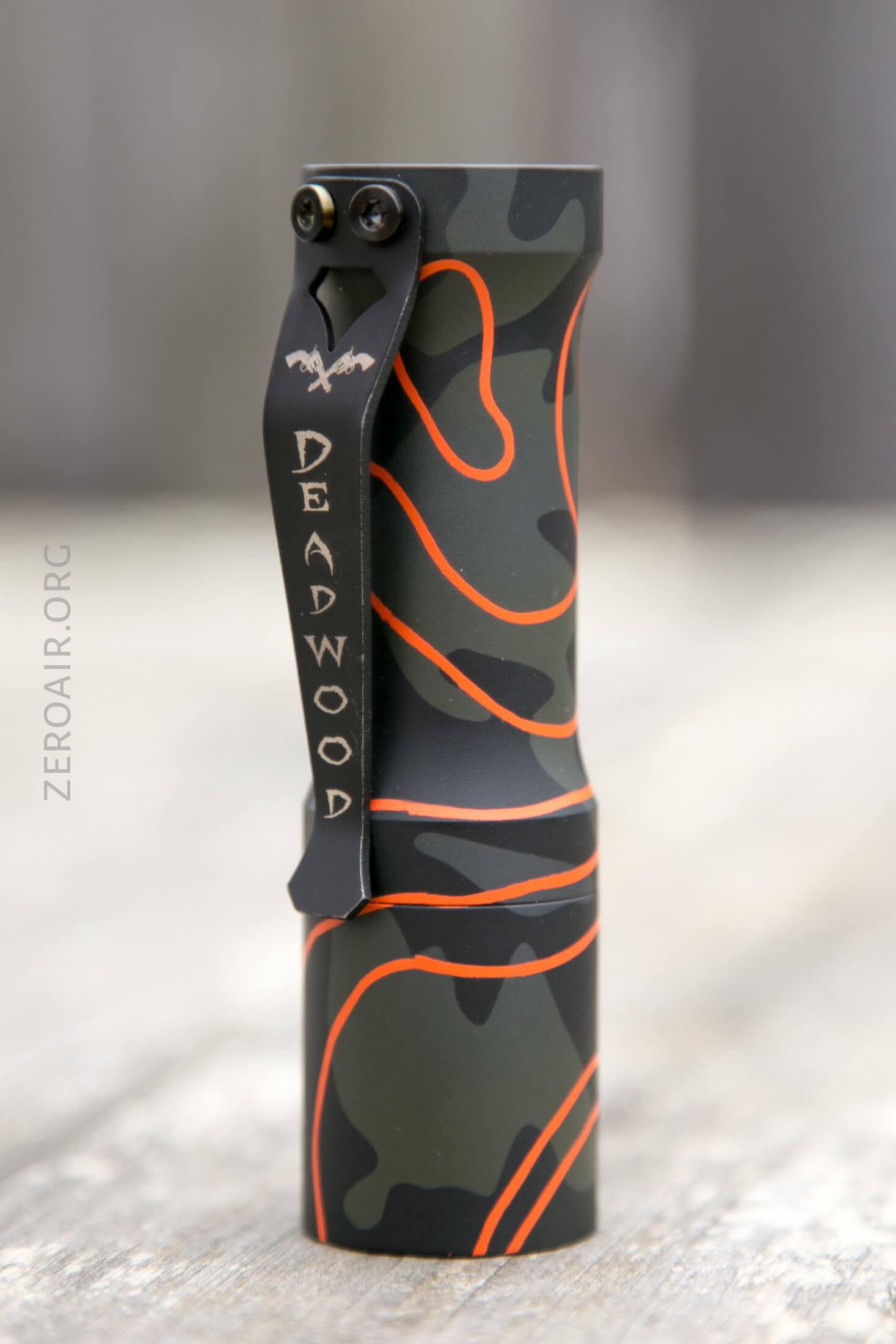

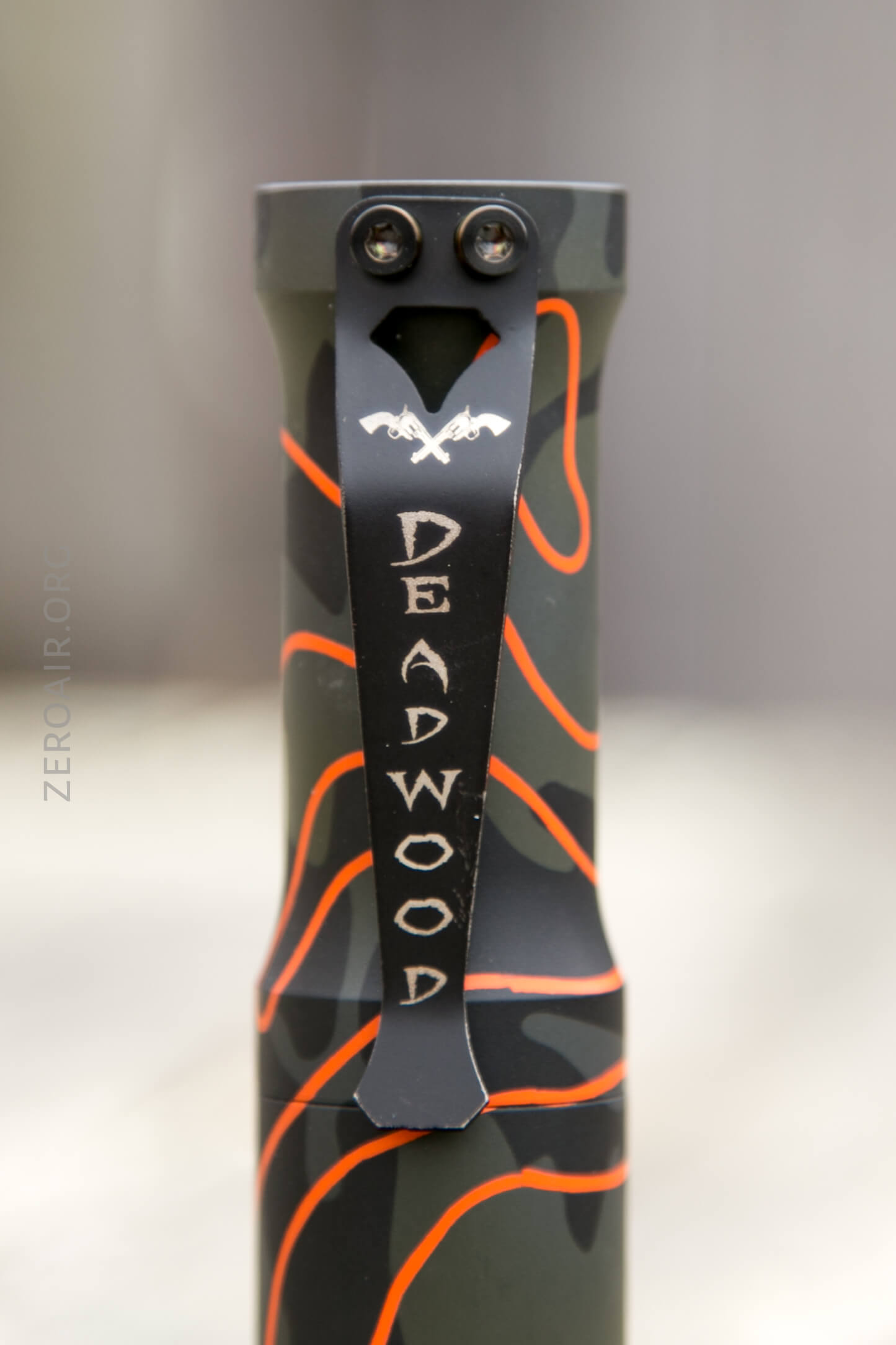

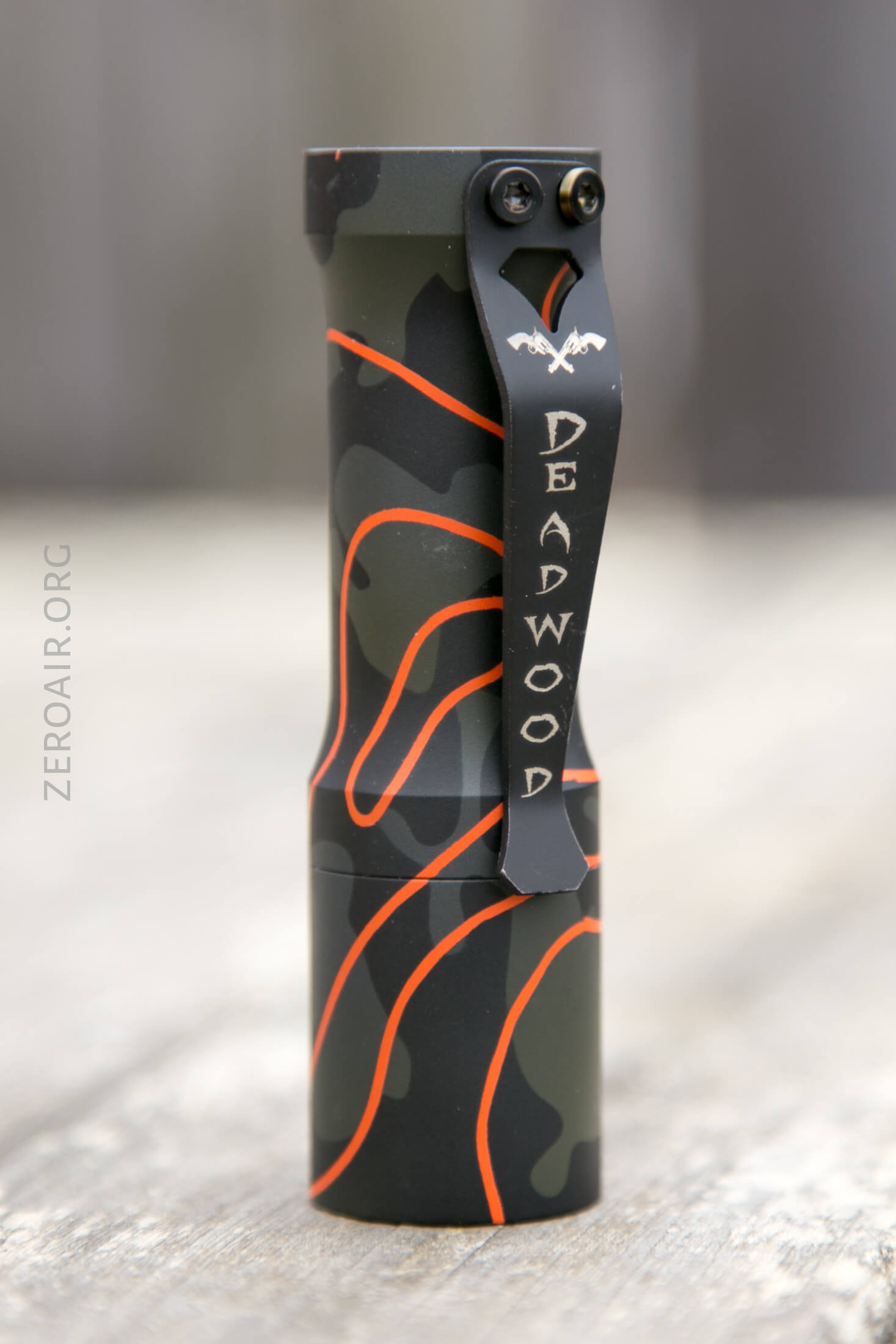

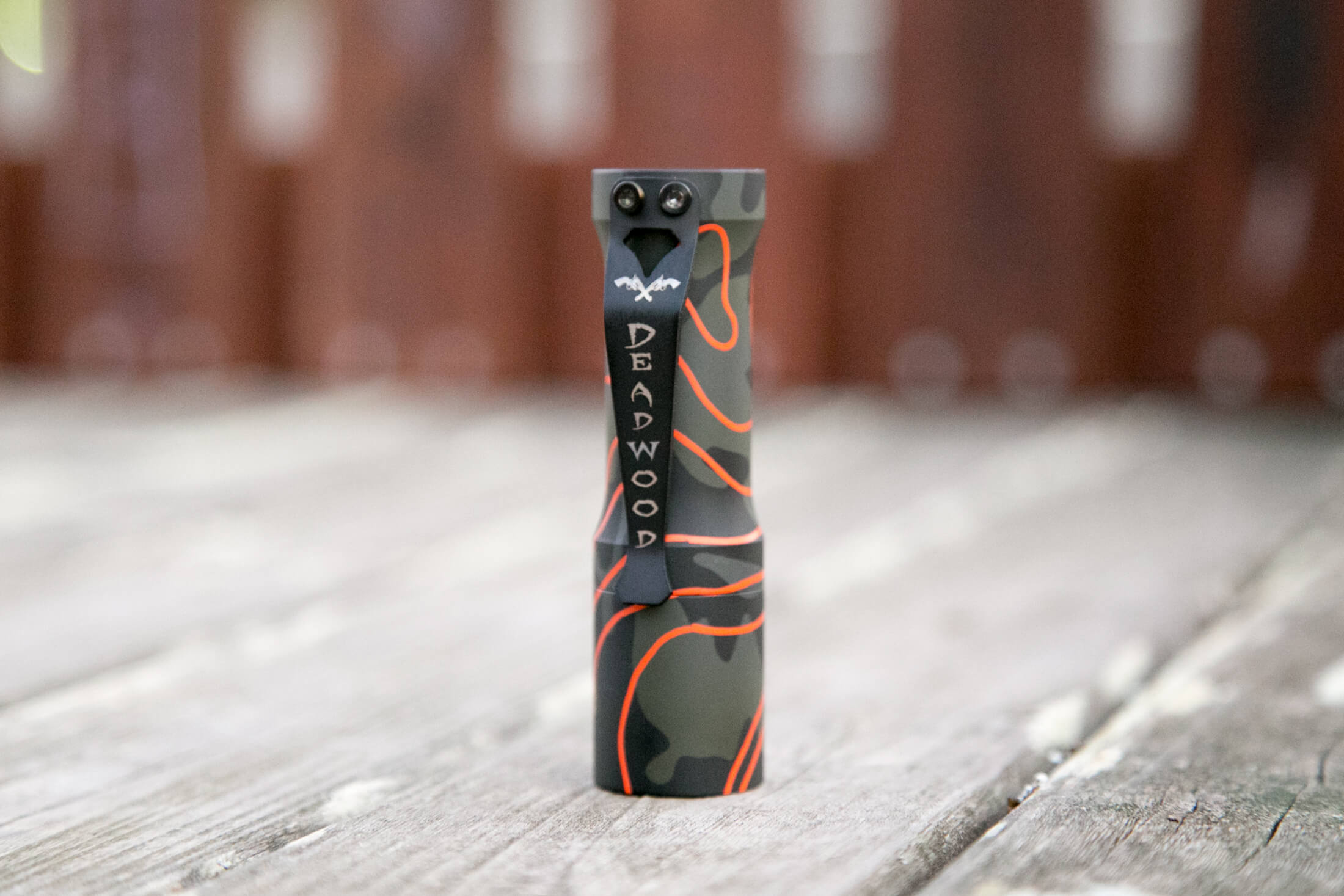

Included with the Huckleberry is a pocket clip.  I believe this is titanium, but that’s not specified.  It could also possibly be stainless, but based on the weight I doubt it.  The Huckleberry has the standard hole spacing for other popular aftermarket clips.  Yes in the pics below the clip is a touch crooked, but I’ve remedied that.

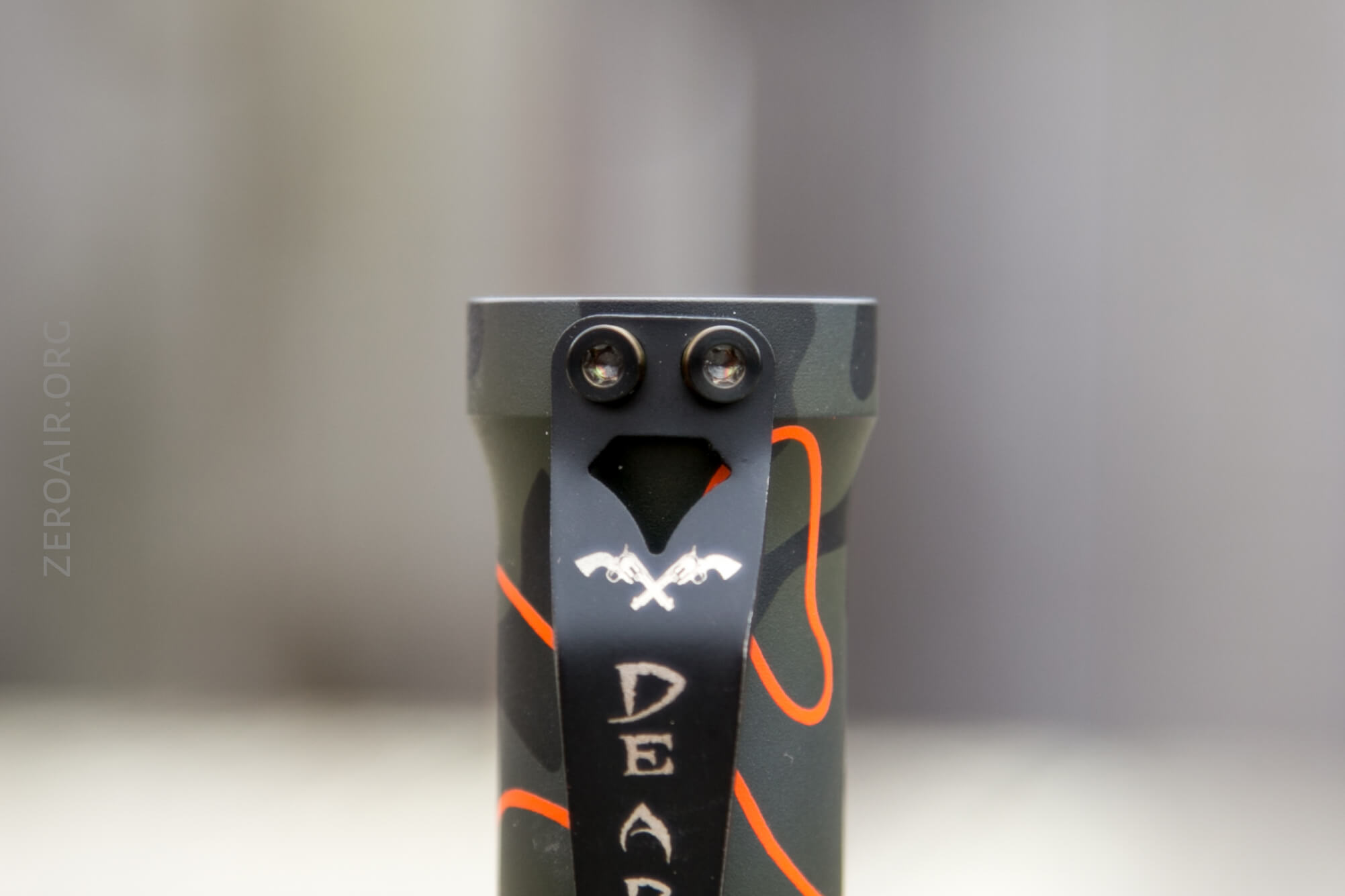

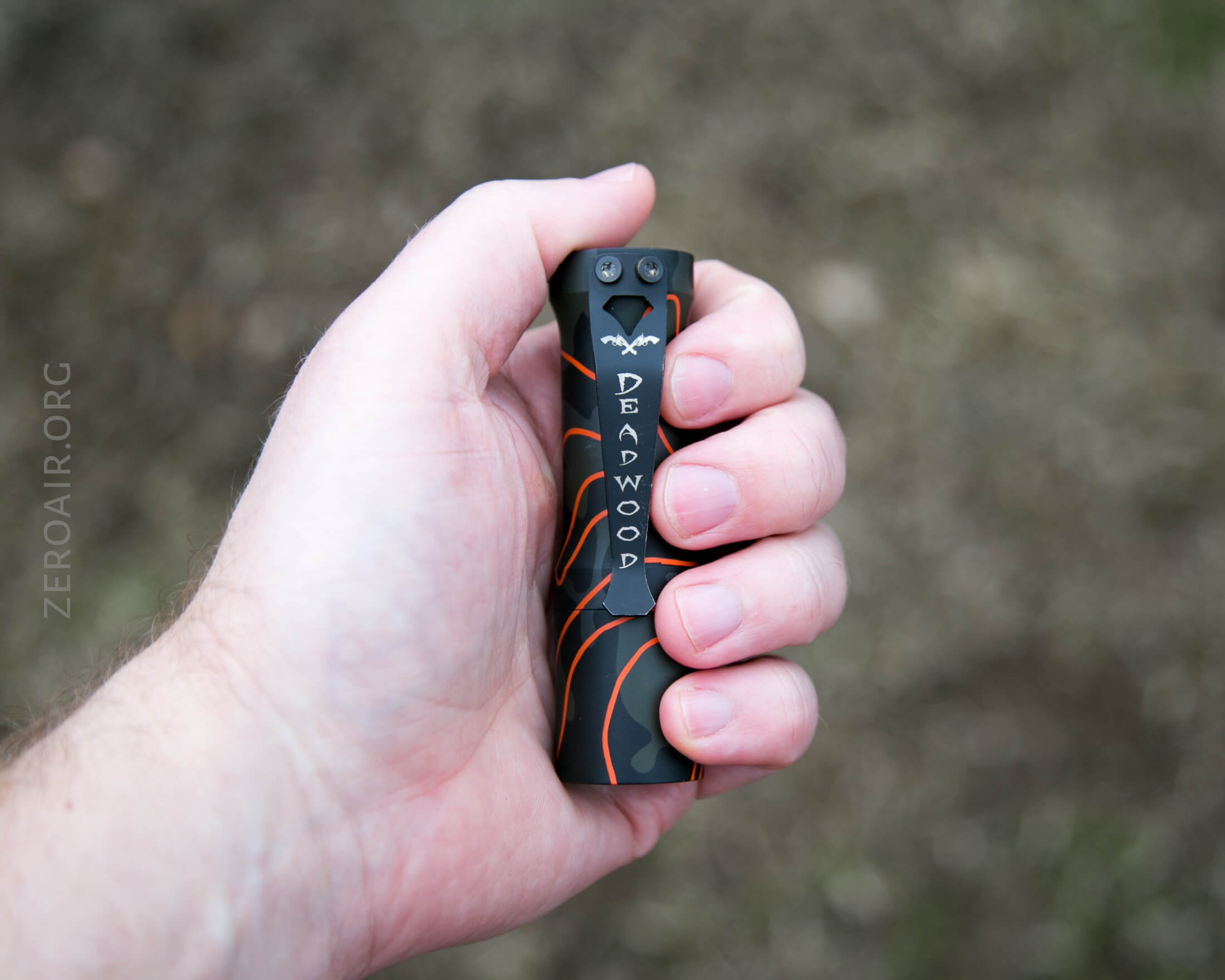

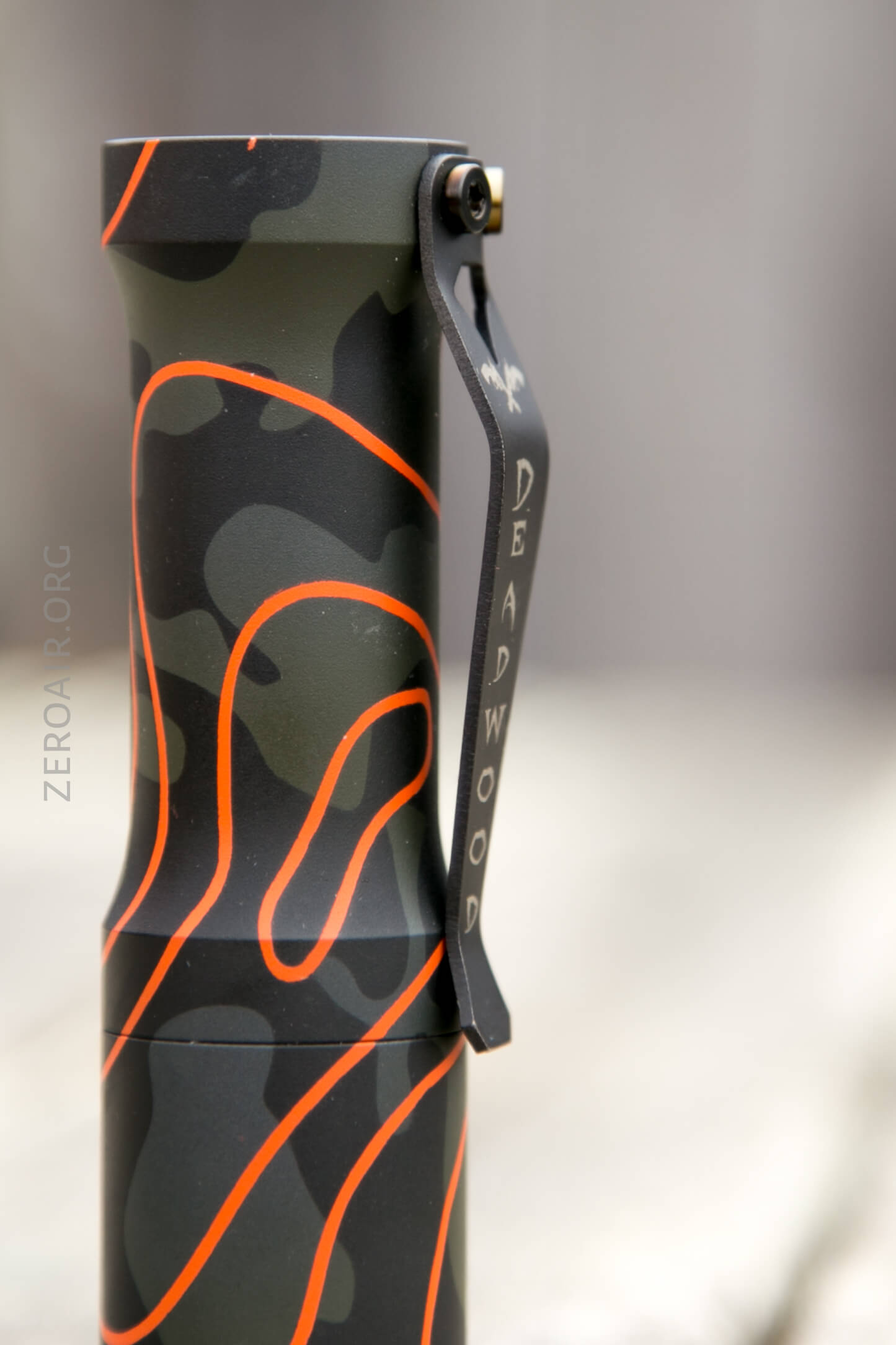

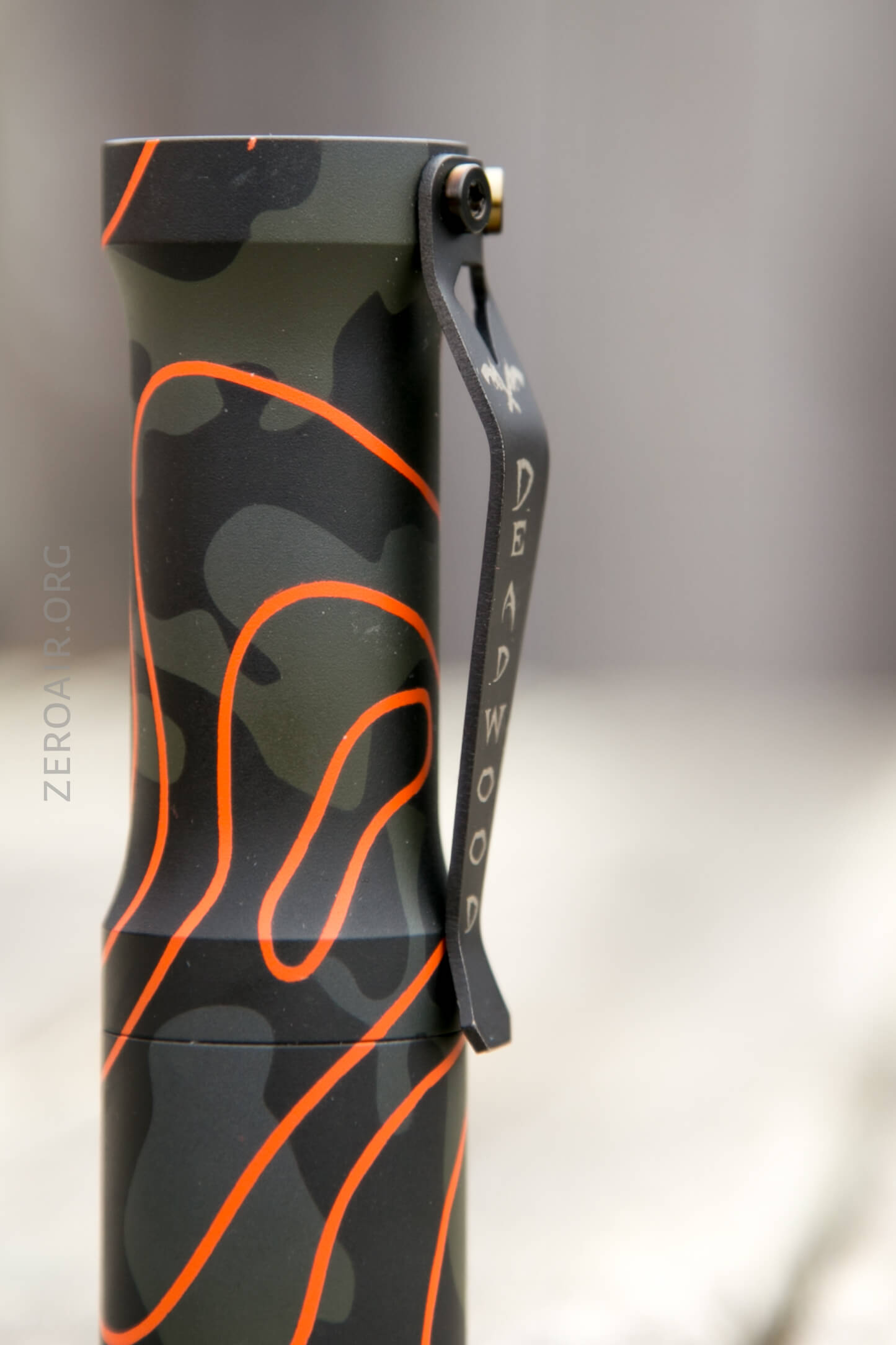

The clip meets the body in just the right place.  And again, I could stand for this mouth to curl out just a little more or be a little longer, for easier grabbing of pockets.  Also, the Deadwood text and gun theme aren’t really my jam, but I don’t dislike them.  I’m not sure how they are applied to the clip. I believe the clip has been coated in some way, and the logo and name have been lasered onto it.

Power and Runtime

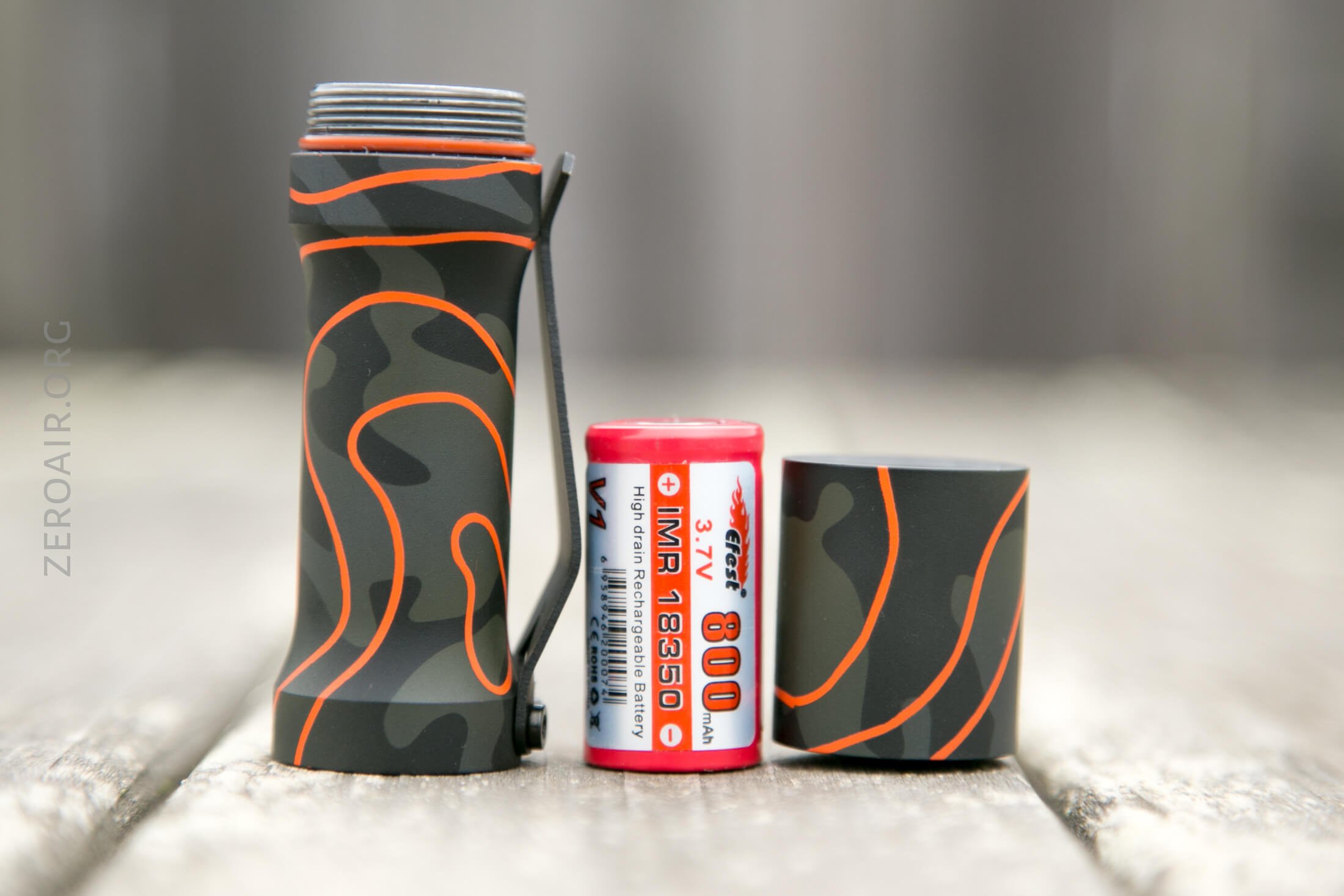

The Huckleberry is powered by a single 18350 cell.  I’ve used an Efest 800mAh 18350 for testing.  It’s a flat top unprotected cell, but the light doesn’t care what type you use; any 18350 should work fine.

Since these threads are unanodized, once the body and head are in contact, and the cell touches that button, the light will operate.  So it’ll operate long before the head is screwed all the way down.

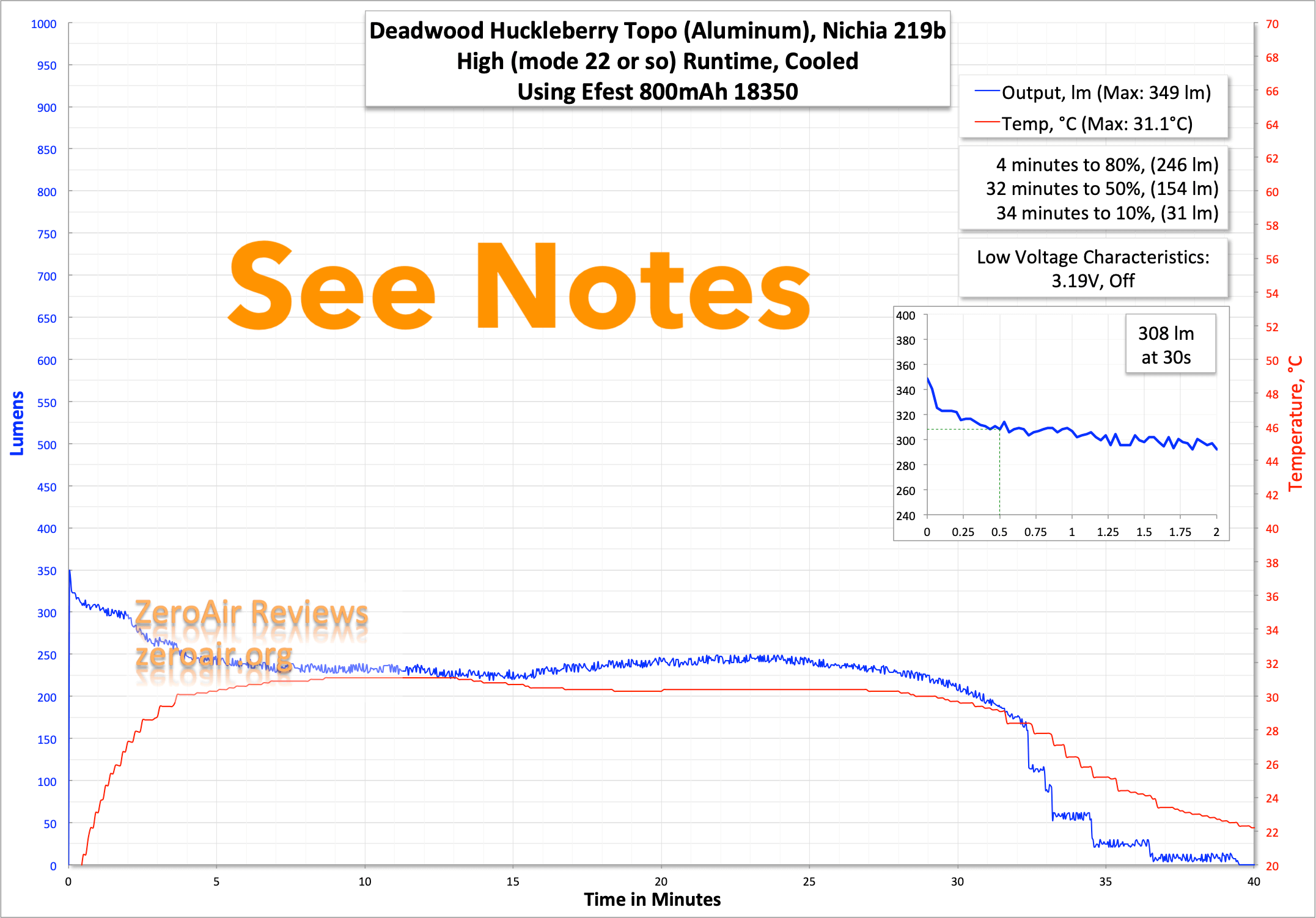

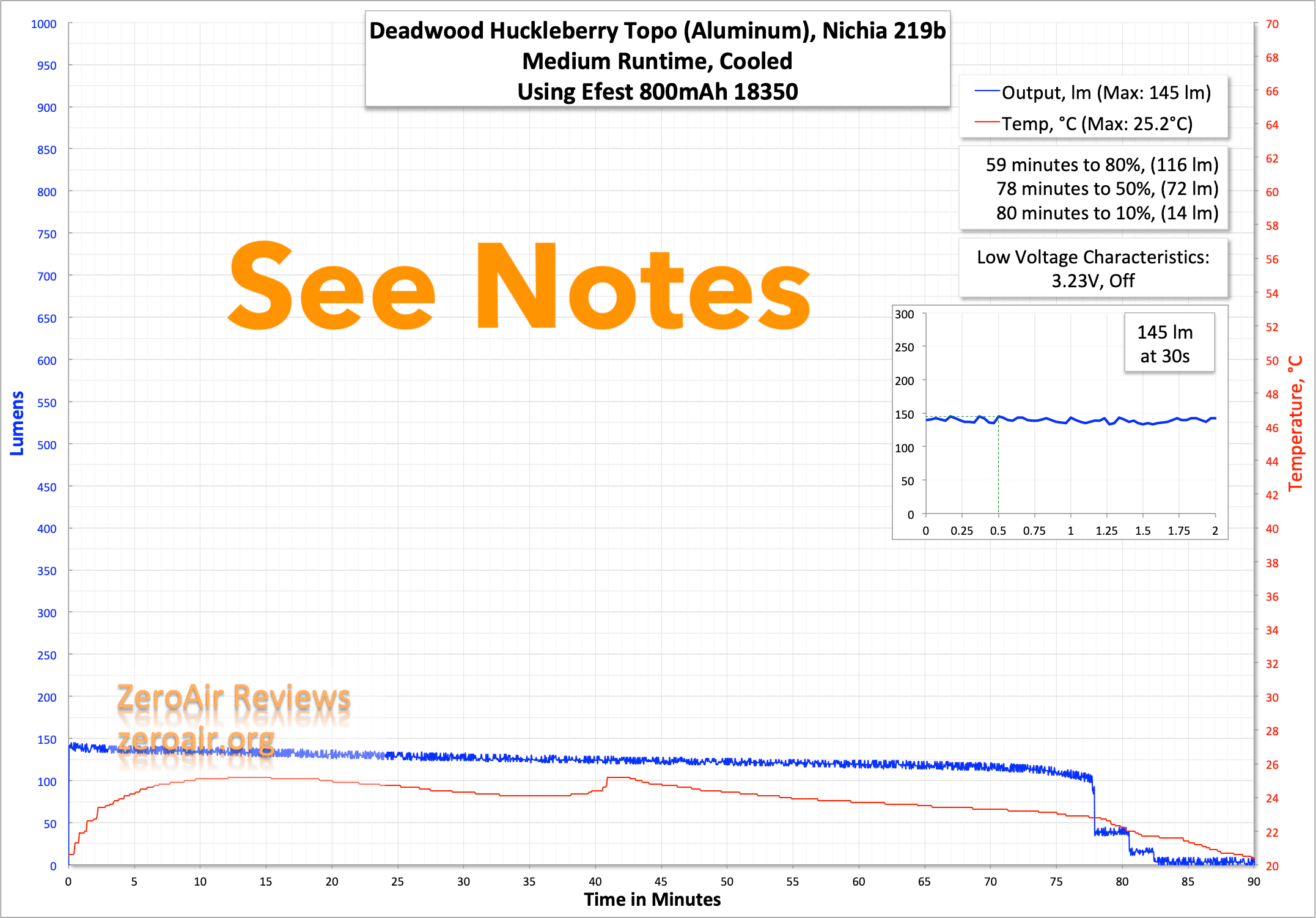

Now as I said above in The Big Table, these runtimes are going to be a little bit… useless.  I’m including them because a review doesn’t seem complete without them, but…  I reprogrammed my light almost immediately when I received it.  The H17F driver is a FET driver on the highest mode, and the standard programming is not documented (by Grant, or anyone else who uses H17F drivers).  Since I didn’t know what the top mode was, it was necessary to reprogram it so that I didn’t kill the Nichia 219b.  Anything over maybe 3A would be very bad for the 219b, and many 18350 cells are certainly able to deliver more than 3A.  Blah blah… so just tell us what mode you programmed to and we’ll all be able to compare.  Well, it’s still not that easy.  I think I put the light in around mode 22 or 23 (there should be 24, with mode 24 being the FET).  But some of the lowest modes don’t even register as output, and when I’m counting the modes I see 21 or 22.  That brings me to a thing I don’t like about the H17F – I wish I could easily set certain groups – for example, the very highest should be some kind of shortcut when programming, or at least a longer pause.  Or a double blink, or pretty much anything to let me know it’s at the top.  But there isn’t this type of notification.  During programming, the light ramps up then ramps down.  Count or guess, you get what you get.

So the below modes are what they are.  I believe the “Medium” is the same as it was from stock, so that should be reliably comparable.  I believe the “Highest” was around 2A when in use, too.  But just enjoy them, without taking too much out of them.

What is surprising on these charts is just how low the output is.  Even when I pushed the light hard, I’m still only seeing around 350 lumens.  I just wouldn’t have guessed it.  I bet you’d feel the same if you had the light in your hand, too.  A reflector puts so many of those relatively few lumens in such a useful place, that the lower output hasn’t ever bothered me once.

Pulse Width Modulation

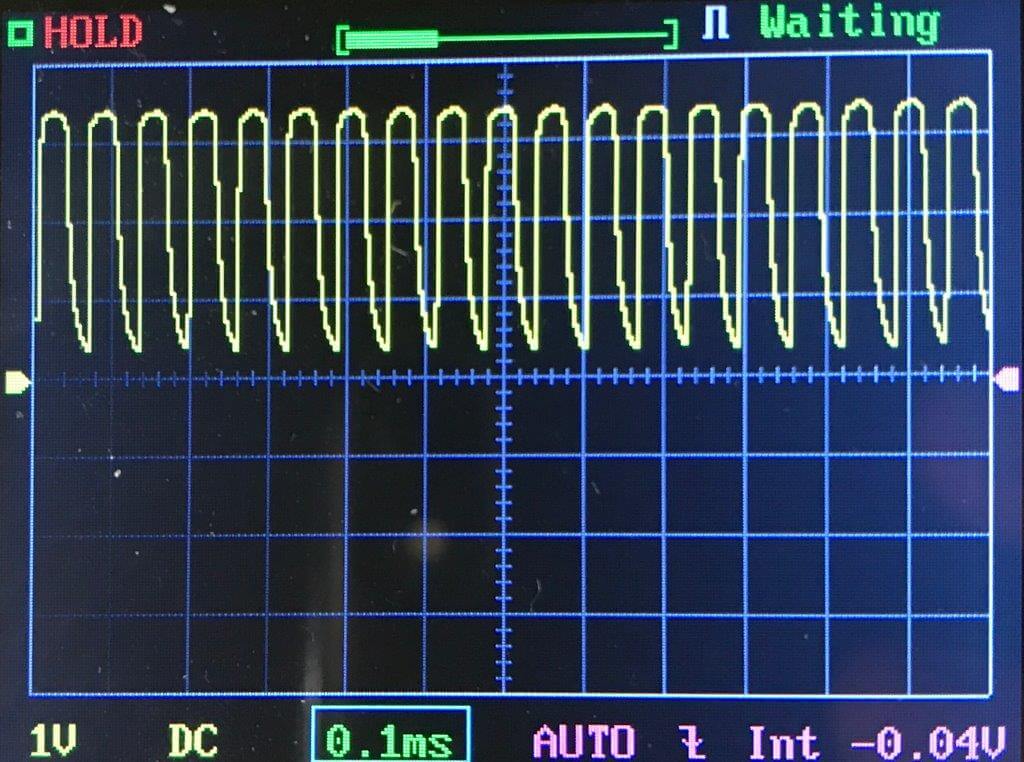

PWM is a known entity on the H17f driver, and it’s a complete nonissue. It’s shown here as a matter of course.  I’m recycling these from some other test, because… it’s still an H17f, so the PWM will be the same.

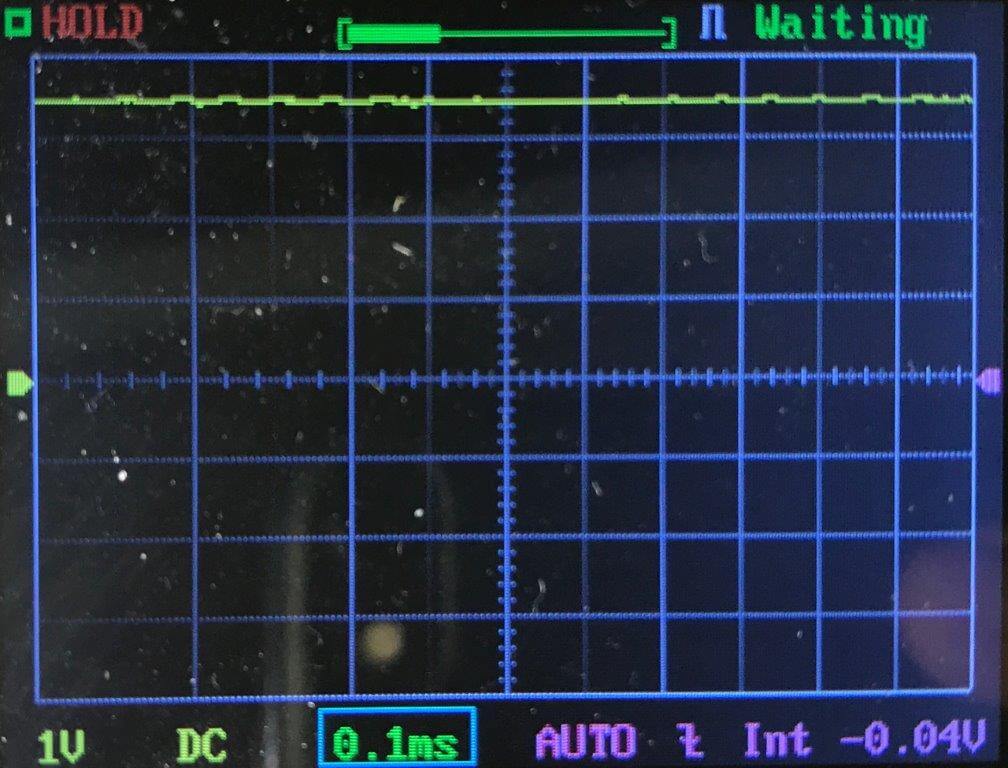

Here you can see a “baseline” – a chart with almost no light hitting the sensor.

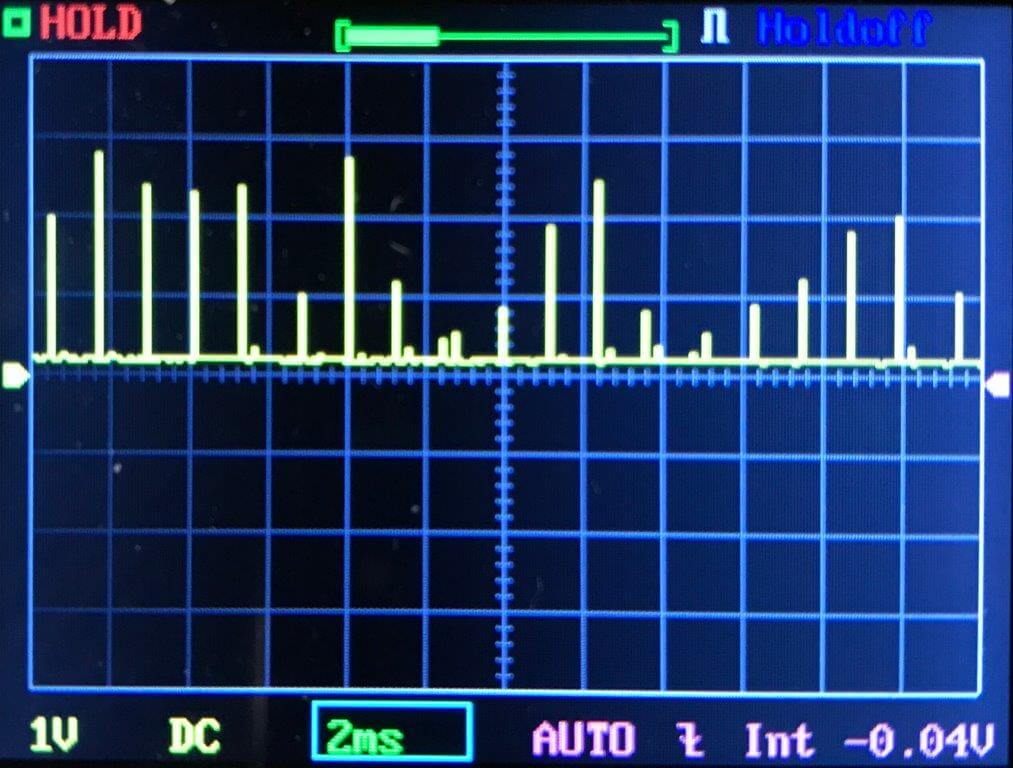

Then there’s the Ultrafire WF-602C flashlight, which has some of the worst PWM I’ve seen. It’s so bad that I used a post about it to explain PWM! Here are multiple timescales (10ms, 5ms, 2ms, 1ms, 0.5ms, 0.2ms) to make comparing this “worst” PWM light to the test light easier. That post also explains why I didn’t test the WF-602C at the usual 50us scale.

User Interface and Operation

The switch is a forward clicky mechanical switch.  This means it’s possible to use the switch as a momentary switch.  It’s big, clicky, and knurled.  The switch itself is an actual McClicky.

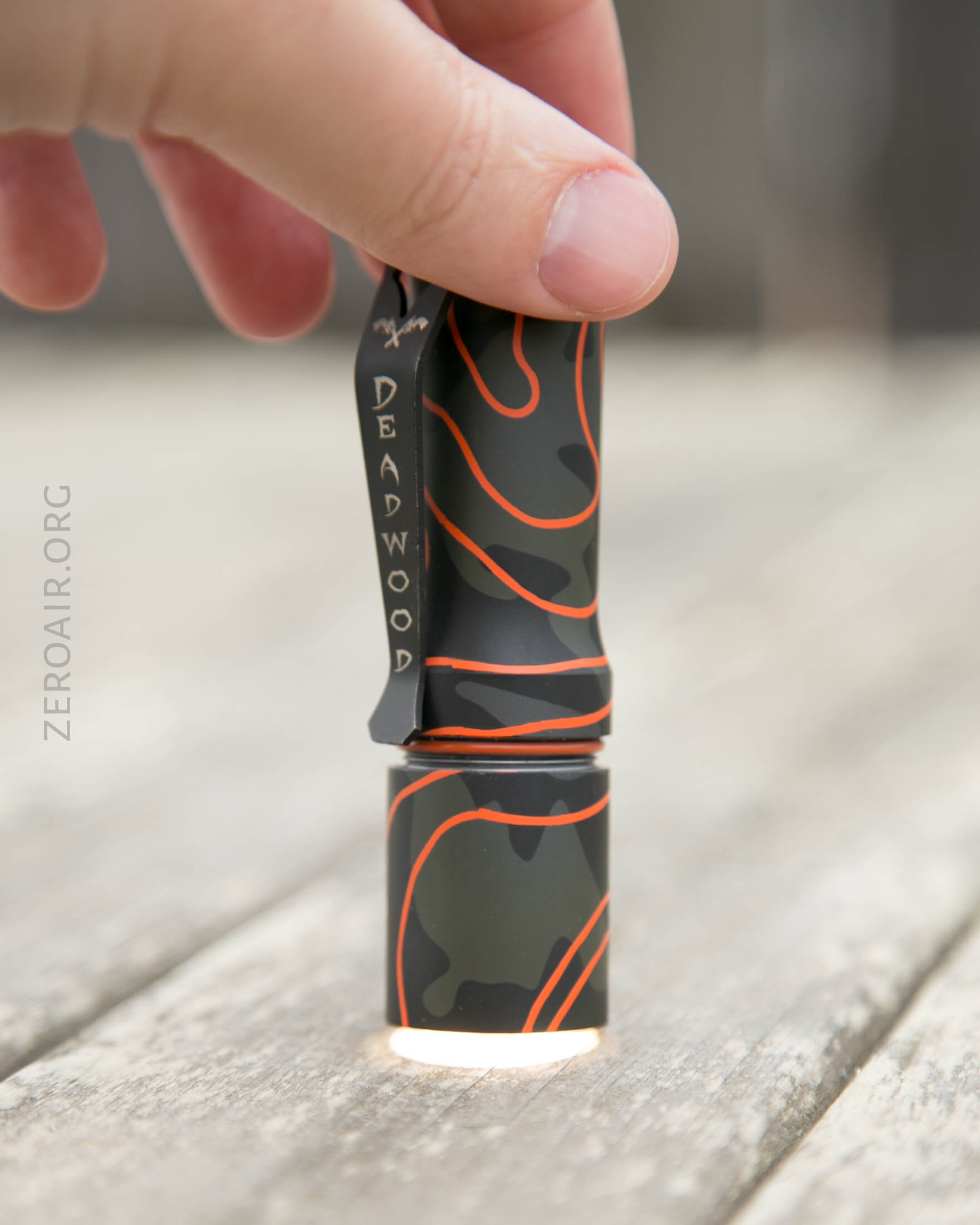

I will note that the light will tailstand easily – the bezel around the switch is tall enough to allow it to sit fully flush on a surface.

I don’t have a UI table for you, but I do have a flow chart that was made for another H17f light and is applicable for this one too.

I had occasion to use that flow chart quite a bit while messing around with this light, and I have to say, it’s pretty useful.  I even printed one for my desk.

LED and Beam

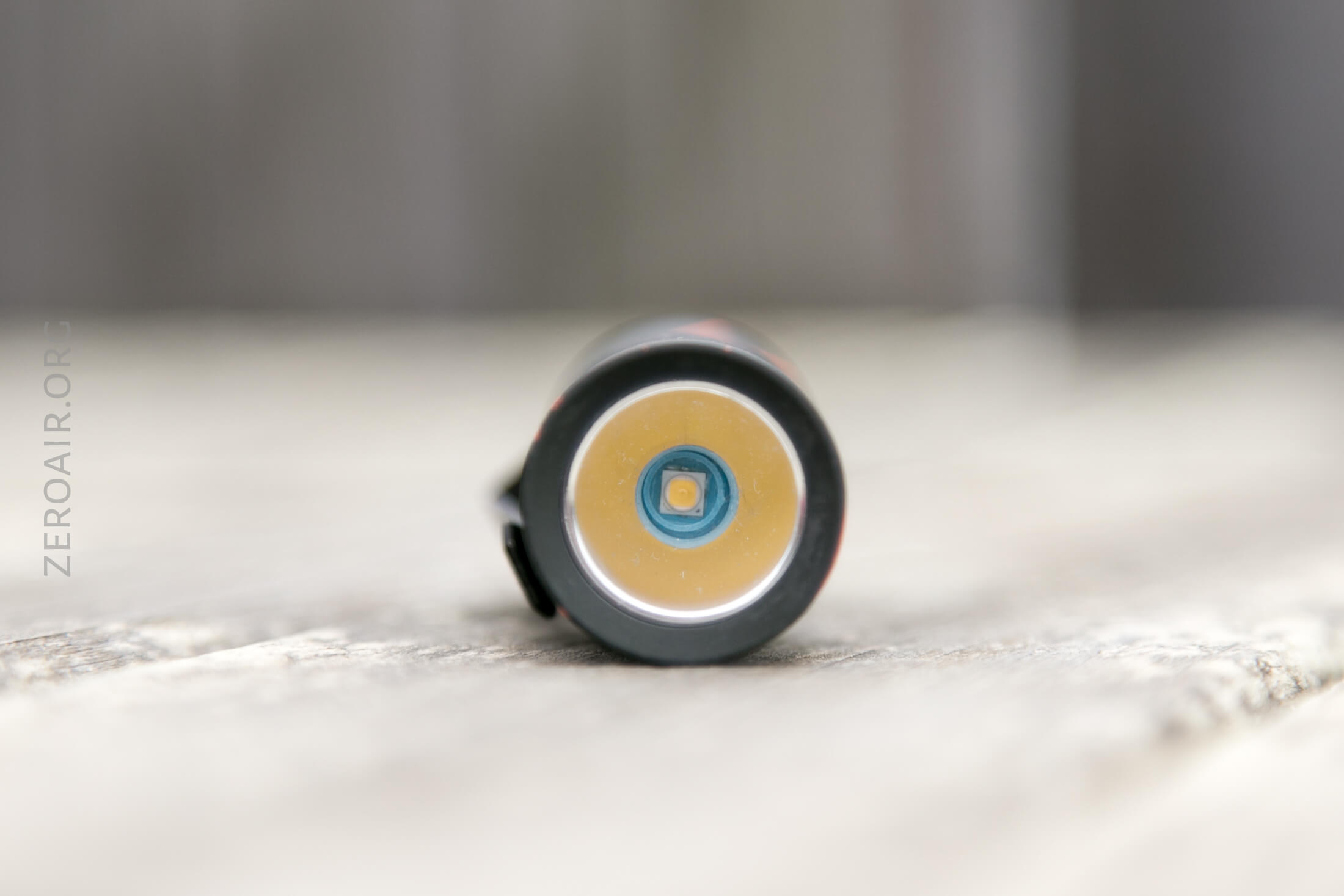

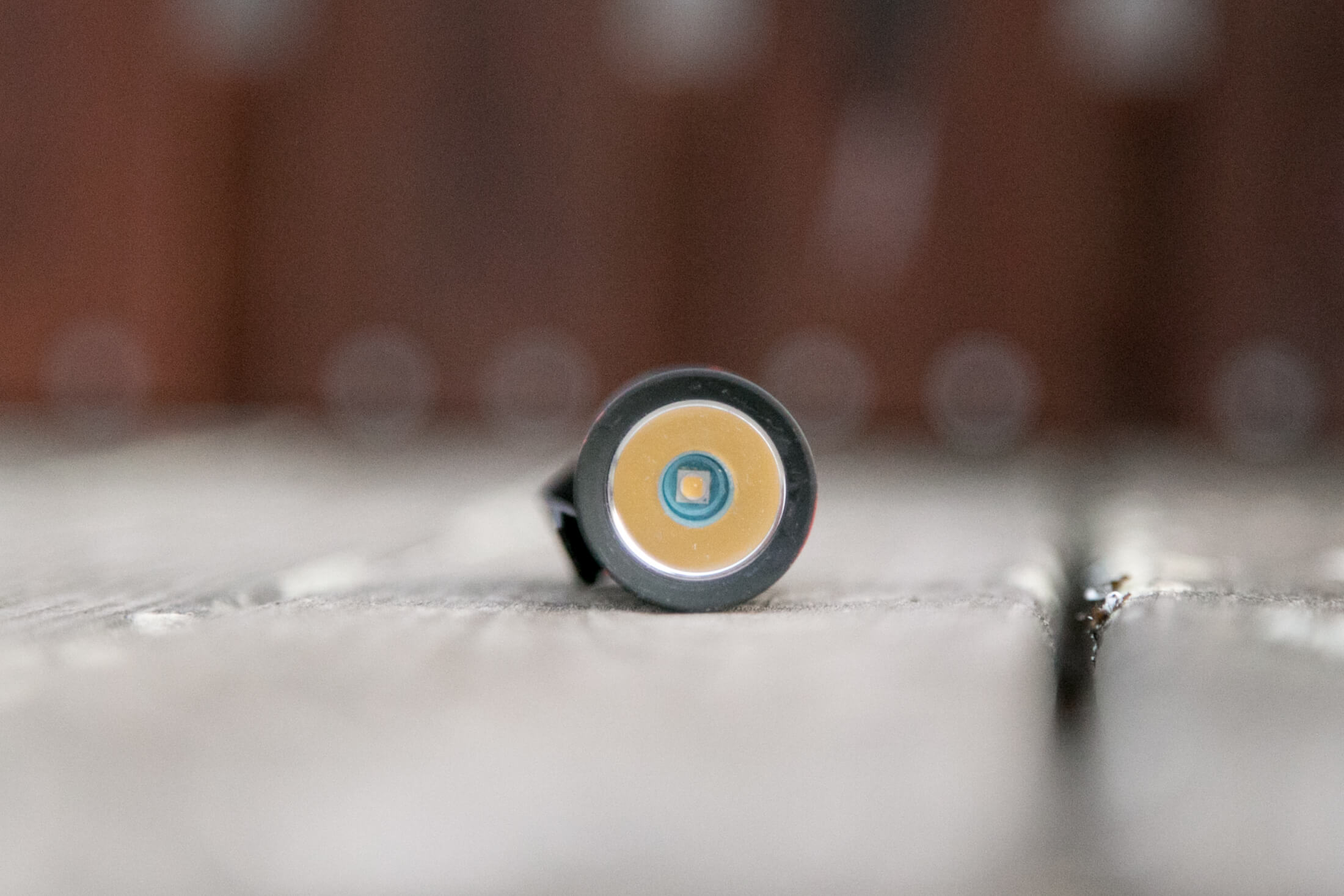

The emitter in my single version of the Huckleberry is a Nichia 219b, my all-time favorite emitter.  It’s very good in this light, too.  The reflector is smooth and provides a tight hotspot.  The emitter might look off-center below but that’s just the glow gasket, not the emitter (at least the best I can tell.)

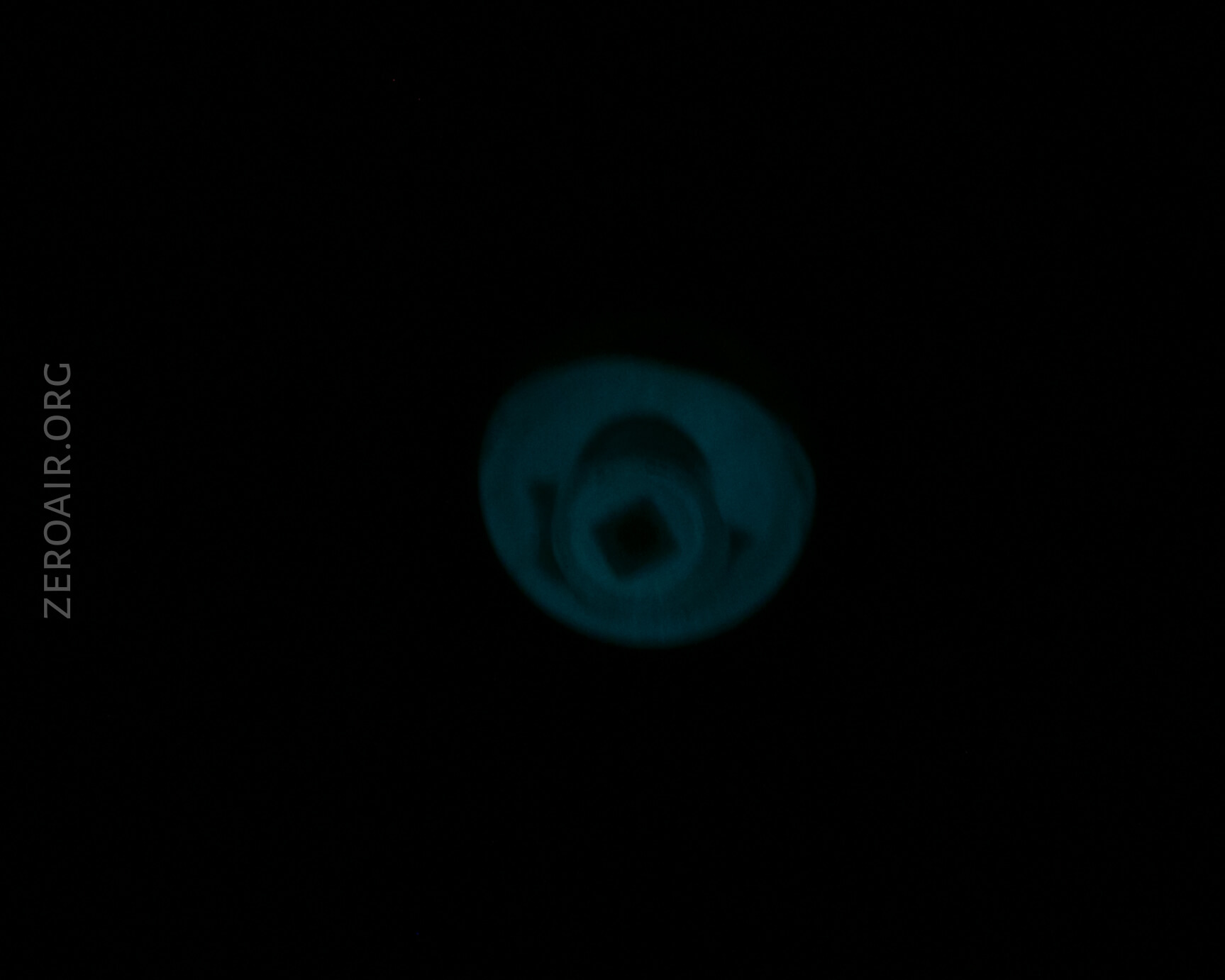

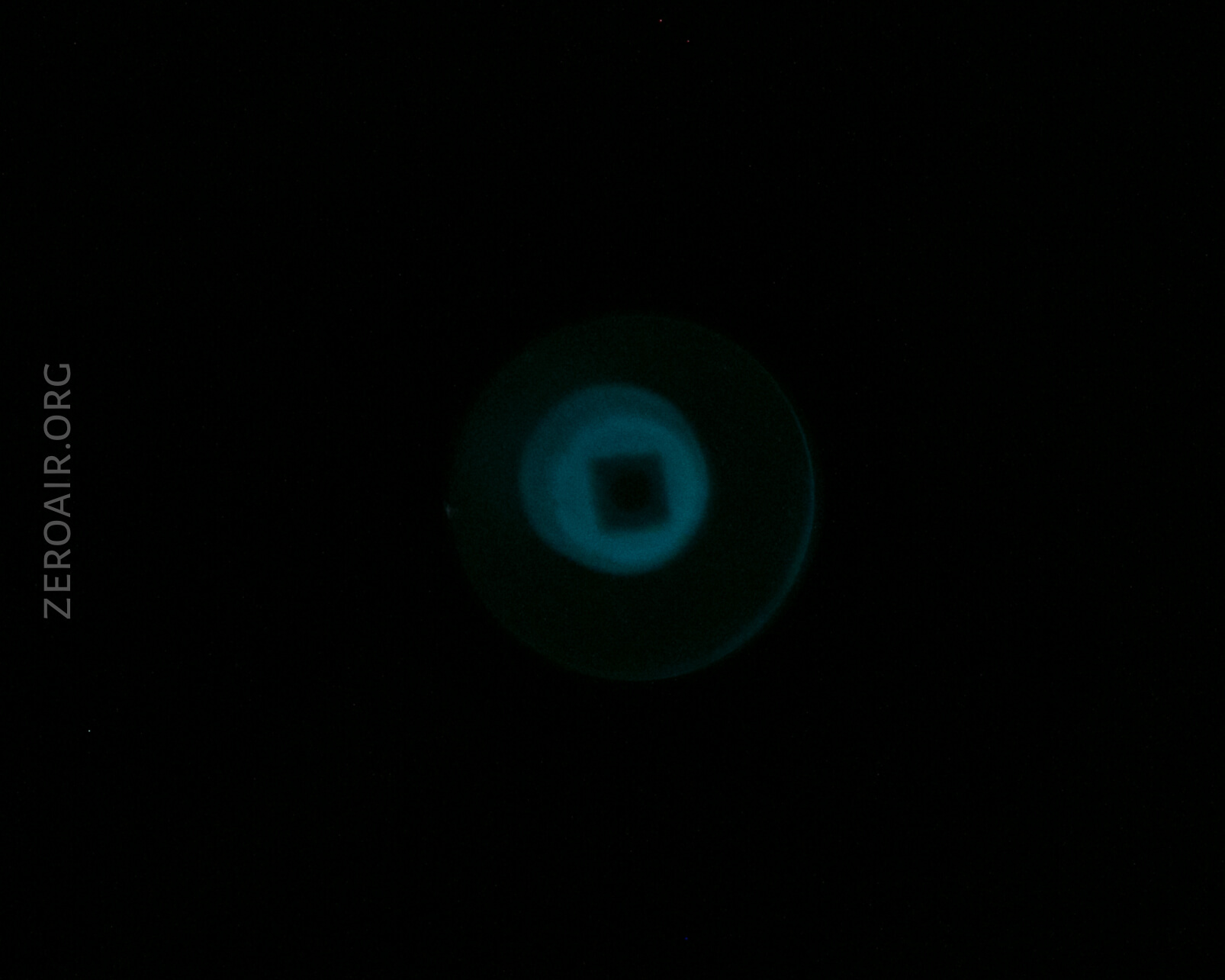

That glow gasket is very glowy.

These beamshots are always with the following settings:  f8, ISO100, 0.3s shutter, and manual 5000K exposure. These photos are taken at floor level and the beam hits the ceiling around 9 feet away.  These are just more or less random modes out of the 24 modes available in the H17F.  That said, the lowest seen here is in fact the lowest option I could get, and the highest seen here is a current of around 2.68A (not the highest, which was pulling over 5.6A during some brief tests.)

Tint vs BLF-348 (KillzoneFlashlights.com 219b version) (affiliate link)

The 219b in this light (left) doesn’t match my Killzone 219b, but I am not really surprised by this.  Unfortunately, the invoice doesn’t show what temperature the 219b used is.

I compare everything to the Killzone 219b BLF-348 because it’s inexpensive and has the best tint!

Conclusion

What I like

• Lightweight aluminum construction
• Even the pill is aluminum
• Cerakoted bodies are great
• Uses Nichia 219b
• Uses Dr. Jones H17F driver
• Many materials available
• Many finishes available
• Able to be very customized before ordering, even more so if speaking with Grant directly

What I don’t like

• Topo lines don’t match up when the head is tight
• Would like even more info to be officially documented (ie 219b temperature, etc).
• Lube used is a little dirty after some use (a characteristic I don’t experience on other lights I use frequently)
• Branding on clip is hit or miss
• Programming can put a user in a confusing place

---
