NealsGadgets has released the NlightD T90, a Luminus SBT-90.2 flashlight with Andúril! New light, new brand! Read on for testing!  It’s quite a beast!


Official Specs and Features

Here’s a link to the product page at nealsgadgets (referral link).

Versions

I believe there is just one version of the T90.

Price

These are going for $119.95 at the moment.  I believe NealsGadgets is the only place to get them.


Short Review

I don’t like the unnecessarily claims of “6500 lumens” (didn’t even come close) but the throw is respectable, and the SBT-90.2 beam profile is quite pleasting.  Also overall the build quality is great, and mine was already calibrated to 21°C out of the box!

Long Review

The Big Table

NLightD T90
Emitter: Luminus SBT90.2
Price in USD at publication time: $119.95 referral link to NealsGadgets.com
Cell: 1×21700
Turbo Runtime High Runtime
LVP? Yes
Switch Type: E-Switch
Quiescent Current (mA): ?
On-Board Charging? No
Claimed Lumens (lm) 6500
Measured Lumens (at 30s) 1034 (15.9% of claim)*
Candela per Lumen 38.4
Claimed Throw (m) 910
Candela (Calculated) in cd (at 30s) 990lux @ 5.929m = 34802cd
Throw (Calculated) (m) (at 30s) 373.1 (41% of claim)*
Measured Lumens (at zero seconds) 4342 (66.8% of claim)*
Candela (Calculated) in cd (at 30s) (at zero seconds) 4990lux @ 5.969m = 177789cd*
Throw (Calculated) (m) (at zero seconds) 843.3 (92.7% of claim)*
All my NLightD reviews!
  • Measurement disclaimer:  I am an amateur flashlight reviewer.  I don’t have $10,000 or even $1,000 worth of testing equipment.  I test output and such in PVC tubes!!  Please consider claims within 10% of what I measure to be perfectly reasonable (accurate, even).

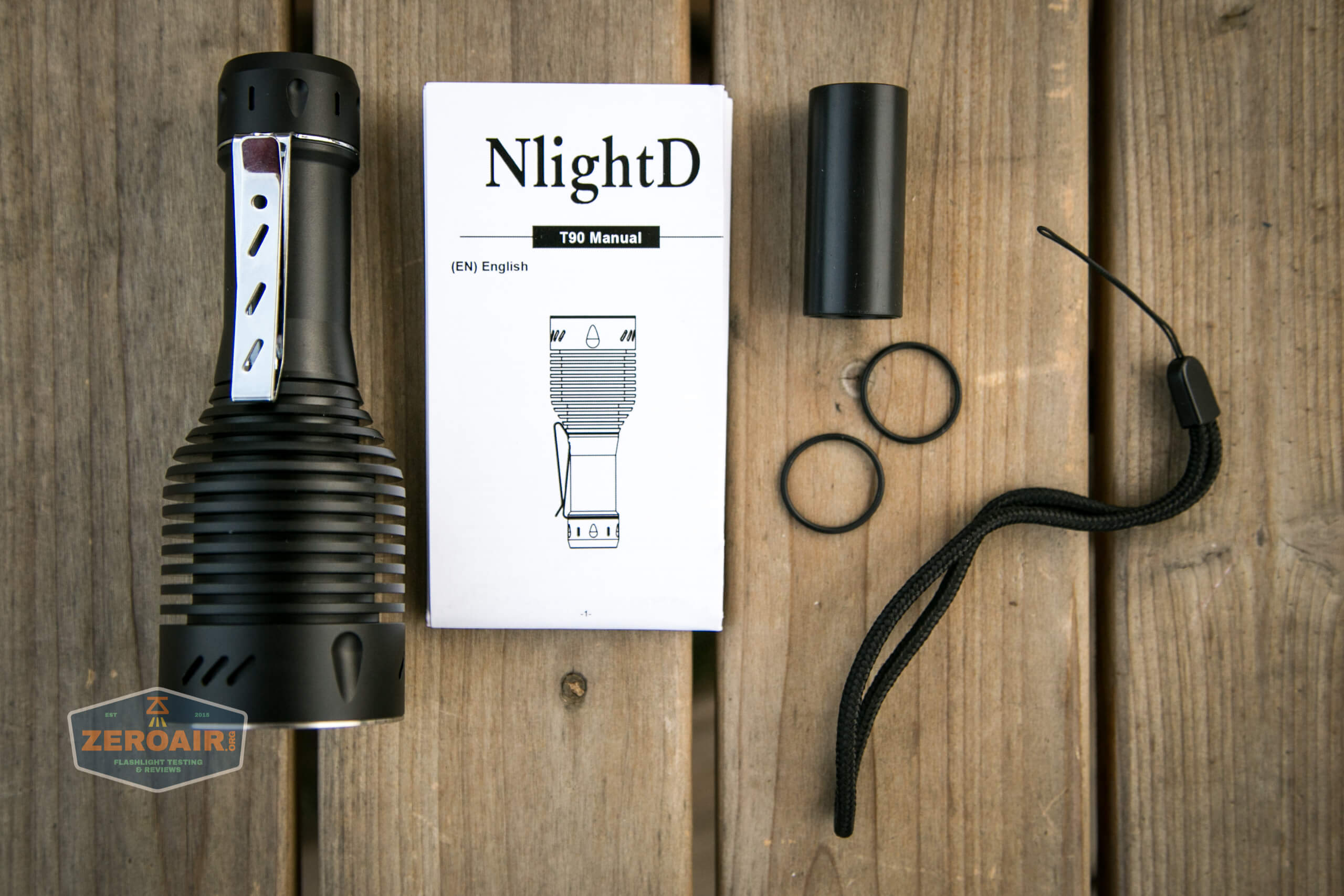

What’s Included

NlightD T90 luminus sbt-90.2 Andúril what's included

  • NLightD T90 FLashlight
  • Lanyard
  • Spare o-rings (2)
  • 21700 to 18650 adapter
  • Manual

Package and Manual

NlightD T90 luminus sbt-90.2 Andúril box

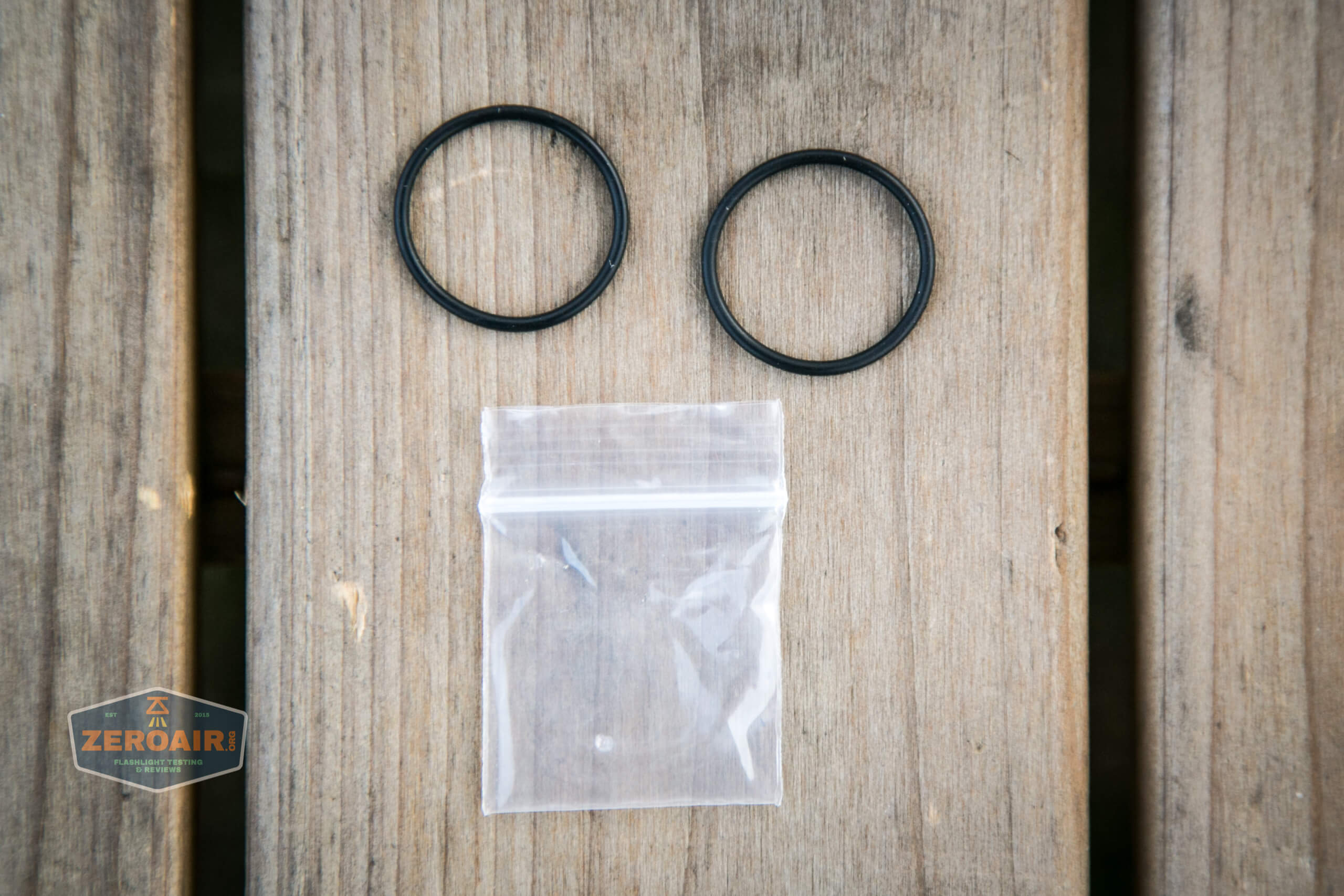

NlightD T90 luminus sbt-90.2 Andúril cute o-ring bag

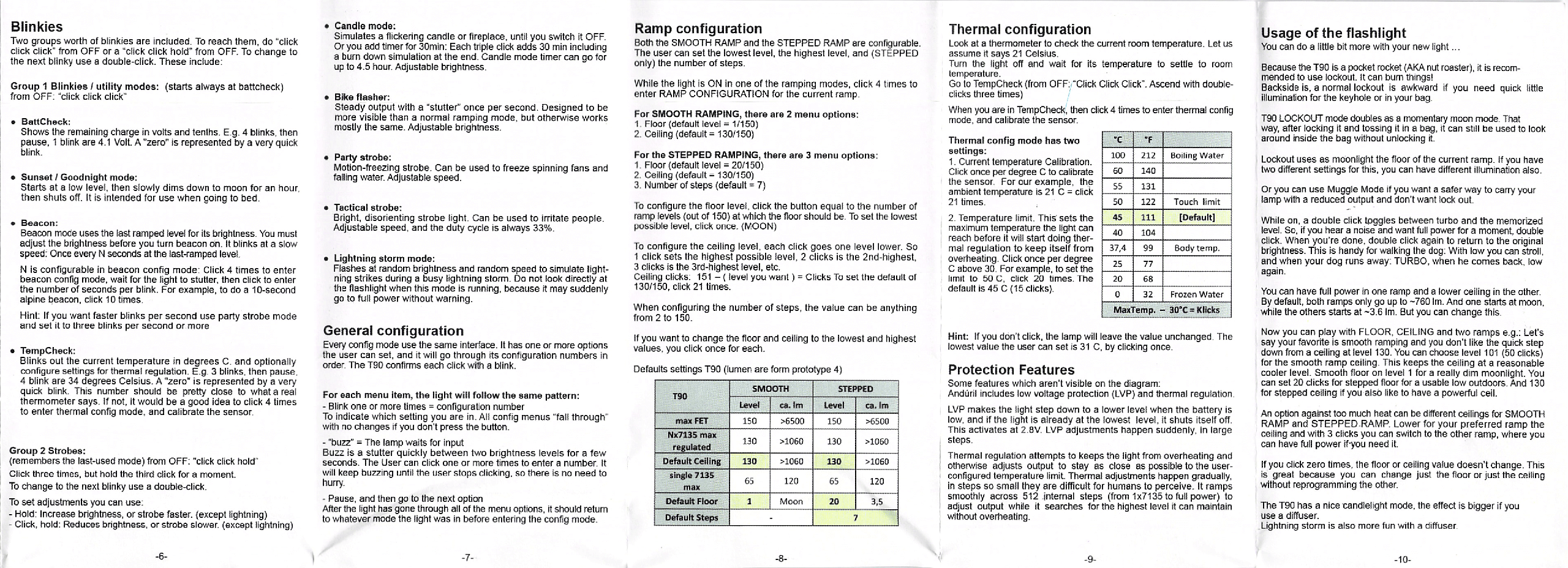

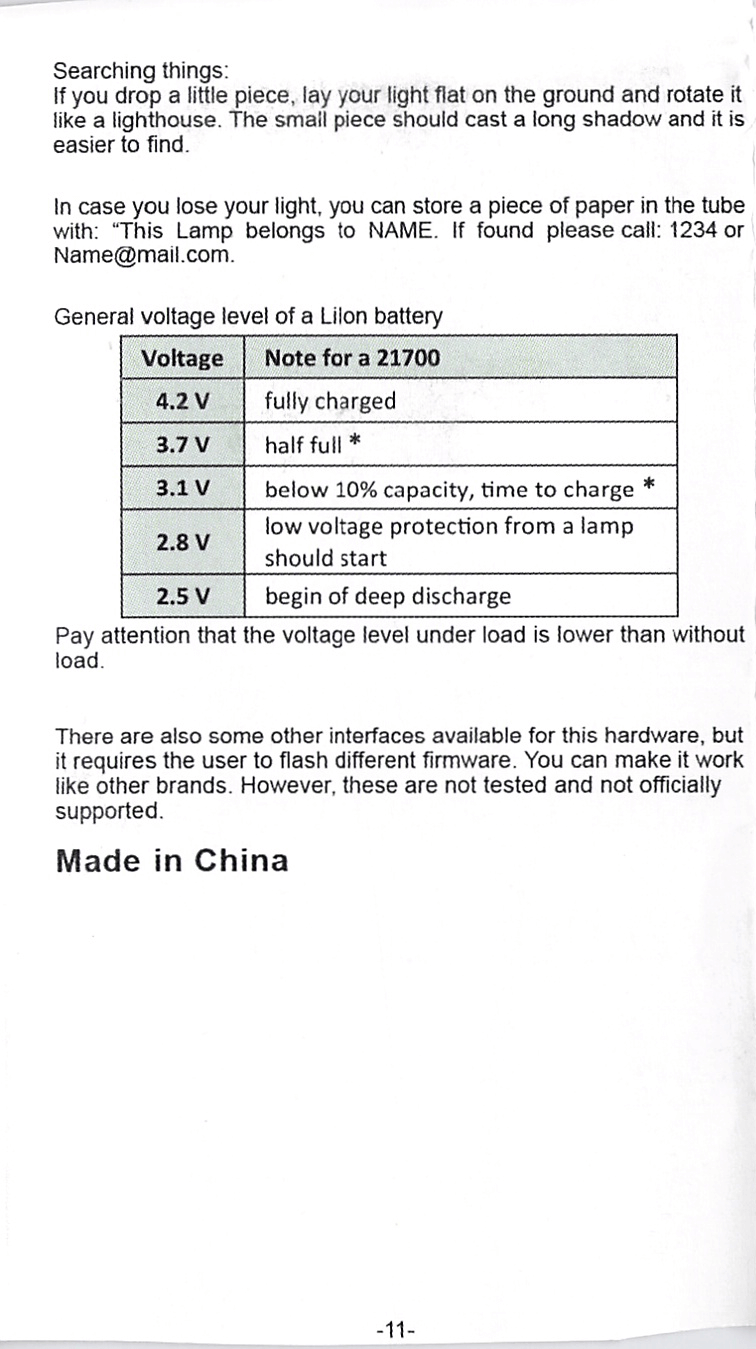

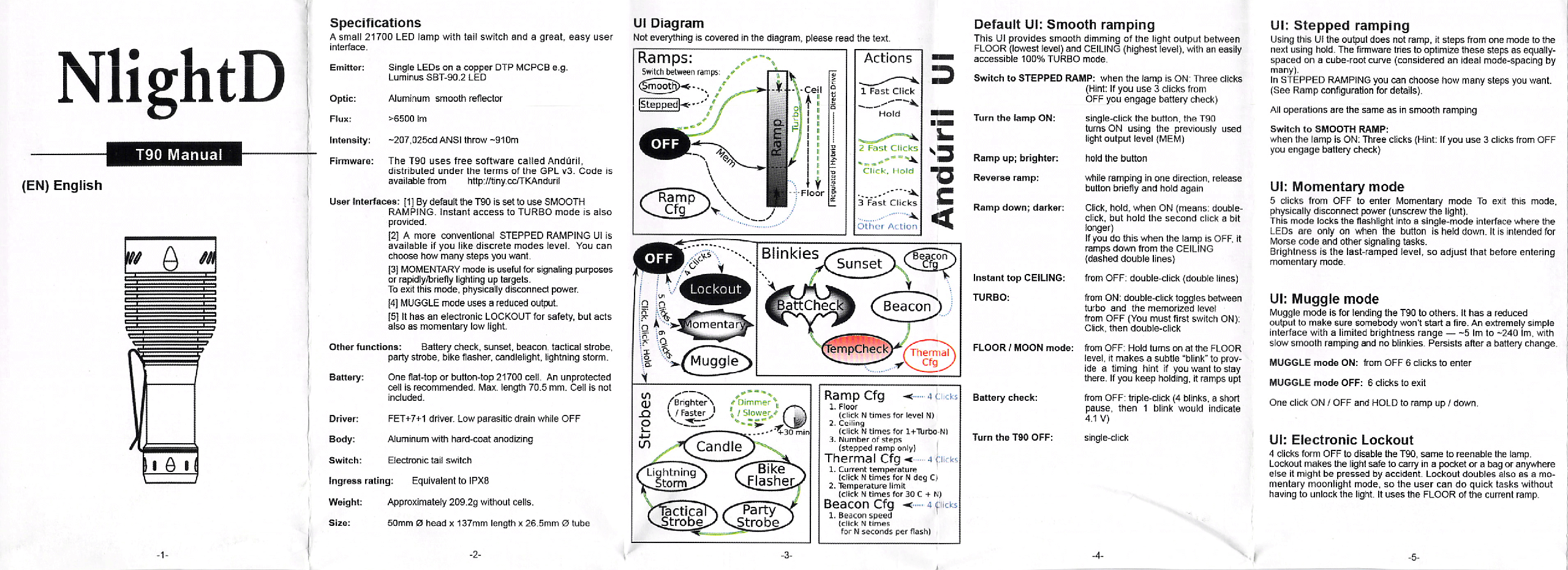

Sorry the manual scan’s a bit of a mess.  The page was bigger than my scanner would fit, and I had to cut the page down a bit…. but you’ll get the idea.

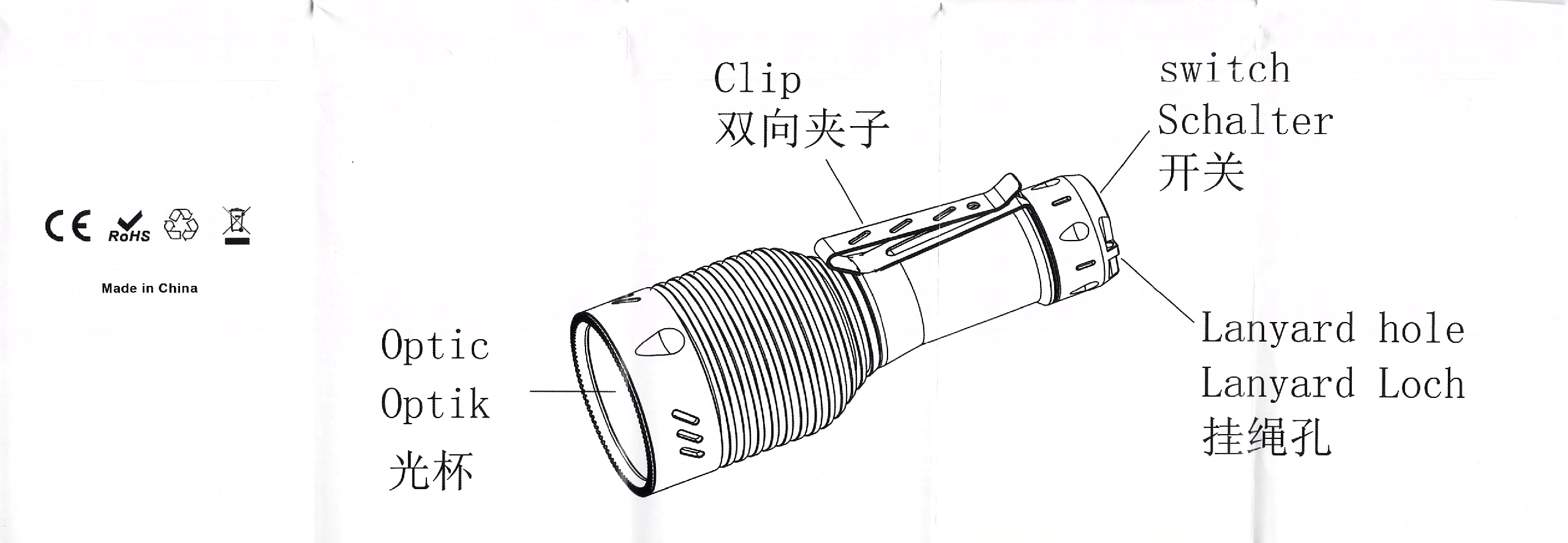

NlightD T90 luminus sbt-90.2 Andúril manual 1

NlightD T90 luminus sbt-90.2 Andúril manual 2

NlightD T90 luminus sbt-90.2 Andúril manual 3

NlightD T90 luminus sbt-90.2 Andúril manual 4

Build Quality and Disassembly

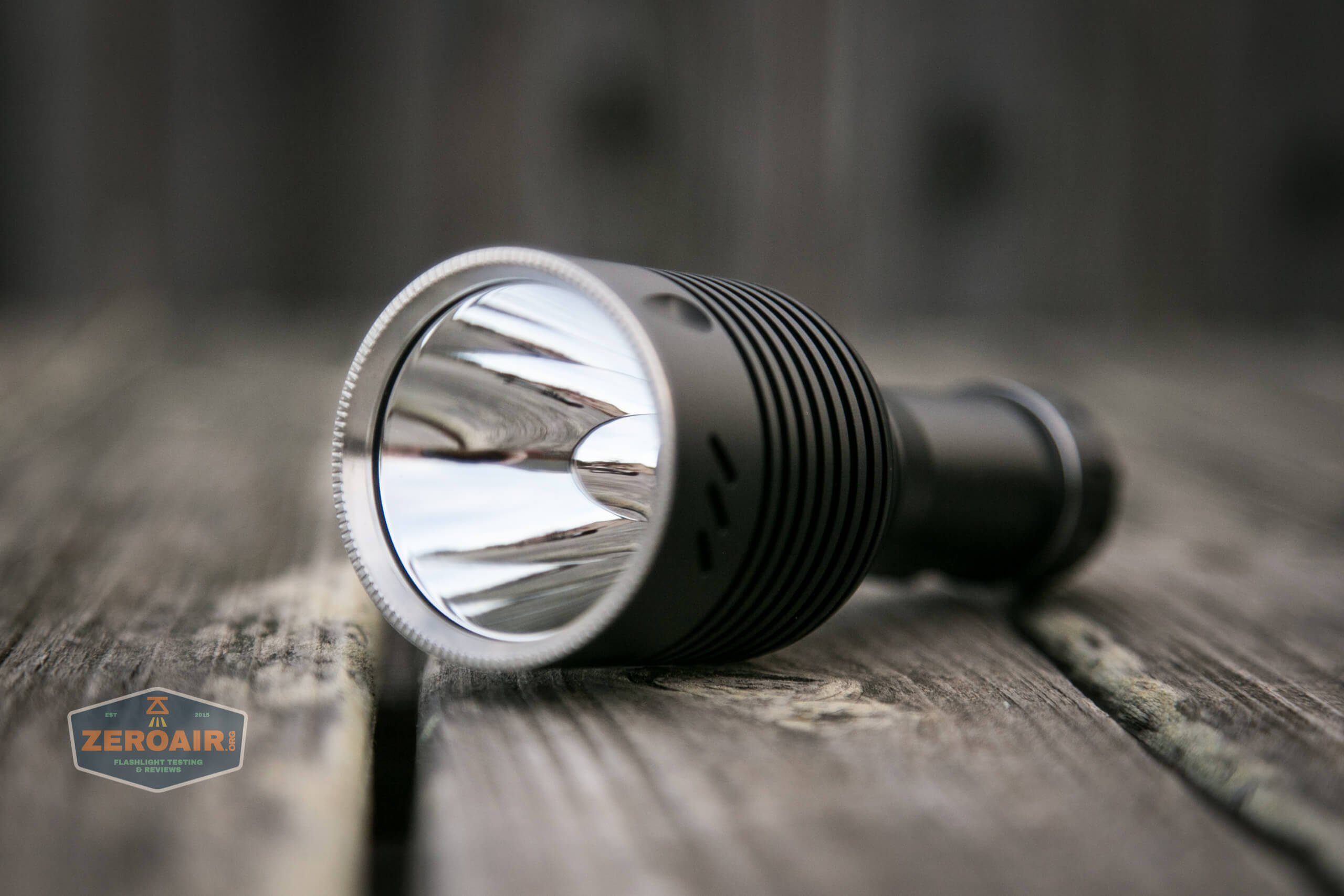

NlightD T90 luminus sbt-90.2 Andúril feature photo

The build quality of this completely new brand (or … new to me?) really reminds me of Lumintop.  That makes sense overall since the light is very Lumintop-esque.  A tailswitch e-switch light with Andúril….

This one’s well designed though, because the head has such cooling fin design.

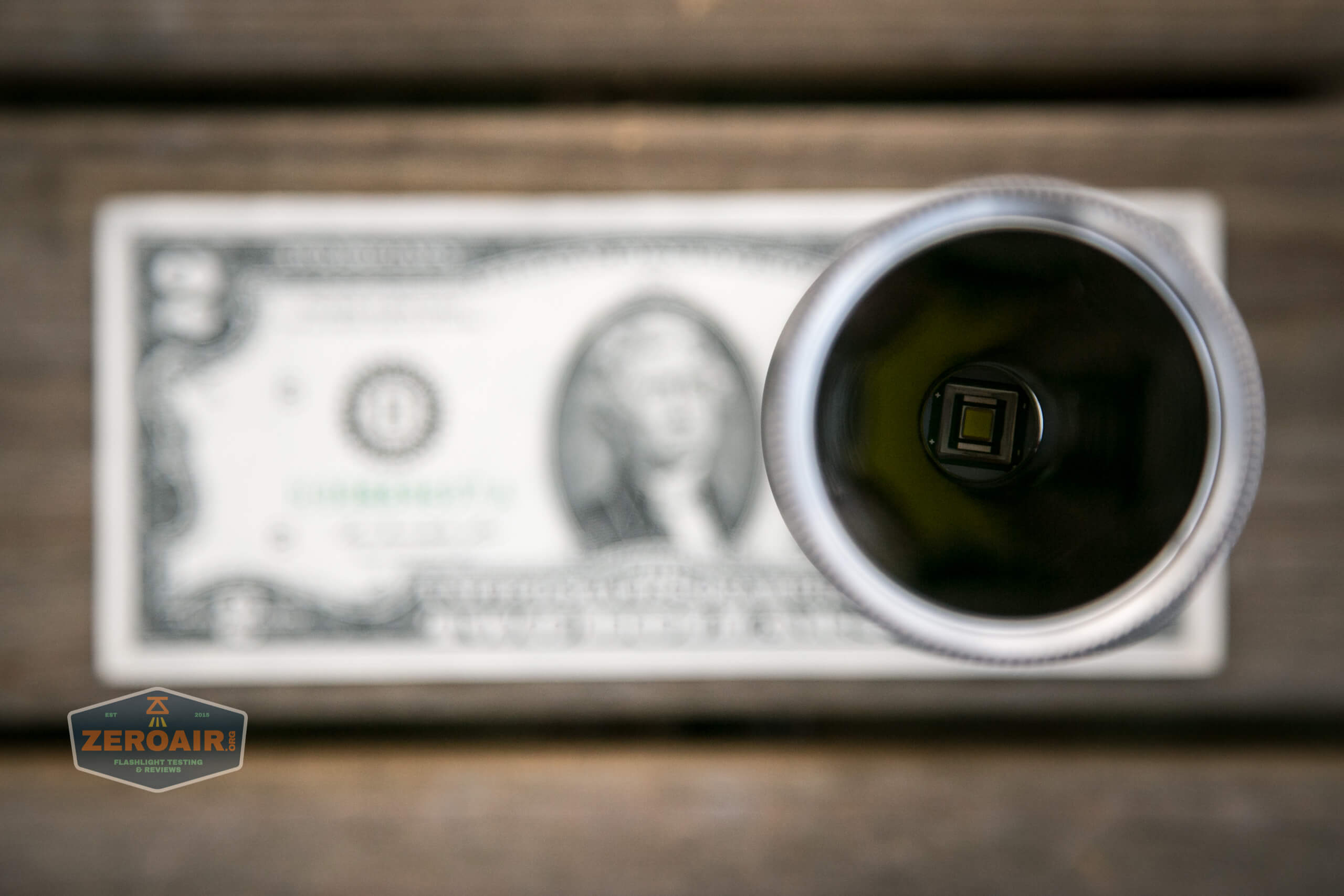

NlightD T90 luminus sbt-90.2 Andúril emitter photo

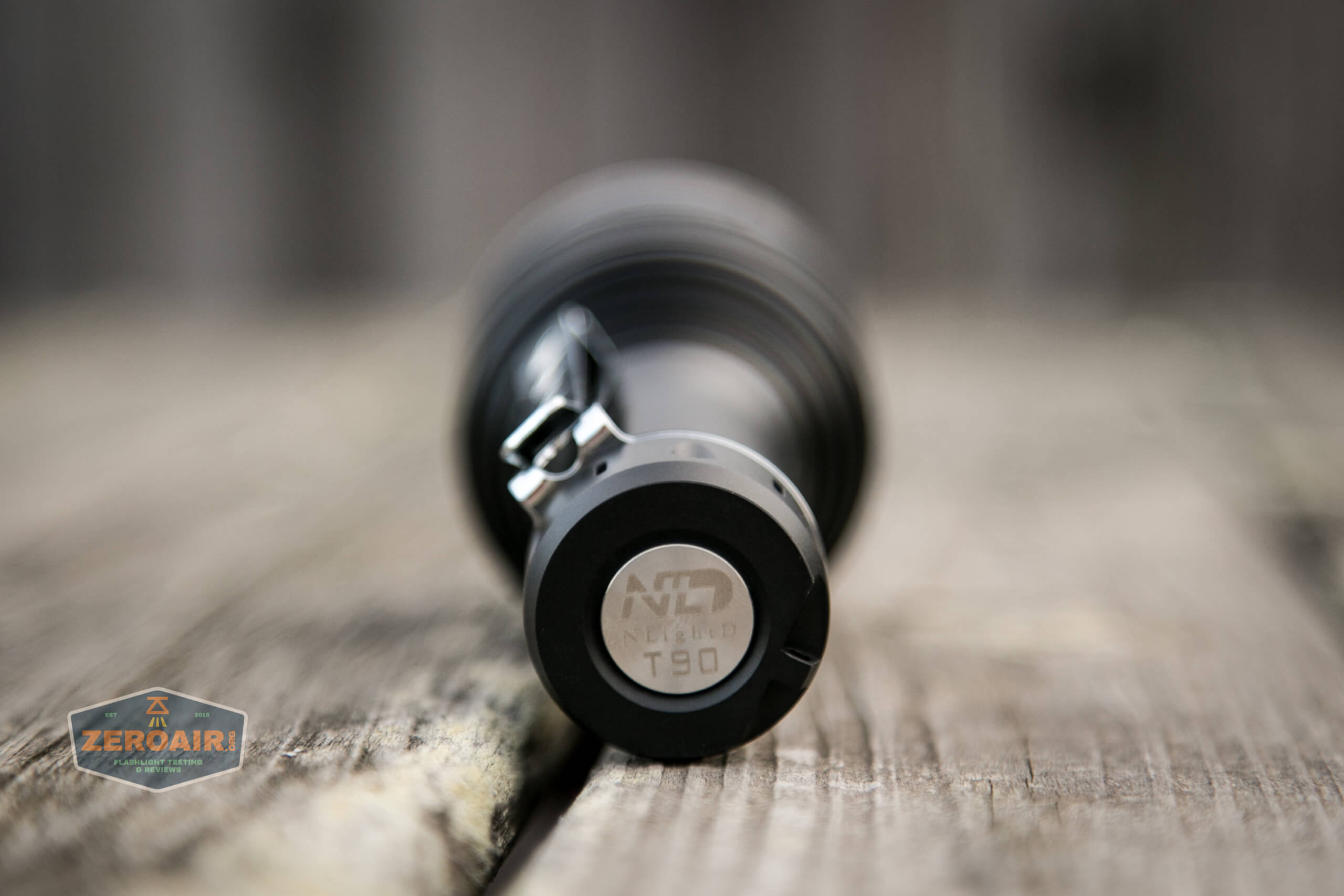

The only branding you’ll see on the light is engraved into the button.  Interestingly the name NlightD is shortened to NLD…. wonder where that came from (hint:  reddit.com/r/flashlight!).

NlightD T90 luminus sbt-90.2 Andúril switch and label

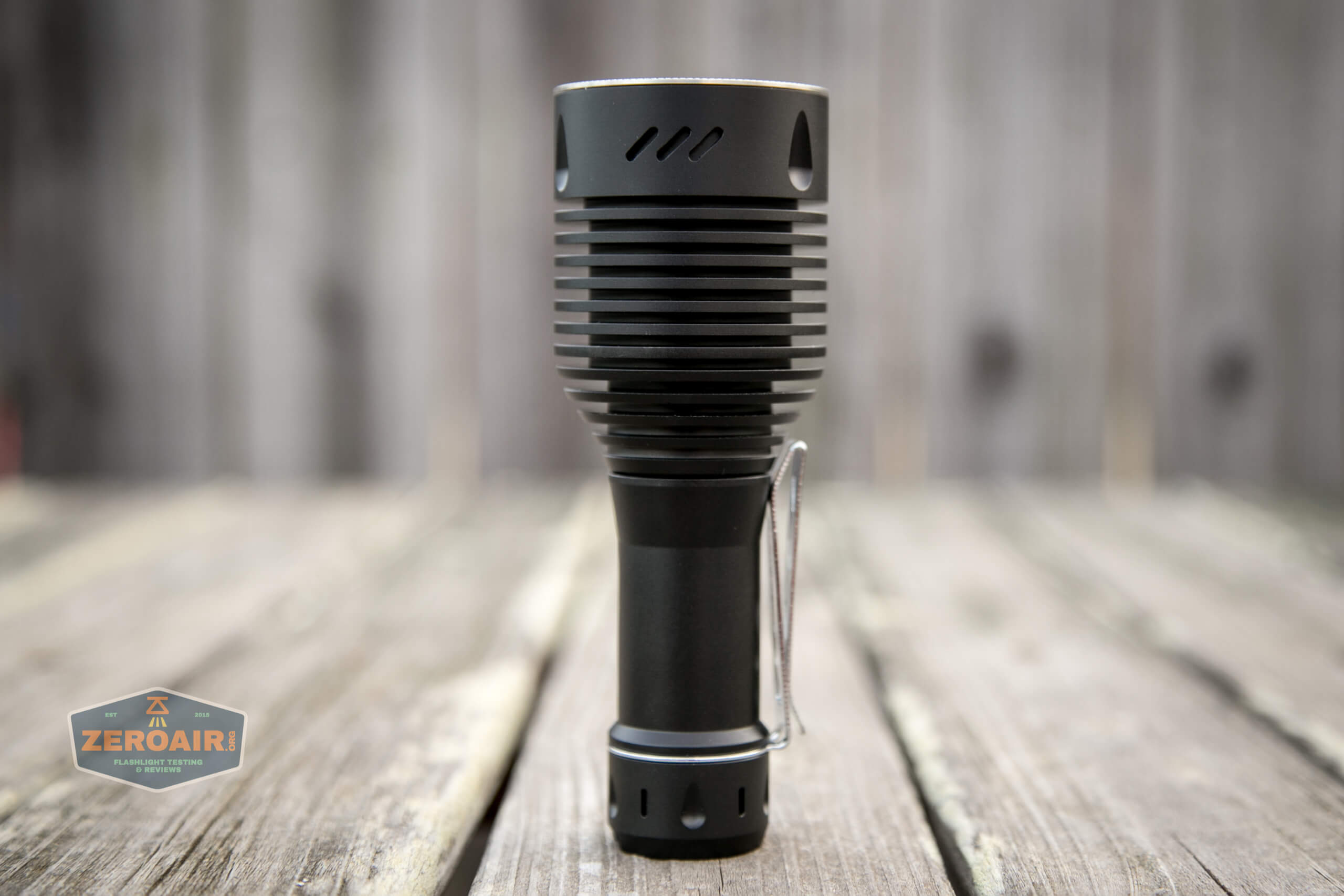

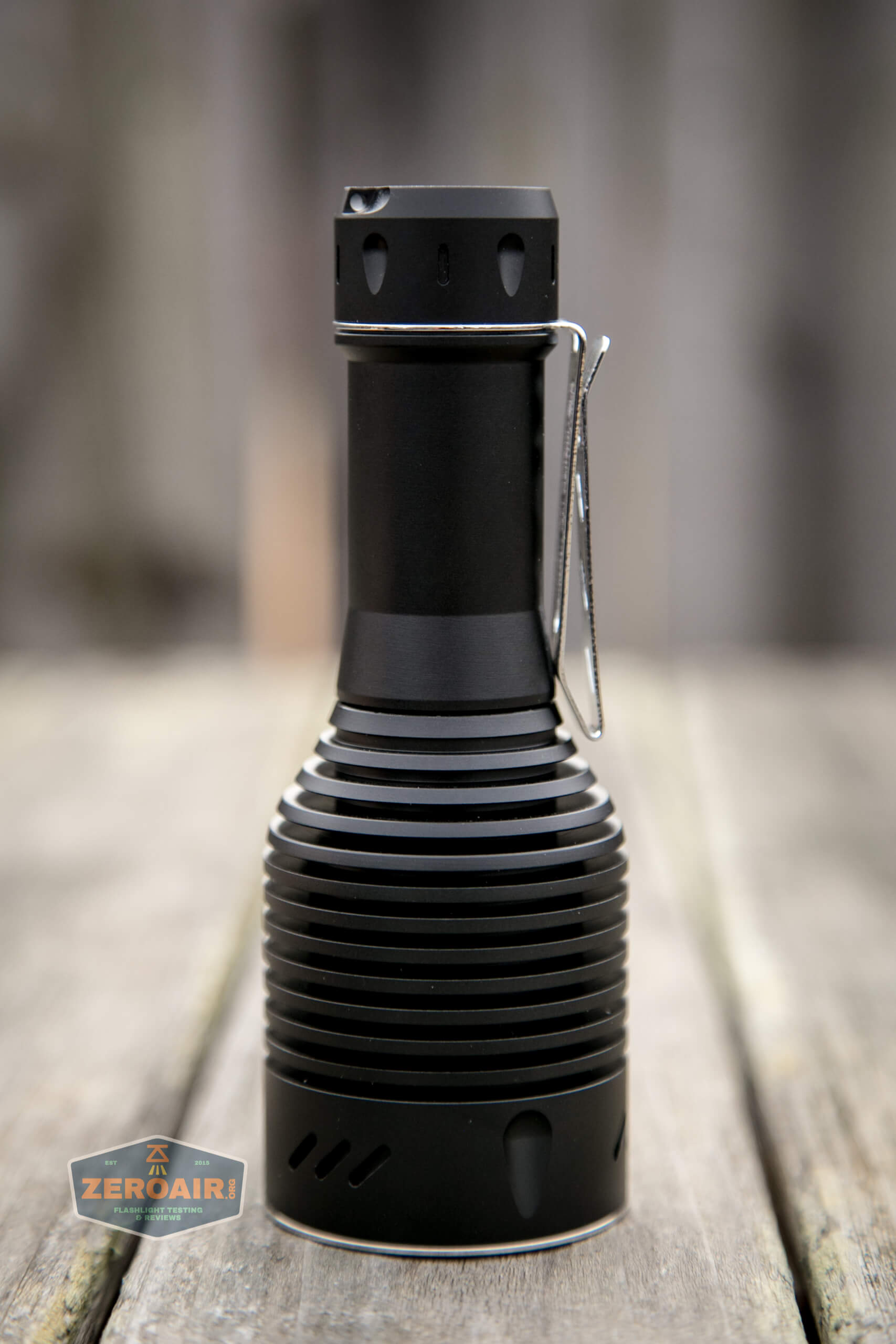

The body of this light looks very similar to the recently reviewed Nightwatch NSX4, but with much thicker and deeper cooling fins.  These cooling fins make a great flashlight shape!!  I do wish the cooling fins had broken edges – a very tiny 45° angle on both side edges of the cooling fins would really set the build quality off.  For that matter, same thing would be nice on the tritium slots.  These edges are not sharp, but they seem to be just the right … something … to be absolute dust and fuzz magnets.

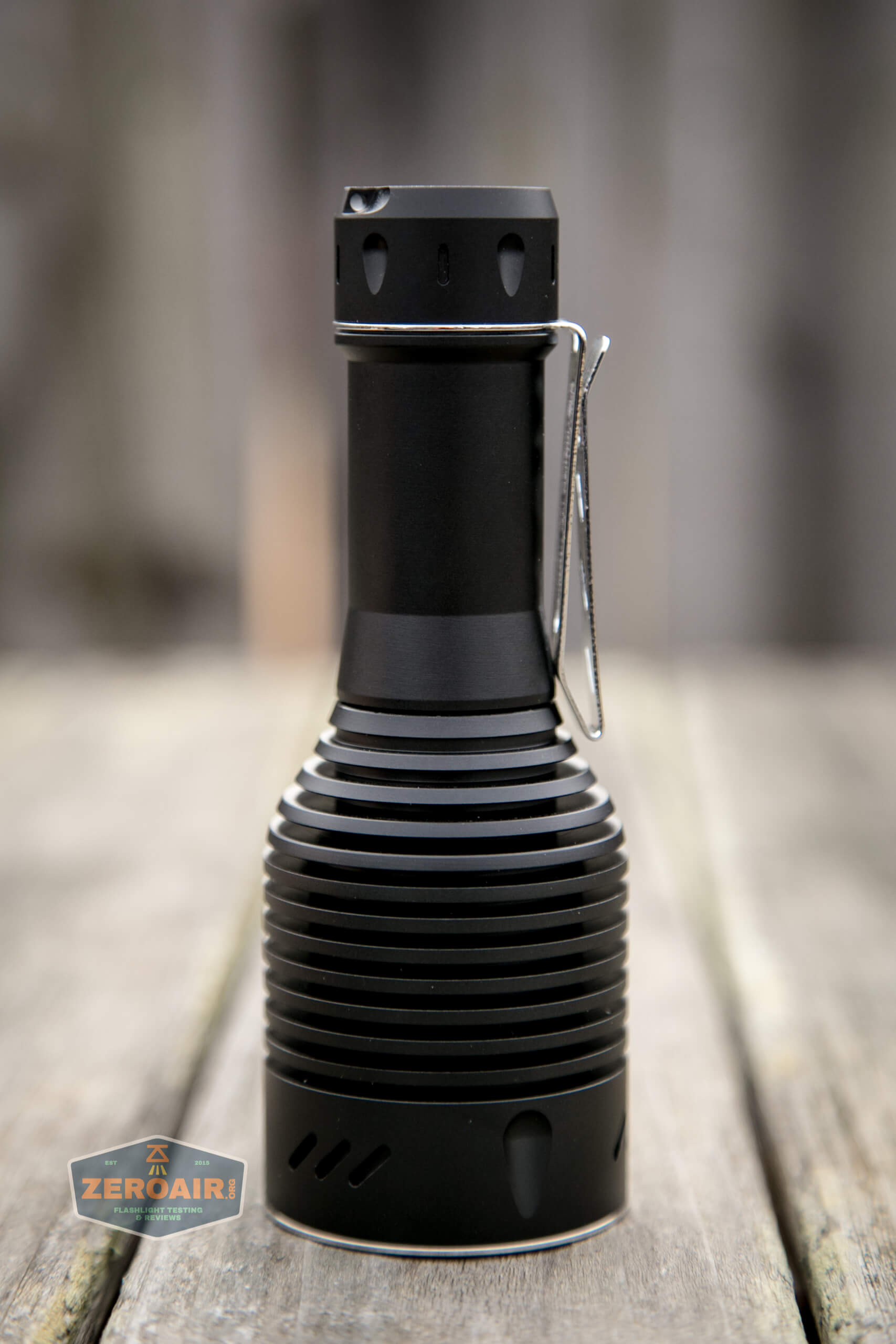

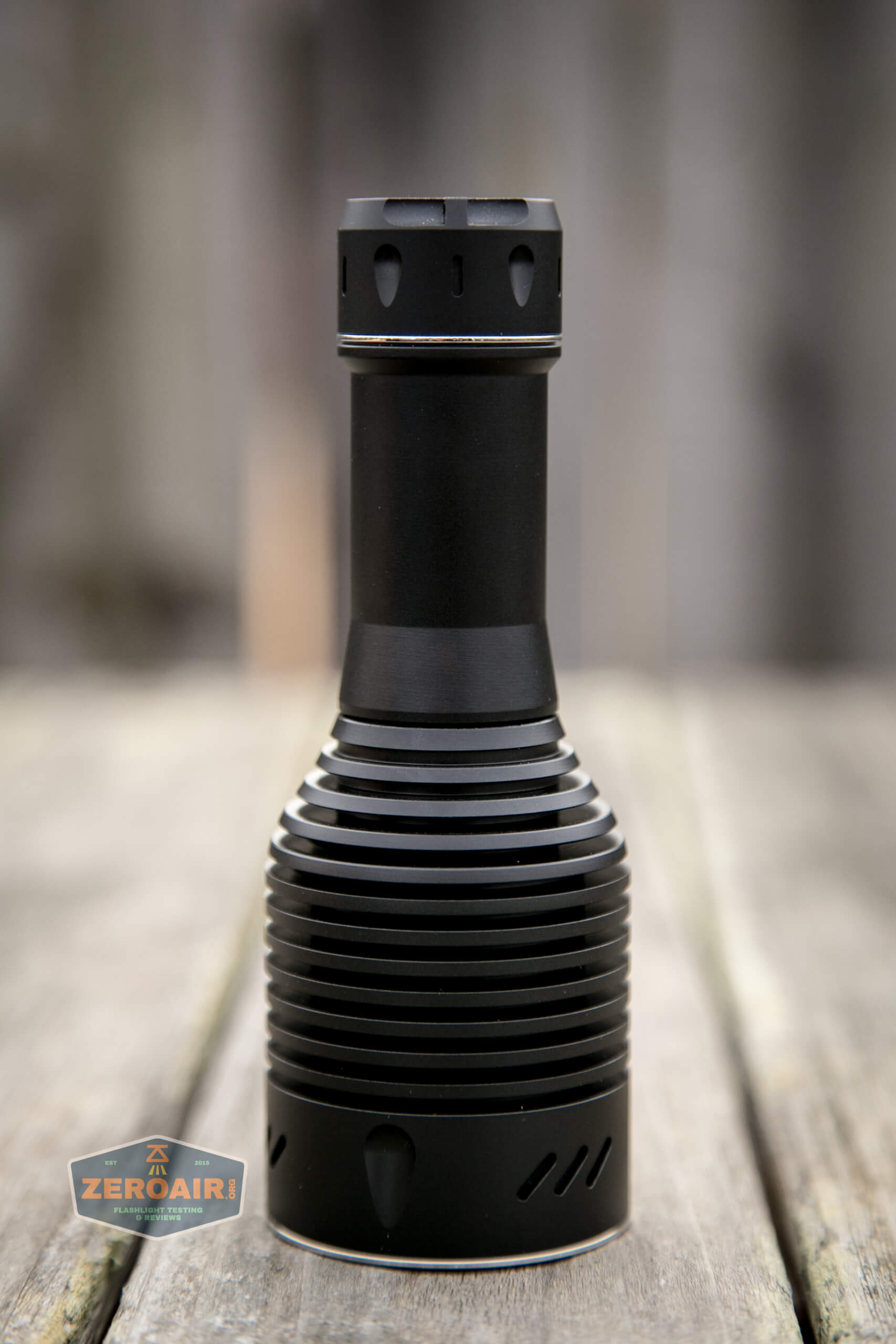

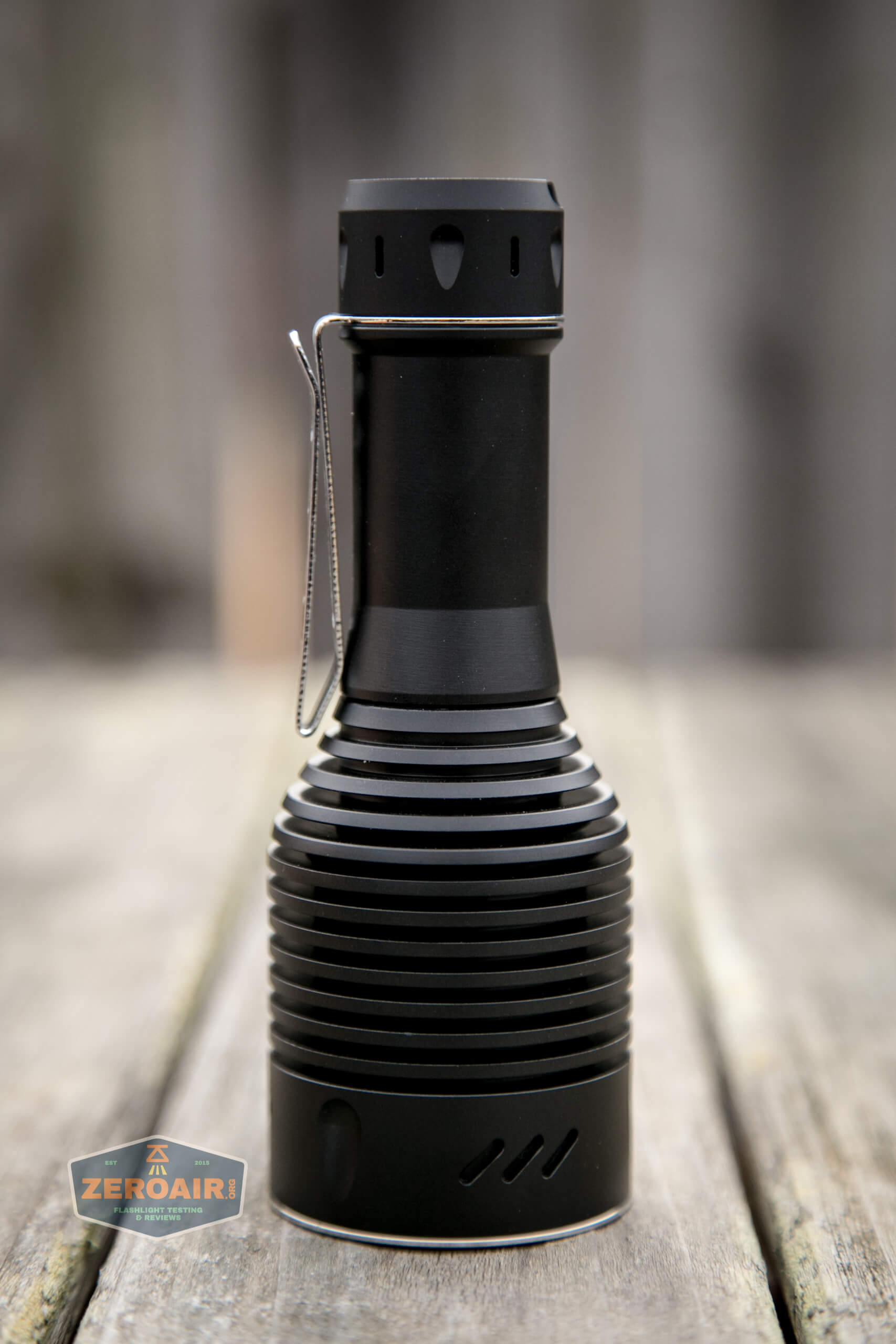

NlightD T90 luminus sbt-90.2 Andúril tailstanding

Also note that there are tritium slots all over this light, three of which can be seen near the bezel here.

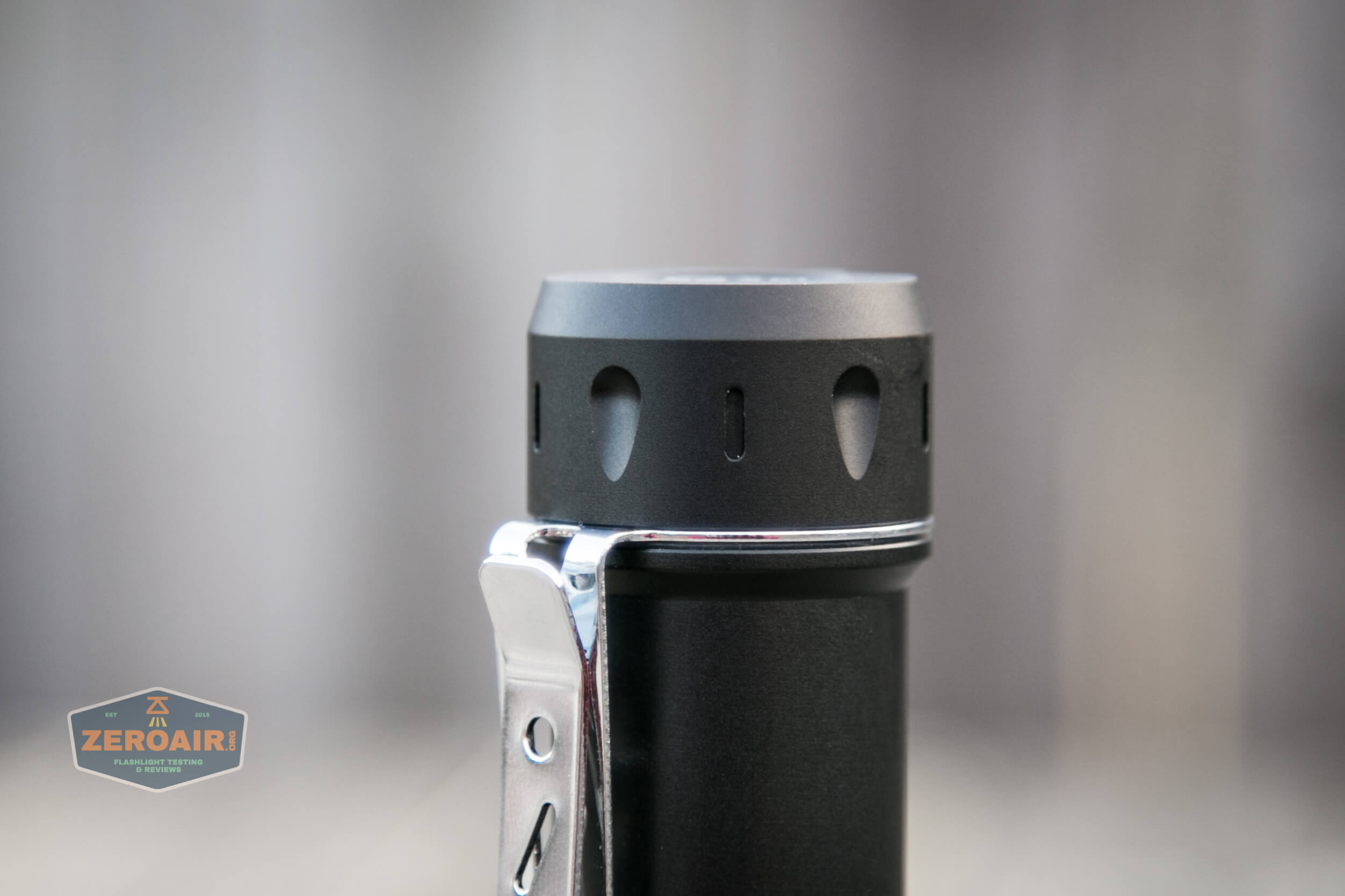

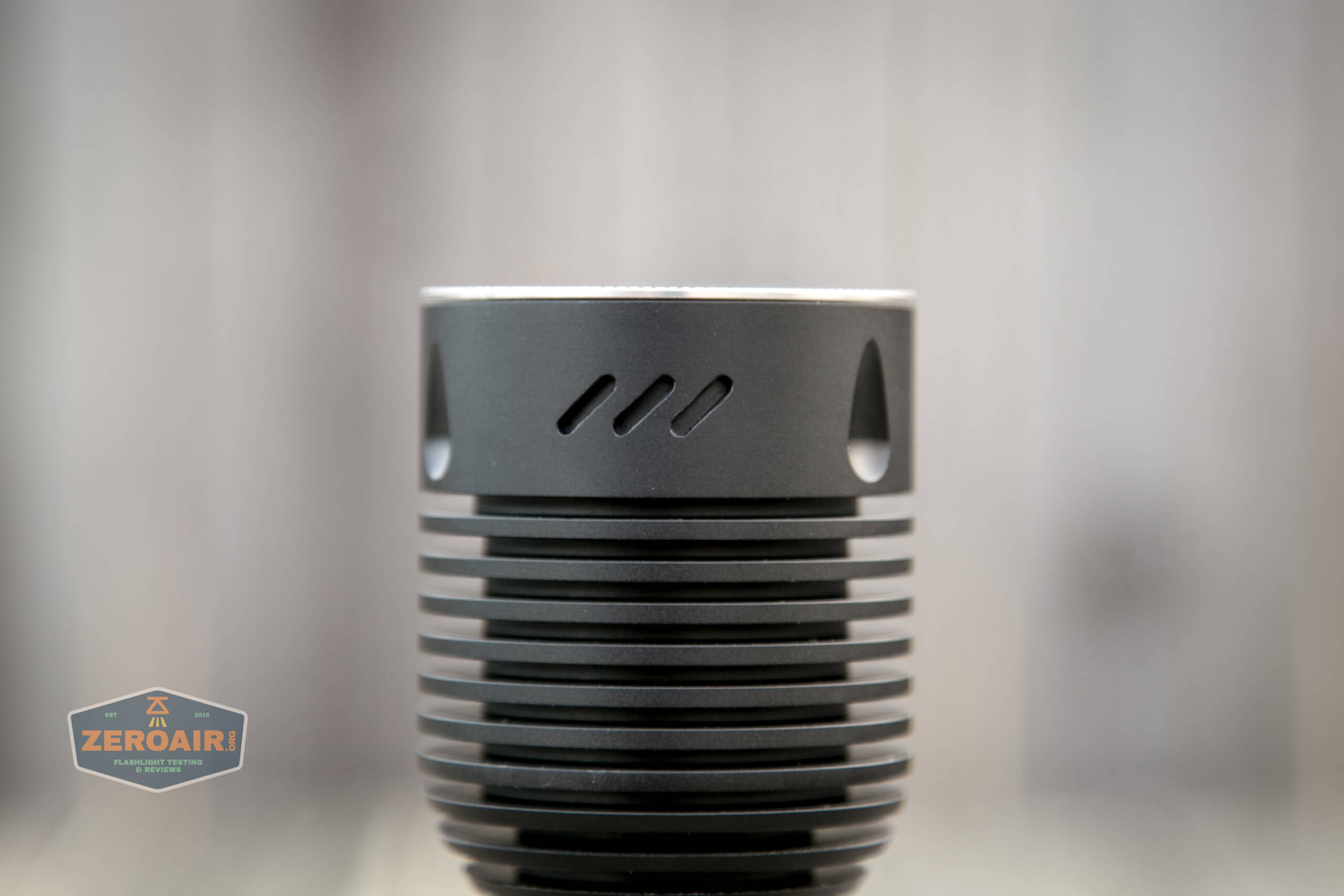

NlightD T90 luminus sbt-90.2 Andúril tritium slots in head

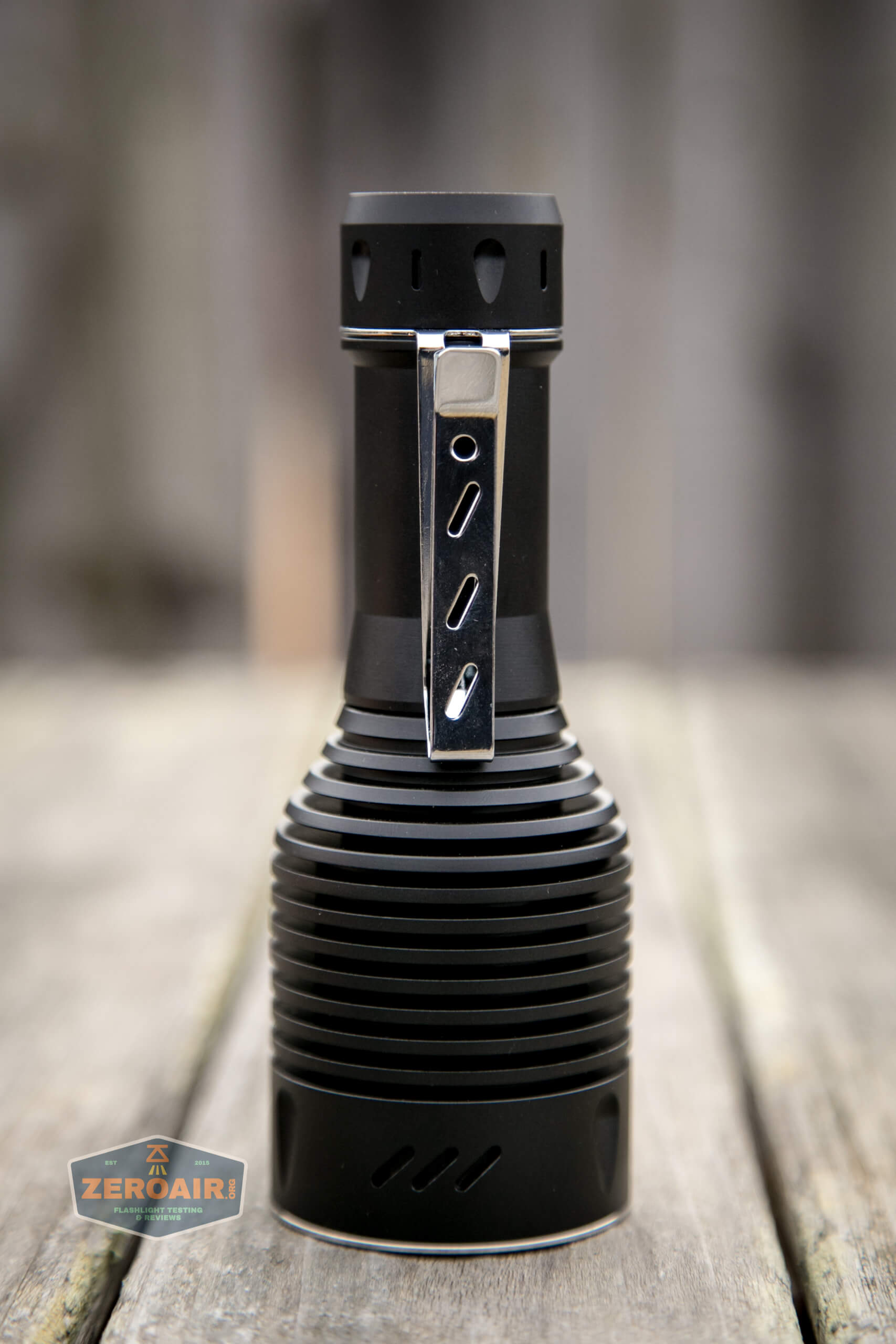

The body is completely smooth.  I had hold the clip in my hand in a certain way to get the body as tight as it needs to be, when putting the light together.

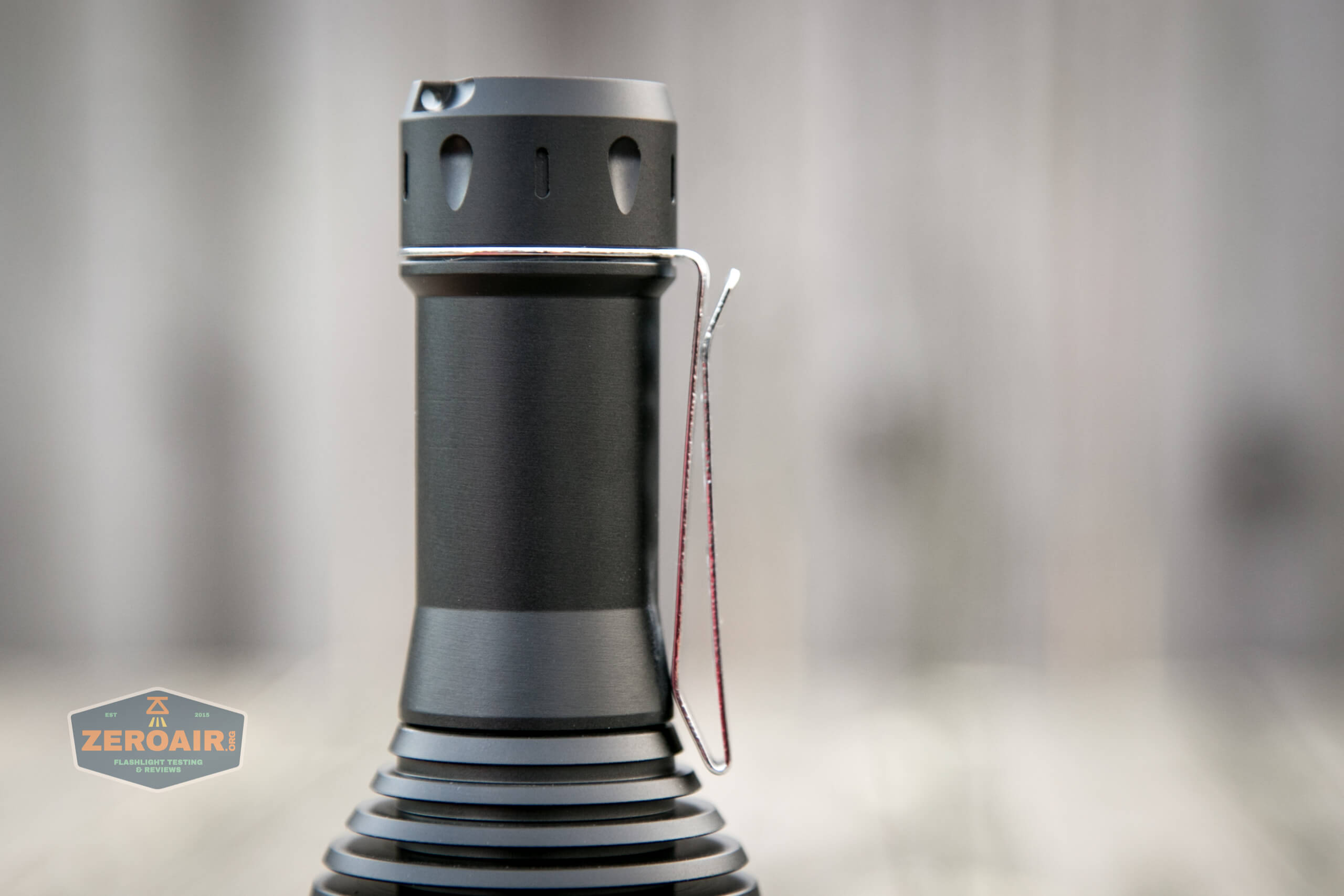

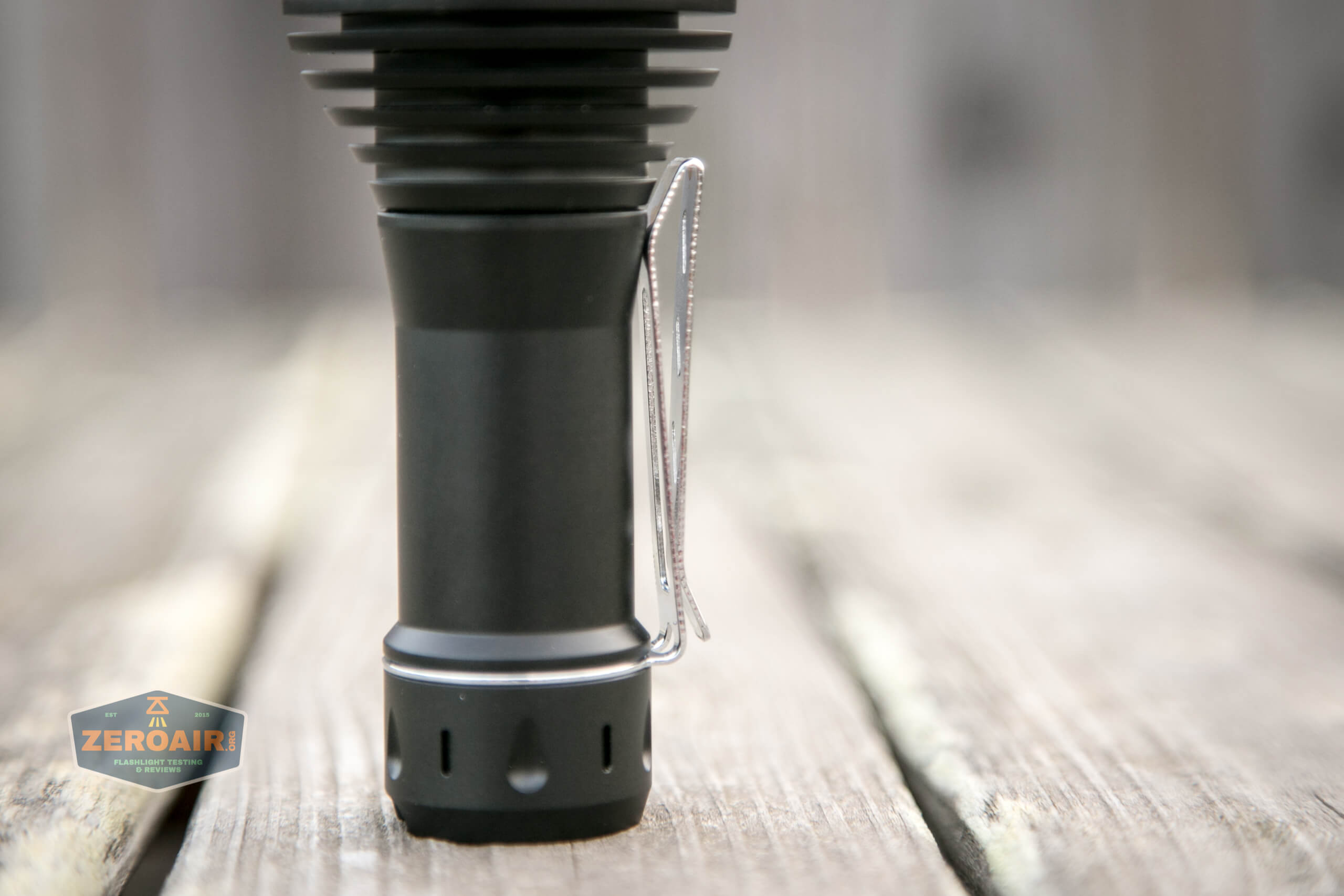

NlightD T90 luminus sbt-90.2 Andúril clip

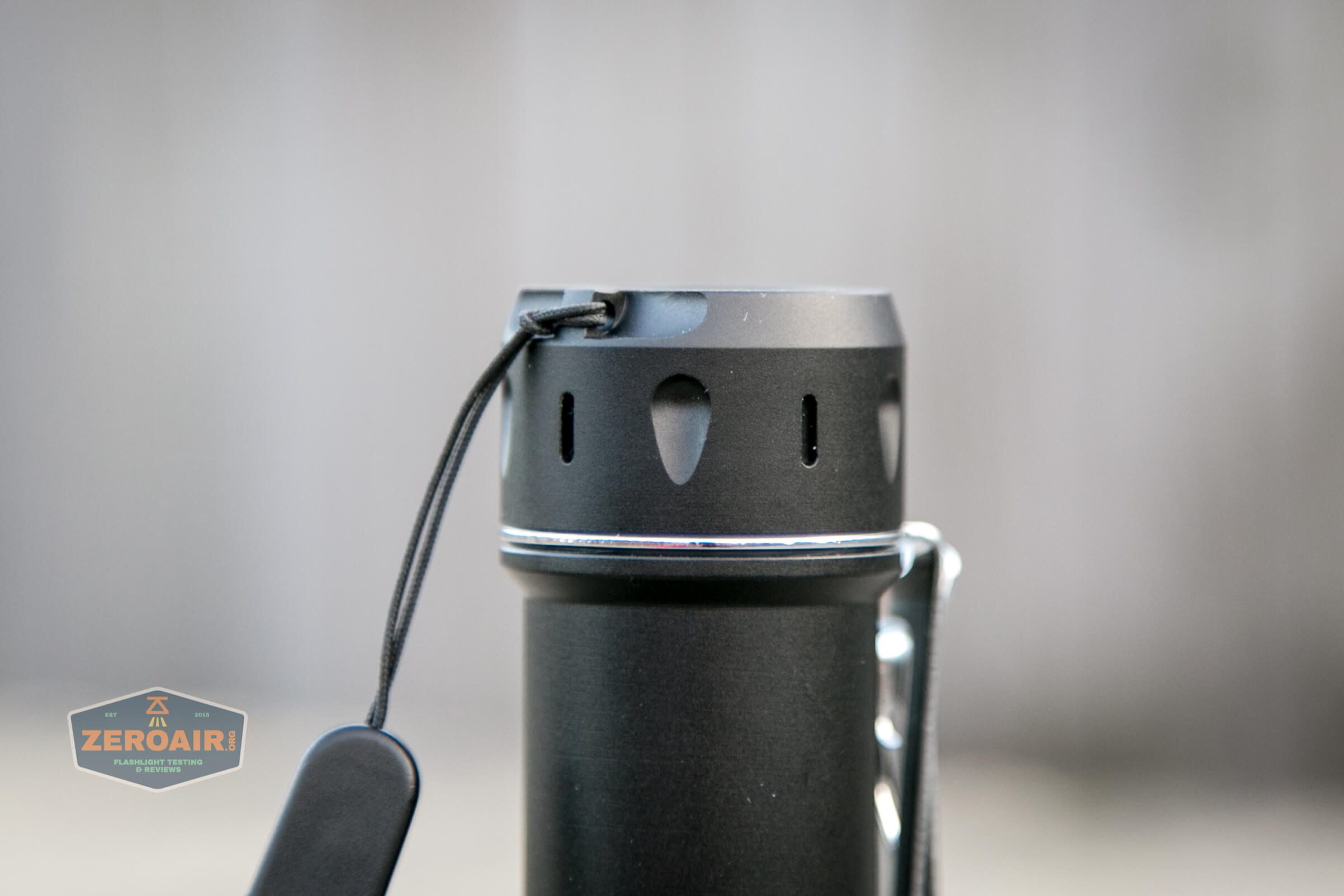

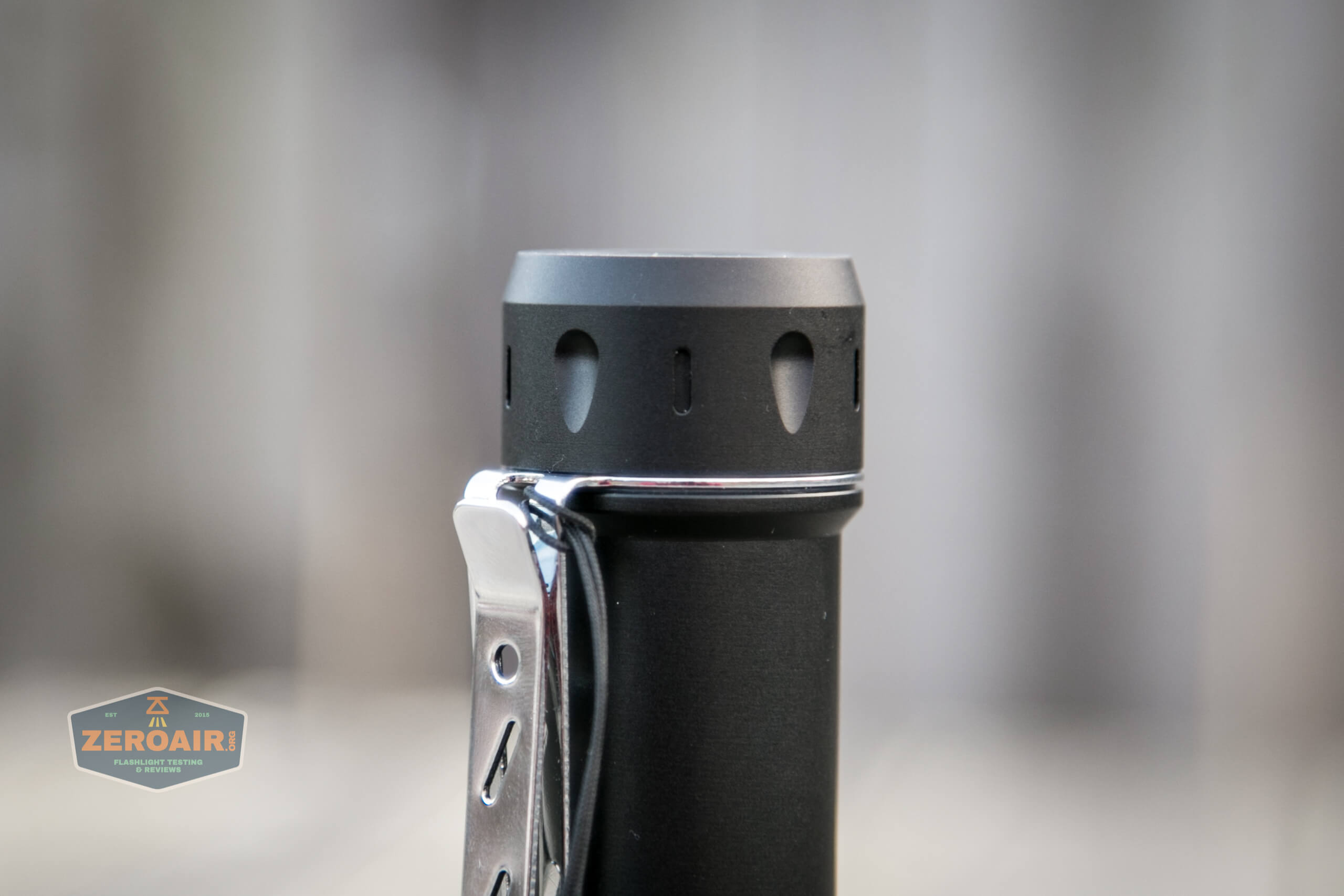

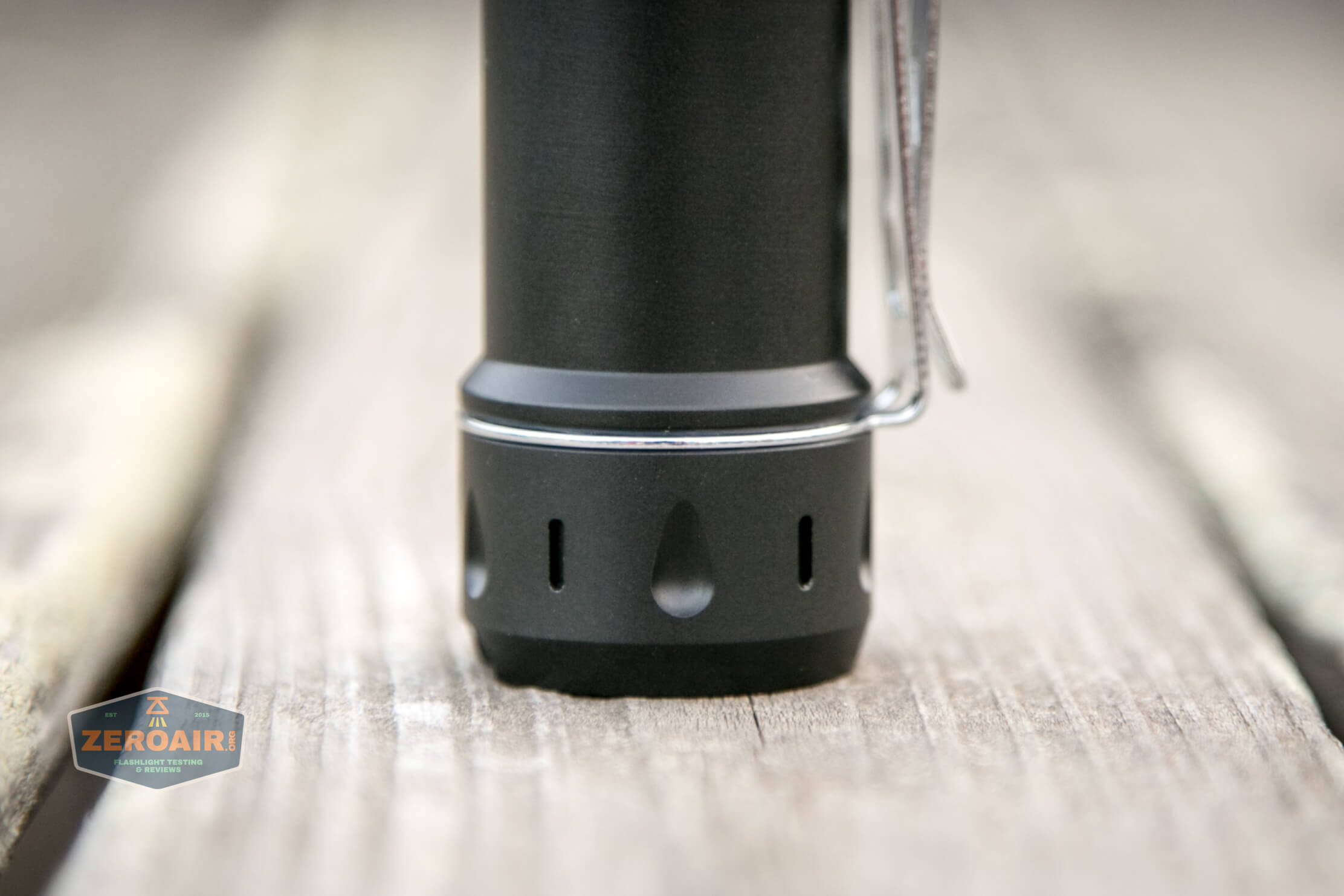

The tailcap has both teardrops and tritium slots, too.

NlightD T90 luminus sbt-90.2 Andúril teardrop on tailcap and tritium

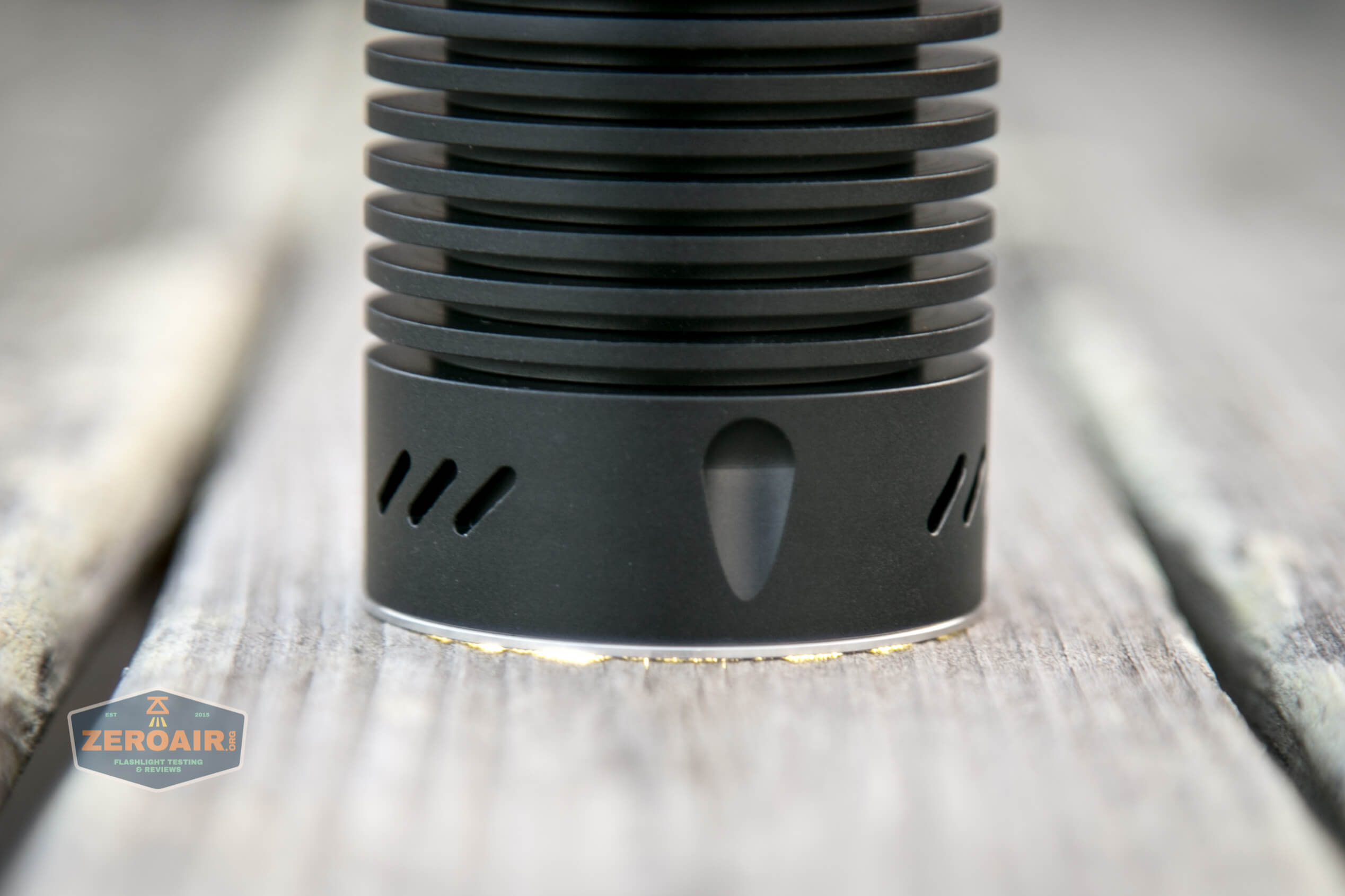

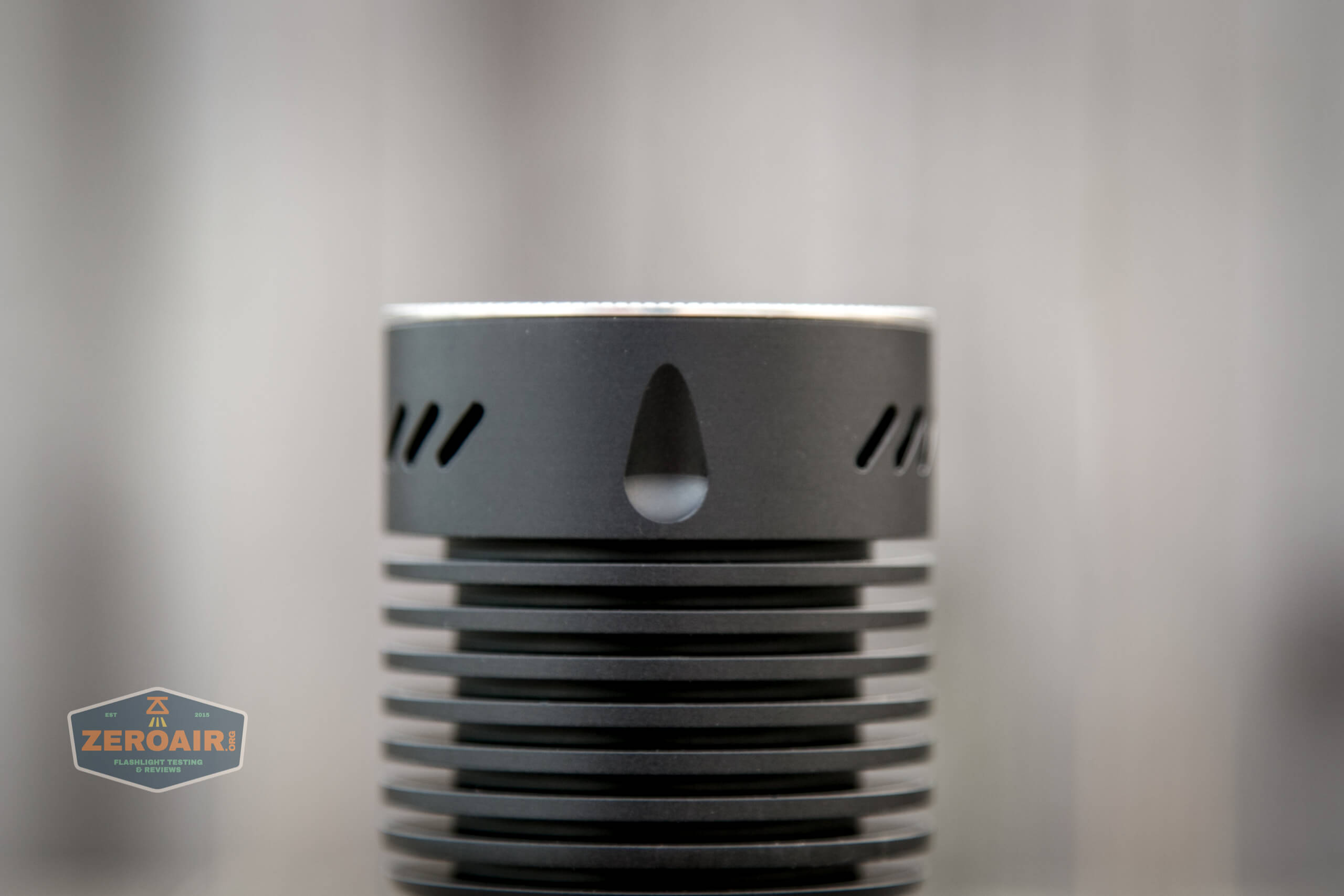

More teardrops on the front end.

NlightD T90 luminus sbt-90.2 Andúril teardrop in head

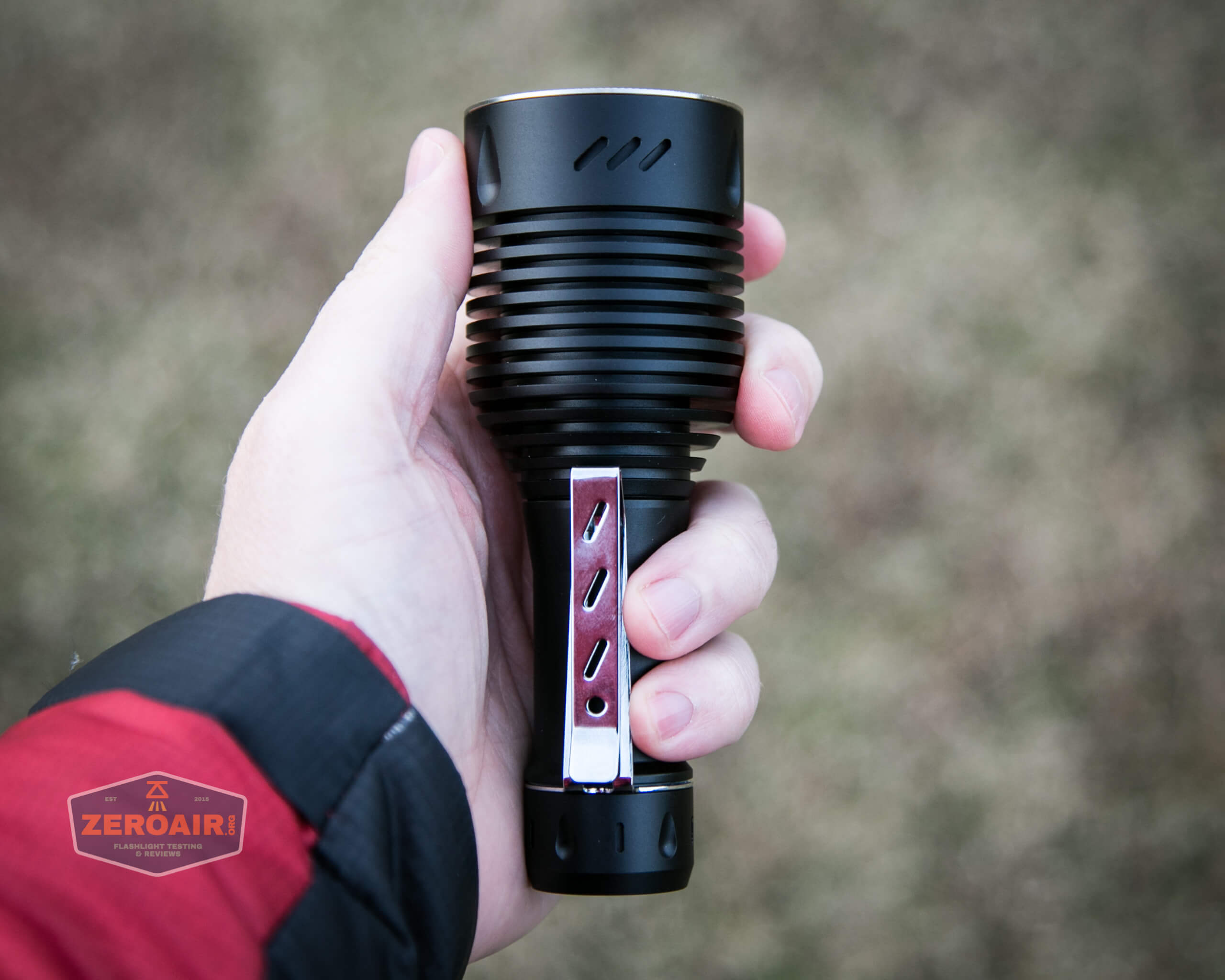

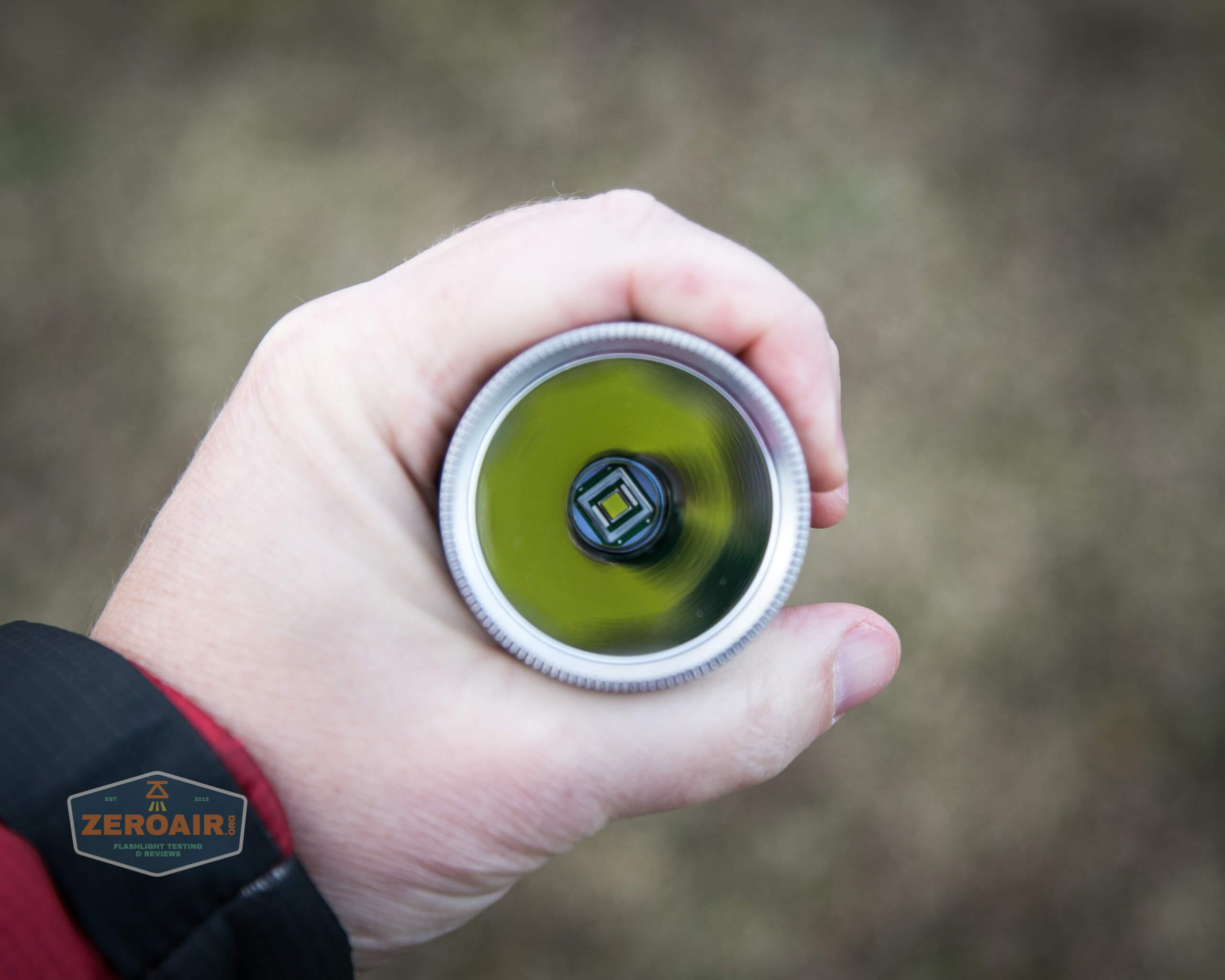

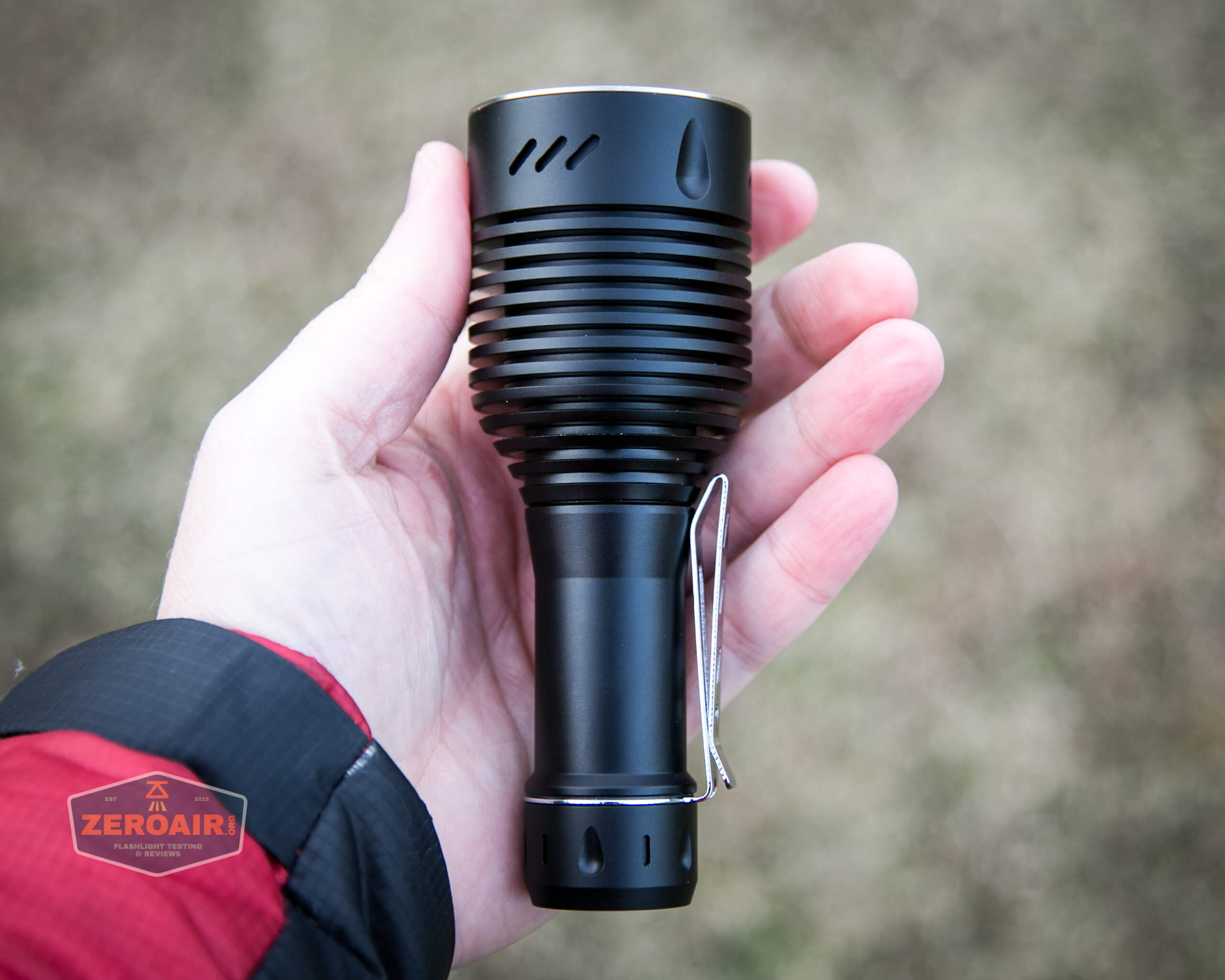

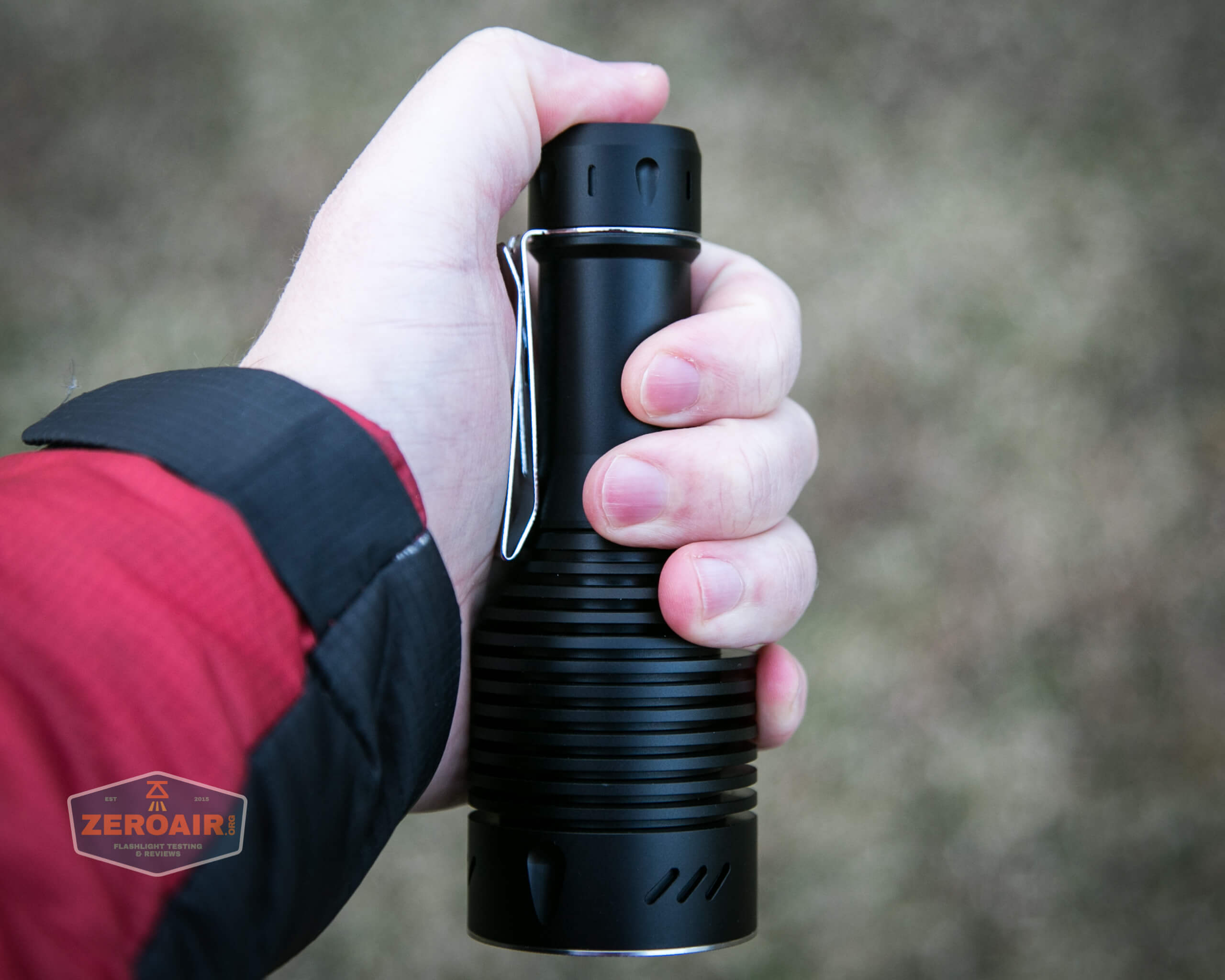

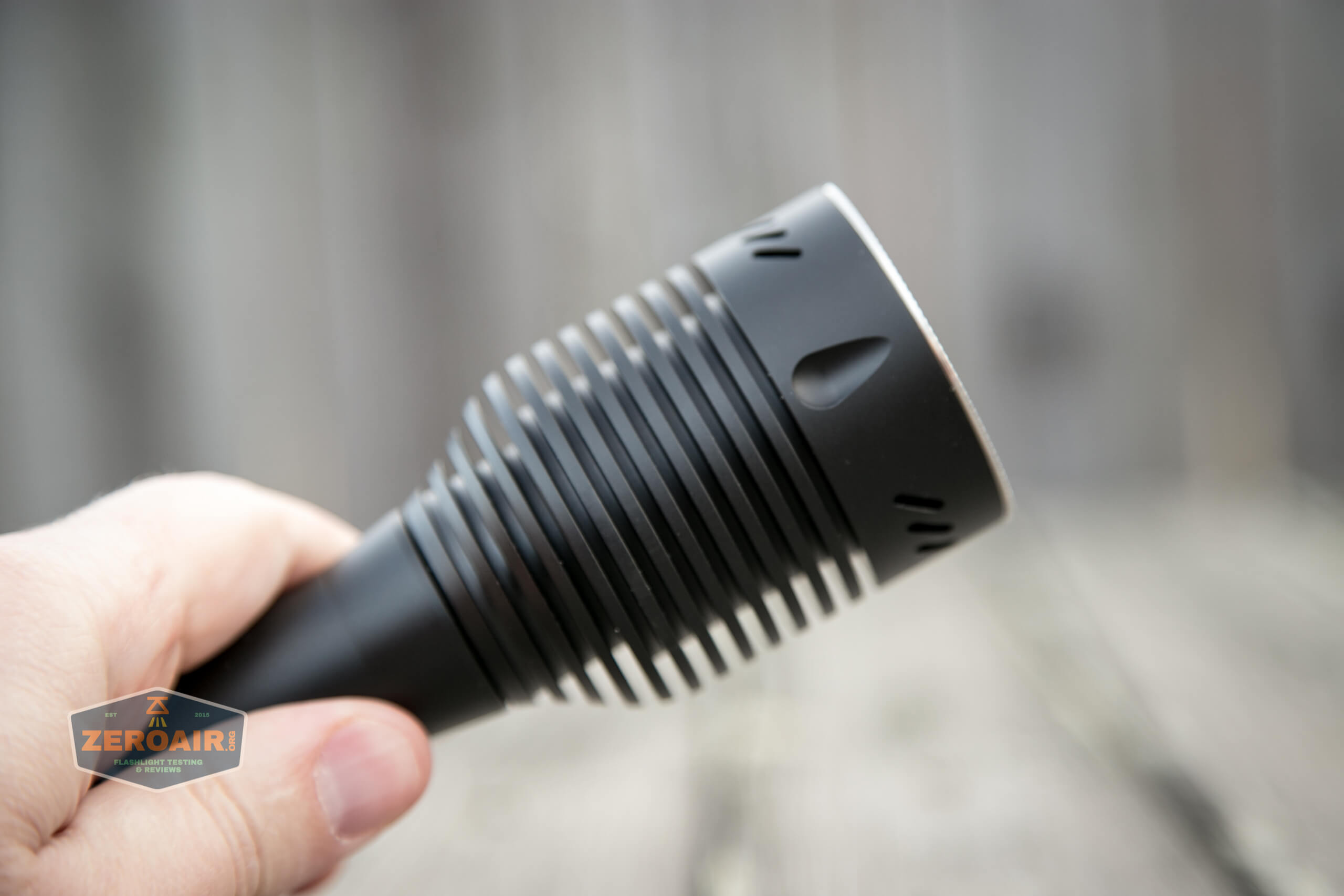

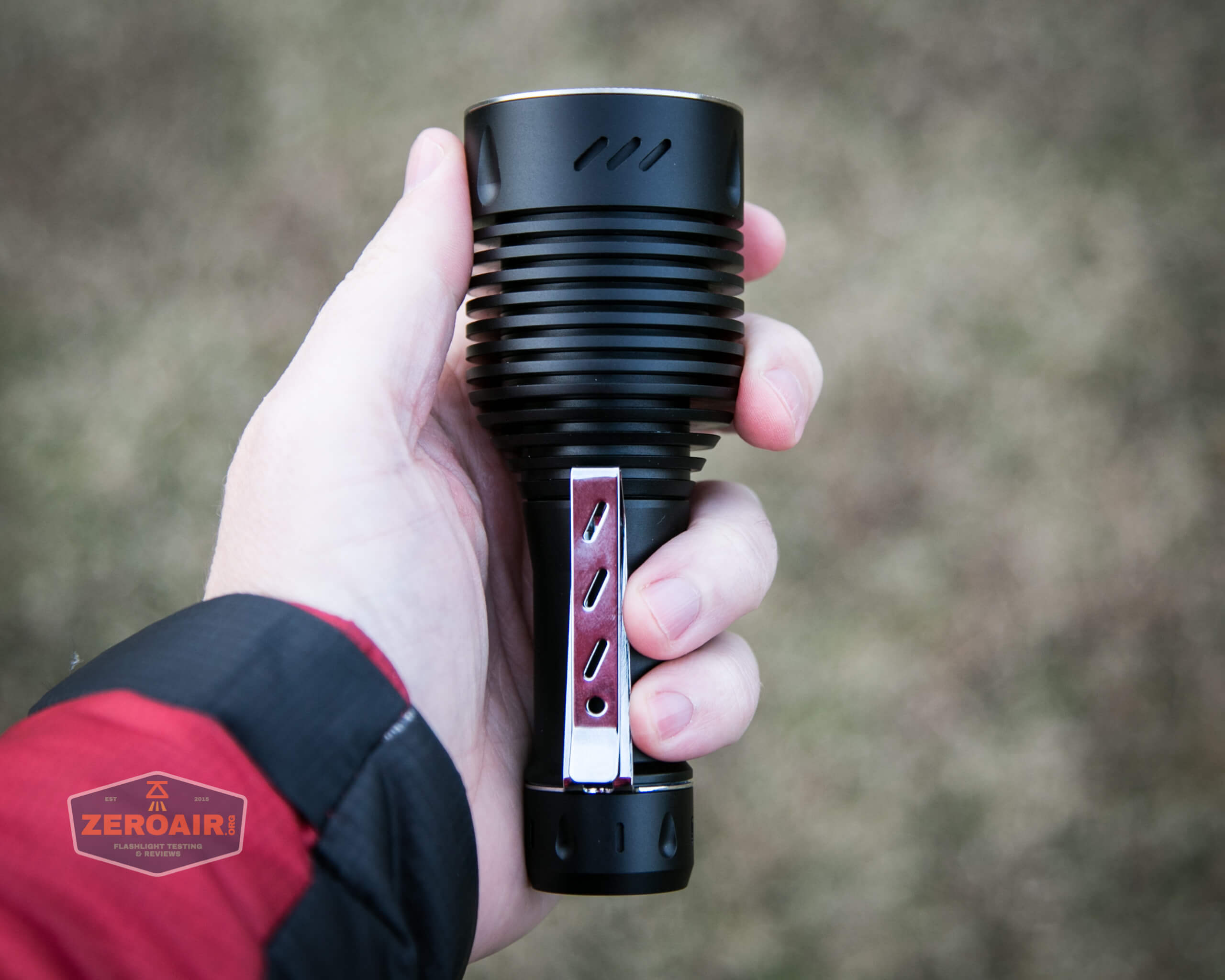

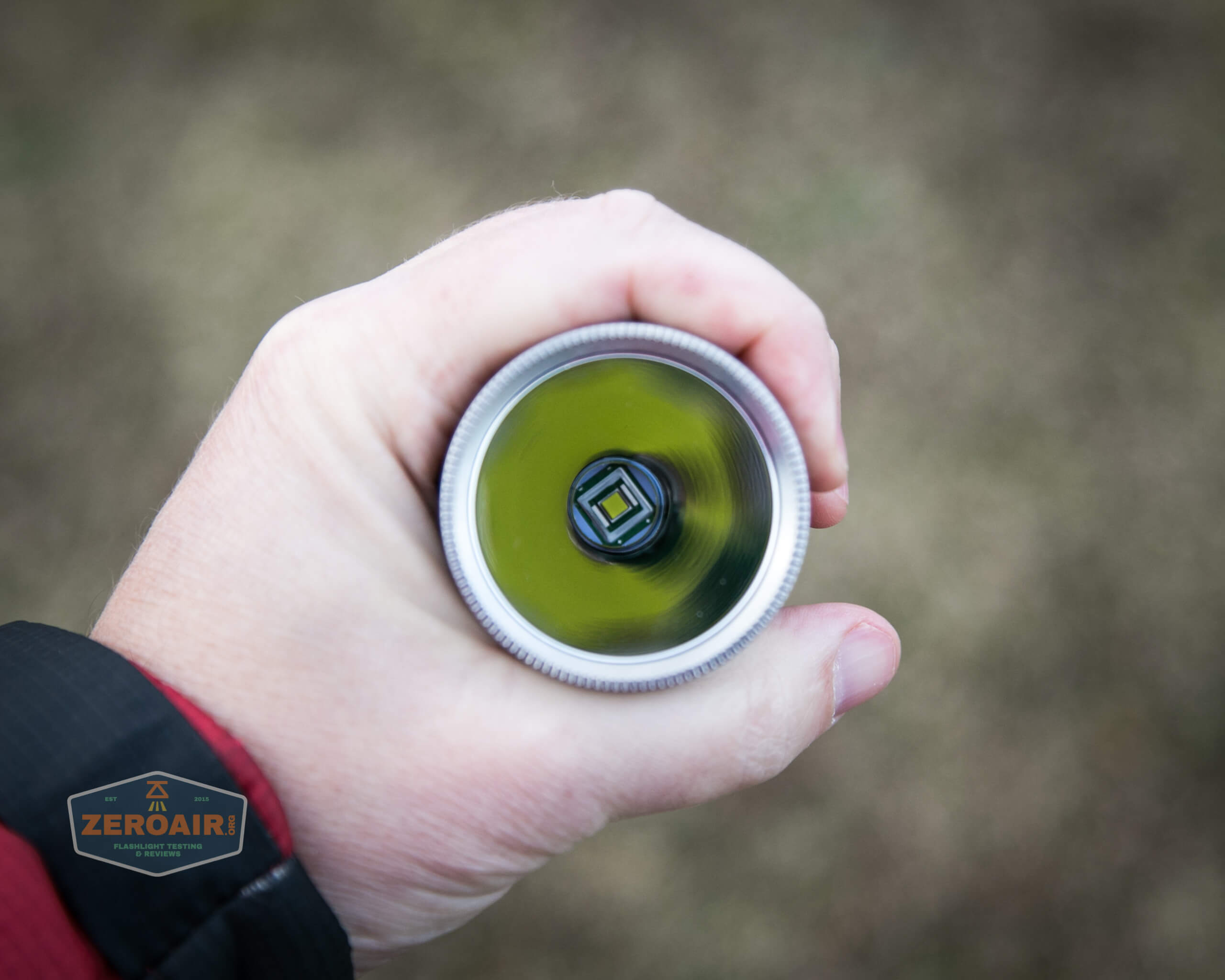

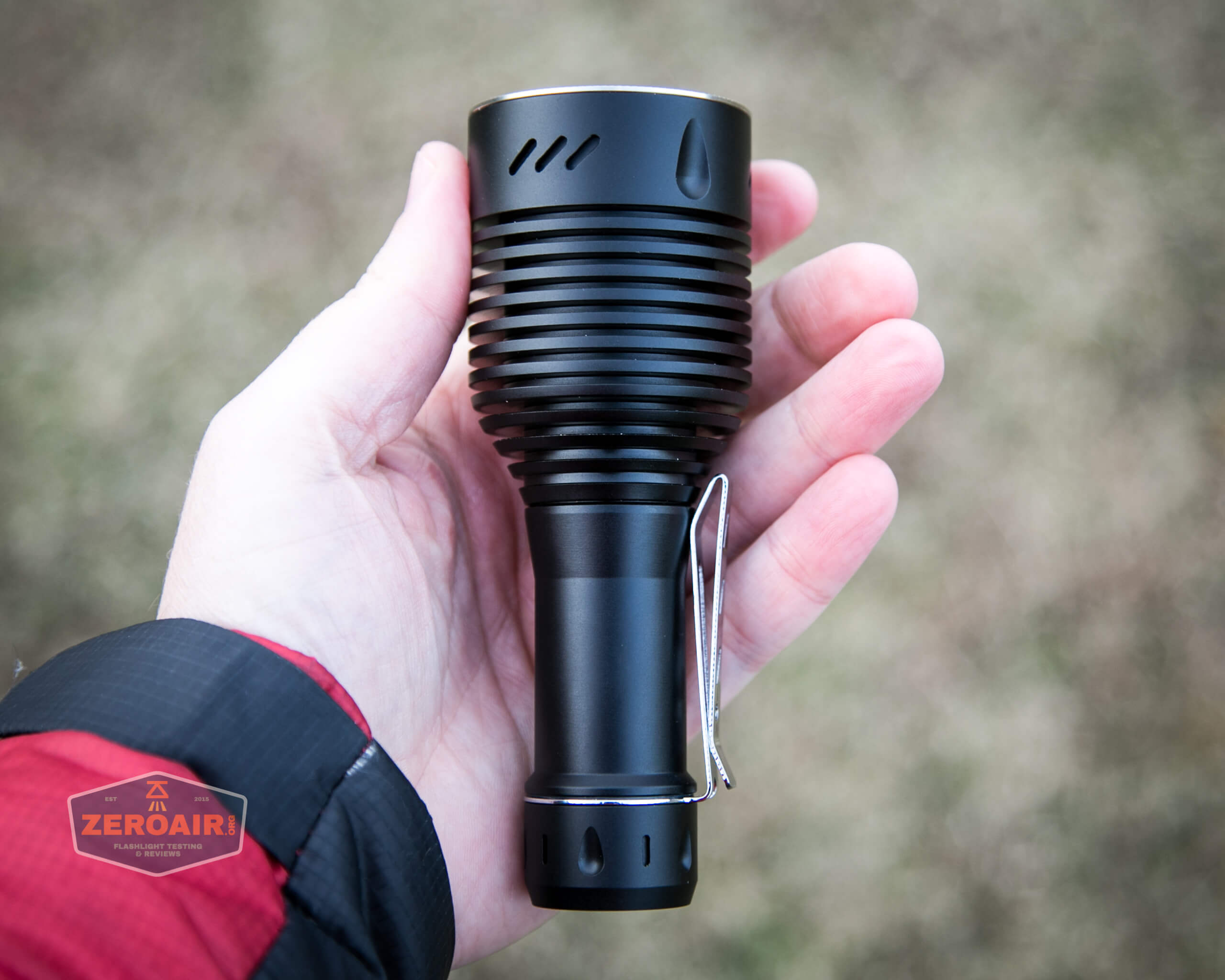

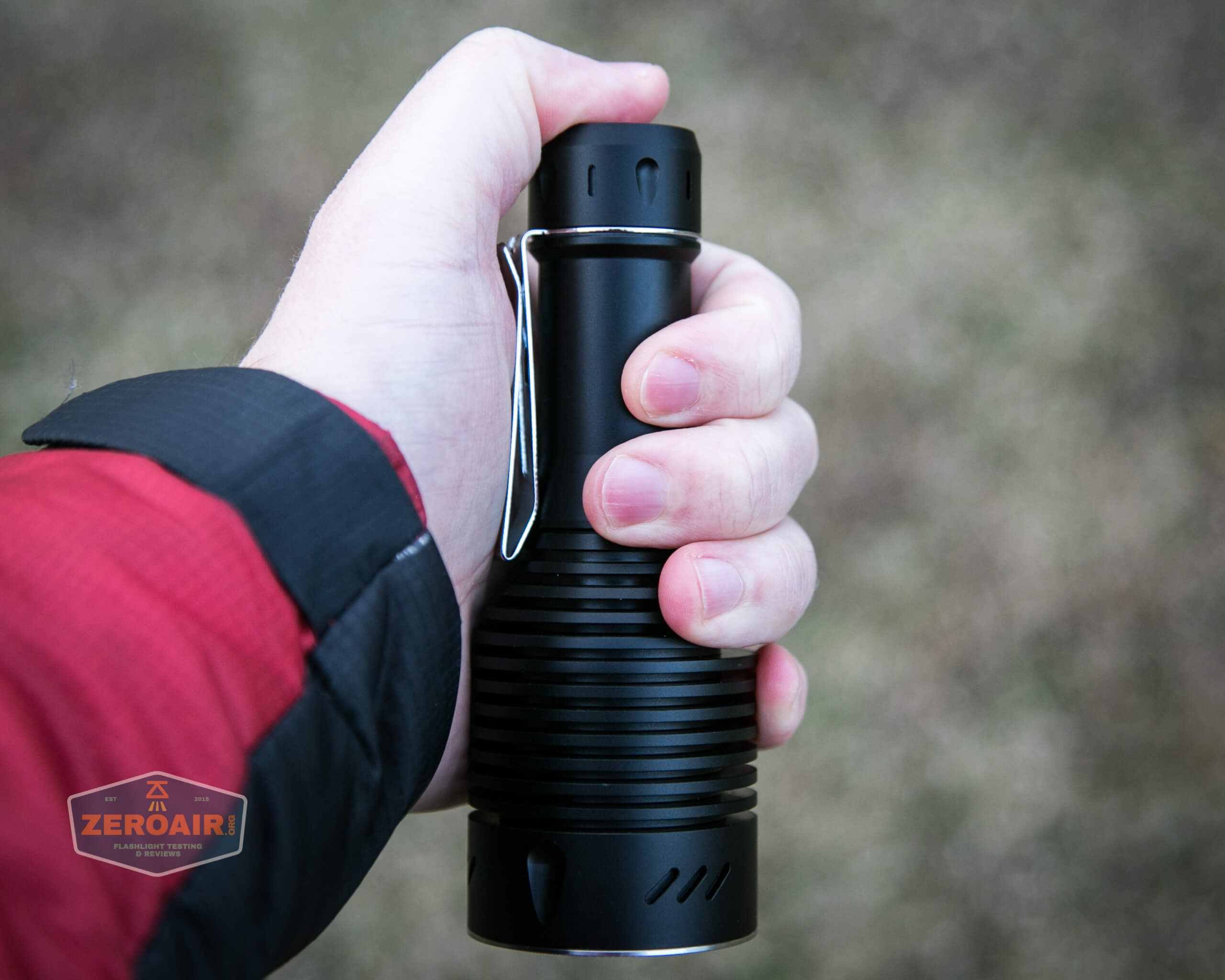

NlightD T90 luminus sbt-90.2 Andúril in hand

NlightD T90 luminus sbt-90.2 Andúril shiny pocket clip

NlightD T90 luminus sbt-90.2 Andúril two way clip

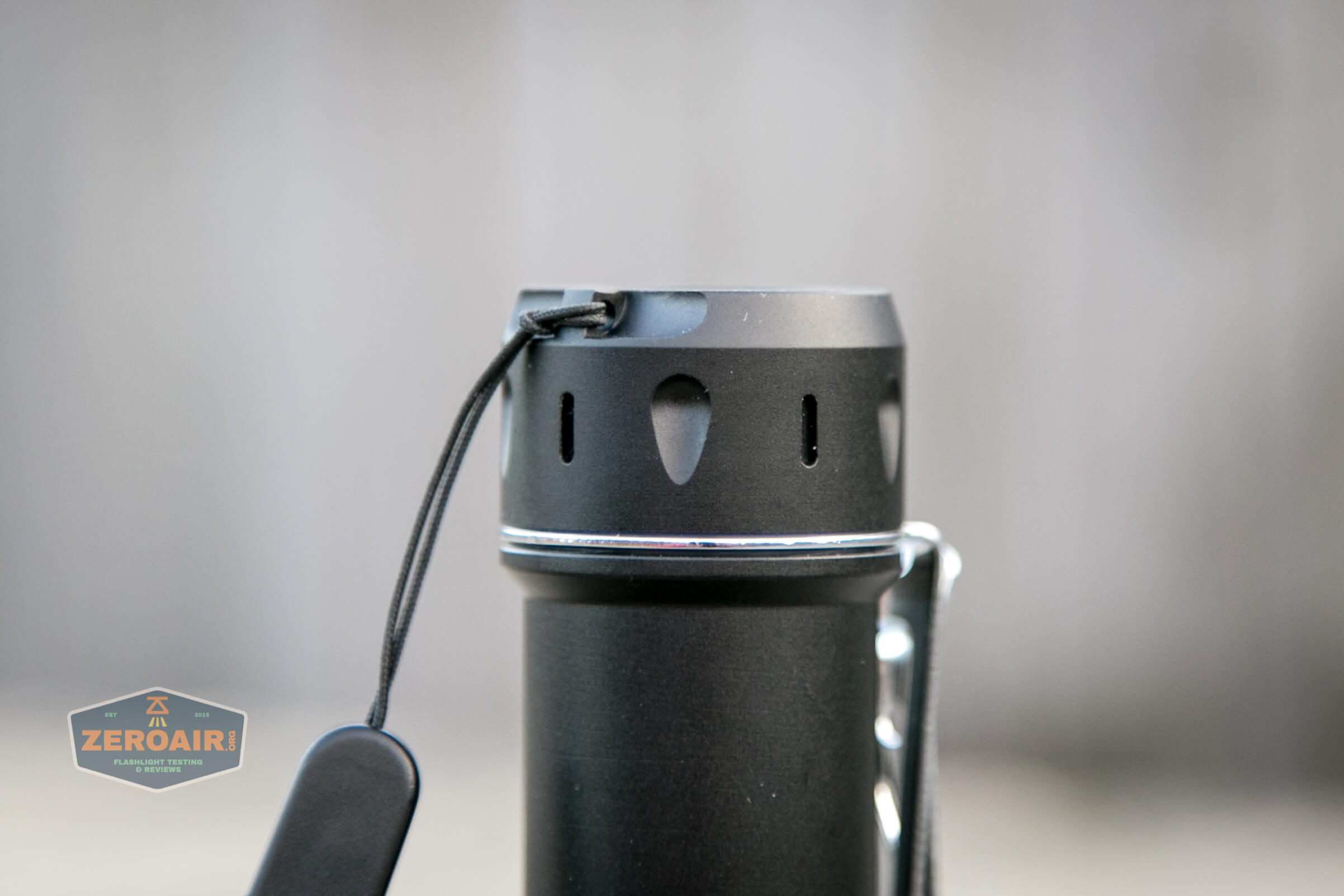

NlightD T90 luminus sbt-90.2 Andúril tailcap tritium and lanyard hole

NlightD T90 luminus sbt-90.2 Andúril lanyard hole

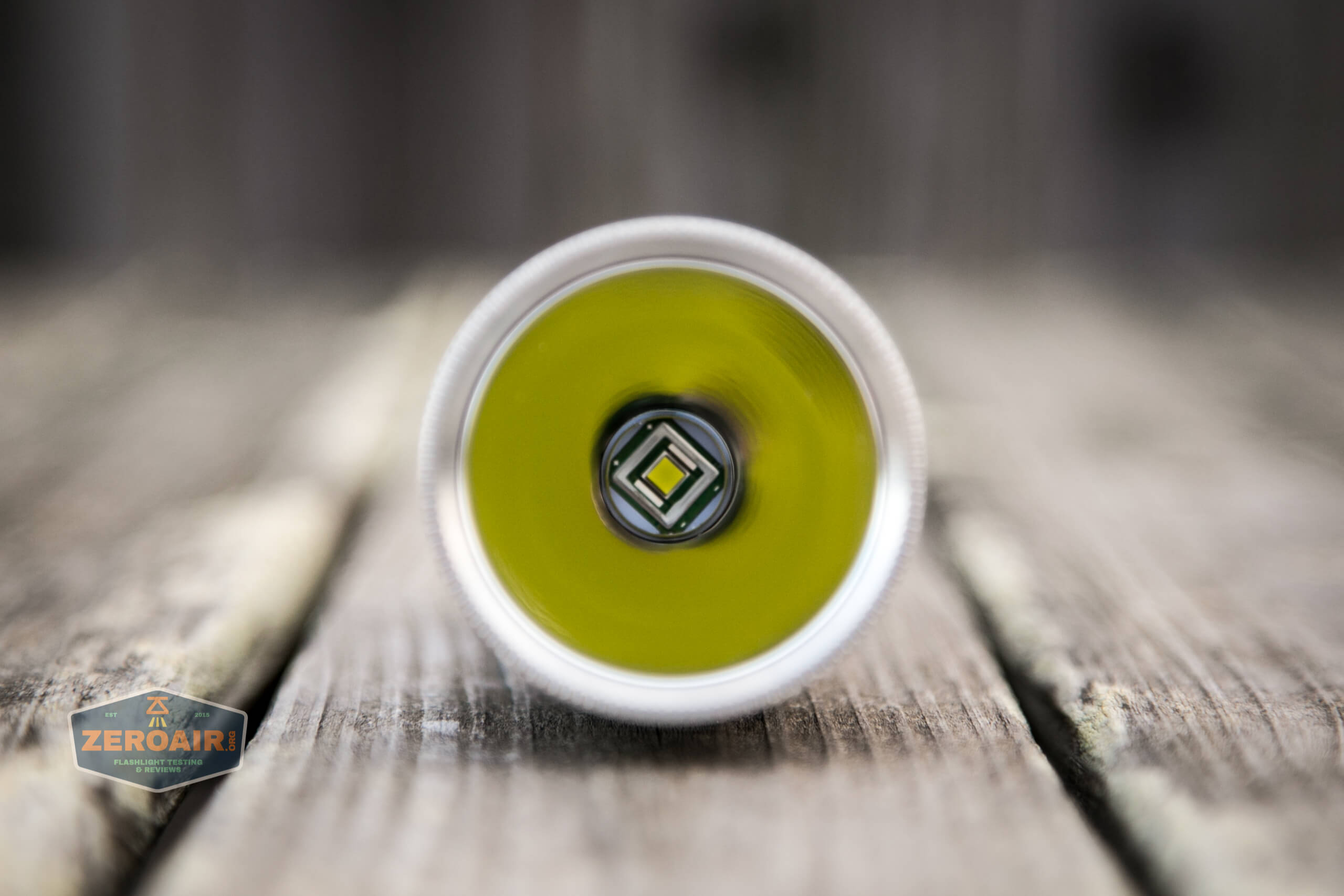

NlightD T90 luminus sbt-90.2 Andúril reflector

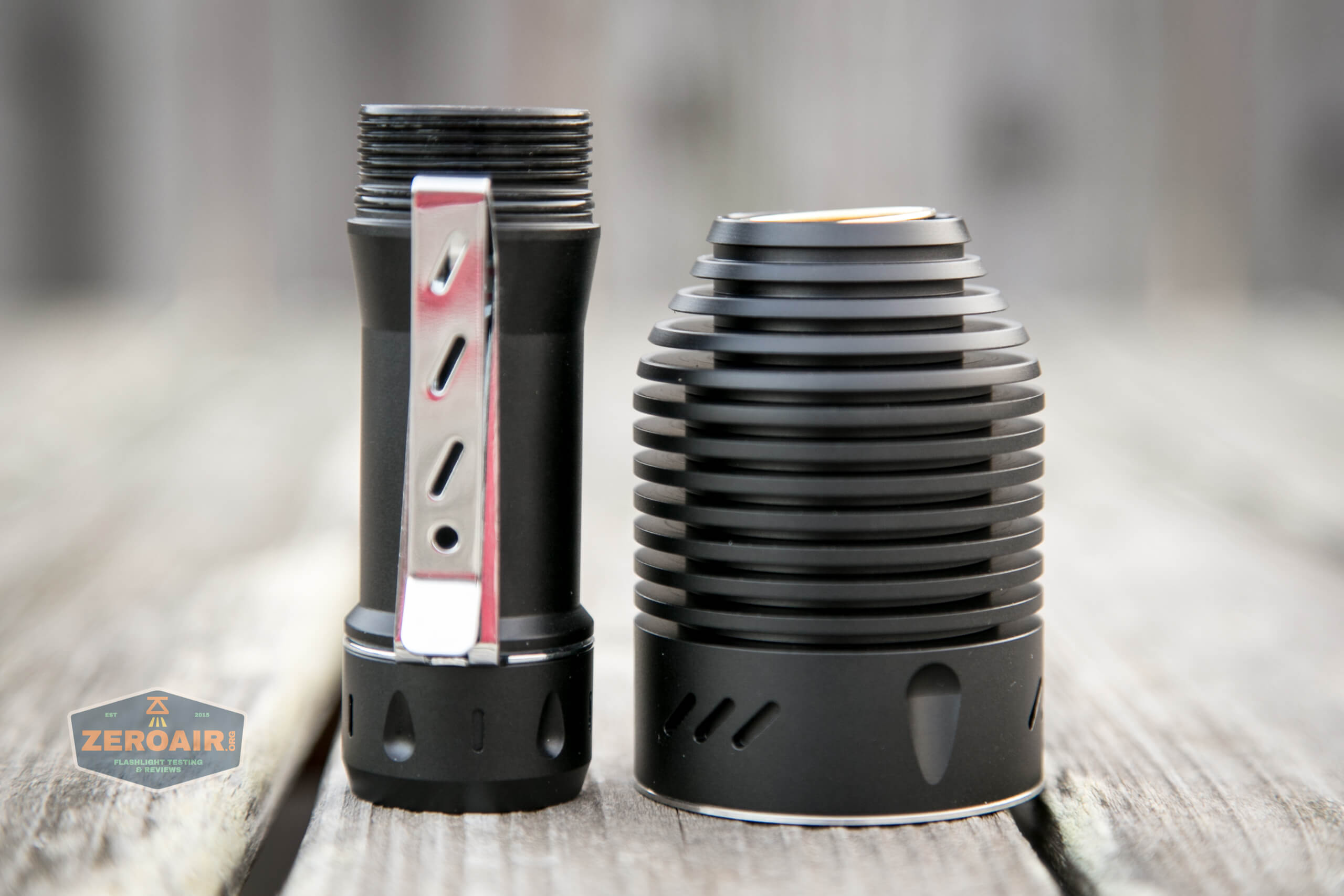

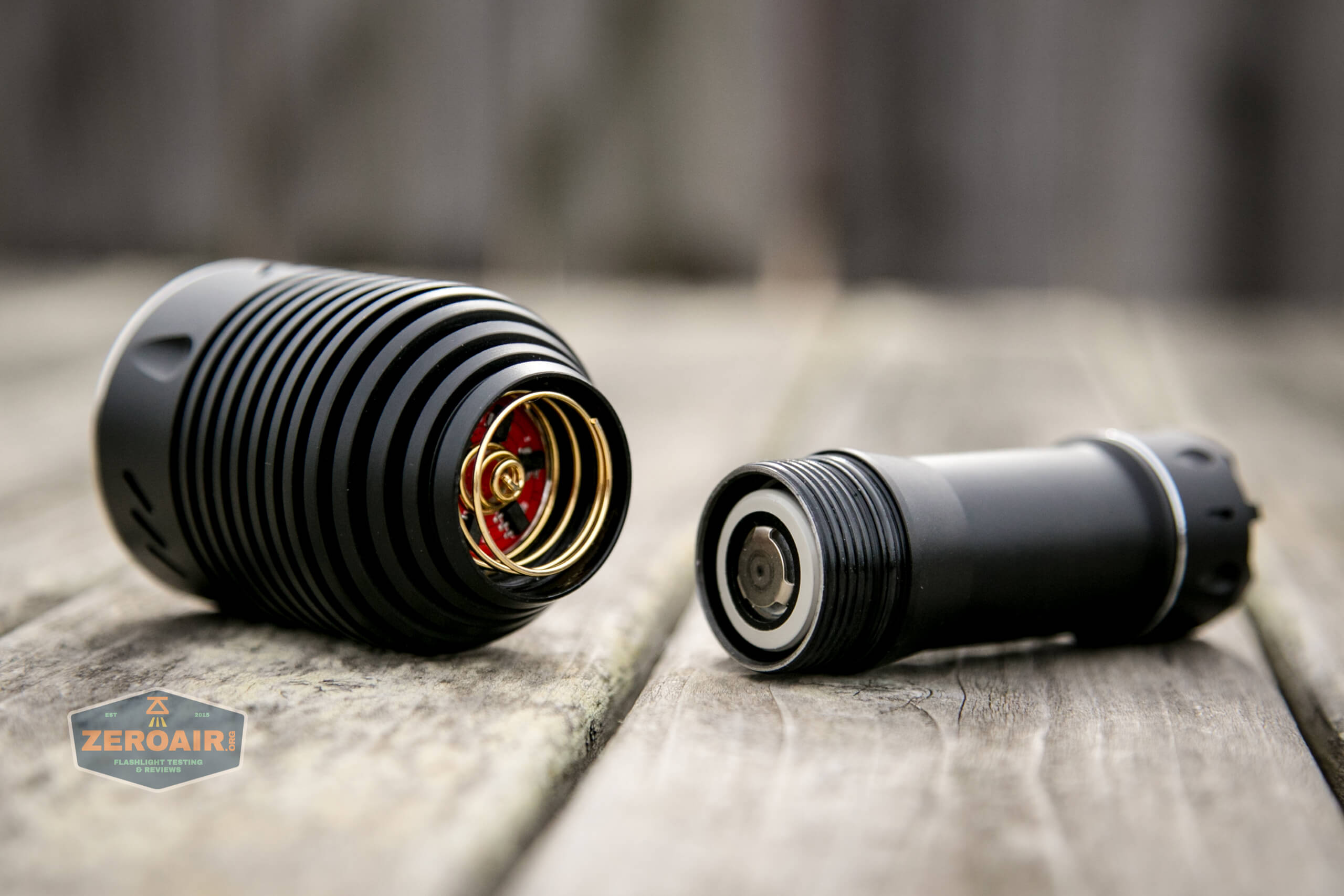

The light is designed to come apart between the head and the body.  These threads are quite long, but very smooth.

NlightD T90 luminus sbt-90.2 Andúril head removed

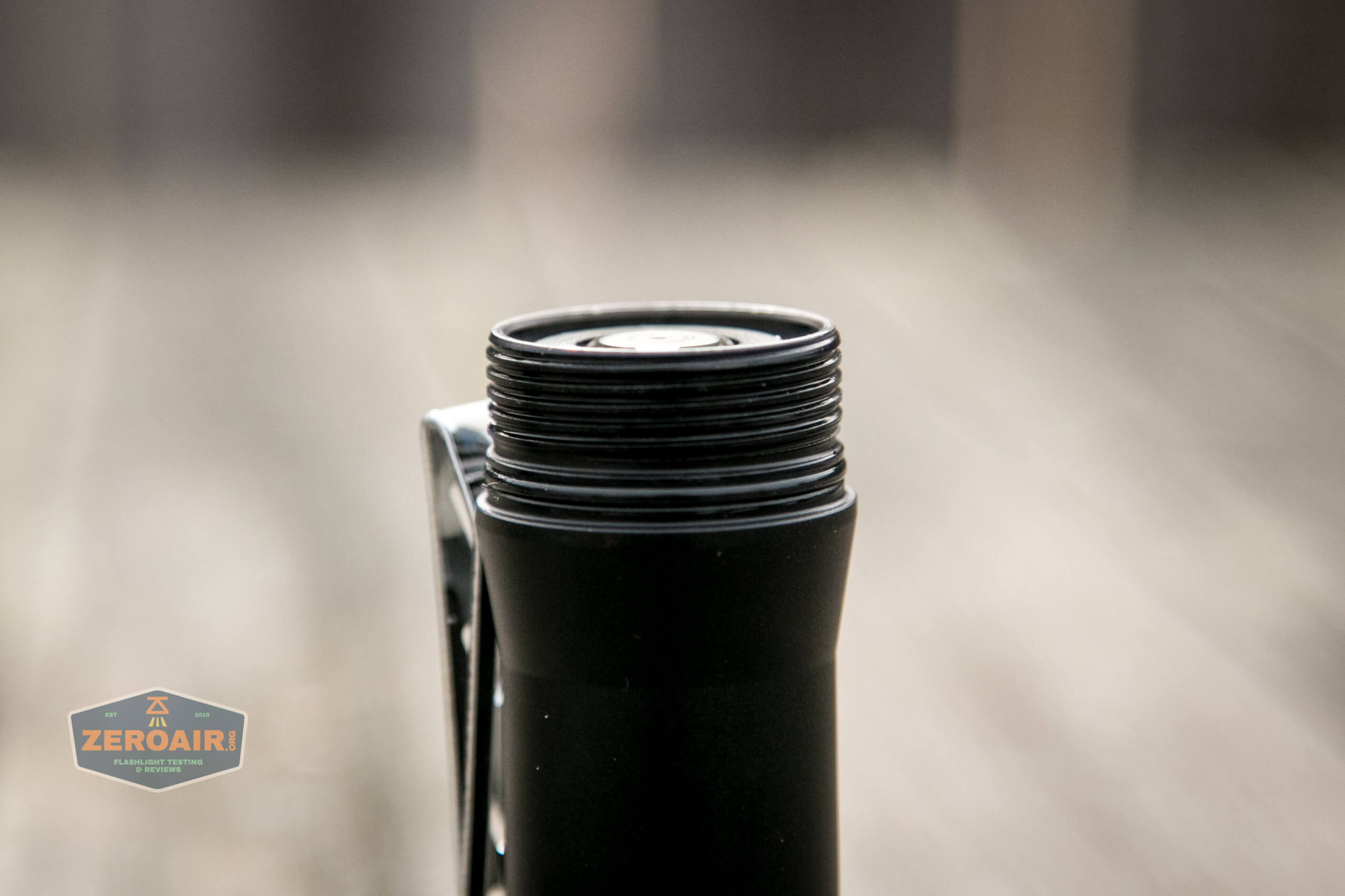

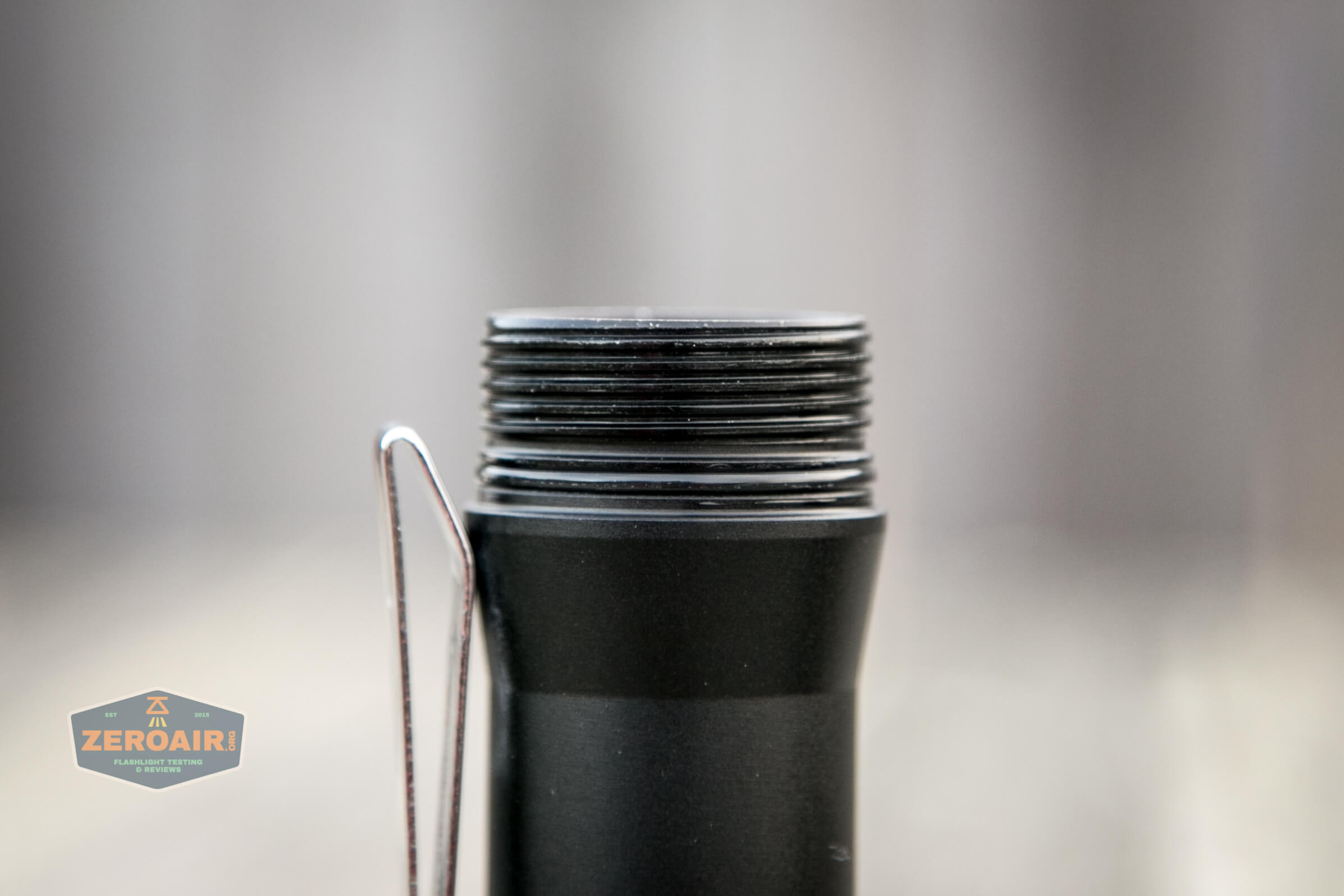

They’re anodized, well lubed, and square cut.

NlightD T90 luminus sbt-90.2 Andúril threads

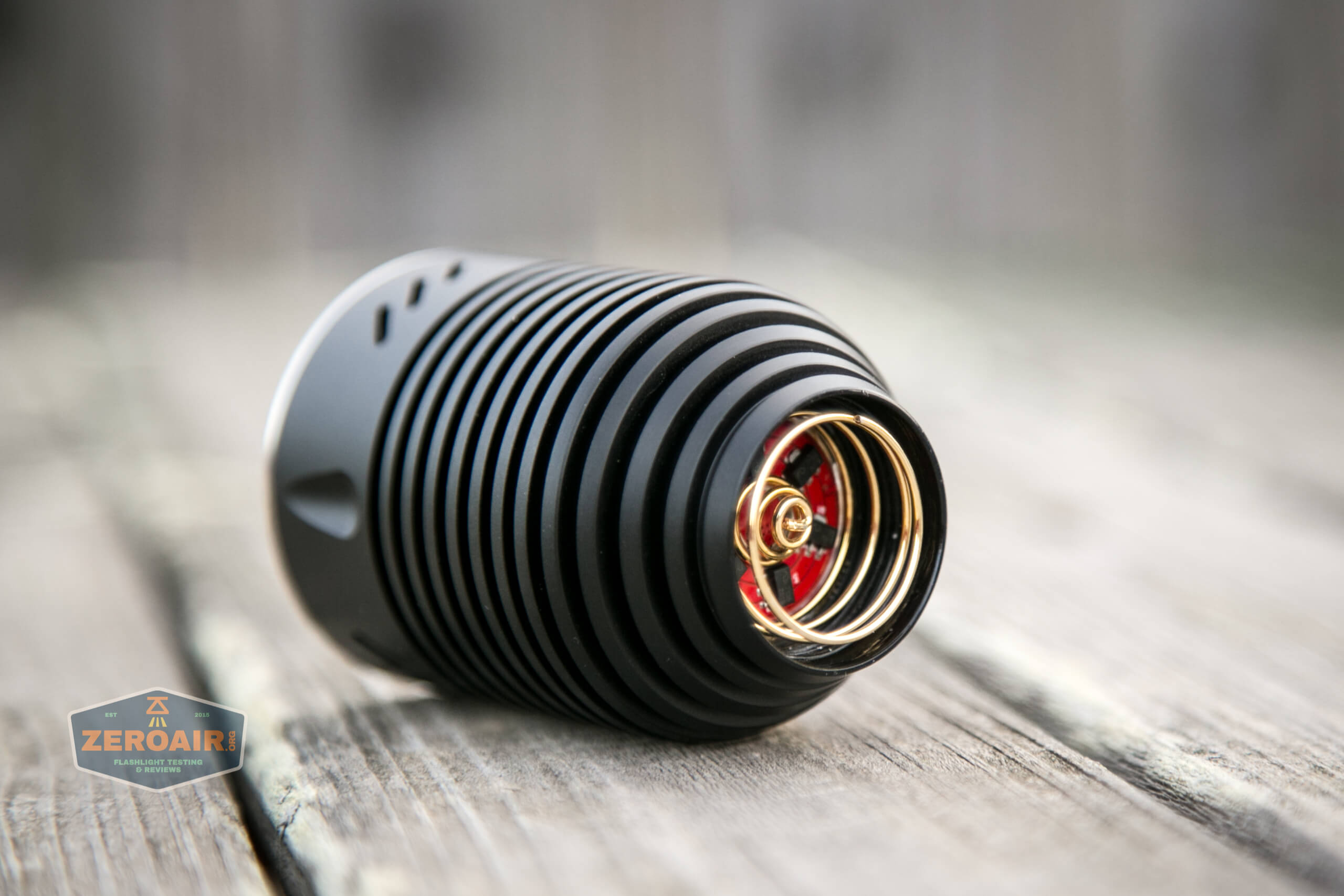

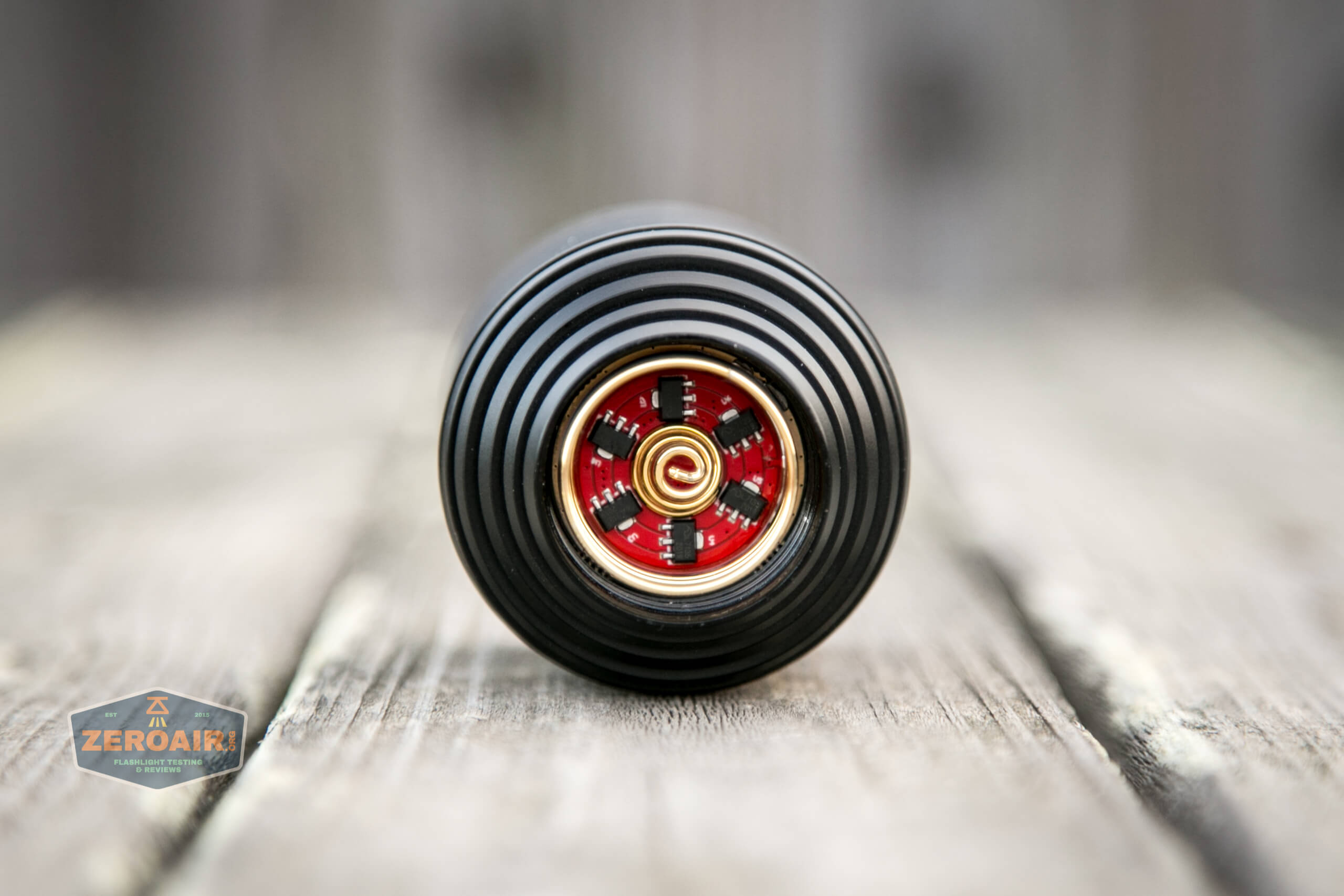

The head has two springs actually, one of which makes contact with the positive of the cell.  The other spring connects with the inner sleeve (more on that later), and gives power to the e-switch.

NlightD T90 luminus sbt-90.2 Andúril showing spring and driver

That bigger spring looks like it’d come out but it seems to be captured.

NlightD T90 luminus sbt-90.2 Andúril showing two springs in head

An adapter is included for using 18650 cells.

NlightD T90 luminus sbt-90.2 Andúril 21700 and adapter

The e-switch of the T90 needs power, so that’s provided with this inner sleeve.

NlightD T90 luminus sbt-90.2 Andúril inner sleeve

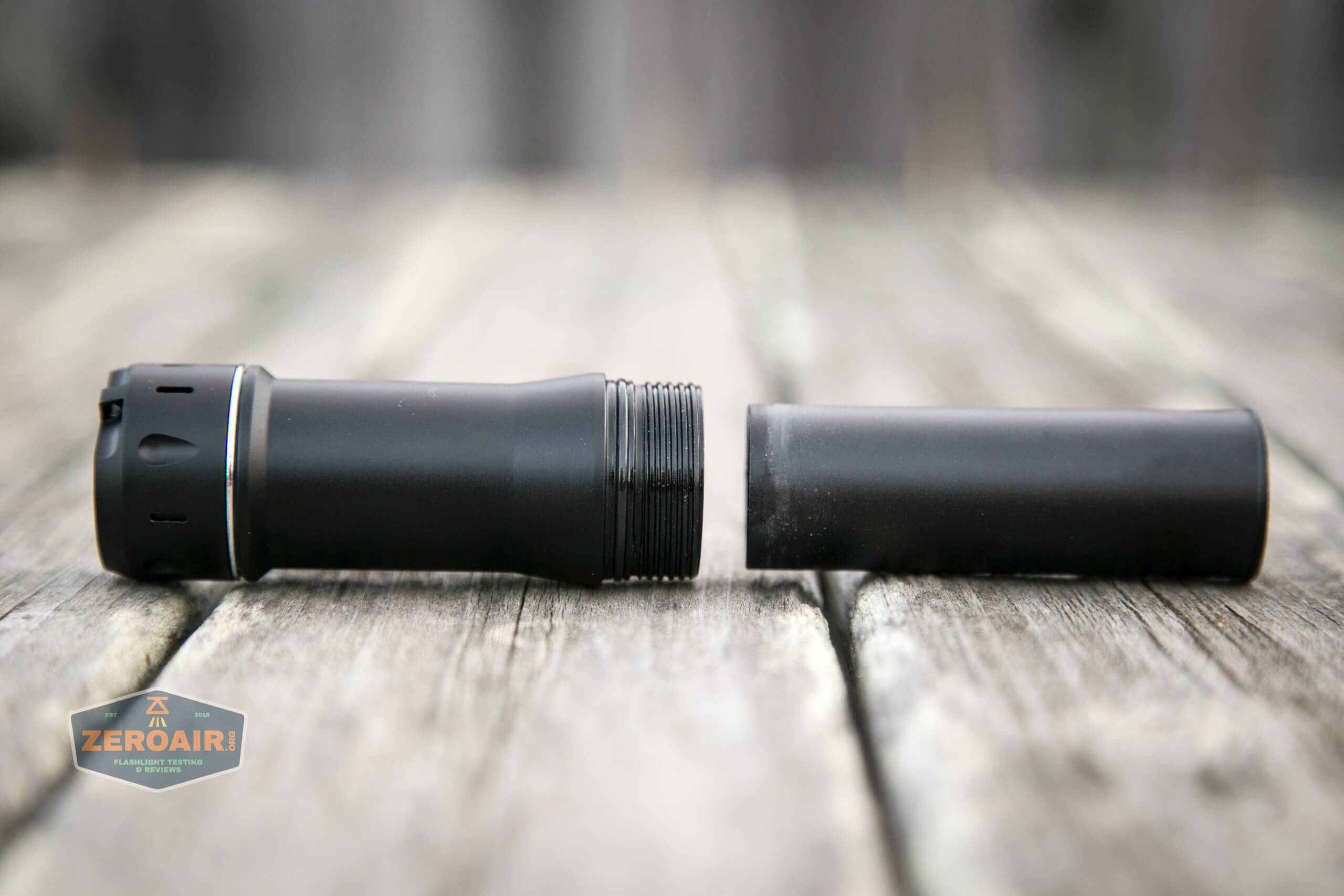

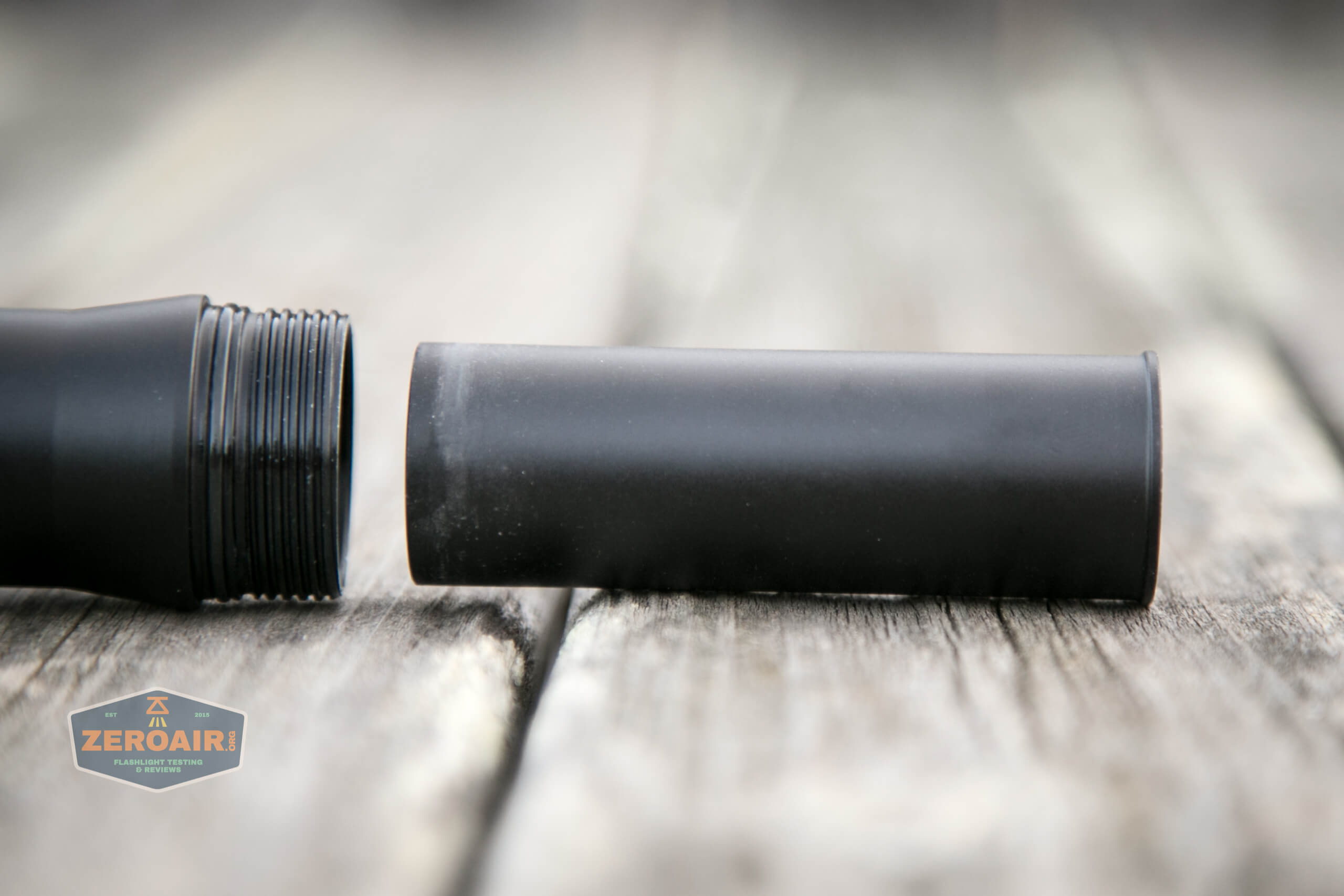

The sleeve is not captured which is a little surprising.  It’s also not the same on either end so will fit into the light in only one way.  Below you can see that way – the lip goes toward the head.

NlightD T90 luminus sbt-90.2 Andúril inner sleeve removed

NlightD T90 luminus sbt-90.2 Andúril inner sleeve

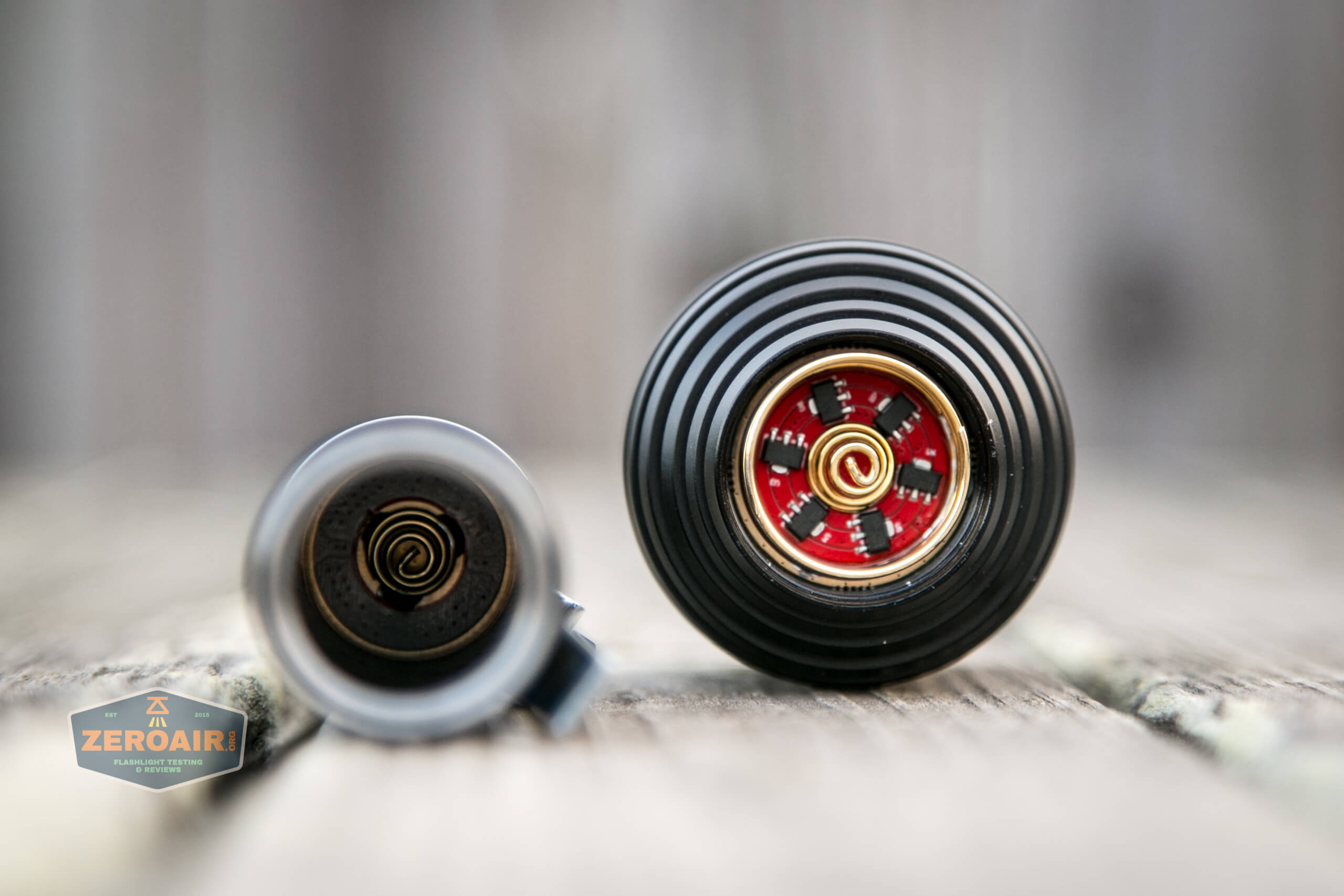

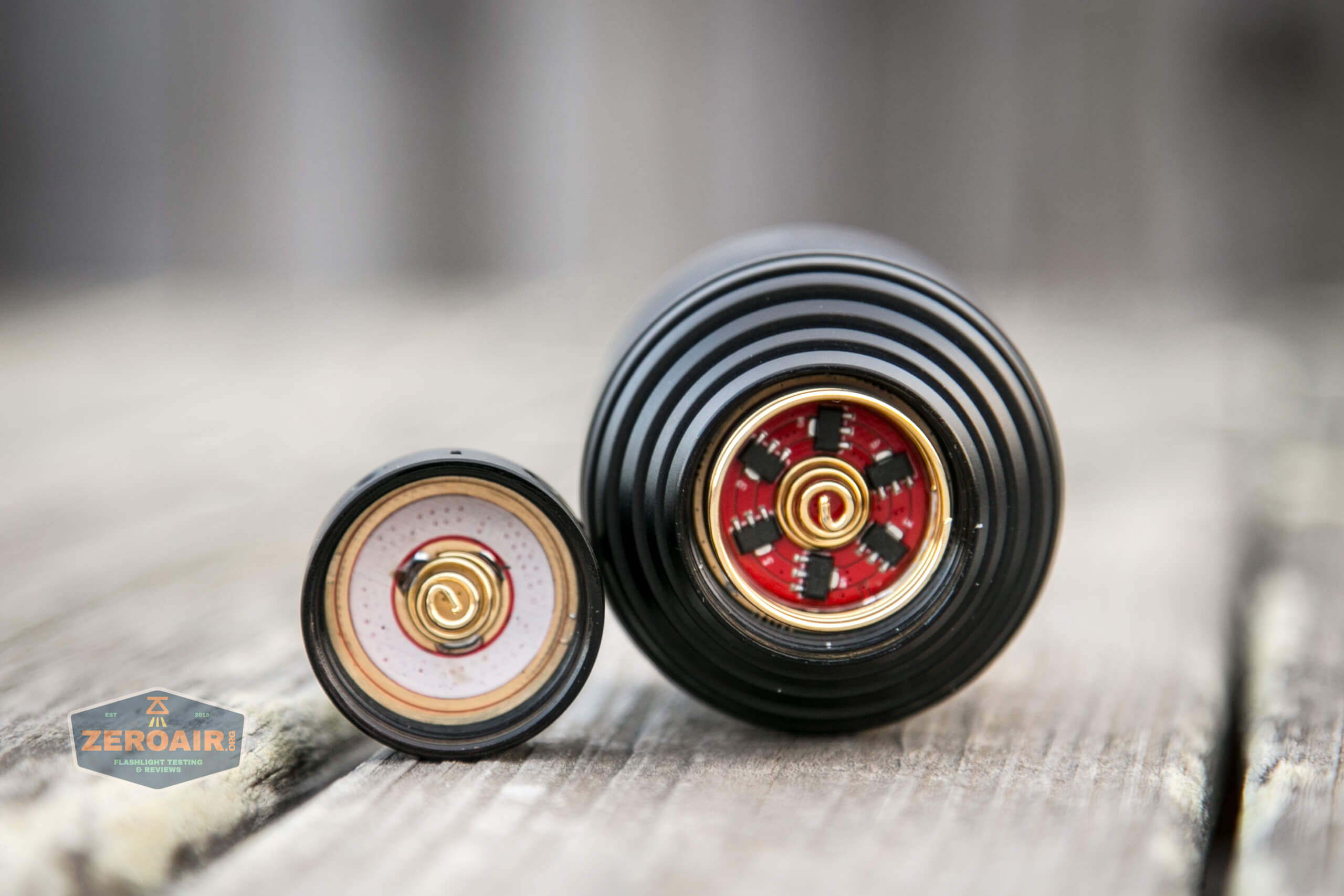

Both ends have springs.

NlightD T90 luminus sbt-90.2 Andúril showing head and tail springs

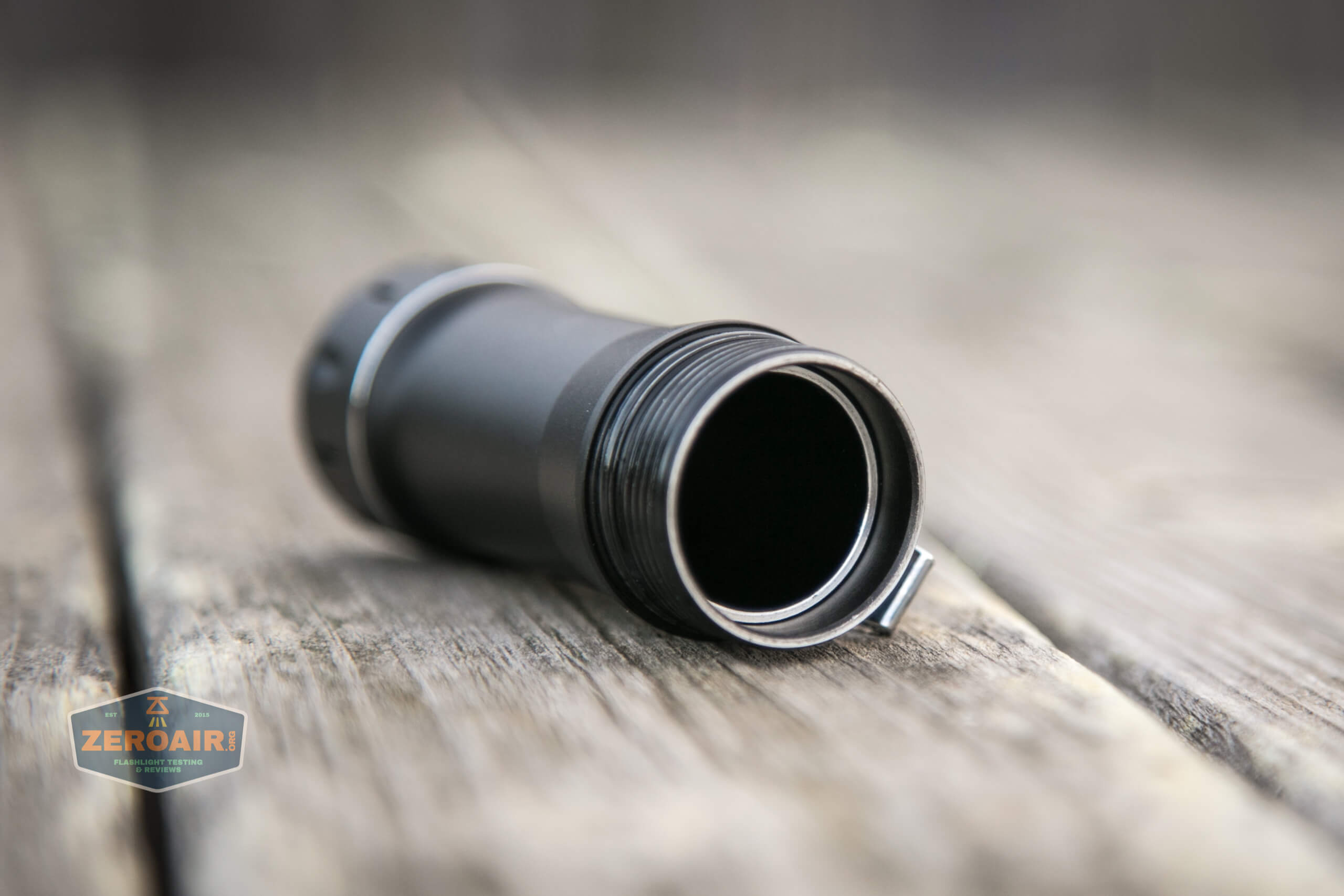

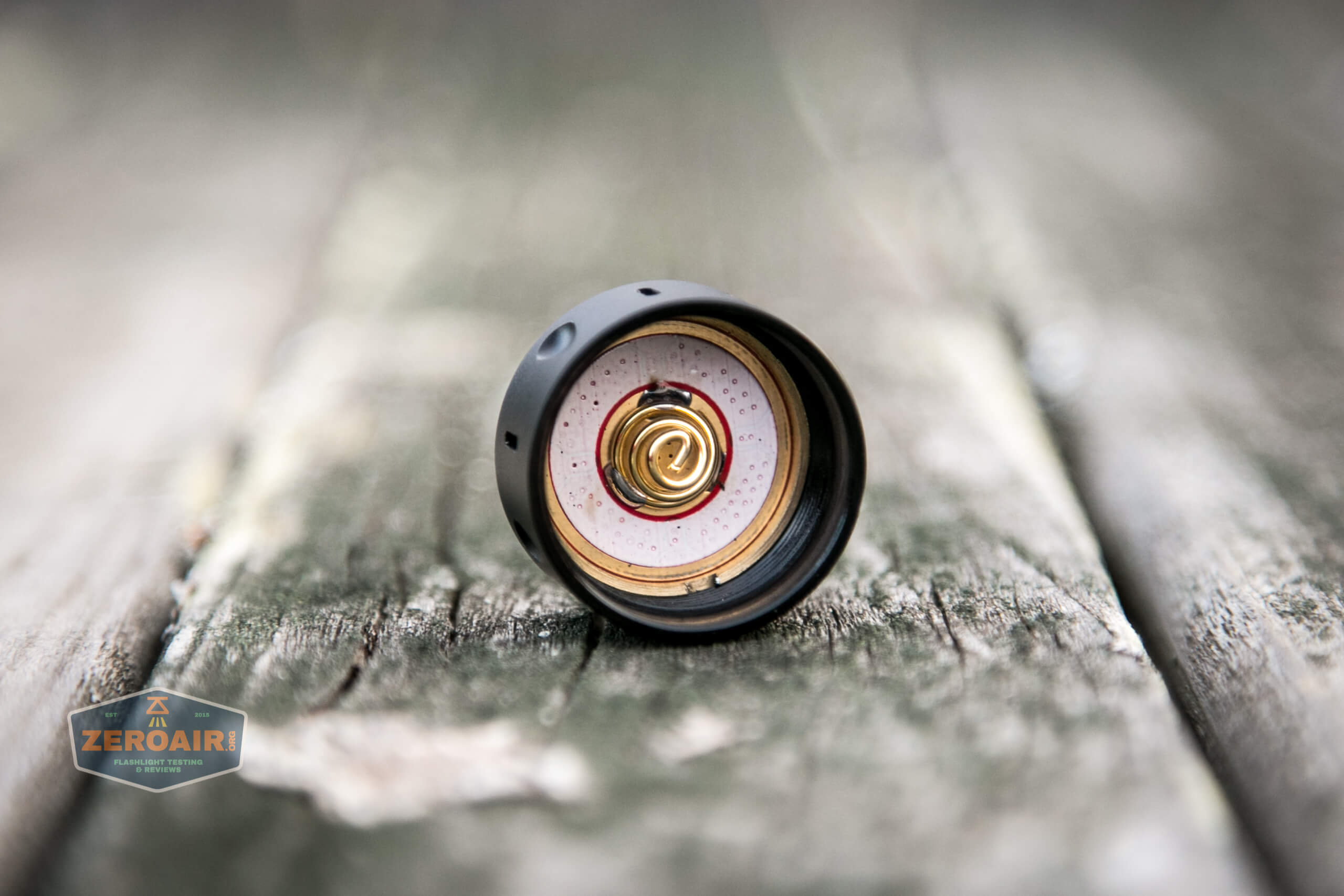

The tailcap is removable too, but as with all the other FW type lights, I recommend removing the head for cell swaps.  You are less likely to run into problems with the e-switch this way.

NlightD T90 luminus sbt-90.2 Andúril head and tail springs

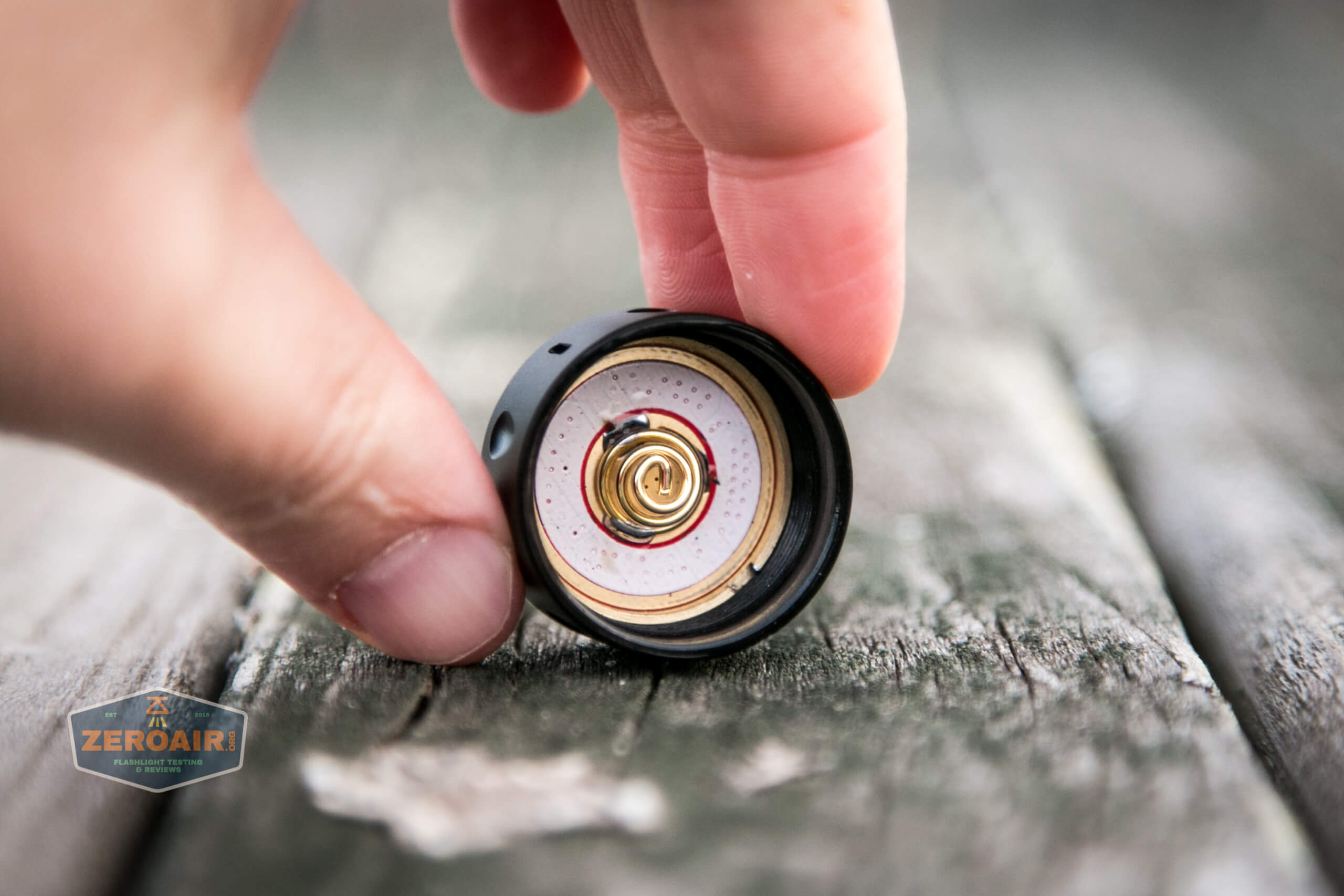

NlightD T90 luminus sbt-90.2 Andúril tailcap spring

NlightD T90 luminus sbt-90.2 Andúril tailcap spring

Below is just a fun photo.  The light doesn’t work this way of course.  🙂

NlightD T90 luminus sbt-90.2 Andúril shorty (joke)

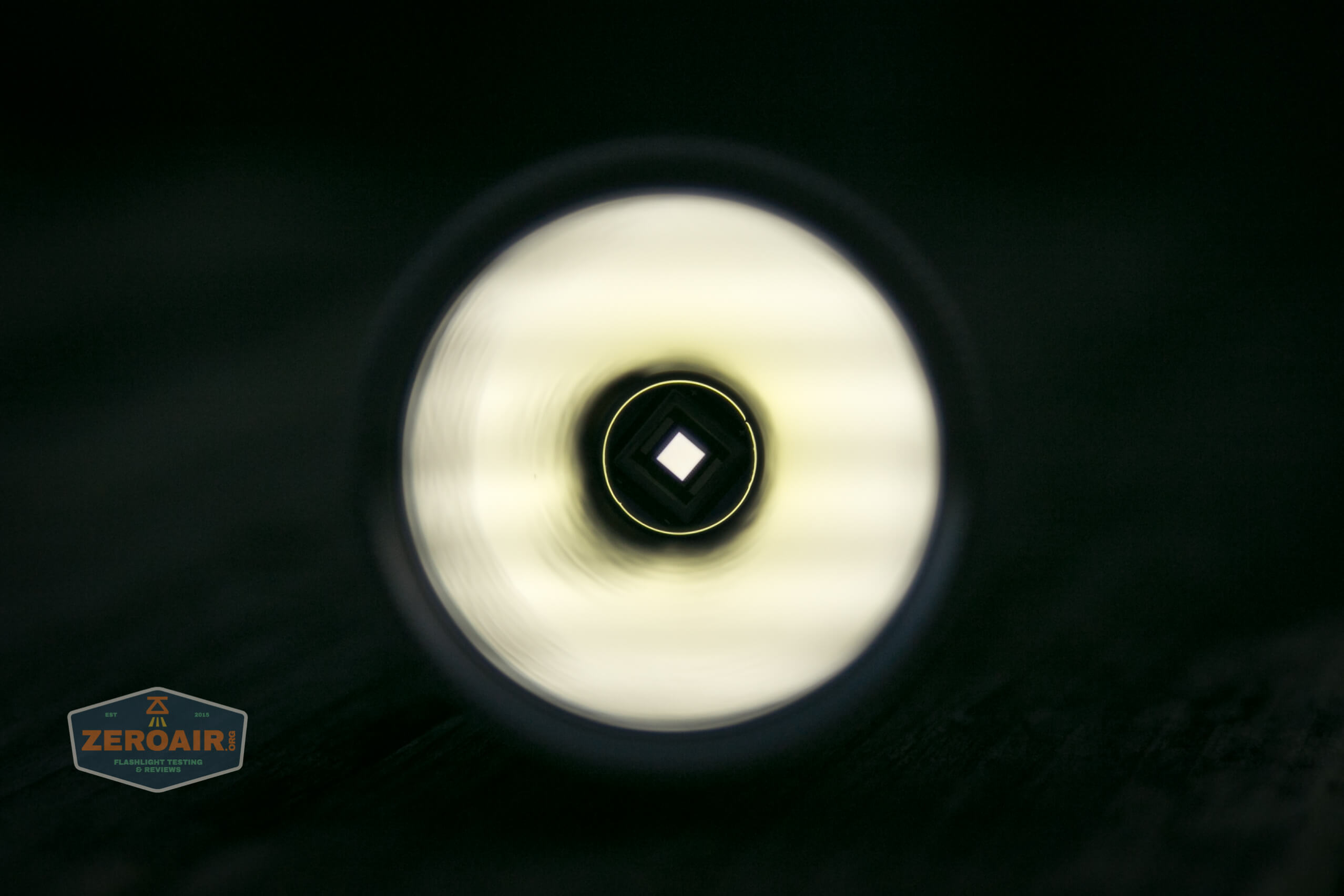

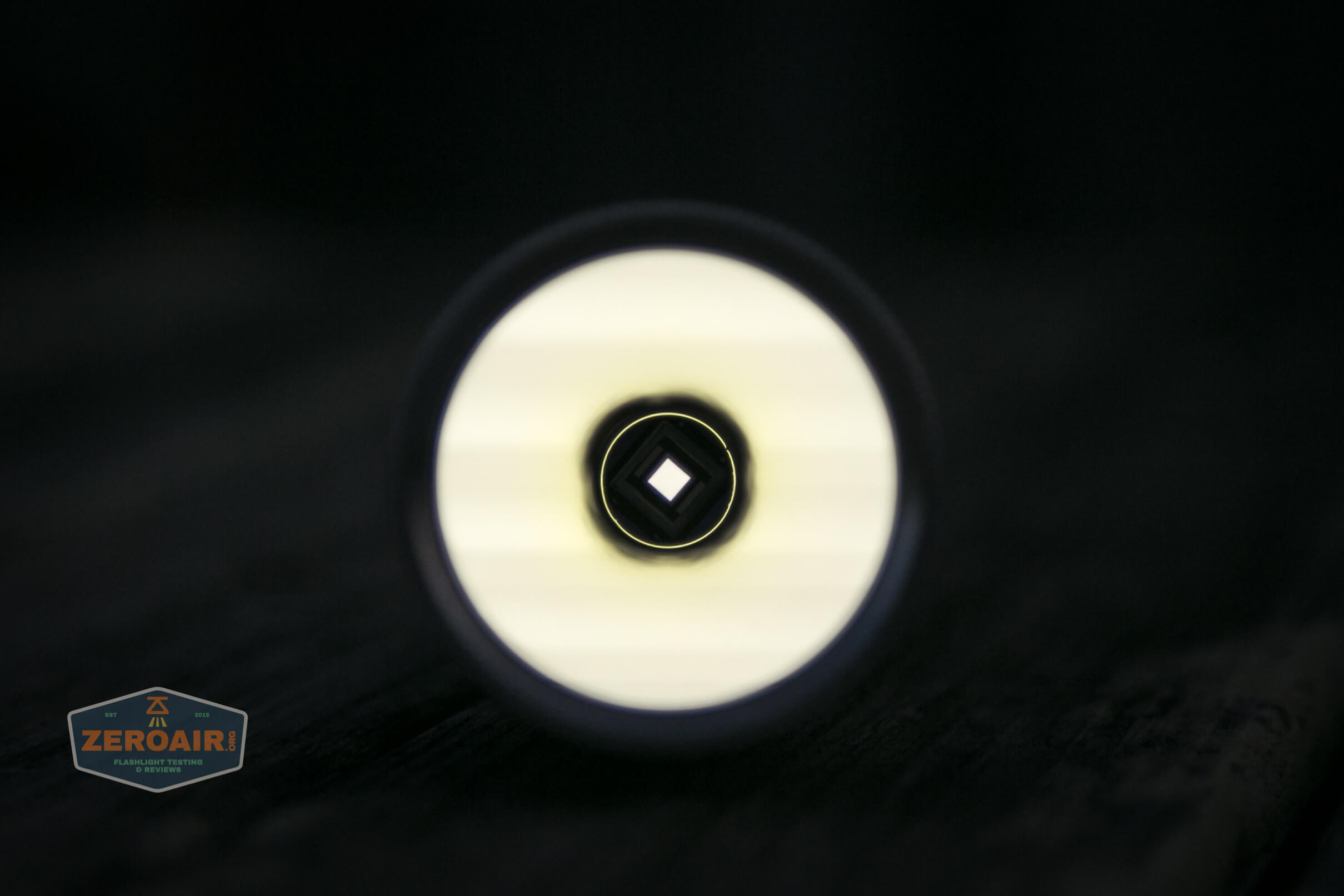

With the emitter on low, you can see how well the reflector is picking up all the light.  Also you can get a hint of PWM here, too.

NlightD T90 luminus sbt-90.2 Andúril on low

The bezel is very finely toothed.  Not a strike bezel, but it does let a bit of light escape when headstanding.  I believe the bezel is stainless steel.

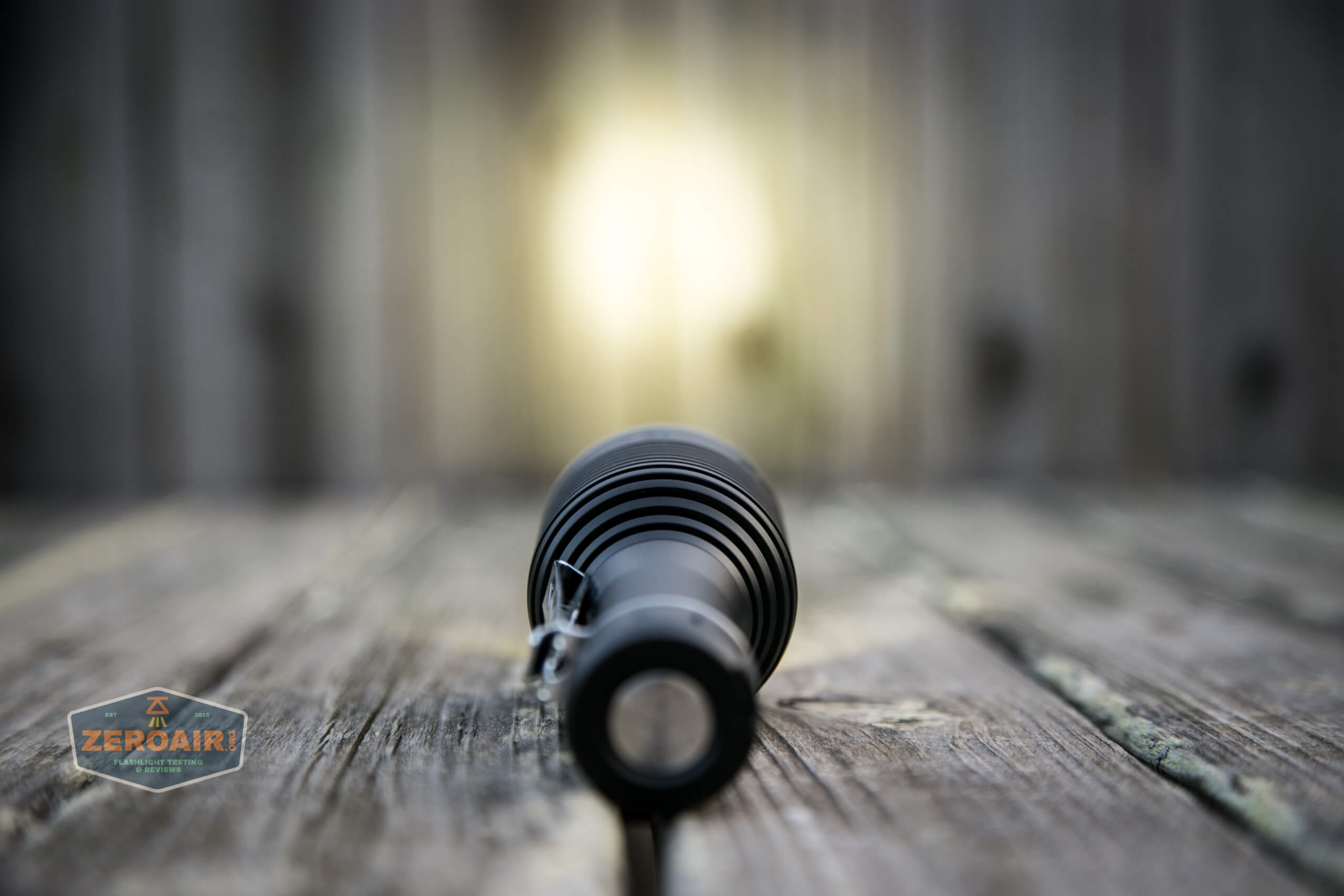

NlightD T90 luminus sbt-90.2 Andúril light under bezel

NlightD T90 luminus sbt-90.2 Andúril collar clip

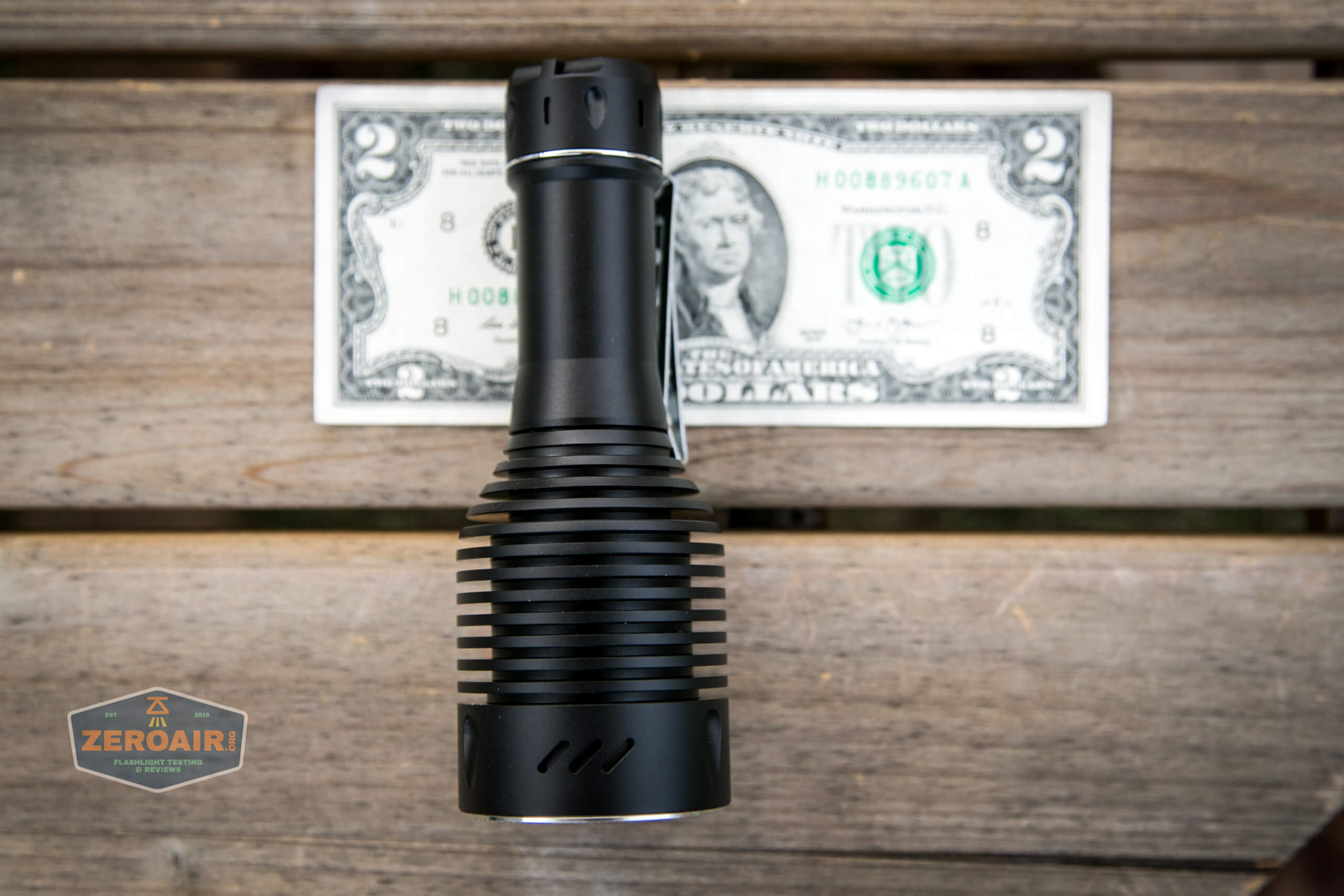

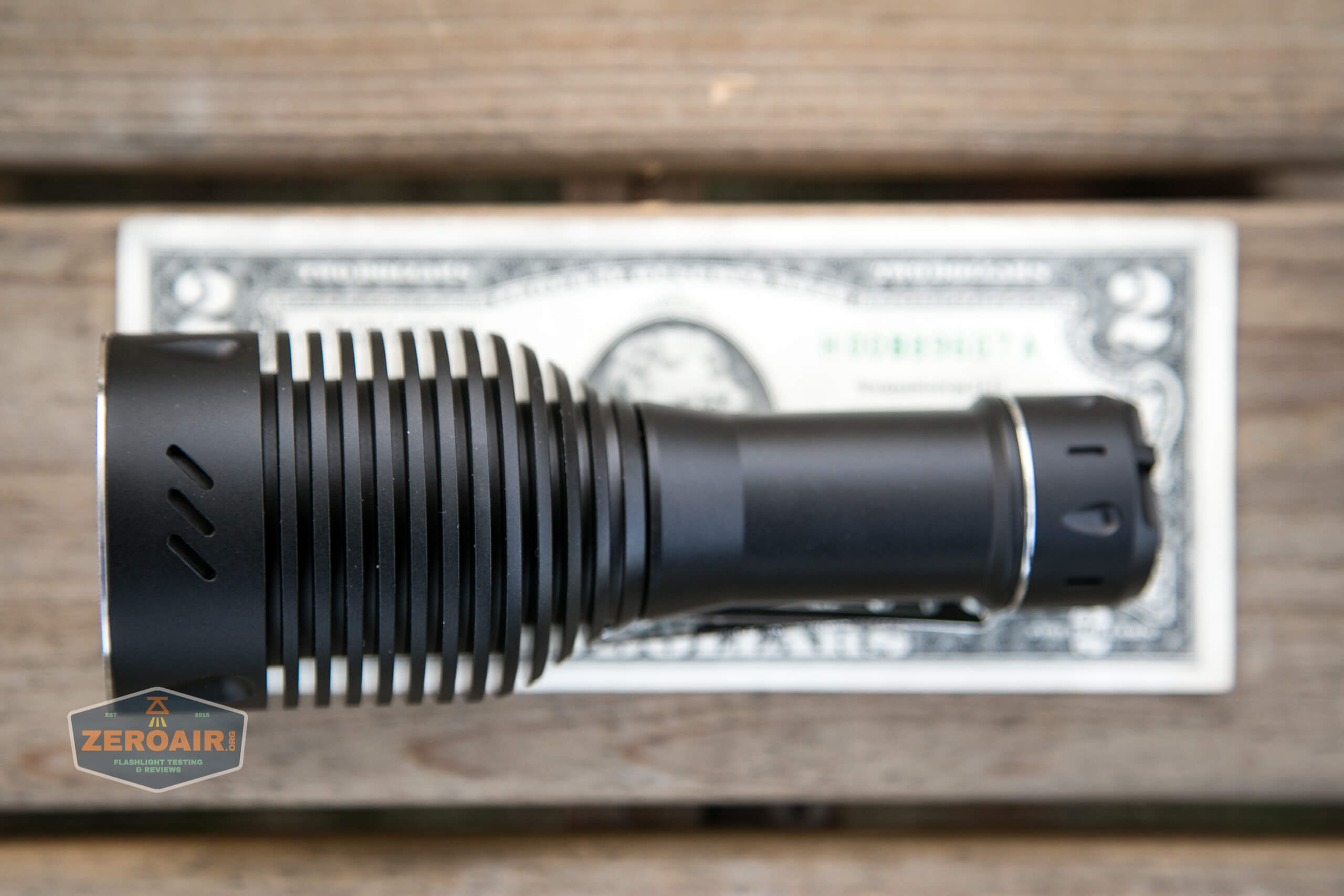

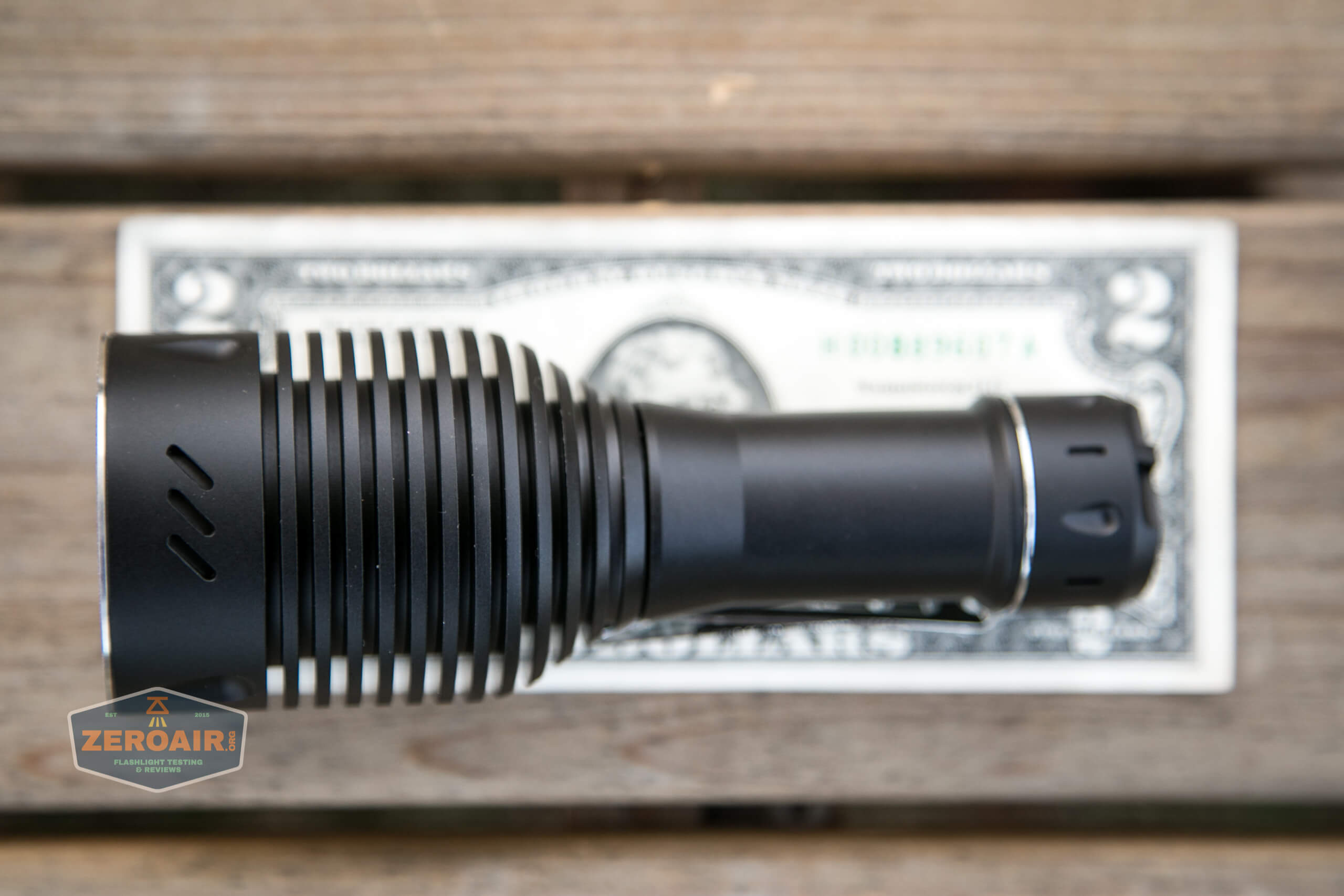

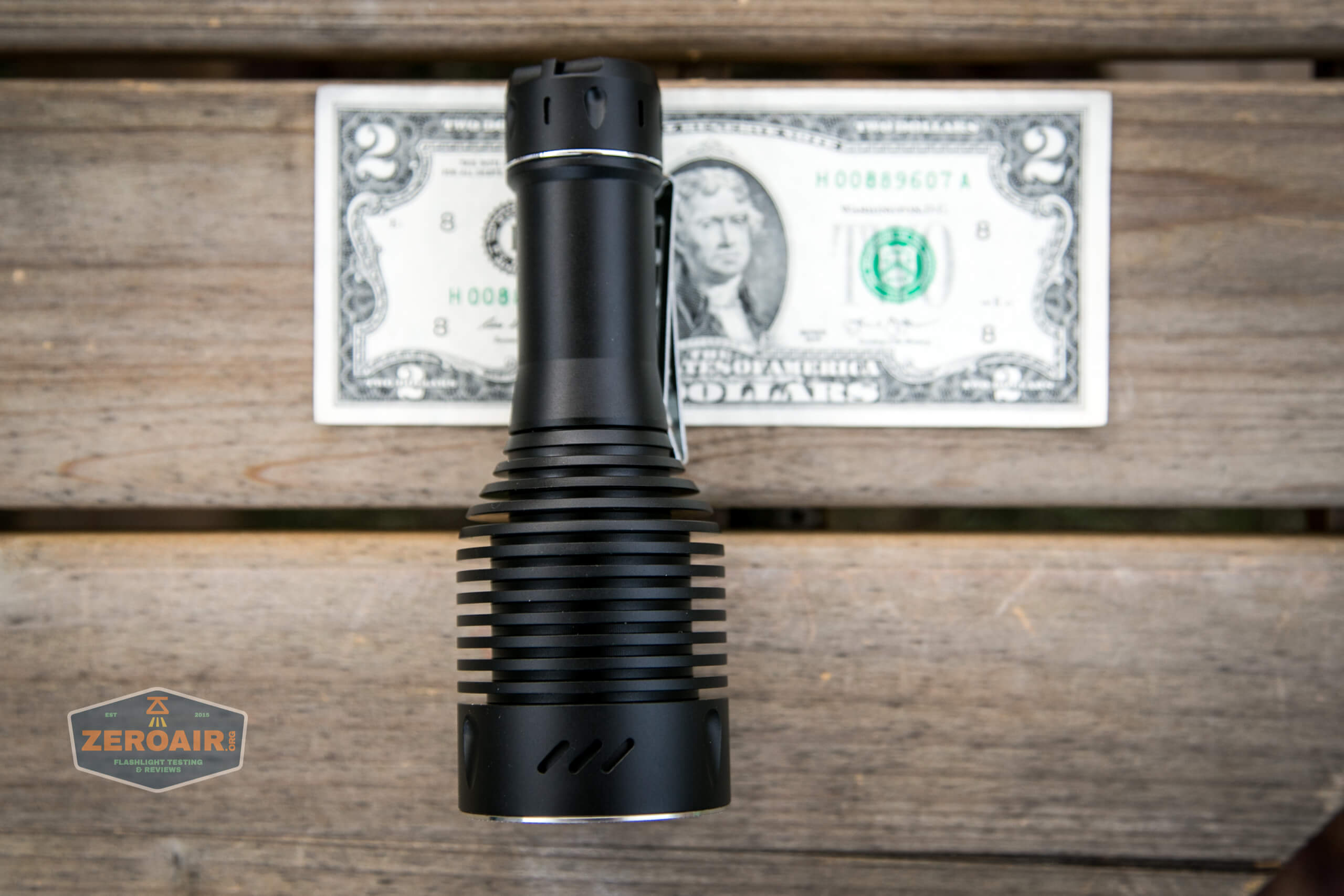

Size and Comps

Weight: Approximately 209.2 g without cells
Size: 50 mm Ø head x 137 mm length x 26.5mm tube

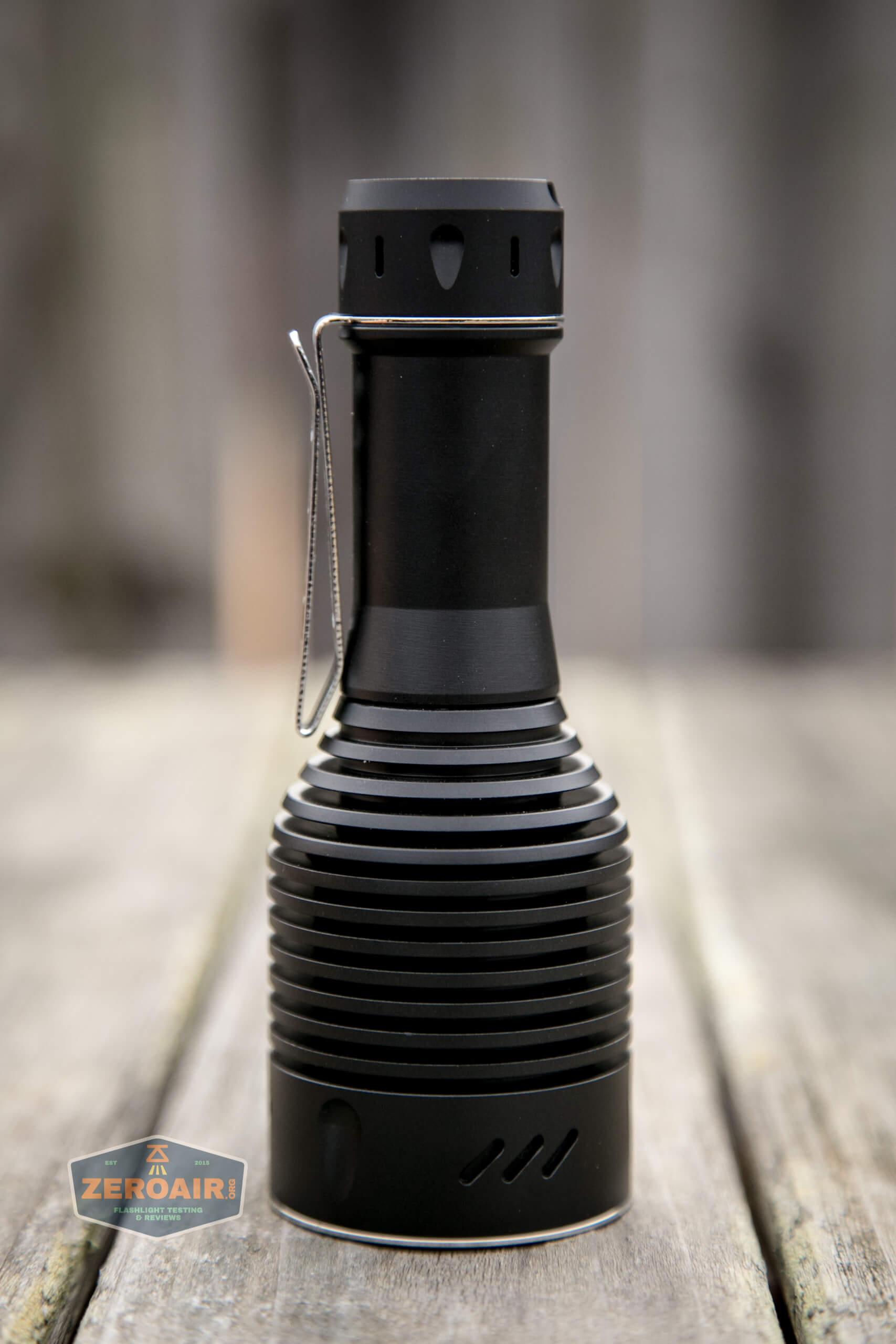

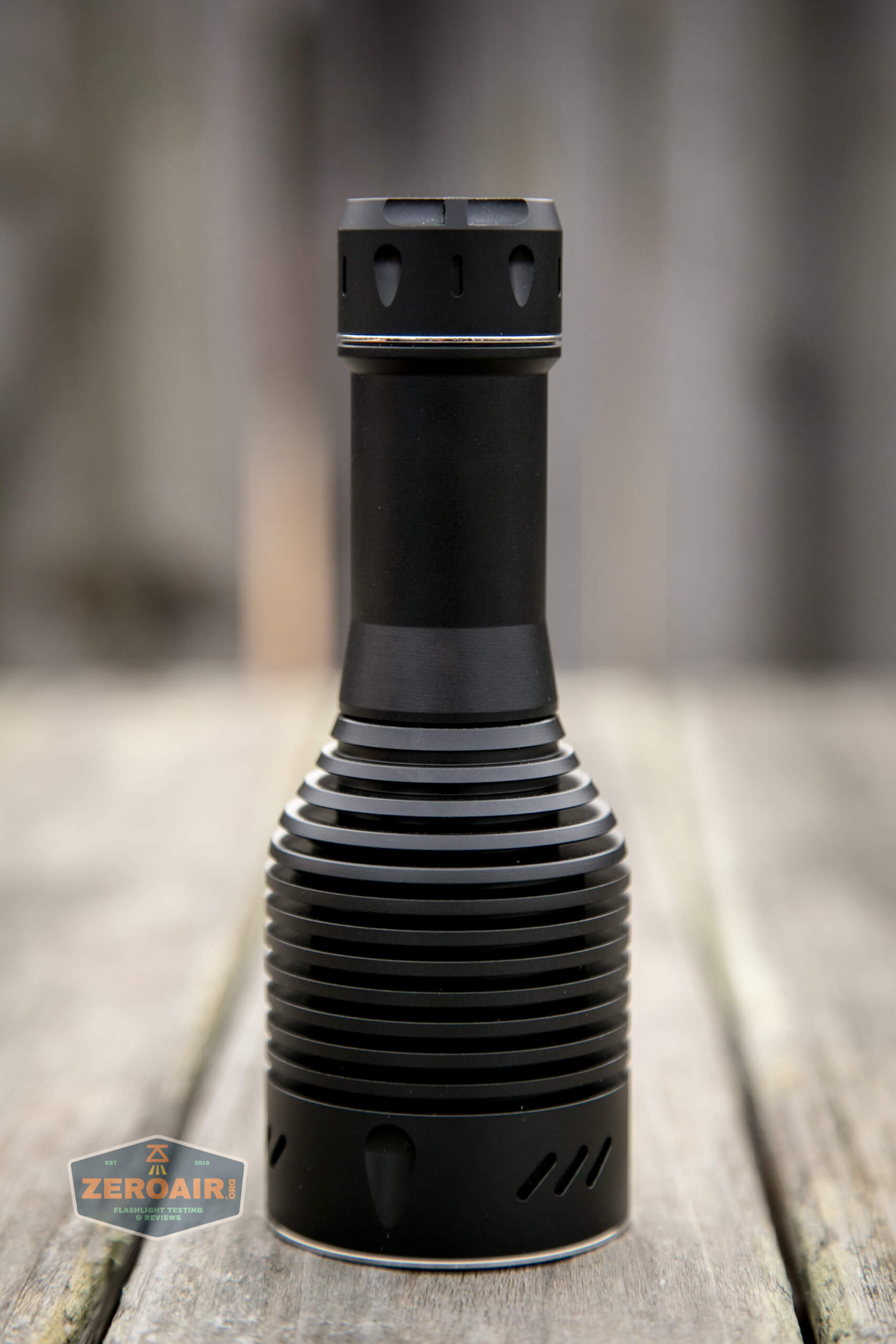

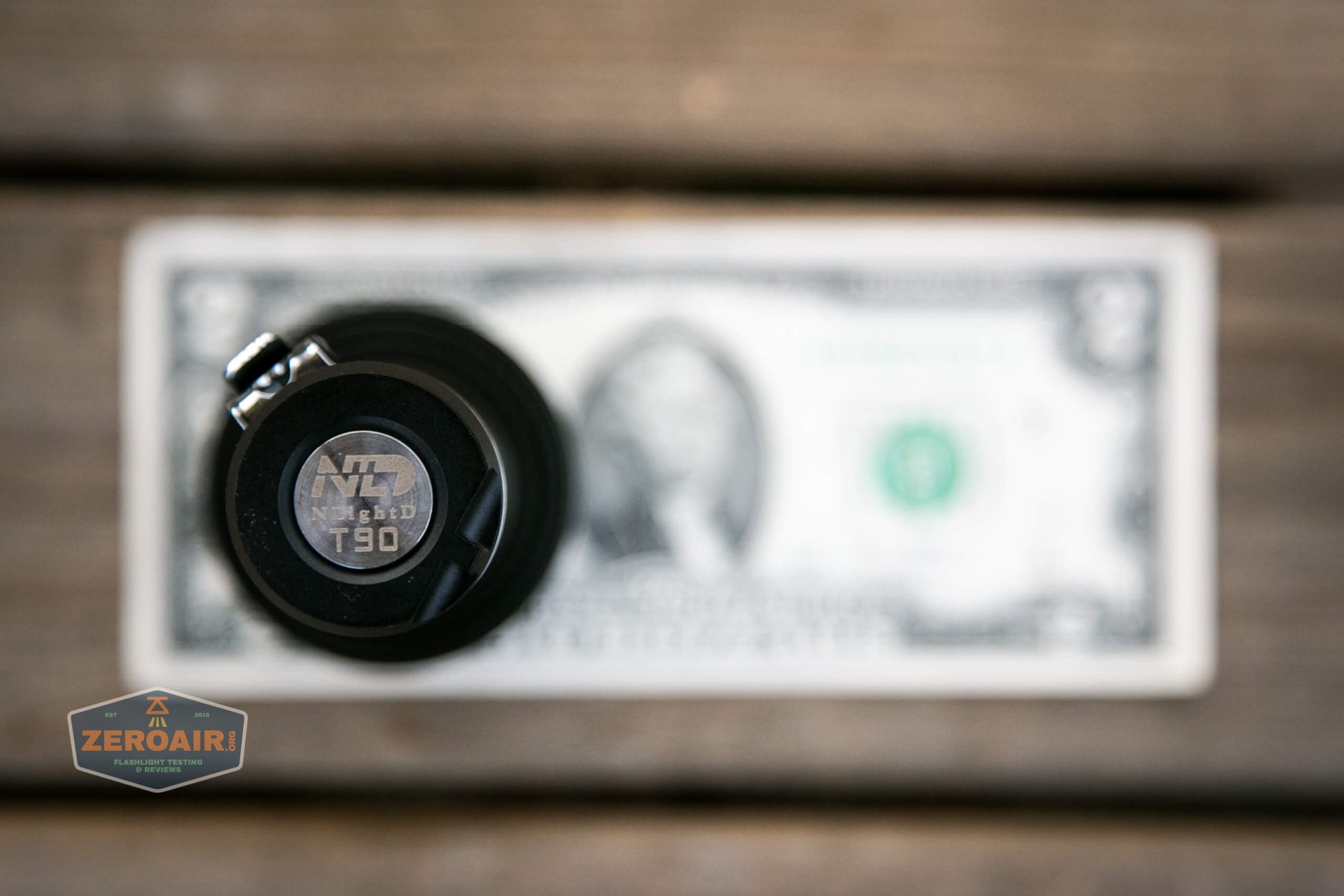

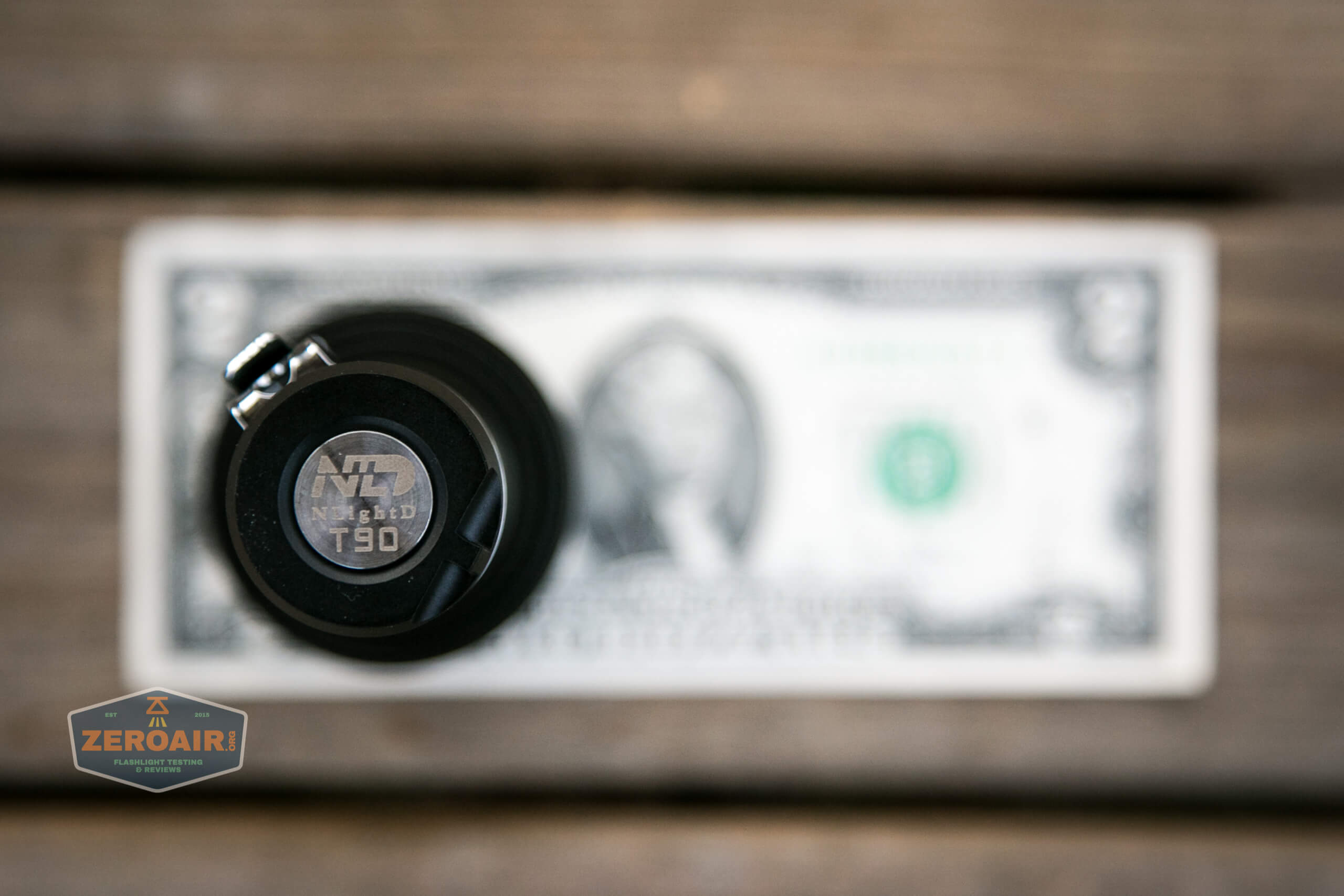

If a light will headstand, I’ll show it here (usually the third photo).  If a light will tailstand, I’ll show that here, too (usually the fourth photo).

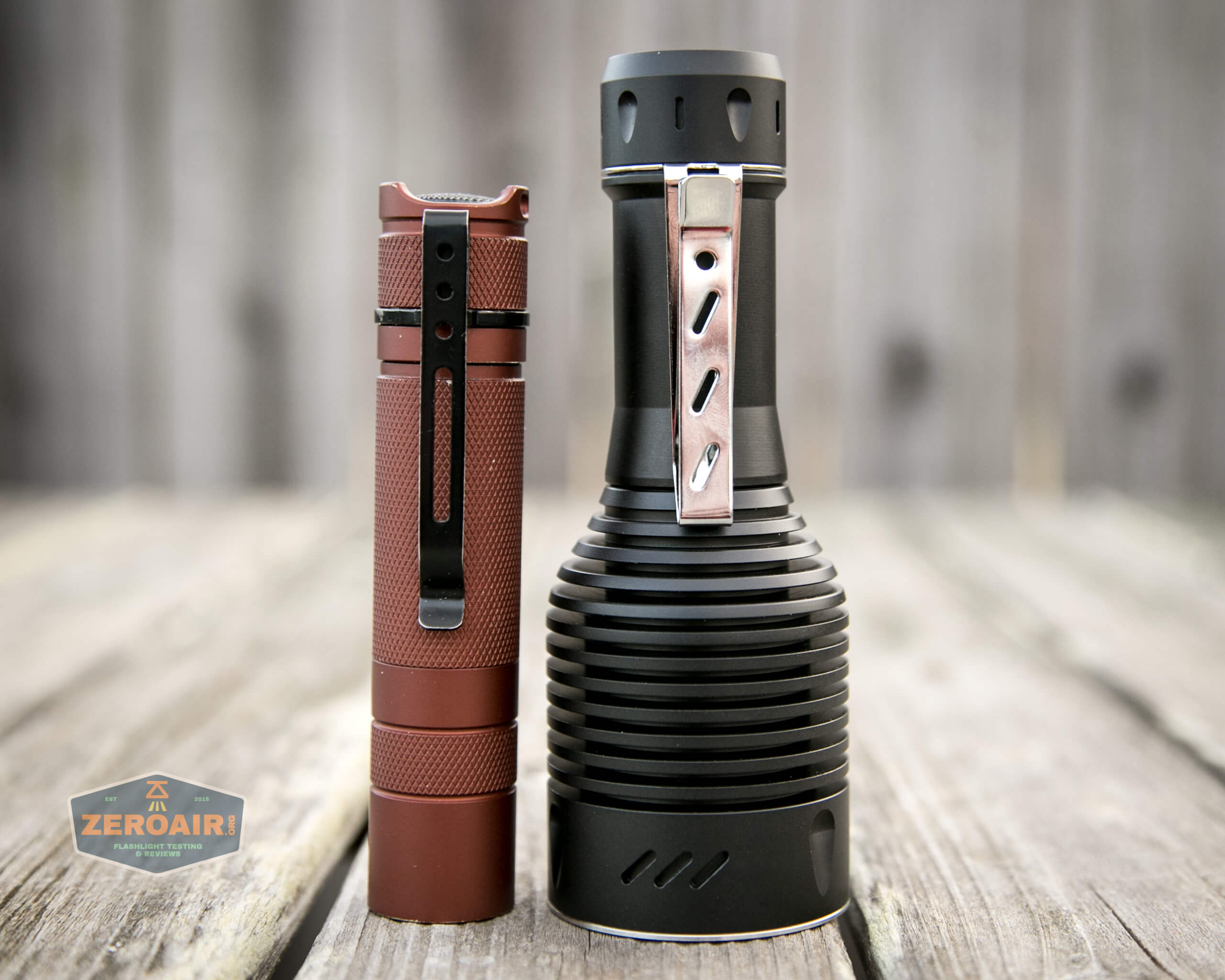

Here’s the test light with the venerable Convoy S2+.  Mine’s a custom “baked” edition Nichia 219b triple.  A very nice 18650 light.

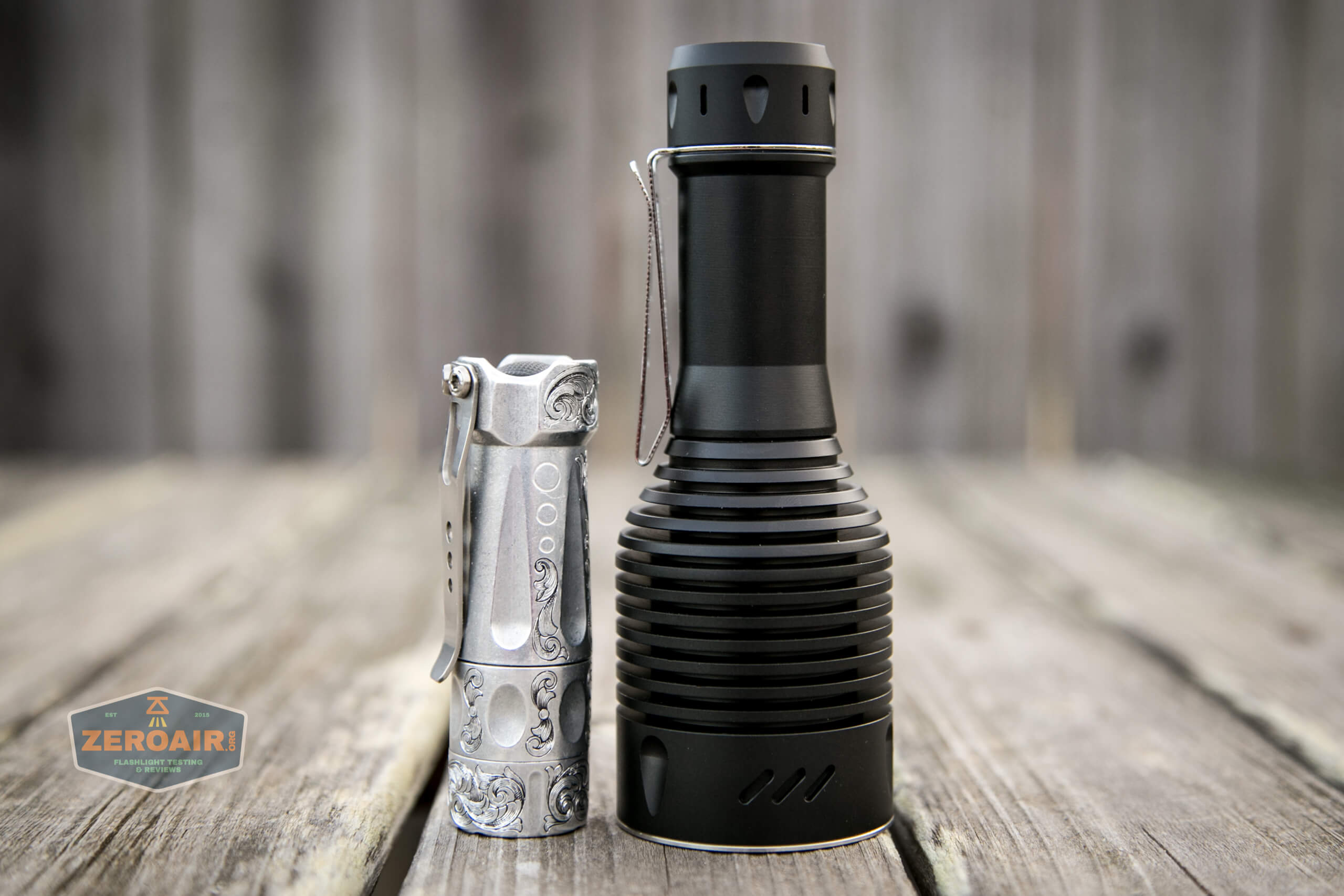

And here’s the light beside my custom engraved TorchLAB BOSS 35, an 18350 light.  I reviewed the aluminum version of that light in both 35 and 70 format.

NlightD T90 luminus sbt-90.2 Andúril beside torchlab boss 35

Retention and Carry

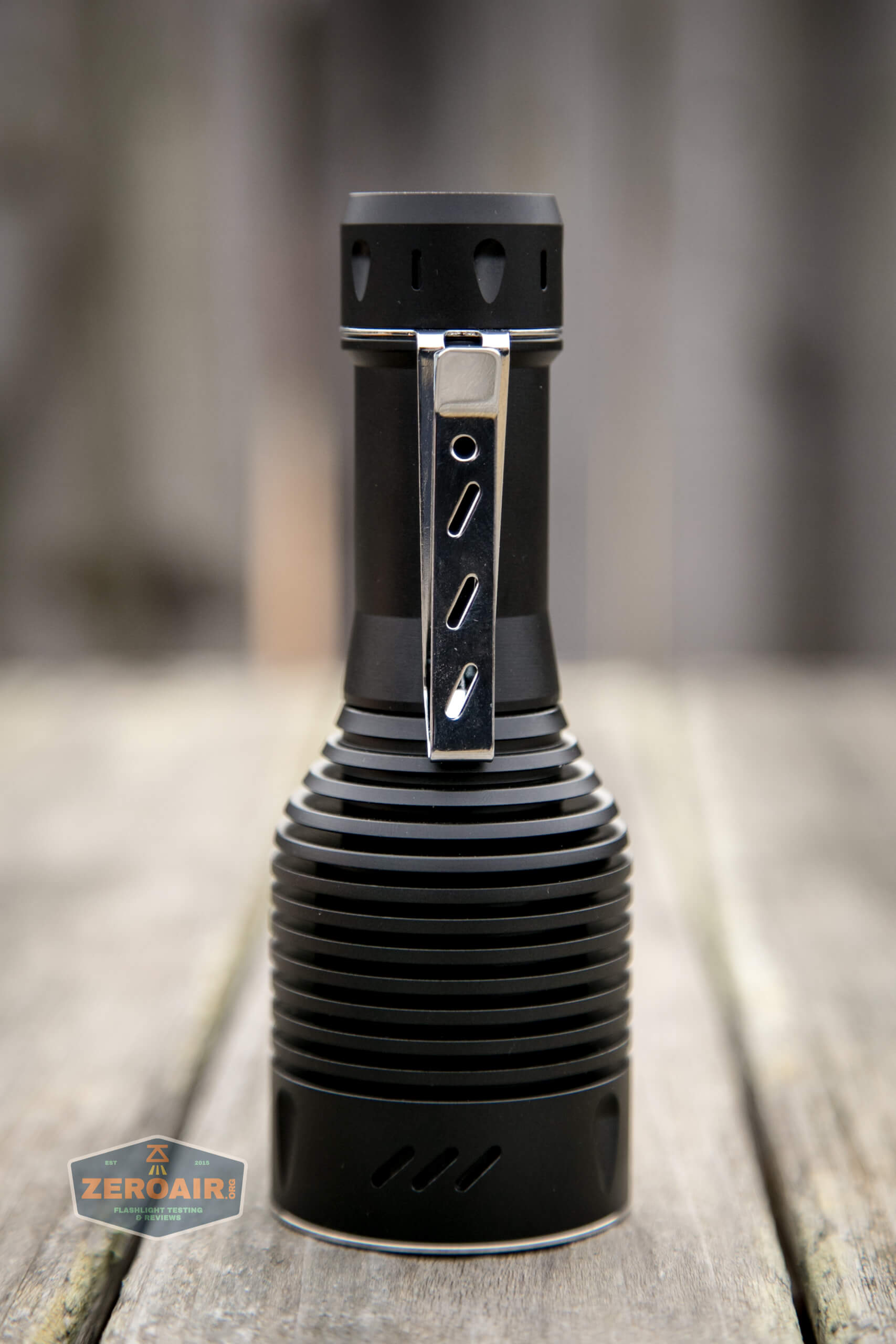

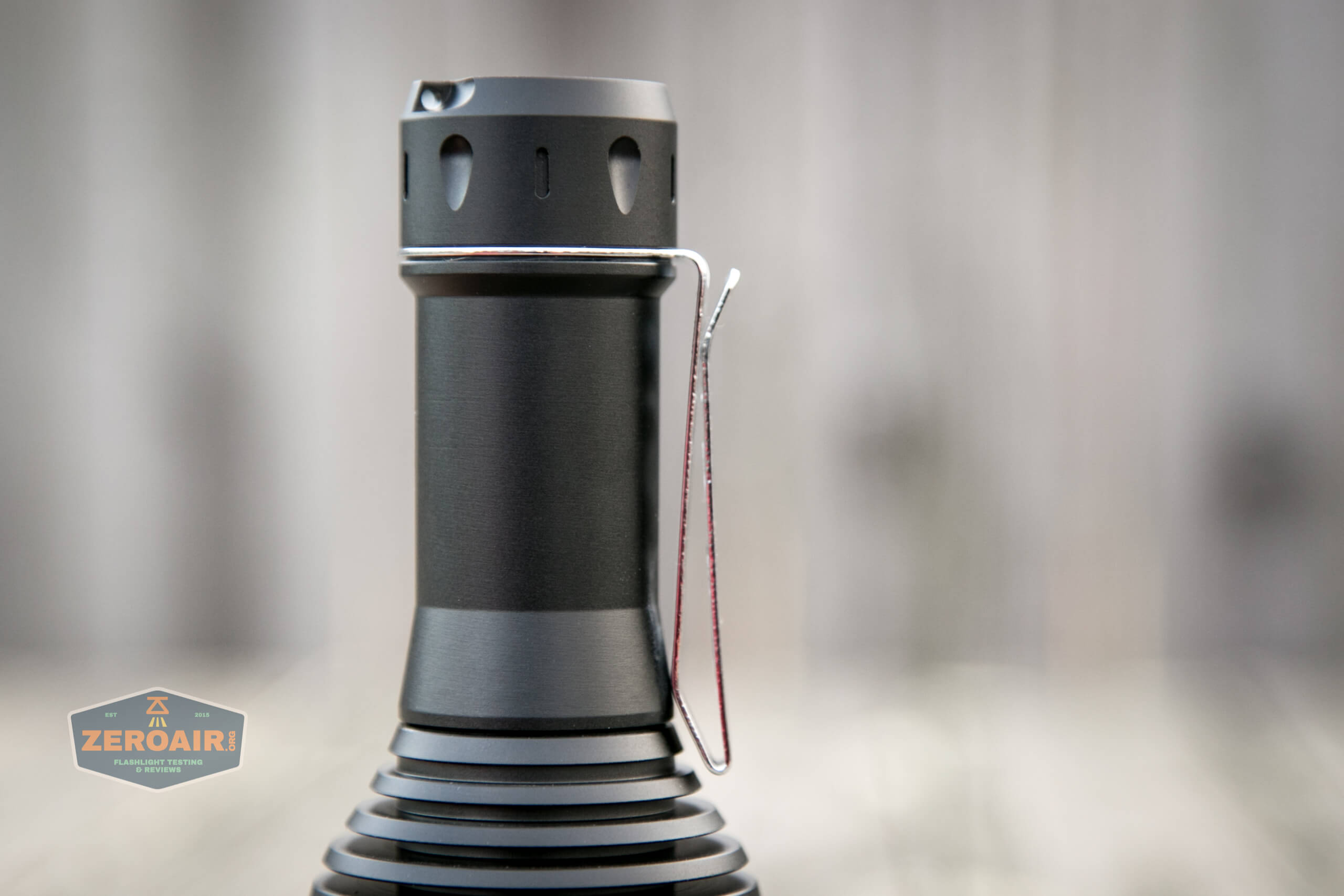

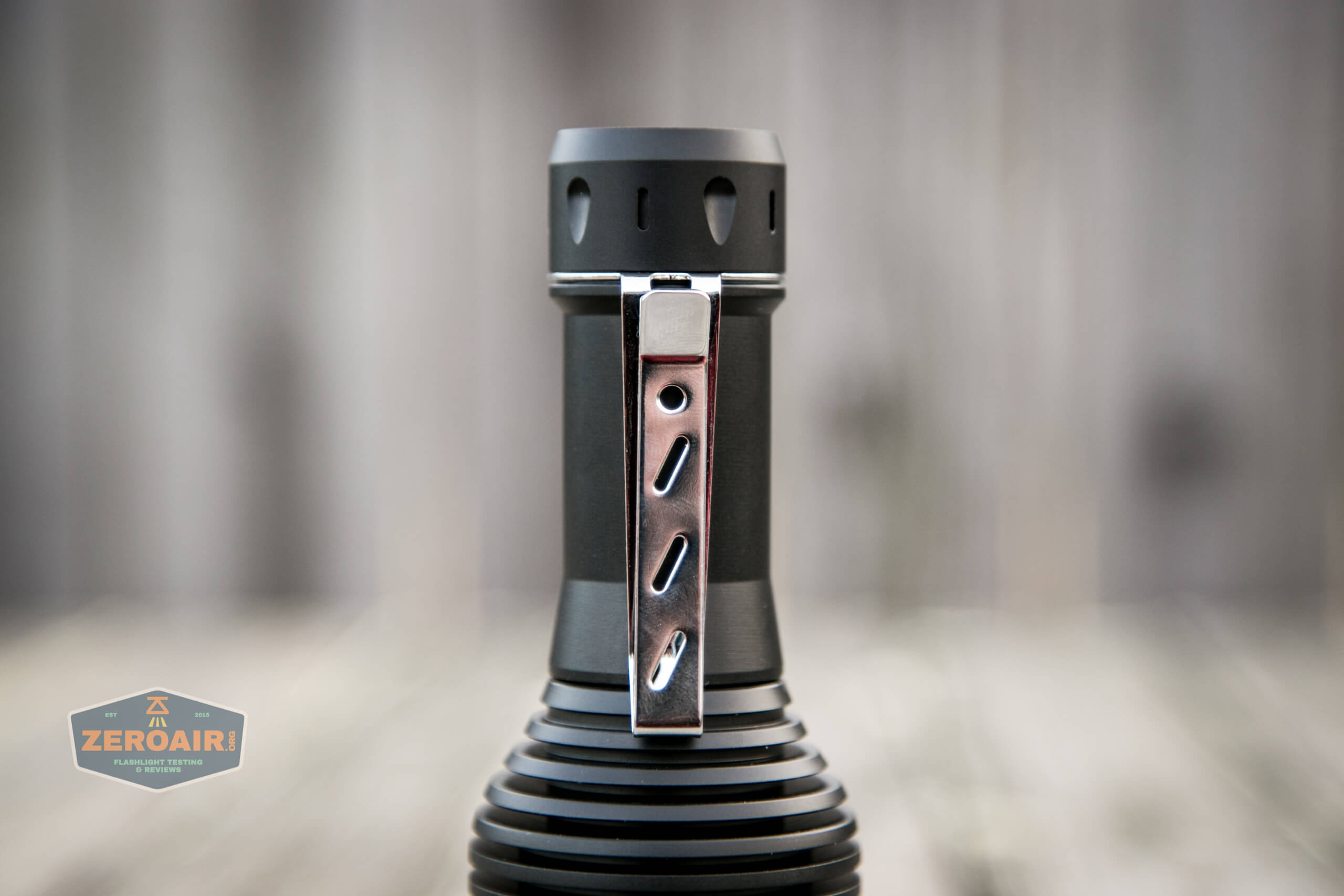

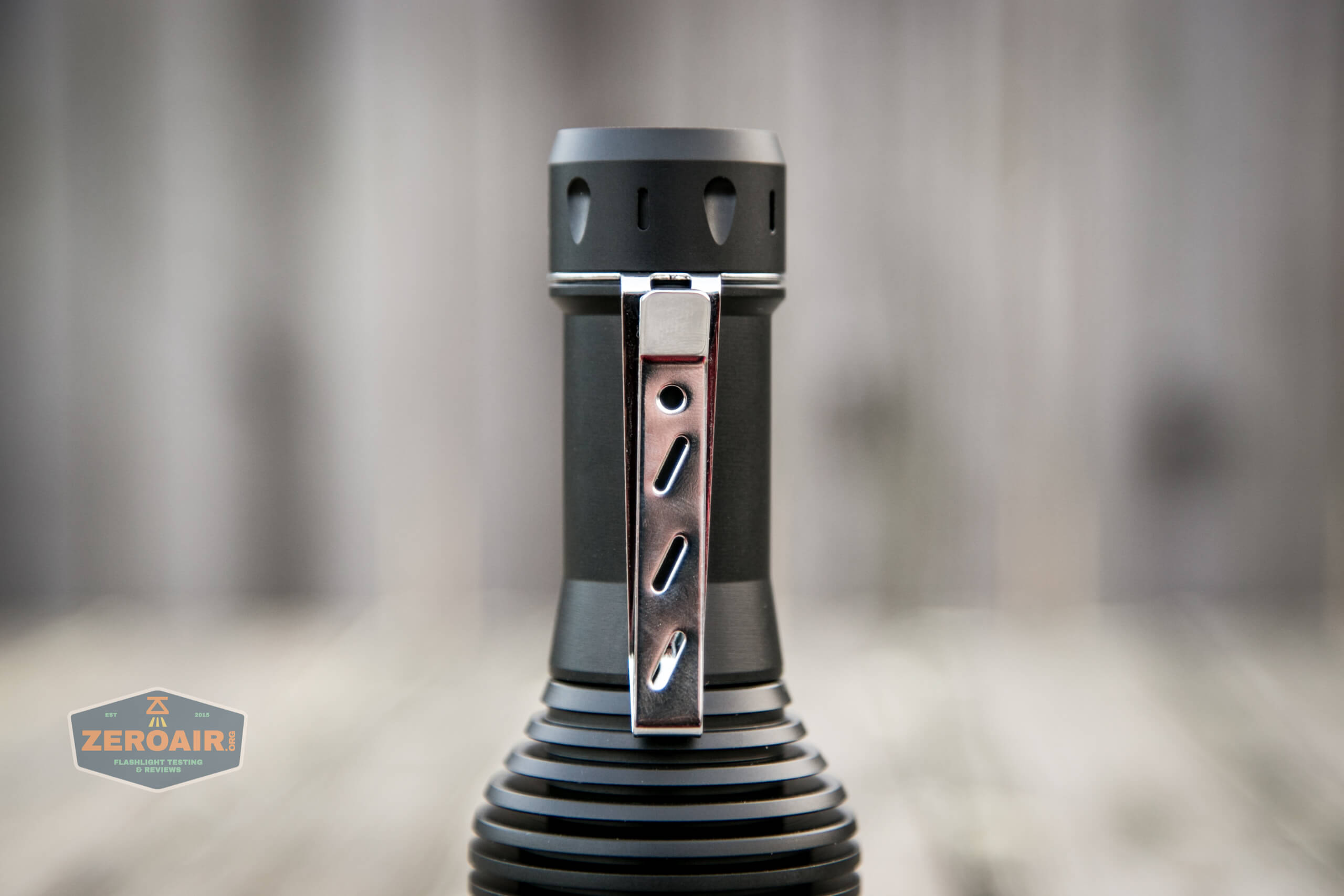

A two-way pocket clip is included and attached from the factory.  This is a collar style clip, and not necessarily the “standard” two-way clip.  It’s a “good enough” clip, though.

The pocket clip has multiple holes which can serve as lanyard attachment points, too.

NlightD T90 luminus sbt-90.2 Andúril pocket clip shoulder hole

There’s one hole for the lanyard right on the shoulder.

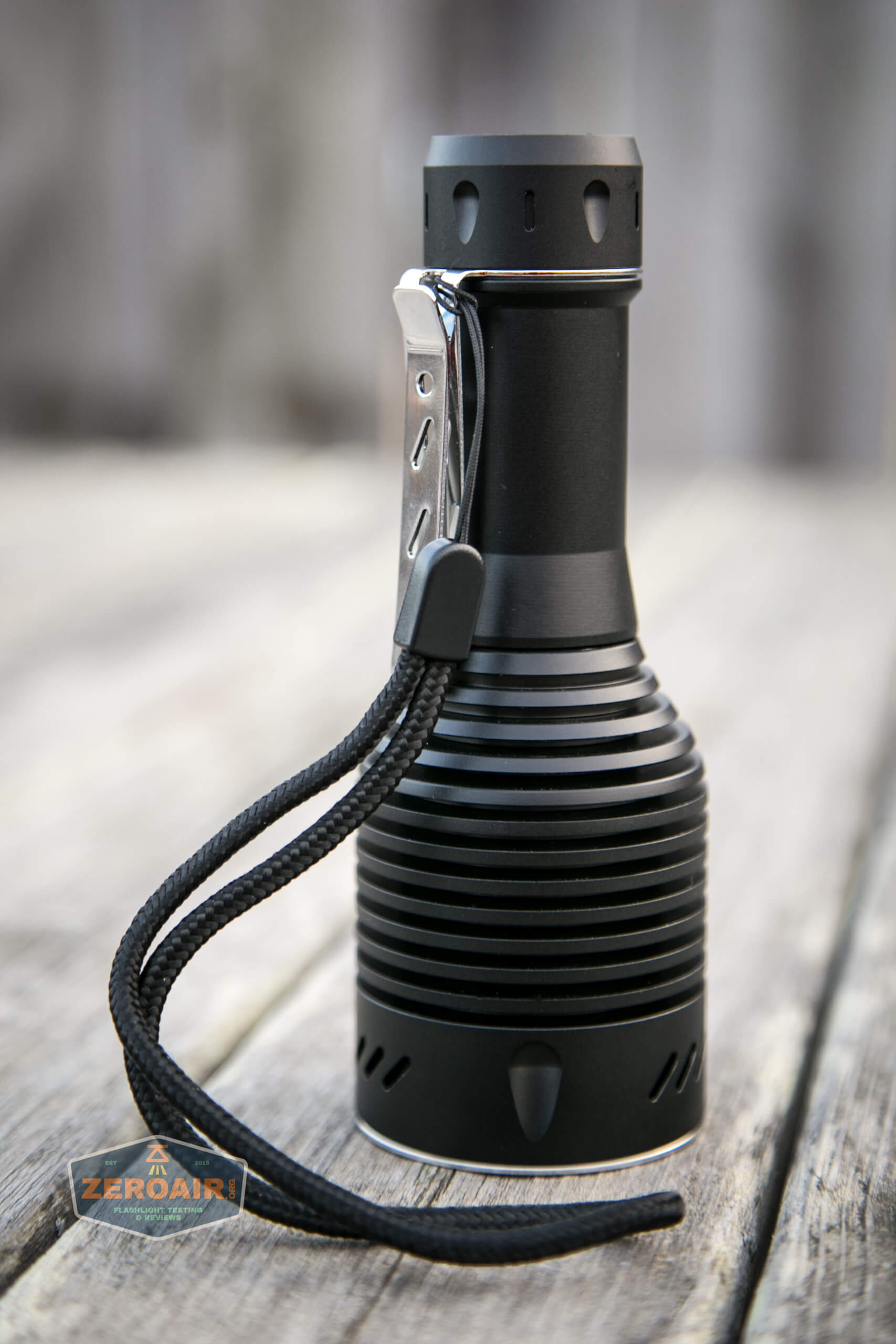

NlightD T90 luminus sbt-90.2 Andúril pocket clip lanyard installed

NlightD T90 luminus sbt-90.2 Andúril pocket clip lanyard installed

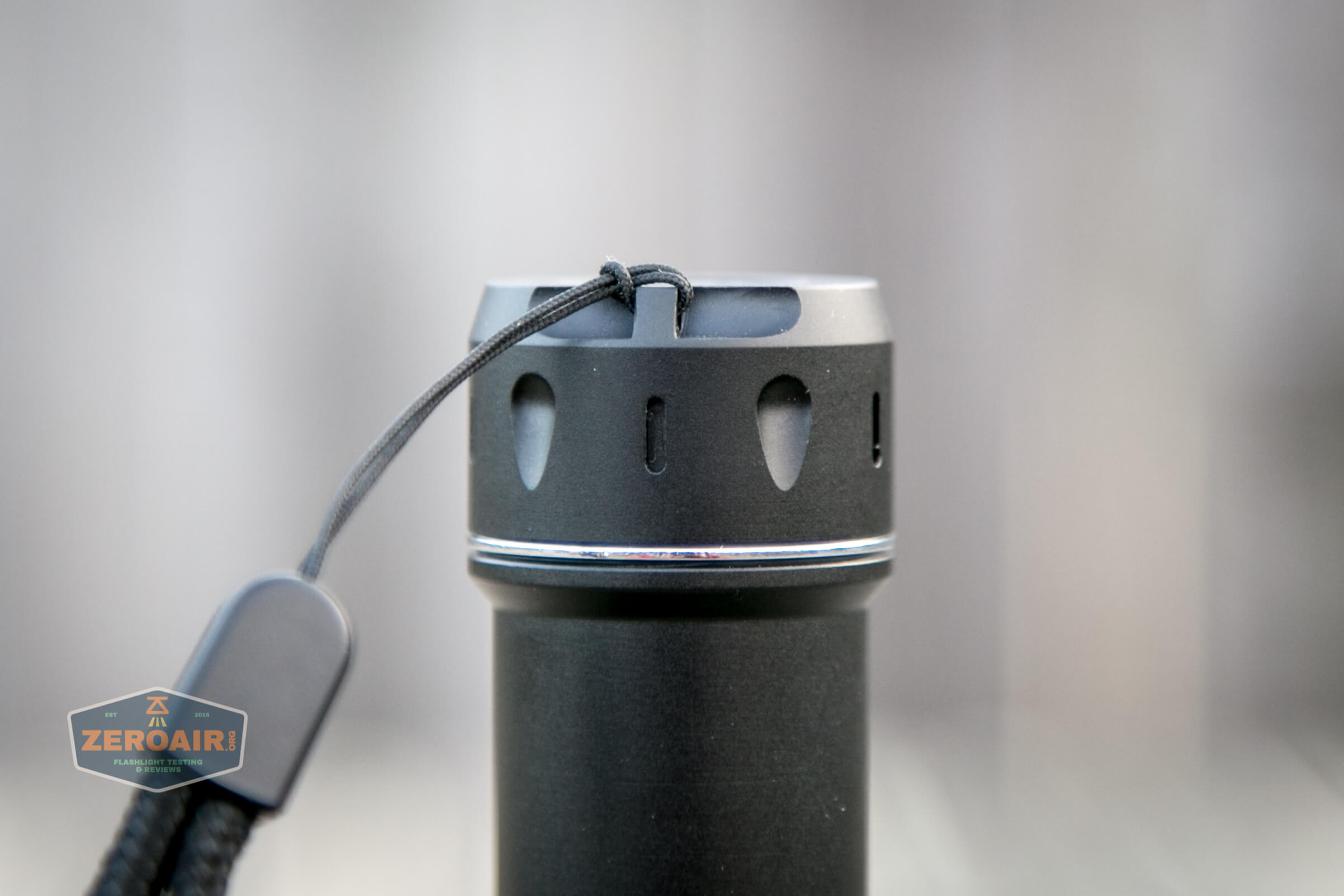

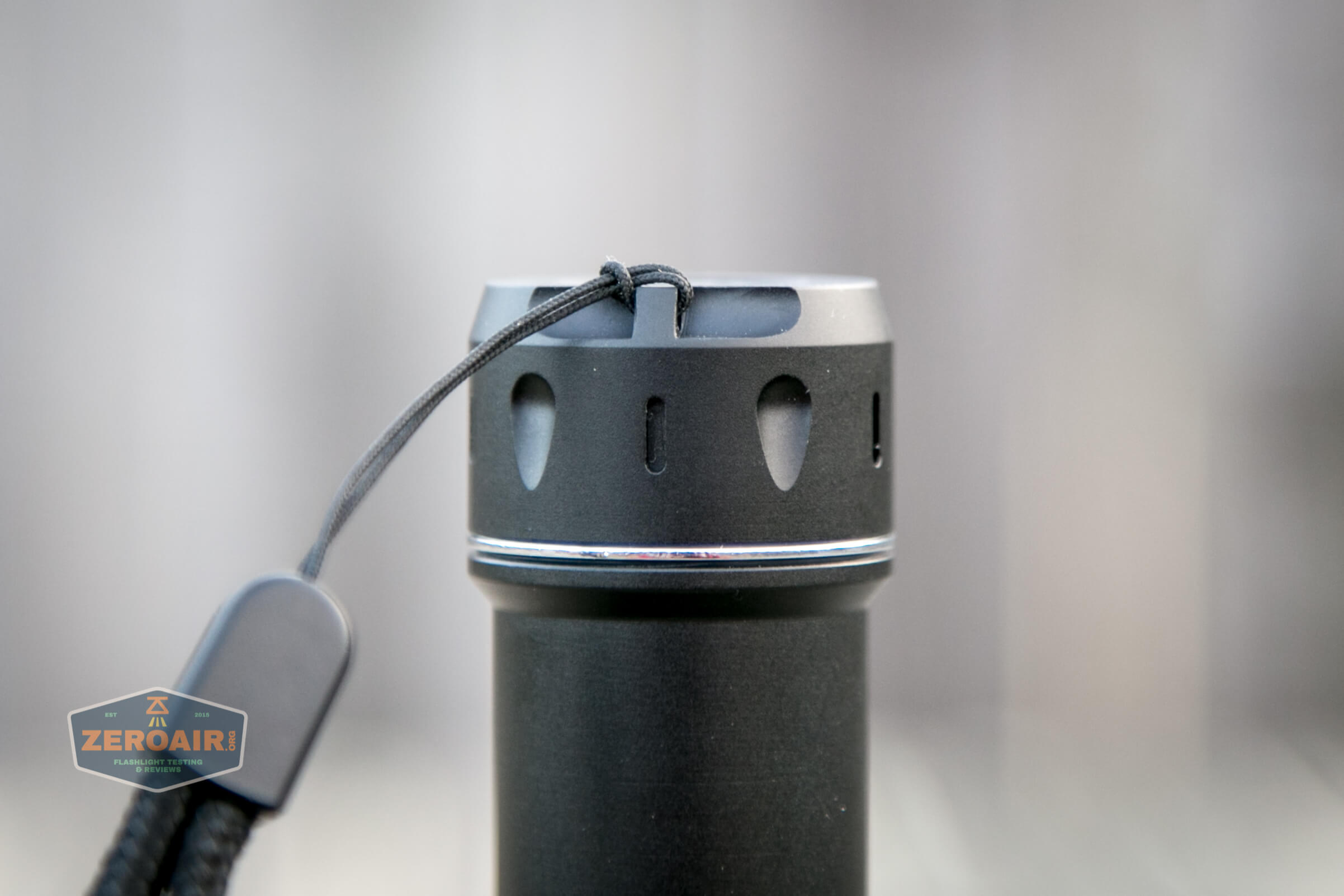

The included lanyard will probably be most at home in the tailcap hole, though.  The light will still tailstand with the lanyard installed here.

Power and Runtime

The NlightD T90 is powered by a single lithium ion cell.  It requires a 21700, but there’s an adapter for use with an 18650.  I tested the light with the cell seen below – a Molicel P42A, which I also tested separately.

NlightD T90 luminus sbt-90.2 Andúril 21700 and adapter

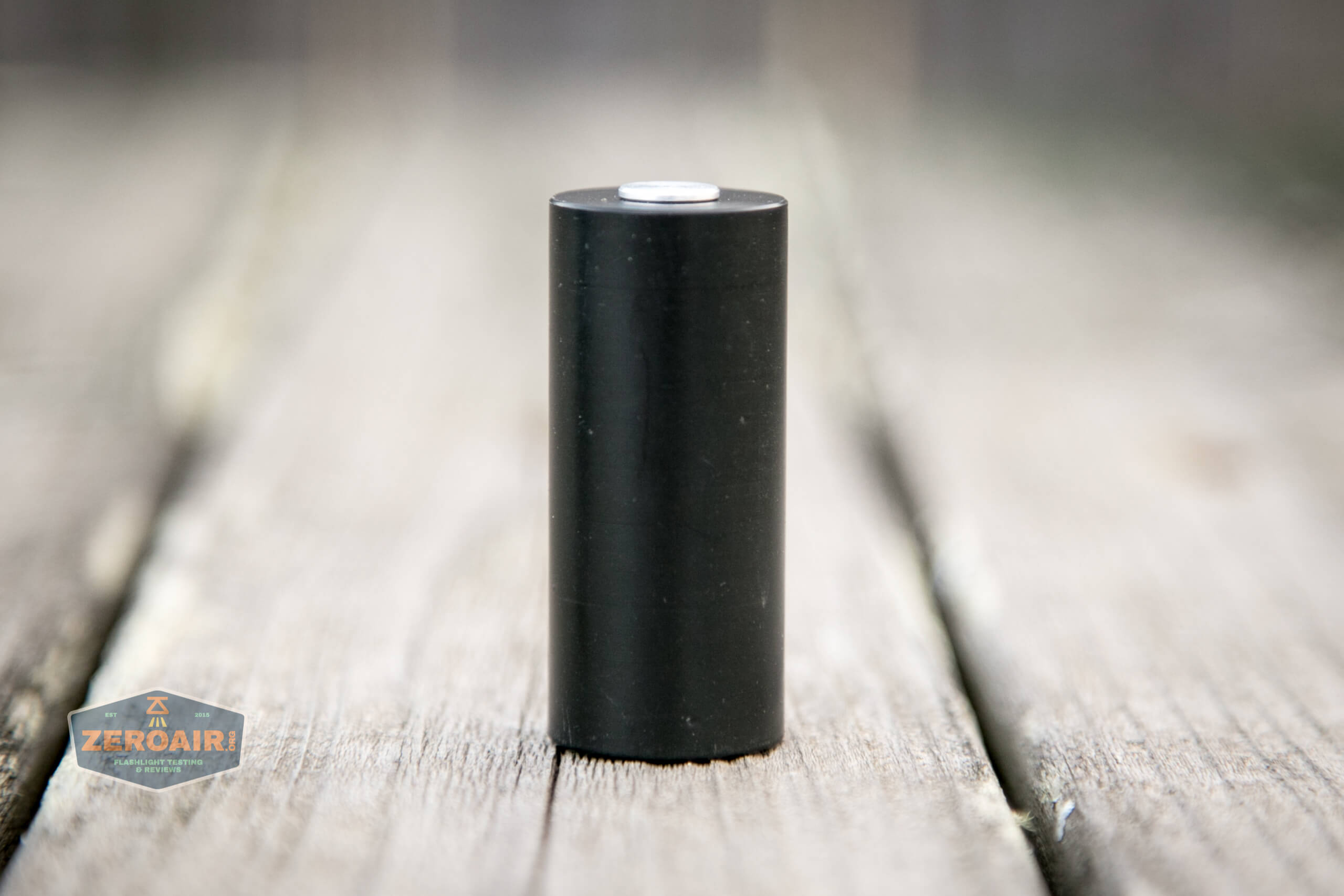

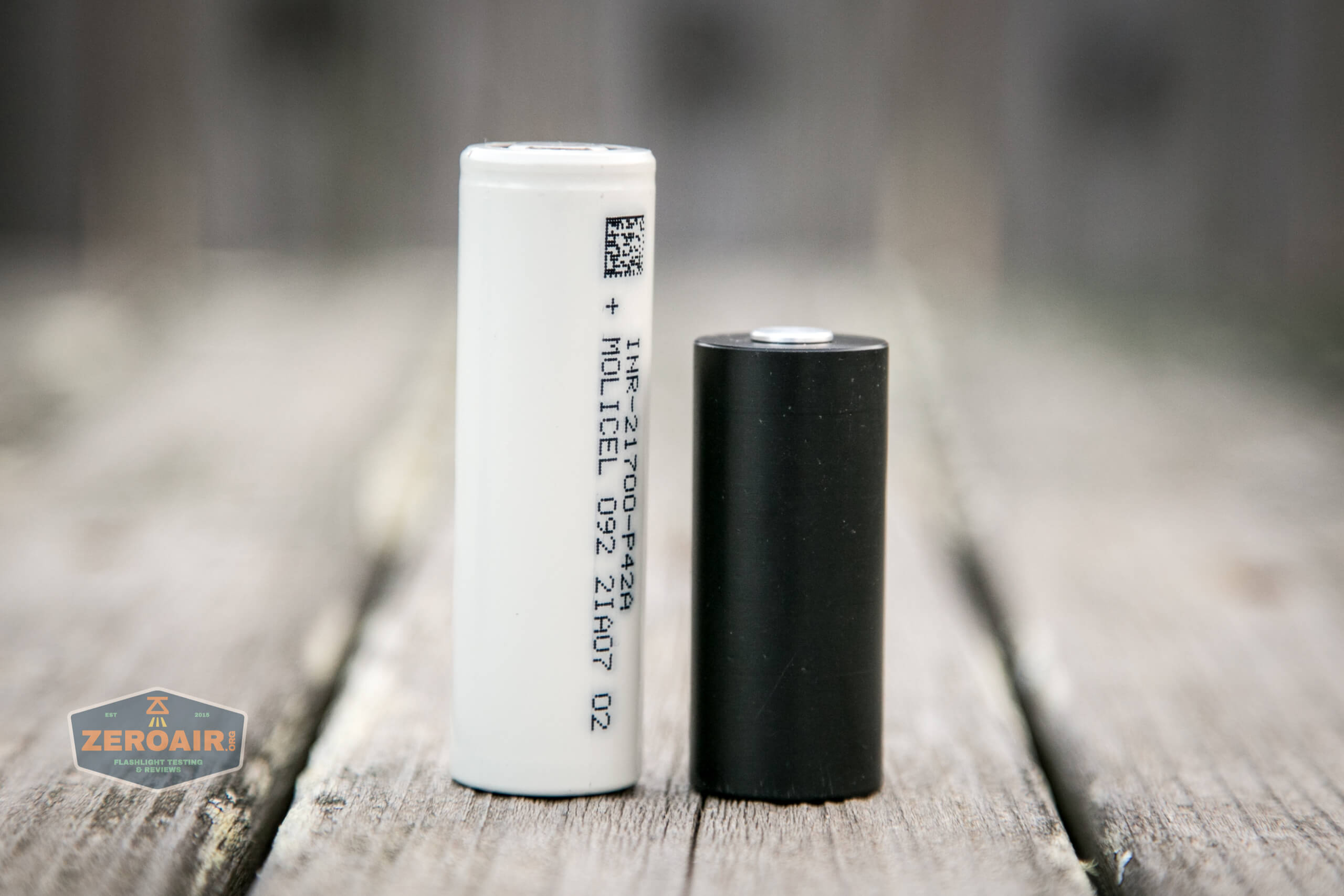

The adapter is just a plastic sleeve with an aluminum button.  An 18650 can slip into this sleeve comfortably.

NlightD T90 luminus sbt-90.2 Andúril 21700 to 18650 adapter

The cell fits into the T90 in the usual way – positive terminal toward the head.

NlightD T90 luminus sbt-90.2 Andúril 21700 install orientation

NlightD T90 luminus sbt-90.2 Andúril 21700 installed

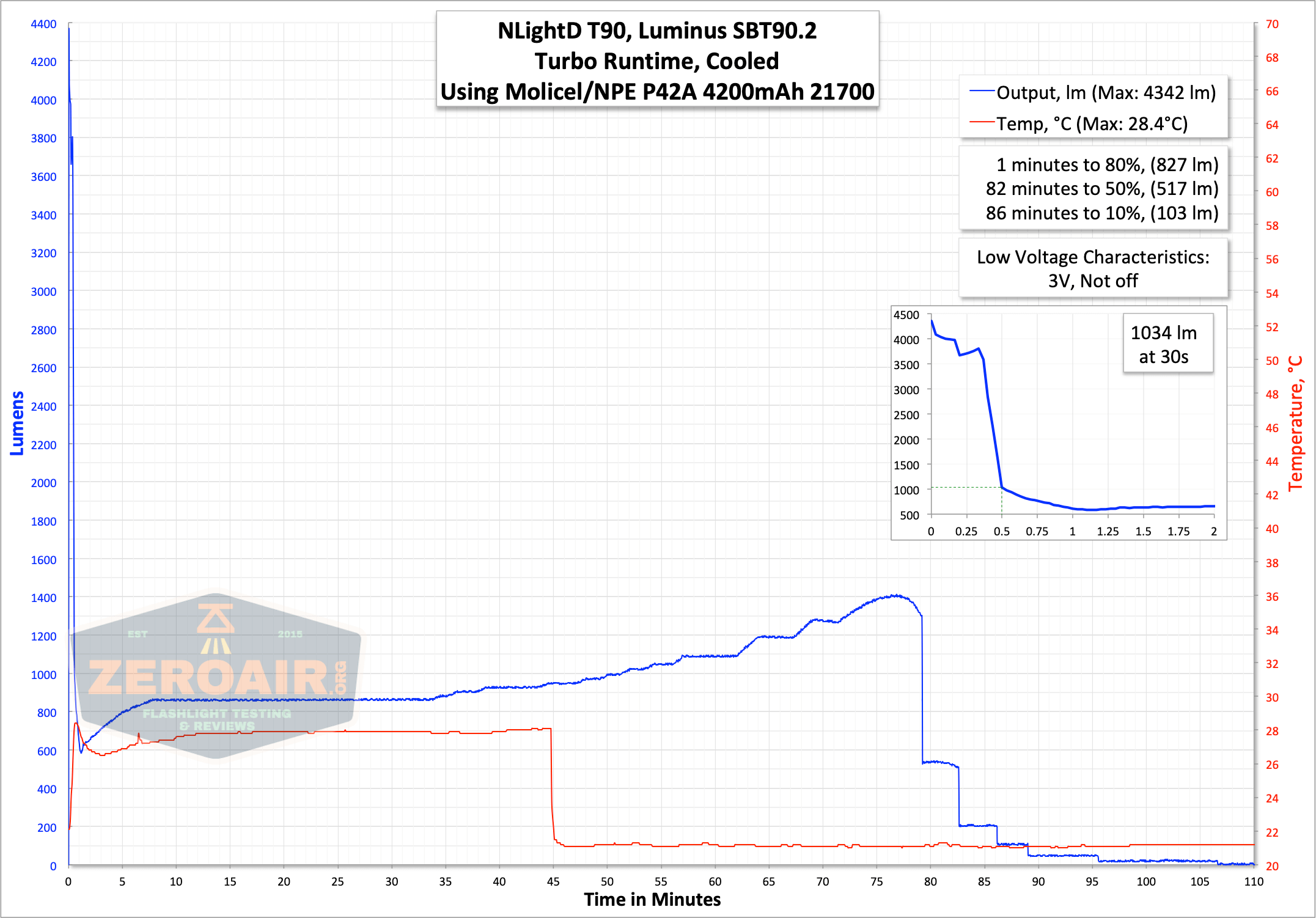

Below you can see three runtimes.  These are the highest three modes – on Andúril I’m not sure what to call “medium.”  Turbo steps down hard and fast, and even still doesn’t hit the 6500 lumen claim.  I checked calibration on the light, and I was reading 21°C out of it, which was an appropriate reading – as such I did not further calibrate the light.  Also around 45 minutes the thermal sensor became dislodged from the light, and so that measurement is no longer relevant on this test.

NlightD T90 luminus sbt-90.2 Andúril 21700 runtime turbo

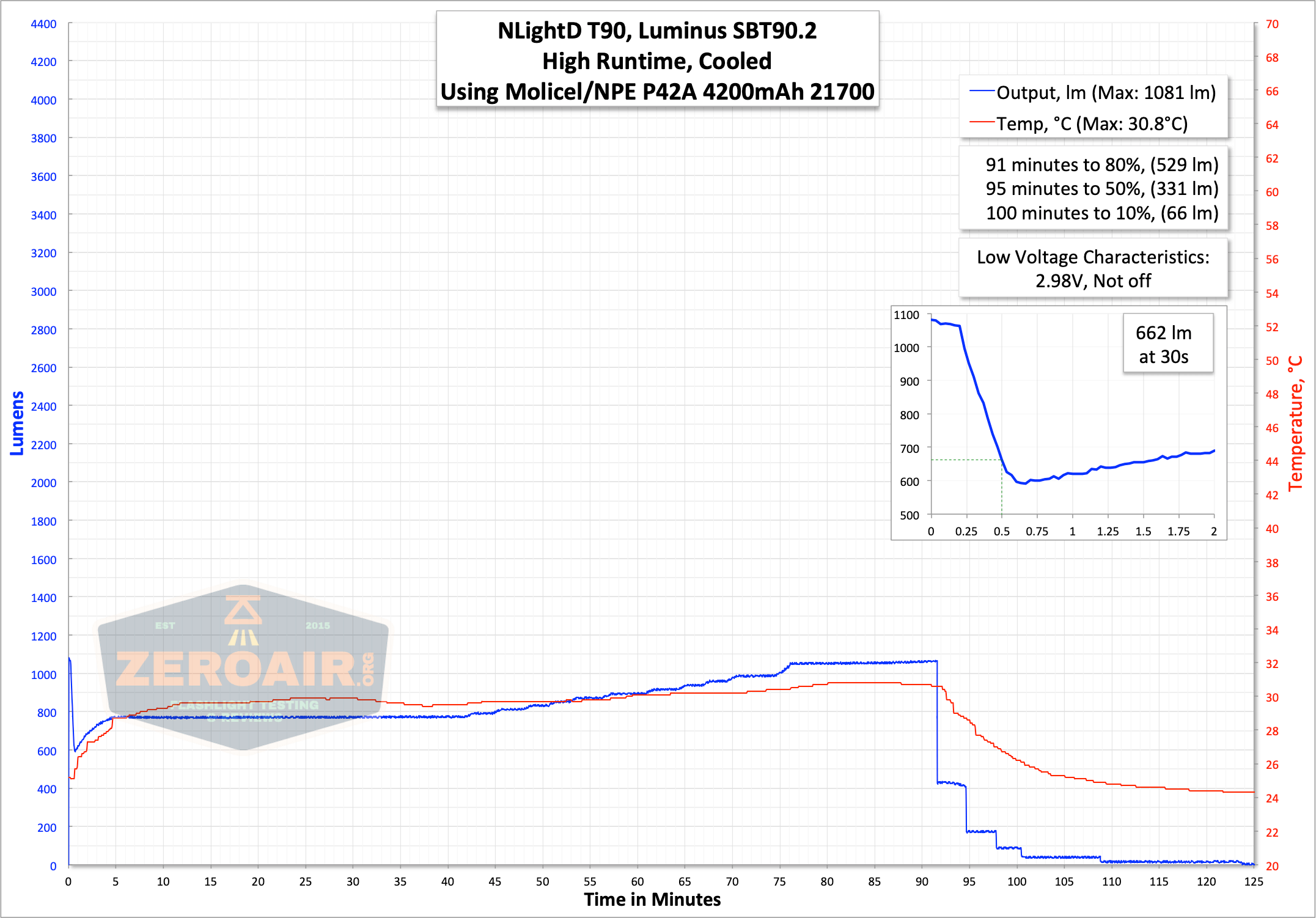

With as much cooling as this light has, I would like to see the highest stepped mode to be higher than around 1100 lumens.  That’s quite low, and the temperature readings support the idea that this could be much higher.  I think sustained 1500 to 1800 lumens would not be too much to ask.

NlightD T90 luminus sbt-90.2 Andúril 21700 runtime high

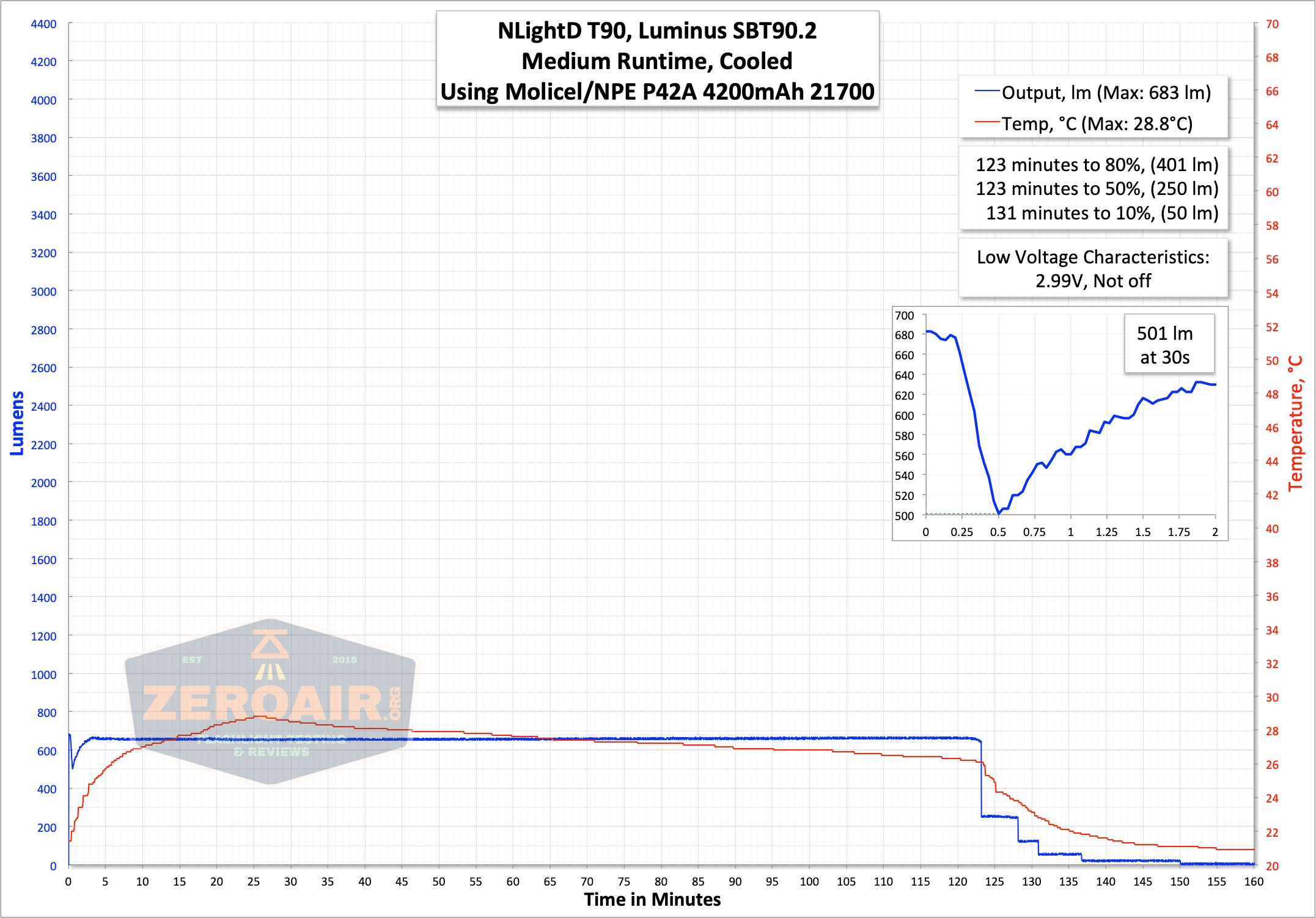

The second highest stepped mode (labeled generically “Medium” below) finally has relatively flat output, once it settles.

NlightD T90 luminus sbt-90.2 Andúril 21700 runtime medium

The light steps down to very low output to indicate low cell voltage.  This seems to happen around 3V, which makes sense because it’s an Andúril light.

Modes and Currents

Mode Mode Claimed Output (lm) Claimed Runtime Measured Lumens Tailcap Amps
Turbo (double click from on) 6500 1034 ?
Highest Stepped 663 ?
7 501 ?
6 402 ?
5 203 ?
4 99 ?
3 40 ?
Lowest Stepped 1 ?
Lowest of ramp ~ ?

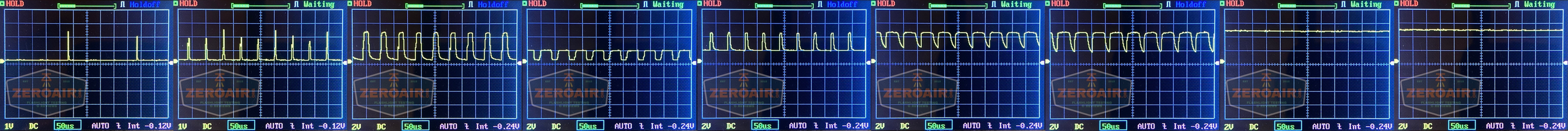

Pulse Width Modulation

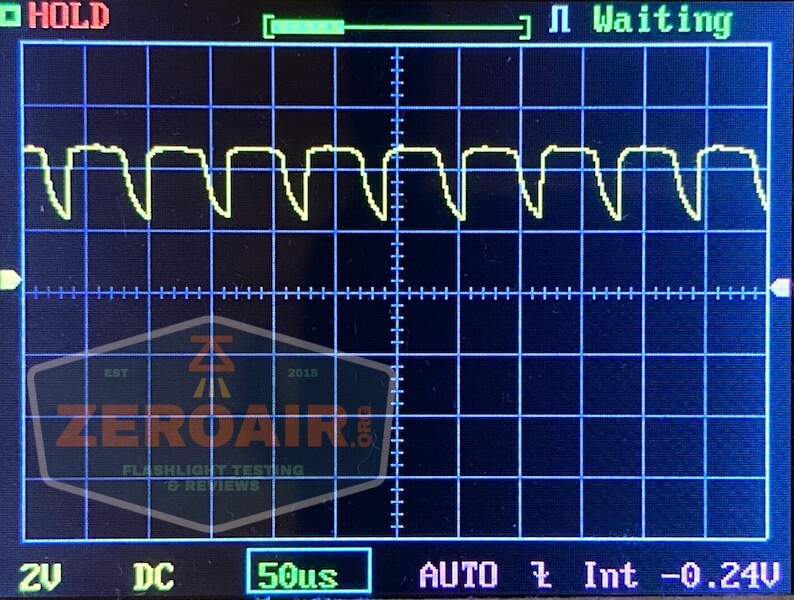

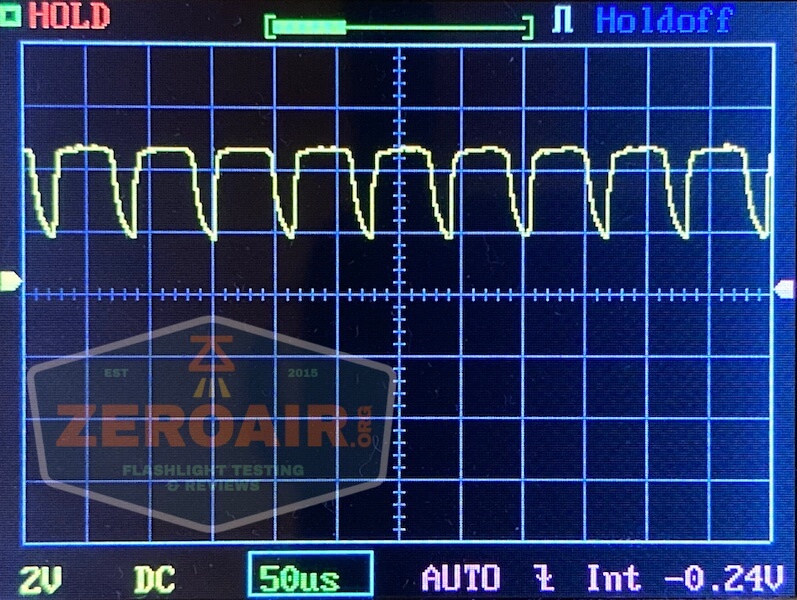

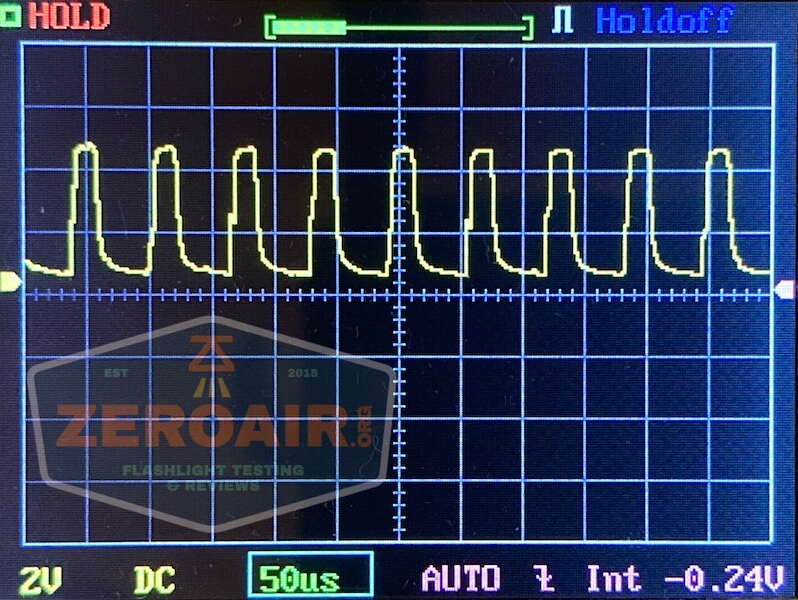

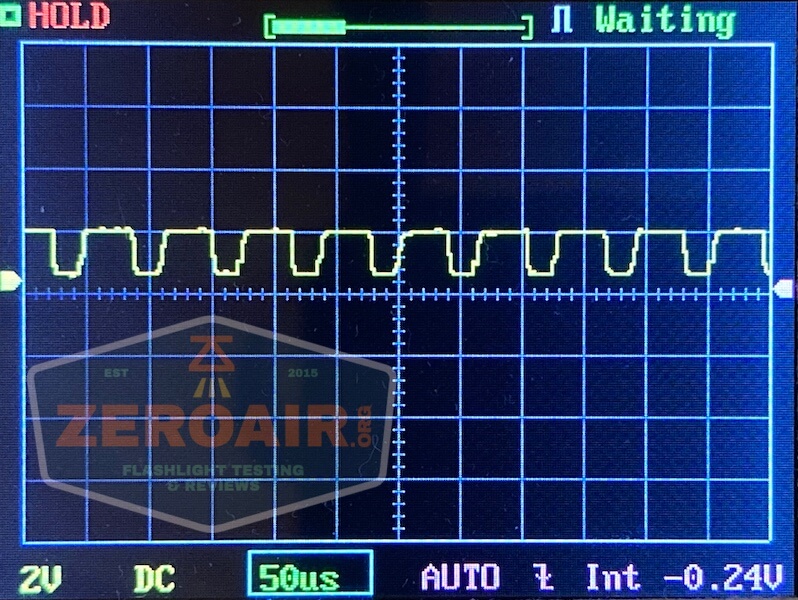

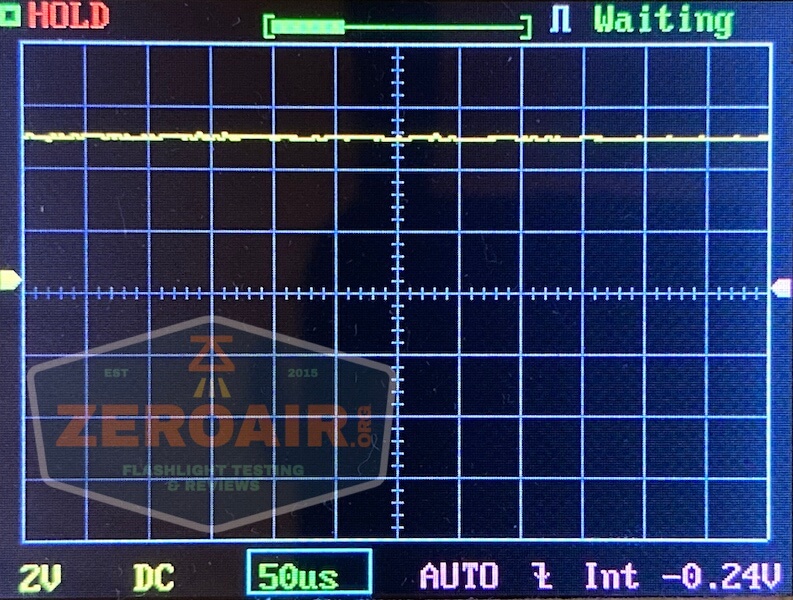

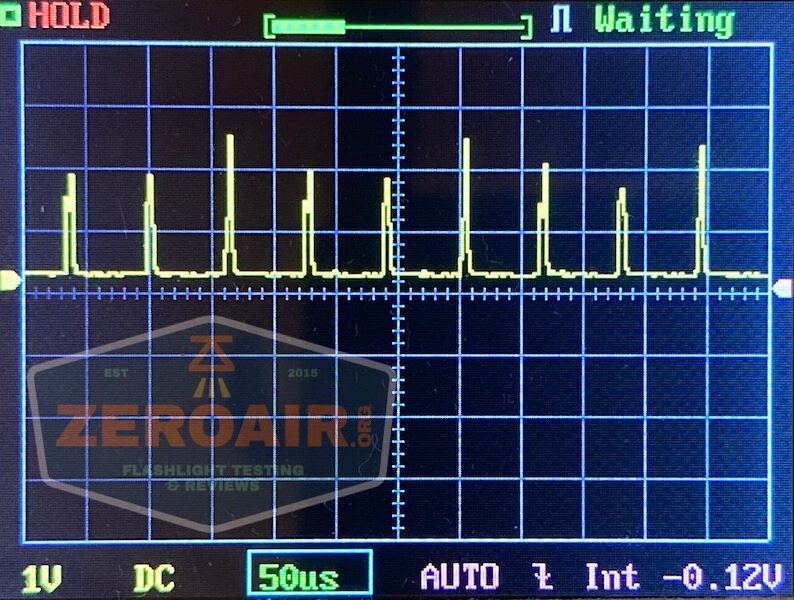

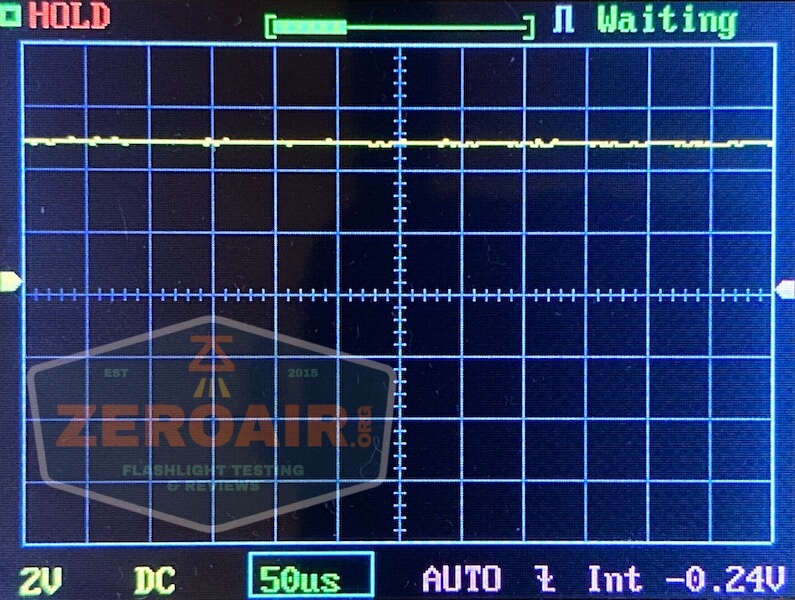

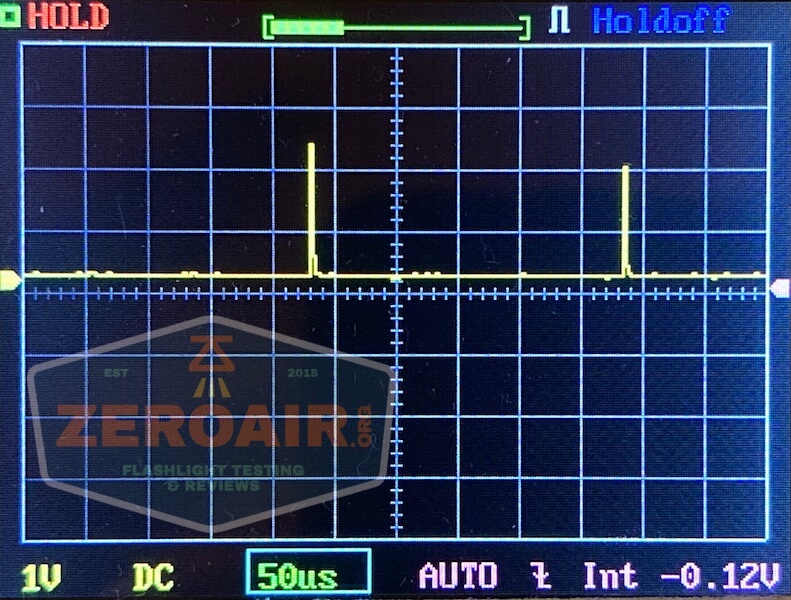

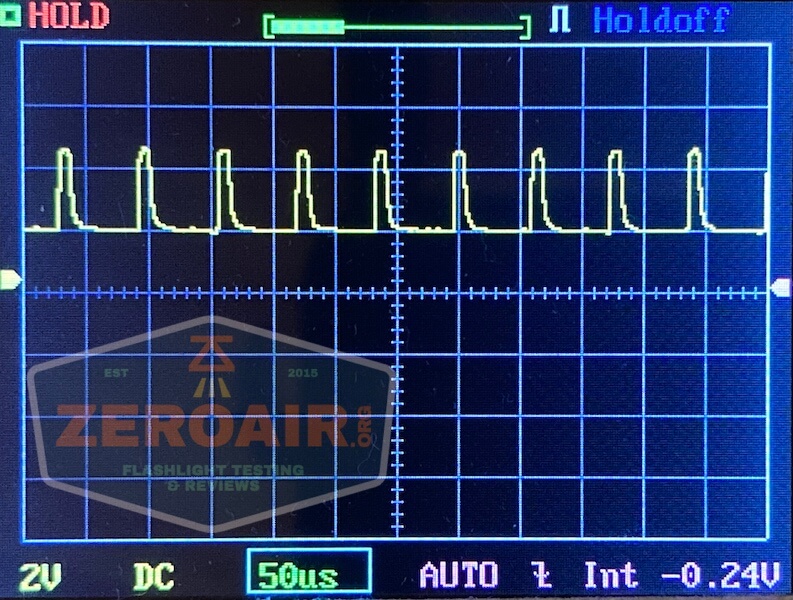

Andúril has PWM, we know this.  The highest two modes are PWM free.  Really the PWM is fast enough that it’s not really noticeable, so I wouldn’t worry too much about it.

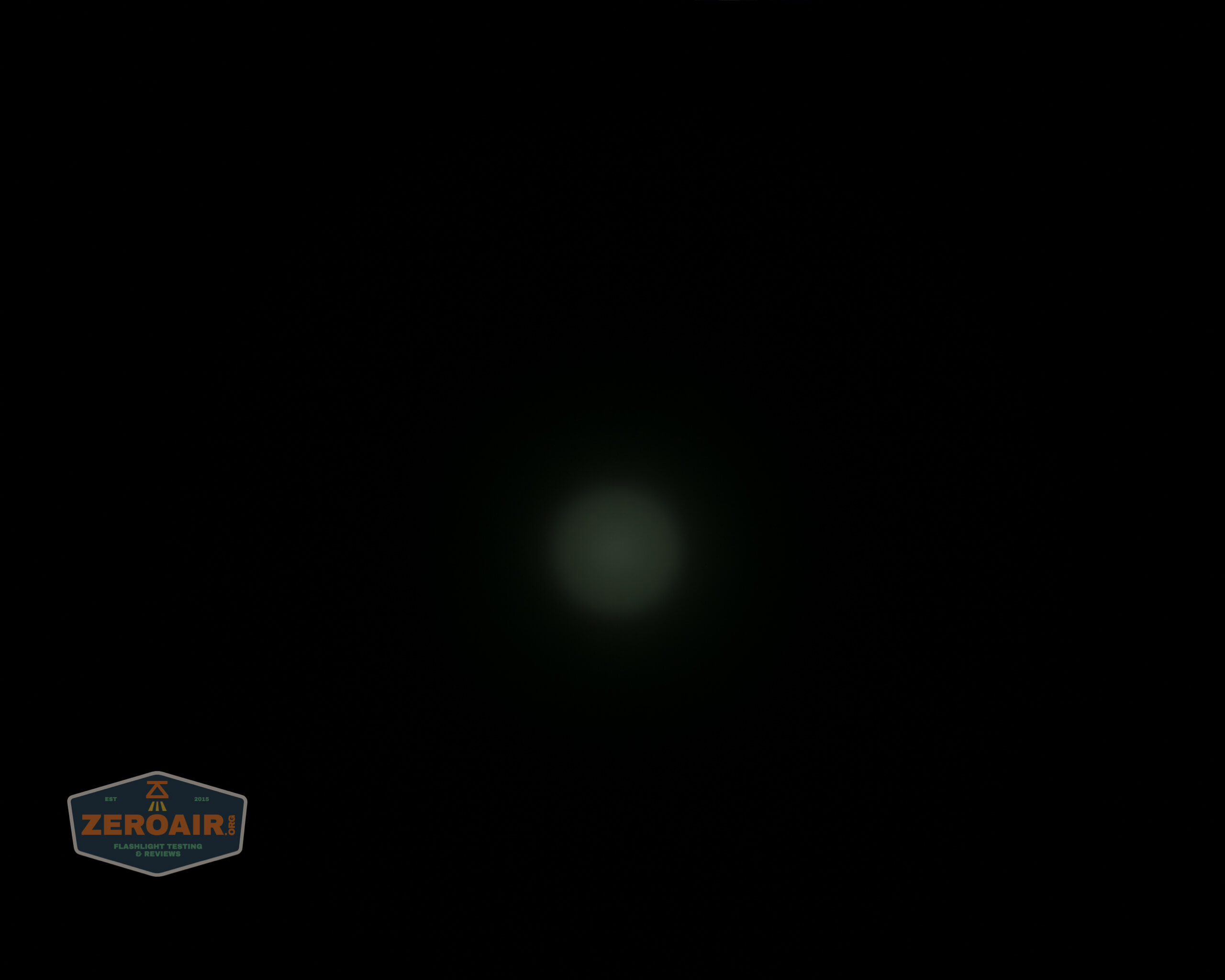

For reference, here’s a baseline shot, with all the room lights off and almost nothing hitting the sensor.  And here’s the worst PWM light I have ever owned.  Also one of the very first lights I ordered directly from China!

User Interface and Operation

The UI on the Nlightd T90 Andúril flashlight is just like many other FW series I’ve reviewed, so there’s no point rewording it.

The interface for this light is a tail clicky, but unusually, it’s an e-switch.

The button itself is metal (with that rubber cover under), and has a very minimal amount of travel (1mm or less).   Despite being a very big switch, it’s possible to actuate from anywhere on the surface – even the tiniest fingernail on the very edge will still work.

I checked the firmware revision of my review copy (15 clicks from off) and it is the 20190928 version of Andúril.

NlightD T90 luminus sbt-90.2 Andúril 21700 e-switch

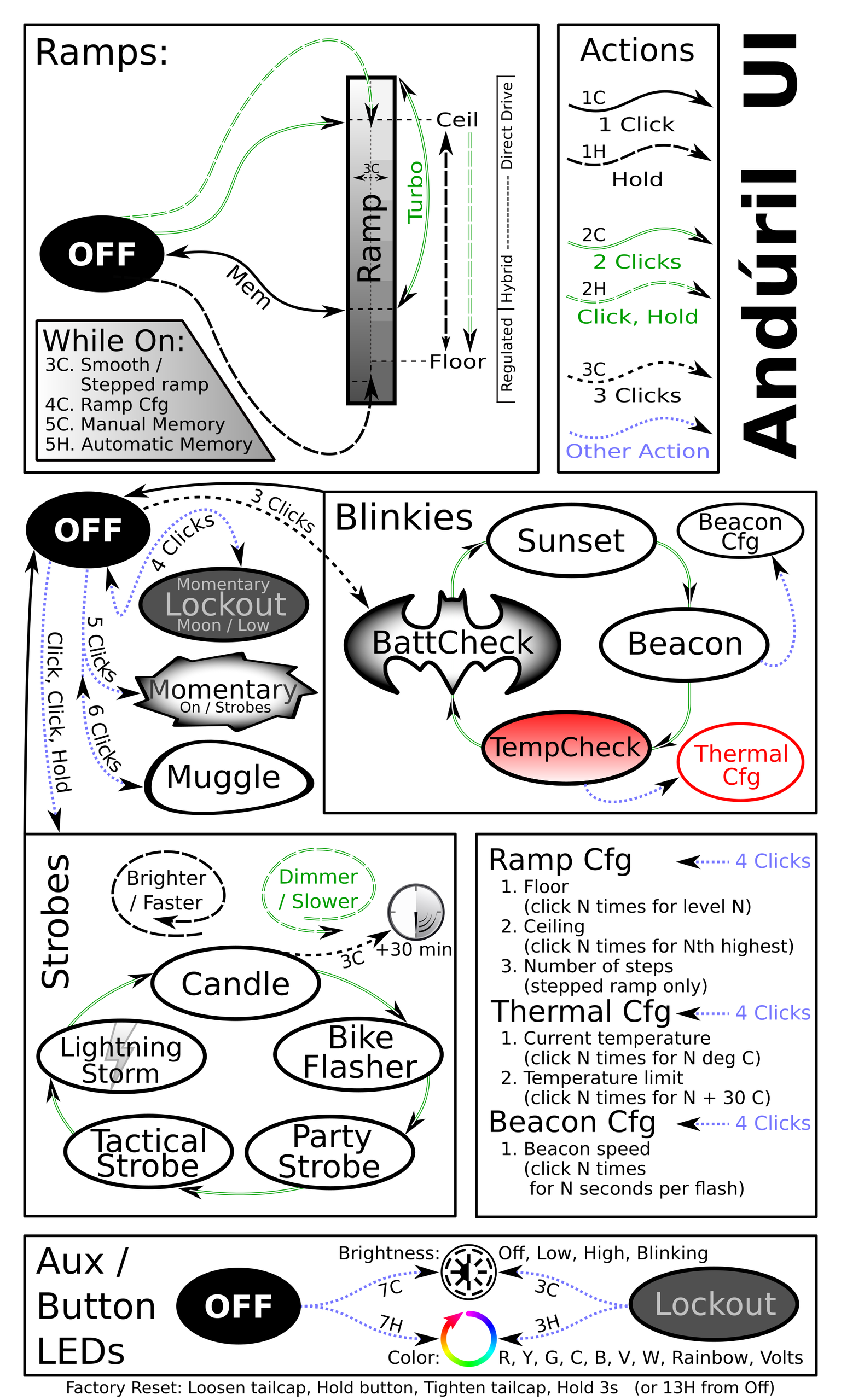

I’m dropping in ToyKeeper’s newest UI diagram, which includes some features my light does not have.  The firmware reset, for example, and also the secondary emitter options – but the graphic itself as a whole is much better.

Here’s a UI table anyway!

State Action Result
Off Hold On (Low)
Off Click On (Mode Memory)
Off Click 2x Highest Hybrid Mode
Off Click 3x Blinkie Mode Group
Off Click 4x Lockout
Off Click 5x Momentary
Off Click 6x Muggle
Off Click, Click, Hold Strobe Group (Mode Memory Strobe)
Strobe Group Click 2x Strobe Cycle (Candle > Bike Flasher > Party Strobe > Tactical Strobe > Lightning Storm)
Blinkie Mode Group Click 2x Blinke Cycle (Sunset > Beacon > TempCheck > BattCheck)
On Click 3x Switch between Stepped and Smooth Ramp
On Click 4x Ramp Configuration
TempCheck Click 4x Thermal Configuration
Beacon Click 4x Beacon Configuration
Lockout Click 4x Off
Off Click 15x Andúril version check (blinks YYYYMMDD, zero is a very short blink)
Strobe Group Click Off
(Basically) On Click Off
Candle Click 3x 30 minute timer to off
Strobe Group Hold Heighten selected mode (Make faster or brighter)
Strobe Group Click, Hold Lessen selected mode (Make slower or dimmer)
On Click 2x FET Turbo
Ramp Configuration [Wait for Single flash] Click N time for level N. Selection of the “Low” you like best by clicking 1, 2, 3, etc. where 1, 2, 3, etc are different levels of low.
Ramp Configuration [Wait for Second flash] Click N time for 1+Turbo-N. Selection of the “Ceiling” you like best by clicking 1, 2, 3, etc. where 1, 2, 3, etc are different Ceiling levels.
Ramp Configuration [Wait for Third flash] Click for how many steps you want in Stepped mode. Sets Number of Steps.
Thermal Configuration [Wait for First flash] Click for N times for N degrees C. Displays Current Temperature.
Thermal Configuration [Wait for Second flash] Click for N times for 30C + N. Sets Temperature Limit.
Beacon Configuration [Wait for First flash] Click for N times N seconds per flash Sets Beacon Speed.

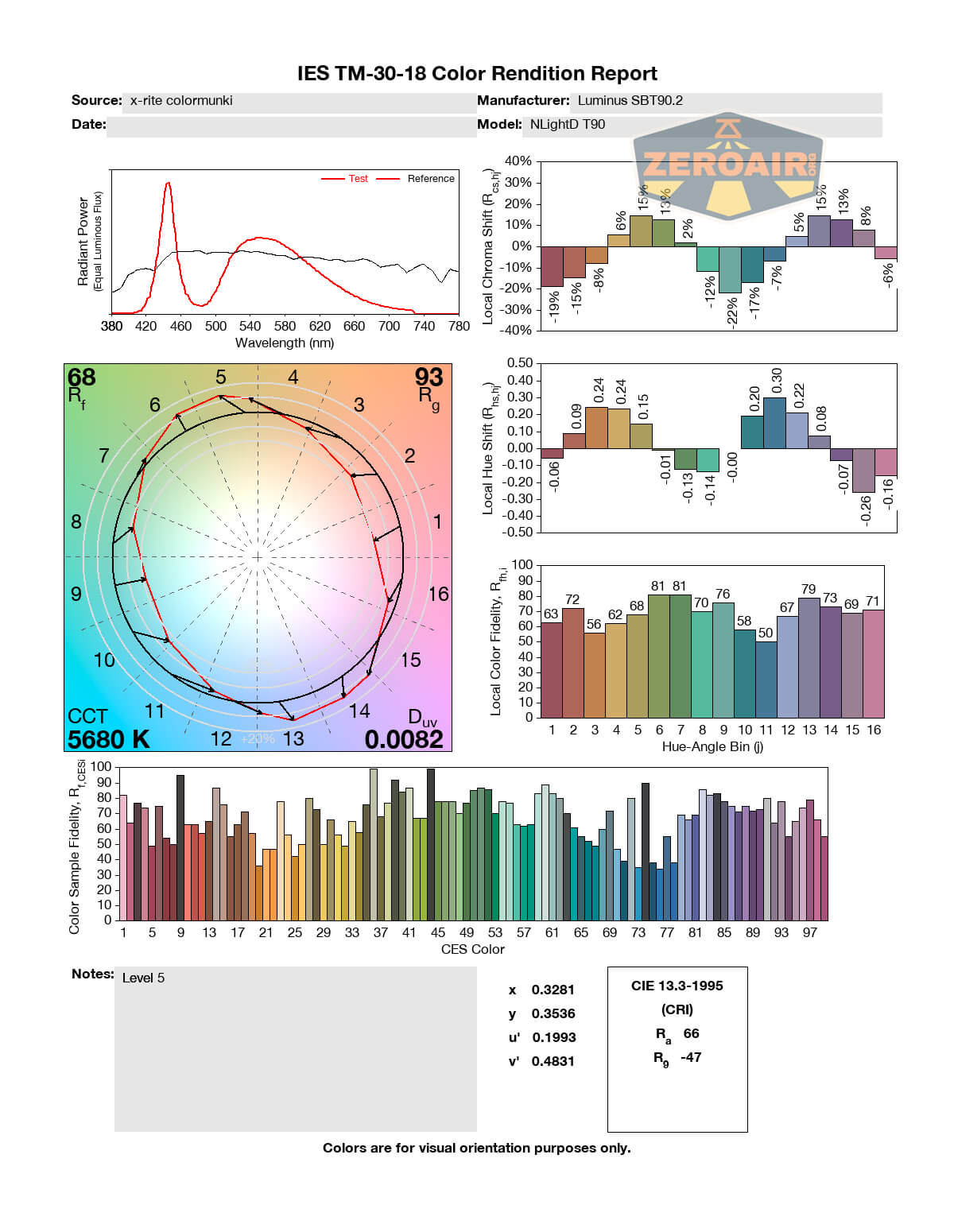

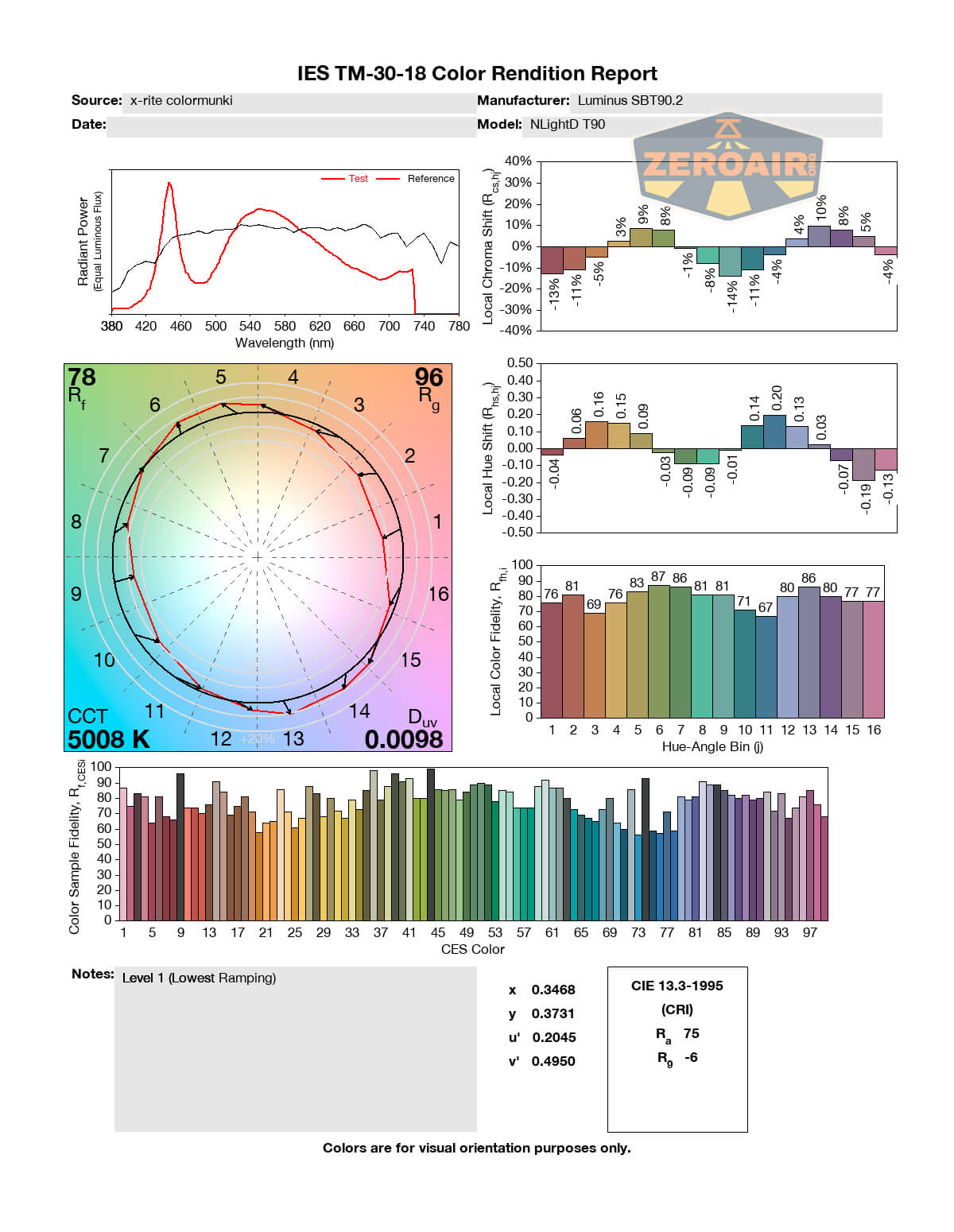

LED and Beam

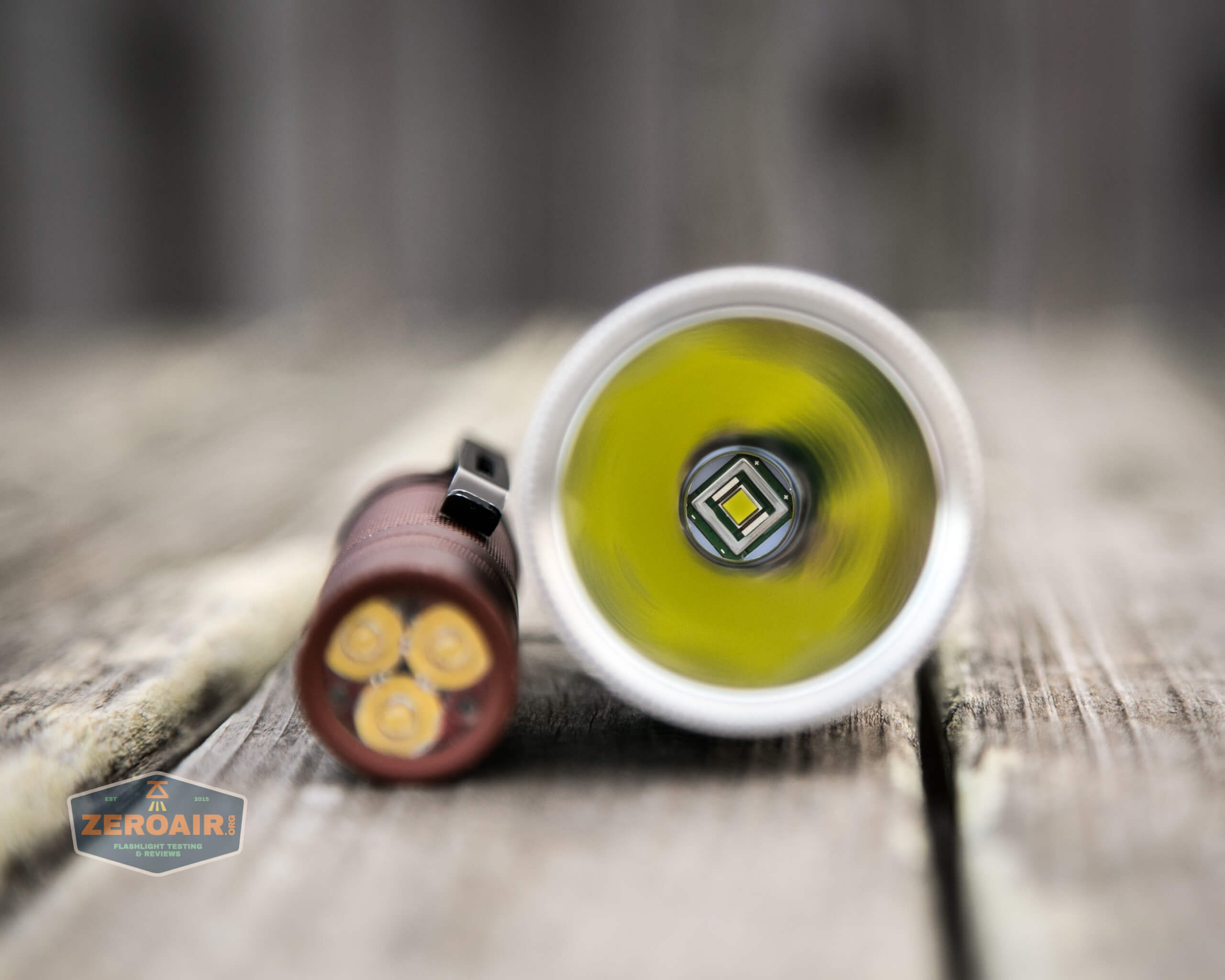

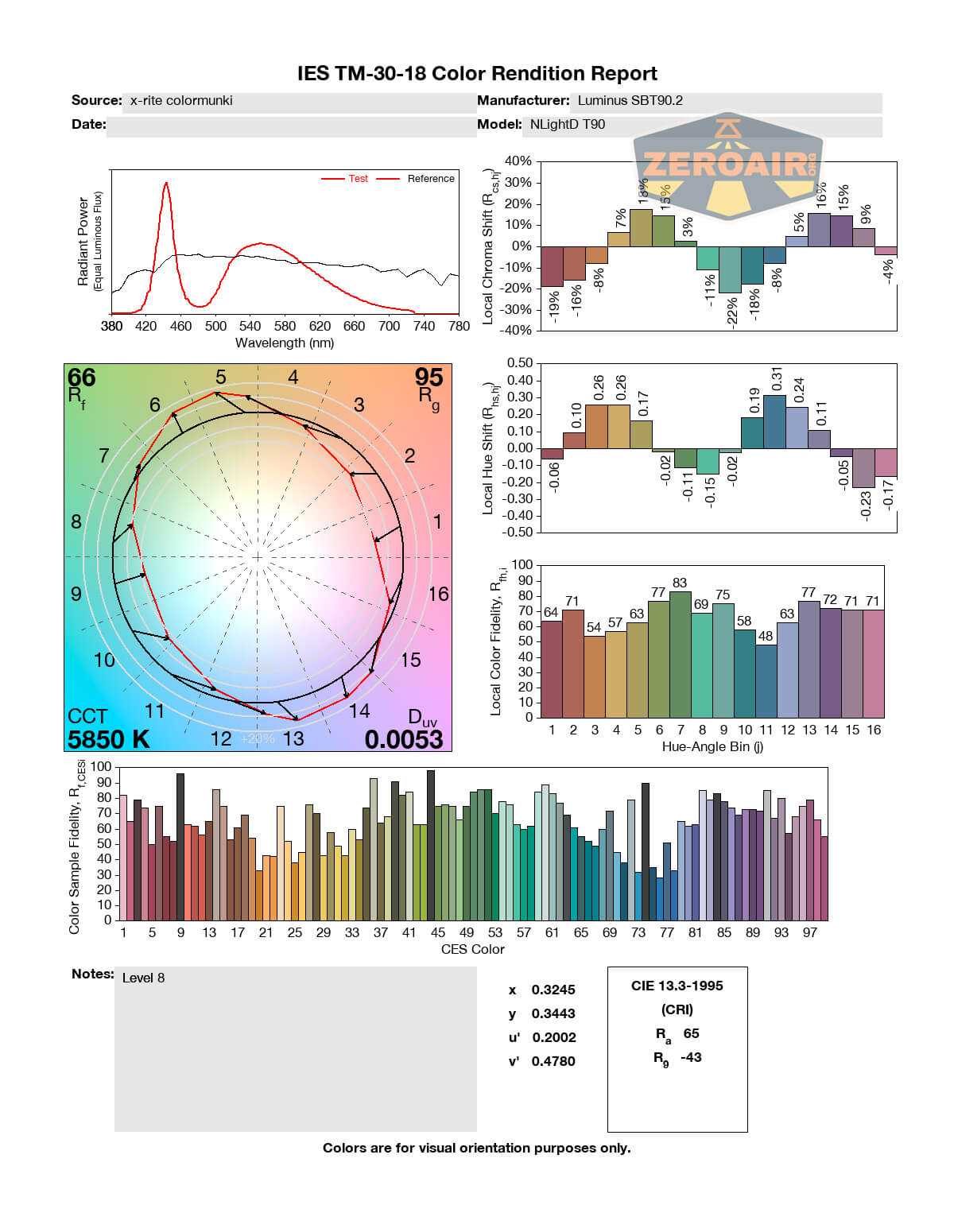

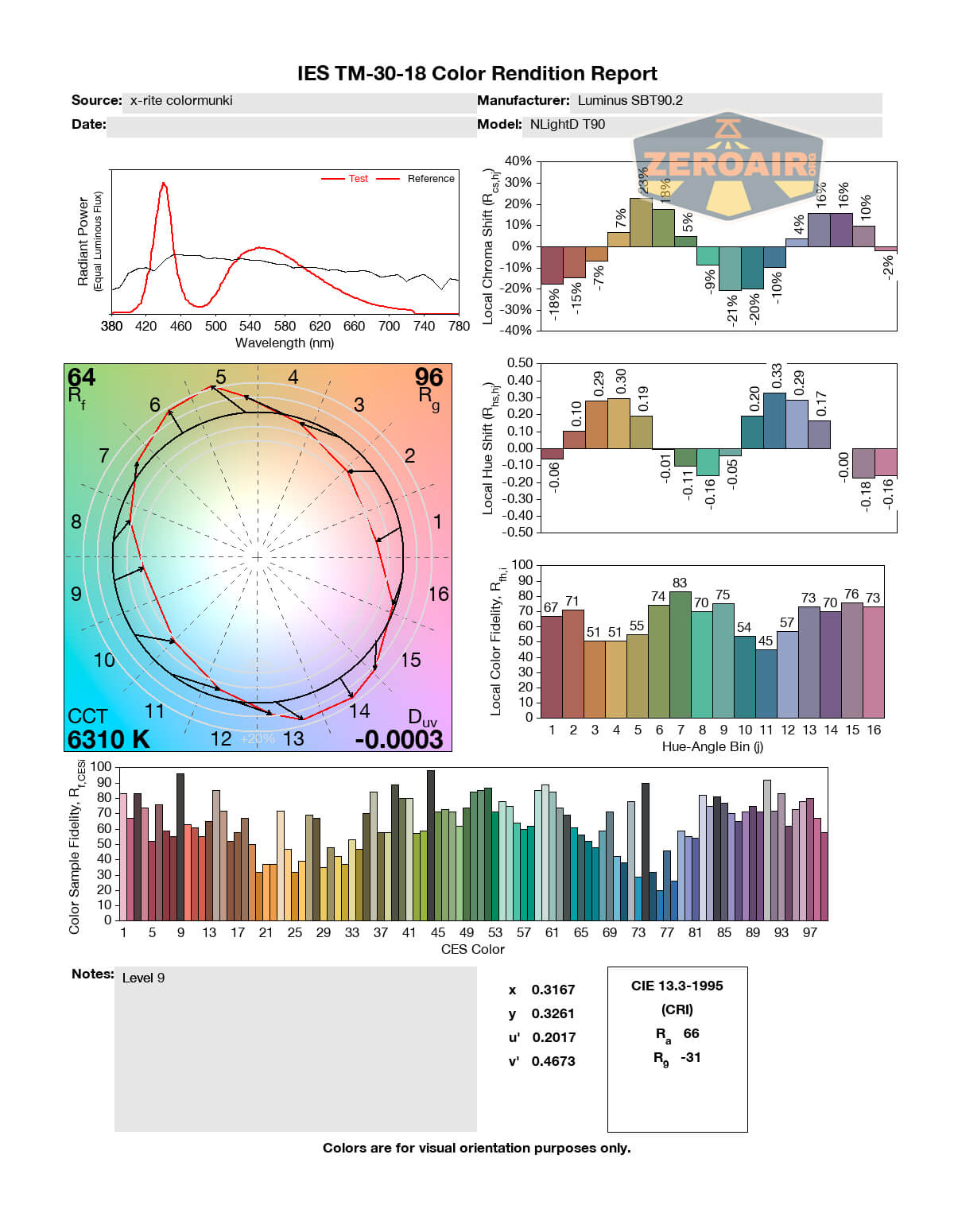

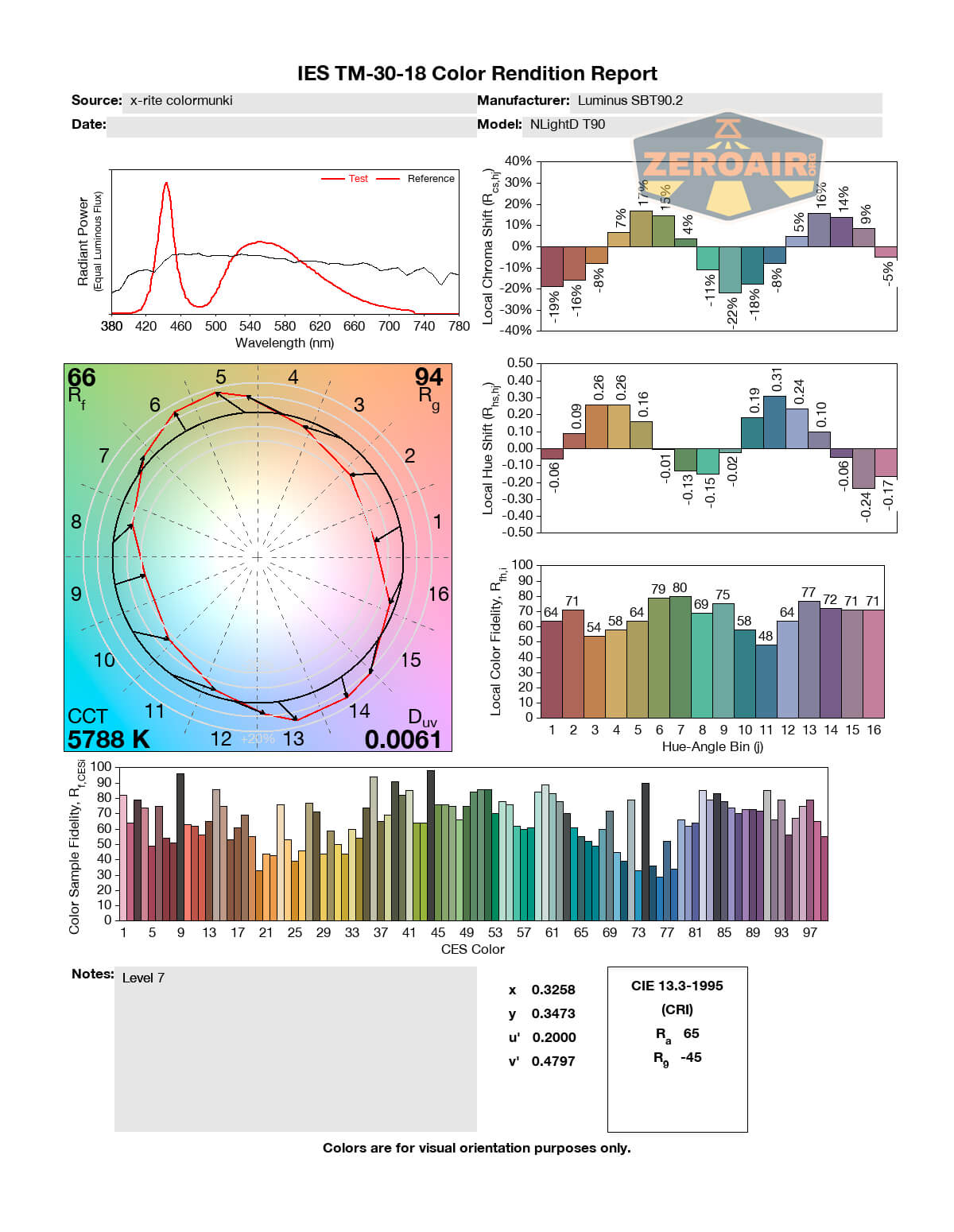

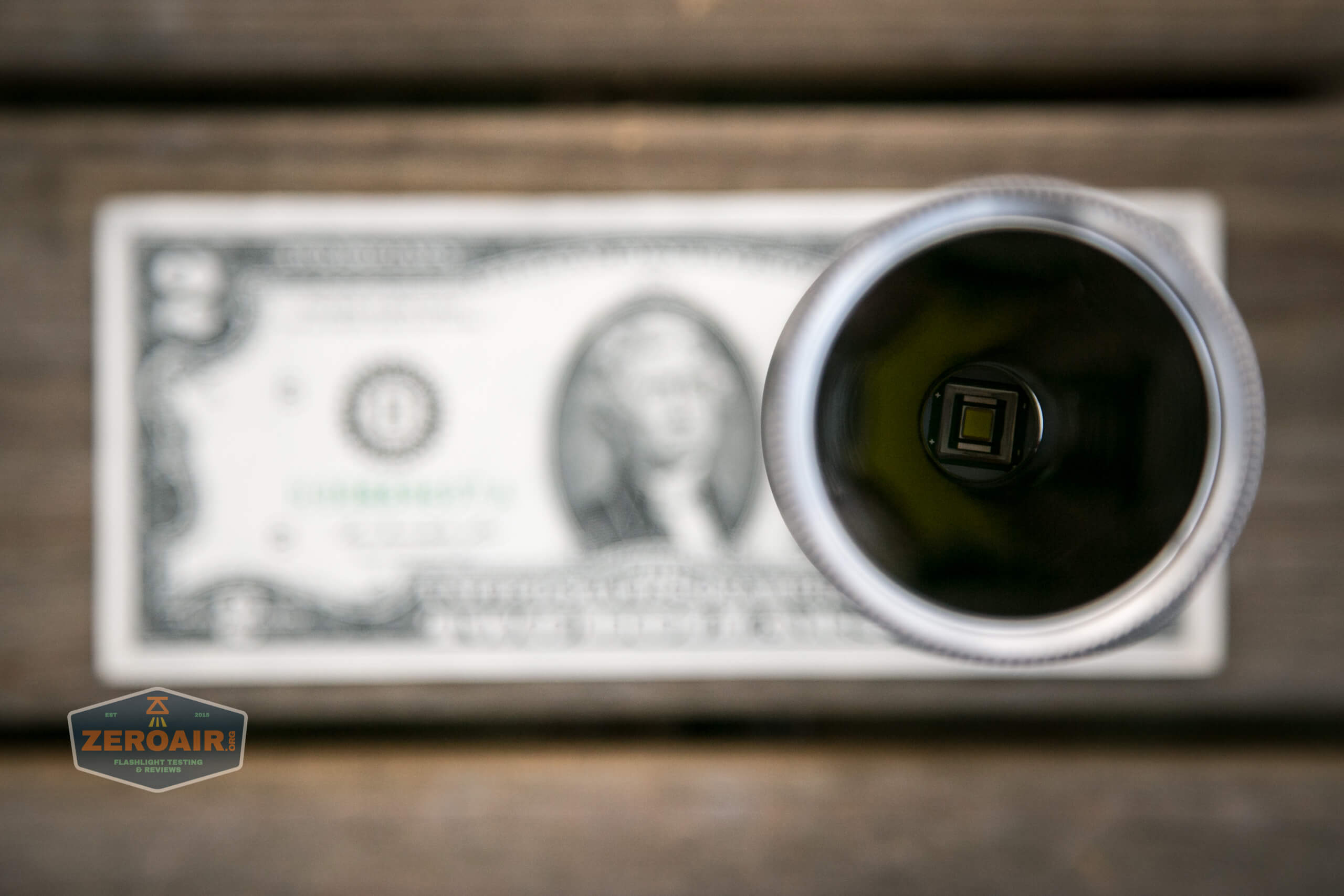

The star of the NlightD T90 is a Luminus SBT-90.2 emitter.  This thing really is a beast, and it’s paired with a smooth deep and big reflector.

NlightD T90 luminus sbt-90.2 Andúril 21700 emitter photo

NlightD T90 luminus sbt-90.2 Andúril 21700 smooth reflector

NlightD T90 luminus sbt-90.2 Andúril 21700 on low

NlightD T90 luminus sbt-90.2 Andúril 21700

NlightD T90 luminus sbt-90.2 Andúril 21700 headstanding

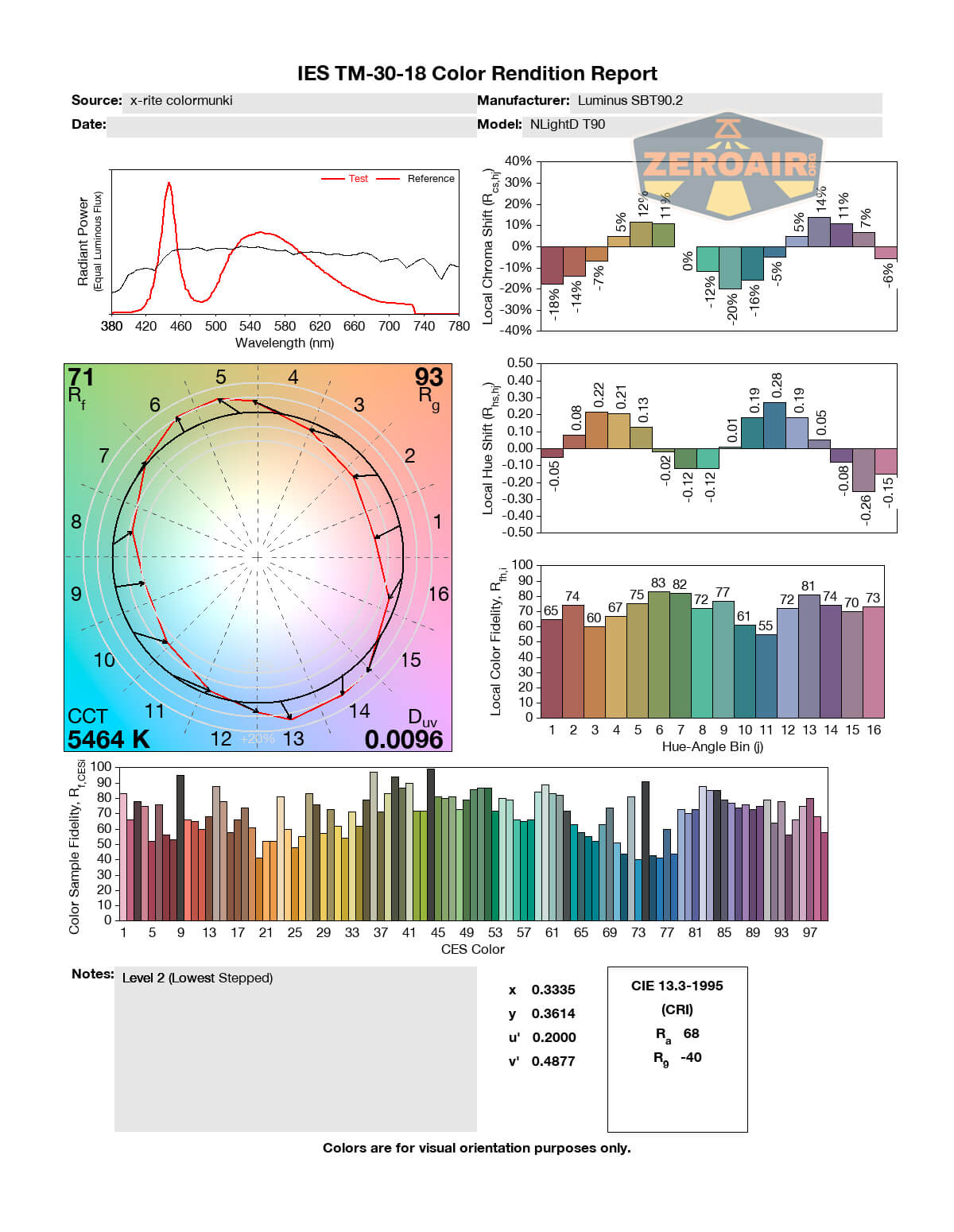

These beamshots are always with the following settings:  f8, ISO100, 0.3s shutter, and manual 5000K exposure.

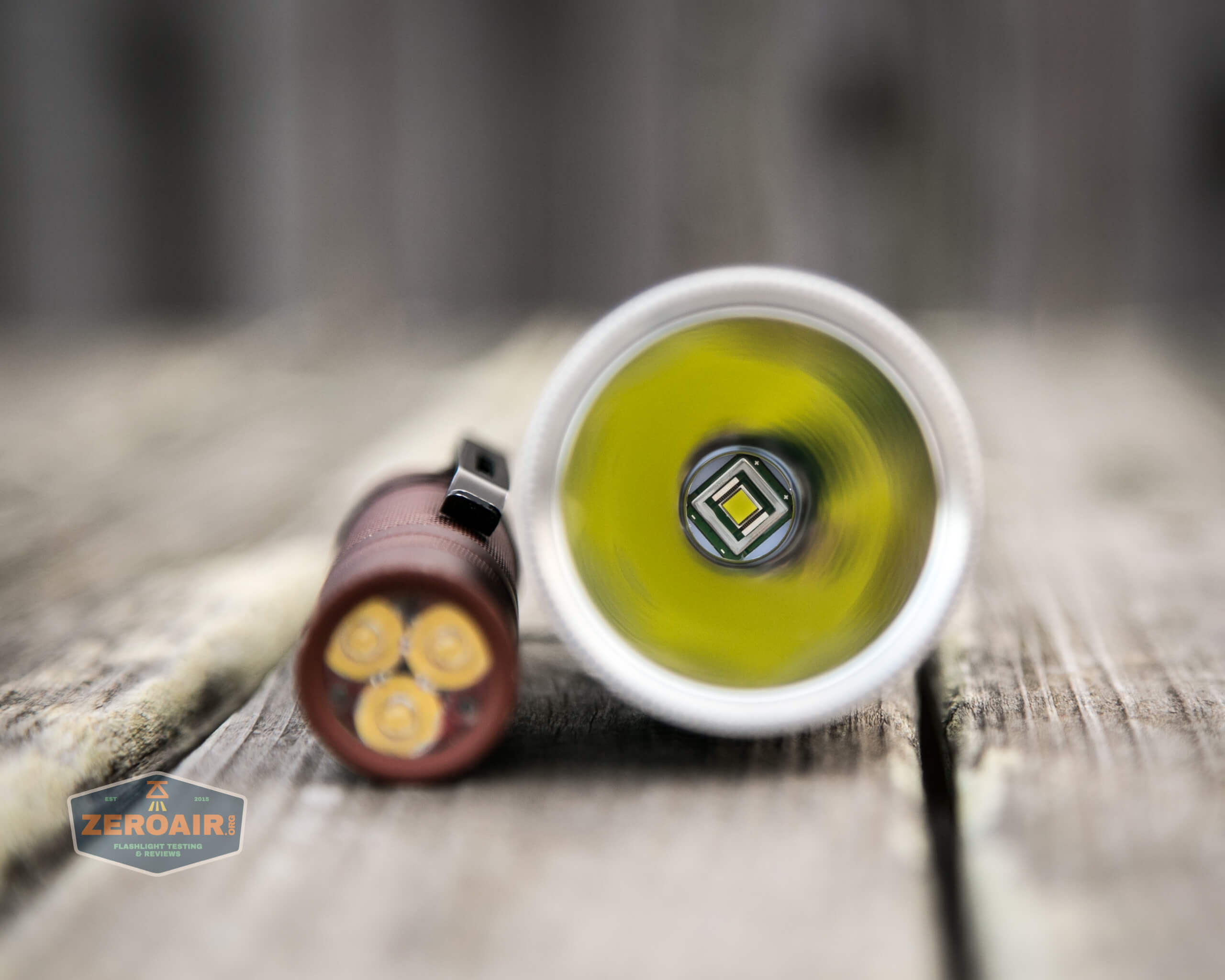

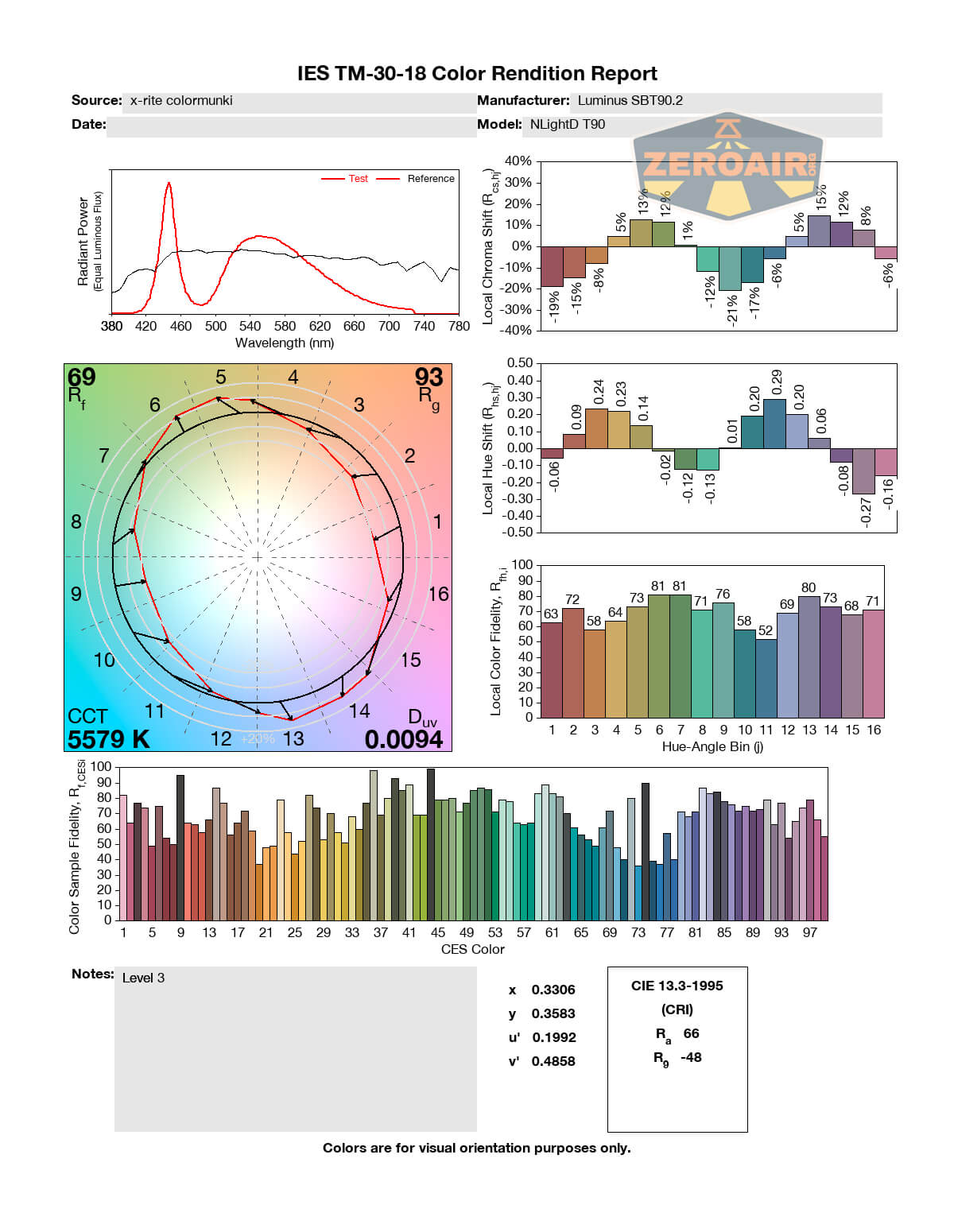

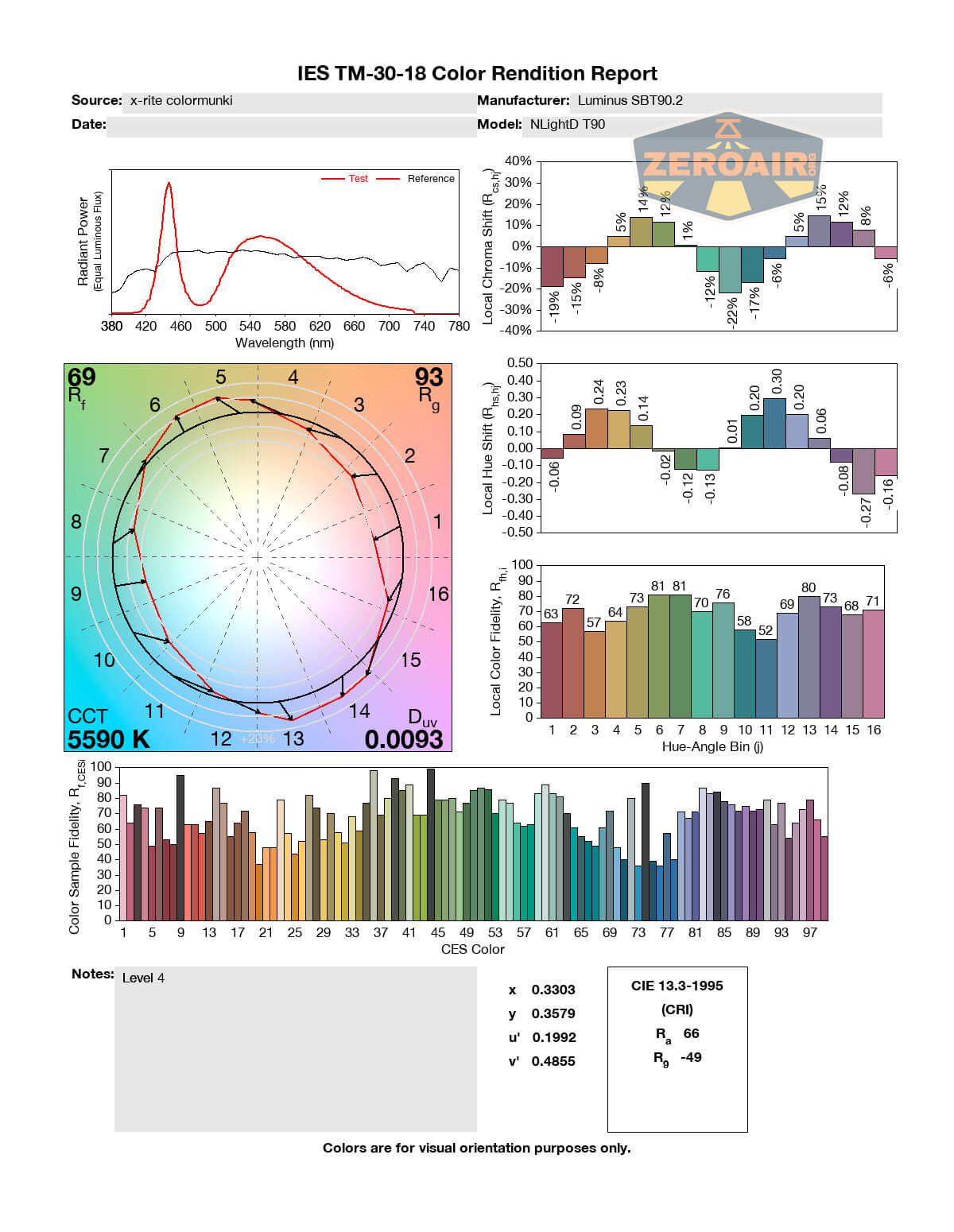

Tint vs BLF-348 (KillzoneFlashlights.com 219b version) (affiliate link)

Test light is on the left!

I compare everything to the KillzoneFlashlights.com 219b BLF-348, because it’s inexpensive and has the best tint!

Conclusion

What I like

  • Nice build quality
  • Fun use of the Luminus SBT-90.2 emitter
  • Output is really fantastic (briefly)
  • Lowest output is useful
  • Good clip, and decent use of two-way clip

What I don’t like

  • Output drops just way too quickly
  • Sustained output on highest stepped level is too low
  • Cell isn’t included

Notes

  • This light was provided by NealsGadgets for review. I was not paid to write this review.
  • This content originally appeared at zeroair.org.  Please visit there for the best experience!
  • For flashlight related patches, stickers, and gear, head over to PhotonPhreaks, another site where I write!
  • Use my amazon.com referral link if you’re willing to help support making more reviews like this one!
