Wuben X-1 Falcon Flashlight Review

Wuben released another flashlight in the X series: the X-1 Falcon. This light uses two 21700 cells and has USB-C charging, too! Read on!

---

Official Specs and Features

Here’s a link to the Wuben X-1 Falcon flashlight product page.

Versions

Two body colors are available – black (seen here) and white with black accents.  They share an emitter type: three Cree XHP70.2.

Price

Wuben lists the X-1 Falcon price at $178.00, and it’s available now at wuben.com. Here’s a 20% off coupon, too:
zeroair20

---

Short Review

The Wuben X-1 Falcon flashlight is a pretty neat flashlight. While rectangular is unusual for a flashlight, it works well here. That the two 21700 cells are standard is great, but that they’re sort of hard to get to is less than ideal.

Long Review

The Big Table

Wuben X-1 Falcon flashlight
Emitter:	Cree XHP70 (3)
Price in USD at publication time:	$178.00 at wubenlight.com Here’s a 20% off coupon, too: zeroair20
Cell:	1xInternal (21700×2)
Turbo Runtime Graph	High Runtime Graph
LVP?	Yes
Switch Type:	E-Switch
Quiescent Current (mA):	?
On-Board Charging?	Yes
Charge Port Type:	USB-C
Charge Graph
Power off Charge Port	All modes except Turbo
Claimed Lumens (lm)	12000
Measured Lumens (at 30s)	9130 (76.1% of claim)^
Candela per Lumen	2.7
Claimed Throw (m)	303
Candela (Calculated) in cd (at 30s)	932lux @ 5.208m = 25279cd
Throw (Calculated) (m)	318.0 (105% of claim)^
Claimed CCT	–
Measured CCT Range (K)	5700-6000 Kelvin
Item provided for review by:	Wuben
All my Wuben reviews!

^ Measurement disclaimer: Testing flashlights is my hobby. I use hobbyist-level equipment for testing, including some I made myself. Try not to get buried in the details of manufacturer specifications versus measurements recorded here; A certain amount of difference (say, 10 or 15%) is perfectly reasonable.

What’s Included

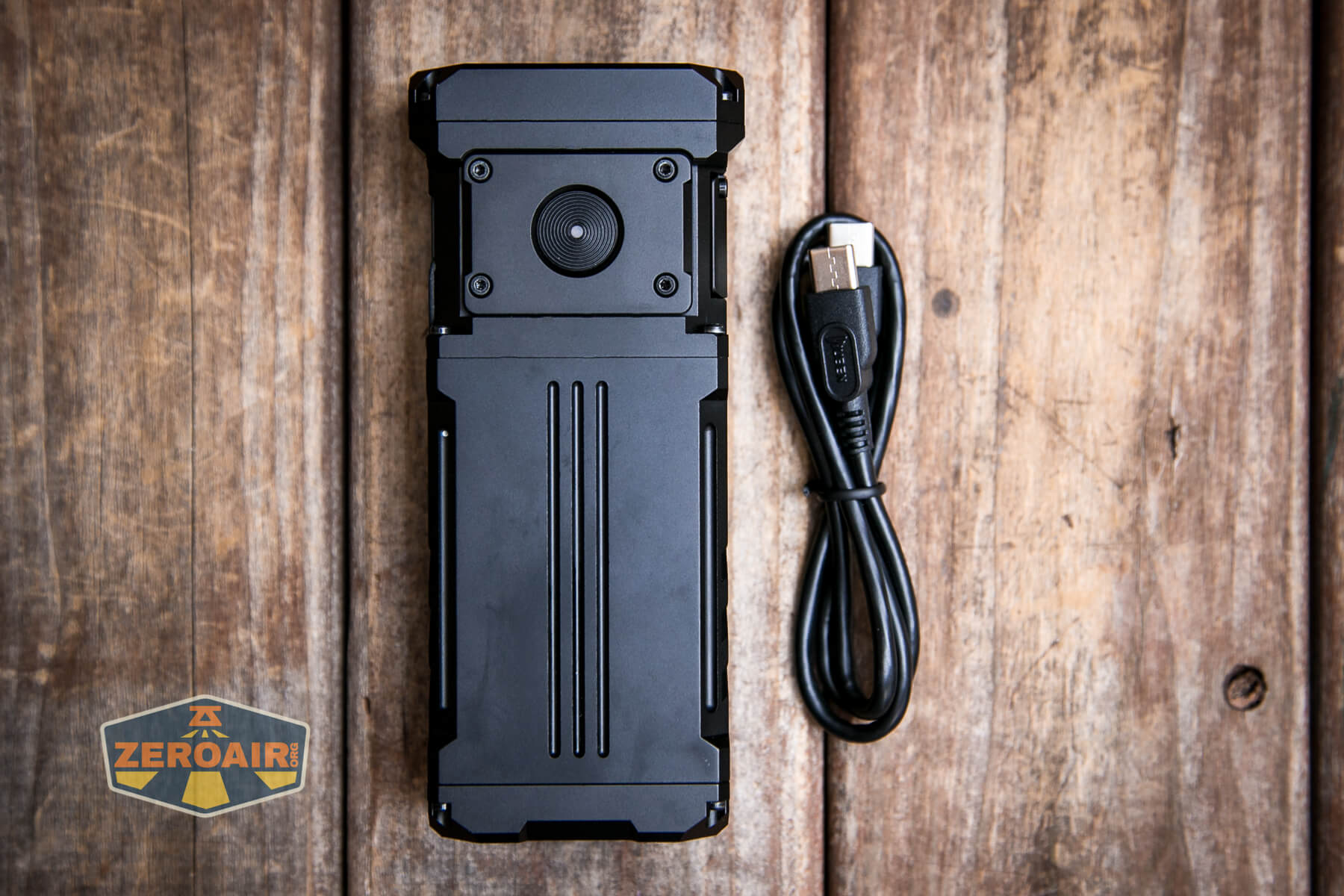

• Wuben X-1 Falcon Flashlight

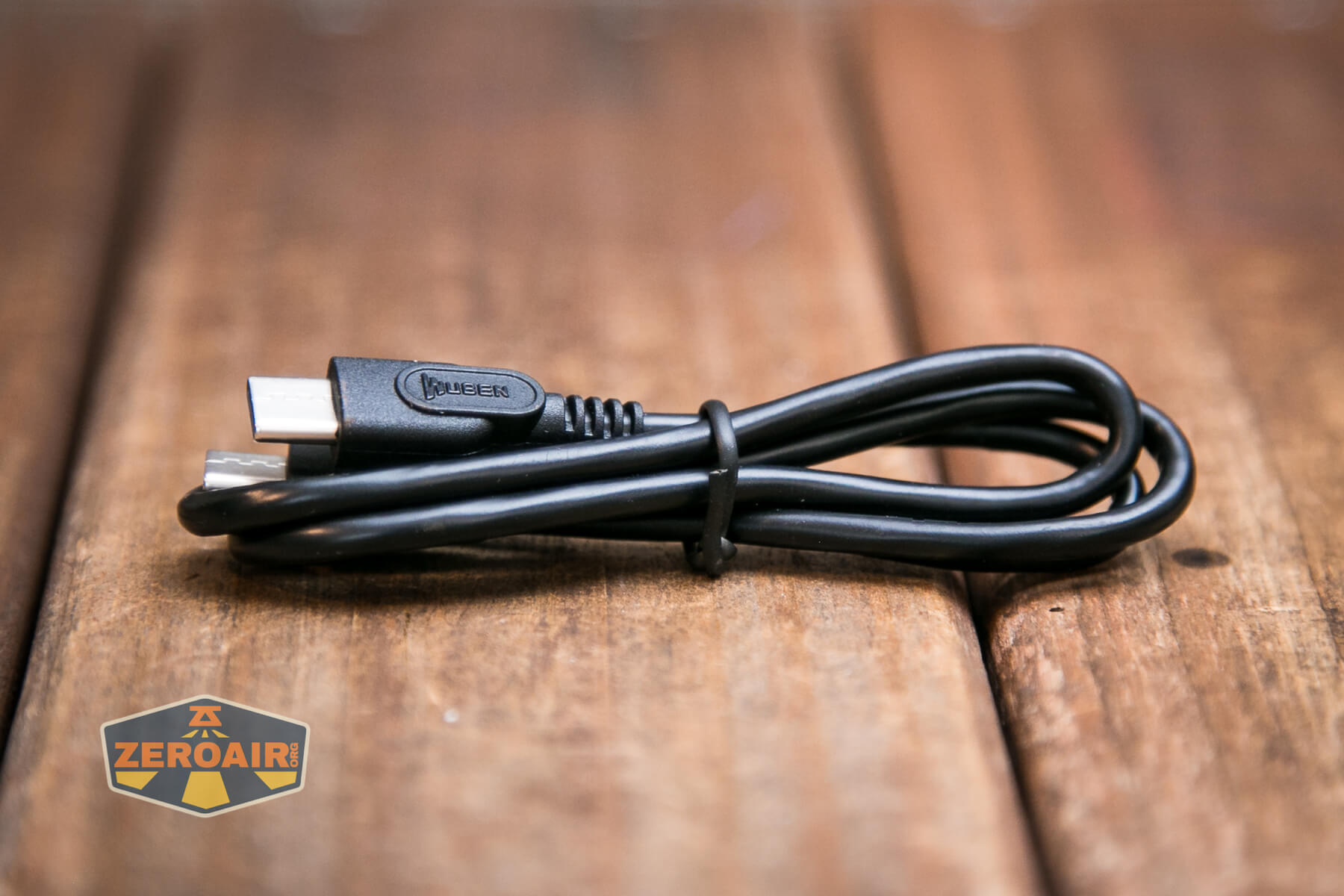

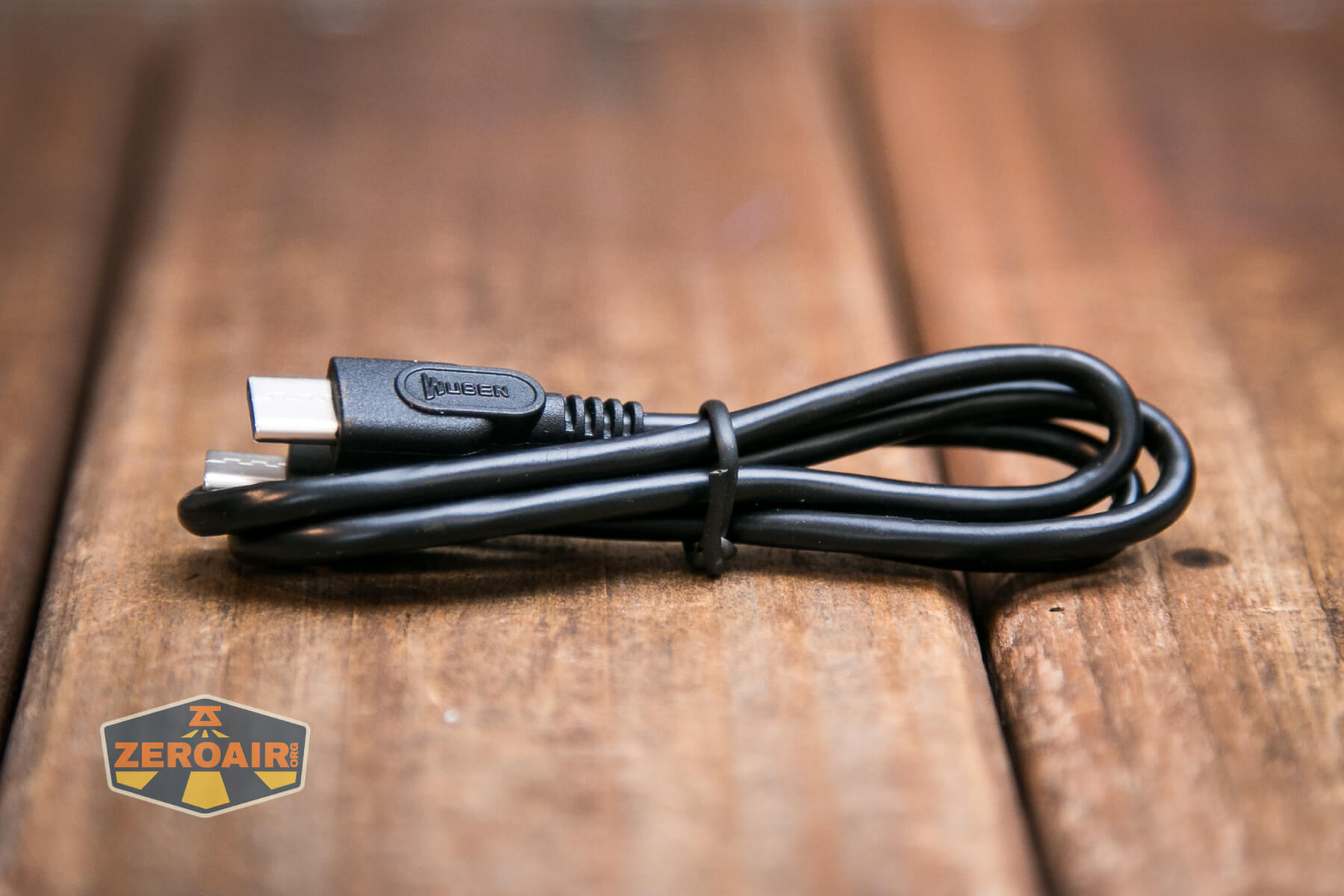

• Charging cable (USB-C to USB-C)
• Two 21700 cells (“built-in” but standard cells)

This may not be a production package for the X-1 Falcon.

Package and Manual

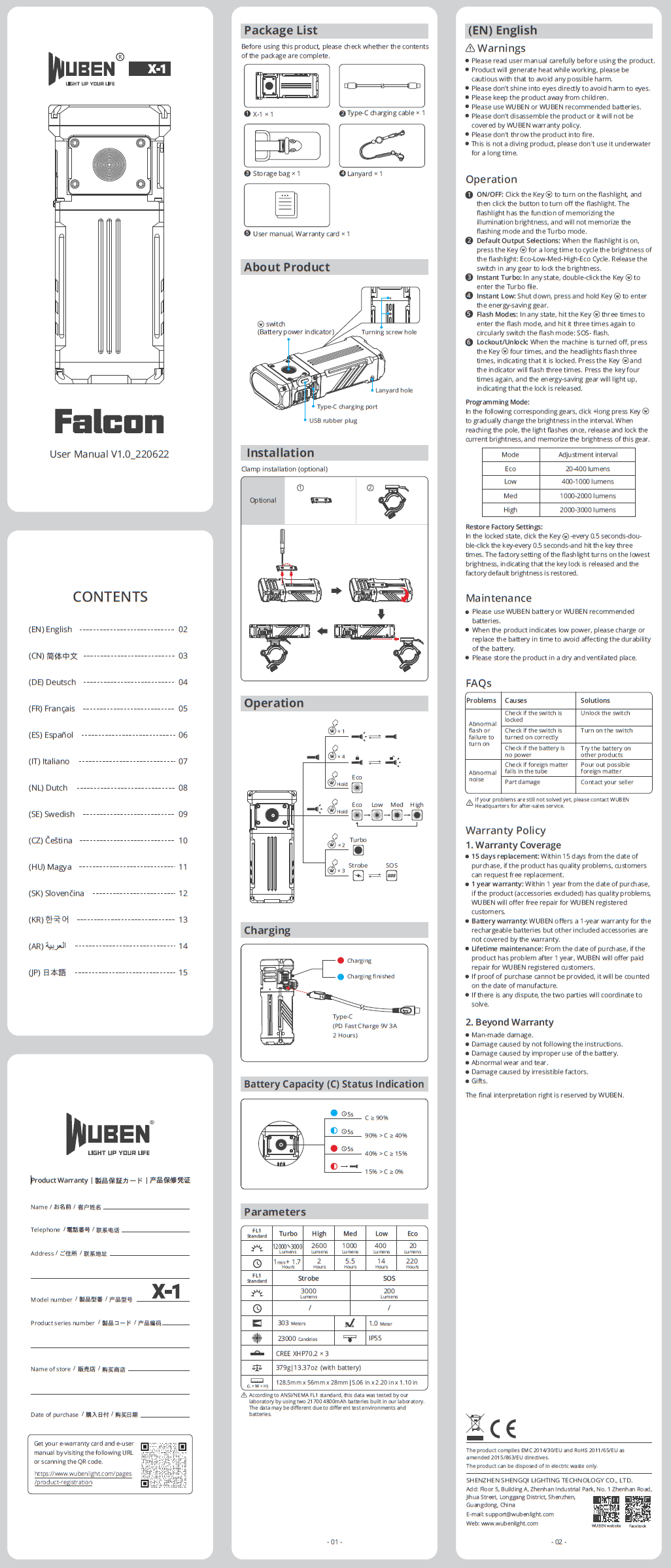

I don’t think this is really a “production package” but Wuben did provide me with a manual.

Build Quality and Disassembly

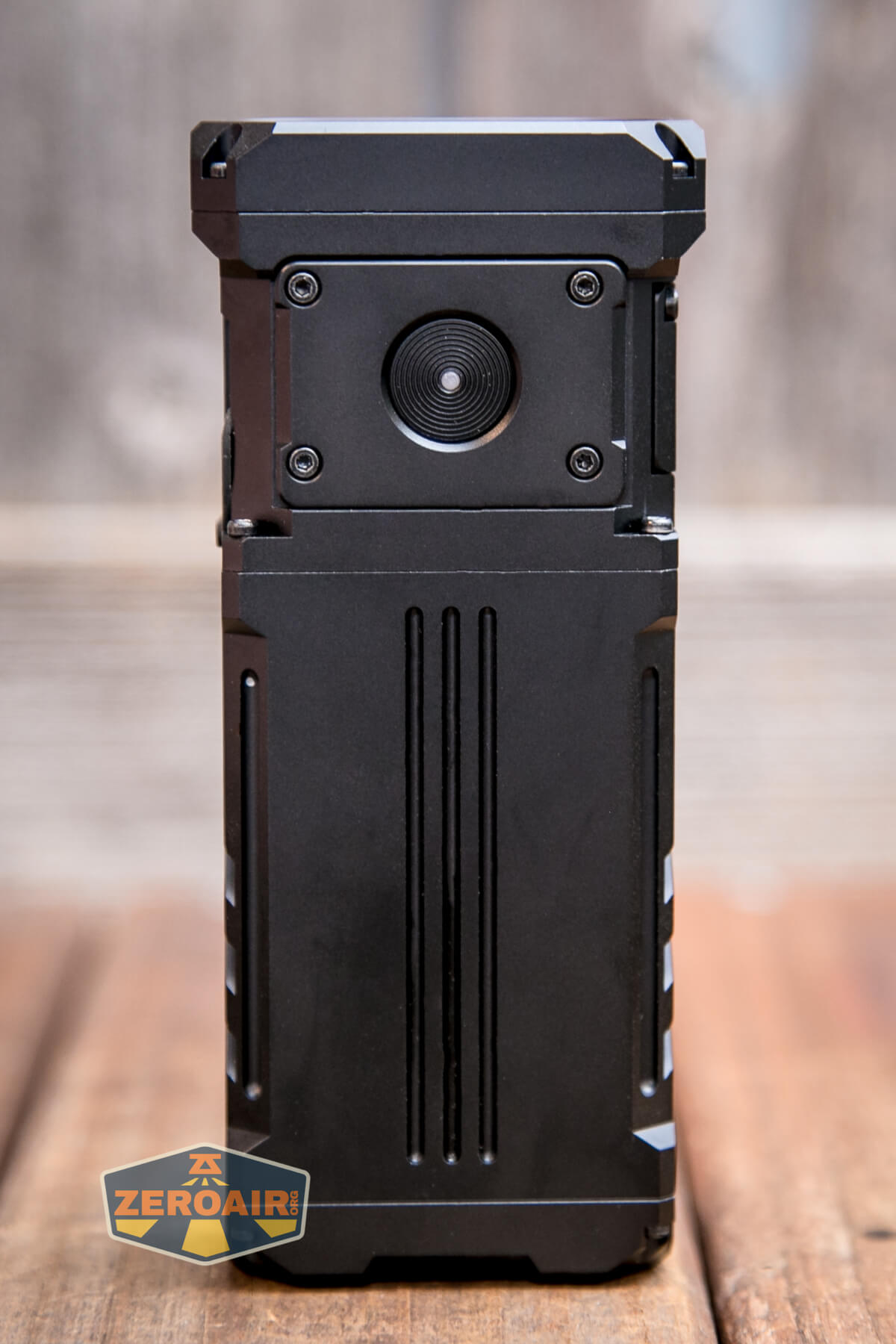

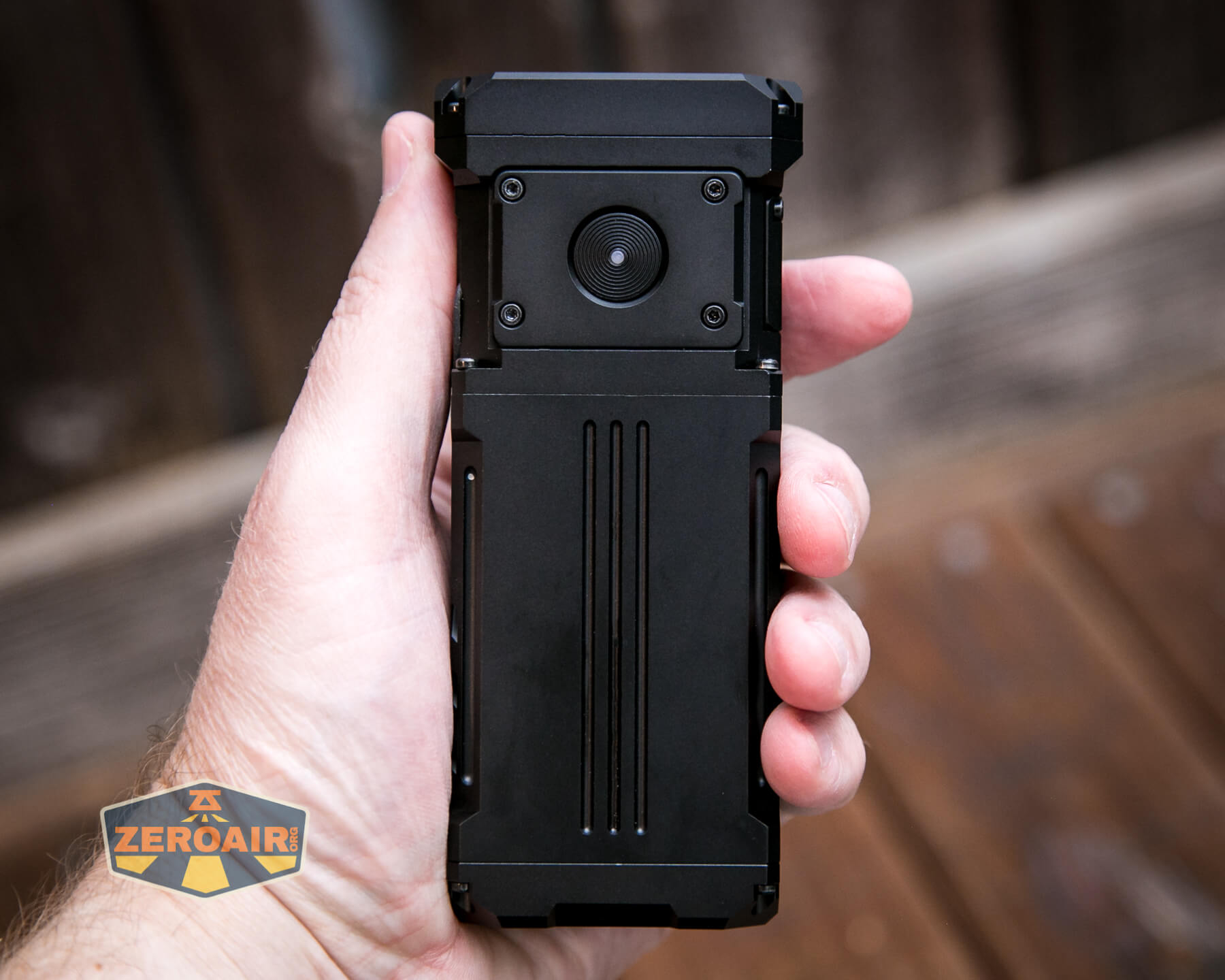

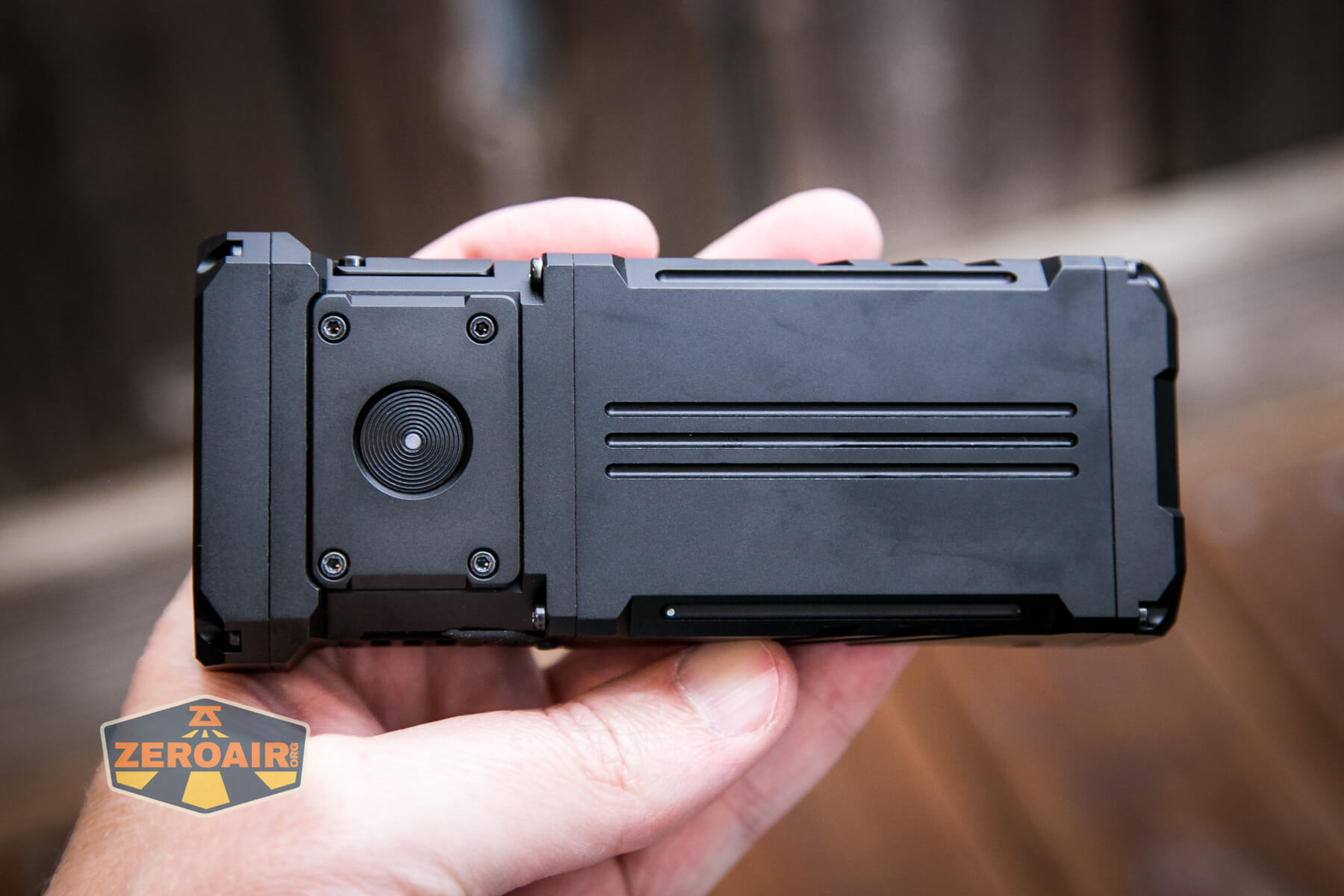

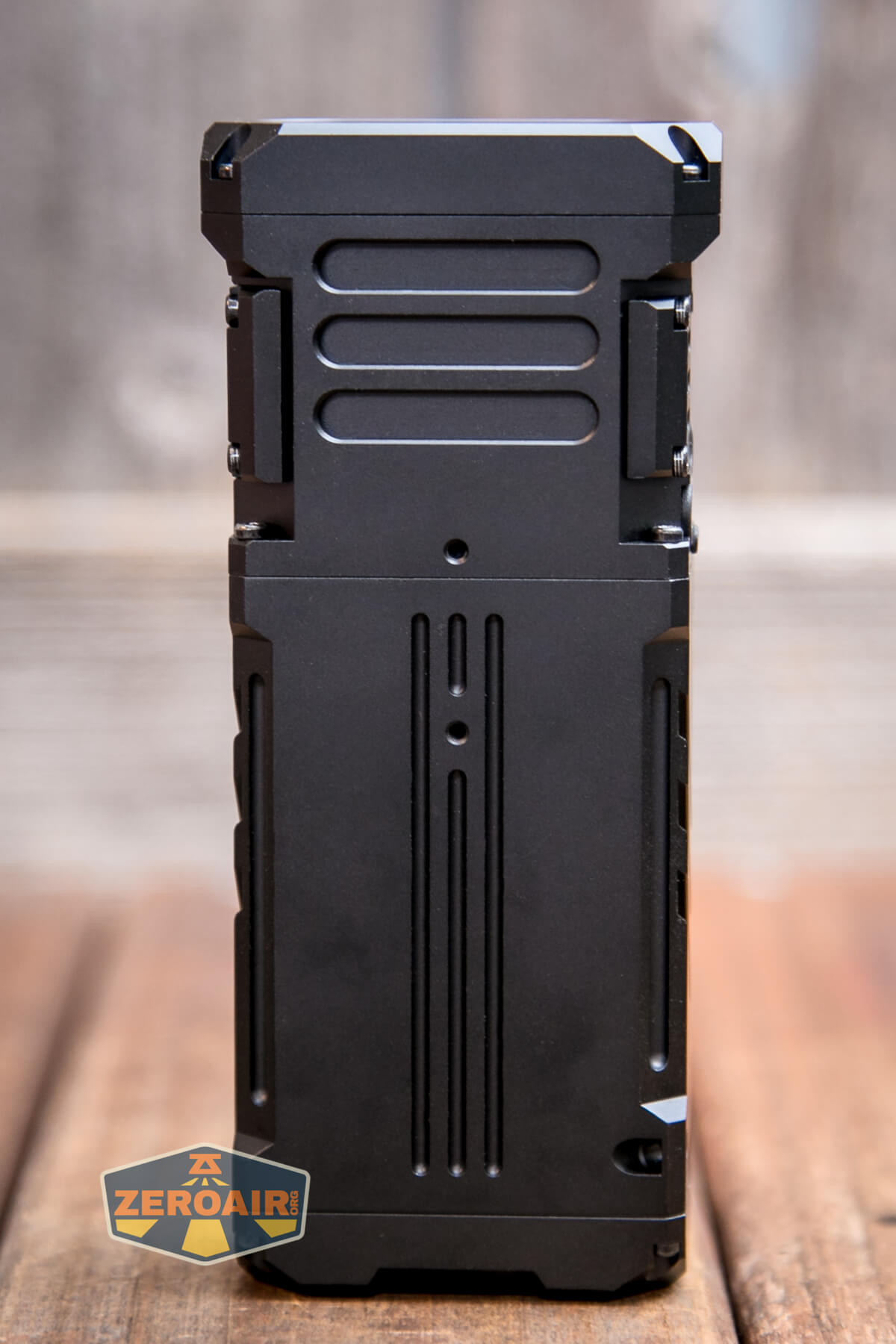

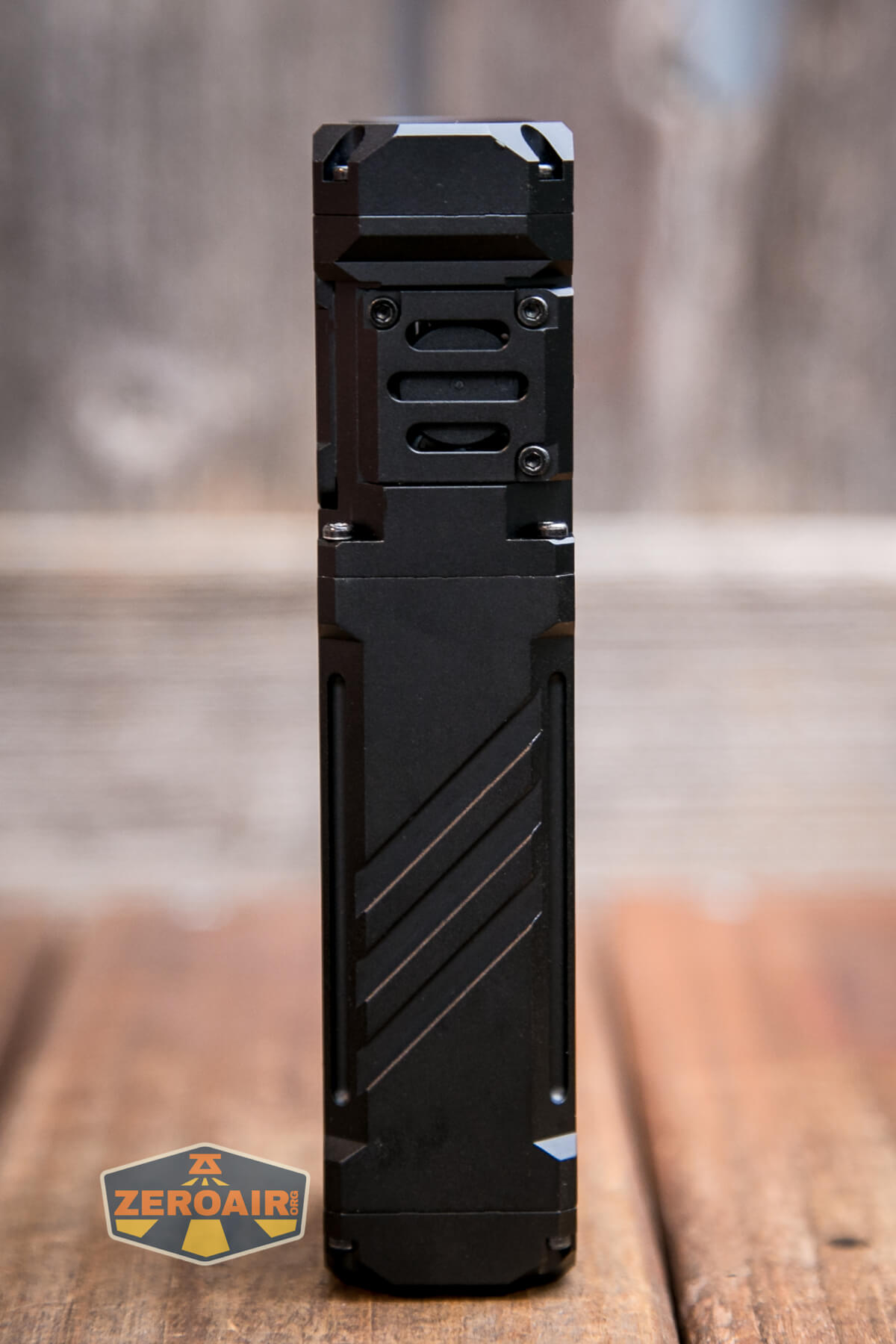

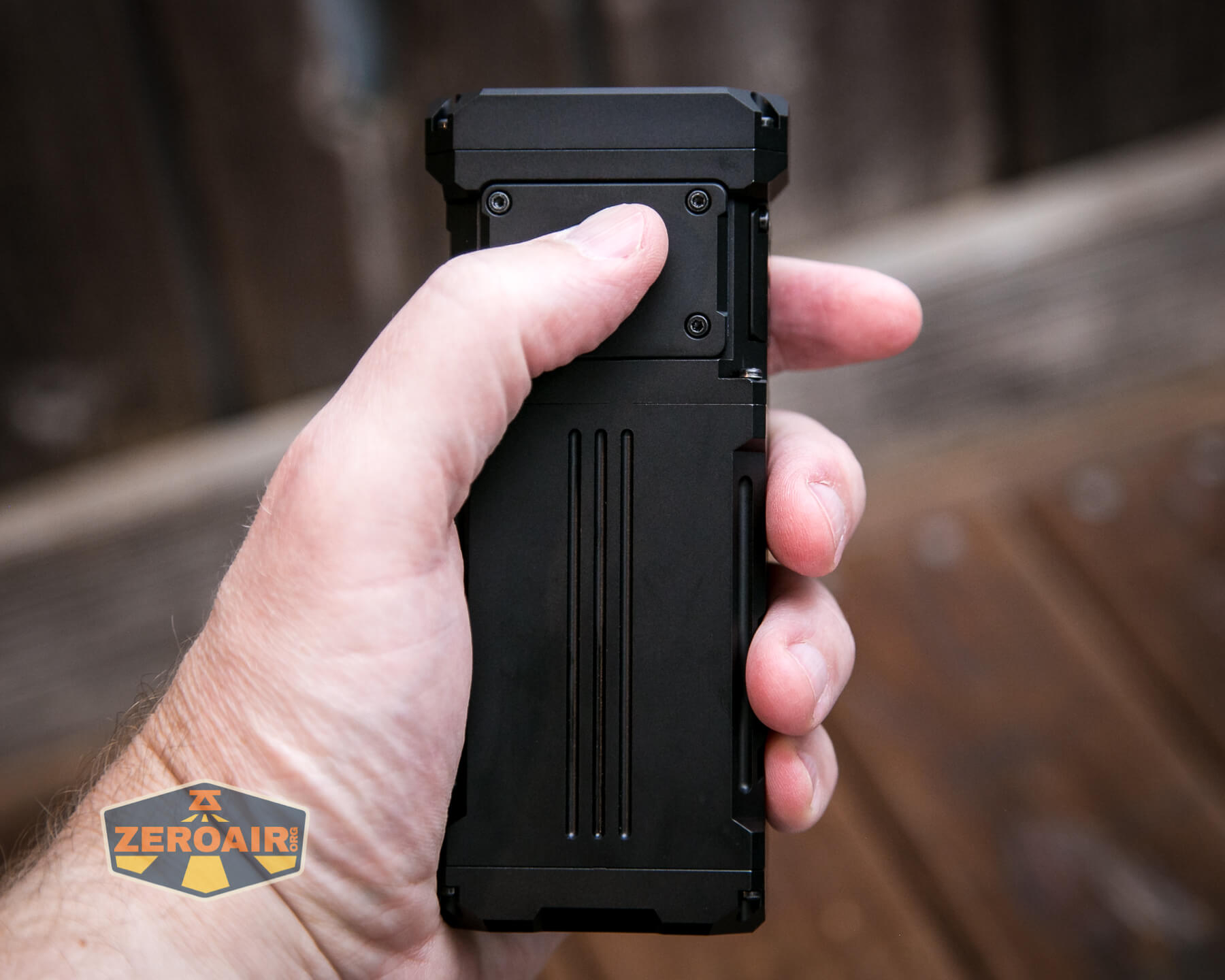

The Wuben X-1 Falcon flashlight has an interesting design. We’ve seen rectangular lights before, but they’re still uncommon enough to warrant discussion.

I like these unusual designs. A bonus here is the built-in fan which helps deal with the heat.

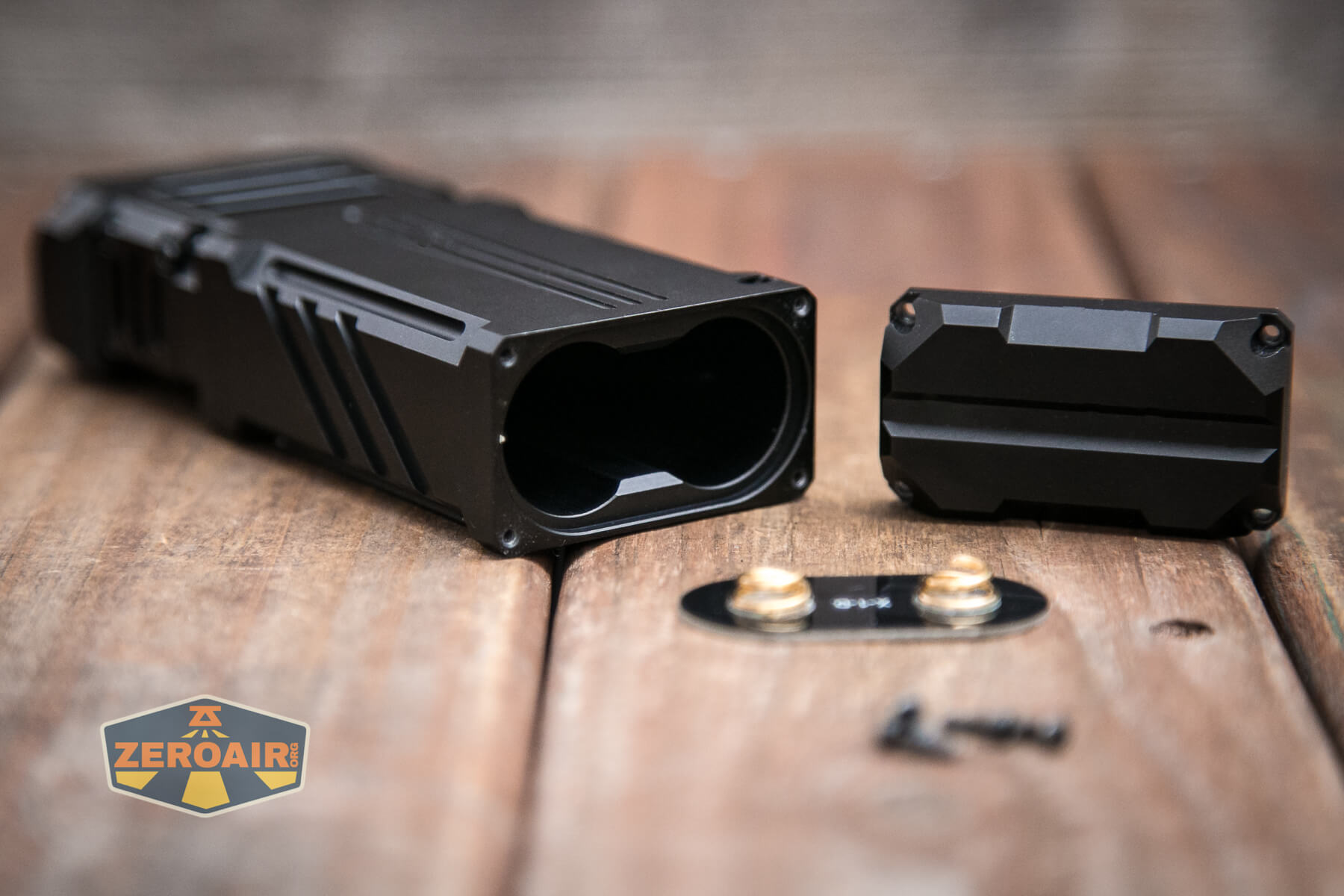

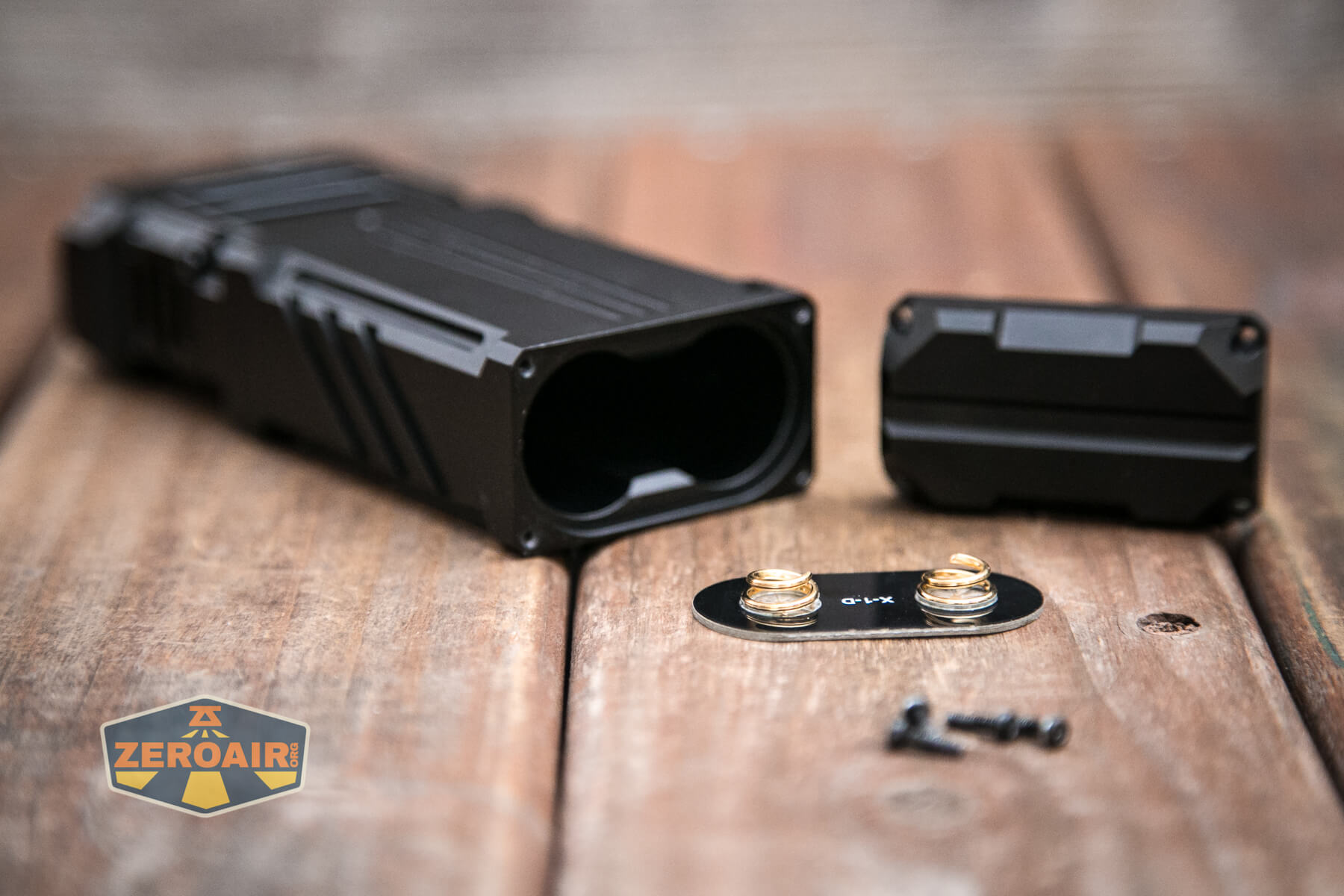

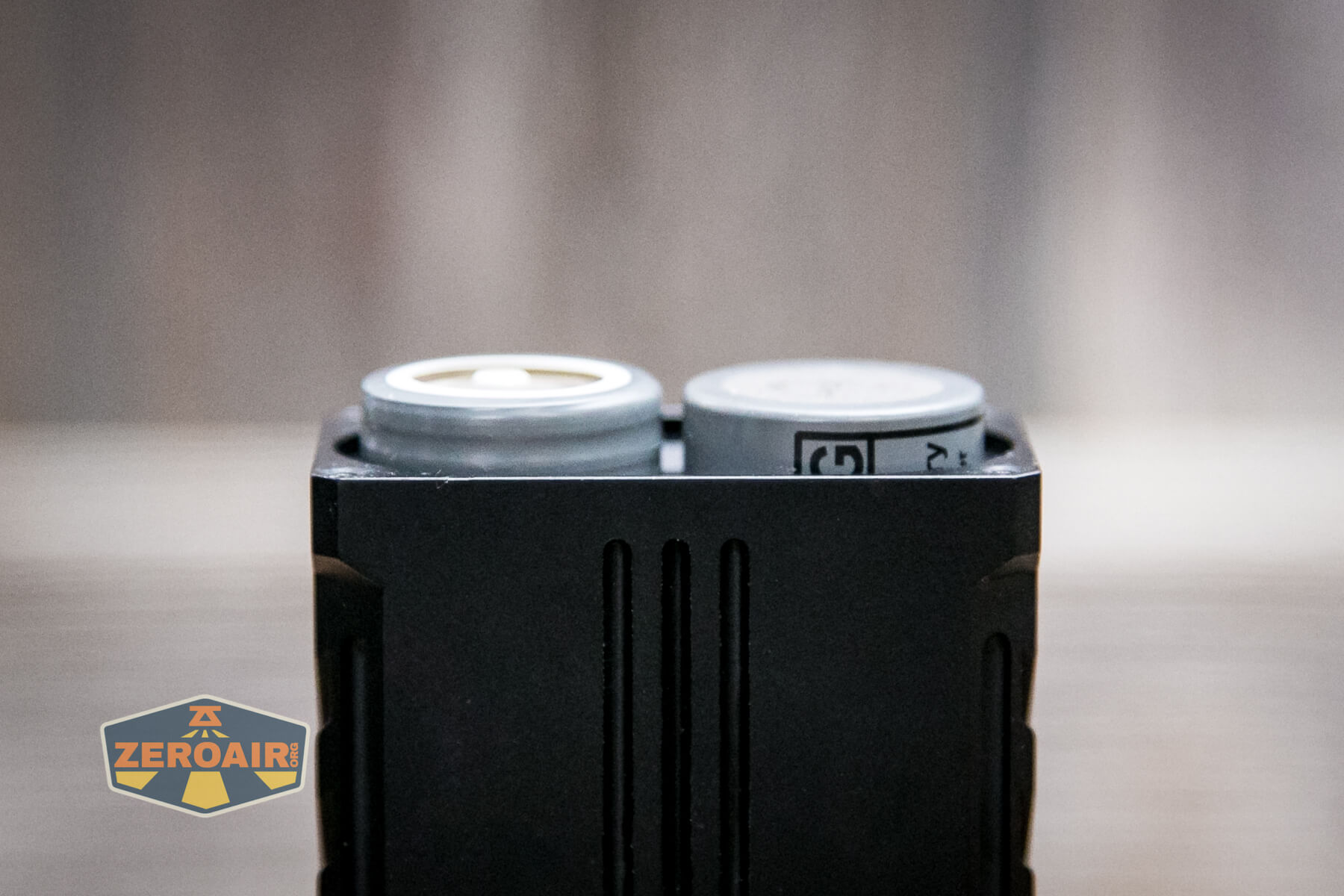

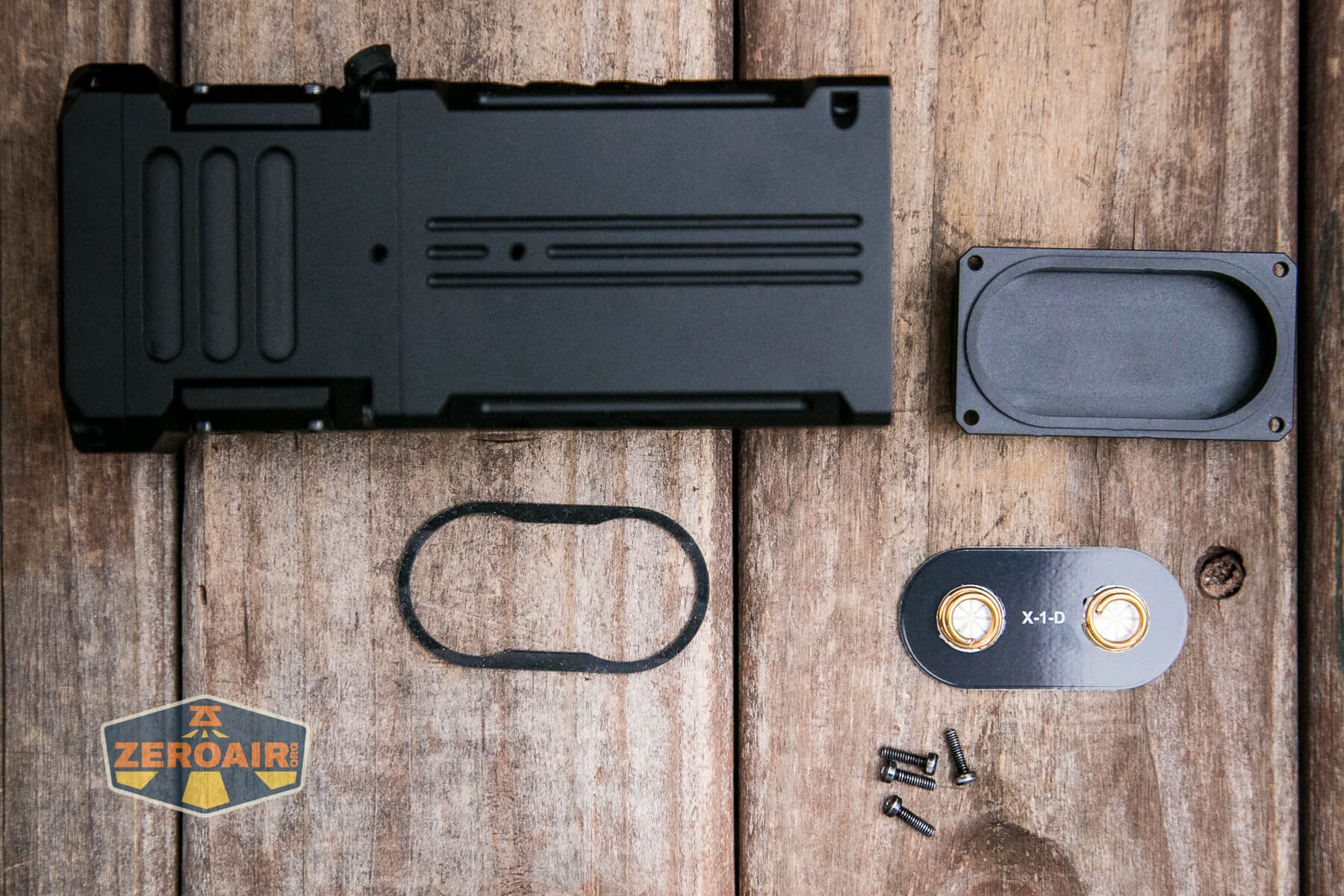

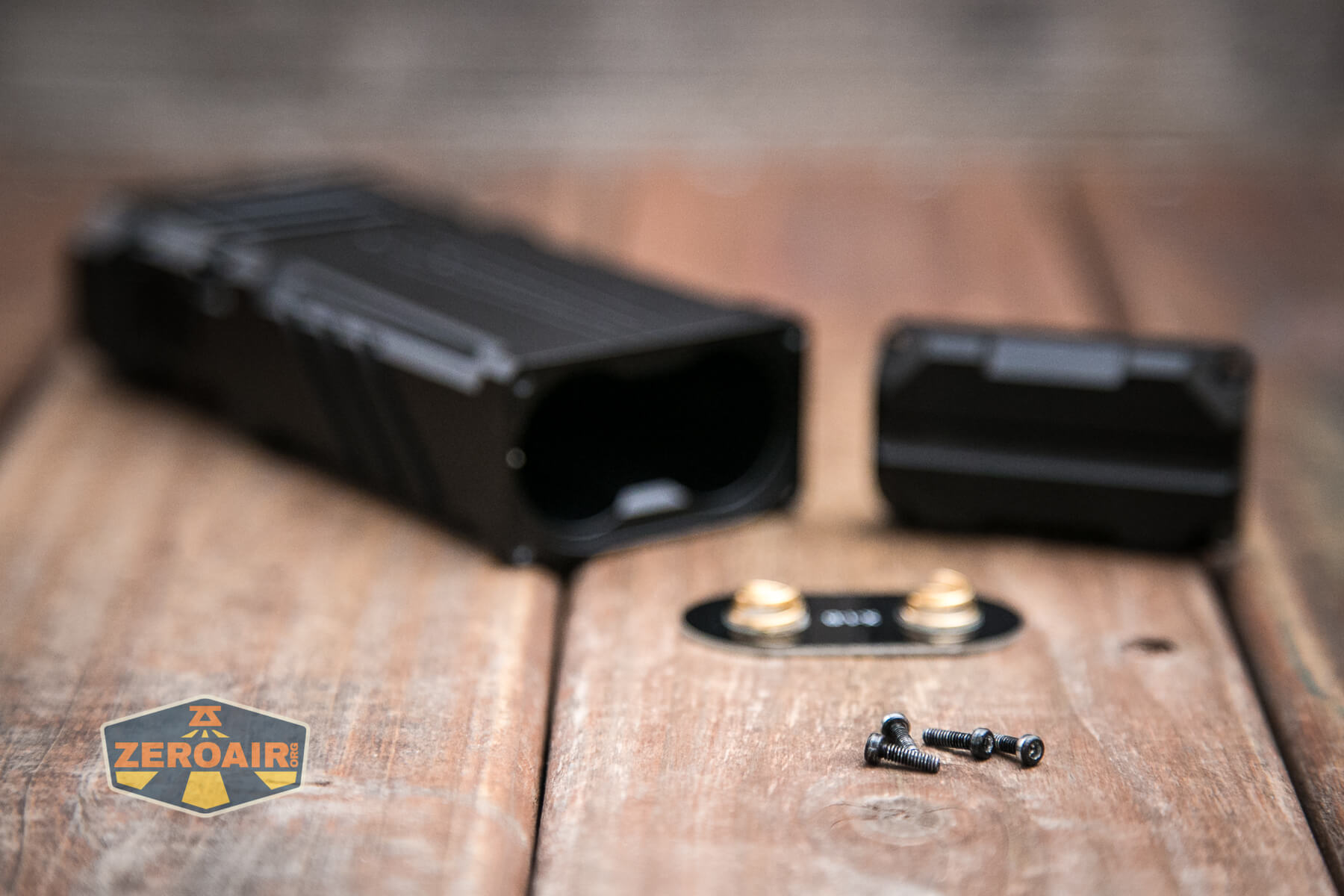

These 21700 cells being used are standard cells, despite being “hidden” under four Torx screws. Removing those screws is pretty simple though, and once that’s done, the cells can come out easily. A little spring board is also loose in there when all the parts are removed. The springs go cell-side, but either spring can touch either cell. (Ie it’s not really directional.)

That o-ring you see below will probably come out when you pull the cells but just pop it back in. It’s a custom flat ring.

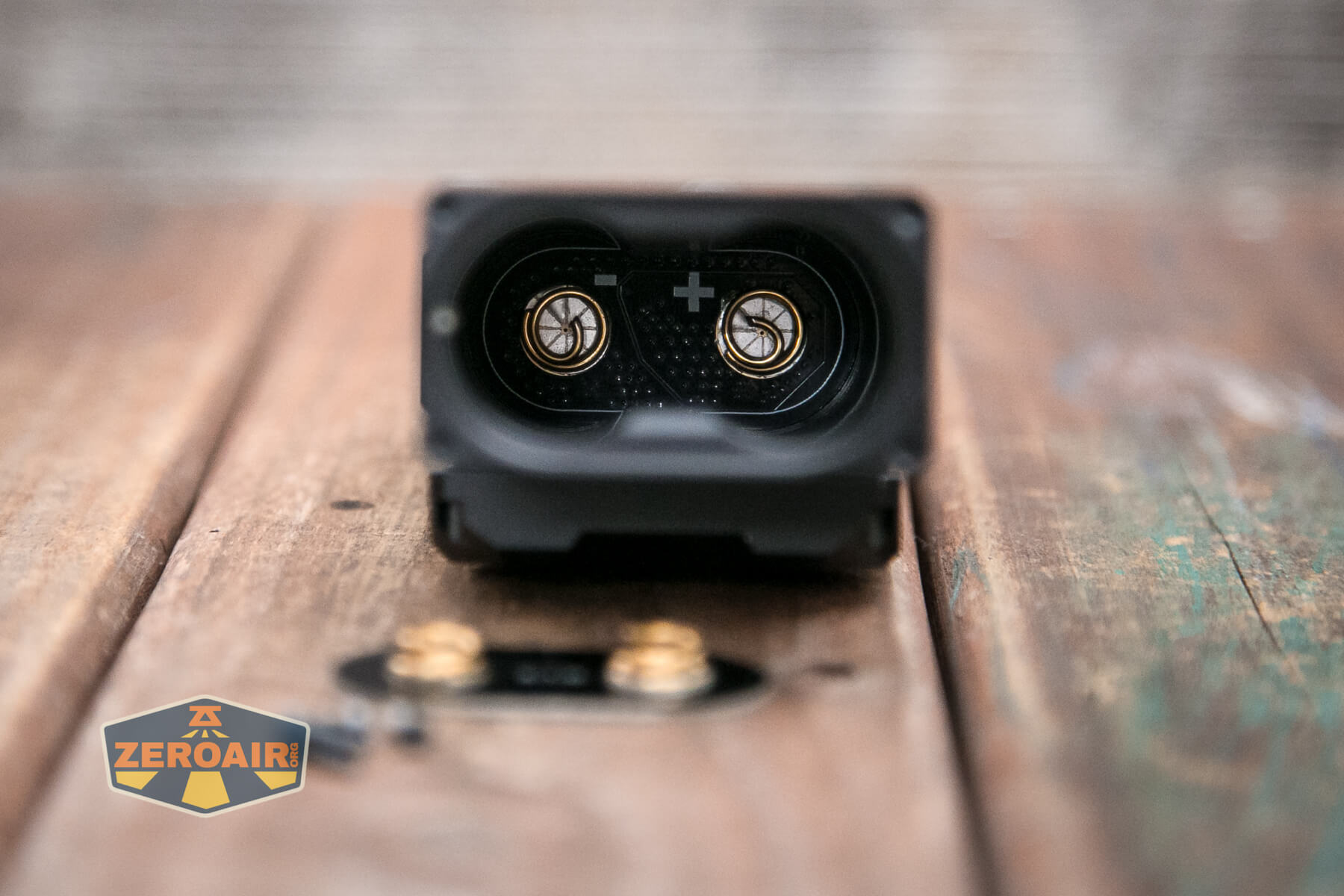

Inside, you can see two springs. Those springs use thick metal and are not all that springy. They’re more of “contacts” than springs.  More on this later.

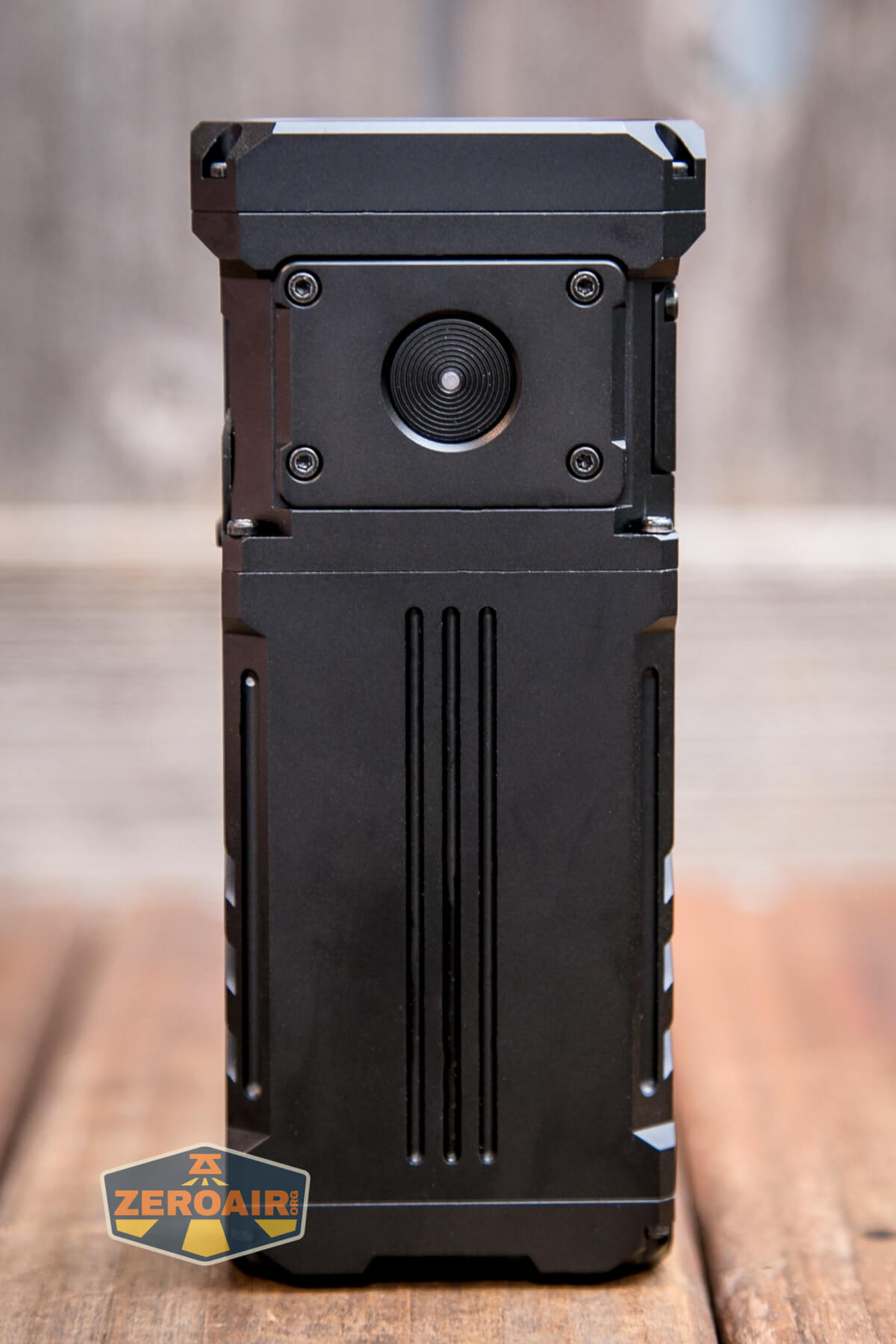

While I didn’t disassemble the front, it does appear to use the same type of Torx screws, and there are also four on the front. If you were inclined, you could probably access the emitters this way too.

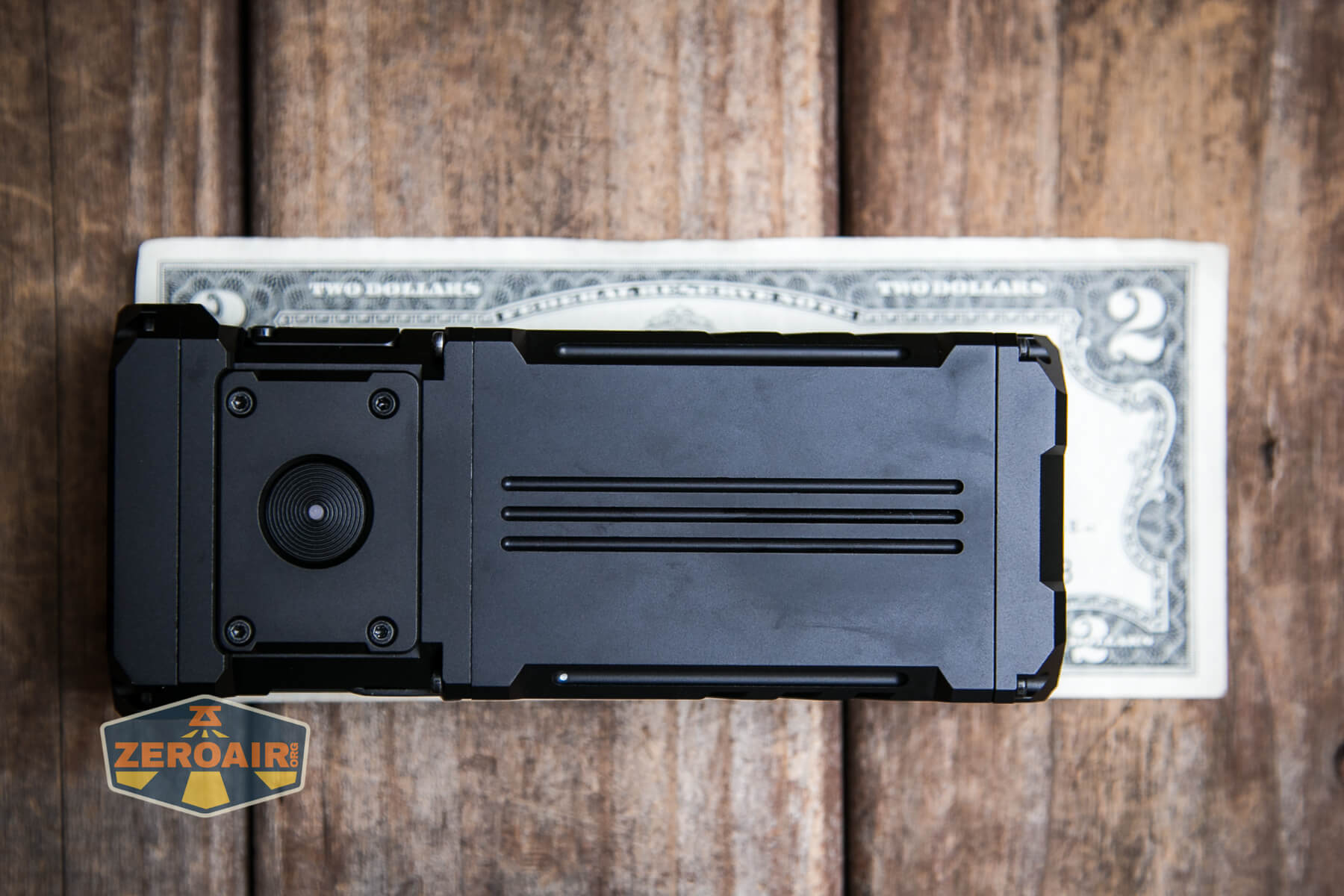

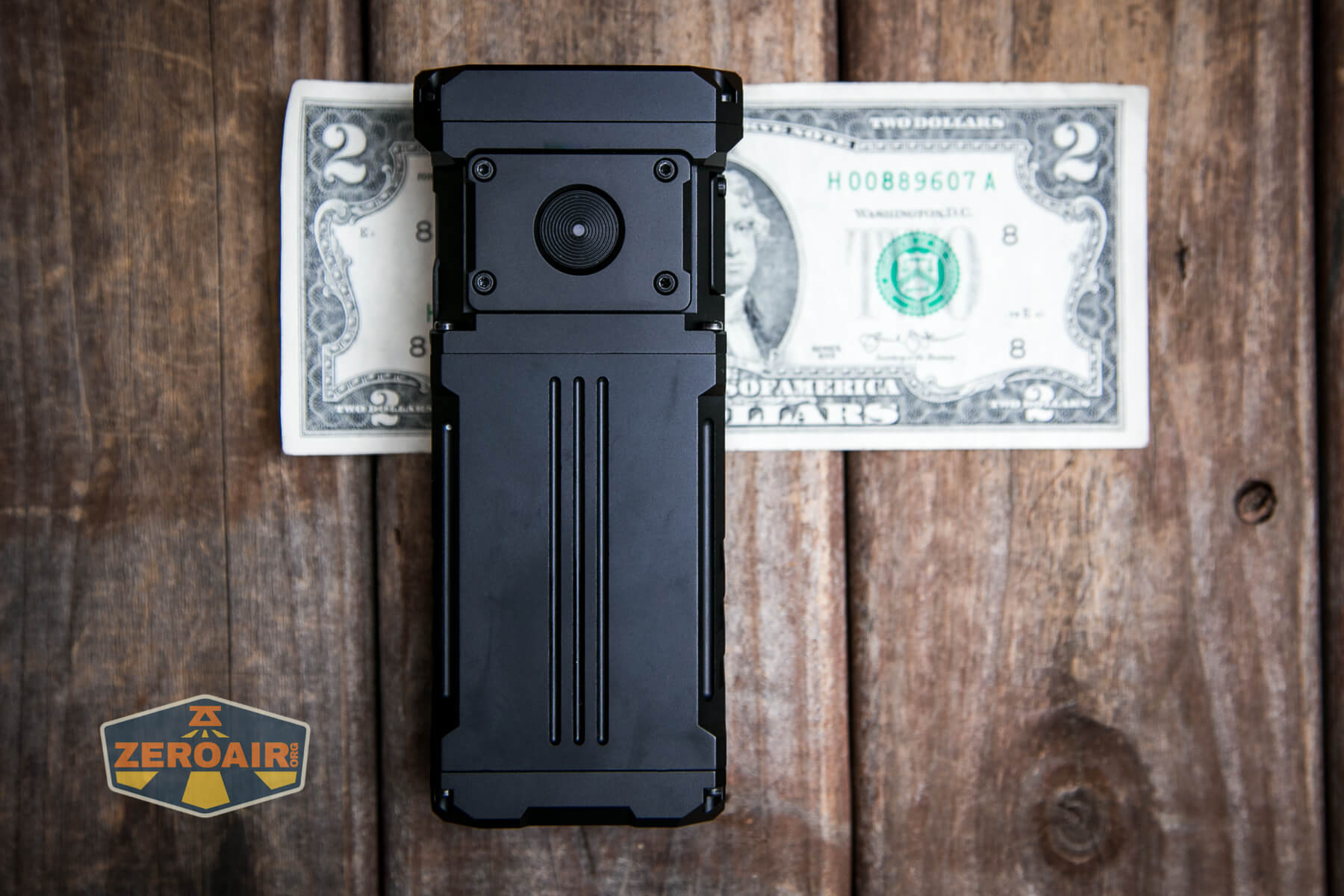

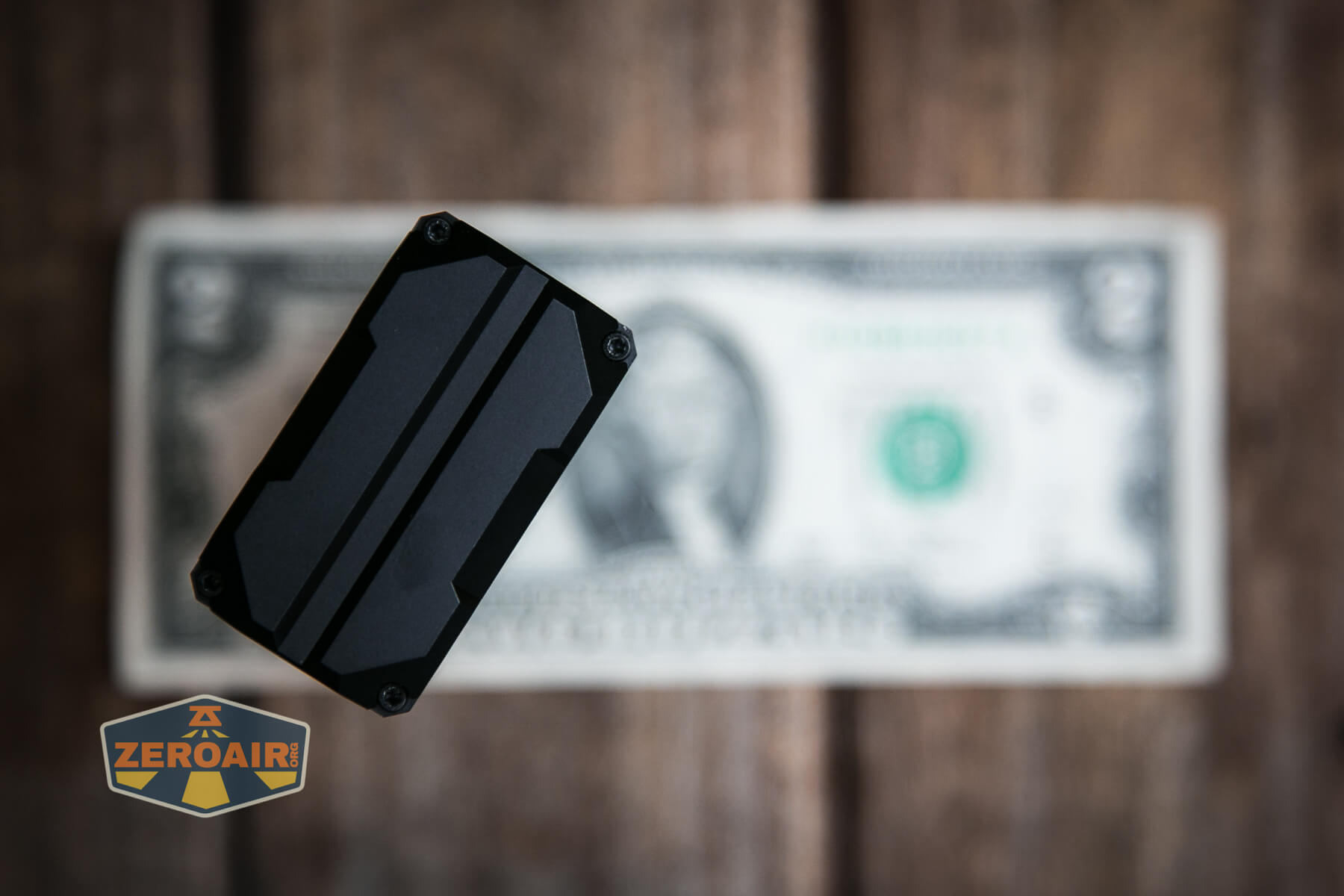

Size and Comps

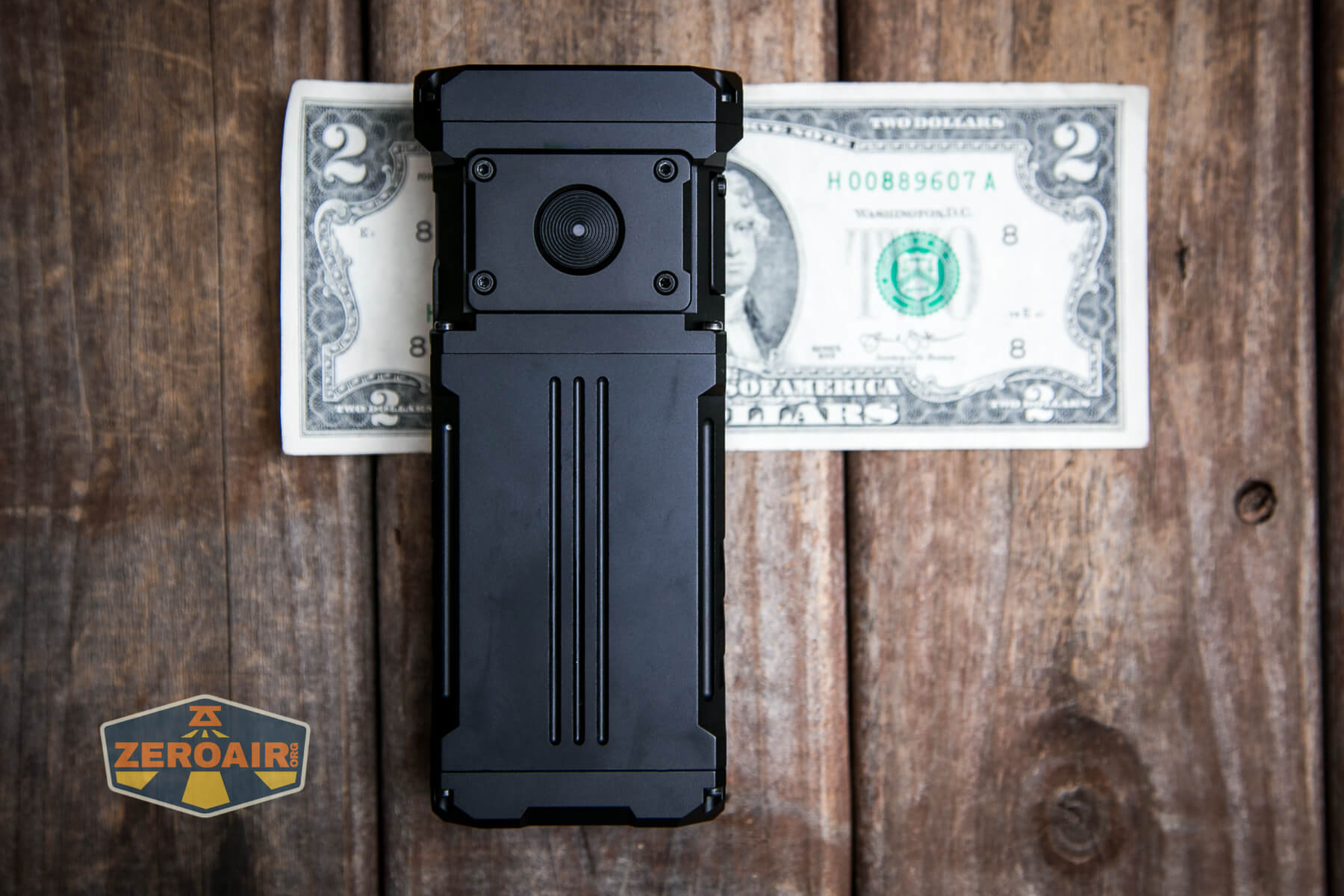

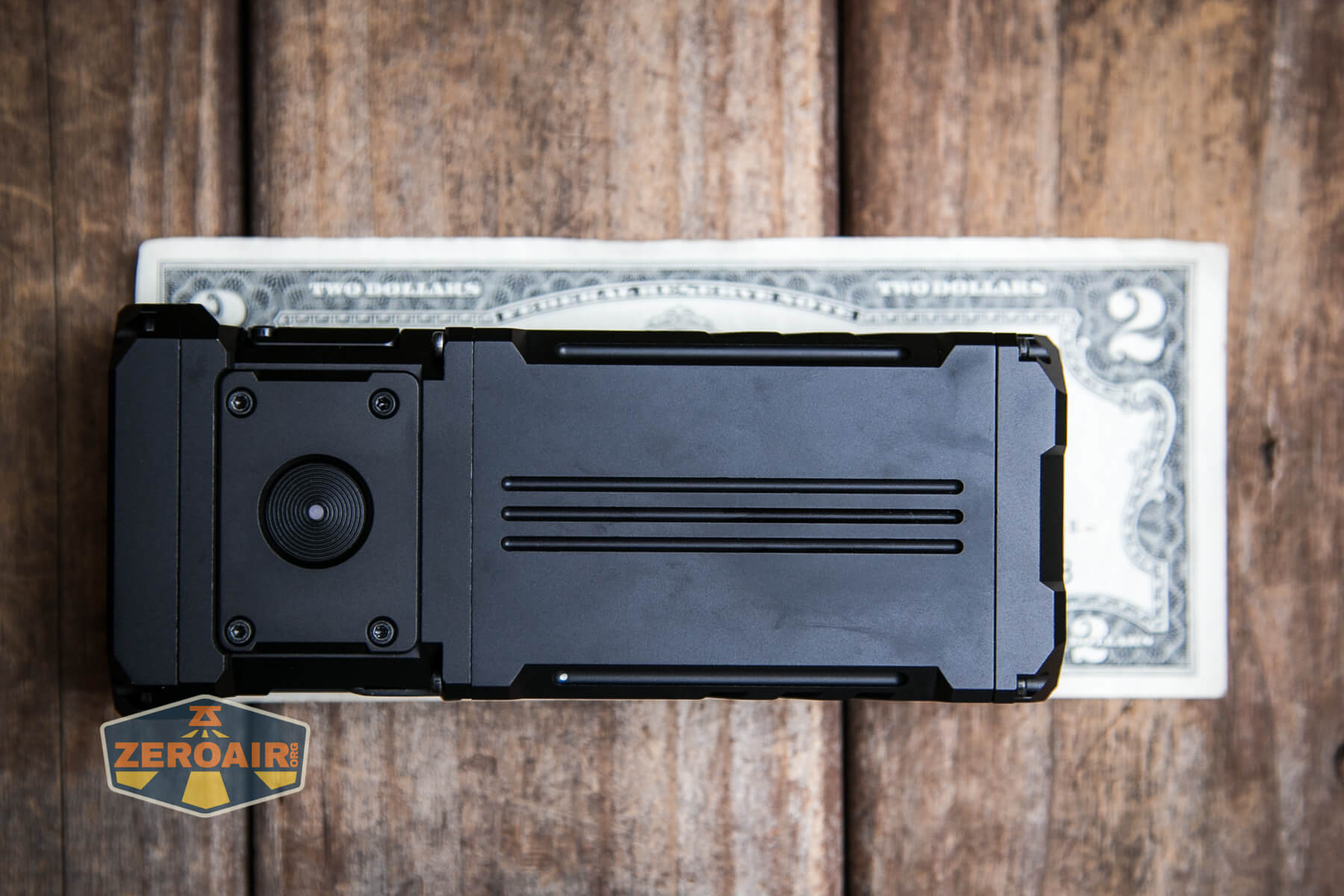

I don’t see any official measurements, so here are mine:

28mm x 49.97mm x 128.49mm, and 380g.

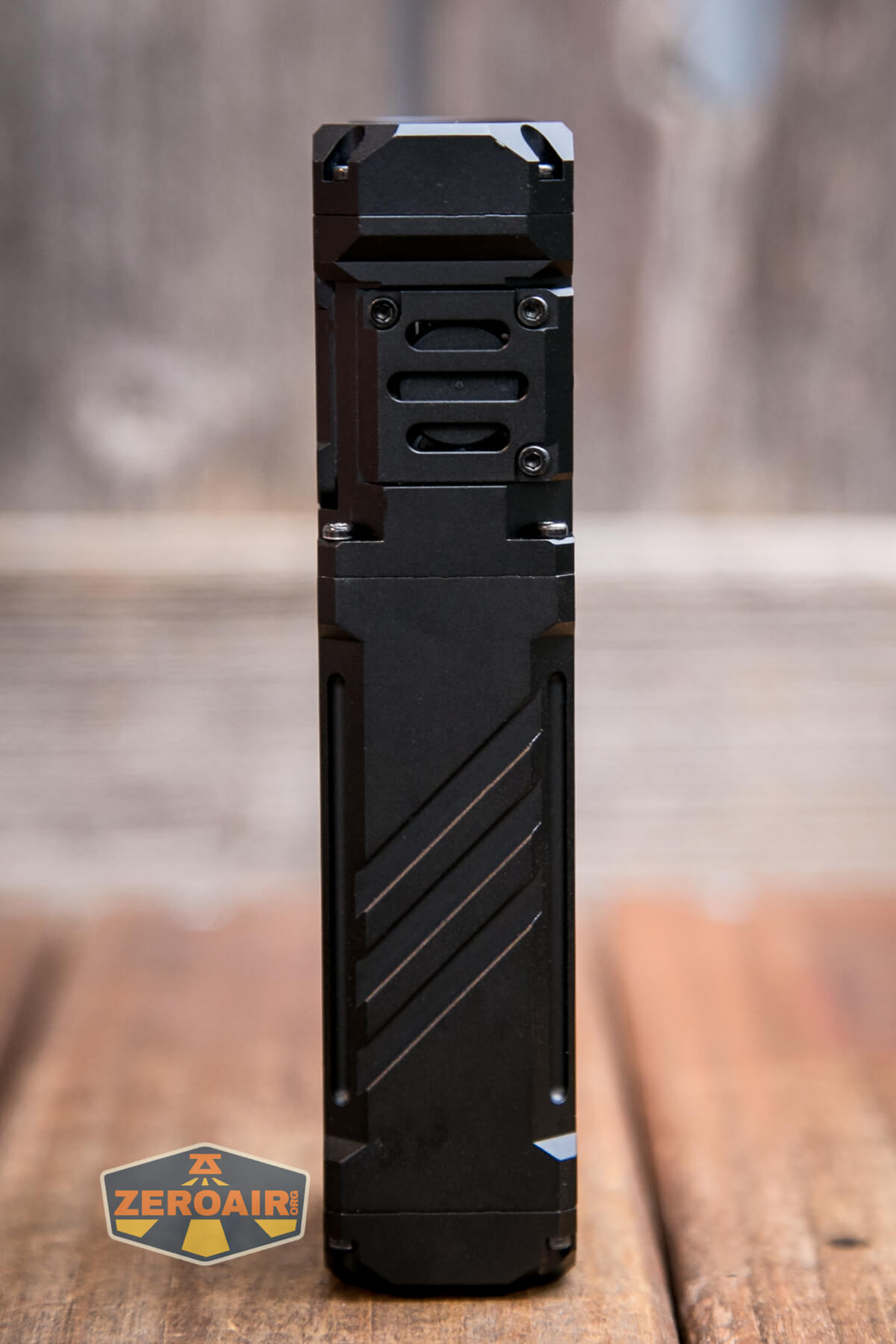

If the flashlight will headstand, I’ll show it here (usually the third photo).  If the flashlight will tailstand, I’ll show that here, too (usually the fourth photo).

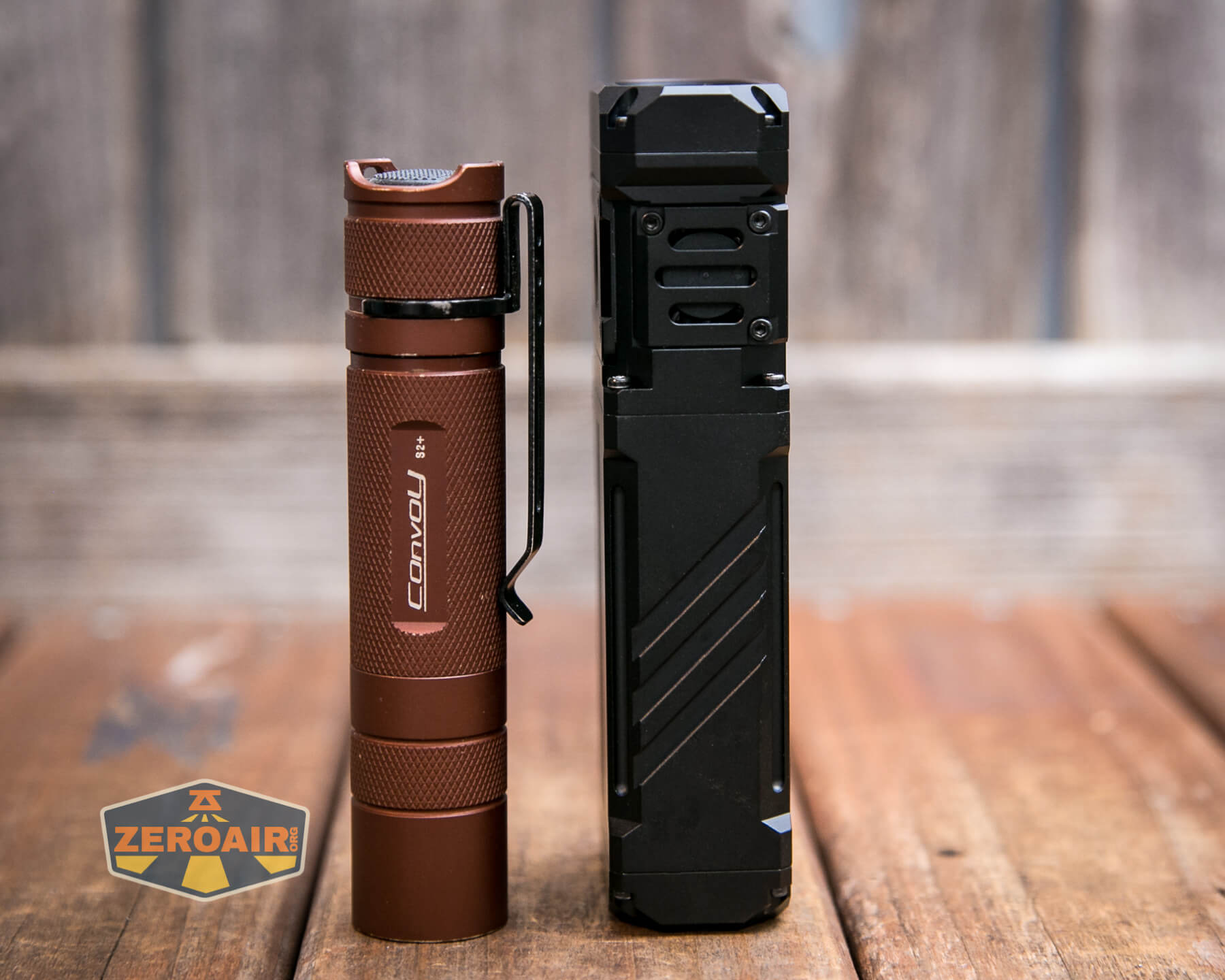

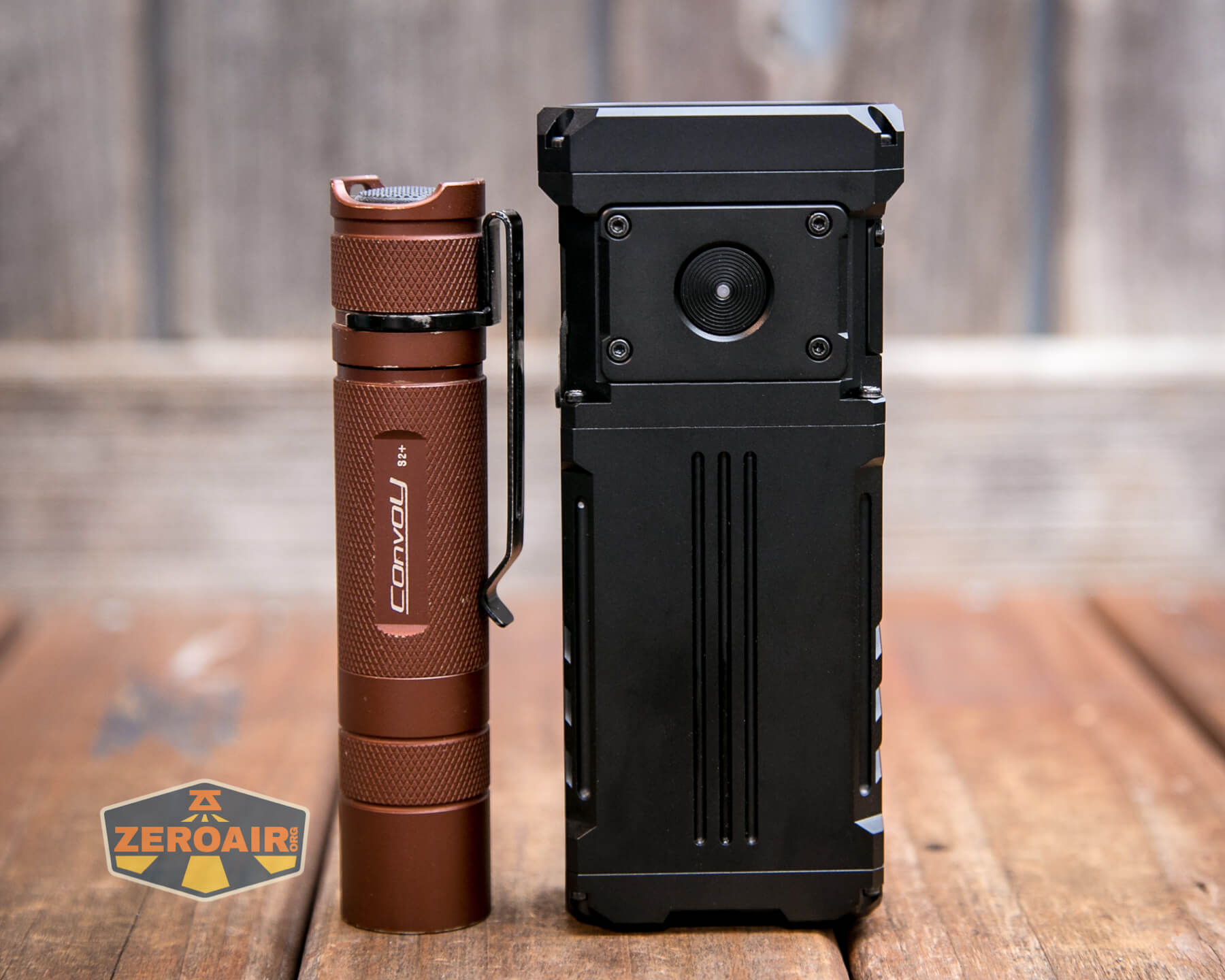

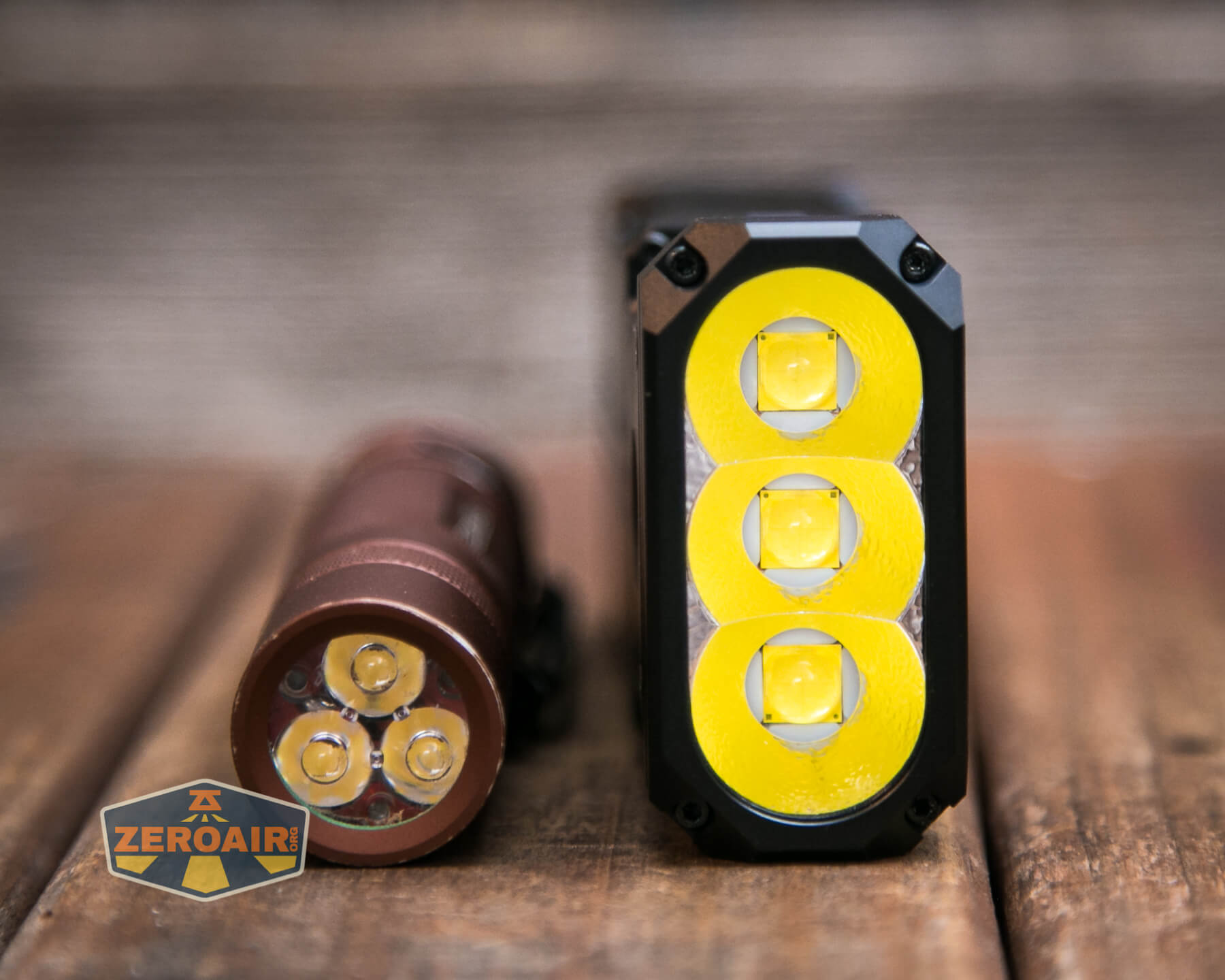

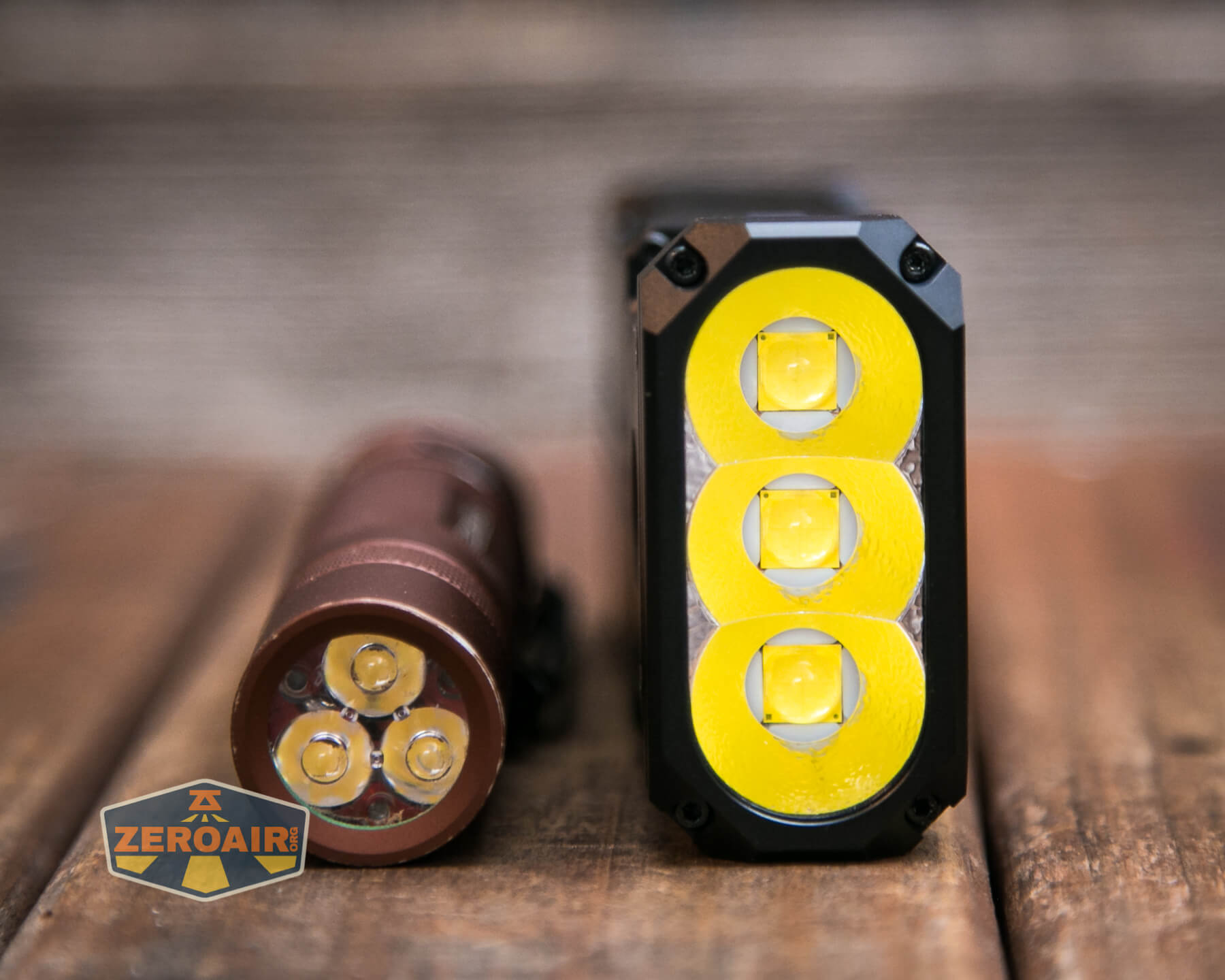

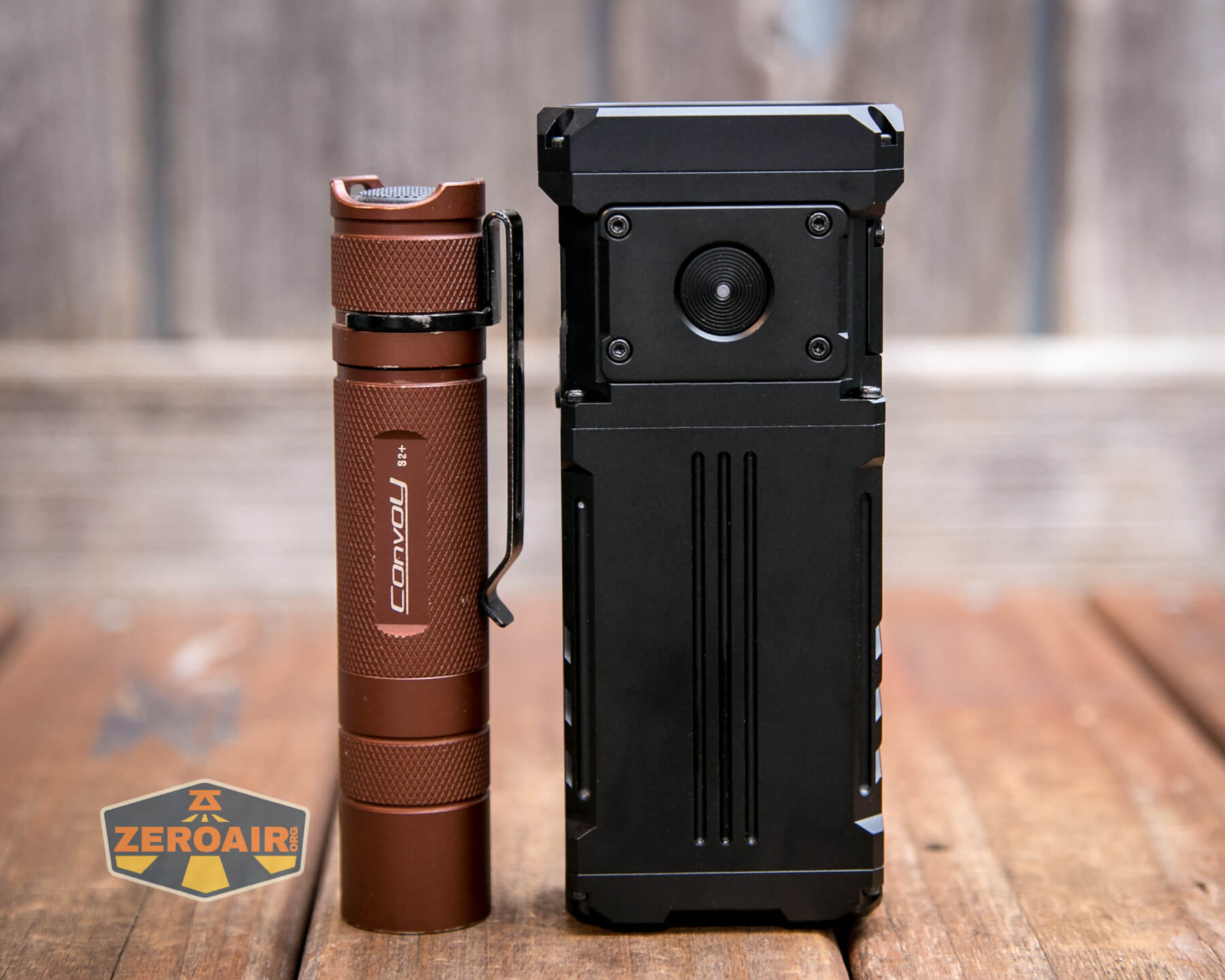

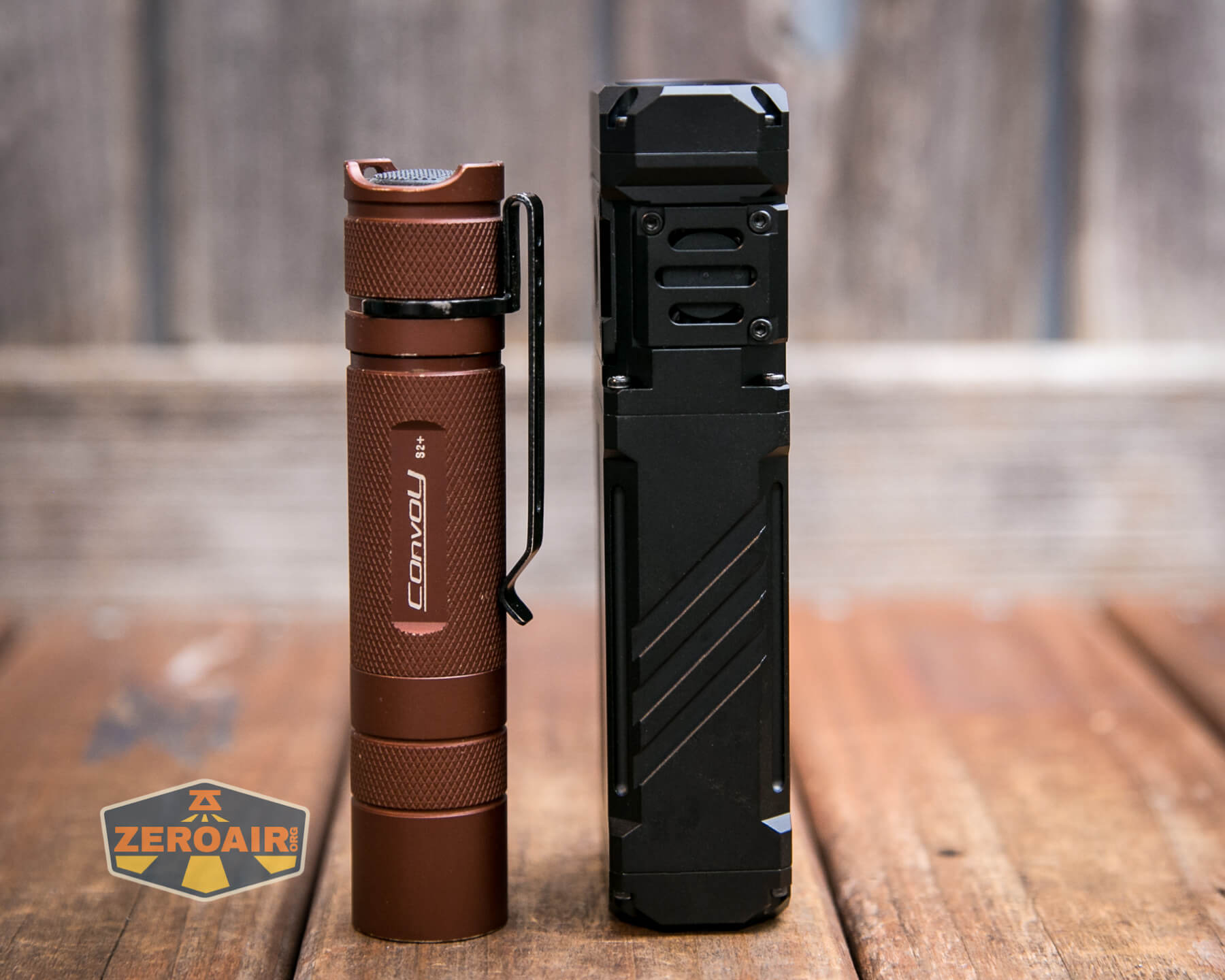

Here’s the test light with the venerable Convoy S2+. Mine is a custom “baked” edition Nichia 219b triple. A very nice 18650 light!

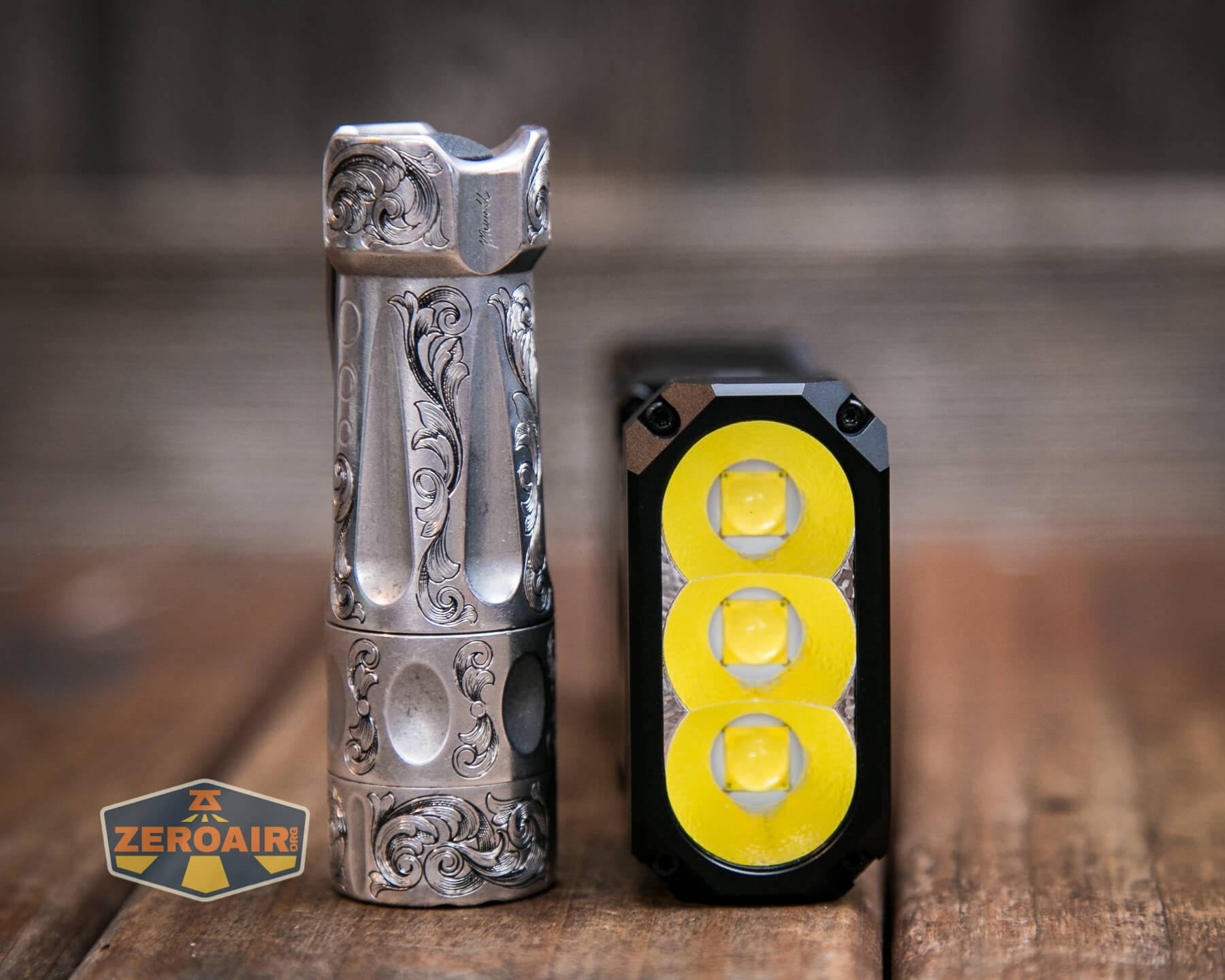

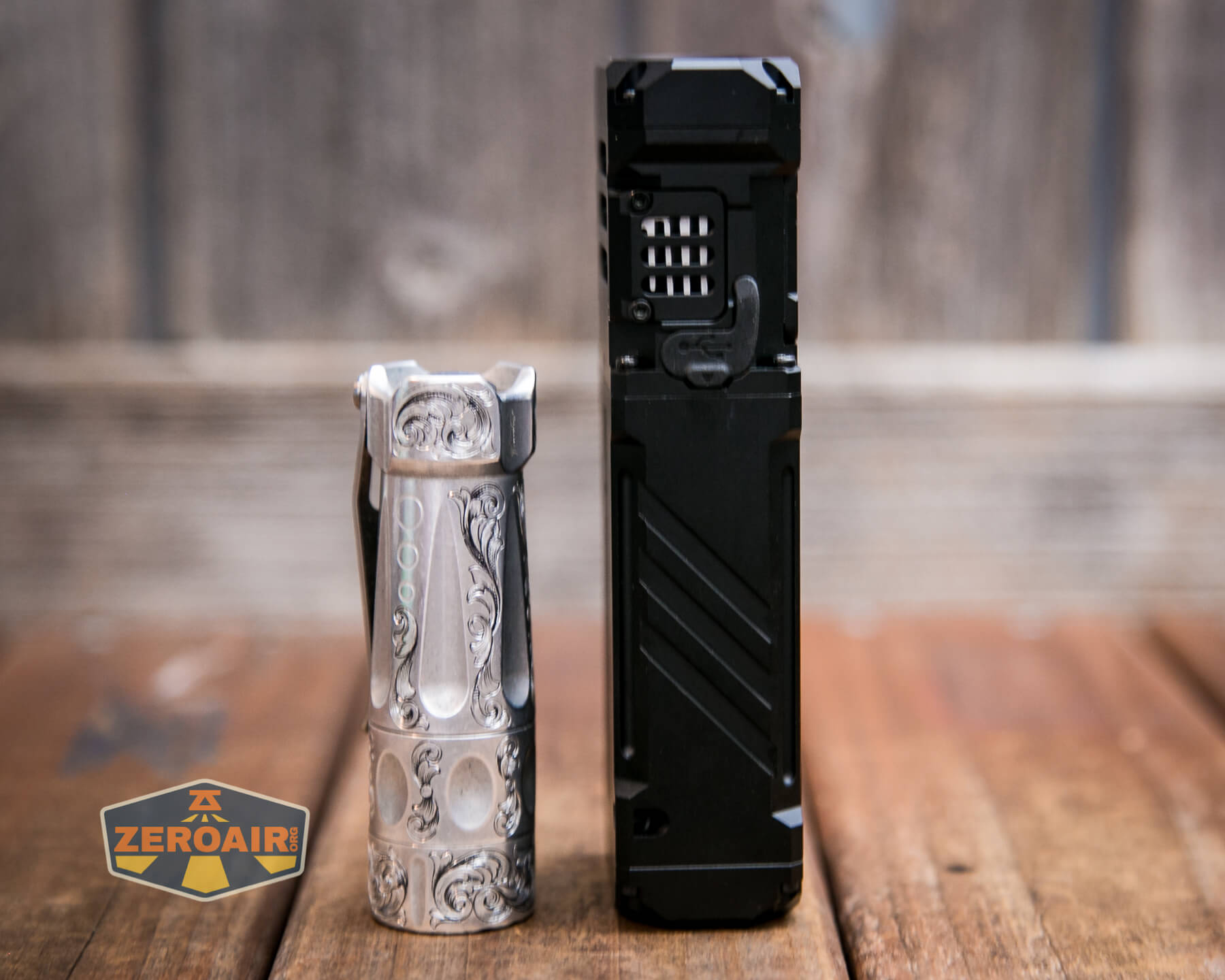

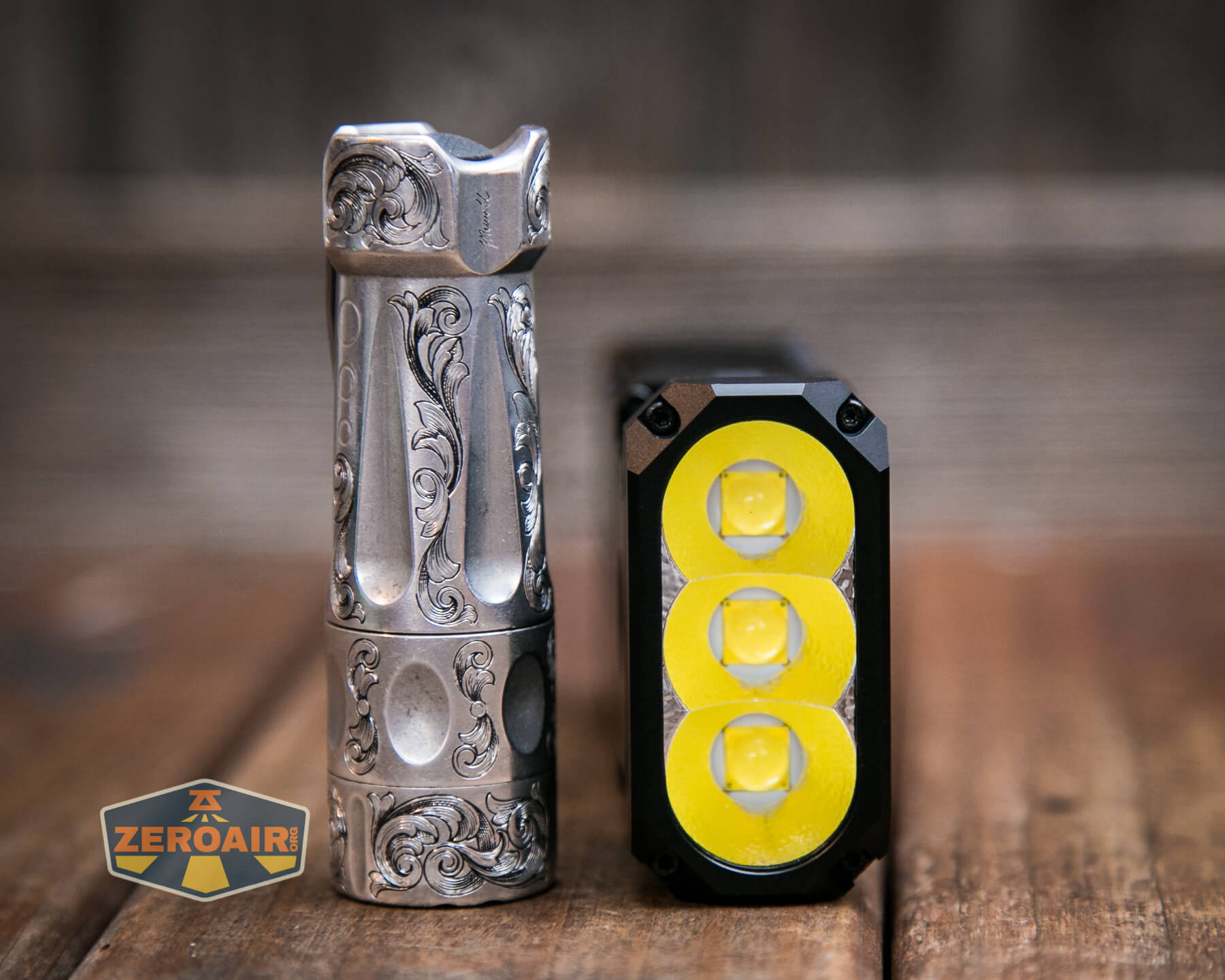

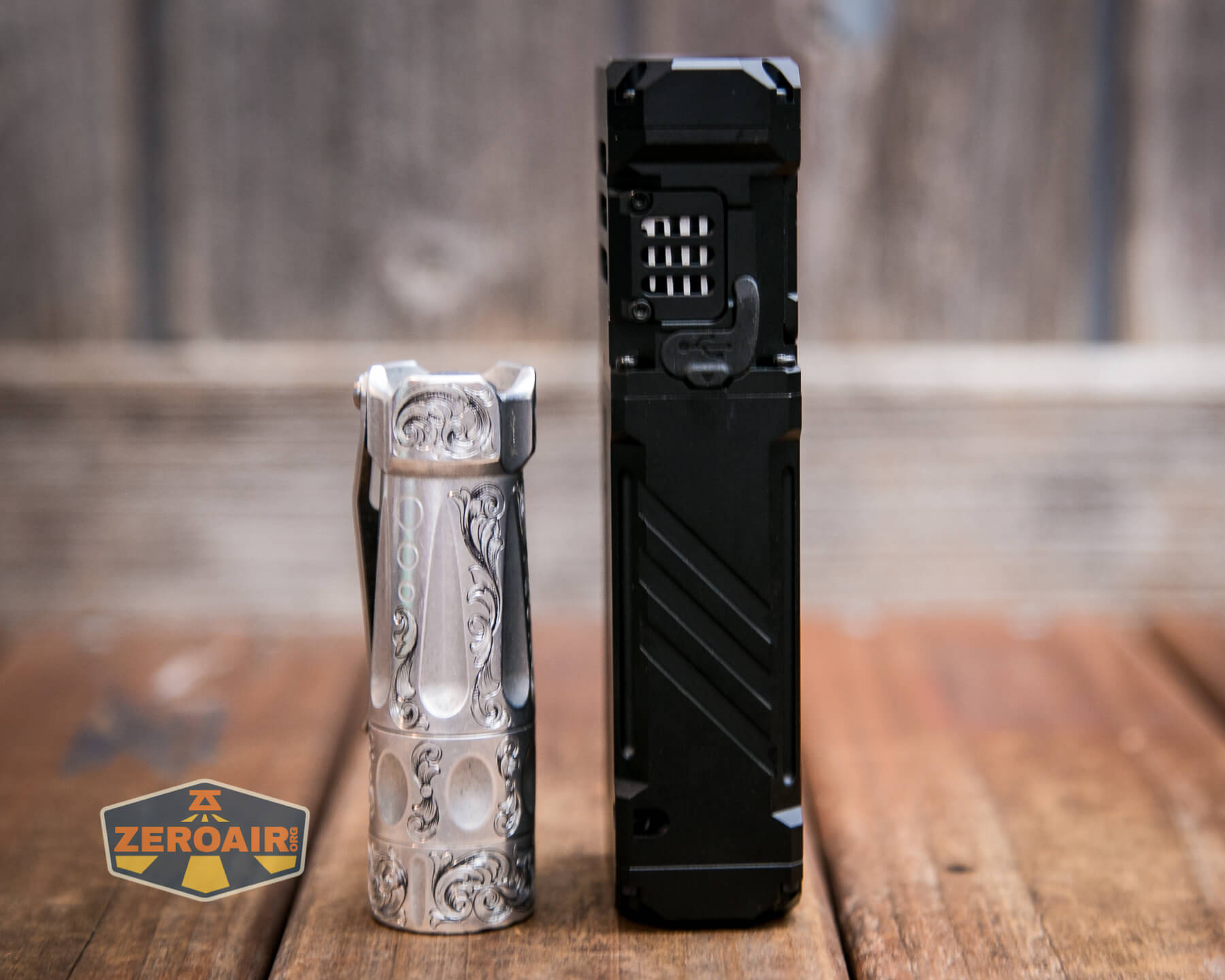

And here’s the light beside my custom-engraved TorchLAB BOSS 35, an 18350 light.  I reviewed the aluminum version of that light in both 35 and 70 formats.

Retention and Carry

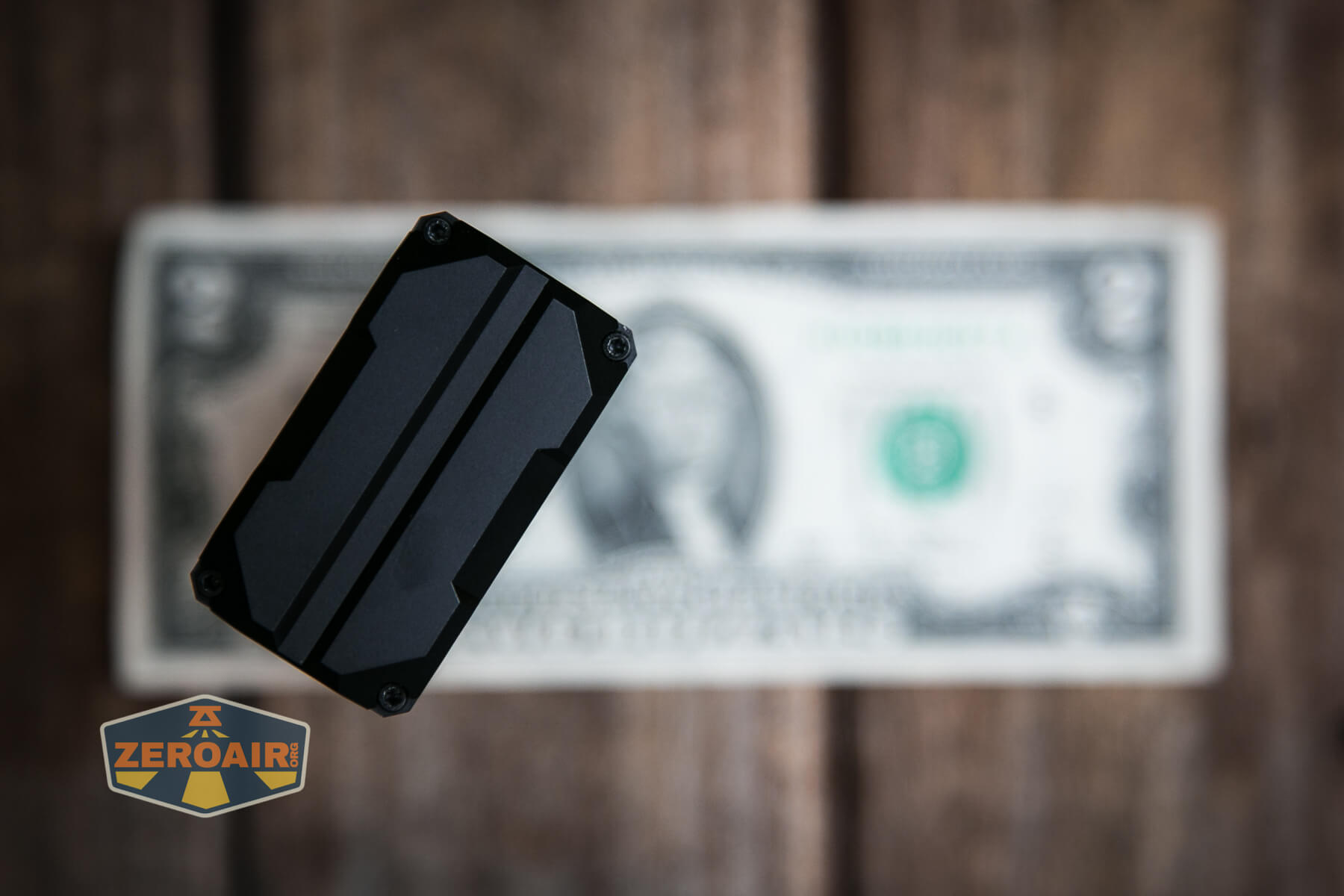

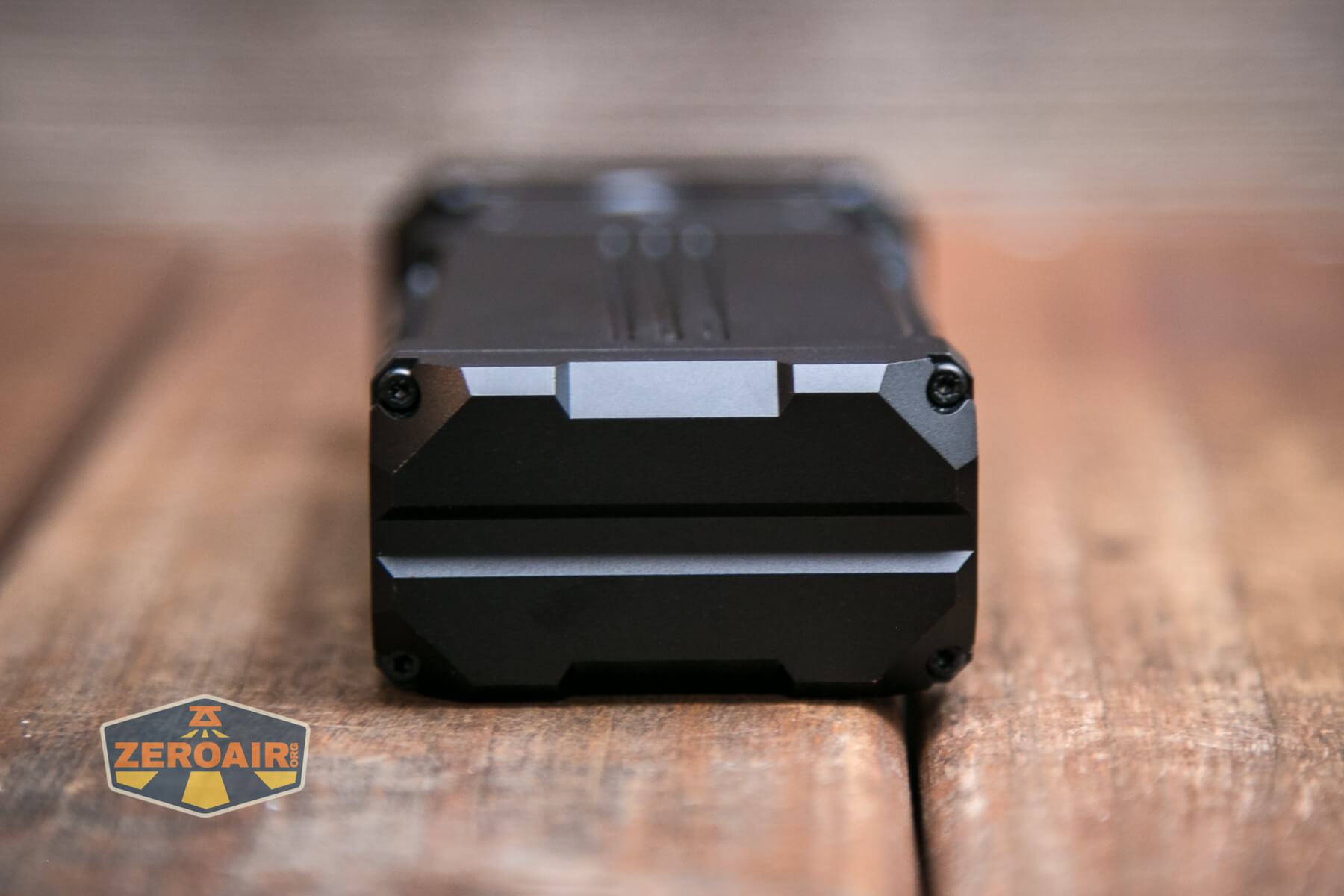

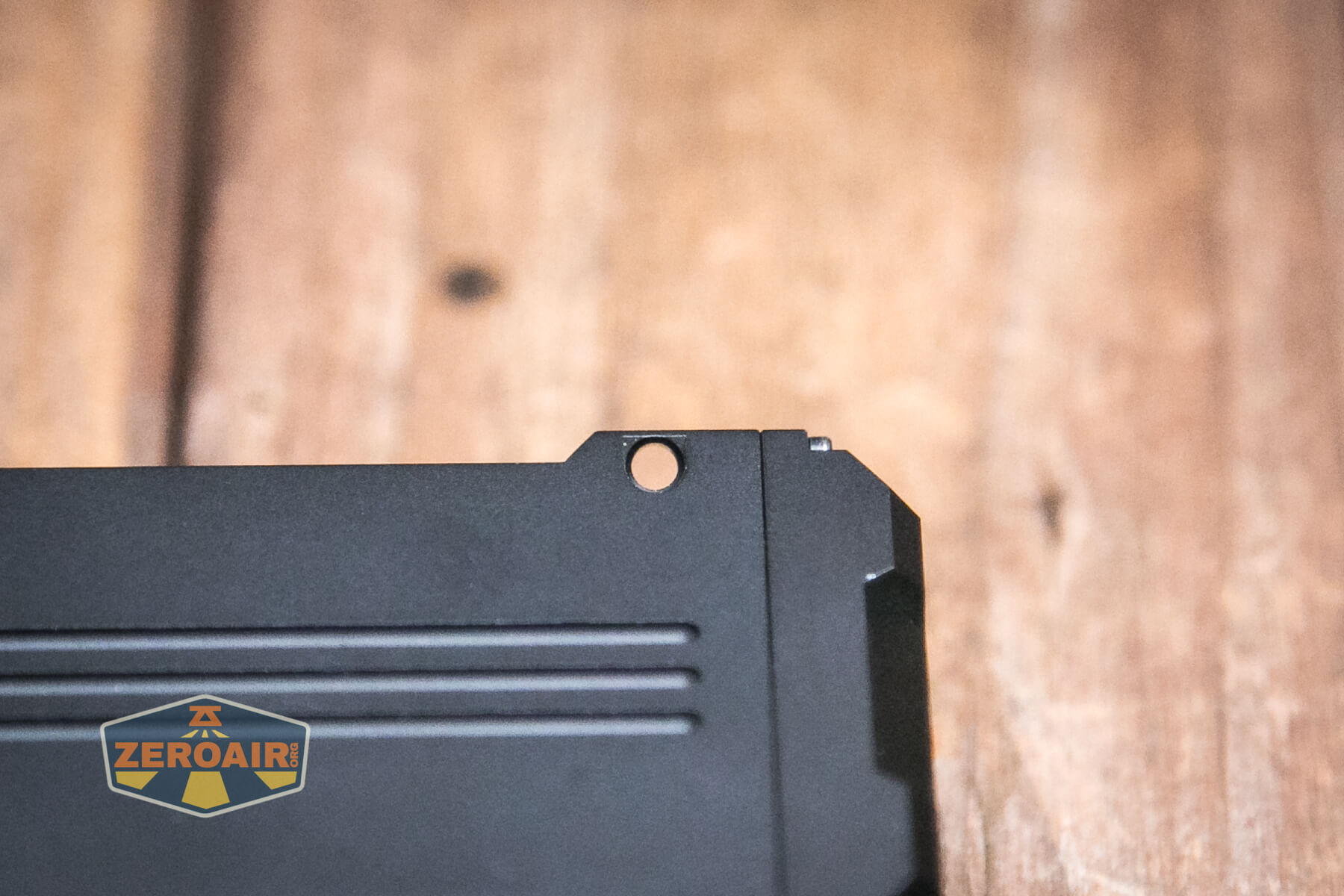

There are not many options for carrying the Wuben X-1 Falcon flashlight. Mainly I’ll say that there’s this lanyard hole on the tail-end. This is built into the body and seems quite robust. However, a lanyard is not included.

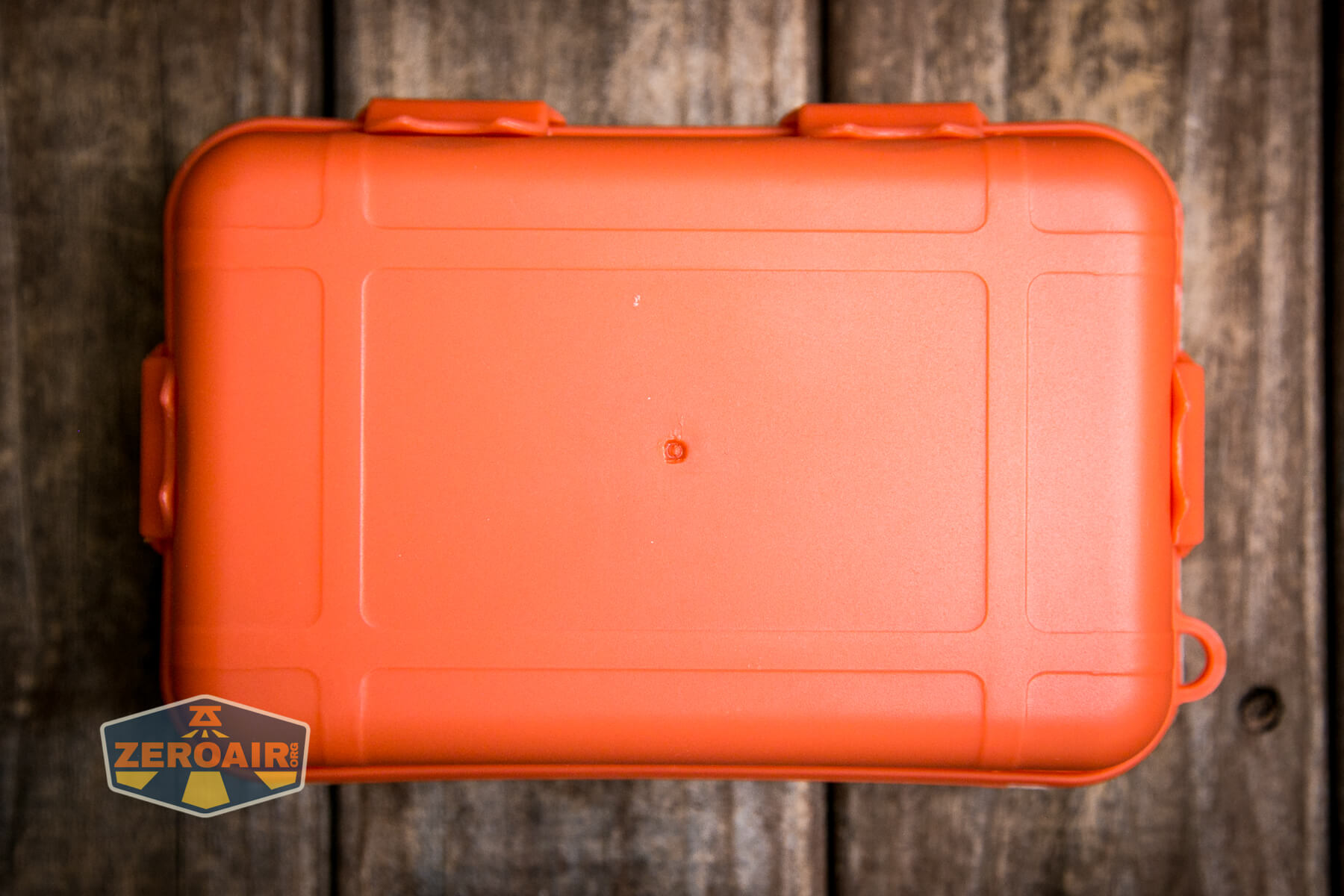

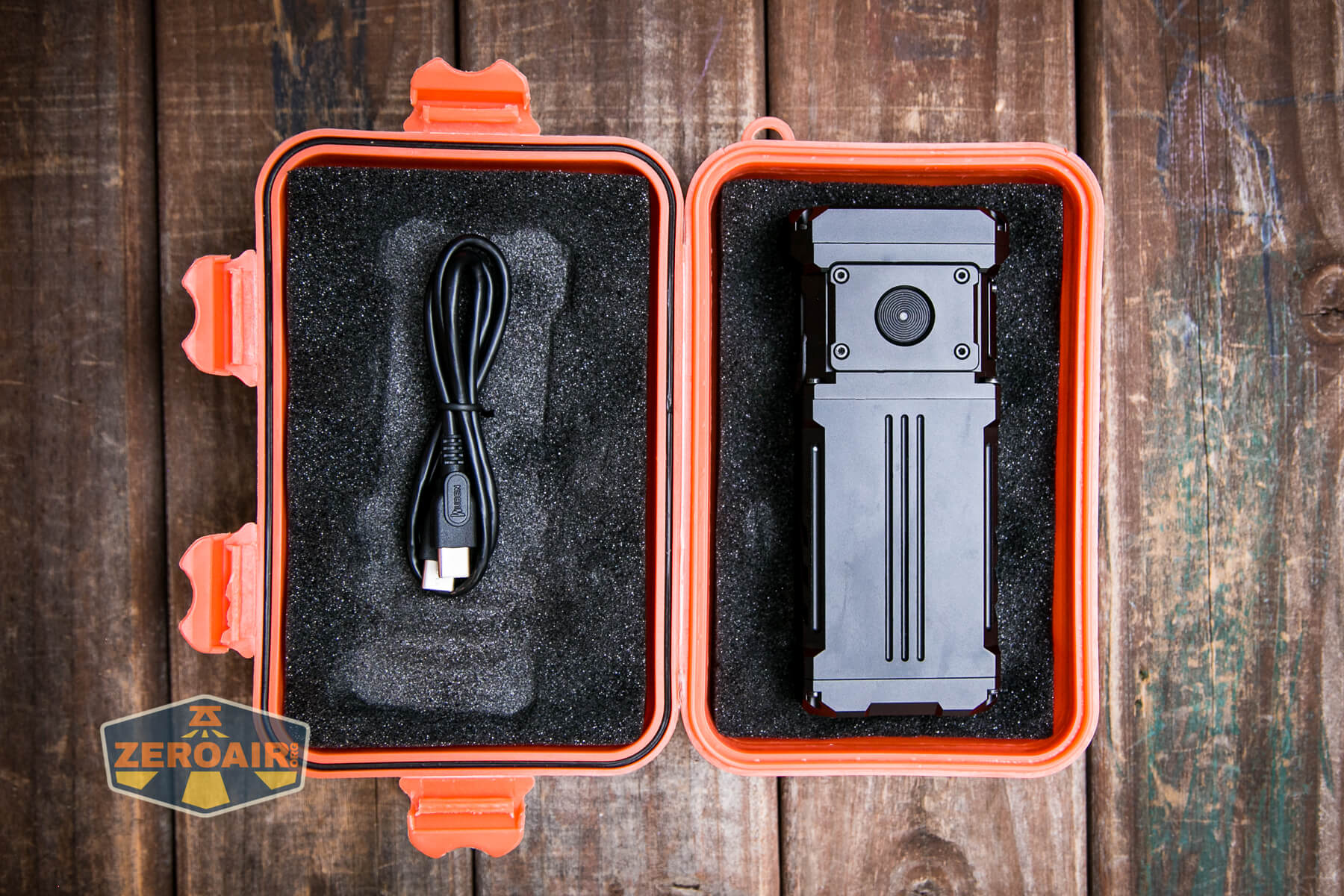

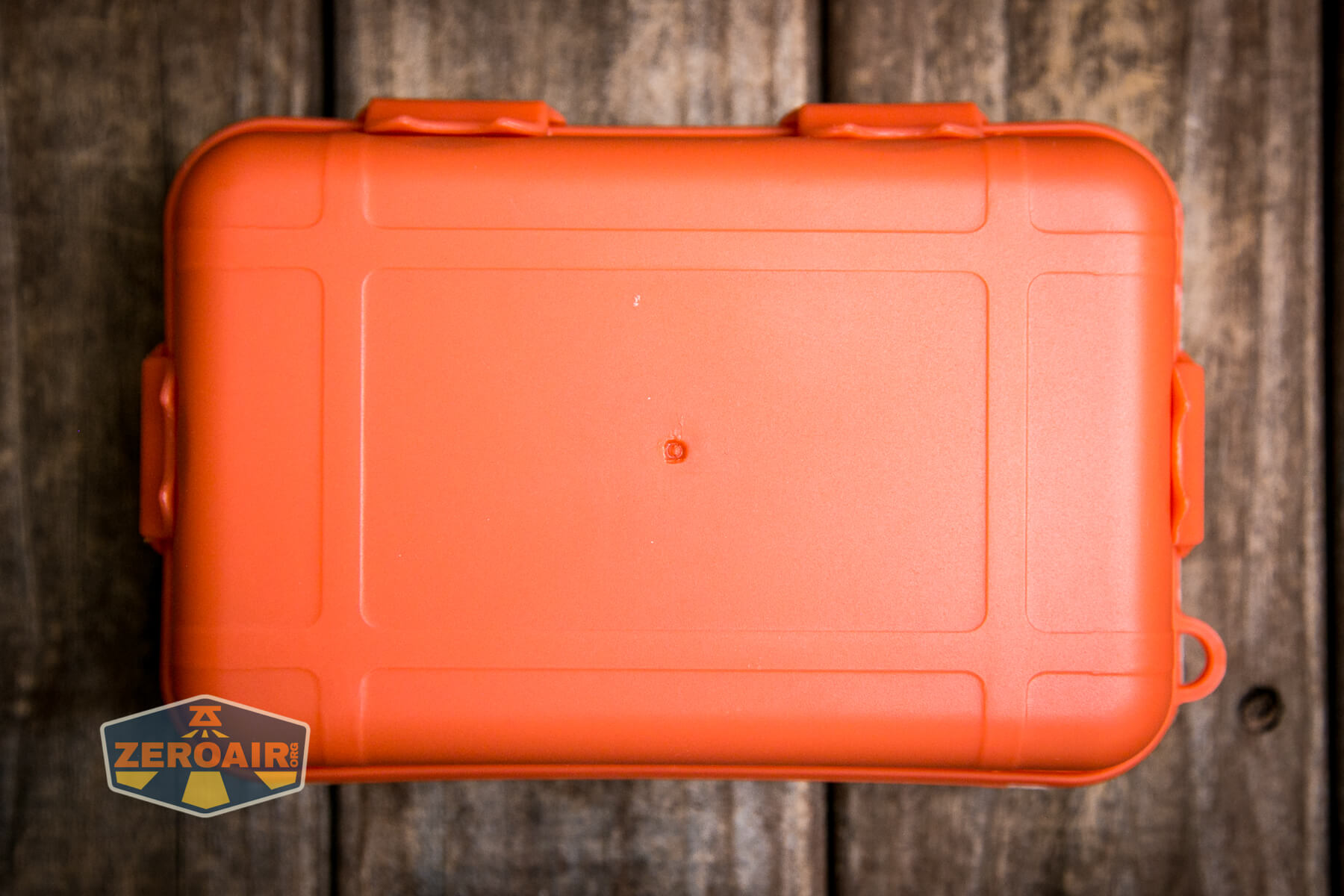

It’s also reasonable to consider the package as a carry case for the Wuben X-1 Falcon flashlight. It’s hard plastic and has foam inside, and should protect the X-1 just fine.

Power and Runtime

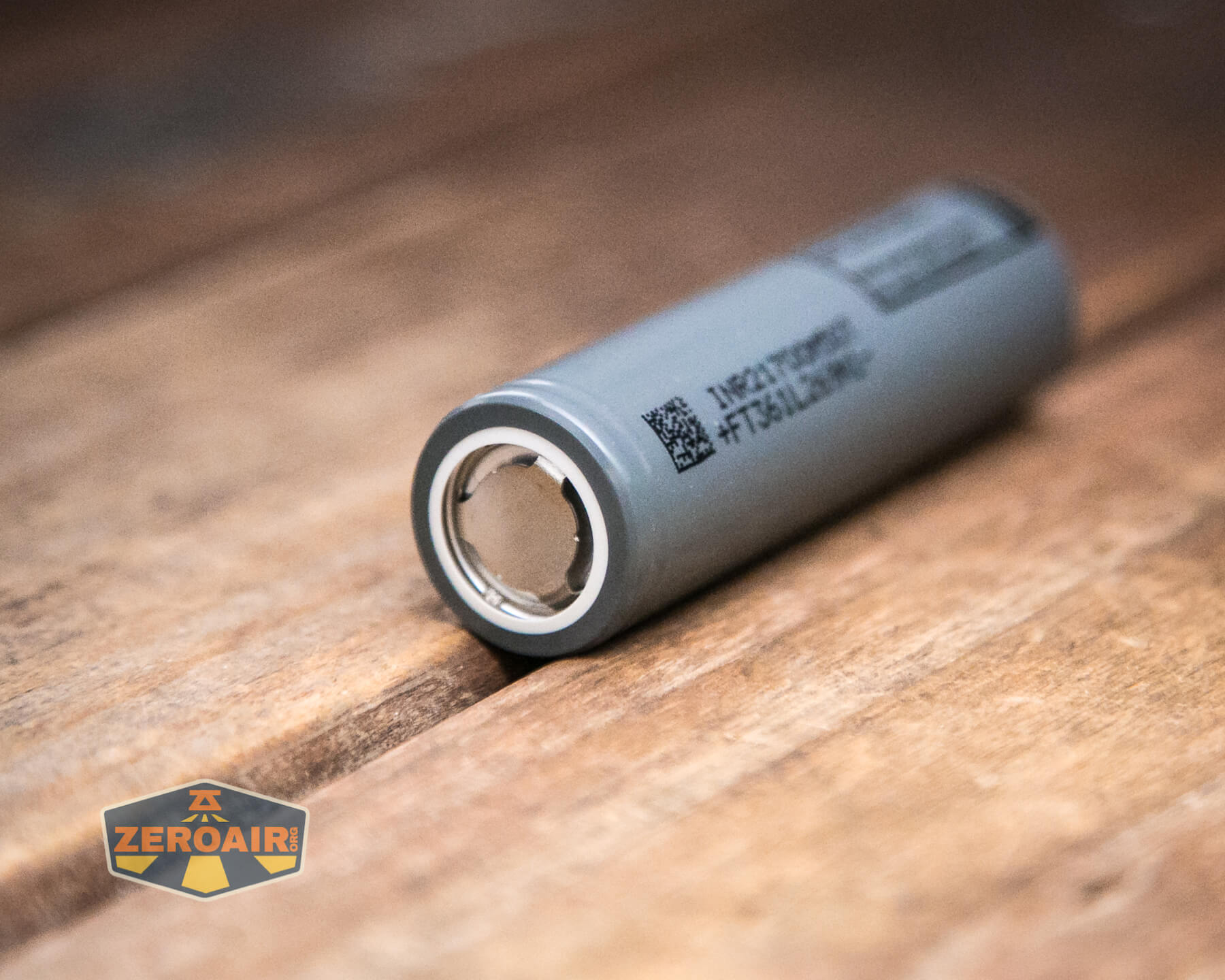

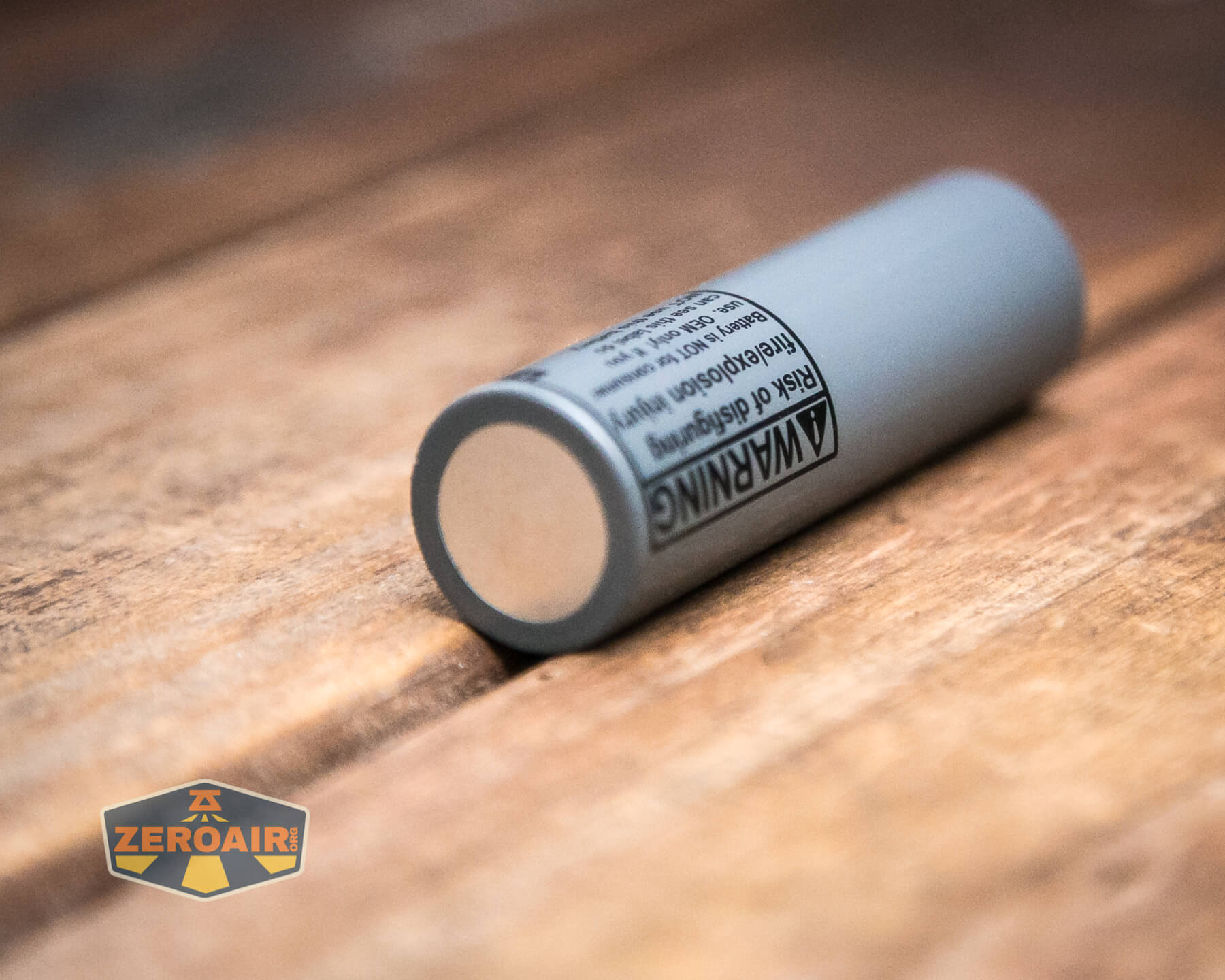

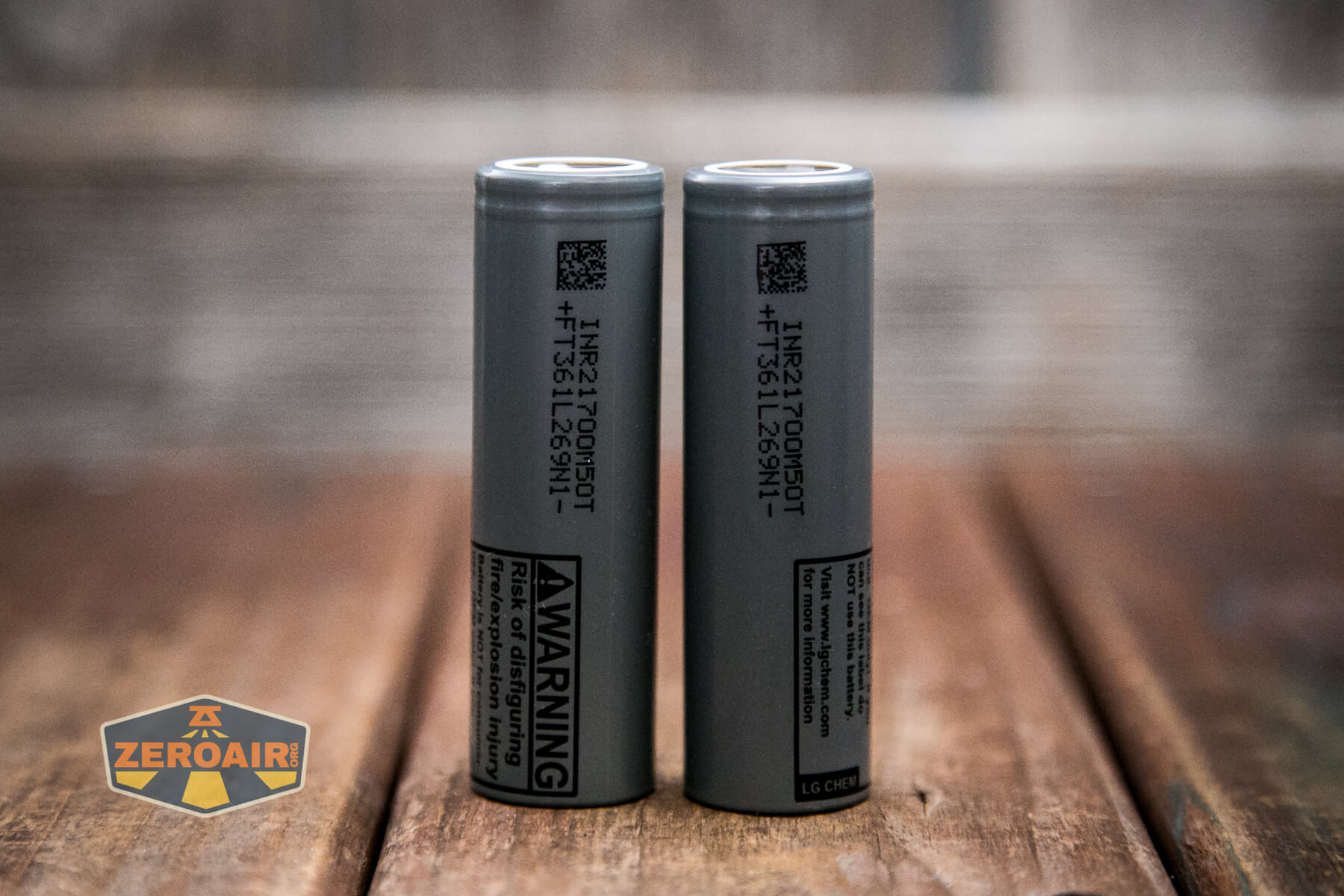

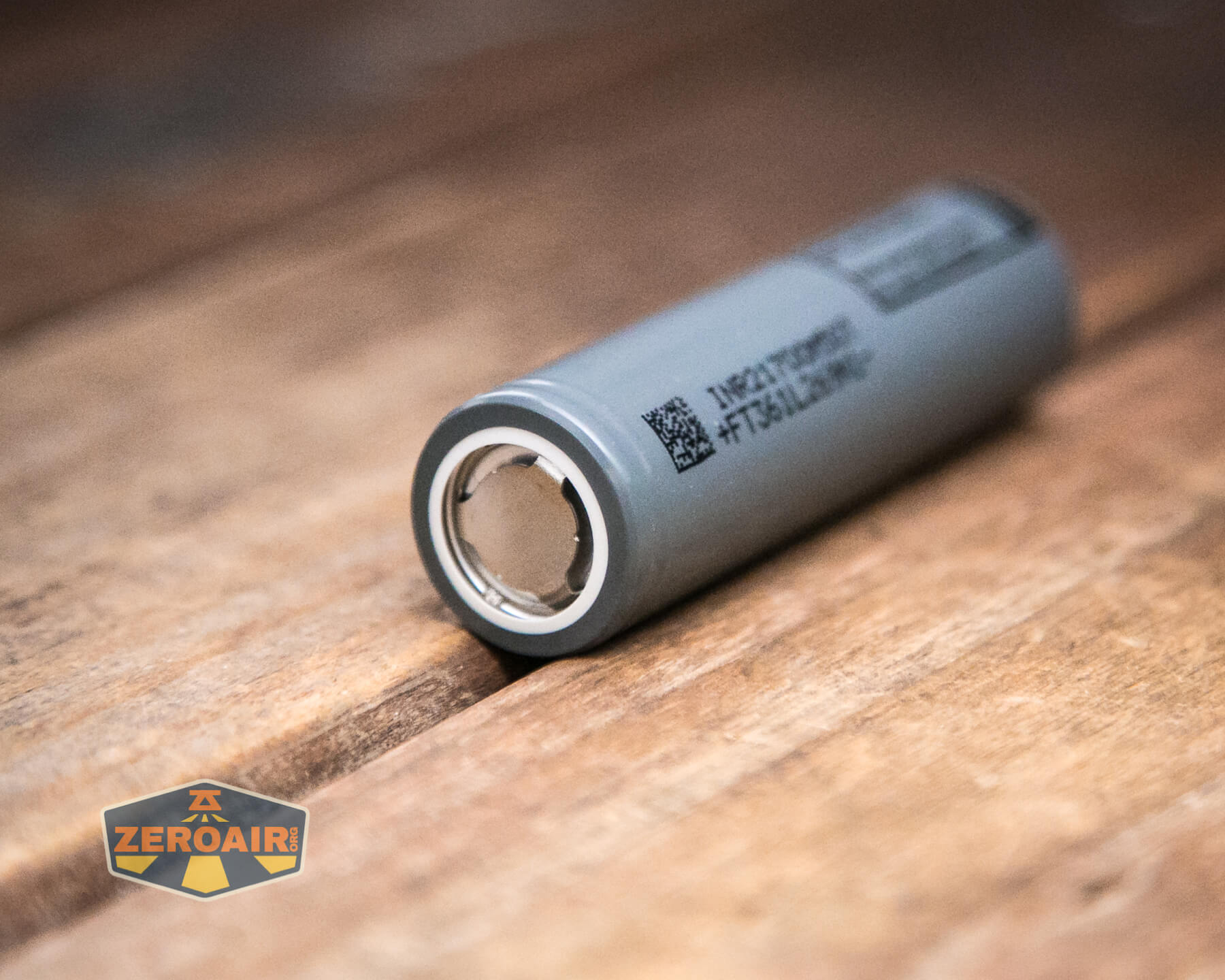

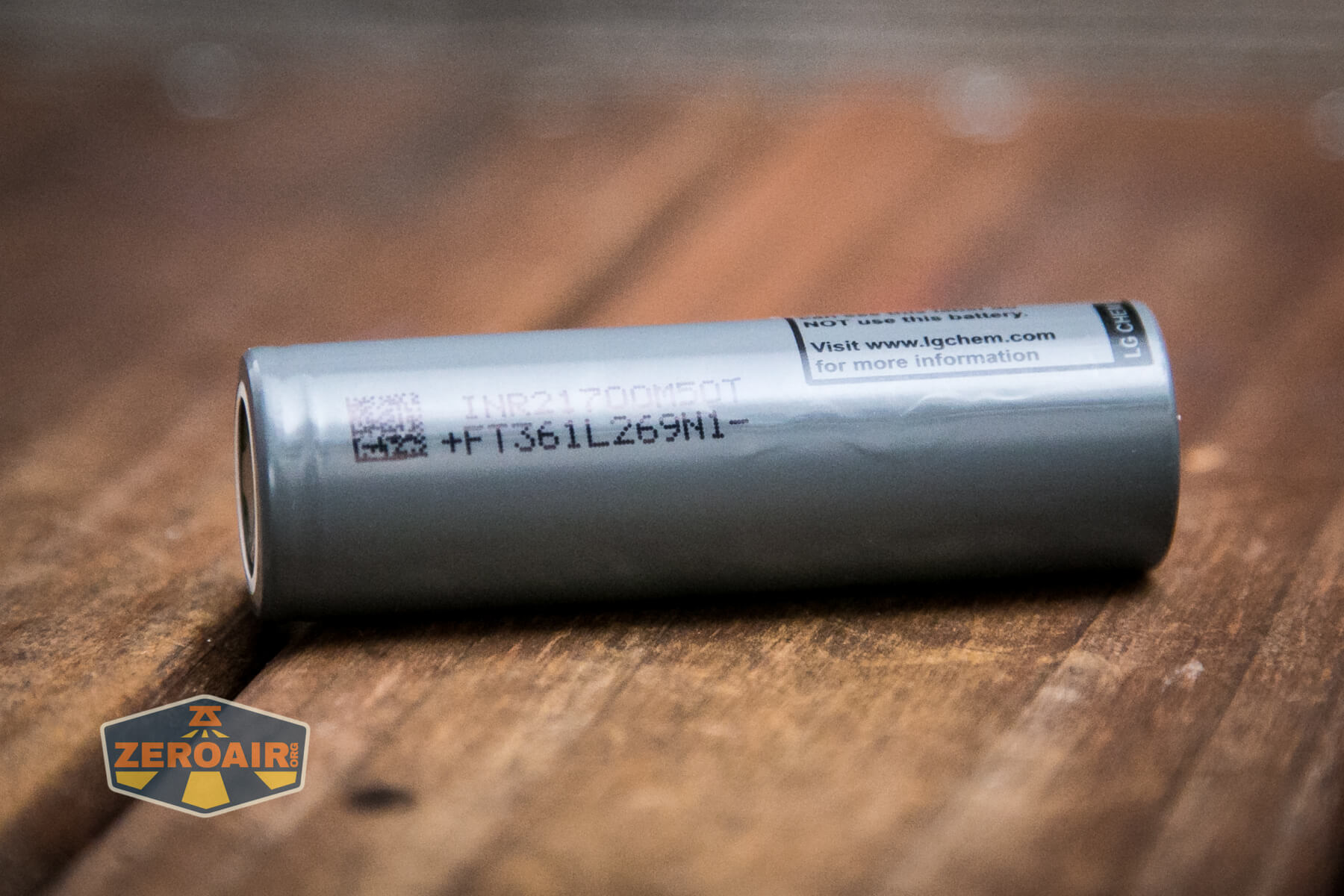

As stated above, the Wuben X-1 Falcon flashlight runs on two 21700 cells. The package includes these cells seen below. These are flat top cells and quite standard.

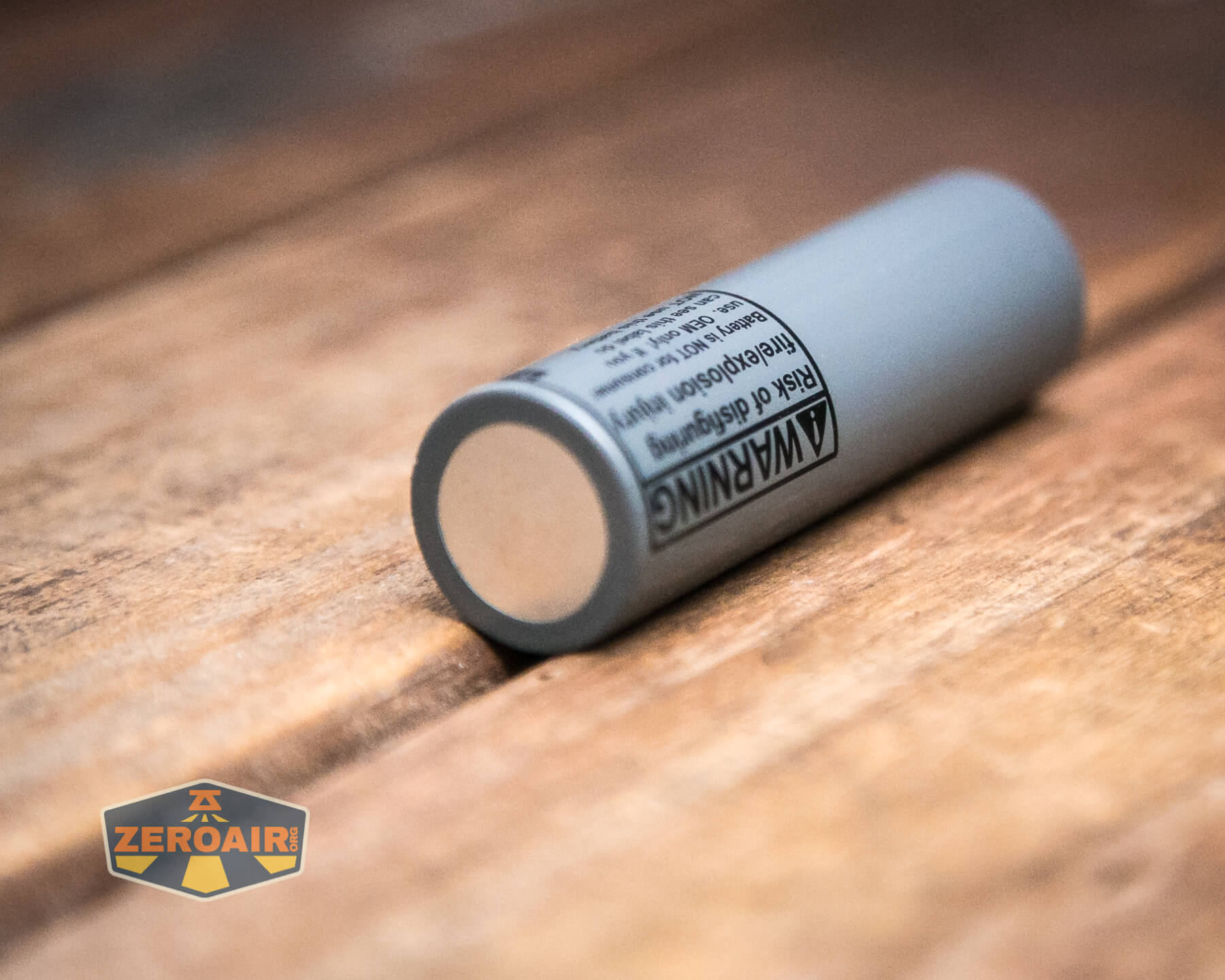

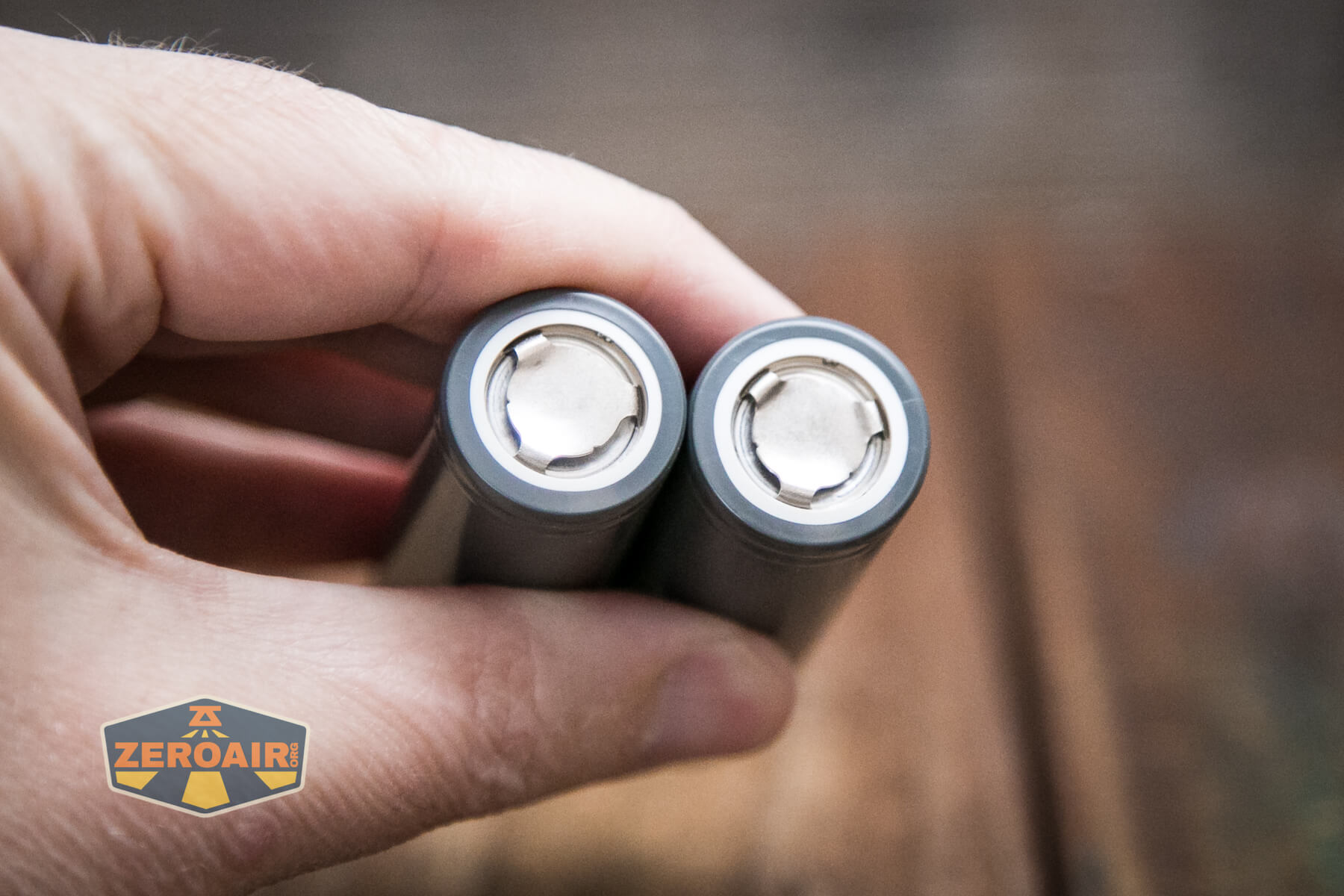

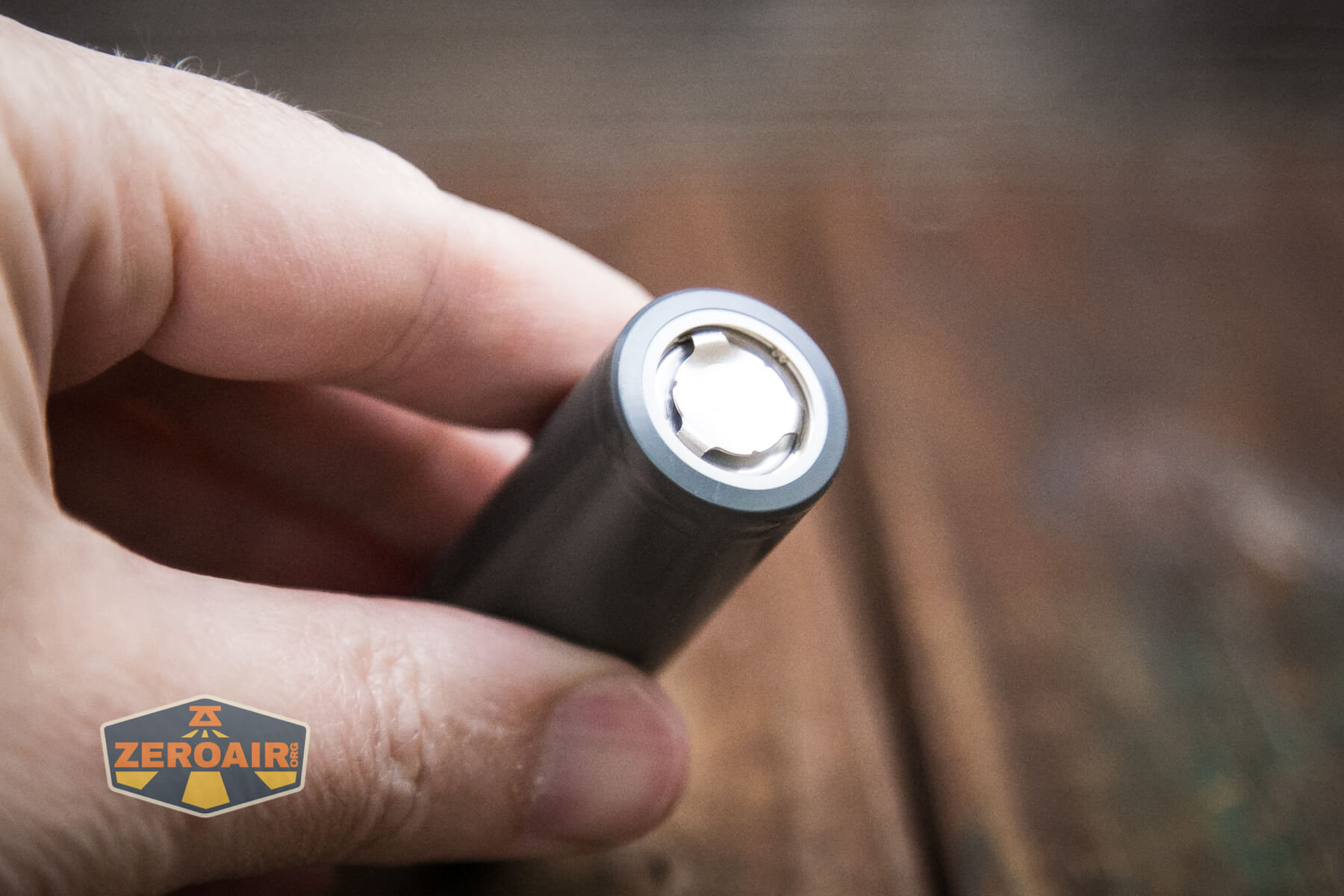

Something to note about the setup of the X-1. With everything installed in the usual way, the contacts on each cell get compressed quite dramatically. Cells this way will work fine, but it’s less than ideal for general robustness of the light.

Both cells were this way, too. This is one reason I say the springs are less “springs” and more “contact points” – they don’t cushion the cells in the way you’d want. That, or the springs are so compressed to cause this.

One more note is that the cells are in series. Inside the body is a little icon that indicates the cell direction; if you take out the cells you’ll need to be aware of the orientation when you reinstall the cells.

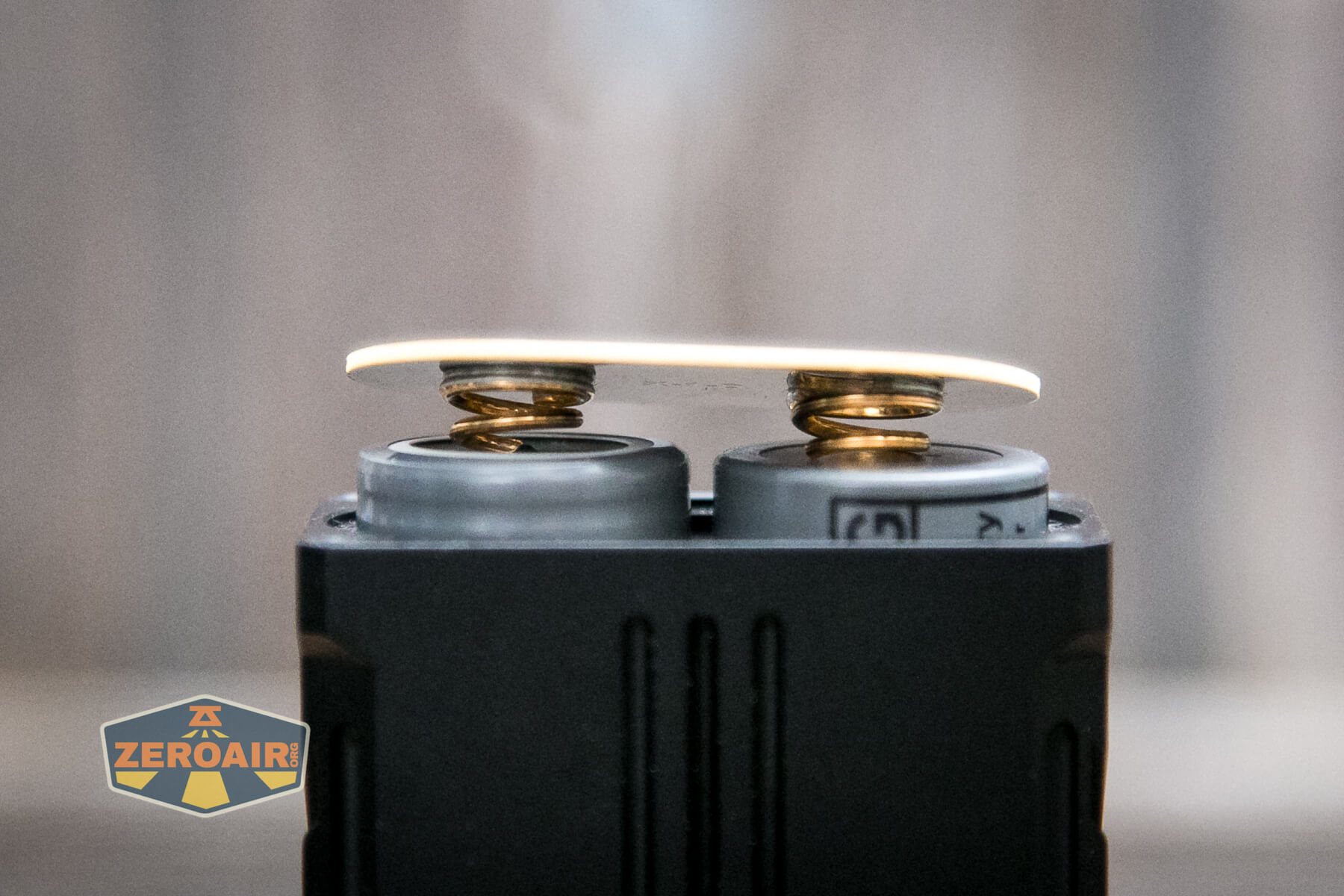

This little springy board goes with the springs touching the cells, but it’s just a dummy board – it can go with either spring touching either cell.

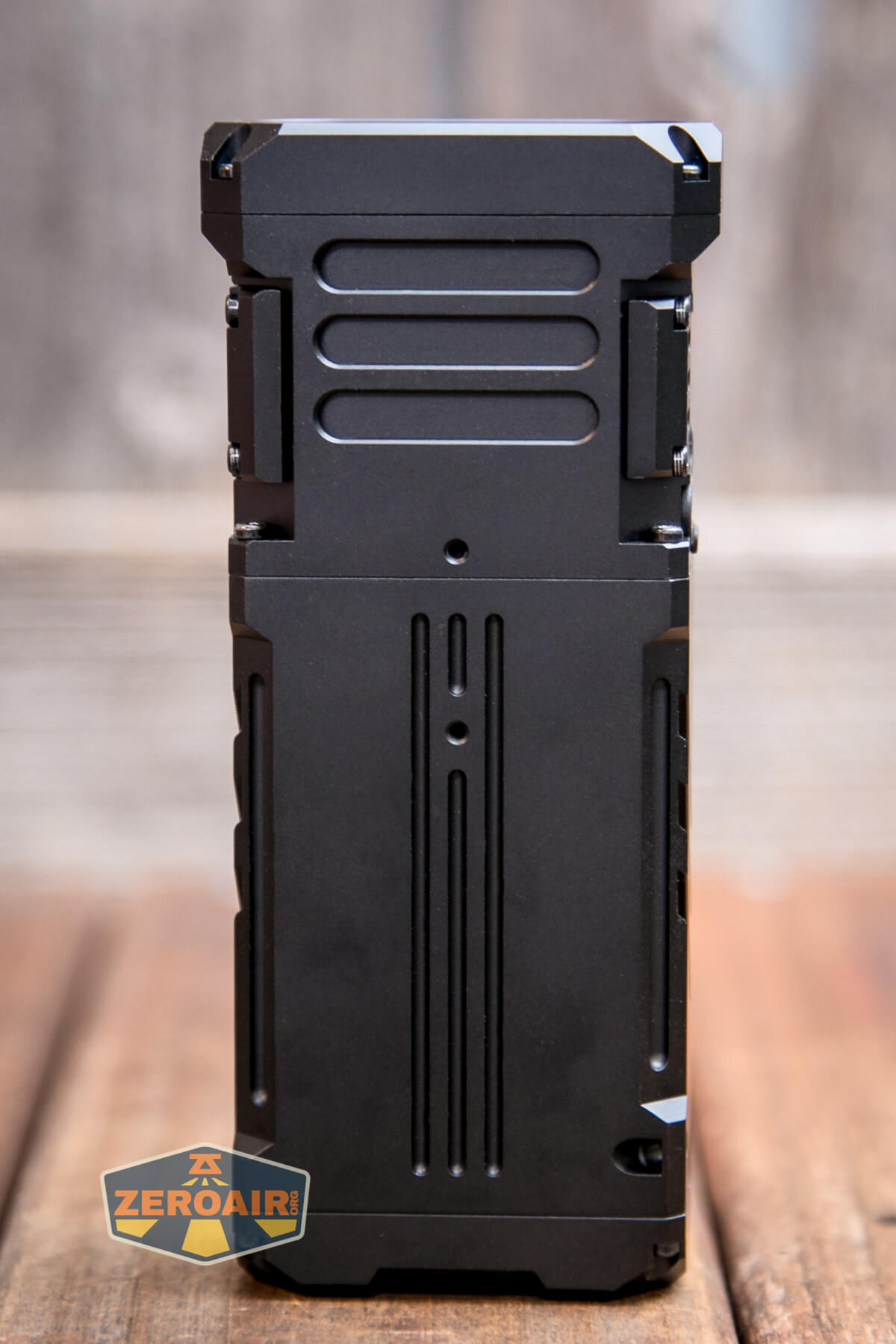

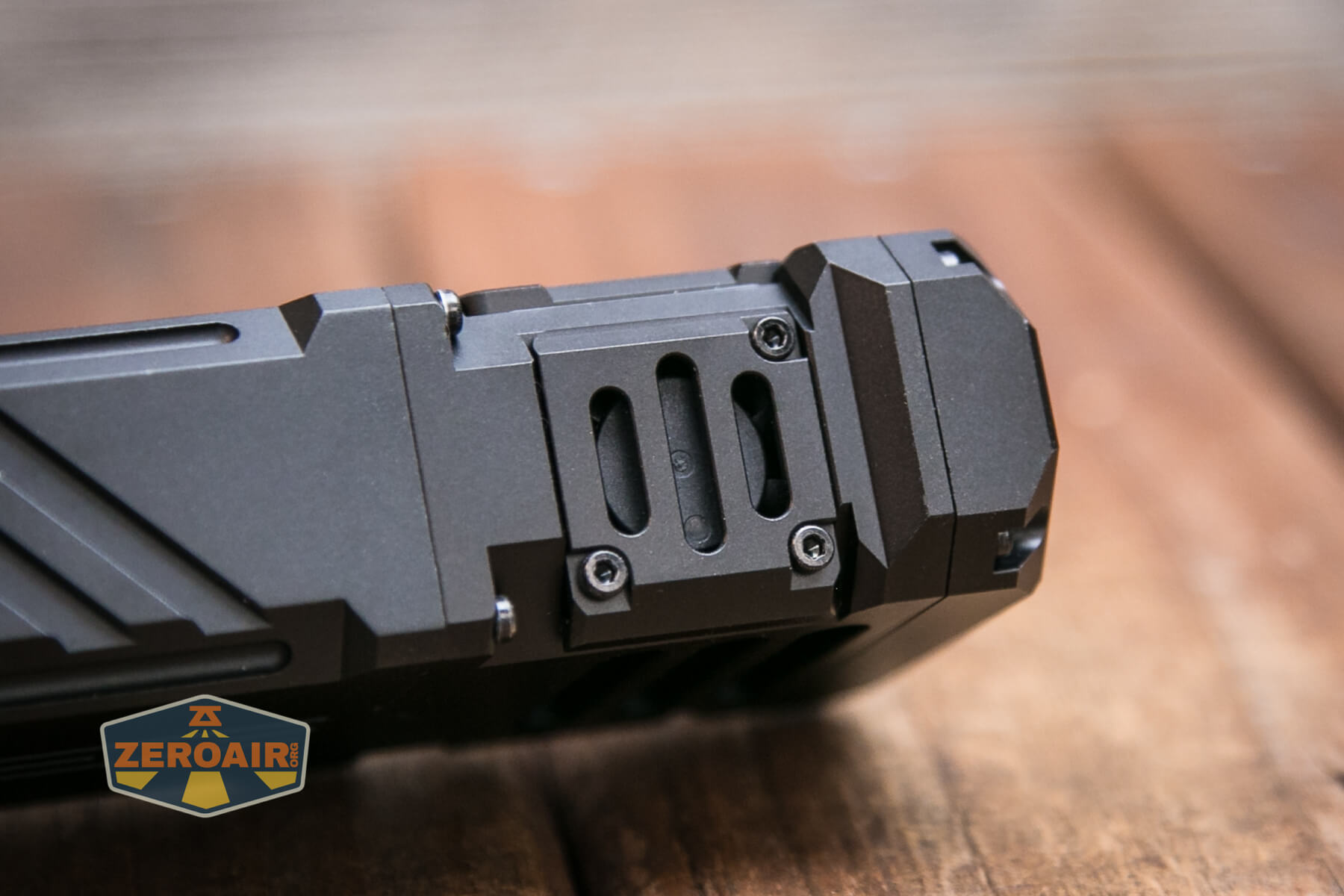

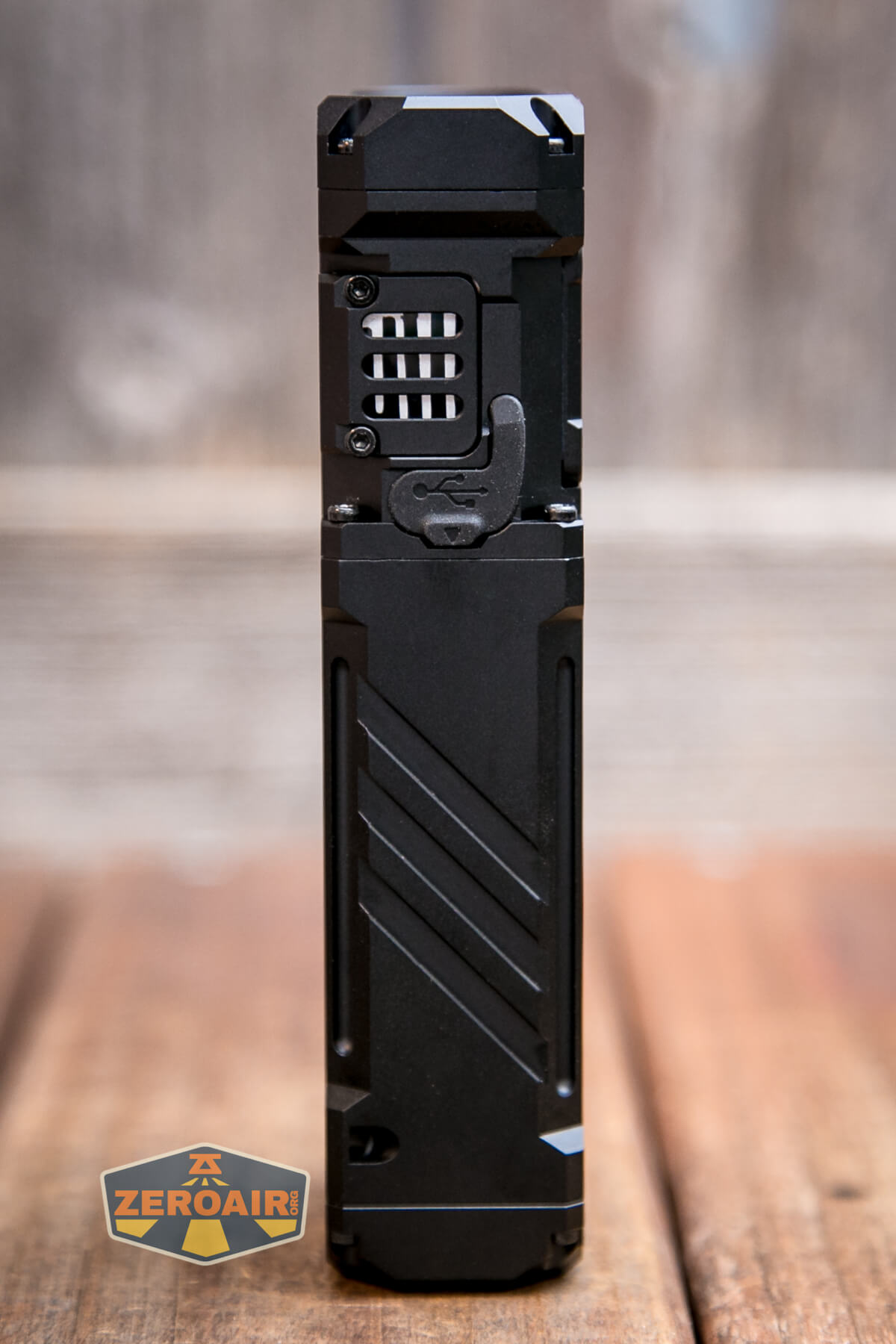

And finally, for lack of any better place to put the information, here’s where the built-in fan runs air over all the internals.

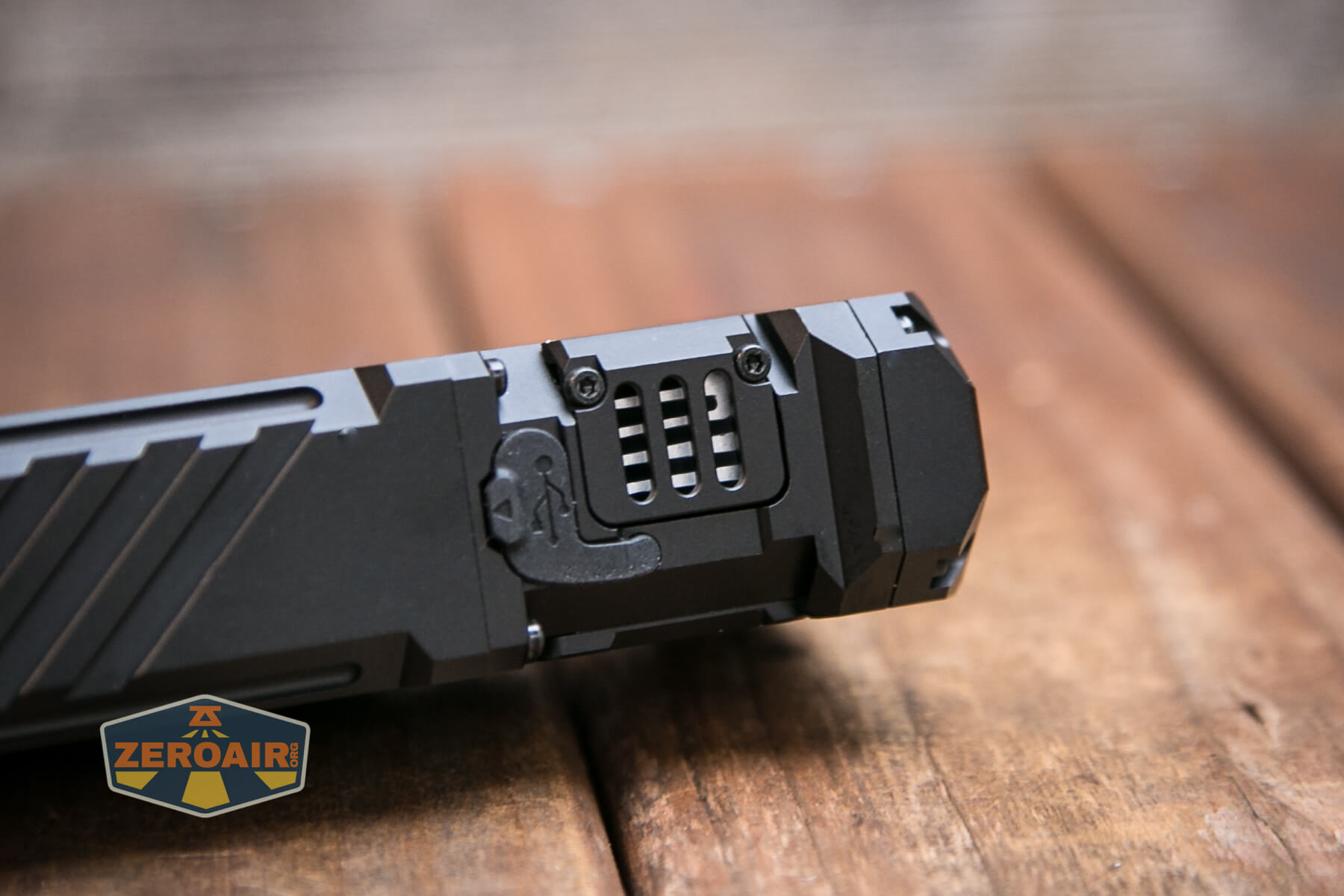

The other side has a fan. As far as I can tell, the fan turns on and off as necessary and is not under user control. The manual does not seem to cover the fan very thoroughly. I can say that the fan is very quiet, though (and definitely does spin and blow air). A quick test indicates that the fan comes on after a few seconds (maybe 10s) on turbo and stops spinning right when the light is turned off. If the light is already hot and you turn the light on even to low (for example), the fan will spin to cool the area. So while it’s not user-controlled, it can be affected in this way.

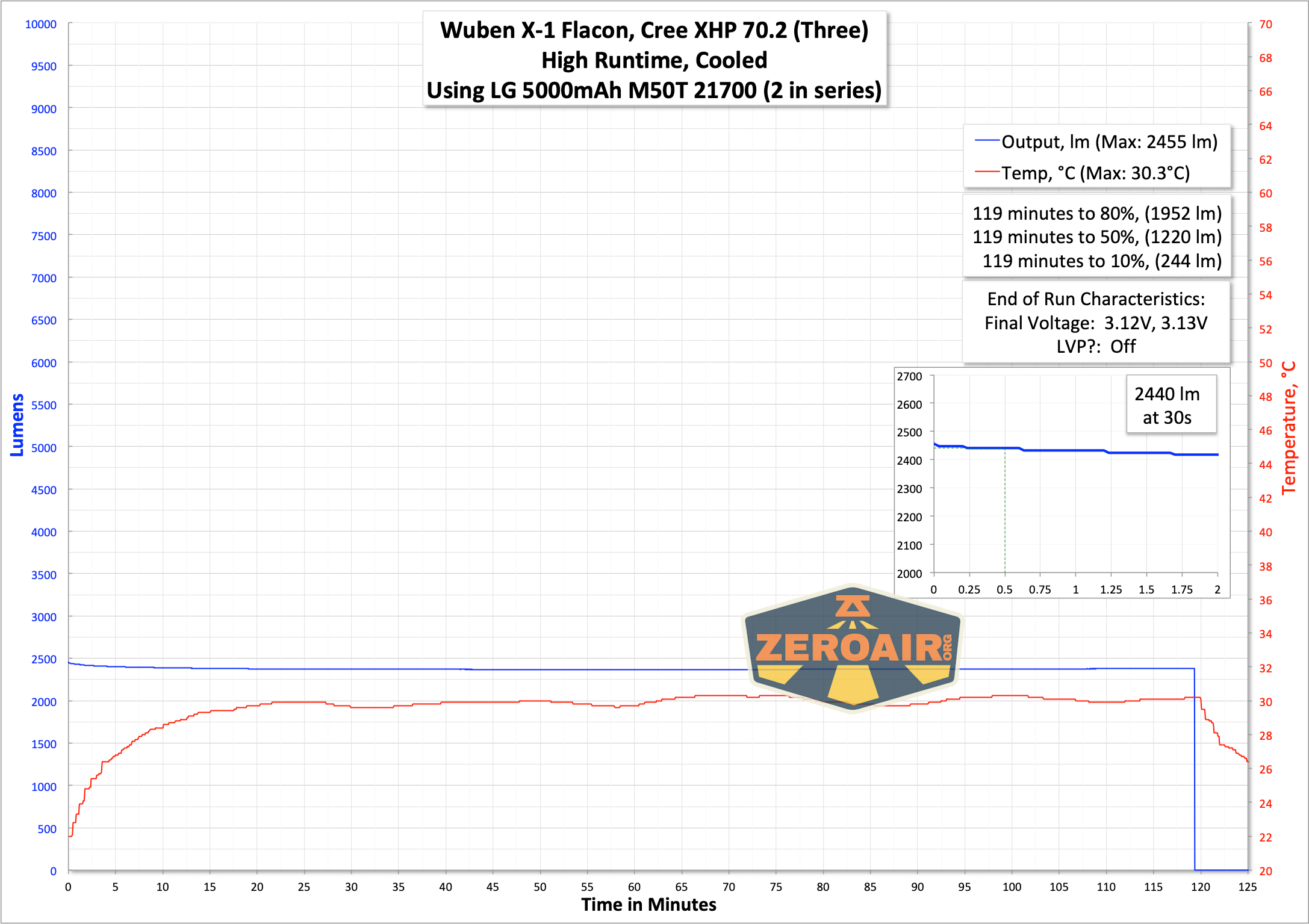

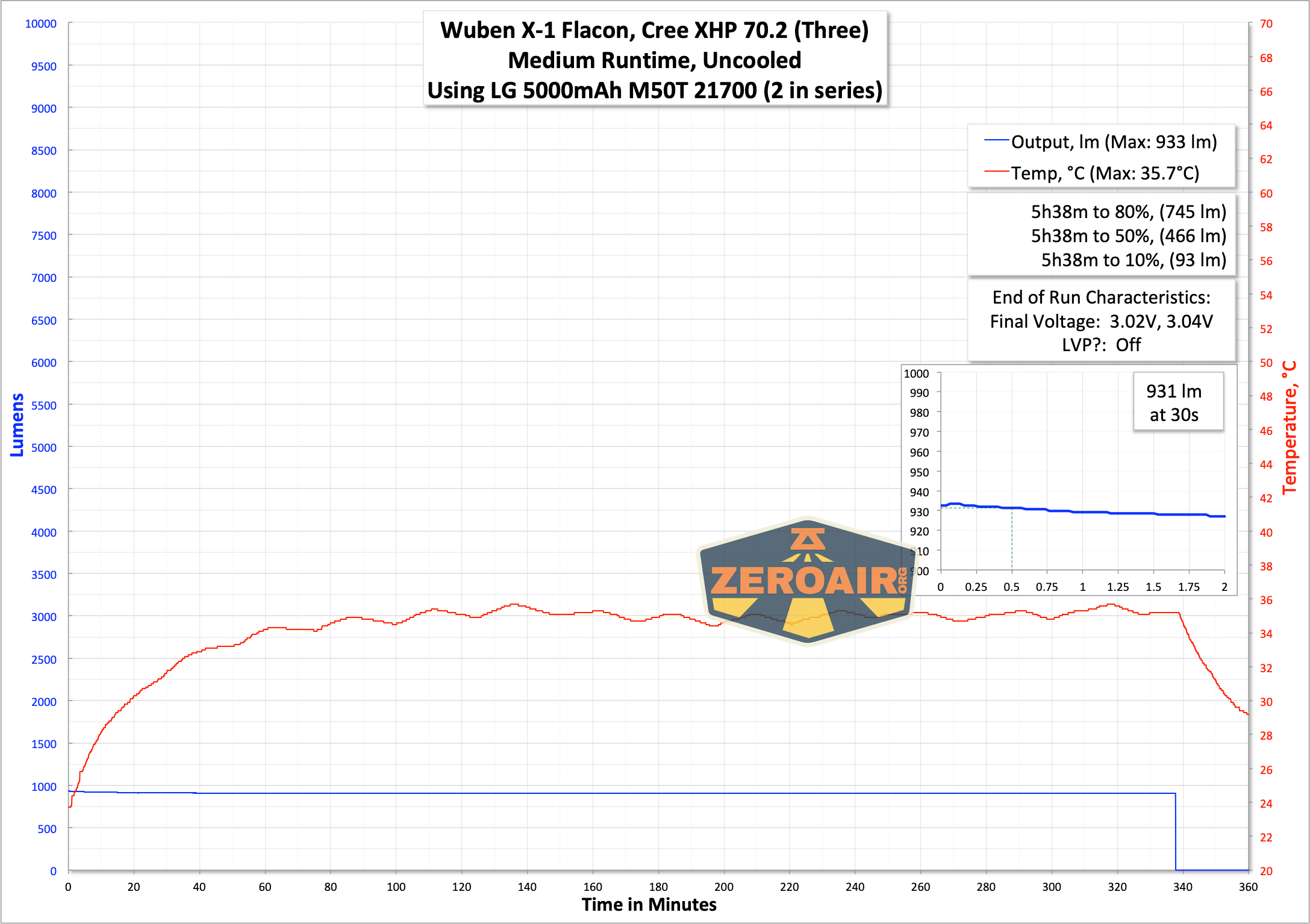

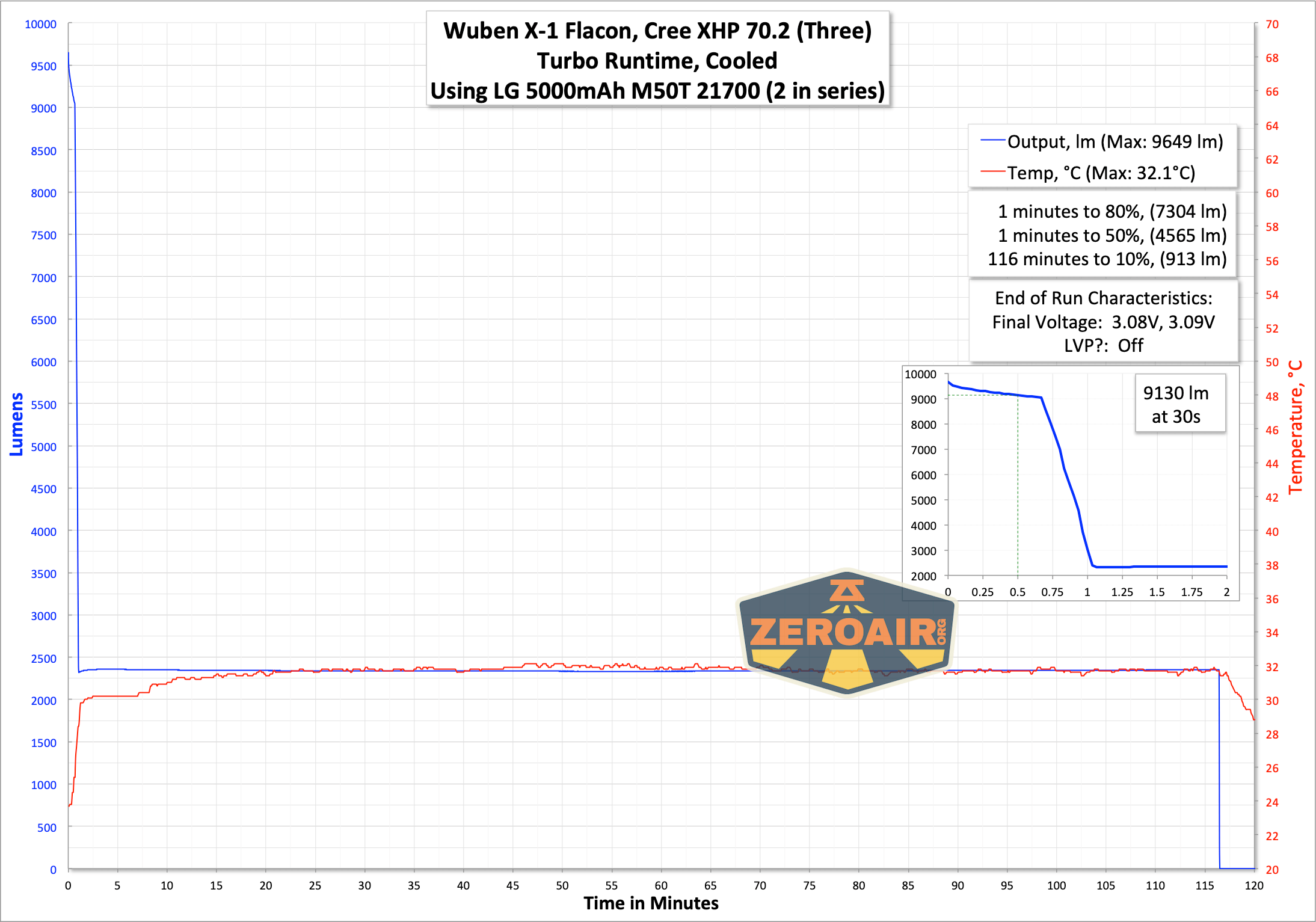

Here are a few runtime graphs. I didn’t see the claimed 12,000 lumens, but otherwise, I’d say output looks pretty good.

The light does shut off with low voltage protection at around 3V.

Charging

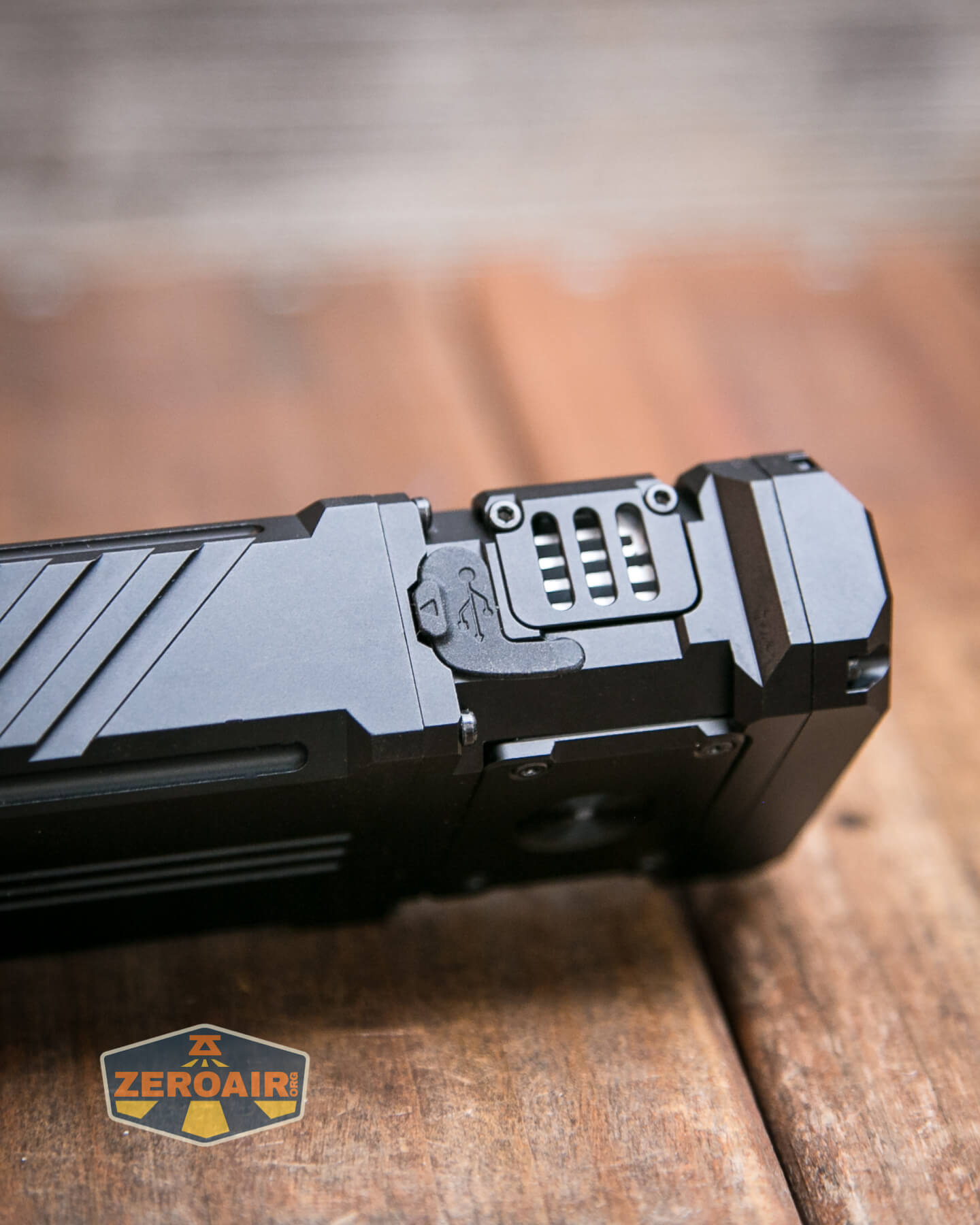

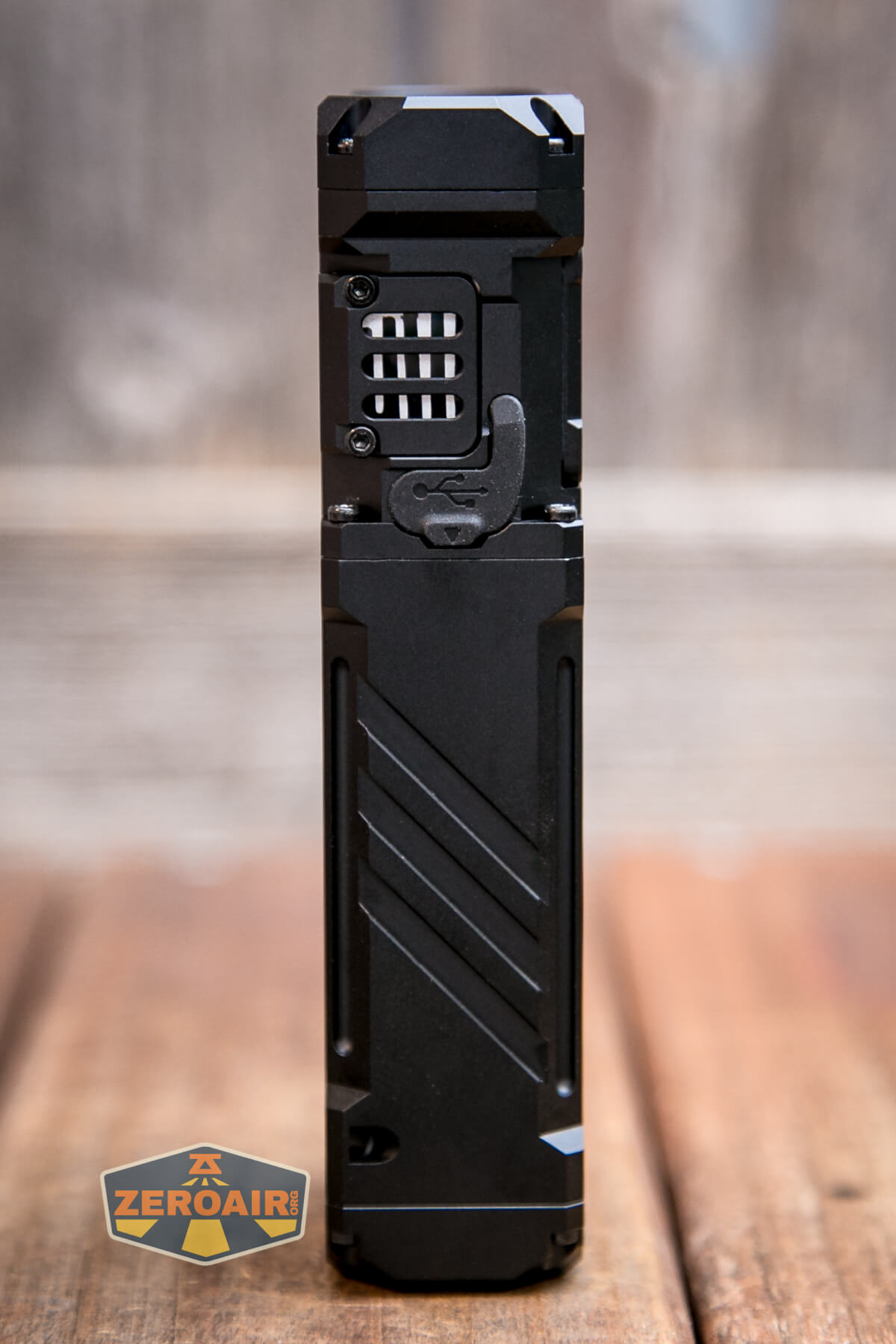

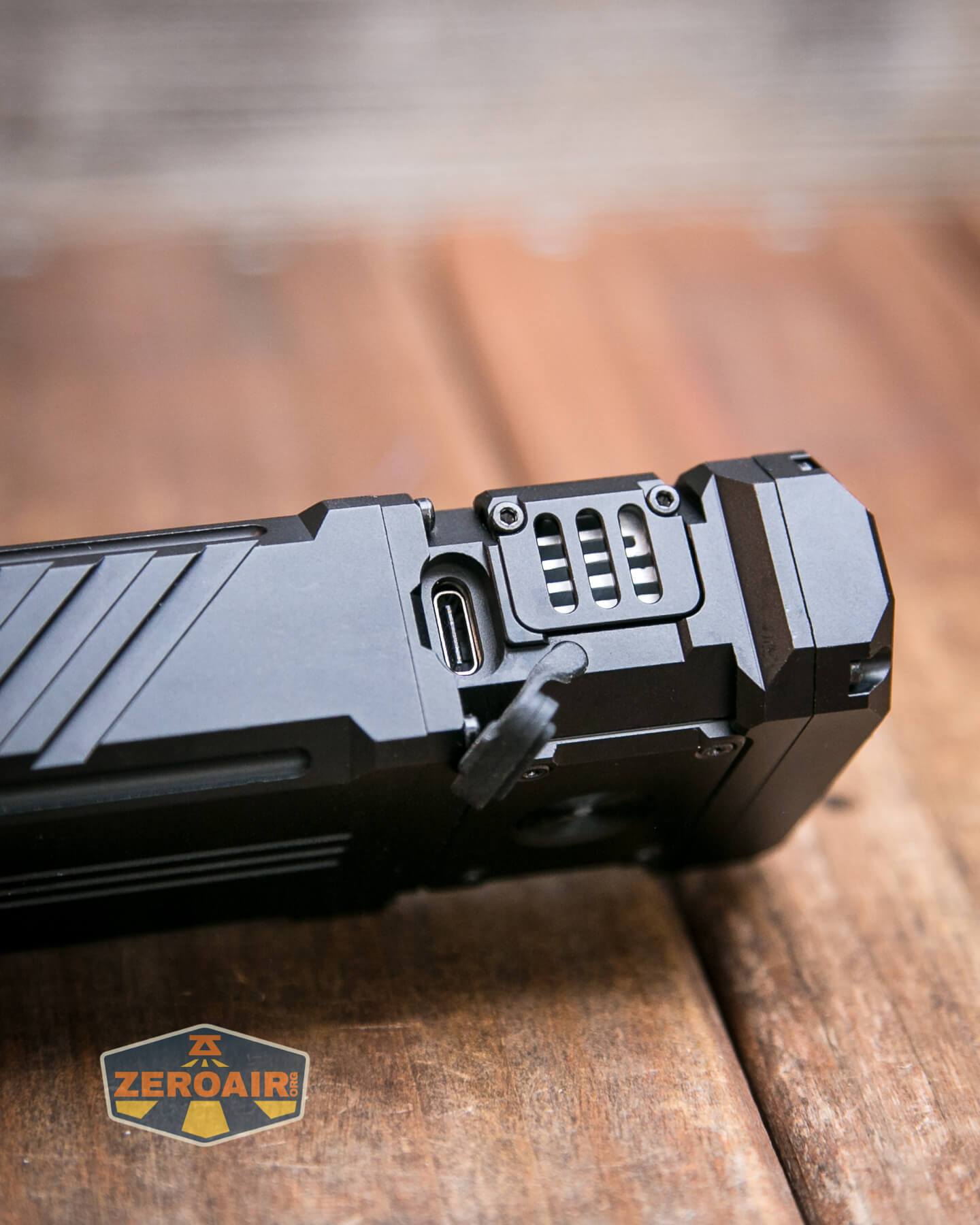

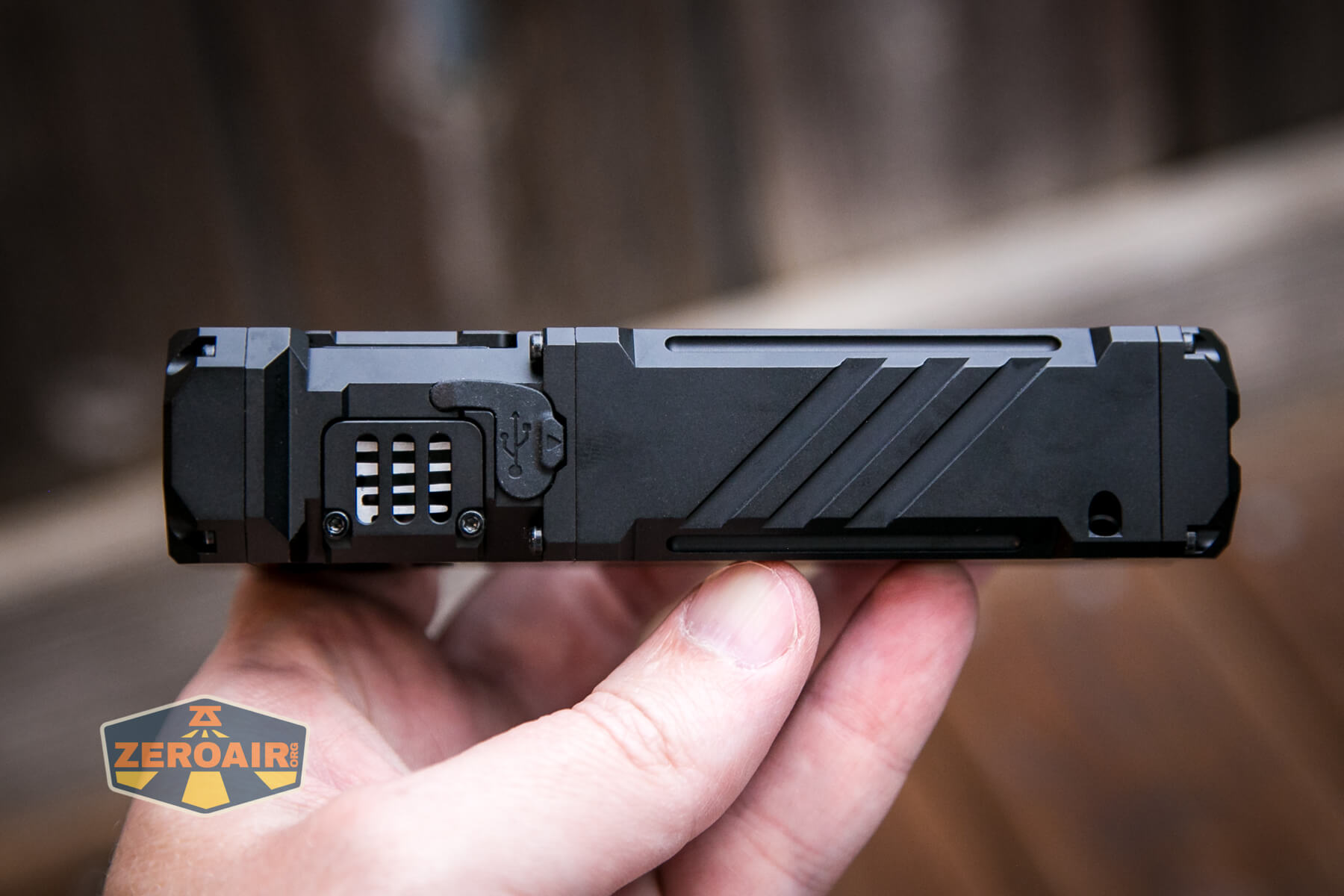

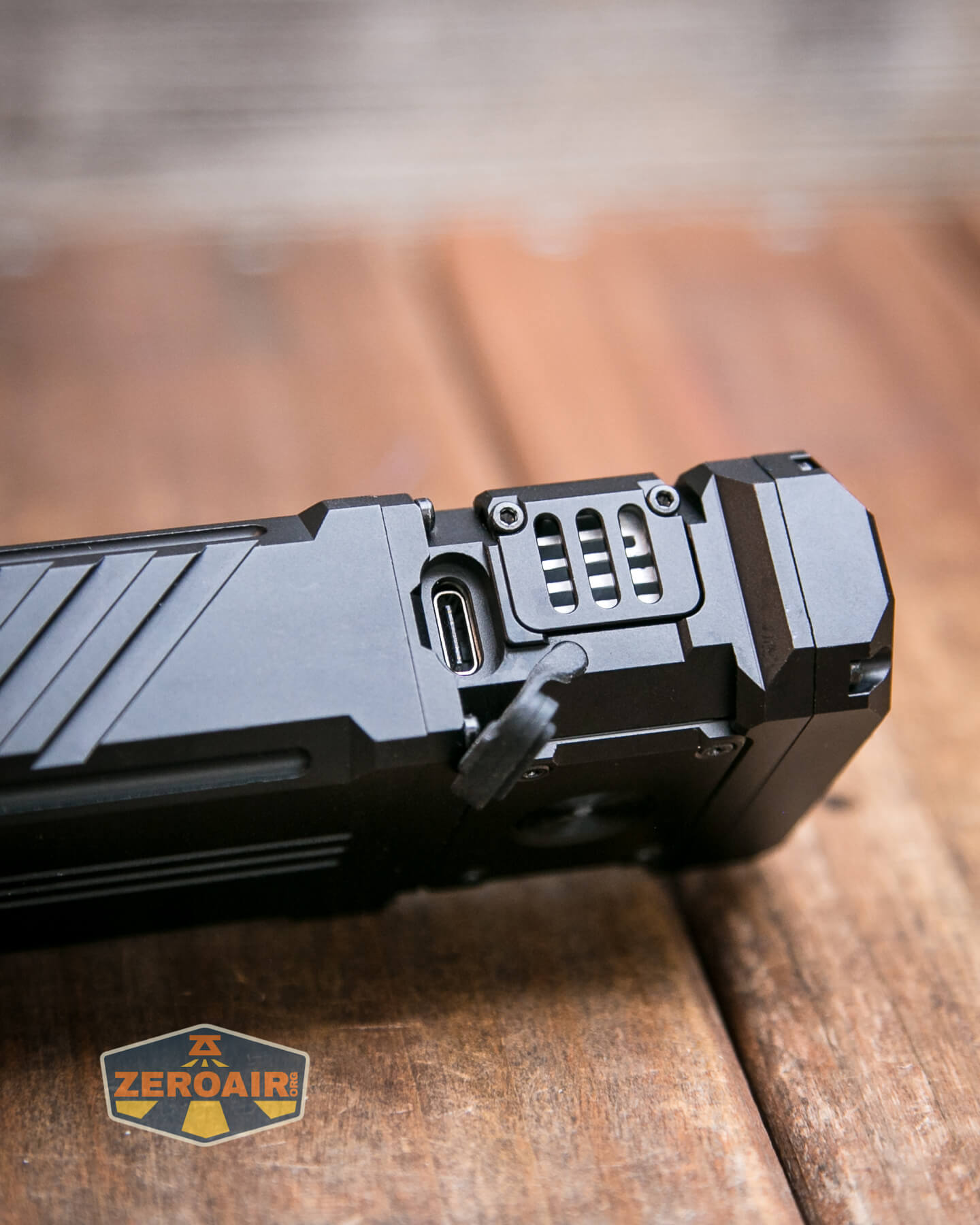

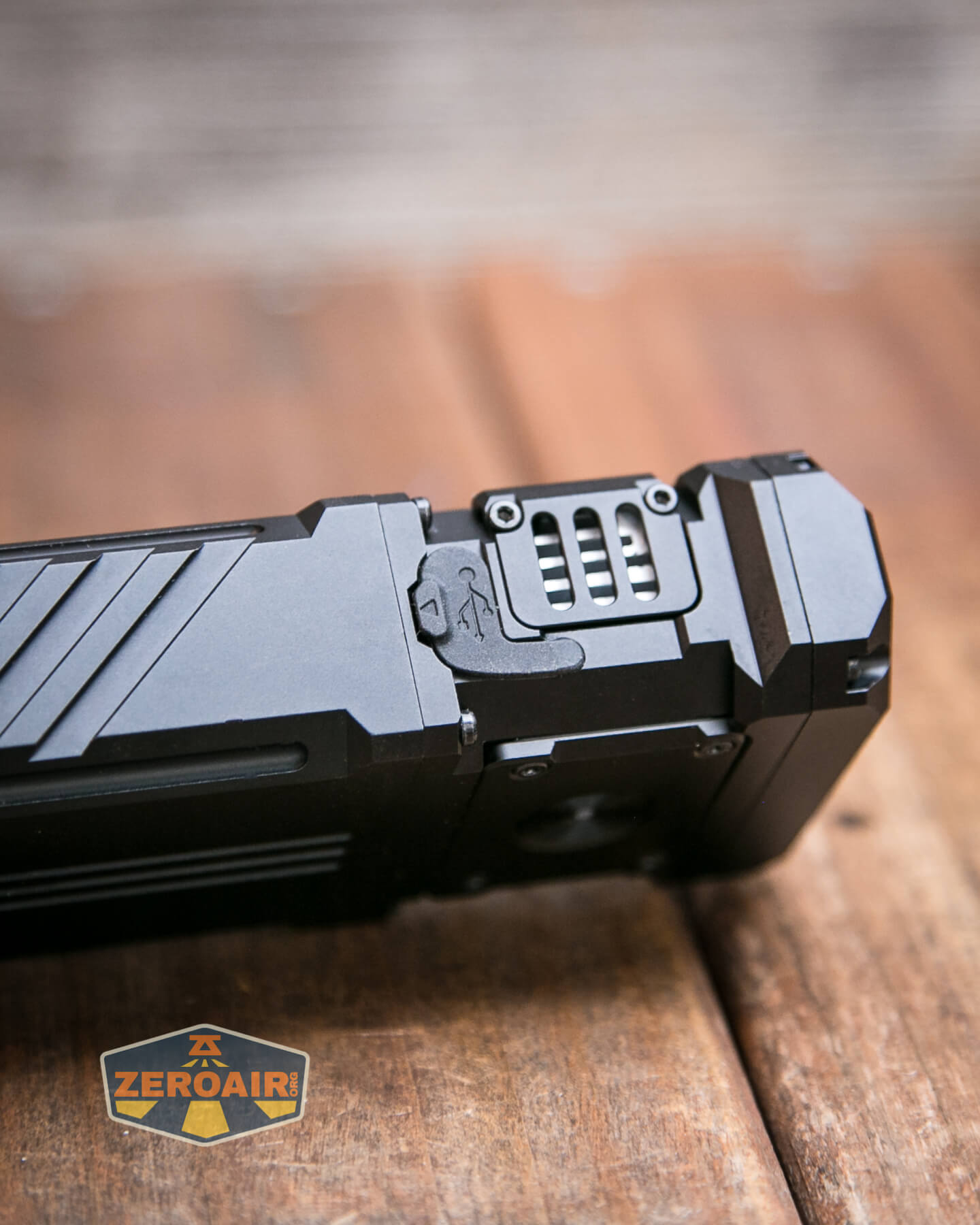

Charging on the Wuben X-1 Falcon flashlight is by way of a USB-C charging port on the head. This charging port has a nice press-in cover that seems quite snug and secure.

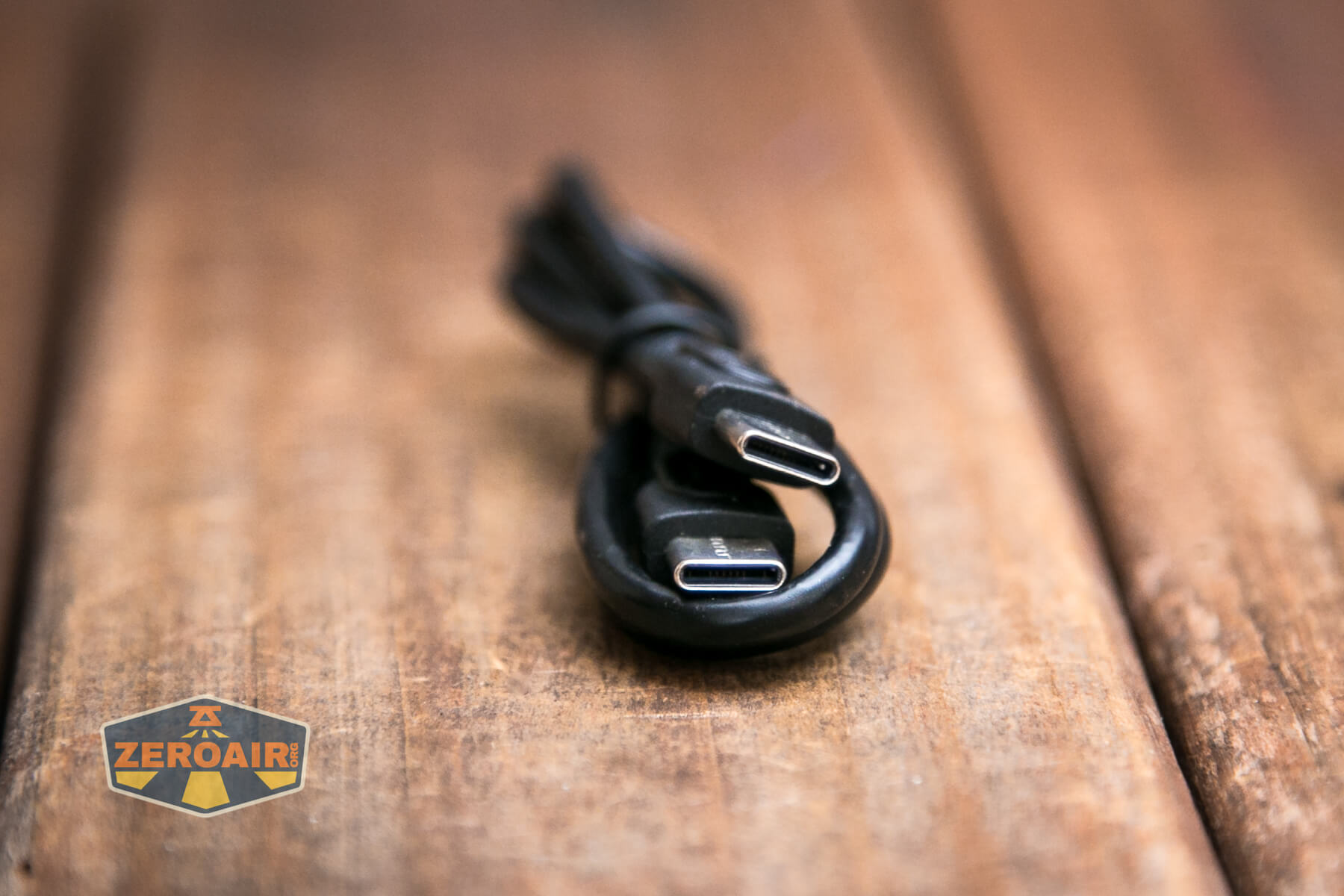

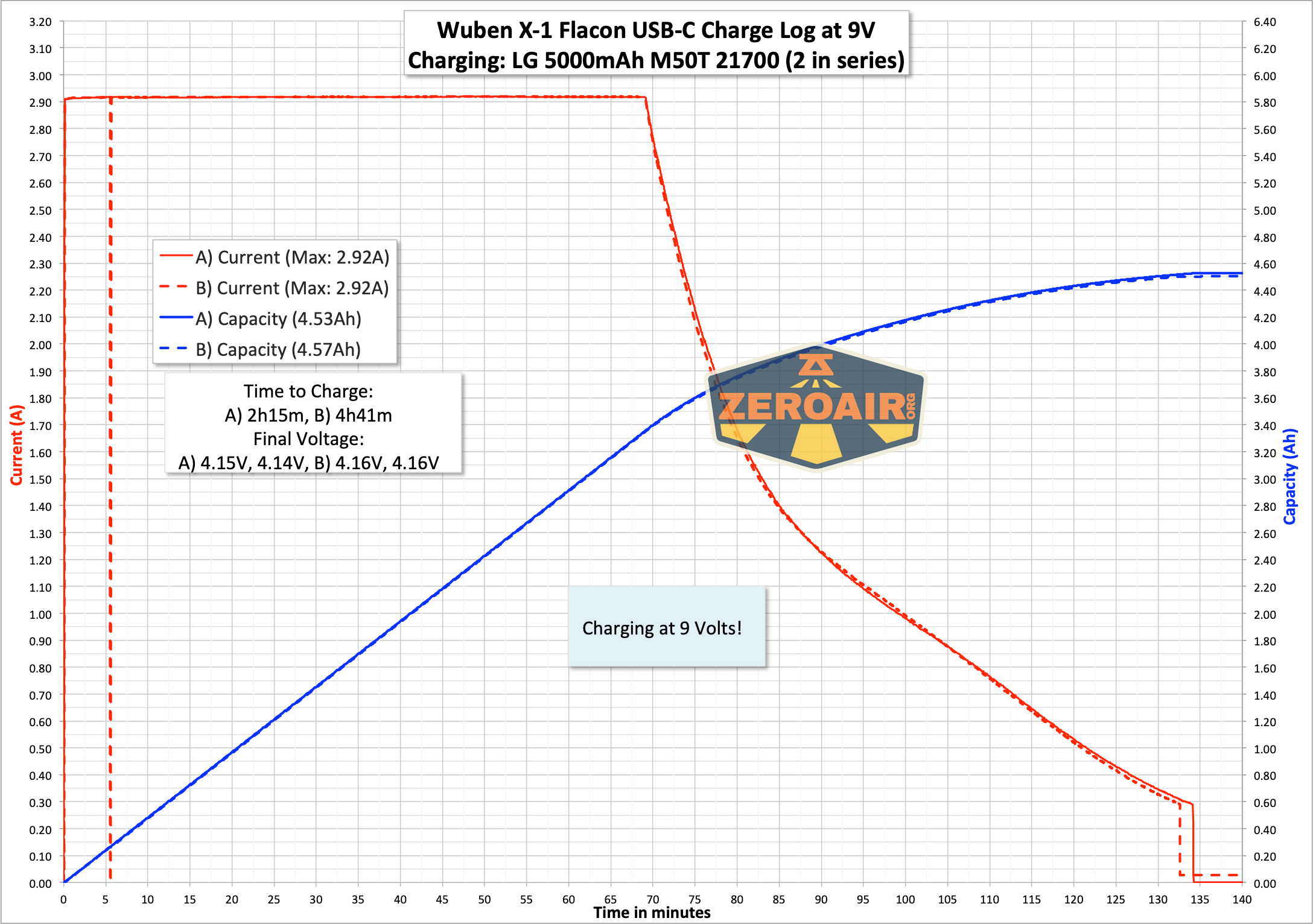

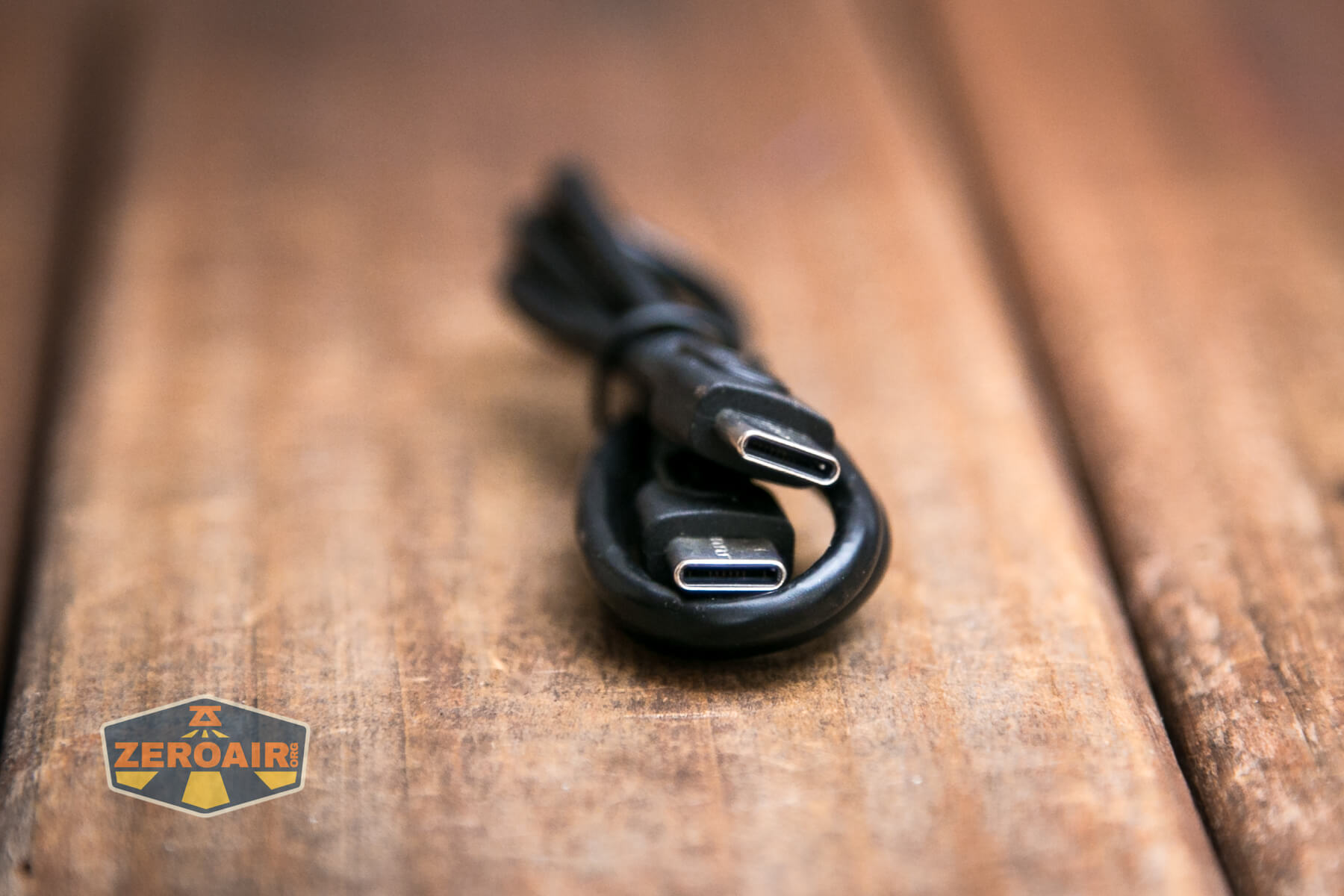

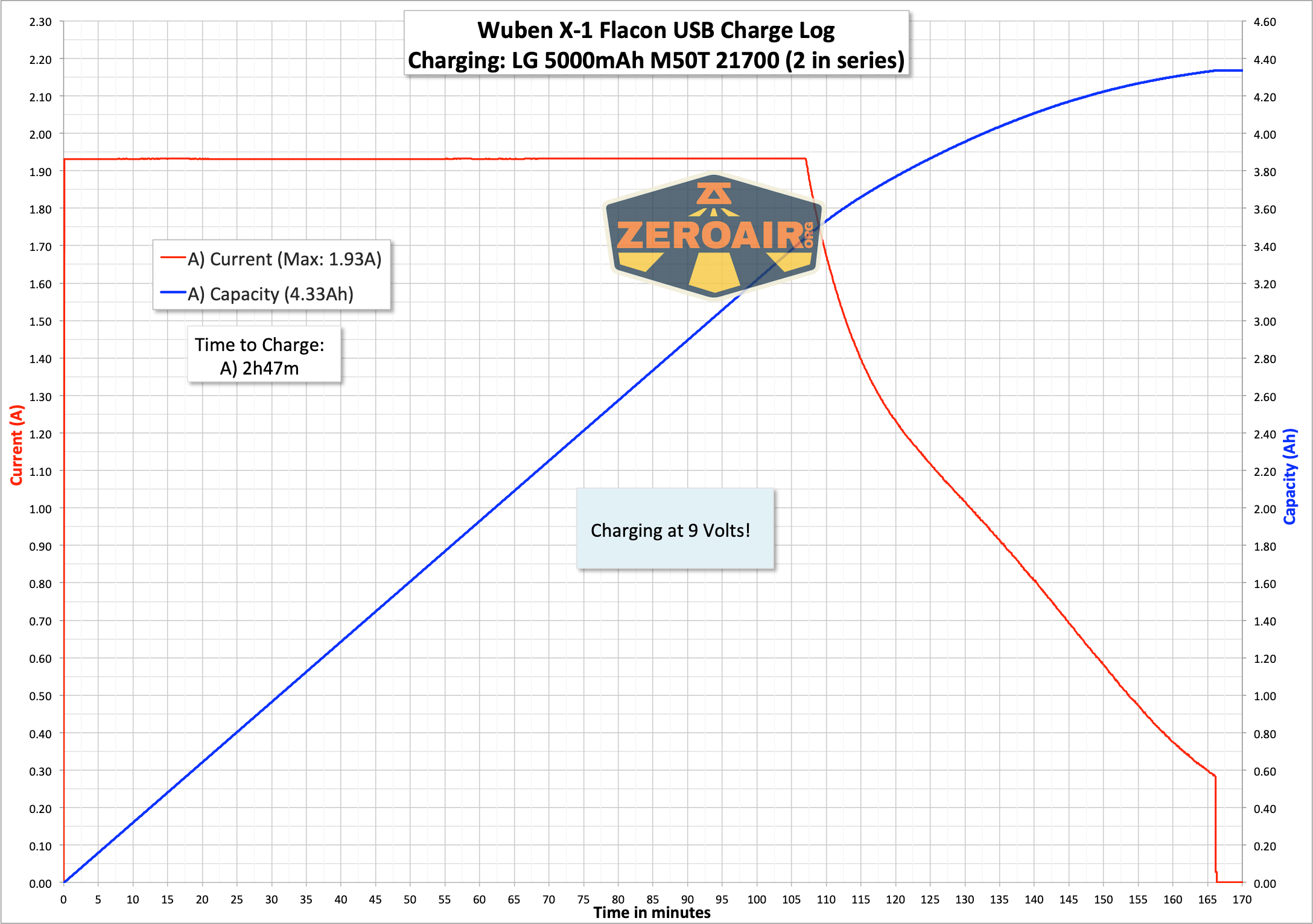

The cable provided is USB-C to USB-C and obviously that type of charging works fine. Note that this light charges at 9V, so even at around 2A, that’s nearly 20W of power.

The C to C charge is even quicker at around 2 hours 15 minutes because it’s charging at nearly 3A, or 27W!

The switch indicator is red when charging is active and blue when charging has finished.

Modes and Currents

Mode	Mode Claimed Output (lm)	Claimed Runtime	Measured Lumens	Tailcap Amps
Turbo	12,000~3,000	1m~1.7h	Initial: 9649 30s: 9130	10.52
High	2600	2h	2440	2.05
Med	1000	5.5h	931	0.79
Low	400	14h		0.30
Eco	20	220h		0.01

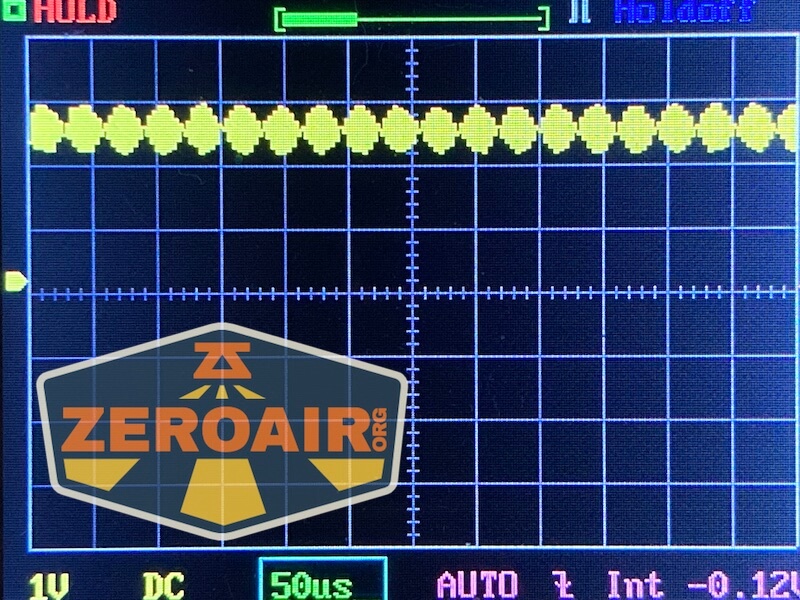

Pulse Width Modulation

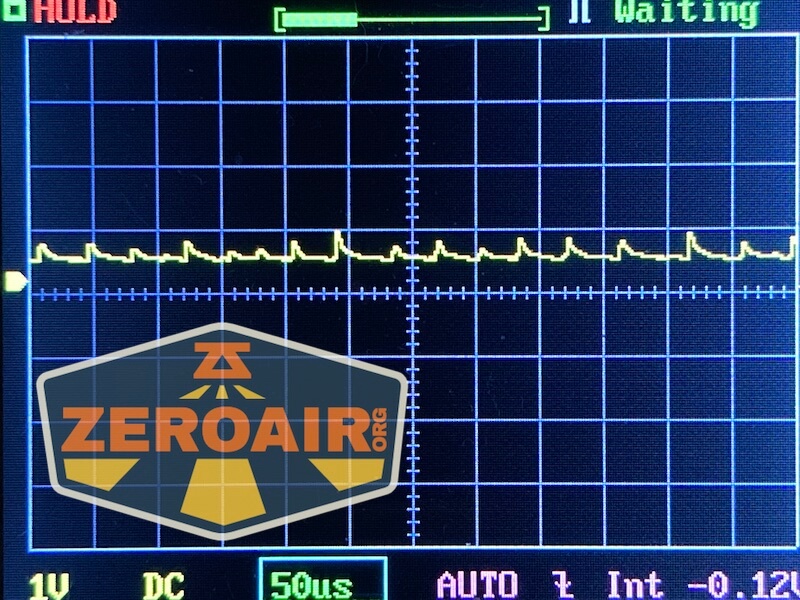

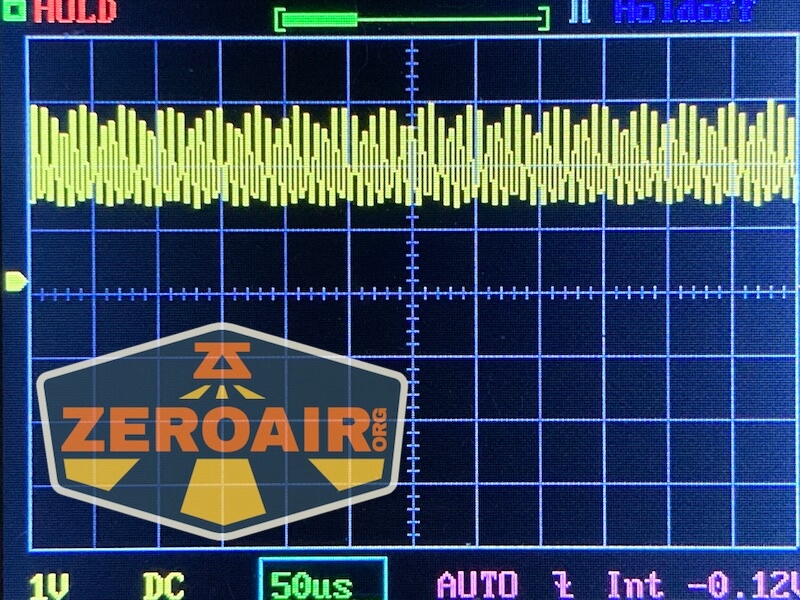

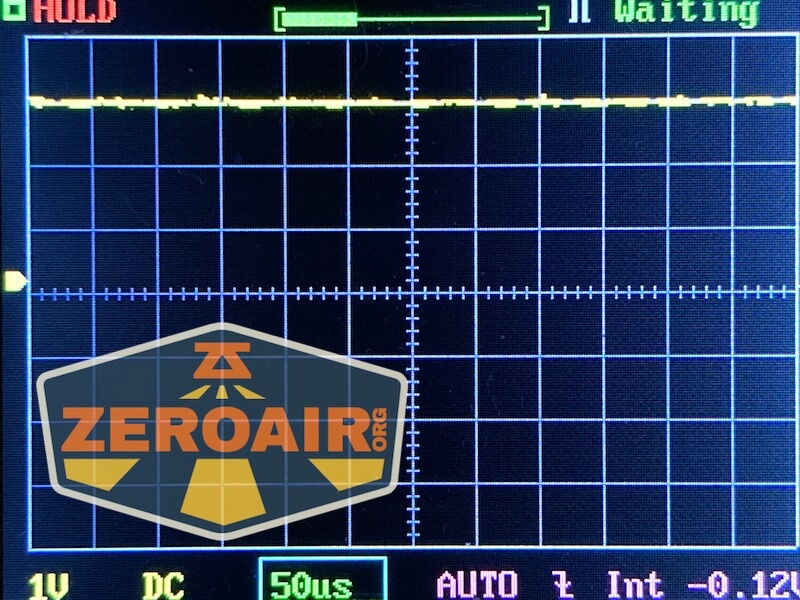

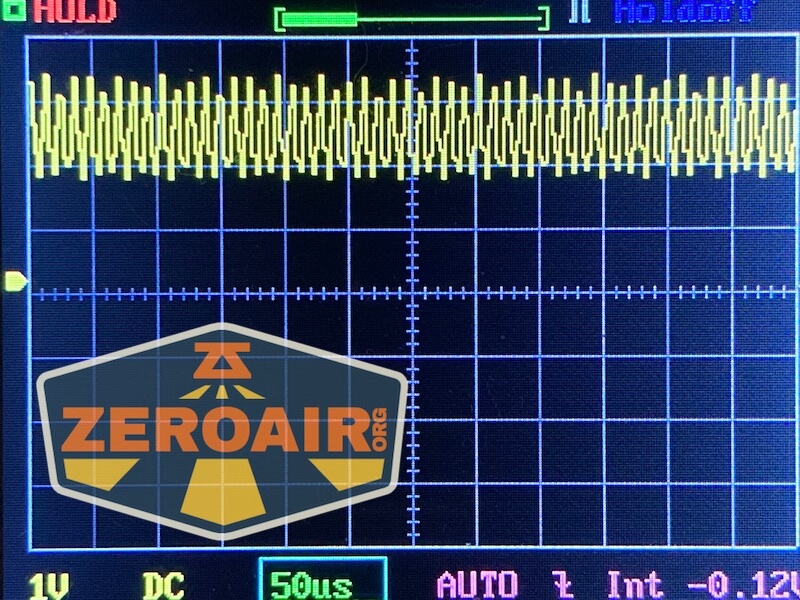

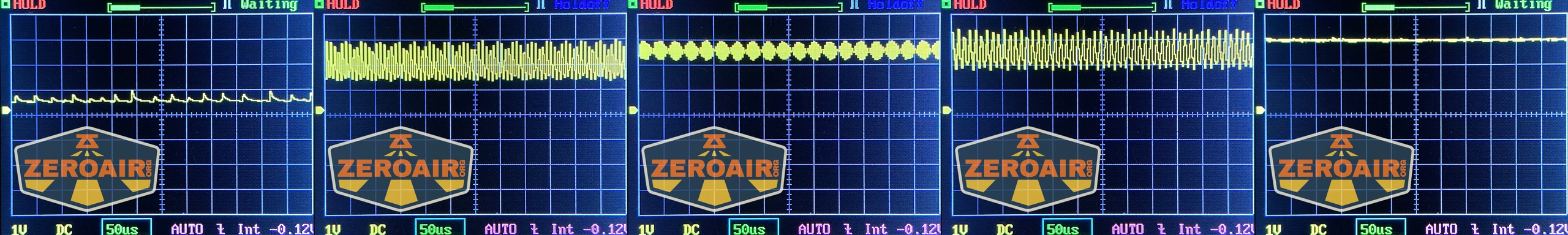

We don’t really have too much in the way of PWM here on the X-1 Falcon – it’s more of a sawtooth. Whatever might be considered PWM is fast enough that you’re very unlikely to be able to notice it.

Here you can see a “baseline” – a chart with almost no light hitting the sensor.

Then there’s the Ultrafire WF-602C flashlight, which has some of the worst PWM I’ve seen. It’s so bad that I used a post about it to explain PWM! Here are multiple timescales (10ms, 5ms, 2ms, 1ms, 0.5ms, 0.2ms) to make comparing this “worst” PWM light to the test light easier. That post also explains why I didn’t test the WF-602C at the usual 50us scale.

User Interface and Operation

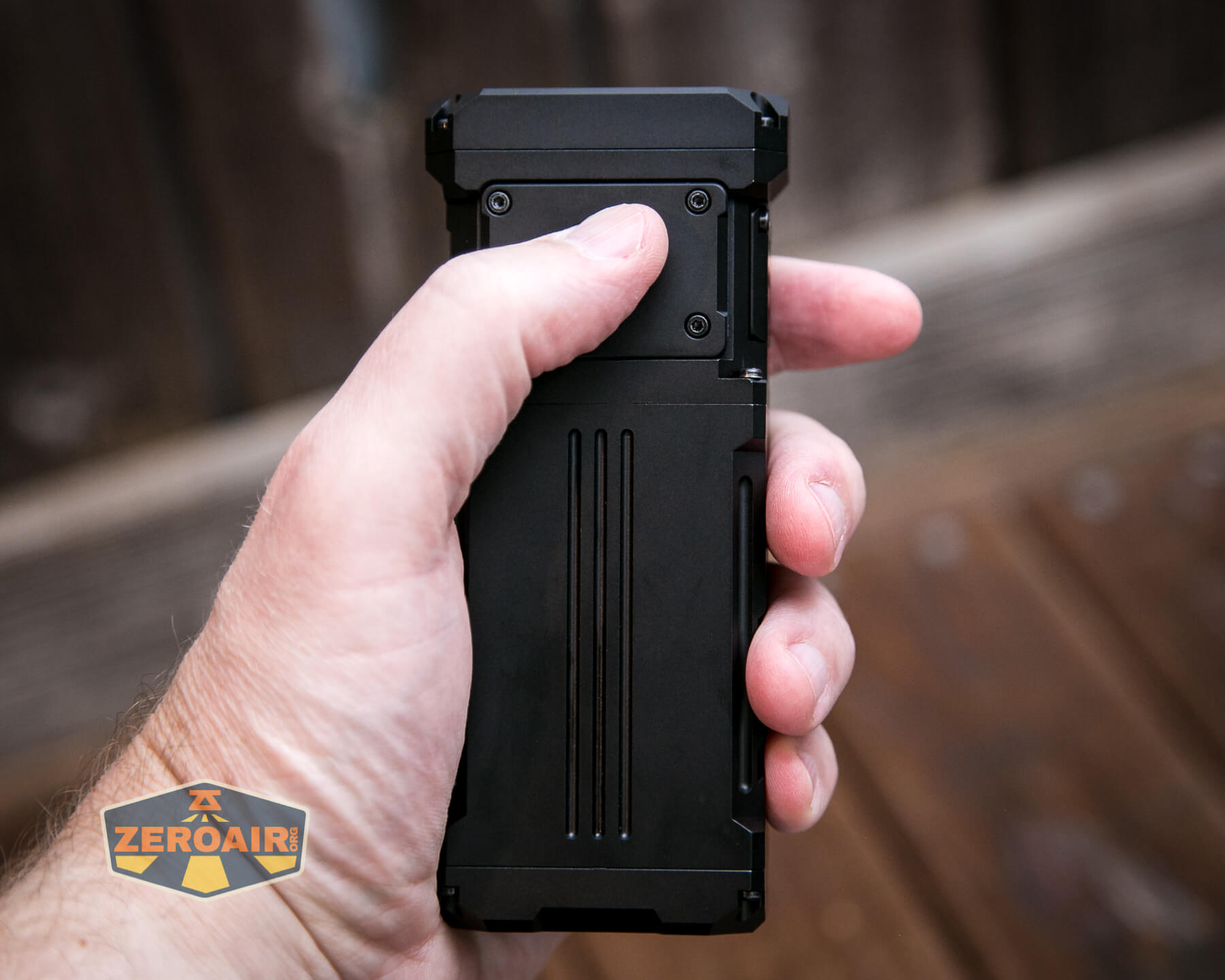

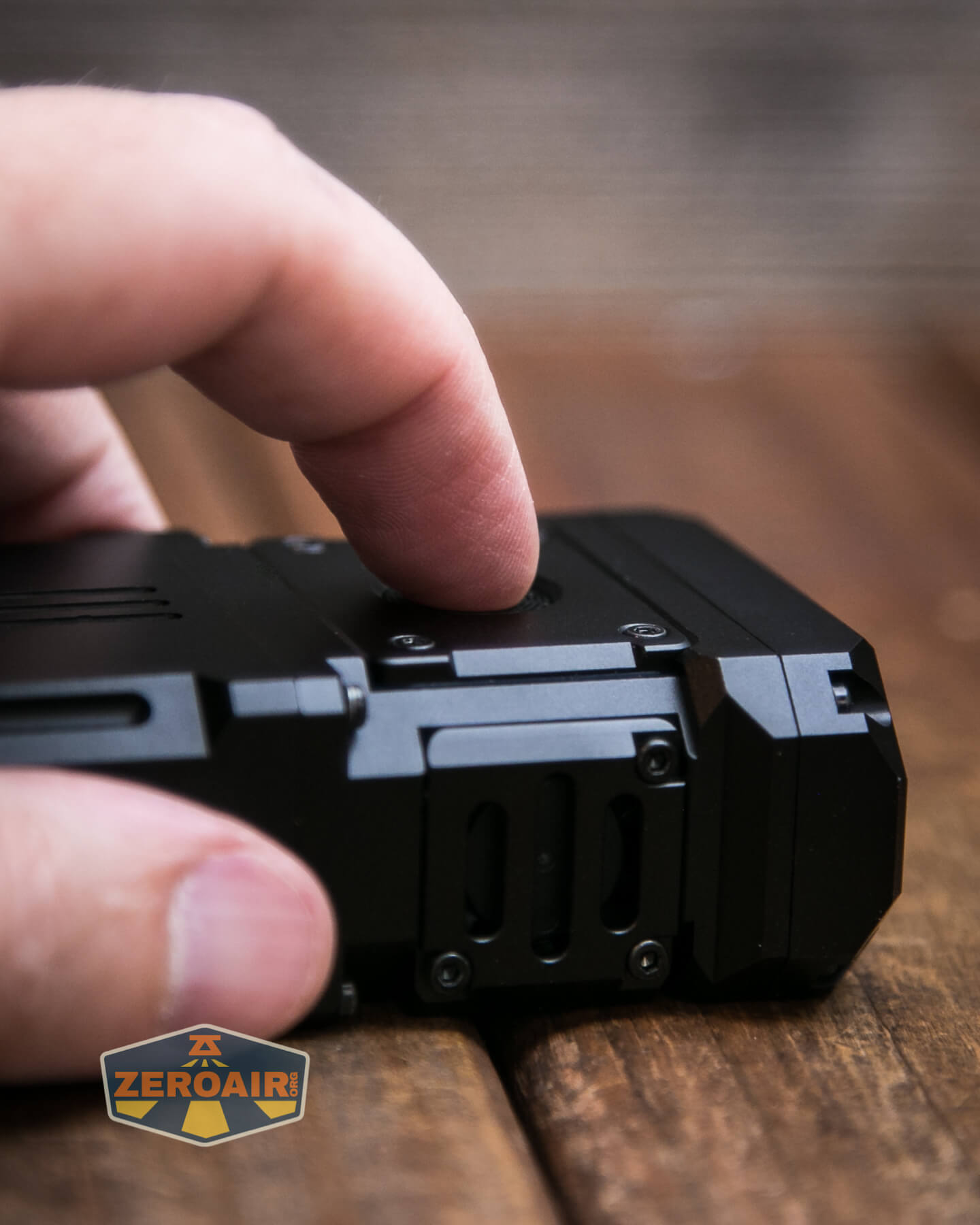

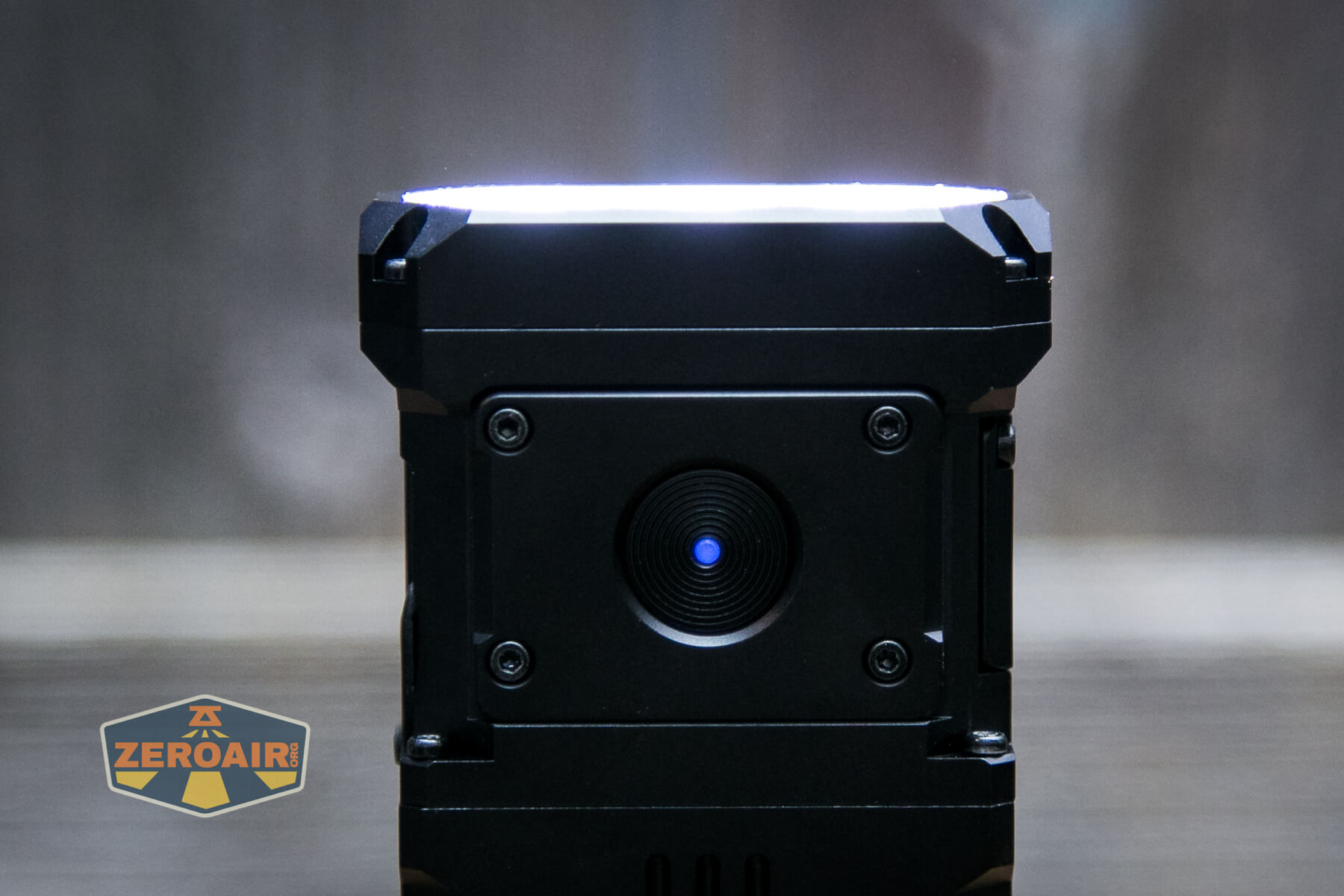

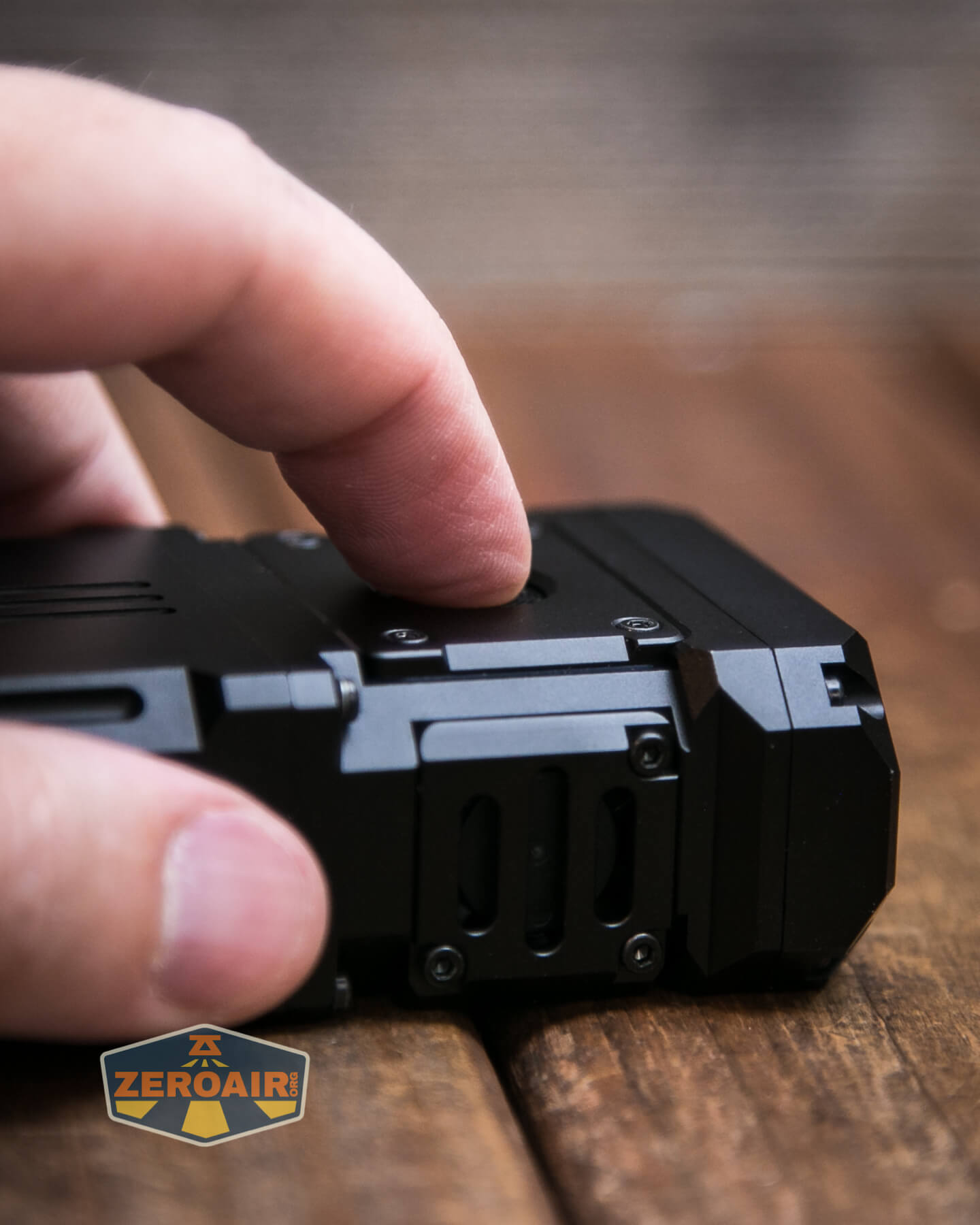

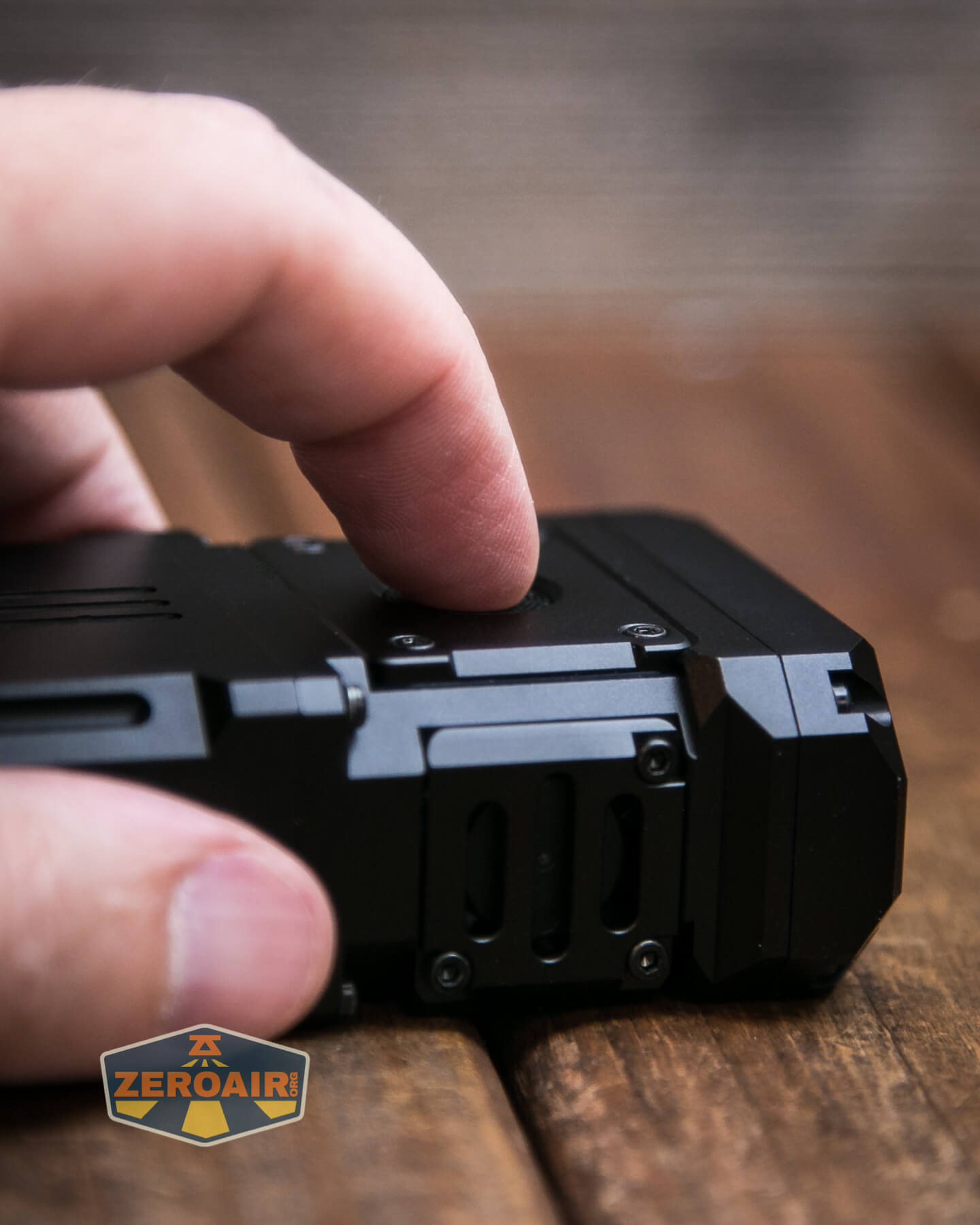

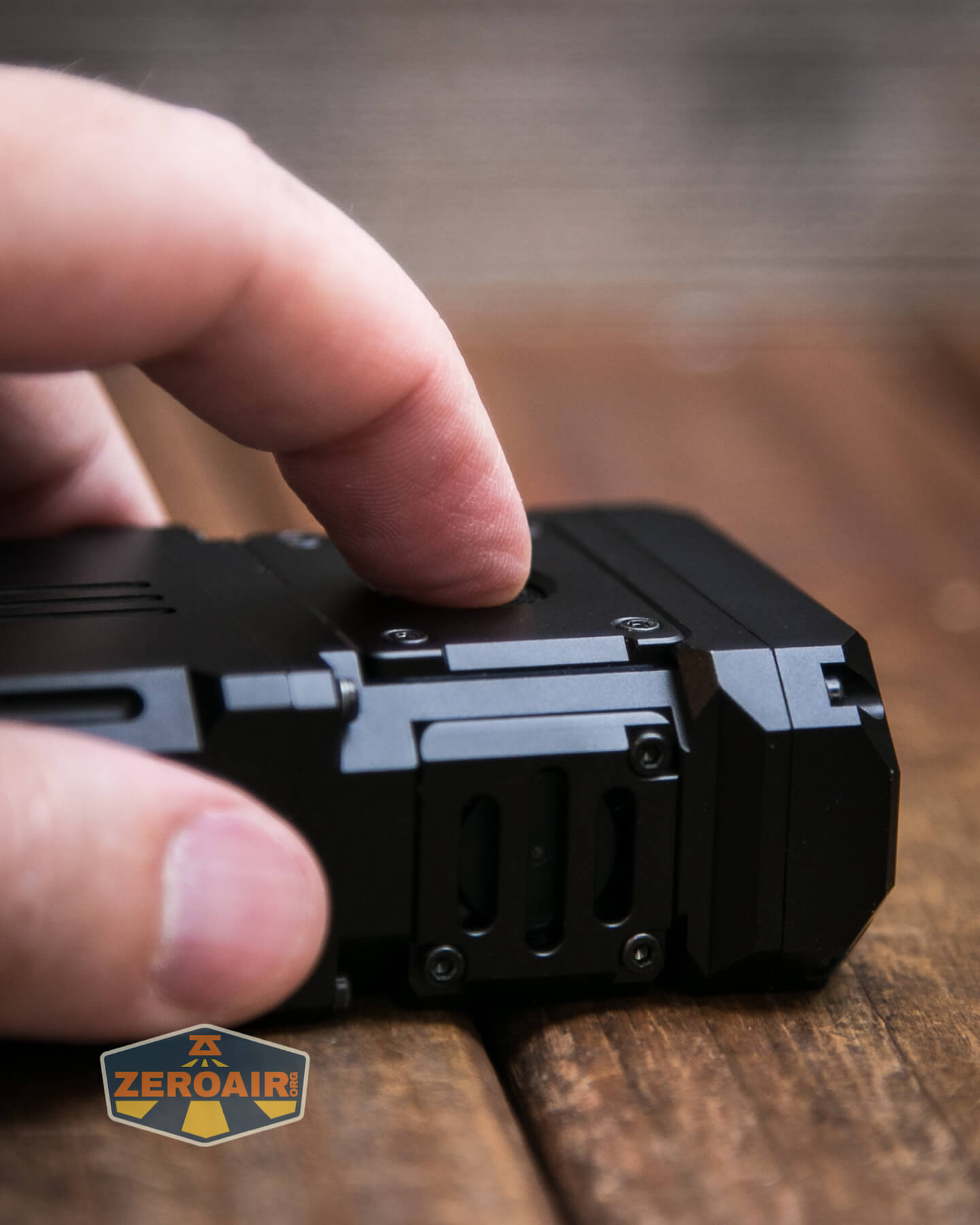

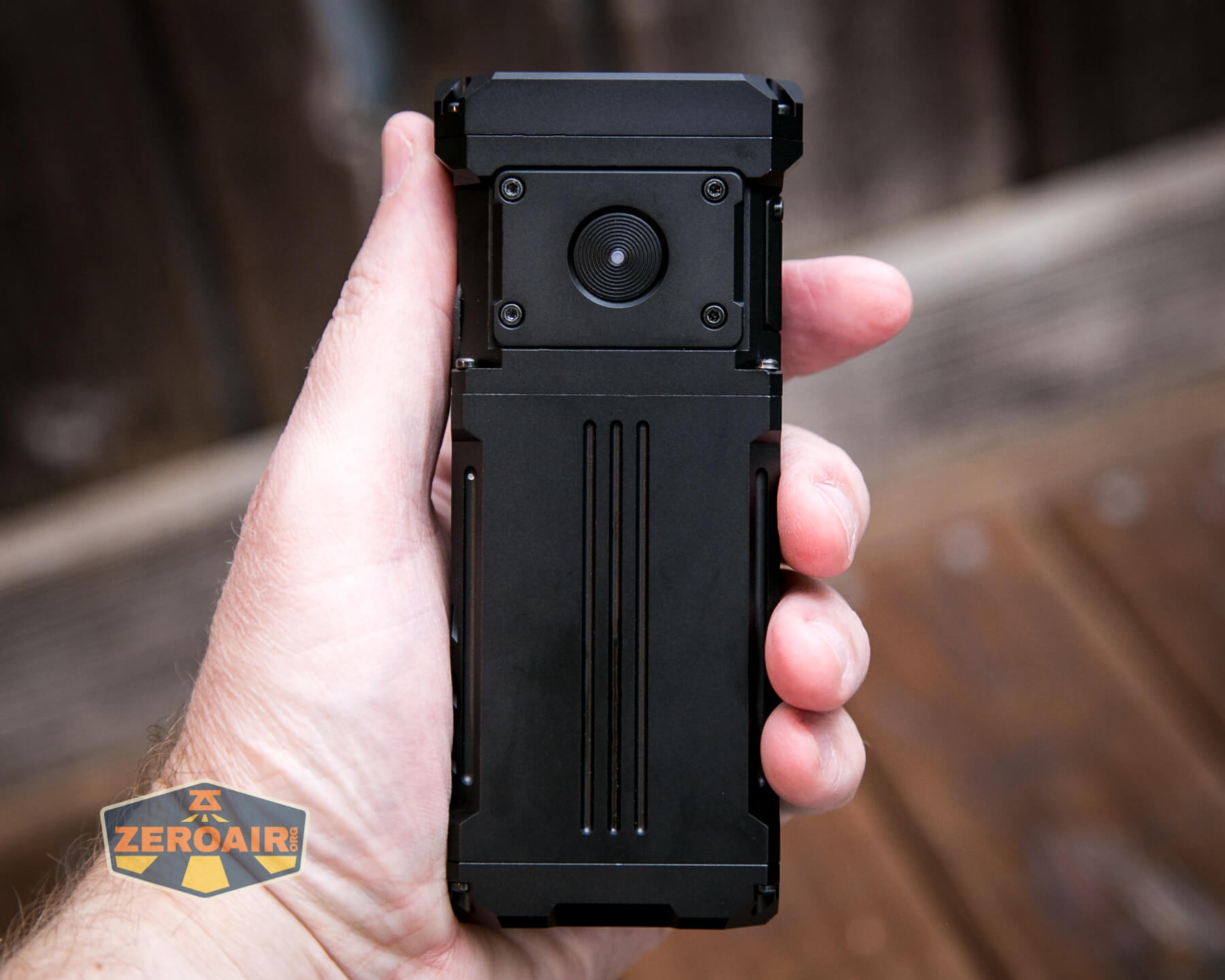

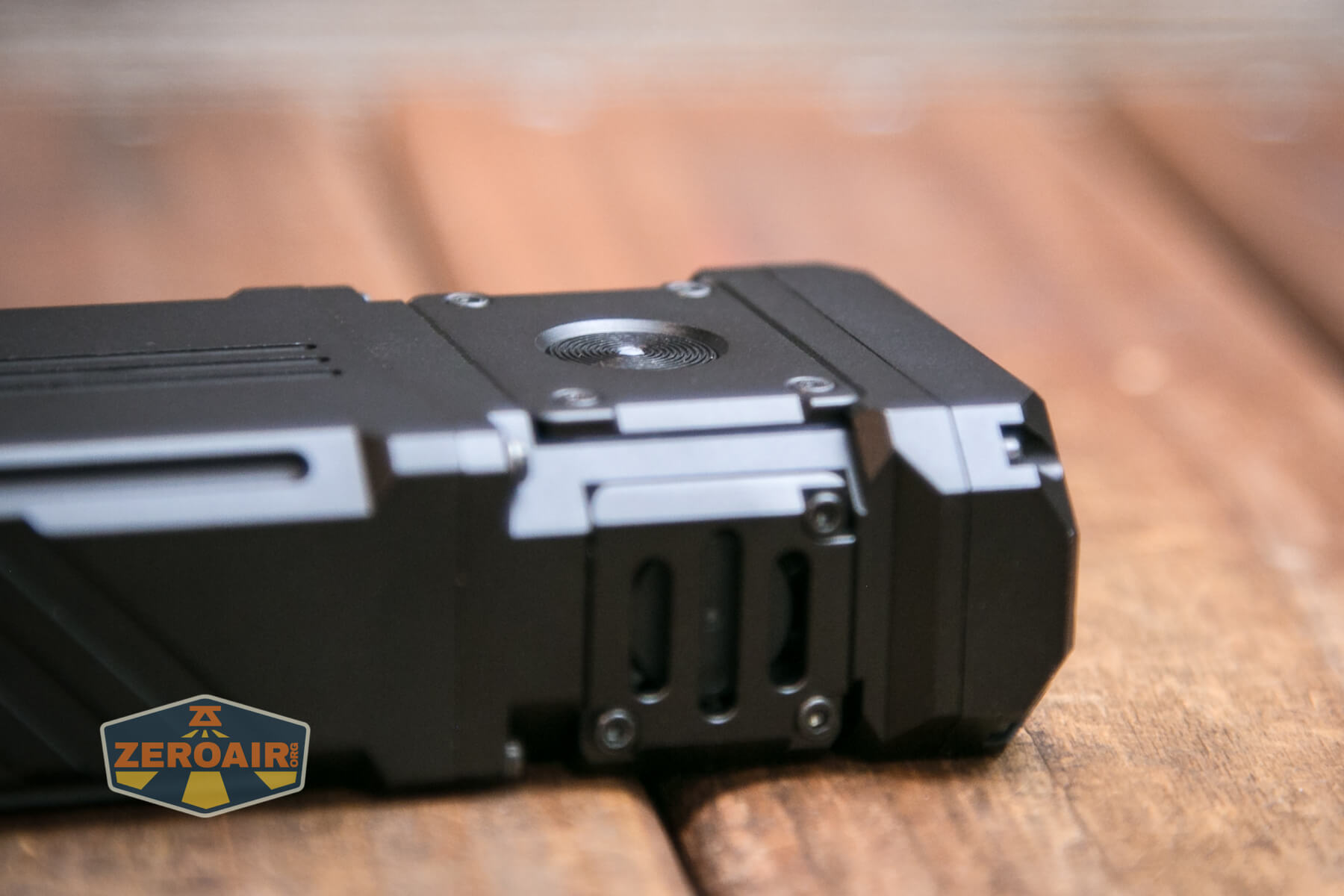

Wuben put an e-switch on the X-1 Falcon. This switch is in the head and has a nice big hard pad.

I can say that the switch is not perfect, though. When the switch cover rebounds from being clicked, it sometimes catches on the edge and makes a little snap. It’s not a problem for usability (it works just fine) but as someone who has a healthy respect for a light that pulls >10A on turbo and has two 21700 cells inside, the little “pop” is enough to cause me to gasp for the split second it takes for me to realize it’s just the switch cover.

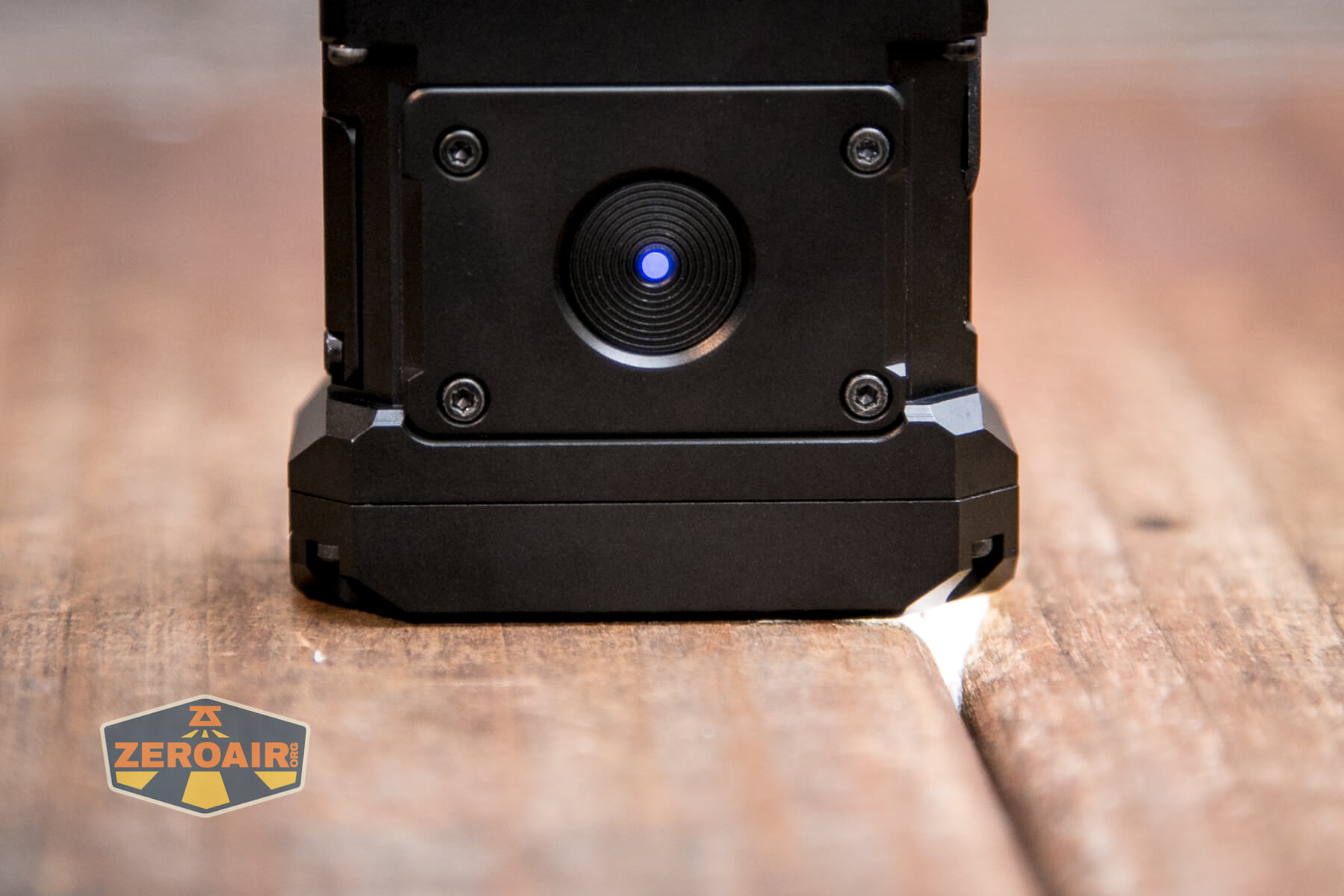

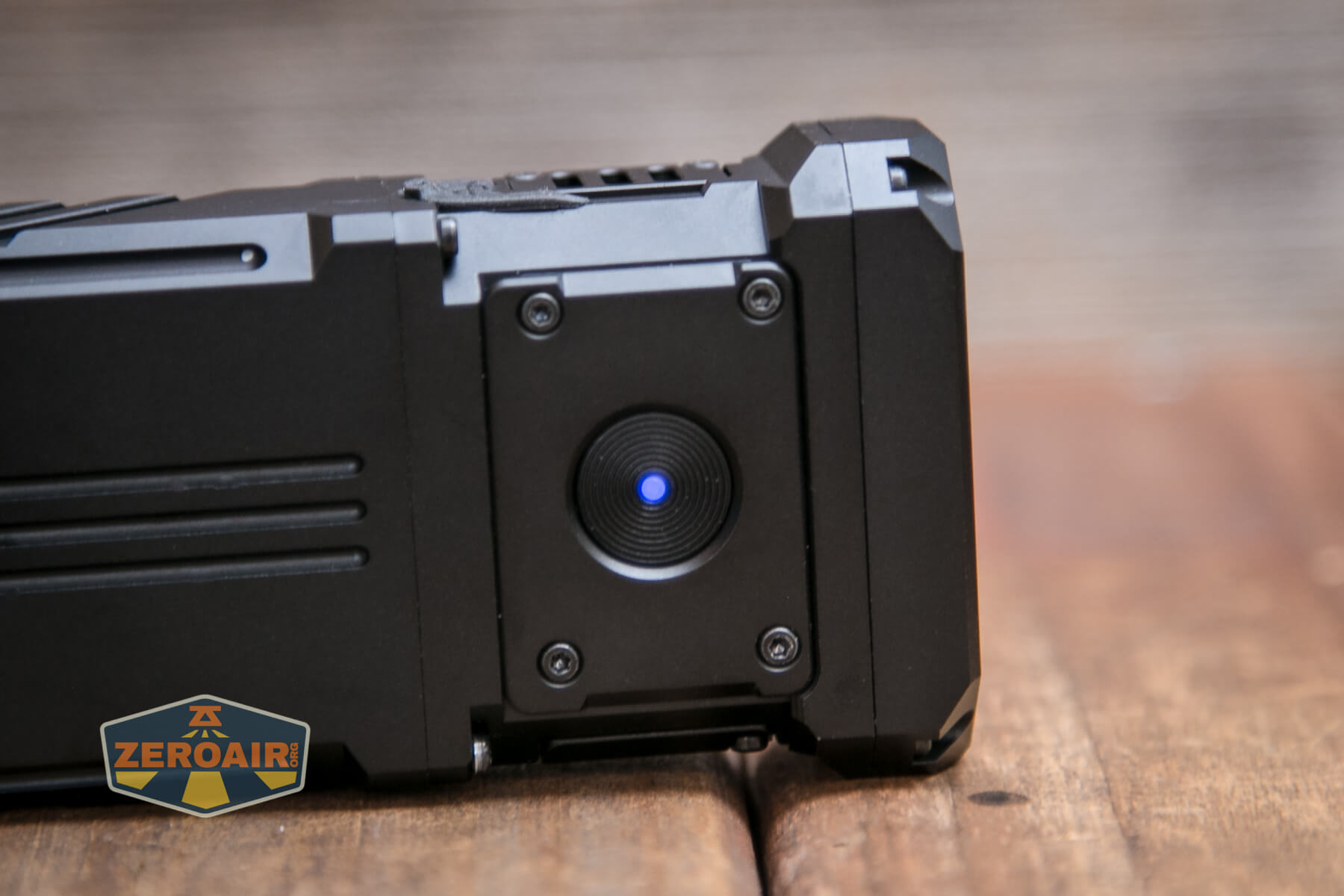

The switch has an indicating function, too. Below you can see the switch lighting in blue.

Here’s a user interface table! I think this user interface is mostly like the Wuben X-0 Knight flashlight, which I reviewed previously, but there are some differences.

State	Action	Result
Off	Click	On (Mode Memory) and battery indicator switch LED^
On	Hold	Mode advance (Moon, Low, Med, High)
Any	Double click	Turbo
On	Click	Off
Off	Hold	Eco (Or “Moon”, they call it both)
Any	Triple Click	Strobe
Strobe	Triple Click	SOS
Strobe	Click	Return to previous state except Turbo, which resumes to Low
Off	Click 4x	Lockout (indicated by three blinks from main emitter)
Lockout	Click	Lockout indication by LED indicator near switch
Lockout	Click 4x	Unlock to Moon
Any steady mode (excluding Turbo)	Click then Hold (two actions; it’s not just “hold” it’s: click first then hold)	Program output of selected mode^^
Lockout	Click [wait], Double Click [wait], Triple Click	Resets light to default state. Light unlocks and turns on to Eco to confirm.

^ Battery indication is as follows (from the near-switch LED)

Blue steady: ≥90% power
Blue flashing: 90% to ≥40% power
Red steady: 40% to ≥15% power
Red flashing: 15% to ≥ 0% power

^^ In programming mode, the output ramps up to the maximum possible for that level and blinks then begins ramping down to the lowest output possible for that mode and again blinks. When you release the switch, that mode is programmed to that output level.

LED and Beam

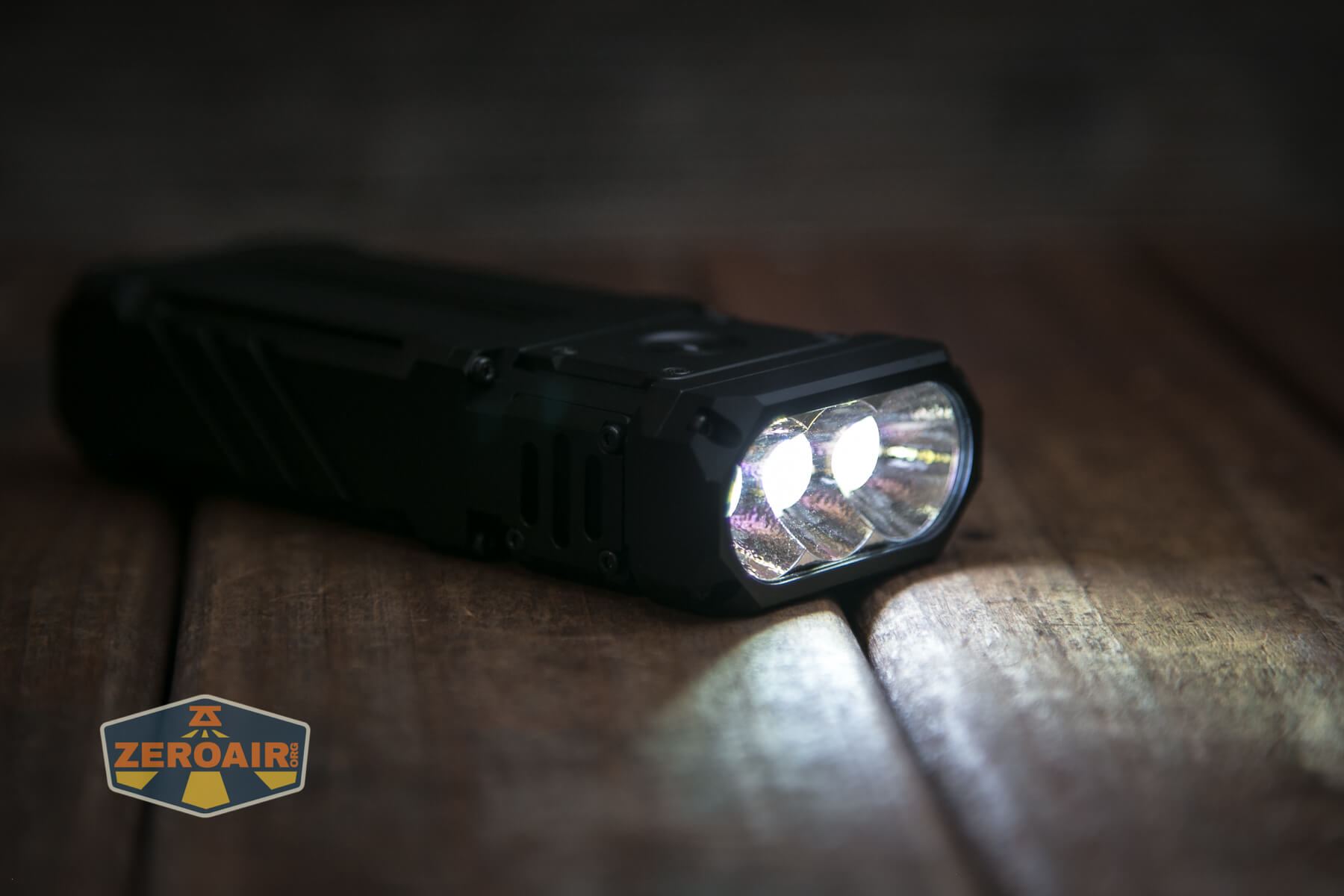

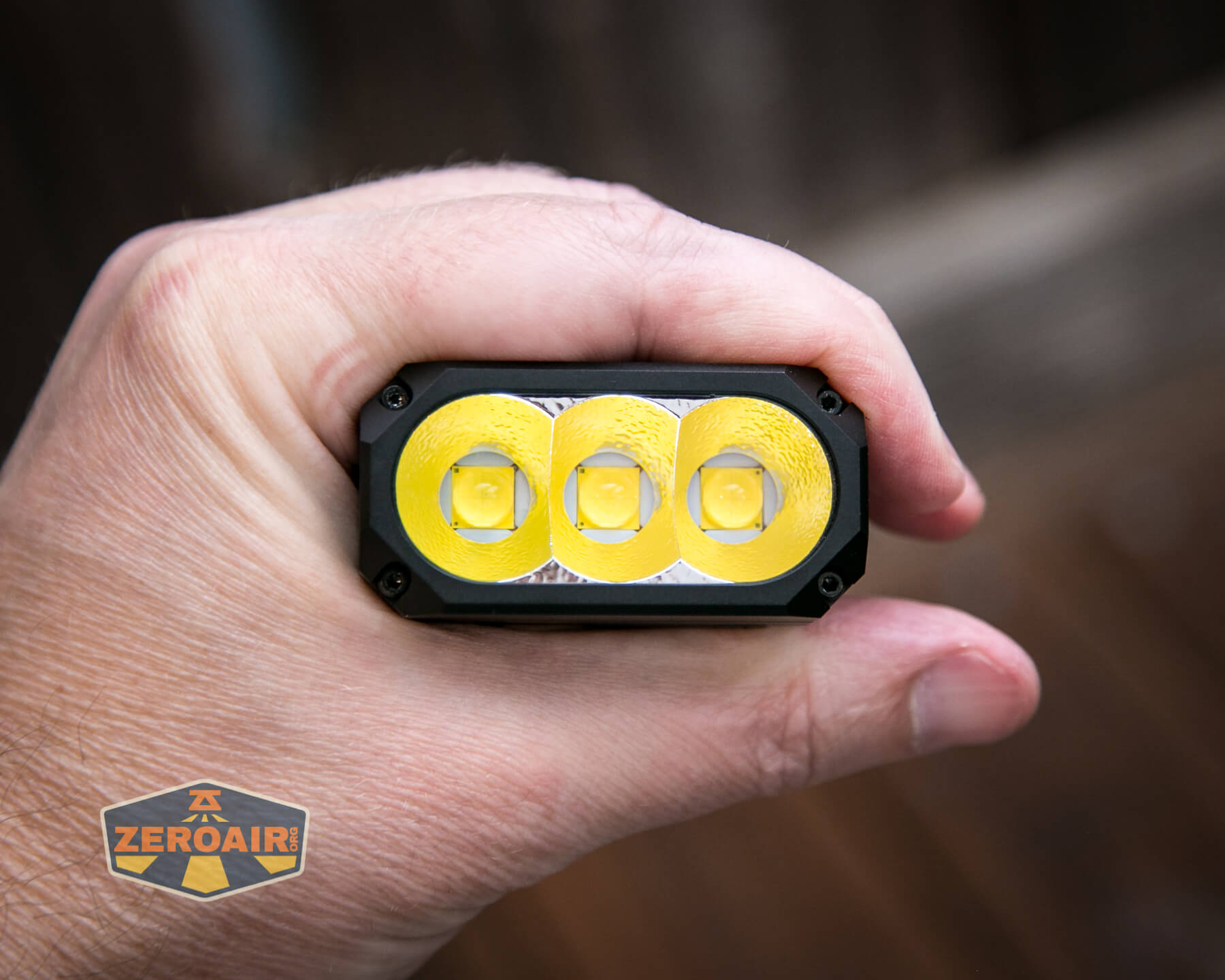

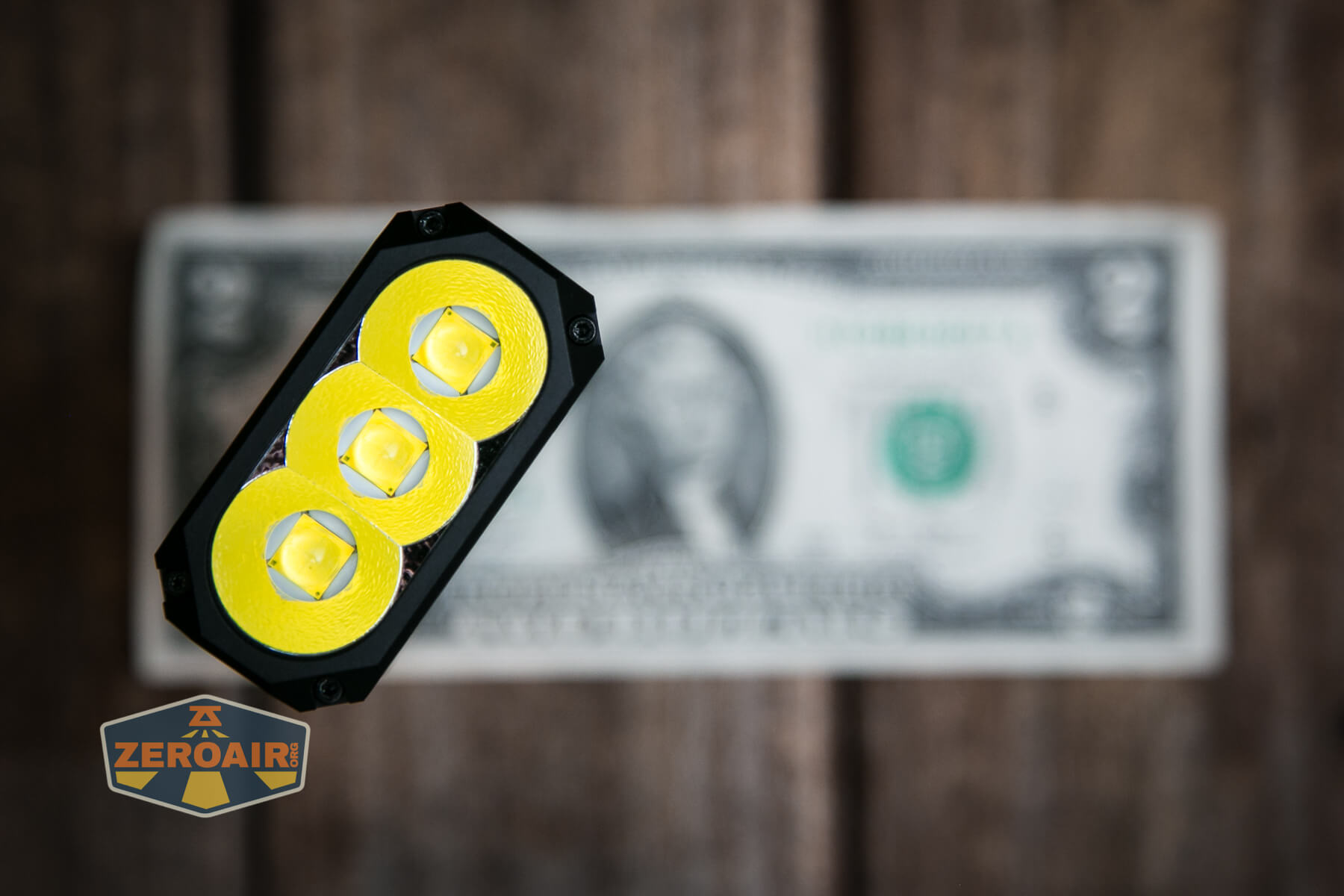

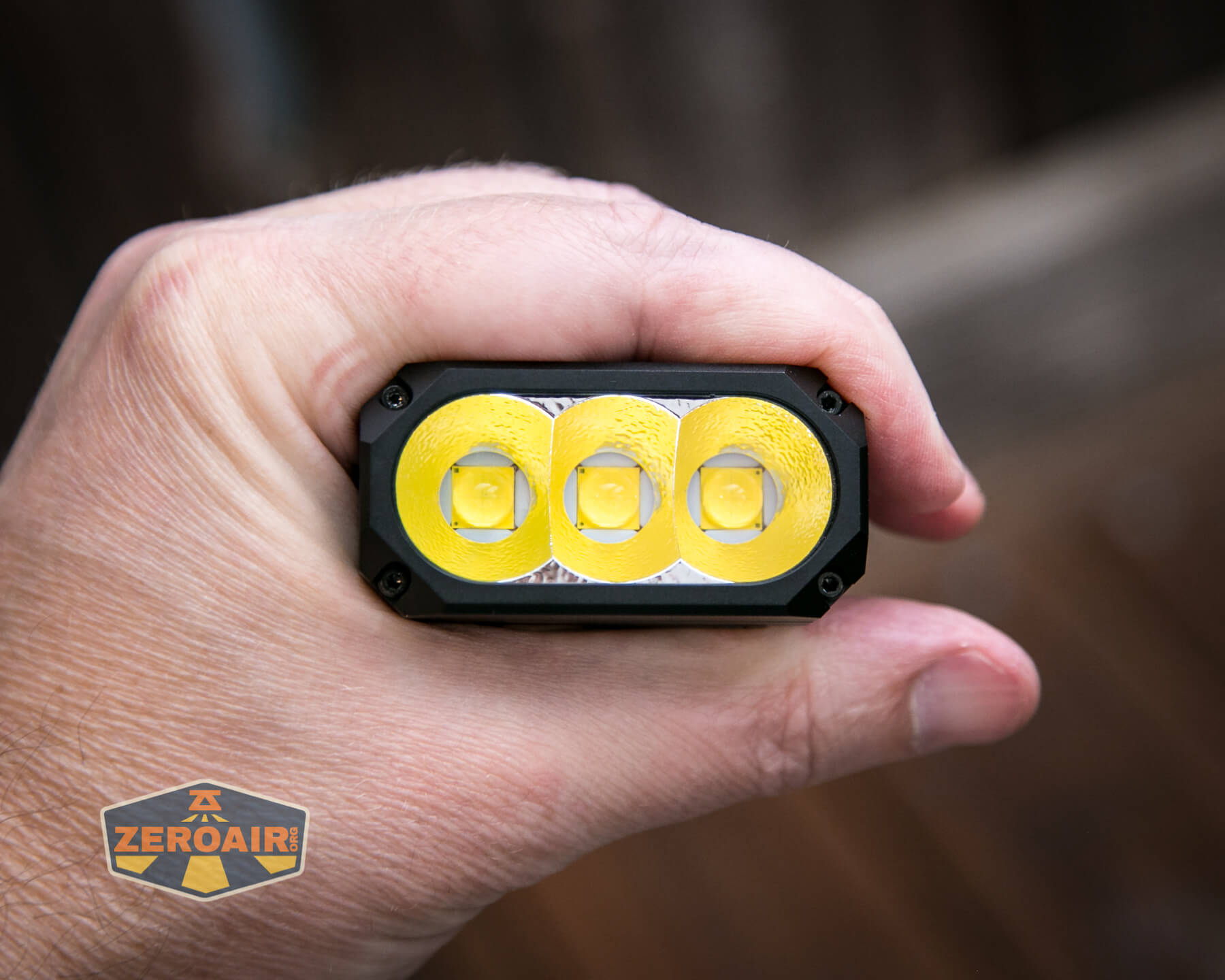

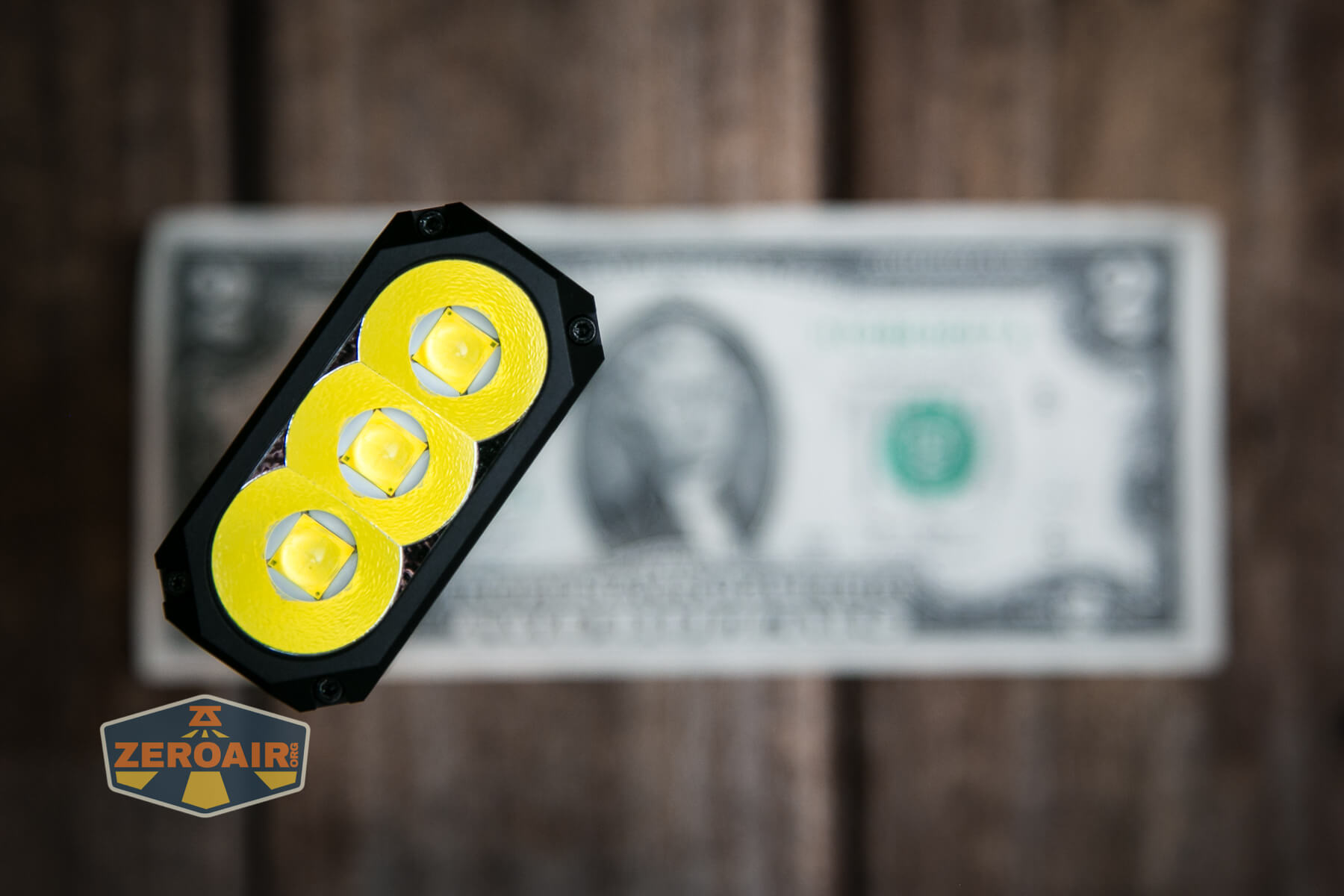

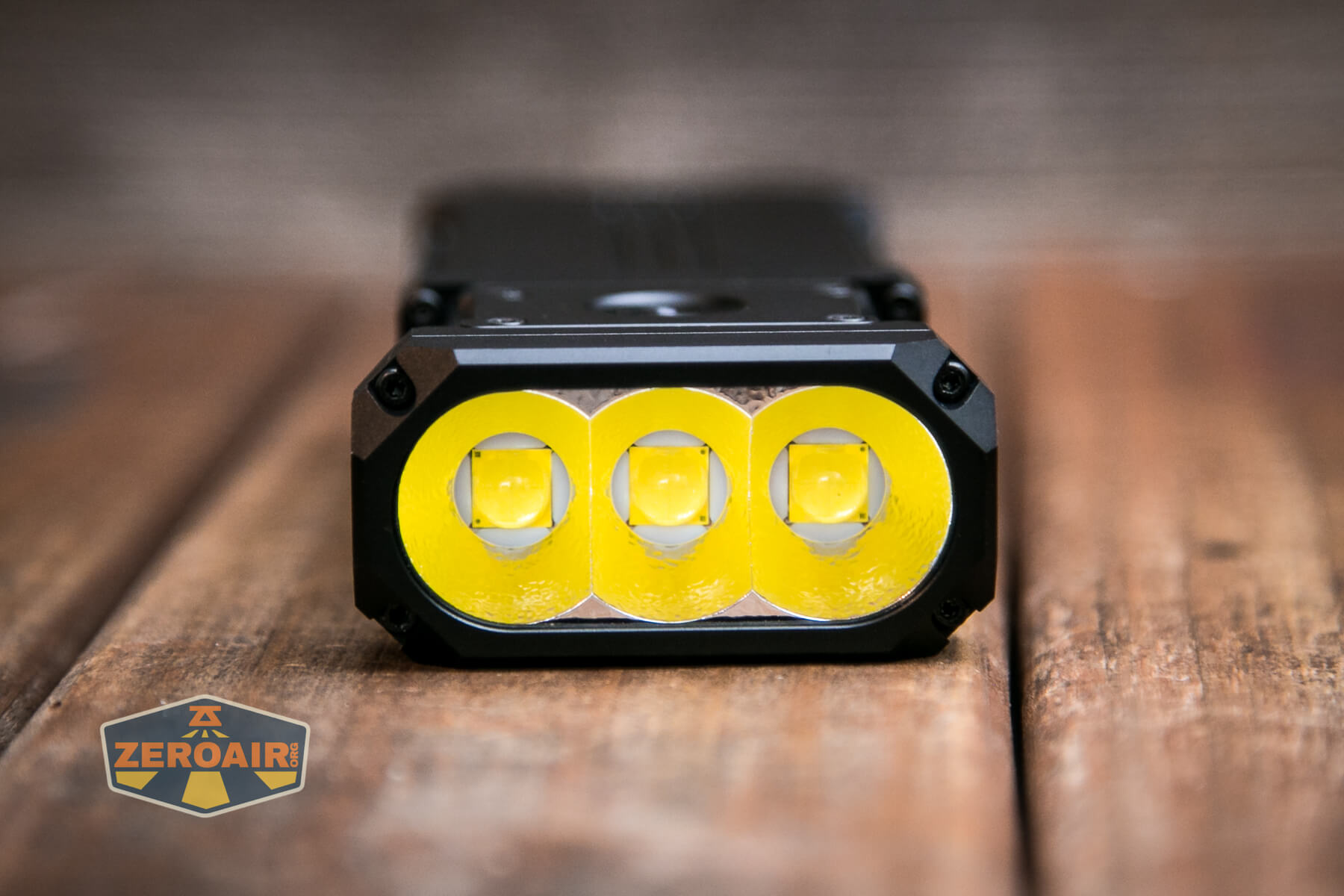

Wuben uses three Cree XHP70.2 emitters in the X-1 Falcon flashlight. That’s a good choice for high output, of course.

The bezel is flat, so no light escapes while the light is headstanding.

Each emitter has a reflector. That reflector is broad and shallow, with a light texture.

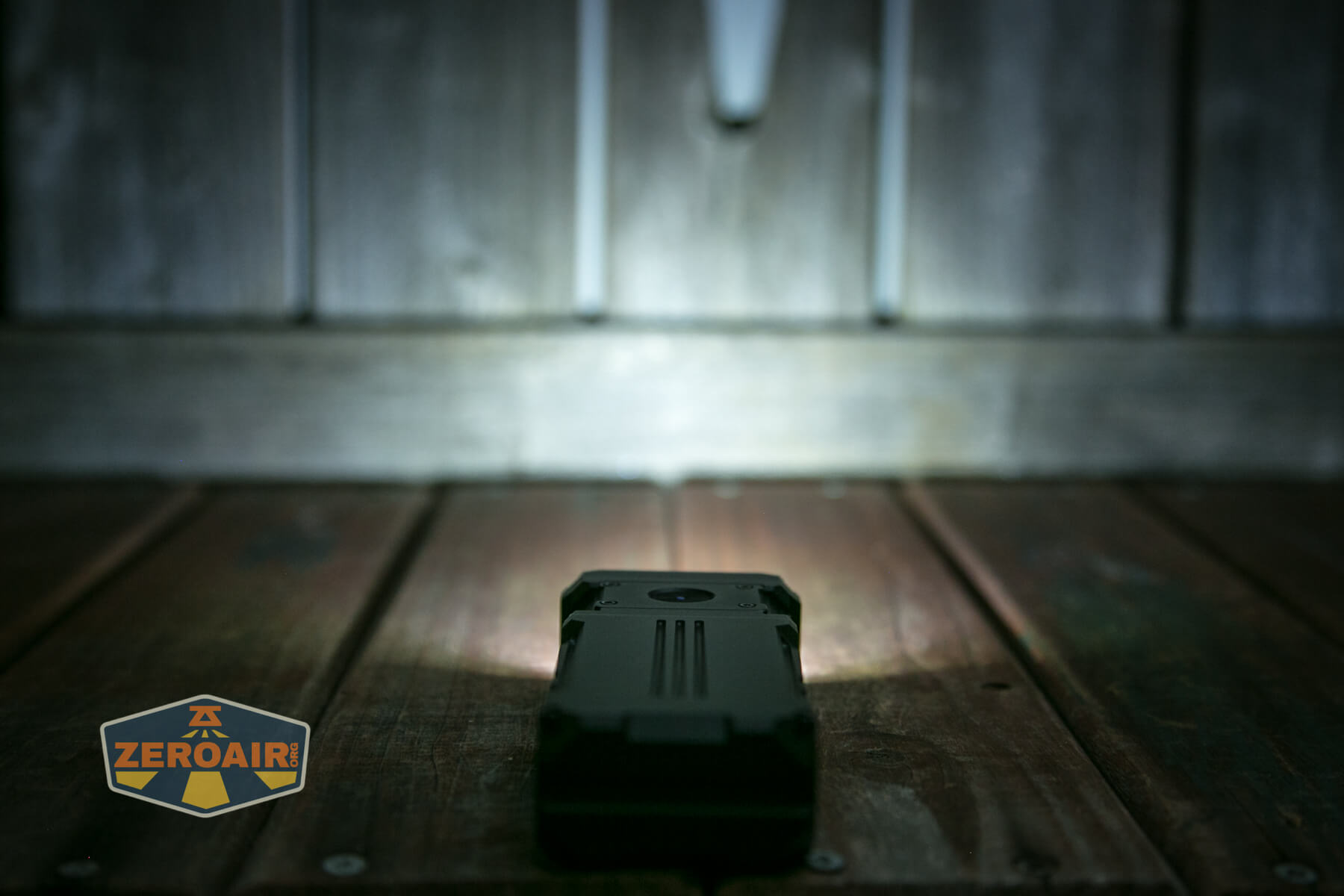

The output is unsurprisingly very floody!

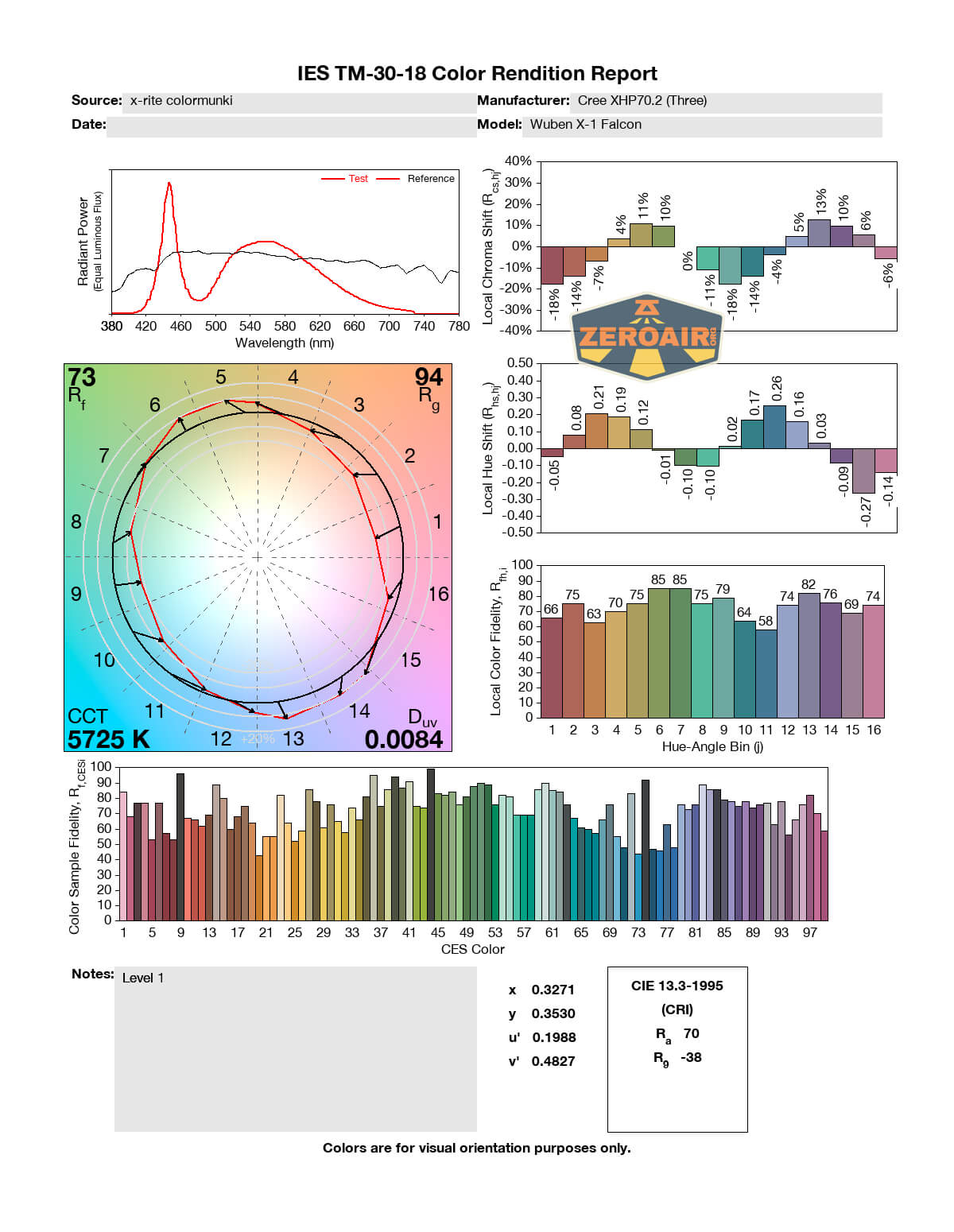

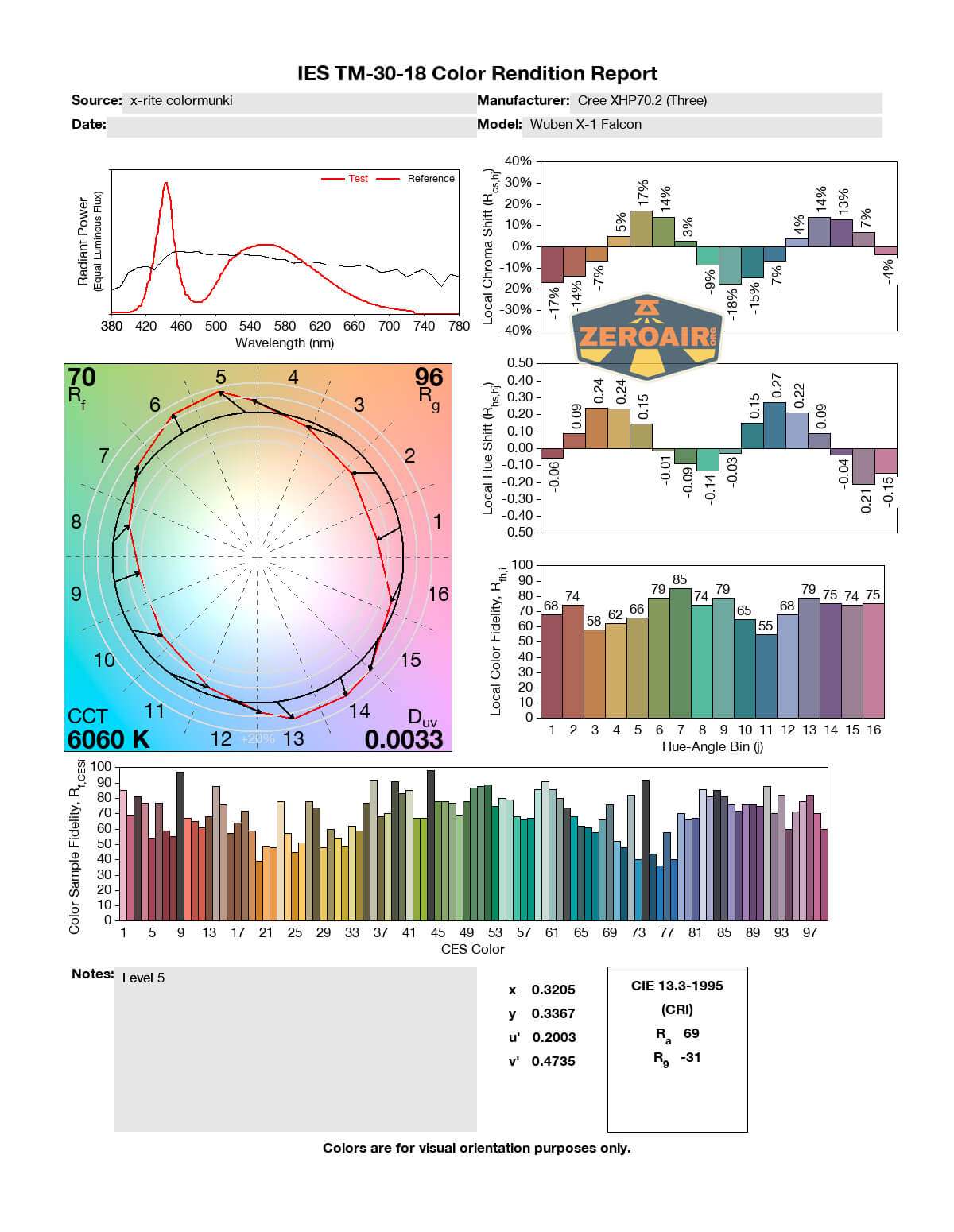

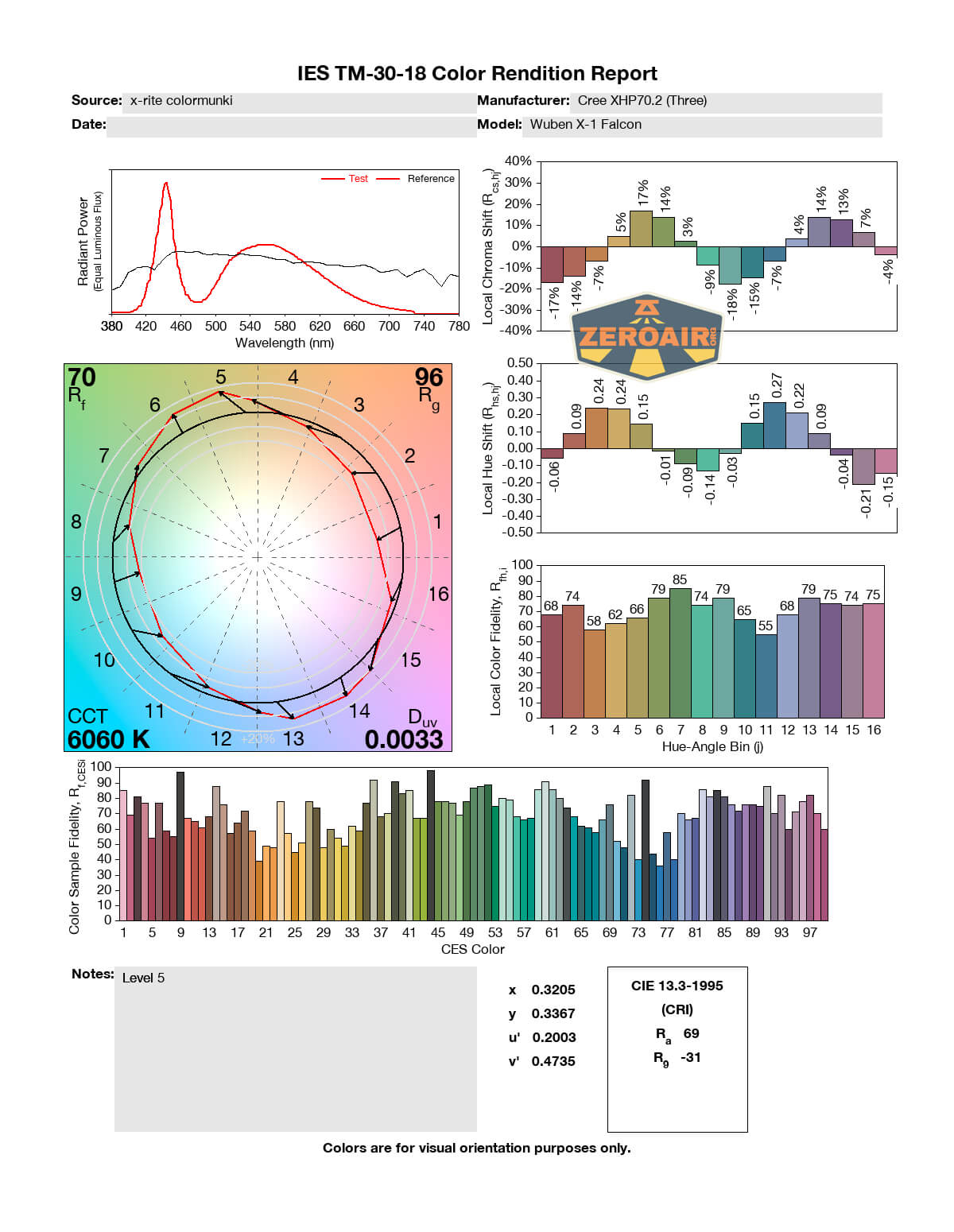

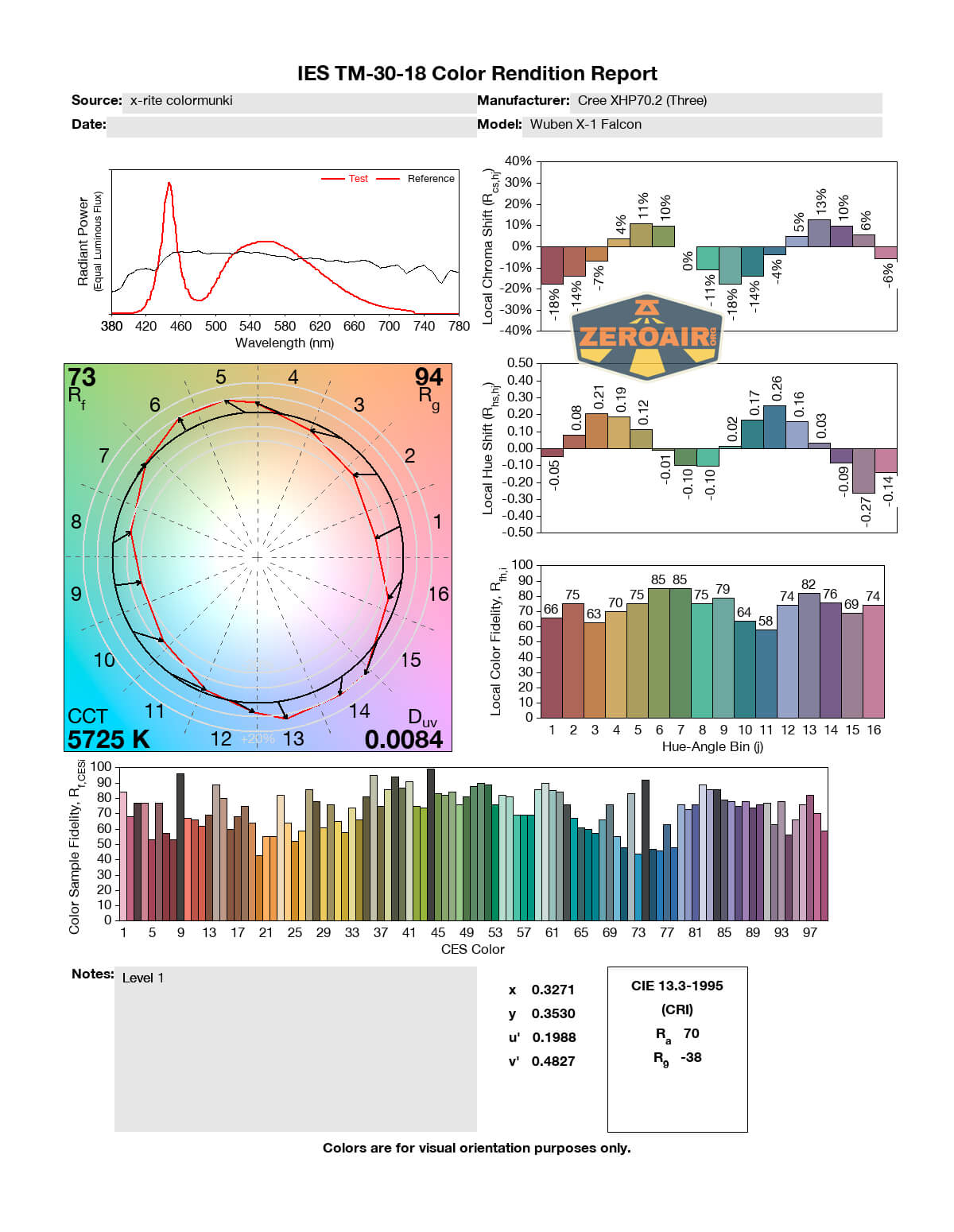

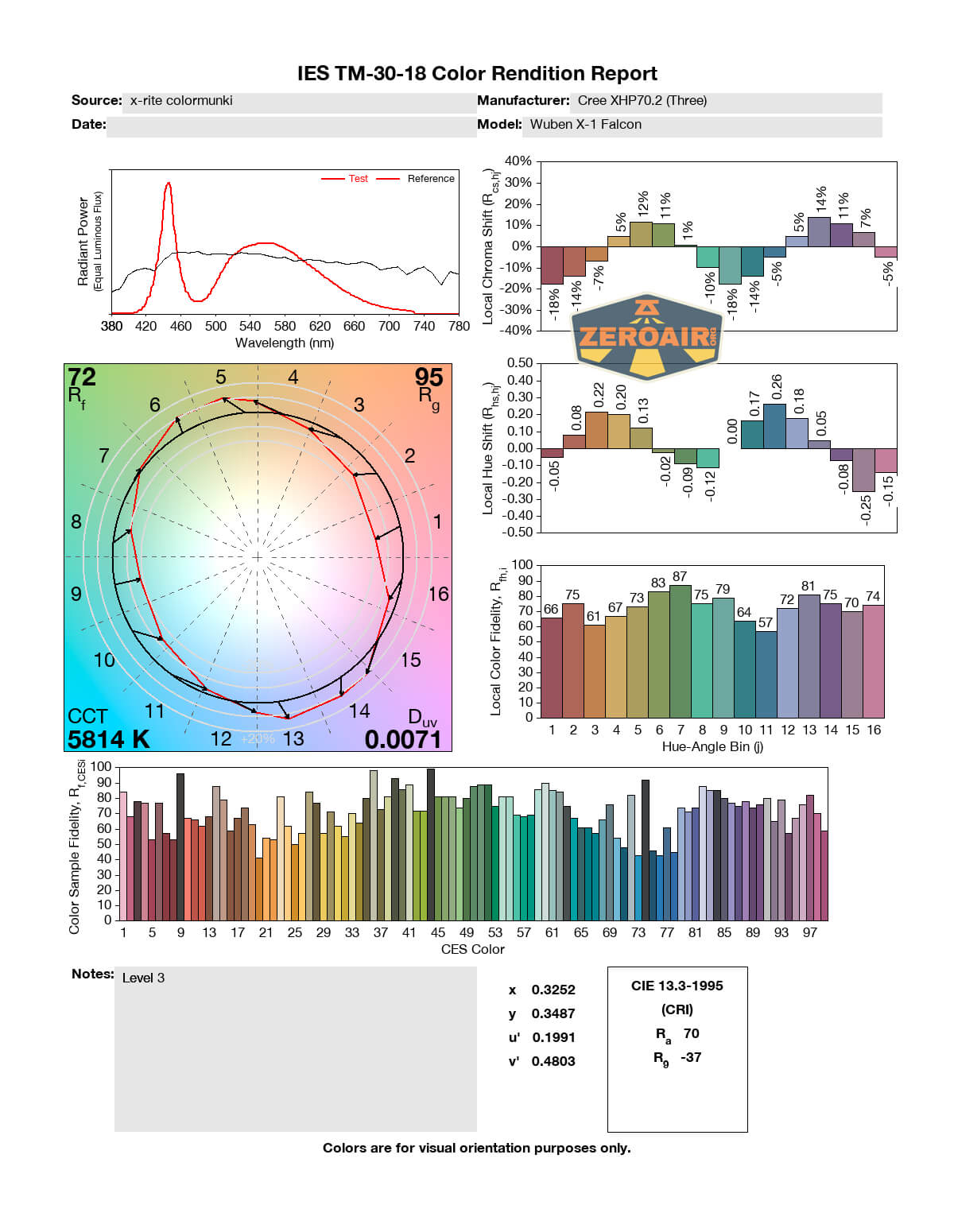

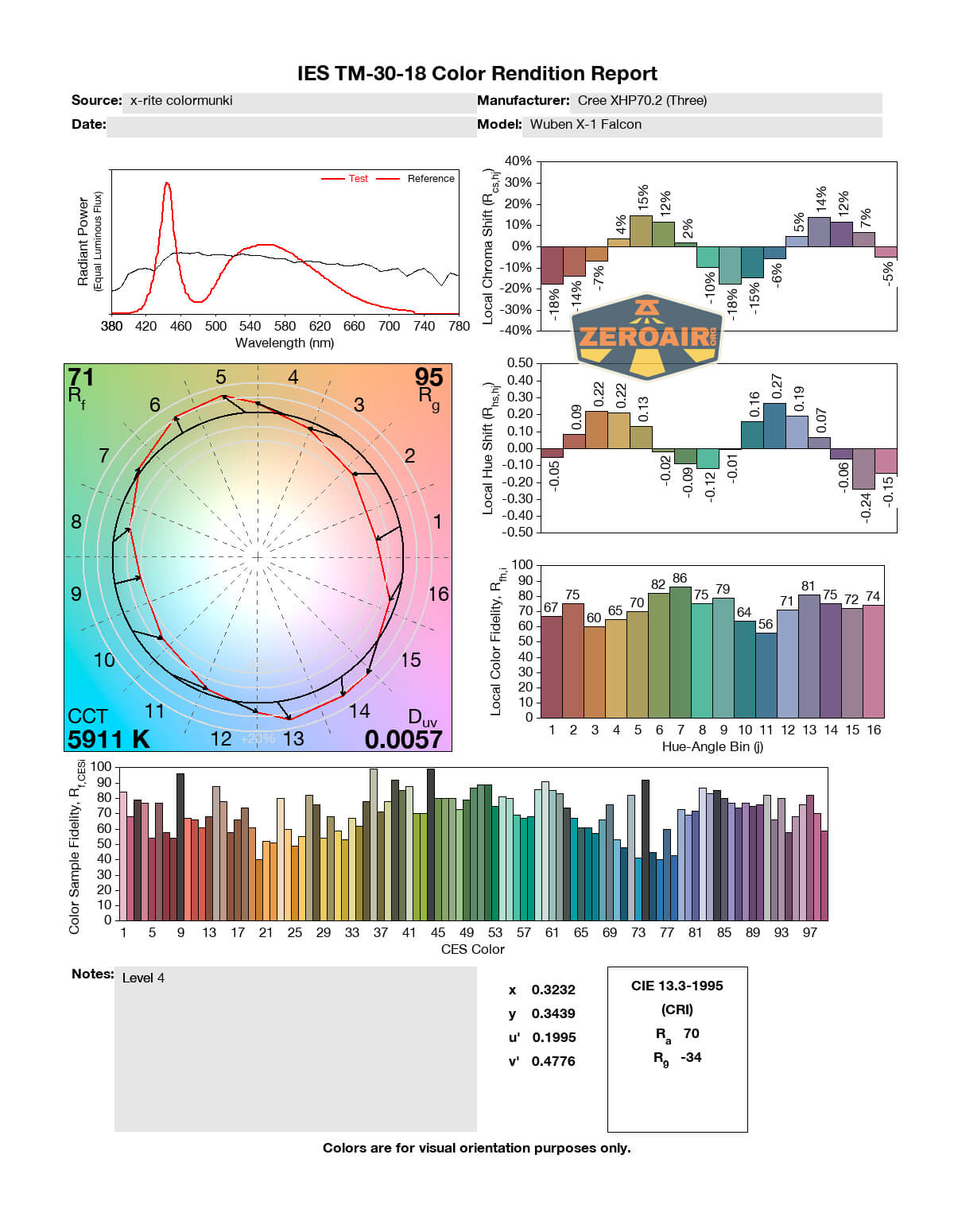

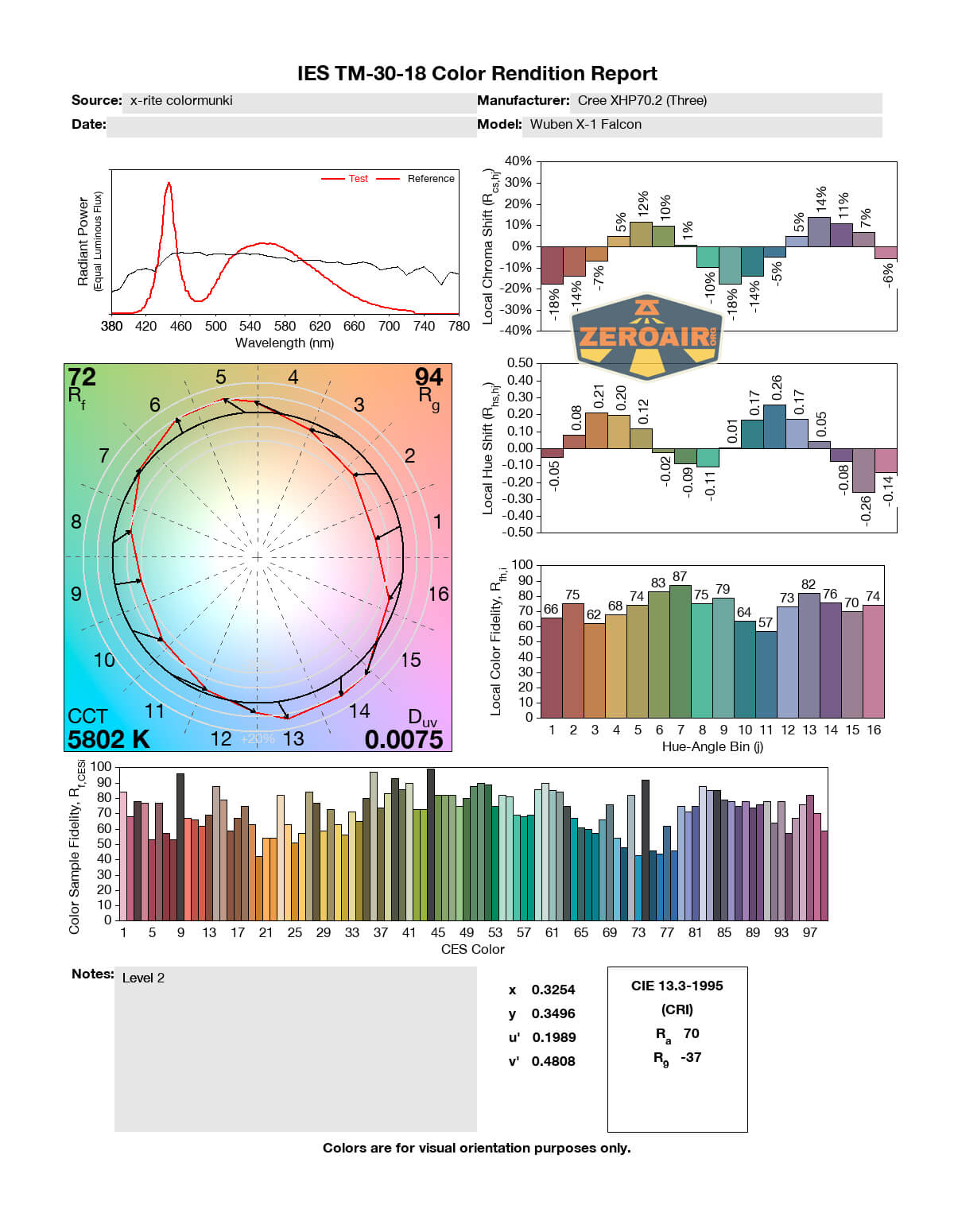

LED Color Report (CRI and CCT)

The CCT is between 5700K and 6000K, which puts the light on the cooler side of neutral. CRI is low, at around 70. Duv remains positive throughout the output range, so the light could be said to have a slightly green cast, too. This will be particularly noticeable on the lower modes.

Beamshots

These beamshots always have the following settings:  f8, ISO100, 0.3s shutter, and manual 5000K exposure. These photos are taken at floor level, and the beam hits the ceiling around 9 feet away.

Tint vs BLF-348 (KillzoneFlashlights.com 219b version) (affiliate link)

I keep the test flashlight on the left and the BLF-348 reference flashlight on the right.

I compare everything to the KillzoneFlashlights.com 219b BLF-348 because it’s inexpensive and has the best tint!

Conclusion

What I like

• Very anti-roll
• High output
• Very flat output after the stepdown on Turbo (all the non-Turbo modes have very stable output)
• Good user interface
• Neat use of fans for cooling
• USB-C charging is great, and at 9V is very quick
• Modes are programmable (like on the Wuben X-0 Knight)

What I don’t like

• Cells are a bit tight inside the cell holder in such a way that causes the positive terminal to dent a bit
• Switch cover clicks on rebound in a way that gives me PTSD
• Does not hit the claimed 12,000 lumens on Turbo.

---
