Olight Javelot Mini Flashlight Review

Olight has released the Javelot Mini, a flashlight using a very new emitter. This light produces great throw and has a wonderful beam shape.


Official Specs and Features

Here’s a referral link to the Olight Javelot Mini flashlight product page.

Versions

There are just a couple of versions, differing only in body color. Black is available, as well as the green seen in this review.

Price

The opening day sale price is $74.99. Here’s my ShareASale link for the Olight Javelot Mini flashlight. As Olight usually does, there’s a bundle deal.  Here’s a ShareASale link for the bundle, which is just $1 more, and includes a matching iXV keychain flashlight.


Short Review

I love the flashlighty nature of this flashlight. It’s also actually great as a flashlight, which is a huge win. At an introductory price of around $75, it might be a bit on the costly side, but it does pack a great punch. All in all, I love it!

Long Review

The Big Table

Olight Javelot Mini Flashlight
Emitter: Unstated (new)
Price in USD at publication time: $74.99
Cell: 1×18500
High Runtime Graph Low Runtime Graph
LVP? Yes
Switch Type: E-Switch
Quiescent Current (mA): ?
On-Board Charging? Yes
Charge Port Type: Proprietary Magnetic
Charge Graph
Power off Charge Port
Claimed Lumens (lm) 1000
Measured Lumens (at 30s) 902 (90.2% of claim)^
Candela per Lumen 97.6
Claimed Throw (m) 600
Candela (Calculated) in cd (at 30s) 2850lux @ 5.557m = 88009cd
Throw (Calculated) (m) 593.3 (98.9% of claim)^
Item provided for review by: Olight
All my Olight reviews!

^ Measurement disclaimer:  I am an amateur flashlight reviewer.  I don’t have $10,000 or even $1,000 worth of testing equipment.  I test output and such in PVC tubes!!  Please consider claims within 10% of what I measure to be perfectly reasonable (accurate, even).

What’s Included

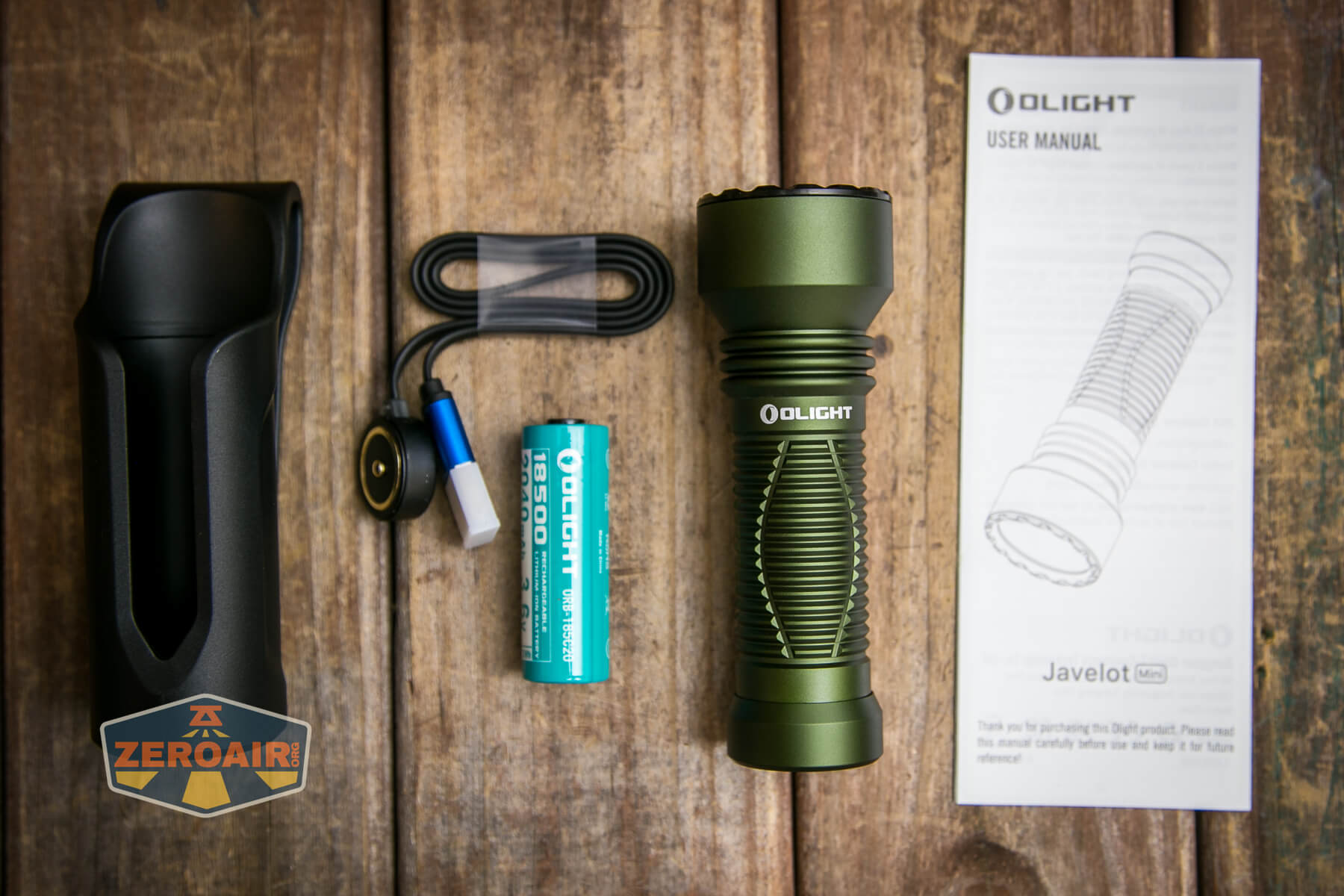

Olight Javelot Mini flashlight what's included

  • Olight Javelot Mini flashlight
  • Olight 2040mAh customized proprietary 18500 cell
  • Charging cable (USB to proprietary magnetic)
  • Belt sheath
  • Manual

Package and Manual

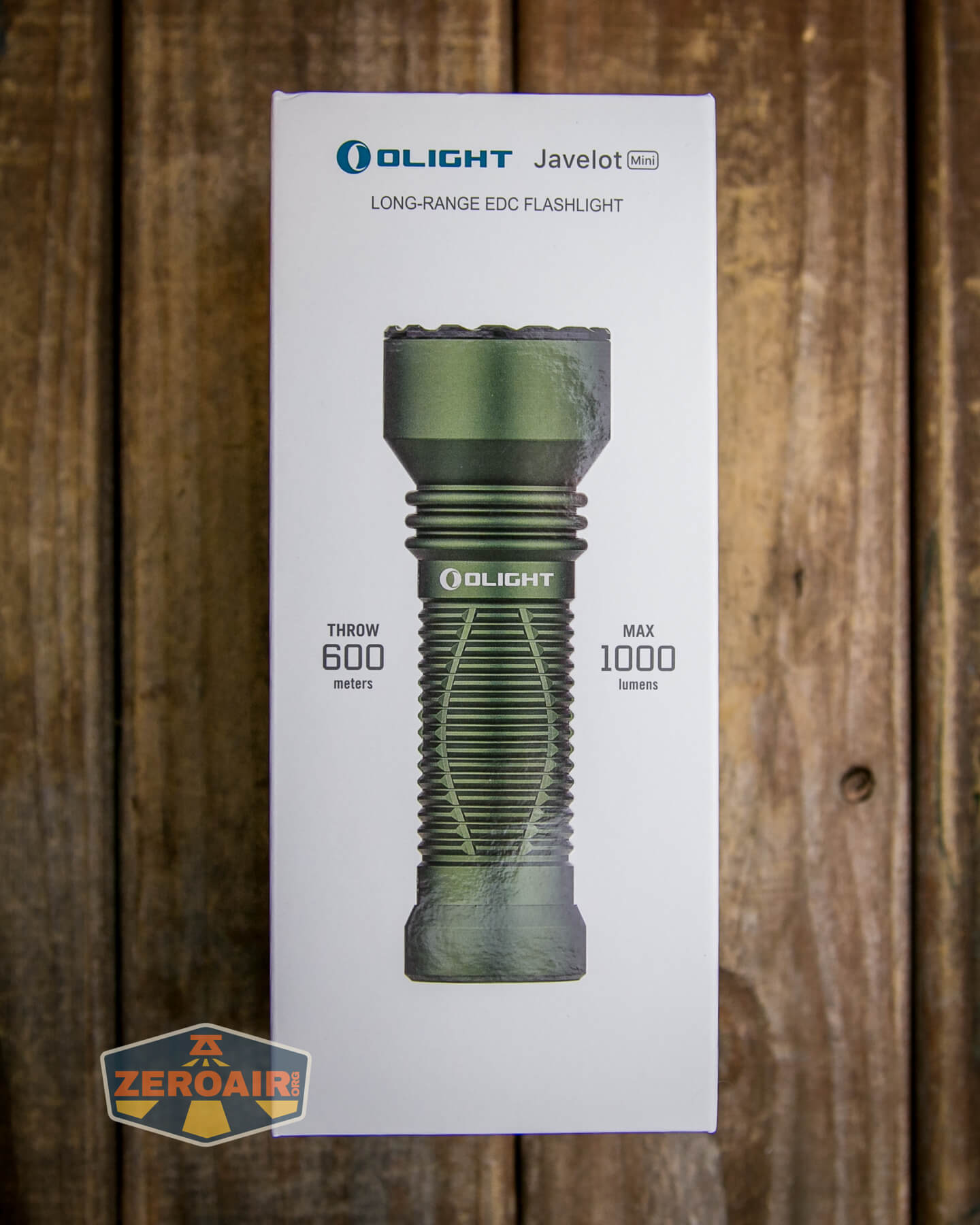

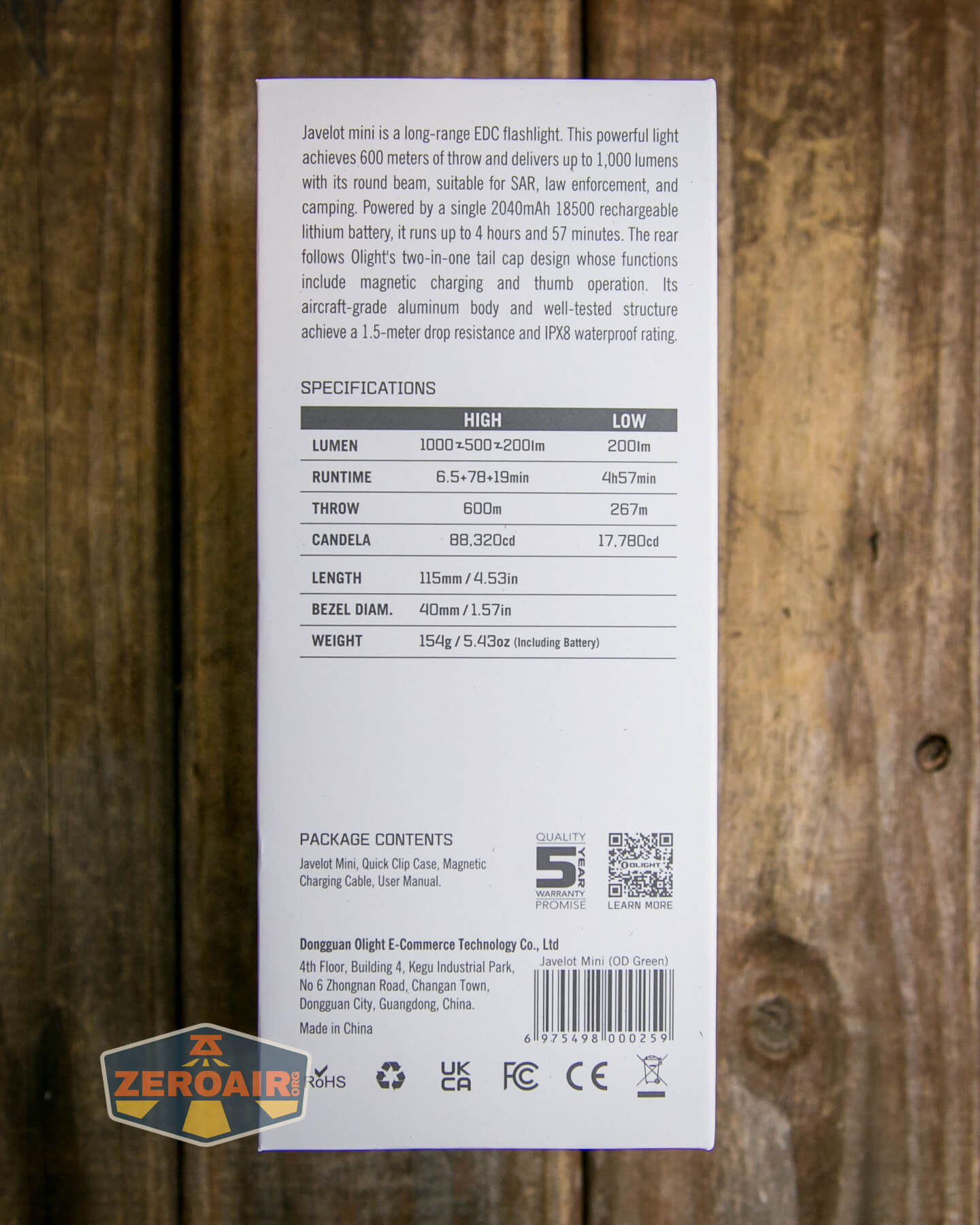

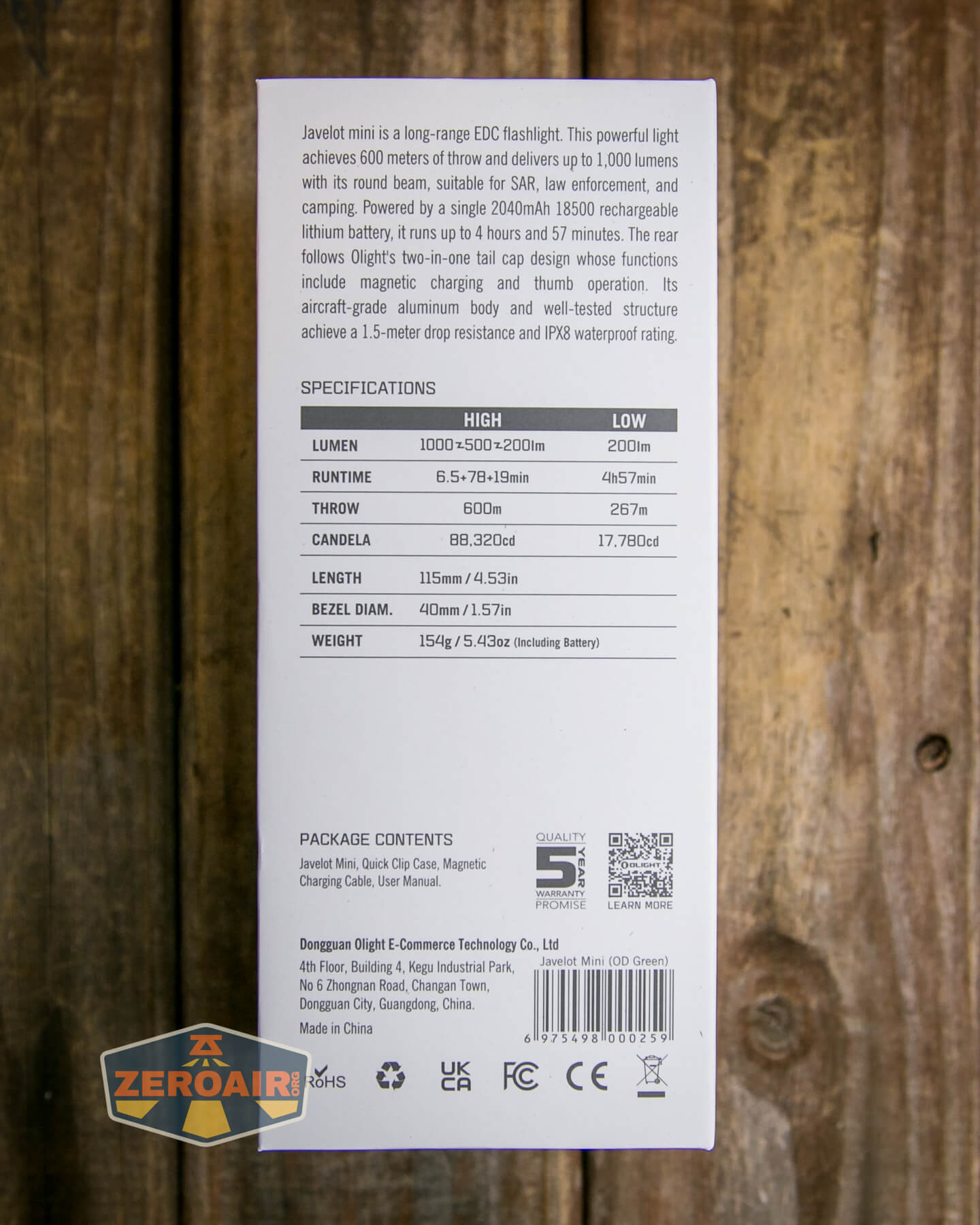

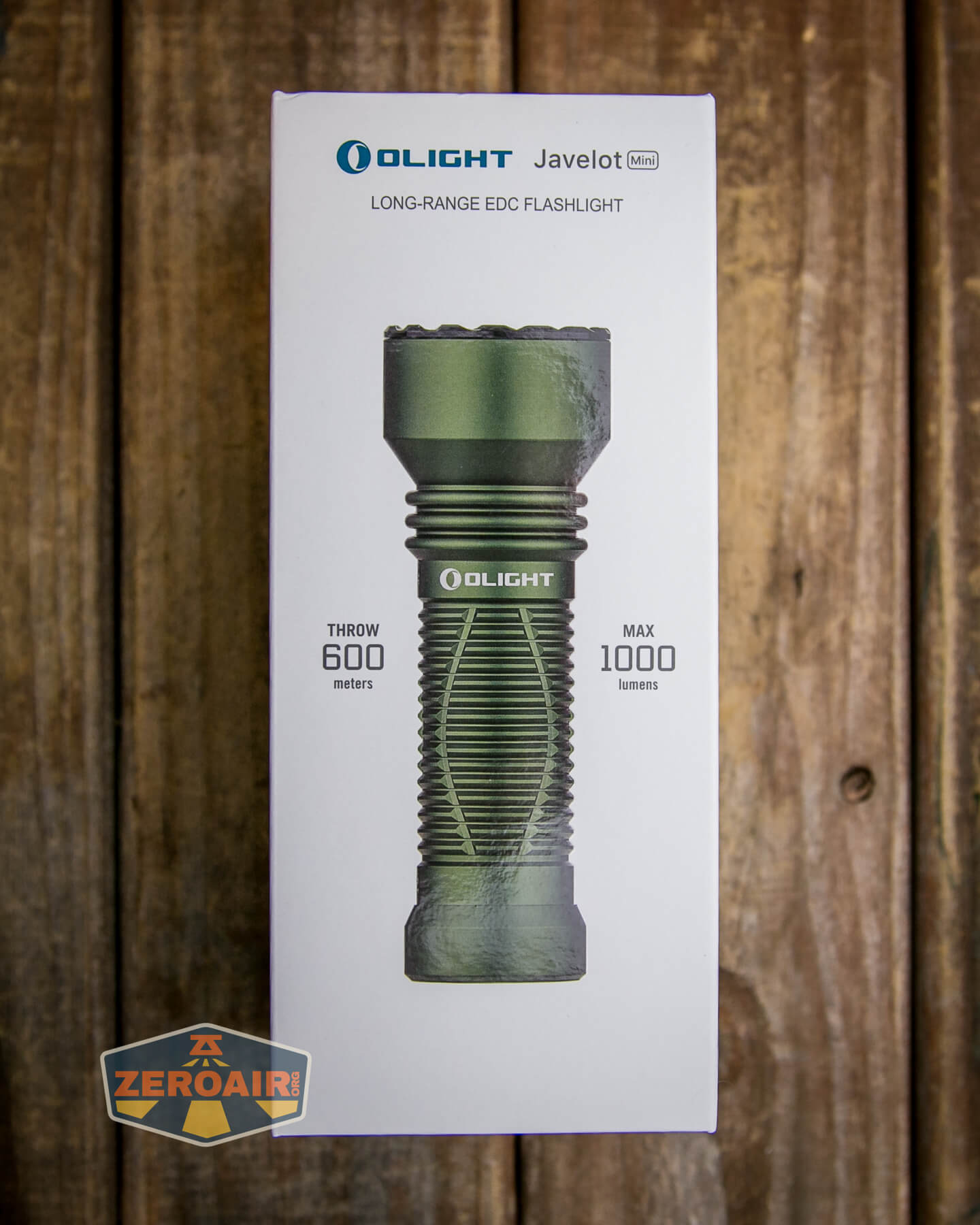

Olight Javelot Mini flashlight box

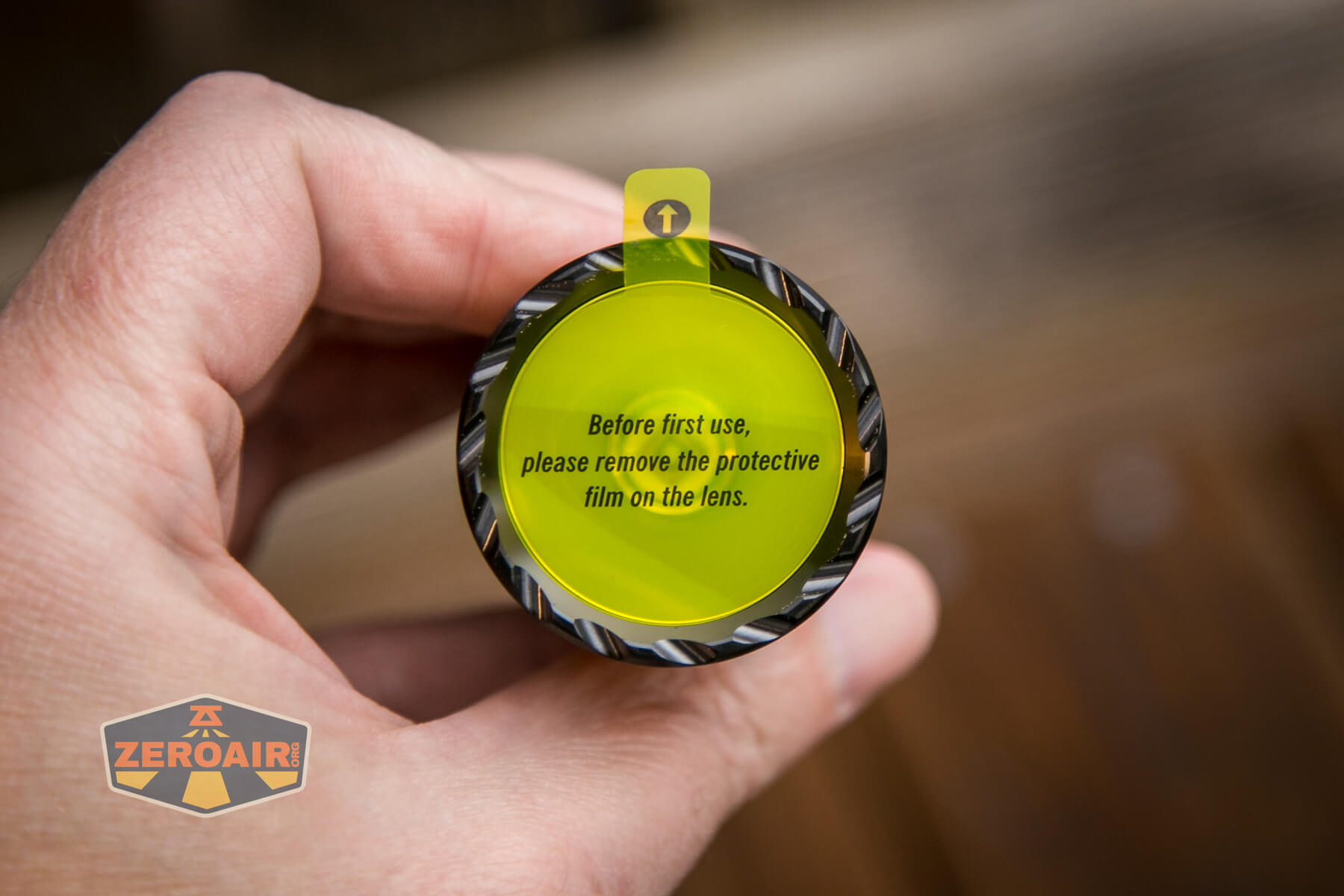

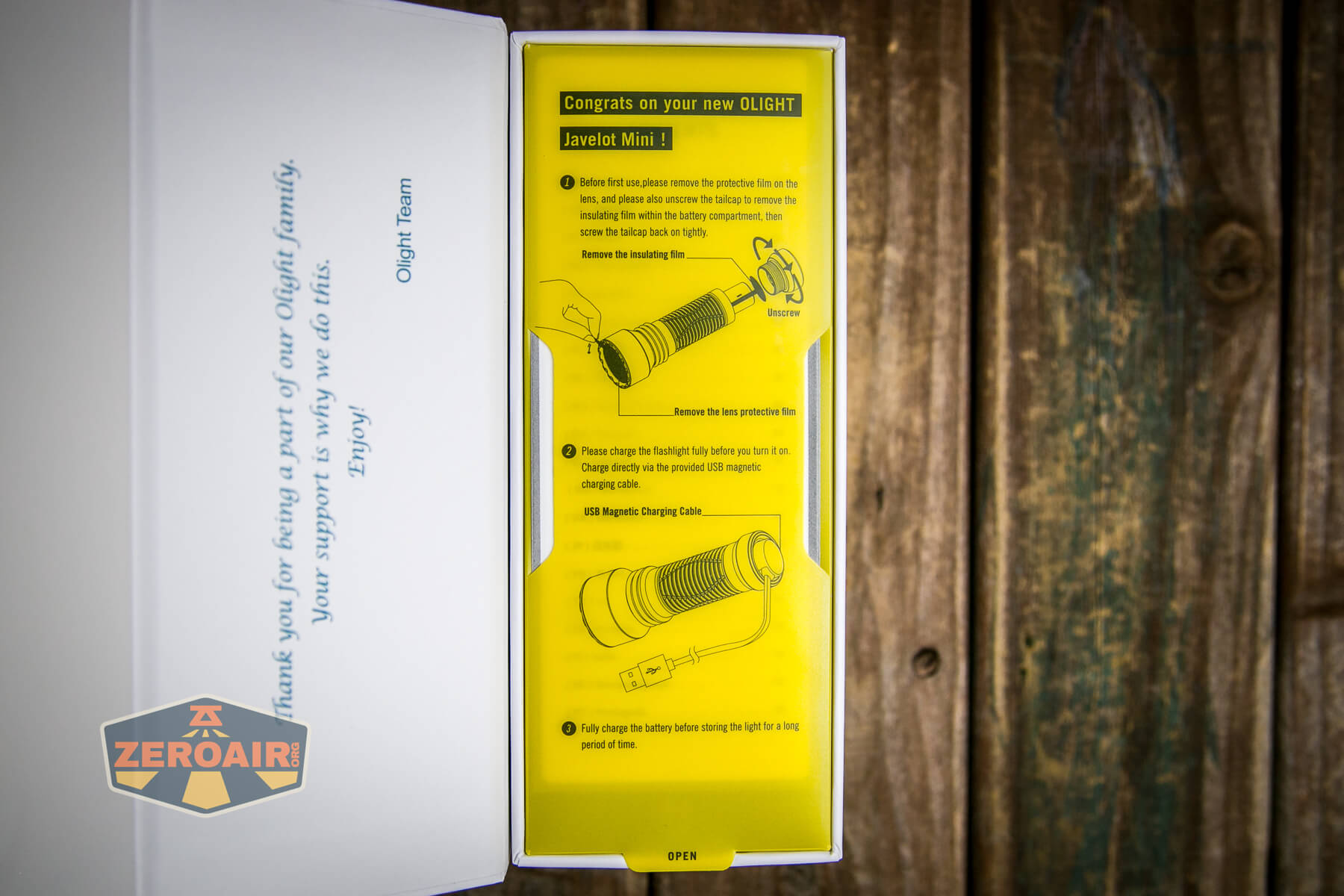

Olight Javelot Mini flashlight lens cover

Olight Javelot Mini flashlight manual

Build Quality and Disassembly

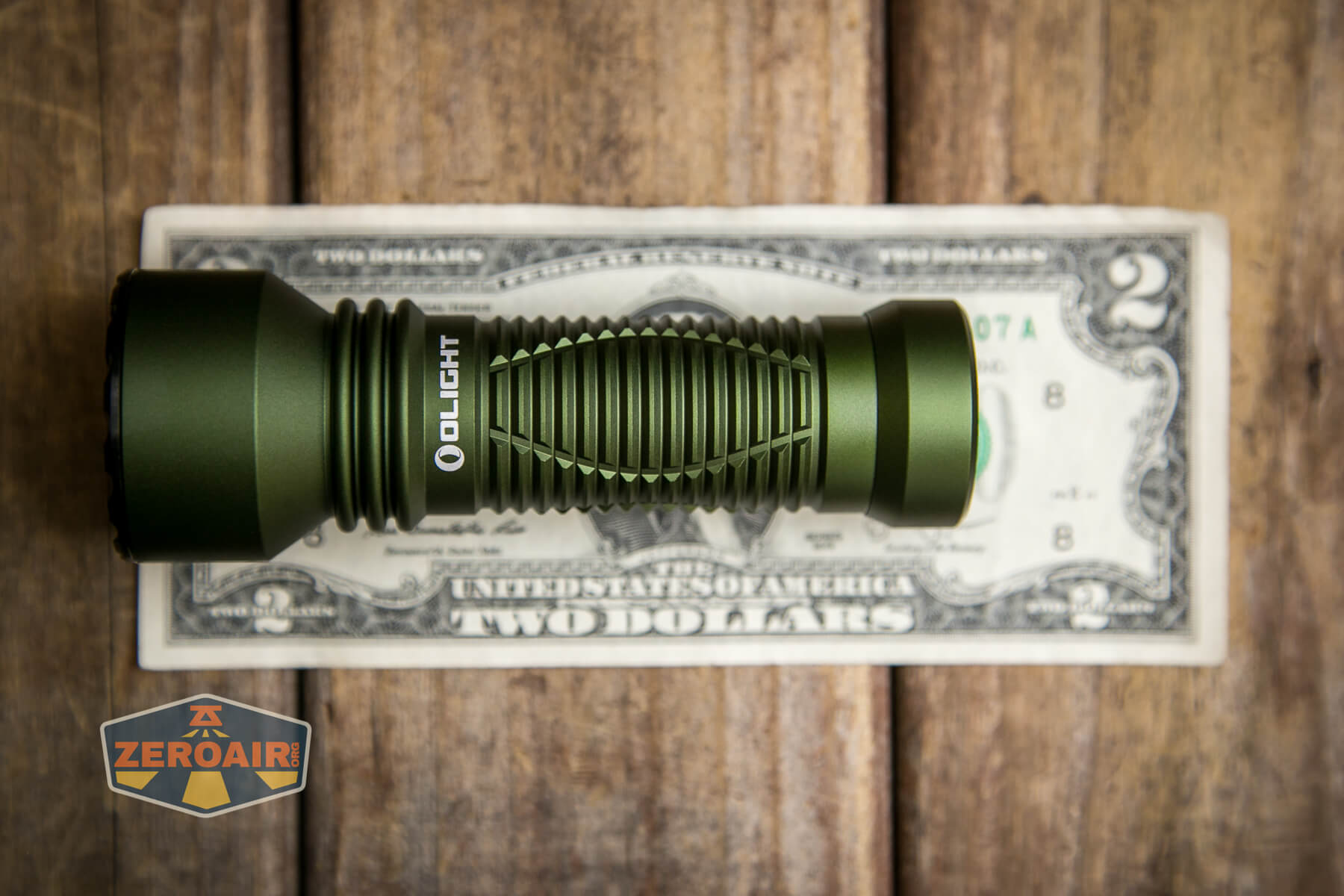

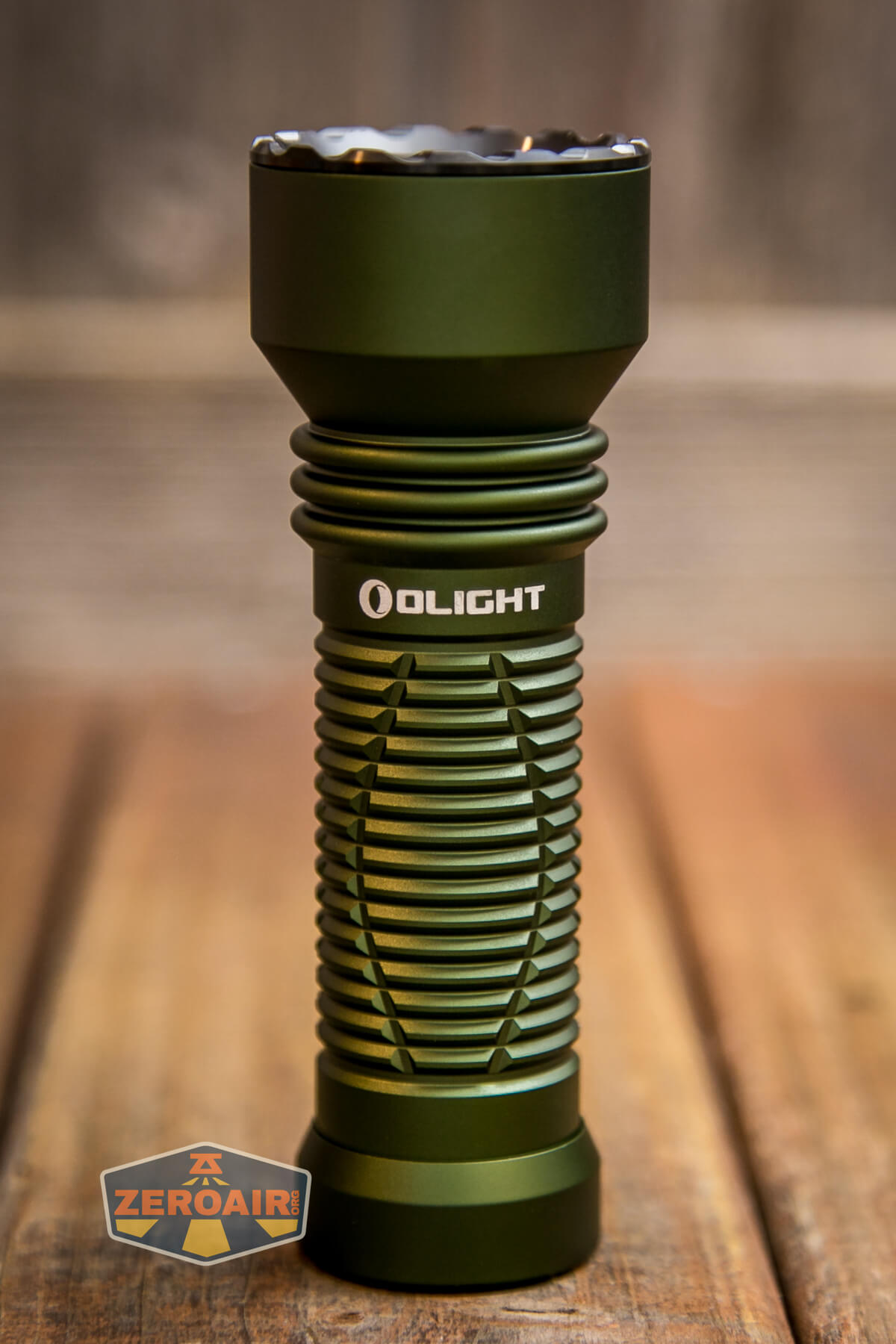

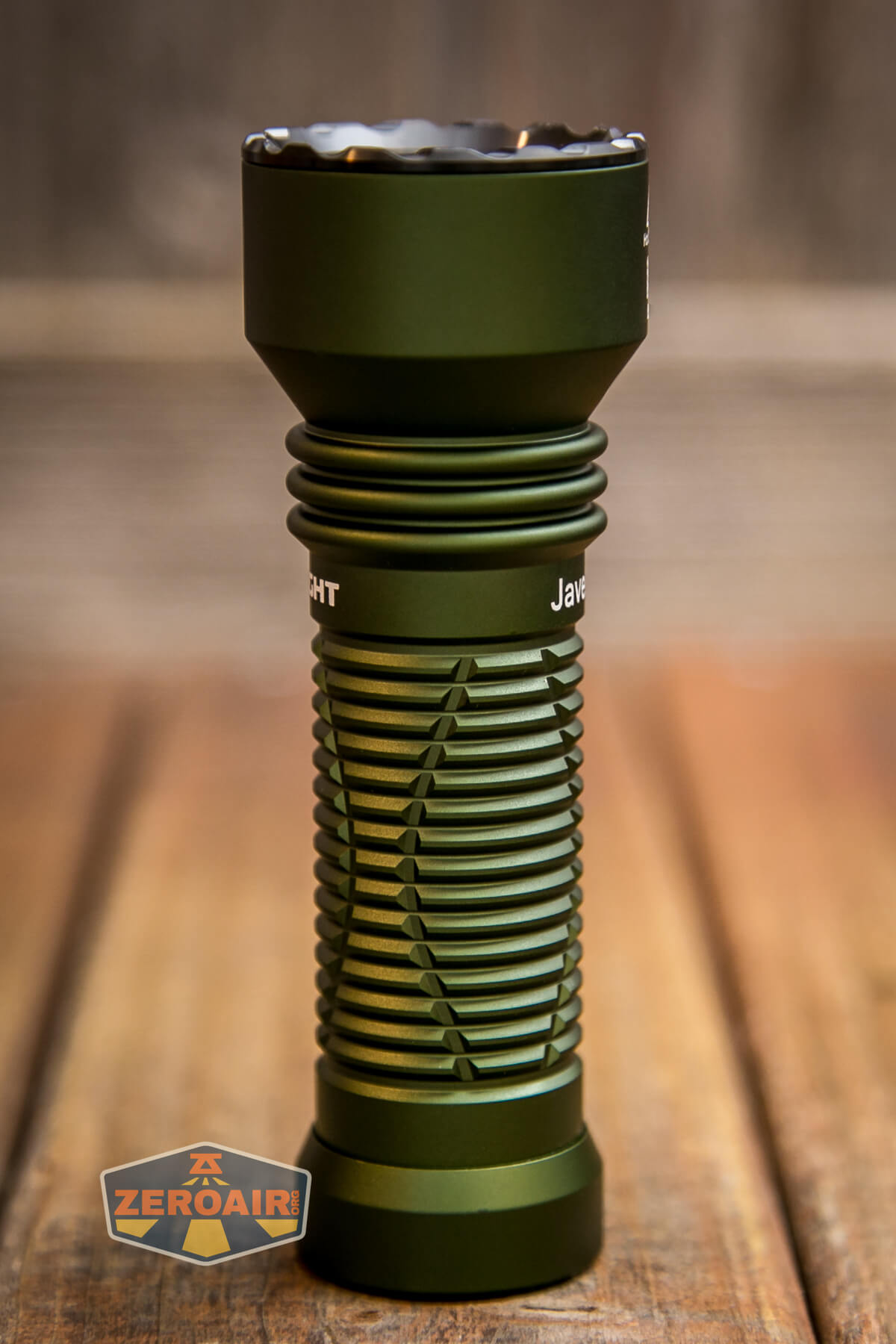

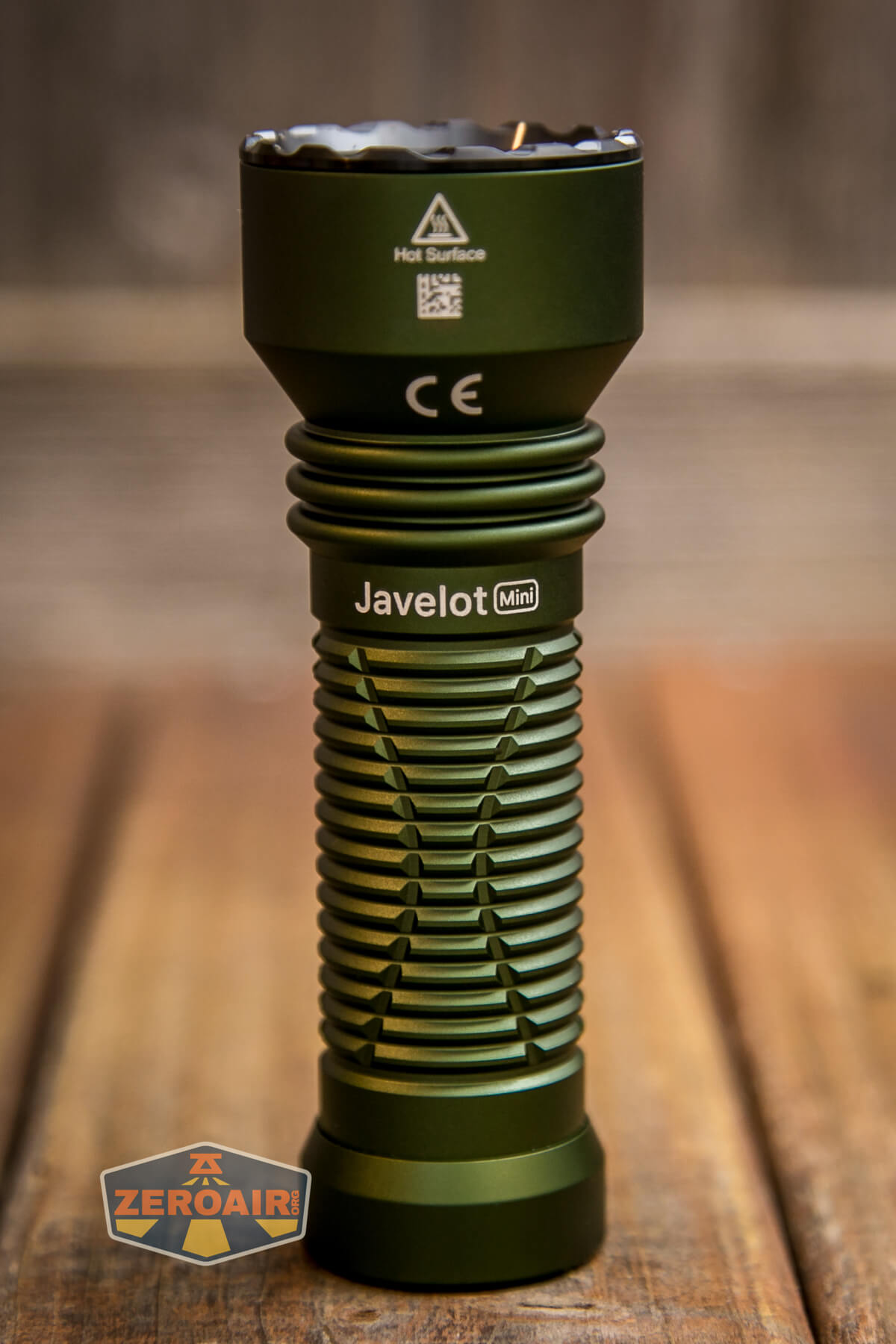

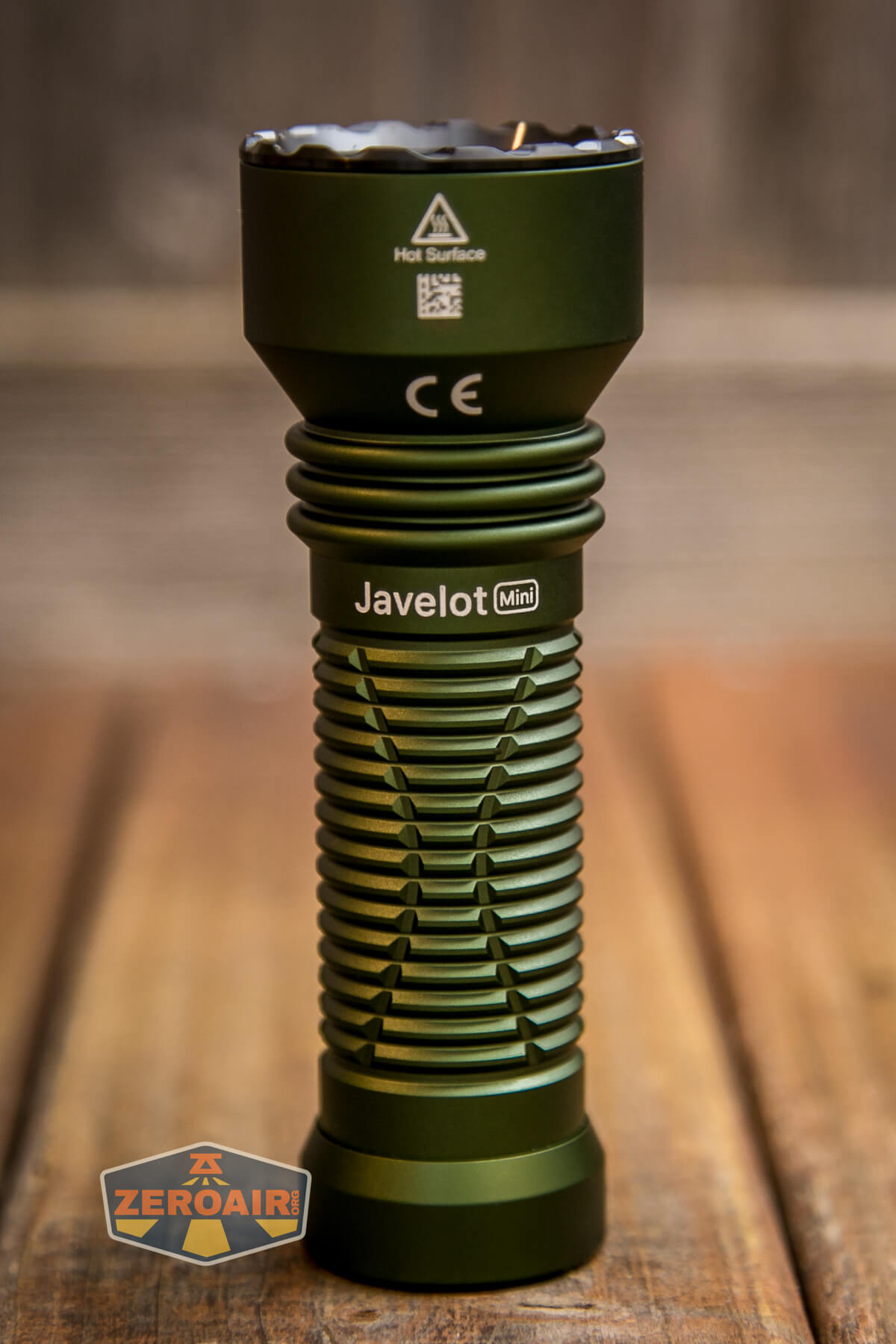

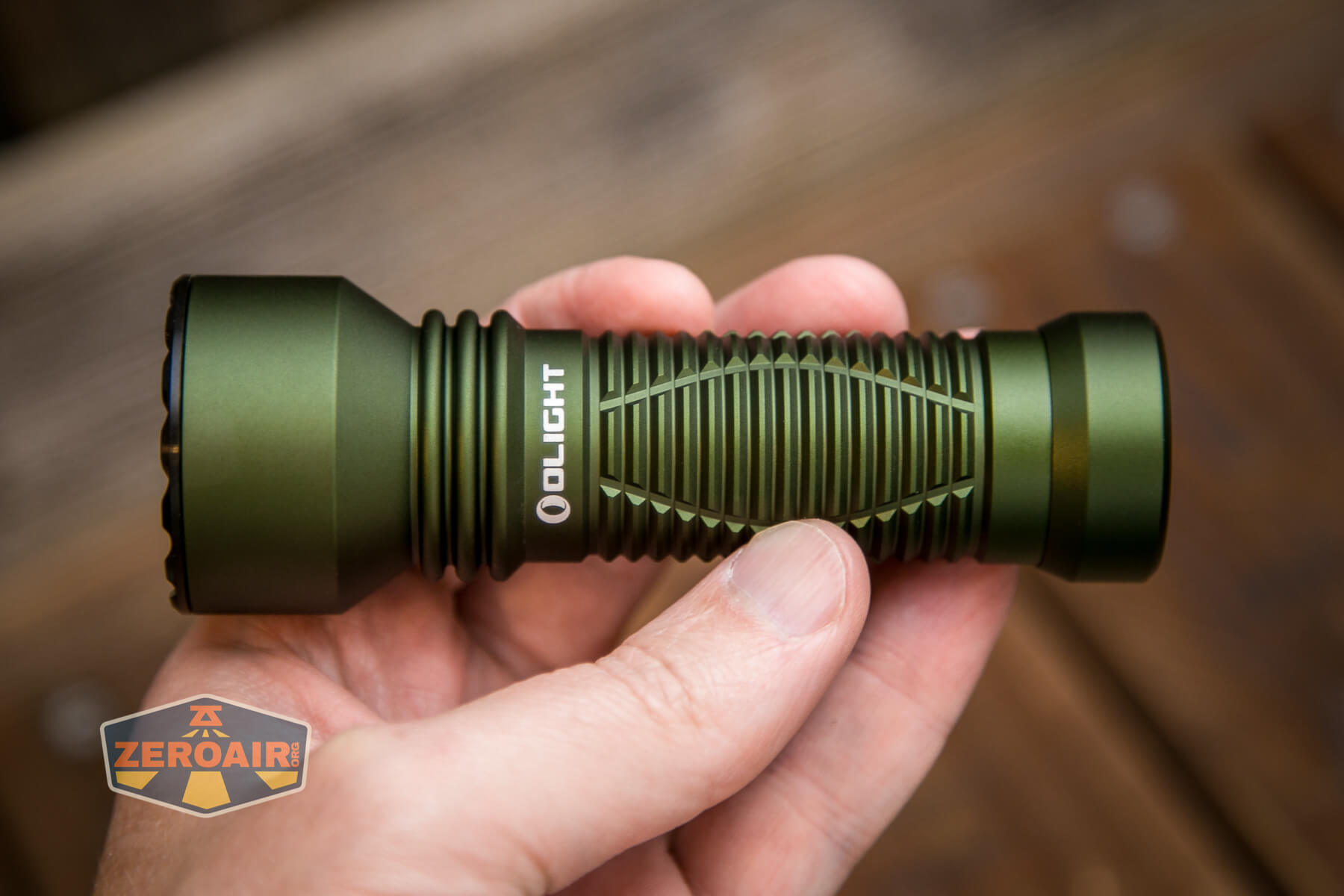

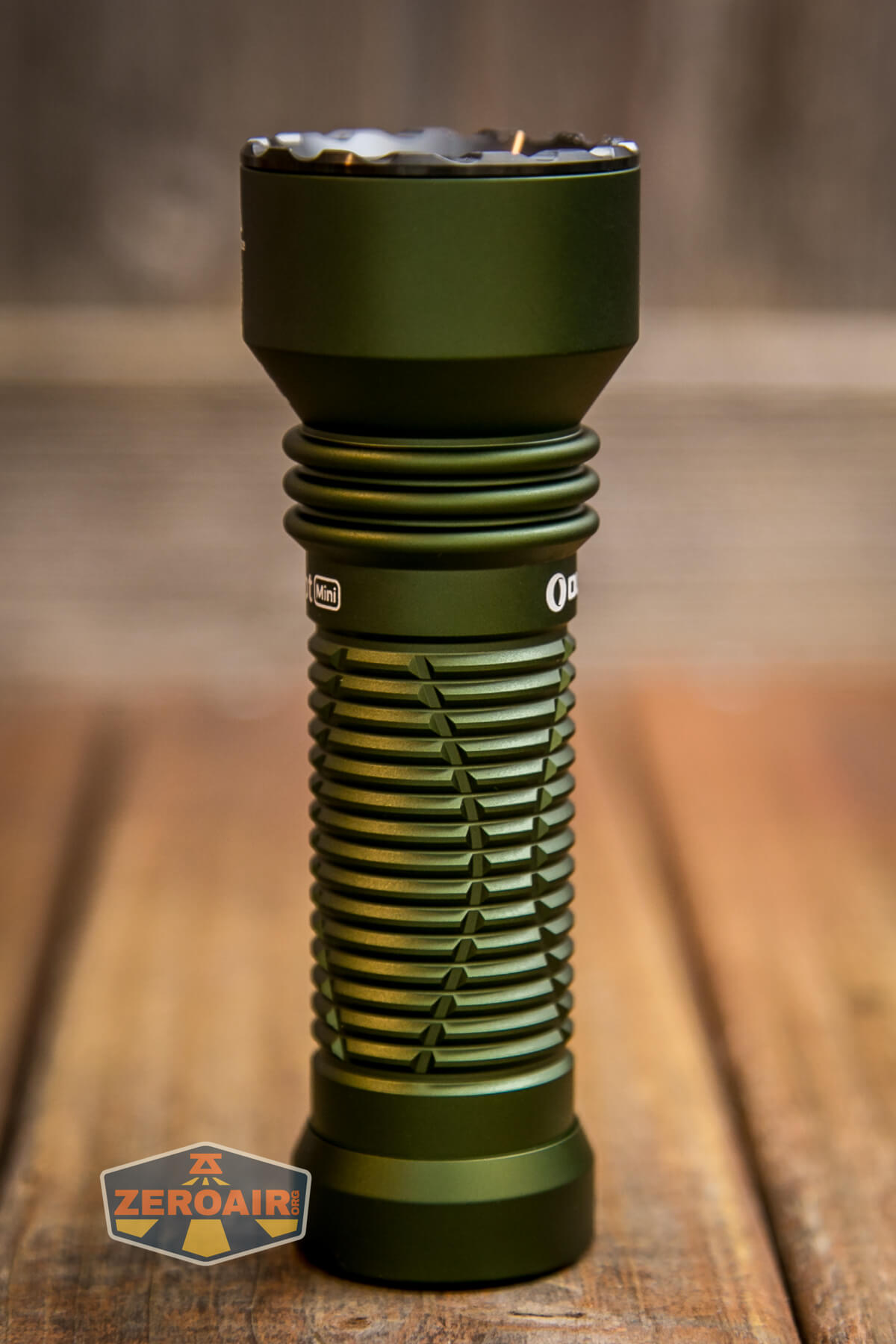

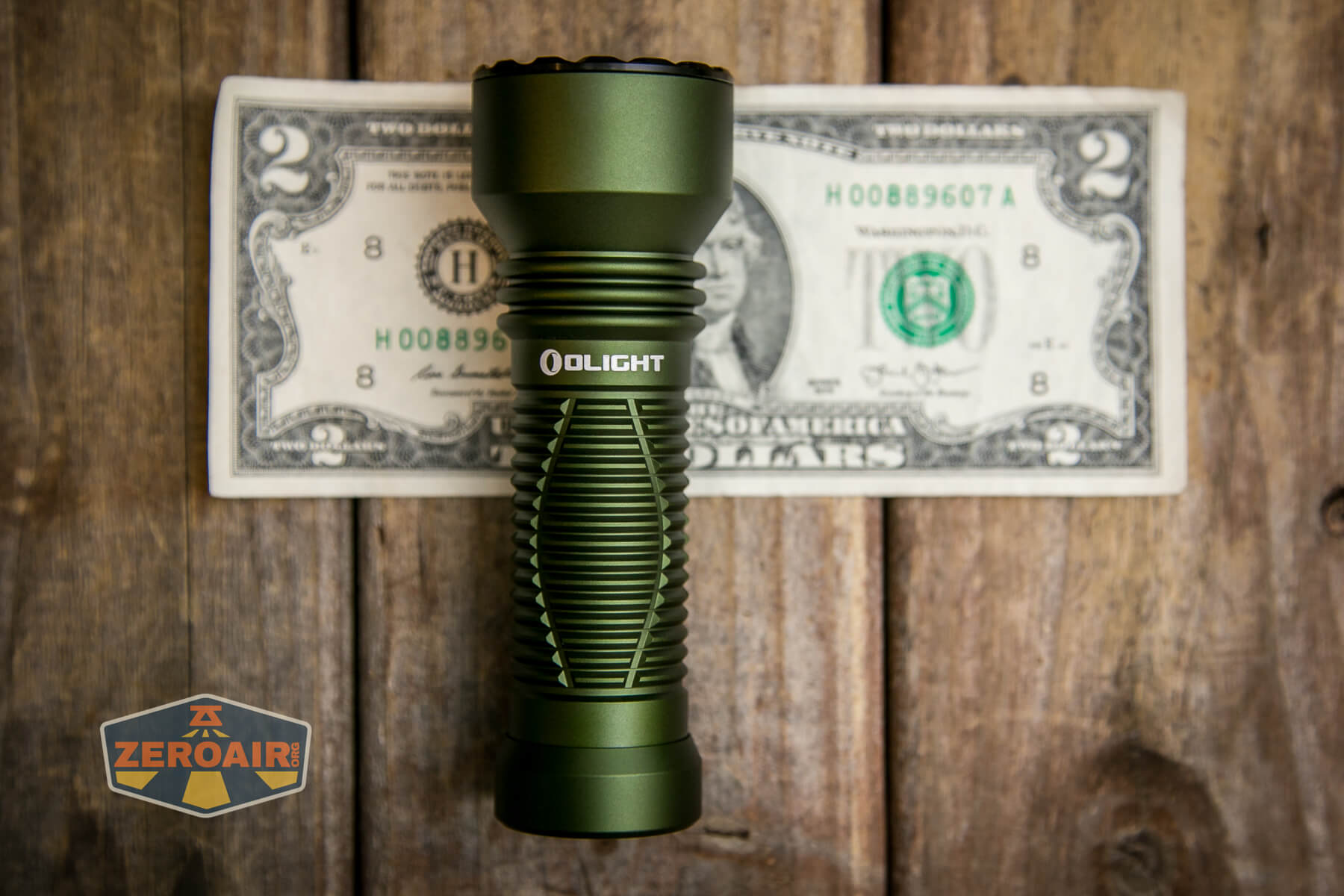

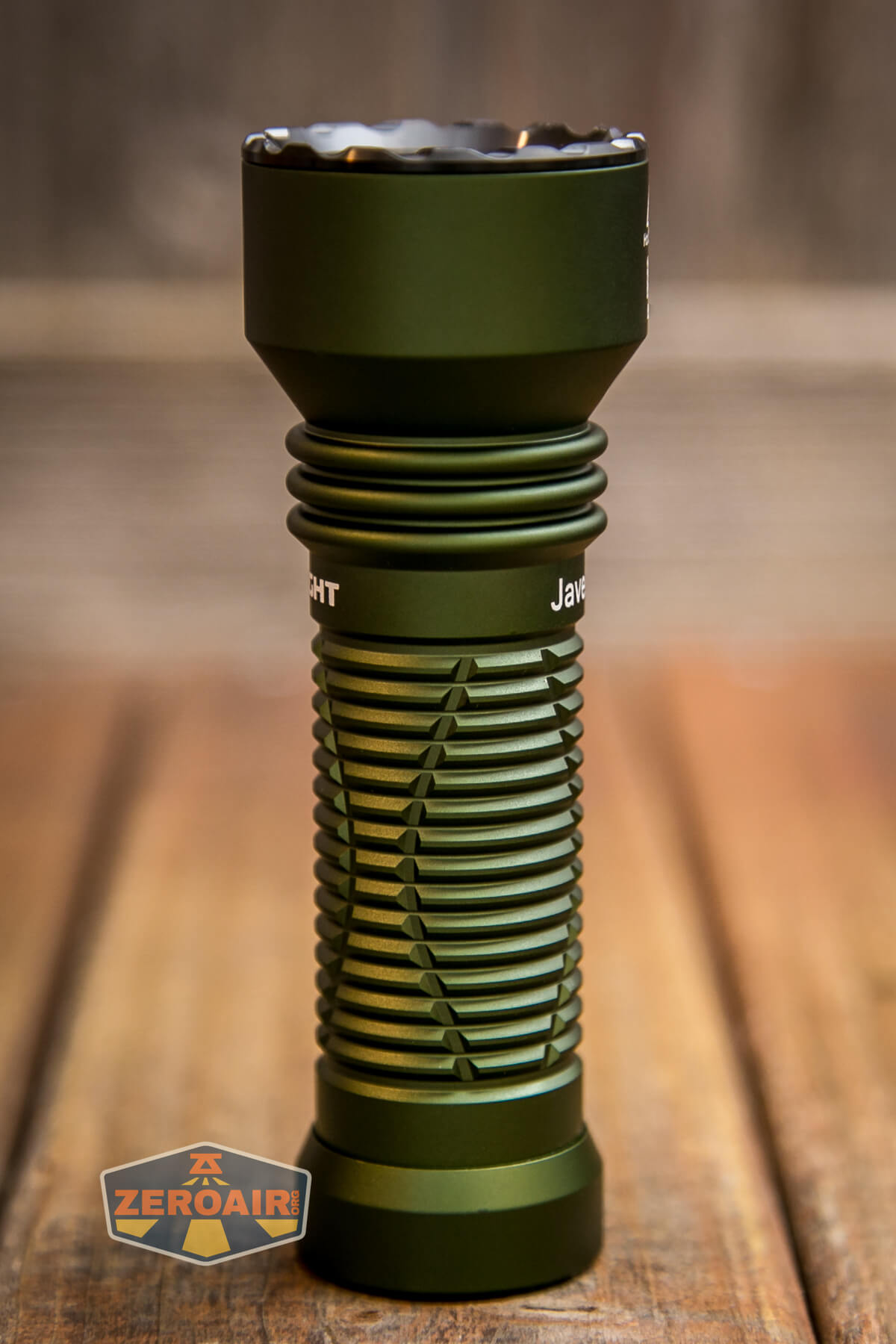

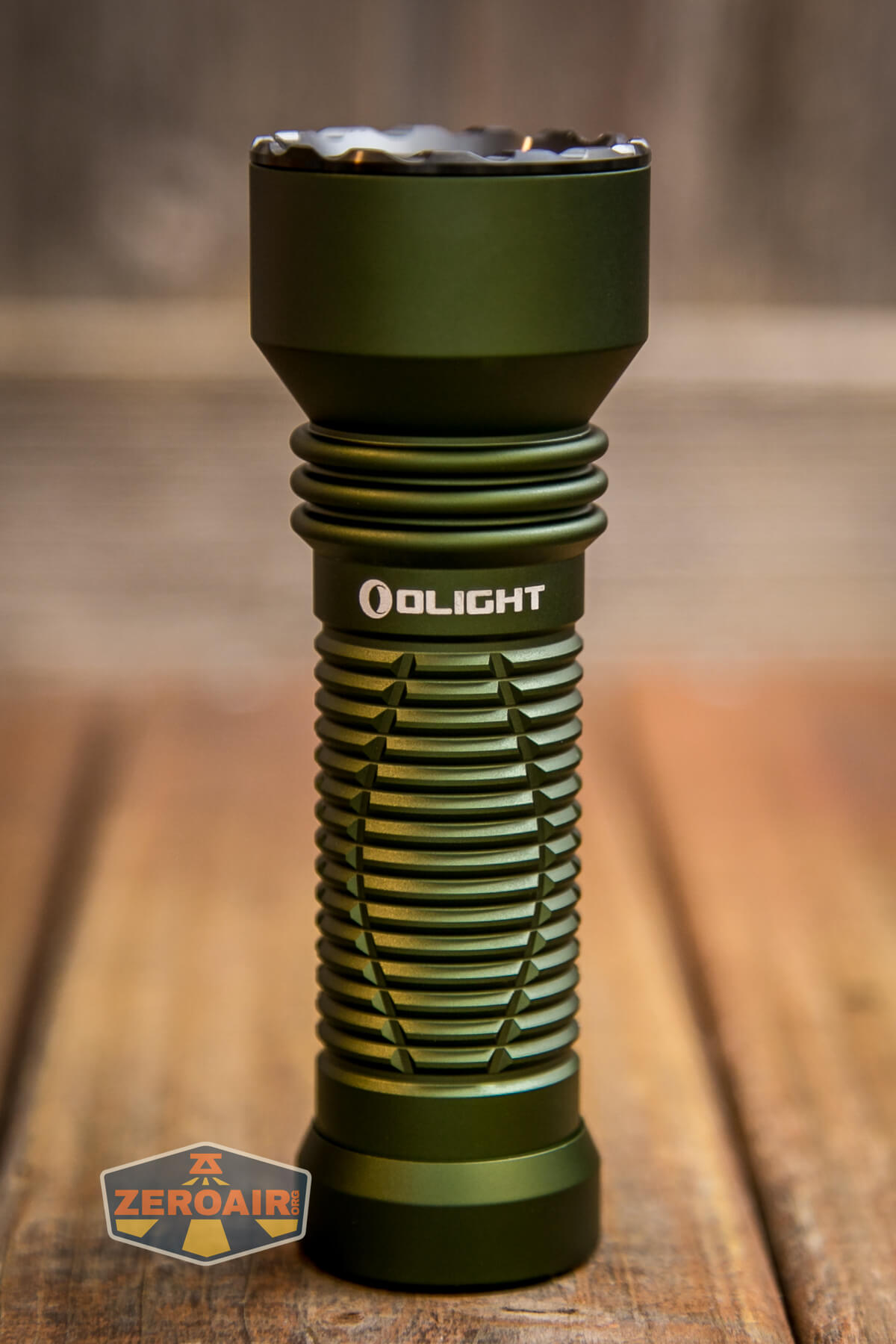

Olight Javelot Mini flashlight

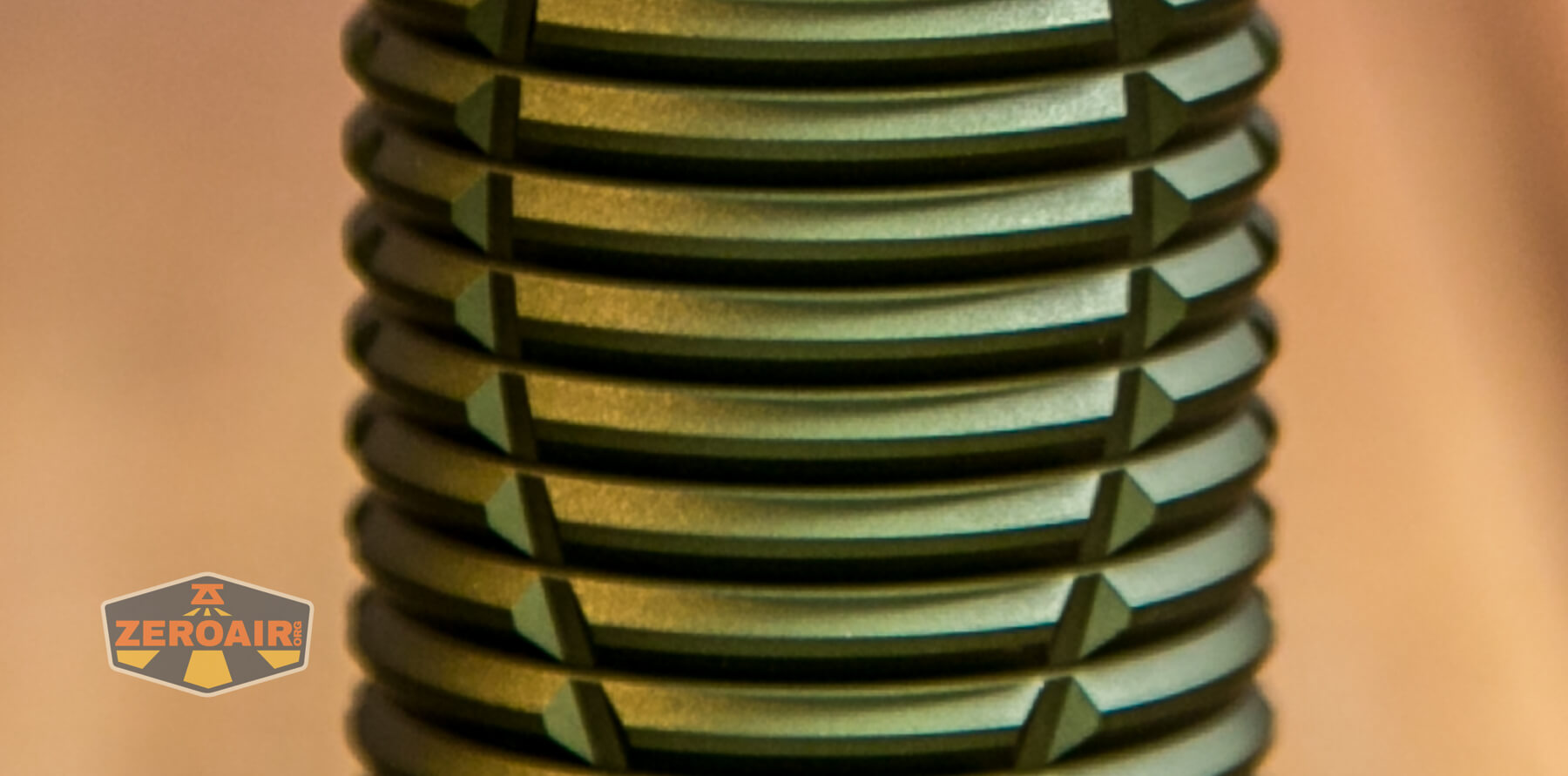

You can probably guess that and why I love this flashlight. It’s exceptionally flashlighty! It has the flashlight shape that I love in a flashlight. It’s unambiguously directional. The hand grip is the perfect size. It headstands very securely. It’s just great!

The build quality is great. I don’t know what else to say. The build quality is really great.

Only the tailcap comes off (though I didn’t try to remove the bezel). No part of the head comes off. The tailcap threads are very long, which I found a bit annoying. But they’re very secure, I suppose!

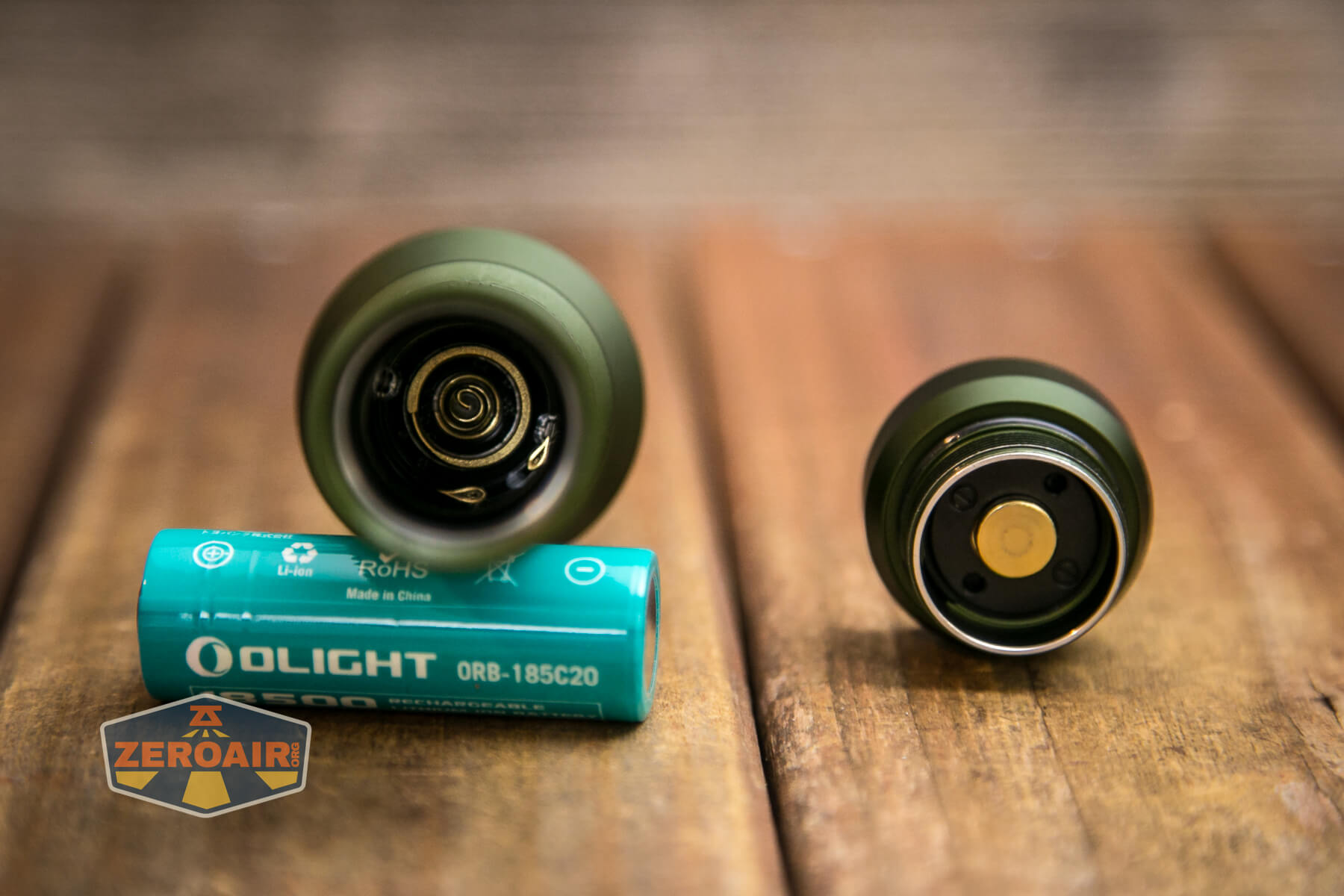

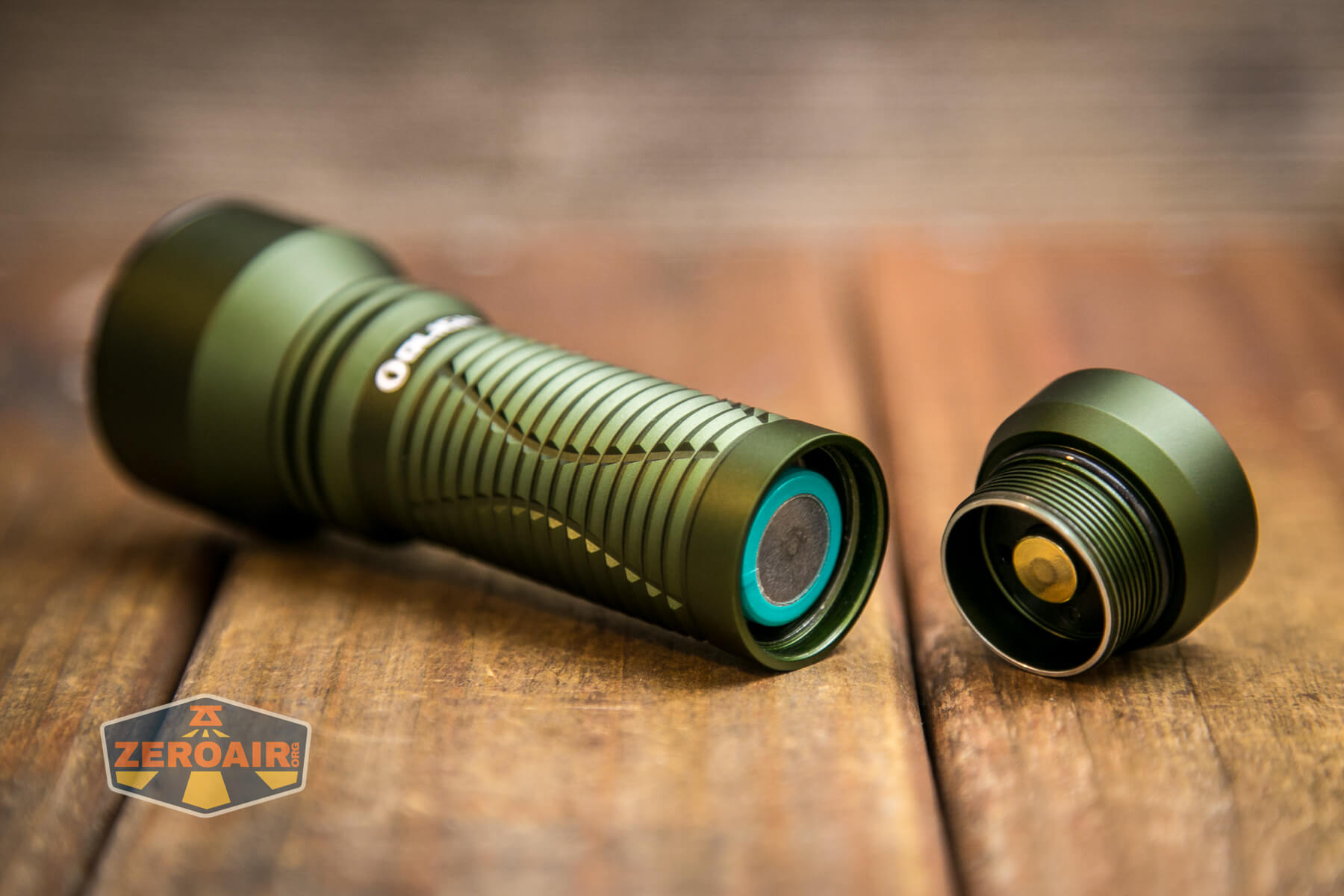

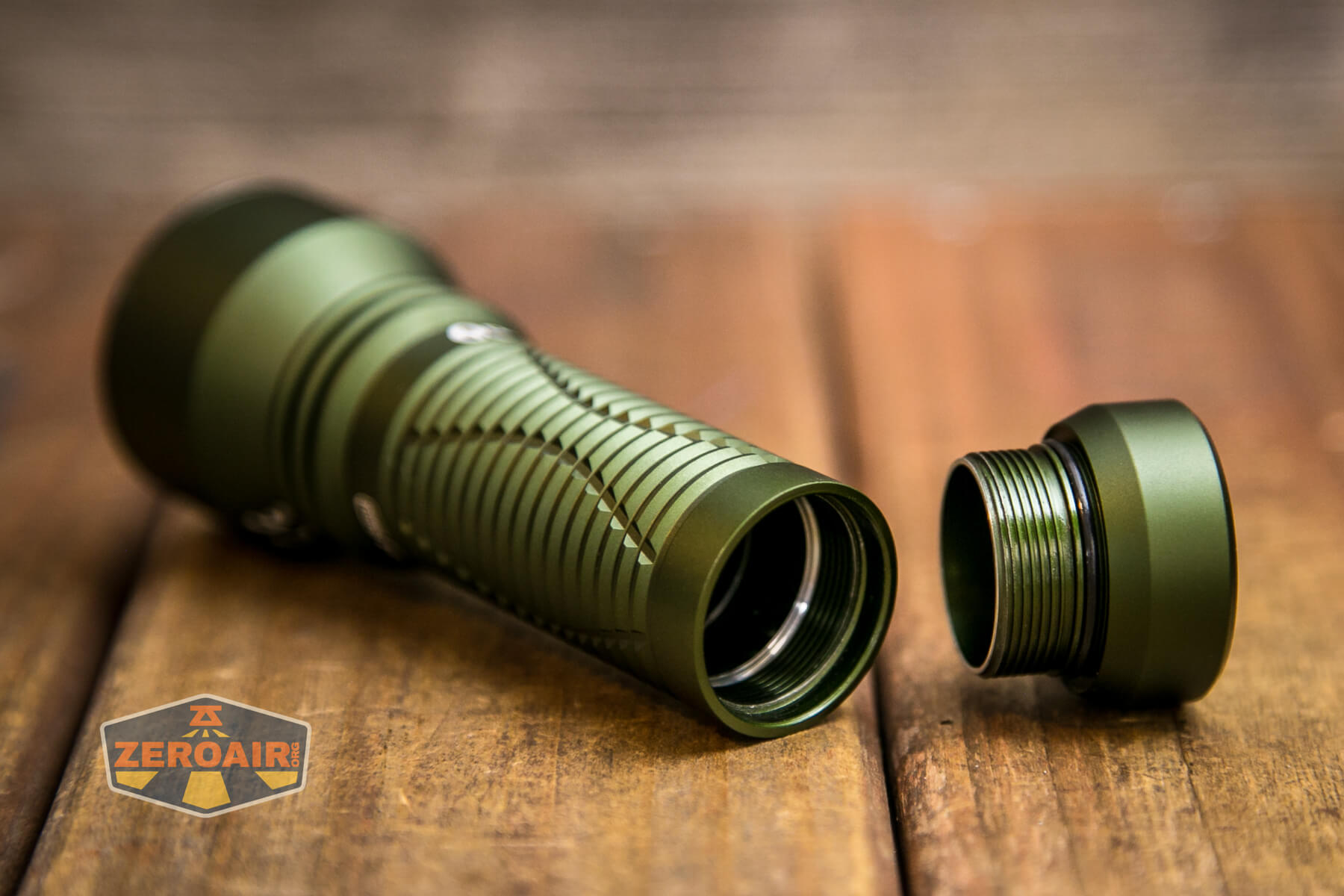

Olight Javelot Mini flashlight tailcap off

Inside, you can see that the positive contacts have all the connections for the customized and proprietary cell Olight uses. The tailcap button is also springy.

Olight Javelot Mini flashlight spring in head

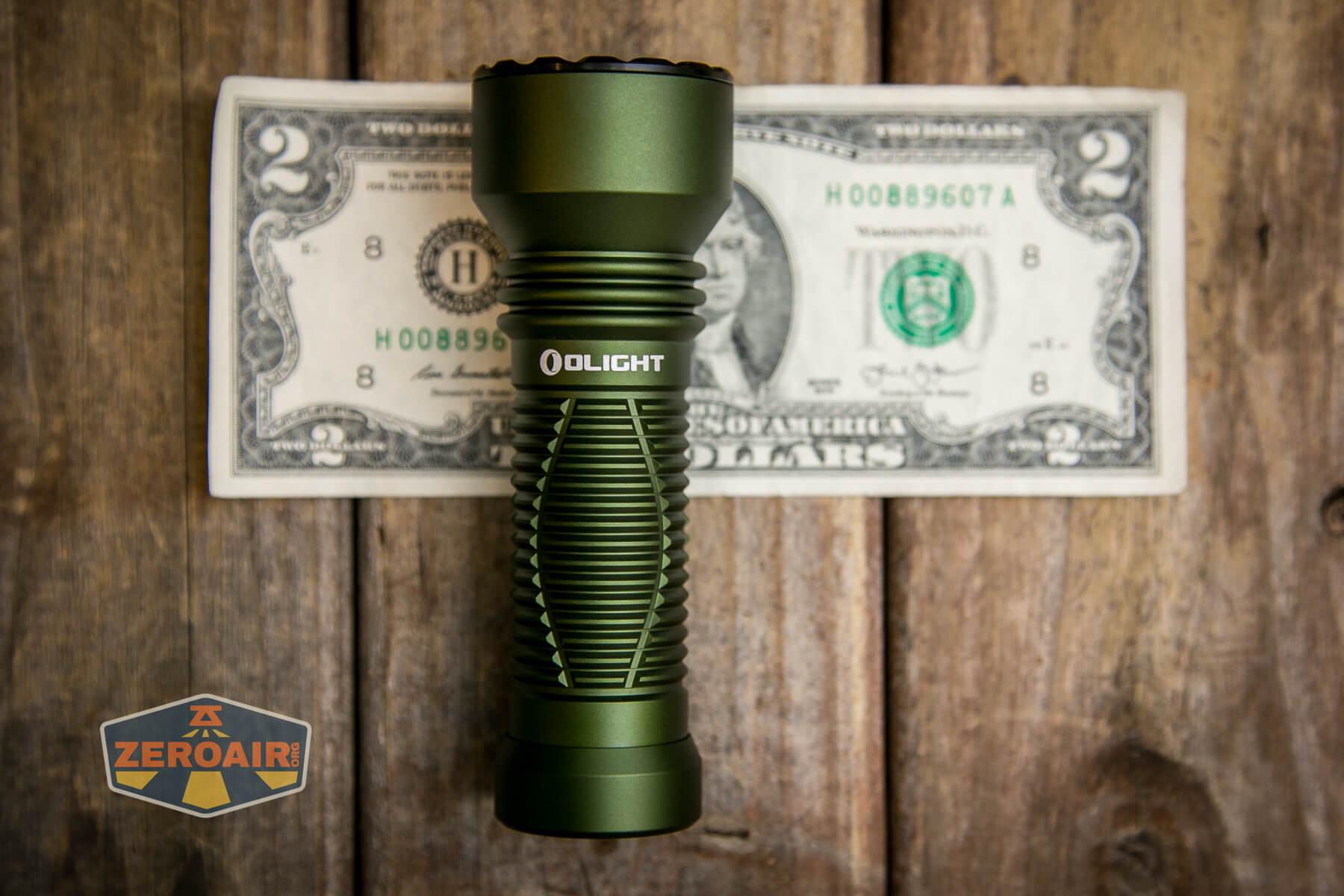

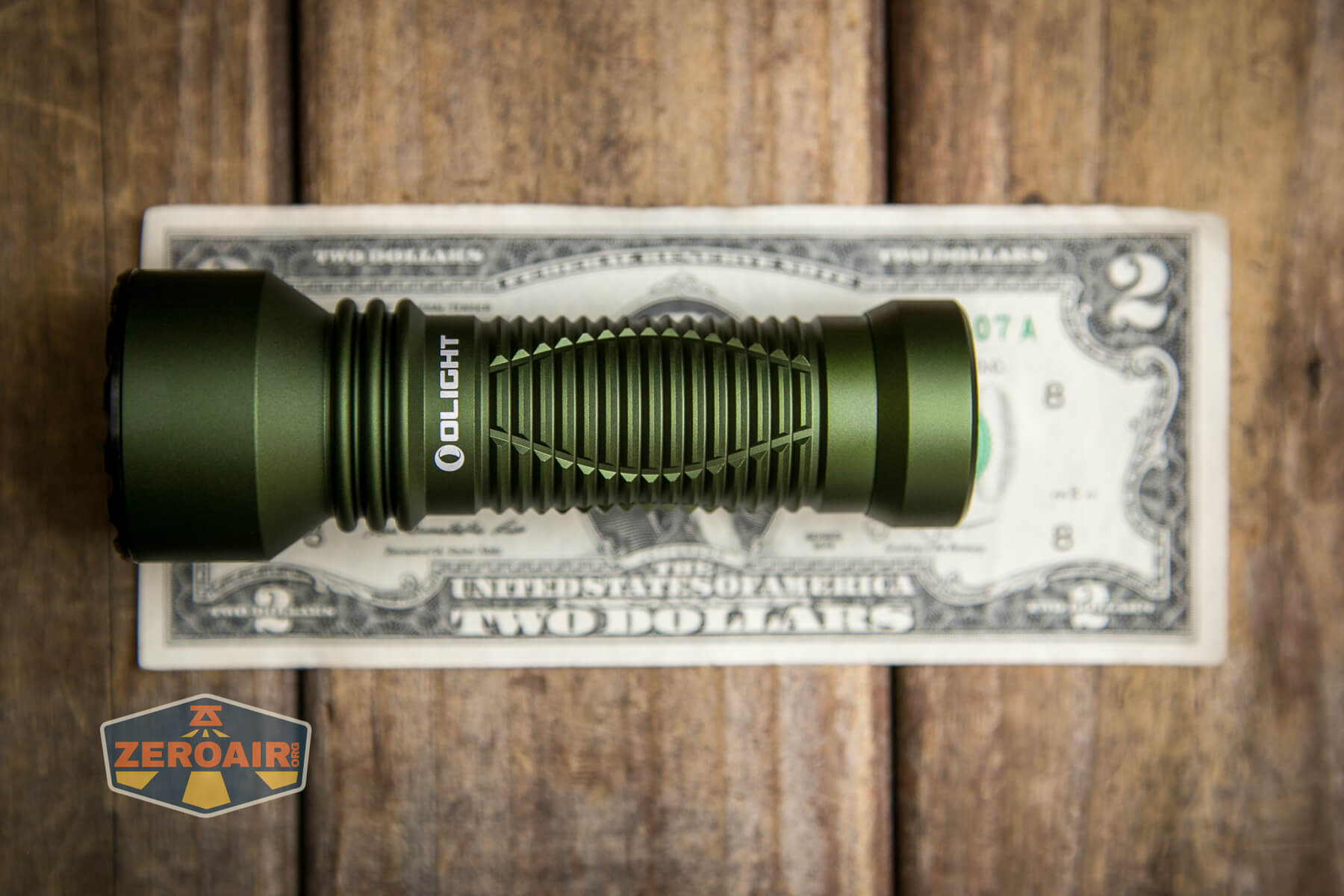

Size and Comps

Weight: 5.43 oz (154 g)
Length: 4.53 in (115 mm)
Head Diameter: 1.57 in (40 mm)
Body Diameter: 1.26 in (32 mm)

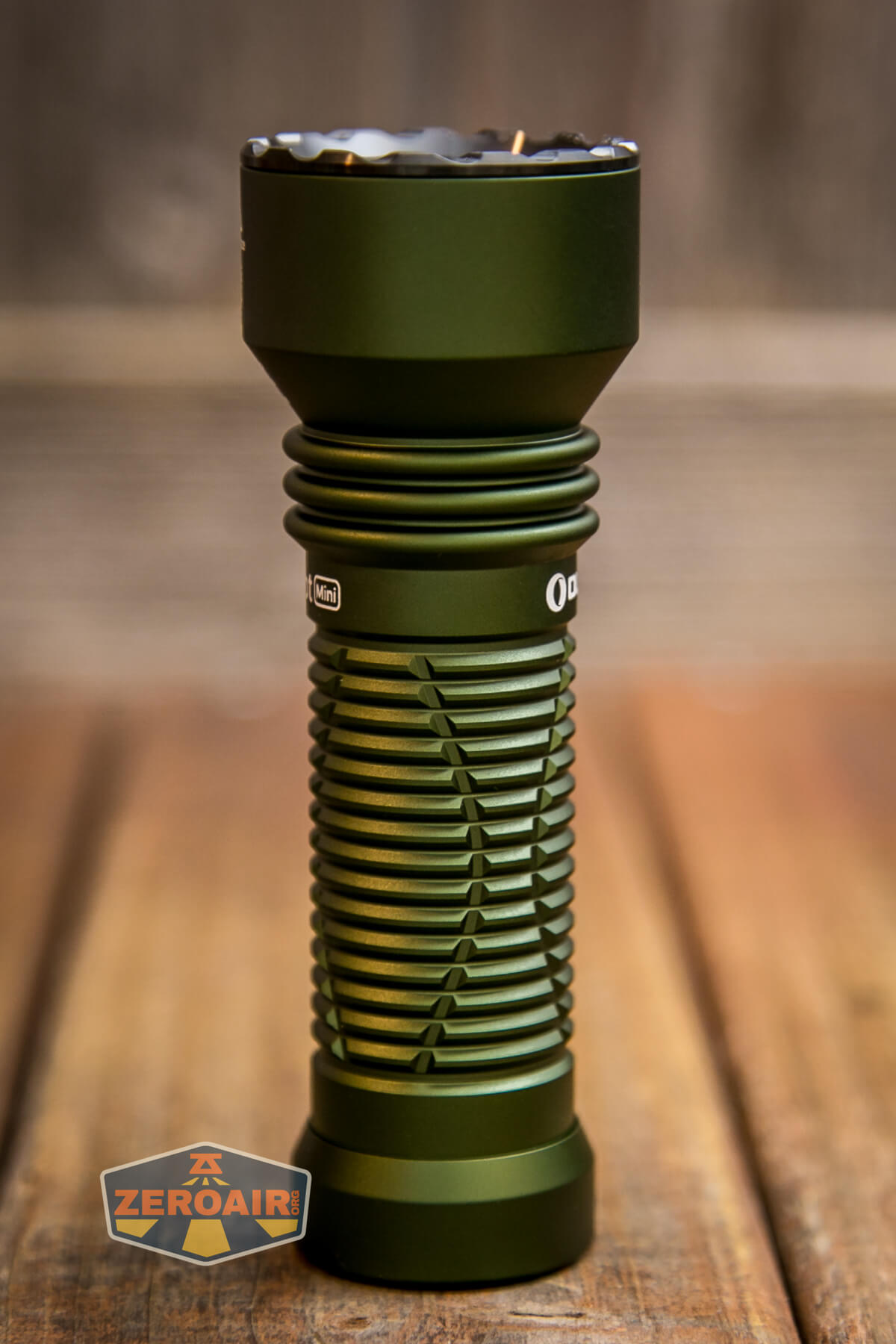

If the flashlight will headstand, I’ll show it here (usually the third photo).  If the flashlight will tailstand, I’ll show that here, too (usually the fourth photo).

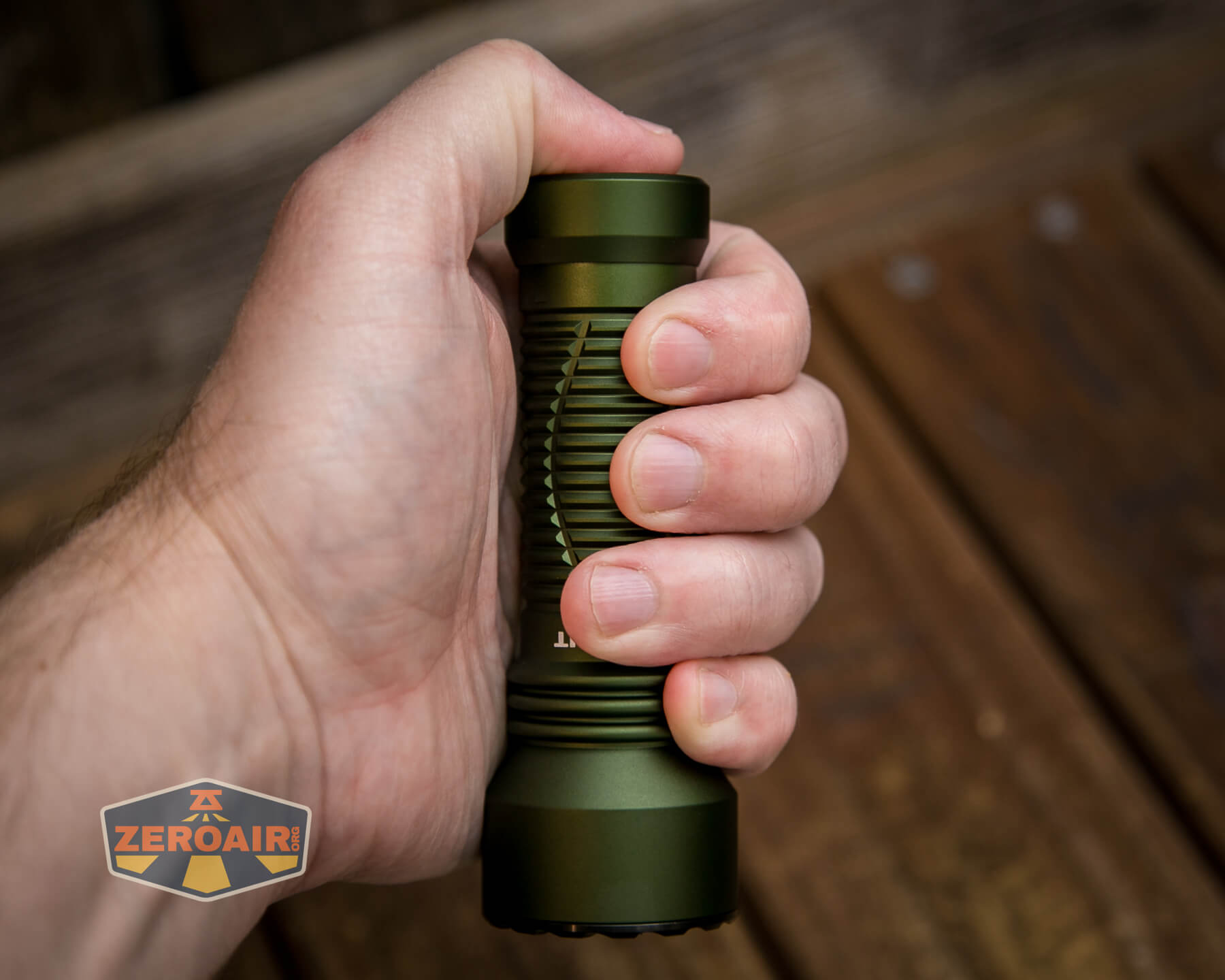

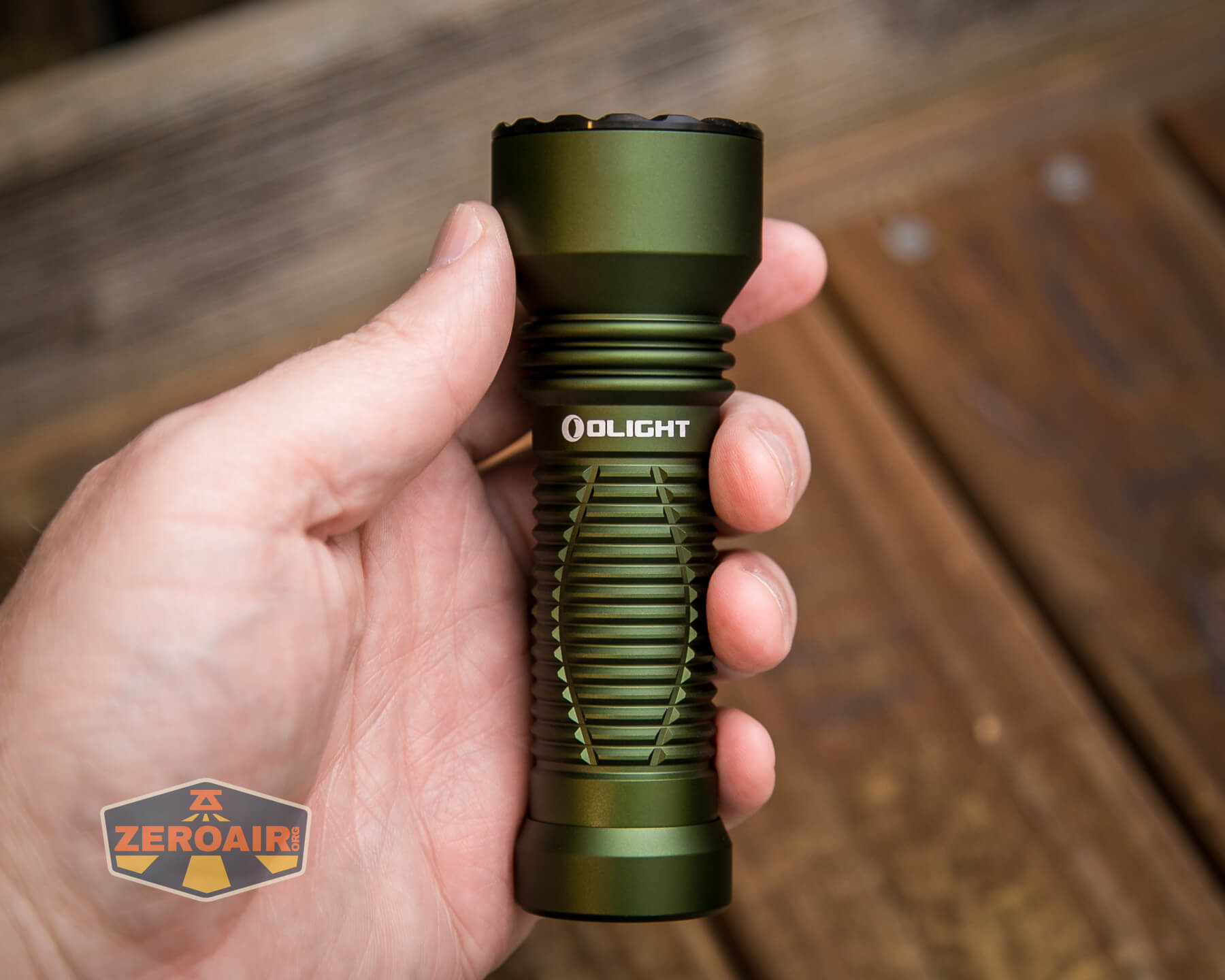

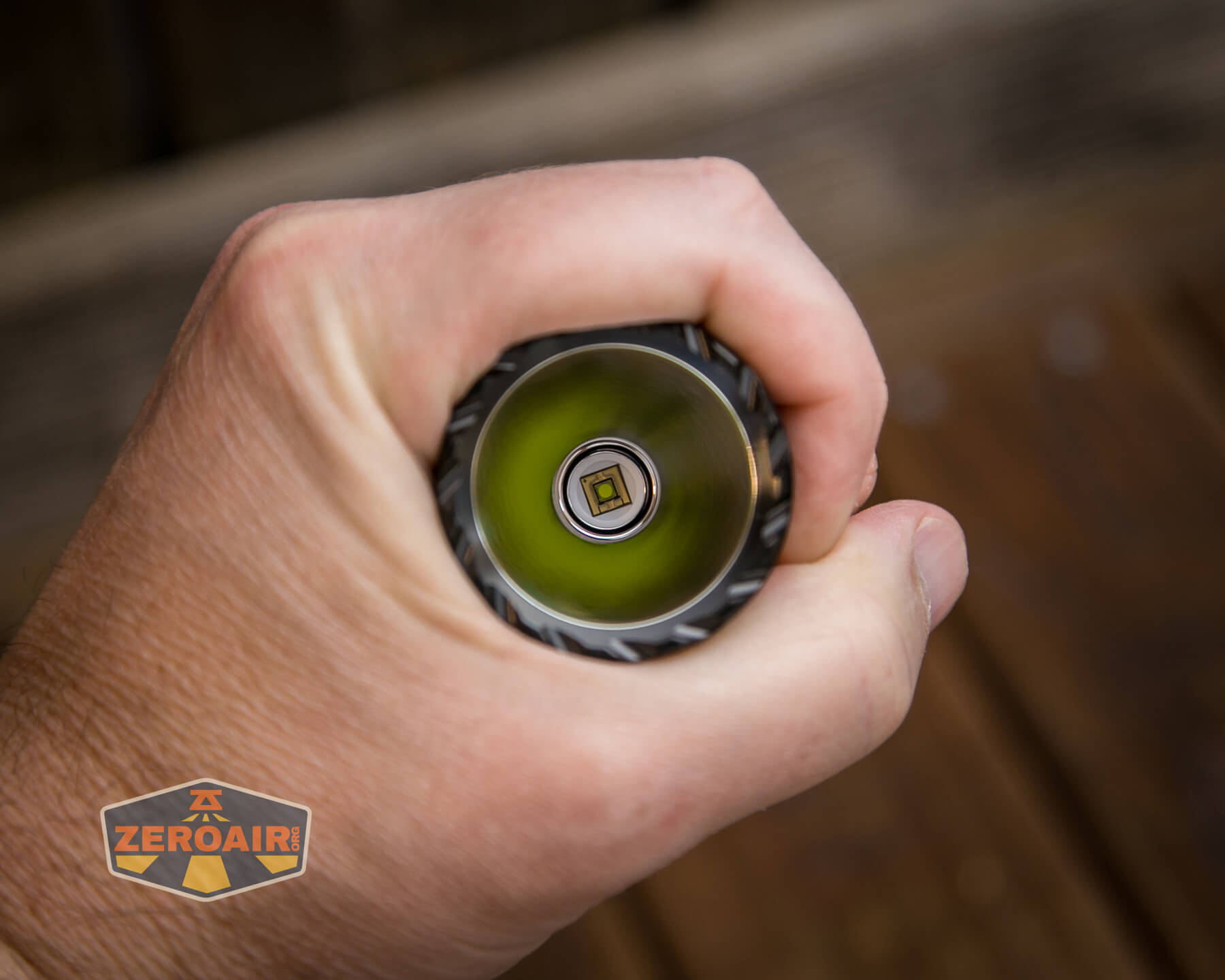

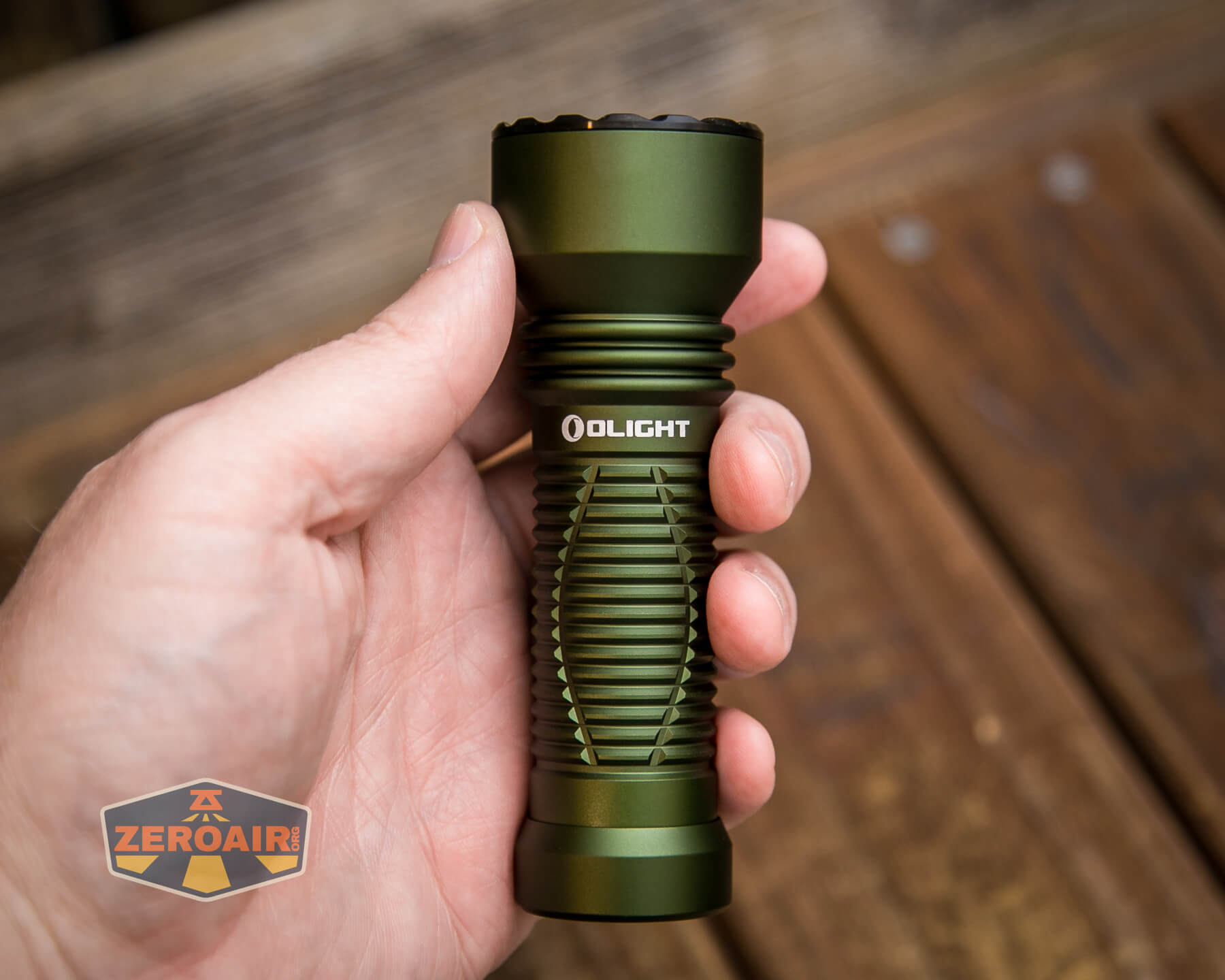

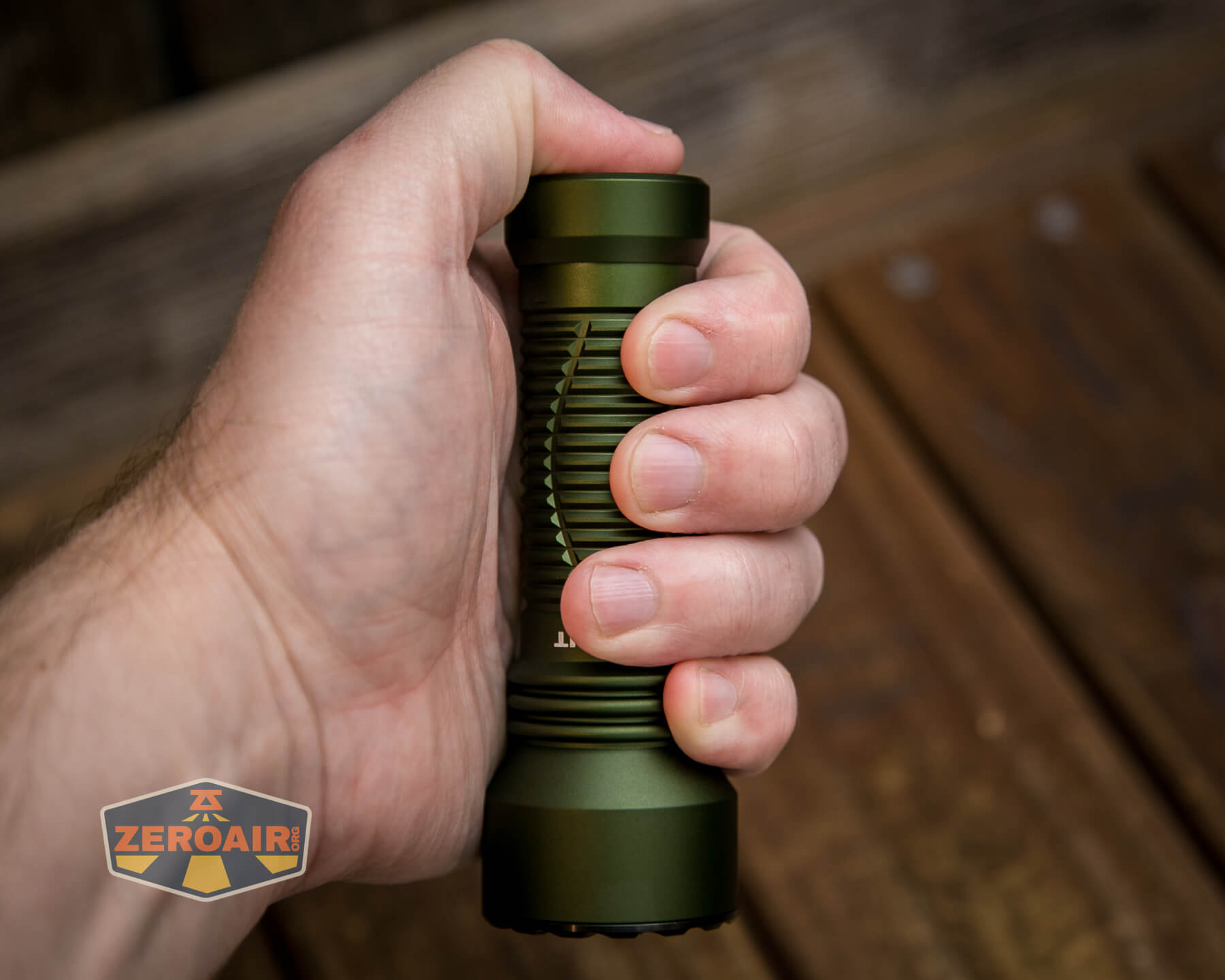

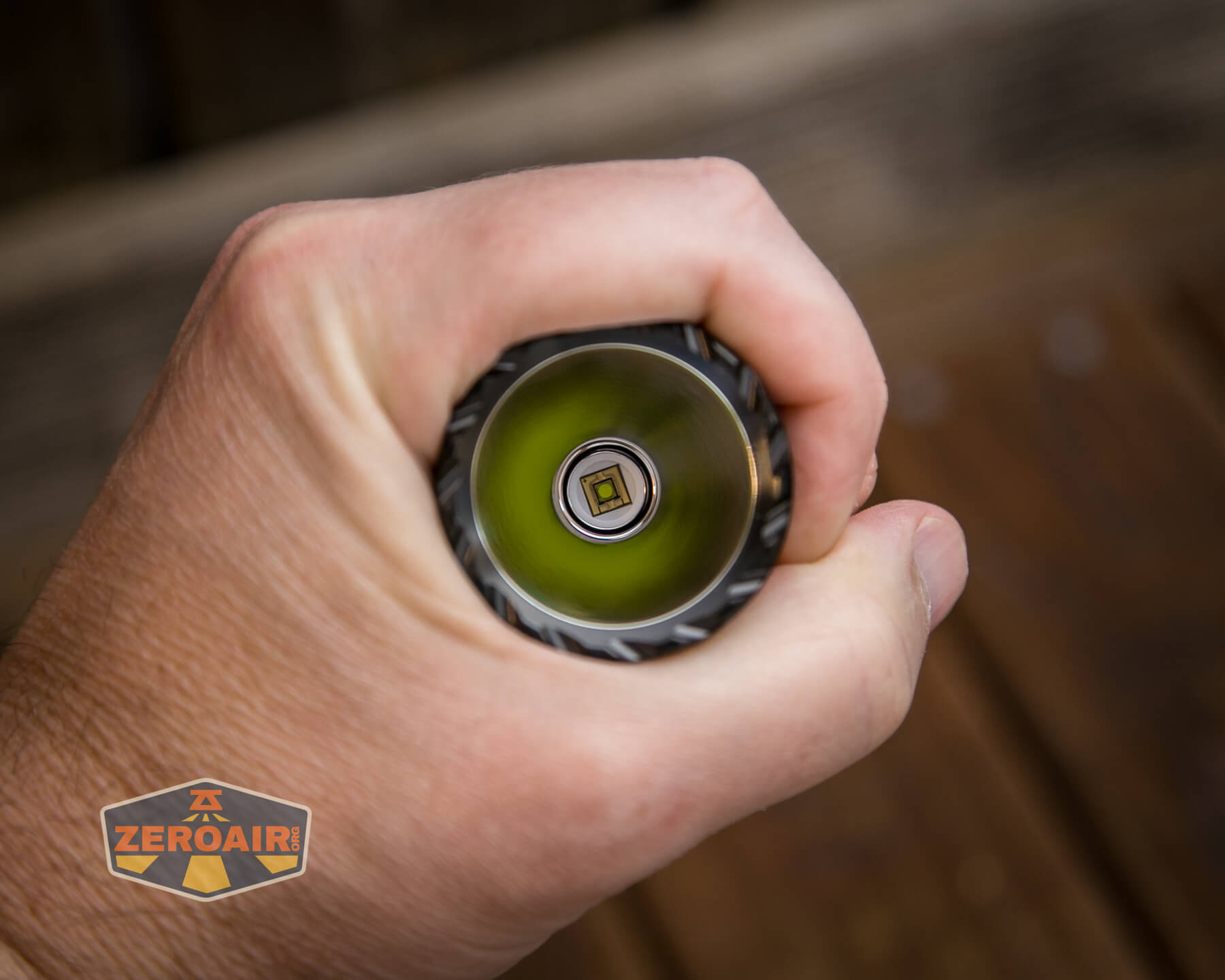

Olight Javelot Mini flashlight in hand

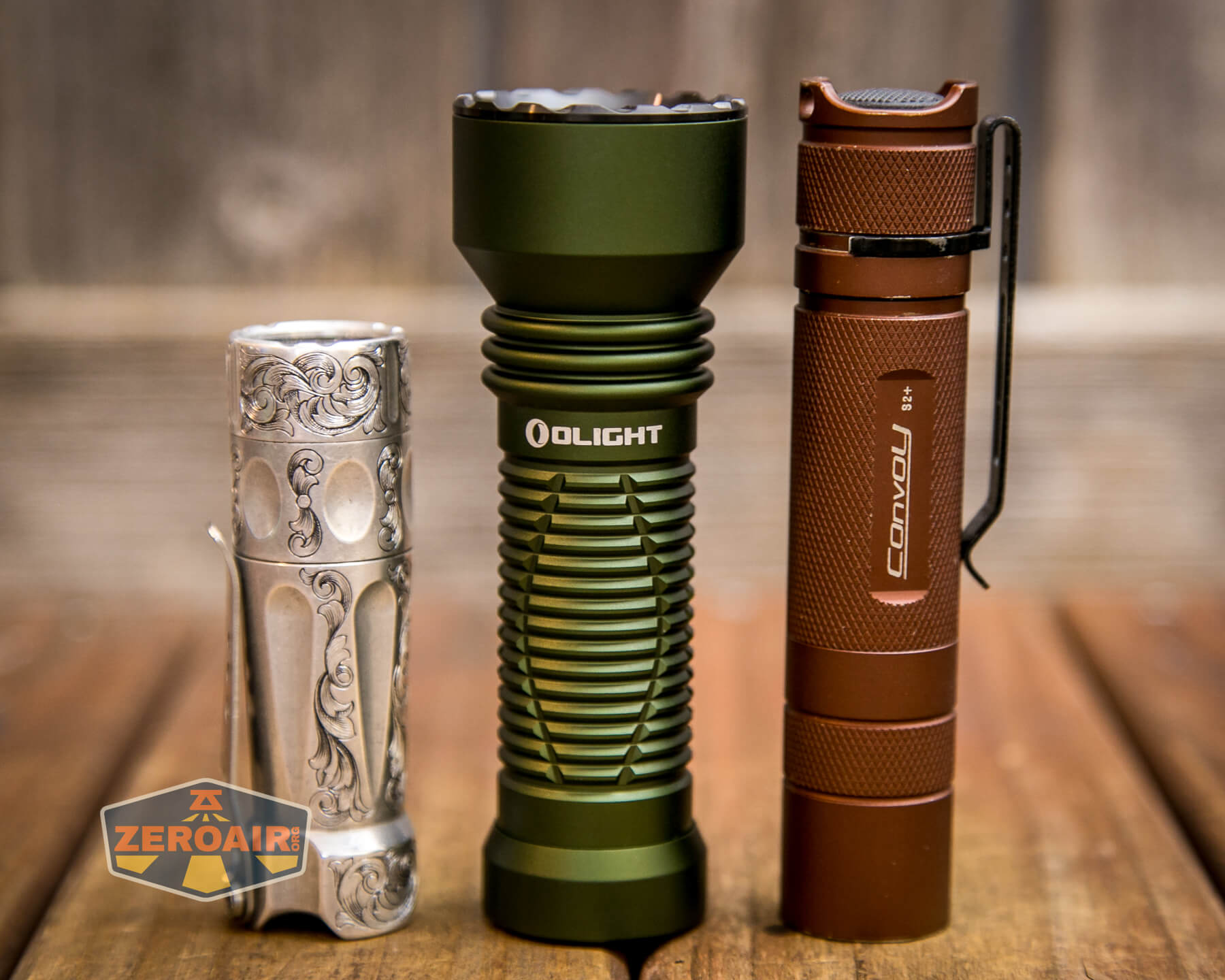

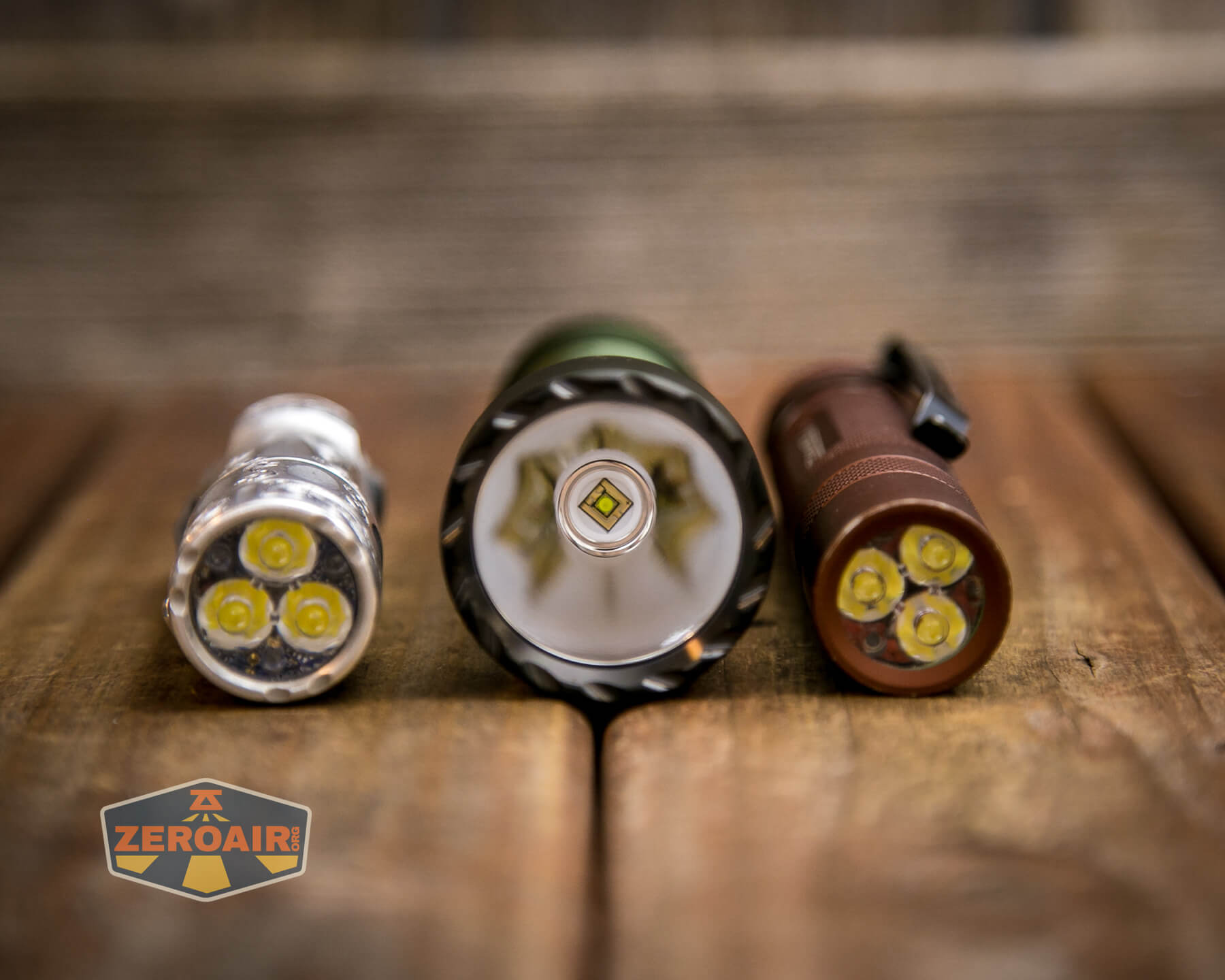

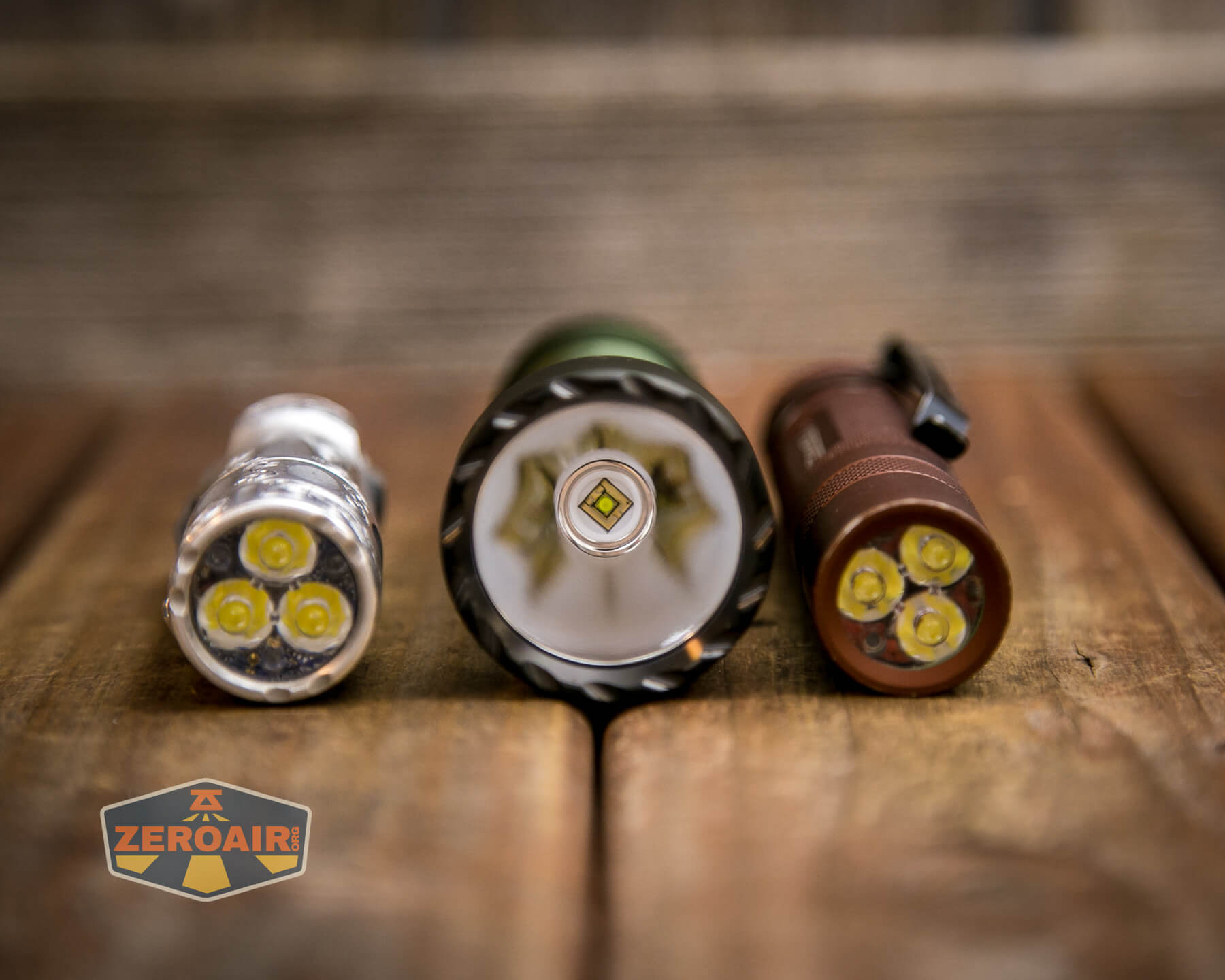

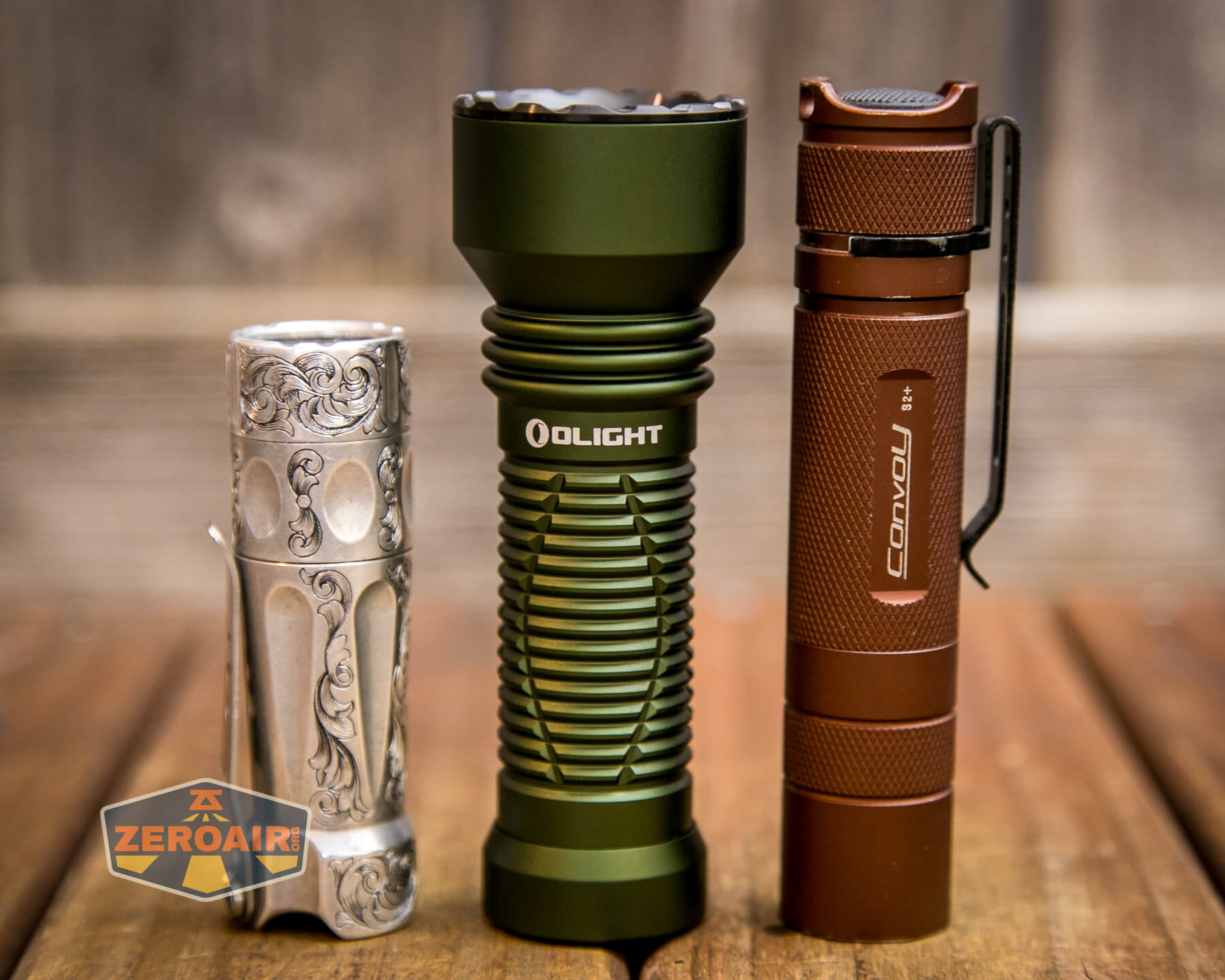

Here’s the test light with the venerable Convoy S2+.  Mine’s a custom “baked” edition Nichia 219b triple.  A very nice 18650 light.

Also above is the light beside my custom engraved TorchLAB BOSS 35, an 18350 light.  I reviewed the aluminum version of that light in both 35 and 70 formats.

Retention and Carry

The only thing Olight includes for carry of the Olight Javelot Mini flashlight is this plastic sheath. It’s very nice as far as sheaths go, but I don’t have a ton of experience with these.

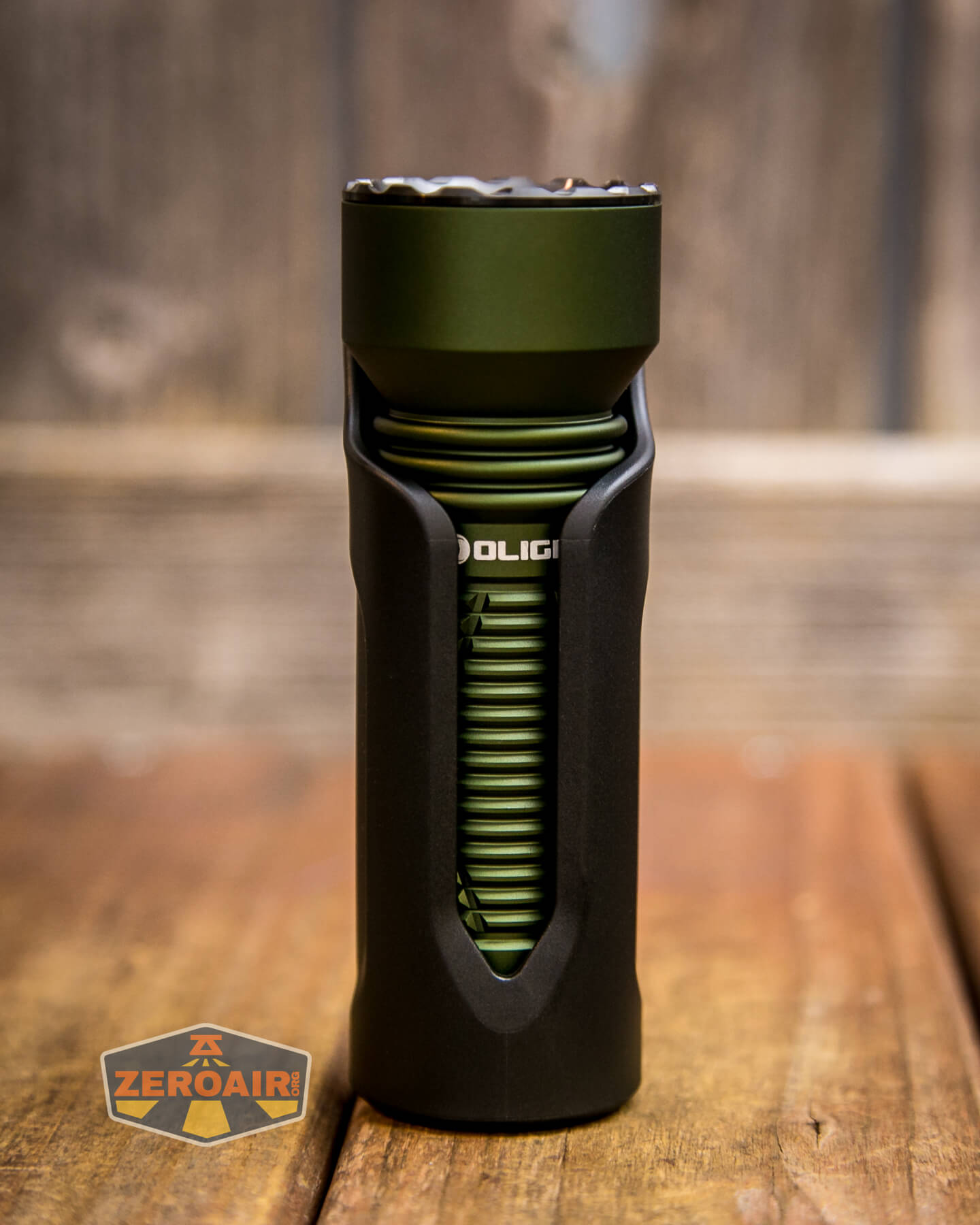

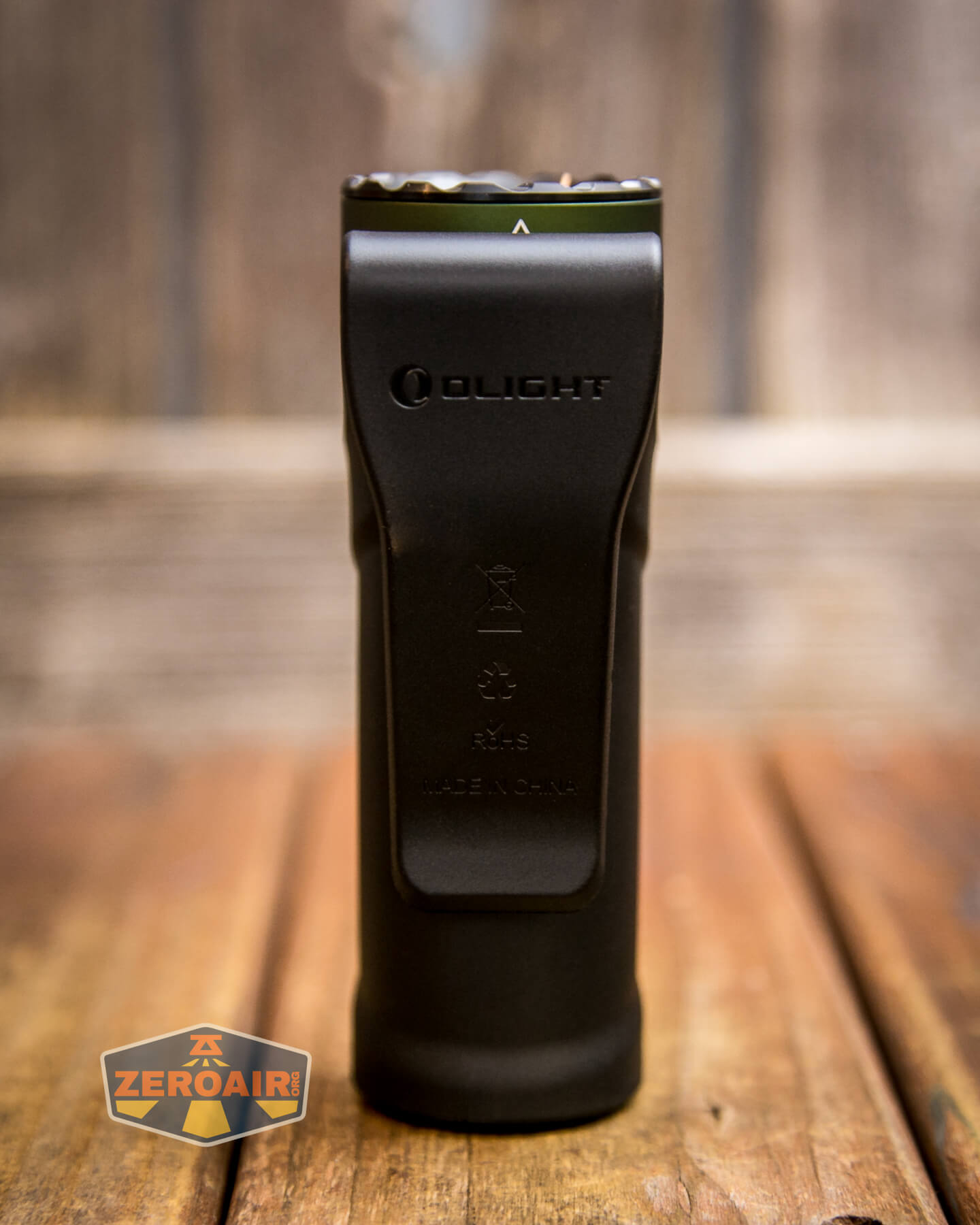

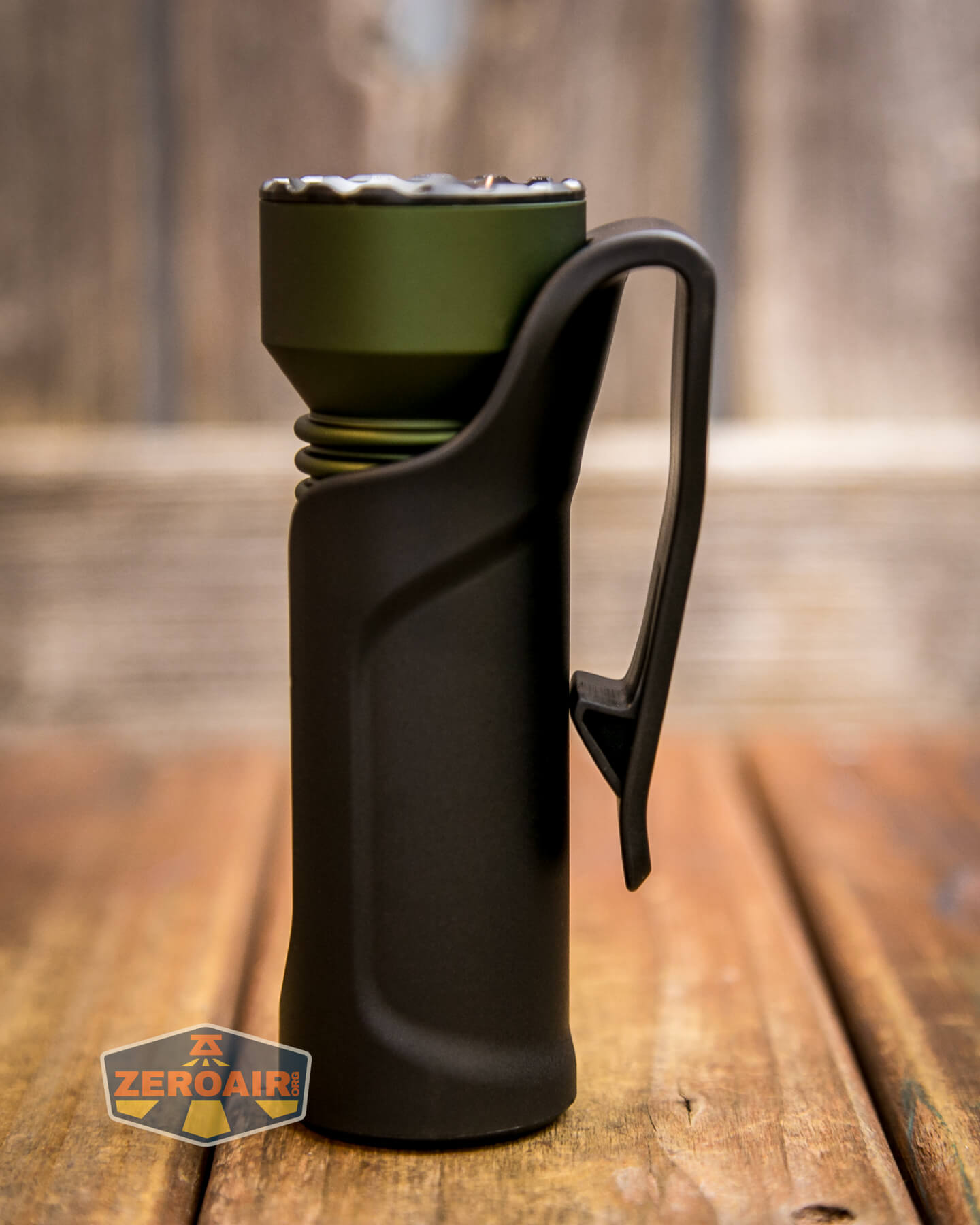

Olight Javelot Mini flashlight in sheath

The belt loop is fixed – it doesn’t rotate or anything. So there’s no chance to carry the Olight Javelot Mini flashlight along the length of your belt, for example.

Olight Javelot Mini flashlight in sheath

Olight Javelot Mini flashlight in sheath

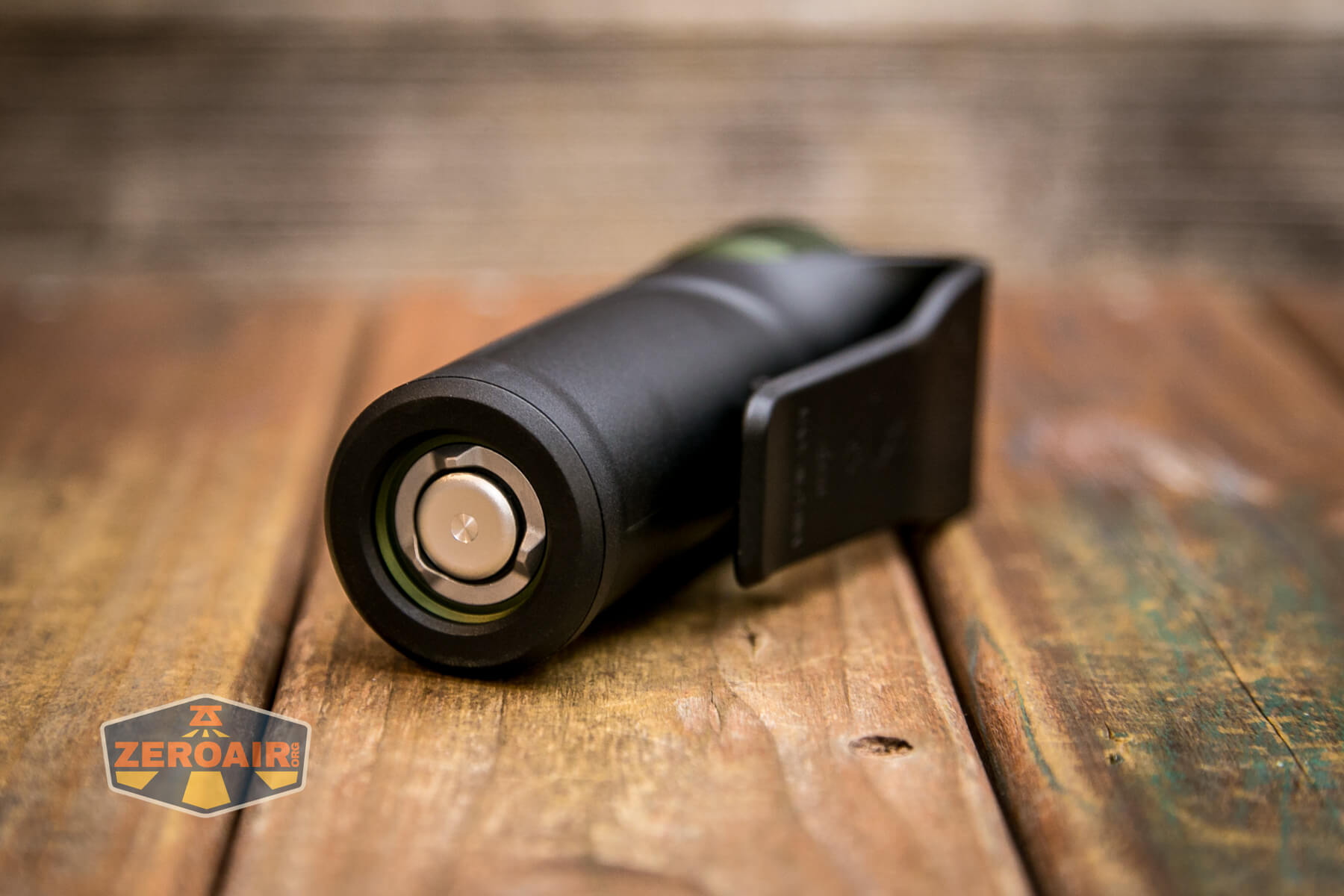

One nice feature here si that the charging port is fairly accessible while the light is in the holster. More importantly, probably, is that the switch can be used while holstered.

Olight Javelot Mini flashlight in sheath

There’s no pocket clip.

And what I said above about the sheath being “the only thing” for holding the light is wrong: the magnet that’s used for charging is perfectly adequate for holding the light in place!

Power and Runtime

What we have here is a customized proprietary cell from Olight. There’s nothing unusual about this cell – it’s very standard as far as customized and proprietary Olight cells go, except that it’s an 18500 size.

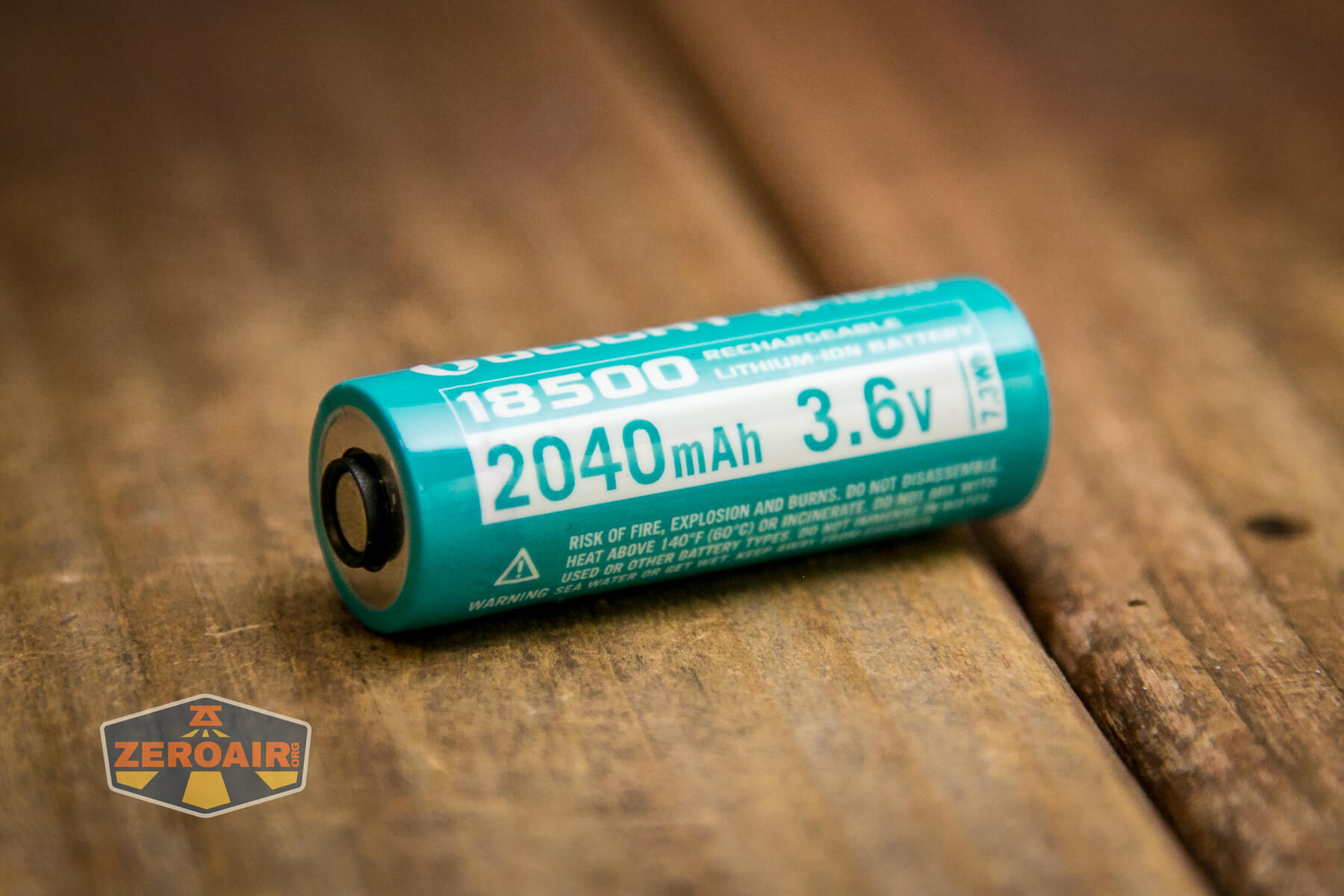

Olight Javelot Mini flashlight custom 18500

Now, the light ships with a cell, so you don’t have to go find your own. So no real problem there, unless you just want to get hot about the fact that it’s customized and proprietary. I agree – I’d prefer a standard cell. Even a standard 18500 would be fine (me and that one other guy who have 18500 cells would be all set…)

The cell is installed in the usual way – positive end toward the head. You can get a sense below that the body of this light is maybe disproportionately thicker than many “18” sized lights – 18650, 18500, 18350, whatever – it’s much thicker than those.

Olight Javelot Mini flashlight custom 18500 installed

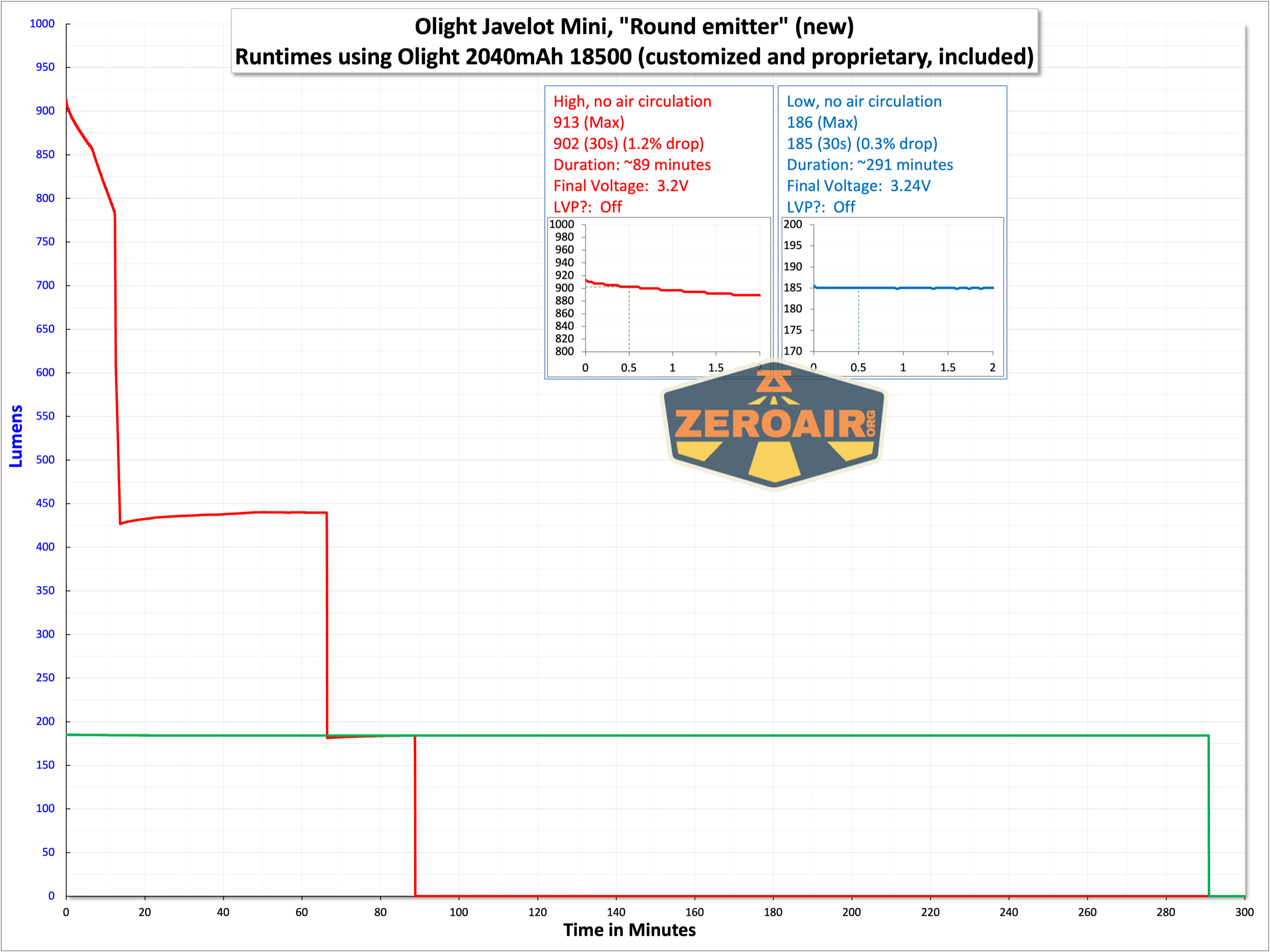

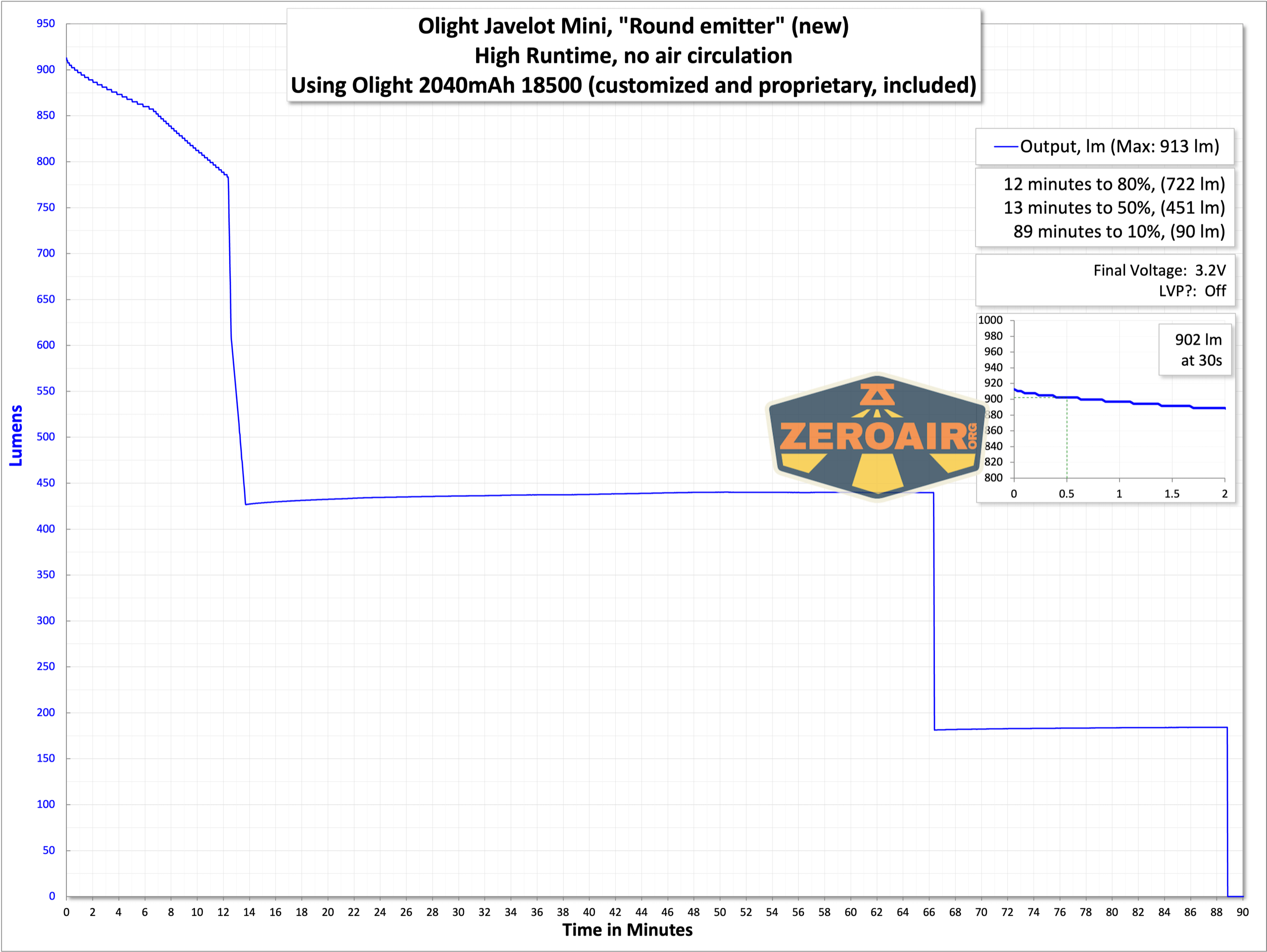

Olight Javelot Mini flashlight runtime graph

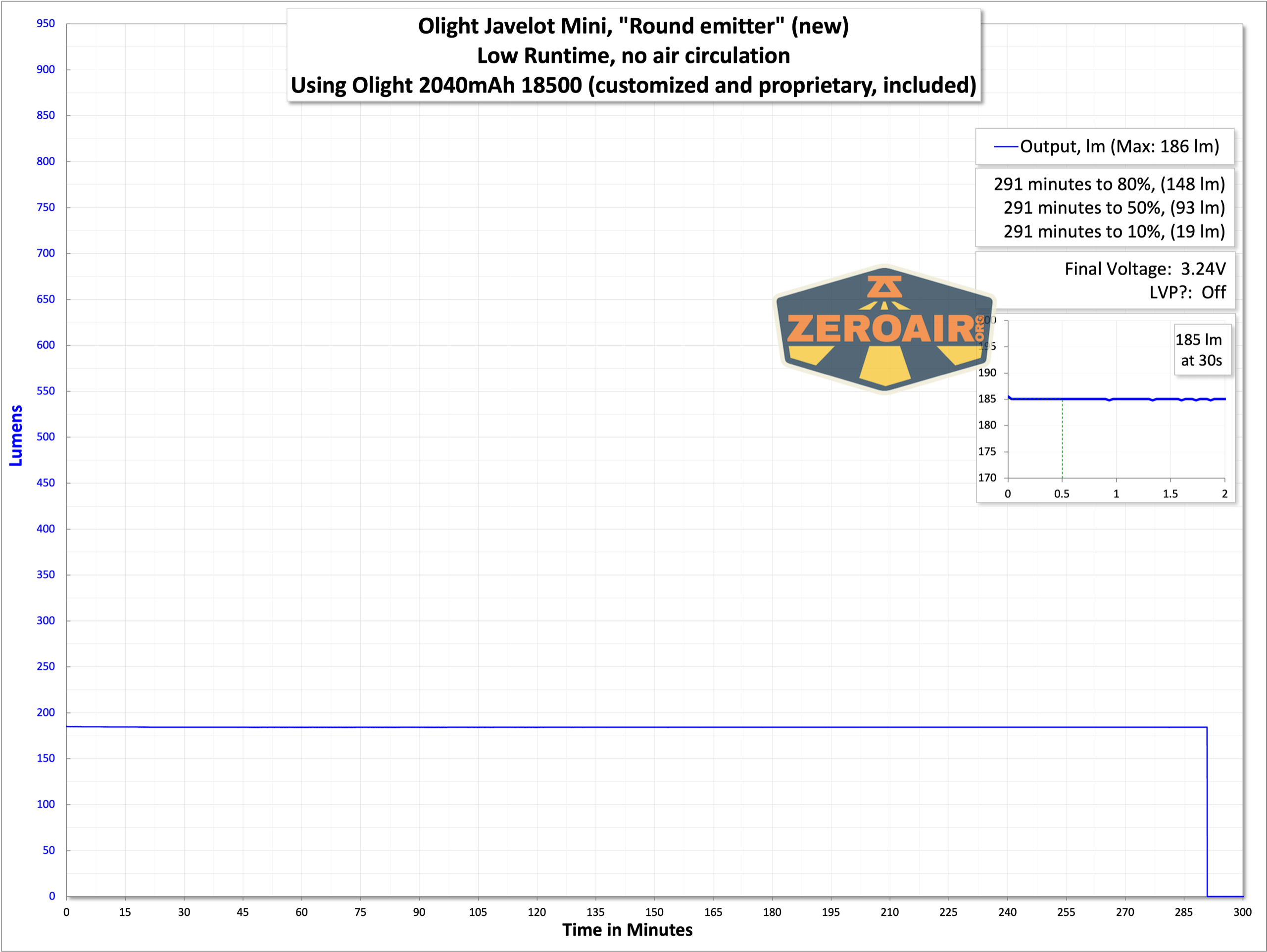

Olight Javelot Mini flashlight runtime graph

Olight Javelot Mini flashlight runtime graph

Another interesting design aspect of this Javelot Mini is that when the cell voltage gets low, the light buzzes! This feature works quite well, particularly when the switch is being actuated. If the light is off and you click to either mode, the whole Javelot Mini will buzz. The buzzes seem to indicate how low the cell voltage is – more buzzing means a lower cell.

Charging

Like many other Olights, the Olight Javelot Mini flashlight uses Olight’s very common proprietary magnetic charging connector.

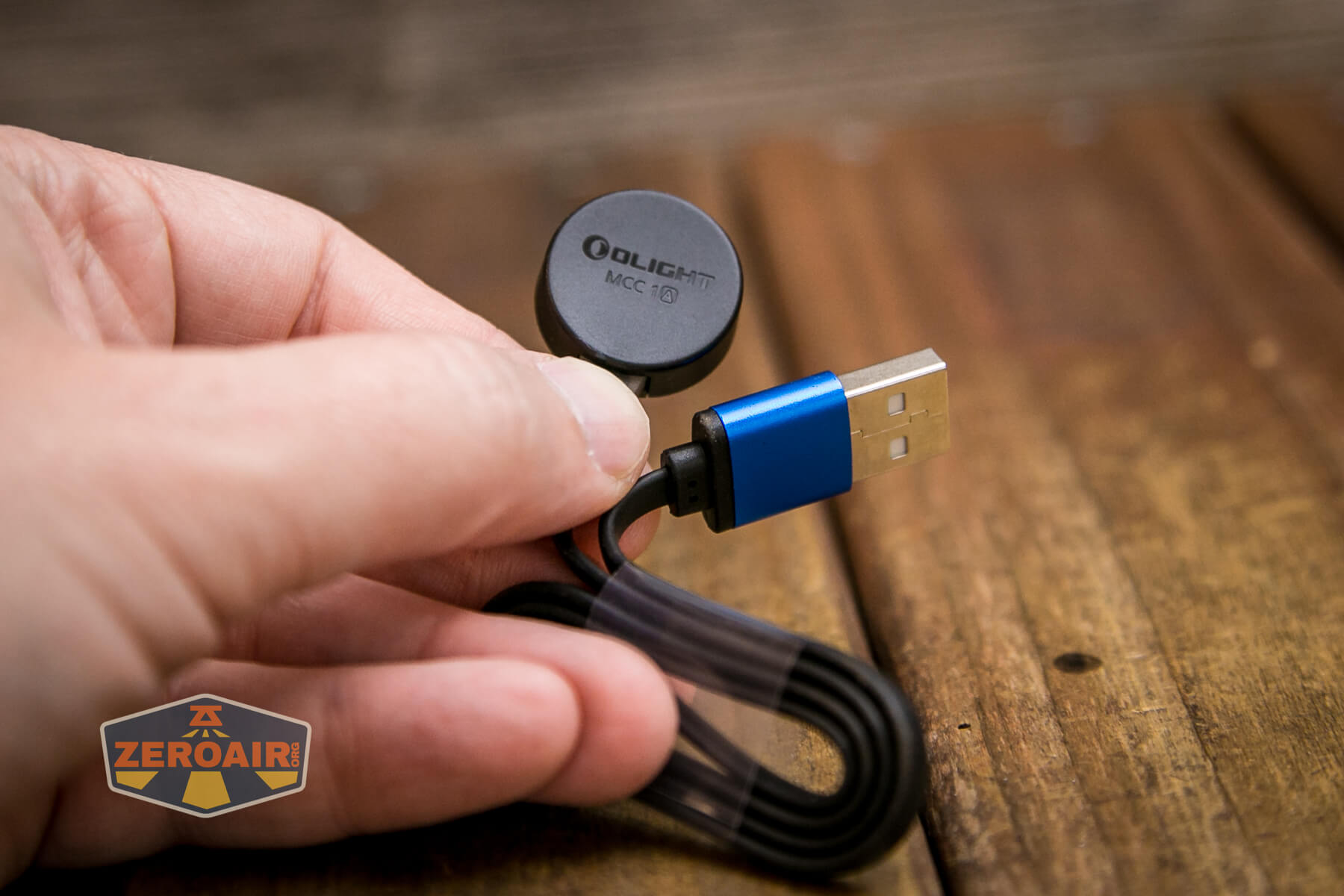

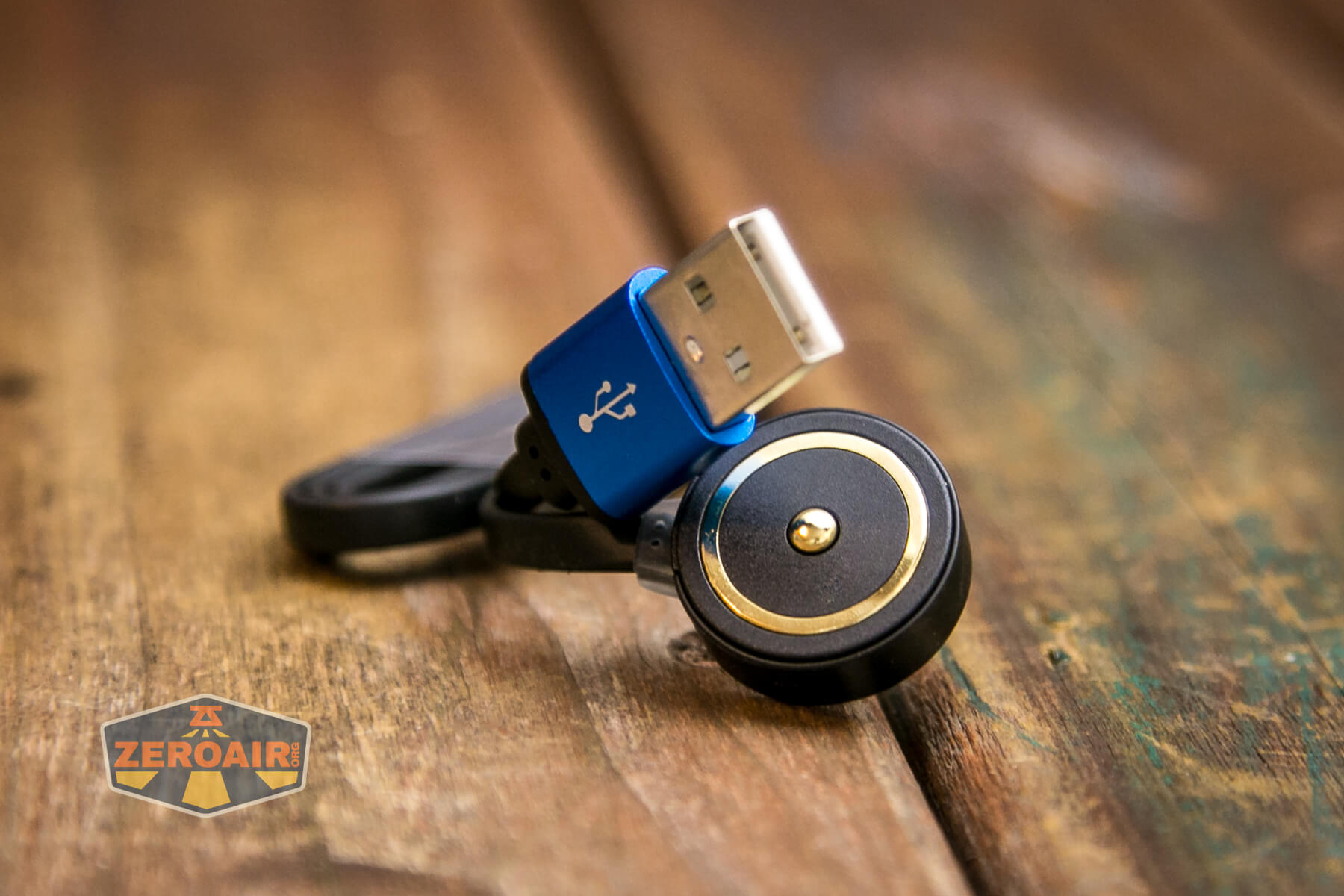

Olight Javelot Mini flashlight charger

This one does technically seem to be a little different though because it specifies only 1A charging. The other MCC chargers sometimes state 0.5A, 1A, and 2A. Maxing at 1A seems reasonable since this is a 2040mAh cell. Charging at 2A would mean 1C charging, which could be seen as “a little fast.”

Olight Javelot Mini flashlight charger

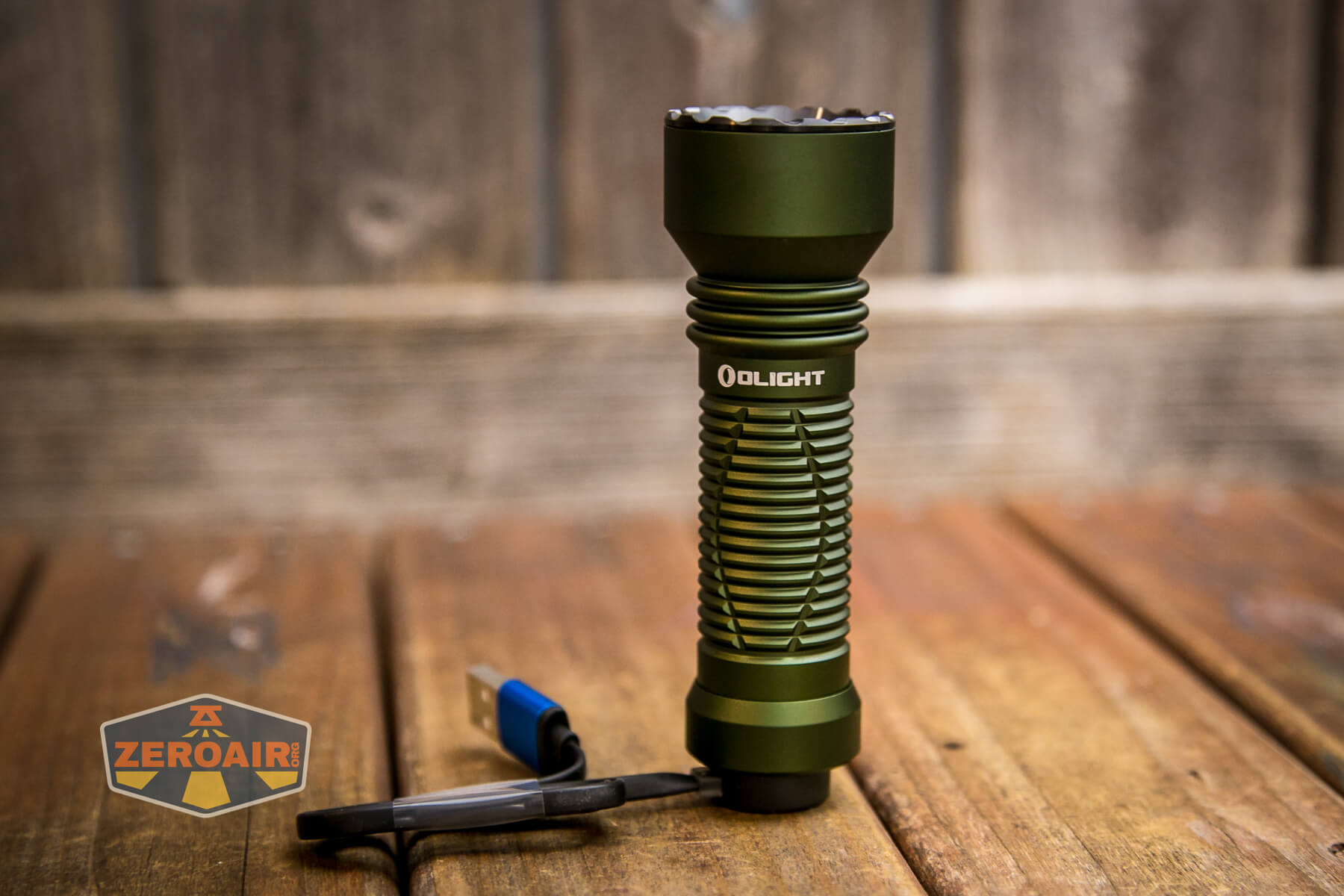

Olight Javelot Mini flashlight charger in use

Olight Javelot Mini flashlight charge base

The charging base is red when charging, and green when not being used or the cell is “completely charged.”  I noted in charge testing that the indicator on the charger would turn green before the trickle CV phase had stopped putting power into the cell.

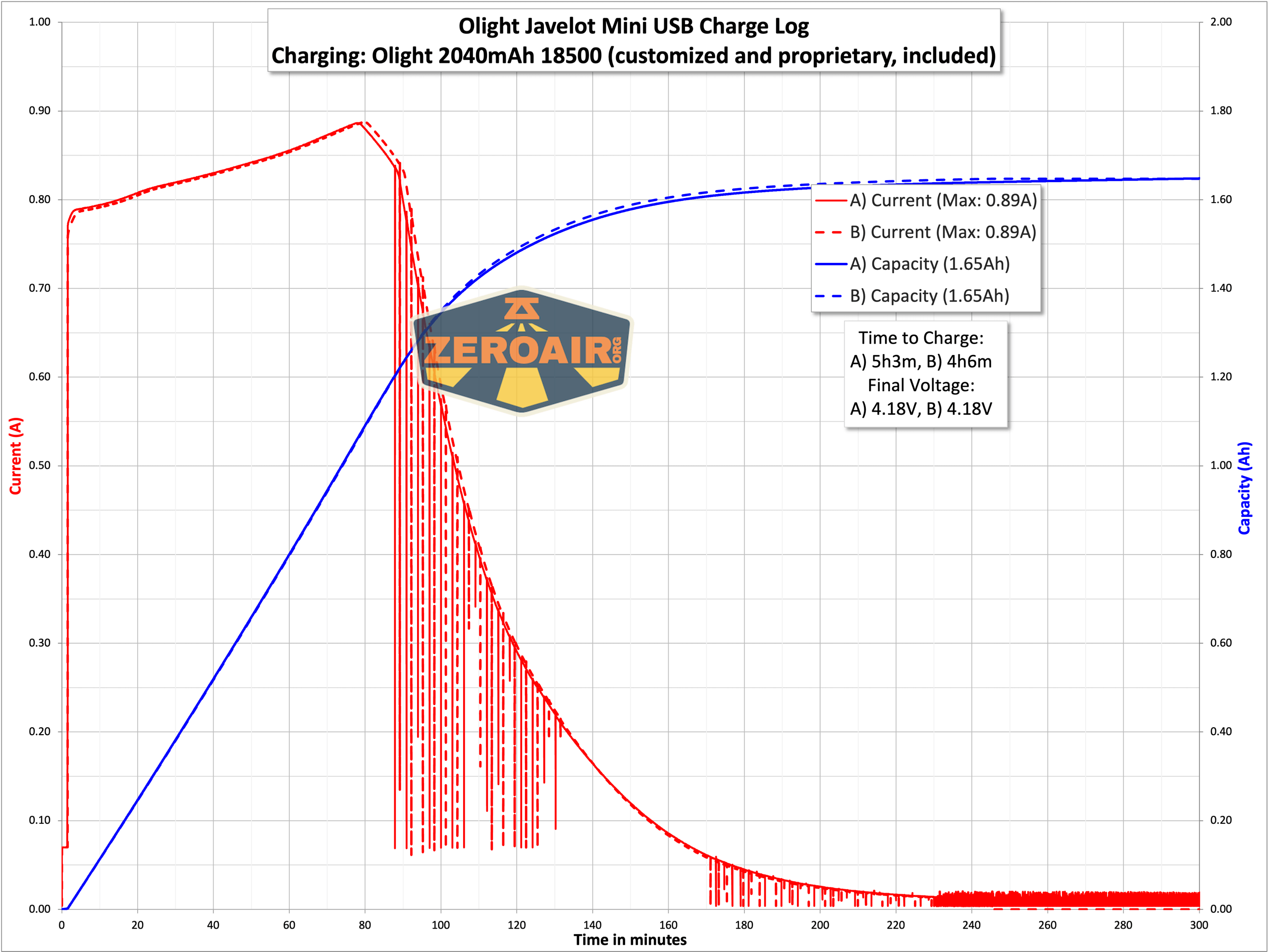

Olight Javelot Mini flashlight charging graph

Modes and Currents

Mode Mode Claimed Output (lm) Claimed Runtime Measured Lumens Tailcap Amps
High 1000\500\200 6.5m\78m\19m 902 ?
Low 200 297m 185 ?

Pulse Width Modulation

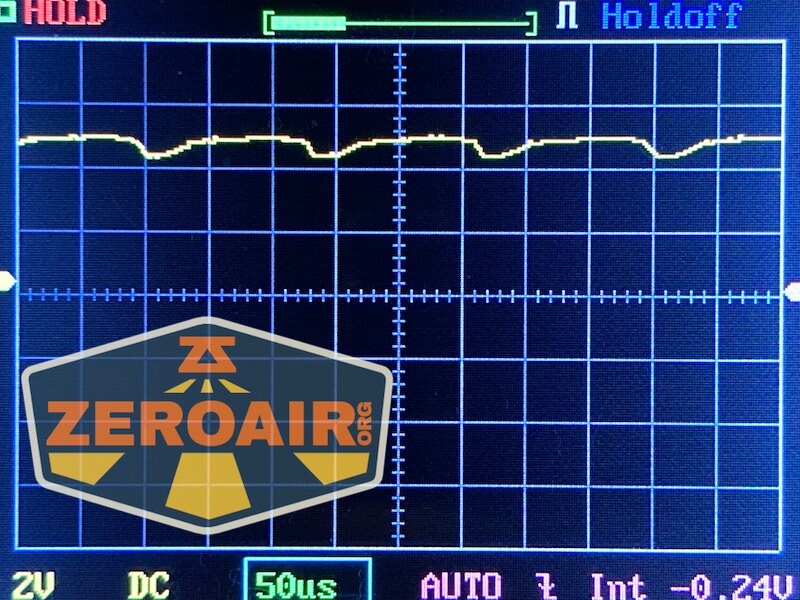

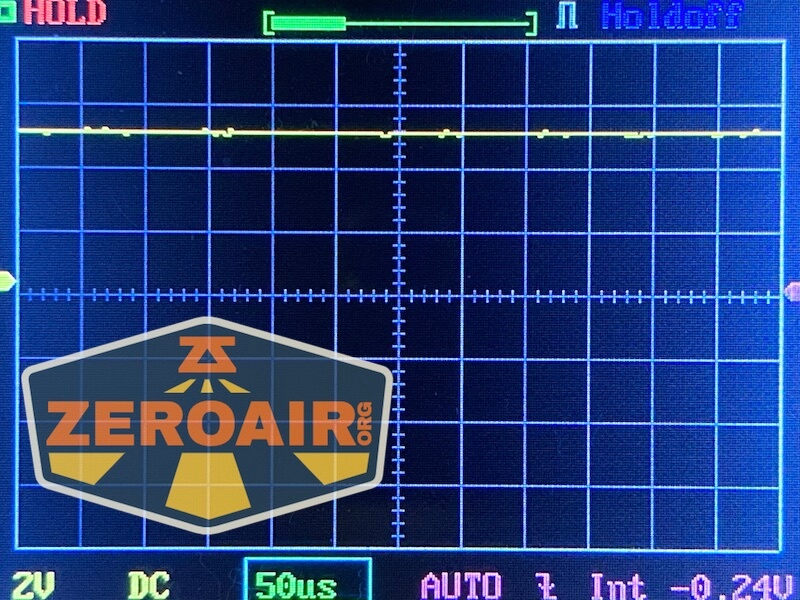

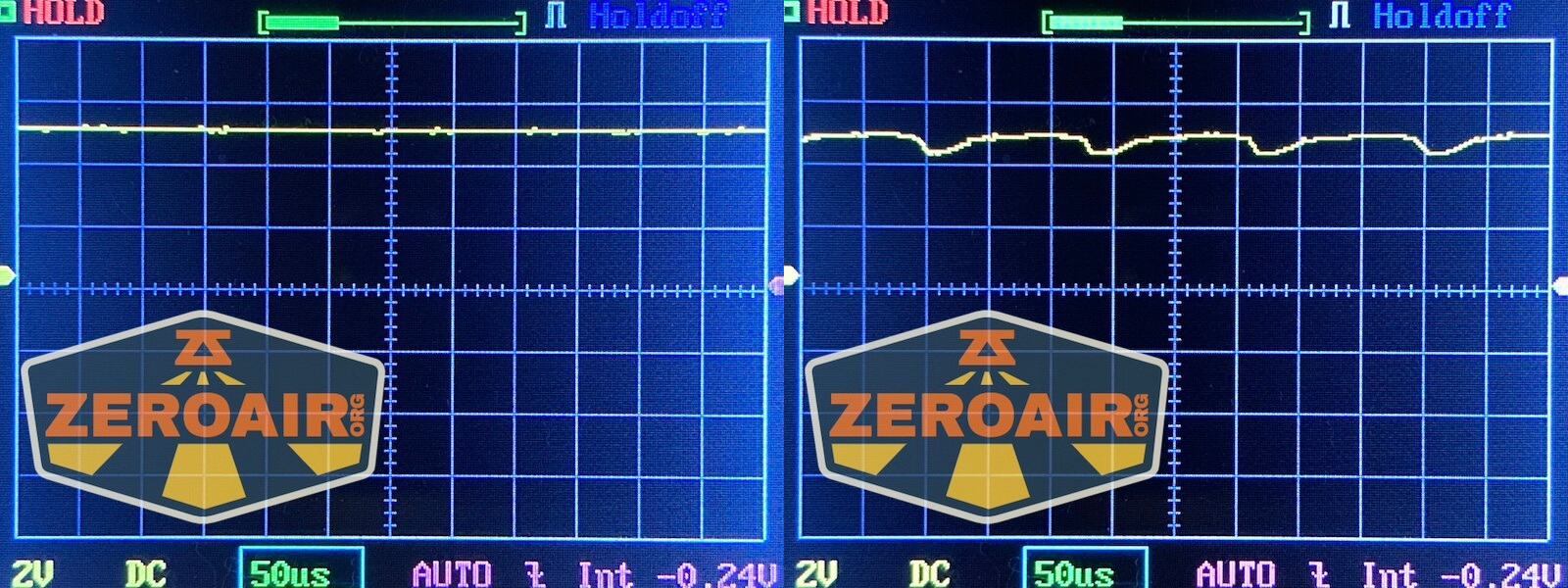

For reference, here’s a baseline shot, with all the room lights off and almost nothing hitting the sensor.  Also, here’s the light with the worst PWM I could find.  I’m adding multiple timescales, so it’ll be easier to compare to the test light.  Unfortunately, the PWM on this light is so bad that it doesn’t even work with my normal scale, with is 50 microseconds (50us).  10ms5ms2ms1ms0.5ms0.2ms.  In a display faster than 0.2ms or so, the on/off cycle is more than one screen, so it’d just (very incorrectly) look like a flat line.  I wrote more about this Ultrafire WF-602C flashlight and explained a little about PWM too.

User Interface and Operation

Just one switch is used for controlling the Olight Javelot Mini flashlight, and it’s a metal tail switch. The switch has two stages of activation, and also is used in charging.

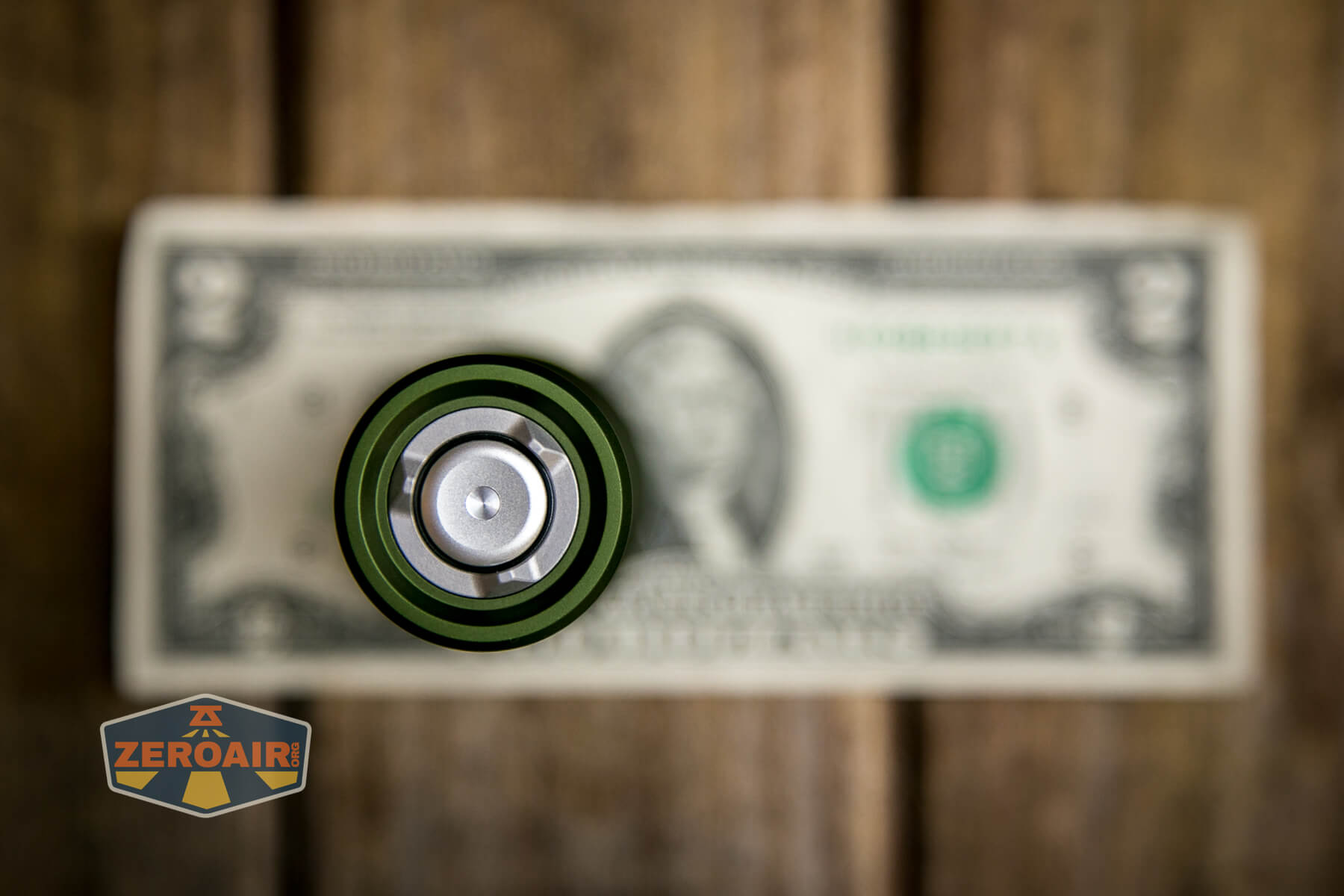

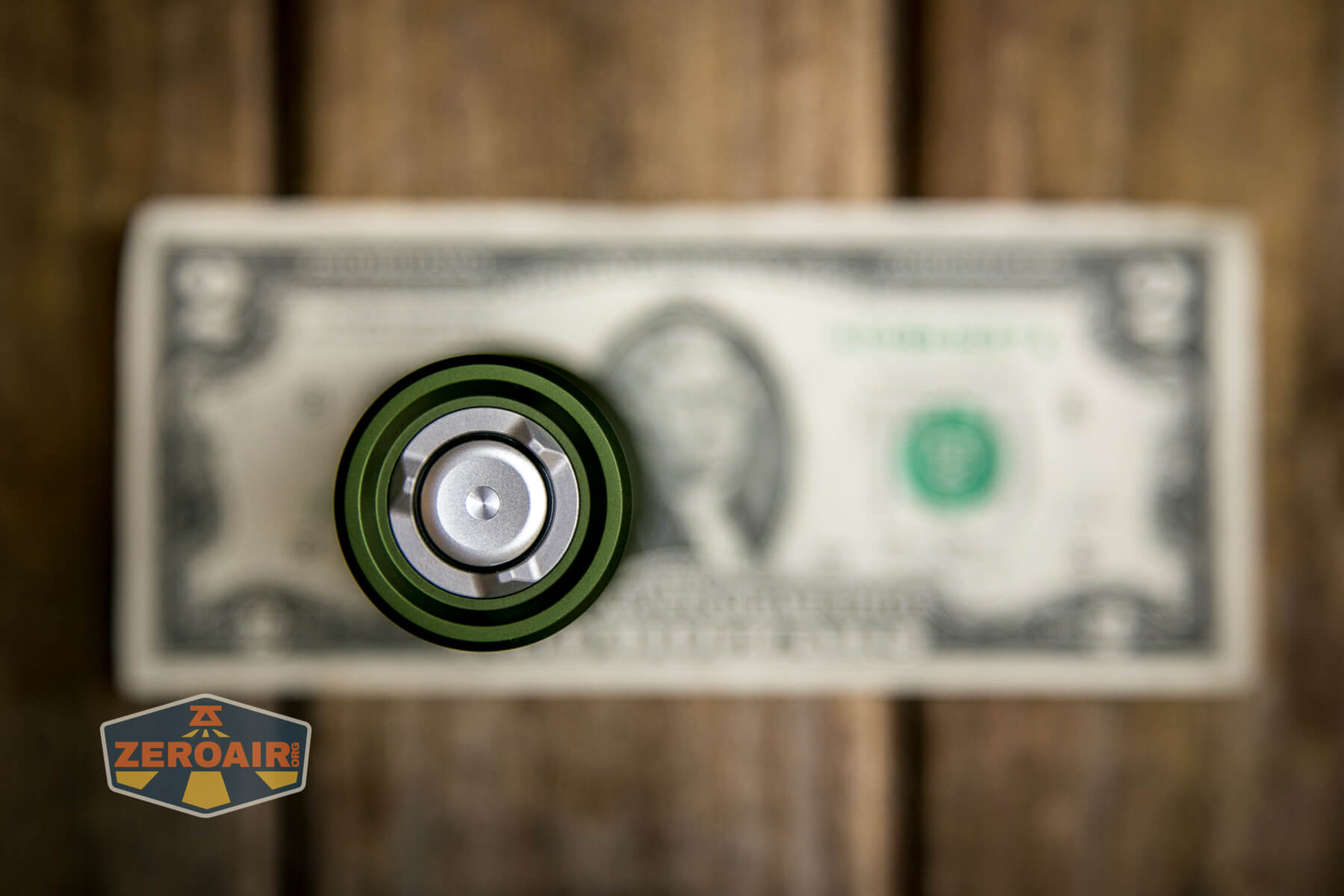

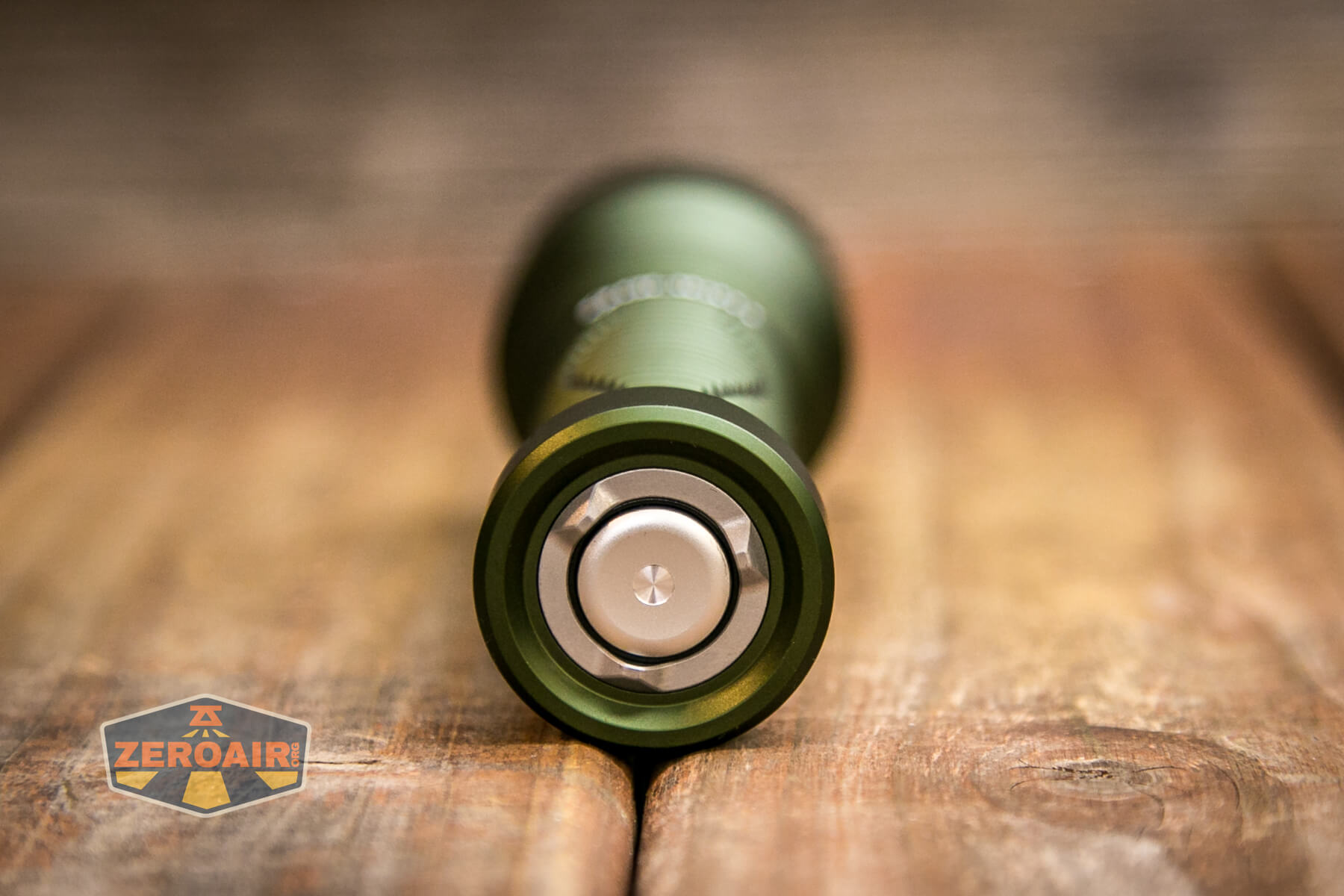

Olight Javelot Mini flashlight dual stage switch

There’s a bit less reveal on this switch than on many similar switches, I think.

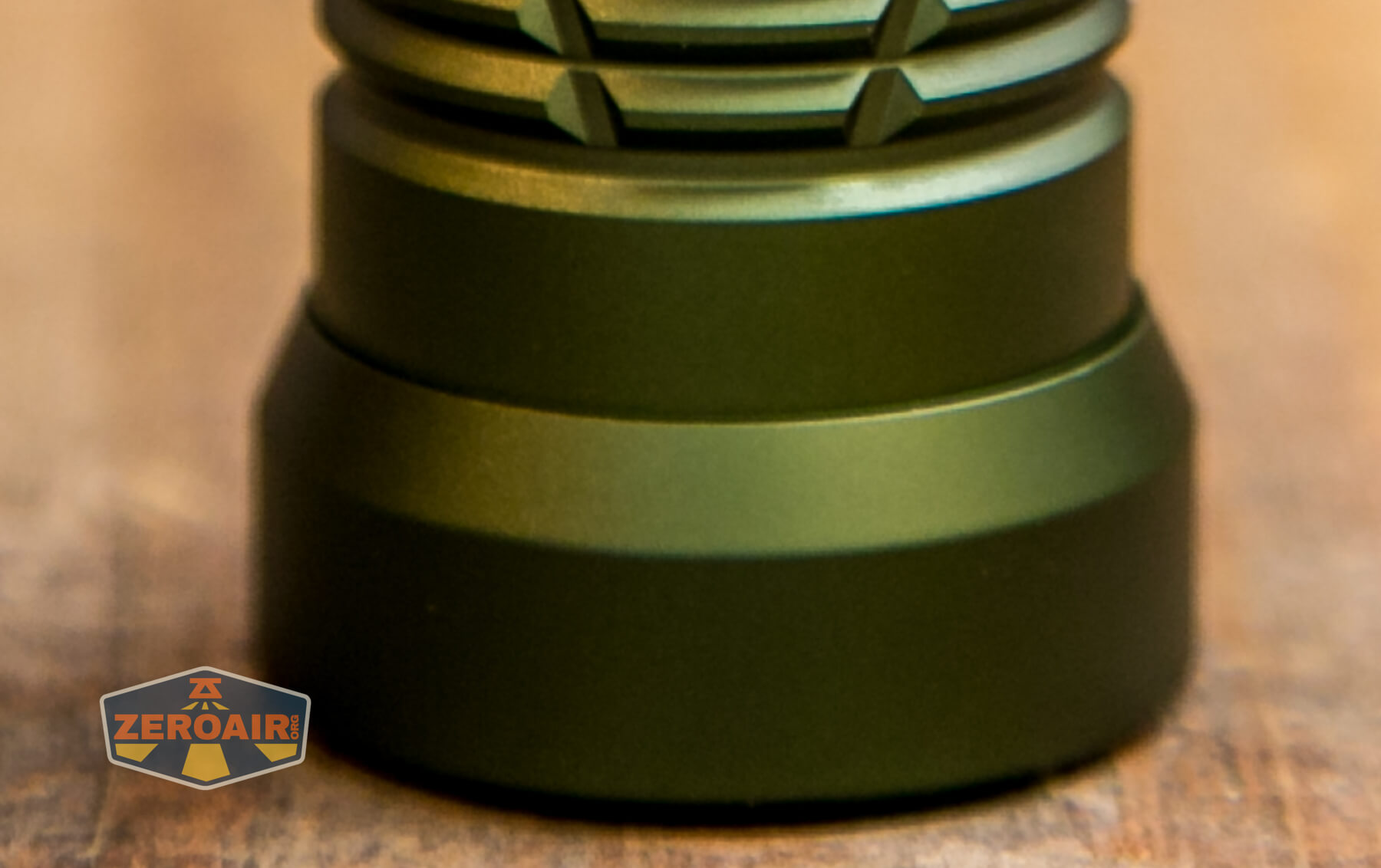

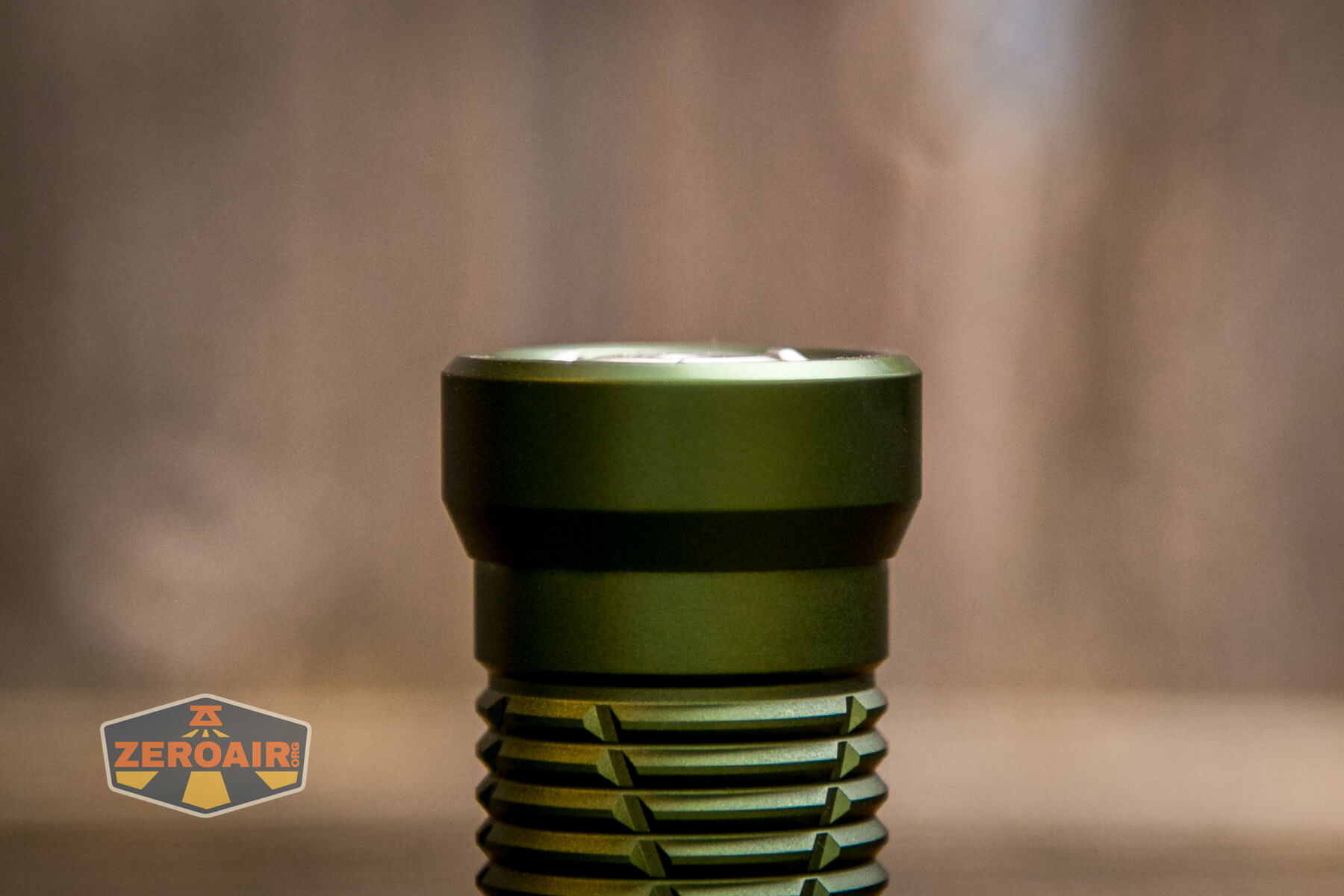

Olight Javelot Mini flashlight switch profile

The actuation, though, is entirely standard for this type of switch by Olight. I am a huge fan of this switch, for what it’s worth.

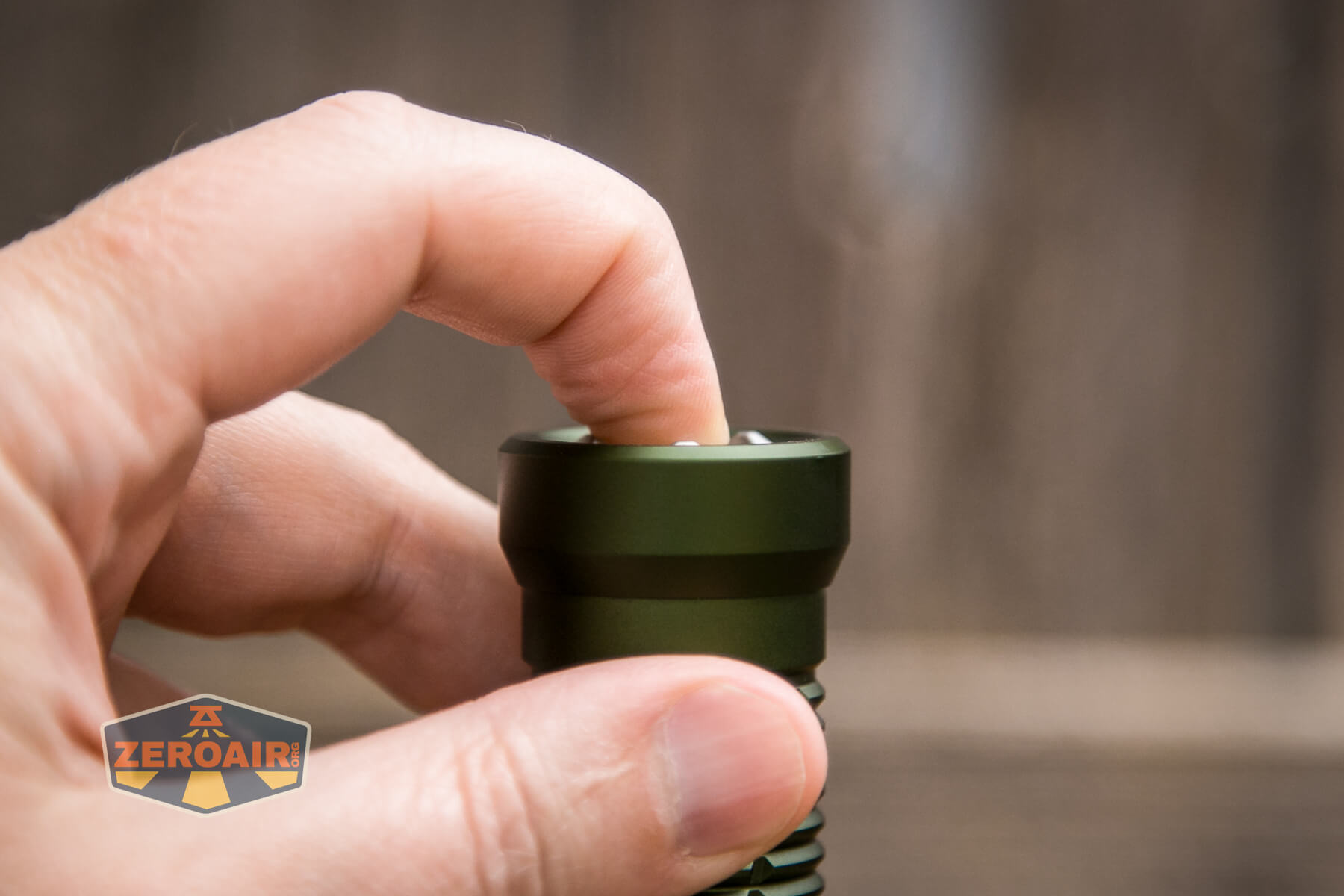

Olight Javelot Mini flashlight switch actuation

Here’s a UI table!

State Action Result
Off Shallow click Low
Off Deep click High
Off Shallow hold Momentary Low
Off Deep hold Momentary High
On Click Off

LED and Beam

This emitter is something new (or at least “newish”).  I don’t know the brand, but it’s one I’ve seen in a Nextorch model before – the P82. Nextorch claims to have developed this (maybe “in conjunction with” some other brands) but either way, Olight’s using it here in the Javelot Mini!

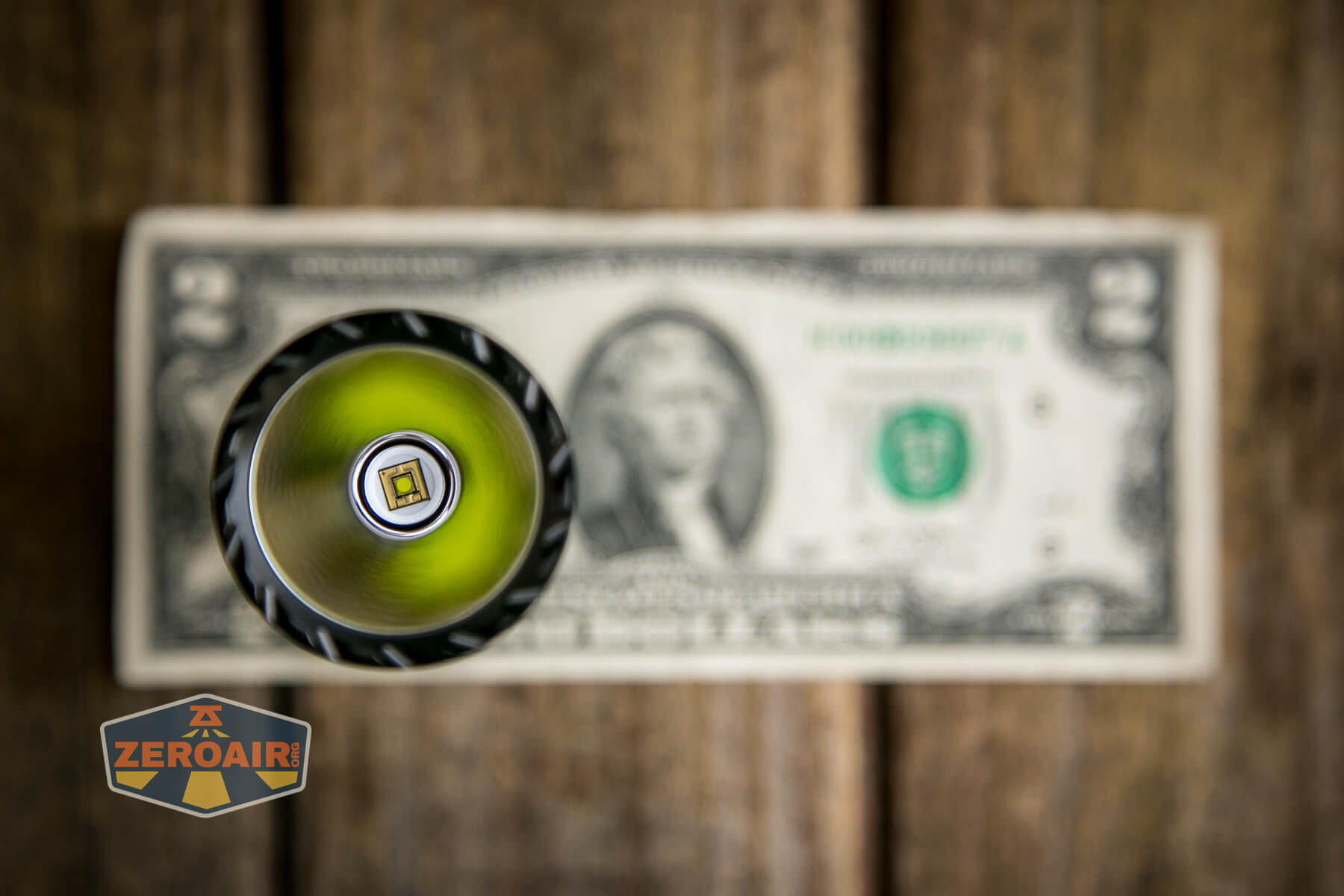

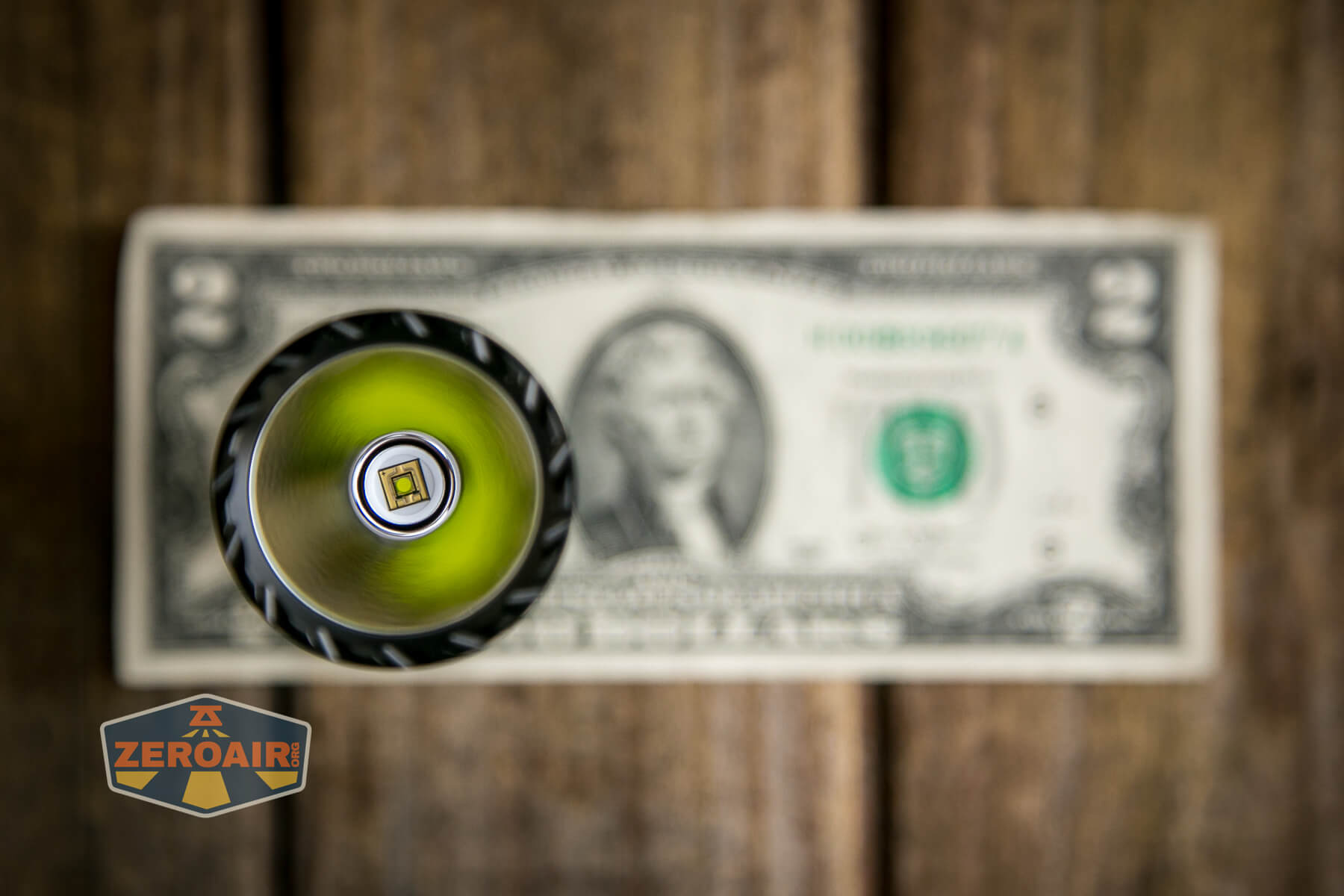

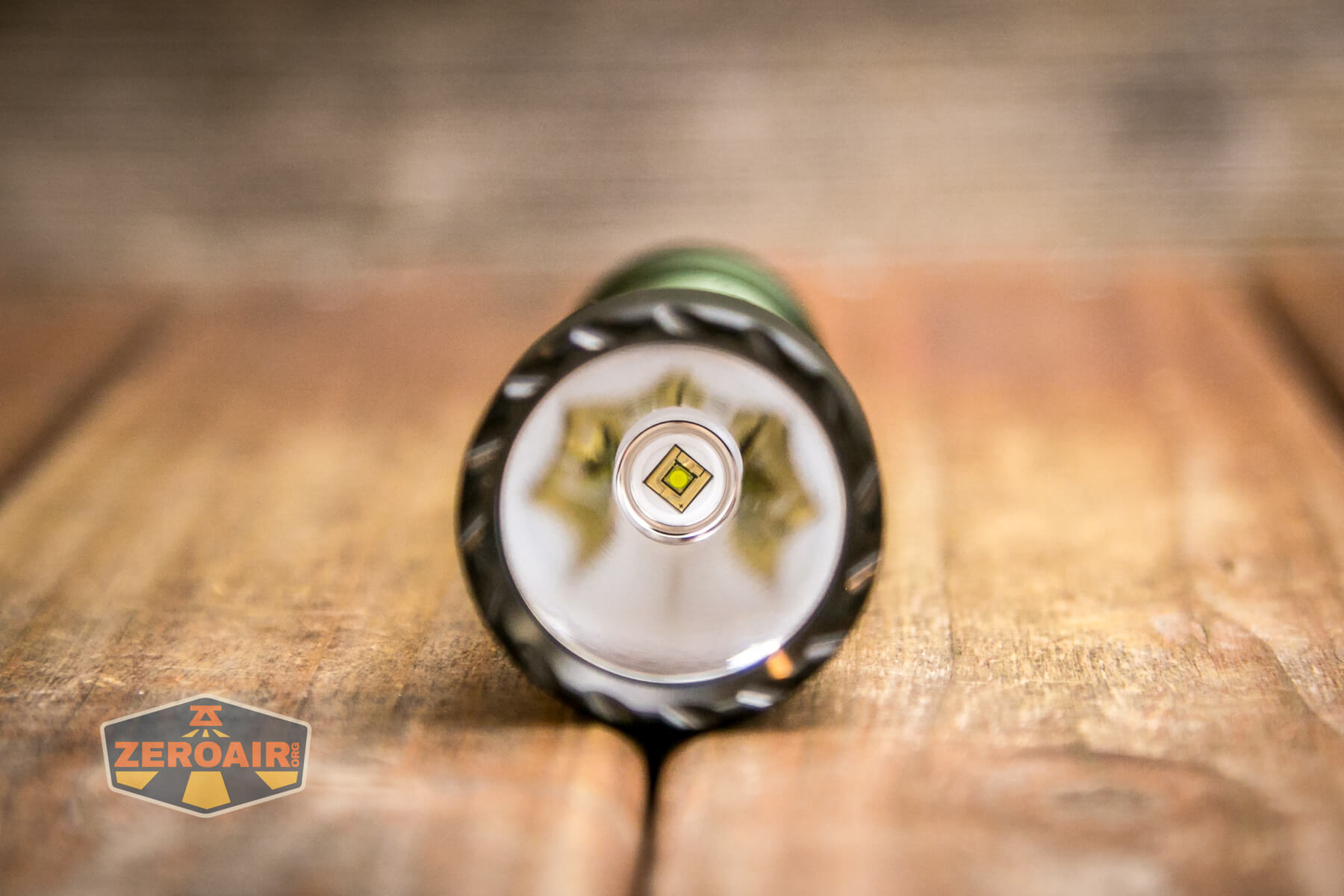

Olight Javelot Mini flashlight emitter

That emitter is coupled with a nice smooth and fairly large reflector.

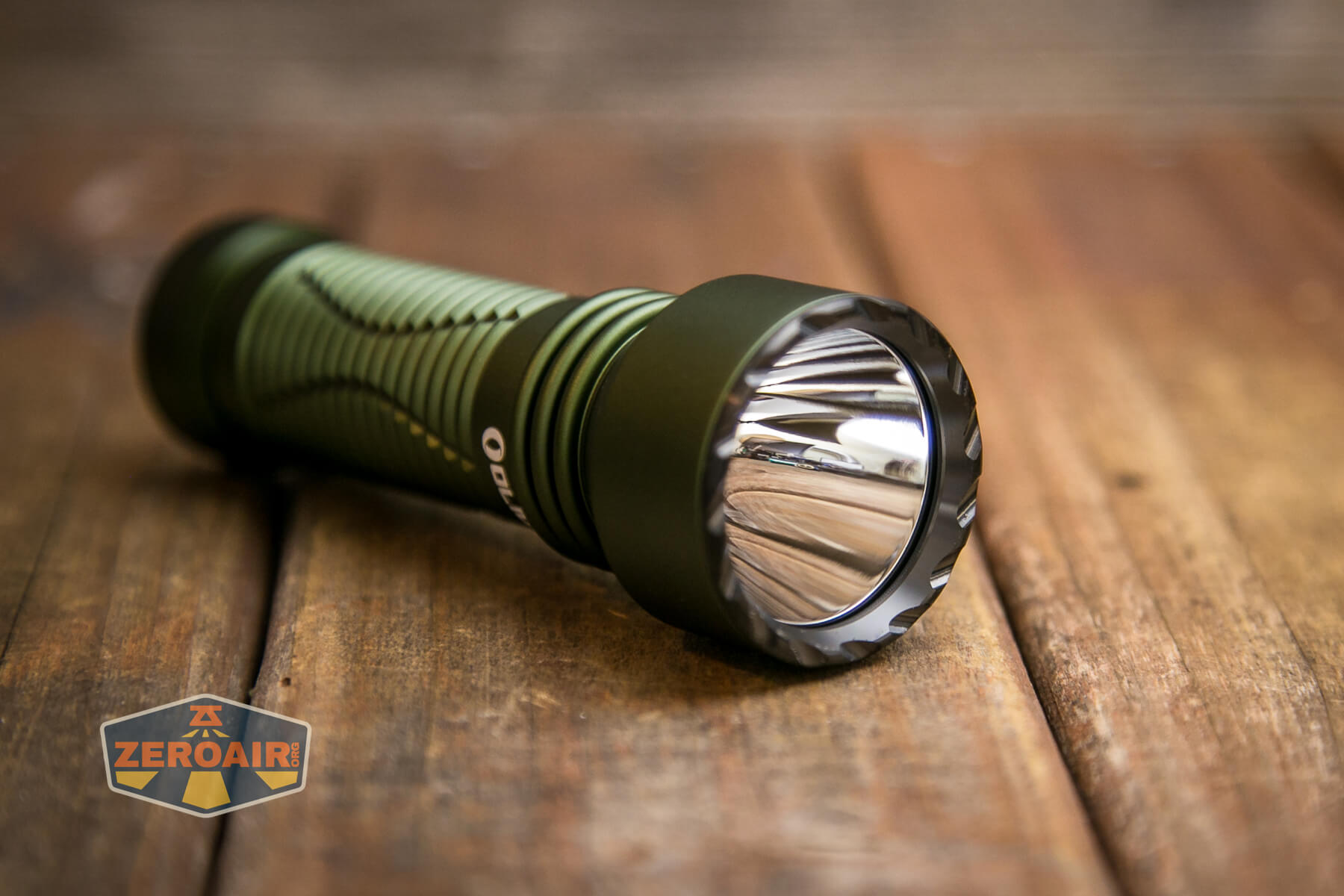

Olight Javelot Mini flashlight reflector

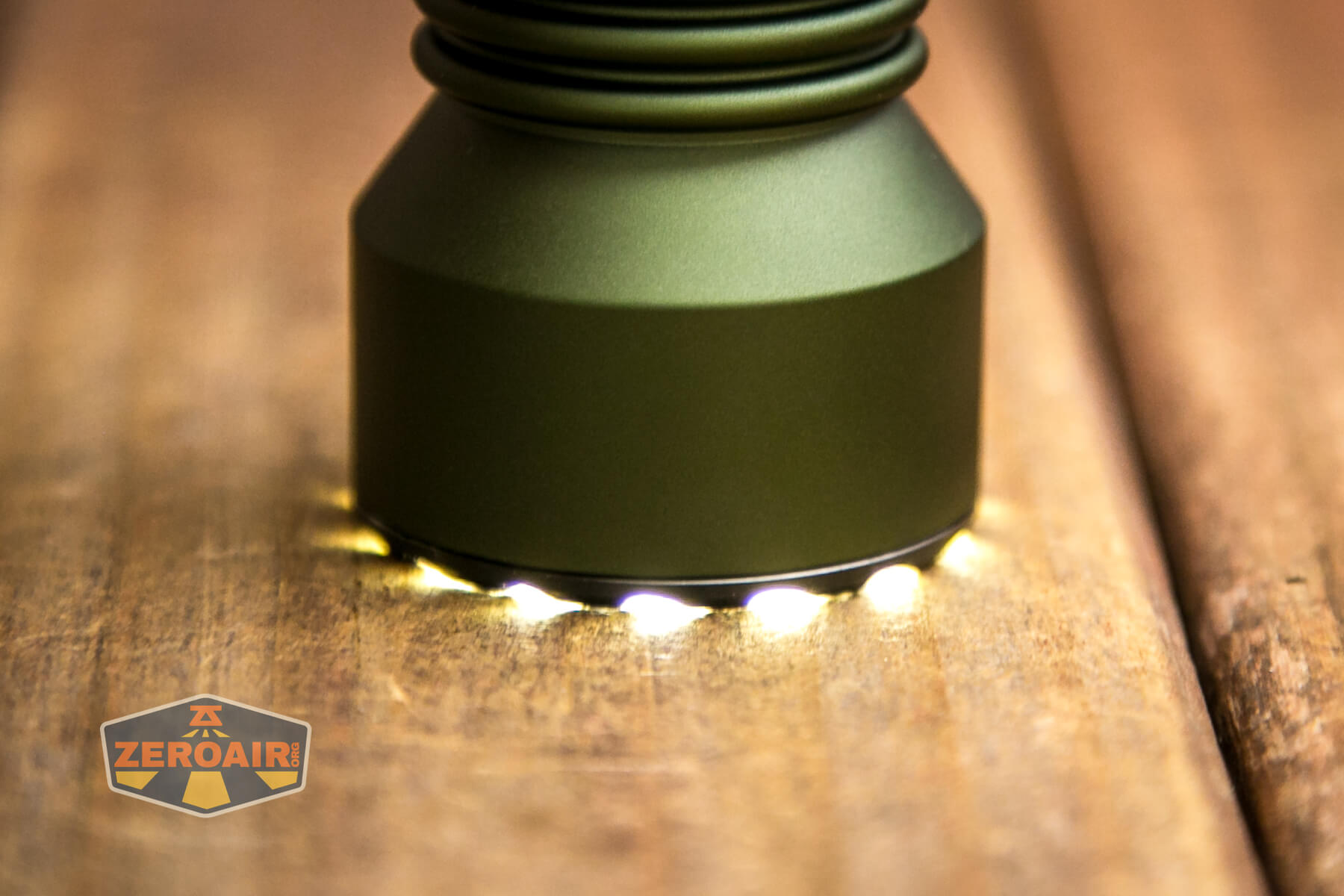

The sawtooth bezel allows light out when headstanding.

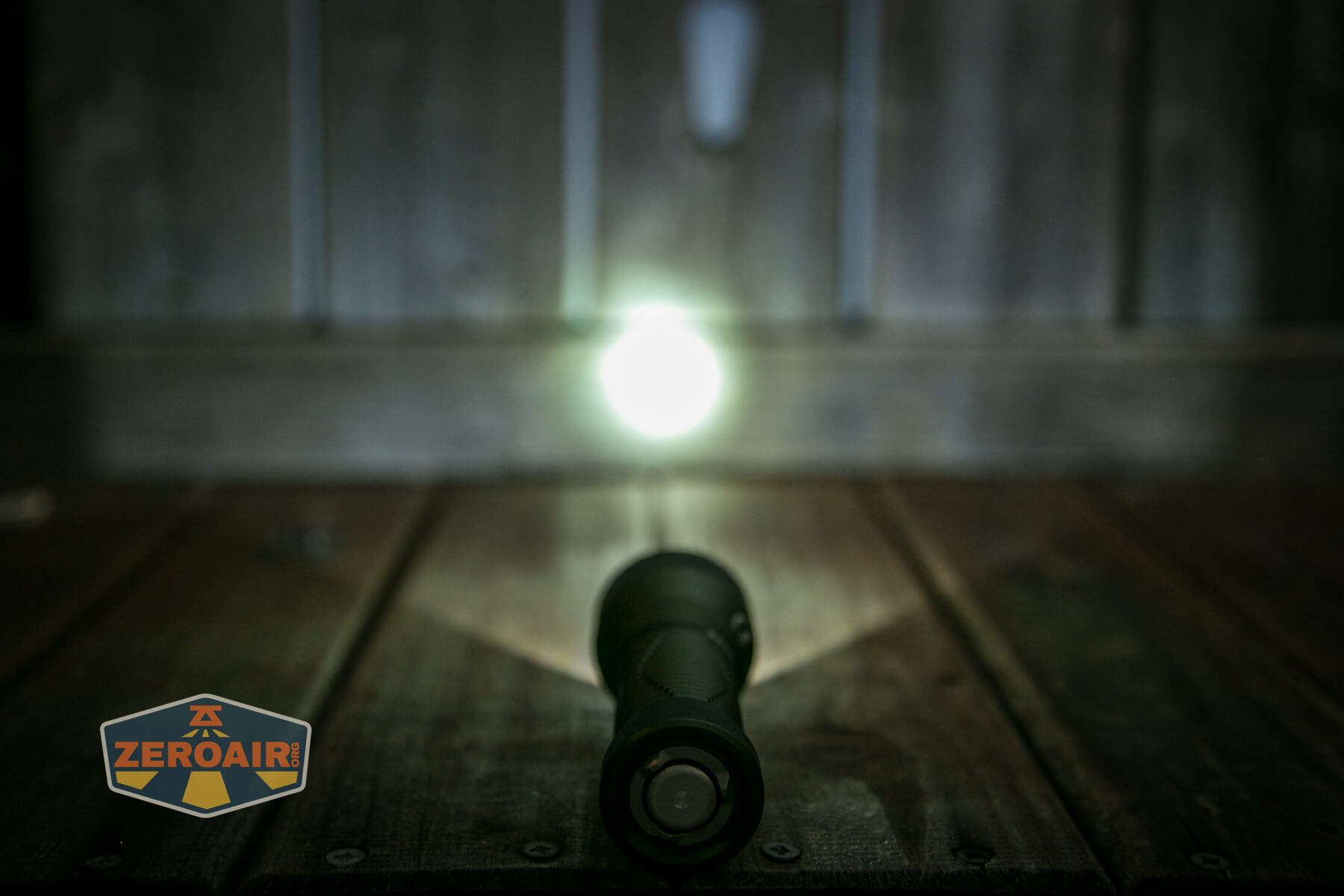

Olight Javelot Mini flashlight emitter on

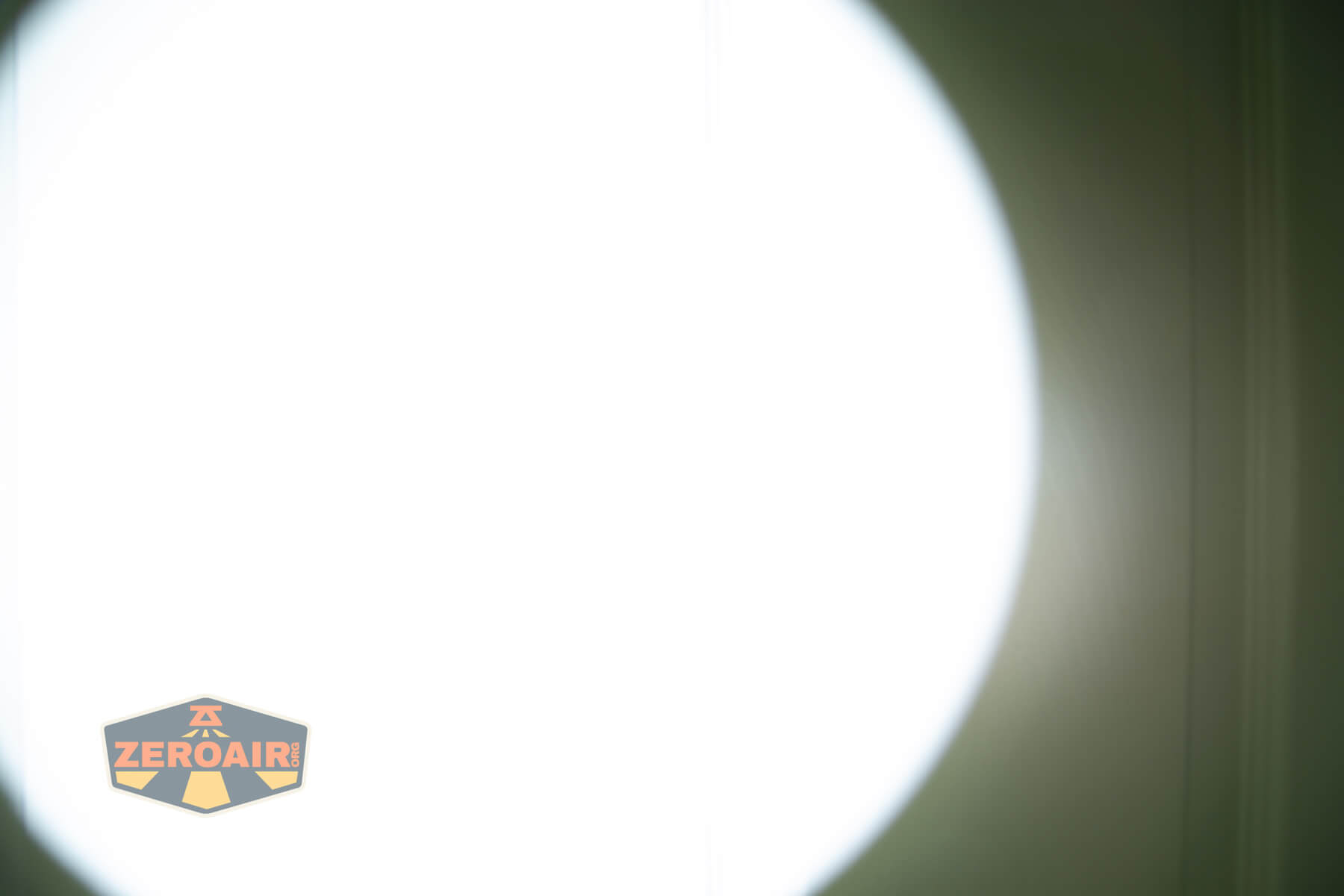

The beam profile is very tight! One great thing about this emitter is that the emitting surface is a circle, and that translates into beam profile too – square emitters don’t really “look square” but this circular emitter certainly has a more circular beam profile! It’s very good.

Olight Javelot Mini flashlight emitter on

LED Color Report (CRI and CCT)

I’ll get these readings in a bit, but I wouldn’t expect them to be much (if any) different than what we see on the Nextorch P82. As stated there:

This unknown and new emitter has a profile that you might expect from a new emitter. Fairly cool (which is typically the first version of any emitter that’s released, it seems) at around 6200-6450K and low CRI at around 65.

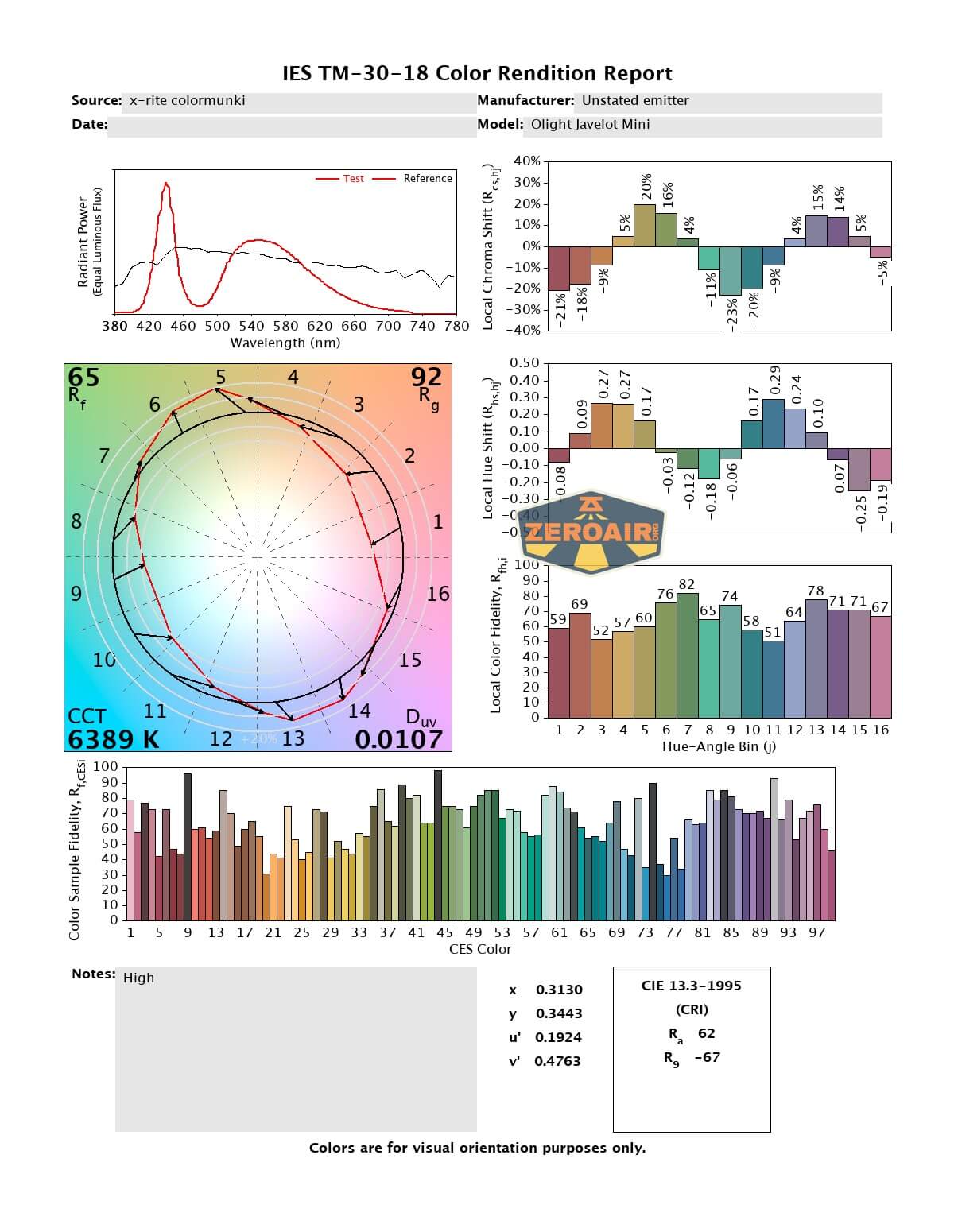

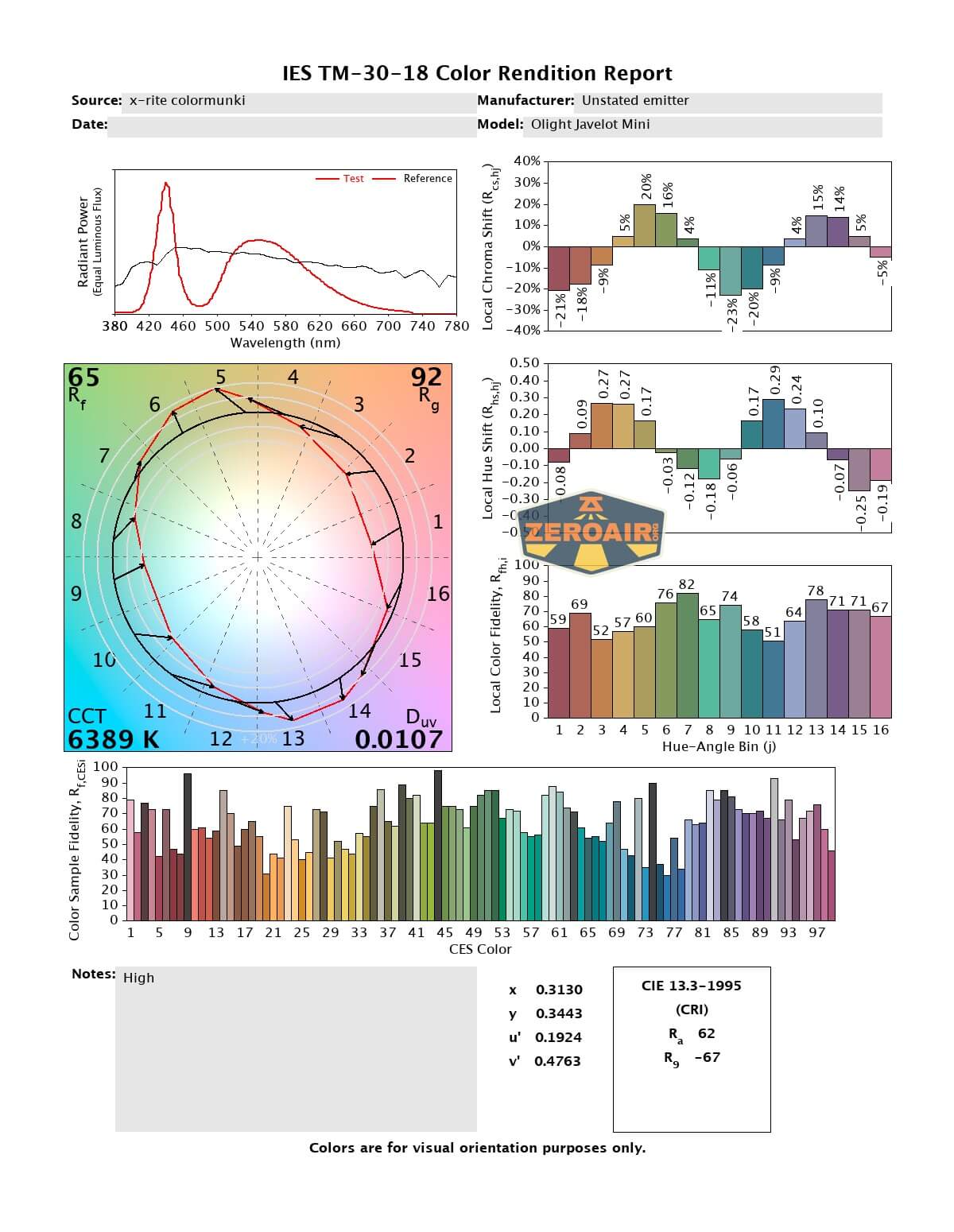

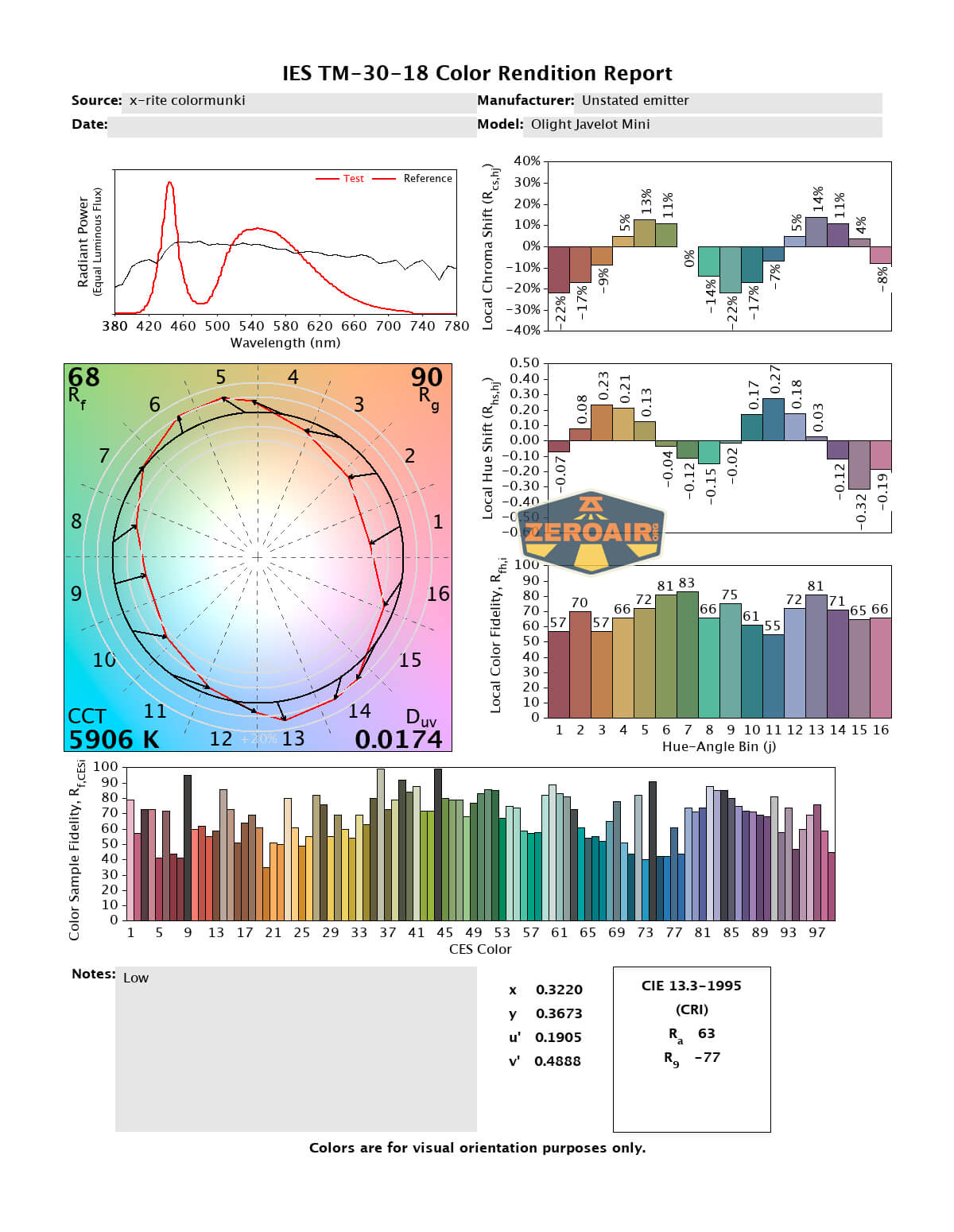

Here’s the CRI and CCT report for the two modes of the Javelot Mini:

Beamshots

These beamshots are always with the following settings:  f8, ISO100, 0.3s shutter, and manual 5000K exposure.

Tint vs BLF-348 (KillzoneFlashlights.com 219b version) (affiliate link)

I keep the test flashlight on the left, and the BLF-348 reference flashlight on the right.

I compare everything to the KillzoneFlashlights.com 219b BLF-348 because it’s inexpensive and has the best tint!

Conclusion

What I like

  • Complete package
  • Great beam profile
  • Very simple user interface
  • These two-stage switches by Olight are fantastic
  • Charging works great
  • Don’t sleep on the flashlighty nature of this light!!
  • Buzzing feature for low voltage indication

What I don’t like

  • Proprietary charging
  • Customized and proprietary 18500 cell
  • No pocket clip
