The Weltool T1 Pro is a flashlight using a single 14500 (or AA) cell. It has a Cree XPP emitter and smooth reflector for great throw! Read on!


Official Specs and Features

Here’s a link to the Weltool T1 Pro flashlight product page.

Versions

I believe there’s just one version of the Weltool T1 Pro flashlight.

Price

KillzoneFlashlights.com has the Weltool T1 Pro flashlight in stock now and it’s available for $54.


Short Review

I really love 14500-sized lights and this is a great example of one that sort of “punches outside its category” – it’s very throwy! I like unexpected things, so this tiny light having great throw is a great surprise. The build quality is great (which I’ve come to expect from Weltool). I do not like the way to access low mode, but I can overlook that. Support for both AA (or “1.5V”) cells as well as (the included) lithium-ion 14500 cell is fantastic.

Long Review

The Big Table

Weltool T1 Pro “Little Duke” Flashlight
Emitter: Cree XPP (5700K)
Price in USD at publication time: $54.00 at killzoneflashlights.com
Cell: 1×14500
High runtime Graph Medium Runtime Graph
LVP? Yes
Switch Type: Mechanical
On-Board Charging? Yes
Charge Port Type: USB-C (on cell)
Charge Graph
Power off Charge Port
Claimed Lumens (lm) 540
Measured Lumens (at 30s) 431 (79.8% of claim)^
Candela per Lumen 0
Claimed Throw (m) 290
Candela (Calculated) in cd (at 30s) 689lux @ 5.078m = 17767cd
Throw (Calculated) (m) 266.6 (91.9% of claim)^
Claimed CCT 5700
Measured CCT Range (K) 5300-5900 Kelvin
Item provided for review by: KillzoneFlashlights.com
All my Weltool reviews!
Weltool T1 Pro “Little Duke” Flashlight
Emitter: Cree XPP (5700K)
Price in USD at publication time: $54.00 at killzoneflashlights.com
Cell: 1xAA
High Runtime Graph Medium Runtime Graph
LVP?
Switch Type: Mechanical
On-Board Charging? No
Claimed Lumens (lm) 160
Measured Lumens (at 30s) 140 (87.5% of claim)^
Candela per Lumen 0
Claimed Throw (m) 152
Candela (Calculated) in cd (at 30s) 226lux @ 5.118m = 5920cd
Throw (Calculated) (m) 153.9 (101.3% of claim)^
Claimed CCT 5700
Measured CCT Range (K) 5200-5600 Kelvin
Item provided for review by: KillzoneFlashlights.com
All my Weltool reviews!

^ Measurement disclaimer:  I am an amateur flashlight reviewer.  I don’t have $10,000 or even $1,000 worth of testing equipment.  I test output and such in PVC tubes!!  Please consider claims within 10% of what I measure to be perfectly reasonable (accurate, even).

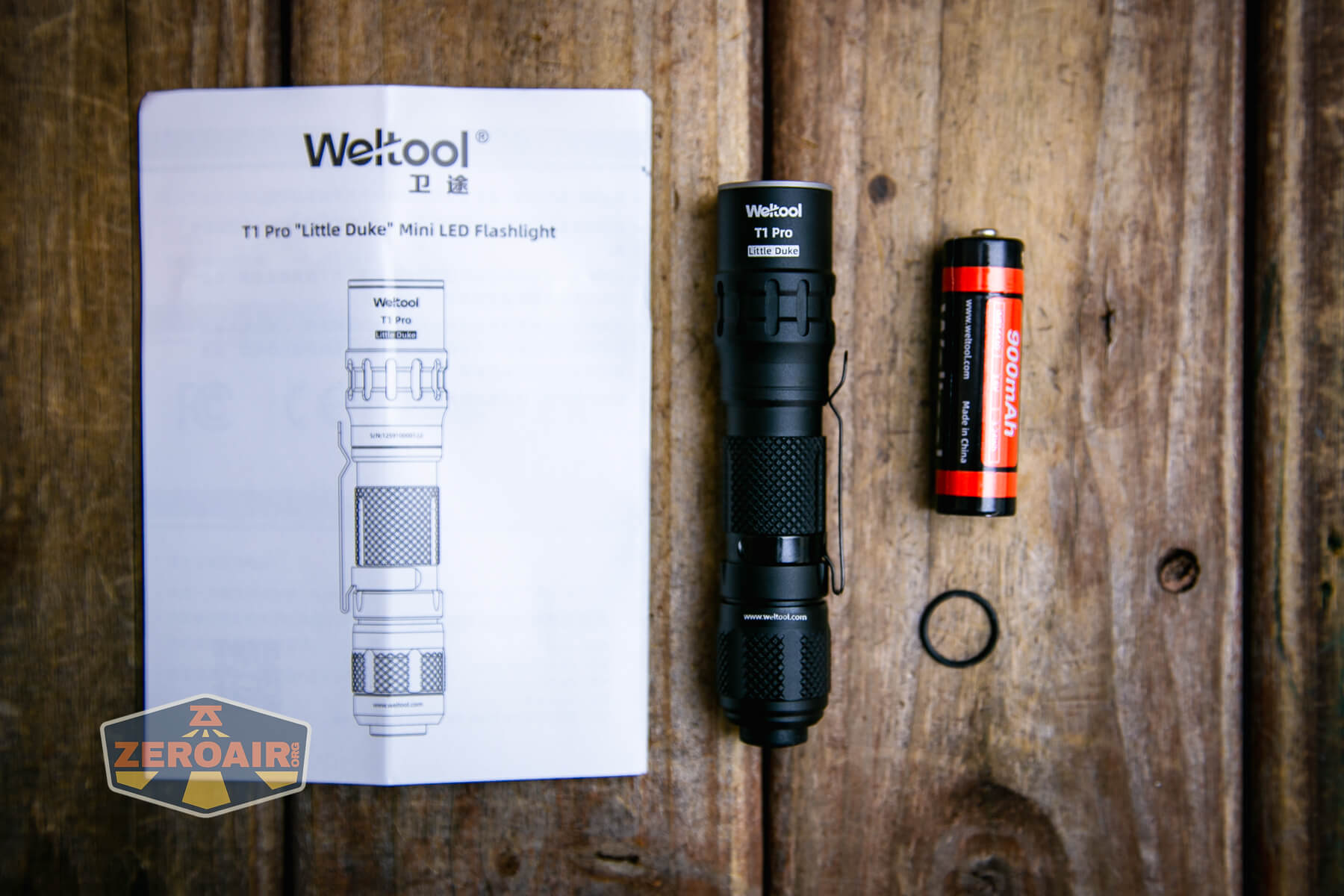

What’s Included

Weltool T1 Pro flashlight what's included

  • Weltool T1 Pro flashlight
  • Weltool 900mAh 14500
  • Spare o-ring
  • Manual

Package and Manual

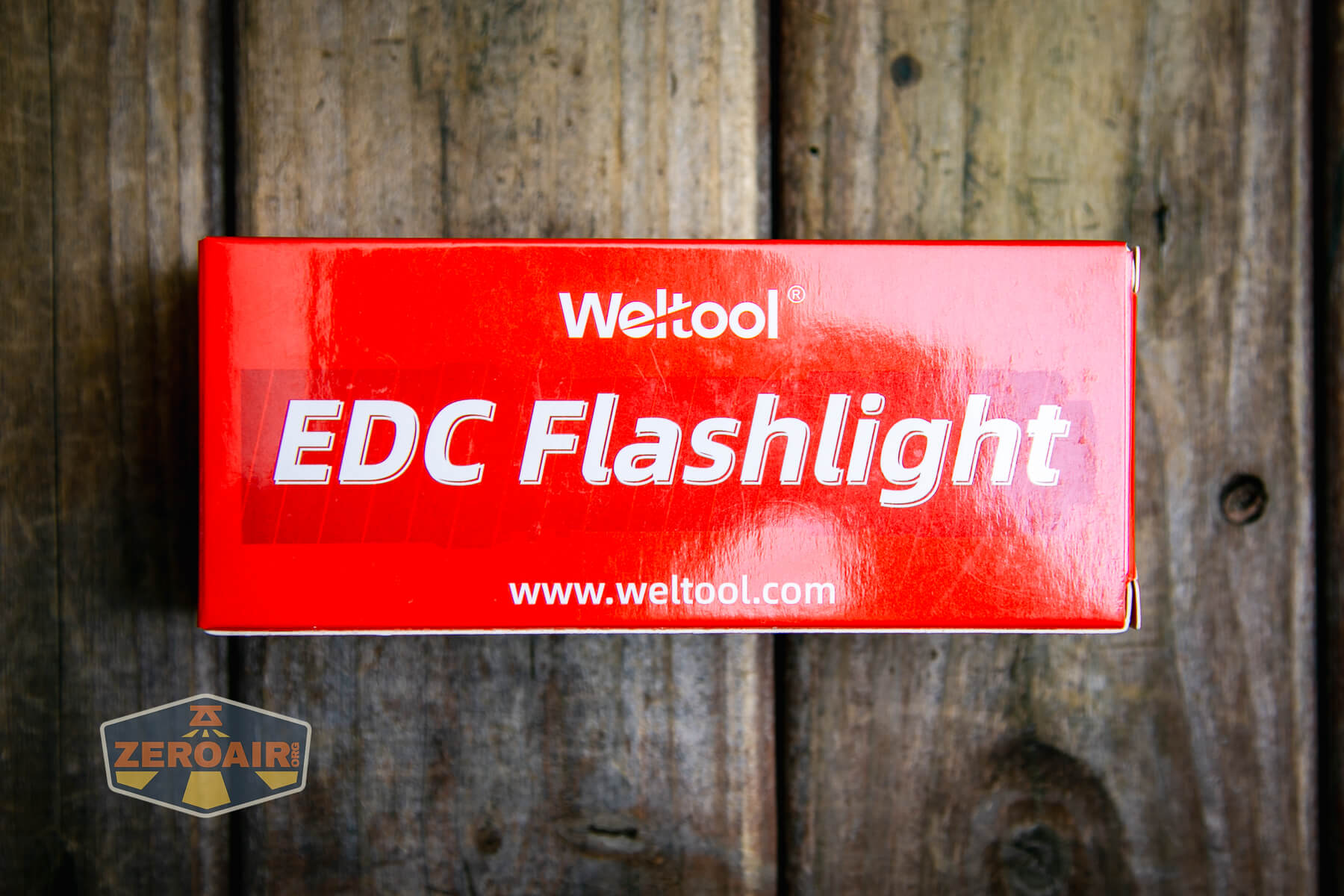

Weltool T1 Pro flashlight box

Weltool T1 Pro flashlight box

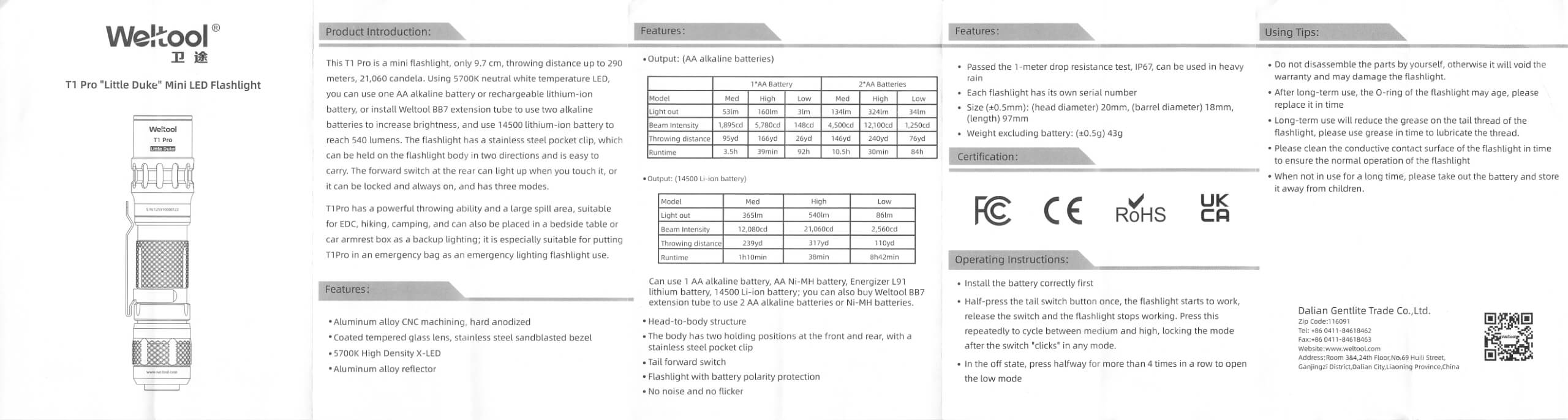

Weltool T1 Pro flashlight manual

Build Quality and Disassembly

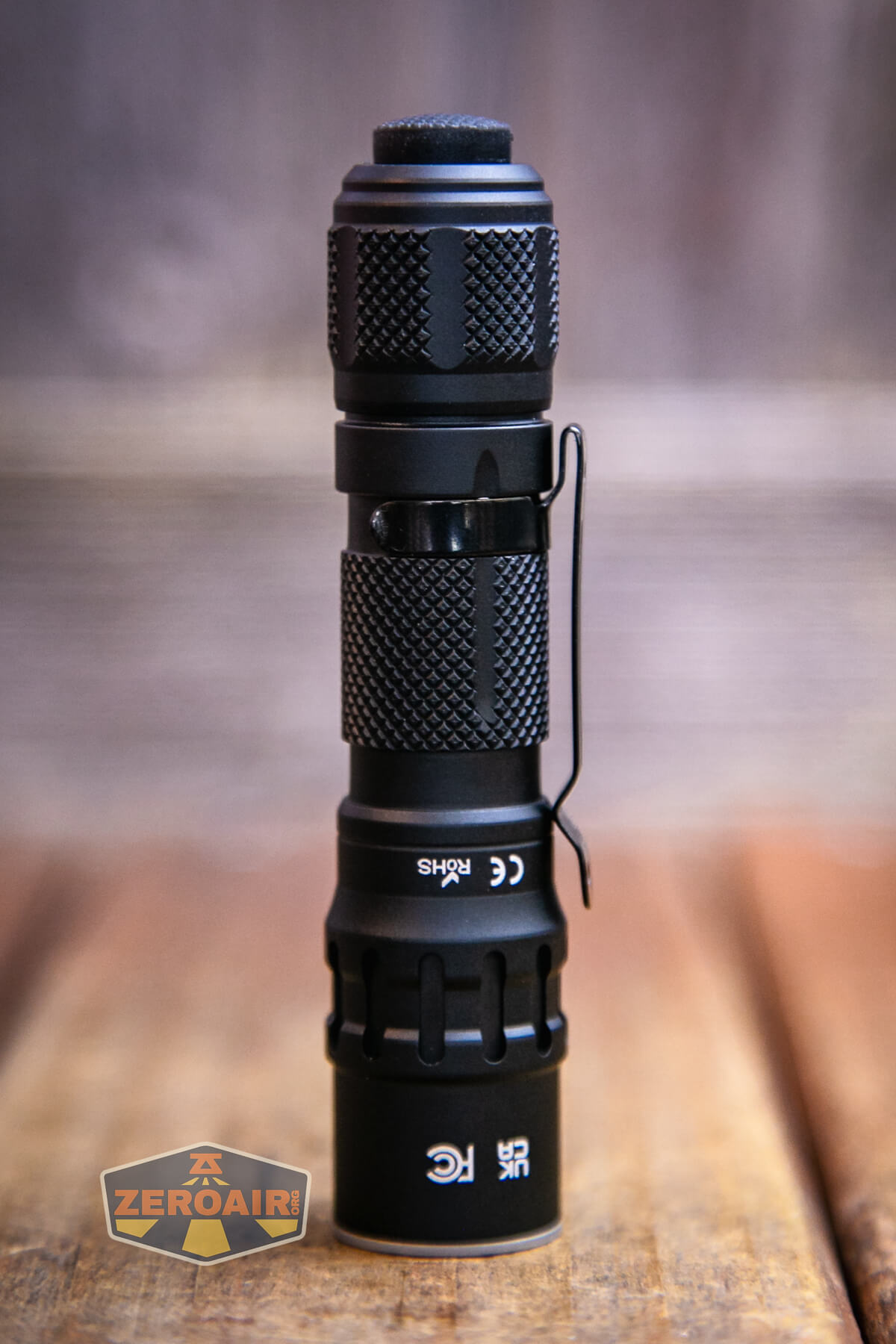

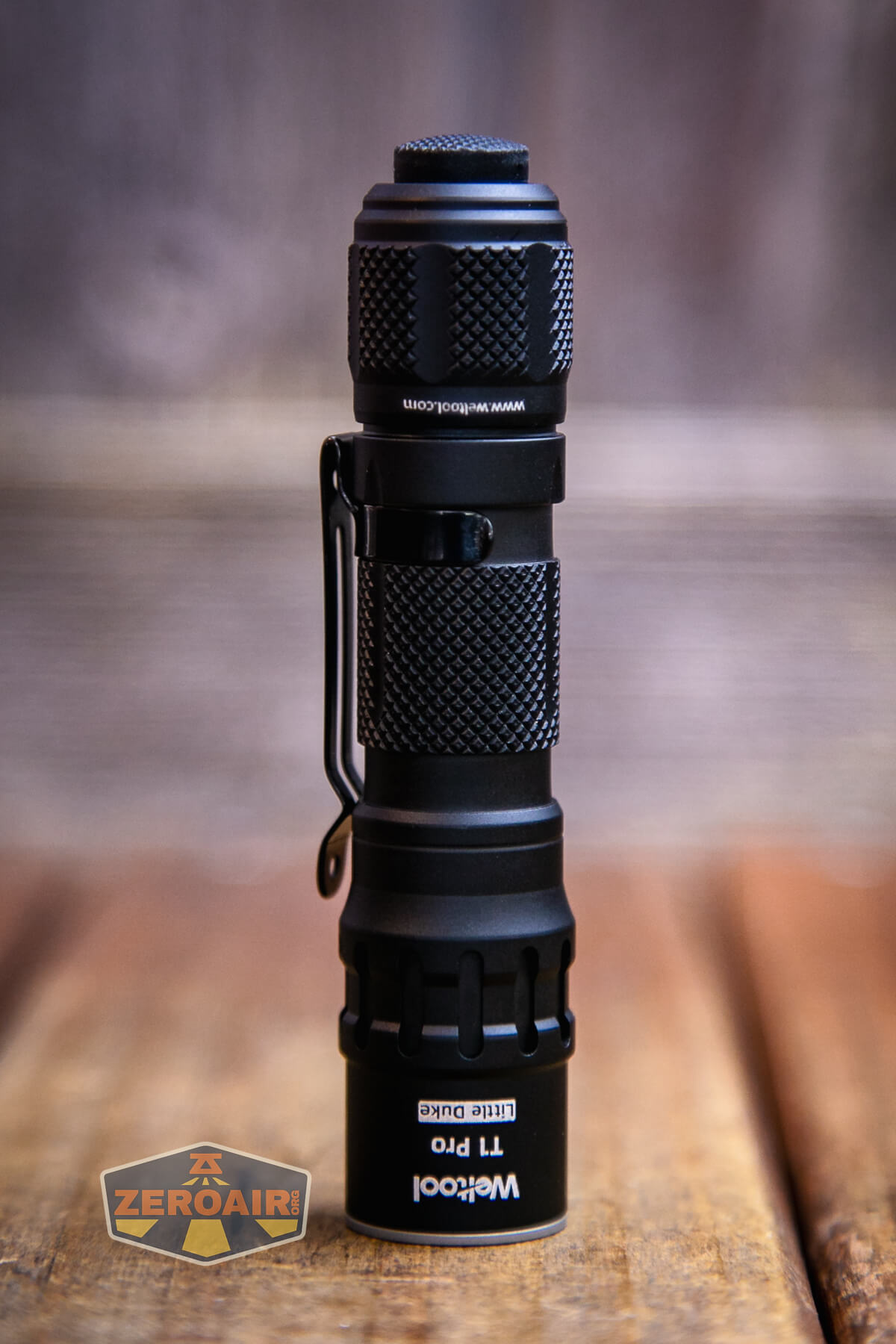

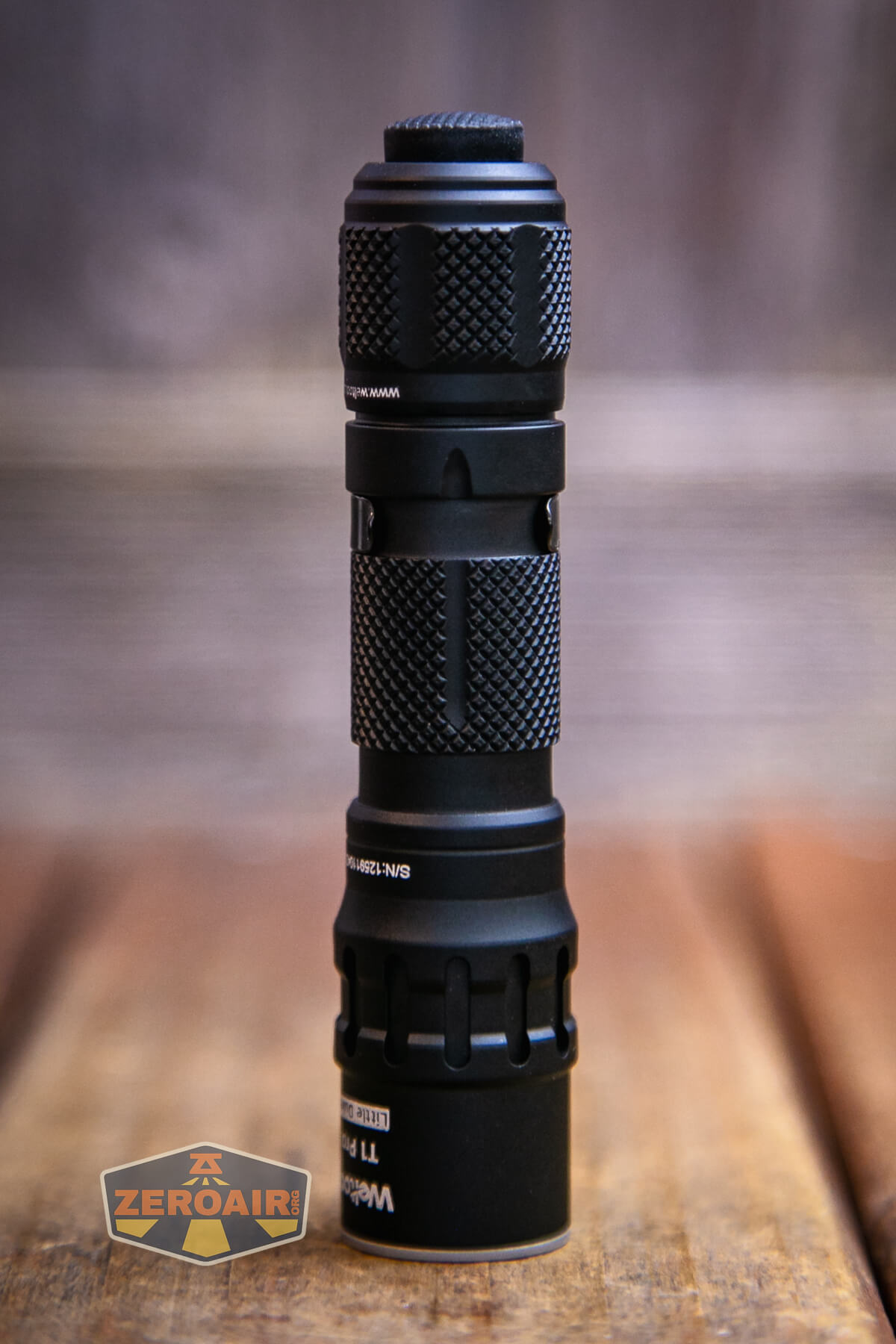

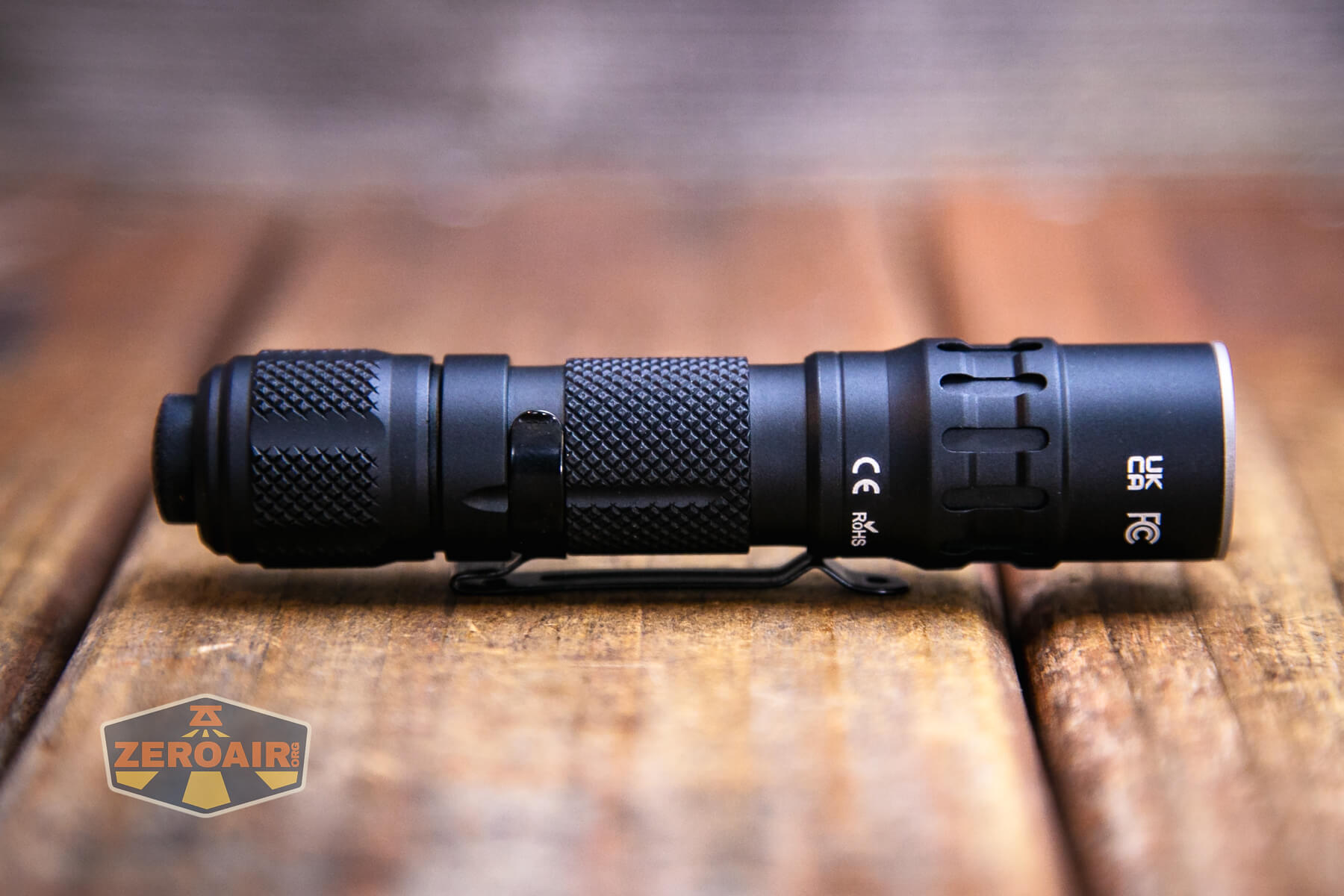

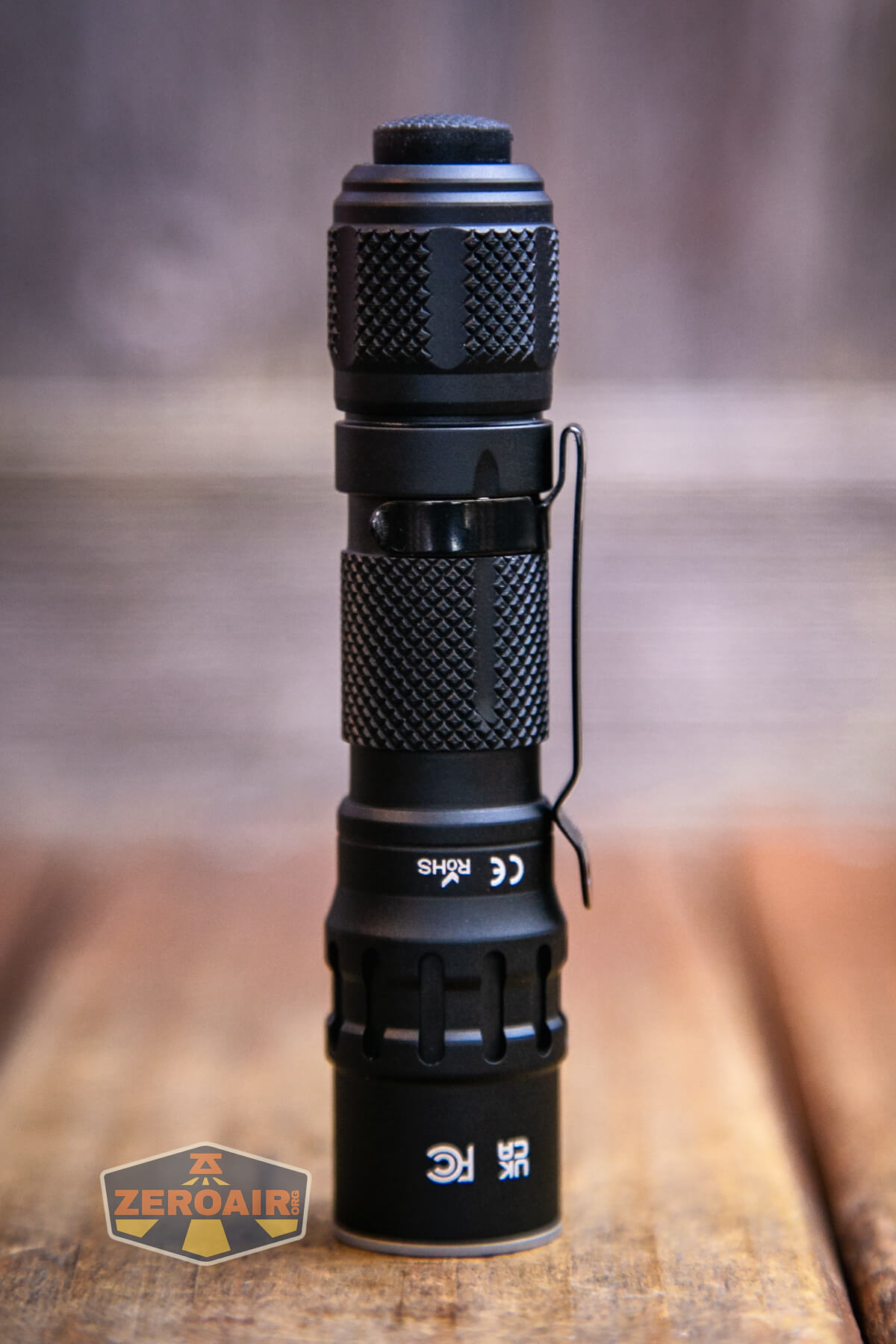

Weltool T1 Pro flashlight

The design of the Weltool T1 Pro flashlight head is different enough to be special, and I love it. It’s not ‘cooling fins’ but I do think the extra surface area here is sufficient for that. This design feature is also just like the Weltool T2, the big brother to this tiny light.

Build quality is great and robust.

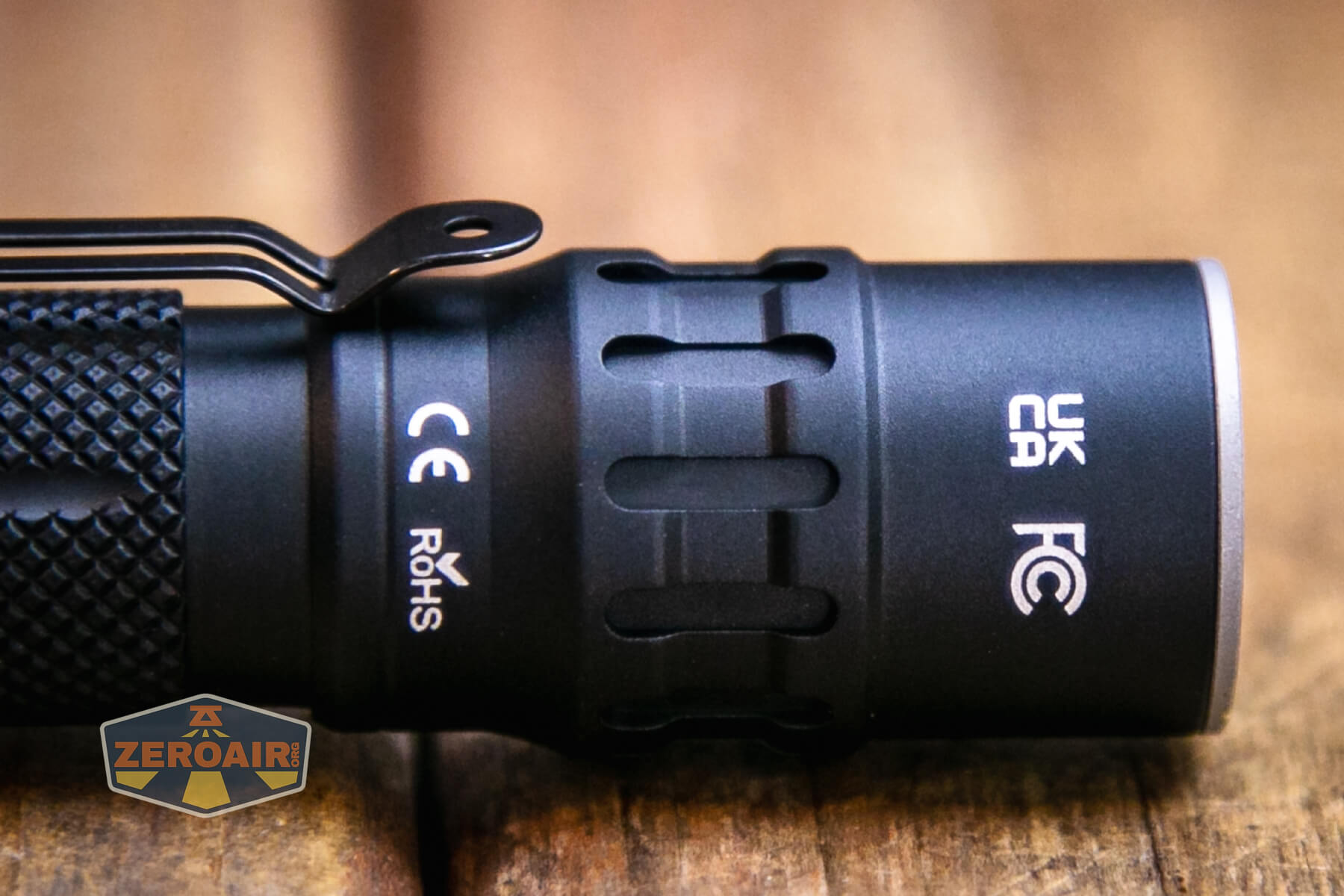

Again, check out this head design!

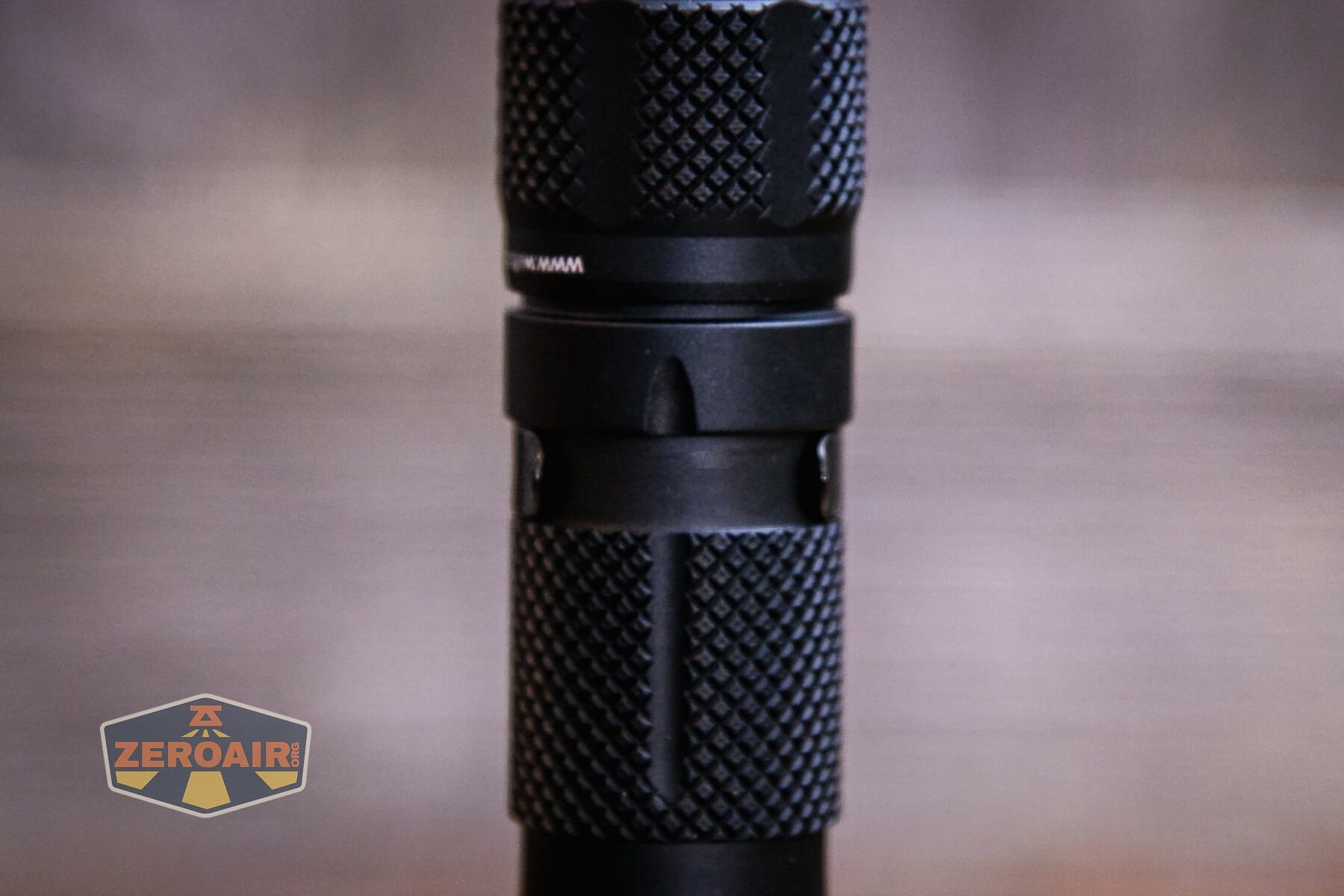

Weltool T1 Pro flashlight head detail

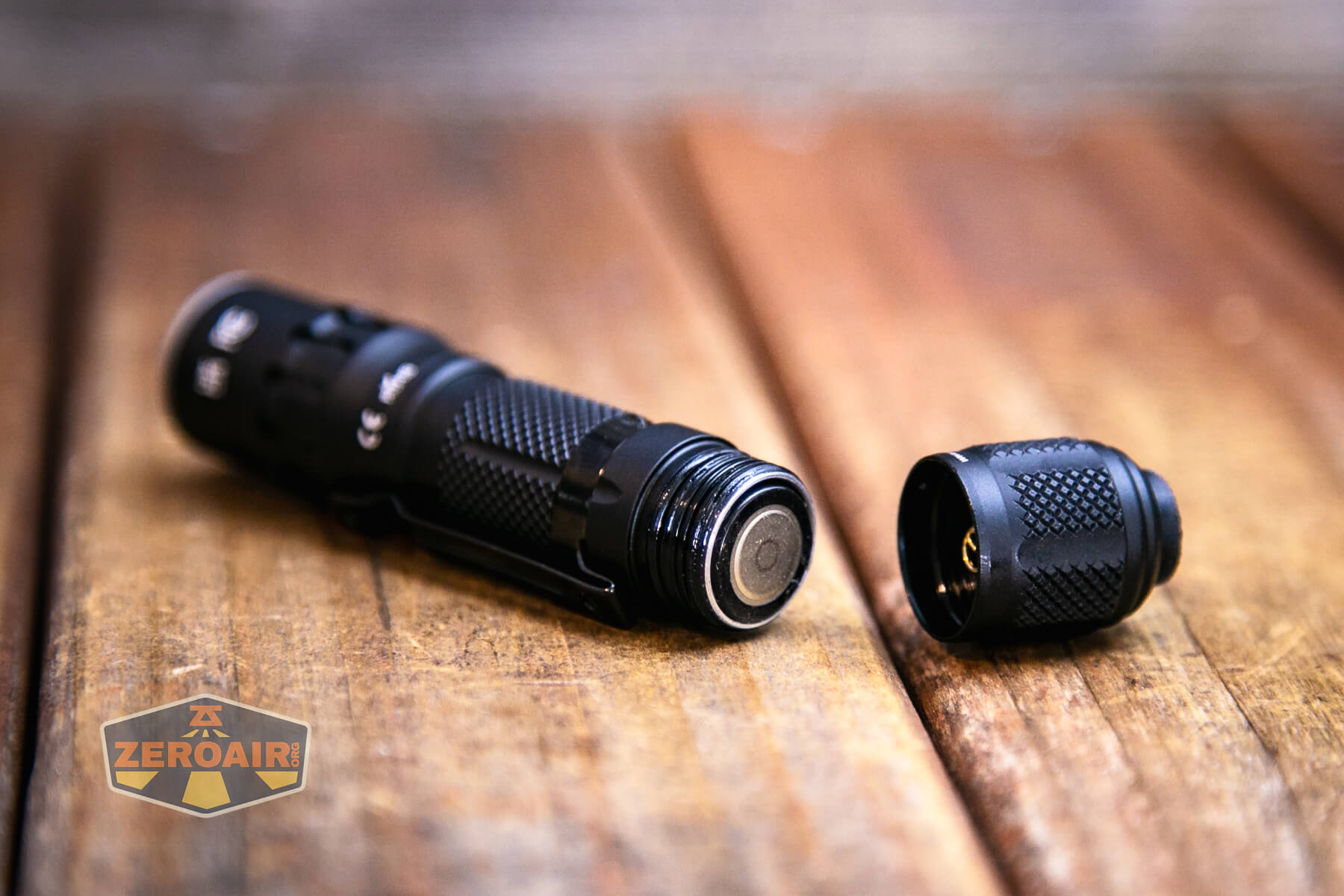

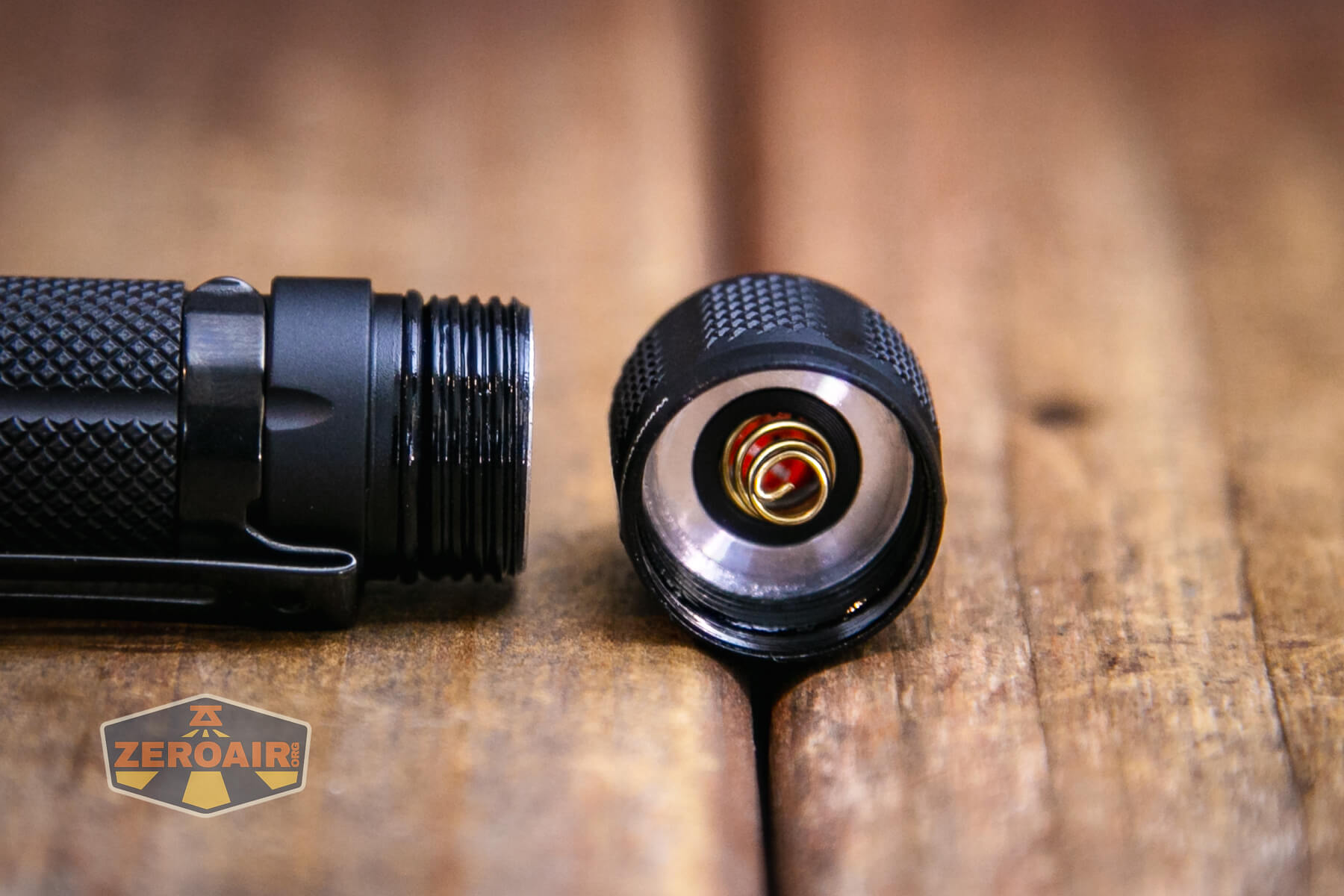

The tailcap has a nice beefy spring and very smooth, lubricated threads.

Weltool T1 Pro flashlight tailcap detail

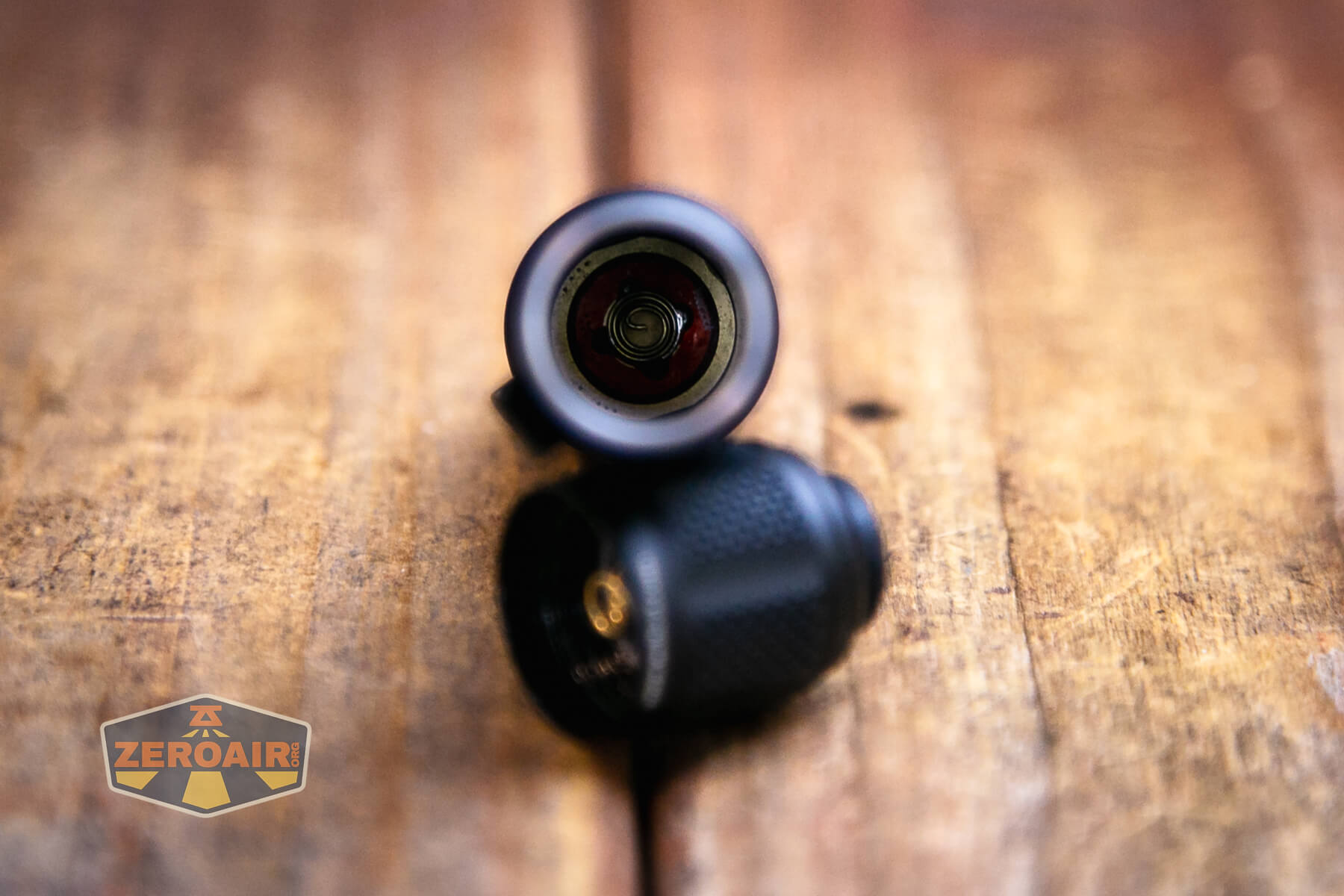

The head end also has a spring.

Weltool T1 Pro flashlight head contact spring

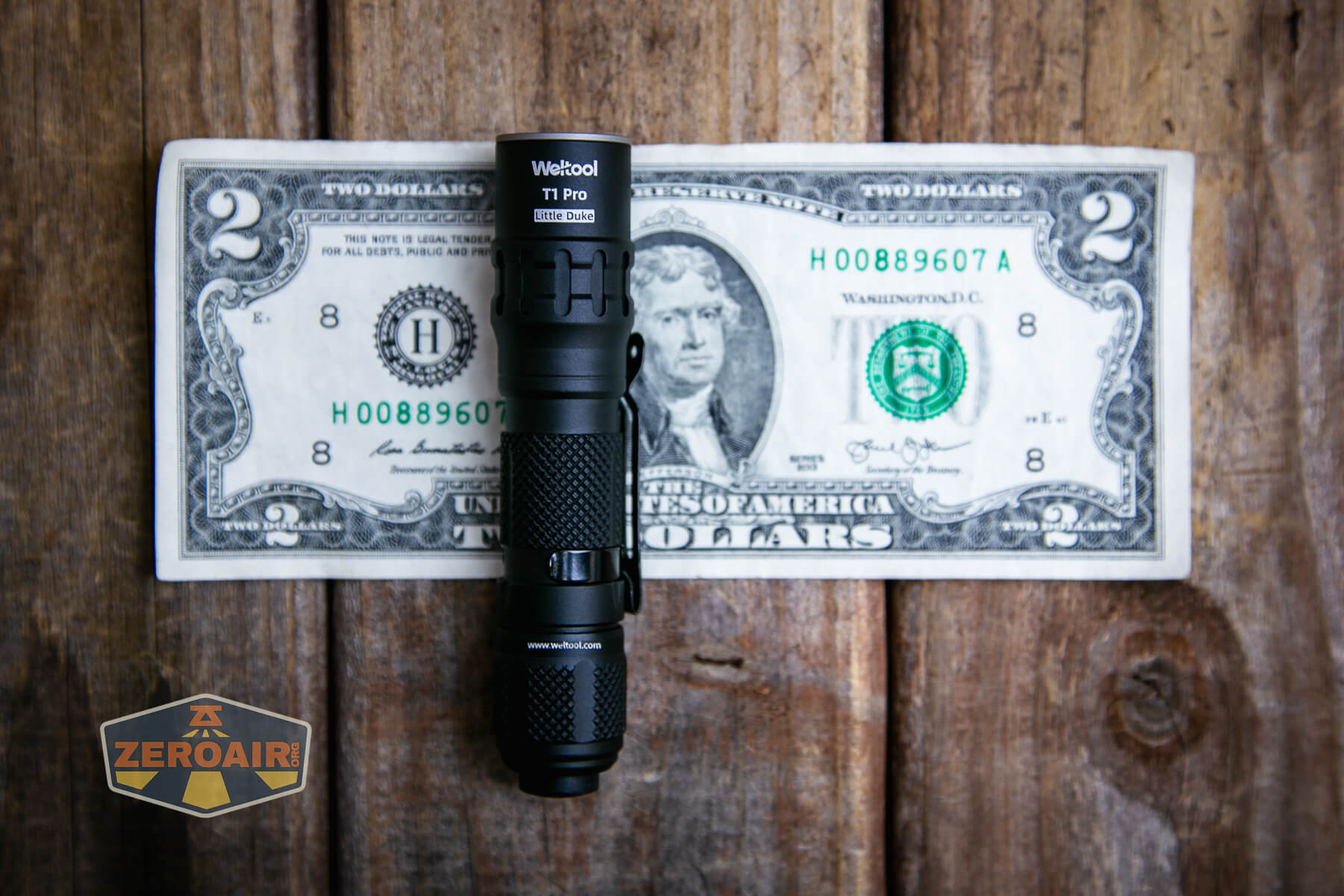

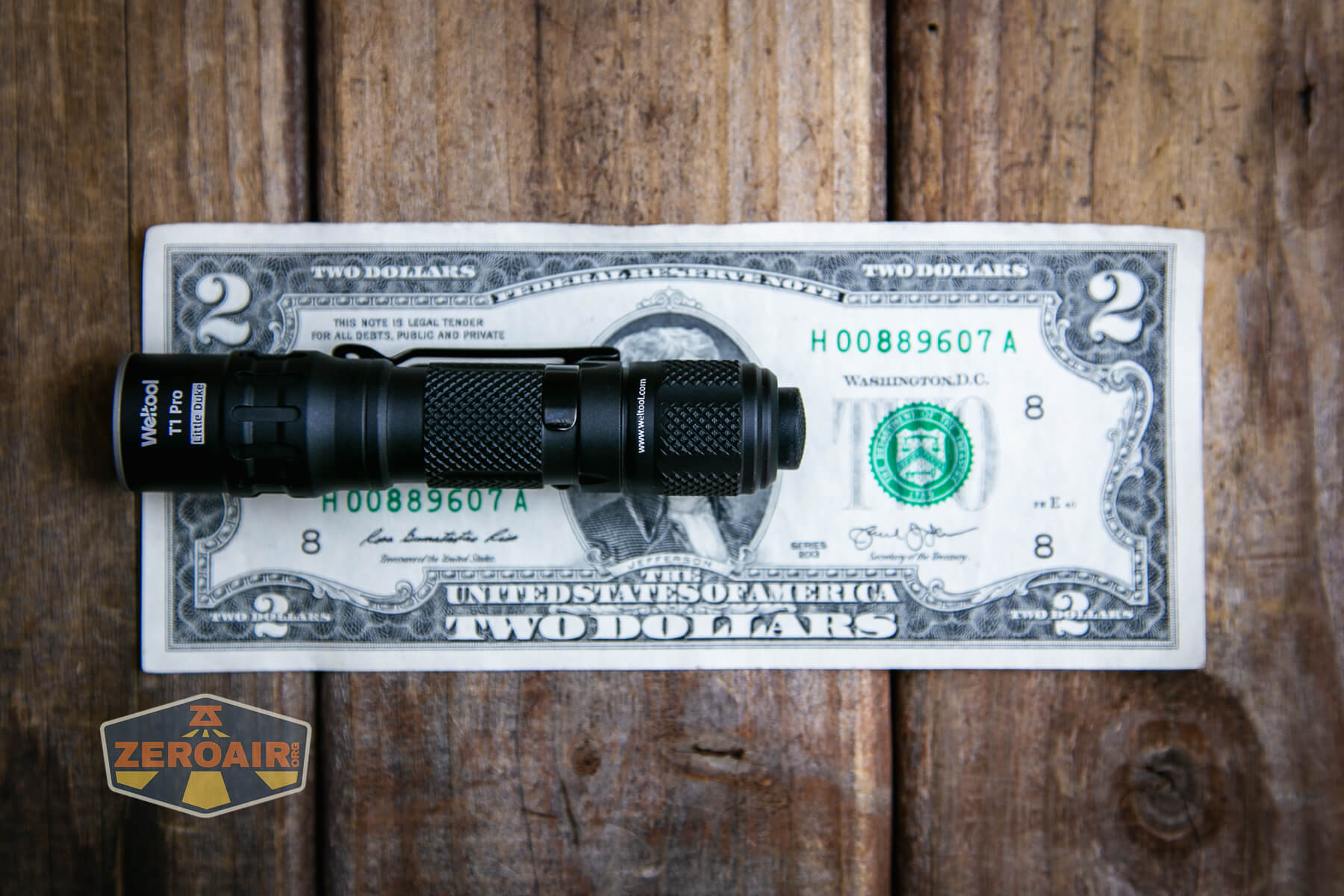

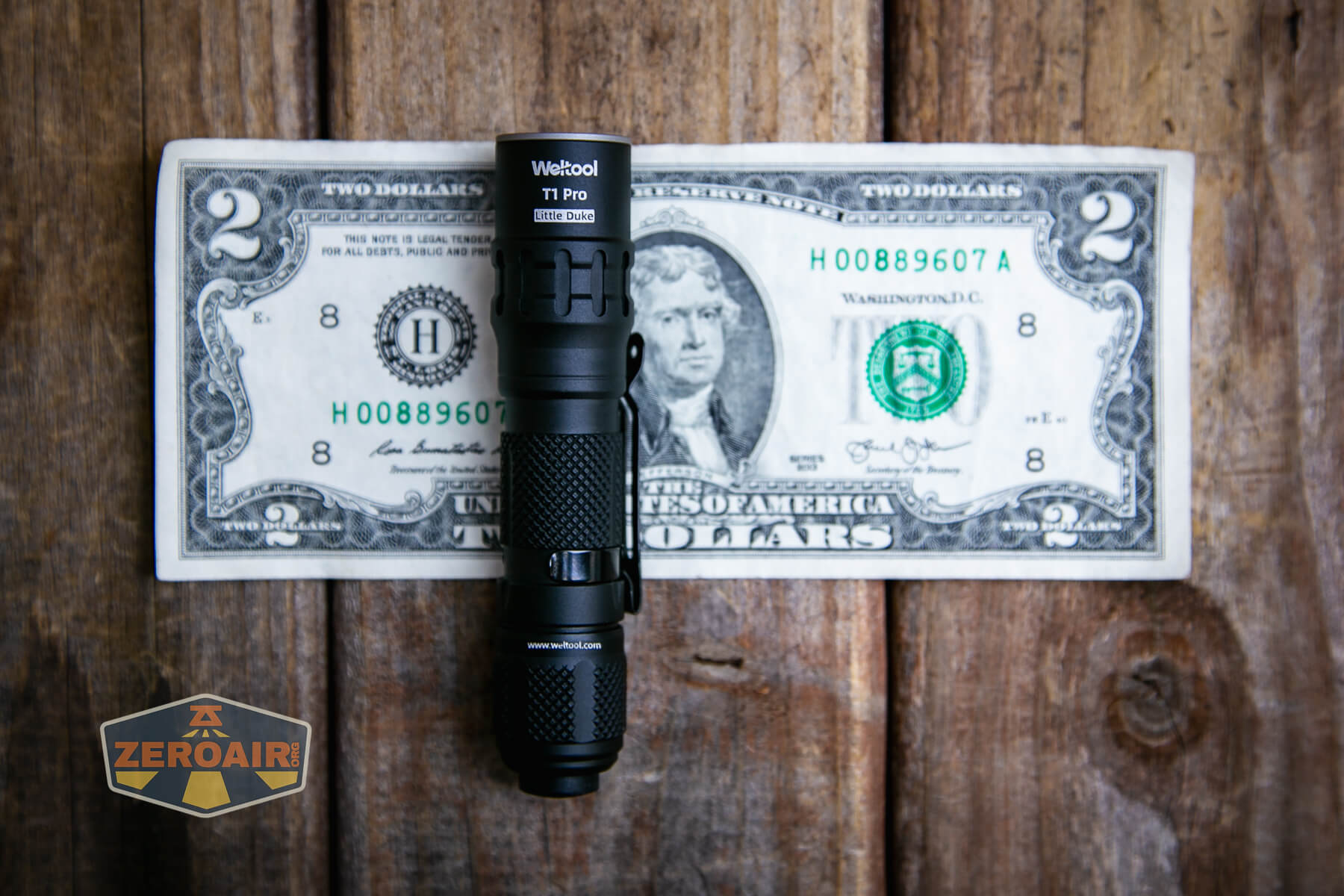

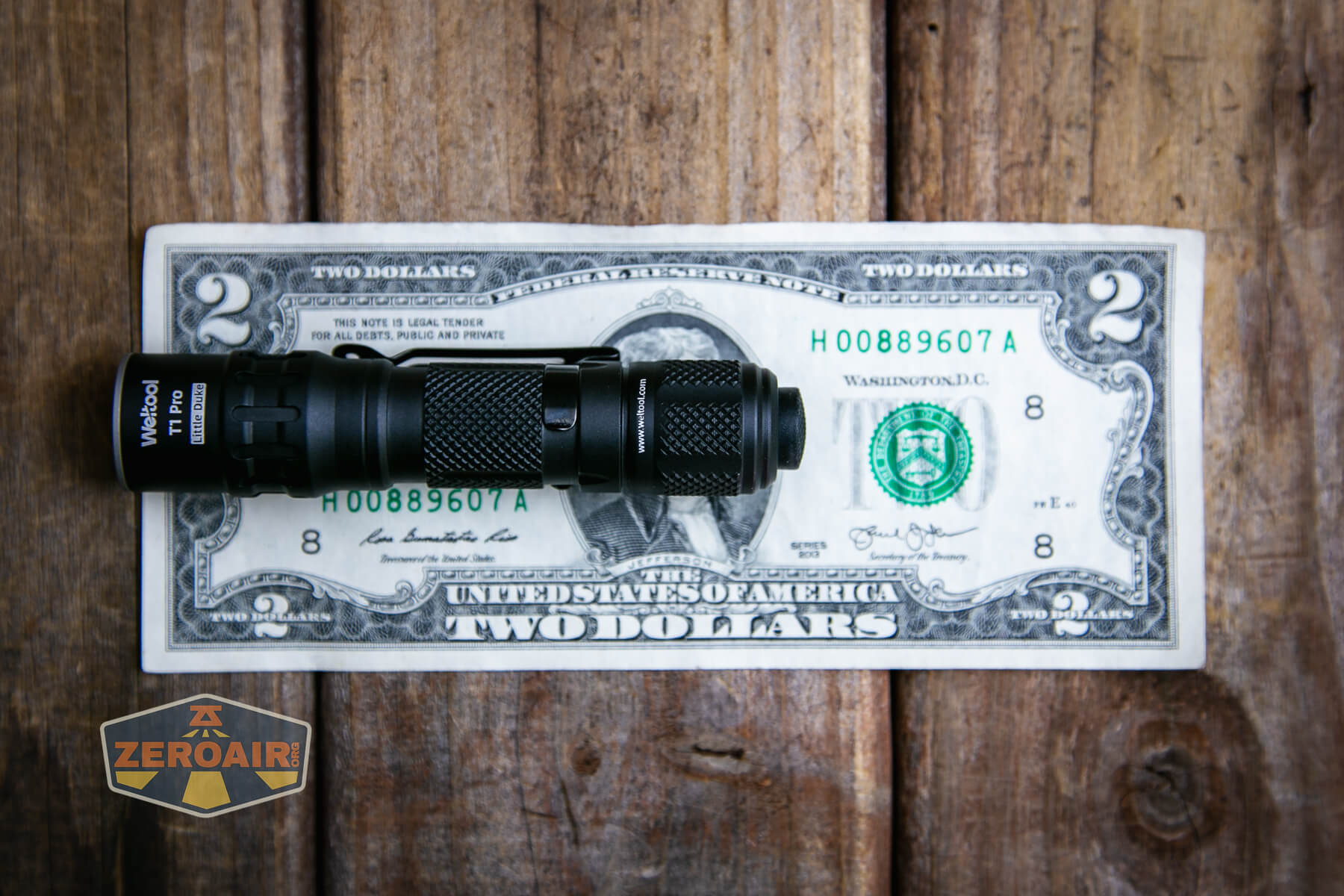

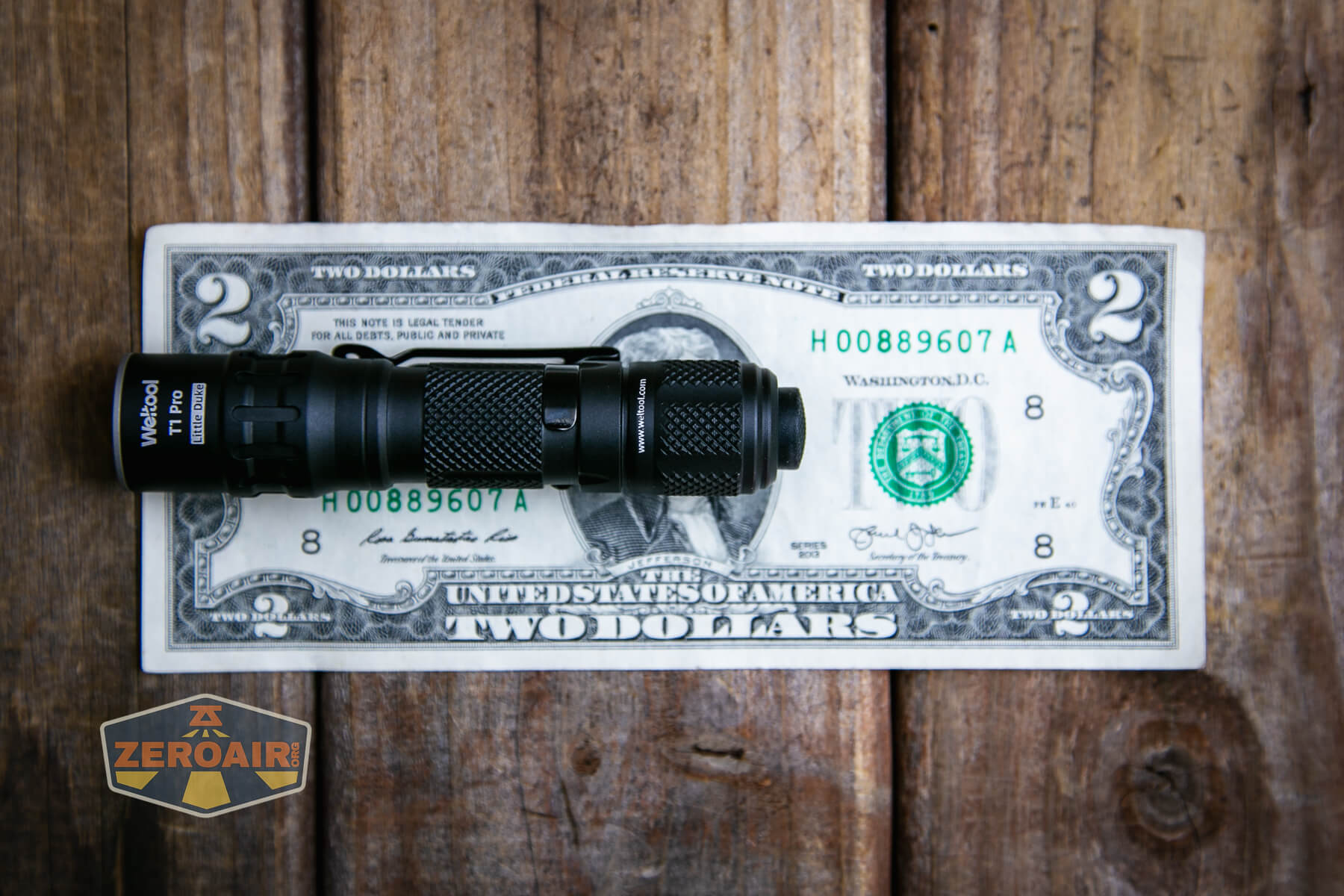

Size and Comps

Size (±0.5mm): (head diameter) 20mm, (barrel diameter) 18mm, (length) 97mm
Weight excluding battery: (±0.5g) 43g

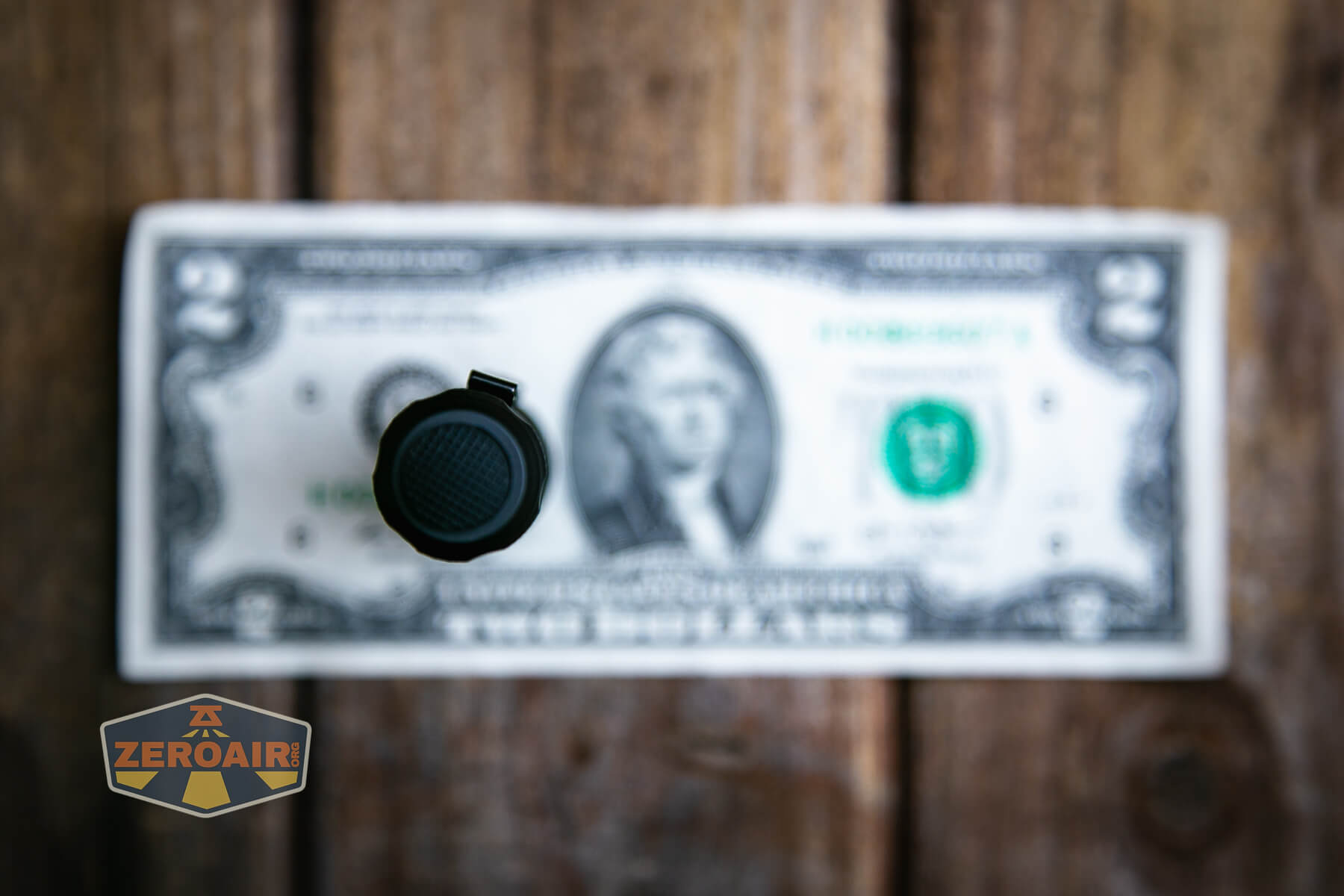

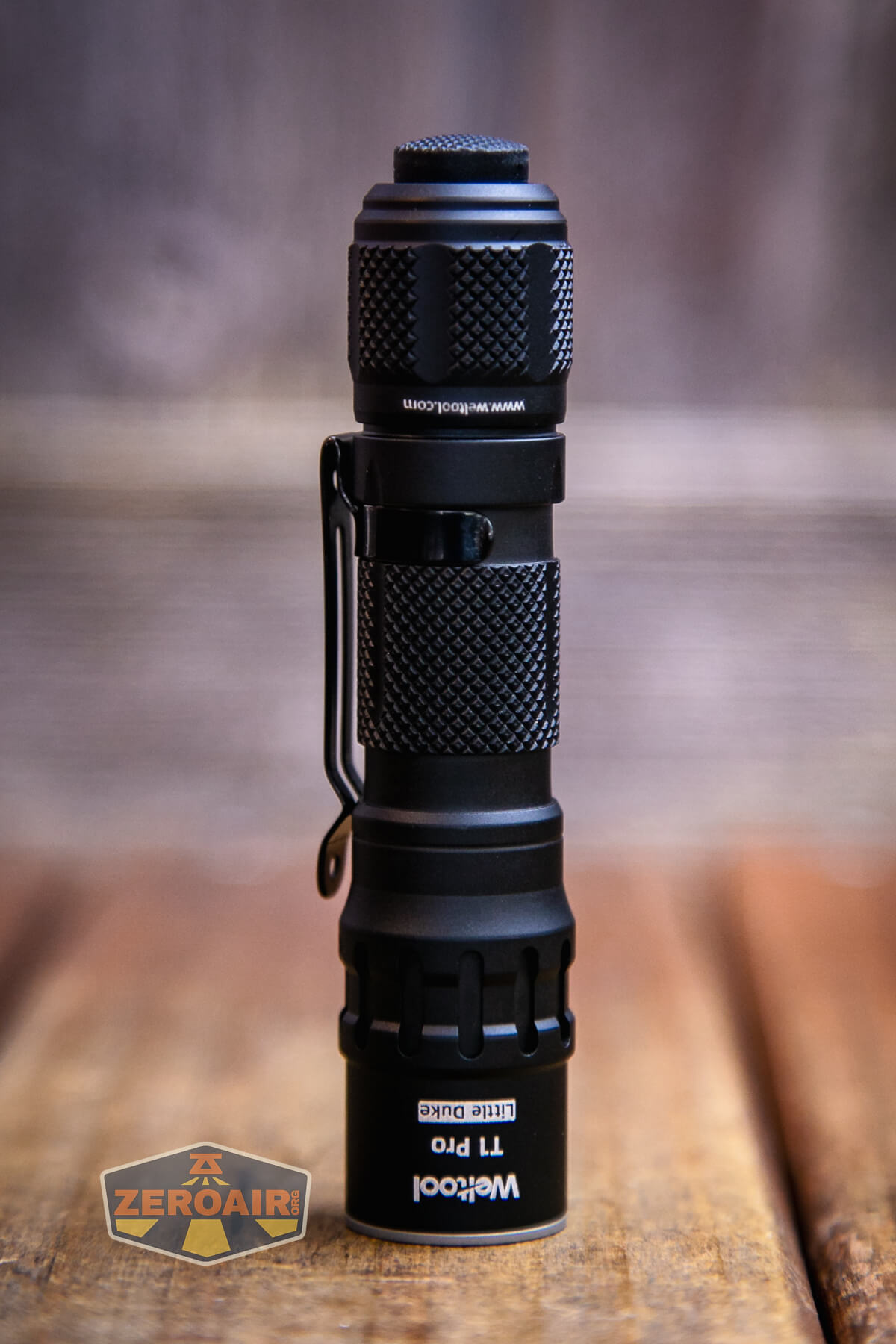

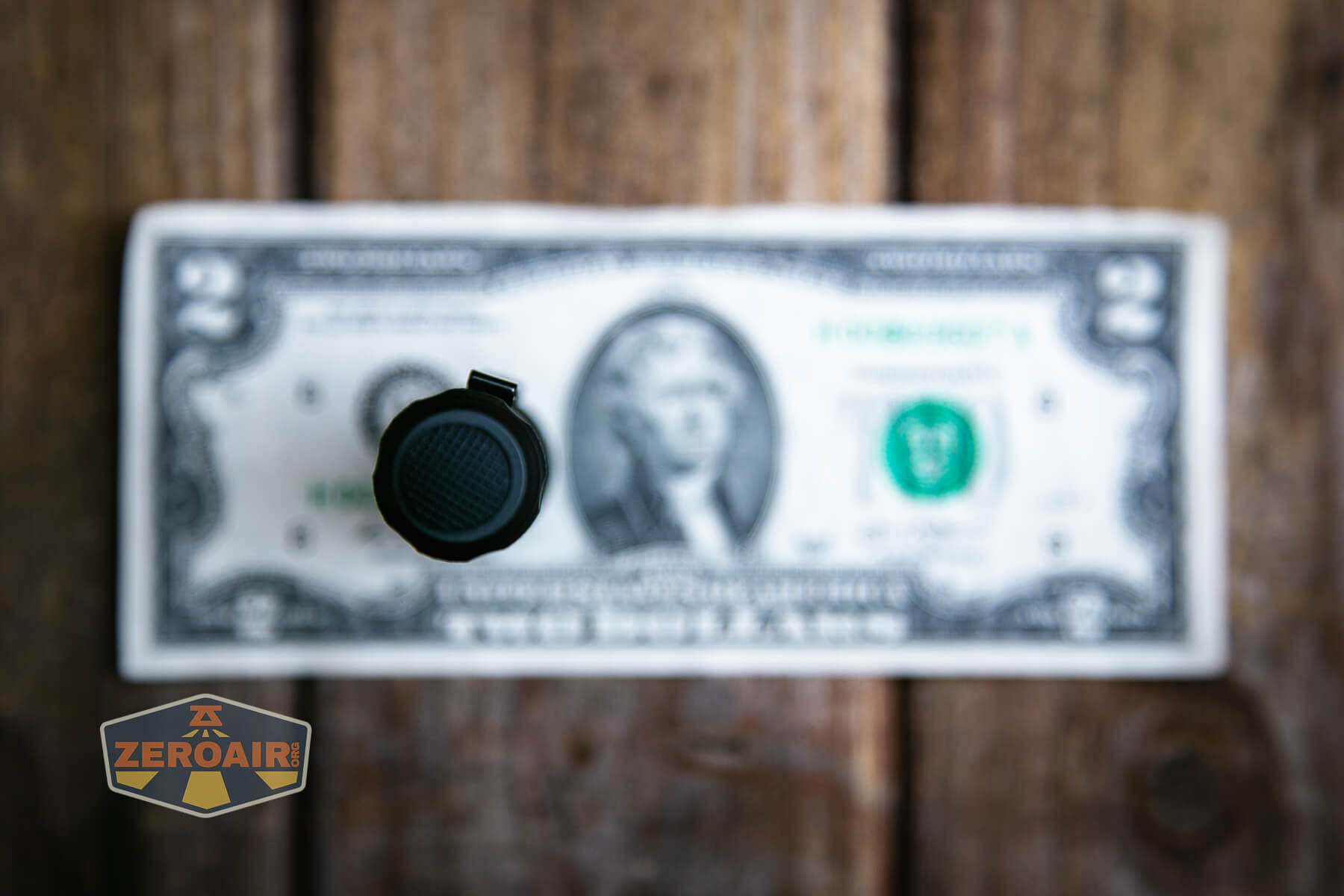

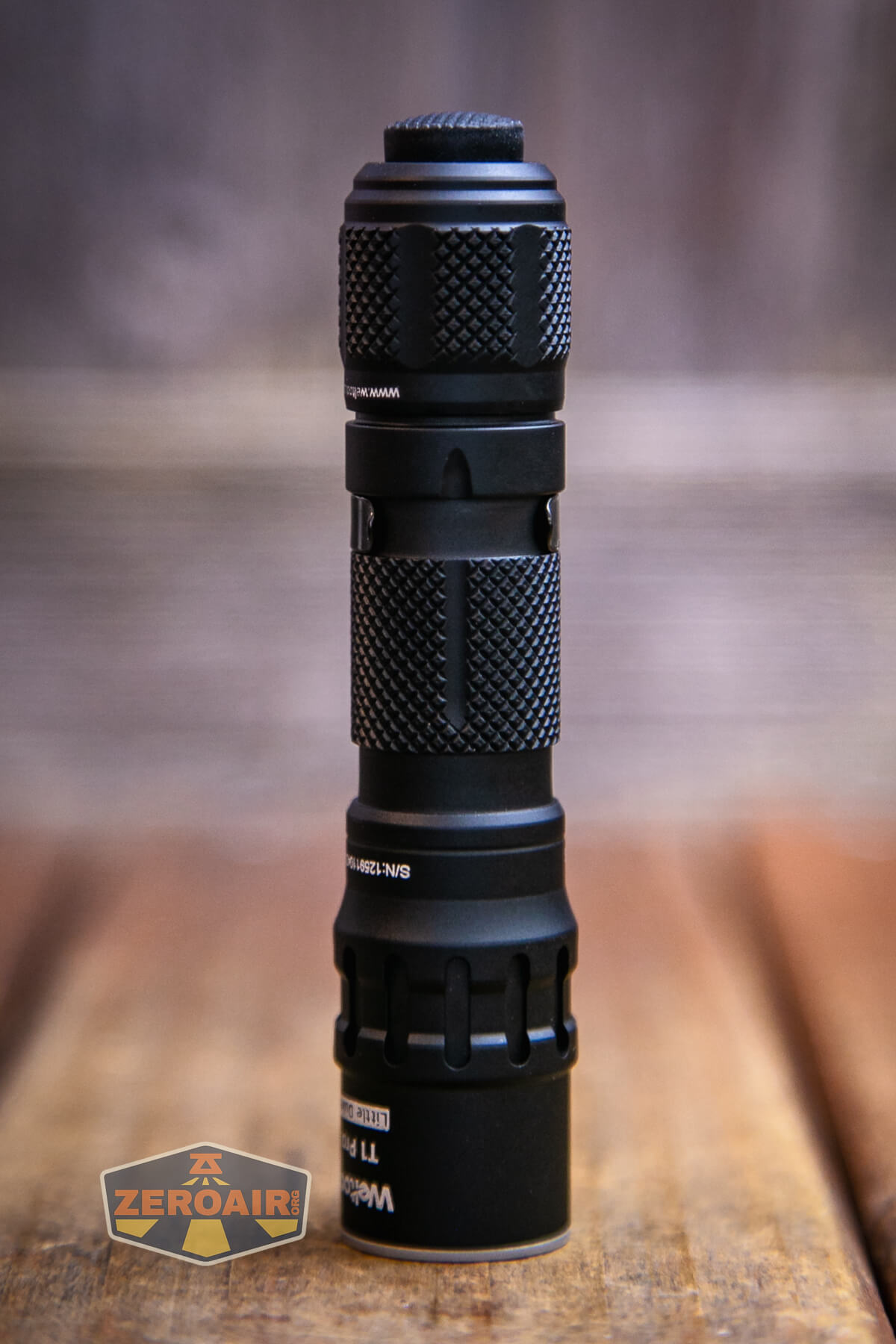

If the flashlight will headstand, I’ll show it here (usually the third photo).  If the flashlight will tailstand, I’ll also show that (usually in the fourth photo).

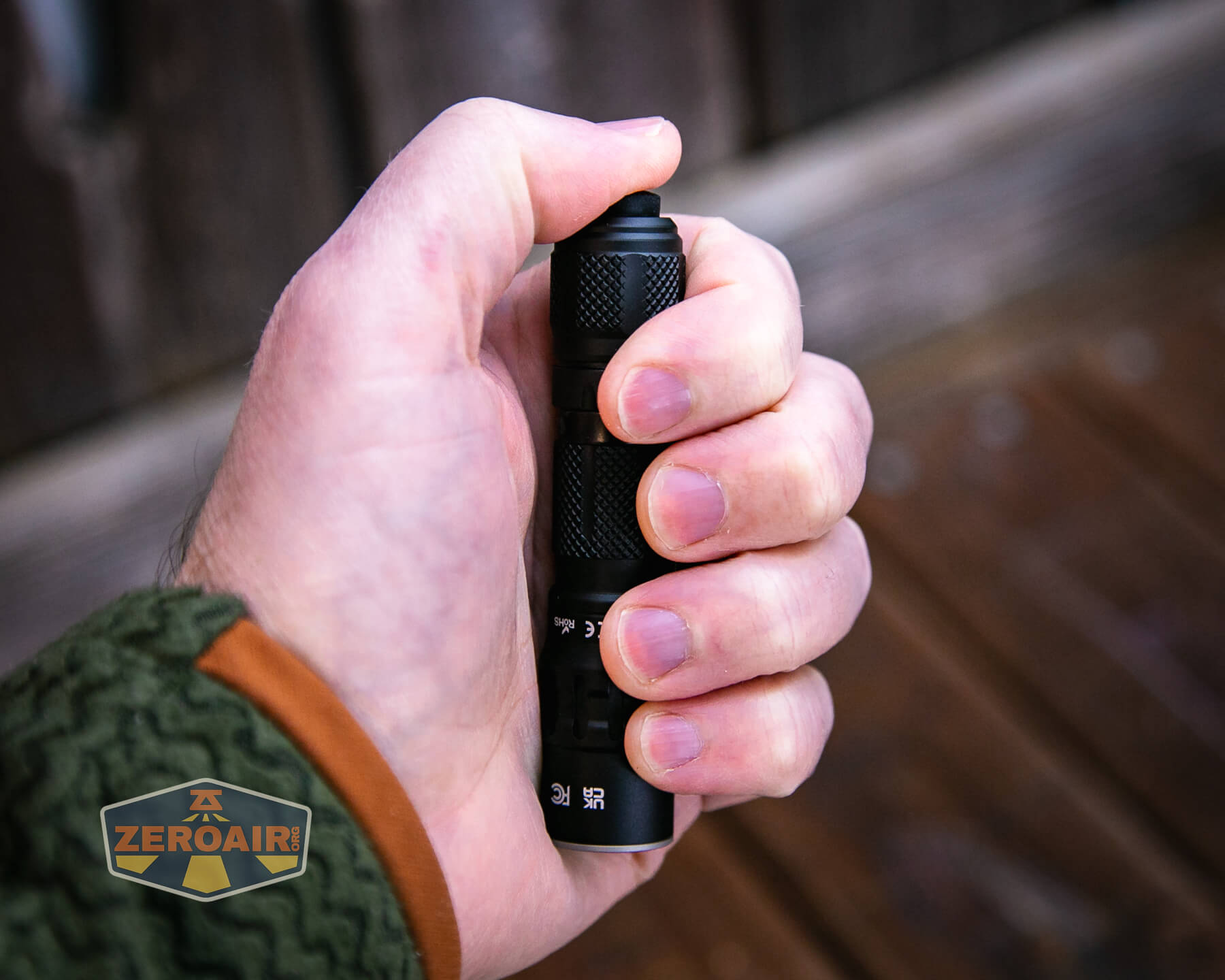

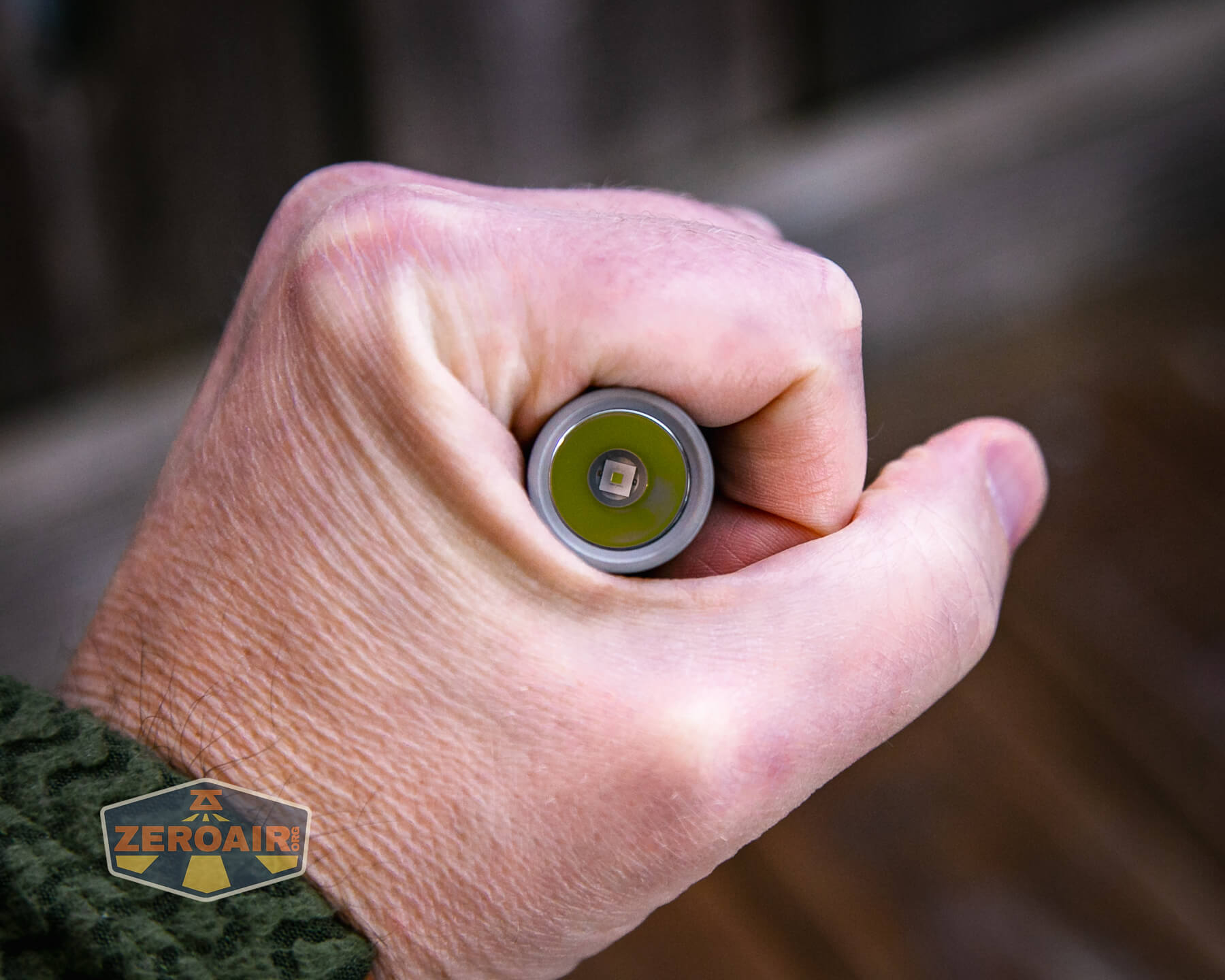

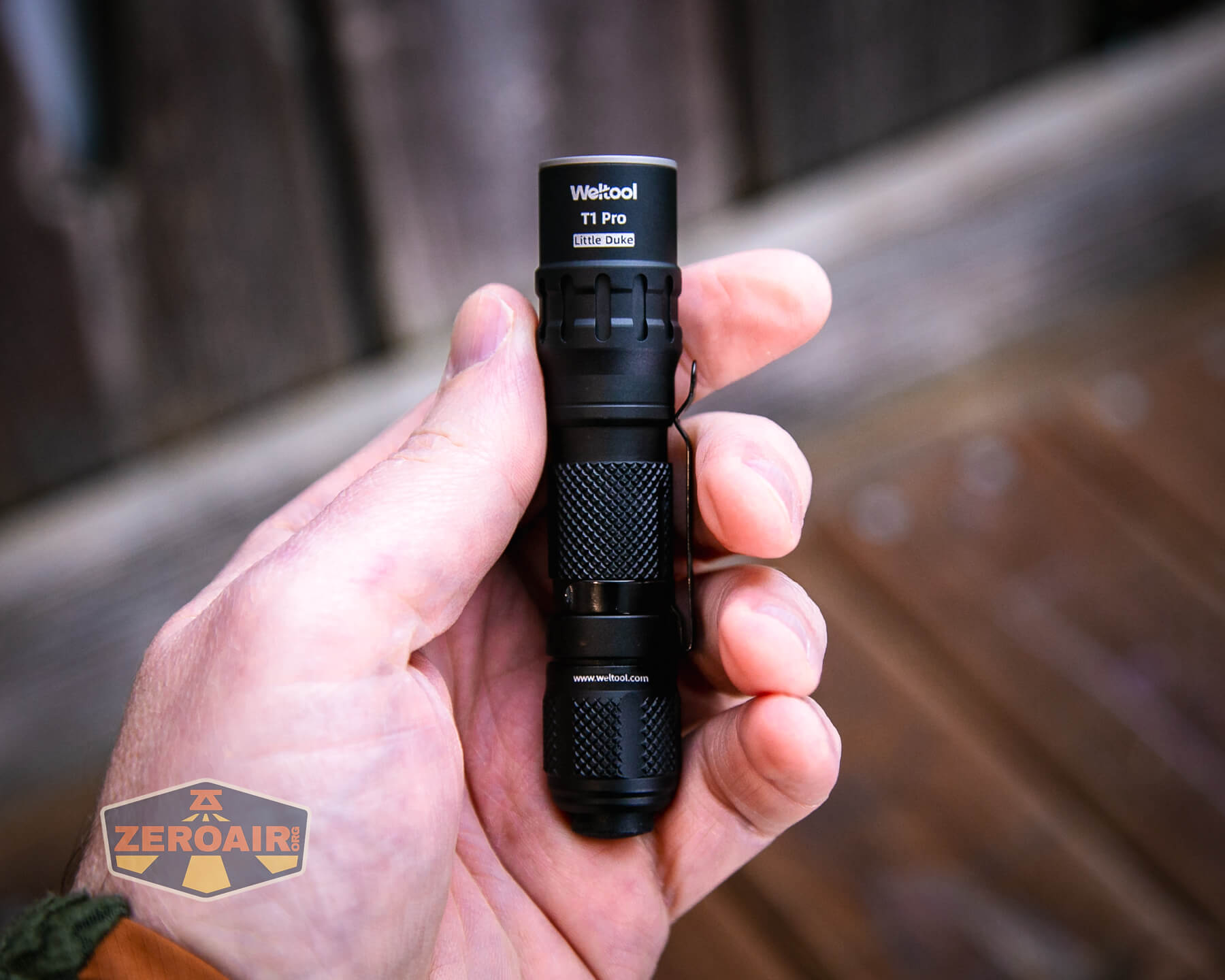

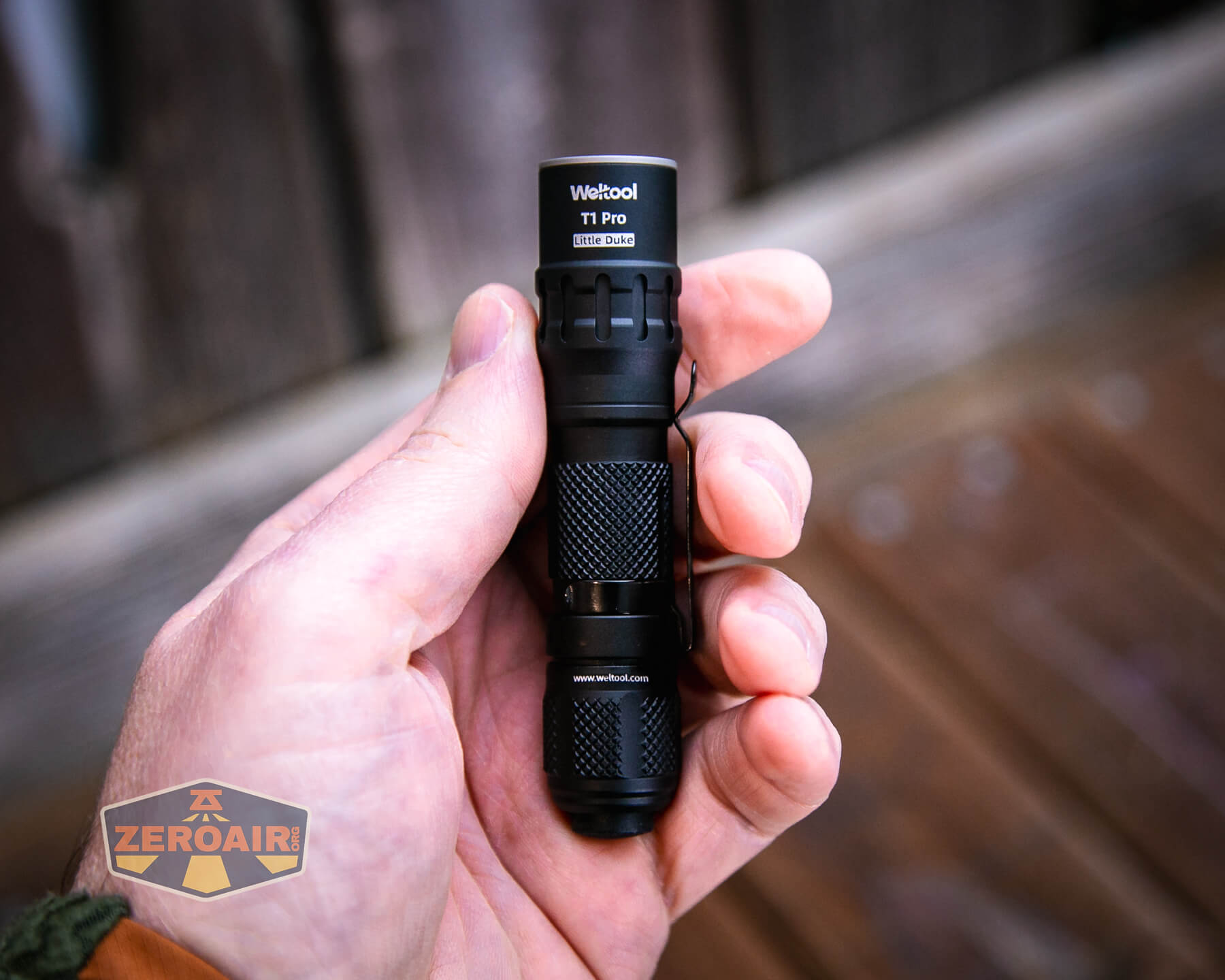

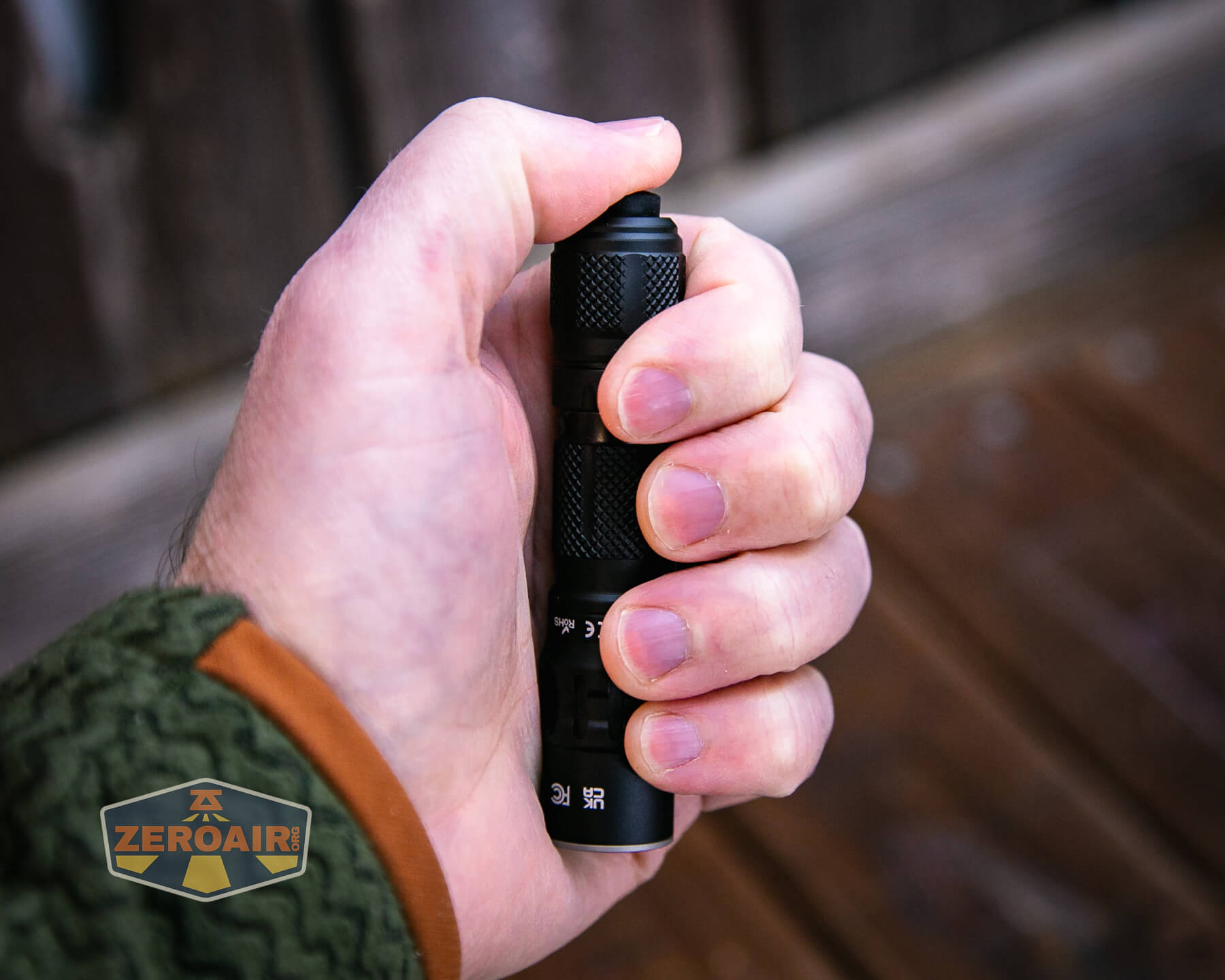

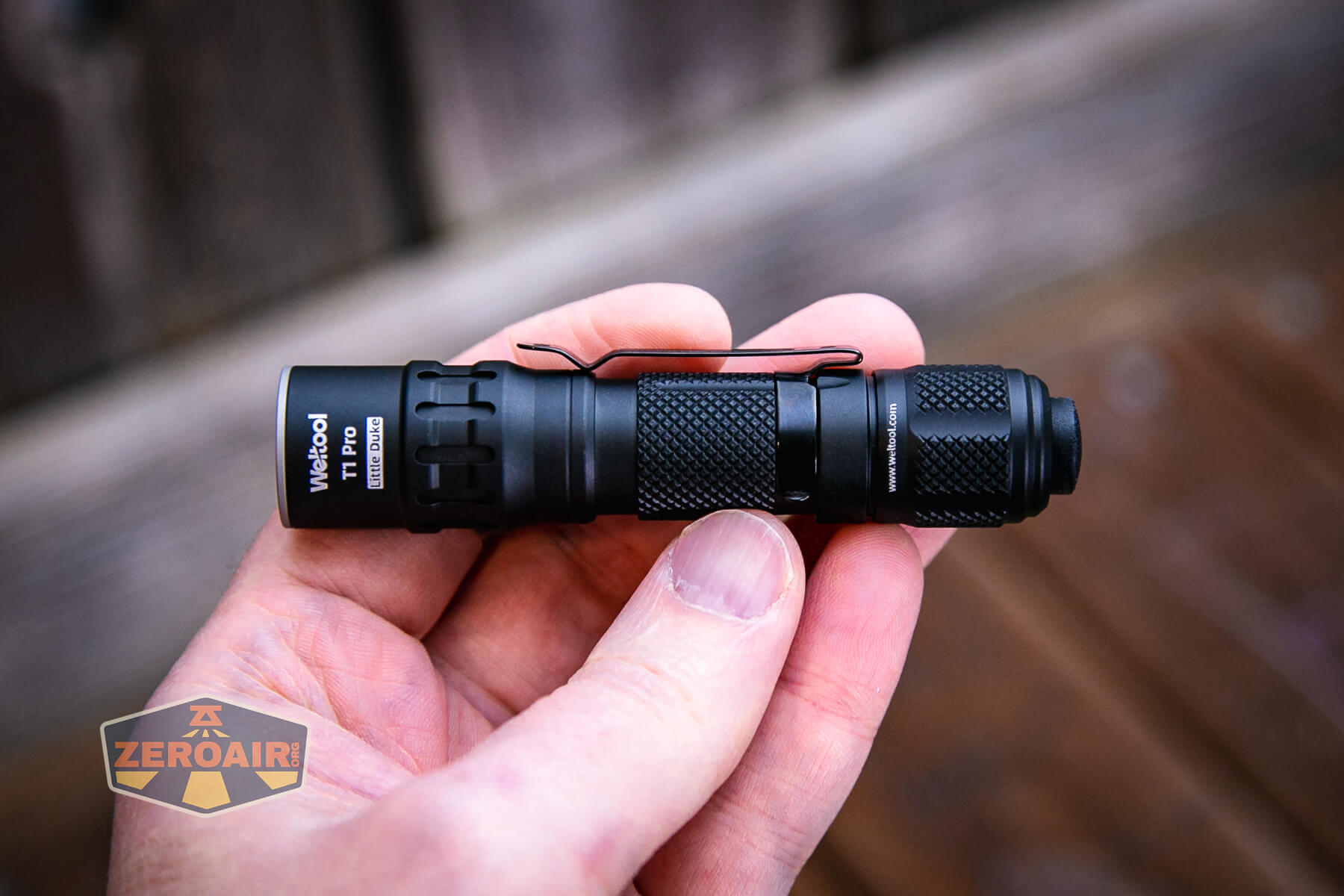

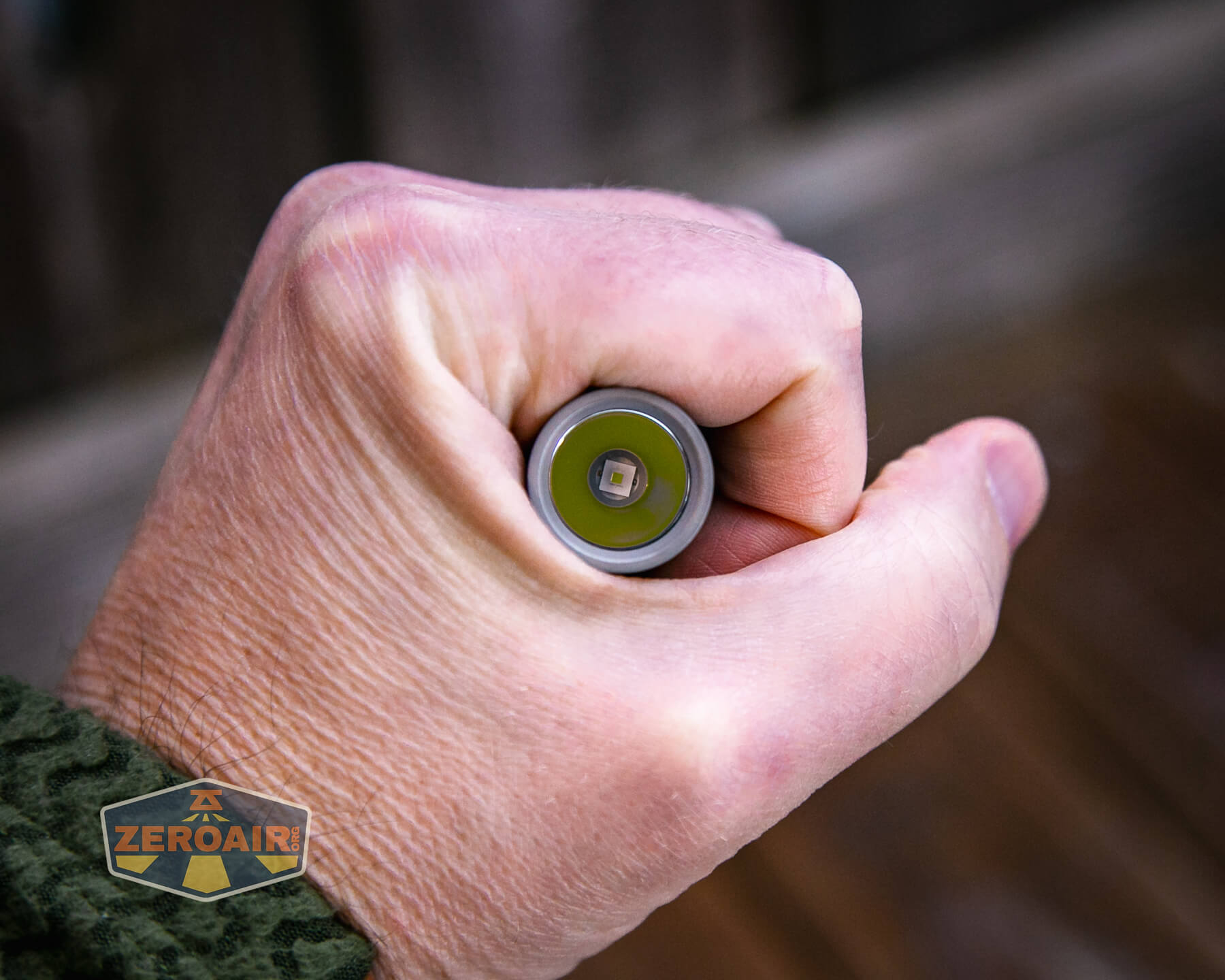

Weltool T1 Pro flashlight in hand

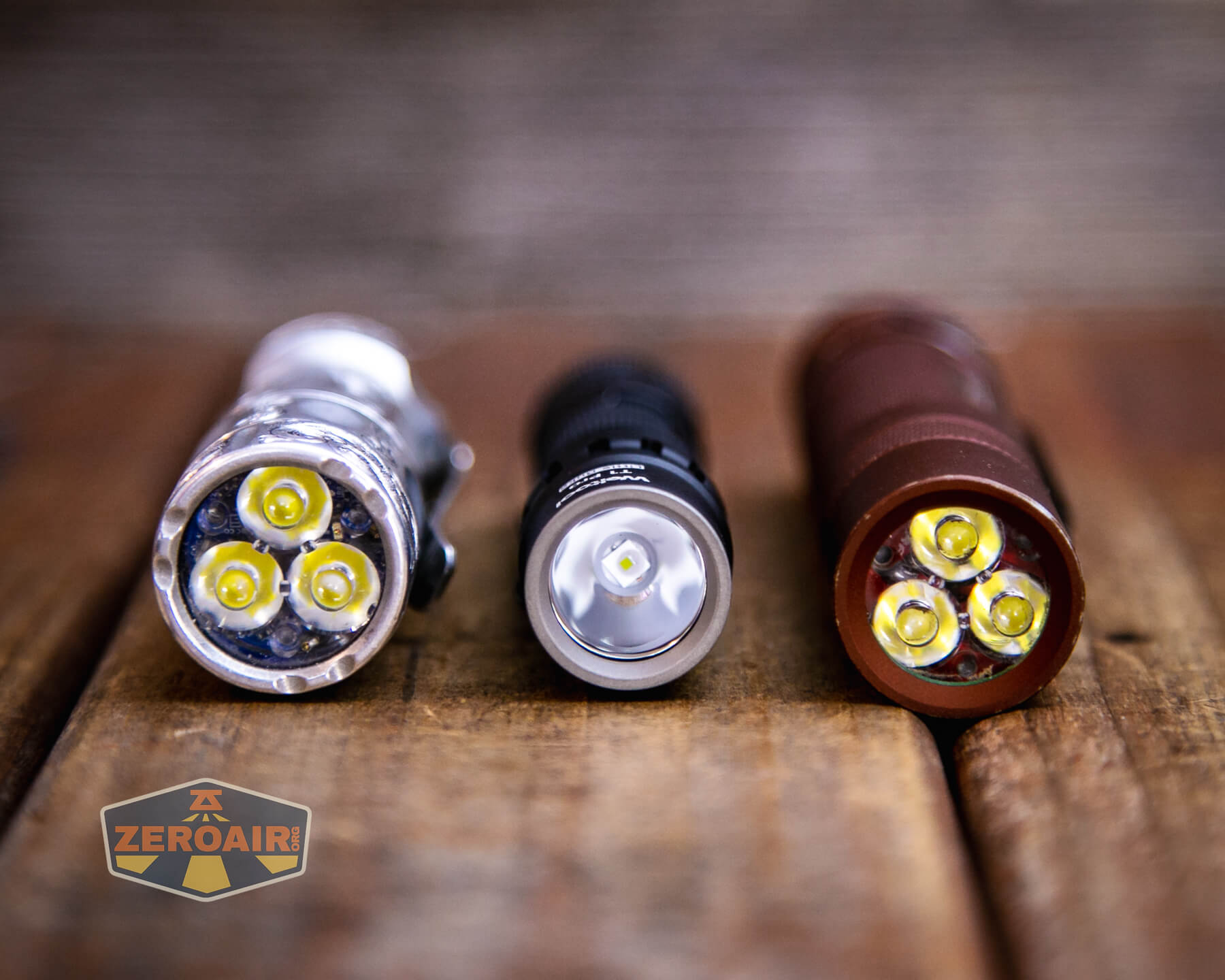

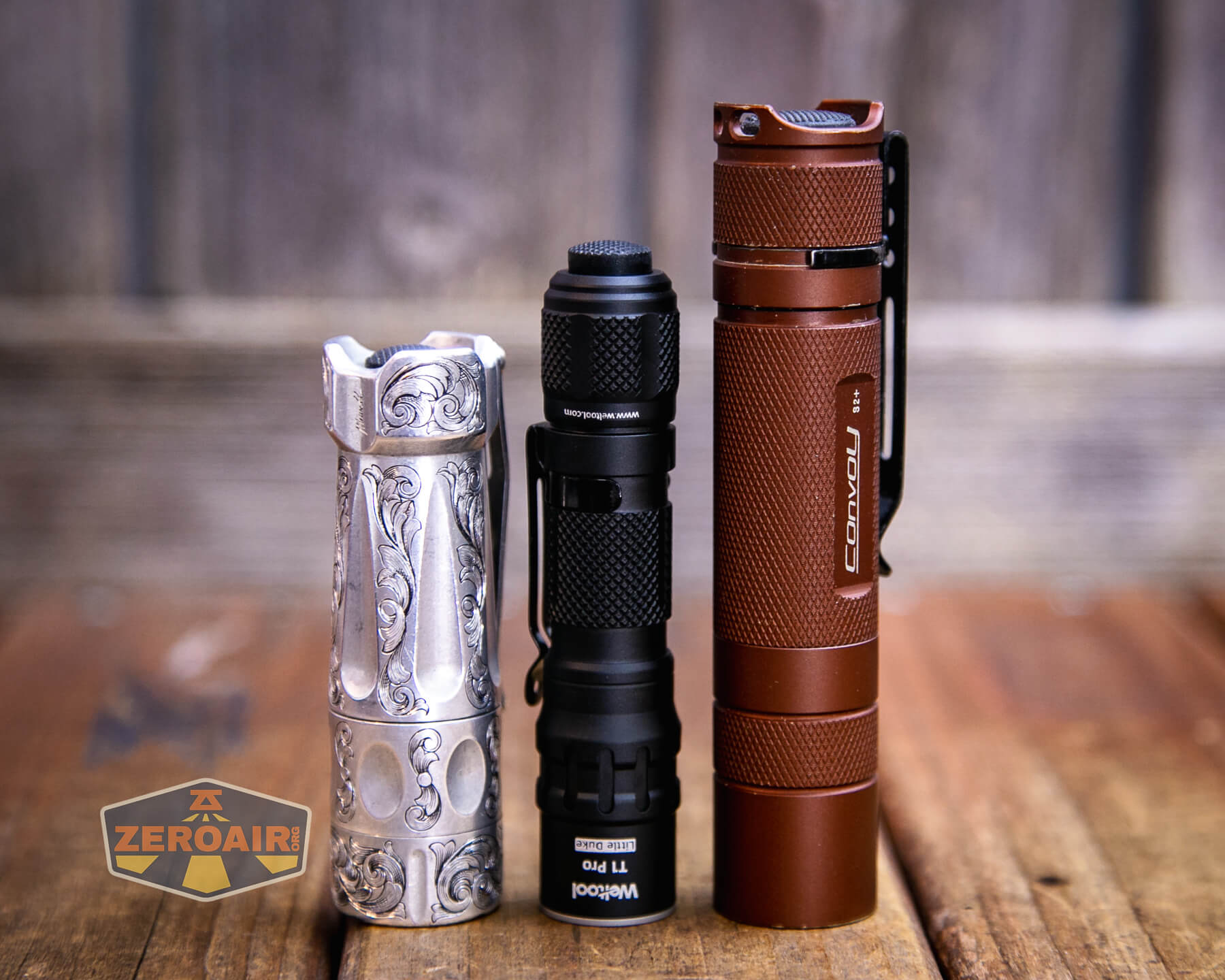

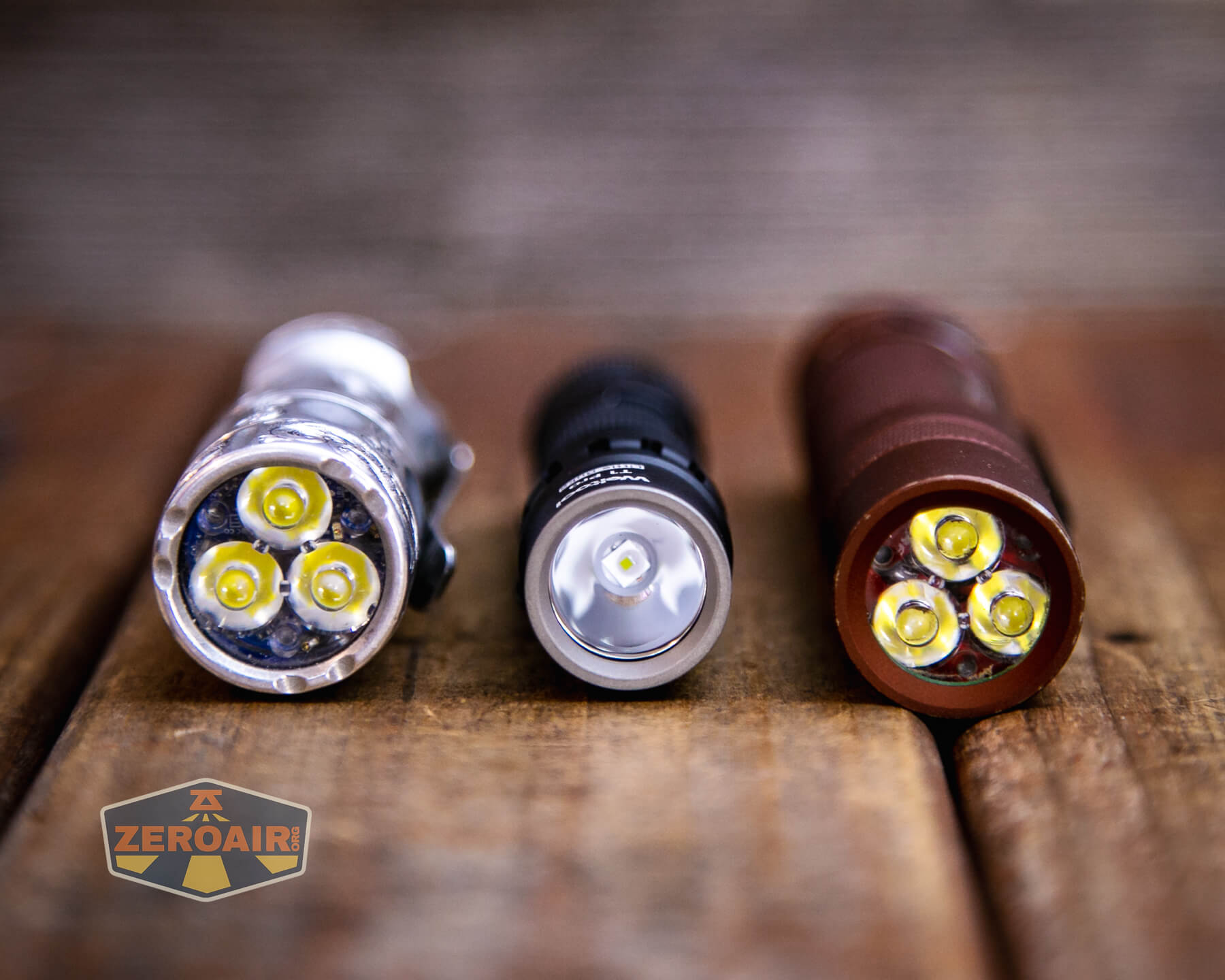

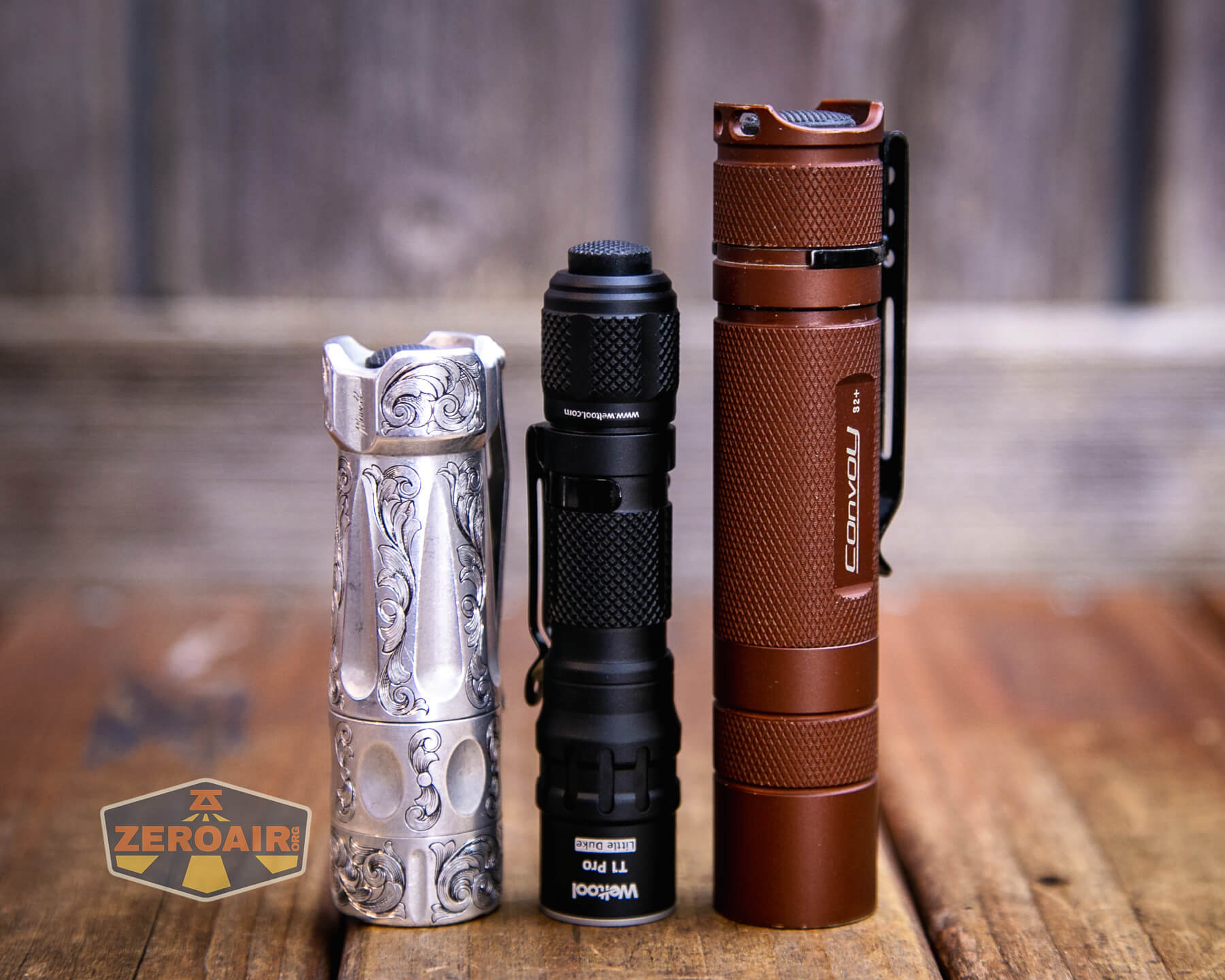

Here’s the test light with the venerable Convoy S2+.  Mine’s a custom “baked” edition Nichia 219b triple.  A very nice 18650 light.

Also above is the light beside my custom engraved TorchLAB BOSS 35, an 18350 light.  I reviewed the aluminum version of that light in both 35 and 70 formats.

Retention and Carry

A pocket clip is included and attached by default. This is what I’ve come to call the “standard Lumintop clip” because of how common it was on lights from Lumintop for a while. There’s nothing at all wrong with that.

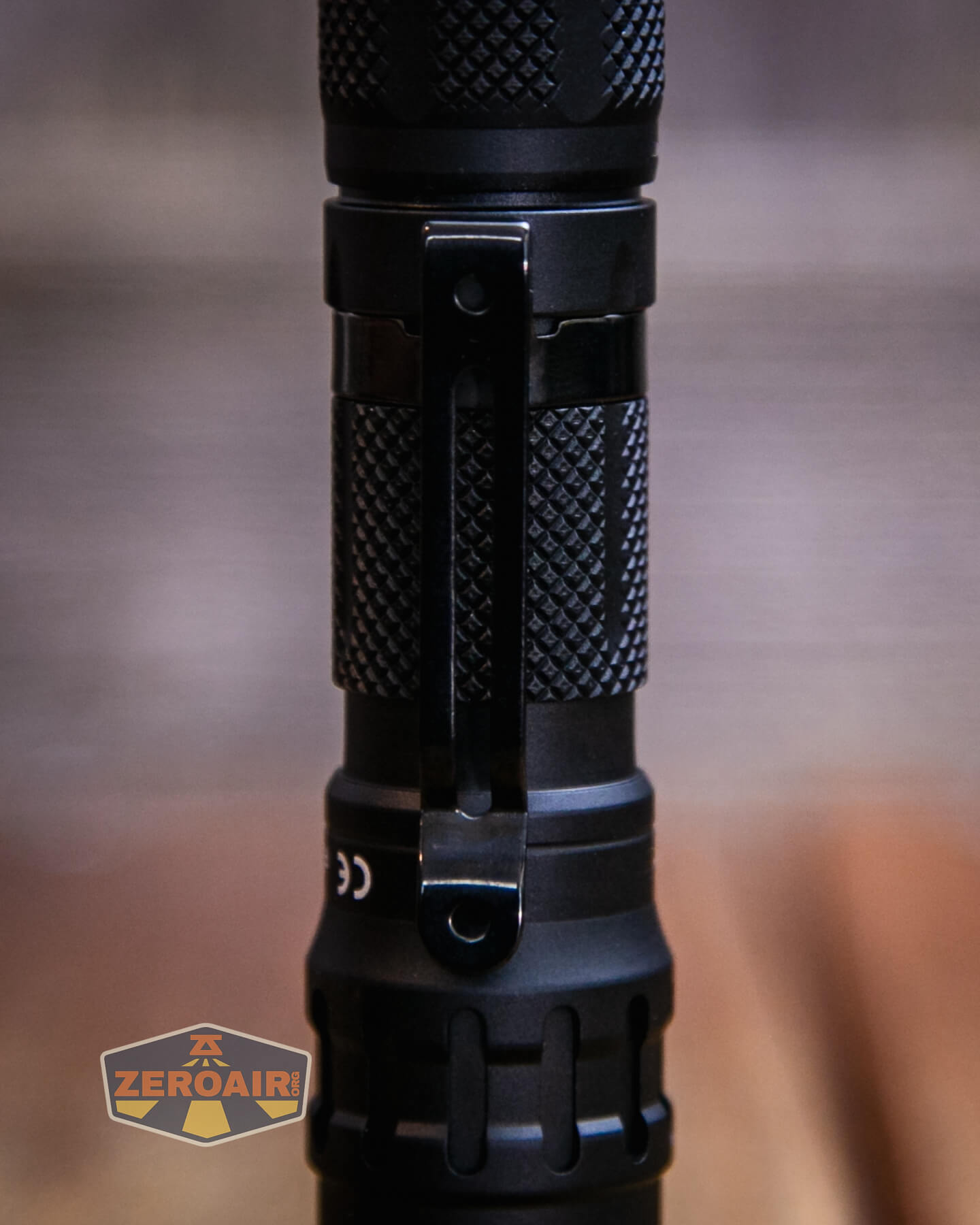

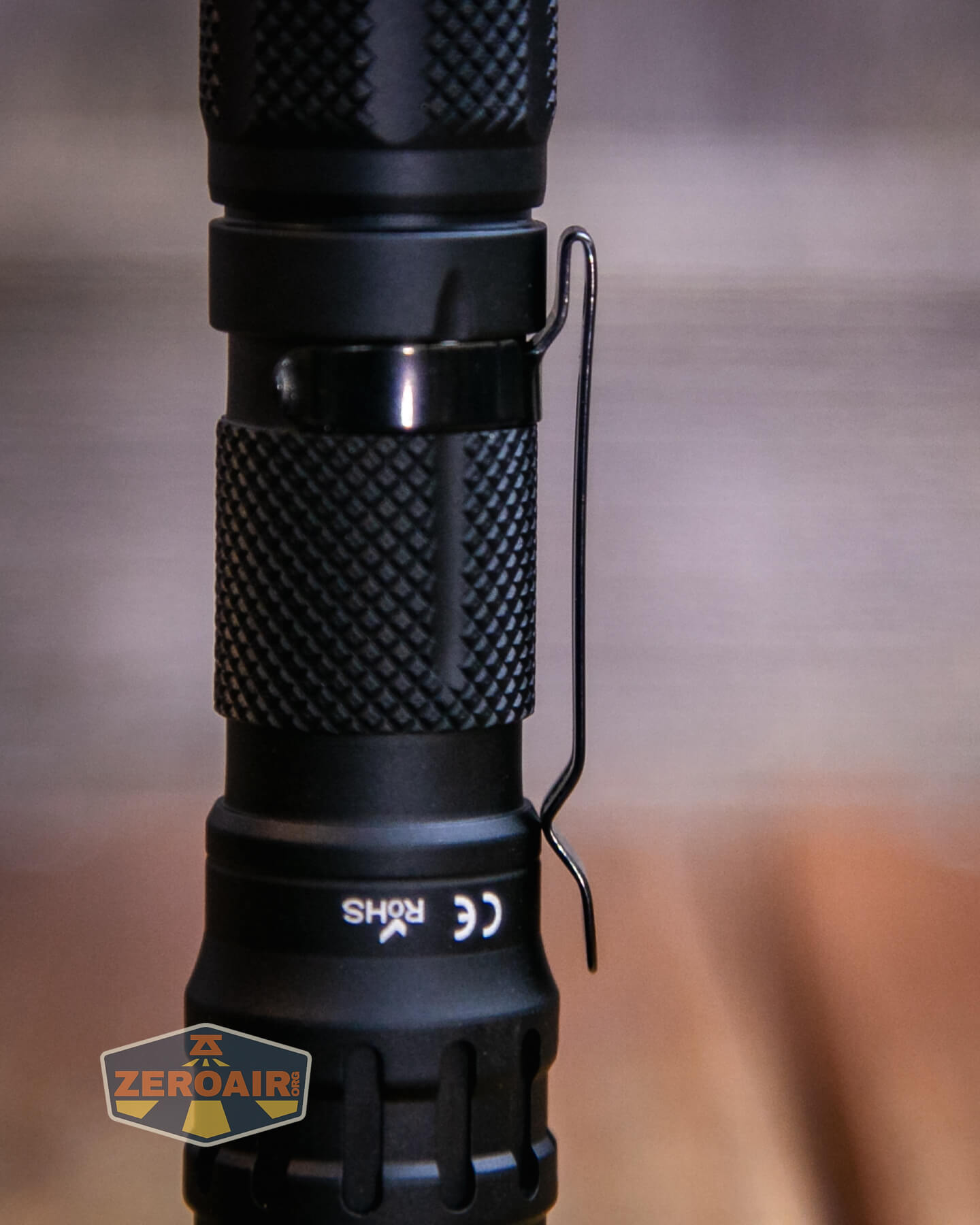

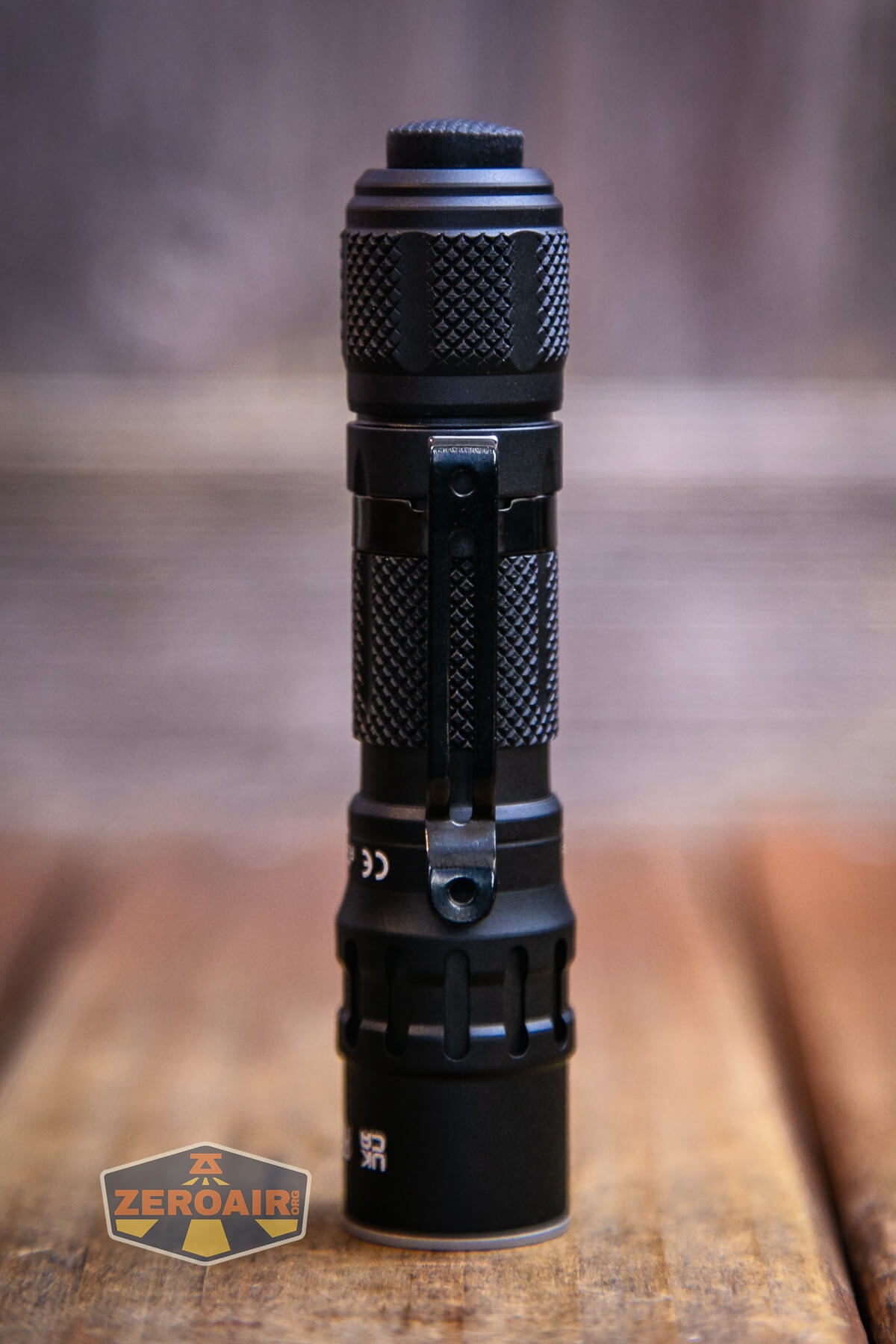

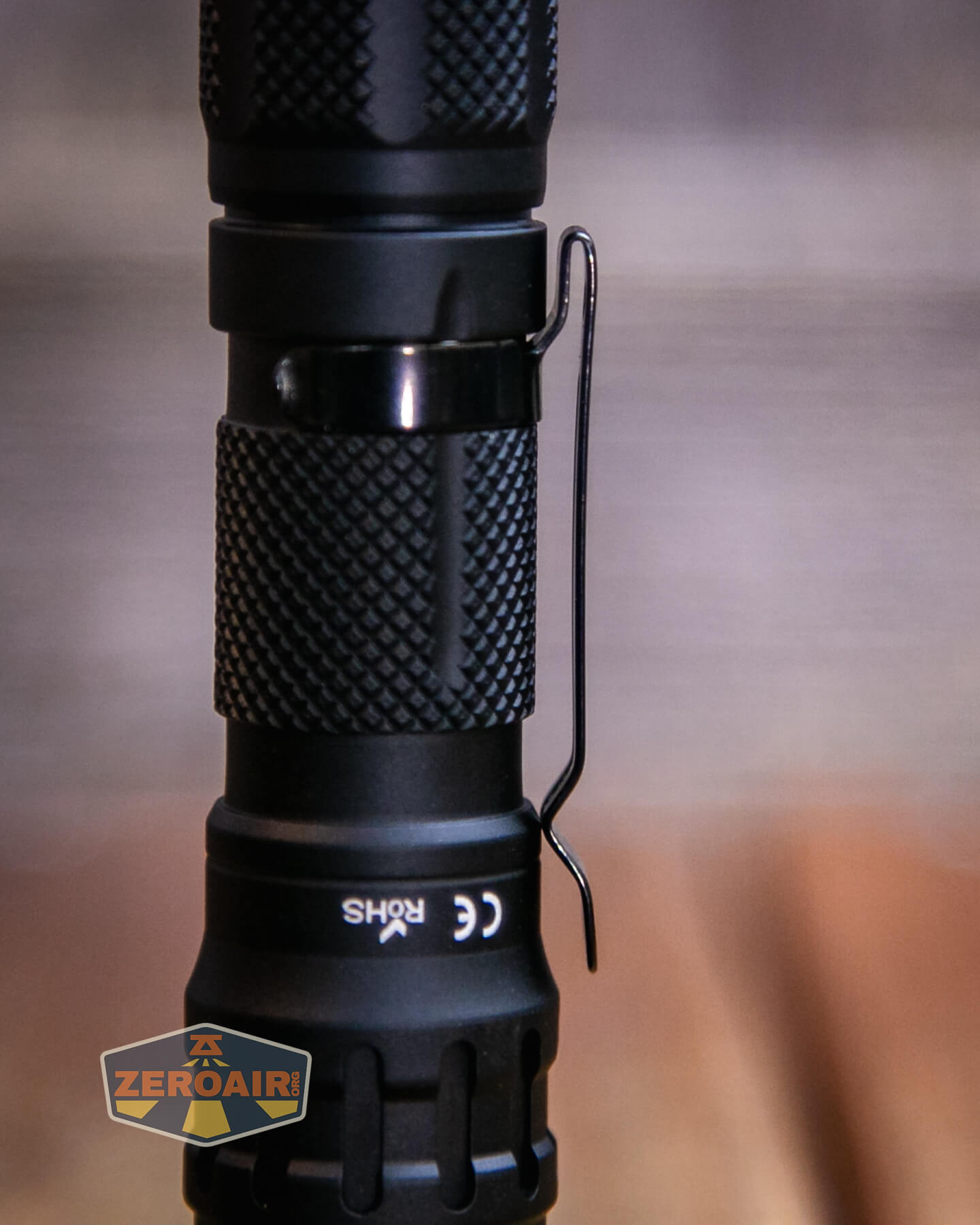

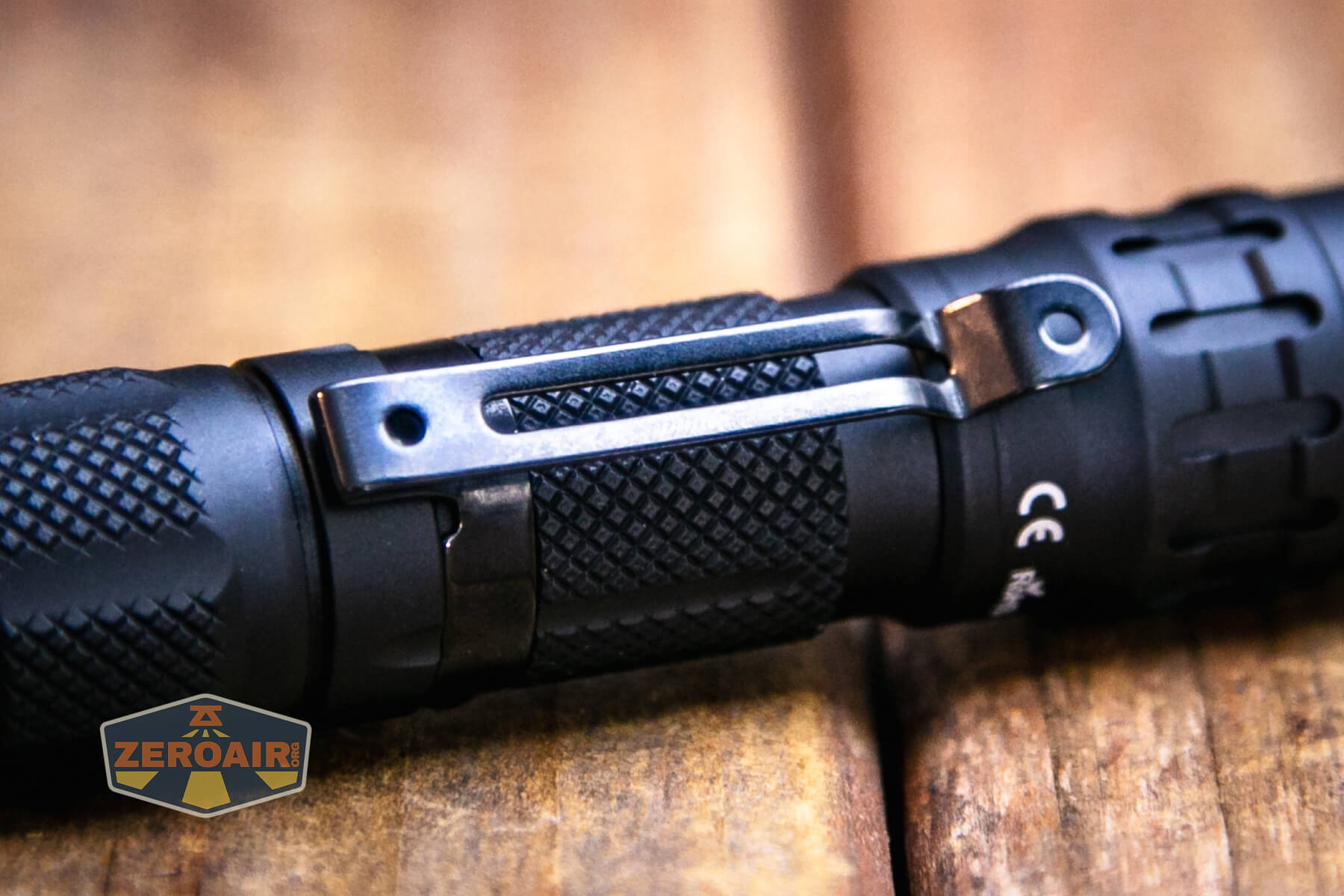

Weltool T1 Pro flashlight pocket clip

The clip is a friction-fit clip and there’s a small lanyard hole in the shoulder.

Clip hug!

Weltool T1 Pro flashlight pocket clip hug

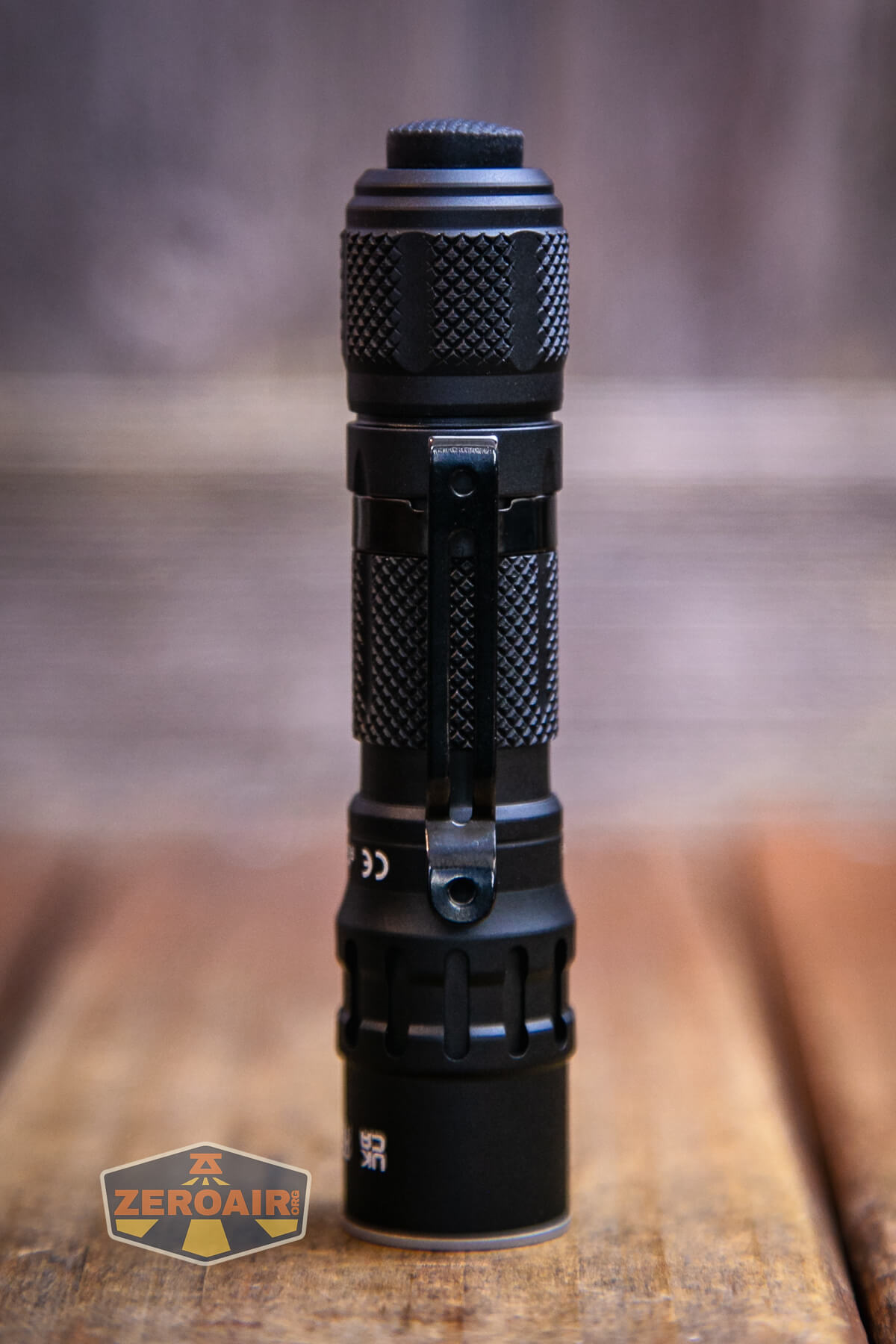

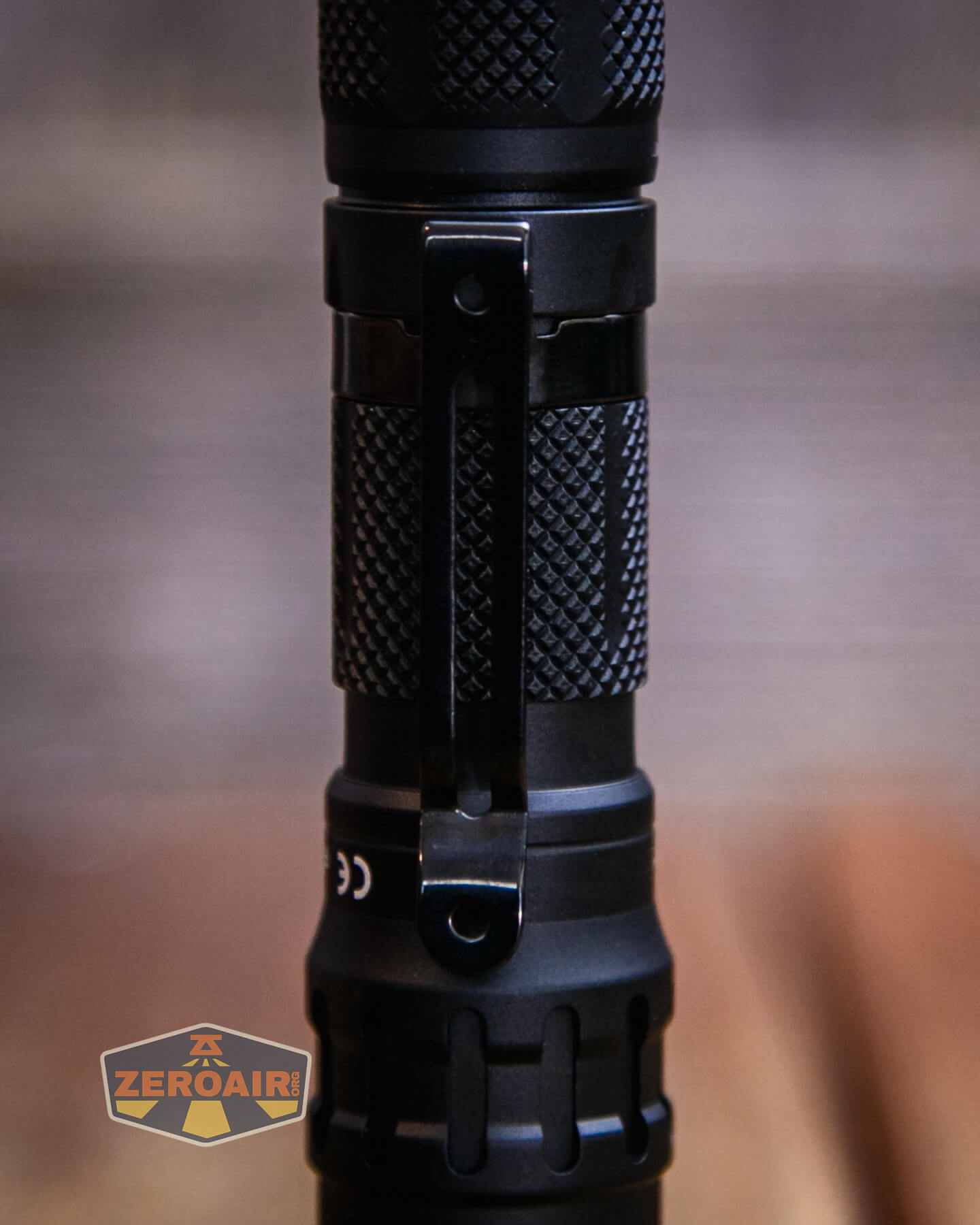

The pocket clip is reversible but in the other position (bezel up), carry is fairly shallow.

Weltool T1 Pro flashlight two pocket clip spots

No lanyard or anything else is included.

Power and Runtime

Weltool includes what you’ll need for best performance from the T1 Pro. This is a 900mAh 14500 cell – lithium-ion. The T1 Pro is also versatile – it’s also designed to run 1.5V cells (that is AA: primary or rechargeable.) I love this feature!

Weltool T1 Pro flashlight included 14500

The cell is installed in the Weltool T1 Pro flashlight in the usual way – positive end toward the head.

Weltool T1 Pro flashlight included 14500 installed

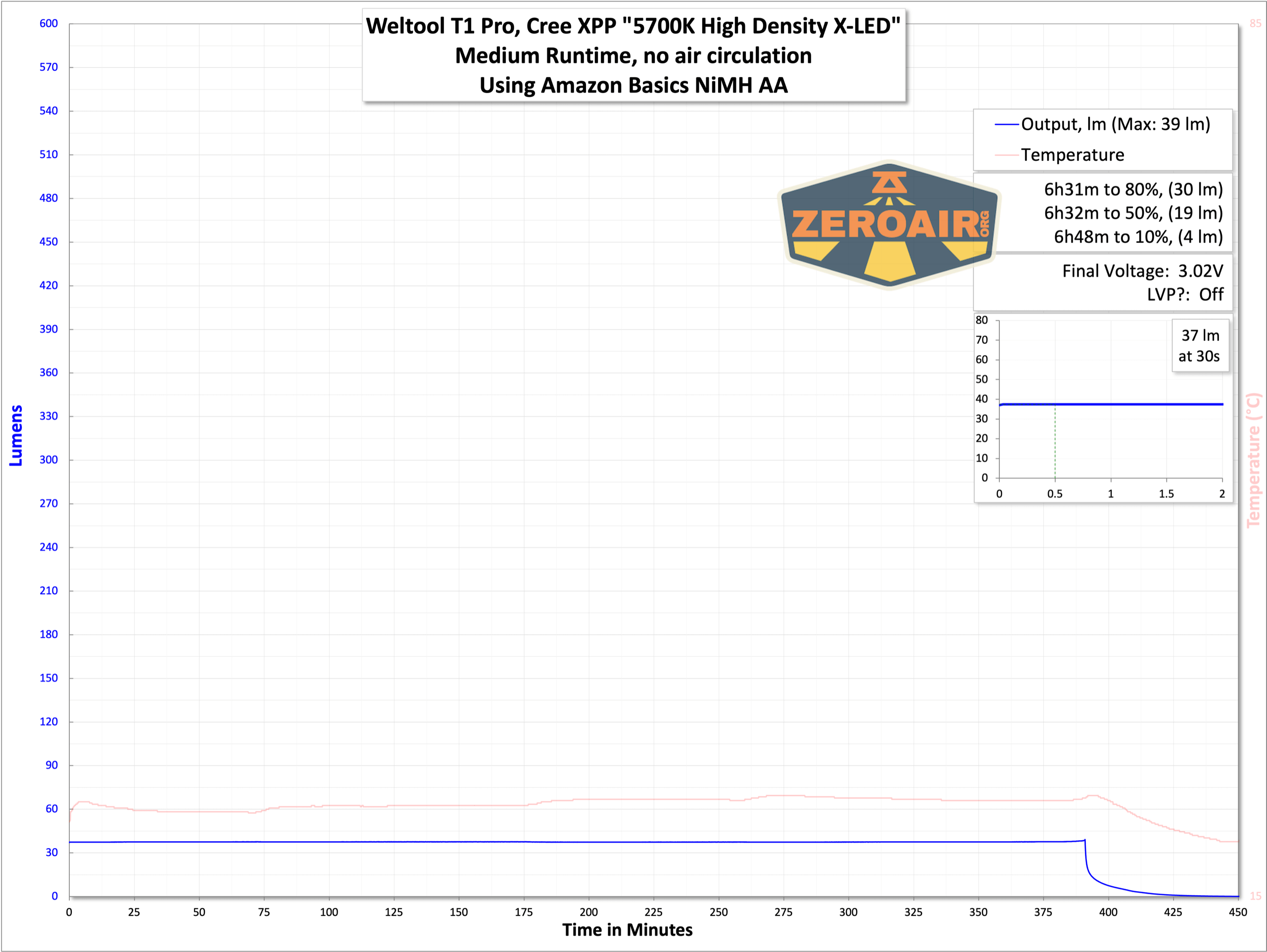

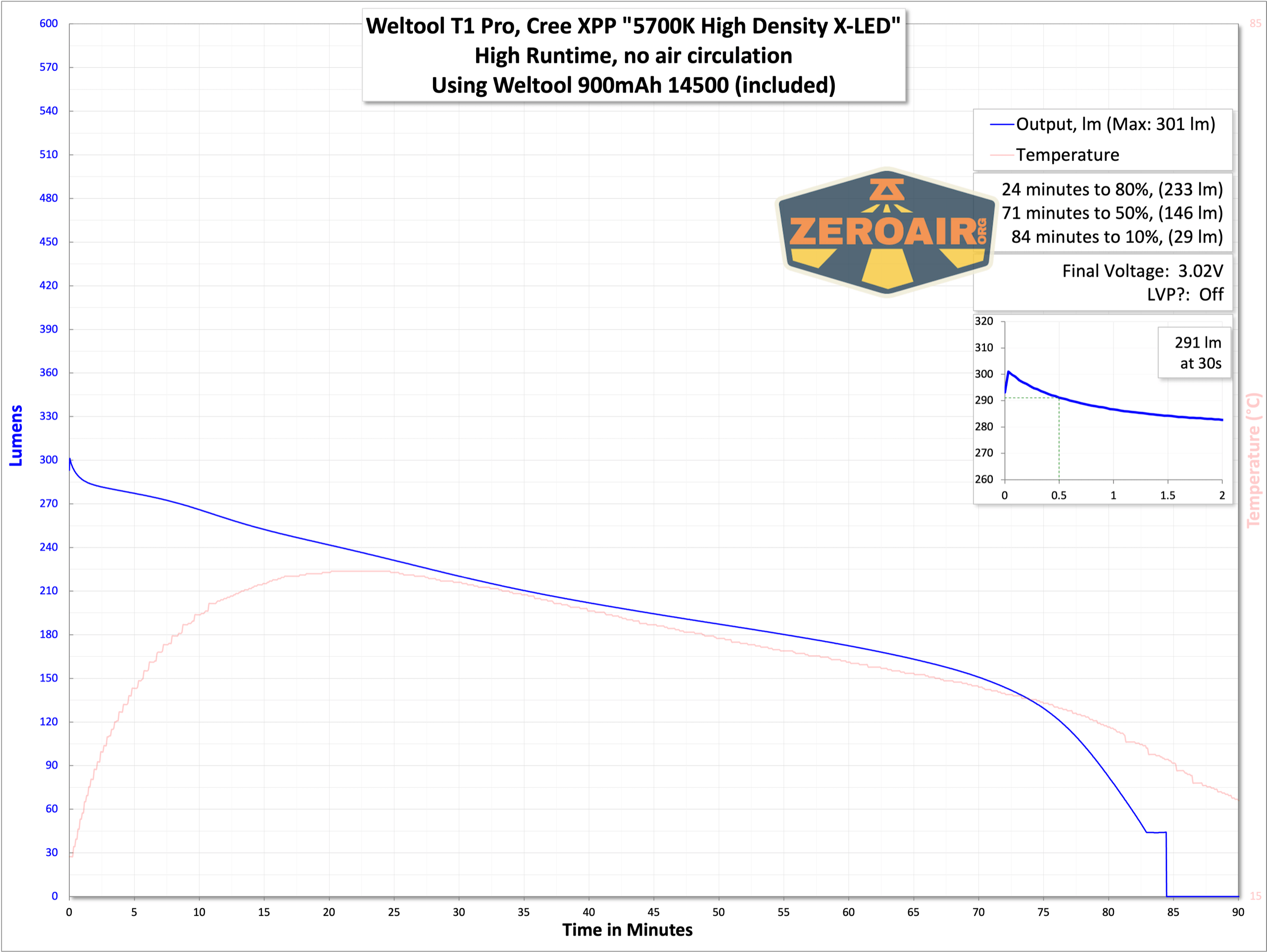

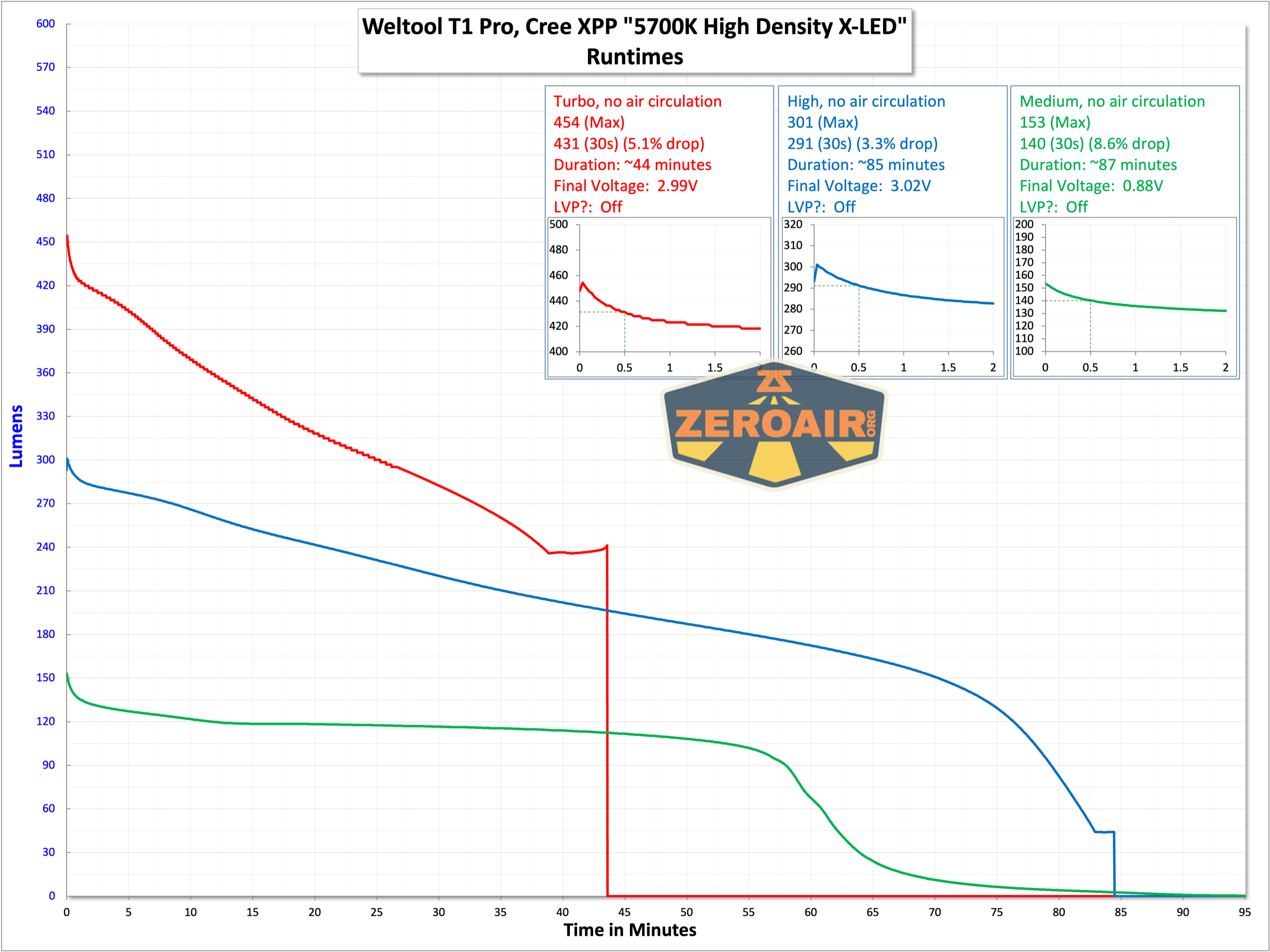

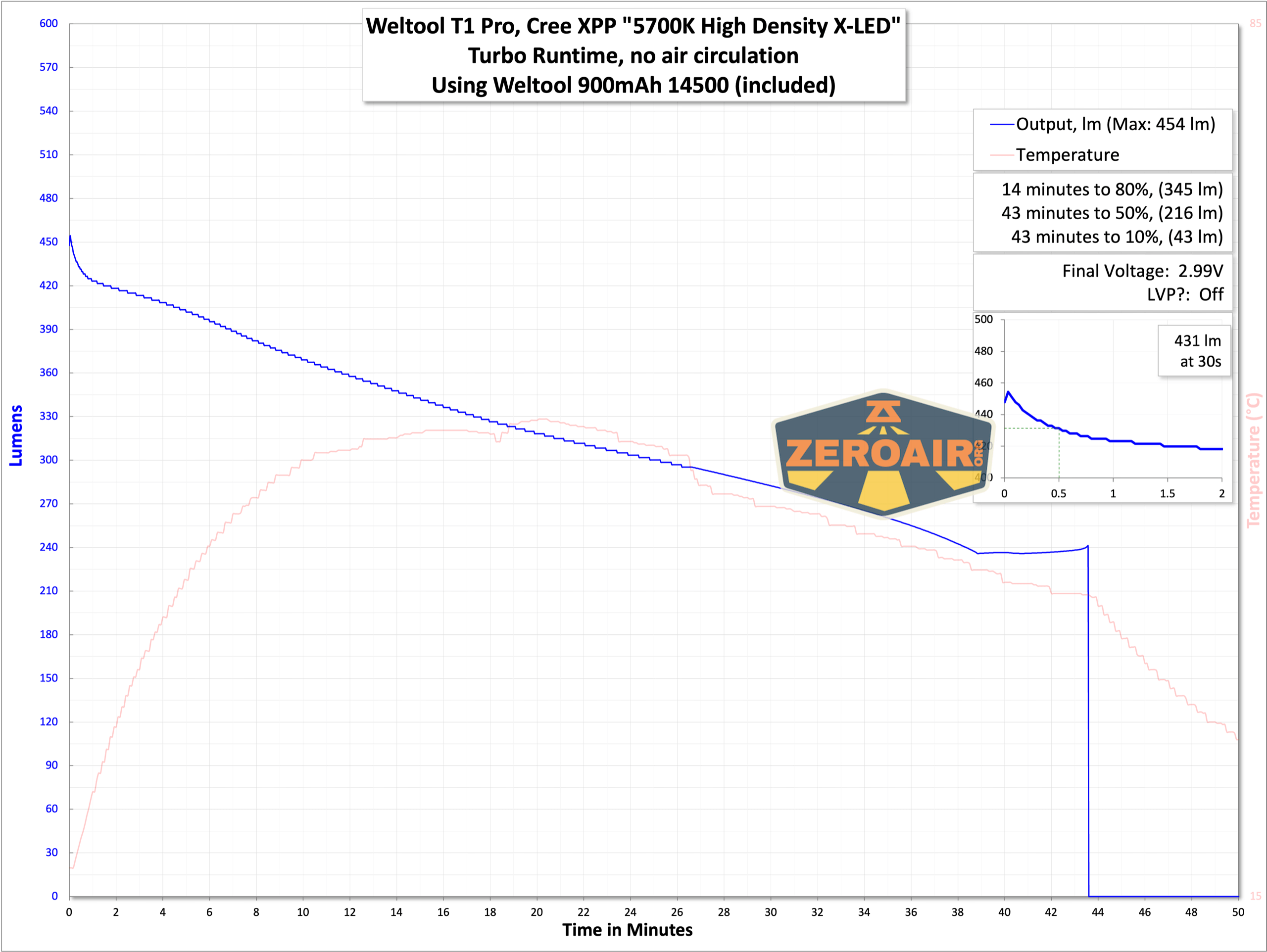

Below are a few runtime tests.

Weltool T1 Pro flashlight runtime graph

Weltool T1 Pro flashlight runtime graph

Weltool T1 Pro flashlight runtime graph

Weltool T1 Pro flashlight runtime graph

Weltool T1 Pro flashlight runtime graph

When using lithium-ion cells, low voltage protection is observed at around 3V. With NiMH, output shuts off at around 0.88V.

Charging

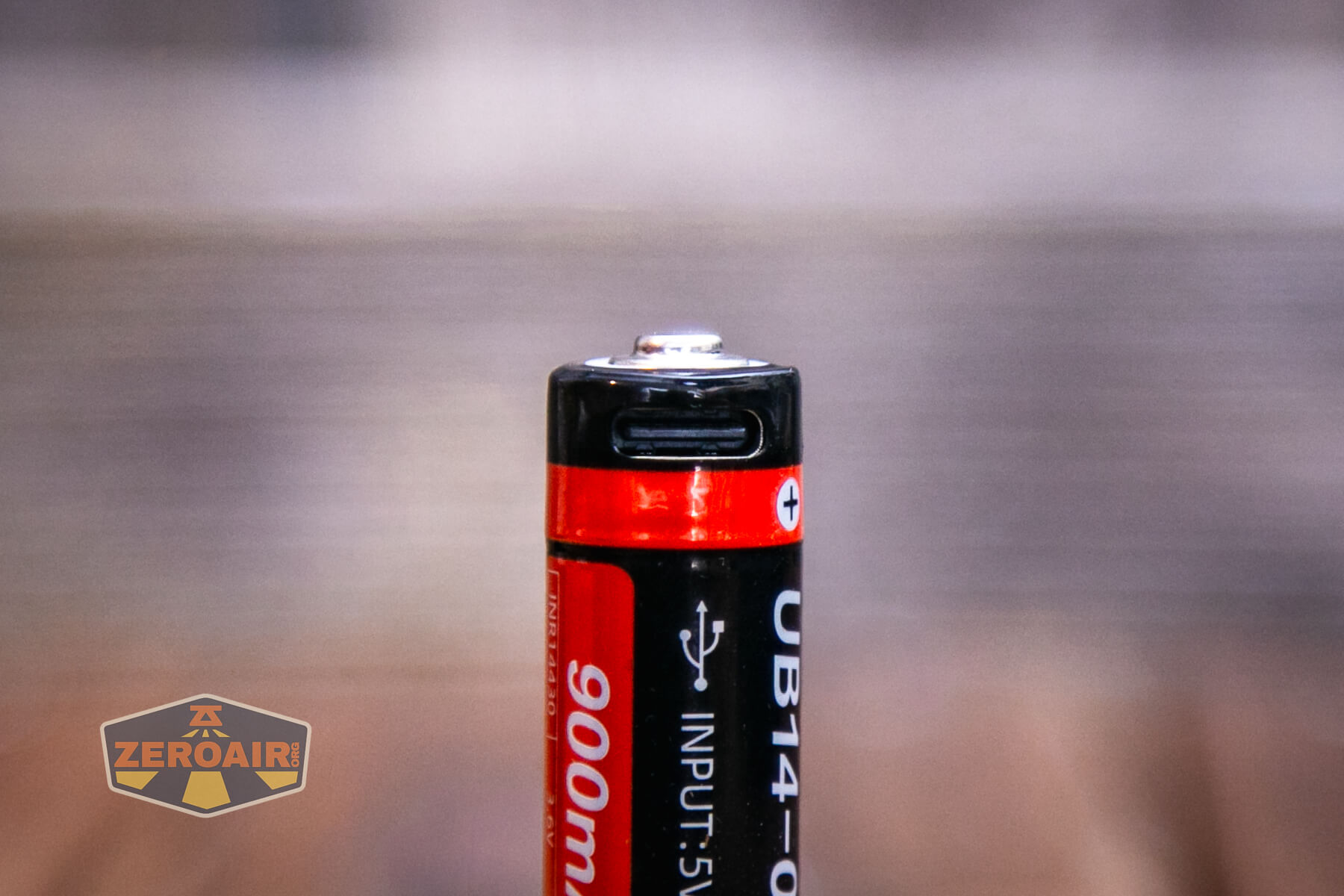

While the T1 Pro itself does not have charging, the included cell does. This is by way of a USB-C charging port on the positive end.

Weltool T1 Pro flashlight cell charging port

Weltool does not include a cable.

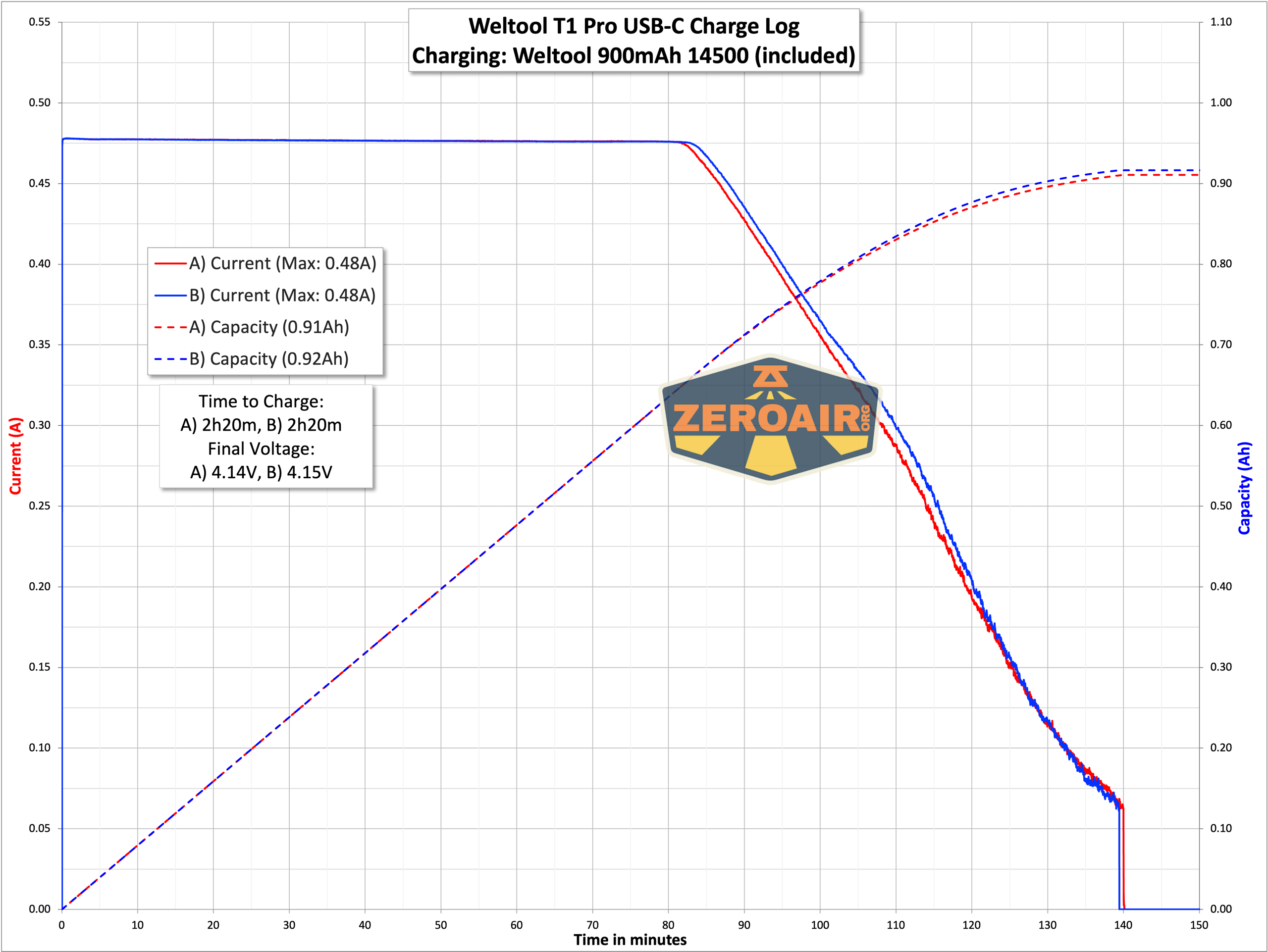

Charging works nicely but is a little slow, requiring over 2 hours. C to C charging works just fine too.

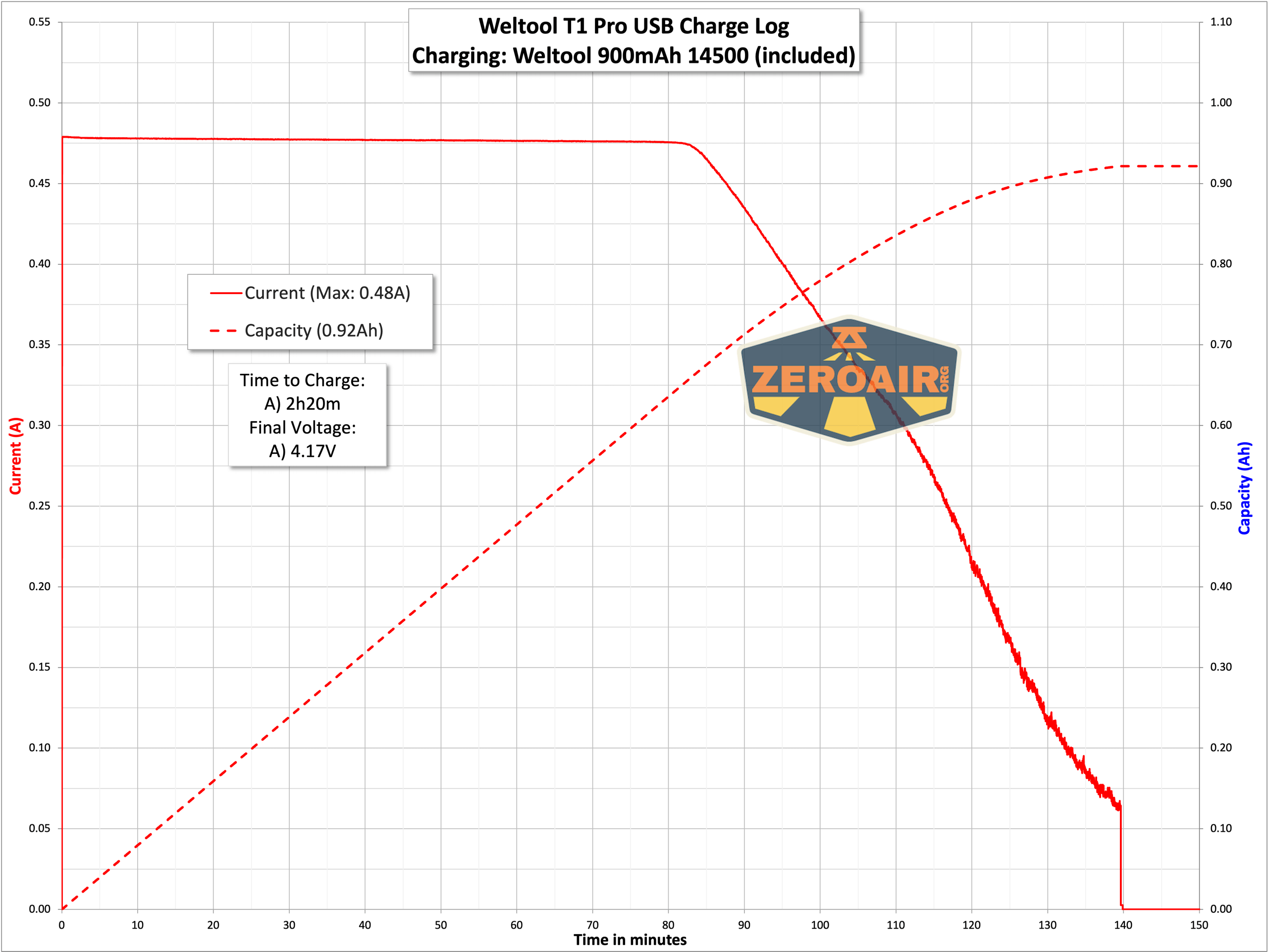

Weltool T1 Pro flashlight cell charging graph

Weltool T1 Pro flashlight cell charging graph

Modes and Currents

Mode Mode Claimed Output (lm) Claimed Runtime Measured Lumens Tailcap Amps (@4.2V)
High 540 38m 431 2.59
Medium 365 1h10m 291 1.21
Low 86 8h42m 66 0.20
Mode Mode Claimed Output (lm) Claimed Runtime Measured Lumens Tailcap Amps (@1.5V)
High 160 39m 140 2.22
Medium 53 3.5h 37 0.22
Low 31 92h   0.01

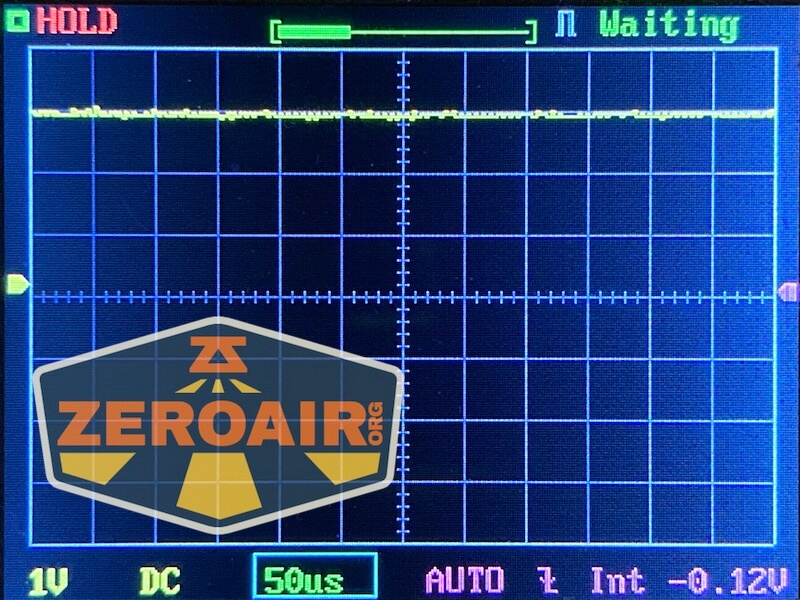

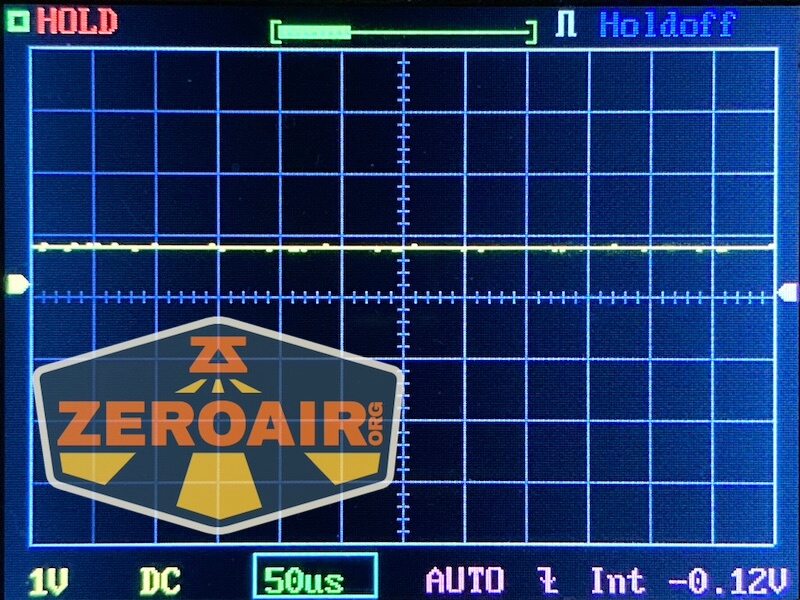

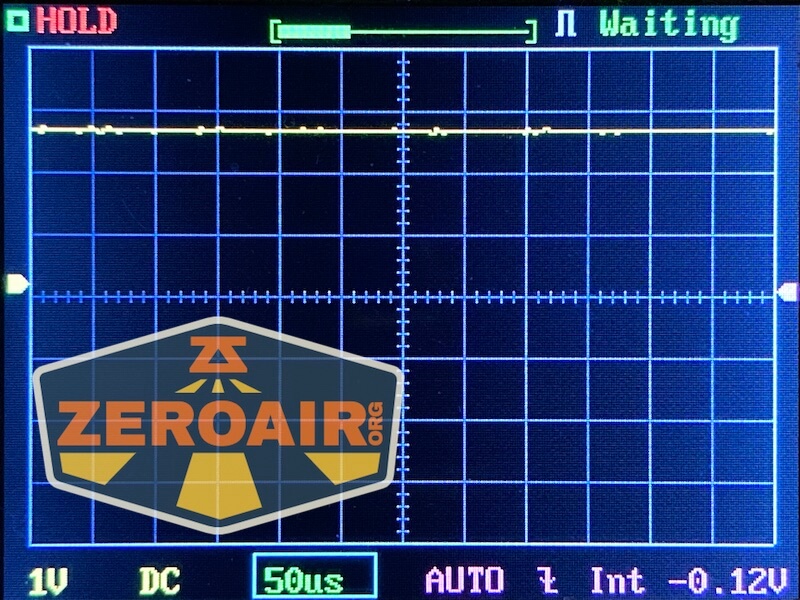

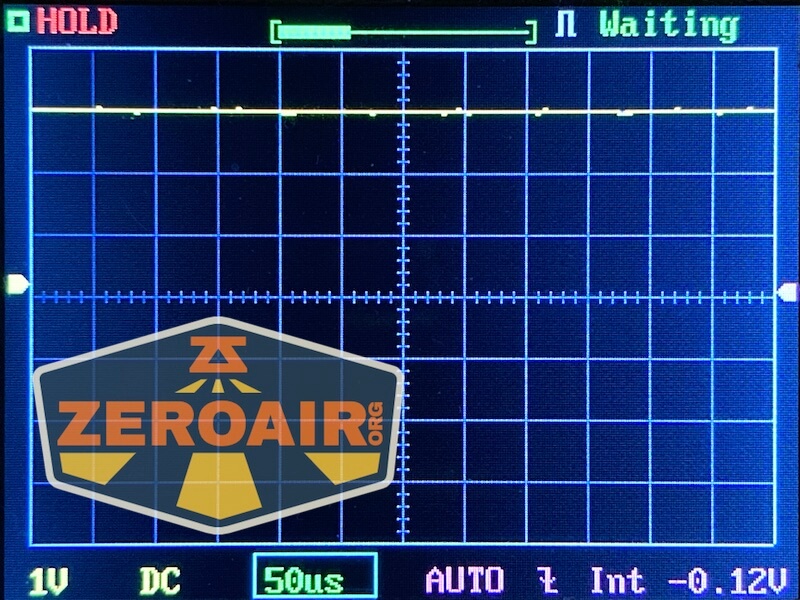

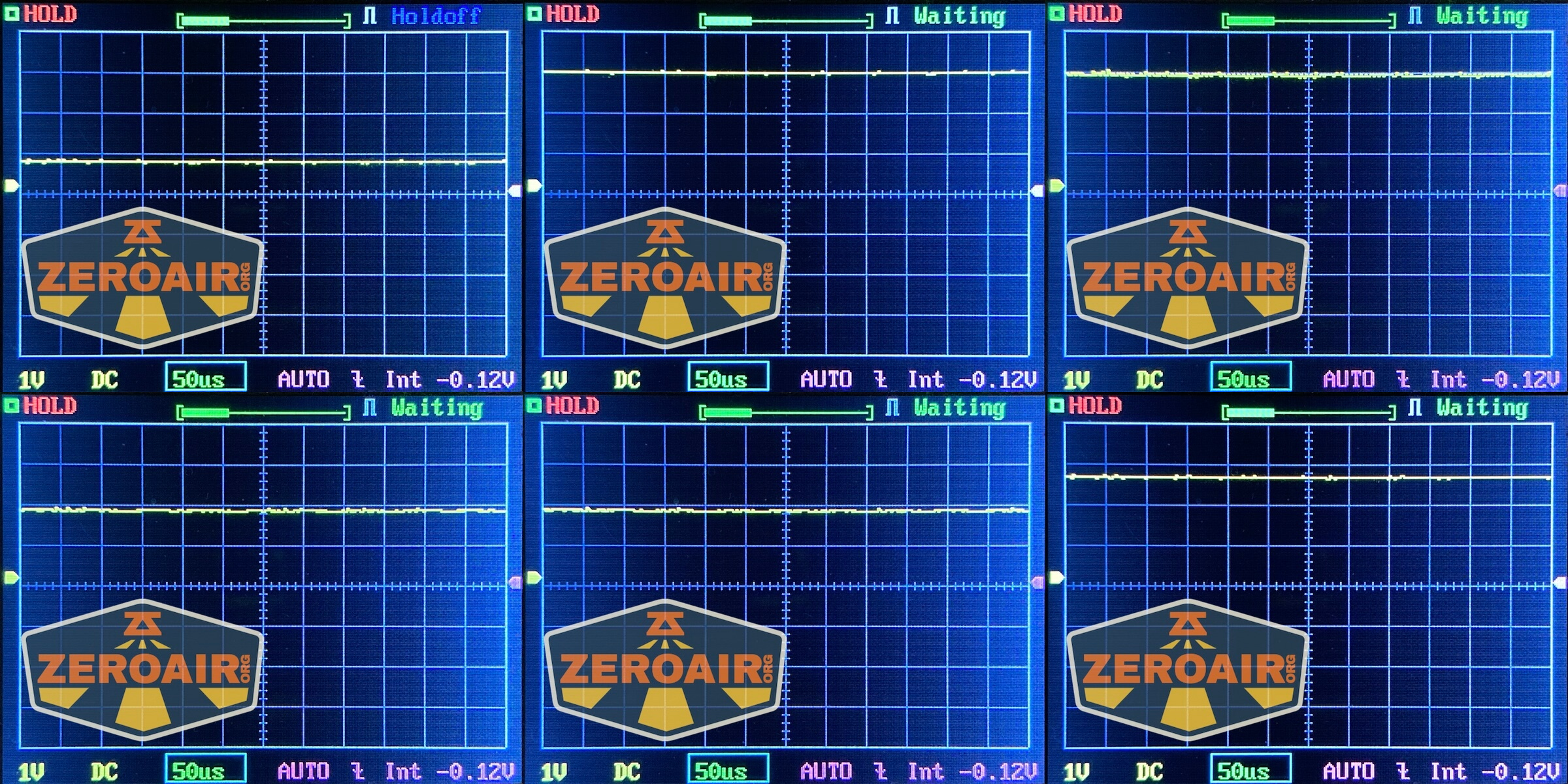

Pulse Width Modulation

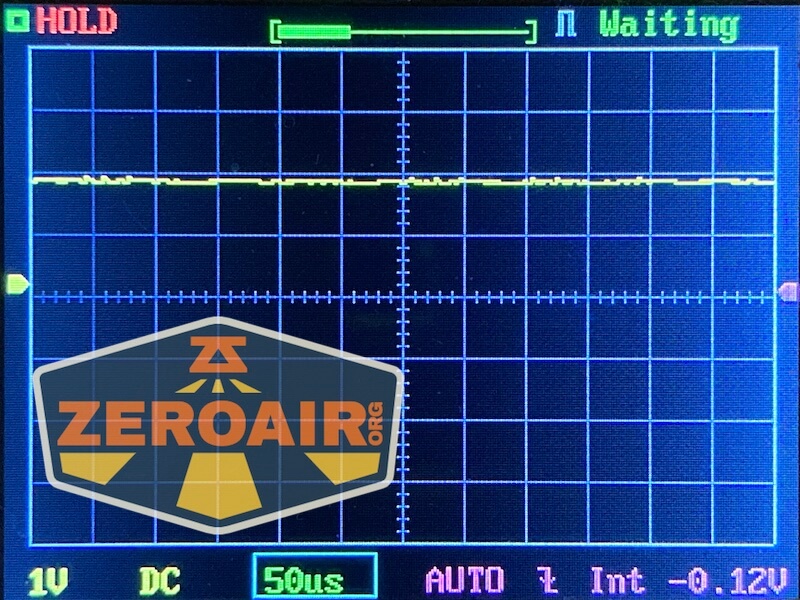

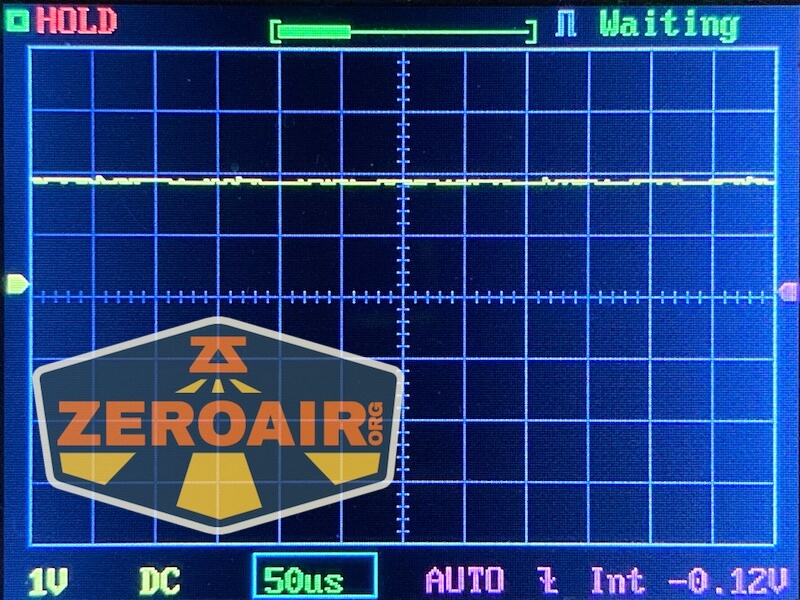

None of the modes on any cell type use PWM.

For reference, here’s a baseline shot, with all the room lights off and almost nothing hitting the sensor.  Also, here’s the light with the worst PWM I could find.  I’m adding multiple timescales, so it’ll be easier to compare to the test light.  Unfortunately, the PWM on this light is so bad that it doesn’t even work with my normal scale, with is 50 microseconds (50us).  10ms5ms2ms1ms0.5ms0.2ms.  In a display faster than 0.2ms or so, the on/off cycle is more than one screen, so it’d just (very incorrectly) look like a flat line.  I wrote more about this Ultrafire WF-602C flashlight and explained a little about PWM too.

User Interface and Operation

A single switch controls the T1 Pro. It’s a mechanical tail switch and is a forward clicky. This allows momentary activation of the light. It’s also what facilitates mode changes.

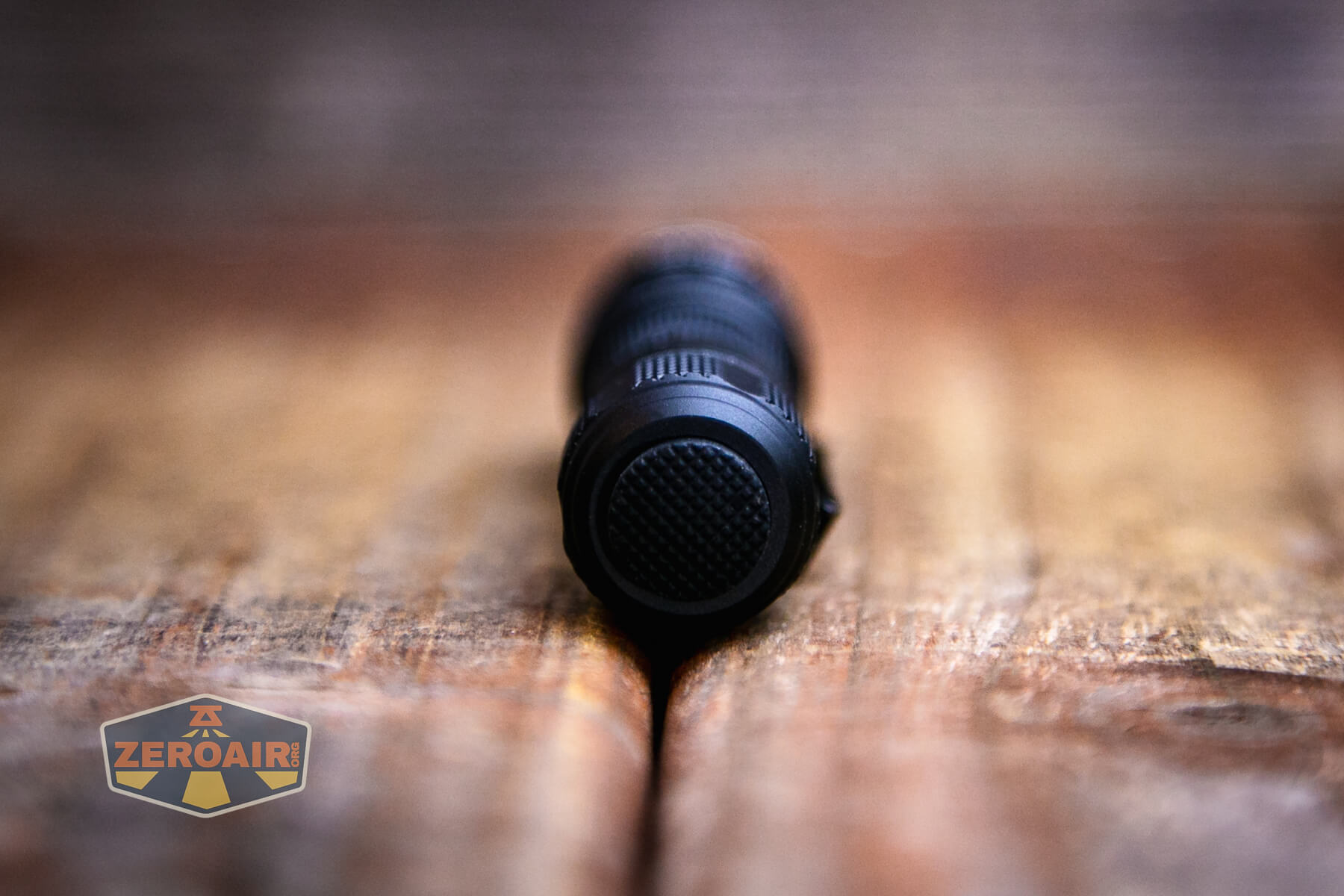

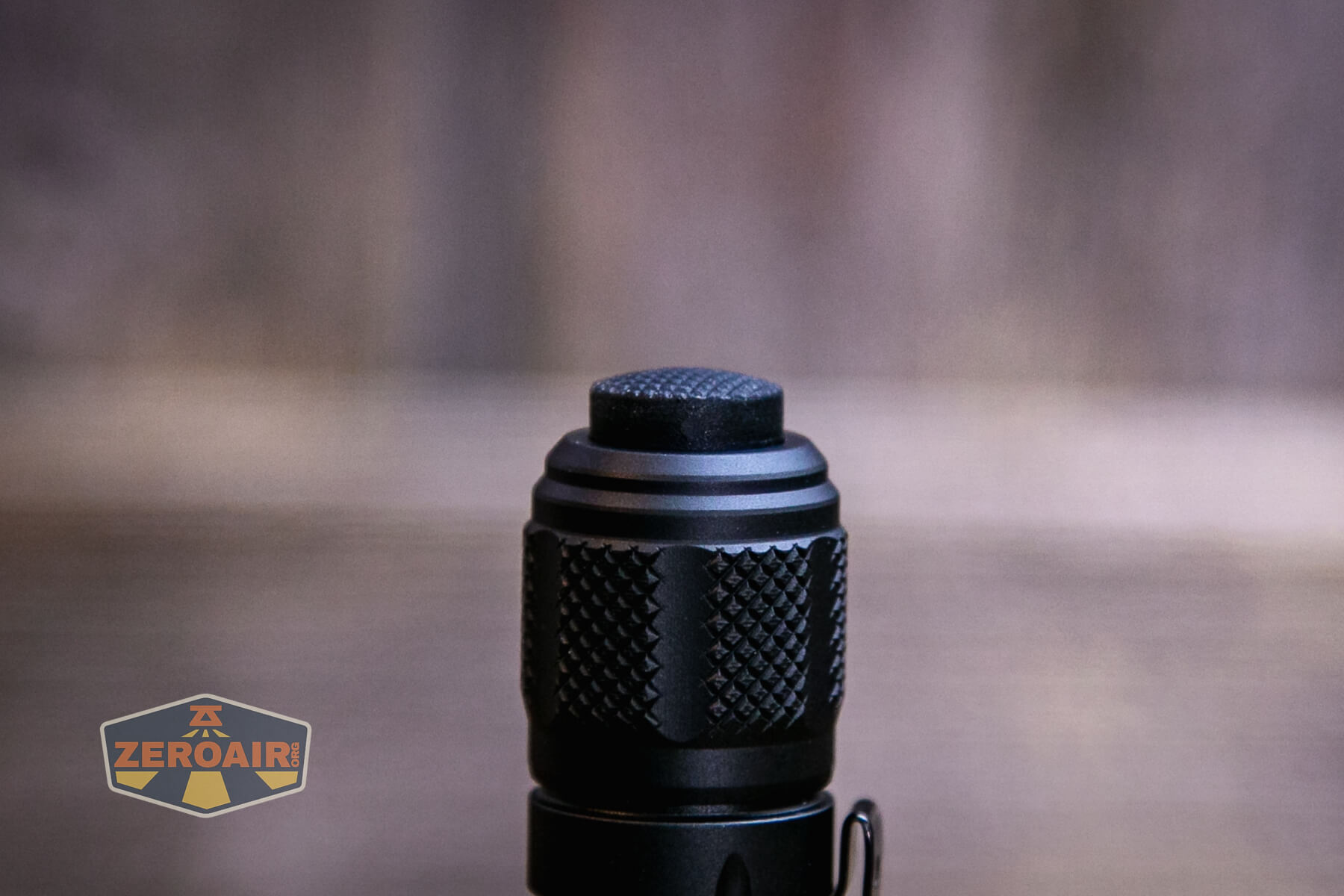

Weltool T1 Pro flashlight tail switch

Weltool T1 Pro flashlight tail switch profile

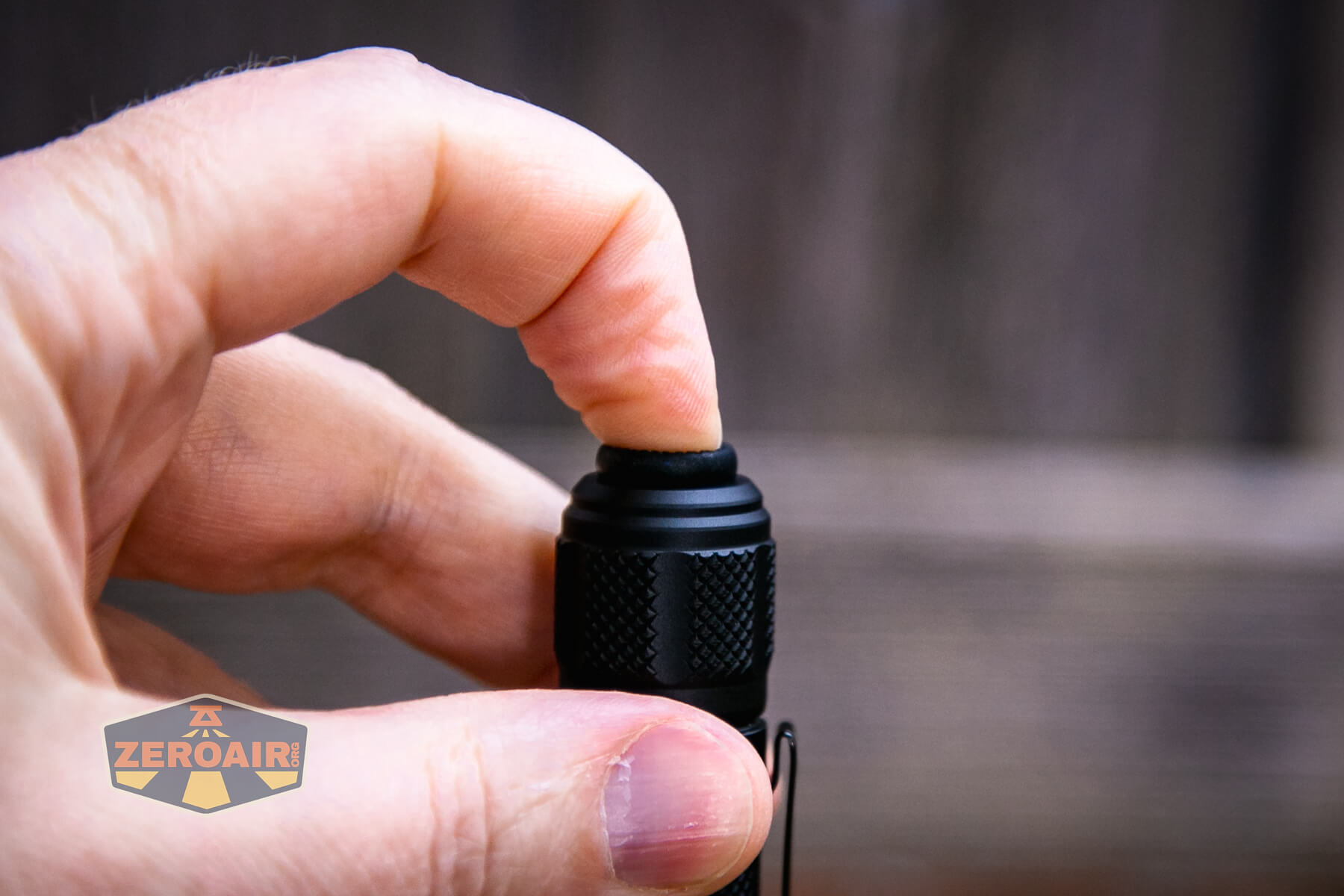

Weltool T1 Pro flashlight tail switch actuation

Here’s a UI table!

State Action Result
Off Click On
Off Repeated taps Mode advance (M>H)
Off Repeated taps >4 Low
On Click Off

LED and Beam

Weltool uses a Cree XPP emitter in the T1 Pro. That’s a good choice for throw and probably trades a bit of output for that. This emitter is fairly small! I like it quite a bit though.

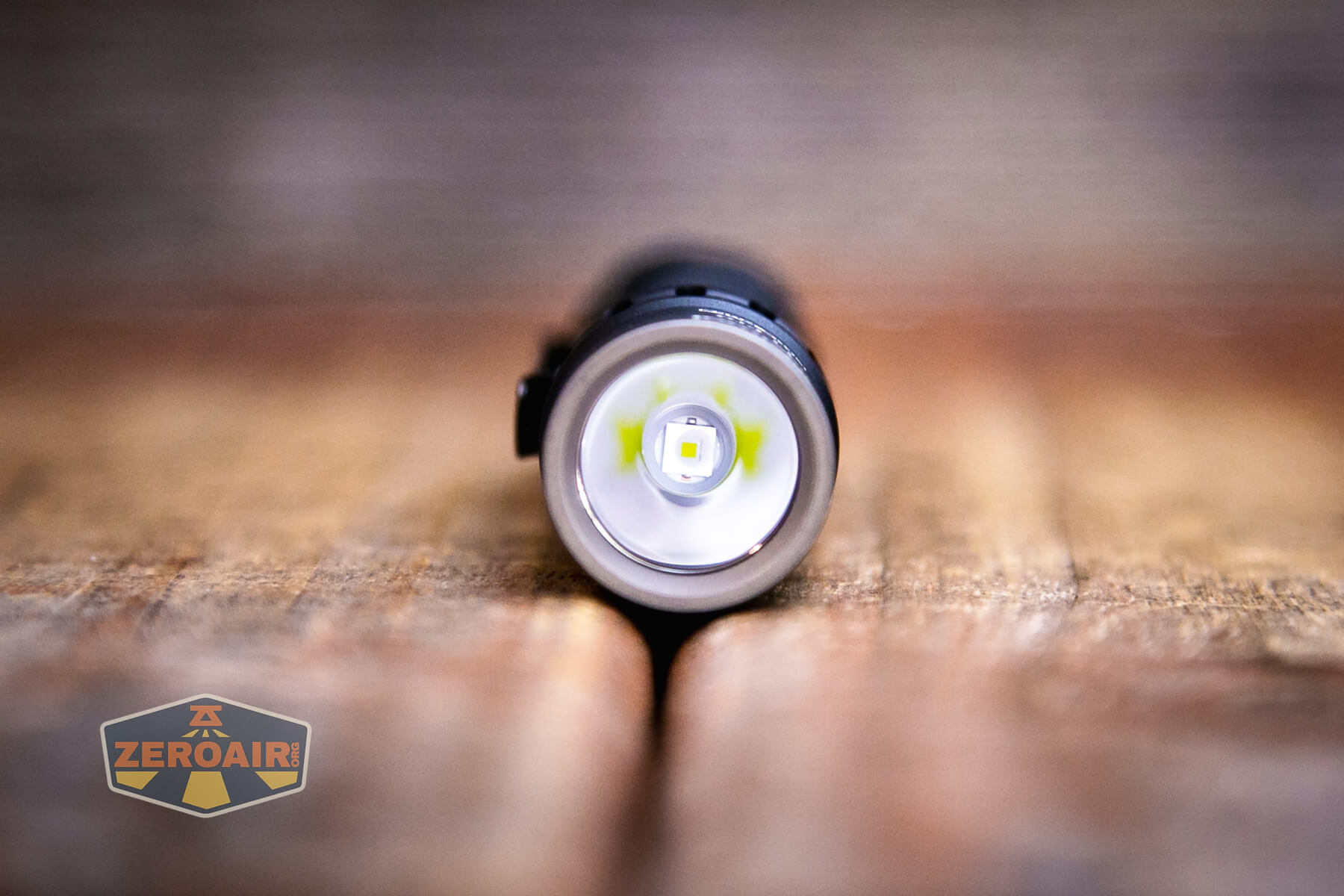

Weltool T1 Pro flashlight emitter

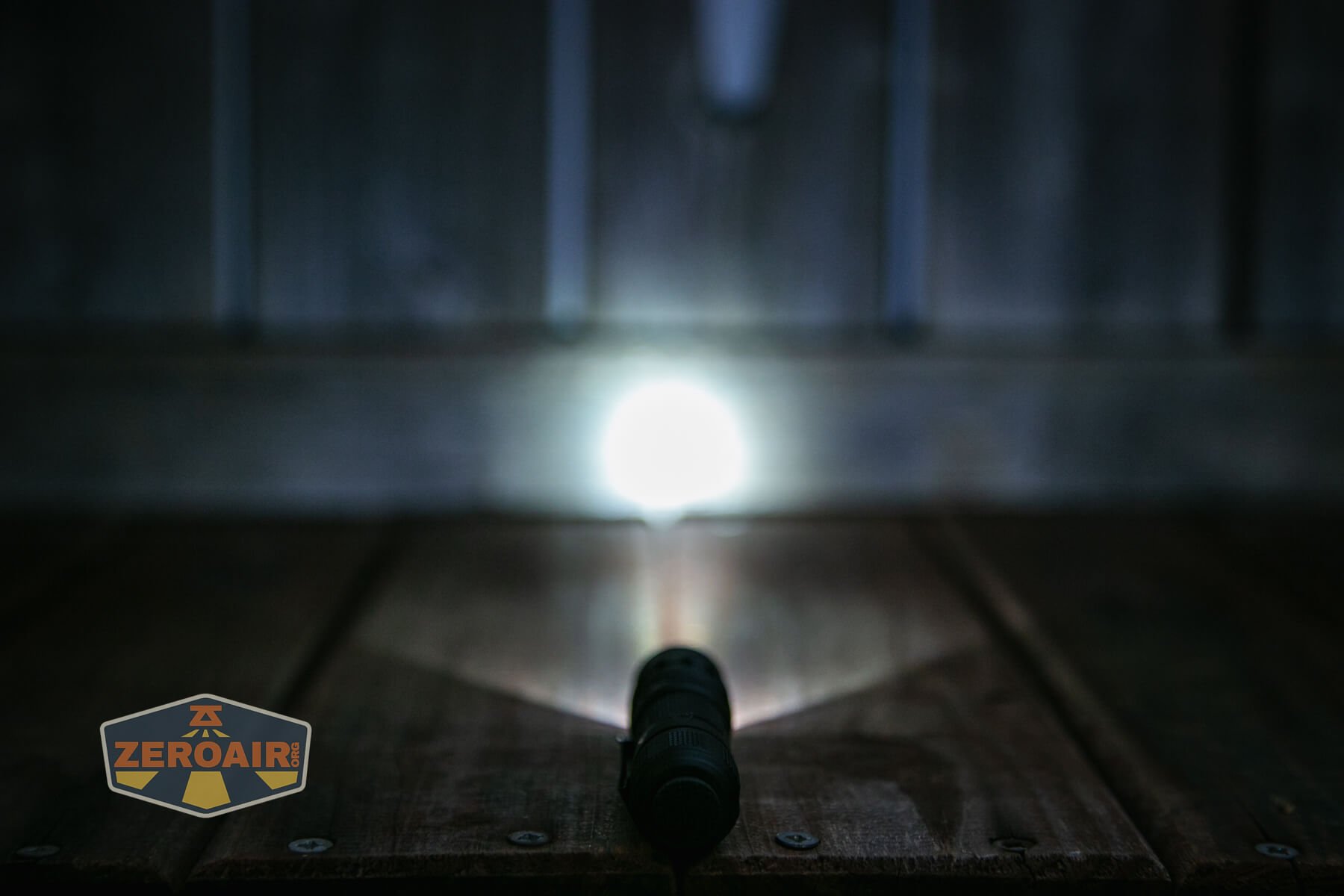

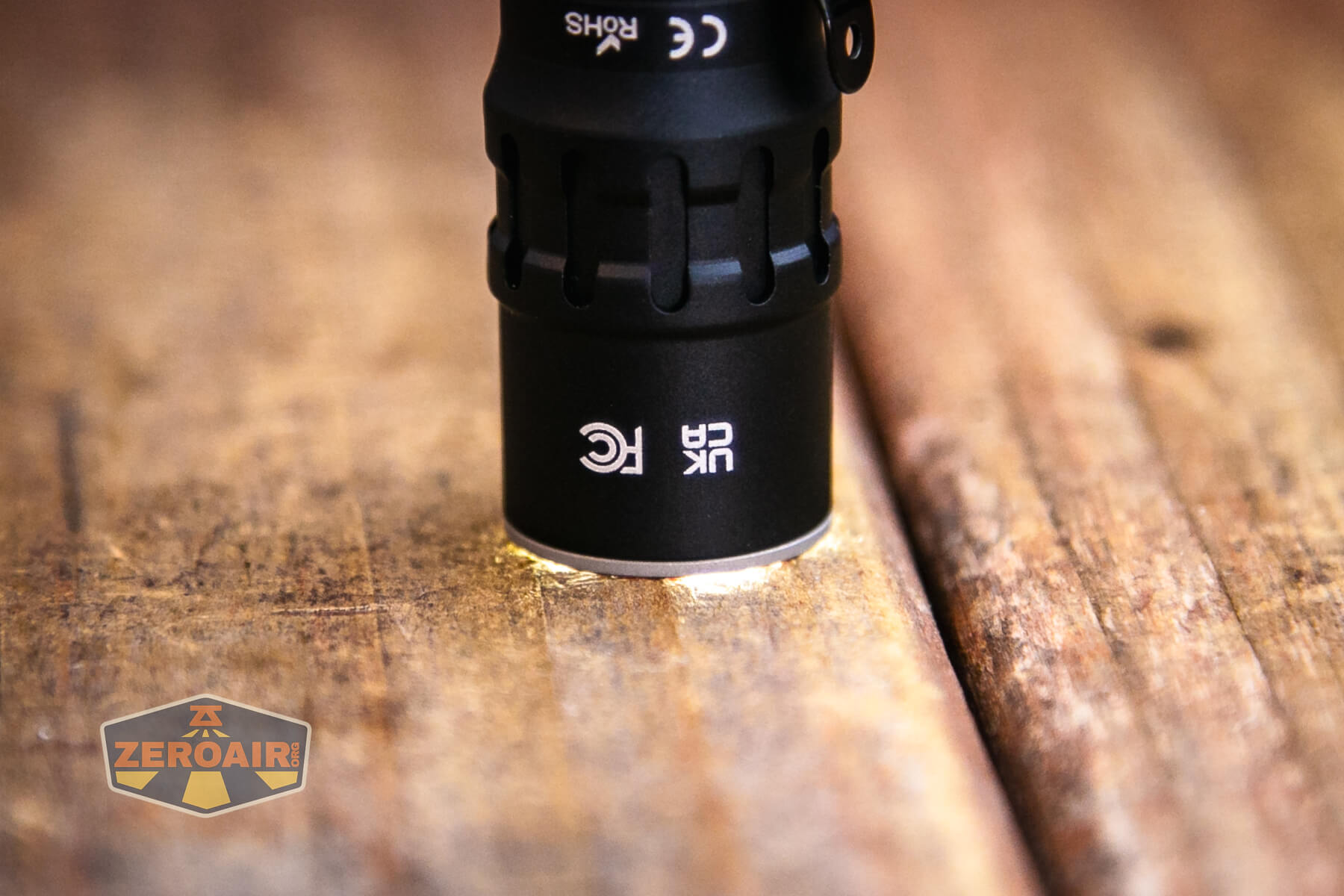

The bezel is smooth, so light doesn’t escape when on a flat surface (below is not a flat surface…)

Weltool T1 Pro flashlight flat bezel

Weltool T1 Pro flashlight emitter on

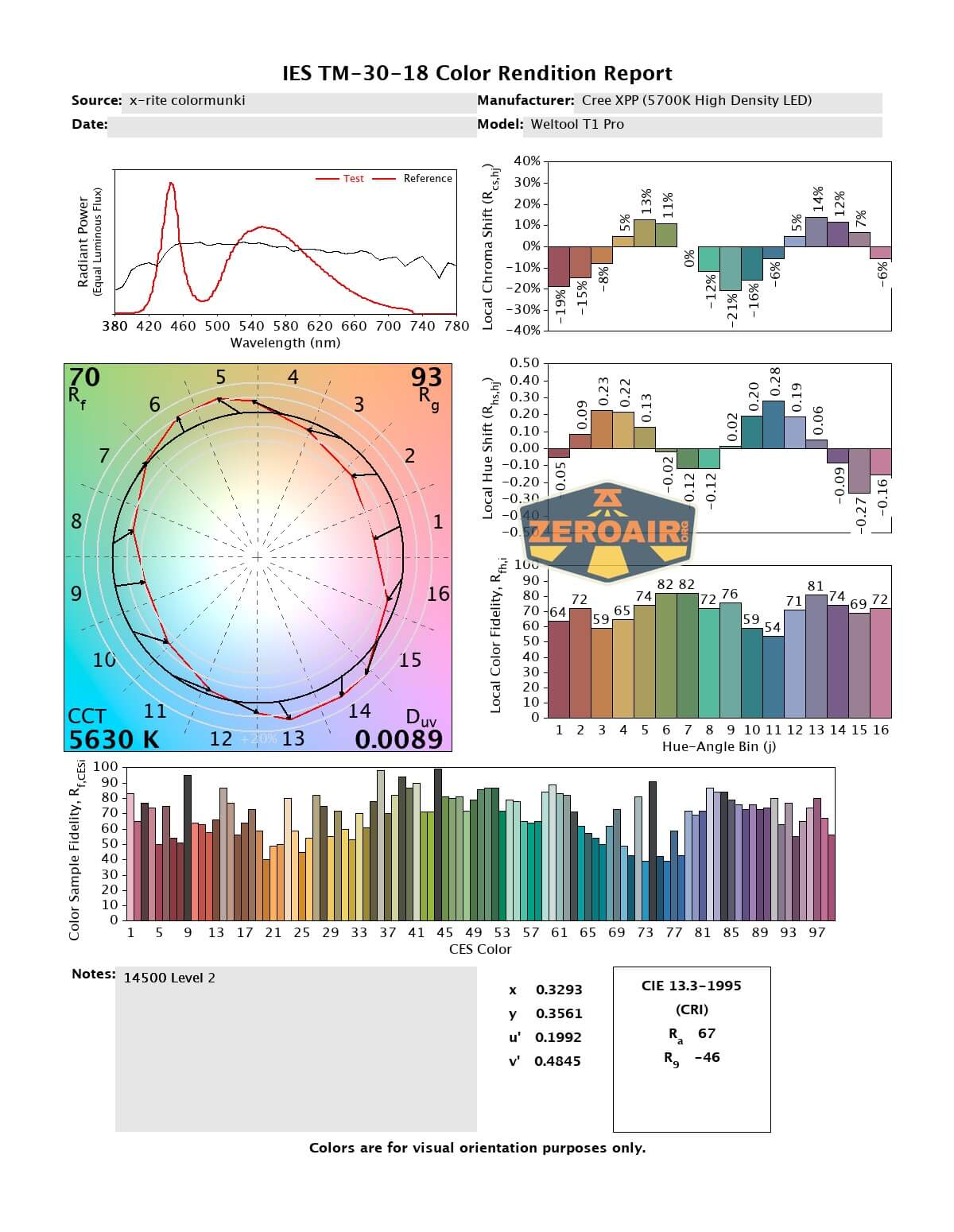

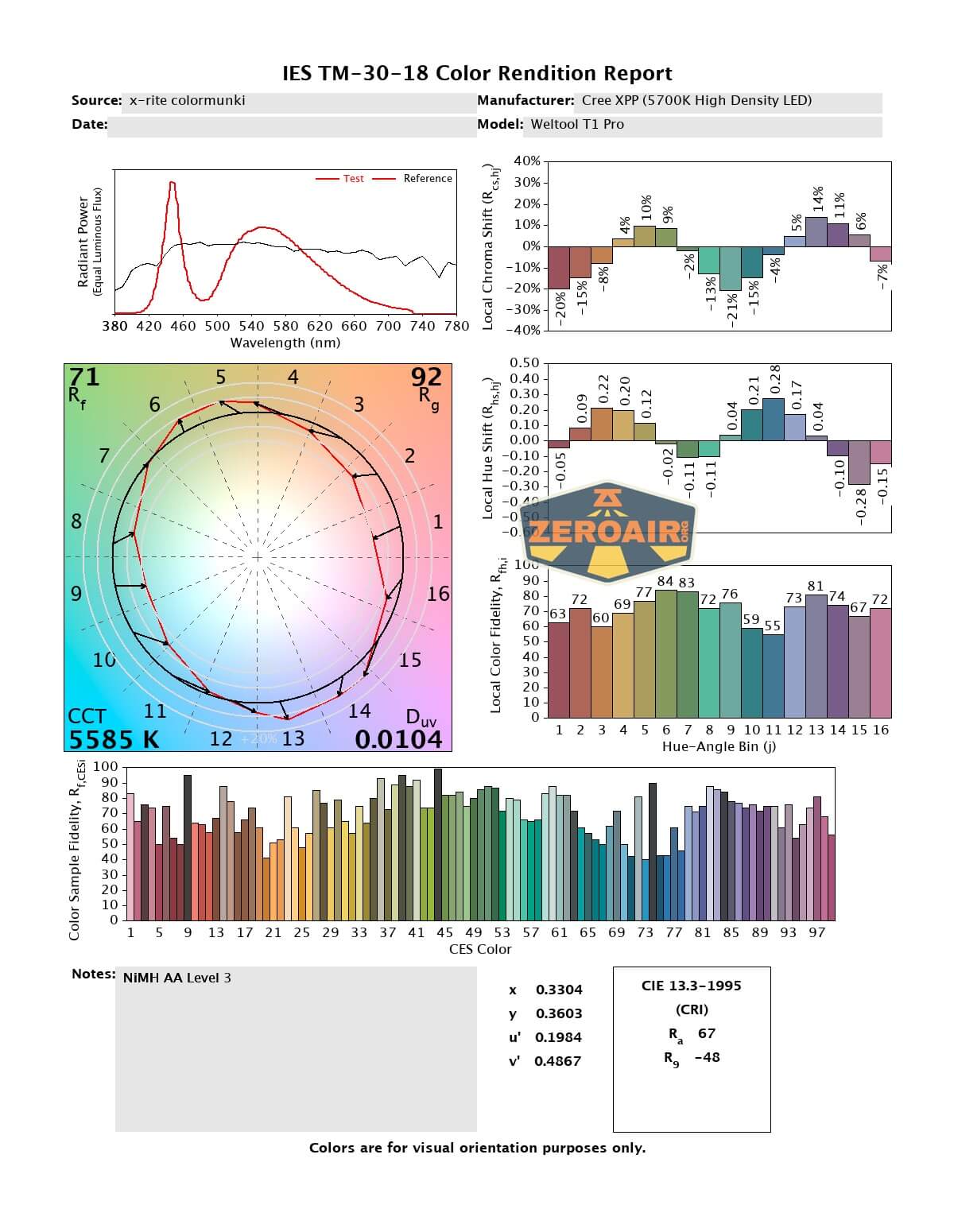

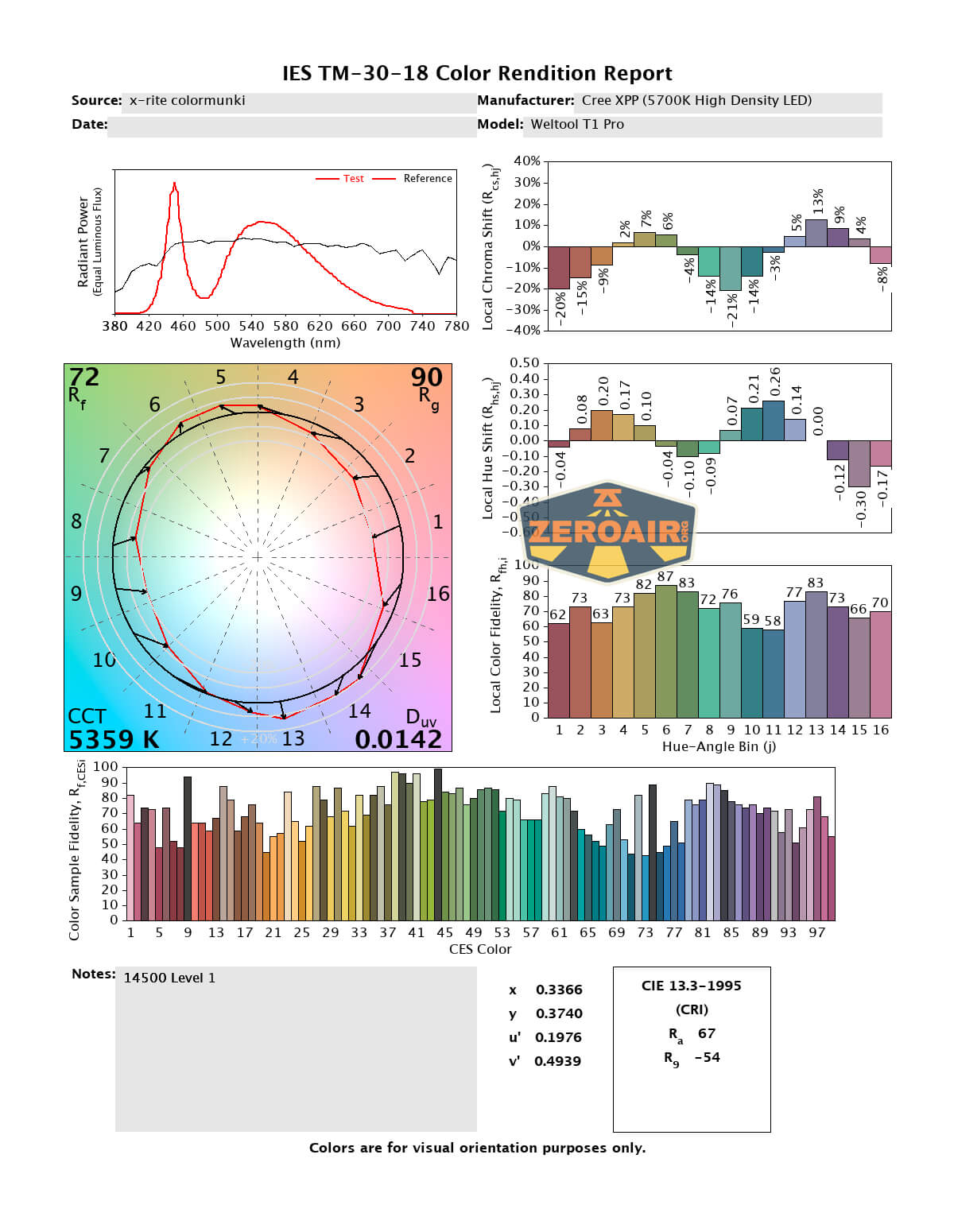

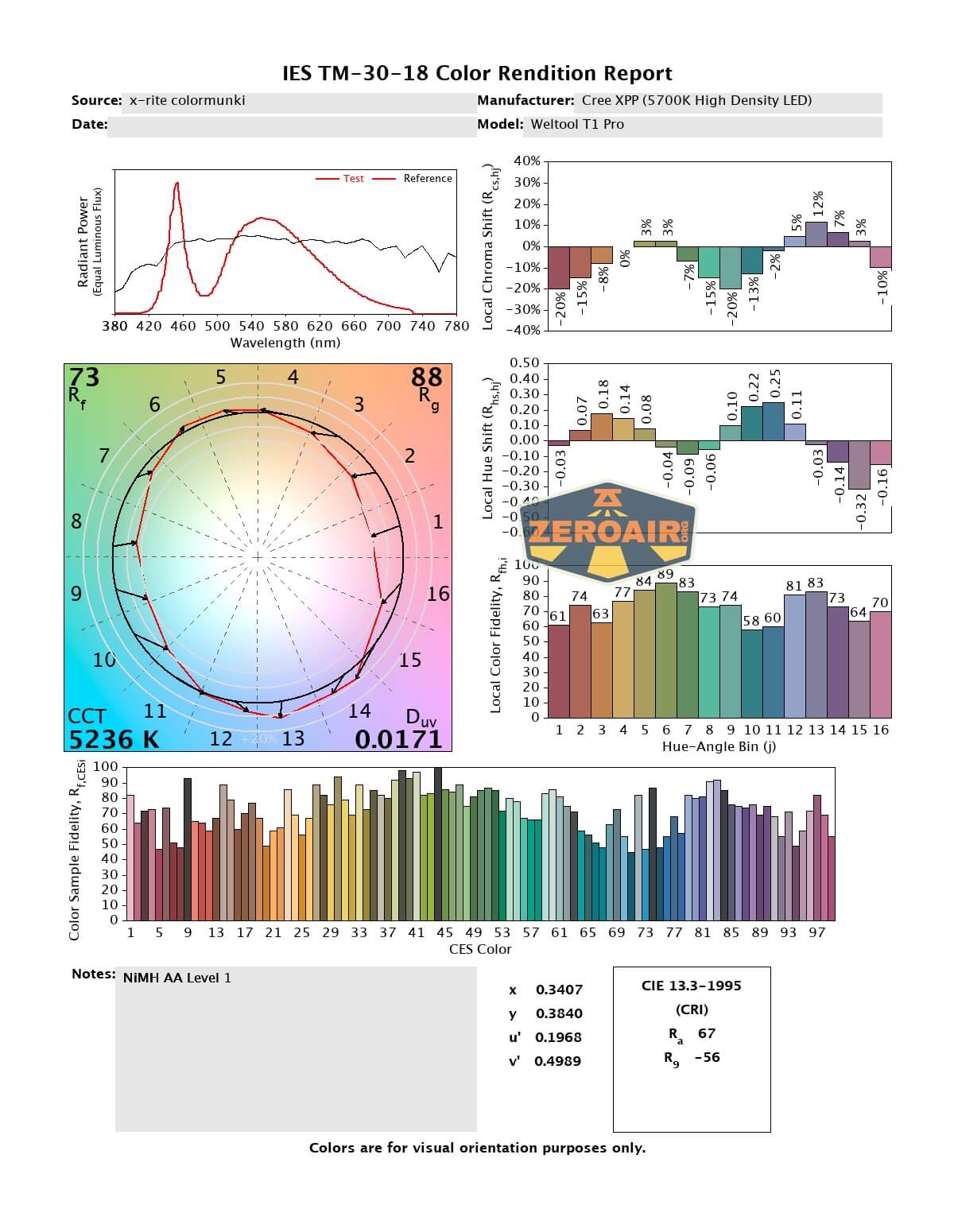

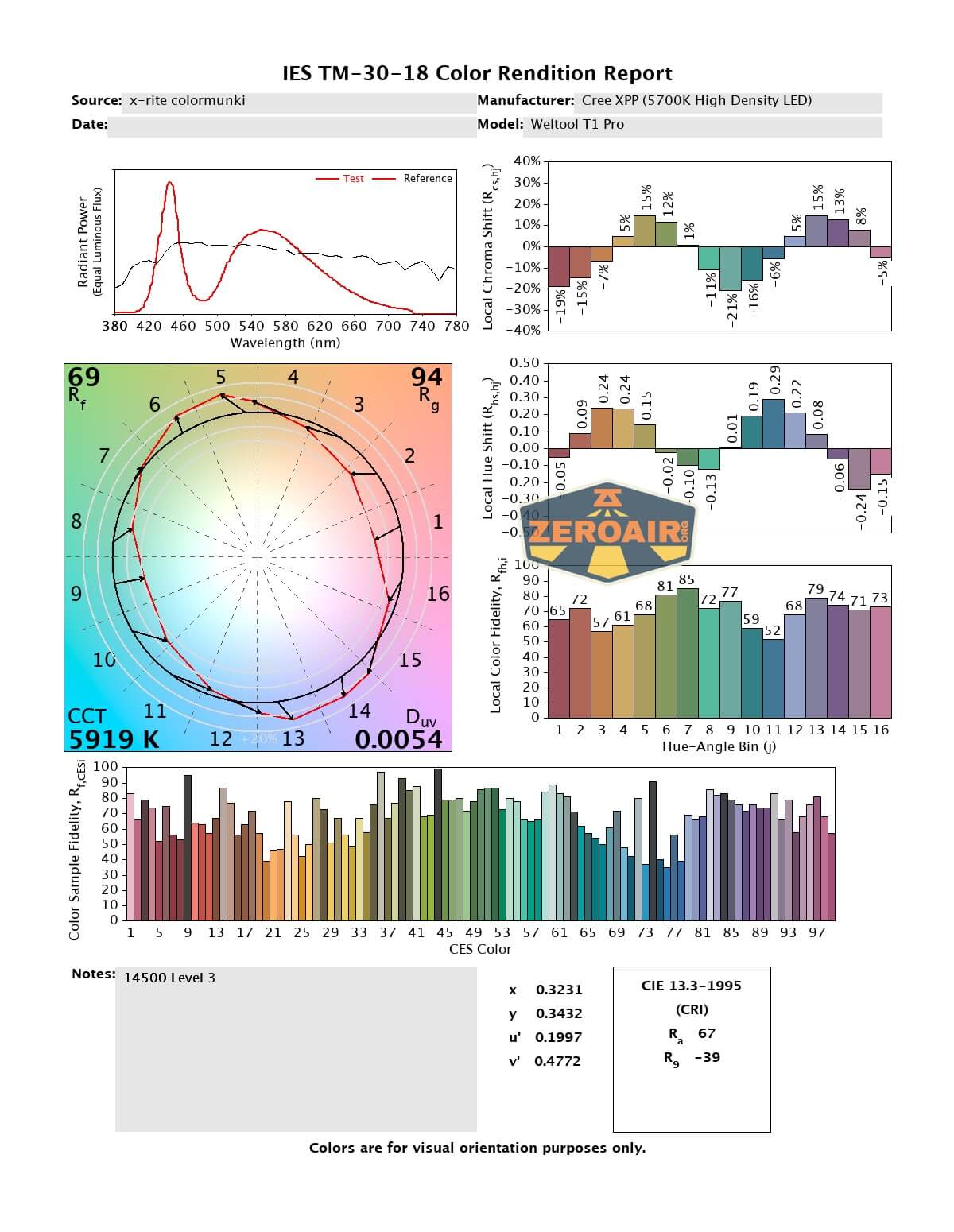

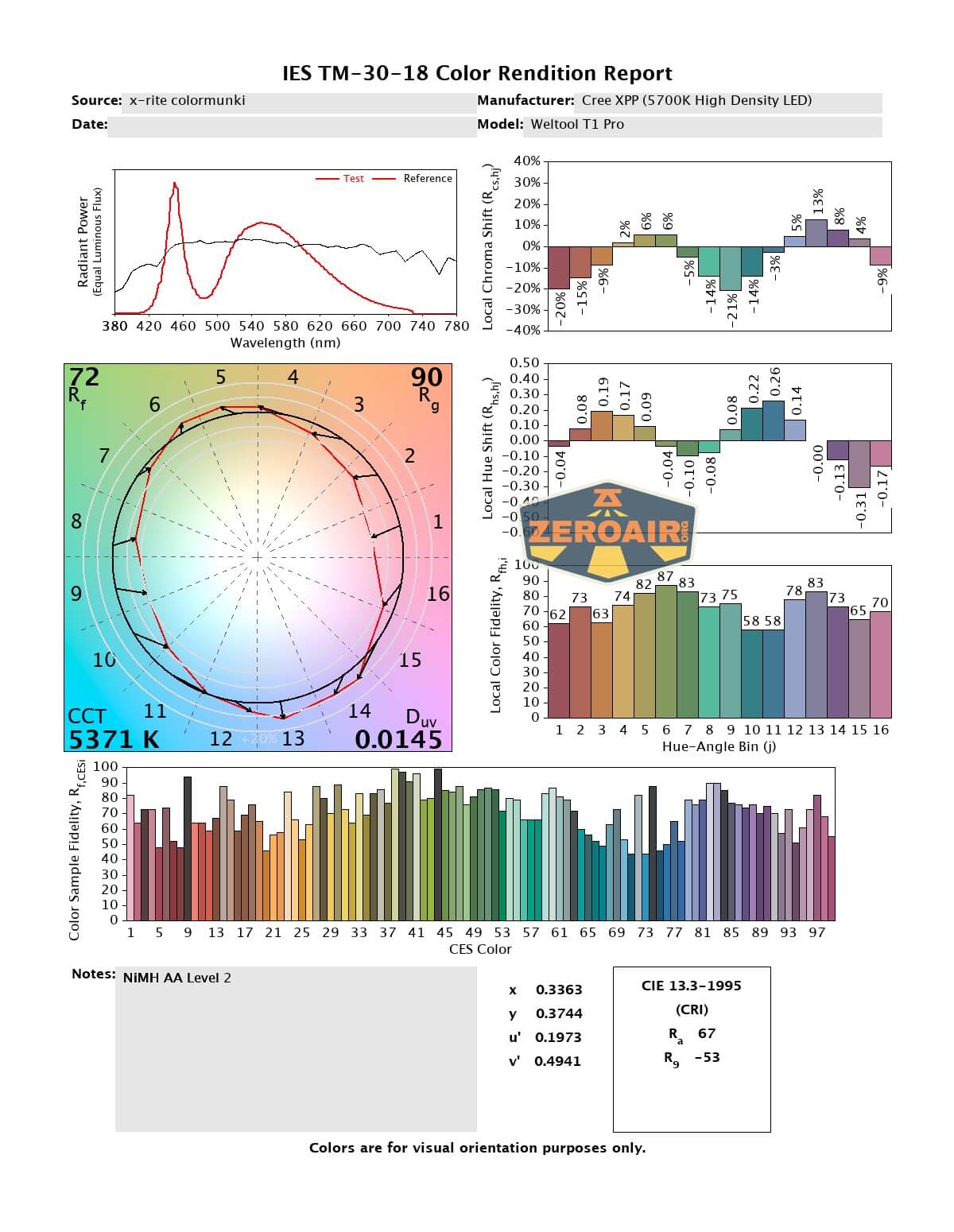

LED Color Report (CRI and CCT)

CCT is “fairly good” at around the claimed 5700K. CRI is low, however, at under 70.

Beamshots

These beamshots are always with the following settings:  f8, ISO100, 0.3s shutter, and manual 5000K exposure.

Tint vs BLF-348 (KillzoneFlashlights.com 219b version) (affiliate link)

I keep the test flashlight on the left, and the BLF-348 reference flashlight on the right.

I compare everything to the KillzoneFlashlights.com 219b BLF-348 because it’s inexpensive and has the best tint!

Conclusion

What I like

  • Package includes cell
  • Great throw!
  • Cell has USB-C charging
  • Simple user interface (read it as a “two mode” light that has a “hidden” Low mode)
  • The big brother T2 make a good matching set!
  • Can use lithium-ion and 1.5V cells
  • There’s a long body for using two cells!

What I don’t like

  • Having to click 4x to get to low
  • Very low CRI

Notes
