The Wurkkos TS11S rechargeable flashlight is a nice entry to the simple category of light! It has incredible throw and uses one 18350 cell. Read on for testing!


Official Specs and Features of the Wurkkos TS11S rechargeable flashlight

Here’s a link to the Wurkkos TS11S rechargeable flashlight product page.

Versions

There’s only this version. The package can be bought with or without a cell, though.

Price

Without an 18350, the Wurkkos TS11S rechargeable flashlight costs $29.99. The cell adds only $2, so that’s a no-brainer addition!


Short Review

I love these little throwy flashlights; this is a great example! The Wurkkos TS11S rechargeable flashlight throws incredibly! I like the small size, and that the cell only adds $2 to the already low cost. The simple user interface is great, too!

Long Review

The Big Table

Wurkkos TS11S rechargeable flashlight
Emitter: Luminus SFT-40
Price in USD at publication time: $29.99
Cell: 1×18350
Runtime Graphs
LVP? Yes
Switch Type: E-Switch
Quiescent Current (mA): ?
On-Board Charging? Yes
Charge Port Type: USB-C
Charge Graph
Power off Charge Port any state: all modes
Claimed Lumens (lm) 2000
Measured Lumens (at 30s) 785 (39.3% of claim)^
Candela per Lumen 55.1
Claimed Throw (m) 529
Candela (Calculated) in cd (at 30s) 1503lux @ 6.114m = 56184cd
Throw (Calculated) (m) 474.1 (89.6% of claim)^
Claimed CCT 6000-6500
Measured CCT Range (K) 5700-6700 Kelvin
Item provided for review by: Wurkkos
All my Wurkkos reviews!

^ Measurement disclaimer:  Testing flashlights is my hobby. I use hobbyist-level equipment for testing, including some I made myself. Try not to get buried in the details of manufacturer specifications versus measurements recorded here; A certain amount of difference (say, 10 or 15%) is perfectly reasonable.

What’s Included

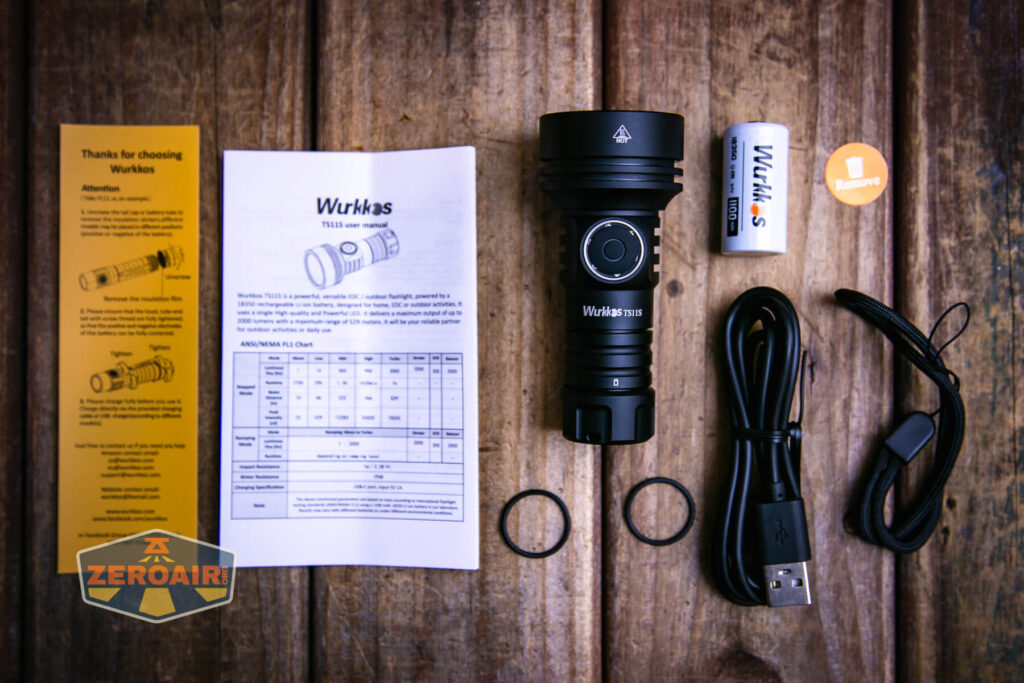

Wurkkos TS11S rechargeable flashlight what's included

  • Wurkkos TS11S rechargeable flashlight
  • Wurkkos 1000mAh 18350
  • Charging cable (USB to USB-C)
  • Spare o-rings (2)
  • Lanyard
  • Manual

Package and Manual

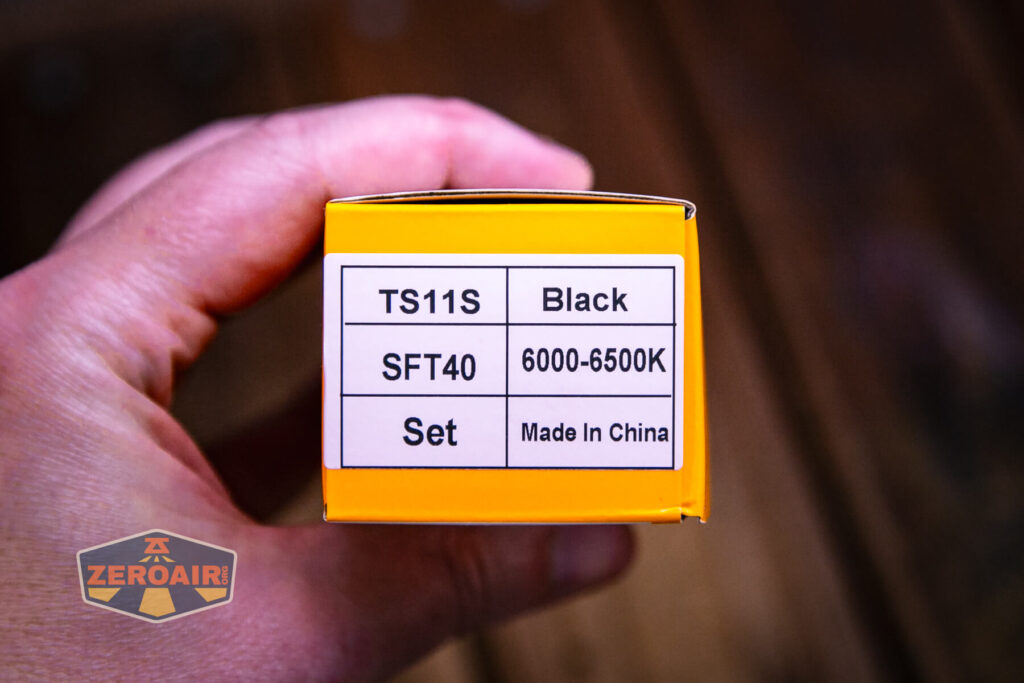

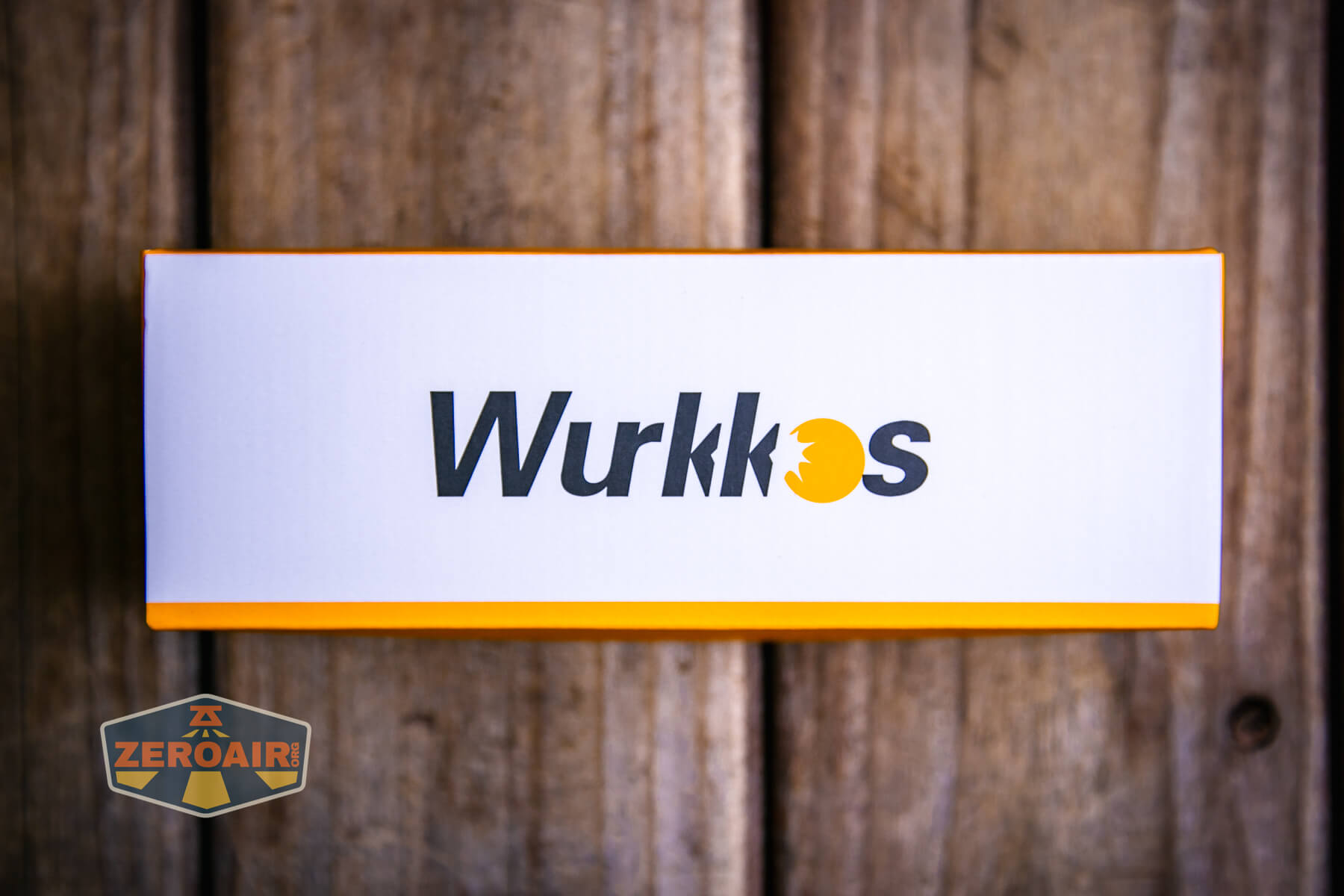

Wurkkos TS11S rechargeable flashlight box

Wurkkos TS11S rechargeable flashlight box

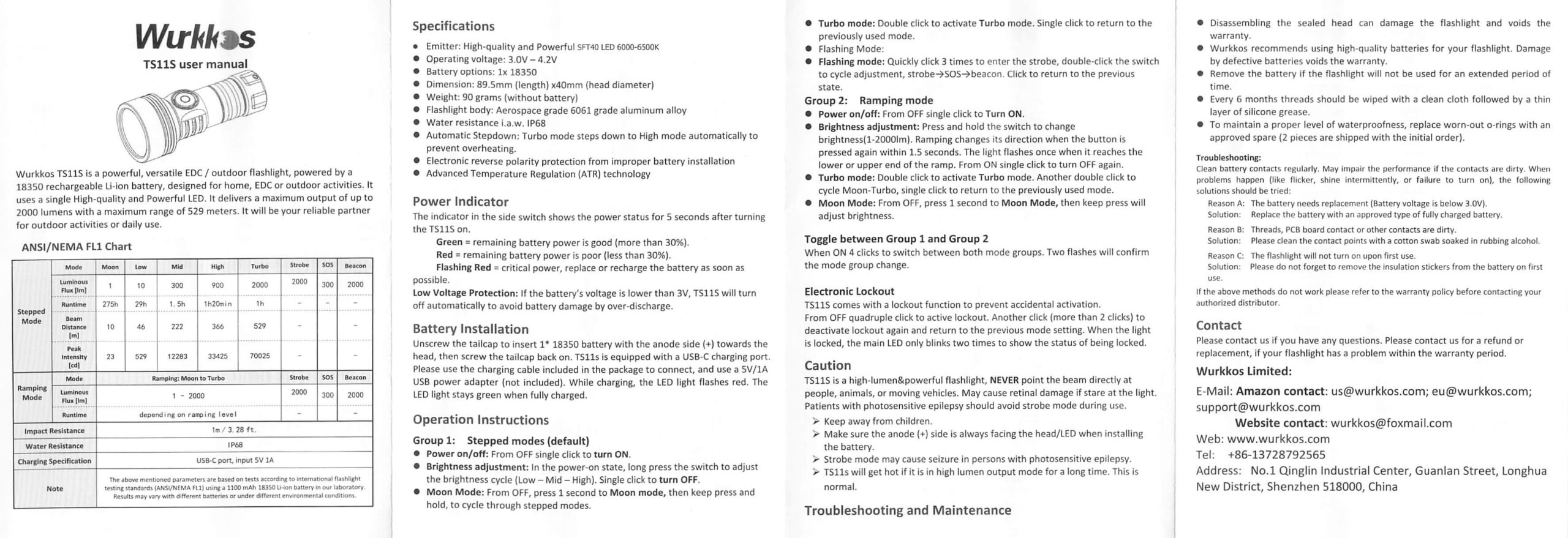

Wurkkos TS11S rechargeable flashlight manual



Build Quality and Disassembly

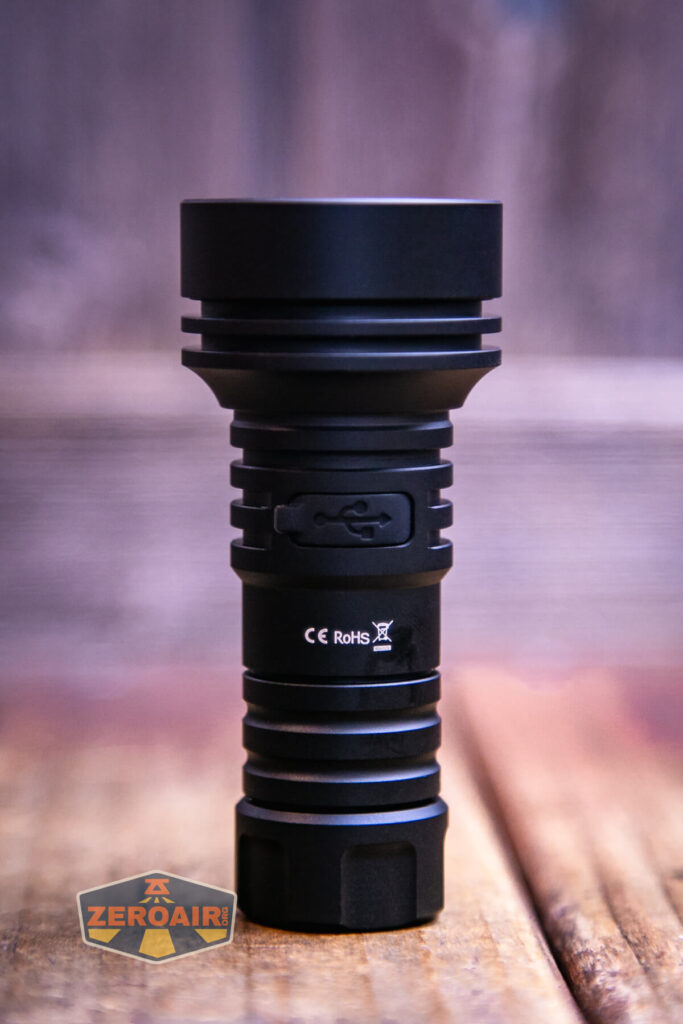

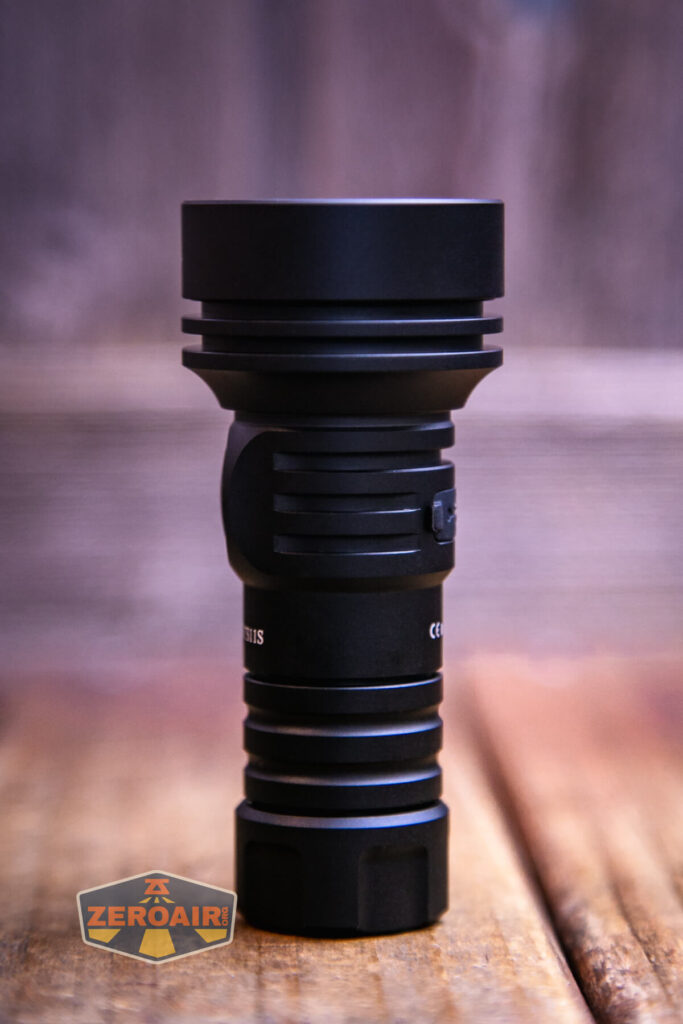

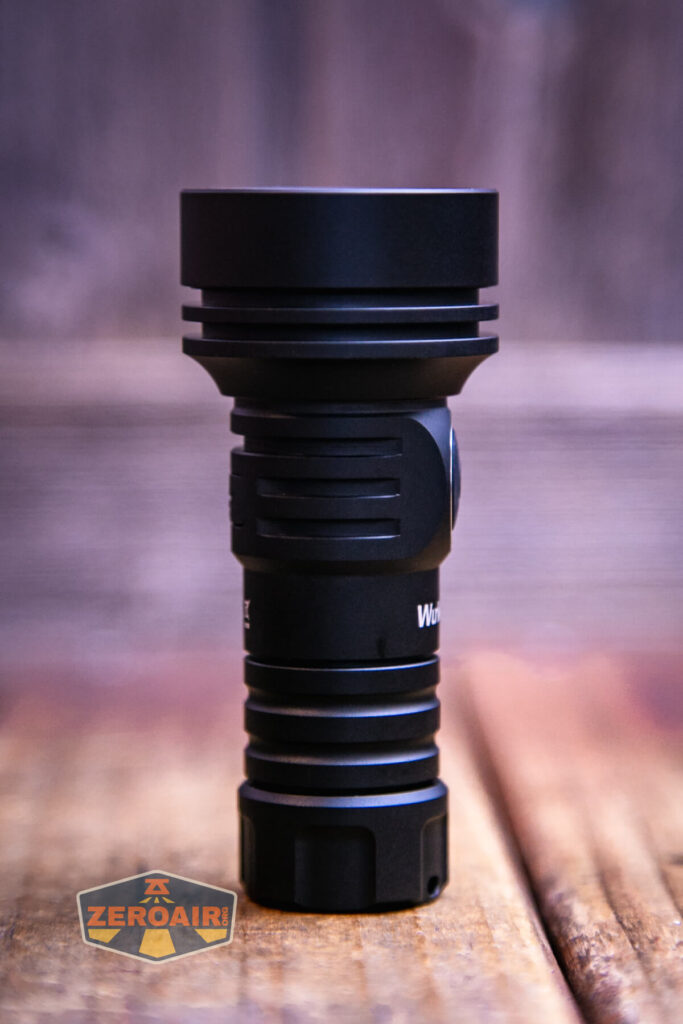

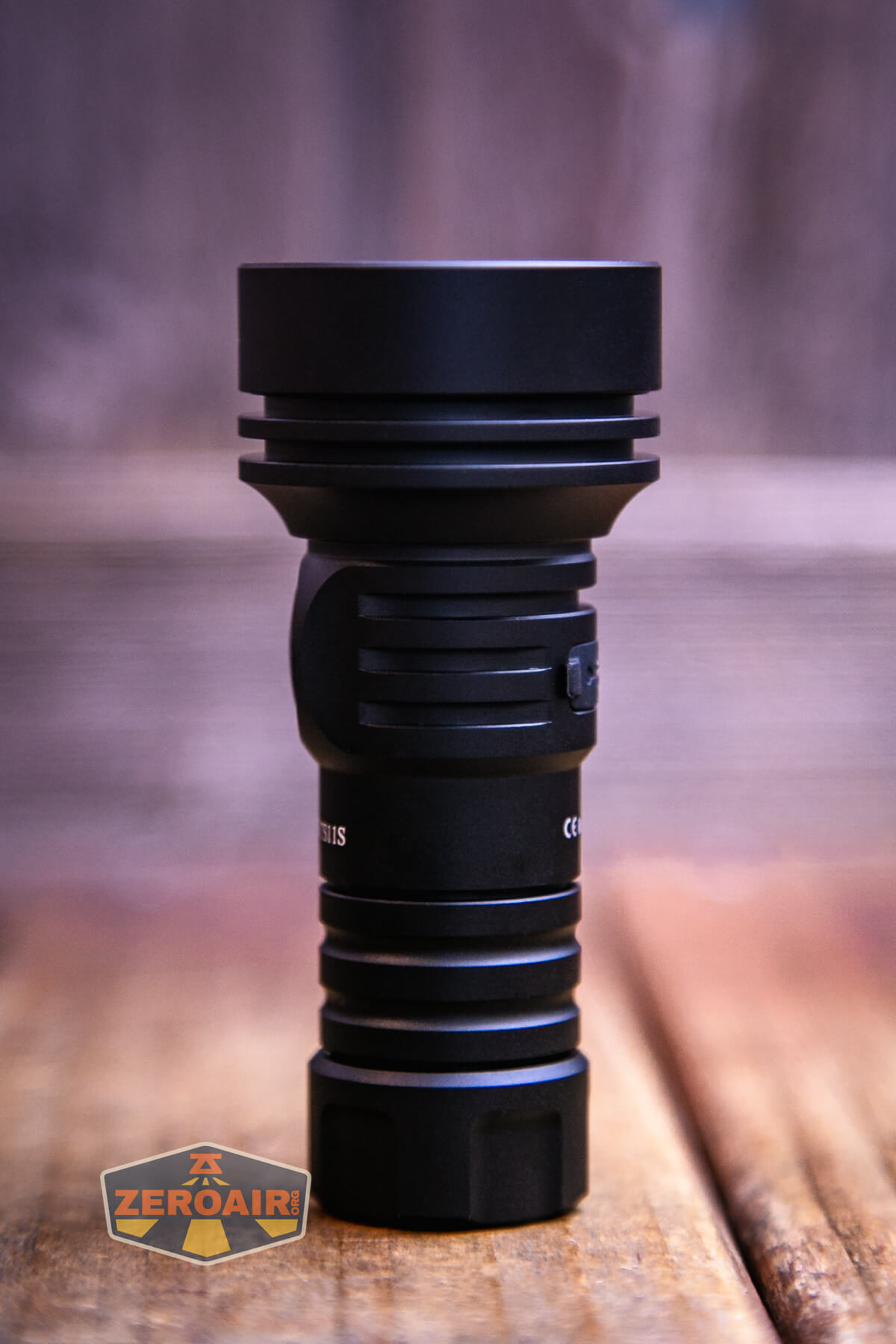

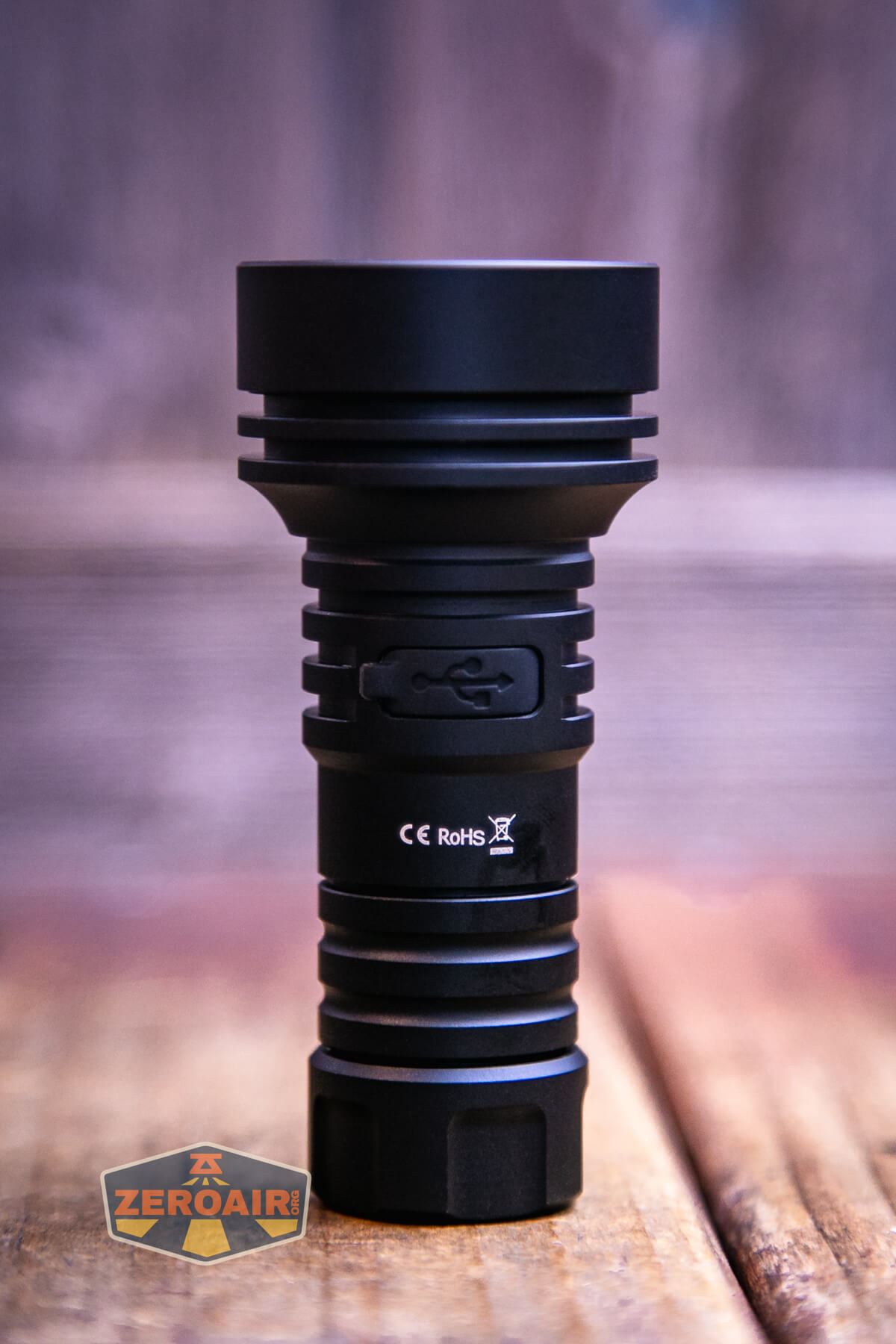

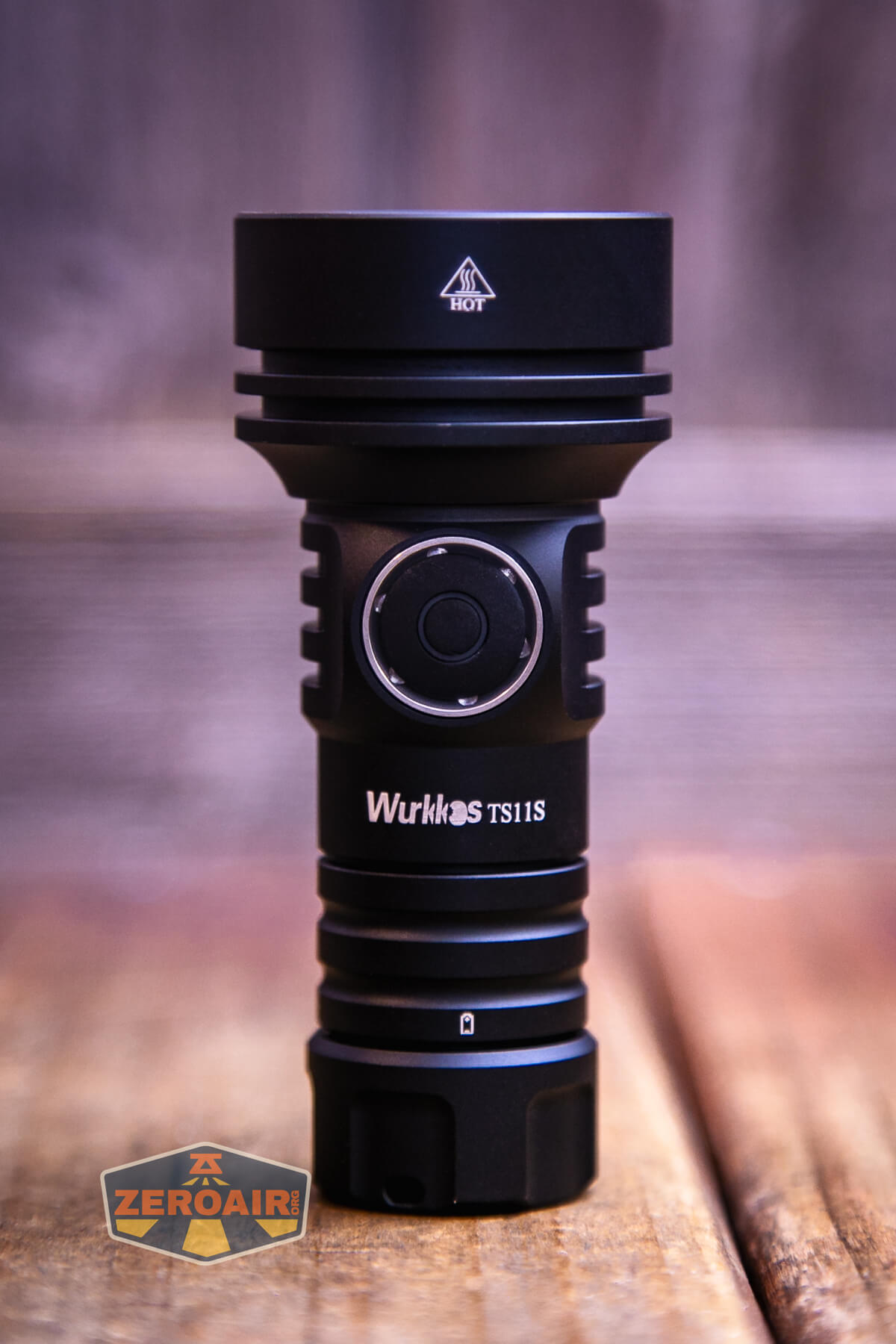

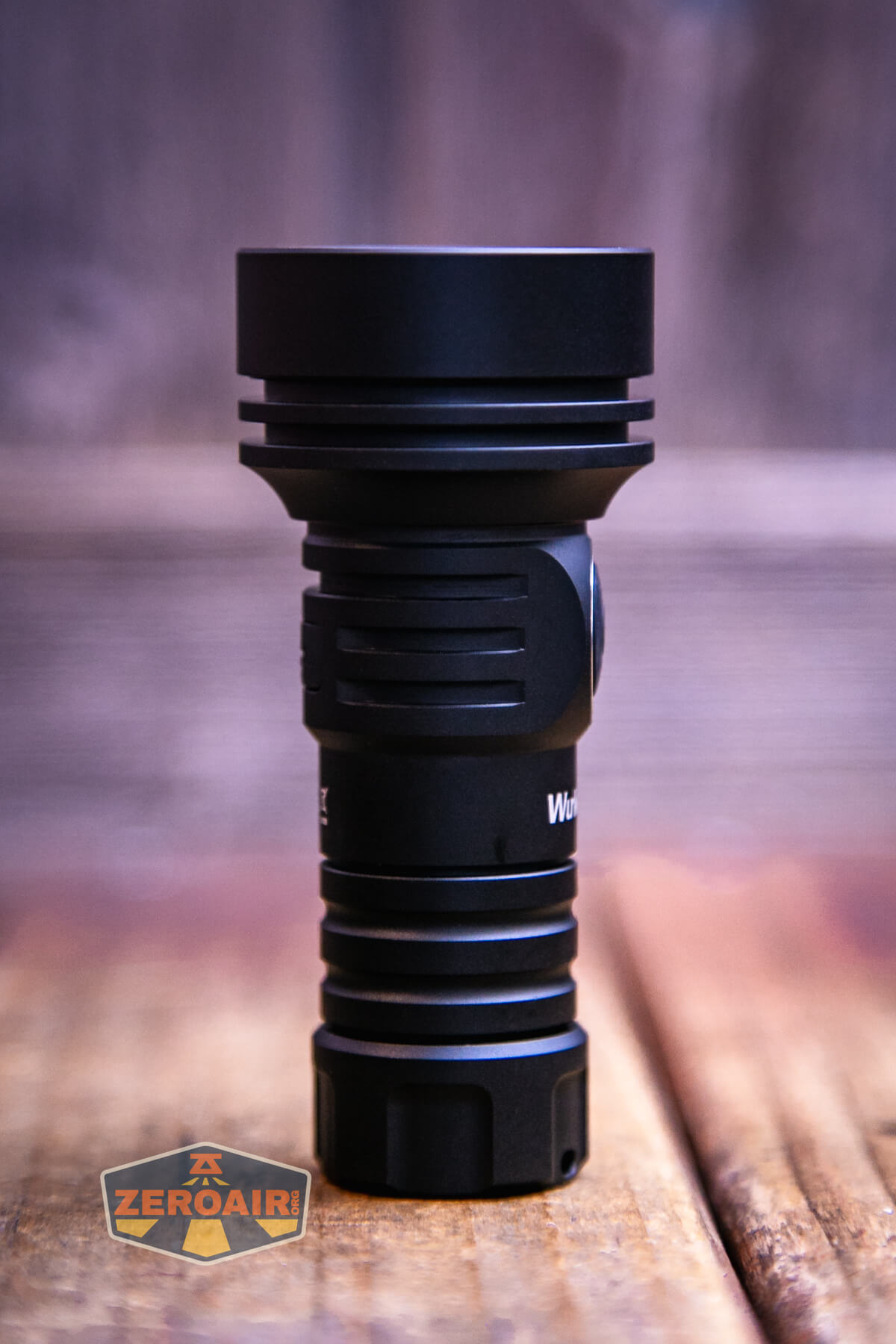

Wurkkos TS11S rechargeable flashlight

The build quality here is great.  Really not much more to say about it than that –  The whole product is a high-quality package.

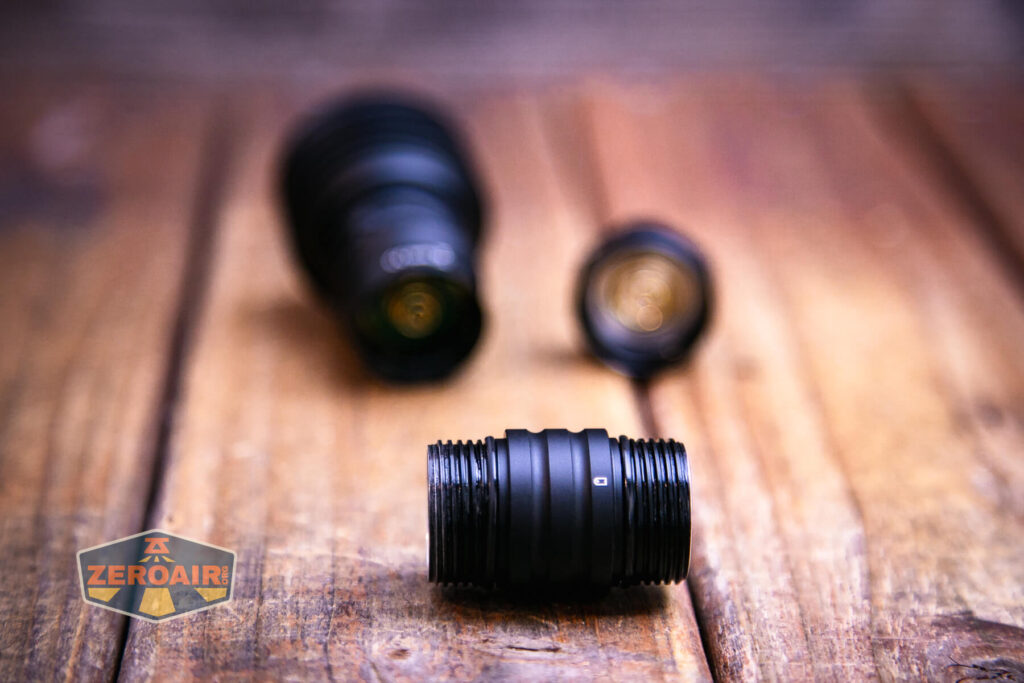

Wurkkos TS11S rechargeable flashlight cell tube

Both the head and tailcap have springs. On the head end are the same threads – in fact, the cell tube is reversible. There’s no good reason to do that (since there’s no pocket clip to attach to the body) but there’s a good reason to not do that. If you reverse the cell tube then the little battery icon is backward!!

Wurkkos TS11S rechargeable flashlight head and tail springs

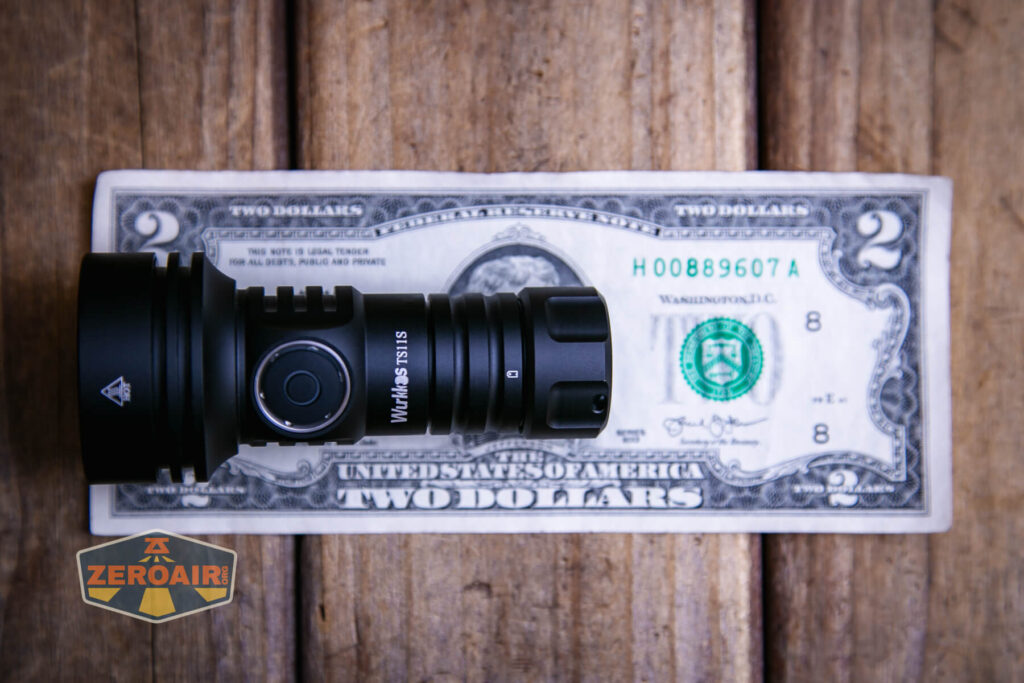

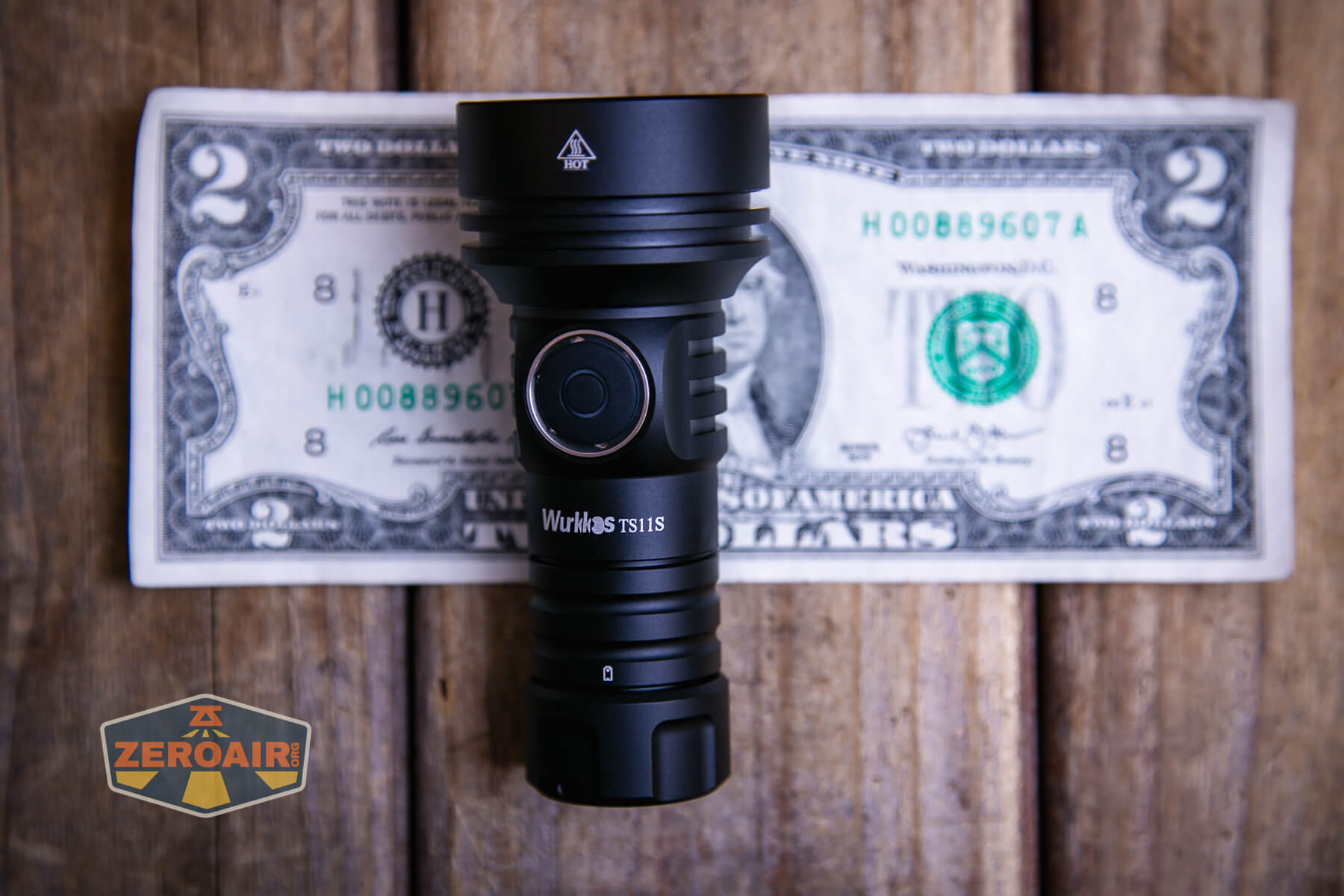

Size and Comps

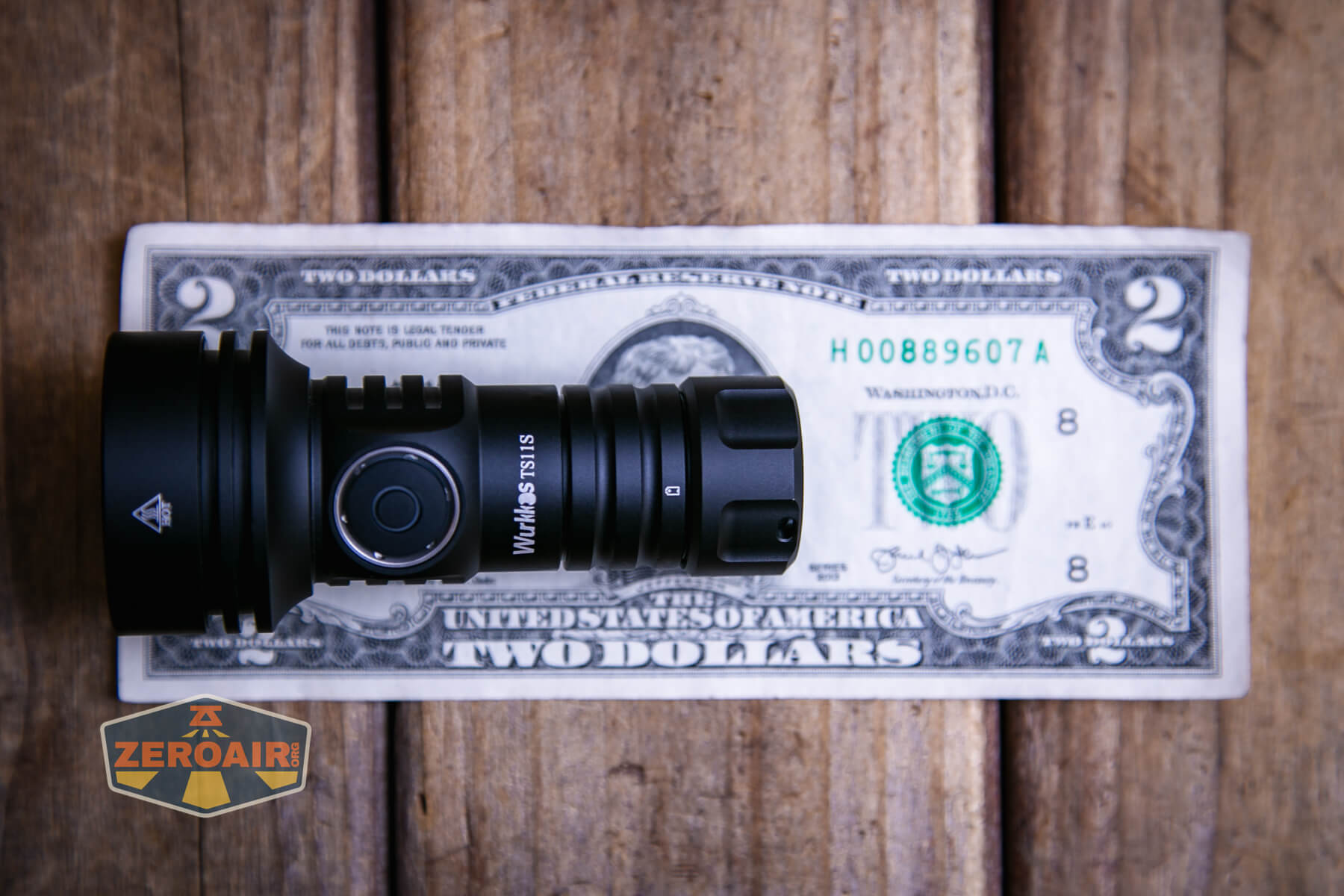

Dimension: 89.5mm (length) x 40mm (head diameter)
Weight: 90grams (without battery)

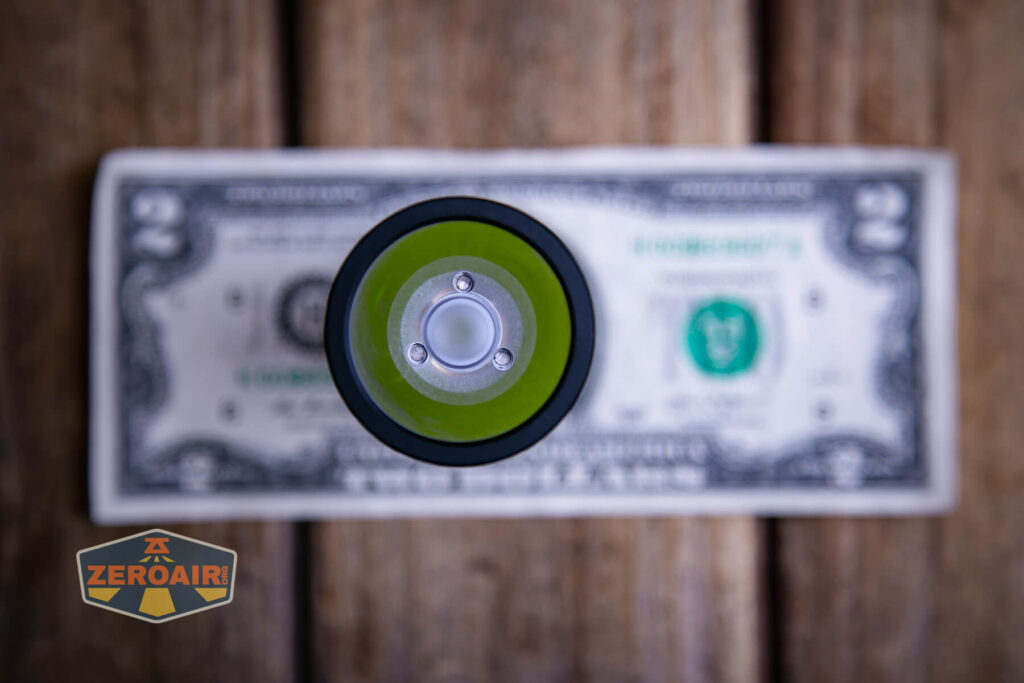

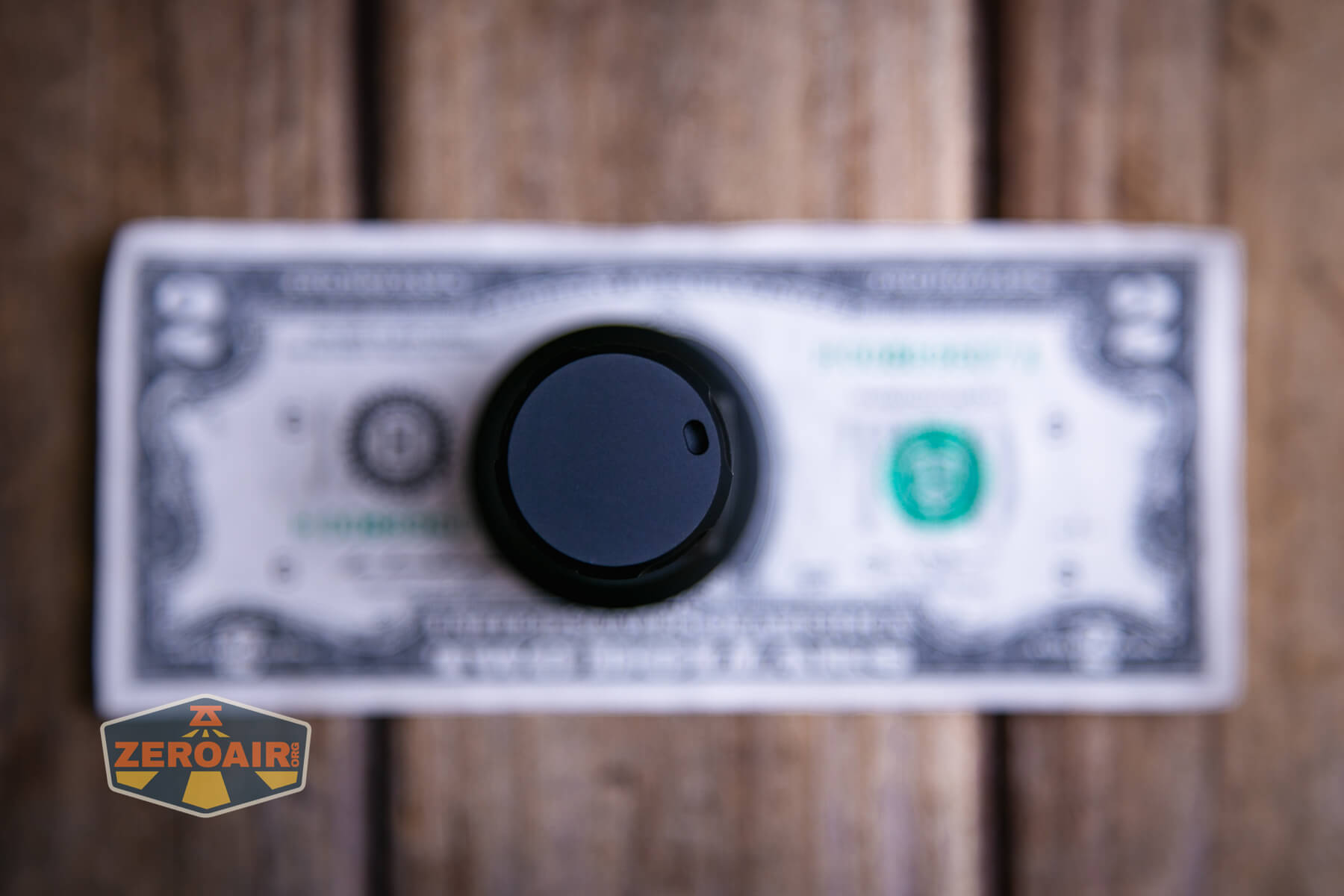

If the flashlight will headstand, I’ll show it here (usually the third photo). If the flashlight will tailstand, I’ll also show that (usually in the fourth photo).

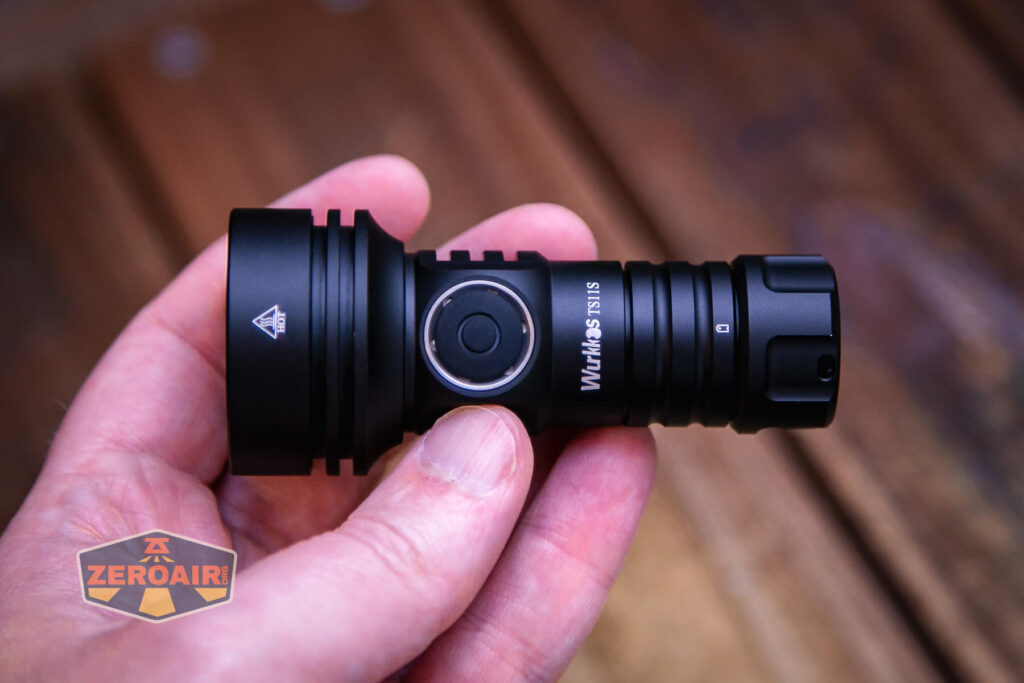

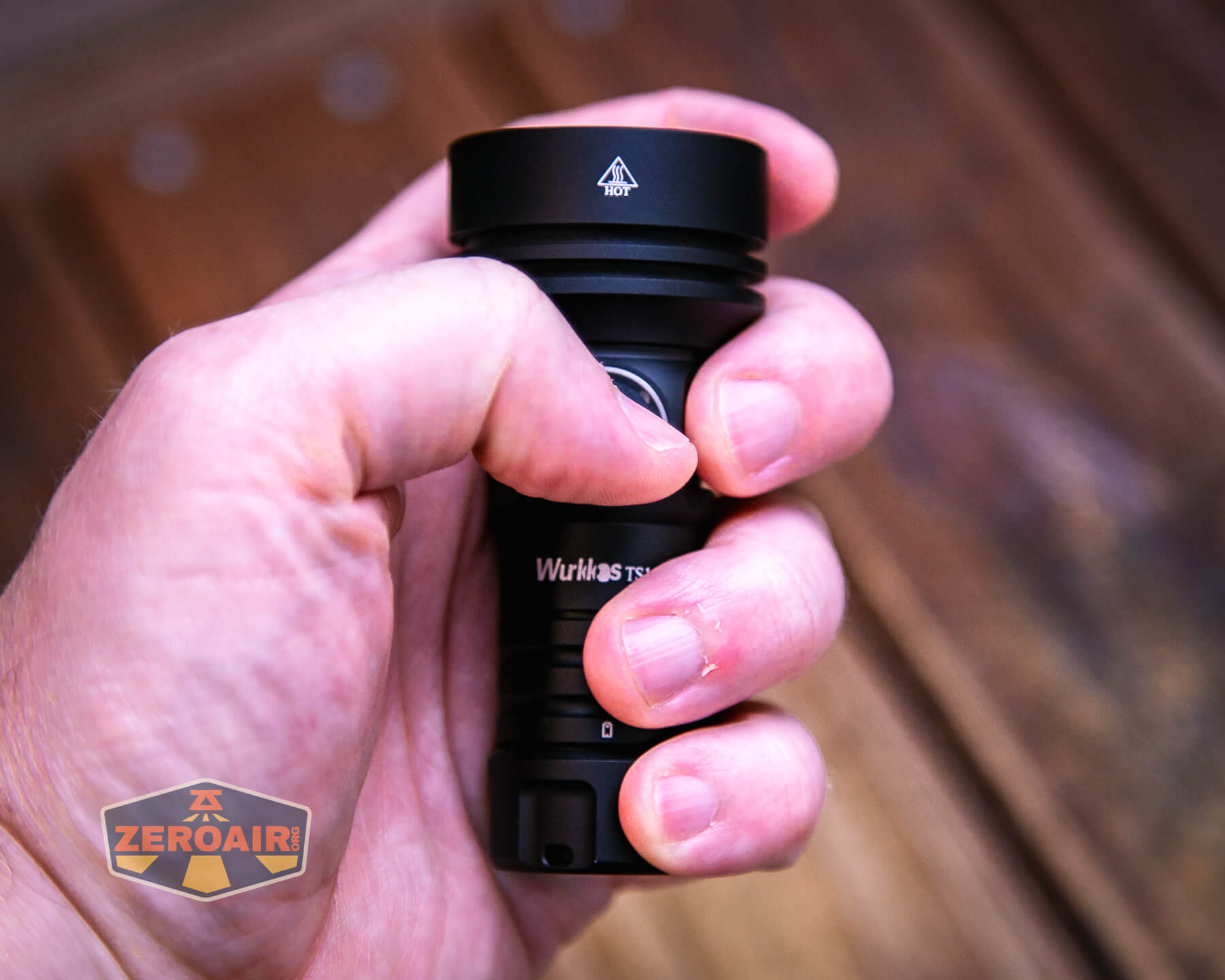

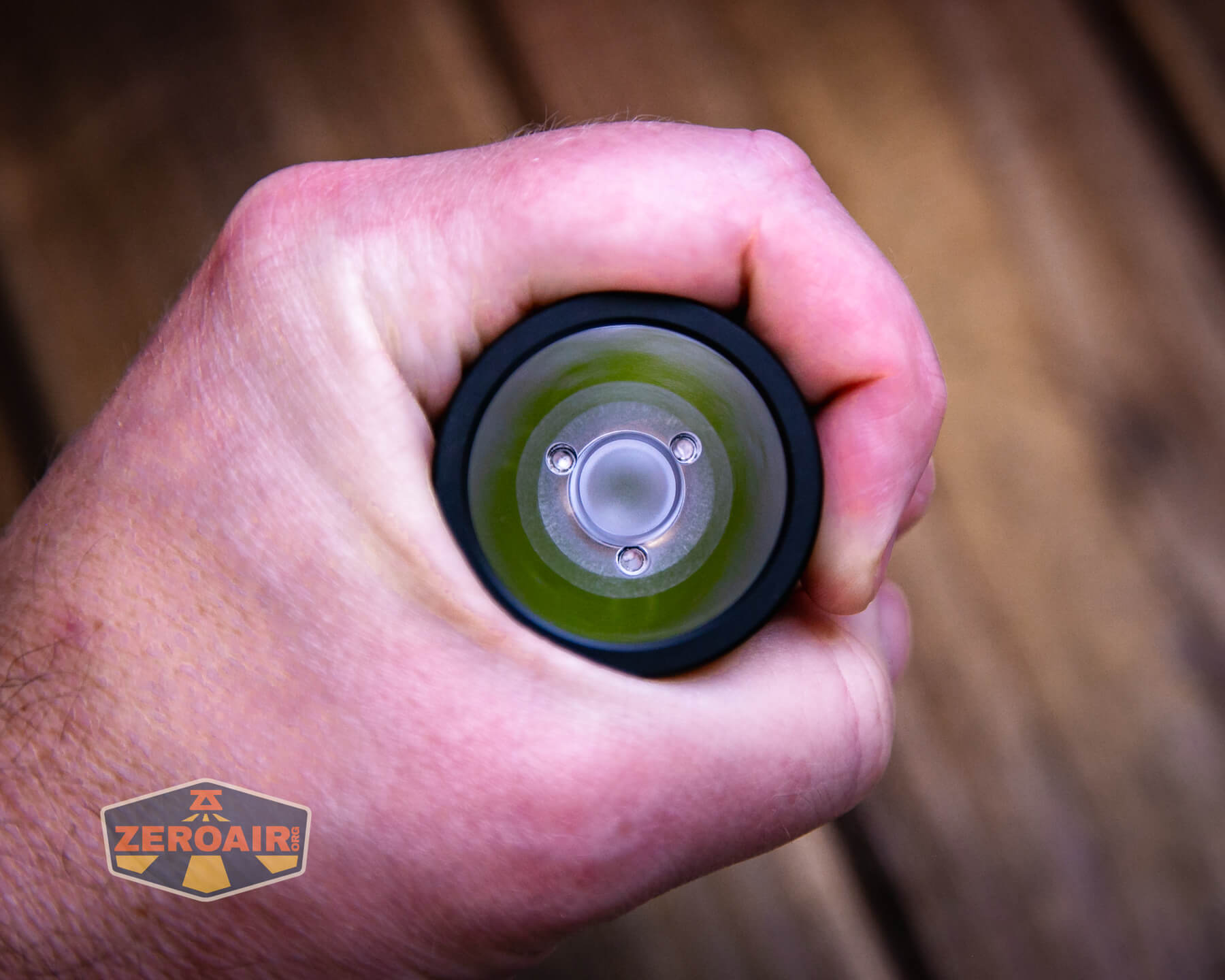

Wurkkos TS11S rechargeable flashlight in hand

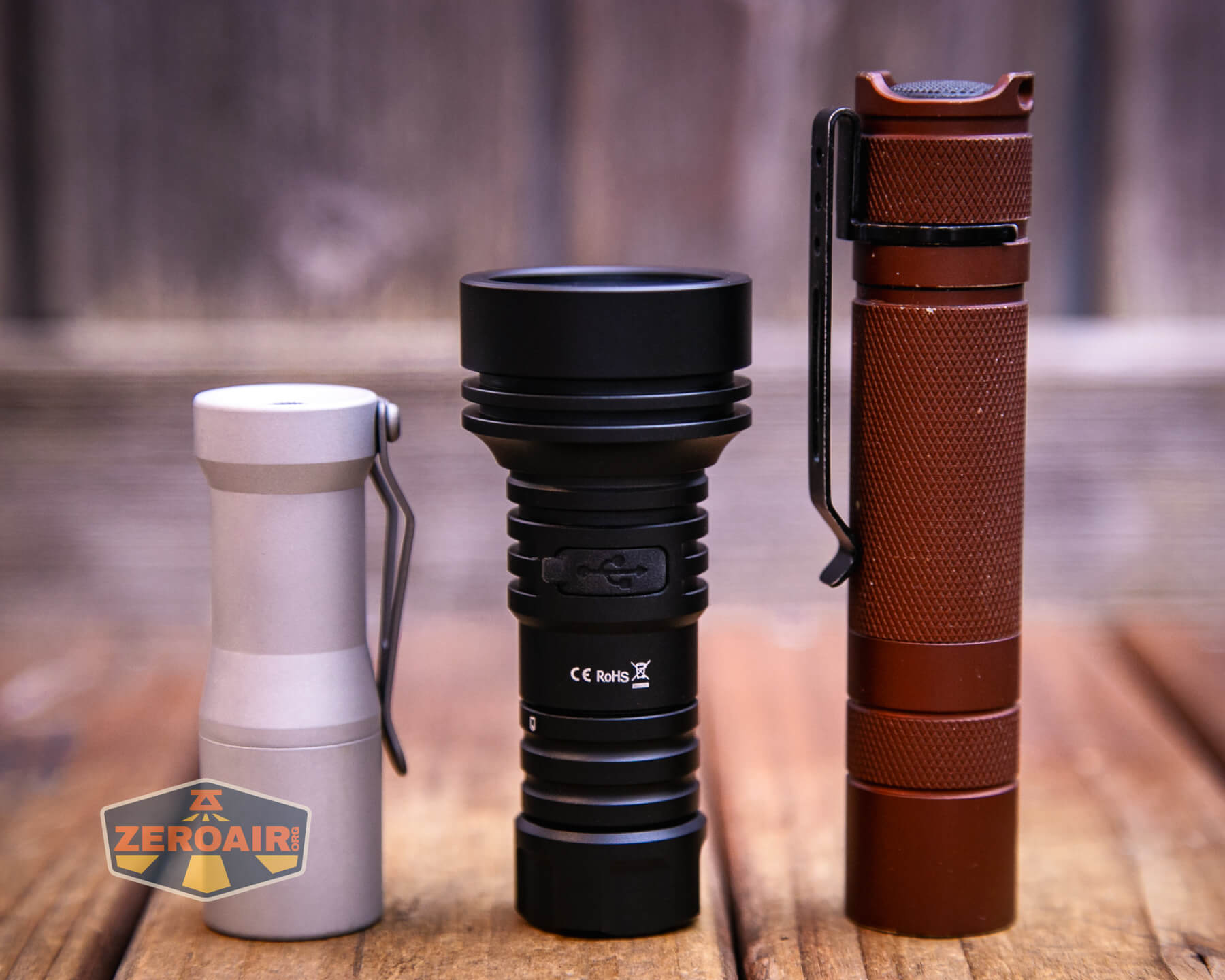

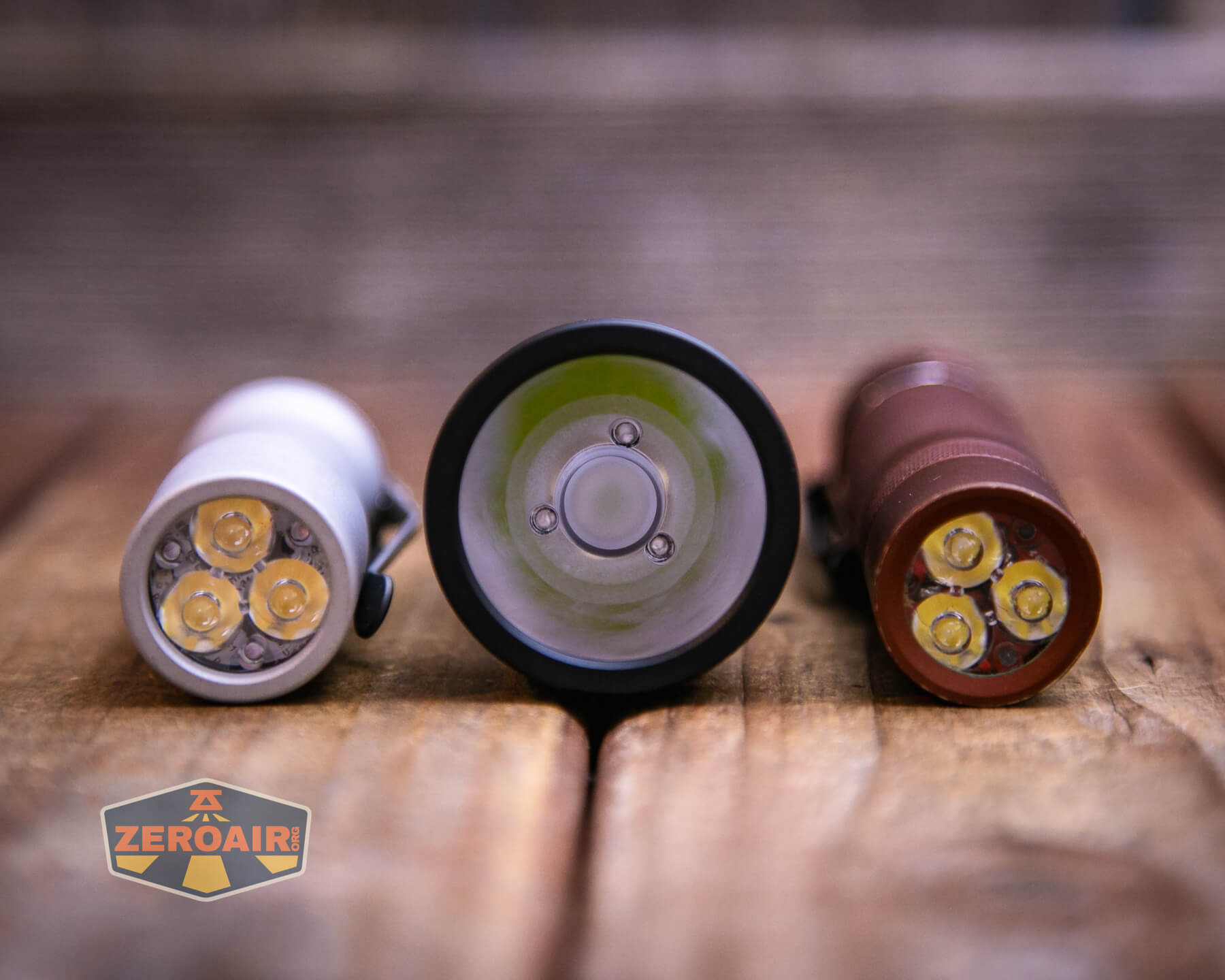

Here’s the test light with the venerable Convoy S2+. Mine’s a custom “baked” edition Nichia 219b triple. A very nice 18650 light.

Also above is the light beside a new standard 18350 light! It’s not one I’ve reviewed yet but this is the CWF Arcadian Peanut in aluminum. This one is stonewashed and has the new Quantum Dragon driver – a whole new product! Stay tuned for a full review of this tiny powerhouse!

Retention and Carry

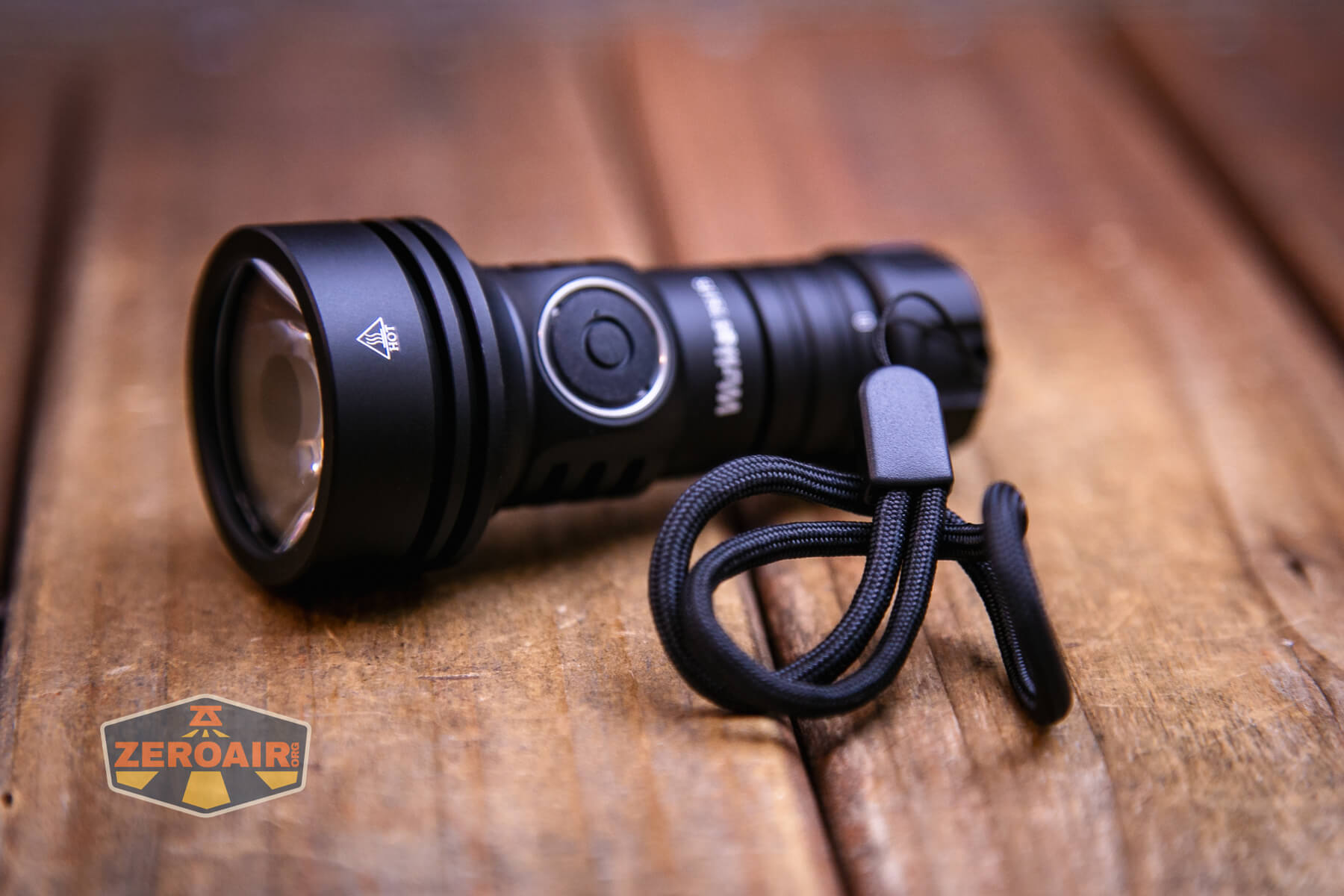

A lanyard is included for carrying the Wurkkos TS11S rechargeable flashlight. This lanyard attaches only through the tailcap hole.

Wurkkos TS11S rechargeable flashlight lanyard hole

Wurkkos TS11S rechargeable flashlight lanyard

Nothing else is included for carry or retention. Not ably, there’s no tailcap magnet. (Which isn’t a problem, just noteworthy because of the tailcap having the appearance that many magnet tailcaps have.)

Power and Runtime

A single lithium-ion cell powers the Wurkkos TS11S rechargeable flashlight. The proper size is 18350, and one can be included with your purchase if you opt for that package. The cell is a button-top 1000mAh 18350 and is not special or proprietary, or customized in any way (except the nice Wurkkos wrapper).

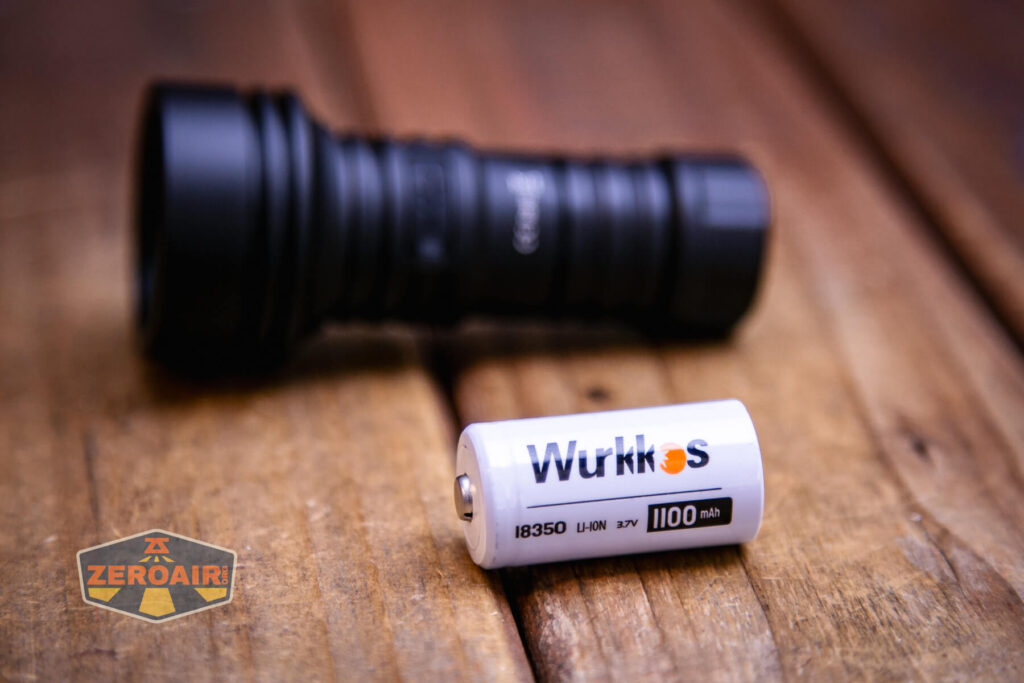

Wurkkos TS11S rechargeable flashlight with included 18350 cell

The cell goes into the light in the “normal” way – the positive end toward the head.

Wurkkos TS11S rechargeable flashlight with included 18350 cell installed

In case you forget the direction, and you have the cell tube installed correctly, you can regard this little battery icon on the cell tube for a reminder!

Wurkkos TS11S rechargeable flashlight cell orientation indicator

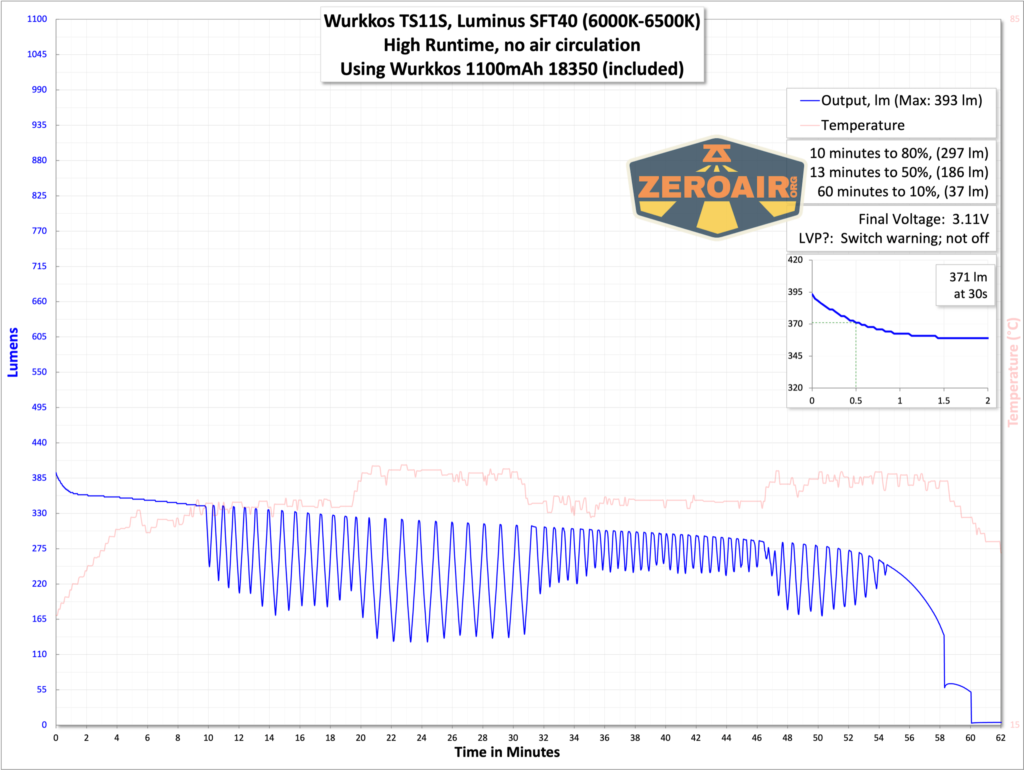

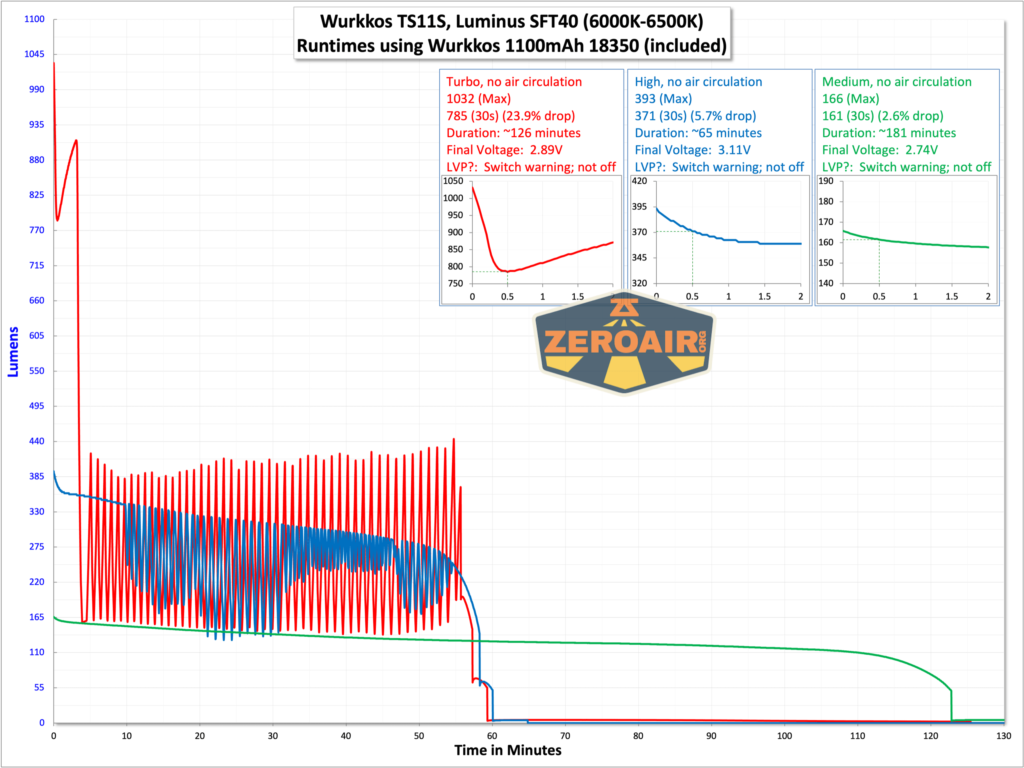

Below are a few runtime graphs.  I did not observe 2000 lumens out of this 6000K-6500K version. I’m recording at 30 seconds, which is well after the significant stepdown. The initial output is around 1000 lumens, which is still well short of the 2000 claim. The thermal management feature is very active, as you can clearly see in the charts below.

Wurkkos TS11S rechargeable flashlight runtime graph

Wurkkos TS11S rechargeable flashlight runtime graph

Wurkkos TS11S rechargeable flashlight runtime graph

Wurkkos TS11S rechargeable flashlight runtime graph

Low voltage protection is observed. The light didn’t always shut off, but the switch indicated in every case that the voltage was low, as follows:

Green: >30% power
Red: <30% power
Red Flashing: Power level is critical

Charging

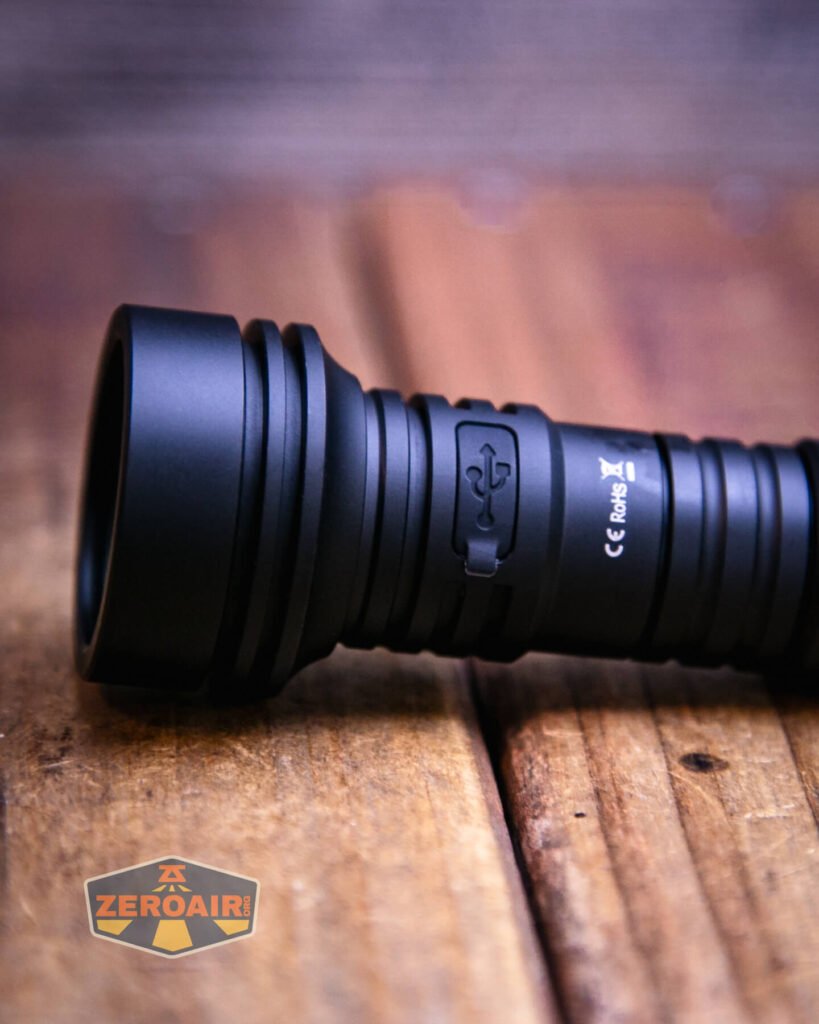

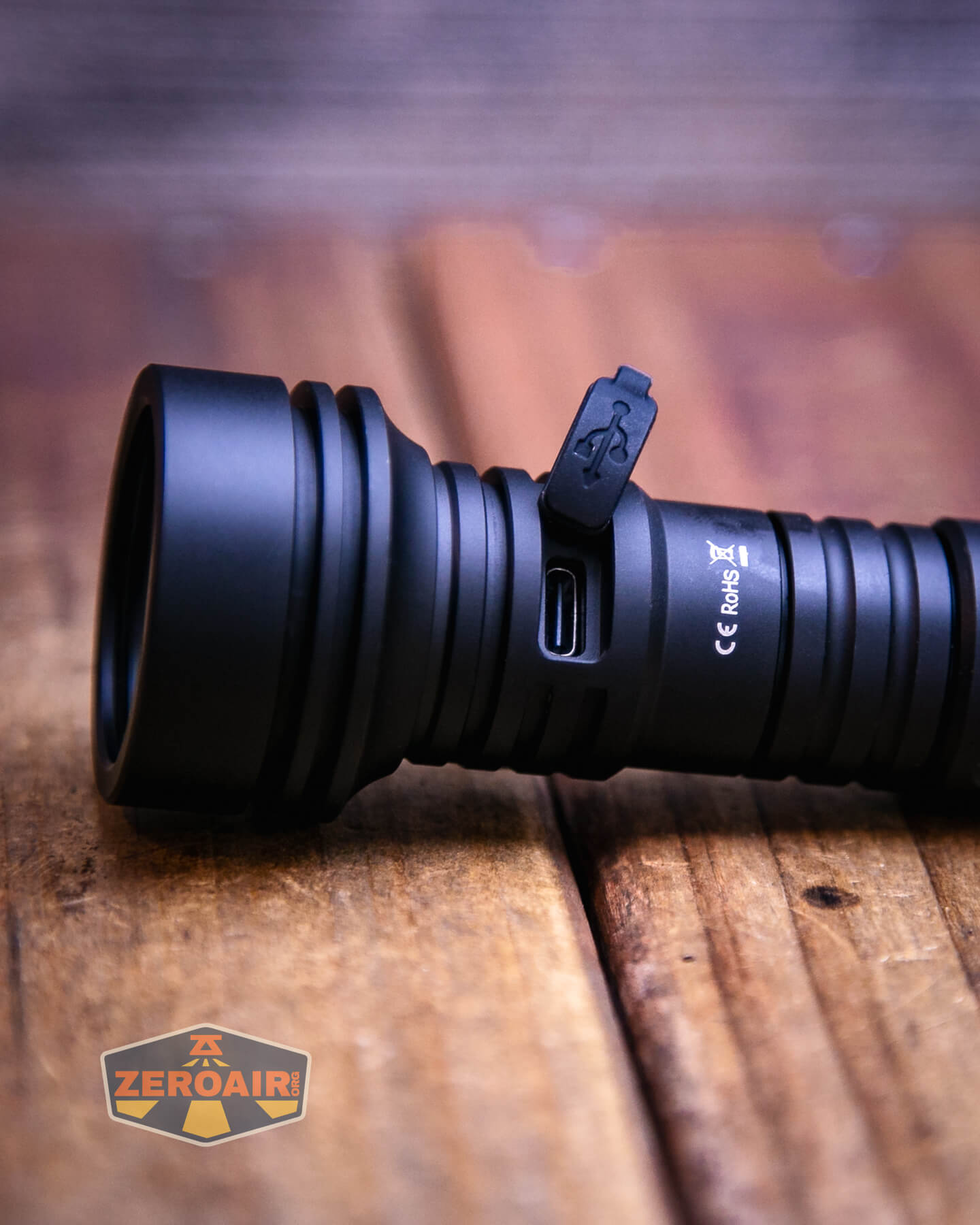

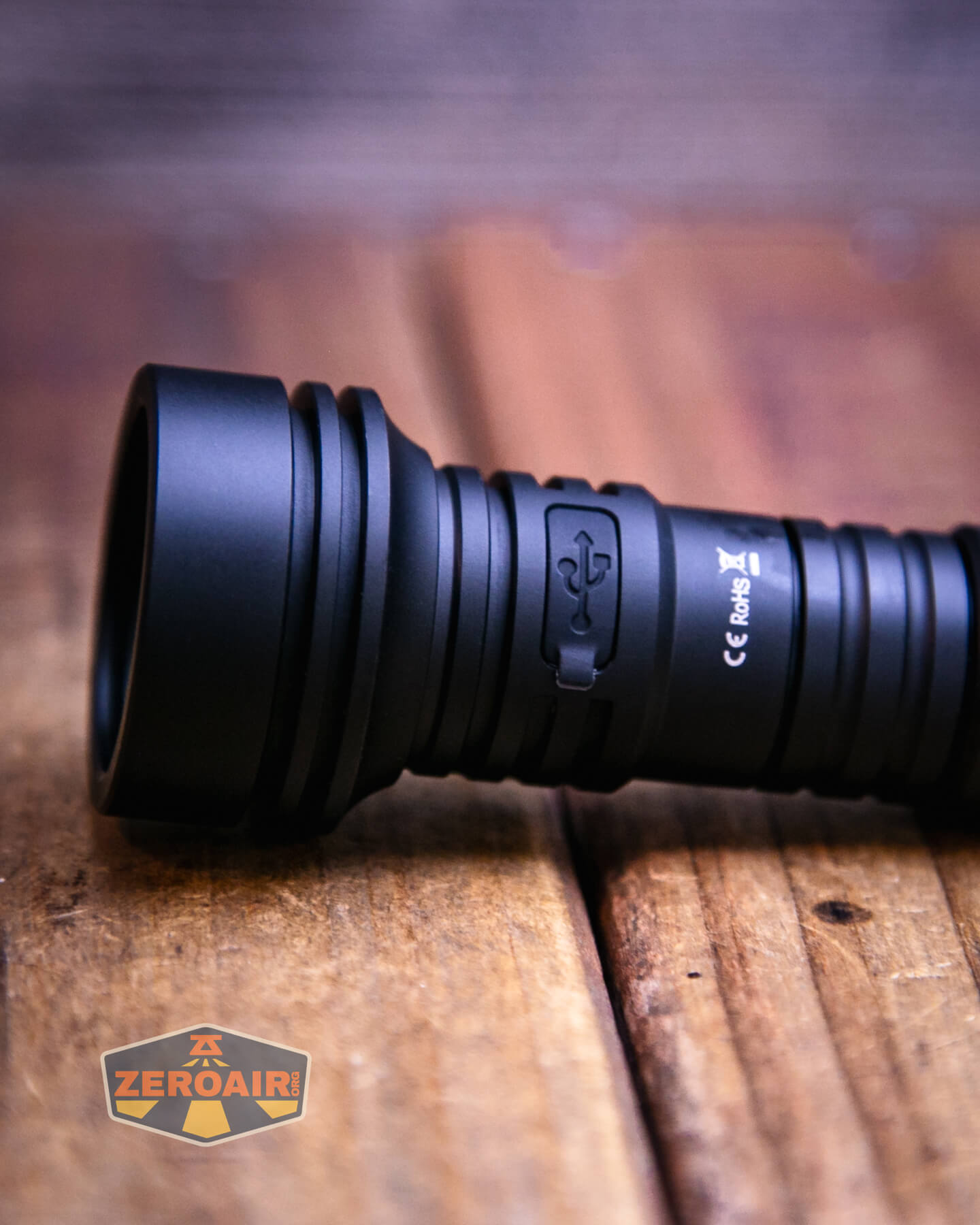

Another feature of the Wurkkos TS11S rechargeable flashlight is built-in charging. There’s a USB-C port in the head, which has a press-in cover. This cover is quite thick, and when installed properly, very secure. It has a thick edge and must be pushed deliberately into the opening.

An appropriate charge cable is included. It’s USB to USB-C.

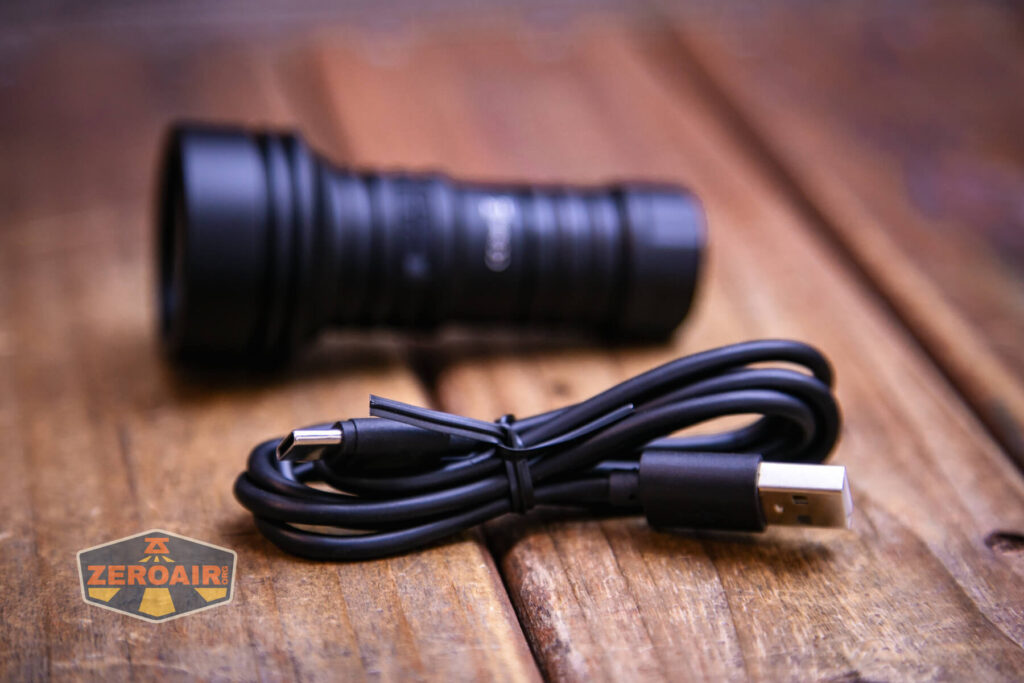

Wurkkos TS11S rechargeable flashlight charging cable

When charging, the switch flashes red and turns green when charging is complete.

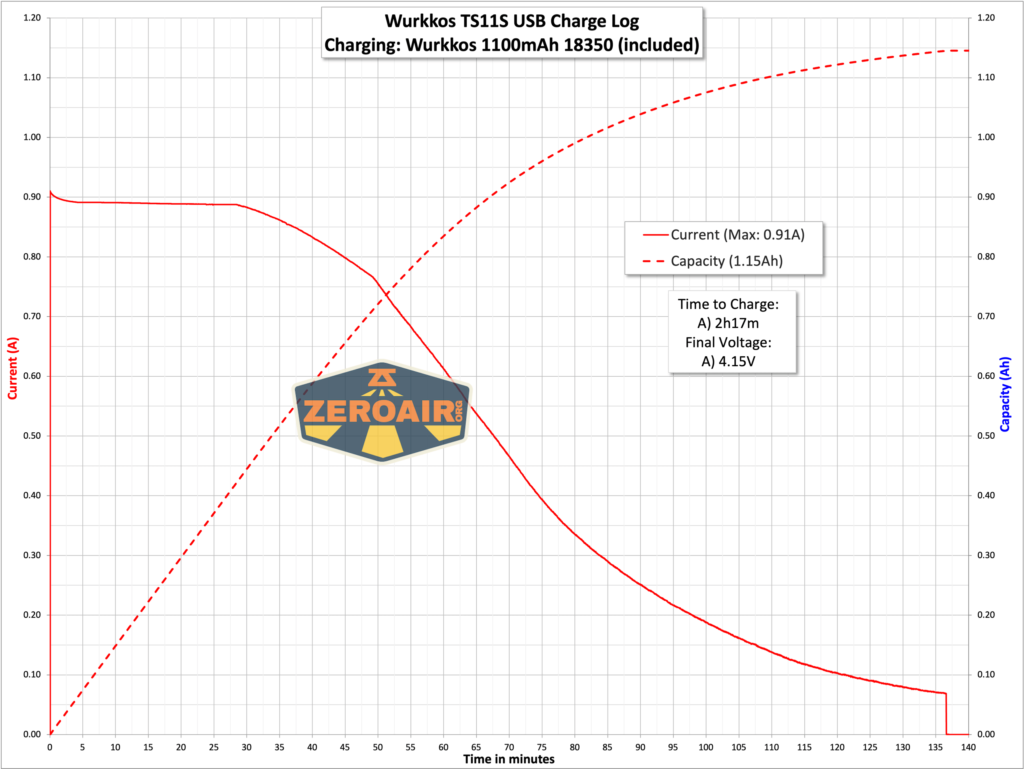

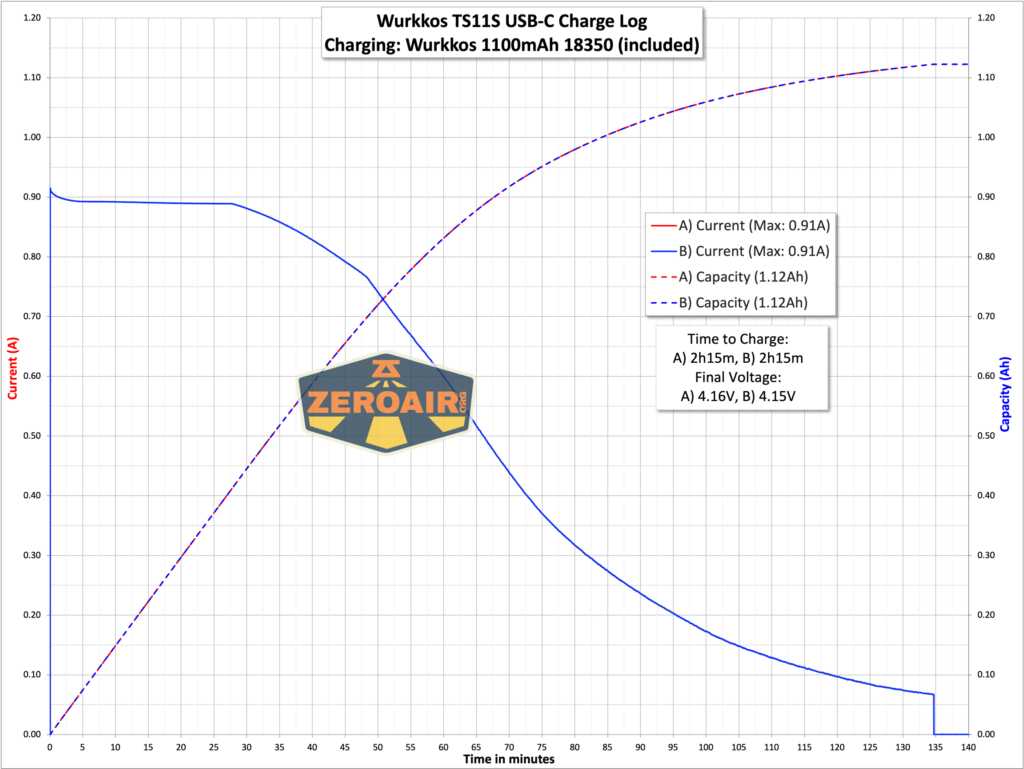

Here’s a graph of C to C charging. Charging looks quite good!

Wurkkos TS11S rechargeable flashlight charging graph

Here’s a charge graph with the USB to USB-C setup. It’s fairly normal, and charges at around 1A. The cell should handle that easily.

Wurkkos TS11S rechargeable flashlight charging graph



Modes and Currents

Mode Mode Claimed Output (lm) Claimed Runtime Measured Lumens Tailcap Amps
Turbo 2000 1h 1032 (0s)
785 (30s)
7.54
High 900 1h20m 371 2.10
Mid 300 1.5h 161 0.83
Low 10 29h 10 0.04
Moon 1 275h 0.33 [low]

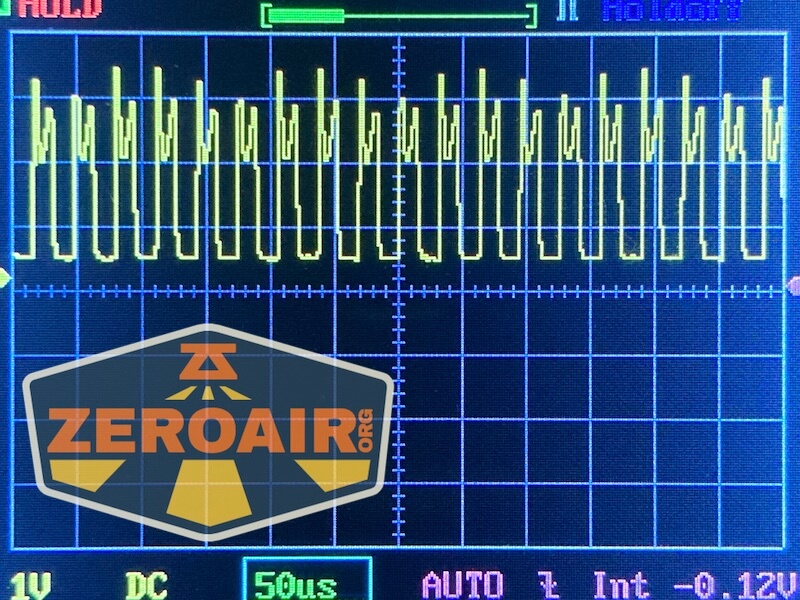

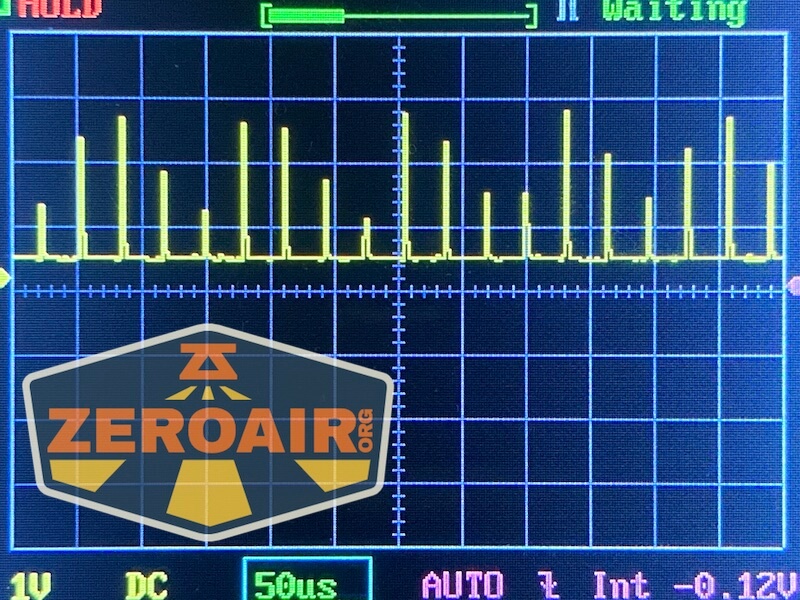

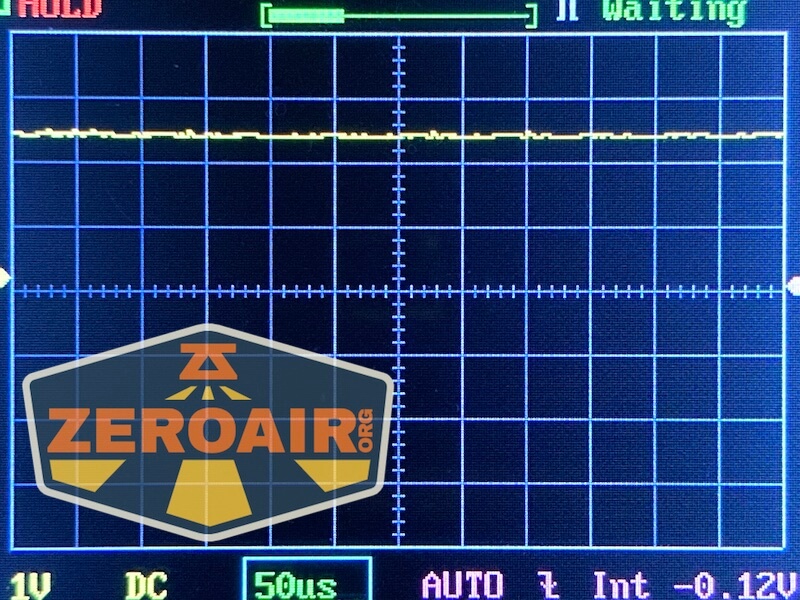

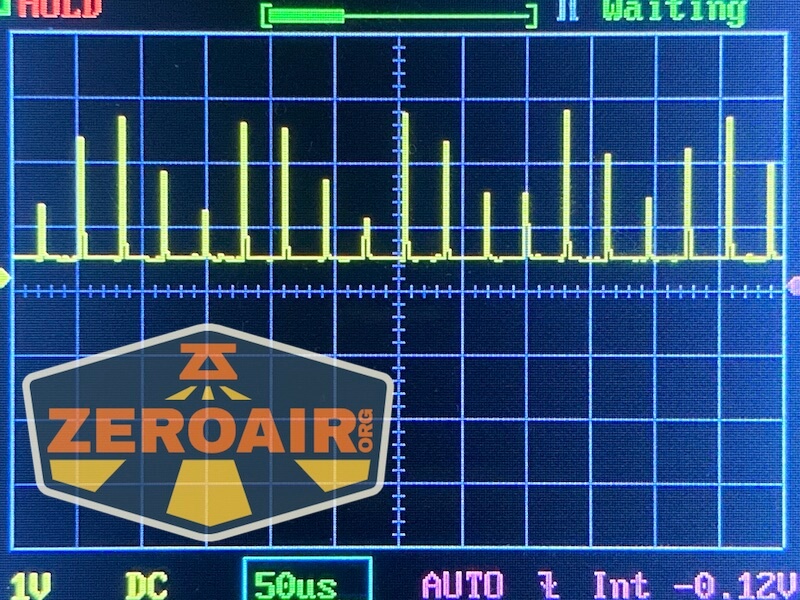

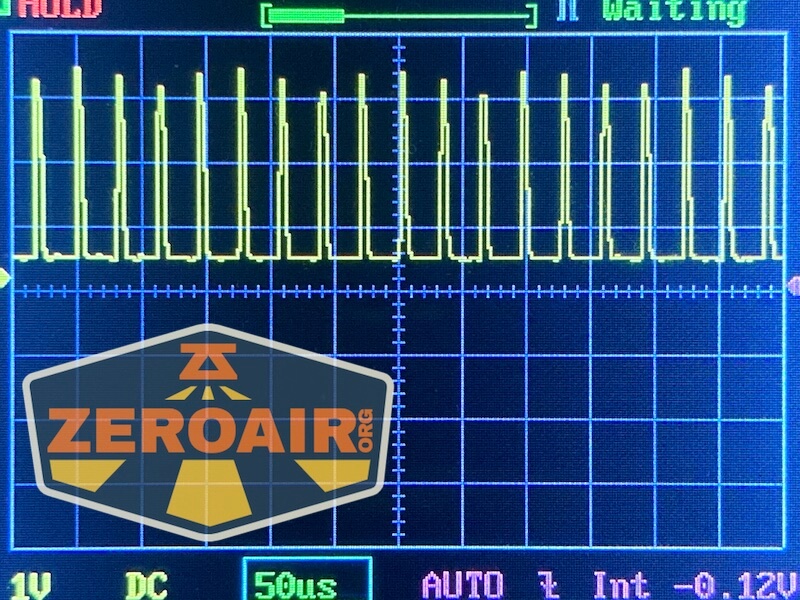

Pulse Width Modulation

There is PWM on all modes except Moon and Turbo. On all but the lowest output level, it’s not PWM that I can call “noticeable.”  It’s plenty fast PWM.

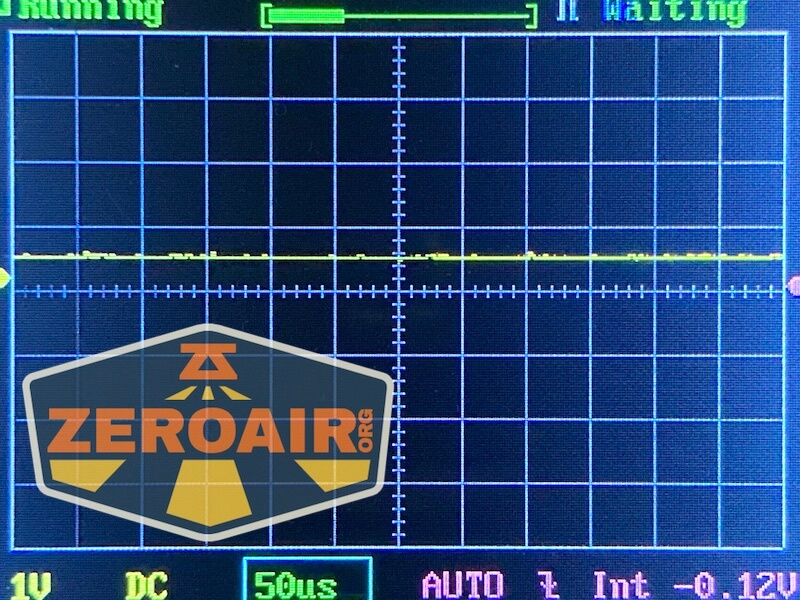

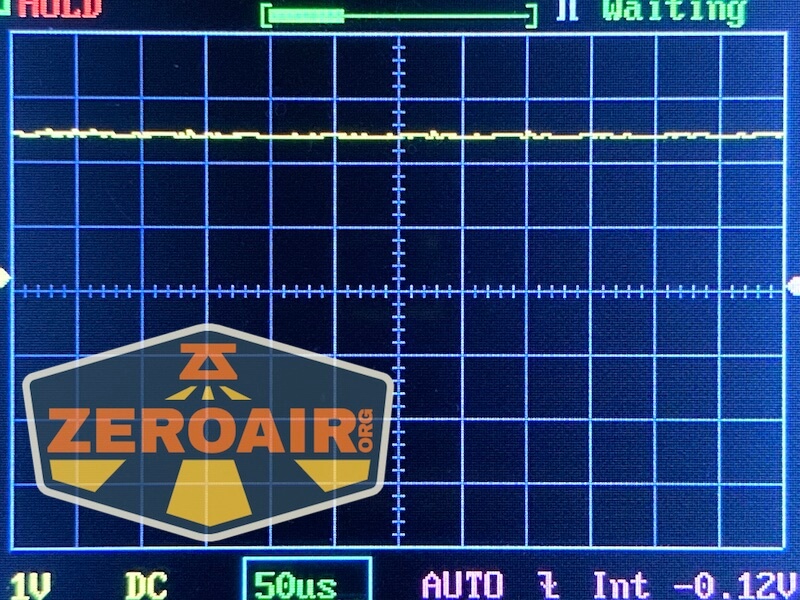

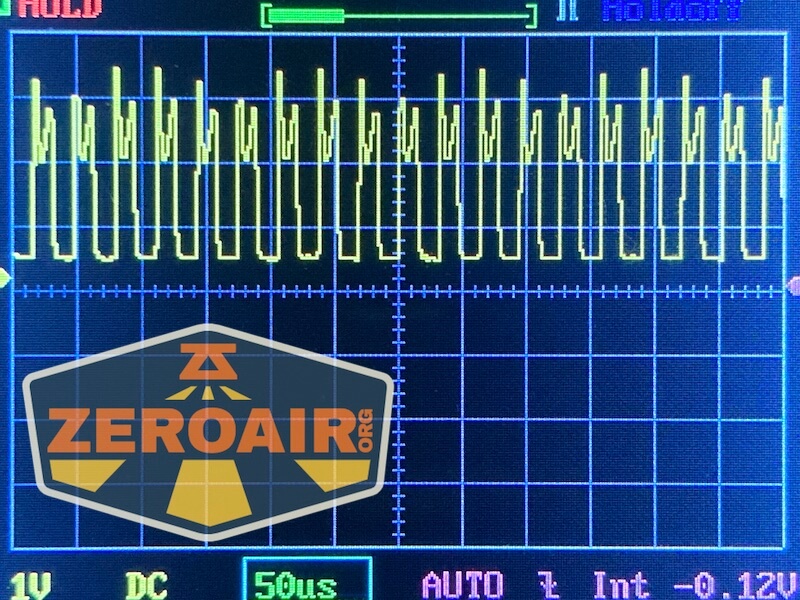

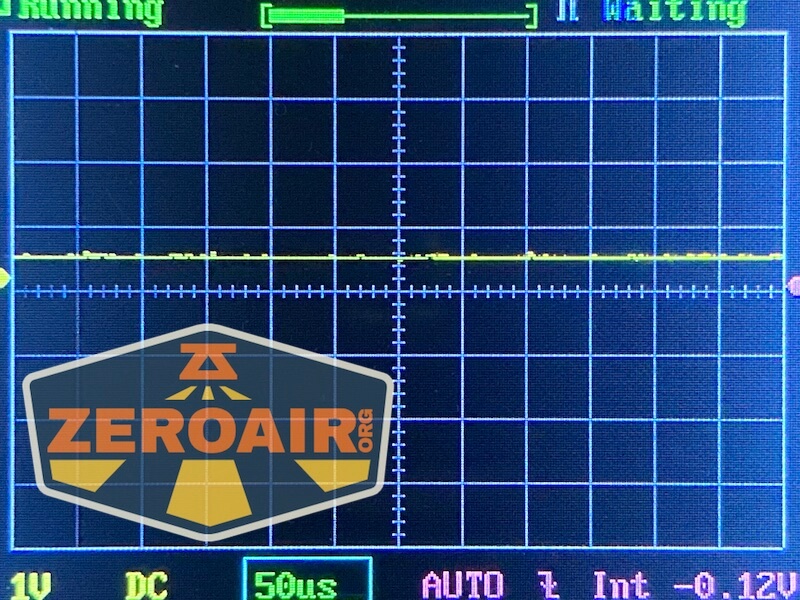

For reference, here’s a baseline shot, with all the room lights off and almost nothing hitting the sensor. Also, here’s the light with the worst PWM I could find. I’m adding multiple timescales, comparing them to the test light will be easier. Unfortunately, the PWM on this light is so bad that it doesn’t even work with my normal scale, which is 50 microseconds (50us). 10ms. 5ms. 2ms. 1ms. 0.5ms. 0.2ms. In a display faster than 0.2ms or so, the on/off cycle is more than one screen, so it’d just (very incorrectly) look like a flat line. I wrote more about this Ultrafire WF-602C flashlight and explained a little about PWM.

User Interface and Operation

The switch seen on the is an indicating e-switch. It is a soft and low switch with a translucent center and edges that can be red or green.

Wurkkos TS11S rechargeable flashlight e-switch

Wurkkos TS11S rechargeable flashlight e-switch actuation

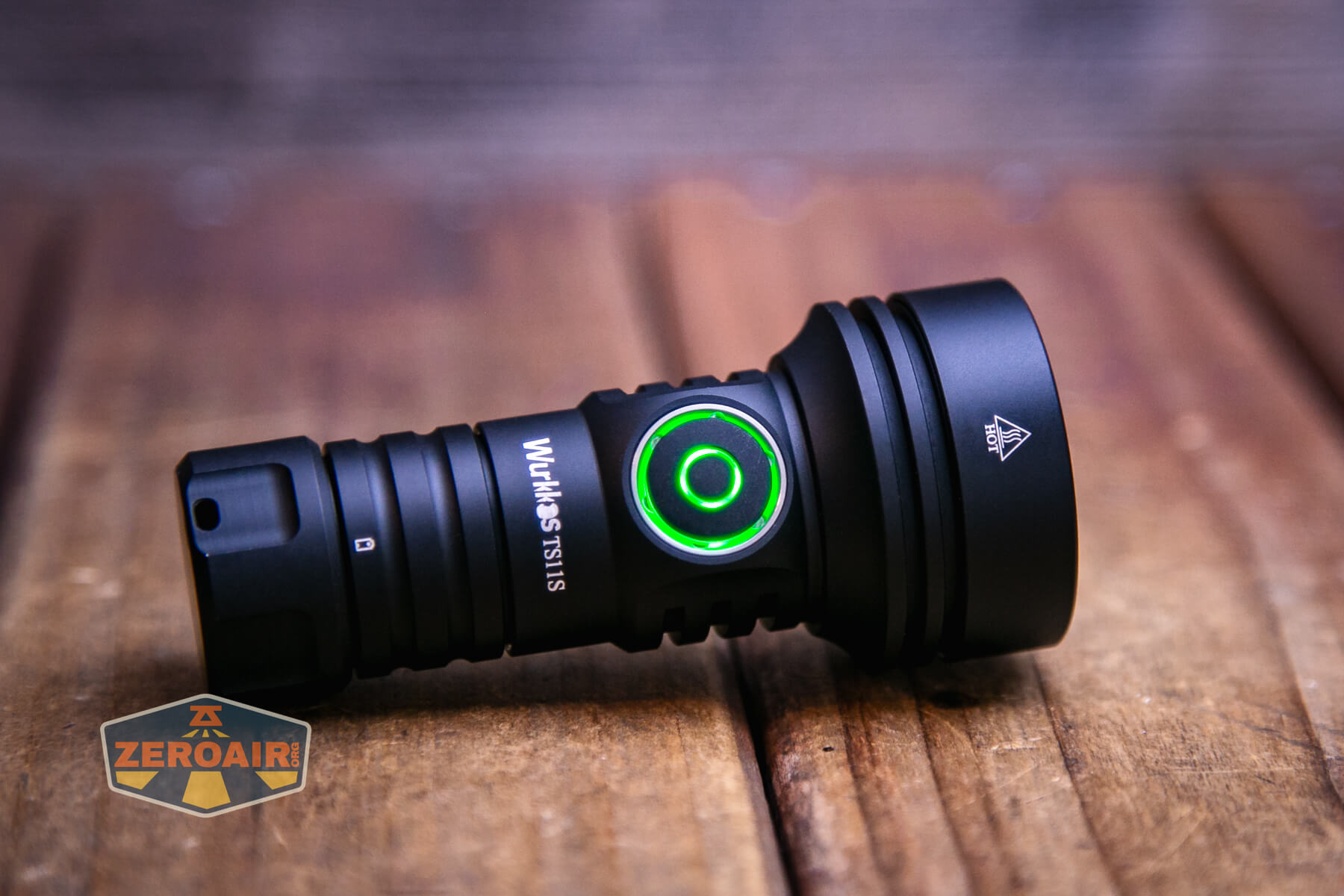

Wurkkos TS11S rechargeable flashlight e-switch indicating in green

Unlike the some other Wurkkos lights, the TS11S does not use Anduril. I think the idea was to give users a non-Anduril version of a very capable light, and Wurkkos accomplished that! However the light does still offer ramping, so you still have plenty of options.

Here’s a UI table according to the manual! In practice, I was unable to access Group 2, the ramping modes. (That’s perfectly great for me since I don’t want ramping, particularly since this light has enough output levels. But the manual should be addressed, probably.) Note that’s the same thing I said about the Wurkkos FC13s and it’s still true – I’m unable to access the ramping setting on this light!

State Action Result
Off Click On (Mode memory)
Off Hold Moon
Any Double Click Turbo
On Hold Group 1: Mode advance (Eco>Low>Mid>High)
Group 2: Ramp up (or change ramp direction if held within 1.5s of being held and released)
On Click Off
Turbo Click Return to previous level
Turbo Double Click Group 1:
Group 2: Iterate between Moon and Turbo
Any Click 3x Strobe
Strobe group Double Click Strobe advance (Strobe>SOS>Beacon)
On Click 4x Switch between Group 1 and Group 2
Off Click 4x Lockout
Lockout Click 4x Unlock to on state (Mode Memory)
Lockout Click Two blinks to indicate lockout

LED and Beam

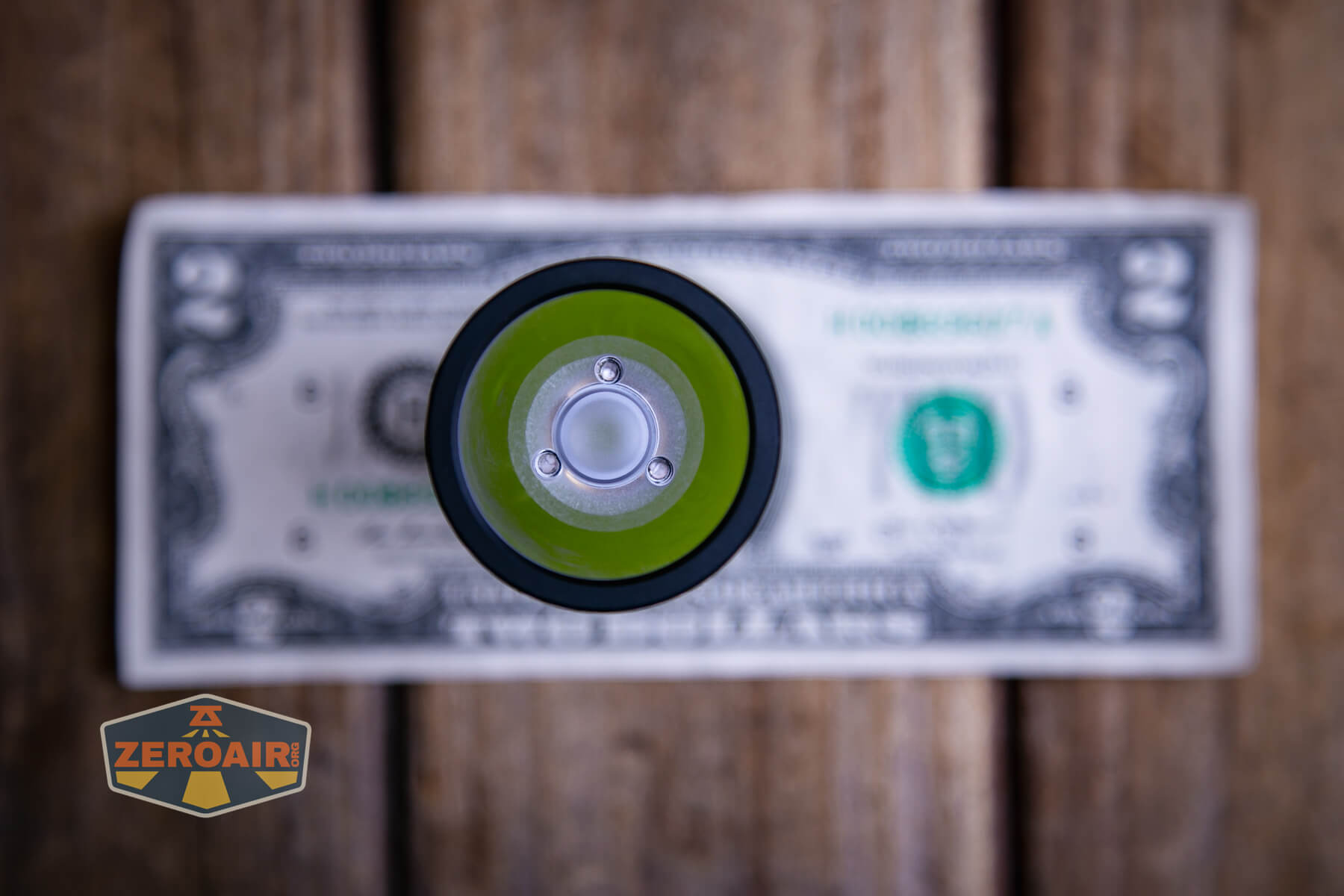

Wurkkos uses a Luminus SFT40 emitter in the TS11S. It’s rated at 6000K-6500K. The emitter is coupled with a big TIR.

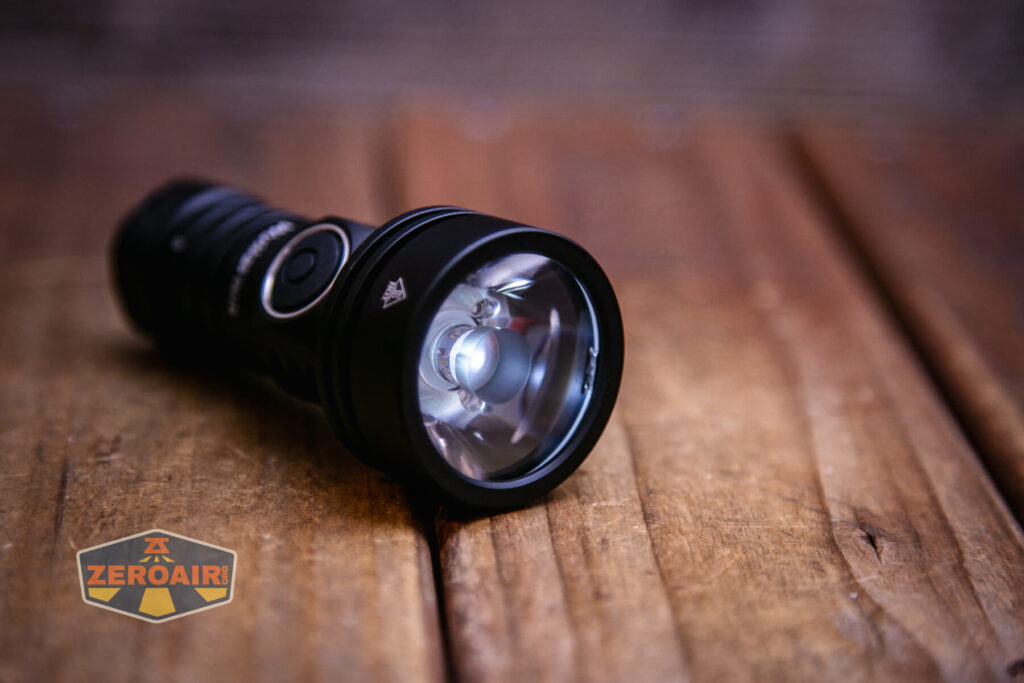

Wurkkos TS11S rechargeable flashlight emitter and TIR

Wurkkos TS11S rechargeable flashlight emitter and TIR

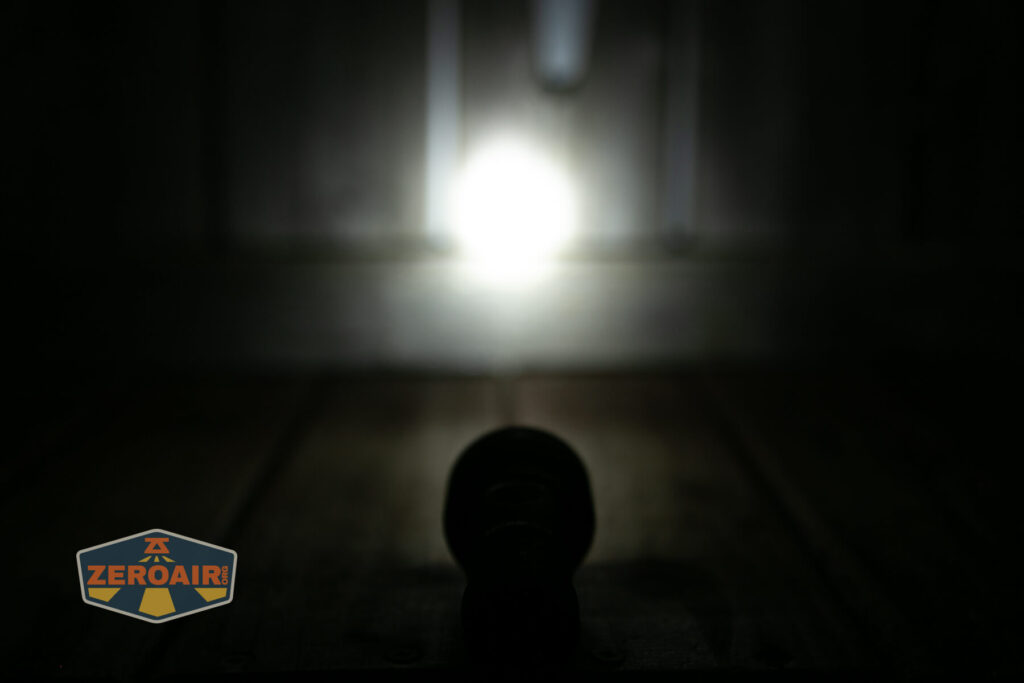

Wurkkos TS11S rechargeable flashlight emitter on

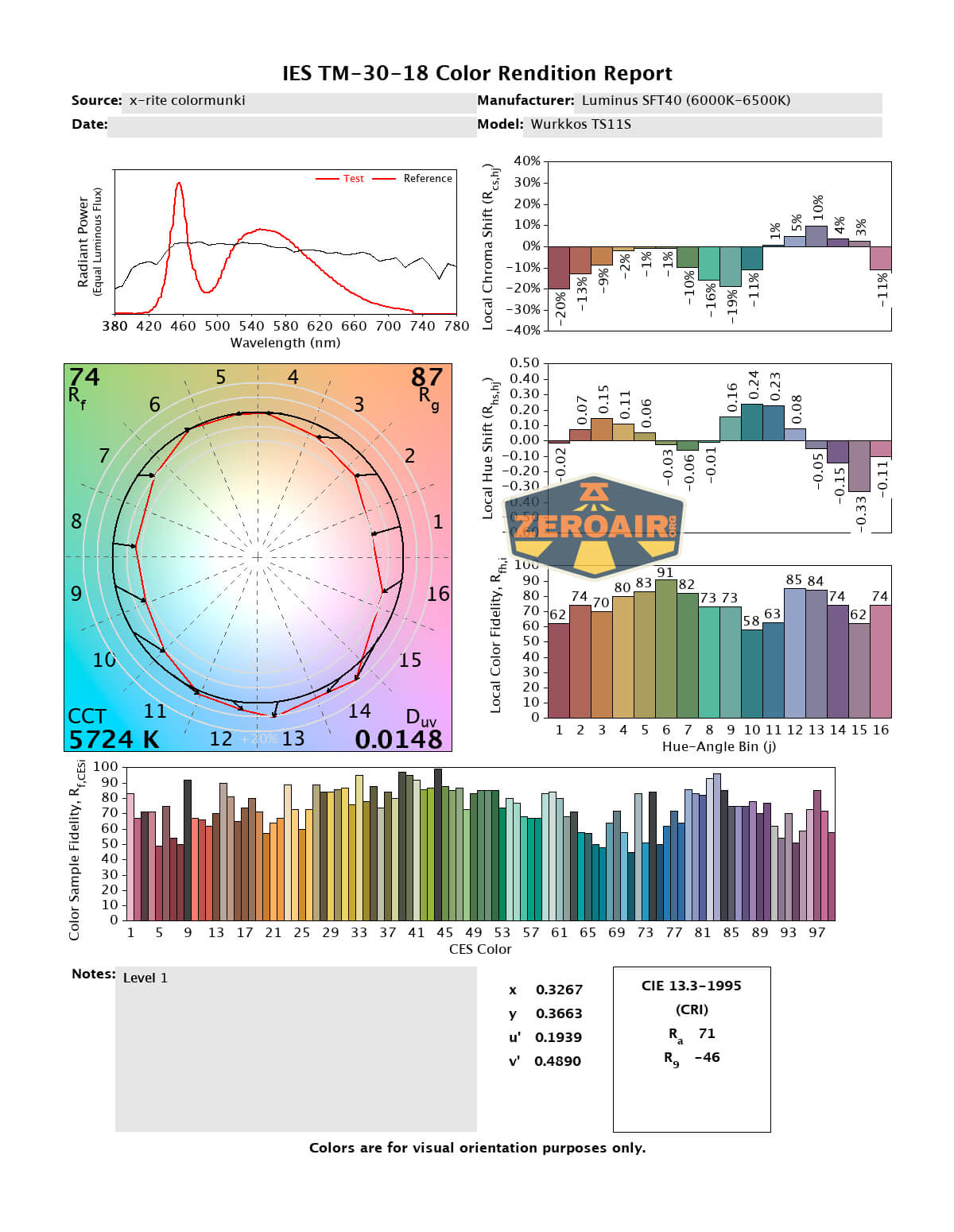

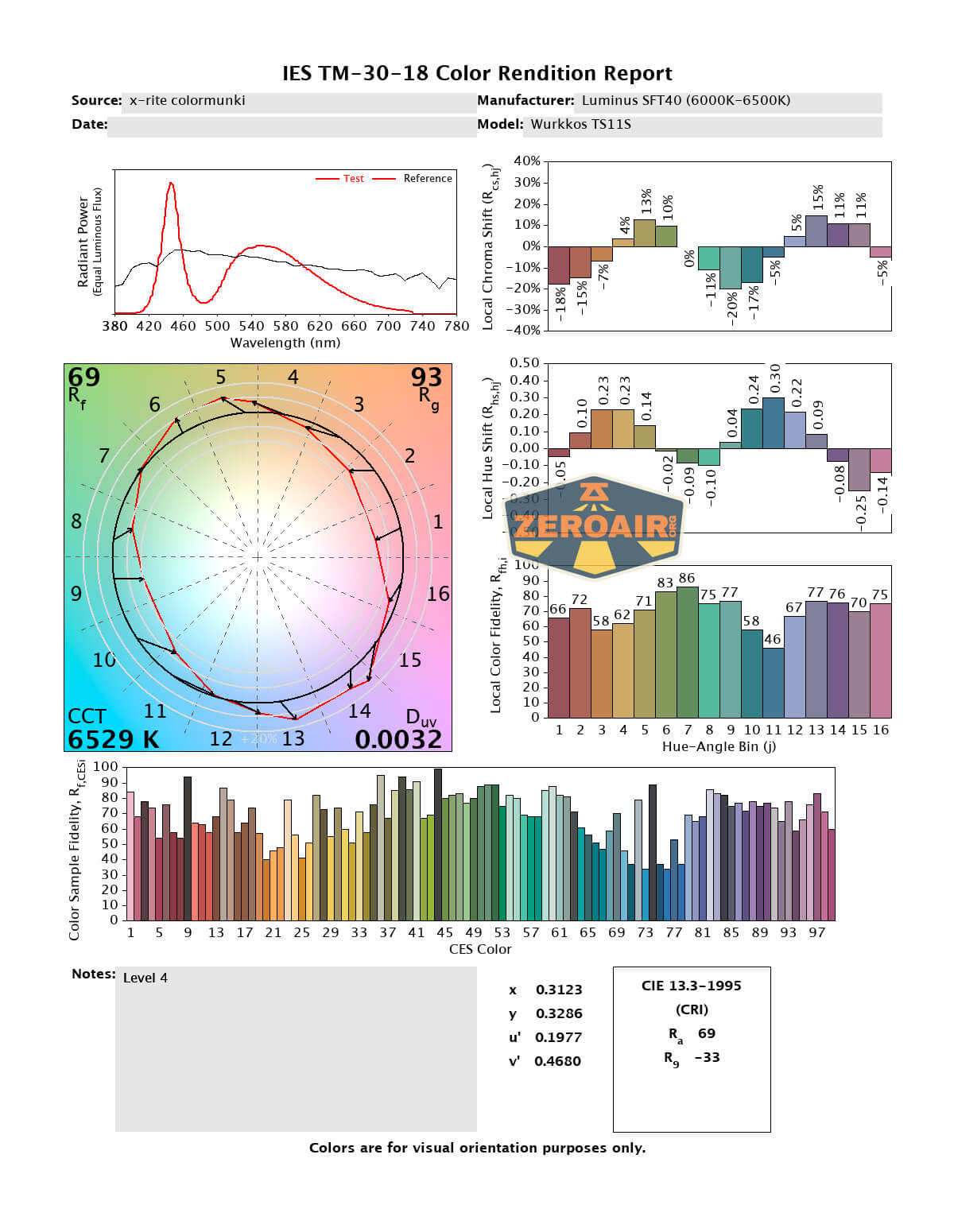

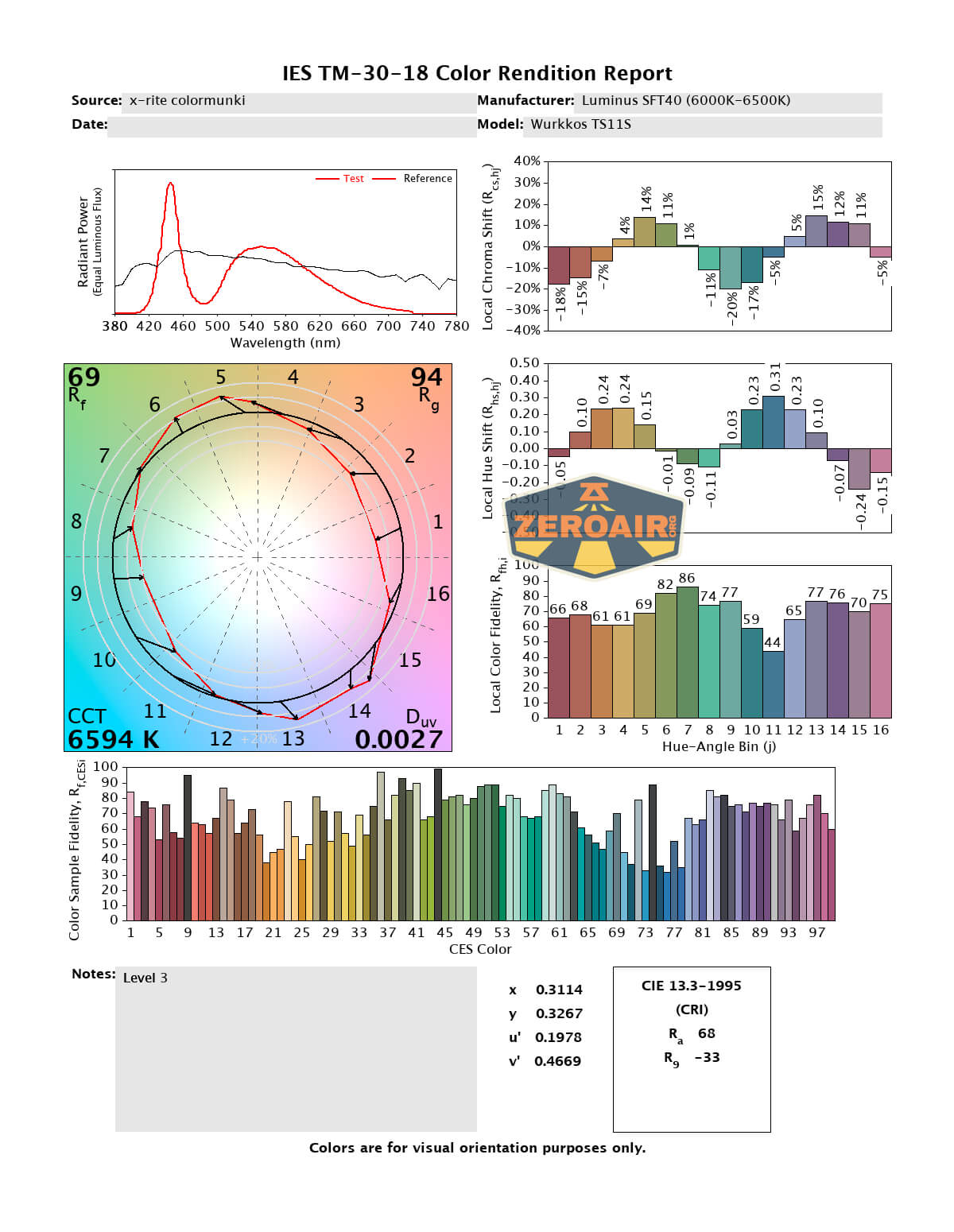

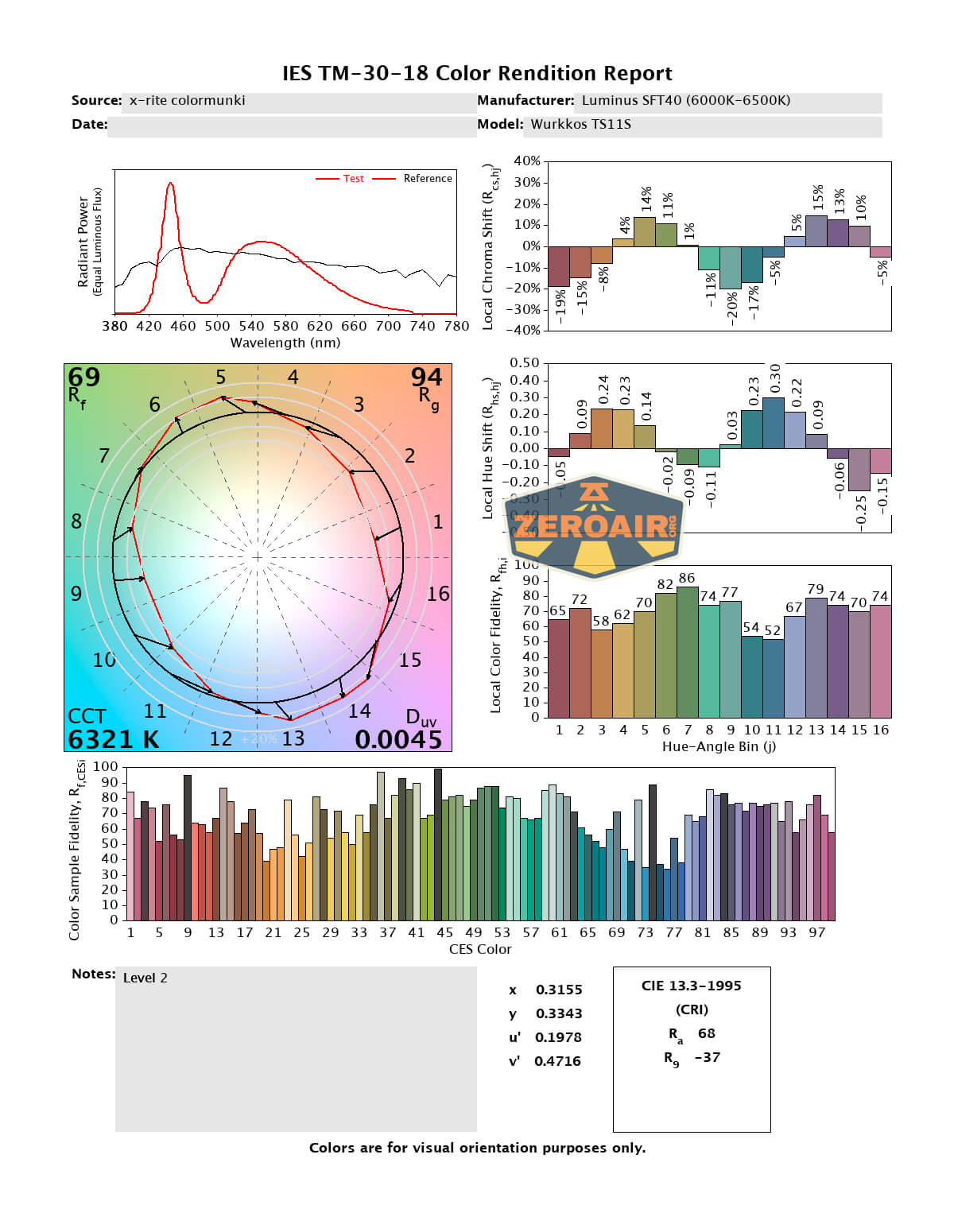

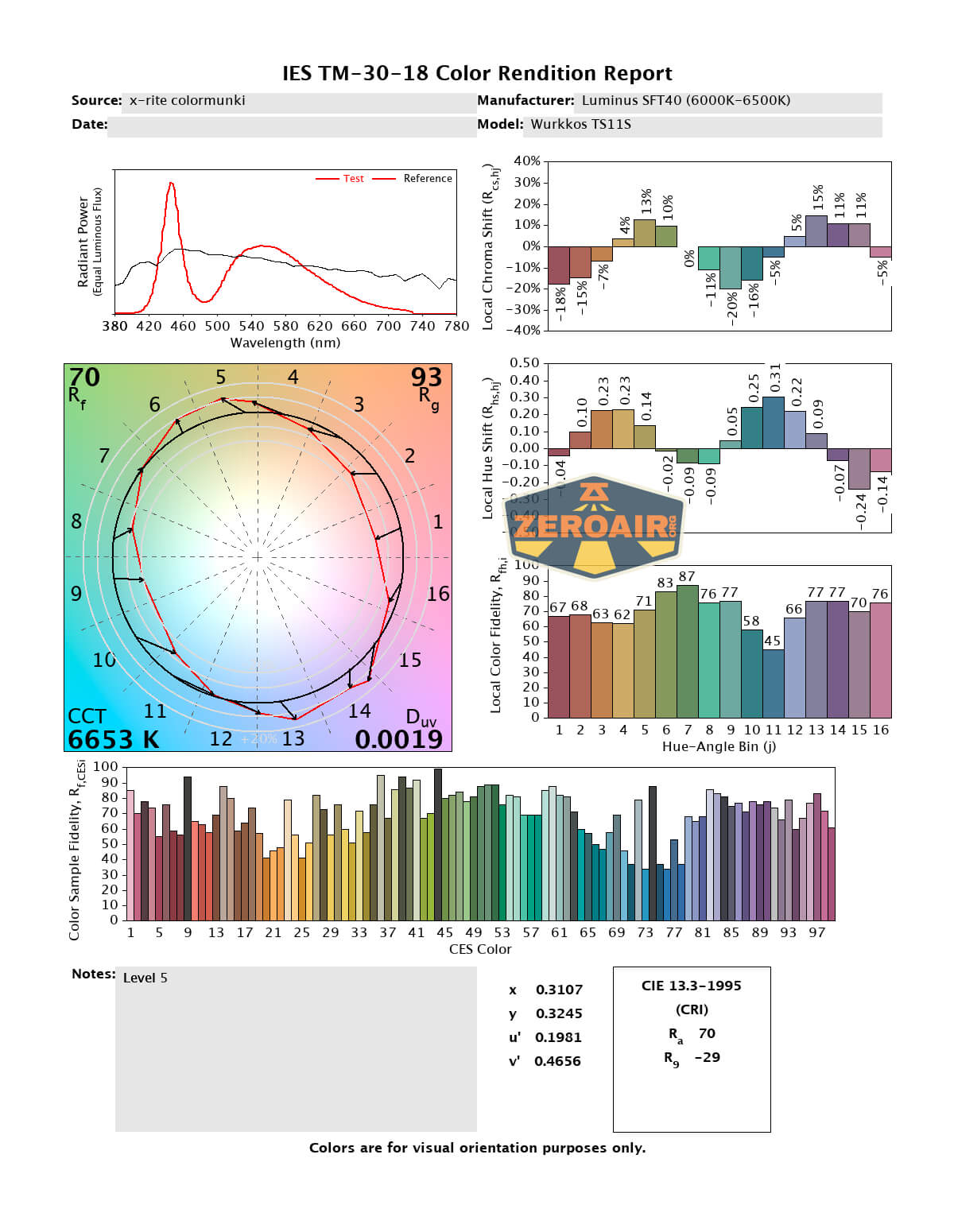

LED Color Report (CRI and CCT)

CCT stays roughly in the range of what Wurkkos claims – 6000K to 6500K. The CRI is low, though, at around 70.

Beamshots

These beamshots are always with the following settings:  f8, ISO100, 0.3s shutter, and manual 5000K exposure. These photos are taken at floor level and the beam hits the ceiling around 9 feet away.

Tint vs BLF-348 (KillzoneFlashlights.com 219b version) (affiliate link)

I keep the test flashlight on the left, and the BLF-348 reference flashlight on the right.

I compare everything to the KillzoneFlashlights.com 219b BLF-348 because it’s inexpensive and has the best tint!

Conclusion on the Wurkkos TS11S rechargeable flashlight

What I like

  • Great value
  • Cell included for $2!
  • 5000K emitter option (and they’re a little warmer than that, too!)
  • Indicating e-switch is a novel variety
  • USB-C charging works well

What I don’t like

  • Could not access the ramping modes mentioned in the manual

Notes
