Klarus XT2CR Flashlight Review

Klarus has a good ‘recharging light’ and ‘tactical light’ game going, and now there’s the XT2CR in the mix.  Read on to see how the light looks, and fares in testing!



Official Specs and Features

Versions

Just this one version of the XT2RC.  This is an update to the XT2C – the added “R” for “Rechargeable” meaning on-board charging has been added.

Price

The MSRP is around $98, but the street price seems to be in the $75 range currently.


Short Review

Very solid light, and if I’m being frank I quite like the look of it.  It’s more than about looks though, and it’s a good performer too.

Long Review

The Big Table

Klarus XT2CR
Emitter: Cree XHP35 HD (E4)
Price in USD at publication time: $75
Cell: 1×18650
Turbo Runtime
LVP?
Switch Type: Mechanical
On-Board Charging? Yes
Charge Port Type: On-Cell
Chargetime
Power off Charge Port with no Cell?
Claimed Lumens (lm) 1600
Claimed Throw (m) 240
Candela (Calculated) in cd (at 30s) 583lux @ 5.036m = 14786cd
Throw (Calculated) (m) 243.2 (101.3% of claim)*
All my Klarus reviews!

* Standard measurement disclaimer: I am an amateur flashlight reviewer. I don’t have $10,000 or even $1,000 worth of testing equipment. I test output and such in PVC tubes!! Please consider claims within 10% of what I measure to be perfectly reasonable (accurate, even).

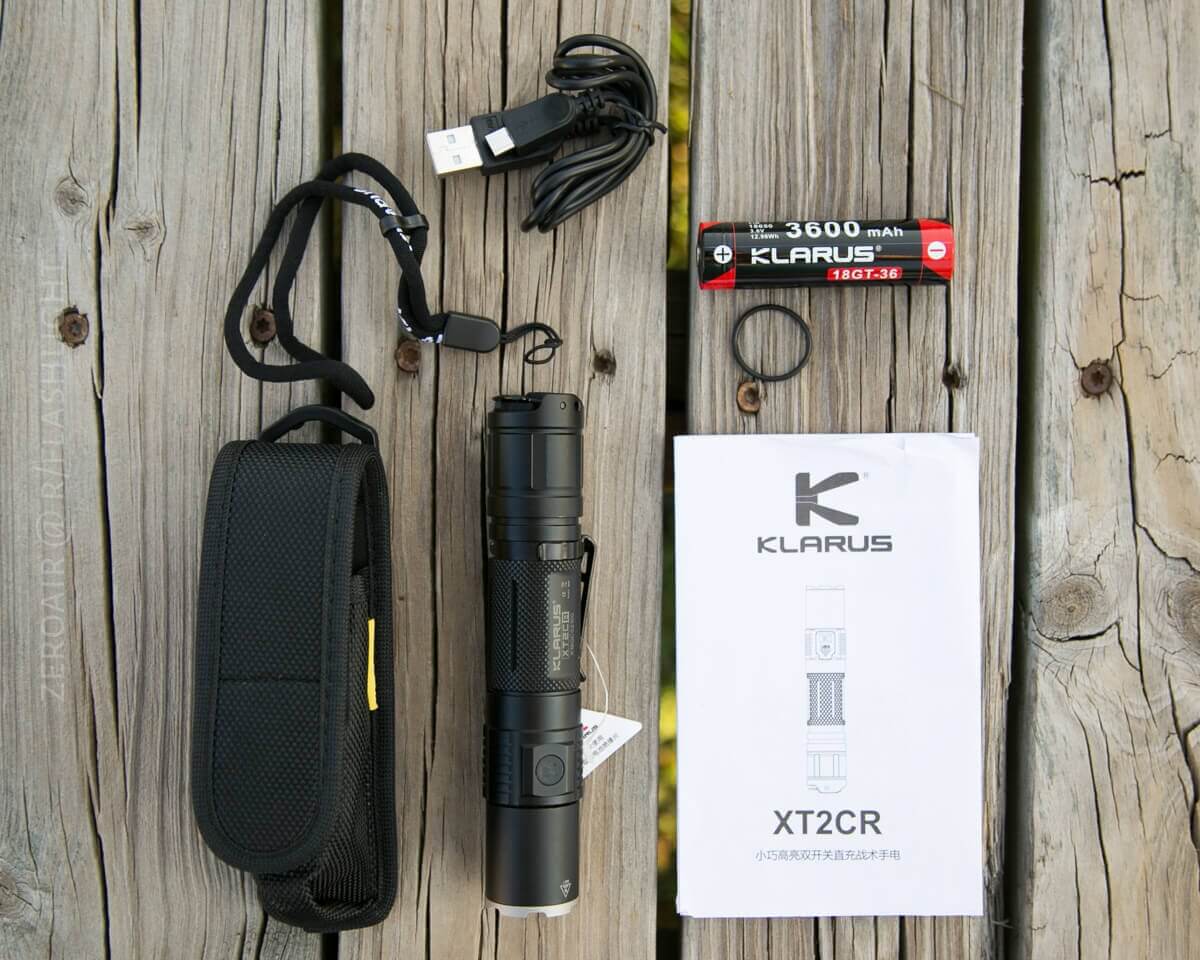

What’s Included


  • Klarus XT2CR
  • Klarus “3600mAh” 18650
  • Nylon pouch
  • Lanyard
  • USB cable
  • Manual
  • Spare o-ring

Finally remembered to take the cell out of one of these lights for the photo. 🙂

Package and Manual

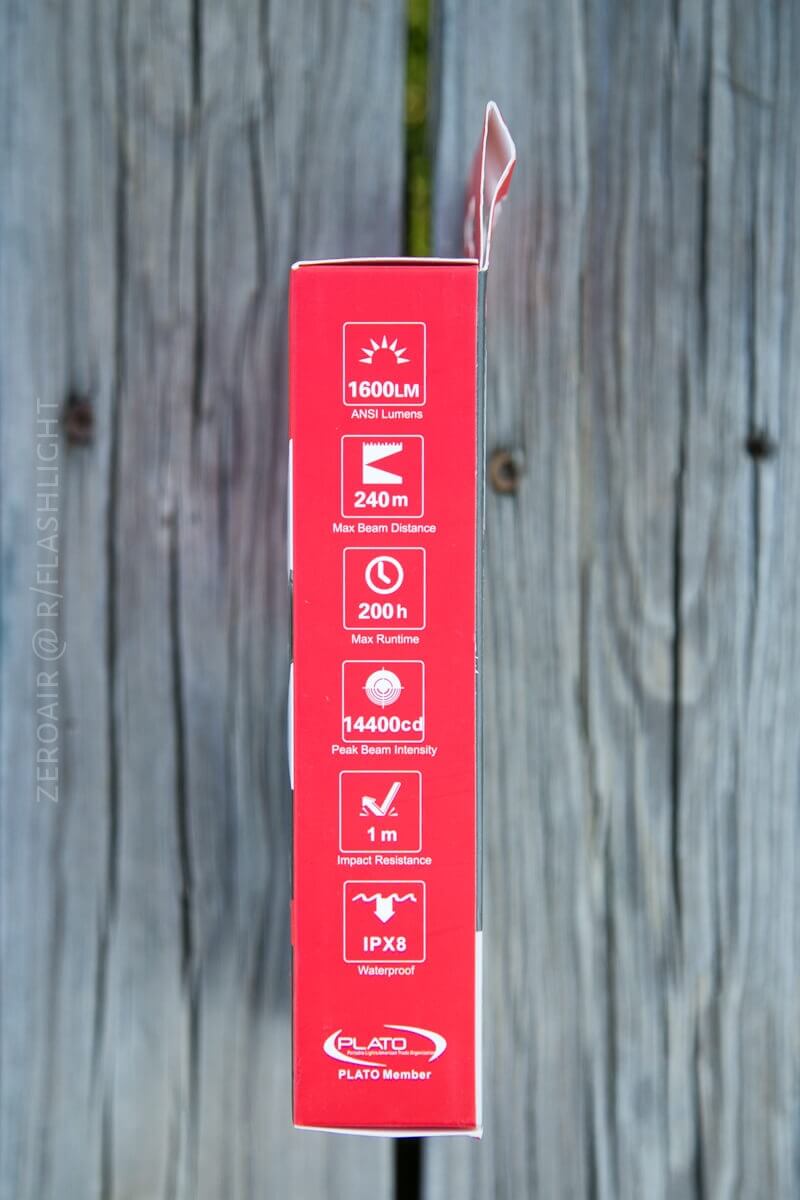

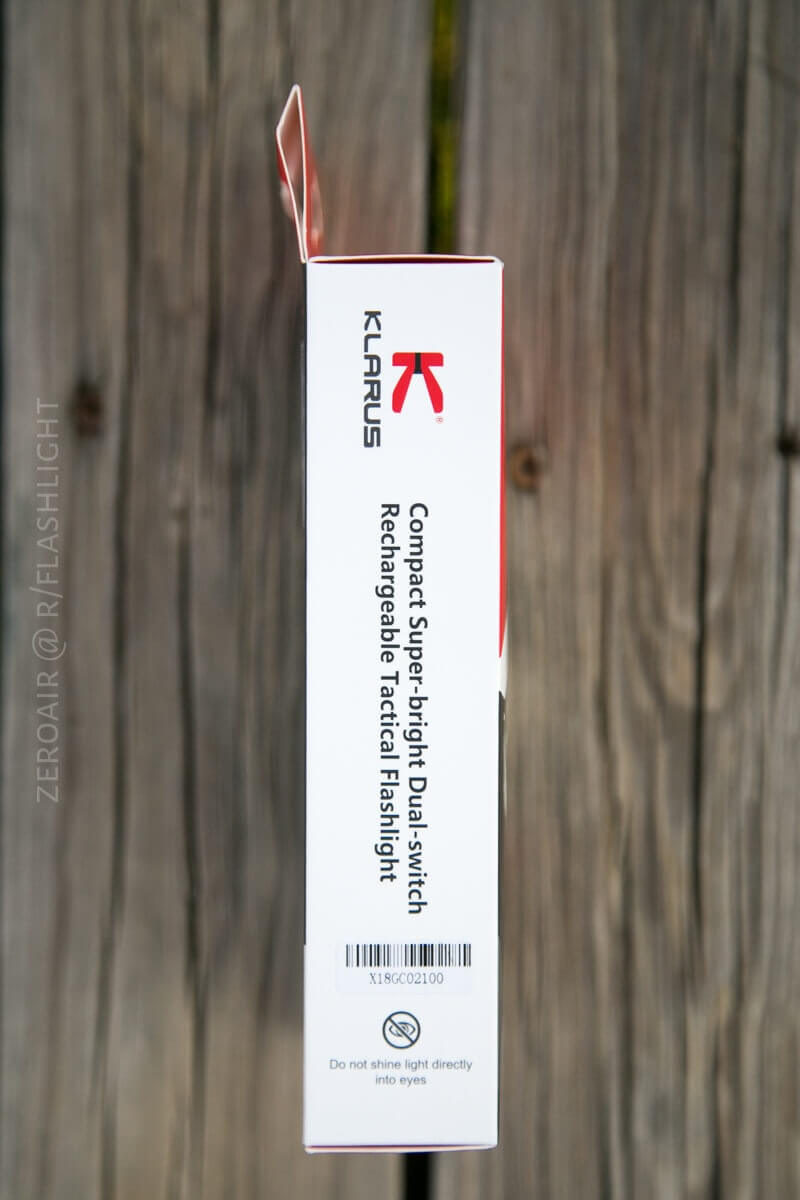

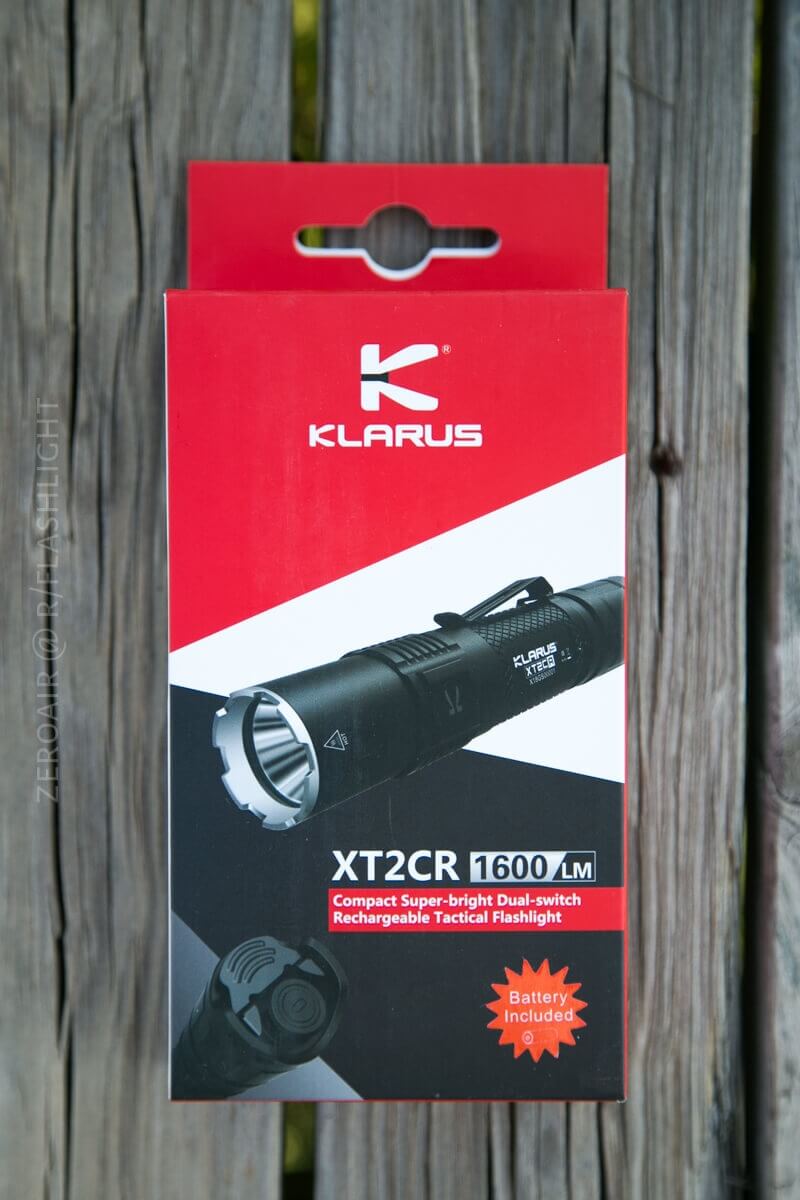

The package is a display-ready no-window red and black cardboard box.  It’s very printed, with most features and specs right there on the box.  The light itself rests in a plastic tray.

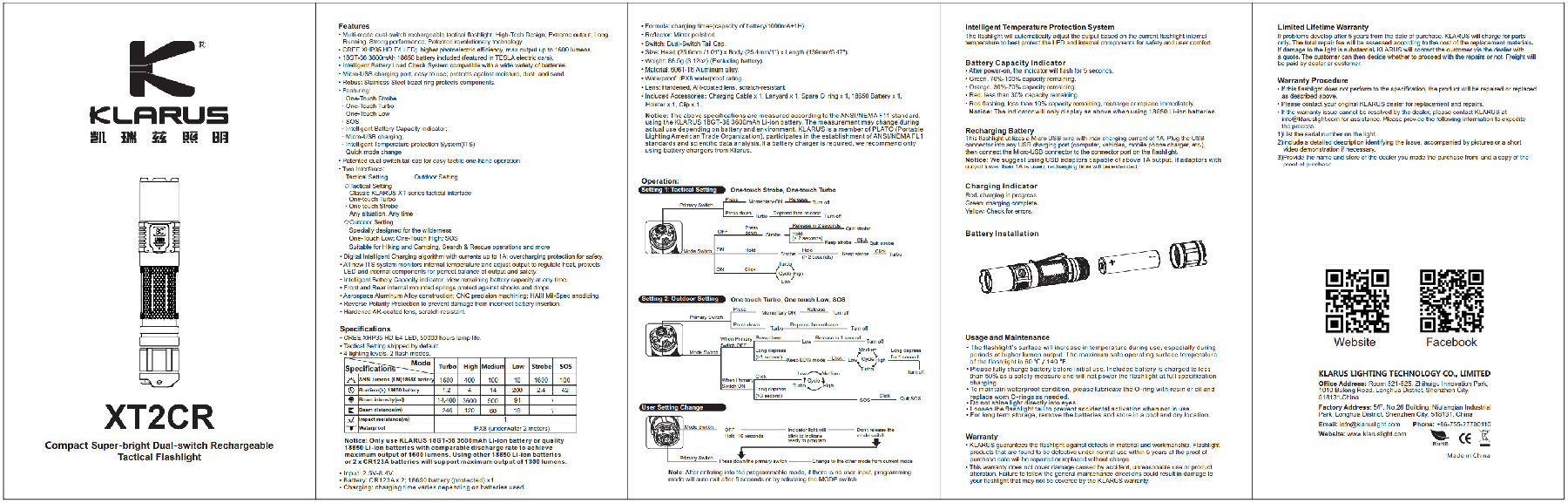

Here’a link to the PDF manual.  Really, really appreciate companies including pdf manual on their website!!  Below you may see a photo of the manual.  I’m pretty satisfied with the manual.  It’s descriptive, has a flow chart UI, some photos of the light and all the necessary info on this versatile light.

Screen Shot 2017-09-27 at 9.59.22 PM.png

Build Quality and Disassembly

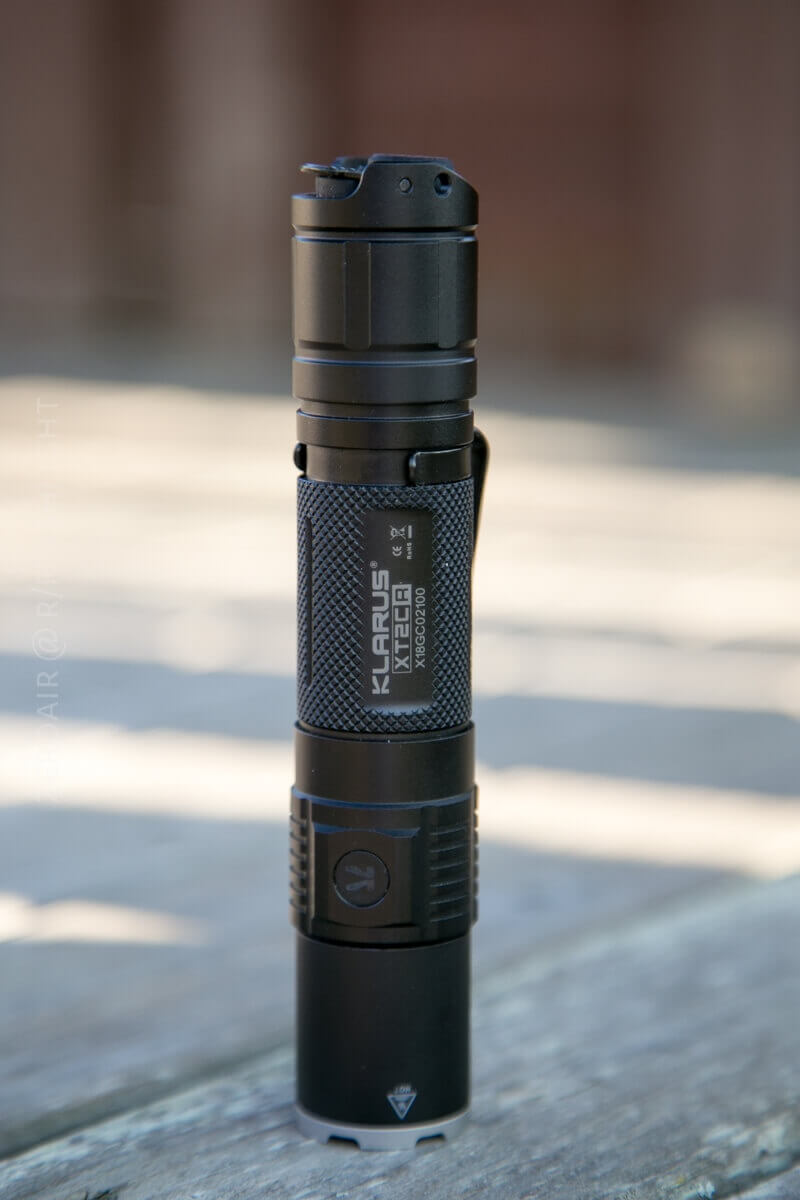

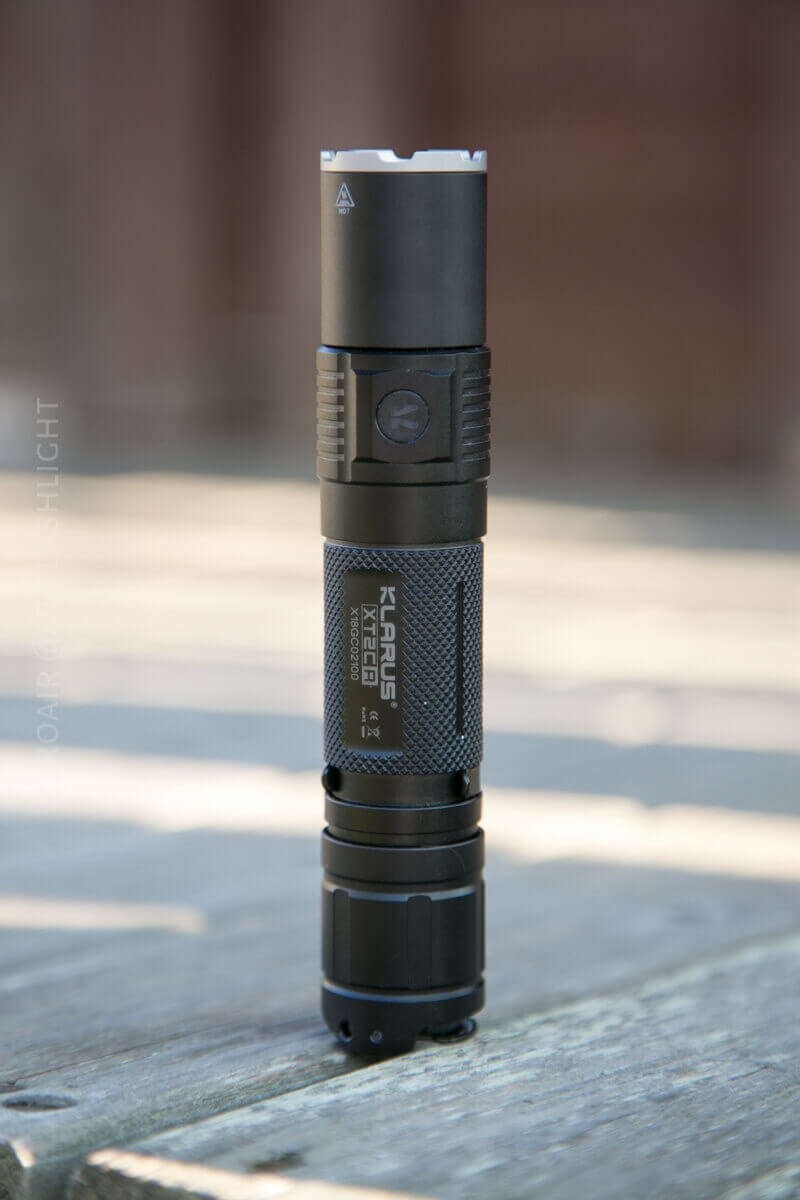

The build quality of the XT2CR is super.  It’s a very sturdy light.  The body is actually very similar to the XT12GT.  In fact I might even say that these are the same, with different heads.  That light was built well, and this one is too.  This is a minor point but shows nice attention to detail: The logoing on the body is a very nice muted gray.  Not worn or faded, but just “not white.”  It matches the aesthetic very well.

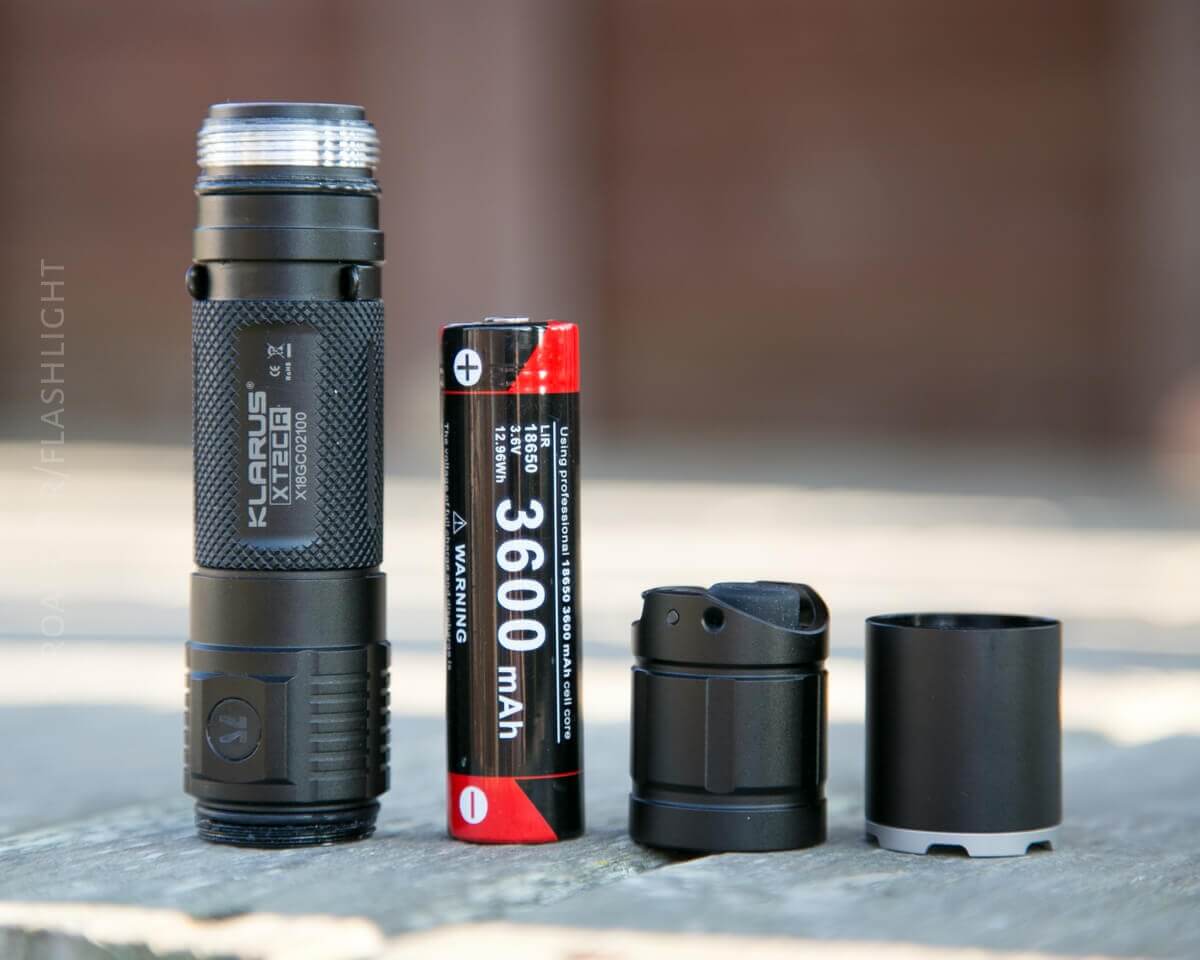

The XT2CR is easy to disassemble, as well.  The tail unscrews, and the switch mechanism(s?) are held in place by a retaining ring (which doesn’t have divots for unscrewing, but still should come out relatively easily).  The threads on the tail end of the body are big square cut threads, and adequately lubed (but ‘just’ enough lube, no extra at all), and are unanodized.  There’s a floating tube inside the body tube, which facilitates charging of any cell – the XT2CR doesn’t require any proprietary cell for charging!

And I hope you can see the springs here.  BOTH ends are very thick double sprung springs.  Very nice springs indeed.

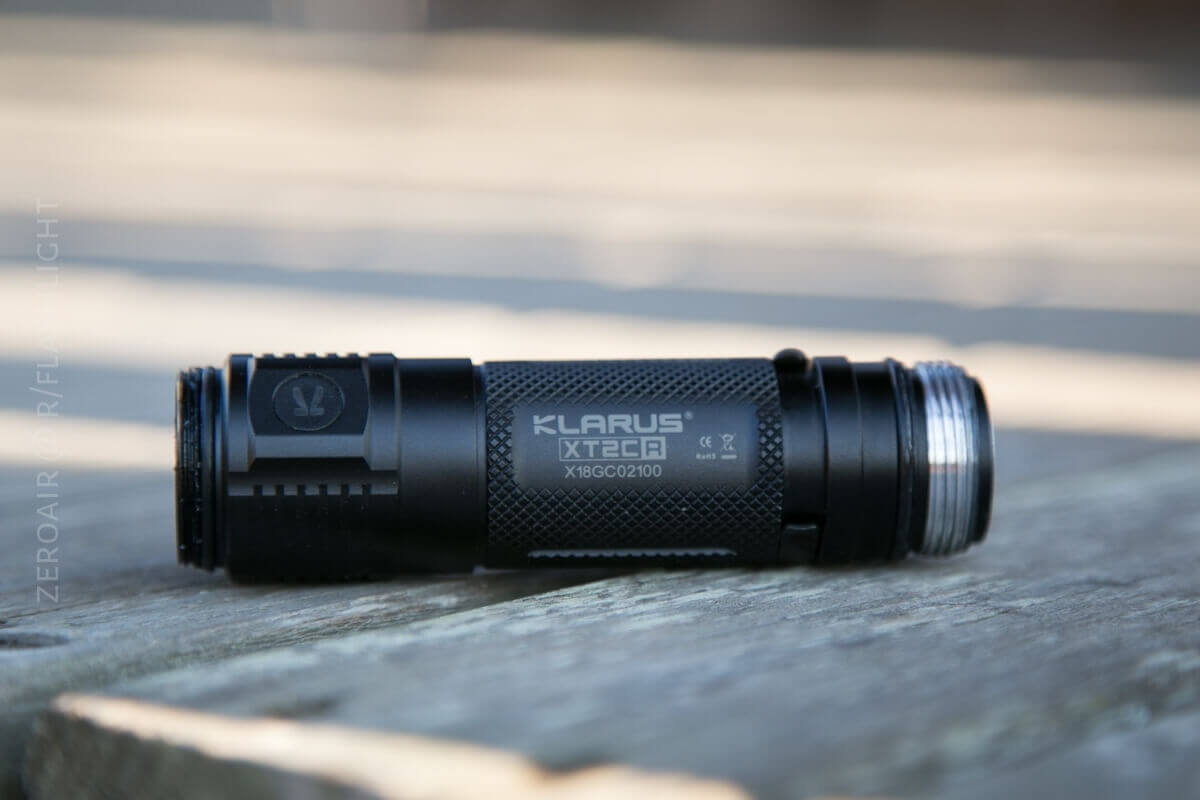

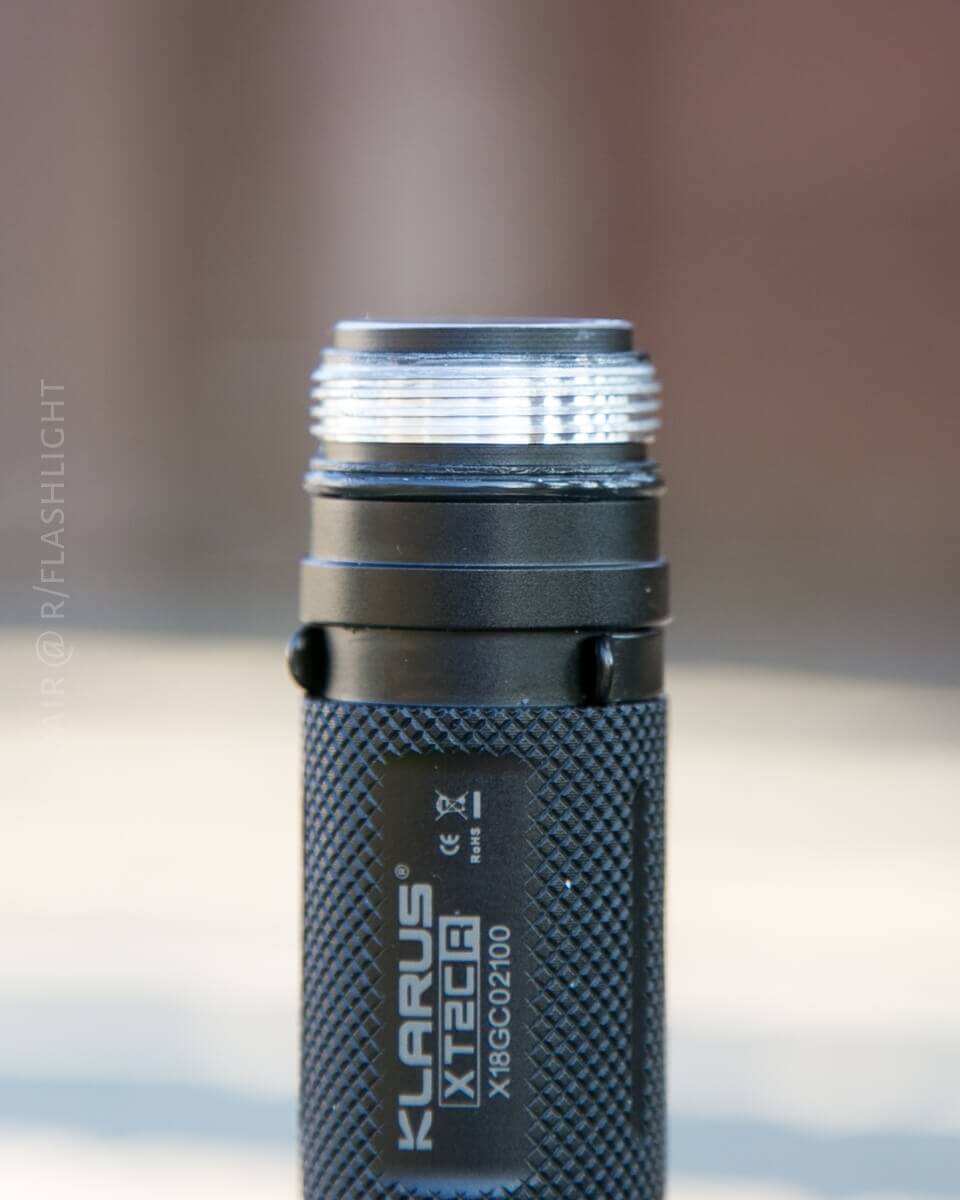

I was able to unscrew the bezel off the head, and the reflector housing off the head, but I wasn’t able to remove the head from the body.  This does mean that the light could easily be used as a mule (though temporarily, since the emitter and threads are unprotected in that setup).

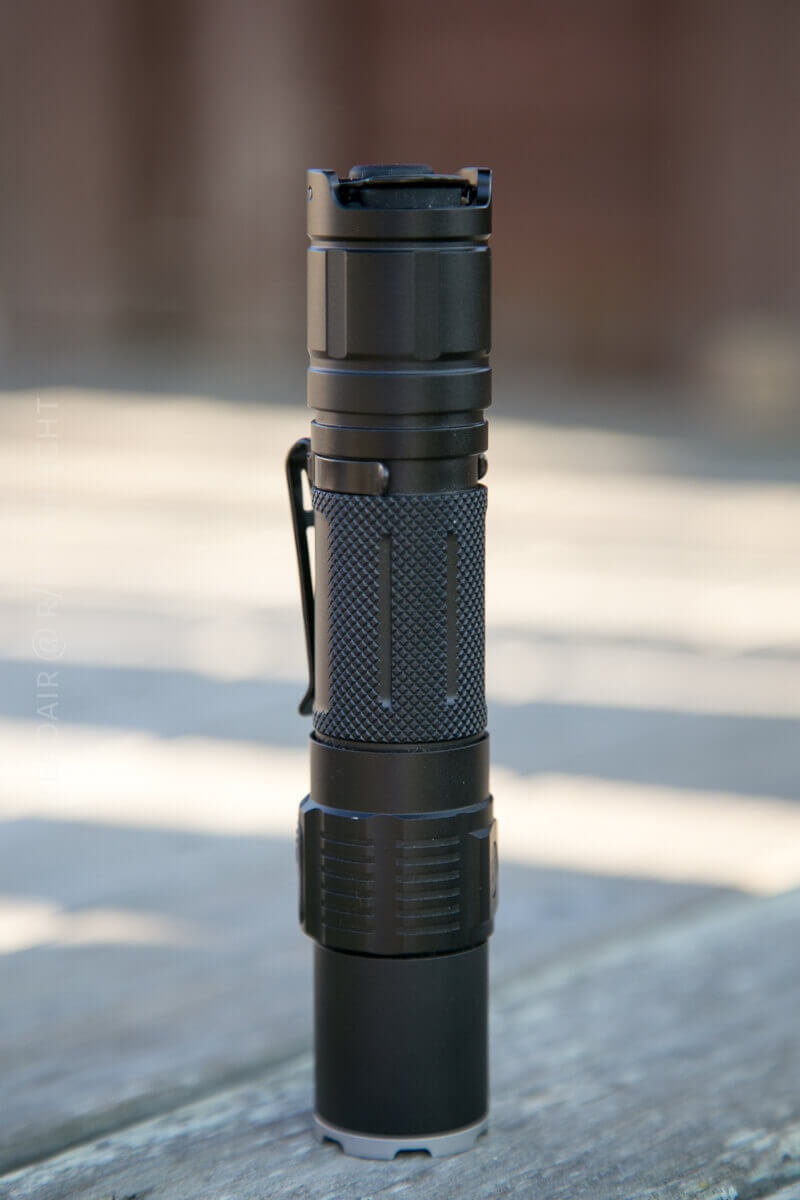

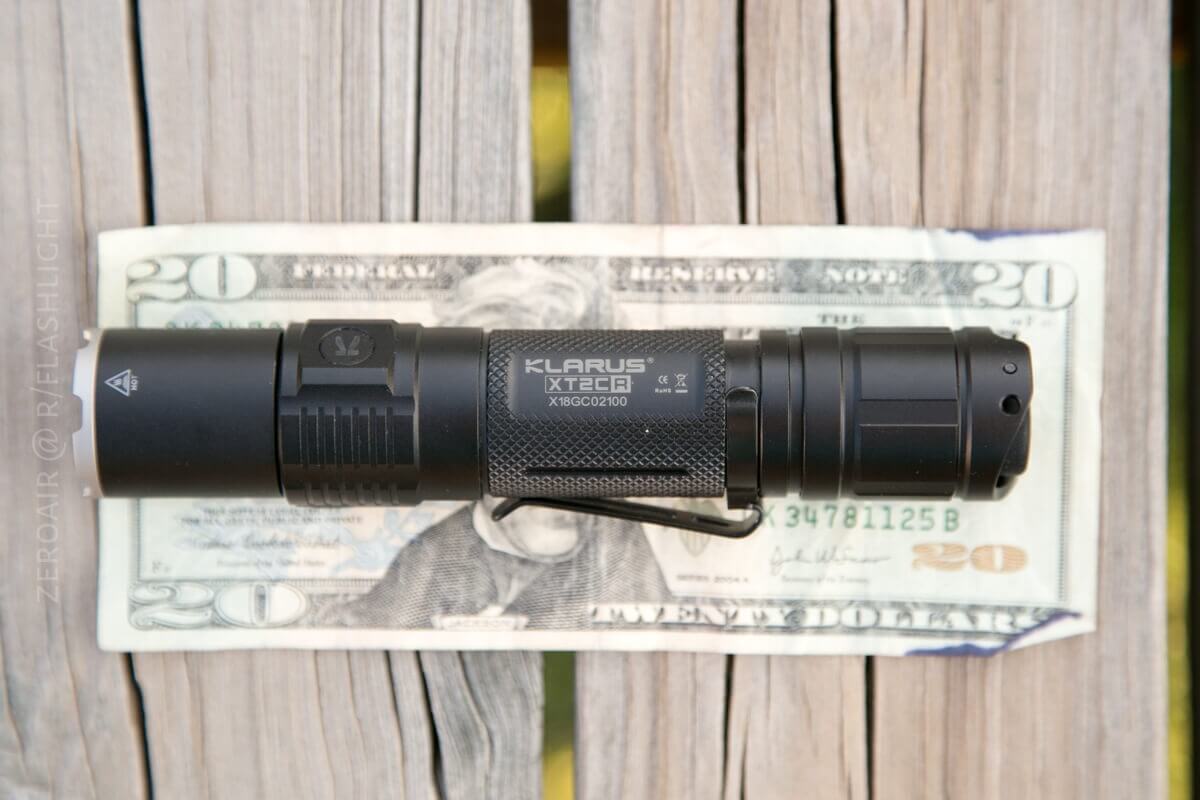

Size

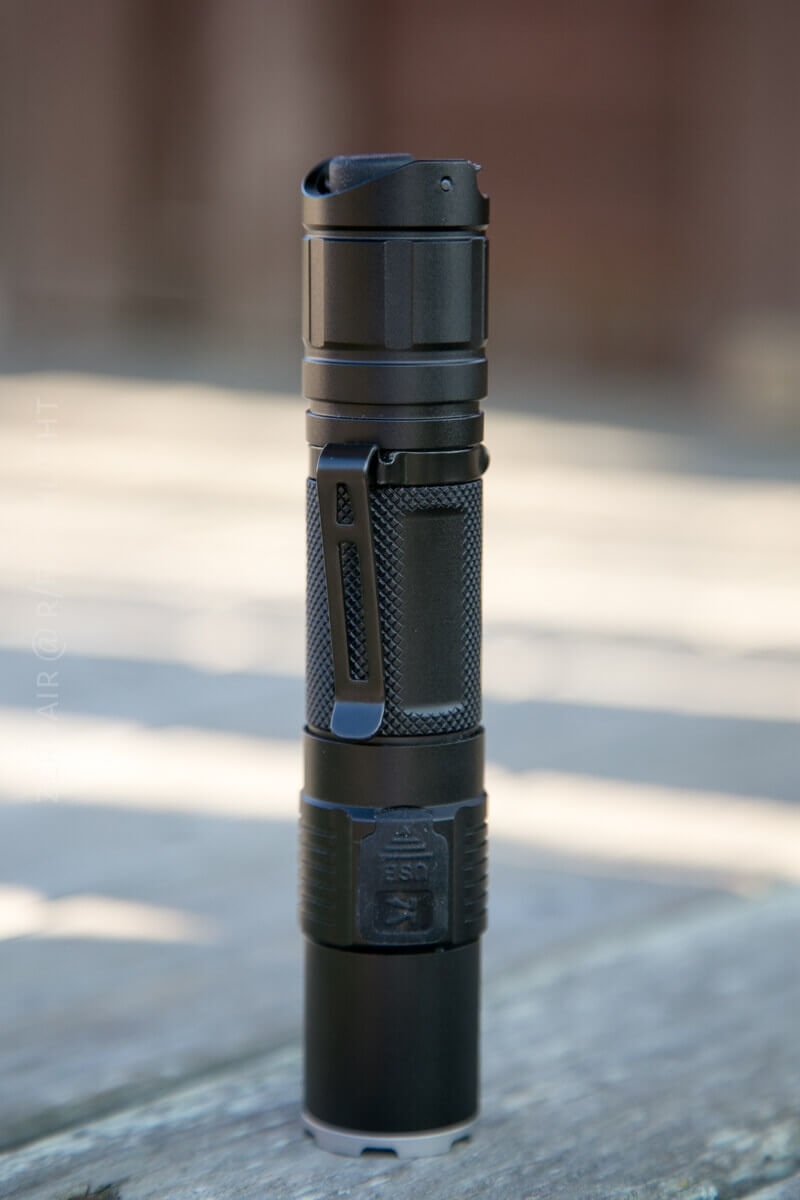

Officially: Head (25.6mm) x Body (25.4mm) x Length (139mm), Weight: 88.5g (Excluding battery)

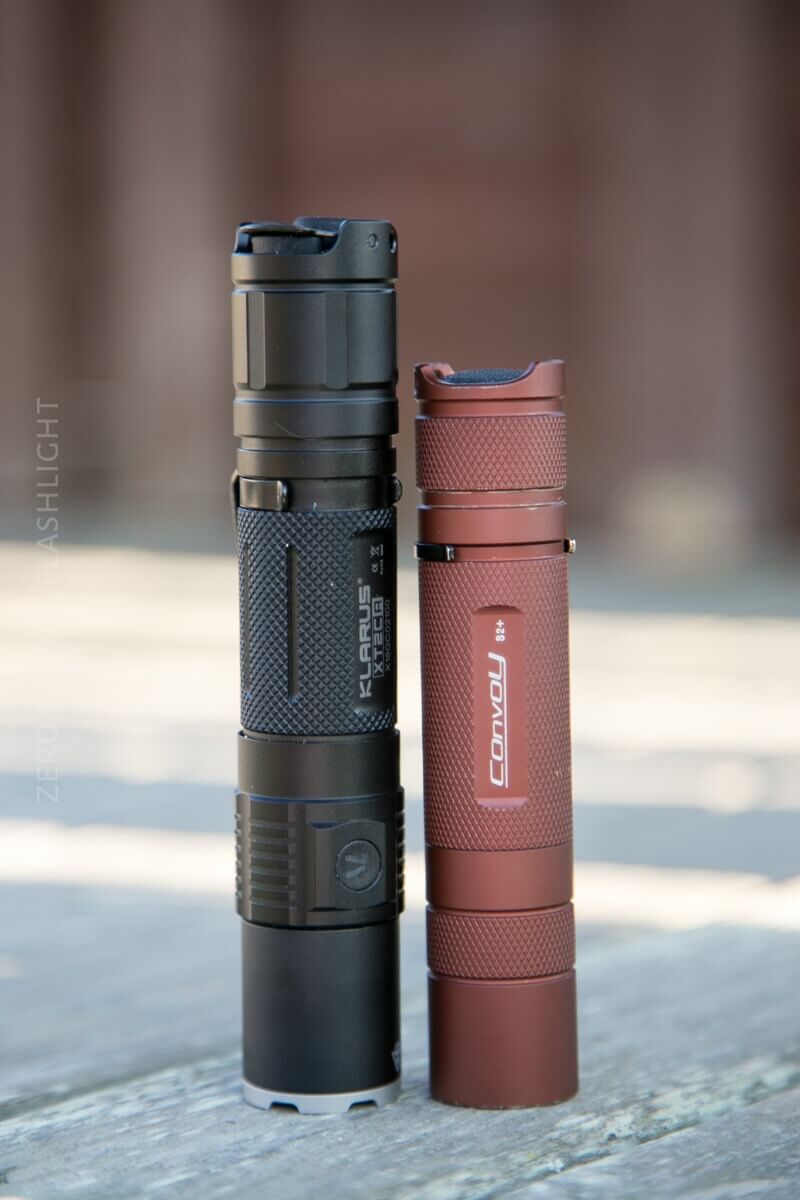

The XT2CR is both long and girthy.  Again, this matches the body size of the other lights in this XT2 series, and as I think I said for those, I like that because that’s why these lights don’t require proprietary cells for charging.


Retention

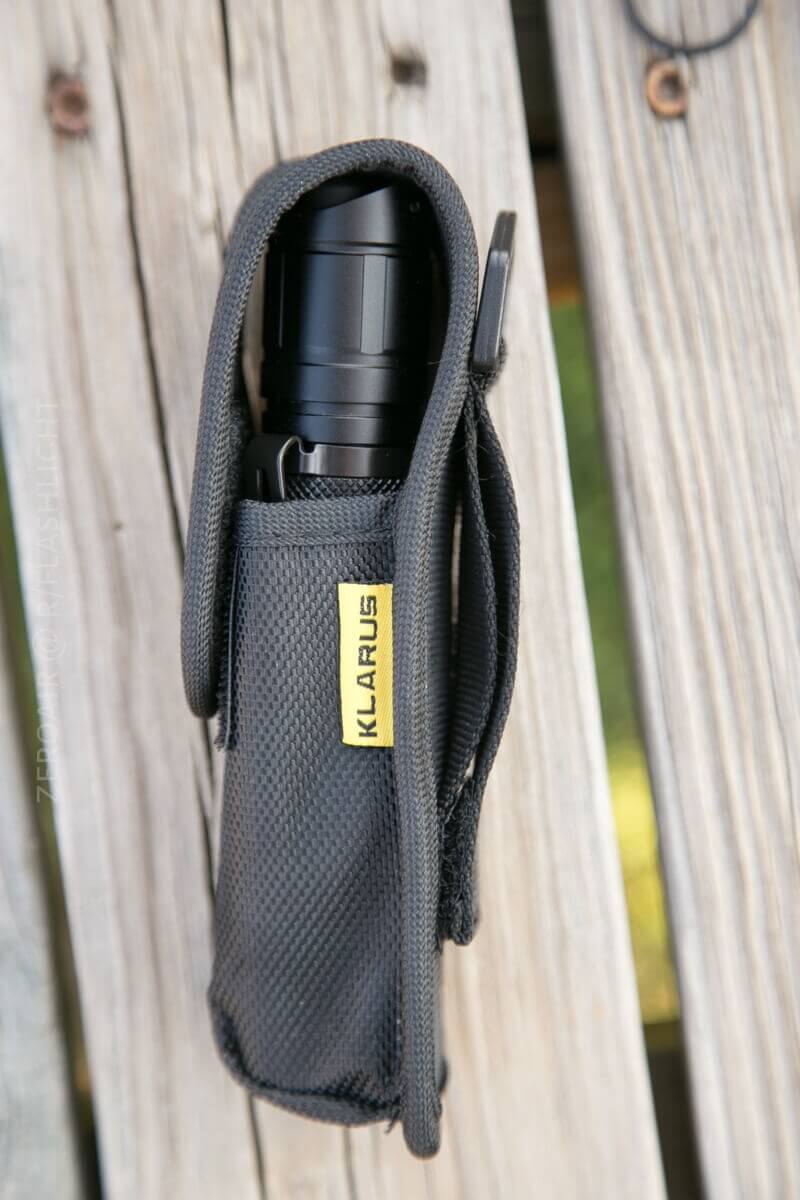

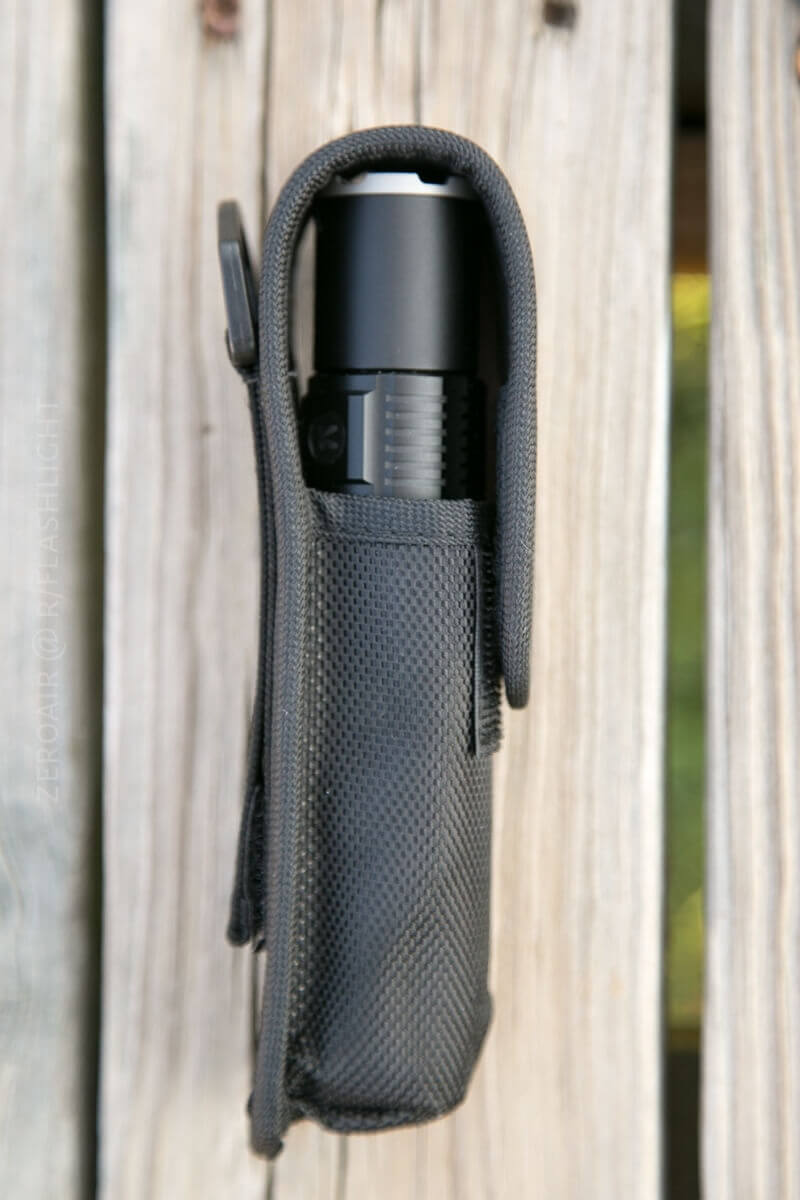

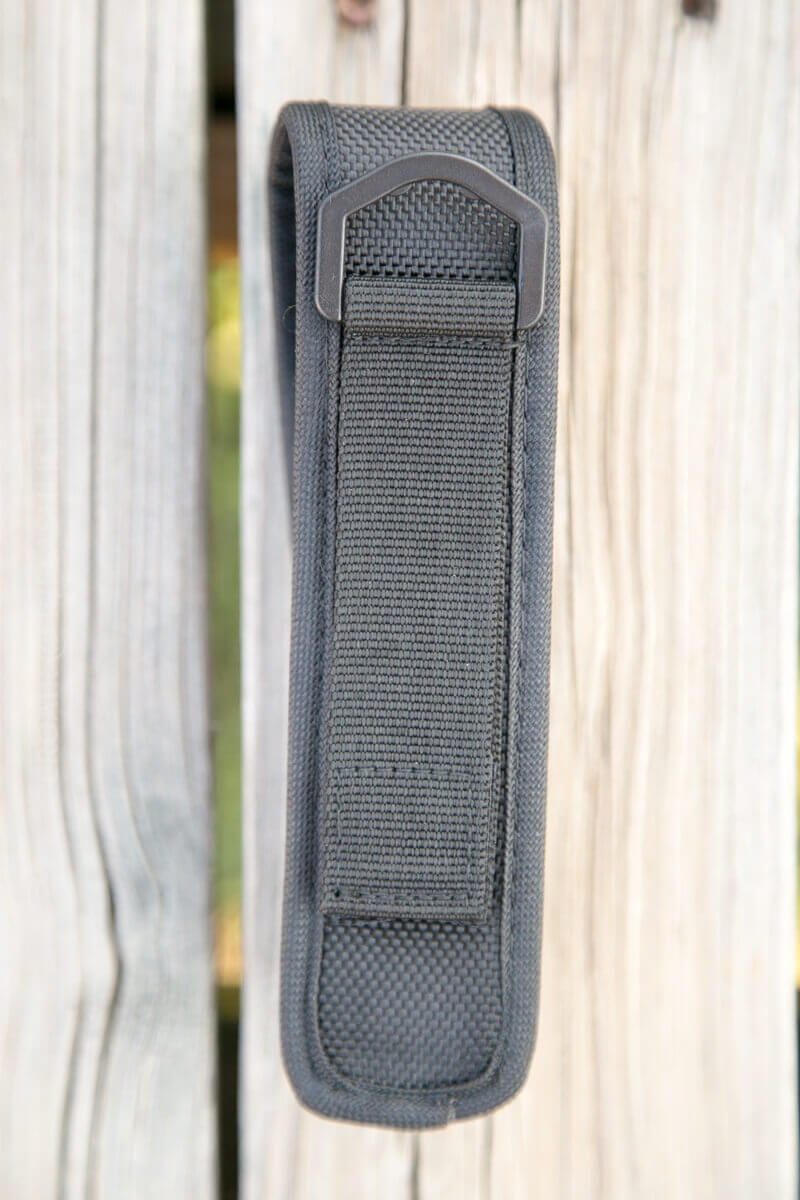

The light comes with a nice nylon pouch.  It’ll fit into the pouch bezel up or down.  The pouch has a nice d-ring, and two loops for belt placement.

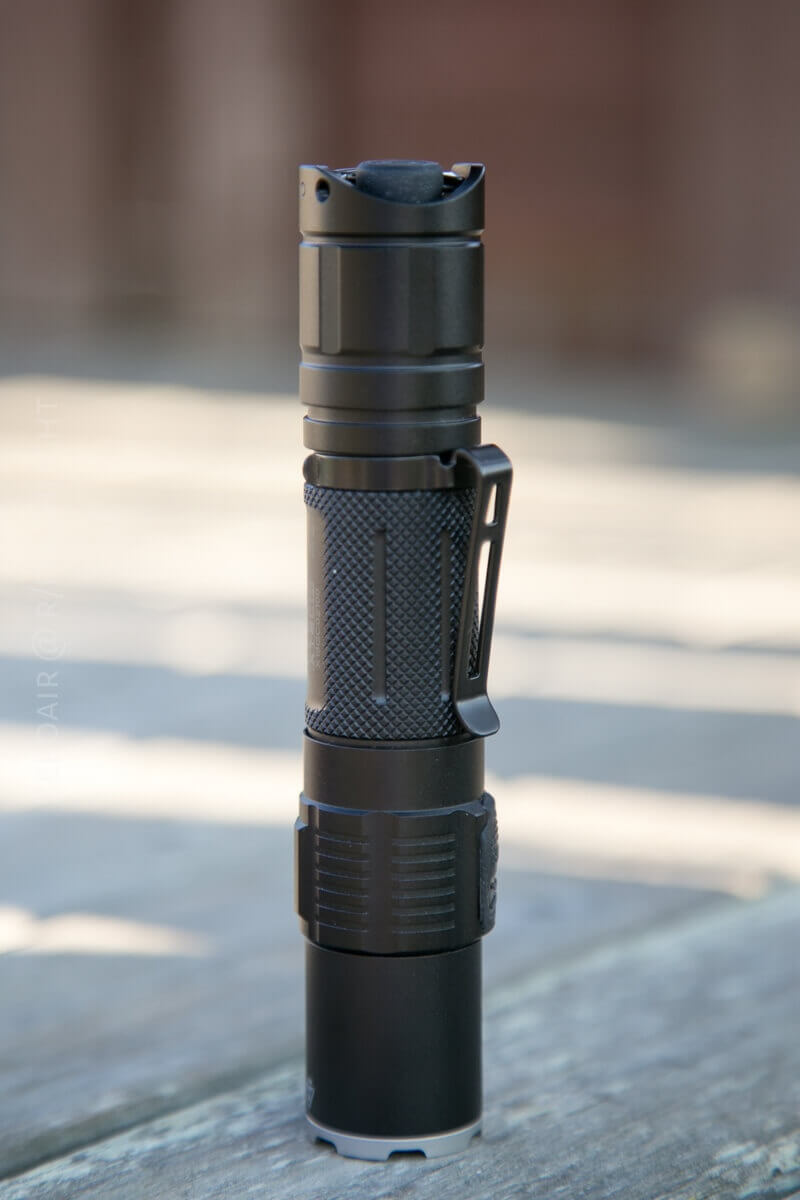

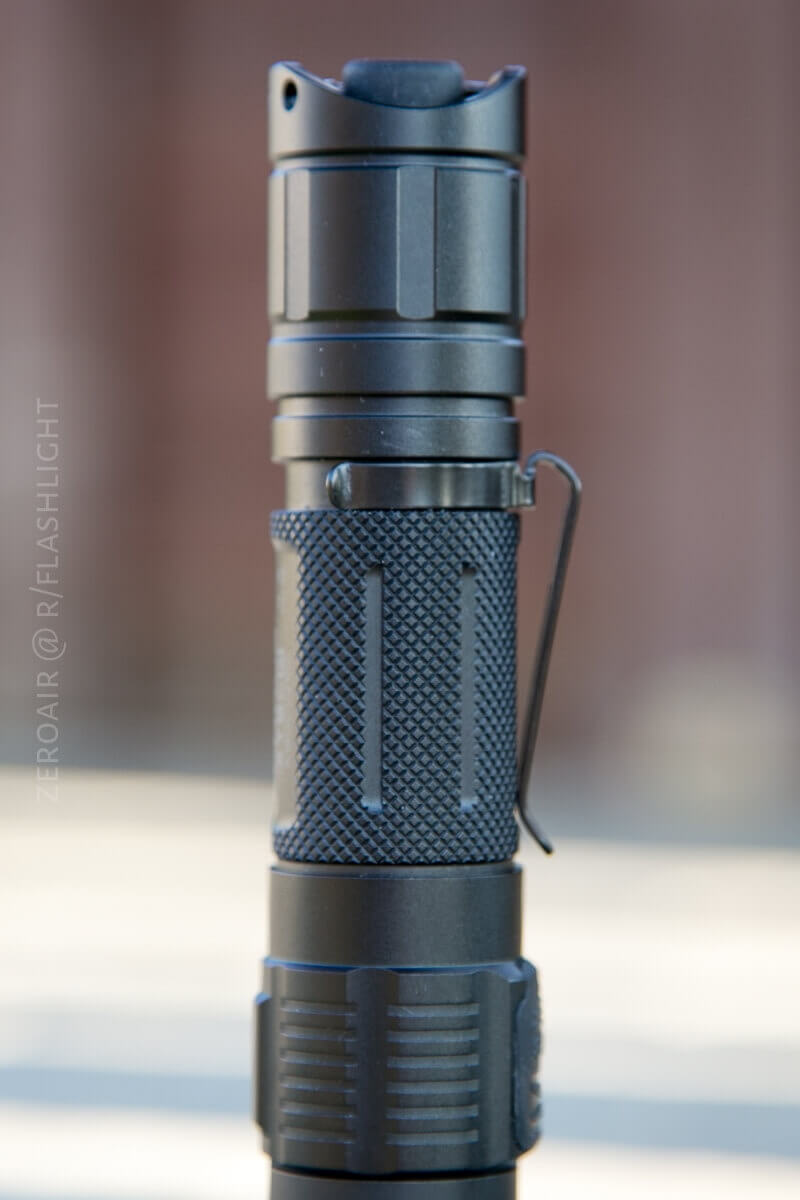

In the photo below can be seen the removable pocket clip, but also note the hole on the tailcap by the Primary Switch.  That’s the lanyard connection point.  The lanyard could also be connected to the pocket clip, but that might not be the best idea with a friction clip, even though it’s quite snug.  (And by “quite snug” I mean that while I can rotate it around the light, I wasn’t able to move it off the light by one single micron.)


Power

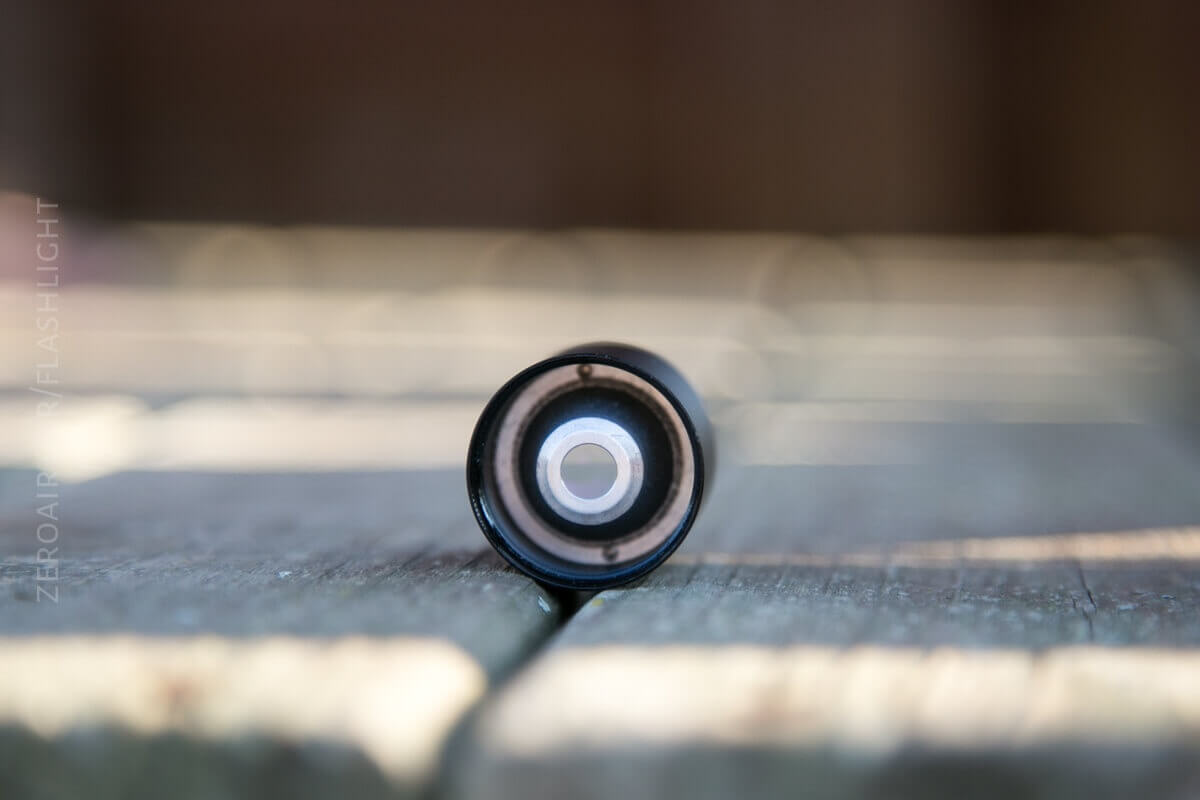

Klarus provides the cell for this rechargeable light, even though it’s not a proprietary cell.  The cell doesn’t actually say on the body, but it’s a protected cell.  And a button top.  The part number (in case you want to replace) is 18GT-36.  Now, Klarus wrongly claims that this is a 3600mAh cell – we know that’s not true because those don’t even exist yet.  But it does seem like a good cell regardless.

This light should work fine with any cell you want (flat/button, pro/unpro).  And it has a voltage range of 2.5V-8.4V, so it’ll work with 2x cells too (16340, 18350, CR123a).

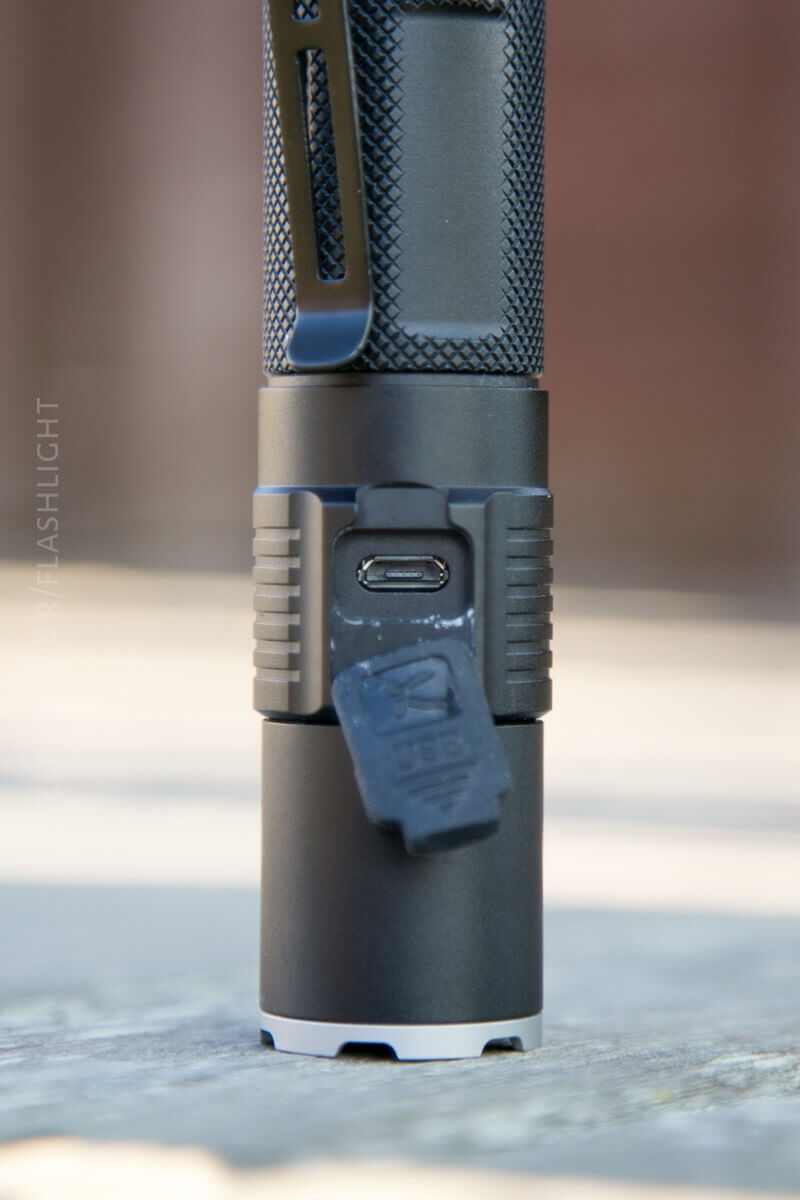

The light has on-board charging, which is done by a micro-USB connection near the head on the side of the body.  Just a regular micro-USB.

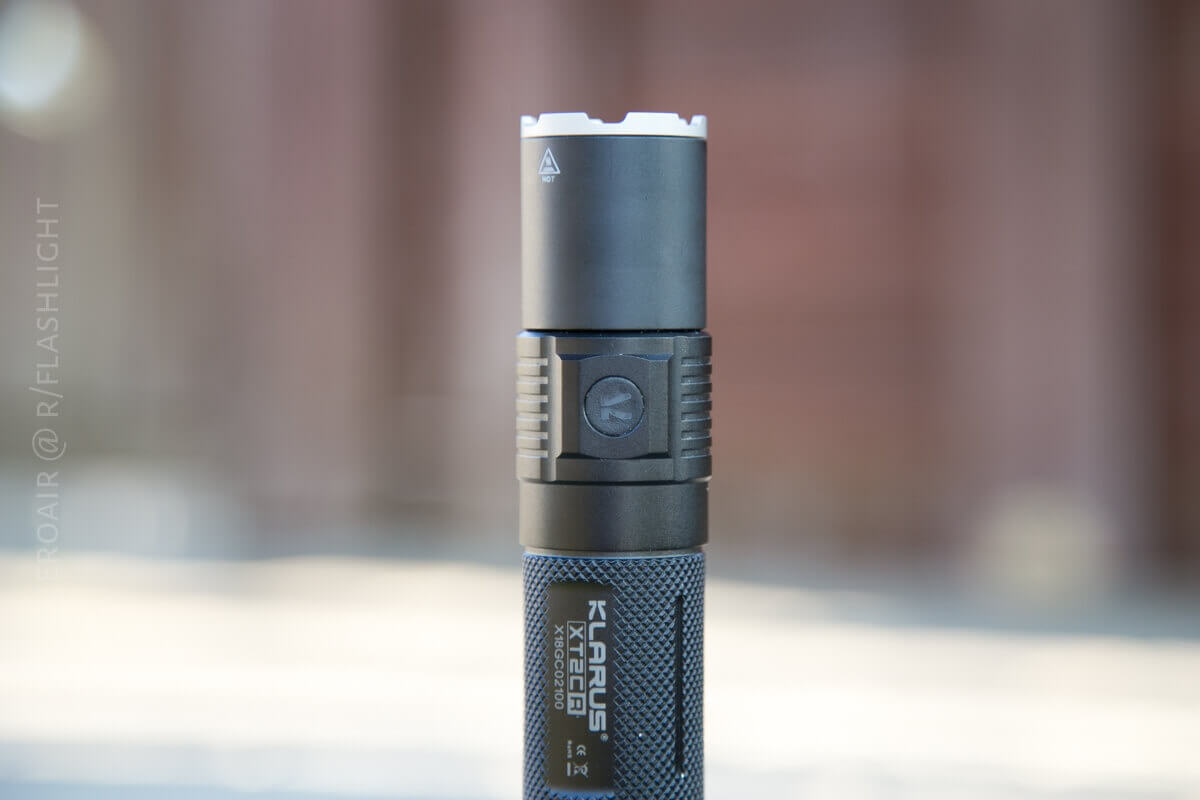

There’s also a non-switch indicating light on the opposite side from the charge port.  This is used for many things, including during-charge notifications.  Here’s what it does:

When the light is turned on, the little “K” lights to indicate cell charge, as follows:

Green: 70-100%
Orange: 30-70%
Red: <30%
Red Flashing: <10%

Note: this only works when using 18650 cells, not 2-up of any other variety!

During charging, the indicator light works as follows:

Red: charge in progress
Green: charge complete
Yellow: Check for errors

Note: don’t charge 2-up of any variety cells (in this light or any light!)

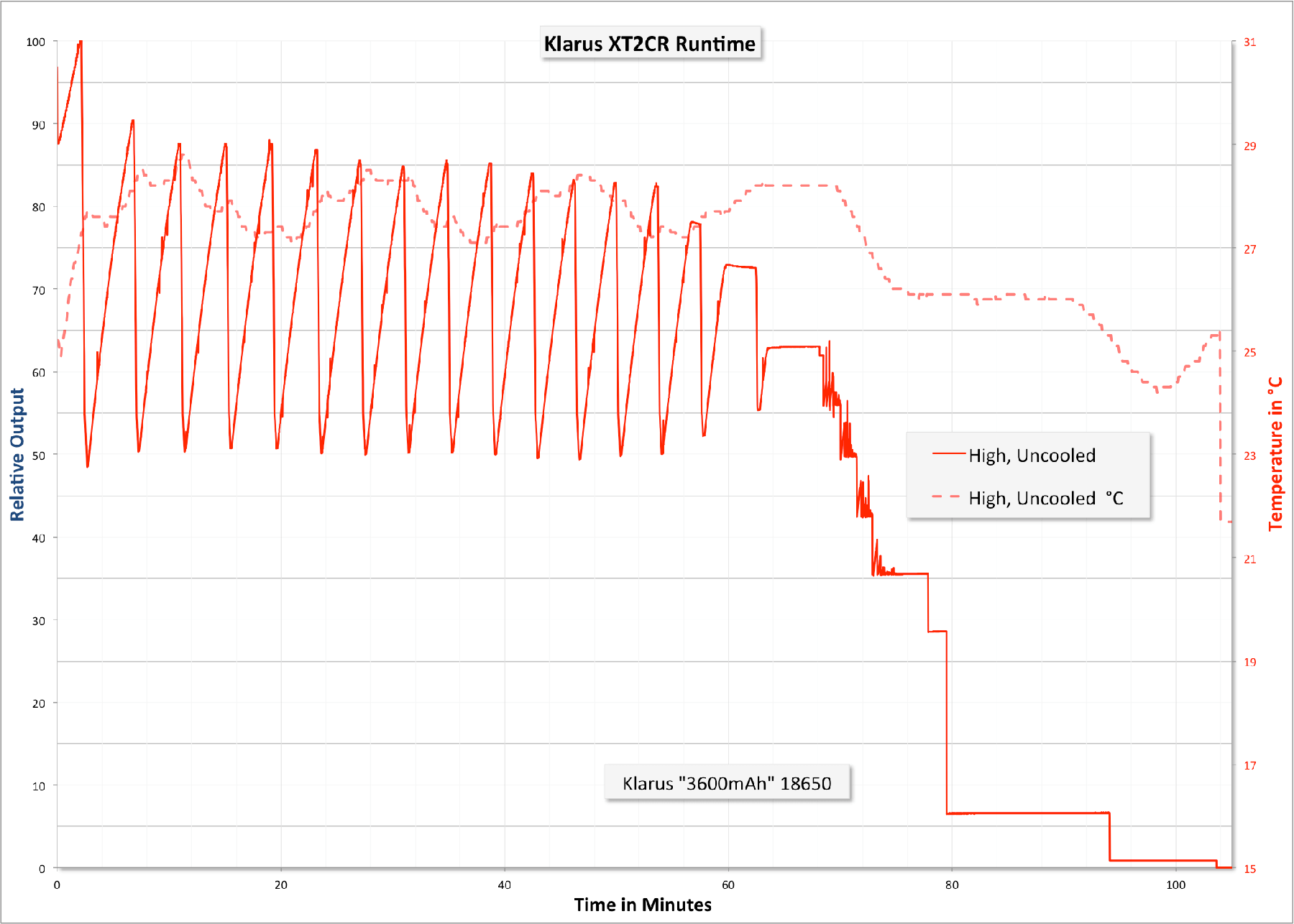

I performed a runtime, and it’s got some unusual characteristics.  Note though, that even though it’s labeled “Uncooled”, I did actually have a fan running at the light.  Sorry for that mistake!  I’ll try to get an updated file for there.

After the drop from turbo, the light vacillates between ~50% and ~85%.  It takes a few minutes to make this cycle, but I do think this is something you’d notice in daily use, and extended uses on turbo.  I can’t really say this output is intended to control temperature (that’d be a first) (and also the temperature doesn’t really seem to be responding to that change in output anyway).

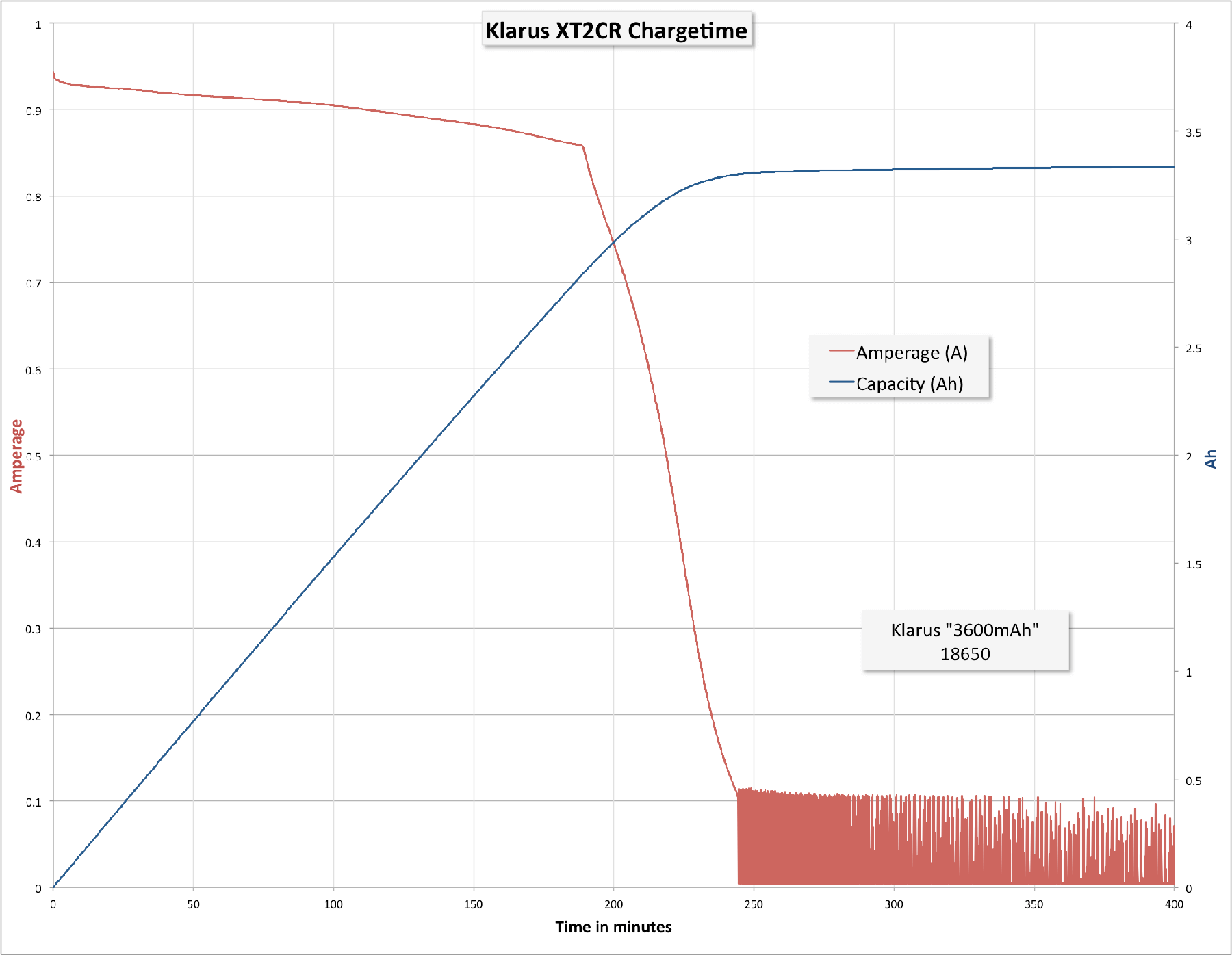

The chargetime of the Klarus-provided “3600mAh” 18650 can be seen below.  Klarus claims 1A charging and the light does start around 1A, but never really reaches it.  Current slowly drops during the Constant Current phase, until the CV phase kicks in.  There’s a slow trickle charge supplied after the cell reaches 4.2V.  We can note here that the capacity is nearer 3300-3400mAh than the claimed 3600mAh.  Overall, this is good charging, and I’m satisfied with it.


User Interface and Operation

There are two tail switches on this Klarus. The round rubber-covered one is a forward mechanical clicky, and the paddle switch is an electronic switch (which functions mostly like a fw clicky). The round switch is the Primary switch. The paddle switch is the Mode switch.

First thing to note is that there are two entirely separate mode groups for this light. One is the “Tactical”, the other is “Outdoor”. The light ships in Tactical Setting; here’s how to switch between them: With the light off, hold the Mode switch. After ~10s, the light will begin to flash. (This is subtle in Outdoor group (where the mode switch enters Low) but not possible to see in the Tactical group because the Paddle switch activates strobe. Best bet is to just count “11 Mississippi”, and then do the next step: Click the Primary switch. And now you’ve changed the group. There’s no confirmation you’ve done so. Just turn the light off, and hit the paddle: if it’s “low” then you’re in Outdoor Group. If it’s strobe, then you’re in Tactical.

Now let’s concern ourselves with the Tactical Group. Here’s a table.

State Action Result
Off Primary Click Turbo
Off Primary Half Press Momentary Turbo
Off Mode <2s Momentary Strobe
Off Mode >2s Strobe
Off Mode >10s Group change option
On Primary Click Off
On Mode Press Cycle (Turbo>High>Low)

(That’s right, no medium for you in Tactical!!)

And below is a table for the Outdoor Setting Group:

State Action Result
Off Primary Click Turbo
Off Primary Half Press Momentary Turbo
Off Mode <1s Momentary Low
Off Mode >1s Constant Low
Off Mode >10s Group change option
On Primary Click Off
On Mode Press Cycle (Turbo>High>Medium>Low)
On Mode >3s SOS

There are a couple of caveats to the Outdoor Group.  Foremost is that since the FC has a momentary turbo, which works from any mode, turning the light off always activates turbo.  EXCEPT when the light is turned on to low with the paddle switch, in which case the paddle switch may be used to turn the light off without going through turbo.  (Further proof that this has an electronic and mechanical switches.) But this is probably a setting you’ll want to know (otherwise going through turbo for off can be annoying.)  To wit: if you’re using this in Outdoor Group, I’d recommend you turn the light off and on with the paddle switch!

In Outdoor Setting, the UI retains enough of the Tactical feel that it can be a bit confusing.

Modes

Mode Mode Claimed Output (lm) Claimed Runtime
Turbo 1600 1.2h
High  400 4h
Medium  100 14h
Low  10 200h

LED and Beam

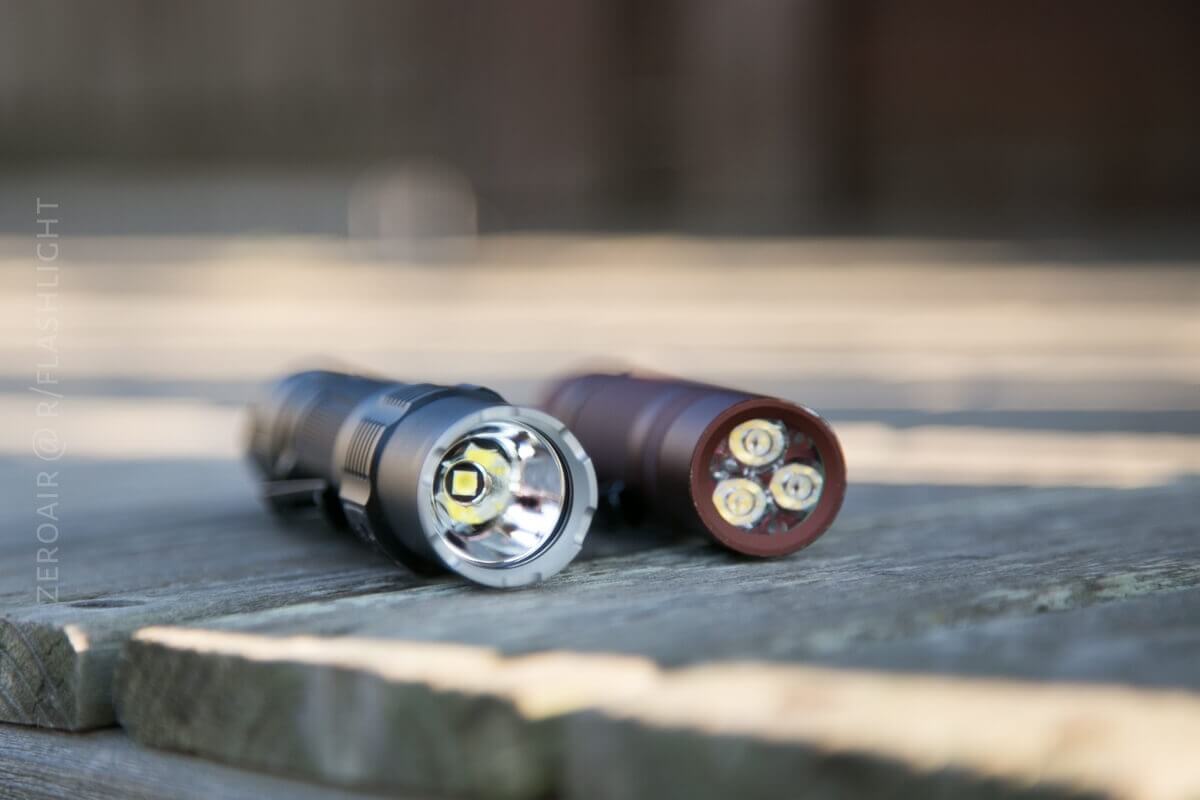

Klarus chose a Cree XHP35 HD E4 for this light.  I love HI versions almost across the board, and it seems like that’d have been a good choice here too.  The reflector is perfectly smooth, and also quite deep, so Klarus clearly had throw in mind.  That said, this light still get photos out to 240 meters (which hits the claim Klarus makes).  The beam is mostly spot with a noticeable amount of spill.  The profile is also affected by the crenelations on the (easily removable) bezel.  Another note about the bezel – those crenelations are actually quite pointy, and could really be used to strike quite well.  I’m surprised Klarus doesn’t It might be nice for Klarus to include a non-strike bezel for this light, too.

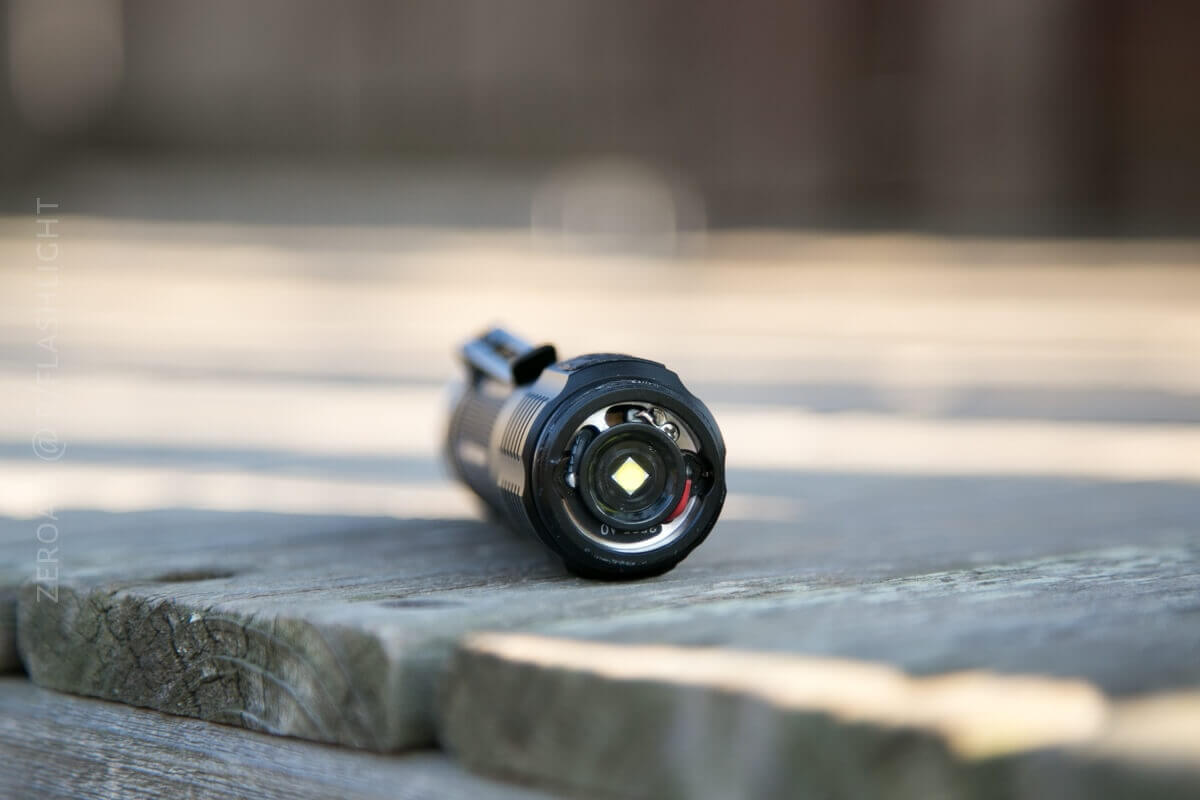

With the reflector and housing removed, the light may be used as a mule.  But there’s little protection, so be prepared!  But this is a useful setup for things like shadow puppets on the wall , to entertain your kids.  🙂

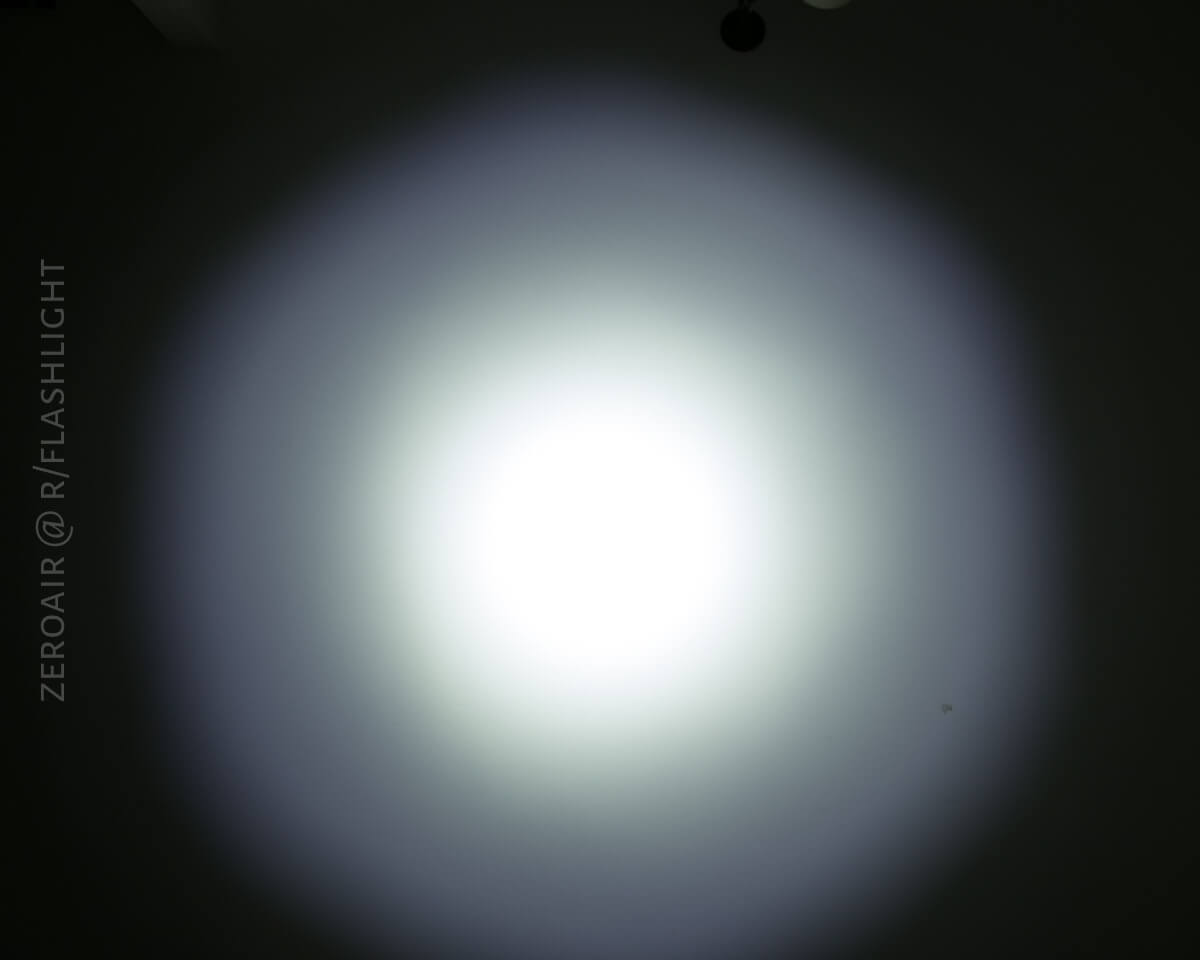

These beamshots are always with the following settings: f8, ISO100, 0.3s shutter, and manual 5000K exposure.

Tint vs BLF-348


Conclusion

What I like

  • On-board charging is solid
  • Dual switch UI makes a versatile UI
  • Two mode groups gives even more options
  • The indicating side light is both neat and unusual, and useful

What I don’t like

  • The light is a little long
  • The strike bezel is a bit sharp
  • Wish the side indicating light could tell cell voltage (precisely)
