Nitecore P26 Infinitely Variable Brightness Tactical Flashlight Review

Preface

Nitecore seems to like to play around with UI’s, and here’s another new one.  The P26 has an infinitely variable rotary dial on the head.  It’s quite interesting.  The rest of the light is very similar to some of Nitecore’s other lights.  Let’s see how the P26 and its rotary dial stack up.


Official Specs and Features

Versions

Just one version of this light.

Price

The MSRP of this just-on-the-market light is $64.95.  Buy it at NitecoreStore.com!


Short Review

This is a pretty neat light, and the rotary dial is a good start.  While the dial is good as-is, I think future iterations will be even better.  Great, even.

Long Review

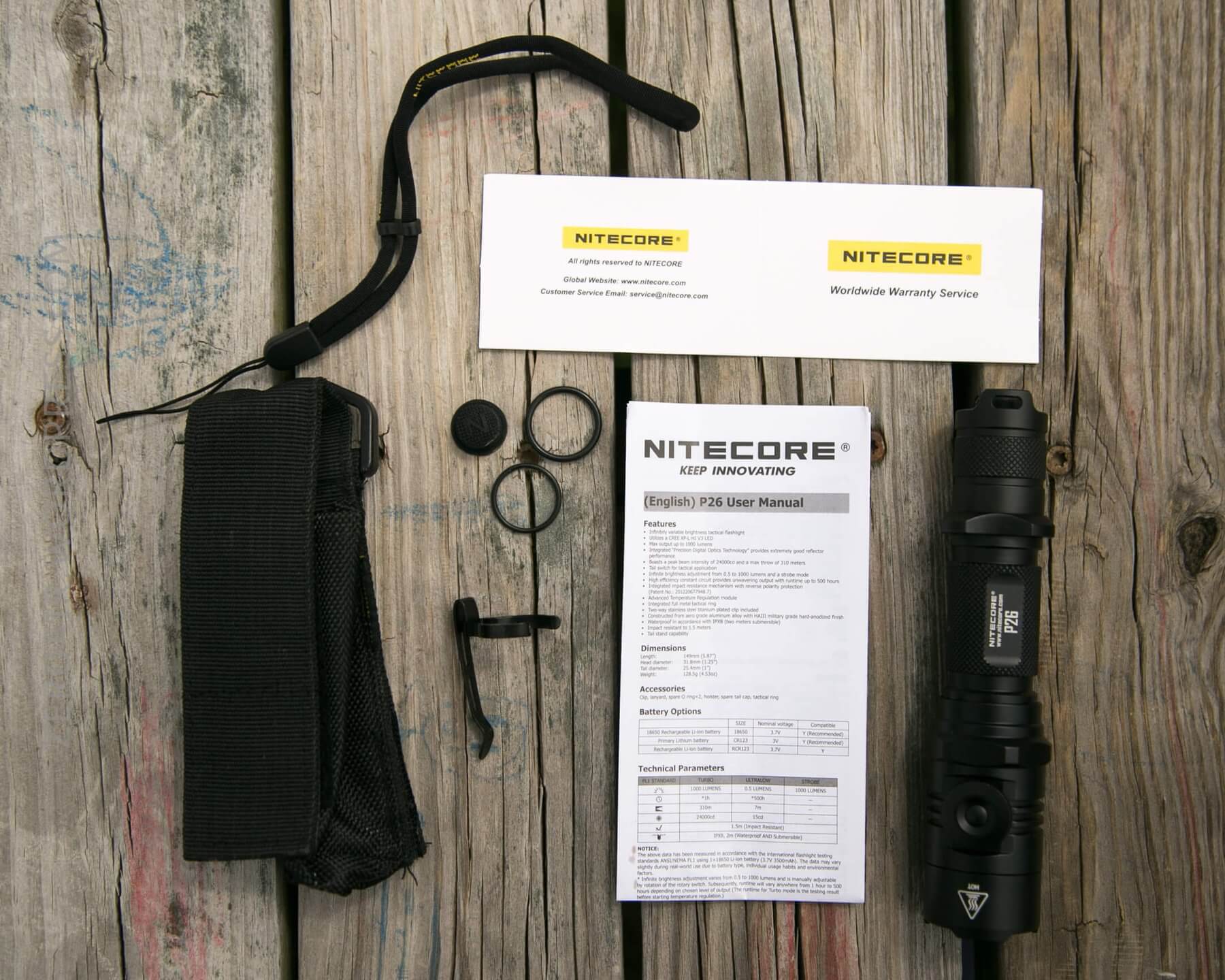

What’s Included

  • Nitecore P26
  • Nylon pouch
  • Lanyard
  • Spare o-ring (2)
  • Pocket clip
  • Spare rubber boot
  • Manual and paperwork


Package and Manual

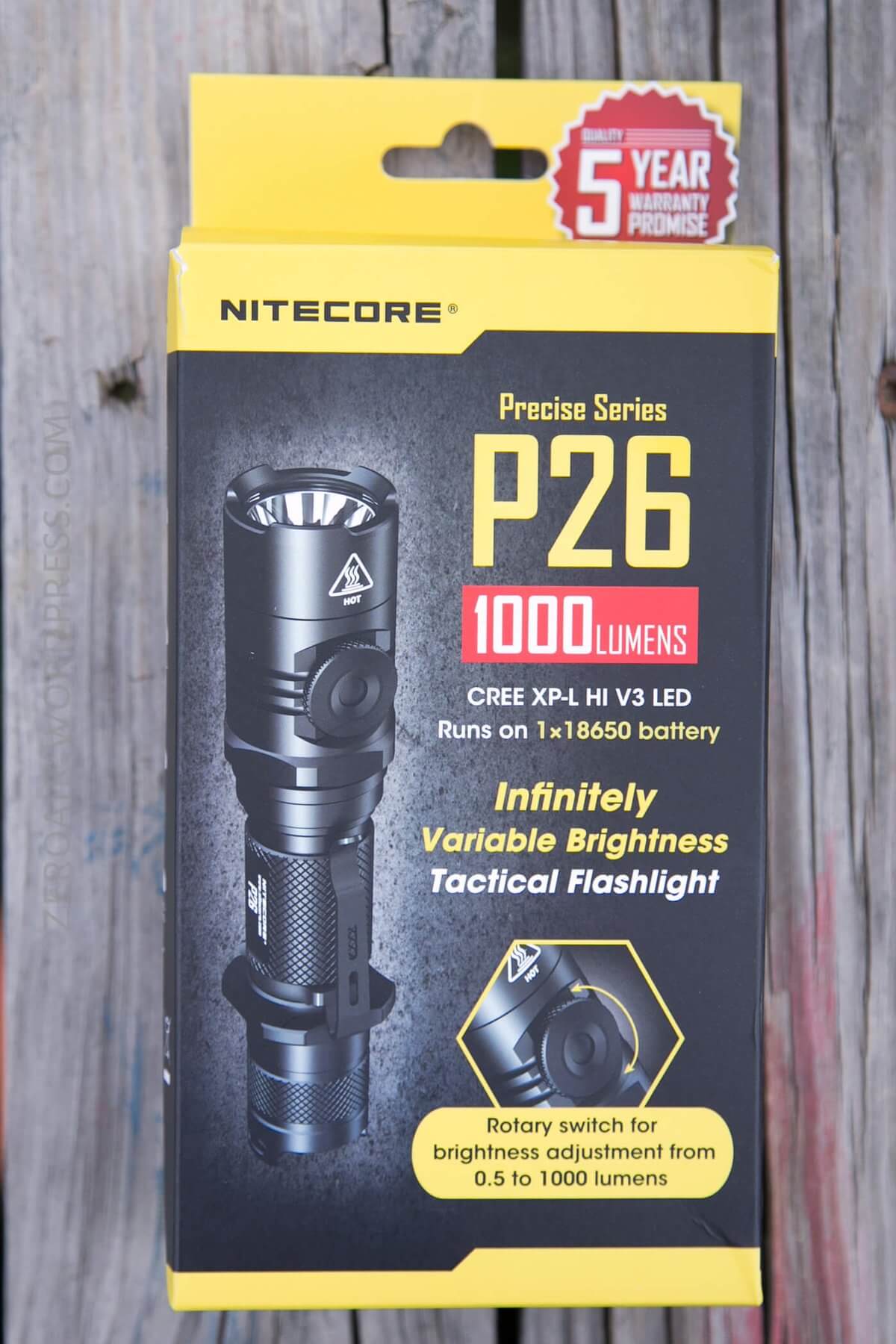

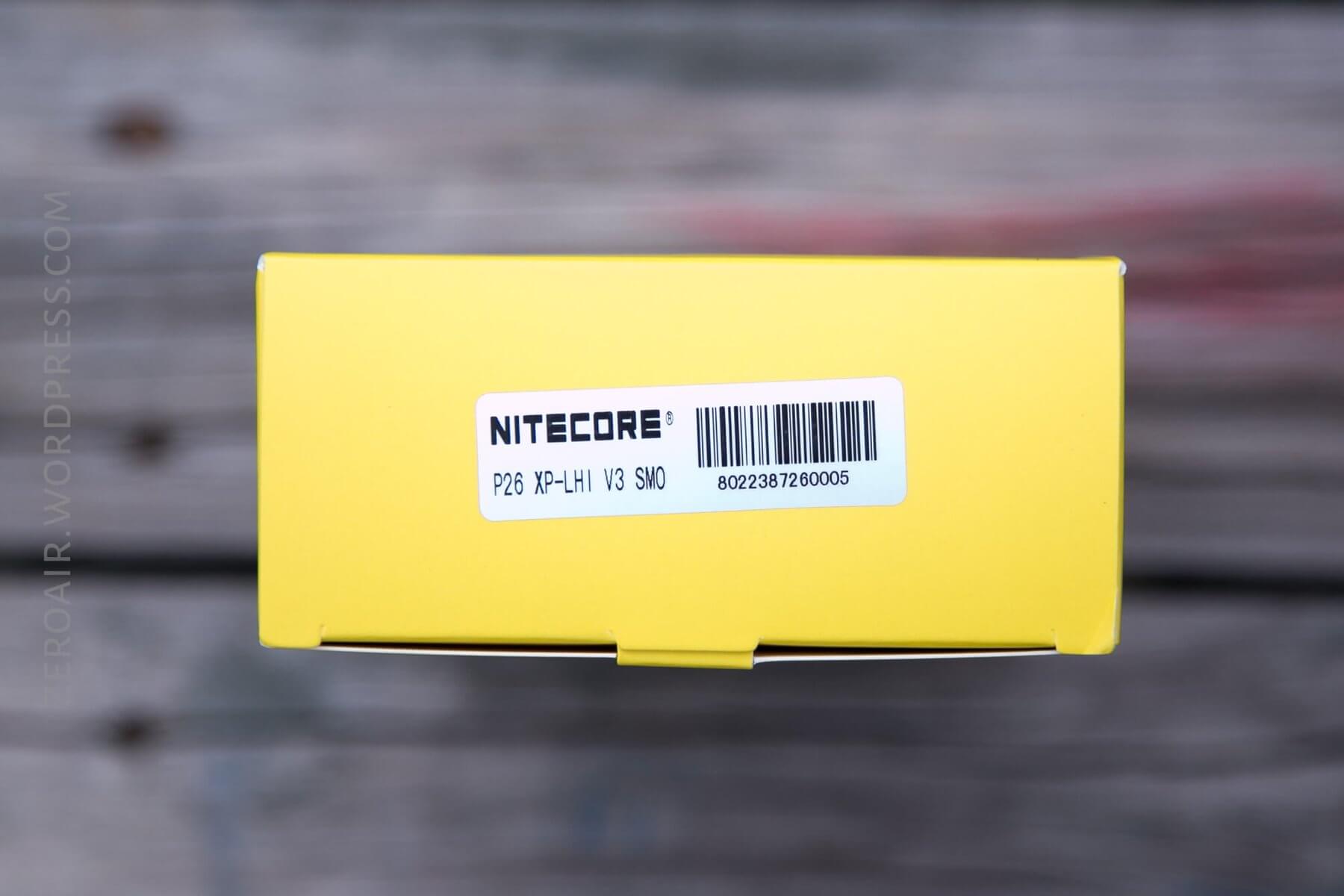

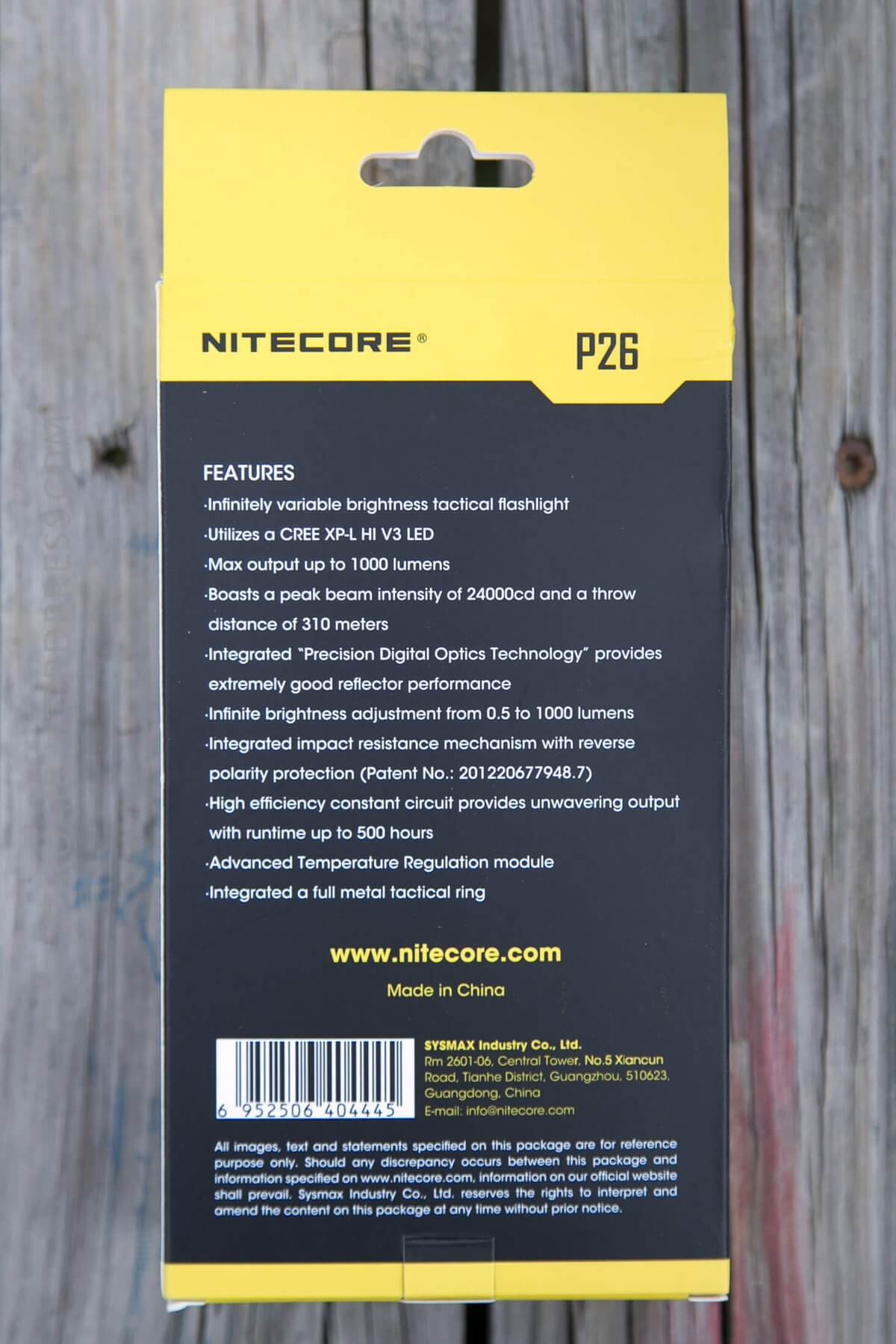

Nitecore’s standard black and yellow package with photos and specs, and even a serial number.  Good package, nothing special.  Does it’s job.  The light is held in a plastic tray.

Here’s a pdf of the manual.  Nitecore has a specific format for their manuals, and the manual for the P26 is no different.  It’s good.  Clear.  Complete.

Build Quality and Disassembly

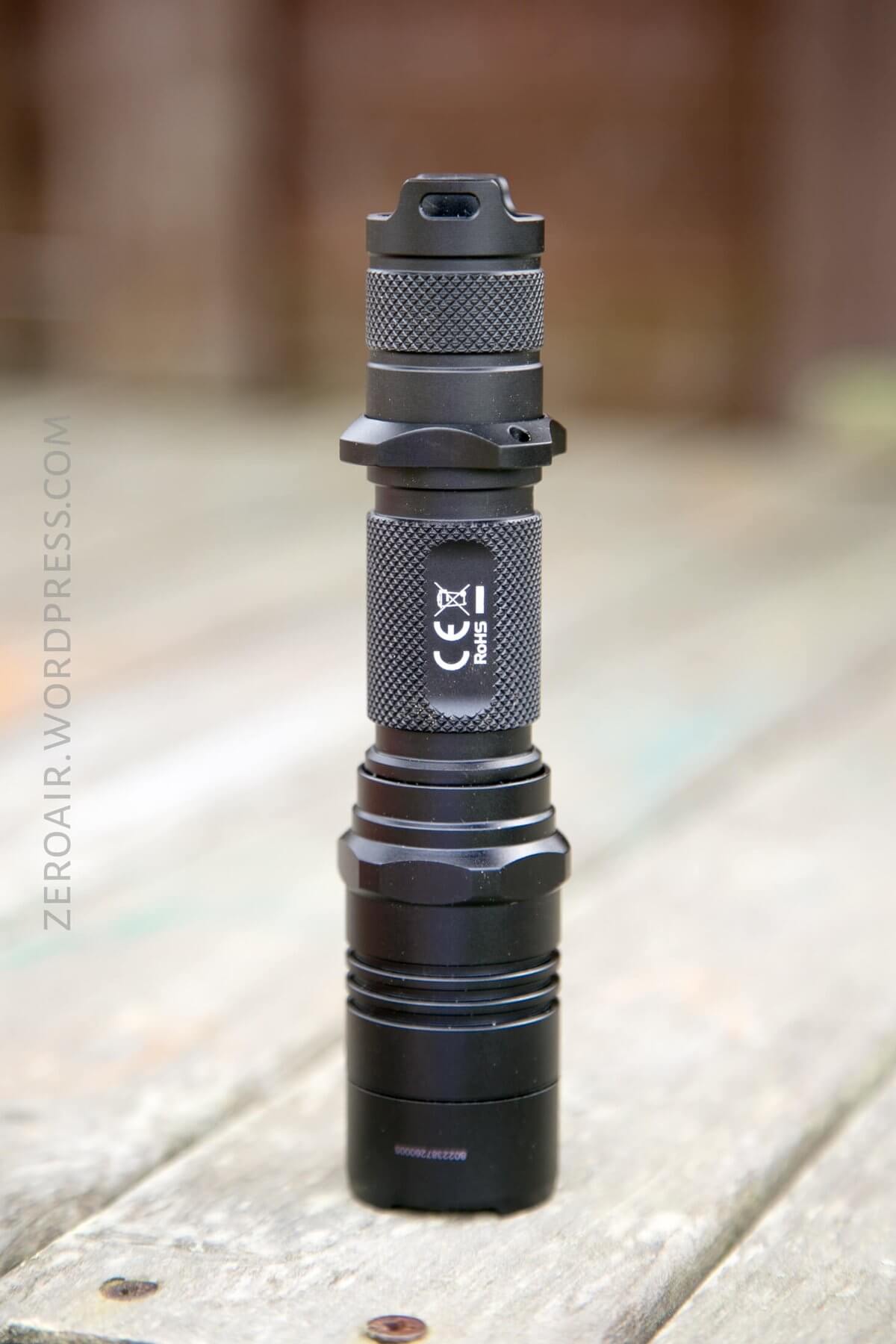

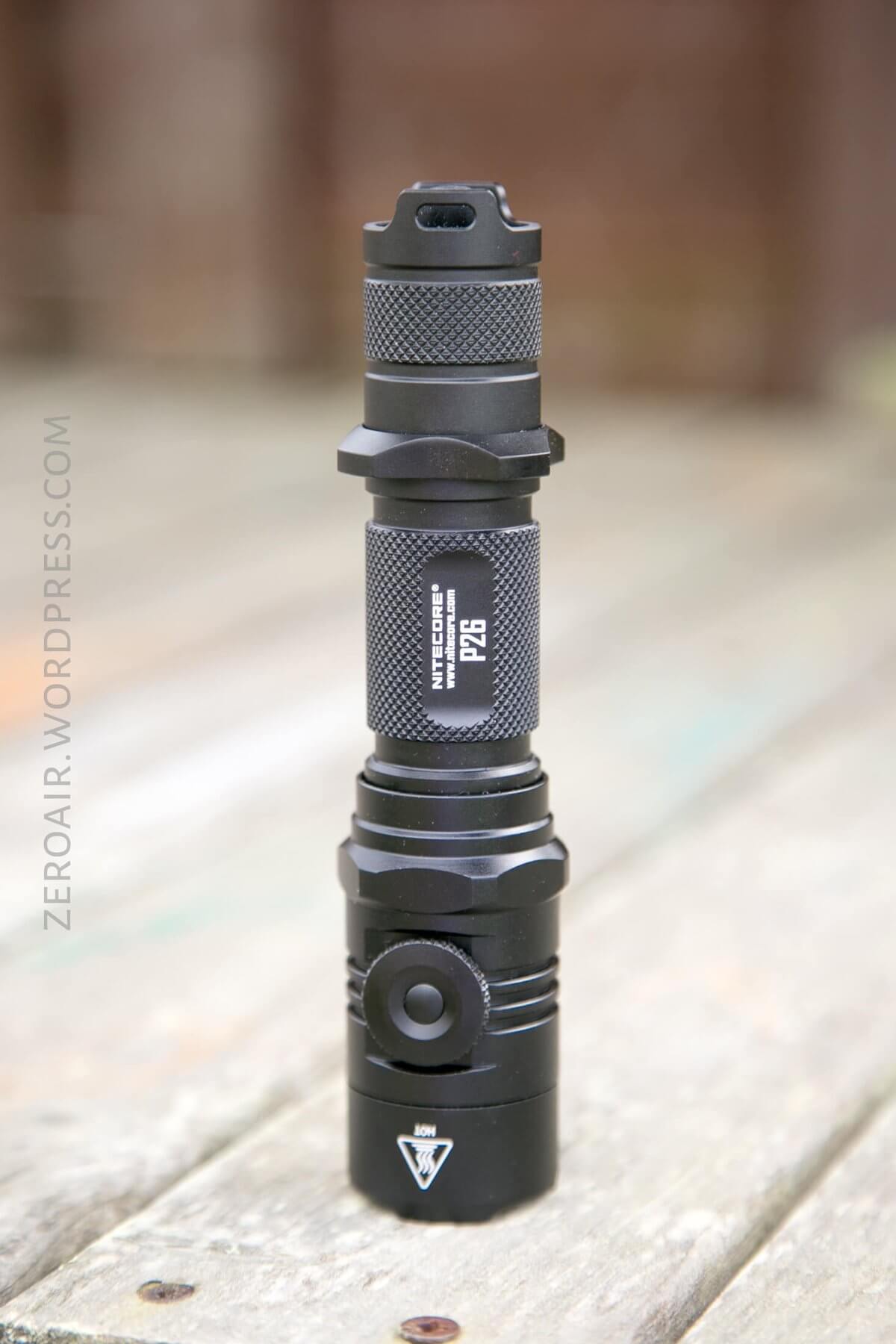

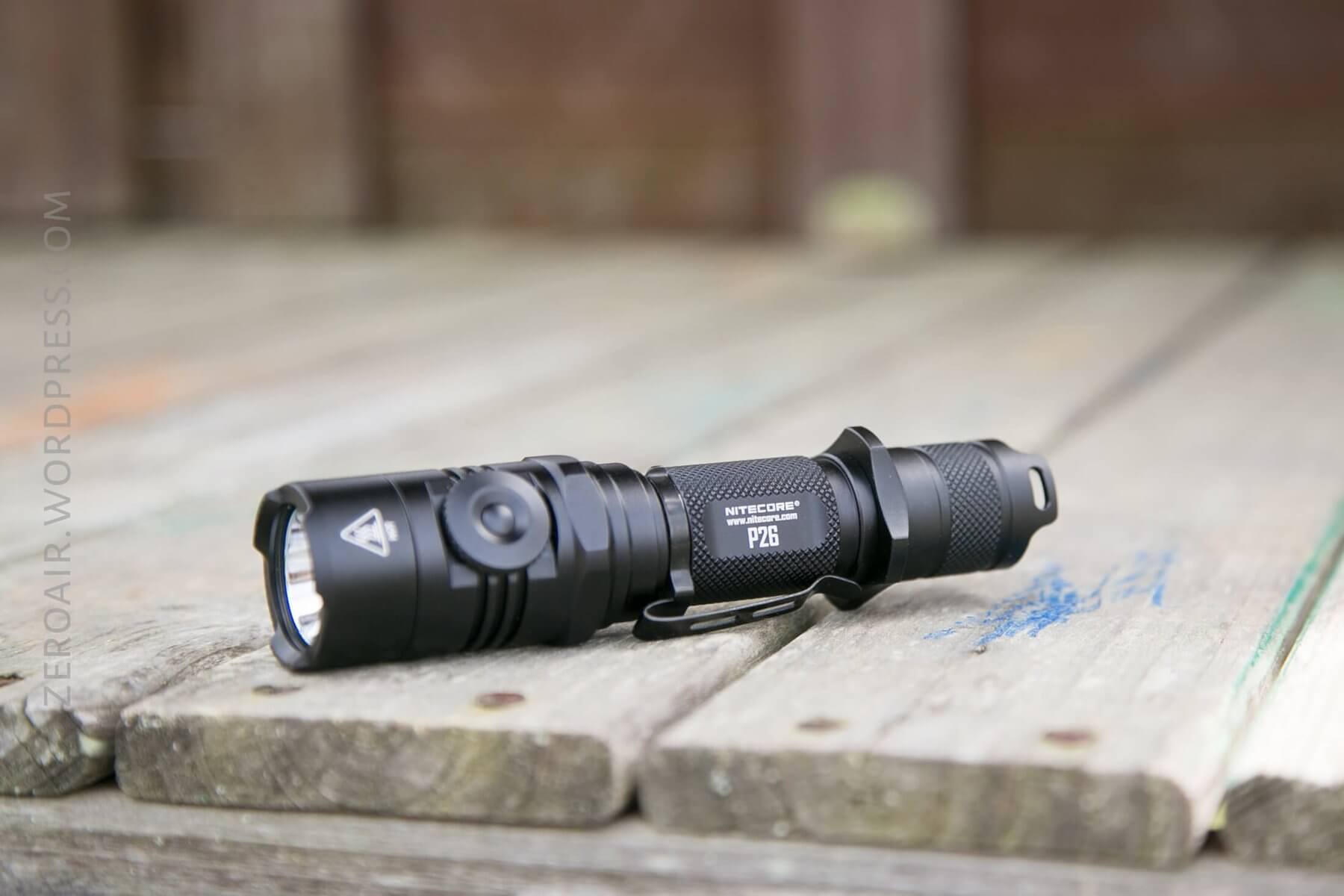

The P26 has a nice feel.  The light is a bit long.  There’s a tactical grip ring on the tail, and it’s fixed (doesn’t rotate freely as tac rings often do.)

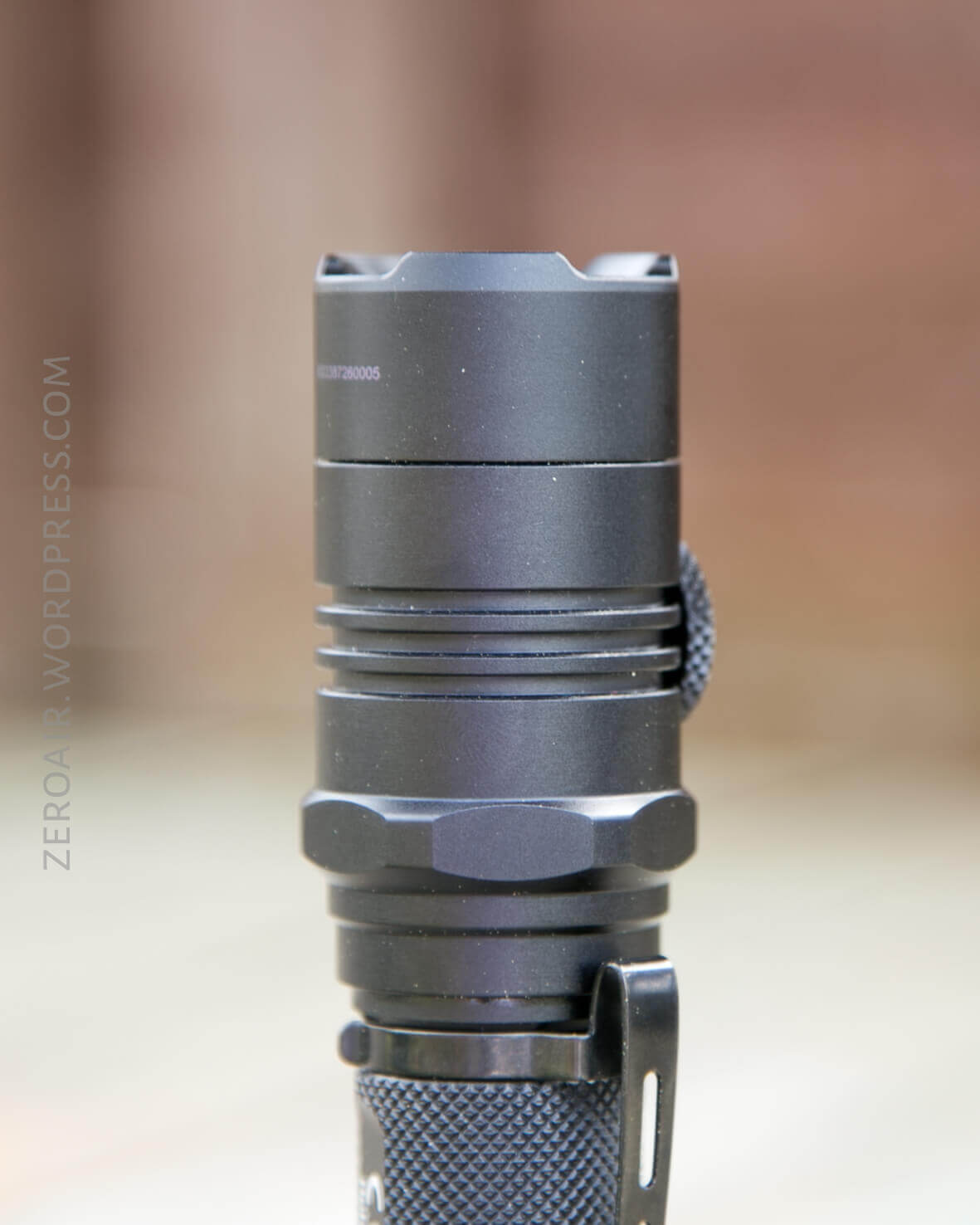

The threads are triangle cut on both the head and tail end of the cell tube.  The head as some shallow fins, but the light doesn’t really get very hot anyway, even on Turbo.

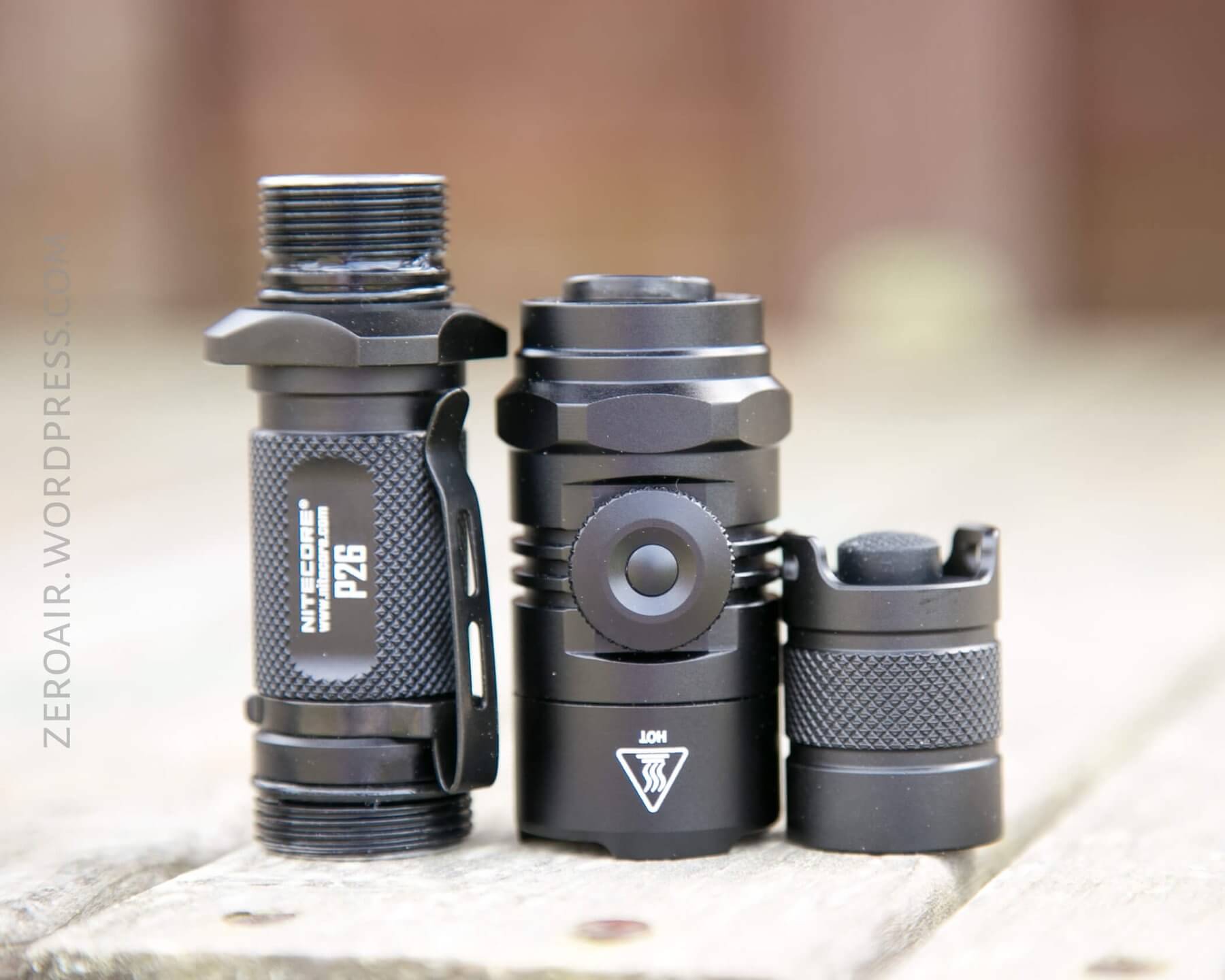

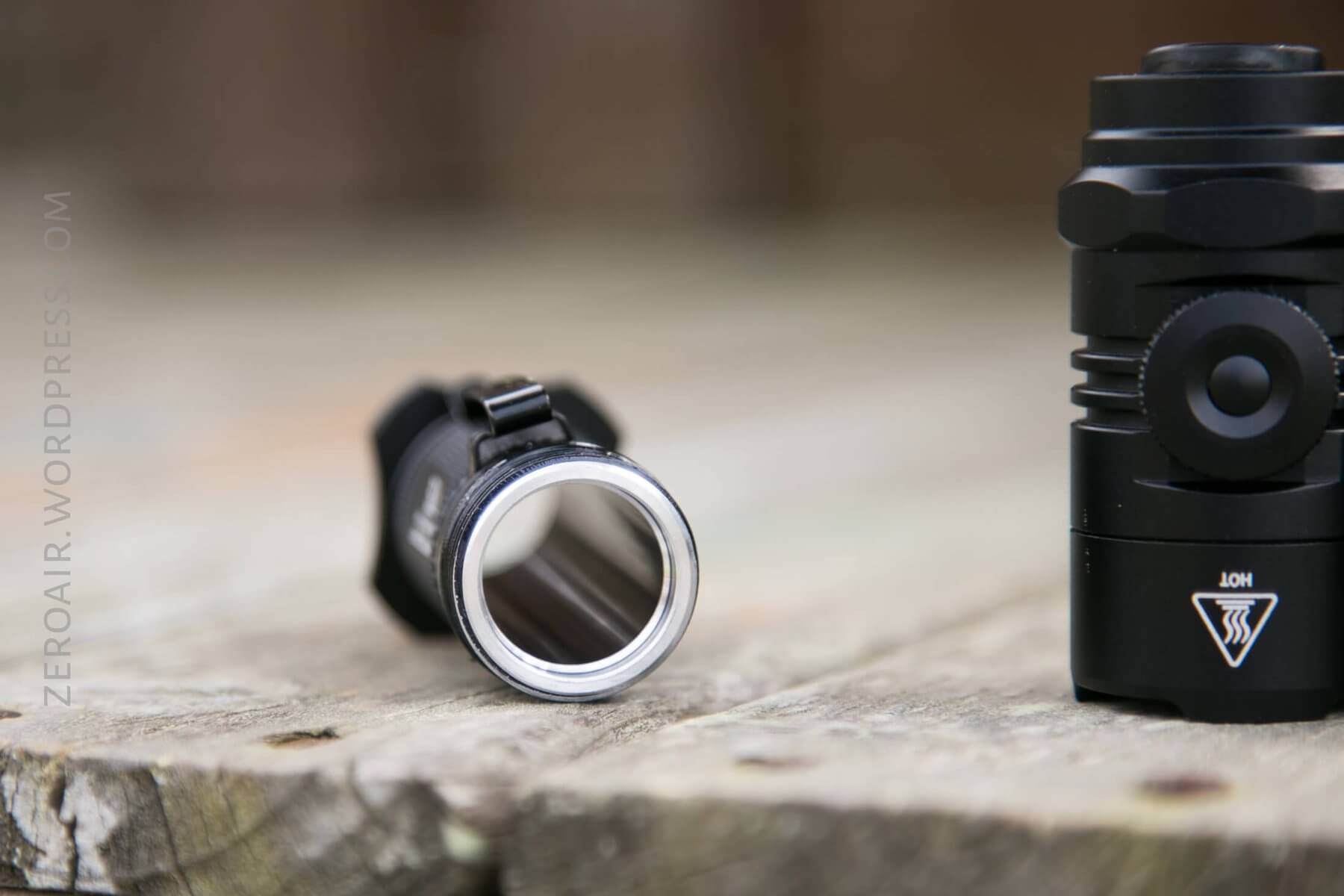

The cell tube separates fully from the light, and is thicker on the head than the tail (ie, not reversible).  The flair on the head end of the cell tube actually adds quite a bit of mass for heat dissipation.

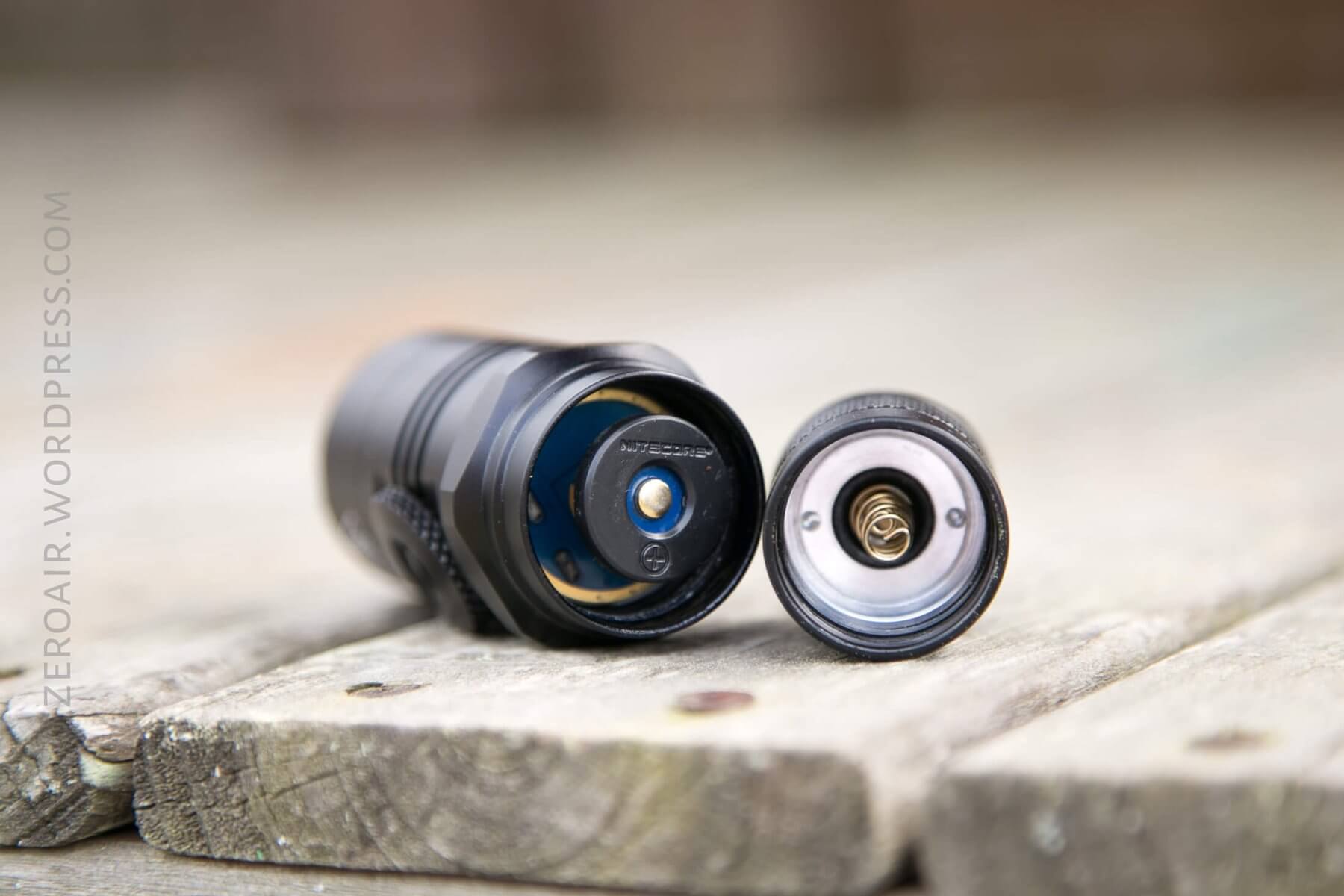

The negative contact is just a standard spring on a forward clicky.  The positive contact is an unusual rubber reverse polarity protection piece on a board with a brass button, all on a brass spring.  This is the same setup as the SRT7GT (and maybe others).

I was unable to remove the bezel from the head.

Size

Officially the light is 149mm long and 31.8mm in diameter (head) and 25.4mm in the body.  It’s quite a long light.

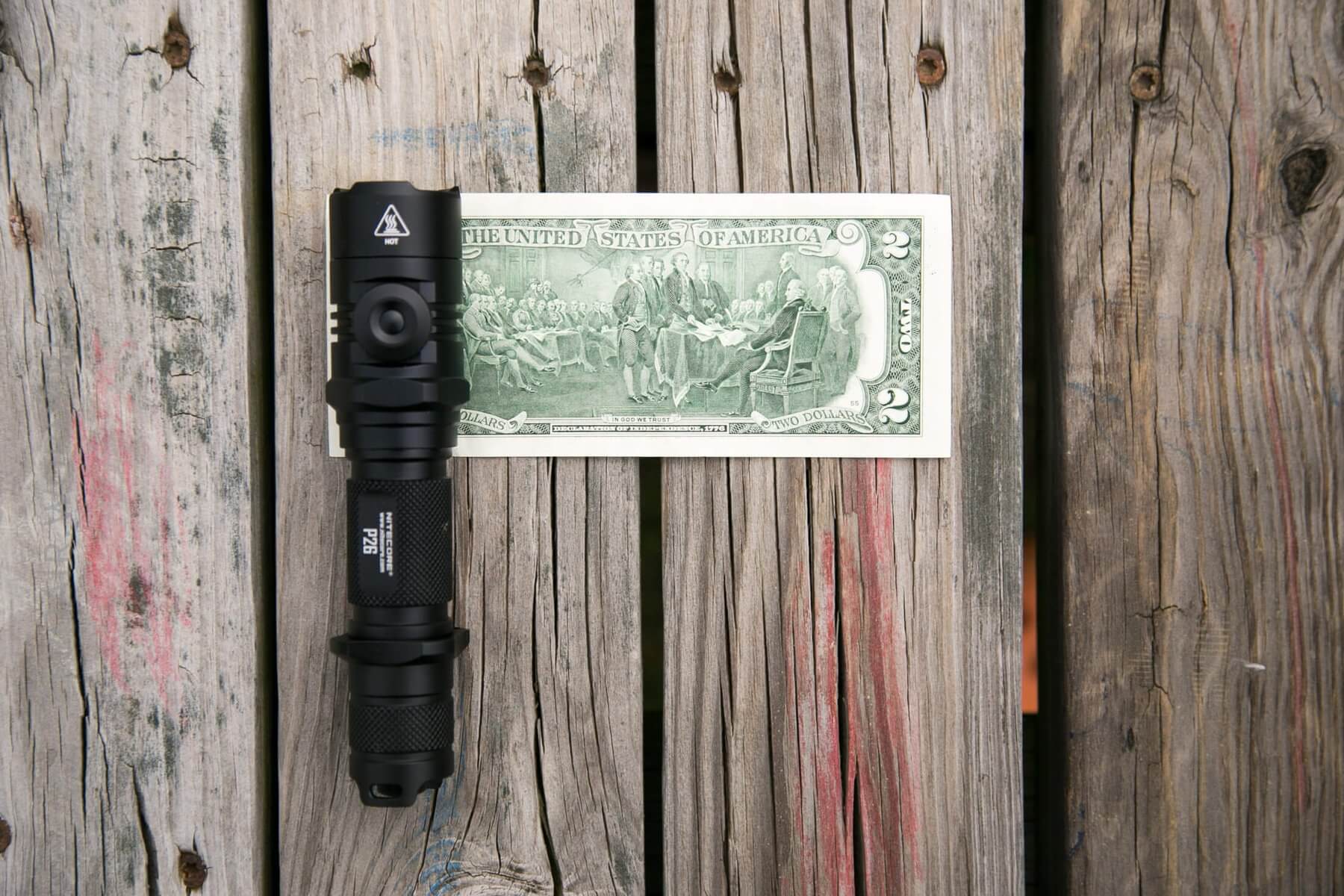

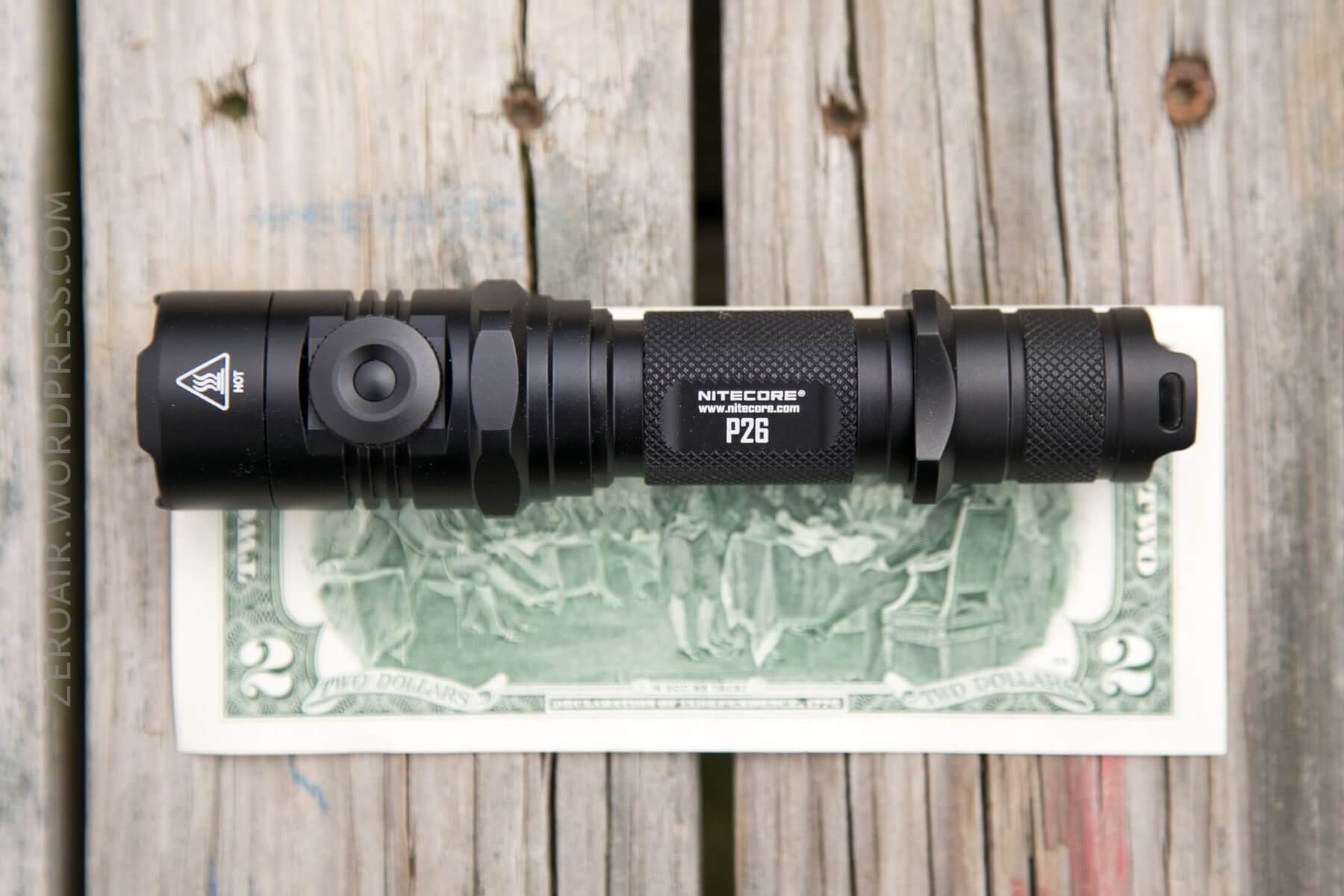

And you know, just because it’s a neat thing?  Here’s the full bill.

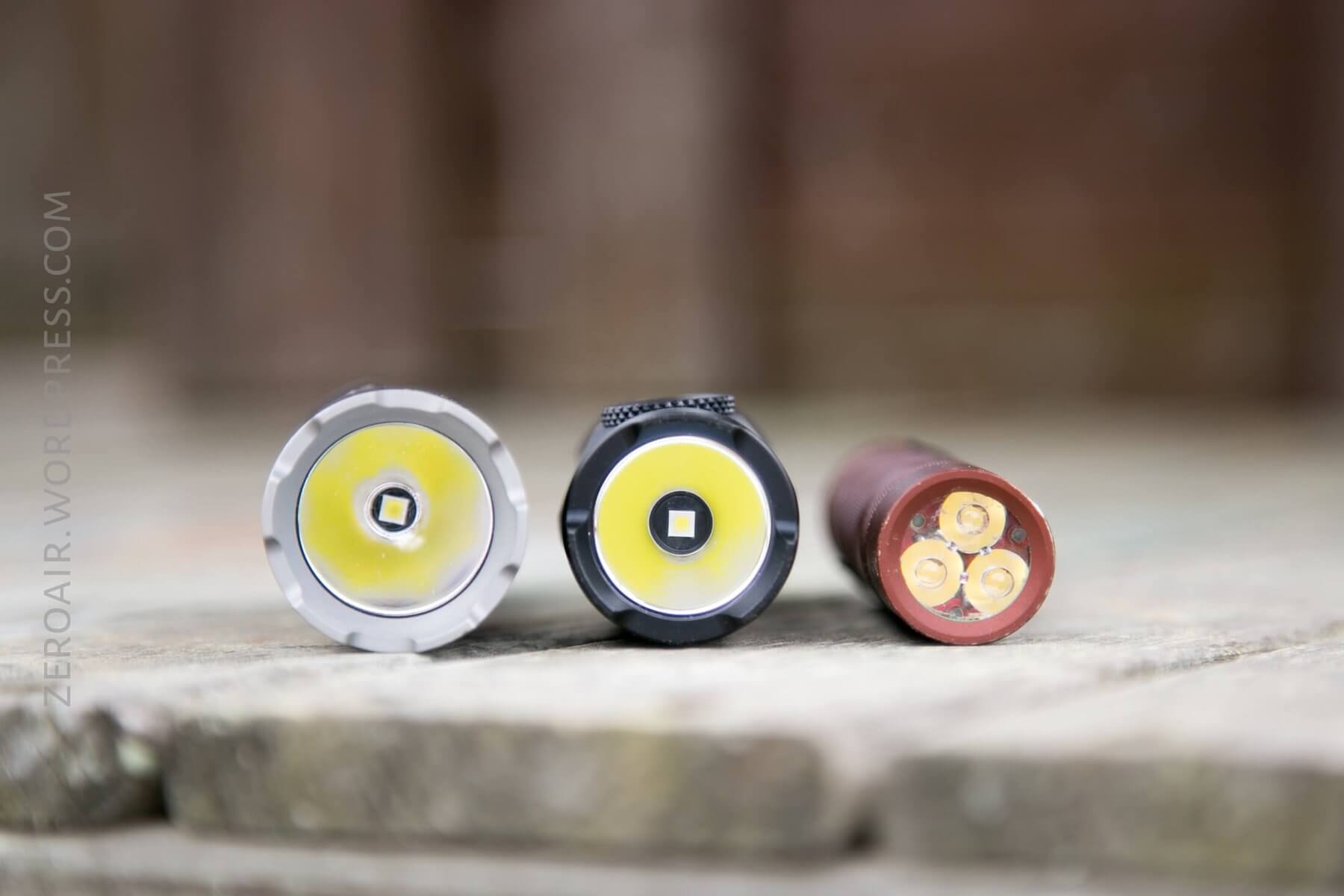

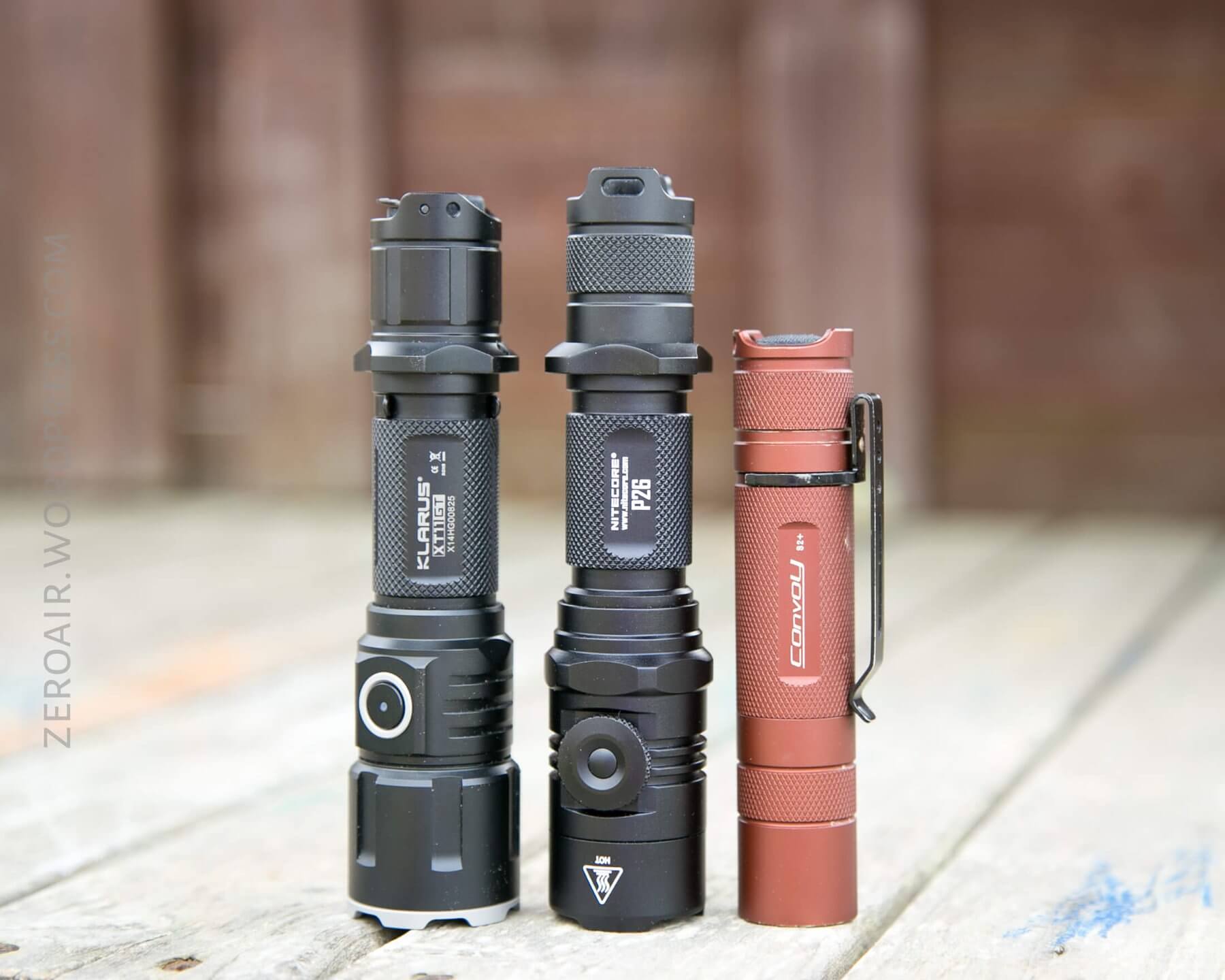

Here’s the P26 beside the Klarus XT11GT and a Convoy S2+.

Retention

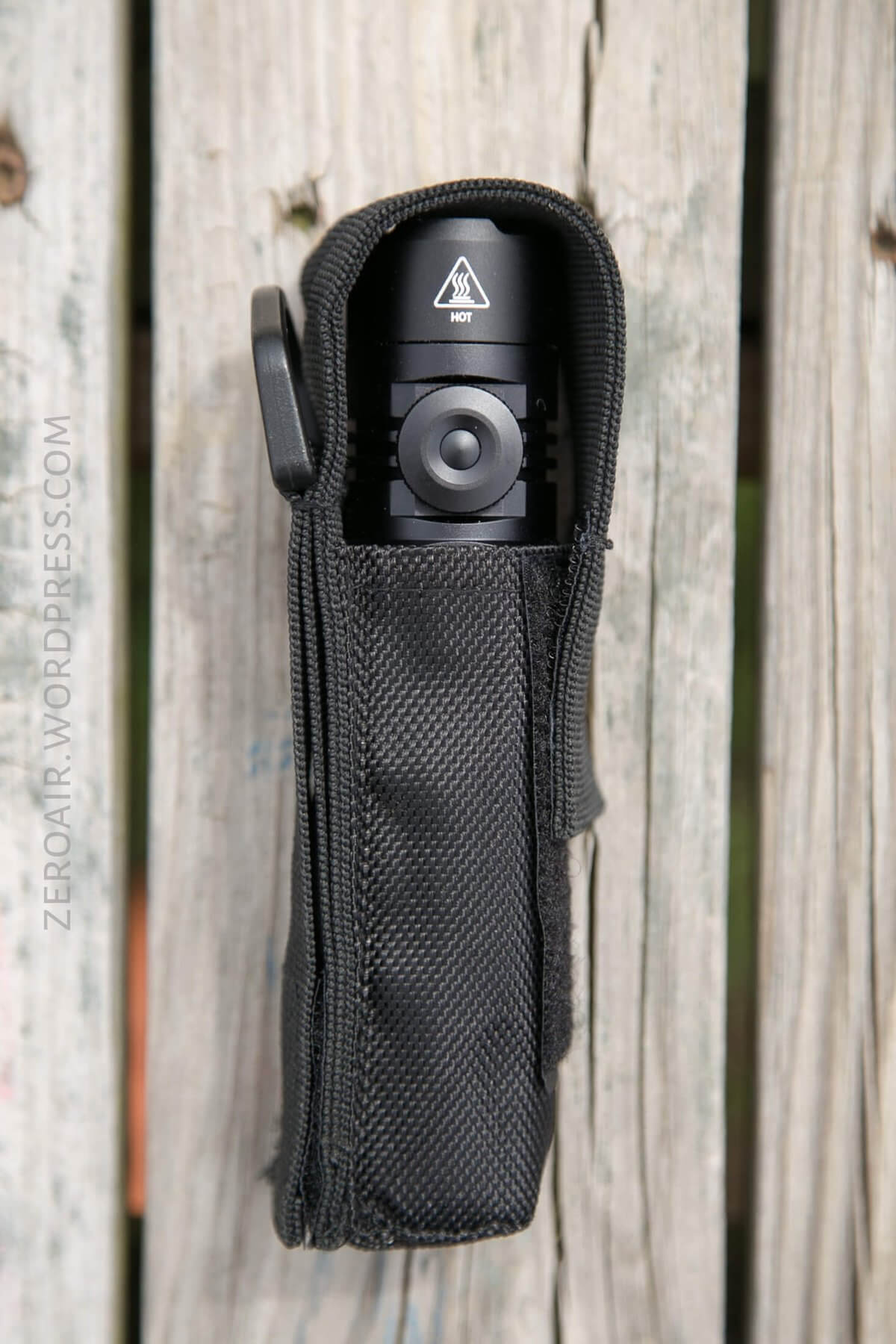

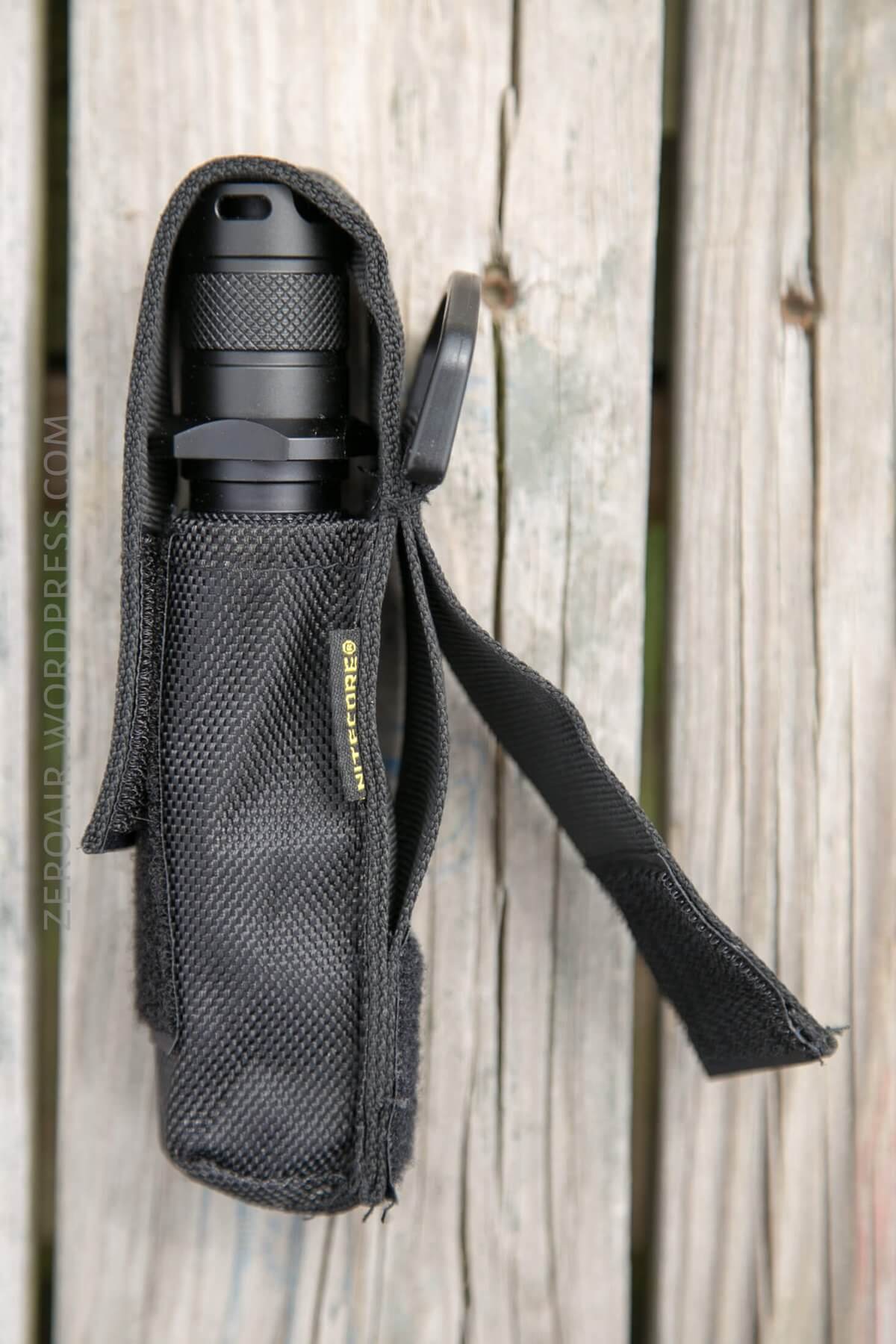

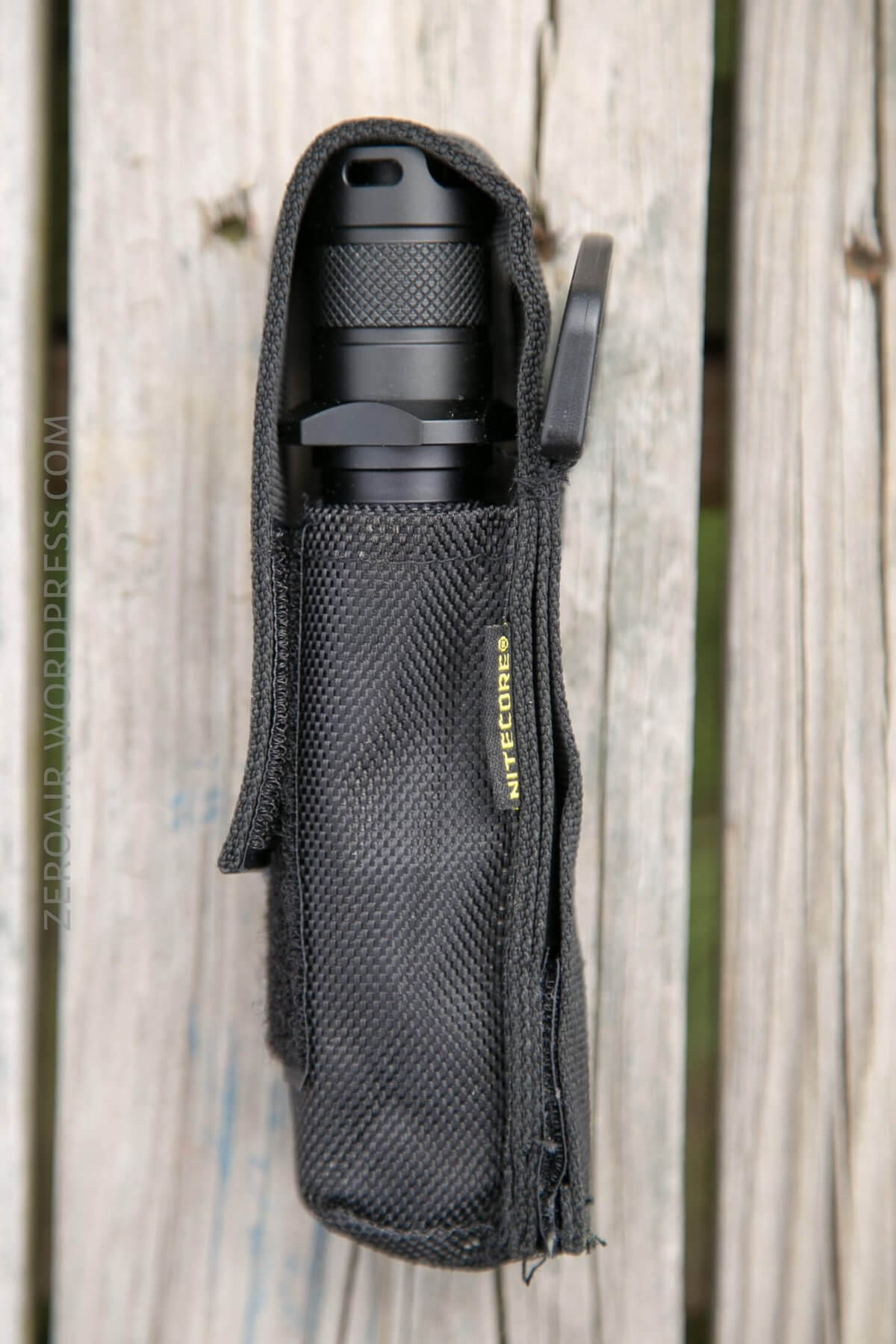

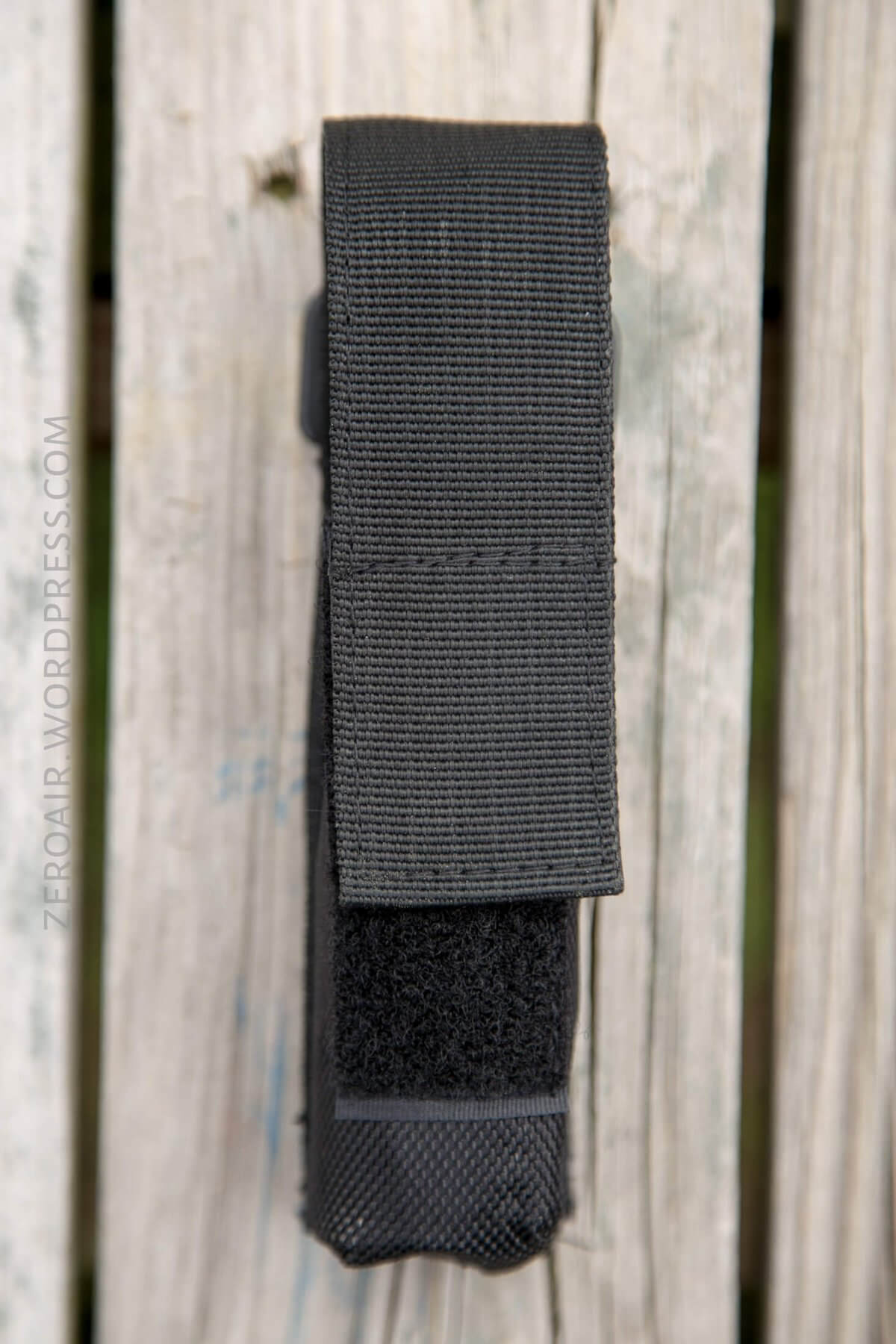

There are a few ways to handle the P26.  First is the nylon pouch.  The light fits either head up or down.  The pouch has a belt loop, a velcro belt loop, and a plastic D-ring.

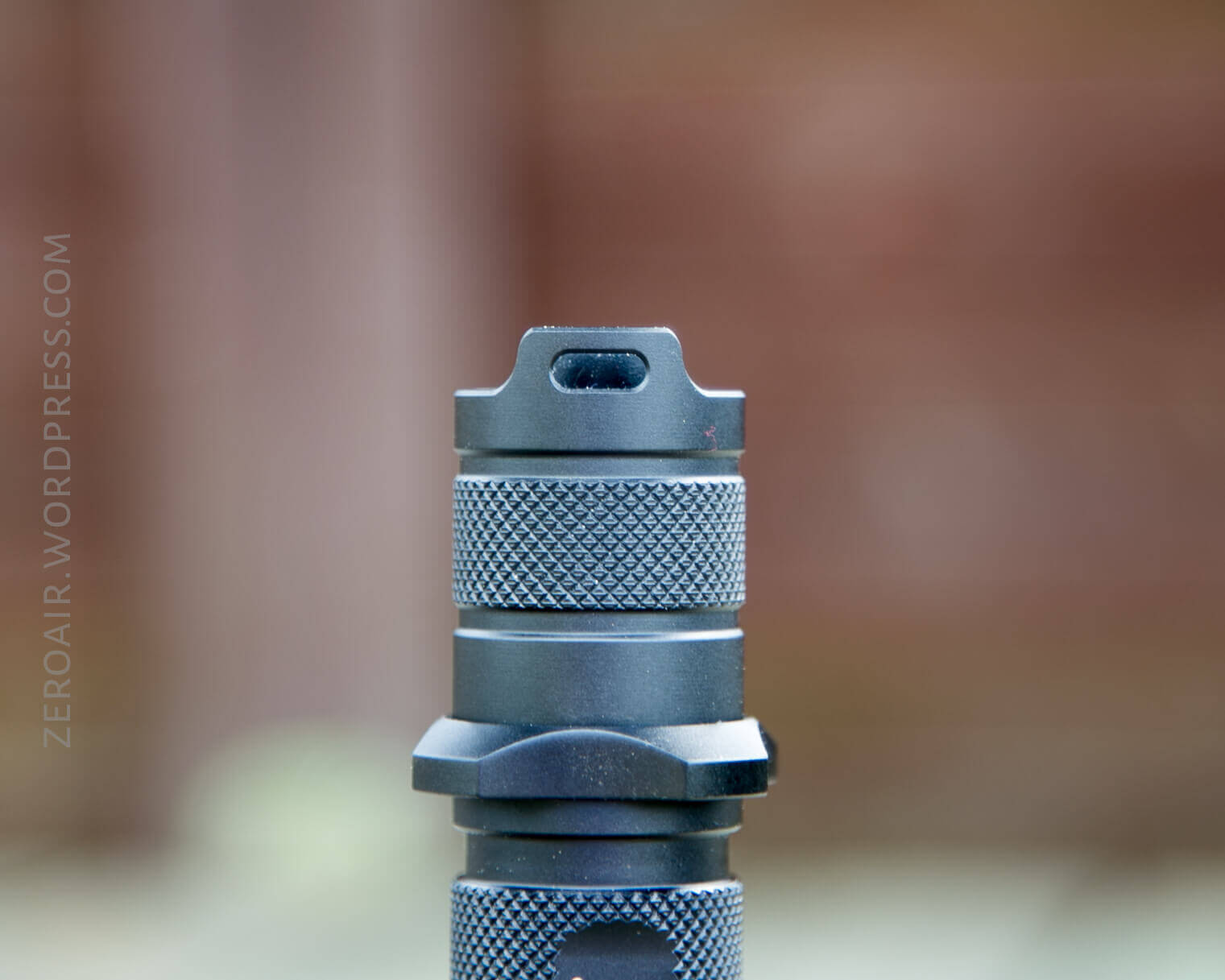

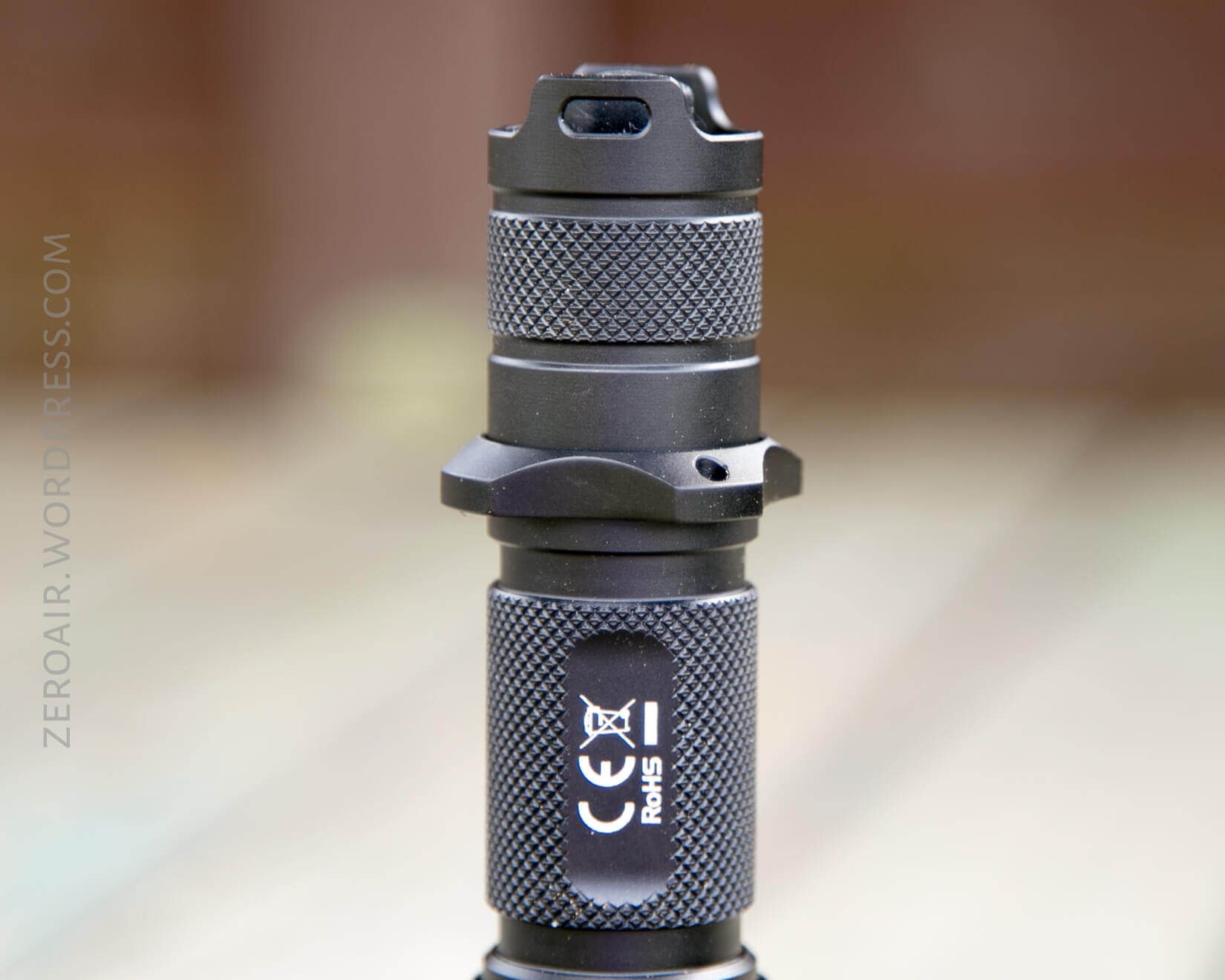

Next is the lanyard, which can attach a number of places.  There’s a loop on the tailcap (seen below).

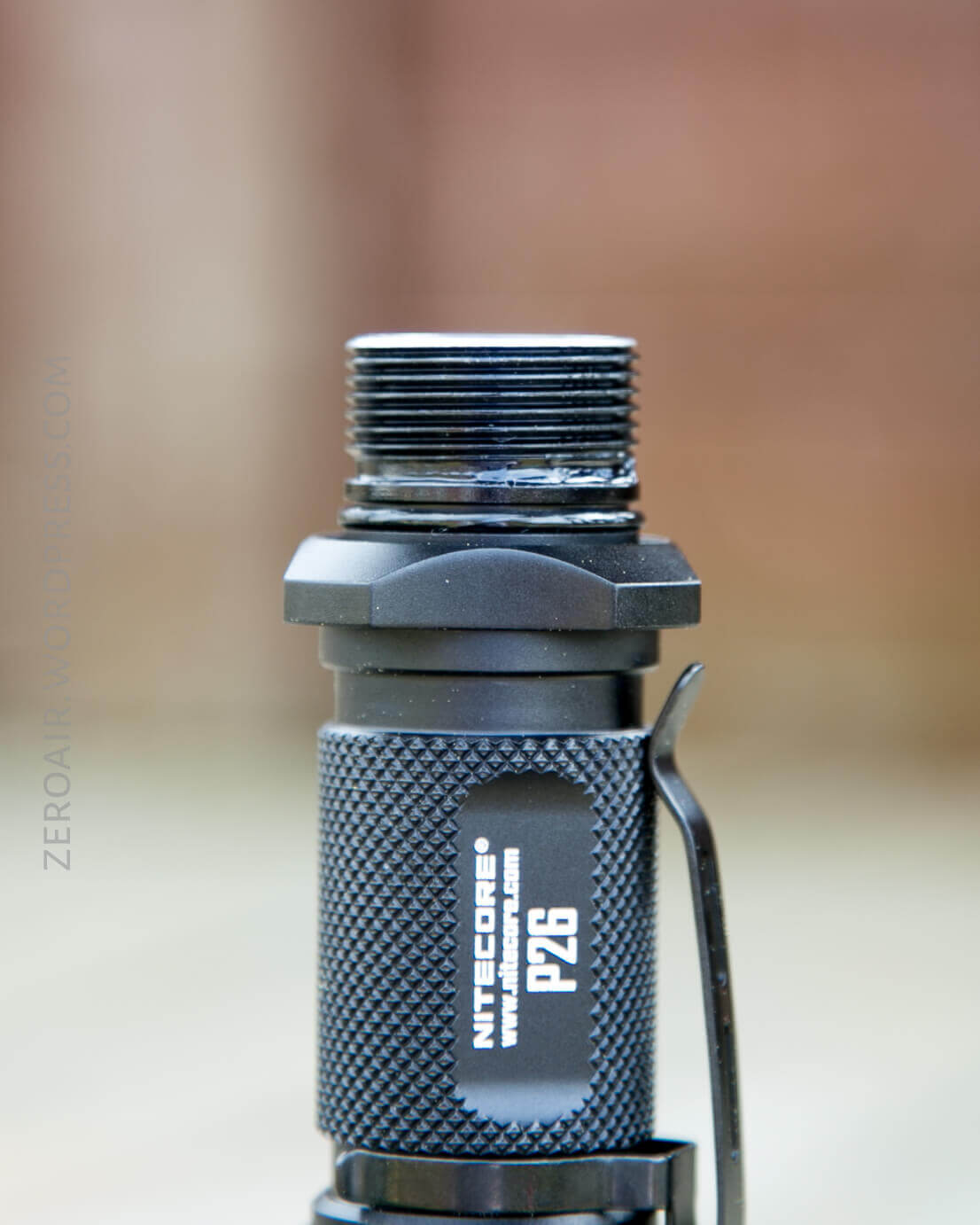

There’s a loop on the tactical ring (seen below).  Normally these tactical rings rotate freely, or are friction fit.  But in this case, the tac ring has threads, and screws on.

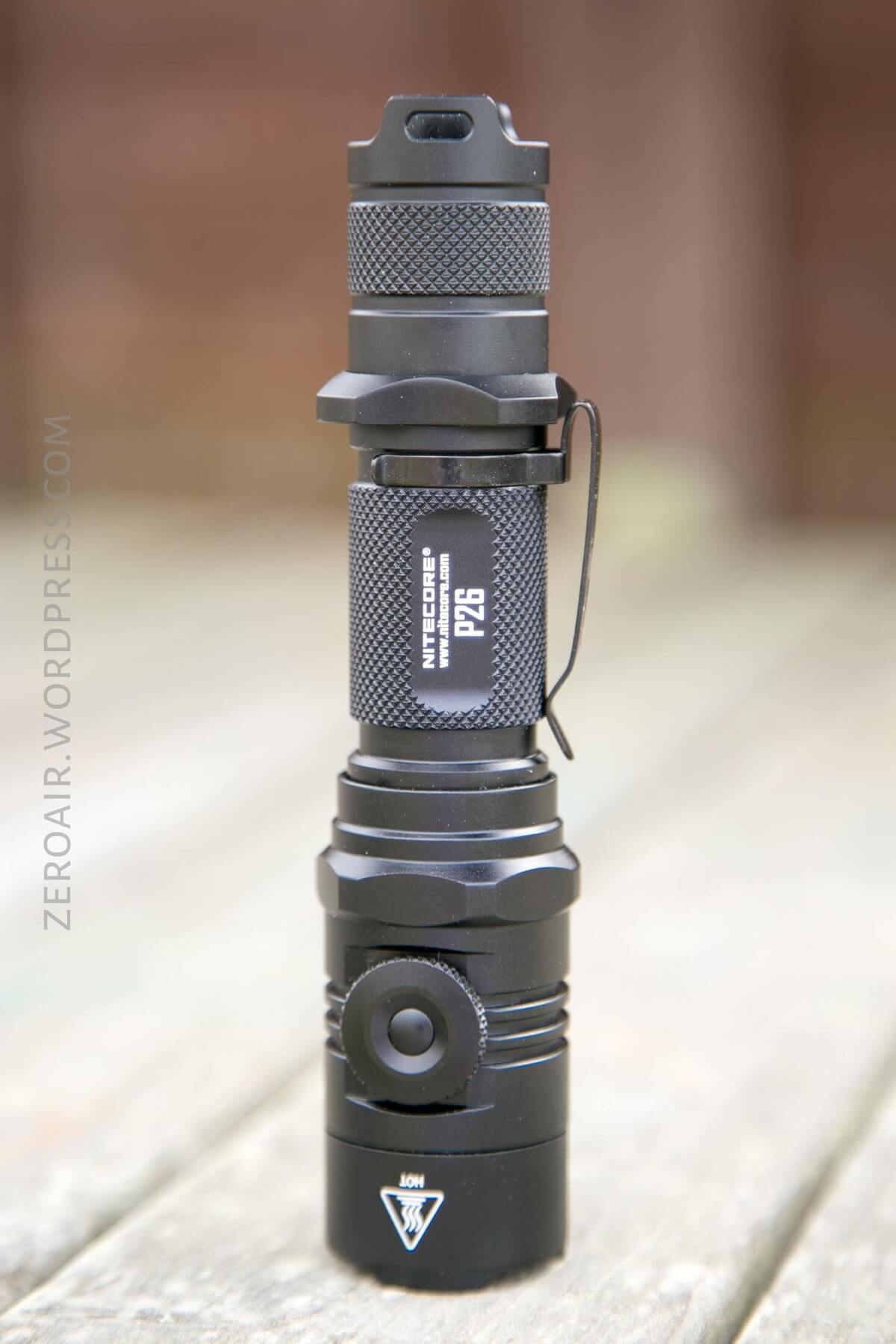

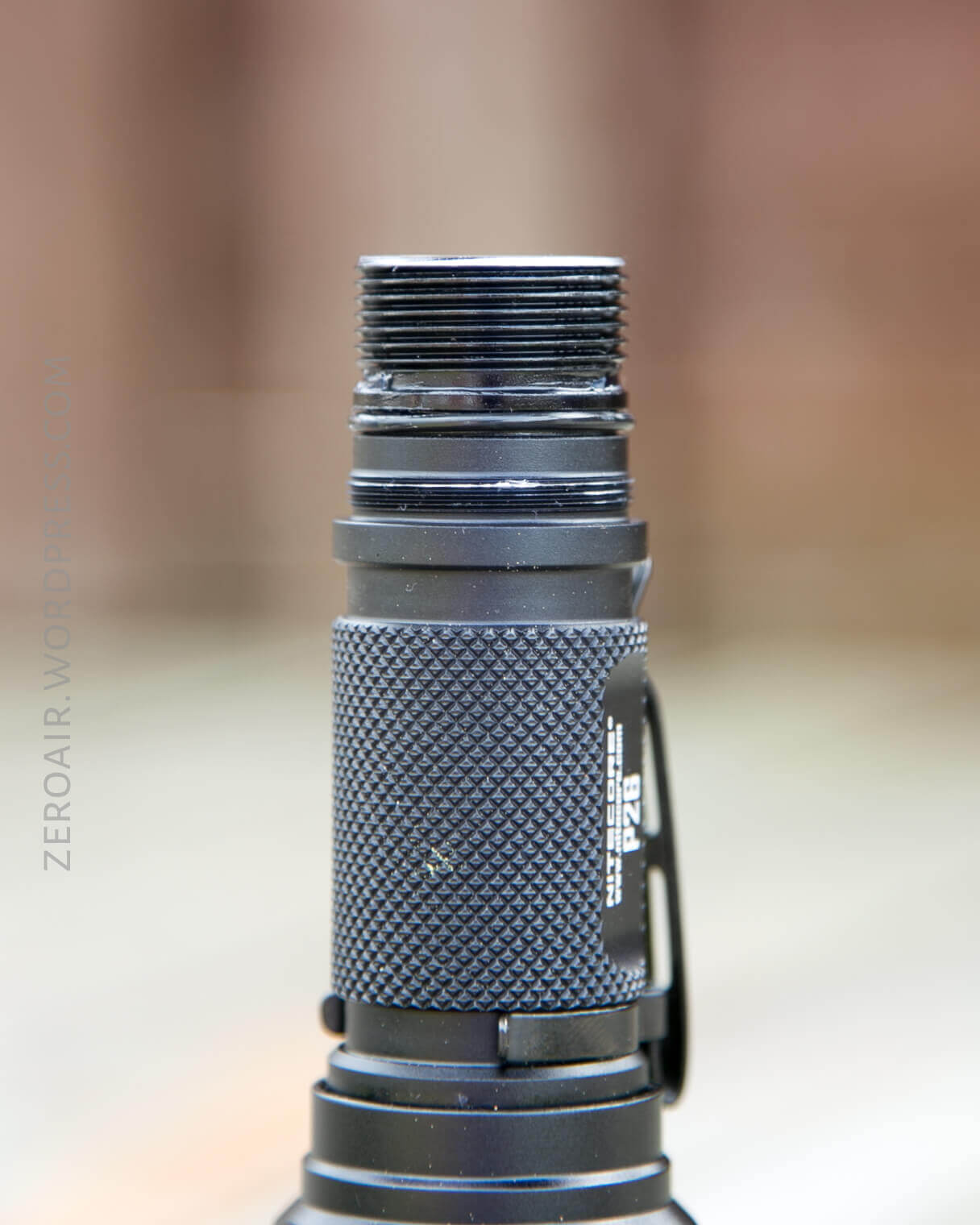

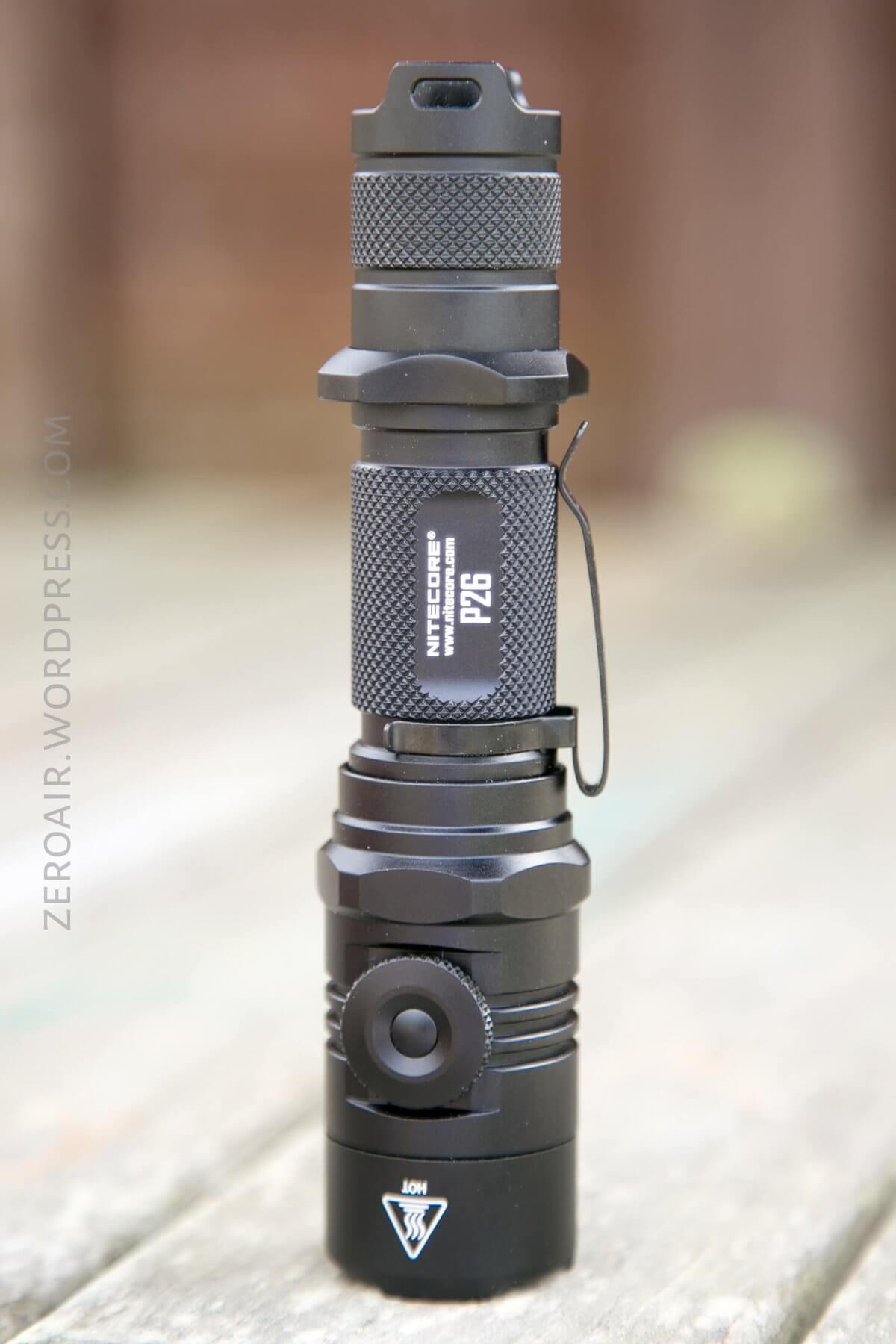

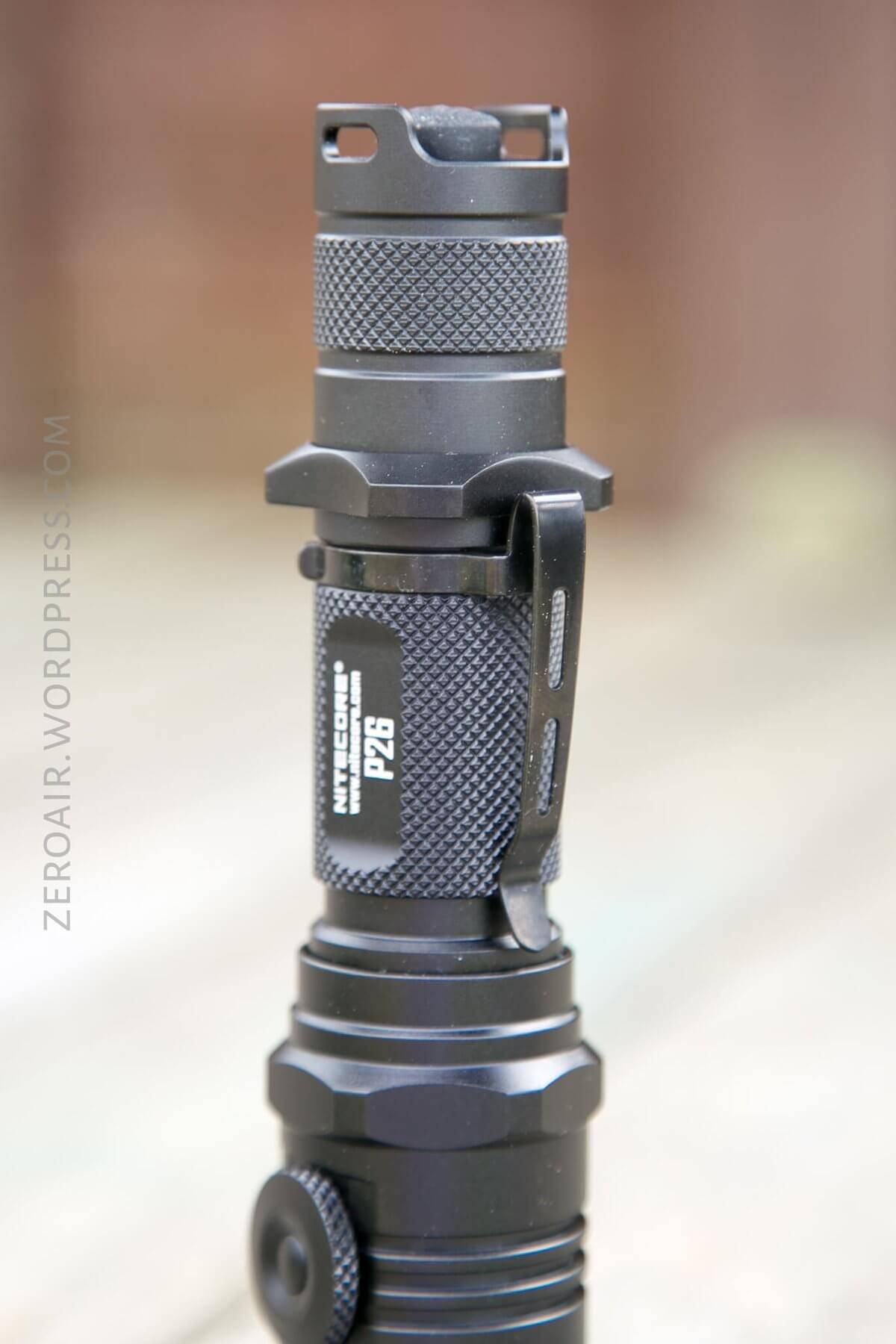

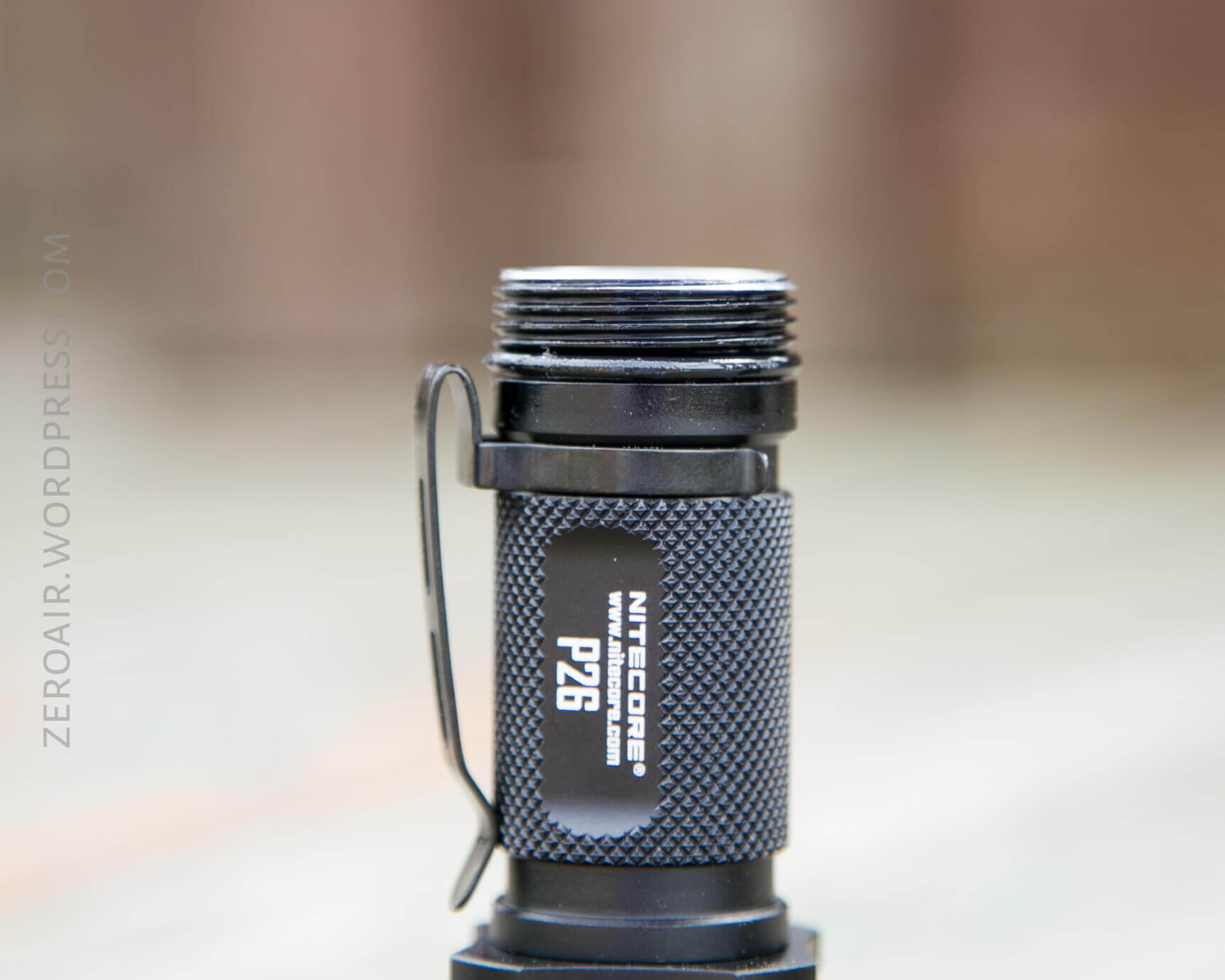

Finally the pocket clip, which fits on the cell tube, and can go in either orientation.  The clip doesn’t fit as tight as I’m accustomed to.  It would be possible to connect the lanyard to the clip, too.  The clip can avoid the tactical clip if placed in the correct place.

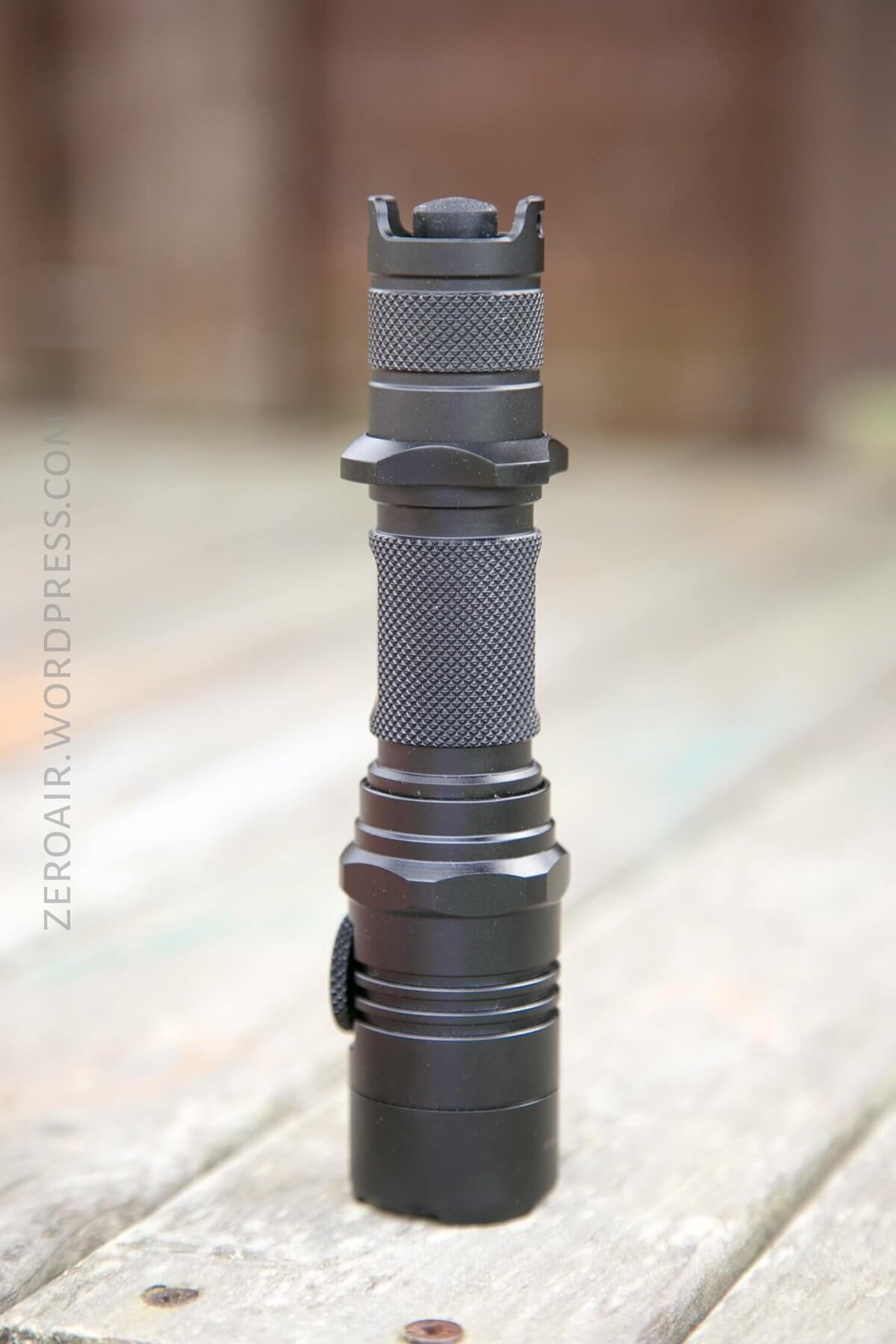

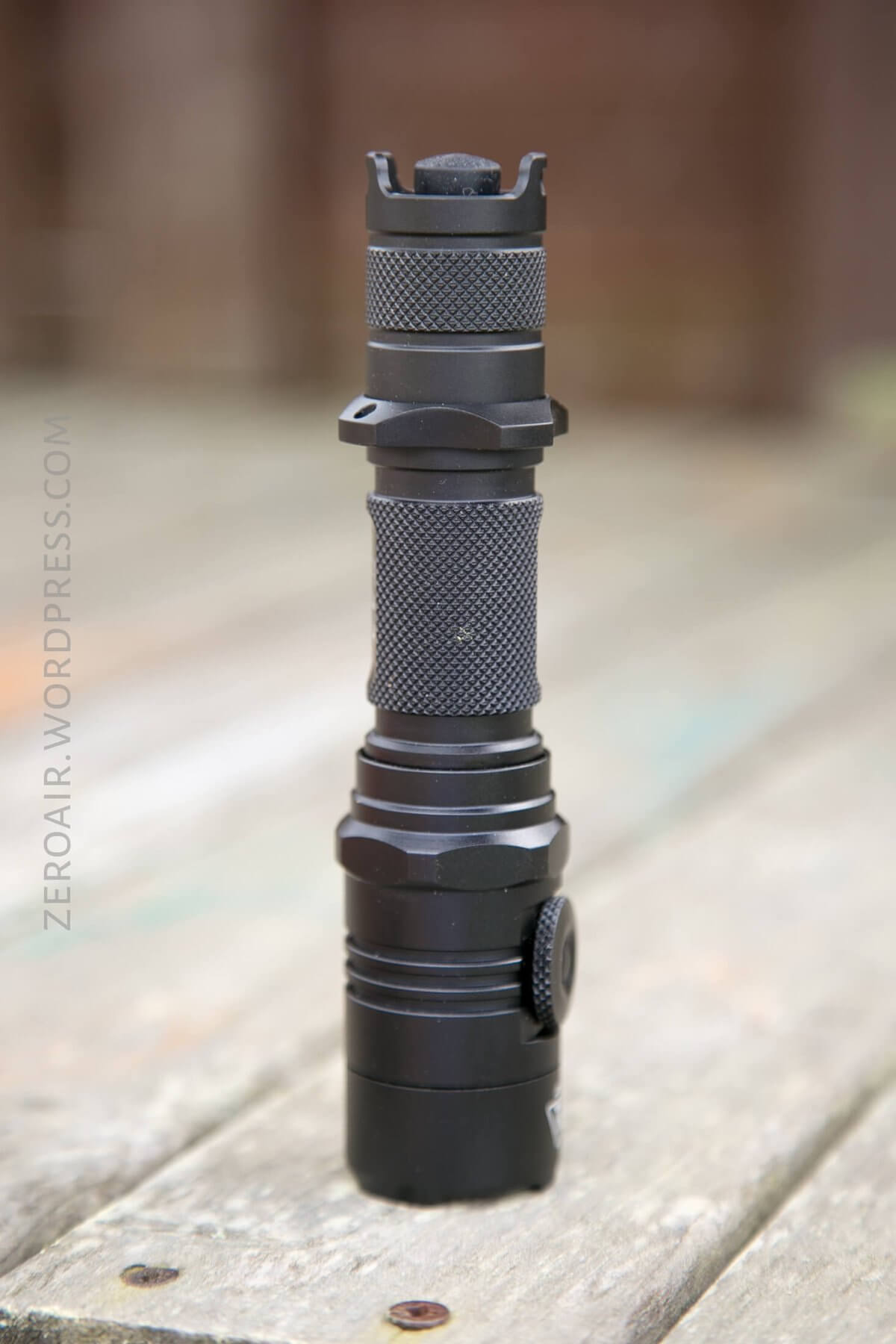

And one of the things Nitecore mentions on their site is that the light will also tailstand.  That’s true, but there’s so much cut out from the tailcap around the switch, it’ll just tailstand.

Power

Primarily the P26 is powered by a single 18650.  As discussed above, the positive terminal precludes use of flat top cells, and also is a means of reverse polarity protection.
Other cells will also work – 2xCR123a cells.  Unfortunately I didn’t have two CR123a cells to test the light with, but in the past using 2-up cells like this in a Nitecore didn’t increase output.

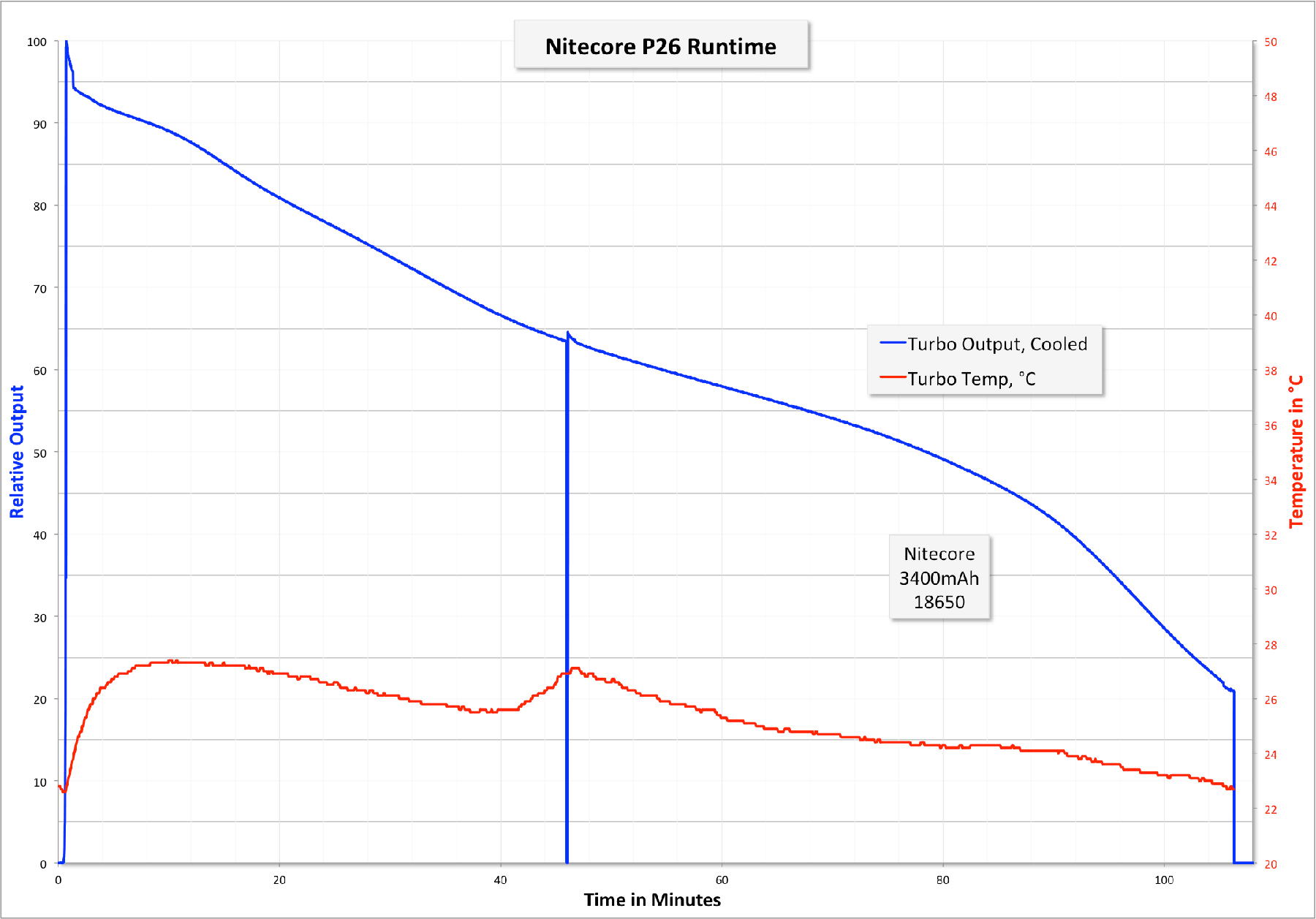

There seems to be no regulation on the output.  “Turbo” (or “100% output) seems to hold out for a minute or so, but then steps down by a few percent, and begins a steady decline (which looks to track cell voltage).  The light will not reach 100% output again (as seen around 47 minutes, when I rolled the dial down and back up to 100% – actual output doesn’t change.)
In testing with my bench power supply, there seems to be no low voltage protection.

User Interface and Operation

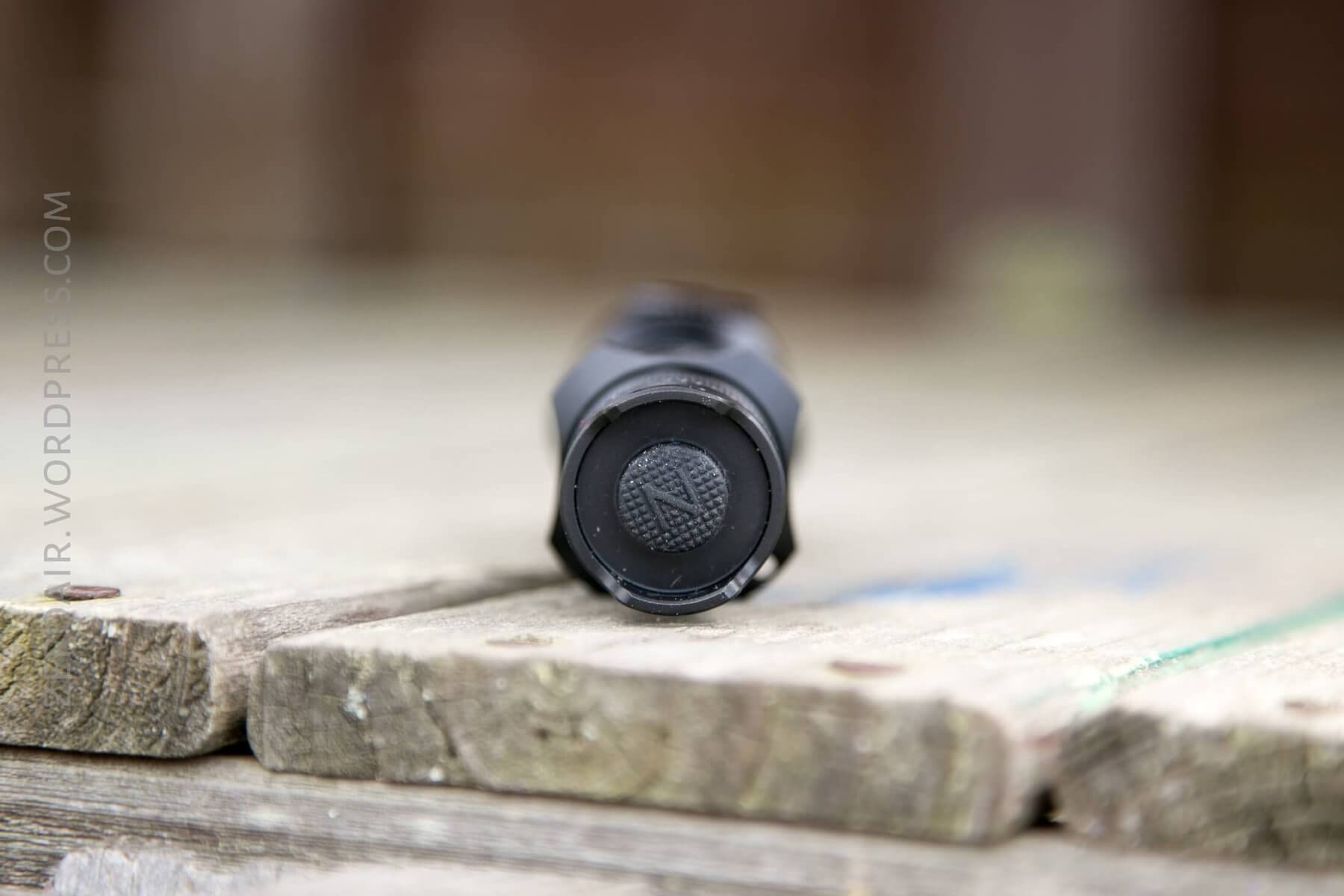

There are two switches on the P26.  The primary one is a mechanical forward tail clicky.

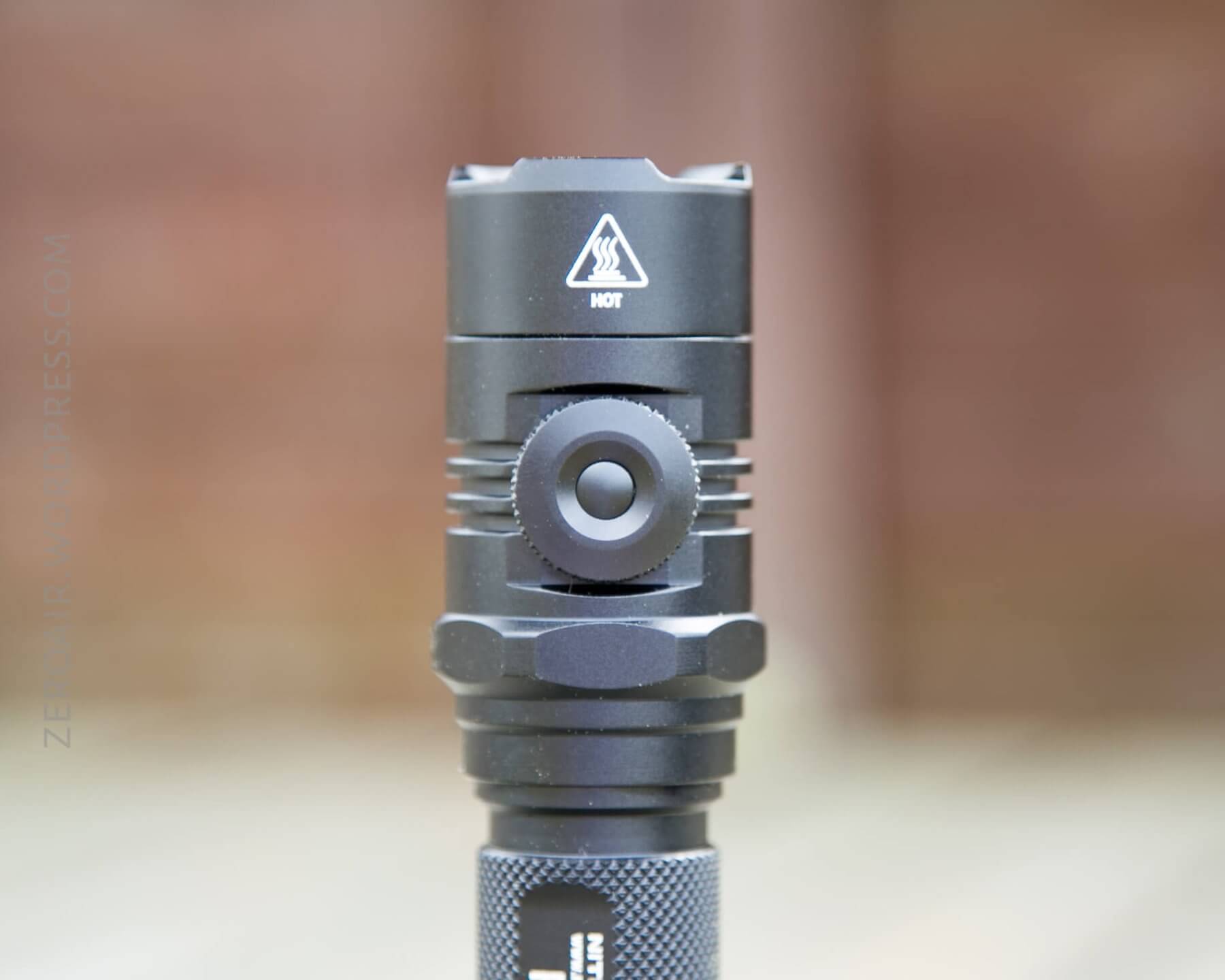

The second is an unusual rotary dial on the head of the light.  And even though it looks like there’s a button in the center of the rotary, there isn’t.
Here’s a UI table!

State Action Result
Off Click On (Mode set by dial)
On Click Off
 On Fully clockwise Ultralow
 On Fully counterclockwise Strobe

While the rotary dial is neat, and works well, it could be better.  My primary qualm is that the only dial feedback is a single click between Turbo (or 100%) and Strobe.  One of my two issues is that this is not an exact position.  Sometimes strobe will engage before the actual click.  That’s one complaint.  The second complaint is tied to this – It’s hard (if not impossible) to reliably dial directly to 100% and move on to operation.  At the very least the dial needs two clicks.  One which is reliably turbo, and one (much stiffer imo) for strobe.  Or maybe that little button-lookingest-not-a-button in the center of the dial could be harnessed for strobe.

Modes

Mode Mode Claimed Output (lm) Claimed Runtime Mode Measured Lux Tailcap Amps
Turbo 1000 1h 19250 3.00
 Ultralow 0.5  500h ~0 ~0
 Strobe 1000

LED and Beam

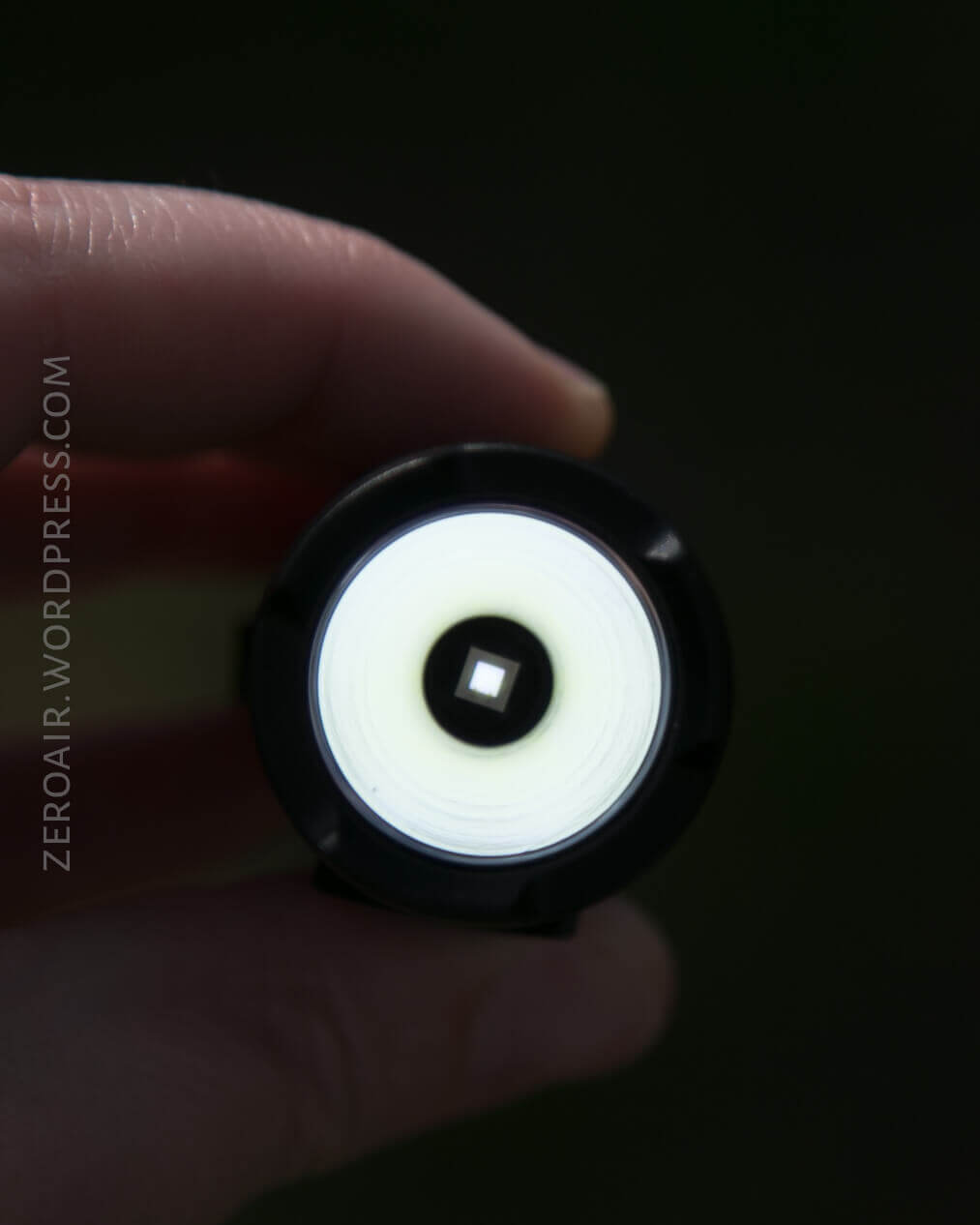

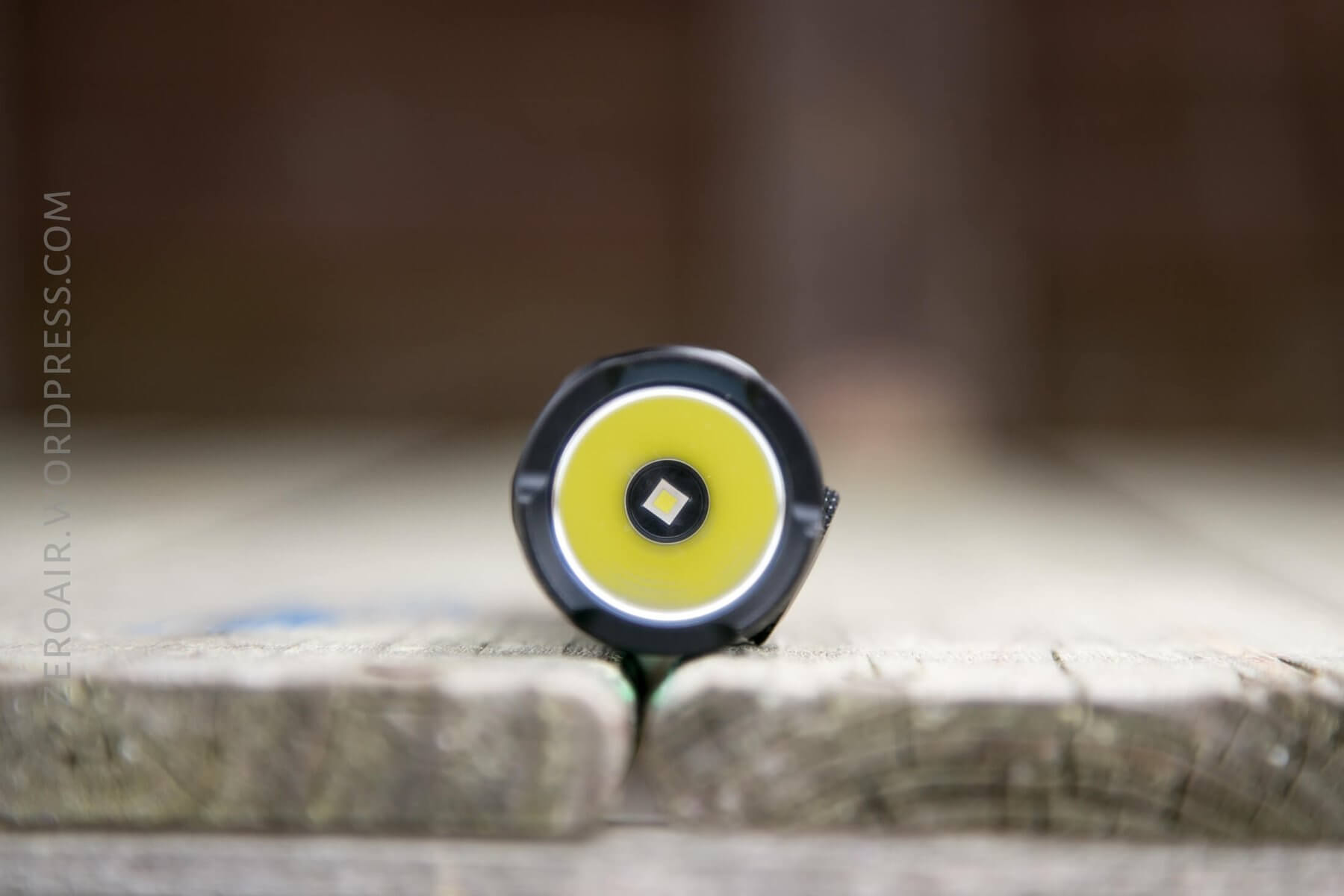

The emitter Nitecore has used here is a Cree XP-L HI.  I happen to really like XP-L HI emitters.  They are great for throw and often have nice tint.  The P26 has a smooth reflector that is surprisingly shallow for such a long light.
Low is pleasantly low, but in a light made for throw, “Ultralow” still puts a spot of light out.
Very pleasantly the P26 measures well over the rated 310m of throw, at over 340m.

Tint vs BLF-348


Beamshots, Runtime, and Lux Measurements

Nitecore P26
Emitter Cree XP-L HI
Emitter Notes V3
Cell 18650
Glamour Shots Beamshots [0.3″, f/8, ISO 100, 5000k]
Runtime Chargetime N/A
LVP? No
Claimed Lumens (lm) 1000
Lux (Measured) 1448 lux @ 4.485 m
Candela (Calculated) in cd 29126.8
Throw (Calculated) (m) 341.3
Throw (Claimed) (m) 310

Random Comparisons and Competitive Options….

Really once you add the rotary dial in the mix, nothing compares to this light.

Conclusion

What I like

  • Rotary switch works well
  • Cree XP-L HI emitter is a nice choice
  • UI is very simple
  • Build quality is good

What I don’t like

  • Rotary switch needs improvement to work really well
  • Light is a big long
  • Output is unregulated
  • No Low Voltage Protection

Up Next

I have a light by Utorch for this week, and at least one charger.  A couple of random items are coming round too!  But maybe next week for that.

Notes

  • This light was provided by Nitecore for review. I was not paid to write this review.
  • This content originally appeared at zeroair.wordpress.com.  Please visit there for the best experience!
  • Whether or not I have a coupon for this light, I do have a bunch of coupons!!  Have a look at my spreadsheet for those coupons. It’s possible to subscribe and get notifications when the sheet is edited!!
